Virtual Memory (Making a Process)
This document summarizes lecture slides from a university computer science class on operating system processes and virtual memory. The slides covered: - Last week's discussion of process creation in Rust and the fork system call. - The plan for this week's lectures, including how the kernel makes processes and diving into the fork.c source code. - An overview of virtual memory and how it provides memory isolation between processes using paging and segmentation. - Details of how x86 processors implement virtual memory using segmentation and paging tables, address translation, and handling of page faults. - The history and evolution of virtual memory from early mainframe systems to modern desktop processors.
More Related Content
Similar to Virtual Memory (Making a Process)
More from David Evans
Virtual Memory (Making a Process)

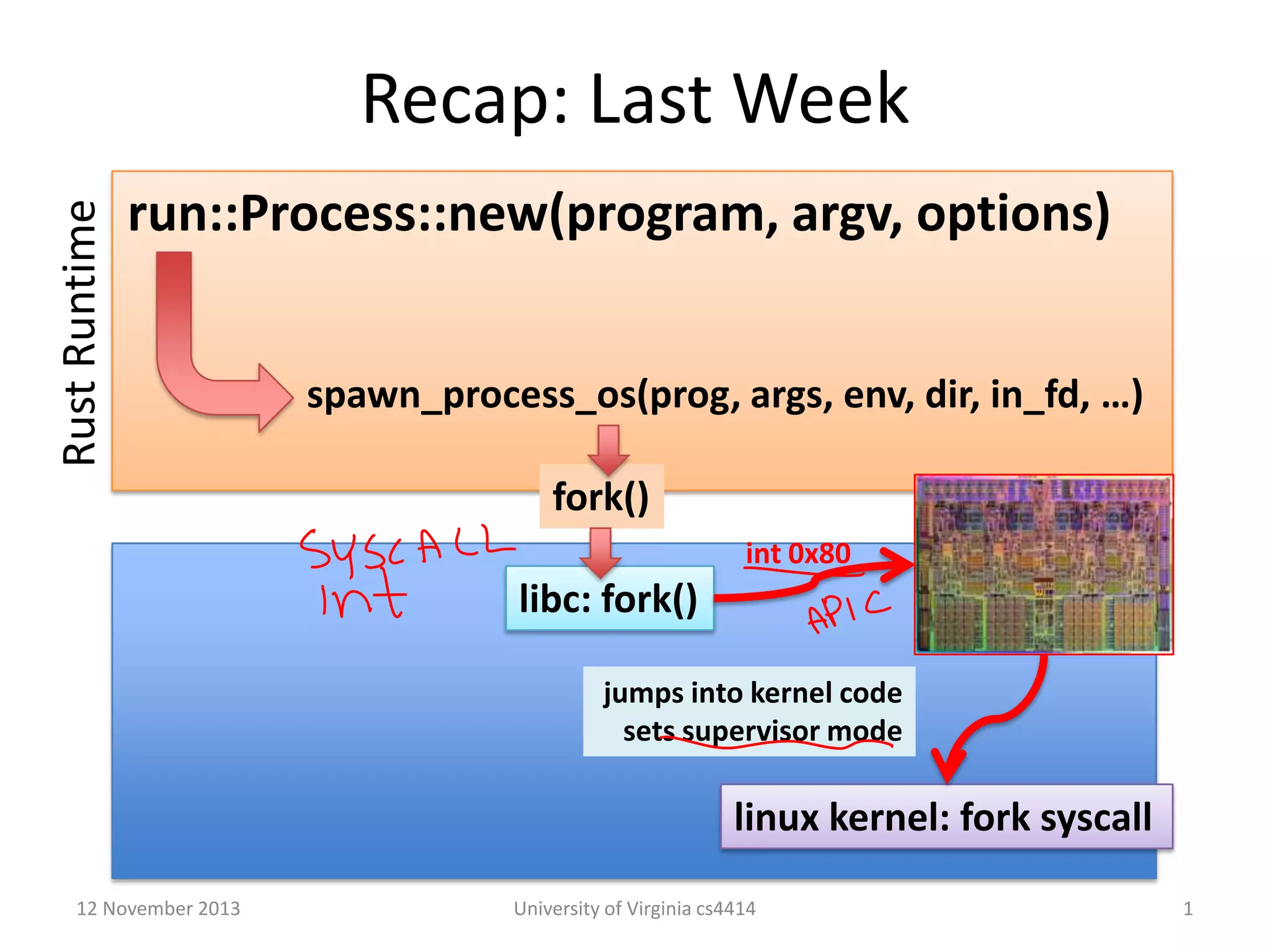

- 2. Rust Runtime Recap: LastWeek run::Process::new(program, argv, options) spawn_process_os(prog, args, env, dir, in_fd, …) fork() int 0x80 libc: fork() jumps into kernel code sets supervisor mode linux kernel: fork syscall 12 November 2013 University of Virginia cs4414 1

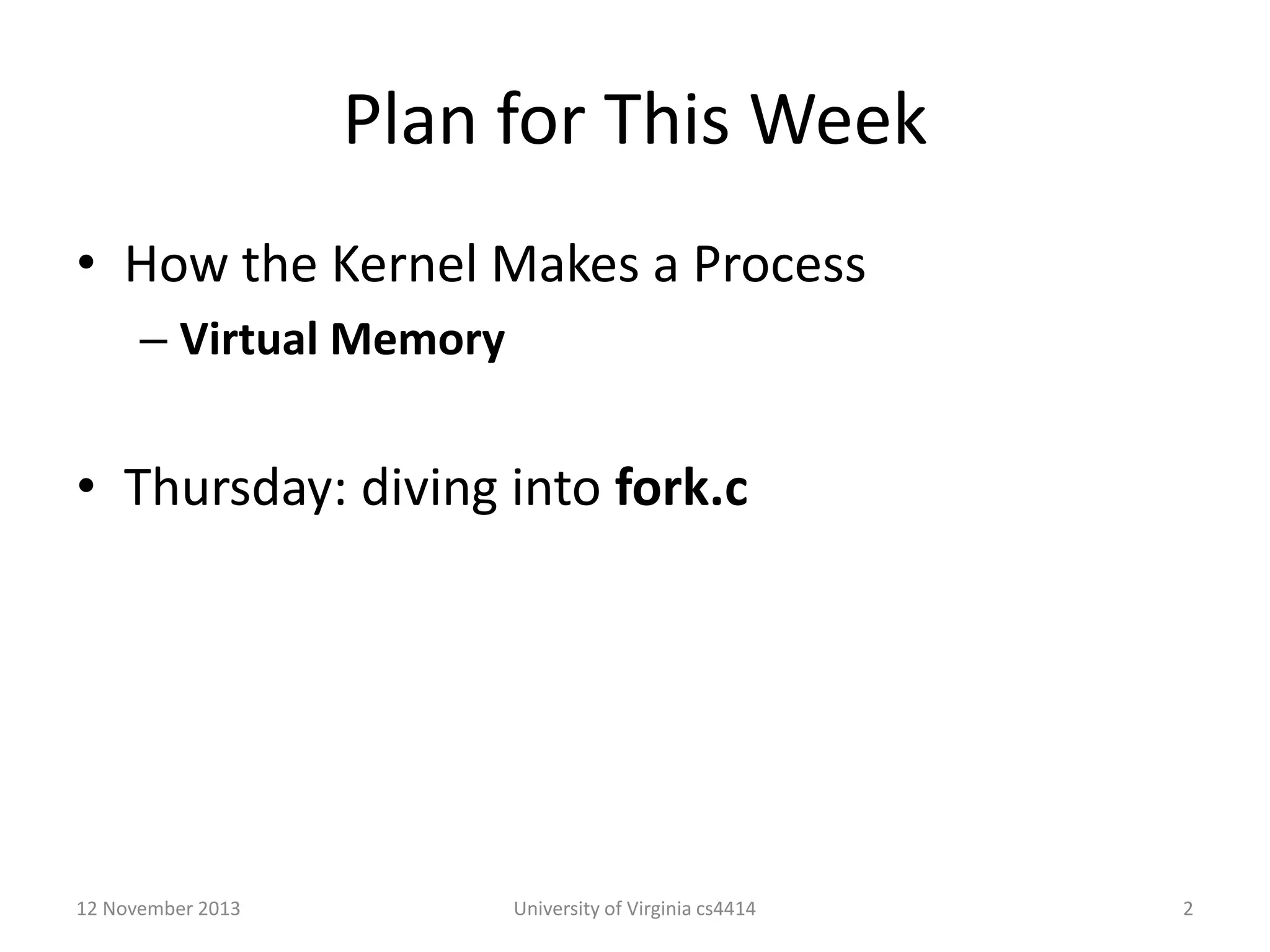

- 3. Plan for ThisWeek • How the Kernel Makes a Process – Virtual Memory • Thursday: diving into fork.c 12 November 2013 University of Virginia cs4414 2
- 4. From Class 3: BatchProcessing Program Computer Center Your Program Runs Output: Invalid Operation Charge: $174.32 12 November 2013 University of Virginia cs4414 3
- 5. Process Abstraction Provide eachprogram with the illusion that it owns the whole machine. The best example of this way to do things is Linux, which is an operating system, which is a program that keeps track of other programs in a computer and gives each its due in space and time. Guy Steele, “How to Grow a Language” HT: Anonymous for posting link in Piazza forum 12 November 2013 University of Virginia cs4414 4

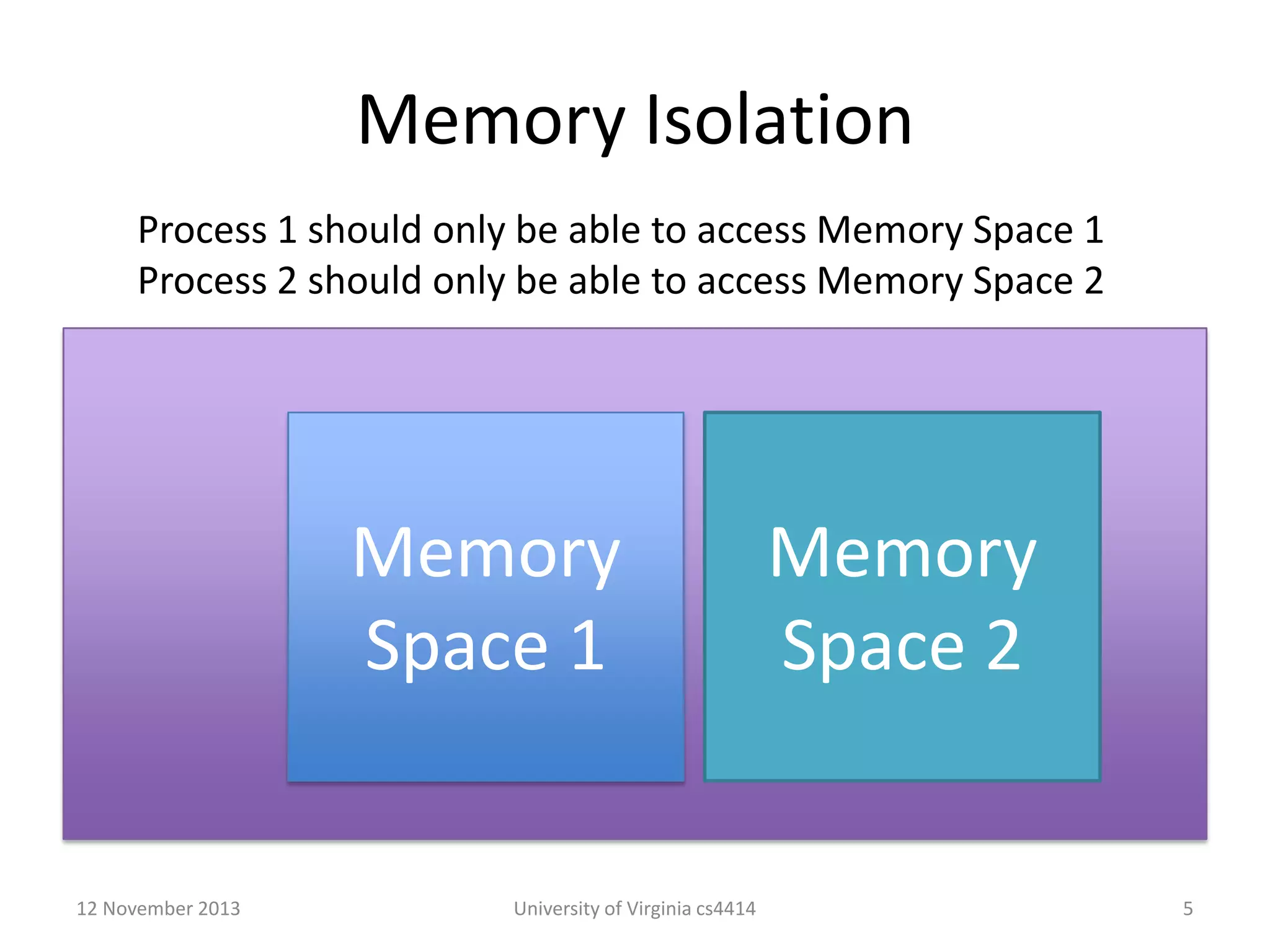

- 6. Memory Isolation Process 1should only be able to access Memory Space 1 Process 2 should only be able to access Memory Space 2 Memory Space 1 12 November 2013 University of Virginia cs4414 Memory Space 2 5

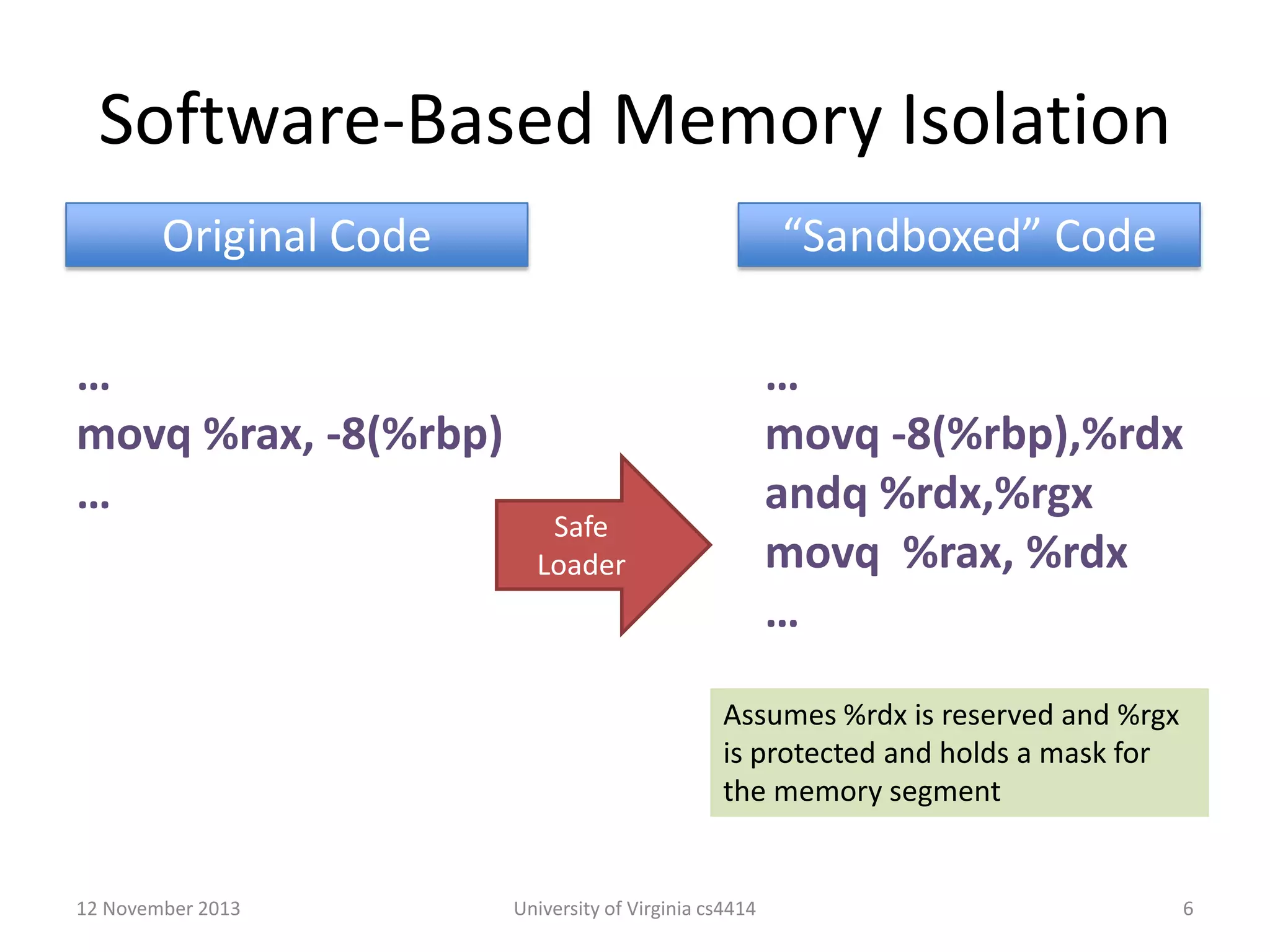

- 7. Software-Based Memory Isolation OriginalCode “Sandboxed” Code … movq %rax, -8(%rbp) … … movq -8(%rbp),%rdx andq %rdx,%rgx movq %rax, %rdx … Safe Loader Assumes %rdx is reserved and %rgx is protected and holds a mask for the memory segment 12 November 2013 University of Virginia cs4414 6

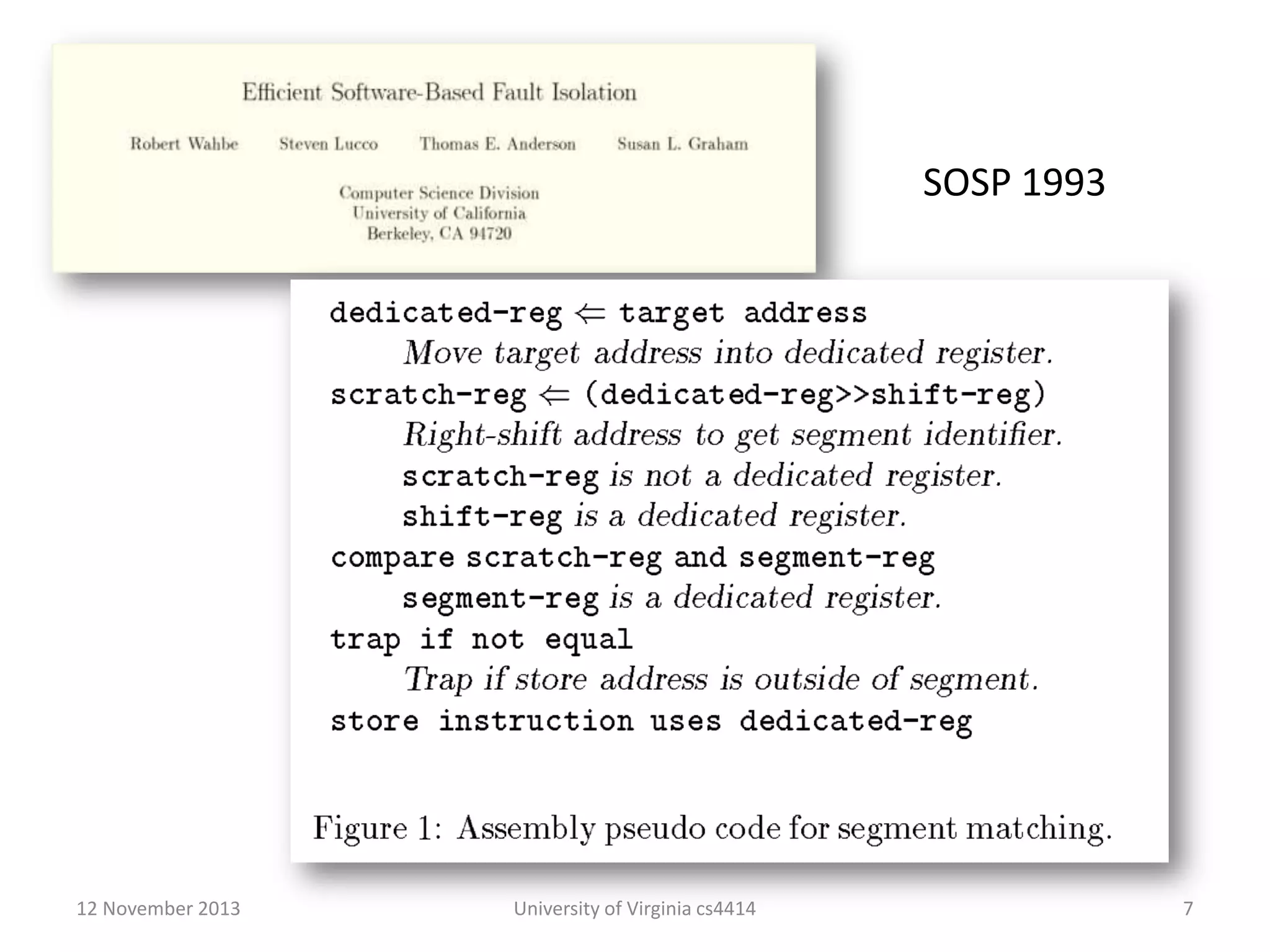

- 8. SOSP 1993 SOSP 1993 12November 2013 University of Virginia cs4414 7

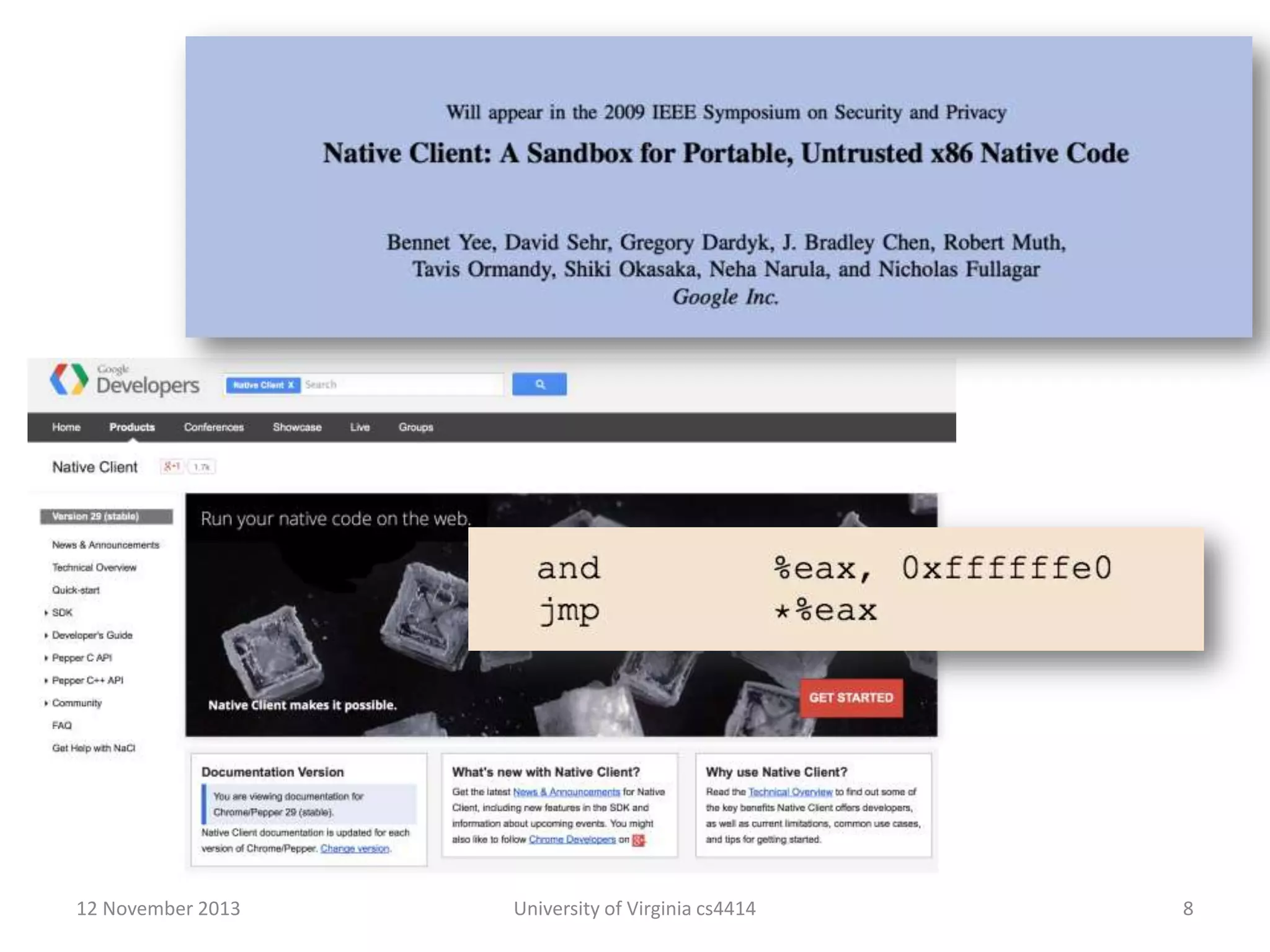

- 9. 12 November 2013 Universityof Virginia cs4414 8

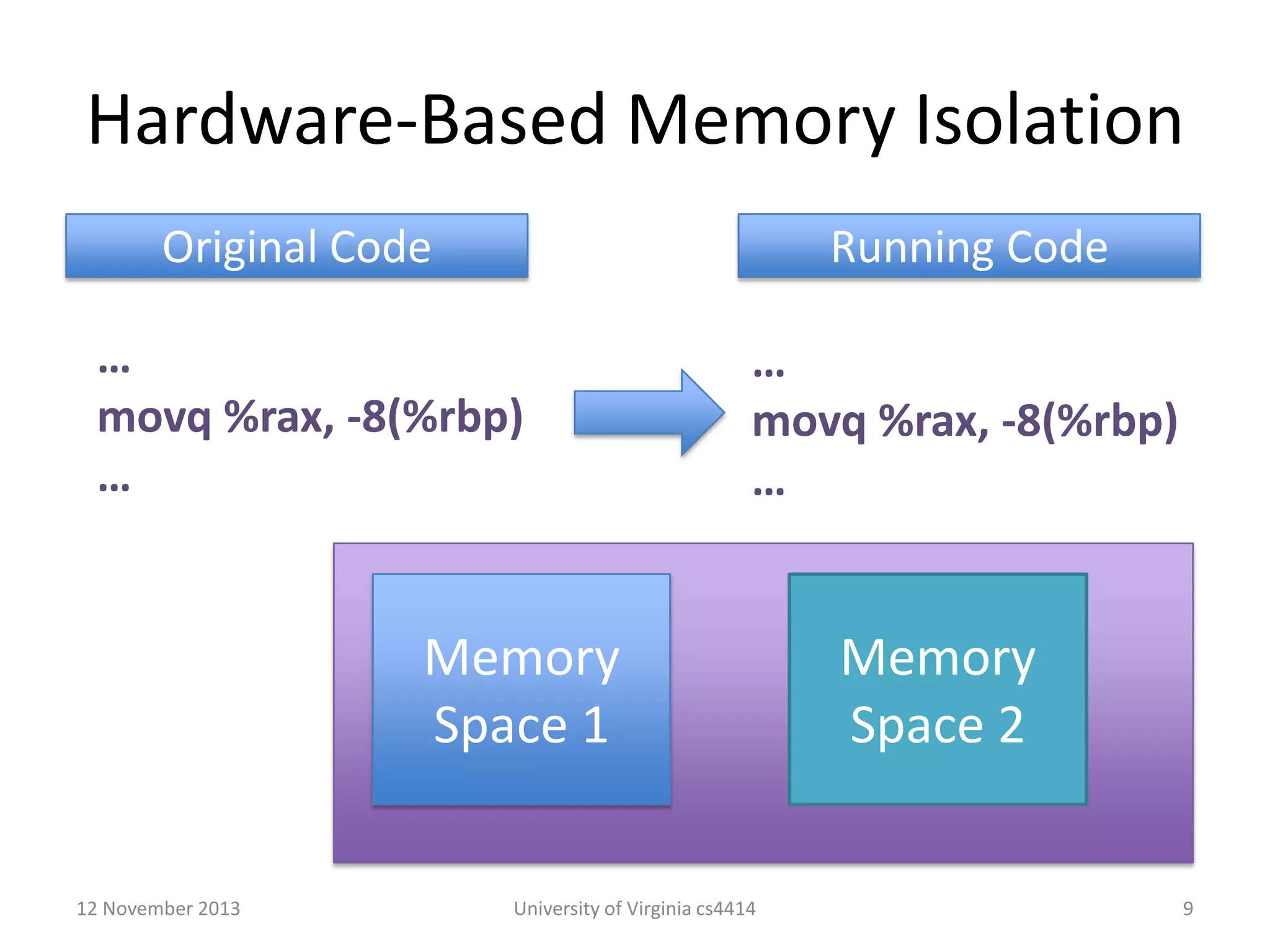

- 10. Hardware-Based Memory Isolation OriginalCode Running Code … movq %rax, -8(%rbp) … … movq %rax, -8(%rbp) … Memory Space 1 12 November 2013 University of Virginia cs4414 Memory Space 2 9

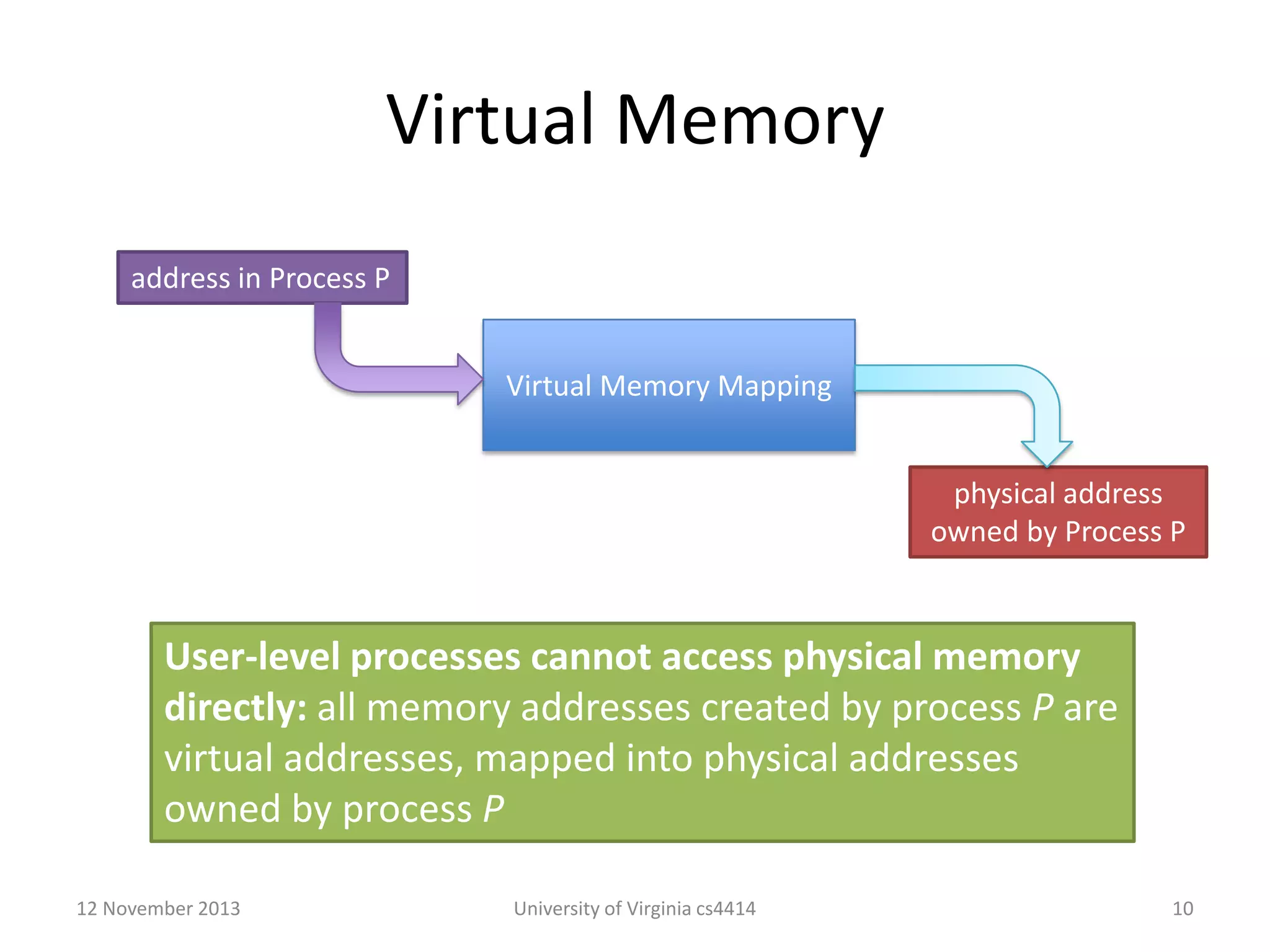

- 11. Virtual Memory address inProcess P Virtual Memory Mapping physical address owned by Process P User-level processes cannot access physical memory directly: all memory addresses created by process P are virtual addresses, mapped into physical addresses owned by process P 12 November 2013 University of Virginia cs4414 10
- 12. Getting Into theDetails… 12 November 2013 University of Virginia cs4414 11

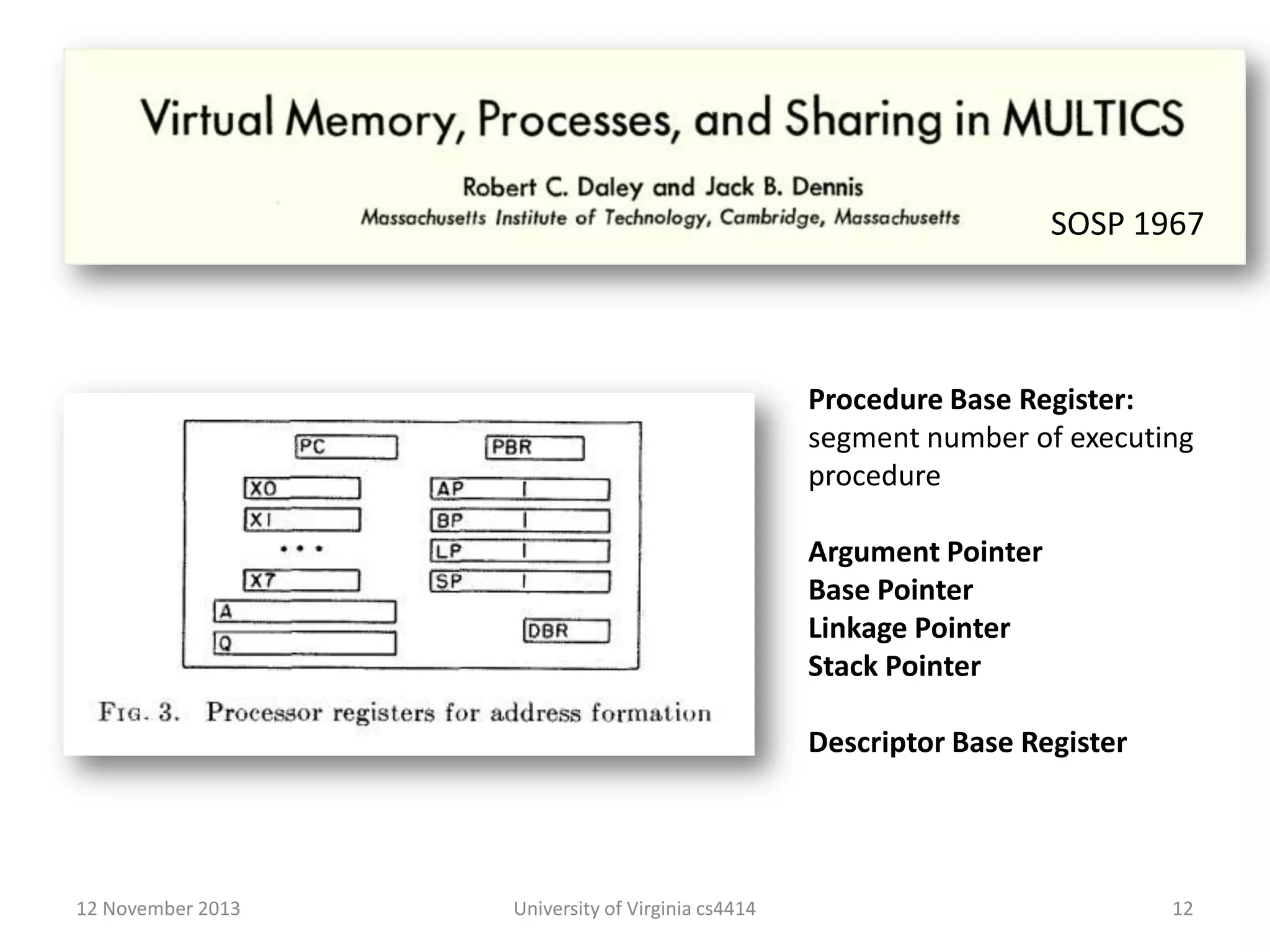

- 13. SOSP 1967 Procedure BaseRegister: segment number of executing procedure Argument Pointer Base Pointer Linkage Pointer Stack Pointer Descriptor Base Register 12 November 2013 University of Virginia cs4414 12
- 14. Generating an Address 18bits 18 bits 218 = 262144 12 November 2013 University of Virginia cs4414 13

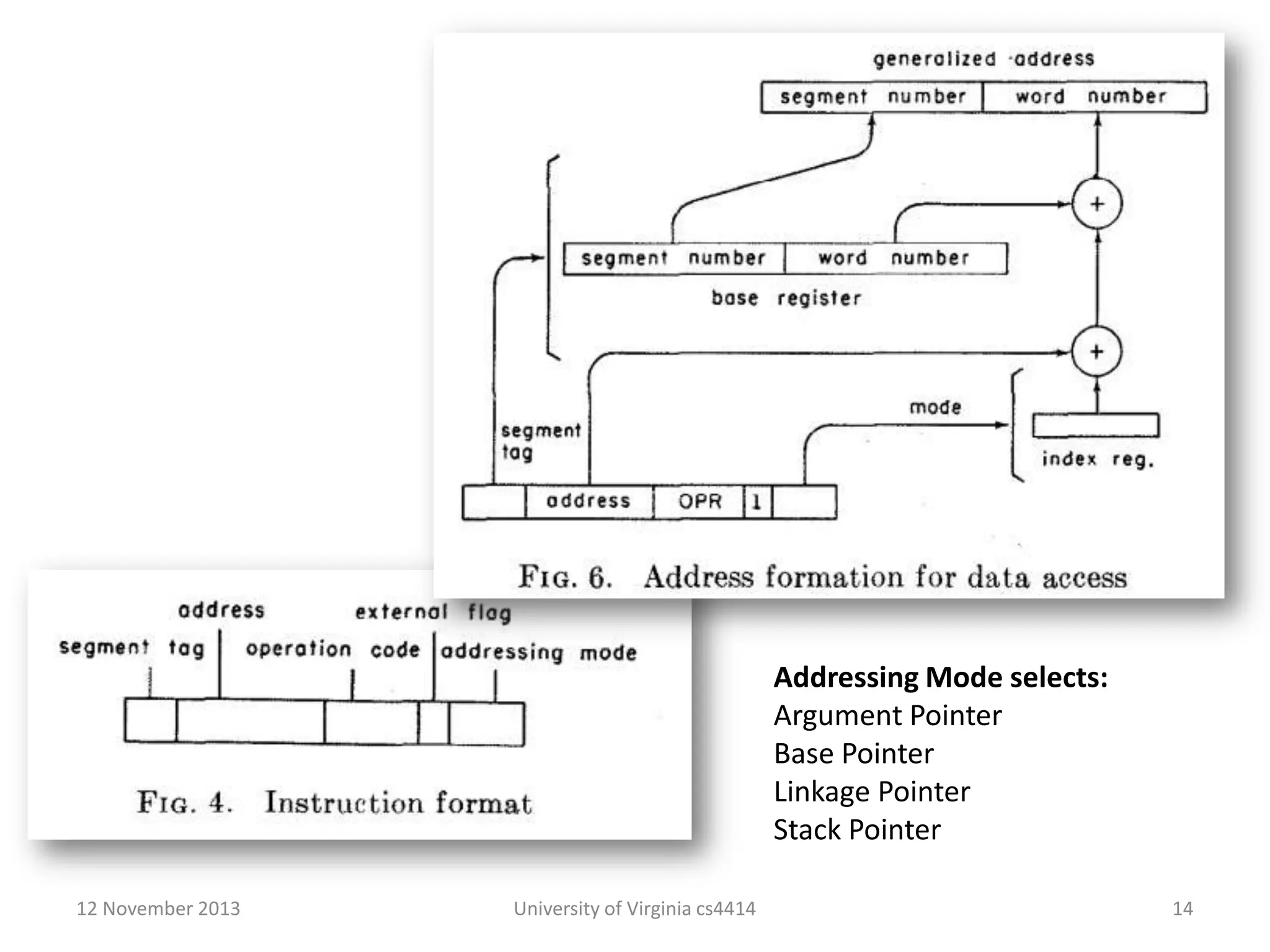

- 15. Addressing Mode selects: ArgumentPointer Base Pointer Linkage Pointer Stack Pointer 12 November 2013 University of Virginia cs4414 14

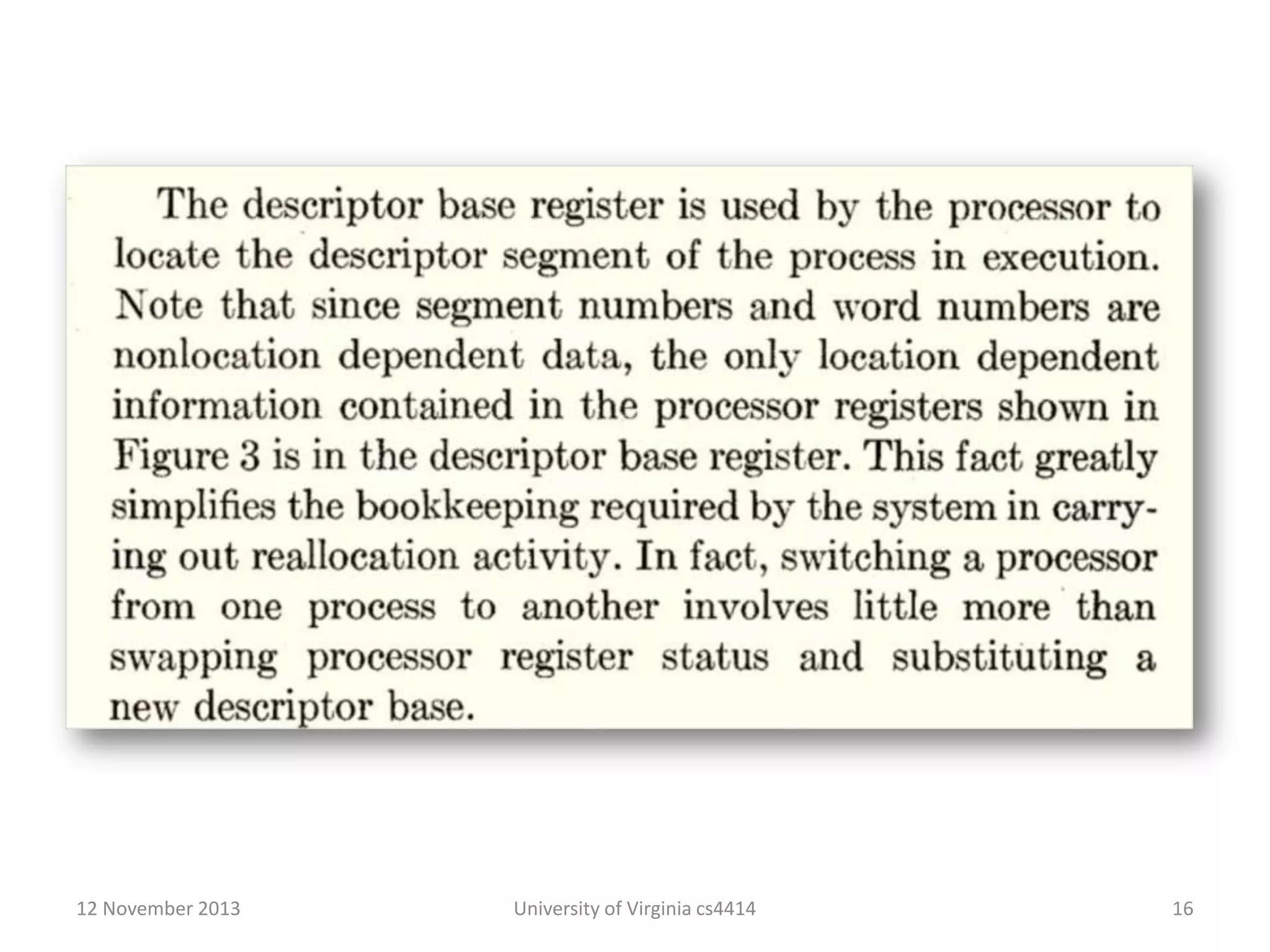

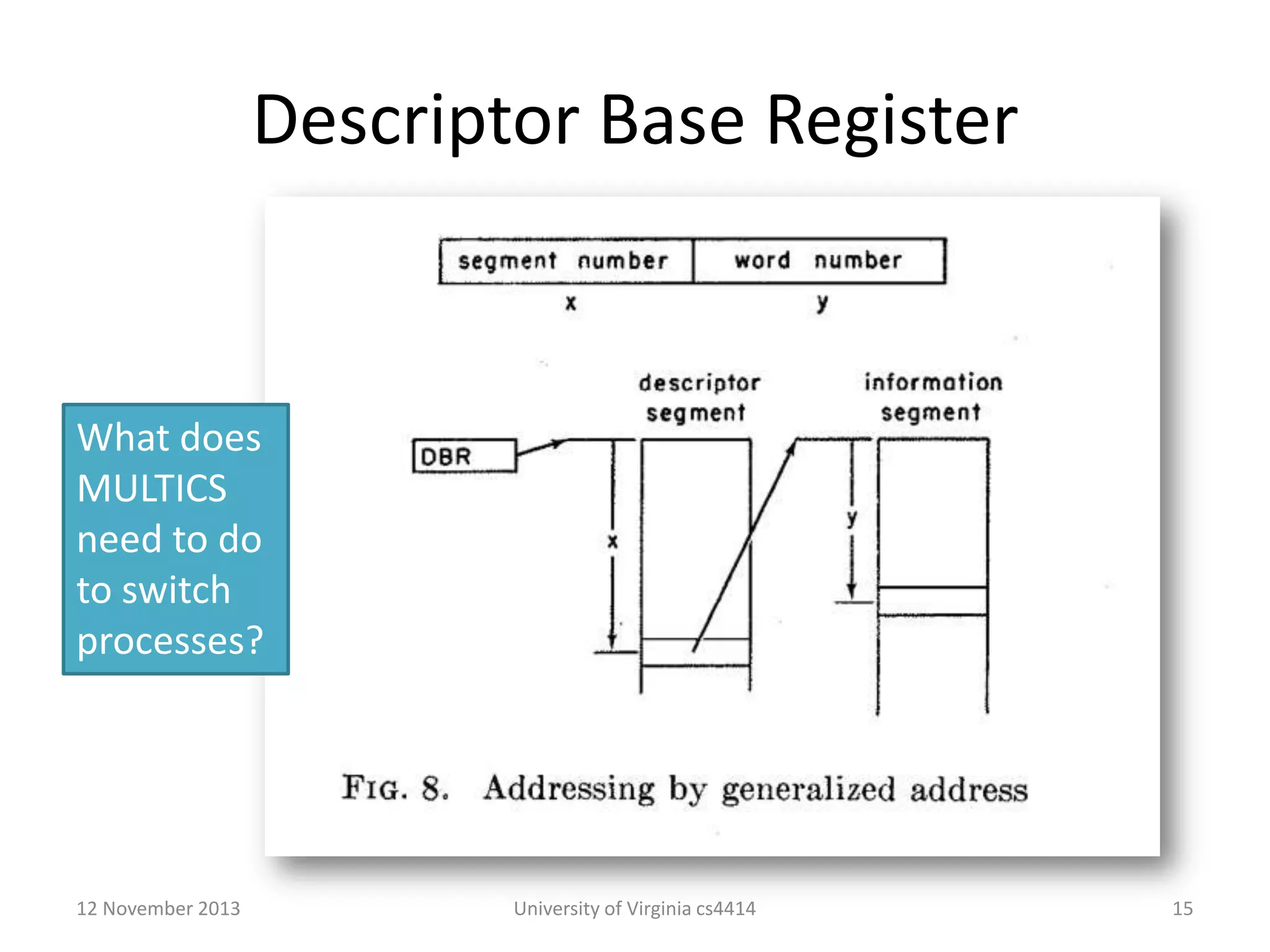

- 16. Descriptor Base Register Whatdoes MULTICS need to do to switch processes? 12 November 2013 University of Virginia cs4414 15
- 17. 12 November 2013 Universityof Virginia cs4414 16
- 18. 1982 12 November 2013 "Itused to be that programs were easy to copy and change. But manufacturers began to lose money as many people made copies of software and gave them to their friends. Now, many manufacturers have figured out how to 'copyprotect' discs. A copy-protected disc– like a cartridge–can’t be copied or changed. To our mind this is a disaster: Most people learn programming by changing programs to fit their own needs. This capability of customization is what makes computers so attractive. New ways of copy protection will probably be found soon. Until then, a computer owner may have to put up with being 'locked out' of his own machine.” Popular Mechanics, January 1982 University of Virginia cs4414 17

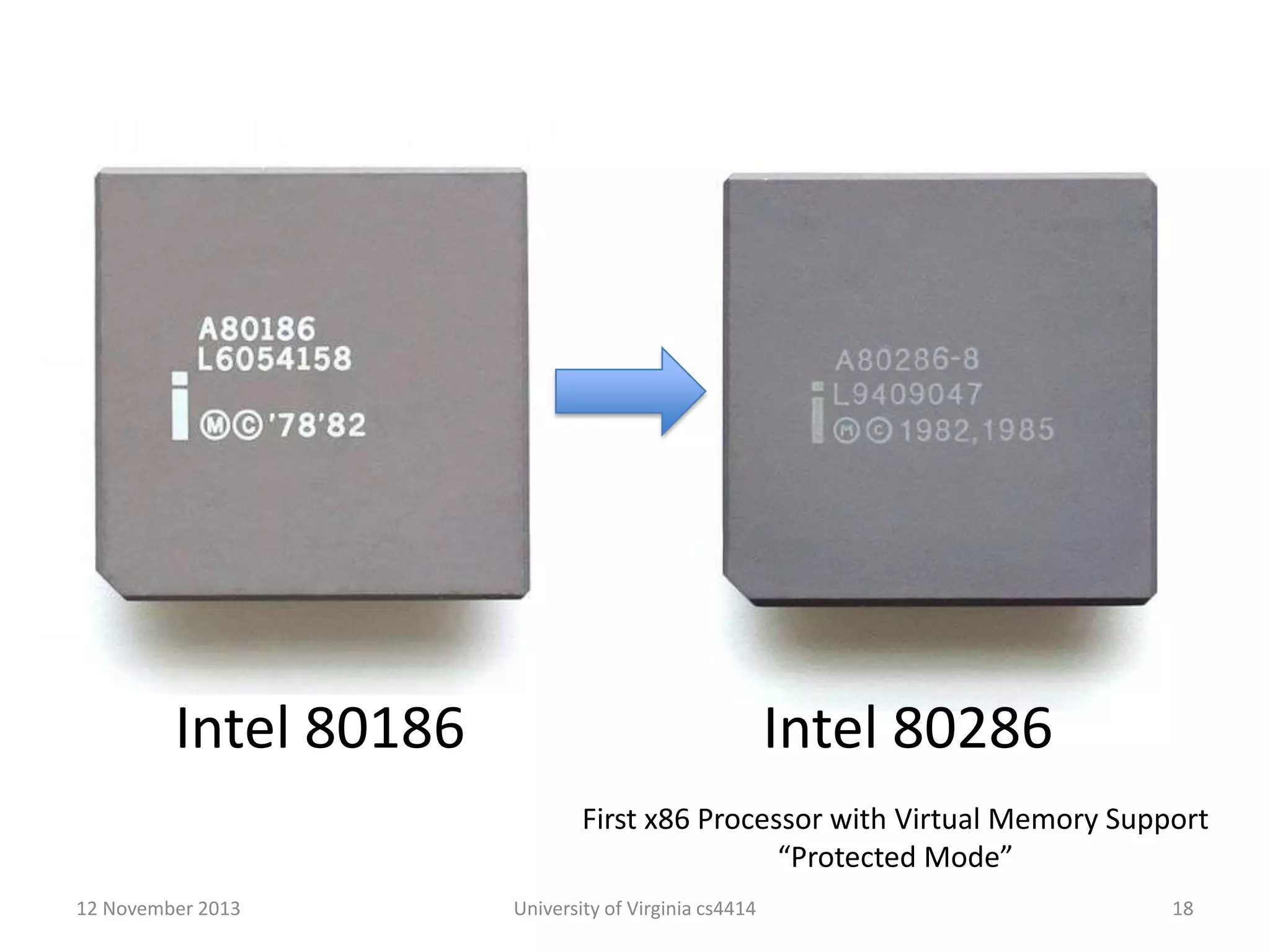

- 19. Intel 80186 Intel 80286 Firstx86 Processor with Virtual Memory Support “Protected Mode” 12 November 2013 University of Virginia cs4414 18

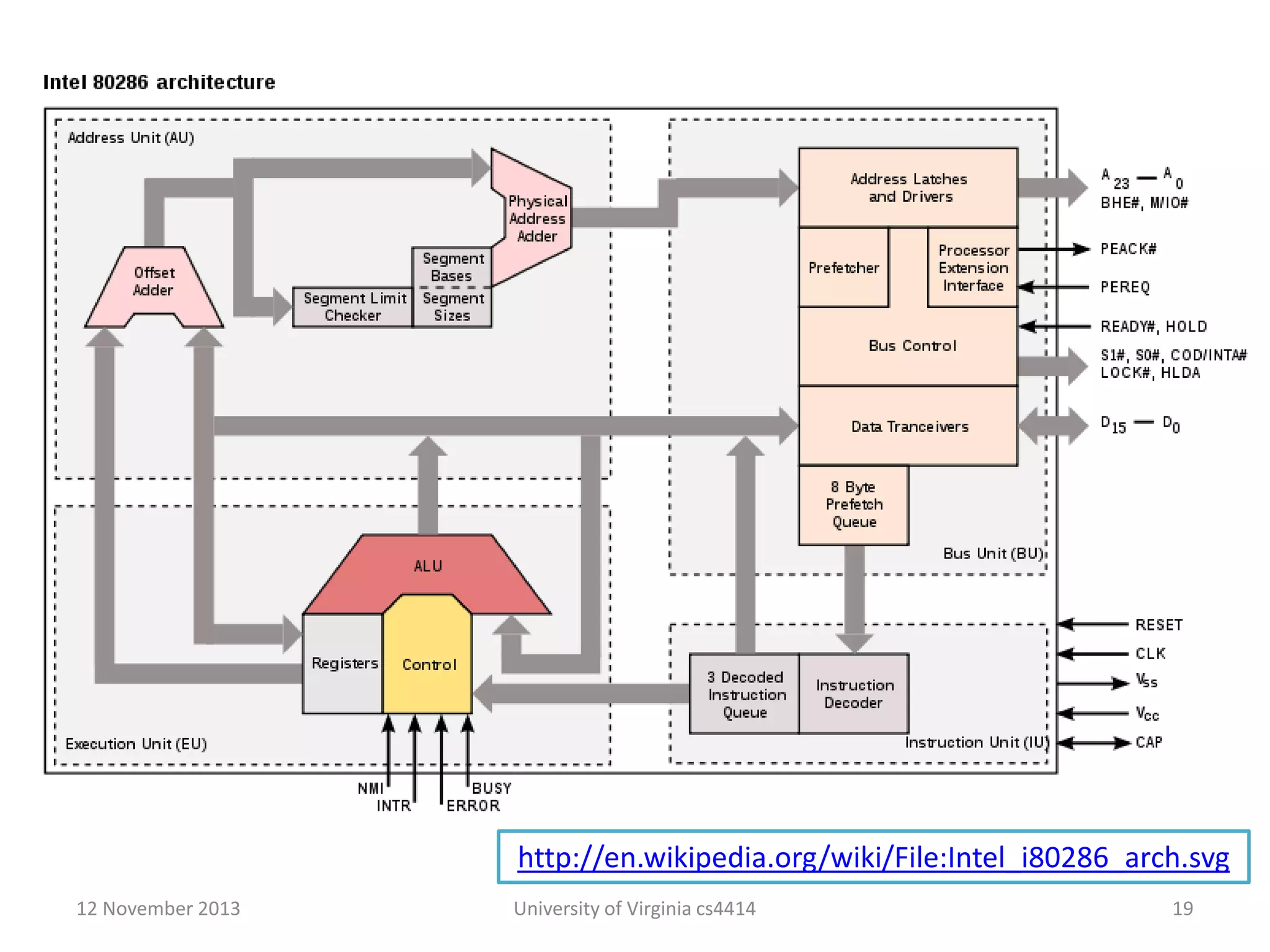

- 20. http://en.wikipedia.org/wiki/File:Intel_i80286_arch.svg 12 November 2013 Universityof Virginia cs4414 19

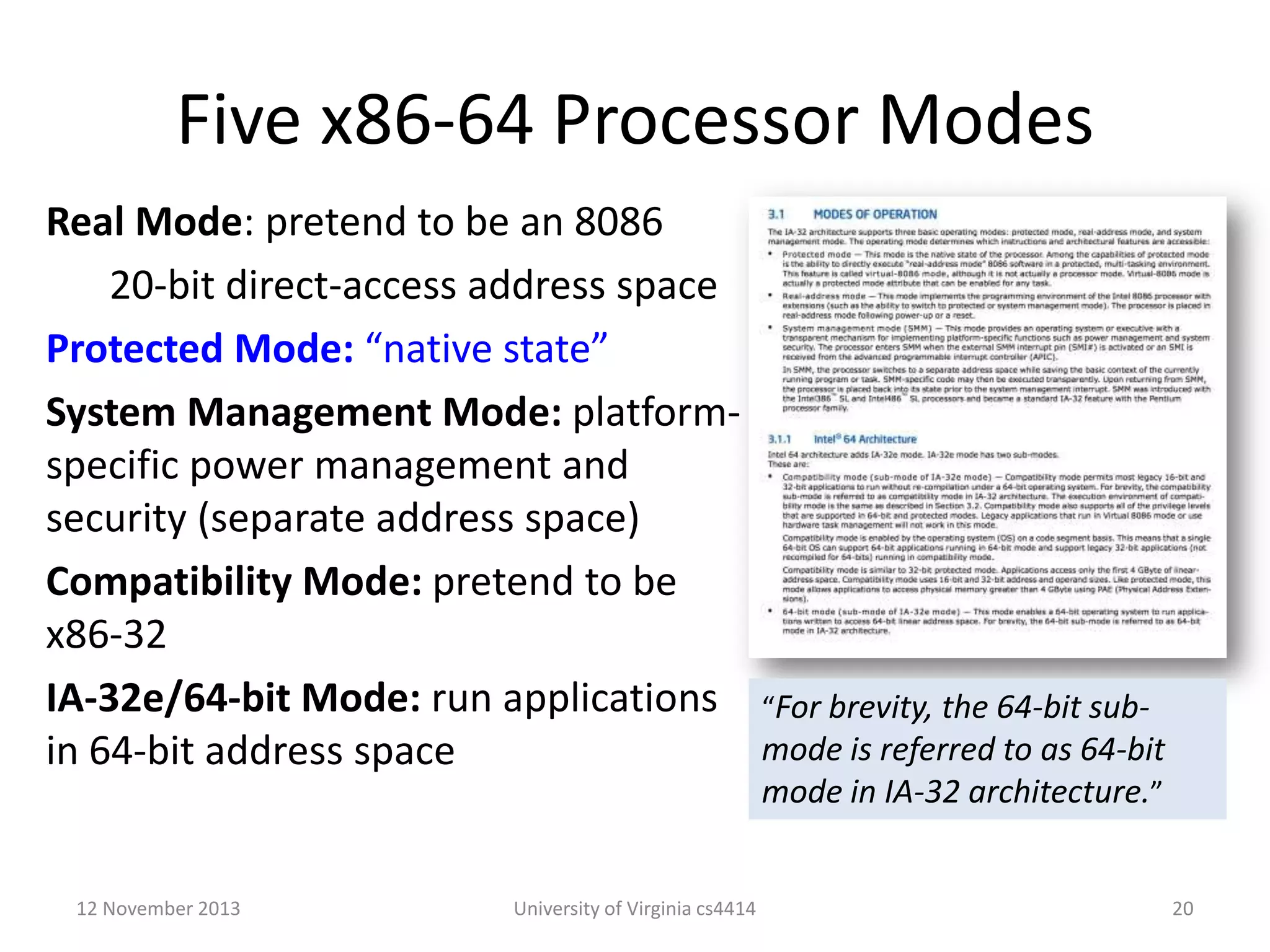

- 21. Five x86-64 ProcessorModes Real Mode: pretend to be an 8086 20-bit direct-access address space Protected Mode: “native state” System Management Mode: platformspecific power management and security (separate address space) Compatibility Mode: pretend to be x86-32 IA-32e/64-bit Mode: run applications “For brevity, the 64-bit submode is referred to as 64-bit in 64-bit address space mode in IA-32 architecture.” 12 November 2013 University of Virginia cs4414 20

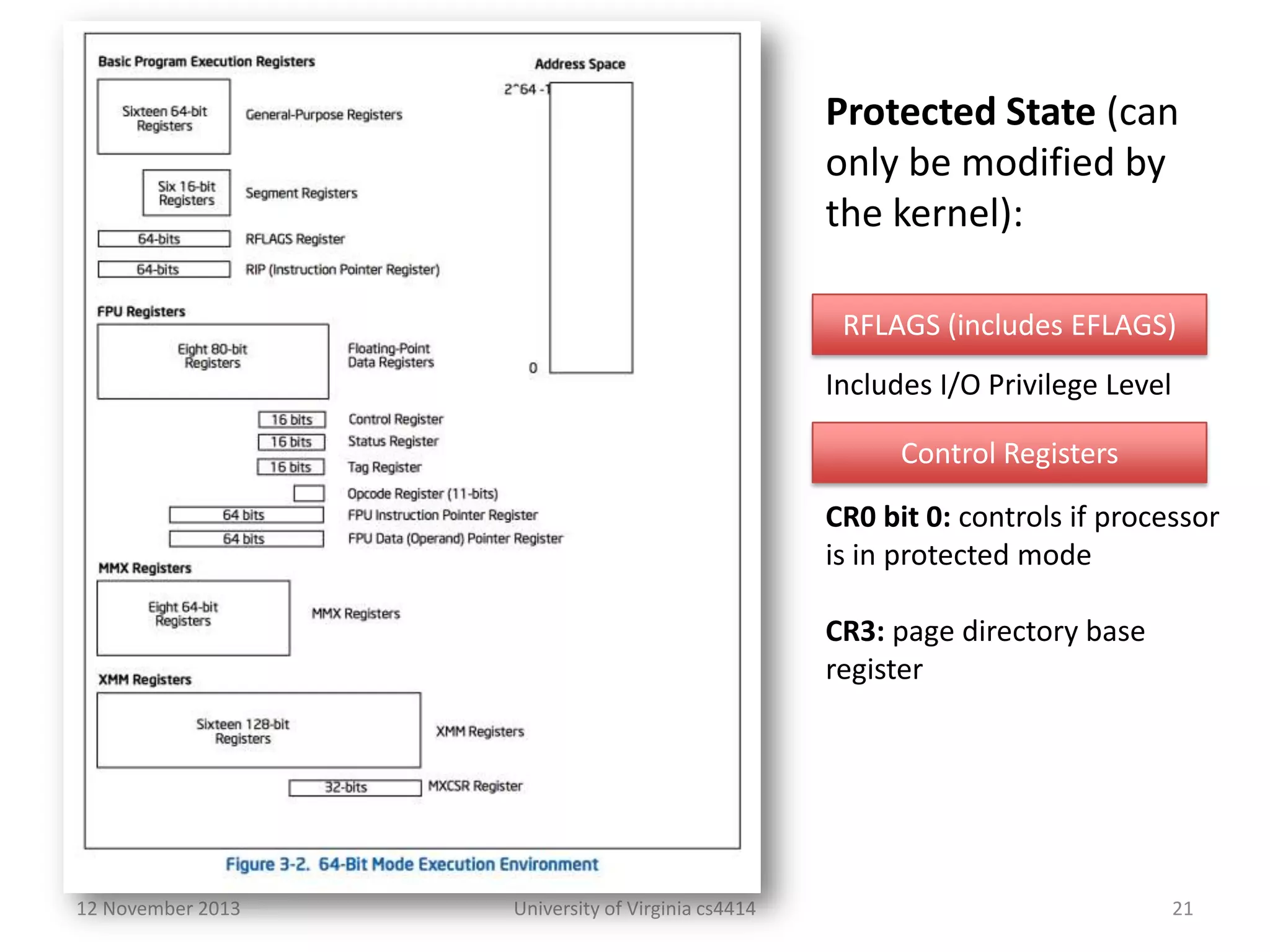

- 22. Protected State (can onlybe modified by the kernel): RFLAGS (includes EFLAGS) Includes I/O Privilege Level Control Registers CR0 bit 0: controls if processor is in protected mode CR3: page directory base register 12 November 2013 University of Virginia cs4414 21
- 23. Address Translation Memory University ofVirginia cs4414 Paging Unit Physical Address Linear Address Logical Address 12 November 2013 Segmentation Unit 22

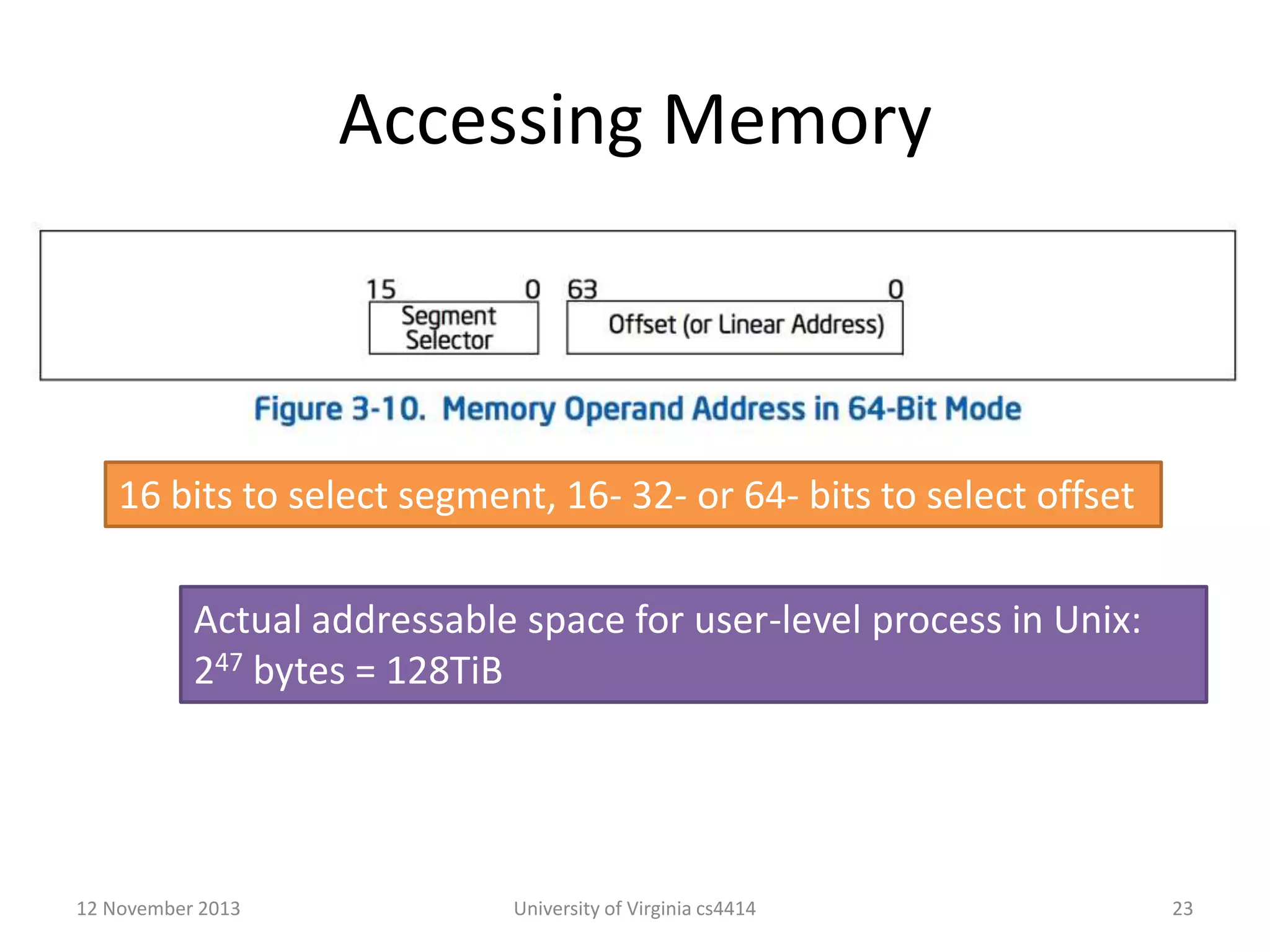

- 24. Accessing Memory 16 bitsto select segment, 16- 32- or 64- bits to select offset Actual addressable space for user-level process in Unix: 247 bytes = 128TiB 12 November 2013 University of Virginia cs4414 23
- 25. Memory Paging Unit Physical Address Linear Address LogicalAddress Segmentatio n Unit Computing the Linear Address Segment selection is inferred from instruction type Logical (“General”, “Virtual”) Address Segment Selector 12 November 2013 Offset University of Virginia cs4414 24

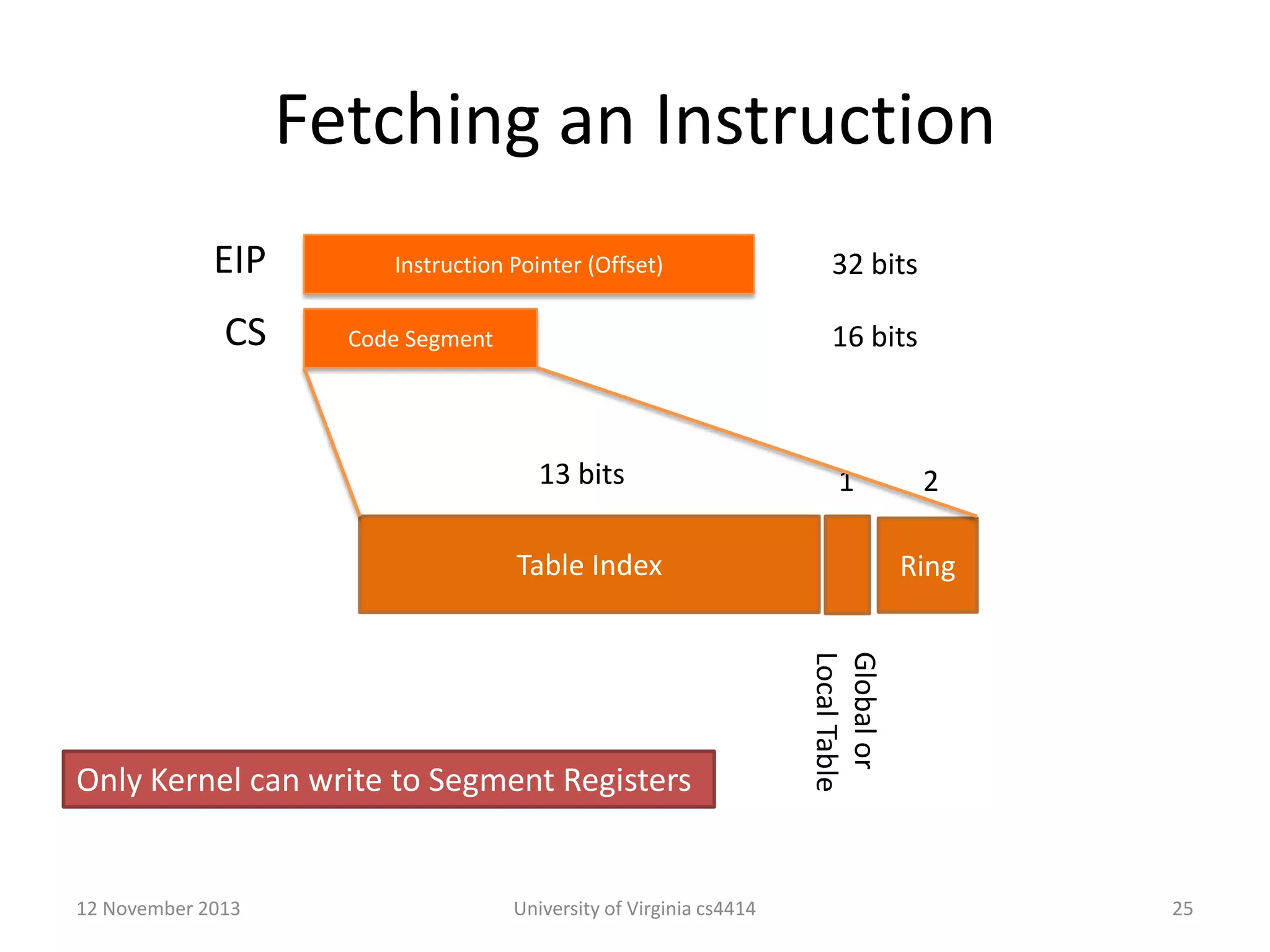

- 26. Fetching an Instruction EIP CS InstructionPointer (Offset) 32 bits 16 bits Code Segment 13 bits 1 Table Index 12 November 2013 University of Virginia cs4414 Ring Global or Local Table Only Kernel can write to Segment Registers 2 25

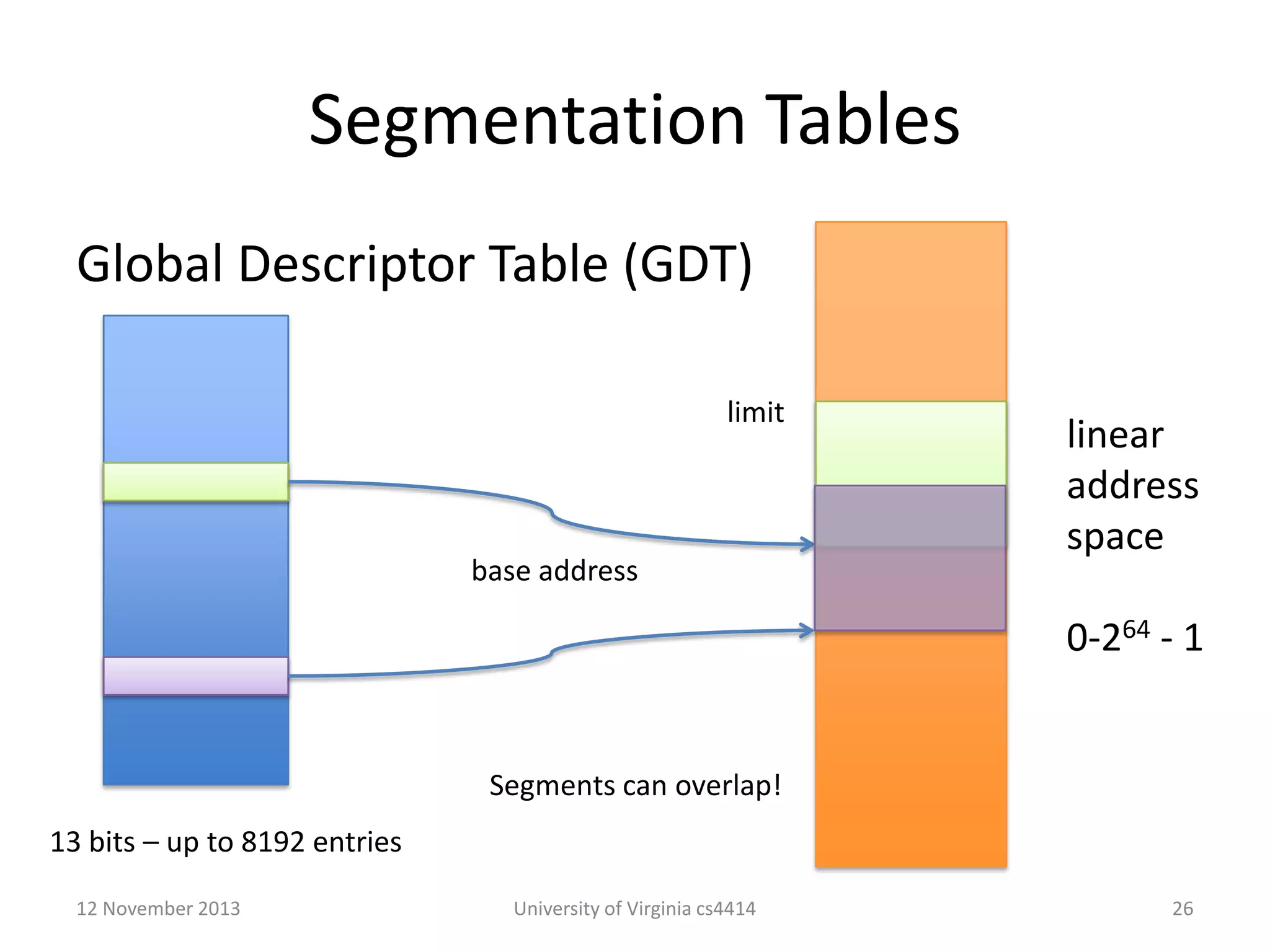

- 27. Segmentation Tables Global DescriptorTable (GDT) limit base address linear address space 0-264 - 1 Segments can overlap! 13 bits – up to 8192 entries 12 November 2013 University of Virginia cs4414 26
- 28. Segmentation Tables Global DescriptorTable (GDT) Local Descriptor Table (per process) 13 bits – up to 8192 entries 12 November 2013 How does the processor find the GDT/LDT? University of Virginia cs4414 27
- 29. The GDT andLDT are just data structures in memory! Special registers store their locations 12 November 2013 University of Virginia cs4414 28
- 30. Logical Address Segmentatio n Unit LinearAddress Paging Unit Physical Address Memory 12 November 2013 University of Virginia cs4414 29
- 31. Linear Address Logical Address 64 2 Segmentation Unit Paging linearaddresses What would it cost to have 264 bytes of RAM? 12 November 2013 University of Virginia cs4414 30

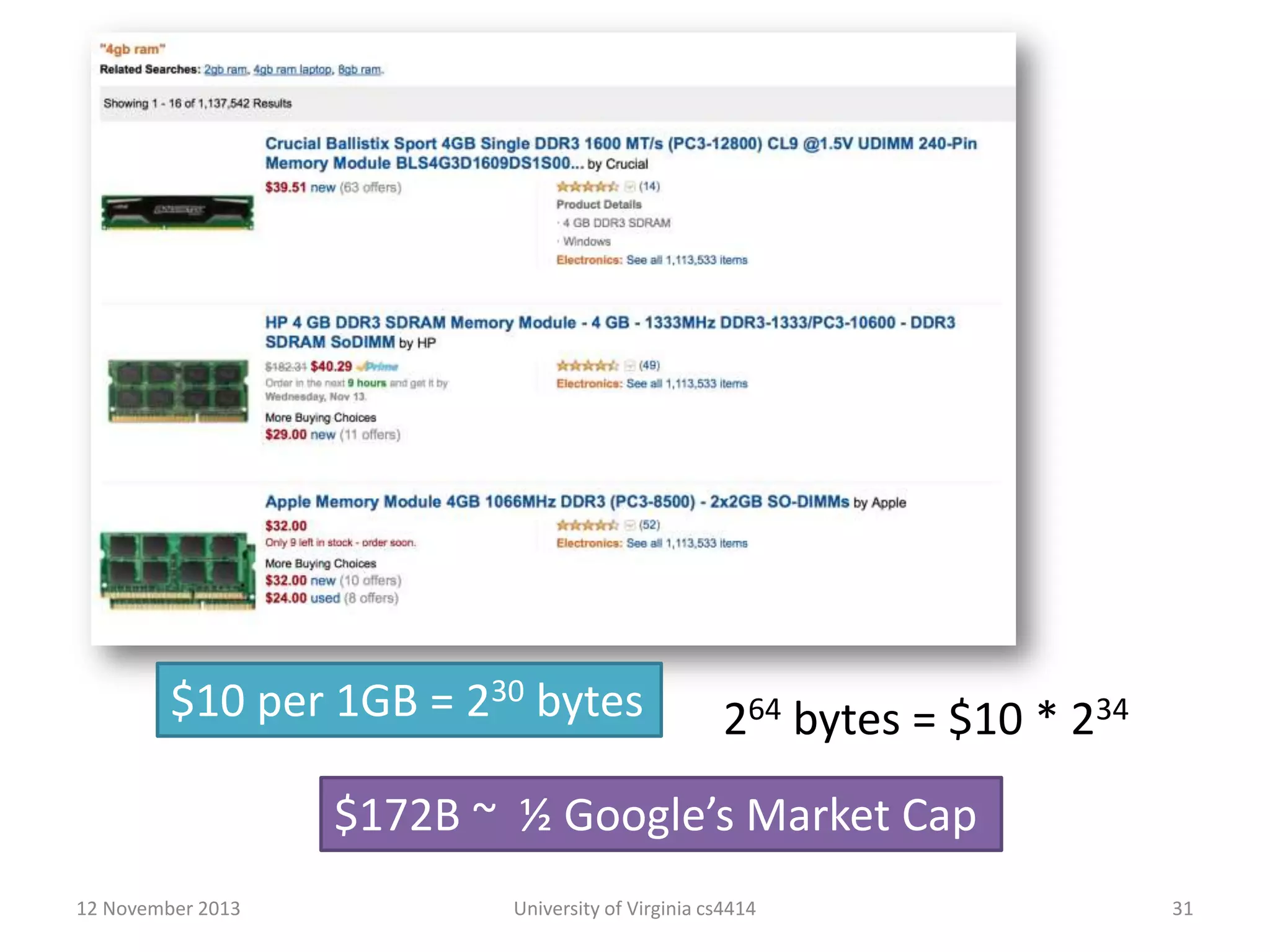

- 32. $10 per 1GB= 230 bytes 264 bytes = $10 * 234 $172B ~ ½ Google’s Market Cap 12 November 2013 University of Virginia cs4414 31
- 33. Paging Memory Paging Unit Physical Address Linear Address LogicalAddress Segmentation Unit We don’t need to store the whole address space in memory! Most of it is unused, and we can store rarely-used parts on the disk. 12 November 2013 University of Virginia cs4414 32
- 34. Memory Physical Address Linear Address Paging Unit Imagefrom Wikipedia 12 November 2013 University of Virginia cs4414 33

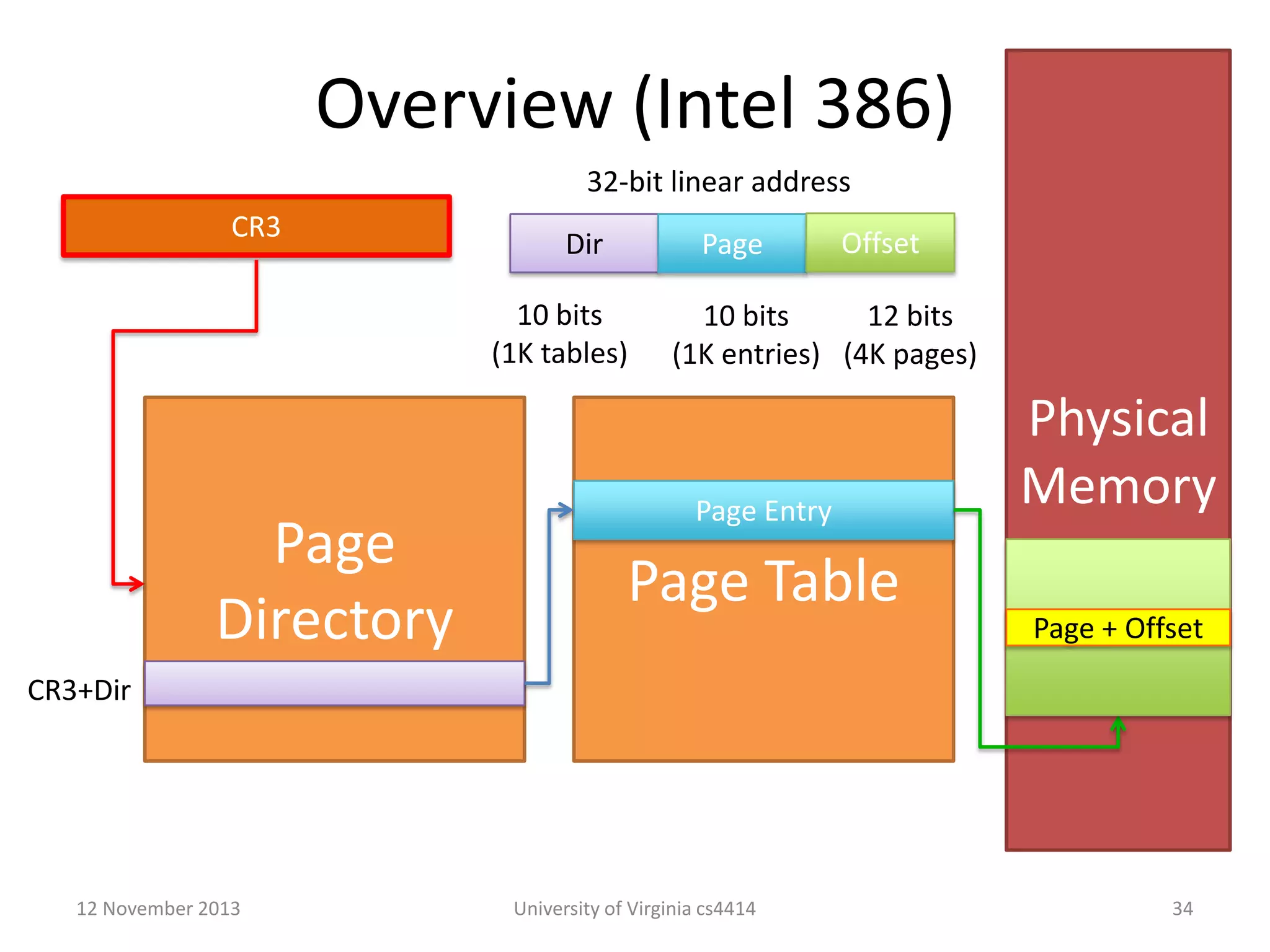

- 35. Overview (Intel 386) 32-bitlinear address CR3 Dir Page 10 bits (1K tables) Page Directory Offset 10 bits 12 bits (1K entries) (4K pages) Page Entry Page Table Physical Memory Page + Offset CR3+Dir 12 November 2013 University of Virginia cs4414 34
- 36. Page Table Entries CR3 PageEntry Page Table Page Directory 12 November 2013 20 bits: physical address of page 12 bits: flags user/kernel page write permission present University of Virginia cs4414 Physical Memory Page + Offset 35
- 37. 386 Checkup 32-bit linearaddress CR3 Dir Page 10 bits (1K tables) Page Directory Offset 10 bits 12 bits (1K entries) (4K pages) 20 bits addr / 12 bits flags Page Table Physical Memory Page + Offset CR3+Dir How many pages do we need to store the page table? 12 November 2013 University of Virginia cs4414 36
- 38. How slow isthis???! Memory Page Paging Unit Physical Address Dir Linear Address Logical Address Segmentation Unit Offset CR3 Page Directory Page Table Physical Memory GDTR Global Descriptor Table 12 November 2013 University of Virginia cs4414 37

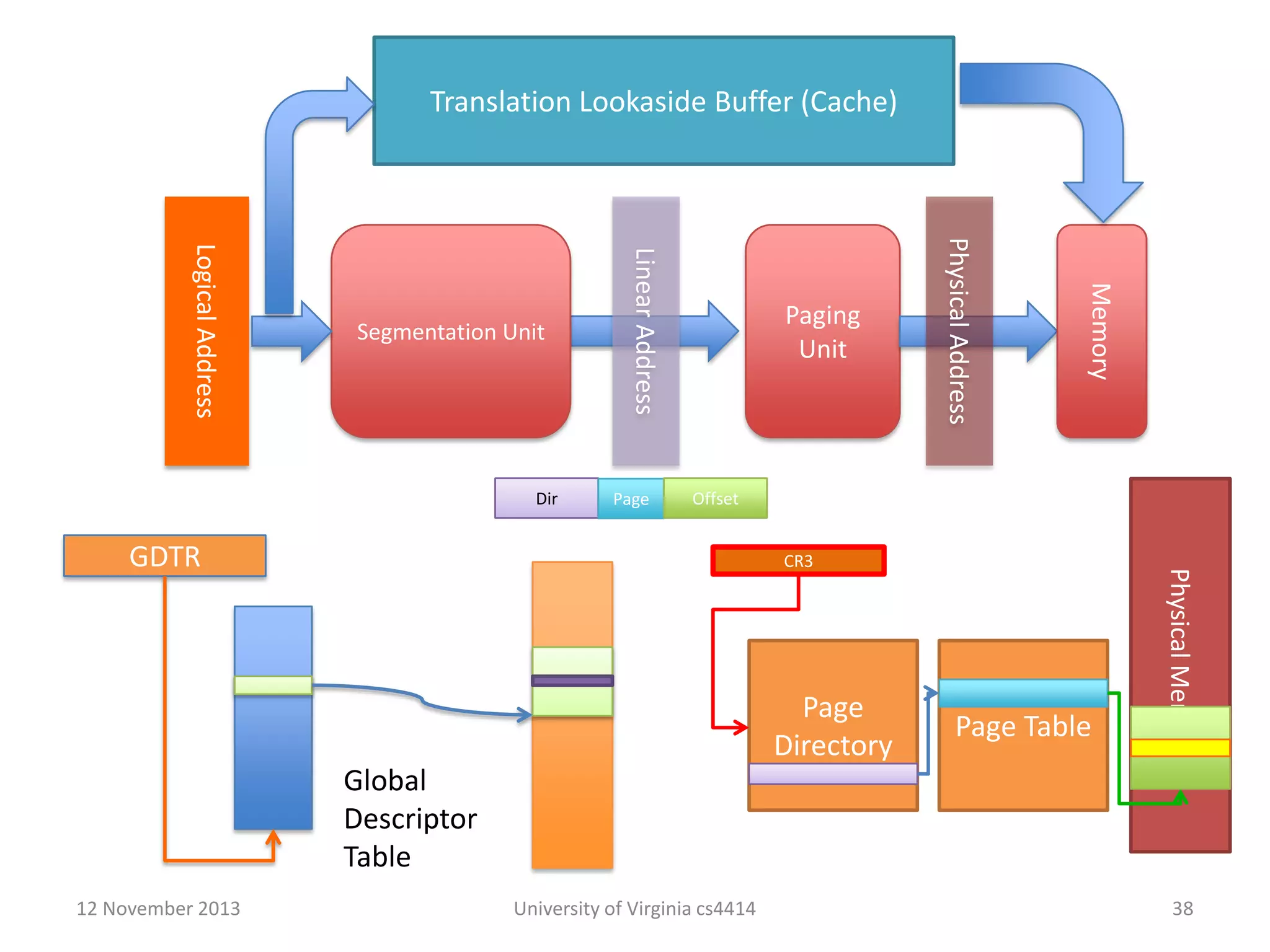

- 39. Translation Lookaside Buffer(Cache) Memory Page Paging Unit Physical Address Dir Linear Address Logical Address Segmentation Unit Offset CR3 Page Directory Page Table Physical Memory GDTR Global Descriptor Table 12 November 2013 University of Virginia cs4414 38

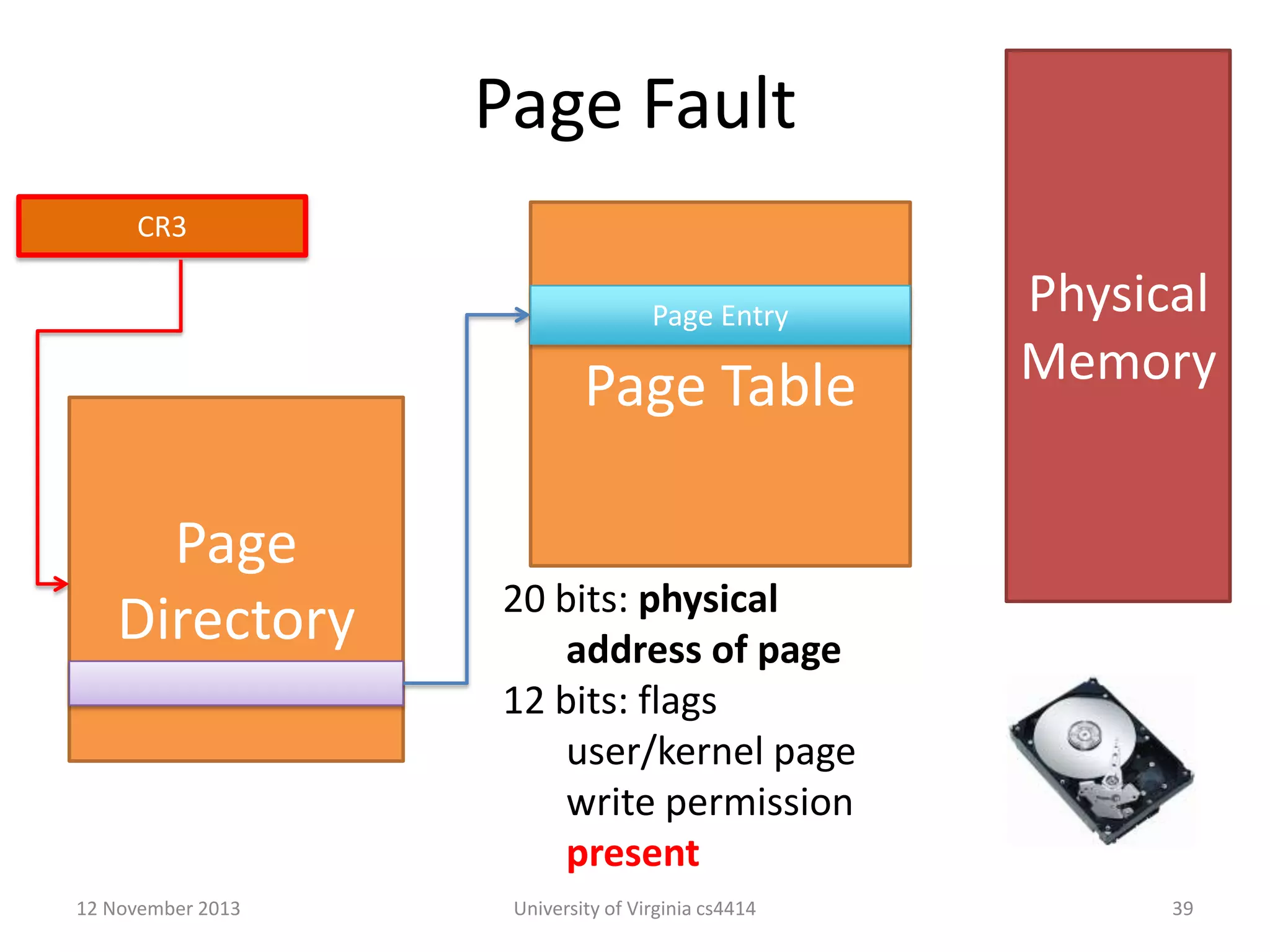

- 40. Page Fault CR3 Page Entry PageTable Page Directory 12 November 2013 Physical Memory 20 bits: physical address of page 12 bits: flags user/kernel page write permission present University of Virginia cs4414 39

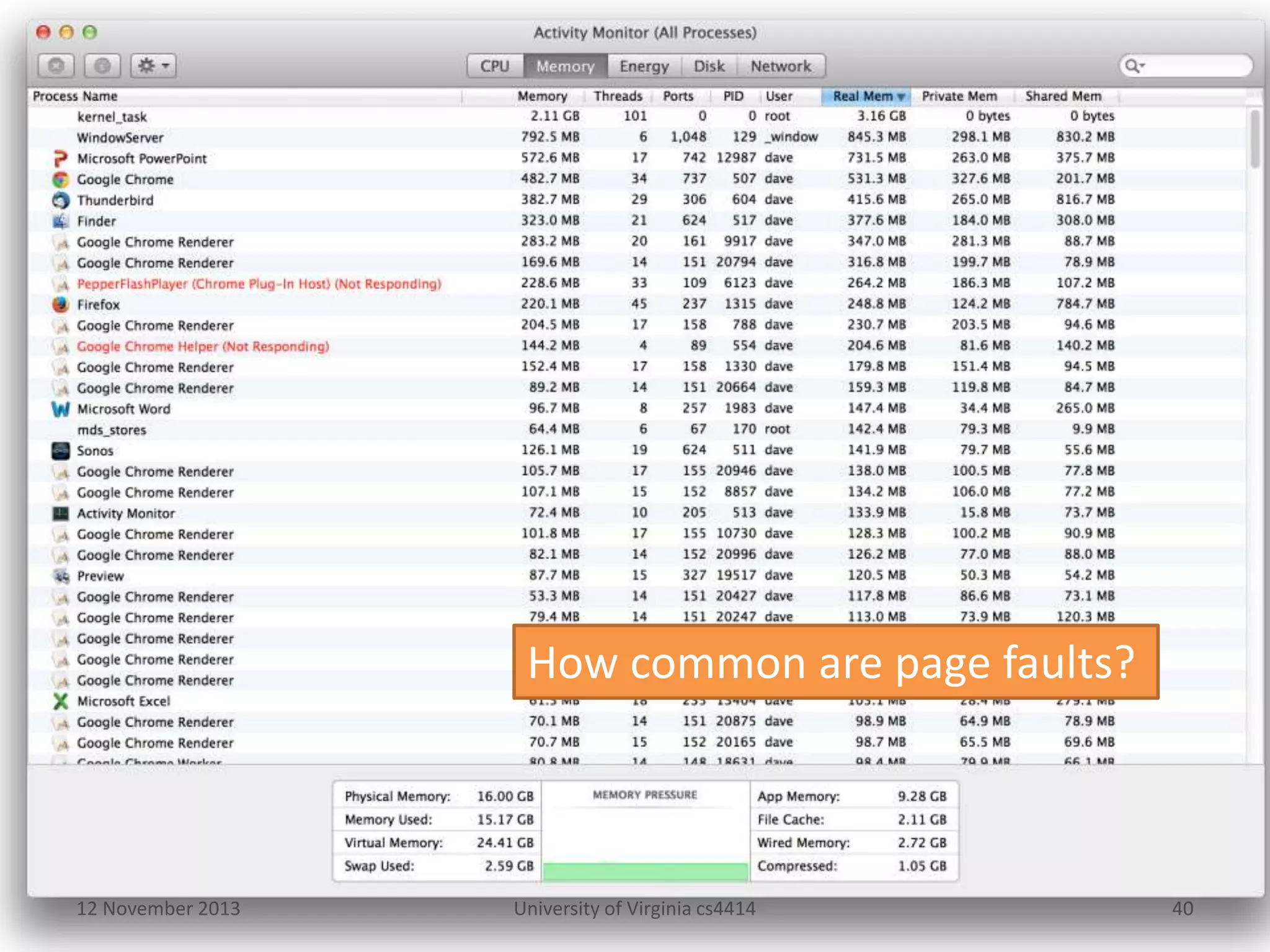

- 41. How common arepage faults? 12 November 2013 University of Virginia cs4414 40
- 42. top -o mem-stats pid,command,cpu,mem,mregion,vsize,faults 12 November 2013 University of Virginia cs4414 41
- 43. Physical Memory: 9106M used(2553M “wired” – cannot be paged out) + 5090M unused = 14196M where is my missing ~2GB???! Virtual Memory: 594G (total) top -o mem -stats pid,command,cpu,mem,mregion,vsize,faults 12 November 2013 University of Virginia cs4414 42
- 44. How expensive isa page fault? 12 November 2013 University of Virginia cs4414 43
- 45. #include <stdio.h> #include <stdlib.h> intmain(int argc, char **argv) { char *s = (char *) malloc (1); int i= 0; while (1) { printf("%d: %xn", i, s[i]); i += 4; } } 12 November 2013 What will this program do? > ./a.out 0: 0 4: 0 8: 0 12: 0 …1033872: 0 1033876: 0 1033880: 0 1033884: 0 Segmentation fault: 11 University of Virginia cs4414 44
- 46. Charge • Make progresson your projects: everyone should have a clear idea what you are doing now • Will post more details on next deliverable (design reviews) soon Challenge: write a program that takes N as an input and produces (nearly) exactly N page faults. 12 November 2013 University of Virginia cs4414 45
