Vanjs backbone-powerpoint

Backbone in Multipage Apps
Michael Yagudaev
@yagudaev
michael@0idle.com
July 2013

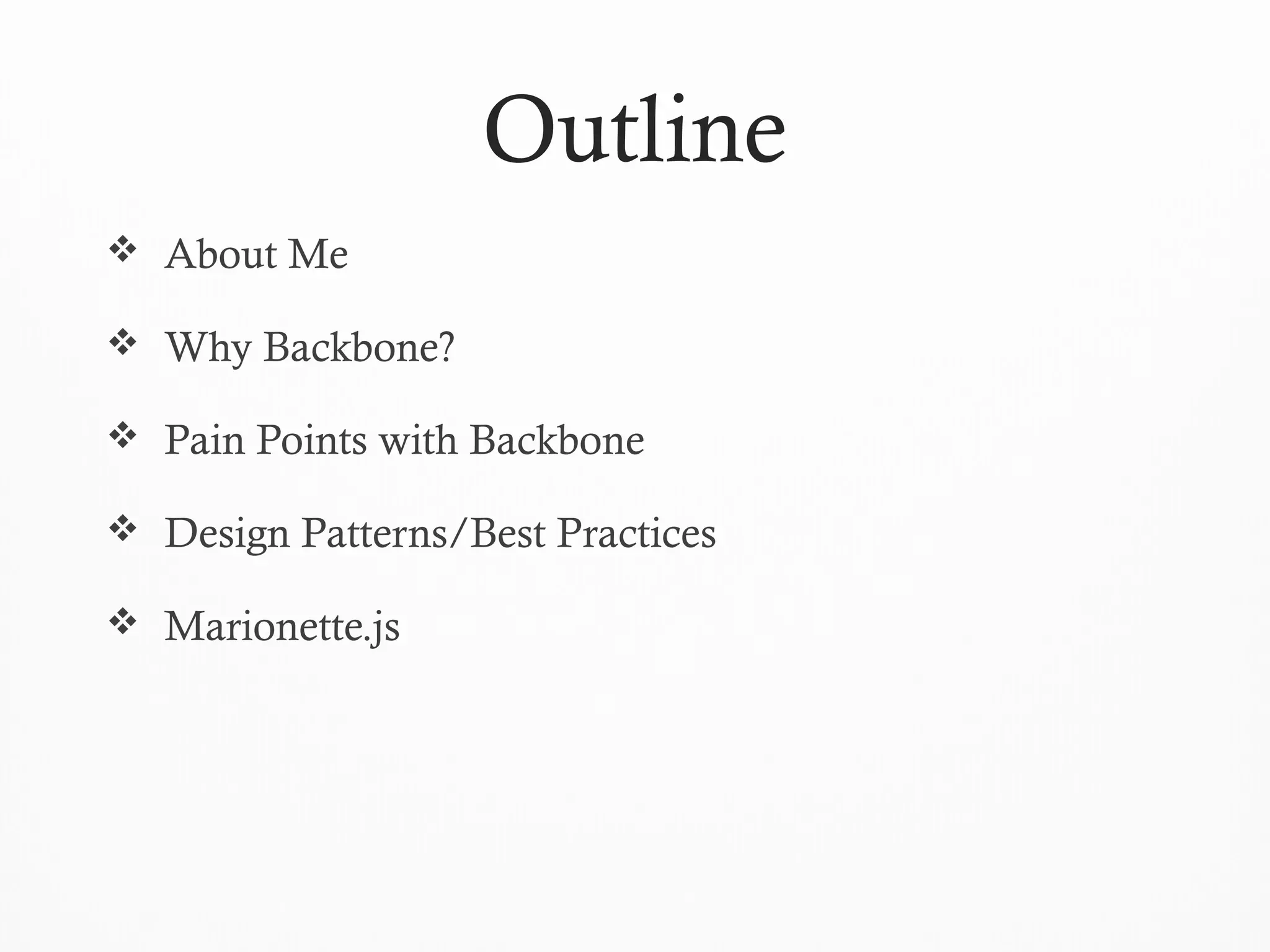

Outline
 About Me
 Why Backbone?
 Pain Points with Backbone
 Design Patterns/Best Practices
 Marionette.js

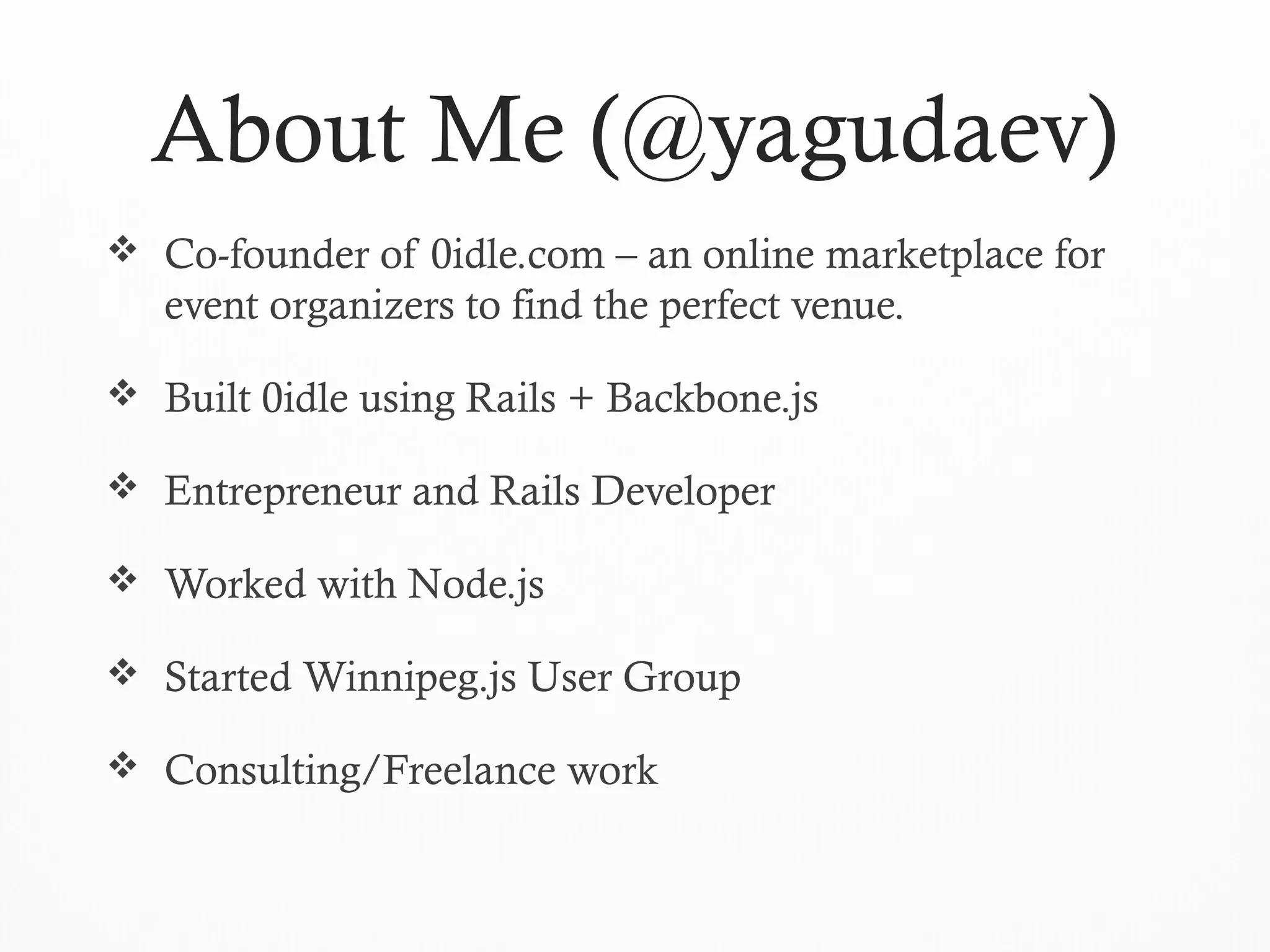

About Me (@yagudaev)
 Co-founder of 0idle.com – an online marketplace for
event organizers to find the perfect venue.
 Built 0idle using Rails + Backbone.js
 Entrepreneur and Rails Developer
 Worked with Node.js
 Started Winnipeg.js User Group
 Consulting/Freelance work

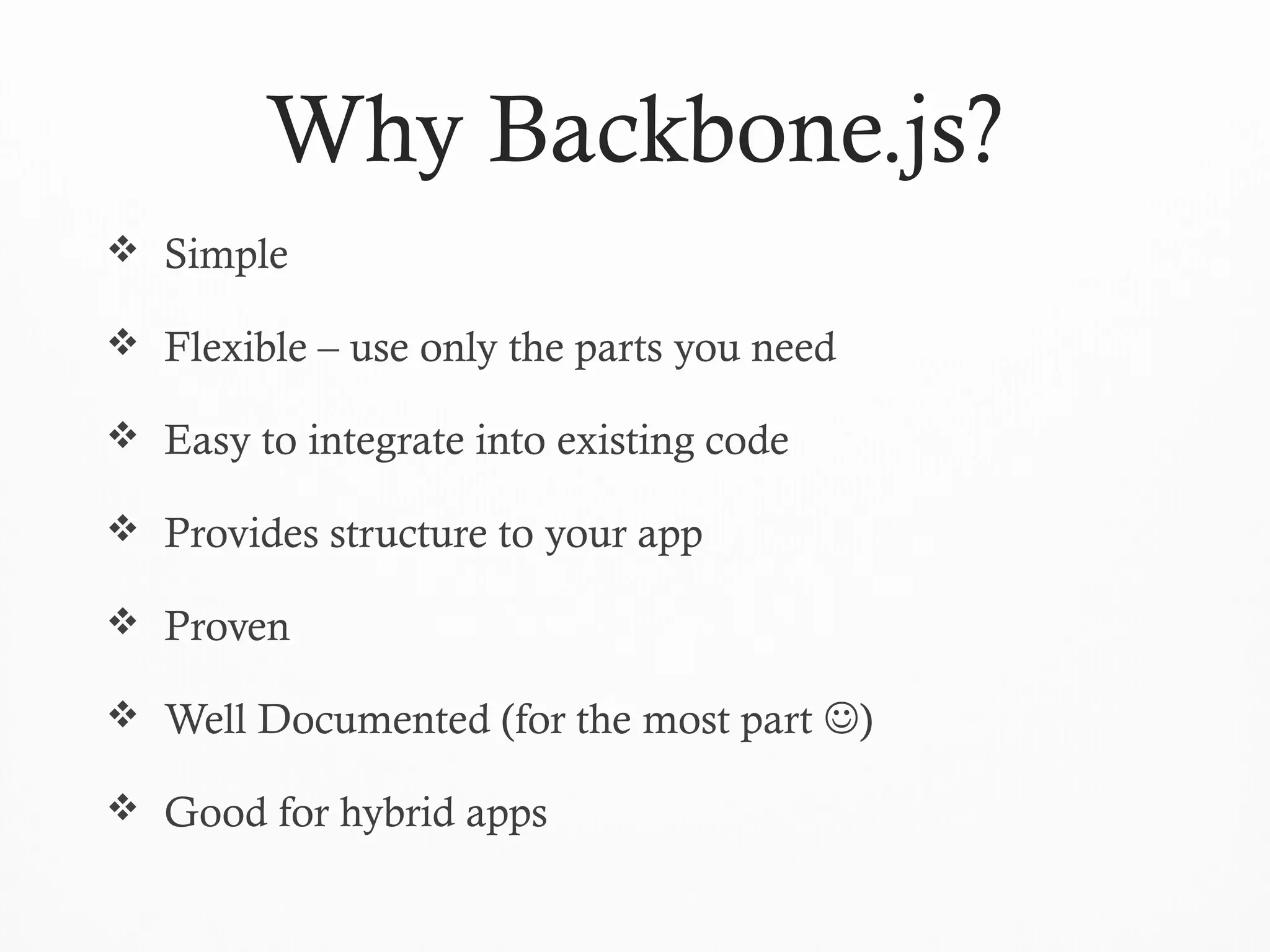

Why Backbone.js?
 Simple
 Flexible – use only the parts you need
 Easy to integrate into existing code
 Provides structure to your app
 Proven
 Well Documented (for the most part )
 Good for hybrid apps

5

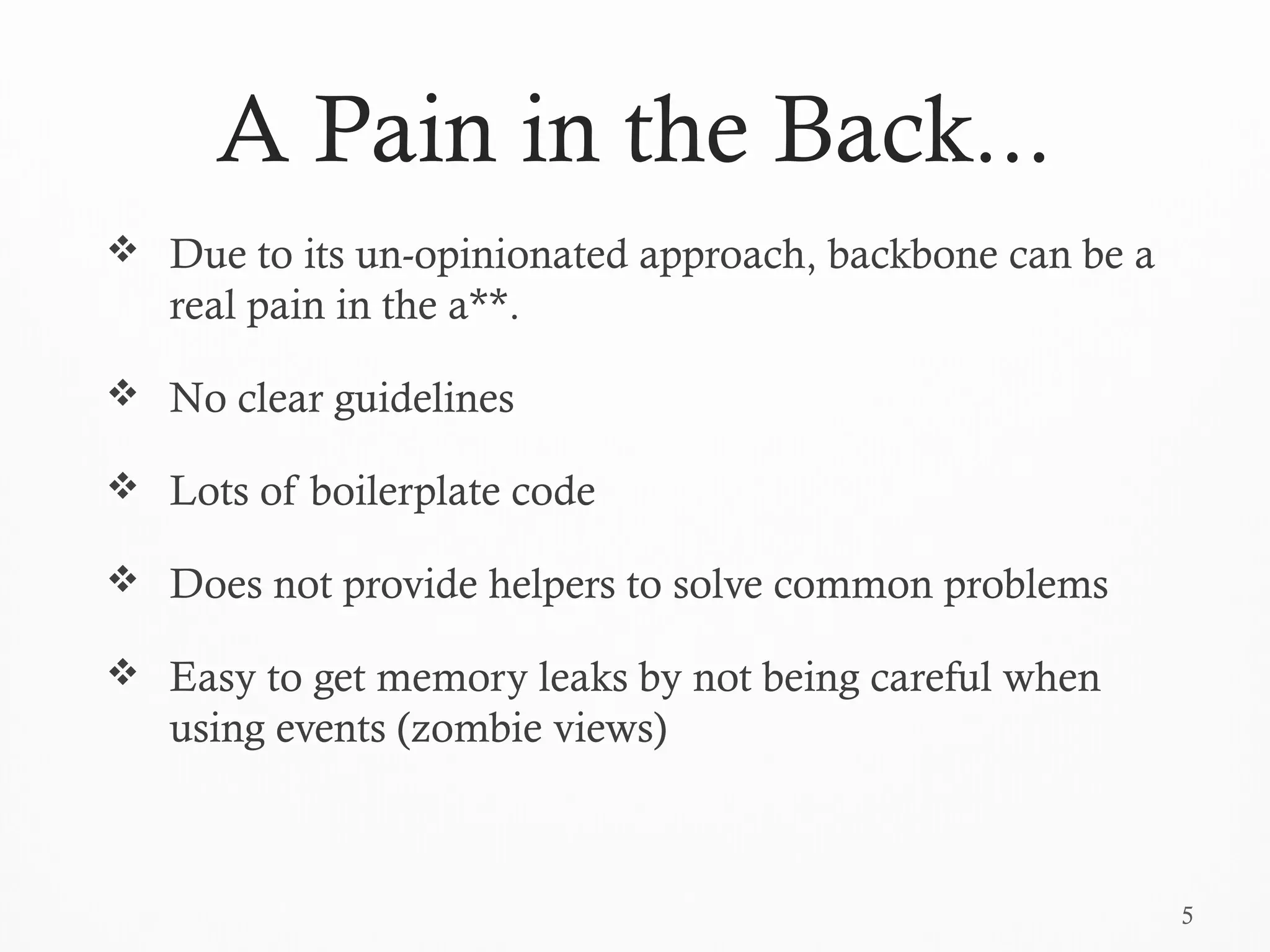

A Pain in the Back...
 Due to its un-opinionated approach, backbone can be a
real pain in the a**.
 No clear guidelines
 Lots of boilerplate code
 Does not provide helpers to solve common problems
 Easy to get memory leaks by not being careful when
using events (zombie views)

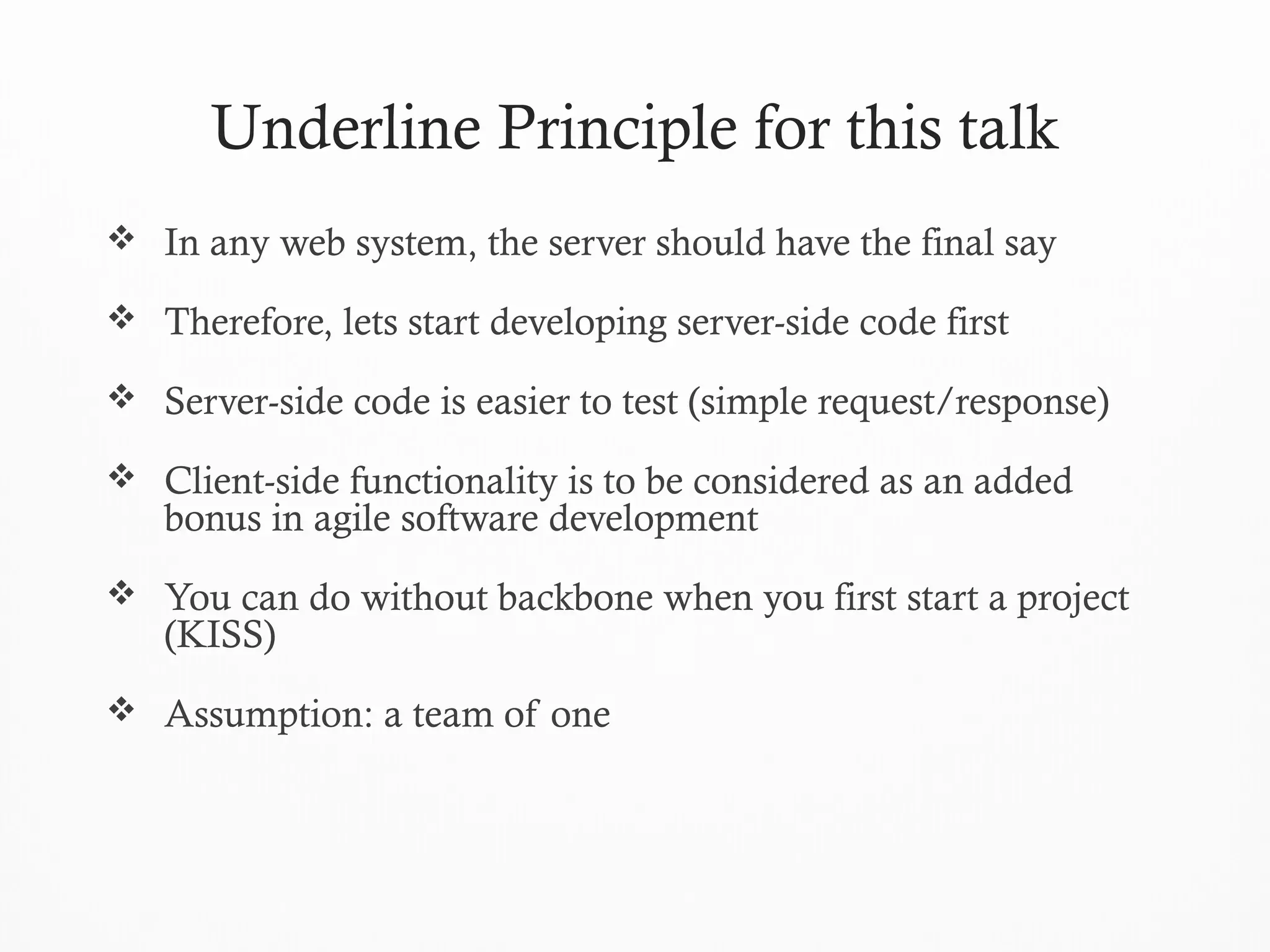

Underline Principle for this talk
 In any web system, the server should have the final say
 Therefore, lets start developing server-side code first
 Server-side code is easier to test (simple request/response)
 Client-side functionality is to be considered as an added
bonus in agile software development
 You can do without backbone when you first start a project
(KISS)
 Assumption: a team of one

7
Design Patterns
Lets start simple and work our way up...

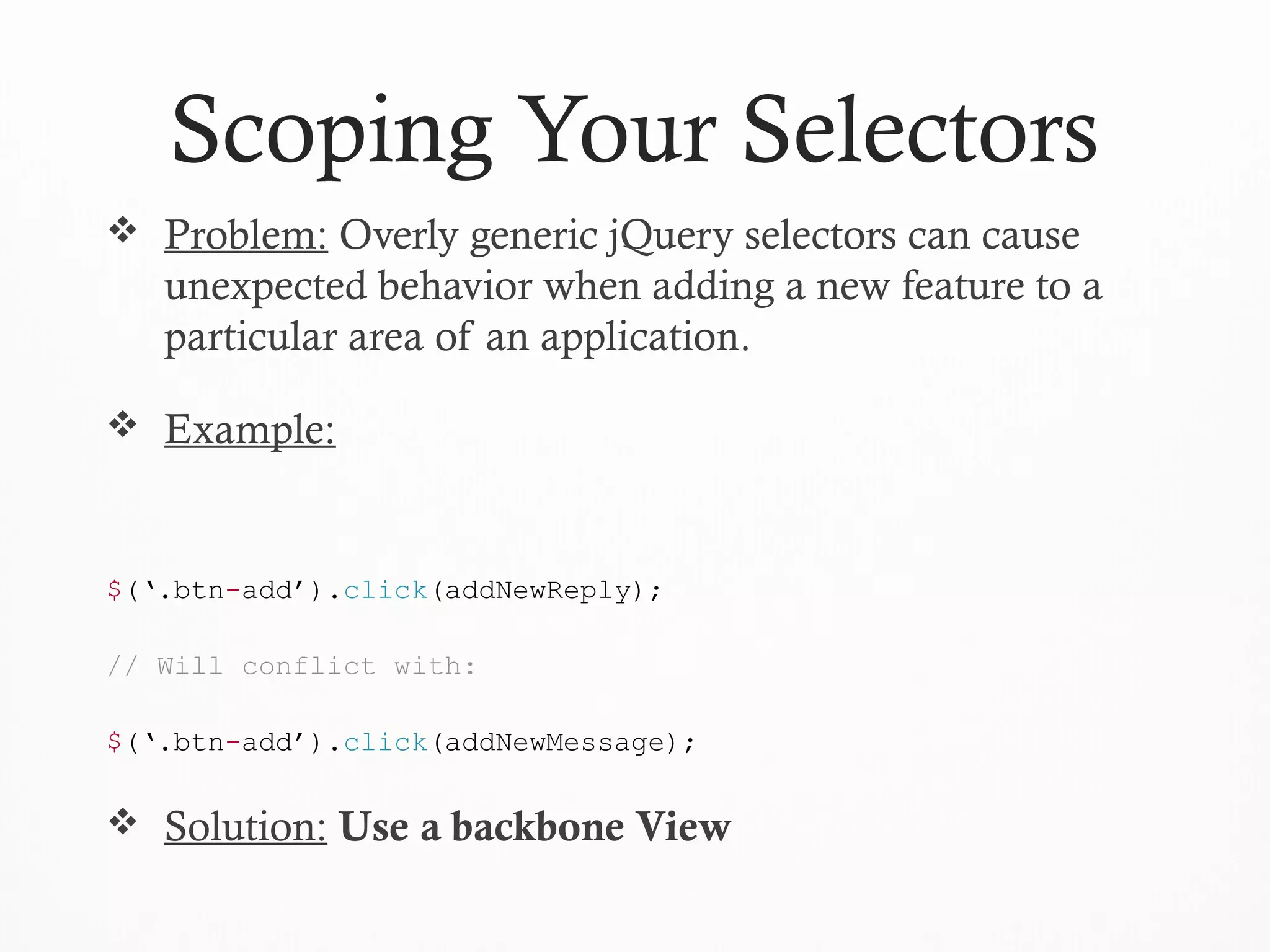

Scoping Your Selectors
 Problem: Overly generic jQuery selectors can cause
unexpected behavior when adding a new feature to a
particular area of an application.
 Example:
$(‘.btn-add’).click(addNewReply);
// Will conflict with:
$(‘.btn-add’).click(addNewMessage);

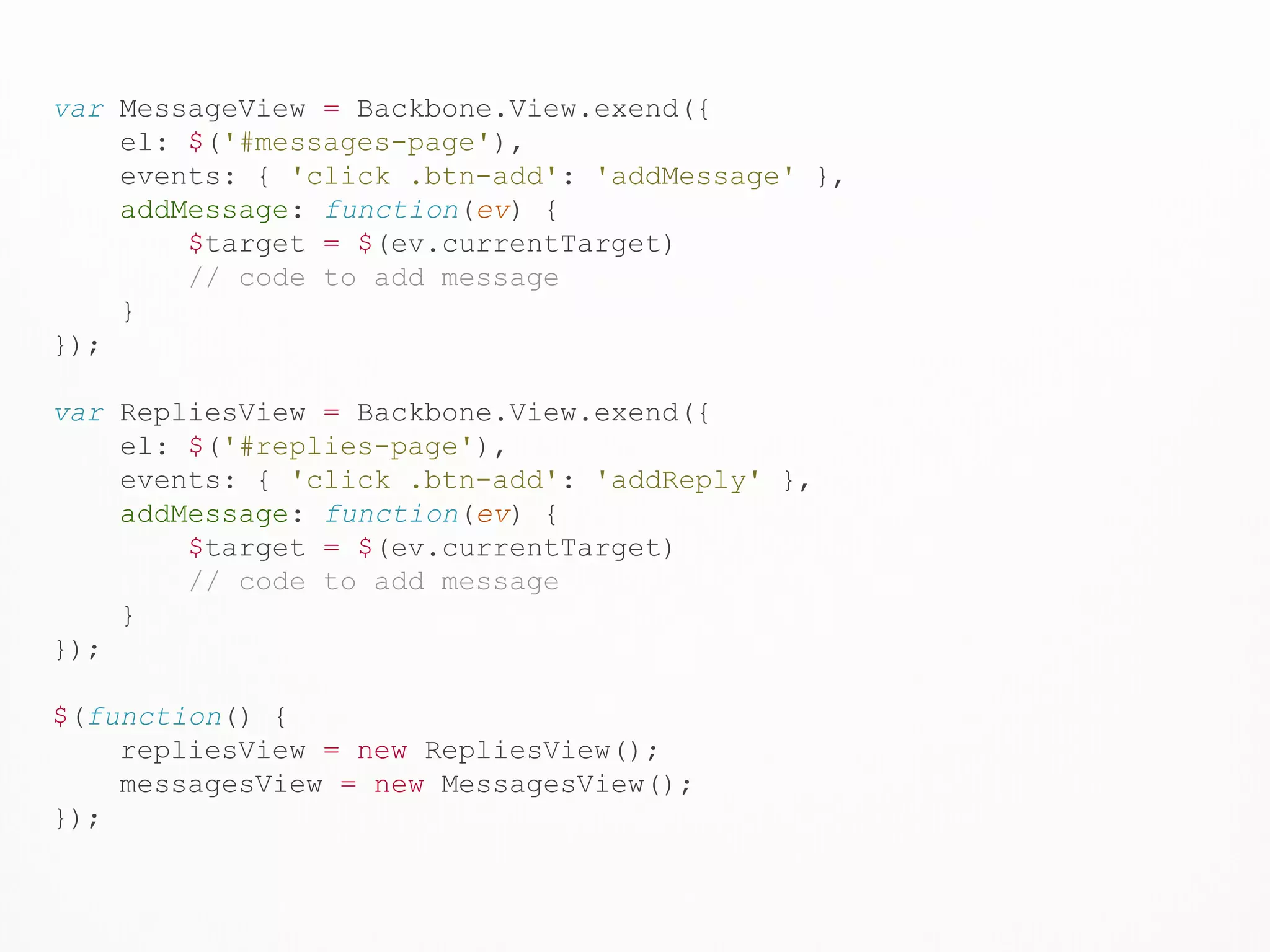

 Solution: Use a backbone View

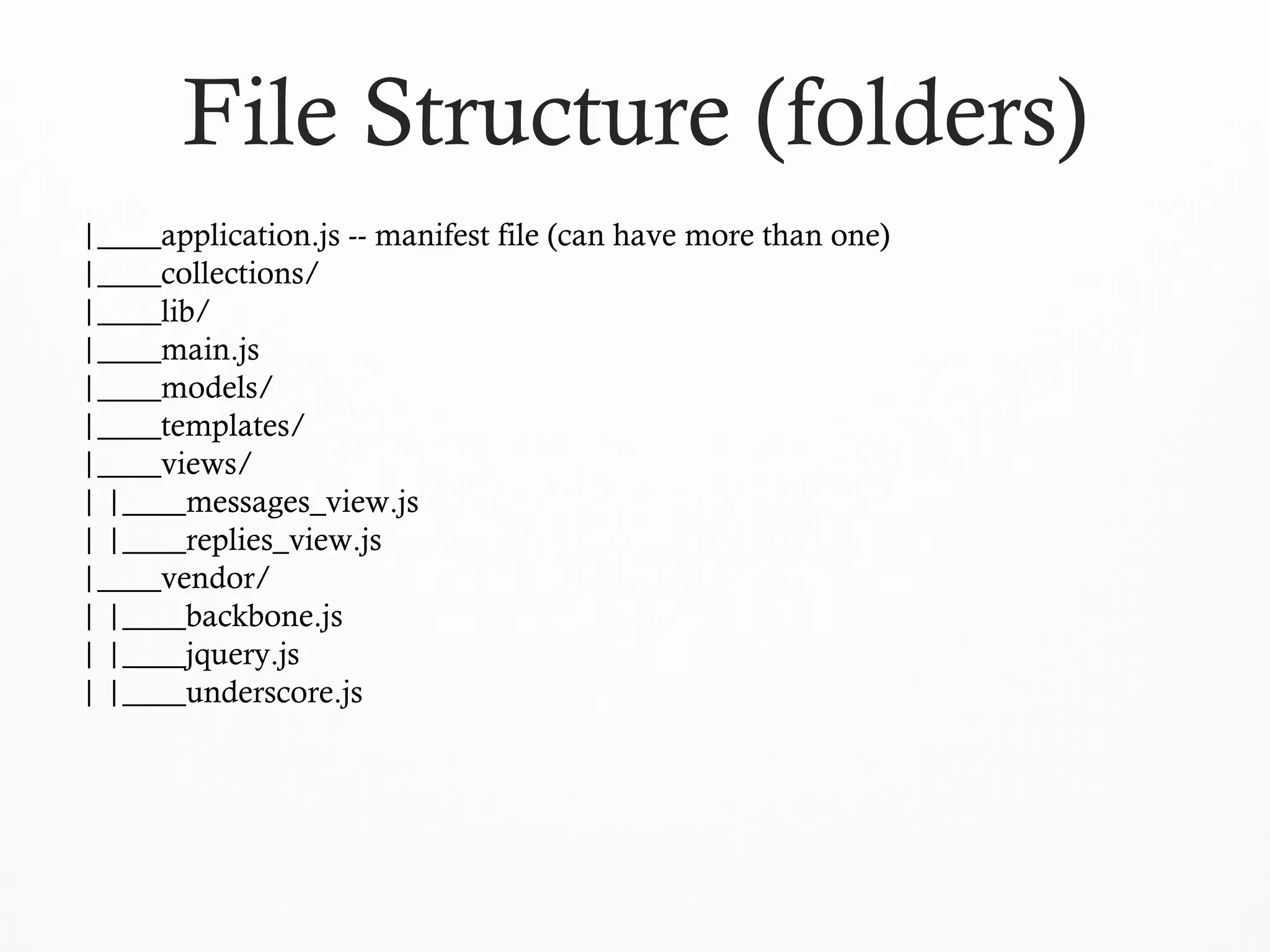

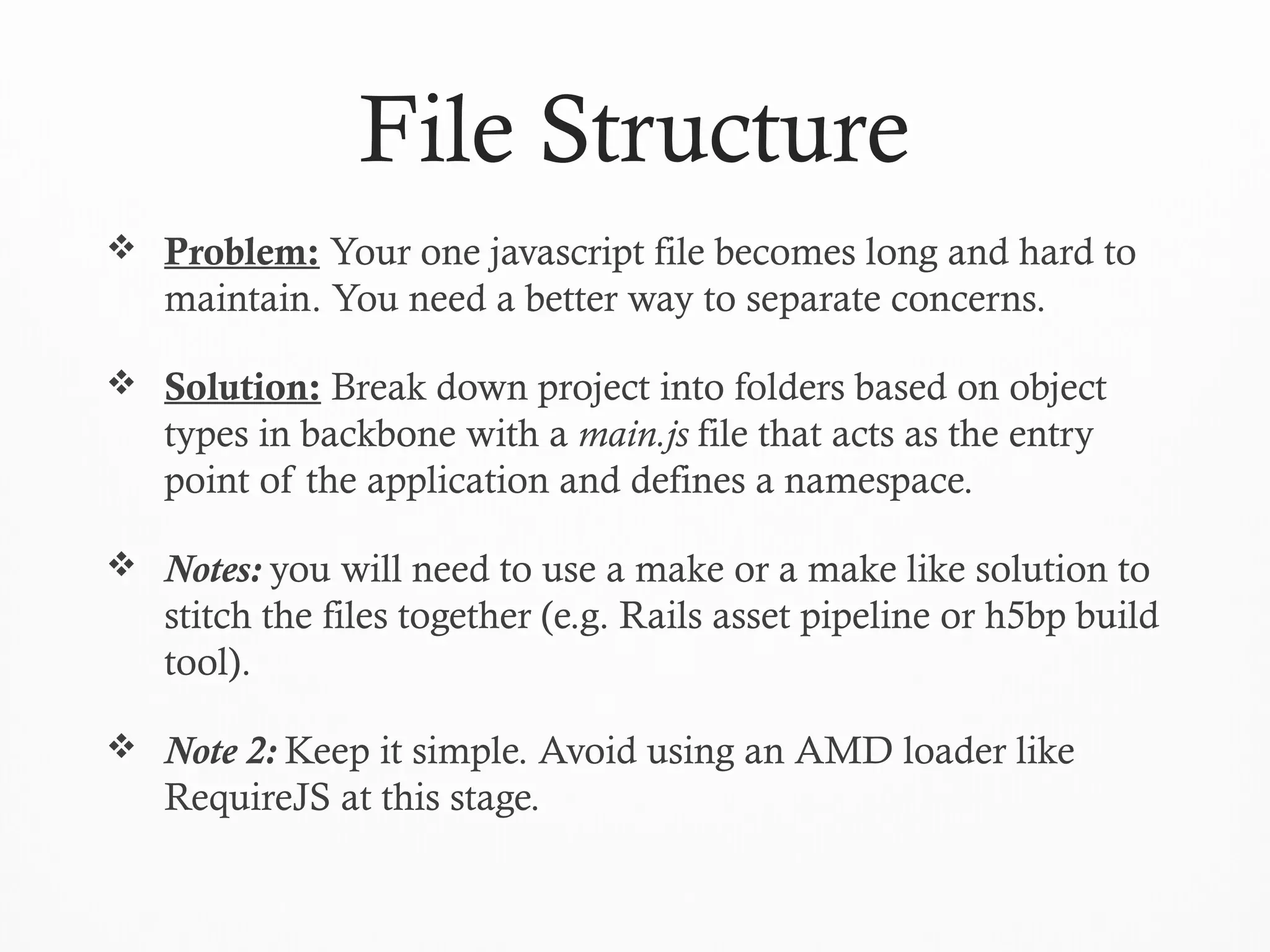

File Structure
 Problem: Your one javascript file becomes long and hard to
maintain. You need a better way to separate concerns.
 Solution: Break down project into folders based on object
types in backbone with a main.js file that acts as the entry
point of the application and defines a namespace.
 Notes: you will need to use a make or a make like solution to
stitch the files together (e.g. Rails asset pipeline or h5bp build
tool).
 Note 2: Keep it simple. Avoid using an AMD loader like
RequireJS at this stage.

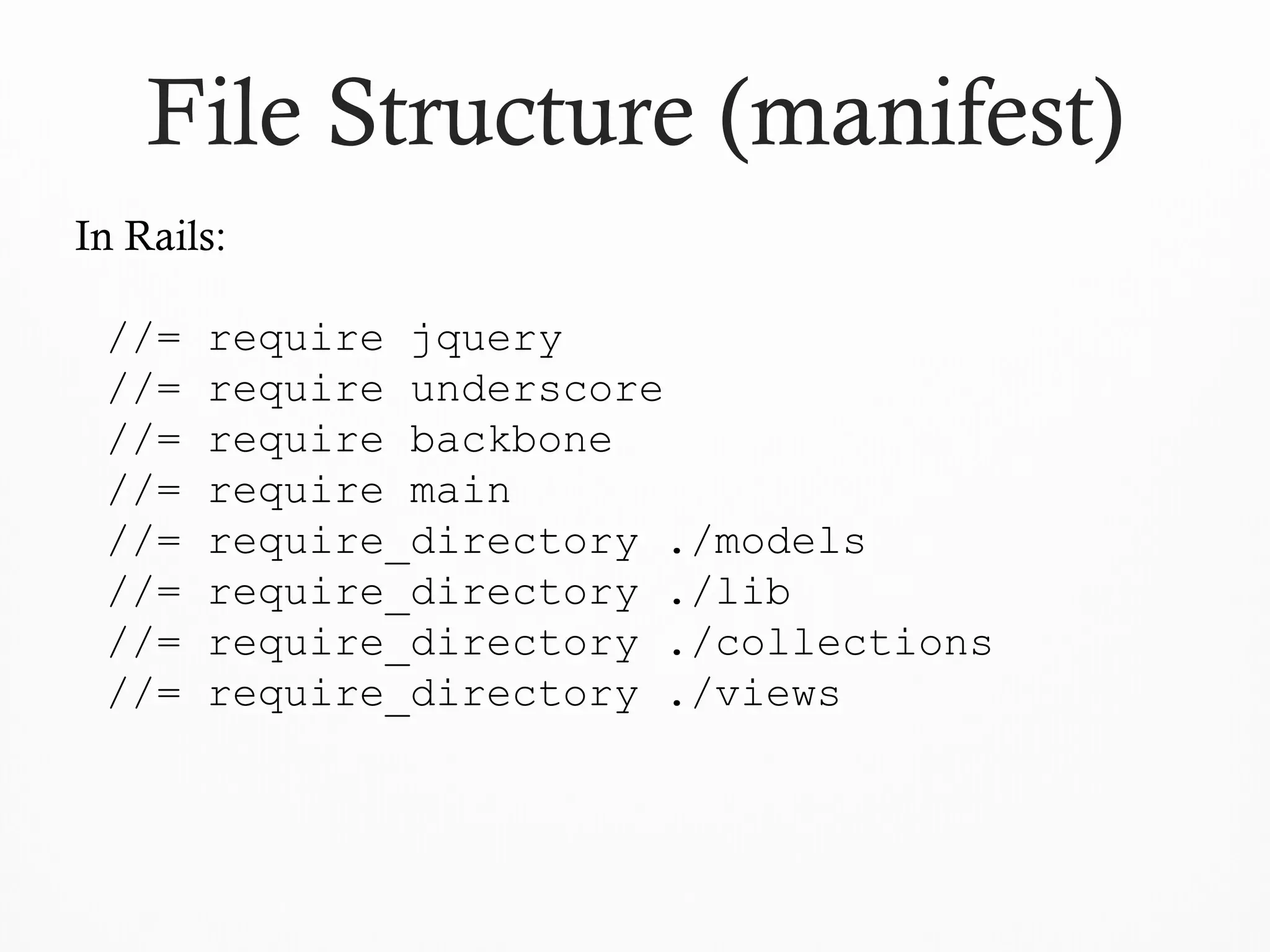

File Structure (manifest)
In Rails:
//= require jquery
//= require underscore
//= require backbone
//= require main
//= require_directory ./models
//= require_directory ./lib
//= require_directory ./collections
//= require_directory ./views

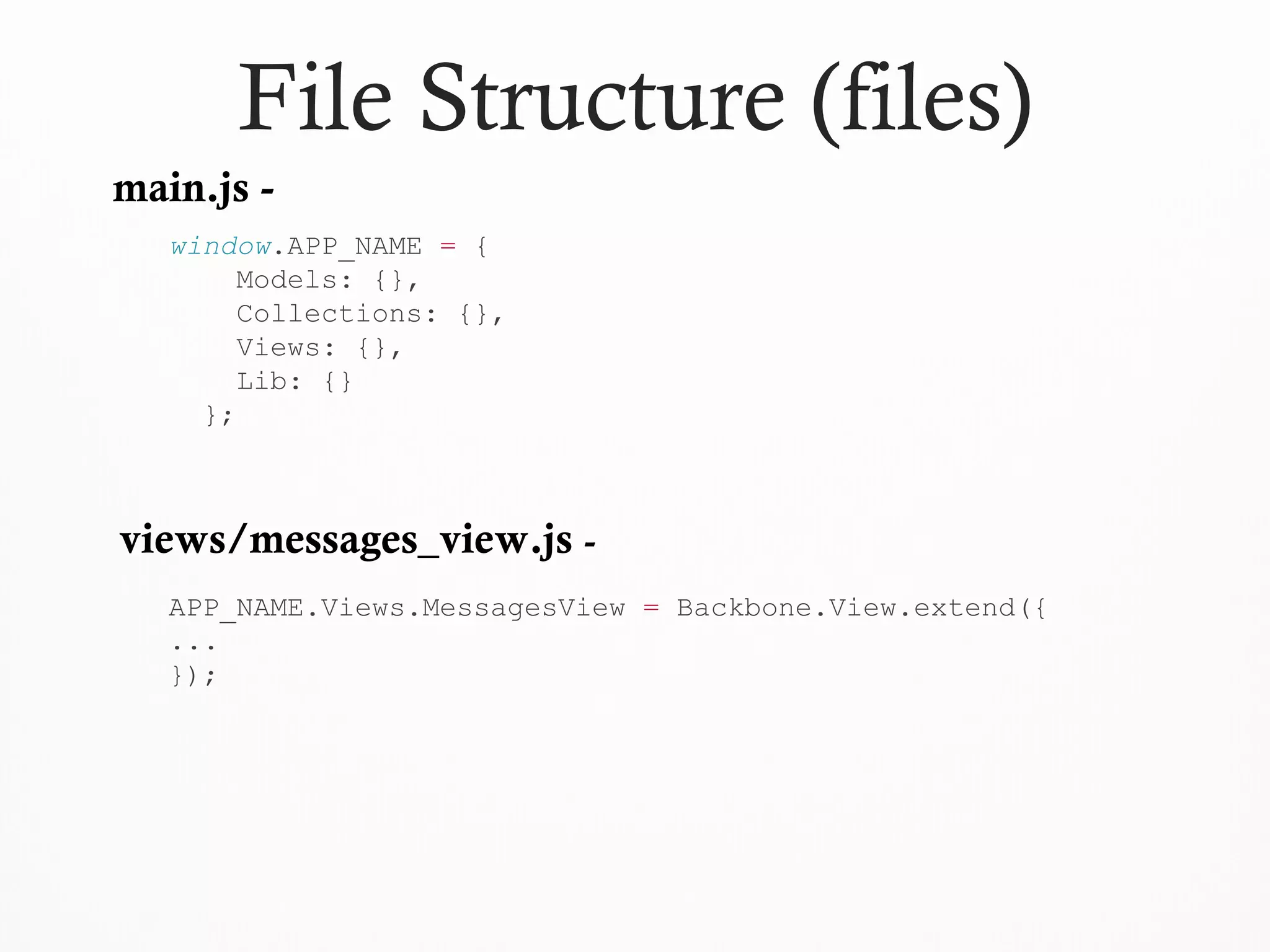

File Structure (files)
window.APP_NAME = {
Models: {},
Collections: {},
Views: {},
Lib: {}
};
main.js -
views/messages_view.js -
APP_NAME.Views.MessagesView = Backbone.View.extend({
...
});

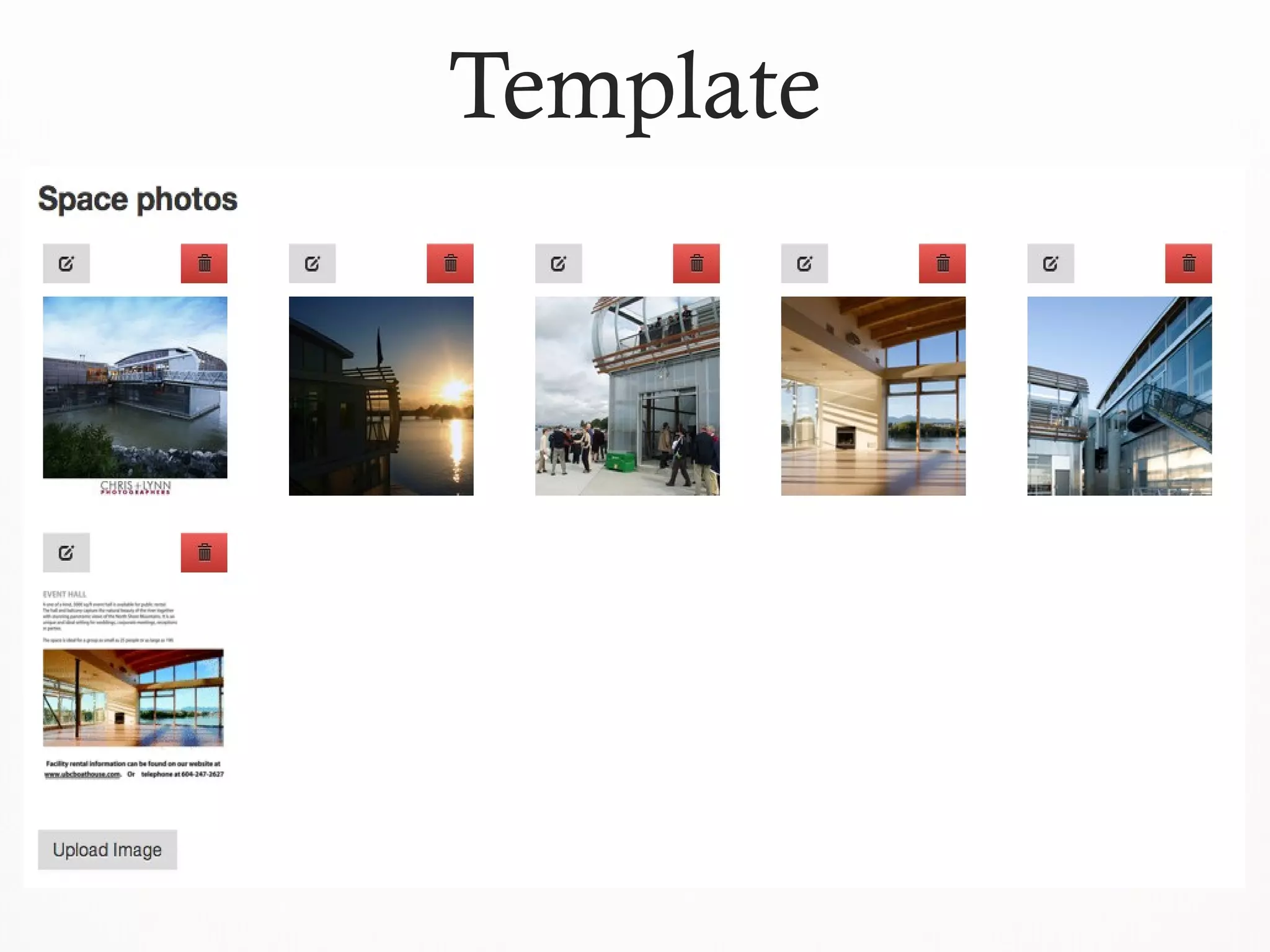

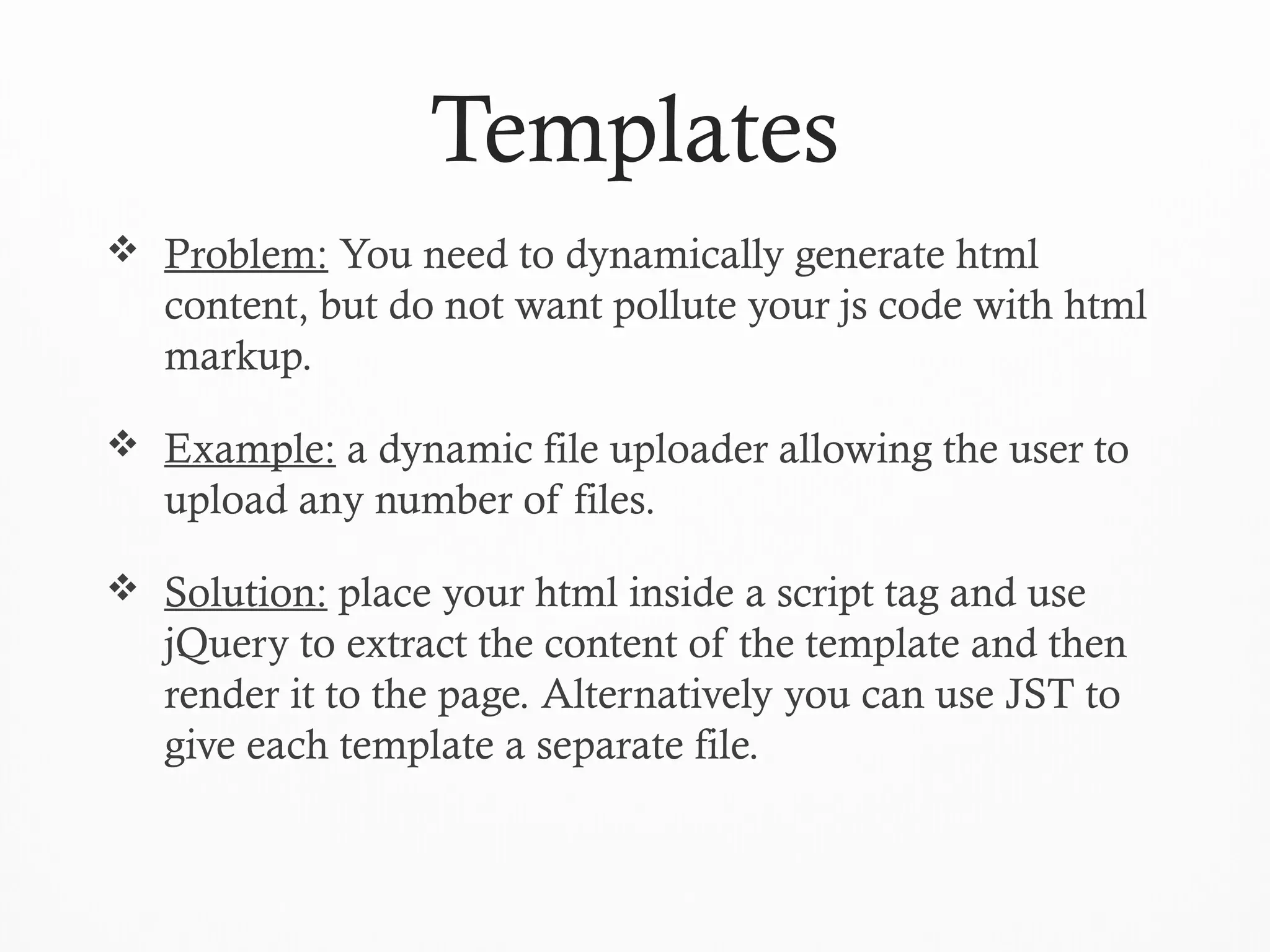

Templates
 Problem: You need to dynamically generate html
content, but do not want pollute your js code with html
markup.
 Example: a dynamic file uploader allowing the user to
upload any number of files.
 Solution: place your html inside a script tag and use
jQuery to extract the content of the template and then
render it to the page. Alternatively you can use JST to
give each template a separate file.

16

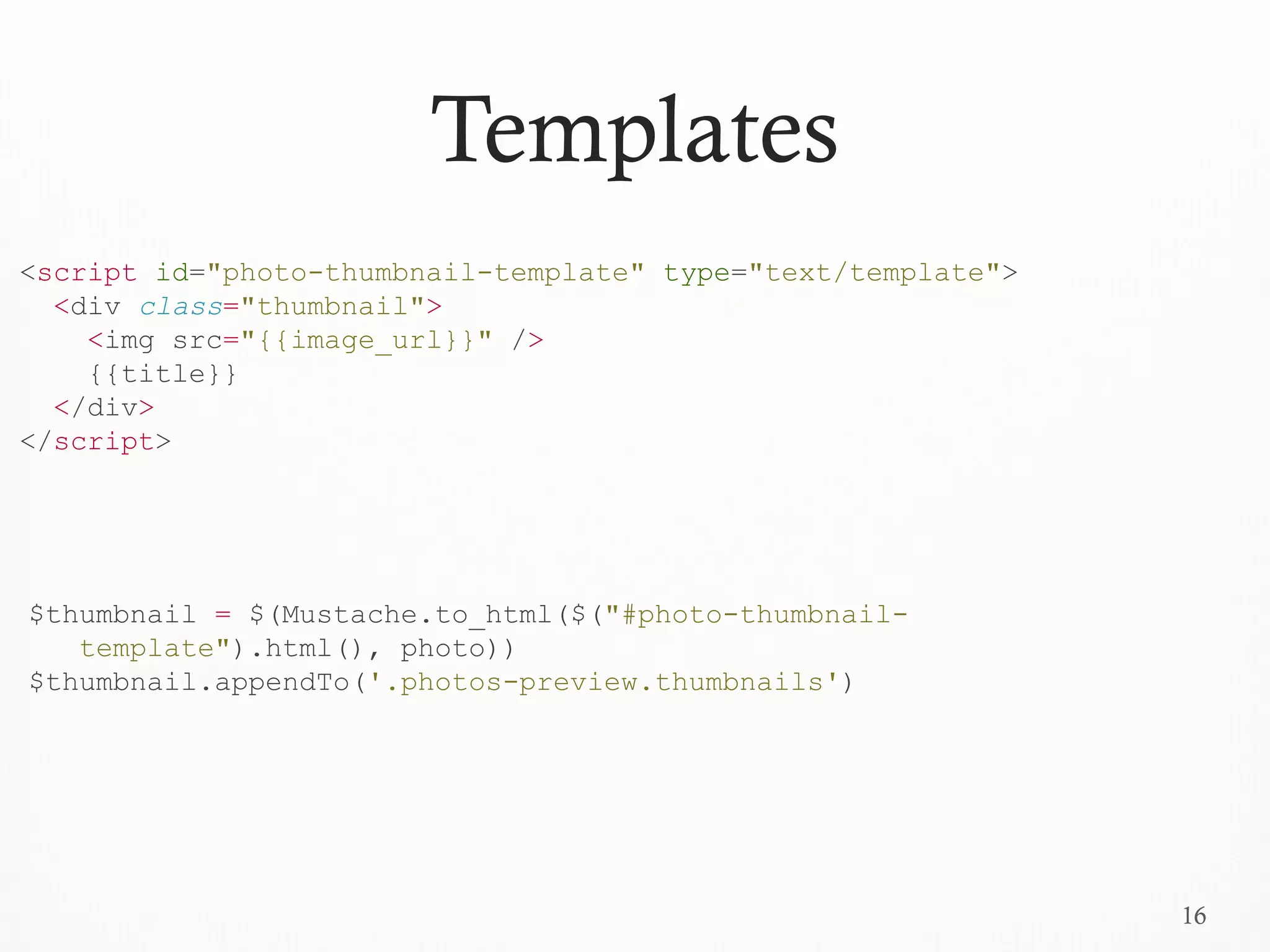

Templates
<script id="photo-thumbnail-template" type="text/template">
<div class="thumbnail">
<img src="{{image_url}}" />
{{title}}
</div>
</script>
$thumbnail = $(Mustache.to_html($("#photo-thumbnail-
template").html(), photo))
$thumbnail.appendTo('.photos-preview.thumbnails')

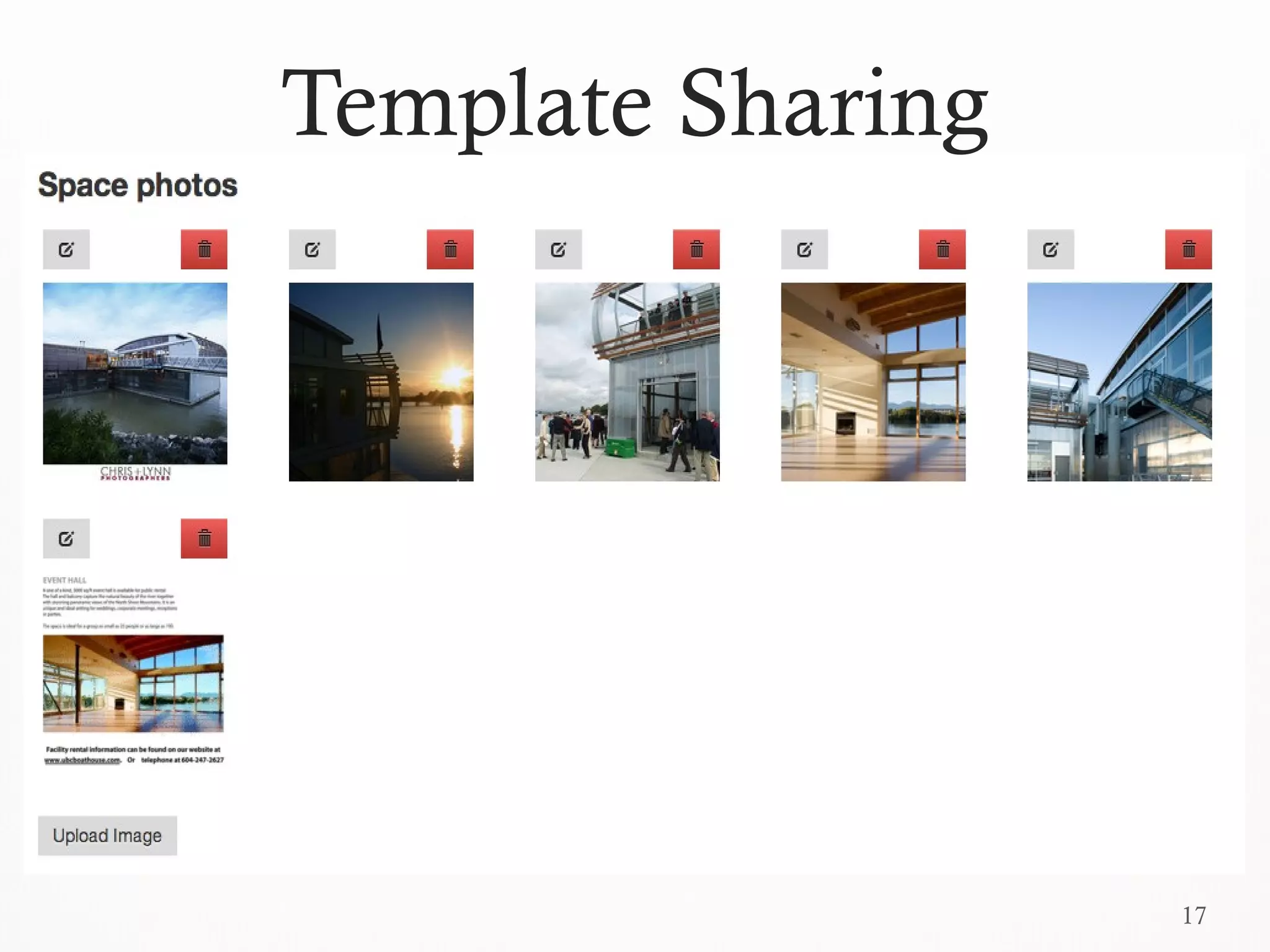

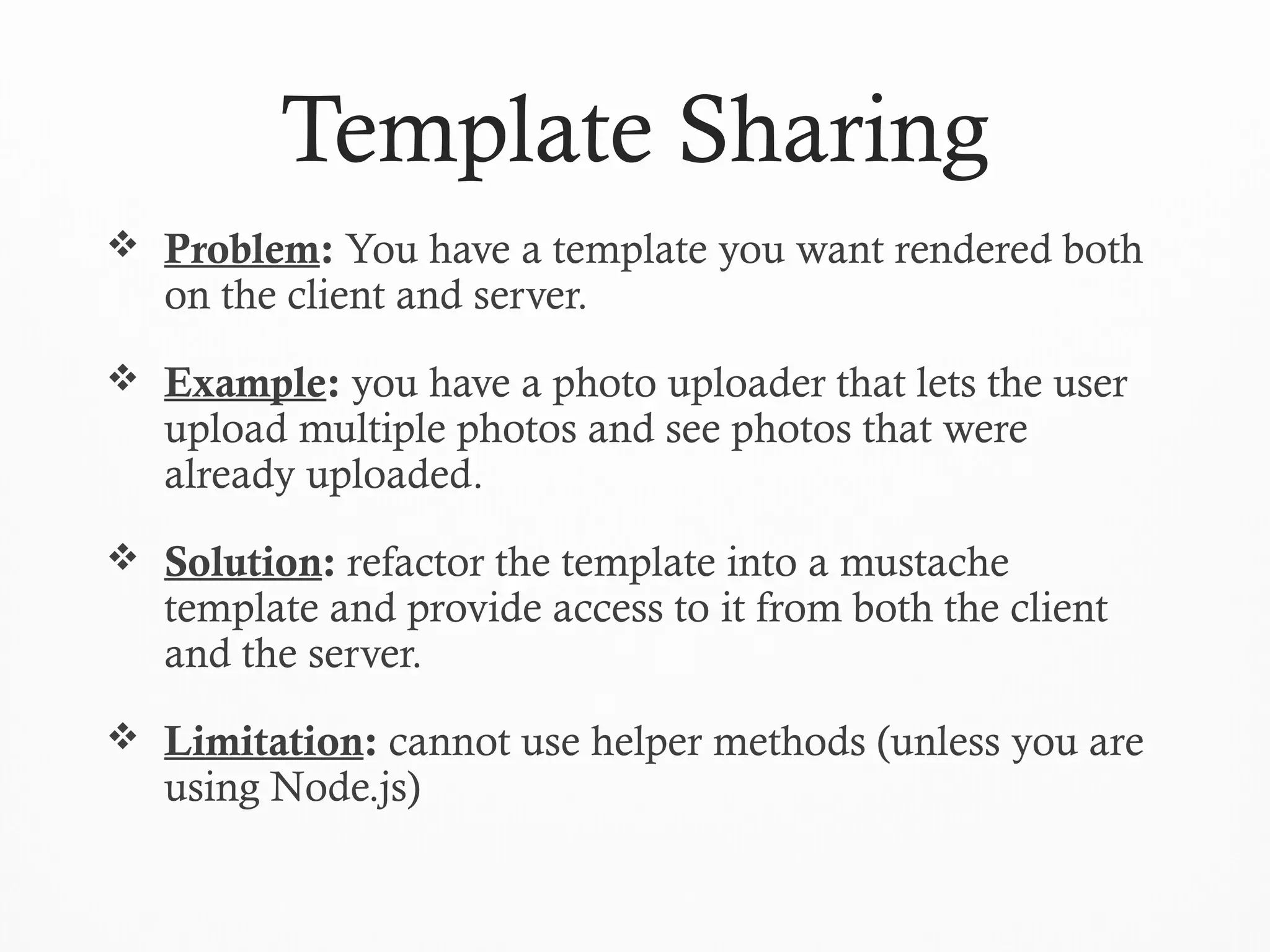

Template Sharing
 Problem: You have a template you want rendered both
on the client and server.
 Example: you have a photo uploader that lets the user
upload multiple photos and see photos that were
already uploaded.
 Solution: refactor the template into a mustache
template and provide access to it from both the client
and the server.
 Limitation: cannot use helper methods (unless you are
using Node.js)

19

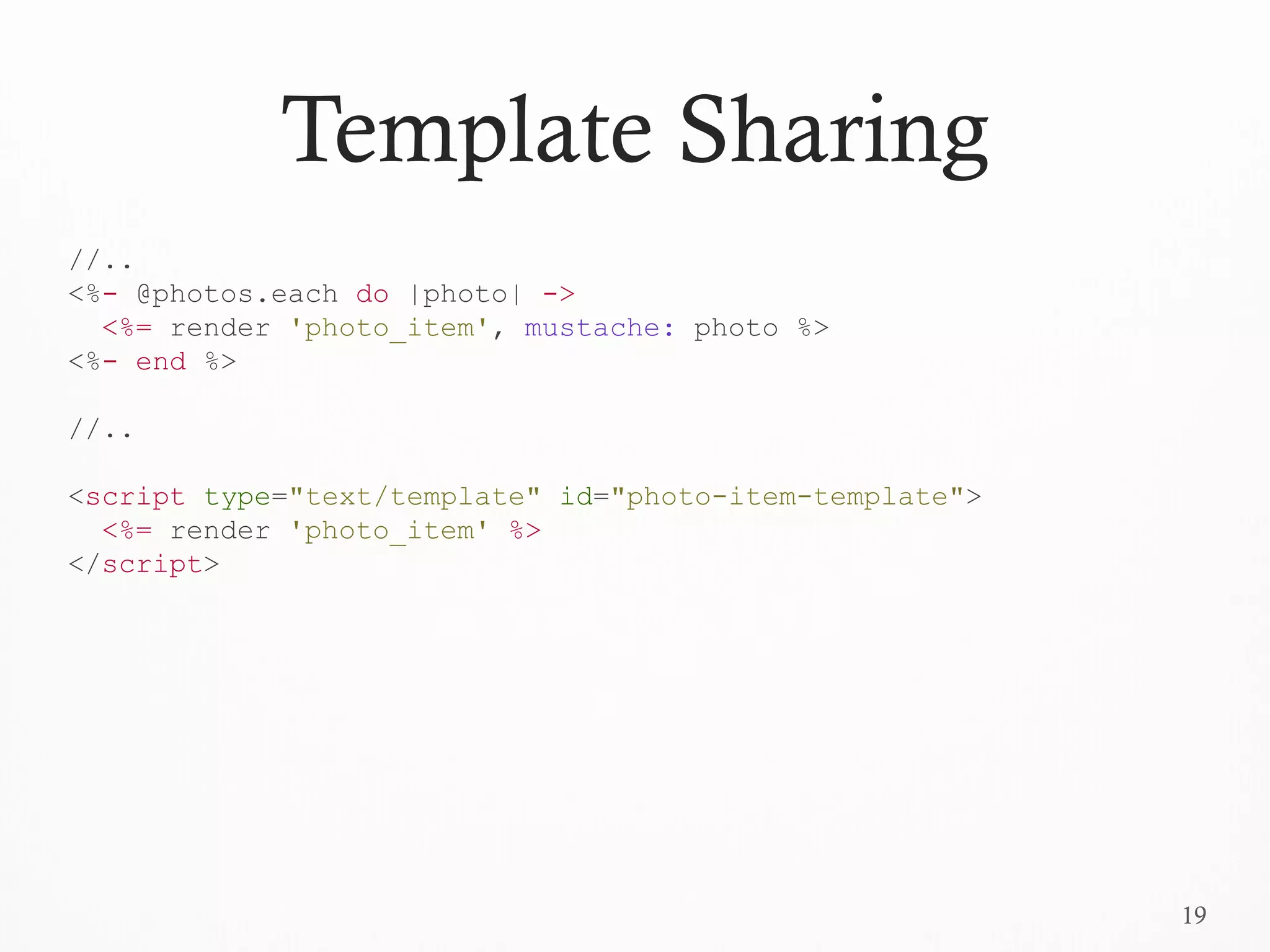

Template Sharing
//..
<%- @photos.each do |photo| ->
<%= render 'photo_item', mustache: photo %>
<%- end %>
//..
<script type="text/template" id="photo-item-template">
<%= render 'photo_item' %>
</script>

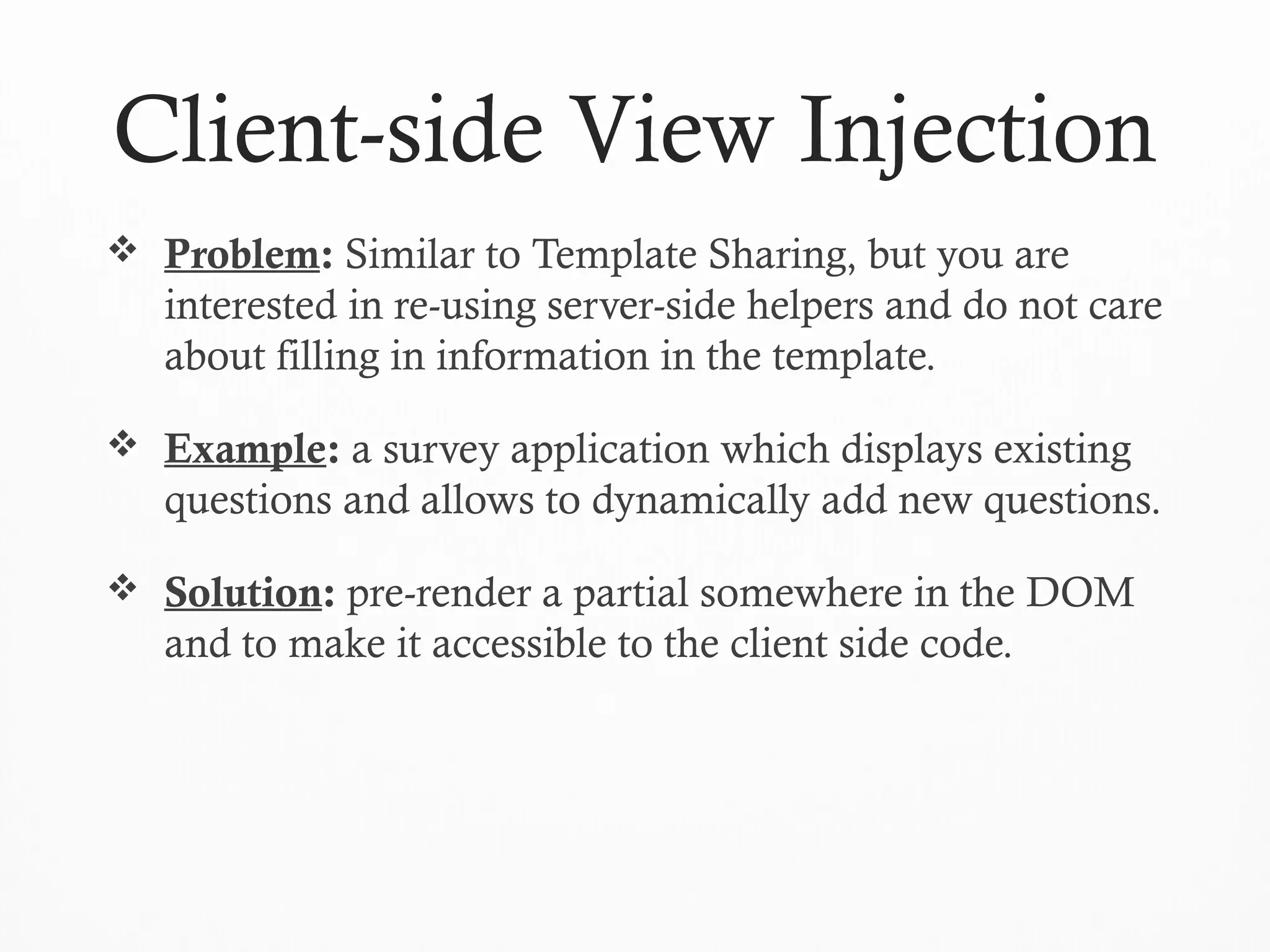

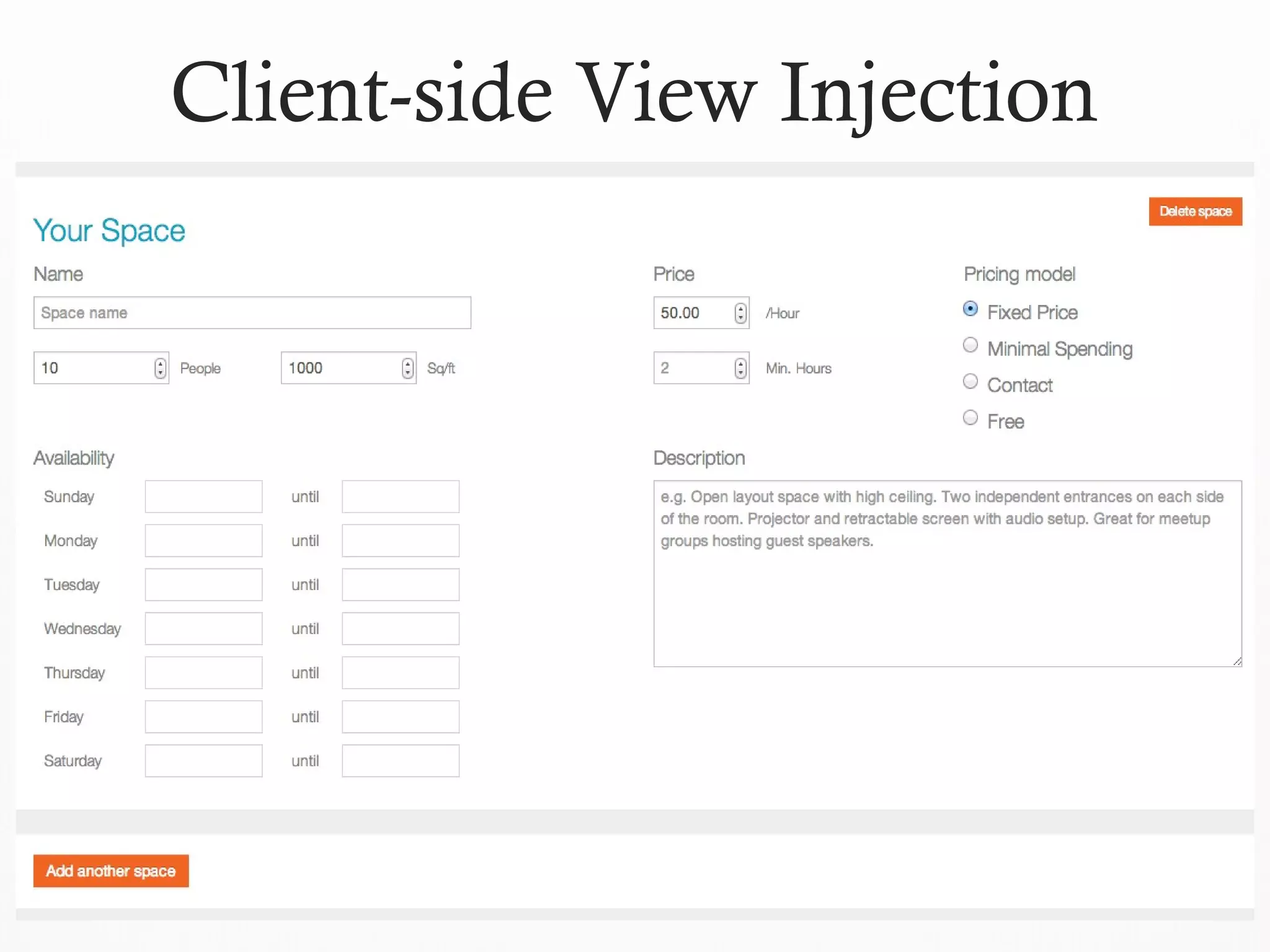

Client-side View Injection
 Problem: Similar to Template Sharing, but you are
interested in re-using server-side helpers and do not care
about filling in information in the template.
 Example: a survey application which displays existing
questions and allows to dynamically add new questions.
 Solution: pre-render a partial somewhere in the DOM
and to make it accessible to the client side code.

22

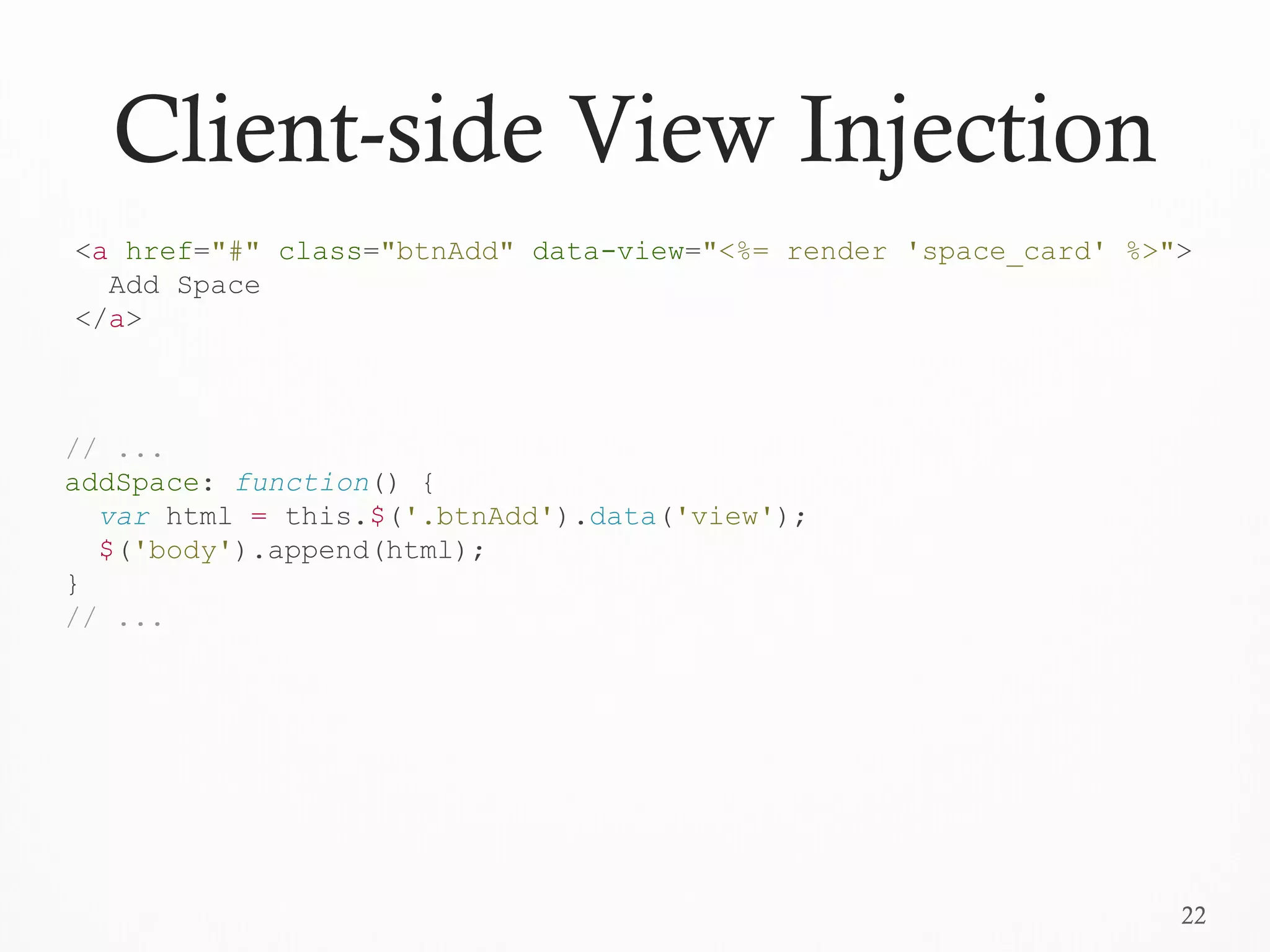

Client-side View Injection
// ...
addSpace: function() {
var html = this.$('.btnAdd').data('view');
$('body').append(html);
}
// ...
<a href="#" class="btnAdd" data-view="<%= render 'space_card' %>">
Add Space
</a>

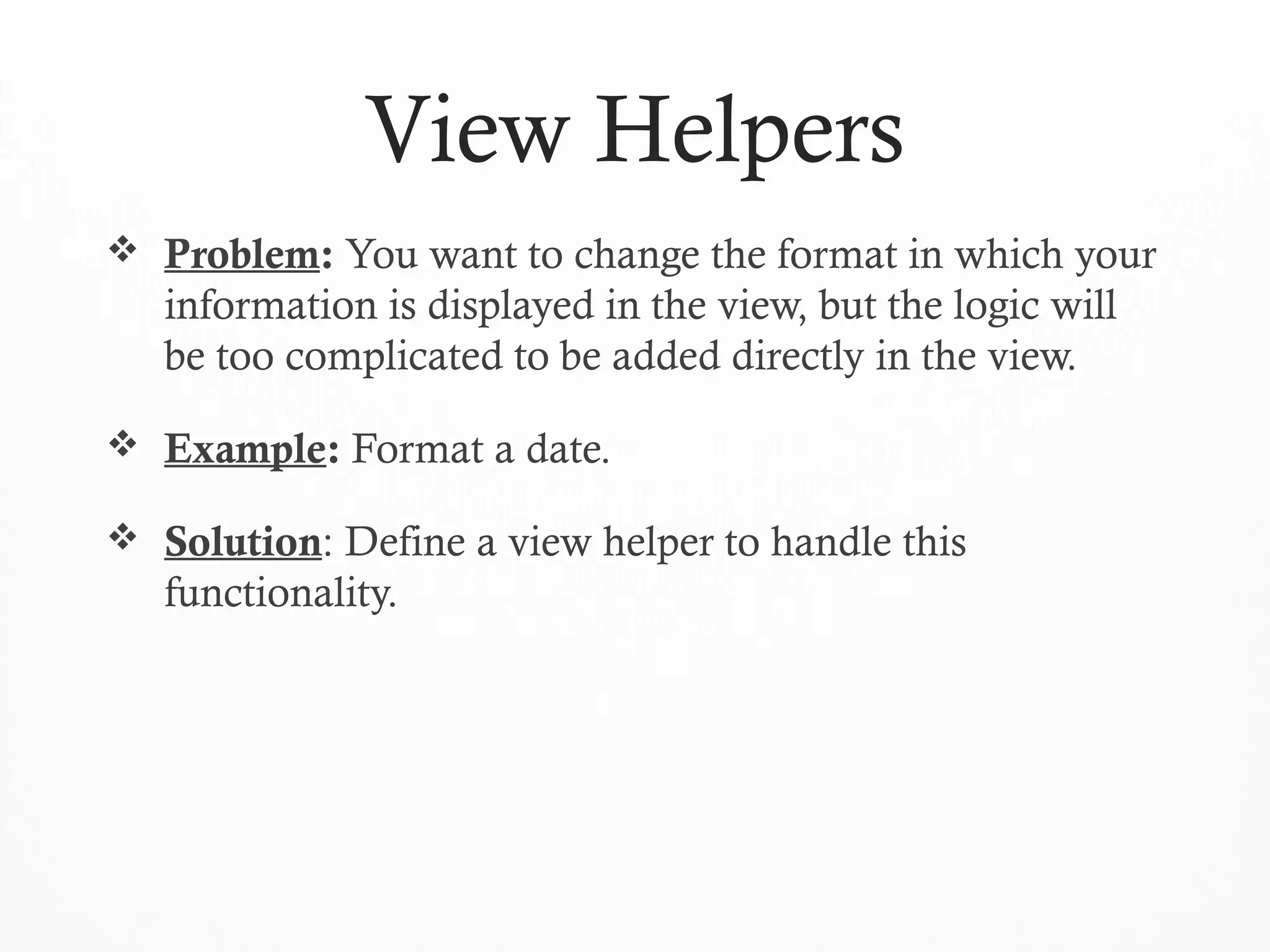

View Helpers
 Problem: You want to change the format in which your
information is displayed in the view, but the logic will
be too complicated to be added directly in the view.
 Example: Format a date.
 Solution: Define a view helper to handle this
functionality.

24

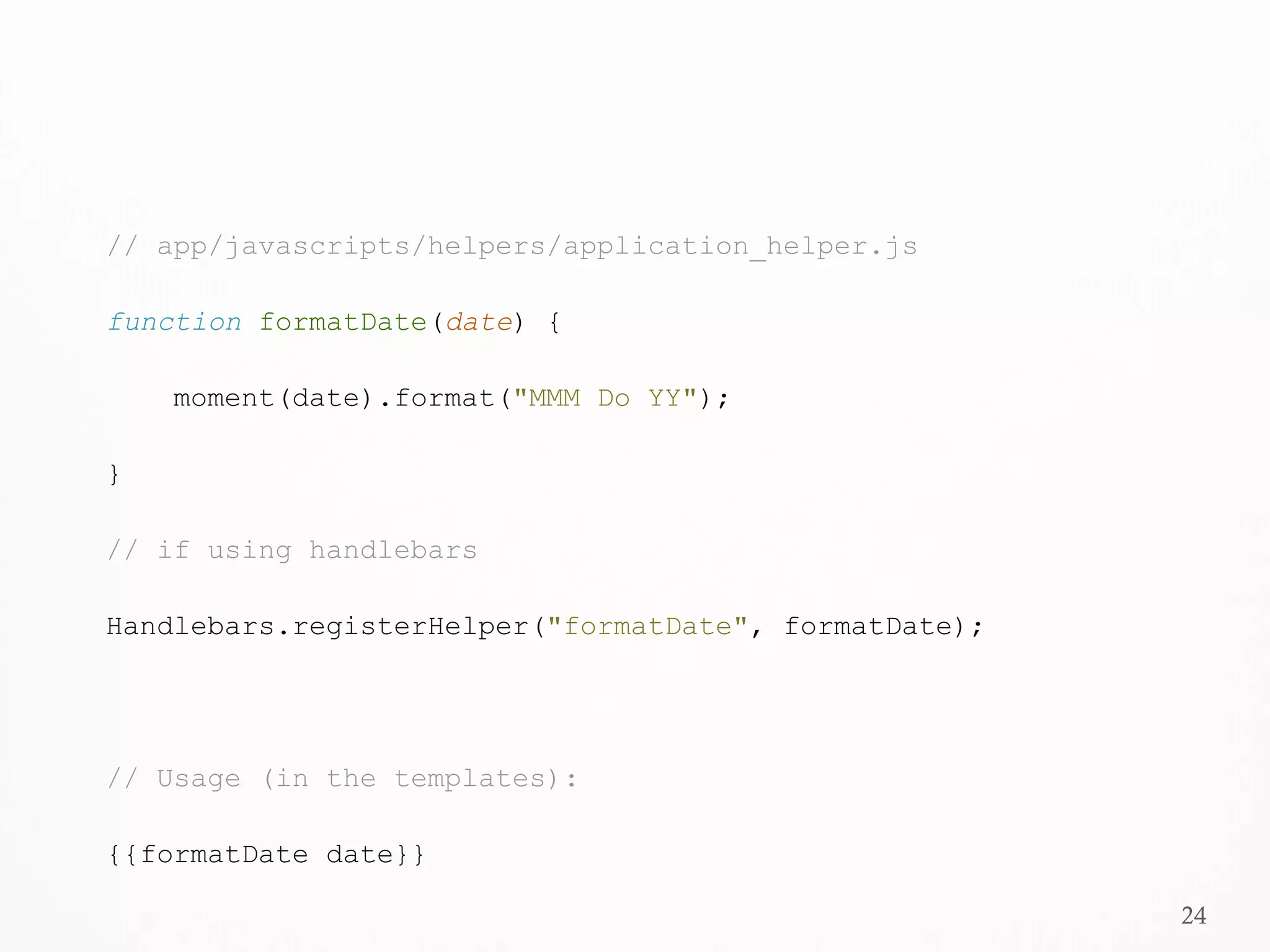

// app/javascripts/helpers/application_helper.js
function formatDate(date) {
moment(date).format("MMM Do YY");
}
// if using handlebars
Handlebars.registerHelper("formatDate", formatDate);
// Usage (in the templates):
{{formatDate date}}

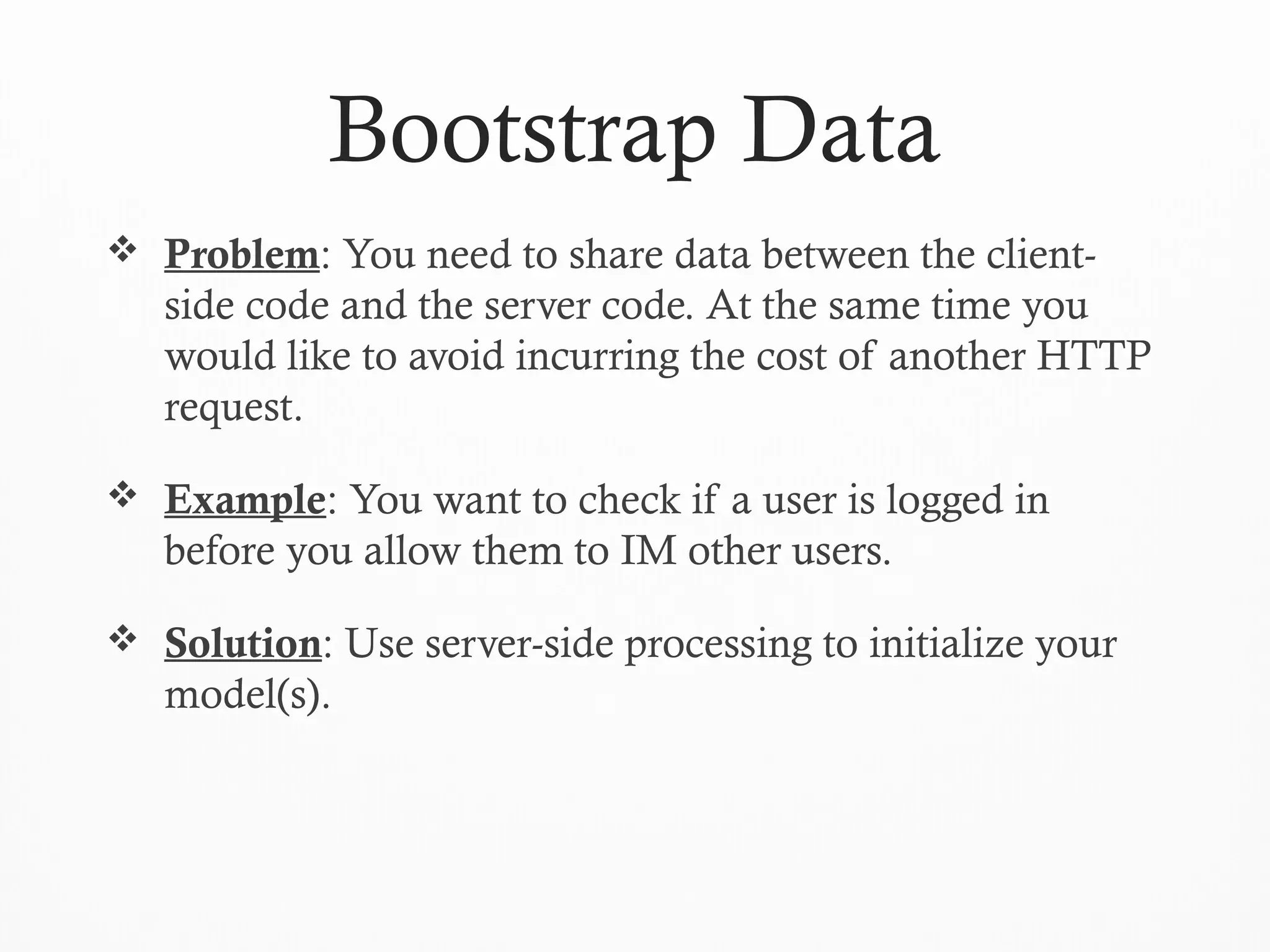

Bootstrap Data
 Problem: You need to share data between the client-
side code and the server code. At the same time you
would like to avoid incurring the cost of another HTTP
request.
 Example: You want to check if a user is logged in
before you allow them to IM other users.
 Solution: Use server-side processing to initialize your
model(s).

26

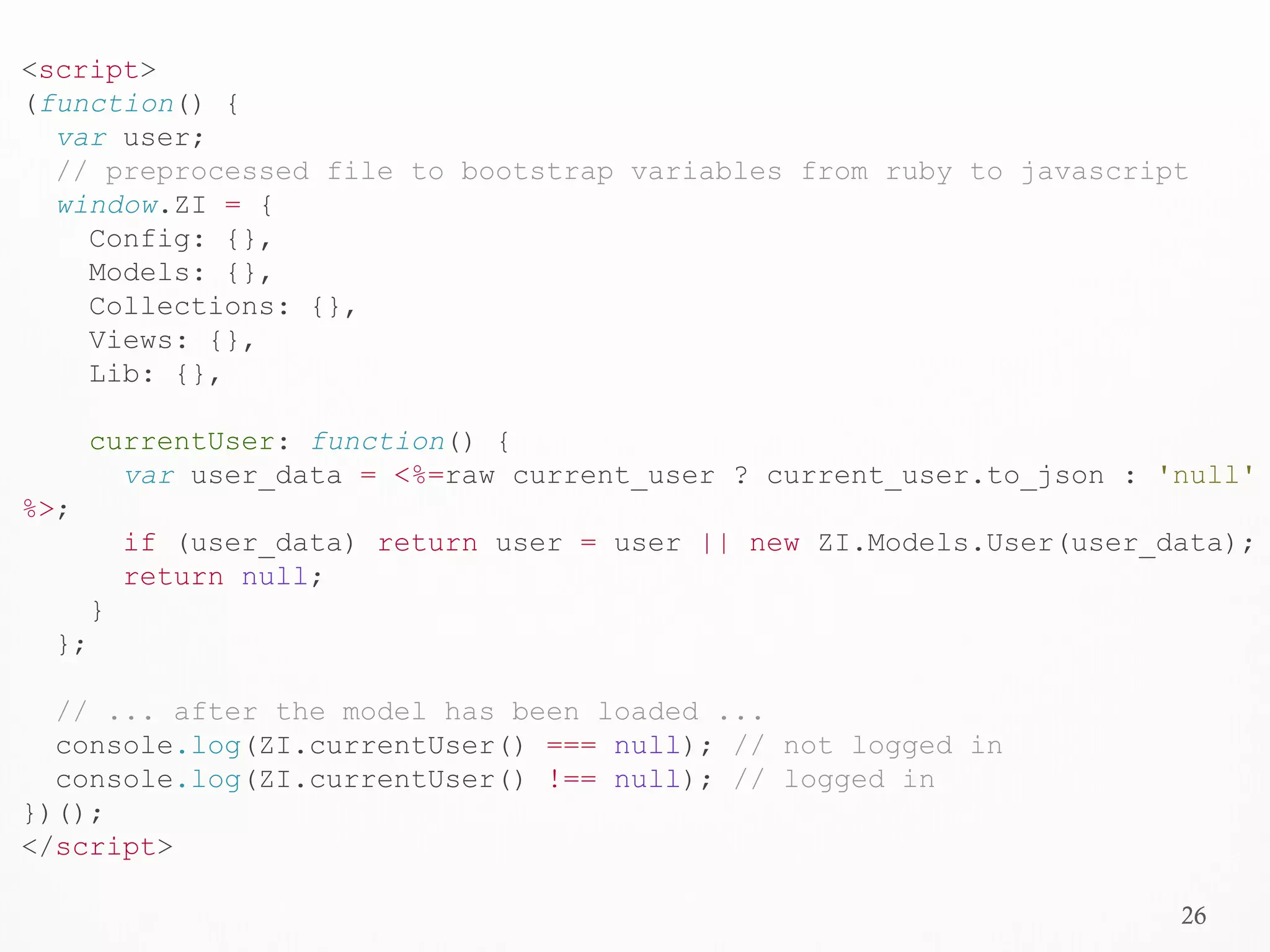

<script>
(function() {
var user;
// preprocessed file to bootstrap variables from ruby to javascript
window.ZI = {
Config: {},
Models: {},
Collections: {},
Views: {},
Lib: {},
currentUser: function() {
var user_data = <%=raw current_user ? current_user.to_json : 'null'
%>;
if (user_data) return user = user || new ZI.Models.User(user_data);
return null;
}
};
// ... after the model has been loaded ...
console.log(ZI.currentUser() === null); // not logged in
console.log(ZI.currentUser() !== null); // logged in
})();
</script>

27

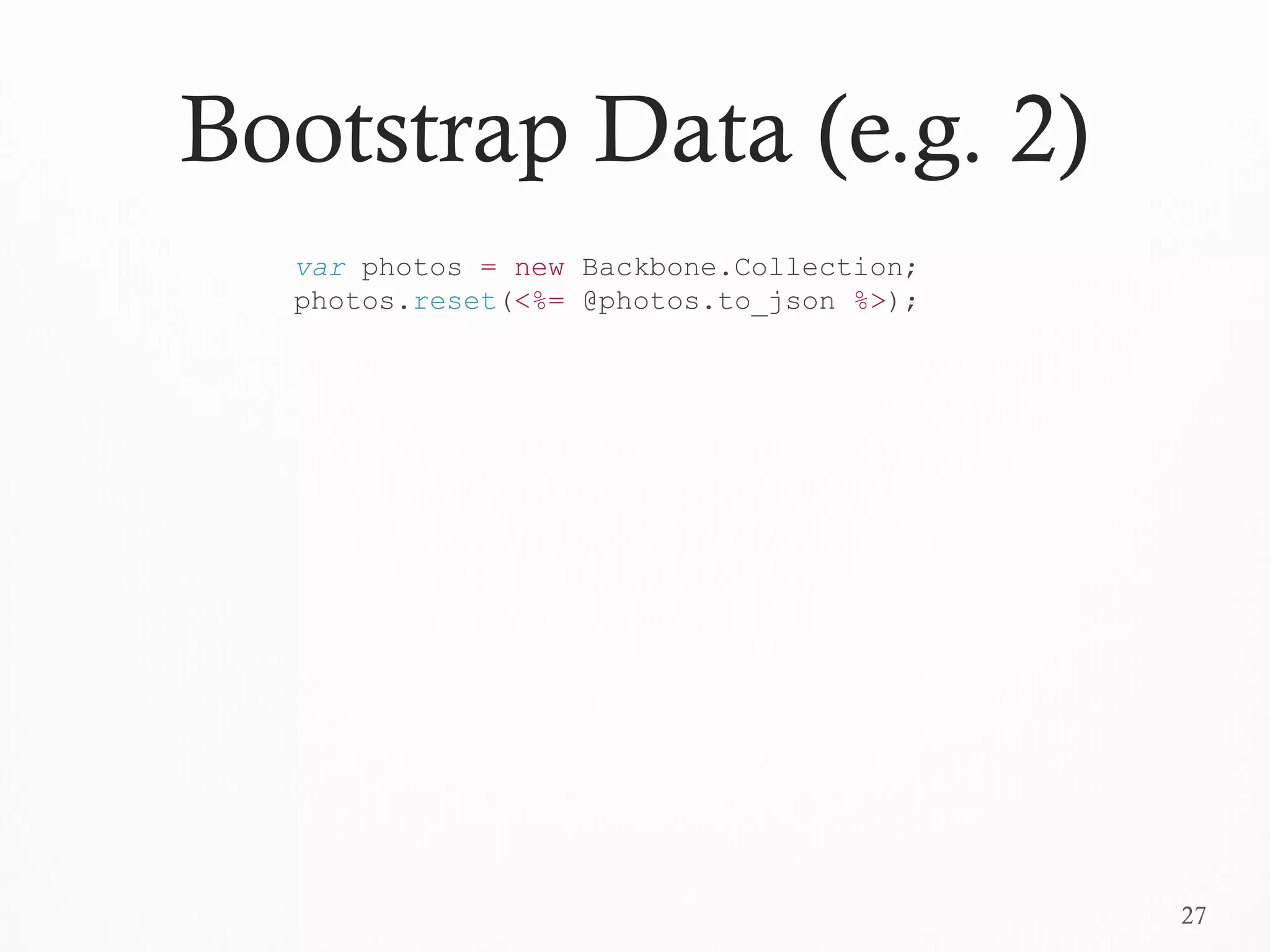

Bootstrap Data (e.g. 2)
var photos = new Backbone.Collection;
photos.reset(<%= @photos.to_json %>);

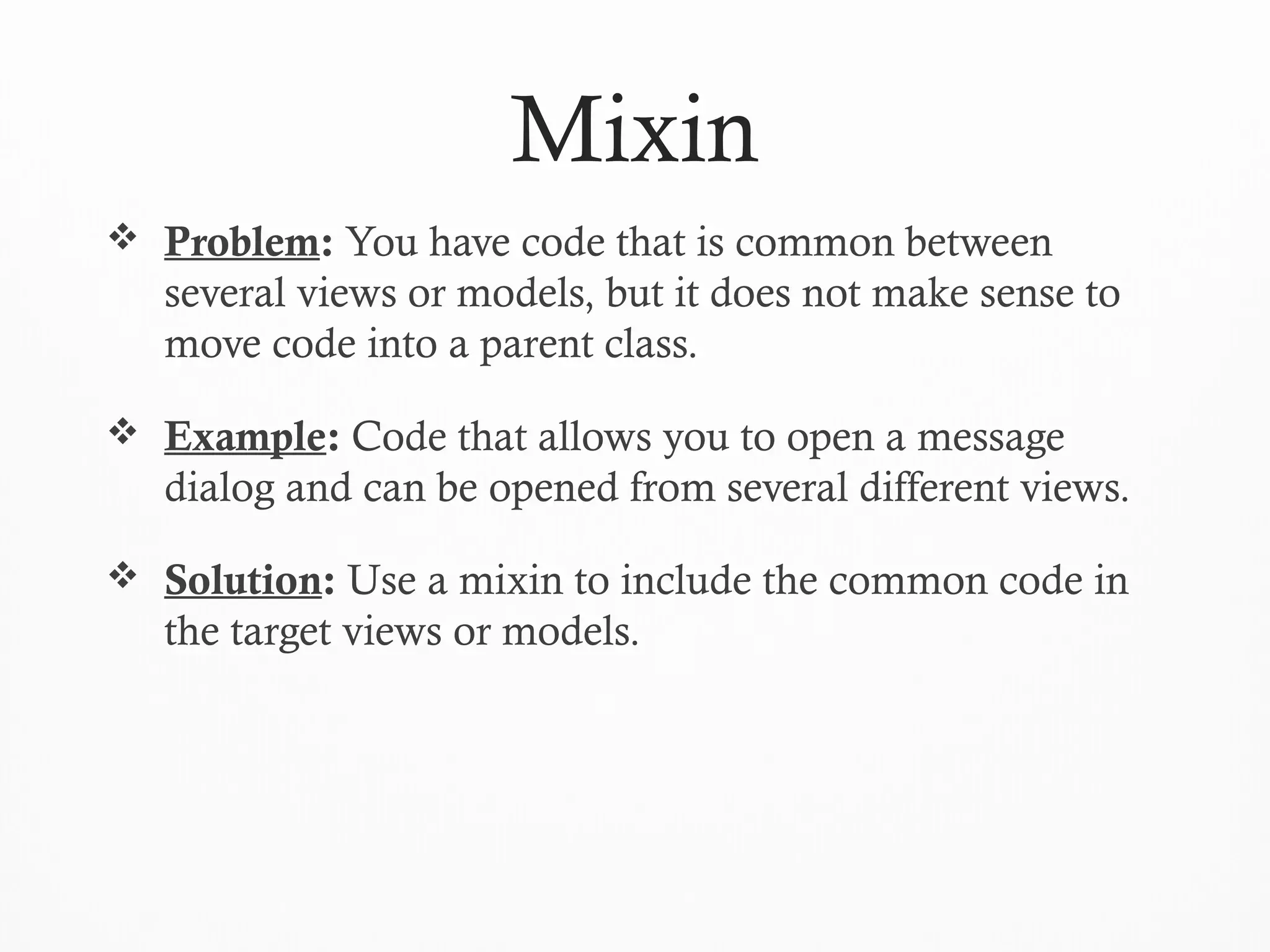

Mixin
 Problem: You have code that is common between
several views or models, but it does not make sense to
move code into a parent class.
 Example: Code that allows you to open a message
dialog and can be opened from several different views.
 Solution: Use a mixin to include the common code in
the target views or models.

29

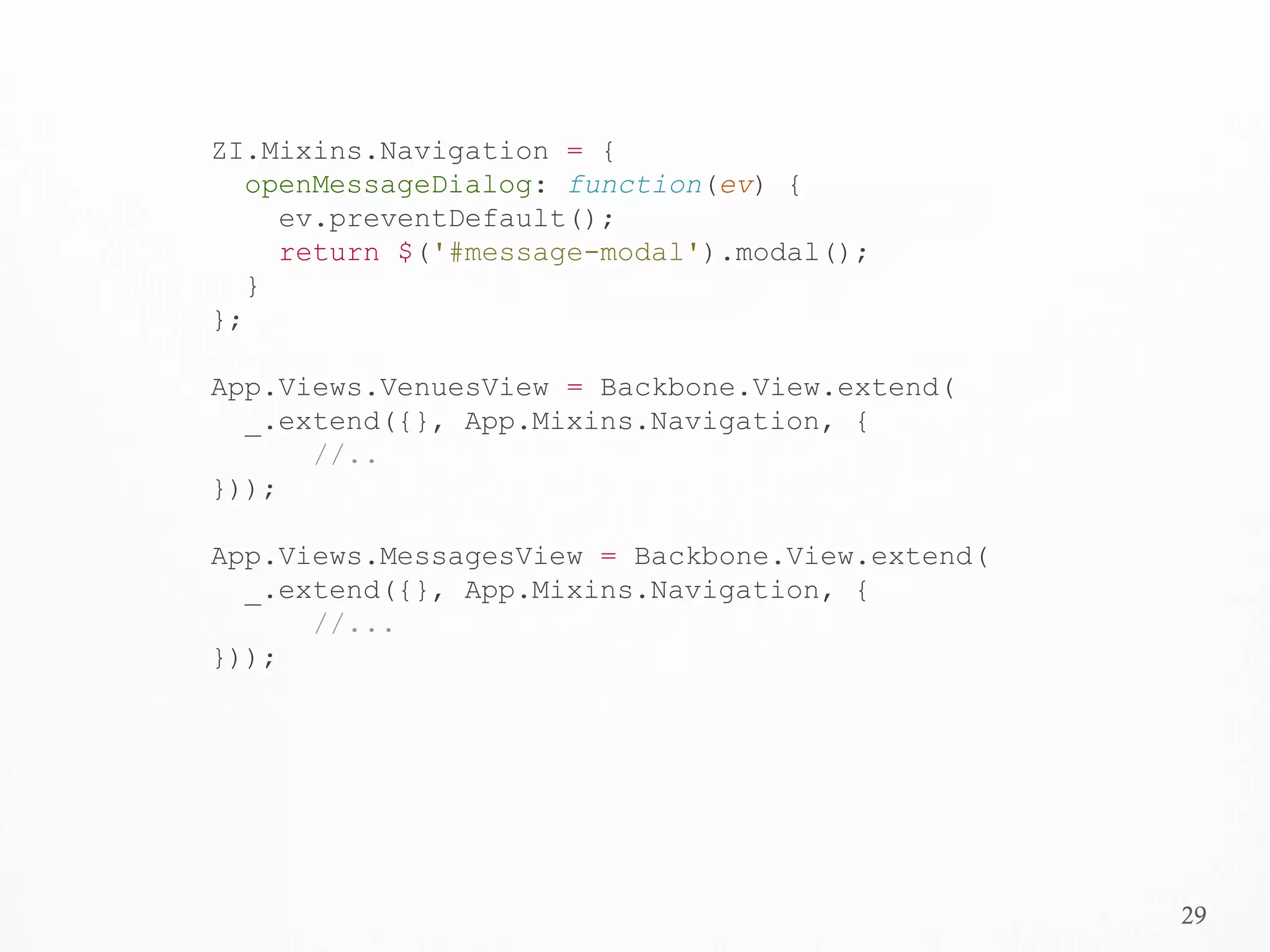

ZI.Mixins.Navigation = {
openMessageDialog: function(ev) {
ev.preventDefault();
return $('#message-modal').modal();
}
};
App.Views.VenuesView = Backbone.View.extend(
_.extend({}, App.Mixins.Navigation, {
//..
}));
App.Views.MessagesView = Backbone.View.extend(
_.extend({}, App.Mixins.Navigation, {
//...
}));

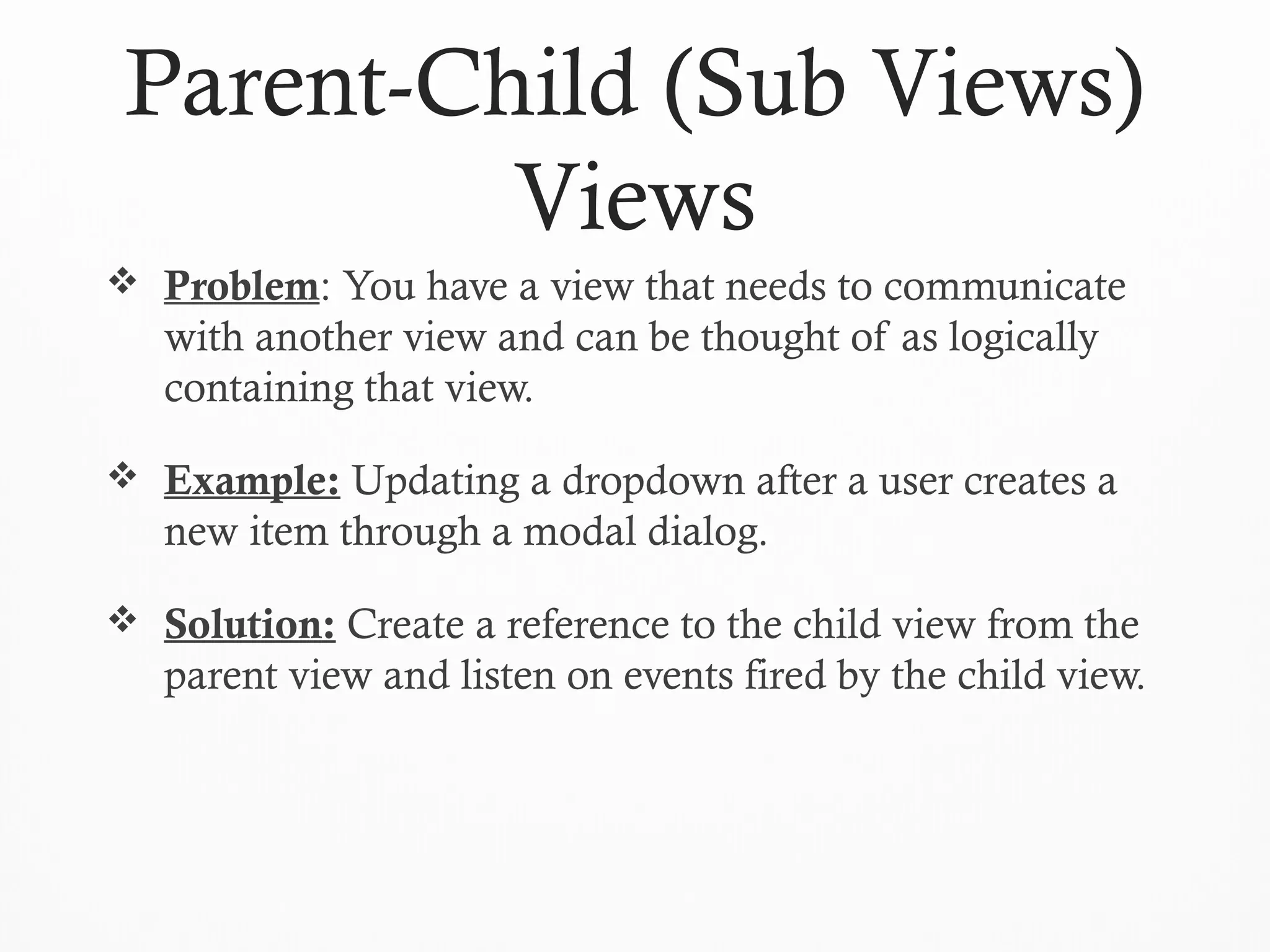

Parent-Child (Sub Views)
Views
 Problem: You have a view that needs to communicate
with another view and can be thought of as logically
containing that view.

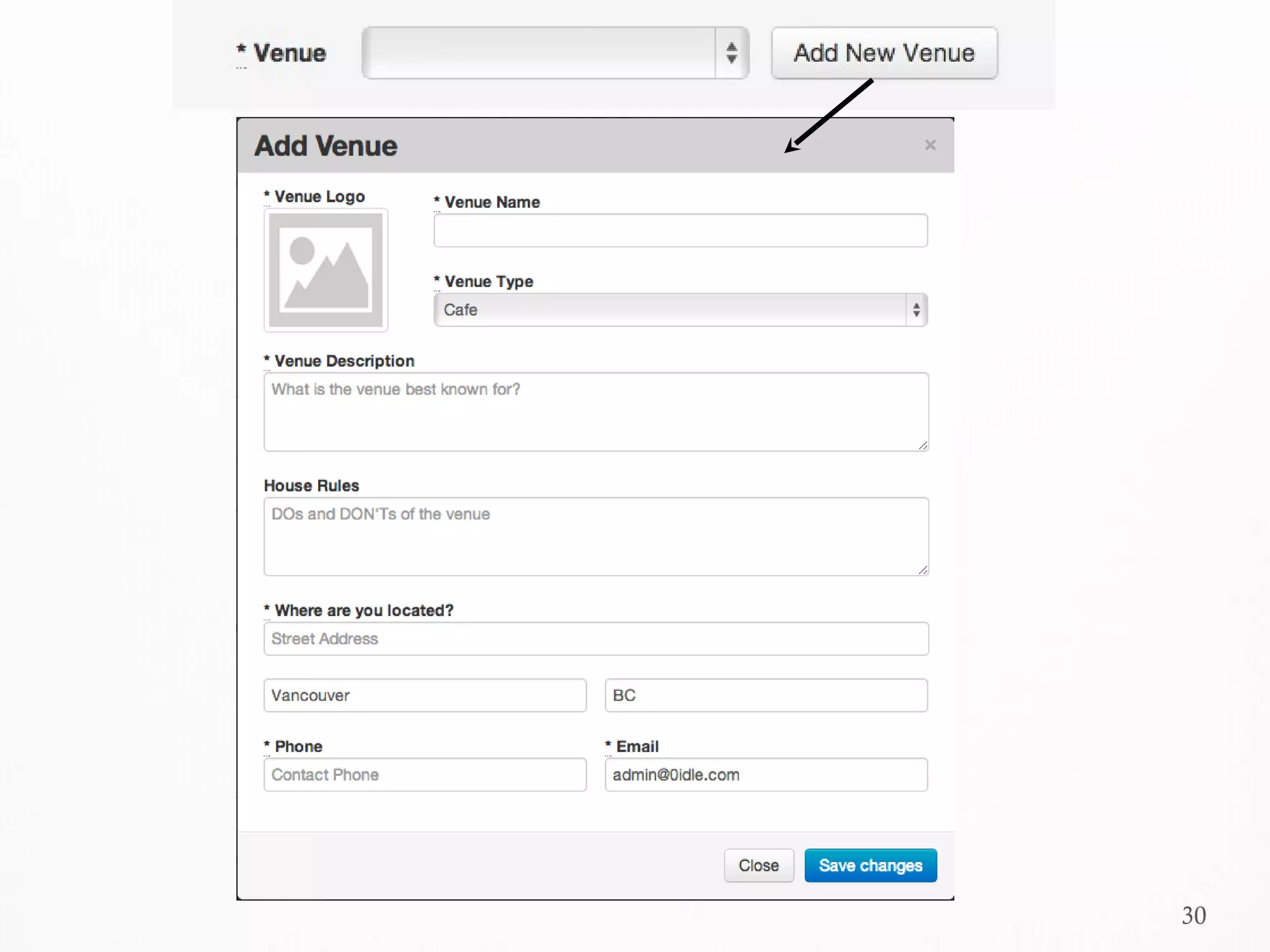

 Example: Updating a dropdown after a user creates a
new item through a modal dialog.
 Solution: Create a reference to the child view from the
parent view and listen on events fired by the child view.

32

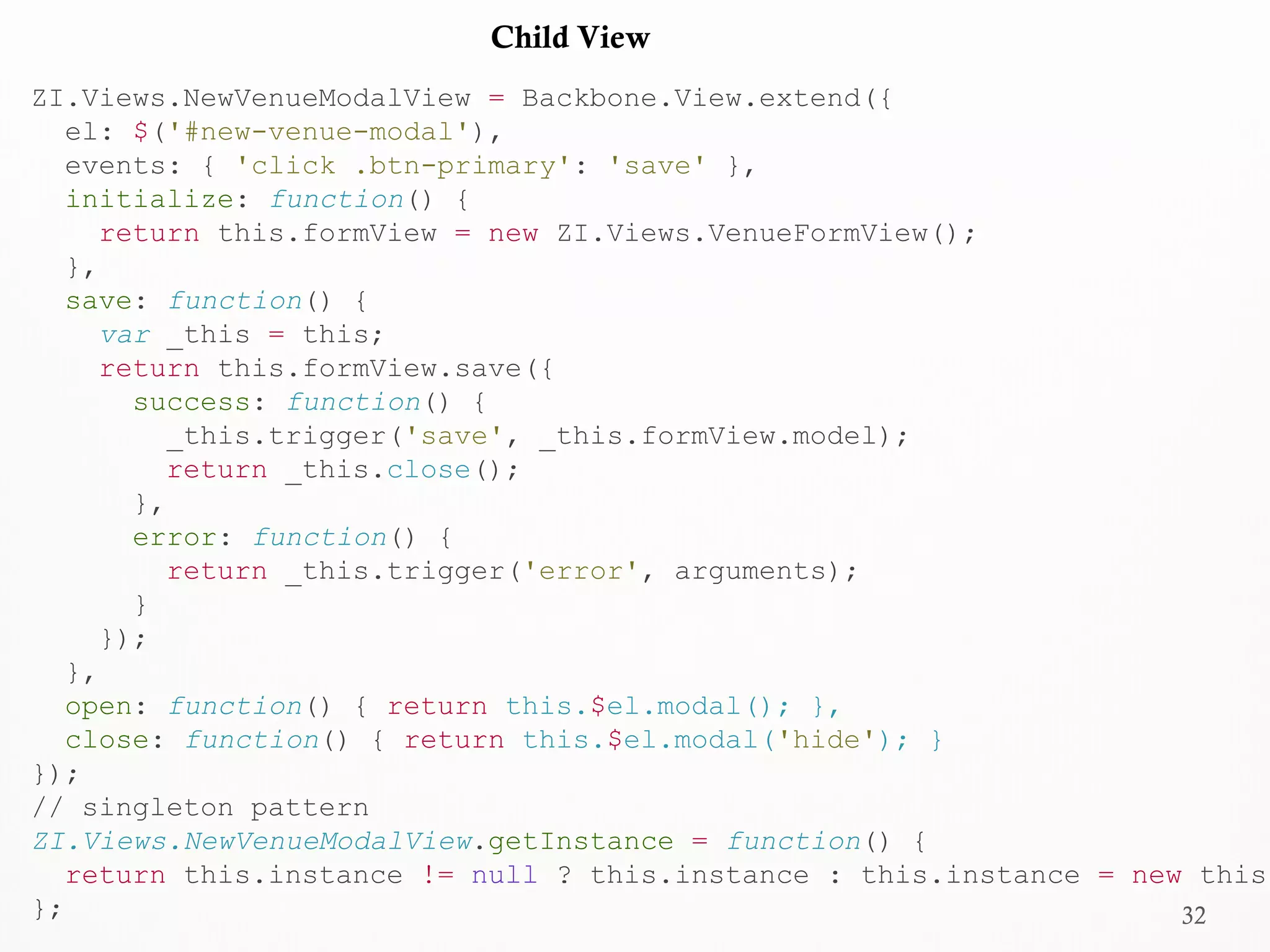

ZI.Views.NewVenueModalView = Backbone.View.extend({
el: $('#new-venue-modal'),
events: { 'click .btn-primary': 'save' },
initialize: function() {
return this.formView = new ZI.Views.VenueFormView();
},
save: function() {
var _this = this;
return this.formView.save({
success: function() {
_this.trigger('save', _this.formView.model);
return _this.close();
},
error: function() {
return _this.trigger('error', arguments);
}
});
},
open: function() { return this.$el.modal(); },
close: function() { return this.$el.modal('hide'); }
});
// singleton pattern
ZI.Views.NewVenueModalView.getInstance = function() {
return this.instance != null ? this.instance : this.instance = new this;
};
Child View

33

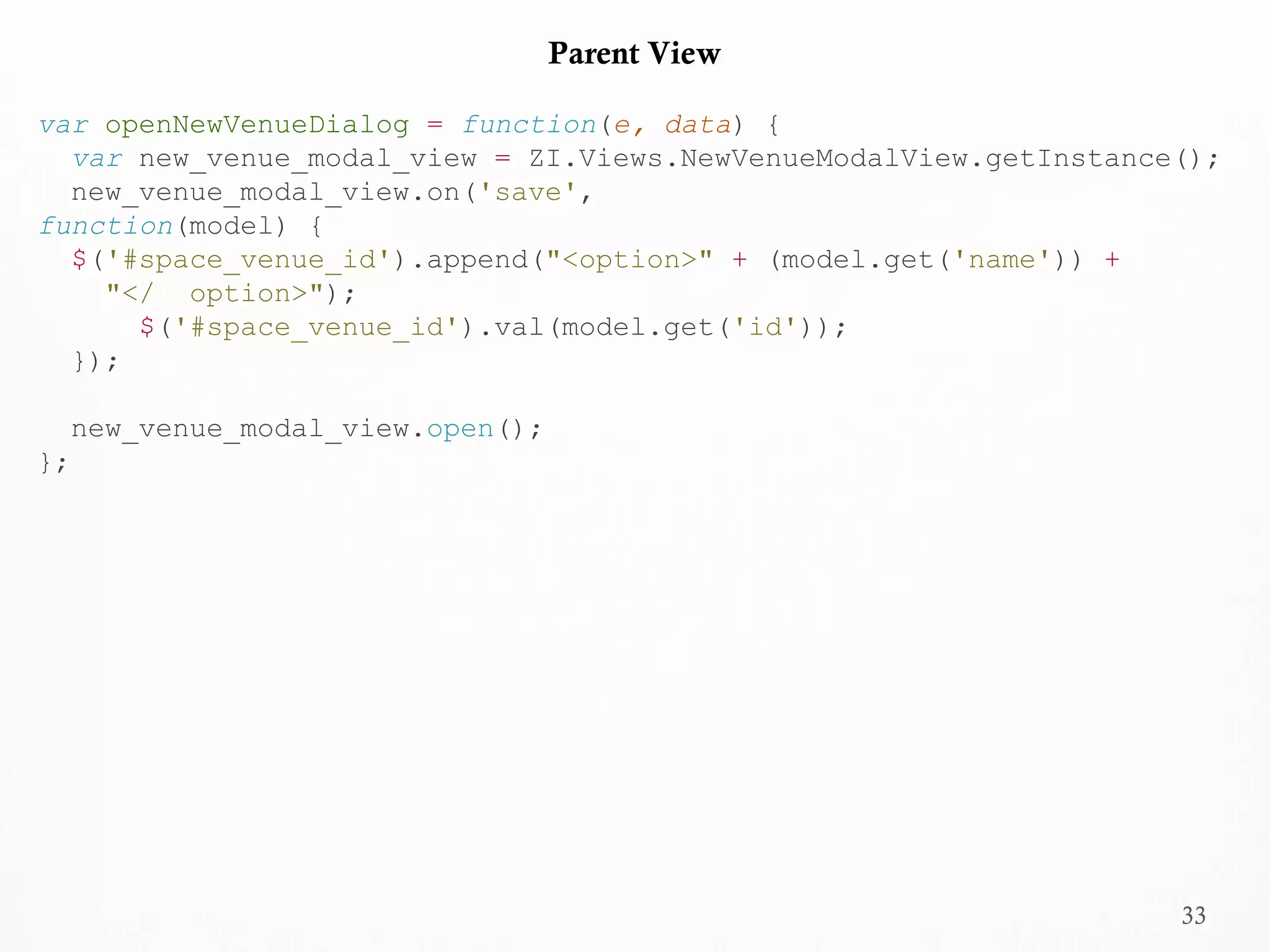

Parent View
var openNewVenueDialog = function(e, data) {
var new_venue_modal_view = ZI.Views.NewVenueModalView.getInstance();
new_venue_modal_view.on('save',
function(model) {
$('#space_venue_id').append("<option>" + (model.get('name')) +
"</ option>");
$('#space_venue_id').val(model.get('id'));
});
new_venue_modal_view.open();
};

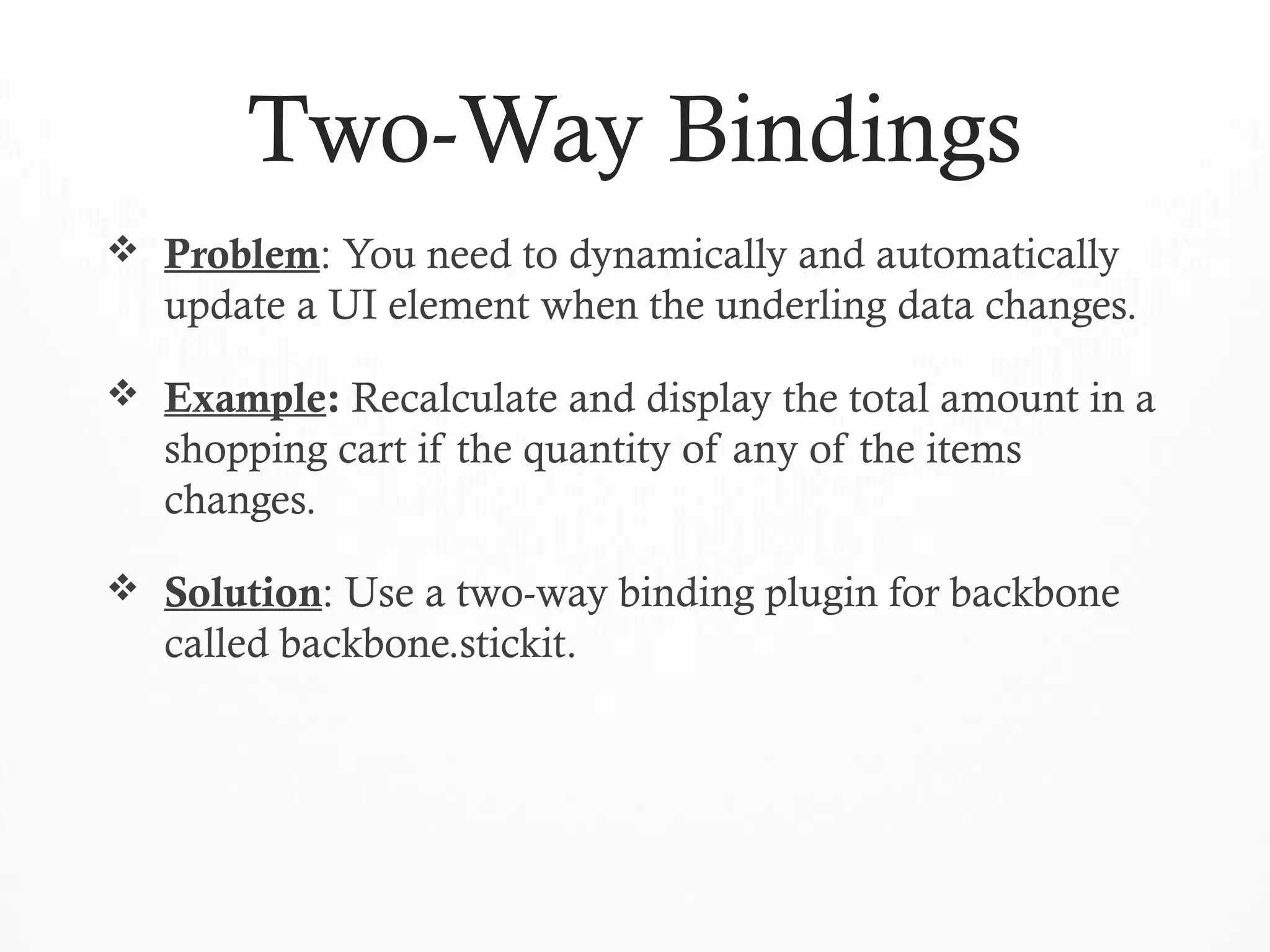

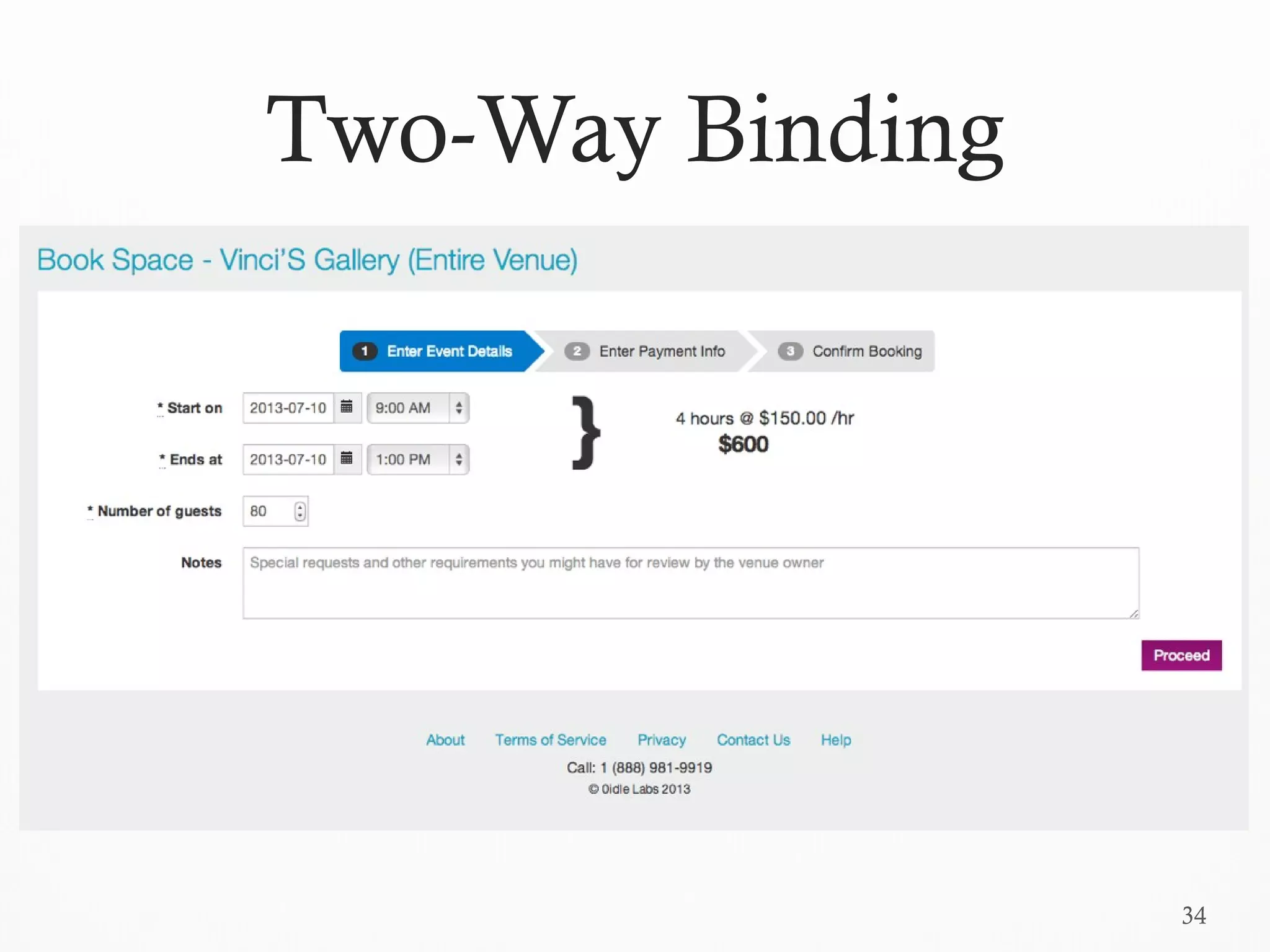

Two-Way Bindings
 Problem: You need to dynamically and automatically
update a UI element when the underling data changes.
 Example: Recalculate and display the total amount in a
shopping cart if the quantity of any of the items
changes.
 Solution: Use a two-way binding plugin for backbone
called backbone.stickit.

36

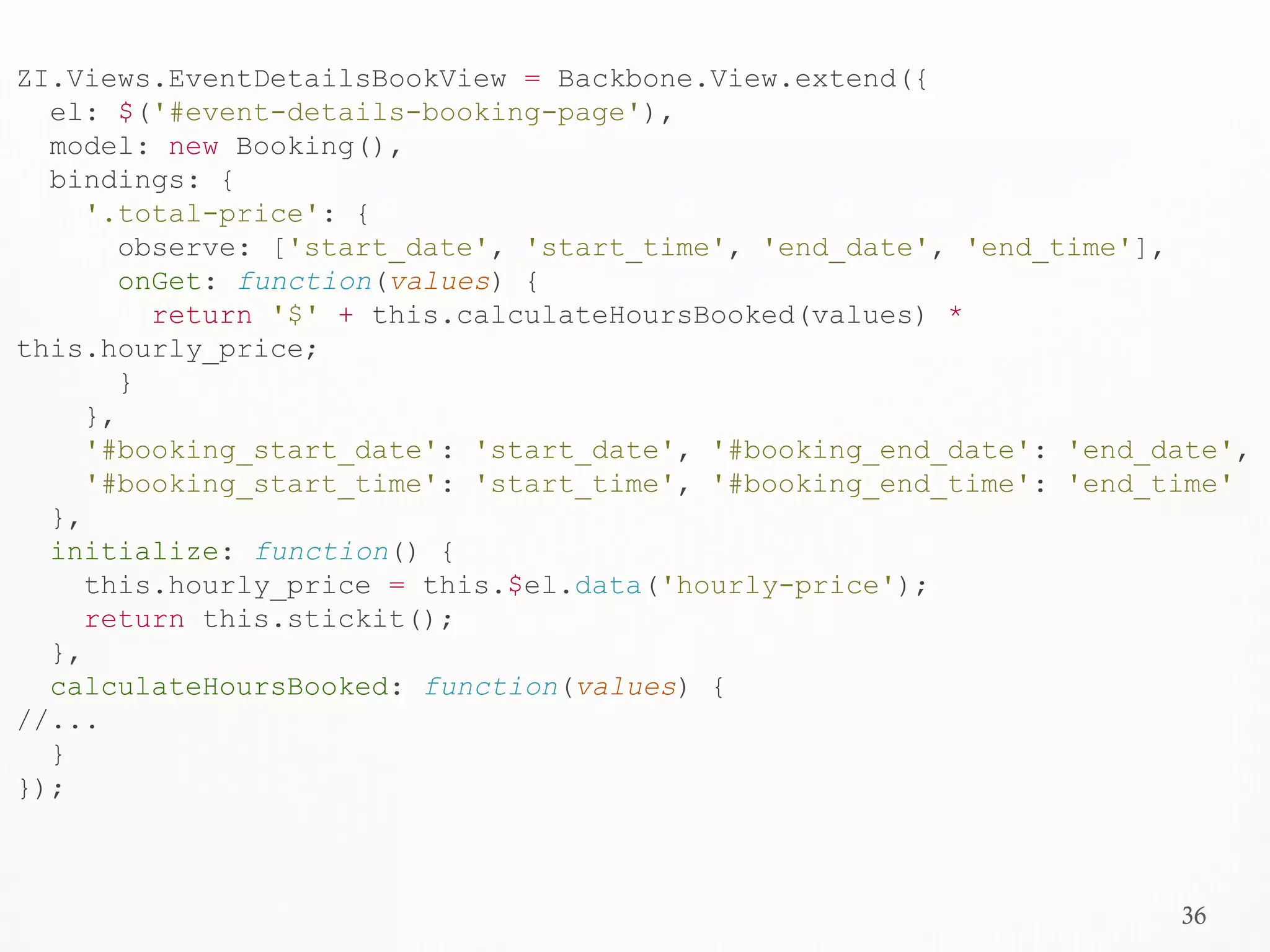

ZI.Views.EventDetailsBookView = Backbone.View.extend({
el: $('#event-details-booking-page'),
model: new Booking(),
bindings: {
'.total-price': {
observe: ['start_date', 'start_time', 'end_date', 'end_time'],
onGet: function(values) {
return '$' + this.calculateHoursBooked(values) *
this.hourly_price;
}
},
'#booking_start_date': 'start_date', '#booking_end_date': 'end_date',
'#booking_start_time': 'start_time', '#booking_end_time': 'end_time'
},
initialize: function() {
this.hourly_price = this.$el.data('hourly-price');
return this.stickit();
},
calculateHoursBooked: function(values) {
//...
}
});

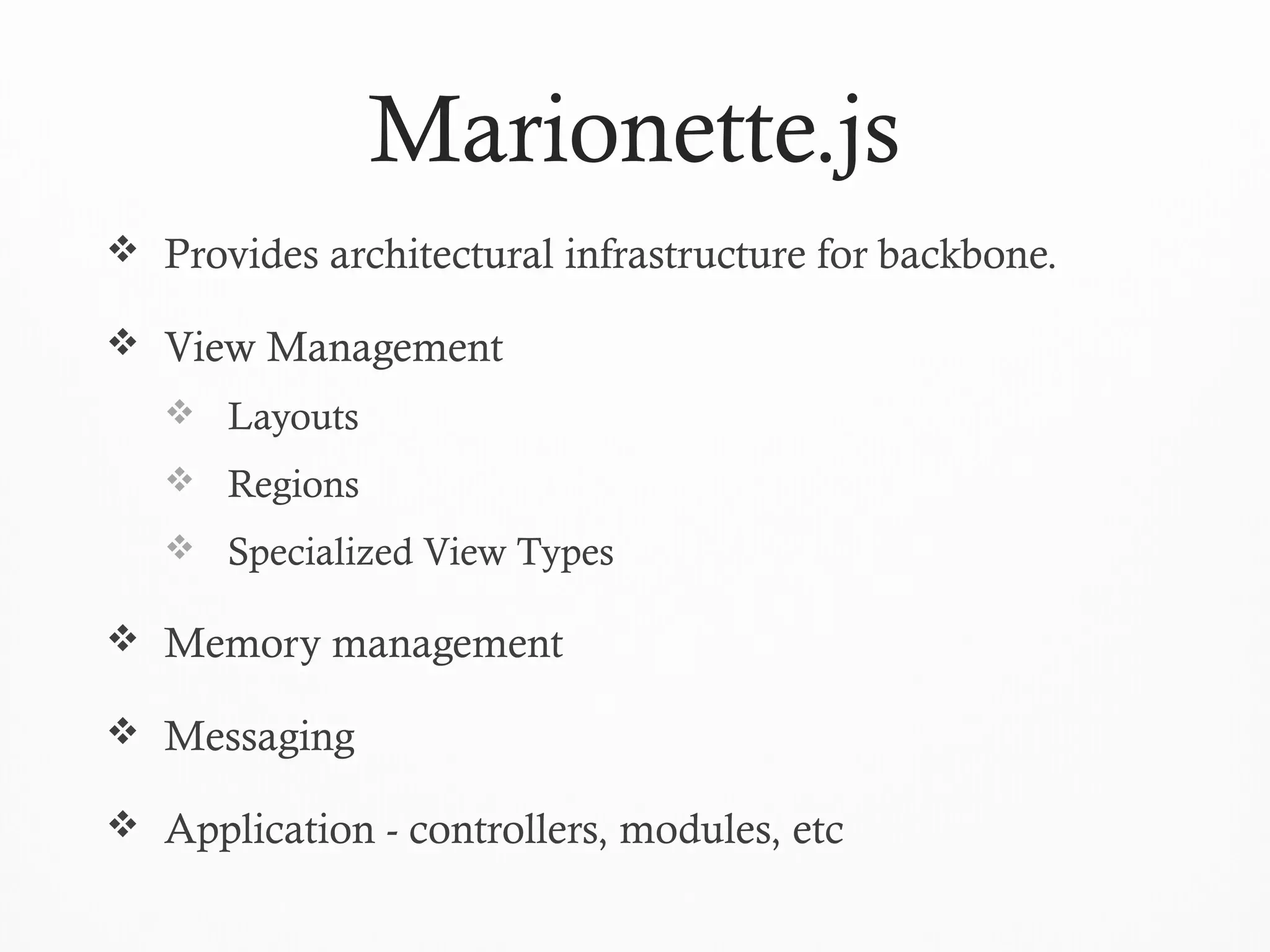

Marionette.js
 Provides architectural infrastructure for backbone.
 View Management
 Layouts
 Regions
 Specialized View Types
 Memory management
 Messaging
 Application - controllers, modules, etc

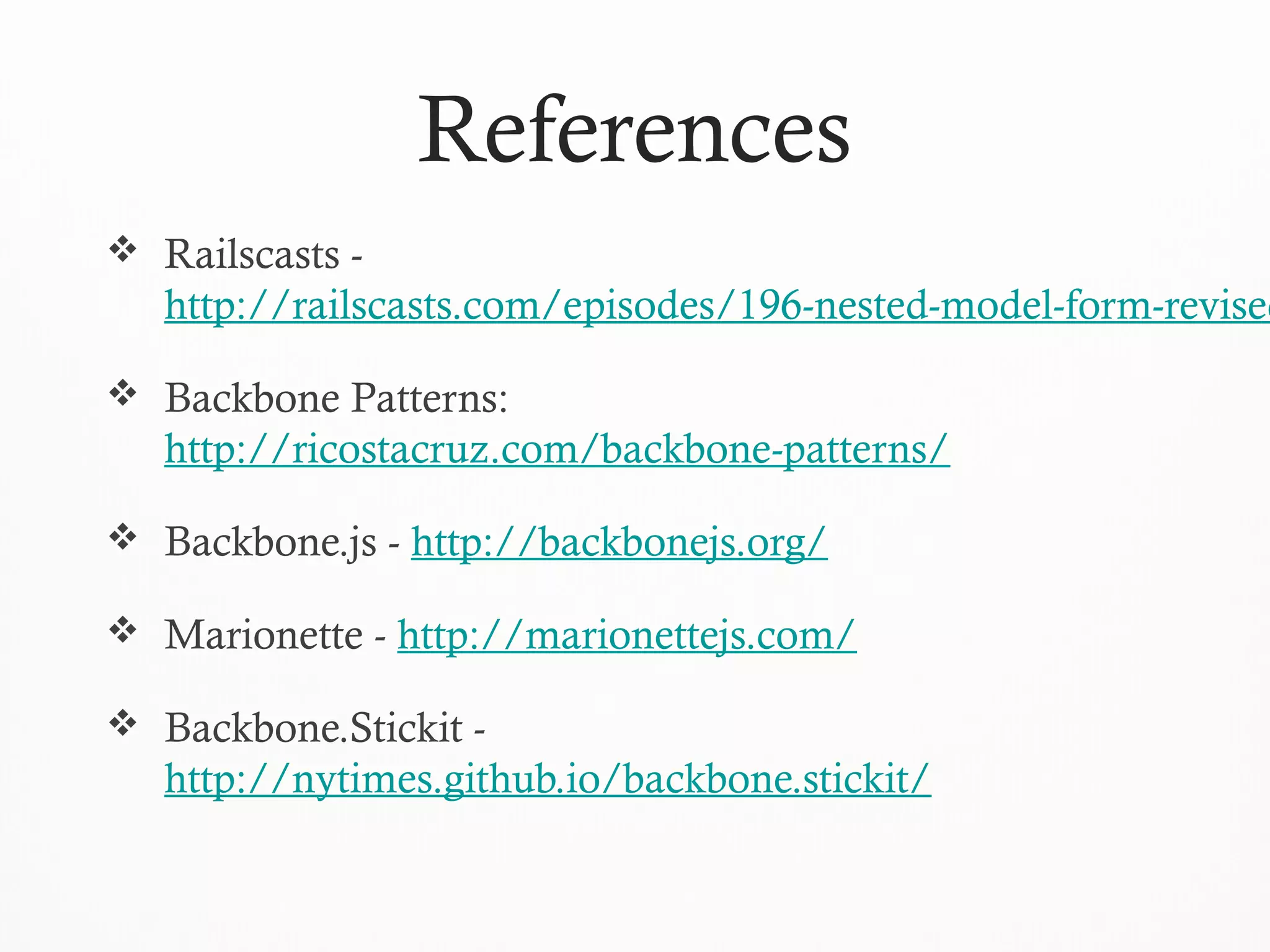

References
 Railscasts -
http://railscasts.com/episodes/196-nested-model-form-revised
 Backbone Patterns:
http://ricostacruz.com/backbone-patterns/
 Backbone.js - http://backbonejs.org/
 Marionette - http://marionettejs.com/
 Backbone.Stickit -
http://nytimes.github.io/backbone.stickit/

40

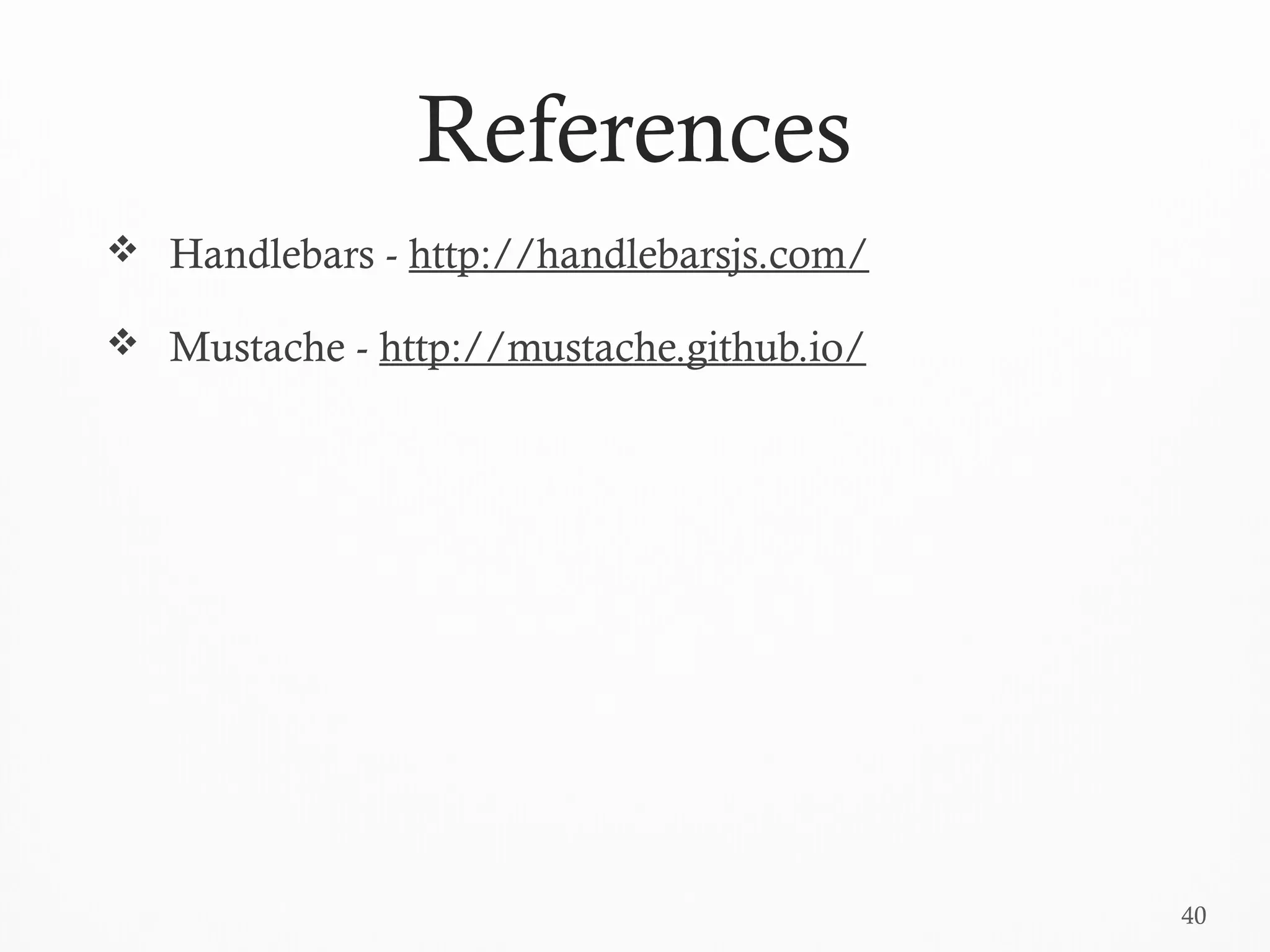

References
 Handlebars - http://handlebarsjs.com/
 Mustache - http://mustache.github.io/
