Advanced Java Programming
Unit-II
Swings and MVC
Architecture

Welcome!
Are you excited for a fun
learning session?

Unit Outcomes
Differentiate between AWT and Swing on the given aspect
Develop Graphical User Interface (GUI) programs using swing component for given
problems
Use the given type of button in Java based GUI
Develop Graphical User Interface (GUI) programs using advanced swing
component for the given problems

Swing is used for creating
Graphical User Interface
(GUI)
Additional components like
tabbed panes, scroll panes, trees
and tables

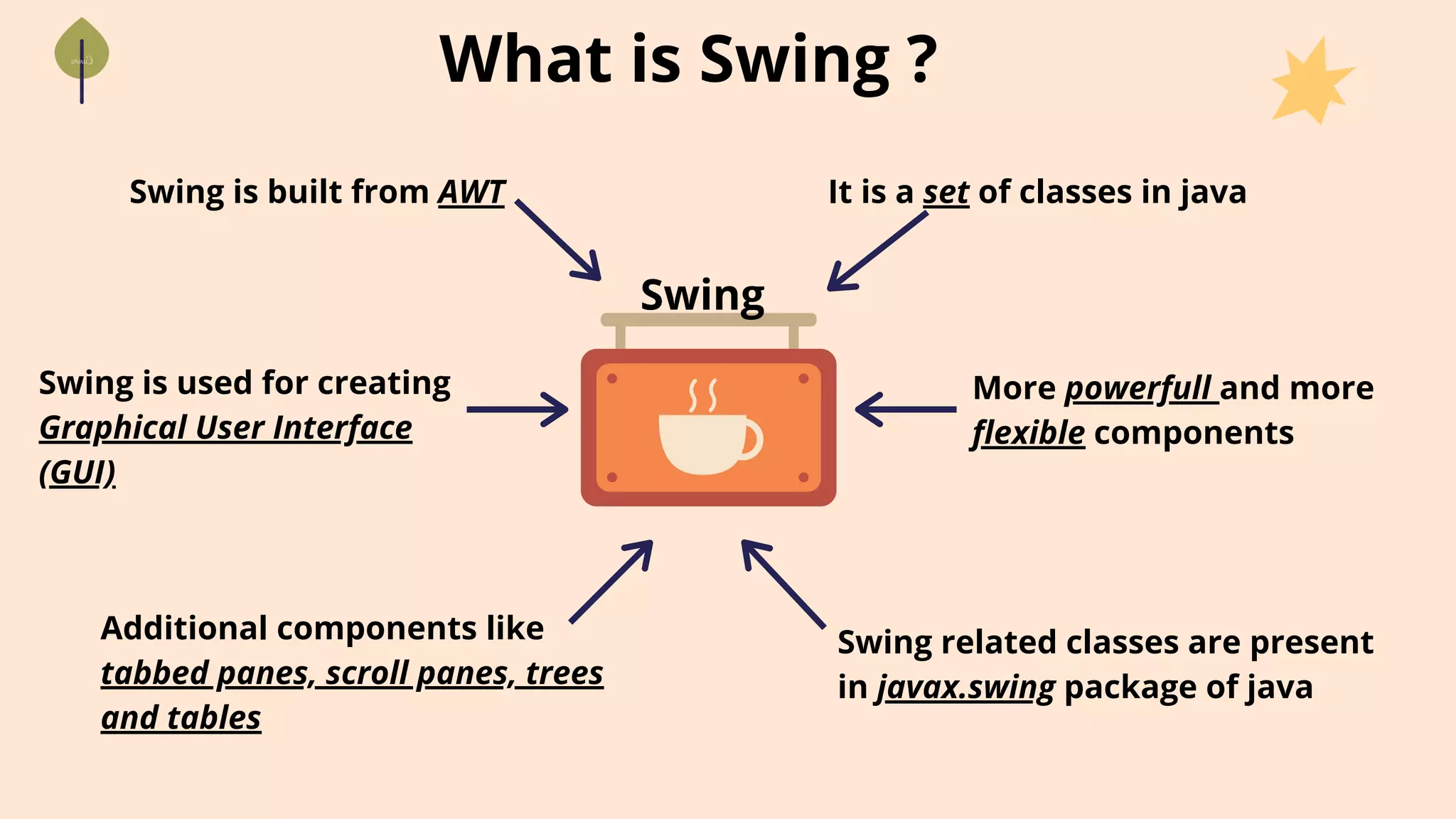

What is Swing ?
Swing is built from AWT
Swing
It is a set of classes in java
More powerfull and more
flexible components
Swing related classes are present
in javax.swing package of java

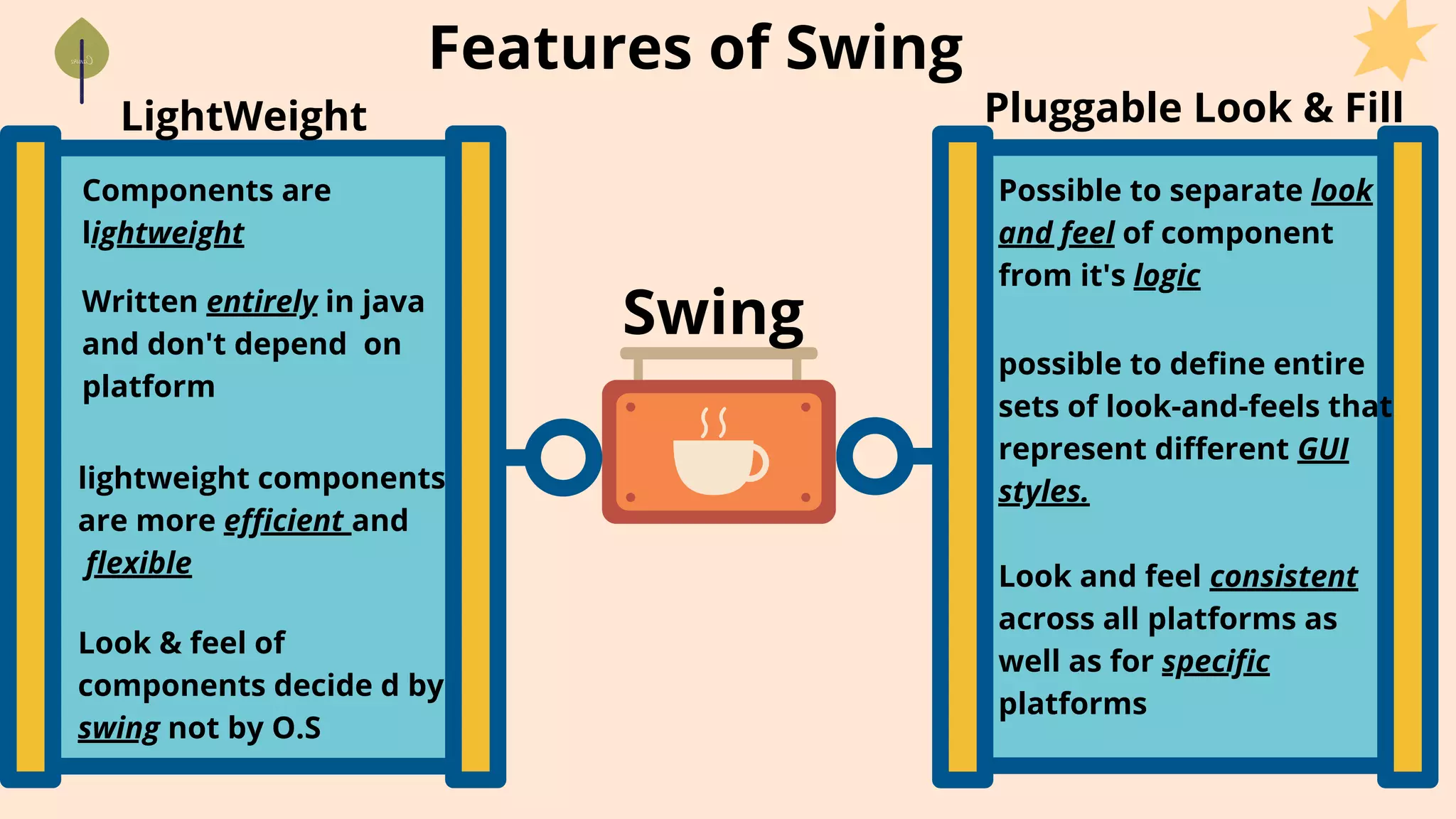

Features of Swing
Swing
LightWeight Pluggable Look & Fill
Components are
lightweight
Written entirely in java
and don't depend on
platform
lightweight components
are more efficient and
flexible
Look & feel of
components decide d by
swing not by O.S
Possible to separate look
and feel of component
from it's logic
possible to define entire
sets of look-and-feels that
represent different GUI
styles.
Look and feel consistent
across all platforms as
well as for specific
platforms

Components and Containers
Components are single
visual controls like :
push buttons
checkbox
label
TextField etc.
Container contains
group of componentsContainer
Component
Container also contains
other container
Fig : Containment Heirarchy

Classes in
Swing
AbstractButton
ButtonGroup
ButtonGroup
ImageIcon
JApplet
JCheckBox
JComboBox
JLabel
JRadioButton
JScrollPane
JTabbedPane
JTable
JTree
JTextField

AWT
Swing
Less powerfull and
less flexible
More powerfull and
more flexible
Don't have tabbed
panes, scroll
panes,trees, tables
Have tabbed panes,
scroll panes,trees, tables
Platform dependant Platform independant
Each component has
more capabilities
Each component has
few capabilities
lightweight code
Heavyweight code
Swing vs AWT

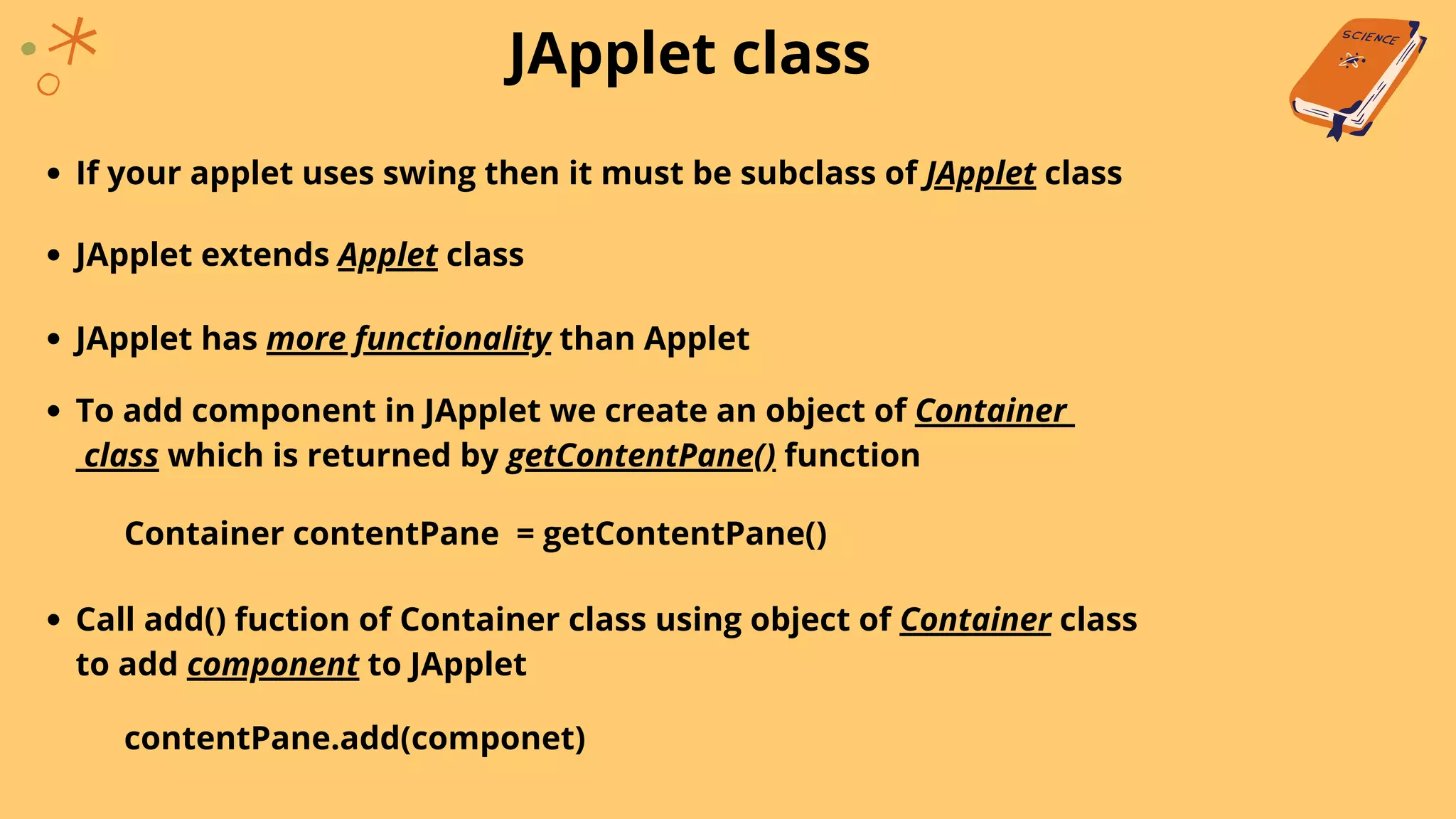

JApplet class
If your applet uses swing then it must be subclass of JApplet class
JApplet extends Applet class
JApplet has more functionality than Applet
To add component in JApplet we create an object of Container
class which is returned by getContentPane() function
Container contentPane = getContentPane()
Call add() fuction of Container class using object of Container class
to add component to JApplet
contentPane.add(componet)

ImageIcon class and Icon interfacce
ImageIcon class is used to create icons (image)
Constructors of ImageIcon class :
ImageIcon(String filename) - creates icon from image file
ImageIcon(URL url) - creates icon from image given in resource url
Icon interface functions :
int getIconHeight() - returns height of icon in pixels
int getIconWidth() - returns width of icon in pixels
void paintIcon(Componet comp, Graphics g, int x, int y) - paints icon at
position x, y using graphics information in g object and additional
information in comp object

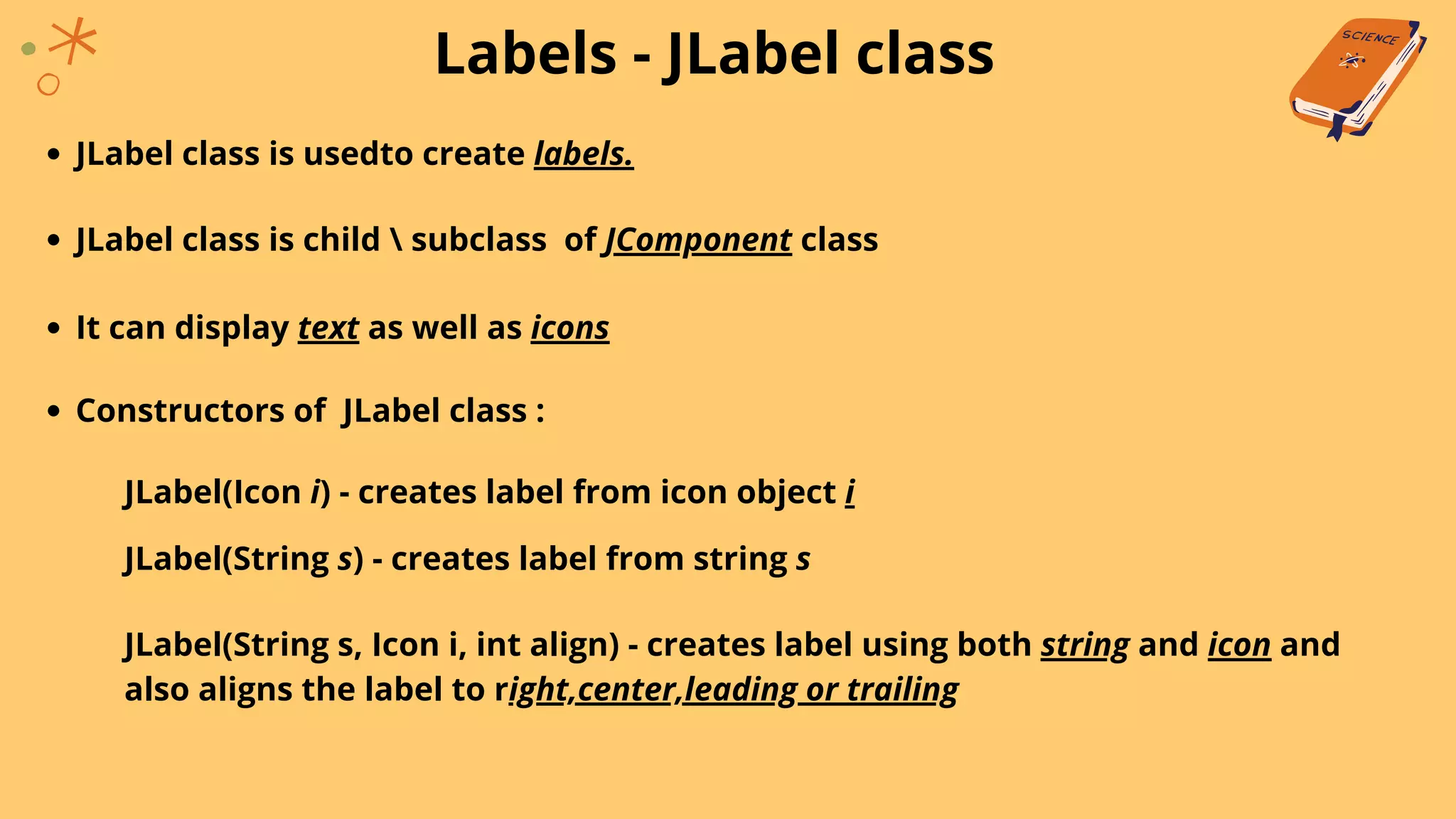

Labels - JLabel class
JLabel class is usedto create labels.
JLabel class is child subclass of JComponent class
JLabel(Icon i) - creates label from icon object i
It can display text as well as icons
Constructors of JLabel class :
JLabel(String s) - creates label from string s
JLabel(String s, Icon i, int align) - creates label using both string and icon and
also aligns the label to right,center,leading or trailing

Labels - JLabel class
Functions in JLabel class :
Icon getIcon() - returns icon used in label
String getText() - returns text used in label
void setIcon(Icon i) - sets or changes icon in the label
void setText(String s) - sets or changes text in the label

import java.awt.*;
import javax.swing.*;
/*
<applet code="JLabelExample" width=250 height=150>
</applet>
*/
public class JLabelExample extends JApplet
{
public void init()
{
Container contentPane = getContentPane();
ImageIcon img = new ImageIcon("emojis.jpg");
JLabel obj = new JLabel("New Label",img,JLabel.CENTER);
contentPane.add(obj);
}
}

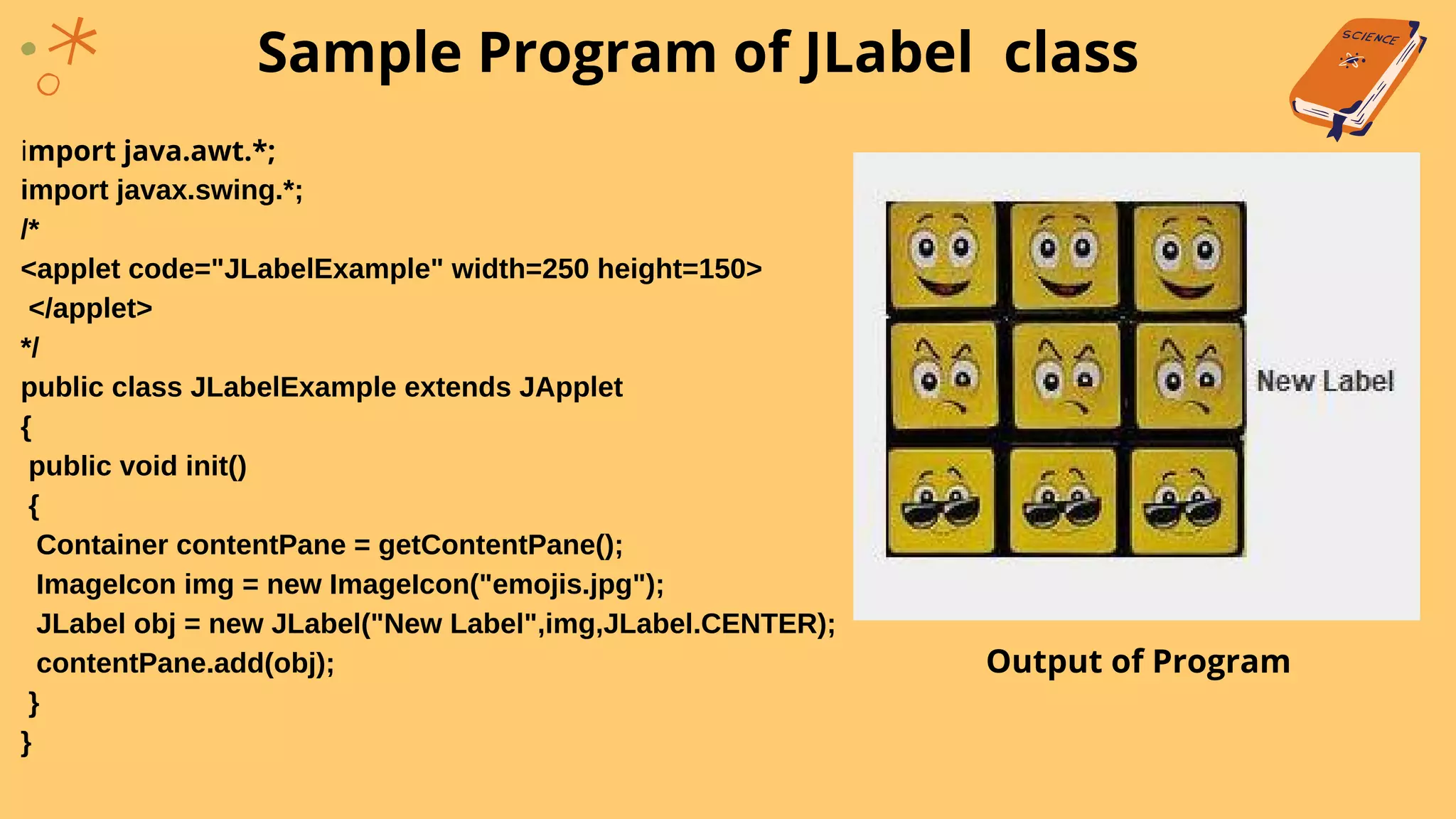

Sample Program of JLabel class
Output of Program

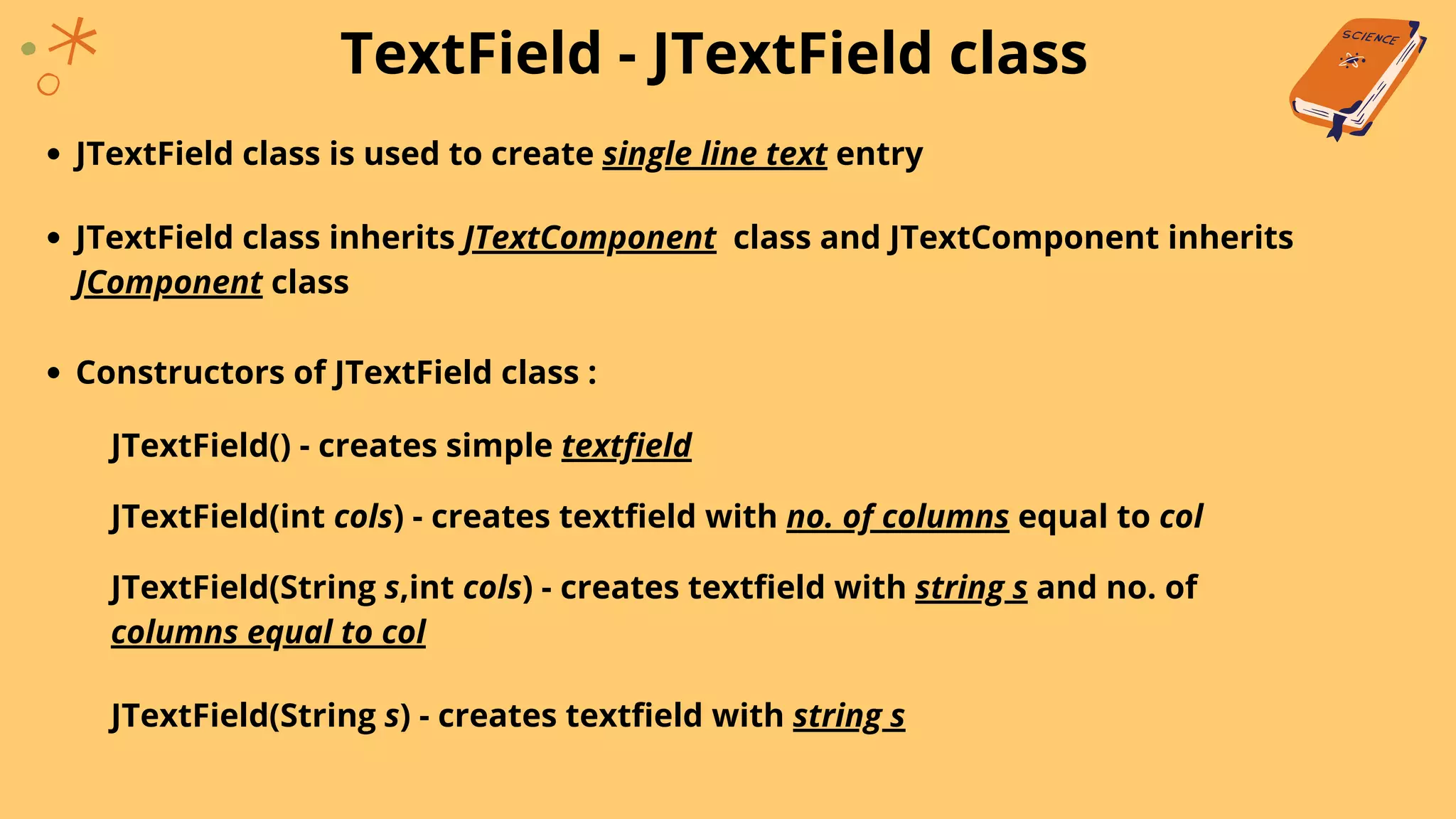

TextField - JTextField class
JTextField class is used to create single line text entry
JTextField class inherits JTextComponent class and JTextComponent inherits
JComponent class
Constructors of JTextField class :
JTextField() - creates simple textfield
JTextField(int cols) - creates textfield with no. of columns equal to col
JTextField(String s,int cols) - creates textfield with string s and no. of
columns equal to col
JTextField(String s) - creates textfield with string s

import java.awt.*;
/*
<applet code="JTextFieldExample" width=250 height=150>
</applet>
*/
public class JTextFieldExample extends JApplet
{
JTextField obj;
public void init()
{
contentPane.setLayout(new FlowLayout());
obj = new JTextField("Enter Name",25);
}
}

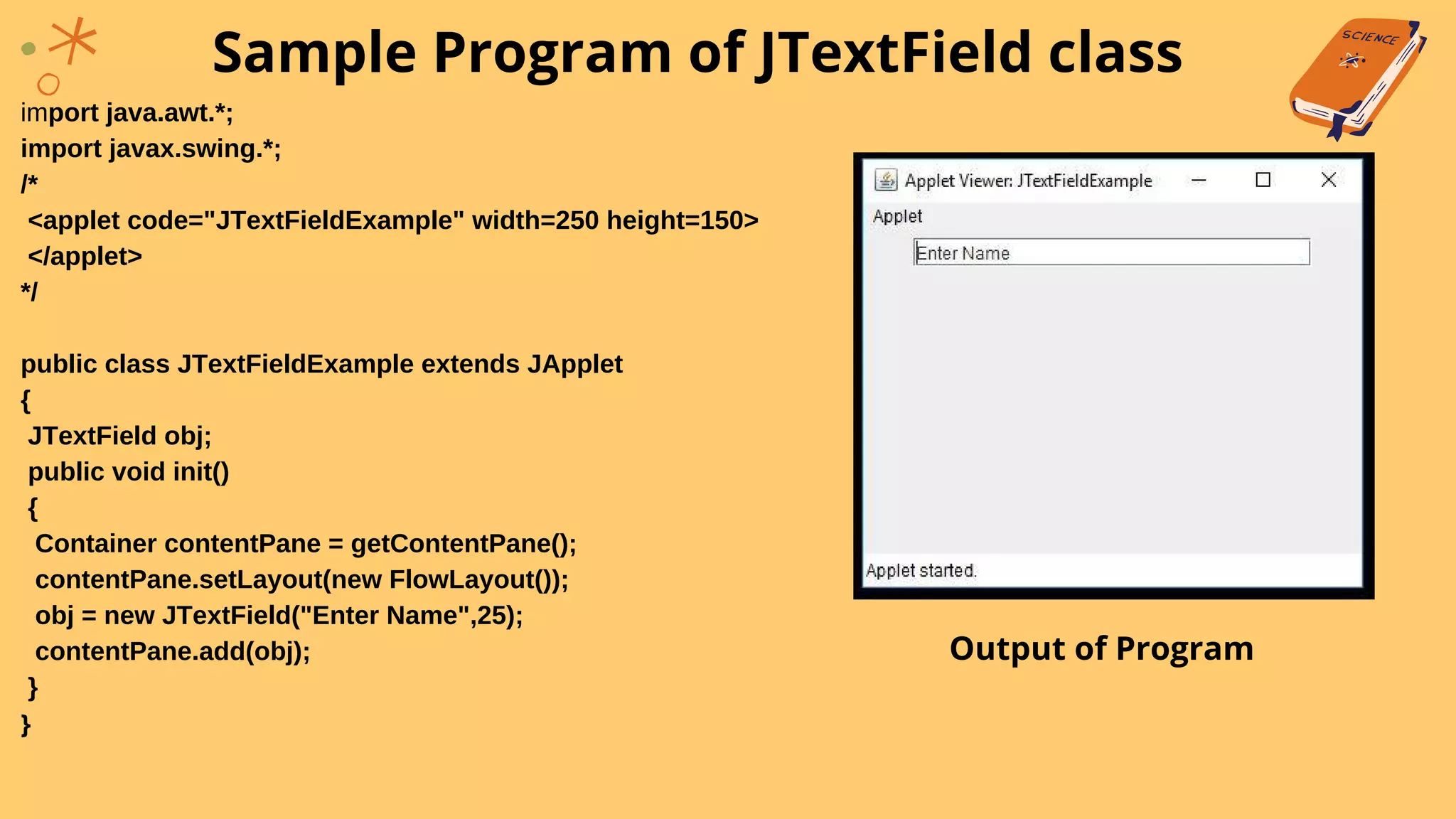

Sample Program of JTextField class
Output of Program

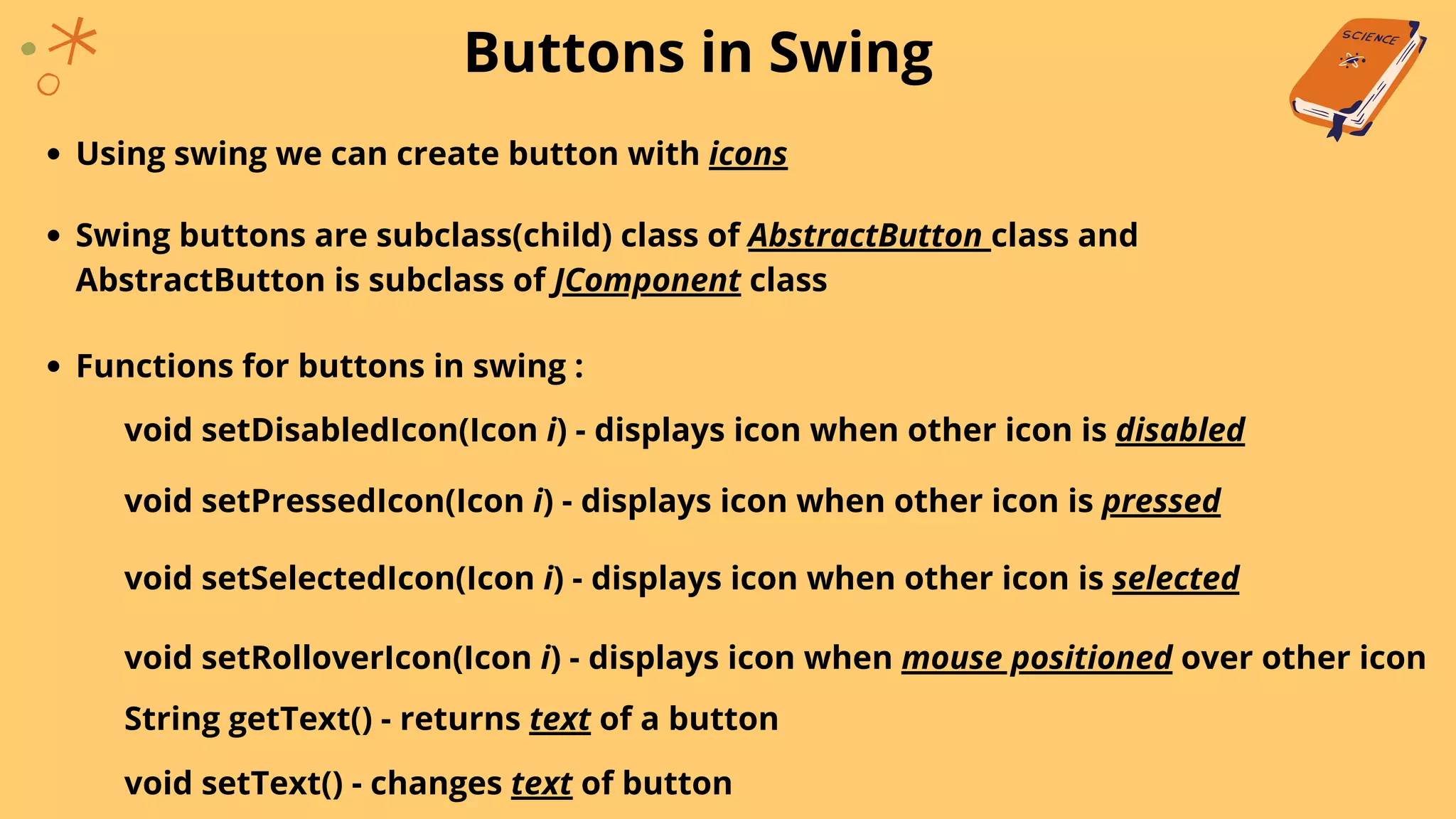

Buttons in Swing
Using swing we can create button with icons
Swing buttons are subclass(child) class of AbstractButton class and
AbstractButton is subclass of JComponent class
Functions for buttons in swing :
void setDisabledIcon(Icon i) - displays icon when other icon is disabled
void setPressedIcon(Icon i) - displays icon when other icon is pressed
void setSelectedIcon(Icon i) - displays icon when other icon is selected
void setRolloverIcon(Icon i) - displays icon when mouse positioned over other icon
String getText() - returns text of a button
void setText() - changes text of button

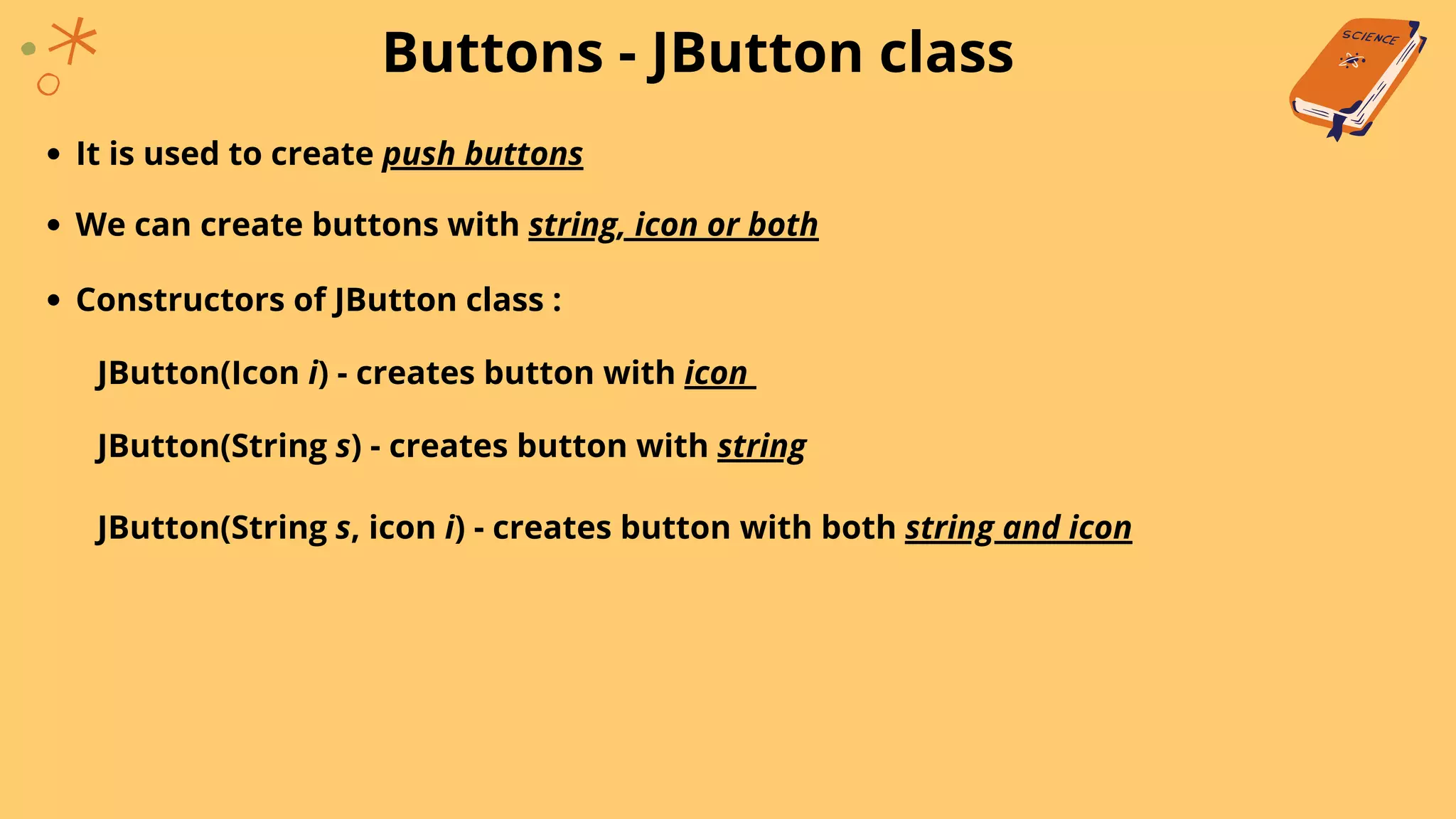

Buttons - JButton class
It is used to create push buttons
We can create buttons with string, icon or both
Constructors of JButton class :
JButton(Icon i) - creates button with icon
JButton(String s) - creates button with string
JButton(String s, icon i) - creates button with both string and icon

import java.awt.*;
/*
<applet code="JButtonExample" width=250 height=150>
</applet>
*/
public class JButtonExample extends JApplet
{
JButton obj;
public void init()
{
ImageIcon img =new ImageIcon("cg4.jpg");
obj = new JButton(img);
}
}

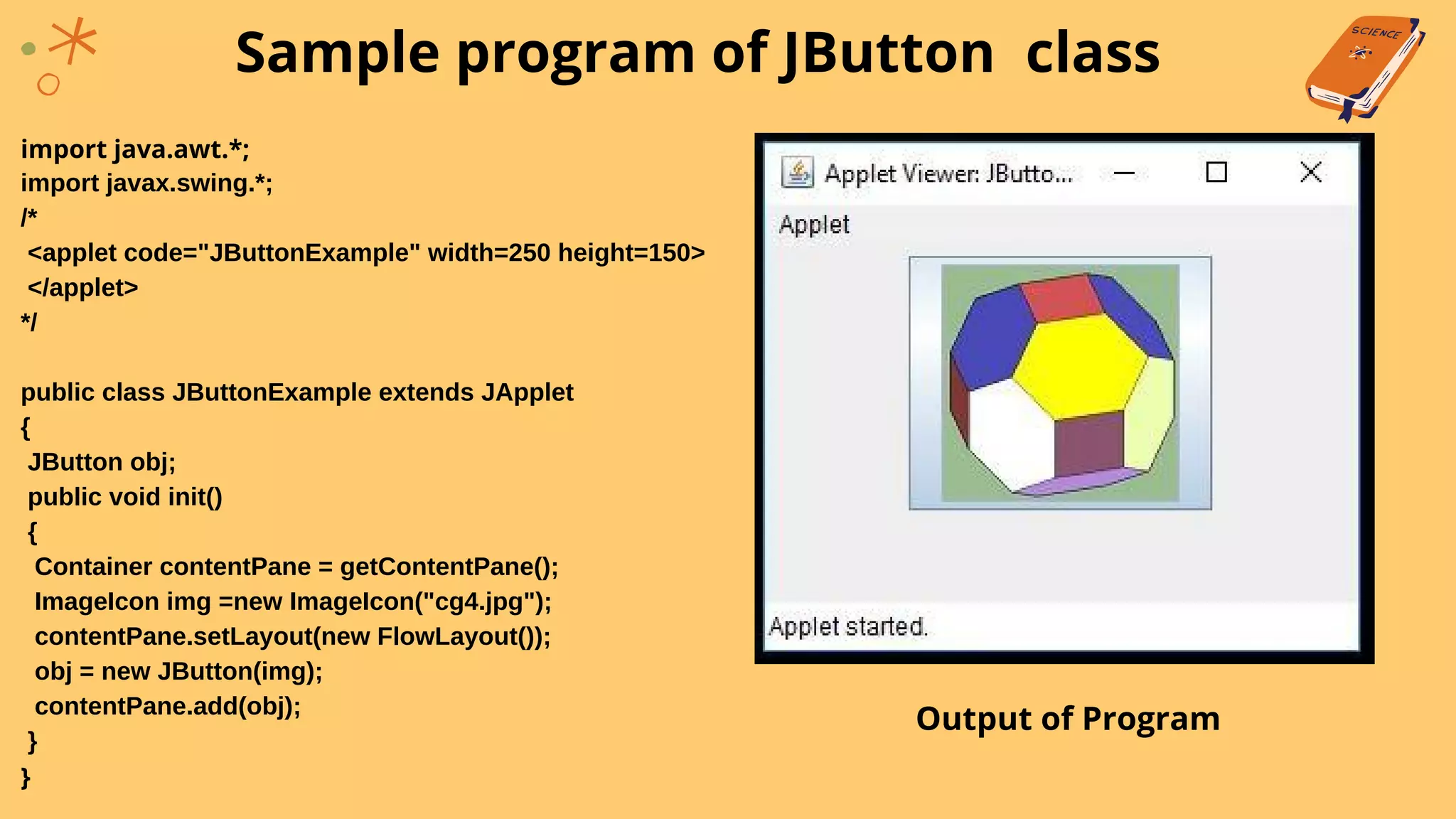

Sample program of JButton class
Output of Program

Checkboxes - JCheckBox class
It is used to create two state checkbox
JCheckBox is subclass (child) class of JTogglebutton class and JTogglebutton is
subclass of AbstractButton
Constructors of JCheckBox class :
JCheckBox(Icon i) - creates checkbox with icon
JCheckBox(Icon i,boolean state) - creates checkbox with icon and state true or false
JCheckBox(String s, boolean state) - creates checkbox with the string and state
JCheckBox(String s, Icon i) - creates checkbox with the both string and icon
JCheckBox(String s, Icon i, boolean state) - creates checkbox with the
string, icon and state true or false

import java.awt.*;
/*
<applet code="JCheckBoxExample" width=250 height=150>
</applet>
*/
public class JCheckBoxExample extends JApplet
{
JCheckBox c1, c2;
public void init()
{
c1 = new JCheckBox("Mechanical");
c2 = new JCheckBox("Computer");
contentPane.add(c1);
contentPane.add(c2);
}
}
Sample program of JCheckBox class
Output of Program

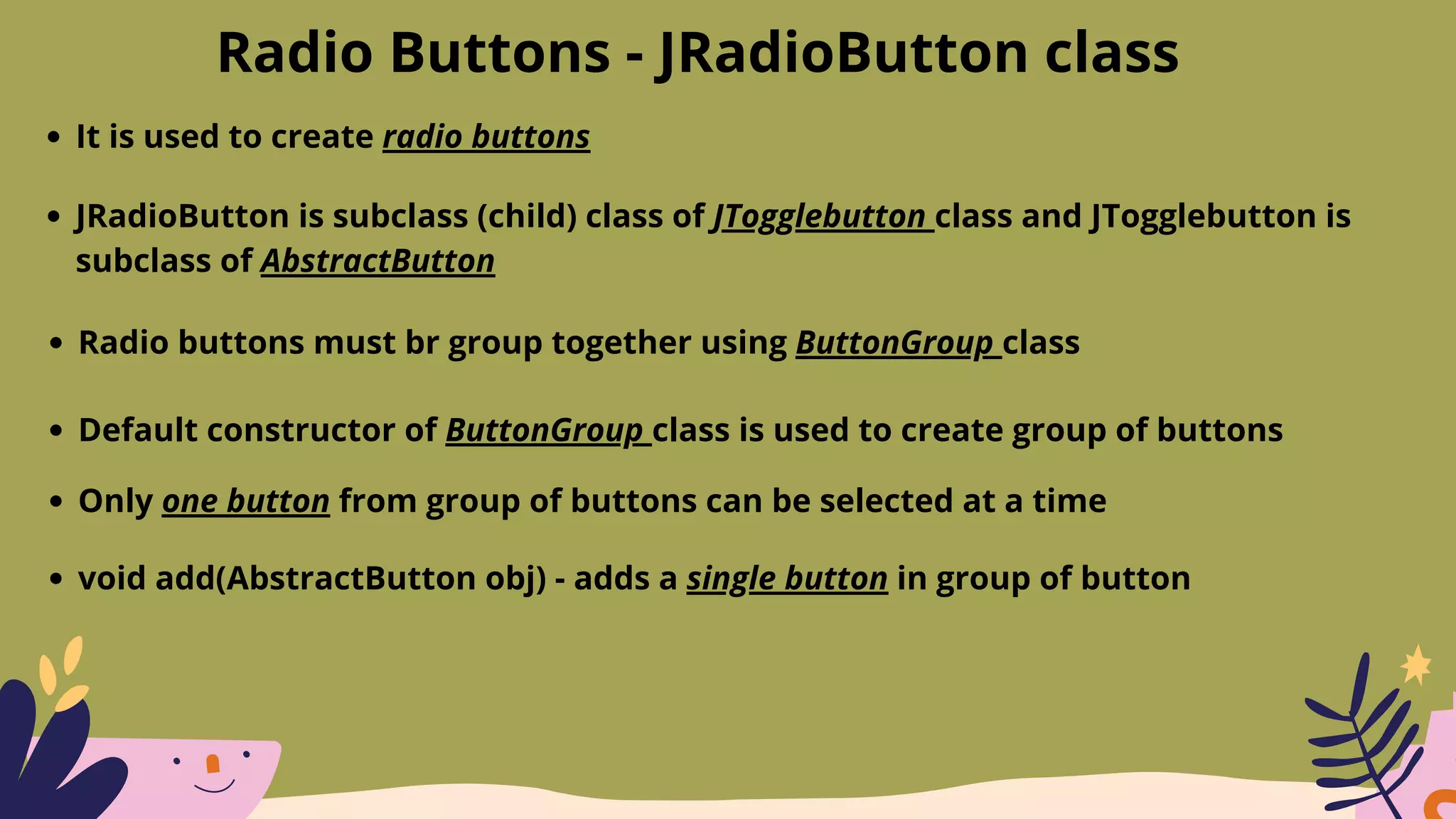

Radio Buttons - JRadioButton class
It is used to create radio buttons
JRadioButton is subclass (child) class of JTogglebutton class and JTogglebutton is
subclass of AbstractButton
Radio buttons must br group together using ButtonGroup class
Default constructor of ButtonGroup class is used to create group of buttons
Only one button from group of buttons can be selected at a time
void add(AbstractButton obj) - adds a single button in group of button

Radio Buttons - JRadioButton class

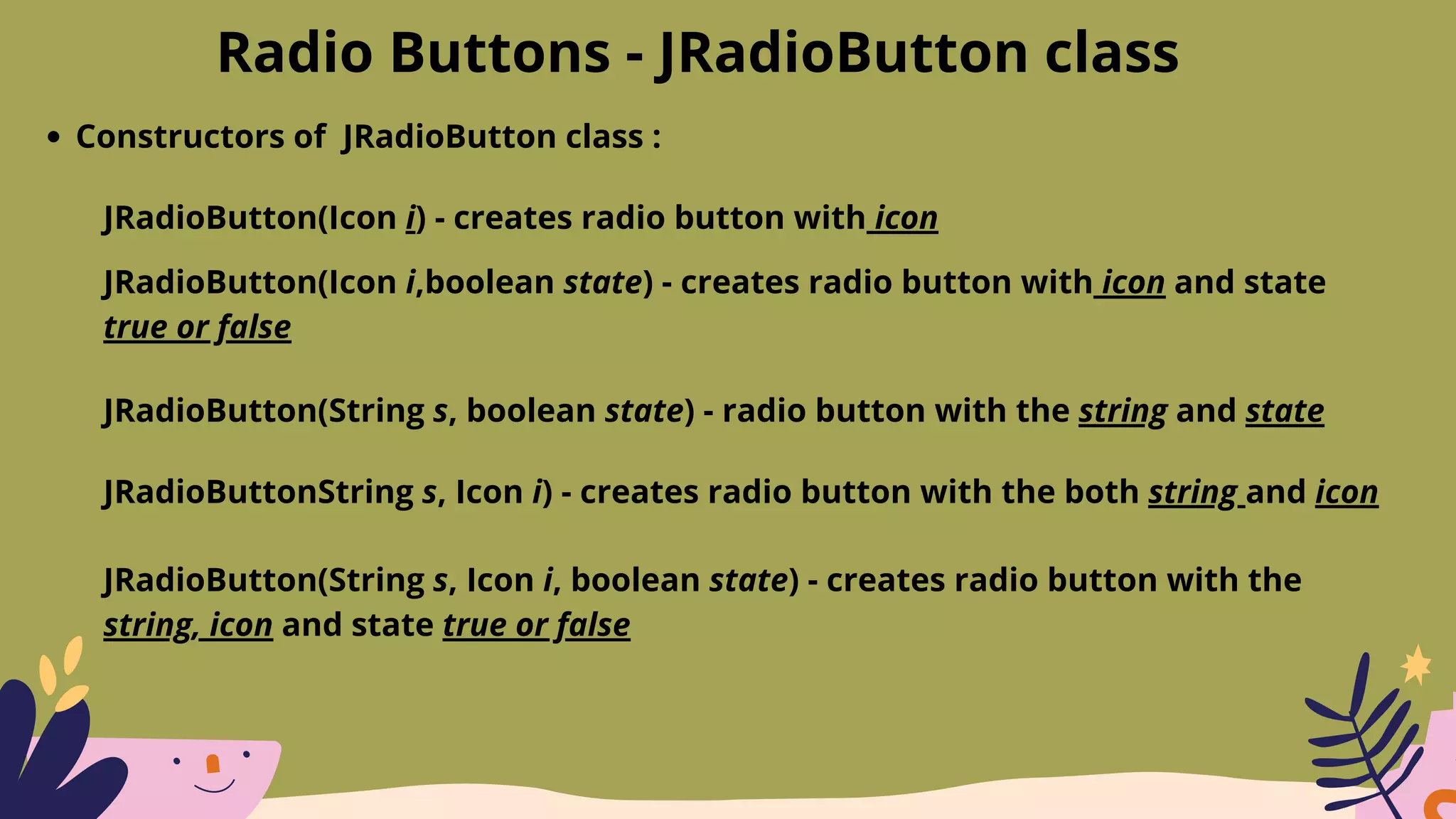

Constructors of JRadioButton class :
JRadioButton(Icon i) - creates radio button with icon
JRadioButton(Icon i,boolean state) - creates radio button with icon and state
true or false
JRadioButton(String s, boolean state) - radio button with the string and state
JRadioButtonString s, Icon i) - creates radio button with the both string and icon
JRadioButton(String s, Icon i, boolean state) - creates radio button with the
string, icon and state true or false

import java.awt.*;
/*
<applet code="JRadioButtonExample" width=250
height=150>
</applet>
*/
public class JRadioButtonExample extends JApplet
{
JRadioButton r1, r2;
ButtonGroup bg;
public void init()
{
r1 = new JRadioButton("Civil");
r2 = new JRadioButton("Electrical");
bg = new ButtonGroup();
bg.add(r1);
bg.add(r2);
contentPane.add(r1);
contentPane.add(r2);
}

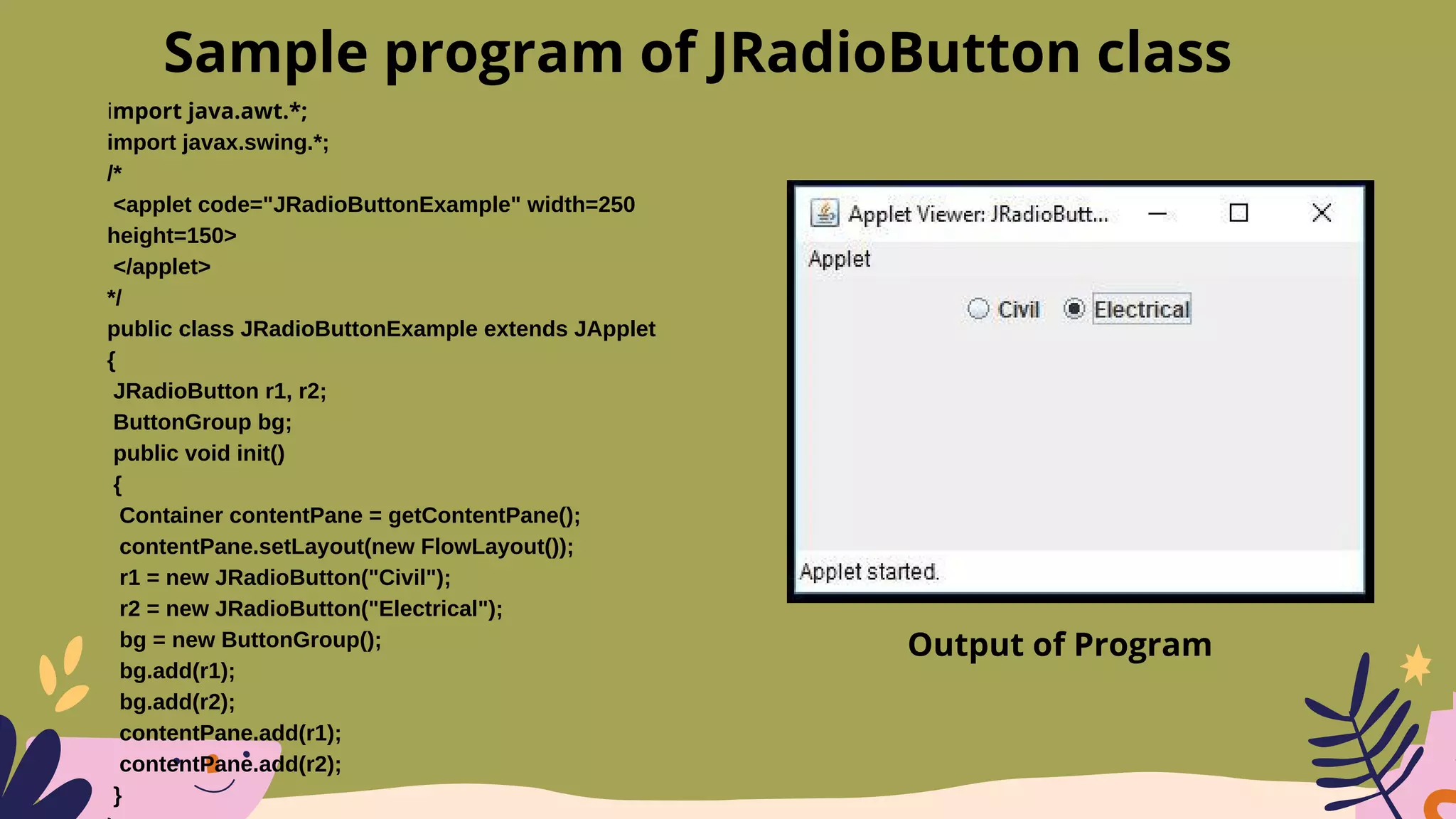

Sample program of JRadioButton class
Output of Program

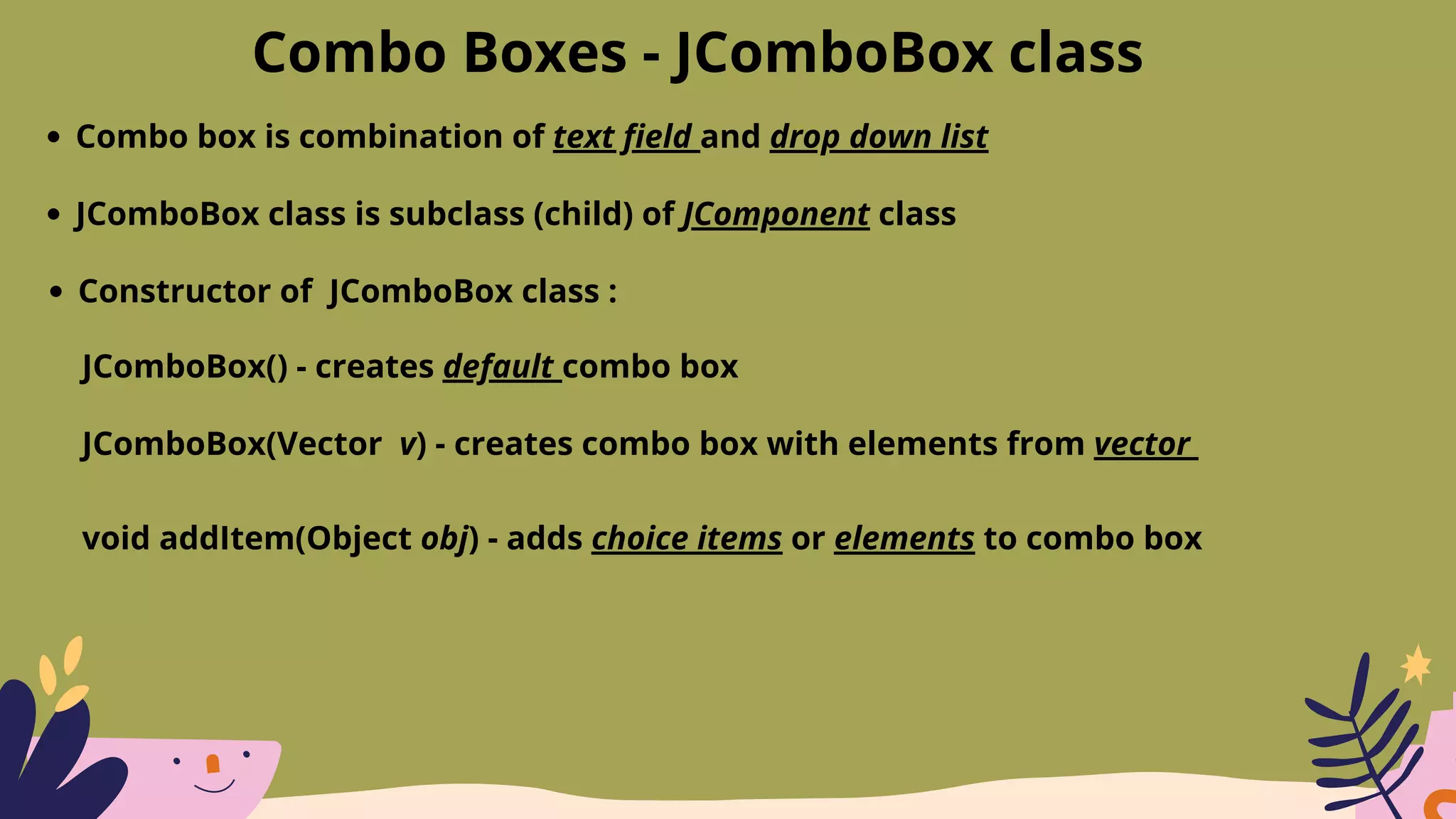

Combo Boxes - JComboBox class
Combo box is combination of text field and drop down list
JComboBox class is subclass (child) of JComponent class
Constructor of JComboBox class :
JComboBox() - creates default combo box
JComboBox(Vector v) - creates combo box with elements from vector
void addItem(Object obj) - adds choice items or elements to combo box

import java.awt.*;
/*
<applet code="JComboExample" width=250 height=150>
</applet>
*/

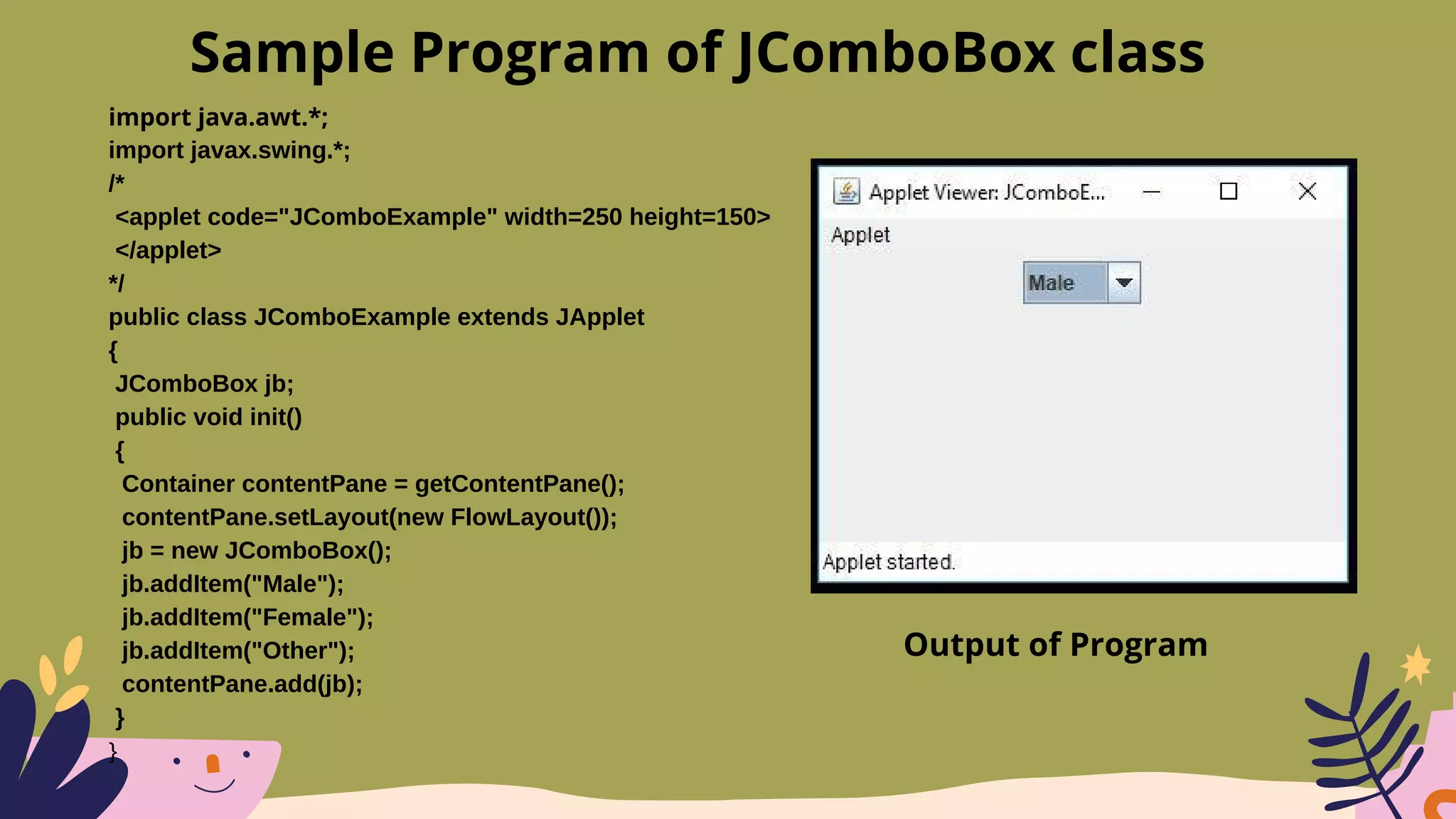

public class JComboExample extends JApplet
{
JComboBox jb;
public void init()
{
jb = new JComboBox();
jb.addItem("Male");
jb.addItem("Female");
jb.addItem("Other");
contentPane.add(jb);
}
}
Sample Program of JComboBox class
Output of Program

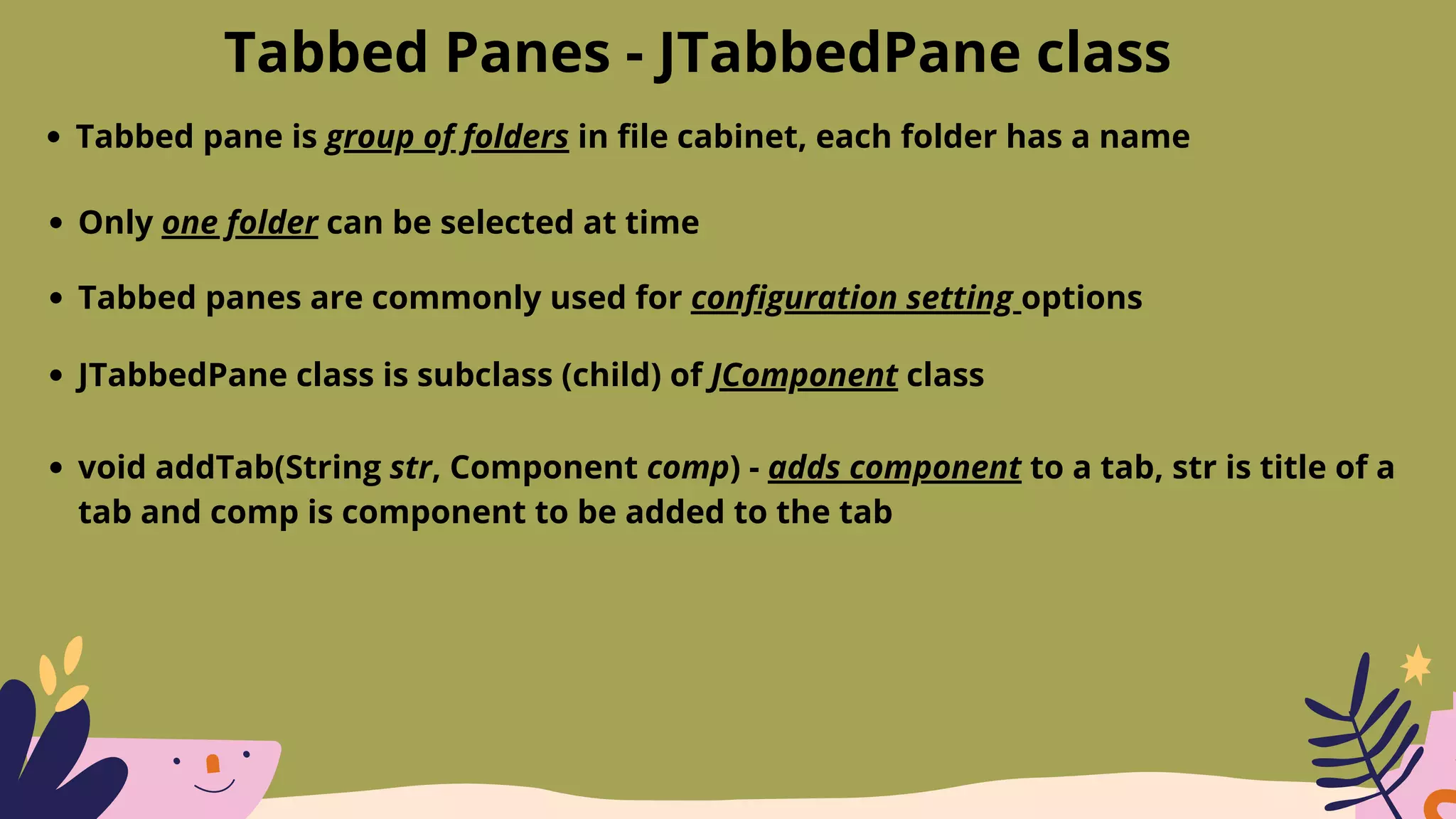

Tabbed Panes - JTabbedPane class
Tabbed pane is group of folders in file cabinet, each folder has a name
Only one folder can be selected at time
Tabbed panes are commonly used for configuration setting options
JTabbedPane class is subclass (child) of JComponent class
void addTab(String str, Component comp) - adds component to a tab, str is title of a
tab and comp is component to be added to the tab

Tabbed Panes - JTabbedPane class
Procedure to create tabbed pane in applet
Create object of JTabbedPane class
Add tabs to the pane by using addTab() function
Repeat step 2 for adding more tabs
Add the tabbed pane to the content pane of the applet

import java.awt.*;
import javax.swing.tree.*;
/*
<applet code="JTabExample" width=250 height=150>
</applet>
*/

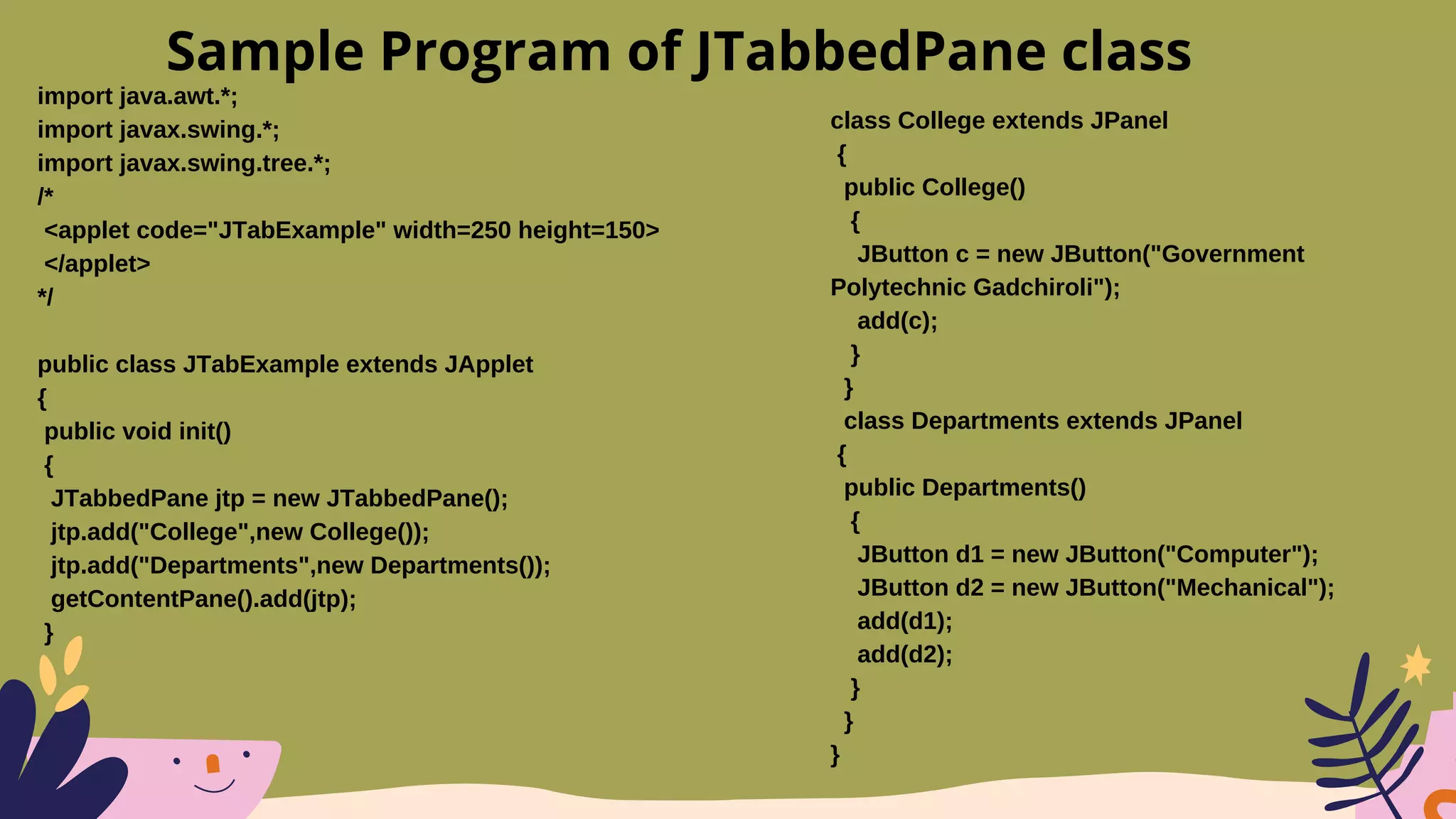

public class JTabExample extends JApplet
{
public void init()
{
JTabbedPane jtp = new JTabbedPane();
jtp.add("College",new College());
jtp.add("Departments",new Departments());
getContentPane().add(jtp);
}
Sample Program of JTabbedPane class
class College extends JPanel
{
public College()
{
JButton c = new JButton("Government
Polytechnic Gadchiroli");
add(c);
}
}
class Departments extends JPanel
{
public Departments()
{
JButton d1 = new JButton("Computer");
JButton d2 = new JButton("Mechanical");
add(d1);
add(d2);
}
}
}

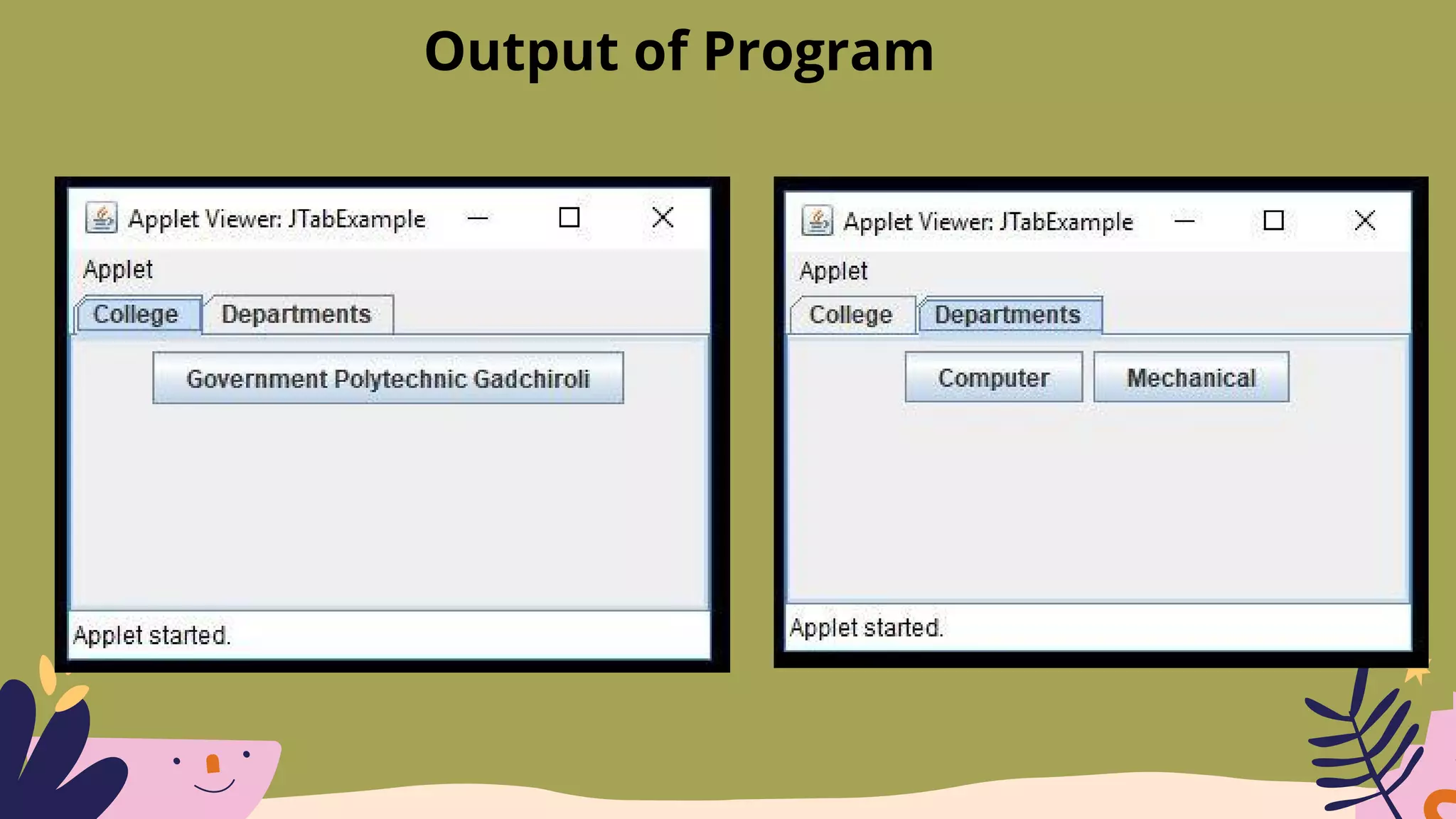

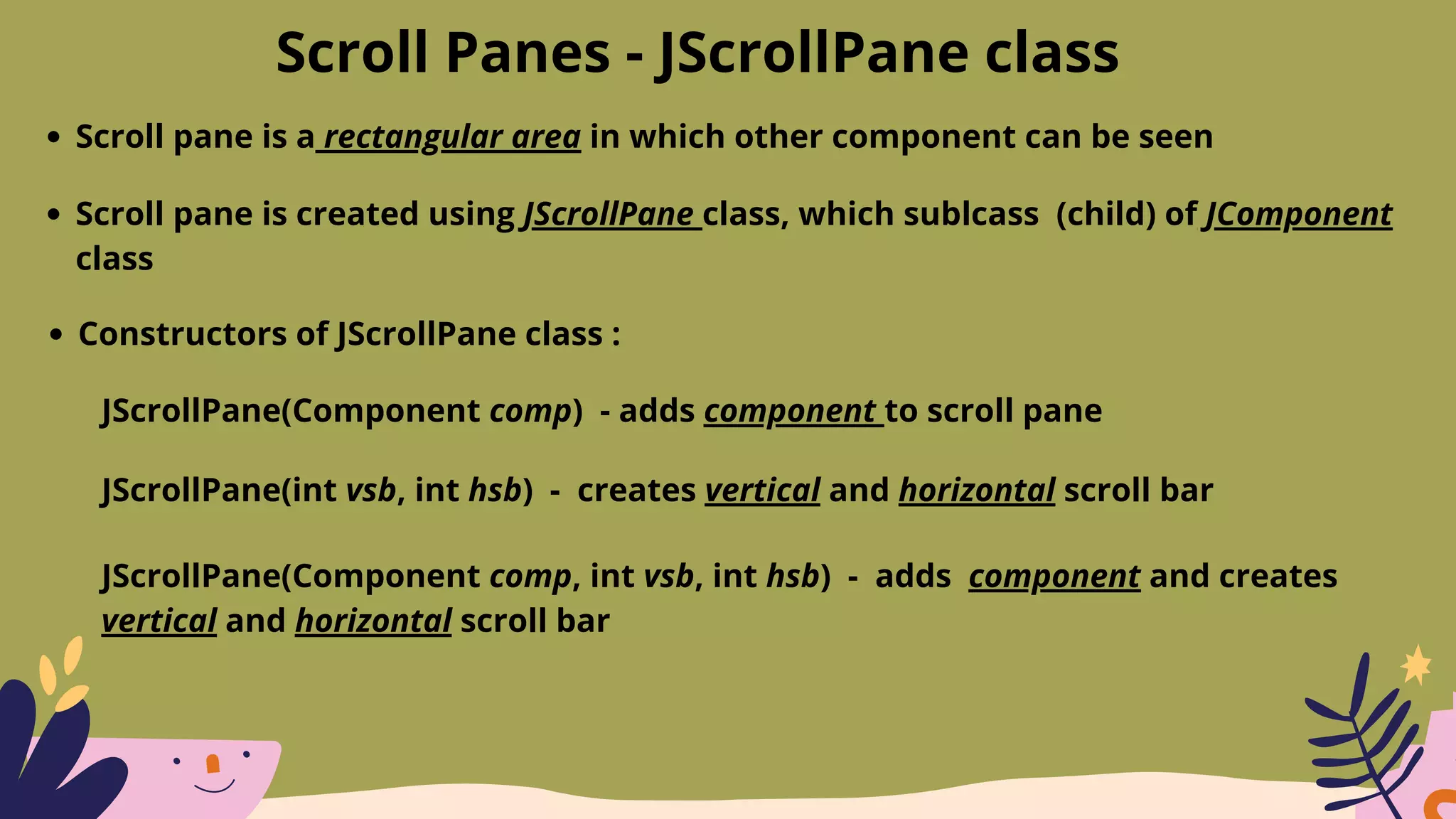

Scroll Panes - JScrollPane class
Scroll pane is a rectangular area in which other component can be seen
Scroll pane is created using JScrollPane class, which sublcass (child) of JComponent
class
Constructors of JScrollPane class :
JScrollPane(Component comp) - adds component to scroll pane
JScrollPane(int vsb, int hsb) - creates vertical and horizontal scroll bar
JScrollPane(Component comp, int vsb, int hsb) - adds component and creates
vertical and horizontal scroll bar

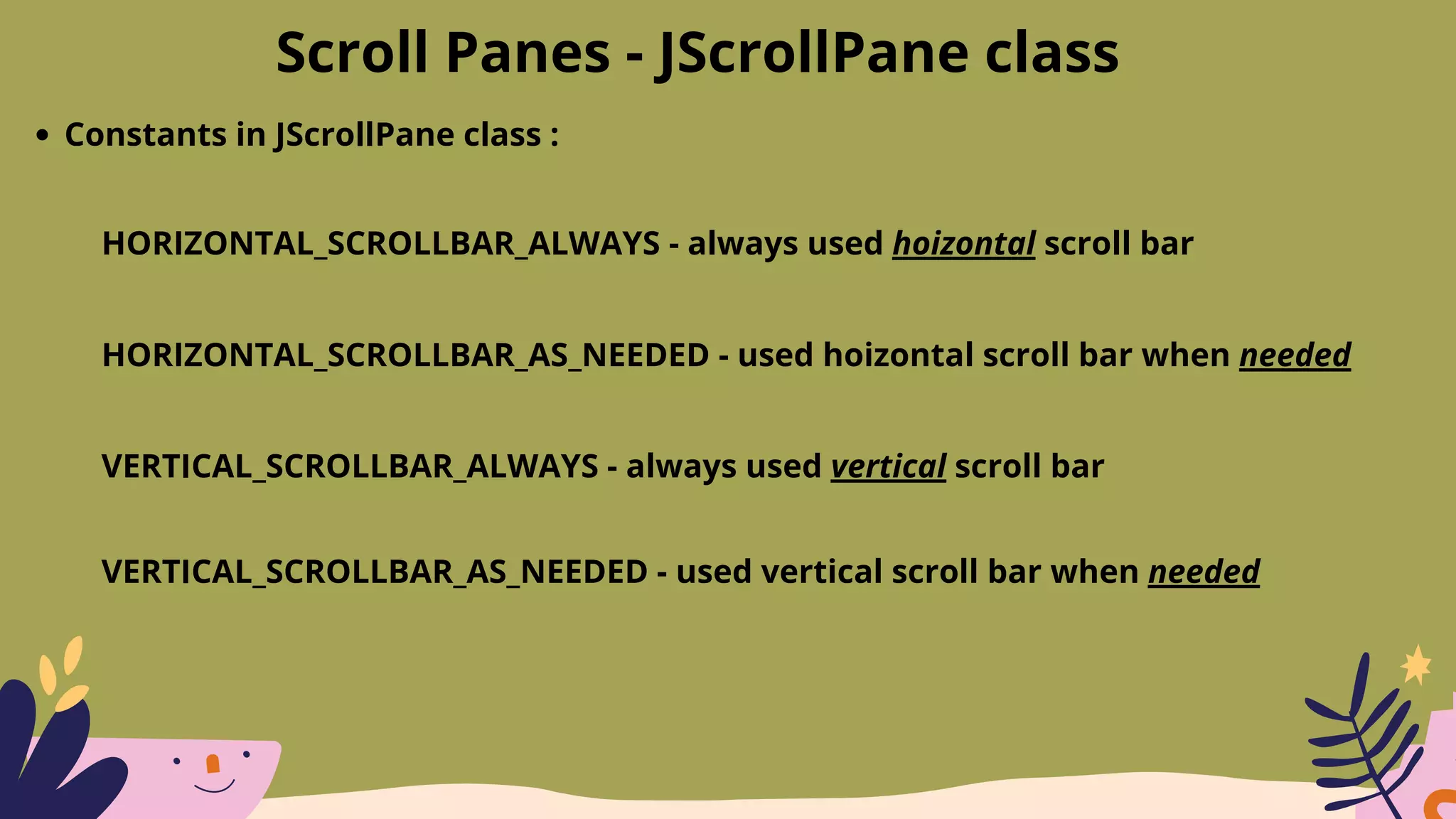

Constants in JScrollPane class :
HORIZONTAL_SCROLLBAR_ALWAYS - always used hoizontal scroll bar
HORIZONTAL_SCROLLBAR_AS_NEEDED - used hoizontal scroll bar when needed
VERTICAL_SCROLLBAR_ALWAYS - always used vertical scroll bar
VERTICAL_SCROLLBAR_AS_NEEDED - used vertical scroll bar when needed

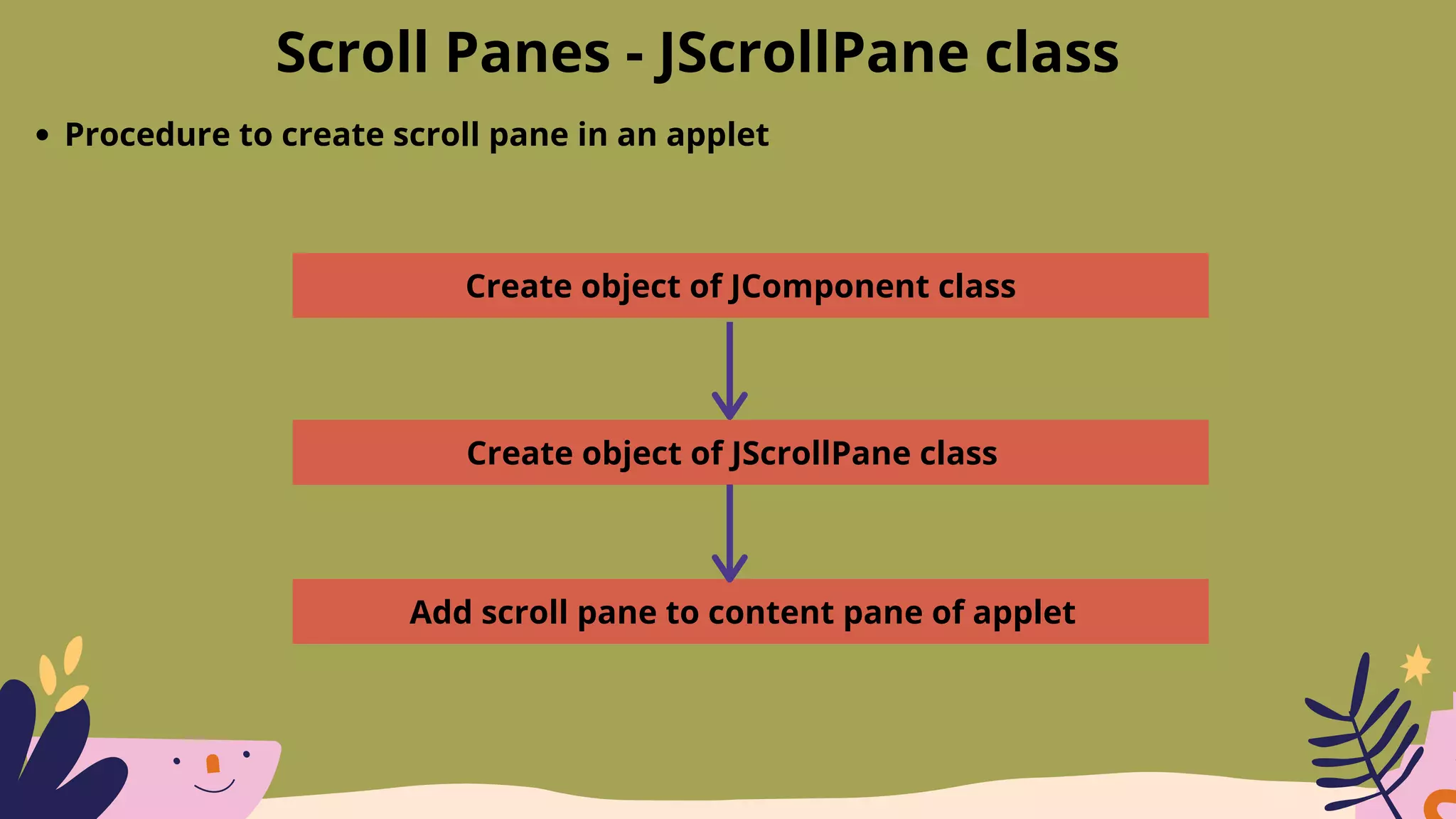

Procedure to create scroll pane in an applet
Create object of JComponent class
Create object of JScrollPane class
Add scroll pane to content pane of applet

import java.awt.*;
/*
<applet code="JScrollExample" width=250
height=150>
</applet>
*/
public class JScrollExample extends JApplet
{
public void init()
{
contentPane.setLayout(new BorderLayout());
JPanel jp = new JPanel();
jp.setLayout(new GridLayout(10,10));
int b=0;
Sample Program of JScrollPane class
for(int i=0;i<10;i++)
{
for(int j=0;i<10;j++)
{
jp.add(new JButton("button "+b));
++b;
}
}
int v =ScrollPaneConstants.VERTICAL_SCROLLBAR_AS_NEEDED;
int h =ScrollPaneConstants.HORIZONTAL_SCROLLBAR_AS_NEEDED;
JScrollPane jsp = new JScrollPane(jp,v,h);
contentPane.add(jsp,BorderLayout.CENTER);
}
}

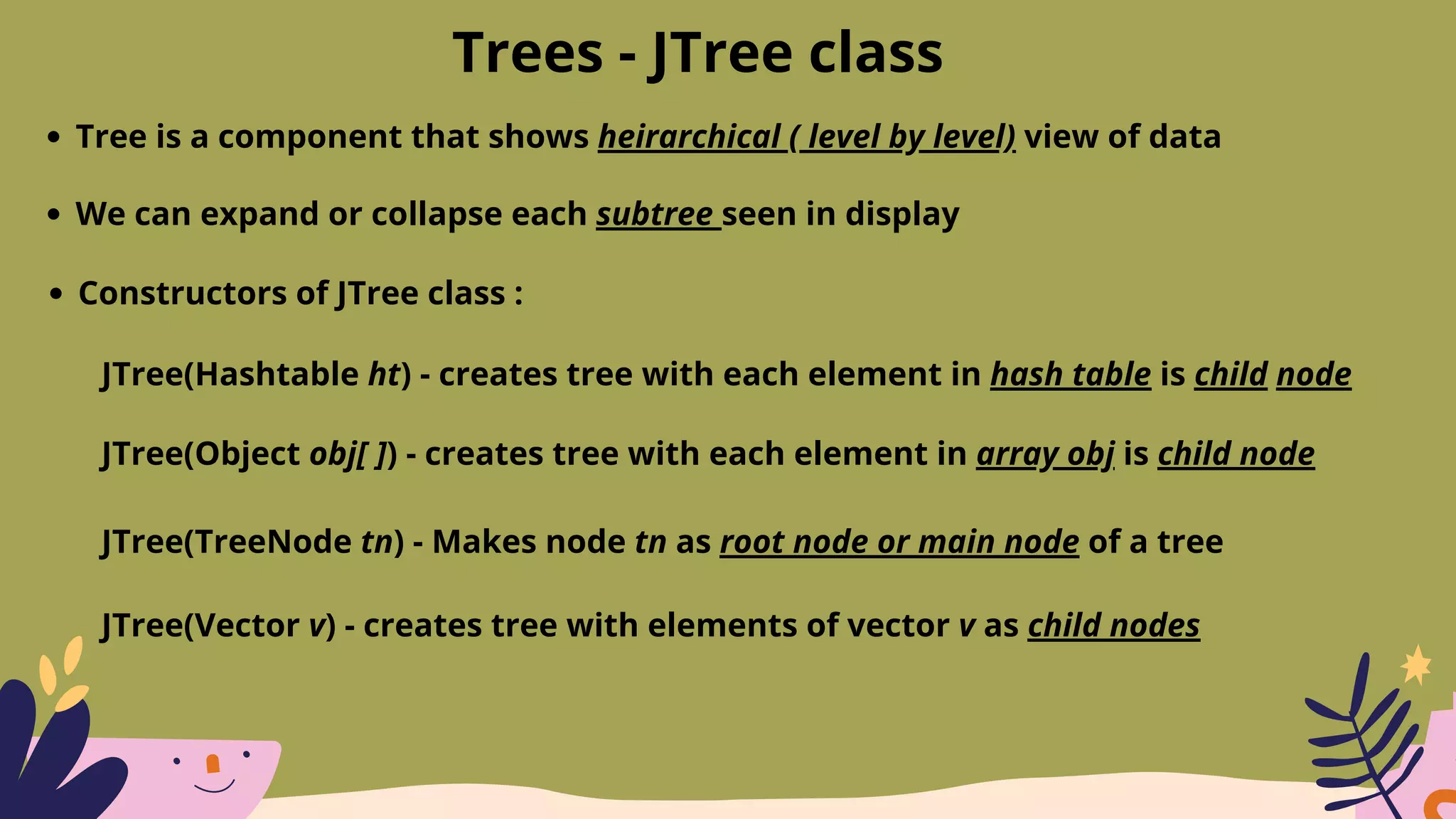

Trees - JTree class
Tree is a component that shows heirarchical ( level by level) view of data
We can expand or collapse each subtree seen in display
Constructors of JTree class :
JTree(Hashtable ht) - creates tree with each element in hash table is child node
JTree(Object obj[ ]) - creates tree with each element in array obj is child node
JTree(TreeNode tn) - Makes node tn as root node or main node of a tree
JTree(Vector v) - creates tree with elements of vector v as child nodes

Trees - JTree class

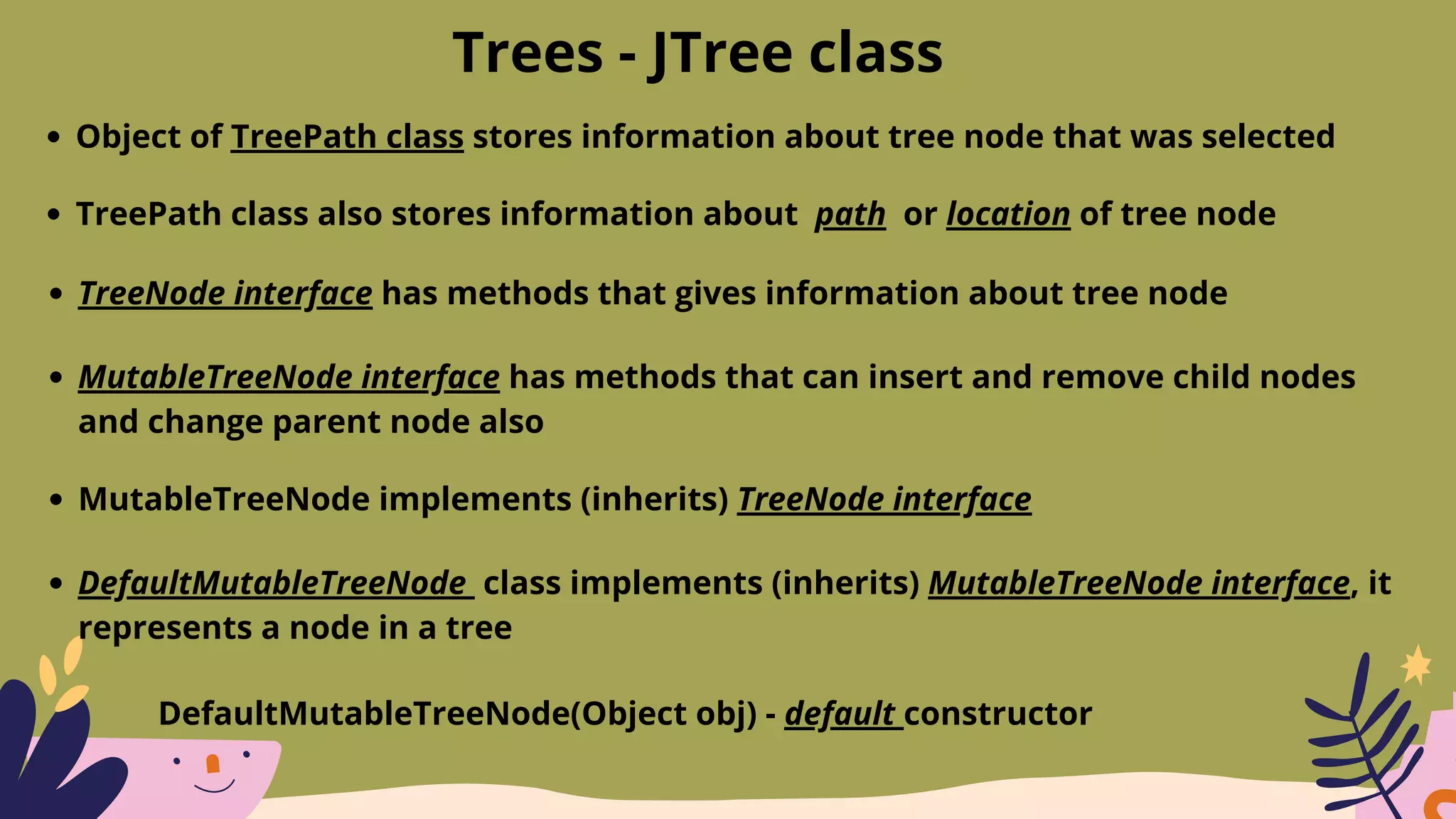

Object of TreePath class stores information about tree node that was selected
TreePath class also stores information about path or location of tree node
TreeNode interface has methods that gives information about tree node
MutableTreeNode interface has methods that can insert and remove child nodes
and change parent node also
MutableTreeNode implements (inherits) TreeNode interface
DefaultMutableTreeNode class implements (inherits) MutableTreeNode interface, it
represents a node in a tree
DefaultMutableTreeNode(Object obj) - default constructor

Trees - JTree class
Procedure to create tree in an applet
Create object of JTree class
Add the tree to scroll pane
Add the scroll pane to the content pane of the applet

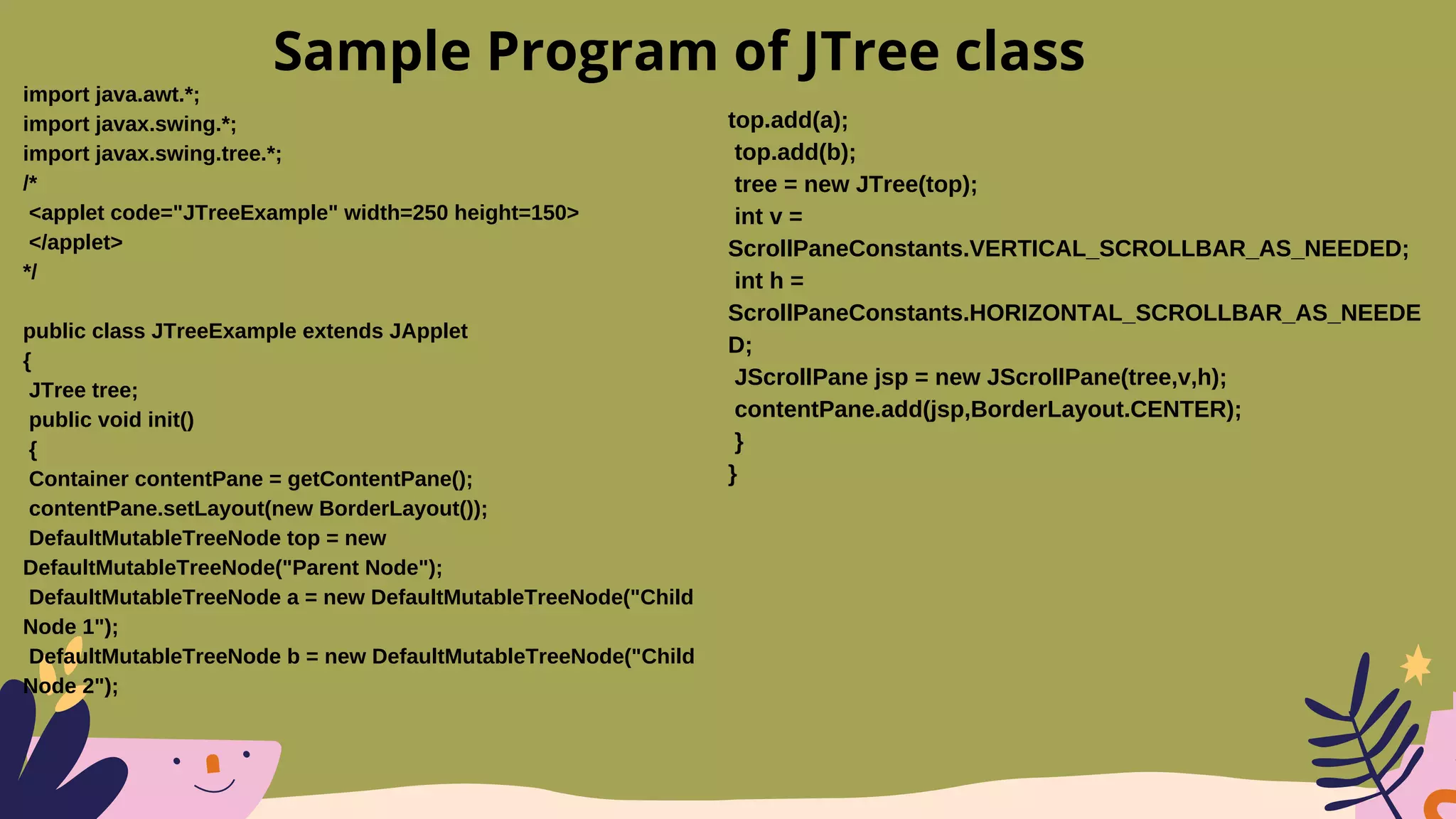

import java.awt.*;
import javax.swing.tree.*;
/*
<applet code="JTreeExample" width=250 height=150>
</applet>
*/
public class JTreeExample extends JApplet
{
JTree tree;
public void init()
{
contentPane.setLayout(new BorderLayout());
DefaultMutableTreeNode top = new
DefaultMutableTreeNode("Parent Node");
DefaultMutableTreeNode a = new DefaultMutableTreeNode("Child
Node 1");
DefaultMutableTreeNode b = new DefaultMutableTreeNode("Child
Node 2");
Sample Program of JTree class
top.add(a);
top.add(b);
tree = new JTree(top);
int v =
ScrollPaneConstants.VERTICAL_SCROLLBAR_AS_NEEDED;
int h =
ScrollPaneConstants.HORIZONTAL_SCROLLBAR_AS_NEEDE
D;
JScrollPane jsp = new JScrollPane(tree,v,h);
}
}

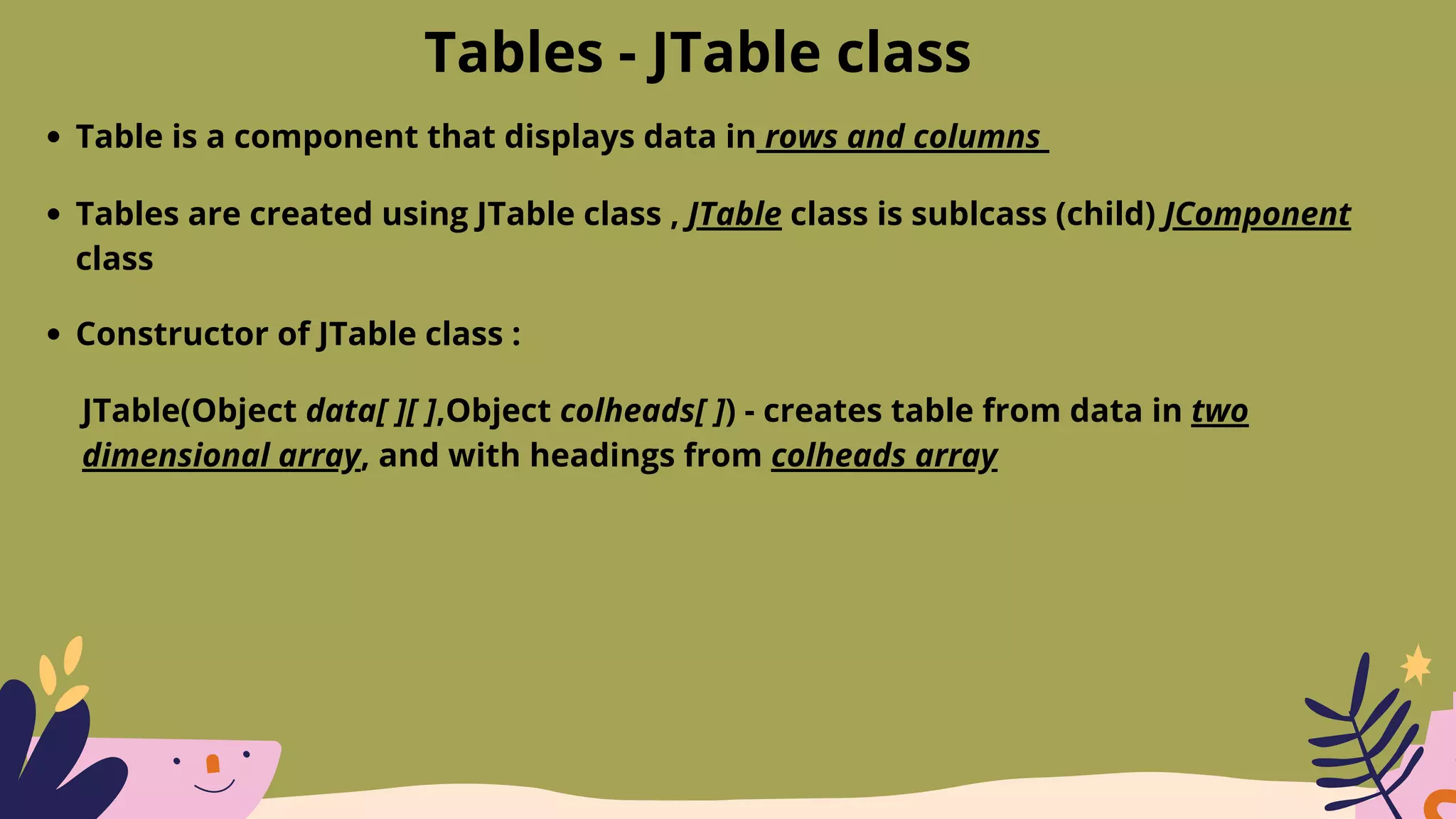

Tables - JTable class
Table is a component that displays data in rows and columns
Tables are created using JTable class , JTable class is sublcass (child) JComponent
class
Constructor of JTable class :
JTable(Object data[ ][ ],Object colheads[ ]) - creates table from data in two
dimensional array, and with headings from colheads array

Tables - JTable class
Procedure to create tree in an applet
Create object of JTable class
Add the table to scroll pane
Add the scroll pane to the content pane of the applet

import java.awt.*;
/*
<applet code="JTableExample" width=250
height=150>
</applet>
*/
public class JTableExample extends JApplet
{
public void init()
{
final String[] colheads = {"Student
Name","Branch"};
final Object[][] data = {{"Akshay","Computer"},
{"Mahesh","Electrical"} };

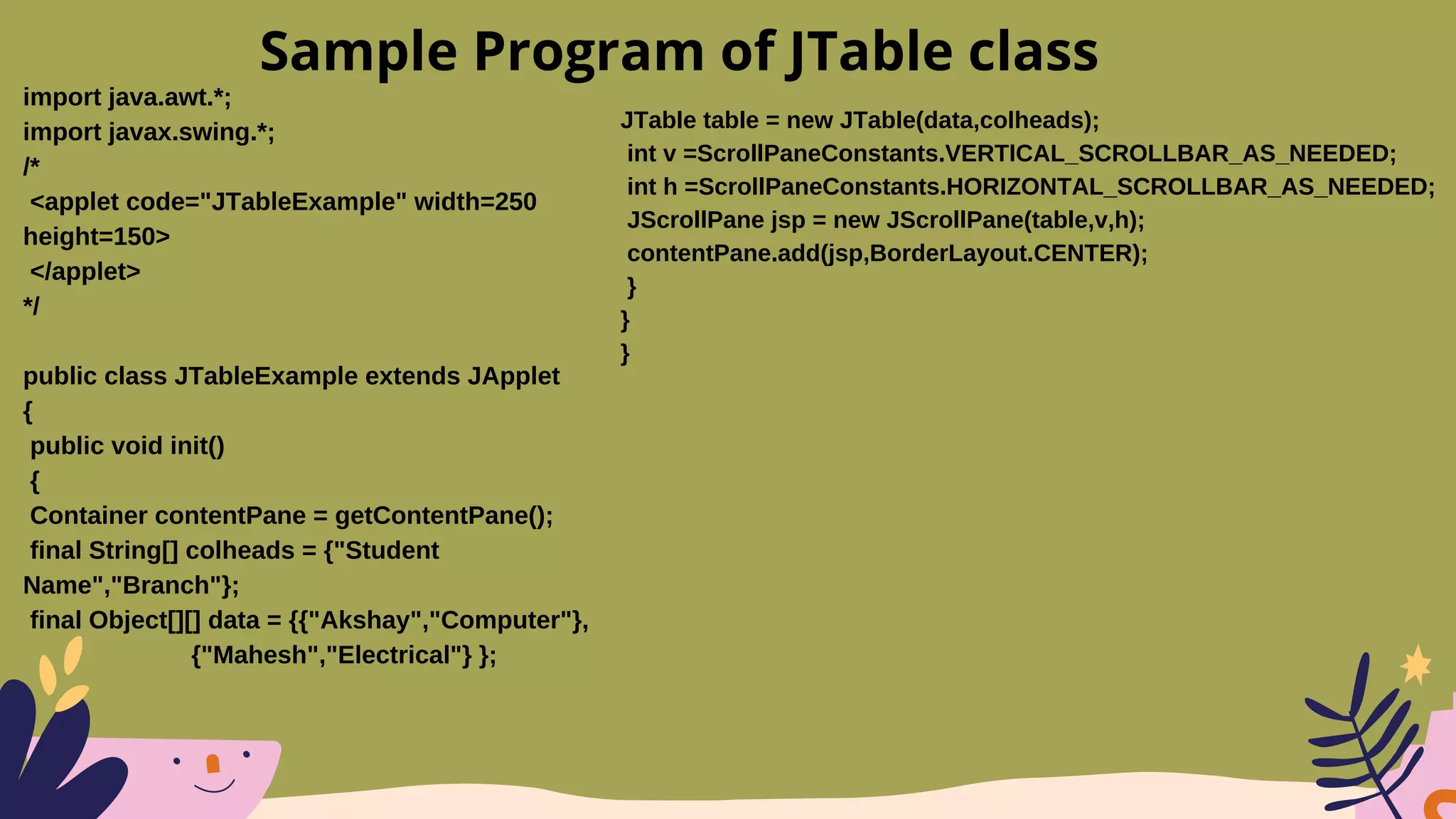

Sample Program of JTable class
JTable table = new JTable(data,colheads);
int v =ScrollPaneConstants.VERTICAL_SCROLLBAR_AS_NEEDED;
int h =ScrollPaneConstants.HORIZONTAL_SCROLLBAR_AS_NEEDED;
JScrollPane jsp = new JScrollPane(table,v,h);
}
}
}

Progress Bar - JProgressBar class

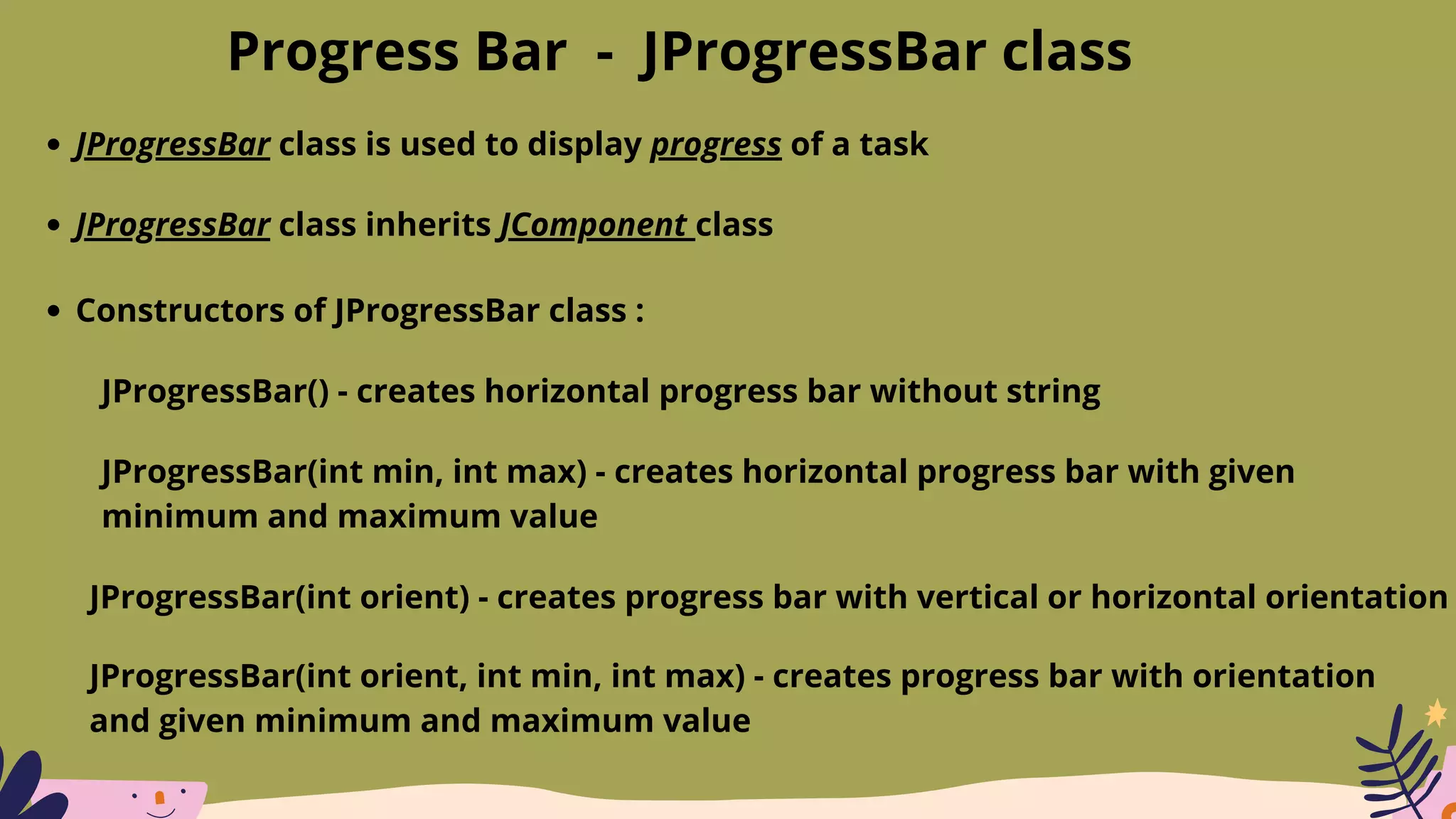

JProgressBar class is used to display progress of a task
JProgressBar class inherits JComponent class
Constructors of JProgressBar class :
JProgressBar() - creates horizontal progress bar without string
JProgressBar(int min, int max) - creates horizontal progress bar with given
minimum and maximum value
JProgressBar(int orient) - creates progress bar with vertical or horizontal orientation
JProgressBar(int orient, int min, int max) - creates progress bar with orientation
and given minimum and maximum value

Progress Bar - JProgressBar class

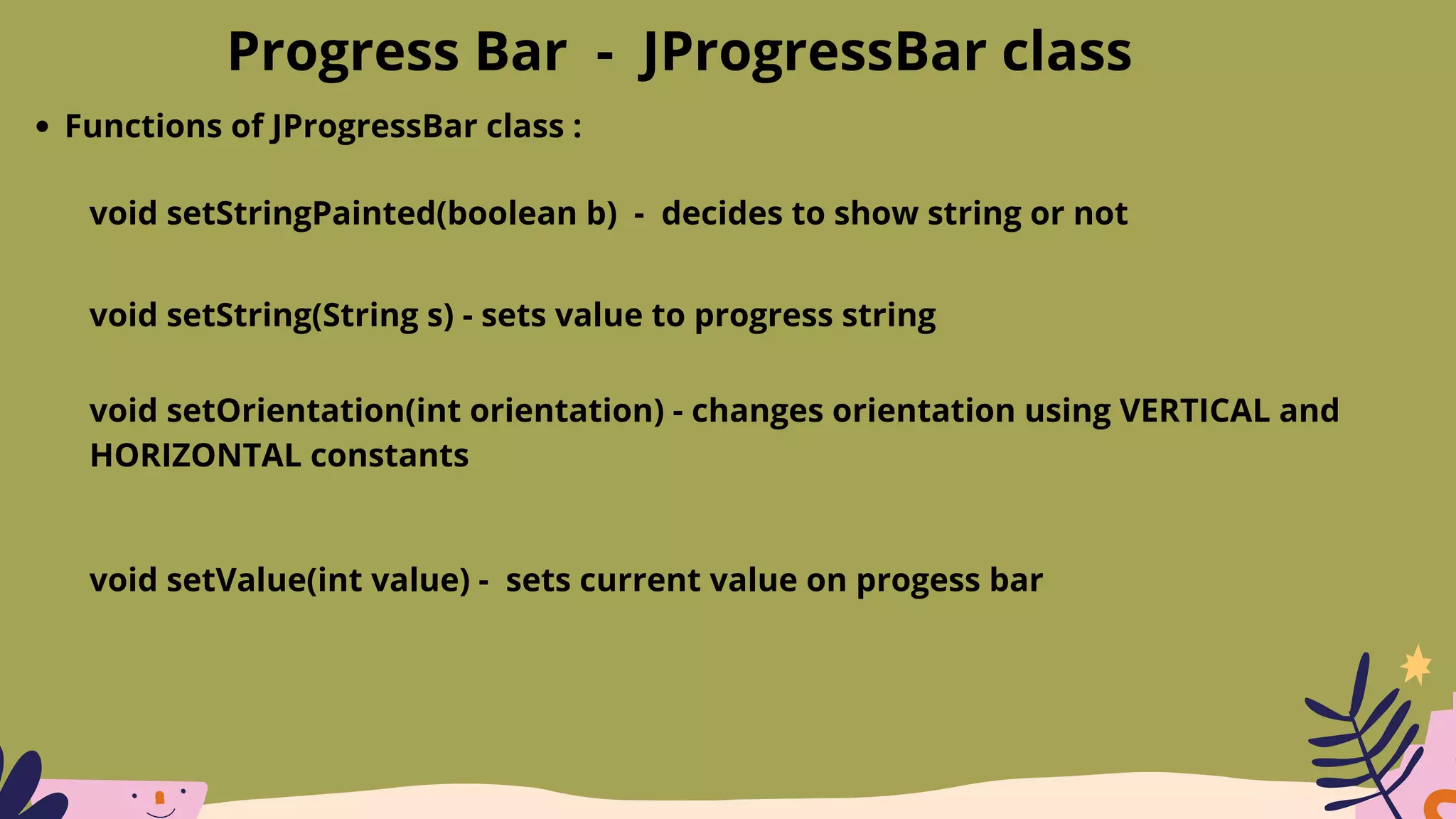

Functions of JProgressBar class :
void setStringPainted(boolean b) - decides to show string or not
void setString(String s) - sets value to progress string
void setOrientation(int orientation) - changes orientation using VERTICAL and
HORIZONTAL constants
void setValue(int value) - sets current value on progess bar

Sample Program of JProgressBar
public class ProgressBarExample extends JFrame{
JProgressBar jp;
int i=0,num=0;
ProgressBarExample(){
jp=new JProgressBar(0,1500);
jp.setBounds(40,40,160,30);
jp.setValue(0);
jp.setStringPainted(true);
add(jp);
setSize(200,120);
setLayout(null);
}
public void repeat(){
while(i<=1500){
jp.setValue(i);
i=i+20;
try{Thread.sleep(160);}catch(Exception e){}
}
}
public static void main(String[] args) {
ProgressBarExample m=new
ProgressBarExample();
m.setVisible(true);
m.repeat();
}
}

Output of Program
Progress bar

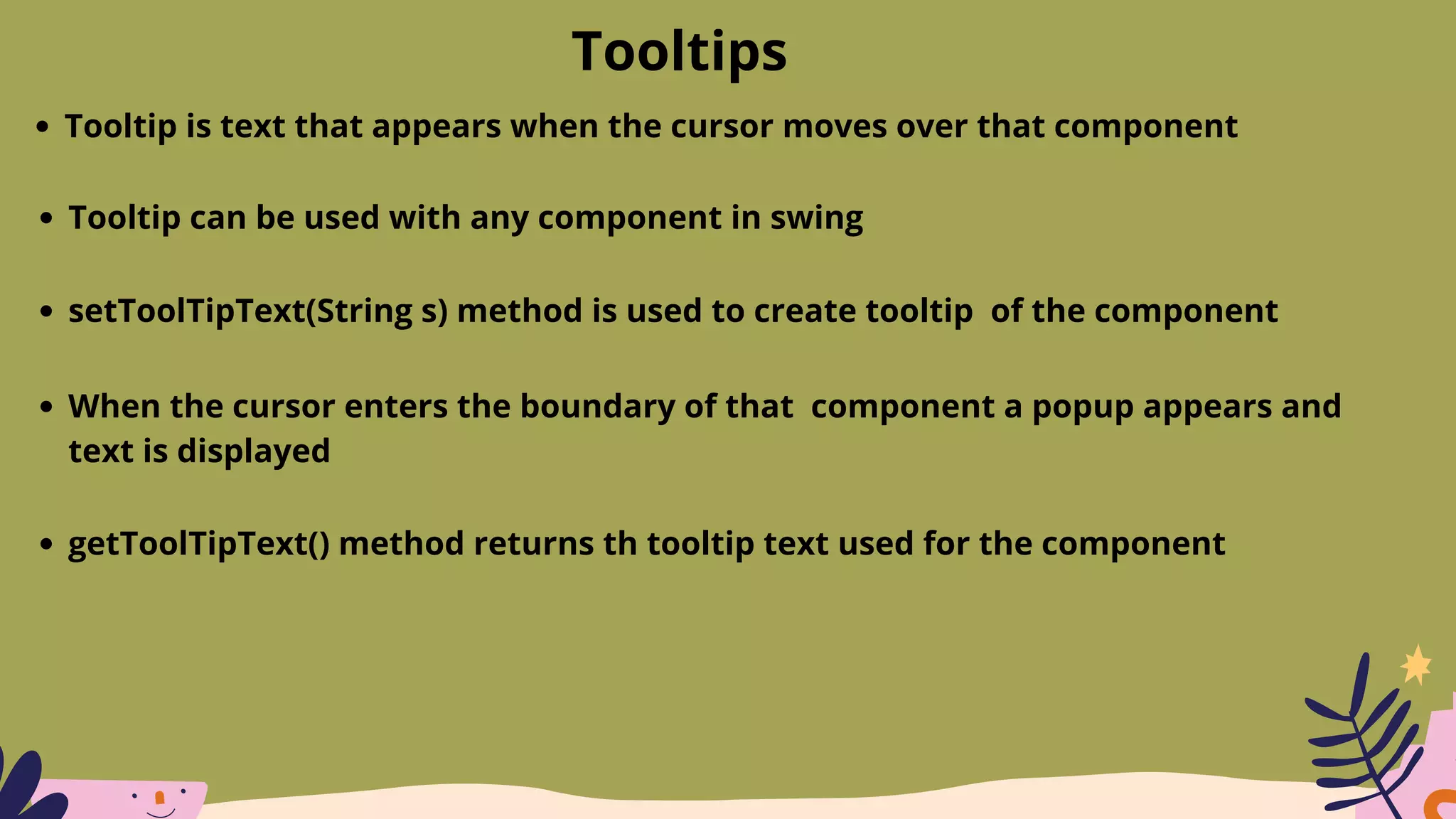

Tooltips
Tooltip is text that appears when the cursor moves over that component
Tooltip can be used with any component in swing
setToolTipText(String s) method is used to create tooltip of the component
When the cursor enters the boundary of that component a popup appears and
text is displayed
getToolTipText() method returns th tooltip text used for the component

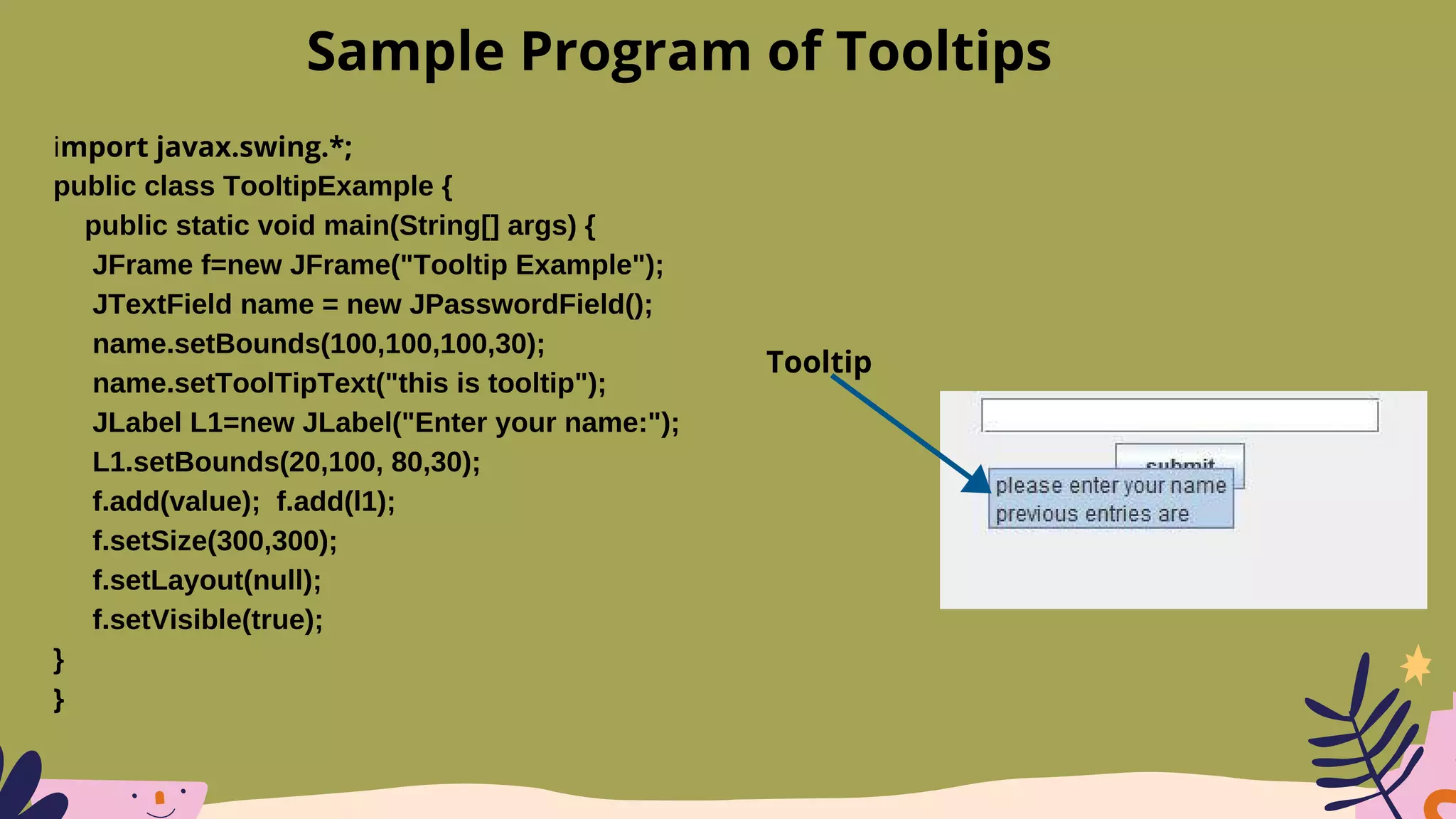

public class TooltipExample {
public static void main(String[] args) {
JFrame f=new JFrame("Tooltip Example");
JTextField name = new JPasswordField();
name.setBounds(100,100,100,30);
name.setToolTipText("this is tooltip");
JLabel L1=new JLabel("Enter your name:");
L1.setBounds(20,100, 80,30);
f.add(value); f.add(l1);
f.setSize(300,300);
f.setLayout(null);
f.setVisible(true);
}
}
Sample Program of Tooltips
Tooltip

MVC Architecture

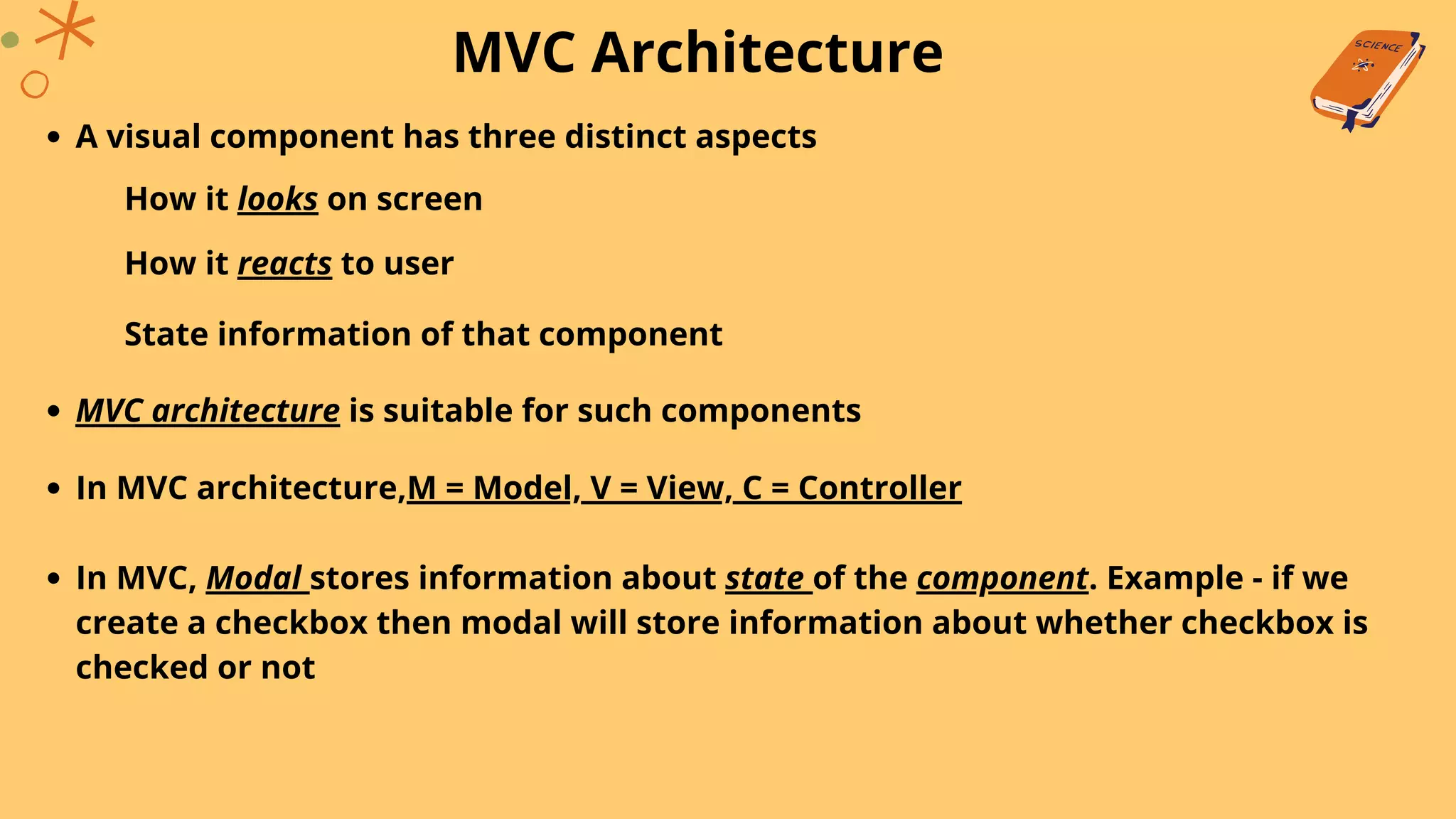

A visual component has three distinct aspects
How it looks on screen
How it reacts to user
State information of that component
MVC architecture is suitable for such components
In MVC architecture,M = Model, V = View, C = Controller
In MVC, Modal stores information about state of the component. Example - if we
create a checkbox then modal will store information about whether checkbox is
checked or not

MVC Architecture

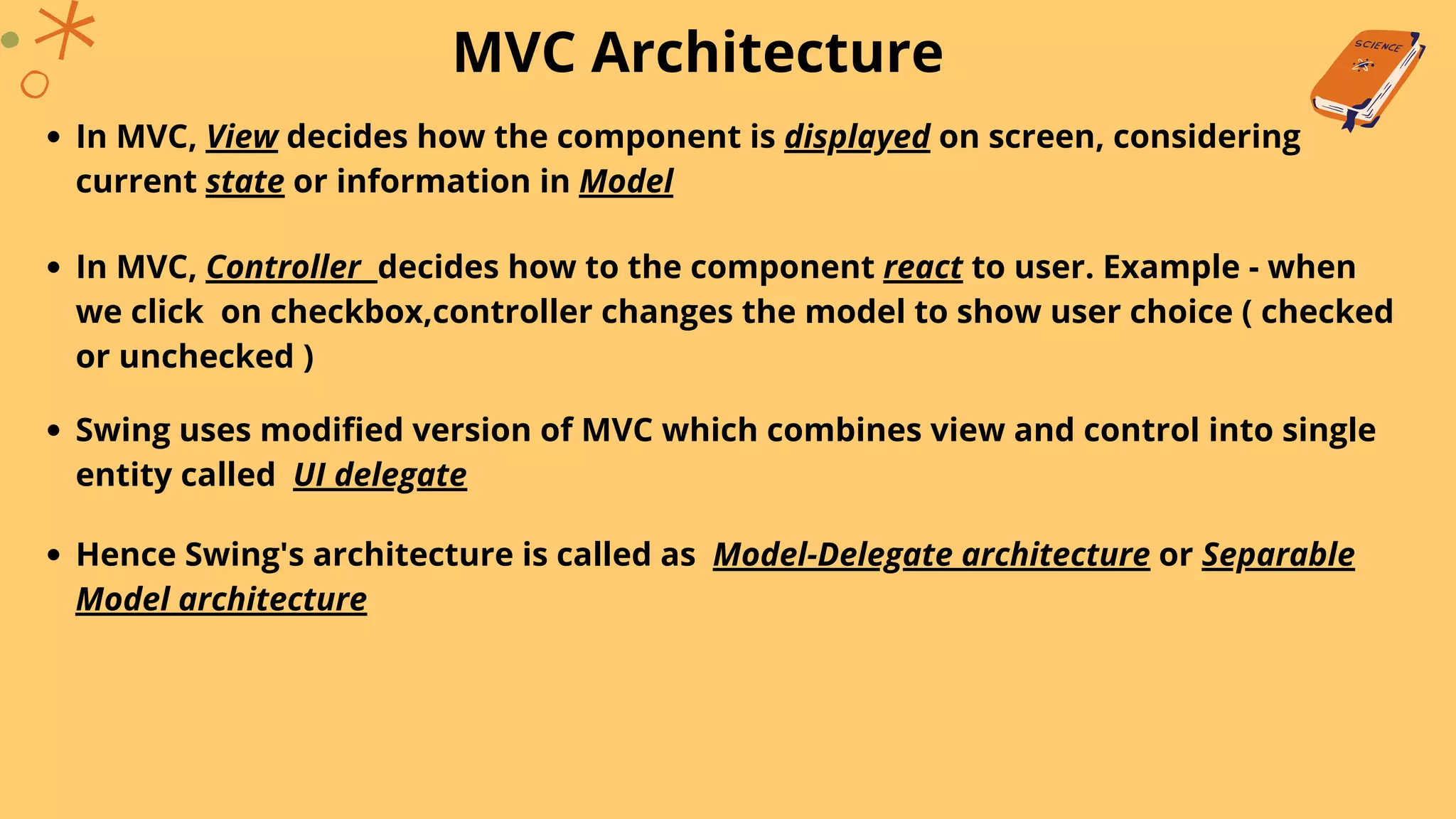

In MVC, View decides how the component is displayed on screen, considering
current state or information in Model
In MVC, Controller decides how to the component react to user. Example - when
we click on checkbox,controller changes the model to show user choice ( checked
or unchecked )
Swing uses modified version of MVC which combines view and control into single
entity called UI delegate
Hence Swing's architecture is called as Model-Delegate architecture or Separable
Model architecture

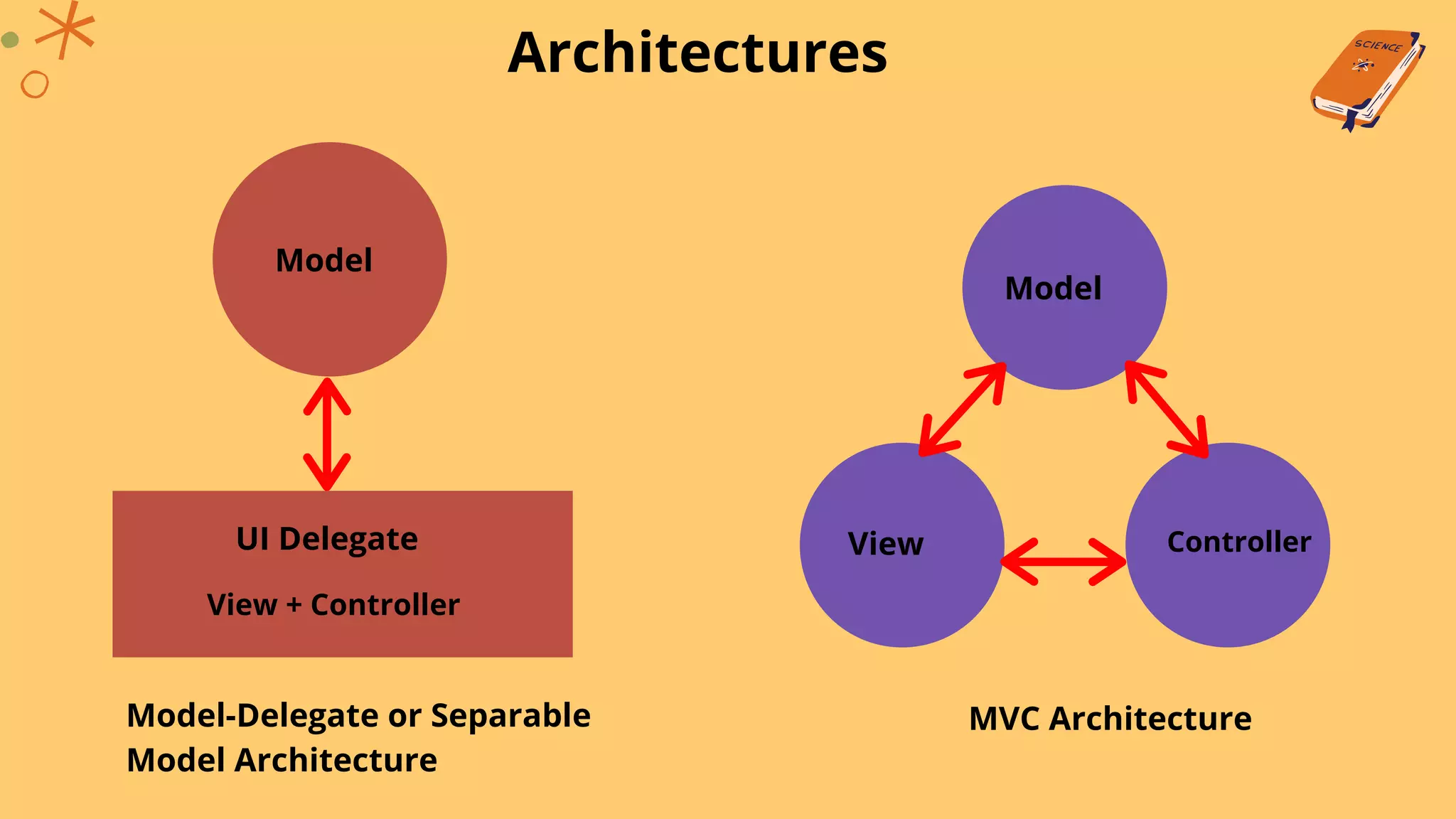

Architectures
Model
ControllerView
MVC Architecture
UI Delegate
View + Controller
Model
Model-Delegate or Separable
Model Architecture

Activity Time
Assessment Test
Program Assignment
Group Discussion

Supplemental
Video
https://nptel.ac.in/courses/106/105/1
06105191/

Additional Resources
https://www.tutorialspoint.com/java
https://www.javatpoint.com/free-java-
projects

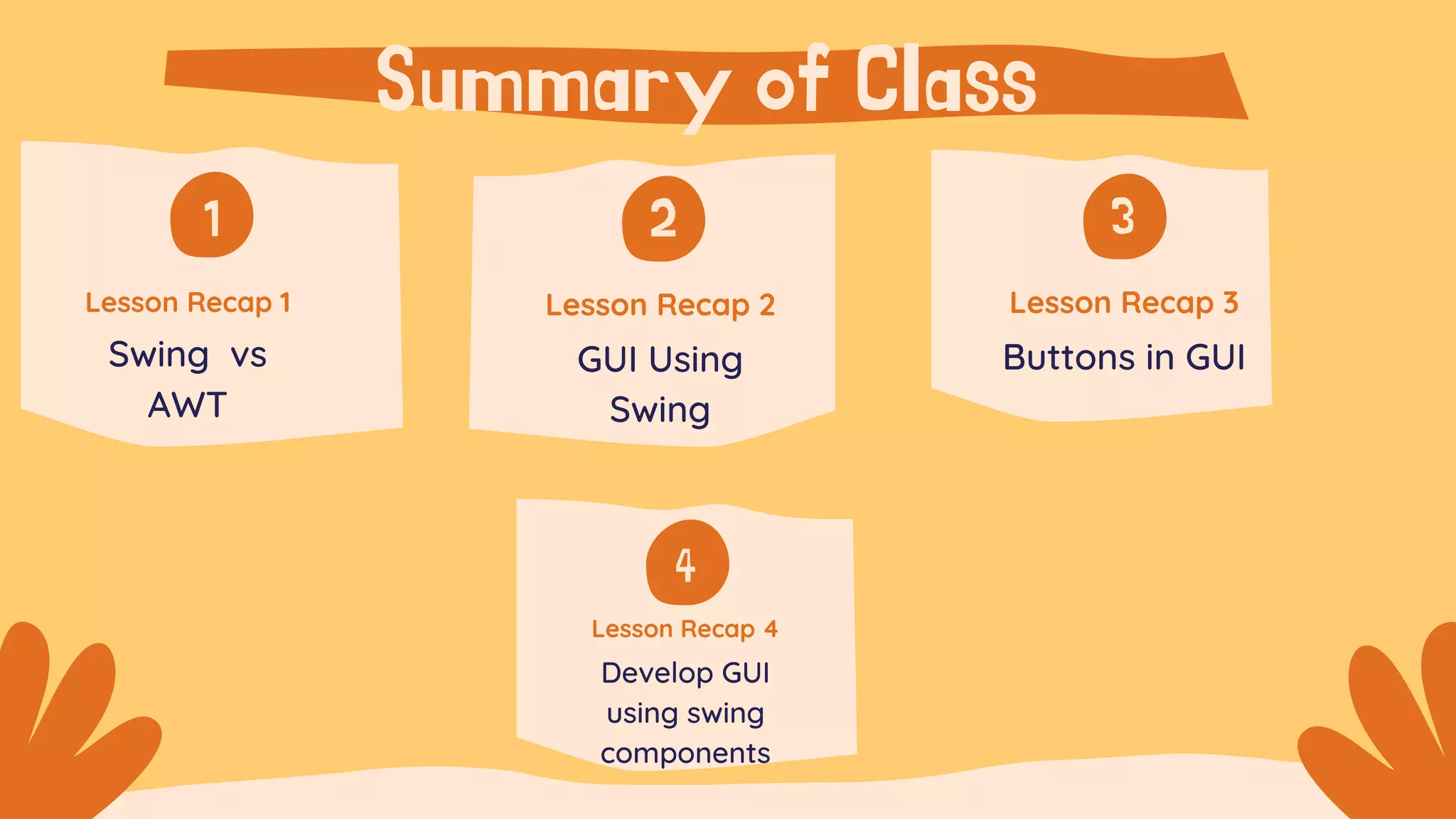

Summary of Class
Lesson Recap 1
Swing vs
AWT
Lesson Recap 2
GUI Using
Swing
Lesson Recap 3
Buttons in GUI
21 3
3
Lesson Recap 4
Develop GUI
using swing
components
4

Refrences
The Complete Reference Java Seventh Edition - Herbert
Schildt,McGraw Hill Publication

Unit-2 swing and mvc architecture

More Related Content

What's hot

Similar to Unit-2 swing and mvc architecture

More from Amol Gaikwad

Recently uploaded

Unit-2 swing and mvc architecture
