Understanding iOS from an Android perspective

Understanding iOS from an
Android perspective
A Busy Developer’s Guide to native iOS apps
Lauren Yew
Sept 28th, 2021
The New York Times
?

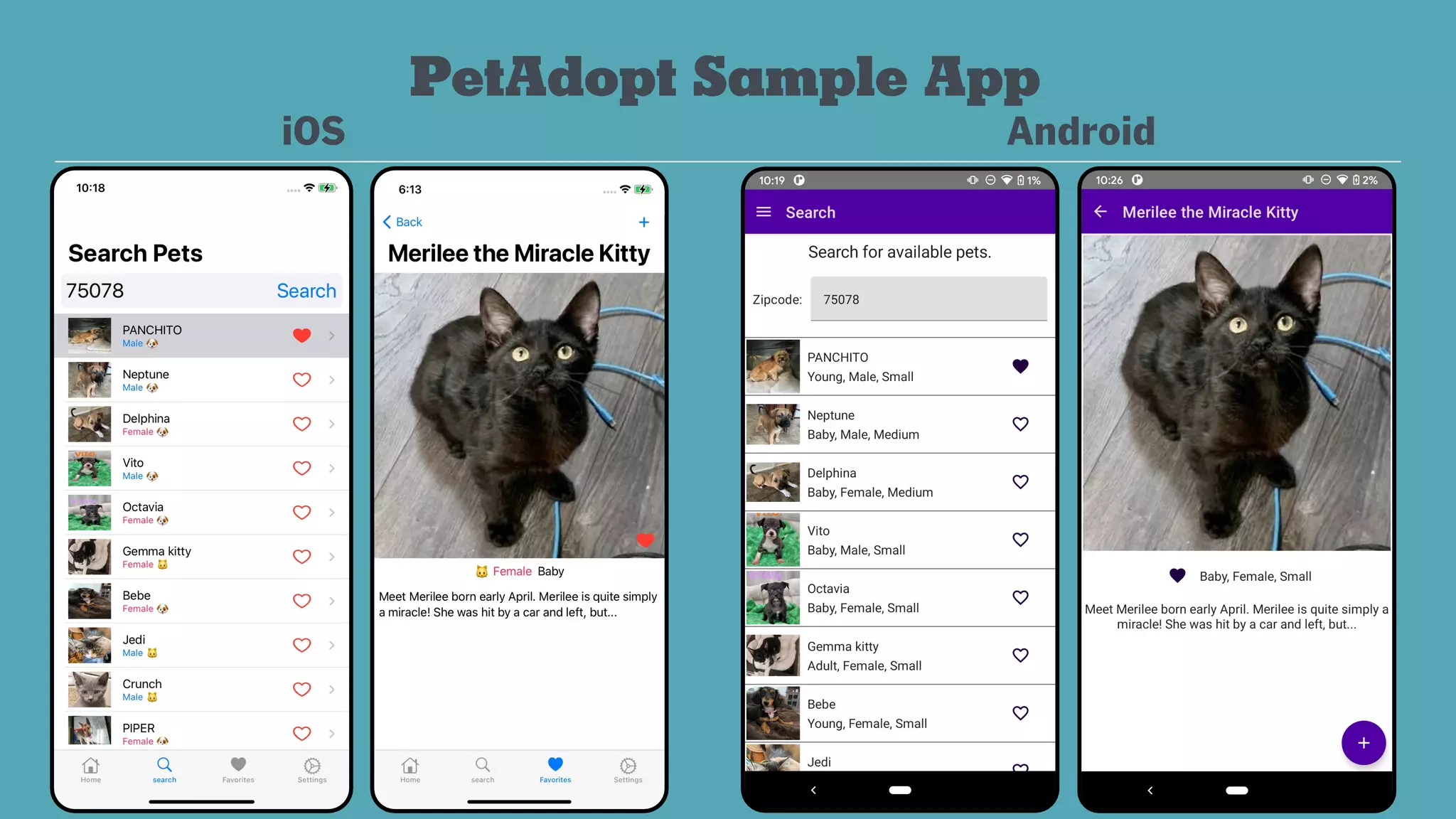

PetAdopt Sample App
iOS Android

Topics
1. Design Differences
2. Swift vs. Kotlin
3. App Setup & Structure
4. App Lifecycles & Architecture Patterns
5. SwiftUI vs. Jetpack Compose
?

Topics
2. Swift vs. Kotlin
5. Swift UI vs. Jetpack Compose

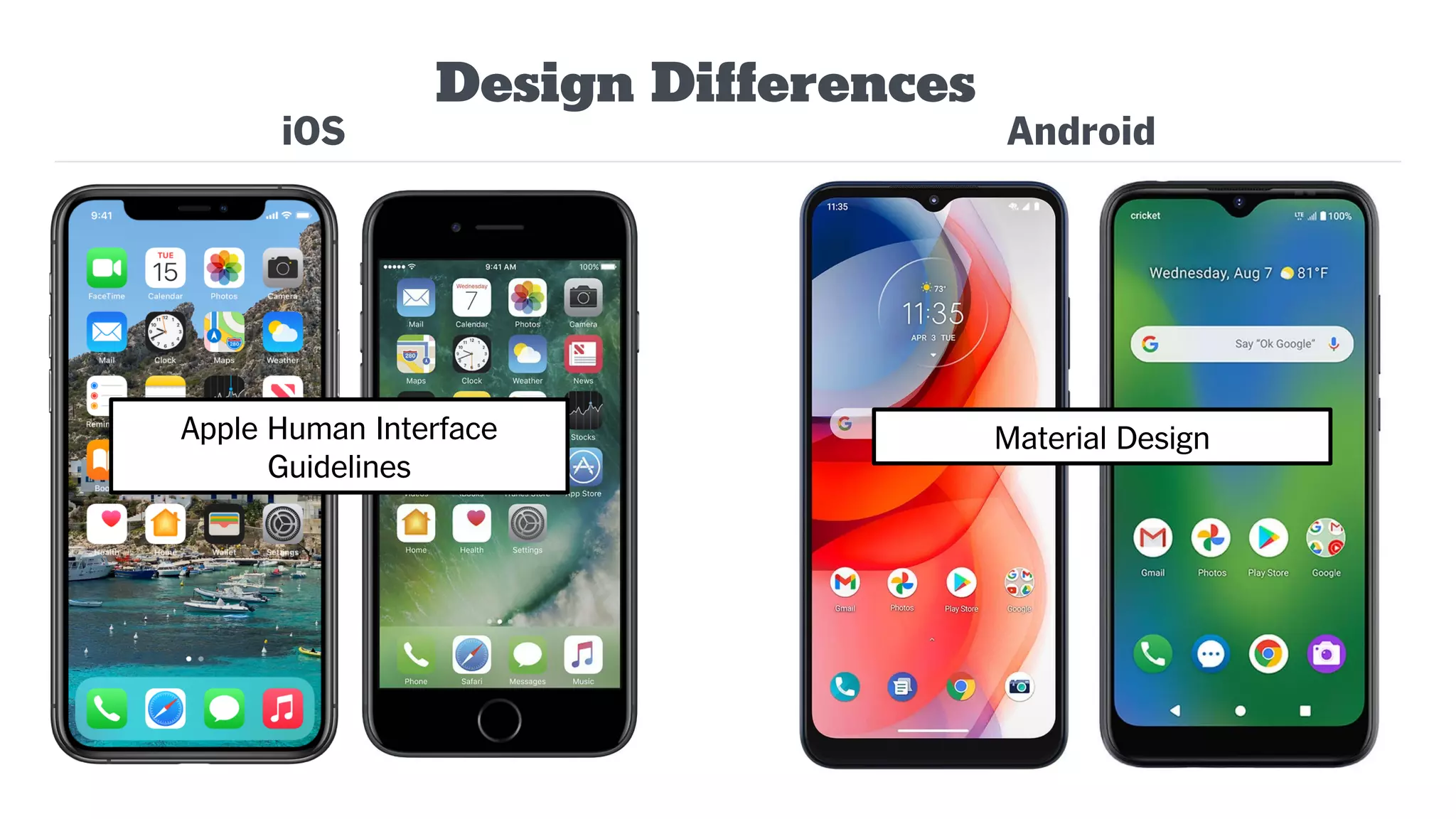

Design Differences
iOS Android
Apple Human Interface
Guidelines
Material Design

Design Differences
iOS Android
Home Button Only
Home Button + Back Button
(*sometimes represented by gestures
depending on navigation settings)

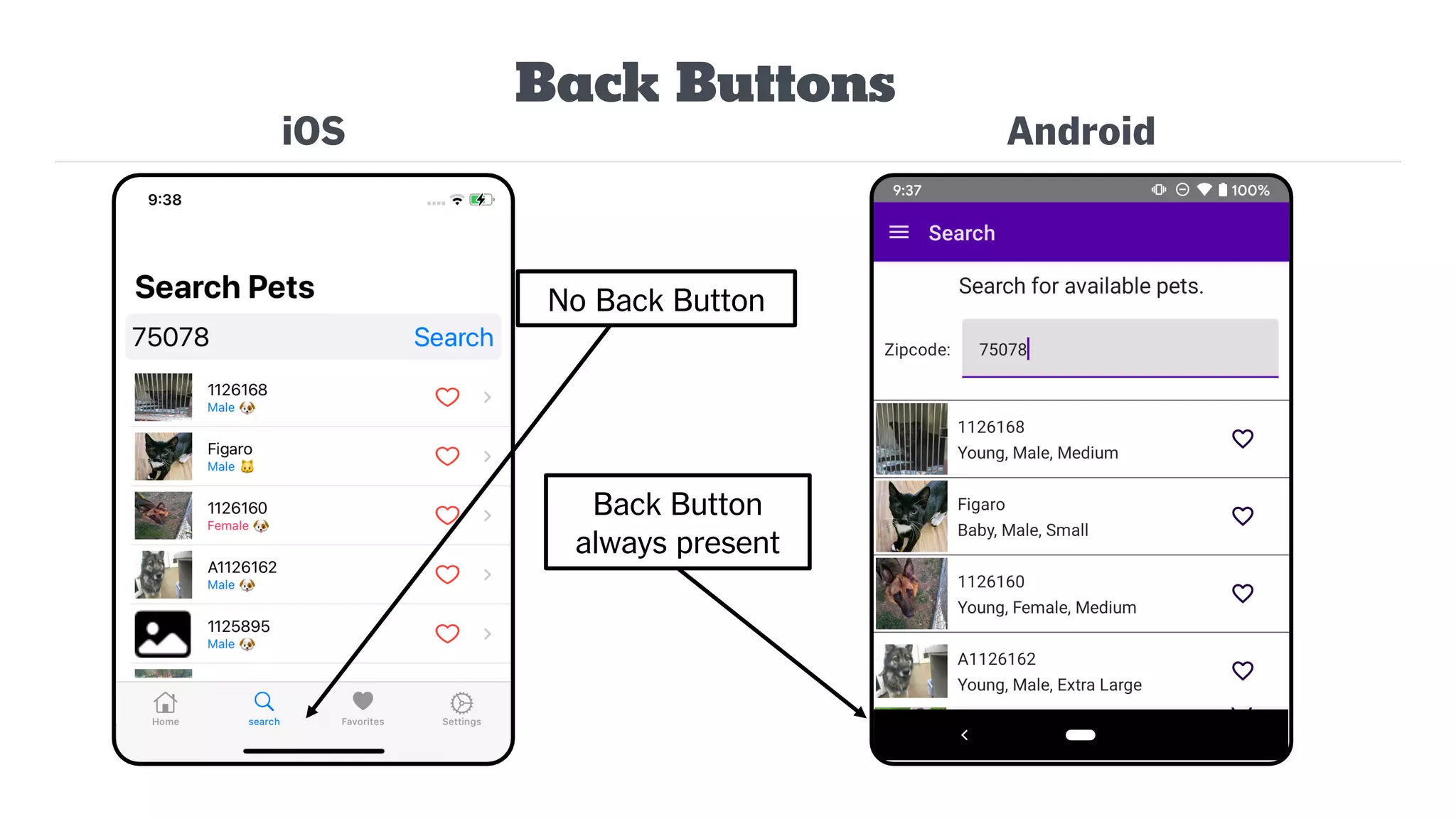

Back Buttons
iOS Android
Back Button
always present
No Back Button

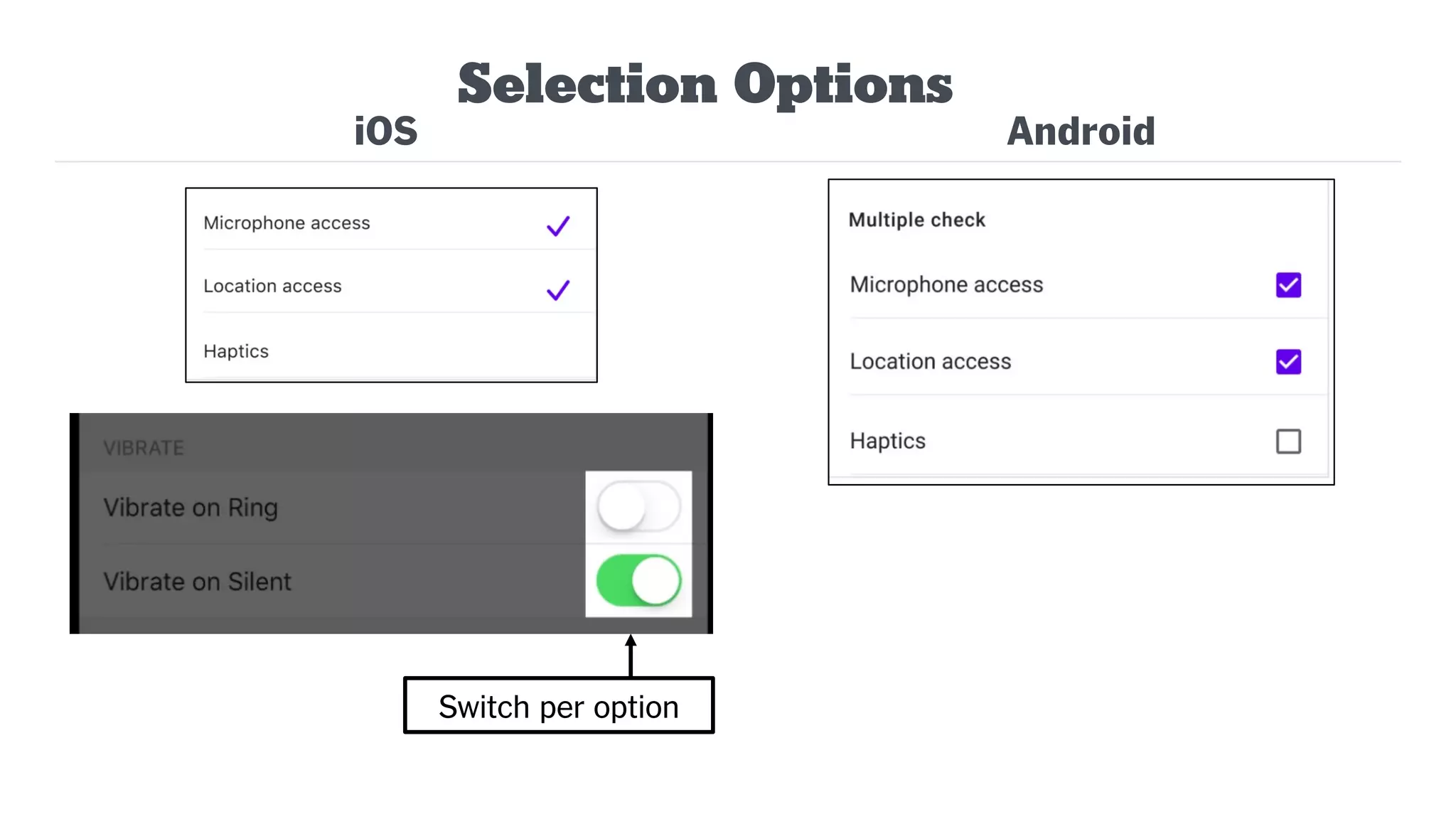

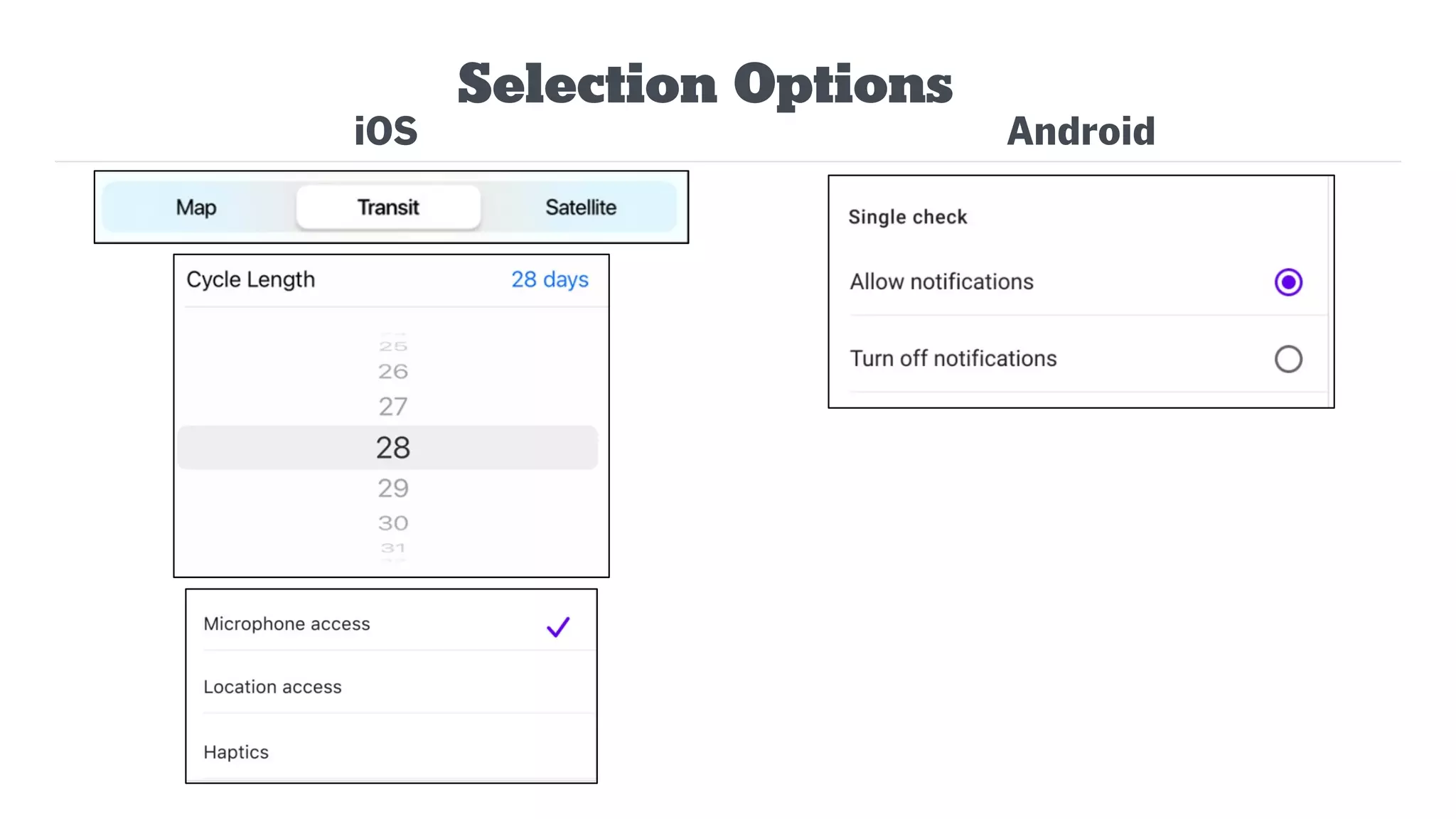

iOS
Selection Options
Android
Switch per option

Swift

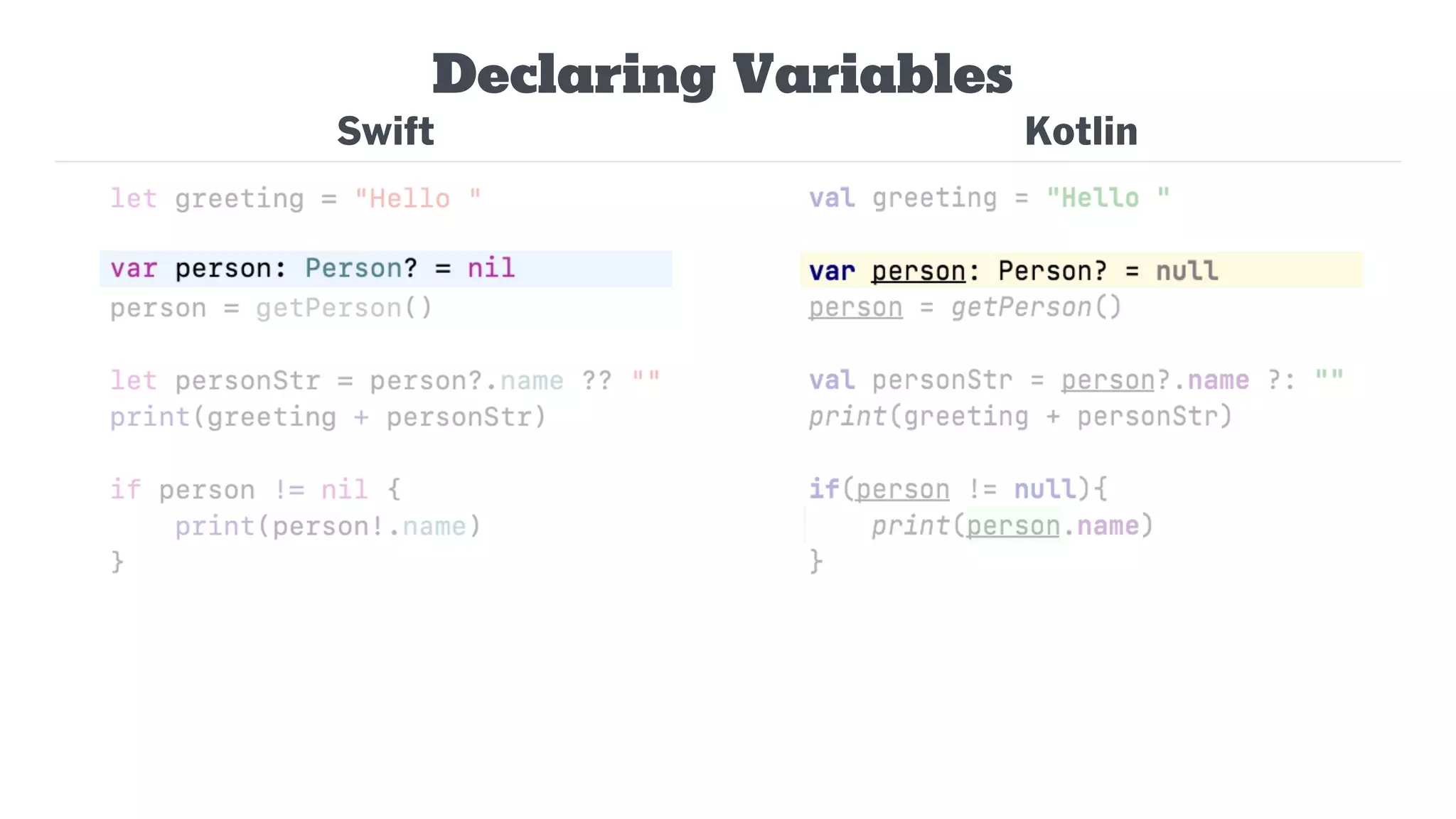

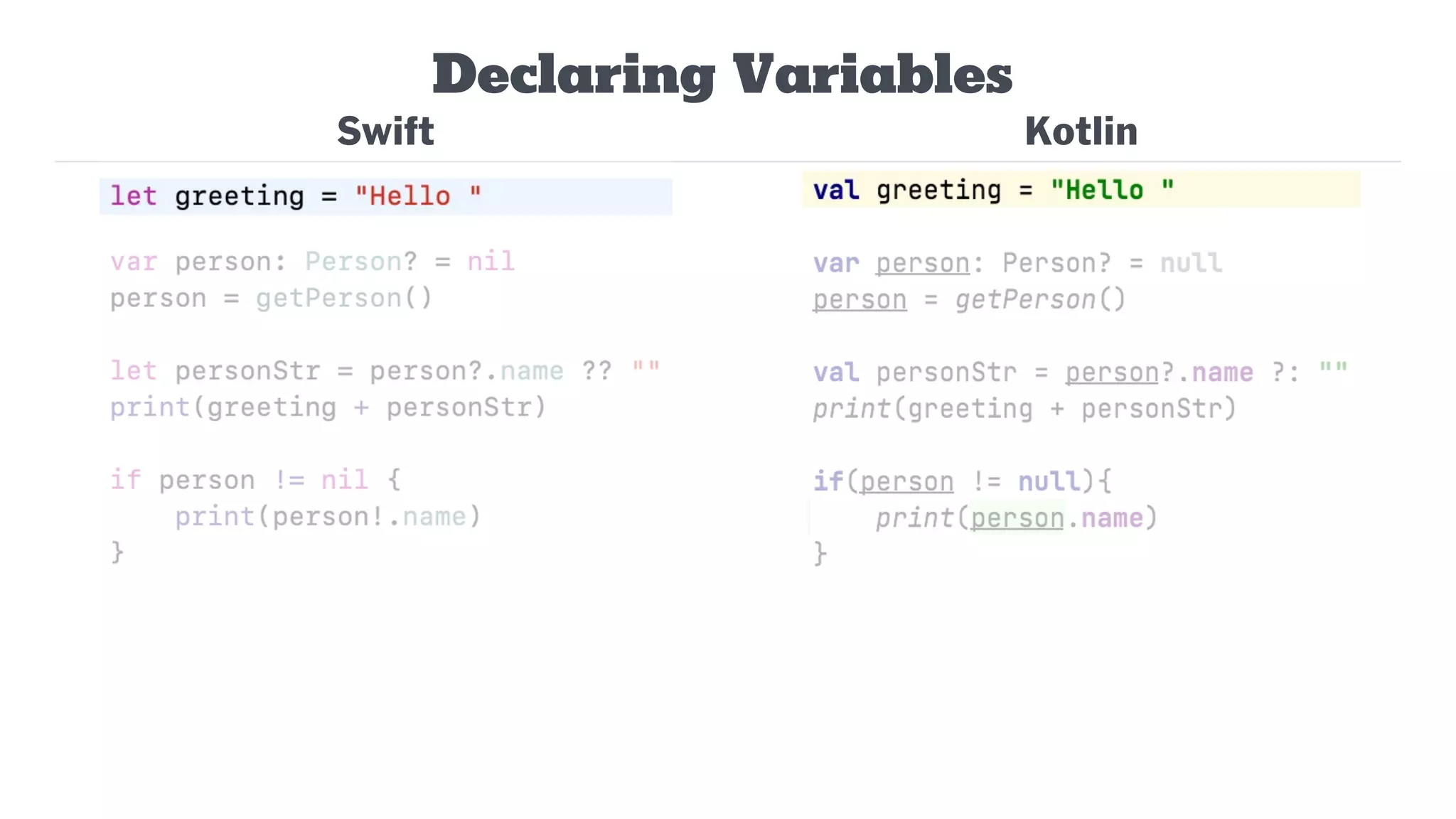

Declaring Variables
Kotlin

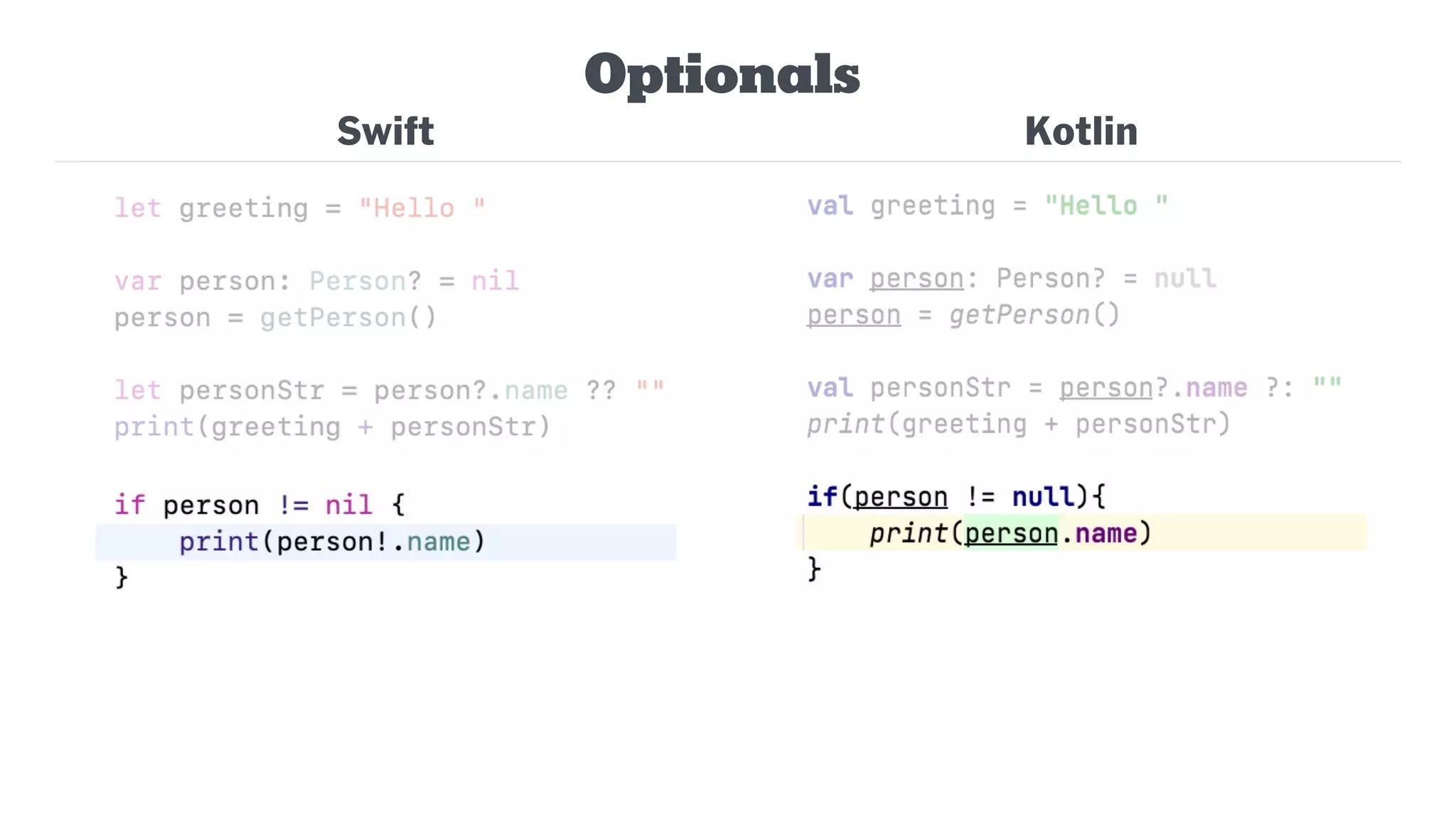

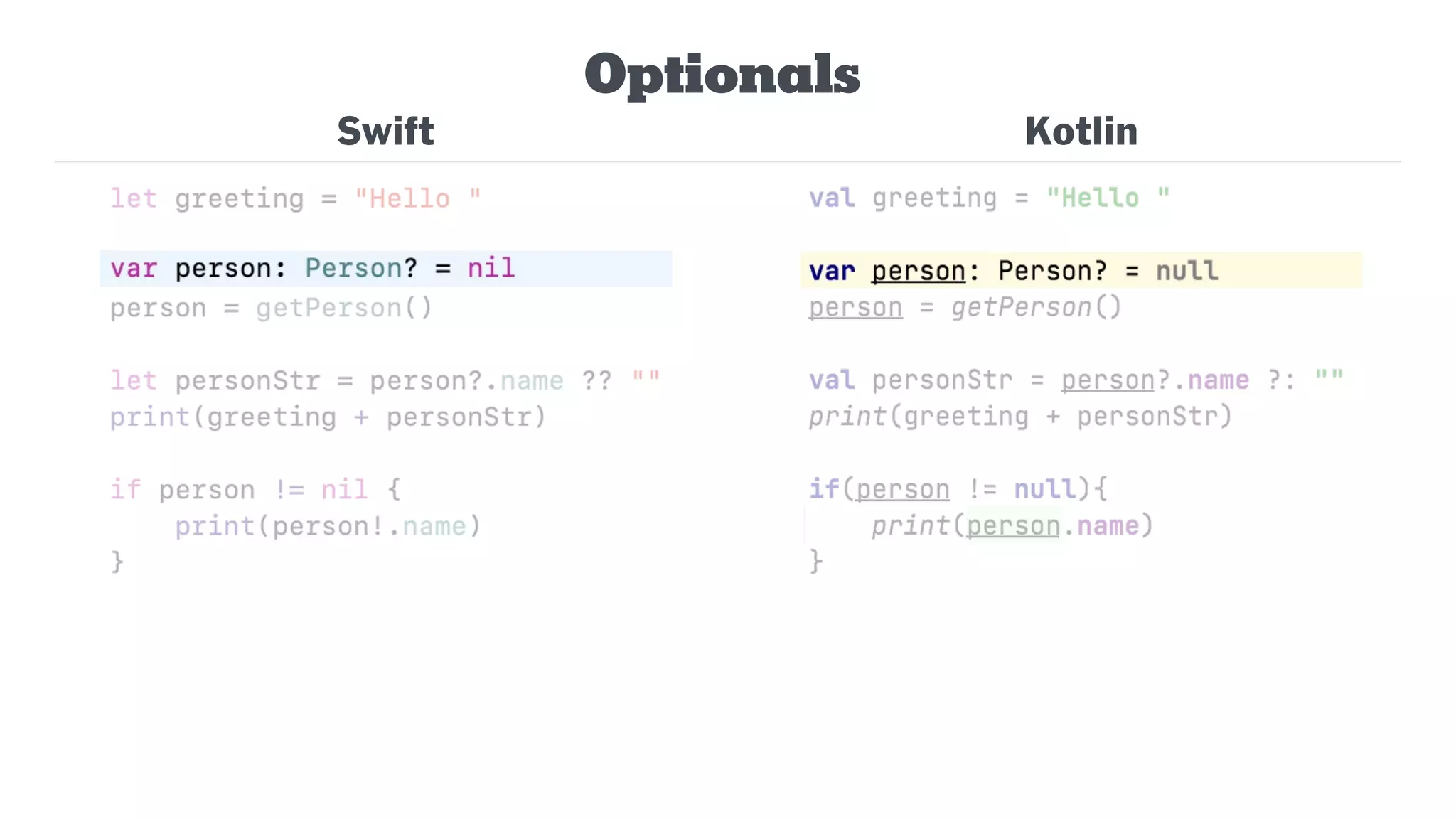

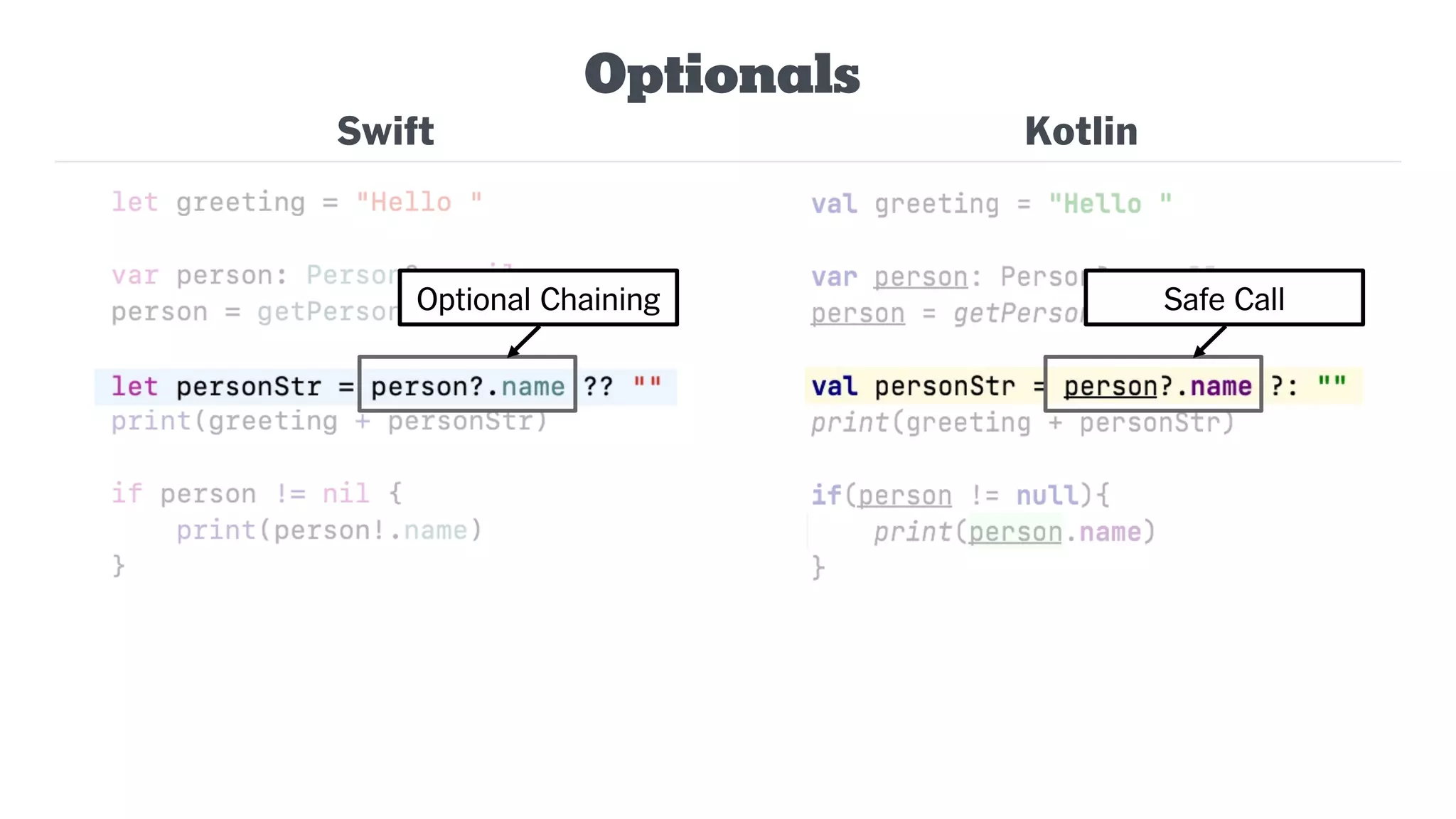

Swift
Optionals
Kotlin
Optional Chaining Safe Call

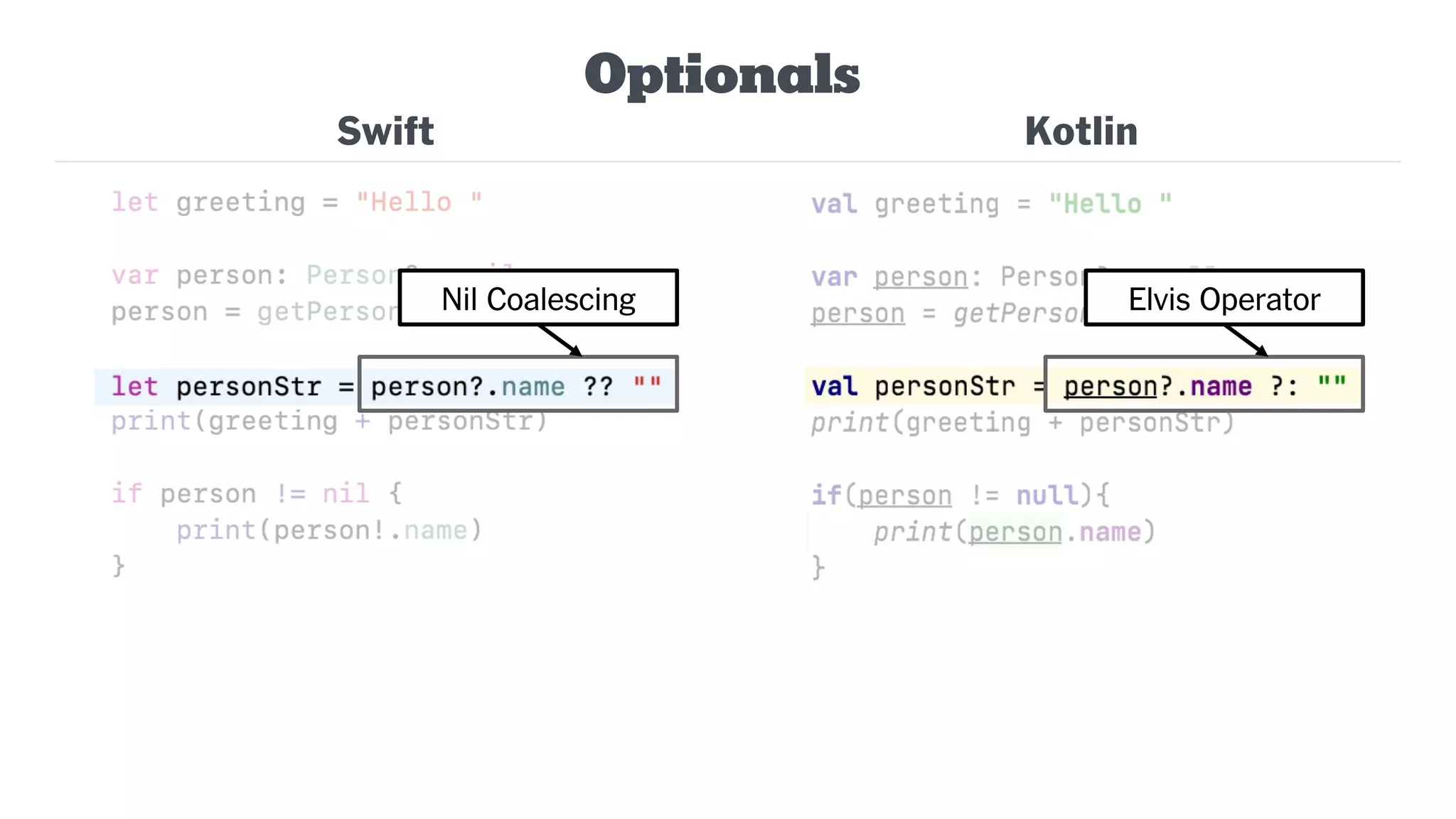

Swift
Optionals
Kotlin
Nil Coalescing Elvis Operator

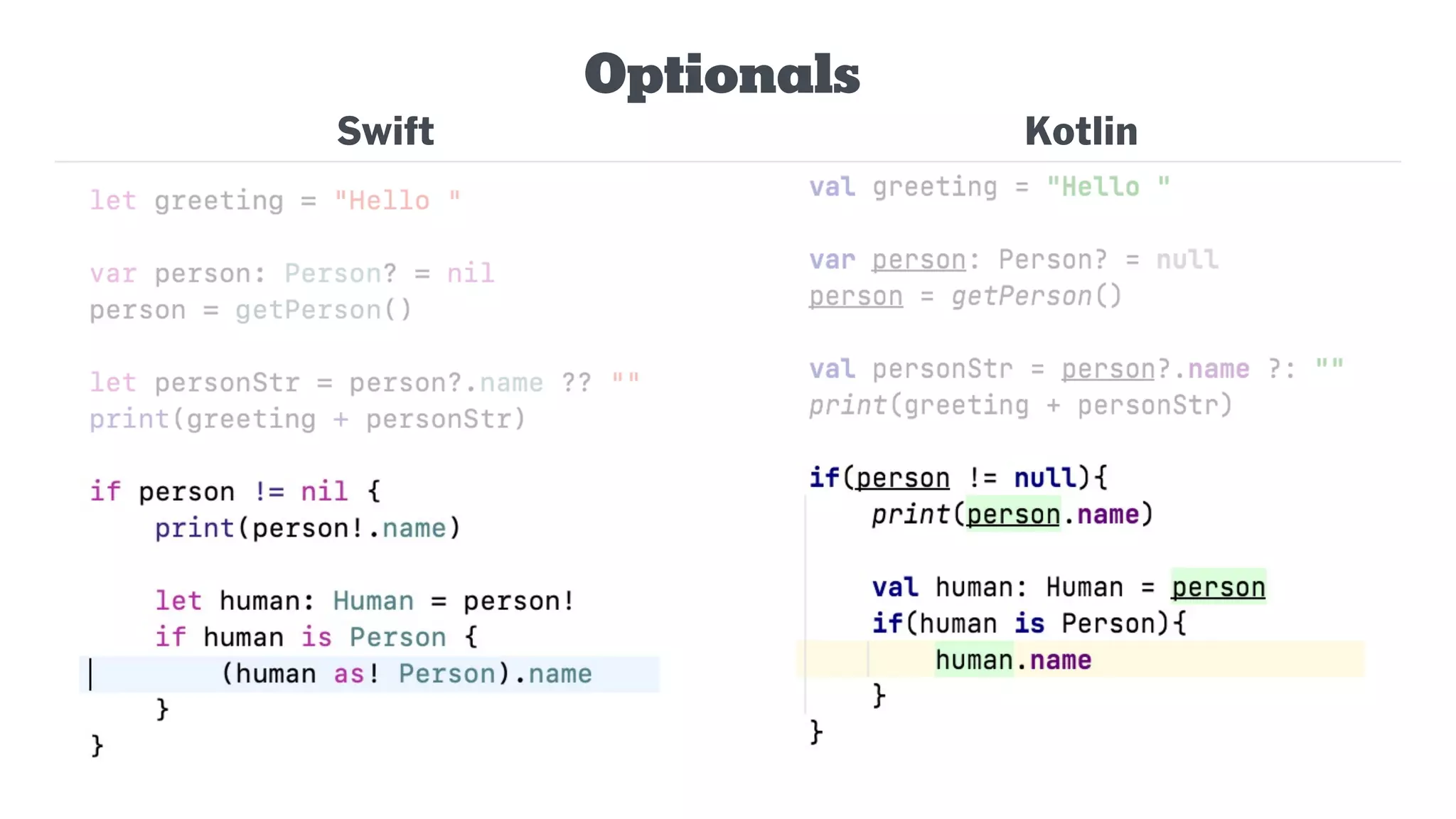

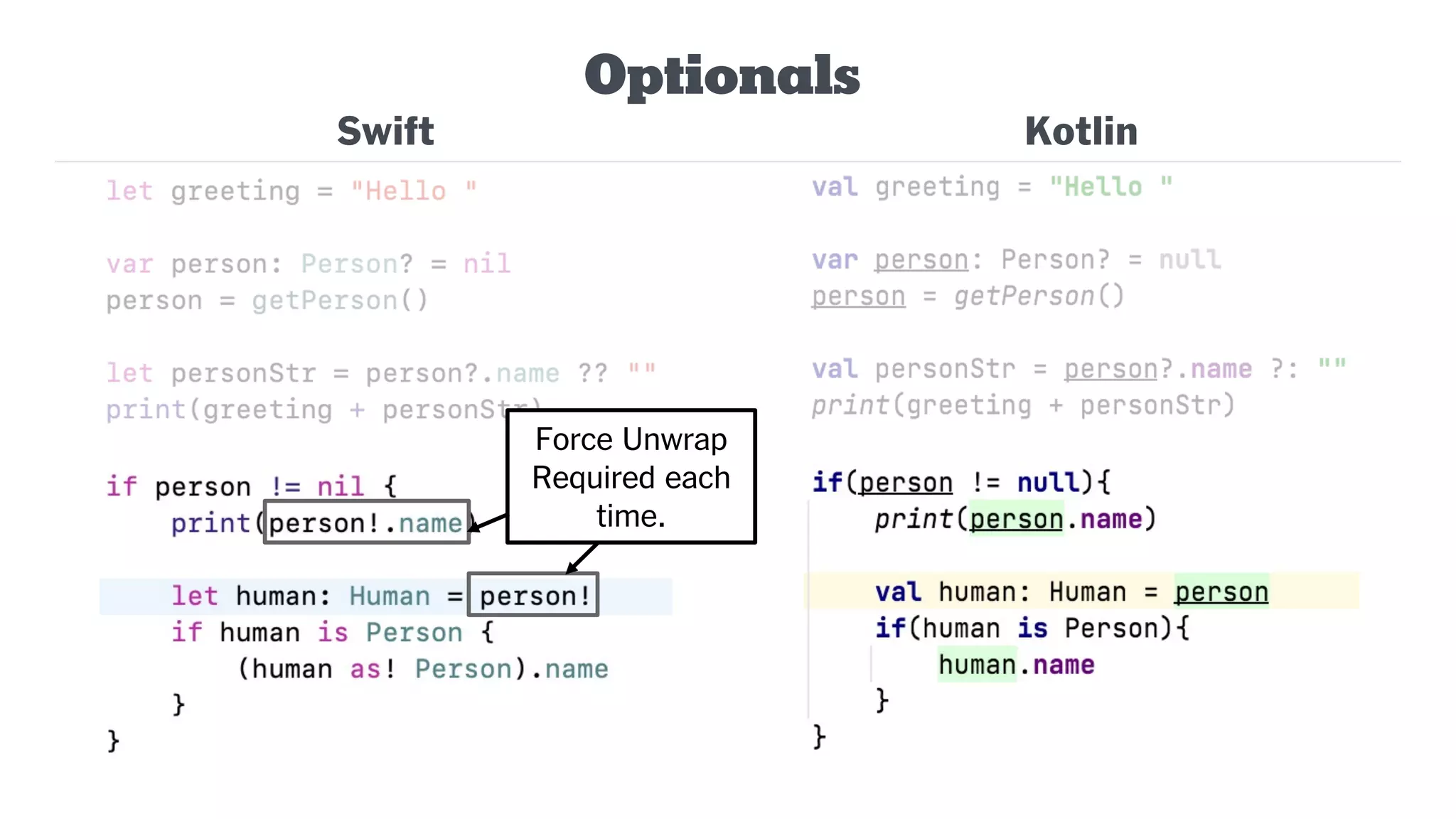

Swift
Optionals
Kotlin
Force Unwrap
Required each
time.

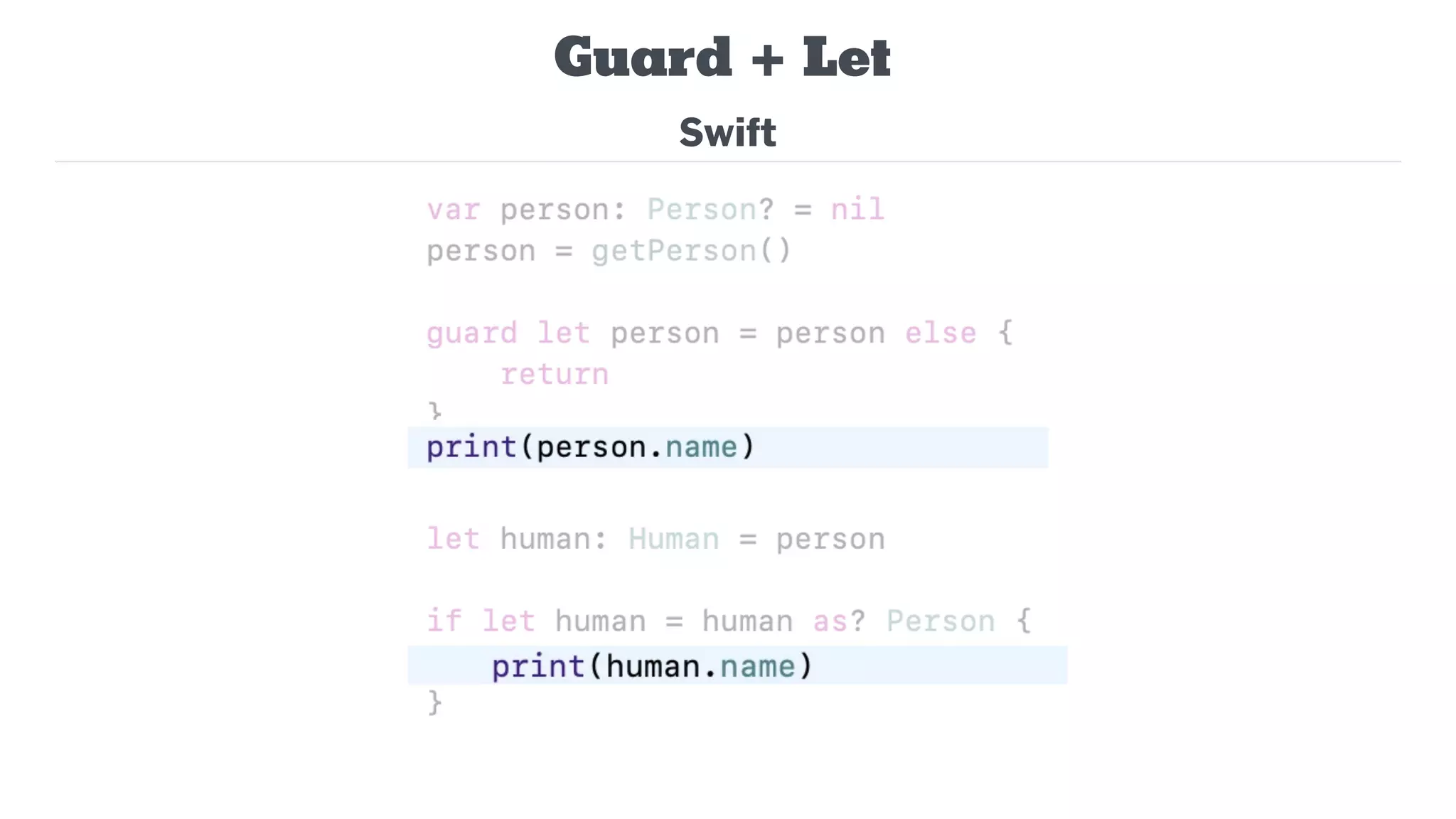

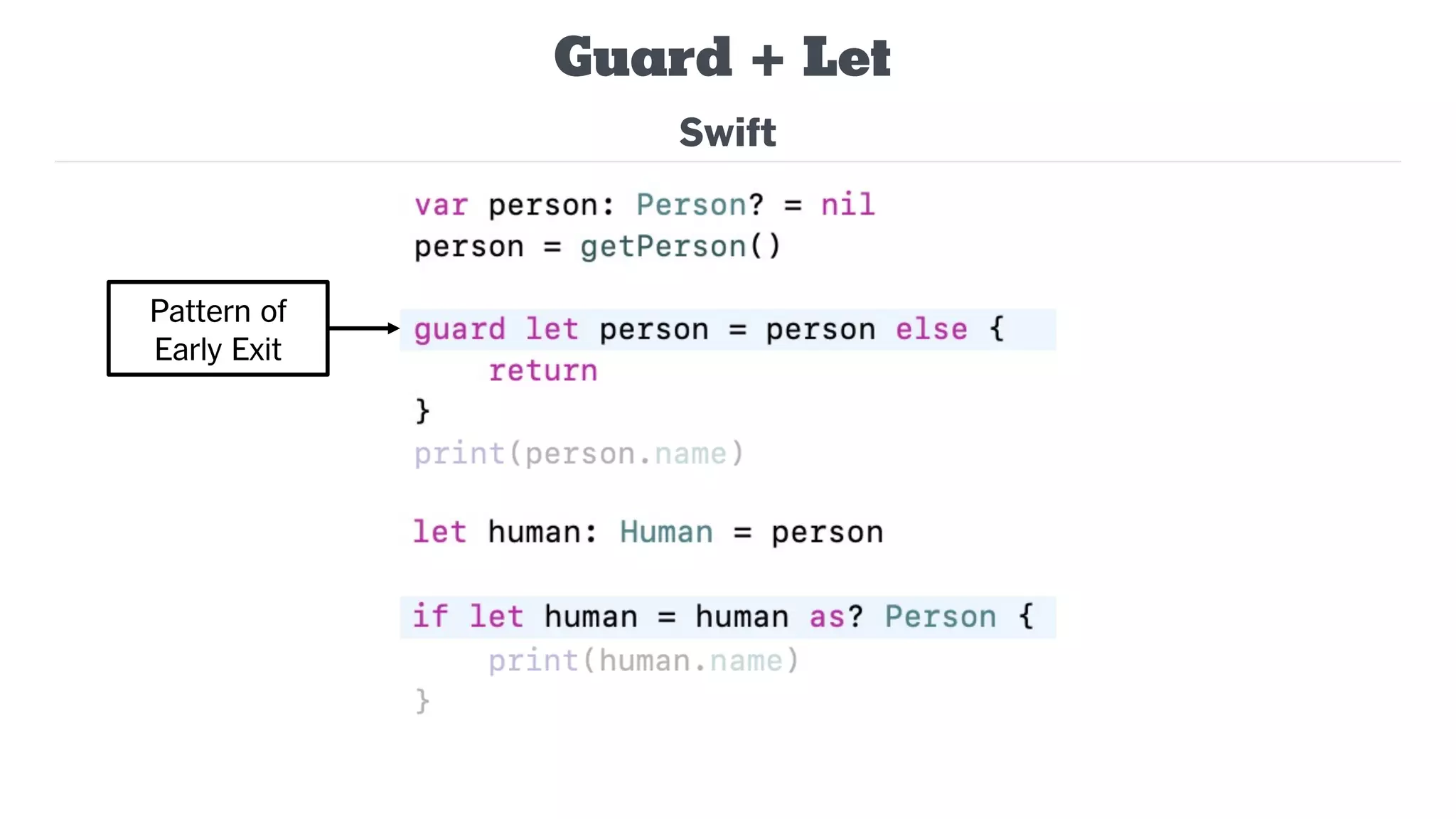

Guard + Let
Pattern of
Early Exit

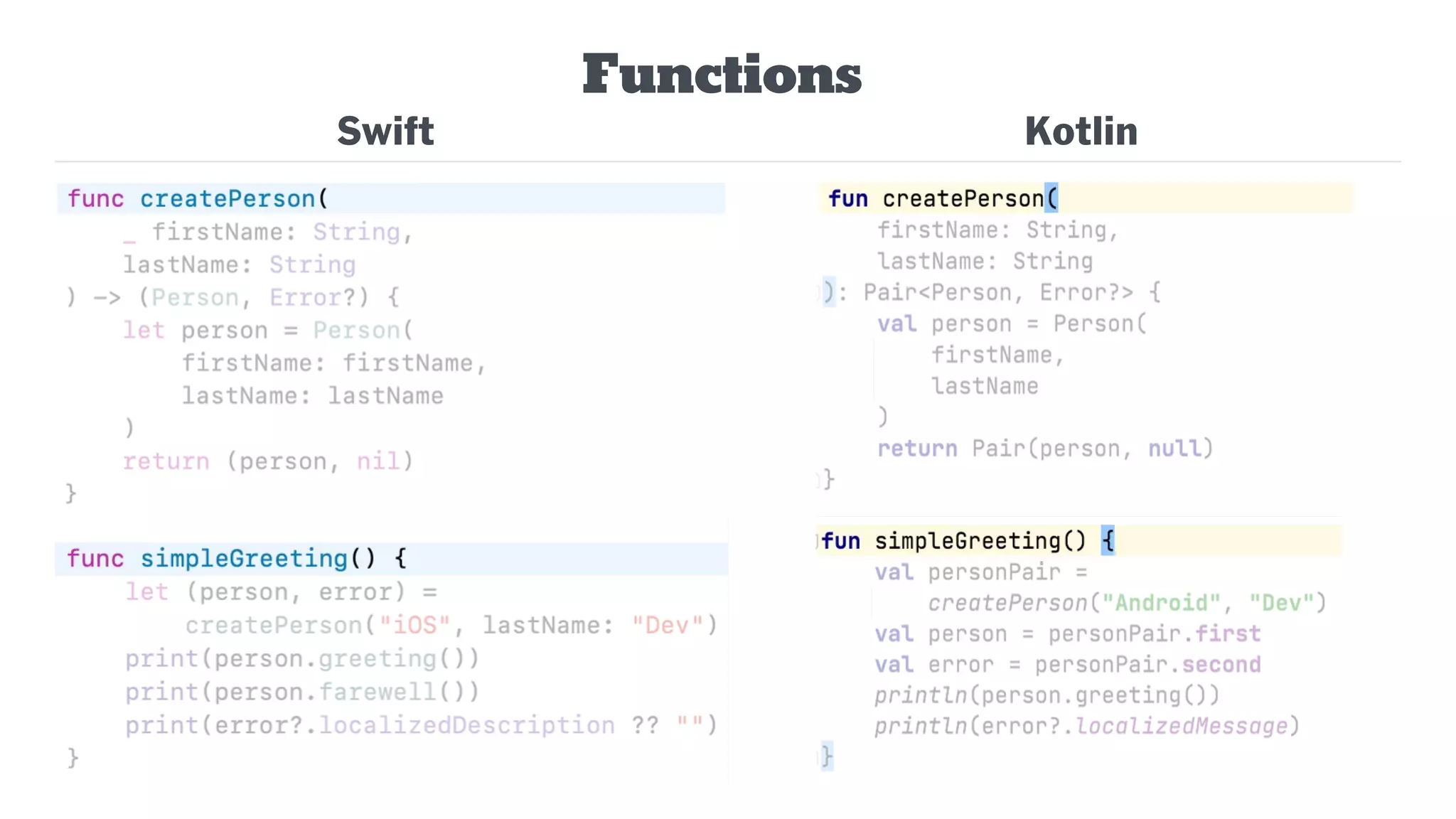

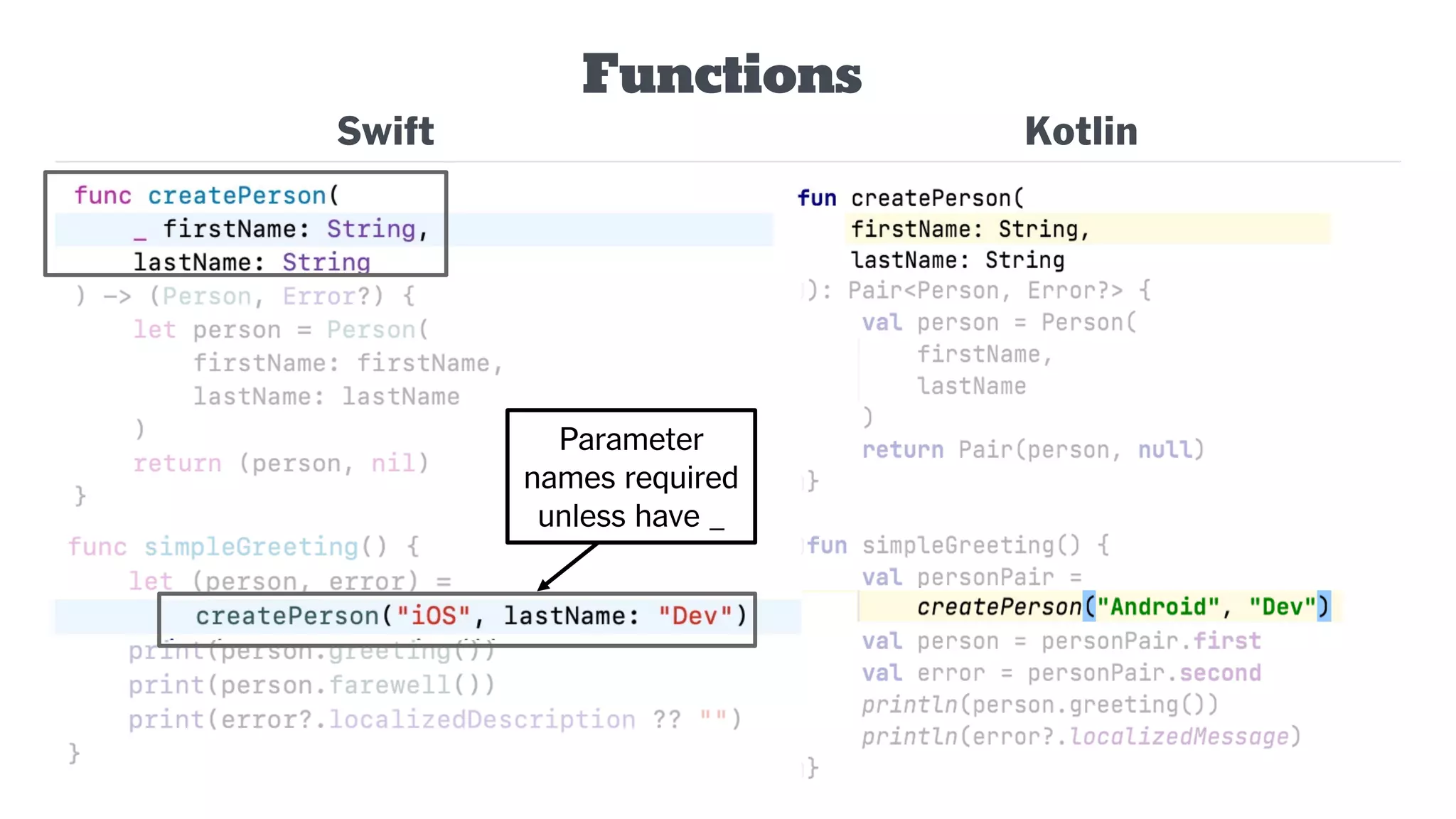

Swift

Swift

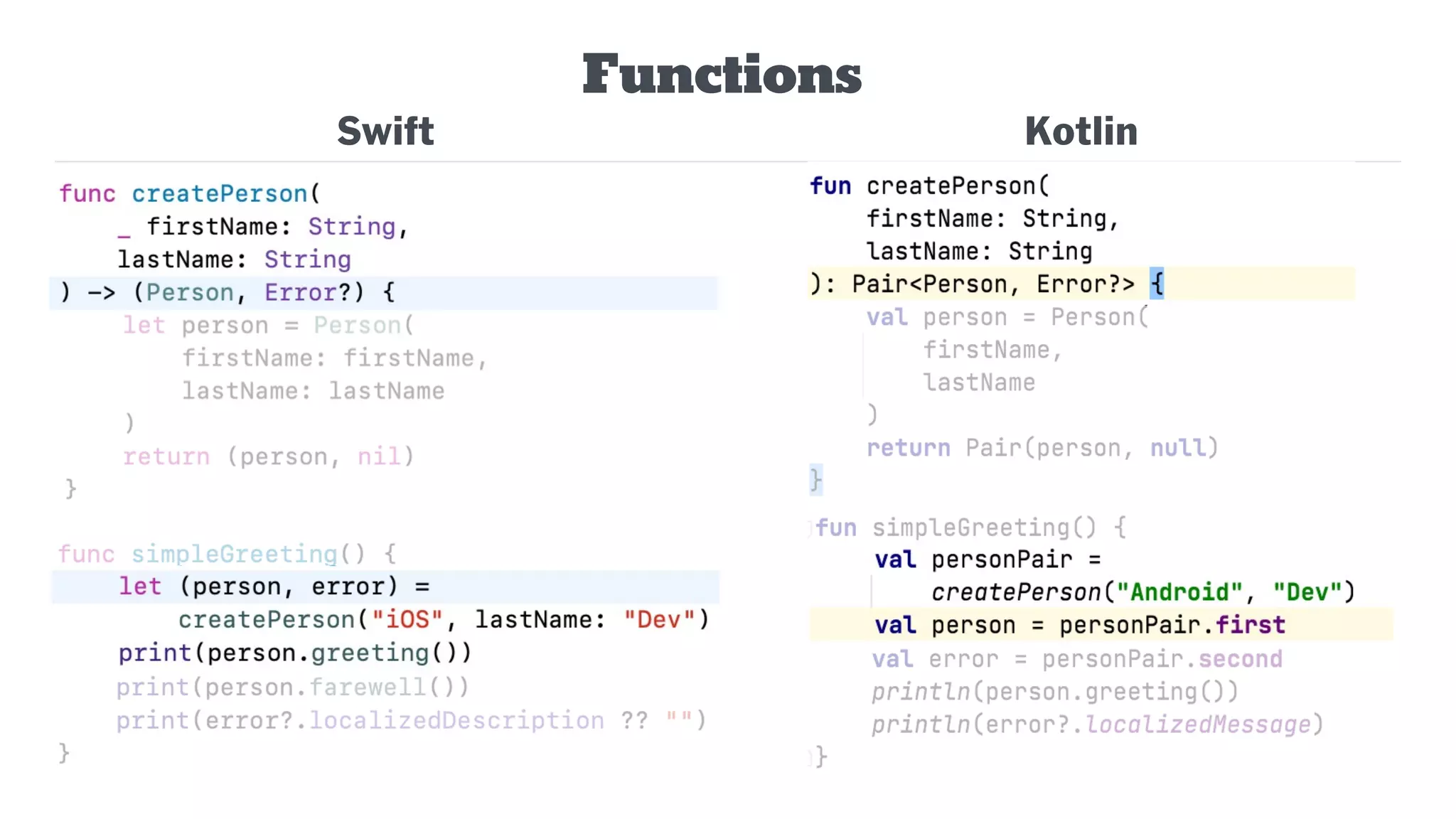

Functions
Kotlin
Parameter
names required
unless have _

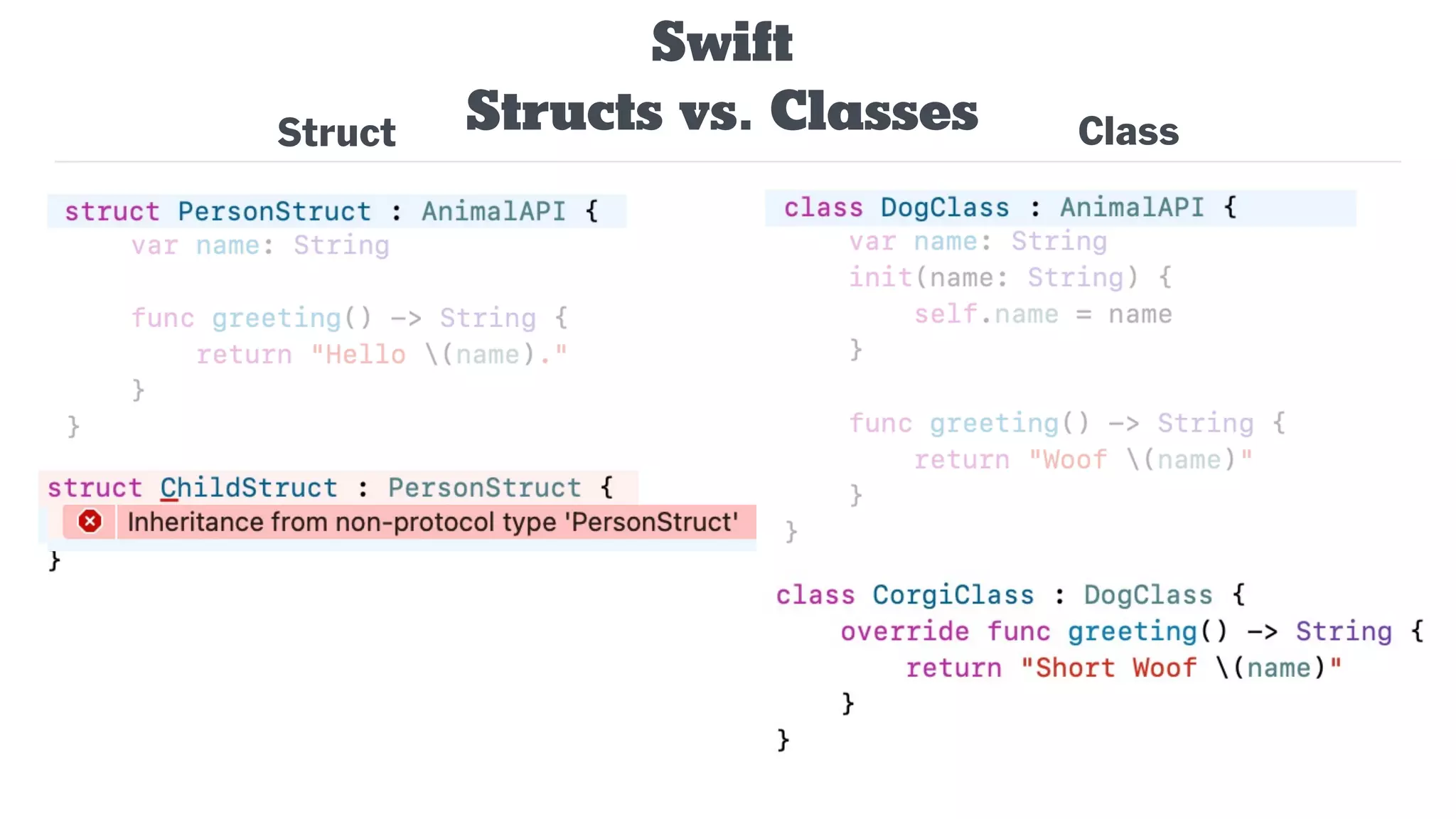

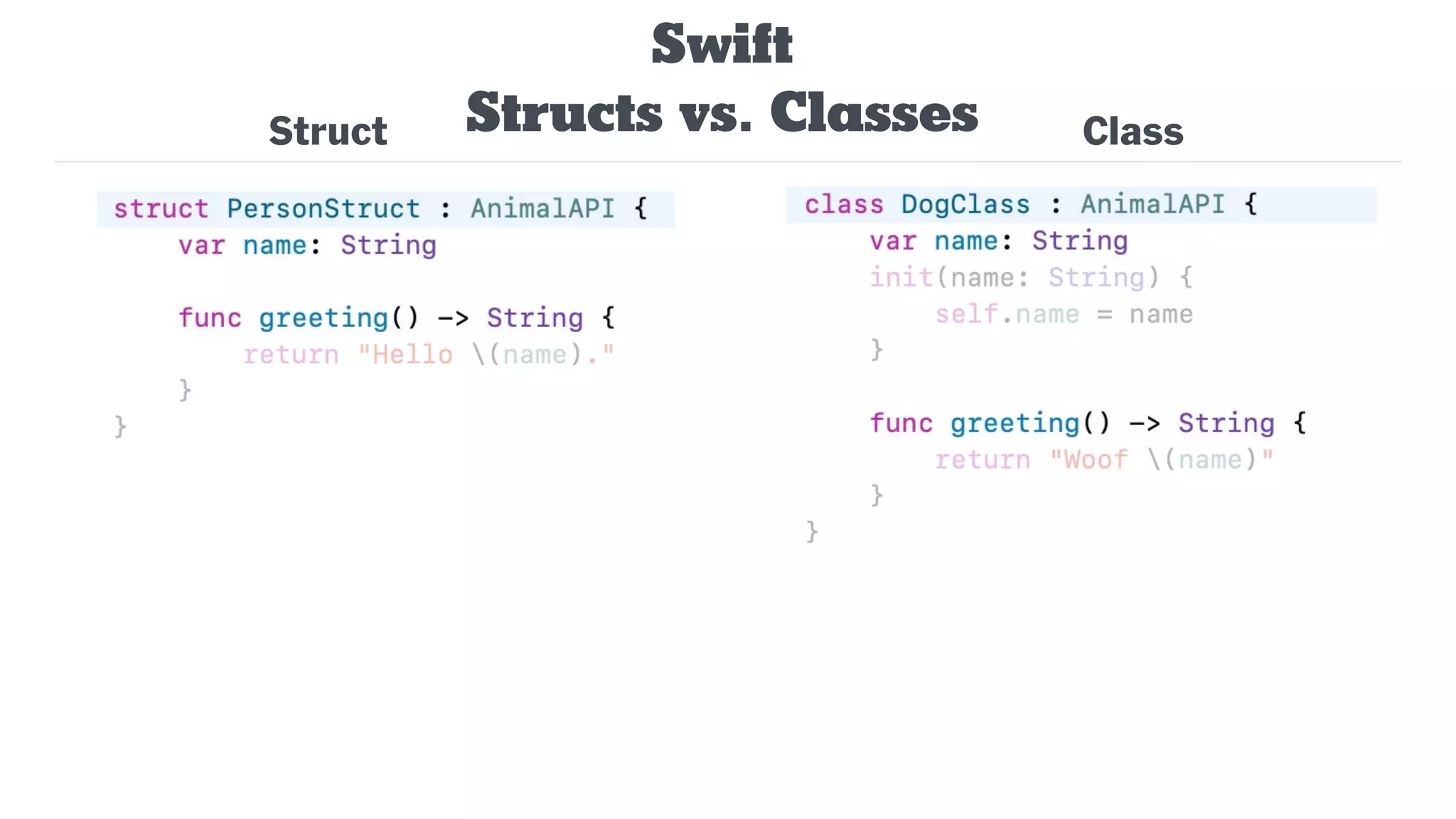

Struct Class
Swift
Structs vs. Classes

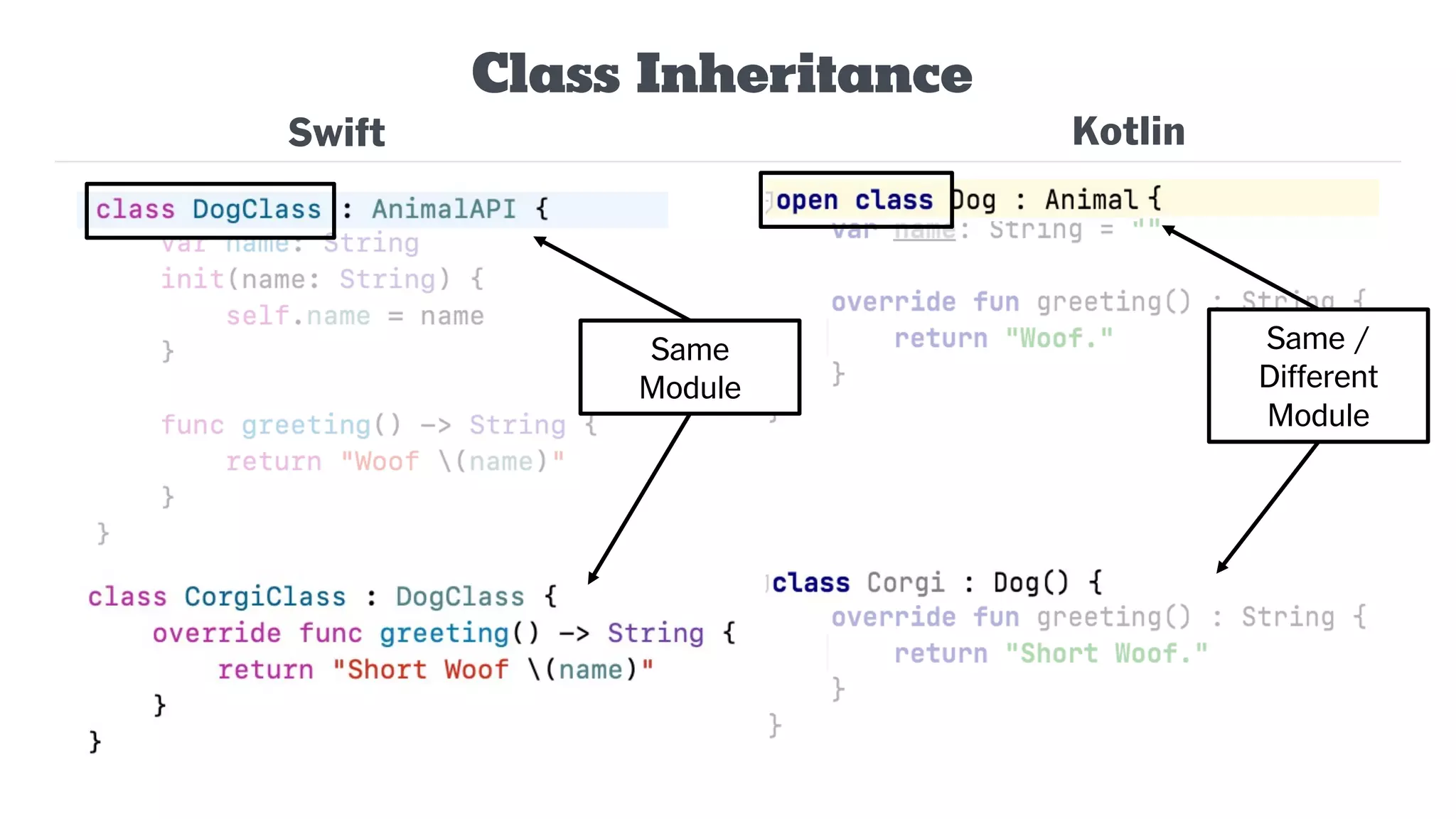

Swift Kotlin

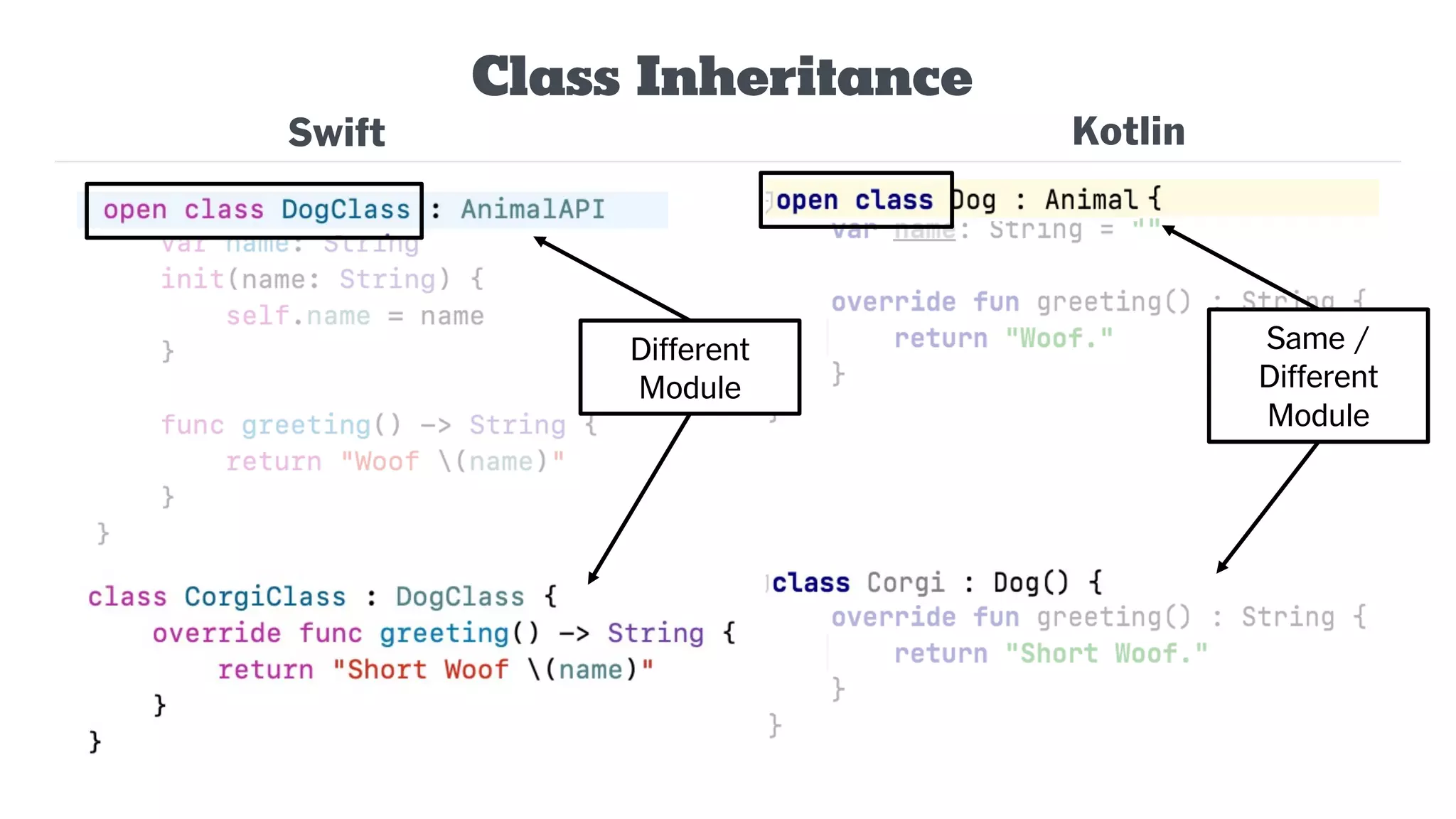

Class Inheritance
Same
Module
Same /
Different
Module

Class Inheritance
Swift Kotlin
Different
Module
Same /
Different
Module

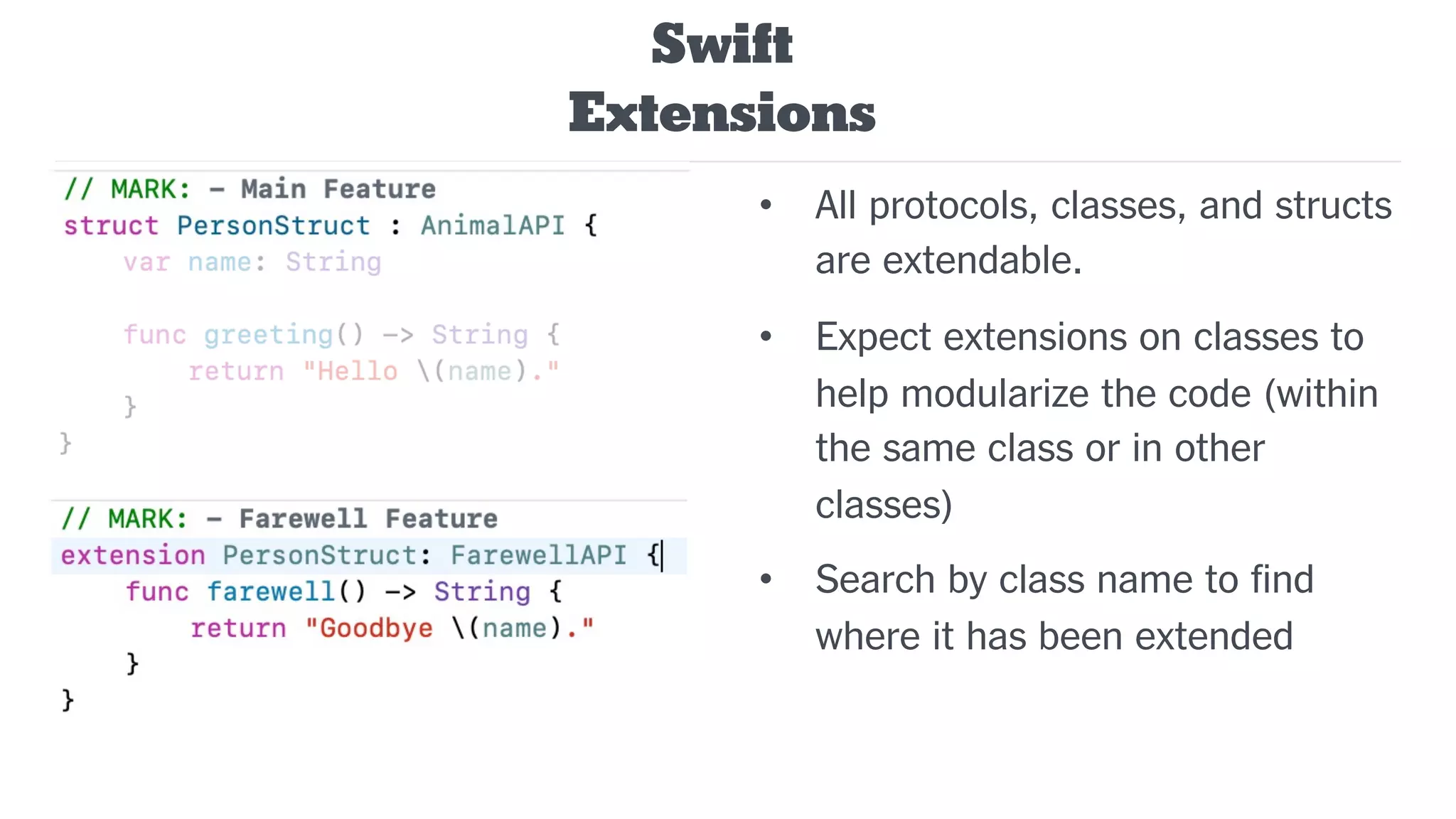

• All protocols, classes, and structs
are extendable.
• Expect extensions on classes to
help modularize the code (within
the same class or in other
classes)
• Search by class name to find
where it has been extended
Swift
Extensions

Topics
2. Swift vs. Kotlin
...

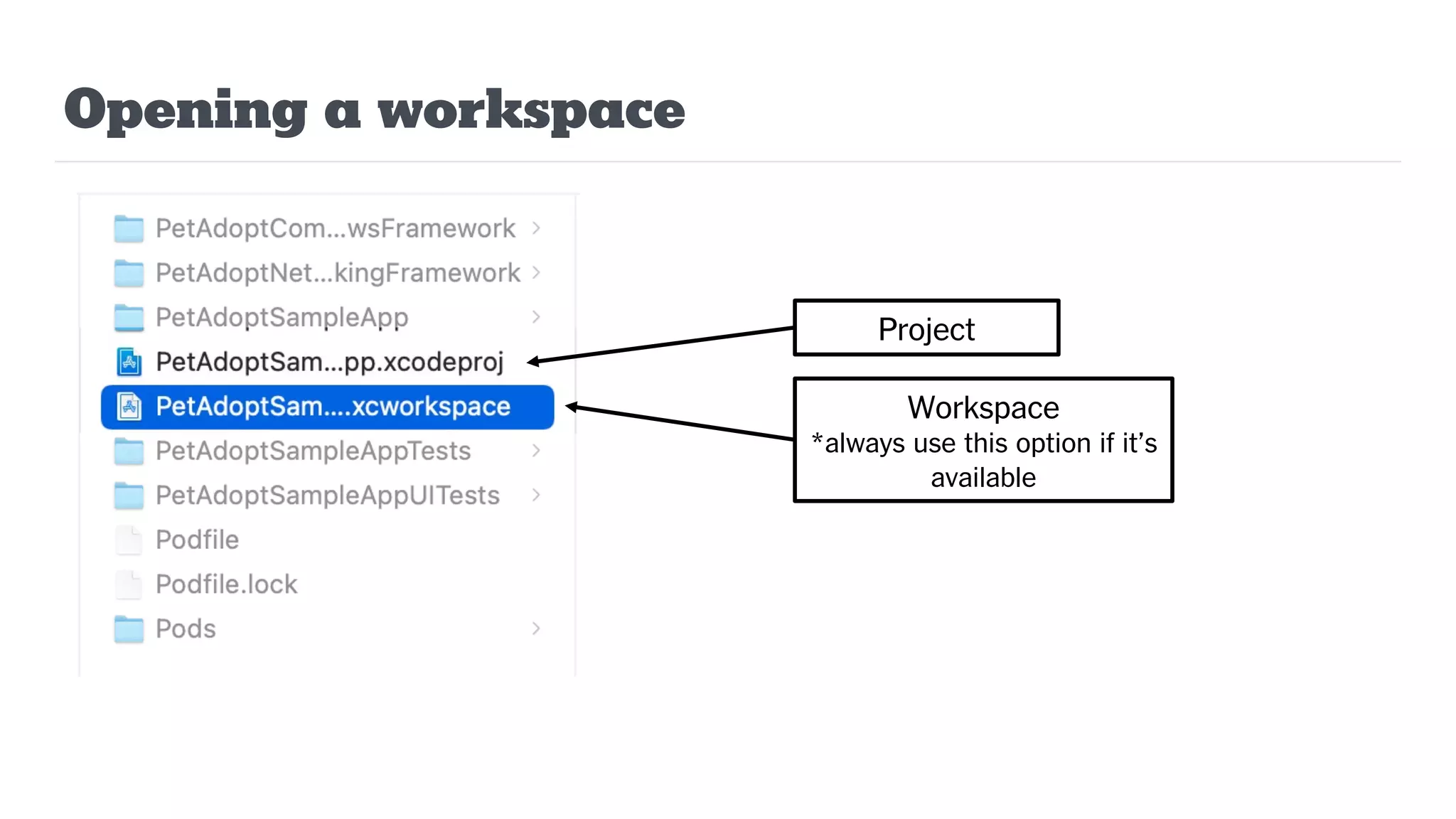

Opening a workspace
Project
Workspace
*always use this option if it’s
available

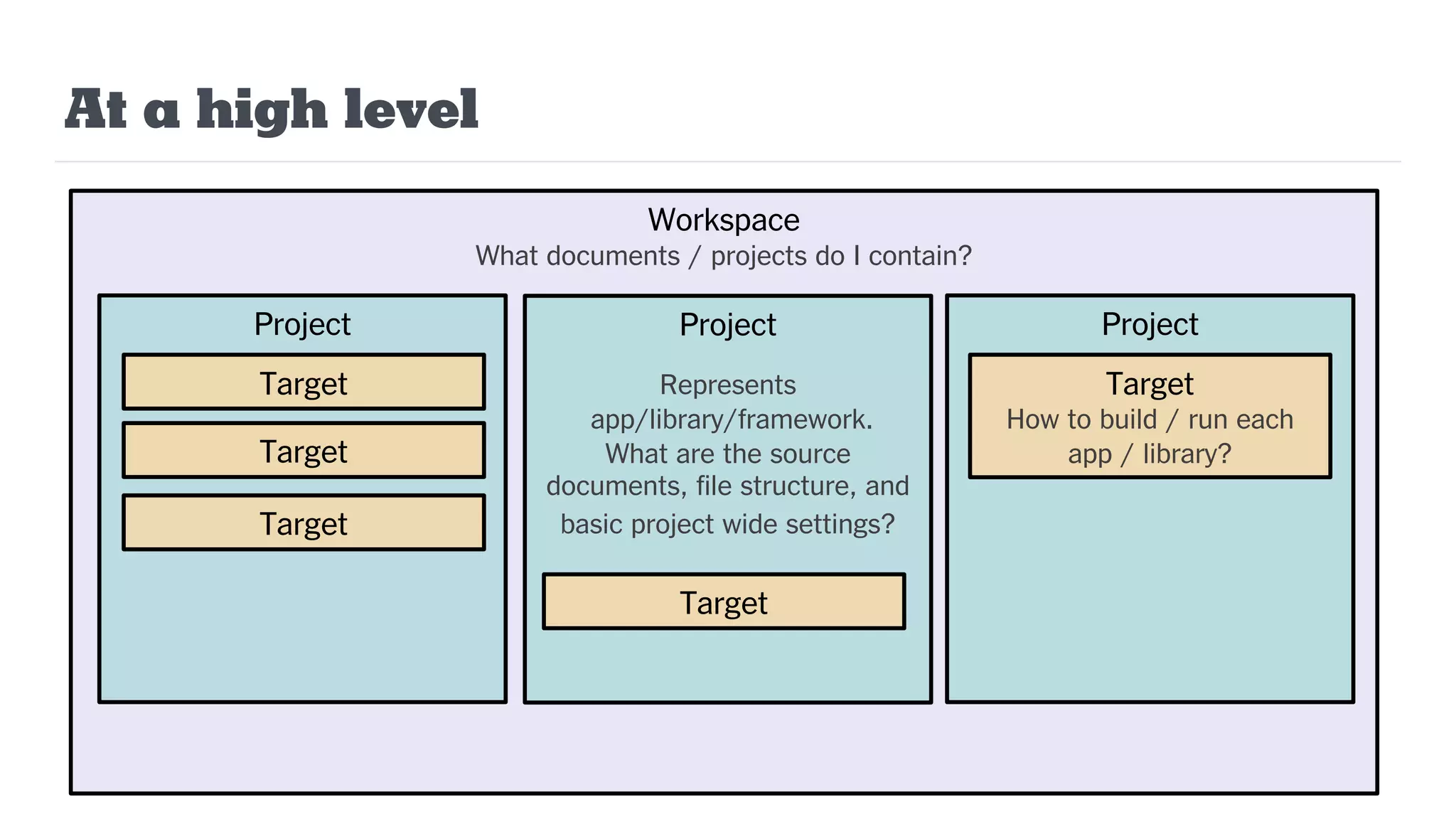

Workspace
What documents / projects do I contain?
At a high level
Project Project
Represents
app/library/framework.
What are the source
documents, file structure, and
basic project wide settings?

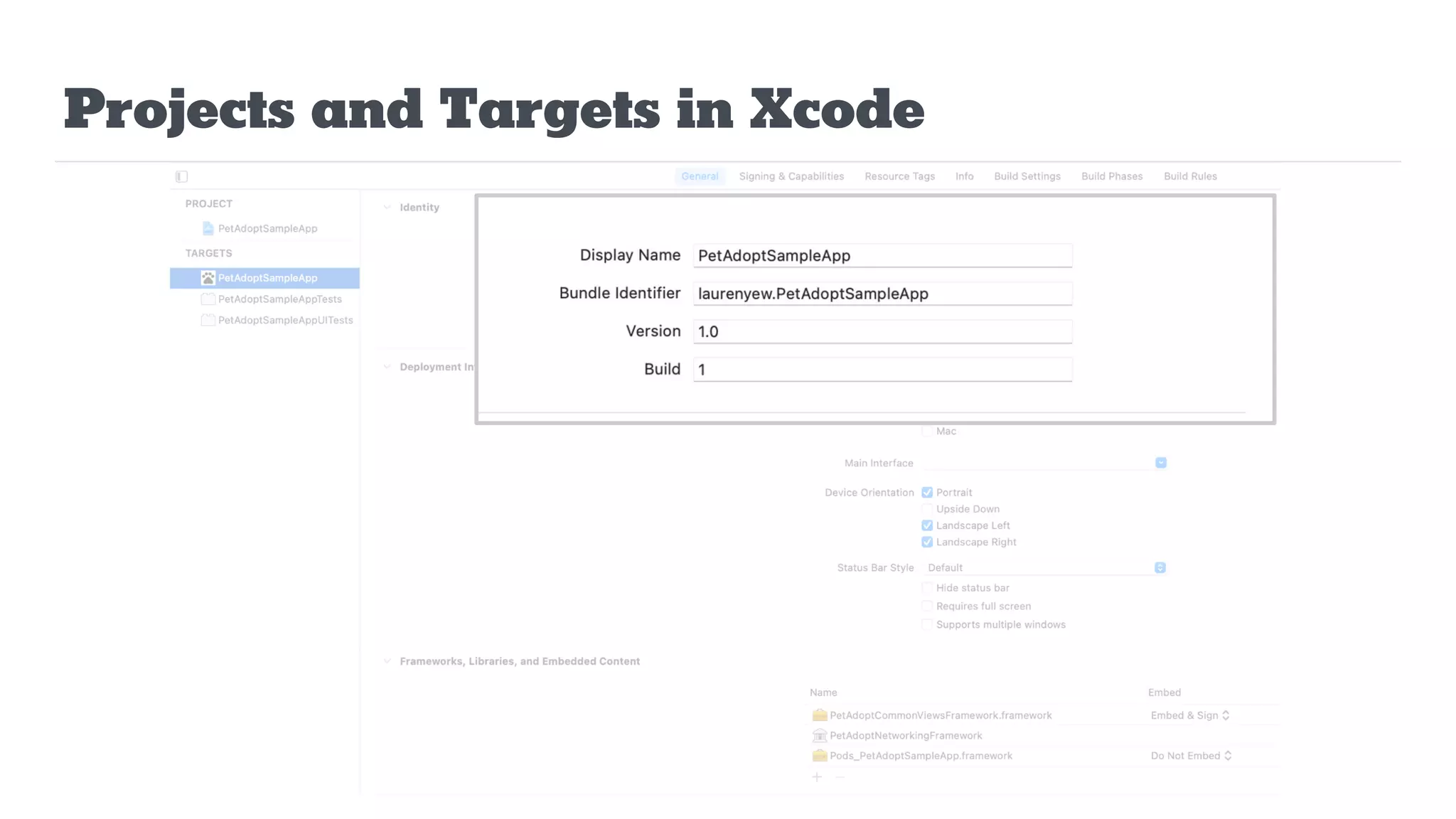

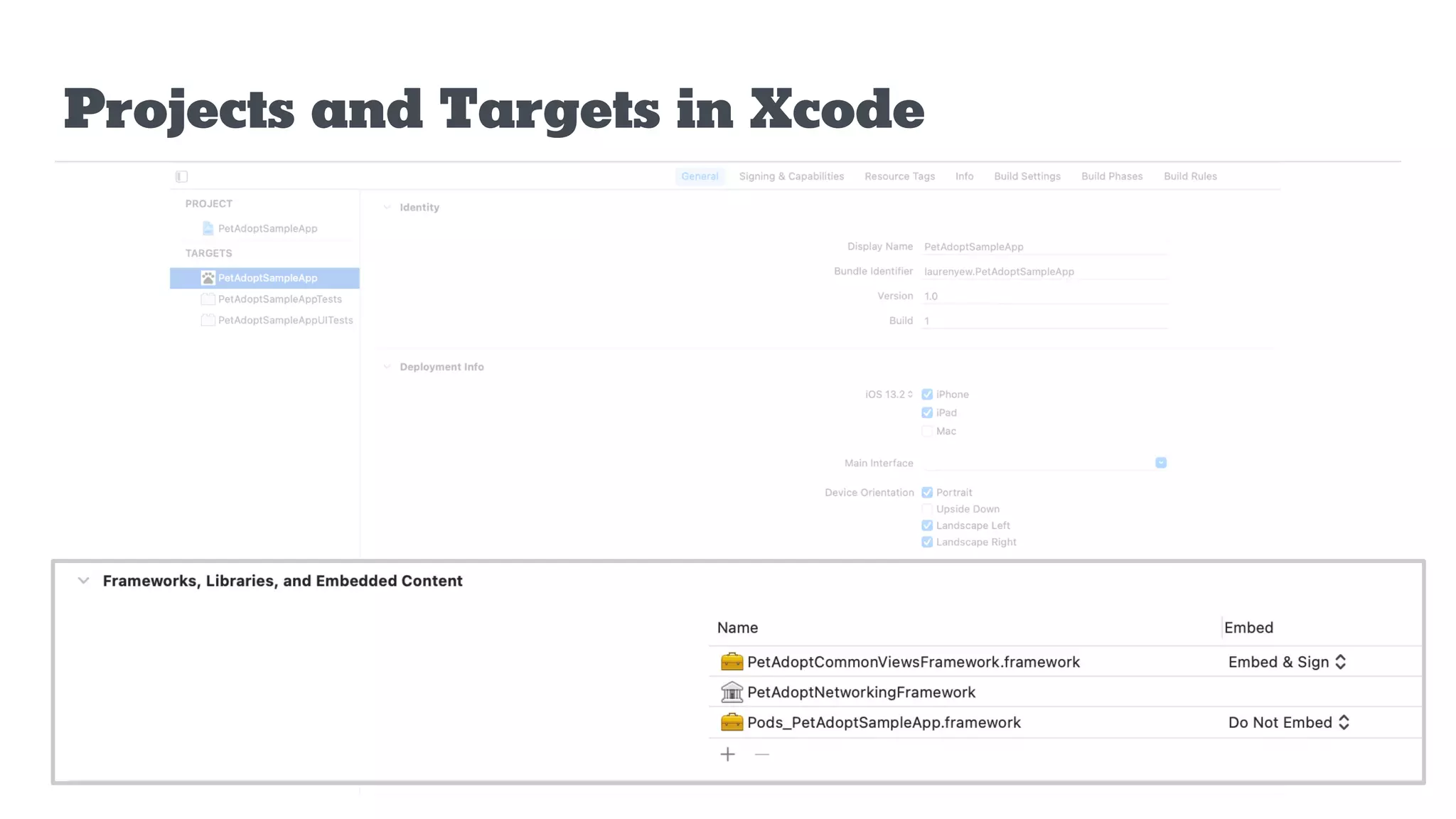

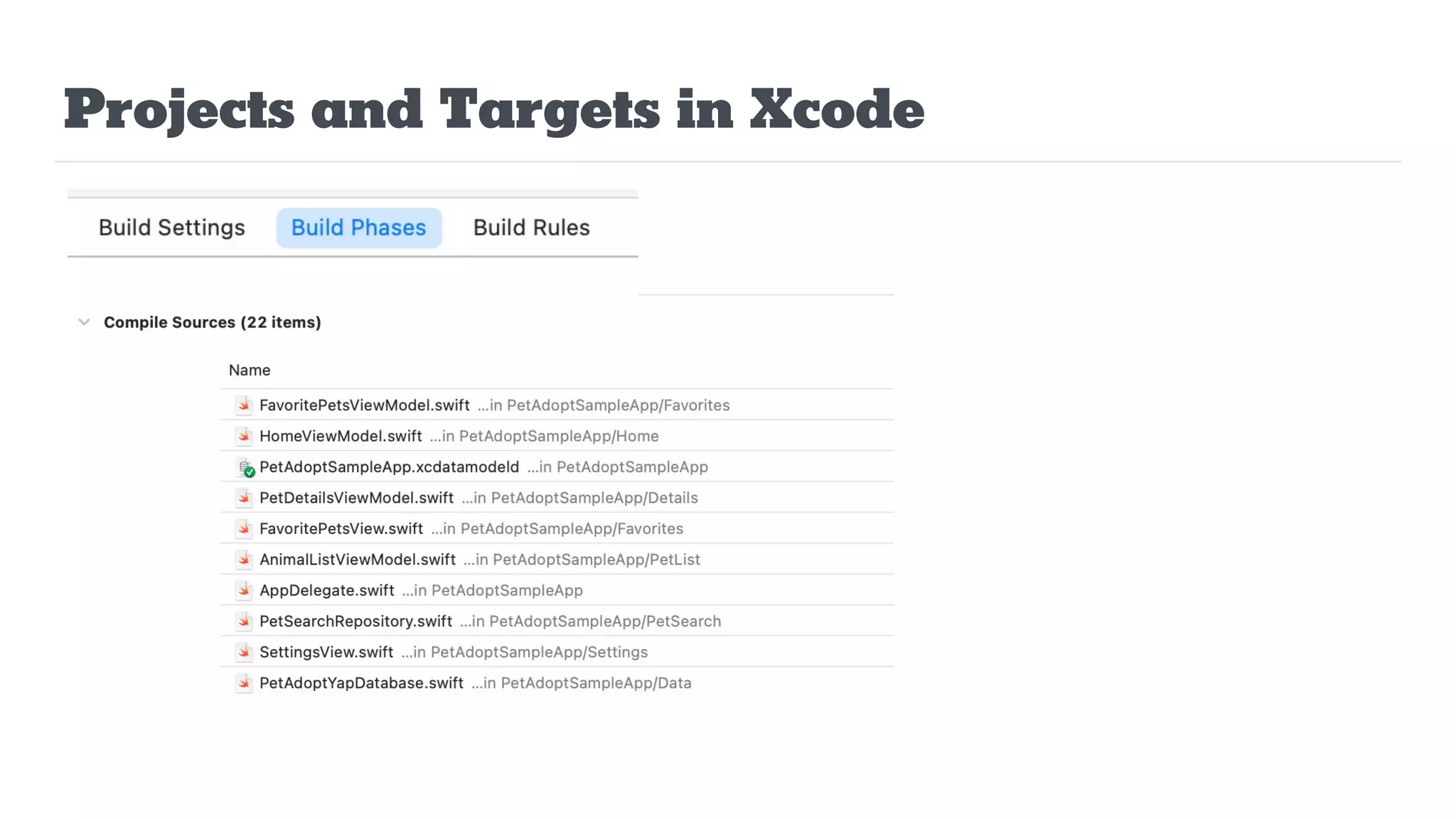

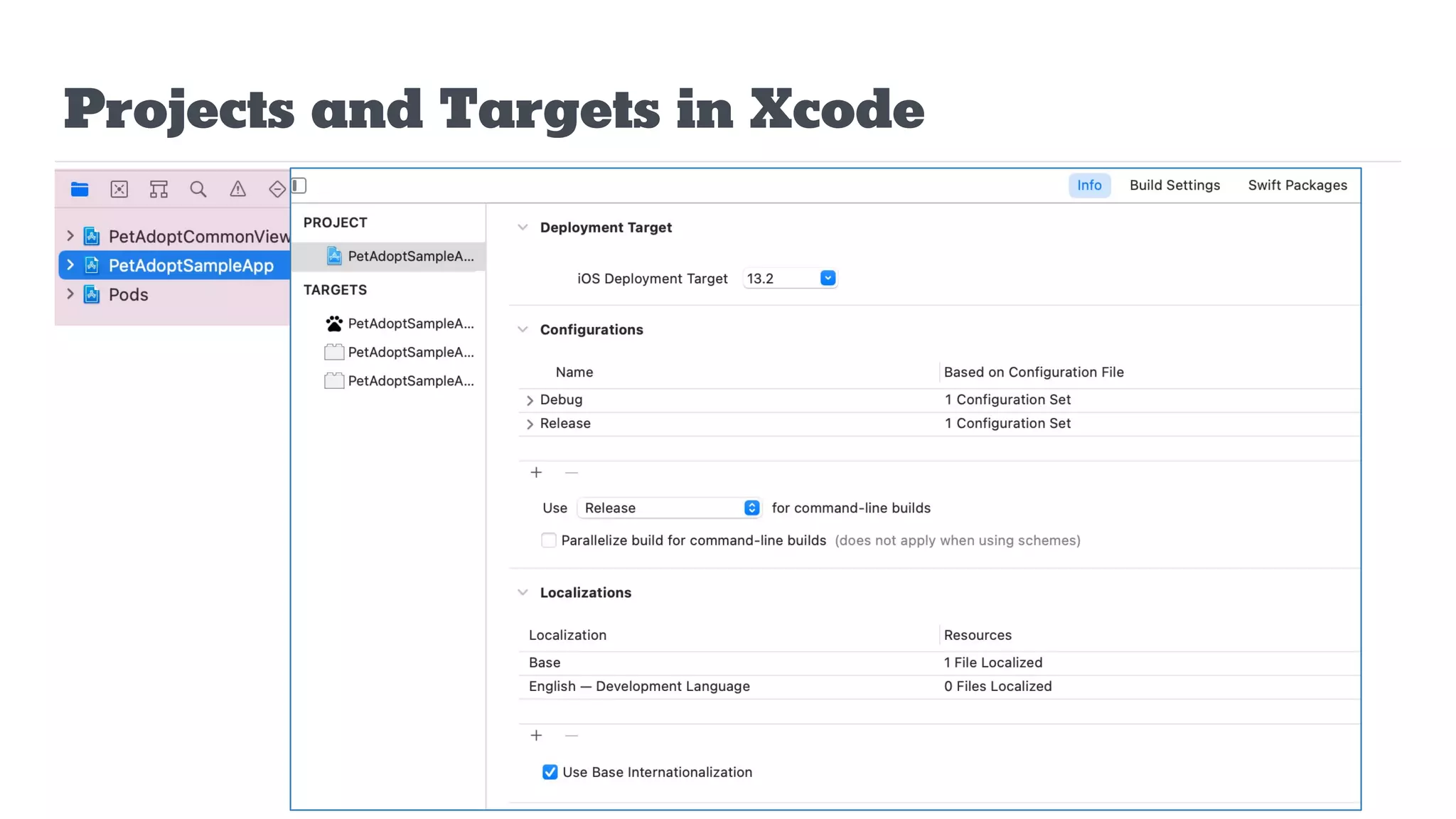

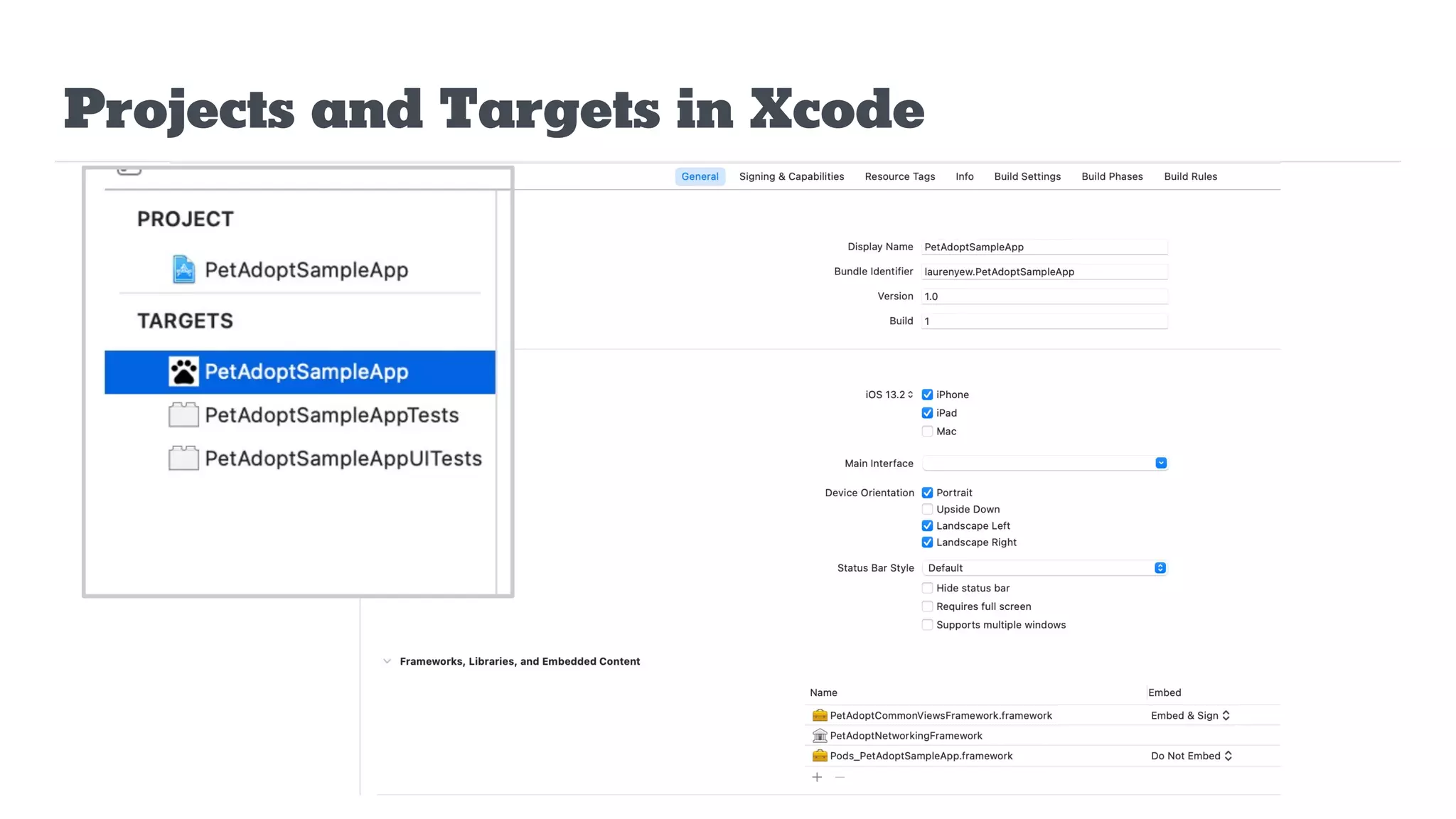

Project
Target
Target
Target
How to build / run each
app / library?
Target
Target

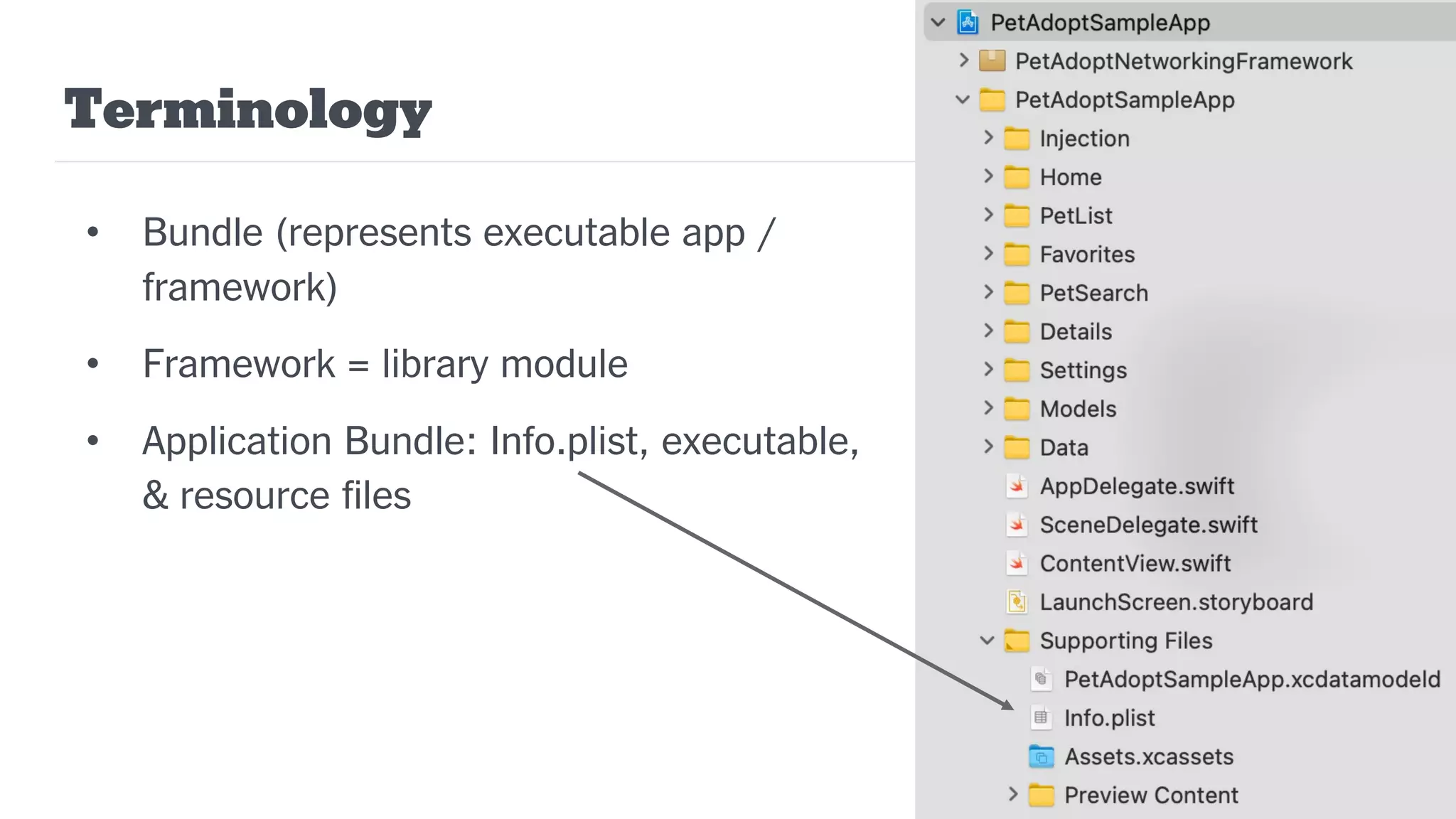

Terminology
• Bundle (represents executable app /
framework)
• Framework = library module
• Application Bundle: Info.plist, executable,
& resource files

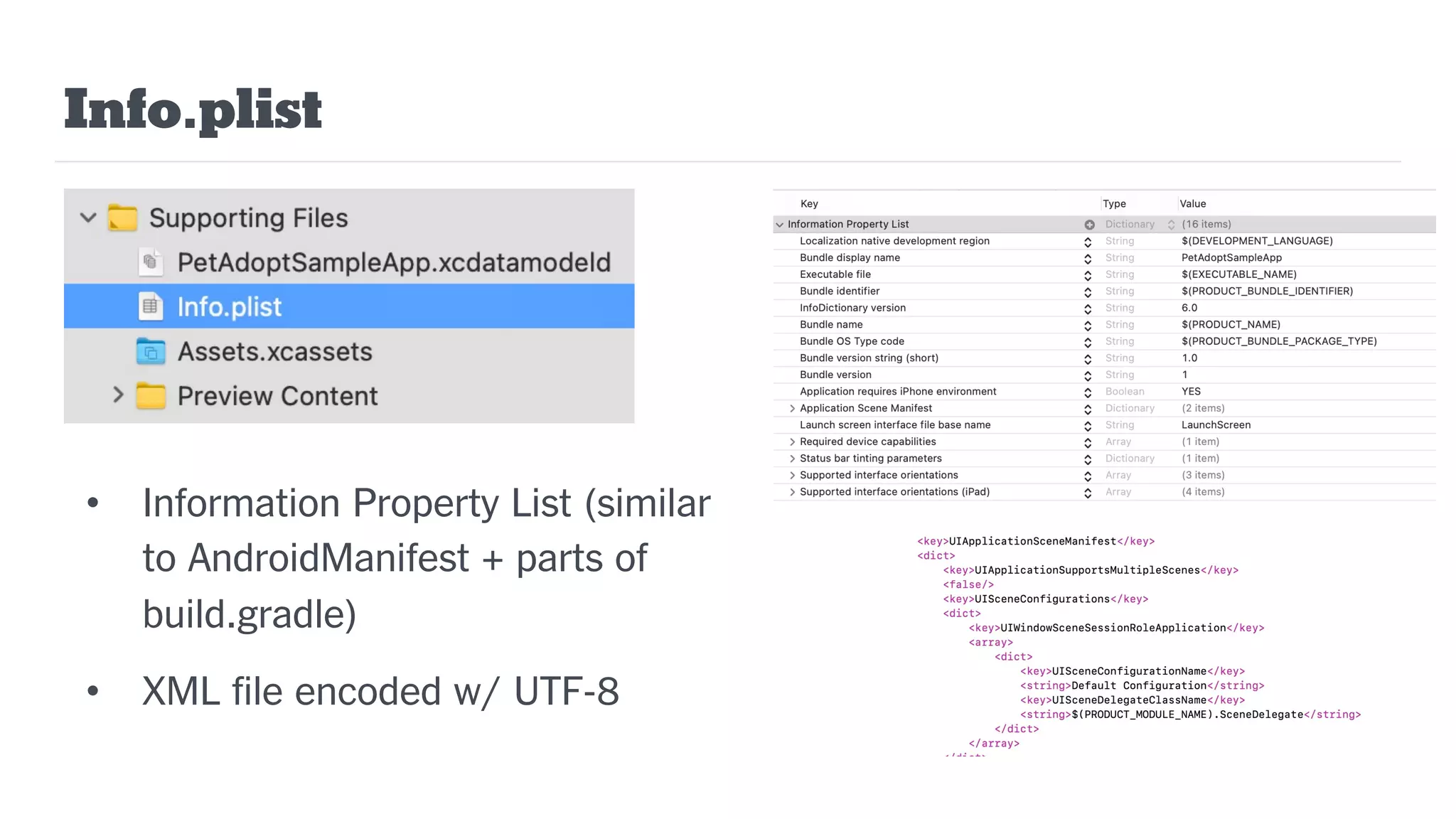

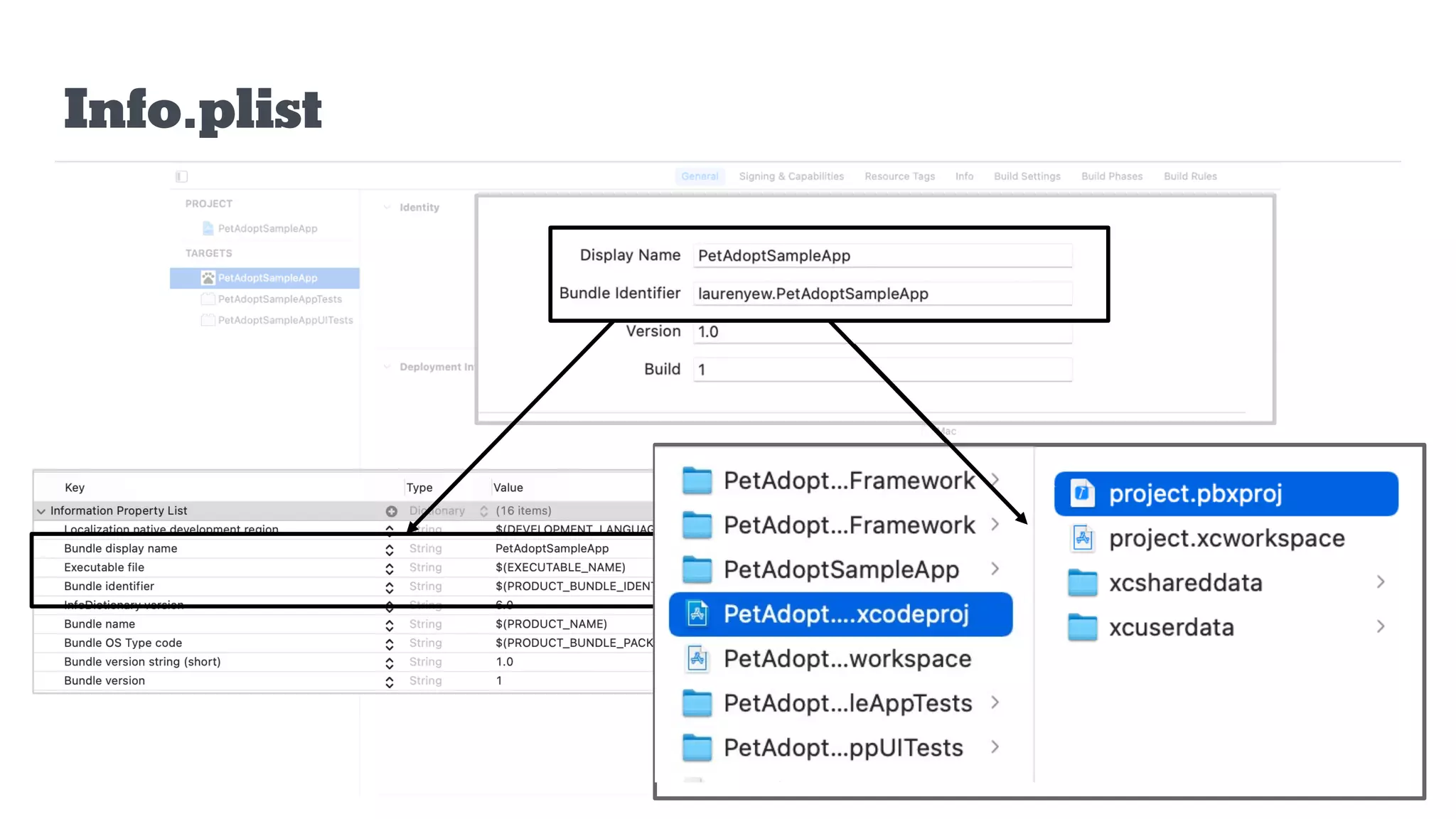

Info.plist
• Information Property List (similar
to AndroidManifest + parts of
build.gradle)
• XML file encoded w/ UTF-8

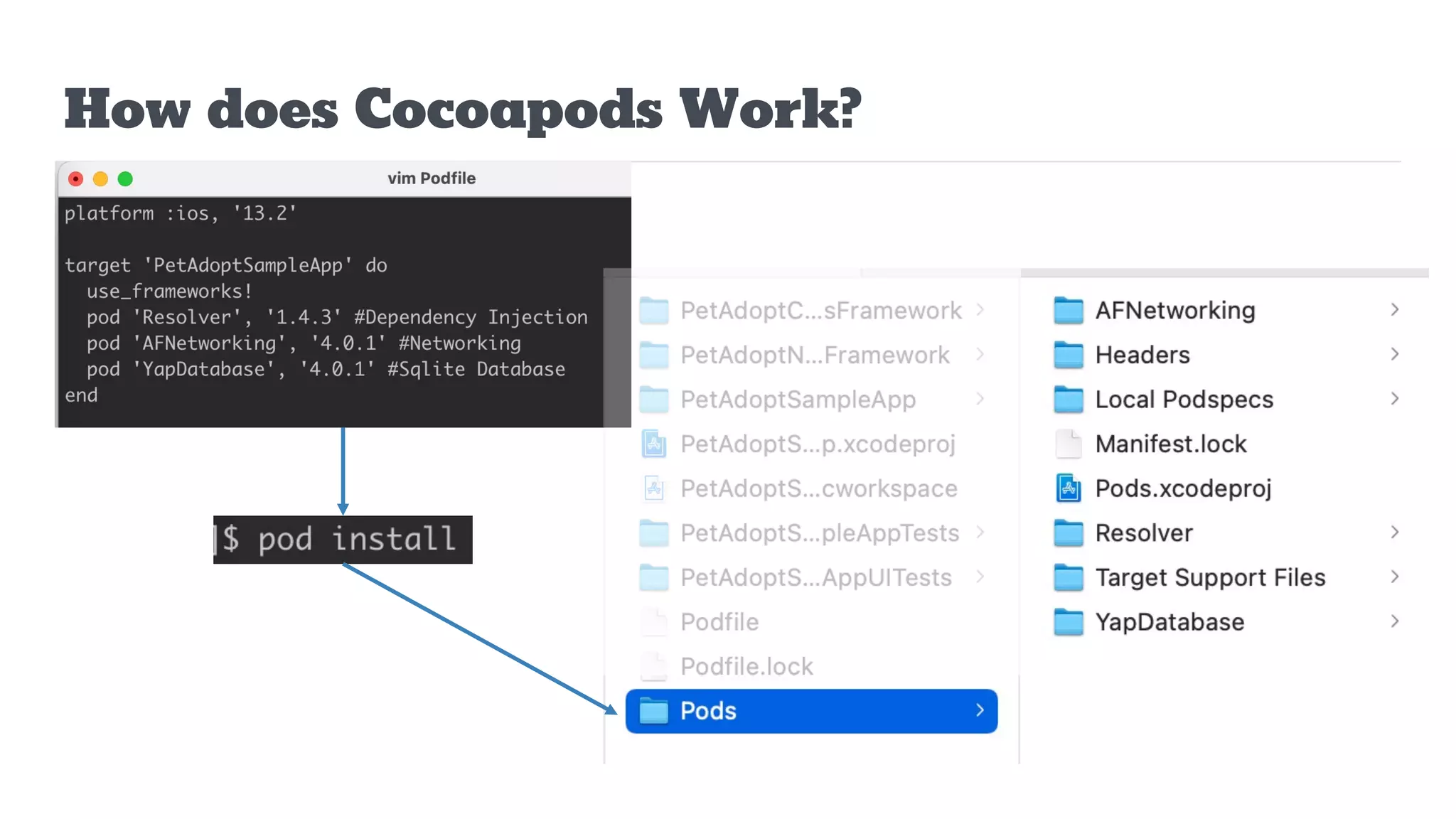

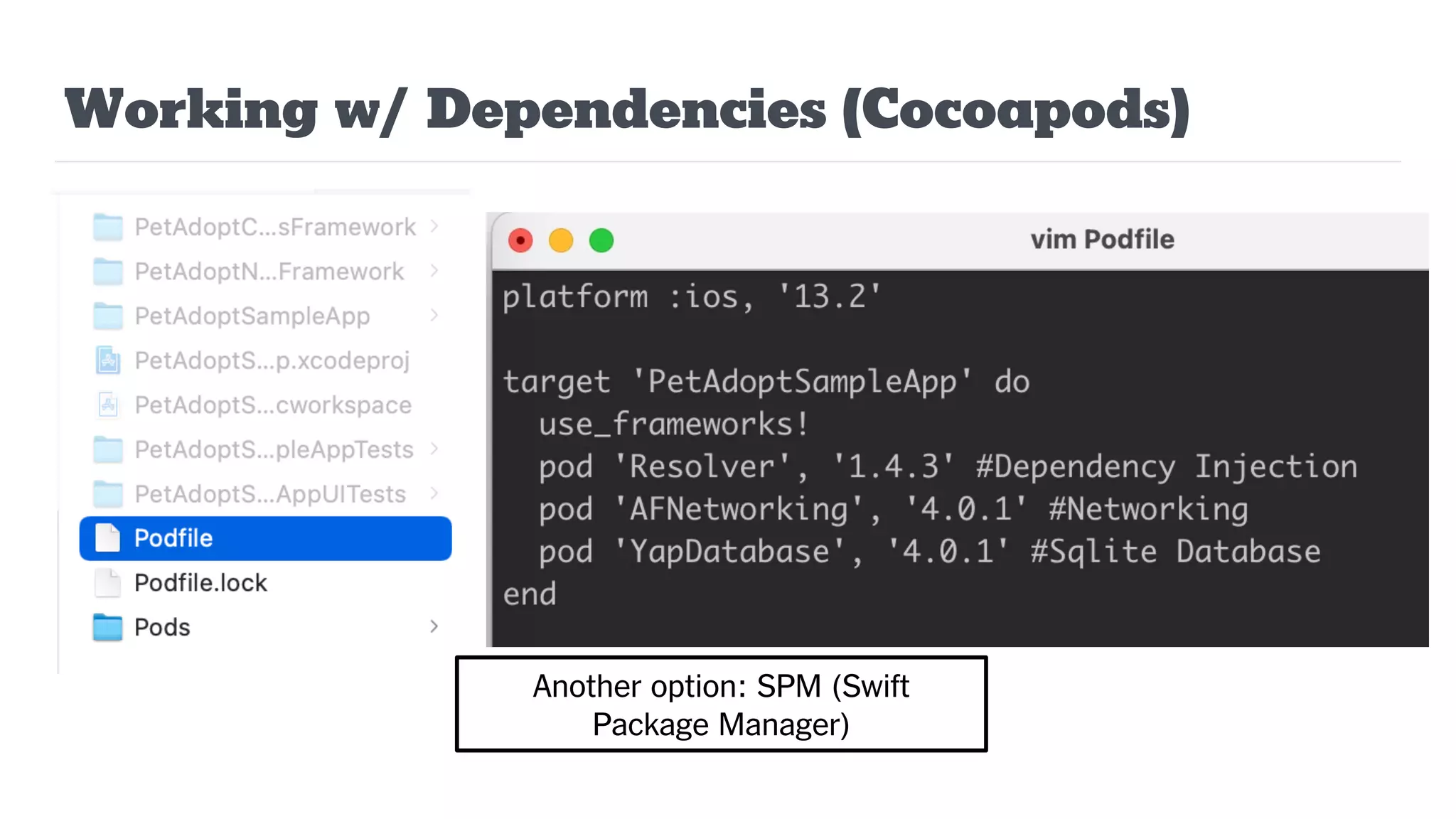

Working w/ Dependencies (Cocoapods)
Another option: SPM (Swift
Package Manager)

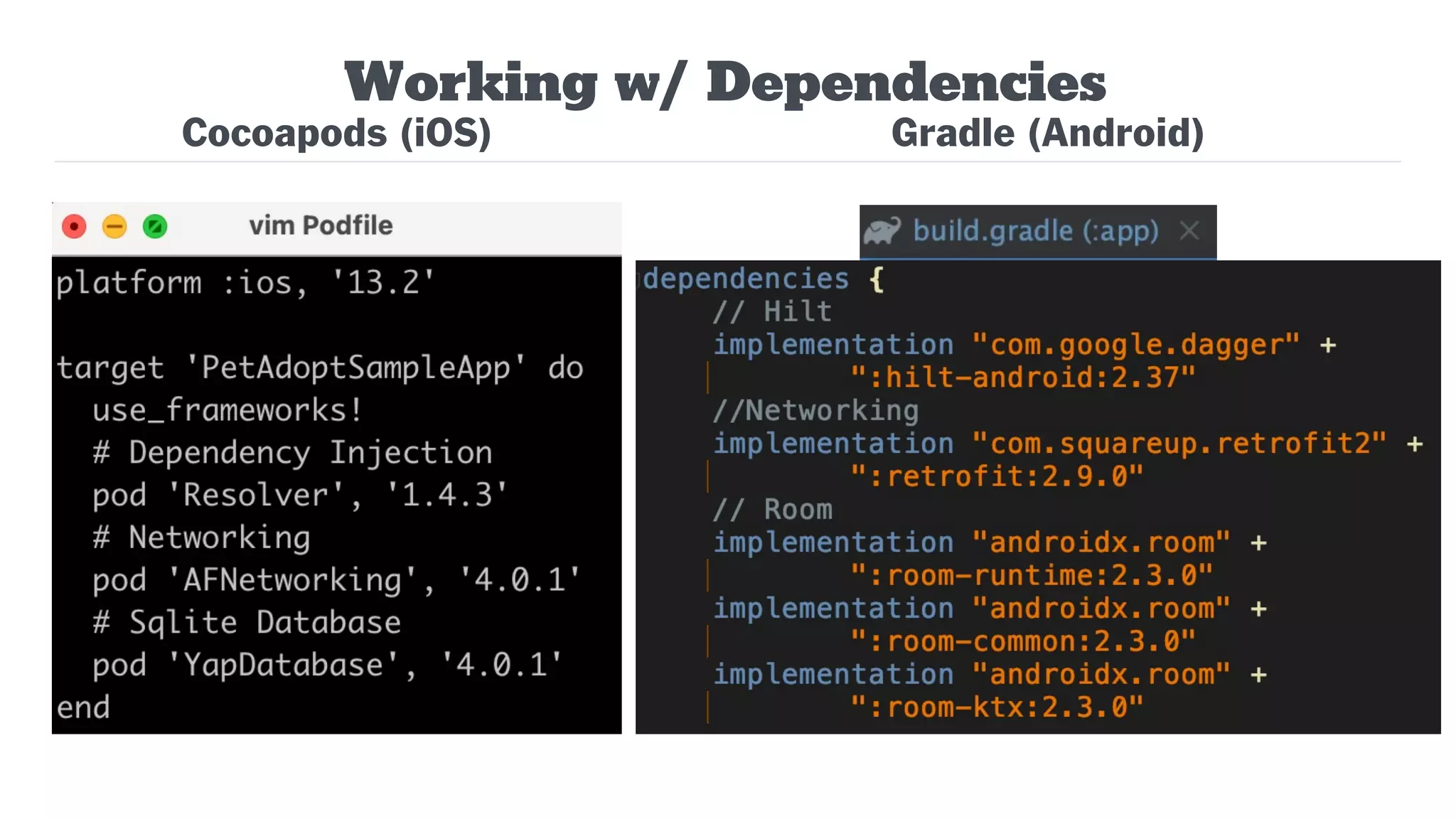

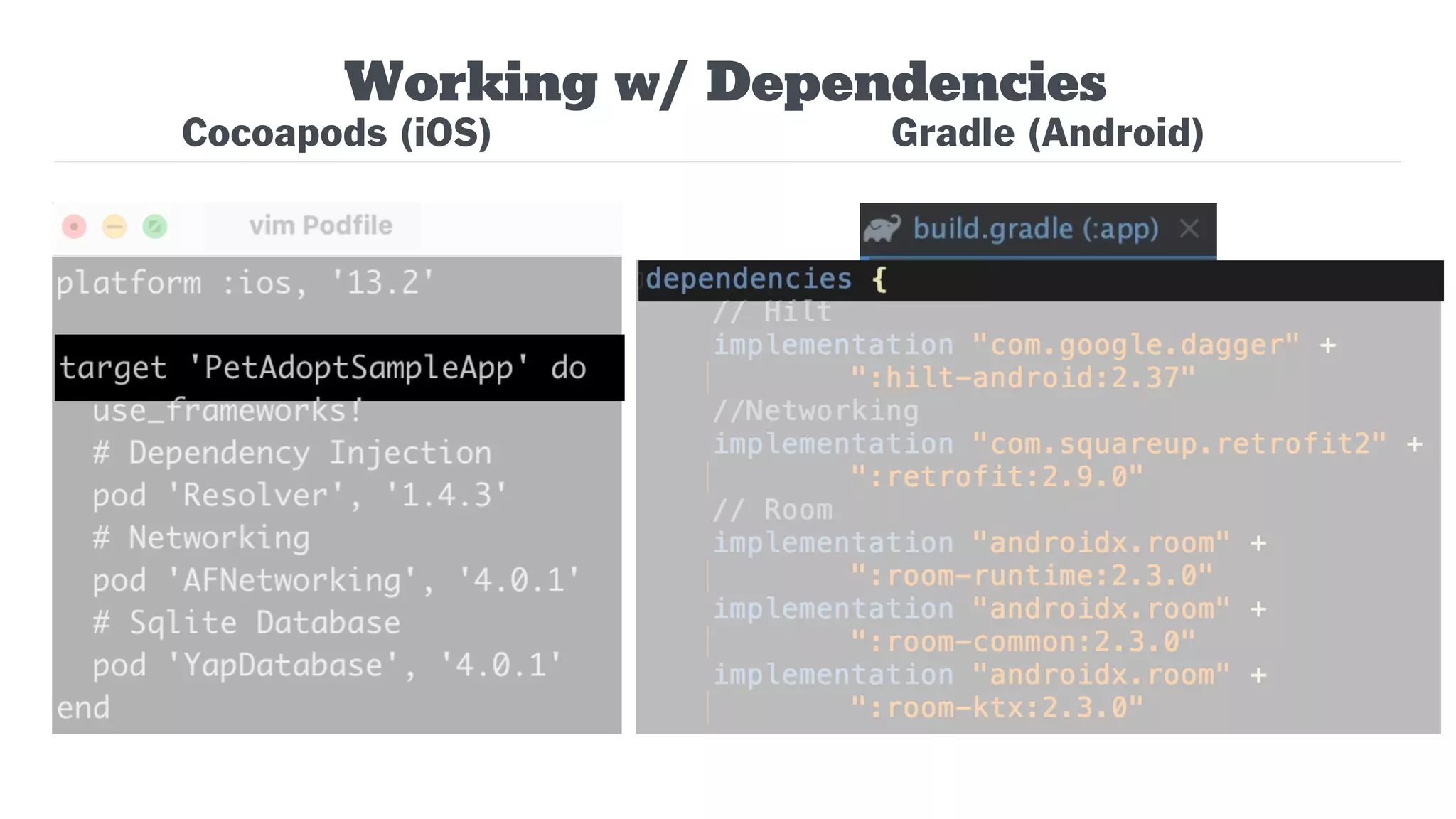

Working w/ Dependencies
Cocoapods (iOS) Gradle (Android)

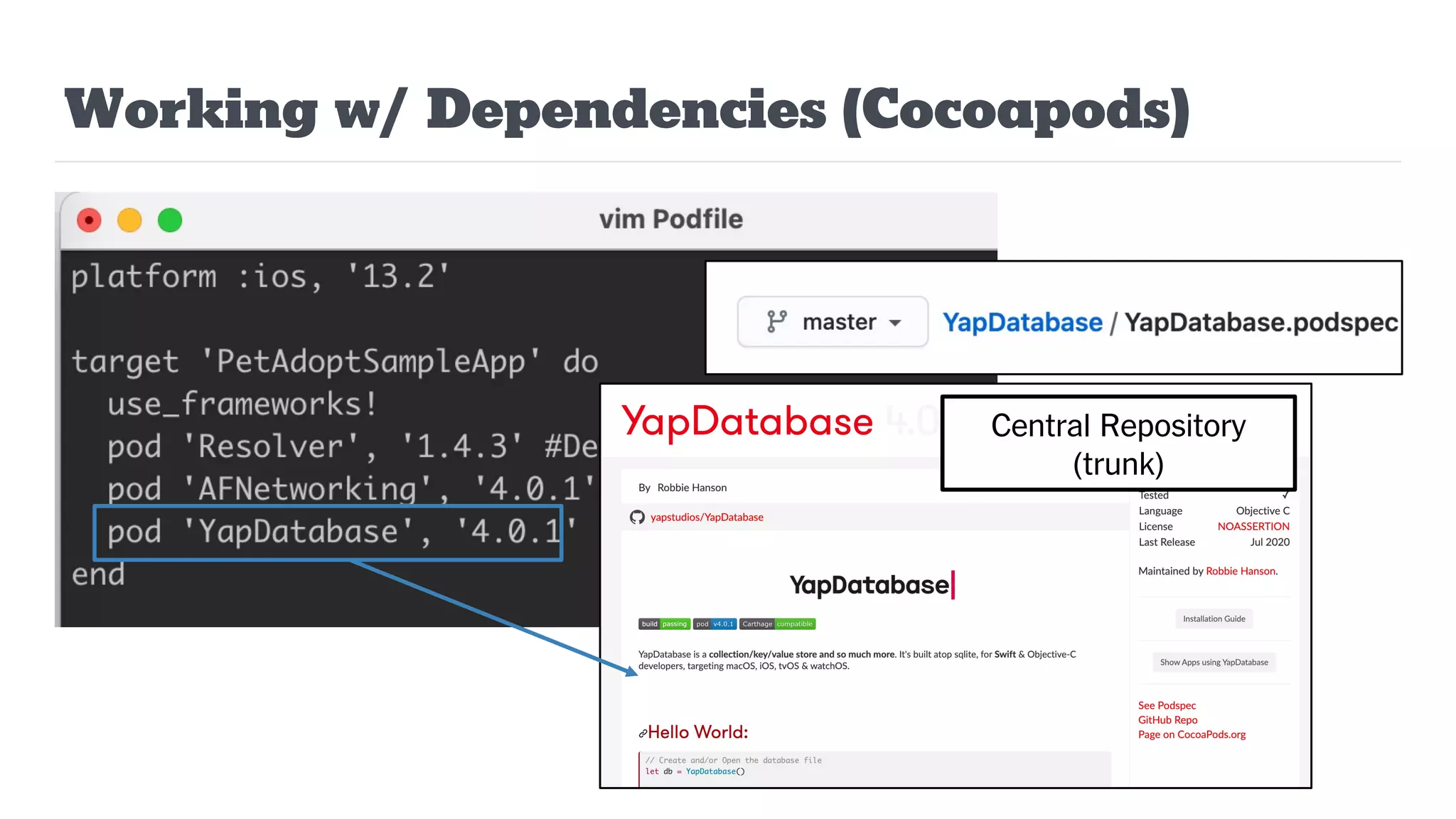

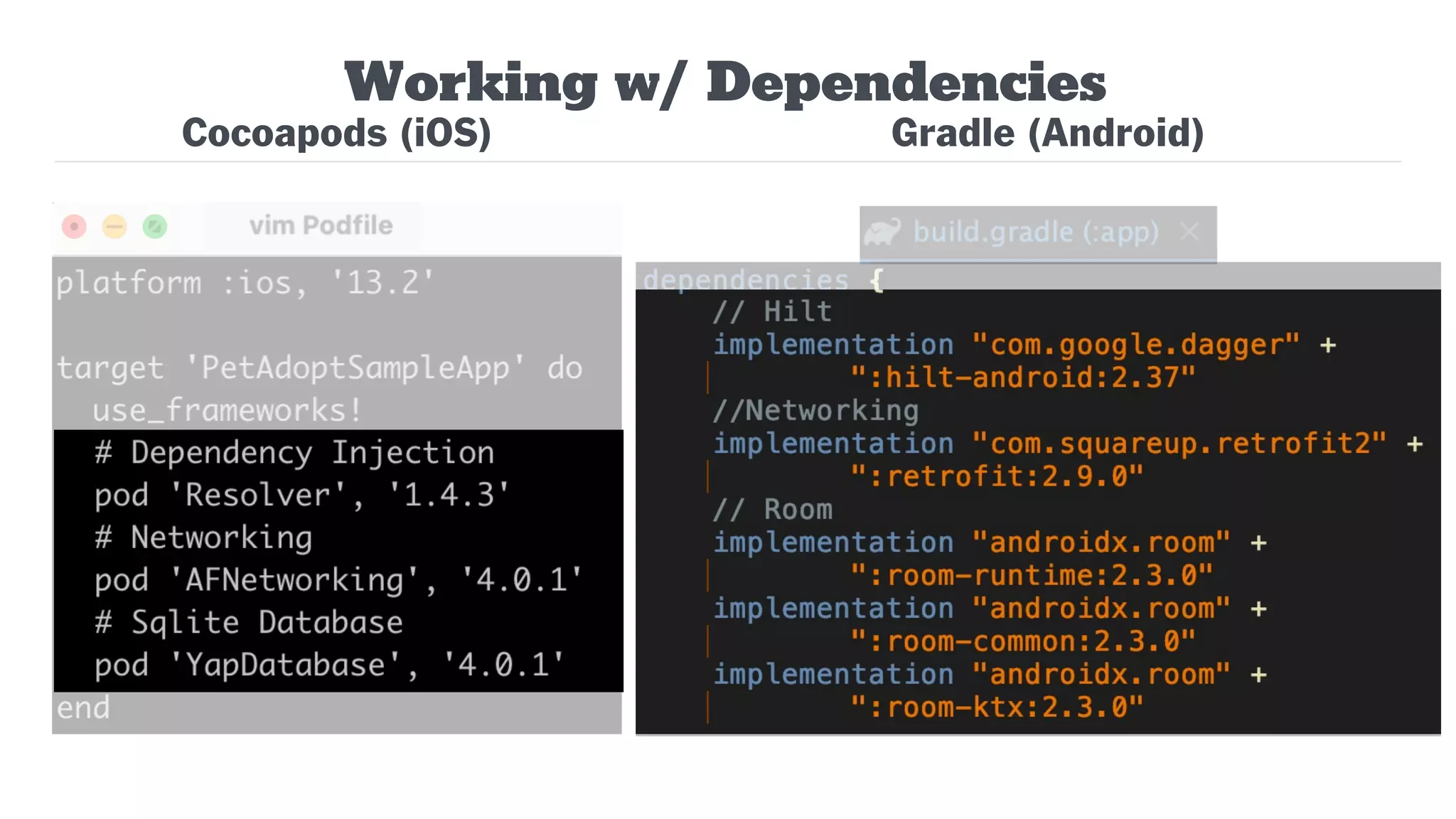

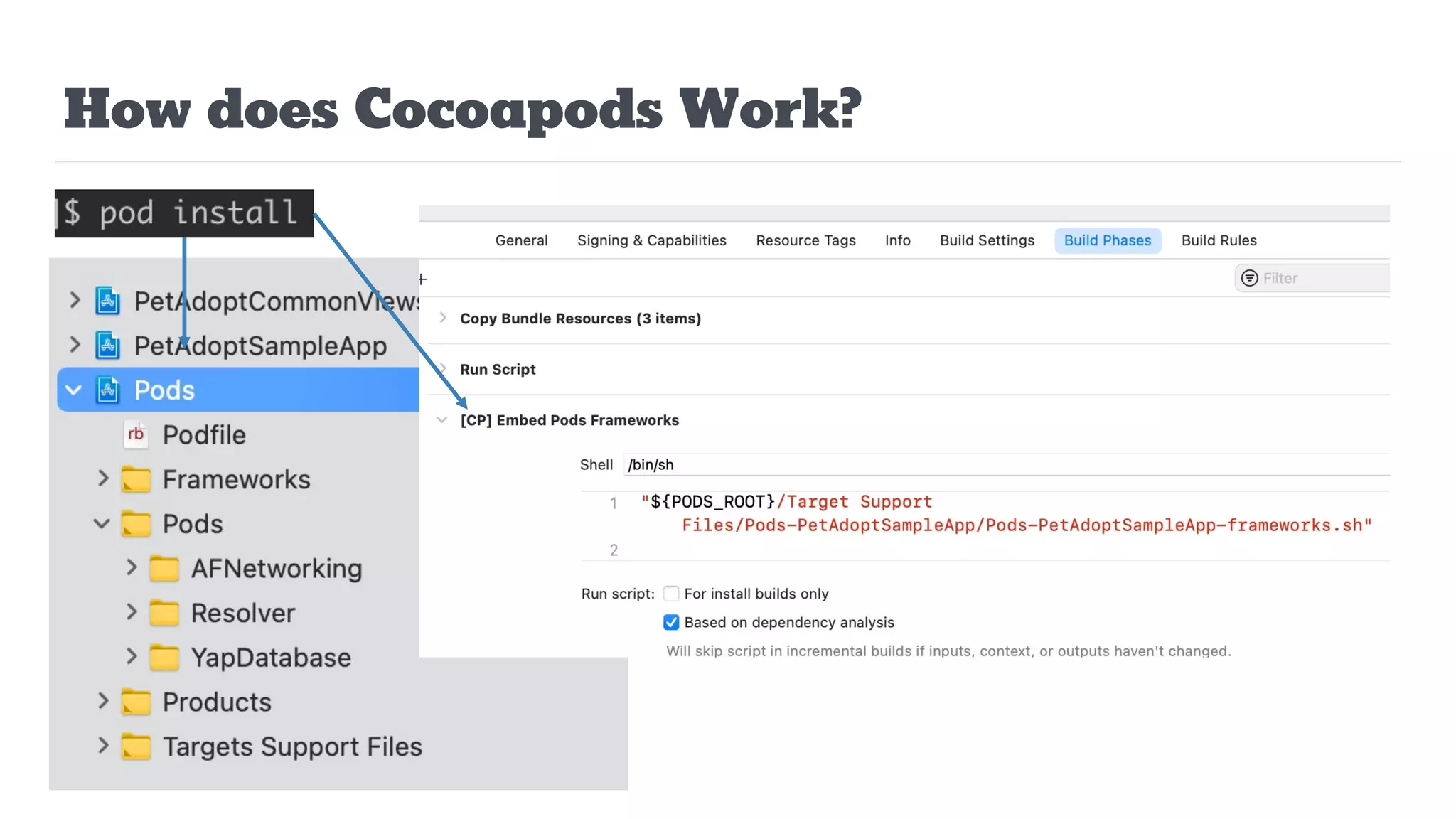

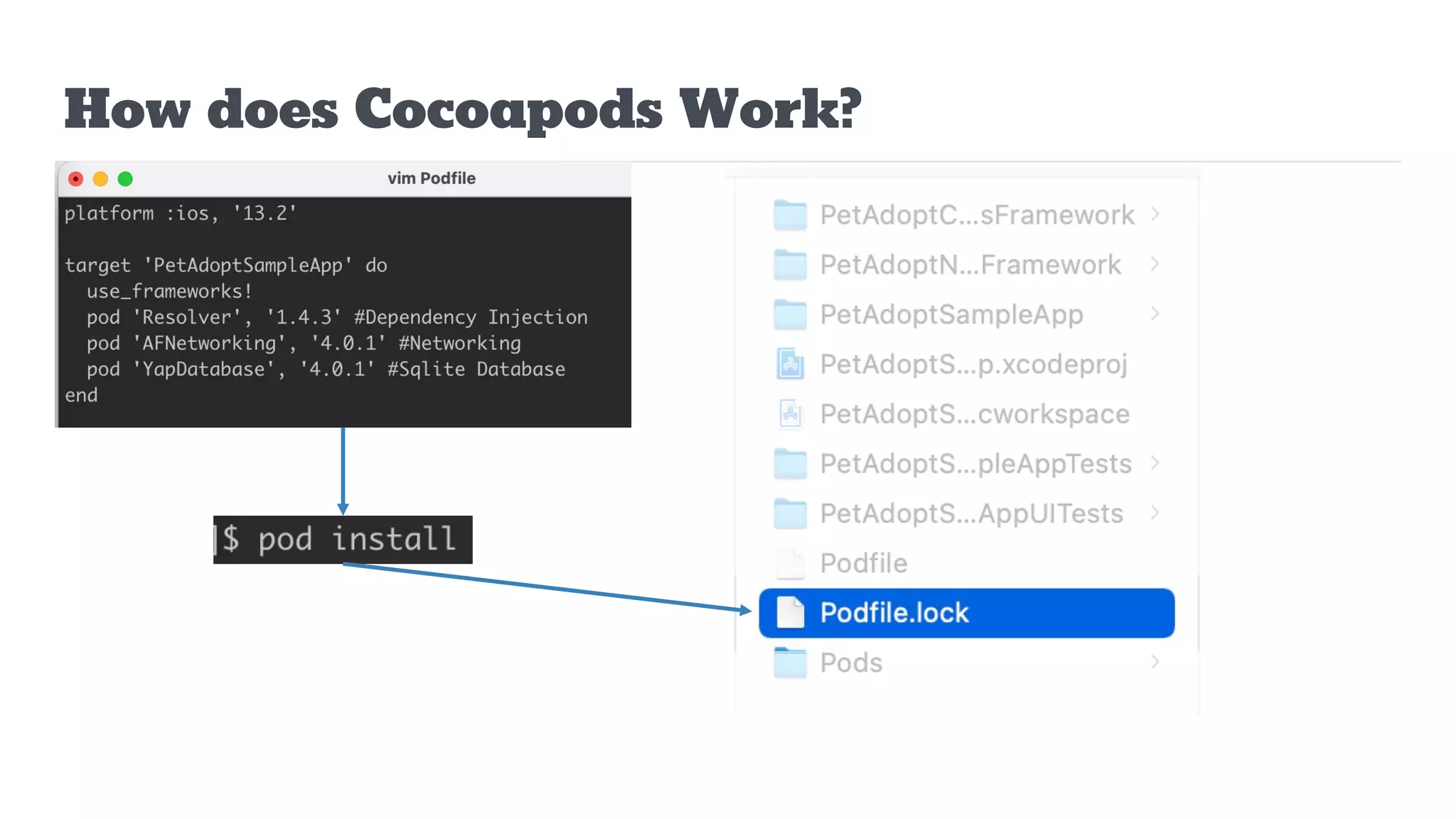

Working w/ Dependencies (Cocoapods)
Central Repository
(trunk)

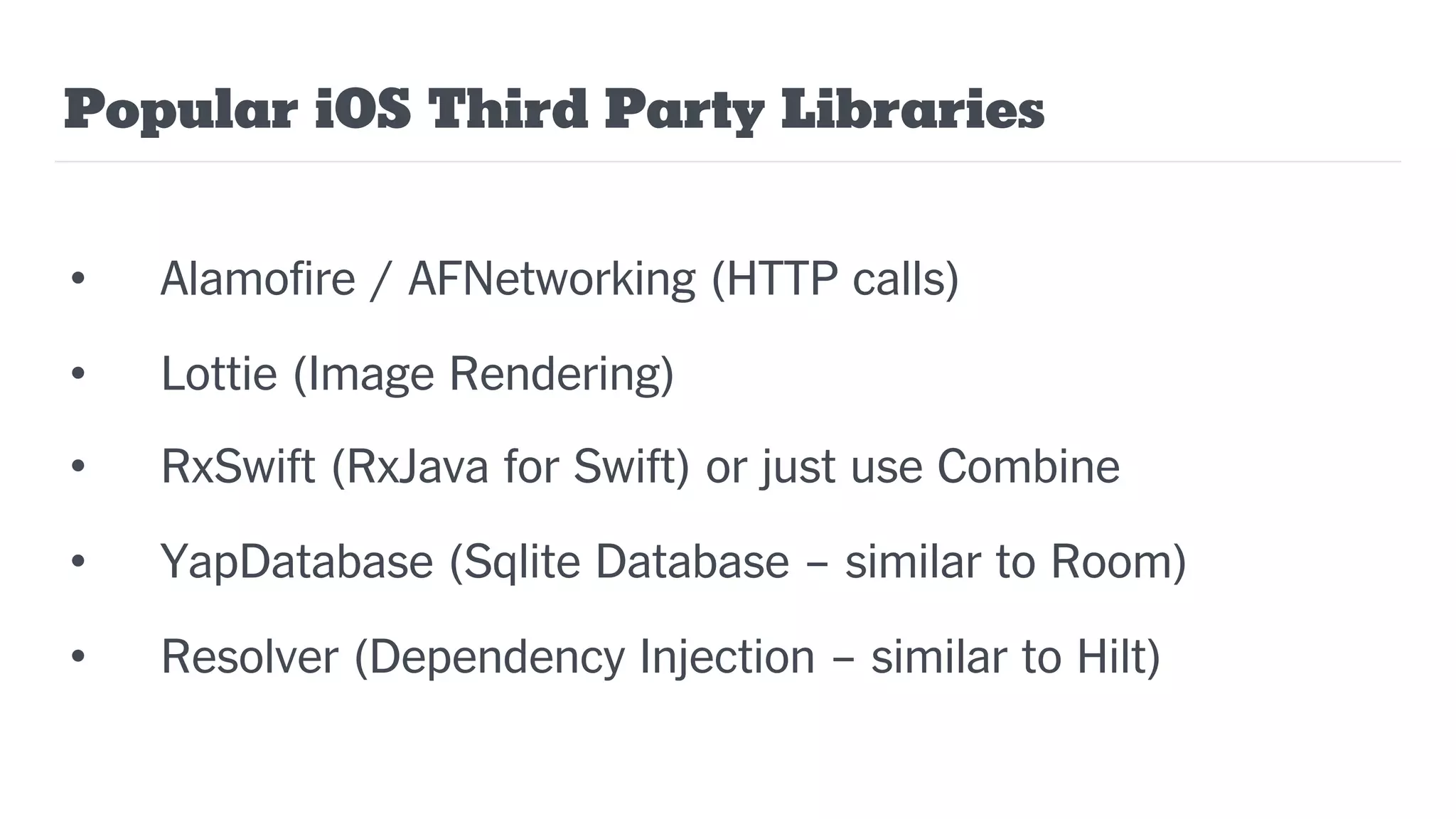

Popular iOS Third Party Libraries
• Alamofire / AFNetworking (HTTP calls)
• Lottie (Image Rendering)
• RxSwift (RxJava for Swift) or just use Combine
• YapDatabase (Sqlite Database – similar to Room)
• Resolver (Dependency Injection – similar to Hilt)

Topics
2. Swift vs. Kotlin
......

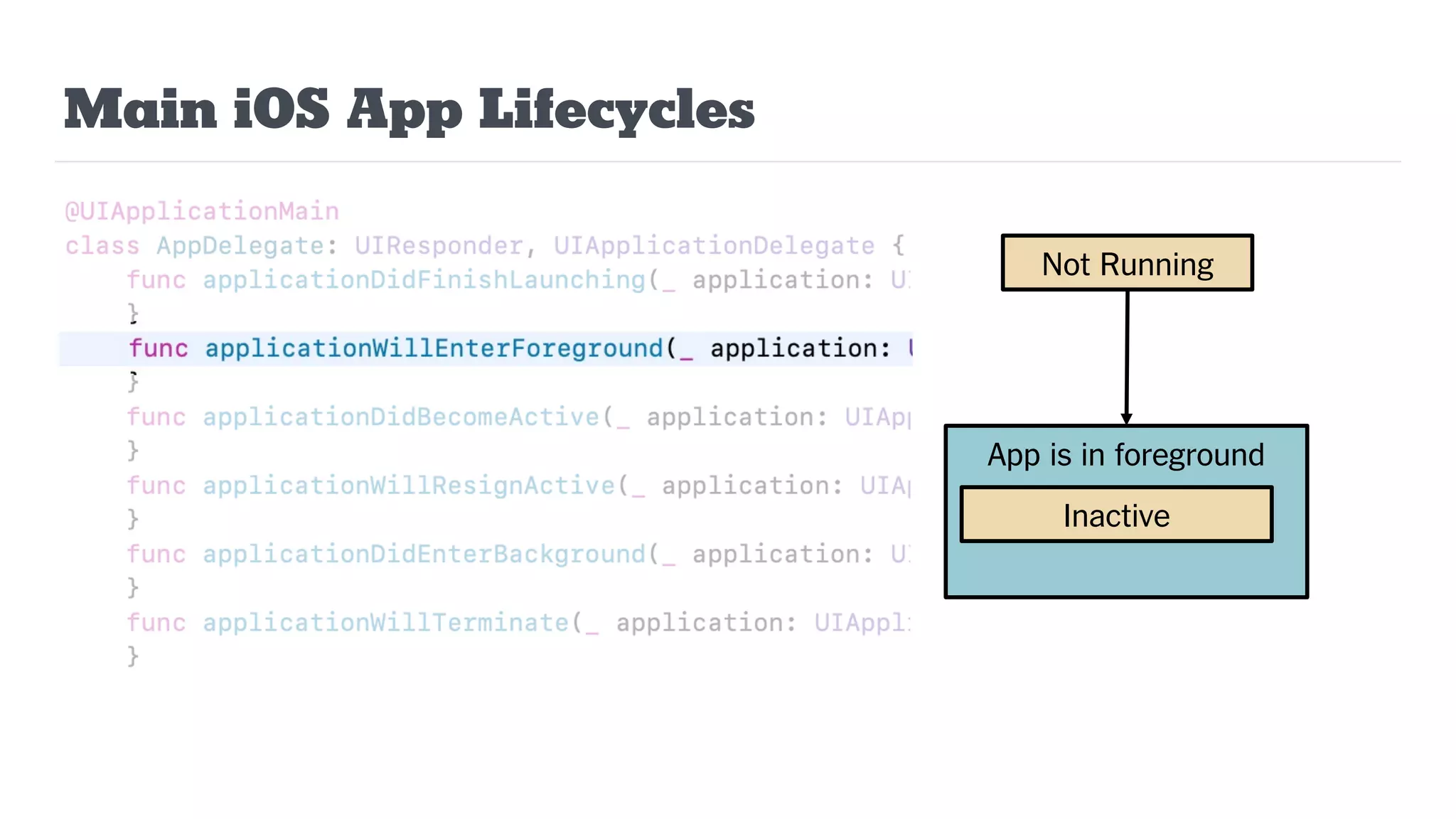

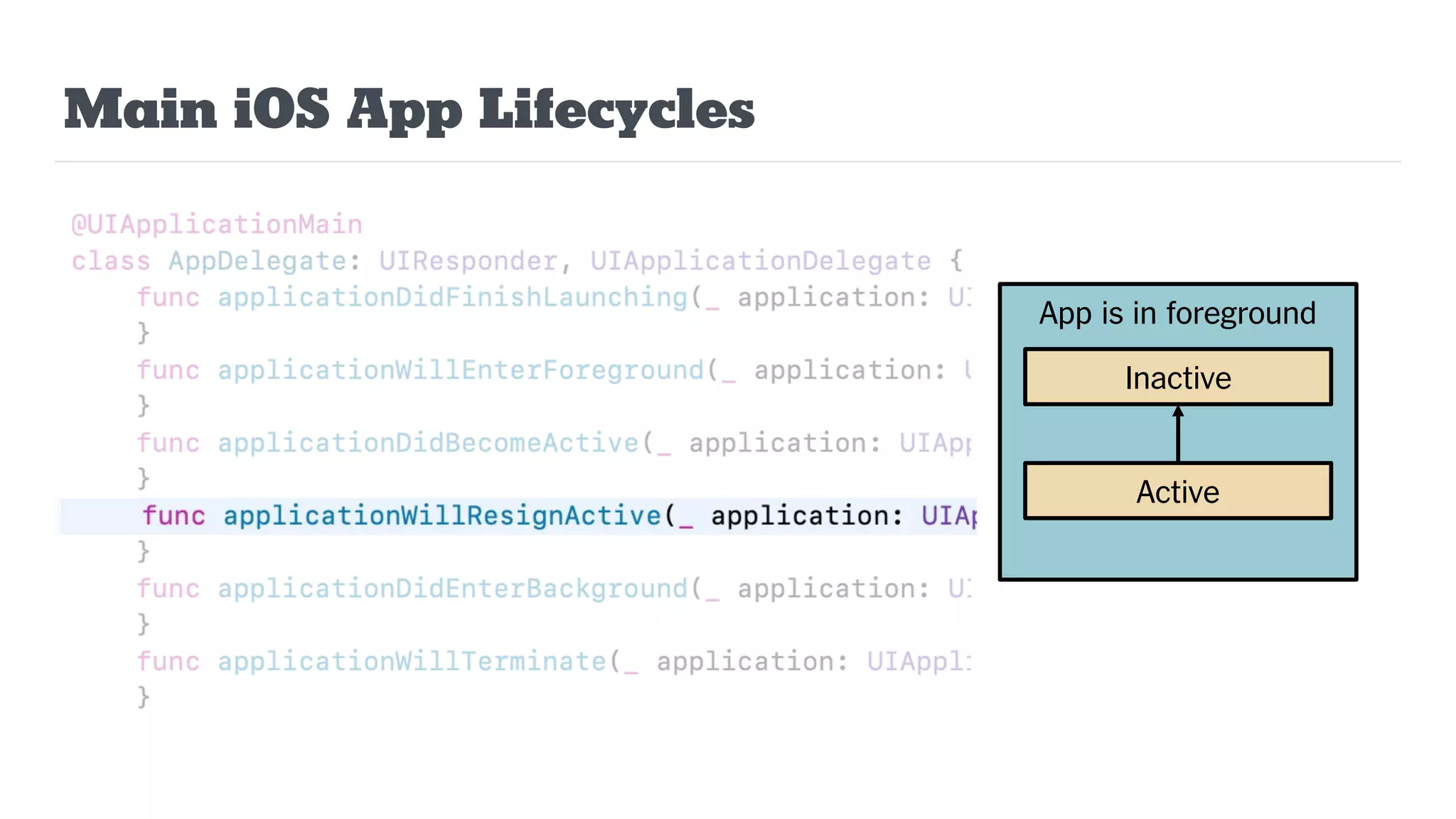

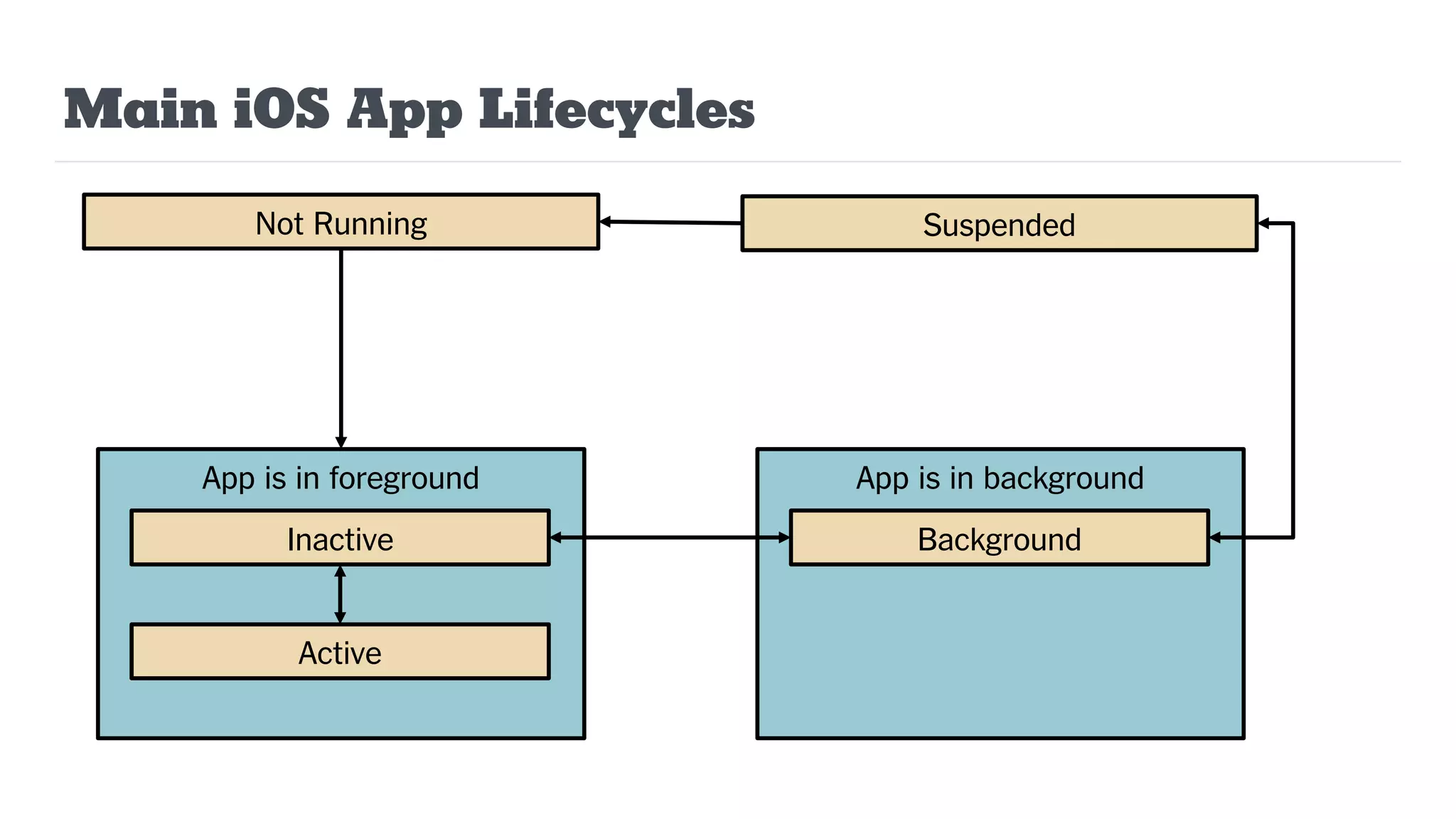

Main iOS App Lifecycles
Not Running
App is in foreground
Inactive
Active
App is in background
Background
Suspended

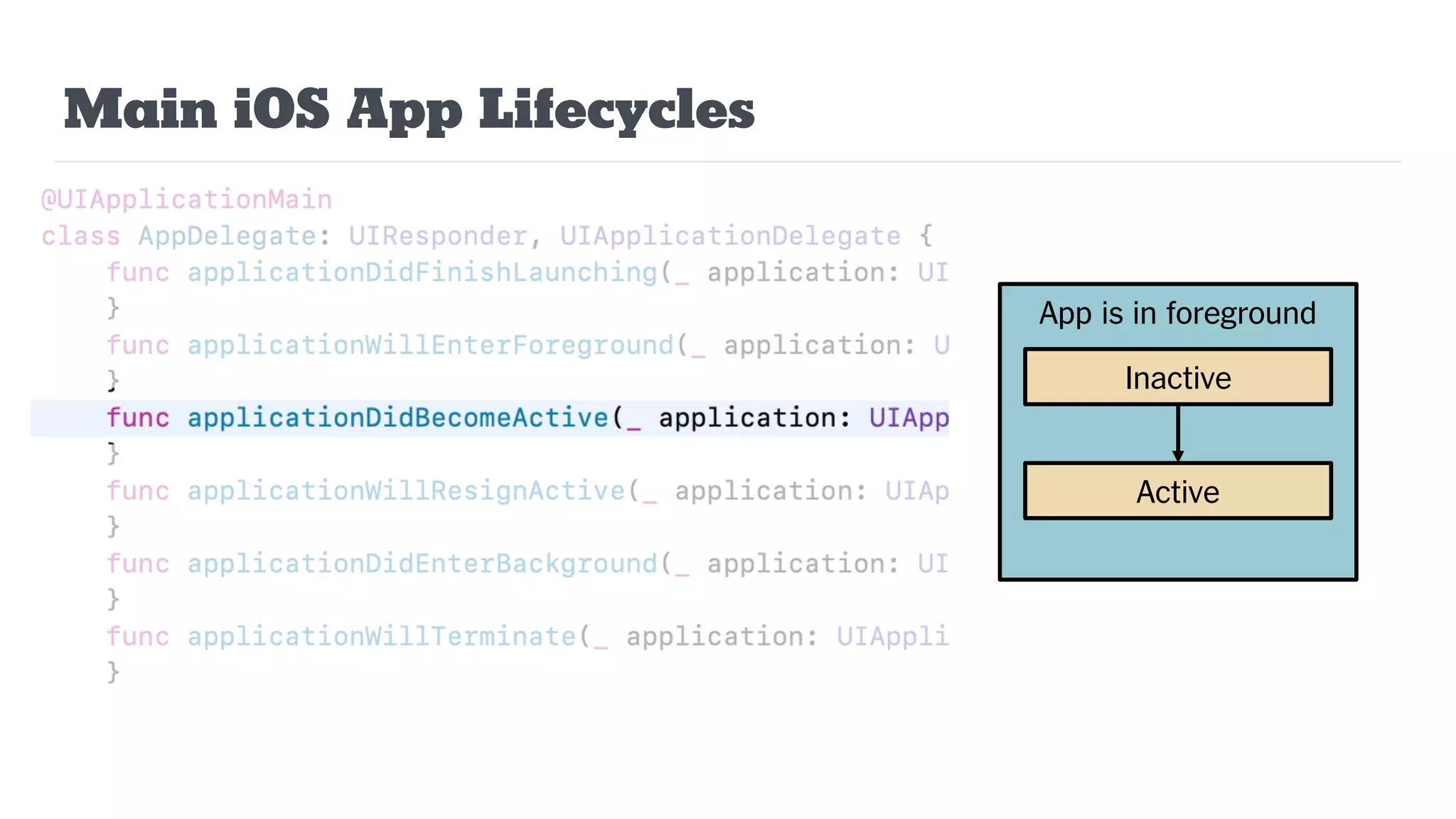

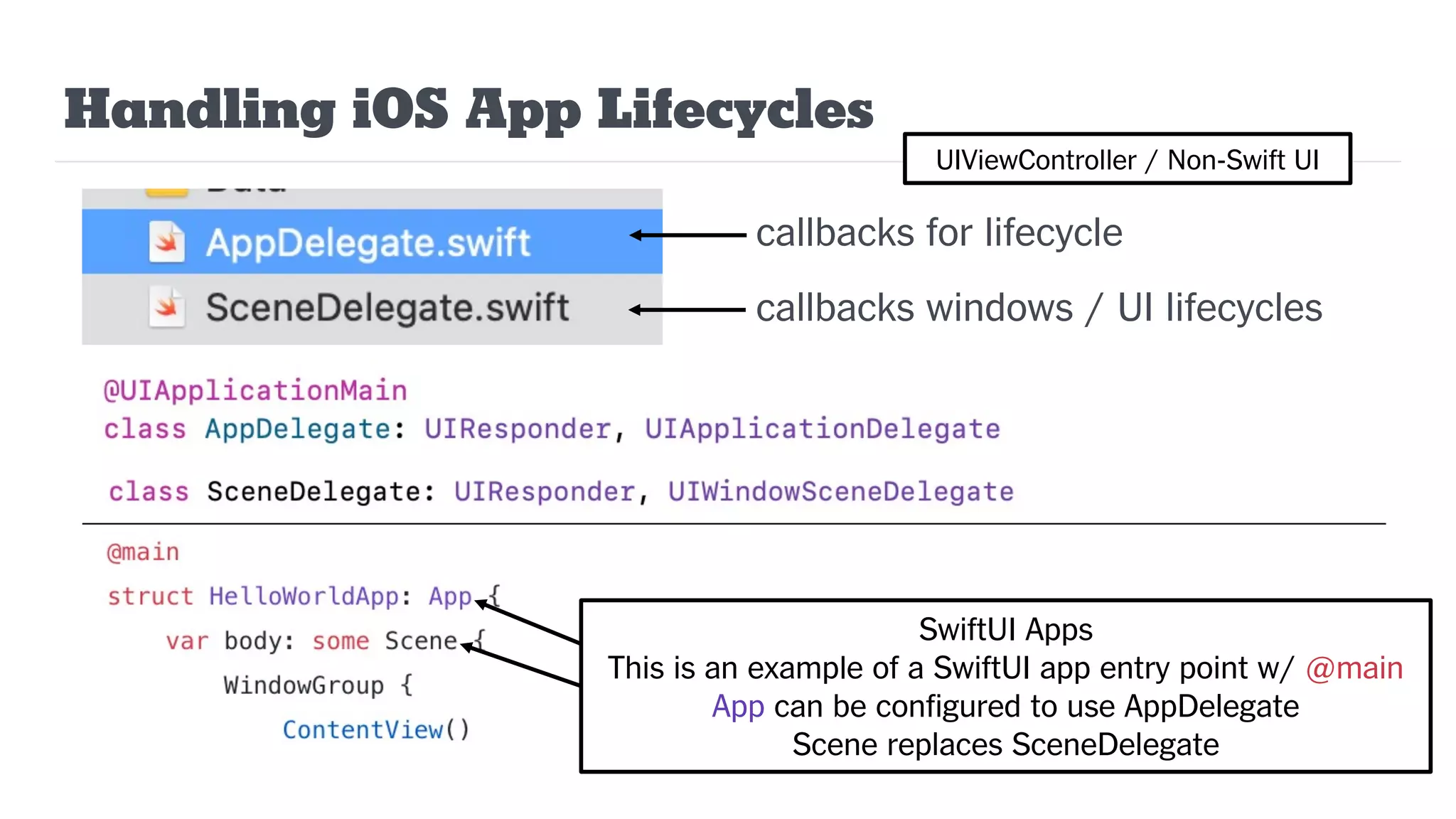

Handling iOS App Lifecycles
callbacks for lifecycle
callbacks windows / UI lifecycles
SwiftUI Apps
This is an example of a SwiftUI app entry point w/ @main
App can be configured to use AppDelegate
Scene replaces SceneDelegate

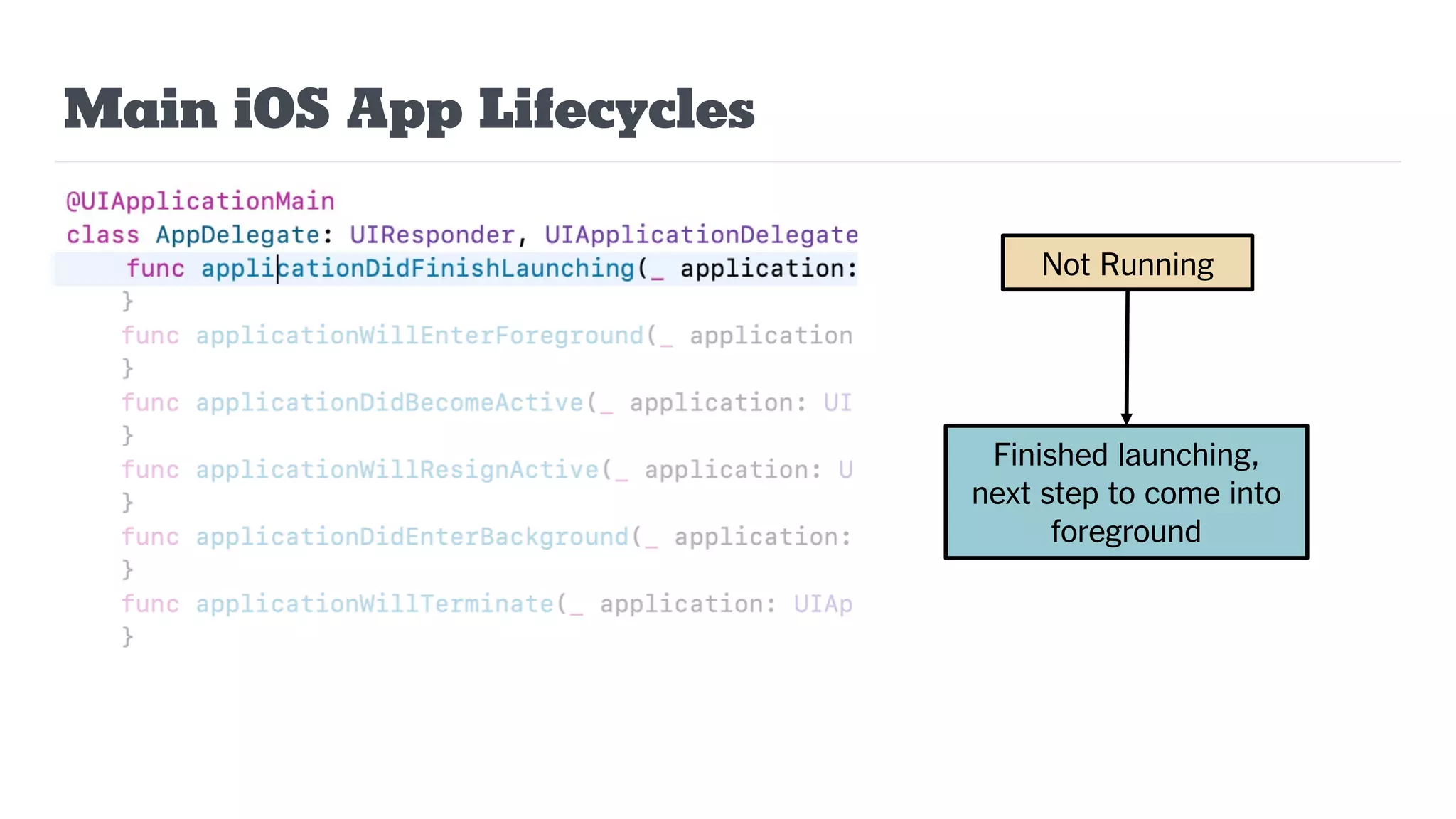

UIViewController / Non-Swift UI

Not Running
Finished launching,
next step to come into
foreground

Not Running
Inactive

Inactive
Active

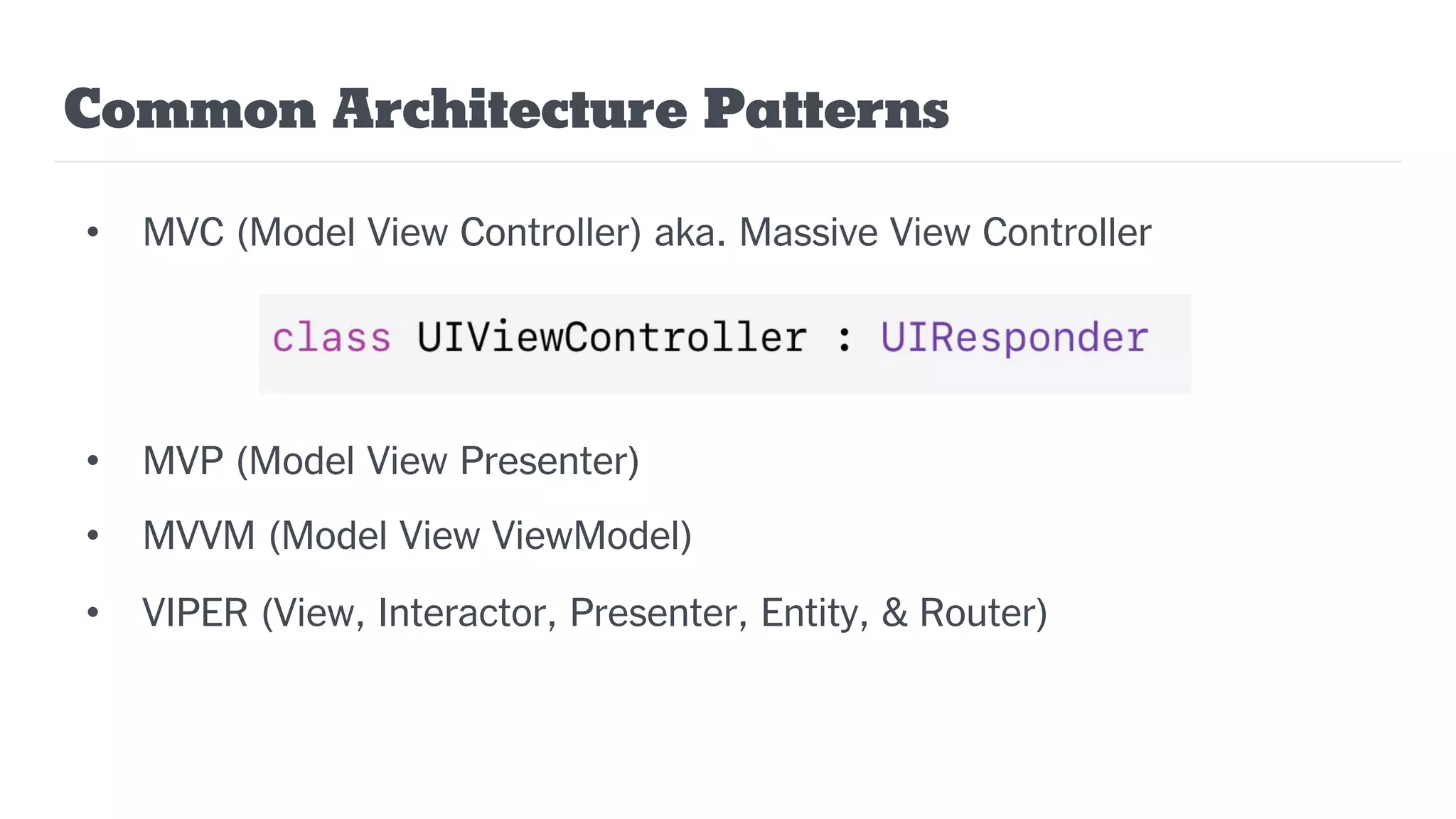

Common Architecture Patterns
• MVC (Model View Controller) aka. Massive View Controller
• MVP (Model View Presenter)
• MVVM (Model View ViewModel)
• VIPER (View, Interactor, Presenter, Entity, & Router)

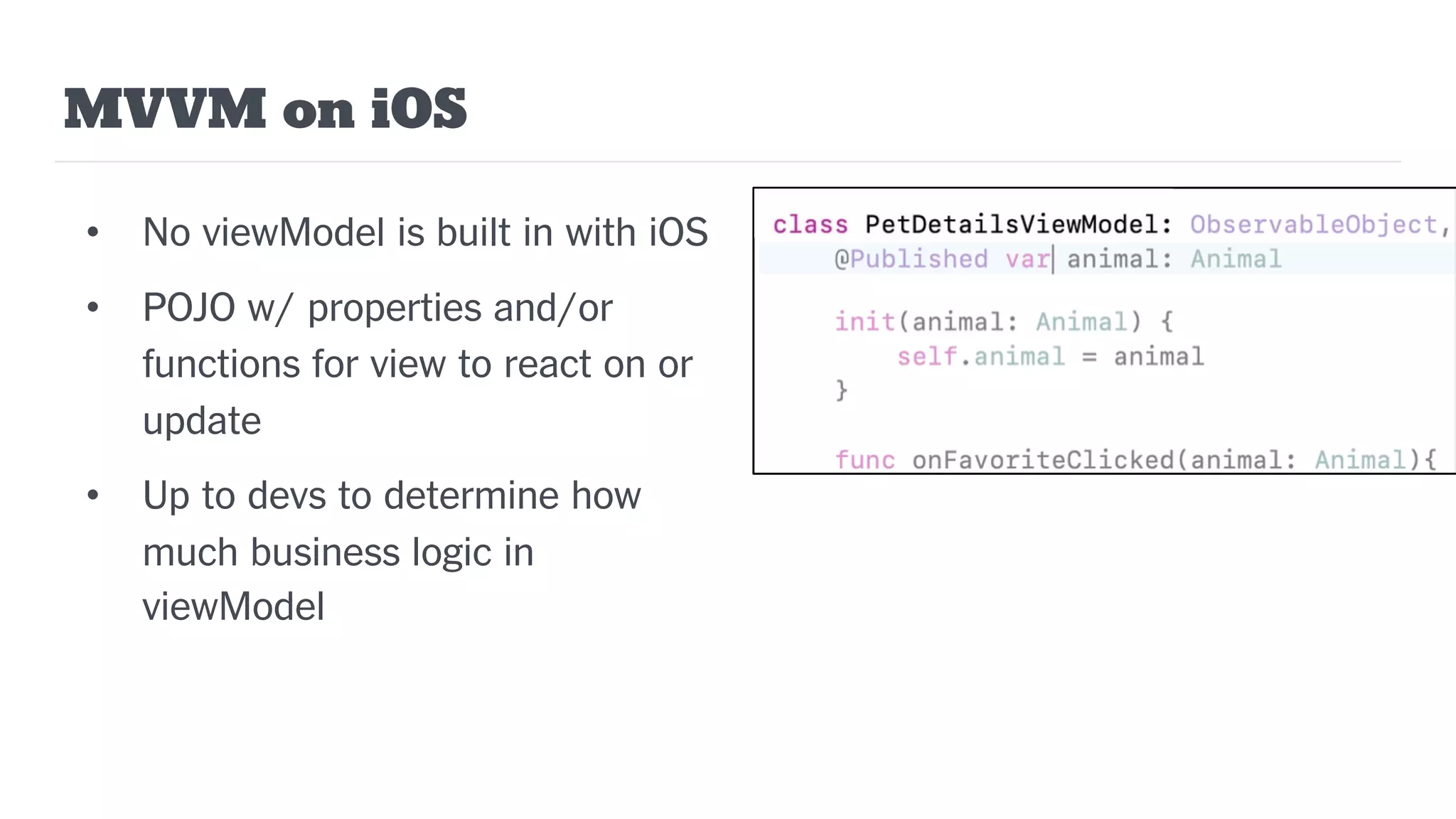

MVVM on iOS
• No viewModel is built in with iOS
• POJO w/ properties and/or
functions for view to react on or
update
• Up to devs to determine how
much business logic in
viewModel

Topics
2. Swift vs. Kotlin
!

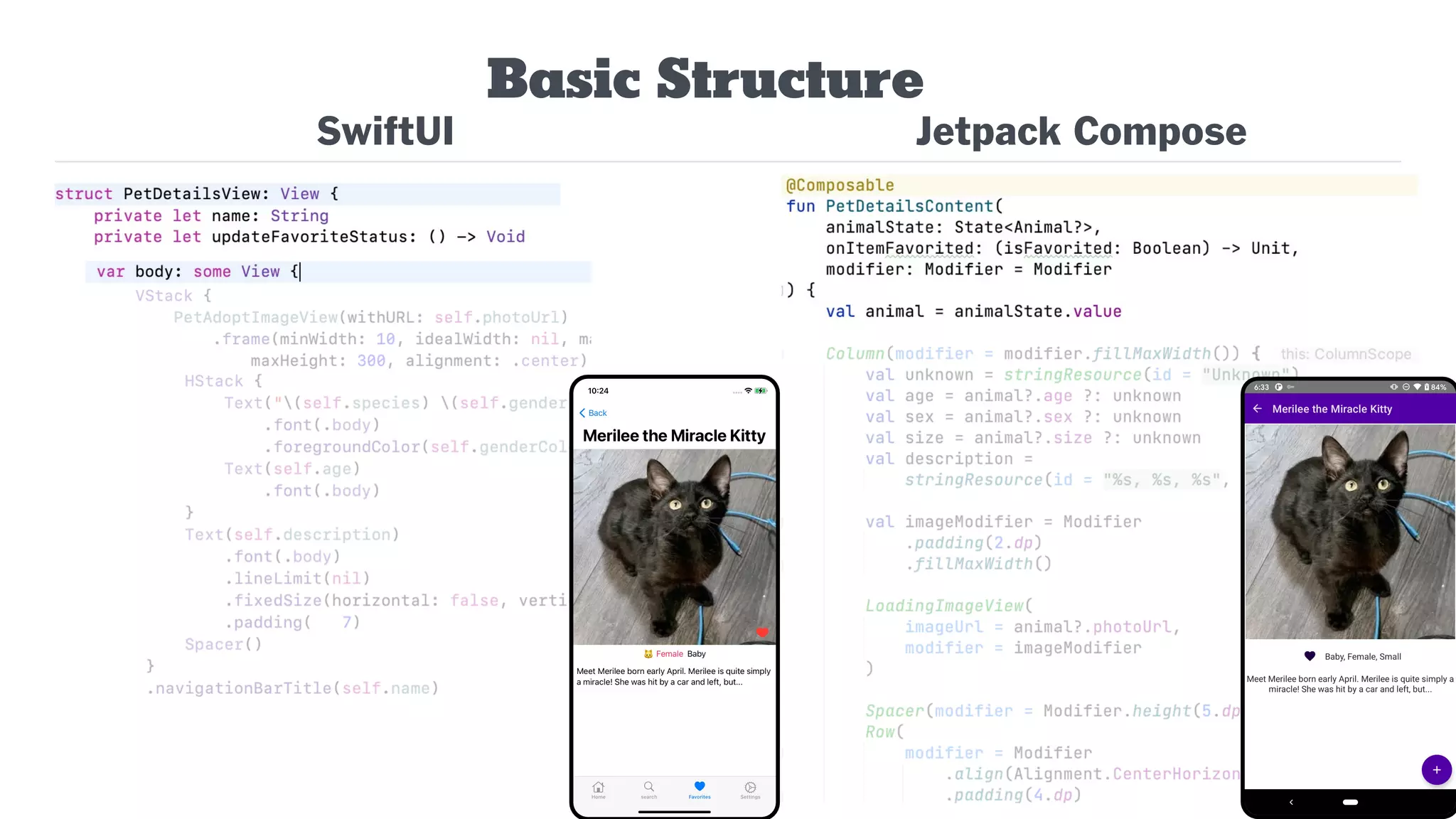

Basic Structure
SwiftUI Jetpack Compose

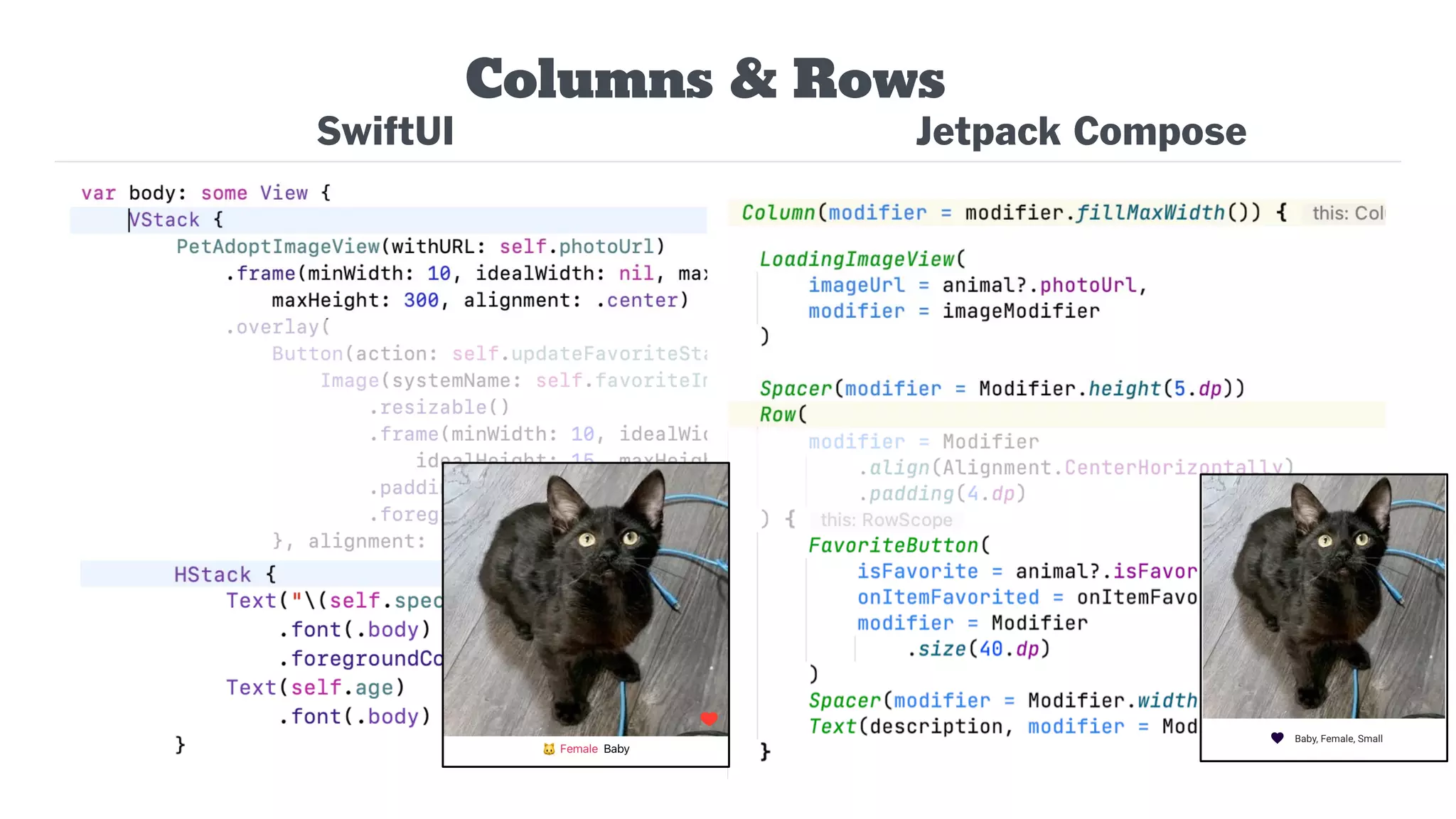

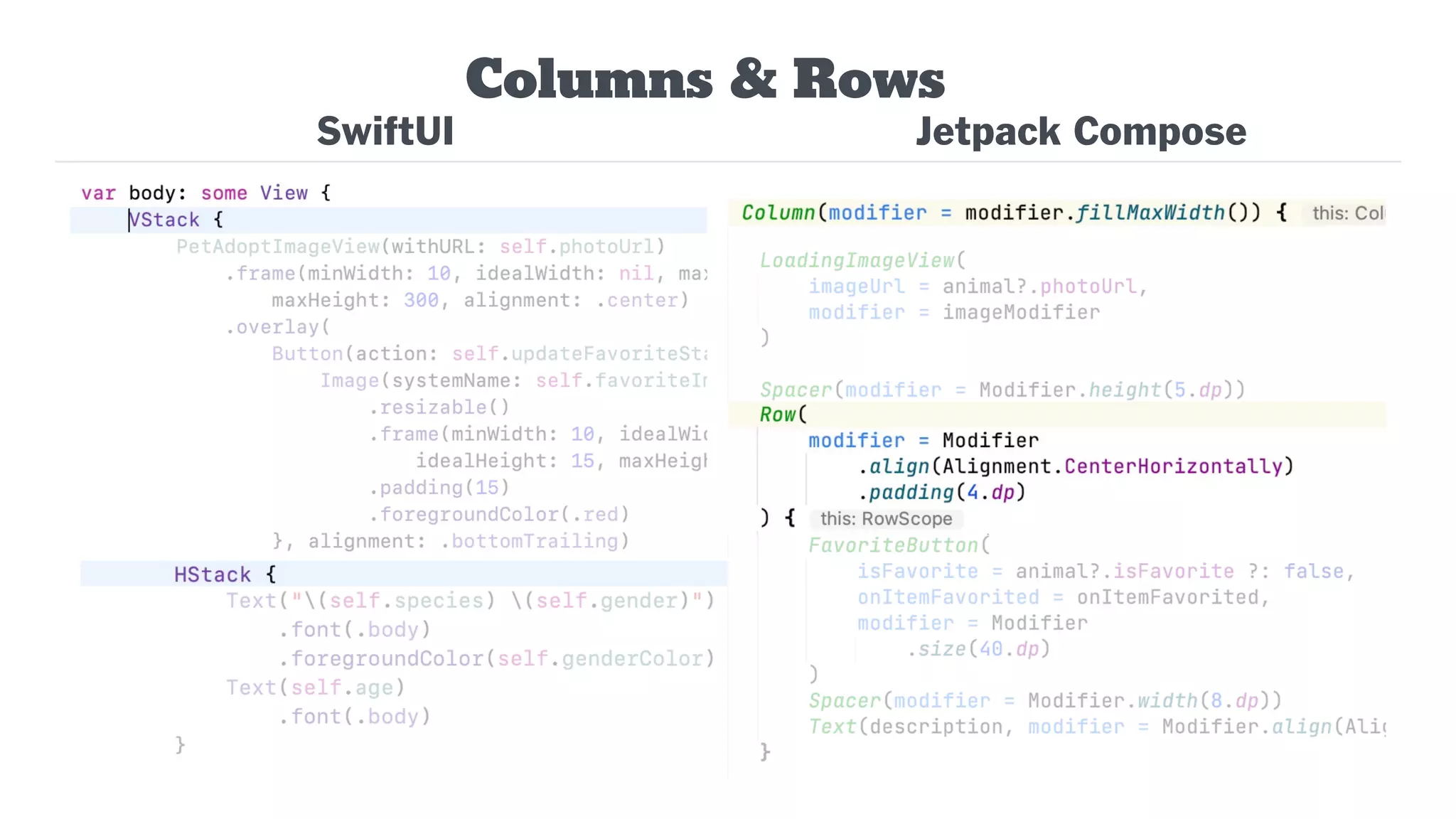

Columns & Rows

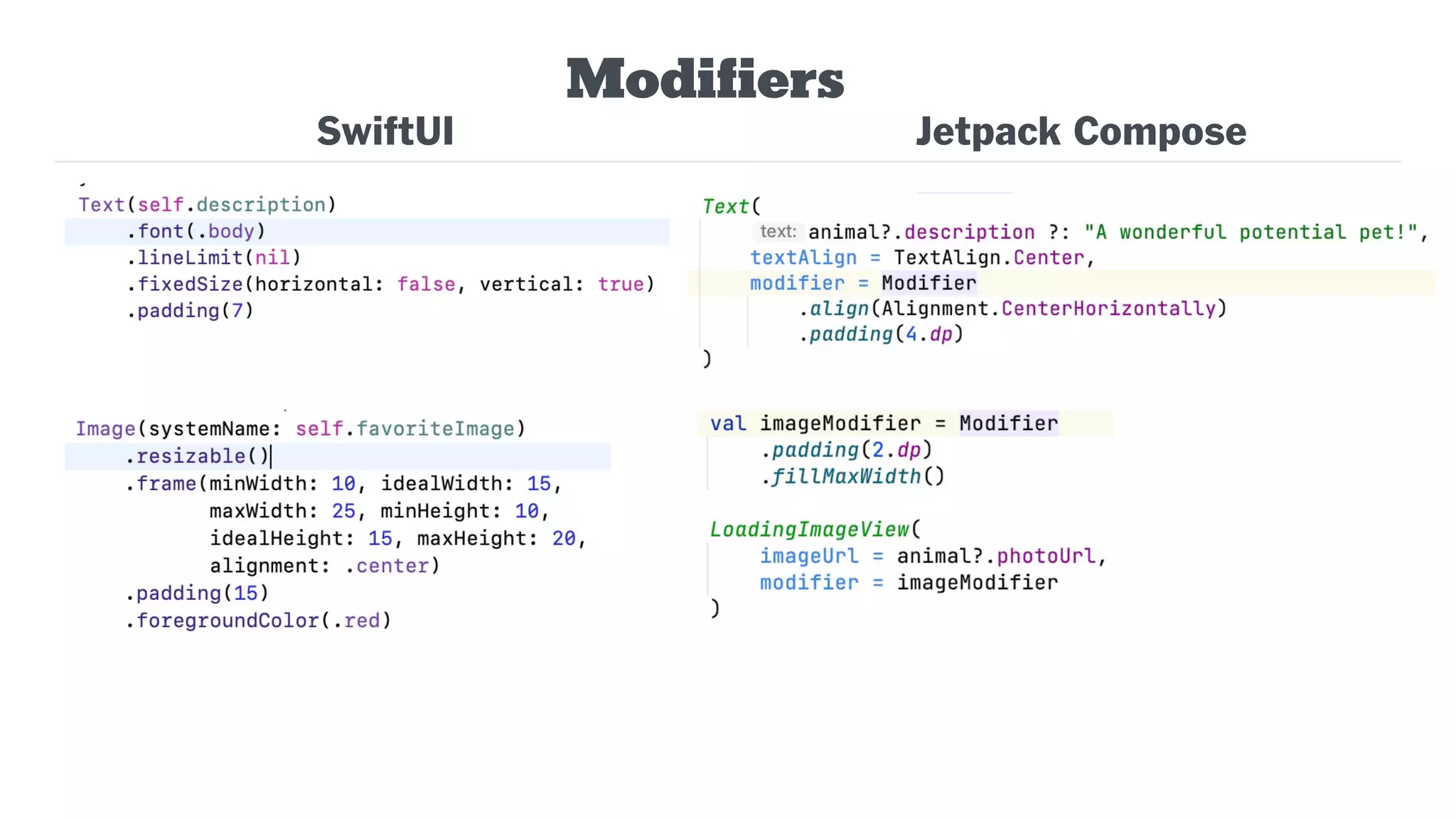

Modifiers

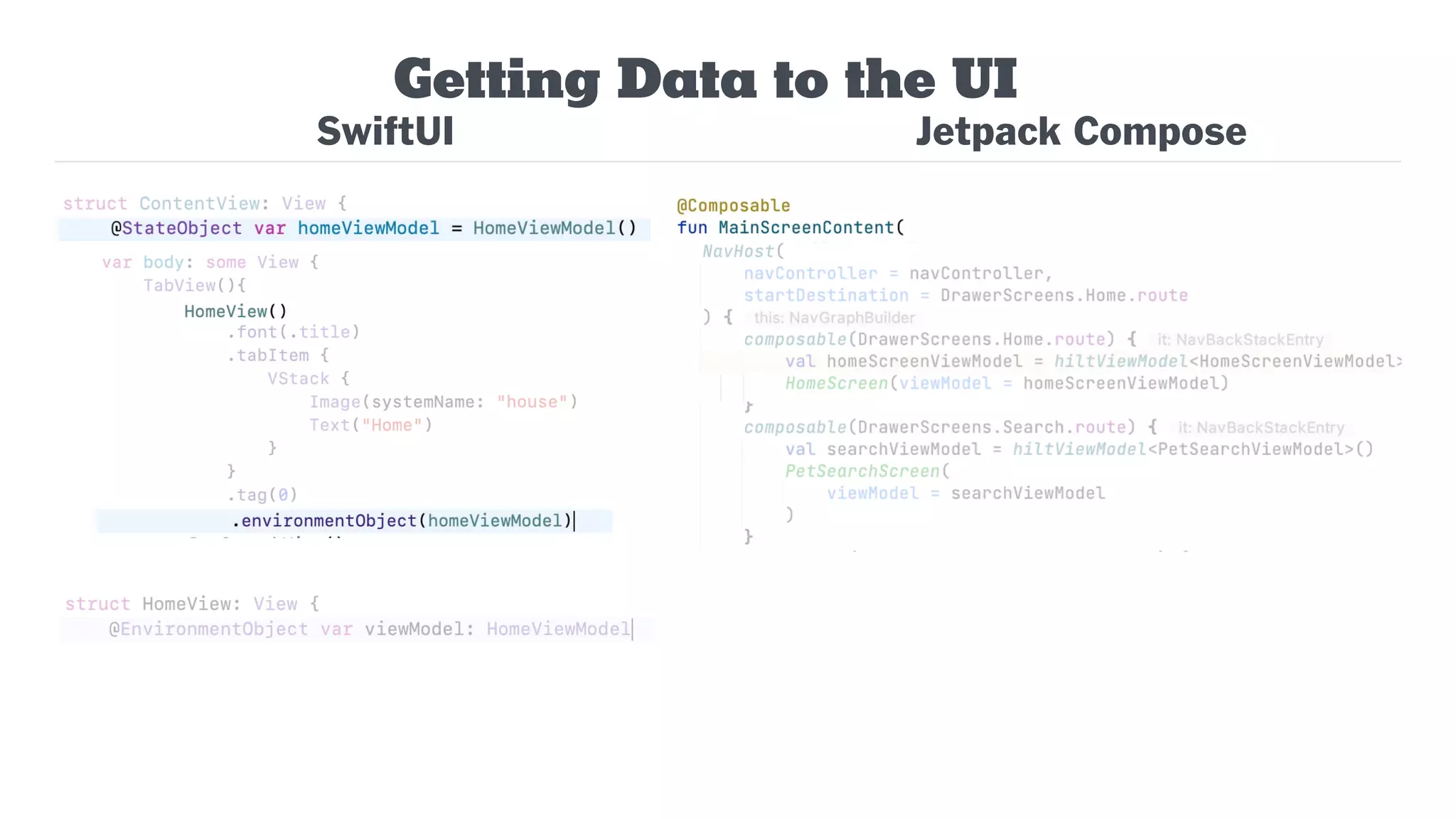

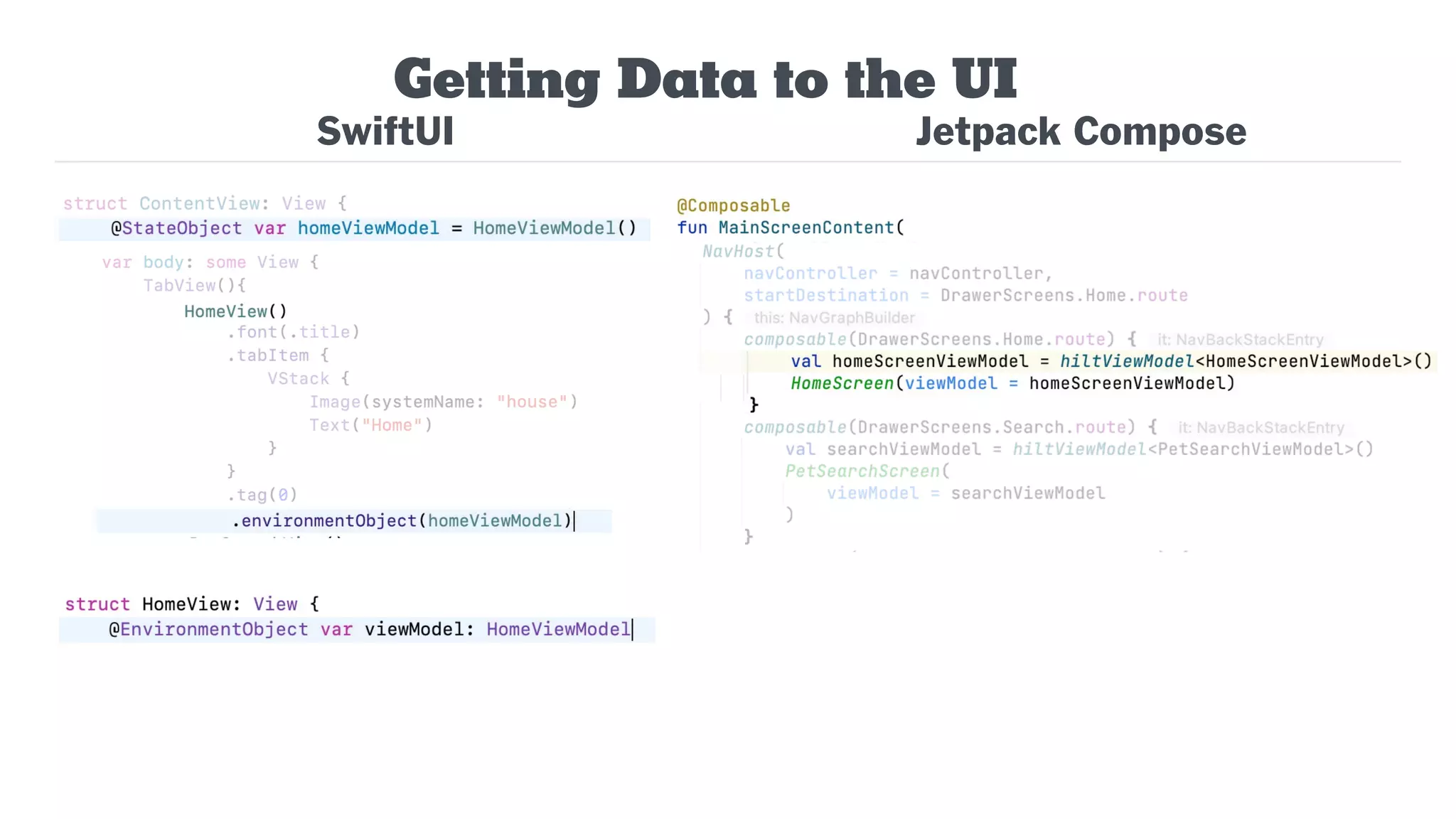

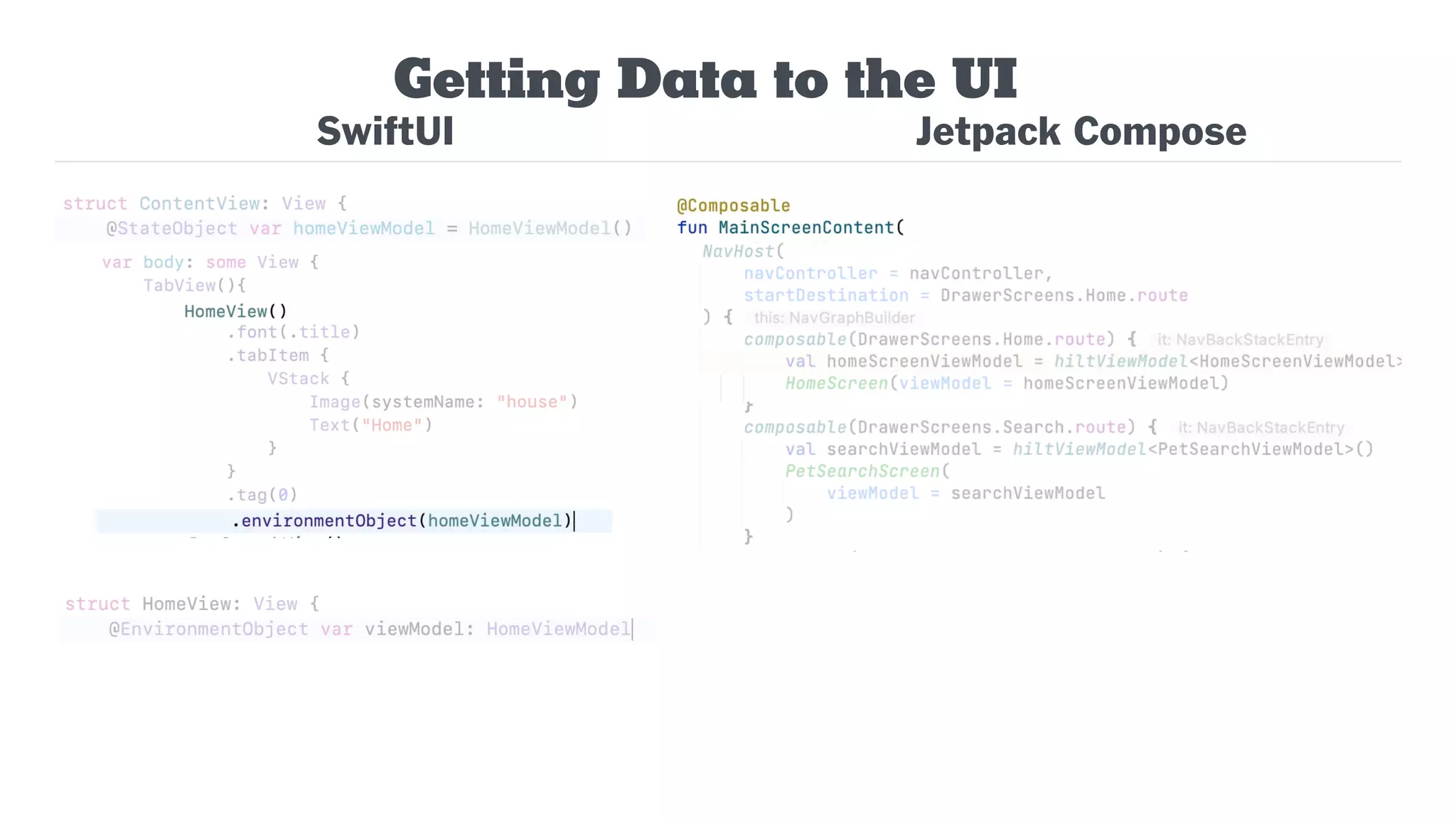

Getting Data to the UI

The New York Times is Hiring!
NYT Android & iOS Apps (News, Cooking, Games)
Come work with us.
https://www.nytco.com/careers/

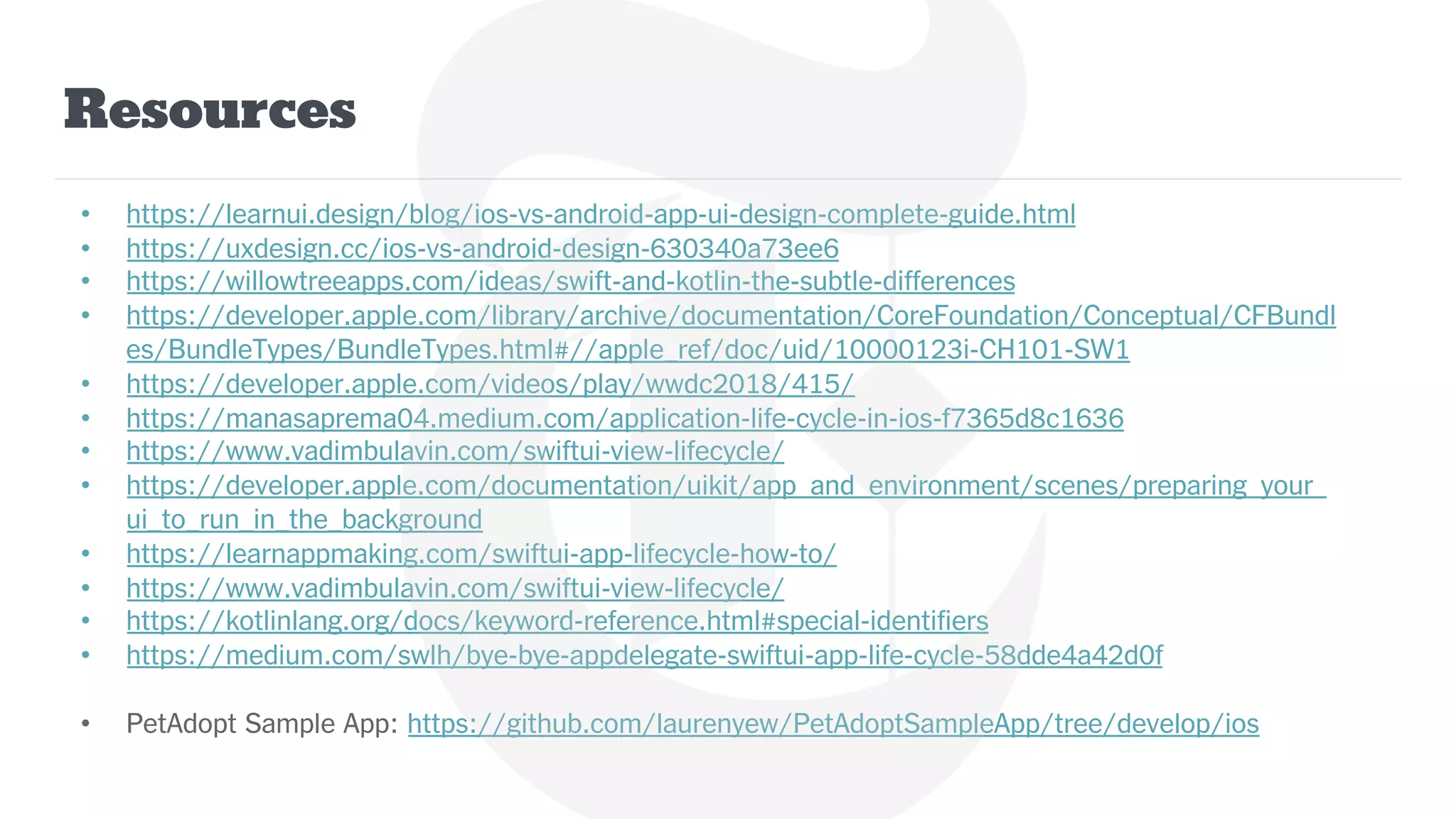

Resources
• https://learnui.design/blog/ios-vs-android-app-ui-design-complete-guide.html
• https://uxdesign.cc/ios-vs-android-design-630340a73ee6
• https://willowtreeapps.com/ideas/swift-and-kotlin-the-subtle-differences
• https://developer.apple.com/library/archive/documentation/CoreFoundation/Conceptual/CFBundl
es/BundleTypes/BundleTypes.html#//apple_ref/doc/uid/10000123i-CH101-SW1
• https://developer.apple.com/videos/play/wwdc2018/415/
• https://manasaprema04.medium.com/application-life-cycle-in-ios-f7365d8c1636
• https://www.vadimbulavin.com/swiftui-view-lifecycle/
• https://developer.apple.com/documentation/uikit/app_and_environment/scenes/preparing_your_
ui_to_run_in_the_background
• https://learnappmaking.com/swiftui-app-lifecycle-how-to/
• https://www.vadimbulavin.com/swiftui-view-lifecycle/
• https://kotlinlang.org/docs/keyword-reference.html#special-identifiers
• https://medium.com/swlh/bye-bye-appdelegate-swiftui-app-life-cycle-58dde4a42d0f
• PetAdopt Sample App: https://github.com/laurenyew/PetAdoptSampleApp/tree/develop/ios

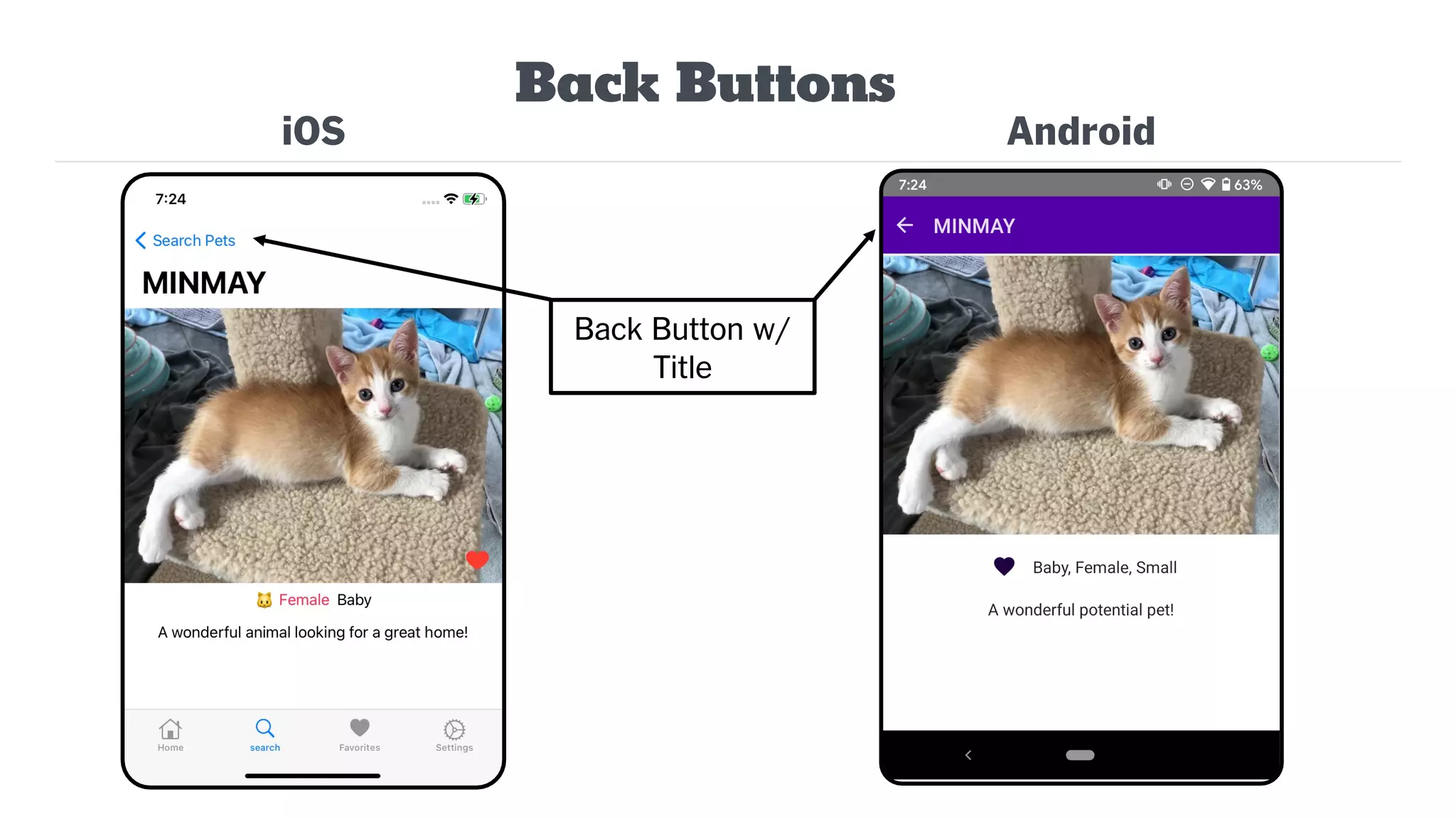

Back Buttons
iOS Android
Back Button w/
Title

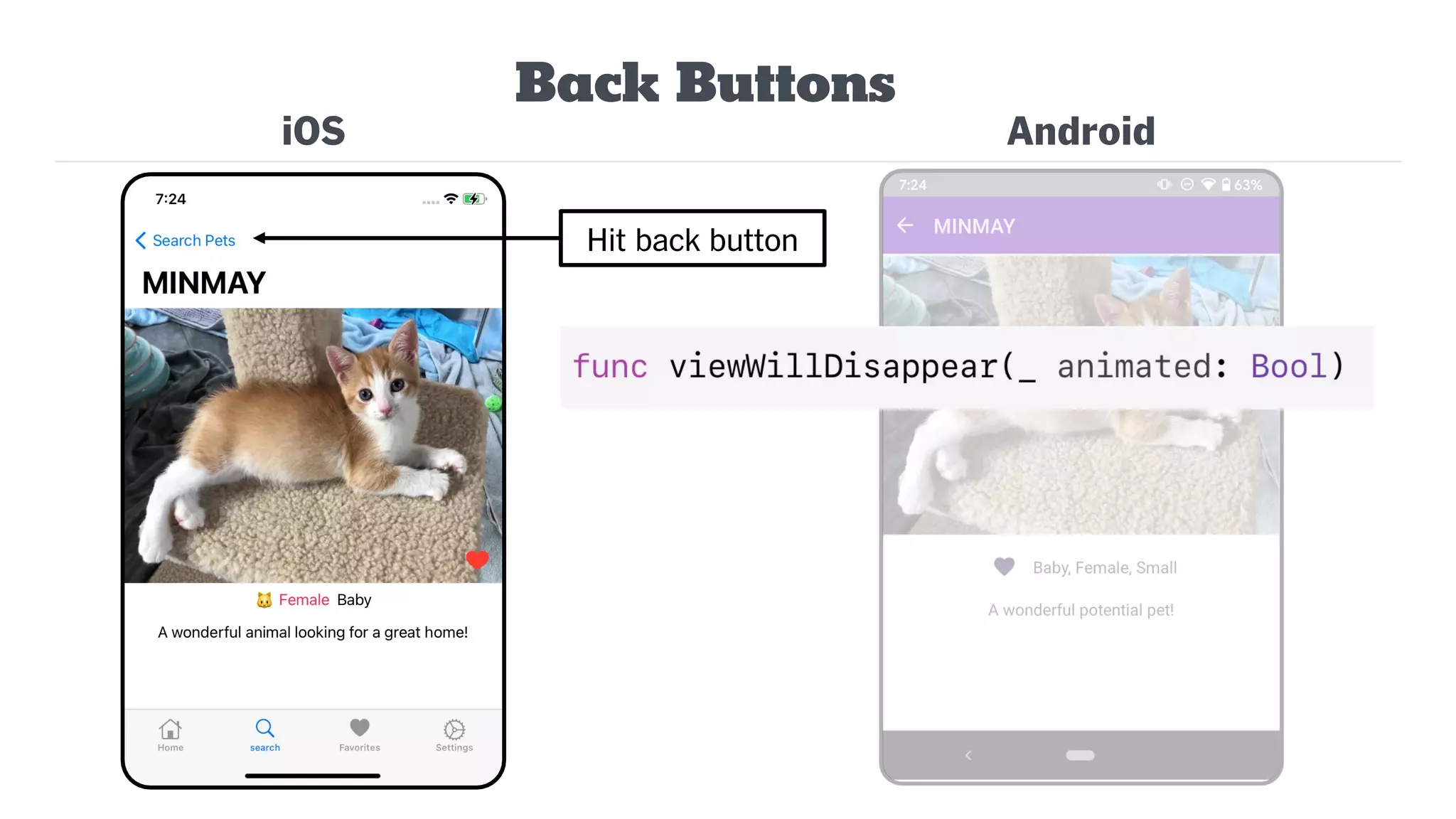

Back Buttons
iOS Android
Hit back button

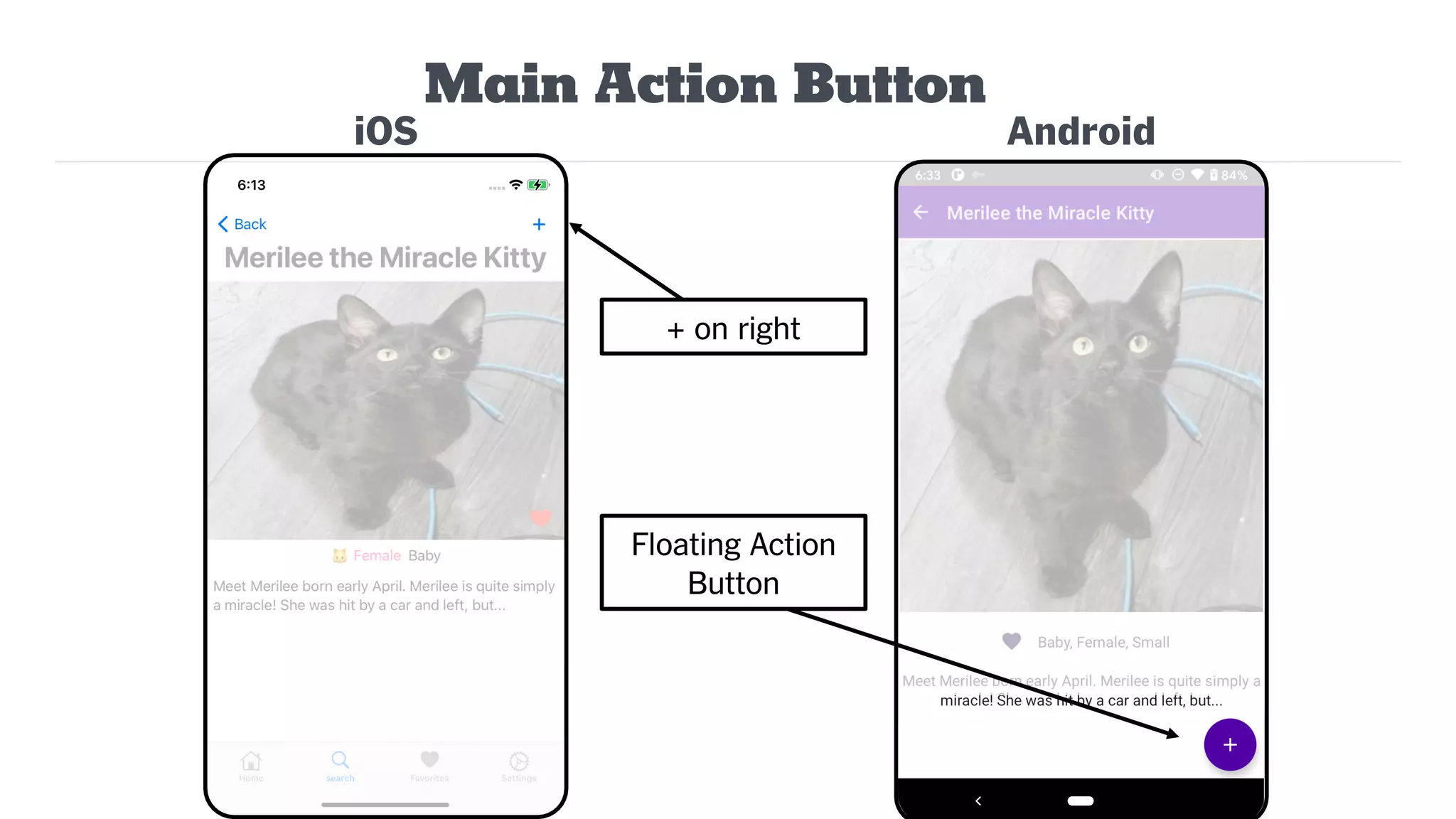

iOS
Main Action Button
Android
+ on right
Floating Action
Button

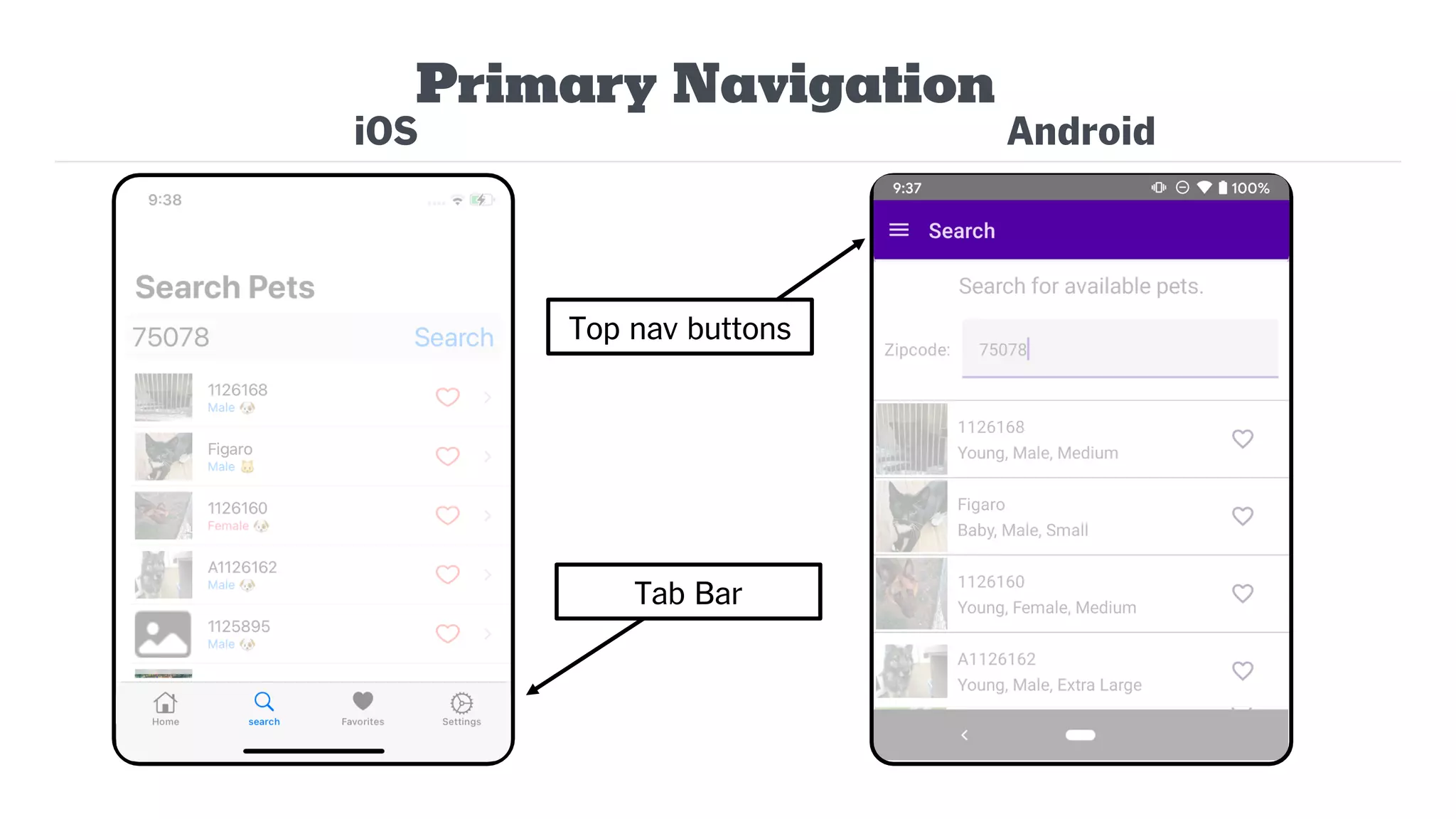

iOS
Primary Navigation
Android
Tab Bar
Top nav buttons

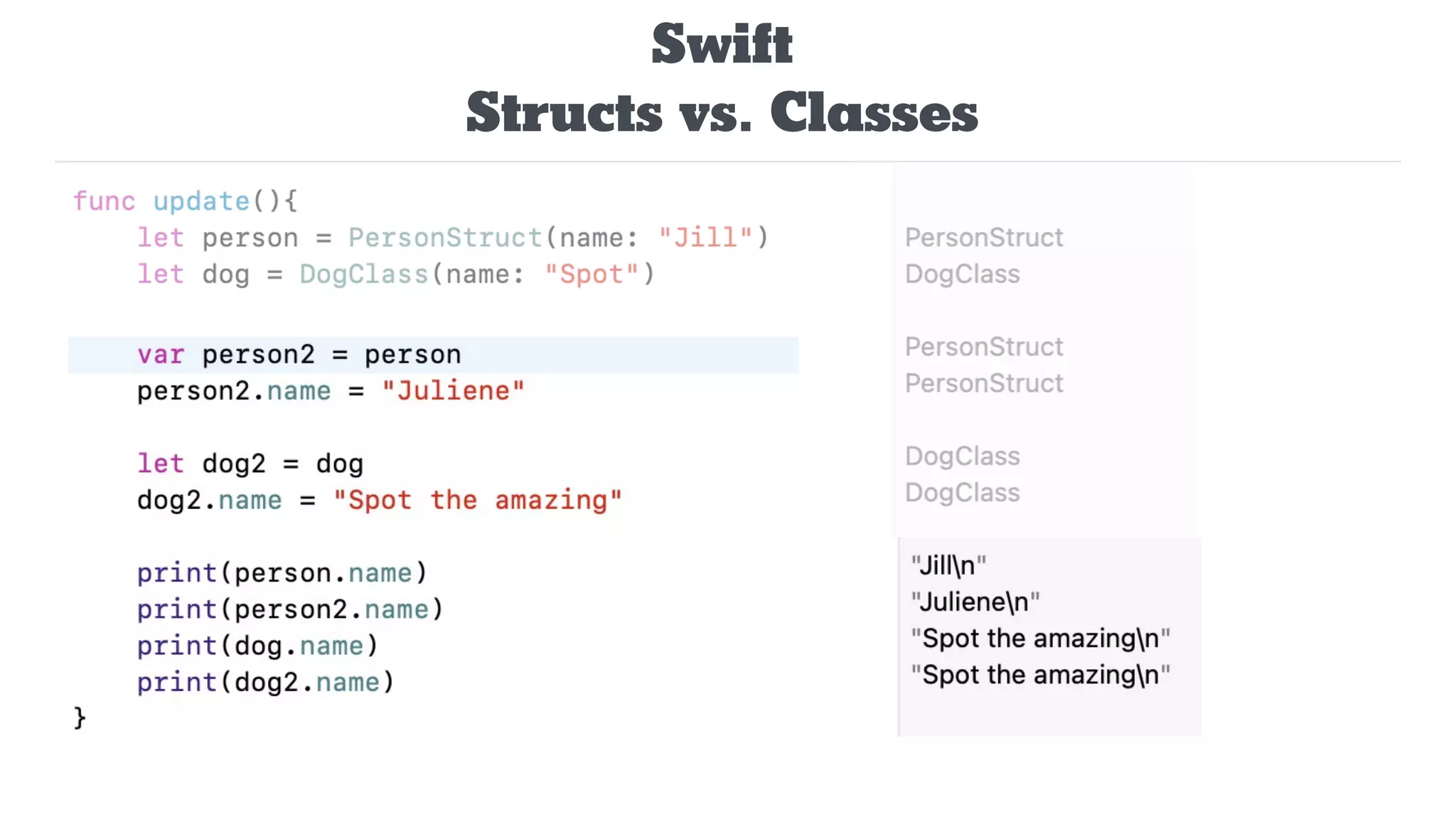

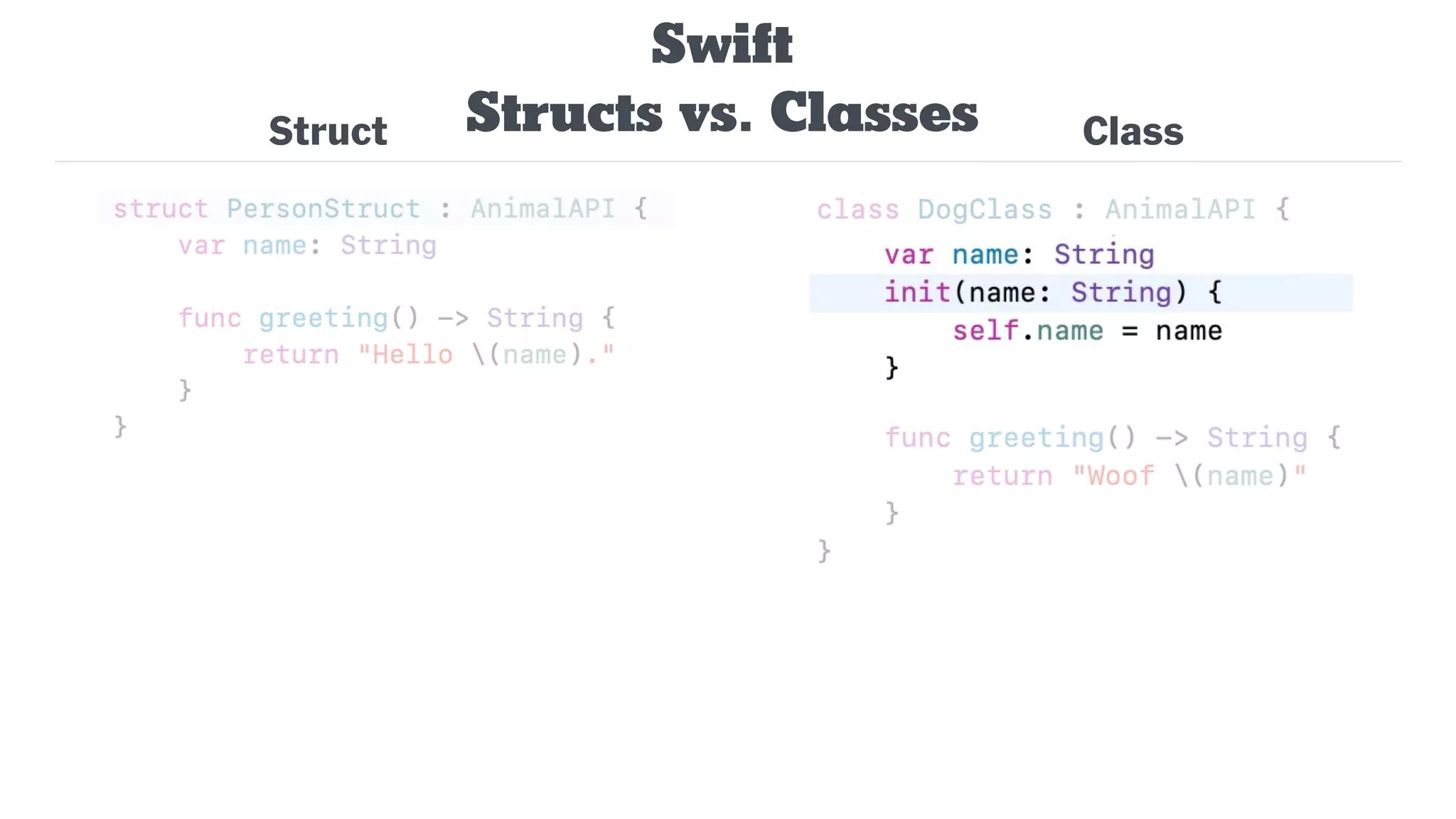

Swift
Structs vs. Classes
Struct Class

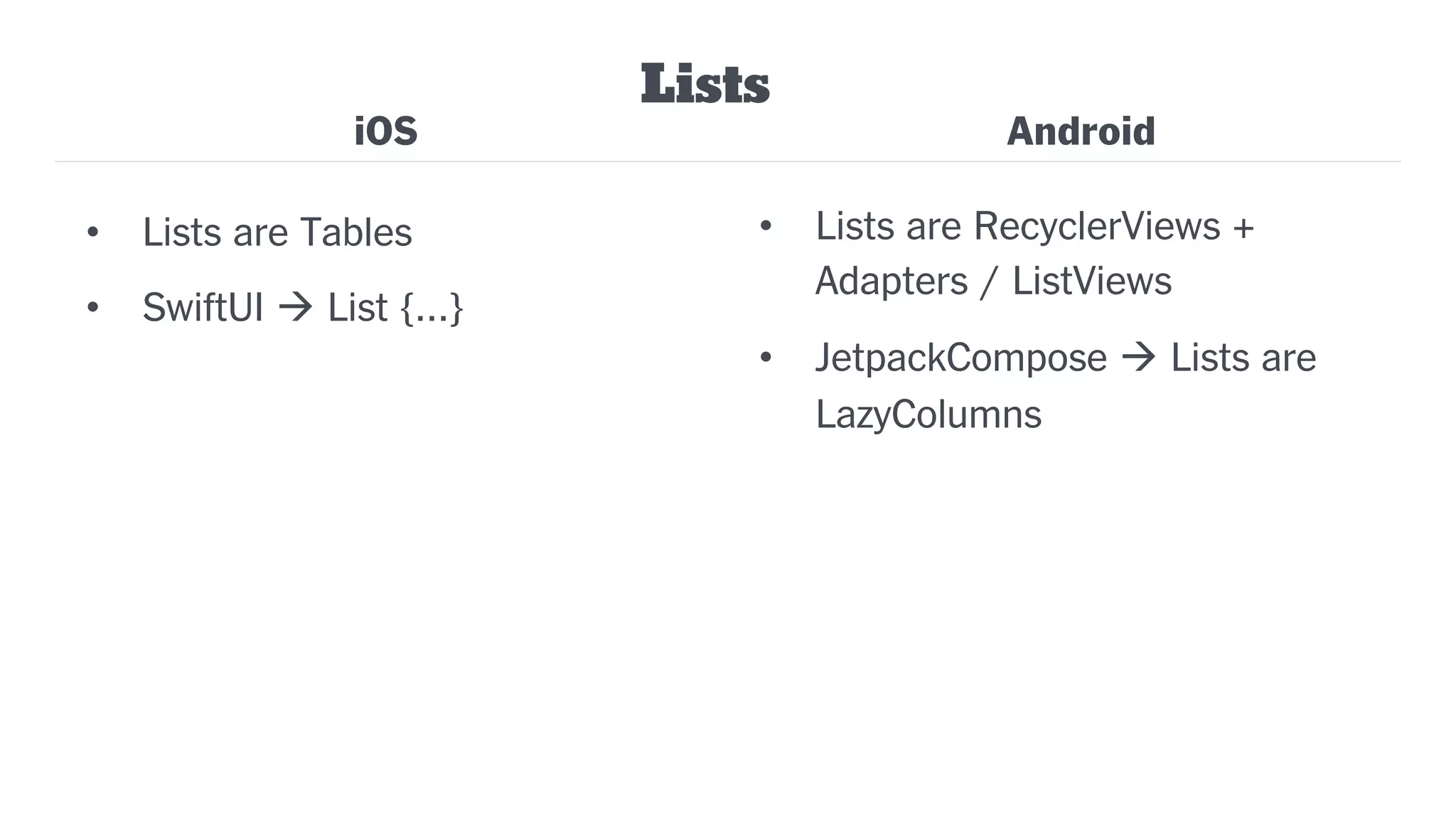

iOS
• Lists are Tables
• SwiftUI à List {…}
• Lists are RecyclerViews +
Adapters / ListViews
• JetpackCompose à Lists are
LazyColumns
Lists
Android

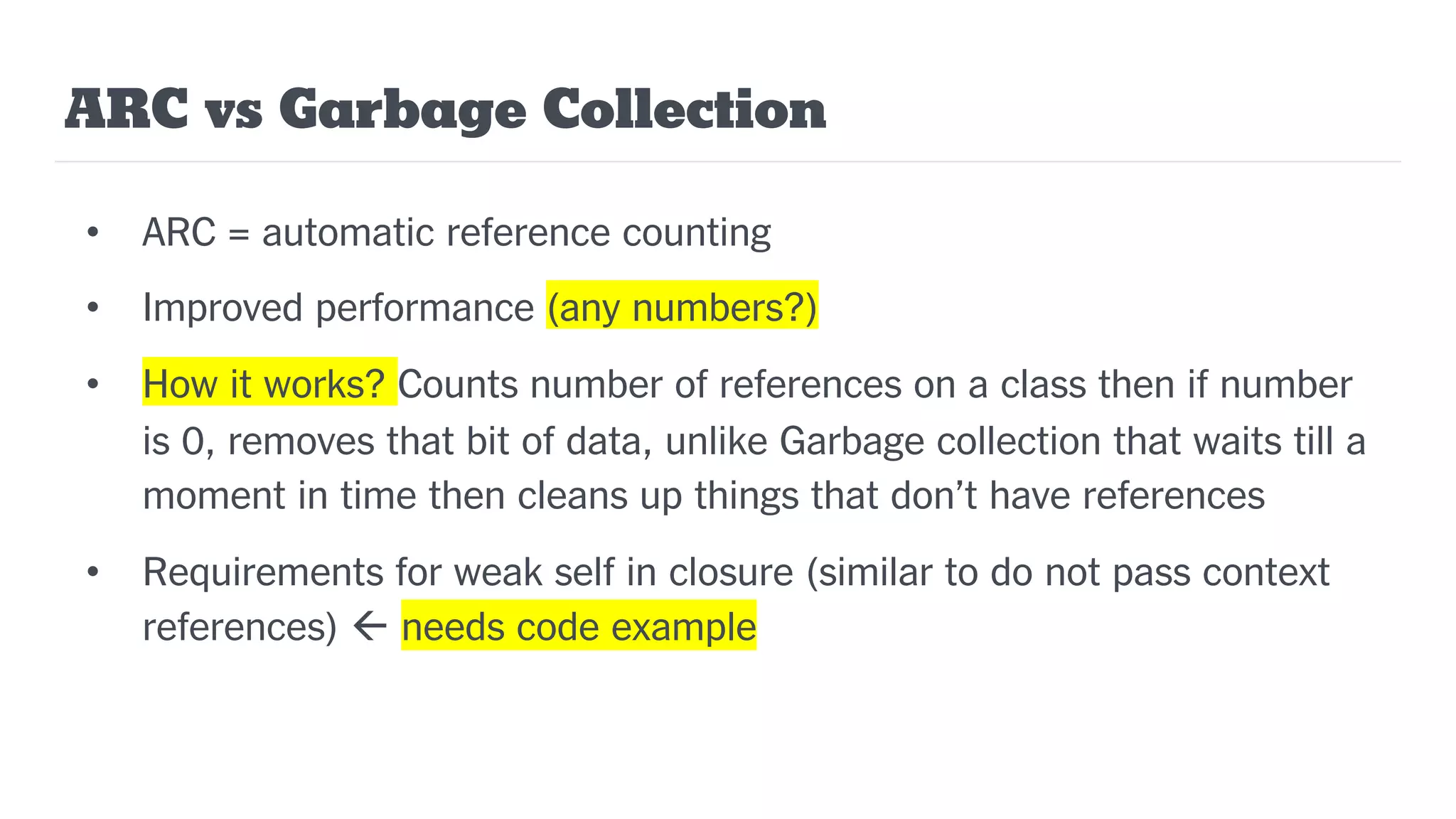

ARC vs Garbage Collection
• ARC = automatic reference counting
• Improved performance (any numbers?)
• How it works? Counts number of references on a class then if number
is 0, removes that bit of data, unlike Garbage collection that waits till a
moment in time then cleans up things that don’t have references
• Requirements for weak self in closure (similar to do not pass context
references) ß needs code example

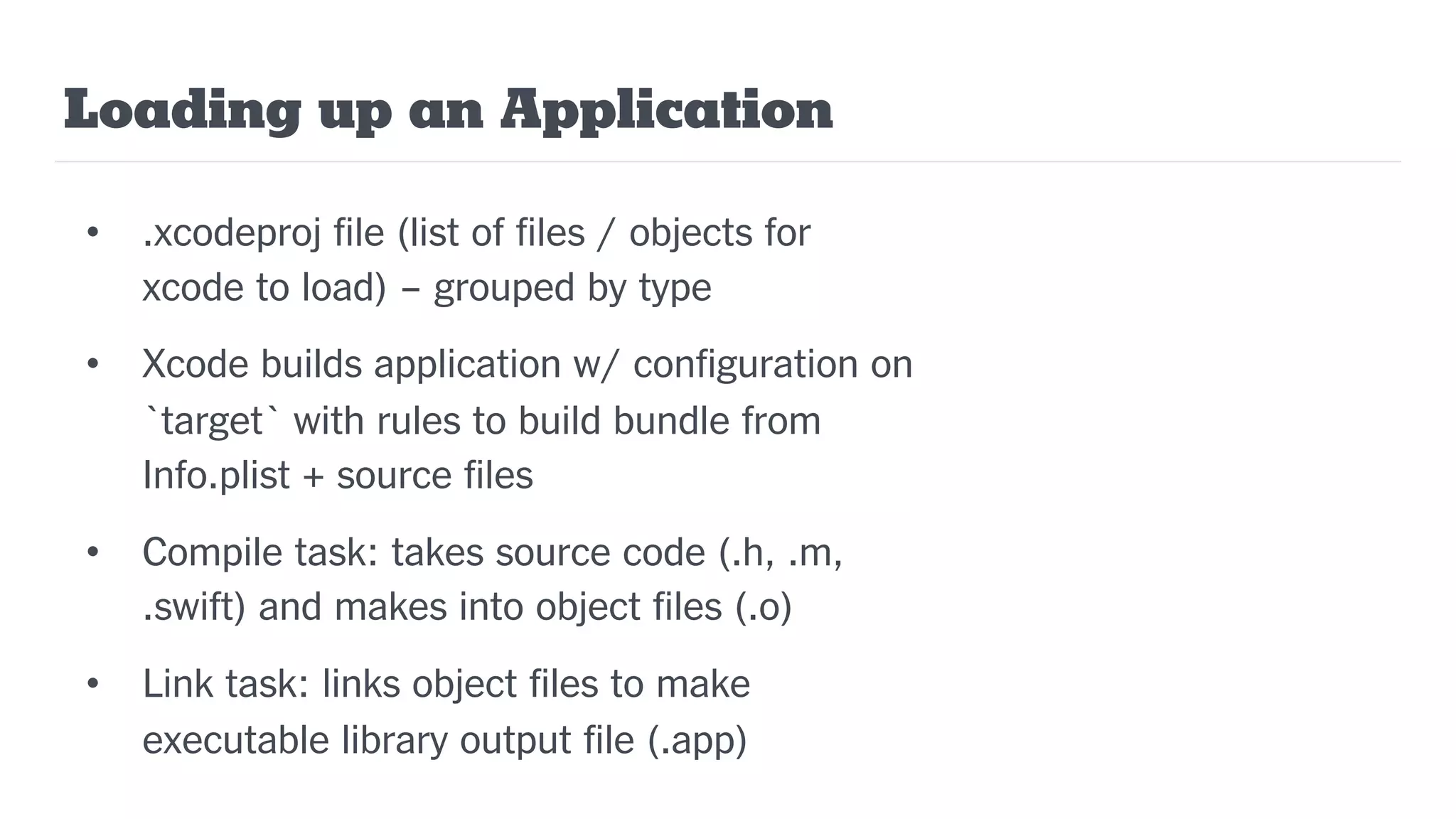

Loading up an Application
• .xcodeproj file (list of files / objects for
xcode to load) – grouped by type
• Xcode builds application w/ configuration on
`target` with rules to build bundle from
Info.plist + source files
• Compile task: takes source code (.h, .m,
.swift) and makes into object files (.o)
• Link task: links object files to make
executable library output file (.app)

SwiftUI Lifecycles
Appearing
Layout
Commit

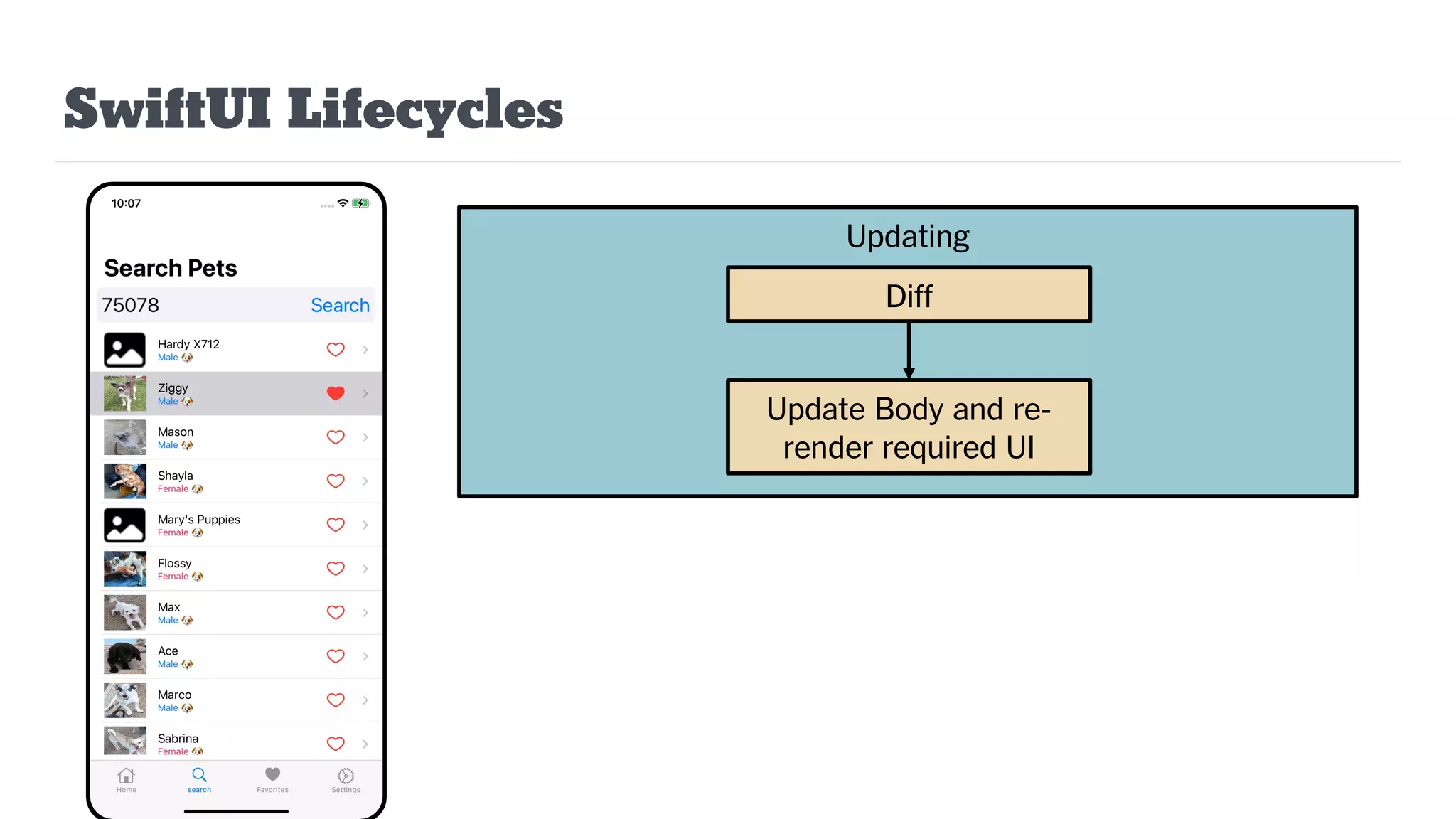

SwiftUI Lifecycles
Updating
Diff
Update Body and re-
render required UI

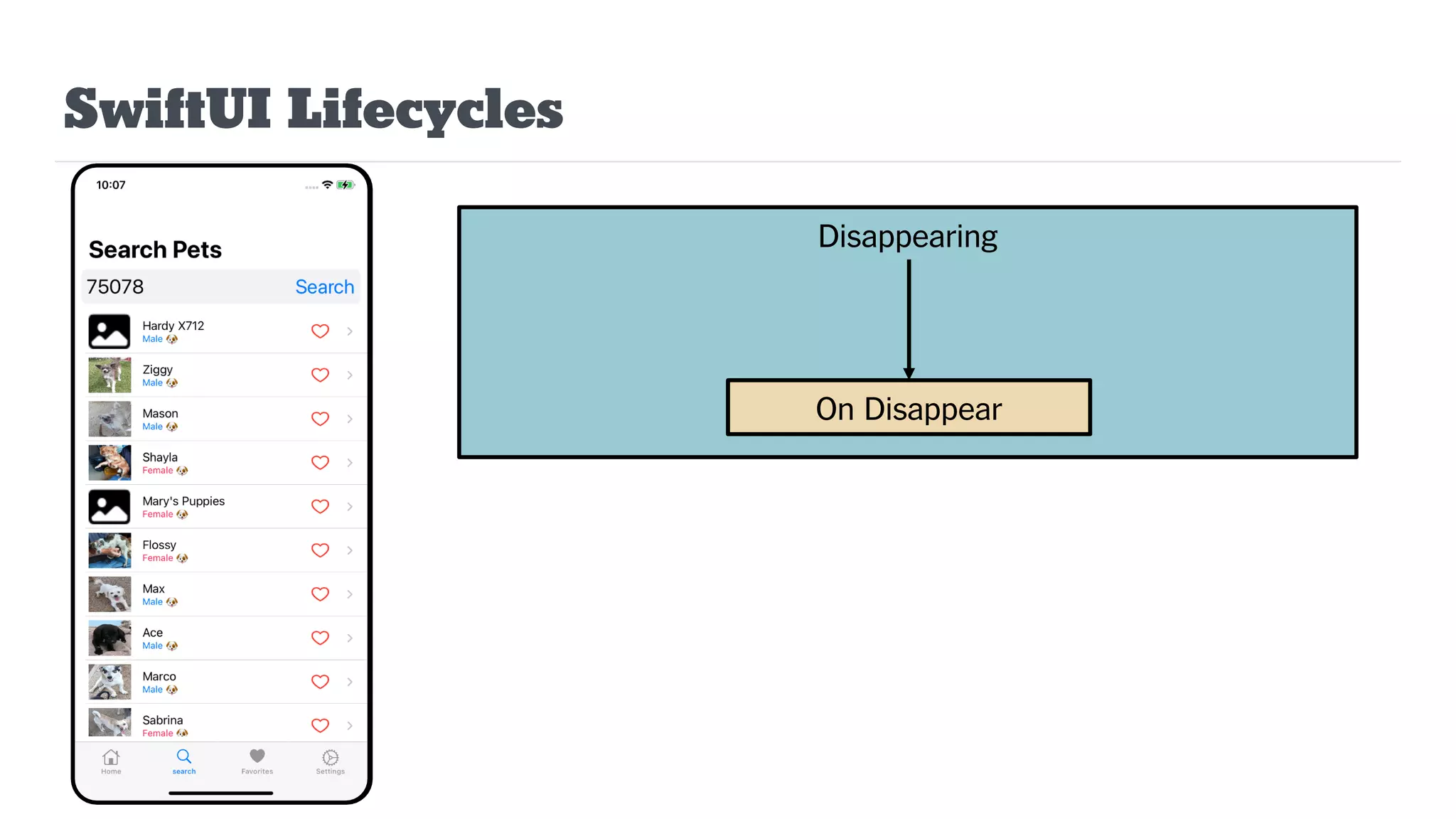

SwiftUI Lifecycles
Disappearing
On Disappear

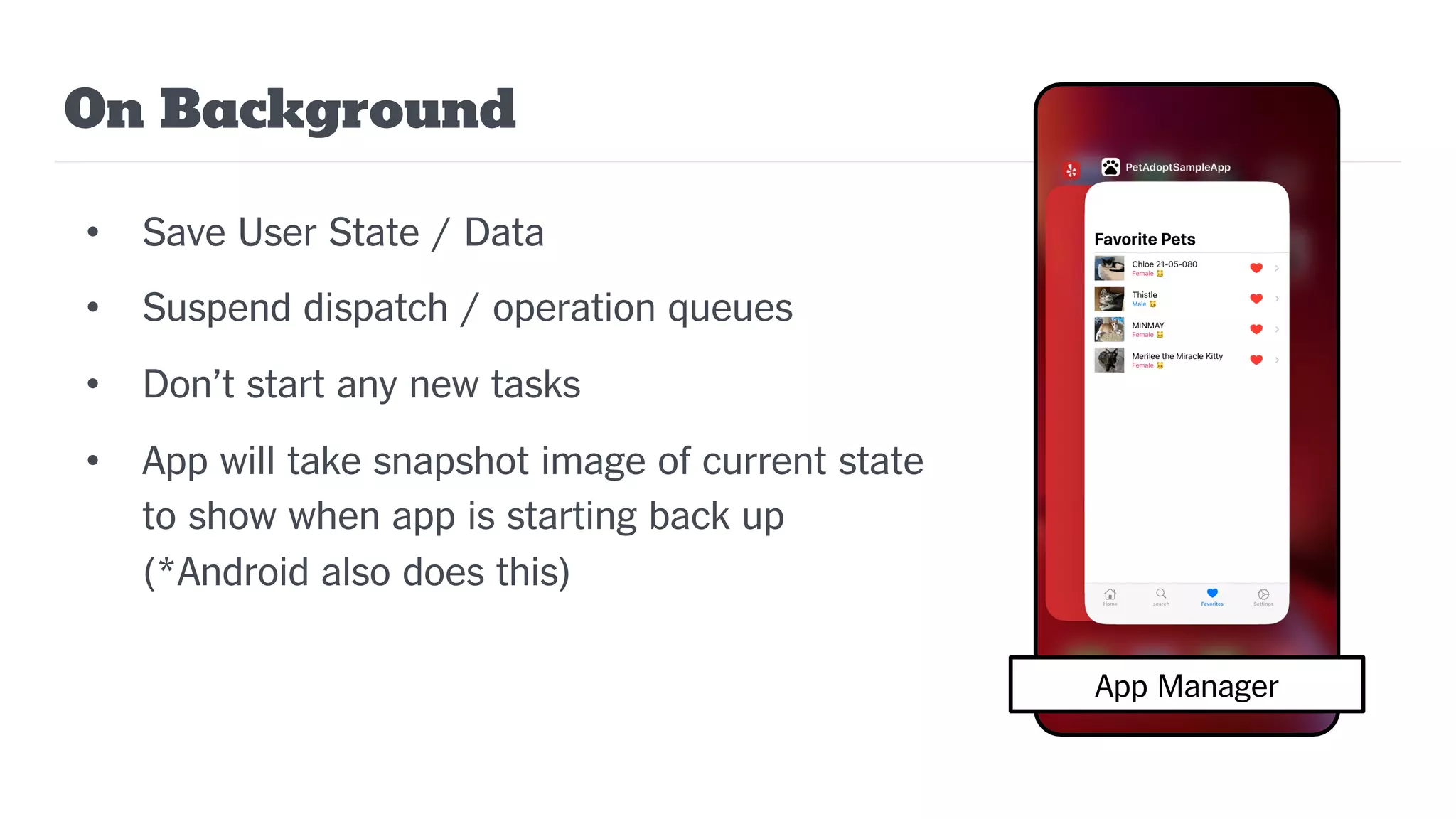

On Background
• Save User State / Data
• Suspend dispatch / operation queues
• Don’t start any new tasks
• App will take snapshot image of current state
to show when app is starting back up
(*Android also does this)
App Manager
