Towards a Scalable Non-Blocking Coding Style

The document discusses a scalable non-blocking coding style for concurrent programming. It proposes using large arrays for parallel read and update access without locks or volatile variables. Finite state machines are replicated per array word, where successful compare-and-set operations transition states. Failed CAS causes retry but ensures global progress. Array resizing is handled by "marking" words to prevent late updates and copying in parallel using the state machine. The style aims to provide high performance concurrent data structures that are as fast as non-thread-safe implementations but with correctness guarantees. Example applications discussed include a lock-free bit vector and resizable hash table.

Embed presentation

Download as PDF, PPTX
Towards a Scalable Non-Blocking Coding Style Dr. Cliff Click, Distinguished Engineer Azul Systems http://blogs.azulsystems.com/cliff
The Computer Revolution is Here We already did the 0->1 cpu transition Concurrent Programming is Now 'The Norm' and hard to do We're doing the 1->2 cpu transition Scalable Concurrent Programming is even harder Time to think about the 2->N cpu transition Here is a different way of thinking about the problem 2008 JavaOneSM Conference | java.sun.com/javaone | 2

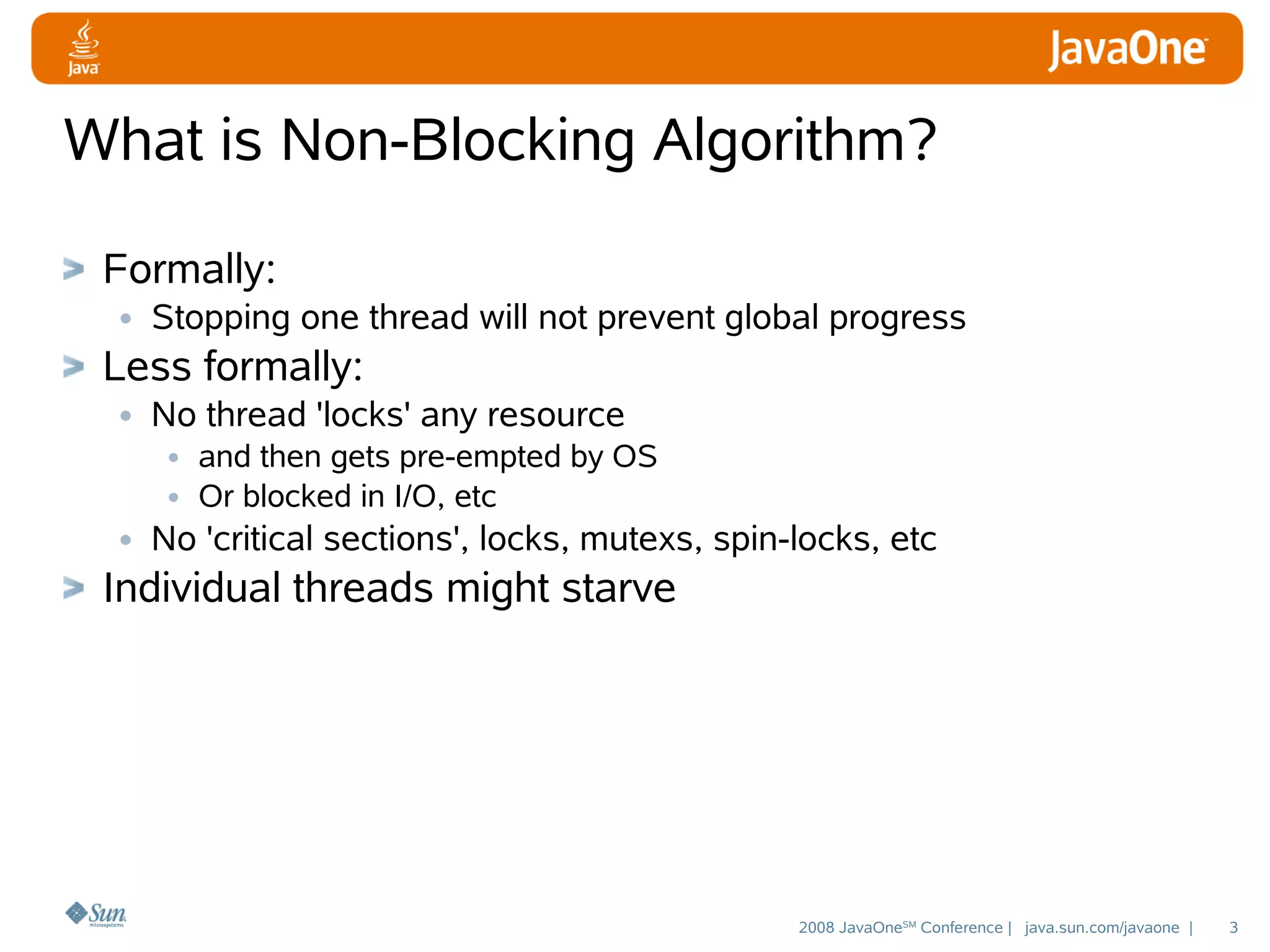

What is Non-Blocking Algorithm? Formally: • Stopping one thread will not prevent global progress Less formally: • No thread 'locks' any resource • and then gets pre-empted by OS • Or blocked in I/O, etc • No 'critical sections', locks, mutexs, spin-locks, etc Individual threads might starve 2008 JavaOneSM Conference | java.sun.com/javaone | 3

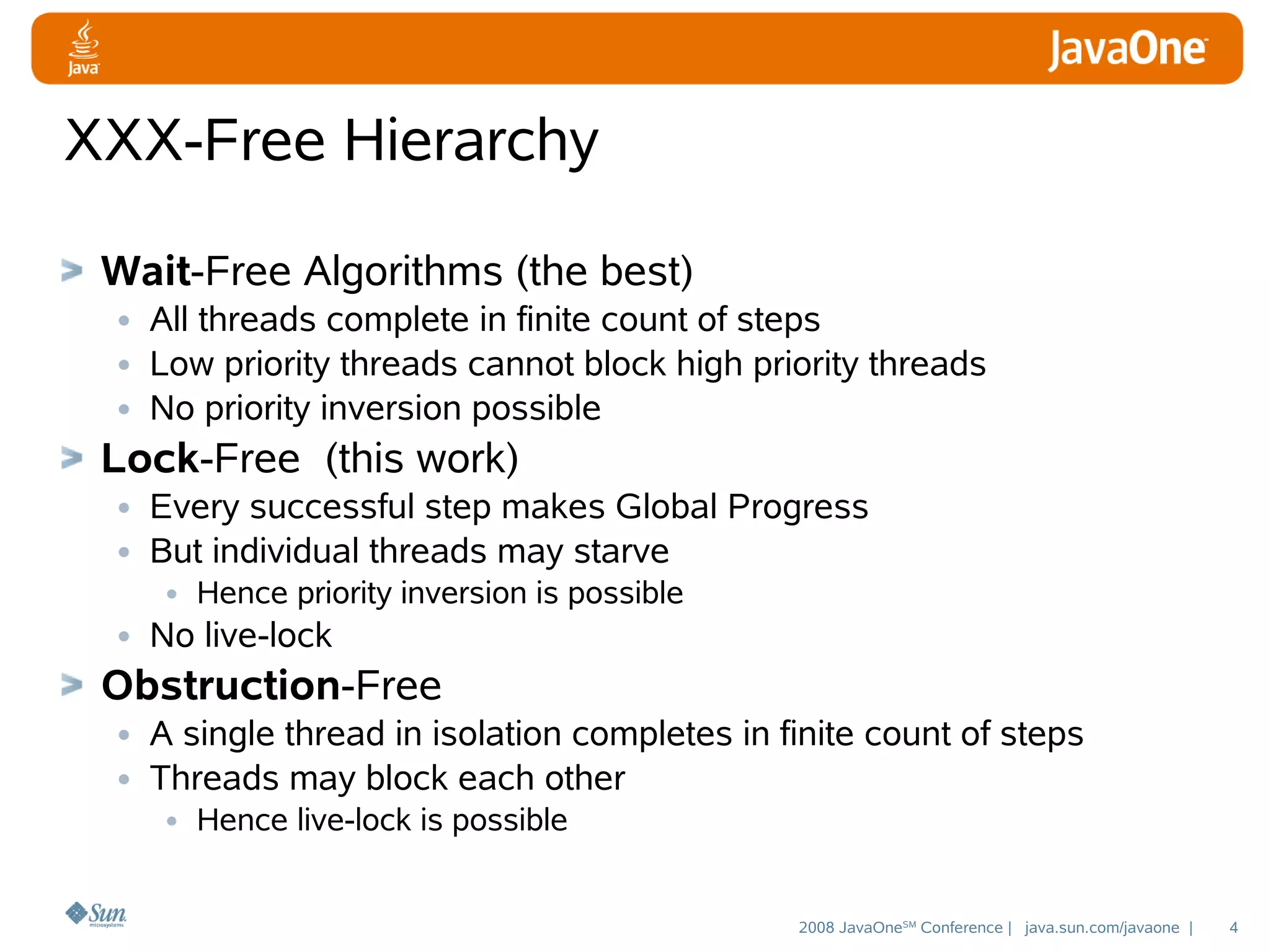

XXX-Free Hierarchy Wait-Free Algorithms (the best) • All threads complete in finite count of steps • Low priority threads cannot block high priority threads • No priority inversion possible Lock-Free (this work) • Every successful step makes Global Progress • But individual threads may starve • Hence priority inversion is possible • No live-lock Obstruction-Free • A single thread in isolation completes in finite count of steps • Threads may block each other • Hence live-lock is possible 2008 JavaOneSM Conference | java.sun.com/javaone | 4

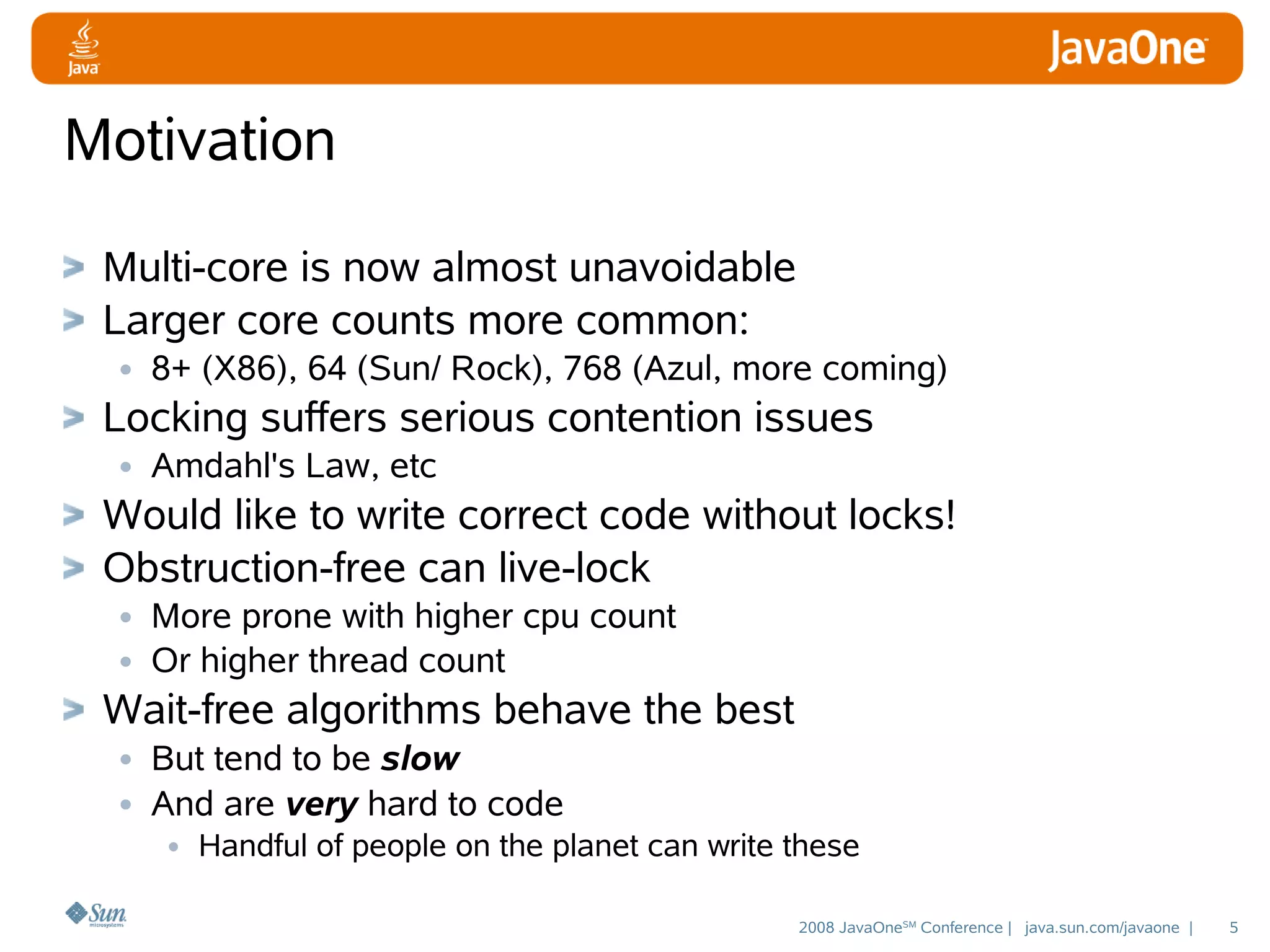

Motivation Multi-core is now almost unavoidable Larger core counts more common: • 8+ (X86), 64 (Sun/ Rock), 768 (Azul, more coming) Locking suffers serious contention issues • Amdahl's Law, etc Would like to write correct code without locks! Obstruction-free can live-lock • More prone with higher cpu count • Or higher thread count Wait-free algorithms behave the best • But tend to be slow • And are very hard to code • Handful of people on the planet can write these 2008 JavaOneSM Conference | java.sun.com/javaone | 5

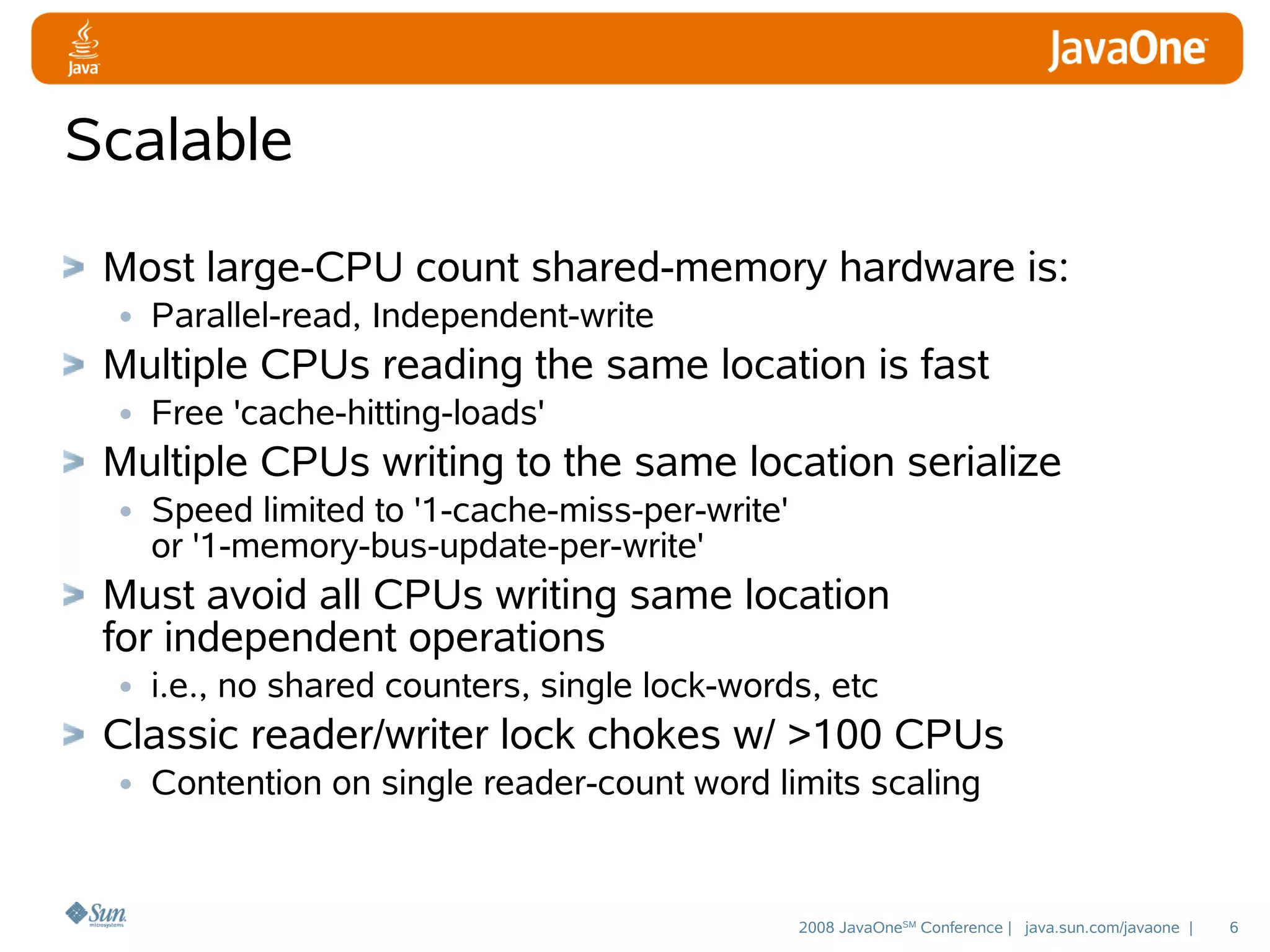

Scalable Most large-CPU count shared-memory hardware is: • Parallel-read, Independent-write Multiple CPUs reading the same location is fast • Free 'cache-hitting-loads' Multiple CPUs writing to the same location serialize • Speed limited to '1-cache-miss-per-write' or '1-memory-bus-update-per-write' Must avoid all CPUs writing same location for independent operations • i.e., no shared counters, single lock-words, etc Classic reader/writer lock chokes w/ >100 CPUs • Contention on single reader-count word limits scaling 2008 JavaOneSM Conference | java.sun.com/javaone | 6

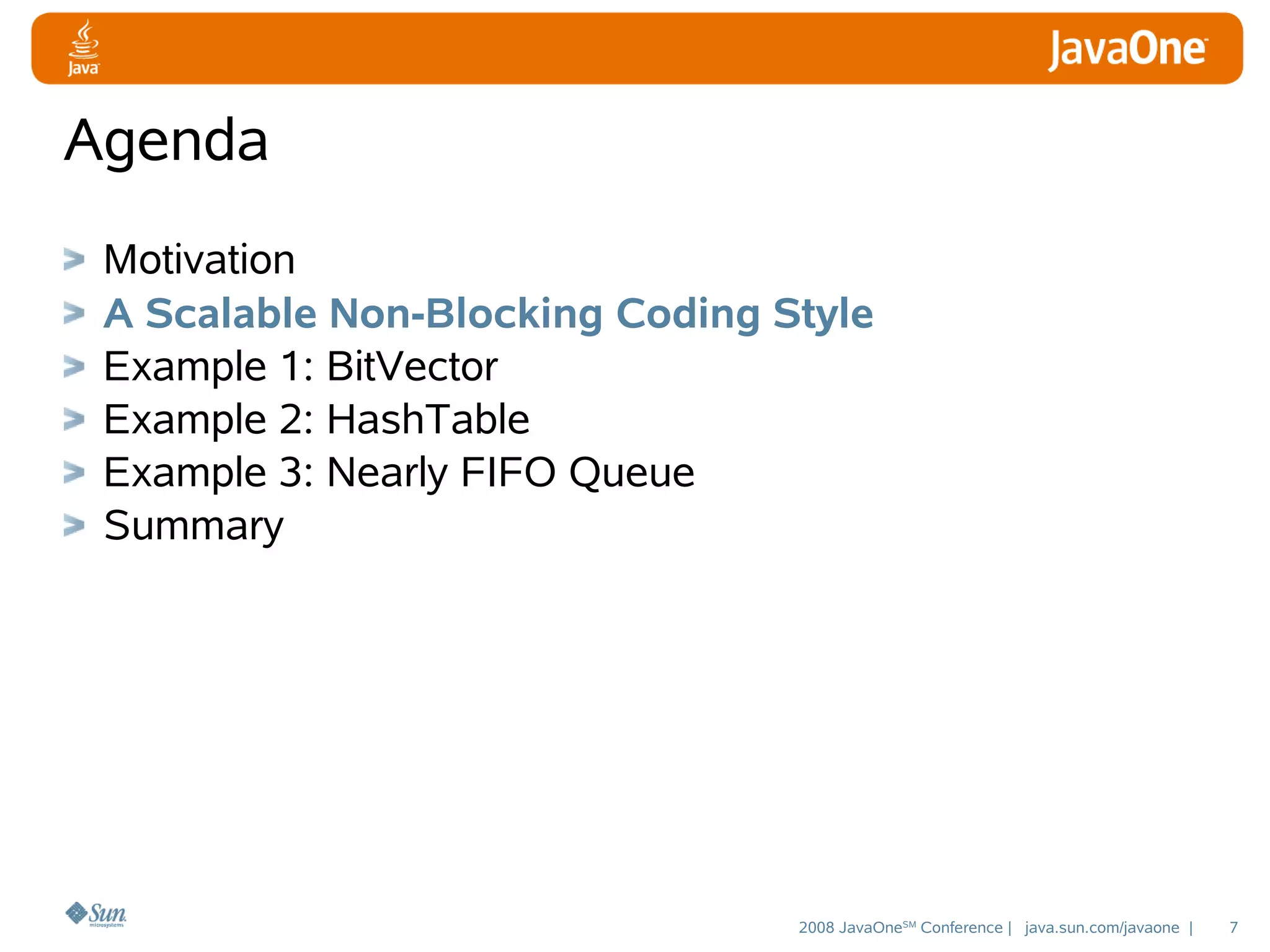

Agenda Motivation A Scalable Non-Blocking Coding Style Example 1: BitVector Example 2: HashTable Example 3: Nearly FIFO Queue Summary 2008 JavaOneSM Conference | java.sun.com/javaone | 7

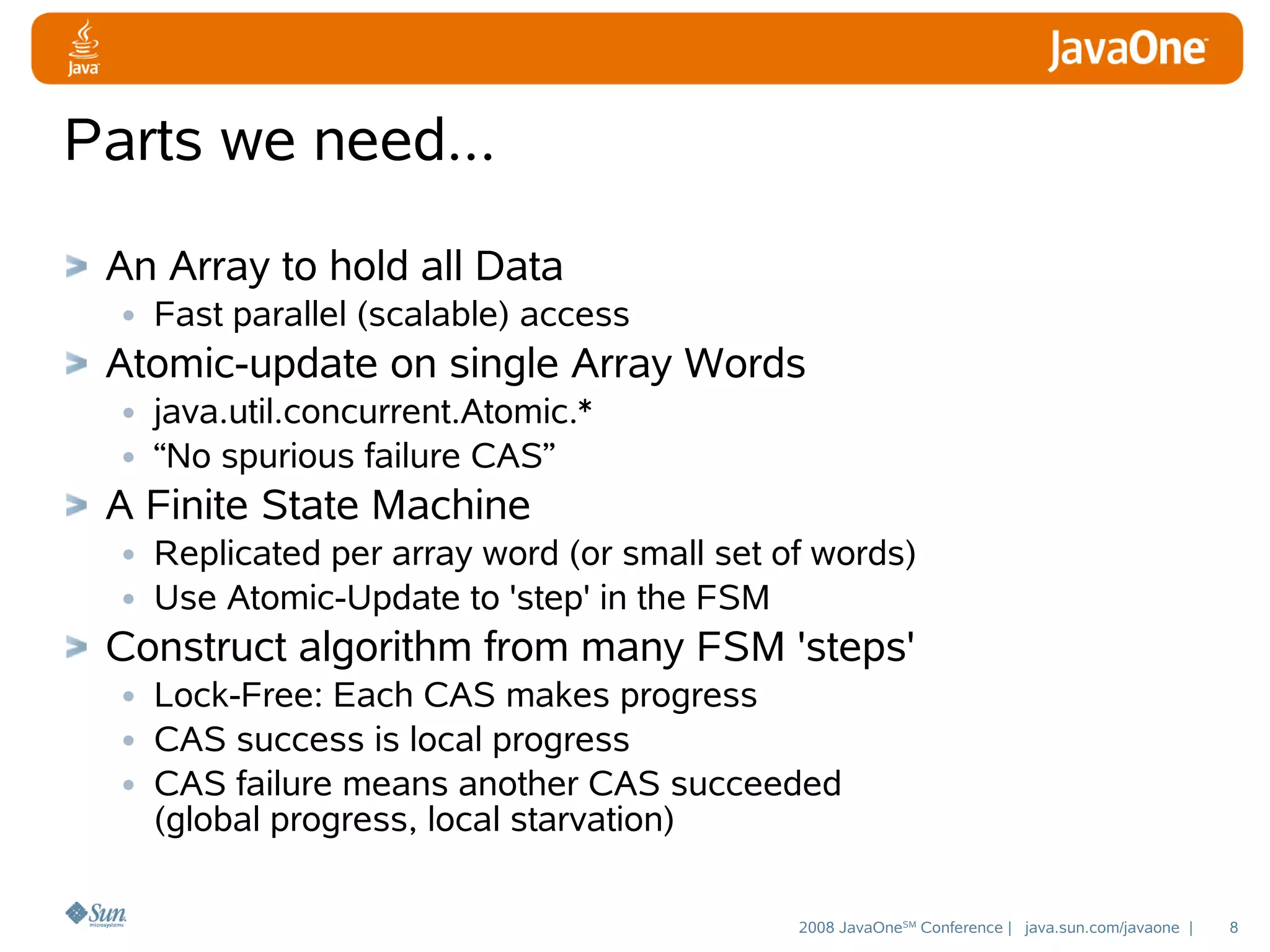

Parts we need... An Array to hold all Data • Fast parallel (scalable) access Atomic-update on single Array Words • java.util.concurrent.Atomic.* • “No spurious failure CAS” A Finite State Machine • Replicated per array word (or small set of words) • Use Atomic-Update to 'step' in the FSM Construct algorithm from many FSM 'steps' • Lock-Free: Each CAS makes progress • CAS success is local progress • CAS failure means another CAS succeeded (global progress, local starvation) 2008 JavaOneSM Conference | java.sun.com/javaone | 8

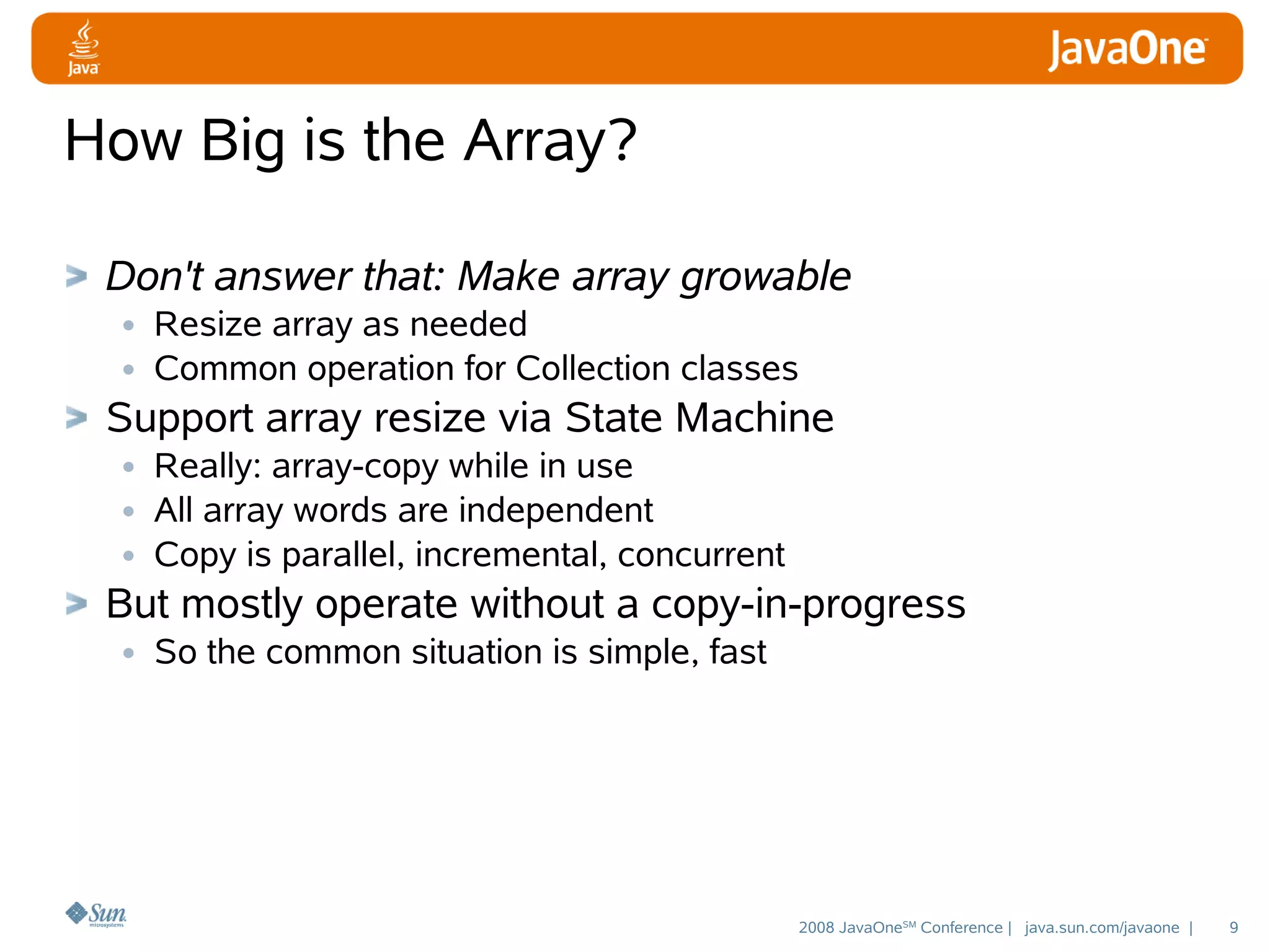

How Big is the Array? Don't answer that: Make array growable • Resize array as needed • Common operation for Collection classes Support array resize via State Machine • Really: array-copy while in use • All array words are independent • Copy is parallel, incremental, concurrent But mostly operate without a copy-in-progress • So the common situation is simple, fast 2008 JavaOneSM Conference | java.sun.com/javaone | 9

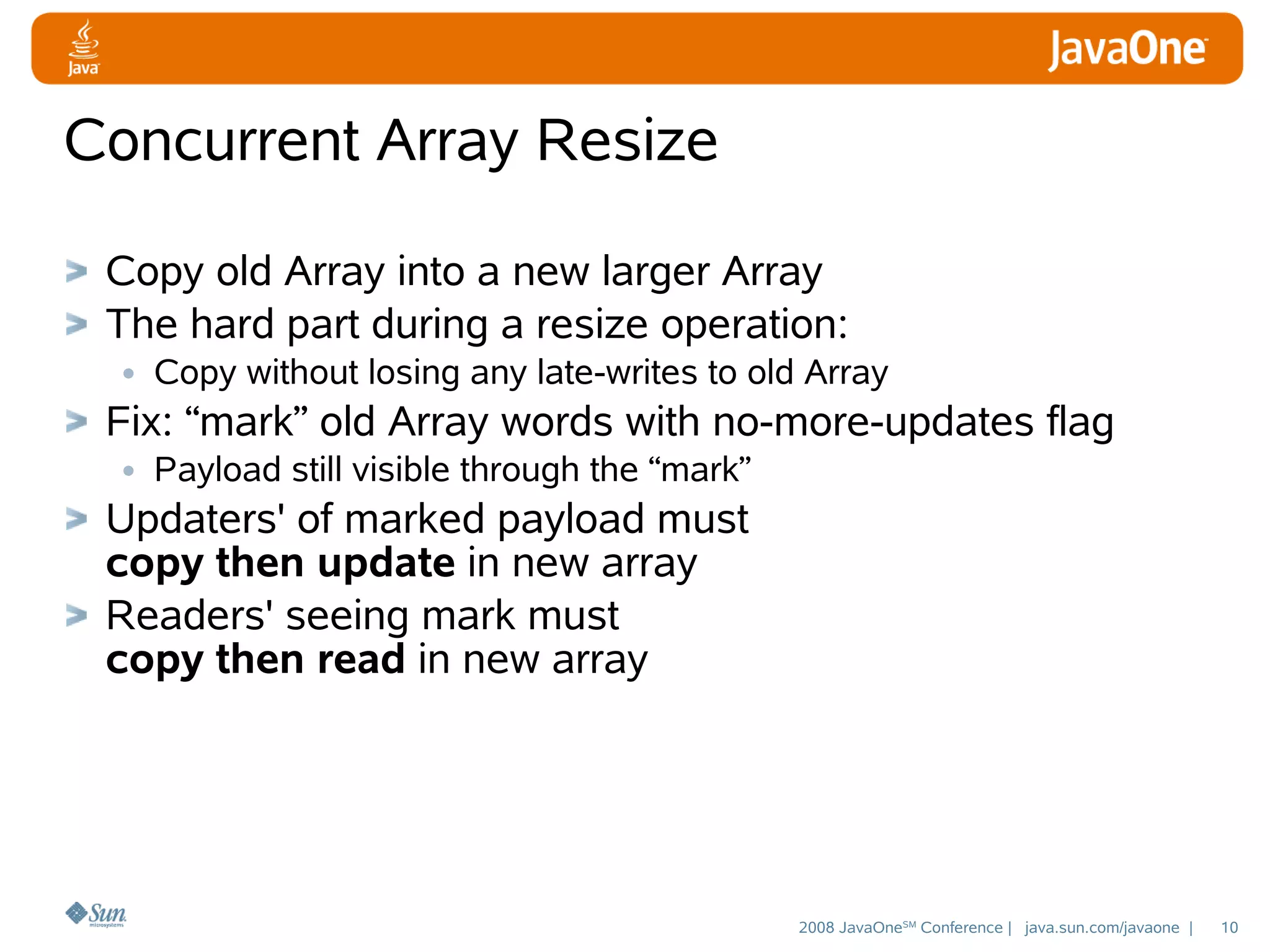

Concurrent Array Resize Copy old Array into a new larger Array The hard part during a resize operation: • Copy without losing any late-writes to old Array Fix: “mark” old Array words with no-more-updates flag • Payload still visible through the “mark” Updaters' of marked payload must copy then update in new array Readers' seeing mark must copy then read in new array 2008 JavaOneSM Conference | java.sun.com/javaone | 10

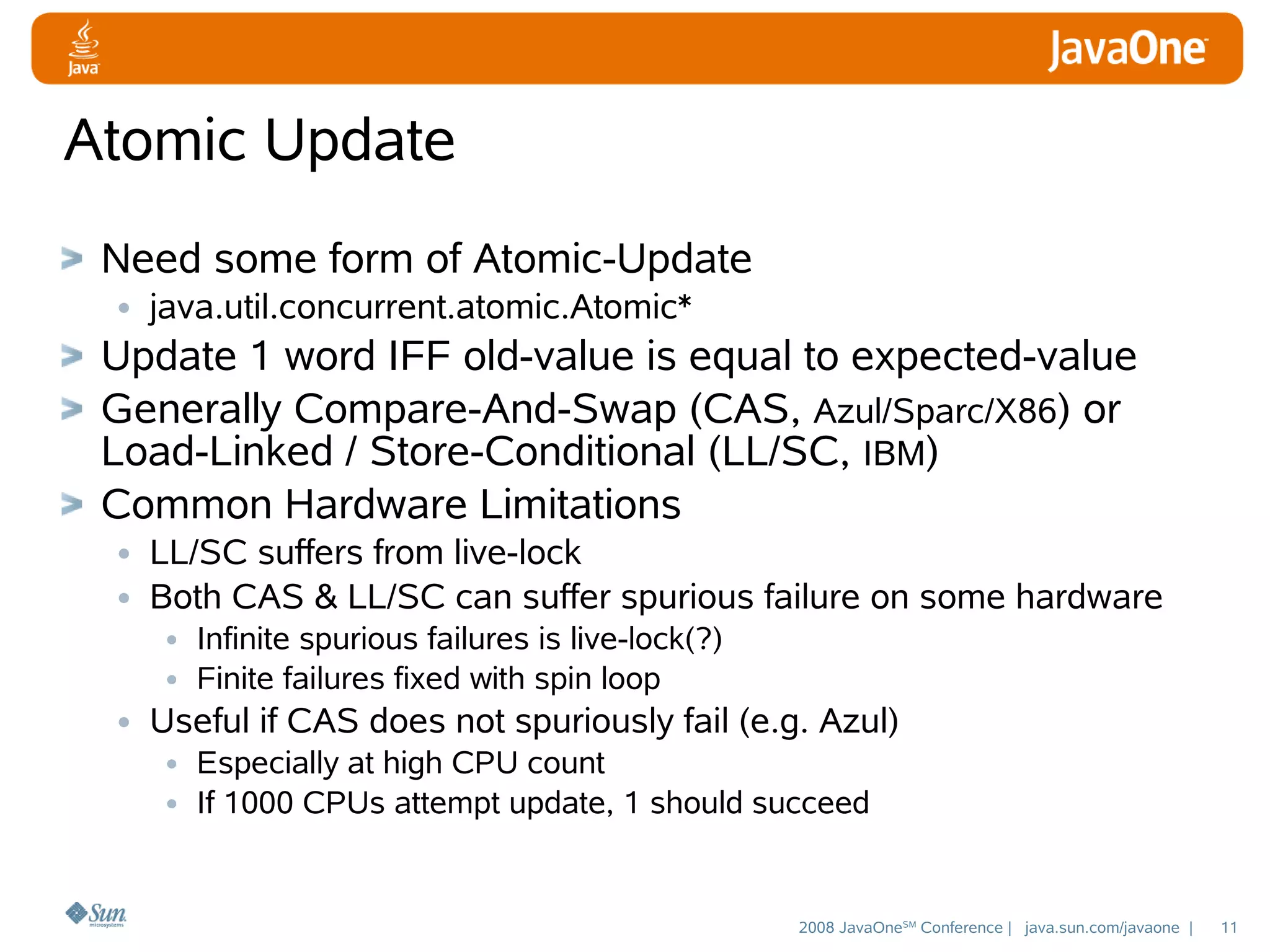

Atomic Update Need some form of Atomic-Update • java.util.concurrent.atomic.Atomic* Update 1 word IFF old-value is equal to expected-value Generally Compare-And-Swap (CAS, Azul/Sparc/X86) or Load-Linked / Store-Conditional (LL/SC, IBM) Common Hardware Limitations • LL/SC suffers from live-lock • Both CAS & LL/SC can suffer spurious failure on some hardware • Infinite spurious failures is live-lock(?) • Finite failures fixed with spin loop • Useful if CAS does not spuriously fail (e.g. Azul) • Especially at high CPU count • If 1000 CPUs attempt update, 1 should succeed 2008 JavaOneSM Conference | java.sun.com/javaone | 11

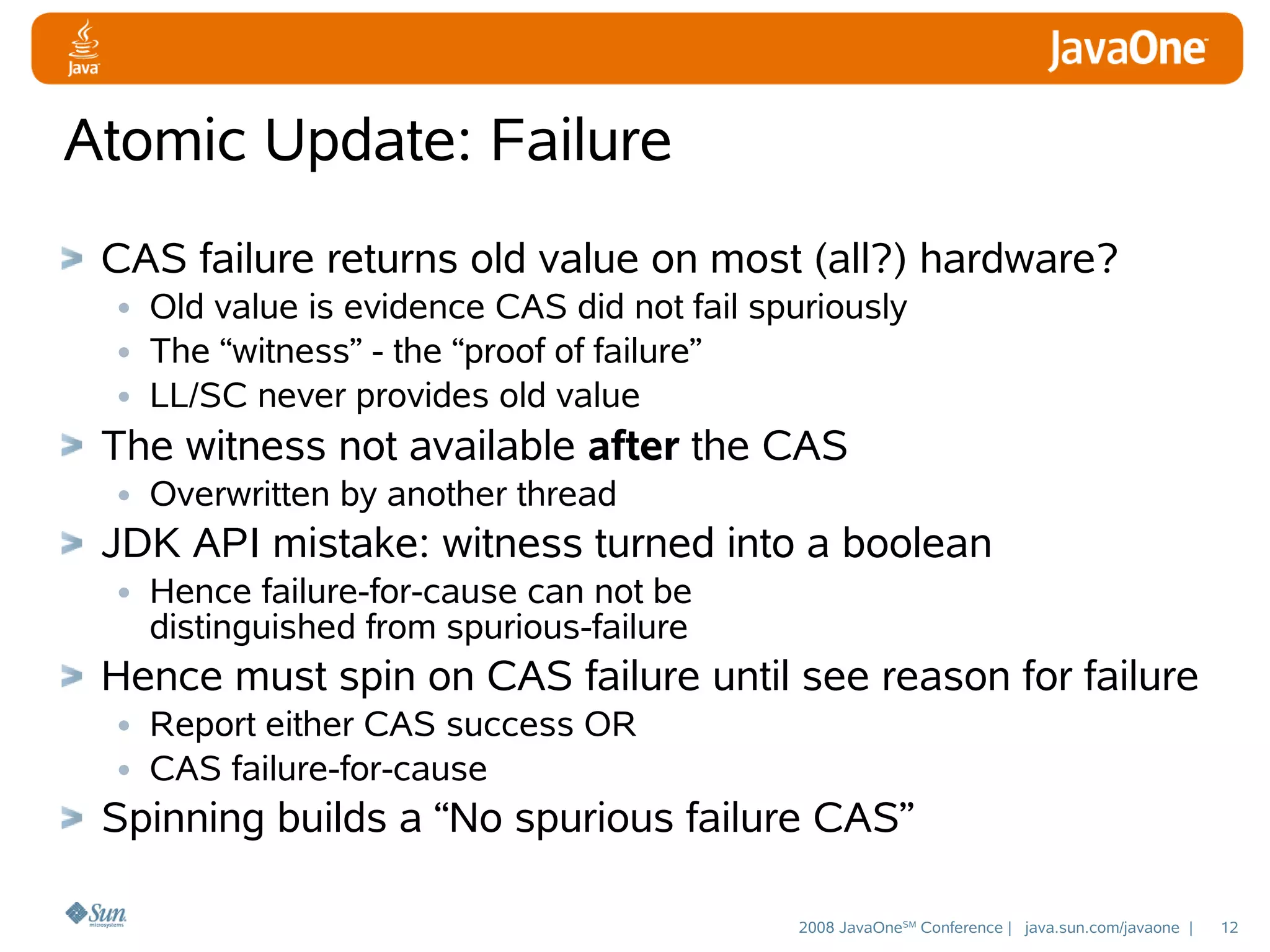

Atomic Update: Failure CAS failure returns old value on most (all?) hardware? • Old value is evidence CAS did not fail spuriously • The “witness” - the “proof of failure” • LL/SC never provides old value The witness not available after the CAS • Overwritten by another thread JDK API mistake: witness turned into a boolean • Hence failure-for-cause can not be distinguished from spurious-failure Hence must spin on CAS failure until see reason for failure • Report either CAS success OR • CAS failure-for-cause Spinning builds a “No spurious failure CAS” 2008 JavaOneSM Conference | java.sun.com/javaone | 12

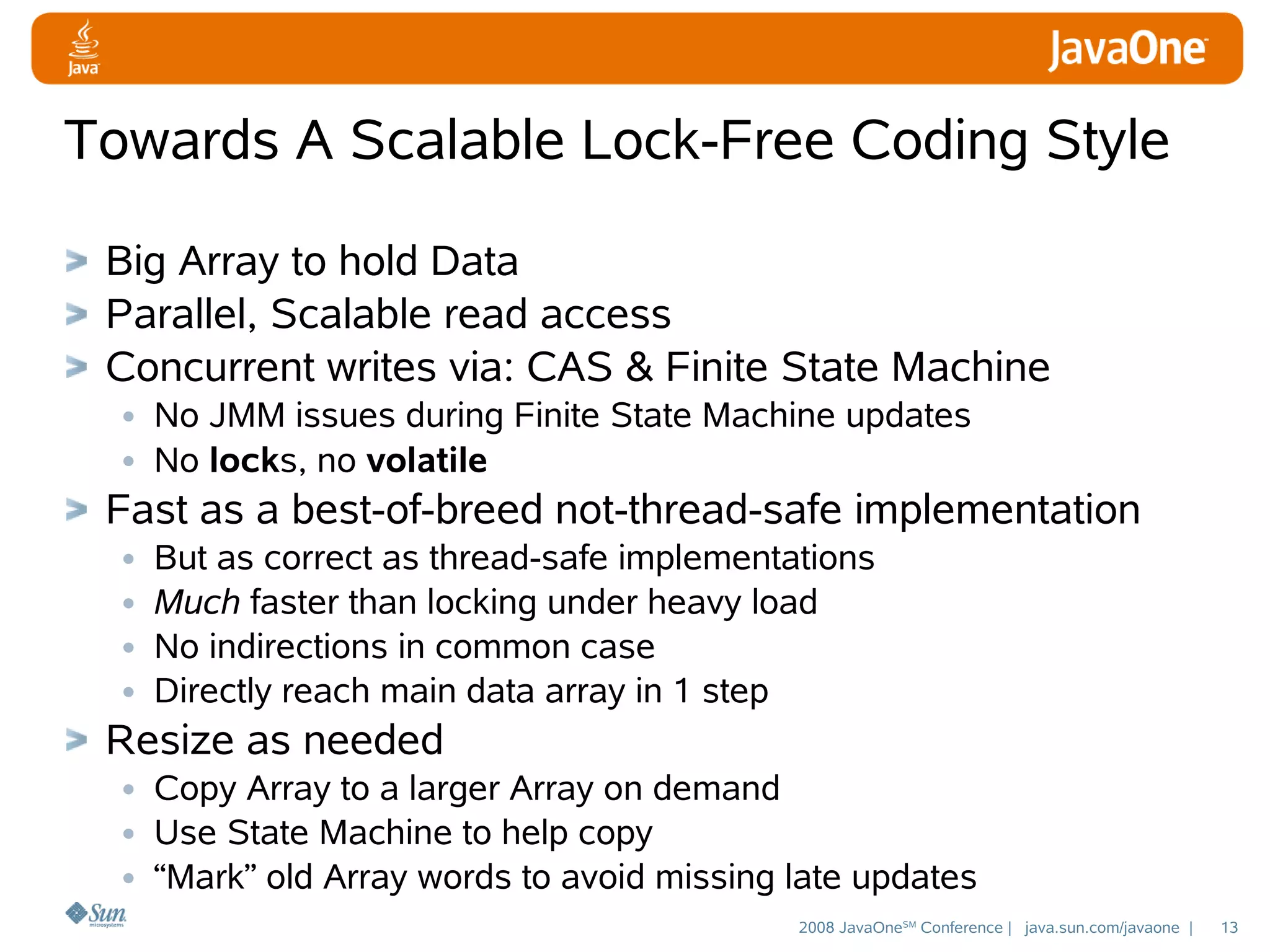

Towards A Scalable Lock-Free Coding Style Big Array to hold Data Parallel, Scalable read access Concurrent writes via: CAS & Finite State Machine • No JMM issues during Finite State Machine updates • No locks, no volatile Fast as a best-of-breed not-thread-safe implementation • But as correct as thread-safe implementations • Much faster than locking under heavy load • No indirections in common case • Directly reach main data array in 1 step Resize as needed • Copy Array to a larger Array on demand • Use State Machine to help copy • “Mark” old Array words to avoid missing late updates 2008 JavaOneSM Conference | java.sun.com/javaone | 13

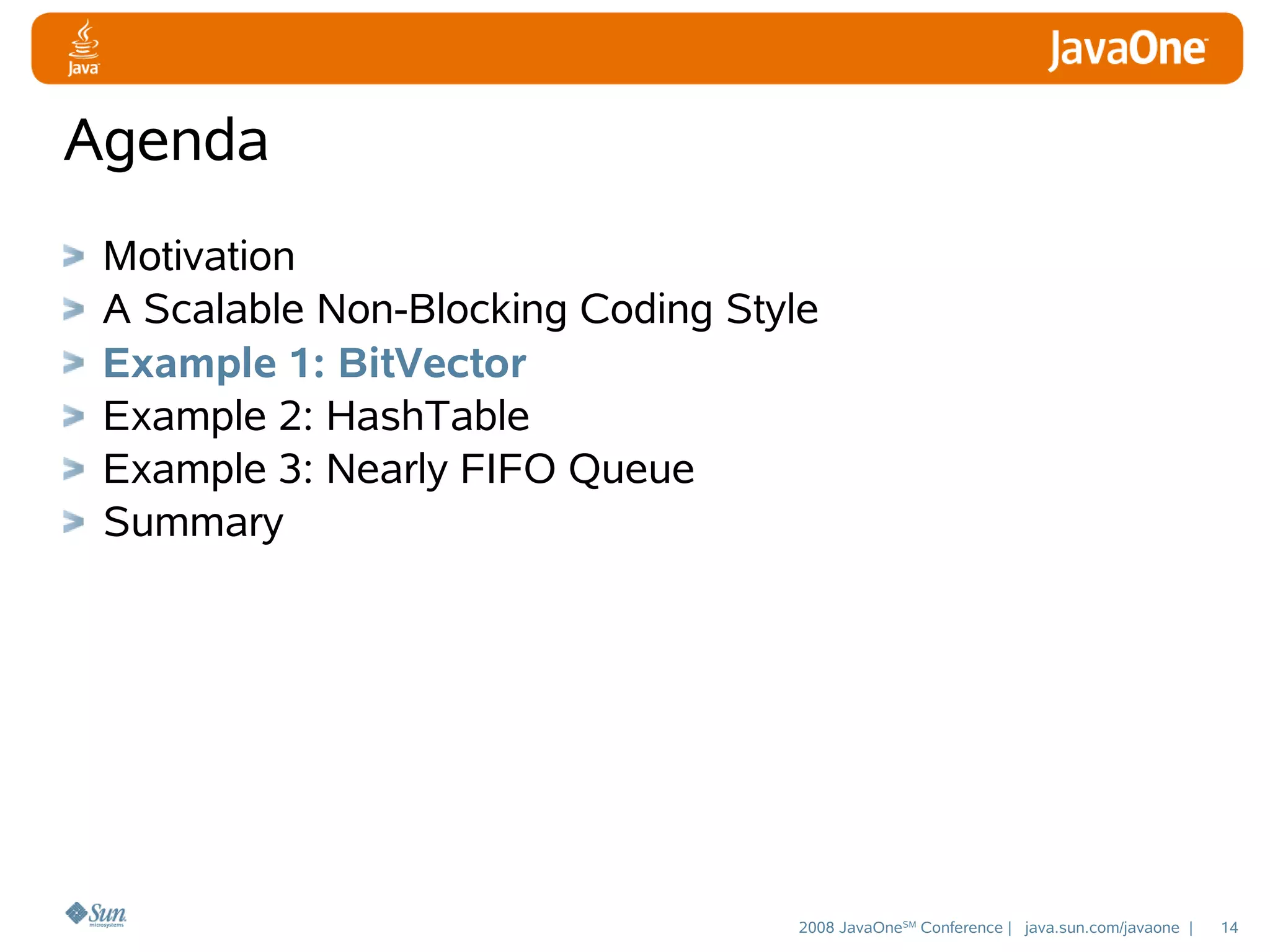

Agenda Motivation A Scalable Non-Blocking Coding Style Example 1: BitVector Example 2: HashTable Example 3: Nearly FIFO Queue Summary 2008 JavaOneSM Conference | java.sun.com/javaone | 14

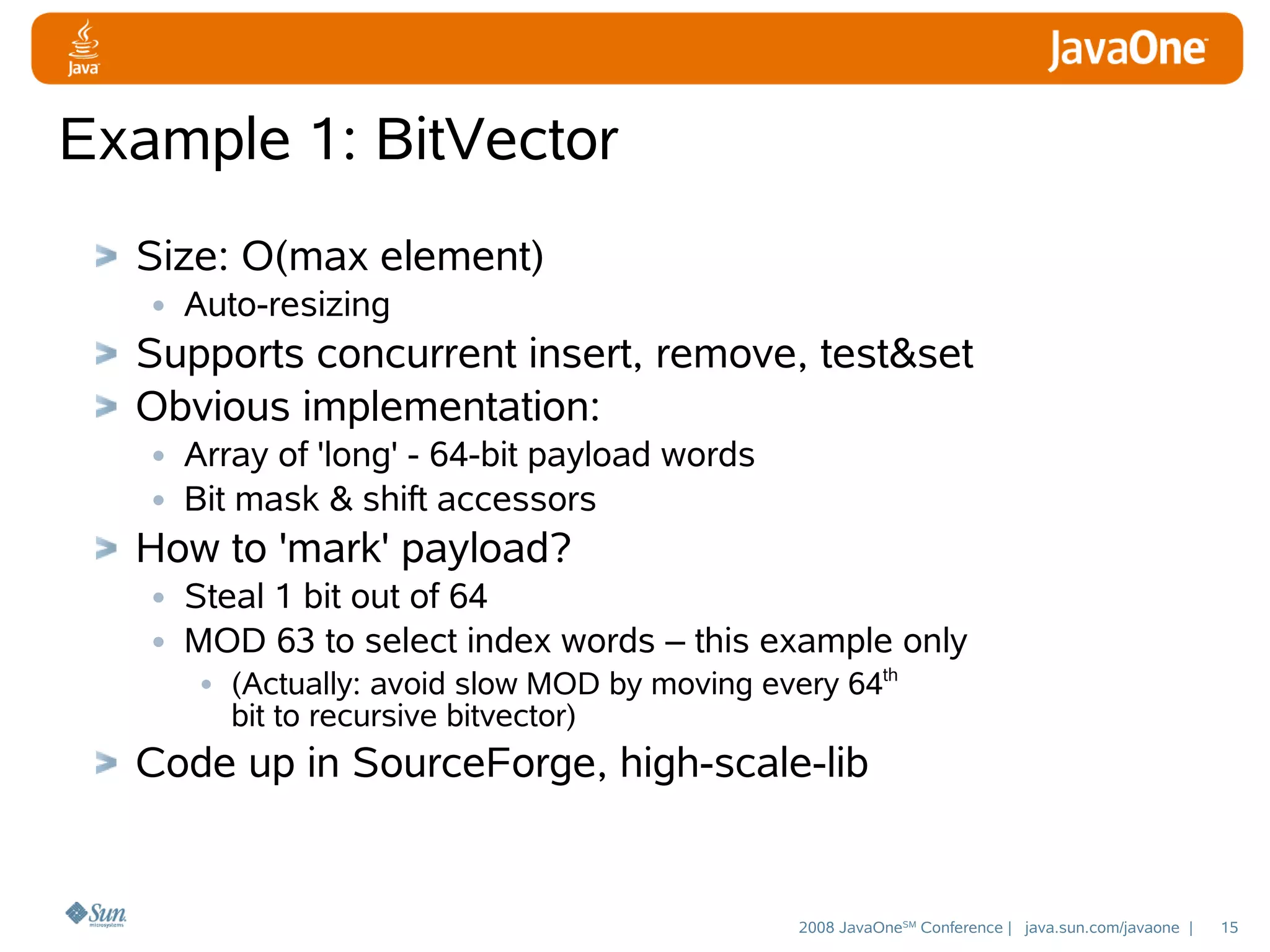

Example 1: BitVector Size: O(max element) • Auto-resizing Supports concurrent insert, remove, test&set Obvious implementation: • Array of 'long' - 64-bit payload words • Bit mask & shift accessors How to 'mark' payload? • Steal 1 bit out of 64 • MOD 63 to select index words – this example only • (Actually: avoid slow MOD by moving every 64th bit to recursive bitvector) Code up in SourceForge, high-scale-lib 2008 JavaOneSM Conference | java.sun.com/javaone | 15

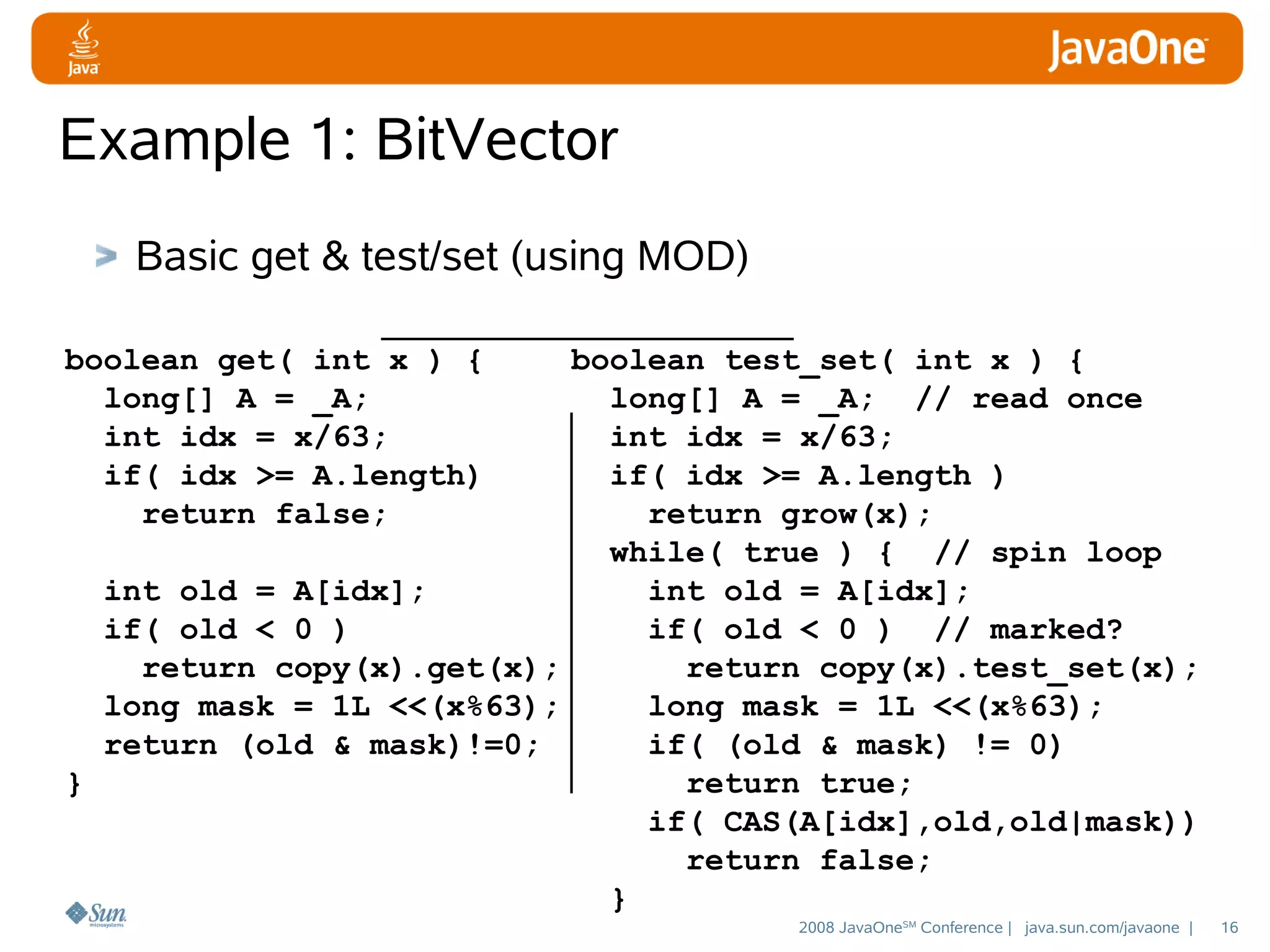

Example 1: BitVector Basic get & test/set (using MOD) boolean get( int x ) { long[] A = _A; int idx = x/63; if( idx >= A.length) return false; boolean test_set( int x ) { long[] A = _A; // read once int idx = x/63; if( idx >= A.length ) return grow(x); while( true ) { // spin loop int old = A[idx]; int old = A[idx]; if( old < 0 ) if( old < 0 ) // marked? return copy(x).get(x); return copy(x).test_set(x); long mask = 1L <<(x%63); long mask = 1L <<(x%63); return (old & mask)!=0; if( (old & mask) != 0) } return true; if( CAS(A[idx],old,old|mask)) return false; } 2008 JavaOneSM Conference | java.sun.com/javaone | 16

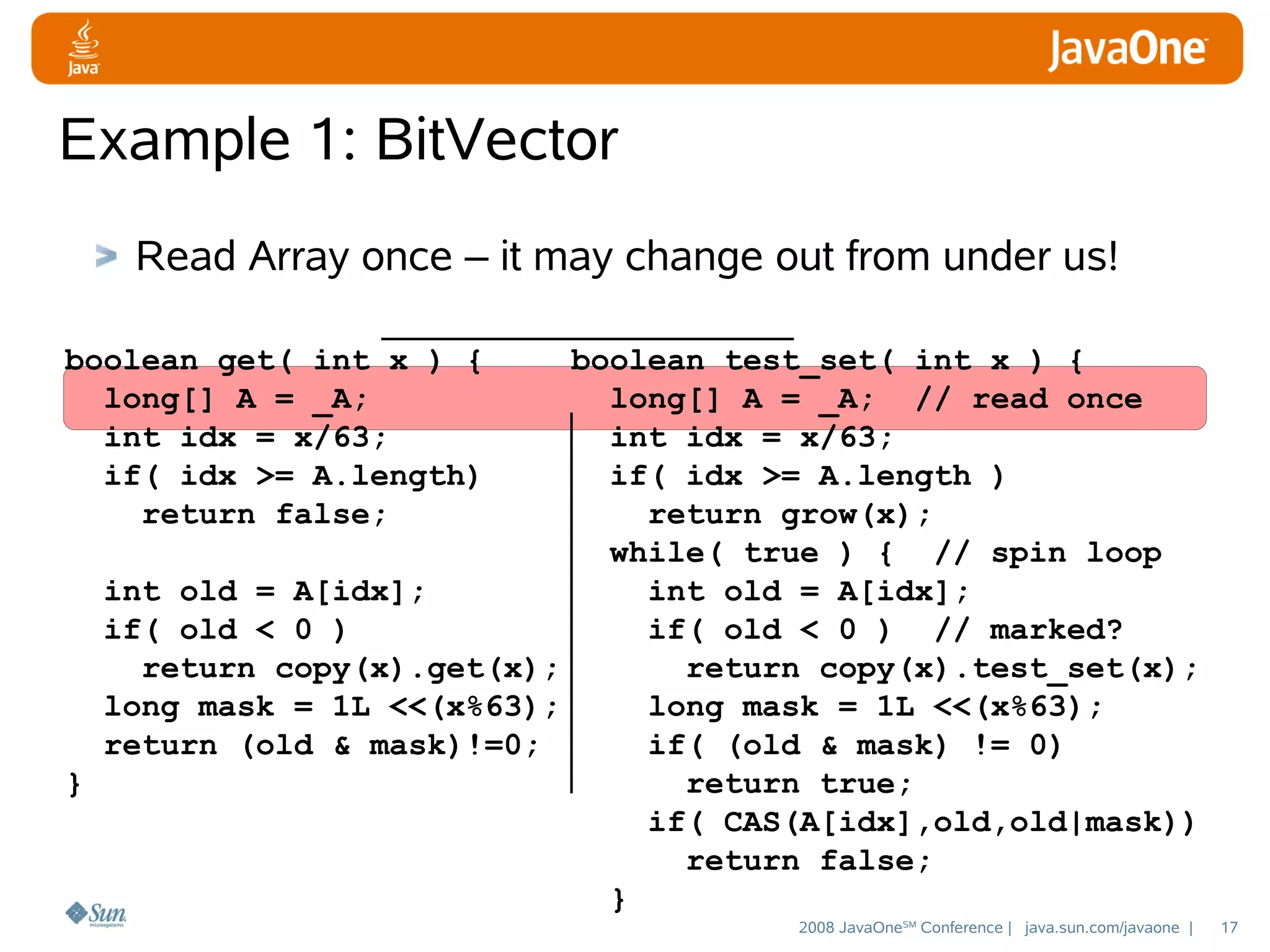

Example 1: BitVector Read Array once – it may change out from under us! boolean get( int x ) { long[] A = _A; int idx = x/63; if( idx >= A.length) return false; boolean test_set( int x ) { long[] A = _A; // read once int idx = x/63; if( idx >= A.length ) return grow(x); while( true ) { // spin loop int old = A[idx]; int old = A[idx]; if( old < 0 ) if( old < 0 ) // marked? return copy(x).get(x); return copy(x).test_set(x); long mask = 1L <<(x%63); long mask = 1L <<(x%63); return (old & mask)!=0; if( (old & mask) != 0) } return true; if( CAS(A[idx],old,old|mask)) return false; } 2008 JavaOneSM Conference | java.sun.com/javaone | 17

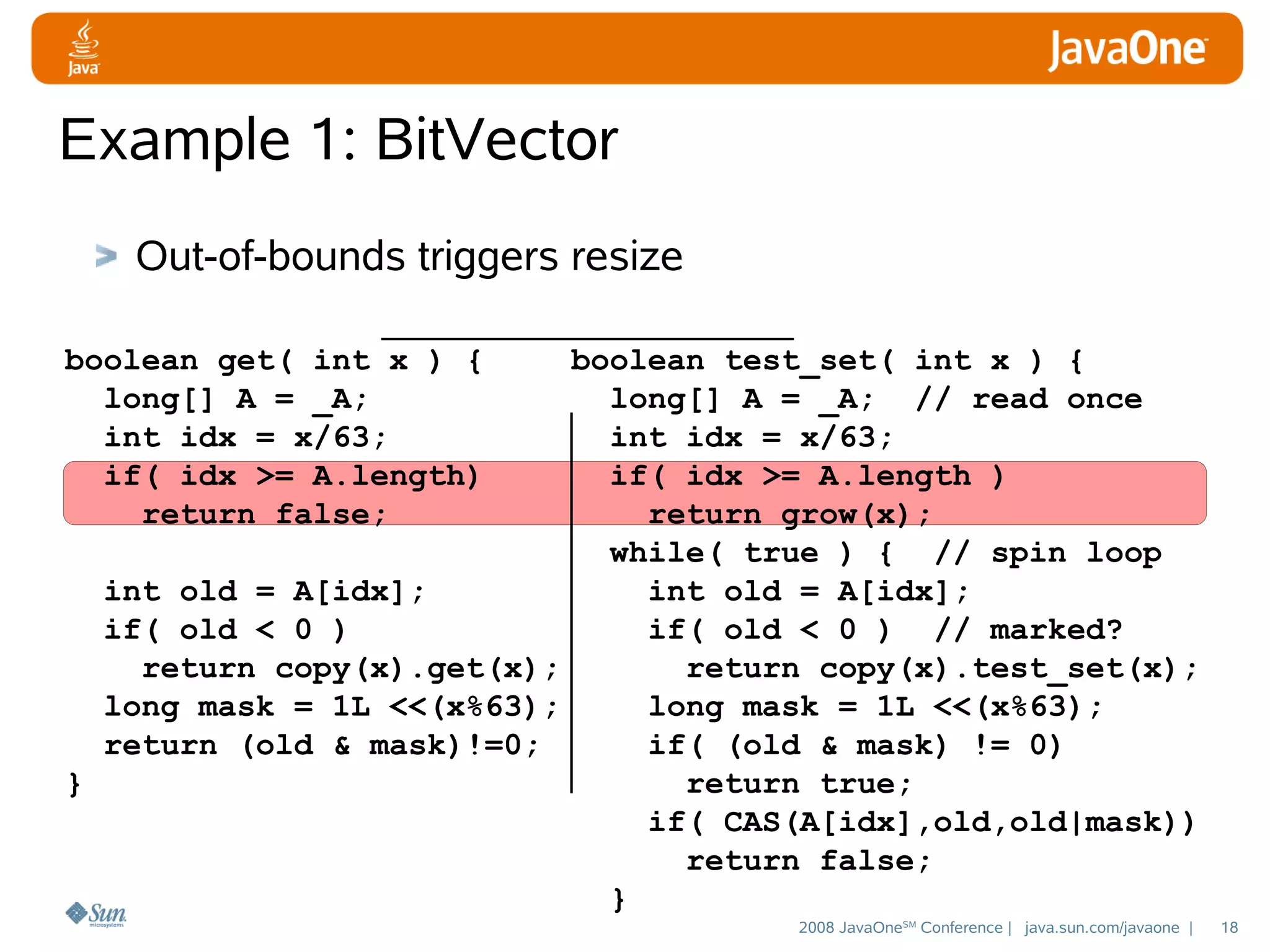

Example 1: BitVector Out-of-bounds triggers resize boolean get( int x ) { long[] A = _A; int idx = x/63; if( idx >= A.length) return false; boolean test_set( int x ) { long[] A = _A; // read once int idx = x/63; if( idx >= A.length ) return grow(x); while( true ) { // spin loop int old = A[idx]; int old = A[idx]; if( old < 0 ) if( old < 0 ) // marked? return copy(x).get(x); return copy(x).test_set(x); long mask = 1L <<(x%63); long mask = 1L <<(x%63); return (old & mask)!=0; if( (old & mask) != 0) } return true; if( CAS(A[idx],old,old|mask)) return false; } 2008 JavaOneSM Conference | java.sun.com/javaone | 18

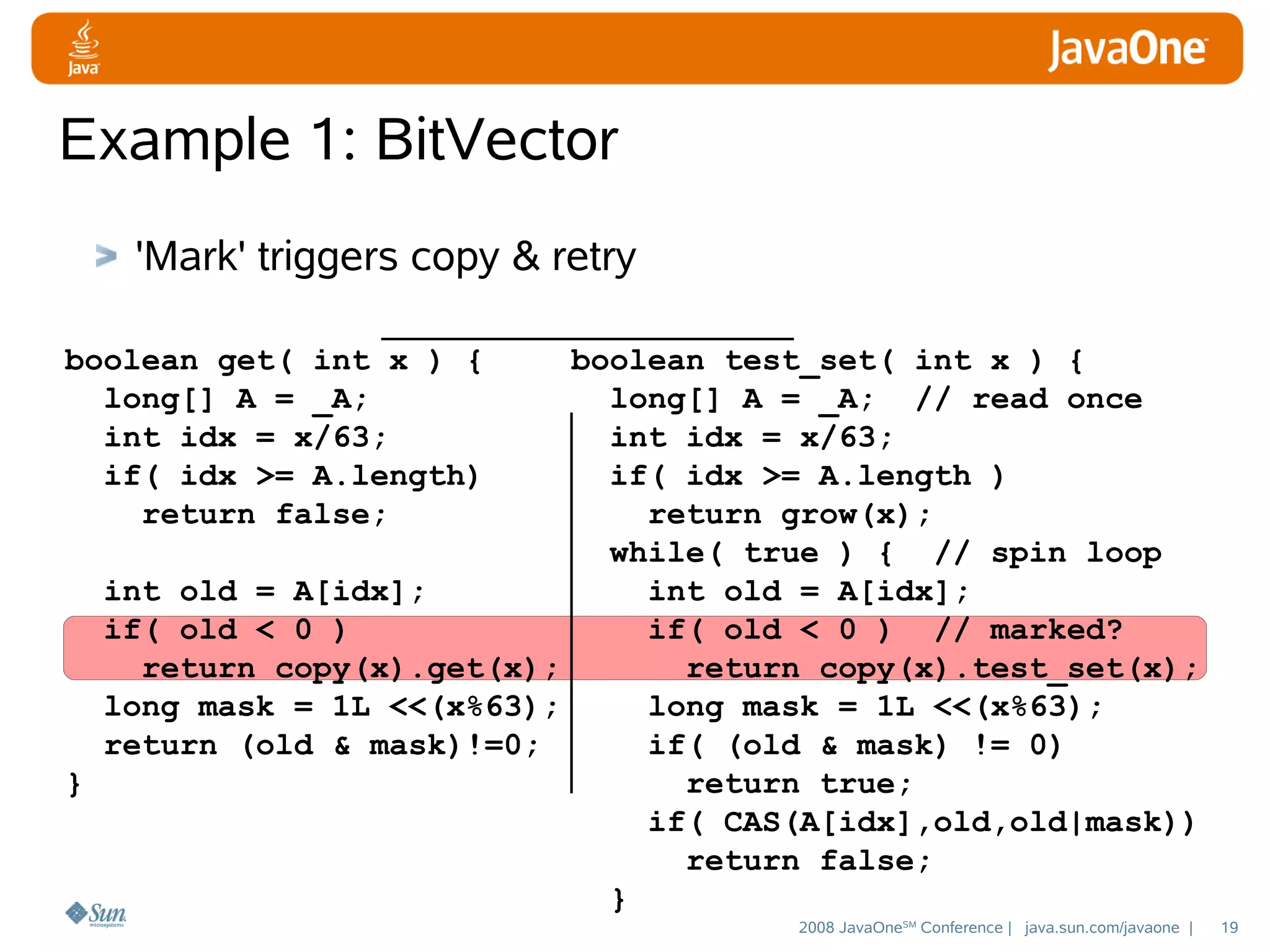

Example 1: BitVector 'Mark' triggers copy & retry boolean get( int x ) { long[] A = _A; int idx = x/63; if( idx >= A.length) return false; boolean test_set( int x ) { long[] A = _A; // read once int idx = x/63; if( idx >= A.length ) return grow(x); while( true ) { // spin loop int old = A[idx]; int old = A[idx]; if( old < 0 ) if( old < 0 ) // marked? return copy(x).get(x); return copy(x).test_set(x); long mask = 1L <<(x%63); long mask = 1L <<(x%63); return (old & mask)!=0; if( (old & mask) != 0) } return true; if( CAS(A[idx],old,old|mask)) return false; } 2008 JavaOneSM Conference | java.sun.com/javaone | 19

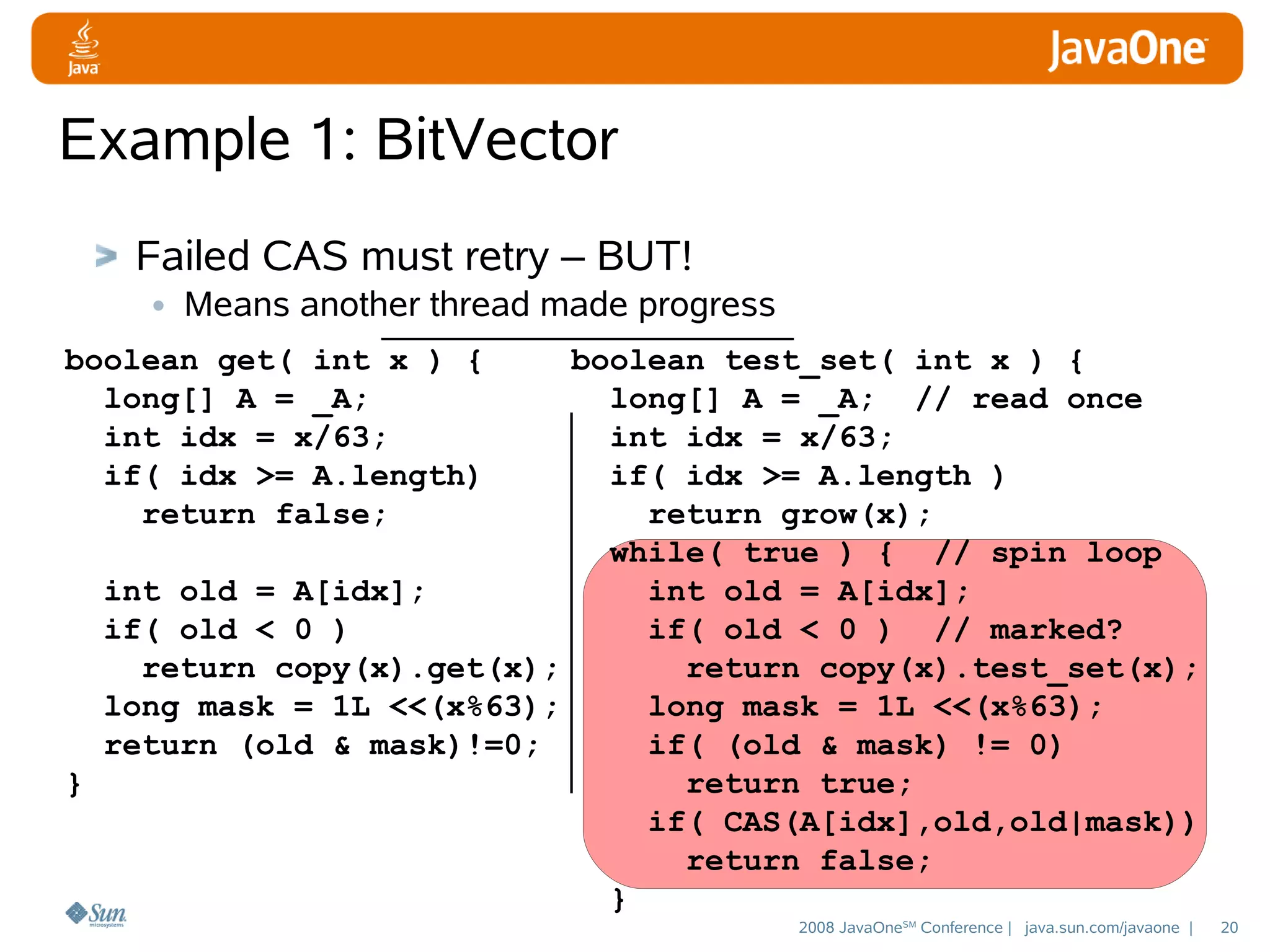

Example 1: BitVector Failed CAS must retry – BUT! • Means another thread made progress boolean get( int x ) { long[] A = _A; int idx = x/63; if( idx >= A.length) return false; boolean test_set( int x ) { long[] A = _A; // read once int idx = x/63; if( idx >= A.length ) return grow(x); while( true ) { // spin loop int old = A[idx]; int old = A[idx]; if( old < 0 ) if( old < 0 ) // marked? return copy(x).get(x); return copy(x).test_set(x); long mask = 1L <<(x%63); long mask = 1L <<(x%63); return (old & mask)!=0; if( (old & mask) != 0) } return true; if( CAS(A[idx],old,old|mask)) return false; } 2008 JavaOneSM Conference | java.sun.com/javaone | 20

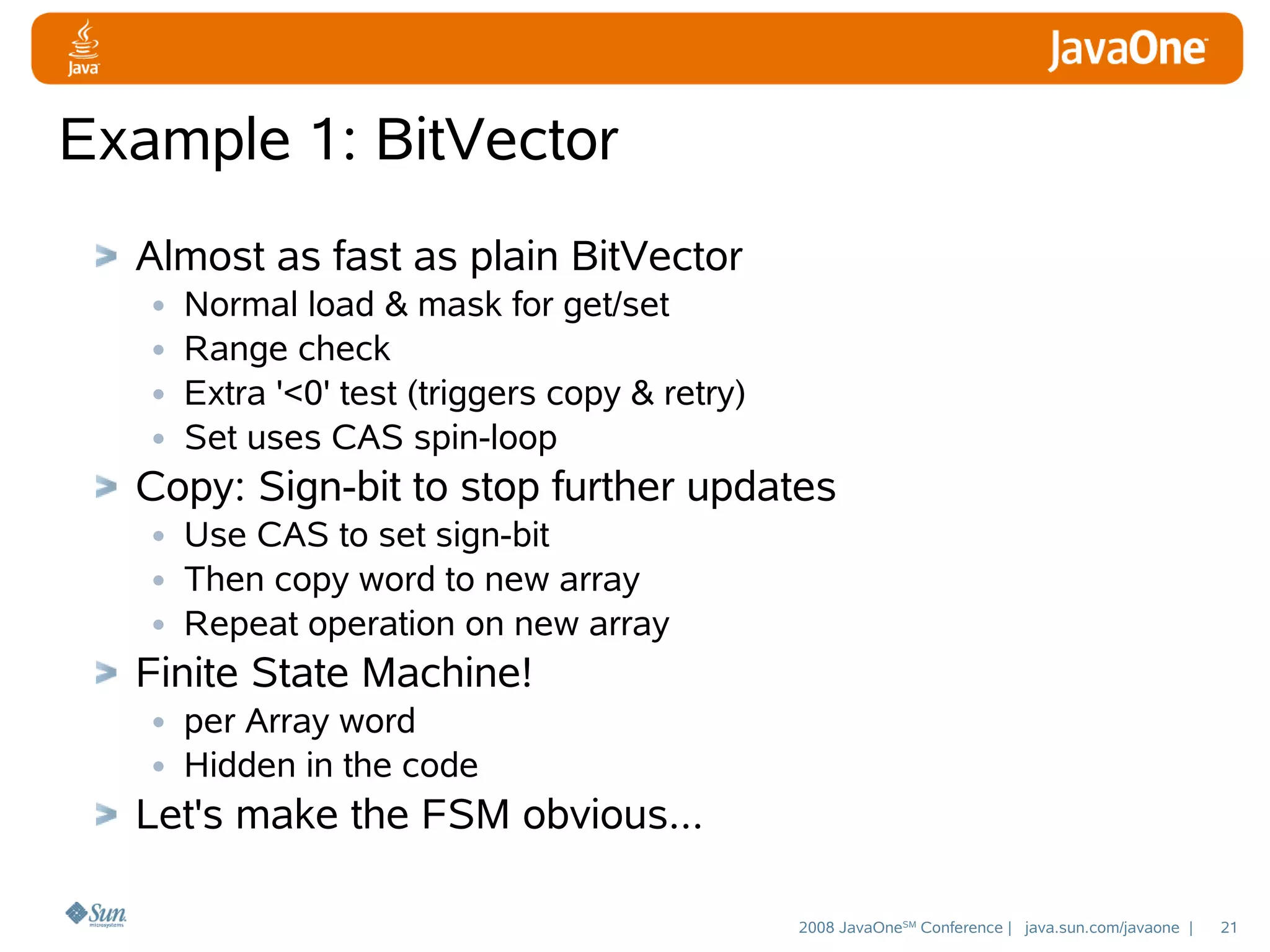

Example 1: BitVector Almost as fast as plain BitVector • Normal load & mask for get/set • Range check • Extra '<0' test (triggers copy & retry) • Set uses CAS spin-loop Copy: Sign-bit to stop further updates • Use CAS to set sign-bit • Then copy word to new array • Repeat operation on new array Finite State Machine! • per Array word • Hidden in the code Let's make the FSM obvious... 2008 JavaOneSM Conference | java.sun.com/javaone | 21

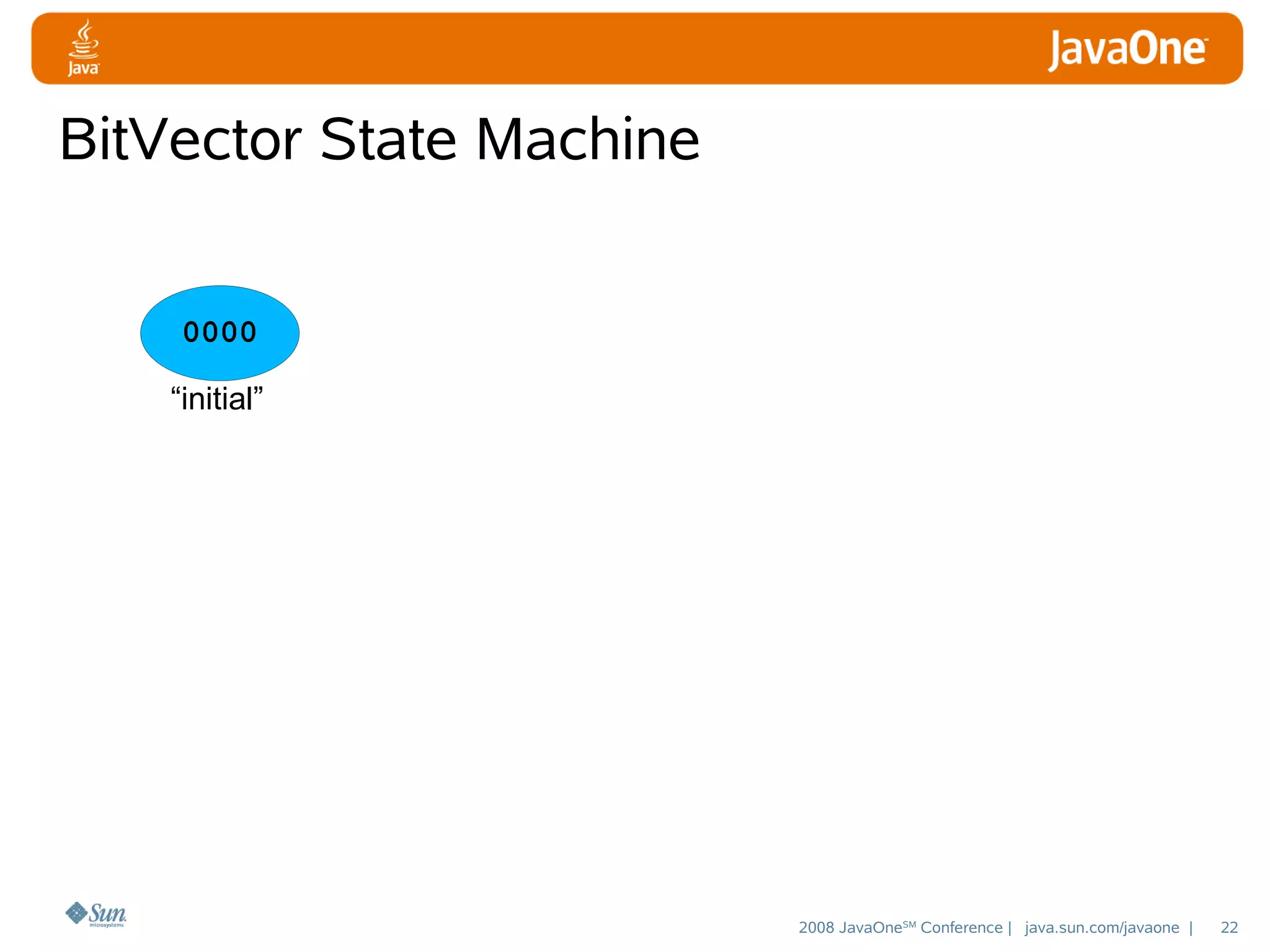

BitVector State Machine 0000 “initial” 2008 JavaOneSM Conference | java.sun.com/javaone | 22

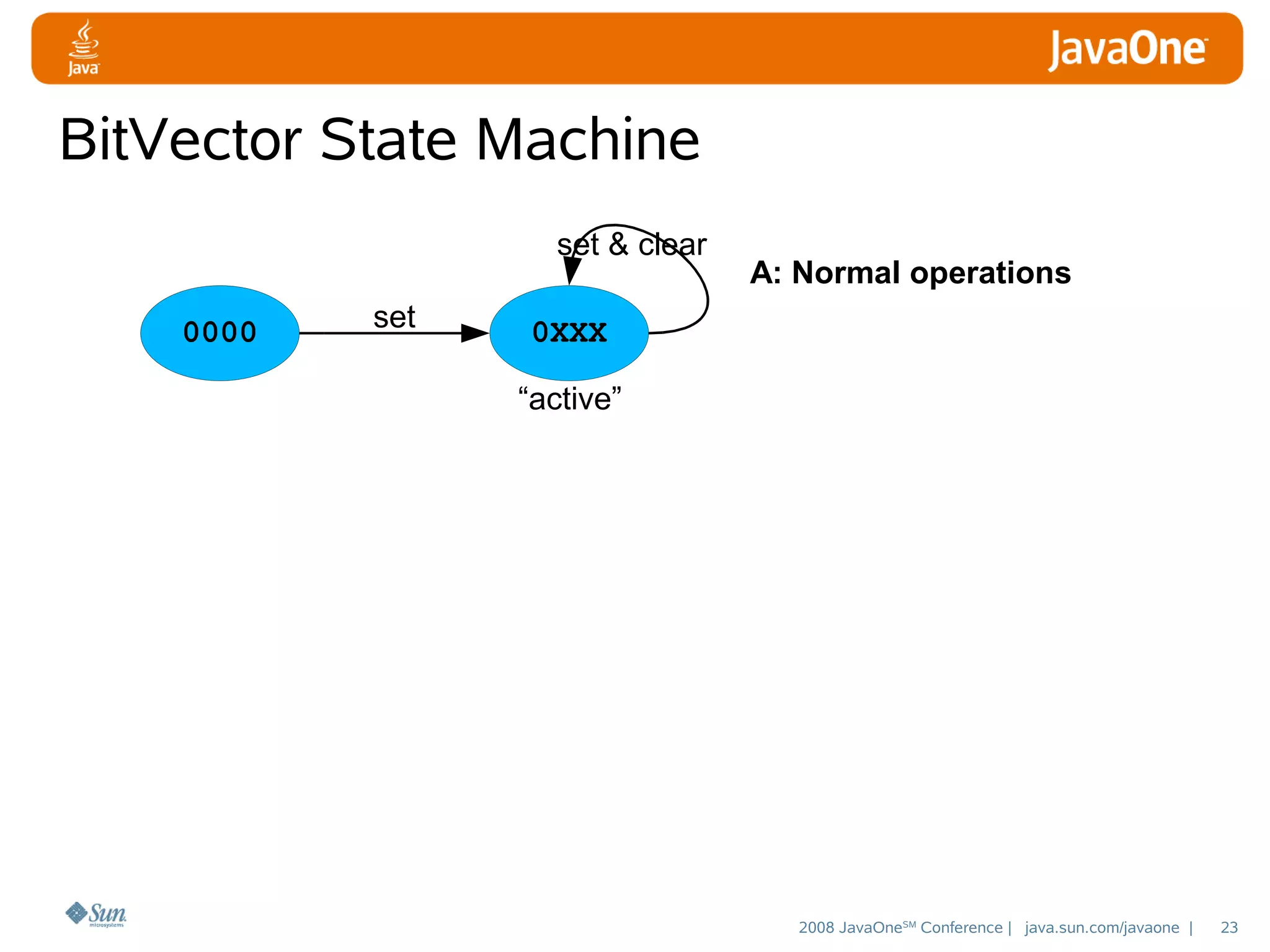

BitVector State Machine set & clear 0000 set A: Normal operations 0XXX “active” 2008 JavaOneSM Conference | java.sun.com/javaone | 23

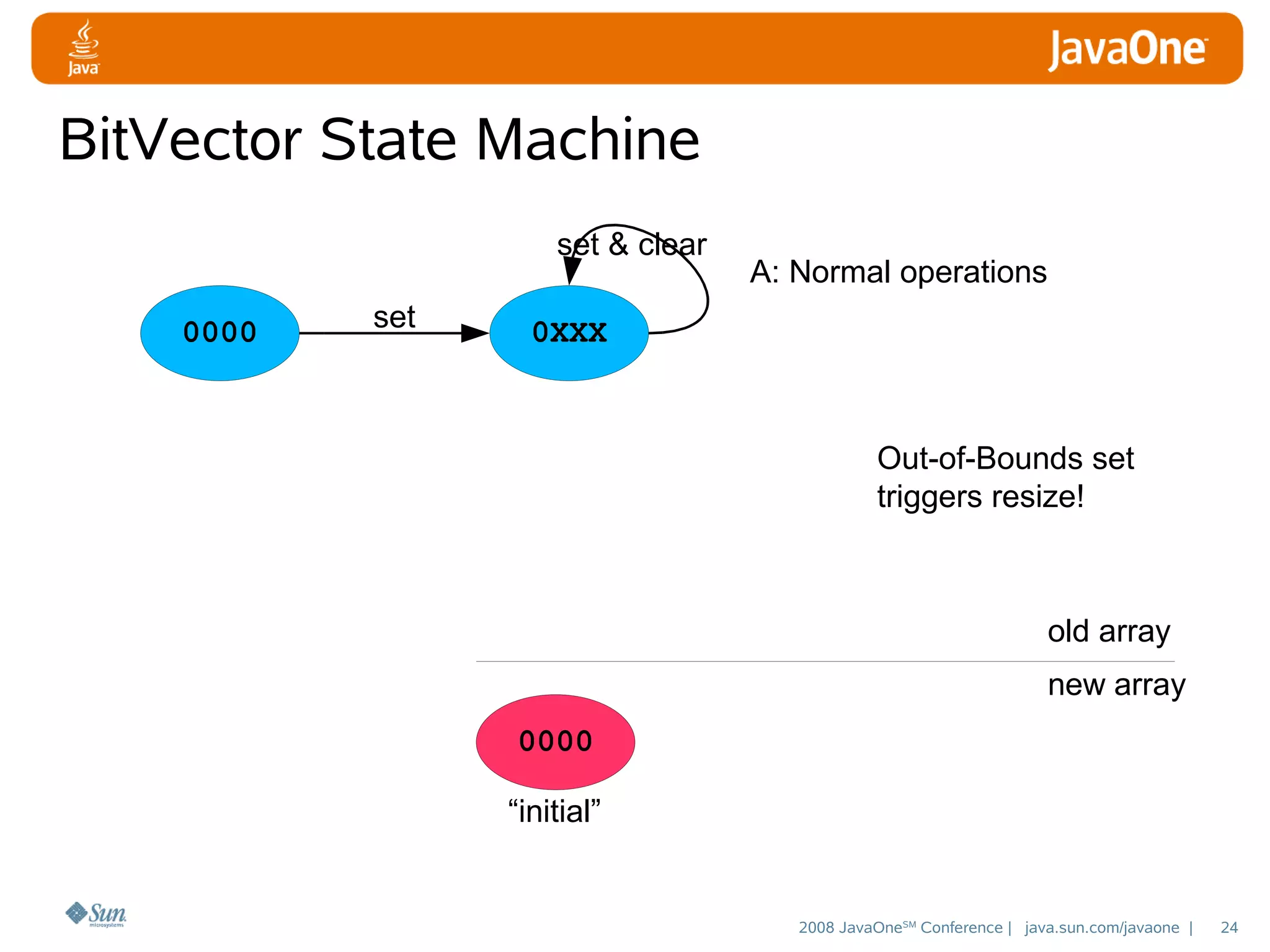

BitVector State Machine set & clear 0000 set A: Normal operations 0XXX Out-of-Bounds set triggers resize! old array new array 0000 “initial” 2008 JavaOneSM Conference | java.sun.com/javaone | 24

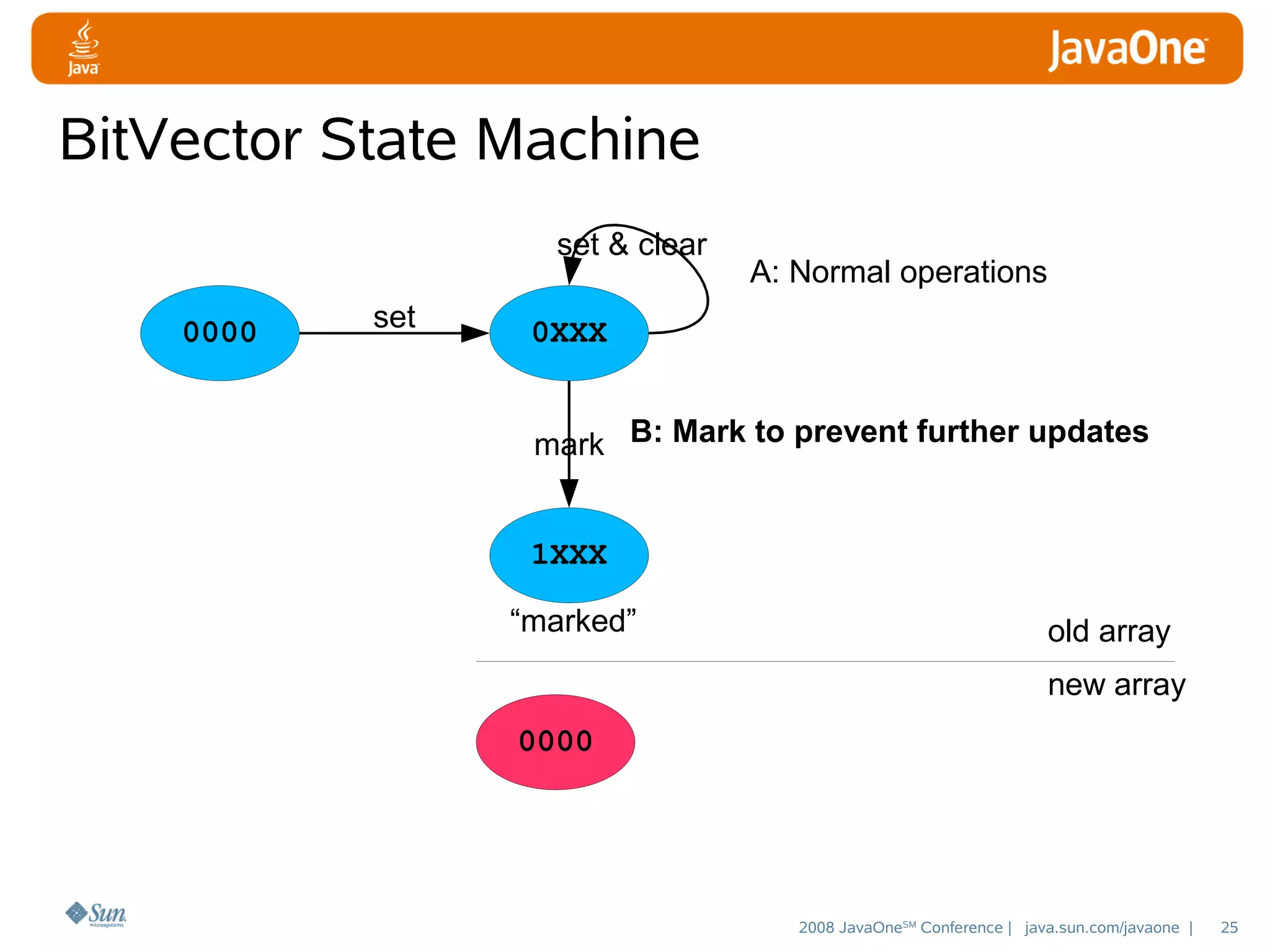

BitVector State Machine set & clear 0000 set A: Normal operations 0XXX mark B: Mark to prevent further updates 1XXX “marked” old array new array 0000 2008 JavaOneSM Conference | java.sun.com/javaone | 25
BitVector State Machine set & clear 0000 set A: Normal operations 0XXX mark B: Mark to prevent further updates 1XXX old array new array 0000 copy 0XXX C: Copy from old to new 2008 JavaOneSM Conference | java.sun.com/javaone | 26

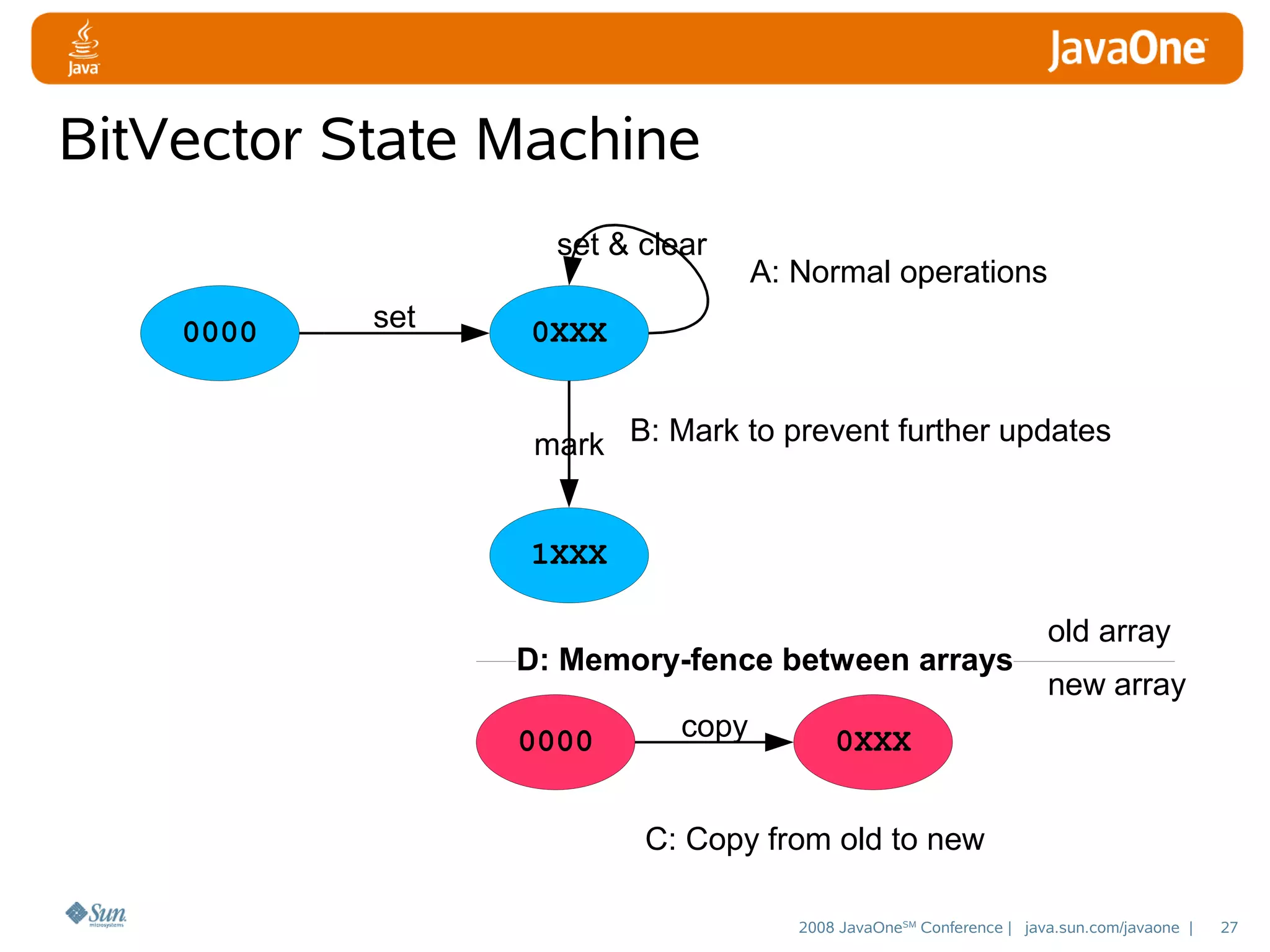

BitVector State Machine set & clear 0000 set A: Normal operations 0XXX mark B: Mark to prevent further updates 1XXX D: Memory-fence between arrays 0000 copy old array new array 0XXX C: Copy from old to new 2008 JavaOneSM Conference | java.sun.com/javaone | 27

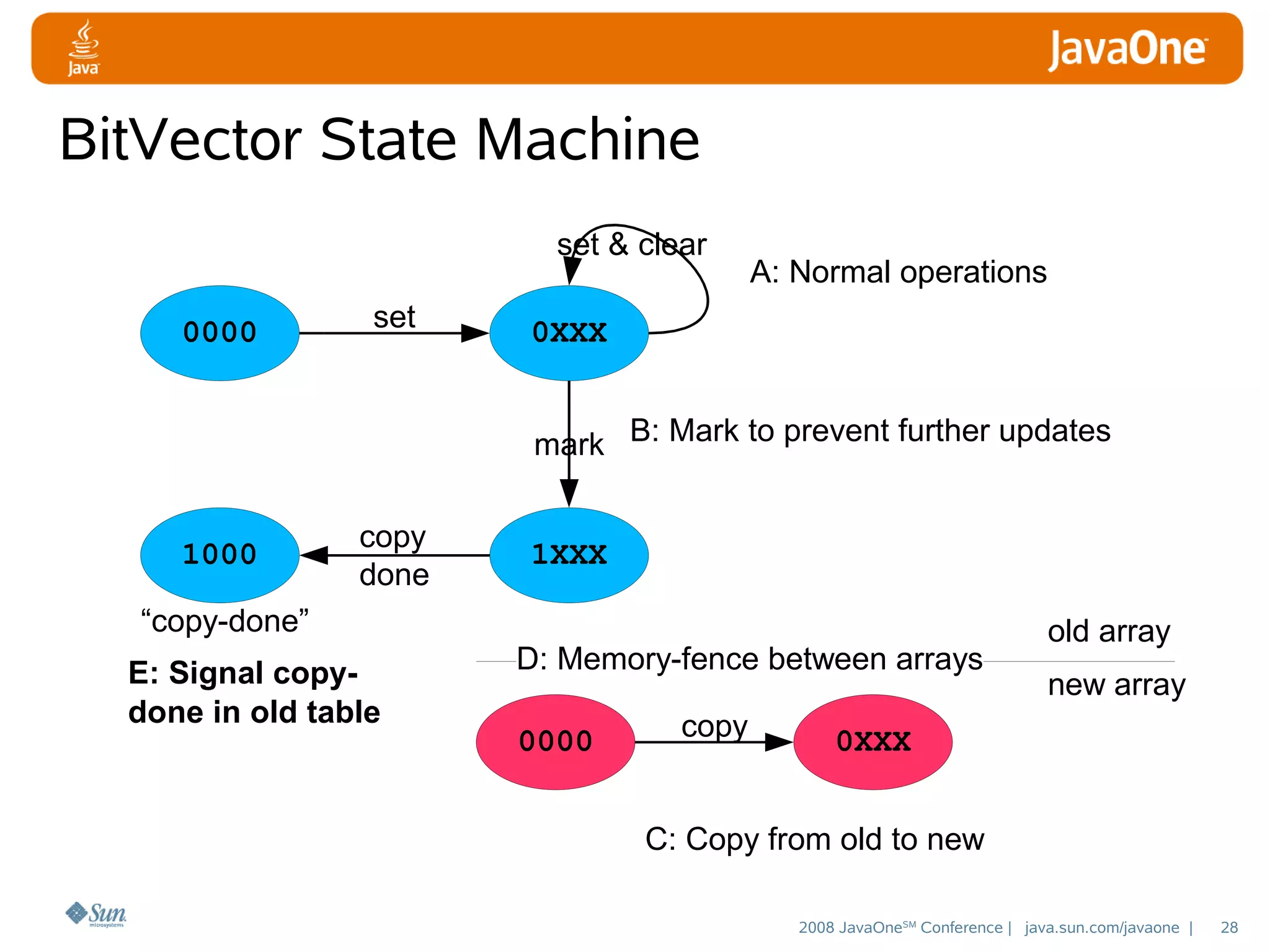

BitVector State Machine set & clear 0000 set A: Normal operations 0XXX mark B: Mark to prevent further updates 1000 copy done 1XXX “copy-done” E: Signal copydone in old table D: Memory-fence between arrays 0000 copy old array new array 0XXX C: Copy from old to new 2008 JavaOneSM Conference | java.sun.com/javaone | 28

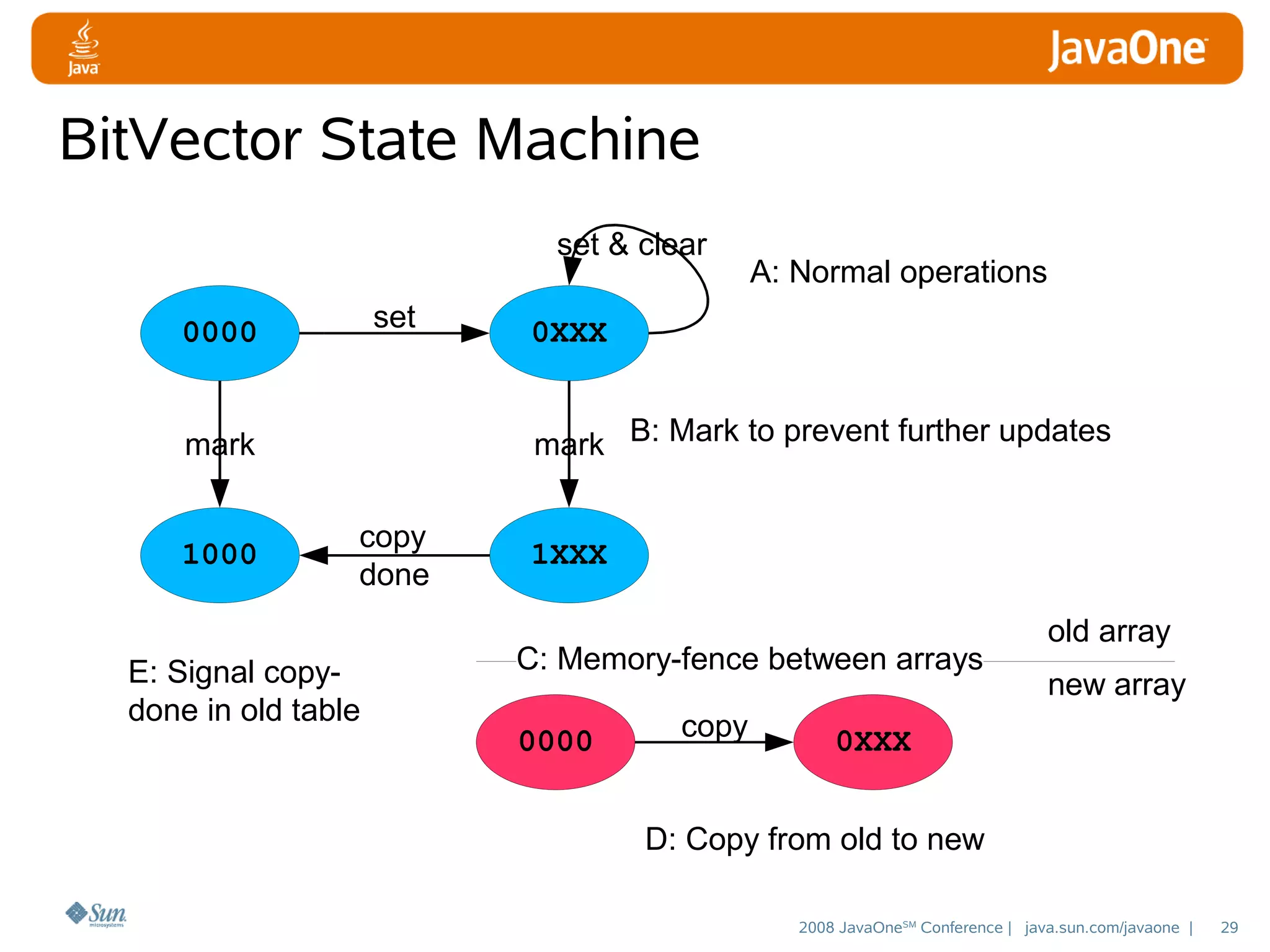

BitVector State Machine set & clear set 0000 0XXX mark B: Mark to prevent further updates mark 1000 A: Normal operations copy done E: Signal copydone in old table 1XXX C: Memory-fence between arrays 0000 copy old array new array 0XXX D: Copy from old to new 2008 JavaOneSM Conference | java.sun.com/javaone | 29

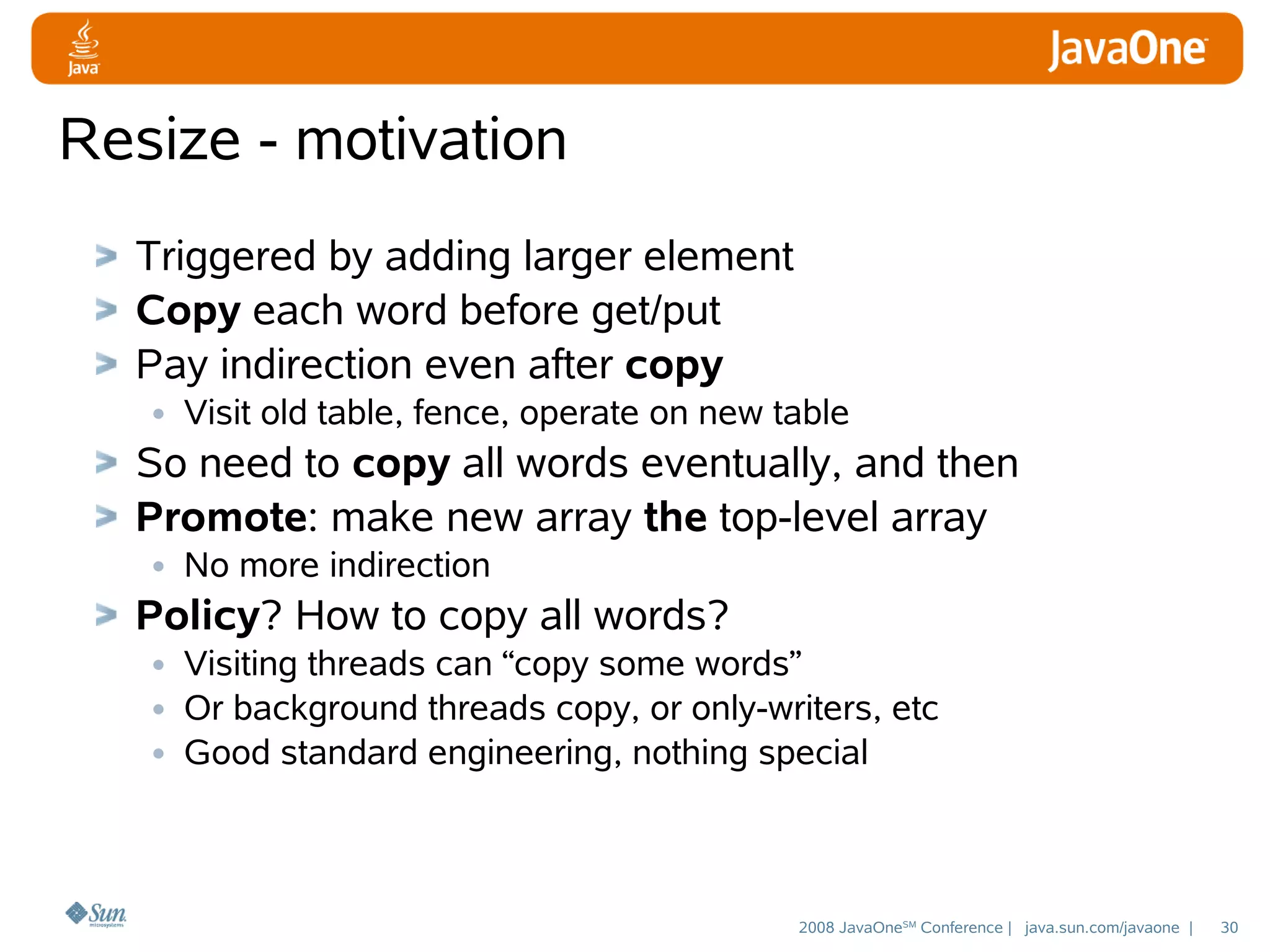

Resize - motivation Triggered by adding larger element Copy each word before get/put Pay indirection even after copy • Visit old table, fence, operate on new table So need to copy all words eventually, and then Promote: make new array the top-level array • No more indirection Policy? How to copy all words? • Visiting threads can “copy some words” • Or background threads copy, or only-writers, etc • Good standard engineering, nothing special 2008 JavaOneSM Conference | java.sun.com/javaone | 30

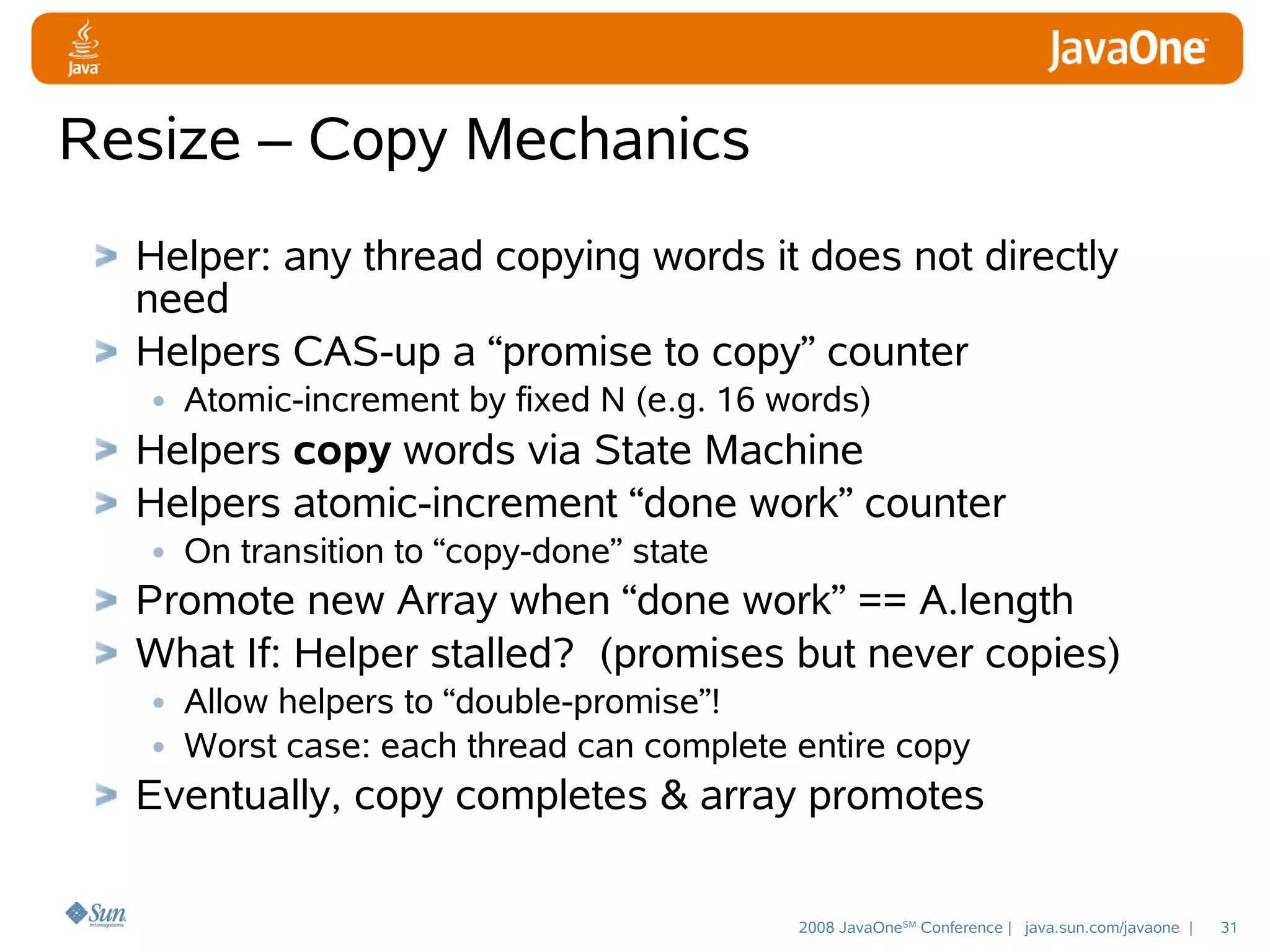

Resize – Copy Mechanics Helper: any thread copying words it does not directly need Helpers CAS-up a “promise to copy” counter • Atomic-increment by fixed N (e.g. 16 words) Helpers copy words via State Machine Helpers atomic-increment “done work” counter • On transition to “copy-done” state Promote new Array when “done work” == A.length What If: Helper stalled? (promises but never copies) • Allow helpers to “double-promise”! • Worst case: each thread can complete entire copy Eventually, copy completes & array promotes 2008 JavaOneSM Conference | java.sun.com/javaone | 31

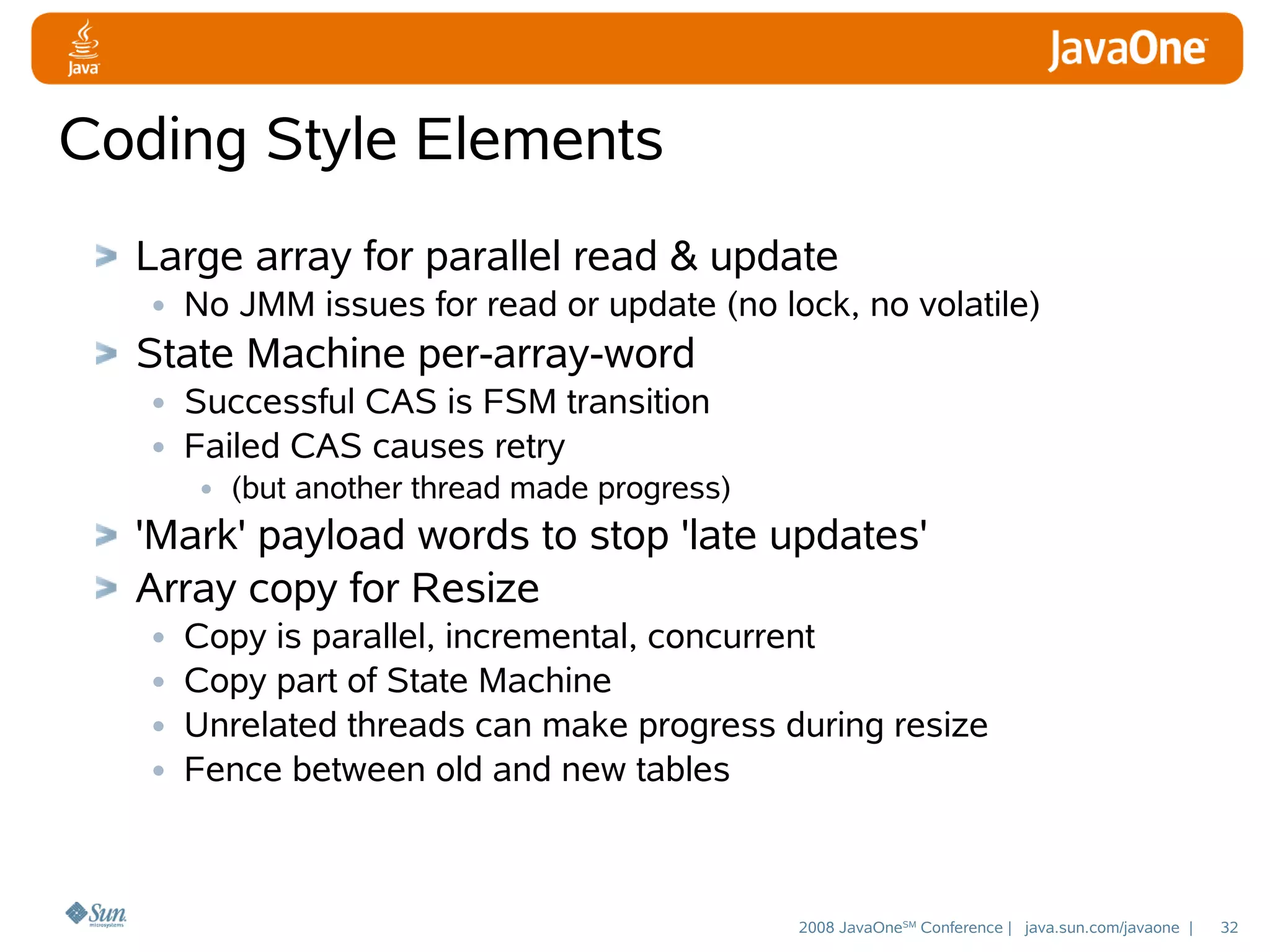

Coding Style Elements Large array for parallel read & update • No JMM issues for read or update (no lock, no volatile) State Machine per-array-word • Successful CAS is FSM transition • Failed CAS causes retry • (but another thread made progress) 'Mark' payload words to stop 'late updates' Array copy for Resize • Copy is parallel, incremental, concurrent • Copy part of State Machine • Unrelated threads can make progress during resize • Fence between old and new tables 2008 JavaOneSM Conference | java.sun.com/javaone | 32
Agenda Motivation A Scalable Non-Blocking Coding Style Example 1: BitVector Example 2: HashTable Example 3: Nearly FIFO Queue Summary 2008 JavaOneSM Conference | java.sun.com/javaone | 33

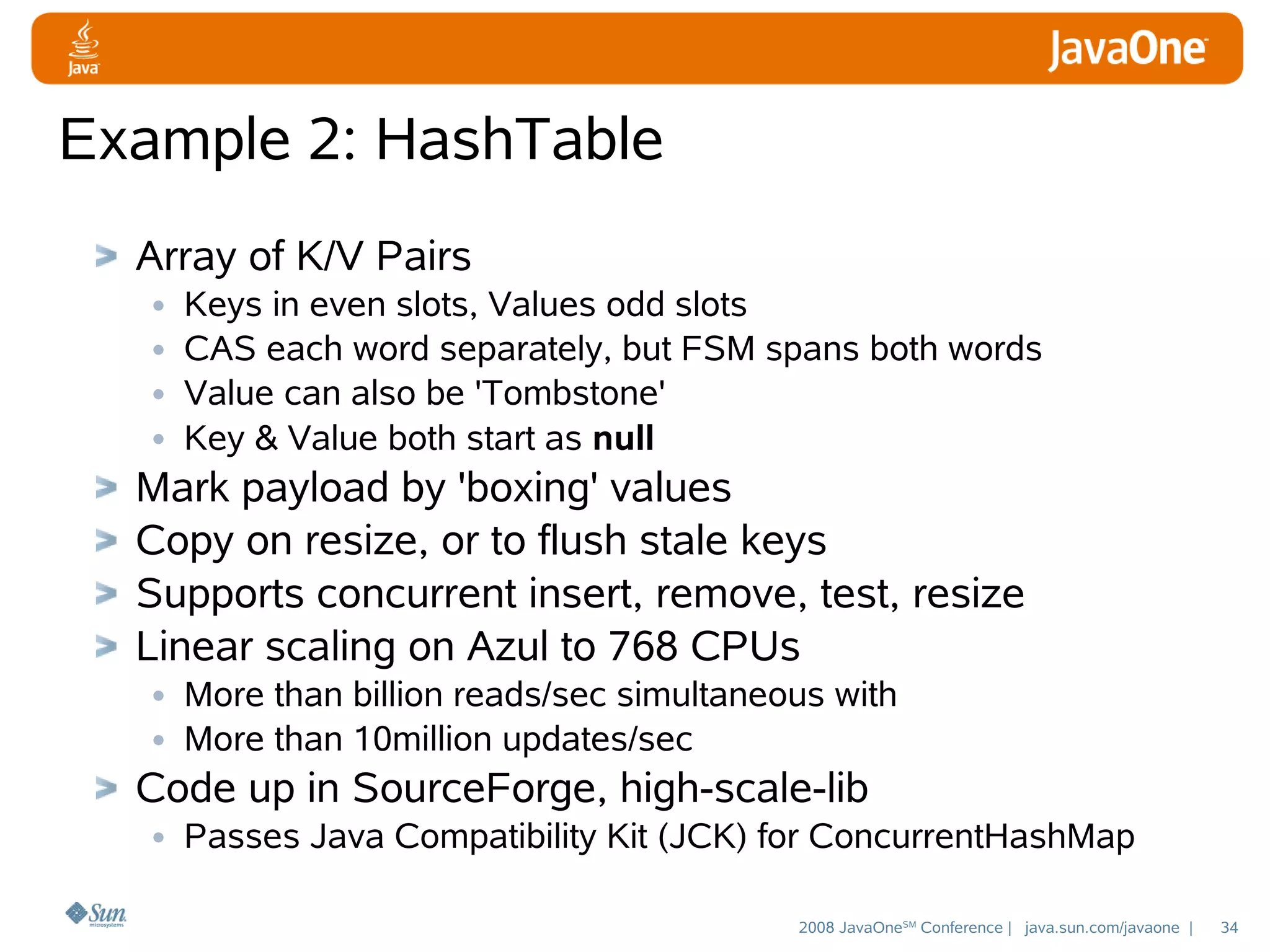

Example 2: HashTable Array of K/V Pairs • Keys in even slots, Values odd slots • CAS each word separately, but FSM spans both words • Value can also be 'Tombstone' • Key & Value both start as null Mark payload by 'boxing' values Copy on resize, or to flush stale keys Supports concurrent insert, remove, test, resize Linear scaling on Azul to 768 CPUs • More than billion reads/sec simultaneous with • More than 10million updates/sec Code up in SourceForge, high-scale-lib • Passes Java Compatibility Kit (JCK) for ConcurrentHashMap 2008 JavaOneSM Conference | java.sun.com/javaone | 34

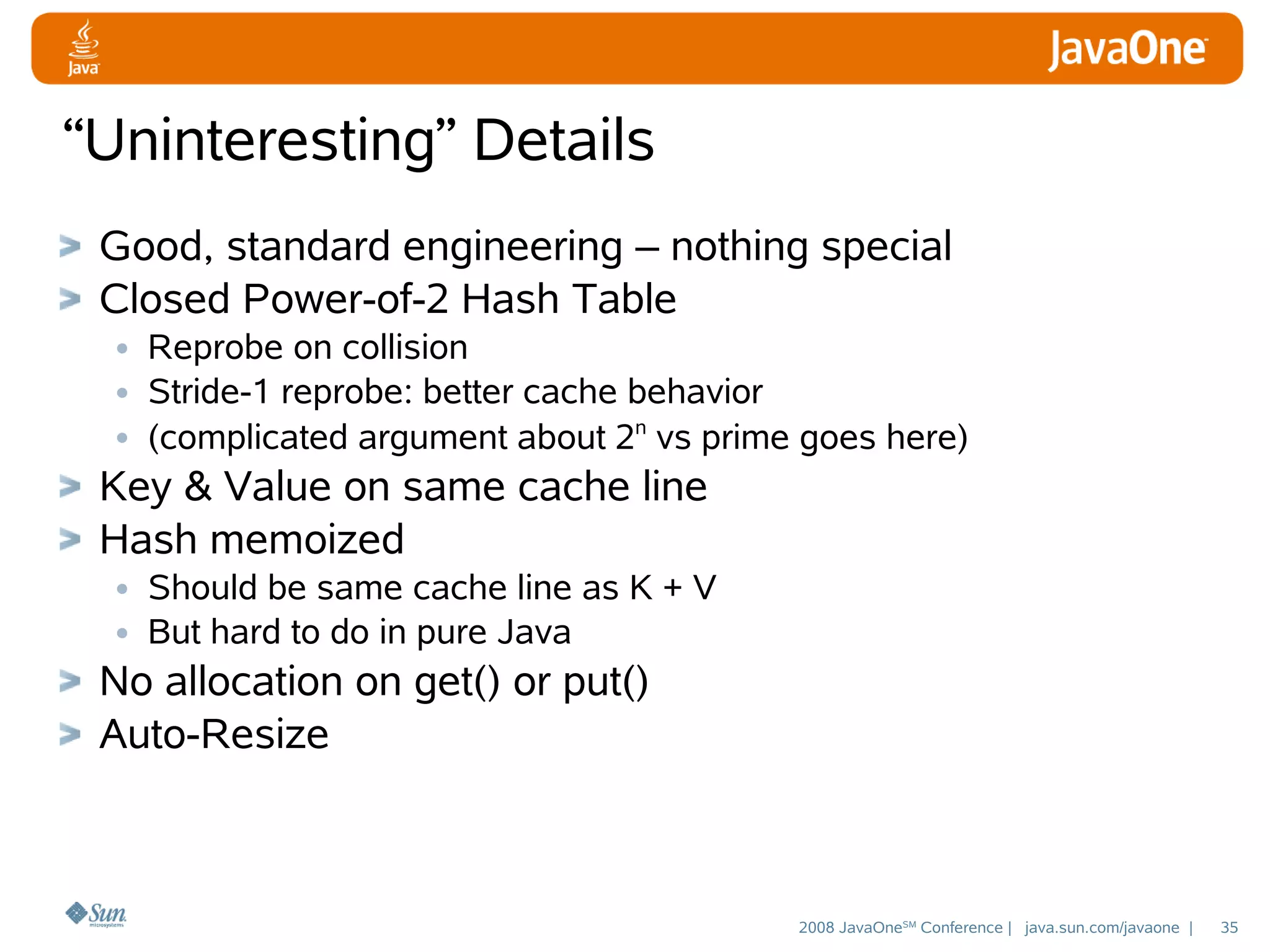

“Uninteresting” Details Good, standard engineering – nothing special Closed Power-of-2 Hash Table • Reprobe on collision • Stride-1 reprobe: better cache behavior • (complicated argument about 2n vs prime goes here) Key & Value on same cache line Hash memoized • Should be same cache line as K + V • But hard to do in pure Java No allocation on get() or put() Auto-Resize 2008 JavaOneSM Conference | java.sun.com/javaone | 35

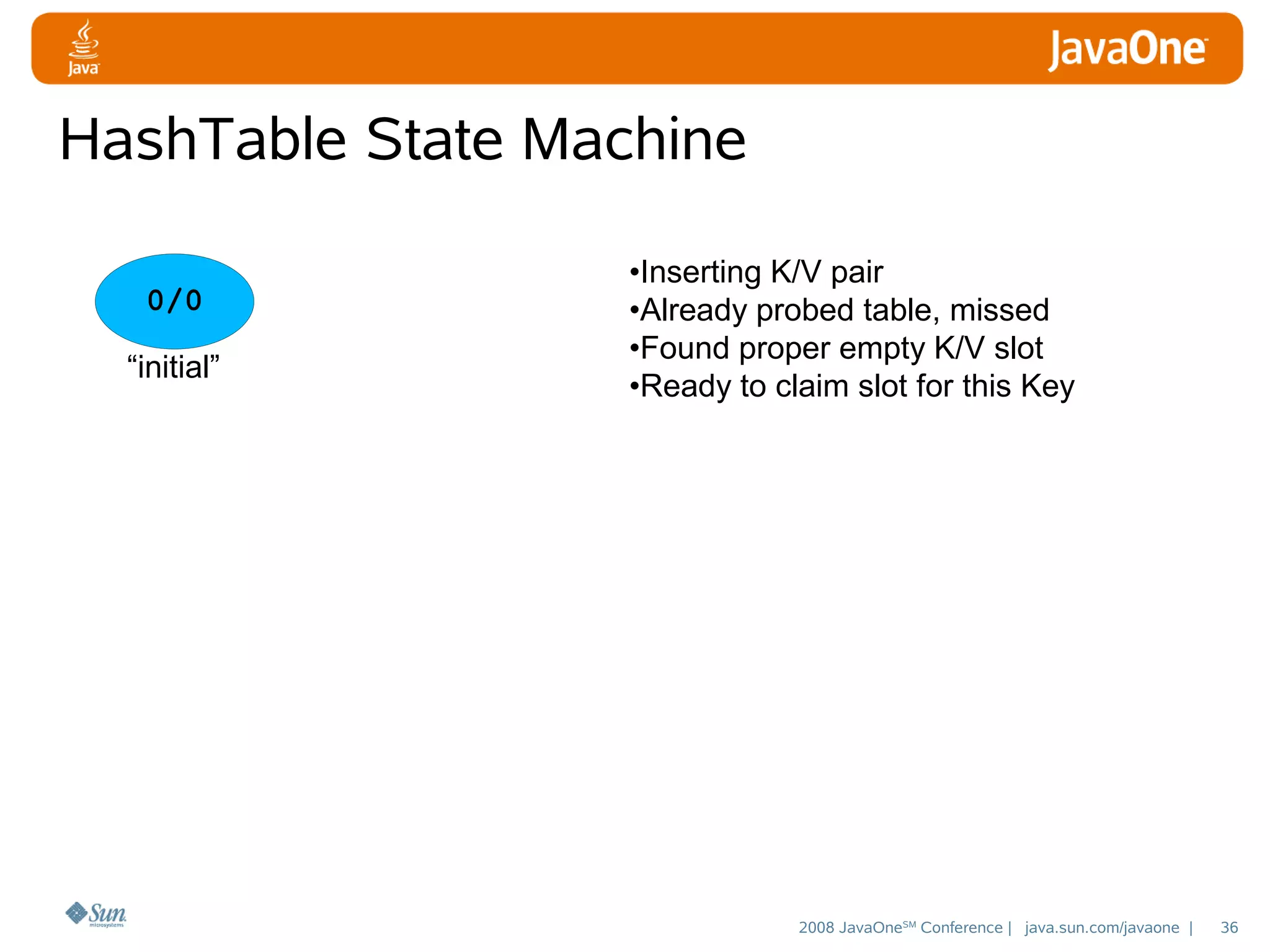

HashTable State Machine 0/0 “initial” •Inserting K/V pair •Already probed table, missed •Found proper empty K/V slot •Ready to claim slot for this Key 2008 JavaOneSM Conference | java.sun.com/javaone | 36

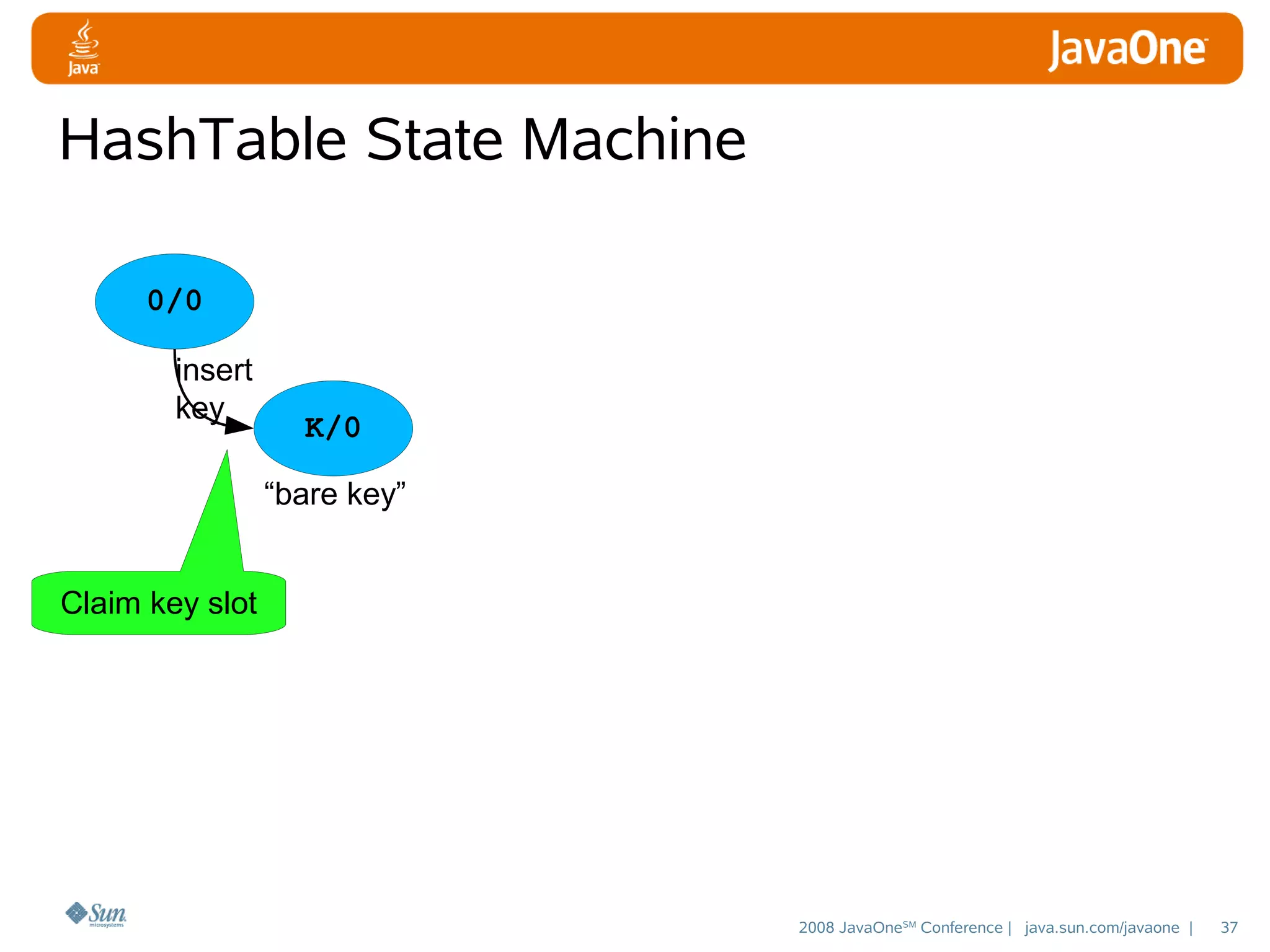

HashTable State Machine 0/0 insert key K/0 “bare key” Claim key slot 2008 JavaOneSM Conference | java.sun.com/javaone | 37

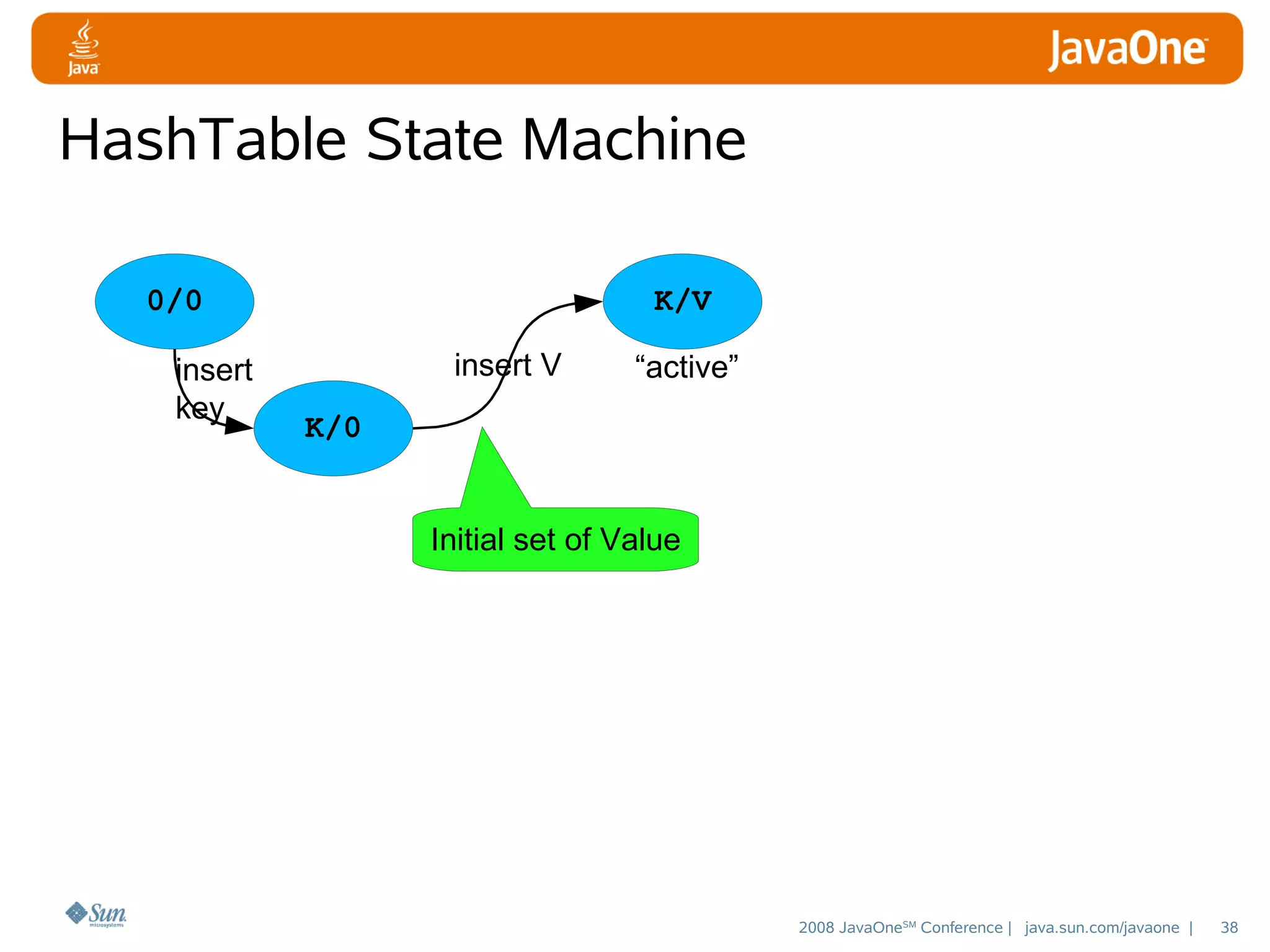

HashTable State Machine 0/0 insert key K/V insert V “active” K/0 Initial set of Value 2008 JavaOneSM Conference | java.sun.com/javaone | 38

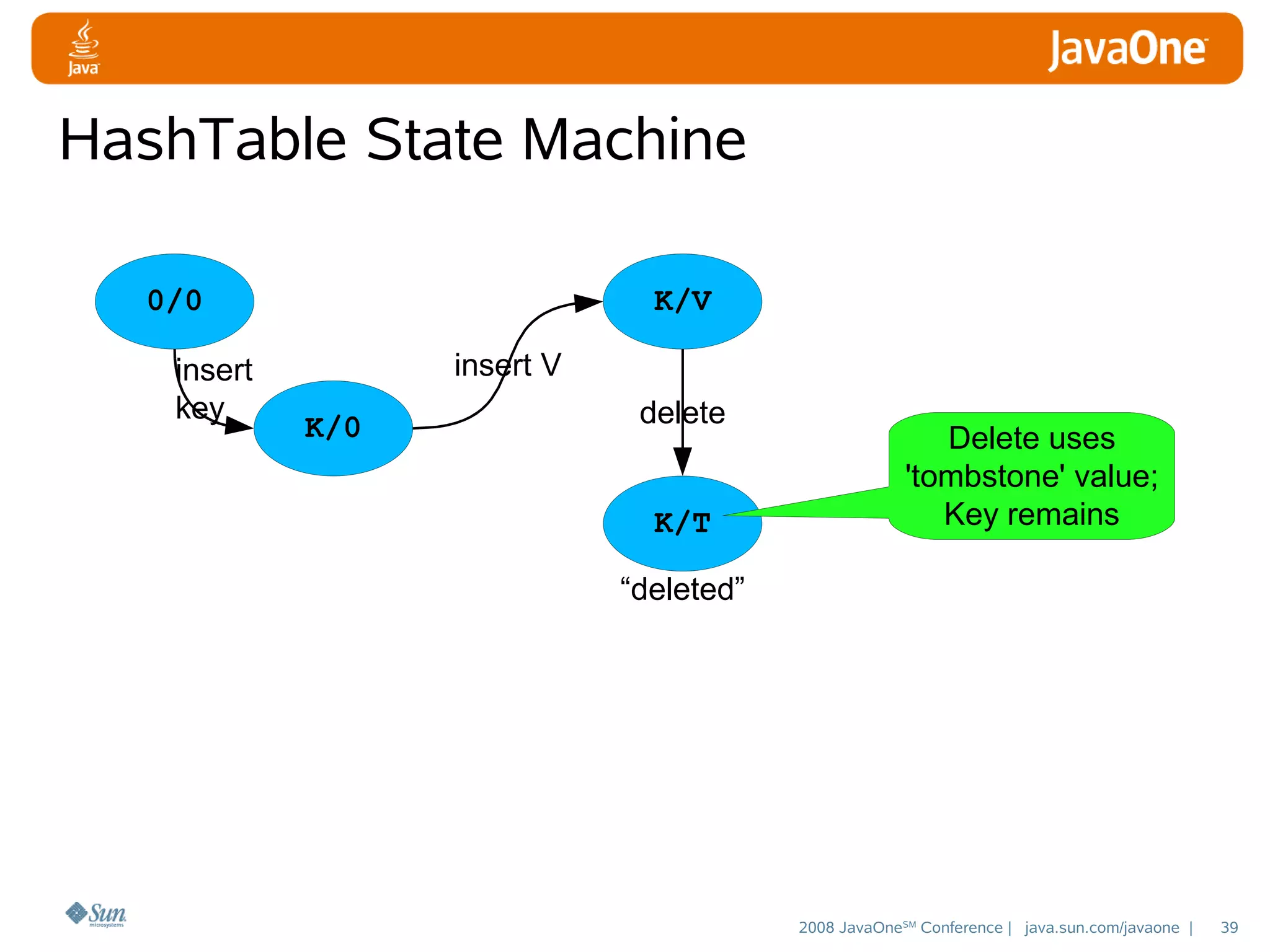

HashTable State Machine 0/0 insert key K/V insert V K/0 delete K/T Delete uses 'tombstone' value; Key remains “deleted” 2008 JavaOneSM Conference | java.sun.com/javaone | 39

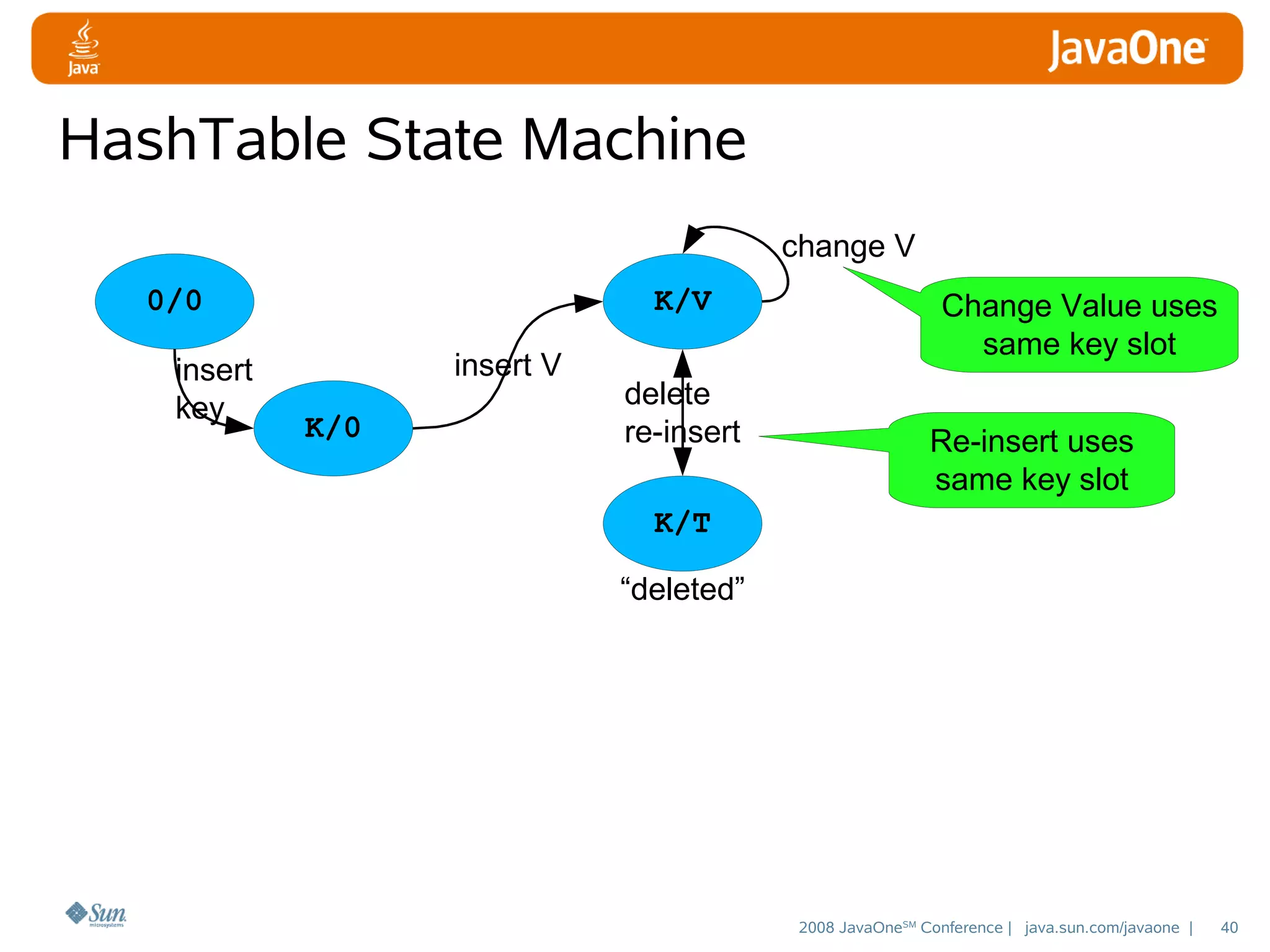

HashTable State Machine change V 0/0 insert key K/V insert V K/0 delete re-insert Change Value uses same key slot Re-insert uses same key slot K/T “deleted” 2008 JavaOneSM Conference | java.sun.com/javaone | 40
HashTable State Machine change V 0/0 K/V insert key insert V K/0 delete re-insert K/T Resize triggered, new array created old array new array 0/0 “initial” 2008 JavaOneSM Conference | java.sun.com/javaone | 41
HashTable State Machine change V 0/0 K/V insert key insert V K/0 box delete re-insert K/[V] “boxed V” K/T Boxing V prevents further changes old array new array 0/0 2008 JavaOneSM Conference | java.sun.com/javaone | 42
HashTable State Machine change V 0/0 K/V insert key insert V K/0 box delete re-insert K/[V] K/T Claim key slot in new table old array new array 0/0 insert key K/0 “bare key” 2008 JavaOneSM Conference | java.sun.com/javaone | 43

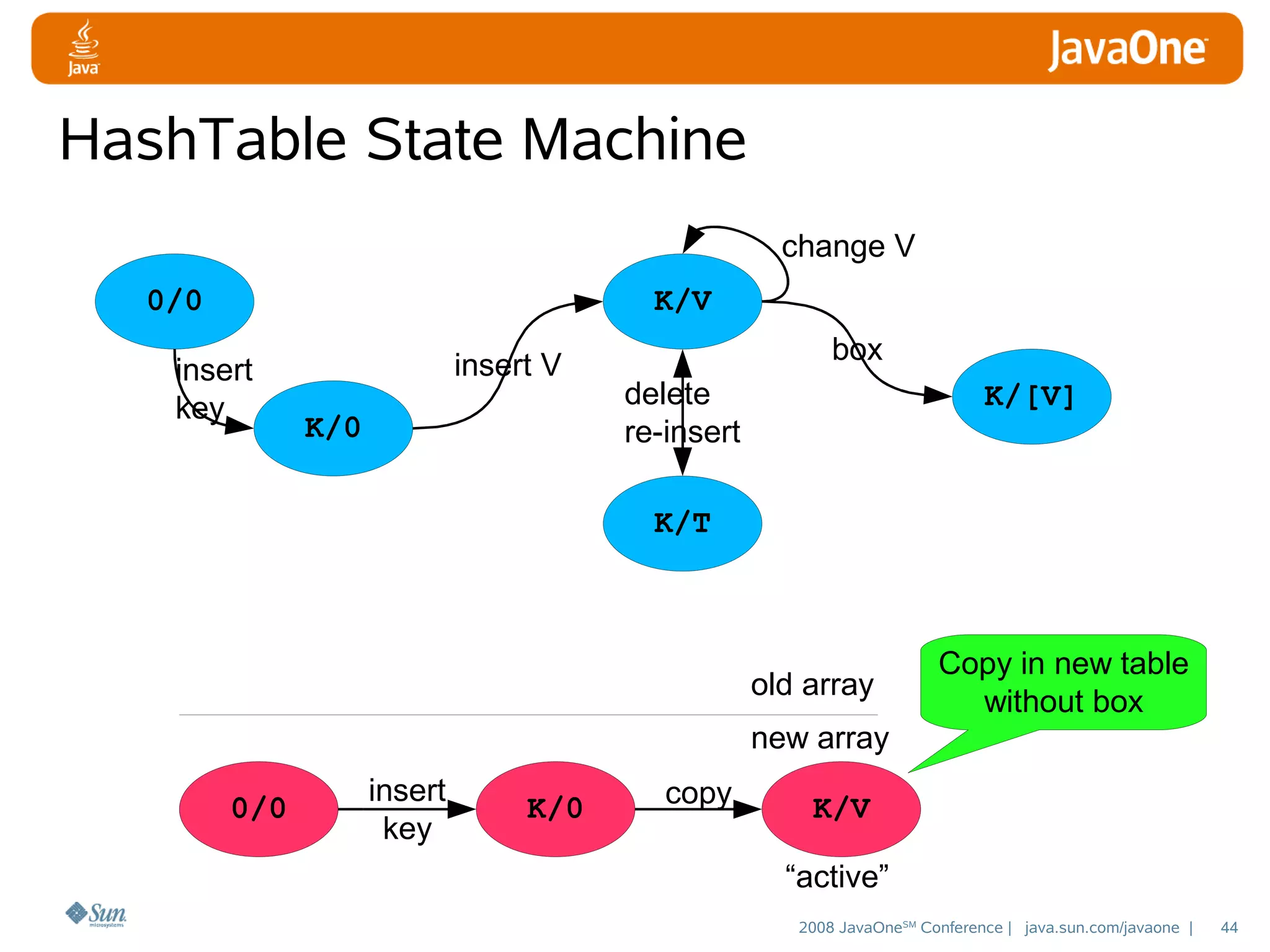

HashTable State Machine change V 0/0 K/V insert key insert V K/0 box delete re-insert K/[V] K/T old array Copy in new table without box new array 0/0 insert key K/0 copy K/V “active” 2008 JavaOneSM Conference | java.sun.com/javaone | 44
HashTable State Machine change V 0/0 K/V insert key insert V K/0 box delete re-insert K/[V] K/T Fence after writing to new array and before setting 'copy done' old array Memory-fence between arrays 0/0 insert key K/0 new array copy K/V 2008 JavaOneSM Conference | java.sun.com/javaone | 45

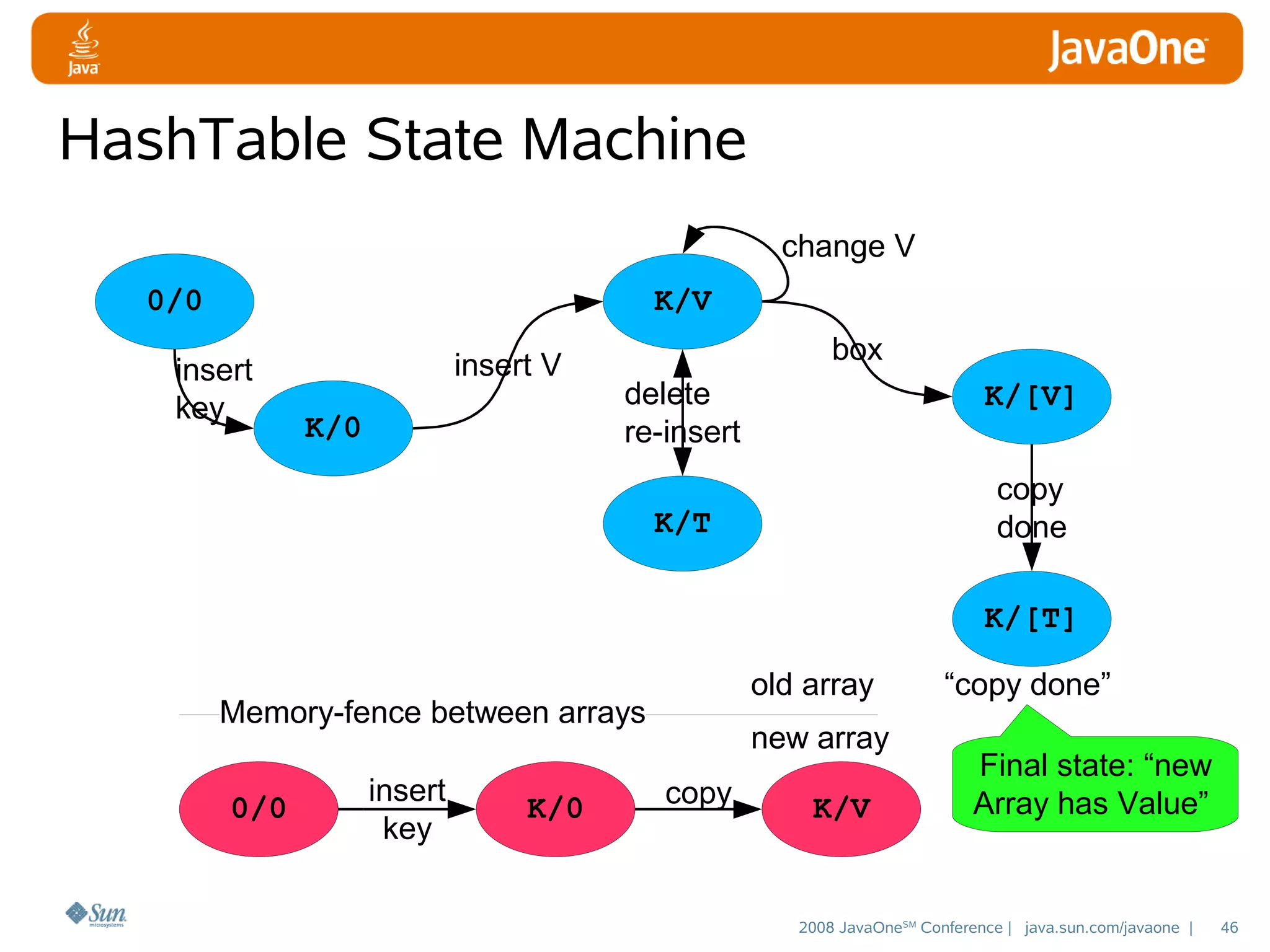

HashTable State Machine change V 0/0 K/V insert key insert V K/0 box delete re-insert K/[V] copy done K/T K/[T] old array Memory-fence between arrays 0/0 insert key K/0 new array copy K/V “copy done” Final state: “new Array has Value” 2008 JavaOneSM Conference | java.sun.com/javaone | 46
HashTable State Machine change V 0/0 K/V insert key insert V K/0 box delete re-insert K/[V] copy done K/T Nothing to copy Memory-fence between arrays K/[T] old array new array 0/0 2008 JavaOneSM Conference | java.sun.com/javaone | 47

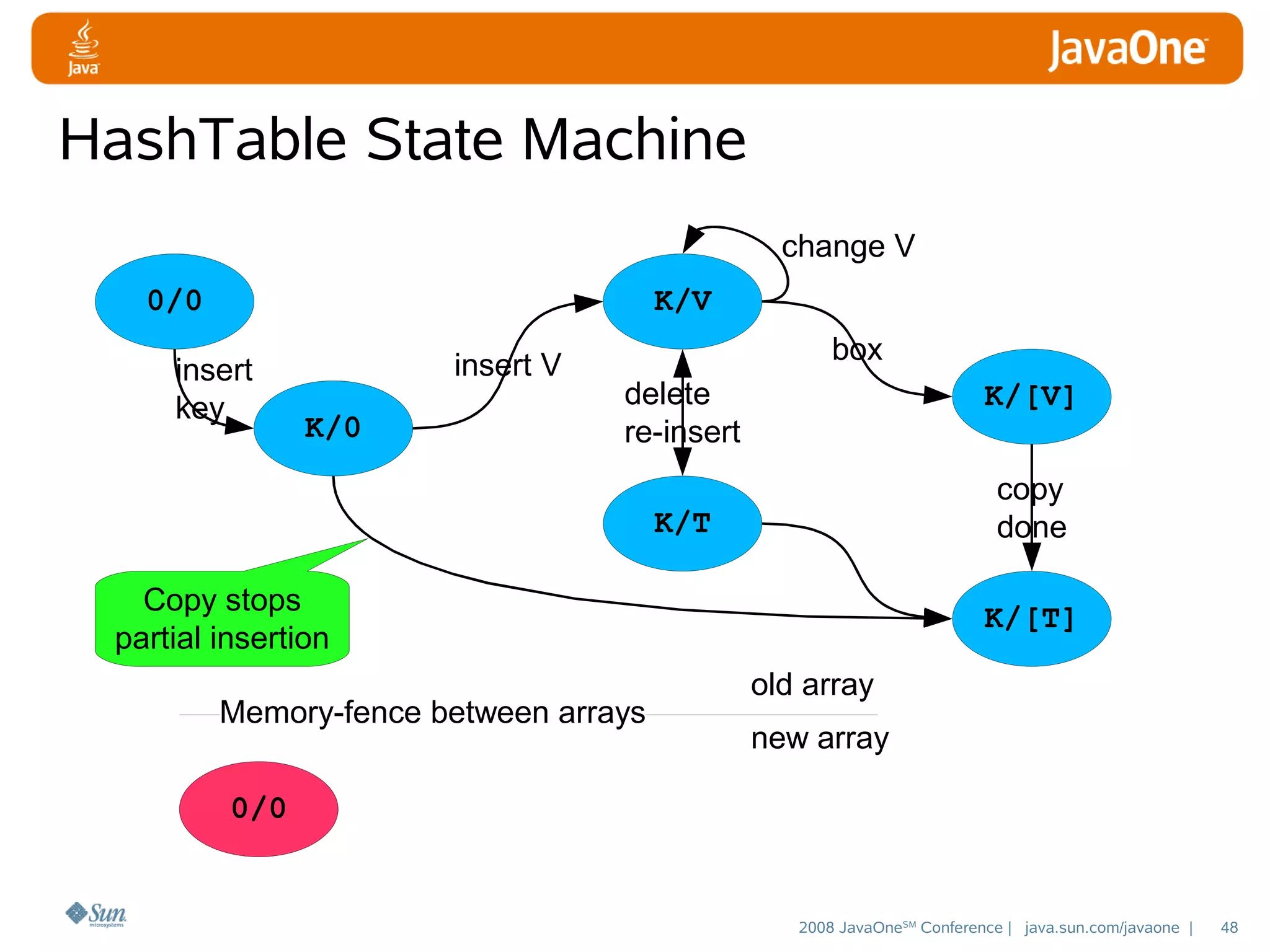

HashTable State Machine change V 0/0 K/V insert key insert V K/0 box delete re-insert K/[V] copy done K/T Copy stops partial insertion Memory-fence between arrays K/[T] old array new array 0/0 2008 JavaOneSM Conference | java.sun.com/javaone | 48
HashTable State Machine change V 0/0 K/V insert key insert V K/0 box delete re-insert K/[V] copy done K/T K/[T] old array Memory-fence between arrays 0/0 insert key K/0 new array copy K/V 2008 JavaOneSM Conference | java.sun.com/javaone | 49

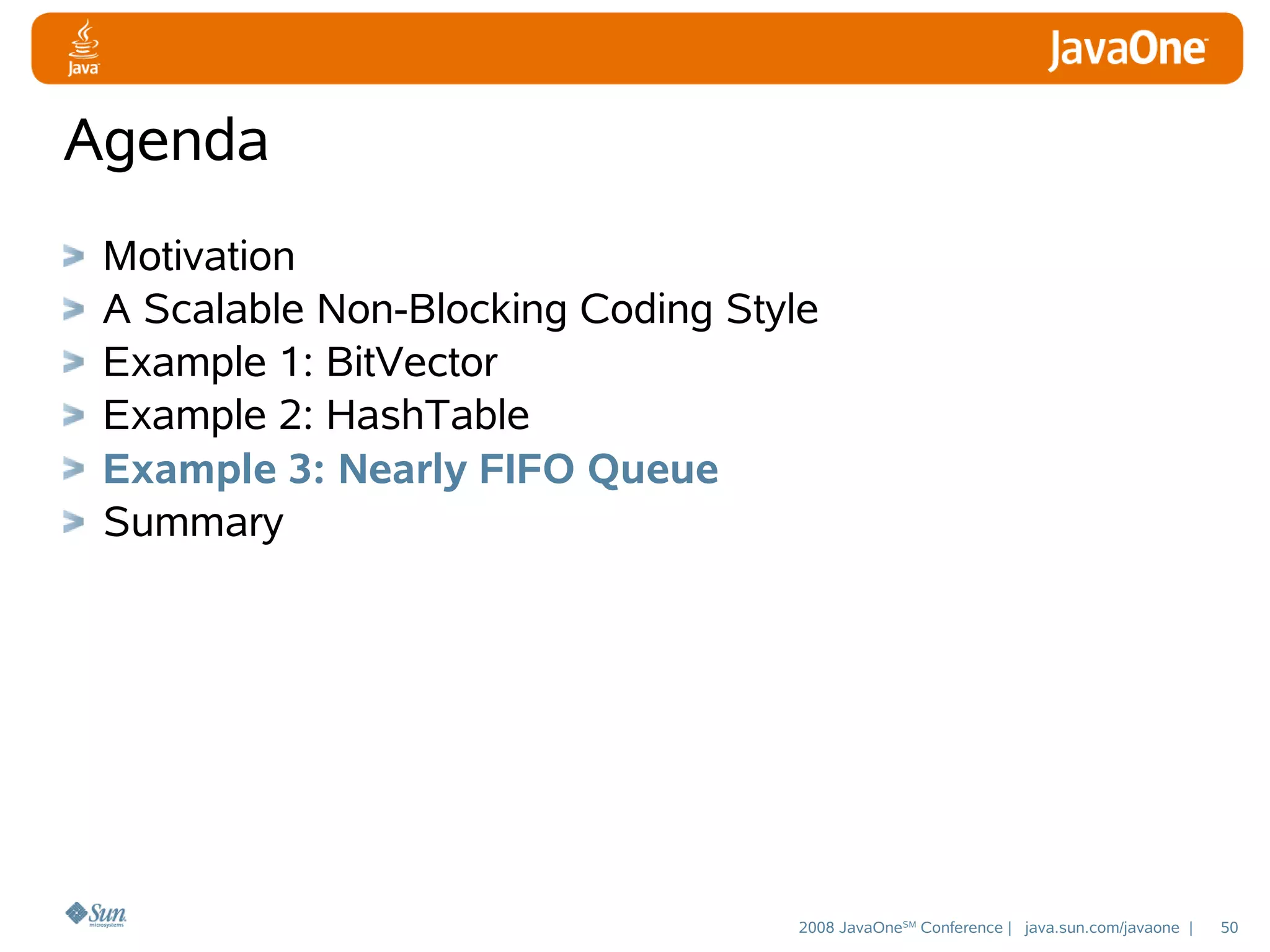

Agenda Motivation A Scalable Non-Blocking Coding Style Example 1: BitVector Example 2: HashTable Example 3: Nearly FIFO Queue Summary 2008 JavaOneSM Conference | java.sun.com/javaone | 50

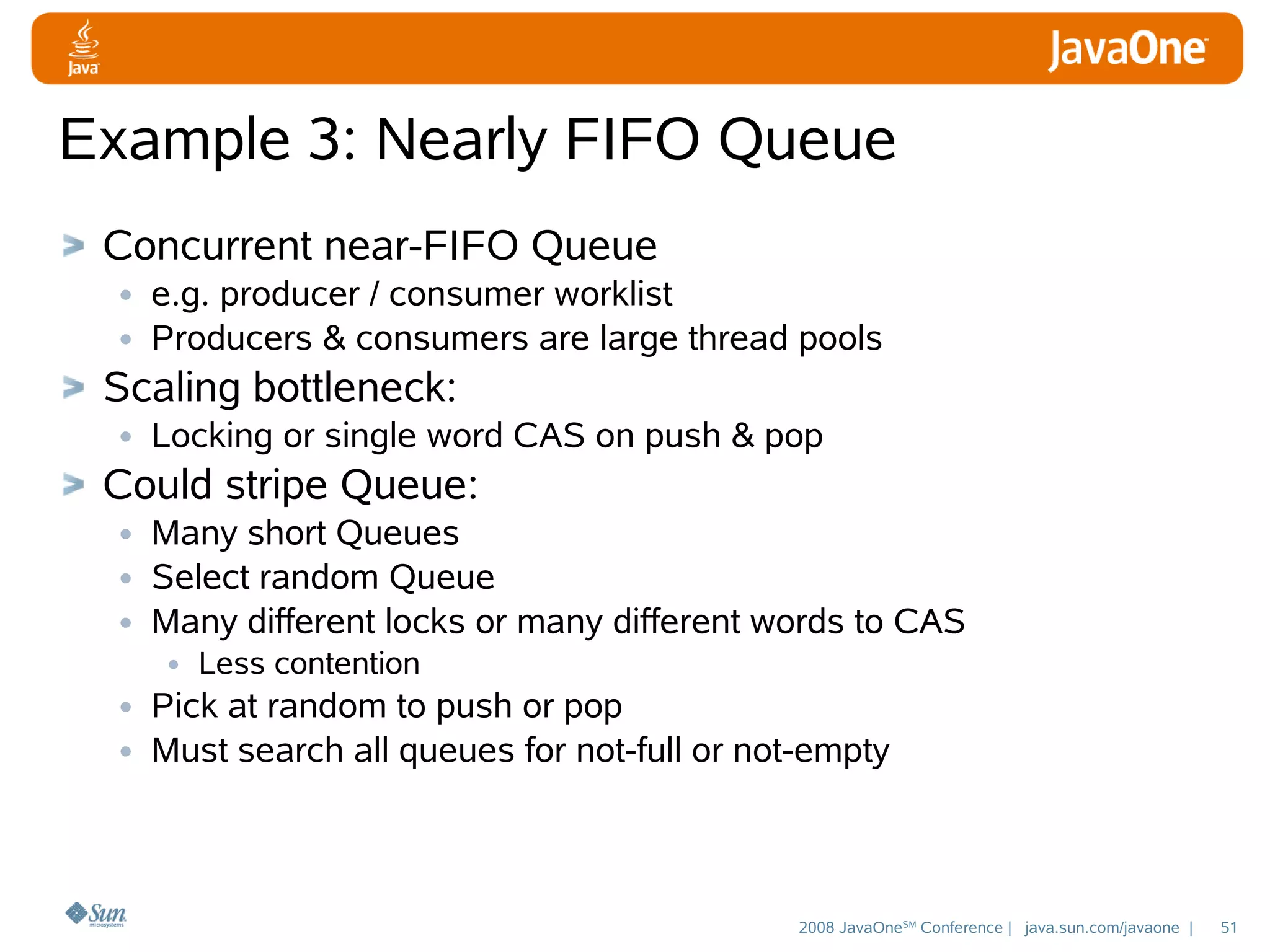

Example 3: Nearly FIFO Queue Concurrent near-FIFO Queue • e.g. producer / consumer worklist • Producers & consumers are large thread pools Scaling bottleneck: • Locking or single word CAS on push & pop Could stripe Queue: • Many short Queues • Select random Queue • Many different locks or many different words to CAS • Less contention • Pick at random to push or pop • Must search all queues for not-full or not-empty 2008 JavaOneSM Conference | java.sun.com/javaone | 51

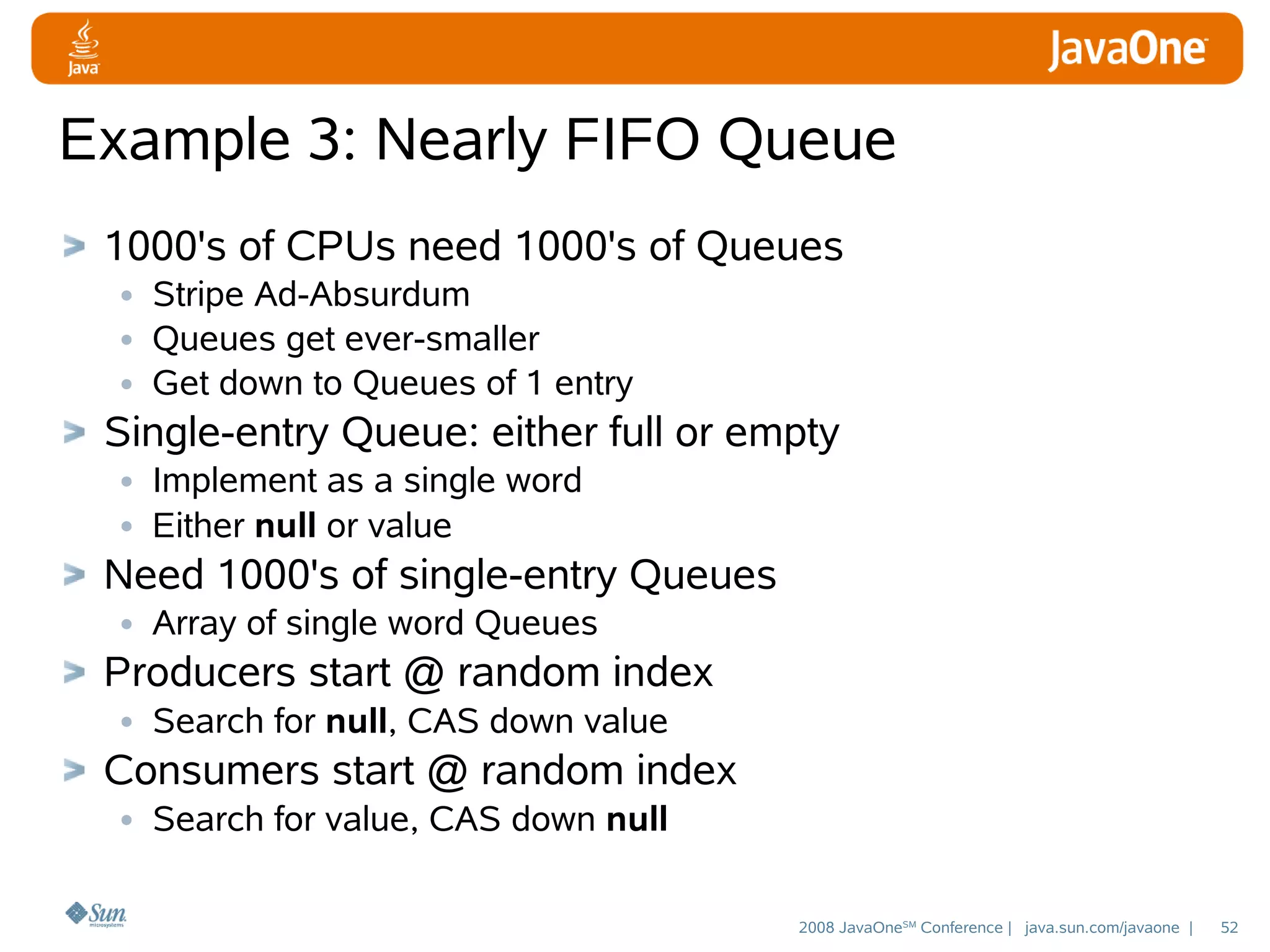

Example 3: Nearly FIFO Queue 1000's of CPUs need 1000's of Queues • Stripe Ad-Absurdum • Queues get ever-smaller • Get down to Queues of 1 entry Single-entry Queue: either full or empty • Implement as a single word • Either null or value Need 1000's of single-entry Queues • Array of single word Queues Producers start @ random index • Search for null, CAS down value Consumers start @ random index • Search for value, CAS down null 2008 JavaOneSM Conference | java.sun.com/javaone | 52

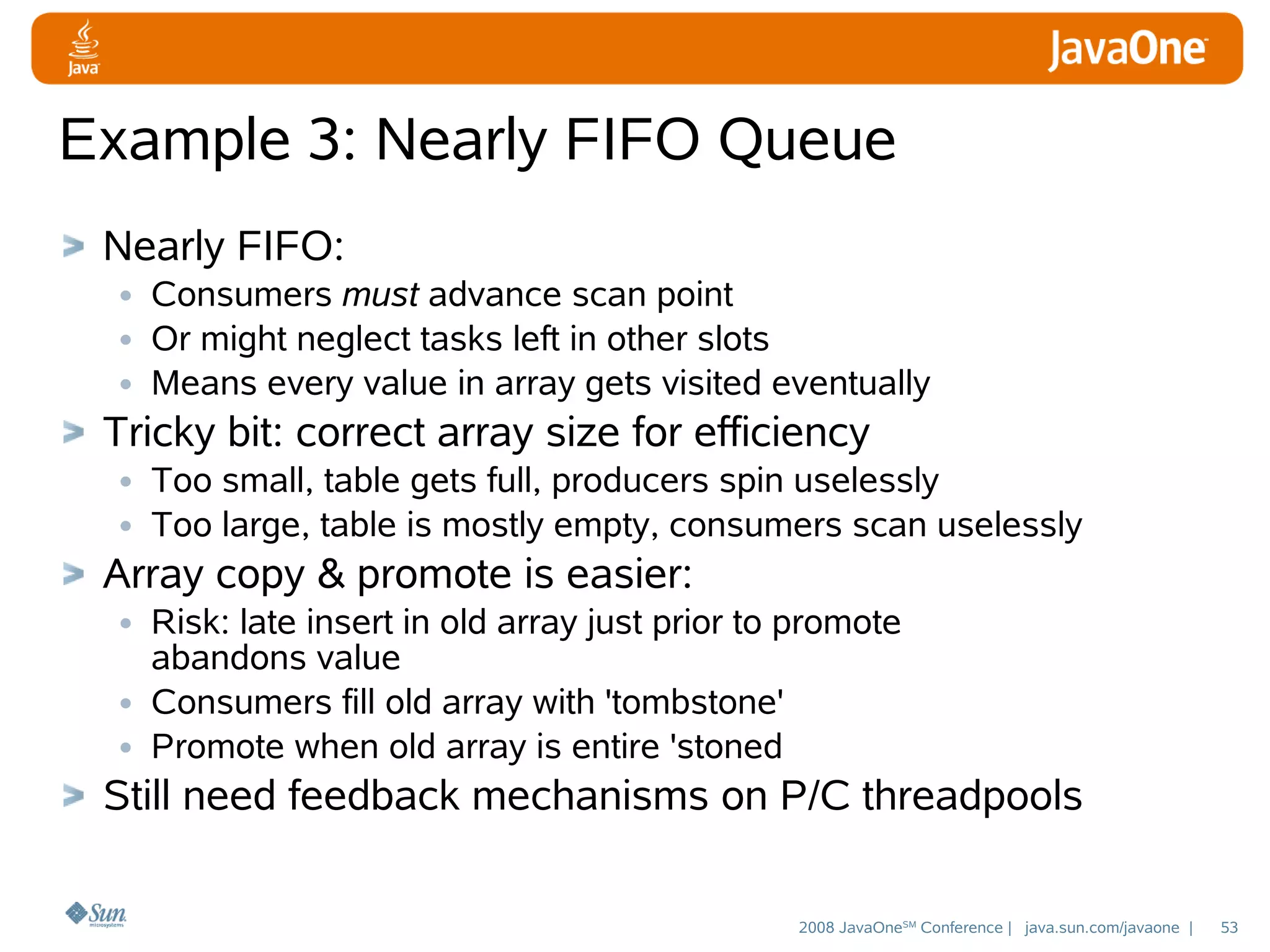

Example 3: Nearly FIFO Queue Nearly FIFO: • Consumers must advance scan point • Or might neglect tasks left in other slots • Means every value in array gets visited eventually Tricky bit: correct array size for efficiency • Too small, table gets full, producers spin uselessly • Too large, table is mostly empty, consumers scan uselessly Array copy & promote is easier: • Risk: late insert in old array just prior to promote abandons value • Consumers fill old array with 'tombstone' • Promote when old array is entire 'stoned Still need feedback mechanisms on P/C threadpools 2008 JavaOneSM Conference | java.sun.com/javaone | 53

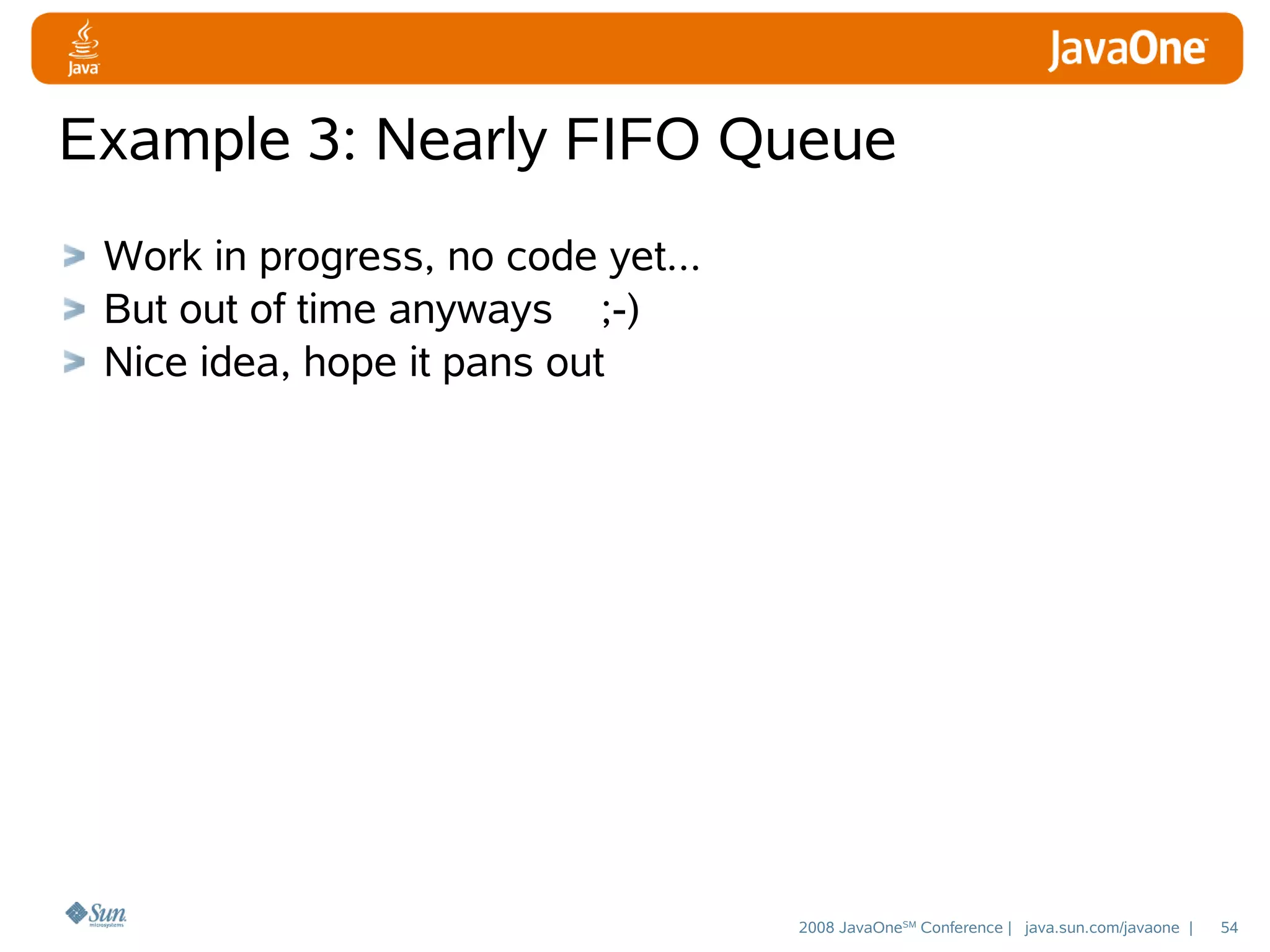

Example 3: Nearly FIFO Queue Work in progress, no code yet... But out of time anyways ;-) Nice idea, hope it pans out 2008 JavaOneSM Conference | java.sun.com/javaone | 54
Agenda Motivation A Scalable Non-Blocking Coding Style Example 1: BitVector Example 2: HashTable Example 3: Nearly FIFO Queue Summary 2008 JavaOneSM Conference | java.sun.com/javaone | 55

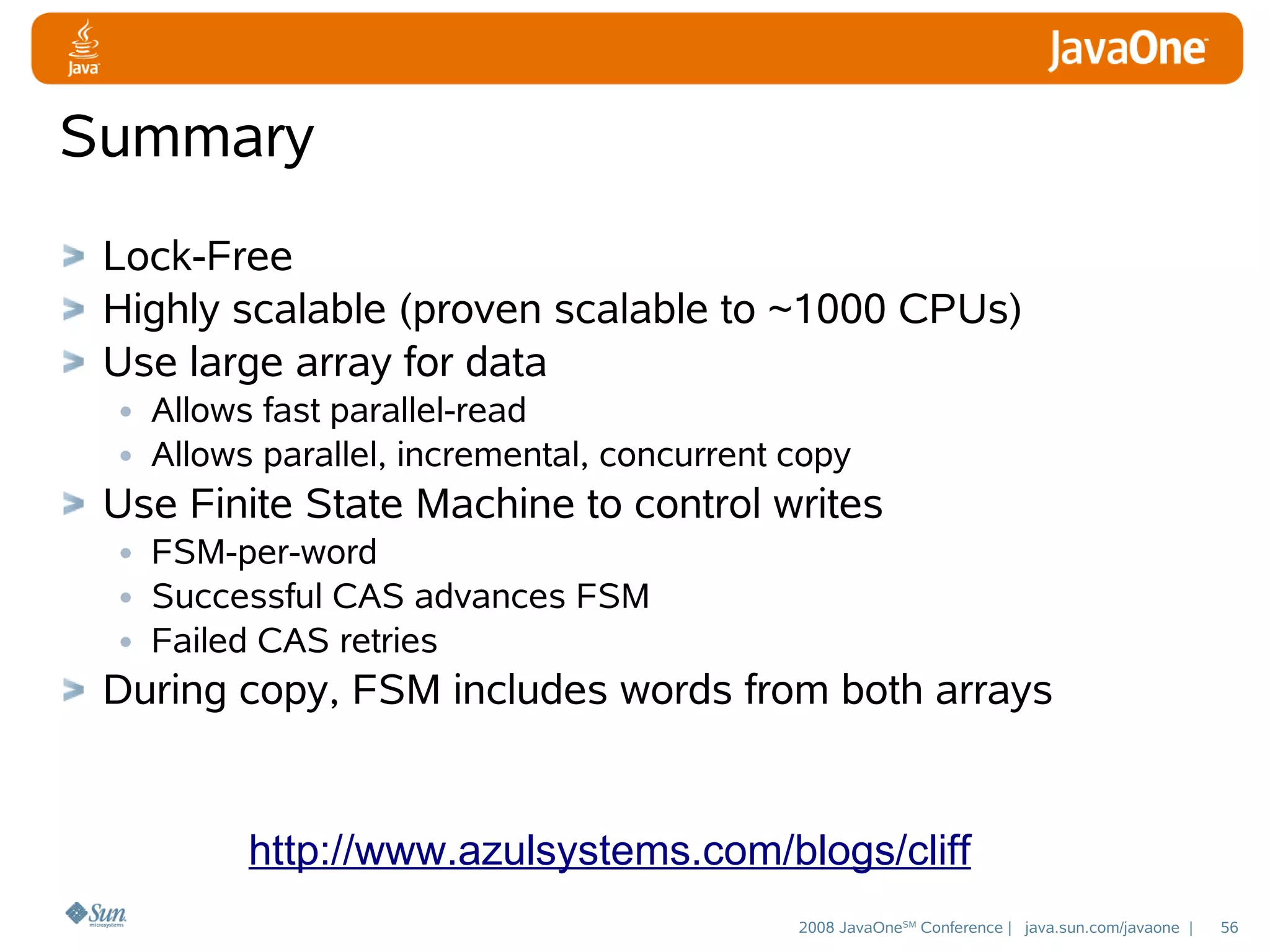

Summary Lock-Free Highly scalable (proven scalable to ~1000 CPUs) Use large array for data • Allows fast parallel-read • Allows parallel, incremental, concurrent copy Use Finite State Machine to control writes • FSM-per-word • Successful CAS advances FSM • Failed CAS retries During copy, FSM includes words from both arrays http://www.azulsystems.com/blogs/cliff 2008 JavaOneSM Conference | java.sun.com/javaone | 56
Dr. Cliff Click, Distinguished Engineer Azul Systems http://blogs.azulsystems.com/cliff 2008 JavaOneSM Conference | java.sun.com/javaone | 57
