![Model
public struct CategoryList {
public var filterGroups : Array<FilterGroups>?
public var filterKey : String?
public var appStoreAPIVersion : Double?
public var status : Int?
public init() {}
/**
Constructs the object based on the given dictionary.
- parameter dictionary: NSDictionary from JSON.
- returns: CategoryList Instance.
*/
public init?(dictionary: NSDictionary) {
if (dictionary["filterGroups"] != nil) {
filterGroups = FilterGroups.modelsFromDictionaryArray(array: dictionary["filterGroups"] as! NSArray)
}
filterKey = dictionary["filterKey"] as? String
appStoreAPIVersion = dictionary["appStoreAPIVersion"] as? Double
status = dictionary["status"] as? Int
}
}](https://image.slidesharecdn.com/thingmakermvc-180706030930/75/ThingMaker-in-Swift-15-2048.jpg)

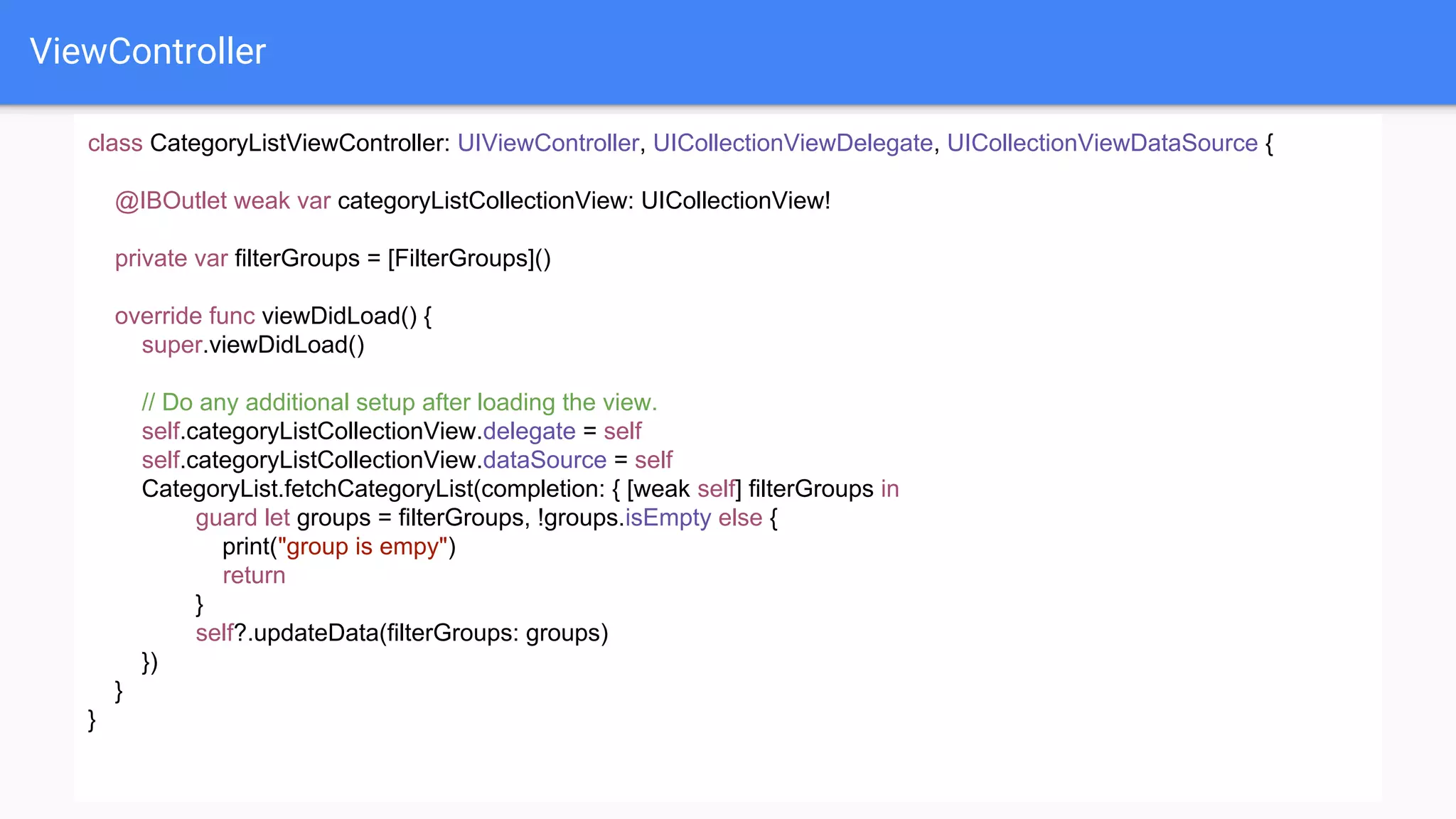

![ViewController
class CategoryListViewController: UIViewController, UICollectionViewDelegate, UICollectionViewDataSource {
@IBOutlet weak var categoryListCollectionView: UICollectionView!
private var filterGroups = [FilterGroups]()
override func viewDidLoad() {
super.viewDidLoad()
// Do any additional setup after loading the view.
self.categoryListCollectionView.delegate = self
self.categoryListCollectionView.dataSource = self
CategoryList.fetchCategoryList(completion: { [weak self] filterGroups in
guard let groups = filterGroups, !groups.isEmpty else {
print("group is empy")
return
}
self?.updateData(filterGroups: groups)
})
}
}](https://image.slidesharecdn.com/thingmakermvc-180706030930/75/ThingMaker-in-Swift-17-2048.jpg)

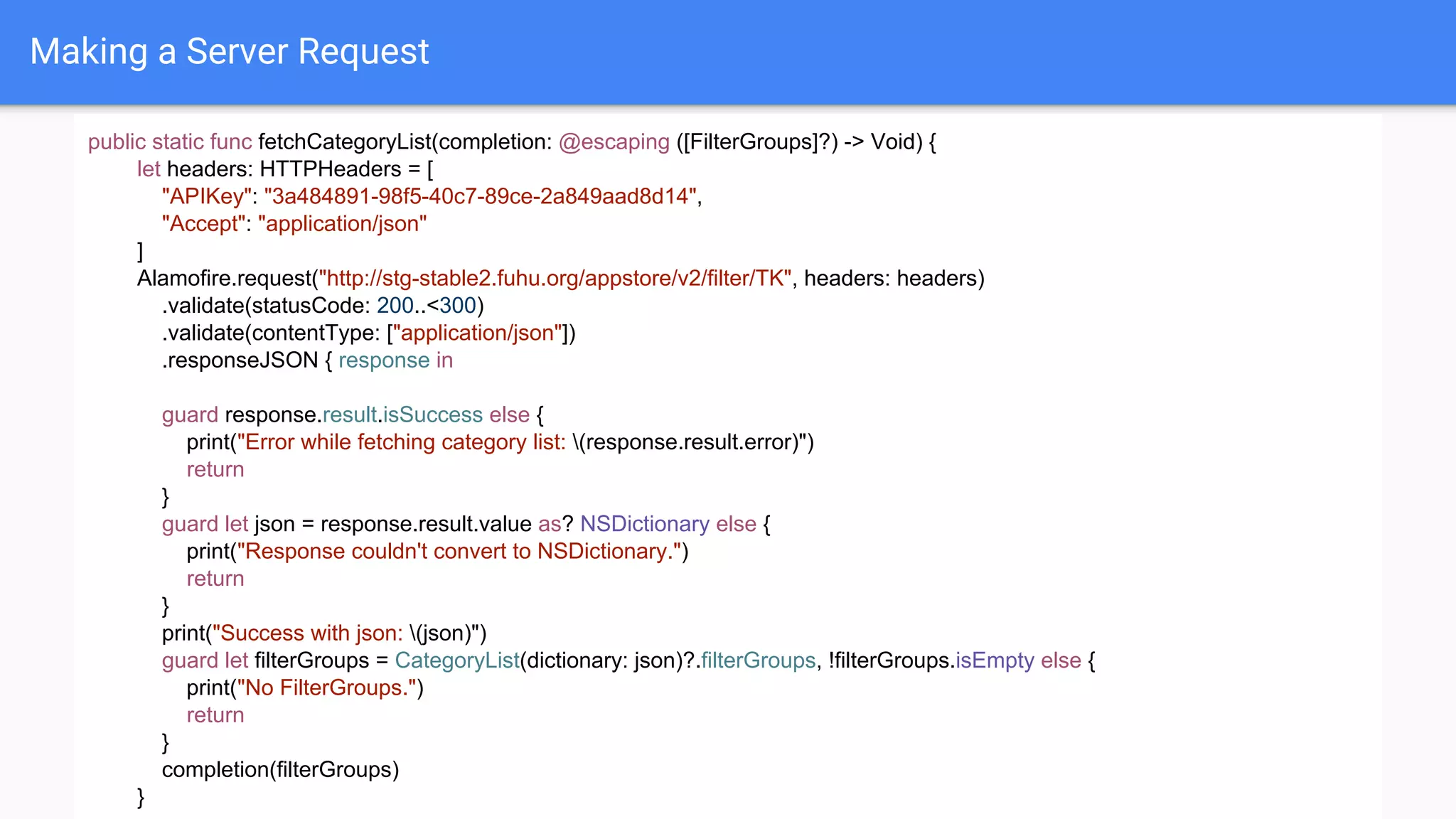

![Making a Server Request
public static func fetchCategoryList(completion: @escaping ([FilterGroups]?) -> Void) {
let headers: HTTPHeaders = [
"APIKey": "3a484891-98f5-40c7-89ce-2a849aad8d14",
"Accept": "application/json"
]
Alamofire.request("http://stg-stable2.fuhu.org/appstore/v2/filter/TK", headers: headers)
.validate(statusCode: 200..<300)
.validate(contentType: ["application/json"])
.responseJSON { response in
guard response.result.isSuccess else {
print("Error while fetching category list: (response.result.error)")
return
}
guard let json = response.result.value as? NSDictionary else {
print("Response couldn't convert to NSDictionary.")
return
}
print("Success with json: (json)")
guard let filterGroups = CategoryList(dictionary: json)?.filterGroups, !filterGroups.isEmpty else {
print("No FilterGroups.")
return
}
completion(filterGroups)
}](https://image.slidesharecdn.com/thingmakermvc-180706030930/75/ThingMaker-in-Swift-18-2048.jpg)
![Return result to Completion handler
class CategoryListViewController: UIViewController, UICollectionViewDelegate, UICollectionViewDataSource {
@IBOutlet weak var categoryListCollectionView: UICollectionView!
private var filterGroups = [FilterGroups]()
override func viewDidLoad() {
...
CategoryList.fetchCategoryList(completion: { [weak self] filterGroups in
guard let groups = filterGroups, !groups.isEmpty else {
print("group is empy")
return
}
self?.updateData(filterGroups: groups)
})
}
func updateData(filterGroups: [FilterGroups]) {
self.filterGroups = filterGroups
self.categoryListCollectionView.reloadData()
}
...
}](https://image.slidesharecdn.com/thingmakermvc-180706030930/75/ThingMaker-in-Swift-19-2048.jpg)
![Update UI - Label
func collectionView(_ collectionView: UICollectionView, cellForItemAt indexPath: IndexPath) ->
UICollectionViewCell {
let cell = collectionView.dequeueReusableCell(withReuseIdentifier: "CategoryCell", for:
indexPath) as! CategoryCollectionViewCell
guard let filterGroup = filterGroups[safe: indexPath.row]
else {
print("no filter group")
return cell
}
// set labels
guard let categoryLabel = filterGroup.filterGroupName else {
print("no category label")
return cell
}
cell.categoryLabel.text = categoryLabel
...
}](https://image.slidesharecdn.com/thingmakermvc-180706030930/75/ThingMaker-in-Swift-20-2048.jpg)

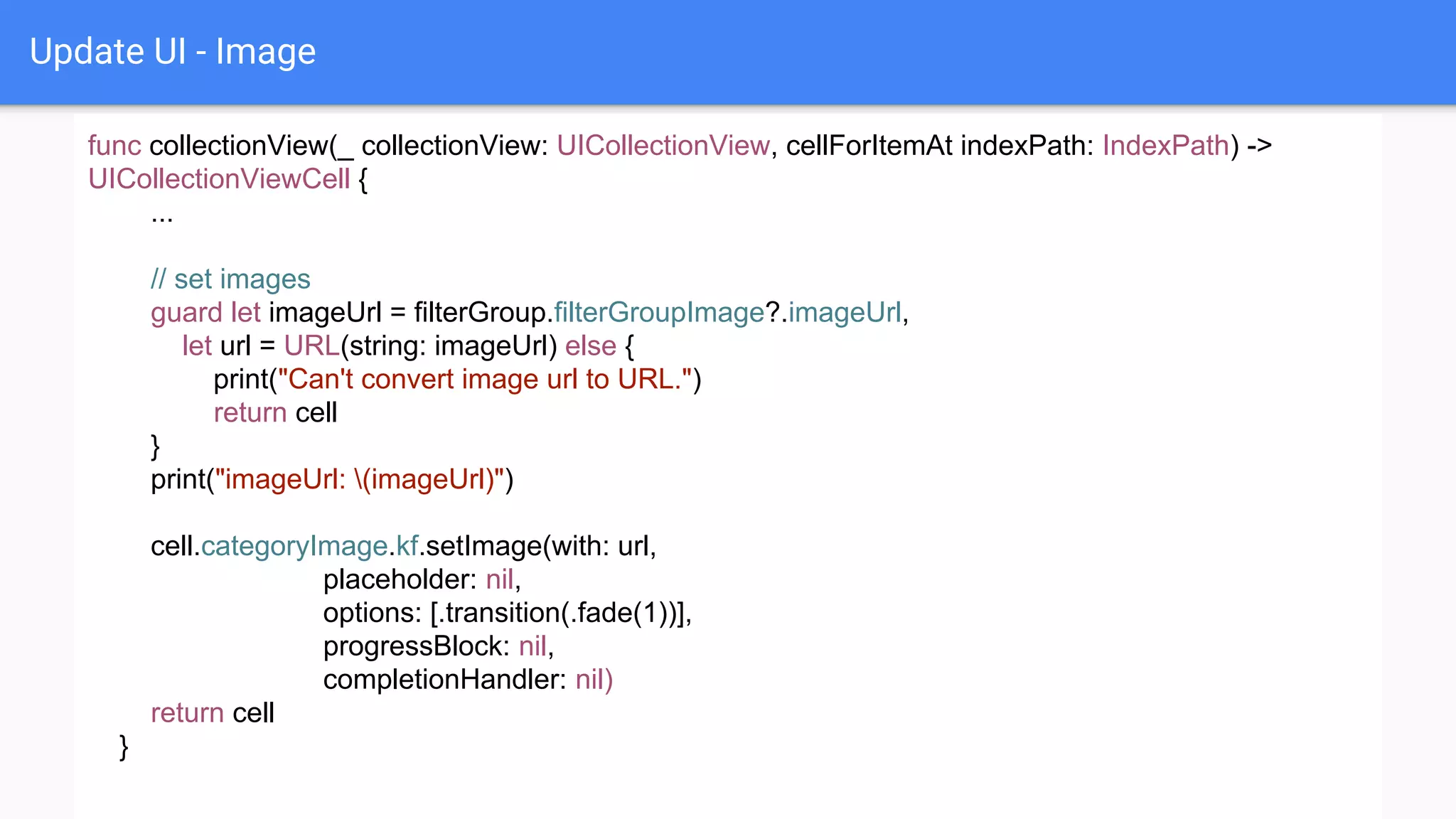

![Update UI - Image
func collectionView(_ collectionView: UICollectionView, cellForItemAt indexPath: IndexPath) ->
UICollectionViewCell {
...
// set images
guard let imageUrl = filterGroup.filterGroupImage?.imageUrl,
let url = URL(string: imageUrl) else {
print("Can't convert image url to URL.")
return cell
}
print("imageUrl: (imageUrl)")
cell.categoryImage.kf.setImage(with: url,
placeholder: nil,
options: [.transition(.fade(1))],
progressBlock: nil,
completionHandler: nil)
return cell
}](https://image.slidesharecdn.com/thingmakermvc-180706030930/75/ThingMaker-in-Swift-21-2048.jpg)
Uploaded byallanh0526
ThingMaker in Swift

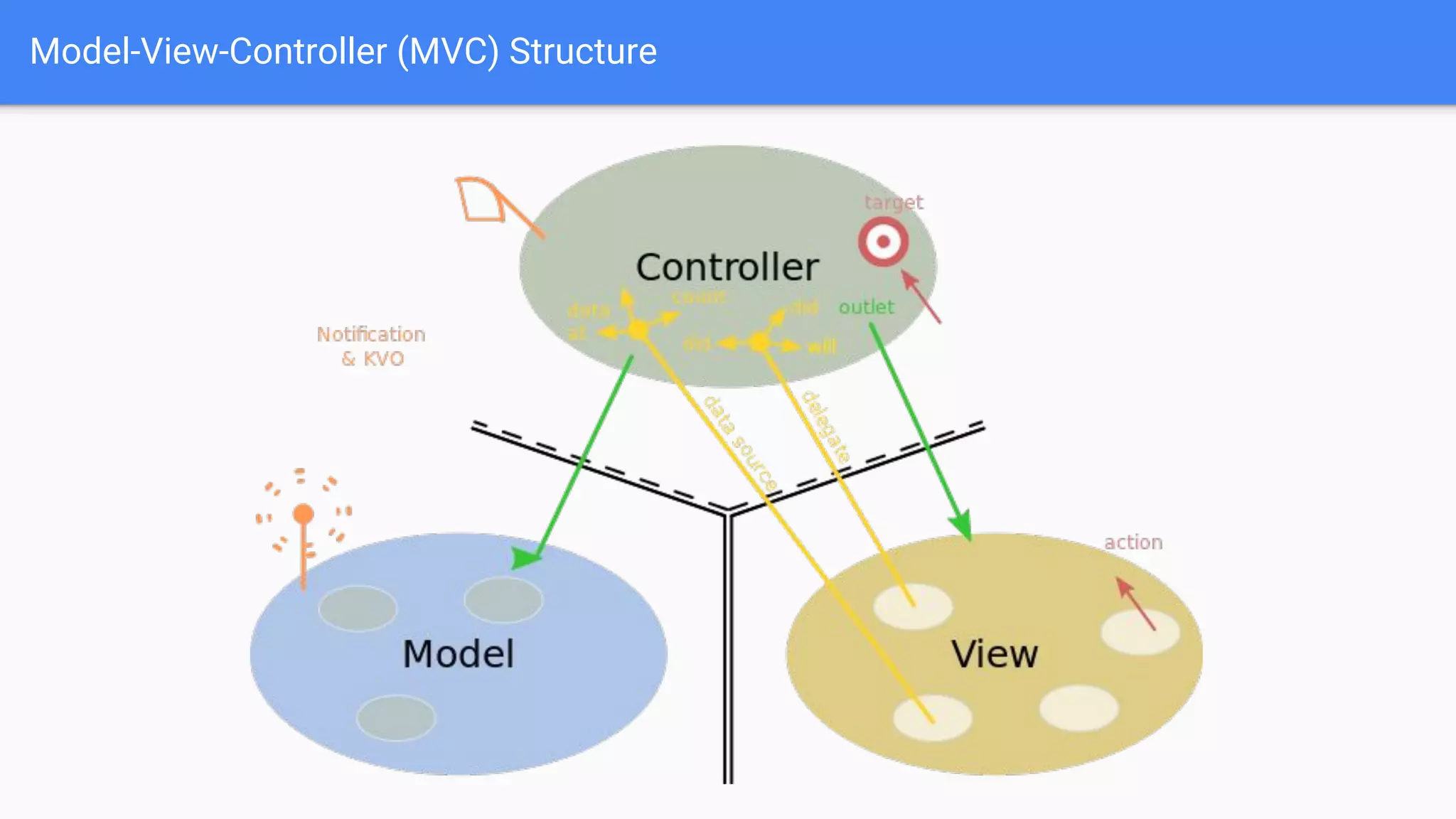

1. The document discusses ThingMaker in Swift, including using Xcode, Model-View-Controller structure, making server requests, and updating the UI. It demonstrates fetching category data from a server, storing it in a model, and displaying it in a collection view. Key aspects covered are the MVC pattern, Alamofire for network requests, and Kingfisher for image loading.
More Related Content
ThingMaker in Swift
- 1.

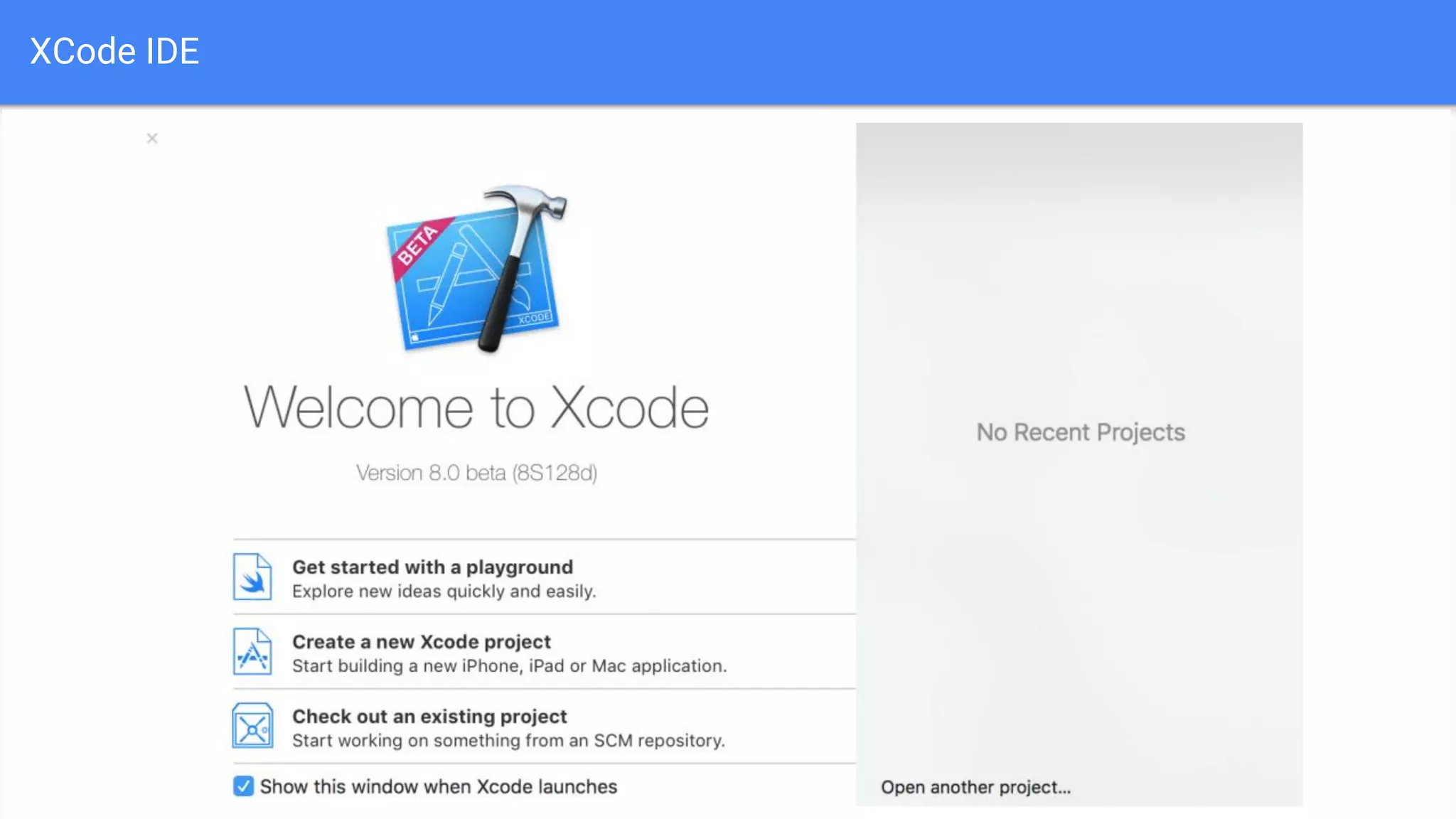

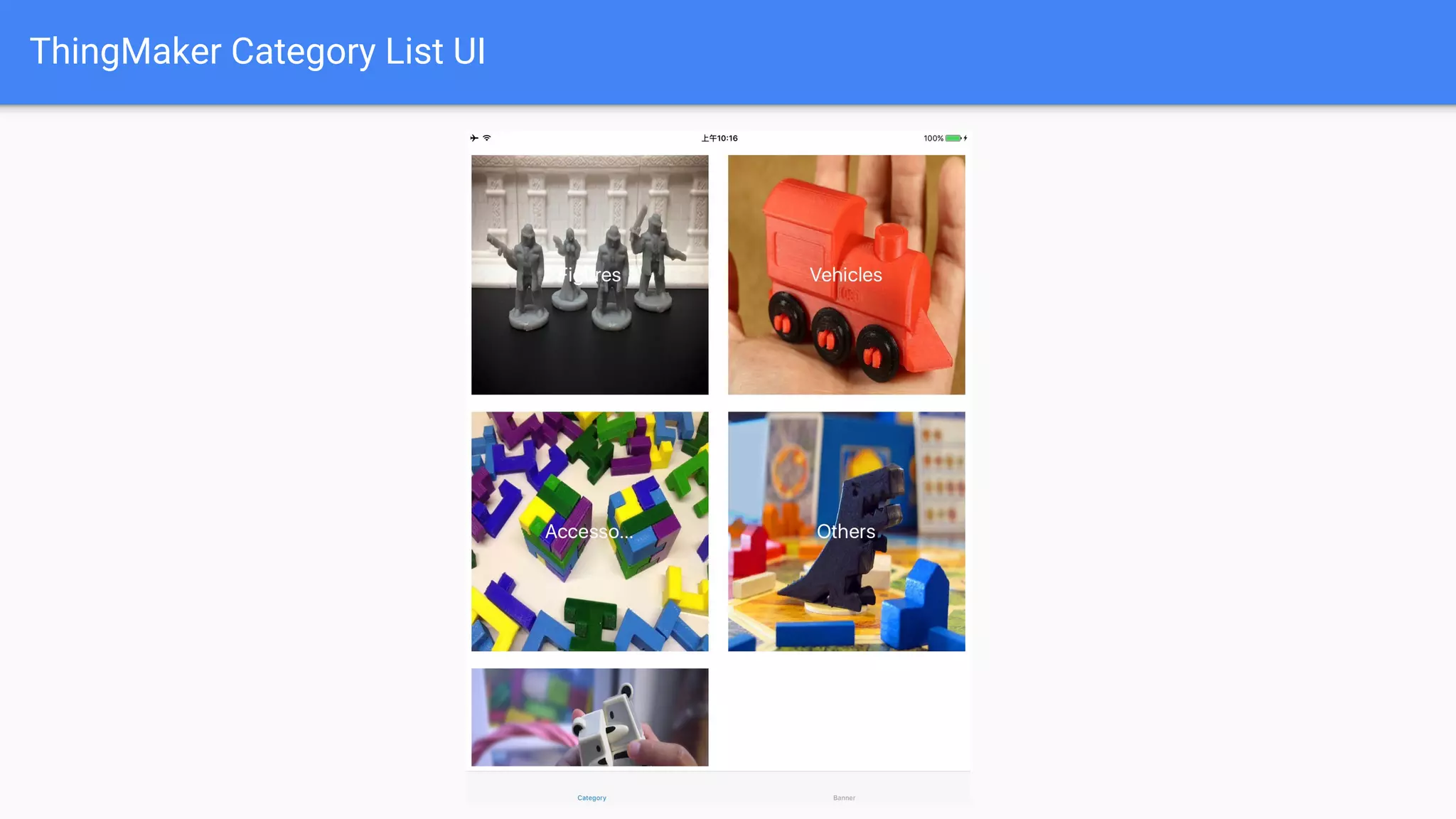

- 2. Agenda ● XCode IDE ●ThingMaker: Category List UI ● Model-View-Controller (MVC) Structure ● Make a Server Request ● Demo ● Todo List ● Reference
- 3.
- 4.
- 5.
- 6.
- 7.
- 8.

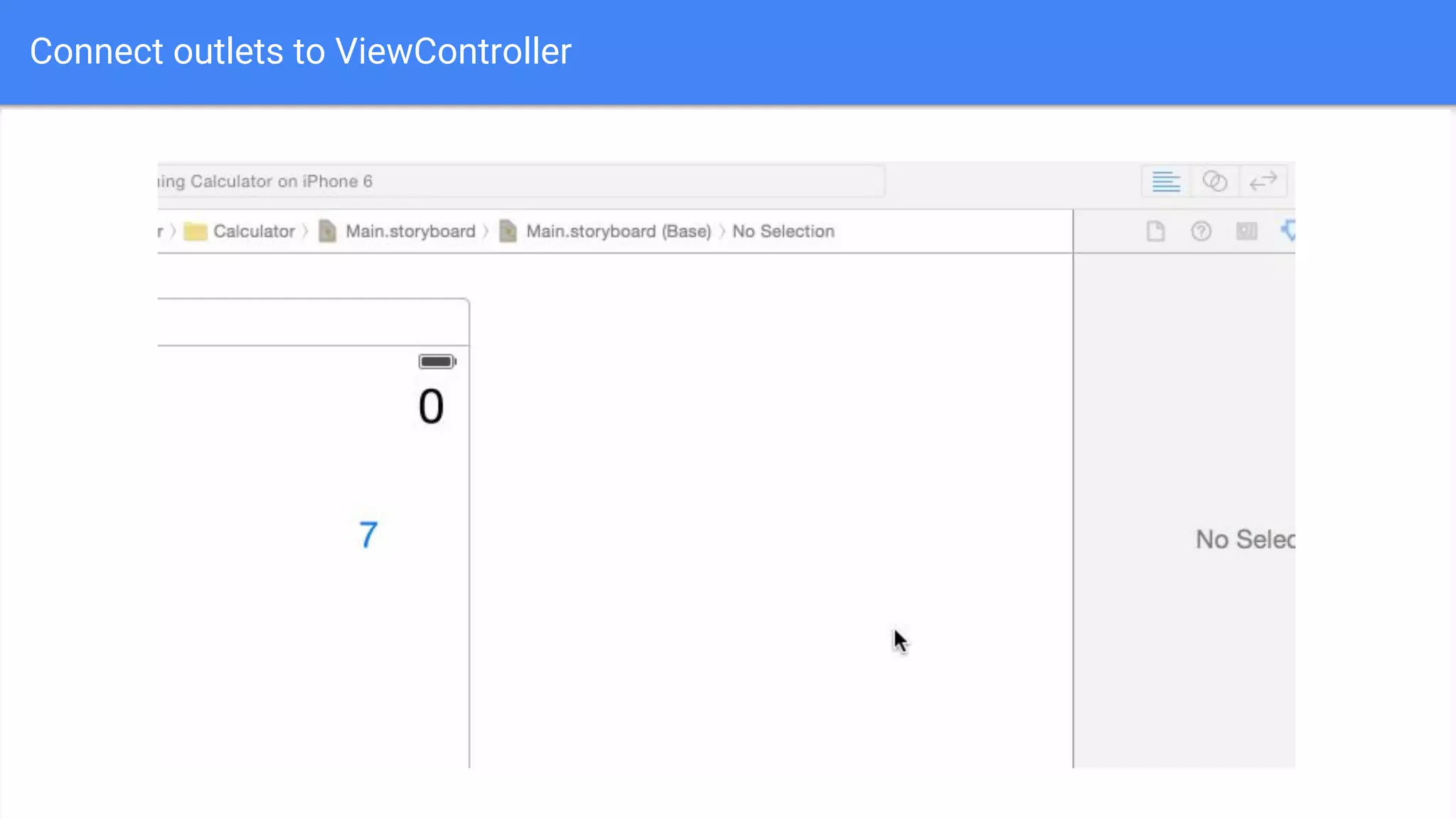

- 9. Connect outlets toViewController

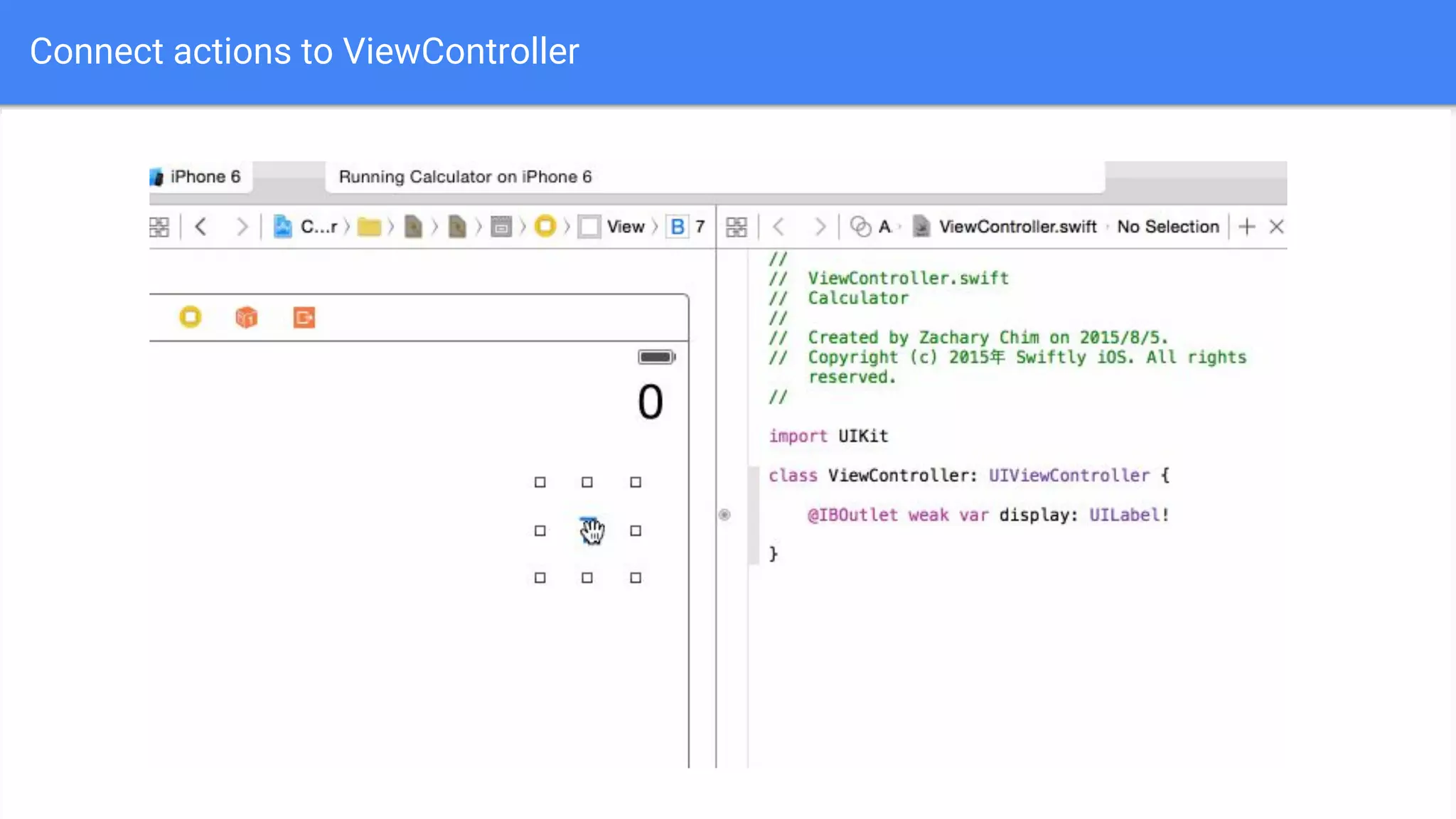

- 10. Connect actions toViewController
- 11.
- 12.
- 13.

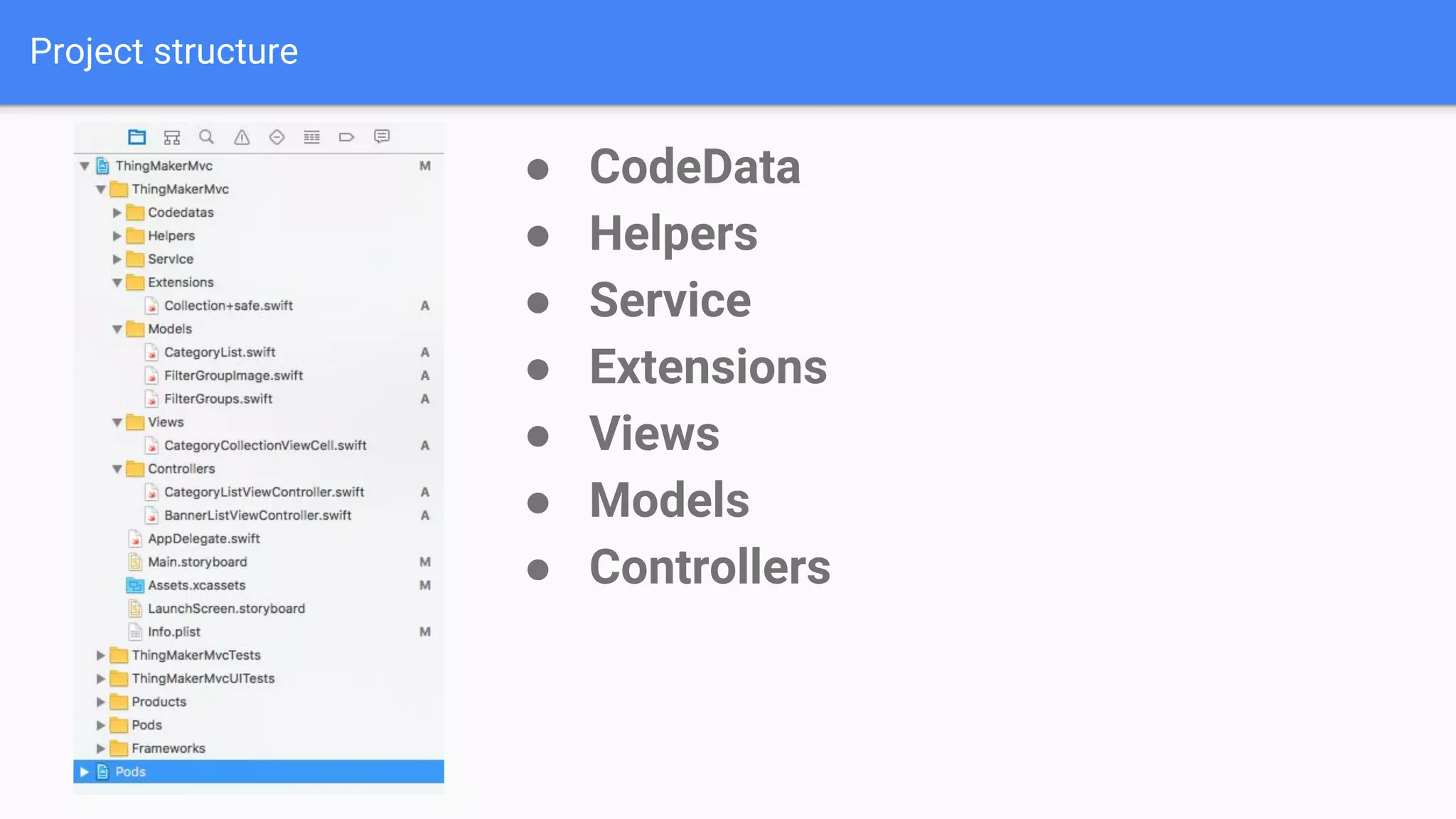

- 14. Project structure ● CodeData ●Helpers ● Service ● Extensions ● Views ● Models ● Controllers

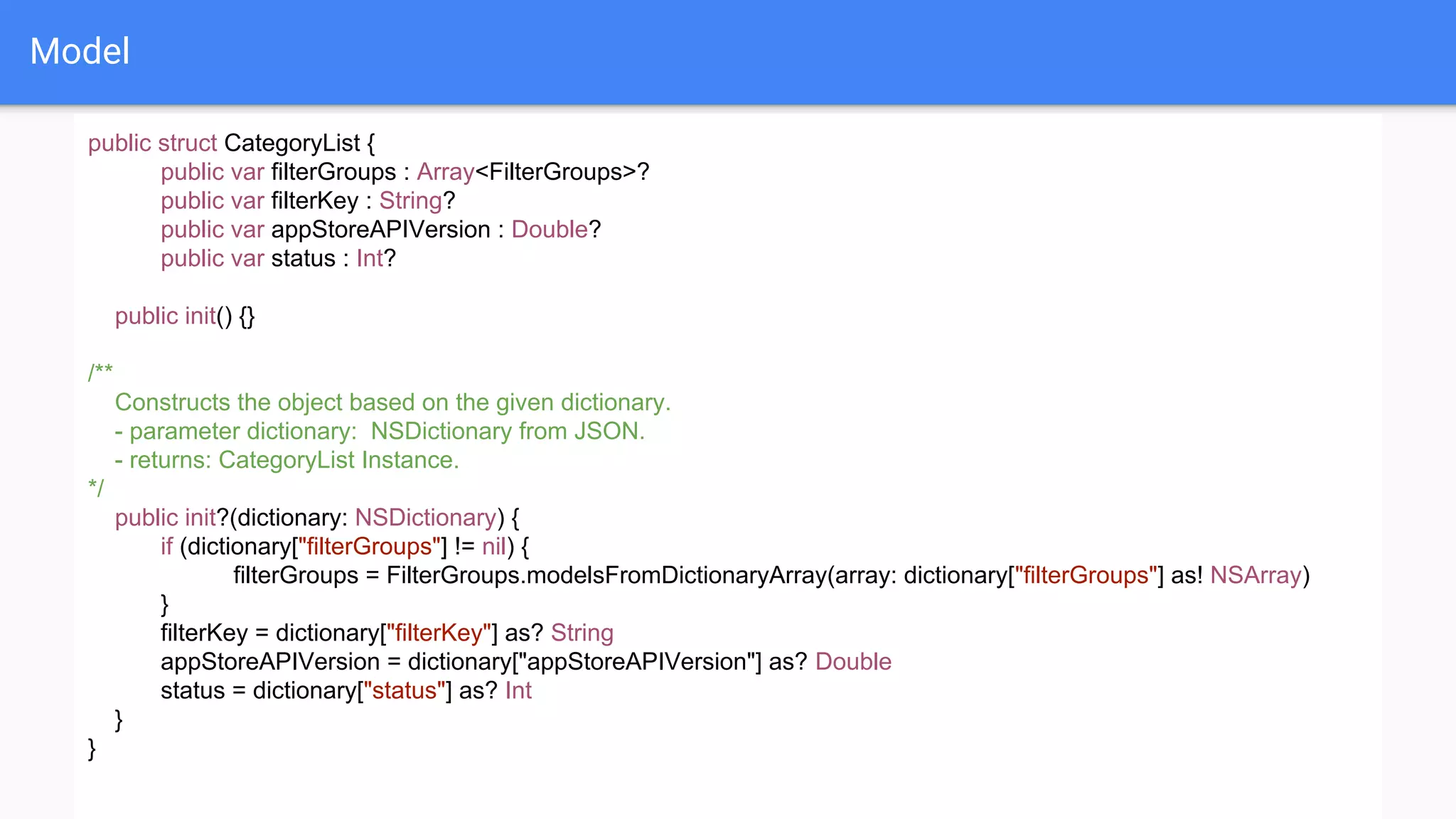

- 15. Model public struct CategoryList{ public var filterGroups : Array<FilterGroups>? public var filterKey : String? public var appStoreAPIVersion : Double? public var status : Int? public init() {} /** Constructs the object based on the given dictionary. - parameter dictionary: NSDictionary from JSON. - returns: CategoryList Instance. */ public init?(dictionary: NSDictionary) { if (dictionary["filterGroups"] != nil) { filterGroups = FilterGroups.modelsFromDictionaryArray(array: dictionary["filterGroups"] as! NSArray) } filterKey = dictionary["filterKey"] as? String appStoreAPIVersion = dictionary["appStoreAPIVersion"] as? Double status = dictionary["status"] as? Int } }

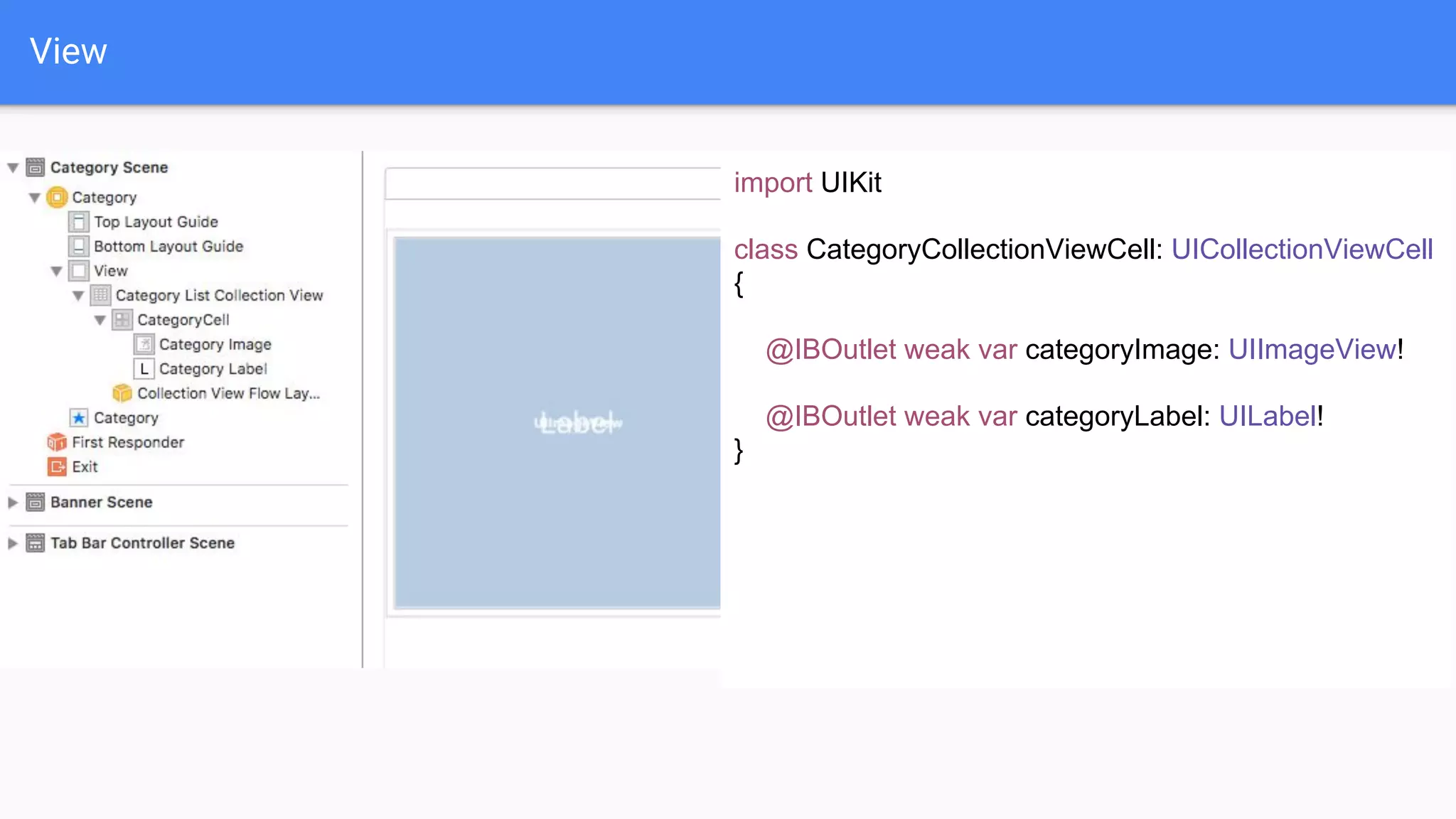

- 16. View import UIKit class CategoryCollectionViewCell:UICollectionViewCell { @IBOutlet weak var categoryImage: UIImageView! @IBOutlet weak var categoryLabel: UILabel! }
- 17. ViewController class CategoryListViewController: UIViewController,UICollectionViewDelegate, UICollectionViewDataSource { @IBOutlet weak var categoryListCollectionView: UICollectionView! private var filterGroups = [FilterGroups]() override func viewDidLoad() { super.viewDidLoad() // Do any additional setup after loading the view. self.categoryListCollectionView.delegate = self self.categoryListCollectionView.dataSource = self CategoryList.fetchCategoryList(completion: { [weak self] filterGroups in guard let groups = filterGroups, !groups.isEmpty else { print("group is empy") return } self?.updateData(filterGroups: groups) }) } }
- 18. Making a ServerRequest public static func fetchCategoryList(completion: @escaping ([FilterGroups]?) -> Void) { let headers: HTTPHeaders = [ "APIKey": "3a484891-98f5-40c7-89ce-2a849aad8d14", "Accept": "application/json" ] Alamofire.request("http://stg-stable2.fuhu.org/appstore/v2/filter/TK", headers: headers) .validate(statusCode: 200..<300) .validate(contentType: ["application/json"]) .responseJSON { response in guard response.result.isSuccess else { print("Error while fetching category list: (response.result.error)") return } guard let json = response.result.value as? NSDictionary else { print("Response couldn't convert to NSDictionary.") return } print("Success with json: (json)") guard let filterGroups = CategoryList(dictionary: json)?.filterGroups, !filterGroups.isEmpty else { print("No FilterGroups.") return } completion(filterGroups) }

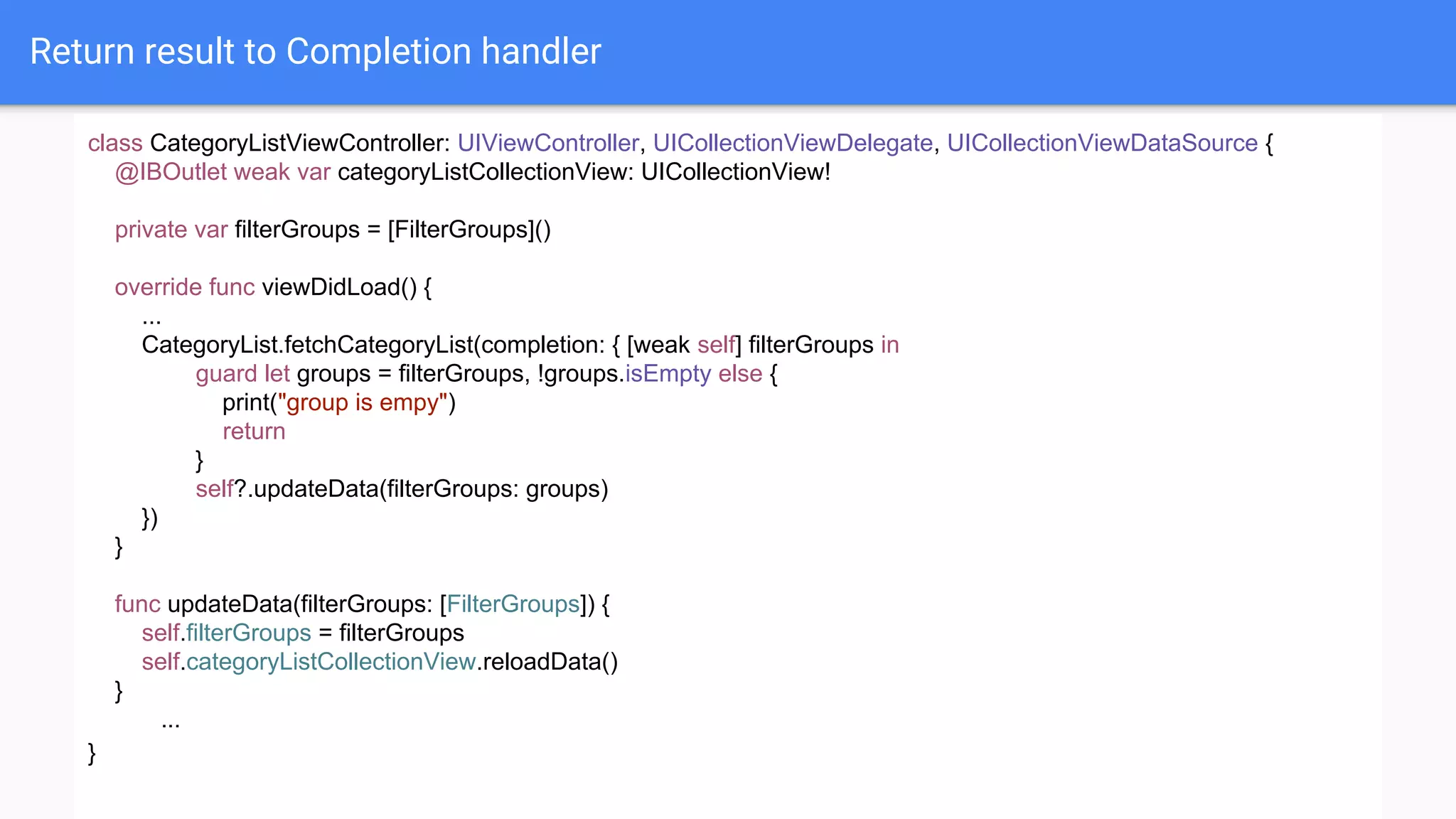

- 19. Return result toCompletion handler class CategoryListViewController: UIViewController, UICollectionViewDelegate, UICollectionViewDataSource { @IBOutlet weak var categoryListCollectionView: UICollectionView! private var filterGroups = [FilterGroups]() override func viewDidLoad() { ... CategoryList.fetchCategoryList(completion: { [weak self] filterGroups in guard let groups = filterGroups, !groups.isEmpty else { print("group is empy") return } self?.updateData(filterGroups: groups) }) } func updateData(filterGroups: [FilterGroups]) { self.filterGroups = filterGroups self.categoryListCollectionView.reloadData() } ... }

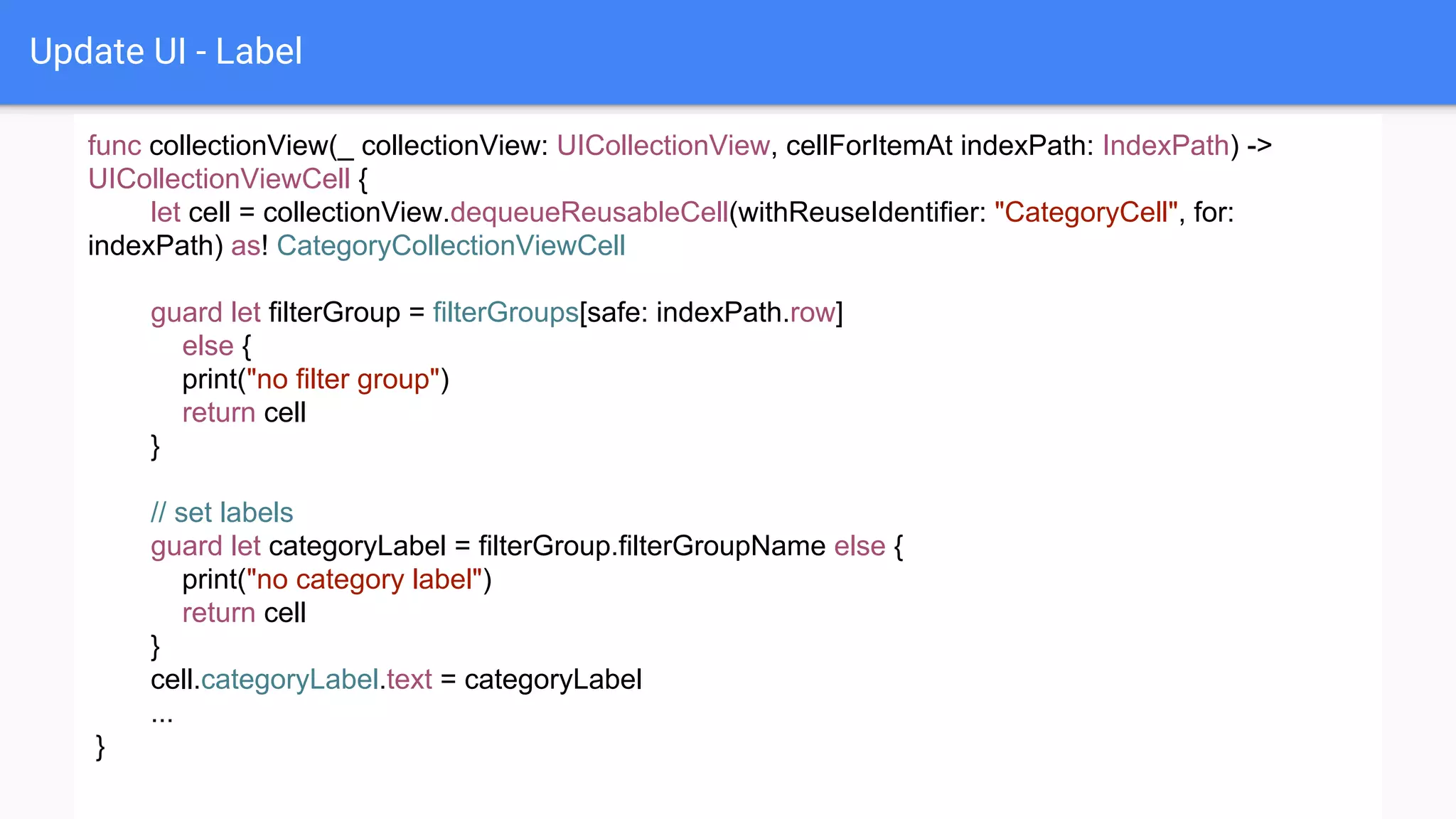

- 20. Update UI -Label func collectionView(_ collectionView: UICollectionView, cellForItemAt indexPath: IndexPath) -> UICollectionViewCell { let cell = collectionView.dequeueReusableCell(withReuseIdentifier: "CategoryCell", for: indexPath) as! CategoryCollectionViewCell guard let filterGroup = filterGroups[safe: indexPath.row] else { print("no filter group") return cell } // set labels guard let categoryLabel = filterGroup.filterGroupName else { print("no category label") return cell } cell.categoryLabel.text = categoryLabel ... }
- 21. Update UI -Image func collectionView(_ collectionView: UICollectionView, cellForItemAt indexPath: IndexPath) -> UICollectionViewCell { ... // set images guard let imageUrl = filterGroup.filterGroupImage?.imageUrl, let url = URL(string: imageUrl) else { print("Can't convert image url to URL.") return cell } print("imageUrl: (imageUrl)") cell.categoryImage.kf.setImage(with: url, placeholder: nil, options: [.transition(.fade(1))], progressBlock: nil, completionHandler: nil) return cell }
- 22.

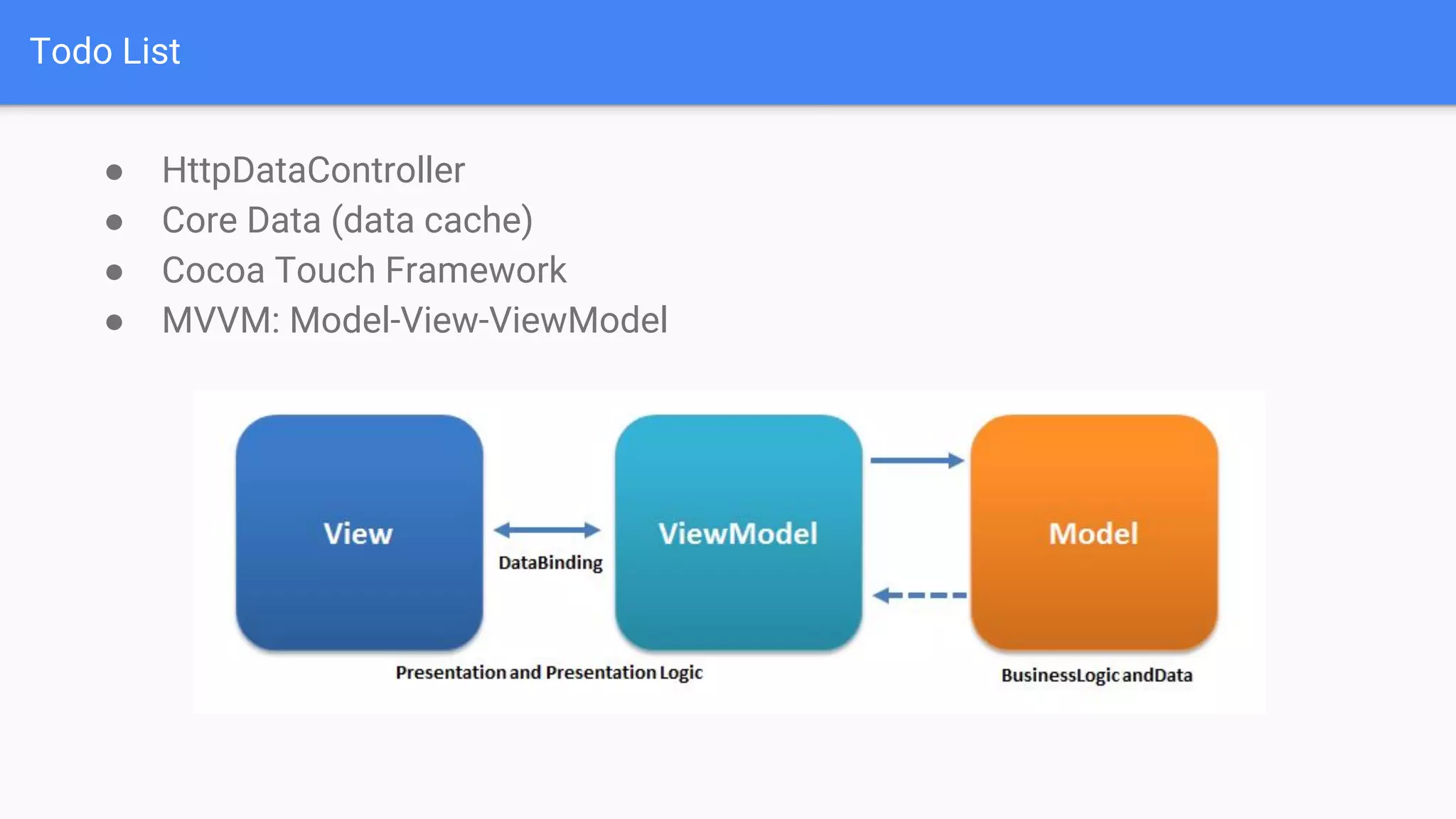

- 23. Todo List ● HttpDataController ●Core Data (data cache) ● Cocoa Touch Framework ● MVVM: Model-View-ViewModel

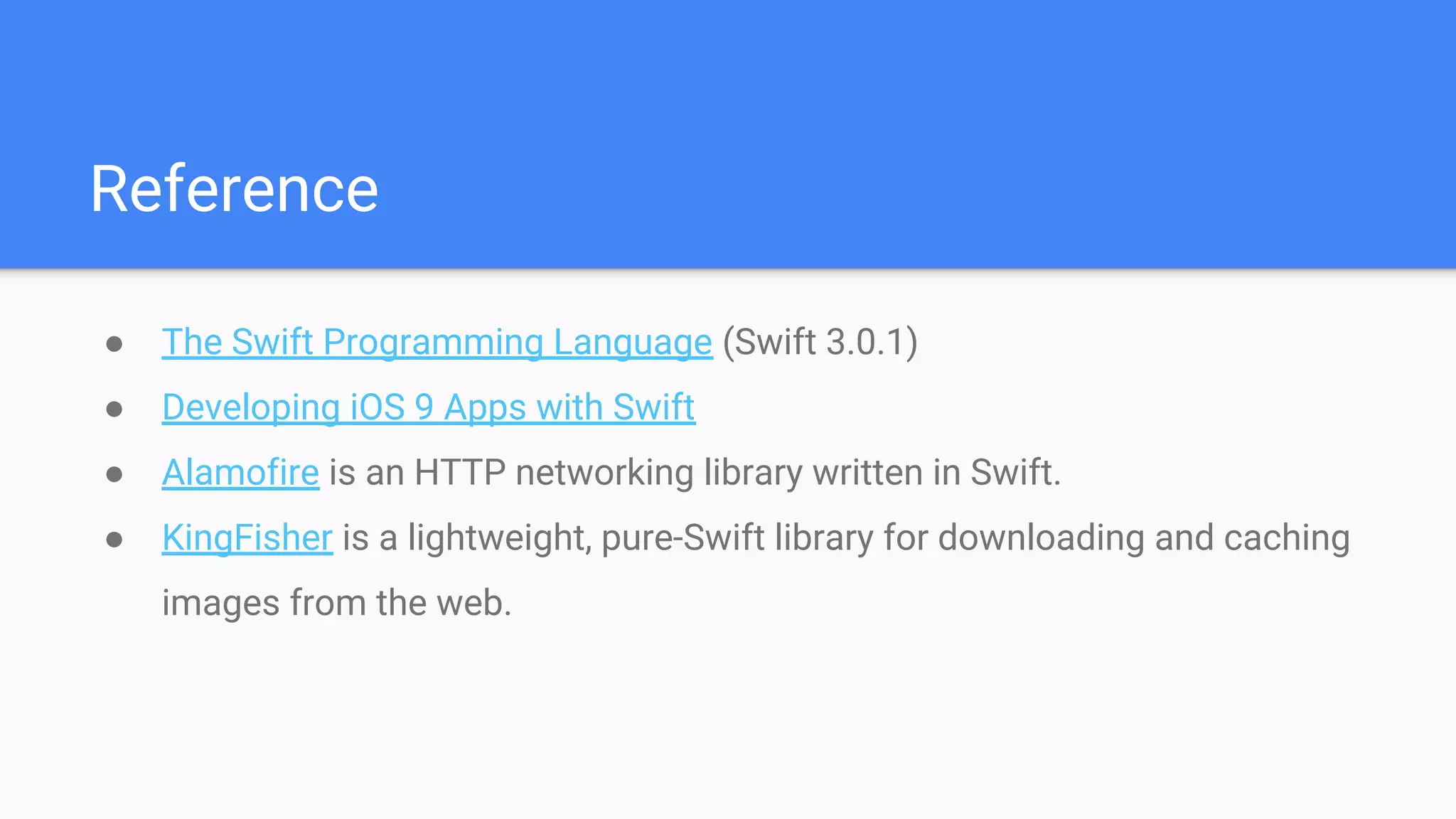

- 24. Reference ● The SwiftProgramming Language (Swift 3.0.1) ● Developing iOS 9 Apps with Swift ● Alamofire is an HTTP networking library written in Swift. ● KingFisher is a lightweight, pure-Swift library for downloading and caching images from the web.
