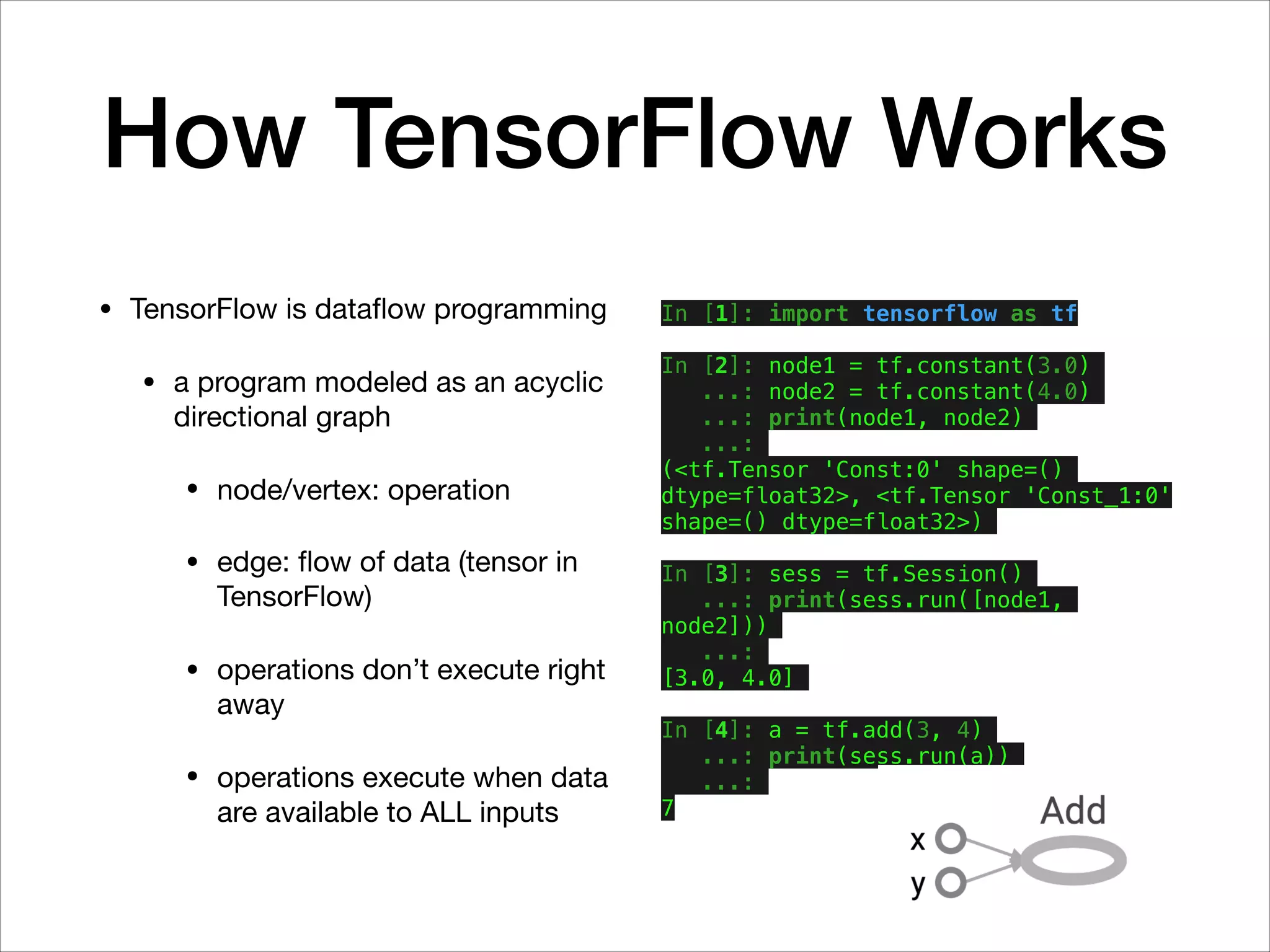

![How TensorFlow Works
• TensorFlow is dataflow programming
• a program modeled as an acyclic
directional graph
• node/vertex: operation
• edge: flow of data (tensor in
TensorFlow)
• operations don’t execute right
away
• operations execute when data
are available to ALL inputs
In [1]: import tensorflow as tf
In [2]: node1 = tf.constant(3.0)
...: node2 = tf.constant(4.0)
...: print(node1, node2)
...:
(<tf.Tensor 'Const:0' shape=()
dtype=float32>, <tf.Tensor 'Const_1:0'
shape=() dtype=float32>)
In [3]: sess = tf.Session()
...: print(sess.run([node1,
node2]))
...:
[3.0, 4.0]
In [4]: a = tf.add(3, 4)
...: print(sess.run(a))
...:
7](https://image.slidesharecdn.com/tensorflow-on-android-170806040852/75/Tensorflow-on-Android-8-2048.jpg)
![• I saw label_image when reading an article on
quantization
• label_image didn't build for Android
• still image decoders (jpg, png, and gif) are
not included
• So,
• made it run
• added a quick and dirty BMP decider
• To hack more quickly (compiling TensorFlow
on MT8173 board running Debian is slow), I
wrote a Python script to mimic what the C++
program does
[1] https://github.com/tensorflow/tensorflow/
tree/master/tensorflow/examples/label_image](https://image.slidesharecdn.com/tensorflow-on-android-170806040852/75/Tensorflow-on-Android-12-2048.jpg)

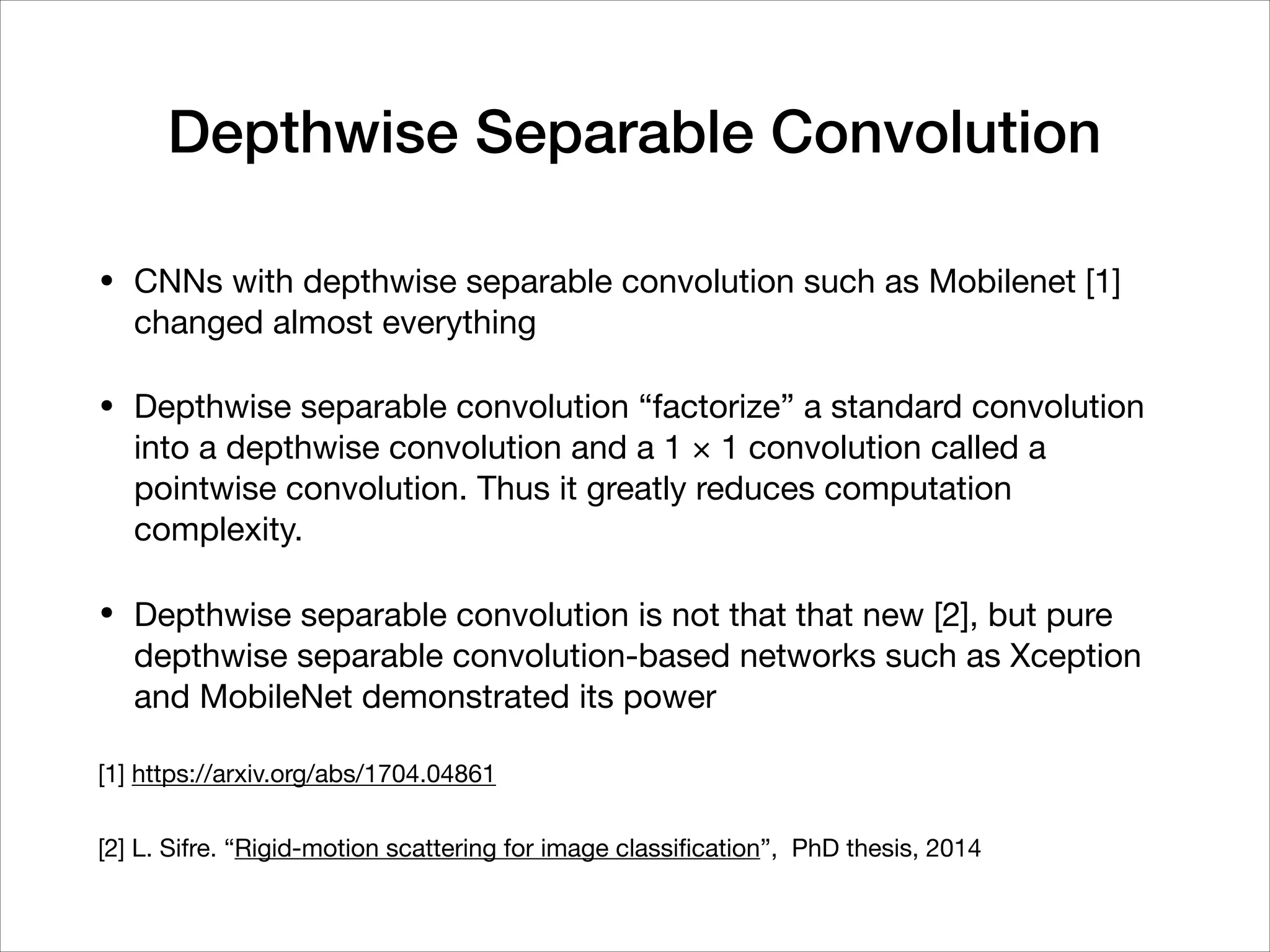

![Depthwise Separable Convolution
• CNNs with depthwise separable convolution such as Mobilenet [1]
changed almost everything
• Depthwise separable convolution “factorize” a standard convolution
into a depthwise convolution and a 1 × 1 convolution called a
pointwise convolution. Thus it greatly reduces computation
complexity.
• Depthwise separable convolution is not that that new [2], but pure
depthwise separable convolution-based networks such as Xception
and MobileNet demonstrated its power
[1] https://arxiv.org/abs/1704.04861
[2] L. Sifre. “Rigid-motion scattering for image classification”, PhD thesis, 2014](https://image.slidesharecdn.com/tensorflow-on-android-170806040852/75/Tensorflow-on-Android-29-2048.jpg)
Uploaded byKoan-Sin Tan
Tensorflow on Android
This document discusses using TensorFlow on Android. It begins by introducing TensorFlow and how it works as a dataflow graph. It then discusses efforts to optimize TensorFlow for mobile and embedded devices through techniques like quantization and models like MobileNet that use depthwise separable convolutions. It shares experiences building and running TensorFlow models on Android, including benchmarking an Inception model and building a label_image demo. It also compares TensorFlow mobile efforts to other mobile deep learning frameworks like CoreML and the upcoming Android Neural Networks API.
More Related Content
Tensorflow on Android
- 1. TensorFlow on Android “freedom” Koan-SinTan freedom@computer.org COSCUP 2017, Taipei, Taiwan
- 2. Who Am I •A software engineer working for a SoC company • An old open source user, learned to use Unix on a VAX-11/780 running 4.3BSD • Learned a bit about TensorFlow and how it works on Android • Send a couple of PRs, when I was learning to use TensorFlow to classify image

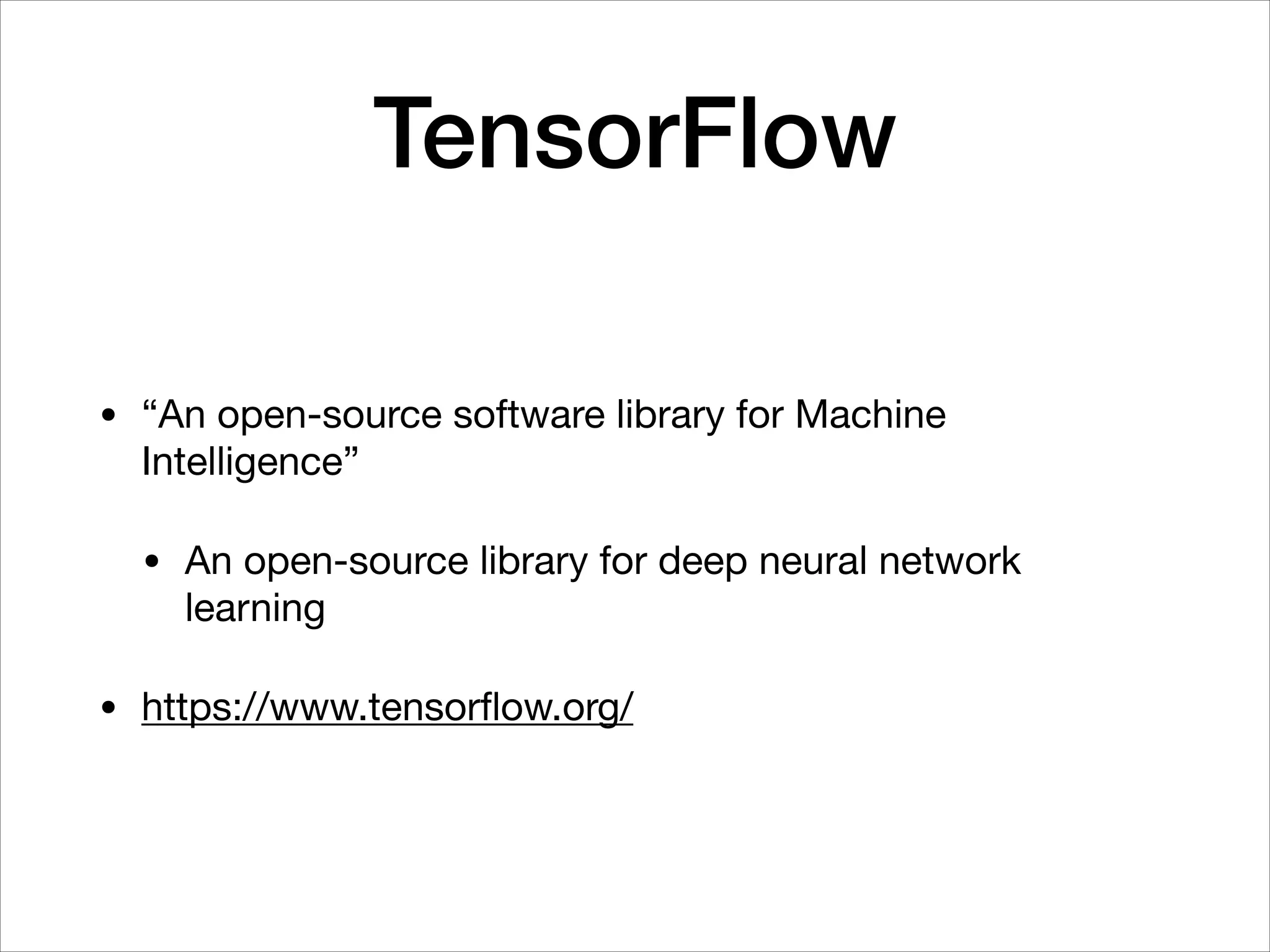

- 3. TensorFlow • “An open-sourcesoftware library for Machine Intelligence” • An open-source library for deep neural network learning • https://www.tensorflow.org/

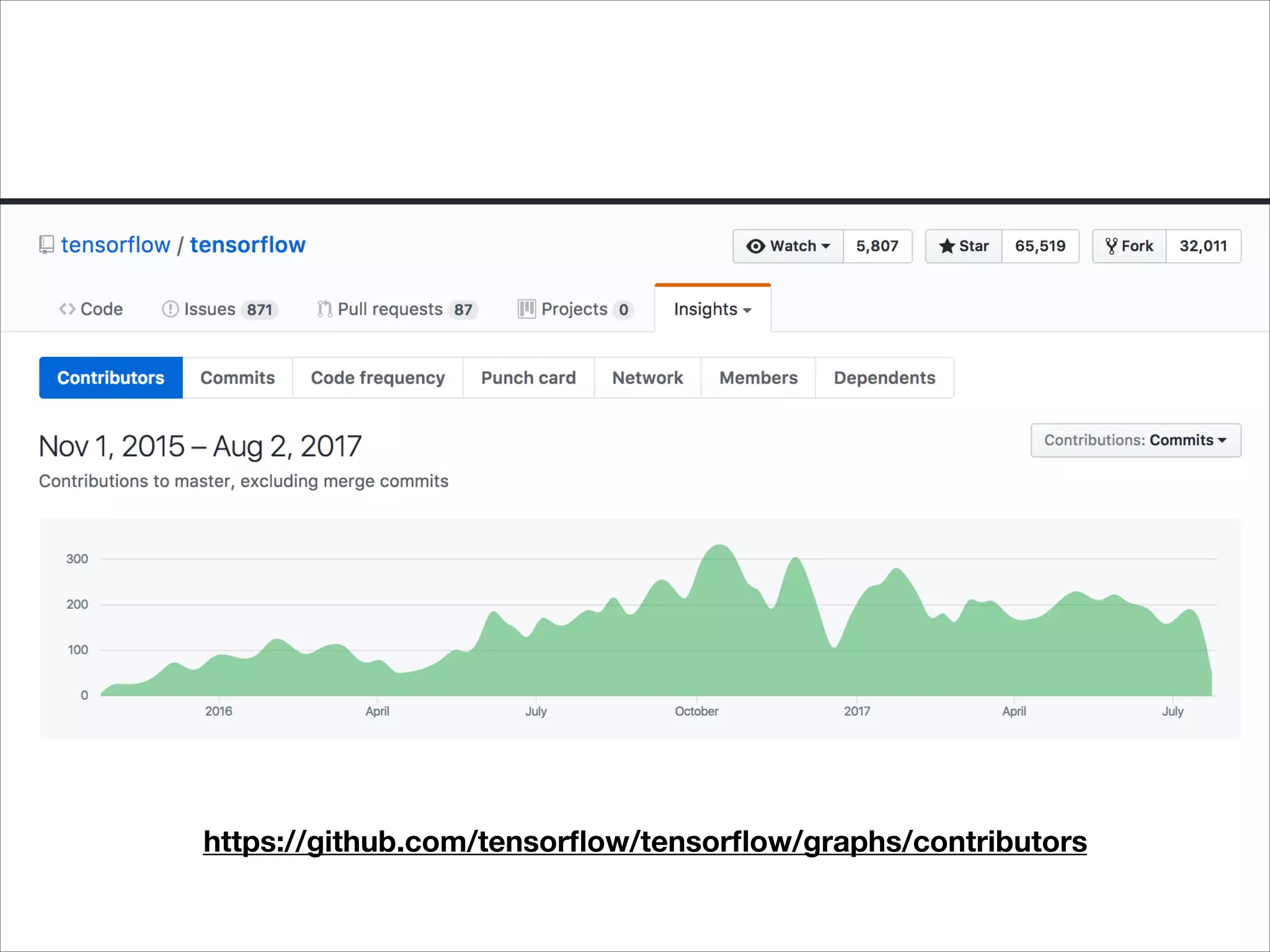

- 4.

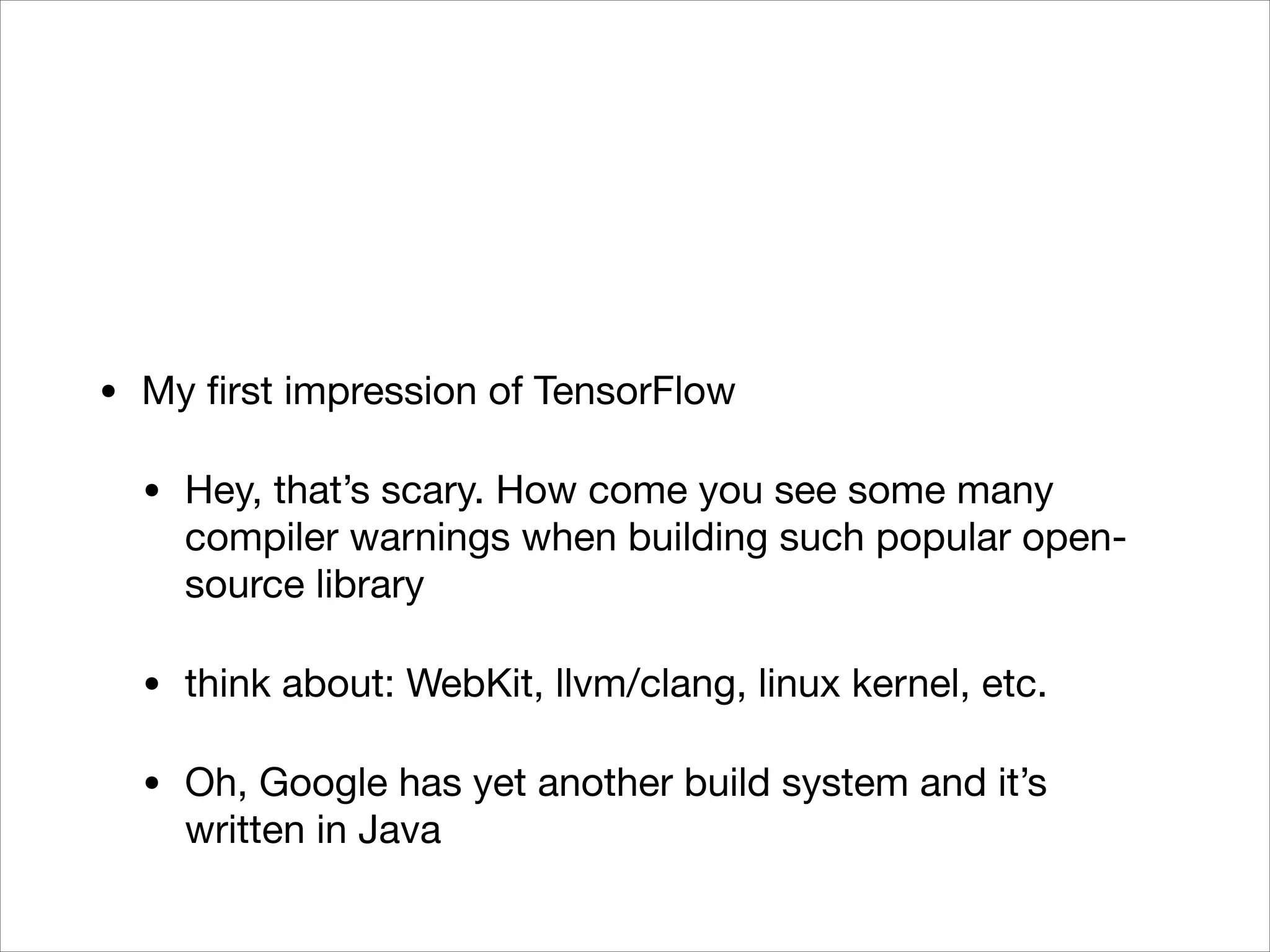

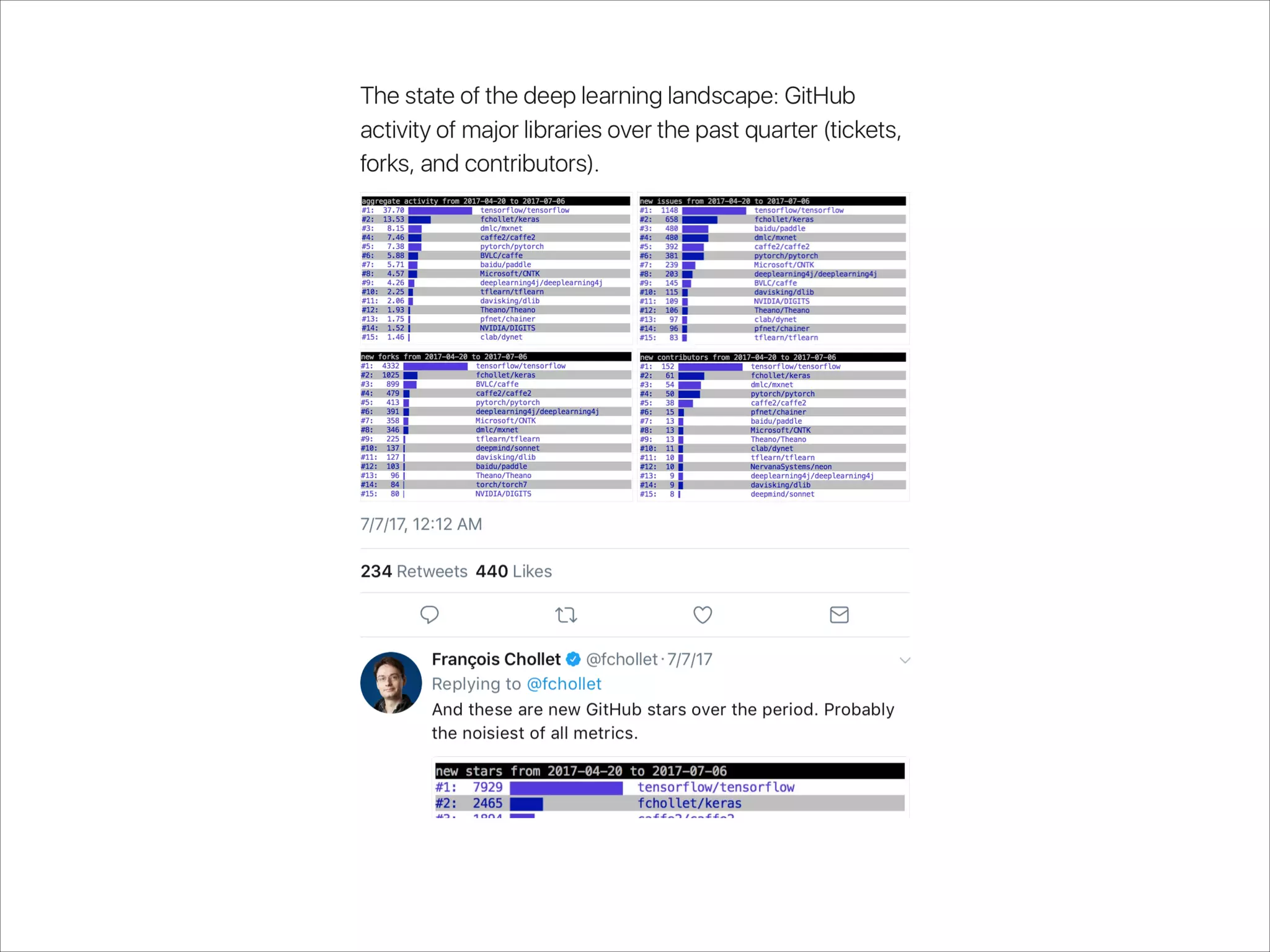

- 7. • My firstimpression of TensorFlow • Hey, that’s scary. How come you see some many compiler warnings when building such popular open- source library • think about: WebKit, llvm/clang, linux kernel, etc. • Oh, Google has yet another build system and it’s written in Java
- 8. How TensorFlow Works •TensorFlow is dataflow programming • a program modeled as an acyclic directional graph • node/vertex: operation • edge: flow of data (tensor in TensorFlow) • operations don’t execute right away • operations execute when data are available to ALL inputs In [1]: import tensorflow as tf In [2]: node1 = tf.constant(3.0) ...: node2 = tf.constant(4.0) ...: print(node1, node2) ...: (<tf.Tensor 'Const:0' shape=() dtype=float32>, <tf.Tensor 'Const_1:0' shape=() dtype=float32>) In [3]: sess = tf.Session() ...: print(sess.run([node1, node2])) ...: [3.0, 4.0] In [4]: a = tf.add(3, 4) ...: print(sess.run(a)) ...: 7

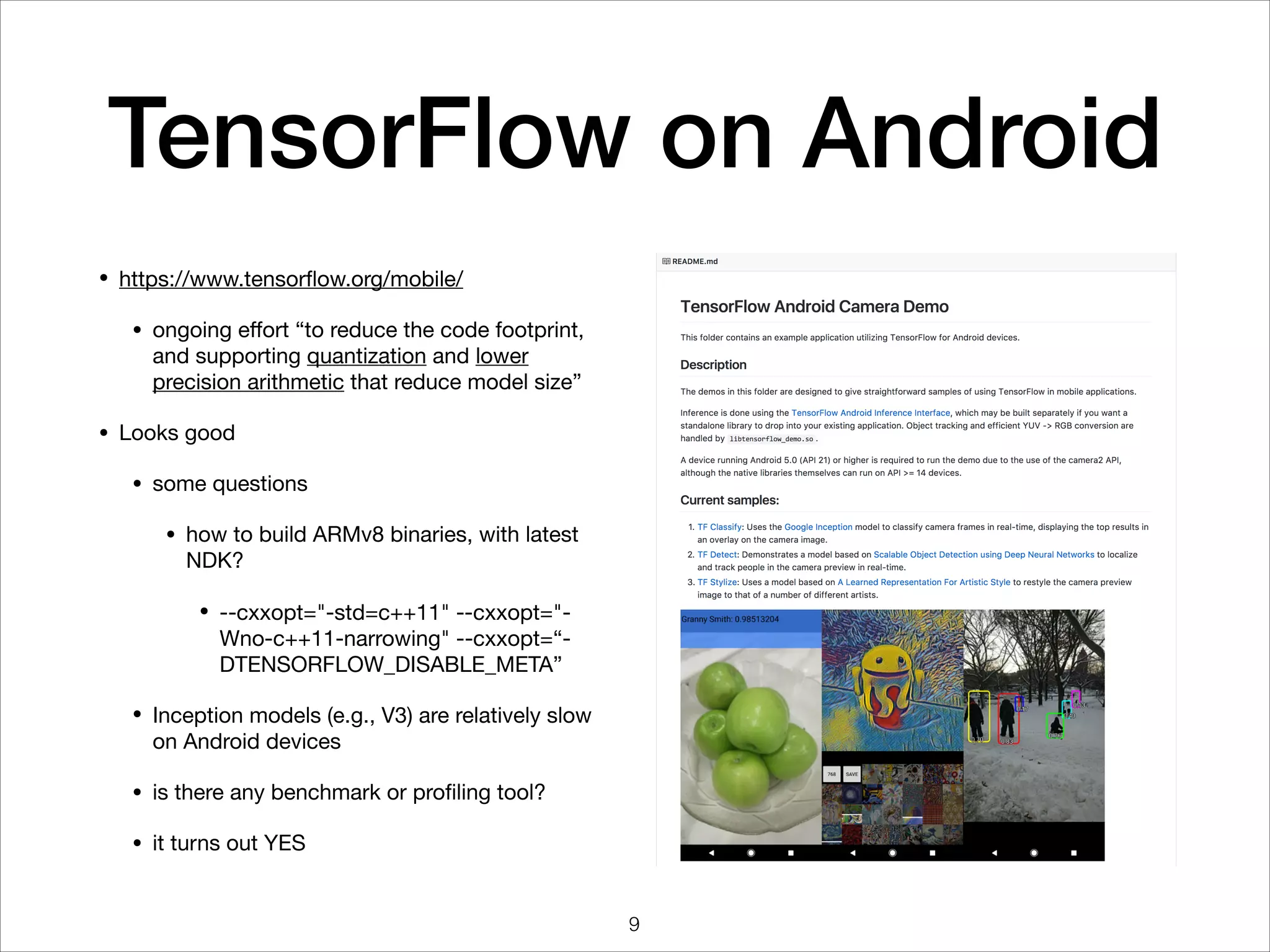

- 9. TensorFlow on Android •https://www.tensorflow.org/mobile/ • ongoing effort “to reduce the code footprint, and supporting quantization and lower precision arithmetic that reduce model size” • Looks good • some questions • how to build ARMv8 binaries, with latest NDK? • --cxxopt="-std=c++11" --cxxopt="- Wno-c++11-narrowing" --cxxopt=“- DTENSORFLOW_DISABLE_META” • Inception models (e.g., V3) are relatively slow on Android devices • is there any benchmark or profiling tool? • it turns out YES 9

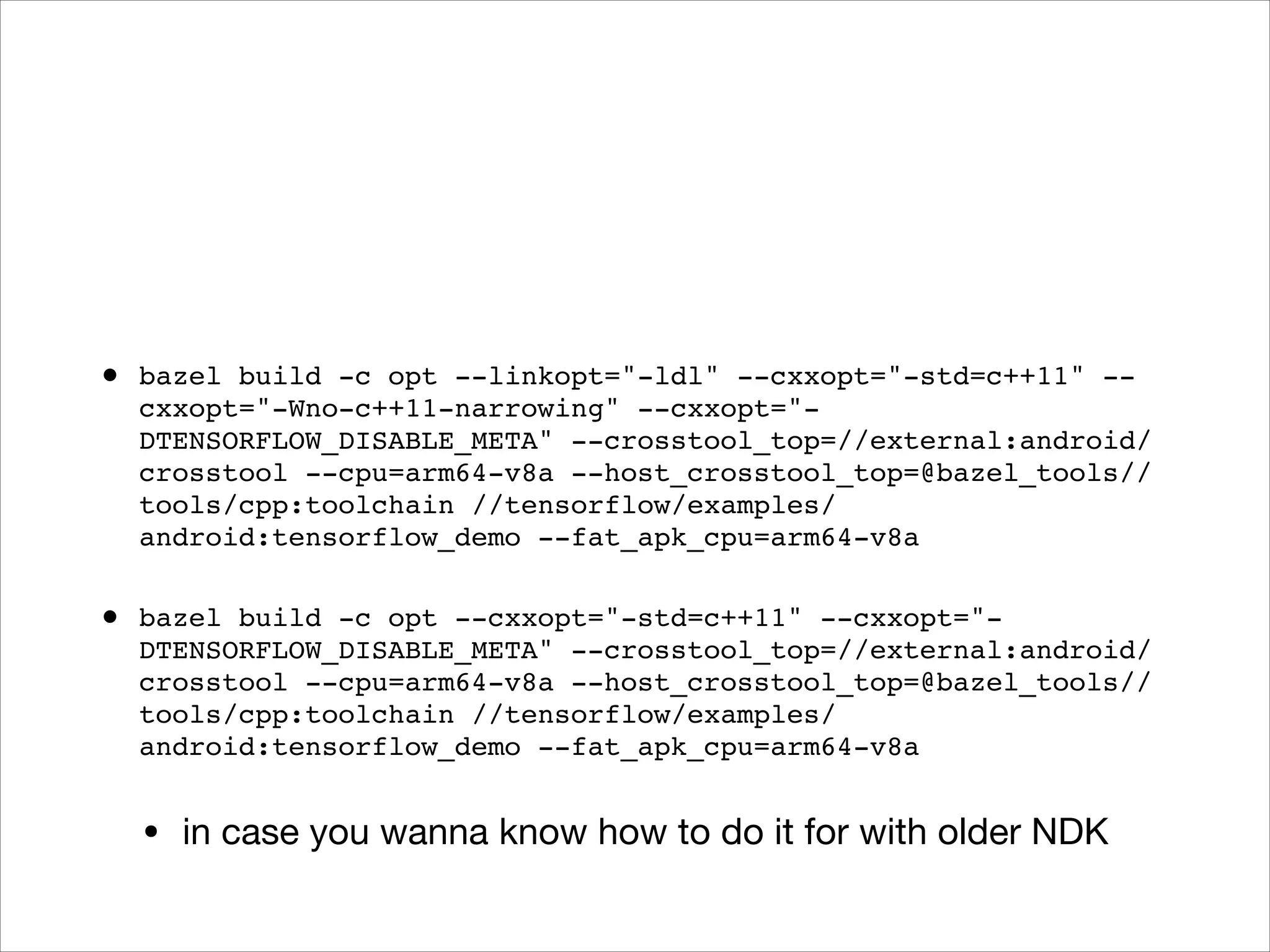

- 10. • bazel build-c opt --linkopt="-ldl" --cxxopt="-std=c++11" -- cxxopt="-Wno-c++11-narrowing" --cxxopt="- DTENSORFLOW_DISABLE_META" --crosstool_top=//external:android/ crosstool --cpu=arm64-v8a --host_crosstool_top=@bazel_tools// tools/cpp:toolchain //tensorflow/examples/ android:tensorflow_demo --fat_apk_cpu=arm64-v8a • bazel build -c opt --cxxopt="-std=c++11" --cxxopt="- DTENSORFLOW_DISABLE_META" --crosstool_top=//external:android/ crosstool --cpu=arm64-v8a --host_crosstool_top=@bazel_tools// tools/cpp:toolchain //tensorflow/examples/ android:tensorflow_demo --fat_apk_cpu=arm64-v8a • in case you wanna know how to do it for with older NDK

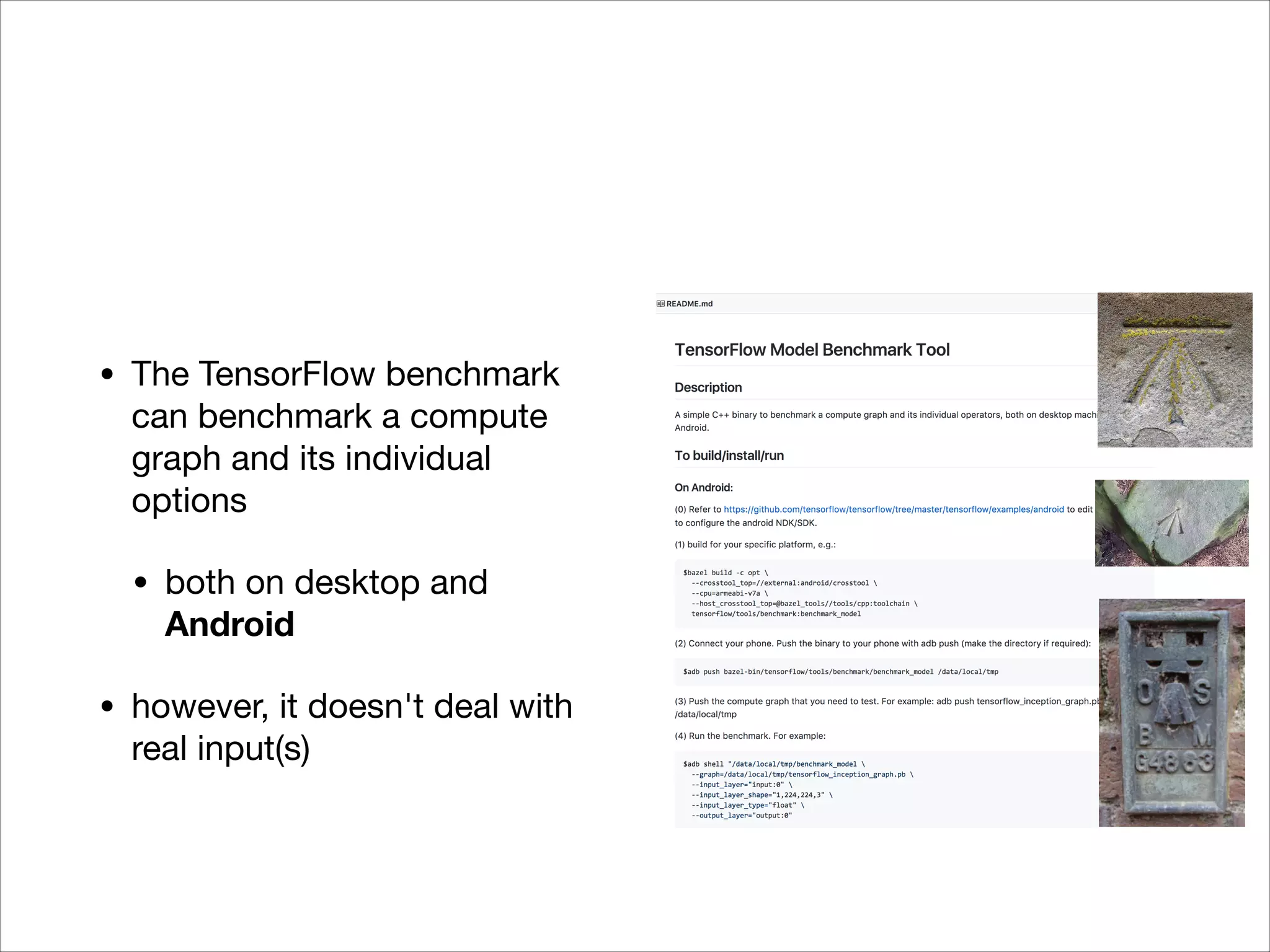

- 11. • The TensorFlowbenchmark can benchmark a compute graph and its individual options • both on desktop and Android • however, it doesn't deal with real input(s)

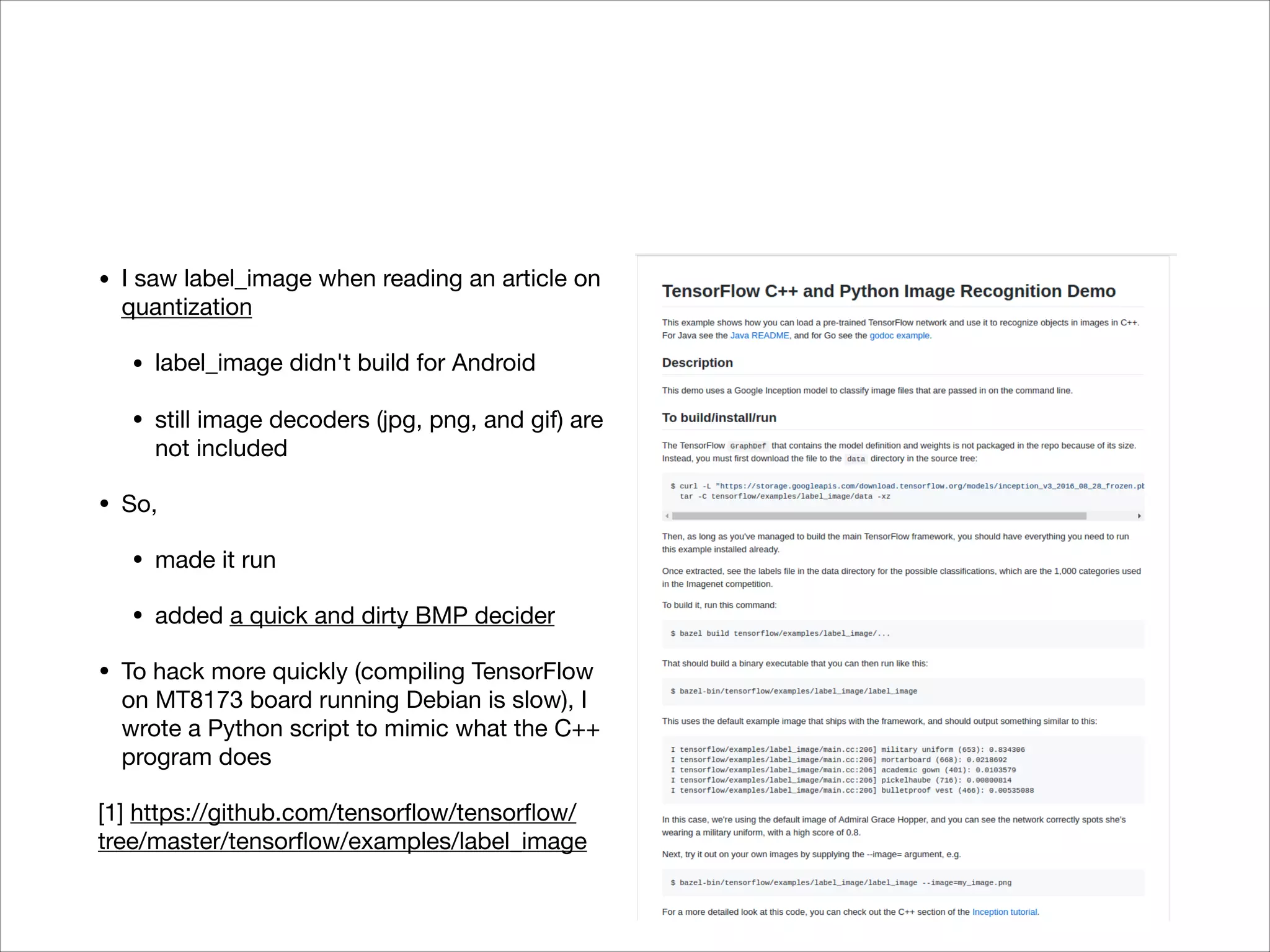

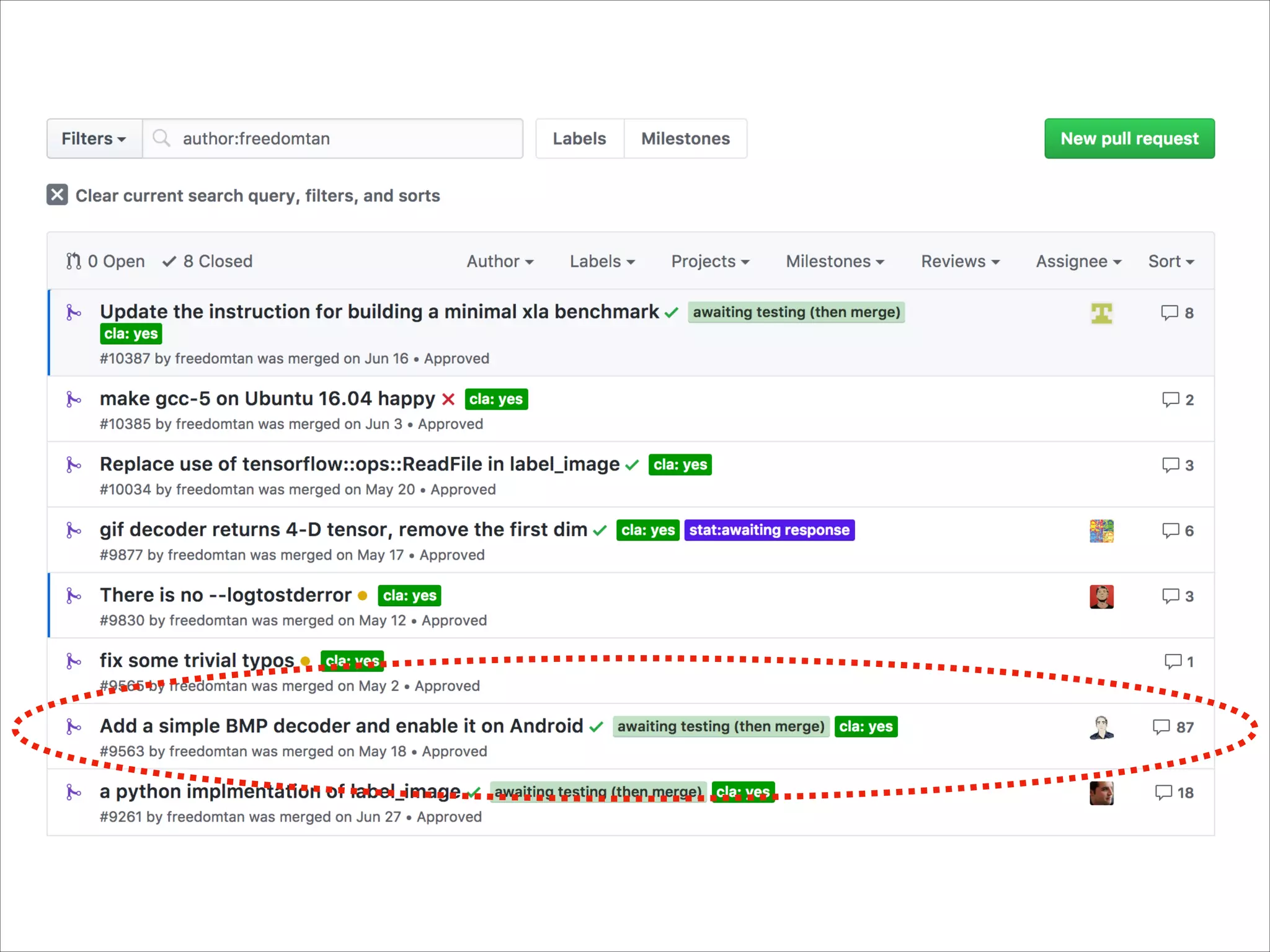

- 12. • I sawlabel_image when reading an article on quantization • label_image didn't build for Android • still image decoders (jpg, png, and gif) are not included • So, • made it run • added a quick and dirty BMP decider • To hack more quickly (compiling TensorFlow on MT8173 board running Debian is slow), I wrote a Python script to mimic what the C++ program does [1] https://github.com/tensorflow/tensorflow/ tree/master/tensorflow/examples/label_image
- 13.
- 14.
- 15.

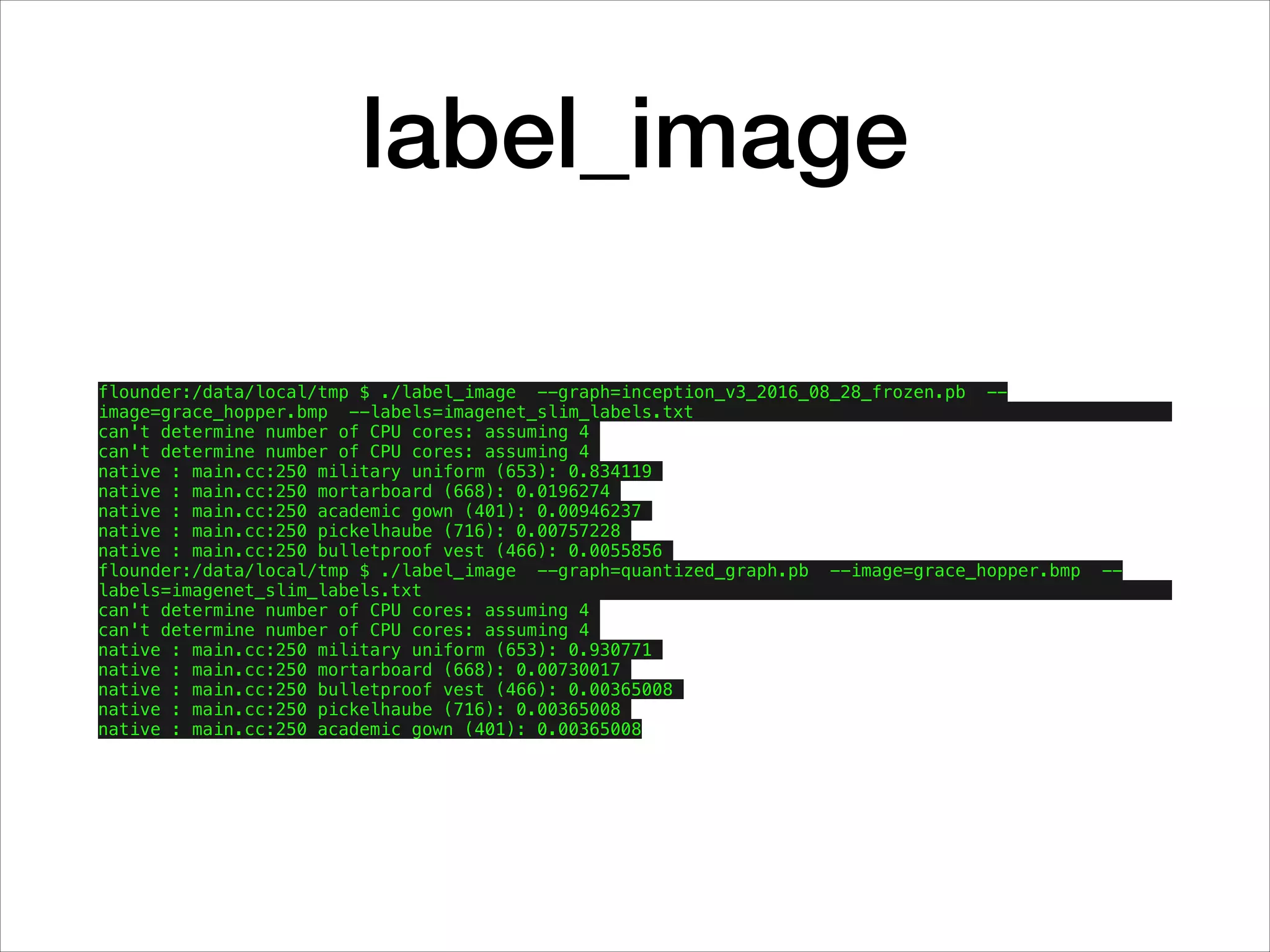

- 16. label_image flounder:/data/local/tmp $ ./label_image--graph=inception_v3_2016_08_28_frozen.pb -- image=grace_hopper.bmp --labels=imagenet_slim_labels.txt can't determine number of CPU cores: assuming 4 can't determine number of CPU cores: assuming 4 native : main.cc:250 military uniform (653): 0.834119 native : main.cc:250 mortarboard (668): 0.0196274 native : main.cc:250 academic gown (401): 0.00946237 native : main.cc:250 pickelhaube (716): 0.00757228 native : main.cc:250 bulletproof vest (466): 0.0055856 flounder:/data/local/tmp $ ./label_image --graph=quantized_graph.pb --image=grace_hopper.bmp -- labels=imagenet_slim_labels.txt can't determine number of CPU cores: assuming 4 can't determine number of CPU cores: assuming 4 native : main.cc:250 military uniform (653): 0.930771 native : main.cc:250 mortarboard (668): 0.00730017 native : main.cc:250 bulletproof vest (466): 0.00365008 native : main.cc:250 pickelhaube (716): 0.00365008 native : main.cc:250 academic gown (401): 0.00365008

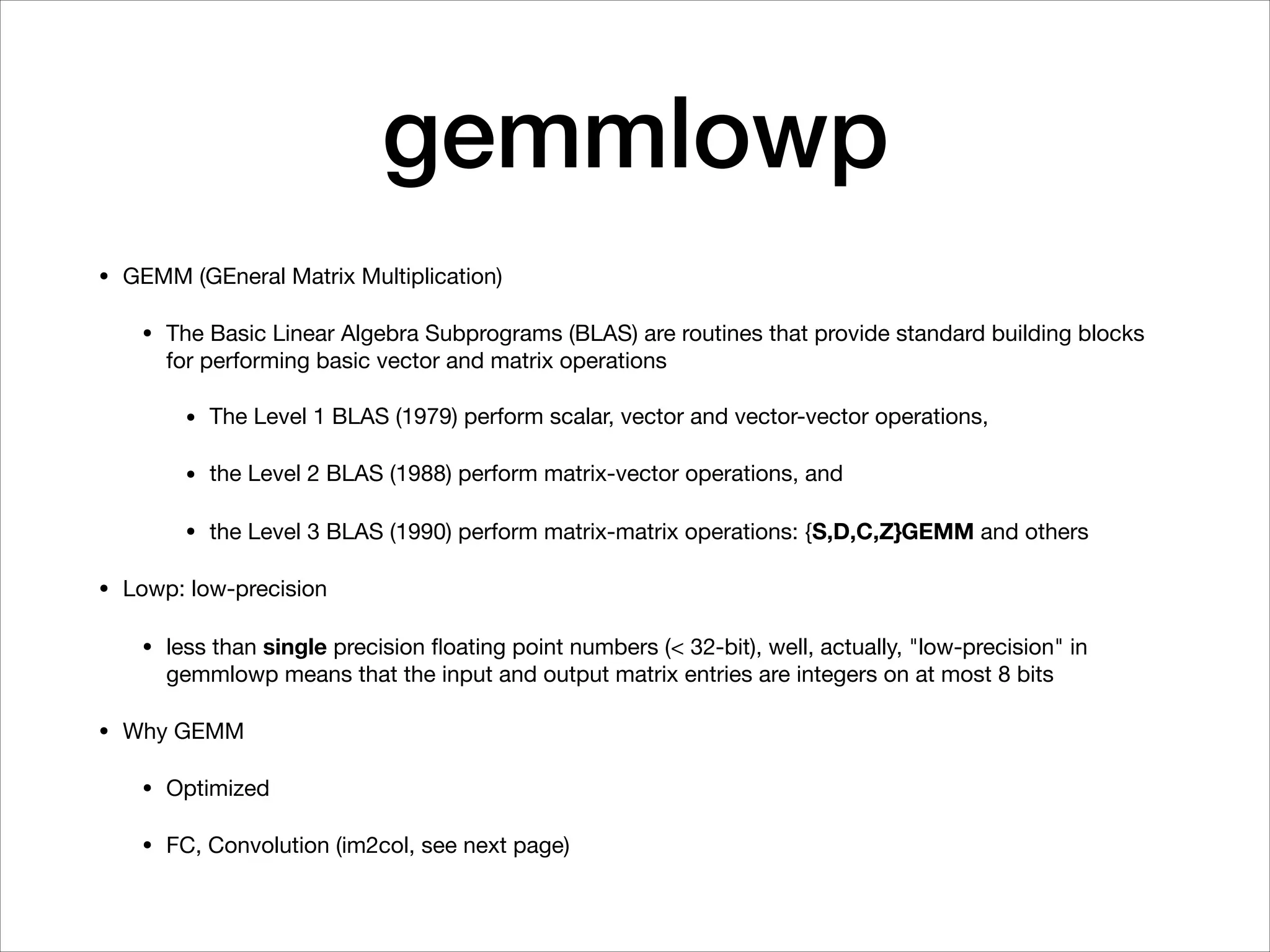

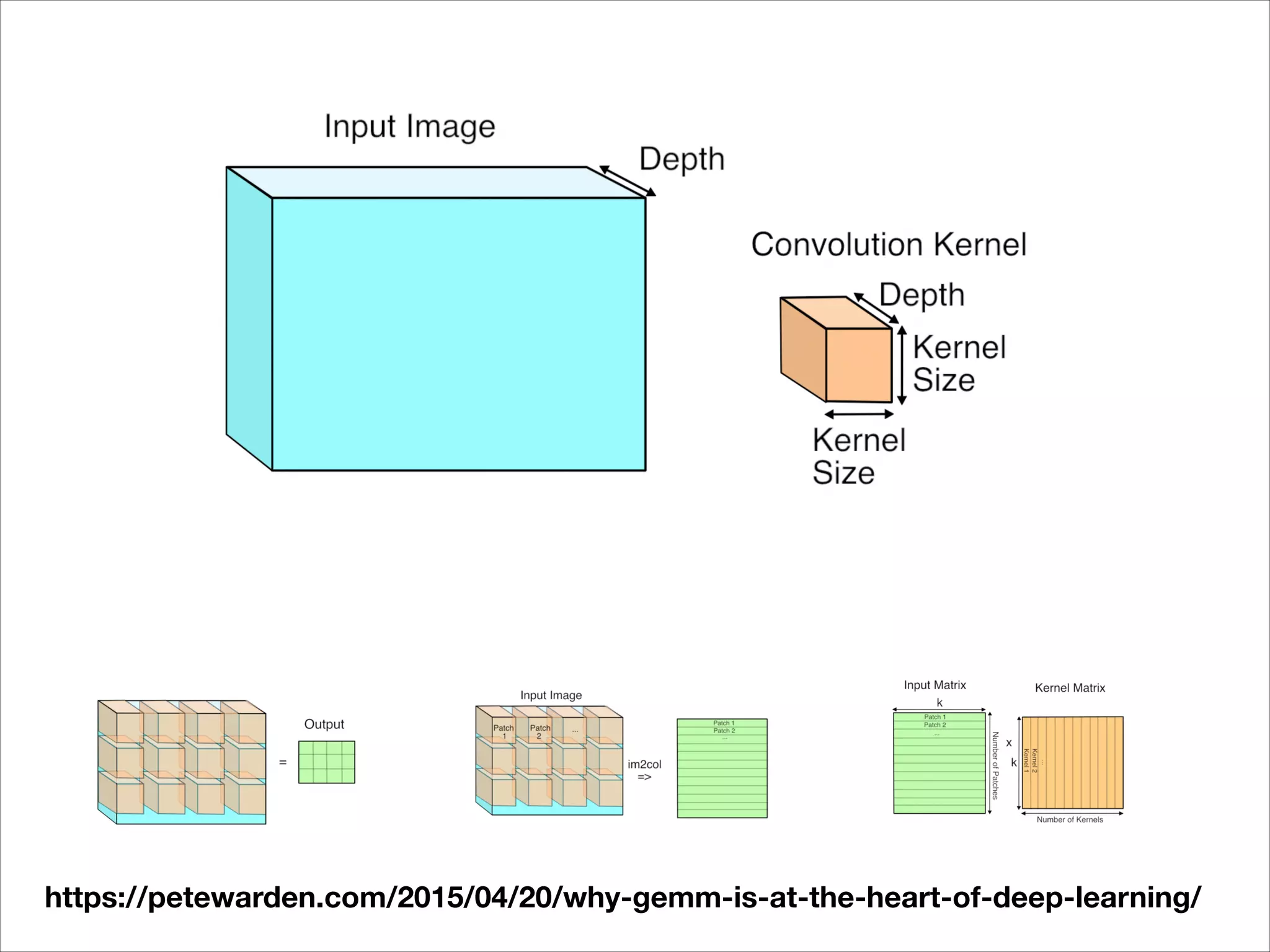

- 17. gemmlowp • GEMM (GEneralMatrix Multiplication) • The Basic Linear Algebra Subprograms (BLAS) are routines that provide standard building blocks for performing basic vector and matrix operations • The Level 1 BLAS (1979) perform scalar, vector and vector-vector operations, • the Level 2 BLAS (1988) perform matrix-vector operations, and • the Level 3 BLAS (1990) perform matrix-matrix operations: {S,D,C,Z}GEMM and others • Lowp: low-precision • less than single precision floating point numbers (< 32-bit), well, actually, "low-precision" in gemmlowp means that the input and output matrix entries are integers on at most 8 bits • Why GEMM • Optimized • FC, Convolution (im2col, see next page)
- 18.

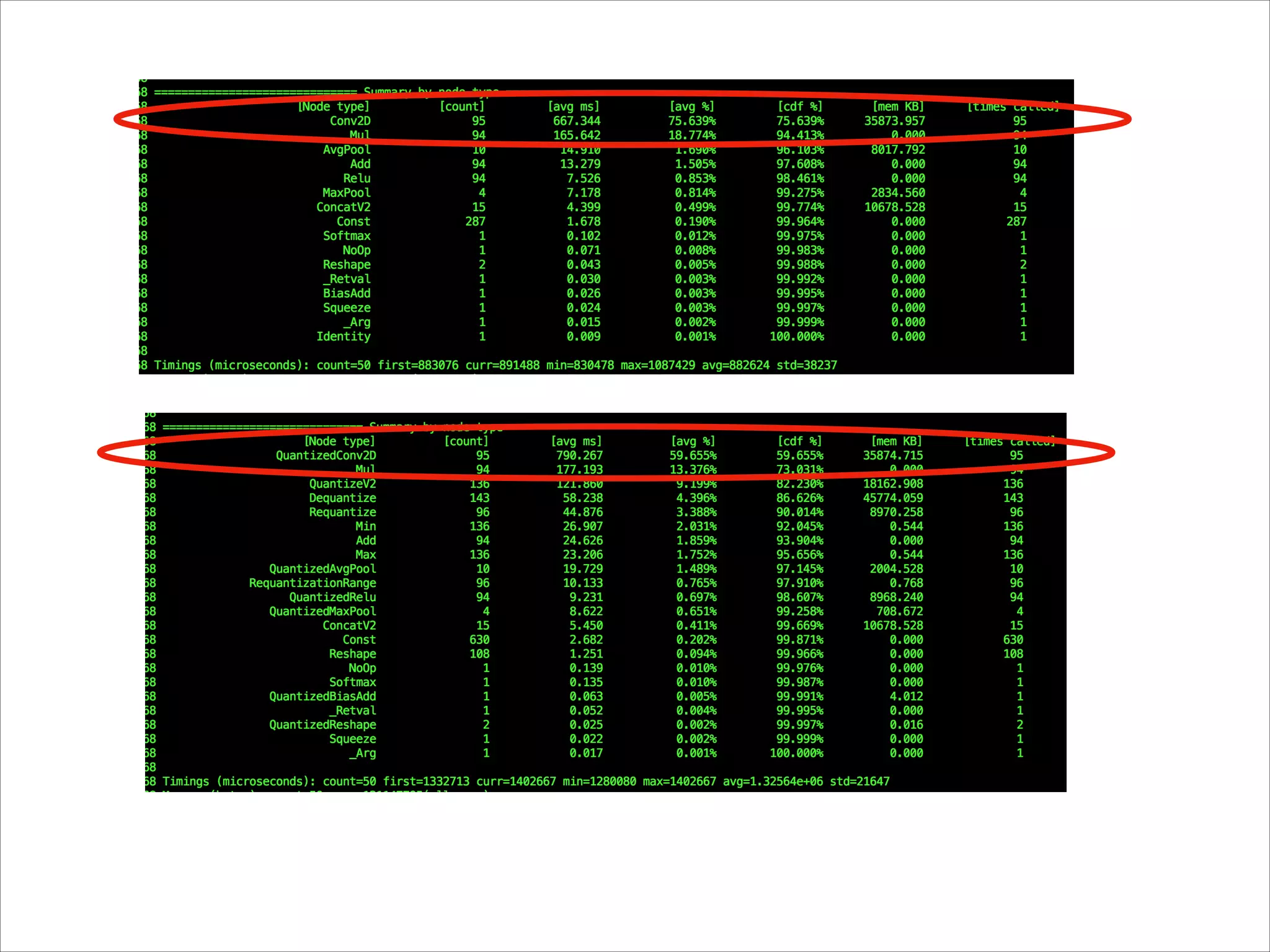

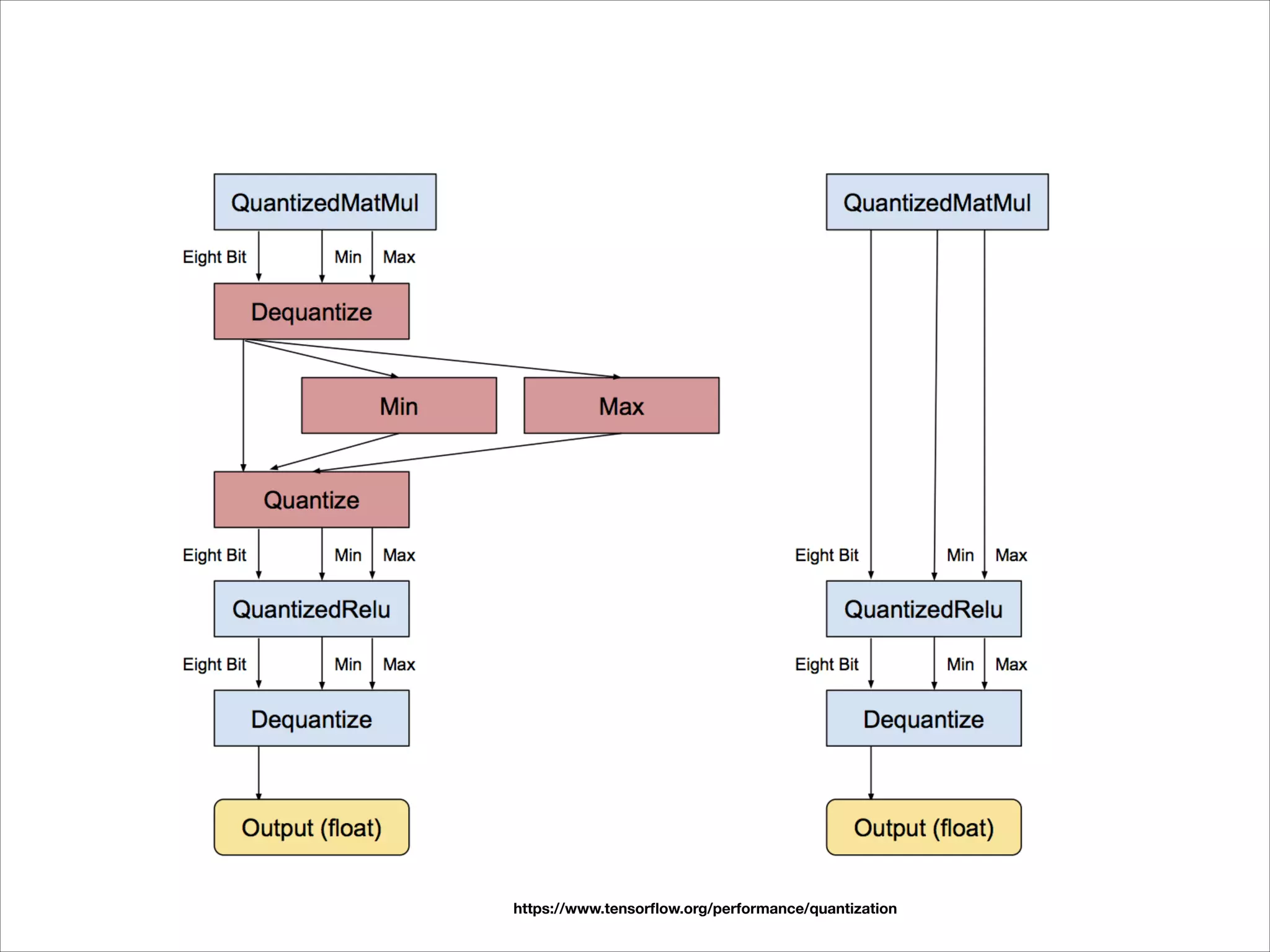

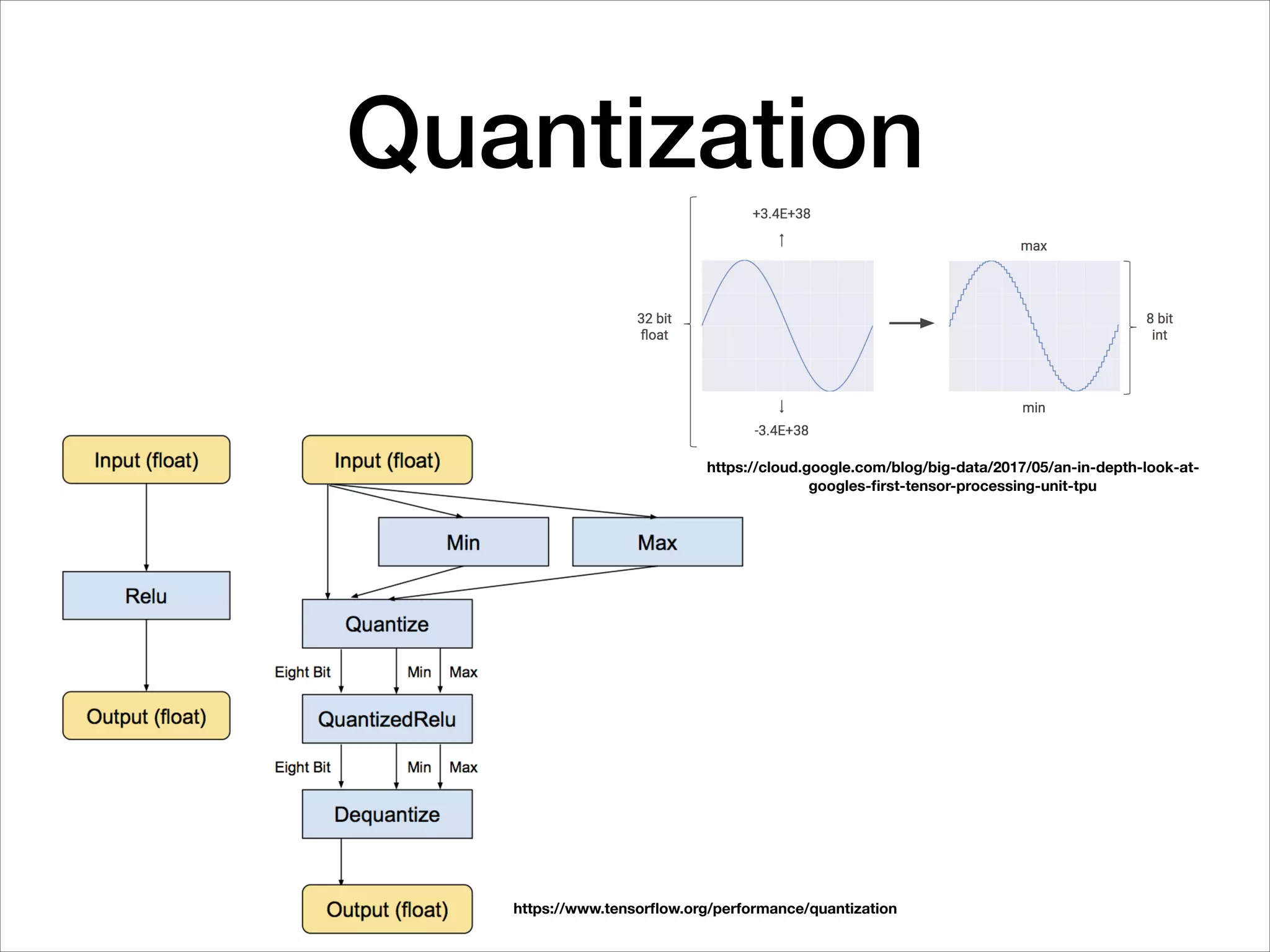

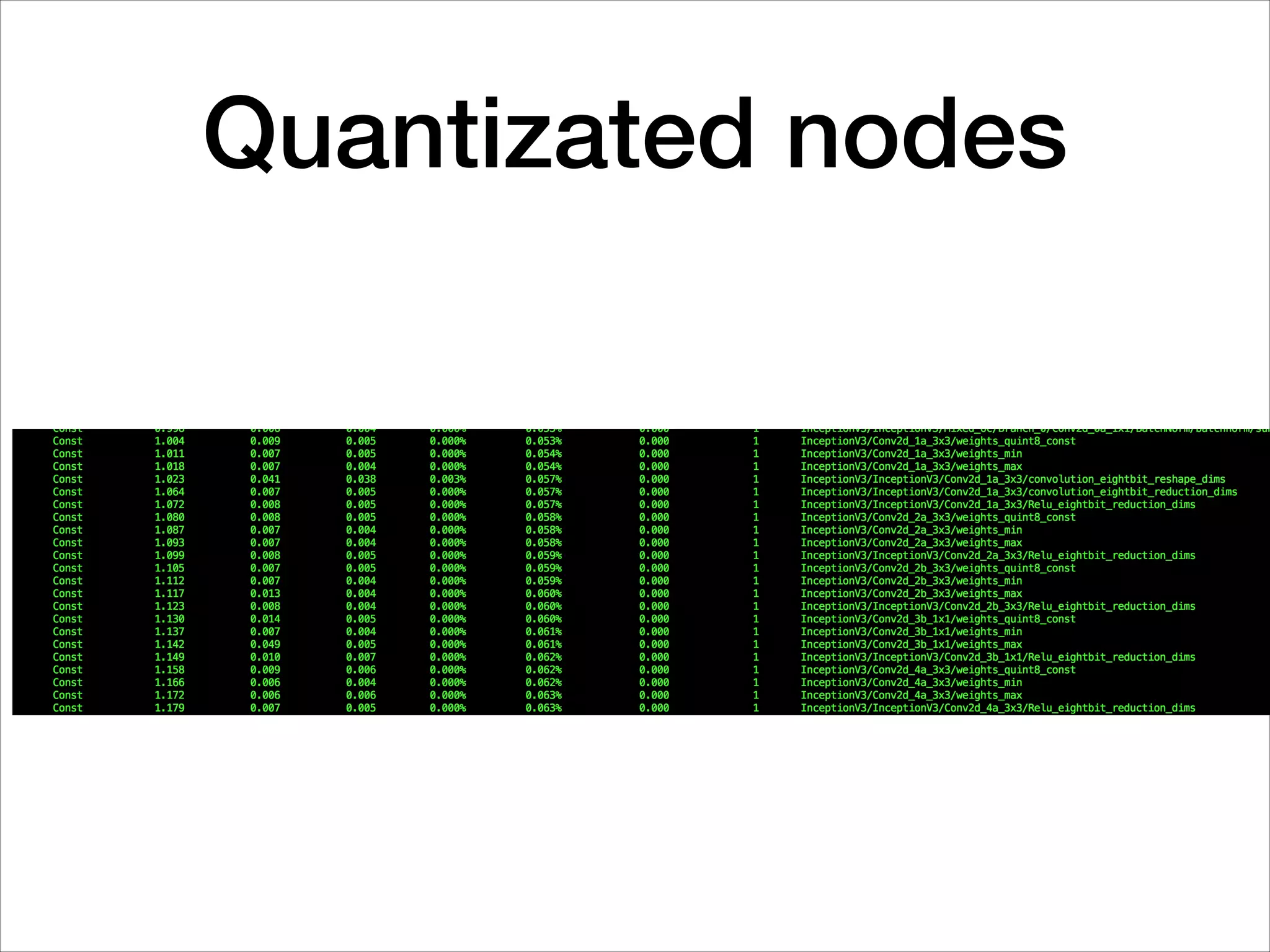

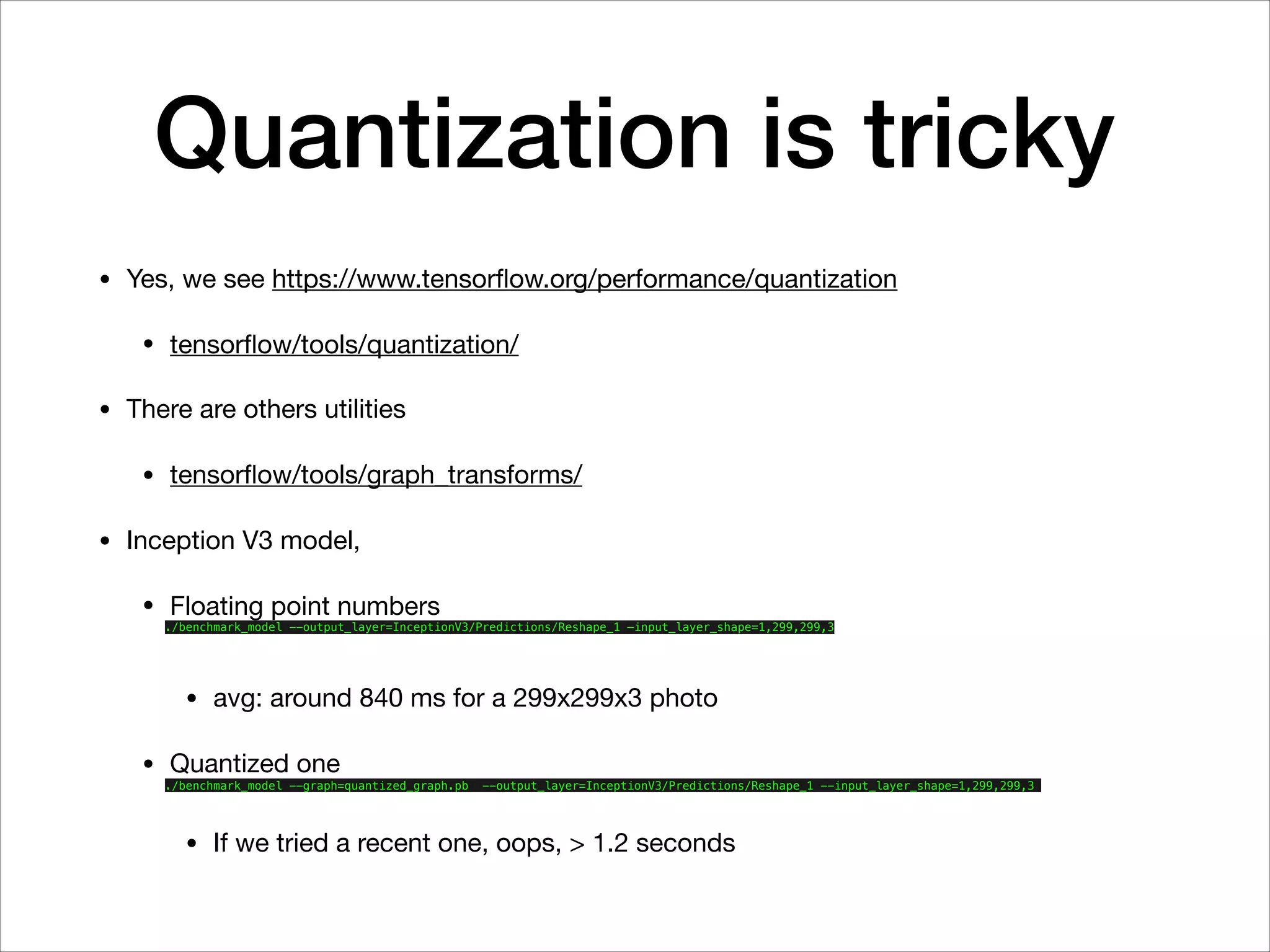

- 19. Quantization is tricky •Yes, we see https://www.tensorflow.org/performance/quantization • tensorflow/tools/quantization/ • There are others utilities • tensorflow/tools/graph_transforms/ • Inception V3 model, • Floating point numbers ./benchmark_model --output_layer=InceptionV3/Predictions/Reshape_1 —input_layer_shape=1,299,299,3 • avg: around 840 ms for a 299x299x3 photo • Quantized one ./benchmark_model --graph=quantized_graph.pb --output_layer=InceptionV3/Predictions/Reshape_1 --input_layer_shape=1,299,299,3 • If we tried a recent one, oops, > 1.2 seconds

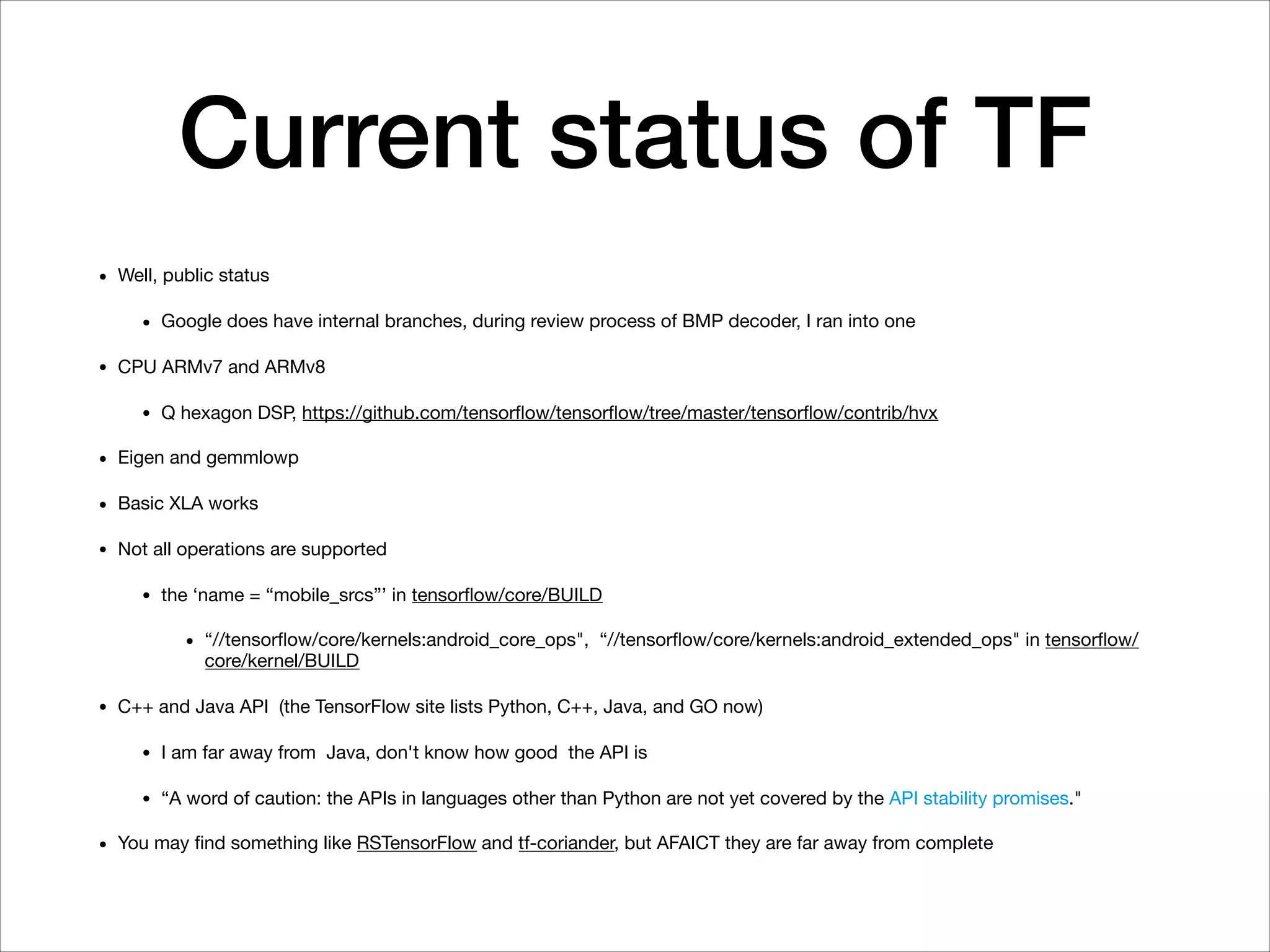

- 21. Current status ofTF • Well, public status • Google does have internal branches, during review process of BMP decoder, I ran into one • CPU ARMv7 and ARMv8 • Q hexagon DSP, https://github.com/tensorflow/tensorflow/tree/master/tensorflow/contrib/hvx • Eigen and gemmlowp • Basic XLA works • Not all operations are supported • the ‘name = “mobile_srcs”’ in tensorflow/core/BUILD • “//tensorflow/core/kernels:android_core_ops", “//tensorflow/core/kernels:android_extended_ops" in tensorflow/ core/kernel/BUILD • C++ and Java API (the TensorFlow site lists Python, C++, Java, and GO now) • I am far away from Java, don't know how good the API is • “A word of caution: the APIs in languages other than Python are not yet covered by the API stability promises." • You may find something like RSTensorFlow and tf-coriander, but AFAICT they are far away from complete

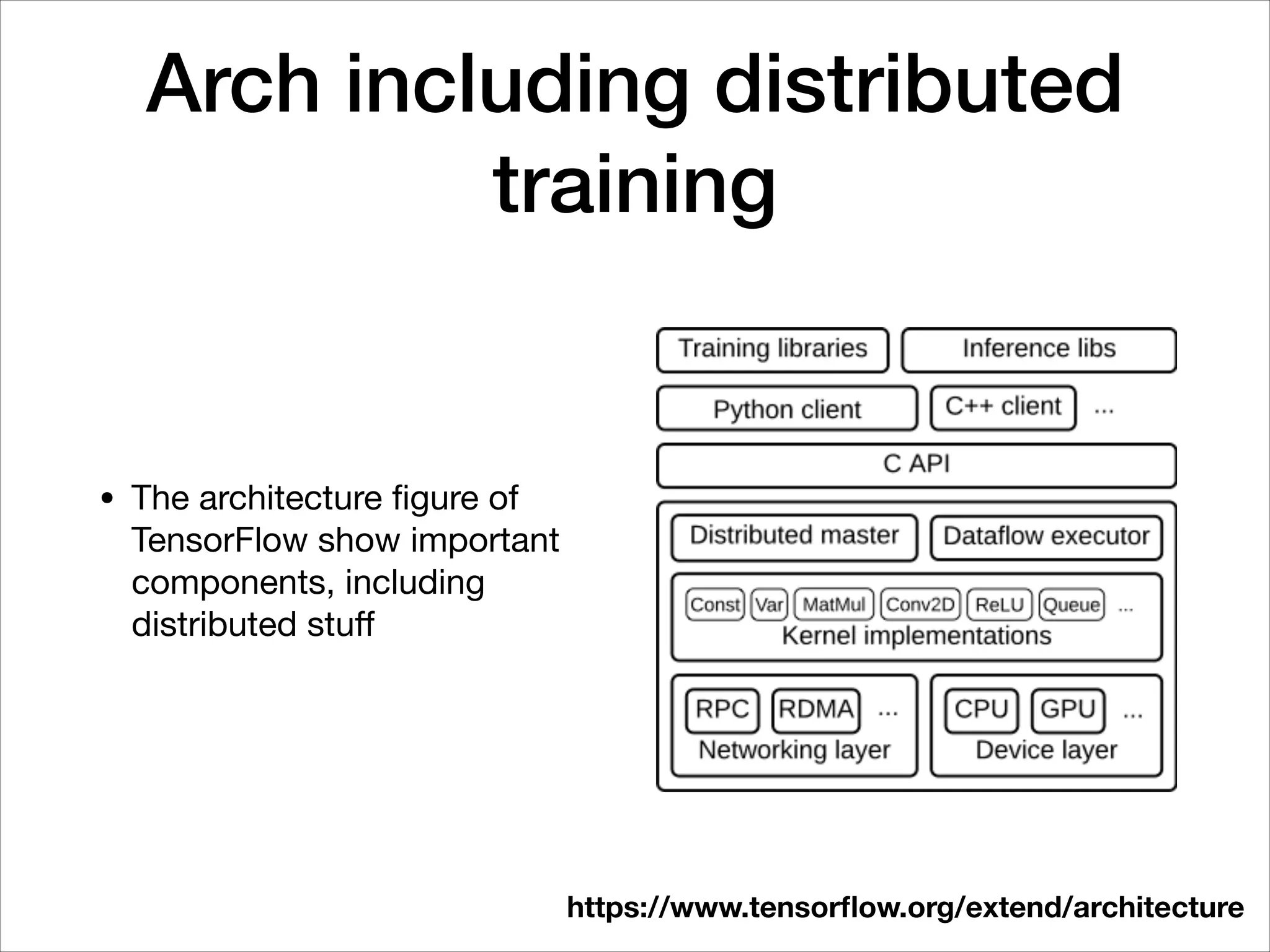

- 22. Arch including distributed training •The architecture figure of TensorFlow show important components, including distributed stuff https://www.tensorflow.org/extend/architecture

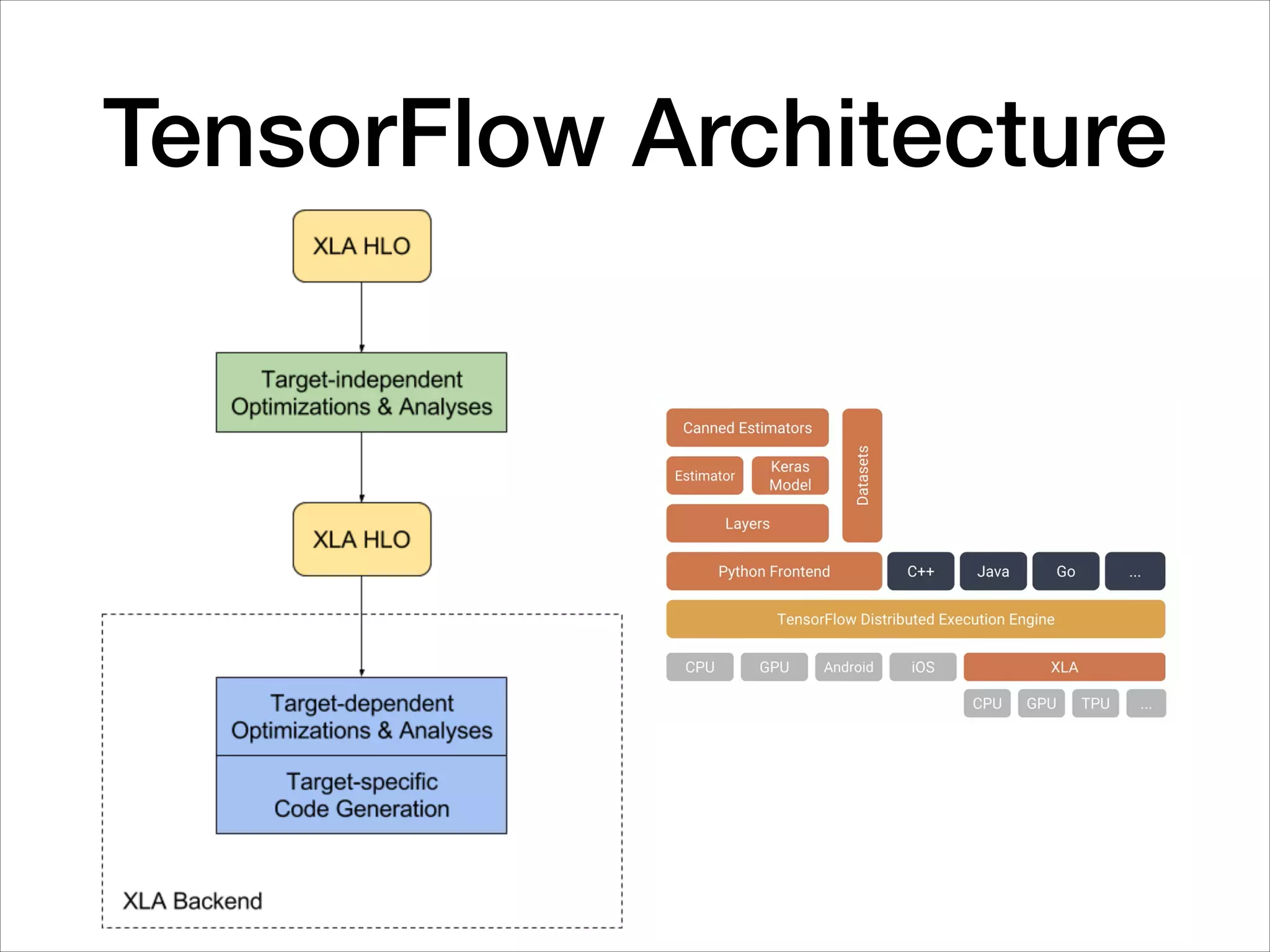

- 23.

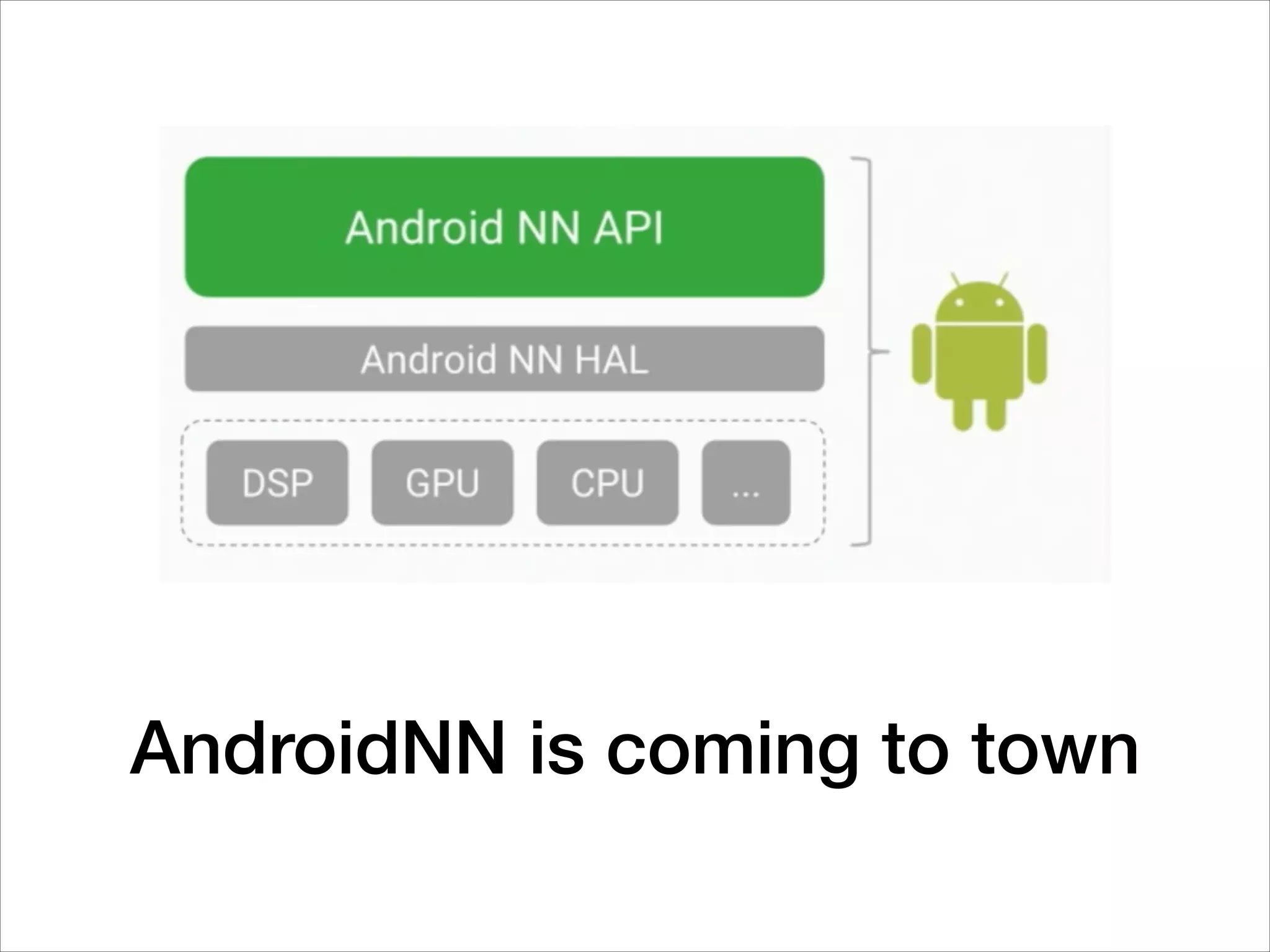

- 24. AndroidNN is comingto town

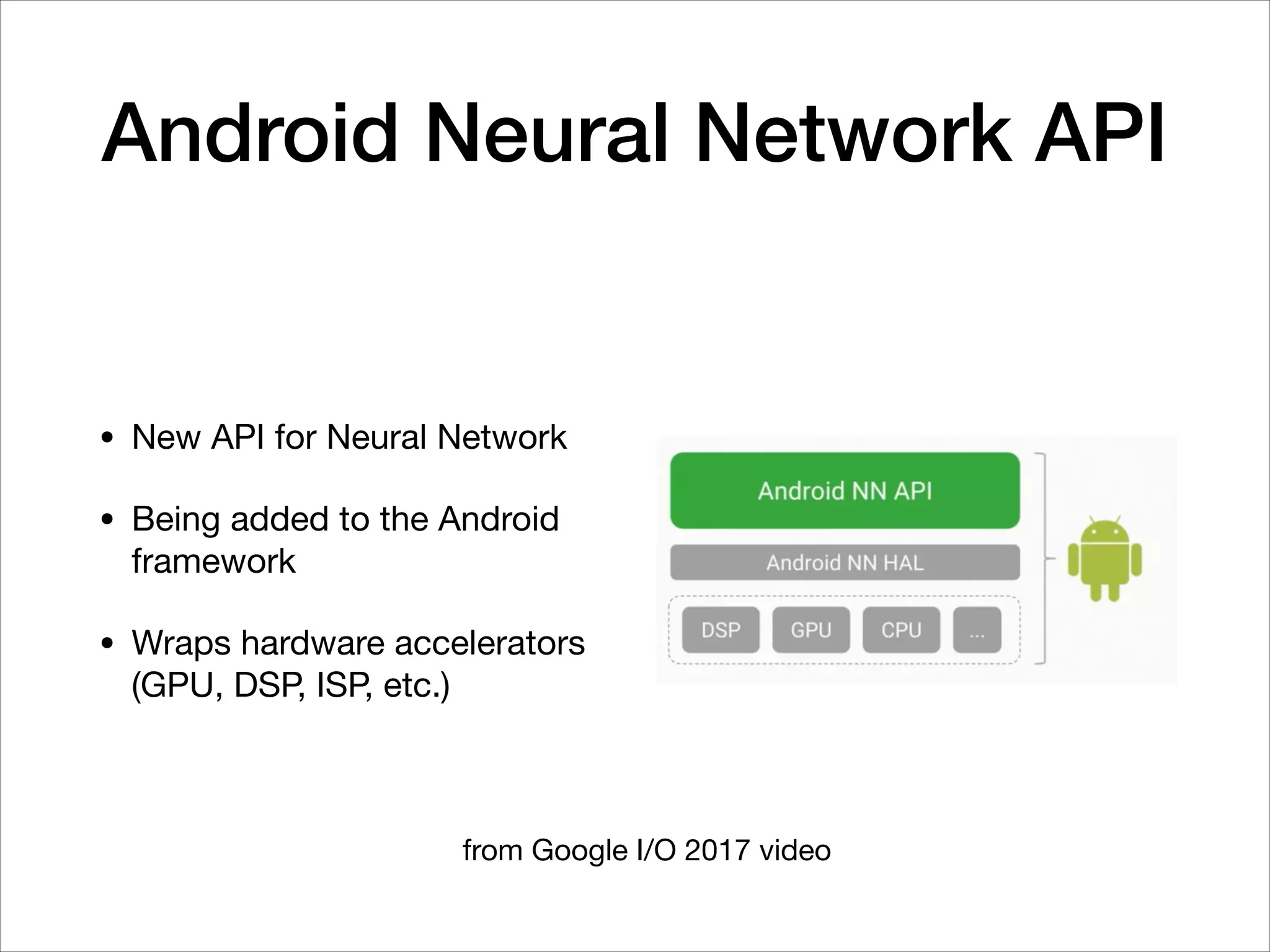

- 25. Android Neural NetworkAPI • New API for Neural Network • Being added to the Android framework • Wraps hardware accelerators (GPU, DSP, ISP, etc.) from Google I/O 2017 video

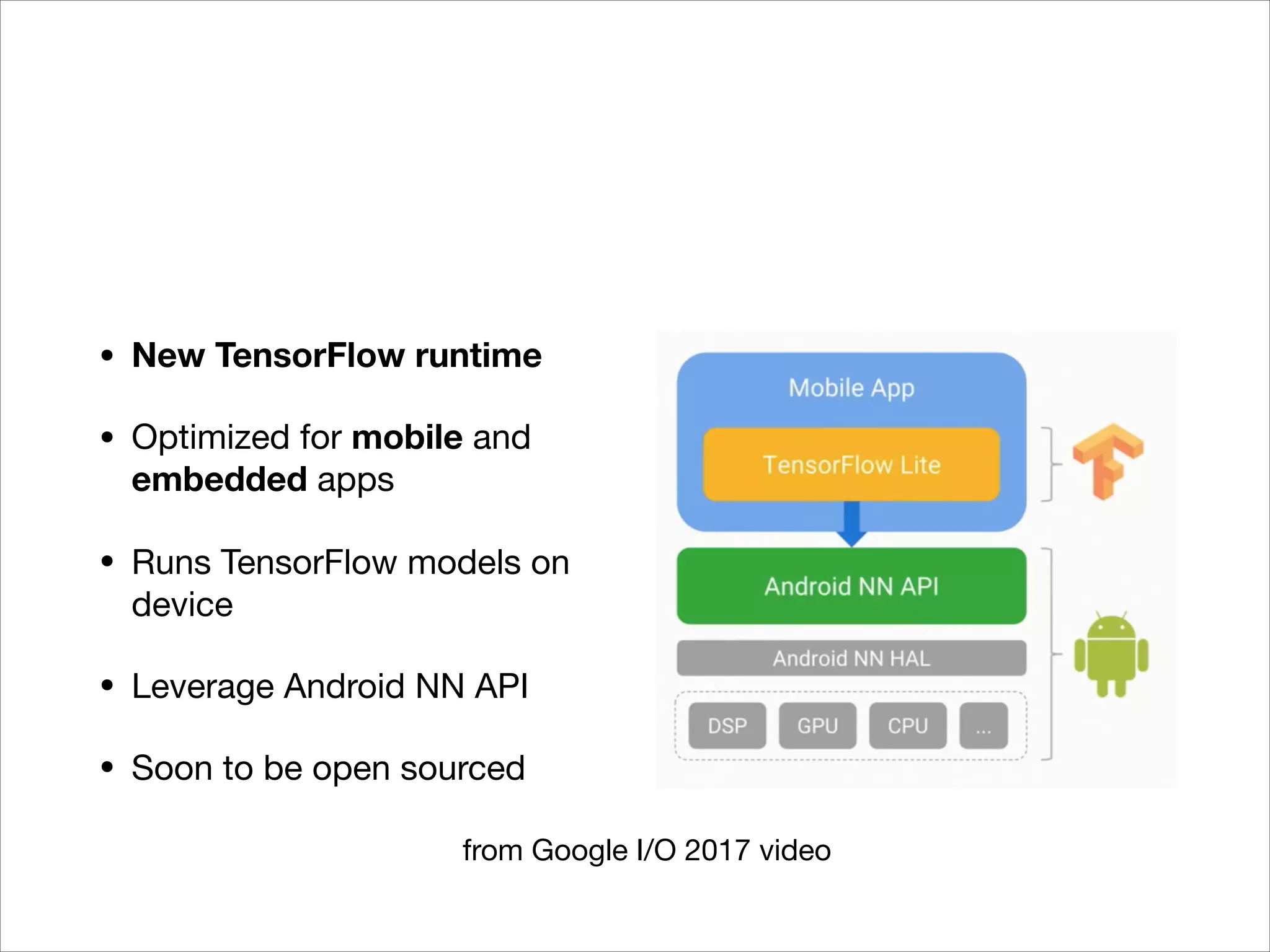

- 26. • New TensorFlowruntime • Optimized for mobile and embedded apps • Runs TensorFlow models on device • Leverage Android NN API • Soon to be open sourced from Google I/O 2017 video

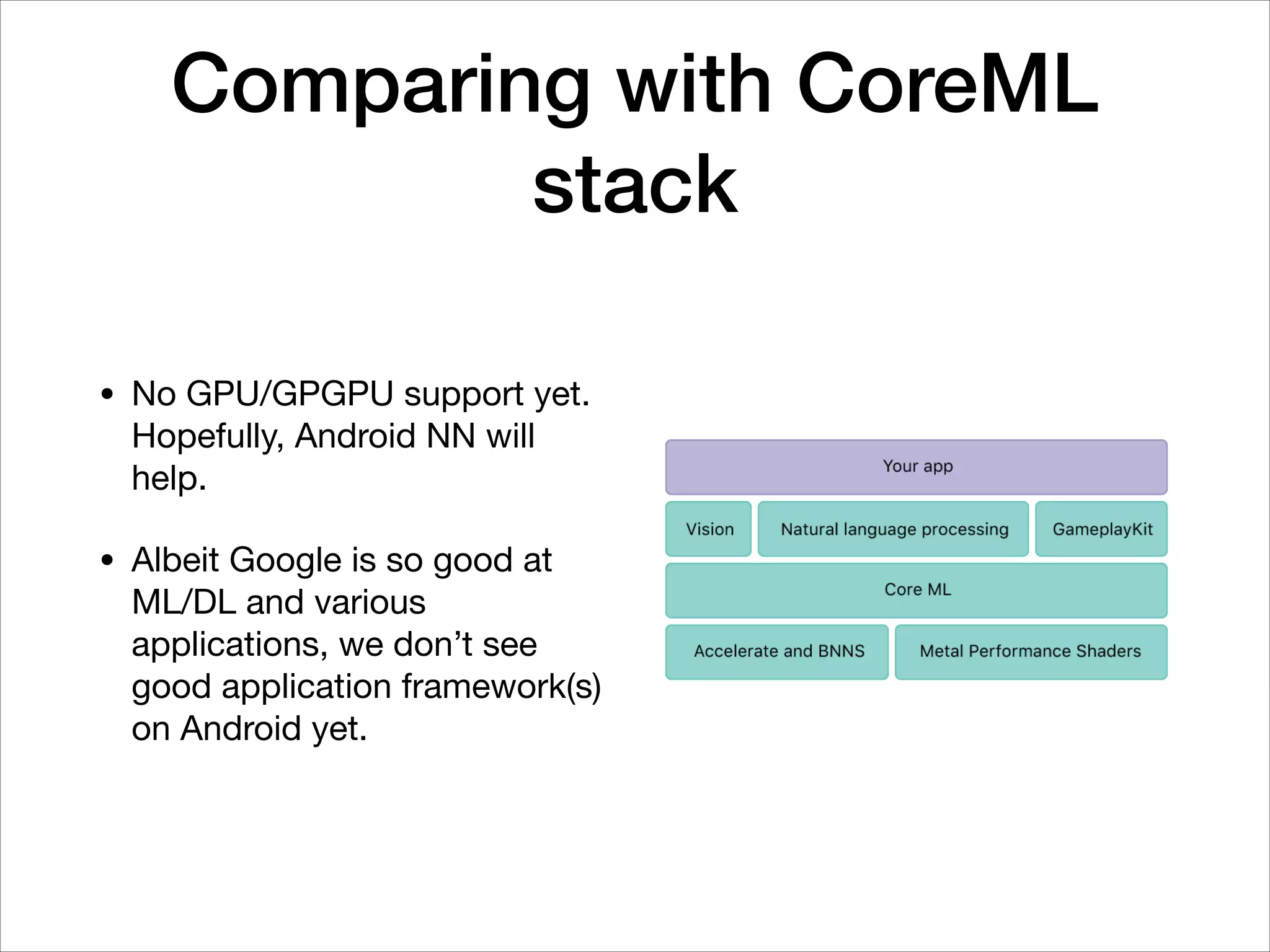

- 27. Comparing with CoreML stack •No GPU/GPGPU support yet. Hopefully, Android NN will help. • Albeit Google is so good at ML/DL and various applications, we don’t see good application framework(s) on Android yet.

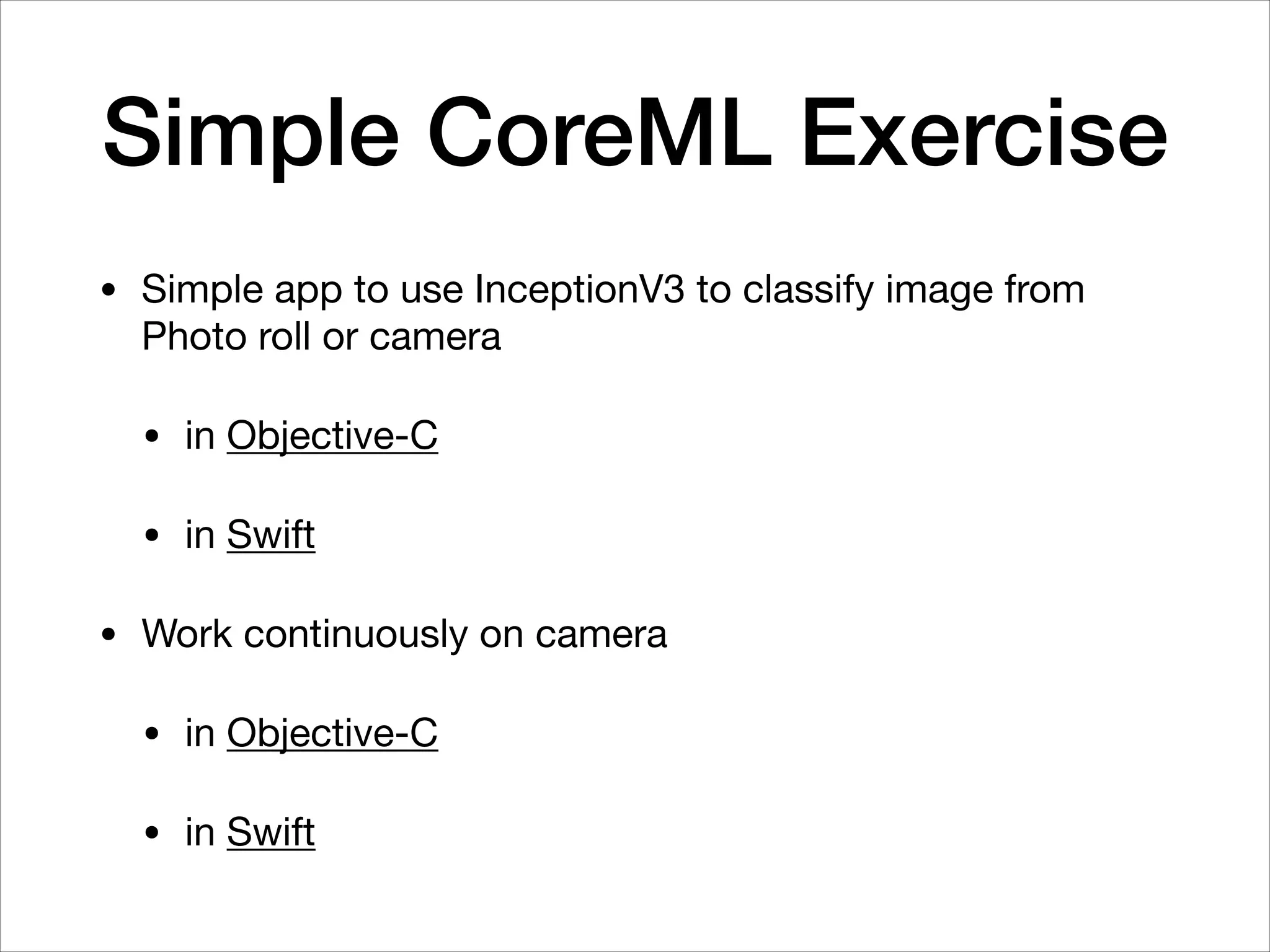

- 28. Simple CoreML Exercise •Simple app to use InceptionV3 to classify image from Photo roll or camera • in Objective-C • in Swift • Work continuously on camera • in Objective-C • in Swift
- 29. Depthwise Separable Convolution •CNNs with depthwise separable convolution such as Mobilenet [1] changed almost everything • Depthwise separable convolution “factorize” a standard convolution into a depthwise convolution and a 1 × 1 convolution called a pointwise convolution. Thus it greatly reduces computation complexity. • Depthwise separable convolution is not that that new [2], but pure depthwise separable convolution-based networks such as Xception and MobileNet demonstrated its power [1] https://arxiv.org/abs/1704.04861 [2] L. Sifre. “Rigid-motion scattering for image classification”, PhD thesis, 2014

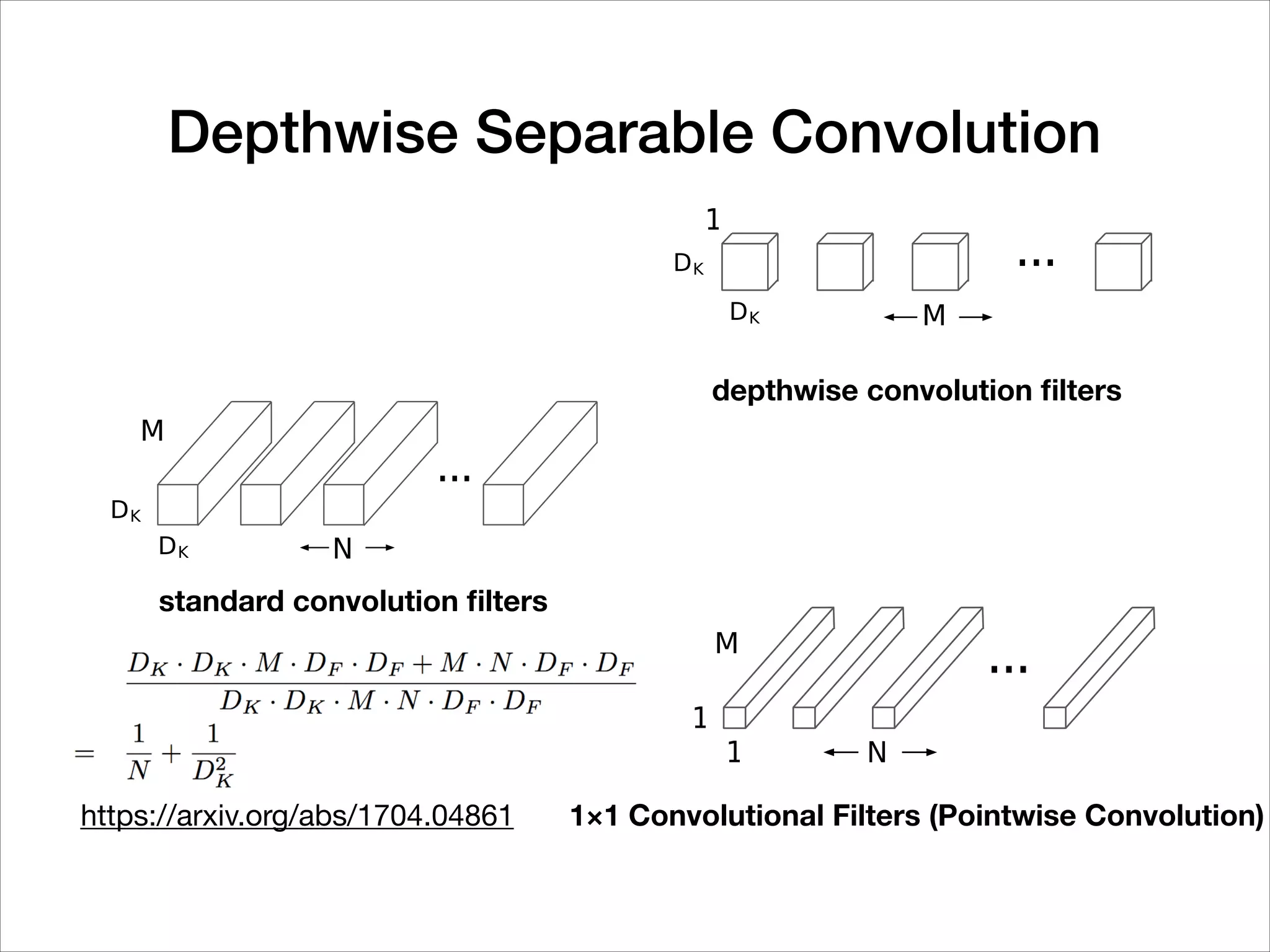

- 30. ...M N 1 1 ... MDK DK 1 ... M DK DK N depthwise convolutionfilters standard convolution filters 1×1 Convolutional Filters (Pointwise Convolution)https://arxiv.org/abs/1704.04861 Depthwise Separable Convolution

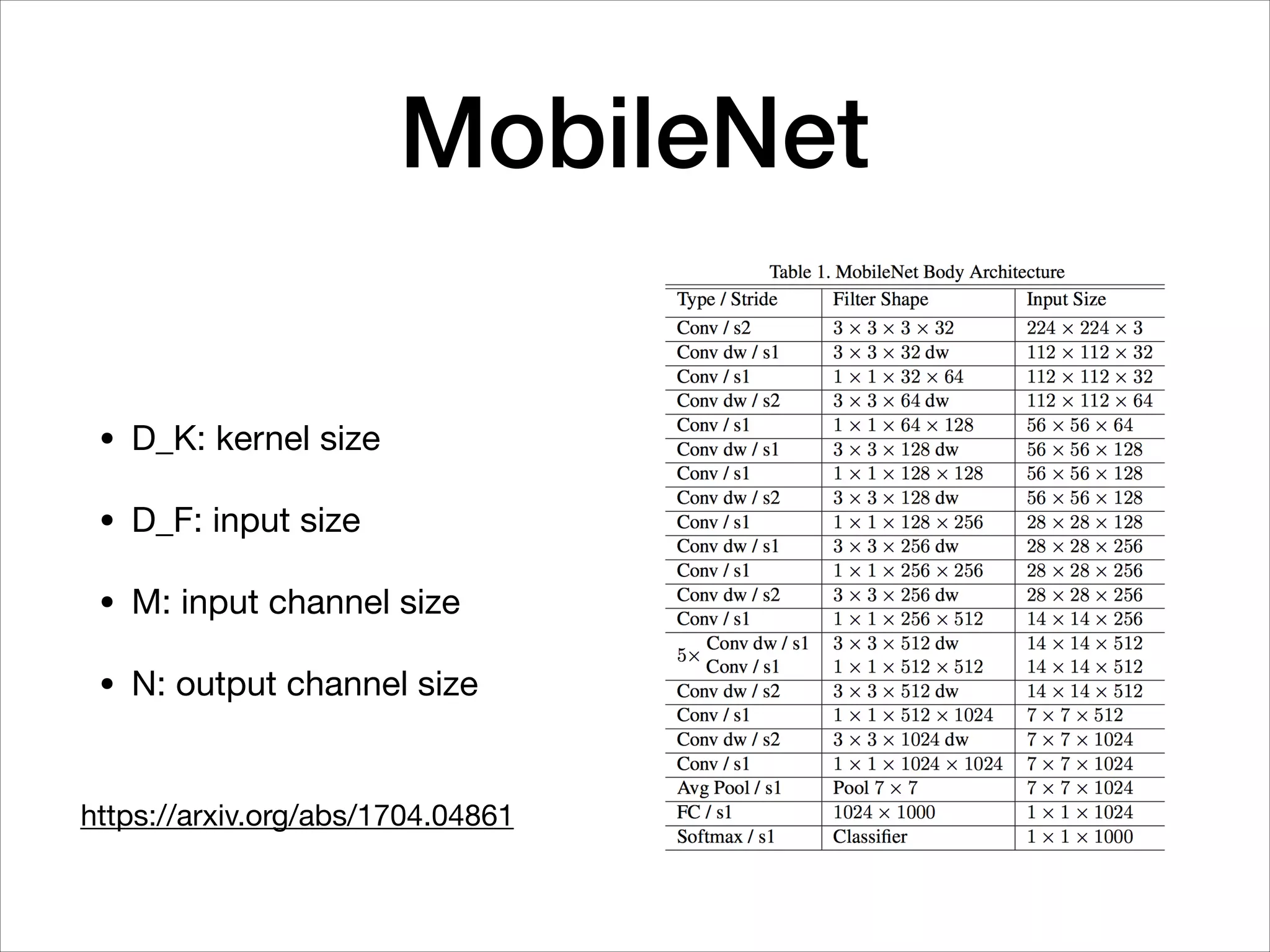

- 31. MobileNet • D_K: kernelsize • D_F: input size • M: input channel size • N: output channel size https://arxiv.org/abs/1704.04861

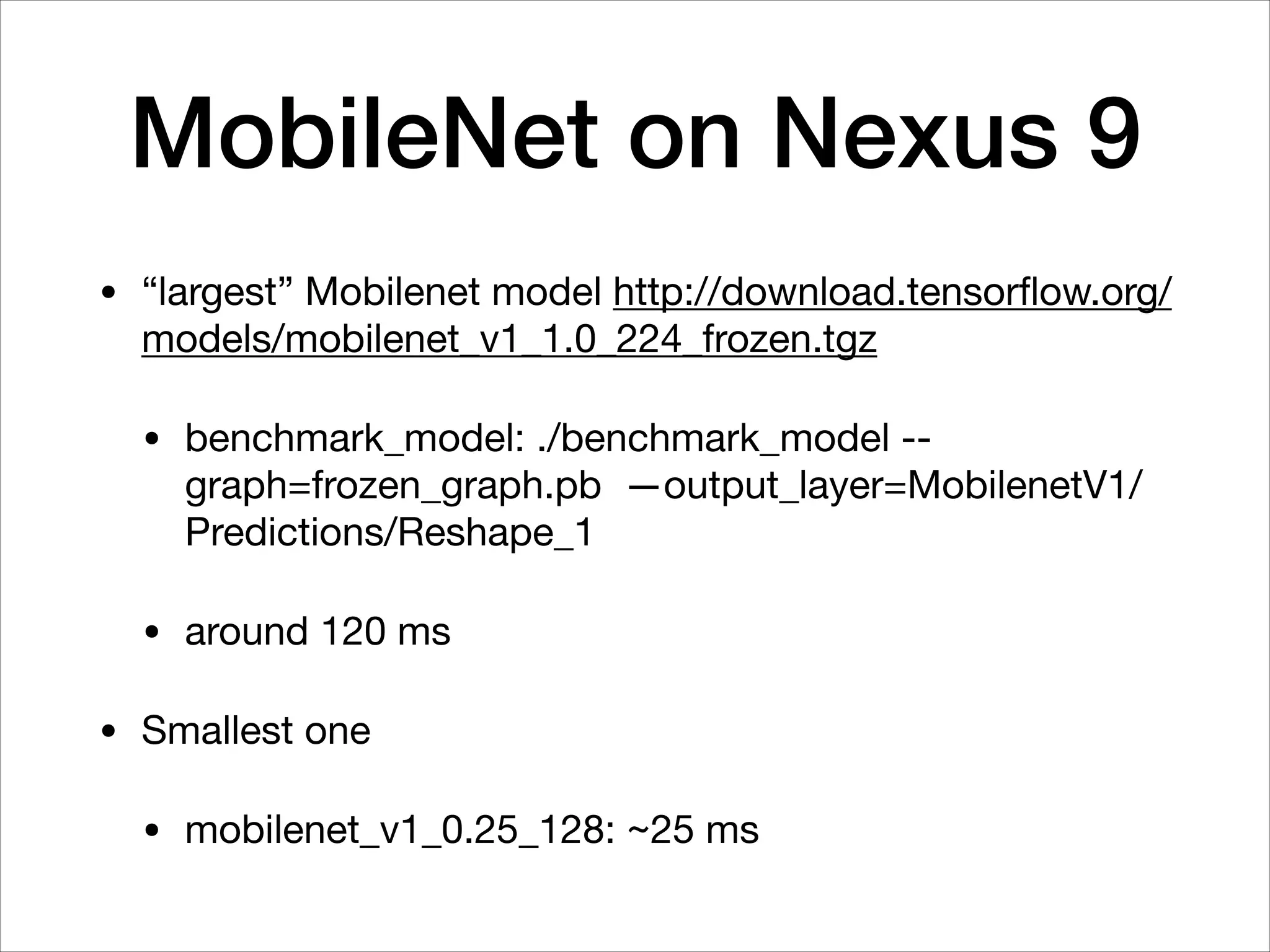

- 32. MobileNet on Nexus9 • “largest” Mobilenet model http://download.tensorflow.org/ models/mobilenet_v1_1.0_224_frozen.tgz • benchmark_model: ./benchmark_model -- graph=frozen_graph.pb —output_layer=MobilenetV1/ Predictions/Reshape_1 • around 120 ms • Smallest one • mobilenet_v1_0.25_128: ~25 ms

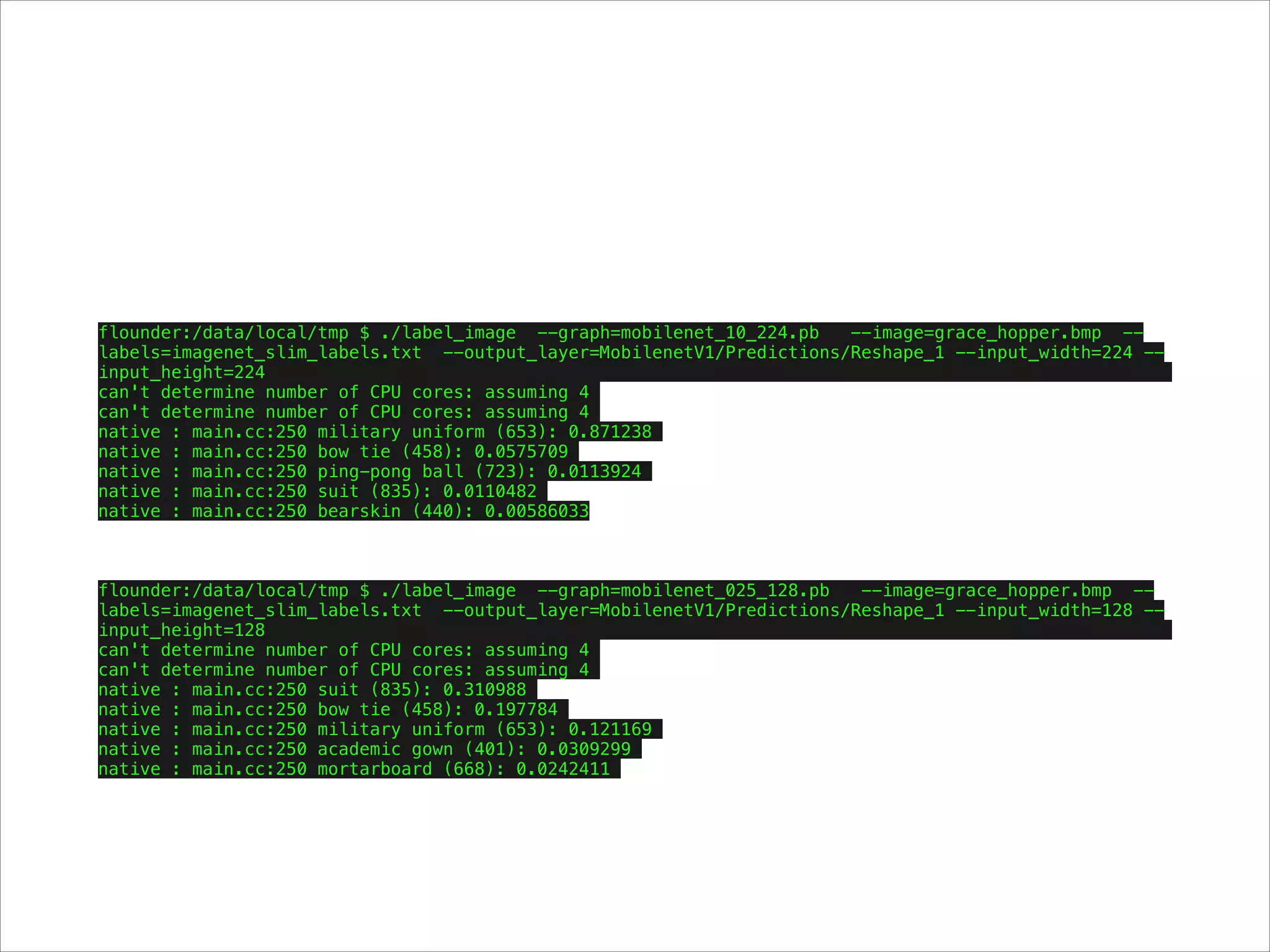

- 33. flounder:/data/local/tmp $ ./label_image--graph=mobilenet_10_224.pb --image=grace_hopper.bmp -- labels=imagenet_slim_labels.txt --output_layer=MobilenetV1/Predictions/Reshape_1 --input_width=224 -- input_height=224 can't determine number of CPU cores: assuming 4 can't determine number of CPU cores: assuming 4 native : main.cc:250 military uniform (653): 0.871238 native : main.cc:250 bow tie (458): 0.0575709 native : main.cc:250 ping-pong ball (723): 0.0113924 native : main.cc:250 suit (835): 0.0110482 native : main.cc:250 bearskin (440): 0.00586033 flounder:/data/local/tmp $ ./label_image --graph=mobilenet_025_128.pb --image=grace_hopper.bmp -- labels=imagenet_slim_labels.txt --output_layer=MobilenetV1/Predictions/Reshape_1 --input_width=128 -- input_height=128 can't determine number of CPU cores: assuming 4 can't determine number of CPU cores: assuming 4 native : main.cc:250 suit (835): 0.310988 native : main.cc:250 bow tie (458): 0.197784 native : main.cc:250 military uniform (653): 0.121169 native : main.cc:250 academic gown (401): 0.0309299 native : main.cc:250 mortarboard (668): 0.0242411

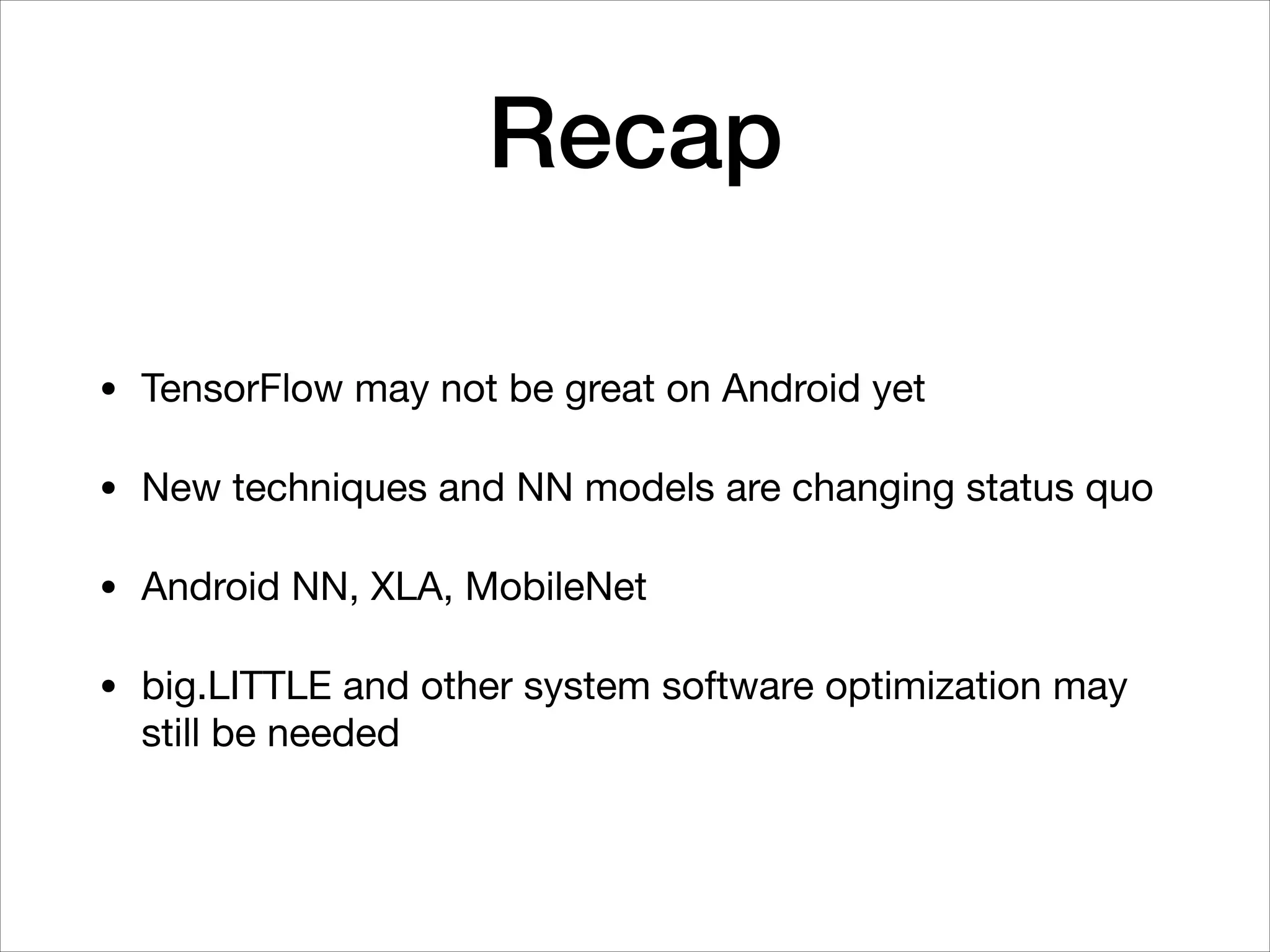

- 34. Recap • TensorFlow maynot be great on Android yet • New techniques and NN models are changing status quo • Android NN, XLA, MobileNet • big.LITTLE and other system software optimization may still be needed
- 35.
- 36.

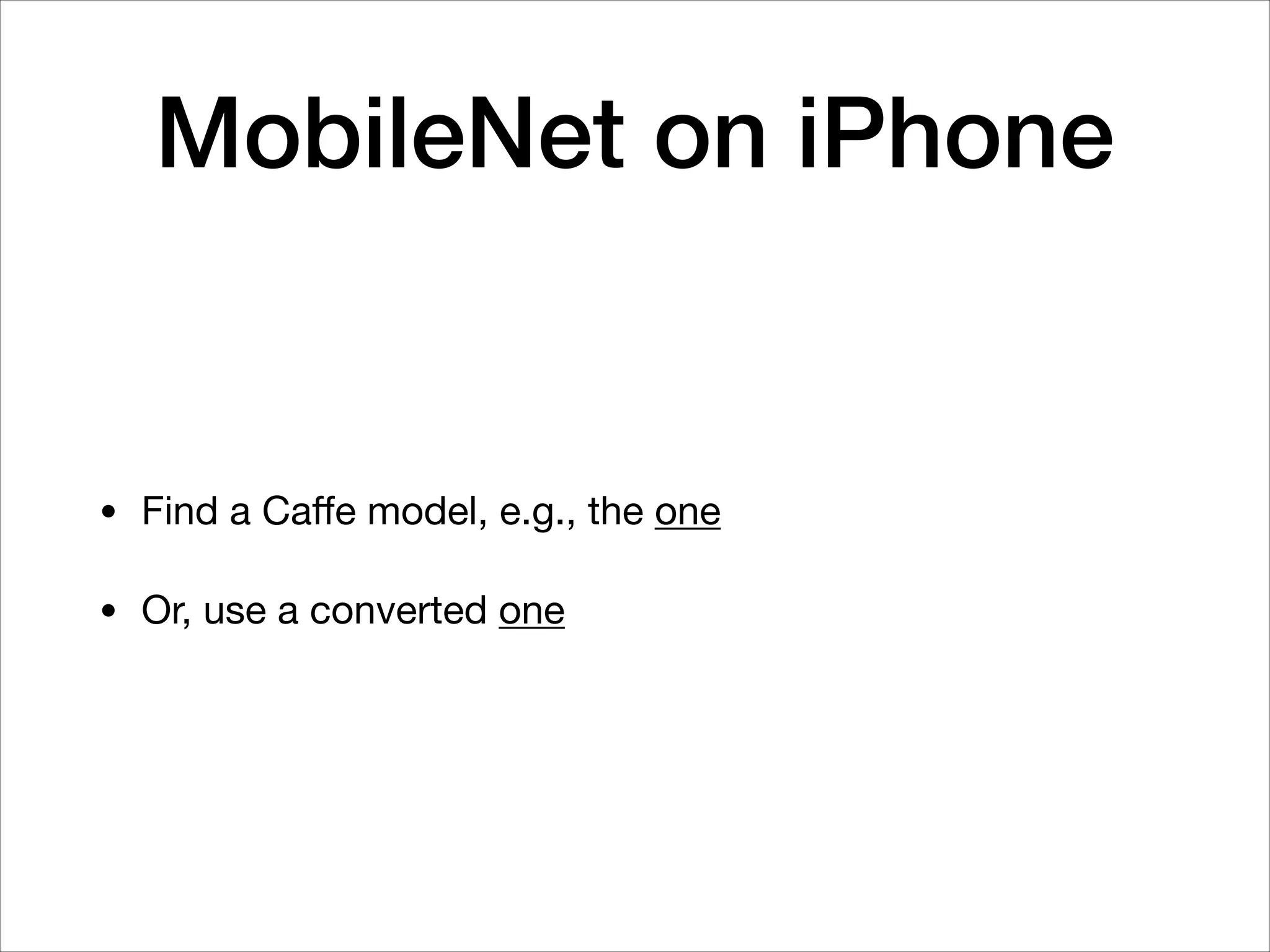

- 37. MobileNet on iPhone •Find a Caffe model, e.g., the one • Or, use a converted one
- 38. label_image in Python •I am not familiar with Protocol Buffer
