Сергій Міськів, «SwiftUI: Animations»
SwiftUI is a declarative UI framework for building iOS apps using Swift. It uses views to represent UI elements, which are composed together declaratively without the use of Interface Builder. Views can contain modifiers that wrap the view in another layer, and the order of modifiers matters. The framework uses implicit and explicit animations to animate state changes. Implicit animations are triggered by state updates and use animatable modifiers. Explicit animations wrap state changes in an animation closure to control animation behavior. Custom animations can be created by making a type conform to the AnimatableModifier protocol.
More Related Content
Similar to Сергій Міськів, «SwiftUI: Animations»
More from Sigma Software
Сергій Міськів, «SwiftUI: Animations»
- 2. SwiftUI Serj Miskiv iOS SEat PiñataFarms & Teacher at APPS UCU Animations
- 3. • Declarative UIframework • No IB, 100 % code only • Swift only What is SwiftUI? • iOS 13+
- 4. Apparently it isnot! SwiftUI is really really raw these days, more stuff will come along SwiftUI a Silver Bullet? …sooner or later 😁
- 5. View View - atype that represents SwiftUI view • require a body computed property • protocol for each and every view in SwiftUI
- 6. View Construction • SwiftUIcompose View type on the compilation time • each modifier on View wraps it to another “layer” • Modifiers order really matters • When state changed, the concrete View type won't • only content
- 7. struct ContentView: View{ @State var counter = 0 var body: some View { VStack { Button(action: { self.counter += 1 }, label: { Text("Tap me!") .padding() .background(Color(.tertiarySystemFill)) .cornerRadius(5) }) if counter > 0 { Text("You've tapped (counter) times") } else { Text("You've not yet tapped") } } .debug() } } View Construction

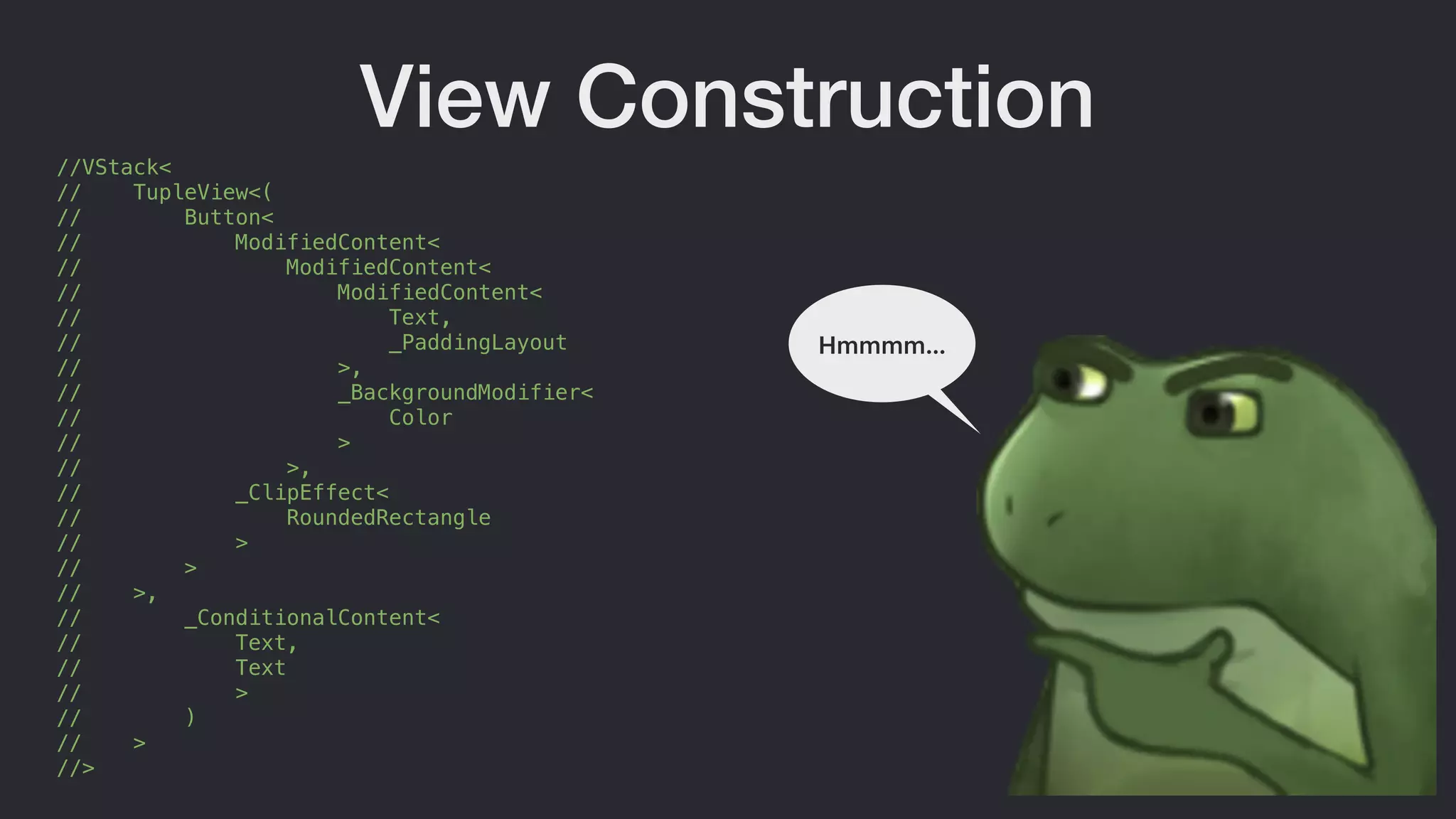

- 8. //VStack< // TupleView<( // Button< //ModifiedContent< // ModifiedContent< // ModifiedContent< // Text, // _PaddingLayout // >, // _BackgroundModifier< // Color // > // >, // _ClipEffect< // RoundedRectangle // > // > // >, // _ConditionalContent< // Text, // Text // > // ) // > //> View Construction Hmmmm…

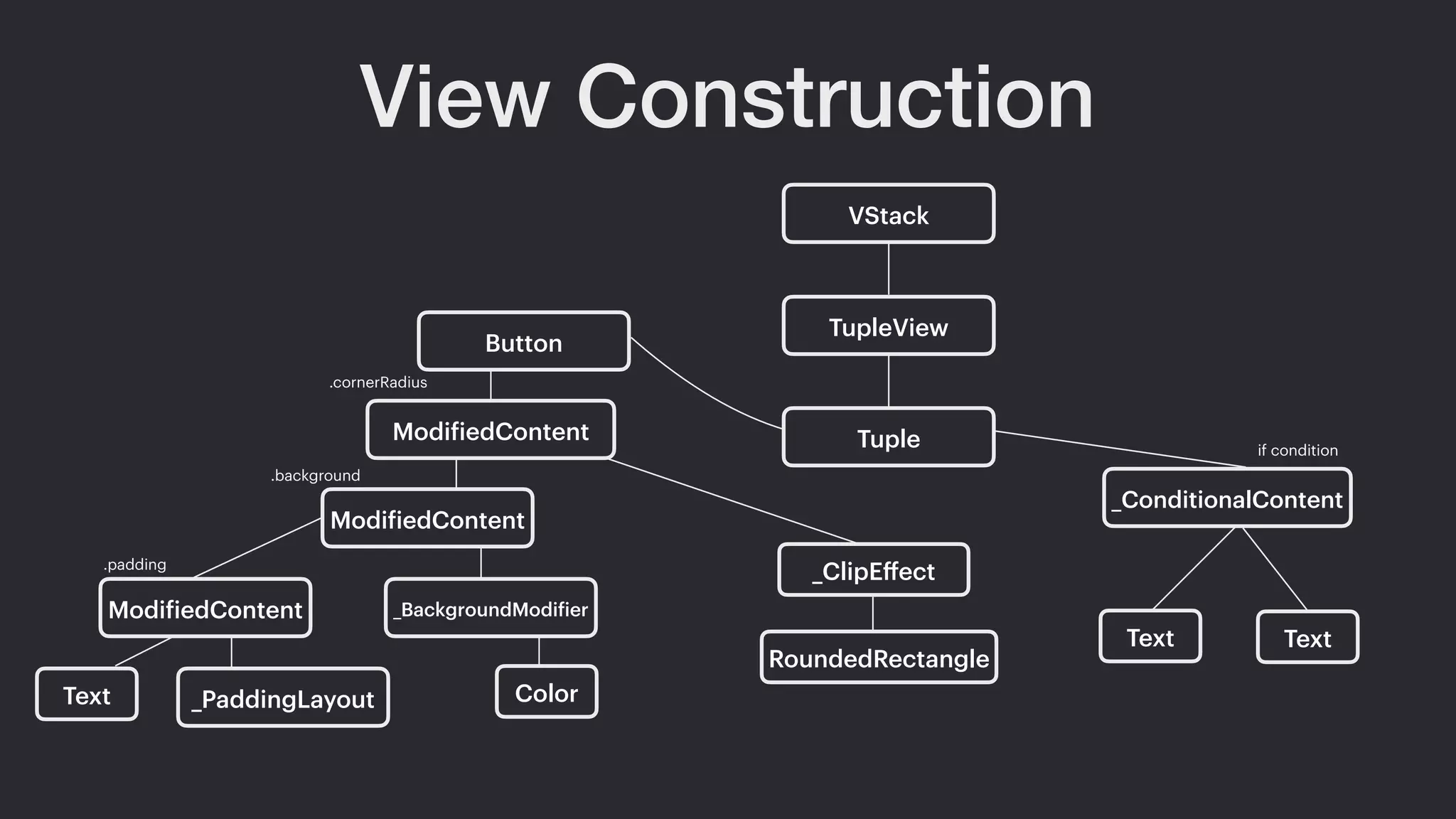

- 9. View Construction VStack TupleView if condition TextText Tuple Button _ConditionalContent ModifiedContent .cornerRadius _ClipEffect RoundedRectangle ModifiedContent .background ModifiedContent _BackgroundModifier Text _PaddingLayout Color .padding
- 10. View Construction So, theactual components translated to: • if statement around component becomes Component? • sole component (Text or Image) to same type • if/else becoming ConditionalContent with two arguments • two or more components will become TupleView • component with modifier becomes ModifiedContent

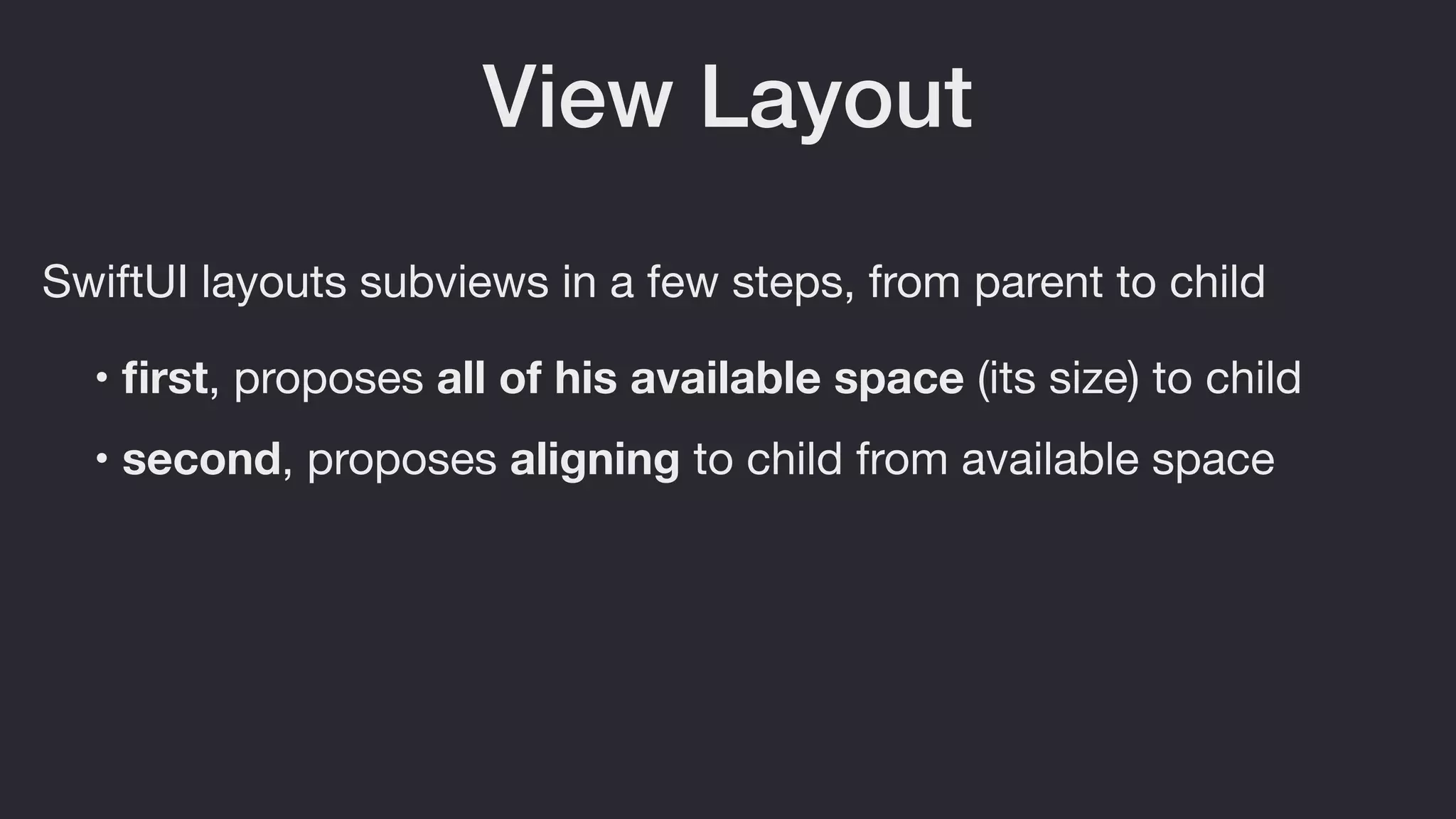

- 11. View Layout SwiftUI layoutssubviews in a few steps, from parent to child • first, proposes all of his available space (its size) to child • second, proposes aligning to child from available space

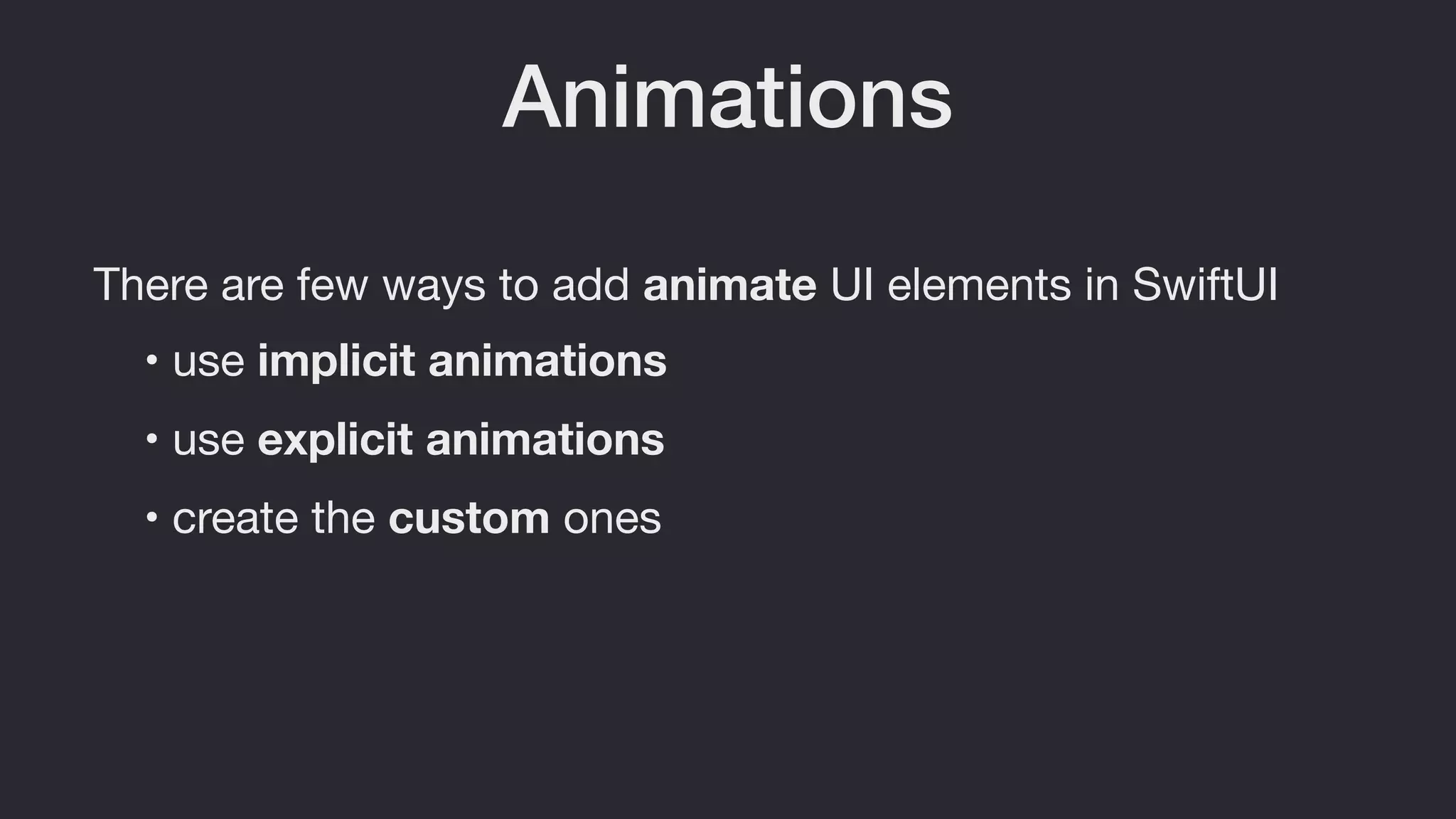

- 12. Animations There are fewways to add animate UI elements in SwiftUI • use explicit animations • use implicit animations • create the custom ones
- 13. Implicit Animations • Lookslike standard modifier, that we apply on the View • Triggers by state updates • only they are AnimatableModifiers
- 14. Animatable A type foranimating views (c) Apple Seems legit!!!
- 15. Animatable Actually pretty simple: •require to provide animatableData as computed property • a protocol, which define what would be animated

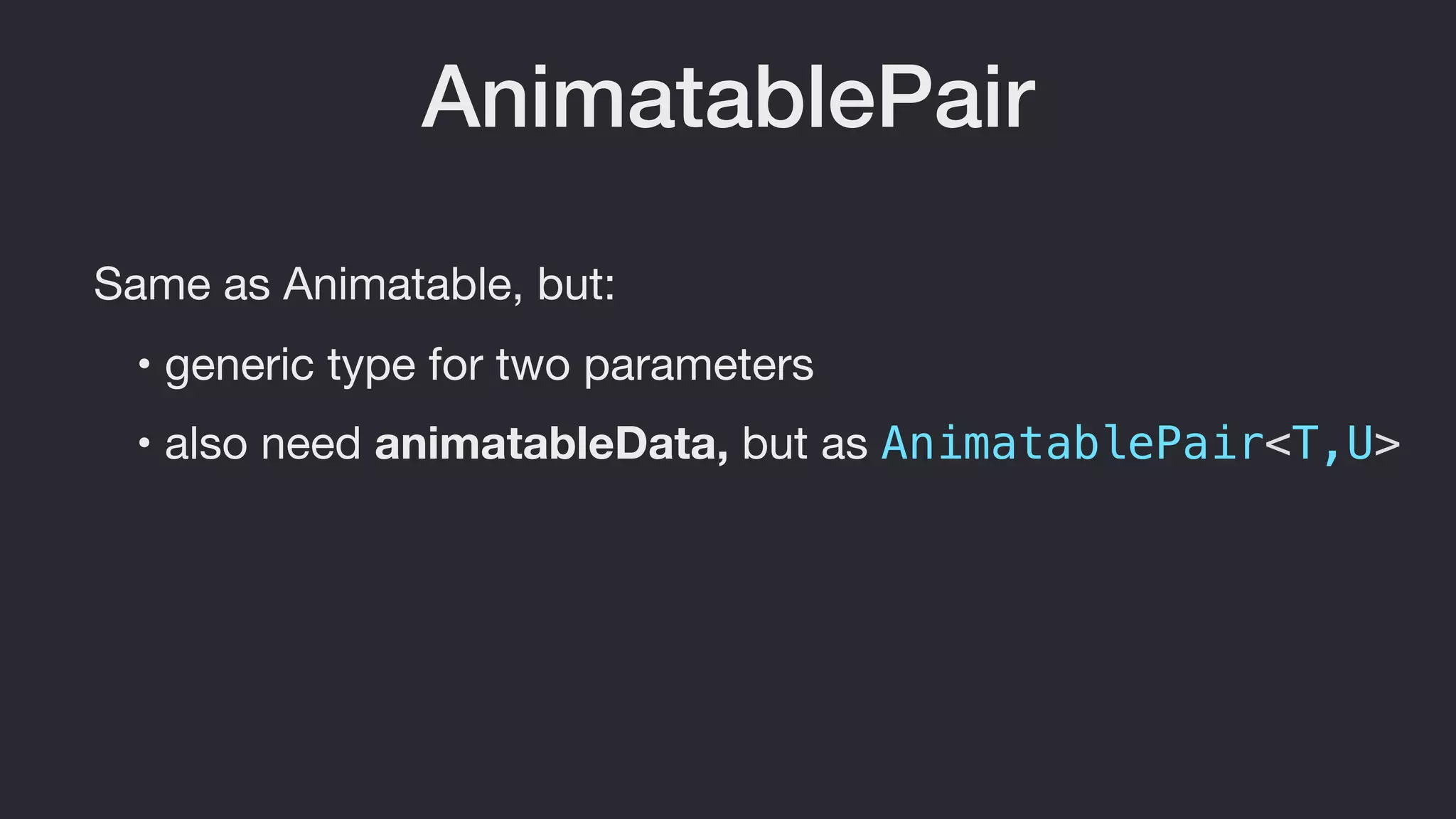

- 16. AnimatablePair Same as Animatable,but: • also need animatableData, but as AnimatablePair<T,U> • generic type for two parameters
- 17. AnimatableModifier Just Animatable +ViewModifier protocols combined: struct SomeNewModifier: AnimatableModifier { var someStuffToAnimated: CGFloat = 0 var animatableData: CGFloat { get { someStuffToAnimated } set { someStuffToAnimated = newValue } } func body(content: Content) -> some View { // Some body } }
- 18. Implicit Animations struct ImplicityAnimationView1:View { @State var selected: Bool = false var body: some View { Button(action: { self.selected.toggle() }) { RoundedRectangle(cornerRadius: 10) .fill(selected ? Color.red : .green) .frame( width: selected ? 100 : 50, height: selected ? 100 : 50 ) } .animation(.default) .debug() } }

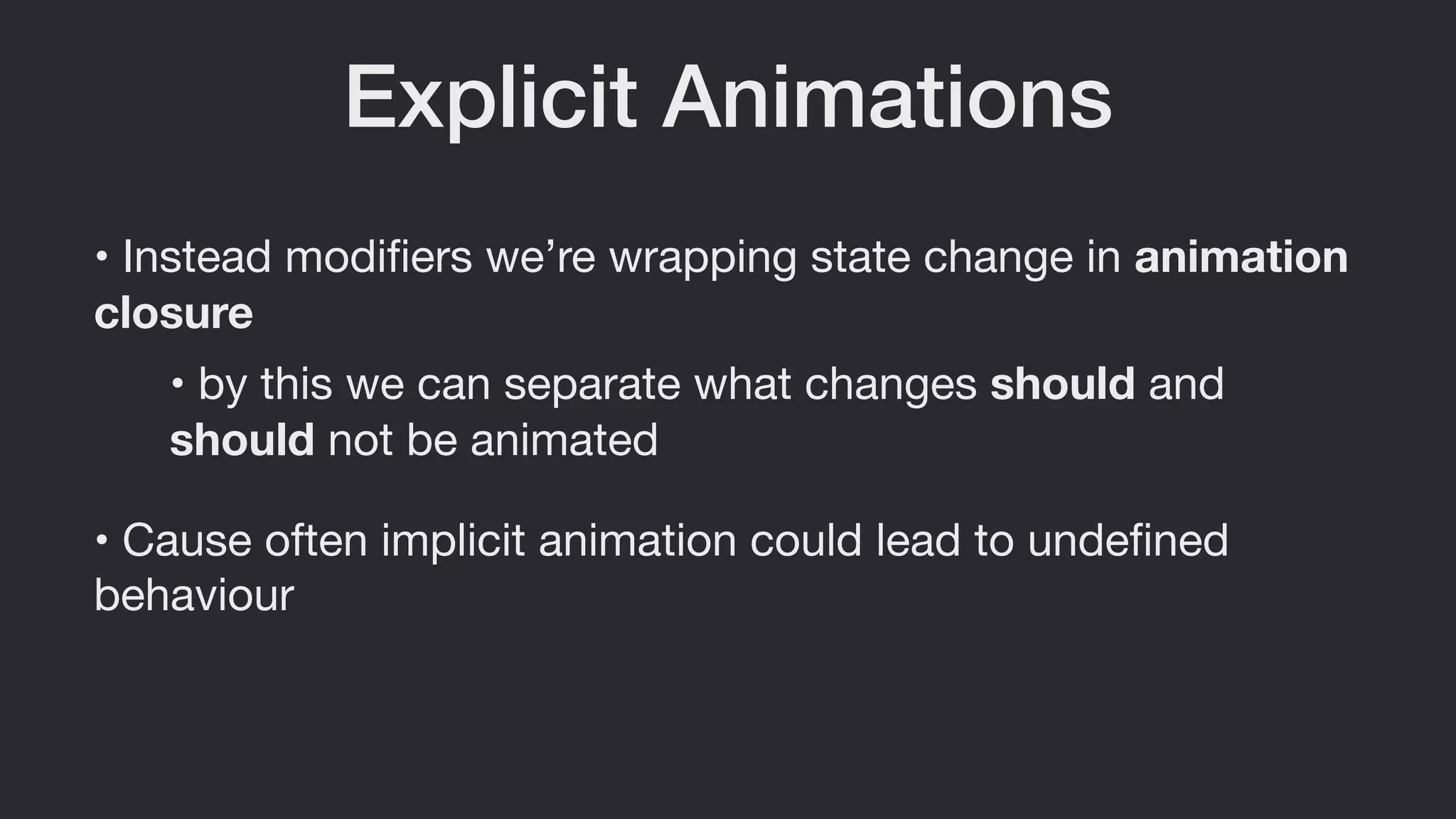

- 19. Explicit Animations • Insteadmodifiers we’re wrapping state change in animation closure • Cause often implicit animation could lead to undefined behaviour • by this we can separate what changes should and should not be animated
- 20. Explicit Animations struct ExplicityAnimationView2:View { @State var appeared = false var body: some View { ZStack { Circle() .fill(Color.red) .frame(width: 45, height: 45) Circle() .fill(Color.accentColor) .frame(width: 15, height: 15) .offset(y: -50) .rotationEffect( appeared ? Angle.degrees(360) : .zero ) .onAppear { withAnimation(self.animation) { self.appeared = true } } } } }

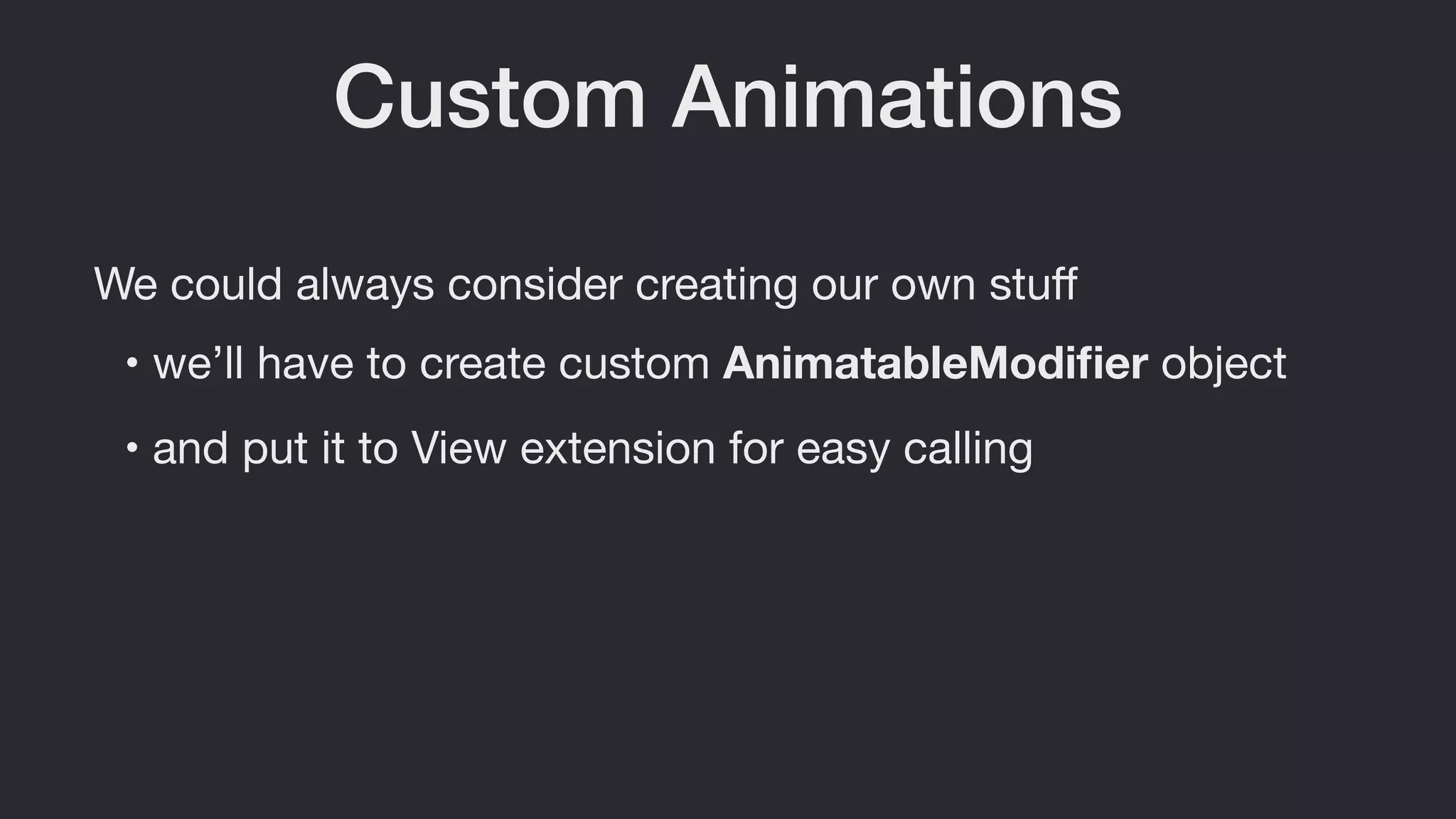

- 21. Custom Animations We couldalways consider creating our own stuff • we’ll have to create custom AnimatableModifier object • and put it to View extension for easy calling

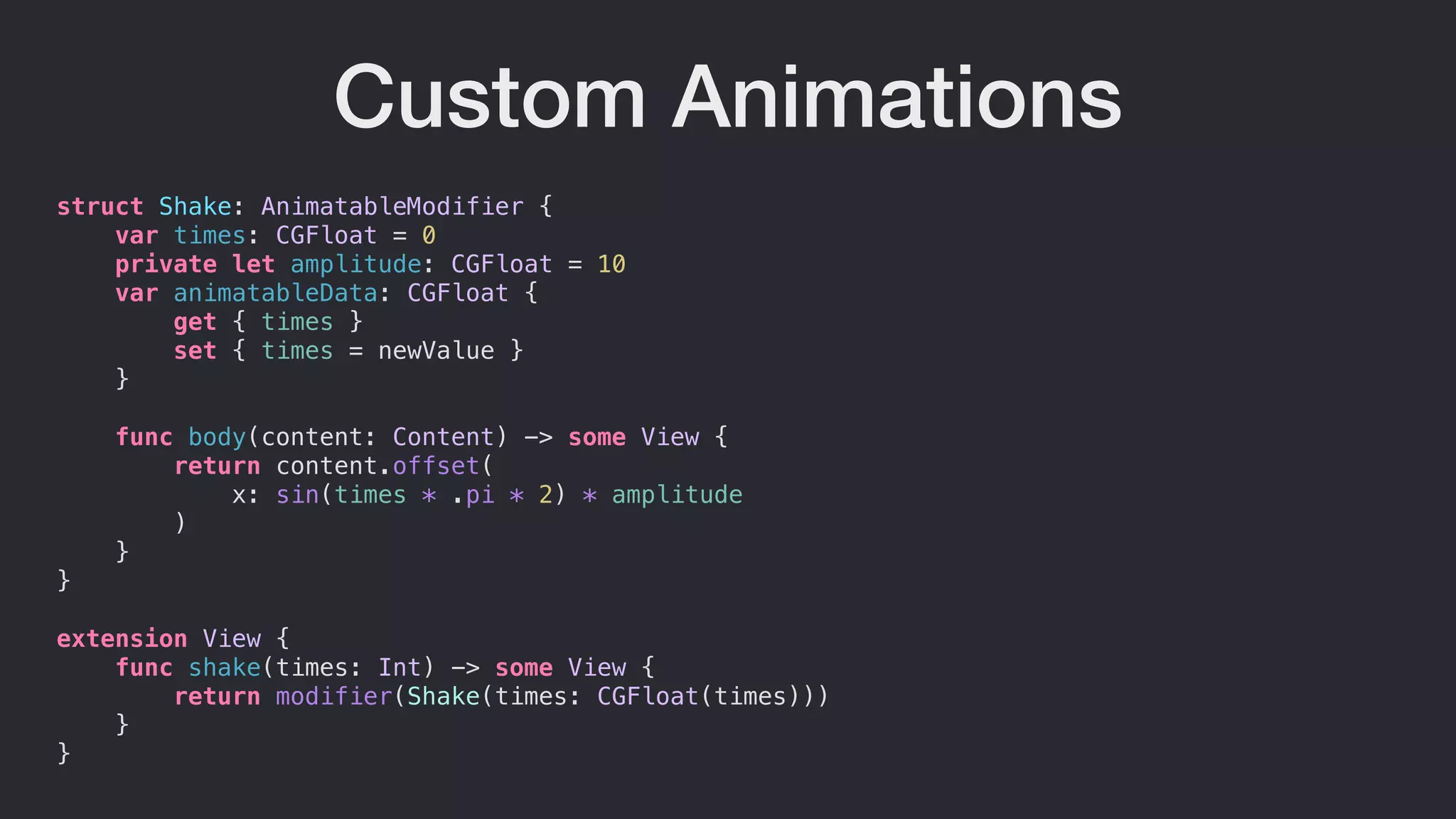

- 22. Custom Animations struct Shake:AnimatableModifier { var times: CGFloat = 0 private let amplitude: CGFloat = 10 var animatableData: CGFloat { get { times } set { times = newValue } } func body(content: Content) -> some View { return content.offset( x: sin(times * .pi * 2) * amplitude ) } } extension View { func shake(times: Int) -> some View { return modifier(Shake(times: CGFloat(times))) } }
- 23. Custom Animations struct CustomAnimationView1:View { @State private var taps: Int = 0 var body: some View { Button("Hello") { withAnimation(.linear(duration: 5)) { self.taps += 1 } } .shake(times: taps * 3) .debug() } }
- 24.
- 25.
- 26. Useful Links • Hackingwith Swift by Paul Hudson • Docs • Tutorials • WWDC 2019 SwiftUI videos
