Streams, Streams Everywhere! An Introduction to Rx Corkdev.io - 15th December 2015 Andrzej Sitek
<author> <name>Andrzej Sitek</name> <title>Android Developer</title> <company>Digisoft.tv / Progressive Apps</company> <email>andy@progressiveapps.co</email> <twitter>@andrzej_sitek</twitter> <google-plus>+AndrzejSitek</google-plus> </author> Let me introduce myself

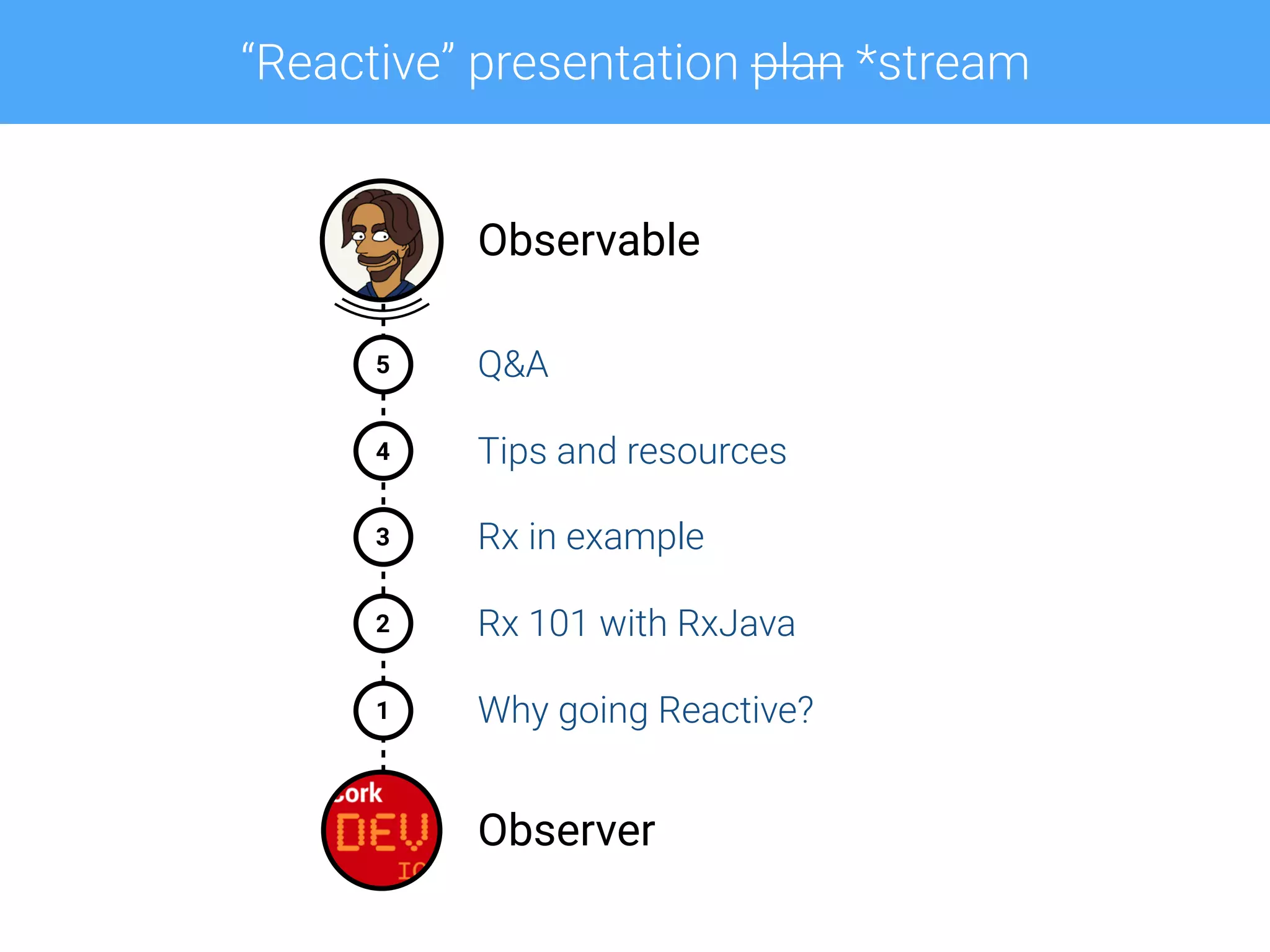

“Reactive” presentation plan *stream 5 4 1 2 3 Observable Observer Q&A Tips and resources Rx in example Rx 101 with RxJava Why going Reactive?

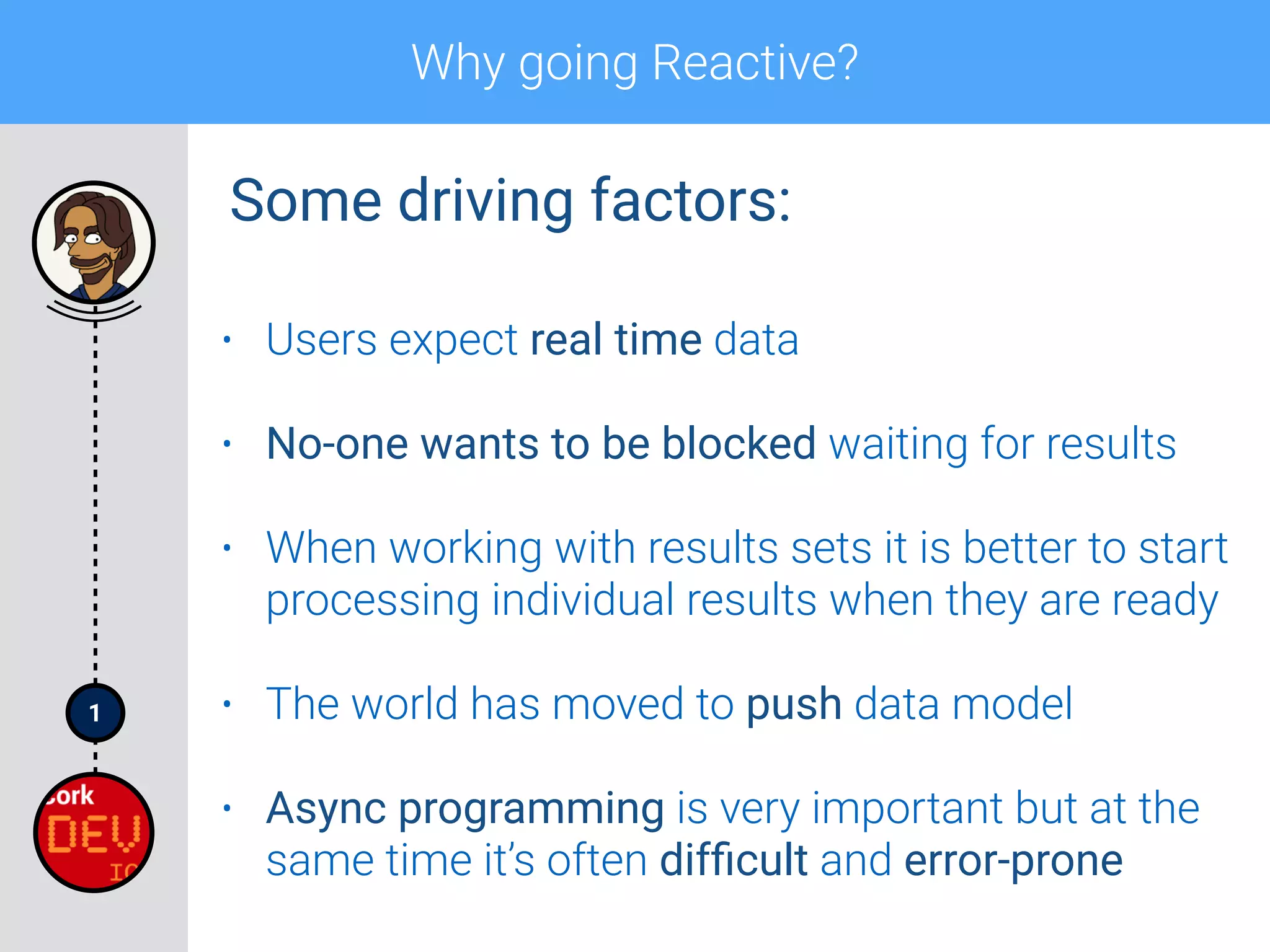

1 Why going Reactive? • Users expect real time data • No-one wants to be blocked waiting for results • When working with results sets it is better to start processing individual results when they are ready • The world has moved to push data model • Async programming is very important but at the same time it’s often difficult and error-prone Some driving factors:

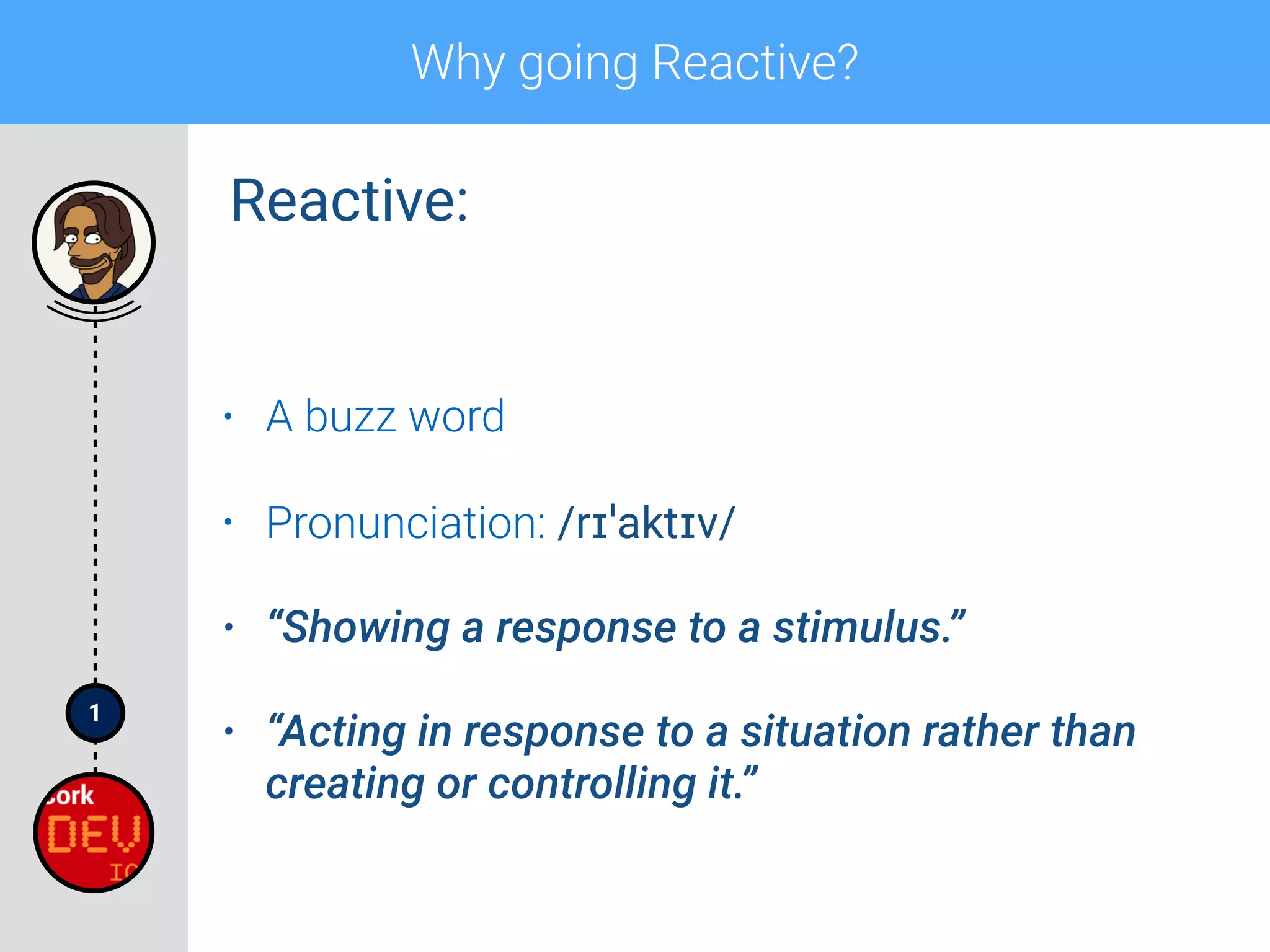

1 Why going Reactive? • A buzz word • Pronunciation: /rɪˈaktɪv/ • “Showing a response to a stimulus.” • “Acting in response to a situation rather than creating or controlling it.” Reactive:

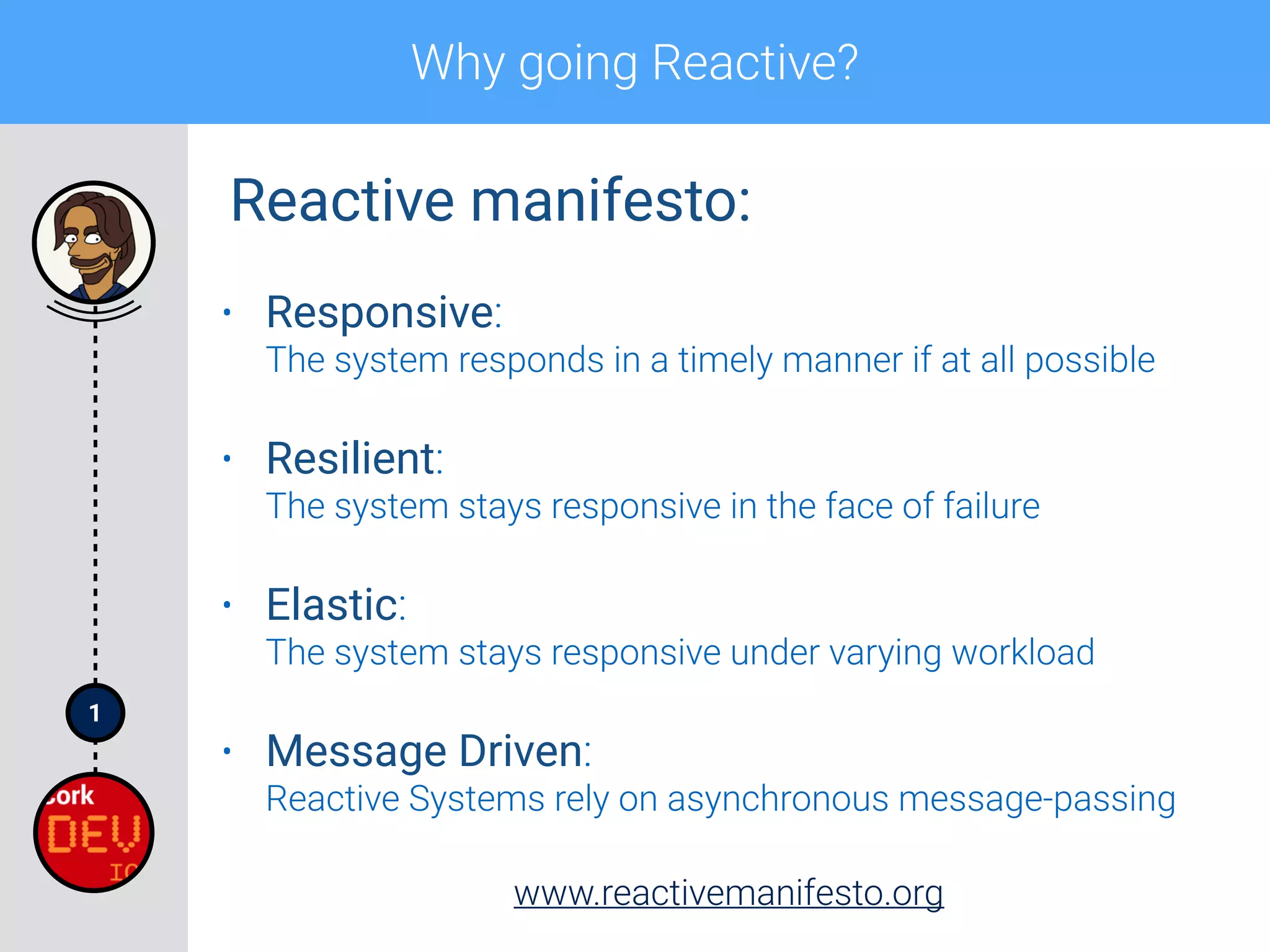

1 Why going Reactive? • Responsive:
 The system responds in a timely manner if at all possible • Resilient:
 The system stays responsive in the face of failure • Elastic:
 The system stays responsive under varying workload • Message Driven:
 Reactive Systems rely on asynchronous message-passing www.reactivemanifesto.org Reactive manifesto:

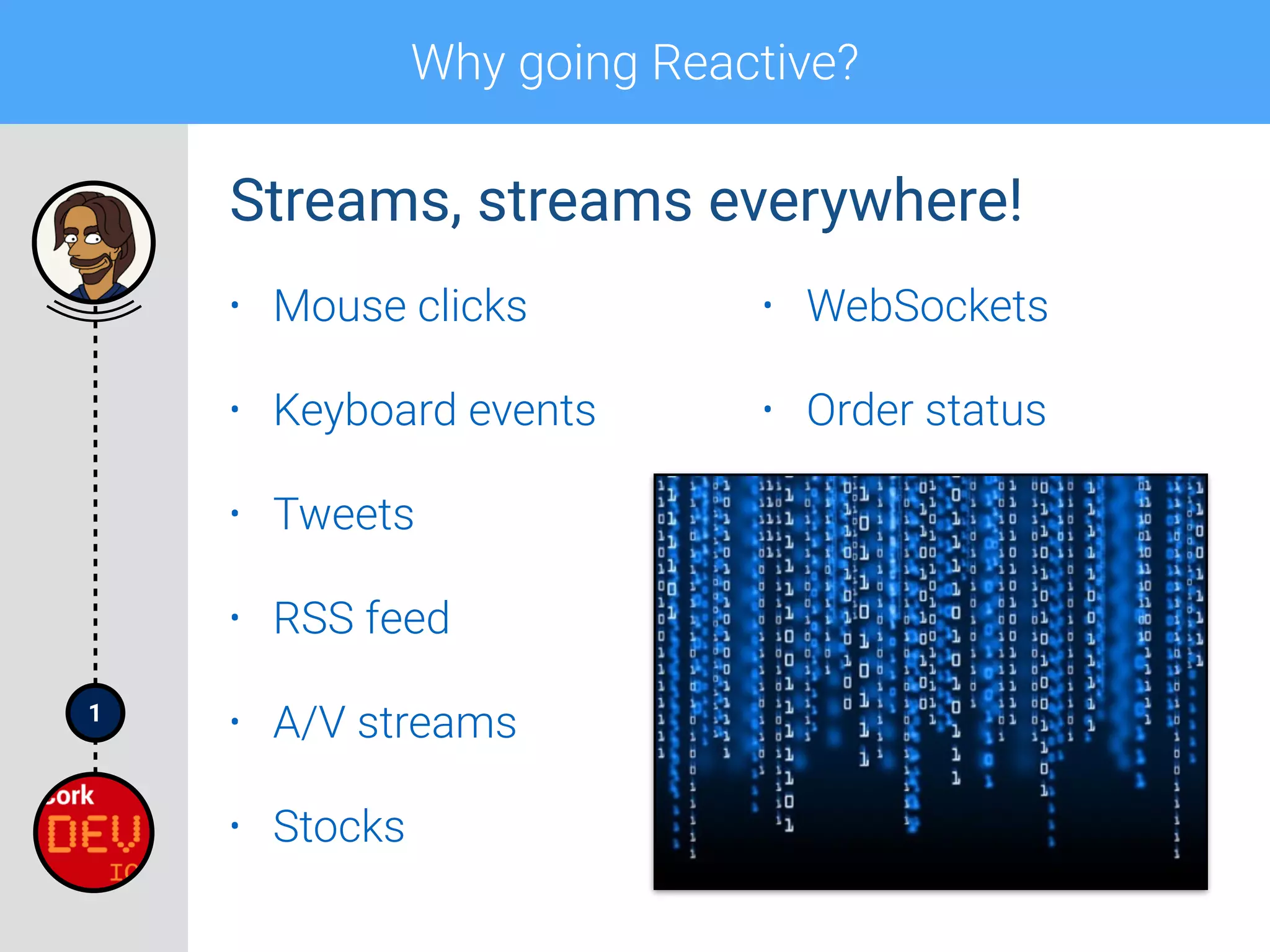

1 Why going Reactive? • Mouse clicks • Keyboard events • Tweets • RSS feed • A/V streams • Stocks • WebSockets • Order status Streams, streams everywhere!

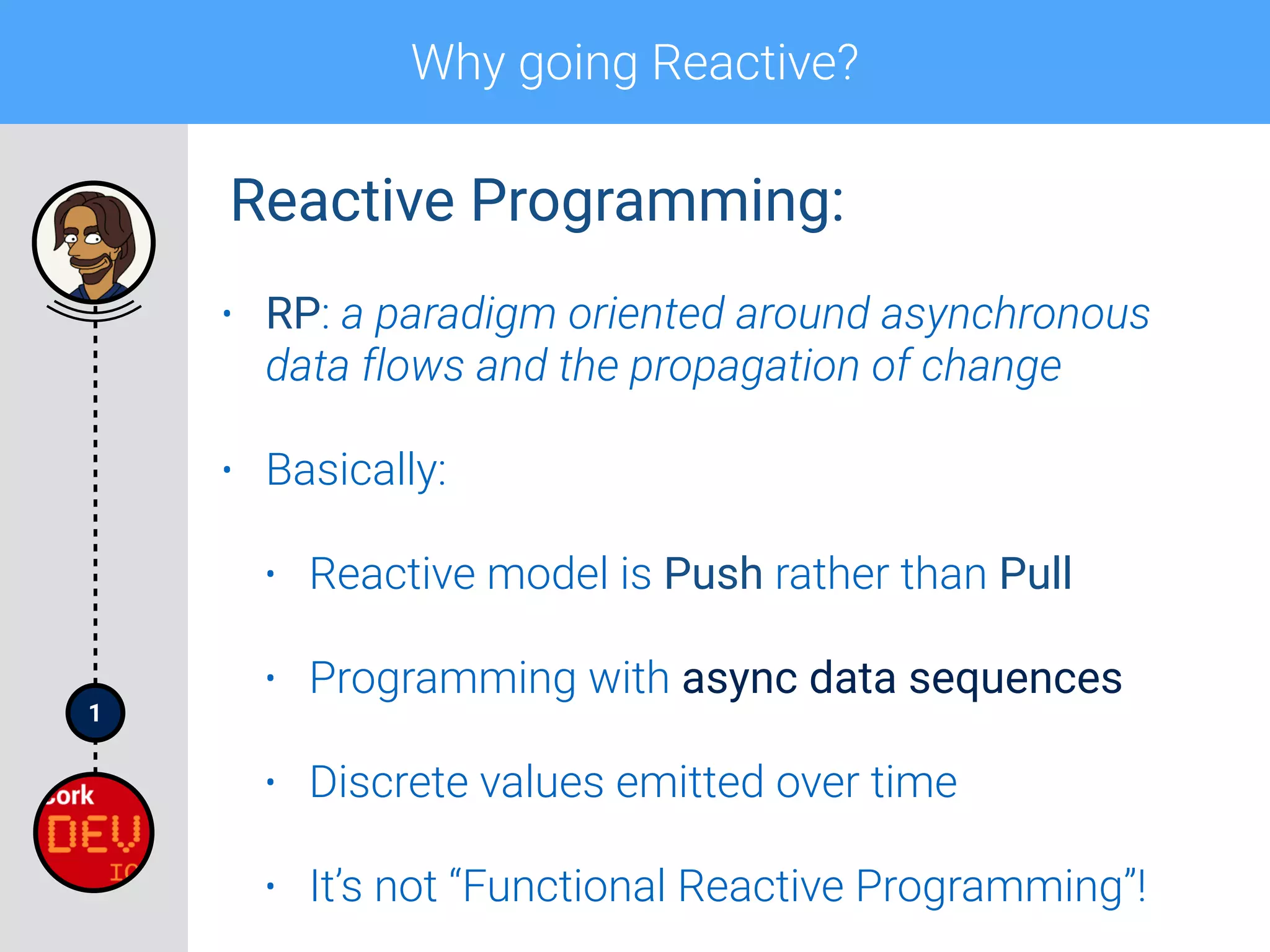

1 Why going Reactive? • RP: a paradigm oriented around asynchronous data flows and the propagation of change • Basically: • Reactive model is Push rather than Pull • Programming with async data sequences • Discrete values emitted over time • It’s not “Functional Reactive Programming”! Reactive Programming:

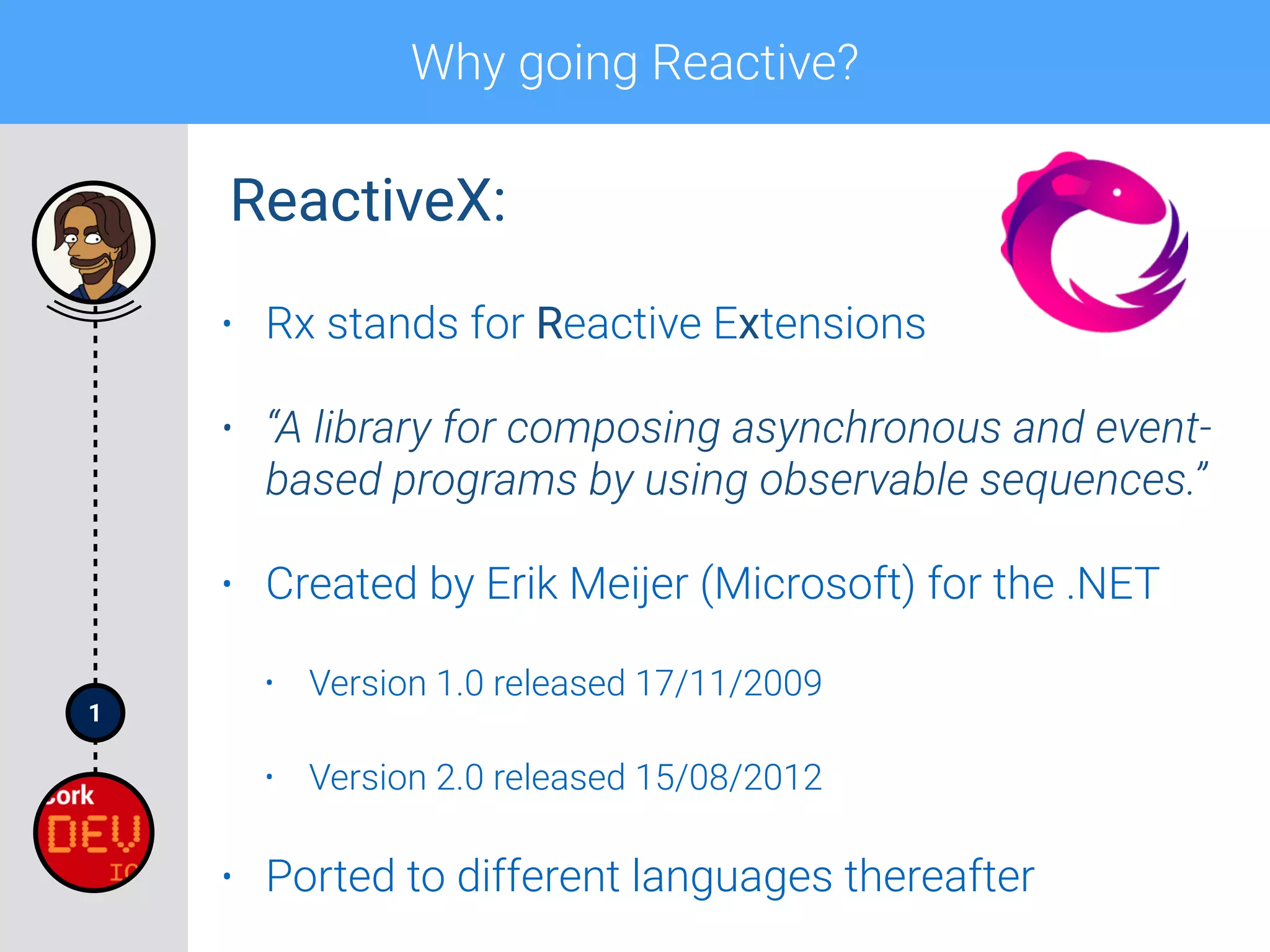

1 Why going Reactive? • Rx stands for Reactive Extensions • “A library for composing asynchronous and event- based programs by using observable sequences.” • Created by Erik Meijer (Microsoft) for the .NET • Version 1.0 released 17/11/2009 • Version 2.0 released 15/08/2012 • Ported to different languages thereafter ReactiveX:

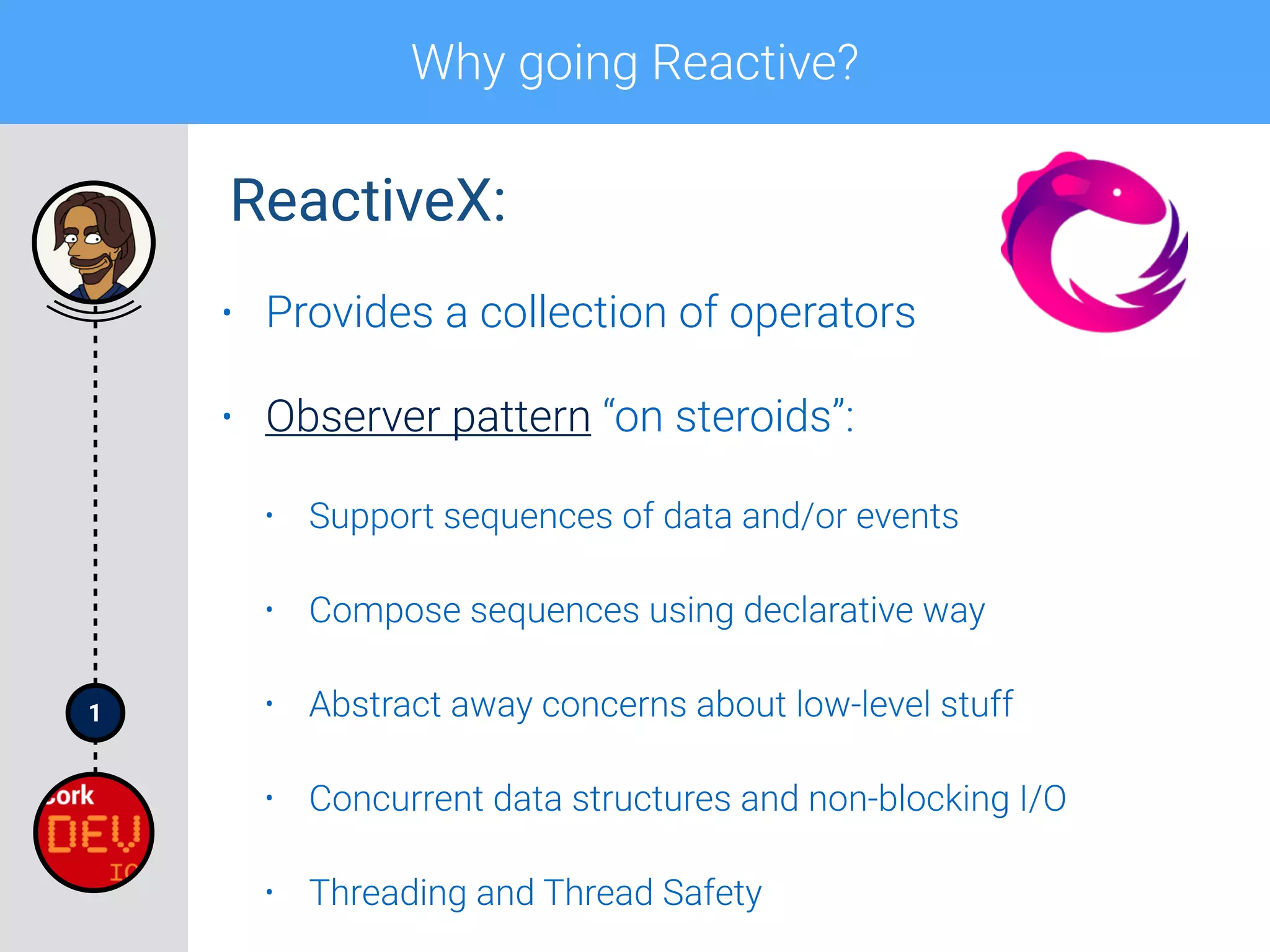

1 Why going Reactive? • Provides a collection of operators • Observer pattern “on steroids”: • Support sequences of data and/or events • Compose sequences using declarative way • Abstract away concerns about low-level stuff • Concurrent data structures and non-blocking I/O • Threading and Thread Safety ReactiveX:

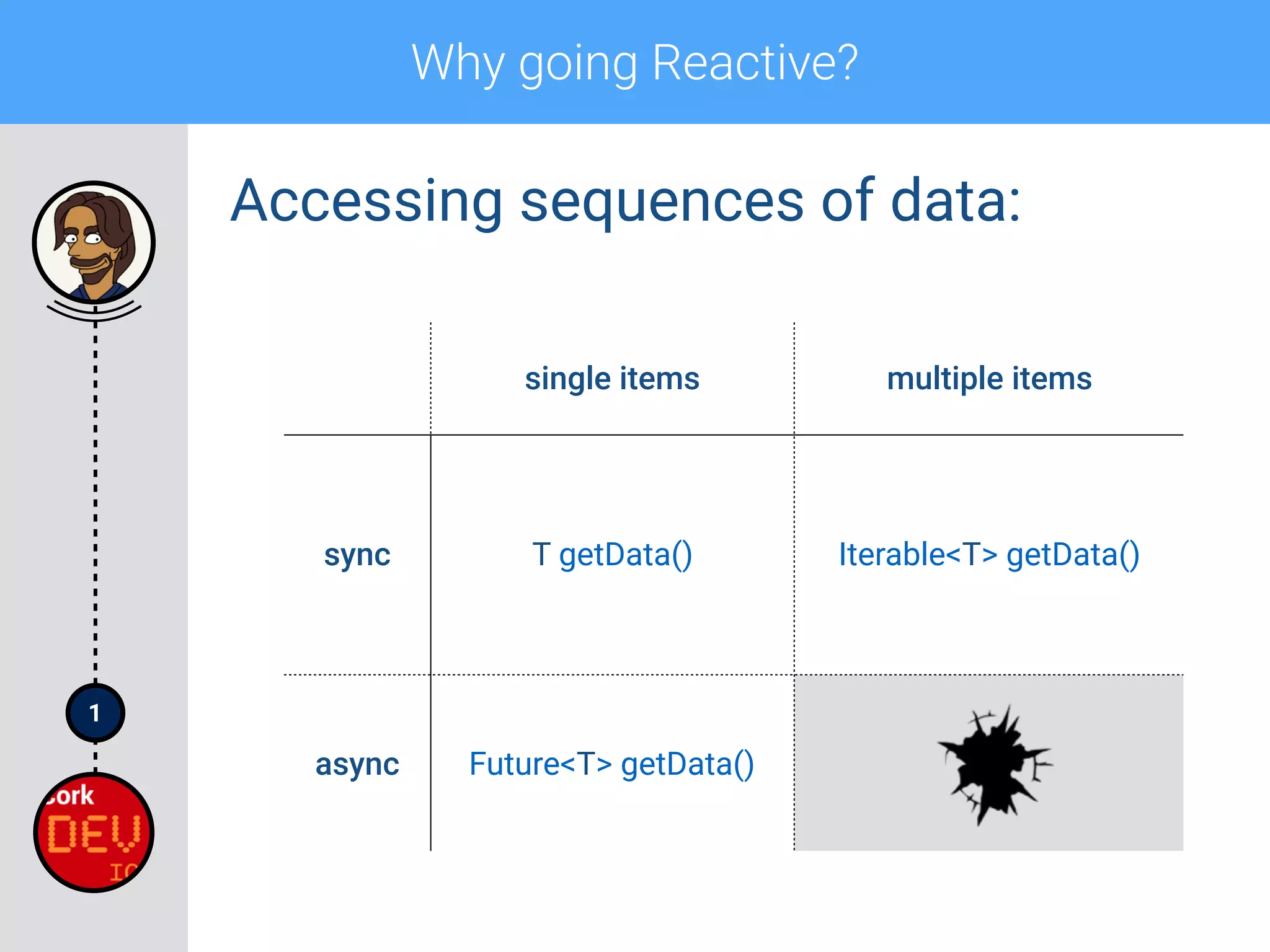

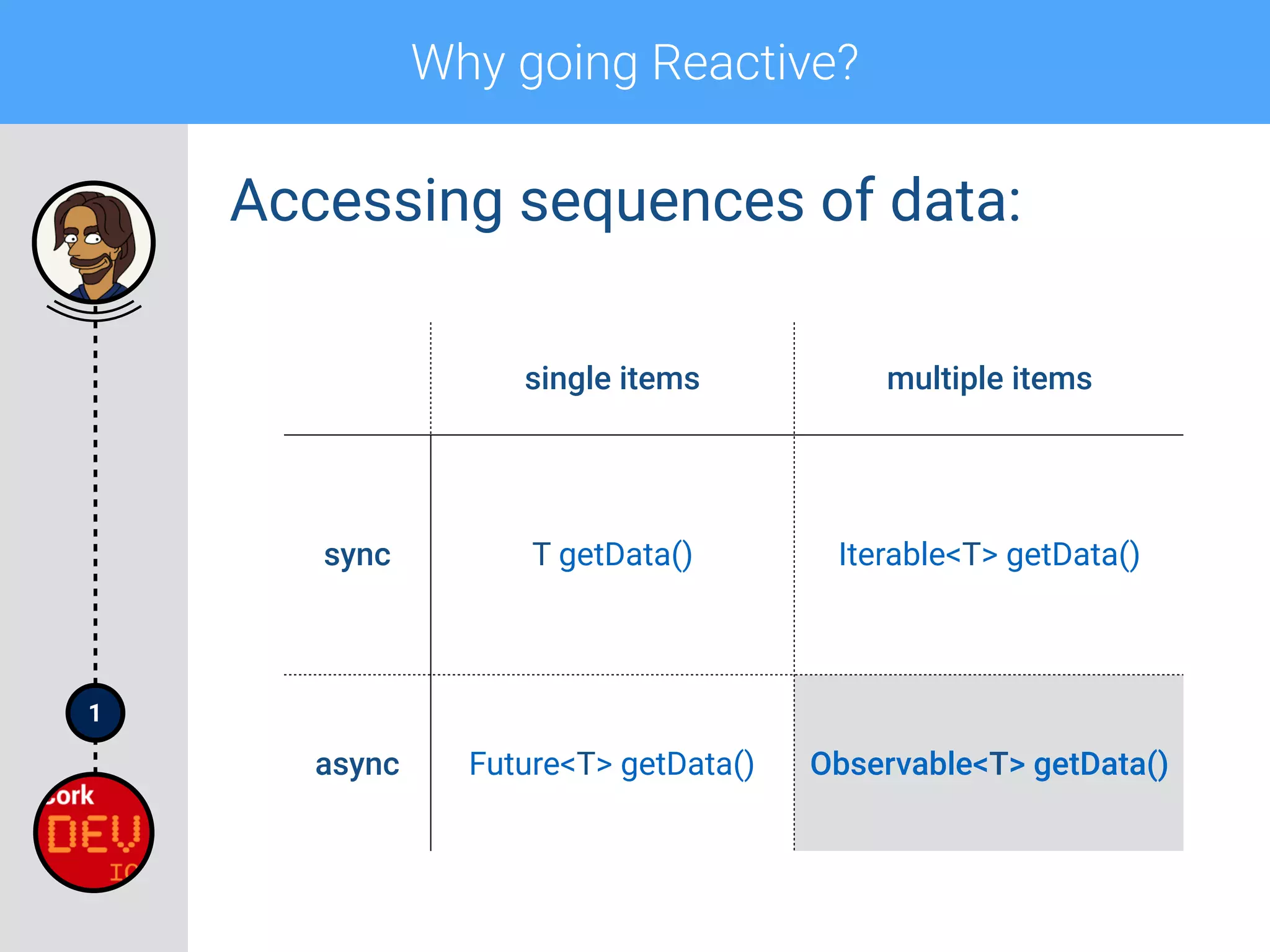

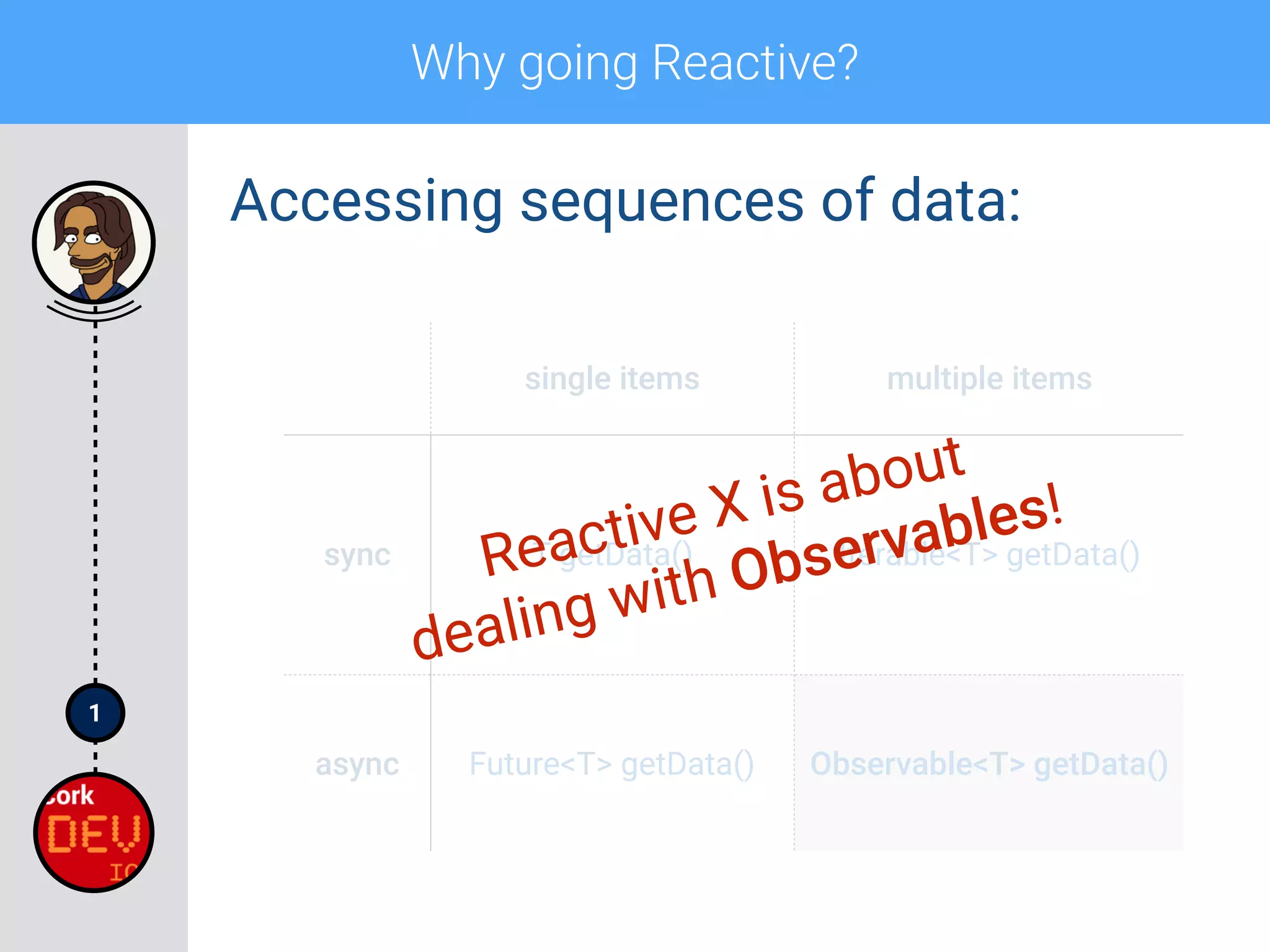

1 Why going Reactive? Accessing sequences of data: single items multiple items sync T getData() Iterable<T> getData() async Future<T> getData()
1 Why going Reactive? Accessing sequences of data: single items multiple items sync T getData() Iterable<T> getData() async Future<T> getData() Observable<T> getData()
1 Why going Reactive? Accessing sequences of data: single items multiple items sync T getData() Iterable<T> getData() async Future<T> getData() Observable<T> getData() Reactive X is about dealing with Observables!

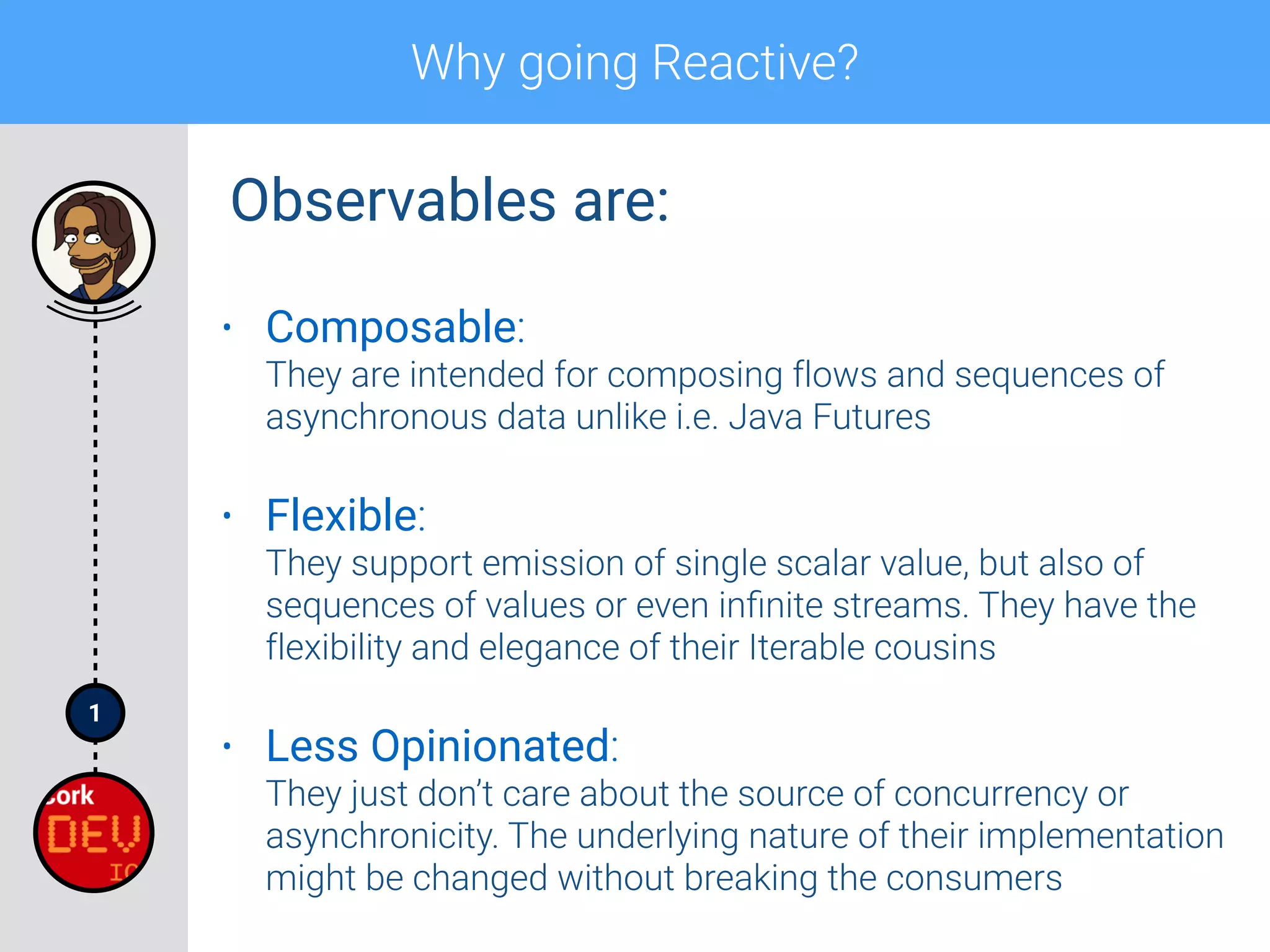

1 Why going Reactive? • Composable:
 They are intended for composing flows and sequences of asynchronous data unlike i.e. Java Futures • Flexible:
 They support emission of single scalar value, but also of sequences of values or even infinite streams. They have the flexibility and elegance of their Iterable cousins • Less Opinionated:
 They just don’t care about the source of concurrency or asynchronicity. The underlying nature of their implementation might be changed without breaking the consumers Observables are:
1 Why going Reactive?

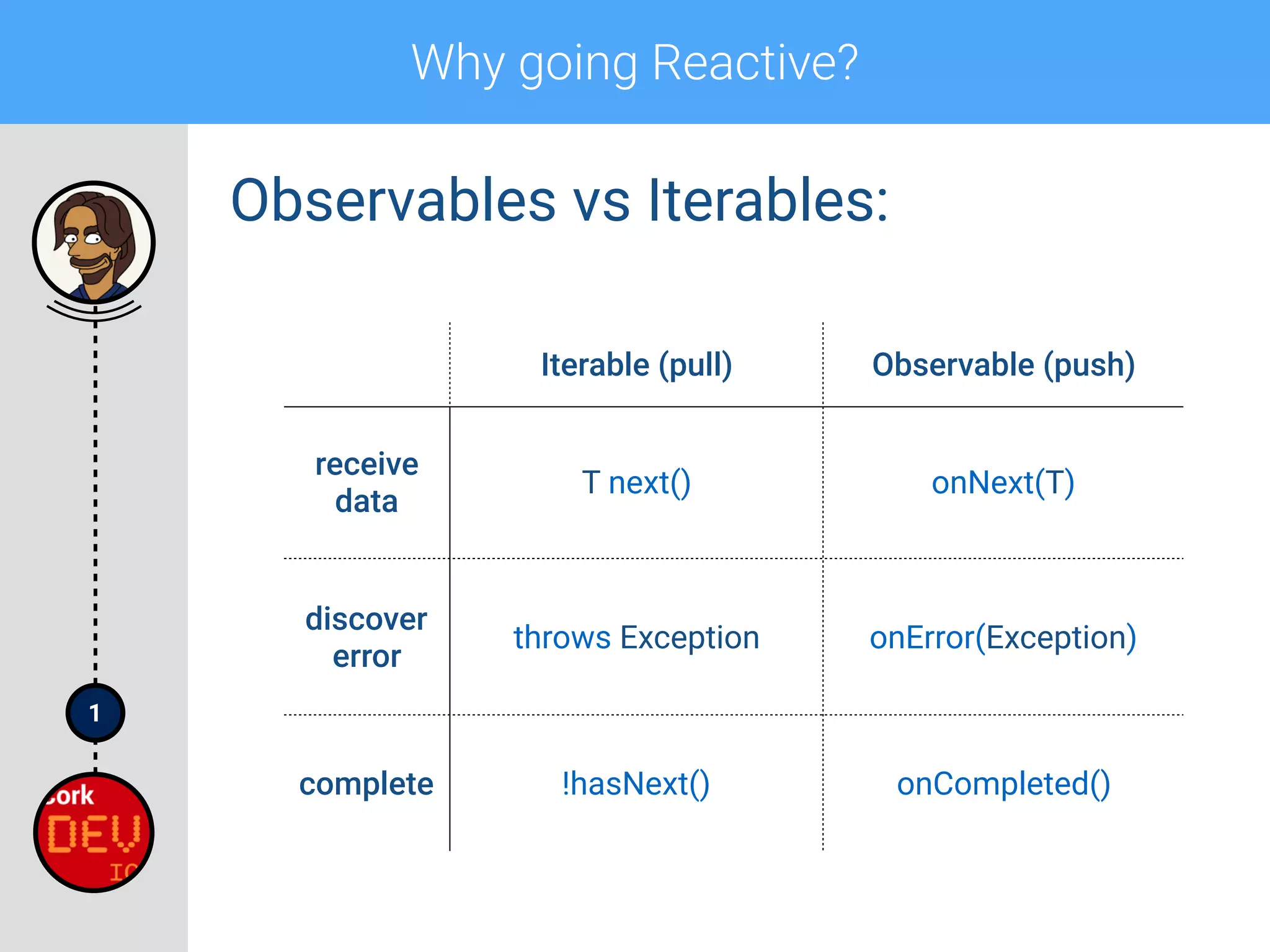

1 Why going Reactive? Observables vs Iterables: Iterable (pull) Observable (push) receive data T next() onNext(T) discover error throws Exception onError(Exception) complete !hasNext() onCompleted()

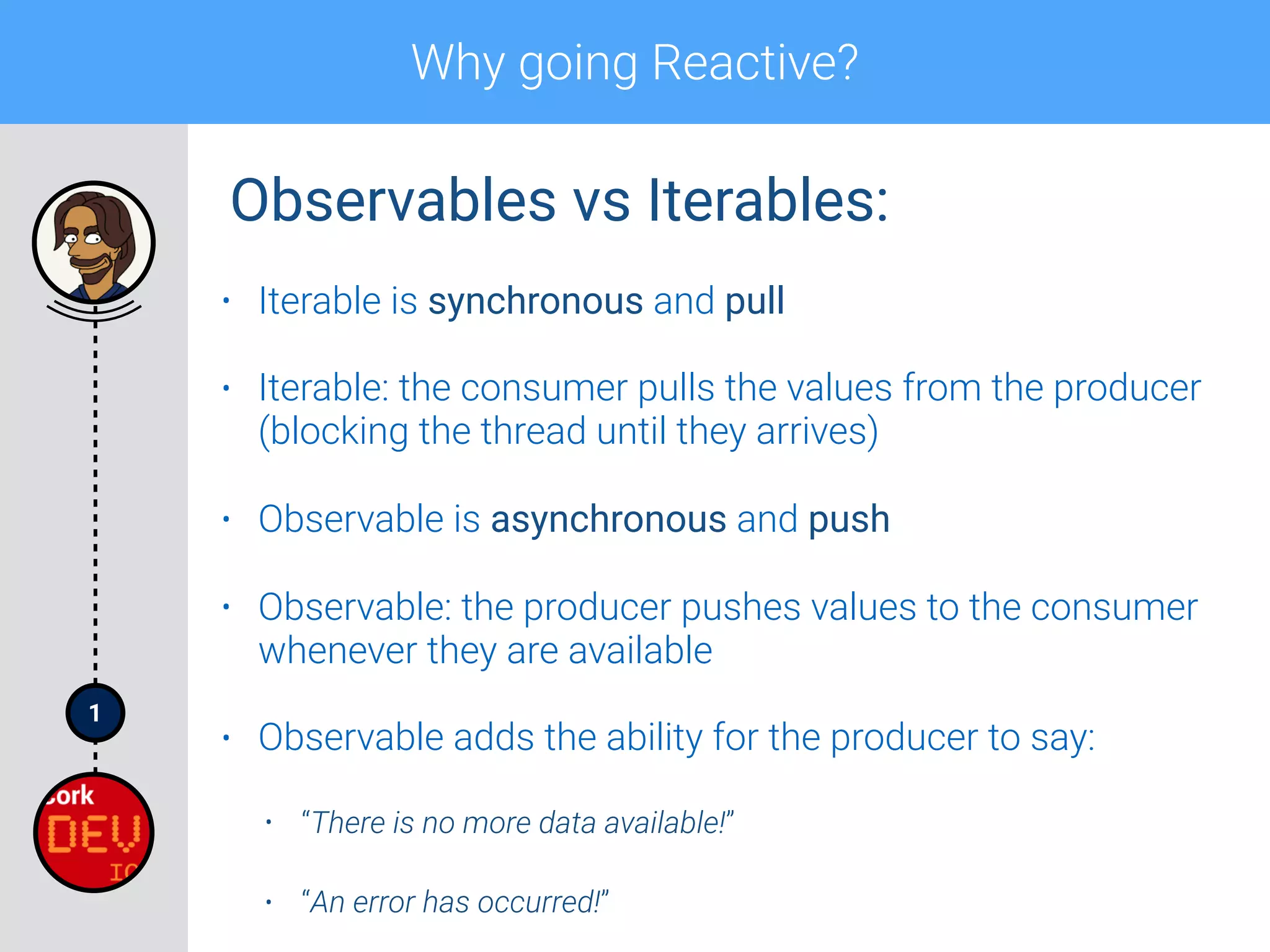

1 Why going Reactive? • Iterable is synchronous and pull • Iterable: the consumer pulls the values from the producer (blocking the thread until they arrives) • Observable is asynchronous and push • Observable: the producer pushes values to the consumer whenever they are available • Observable adds the ability for the producer to say: • “There is no more data available!” • “An error has occurred!” Observables vs Iterables:
1 Why going Reactive?

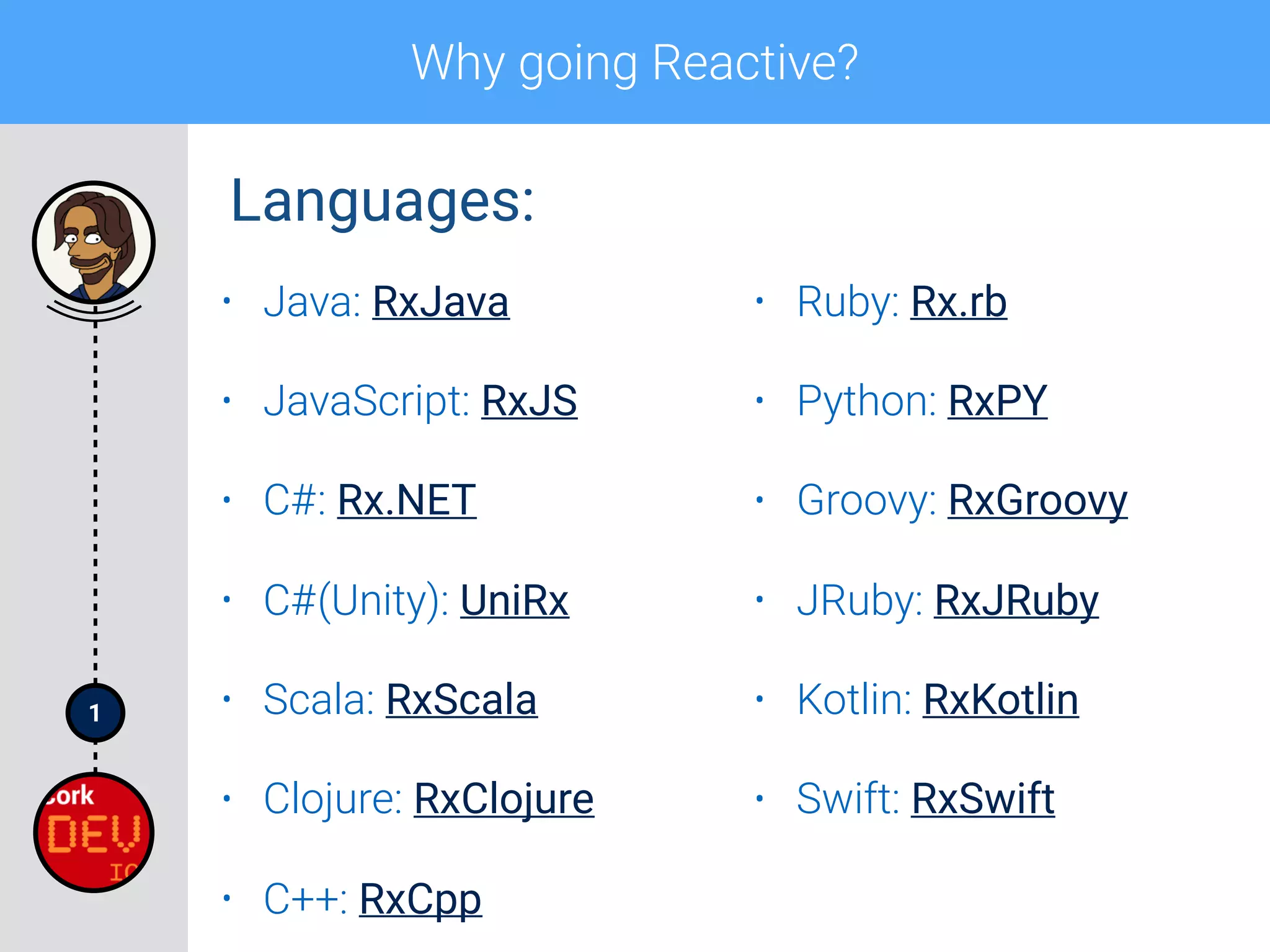

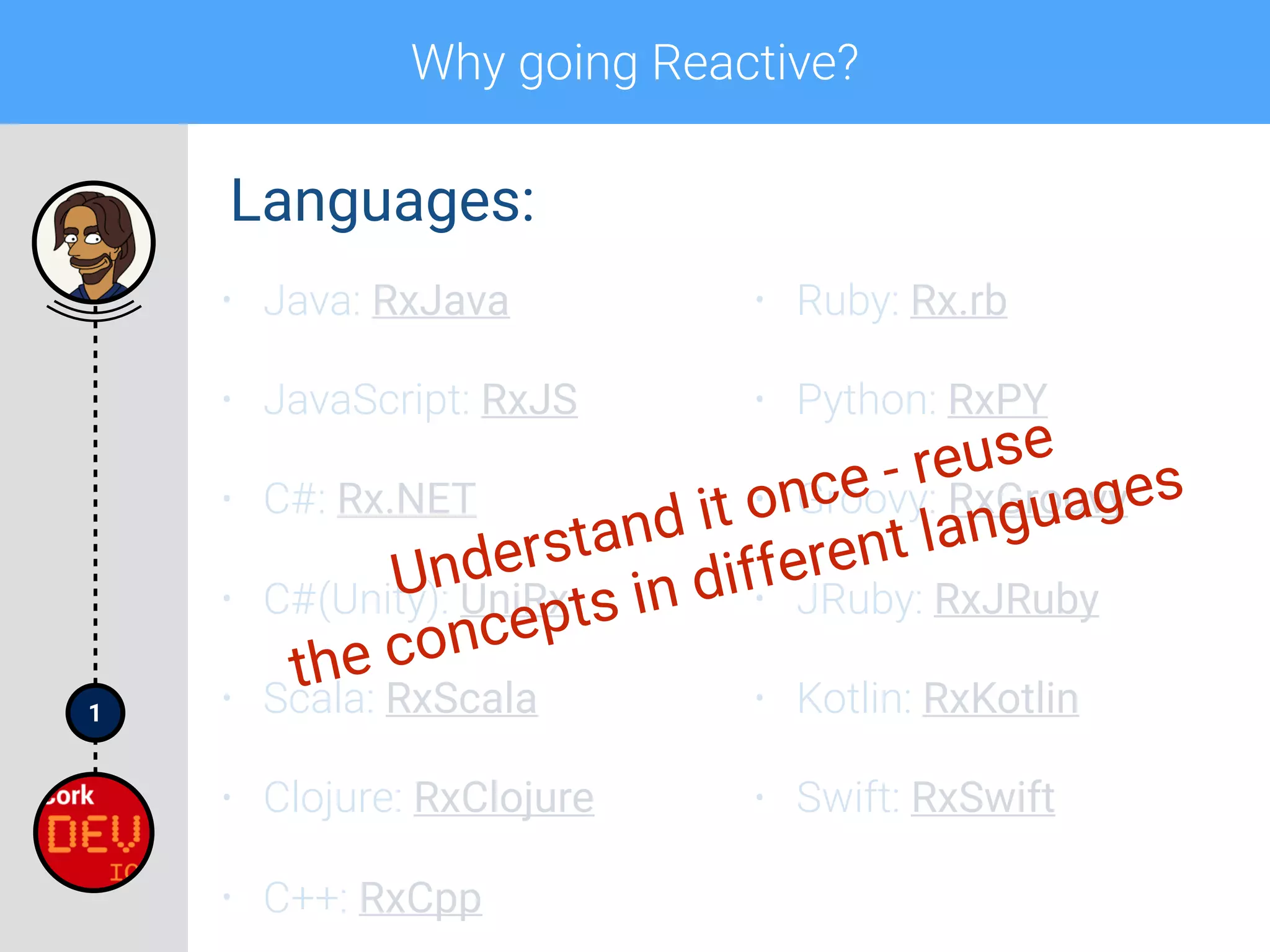

1 Why going Reactive? • Java: RxJava • JavaScript: RxJS • C#: Rx.NET • C#(Unity): UniRx • Scala: RxScala • Clojure: RxClojure • C++: RxCpp • Ruby: Rx.rb • Python: RxPY • Groovy: RxGroovy • JRuby: RxJRuby • Kotlin: RxKotlin • Swift: RxSwift Languages:
1 Why going Reactive? • Java: RxJava • JavaScript: RxJS • C#: Rx.NET • C#(Unity): UniRx • Scala: RxScala • Clojure: RxClojure • C++: RxCpp • Ruby: Rx.rb • Python: RxPY • Groovy: RxGroovy • JRuby: RxJRuby • Kotlin: RxKotlin • Swift: RxSwift Languages: Understand it once - reuse the concepts in different languages
Section 1 Rx 101* with RxJava
Section 1 Rx 101* with RxJava * The road is steep, the road is long, the talk is relatively short.

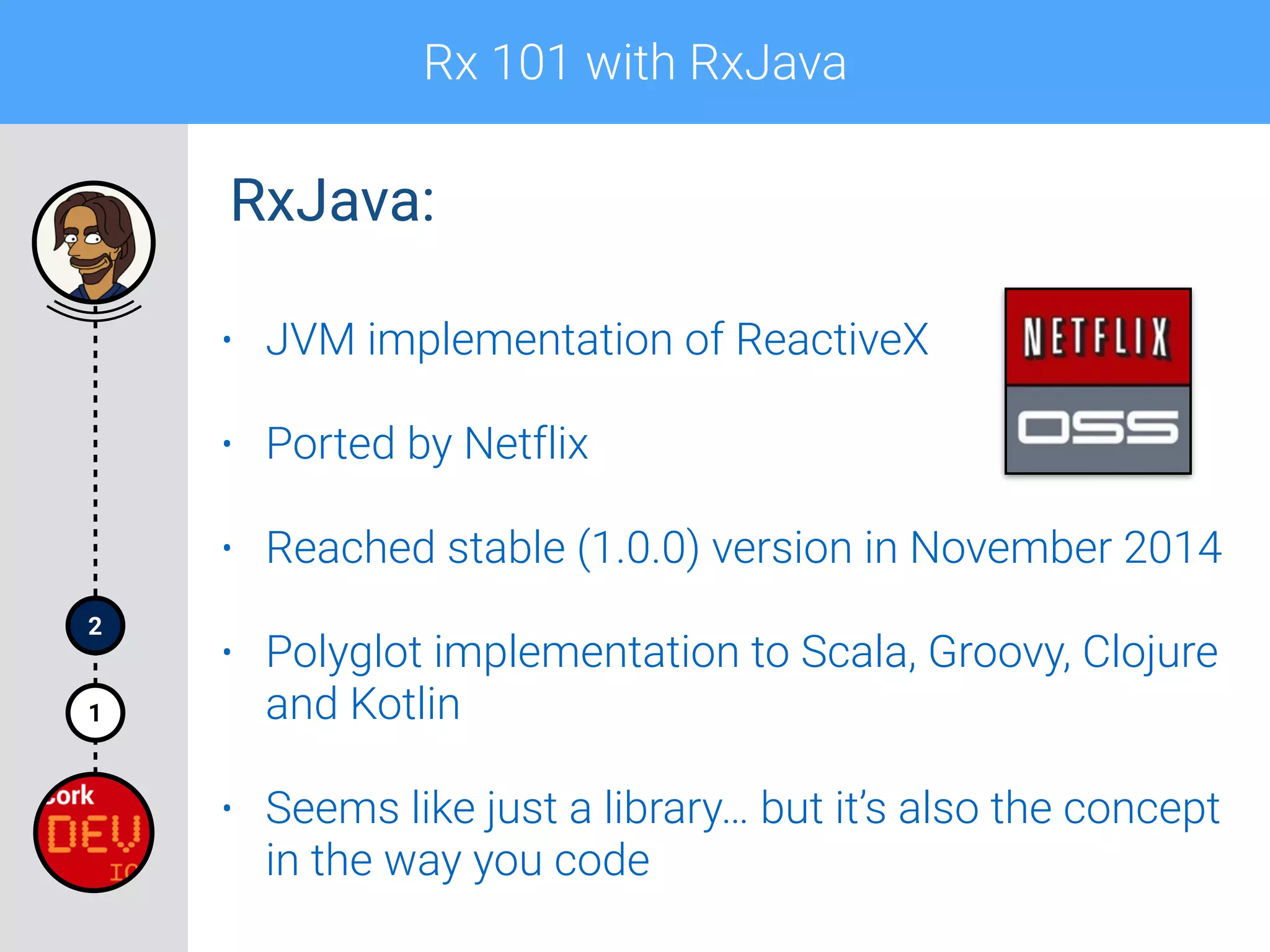

Rx 101 with RxJava 1 2 • JVM implementation of ReactiveX • Ported by Netflix • Reached stable (1.0.0) version in November 2014 • Polyglot implementation to Scala, Groovy, Clojure and Kotlin • Seems like just a library… but it’s also the concept in the way you code RxJava:

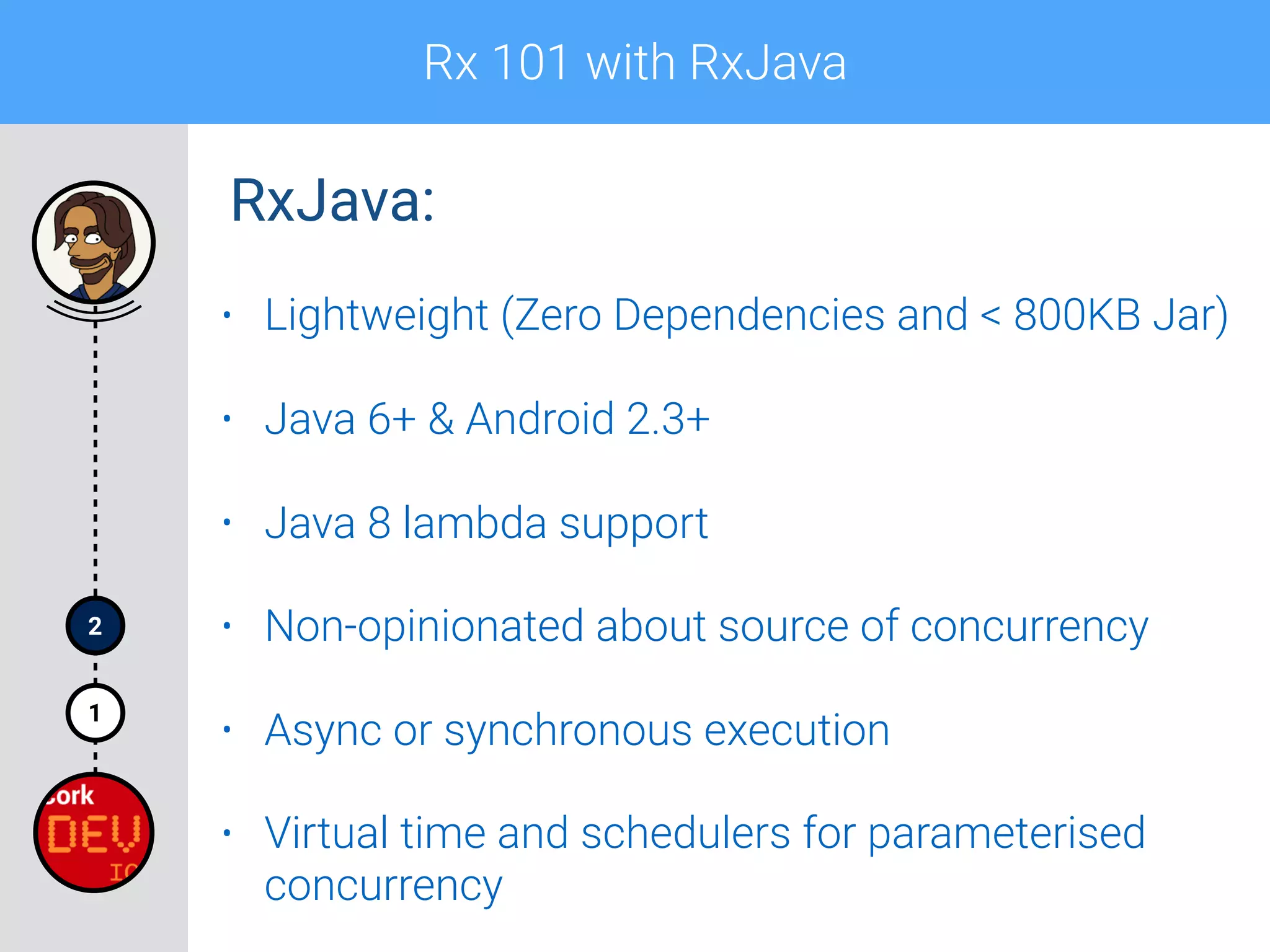

Rx 101 with RxJava 1 2 • Lightweight (Zero Dependencies and < 800KB Jar) • Java 6+ & Android 2.3+ • Java 8 lambda support • Non-opinionated about source of concurrency • Async or synchronous execution • Virtual time and schedulers for parameterised concurrency RxJava:

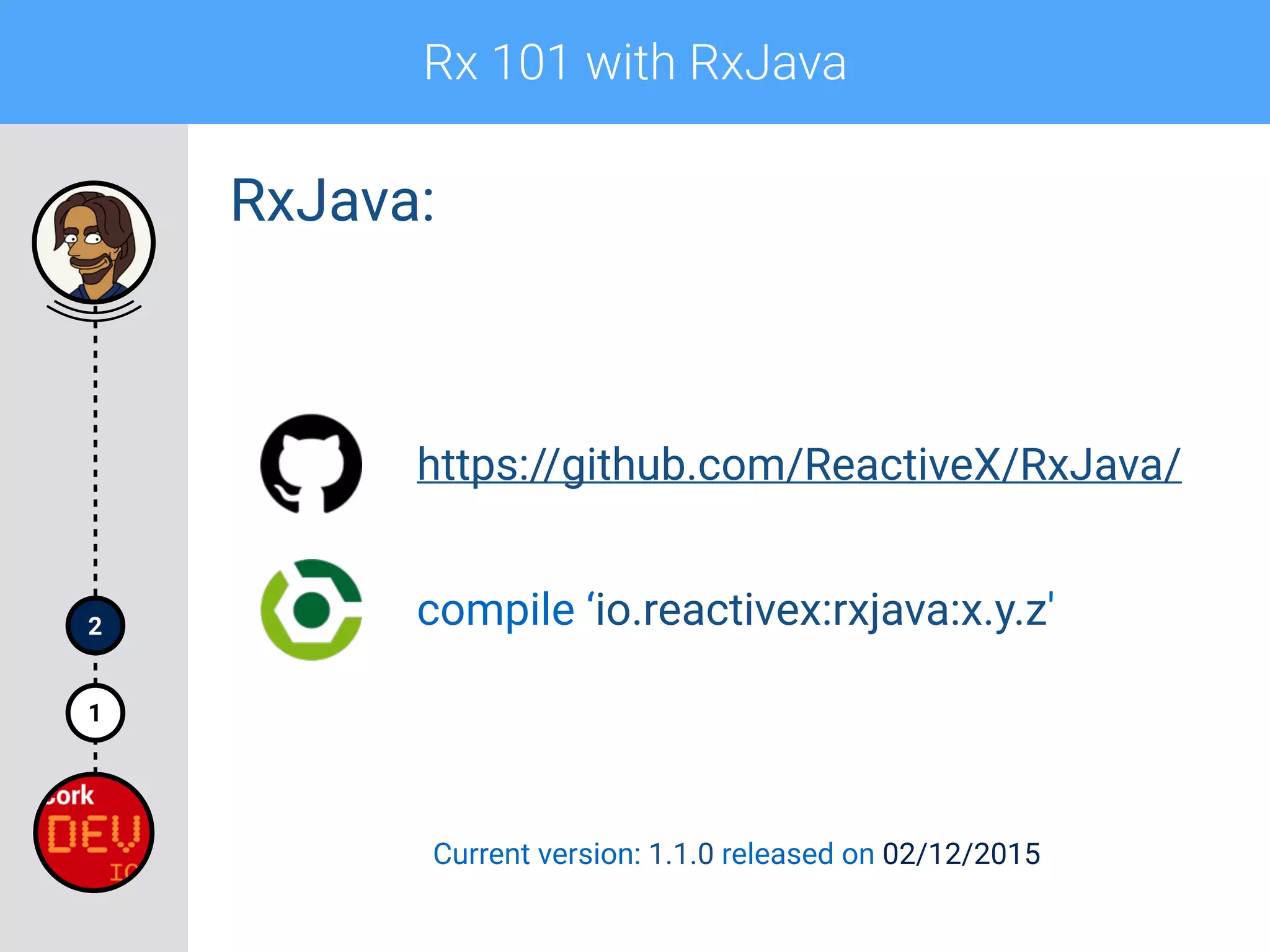

Rx 101 with RxJava 1 2 RxJava: compile ‘io.reactivex:rxjava:x.y.z' https://github.com/ReactiveX/RxJava/ Current version: 1.1.0 released on 02/12/2015

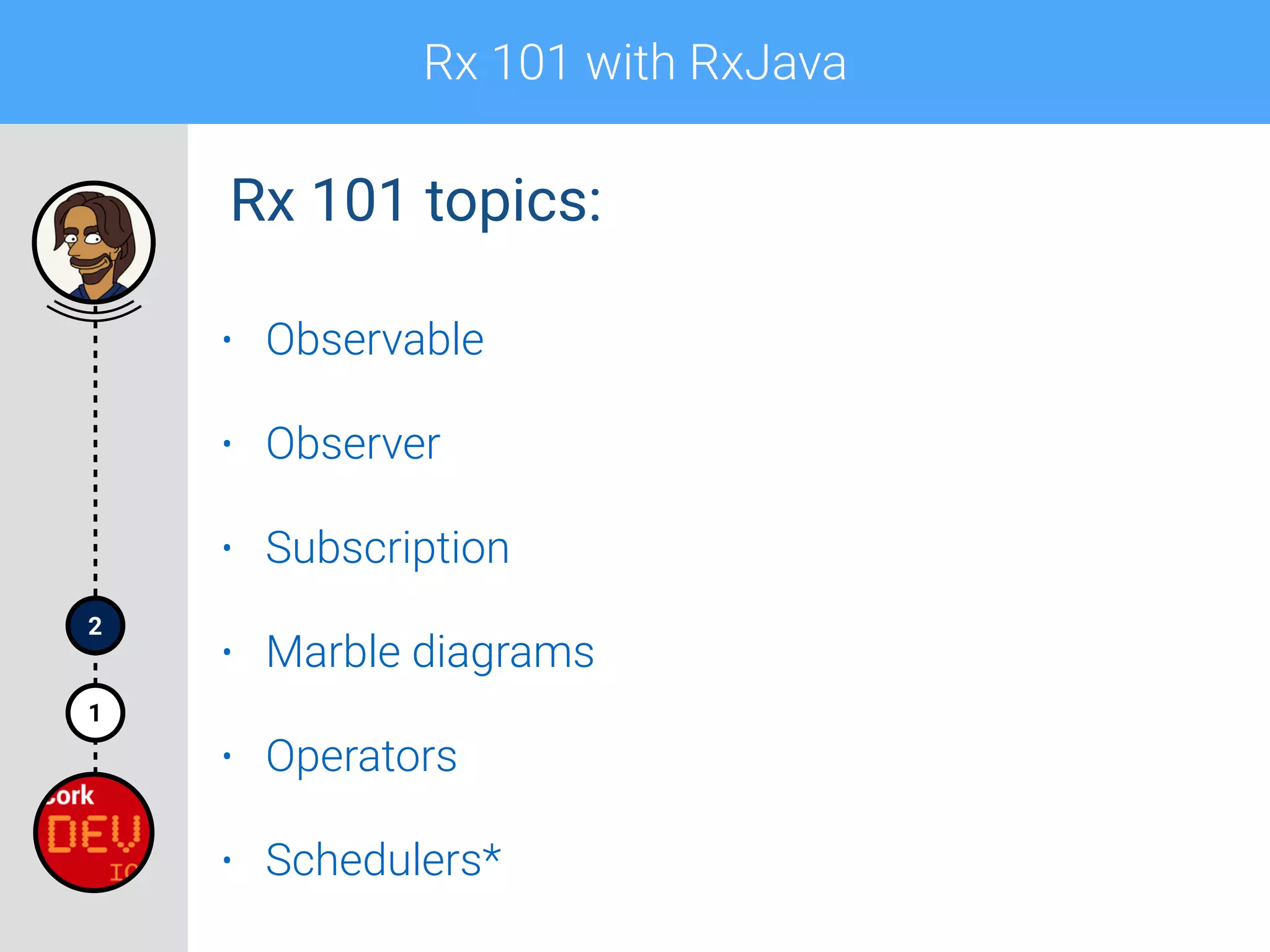

Rx 101 with RxJava 1 2 • Observable • Observer • Subscription • Marble diagrams • Operators • Schedulers* Rx 101 topics:
Rx 101 with RxJava Observable 1 2

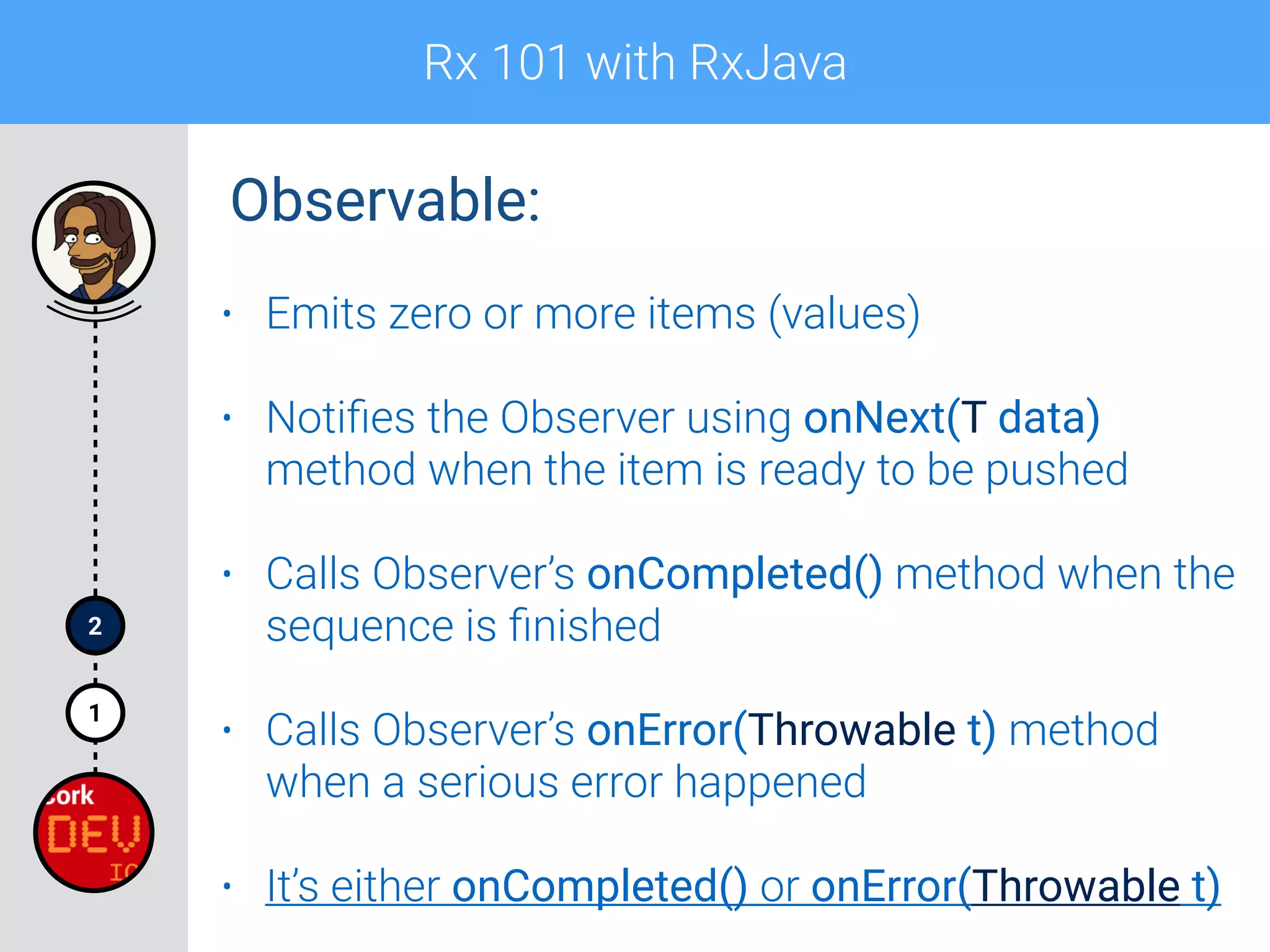

Rx 101 with RxJava 1 2 • Emits zero or more items (values) • Notifies the Observer using onNext(T data) method when the item is ready to be pushed • Calls Observer’s onCompleted() method when the sequence is finished • Calls Observer’s onError(Throwable t) method when a serious error happened • It’s either onCompleted() or onError(Throwable t) Observable:

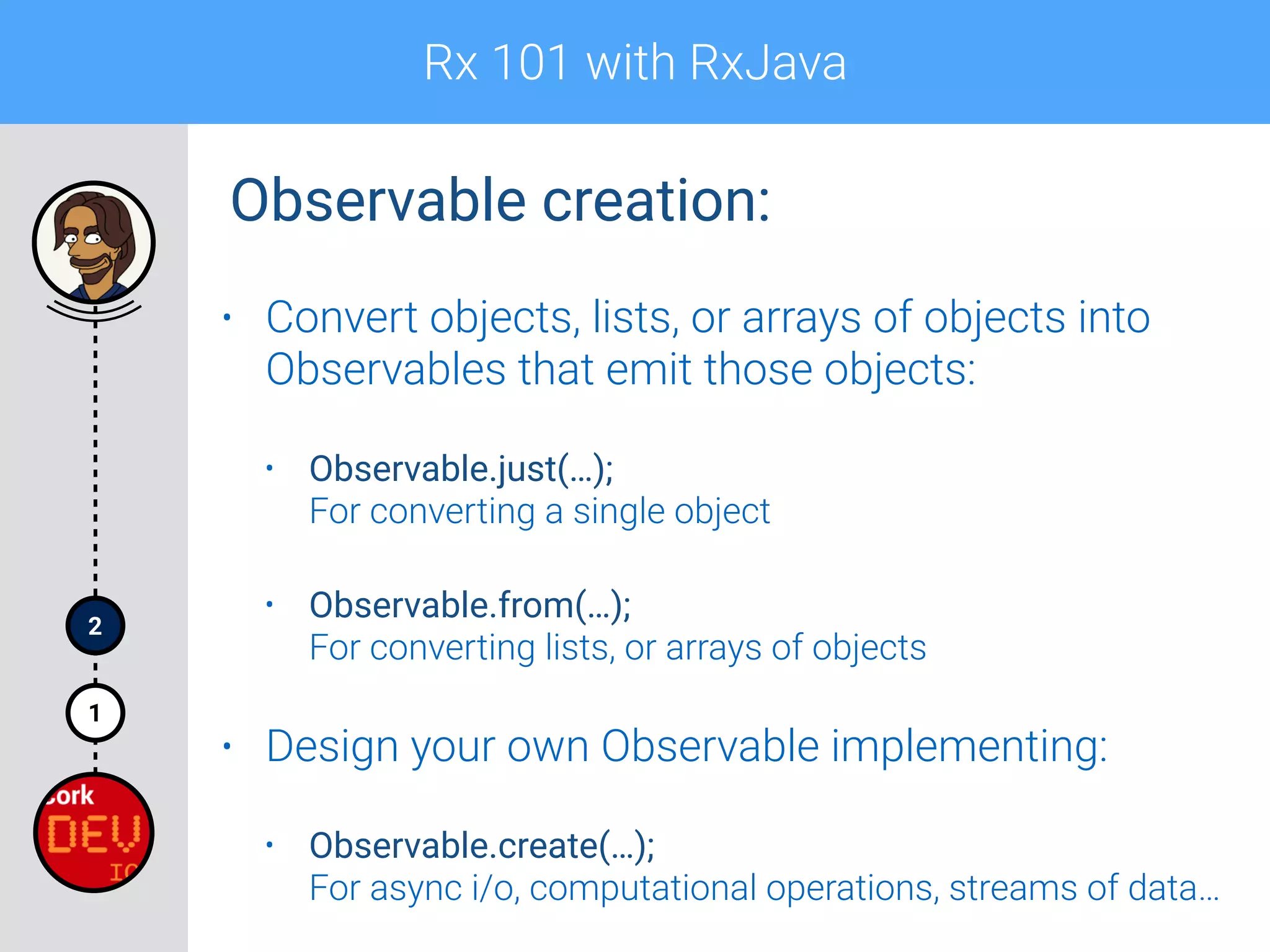

Rx 101 with RxJava 1 2 Observable creation: • Convert objects, lists, or arrays of objects into Observables that emit those objects: • Observable.just(…);
 For converting a single object • Observable.from(…);
 For converting lists, or arrays of objects • Design your own Observable implementing: • Observable.create(…);
 For async i/o, computational operations, streams of data…

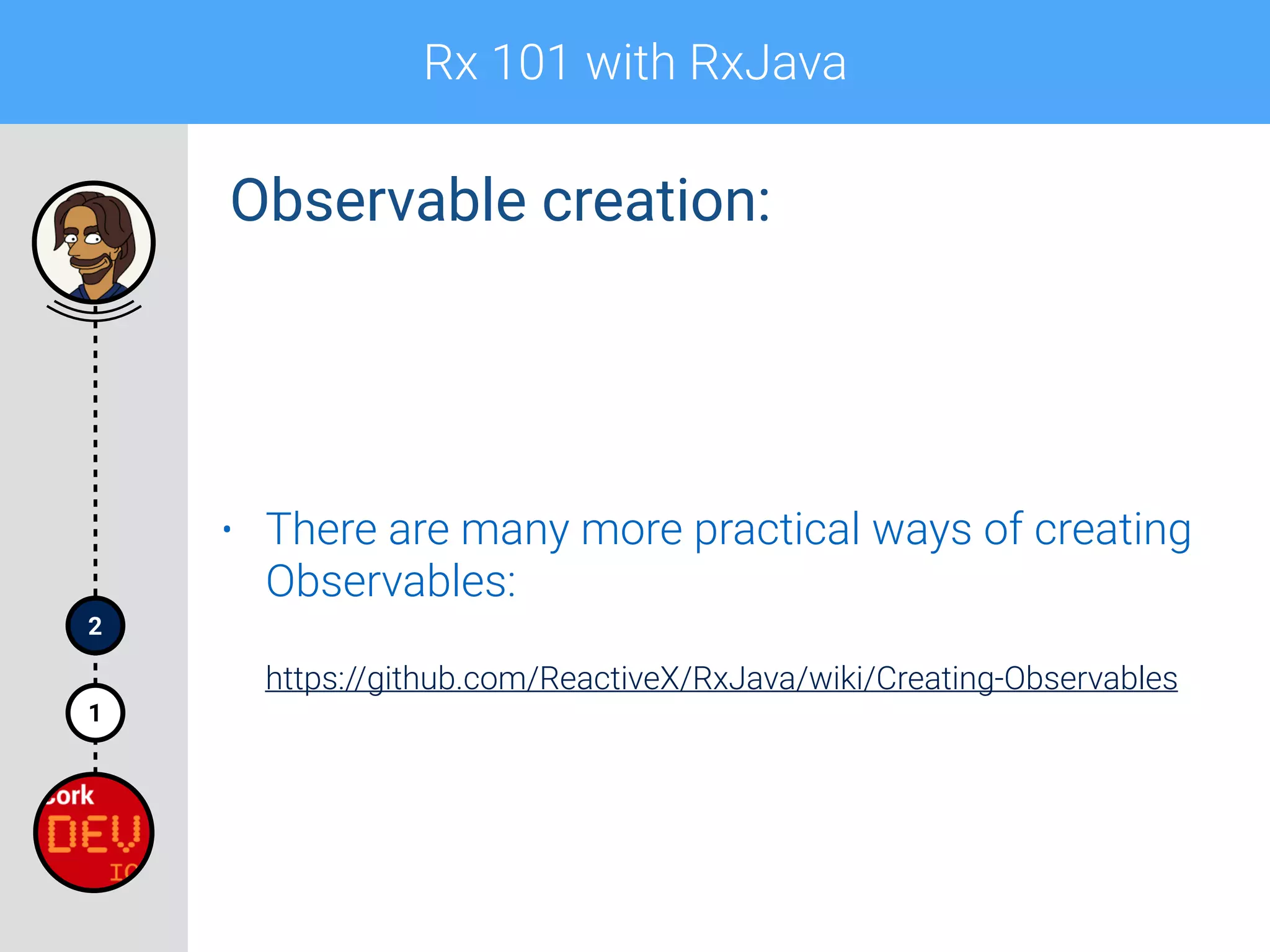

Rx 101 with RxJava 1 2 Observable creation: • There are many more practical ways of creating Observables:

 https://github.com/ReactiveX/RxJava/wiki/Creating-Observables

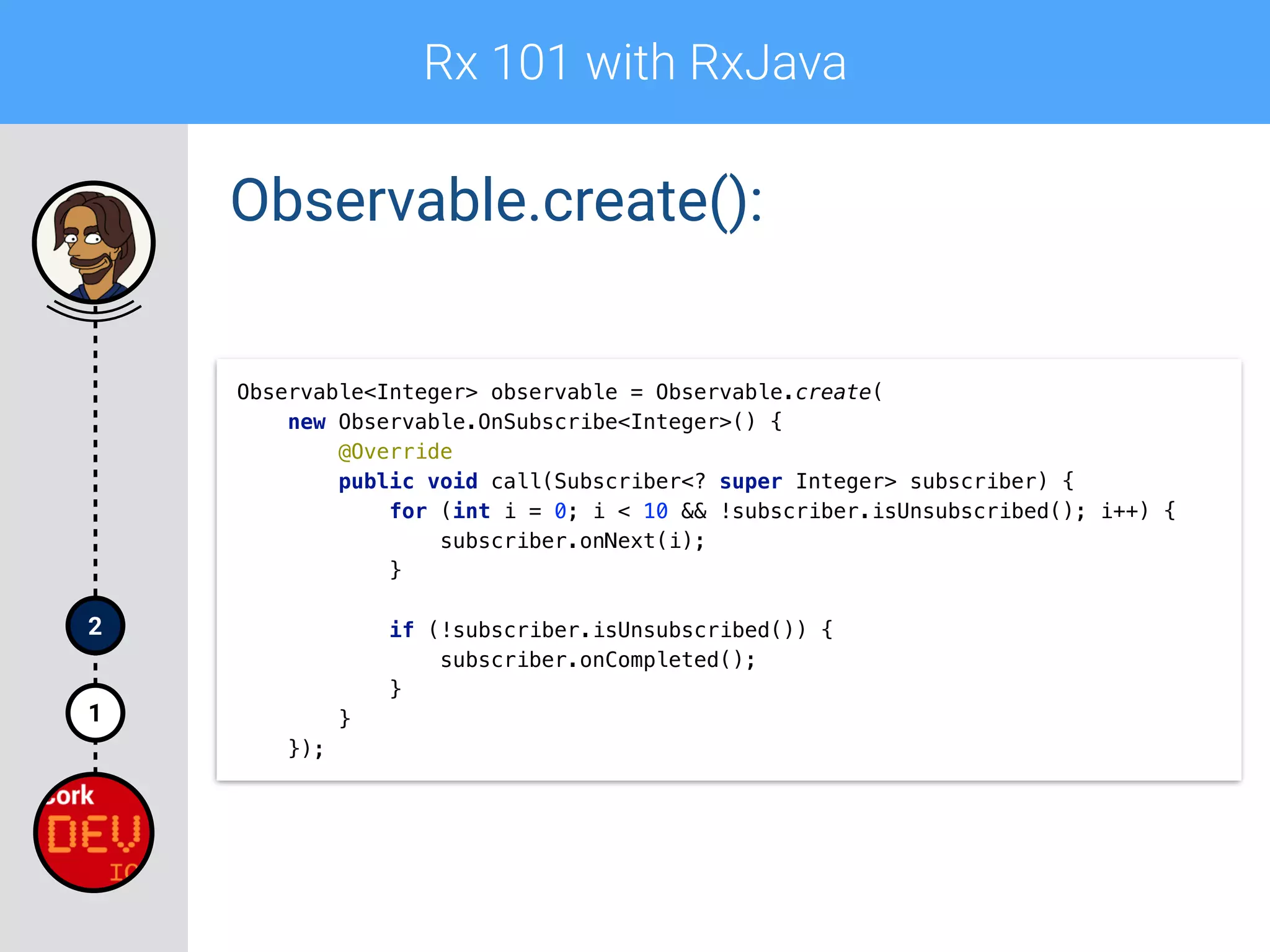

Rx 101 with RxJava 1 2 Observable.create(): Observable<Integer> observable = Observable.create( new Observable.OnSubscribe<Integer>() {
 @Override
 public void call(Subscriber<? super Integer> subscriber) {
 for (int i = 0; i < 10 && !subscriber.isUnsubscribed(); i++) {
 subscriber.onNext(i);
 }

 if (!subscriber.isUnsubscribed()) {
 subscriber.onCompleted();
 }
 }
 });
Rx 101 with RxJava 1 2 Observable.create():

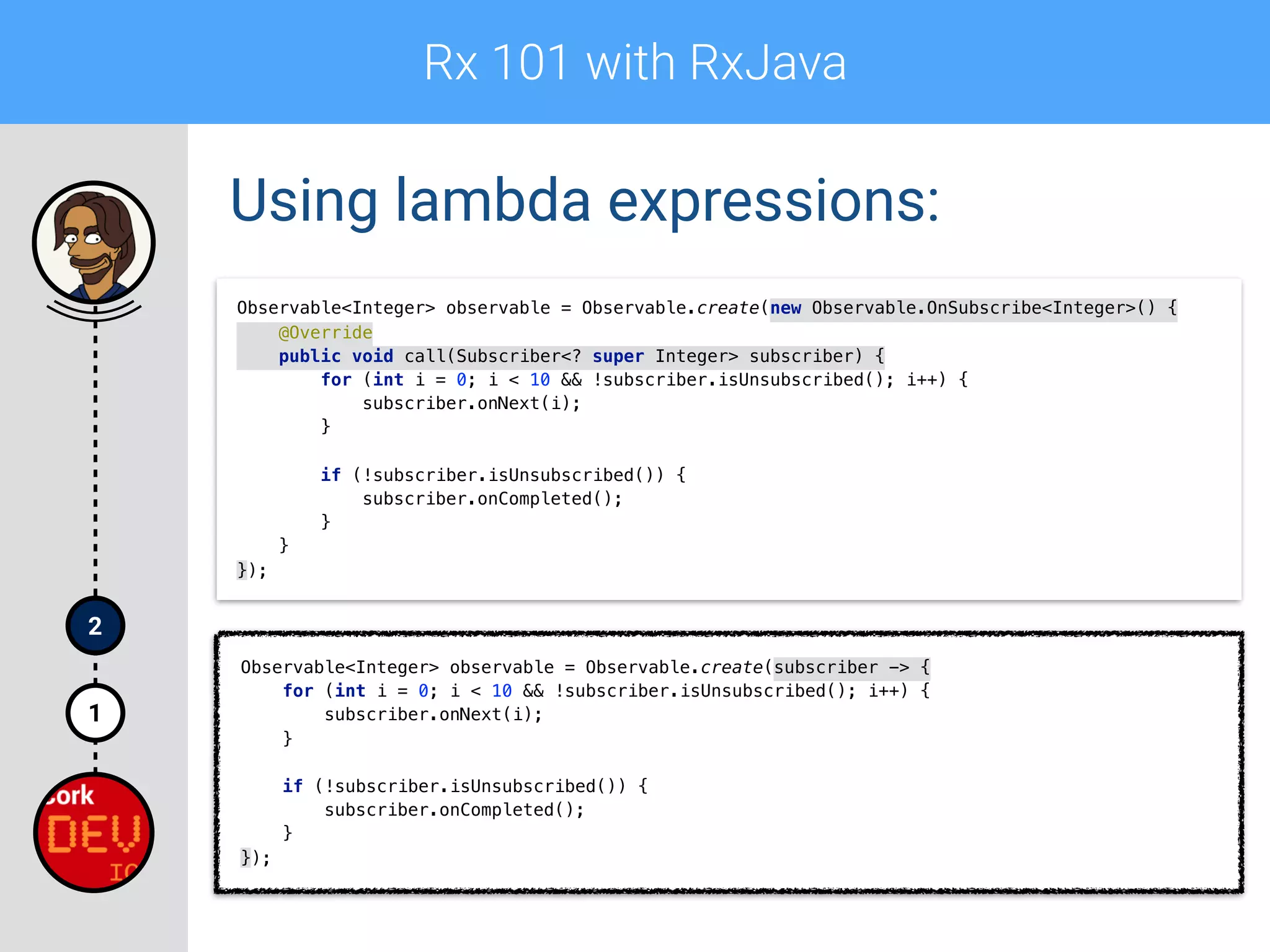

Rx 101 with RxJava 1 2 Using lambda expressions: Observable<Integer> observable = Observable.create(new Observable.OnSubscribe<Integer>() {
 @Override
 public void call(Subscriber<? super Integer> subscriber) {
 for (int i = 0; i < 10 && !subscriber.isUnsubscribed(); i++) {
 subscriber.onNext(i);
 }

 if (!subscriber.isUnsubscribed()) {
 subscriber.onCompleted();
 }
 }
 }); Observable<Integer> observable = Observable.create(subscriber -> {
 for (int i = 0; i < 10 && !subscriber.isUnsubscribed(); i++) {
 subscriber.onNext(i);
 }

 if (!subscriber.isUnsubscribed()) {
 subscriber.onCompleted();
 }
 });

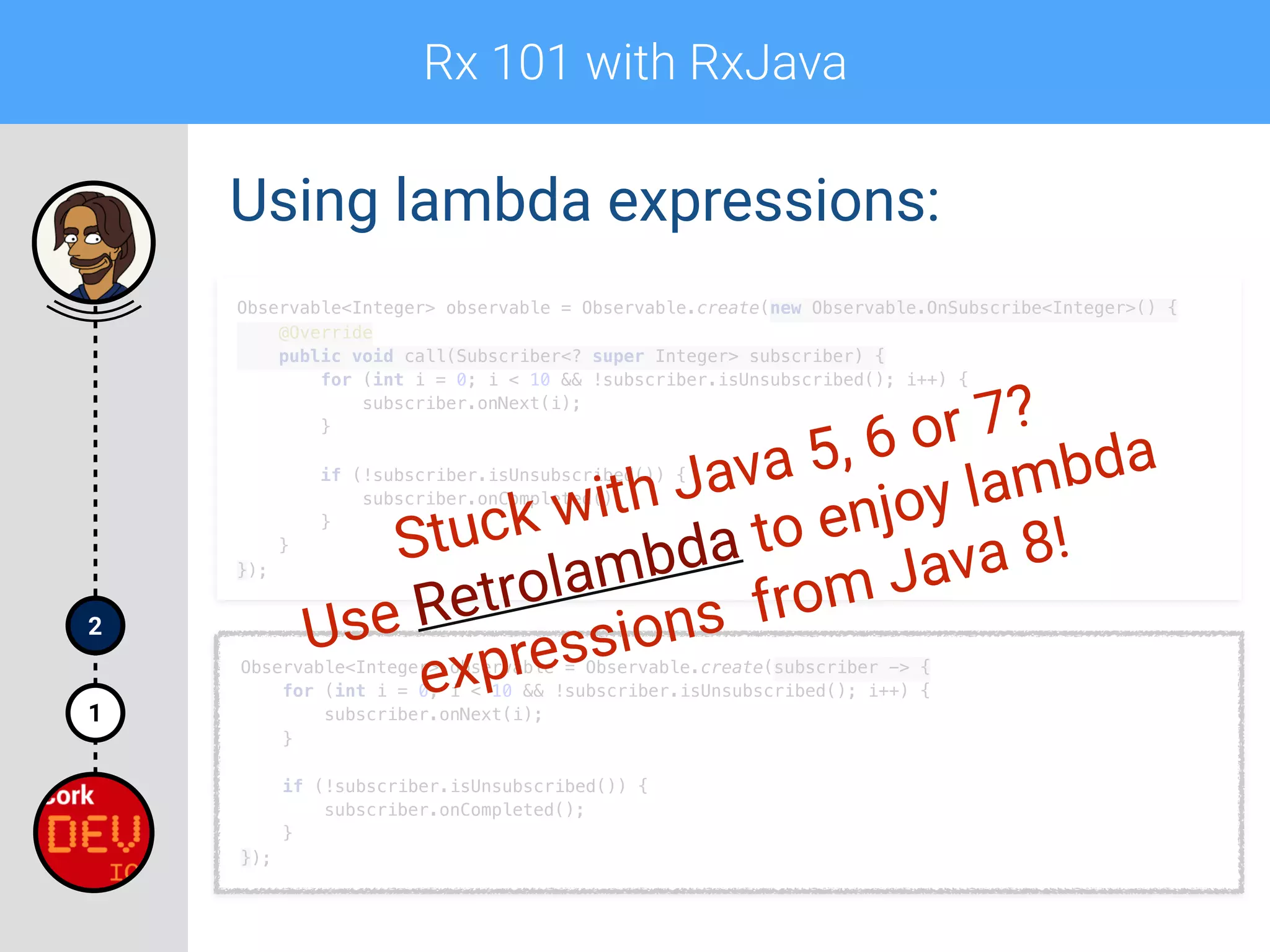

Rx 101 with RxJava 1 2 Using lambda expressions: Observable<Integer> observable = Observable.create(new Observable.OnSubscribe<Integer>() {
 @Override
 public void call(Subscriber<? super Integer> subscriber) {
 for (int i = 0; i < 10 && !subscriber.isUnsubscribed(); i++) {
 subscriber.onNext(i);
 }

 if (!subscriber.isUnsubscribed()) {
 subscriber.onCompleted();
 }
 }
 }); Observable<Integer> observable = Observable.create(subscriber -> {
 for (int i = 0; i < 10 && !subscriber.isUnsubscribed(); i++) {
 subscriber.onNext(i);
 }

 if (!subscriber.isUnsubscribed()) {
 subscriber.onCompleted();
 }
 }); Stuck with Java 5, 6 or 7? Use Retrolambda to enjoy lambda expressions from Java 8!
Rx 101 with RxJava 1 2 “Hot” vs “Cold” Observables:

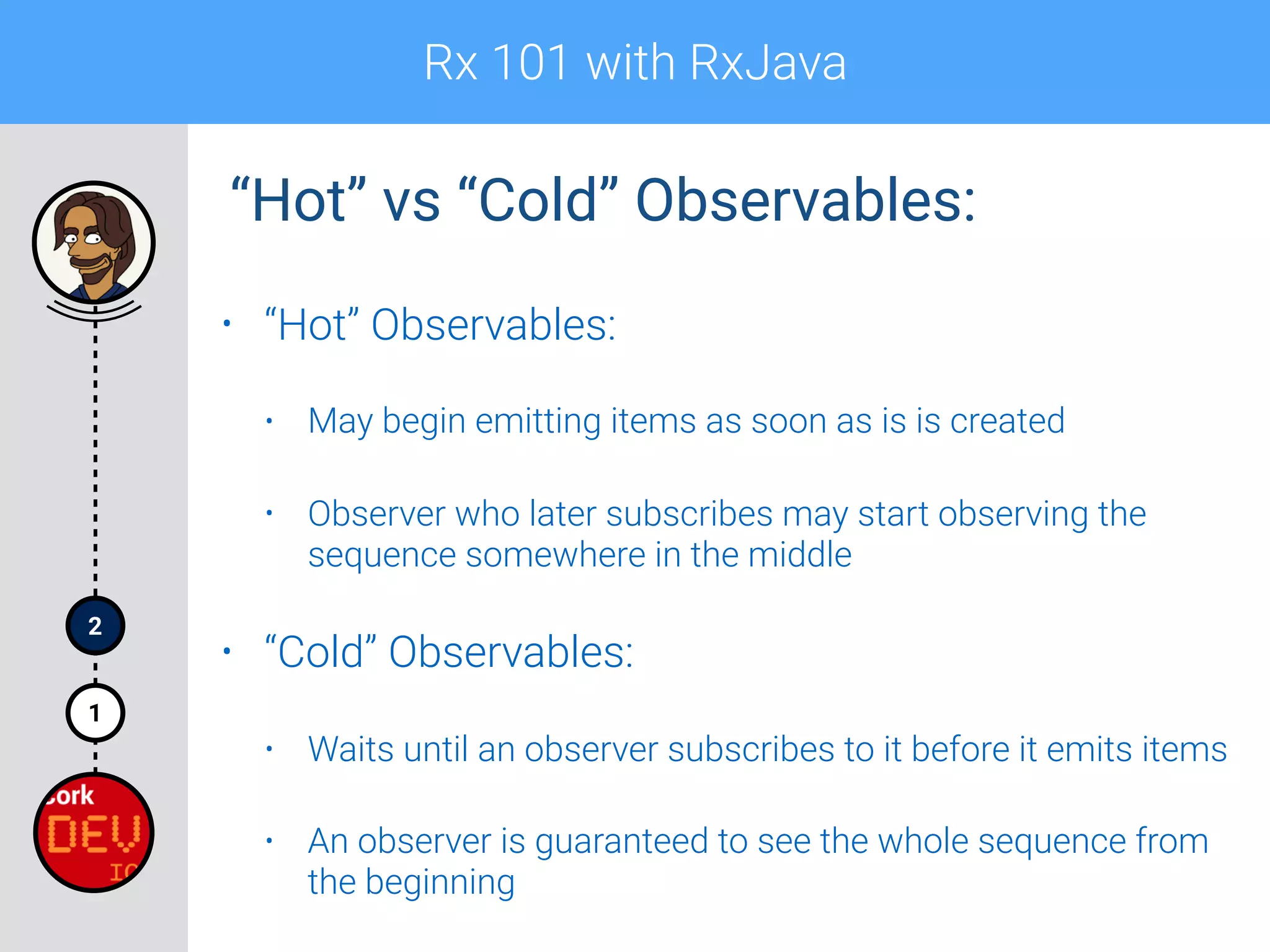

Rx 101 with RxJava 1 2 • “Hot” Observables: • May begin emitting items as soon as is is created • Observer who later subscribes may start observing the sequence somewhere in the middle • “Cold” Observables: • Waits until an observer subscribes to it before it emits items • An observer is guaranteed to see the whole sequence from the beginning “Hot” vs “Cold” Observables:

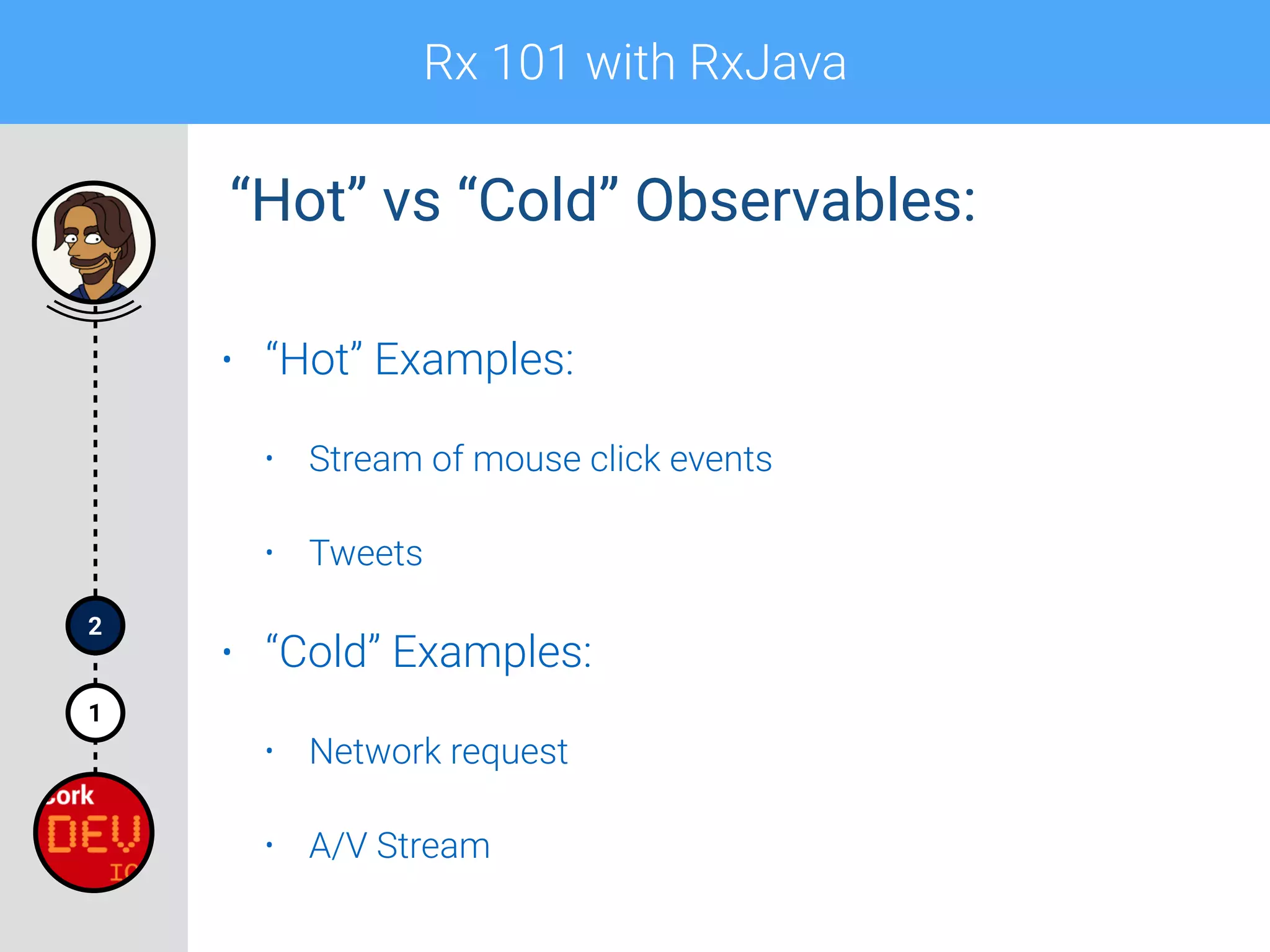

Rx 101 with RxJava 1 2 • “Hot” Examples: • Stream of mouse click events • Tweets • “Cold” Examples: • Network request • A/V Stream “Hot” vs “Cold” Observables:
Rx 101 with RxJava Observer 1 2
Rx 101 with RxJava 1 2 • Interface methods: • onNext(T data); • onCompleted(); • onError(Throwable t); • Receives zero or more items • You can override all of the interface methods (recommended for beginners) or just a single one Observer<T> - the interface:

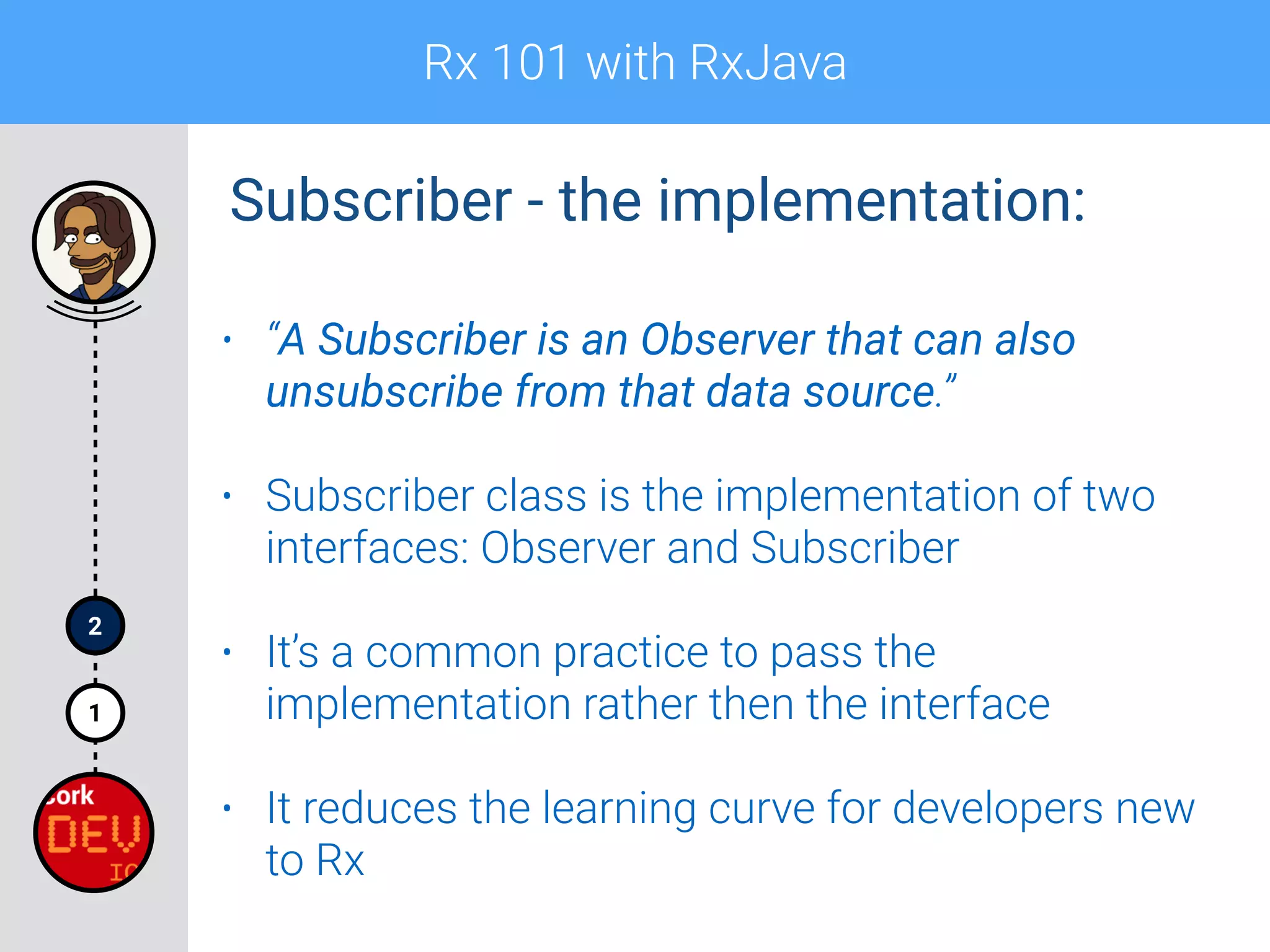

Rx 101 with RxJava 1 2 • “A Subscriber is an Observer that can also unsubscribe from that data source.” • Subscriber class is the implementation of two interfaces: Observer and Subscriber • It’s a common practice to pass the implementation rather then the interface • It reduces the learning curve for developers new to Rx Subscriber - the implementation:

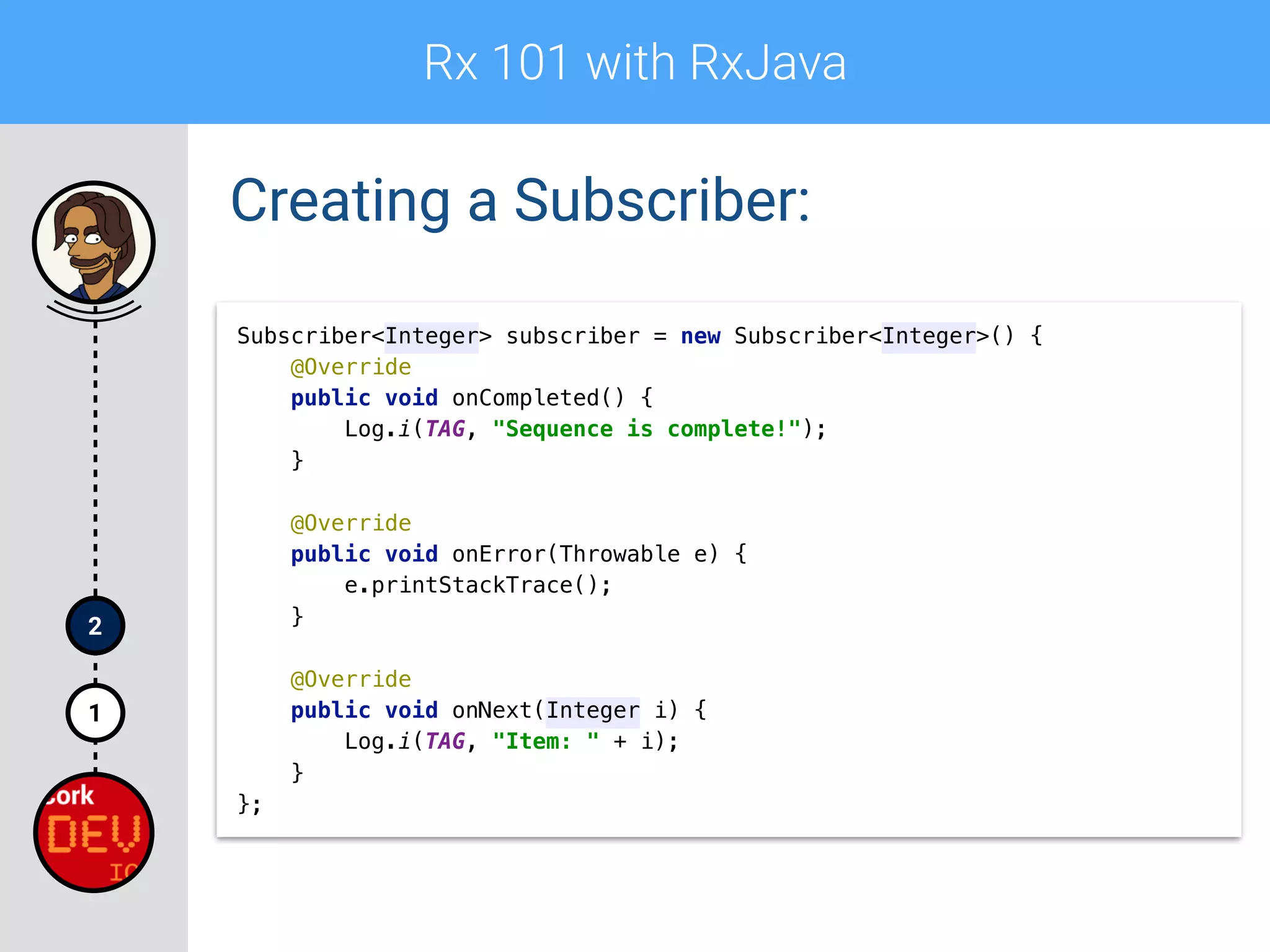

Rx 101 with RxJava 1 2 Creating a Subscriber: Subscriber<Integer> subscriber = new Subscriber<Integer>() {
 @Override
 public void onCompleted() {
 Log.i(TAG, "Sequence is complete!");
 }

 @Override
 public void onError(Throwable e) {
 e.printStackTrace();
 }

 @Override
 public void onNext(Integer i) {
 Log.i(TAG, "Item: " + i);
 }
 };

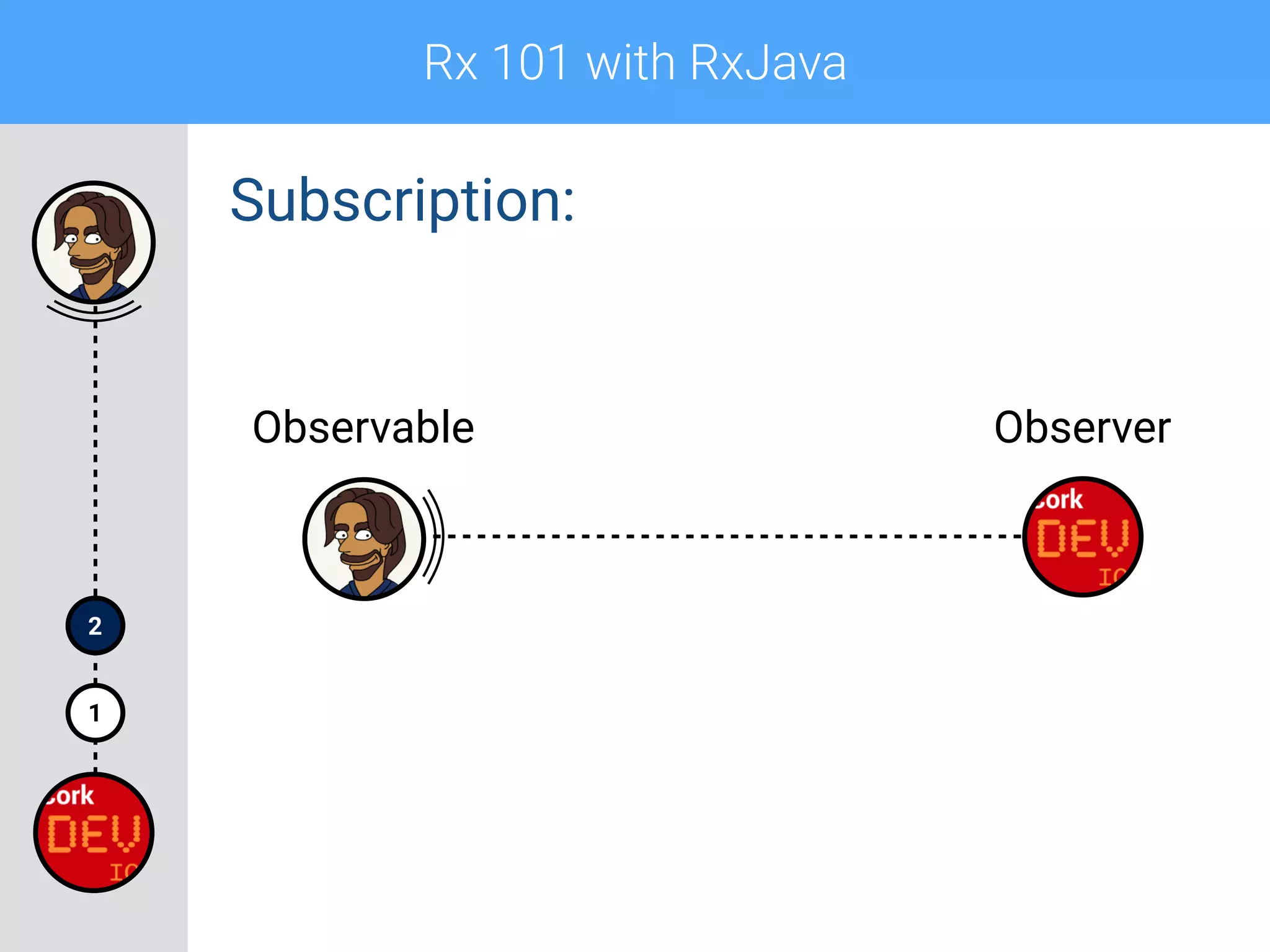

Rx 101 with RxJava 1 2 Subscription: Observable Observer

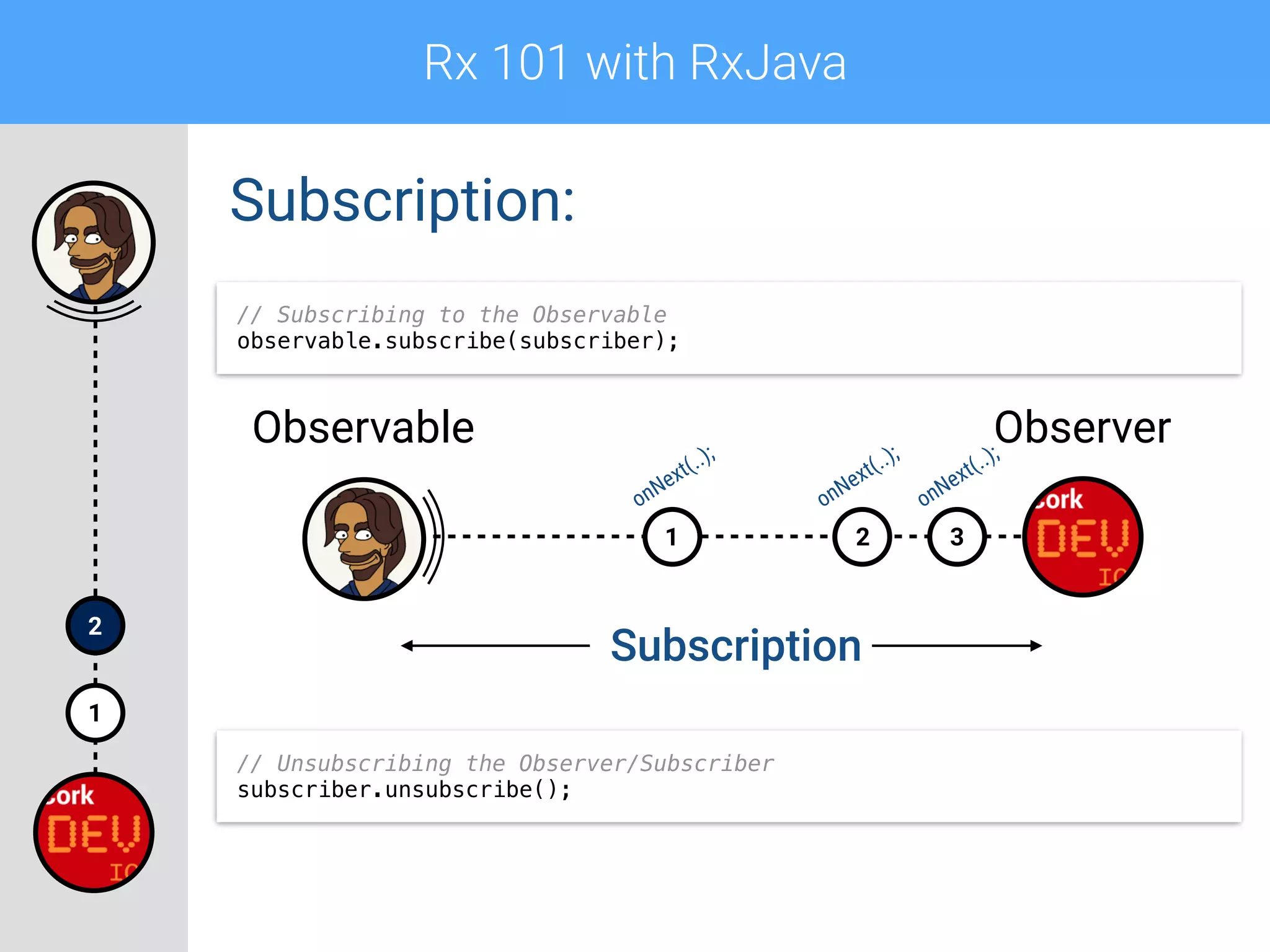

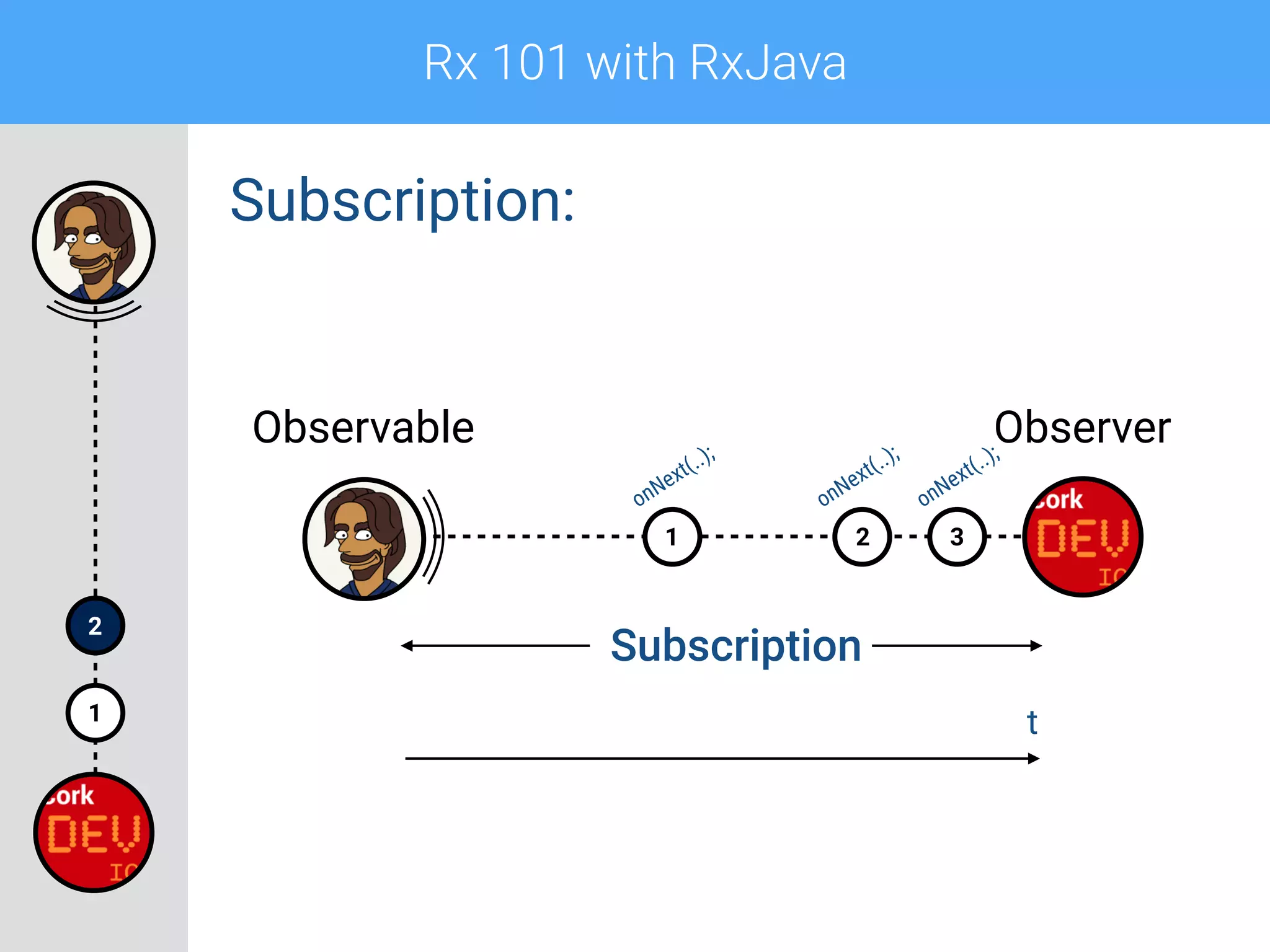

Rx 101 with RxJava 1 2 Subscription: 321 Observable Observer Subscription onNext(..); onNext(..); onNext(..); t
Rx 101 with RxJava 1 2 Subscription: 321 Observable Observer Subscription onNext(..); onNext(..); onNext(..); // Unsubscribing the Observer/Subscriber subscriber.unsubscribe(); // Subscribing to the Observable observable.subscribe(subscriber);

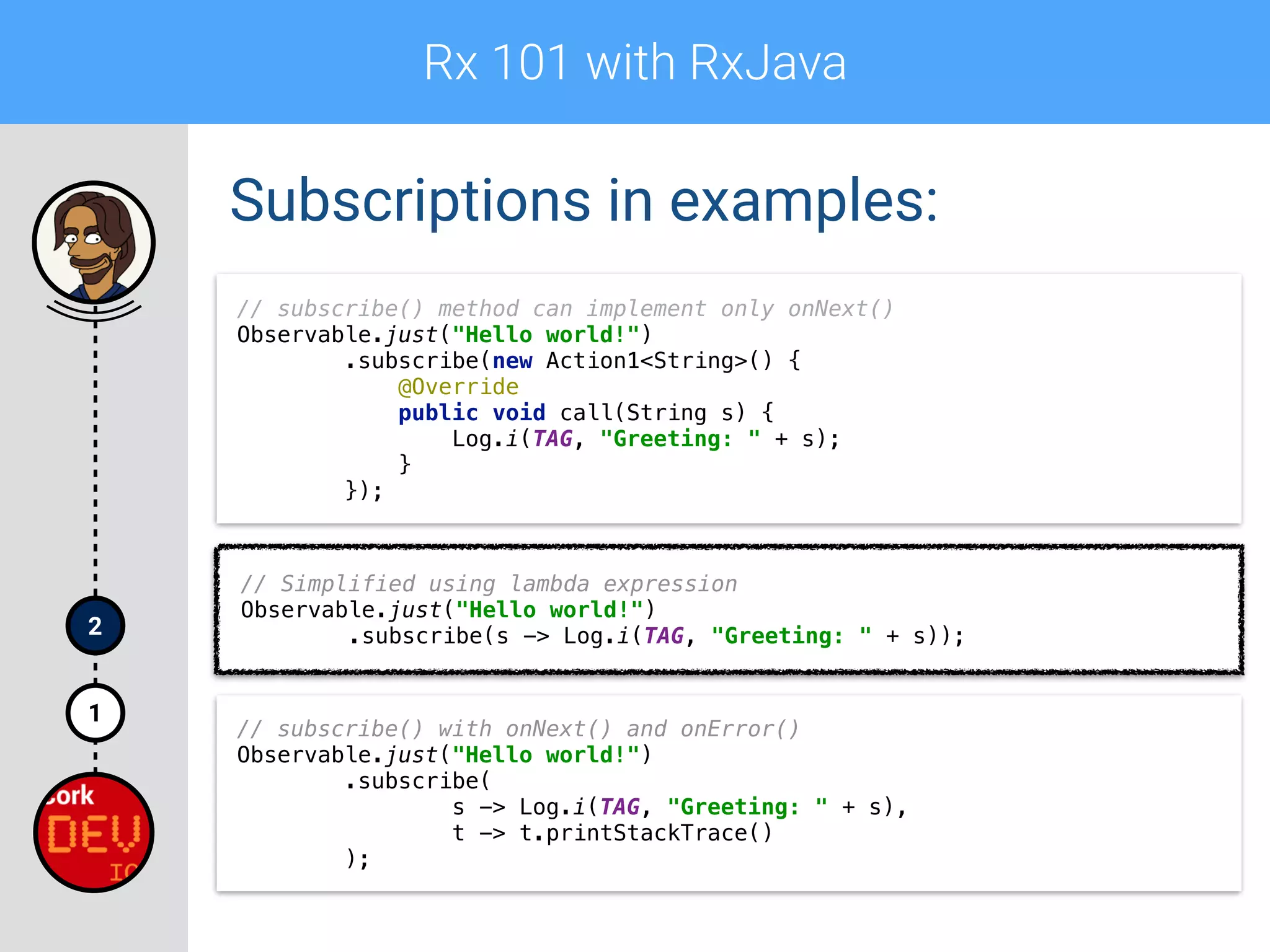

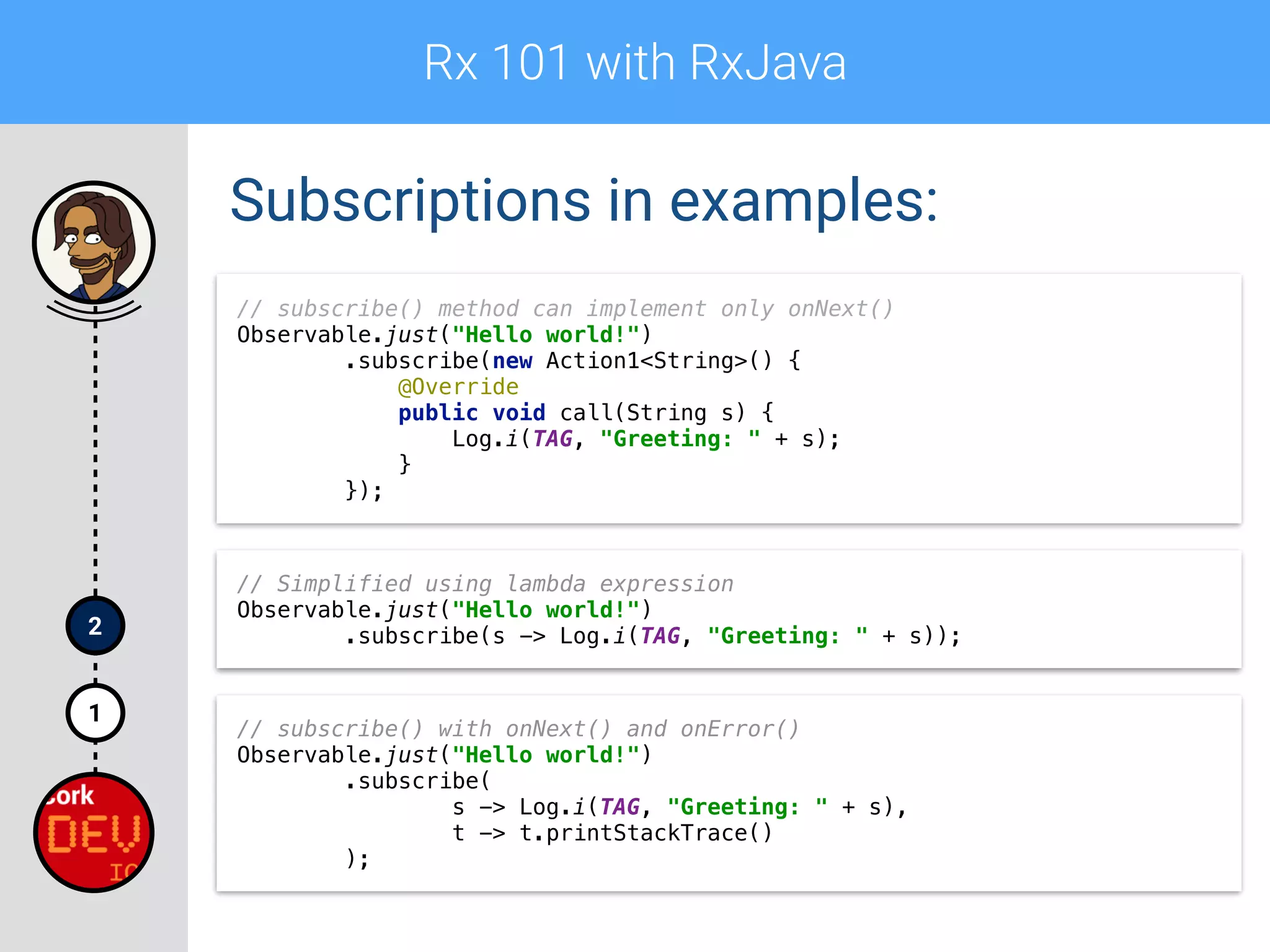

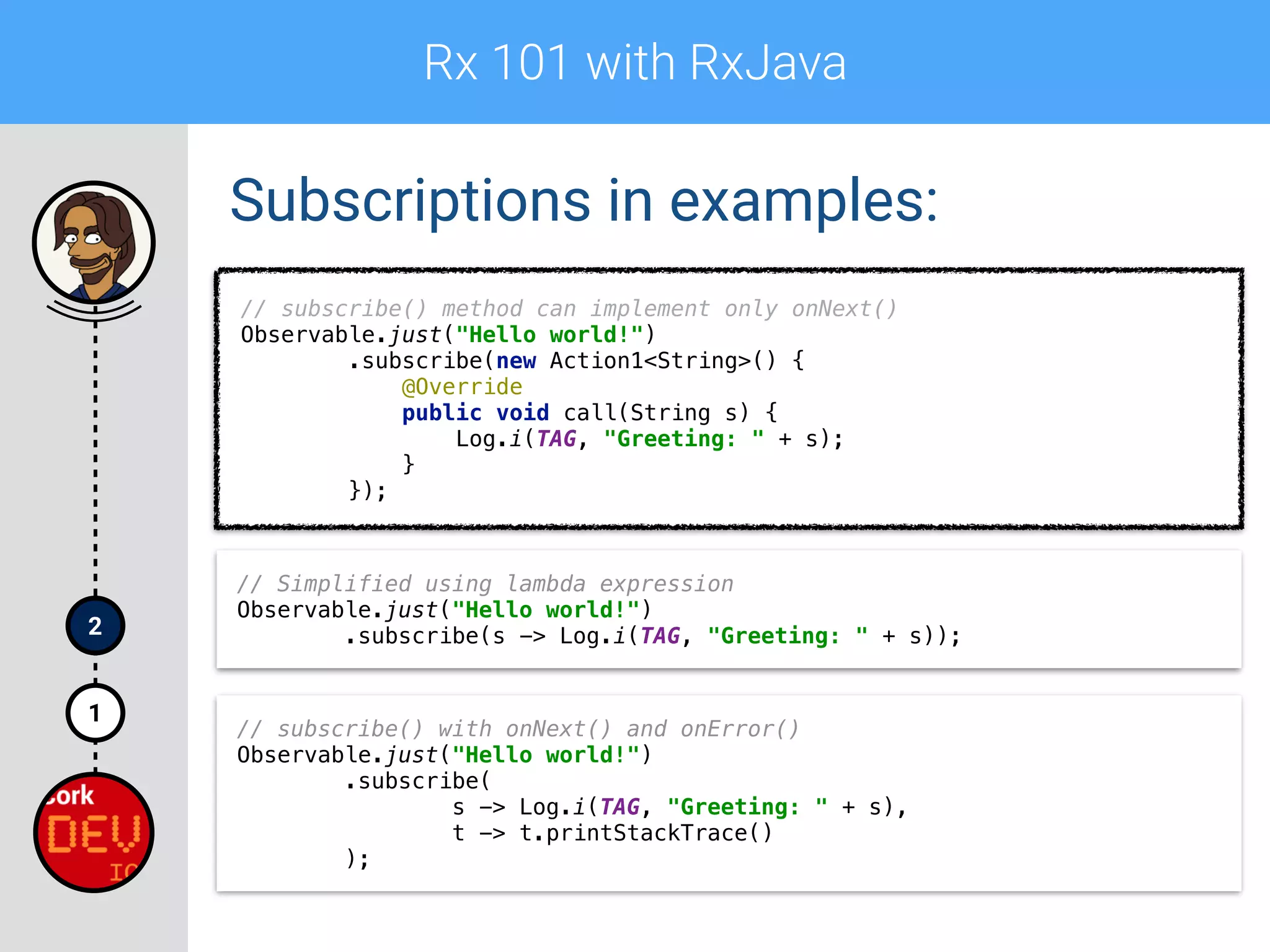

Rx 101 with RxJava 1 2 Subscriptions in examples: // subscribe() method can implement only onNext()
 Observable.just("Hello world!")
 .subscribe(new Action1<String>() {
 @Override
 public void call(String s) {
 Log.i(TAG, "Greeting: " + s);
 }
 }); // Simplified using lambda expression
 Observable.just("Hello world!")
 .subscribe(s -> Log.i(TAG, "Greeting: " + s)); // subscribe() with onNext() and onError() Observable.just("Hello world!")
 .subscribe(
 s -> Log.i(TAG, "Greeting: " + s),
 t -> t.printStackTrace()
 );

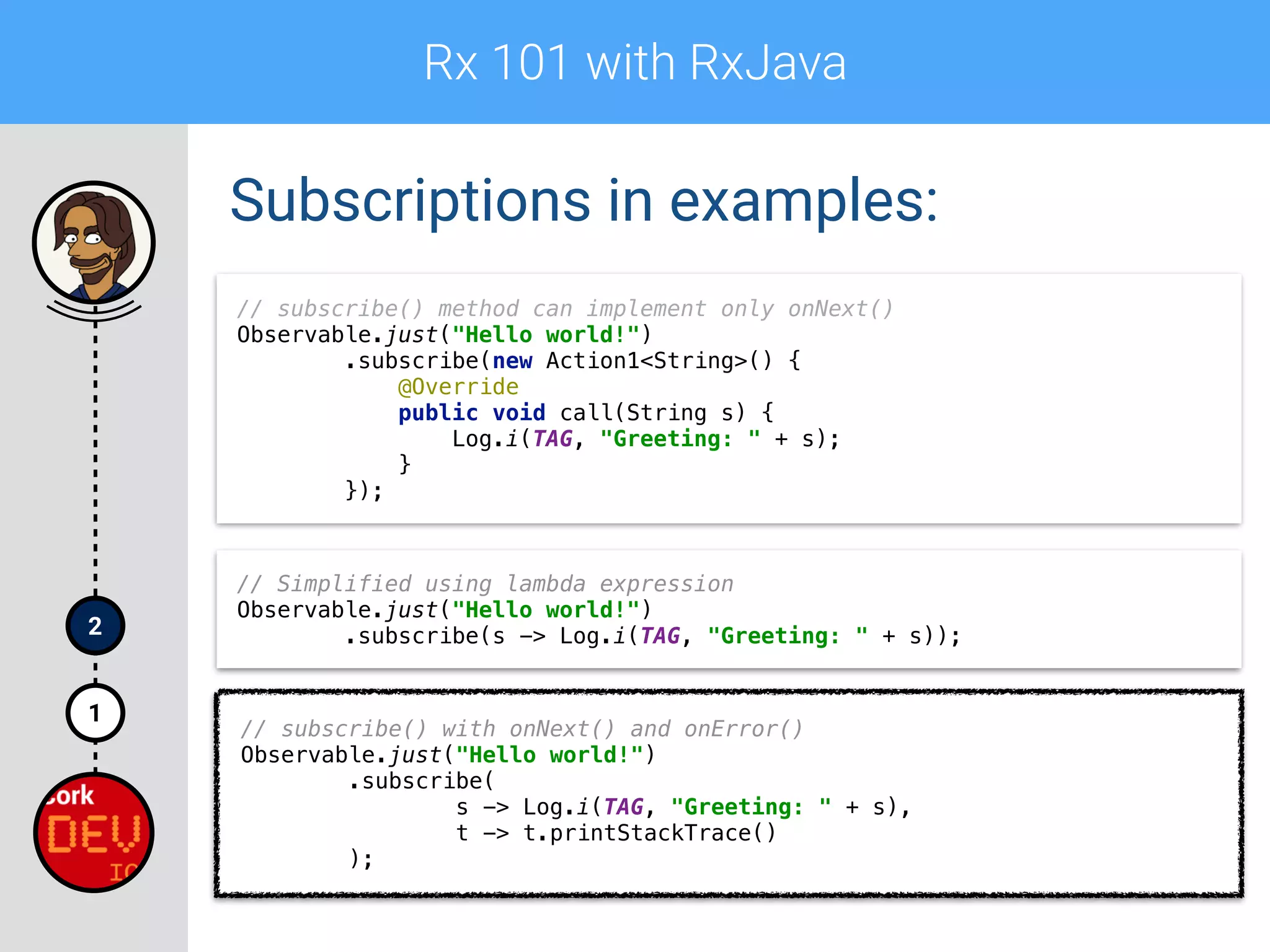

Rx 101 with RxJava 1 2 Subscriptions in examples: // subscribe() method can implement only onNext()
 Observable.just("Hello world!")
 .subscribe(new Action1<String>() {
 @Override
 public void call(String s) {
 Log.i(TAG, "Greeting: " + s);
 }
 }); // Simplified using lambda expression
 Observable.just("Hello world!")
 .subscribe(s -> Log.i(TAG, "Greeting: " + s)); // subscribe() with onNext() and onError() Observable.just("Hello world!")
 .subscribe(
 s -> Log.i(TAG, "Greeting: " + s),
 t -> t.printStackTrace()
 );
Rx 101 with RxJava 1 2 Subscriptions in examples: // subscribe() method can implement only onNext()
 Observable.just("Hello world!")
 .subscribe(new Action1<String>() {
 @Override
 public void call(String s) {
 Log.i(TAG, "Greeting: " + s);
 }
 }); // Simplified using lambda expression
 Observable.just("Hello world!")
 .subscribe(s -> Log.i(TAG, "Greeting: " + s)); // subscribe() with onNext() and onError() Observable.just("Hello world!")
 .subscribe(
 s -> Log.i(TAG, "Greeting: " + s),
 t -> t.printStackTrace()
 );
Rx 101 with RxJava 1 2 Subscriptions in examples: // subscribe() method can implement only onNext()
 Observable.just("Hello world!")
 .subscribe(new Action1<String>() {
 @Override
 public void call(String s) {
 Log.i(TAG, "Greeting: " + s);
 }
 }); // Simplified using lambda expression
 Observable.just("Hello world!")
 .subscribe(s -> Log.i(TAG, "Greeting: " + s)); // subscribe() with onNext() and onError() Observable.just("Hello world!")
 .subscribe(
 s -> Log.i(TAG, "Greeting: " + s),
 t -> t.printStackTrace()
 );

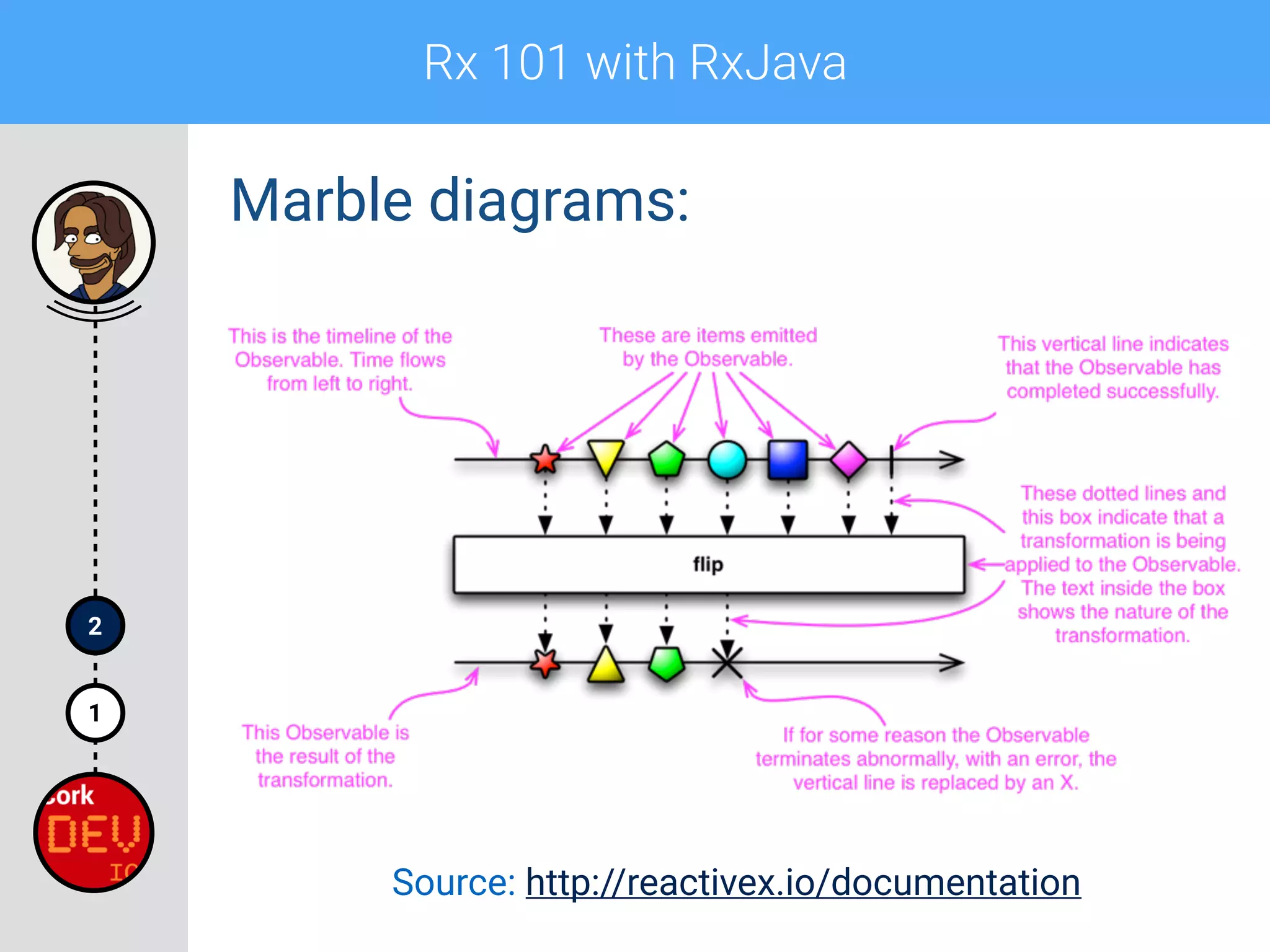

Rx 101 with RxJava 1 2 Marble diagrams:
Rx 101 with RxJava 1 2 Marble diagrams: Source: http://reactivex.io/documentation

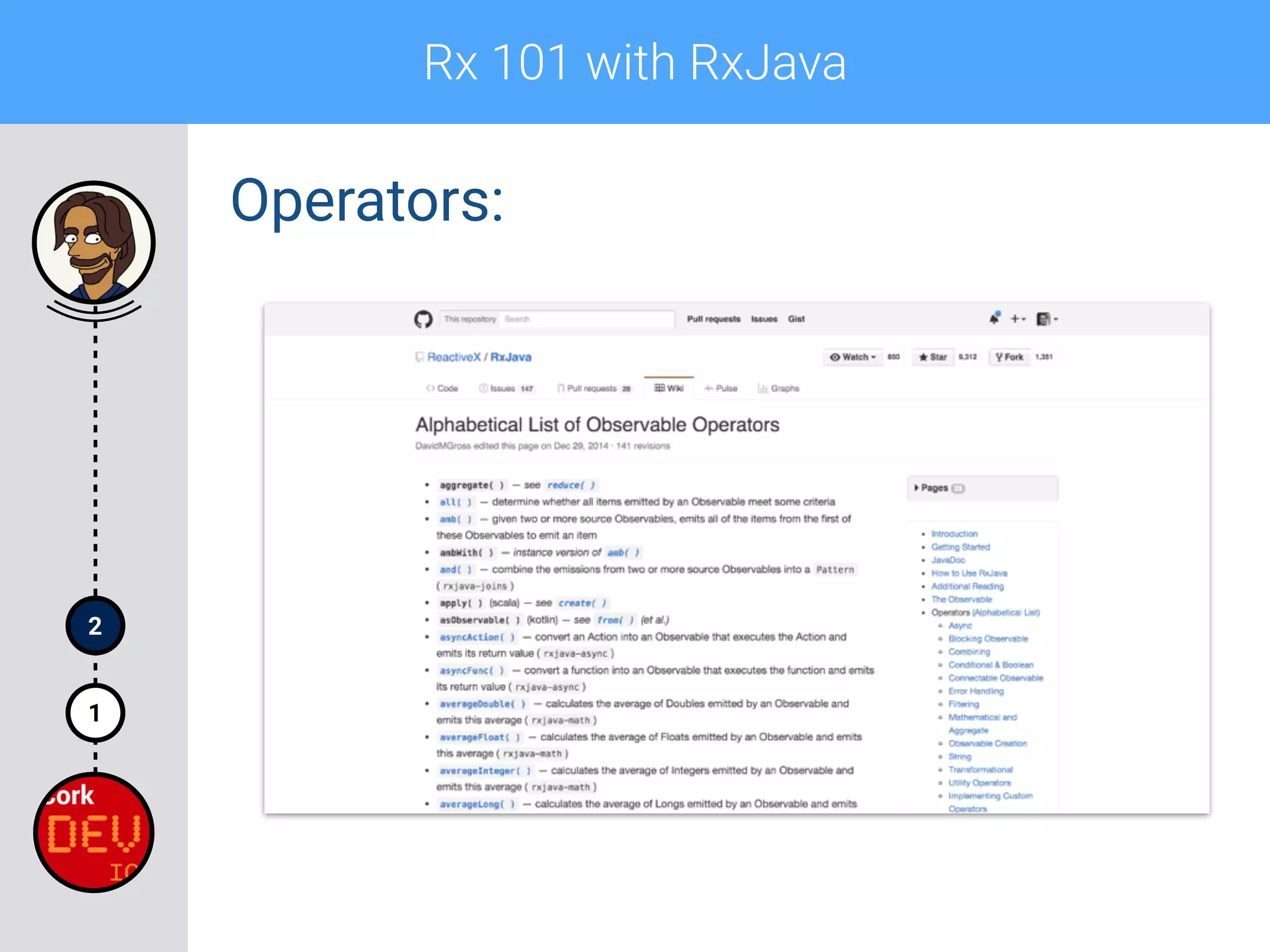

Rx 101 with RxJava 1 2 Operators:
Rx 101 with RxJava 1 2 Operators:

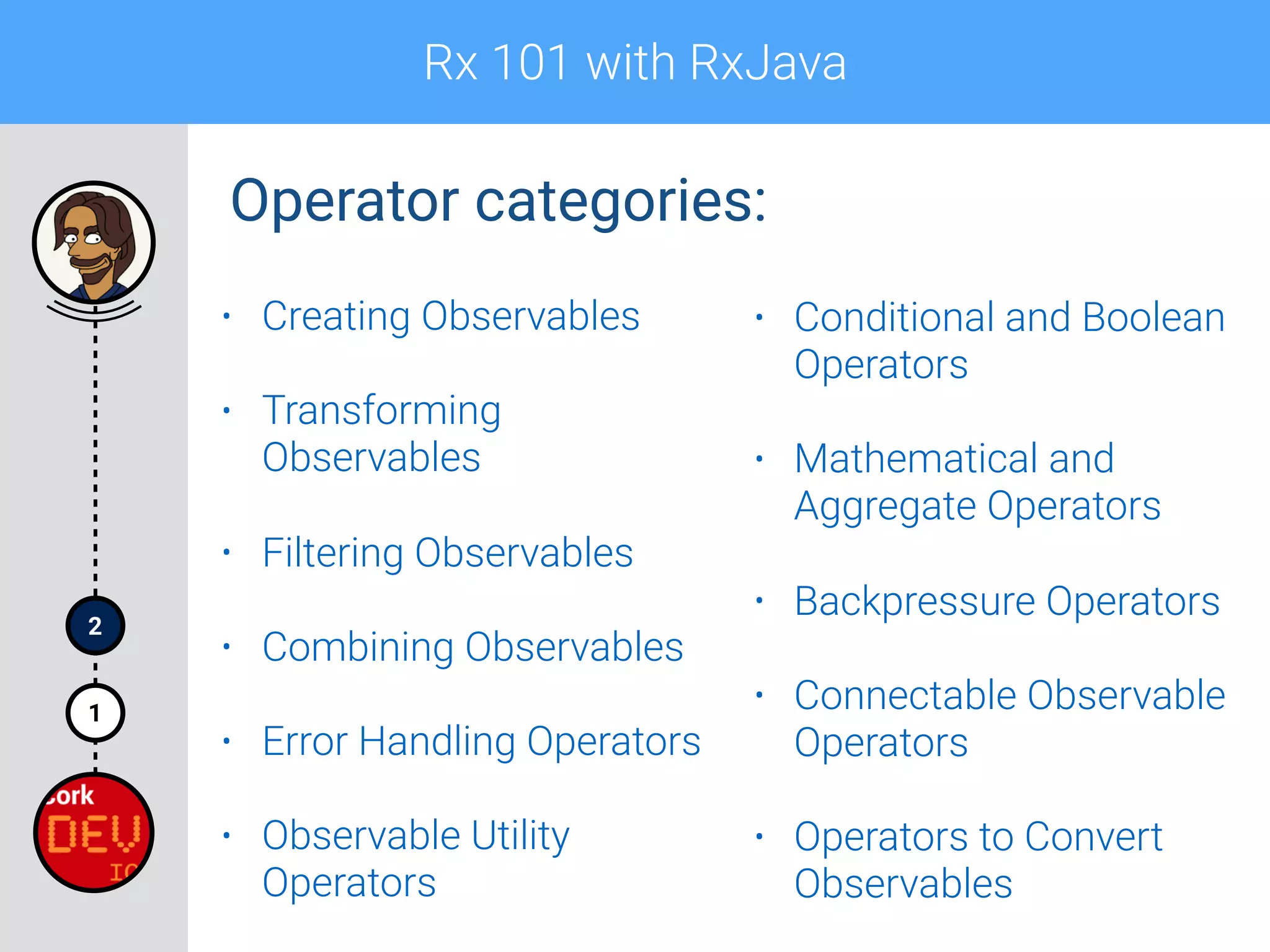

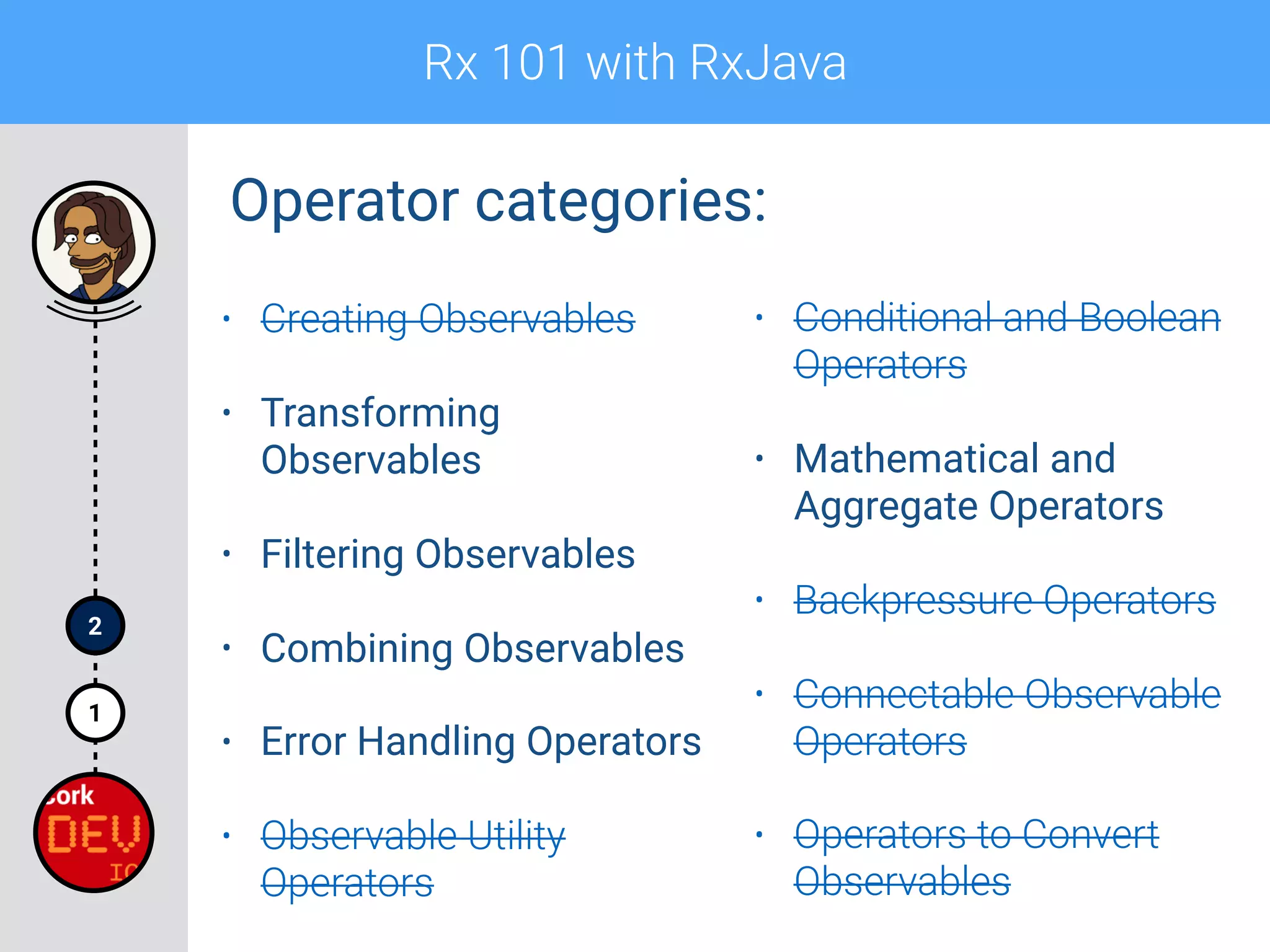

Rx 101 with RxJava 1 2 Operator categories: • Creating Observables • Transforming Observables • Filtering Observables • Combining Observables • Error Handling Operators • Observable Utility Operators • Conditional and Boolean Operators • Mathematical and Aggregate Operators • Backpressure Operators • Connectable Observable Operators • Operators to Convert Observables
Rx 101 with RxJava 1 2 Operator categories: • Creating Observables • Transforming Observables • Filtering Observables • Combining Observables • Error Handling Operators • Observable Utility Operators • Conditional and Boolean Operators • Mathematical and Aggregate Operators • Backpressure Operators • Connectable Observable Operators • Operators to Convert Observables

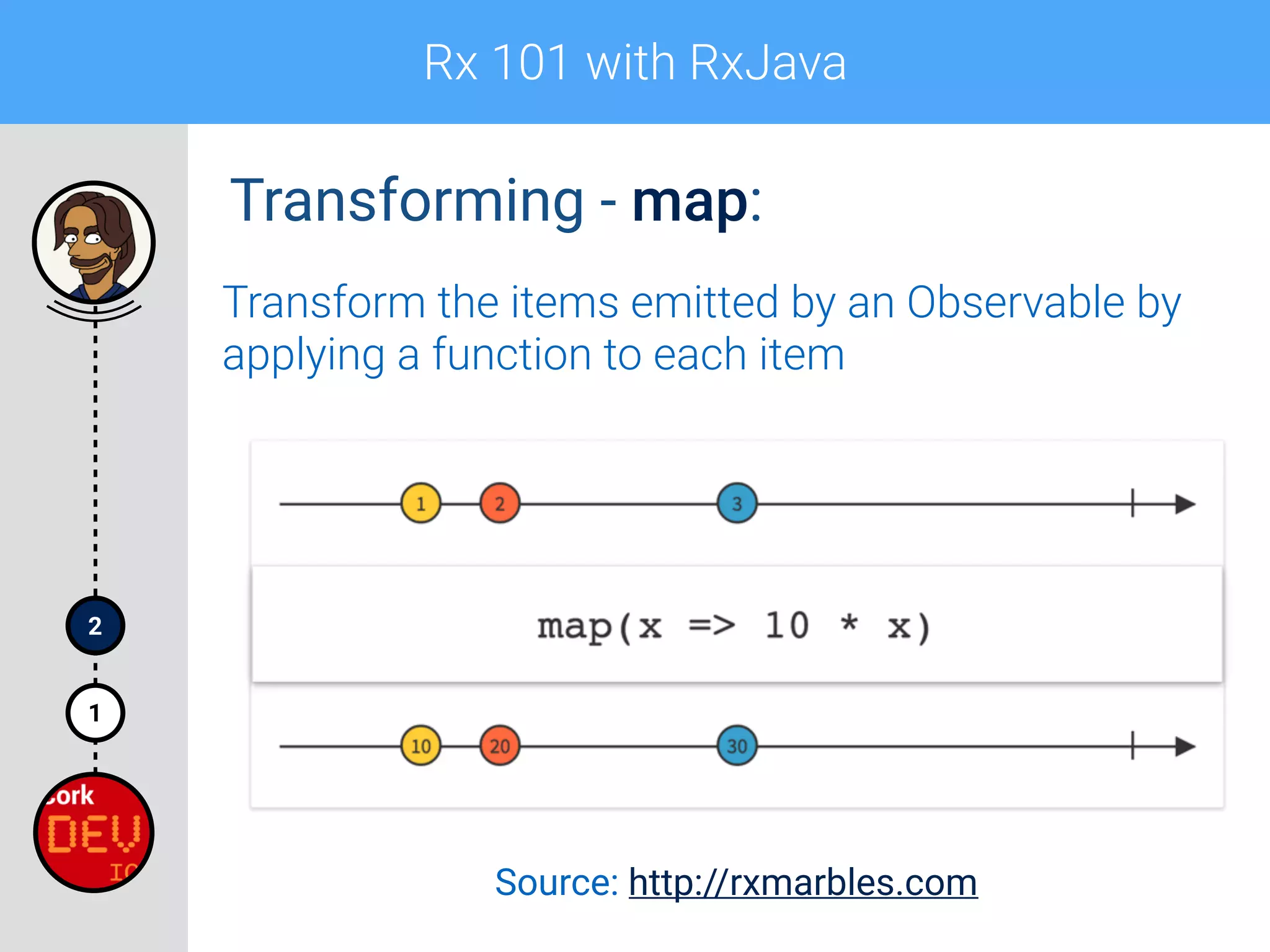

Rx 101 with RxJava 1 2 Transforming - map: Transform the items emitted by an Observable by applying a function to each item Source: http://rxmarbles.com

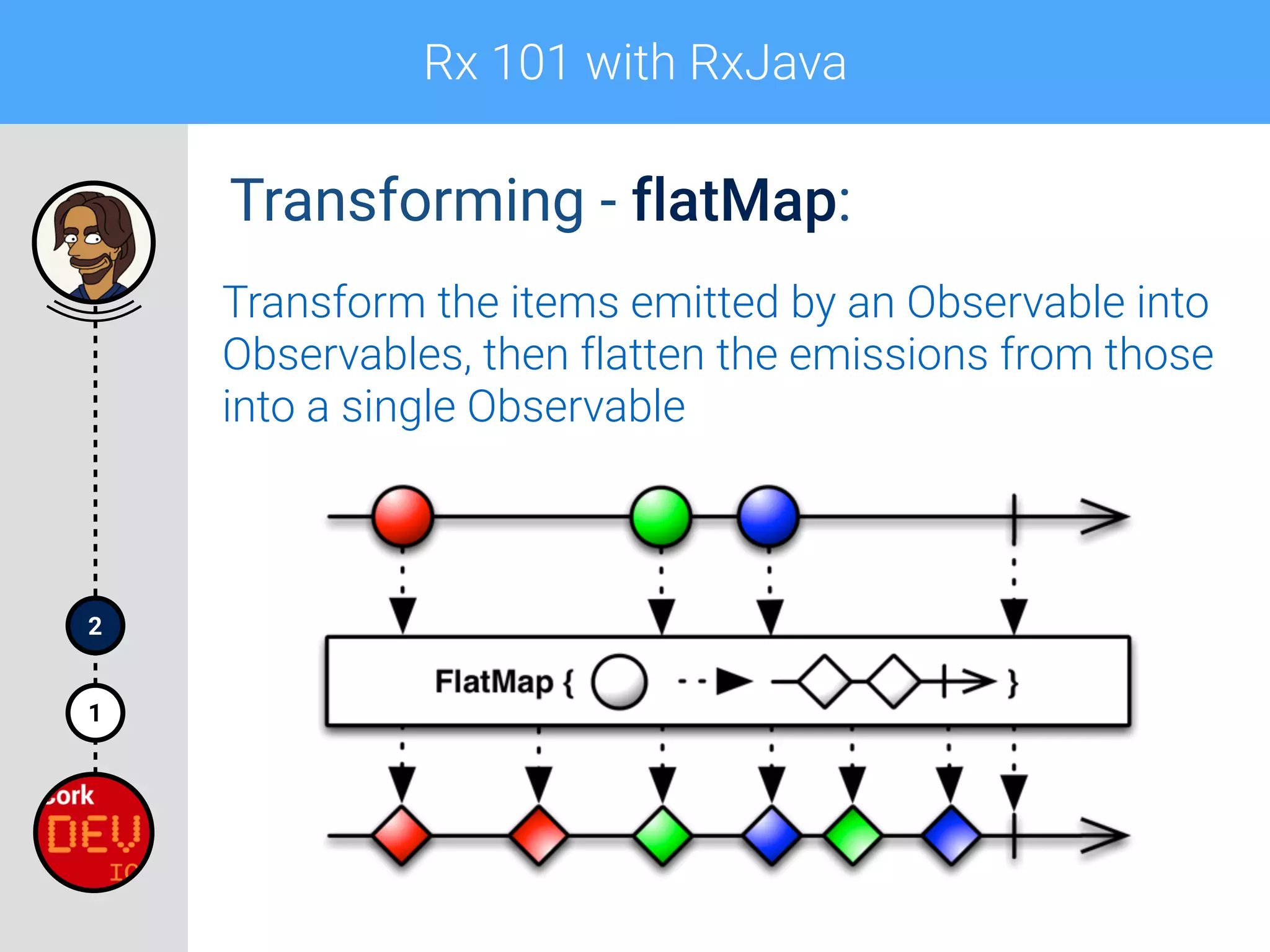

Rx 101 with RxJava 1 2 Transforming - flatMap: Transform the items emitted by an Observable into Observables, then flatten the emissions from those into a single Observable

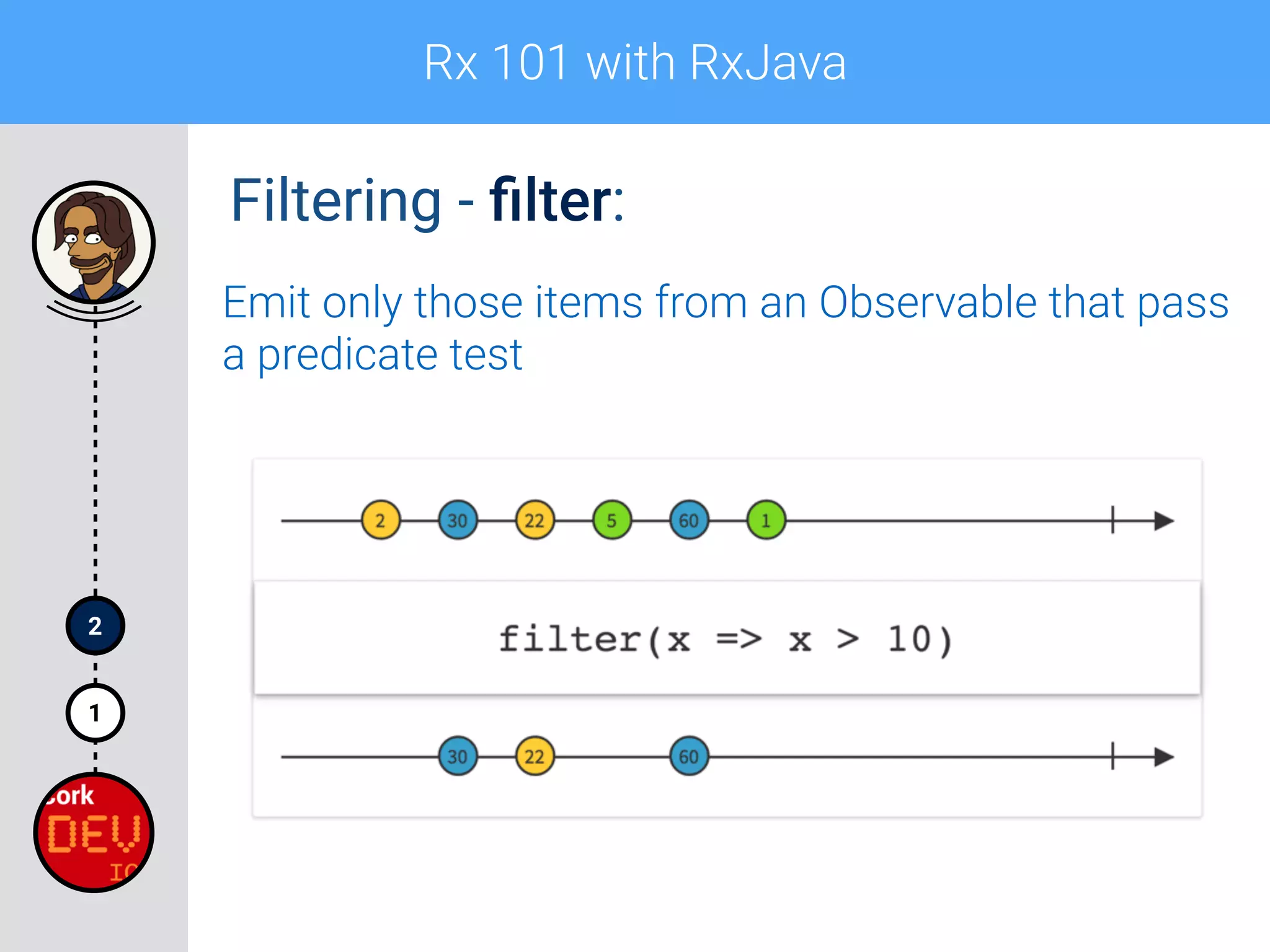

Rx 101 with RxJava 1 2 Filtering - filter: Emit only those items from an Observable that pass a predicate test

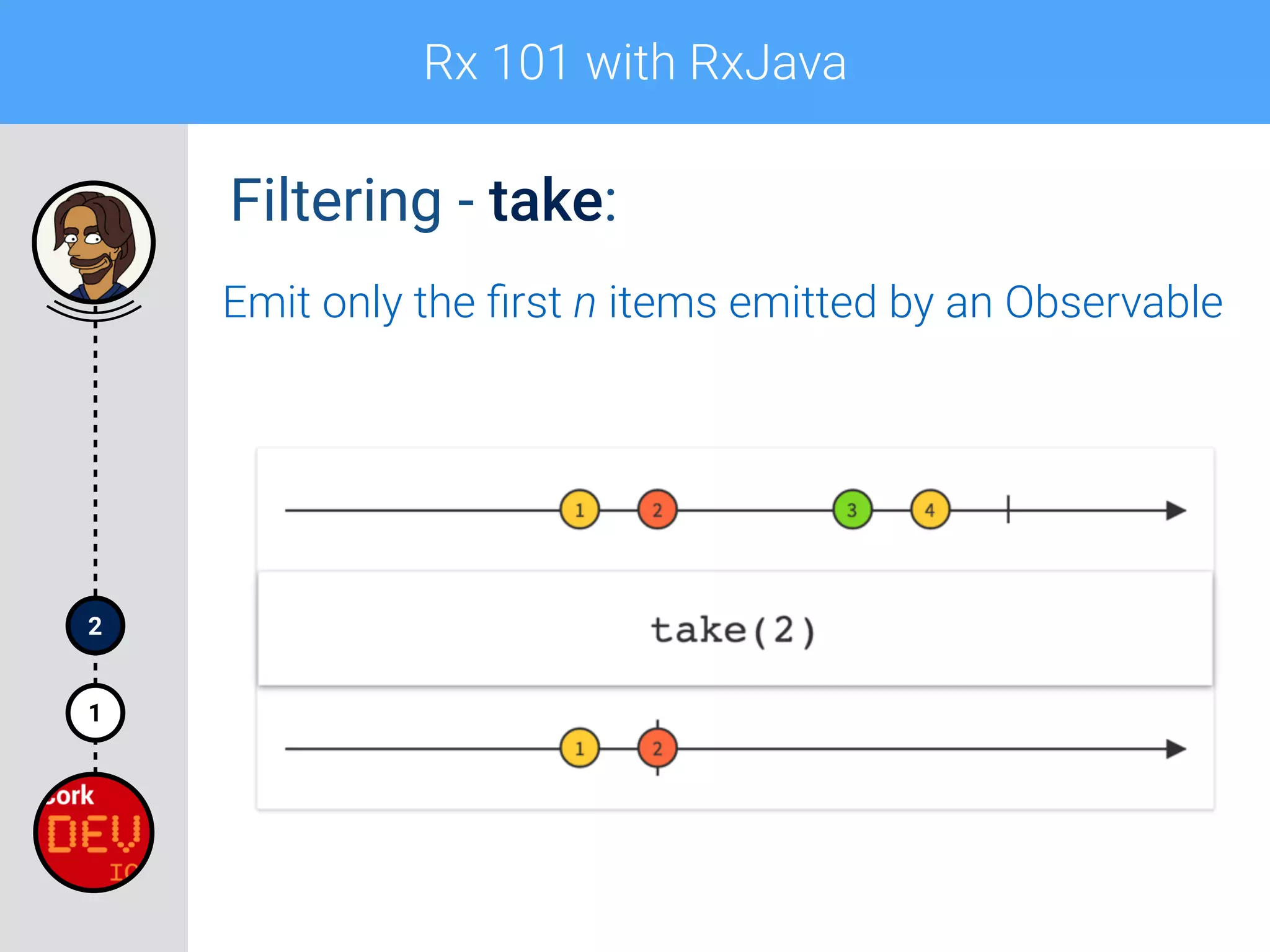

Rx 101 with RxJava 1 2 Filtering - take: Emit only the first n items emitted by an Observable

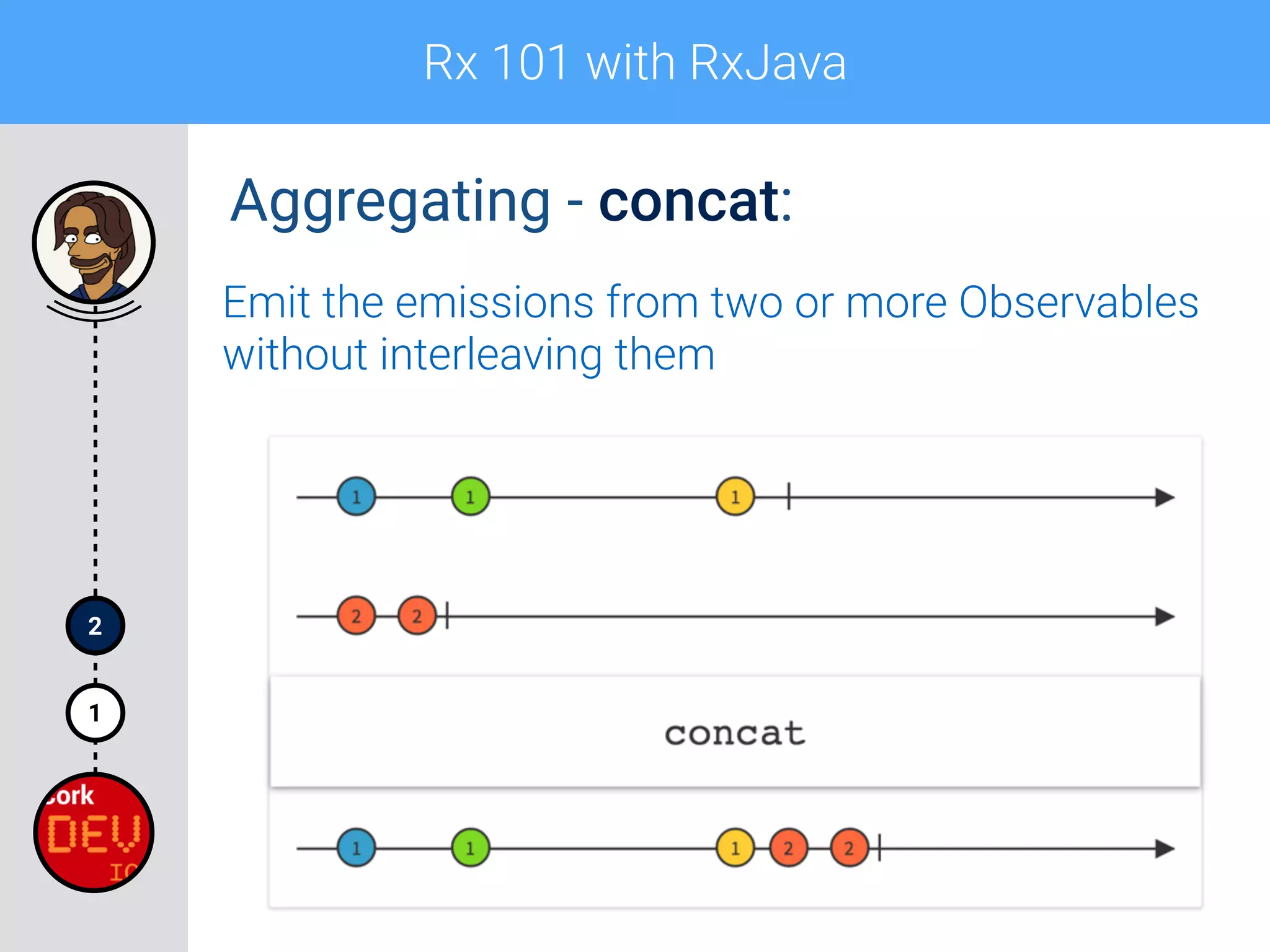

Rx 101 with RxJava 1 2 Aggregating - concat: Emit the emissions from two or more Observables without interleaving them

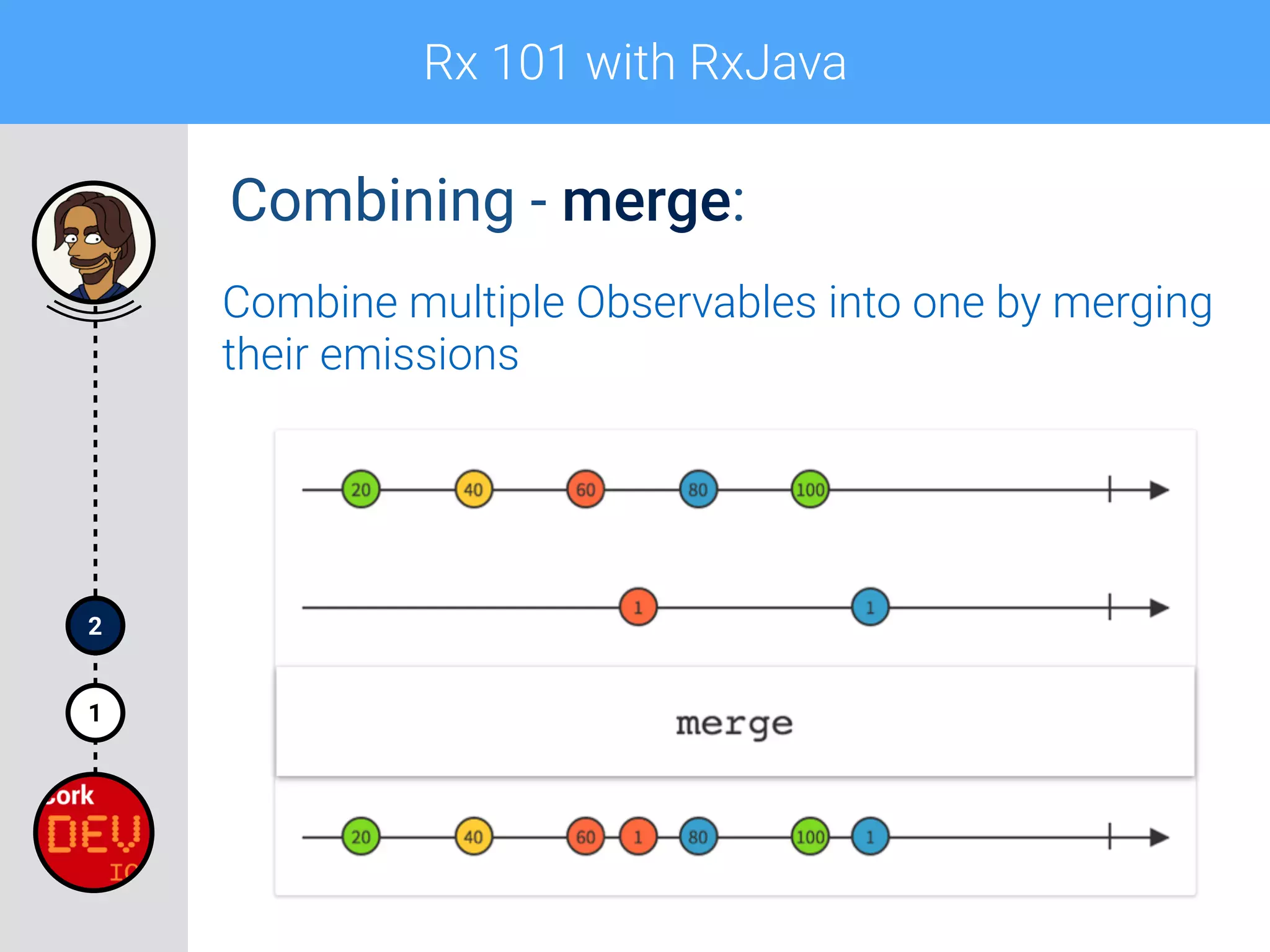

Rx 101 with RxJava 1 2 Combining - merge: Combine multiple Observables into one by merging their emissions

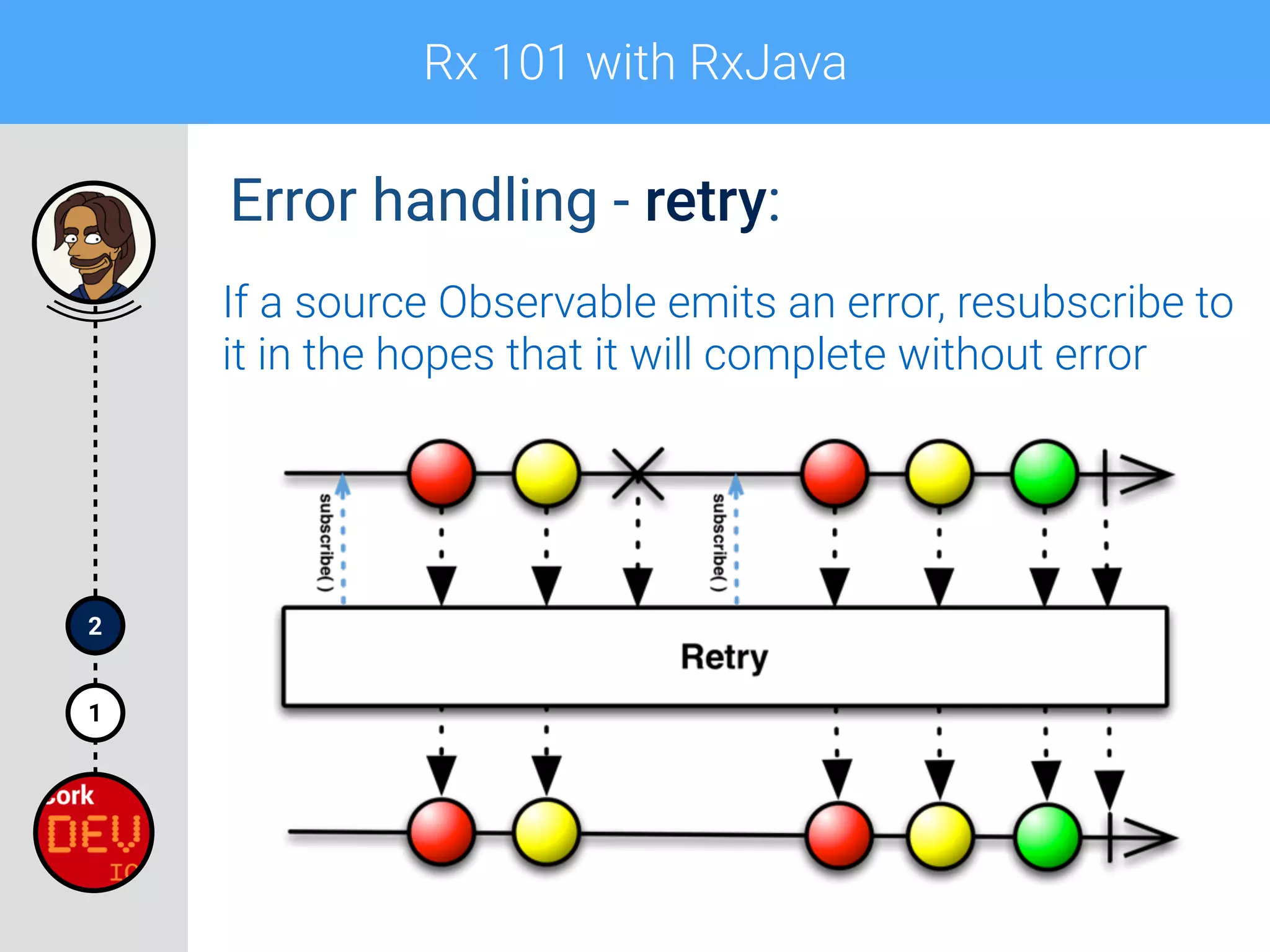

Rx 101 with RxJava 1 2 Error handling - retry: If a source Observable emits an error, resubscribe to it in the hopes that it will complete without error

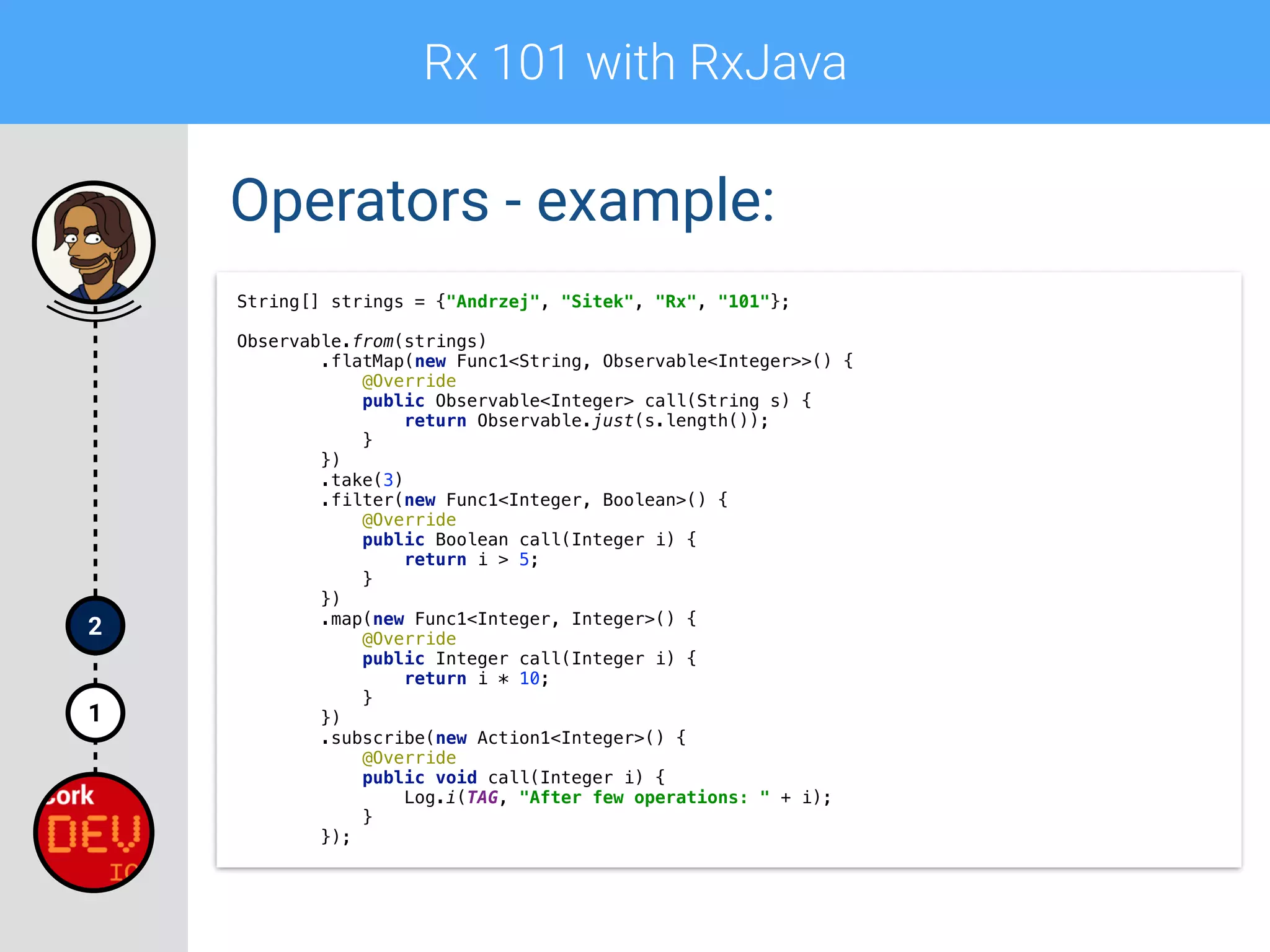

Rx 101 with RxJava 1 2 Operators - example: String[] strings = {"Andrzej", "Sitek", "Rx", "101"};
 Observable.from(strings)
 .flatMap(new Func1<String, Observable<Integer>>() {
 @Override
 public Observable<Integer> call(String s) {
 return Observable.just(s.length());
 }
 })
 .take(3)
 .filter(new Func1<Integer, Boolean>() {
 @Override
 public Boolean call(Integer i) {
 return i > 5;
 }
 })
 .map(new Func1<Integer, Integer>() {
 @Override
 public Integer call(Integer i) {
 return i * 10;
 }
 })
 .subscribe(new Action1<Integer>() {
 @Override
 public void call(Integer i) {
 Log.i(TAG, "After few operations: " + i);
 }
 });

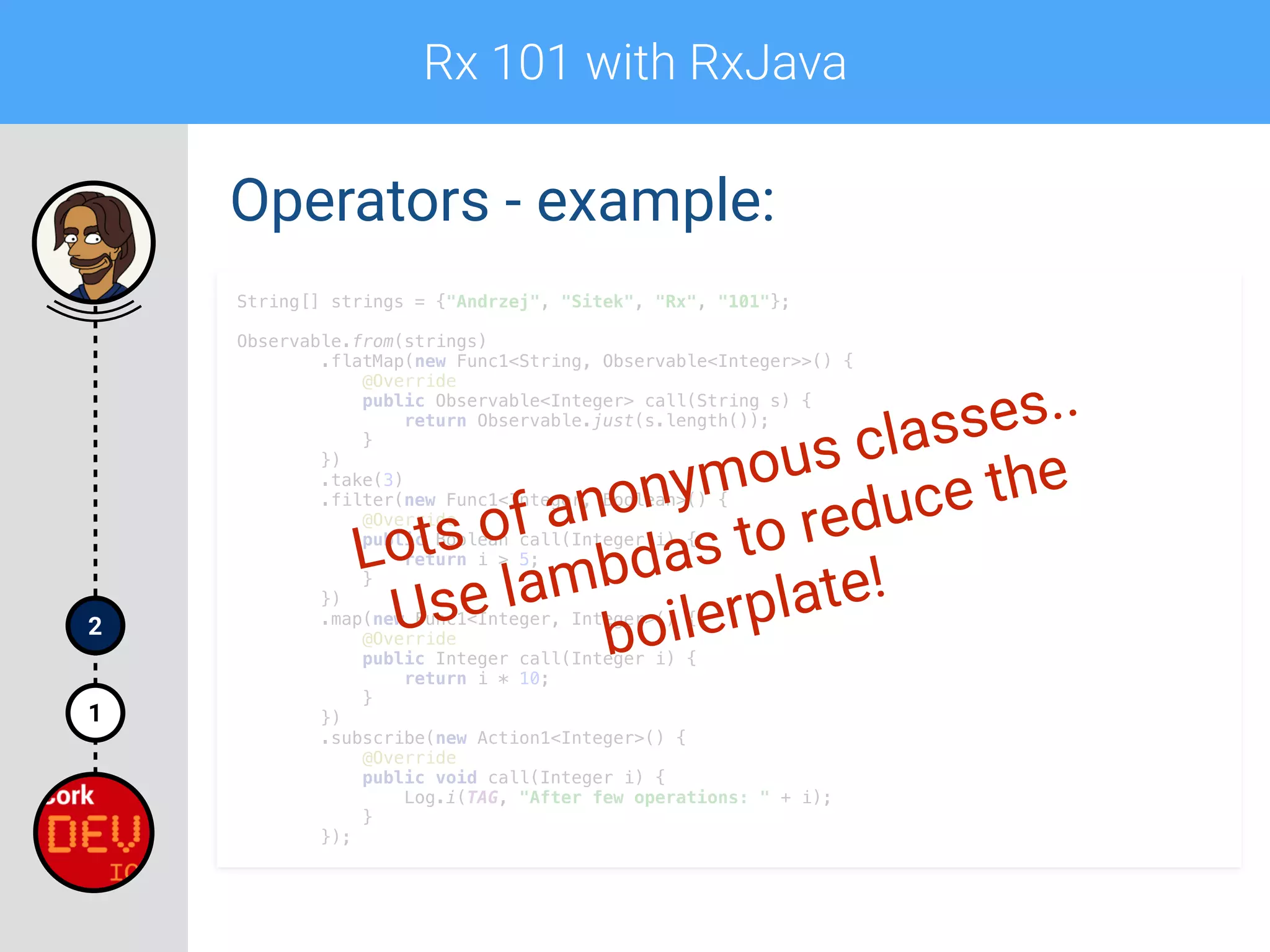

Rx 101 with RxJava 1 2 Operators - example: String[] strings = {"Andrzej", "Sitek", "Rx", "101"};
 Observable.from(strings)
 .flatMap(new Func1<String, Observable<Integer>>() {
 @Override
 public Observable<Integer> call(String s) {
 return Observable.just(s.length());
 }
 })
 .take(3)
 .filter(new Func1<Integer, Boolean>() {
 @Override
 public Boolean call(Integer i) {
 return i > 5;
 }
 })
 .map(new Func1<Integer, Integer>() {
 @Override
 public Integer call(Integer i) {
 return i * 10;
 }
 })
 .subscribe(new Action1<Integer>() {
 @Override
 public void call(Integer i) {
 Log.i(TAG, "After few operations: " + i);
 }
 }); Lots of anonymous classes.. Use lambdas to reduce the boilerplate!

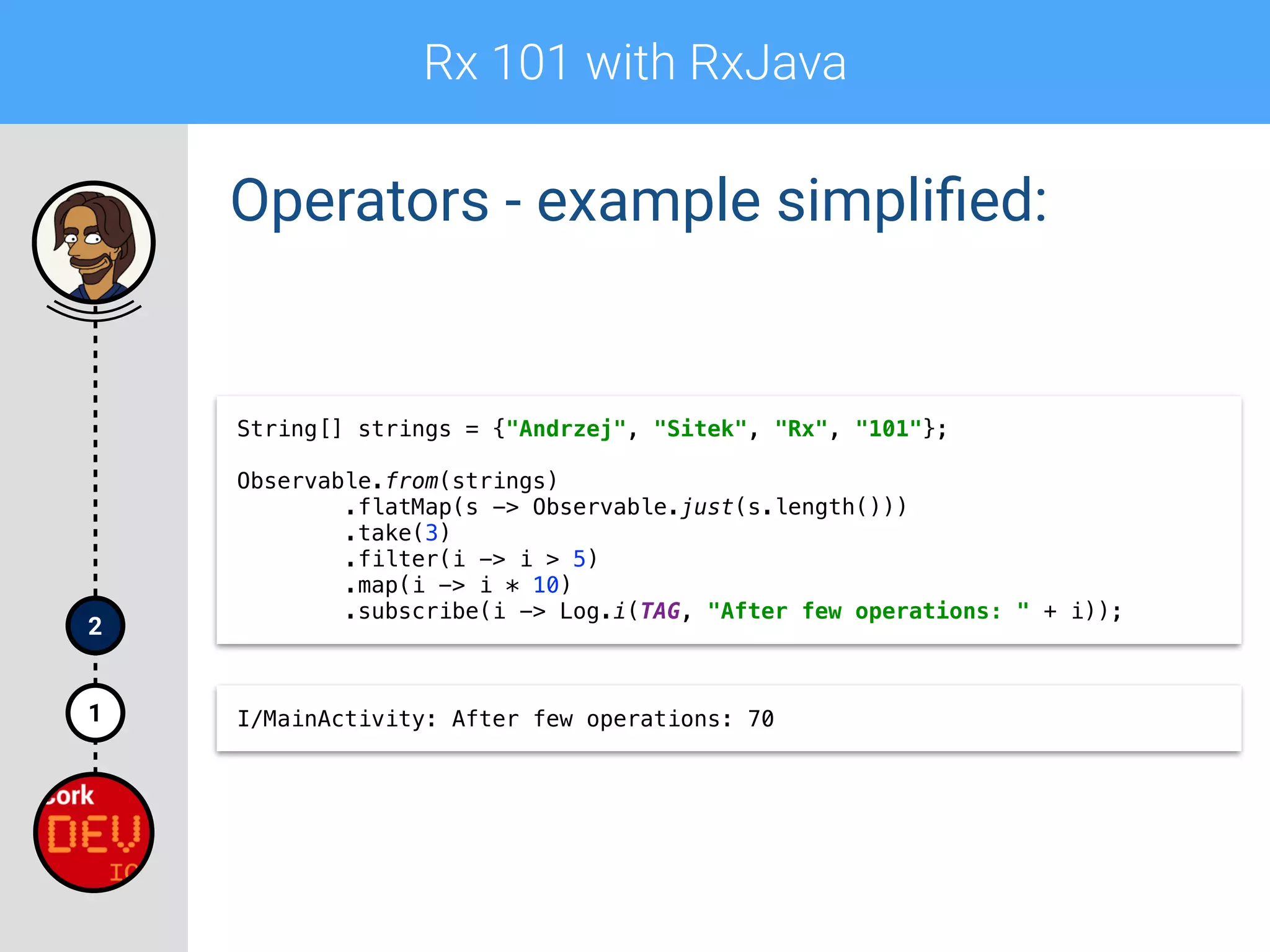

Rx 101 with RxJava 1 2 Operators - example simplified: String[] strings = {"Andrzej", "Sitek", "Rx", "101"};
 Observable.from(strings)
 .flatMap(s -> Observable.just(s.length()))
 .take(3)
 .filter(i -> i > 5)
 .map(i -> i * 10)
 .subscribe(i -> Log.i(TAG, "After few operations: " + i)); I/MainActivity: After few operations: 70

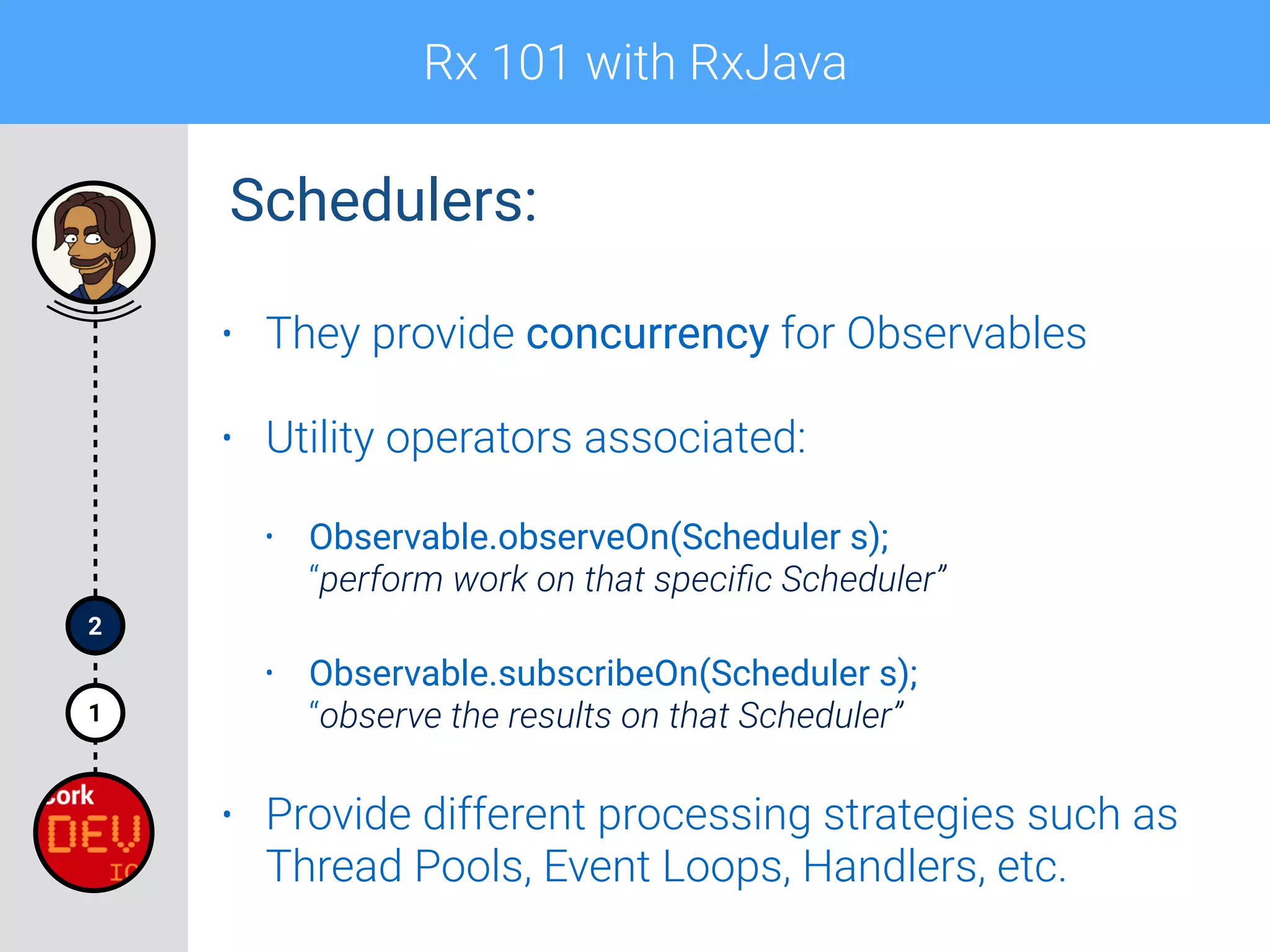

Rx 101 with RxJava 1 2 Schedulers: • They provide concurrency for Observables • Utility operators associated: • Observable.observeOn(Scheduler s);
 “perform work on that specific Scheduler” • Observable.subscribeOn(Scheduler s);
 “observe the results on that Scheduler” • Provide different processing strategies such as Thread Pools, Event Loops, Handlers, etc.

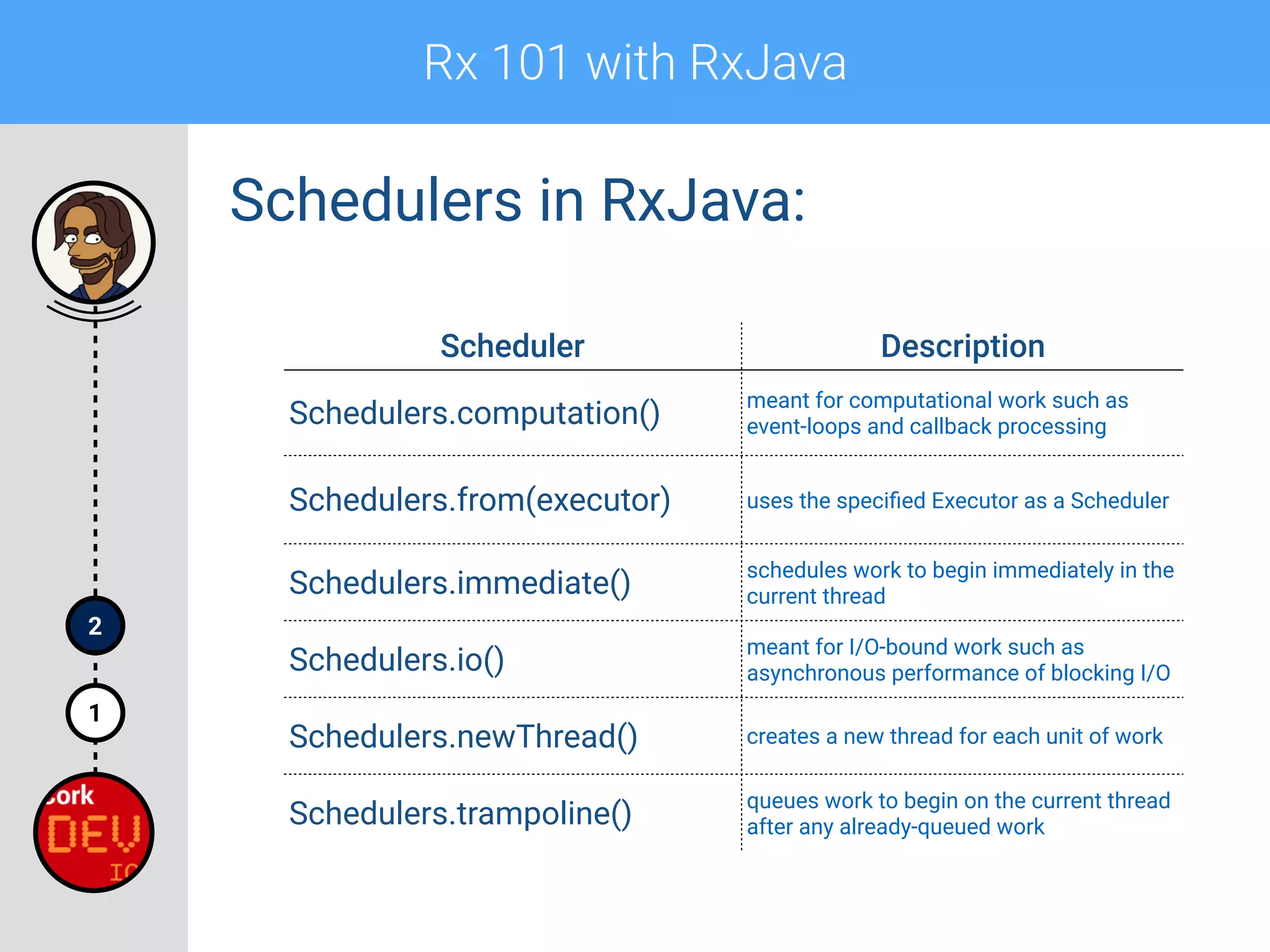

Rx 101 with RxJava 1 2 Schedulers in RxJava: Scheduler Description Schedulers.computation() meant for computational work such as event-loops and callback processing Schedulers.from(executor) uses the specified Executor as a Scheduler Schedulers.immediate() schedules work to begin immediately in the current thread Schedulers.io() meant for I/O-bound work such as asynchronous performance of blocking I/O Schedulers.newThread() creates a new thread for each unit of work Schedulers.trampoline() queues work to begin on the current thread after any already-queued work

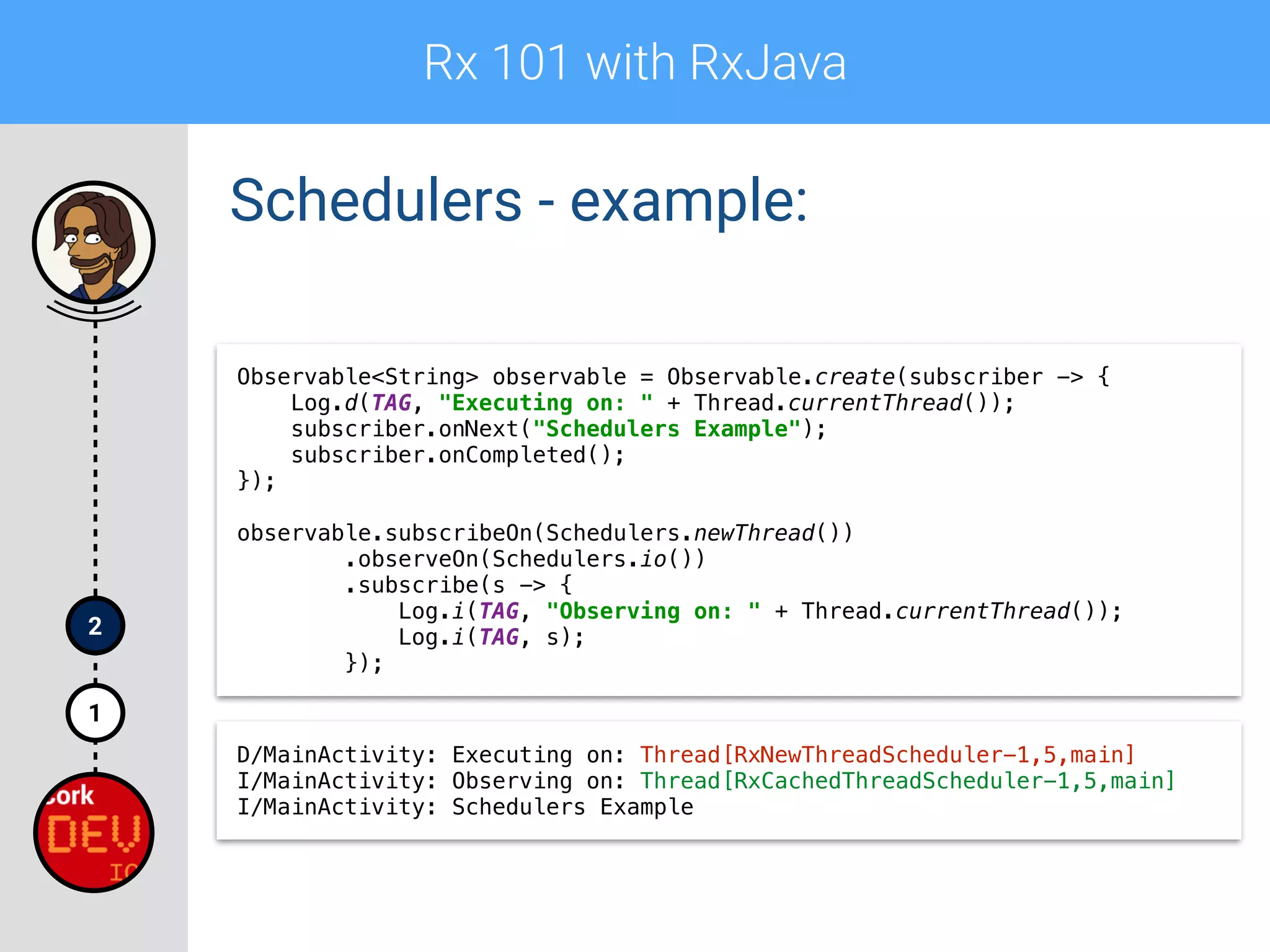

Rx 101 with RxJava 1 2 Schedulers - example: Observable<String> observable = Observable.create(subscriber -> {
 Log.d(TAG, "Executing on: " + Thread.currentThread());
 subscriber.onNext("Schedulers Example");
 subscriber.onCompleted();
 });

 observable.subscribeOn(Schedulers.newThread())
 .observeOn(Schedulers.io())
 .subscribe(s -> {
 Log.i(TAG, "Observing on: " + Thread.currentThread());
 Log.i(TAG, s);
 }); D/MainActivity: Executing on: Thread[RxNewThreadScheduler-1,5,main] I/MainActivity: Observing on: Thread[RxCachedThreadScheduler-1,5,main] I/MainActivity: Schedulers Example

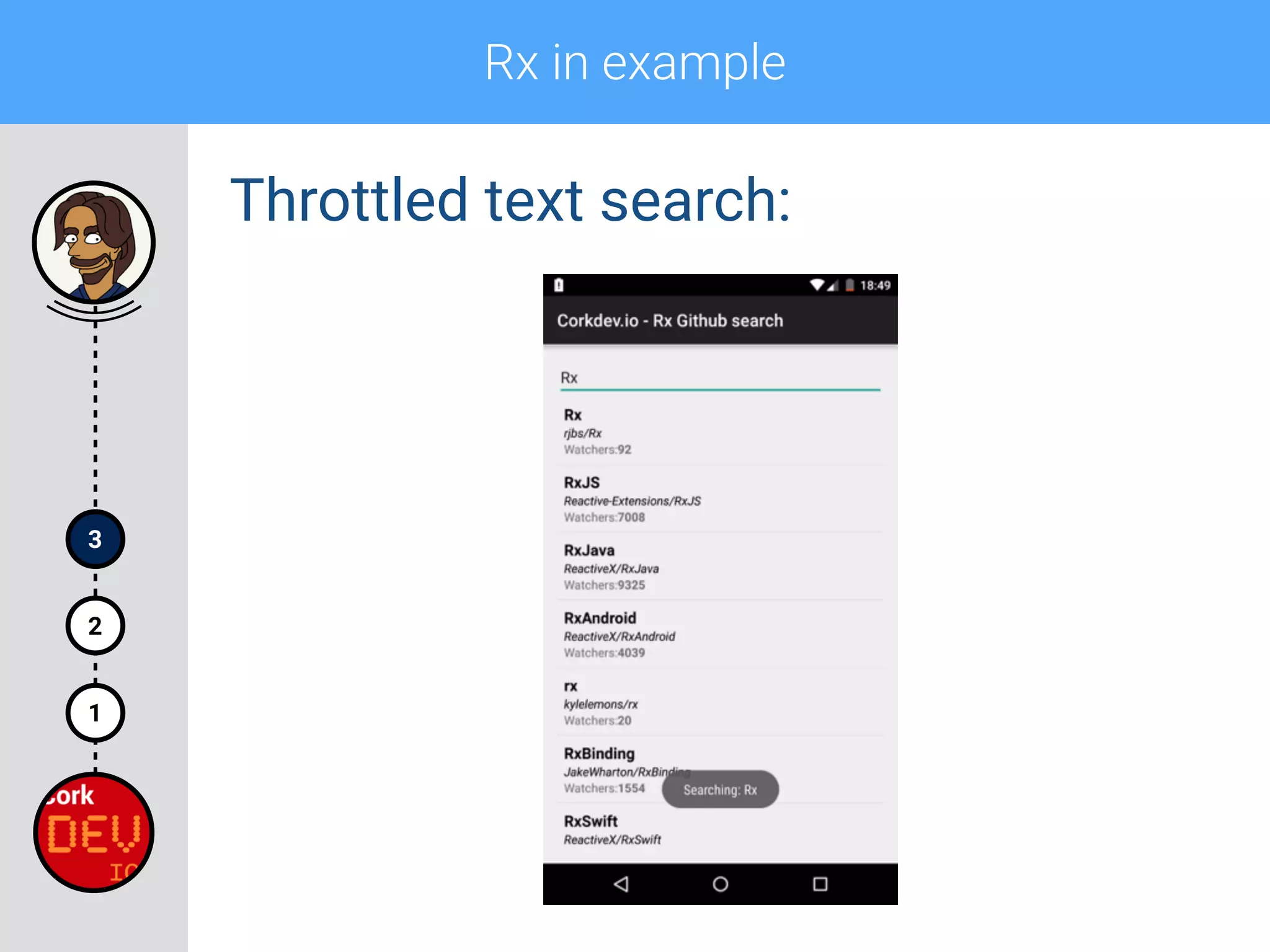

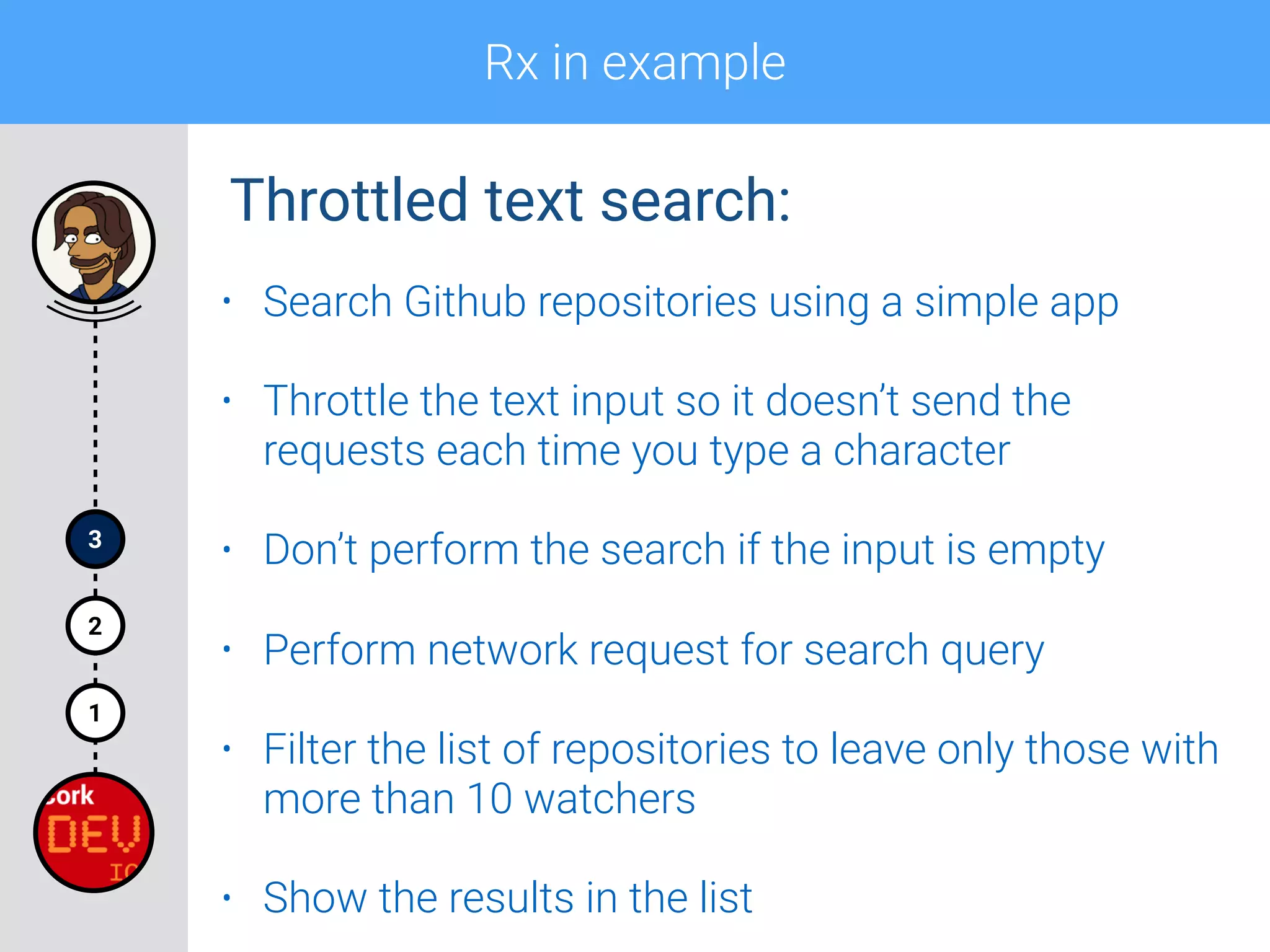

Rx in example 1 2 3 Throttled text search:
Rx in example 1 2 3 Throttled text search: • Search Github repositories using a simple app • Throttle the text input so it doesn’t send the requests each time you type a character • Don’t perform the search if the input is empty • Perform network request for search query • Filter the list of repositories to leave only those with more than 10 watchers • Show the results in the list
Rx in examples 1 2 3

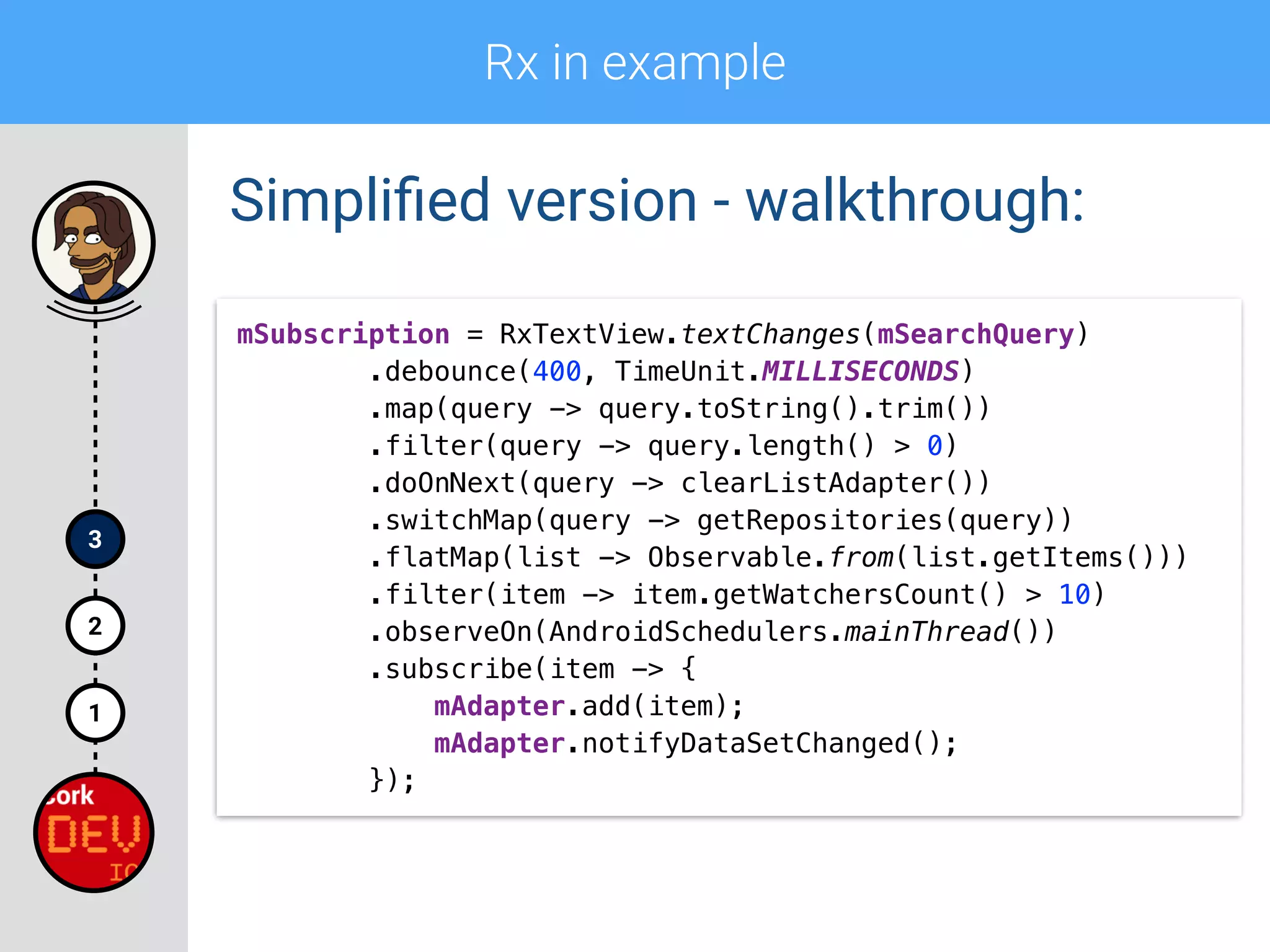

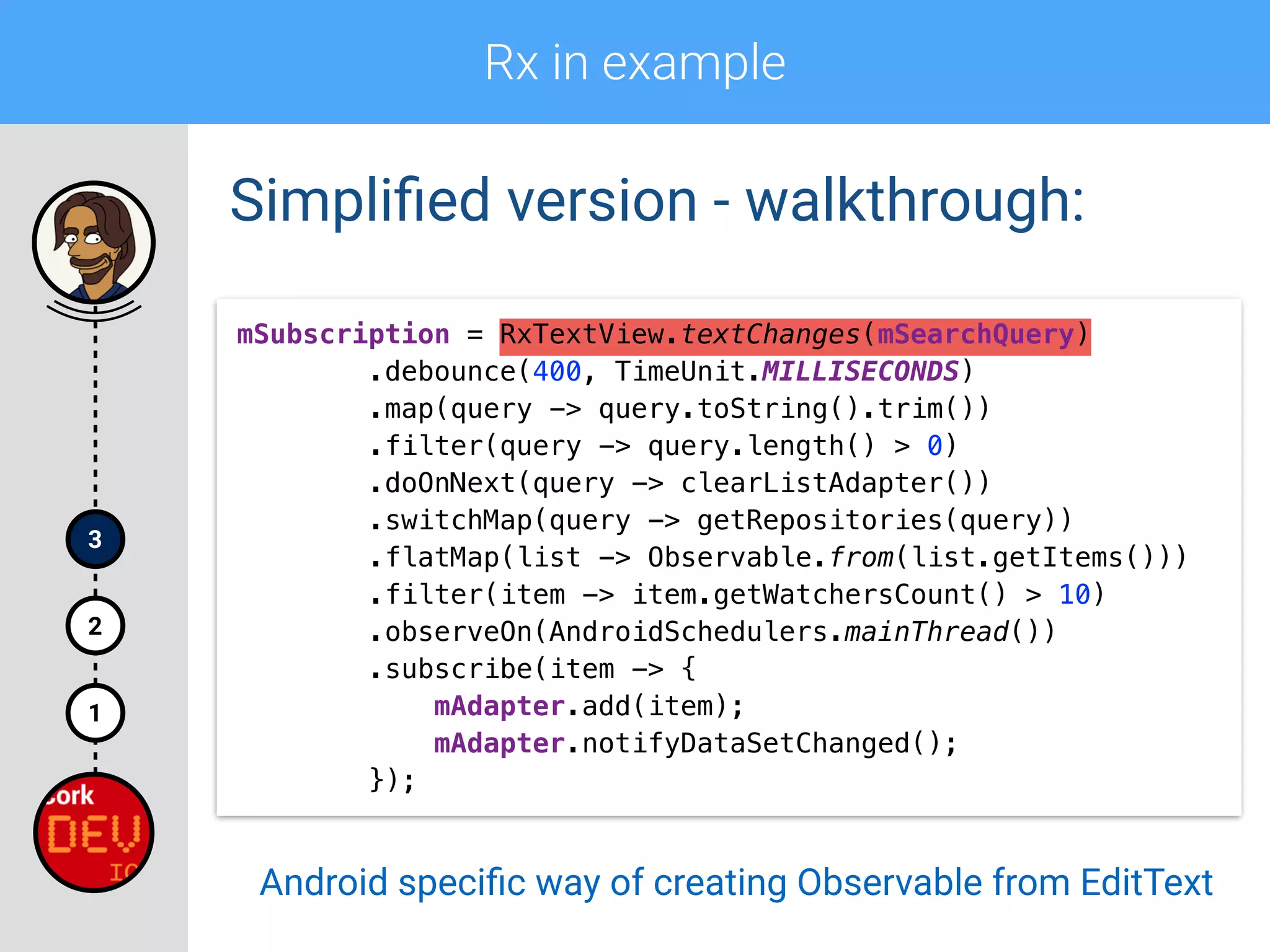

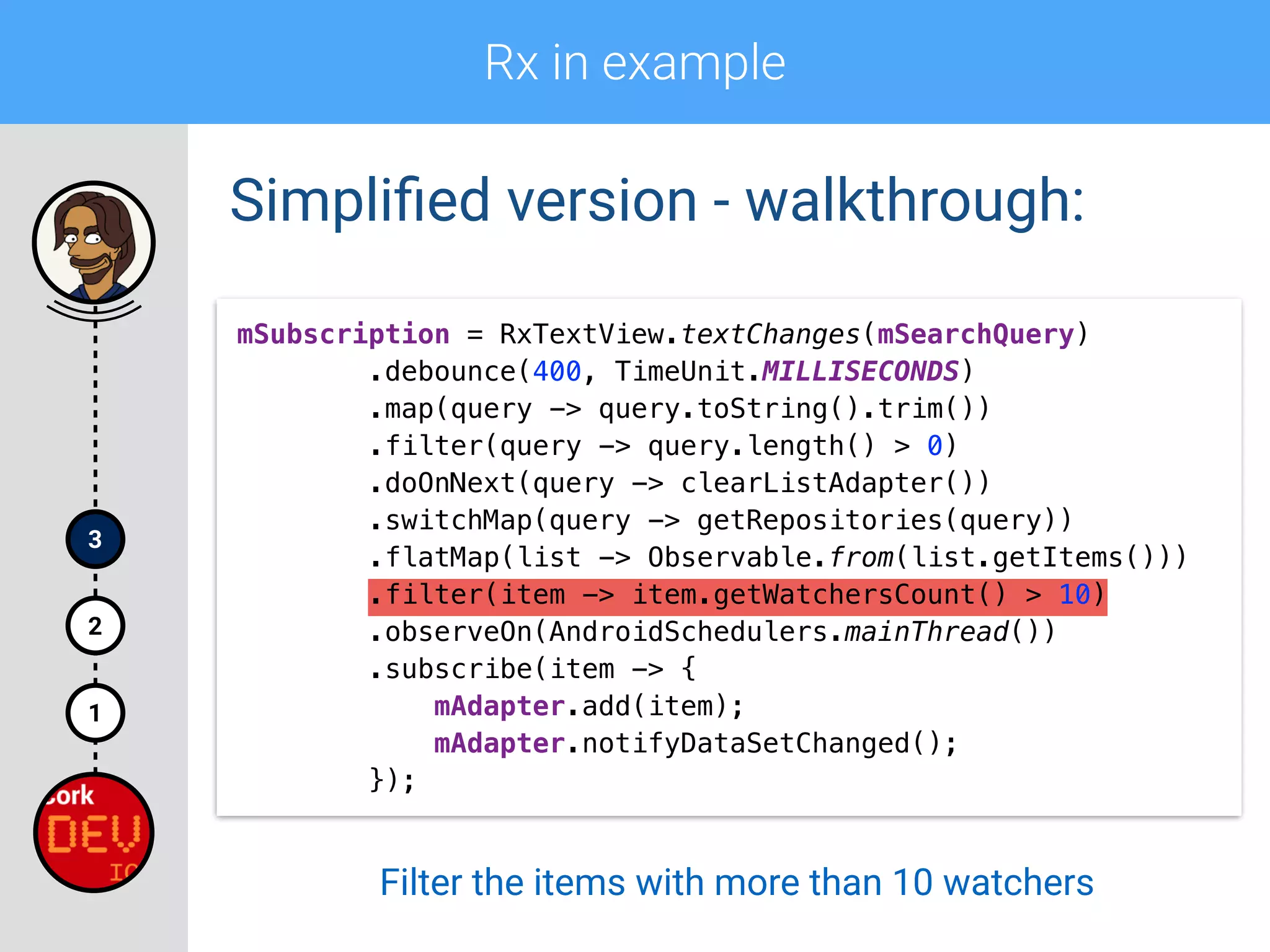

Rx in example 1 2 3 Simplified version - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0) .doOnNext(query -> clearListAdapter())
 .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 });

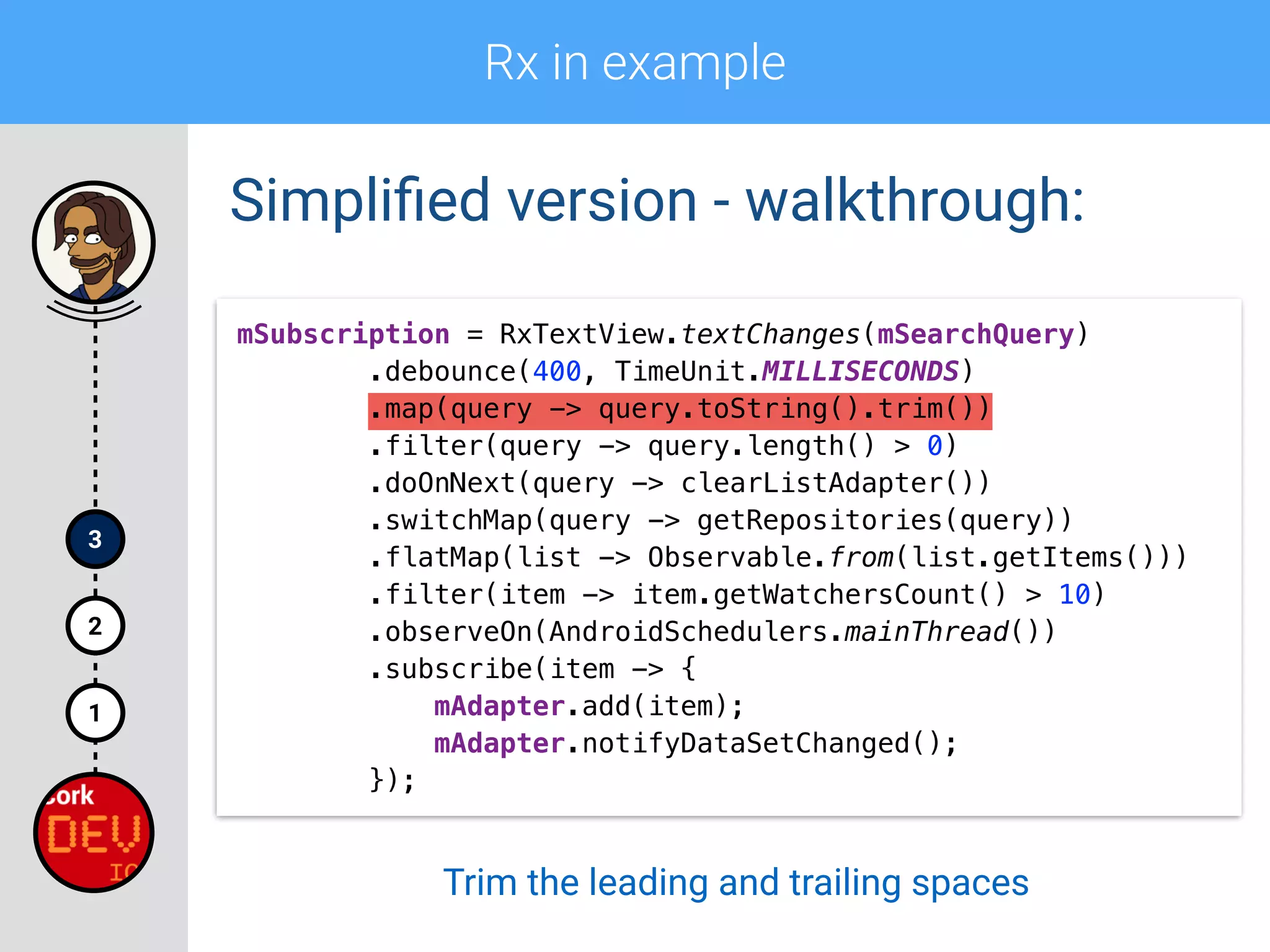

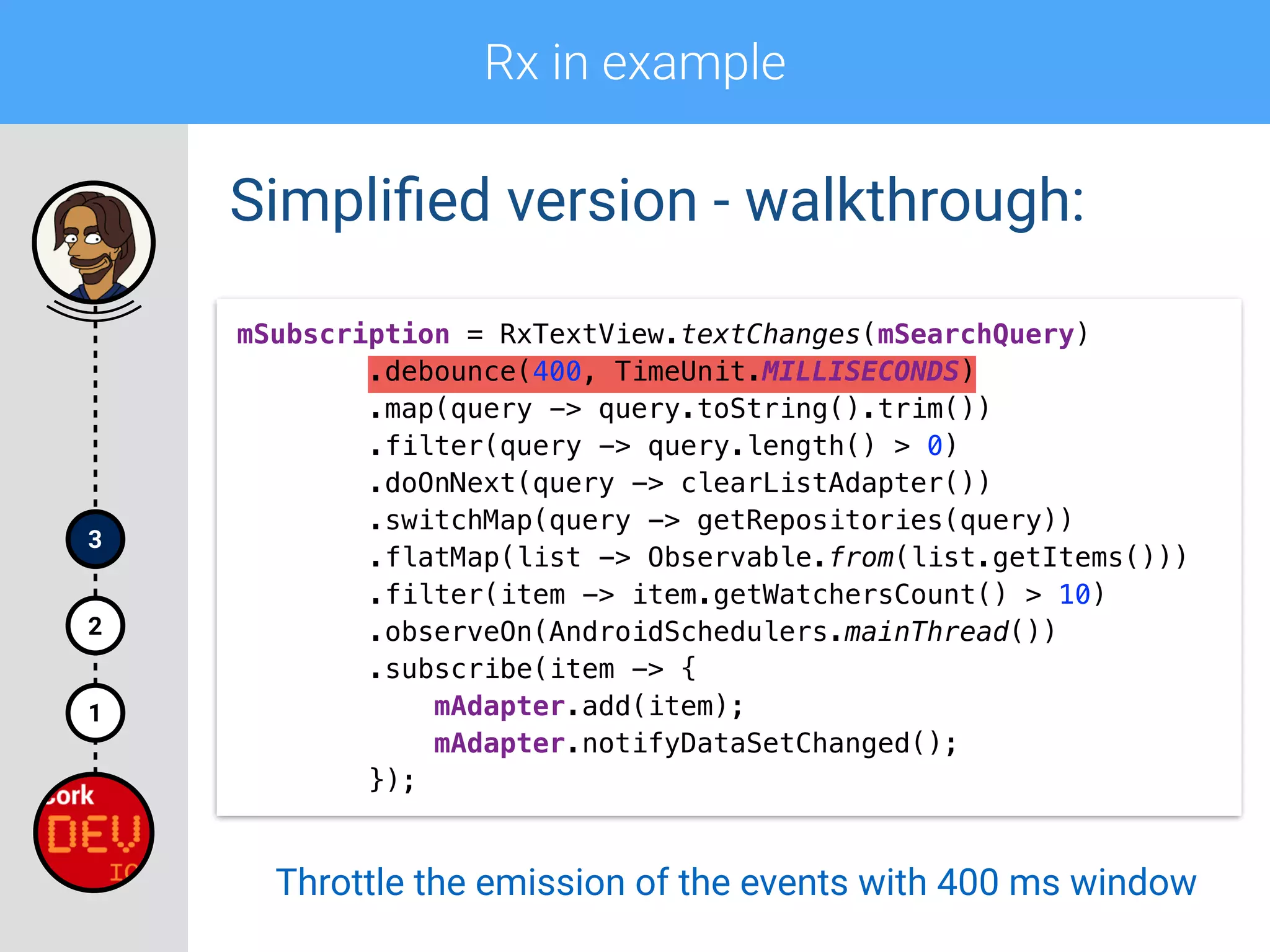

Rx in example 1 2 3 Simplified version - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0) .doOnNext(query -> clearListAdapter())
 .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Android specific way of creating Observable from EditText

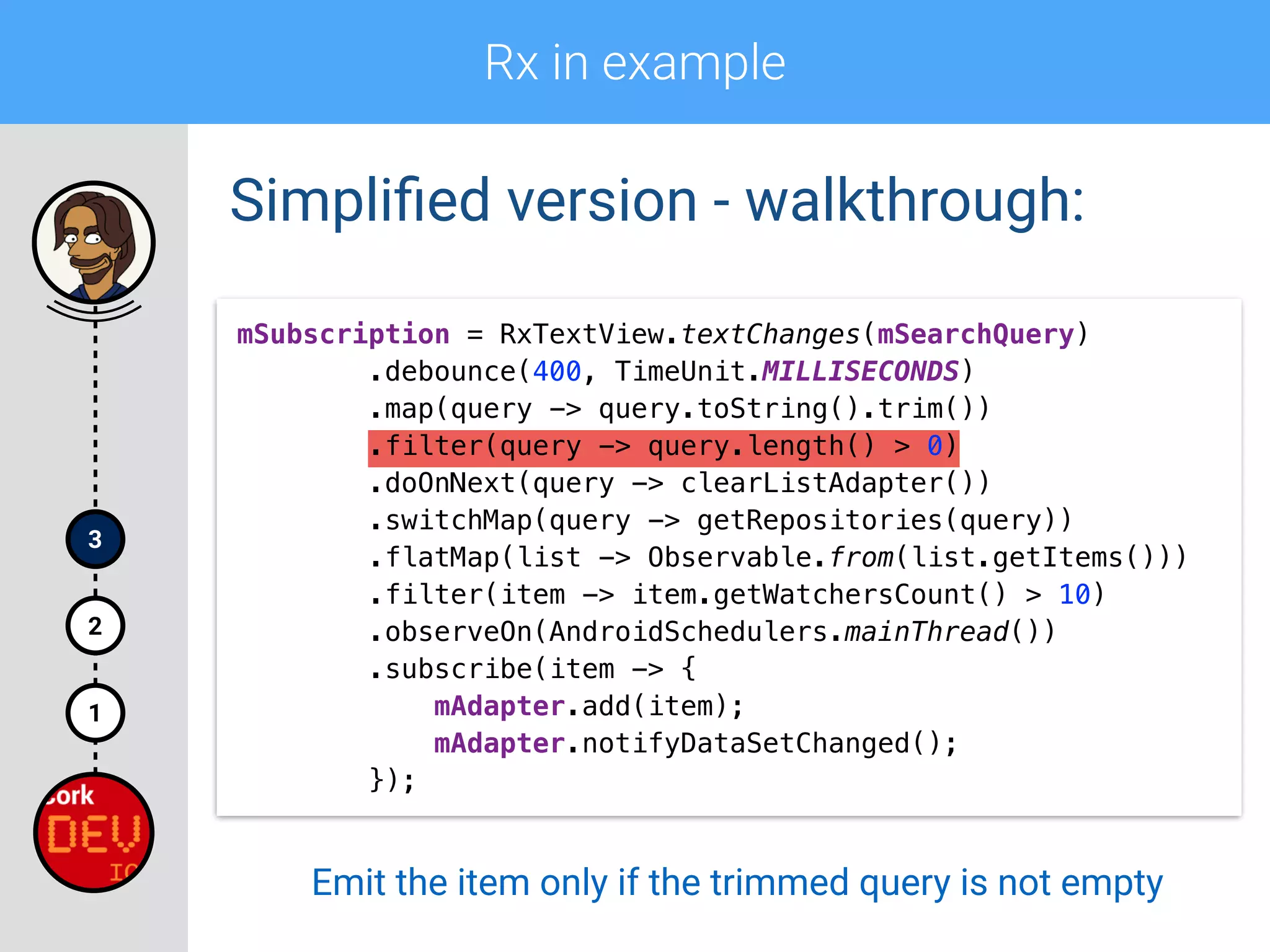

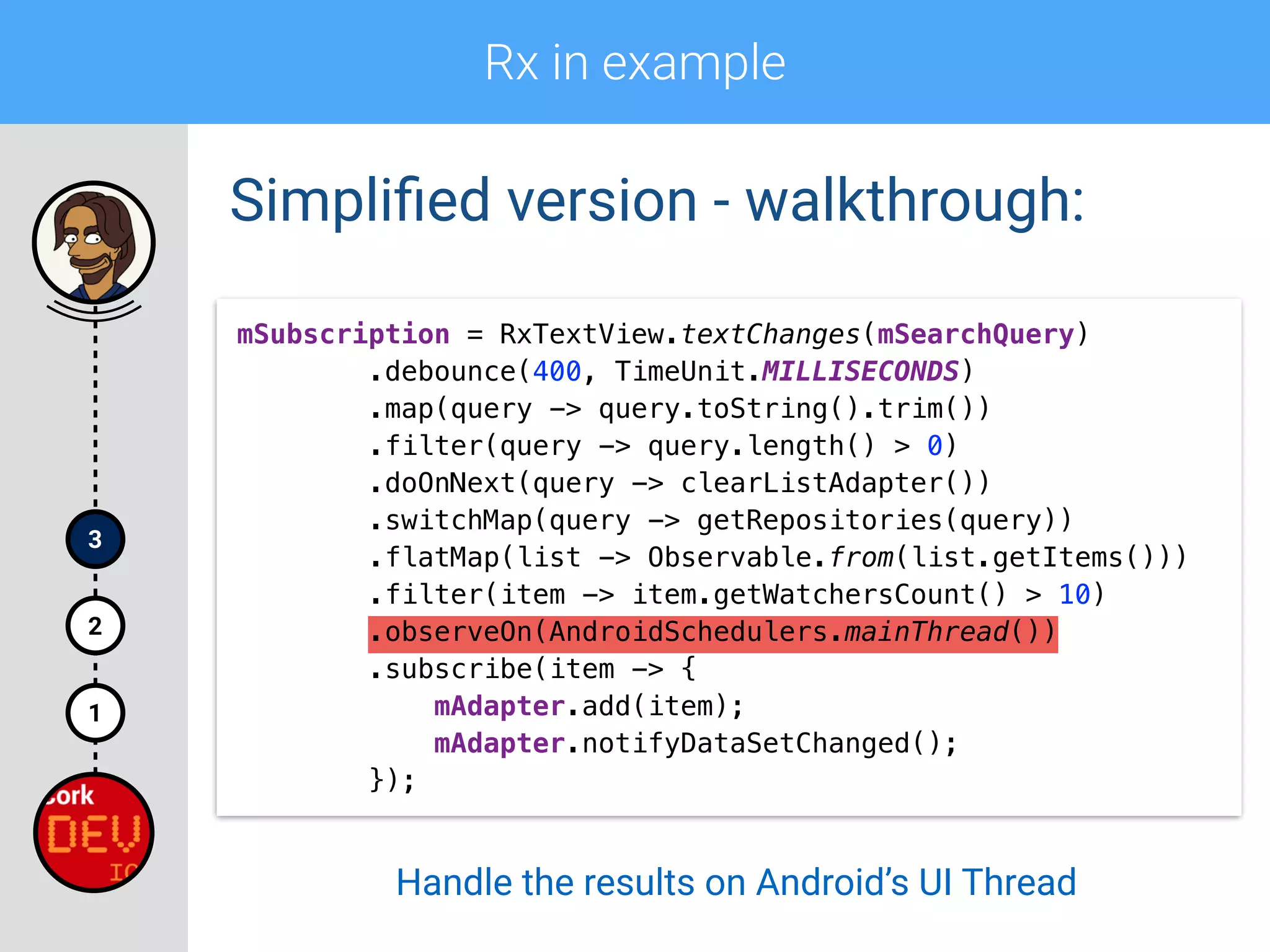

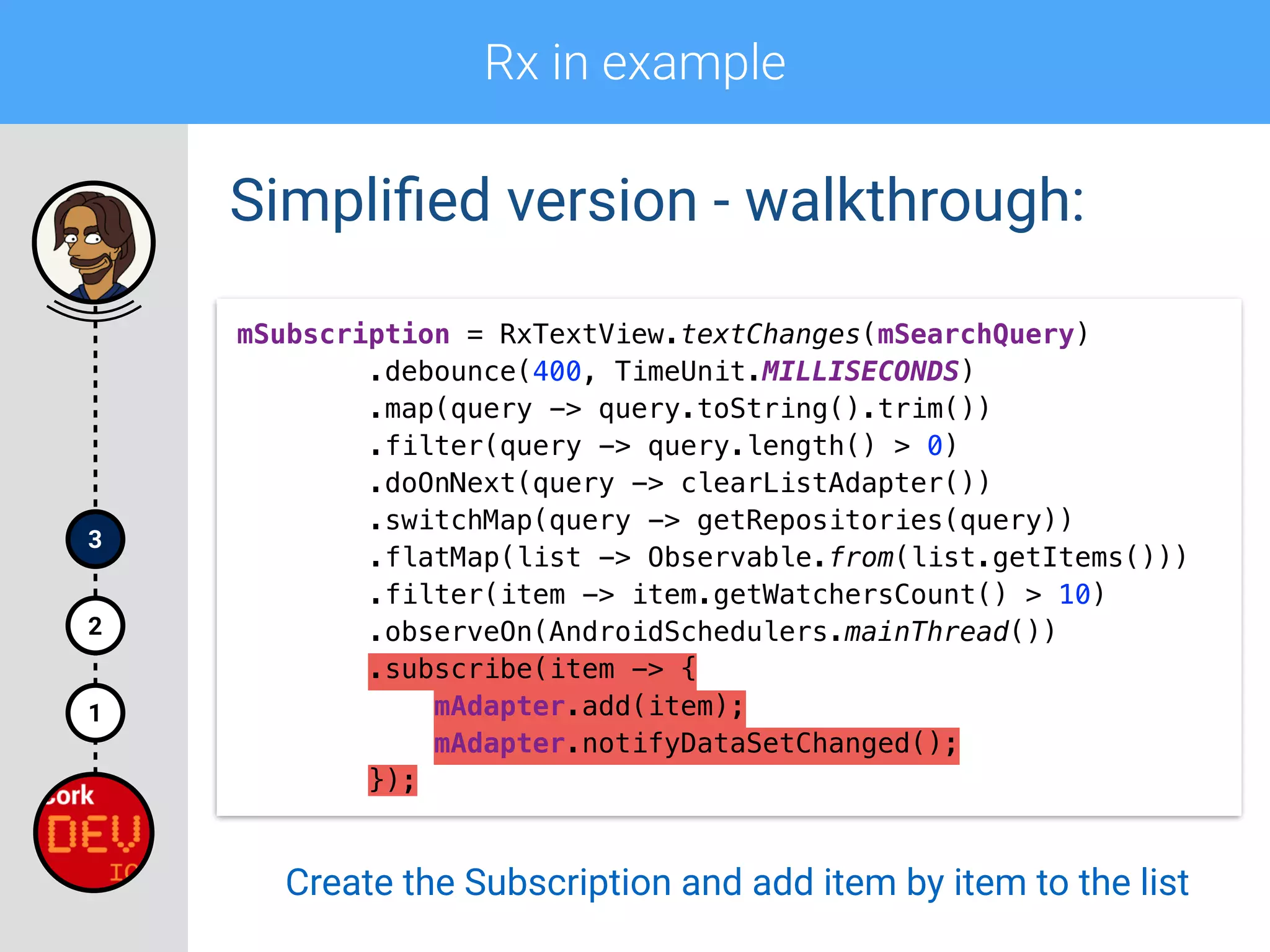

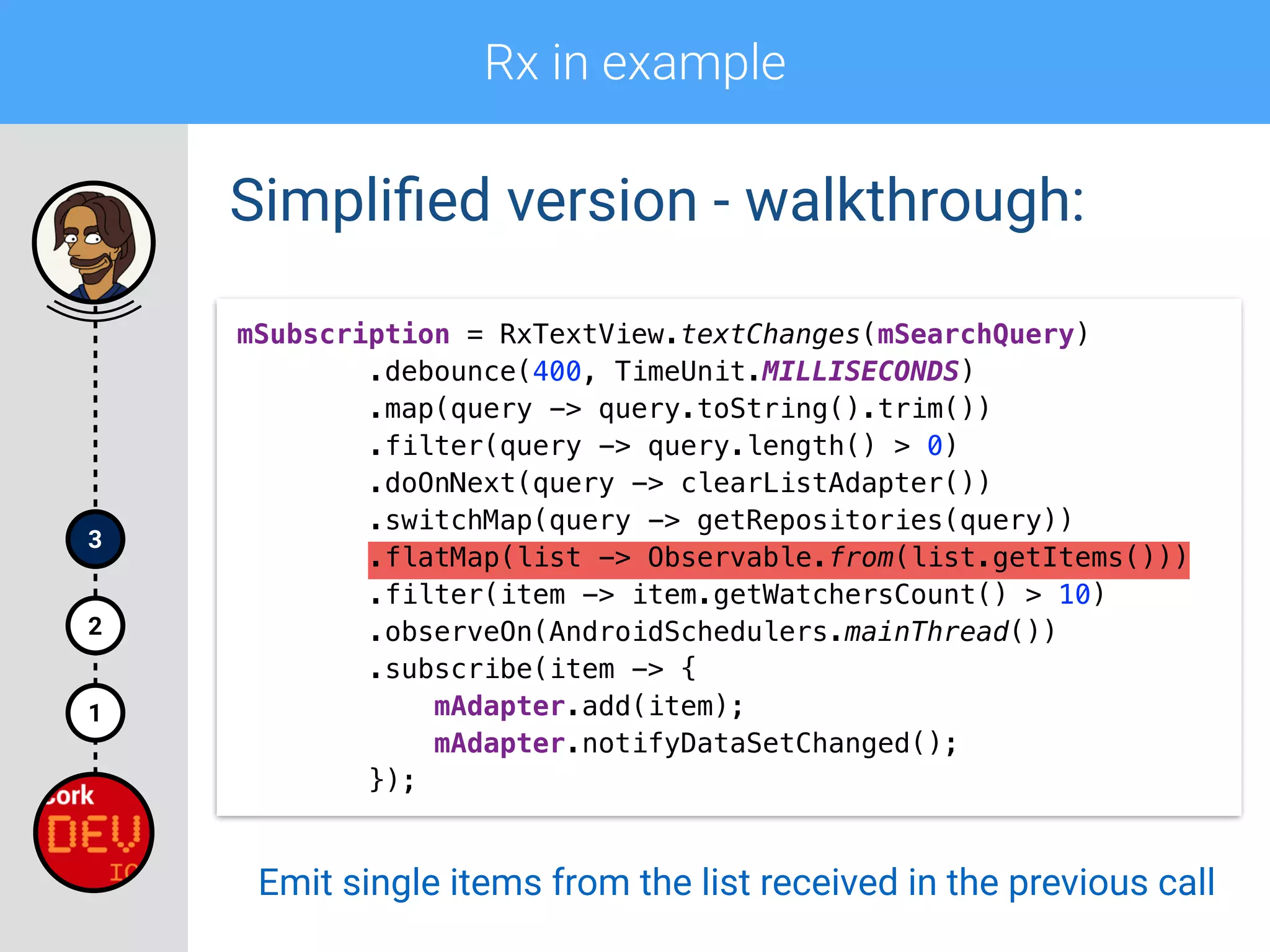

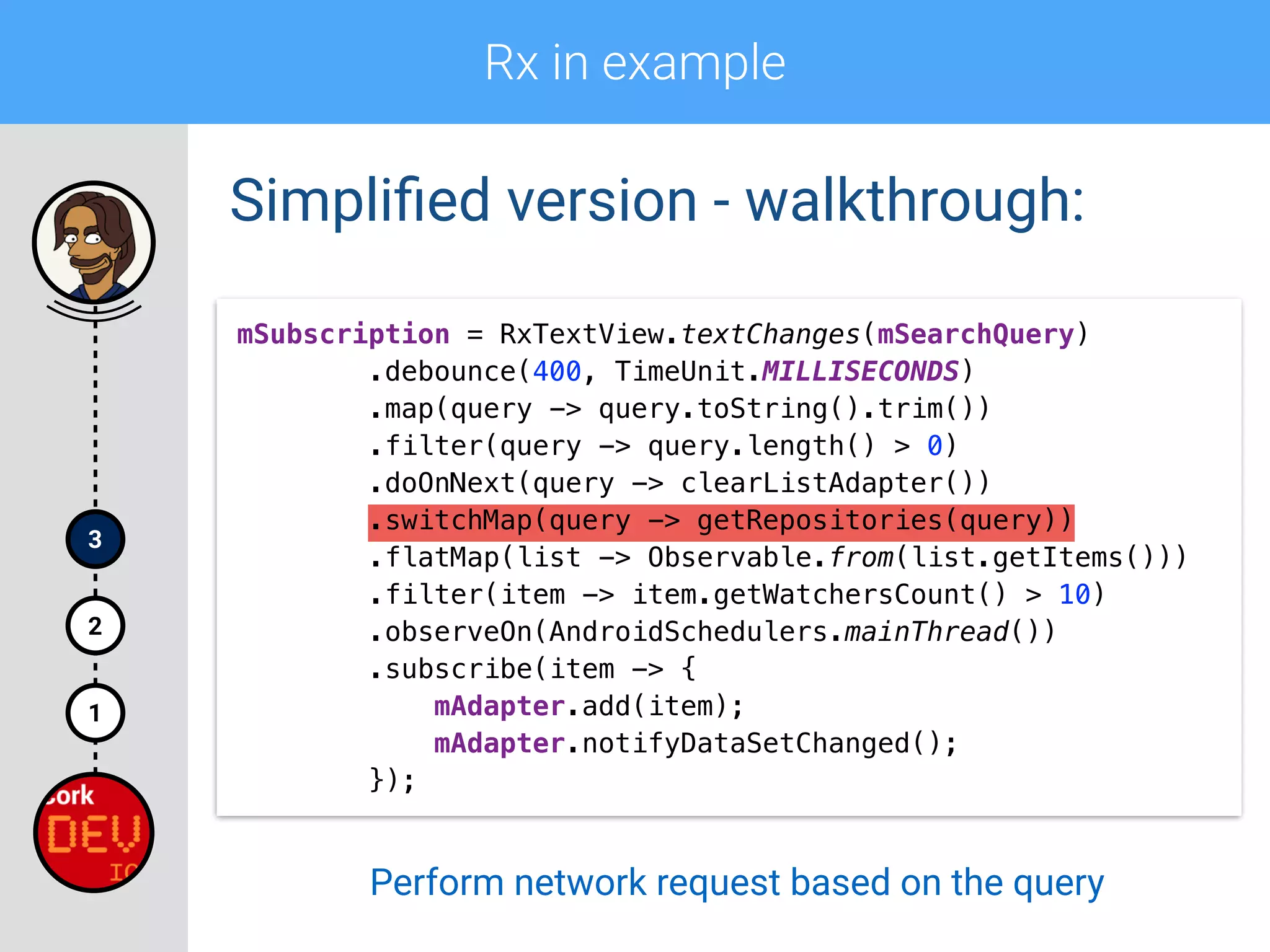

Rx in example 1 2 3 Simplified version - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0) .doOnNext(query -> clearListAdapter())
 .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Throttle the emission of the events with 400 ms window
Rx in example 1 2 3 Simplified version - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0) .doOnNext(query -> clearListAdapter())
 .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Trim the leading and trailing spaces
Rx in example 1 2 3 Simplified version - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0)
 .doOnNext(query -> clearListAdapter()) .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Emit the item only if the trimmed query is not empty
Rx in example 1 2 3 Simplified version - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0)
 .doOnNext(query -> clearListAdapter()) .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Clear the list view each time a query changes
Rx in example 1 2 3 Simplified version - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0) .doOnNext(query -> clearListAdapter())
 .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Perform network request based on the query
Rx in example 1 2 3 Simplified version - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0) .doOnNext(query -> clearListAdapter())
 .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Emit single items from the list received in the previous call
Rx in example 1 2 3 Simplified version - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0) .doOnNext(query -> clearListAdapter())
 .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Filter the items with more than 10 watchers
Rx in example 1 2 3 Simplified version - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0) .doOnNext(query -> clearListAdapter())
 .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Handle the results on Android’s UI Thread
Rx in example 1 2 3 Simplified version - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0) .doOnNext(query -> clearListAdapter())
 .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Create the Subscription and add item by item to the list

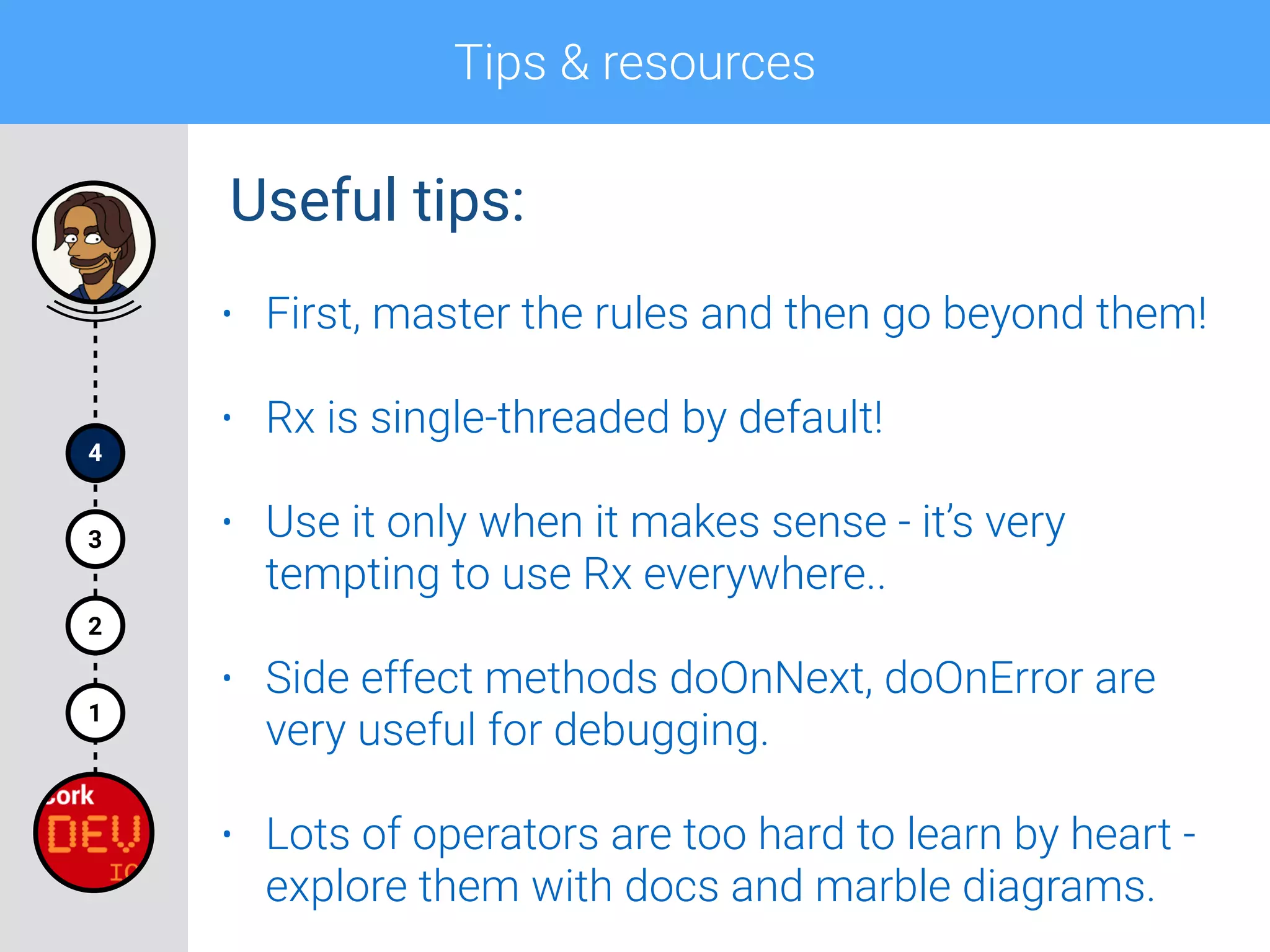

Tips & resources 4 1 2 3 • First, master the rules and then go beyond them! • Rx is single-threaded by default! • Use it only when it makes sense - it’s very tempting to use Rx everywhere.. • Side effect methods doOnNext, doOnError are very useful for debugging. • Lots of operators are too hard to learn by heart - explore them with docs and marble diagrams. Useful tips:
Tips & resources 4 1 2 3 And the most important one:

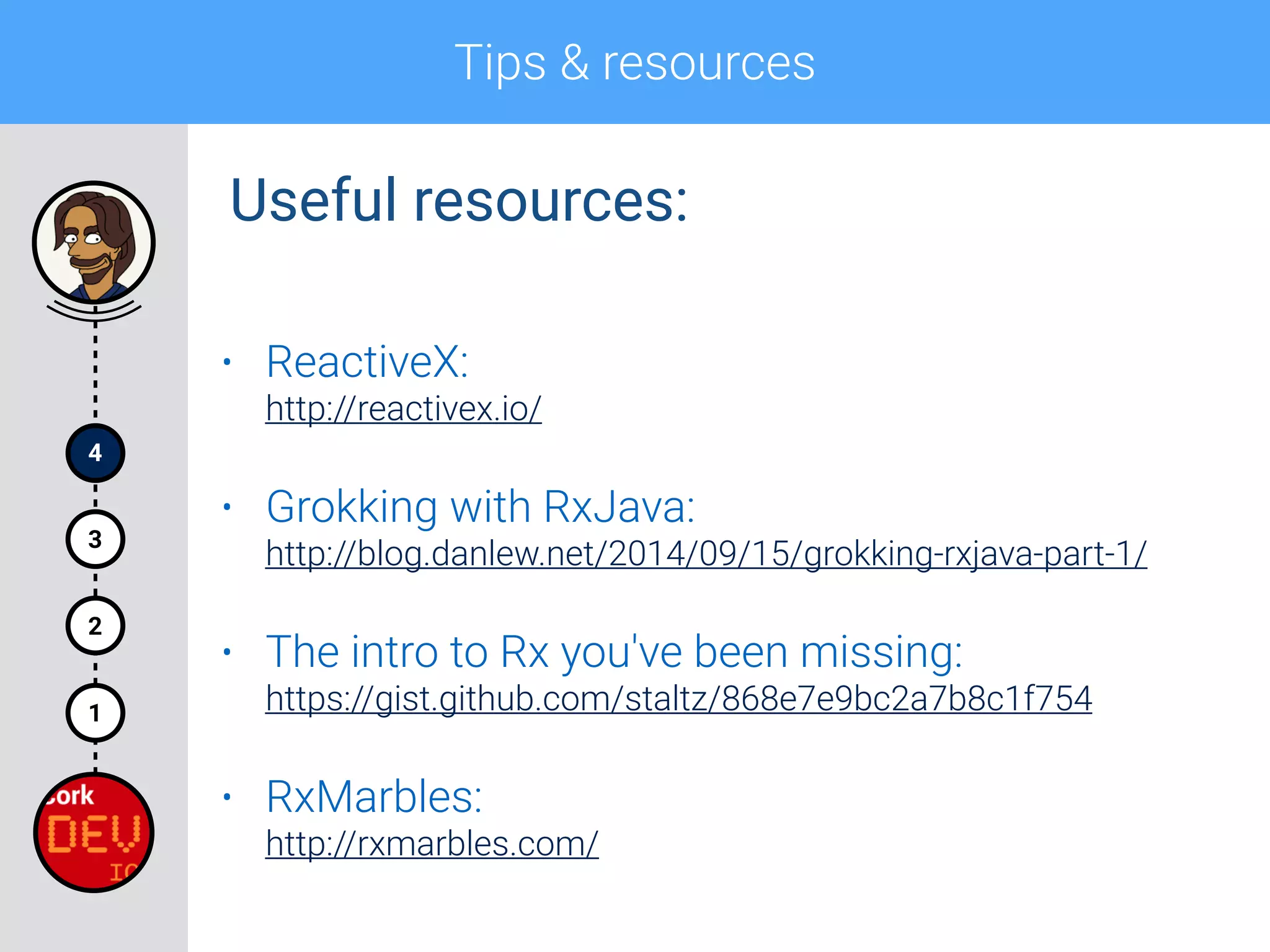

Tips & resources 4 1 2 3 • ReactiveX:
 http://reactivex.io/ • Grokking with RxJava:
 http://blog.danlew.net/2014/09/15/grokking-rxjava-part-1/ • The intro to Rx you've been missing:
 https://gist.github.com/staltz/868e7e9bc2a7b8c1f754 • RxMarbles:
 http://rxmarbles.com/ Useful resources:

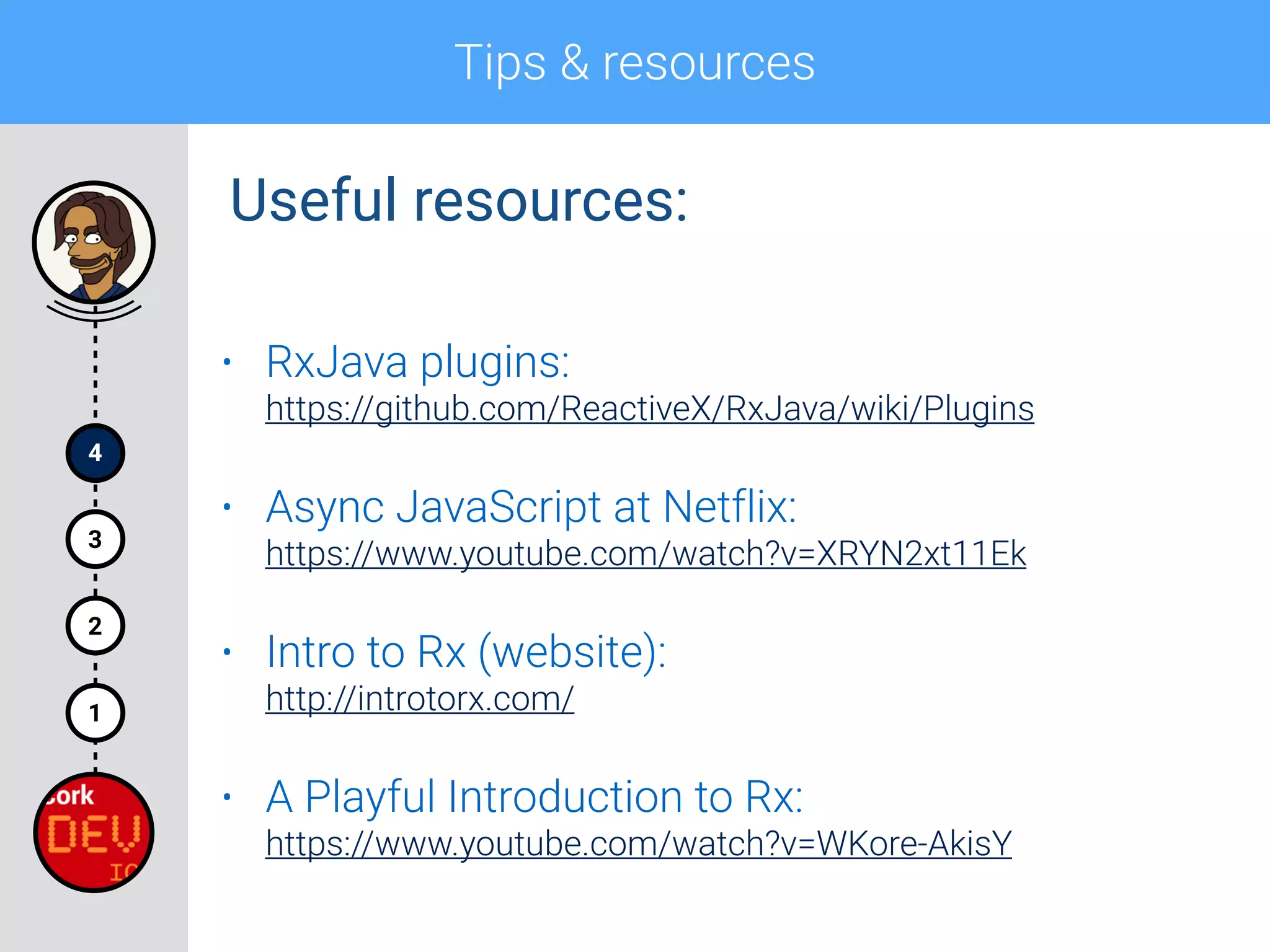

Tips & resources 4 1 2 3 • RxJava plugins:
 https://github.com/ReactiveX/RxJava/wiki/Plugins • Async JavaScript at Netflix:
 https://www.youtube.com/watch?v=XRYN2xt11Ek • Intro to Rx (website):
 http://introtorx.com/ • A Playful Introduction to Rx:
 https://www.youtube.com/watch?v=WKore-AkisY Useful resources:
Q&A 5 4 1 2 3
onComplete((s) -> Log.i(“Thank you!”)); Thanks for your attention! I’d really appreciate your feedback! Stay in touch! @andrzej_sitek +AndrzejSitek

More Related Content

PPTX
Intro to Functional Programming with RxJava
byMike Nakhimovich

PDF
Reactive programming using rx java & akka actors - pdx-scala - june 2014
byThomas Lockney

PPTX
An Introduction to RxJava
bySanjay Acharya

PDF
Practical RxJava for Android
byTomáš Kypta

PDF
Reactive programming with RxJava
byJobaer Chowdhury

PDF
Reactive Android: RxJava and beyond
byFabio Tiriticco

PDF
RxJava - introduction & design
byallegro.tech

PDF
Building Scalable Stateless Applications with RxJava
byRick Warren

Intro to Functional Programming with RxJava
byMike Nakhimovich

Reactive programming using rx java & akka actors - pdx-scala - june 2014
byThomas Lockney

An Introduction to RxJava
bySanjay Acharya

Practical RxJava for Android
byTomáš Kypta

Reactive programming with RxJava
byJobaer Chowdhury

Reactive Android: RxJava and beyond
byFabio Tiriticco

RxJava - introduction & design
byallegro.tech

Building Scalable Stateless Applications with RxJava
byRick Warren


What's hot

PPTX
Reactive Programming on Android - RxAndroid - RxJava
byAli Muzaffar

PPTX
RxJava Applied
byIgor Lozynskyi

PDF
RxJava@Android
byMaxim Volgin

PDF
RxJava in practice
byJavier Gamarra

PDF
rx-java-presentation
byMateusz Bukowicz

PPTX
Reactive Java (33rd Degree)
byTomasz Kowalczewski

PDF
RxJava on Android
byDustin Graham

PDF
RxJava for Android - GDG DevFest Ukraine 2015
byConstantine Mars

PDF
Rxjava 介紹與 Android 中的 RxJava
byKros Huang

PPTX
Javantura v3 - Going Reactive with RxJava – Hrvoje Crnjak
byHUJAK - Hrvatska udruga Java korisnika / Croatian Java User Association

PDF
The Mayans Lost Guide to RxJava on Android
byFernando Cejas

PPTX
Reactive Programming in Java 8 with Rx-Java
byKasun Indrasiri

PDF
RxJava from the trenches
byPeter Hendriks

PDF
Reactive Thinking in Java
byYakov Fain

PPTX
Reactive Java (GeeCON 2014)
byTomasz Kowalczewski

PPTX
Introduction to Reactive Java
byTomasz Kowalczewski

PDF
Intro to RxJava/RxAndroid - GDG Munich Android
byEgor Andreevich

PPTX
RxJS and Reactive Programming - Modern Web UI - May 2015
byBen Lesh

PPTX
Introduction to rx java for android
byEsa Firman

PDF
Reactive Streams: Handling Data-Flow the Reactive Way
byRoland Kuhn

Reactive Programming on Android - RxAndroid - RxJava
byAli Muzaffar

RxJava Applied
byIgor Lozynskyi

RxJava@Android
byMaxim Volgin

RxJava in practice
byJavier Gamarra

rx-java-presentation
byMateusz Bukowicz

Reactive Java (33rd Degree)
byTomasz Kowalczewski

RxJava on Android
byDustin Graham

RxJava for Android - GDG DevFest Ukraine 2015
byConstantine Mars

Rxjava 介紹與 Android 中的 RxJava
byKros Huang

Javantura v3 - Going Reactive with RxJava – Hrvoje Crnjak
byHUJAK - Hrvatska udruga Java korisnika / Croatian Java User Association

The Mayans Lost Guide to RxJava on Android
byFernando Cejas

Reactive Programming in Java 8 with Rx-Java
byKasun Indrasiri

RxJava from the trenches
byPeter Hendriks

Reactive Thinking in Java
byYakov Fain

Reactive Java (GeeCON 2014)
byTomasz Kowalczewski

Introduction to Reactive Java
byTomasz Kowalczewski

Intro to RxJava/RxAndroid - GDG Munich Android
byEgor Andreevich

RxJS and Reactive Programming - Modern Web UI - May 2015
byBen Lesh

Introduction to rx java for android
byEsa Firman

Reactive Streams: Handling Data-Flow the Reactive Way
byRoland Kuhn


Viewers also liked

PDF
Reactive Programming with Rx
byC4Media

PDF
Basic Gradle Plugin Writing
bySchalk Cronjé

ODP
Server Sent Events, Async Servlet, Web Sockets and JSON; born to work together!
byMasoud Kalali

PPTX
Testing android apps with espresso
byÉdipo Souza

PDF
Managing Activity Backstack
byrajdeep

PDF
Observable Everywhere - Rxの原則とUniRxにみるデータソースの見つけ方
byYoshifumi Kawai

Reactive Programming with Rx
byC4Media

Basic Gradle Plugin Writing
bySchalk Cronjé

Server Sent Events, Async Servlet, Web Sockets and JSON; born to work together!
byMasoud Kalali

Testing android apps with espresso
byÉdipo Souza

Managing Activity Backstack
byrajdeep

Observable Everywhere - Rxの原則とUniRxにみるデータソースの見つけ方
byYoshifumi Kawai


Similar to Streams, Streams Everywhere! An Introduction to Rx

PDF
Reactive java - Reactive Programming + RxJava
byNexThoughts Technologies

PDF
Sperasoft Talks: RxJava Functional Reactive Programming on Android
bySperasoft

PDF
Intro to Rx Java
bySyed Awais Mazhar Bukhari

PDF
Reactive x
byGabriel Araujo

PDF
RxJava@DAUG
byMaxim Volgin

PPTX
RxJava 2 Reactive extensions for the JVM
byNetesh Kumar

PPTX
Introduction to RxJava on Android
byChris Arriola

PPTX
Strange Async Code - ReaxtiveX
byMatthew Will

PDF
Reactive Programming for a demanding world: building event-driven and respons...
byMario Fusco

PDF
Reactive Programming in Java by Mario Fusco - Codemotion Rome 2015
byCodemotion

PPTX
Rx – reactive extensions
byVoislav Mishevski

PPTX
Rx- Reactive Extensions for .NET
byJakub Malý

PPTX
Microservices Part 4: Functional Reactive Programming
byAraf Karsh Hamid

PDF
RxJava pour Android : présentation lors du GDG Android Montréal
bySidereo

PPTX
Rx presentation
byAli Mahfud

PDF
Introduction to reactive programming
byLeapfrog Technology Inc.

PPTX
Rxandroid
byThinh Thanh

PPTX
Reactive programming with RxAndroid
bySavvycom Savvycom

PPTX
RxAndroid
byThinh Thanh

PPTX
Mini training - Reactive Extensions (Rx)
byBetclic Everest Group Tech Team

Reactive java - Reactive Programming + RxJava
byNexThoughts Technologies

Sperasoft Talks: RxJava Functional Reactive Programming on Android
bySperasoft

Intro to Rx Java
bySyed Awais Mazhar Bukhari

Reactive x
byGabriel Araujo

RxJava@DAUG
byMaxim Volgin

RxJava 2 Reactive extensions for the JVM
byNetesh Kumar

Introduction to RxJava on Android
byChris Arriola

Strange Async Code - ReaxtiveX
byMatthew Will

Reactive Programming for a demanding world: building event-driven and respons...
byMario Fusco

Reactive Programming in Java by Mario Fusco - Codemotion Rome 2015
byCodemotion

Rx – reactive extensions
byVoislav Mishevski

Rx- Reactive Extensions for .NET
byJakub Malý

Microservices Part 4: Functional Reactive Programming
byAraf Karsh Hamid

RxJava pour Android : présentation lors du GDG Android Montréal
bySidereo

Rx presentation
byAli Mahfud

Introduction to reactive programming
byLeapfrog Technology Inc.

Rxandroid
byThinh Thanh

Reactive programming with RxAndroid
bySavvycom Savvycom

RxAndroid
byThinh Thanh

Mini training - Reactive Extensions (Rx)
byBetclic Everest Group Tech Team


Recently uploaded

PPTX
OpenChain at Okinawa Event on the 4th of December 2025
byShane Coughlan

PPTX
Application Security – Static Application Security Testing (SAST)
byLalit Jagotra

PPTX
Struggling with Pentaho Limitations How Helical Insight Solves Them.pptx
byVarsha Nayak

PDF
Database Management Systems(DBMS):UNIT-II Relational Data Model BCA SEP SEM ...
byKuvempu University

PPTX
AI Clinic Management Software for Otolaryngology Clinics Bringing Precision, ...
byEasy Clinic

PPTX
Magnet-AXIOM_overview_tool_cyber_tool.pptx
byashishtjoseph

PDF
PeopleSoft Lift and Shift to Oracle Cloud Infrastructure.pdf
byAstuteBusiness

PDF
From Boroughs to Browsers: Naresh Ramaiya’s Digital Journey
bynareshramaiyaus

PDF
Red Hat Summit 2025 - Triton GPU Kernel programming.pdf
bySanjeev Rampal

PDF
Digitizing Banquet Management_ Why It Matters for Modern Hotels.pdf
byHotelogix

PPTX
#15 All About Anypoint MQ - Calicut MuleSoft Meetup Group
bycalicutmulesoftmeetu

PDF
IT Estate Modernization: Transform Your Infrastructure for the Future .pdf
byAstuteBusiness

PPTX
Deep Dive into Durable Functions, presented at Cloudbrew 2025
byJoonas Westlin

PPTX
Why Your Business Needs Snowflake Consulting_ From Data Silos to AI-Ready Cloud
byChetu

PPT
This-Project-Demonstrates-How-to-Create.ppt
byjayasuryanexinfo

PPTX
AI Clinic Management Software for Pulmonology Clinics Bringing Clarity, Contr...
byEasy Clinic

PDF
Imed Eddine Bouchoucha | computer engineer | software Architect
byImed Bouchoucha

PDF
Resource-Levelled Critical-Path Analysis Balancing Time, Cost and Constraints
byOrangescrum

PDF
Anchore Enterprise Q4 2025 Release Webinar
byAnchore

PDF
API_SECURITY CONSULTANCY SERVICES IN USA
bydavidjohansen1597

OpenChain at Okinawa Event on the 4th of December 2025
byShane Coughlan

Application Security – Static Application Security Testing (SAST)
byLalit Jagotra

Struggling with Pentaho Limitations How Helical Insight Solves Them.pptx
byVarsha Nayak

Database Management Systems(DBMS):UNIT-II Relational Data Model BCA SEP SEM ...
byKuvempu University

AI Clinic Management Software for Otolaryngology Clinics Bringing Precision, ...
byEasy Clinic

Magnet-AXIOM_overview_tool_cyber_tool.pptx
byashishtjoseph

PeopleSoft Lift and Shift to Oracle Cloud Infrastructure.pdf
byAstuteBusiness

From Boroughs to Browsers: Naresh Ramaiya’s Digital Journey
bynareshramaiyaus

Red Hat Summit 2025 - Triton GPU Kernel programming.pdf
bySanjeev Rampal

Digitizing Banquet Management_ Why It Matters for Modern Hotels.pdf
byHotelogix

#15 All About Anypoint MQ - Calicut MuleSoft Meetup Group
bycalicutmulesoftmeetu

IT Estate Modernization: Transform Your Infrastructure for the Future .pdf
byAstuteBusiness

Deep Dive into Durable Functions, presented at Cloudbrew 2025
byJoonas Westlin

Why Your Business Needs Snowflake Consulting_ From Data Silos to AI-Ready Cloud
byChetu

This-Project-Demonstrates-How-to-Create.ppt
byjayasuryanexinfo

AI Clinic Management Software for Pulmonology Clinics Bringing Clarity, Contr...
byEasy Clinic

Imed Eddine Bouchoucha | computer engineer | software Architect
byImed Bouchoucha

Resource-Levelled Critical-Path Analysis Balancing Time, Cost and Constraints
byOrangescrum

Anchore Enterprise Q4 2025 Release Webinar
byAnchore

API_SECURITY CONSULTANCY SERVICES IN USA
bydavidjohansen1597


Streams, Streams Everywhere! An Introduction to Rx

  • 1.
    Streams, Streams Everywhere! An Introductionto Rx Corkdev.io - 15th December 2015 Andrzej Sitek
  • 2.
    <author> <name>Andrzej Sitek</name> <title>Android Developer</title> <company>Digisoft.tv/ Progressive Apps</company> <email>andy@progressiveapps.co</email> <twitter>@andrzej_sitek</twitter> <google-plus>+AndrzejSitek</google-plus> </author> Let me introduce myself
  • 3.
    “Reactive” presentation plan*stream 5 4 1 2 3 Observable Observer Q&A Tips and resources Rx in example Rx 101 with RxJava Why going Reactive?
  • 4.
    1 Why going Reactive? •Users expect real time data • No-one wants to be blocked waiting for results • When working with results sets it is better to start processing individual results when they are ready • The world has moved to push data model • Async programming is very important but at the same time it’s often difficult and error-prone Some driving factors:
  • 5.
    1 Why going Reactive? •A buzz word • Pronunciation: /rɪˈaktɪv/ • “Showing a response to a stimulus.” • “Acting in response to a situation rather than creating or controlling it.” Reactive:
  • 6.
    1 Why going Reactive? •Responsive:
 The system responds in a timely manner if at all possible • Resilient:
 The system stays responsive in the face of failure • Elastic:
 The system stays responsive under varying workload • Message Driven:
 Reactive Systems rely on asynchronous message-passing www.reactivemanifesto.org Reactive manifesto:
  • 8.
    1 Why going Reactive? •Mouse clicks • Keyboard events • Tweets • RSS feed • A/V streams • Stocks • WebSockets • Order status Streams, streams everywhere!
  • 9.
    1 Why going Reactive? •RP: a paradigm oriented around asynchronous data flows and the propagation of change • Basically: • Reactive model is Push rather than Pull • Programming with async data sequences • Discrete values emitted over time • It’s not “Functional Reactive Programming”! Reactive Programming:
  • 10.
    1 Why going Reactive? •Rx stands for Reactive Extensions • “A library for composing asynchronous and event- based programs by using observable sequences.” • Created by Erik Meijer (Microsoft) for the .NET • Version 1.0 released 17/11/2009 • Version 2.0 released 15/08/2012 • Ported to different languages thereafter ReactiveX:
  • 11.
    1 Why going Reactive? •Provides a collection of operators • Observer pattern “on steroids”: • Support sequences of data and/or events • Compose sequences using declarative way • Abstract away concerns about low-level stuff • Concurrent data structures and non-blocking I/O • Threading and Thread Safety ReactiveX:
  • 12.
    1 Why going Reactive? Accessingsequences of data: single items multiple items sync T getData() Iterable<T> getData() async Future<T> getData()
  • 13.
    1 Why going Reactive? Accessingsequences of data: single items multiple items sync T getData() Iterable<T> getData() async Future<T> getData() Observable<T> getData()
  • 14.
    1 Why going Reactive? Accessingsequences of data: single items multiple items sync T getData() Iterable<T> getData() async Future<T> getData() Observable<T> getData() Reactive X is about dealing with Observables!
  • 15.
    1 Why going Reactive? •Composable:
 They are intended for composing flows and sequences of asynchronous data unlike i.e. Java Futures • Flexible:
 They support emission of single scalar value, but also of sequences of values or even infinite streams. They have the flexibility and elegance of their Iterable cousins • Less Opinionated:
 They just don’t care about the source of concurrency or asynchronicity. The underlying nature of their implementation might be changed without breaking the consumers Observables are:
  • 16.
  • 17.
    1 Why going Reactive? Observablesvs Iterables: Iterable (pull) Observable (push) receive data T next() onNext(T) discover error throws Exception onError(Exception) complete !hasNext() onCompleted()
  • 18.
    1 Why going Reactive? •Iterable is synchronous and pull • Iterable: the consumer pulls the values from the producer (blocking the thread until they arrives) • Observable is asynchronous and push • Observable: the producer pushes values to the consumer whenever they are available • Observable adds the ability for the producer to say: • “There is no more data available!” • “An error has occurred!” Observables vs Iterables:
  • 19.
  • 20.
    1 Why going Reactive? •Java: RxJava • JavaScript: RxJS • C#: Rx.NET • C#(Unity): UniRx • Scala: RxScala • Clojure: RxClojure • C++: RxCpp • Ruby: Rx.rb • Python: RxPY • Groovy: RxGroovy • JRuby: RxJRuby • Kotlin: RxKotlin • Swift: RxSwift Languages:
  • 21.
    1 Why going Reactive? •Java: RxJava • JavaScript: RxJS • C#: Rx.NET • C#(Unity): UniRx • Scala: RxScala • Clojure: RxClojure • C++: RxCpp • Ruby: Rx.rb • Python: RxPY • Groovy: RxGroovy • JRuby: RxJRuby • Kotlin: RxKotlin • Swift: RxSwift Languages: Understand it once - reuse the concepts in different languages
  • 22.
  • 23.
    Section 1 Rx 101* withRxJava * The road is steep, the road is long, the talk is relatively short.
  • 24.
    Rx 101 withRxJava 1 2 • JVM implementation of ReactiveX • Ported by Netflix • Reached stable (1.0.0) version in November 2014 • Polyglot implementation to Scala, Groovy, Clojure and Kotlin • Seems like just a library… but it’s also the concept in the way you code RxJava:
  • 25.
    Rx 101 withRxJava 1 2 • Lightweight (Zero Dependencies and < 800KB Jar) • Java 6+ & Android 2.3+ • Java 8 lambda support • Non-opinionated about source of concurrency • Async or synchronous execution • Virtual time and schedulers for parameterised concurrency RxJava:
  • 26.
    Rx 101 withRxJava 1 2 RxJava: compile ‘io.reactivex:rxjava:x.y.z' https://github.com/ReactiveX/RxJava/ Current version: 1.1.0 released on 02/12/2015
  • 27.
    Rx 101 withRxJava 1 2 • Observable • Observer • Subscription • Marble diagrams • Operators • Schedulers* Rx 101 topics:
  • 28.
    Rx 101 withRxJava Observable 1 2
  • 29.
    Rx 101 withRxJava 1 2 • Emits zero or more items (values) • Notifies the Observer using onNext(T data) method when the item is ready to be pushed • Calls Observer’s onCompleted() method when the sequence is finished • Calls Observer’s onError(Throwable t) method when a serious error happened • It’s either onCompleted() or onError(Throwable t) Observable:
  • 30.
    Rx 101 withRxJava 1 2 Observable creation: • Convert objects, lists, or arrays of objects into Observables that emit those objects: • Observable.just(…);
 For converting a single object • Observable.from(…);
 For converting lists, or arrays of objects • Design your own Observable implementing: • Observable.create(…);
 For async i/o, computational operations, streams of data…
  • 31.
    Rx 101 withRxJava 1 2 Observable creation: • There are many more practical ways of creating Observables:

 https://github.com/ReactiveX/RxJava/wiki/Creating-Observables
  • 32.
    Rx 101 withRxJava 1 2 Observable.create(): Observable<Integer> observable = Observable.create( new Observable.OnSubscribe<Integer>() {
 @Override
 public void call(Subscriber<? super Integer> subscriber) {
 for (int i = 0; i < 10 && !subscriber.isUnsubscribed(); i++) {
 subscriber.onNext(i);
 }

 if (!subscriber.isUnsubscribed()) {
 subscriber.onCompleted();
 }
 }
 });
  • 33.
    Rx 101 withRxJava 1 2 Observable.create():
  • 34.
    Rx 101 withRxJava 1 2 Using lambda expressions: Observable<Integer> observable = Observable.create(new Observable.OnSubscribe<Integer>() {
 @Override
 public void call(Subscriber<? super Integer> subscriber) {
 for (int i = 0; i < 10 && !subscriber.isUnsubscribed(); i++) {
 subscriber.onNext(i);
 }

 if (!subscriber.isUnsubscribed()) {
 subscriber.onCompleted();
 }
 }
 }); Observable<Integer> observable = Observable.create(subscriber -> {
 for (int i = 0; i < 10 && !subscriber.isUnsubscribed(); i++) {
 subscriber.onNext(i);
 }

 if (!subscriber.isUnsubscribed()) {
 subscriber.onCompleted();
 }
 });
  • 35.
    Rx 101 withRxJava 1 2 Using lambda expressions: Observable<Integer> observable = Observable.create(new Observable.OnSubscribe<Integer>() {
 @Override
 public void call(Subscriber<? super Integer> subscriber) {
 for (int i = 0; i < 10 && !subscriber.isUnsubscribed(); i++) {
 subscriber.onNext(i);
 }

 if (!subscriber.isUnsubscribed()) {
 subscriber.onCompleted();
 }
 }
 }); Observable<Integer> observable = Observable.create(subscriber -> {
 for (int i = 0; i < 10 && !subscriber.isUnsubscribed(); i++) {
 subscriber.onNext(i);
 }

 if (!subscriber.isUnsubscribed()) {
 subscriber.onCompleted();
 }
 }); Stuck with Java 5, 6 or 7? Use Retrolambda to enjoy lambda expressions from Java 8!
  • 36.
    Rx 101 withRxJava 1 2 “Hot” vs “Cold” Observables:
  • 37.
    Rx 101 withRxJava 1 2 • “Hot” Observables: • May begin emitting items as soon as is is created • Observer who later subscribes may start observing the sequence somewhere in the middle • “Cold” Observables: • Waits until an observer subscribes to it before it emits items • An observer is guaranteed to see the whole sequence from the beginning “Hot” vs “Cold” Observables:
  • 38.
    Rx 101 withRxJava 1 2 • “Hot” Examples: • Stream of mouse click events • Tweets • “Cold” Examples: • Network request • A/V Stream “Hot” vs “Cold” Observables:
  • 39.
    Rx 101 withRxJava Observer 1 2
  • 40.
    Rx 101 withRxJava 1 2 • Interface methods: • onNext(T data); • onCompleted(); • onError(Throwable t); • Receives zero or more items • You can override all of the interface methods (recommended for beginners) or just a single one Observer<T> - the interface:
  • 41.
    Rx 101 withRxJava 1 2 • “A Subscriber is an Observer that can also unsubscribe from that data source.” • Subscriber class is the implementation of two interfaces: Observer and Subscriber • It’s a common practice to pass the implementation rather then the interface • It reduces the learning curve for developers new to Rx Subscriber - the implementation:
  • 42.
    Rx 101 withRxJava 1 2 Creating a Subscriber: Subscriber<Integer> subscriber = new Subscriber<Integer>() {
 @Override
 public void onCompleted() {
 Log.i(TAG, "Sequence is complete!");
 }

 @Override
 public void onError(Throwable e) {
 e.printStackTrace();
 }

 @Override
 public void onNext(Integer i) {
 Log.i(TAG, "Item: " + i);
 }
 };
  • 43.
    Rx 101 withRxJava 1 2 Subscription: Observable Observer
  • 44.
    Rx 101 withRxJava 1 2 Subscription: 321 Observable Observer Subscription onNext(..); onNext(..); onNext(..); t
  • 45.
    Rx 101 withRxJava 1 2 Subscription: 321 Observable Observer Subscription onNext(..); onNext(..); onNext(..); // Unsubscribing the Observer/Subscriber subscriber.unsubscribe(); // Subscribing to the Observable observable.subscribe(subscriber);
  • 46.
    Rx 101 withRxJava 1 2 Subscriptions in examples: // subscribe() method can implement only onNext()
 Observable.just("Hello world!")
 .subscribe(new Action1<String>() {
 @Override
 public void call(String s) {
 Log.i(TAG, "Greeting: " + s);
 }
 }); // Simplified using lambda expression
 Observable.just("Hello world!")
 .subscribe(s -> Log.i(TAG, "Greeting: " + s)); // subscribe() with onNext() and onError() Observable.just("Hello world!")
 .subscribe(
 s -> Log.i(TAG, "Greeting: " + s),
 t -> t.printStackTrace()
 );
  • 47.
    Rx 101 withRxJava 1 2 Subscriptions in examples: // subscribe() method can implement only onNext()
 Observable.just("Hello world!")
 .subscribe(new Action1<String>() {
 @Override
 public void call(String s) {
 Log.i(TAG, "Greeting: " + s);
 }
 }); // Simplified using lambda expression
 Observable.just("Hello world!")
 .subscribe(s -> Log.i(TAG, "Greeting: " + s)); // subscribe() with onNext() and onError() Observable.just("Hello world!")
 .subscribe(
 s -> Log.i(TAG, "Greeting: " + s),
 t -> t.printStackTrace()
 );
  • 48.
    Rx 101 withRxJava 1 2 Subscriptions in examples: // subscribe() method can implement only onNext()
 Observable.just("Hello world!")
 .subscribe(new Action1<String>() {
 @Override
 public void call(String s) {
 Log.i(TAG, "Greeting: " + s);
 }
 }); // Simplified using lambda expression
 Observable.just("Hello world!")
 .subscribe(s -> Log.i(TAG, "Greeting: " + s)); // subscribe() with onNext() and onError() Observable.just("Hello world!")
 .subscribe(
 s -> Log.i(TAG, "Greeting: " + s),
 t -> t.printStackTrace()
 );
  • 49.
    Rx 101 withRxJava 1 2 Subscriptions in examples: // subscribe() method can implement only onNext()
 Observable.just("Hello world!")
 .subscribe(new Action1<String>() {
 @Override
 public void call(String s) {
 Log.i(TAG, "Greeting: " + s);
 }
 }); // Simplified using lambda expression
 Observable.just("Hello world!")
 .subscribe(s -> Log.i(TAG, "Greeting: " + s)); // subscribe() with onNext() and onError() Observable.just("Hello world!")
 .subscribe(
 s -> Log.i(TAG, "Greeting: " + s),
 t -> t.printStackTrace()
 );
  • 50.
    Rx 101 withRxJava 1 2 Marble diagrams:
  • 51.
    Rx 101 withRxJava 1 2 Marble diagrams: Source: http://reactivex.io/documentation
  • 52.
    Rx 101 withRxJava 1 2 Operators:
  • 53.
    Rx 101 withRxJava 1 2 Operators:
  • 54.
    Rx 101 withRxJava 1 2 Operator categories: • Creating Observables • Transforming Observables • Filtering Observables • Combining Observables • Error Handling Operators • Observable Utility Operators • Conditional and Boolean Operators • Mathematical and Aggregate Operators • Backpressure Operators • Connectable Observable Operators • Operators to Convert Observables
  • 55.
    Rx 101 withRxJava 1 2 Operator categories: • Creating Observables • Transforming Observables • Filtering Observables • Combining Observables • Error Handling Operators • Observable Utility Operators • Conditional and Boolean Operators • Mathematical and Aggregate Operators • Backpressure Operators • Connectable Observable Operators • Operators to Convert Observables
  • 56.
    Rx 101 withRxJava 1 2 Transforming - map: Transform the items emitted by an Observable by applying a function to each item Source: http://rxmarbles.com
  • 57.
    Rx 101 withRxJava 1 2 Transforming - flatMap: Transform the items emitted by an Observable into Observables, then flatten the emissions from those into a single Observable
  • 58.
    Rx 101 withRxJava 1 2 Filtering - filter: Emit only those items from an Observable that pass a predicate test
  • 59.
    Rx 101 withRxJava 1 2 Filtering - take: Emit only the first n items emitted by an Observable
  • 60.
    Rx 101 withRxJava 1 2 Aggregating - concat: Emit the emissions from two or more Observables without interleaving them
  • 61.
    Rx 101 withRxJava 1 2 Combining - merge: Combine multiple Observables into one by merging their emissions
  • 62.
    Rx 101 withRxJava 1 2 Error handling - retry: If a source Observable emits an error, resubscribe to it in the hopes that it will complete without error
  • 63.
    Rx 101 withRxJava 1 2 Operators - example: String[] strings = {"Andrzej", "Sitek", "Rx", "101"};
 Observable.from(strings)
 .flatMap(new Func1<String, Observable<Integer>>() {
 @Override
 public Observable<Integer> call(String s) {
 return Observable.just(s.length());
 }
 })
 .take(3)
 .filter(new Func1<Integer, Boolean>() {
 @Override
 public Boolean call(Integer i) {
 return i > 5;
 }
 })
 .map(new Func1<Integer, Integer>() {
 @Override
 public Integer call(Integer i) {
 return i * 10;
 }
 })
 .subscribe(new Action1<Integer>() {
 @Override
 public void call(Integer i) {
 Log.i(TAG, "After few operations: " + i);
 }
 });
  • 64.
    Rx 101 withRxJava 1 2 Operators - example: String[] strings = {"Andrzej", "Sitek", "Rx", "101"};
 Observable.from(strings)
 .flatMap(new Func1<String, Observable<Integer>>() {
 @Override
 public Observable<Integer> call(String s) {
 return Observable.just(s.length());
 }
 })
 .take(3)
 .filter(new Func1<Integer, Boolean>() {
 @Override
 public Boolean call(Integer i) {
 return i > 5;
 }
 })
 .map(new Func1<Integer, Integer>() {
 @Override
 public Integer call(Integer i) {
 return i * 10;
 }
 })
 .subscribe(new Action1<Integer>() {
 @Override
 public void call(Integer i) {
 Log.i(TAG, "After few operations: " + i);
 }
 }); Lots of anonymous classes.. Use lambdas to reduce the boilerplate!
  • 65.
    Rx 101 withRxJava 1 2 Operators - example simplified: String[] strings = {"Andrzej", "Sitek", "Rx", "101"};
 Observable.from(strings)
 .flatMap(s -> Observable.just(s.length()))
 .take(3)
 .filter(i -> i > 5)
 .map(i -> i * 10)
 .subscribe(i -> Log.i(TAG, "After few operations: " + i)); I/MainActivity: After few operations: 70
  • 66.
    Rx 101 withRxJava 1 2 Schedulers: • They provide concurrency for Observables • Utility operators associated: • Observable.observeOn(Scheduler s);
 “perform work on that specific Scheduler” • Observable.subscribeOn(Scheduler s);
 “observe the results on that Scheduler” • Provide different processing strategies such as Thread Pools, Event Loops, Handlers, etc.
  • 67.
    Rx 101 withRxJava 1 2 Schedulers in RxJava: Scheduler Description Schedulers.computation() meant for computational work such as event-loops and callback processing Schedulers.from(executor) uses the specified Executor as a Scheduler Schedulers.immediate() schedules work to begin immediately in the current thread Schedulers.io() meant for I/O-bound work such as asynchronous performance of blocking I/O Schedulers.newThread() creates a new thread for each unit of work Schedulers.trampoline() queues work to begin on the current thread after any already-queued work
  • 68.
    Rx 101 withRxJava 1 2 Schedulers - example: Observable<String> observable = Observable.create(subscriber -> {
 Log.d(TAG, "Executing on: " + Thread.currentThread());
 subscriber.onNext("Schedulers Example");
 subscriber.onCompleted();
 });

 observable.subscribeOn(Schedulers.newThread())
 .observeOn(Schedulers.io())
 .subscribe(s -> {
 Log.i(TAG, "Observing on: " + Thread.currentThread());
 Log.i(TAG, s);
 }); D/MainActivity: Executing on: Thread[RxNewThreadScheduler-1,5,main] I/MainActivity: Observing on: Thread[RxCachedThreadScheduler-1,5,main] I/MainActivity: Schedulers Example
  • 69.
  • 70.
    Rx in example 1 2 3 Throttledtext search: • Search Github repositories using a simple app • Throttle the text input so it doesn’t send the requests each time you type a character • Don’t perform the search if the input is empty • Perform network request for search query • Filter the list of repositories to leave only those with more than 10 watchers • Show the results in the list
  • 71.
  • 72.
    Rx in example 1 2 3 Simplifiedversion - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0) .doOnNext(query -> clearListAdapter())
 .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 });
  • 73.
    Rx in example 1 2 3 Simplifiedversion - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0) .doOnNext(query -> clearListAdapter())
 .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Android specific way of creating Observable from EditText
  • 74.
    Rx in example 1 2 3 Simplifiedversion - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0) .doOnNext(query -> clearListAdapter())
 .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Throttle the emission of the events with 400 ms window
  • 75.
    Rx in example 1 2 3 Simplifiedversion - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0) .doOnNext(query -> clearListAdapter())
 .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Trim the leading and trailing spaces
  • 76.
    Rx in example 1 2 3 Simplifiedversion - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0)
 .doOnNext(query -> clearListAdapter()) .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Emit the item only if the trimmed query is not empty
  • 77.
    Rx in example 1 2 3 Simplifiedversion - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0)
 .doOnNext(query -> clearListAdapter()) .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Clear the list view each time a query changes
  • 78.
    Rx in example 1 2 3 Simplifiedversion - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0) .doOnNext(query -> clearListAdapter())
 .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Perform network request based on the query
  • 79.
    Rx in example 1 2 3 Simplifiedversion - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0) .doOnNext(query -> clearListAdapter())
 .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Emit single items from the list received in the previous call
  • 80.
    Rx in example 1 2 3 Simplifiedversion - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0) .doOnNext(query -> clearListAdapter())
 .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Filter the items with more than 10 watchers
  • 81.
    Rx in example 1 2 3 Simplifiedversion - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0) .doOnNext(query -> clearListAdapter())
 .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Handle the results on Android’s UI Thread
  • 82.
    Rx in example 1 2 3 Simplifiedversion - walkthrough: mSubscription = RxTextView.textChanges(mSearchQuery)
 .debounce(400, TimeUnit.MILLISECONDS)
 .map(query -> query.toString().trim())
 .filter(query -> query.length() > 0) .doOnNext(query -> clearListAdapter())
 .switchMap(query -> getRepositories(query))
 .flatMap(list -> Observable.from(list.getItems()))
 .filter(item -> item.getWatchersCount() > 10)
 .observeOn(AndroidSchedulers.mainThread())
 .subscribe(item -> {
 mAdapter.add(item);
 mAdapter.notifyDataSetChanged();
 }); Create the Subscription and add item by item to the list
  • 83.
    Tips & resources 4 1 2 3 •First, master the rules and then go beyond them! • Rx is single-threaded by default! • Use it only when it makes sense - it’s very tempting to use Rx everywhere.. • Side effect methods doOnNext, doOnError are very useful for debugging. • Lots of operators are too hard to learn by heart - explore them with docs and marble diagrams. Useful tips:
  • 84.
    Tips & resources 4 1 2 3 Andthe most important one:
  • 85.
    Tips & resources 4 1 2 3 •ReactiveX:
 http://reactivex.io/ • Grokking with RxJava:
 http://blog.danlew.net/2014/09/15/grokking-rxjava-part-1/ • The intro to Rx you've been missing:
 https://gist.github.com/staltz/868e7e9bc2a7b8c1f754 • RxMarbles:
 http://rxmarbles.com/ Useful resources:
  • 86.
    Tips & resources 4 1 2 3 •RxJava plugins:
 https://github.com/ReactiveX/RxJava/wiki/Plugins • Async JavaScript at Netflix:
 https://www.youtube.com/watch?v=XRYN2xt11Ek • Intro to Rx (website):
 http://introtorx.com/ • A Playful Introduction to Rx:
 https://www.youtube.com/watch?v=WKore-AkisY Useful resources:
  • 87.
  • 88.
    onComplete((s) -> Log.i(“Thankyou!”)); Thanks for your attention! I’d really appreciate your feedback! Stay in touch! @andrzej_sitek +AndrzejSitek
