  STM32-M4 First Touch Ben@staros.mobi 2012/06/26
• 2.

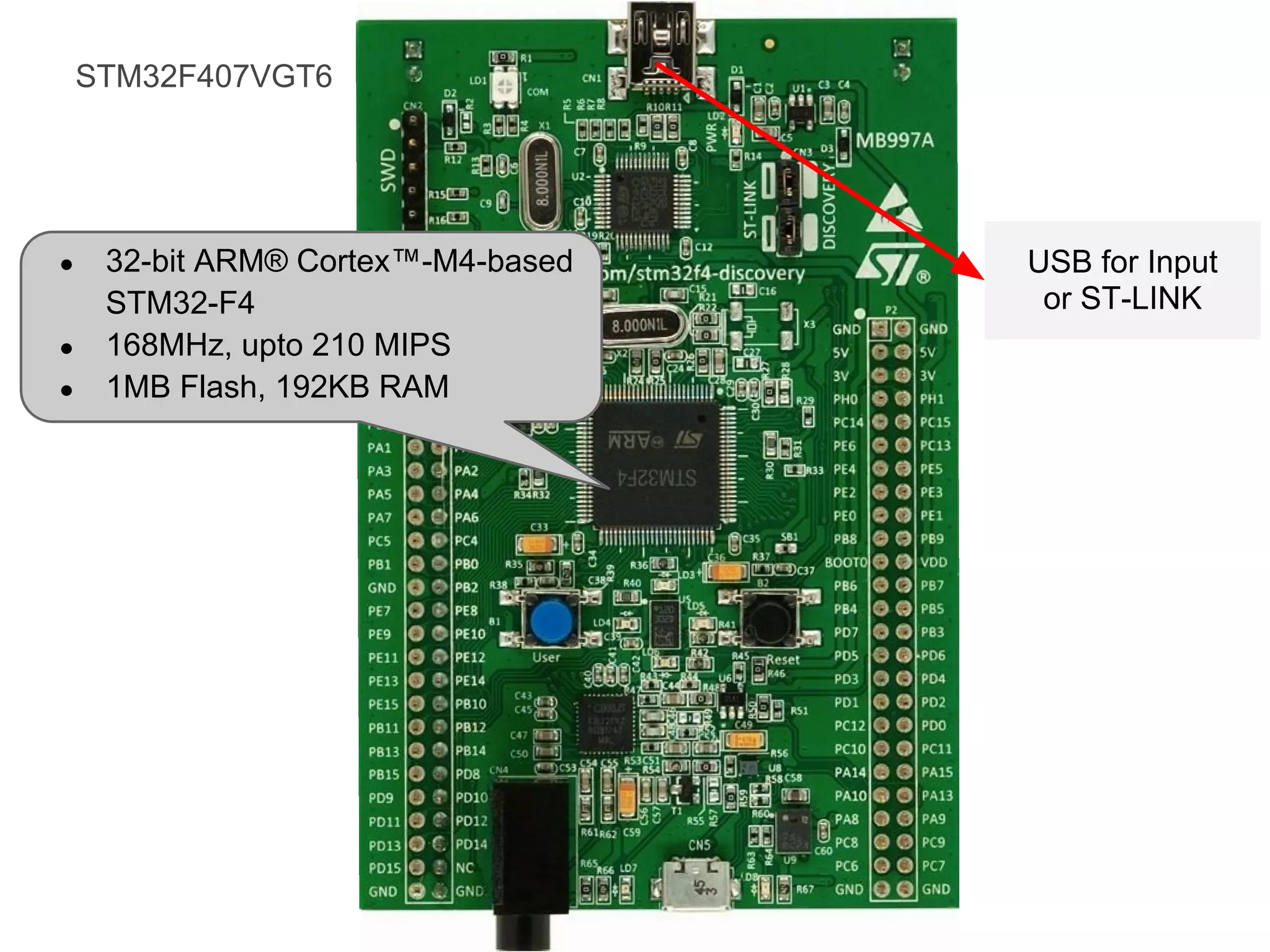

  STM32F407VGT6 ● 32-bit ARM® Cortex™-M4-based USB for Input STM32-F4 or ST-LINK ● 168MHz, upto 210 MIPS ● 1MB Flash, 192KB RAM
• 3.

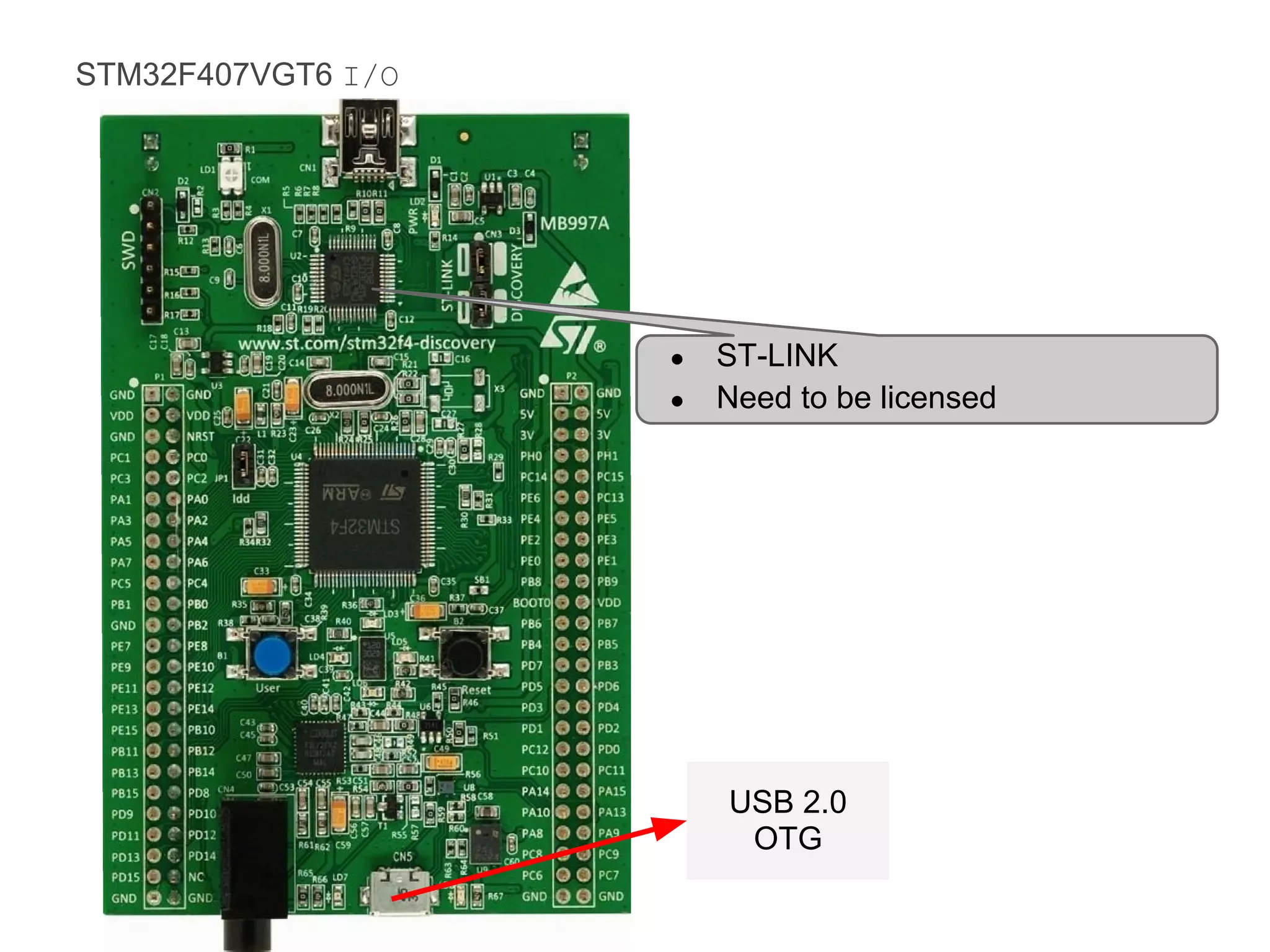

  STM32F407VGT6 I/O ● ST-LINK ● Need to be licensed USB 2.0 OTG
• 4.

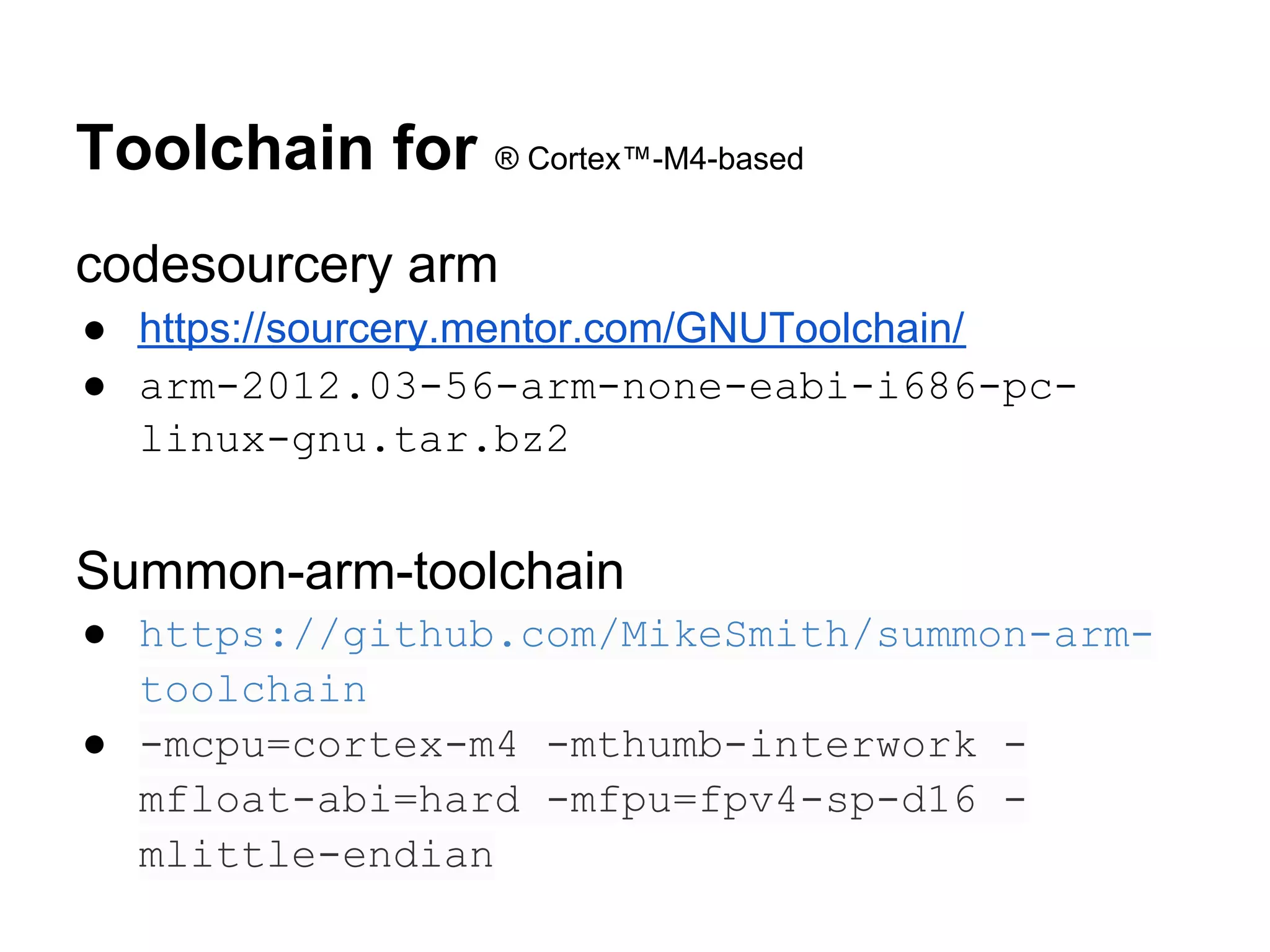

  Toolchain for ®Cortex™-M4-based codesourcery arm ● https://sourcery.mentor.com/GNUToolchain/ ● arm-2012.03-56-arm-none-eabi-i686-pc- linux-gnu.tar.bz2 Summon-arm-toolchain ● https://github.com/MikeSmith/summon-arm- toolchain ● -mcpu=cortex-m4 -mthumb-interwork - mfloat-abi=hard -mfpu=fpv4-sp-d16 - mlittle-endian
• 5.

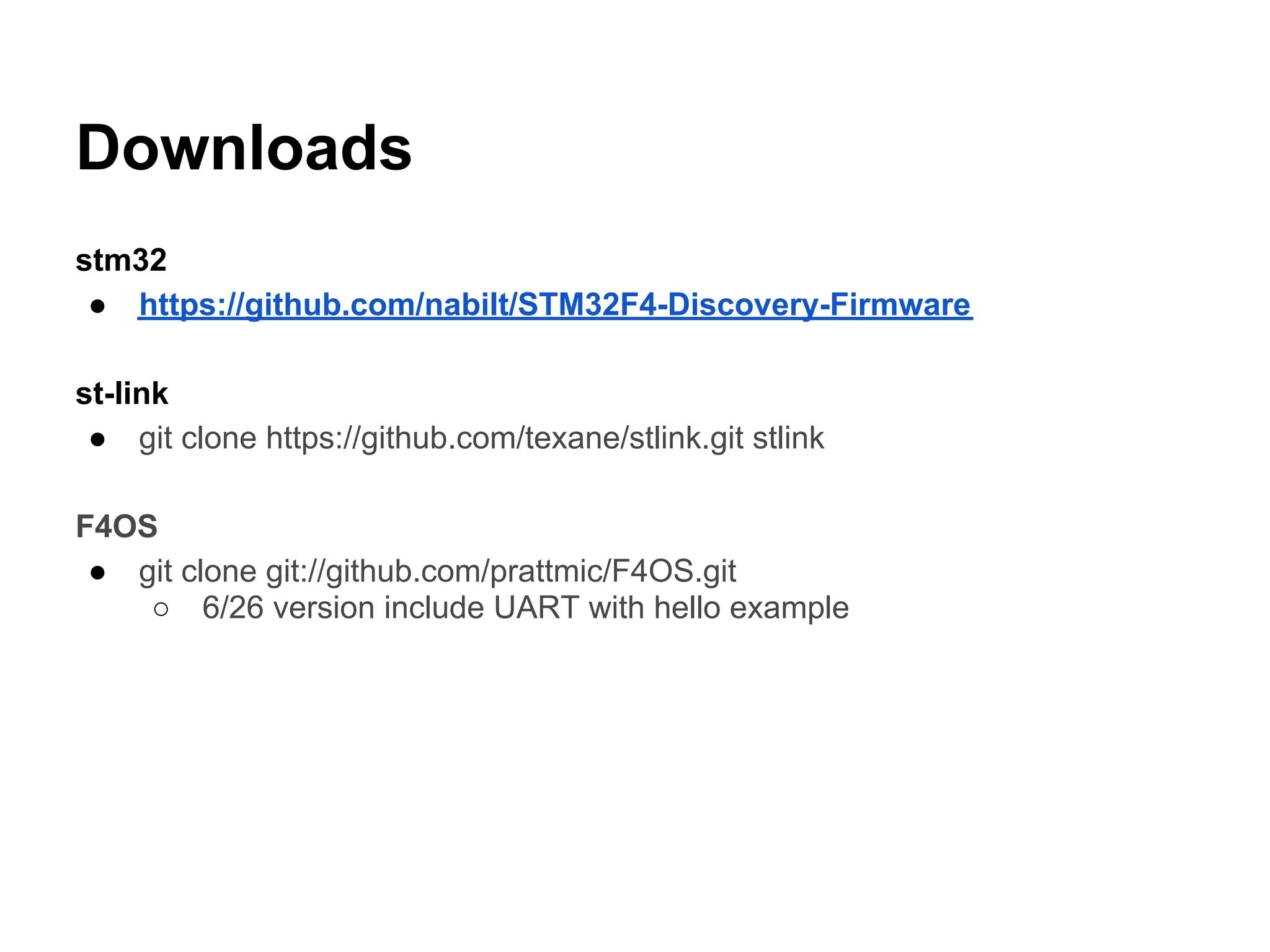

  Downloads stm32 ● https://github.com/nabilt/STM32F4-Discovery-Firmware st-link ● git clone https://github.com/texane/stlink.git stlink F4OS ● git clone git://github.com/prattmic/F4OS.git ○ 6/26 version include UART with hello example
• 6.

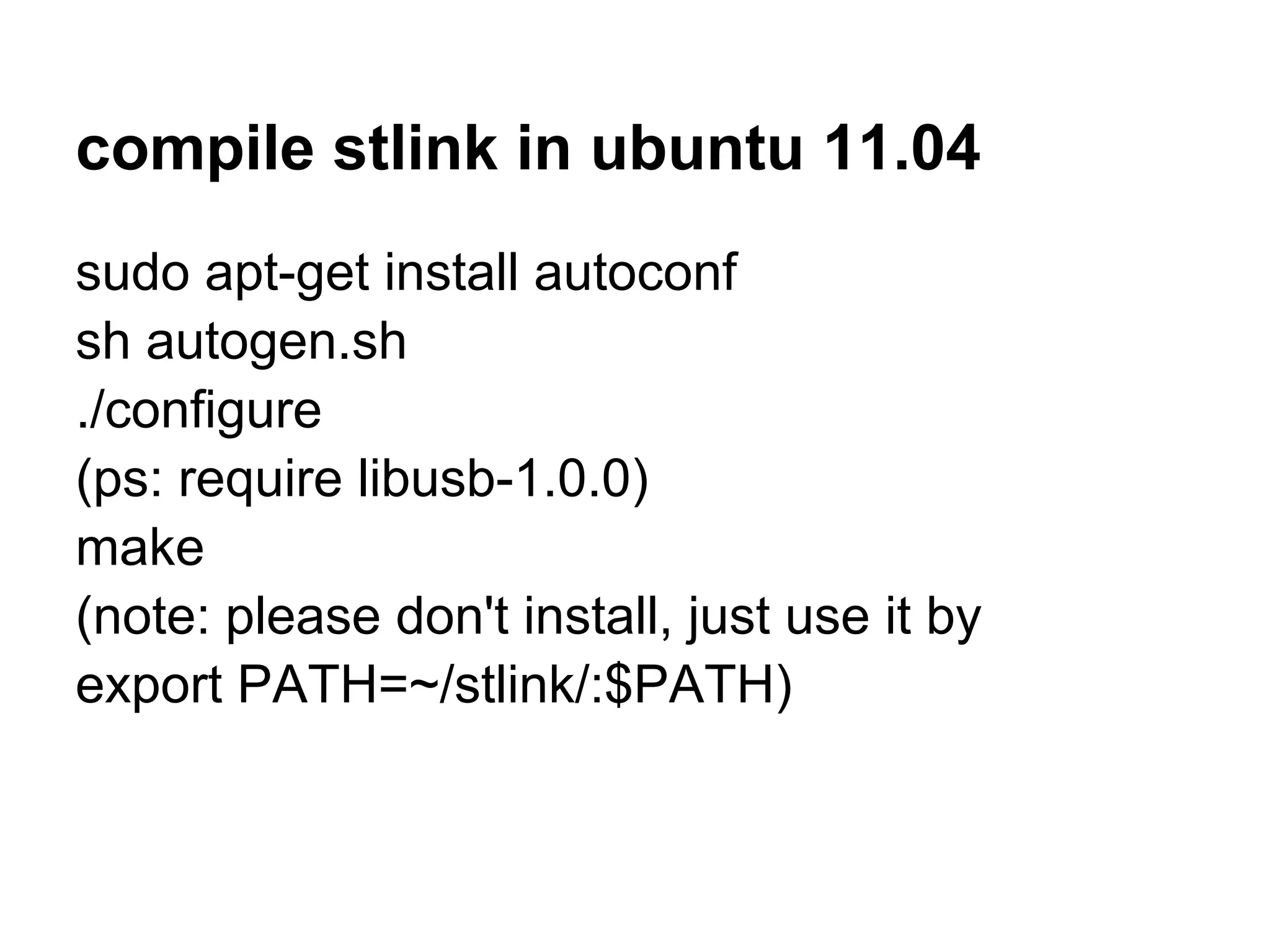

  compile stlink inubuntu 11.04 sudo apt-get install autoconf sh autogen.sh ./configure (ps: require libusb-1.0.0) make (note: please don't install, just use it by export PATH=~/stlink/:$PATH)
• 7.

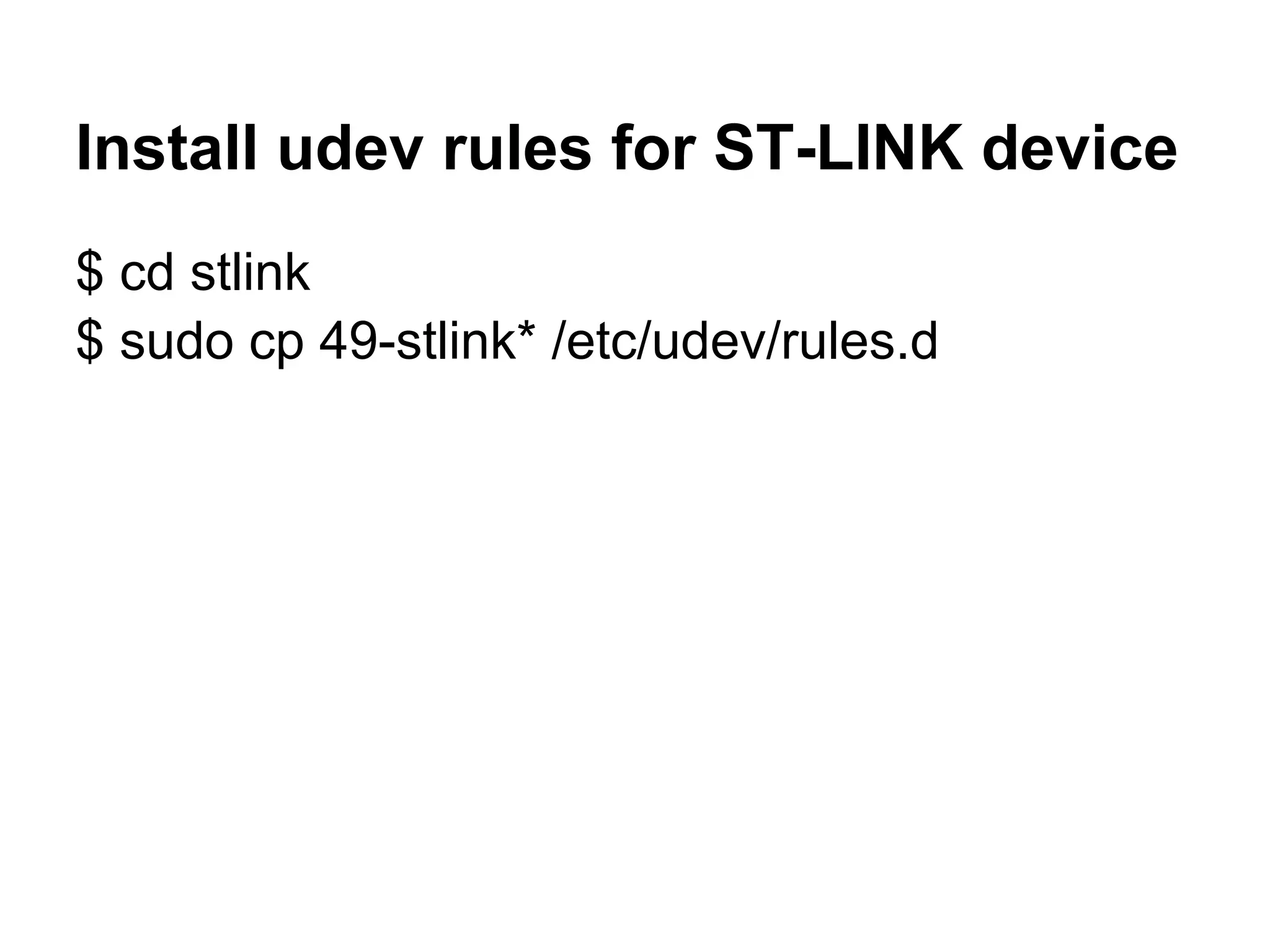

  Install udev rulesfor ST-LINK device $ cd stlink $ sudo cp 49-stlink* /etc/udev/rules.d
• 8.

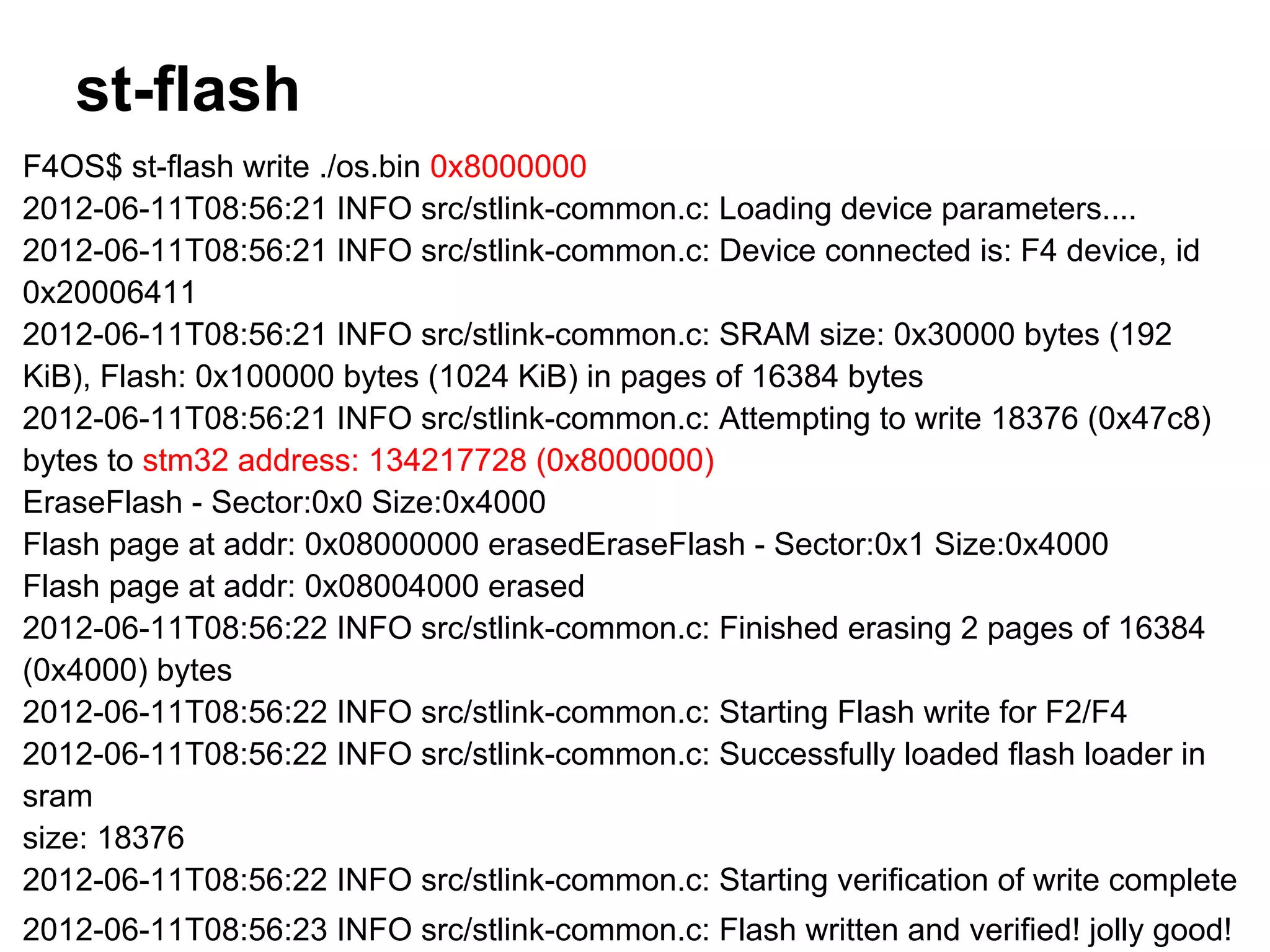

  st-flash F4OS$ st-flash write./os.bin 0x8000000 2012-06-11T08:56:21 INFO src/stlink-common.c: Loading device parameters.... 2012-06-11T08:56:21 INFO src/stlink-common.c: Device connected is: F4 device, id 0x20006411 2012-06-11T08:56:21 INFO src/stlink-common.c: SRAM size: 0x30000 bytes (192 KiB), Flash: 0x100000 bytes (1024 KiB) in pages of 16384 bytes 2012-06-11T08:56:21 INFO src/stlink-common.c: Attempting to write 18376 (0x47c8) bytes to stm32 address: 134217728 (0x8000000) EraseFlash - Sector:0x0 Size:0x4000 Flash page at addr: 0x08000000 erasedEraseFlash - Sector:0x1 Size:0x4000 Flash page at addr: 0x08004000 erased 2012-06-11T08:56:22 INFO src/stlink-common.c: Finished erasing 2 pages of 16384 (0x4000) bytes 2012-06-11T08:56:22 INFO src/stlink-common.c: Starting Flash write for F2/F4 2012-06-11T08:56:22 INFO src/stlink-common.c: Successfully loaded flash loader in sram size: 18376 2012-06-11T08:56:22 INFO src/stlink-common.c: Starting verification of write complete 2012-06-11T08:56:23 INFO src/stlink-common.c: Flash written and verified! jolly good!
• 9.

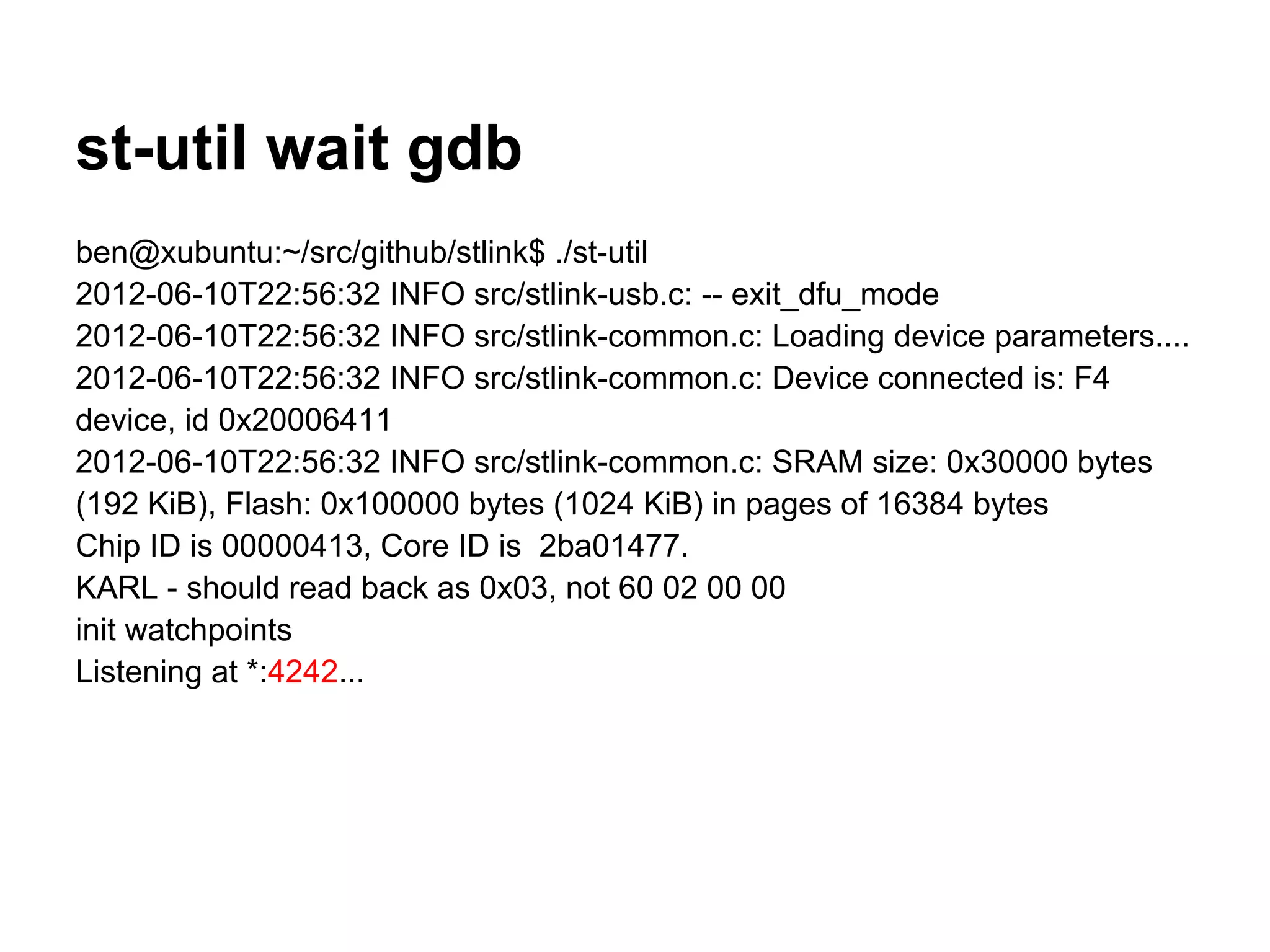

  st-util wait gdb ben@xubuntu:~/src/github/stlink$./st-util 2012-06-10T22:56:32 INFO src/stlink-usb.c: -- exit_dfu_mode 2012-06-10T22:56:32 INFO src/stlink-common.c: Loading device parameters.... 2012-06-10T22:56:32 INFO src/stlink-common.c: Device connected is: F4 device, id 0x20006411 2012-06-10T22:56:32 INFO src/stlink-common.c: SRAM size: 0x30000 bytes (192 KiB), Flash: 0x100000 bytes (1024 KiB) in pages of 16384 bytes Chip ID is 00000413, Core ID is 2ba01477. KARL - should read back as 0x03, not 60 02 00 00 init watchpoints Listening at *:4242...
• 10.

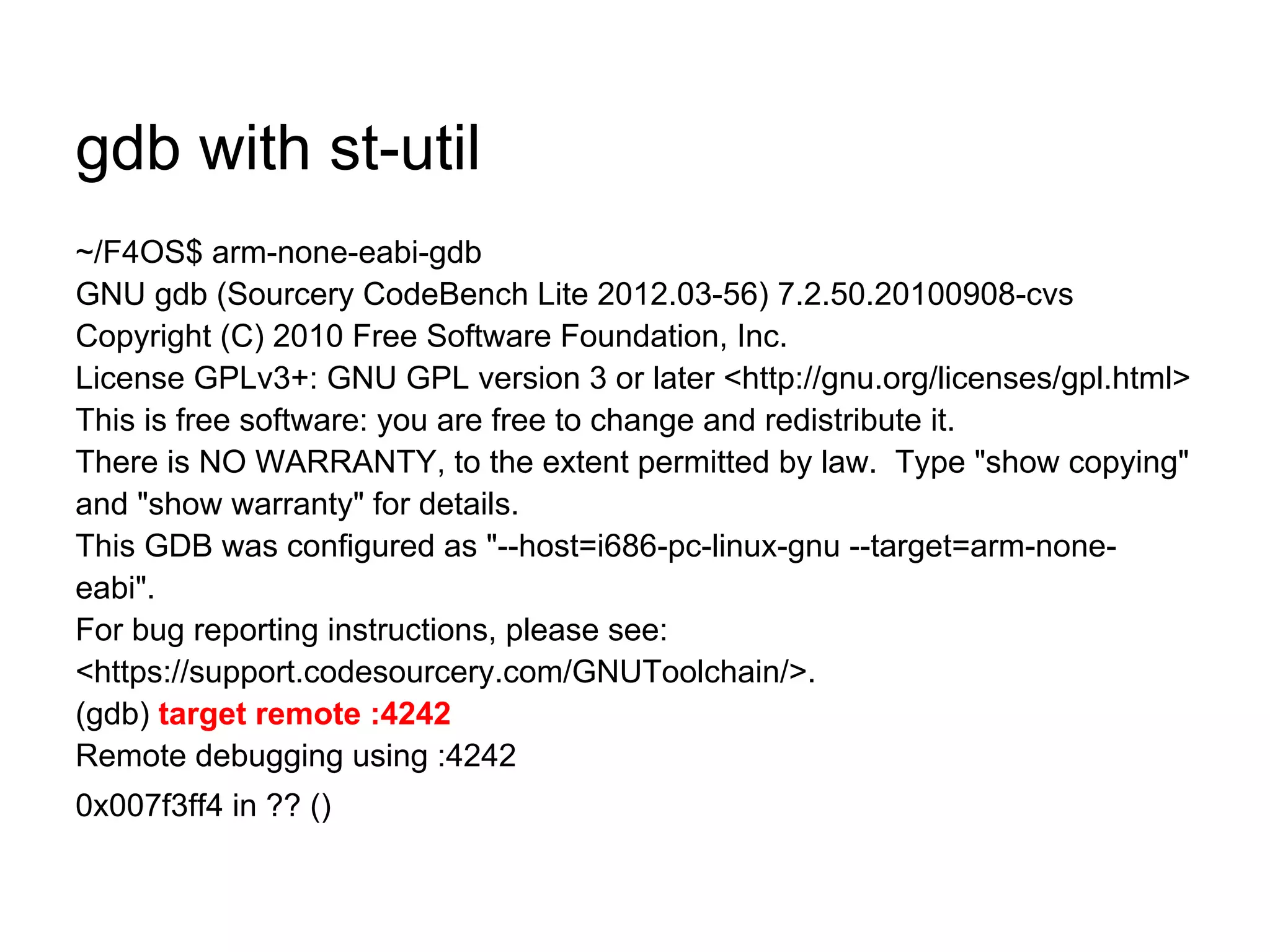

  gdb with st-util ~/F4OS$arm-none-eabi-gdb GNU gdb (Sourcery CodeBench Lite 2012.03-56) 7.2.50.20100908-cvs Copyright (C) 2010 Free Software Foundation, Inc. License GPLv3+: GNU GPL version 3 or later <http://gnu.org/licenses/gpl.html> This is free software: you are free to change and redistribute it. There is NO WARRANTY, to the extent permitted by law. Type "show copying" and "show warranty" for details. This GDB was configured as "--host=i686-pc-linux-gnu --target=arm-none- eabi". For bug reporting instructions, please see: <https://support.codesourcery.com/GNUToolchain/>. (gdb) target remote :4242 Remote debugging using :4242 0x007f3ff4 in ?? ()
• 11.

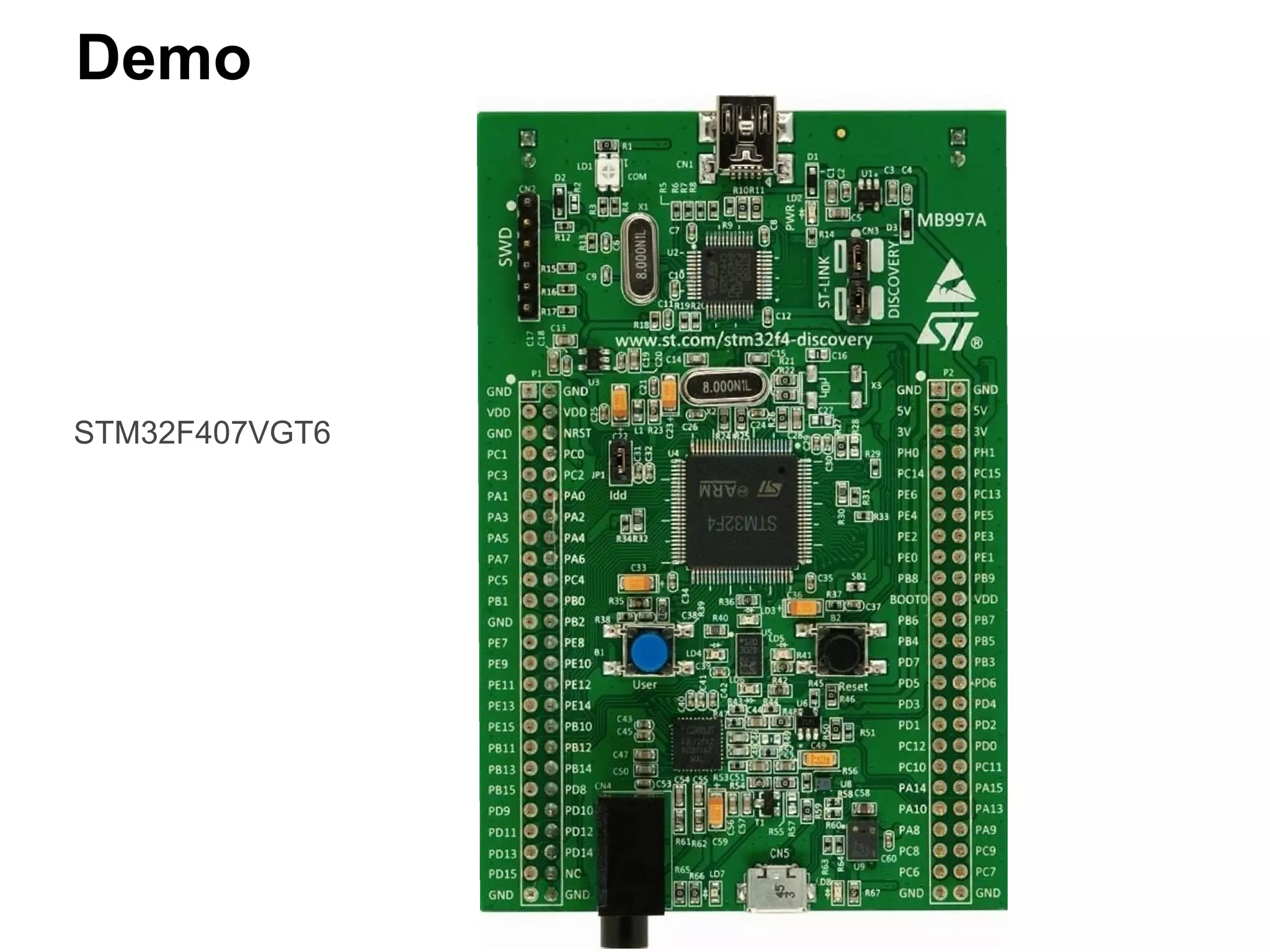

  Demo STM32F407VGT6
• 12.
  Backlogs
• 13.

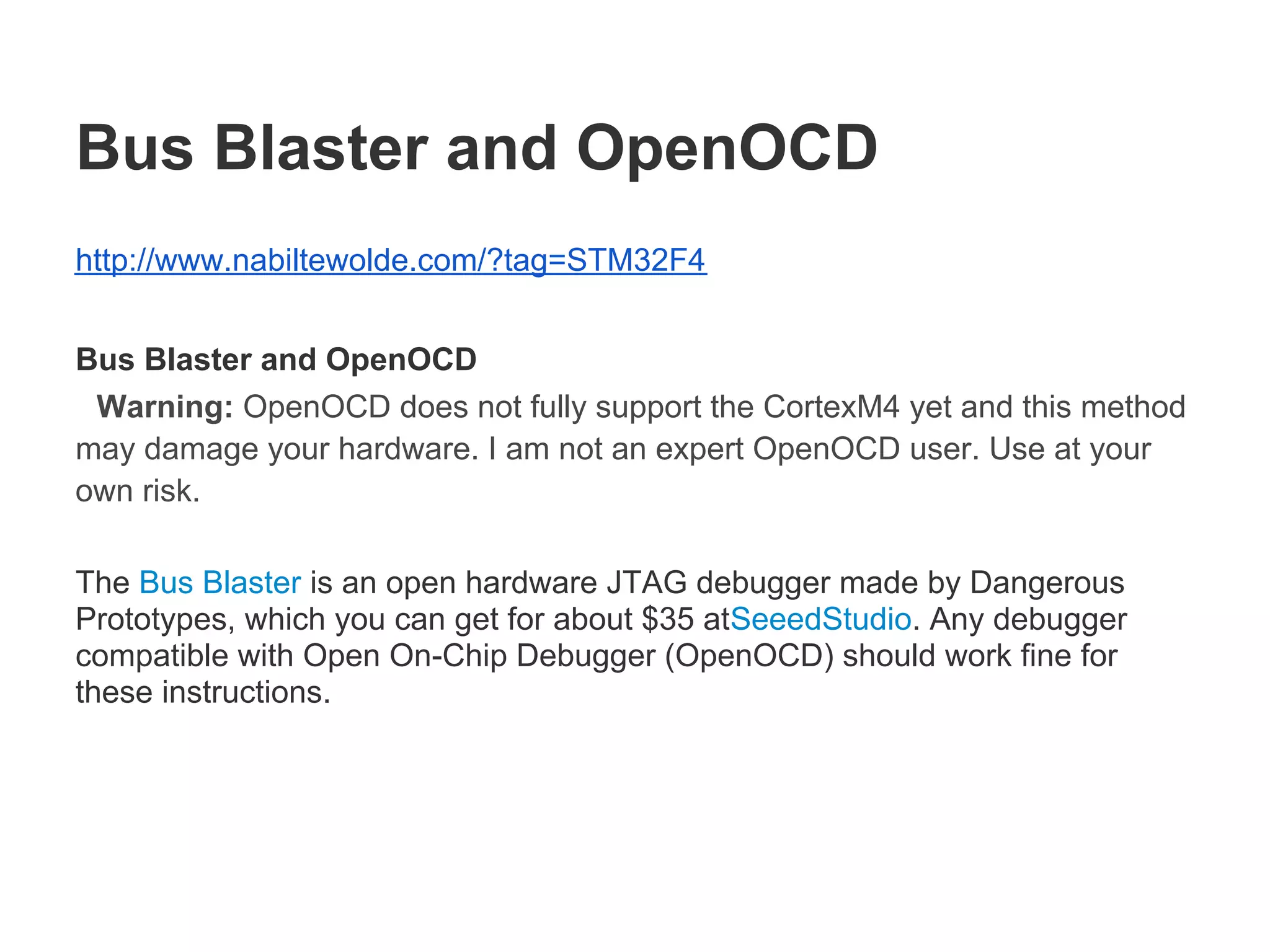

  Bus Blaster andOpenOCD http://www.nabiltewolde.com/?tag=STM32F4 Bus Blaster and OpenOCD Warning: OpenOCD does not fully support the CortexM4 yet and this method may damage your hardware. I am not an expert OpenOCD user. Use at your own risk. The Bus Blaster is an open hardware JTAG debugger made by Dangerous Prototypes, which you can get for about $35 atSeeedStudio. Any debugger compatible with Open On-Chip Debugger (OpenOCD) should work fine for these instructions.
• 14.

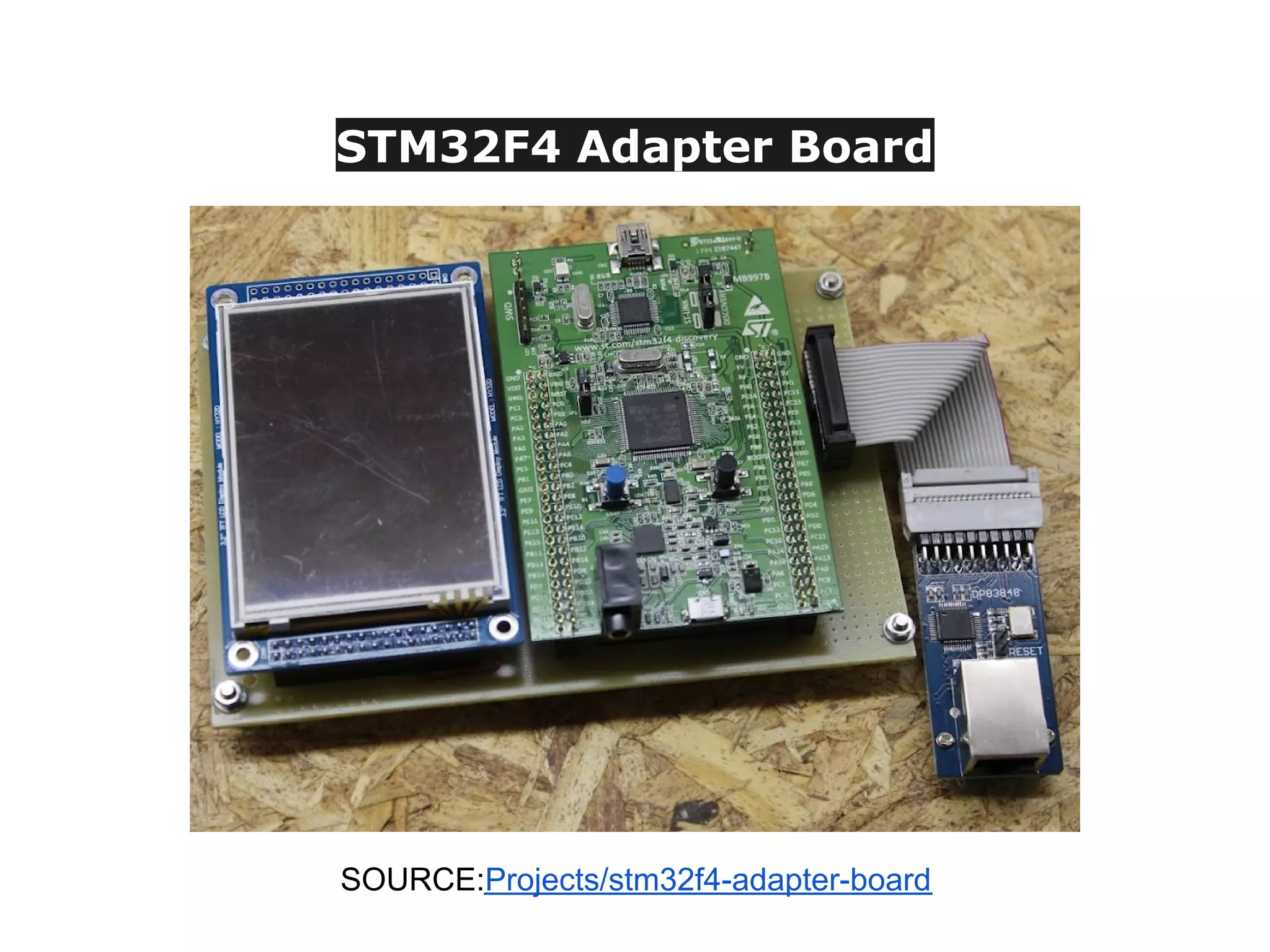

  STM32F4 Adapter Board SOURCE:Projects/stm32f4-adapter-board
• 15.

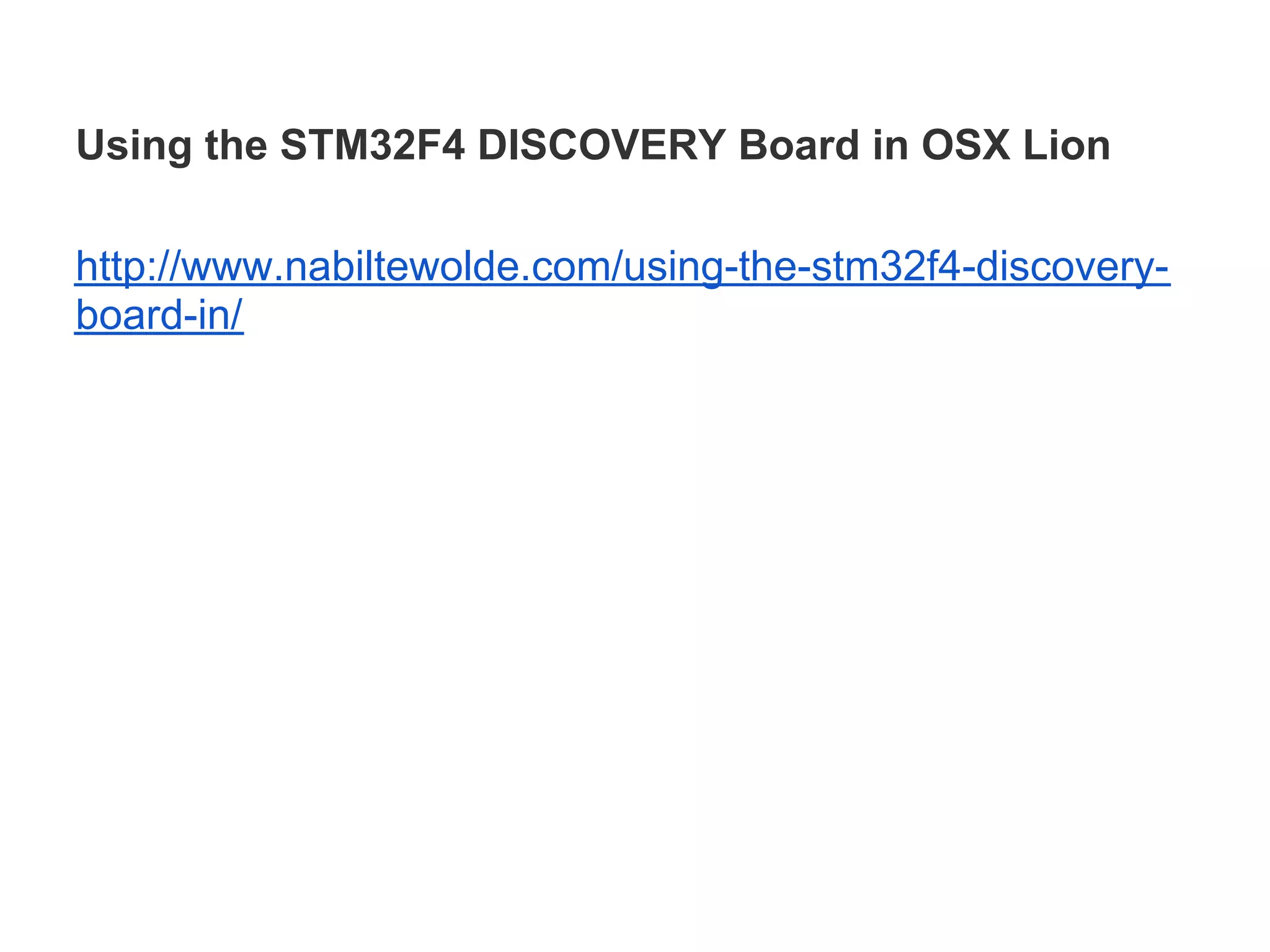

  Using the STM32F4DISCOVERY Board in OSX Lion http://www.nabiltewolde.com/using-the-stm32f4-discovery- board-in/
• 16.

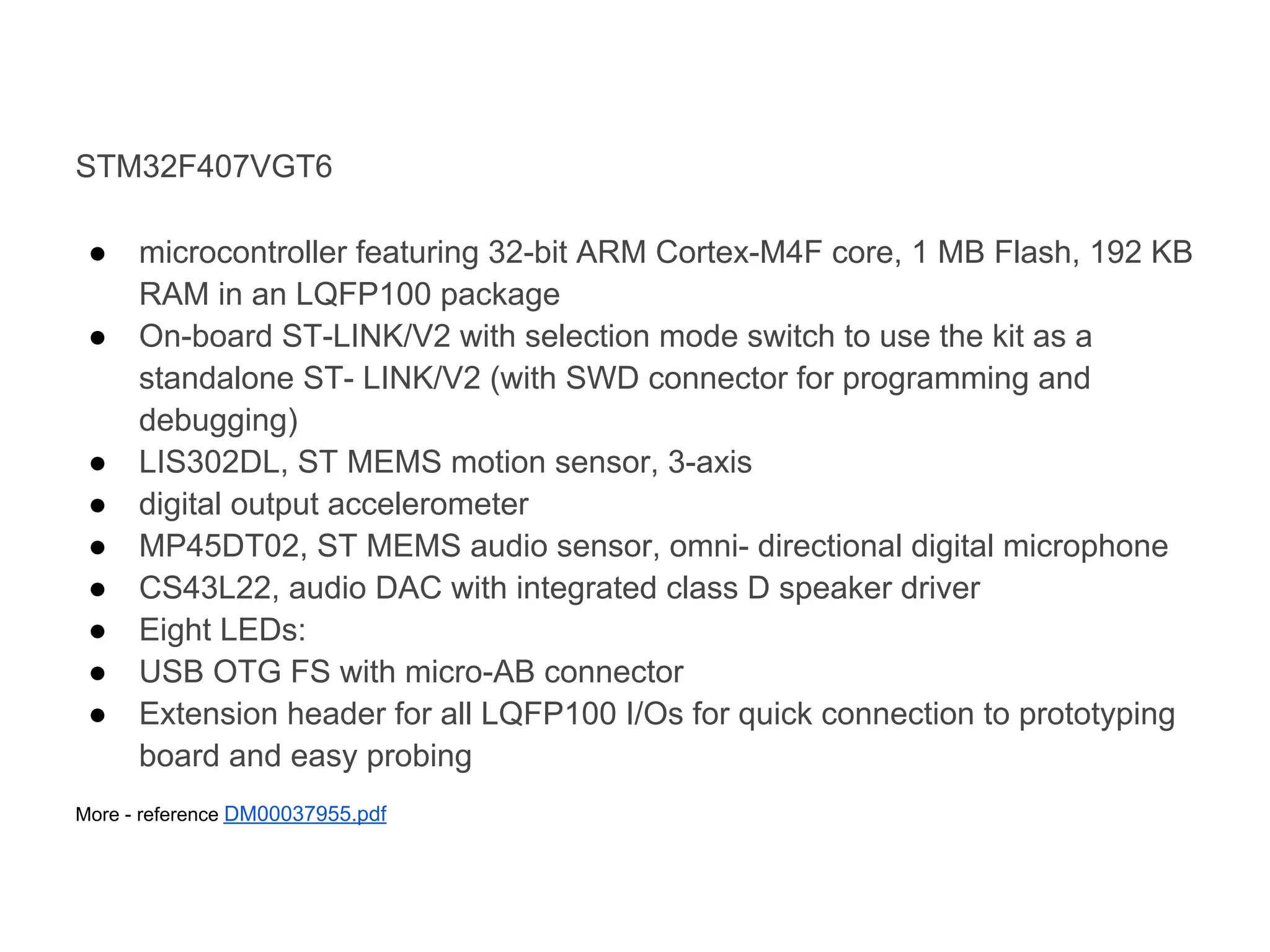

  STM32F407VGT6 ● microcontroller featuring 32-bit ARM Cortex-M4F core, 1 MB Flash, 192 KB RAM in an LQFP100 package ● On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST- LINK/V2 (with SWD connector for programming and debugging) ● LIS302DL, ST MEMS motion sensor, 3-axis ● digital output accelerometer ● MP45DT02, ST MEMS audio sensor, omni- directional digital microphone ● CS43L22, audio DAC with integrated class D speaker driver ● Eight LEDs: ● USB OTG FS with micro-AB connector ● Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing More - reference DM00037955.pdf
