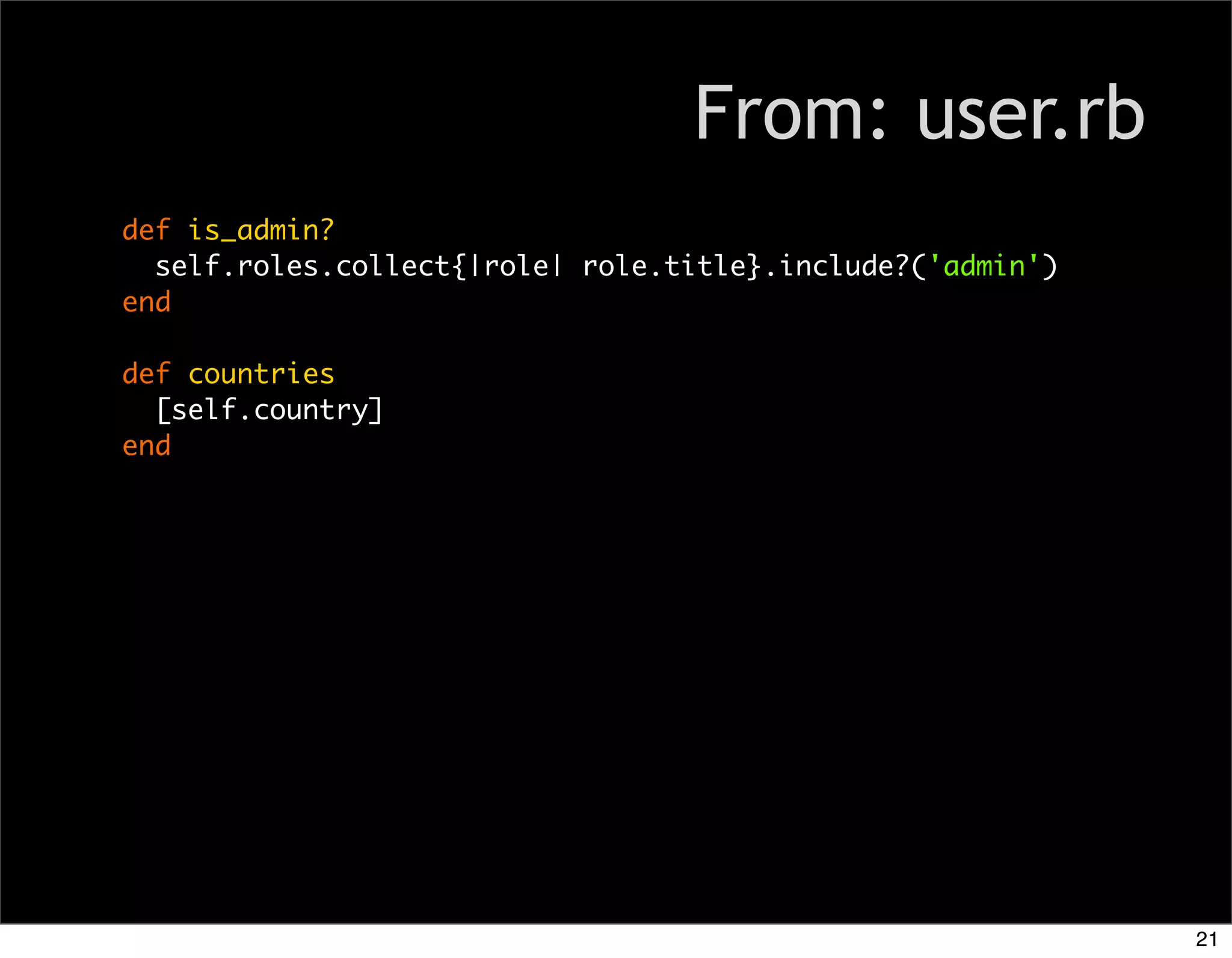

![From: user.rb
def is_admin?
self.roles.collect{|role| role.title}.include?('admin')
end
def countries
[self.country]
end
21](https://image.slidesharecdn.com/railswaycon10solidruby-100601171941-phpapp02/75/SOLID-Ruby-SOLID-Rails-21-2048.jpg)

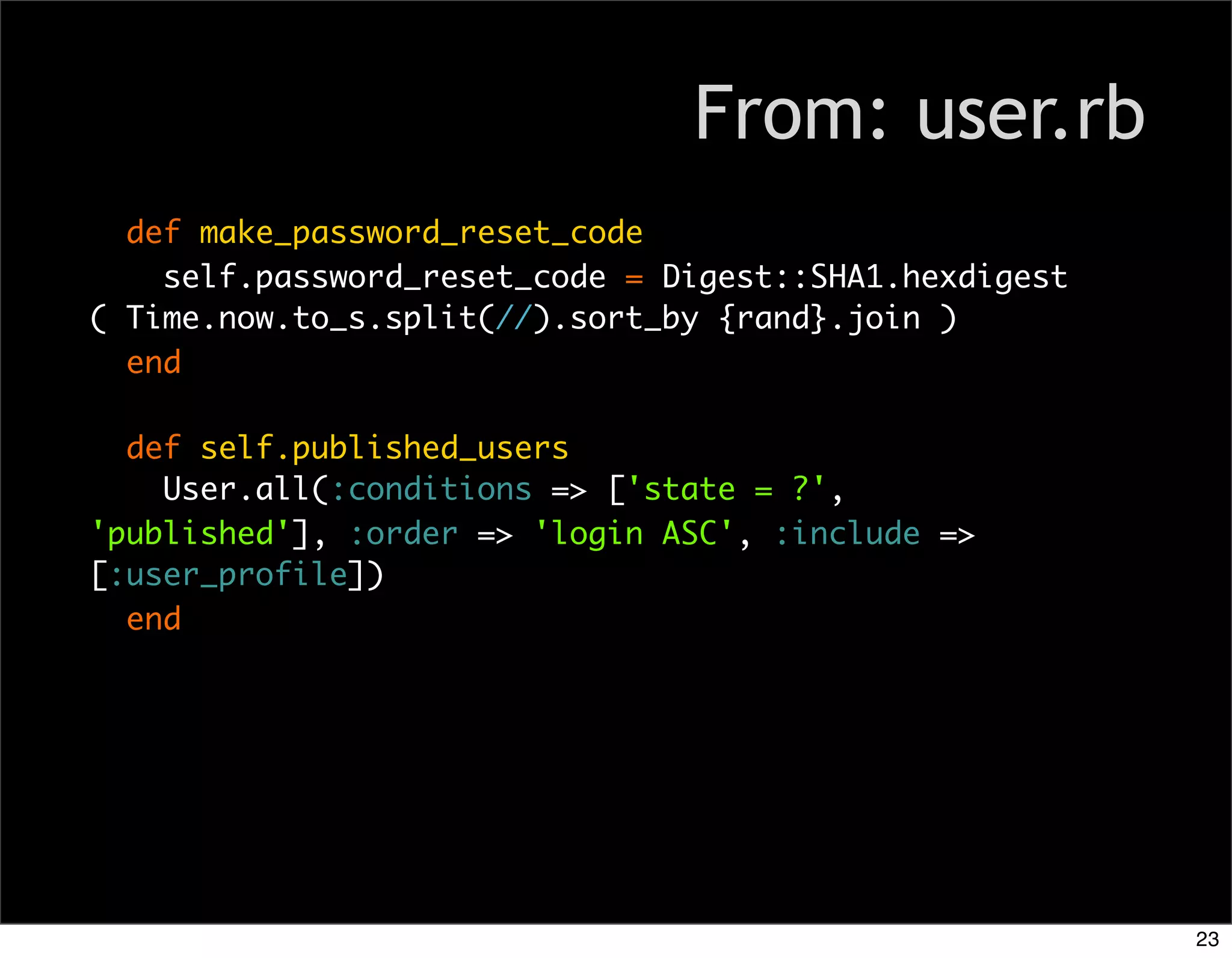

![From: user.rb
def make_password_reset_code
self.password_reset_code = Digest::SHA1.hexdigest
( Time.now.to_s.split(//).sort_by {rand}.join )
end
def self.published_users
User.all(:conditions => ['state = ?',
'published'], :order => 'login ASC', :include =>
[:user_profile])
end
23](https://image.slidesharecdn.com/railswaycon10solidruby-100601171941-phpapp02/75/SOLID-Ruby-SOLID-Rails-23-2048.jpg)

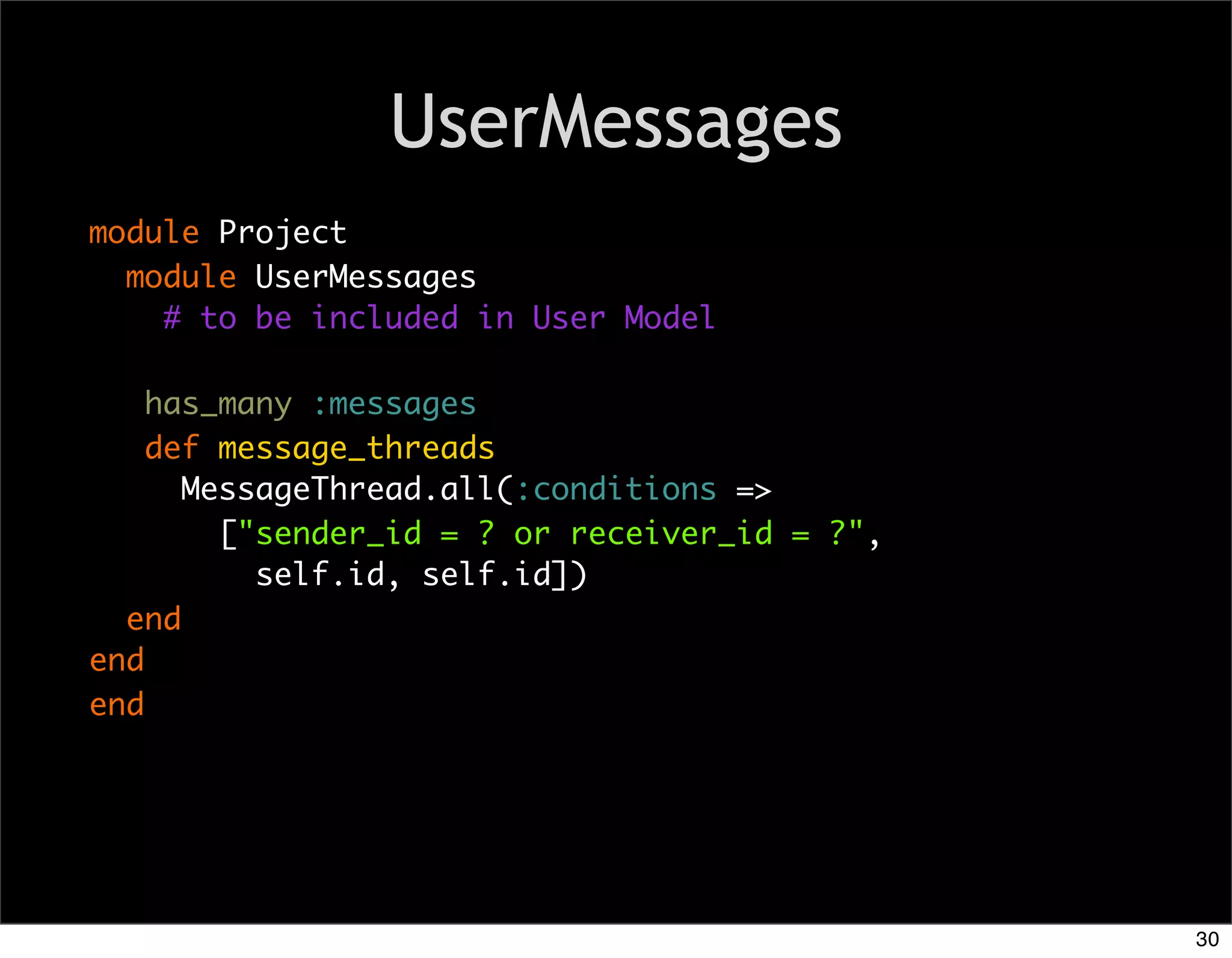

![UserMessages
module Project
module UserMessages
# to be included in User Model
has_many :messages
def message_threads
MessageThread.all(:conditions =>
["sender_id = ? or receiver_id = ?",
self.id, self.id])
end
end
end
30](https://image.slidesharecdn.com/railswaycon10solidruby-100601171941-phpapp02/75/SOLID-Ruby-SOLID-Rails-30-2048.jpg)

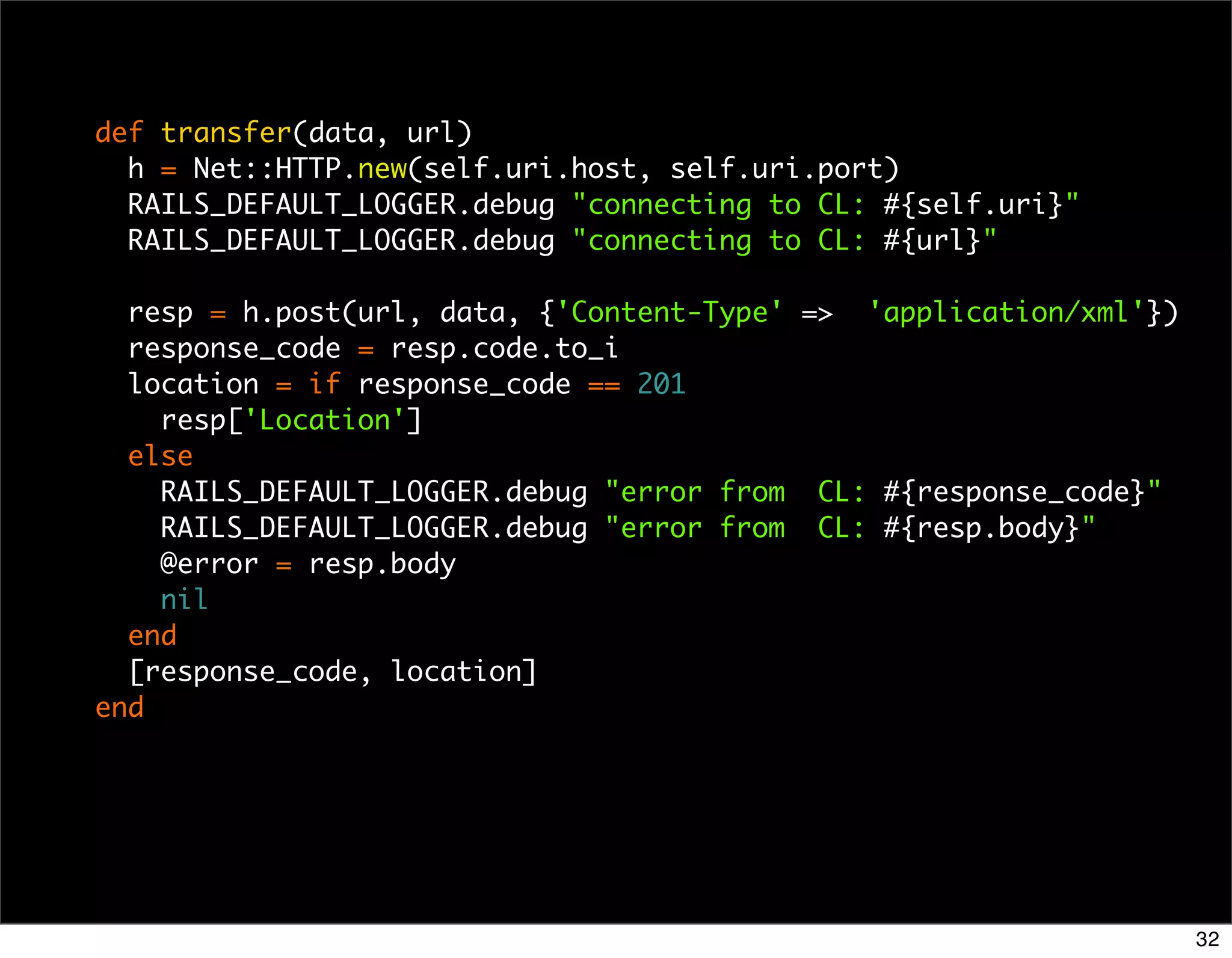

![def transfer(data, url)
h = Net::HTTP.new(self.uri.host, self.uri.port)
RAILS_DEFAULT_LOGGER.debug "connecting to CL: #{self.uri}"
RAILS_DEFAULT_LOGGER.debug "connecting to CL: #{url}"
resp = h.post(url, data, {'Content-Type' => 'application/xml'})
response_code = resp.code.to_i
location = if response_code == 201
resp['Location']
else
RAILS_DEFAULT_LOGGER.debug "error from CL: #{response_code}"
RAILS_DEFAULT_LOGGER.debug "error from CL: #{resp.body}"
@error = resp.body
nil
end
[response_code, location]
end
32](https://image.slidesharecdn.com/railswaycon10solidruby-100601171941-phpapp02/75/SOLID-Ruby-SOLID-Rails-32-2048.jpg)

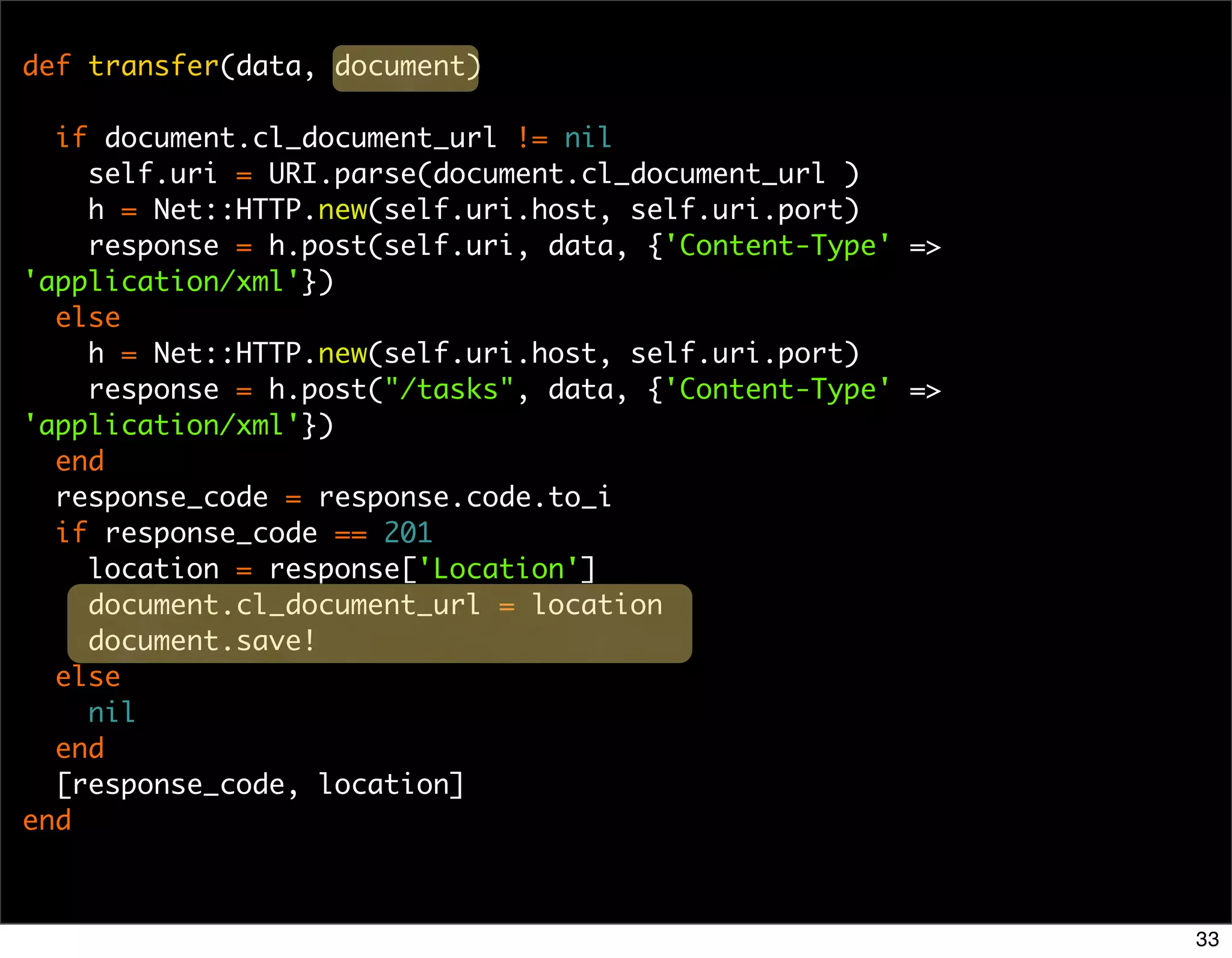

![def transfer(data, document)
if document.cl_document_url != nil
self.uri = URI.parse(document.cl_document_url )
h = Net::HTTP.new(self.uri.host, self.uri.port)
response = h.post(self.uri, data, {'Content-Type' =>
'application/xml'})
else
h = Net::HTTP.new(self.uri.host, self.uri.port)
response = h.post("/tasks", data, {'Content-Type' =>
'application/xml'})
end
response_code = response.code.to_i
if response_code == 201
location = response['Location']
document.cl_document_url = location
document.save!
else
nil
end
[response_code, location]
end
33](https://image.slidesharecdn.com/railswaycon10solidruby-100601171941-phpapp02/75/SOLID-Ruby-SOLID-Rails-33-2048.jpg)

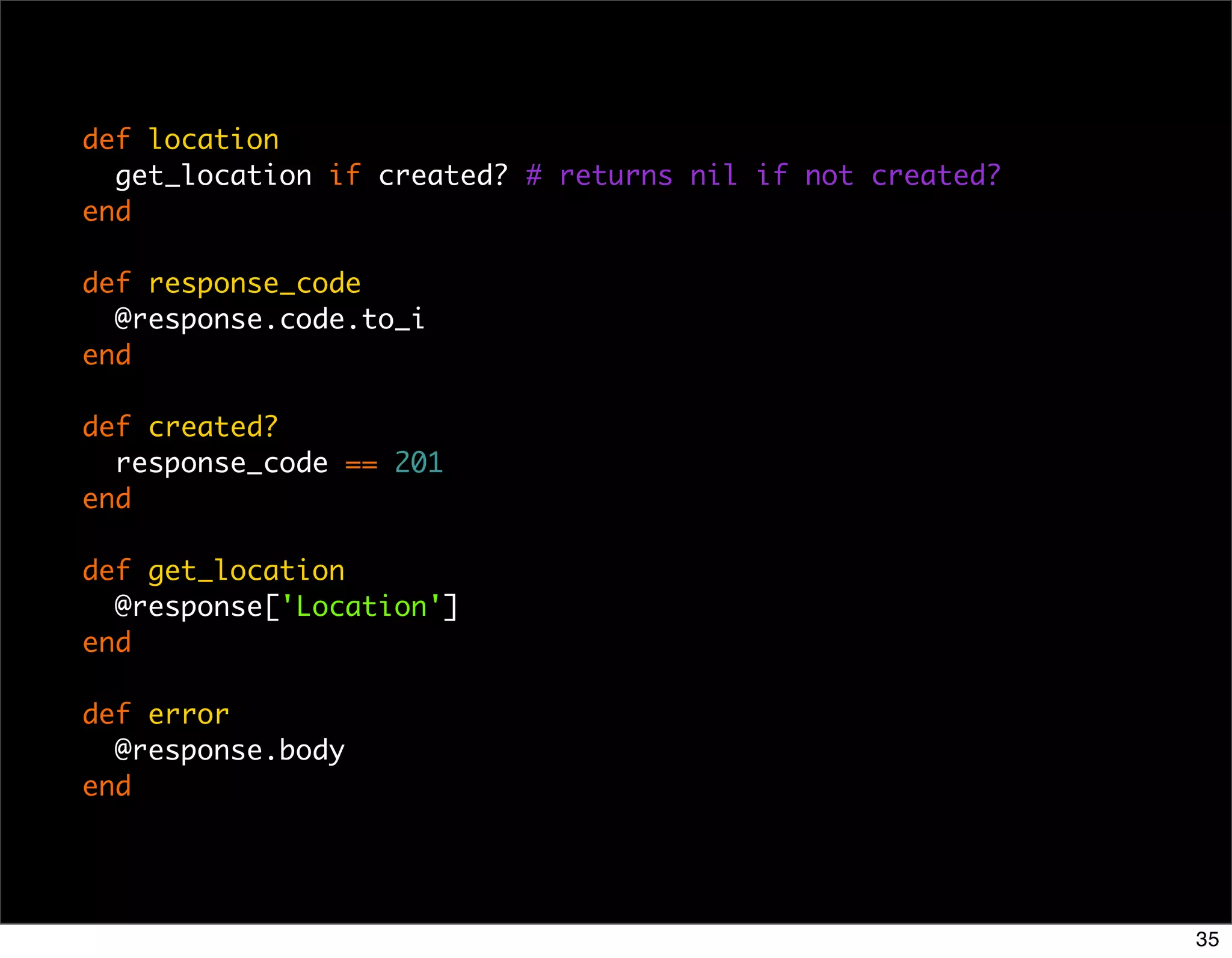

![def location
get_location if created? # returns nil if not created?
end
def response_code
@response.code.to_i
end
def created?
response_code == 201
end
def get_location
@response['Location']
end
def error
@response.body
end
35](https://image.slidesharecdn.com/railswaycon10solidruby-100601171941-phpapp02/75/SOLID-Ruby-SOLID-Rails-35-2048.jpg)

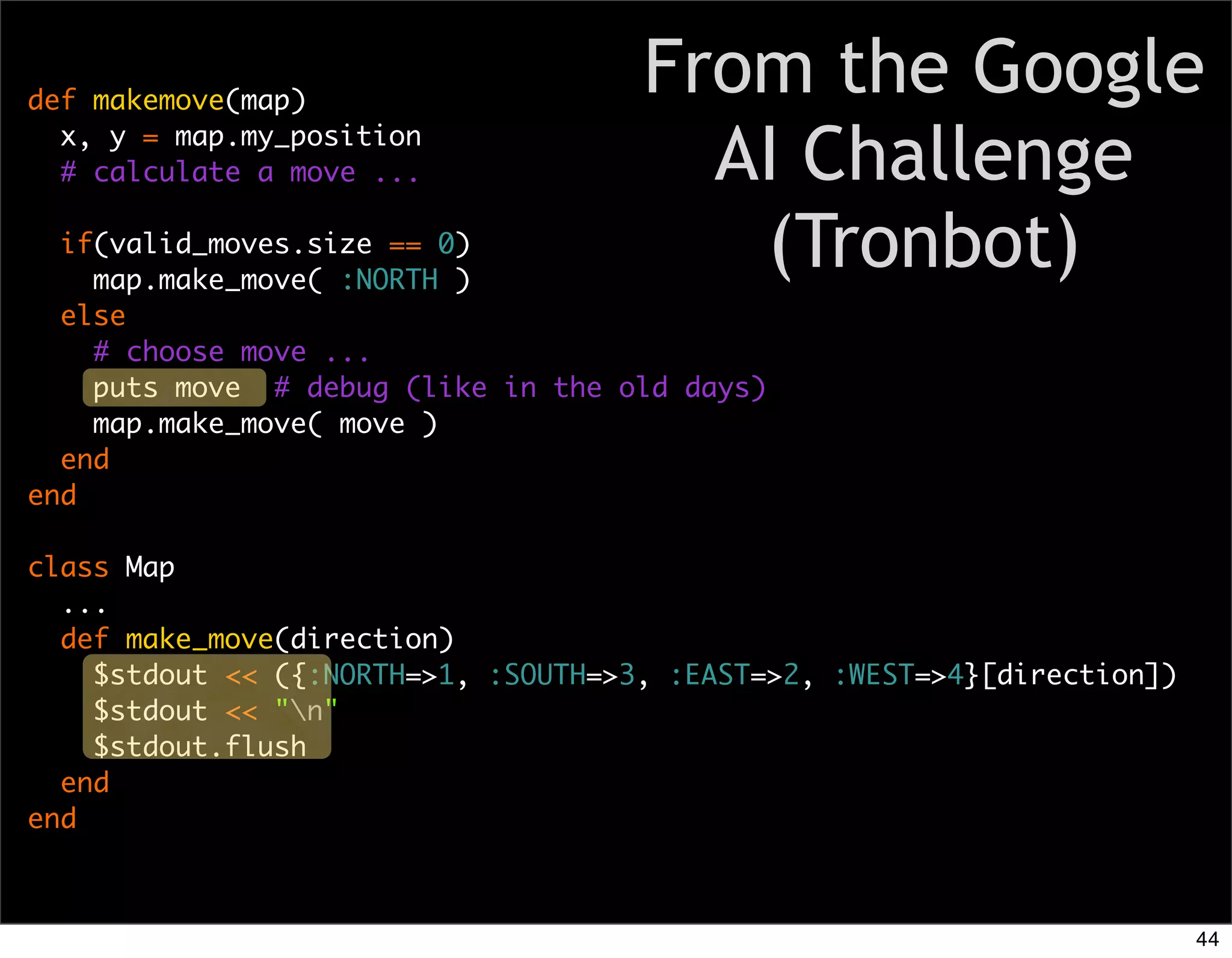

![def makemove(map)
From the Google
x, y = map.my_position
# calculate a move ... AI Challenge
if(valid_moves.size == 0)
map.make_move( :NORTH )
(Tronbot)
else
# choose move ...
puts move # debug (like in the old days)
map.make_move( move )
end
end
class Map
...
def make_move(direction)
$stdout << ({:NORTH=>1, :SOUTH=>3, :EAST=>2, :WEST=>4}[direction])
$stdout << "n"
$stdout.flush
end
end
44](https://image.slidesharecdn.com/railswaycon10solidruby-100601171941-phpapp02/75/SOLID-Ruby-SOLID-Rails-44-2048.jpg)

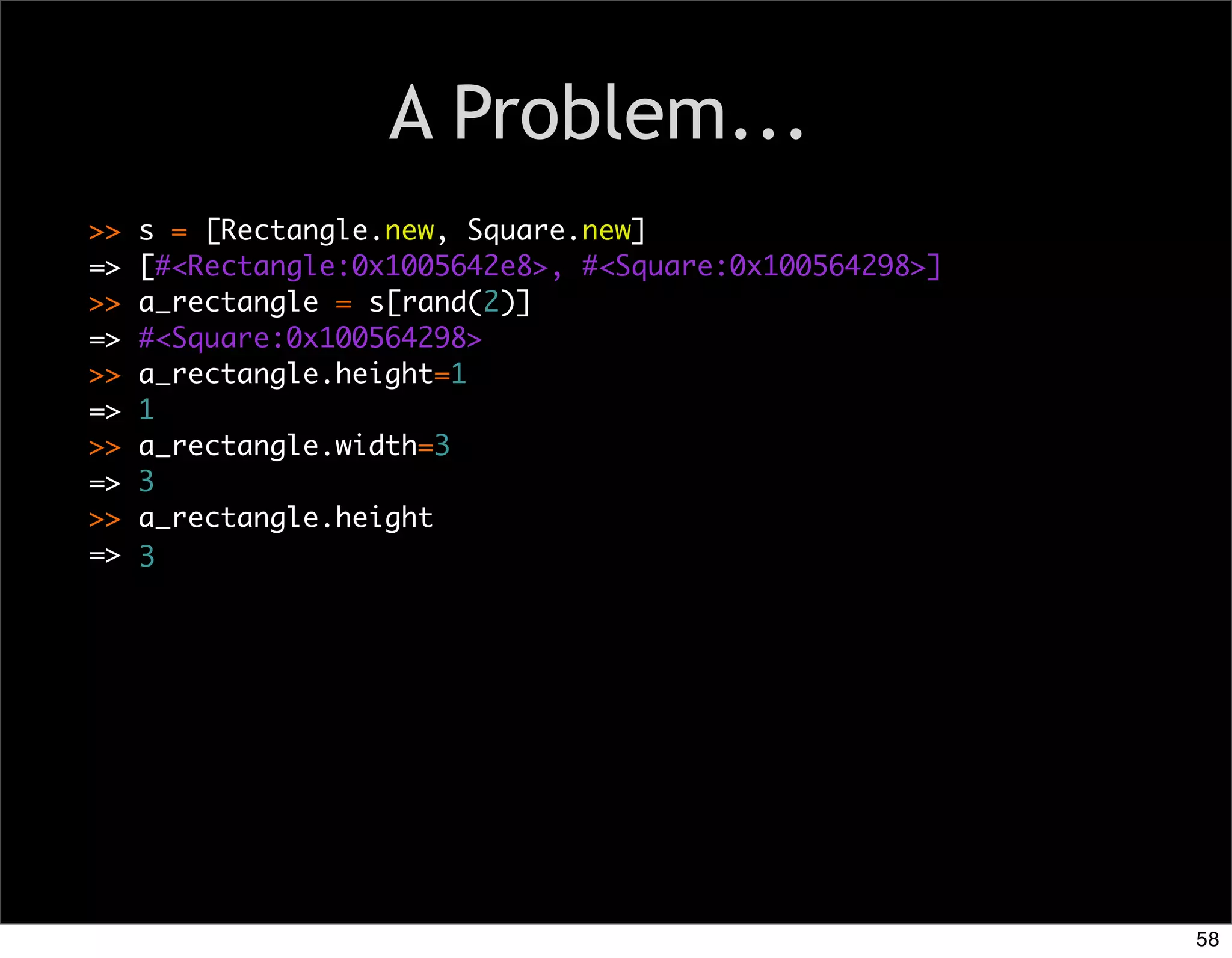

![A Problem...
>> s = [Rectangle.new, Square.new]
=> [#<Rectangle:0x1005642e8>, #<Square:0x100564298>]
>> a_rectangle = s[rand(2)]
=> #<Square:0x100564298>
>> a_rectangle.height=1
=> 1
>> a_rectangle.width=3
=> 3
Text
>> a_rectangle.height
=> 3
58](https://image.slidesharecdn.com/railswaycon10solidruby-100601171941-phpapp02/75/SOLID-Ruby-SOLID-Rails-58-2048.jpg)
![Users Controller
class UsersController < ApplicationController
ssl_required :new, :create, :edit, :update, :destroy, :activate,
:change_passwort, :forgot_password, :reset_password, :make_profile,
:my_contacts
ssl_allowed :eula, :index, :show
access_control
[:suspend, :unsuspend, :destroy, :purge, :delete, :admin, :ban, :remove_ban] =>
'admin'
before_filter :find_user
skip_after_filter :store_location
def show
unless @user == current_user
redirect_to access_denied_path(@locale)
else
respond_to do |format|
format.html
format.js { render :partial => "users/#{@context.title}/#{@partial}" }
end
end
end
...
65](https://image.slidesharecdn.com/railswaycon10solidruby-100601171941-phpapp02/75/SOLID-Ruby-SOLID-Rails-65-2048.jpg)

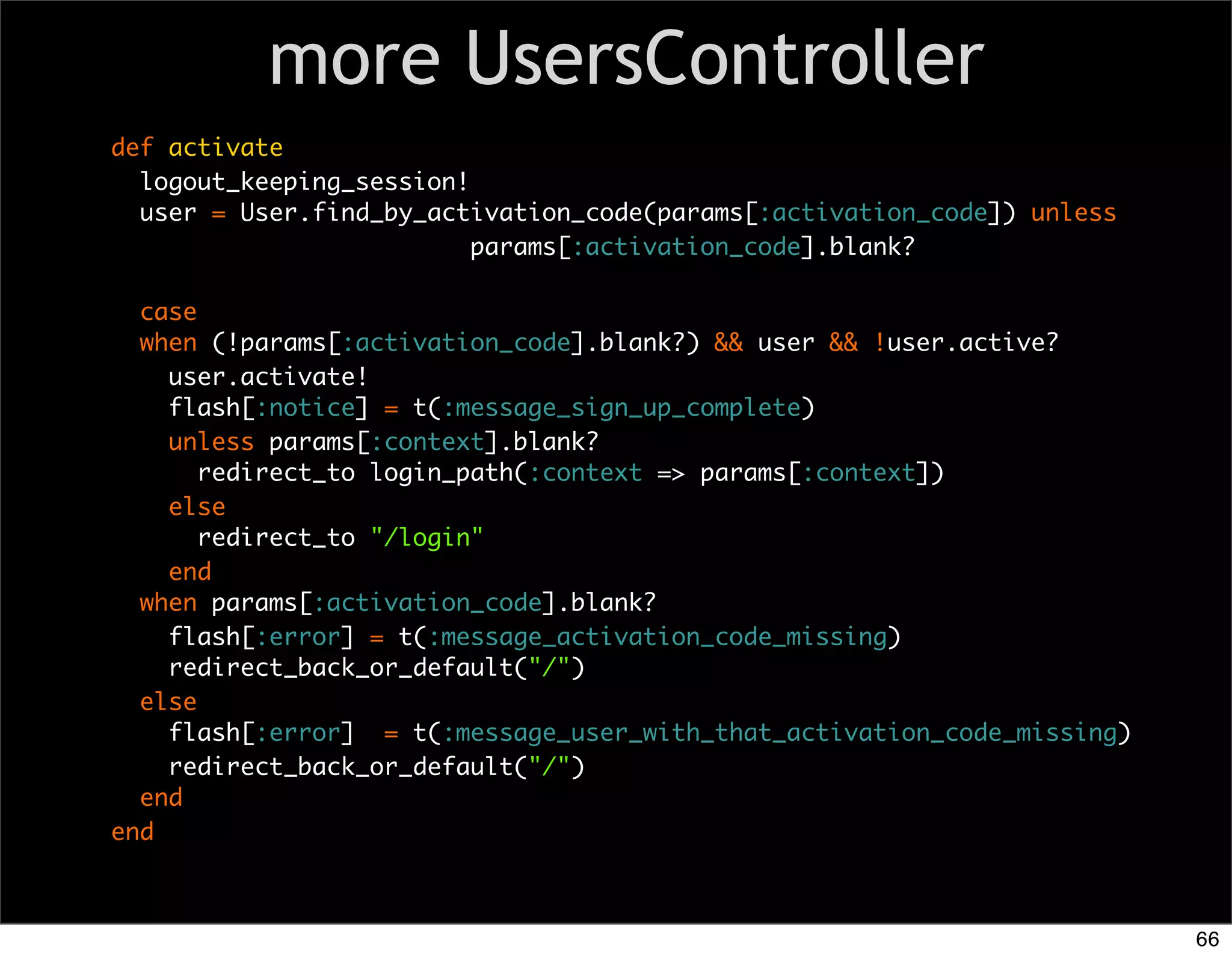

![more UsersController
def activate
logout_keeping_session!
user = User.find_by_activation_code(params[:activation_code]) unless
params[:activation_code].blank?
case
when (!params[:activation_code].blank?) && user && !user.active?
user.activate!
flash[:notice] = t(:message_sign_up_complete)
unless params[:context].blank?
redirect_to login_path(:context => params[:context])
else
redirect_to "/login"
end
when params[:activation_code].blank?
flash[:error] = t(:message_activation_code_missing)
redirect_back_or_default("/")
else
flash[:error] = t(:message_user_with_that_activation_code_missing)
redirect_back_or_default("/")
end
end
66](https://image.slidesharecdn.com/railswaycon10solidruby-100601171941-phpapp02/75/SOLID-Ruby-SOLID-Rails-66-2048.jpg)
![class RegistrationController < ApplicationController
...
def activate
logout_keeping_session!
code_is_blank = params[:activation_code].blank?
registration = Registration.find_by_activation_code(params
[:activation_code]) unless code_is_blank
case
when (!code_is_blank) && registration && !registratio.active?
registration.activate!
flash[:notice] = t(:message_sign_up_complete)
unless params[:context].blank?
redirect_to login_path(:context => params[:context])
else
redirect_to "/login"
end
when code_is_blank
flash[:error] = t(:message_activation_code_missing)
redirect_back_or_default("/")
else
flash[:error] = t(:message_user_with_that_activation_code_missing)
redirect_back_or_default("/")
end
end
...
end
68](https://image.slidesharecdn.com/railswaycon10solidruby-100601171941-phpapp02/75/SOLID-Ruby-SOLID-Rails-68-2048.jpg)

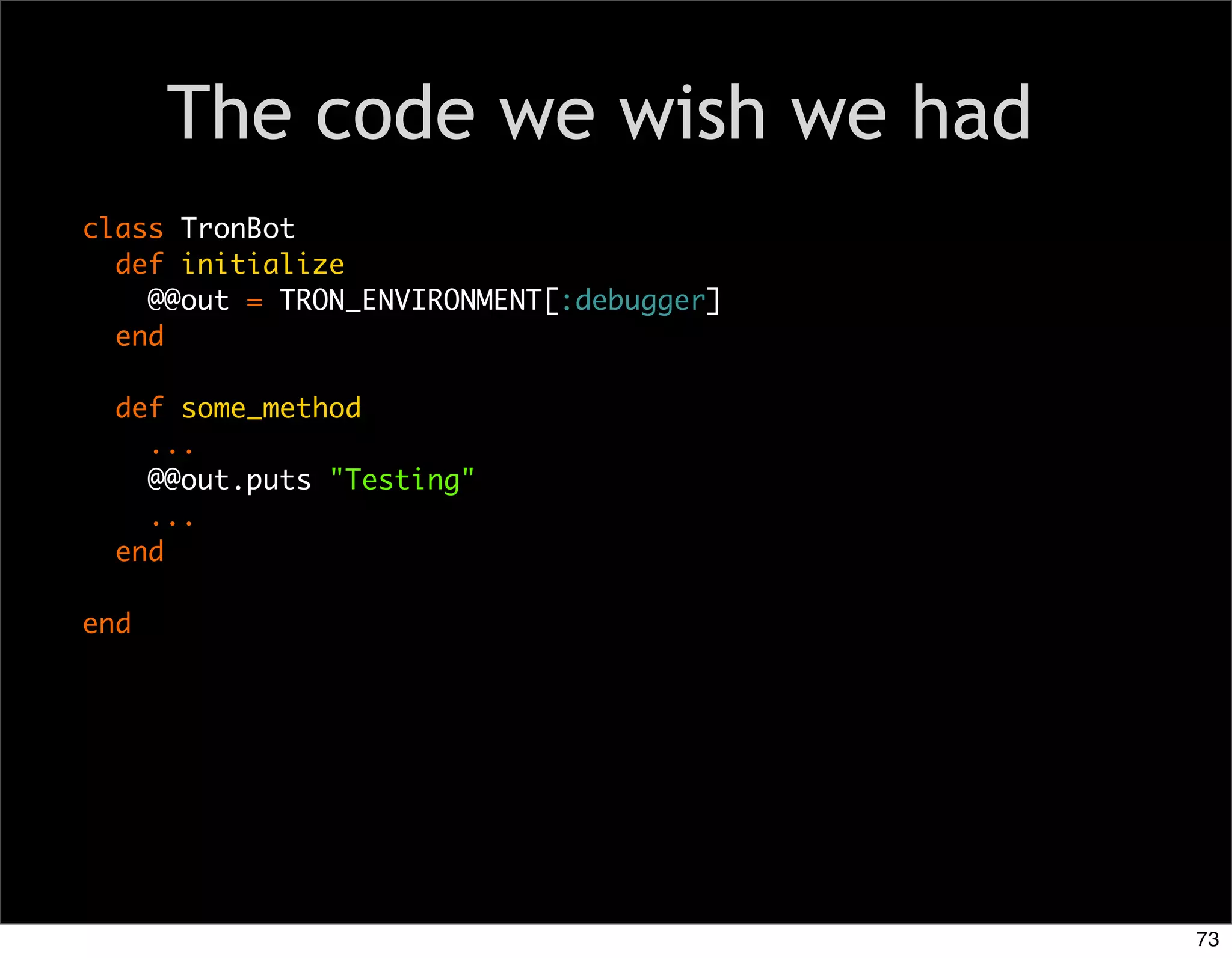

![The code we wish we had
class TronBot
def initialize
@@out = TRON_ENVIRONMENT[:debugger]
end
def some_method
...
@@out.puts "Testing"
...
end
end
73](https://image.slidesharecdn.com/railswaycon10solidruby-100601171941-phpapp02/75/SOLID-Ruby-SOLID-Rails-73-2048.jpg)

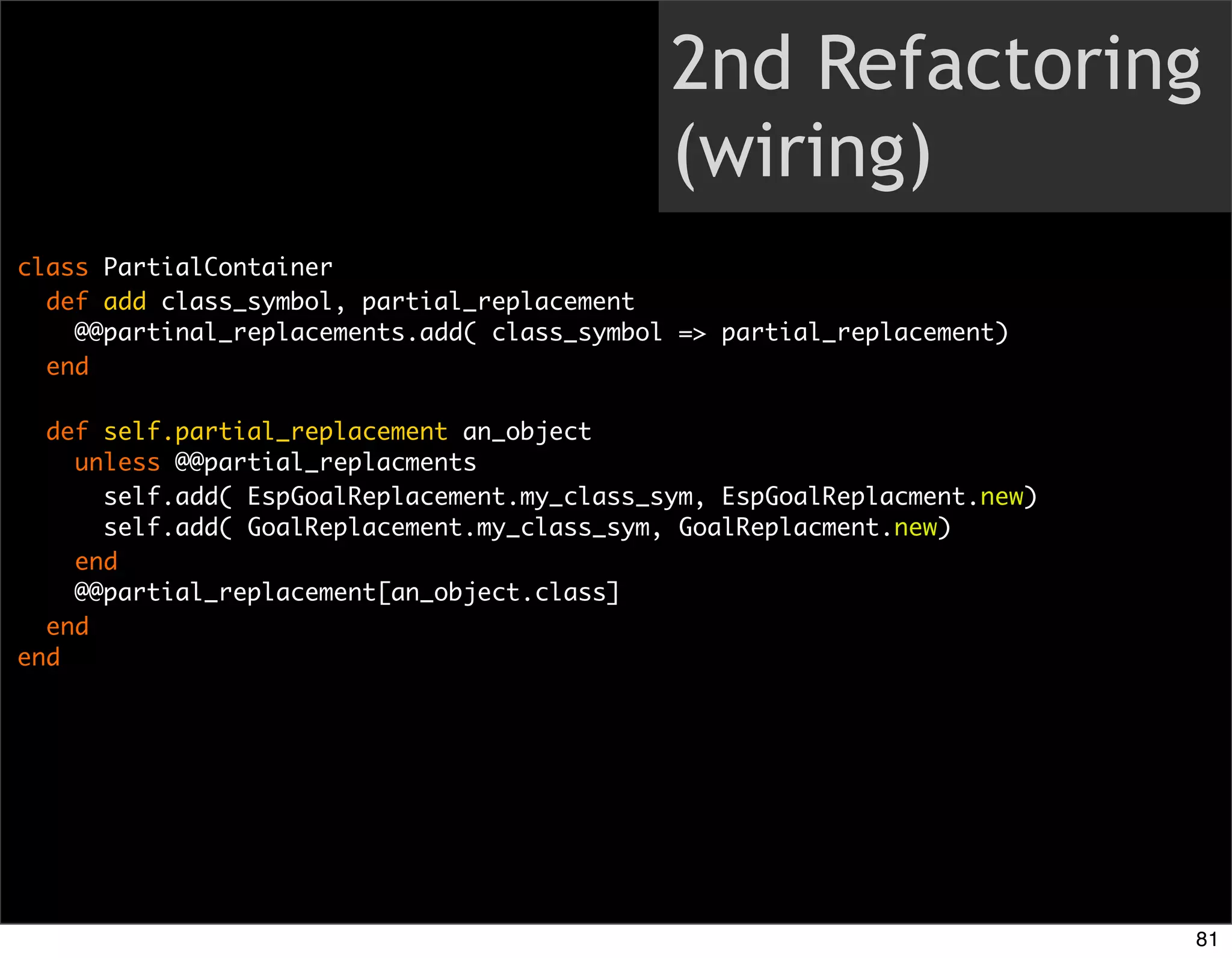

![2nd Refactoring
(wiring)
class PartialContainer
def add class_symbol, partial_replacement
@@partinal_replacements.add( class_symbol => partial_replacement)
end
def self.partial_replacement an_object
unless @@partial_replacments
self.add( EspGoalReplacement.my_class_sym, EspGoalReplacment.new)
self.add( GoalReplacement.my_class_sym, GoalReplacment.new)
end
@@partial_replacement[an_object.class]
end
end
81](https://image.slidesharecdn.com/railswaycon10solidruby-100601171941-phpapp02/75/SOLID-Ruby-SOLID-Rails-81-2048.jpg)
Uploaded byMichael Mahlberg
SOLID Ruby SOLID Rails
Here are a few ways the UsersController could be refactored to better follow the Interface Segregation Principle: 1. Extract authentication/authorization logic into a separate AuthenticationController concern. 2. Extract user profile/account management logic into an AccountsController. 3. Extract activation/registration logic into a separate RegistrationController. 4. Create separate interfaces/controllers for different user roles like AdminUsersController vs RegularUsersController. This avoids forcing all user-related actions onto a single controller, allowing each controller to focus on specific user workflows and responsibilities. Clients like regular users and admins would interact with specialized interfaces rather than depending on a monolithic UsersController.
More Related Content
![The Product Owner's Survival Kit - ein Überblick [DE]](https://cdn.slidesharecdn.com/ss_thumbnails/oop2017ndo4productownersurvivalkitmahlbergslideshare-170209124144-thumbnail.jpg?width=640&height=640&fit=bounds)
SOLID Ruby SOLID Rails
- 1. Michael Mahlberg, ConsultingGuild AG Jens-Christian Fischer, InVisible GmbH SOLID Ruby - SOLID Rails Establishing a sustainable codebase 1
- 2. Who? Michael Mahlberg 2
- 3. Founder of roughly a dozen companies over the last two decades 3
- 4.
- 5. Working as A consultant on software processes, architecture & design for > 2 decades 5

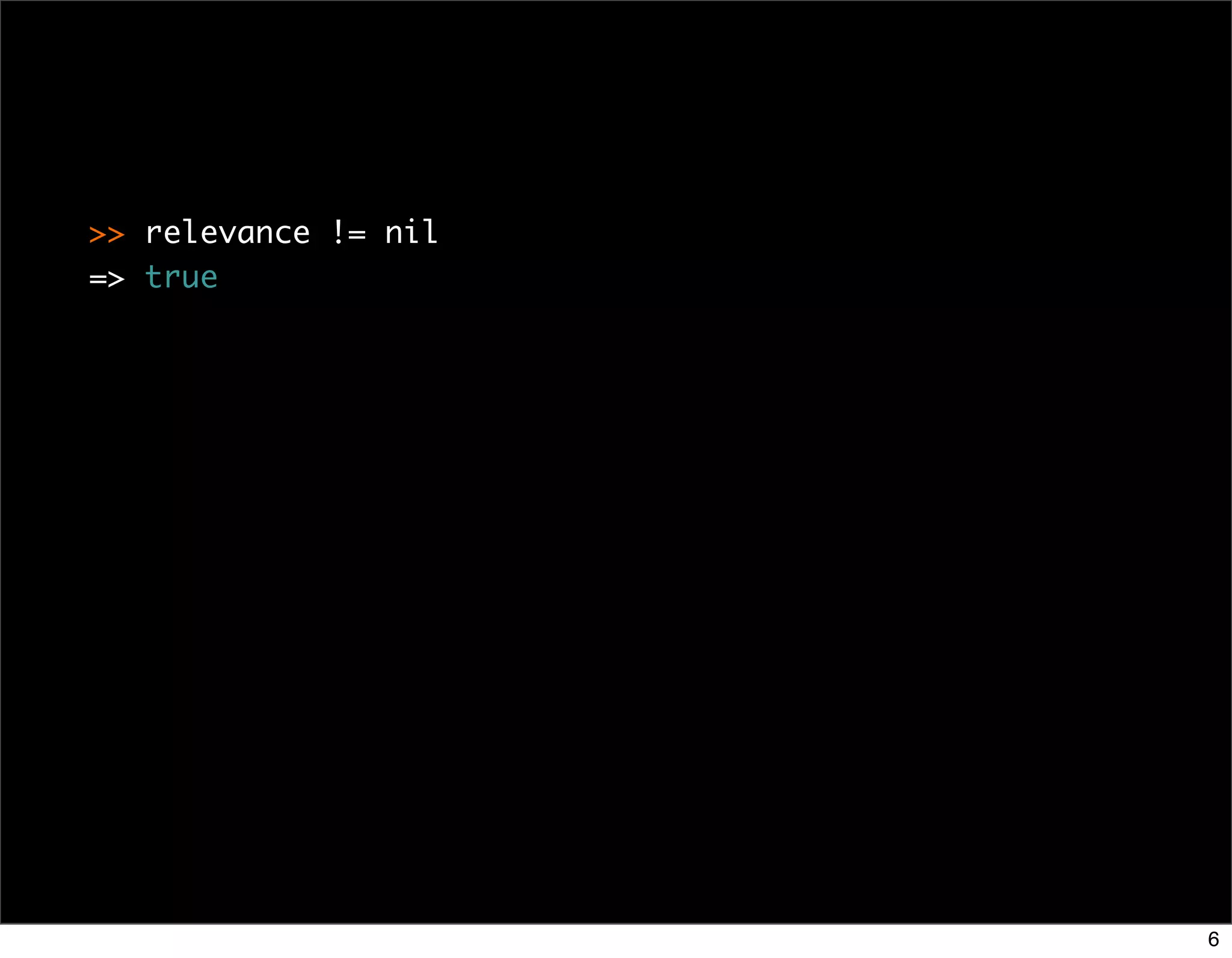

- 6. >> relevance !=nil => true 6
- 7. Who? Jens-Christian Fischer 7
- 8. Tinkerer, Practician, Author and generally interested in way too many things 8
- 9.
- 10. SOLID is not a Law 10
- 11. PPP (by Robert C.Martin) Agile Software Development, Principles, Patterns, and Practices 11
- 12. Principles! You know - more like guidelines 12
- 13. SOLID SRP OCP LSPISP DIP 13
- 14. S OL ID SRP OCP LSP ISP DIP 14

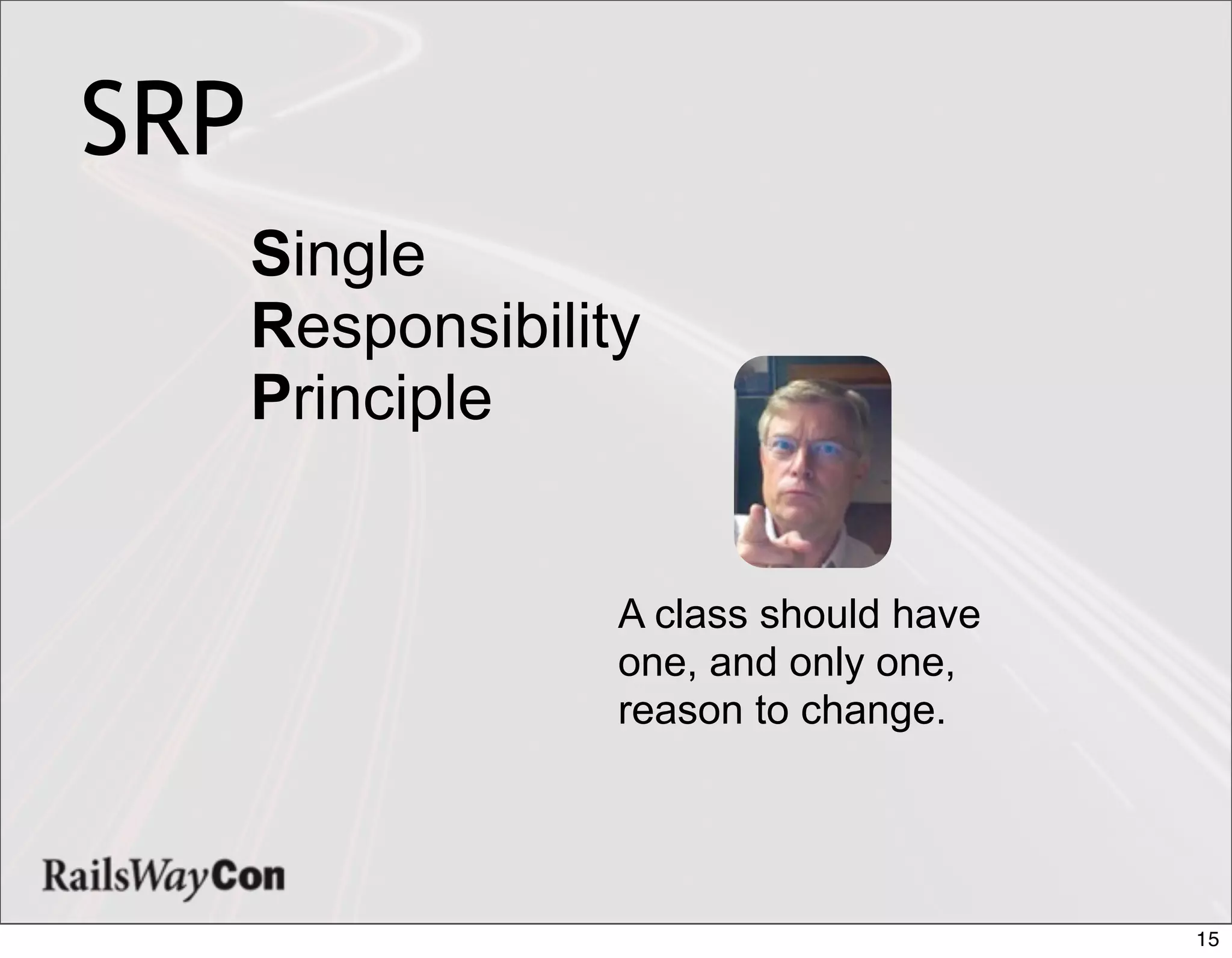

- 15. SRP Single Responsibility Principle A class should have one, and only one, reason to change. 15

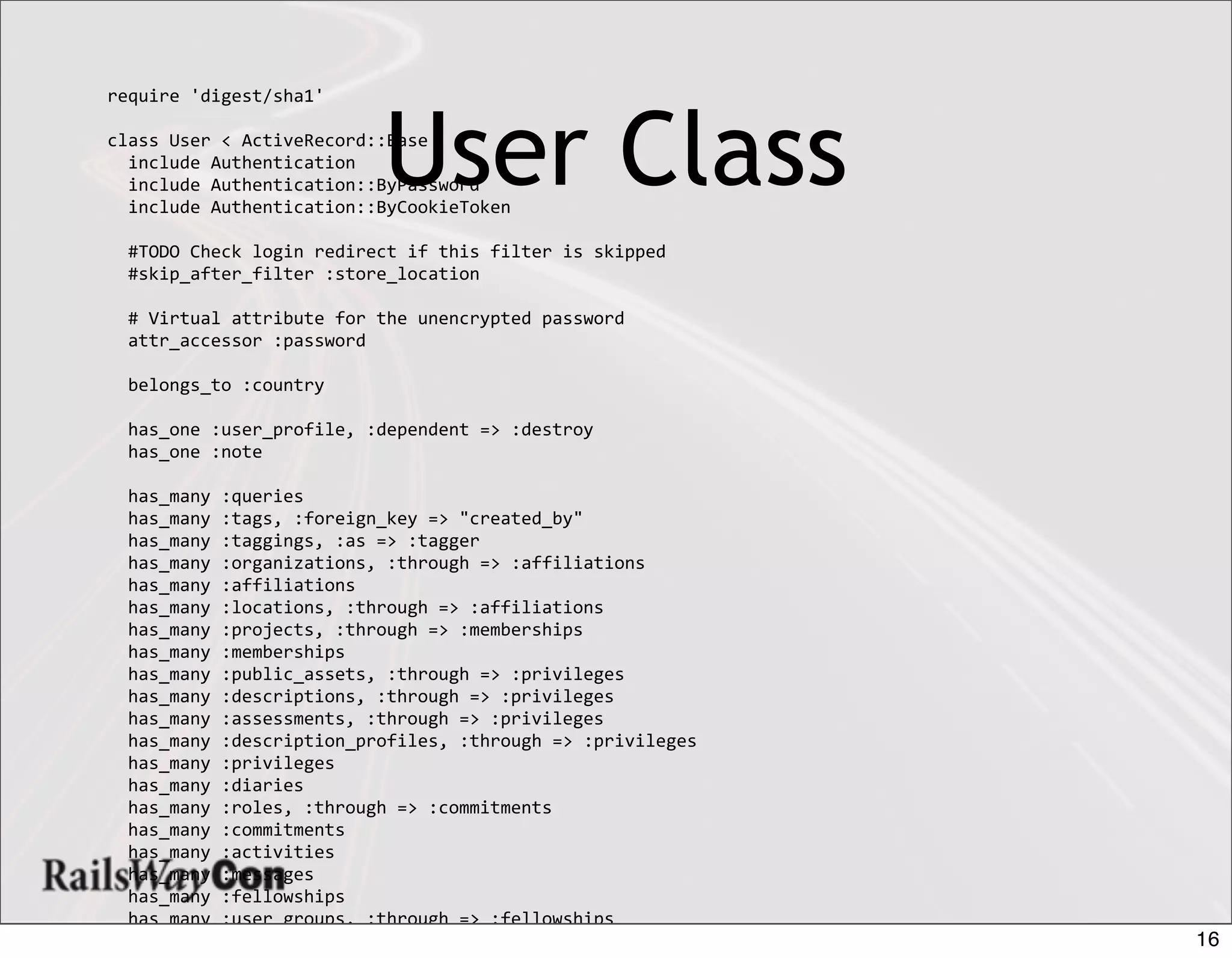

- 16. require 'digest/sha1' class User < ActiveRecord::Base include Authentication User Class include Authentication::ByPassword include Authentication::ByCookieToken #TODO Check login redirect if this filter is skipped #skip_after_filter :store_location # Virtual attribute for the unencrypted password attr_accessor :password belongs_to :country has_one :user_profile, :dependent => :destroy has_one :note has_many :queries has_many :tags, :foreign_key => "created_by" has_many :taggings, :as => :tagger has_many :organizations, :through => :affiliations has_many :affiliations has_many :locations, :through => :affiliations has_many :projects, :through => :memberships has_many :memberships has_many :public_assets, :through => :privileges has_many :descriptions, :through => :privileges has_many :assessments, :through => :privileges has_many :description_profiles, :through => :privileges has_many :privileges has_many :diaries has_many :roles, :through => :commitments has_many :commitments has_many :activities has_many :messages has_many :fellowships has_many :user_groups, :through => :fellowships has_many :survey_responses 16
- 17. So what‘s wrongwith this? 17

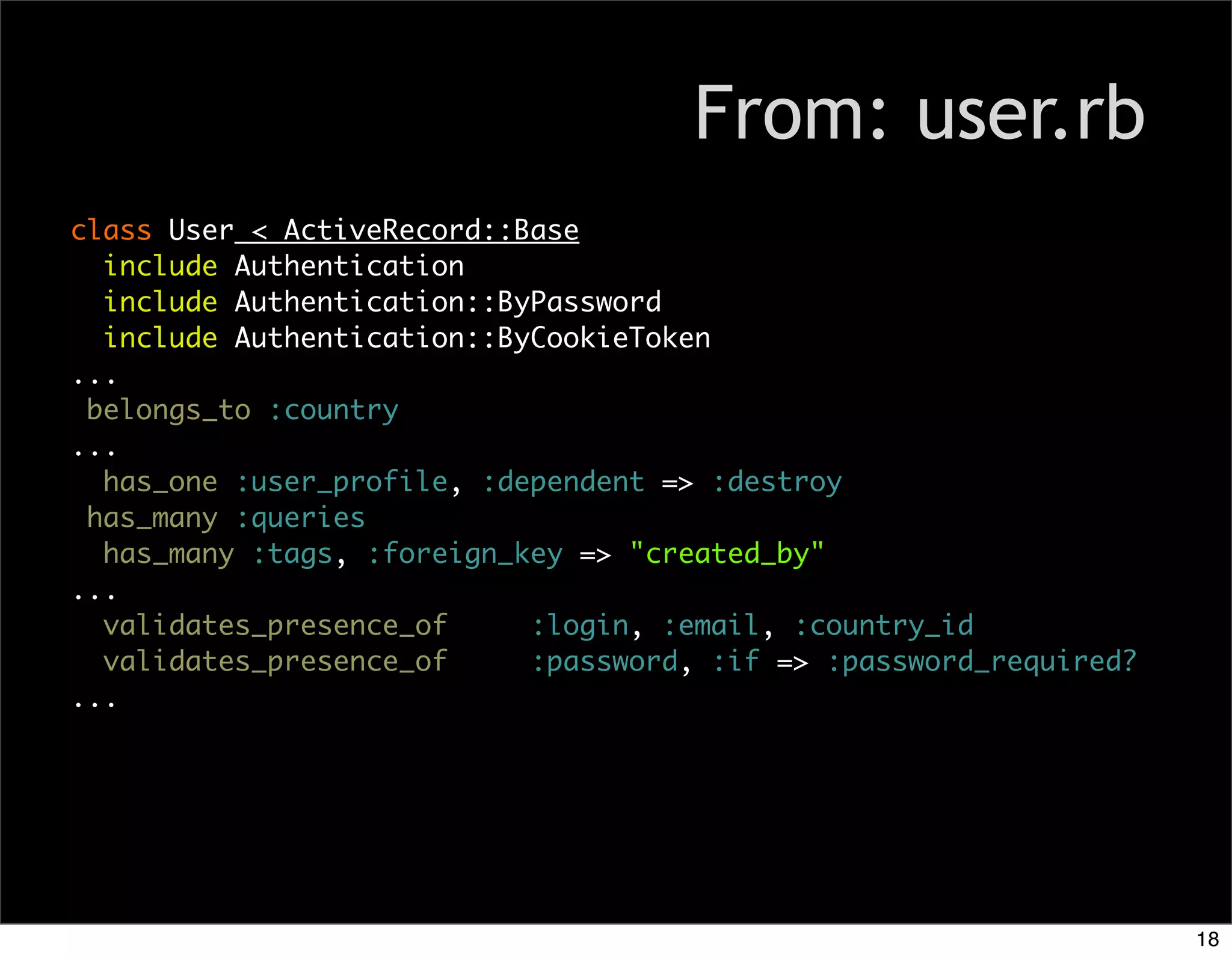

- 18. From: user.rb class User< ActiveRecord::Base include Authentication include Authentication::ByPassword include Authentication::ByCookieToken ... belongs_to :country ... has_one :user_profile, :dependent => :destroy has_many :queries has_many :tags, :foreign_key => "created_by" ... validates_presence_of :login, :email, :country_id validates_presence_of :password, :if => :password_required? ... 18

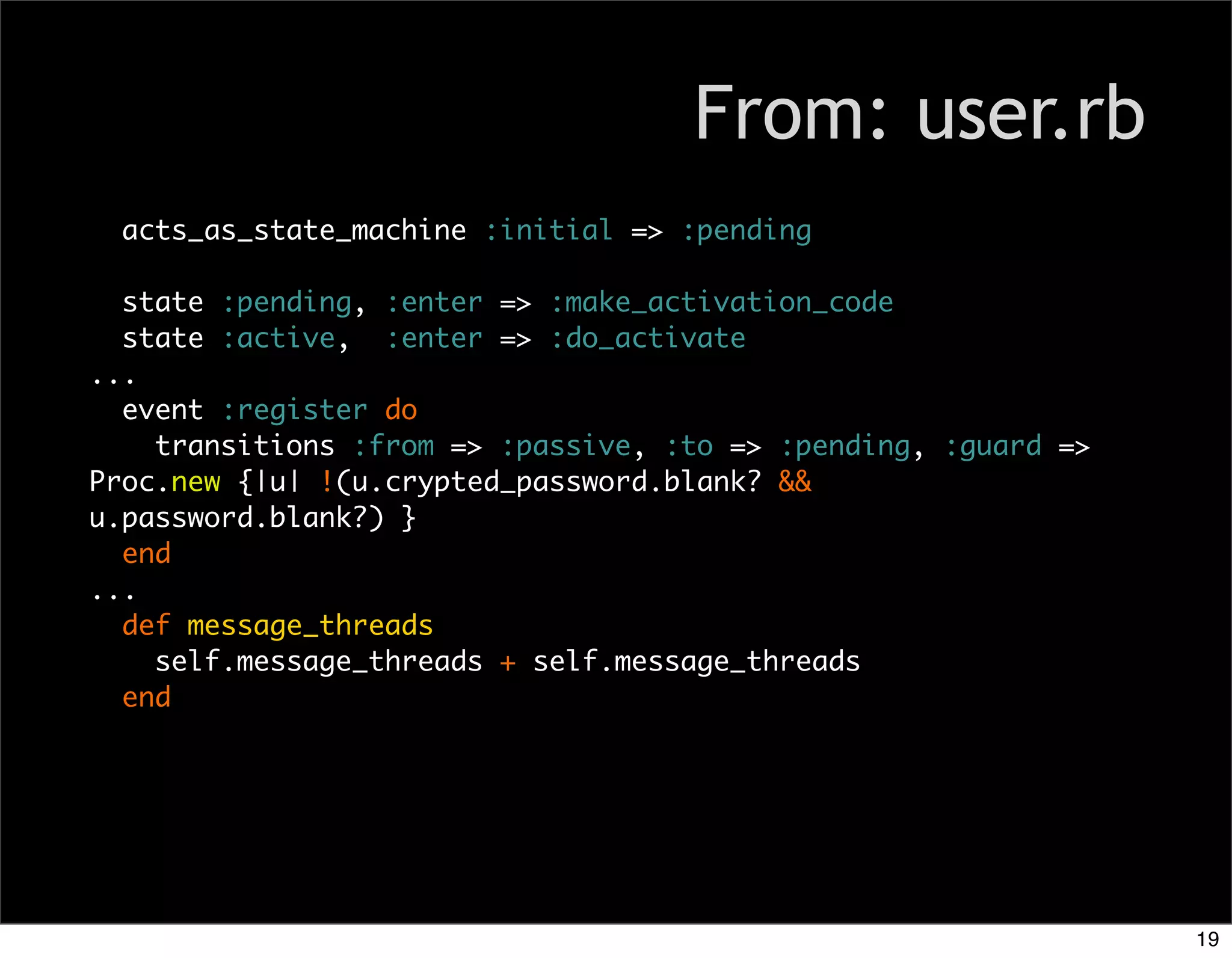

- 19. From: user.rb acts_as_state_machine :initial => :pending state :pending, :enter => :make_activation_code state :active, :enter => :do_activate ... event :register do transitions :from => :passive, :to => :pending, :guard => Proc.new {|u| !(u.crypted_password.blank? && u.password.blank?) } end ... def message_threads self.message_threads + self.message_threads end 19

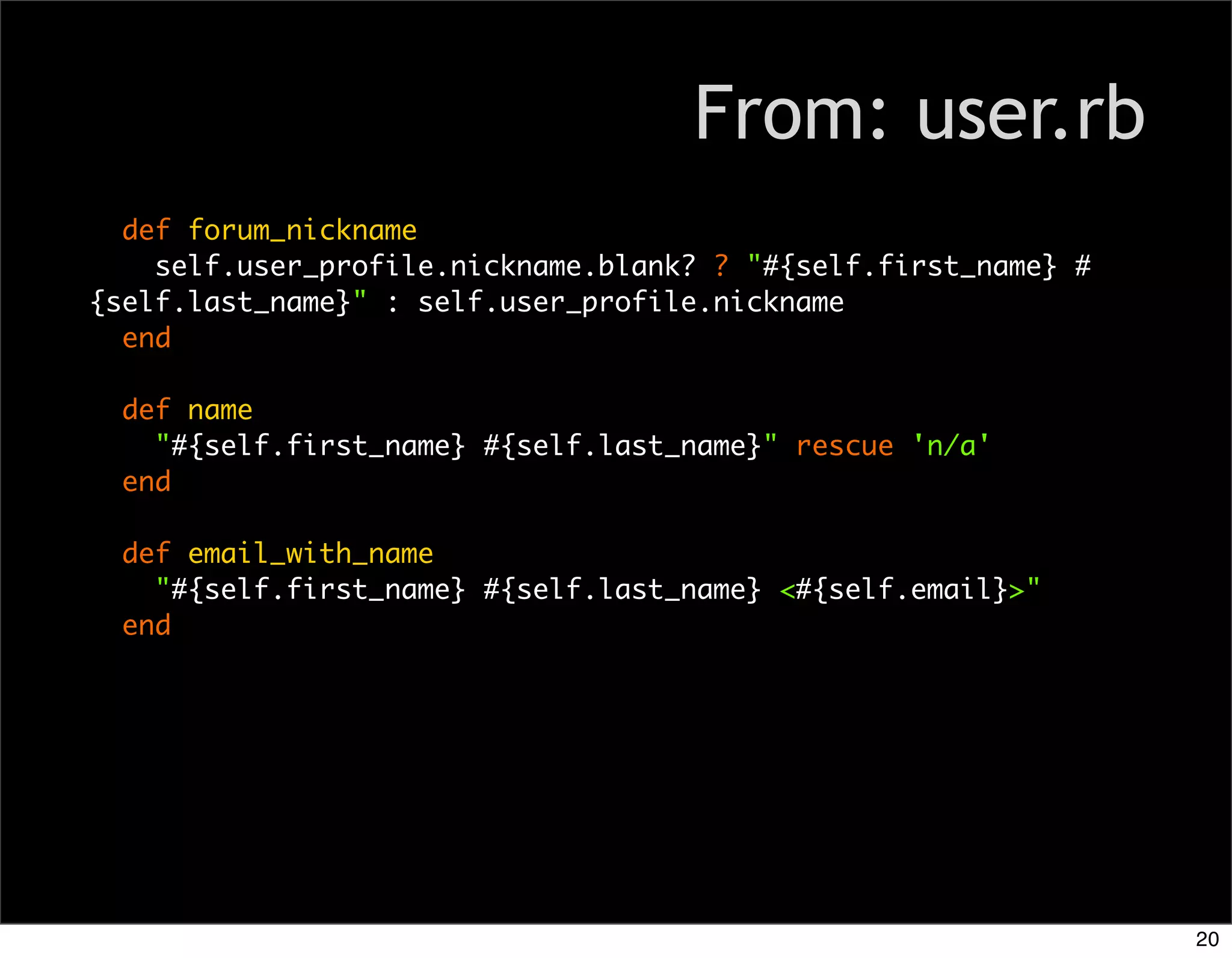

- 20. From: user.rb def forum_nickname self.user_profile.nickname.blank? ? "#{self.first_name} # {self.last_name}" : self.user_profile.nickname end def name "#{self.first_name} #{self.last_name}" rescue 'n/a' end def email_with_name "#{self.first_name} #{self.last_name} <#{self.email}>" end 20
- 21. From: user.rb def is_admin? self.roles.collect{|role| role.title}.include?('admin') end def countries [self.country] end 21

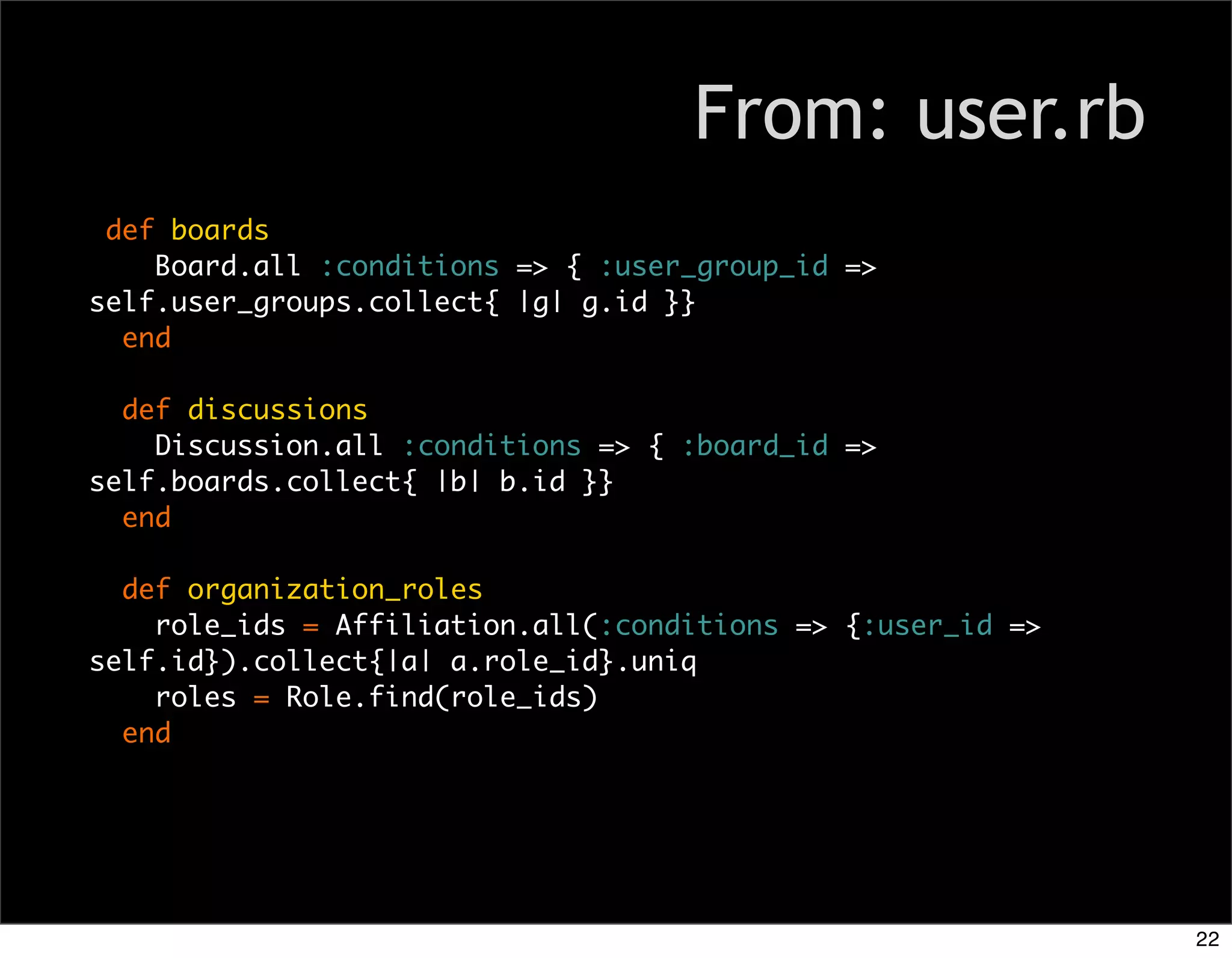

- 22. From: user.rb defboards Board.all :conditions => { :user_group_id => self.user_groups.collect{ |g| g.id }} end def discussions Discussion.all :conditions => { :board_id => self.boards.collect{ |b| b.id }} end def organization_roles role_ids = Affiliation.all(:conditions => {:user_id => self.id}).collect{|a| a.role_id}.uniq roles = Role.find(role_ids) end 22
- 23. From: user.rb def make_password_reset_code self.password_reset_code = Digest::SHA1.hexdigest ( Time.now.to_s.split(//).sort_by {rand}.join ) end def self.published_users User.all(:conditions => ['state = ?', 'published'], :order => 'login ASC', :include => [:user_profile]) end 23
- 24. Anyone notice apattern? 24
- 25.
- 26.
- 27. Authentication Roles Mailers State ... 27

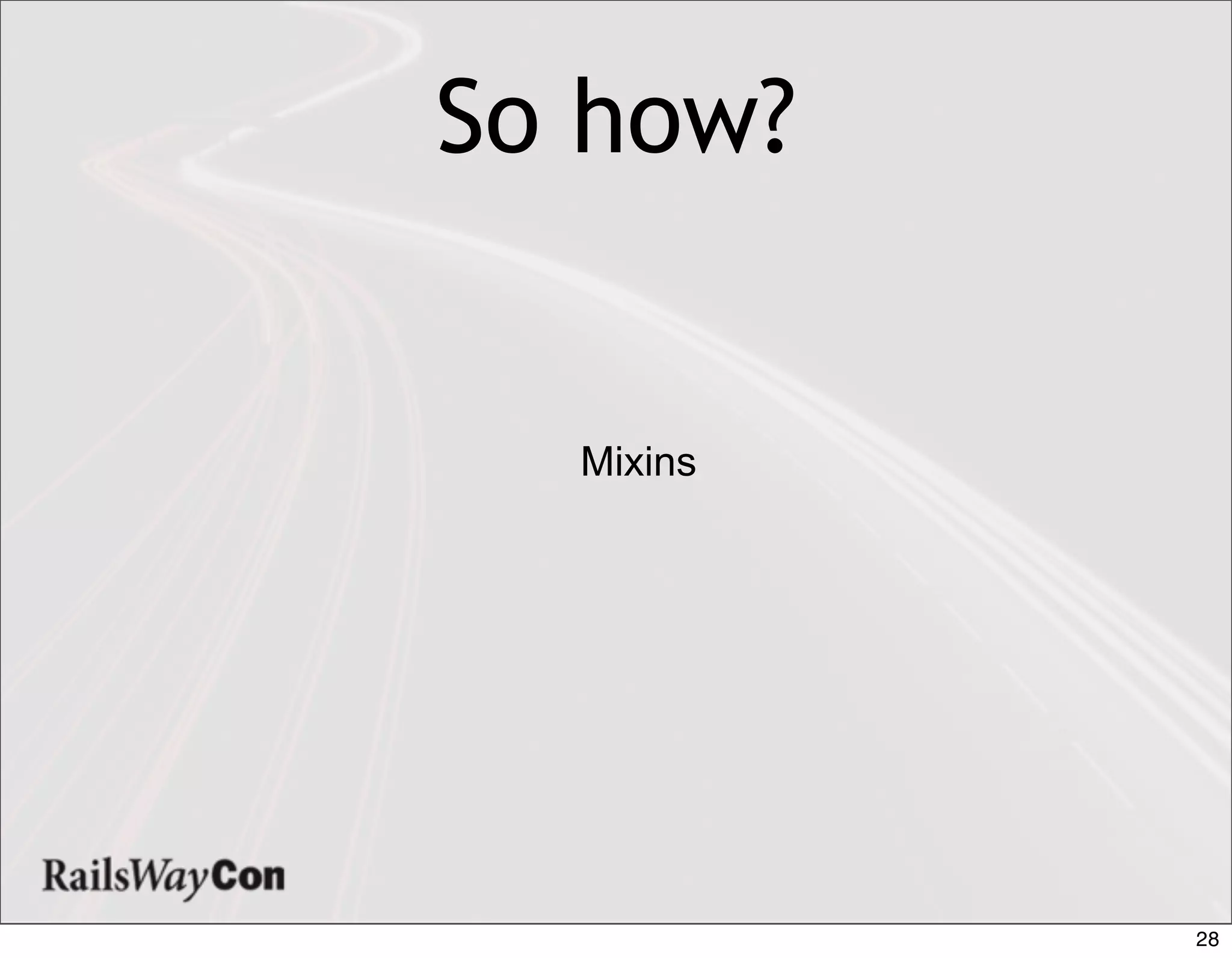

- 28. So how? Mixins 28

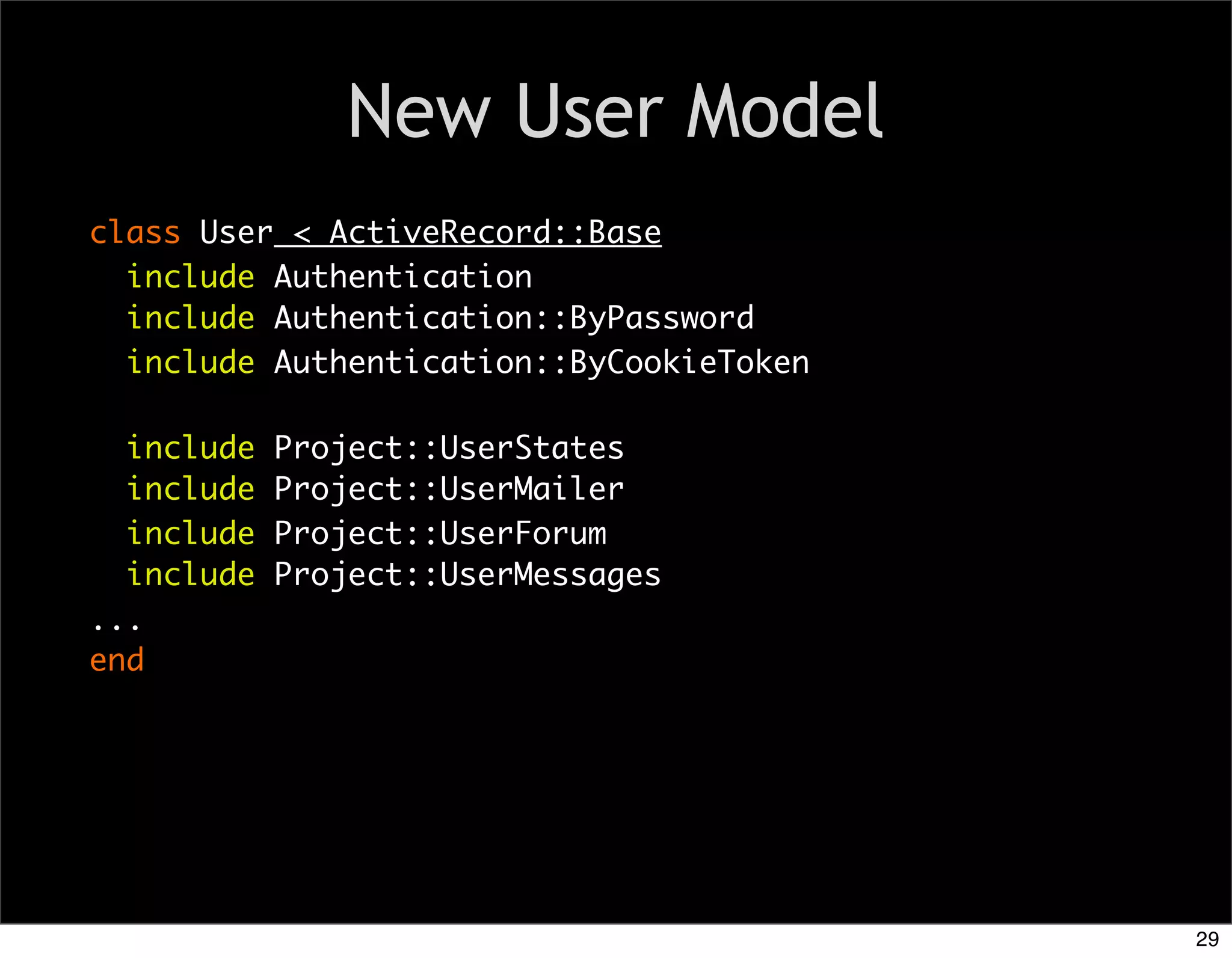

- 29. New User Model classUser < ActiveRecord::Base include Authentication include Authentication::ByPassword include Authentication::ByCookieToken include Project::UserStates include Project::UserMailer include Project::UserForum include Project::UserMessages ... end 29
- 30. UserMessages module Project module UserMessages # to be included in User Model has_many :messages def message_threads MessageThread.all(:conditions => ["sender_id = ? or receiver_id = ?", self.id, self.id]) end end end 30
- 31. Methods 31
- 32. def transfer(data, url) h = Net::HTTP.new(self.uri.host, self.uri.port) RAILS_DEFAULT_LOGGER.debug "connecting to CL: #{self.uri}" RAILS_DEFAULT_LOGGER.debug "connecting to CL: #{url}" resp = h.post(url, data, {'Content-Type' => 'application/xml'}) response_code = resp.code.to_i location = if response_code == 201 resp['Location'] else RAILS_DEFAULT_LOGGER.debug "error from CL: #{response_code}" RAILS_DEFAULT_LOGGER.debug "error from CL: #{resp.body}" @error = resp.body nil end [response_code, location] end 32
- 33. def transfer(data, document) if document.cl_document_url != nil self.uri = URI.parse(document.cl_document_url ) h = Net::HTTP.new(self.uri.host, self.uri.port) response = h.post(self.uri, data, {'Content-Type' => 'application/xml'}) else h = Net::HTTP.new(self.uri.host, self.uri.port) response = h.post("/tasks", data, {'Content-Type' => 'application/xml'}) end response_code = response.code.to_i if response_code == 201 location = response['Location'] document.cl_document_url = location document.save! else nil end [response_code, location] end 33

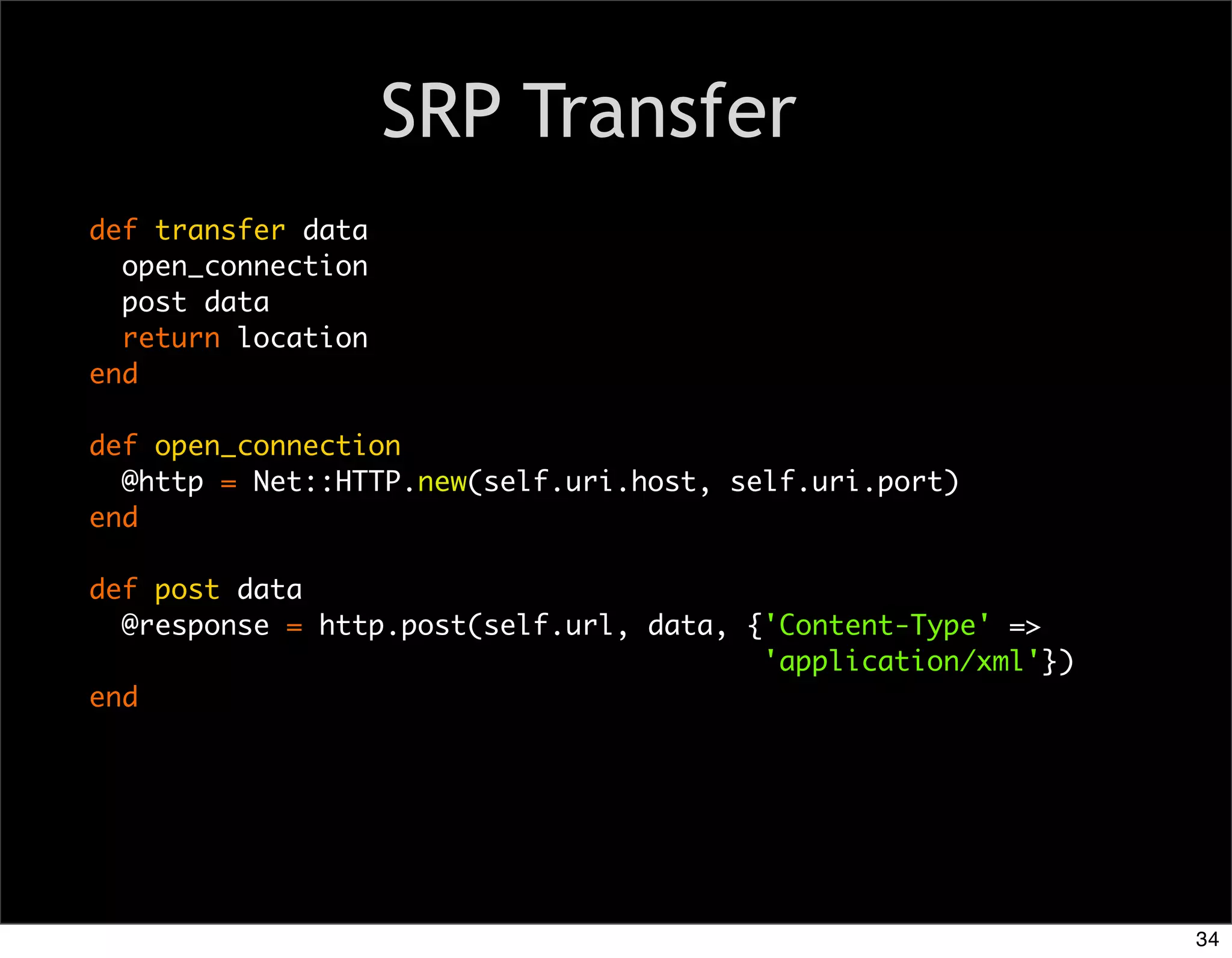

- 34. SRP Transfer def transferdata open_connection post data return location end def open_connection @http = Net::HTTP.new(self.uri.host, self.uri.port) end def post data @response = http.post(self.url, data, {'Content-Type' => 'application/xml'}) end 34
- 35. def location get_location if created? # returns nil if not created? end def response_code @response.code.to_i end def created? response_code == 201 end def get_location @response['Location'] end def error @response.body end 35
- 36. Add a 16-band equalizer & a BlueRay player to this... 36

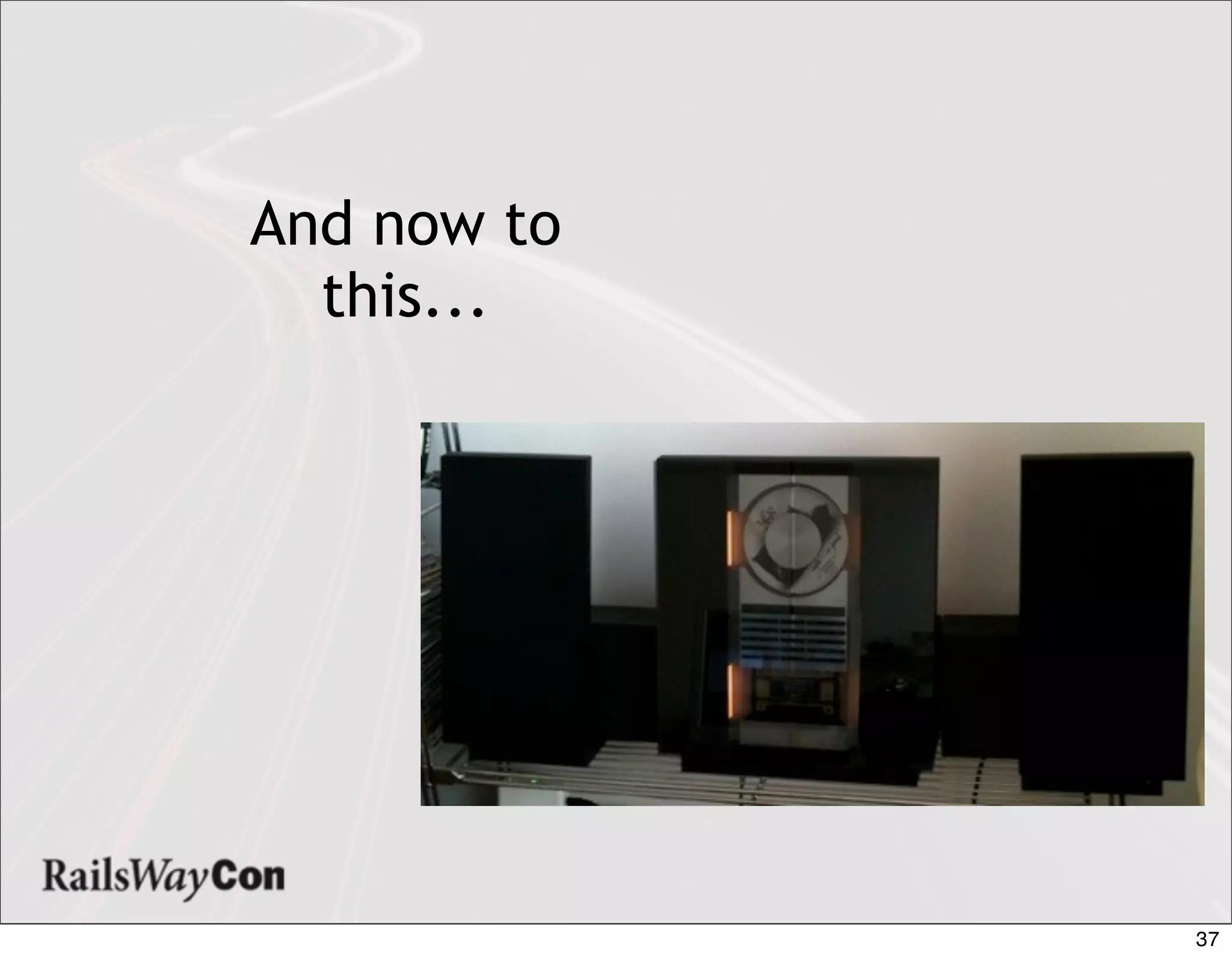

- 37. And now to this... 37
- 38. S OL ID SRP OCP LSP ISP DIP 38
- 39. OCP Open Closed Principle You should be able to extend a classes behavior, without modifying it. 39
- 40.
- 41.
- 42.

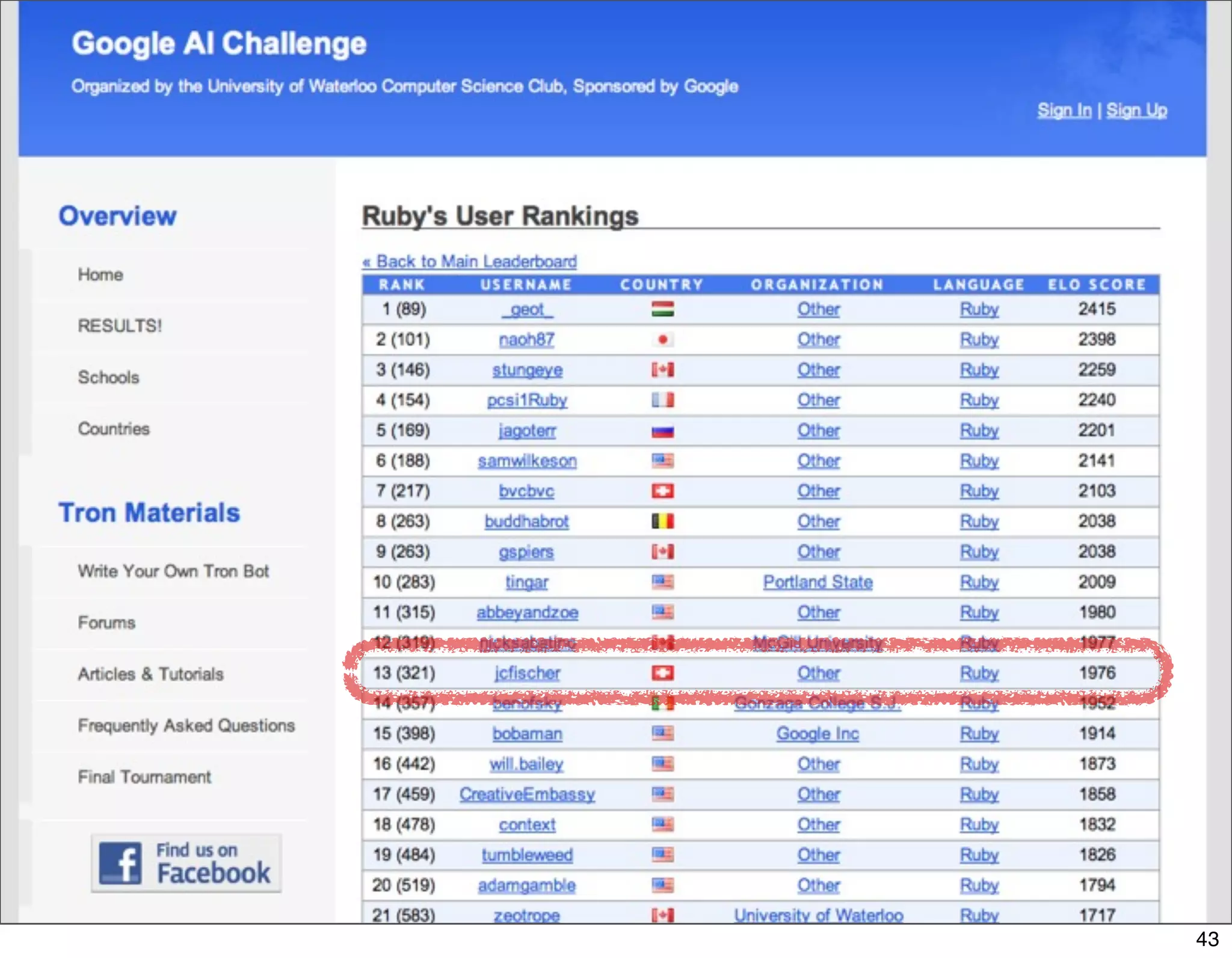

- 43.
- 44. def makemove(map) From the Google x, y = map.my_position # calculate a move ... AI Challenge if(valid_moves.size == 0) map.make_move( :NORTH ) (Tronbot) else # choose move ... puts move # debug (like in the old days) map.make_move( move ) end end class Map ... def make_move(direction) $stdout << ({:NORTH=>1, :SOUTH=>3, :EAST=>2, :WEST=>4}[direction]) $stdout << "n" $stdout.flush end end 44

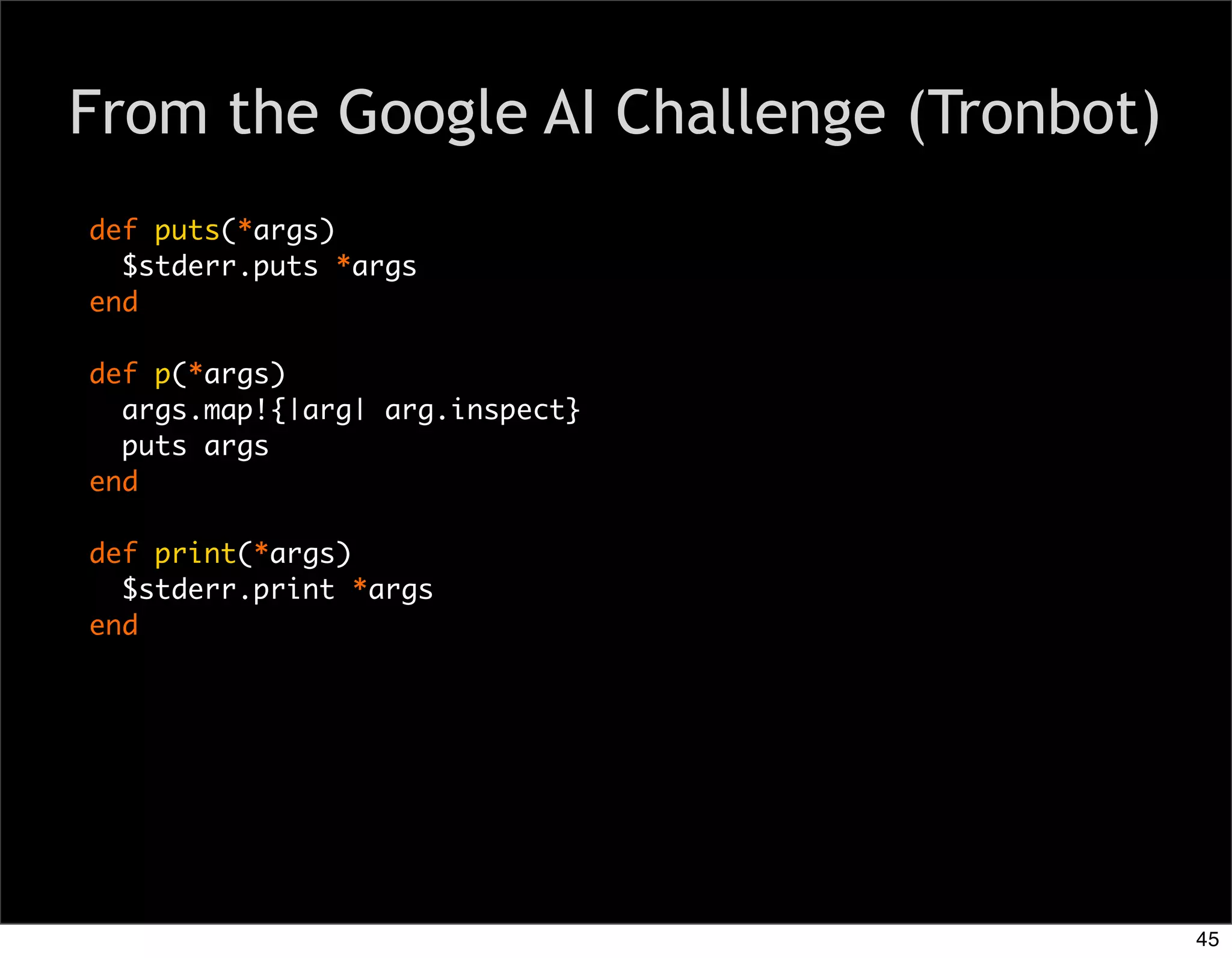

- 45. From the GoogleAI Challenge (Tronbot) def puts(*args) $stderr.puts *args end def p(*args) args.map!{|arg| arg.inspect} puts args end def print(*args) $stderr.print *args end 45
- 46.

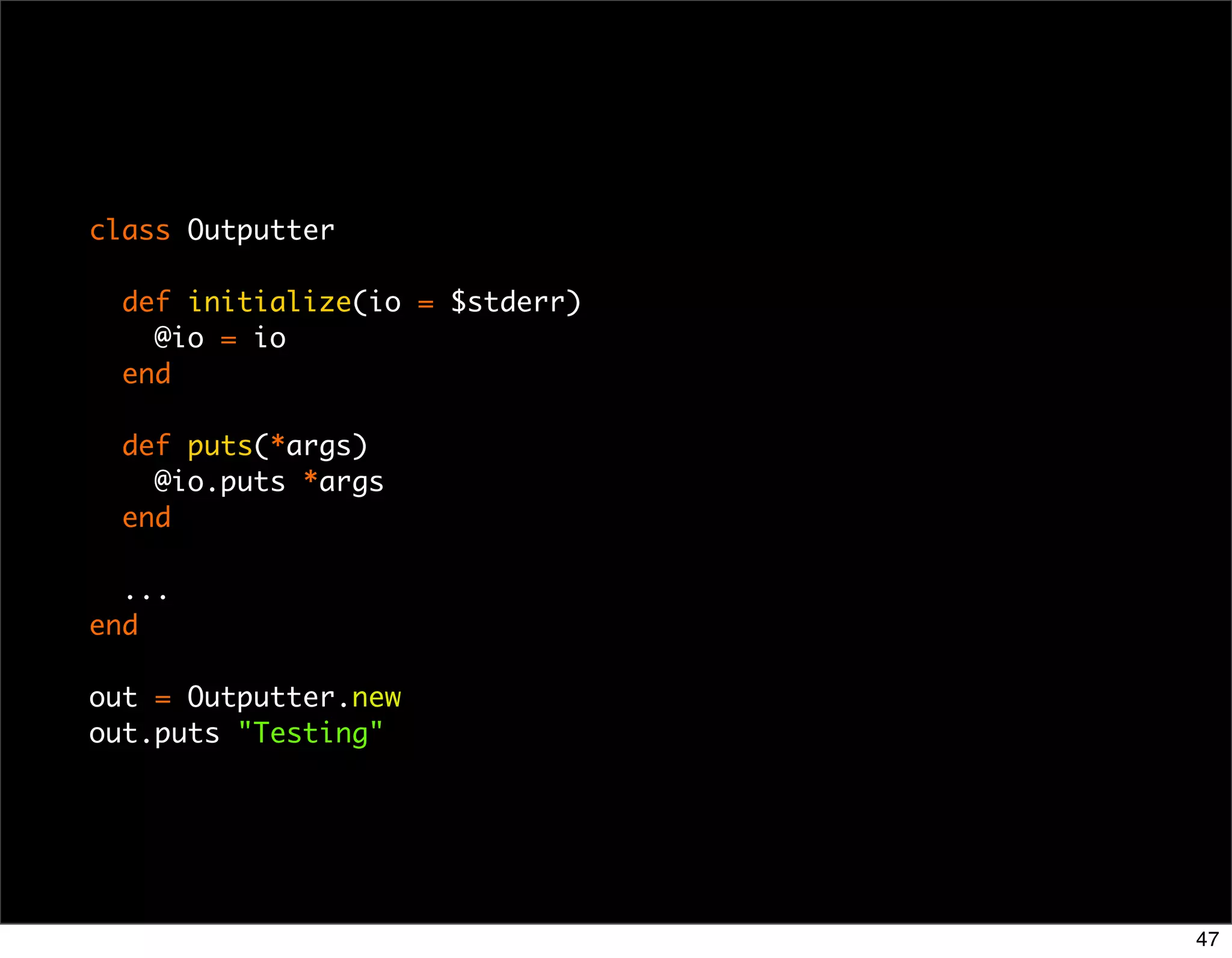

- 47. class Outputter def initialize(io = $stderr) @io = io end def puts(*args) @io.puts *args end ... end out = Outputter.new out.puts "Testing" 47
- 48. S OL ID SRP OCP LSP ISP DIP 48
- 49. LSP Liskov Substitution Principle Derived classes must be substitutable for their base classes. 49
- 50. No Problem in Ruby Or so it seems... 50
- 51. No Interface... no problem? 51
- 52. Wrong ! 52
- 53.
- 54. A square isa rectangle 54

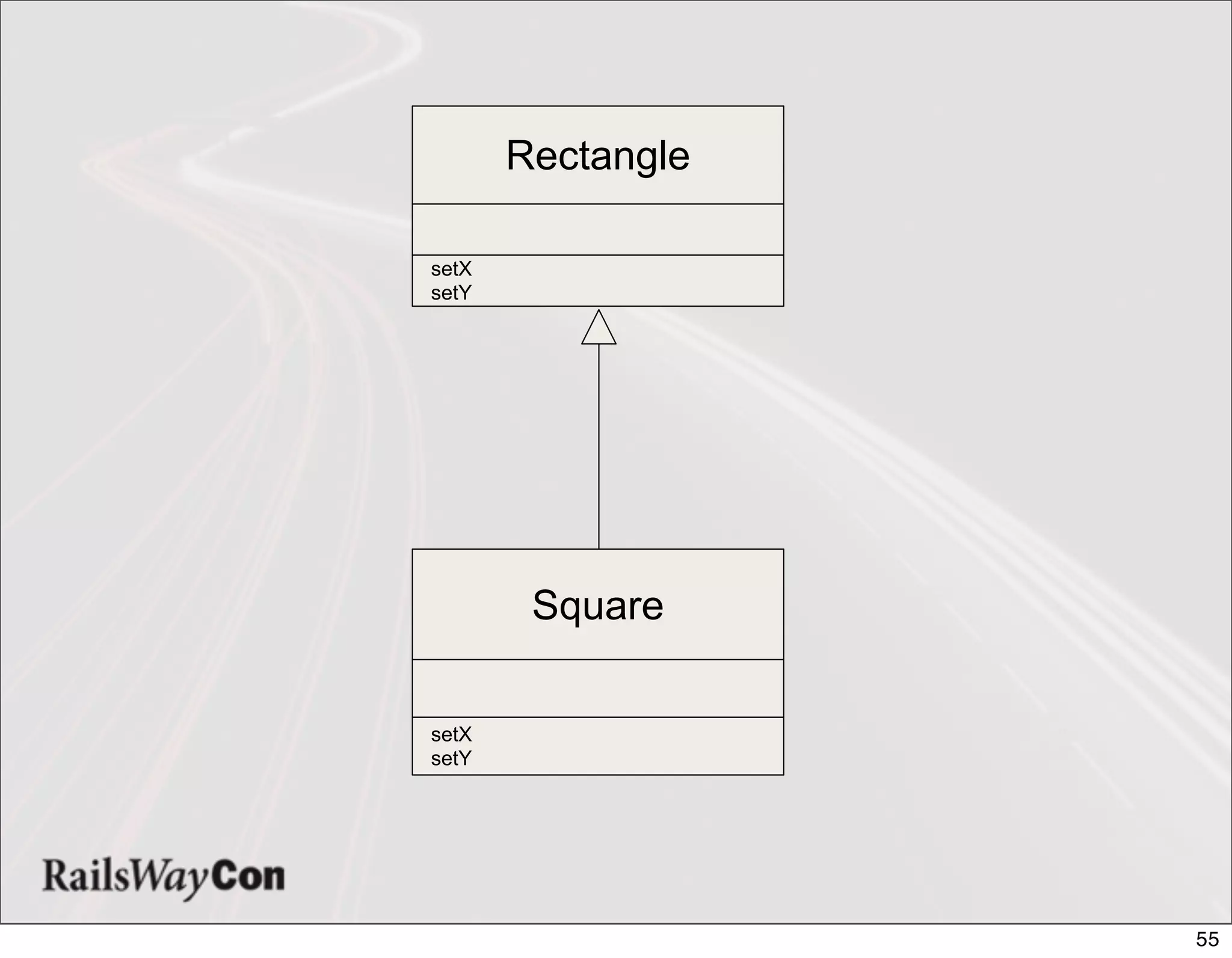

- 55. Rectangle setX setY Square setX setY 55

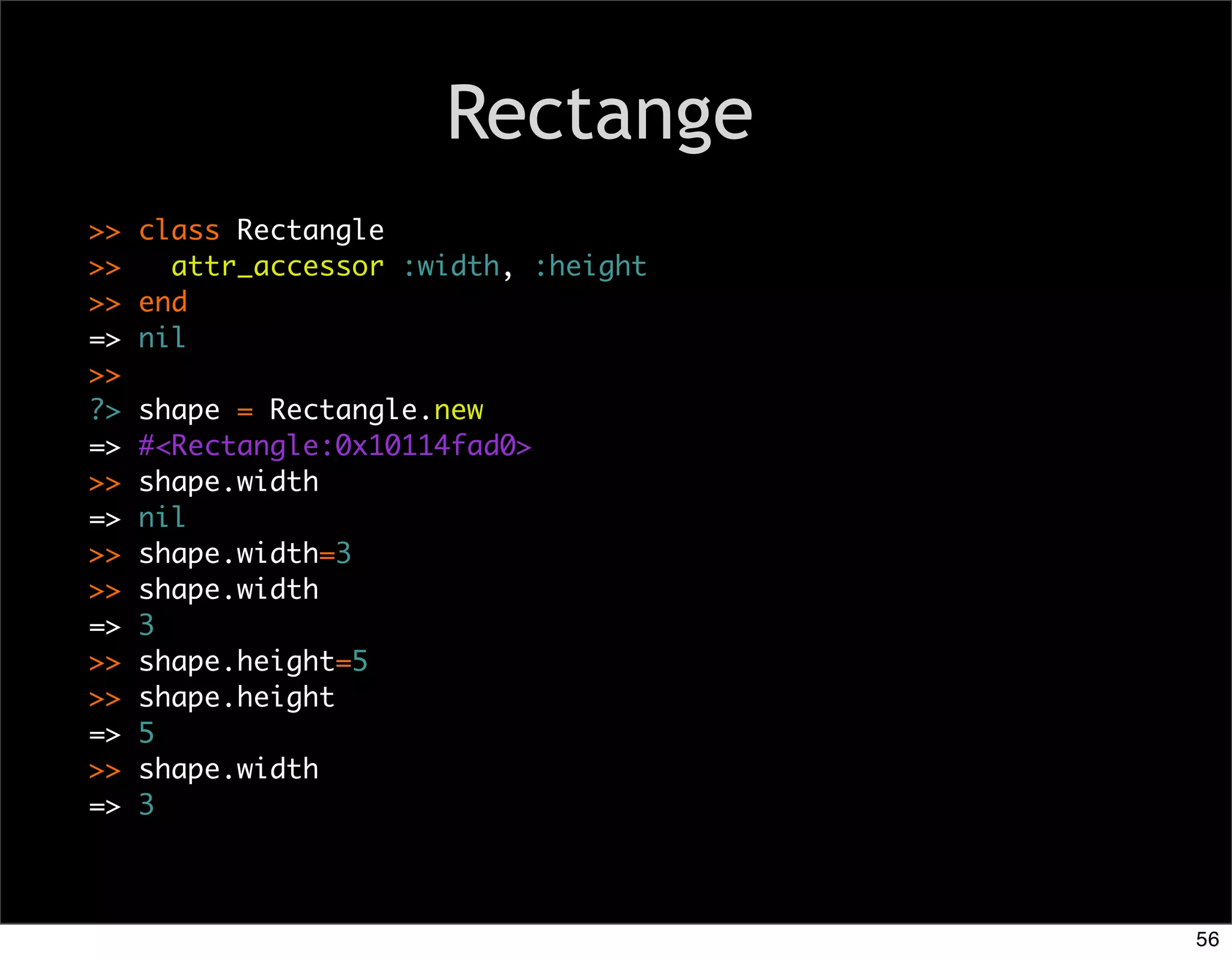

- 56. Rectange >> class Rectangle >> attr_accessor :width, :height >> end => nil >> ?> shape = Rectangle.new => #<Rectangle:0x10114fad0> >> shape.width => nil >> shape.width=3 >> shape.width => 3 >> shape.height=5 >> shape.height => 5 >> shape.width => 3 56

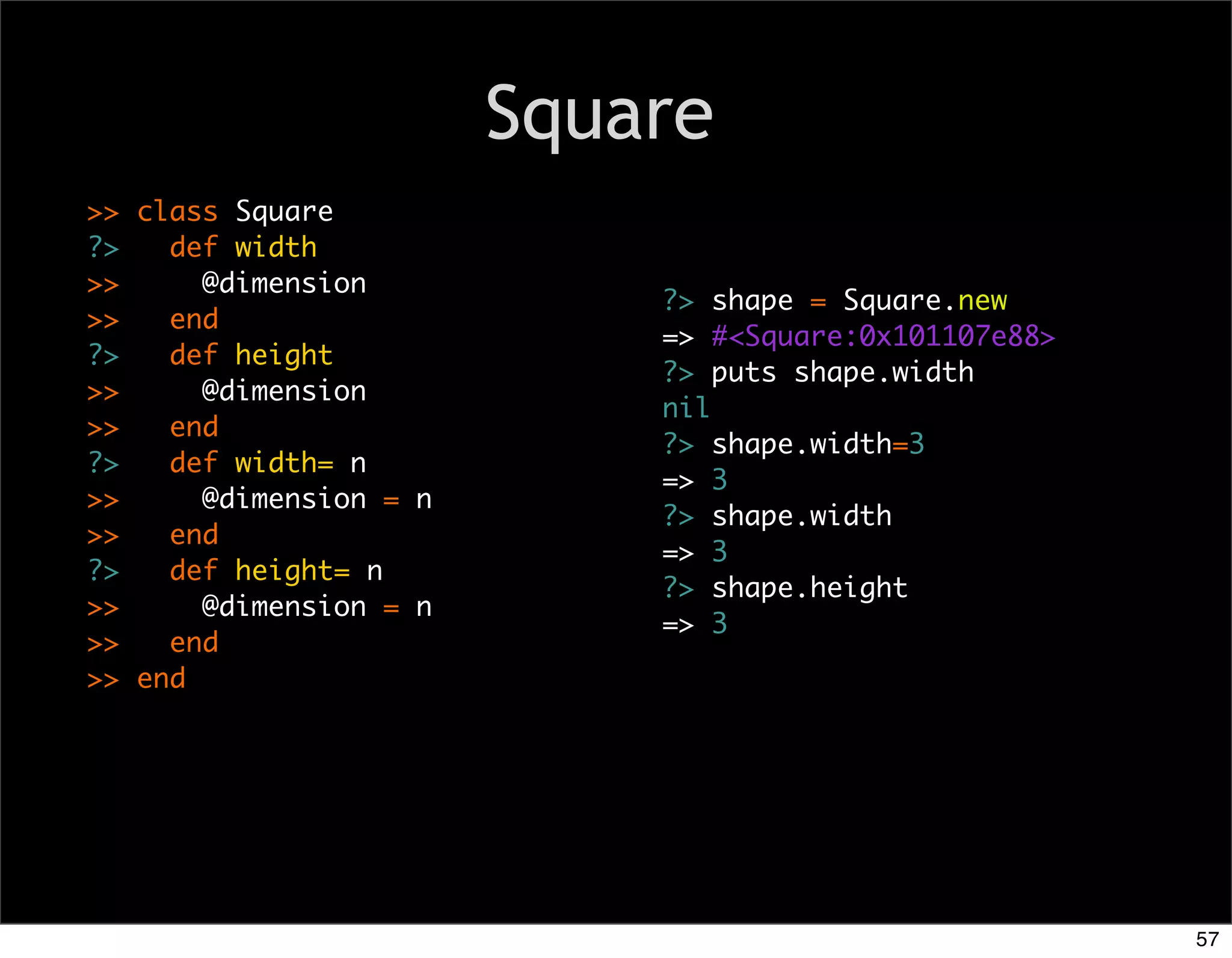

- 57. Square >> class Square ?> def width >> @dimension ?> shape = Square.new >> end => #<Square:0x101107e88> ?> def height ?> puts shape.width >> @dimension nil >> end ?> shape.width=3 ?> def width= n => 3 >> @dimension = n ?> shape.width >> end => 3 ?> def height= n ?> shape.height >> @dimension = n => 3 >> end >> end 57
- 58. A Problem... >> s = [Rectangle.new, Square.new] => [#<Rectangle:0x1005642e8>, #<Square:0x100564298>] >> a_rectangle = s[rand(2)] => #<Square:0x100564298> >> a_rectangle.height=1 => 1 >> a_rectangle.width=3 => 3 Text >> a_rectangle.height => 3 58
- 59. CCD Common Conceptual Denominator 59
- 60. dup 60

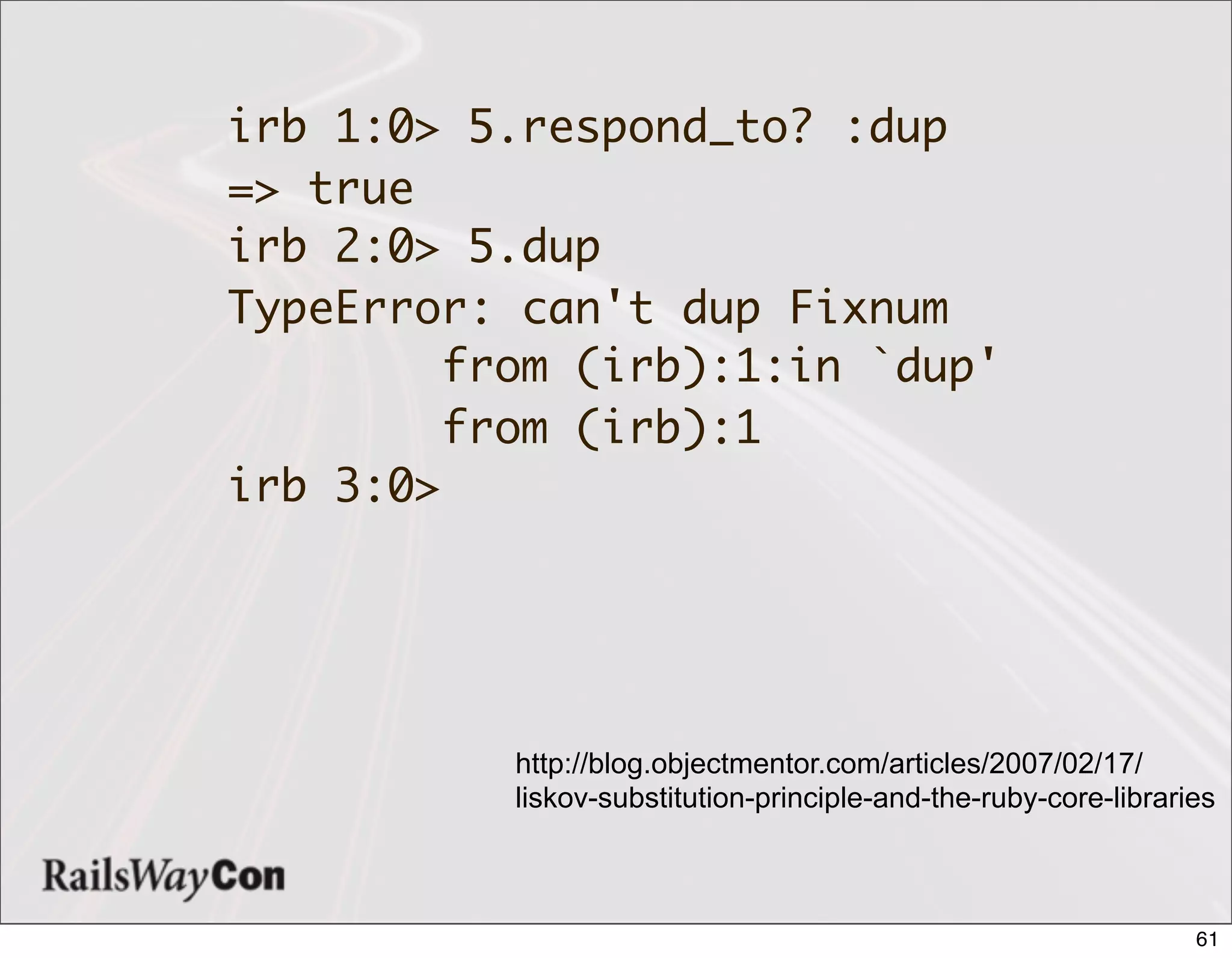

- 61. irb 1:0> 5.respond_to?:dup => true irb 2:0> 5.dup TypeError: can't dup Fixnum from (irb):1:in `dup' from (irb):1 irb 3:0> http://blog.objectmentor.com/articles/2007/02/17/ liskov-substitution-principle-and-the-ruby-core-libraries 61
- 62. S OL ID SRP OCP LSP ISP DIP 62
- 63. ISP Interface Segregation Principle Make fine grained interfaces that are client specific. 63
- 64.

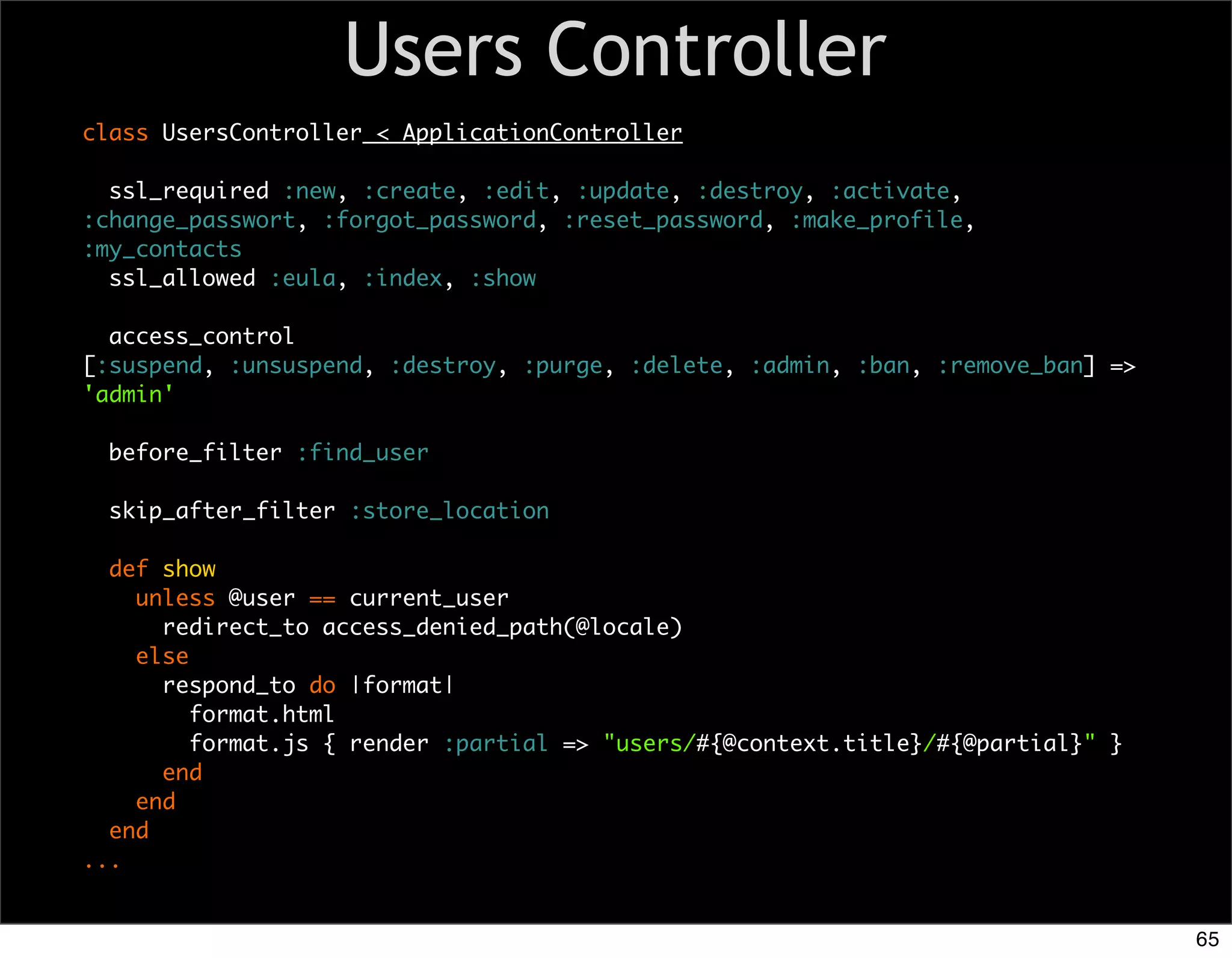

- 65. Users Controller class UsersController< ApplicationController ssl_required :new, :create, :edit, :update, :destroy, :activate, :change_passwort, :forgot_password, :reset_password, :make_profile, :my_contacts ssl_allowed :eula, :index, :show access_control [:suspend, :unsuspend, :destroy, :purge, :delete, :admin, :ban, :remove_ban] => 'admin' before_filter :find_user skip_after_filter :store_location def show unless @user == current_user redirect_to access_denied_path(@locale) else respond_to do |format| format.html format.js { render :partial => "users/#{@context.title}/#{@partial}" } end end end ... 65
- 66. more UsersController def activate logout_keeping_session! user = User.find_by_activation_code(params[:activation_code]) unless params[:activation_code].blank? case when (!params[:activation_code].blank?) && user && !user.active? user.activate! flash[:notice] = t(:message_sign_up_complete) unless params[:context].blank? redirect_to login_path(:context => params[:context]) else redirect_to "/login" end when params[:activation_code].blank? flash[:error] = t(:message_activation_code_missing) redirect_back_or_default("/") else flash[:error] = t(:message_user_with_that_activation_code_missing) redirect_back_or_default("/") end end 66

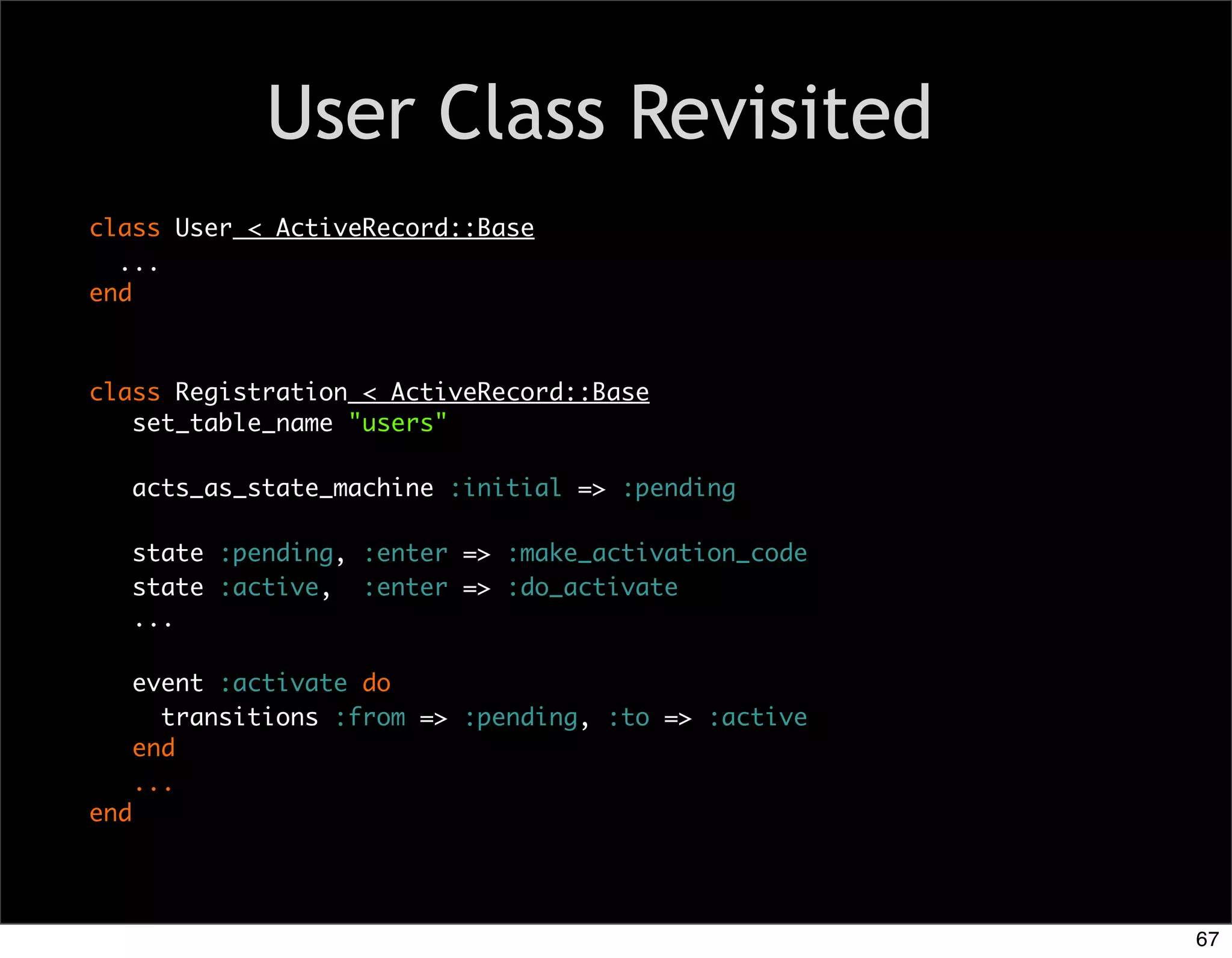

- 67. User Class Revisited classUser < ActiveRecord::Base ... end class Registration < ActiveRecord::Base set_table_name "users" acts_as_state_machine :initial => :pending state :pending, :enter => :make_activation_code state :active, :enter => :do_activate ... event :activate do transitions :from => :pending, :to => :active end ... end 67

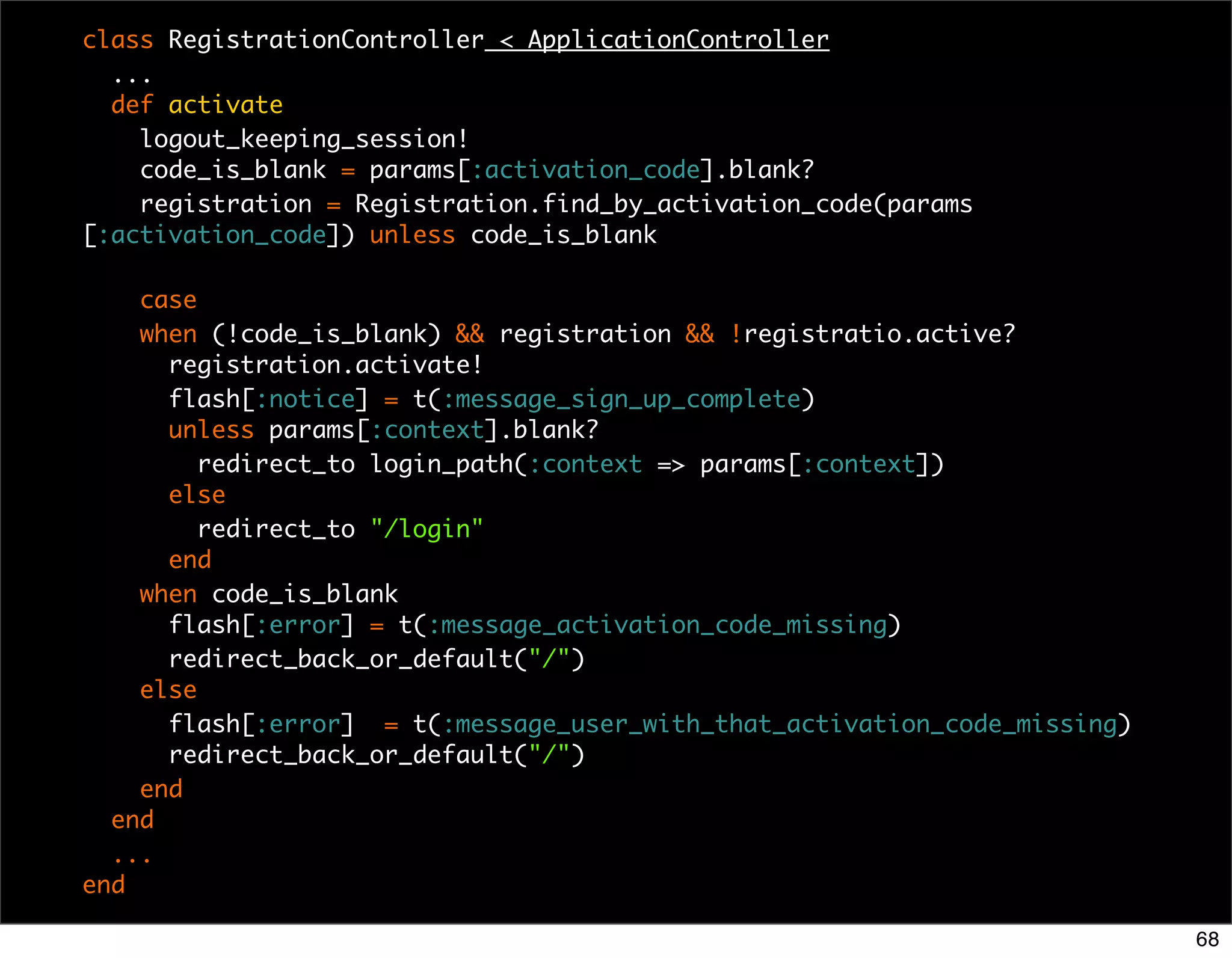

- 68. class RegistrationController <ApplicationController ... def activate logout_keeping_session! code_is_blank = params[:activation_code].blank? registration = Registration.find_by_activation_code(params [:activation_code]) unless code_is_blank case when (!code_is_blank) && registration && !registratio.active? registration.activate! flash[:notice] = t(:message_sign_up_complete) unless params[:context].blank? redirect_to login_path(:context => params[:context]) else redirect_to "/login" end when code_is_blank flash[:error] = t(:message_activation_code_missing) redirect_back_or_default("/") else flash[:error] = t(:message_user_with_that_activation_code_missing) redirect_back_or_default("/") end end ... end 68

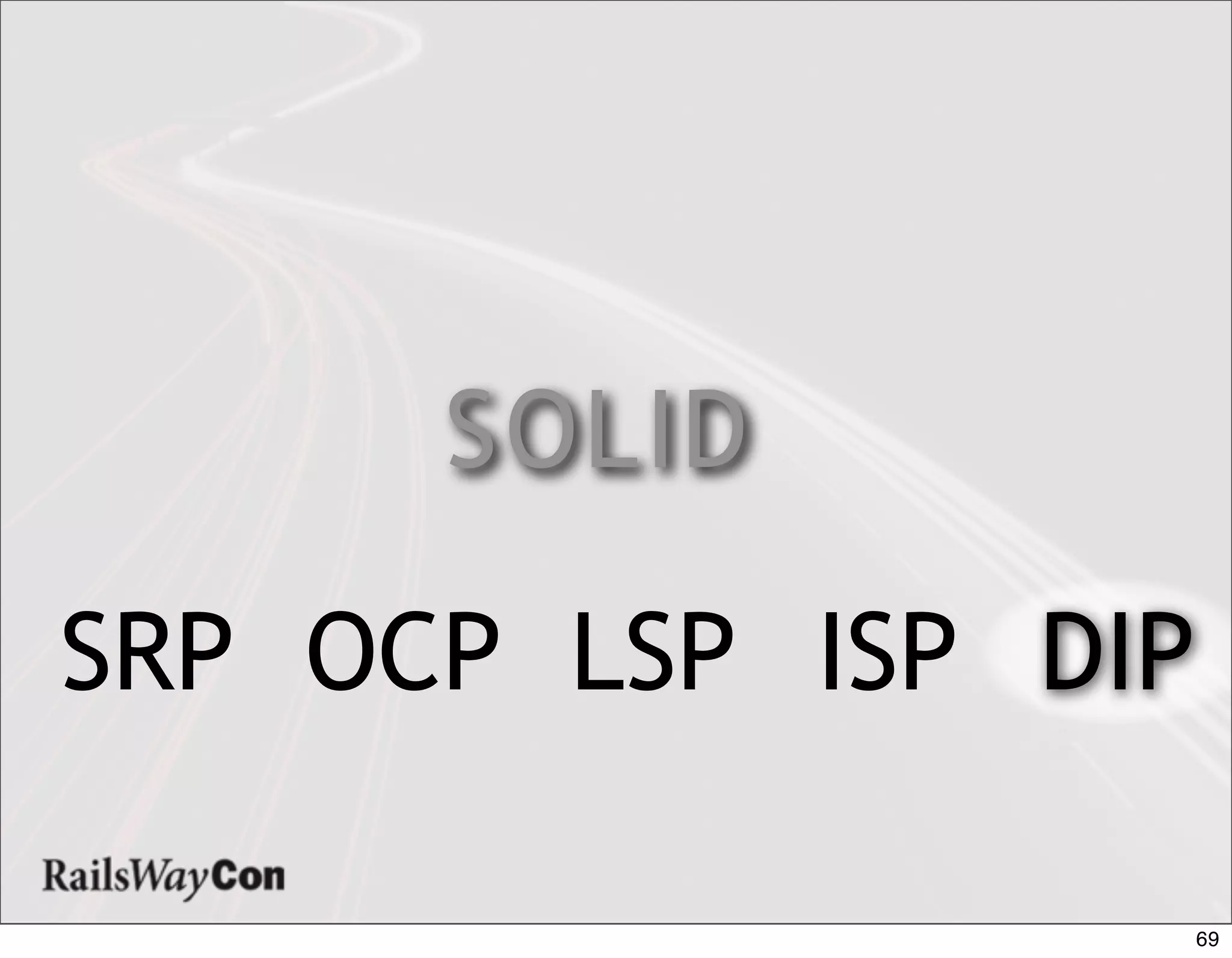

- 69. S OL ID SRP OCP LSP ISP DIP 69
- 70. DIP Dependency Inversion Principle Depend on abstractions, not on concretions. 70
- 71.

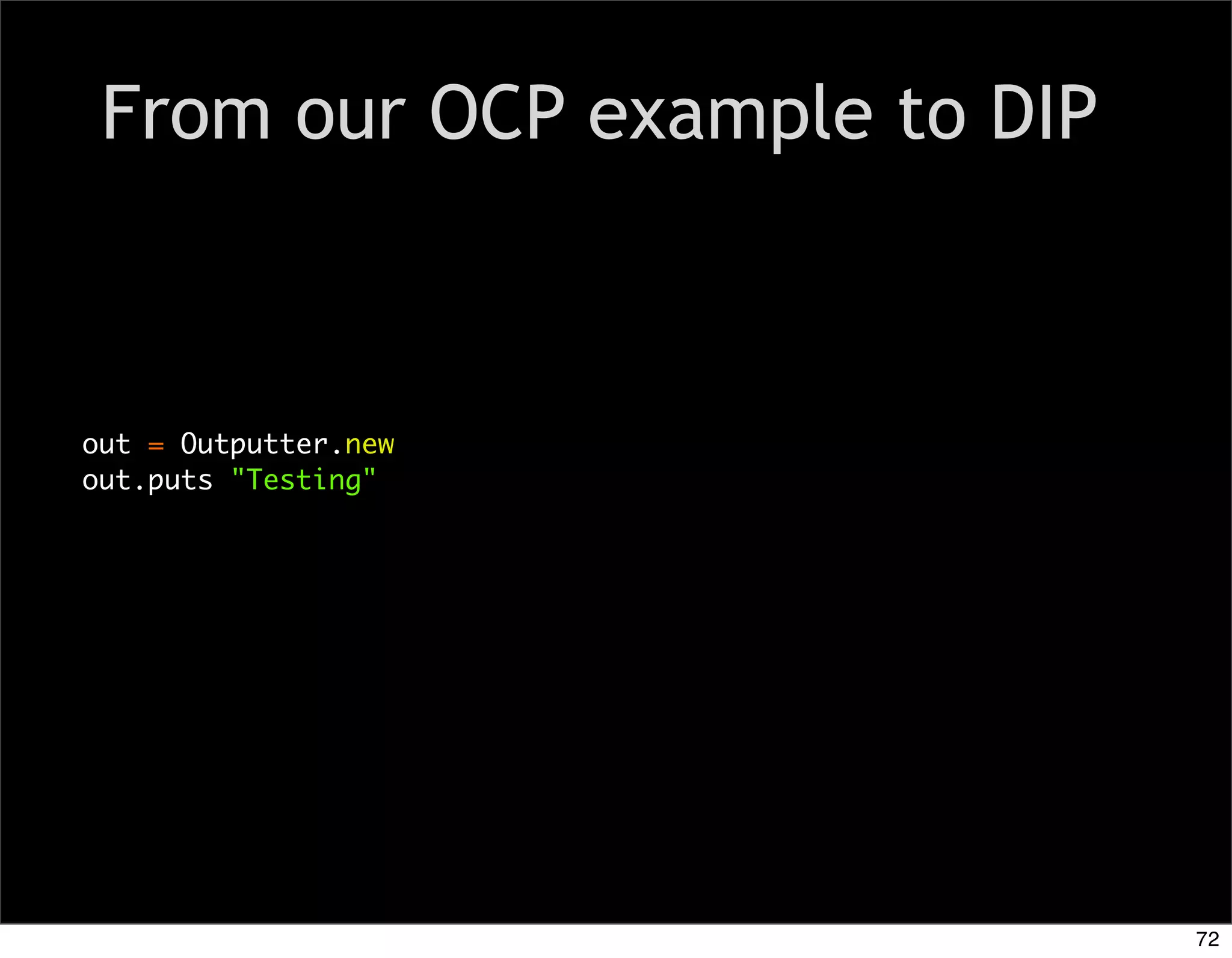

- 72. From our OCPexample to DIP out = Outputter.new out.puts "Testing" 72
- 73. The code wewish we had class TronBot def initialize @@out = TRON_ENVIRONMENT[:debugger] end def some_method ... @@out.puts "Testing" ... end end 73

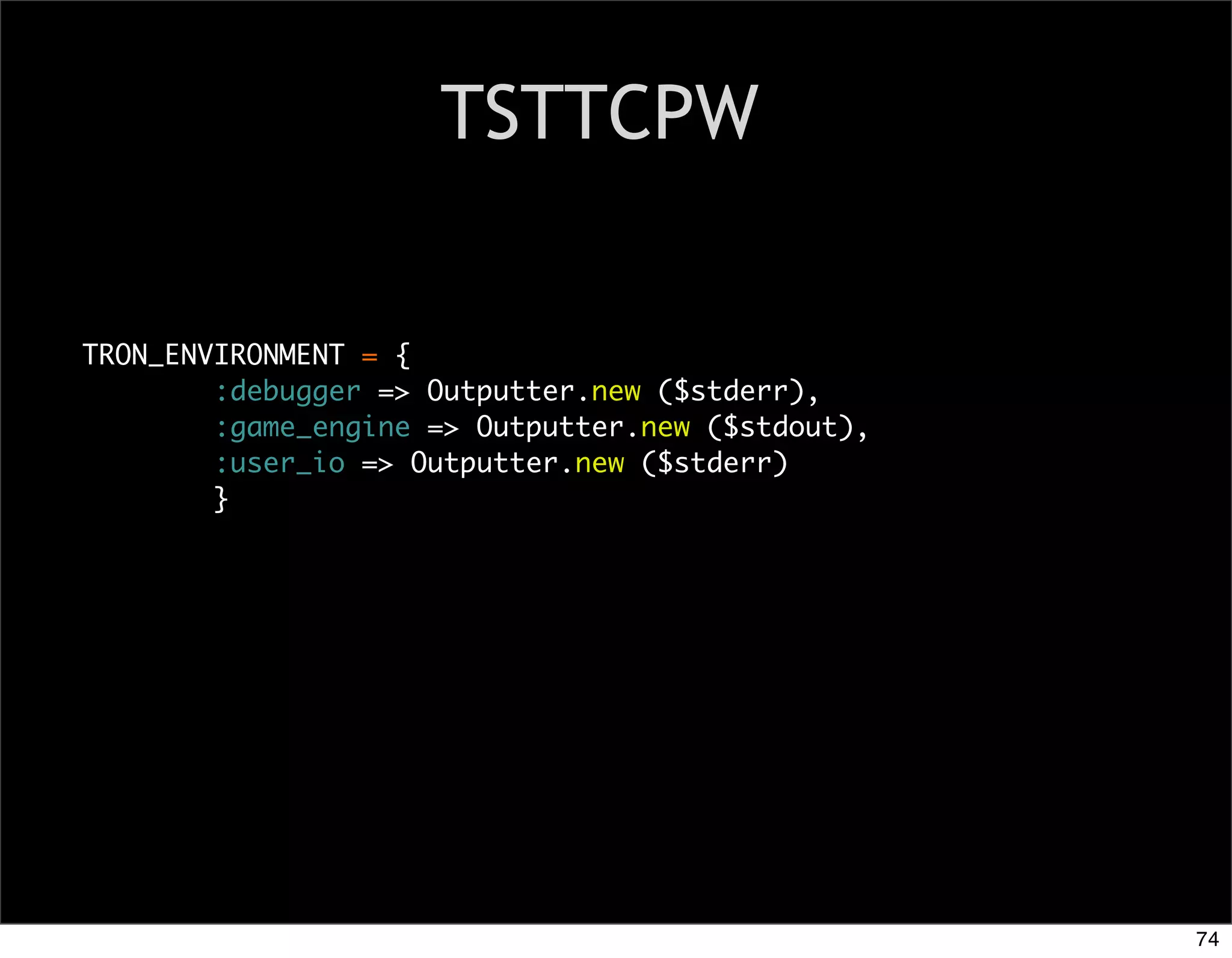

- 74. TSTTCPW TRON_ENVIRONMENT = { :debugger => Outputter.new ($stderr), :game_engine => Outputter.new ($stdout), :user_io => Outputter.new ($stderr) } 74

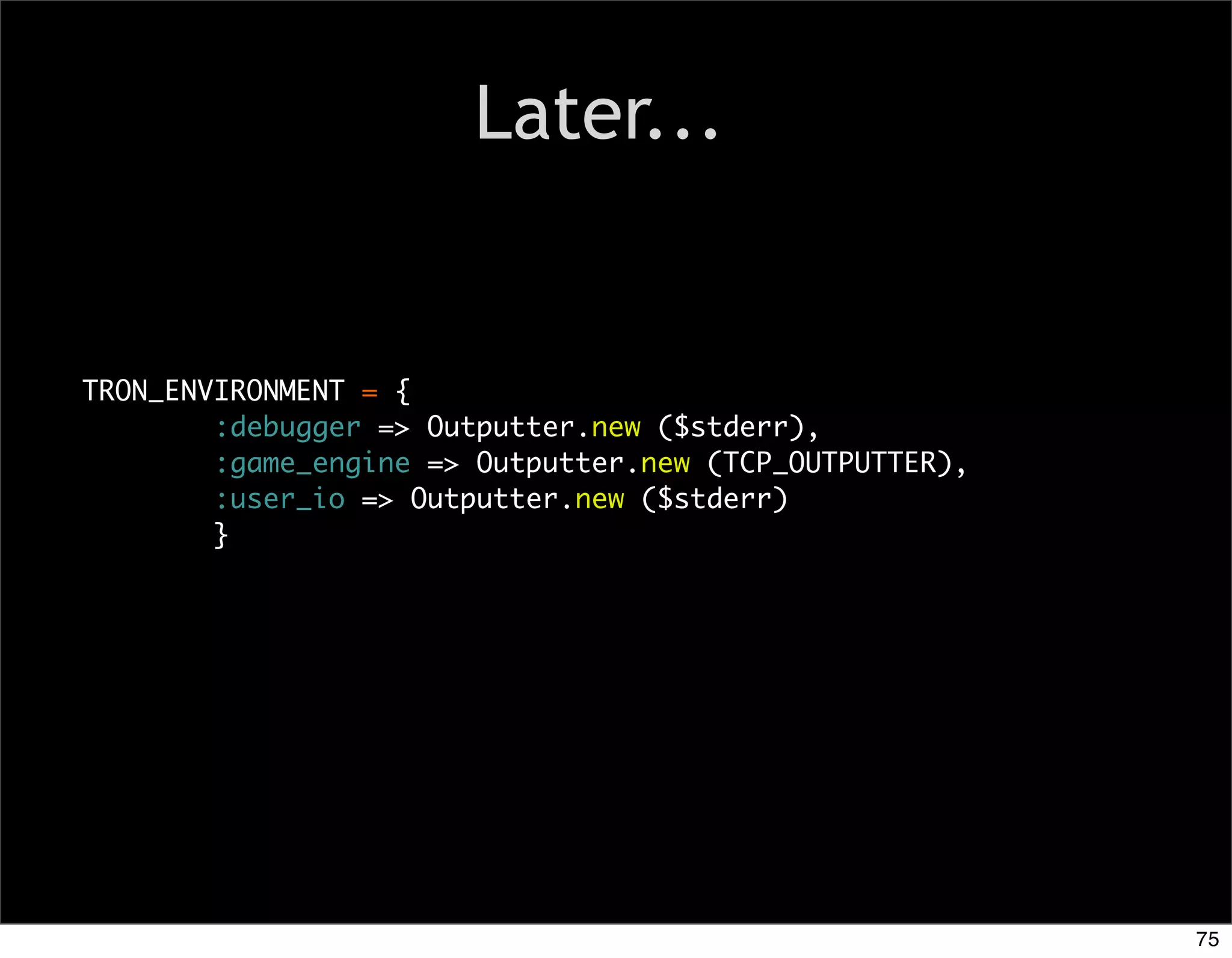

- 75. Later... TRON_ENVIRONMENT = { :debugger => Outputter.new ($stderr), :game_engine => Outputter.new (TCP_OUTPUTTER), :user_io => Outputter.new ($stderr) } 75

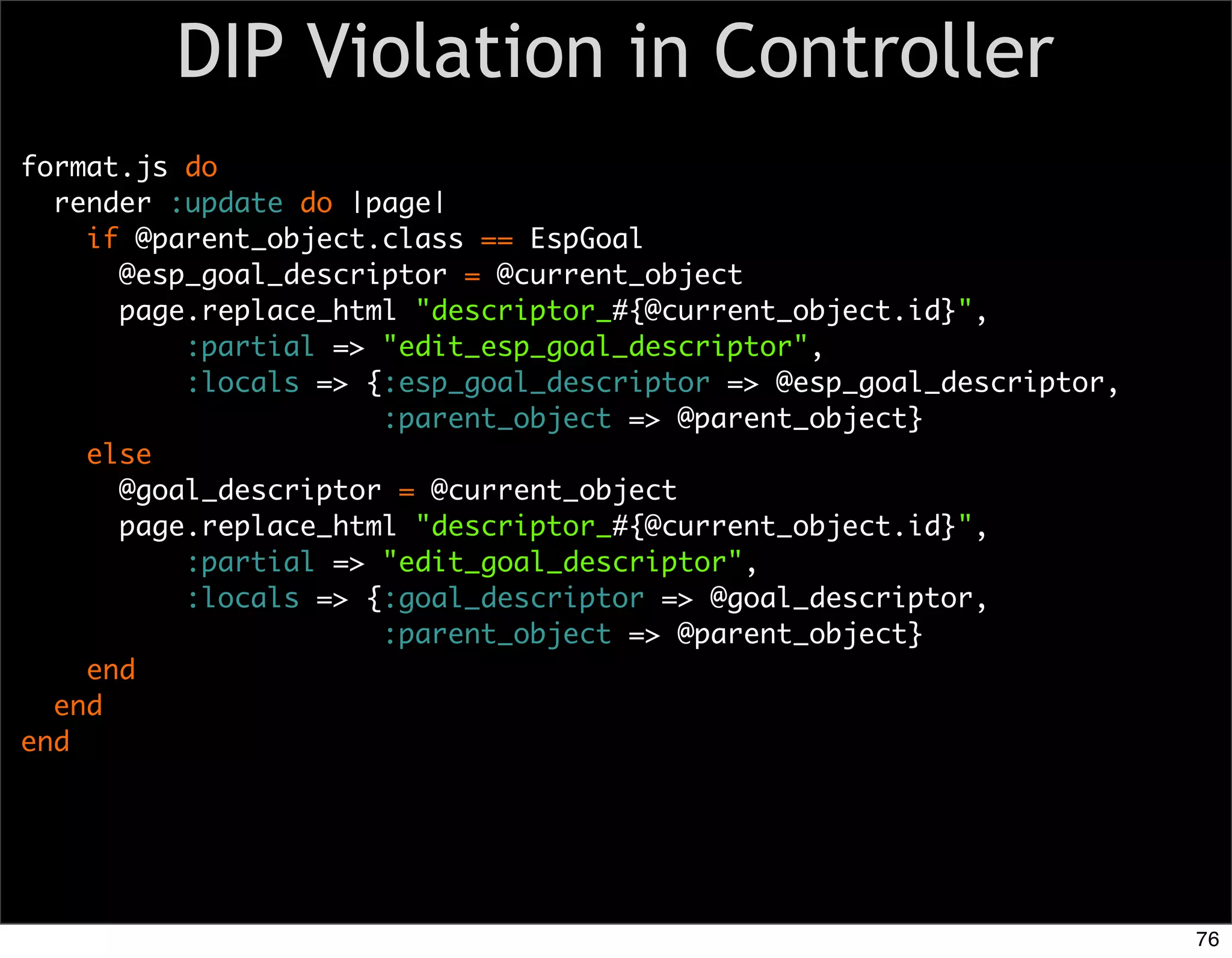

- 76. DIP Violation inController format.js do render :update do |page| if @parent_object.class == EspGoal @esp_goal_descriptor = @current_object page.replace_html "descriptor_#{@current_object.id}", :partial => "edit_esp_goal_descriptor", :locals => {:esp_goal_descriptor => @esp_goal_descriptor, :parent_object => @parent_object} else @goal_descriptor = @current_object page.replace_html "descriptor_#{@current_object.id}", :partial => "edit_goal_descriptor", :locals => {:goal_descriptor => @goal_descriptor, :parent_object => @parent_object} end end end 76

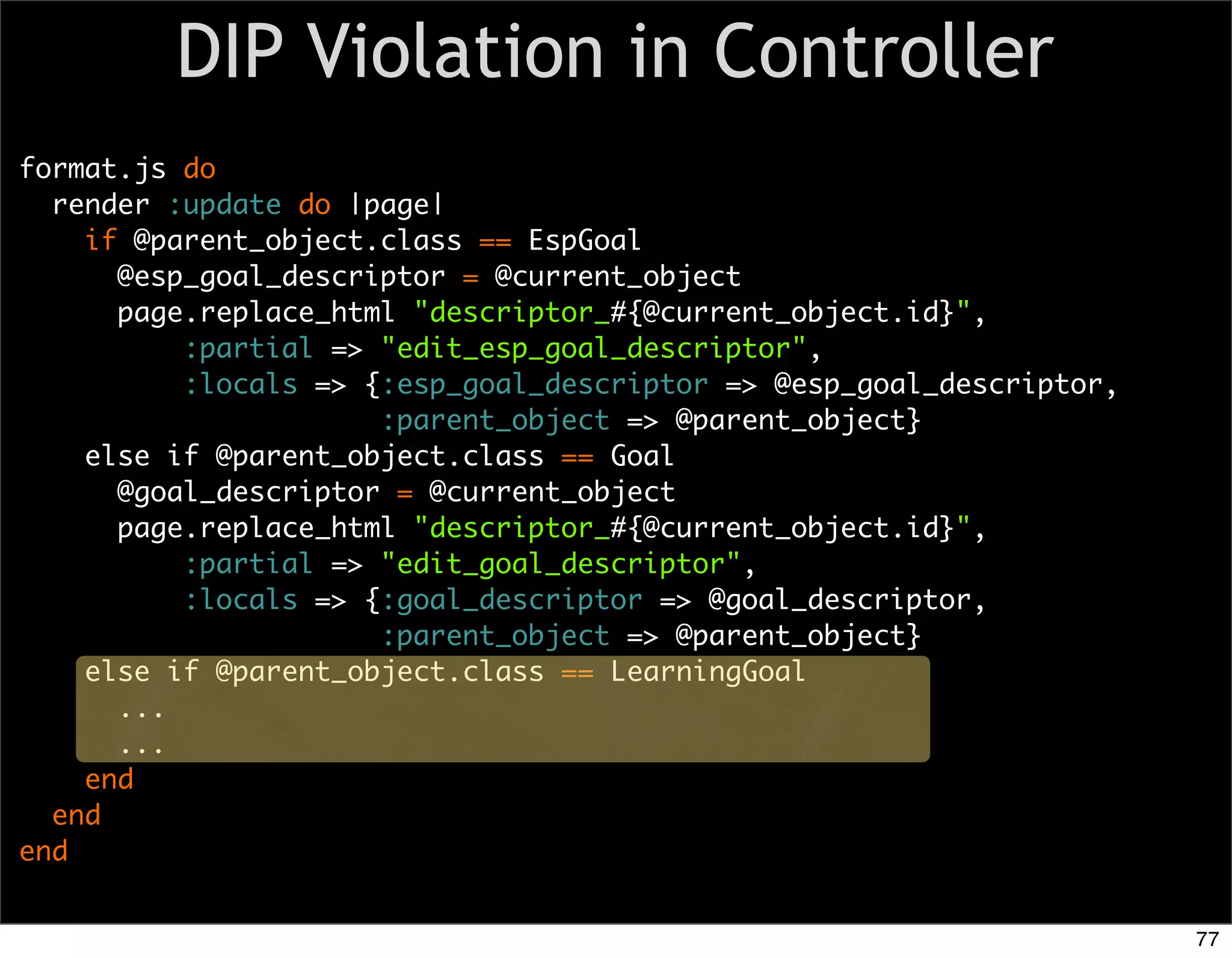

- 77. DIP Violation inController format.js do render :update do |page| if @parent_object.class == EspGoal @esp_goal_descriptor = @current_object page.replace_html "descriptor_#{@current_object.id}", :partial => "edit_esp_goal_descriptor", :locals => {:esp_goal_descriptor => @esp_goal_descriptor, :parent_object => @parent_object} else if @parent_object.class == Goal @goal_descriptor = @current_object page.replace_html "descriptor_#{@current_object.id}", :partial => "edit_goal_descriptor", :locals => {:goal_descriptor => @goal_descriptor, :parent_object => @parent_object} else if @parent_object.class == LearningGoal ... ... end end end 77
- 78.

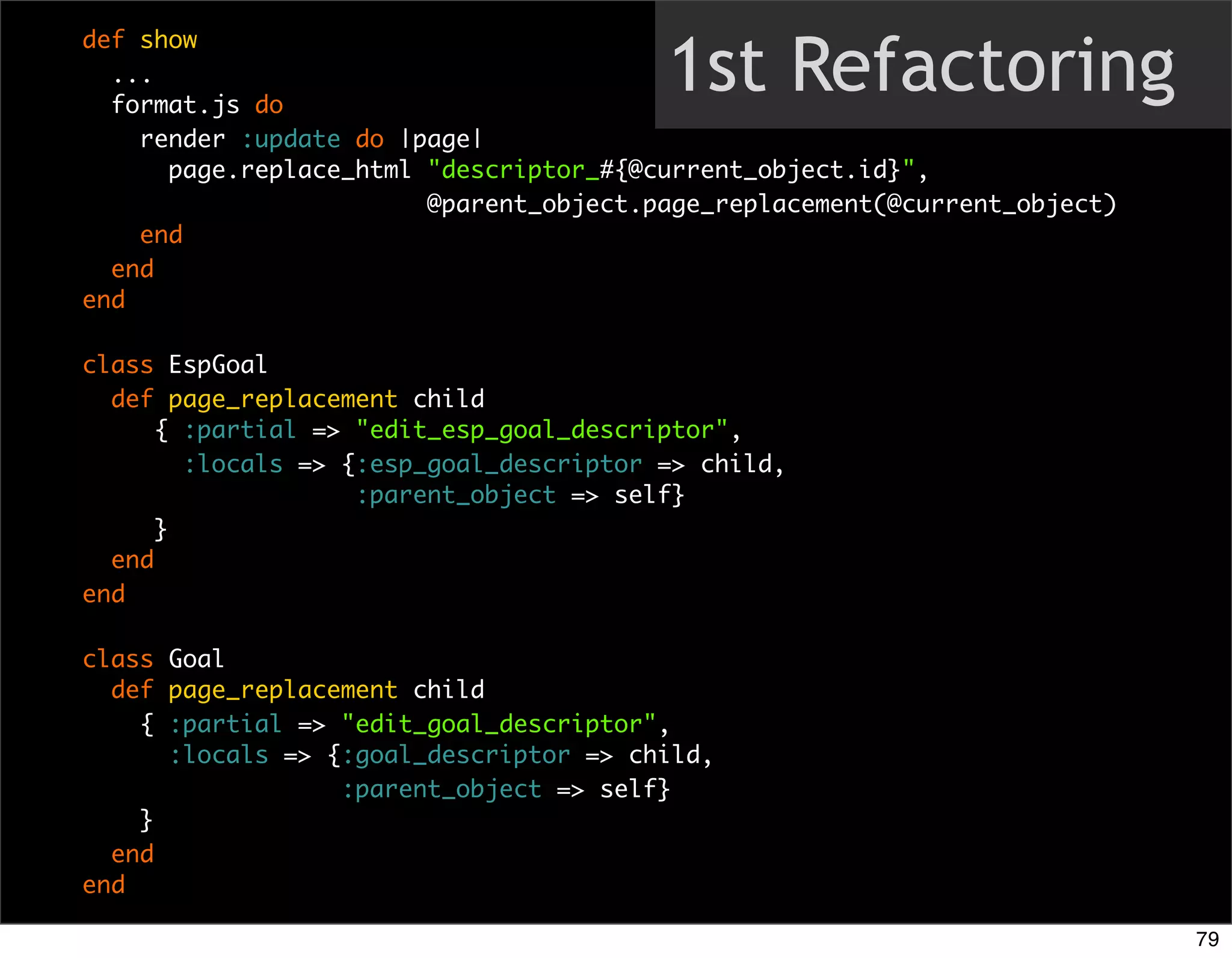

- 79. 1st Refactoring def show ... format.js do render :update do |page| page.replace_html "descriptor_#{@current_object.id}", @parent_object.page_replacement(@current_object) end end end class EspGoal def page_replacement child { :partial => "edit_esp_goal_descriptor", :locals => {:esp_goal_descriptor => child, :parent_object => self} } end end class Goal def page_replacement child { :partial => "edit_goal_descriptor", :locals => {:goal_descriptor => child, :parent_object => self} } end end 79
- 80.
- 81. 2nd Refactoring (wiring) class PartialContainer def add class_symbol, partial_replacement @@partinal_replacements.add( class_symbol => partial_replacement) end def self.partial_replacement an_object unless @@partial_replacments self.add( EspGoalReplacement.my_class_sym, EspGoalReplacment.new) self.add( GoalReplacement.my_class_sym, GoalReplacment.new) end @@partial_replacement[an_object.class] end end 81

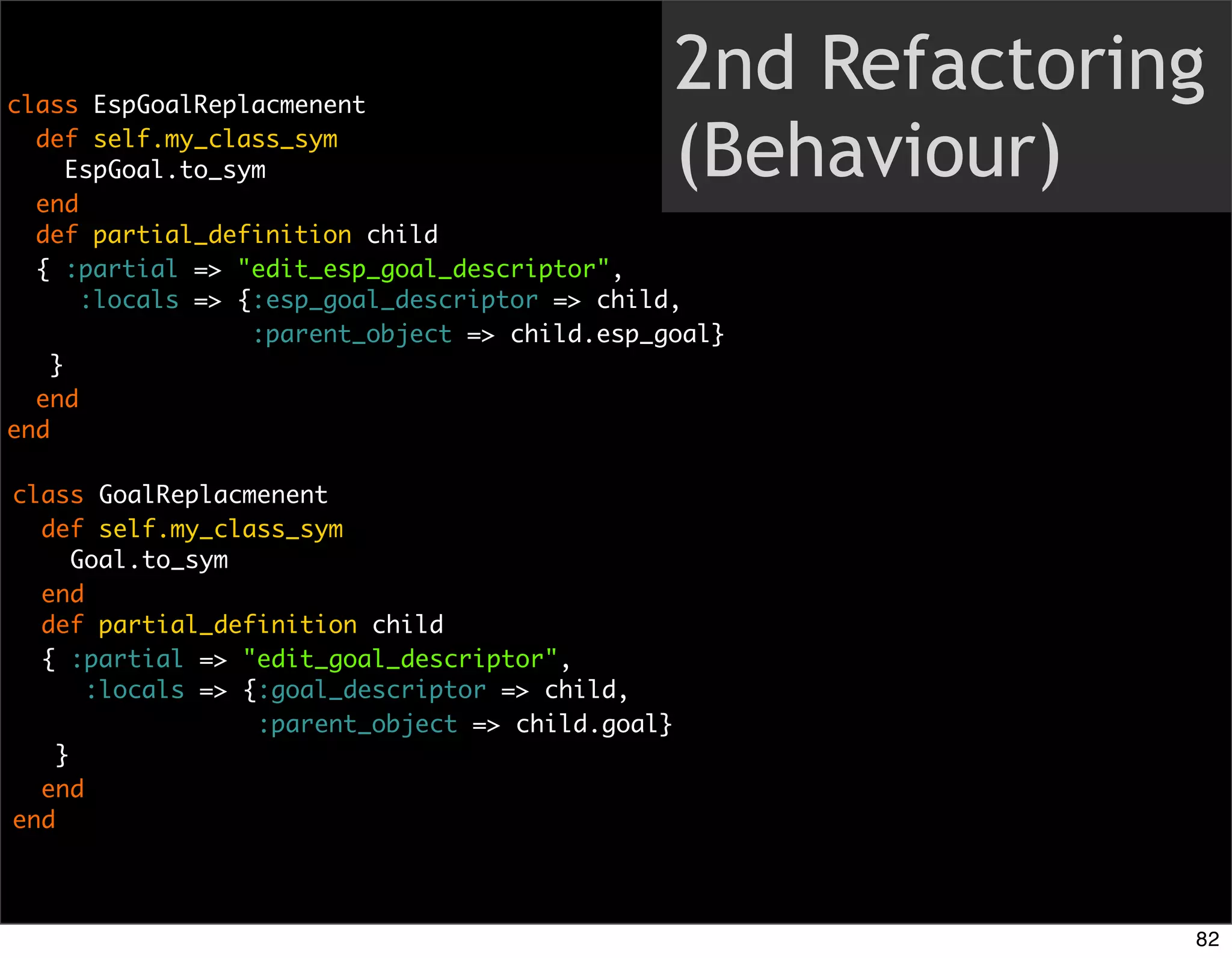

- 82. class EspGoalReplacmenent 2nd Refactoring def self.my_class_sym end EspGoal.to_sym (Behaviour) def partial_definition child { :partial => "edit_esp_goal_descriptor", :locals => {:esp_goal_descriptor => child, :parent_object => child.esp_goal} } end end class GoalReplacmenent def self.my_class_sym Goal.to_sym end def partial_definition child { :partial => "edit_goal_descriptor", :locals => {:goal_descriptor => child, :parent_object => child.goal} } end end 82

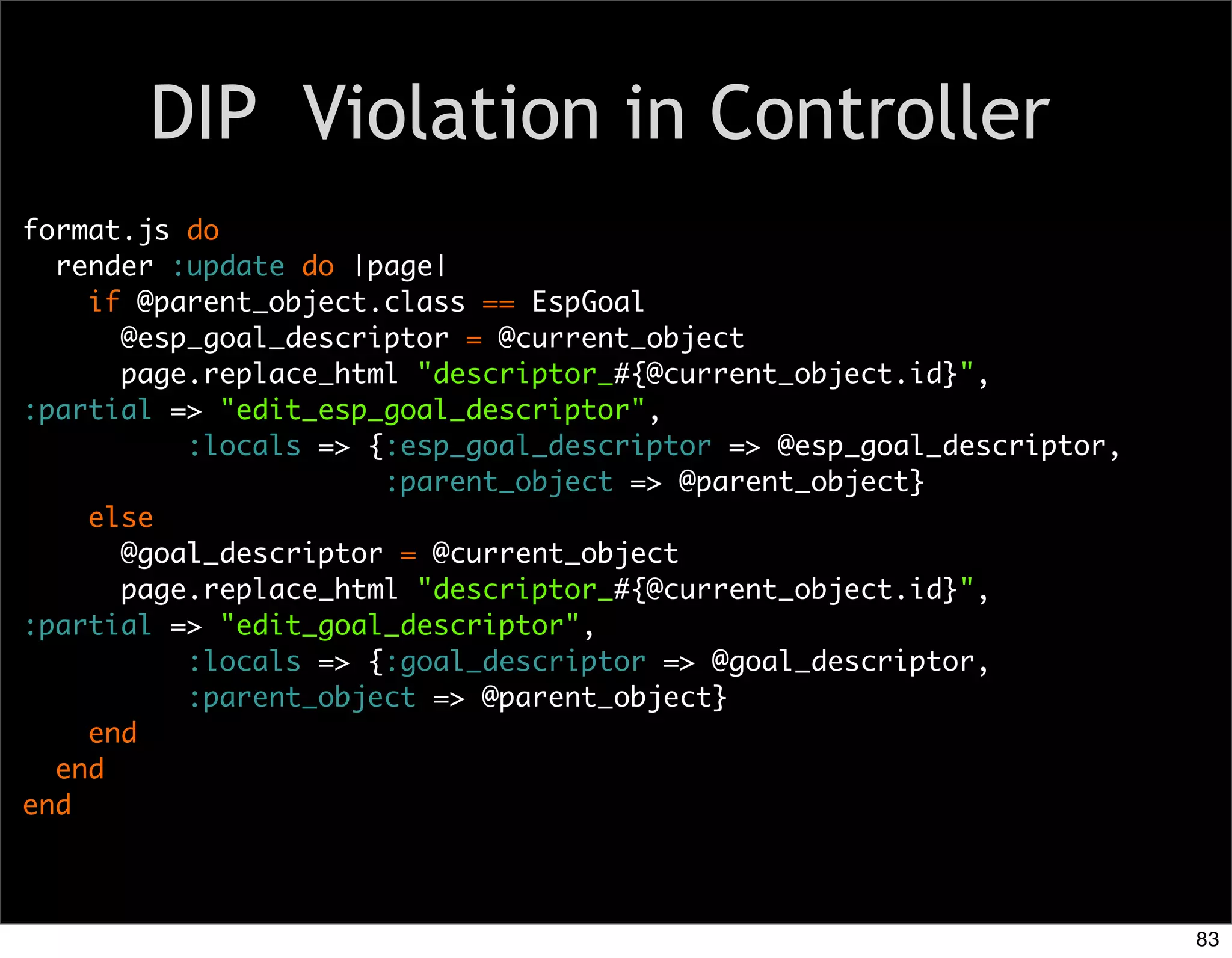

- 83. DIP Violation inController format.js do render :update do |page| if @parent_object.class == EspGoal @esp_goal_descriptor = @current_object page.replace_html "descriptor_#{@current_object.id}", :partial => "edit_esp_goal_descriptor", :locals => {:esp_goal_descriptor => @esp_goal_descriptor, :parent_object => @parent_object} else @goal_descriptor = @current_object page.replace_html "descriptor_#{@current_object.id}", :partial => "edit_goal_descriptor", :locals => {:goal_descriptor => @goal_descriptor, :parent_object => @parent_object} end end end 83

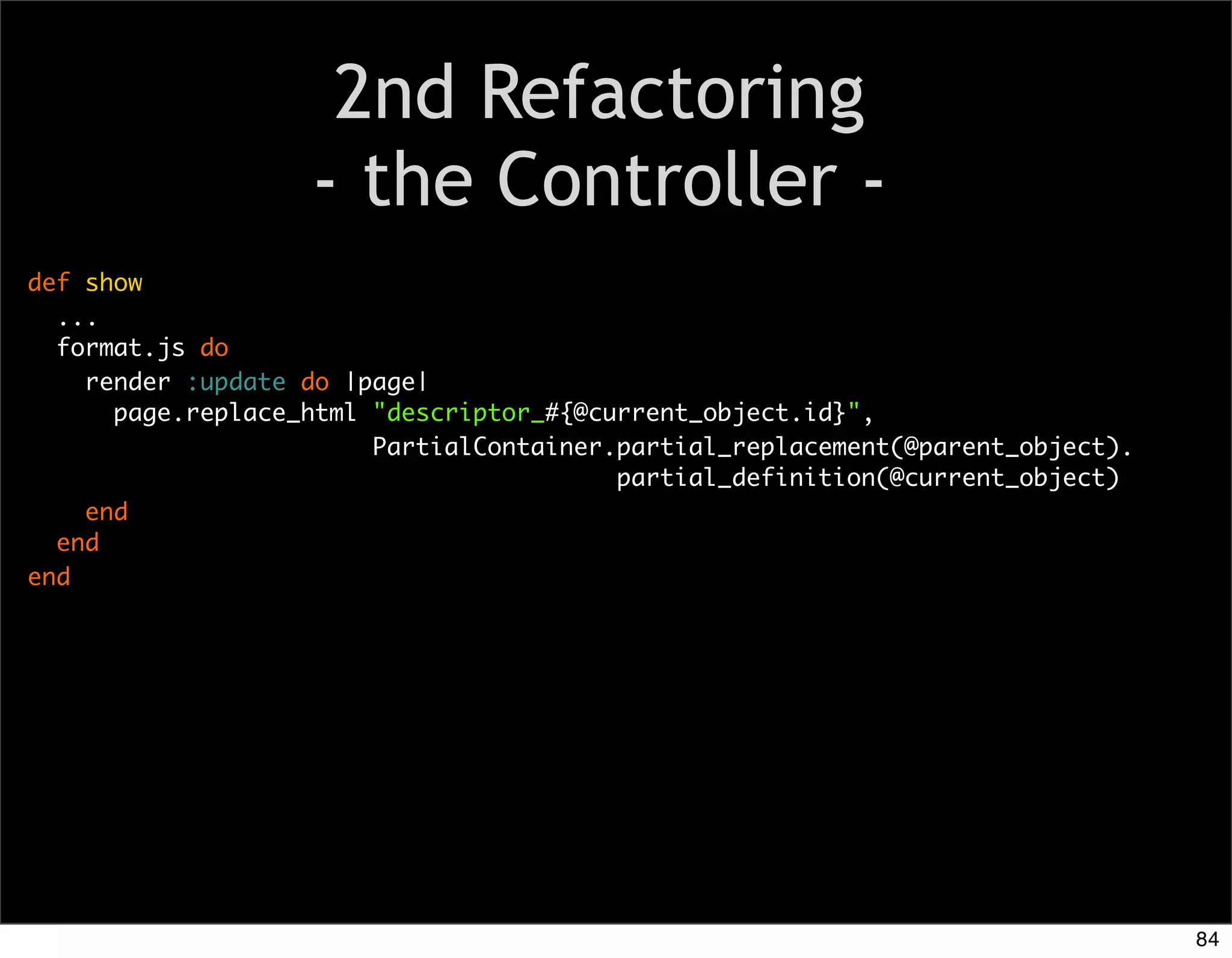

- 84. 2nd Refactoring - the Controller - def show ... format.js do render :update do |page| page.replace_html "descriptor_#{@current_object.id}", PartialContainer.partial_replacement(@parent_object). partial_definition(@current_object) end end end 84
- 85.
- 86. SOLID SRP OCP LSPISP DIP 86
- 87. SRP OCP LSPISP DIP 87
- 88. Questions? S OL ID SRP OCP LSP ISP DIP 88
- 89. Vielen Dank! 89
- 90.
- 91.
- 92.
- 93. Jens-Christian Fischer Michael Mahlberg InVisible GmbH Consulting Guild AG @jcfischer @MMahlberg jens-christian@invisible.ch mm@michaelmahlberg.de http://blog.invisible.ch http://agile-aspects.blogspot.com 93 93
