Skype testing overview

Video automation testing at Skype

Pierre Gronlier - pierre.gronlier@skype.net

Video Software Development Engineer in Test - Microsoft Skype division

April 2012 - Kiev

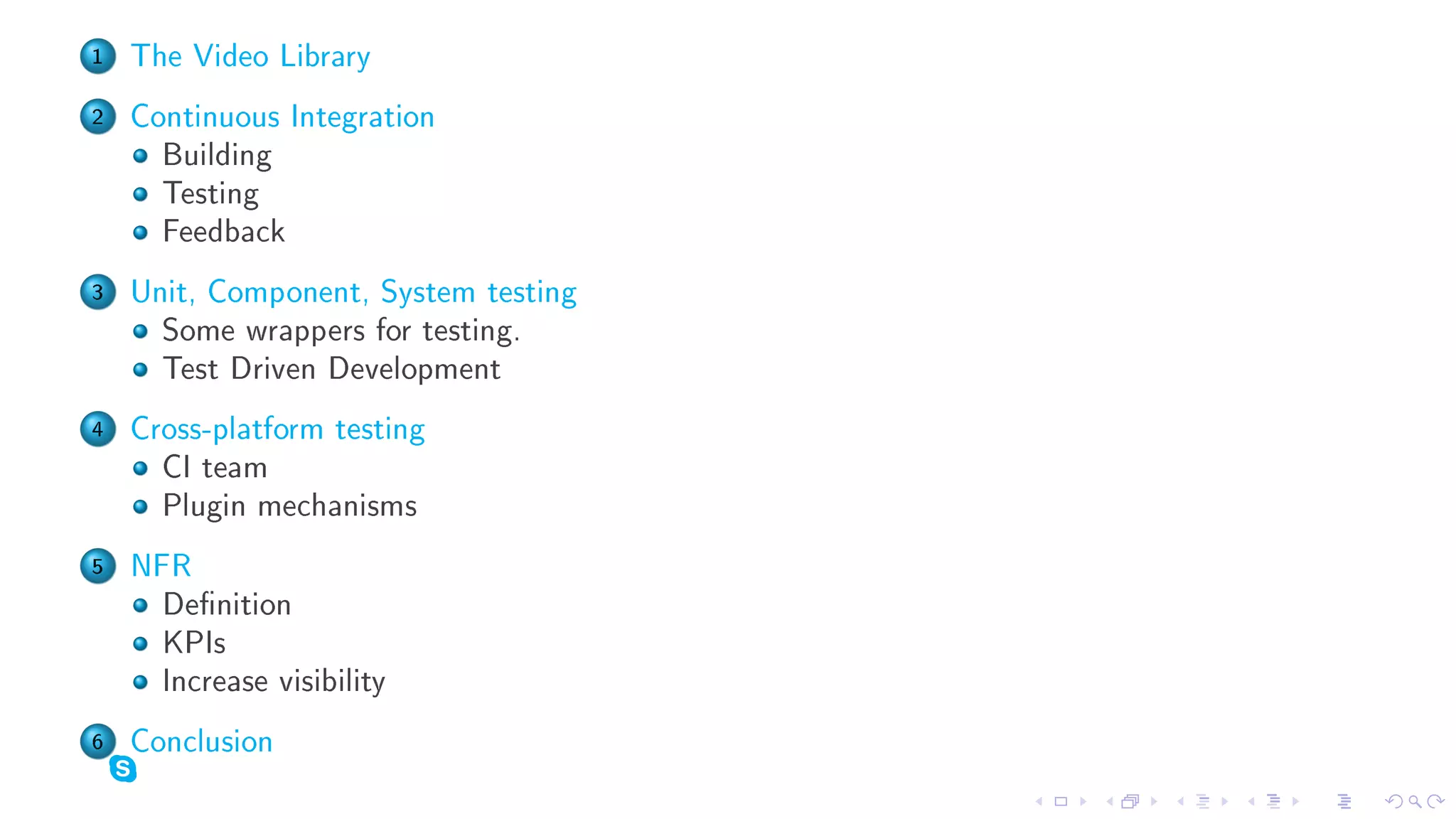

1 The Video Library
2 Continuous Integration
Building
Testing
Feedback
3 Unit, Component, System testing
Some wrappers for testing.
Test Driven Development
4 Cross-platform testing
CI team
Plugin mechanisms
5 NFR
Denition
KPIs
Increase visibility
6 Conclusion

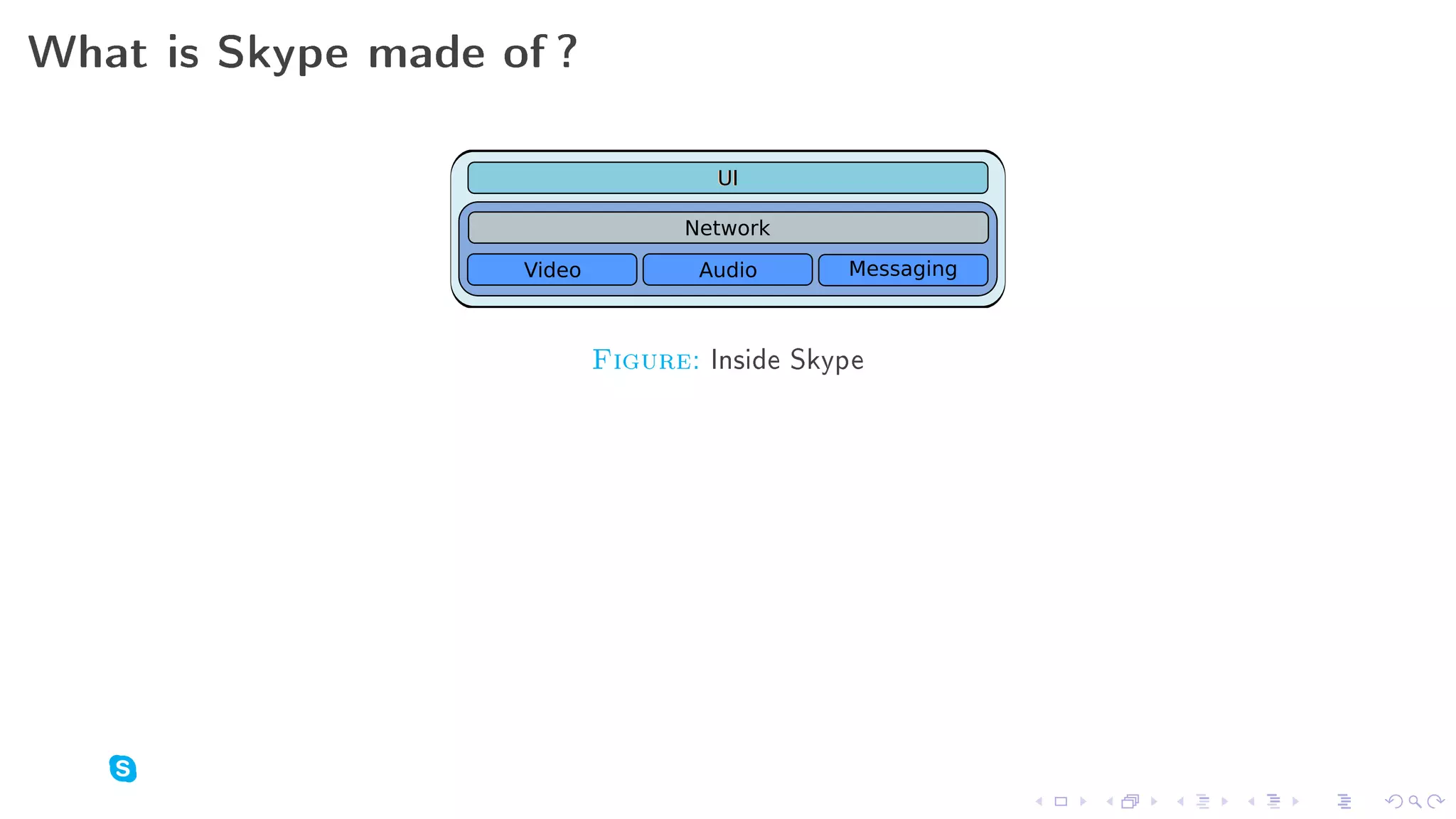

What is Skype made of ?

UI

Network

Video Audio Messaging

Figure: Inside Skype

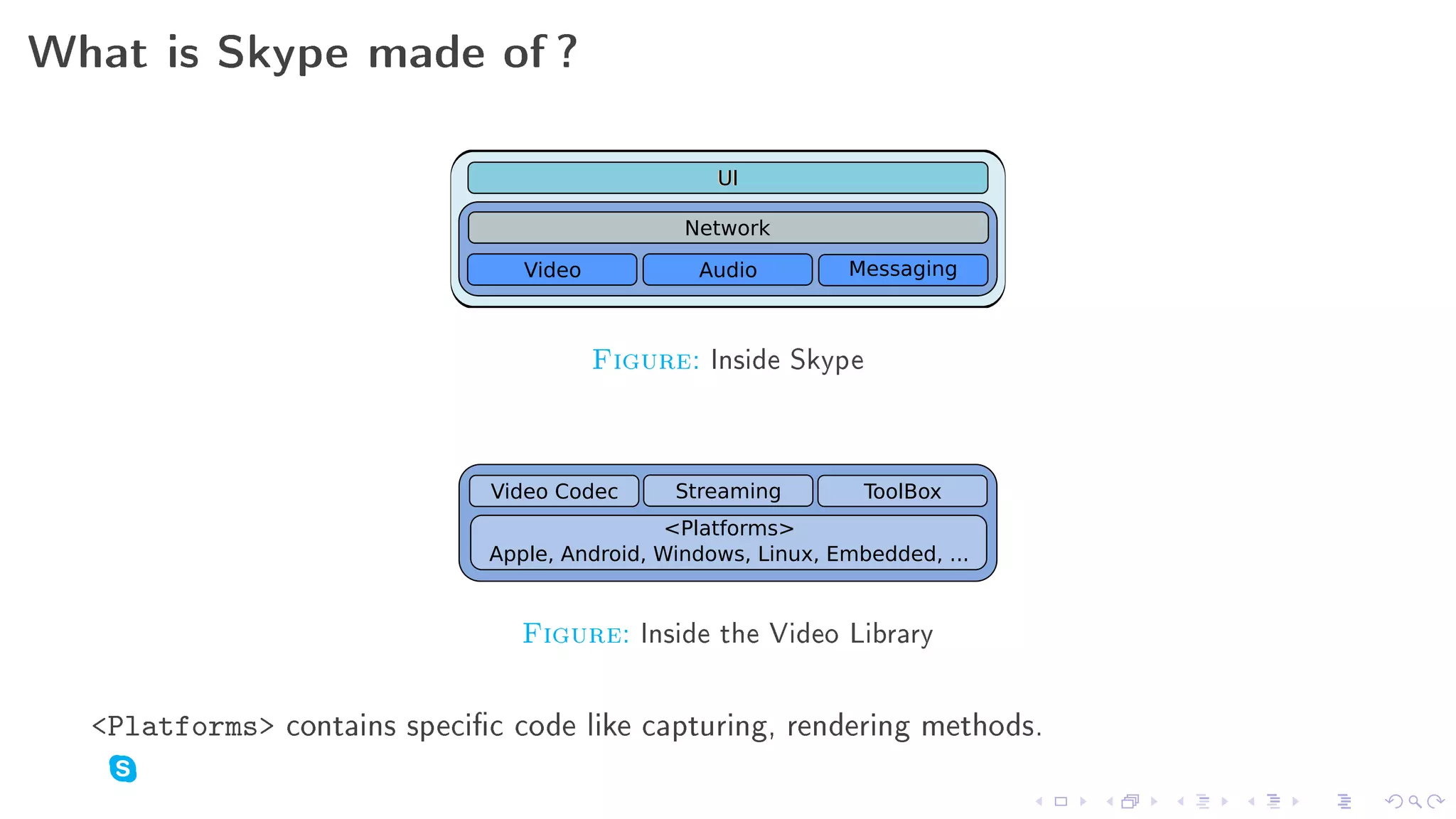

What is Skype made of ?

UI

Network



Video Codec Streaming ToolBox
Platforms
Apple, Android, Windows, Linux, Embedded, ...

Figure: Inside the Video Library

Platforms contains specic code like capturing, rendering methods.

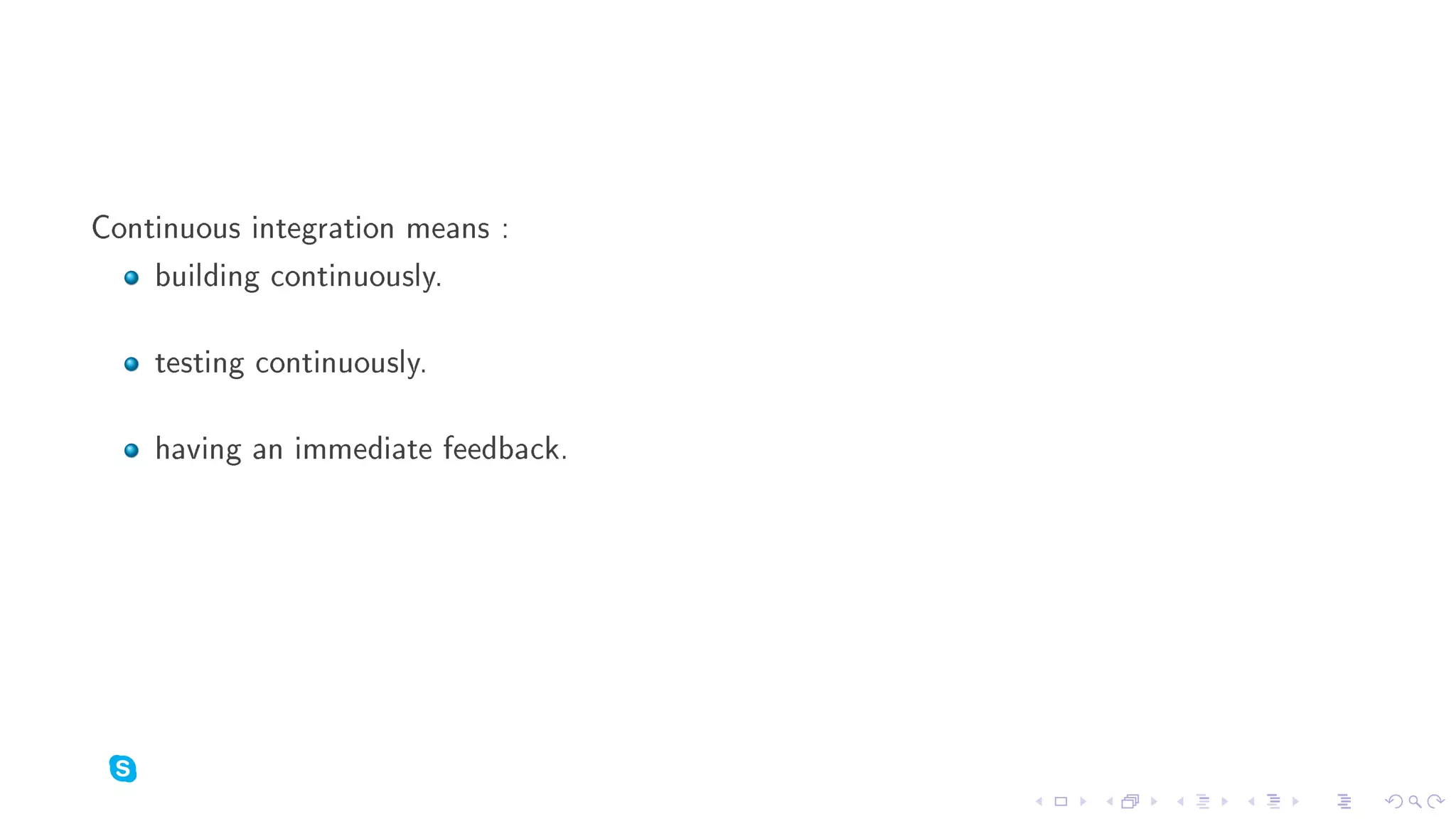

Continuous integration means :
building continuously.

testing continuously.

having an immediate feedback.

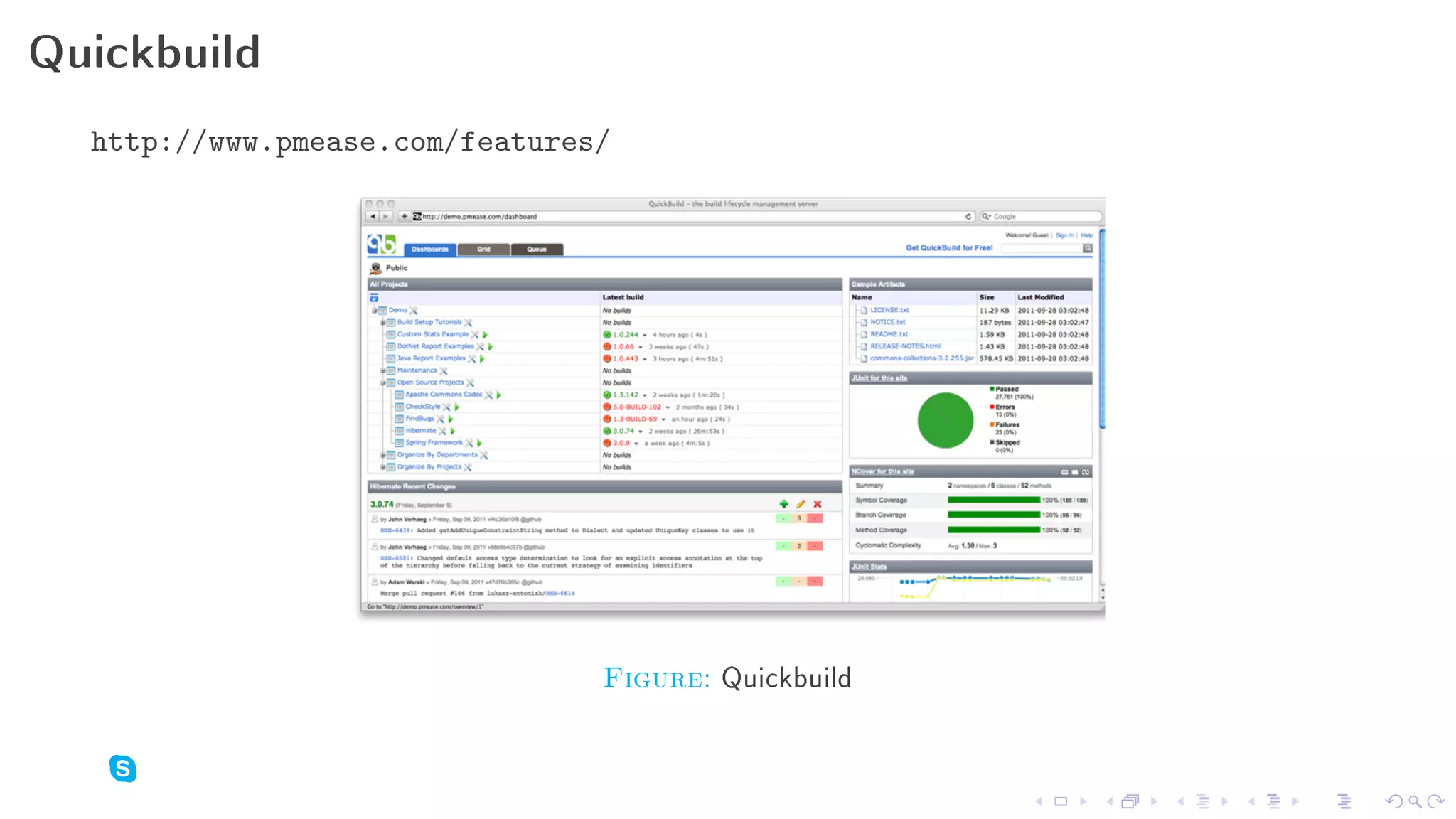

Quickbuild

http://www.pmease.com/features/

Figure: Quickbuild

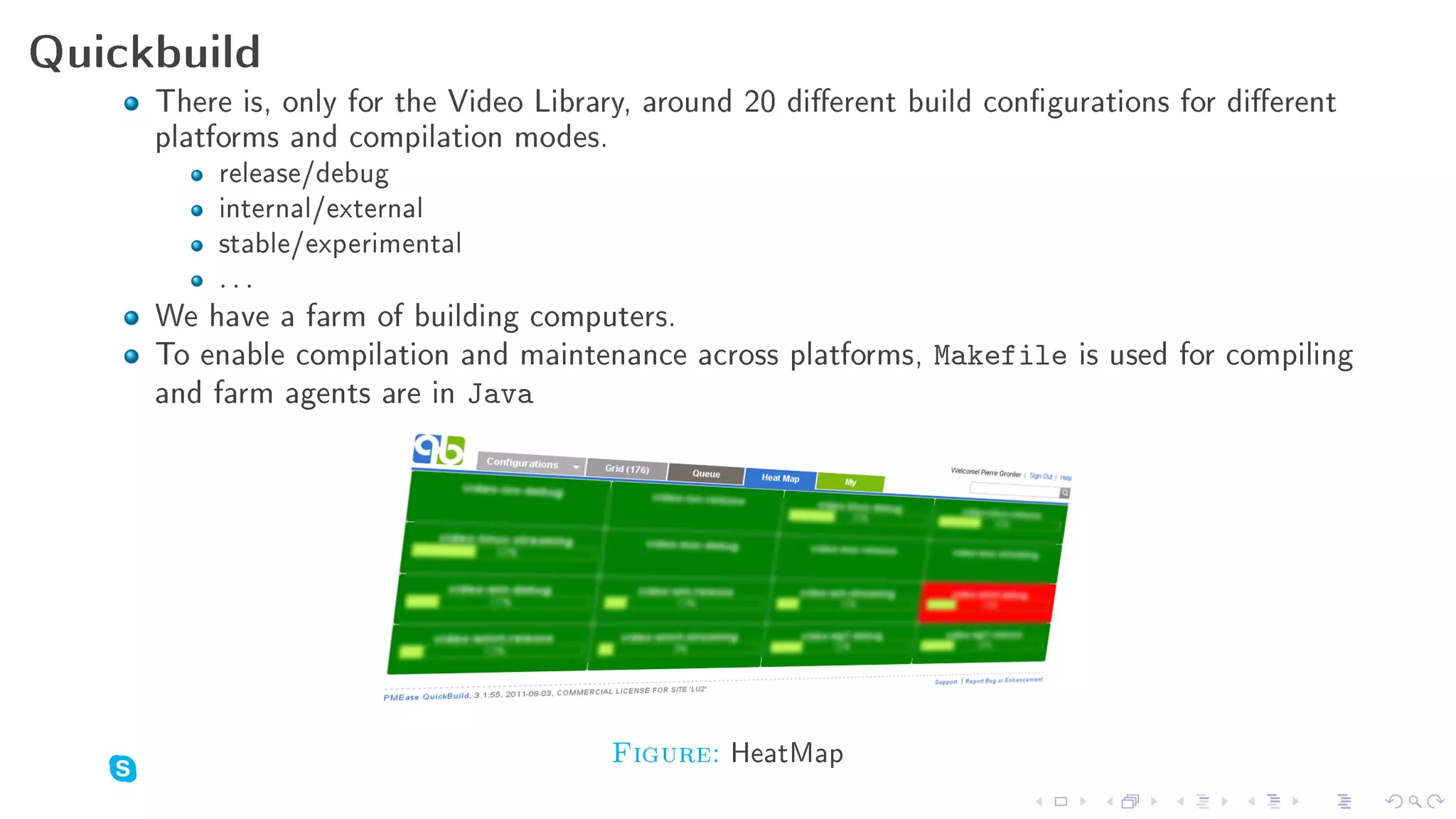

Quickbuild
There is, only for the Video Library, around 20 dierent build congurations for dierent
platforms and compilation modes.
release/debug
internal/external
stable/experimental
...
We have a farm of building computers.
To enable compilation and maintenance across platforms, Makefile is used for compiling
and farm agents are in Java

Figure: HeatMap

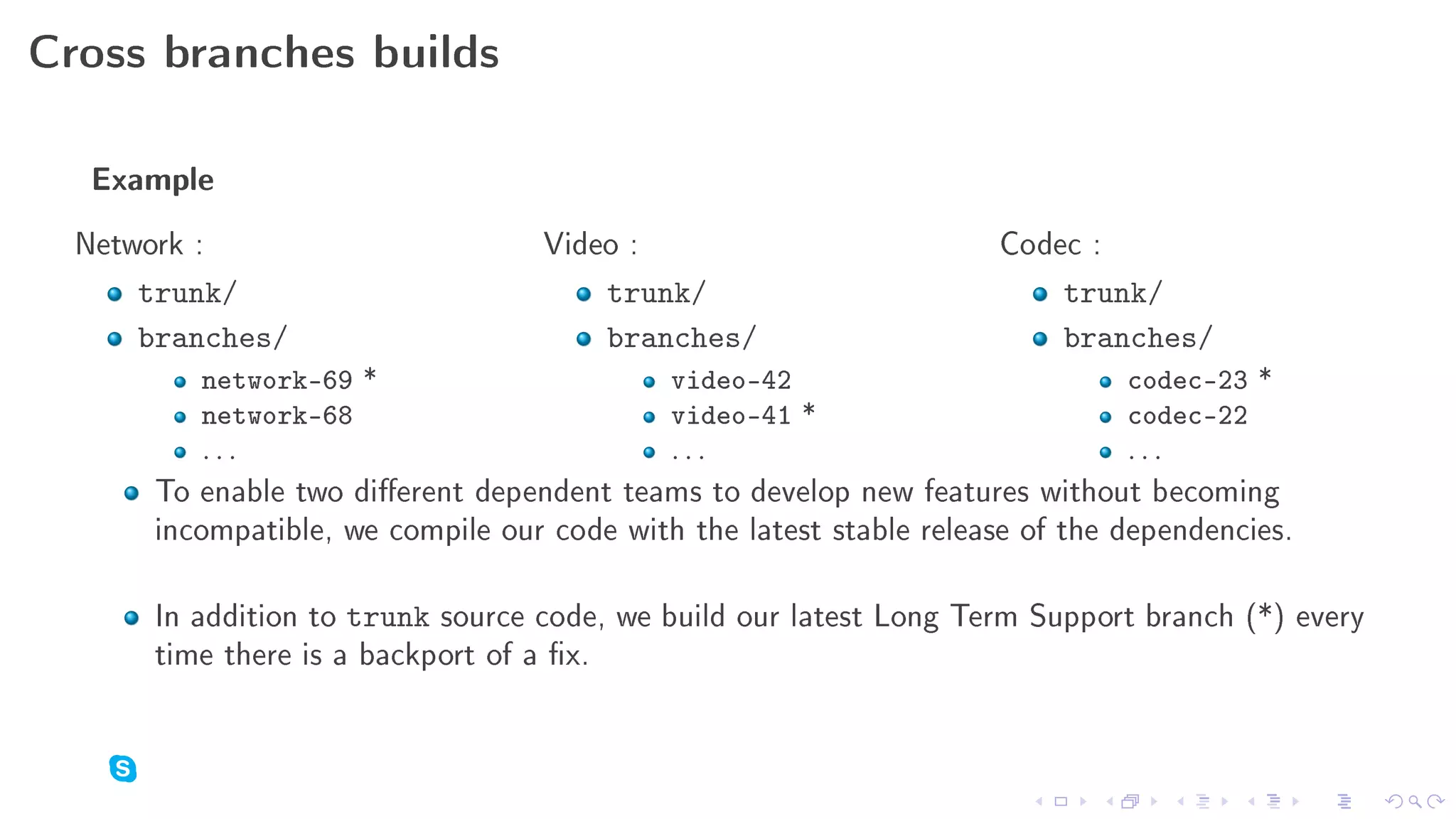

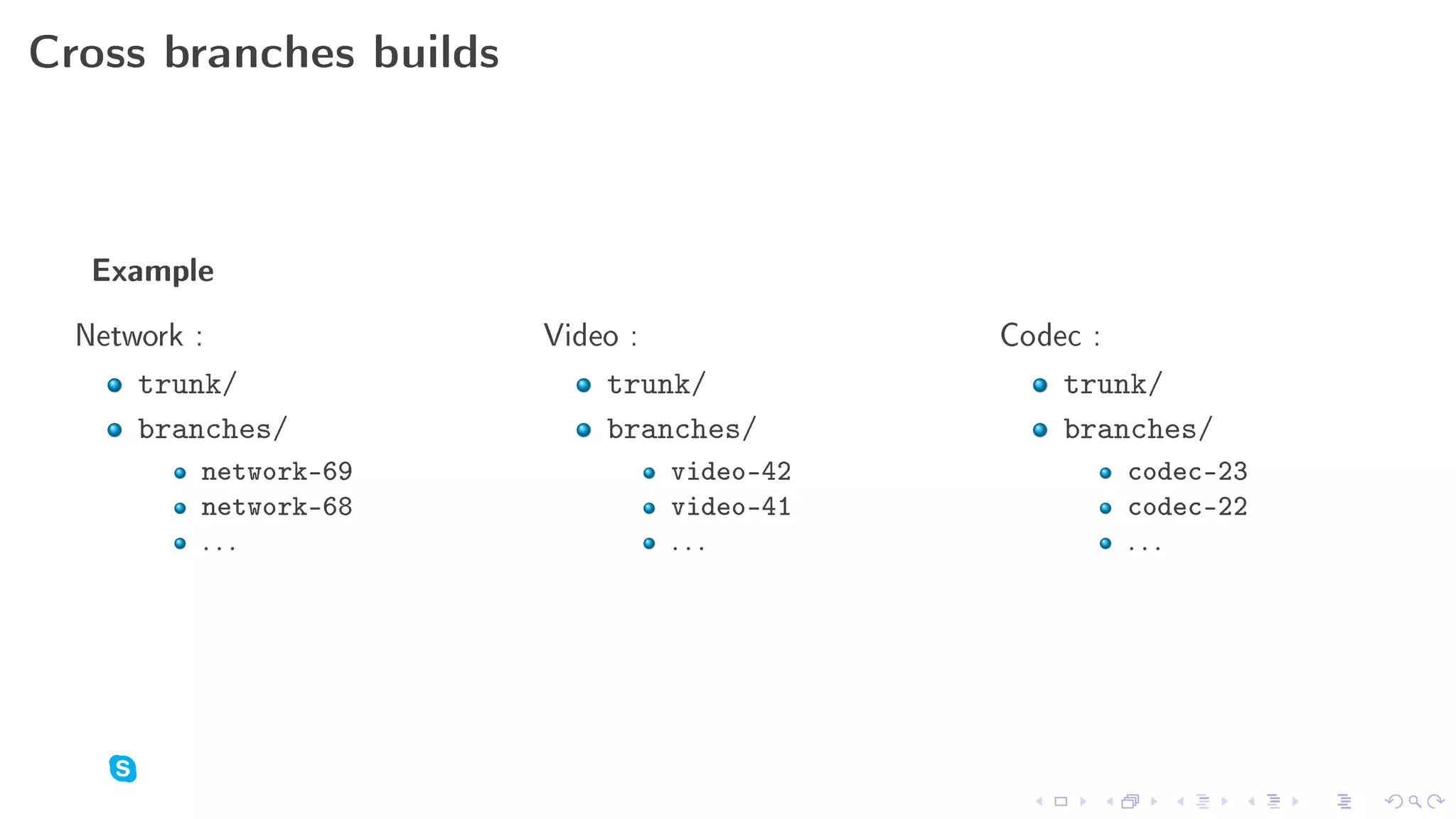

Cross branches builds

Example

Network : Video : Codec :
trunk/ trunk/ trunk/
branches/ branches/ branches/
network-69 video-42 codec-23
network-68 video-41 codec-22
... ... ...


Example

network-69 * video-42 codec-23 *
network-68 video-41 * codec-22
... ... ...
To enable two dierent dependent teams to develop new features without becoming
incompatible, we compile our code with the latest stable release of the dependencies.

In addition to trunk source code, we build our latest Long Term Support branch (*) every
time there is a backport of a x.

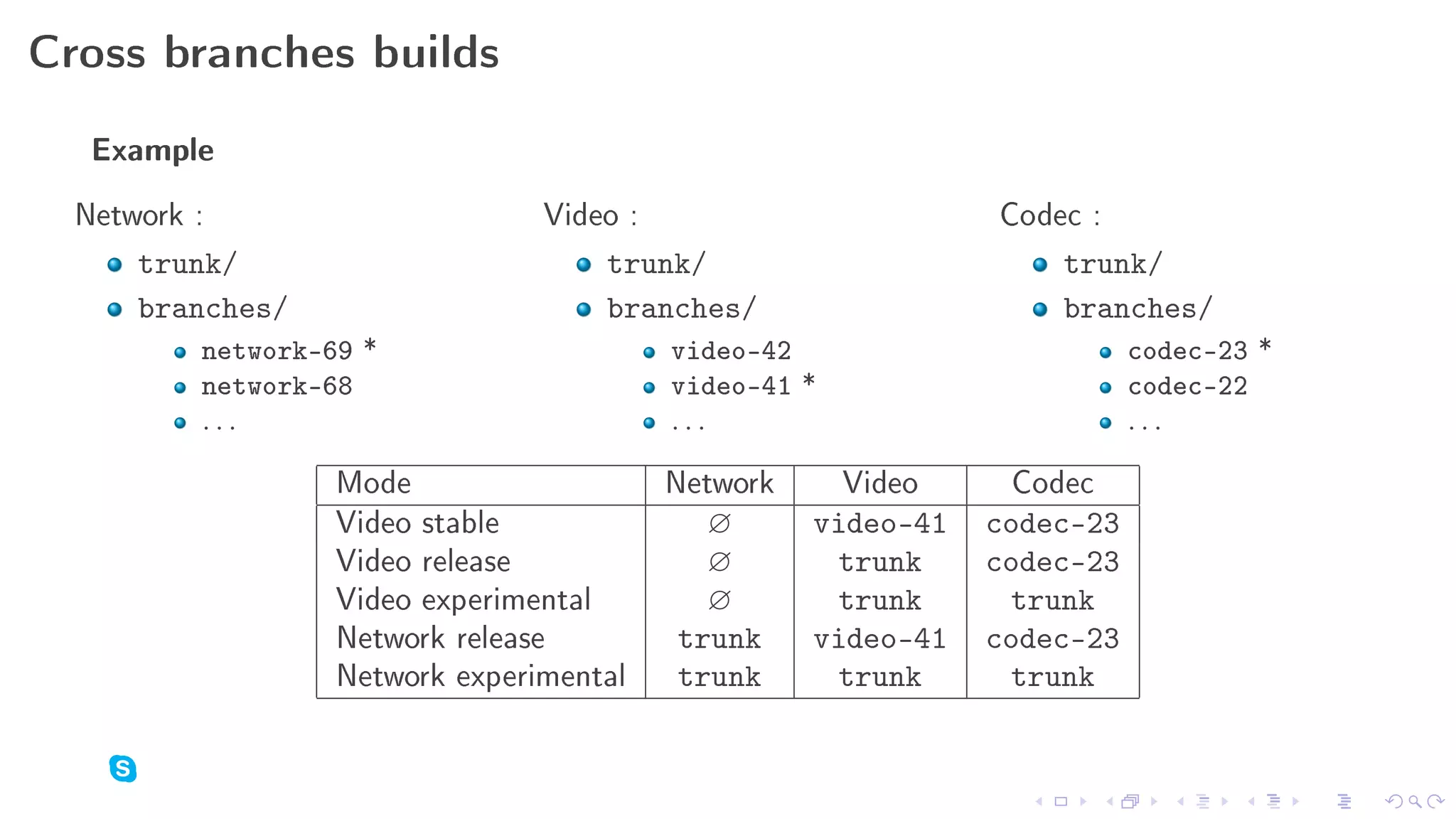

Example

network-69 * video-42 codec-23 *
network-68 video-41 * codec-22
... ... ...

Mode Network Video Codec
Video stable ∅ video-41 codec-23
Video release ∅ trunk codec-23
Video experimental ∅ trunk trunk
Network release trunk video-41 codec-23
Network experimental trunk trunk trunk

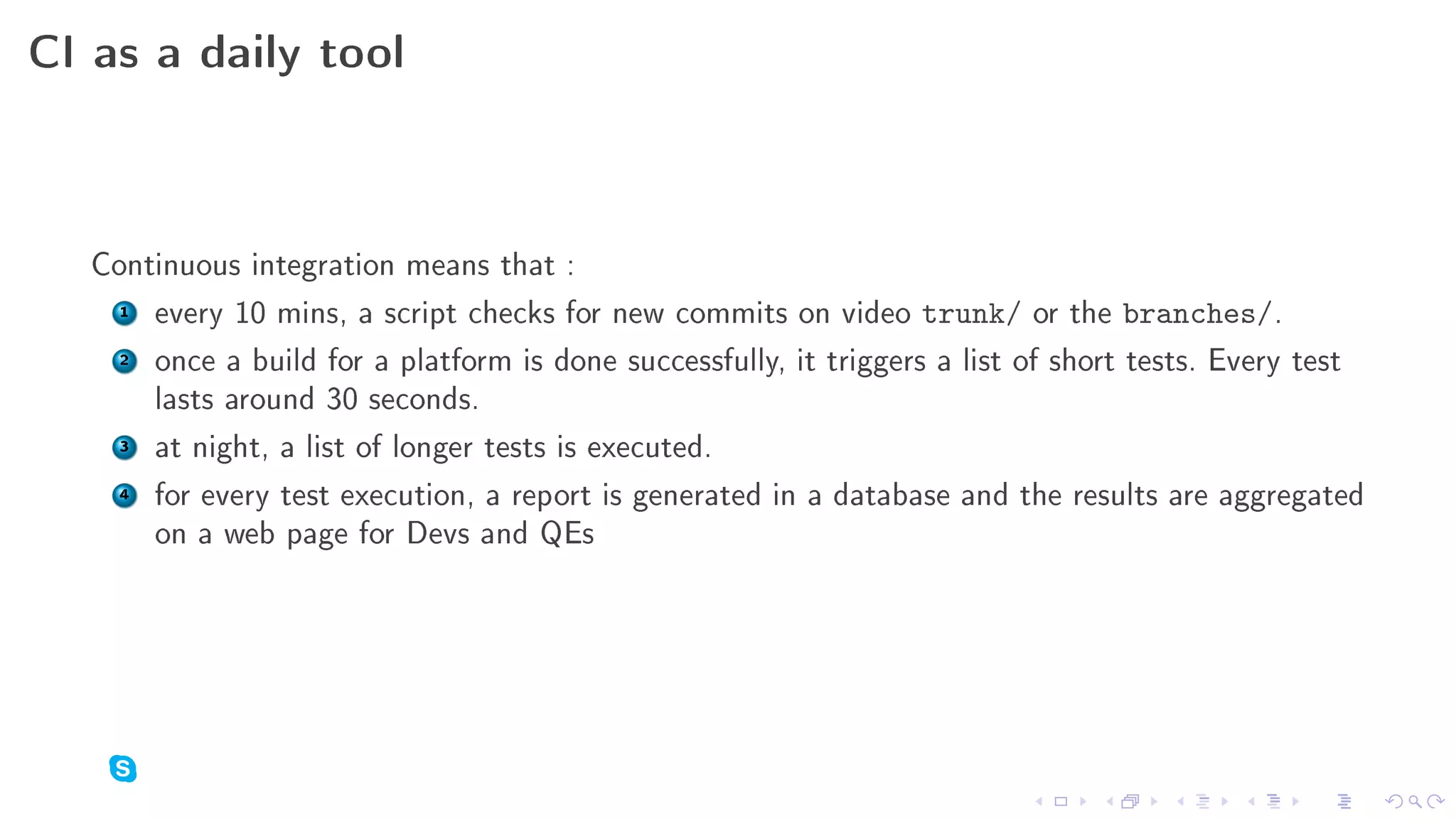

CI as a daily tool

Continuous integration means that :
1 every 10 mins, a script checks for new commits on video trunk/ or the branches/.

2 once a build for a platform is done successfully, it triggers a list of short tests. Every test

lasts around 30 seconds.
3 at night, a list of longer tests is executed.

4 for every test execution, a report is generated in a database and the results are aggregated

on a web page for Devs and QEs

CI as a daily tool

Figure: Test results

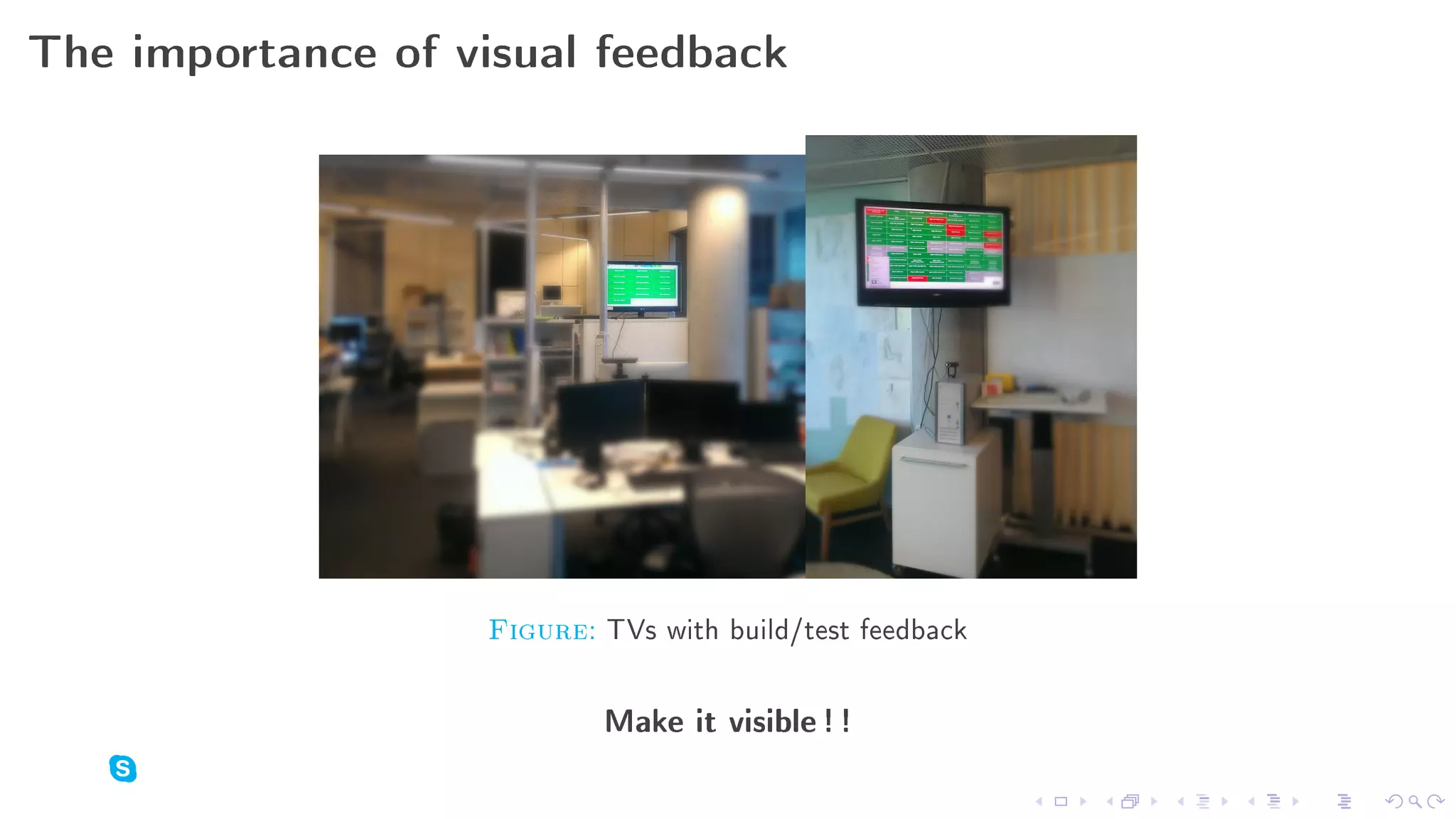

The importance of visual feedback

Figure: TVs with build/test feedback

Make it visible ! !

Unit, Component, System testing

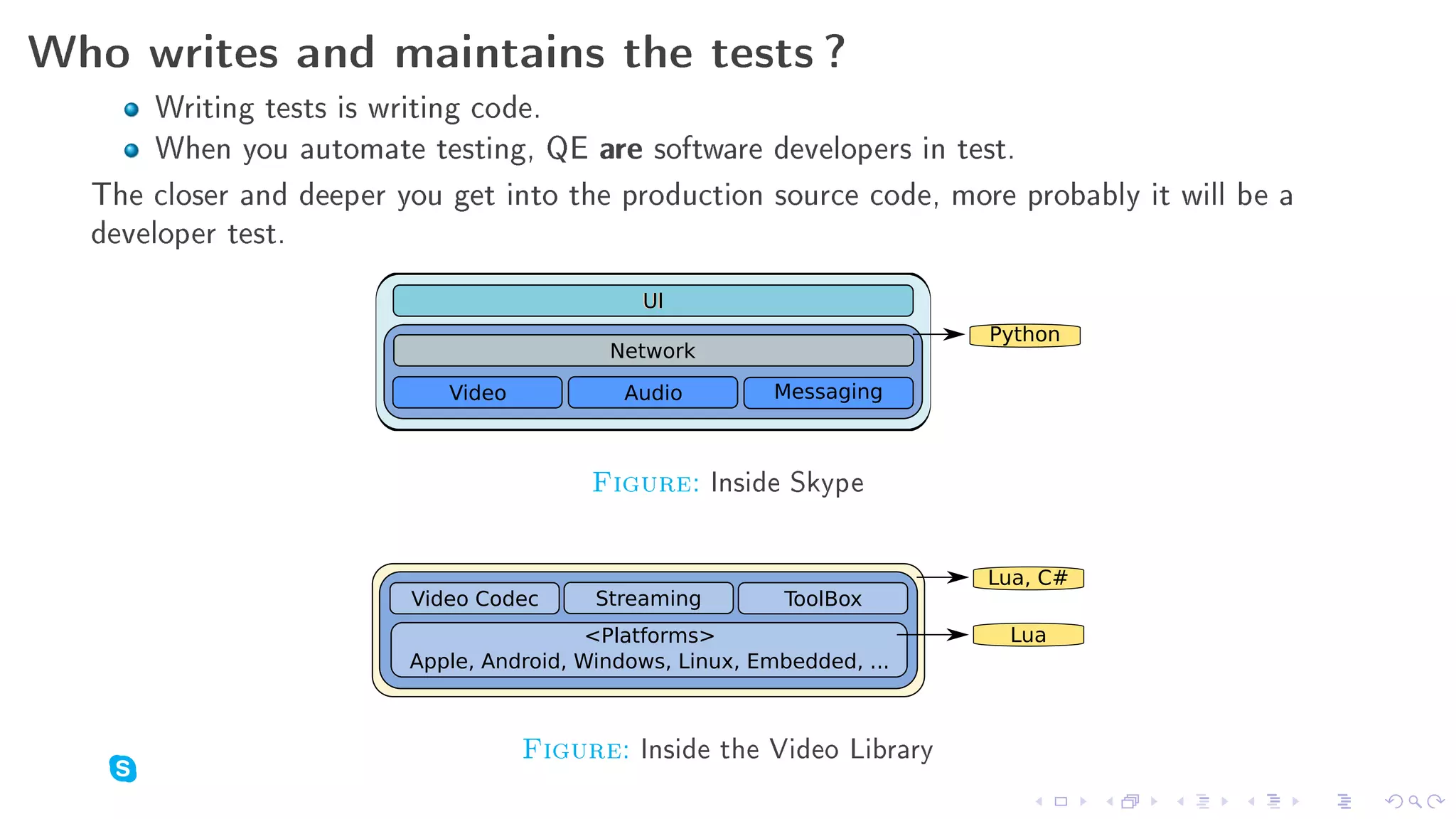

Who writes and maintains the tests ?
Writing tests is writing code.
When you automate testing, QE are software developers in test.
The closer and deeper you get into the production source code, more probably it will be a
developer test.
UI
Python
Network



Lua, C#
Video Codec Streaming ToolBox
Platforms Lua
Apple, Android, Windows, Linux, Embedded, ...

Figure: Inside the Video Library

QE and Devs together

1 Don't wait for developers to write your
tests.

2 Dene the tests when you dene the
Acceptance Criteria of your PBI.

3 Evaluate the value of your tests (e.g. code
coverage).

4 KISS : Keep it Stupid Short and Simple.

Figure: Test plan

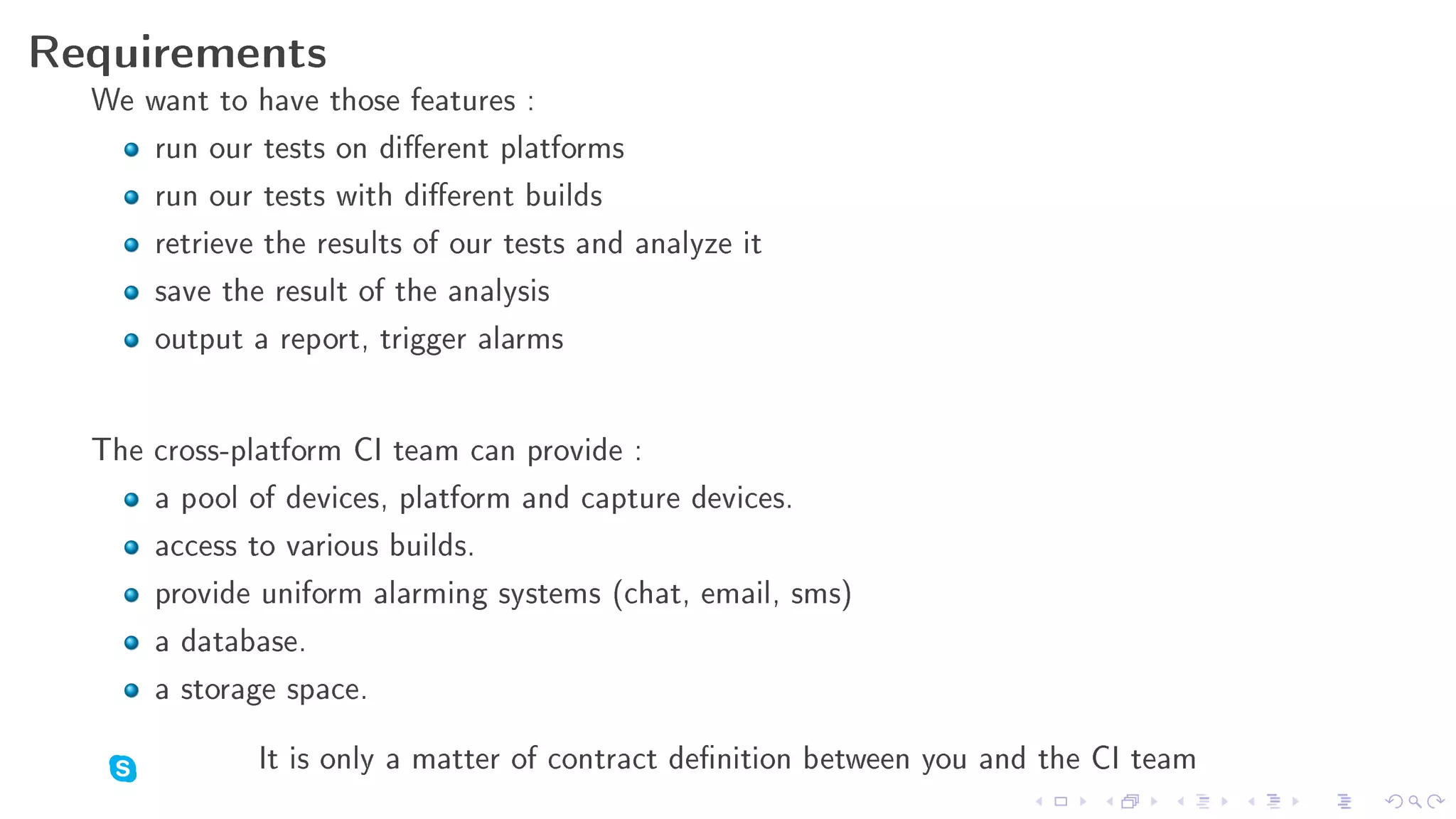

Requirements
We want to have those features :
run our tests on dierent platforms
run our tests with dierent builds
retrieve the results of our tests and analyze it
save the result of the analysis
output a report, trigger alarms

The cross-platform CI team can provide :
a pool of devices, platform and capture devices.
access to various builds.
provide uniform alarming systems (chat, email, sms)
a database.
a storage space.
It is only a matter of contract denition between you and the CI team

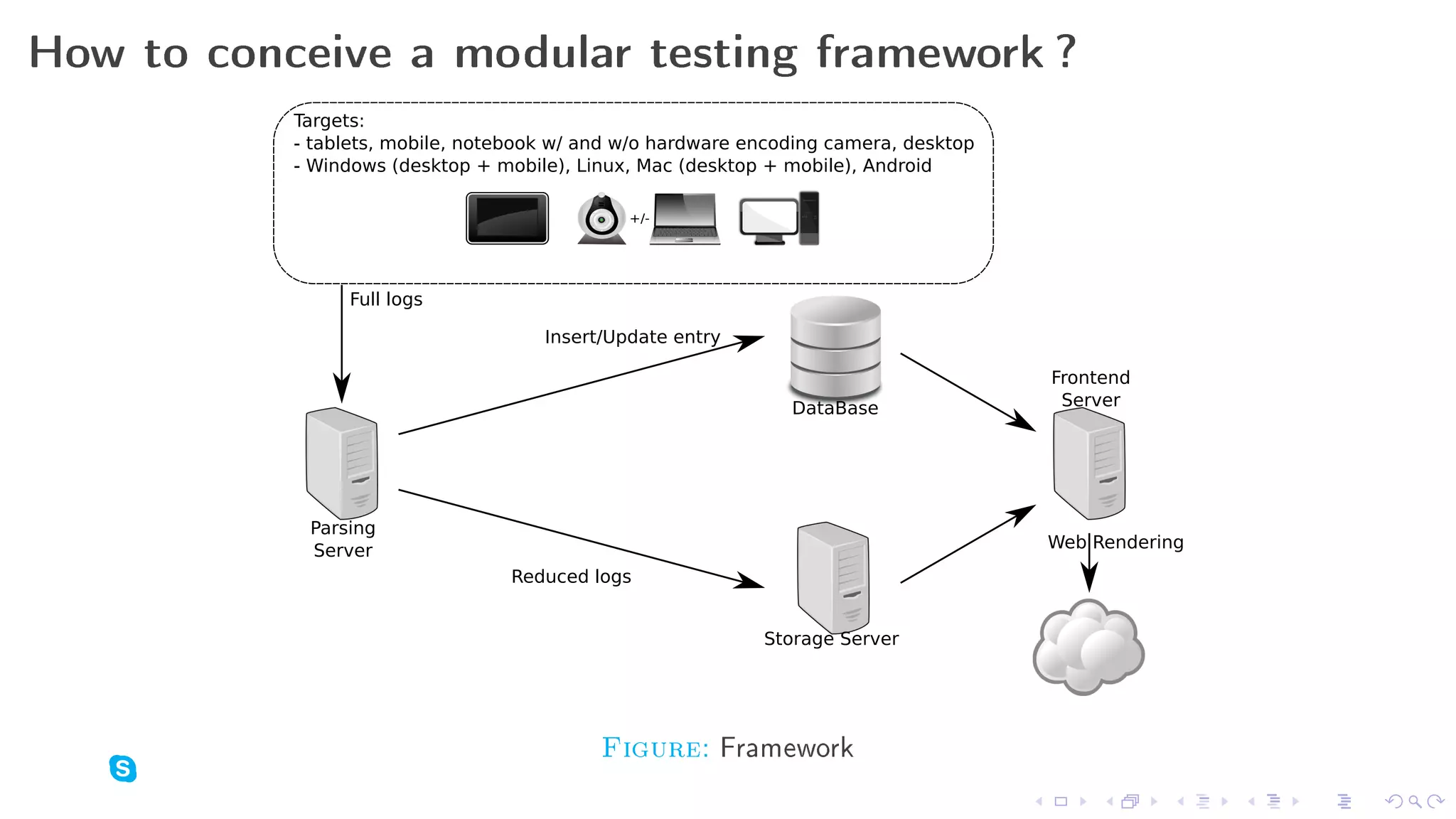

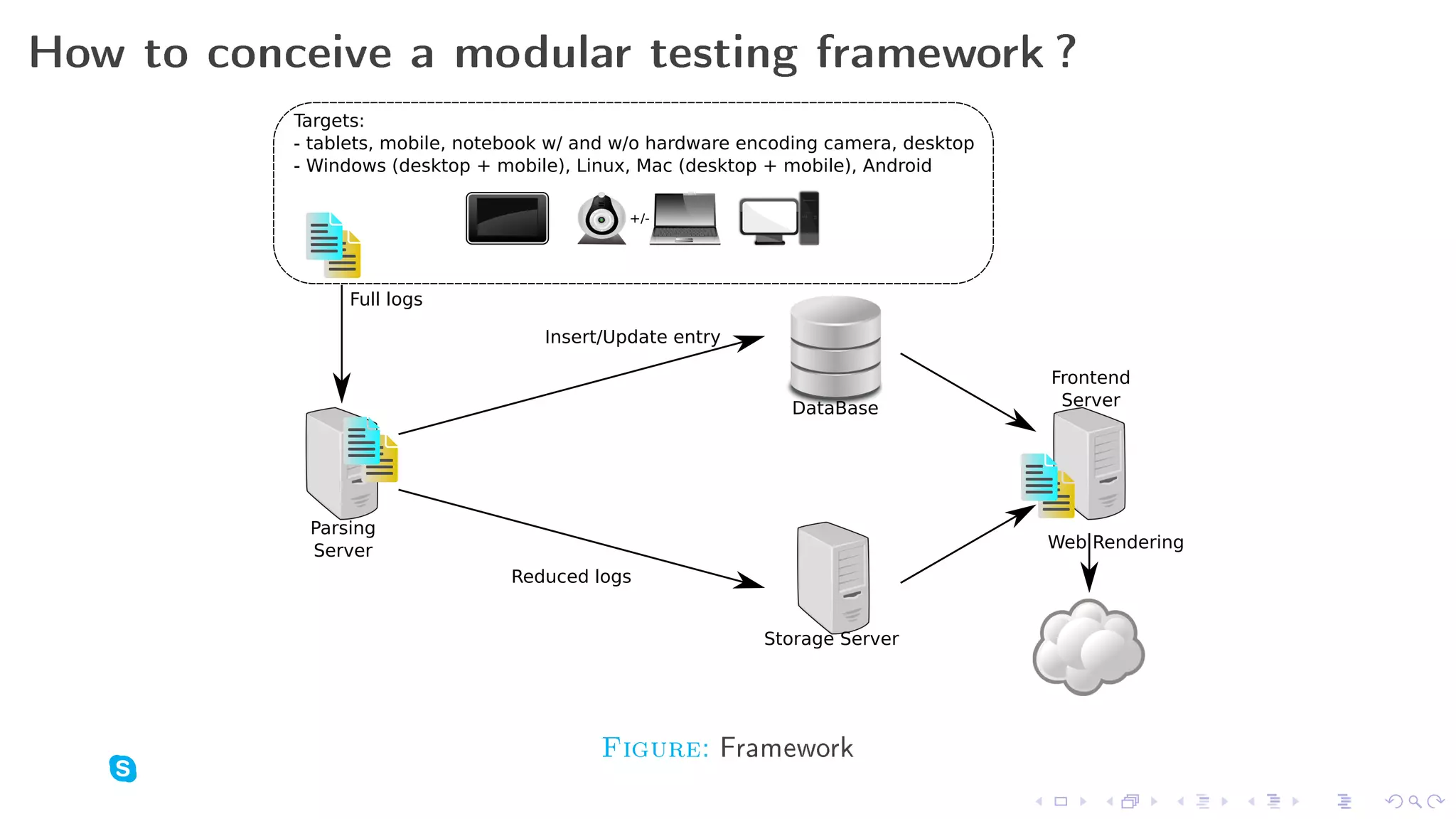

How to conceive a modular testing framework ?
Targets:
- tablets, mobile, notebook w/ and w/o hardware encoding camera, desktop
- Windows (desktop + mobile), Linux, Mac (desktop + mobile), Android

+/-

Full logs

Insert/Update entry

Frontend
DataBase Server

Parsing
Server Web Rendering
Reduced logs

Storage Server

Figure: Framework

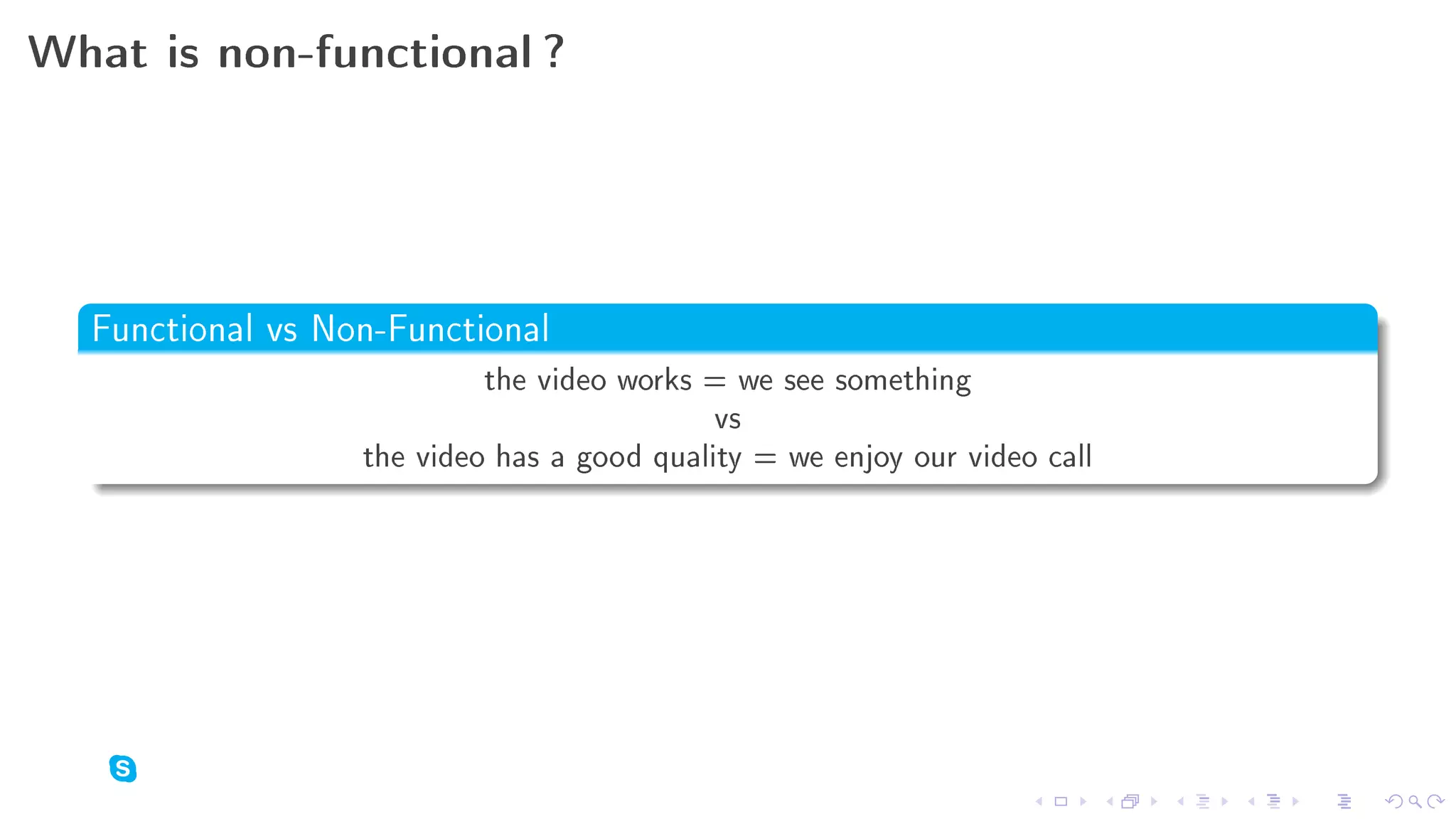

What is non-functional ?

Functional vs Non-Functional
the video works = we see something
vs
the video has a good quality = we enjoy our video call

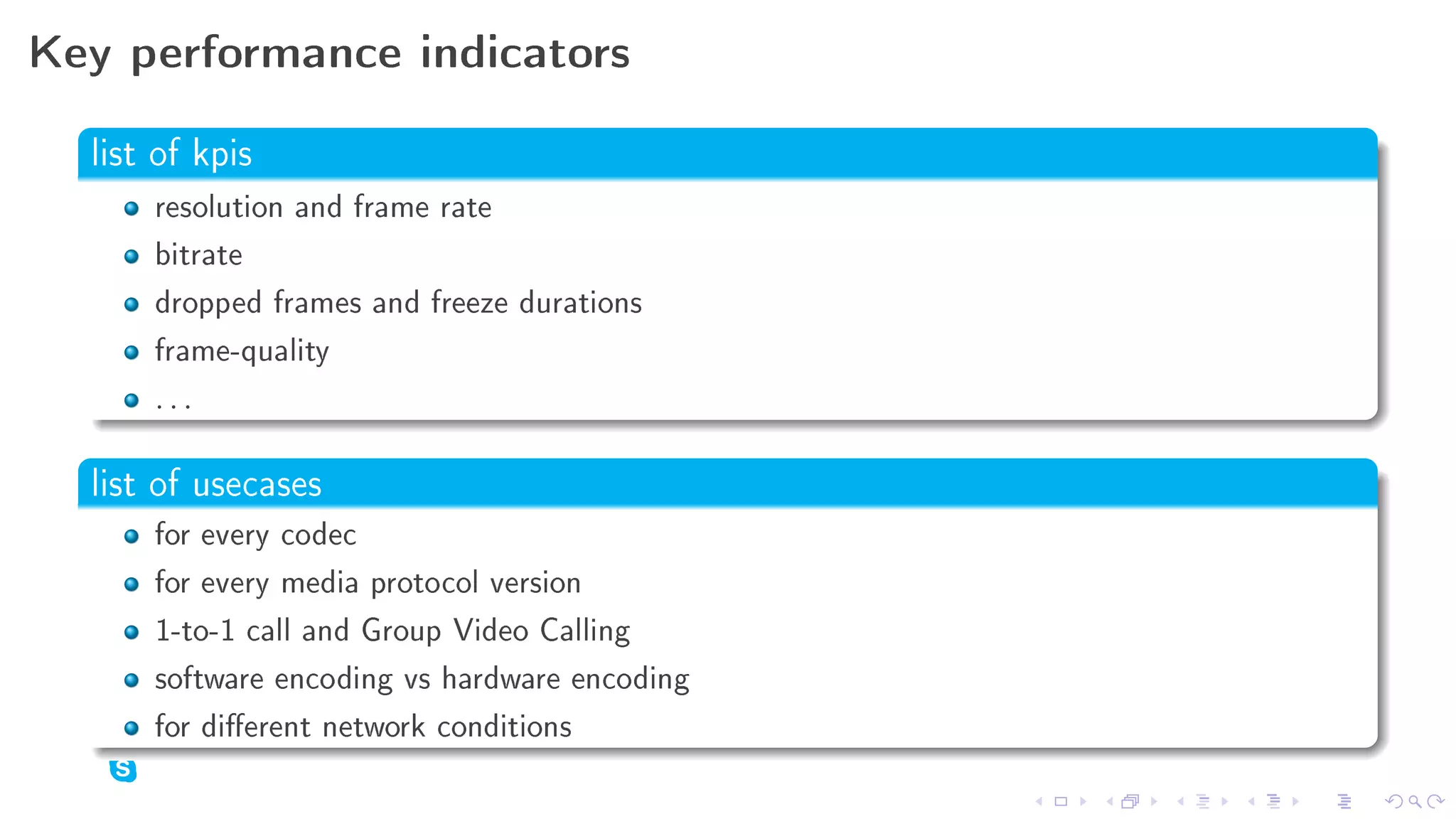

Key performance indicators

list of kpis

resolution and frame rate
bitrate
dropped frames and freeze durations
frame-quality
...

list of usecases
for every codec
for every media protocol version
1-to-1 call and Group Video Calling
software encoding vs hardware encoding
for dierent network conditions

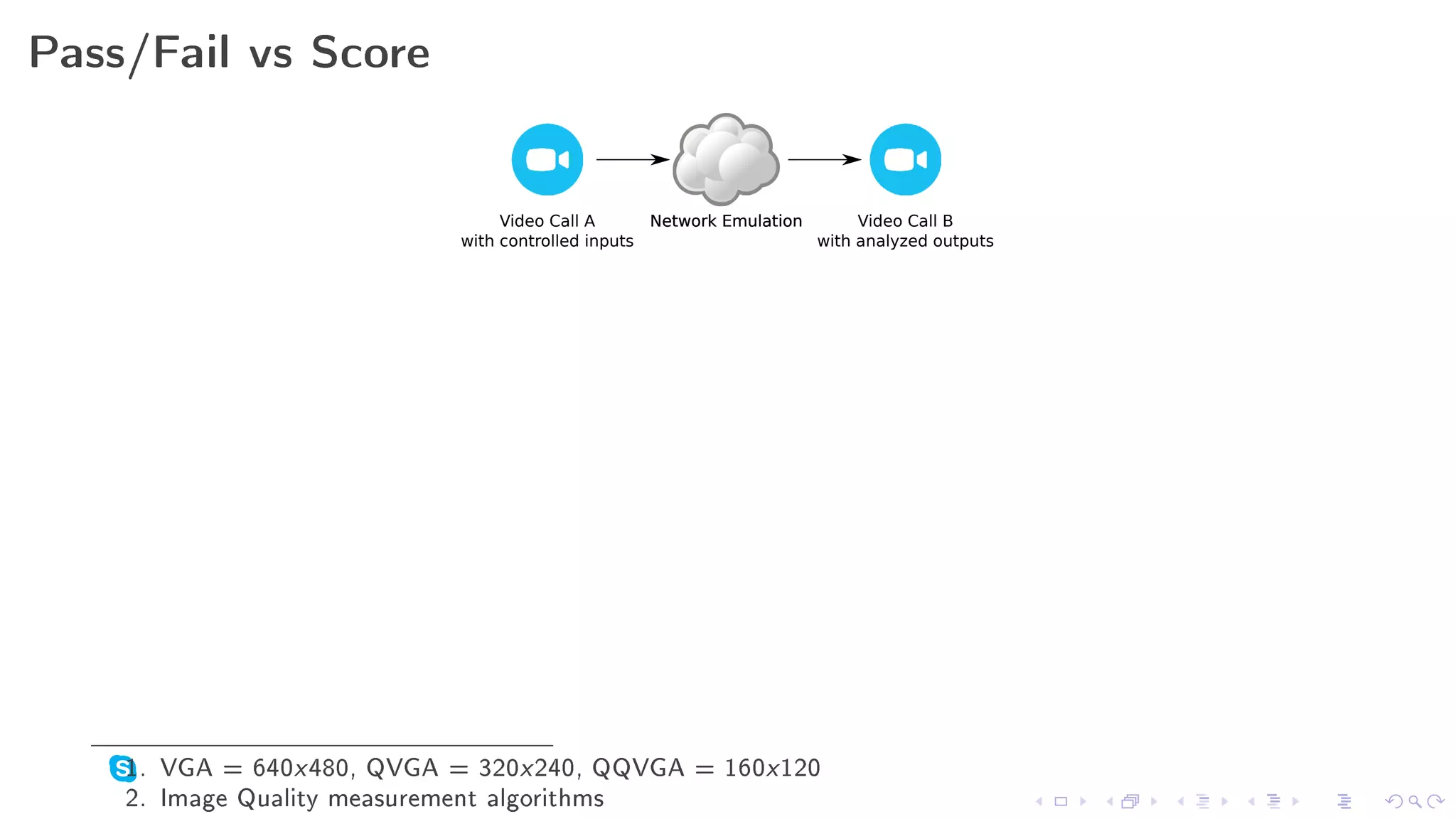

Pass/Fail vs Score

Video Call A Network Emulation Video Call B
with controlled inputs with analyzed outputs

x x
1. VGA = 640 480, QVGA = 320 240, QQVGA = 160 120 x
2. Image Quality measurement algorithms

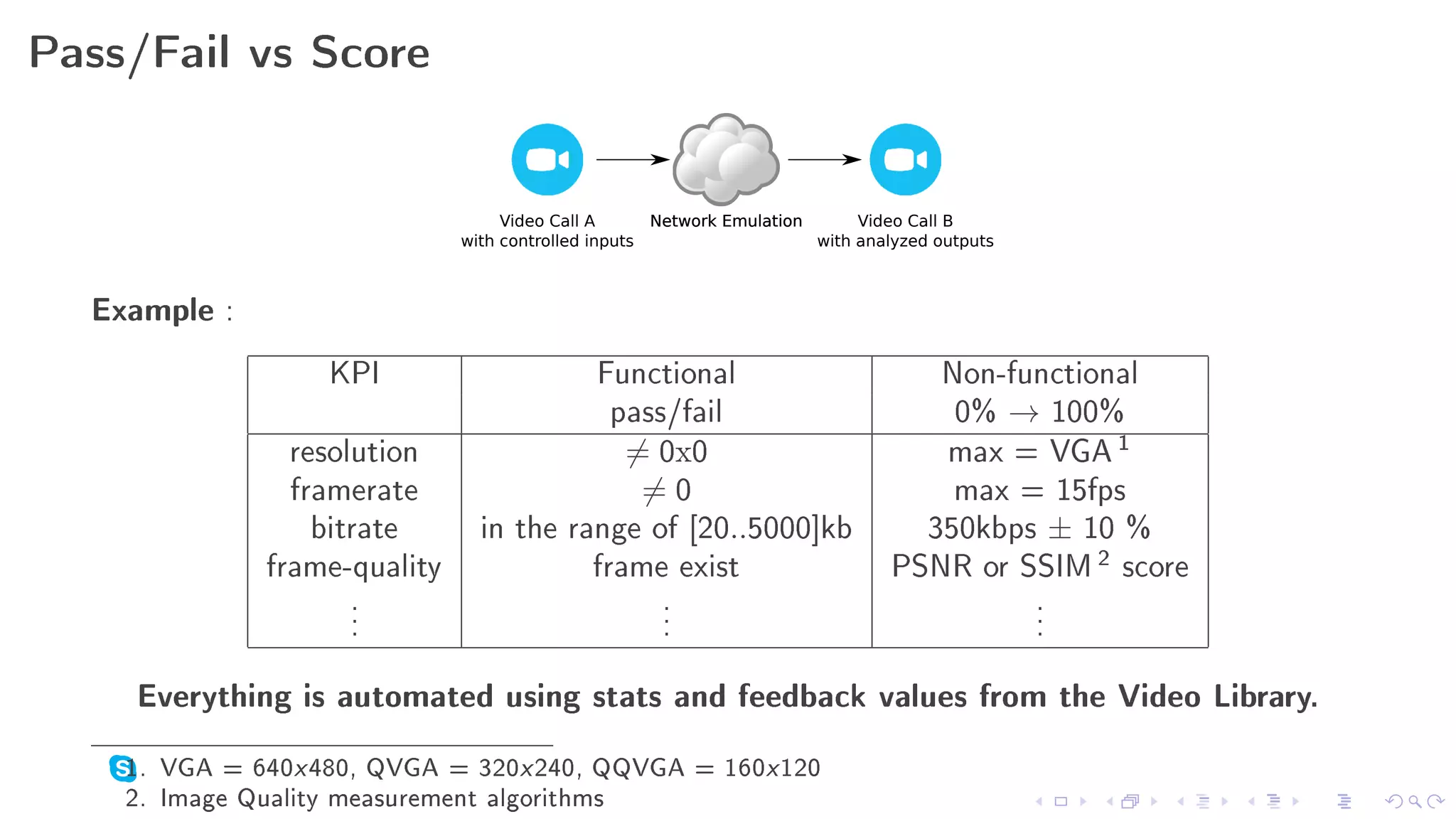

Pass/Fail vs Score

Video Call A Network Emulation Video Call B
with controlled inputs with analyzed outputs

Example :
KPI Functional Non-functional
pass/fail 0% → 100%
resolution = 0x0 max = VGA 1
framerate =0 max = 15fps
bitrate in the range of [20..5000]kb 350kbps ± 10 %
frame-quality frame exist PSNR or SSIM 2 score
.
. .
. .
.
. . .
Everything is automated using stats and feedback values from the Video Library.

x x
1. VGA = 640 480, QVGA = 320 240, QQVGA = 160 120 x
2. Image Quality measurement algorithms

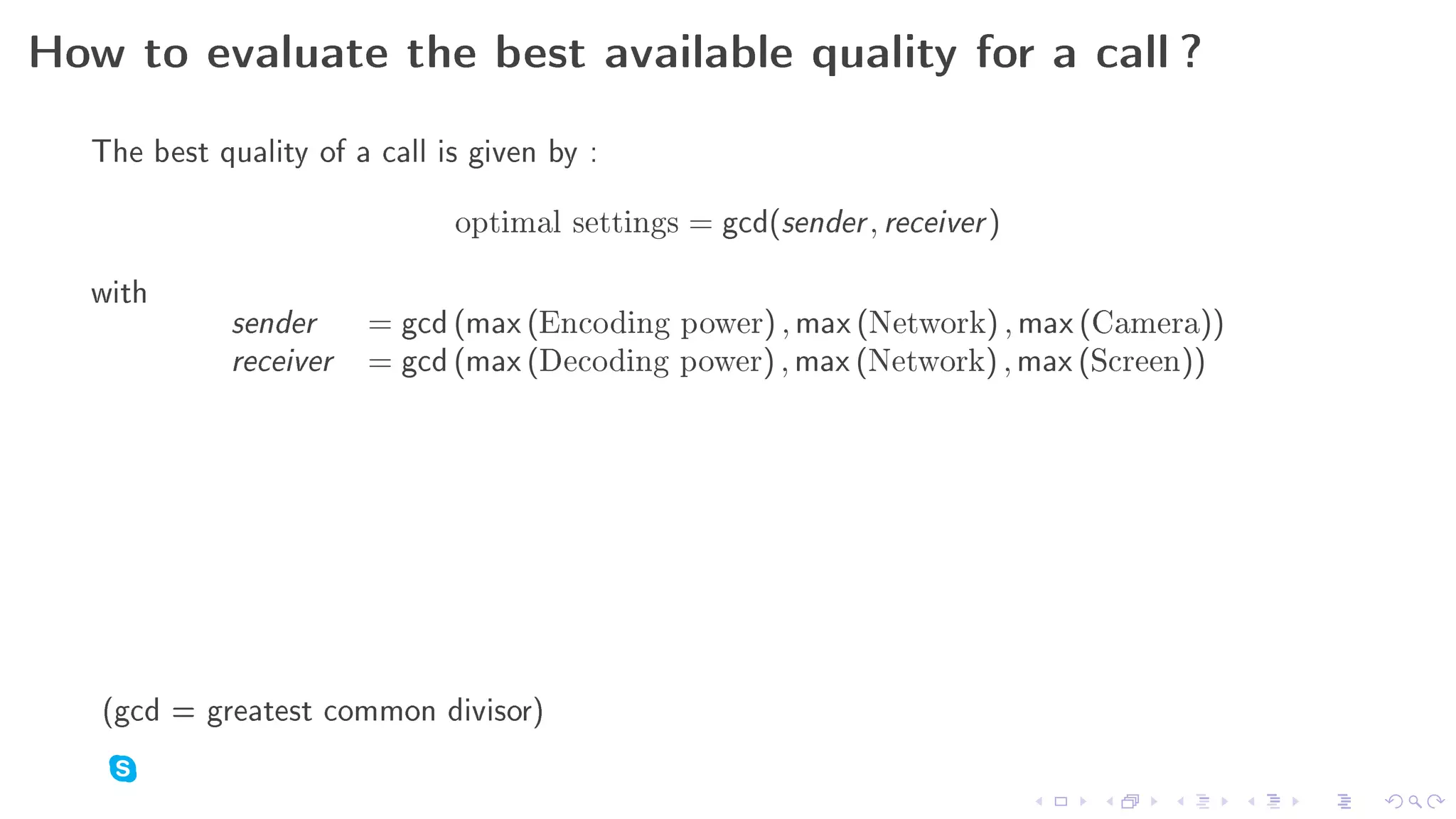

How to evaluate the best available quality for a call ?

The best quality of a call is given by :
optimal settings = gcd(sender , receiver )

with
sender = gcd (max (Encoding power ) , max (Network) , max (Camera))
receiver = gcd (max (Decoding power ) , max (Network) , max (Screen))

(gcd = greatest common divisor)

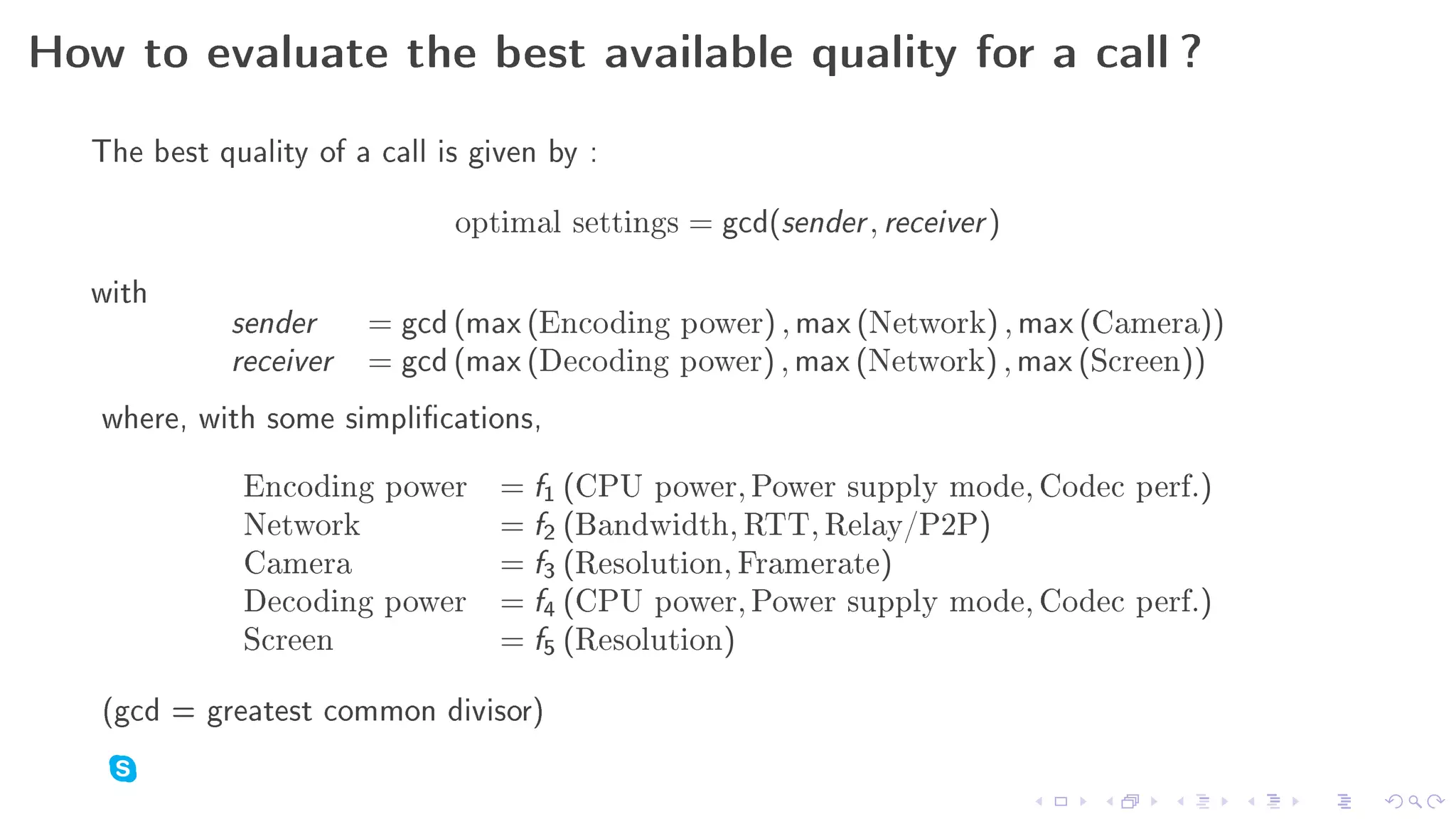

How to evaluate the best available quality for a call ?

The best quality of a call is given by :
optimal settings = gcd(sender , receiver )

with
sender = gcd (max (Encoding power ) , max (Network) , max (Camera))
receiver = gcd (max (Decoding power ) , max (Network) , max (Screen))
where, with some simplications,
Encoding power = f1 (CPU power, Power supply mode, Codec perf.)
Network = f2 (Bandwidth, RTT, Relay/P2P)
Camera = f3 (Resolution, Framerate)
Decoding power = f4 (CPU power, Power supply mode, Codec perf.)
Screen = f5 (Resolution)

(gcd = greatest common divisor)

Compare across revisions / branches

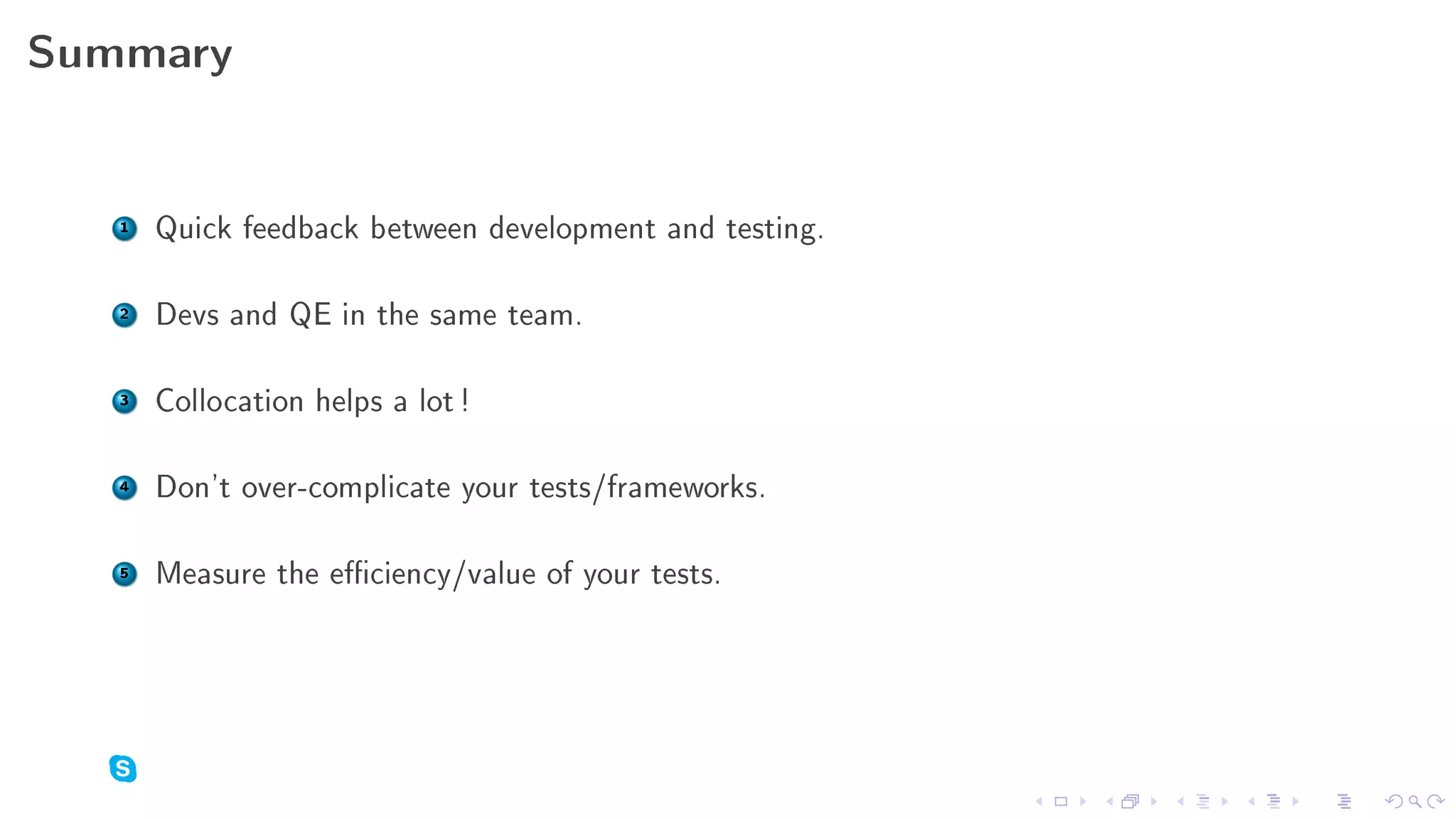

Summary

1 Quick feedback between development and testing.

2 Devs and QE in the same team.

3 Collocation helps a lot !

4 Don't over-complicate your tests/frameworks.

5 Measure the eciency/value of your tests.

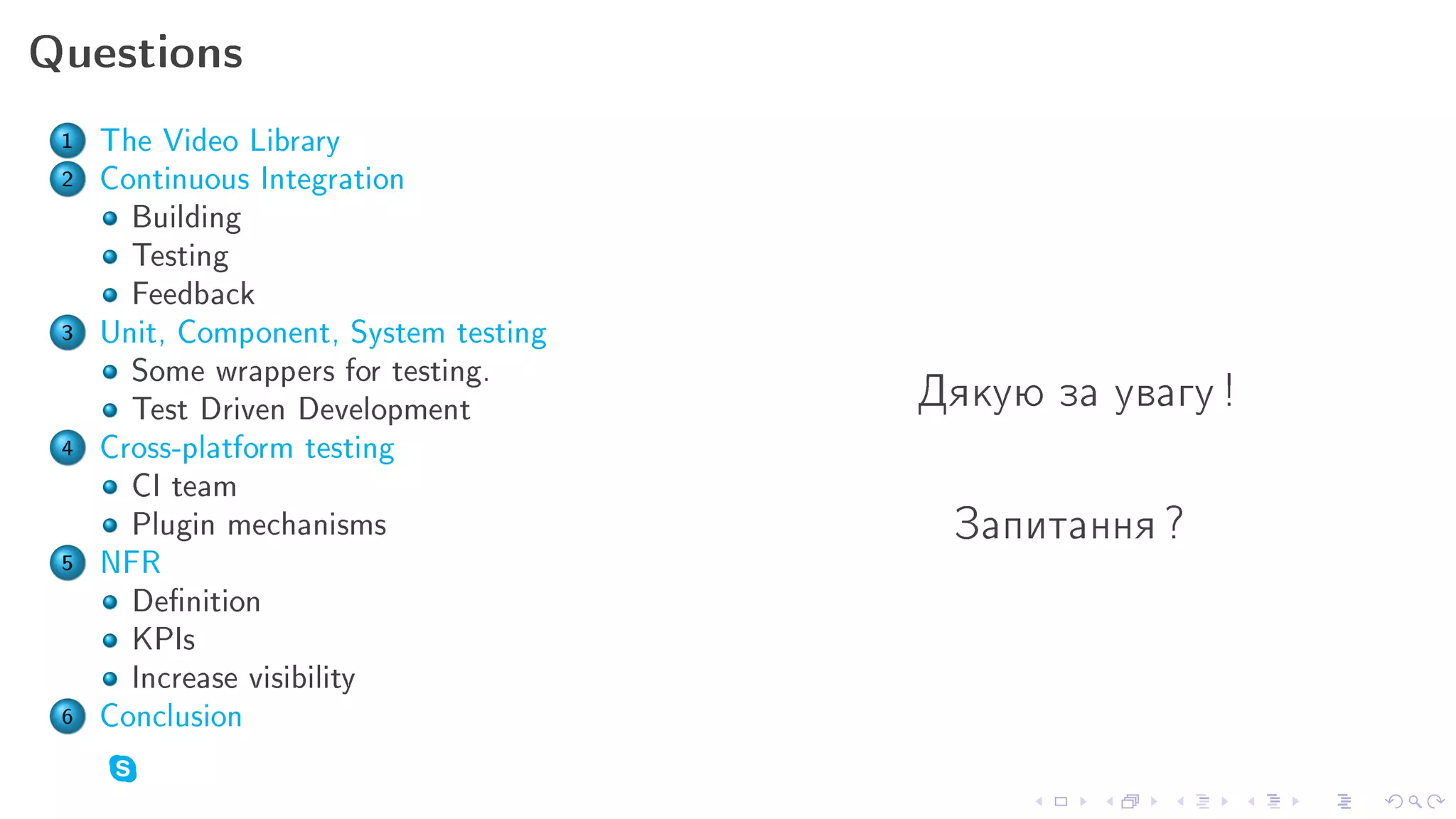

Questions

1 The Video Library
2 Continuous Integration
Building
Testing
Feedback
3 Unit, Component, System testing
Some wrappers for testing.
Test Driven Development Äÿêóþ çà óâàãó !
4 Cross-platform testing
CI team
Plugin mechanisms Çàïèòàííÿ ?
5 NFR
Denition
KPIs
Increase visibility
6 Conclusion
