Securing Microservices using Play and Akka HTTP
- 1. Securing Microservices using Play andAkka HTTP Rafal Gancarz @RafalGancarz 1
- 2. About me • LeadConsultant at OpenCredo • Helping companies transform their IT platforms and the ways their do business • Technologist, architect, developer • Agile practitioner & evangelist • Scala <- Java <- PHP 2

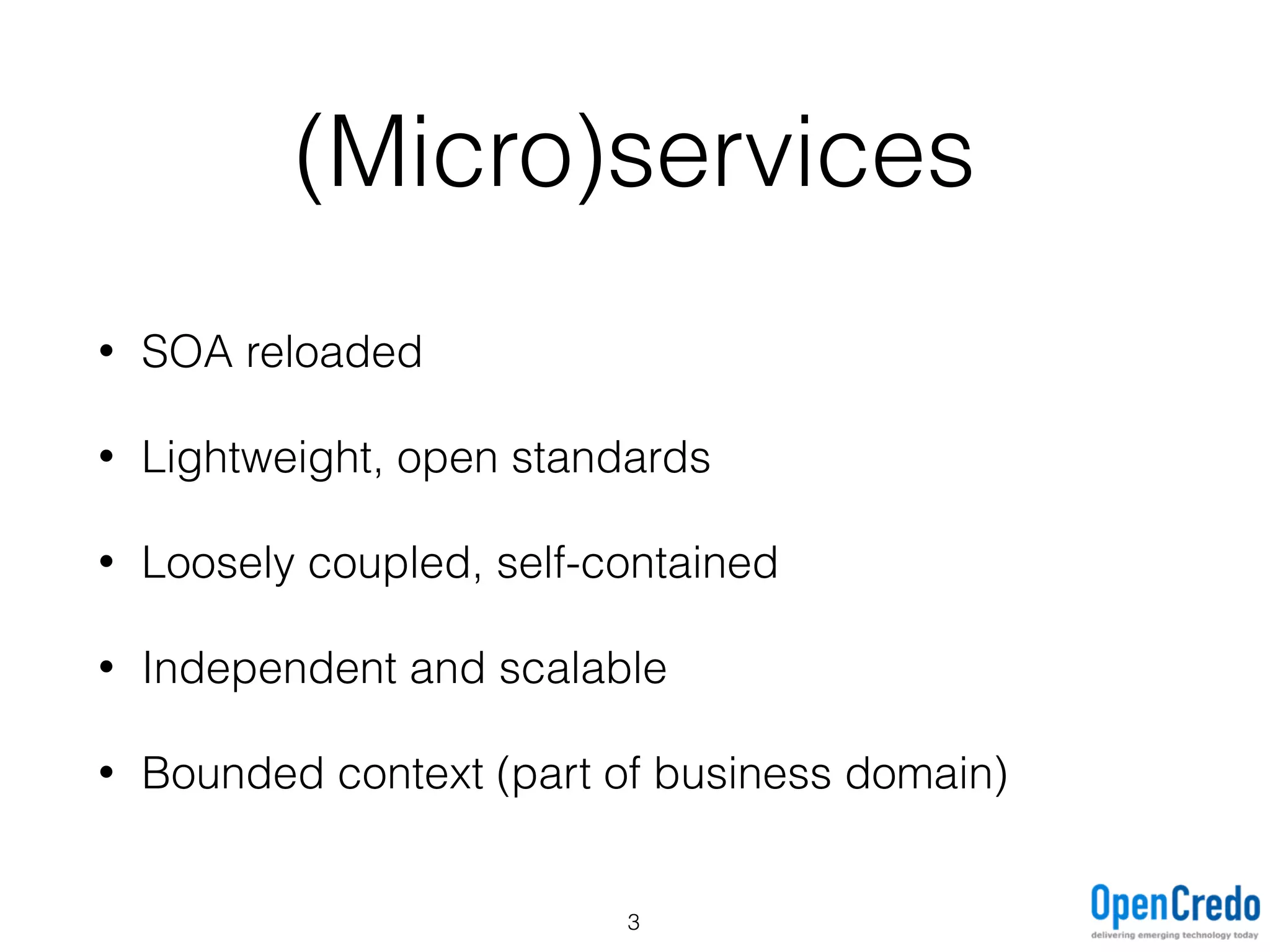

- 3. (Micro)services • SOA reloaded •Lightweight, open standards • Loosely coupled, self-contained • Independent and scalable • Bounded context (part of business domain) 3

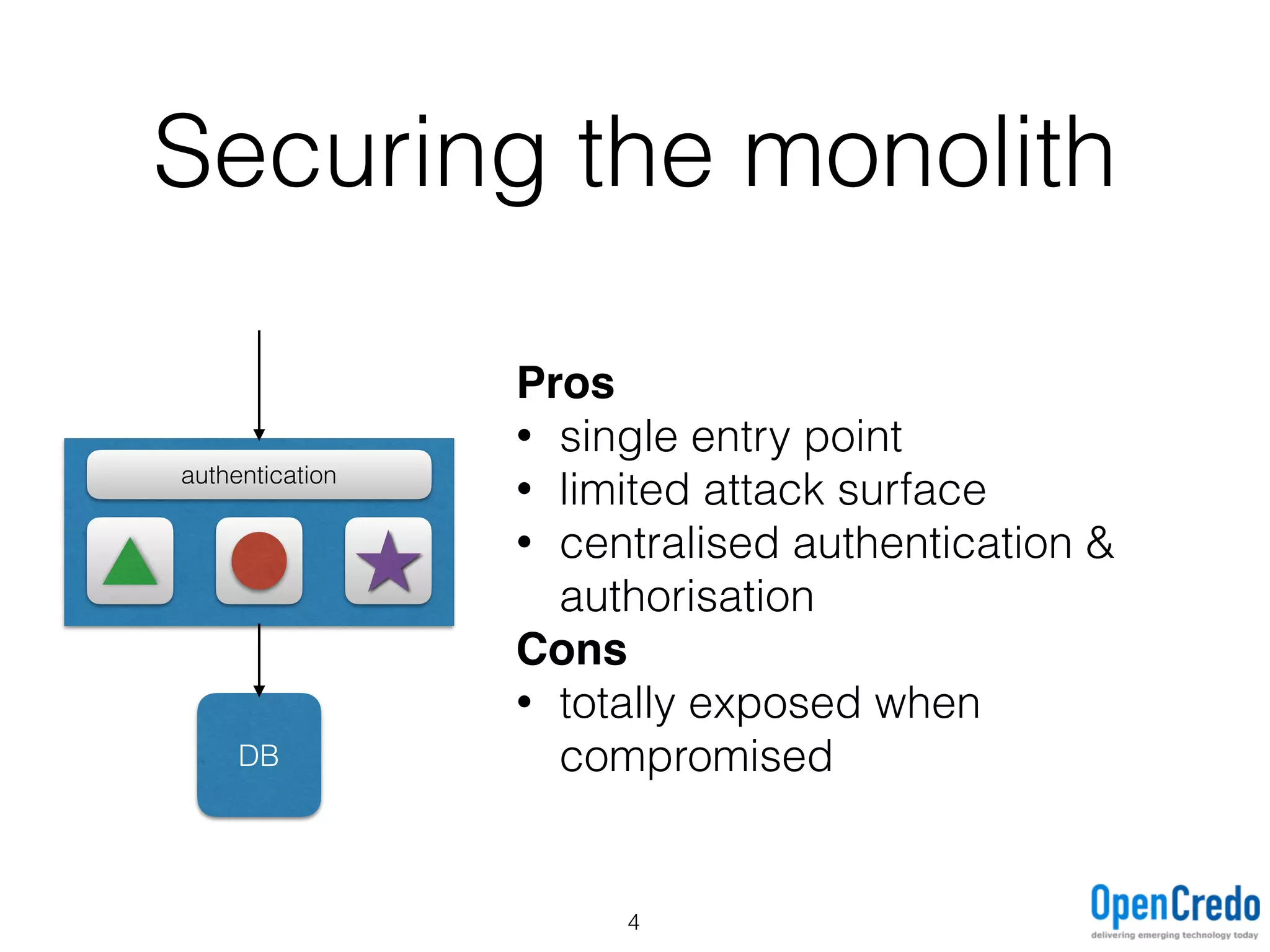

- 4. Securing the monolith DB authentication Pros •single entry point • limited attack surface • centralised authentication & authorisation Cons • totally exposed when compromised 4

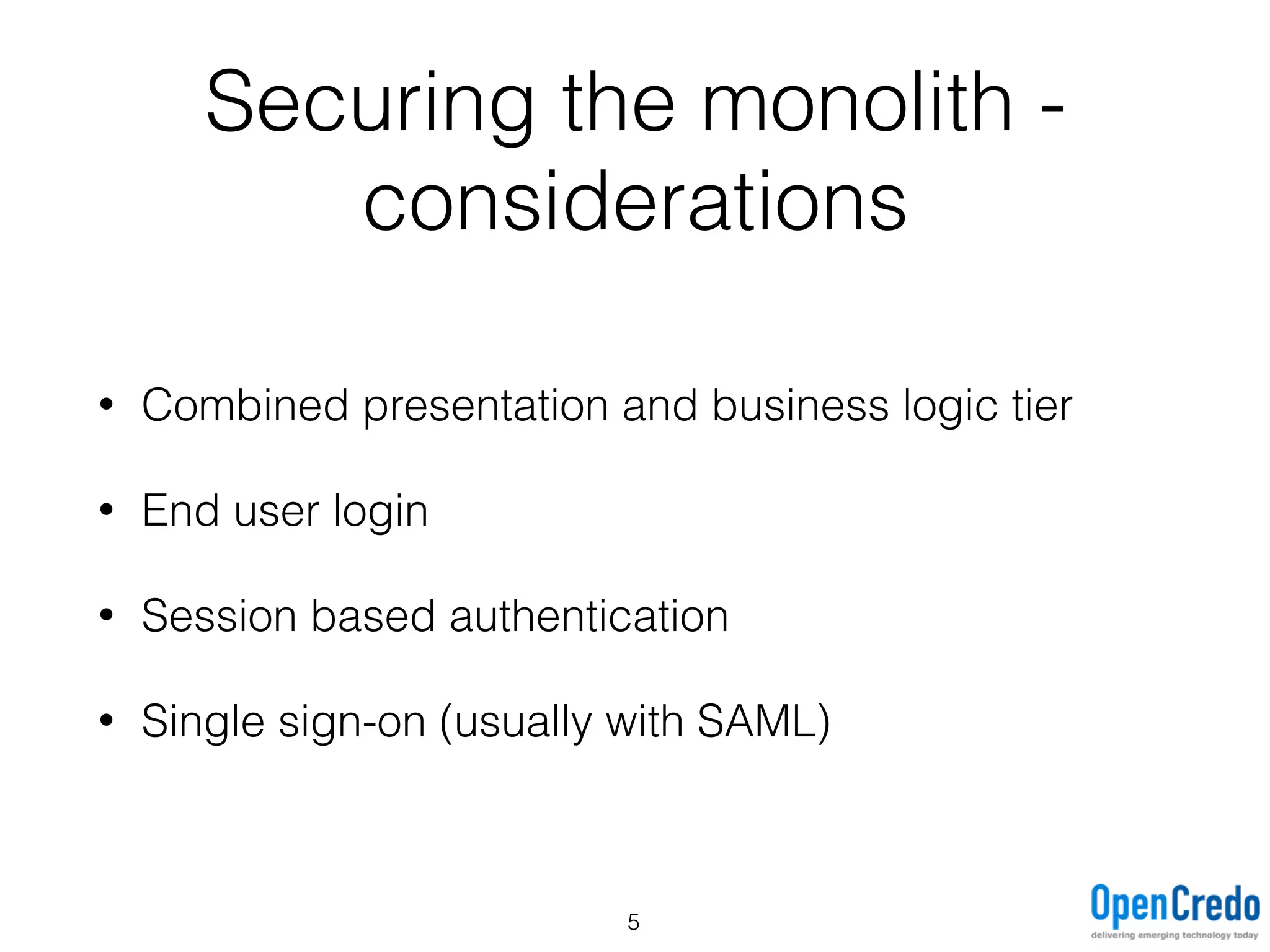

- 5. Securing the monolith- considerations • Combined presentation and business logic tier • End user login • Session based authentication • Single sign-on (usually with SAML) 5

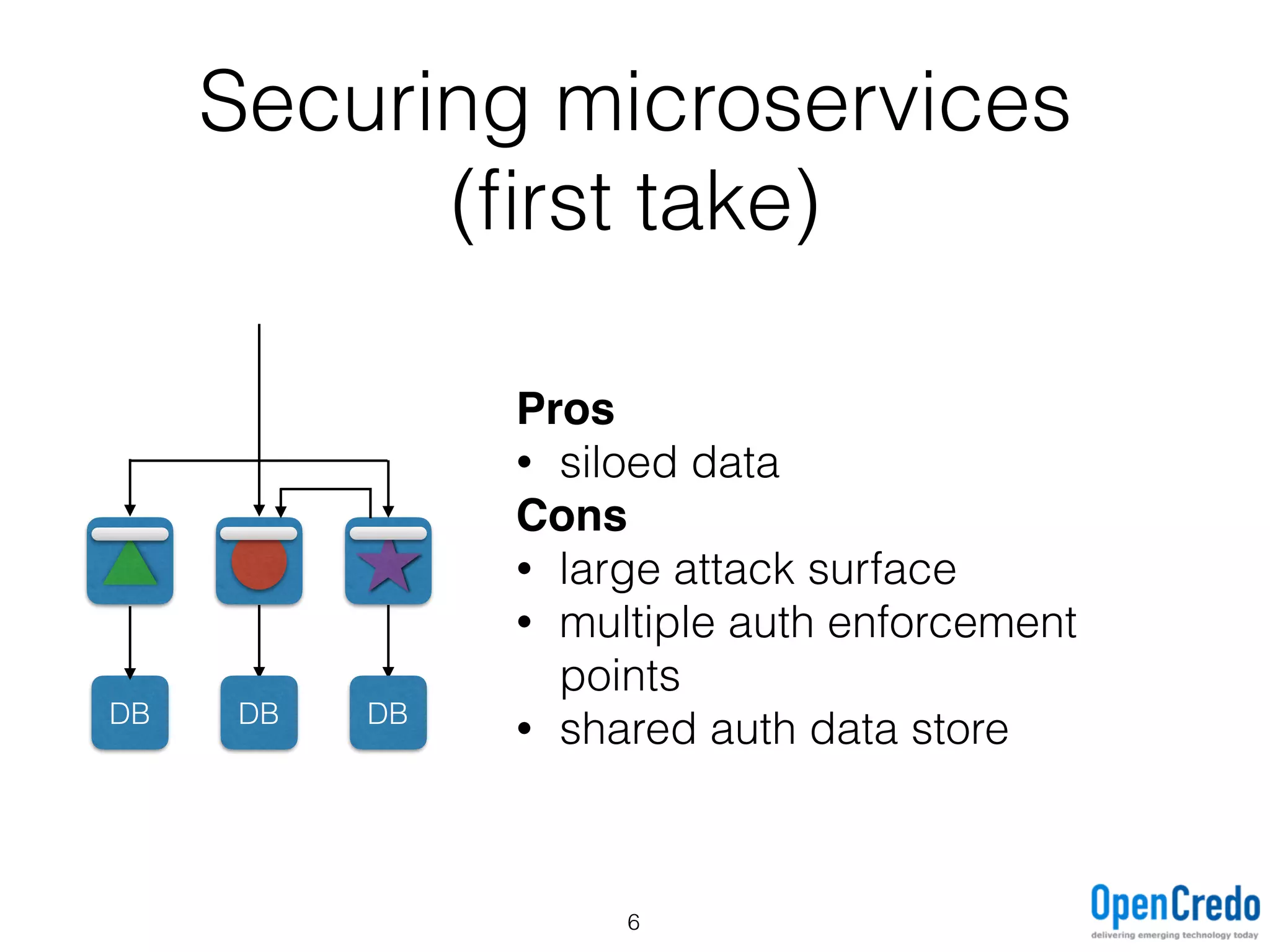

- 6. Securing microservices (first take) DB Pros •siloed data Cons • large attack surface • multiple auth enforcement points • shared auth data storeDB DB 6

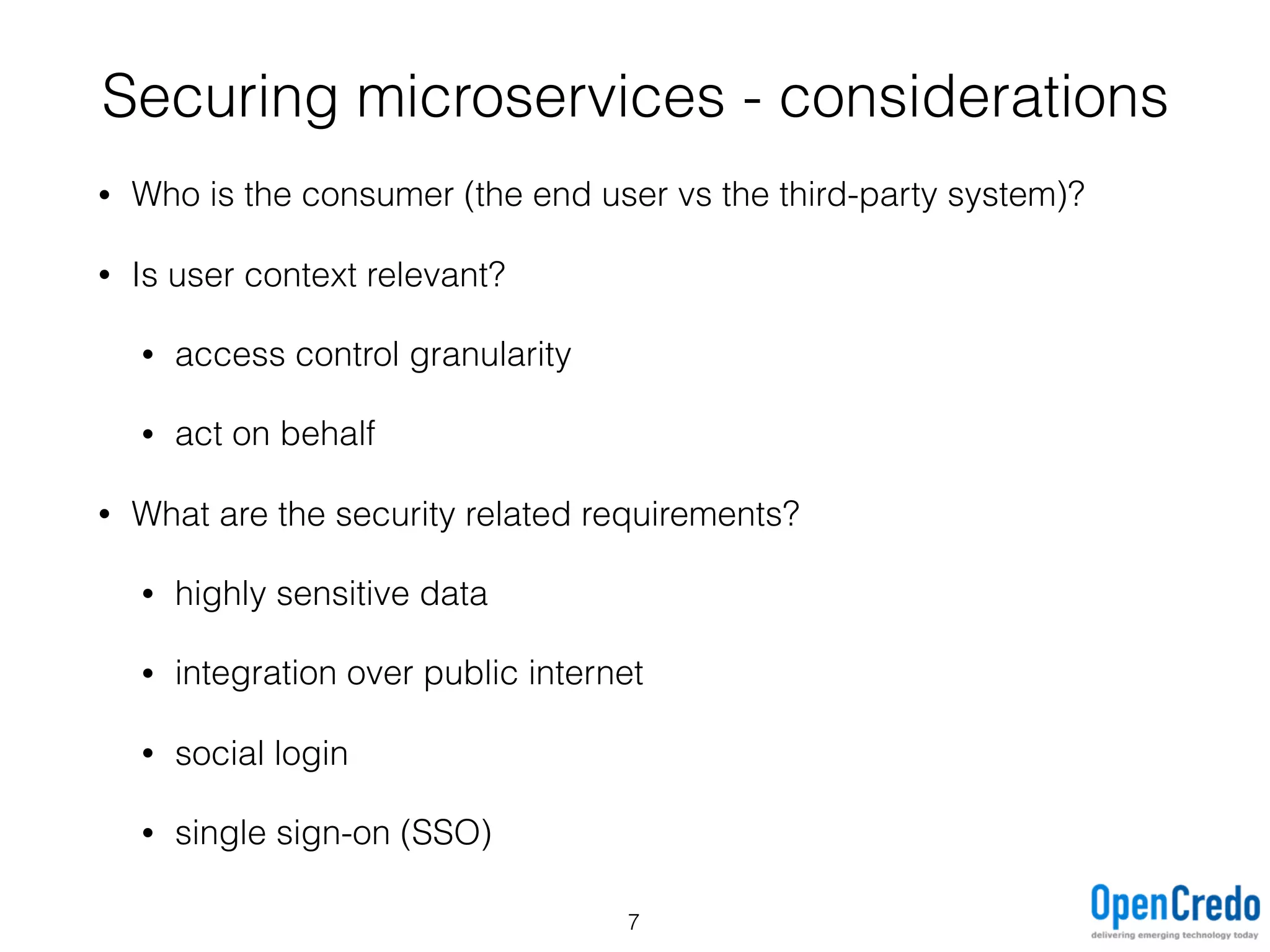

- 7. • Who isthe consumer (the end user vs the third-party system)? • Is user context relevant? • access control granularity • act on behalf • What are the security related requirements? • highly sensitive data • integration over public internet • social login • single sign-on (SSO) Securing microservices - considerations 7

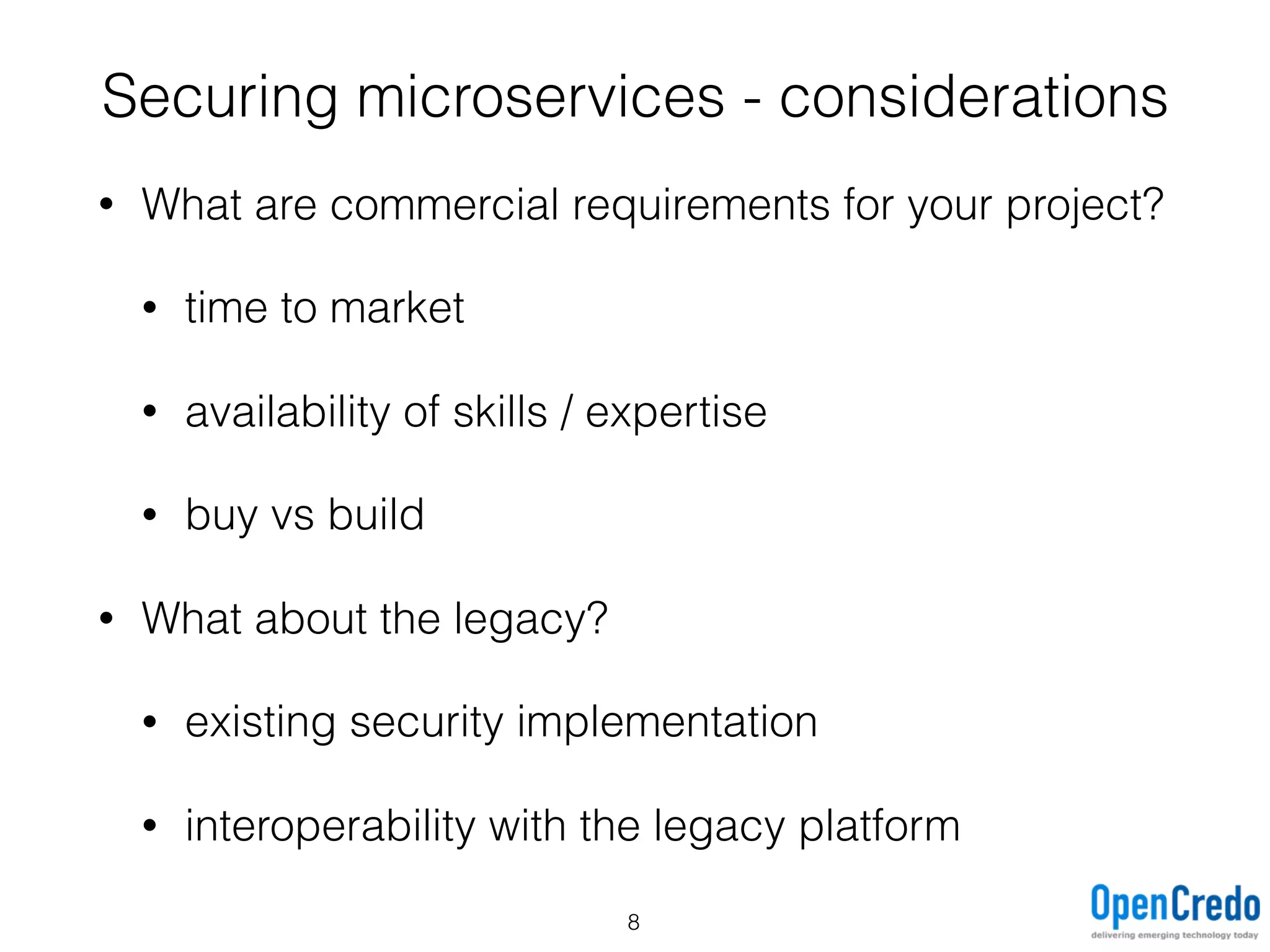

- 8. • What arecommercial requirements for your project? • time to market • availability of skills / expertise • buy vs build • What about the legacy? • existing security implementation • interoperability with the legacy platform Securing microservices - considerations 8

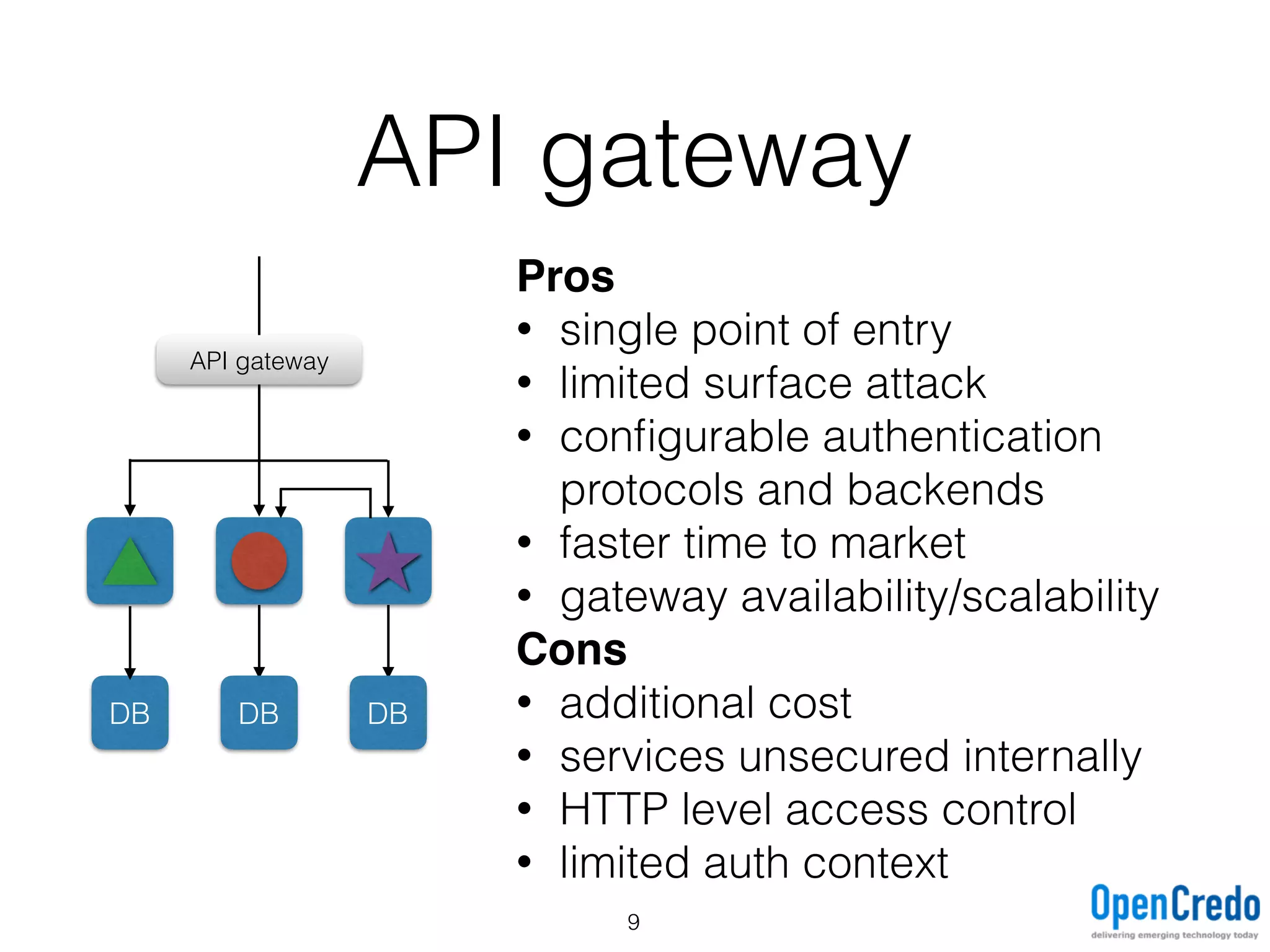

- 9. API gateway DB DBDB API gateway Pros • single point of entry • limited surface attack • configurable authentication protocols and backends • faster time to market • gateway availability/scalability Cons • additional cost • services unsecured internally • HTTP level access control • limited auth context 9

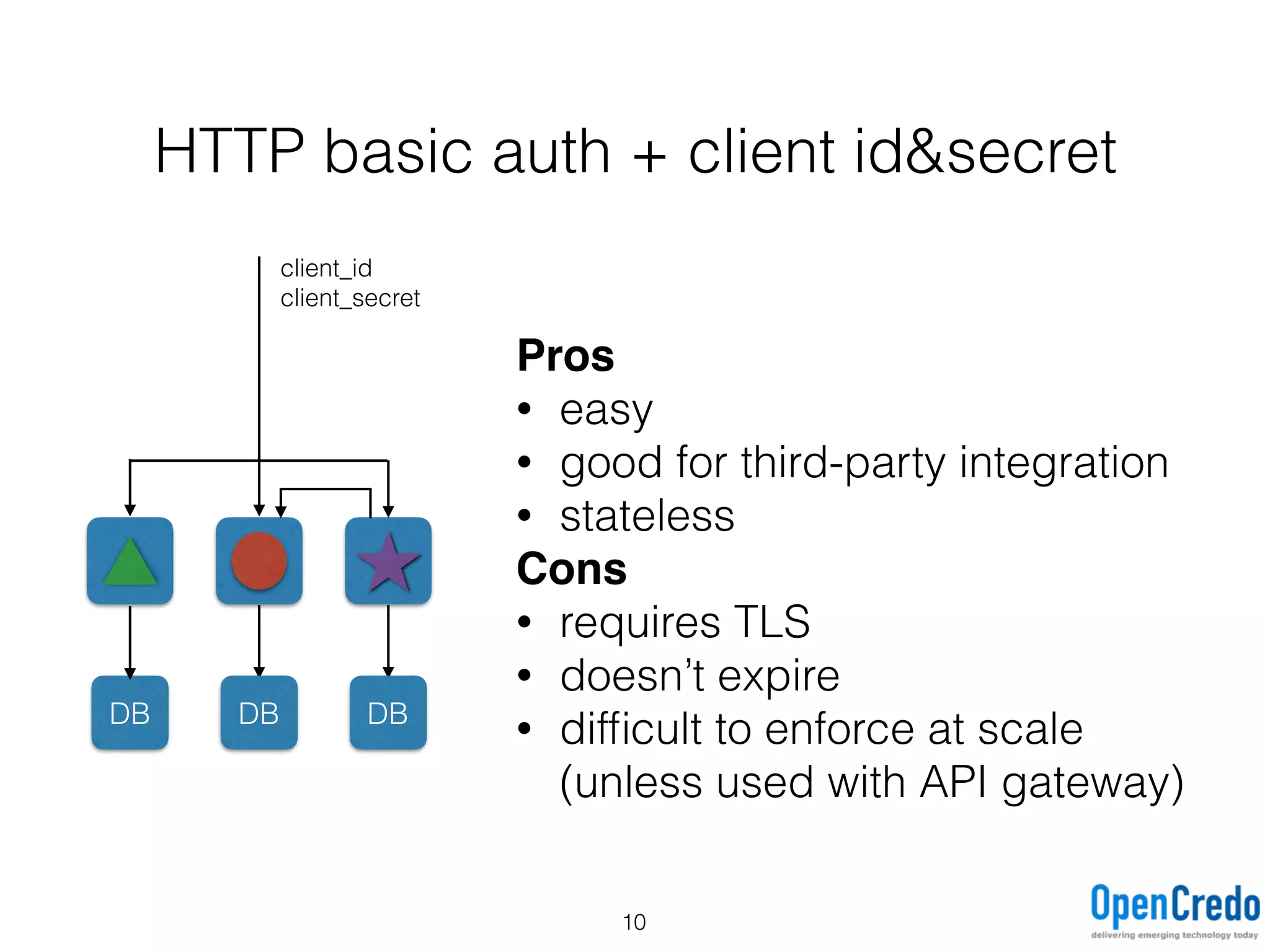

- 10. HTTP basic auth+ client id&secret DB DB DB Pros • easy • good for third-party integration • stateless Cons • requires TLS • doesn’t expire • difficult to enforce at scale (unless used with API gateway) client_id client_secret 10

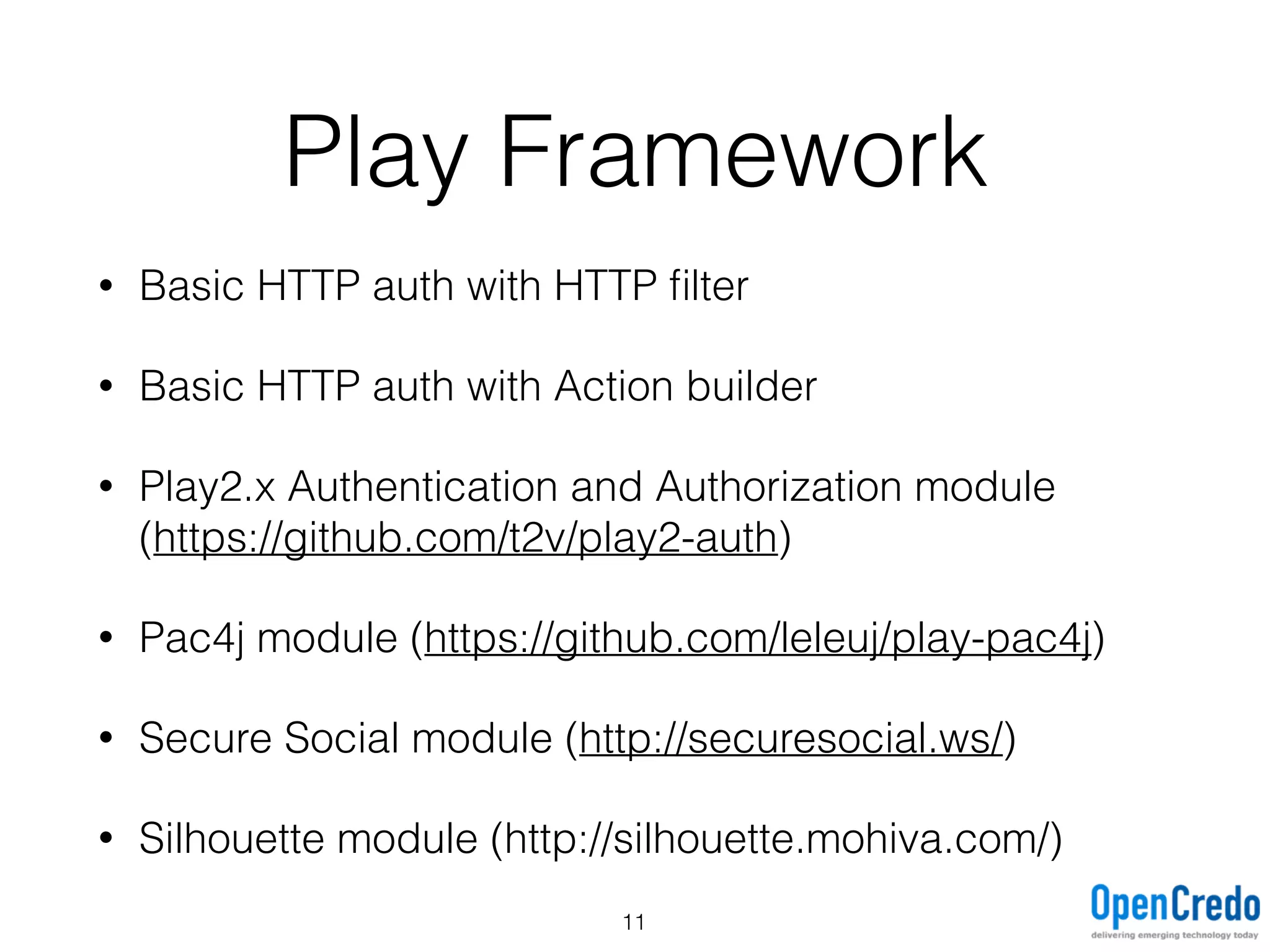

- 11. Play Framework • BasicHTTP auth with HTTP filter • Basic HTTP auth with Action builder • Play2.x Authentication and Authorization module (https://github.com/t2v/play2-auth) • Pac4j module (https://github.com/leleuj/play-pac4j) • Secure Social module (http://securesocial.ws/) • Silhouette module (http://silhouette.mohiva.com/) 11

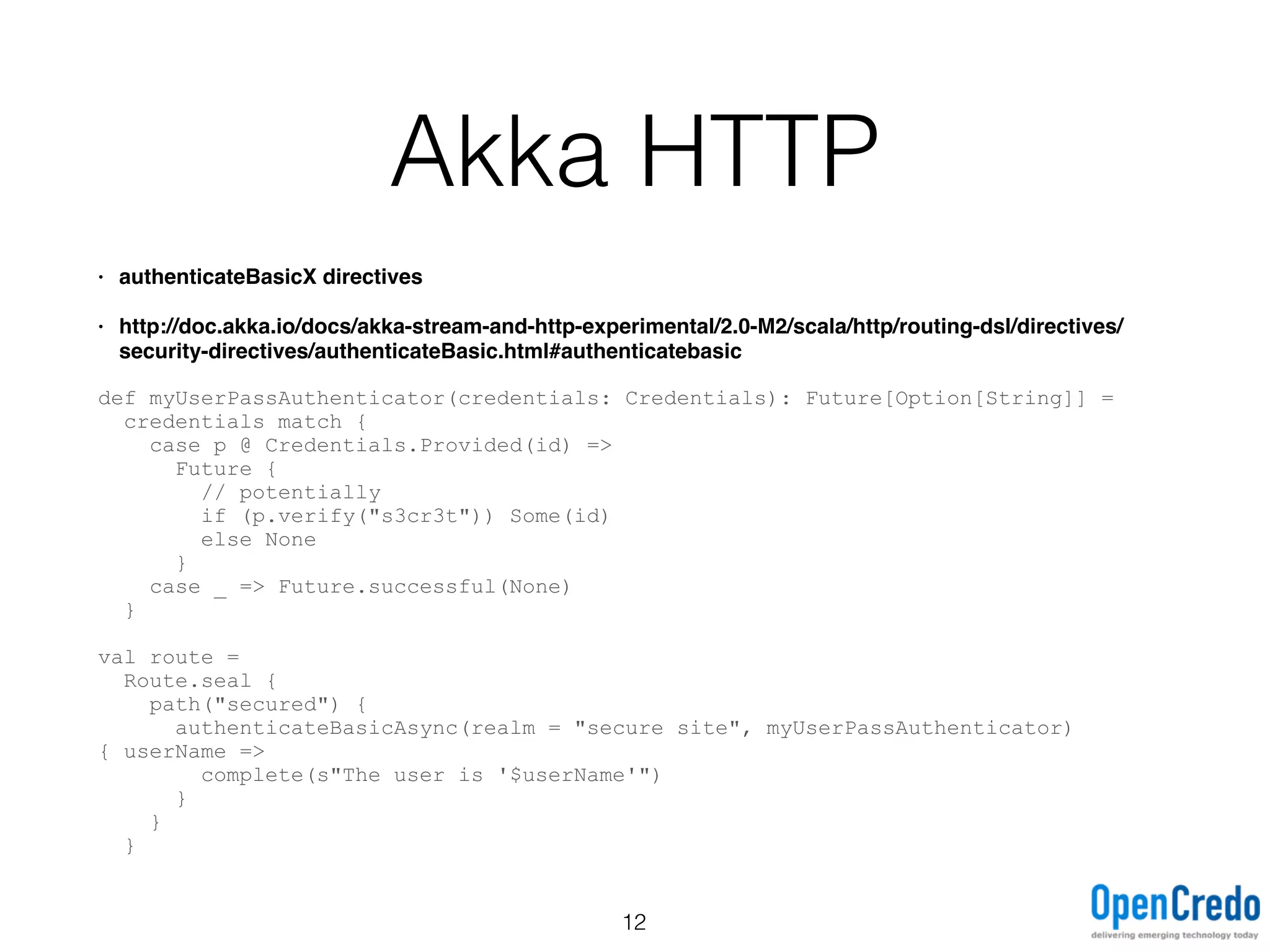

- 12. Akka HTTP • authenticateBasicXdirectives • http://doc.akka.io/docs/akka-stream-and-http-experimental/2.0-M2/scala/http/routing-dsl/directives/ security-directives/authenticateBasic.html#authenticatebasic def myUserPassAuthenticator(credentials: Credentials): Future[Option[String]] = credentials match { case p @ Credentials.Provided(id) => Future { // potentially if (p.verify("s3cr3t")) Some(id) else None } case _ => Future.successful(None) } val route = Route.seal { path("secured") { authenticateBasicAsync(realm = "secure site", myUserPassAuthenticator) { userName => complete(s"The user is '$userName'") } } } 12

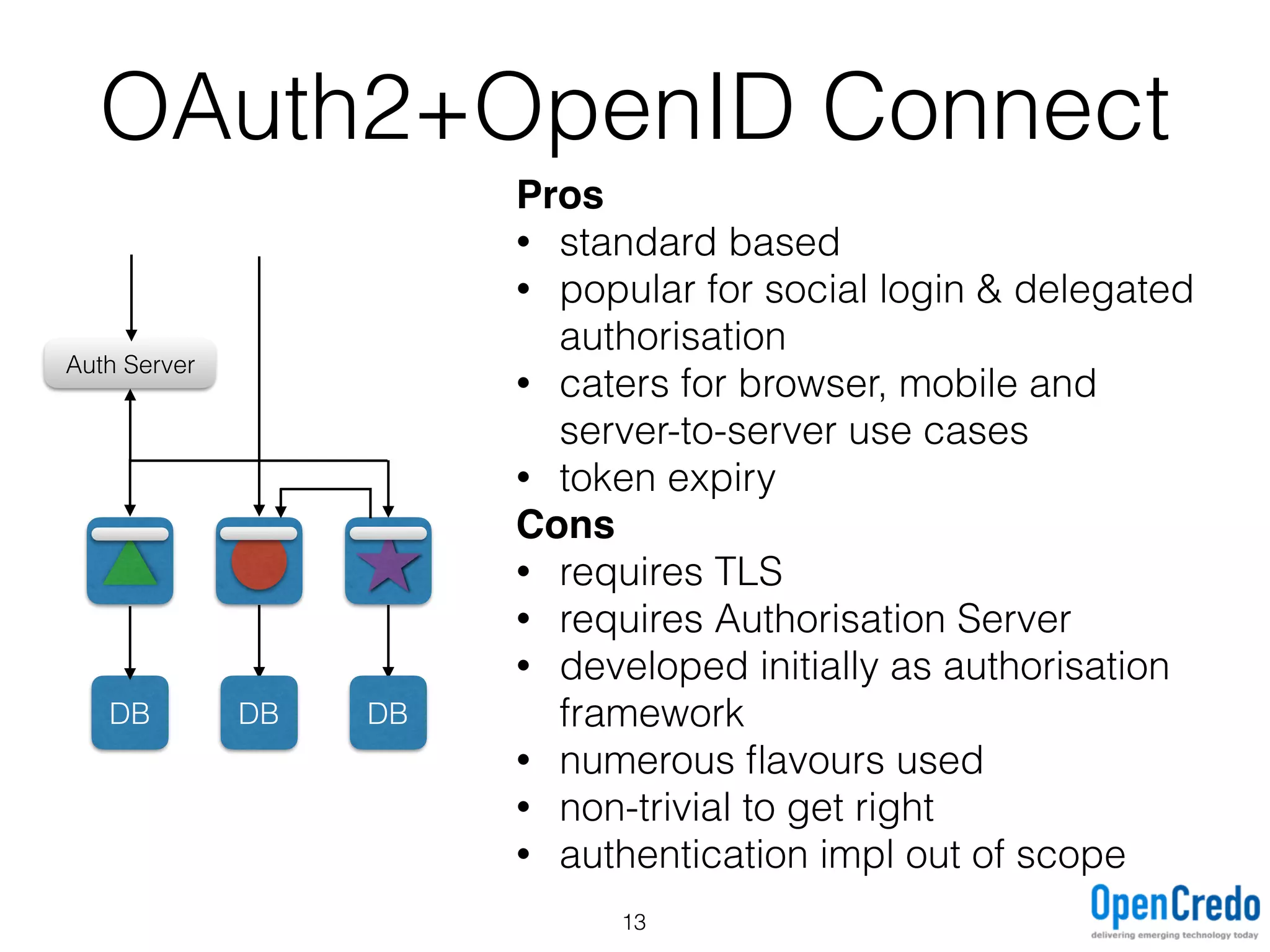

- 13. OAuth2+OpenID Connect DB DBDB Auth Server Pros • standard based • popular for social login & delegated authorisation • caters for browser, mobile and server-to-server use cases • token expiry Cons • requires TLS • requires Authorisation Server • developed initially as authorisation framework • numerous flavours used • non-trivial to get right • authentication impl out of scope 13

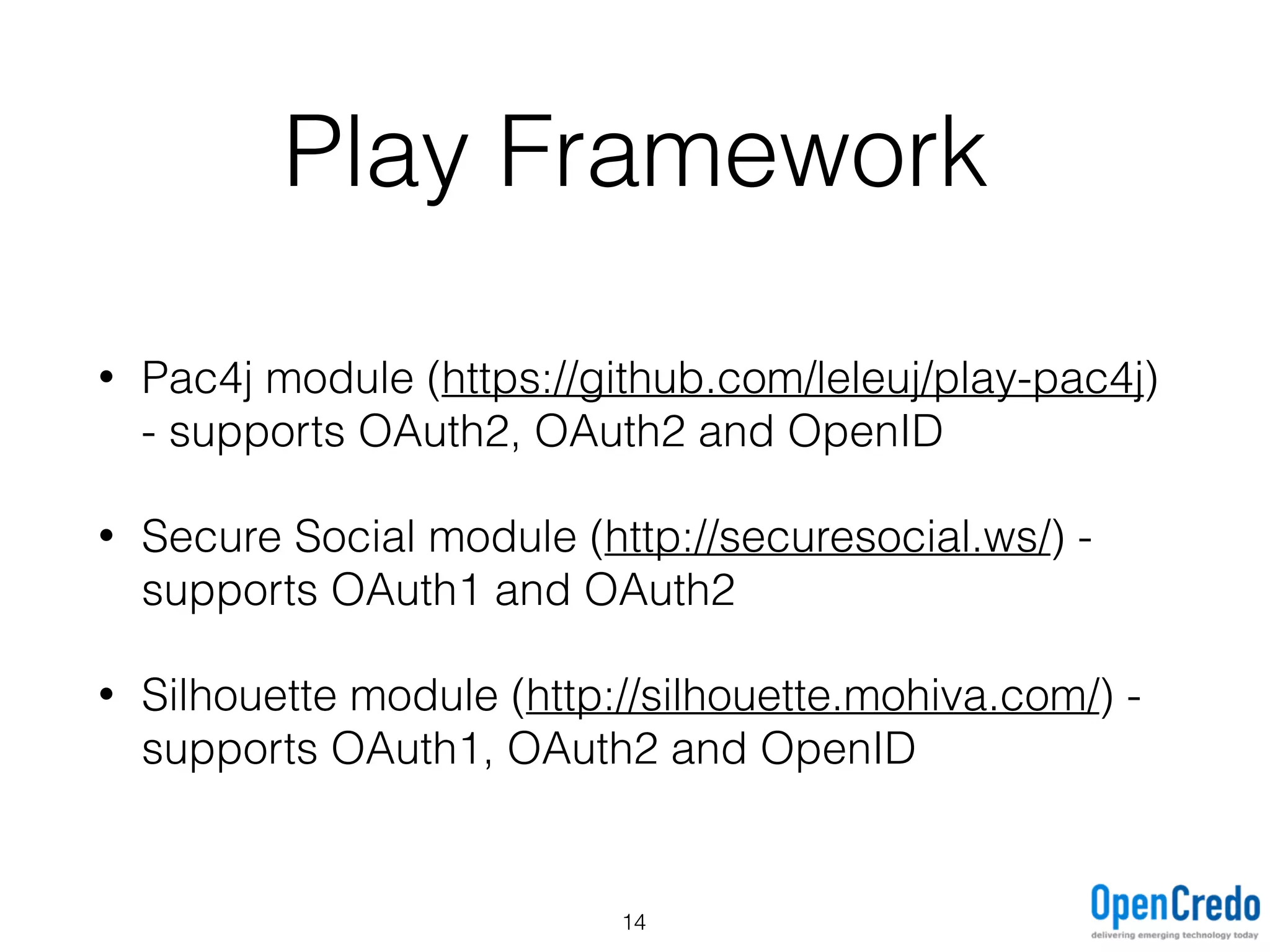

- 14. Play Framework • Pac4jmodule (https://github.com/leleuj/play-pac4j) - supports OAuth2, OAuth2 and OpenID • Secure Social module (http://securesocial.ws/) - supports OAuth1 and OAuth2 • Silhouette module (http://silhouette.mohiva.com/) - supports OAuth1, OAuth2 and OpenID 14

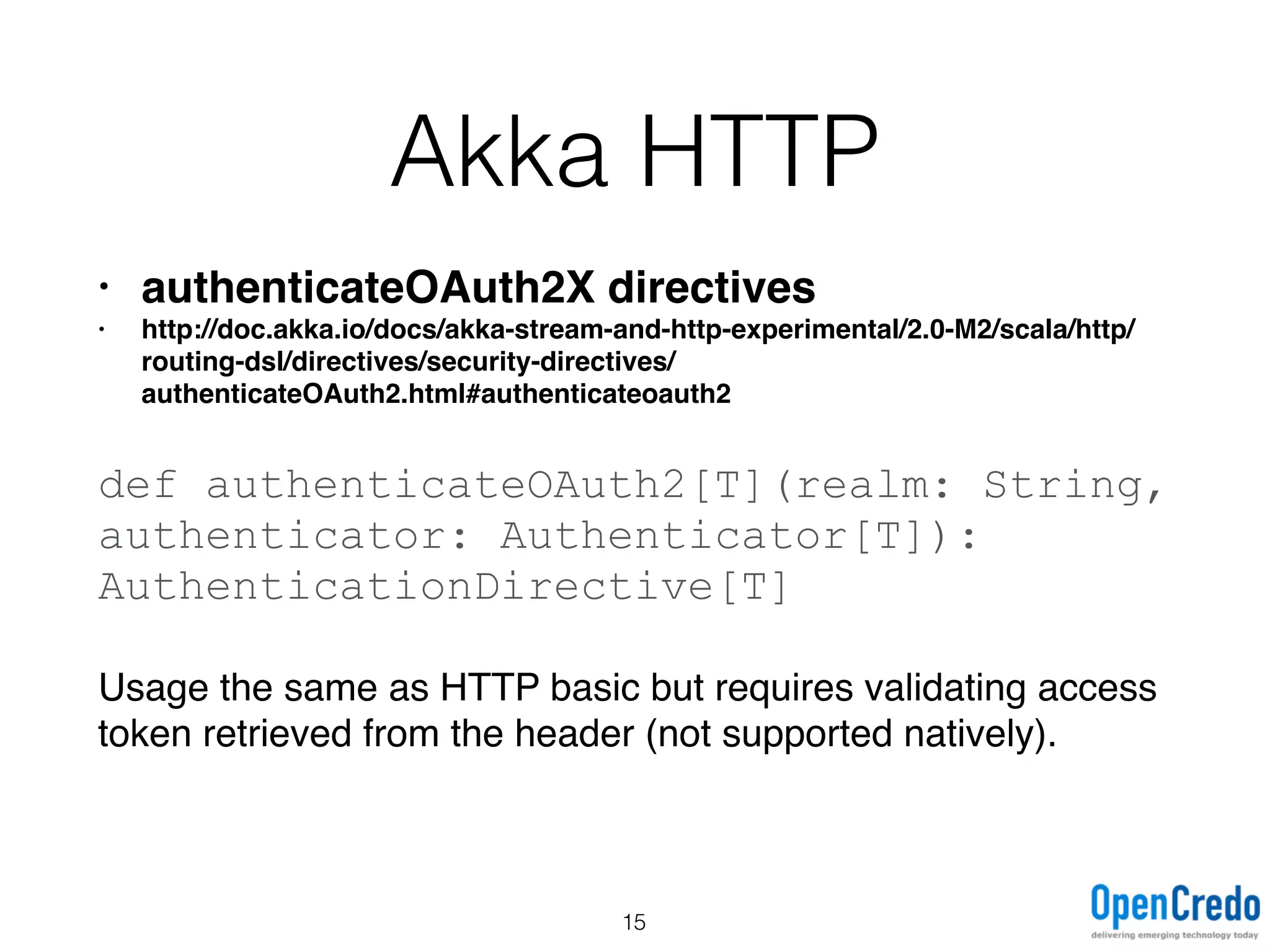

- 15. Akka HTTP • authenticateOAuth2Xdirectives • http://doc.akka.io/docs/akka-stream-and-http-experimental/2.0-M2/scala/http/ routing-dsl/directives/security-directives/ authenticateOAuth2.html#authenticateoauth2 def authenticateOAuth2[T](realm: String, authenticator: Authenticator[T]): AuthenticationDirective[T] Usage the same as HTTP basic but requires validating access token retrieved from the header (not supported natively). 15

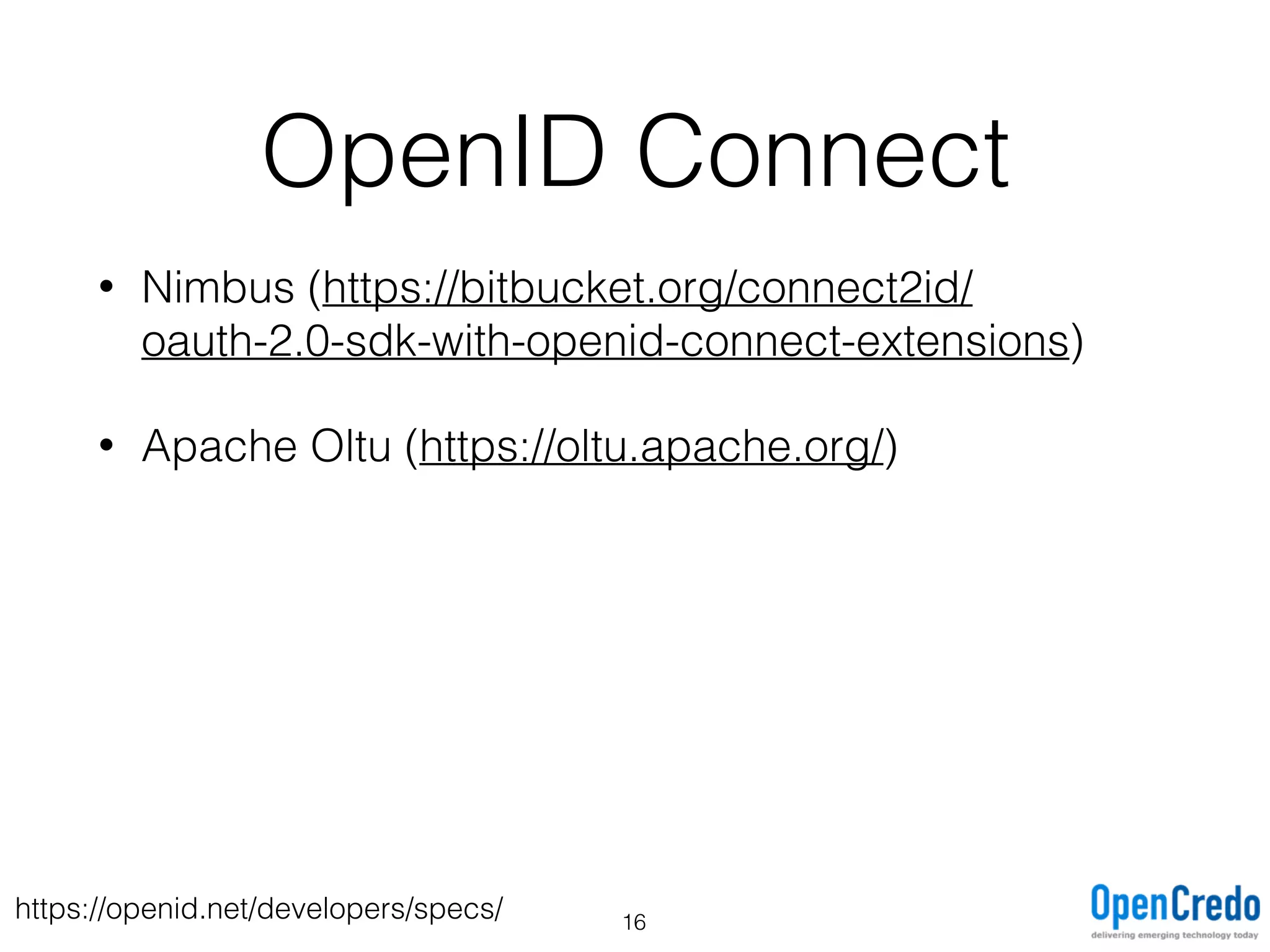

- 16. OpenID Connect • Nimbus(https://bitbucket.org/connect2id/ oauth-2.0-sdk-with-openid-connect-extensions) • Apache Oltu (https://oltu.apache.org/) https://openid.net/developers/specs/ 16

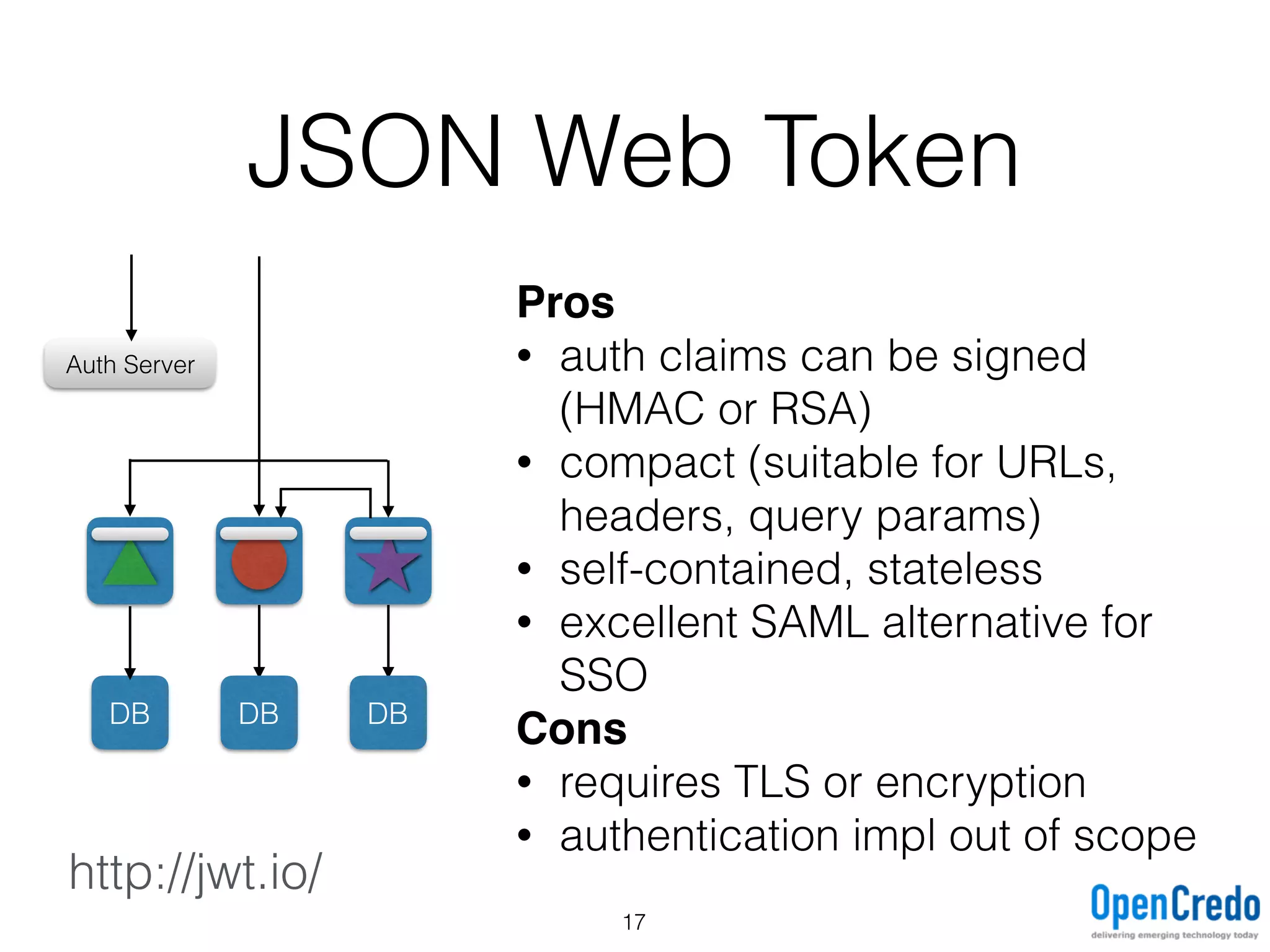

- 17. JSON Web Token DBDB DB Auth Server Pros • auth claims can be signed (HMAC or RSA) • compact (suitable for URLs, headers, query params) • self-contained, stateless • excellent SAML alternative for SSO Cons • requires TLS or encryption • authentication impl out of scope http://jwt.io/ 17

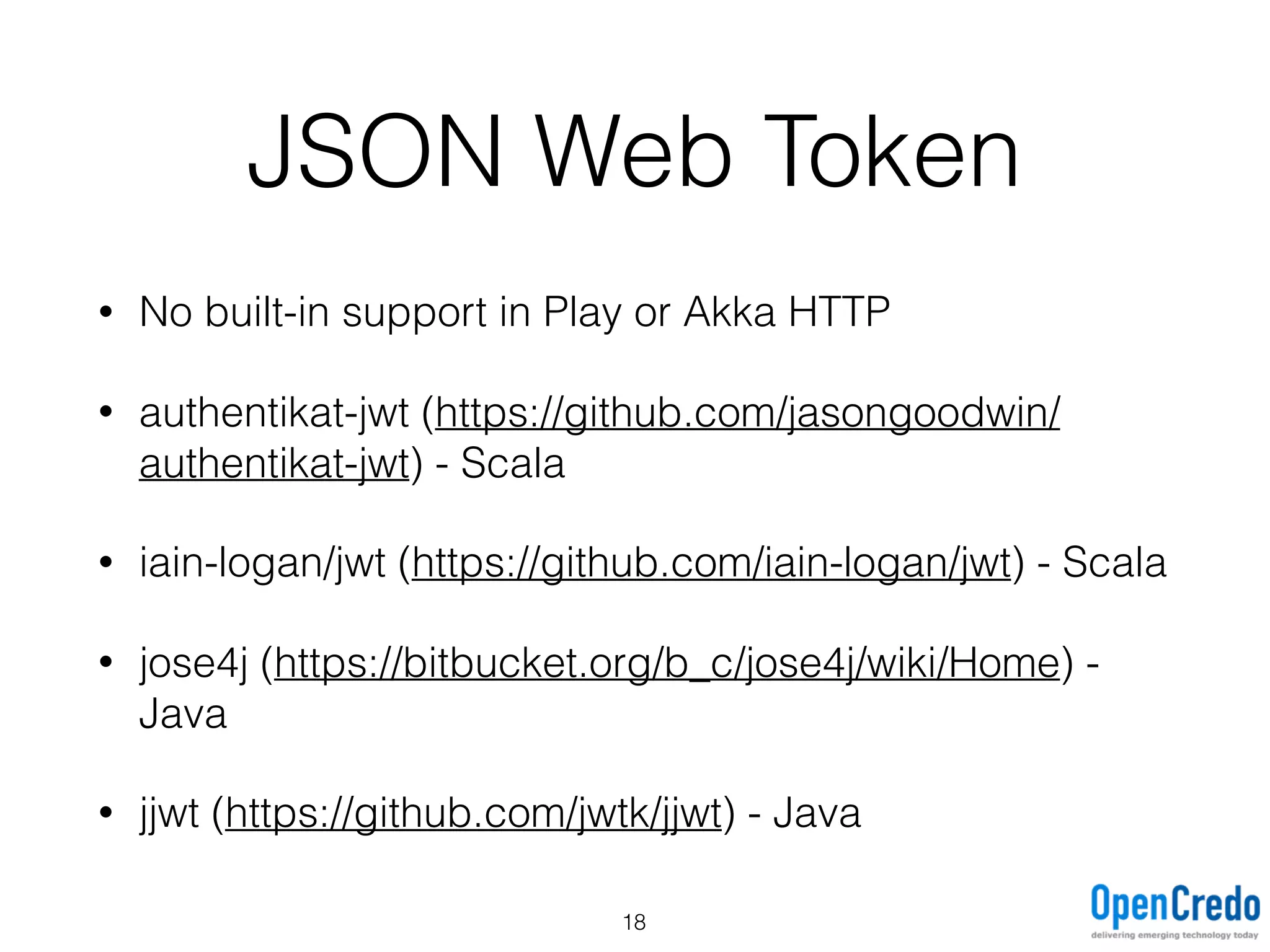

- 18. JSON Web Token •No built-in support in Play or Akka HTTP • authentikat-jwt (https://github.com/jasongoodwin/ authentikat-jwt) - Scala • iain-logan/jwt (https://github.com/iain-logan/jwt) - Scala • jose4j (https://bitbucket.org/b_c/jose4j/wiki/Home) - Java • jjwt (https://github.com/jwtk/jjwt) - Java 18

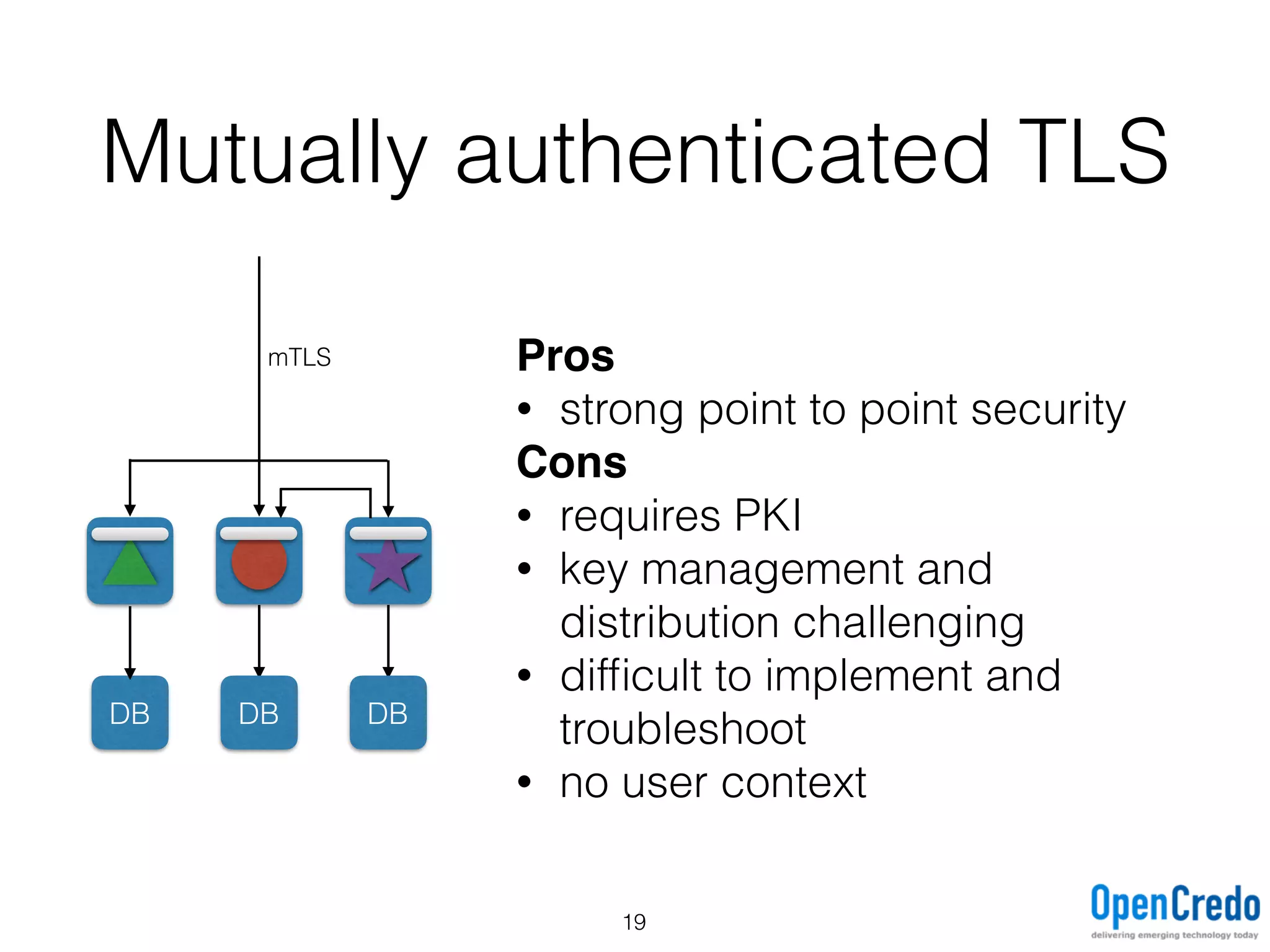

- 19. Mutually authenticated TLS DBDB DB Pros • strong point to point security Cons • requires PKI • key management and distribution challenging • difficult to implement and troubleshoot • no user context mTLS 19

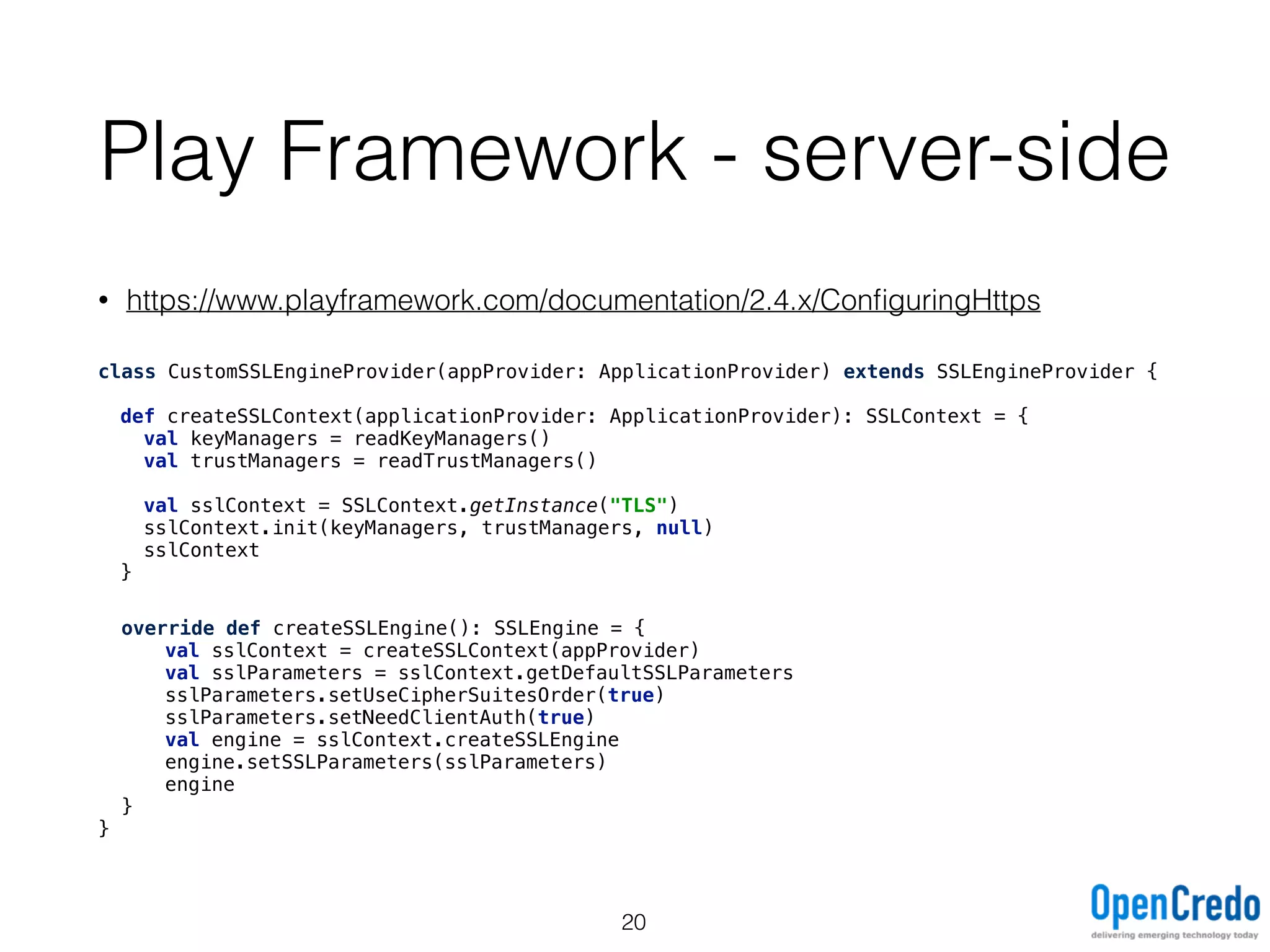

- 20. Play Framework -server-side • https://www.playframework.com/documentation/2.4.x/ConfiguringHttps class CustomSSLEngineProvider(appProvider: ApplicationProvider) extends SSLEngineProvider { def createSSLContext(applicationProvider: ApplicationProvider): SSLContext = { val keyManagers = readKeyManagers() val trustManagers = readTrustManagers() val sslContext = SSLContext.getInstance("TLS") sslContext.init(keyManagers, trustManagers, null) sslContext } override def createSSLEngine(): SSLEngine = { val sslContext = createSSLContext(appProvider) val sslParameters = sslContext.getDefaultSSLParameters sslParameters.setUseCipherSuitesOrder(true) sslParameters.setNeedClientAuth(true) val engine = sslContext.createSSLEngine engine.setSSLParameters(sslParameters) engine } } 20

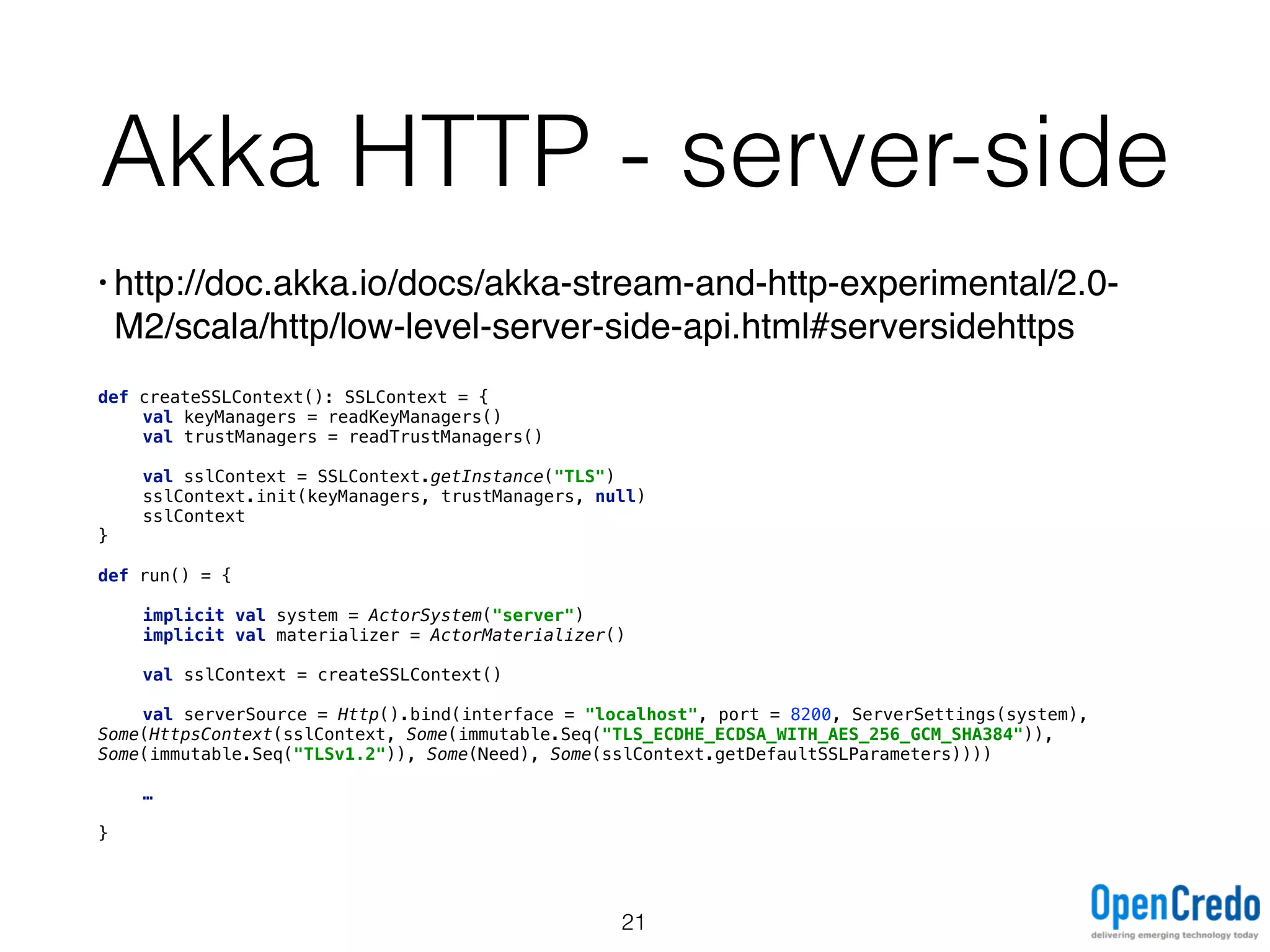

- 21. Akka HTTP -server-side • http://doc.akka.io/docs/akka-stream-and-http-experimental/2.0- M2/scala/http/low-level-server-side-api.html#serversidehttps def createSSLContext(): SSLContext = { val keyManagers = readKeyManagers() val trustManagers = readTrustManagers() val sslContext = SSLContext.getInstance("TLS") sslContext.init(keyManagers, trustManagers, null) sslContext } def run() = { implicit val system = ActorSystem("server") implicit val materializer = ActorMaterializer() val sslContext = createSSLContext() val serverSource = Http().bind(interface = "localhost", port = 8200, ServerSettings(system), Some(HttpsContext(sslContext, Some(immutable.Seq("TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384")), Some(immutable.Seq("TLSv1.2")), Some(Need), Some(sslContext.getDefaultSSLParameters)))) … } 21

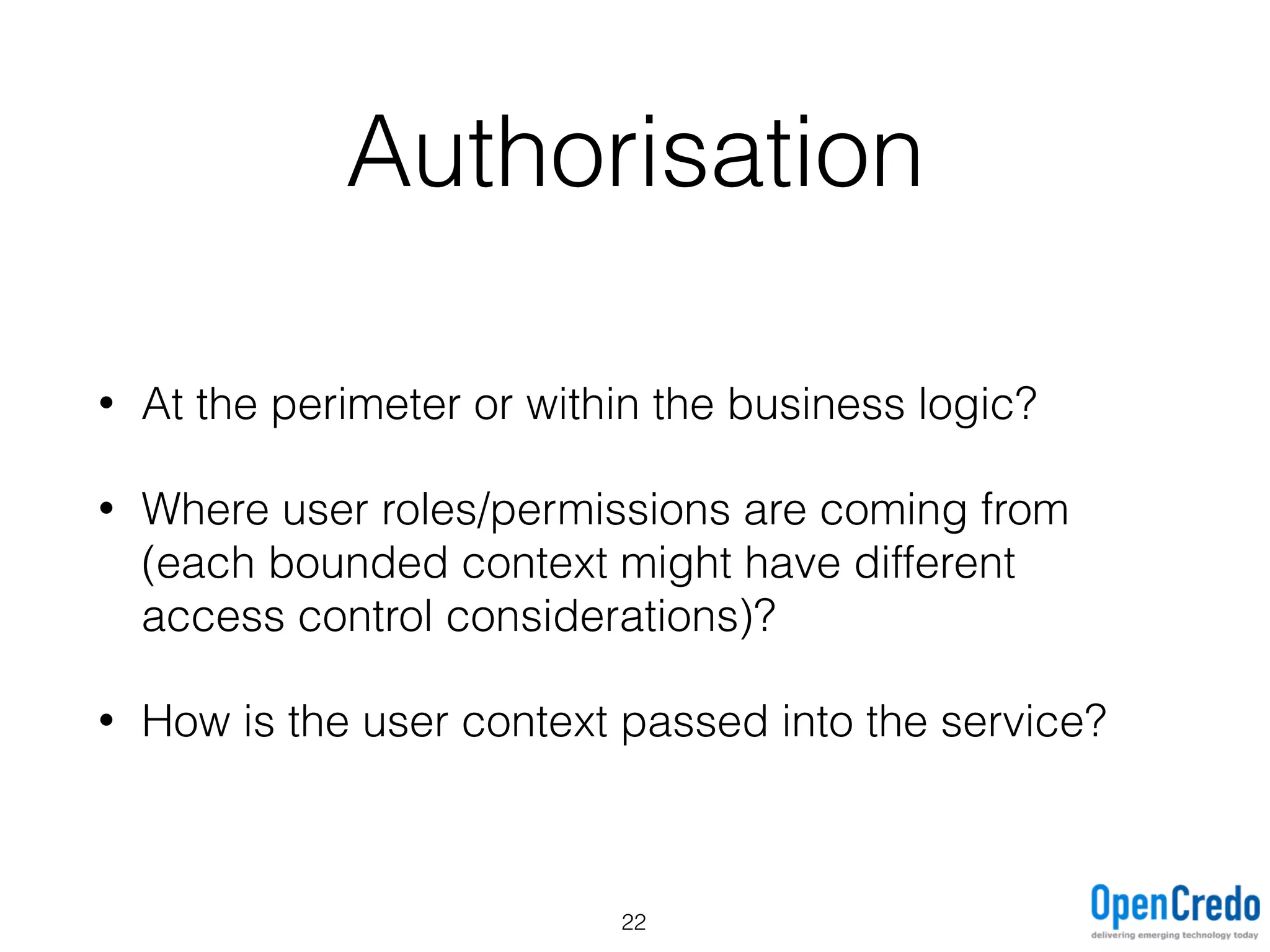

- 22. Authorisation • At theperimeter or within the business logic? • Where user roles/permissions are coming from (each bounded context might have different access control considerations)? • How is the user context passed into the service? 22

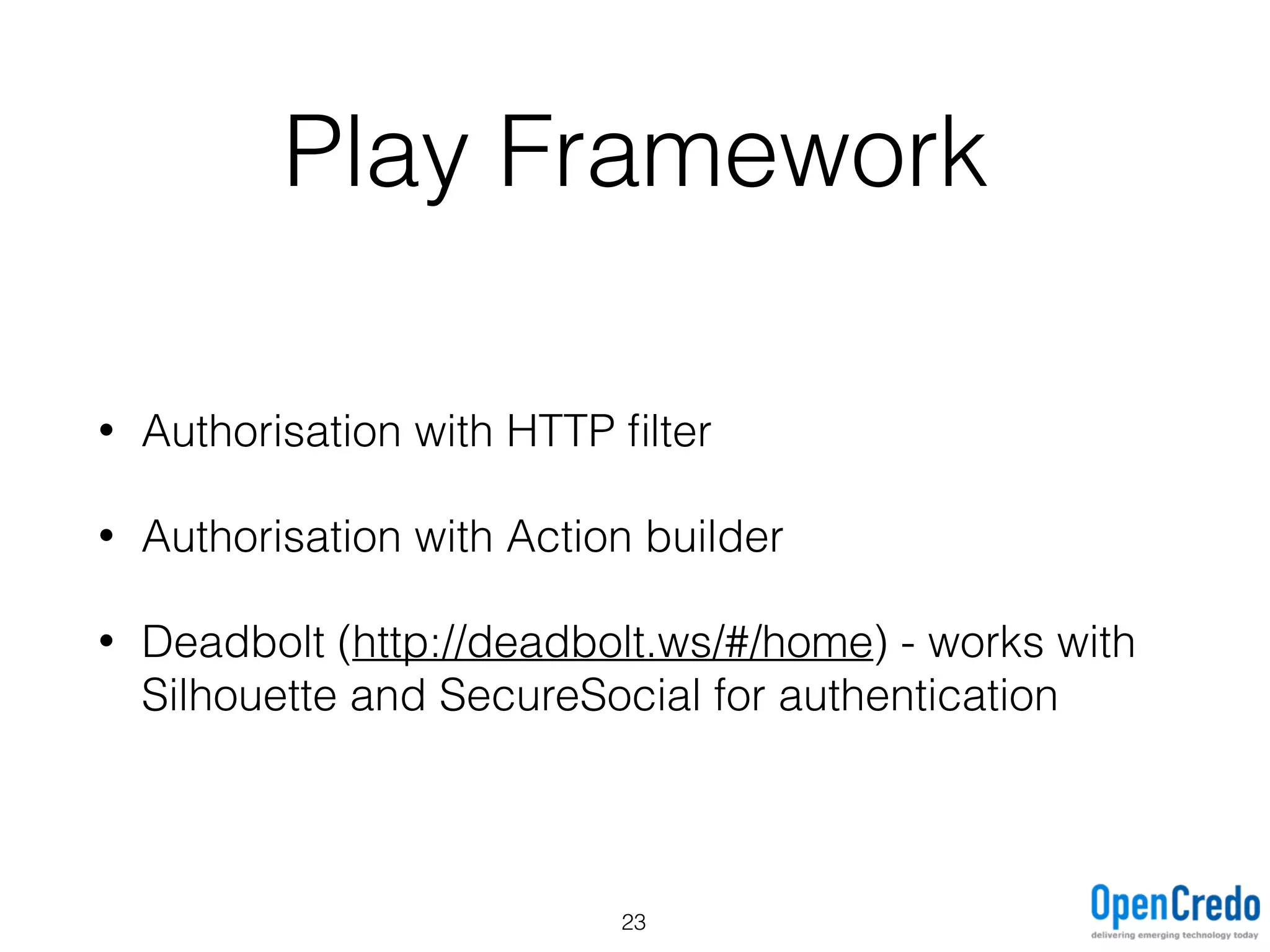

- 23. Play Framework • Authorisationwith HTTP filter • Authorisation with Action builder • Deadbolt (http://deadbolt.ws/#/home) - works with Silhouette and SecureSocial for authentication 23

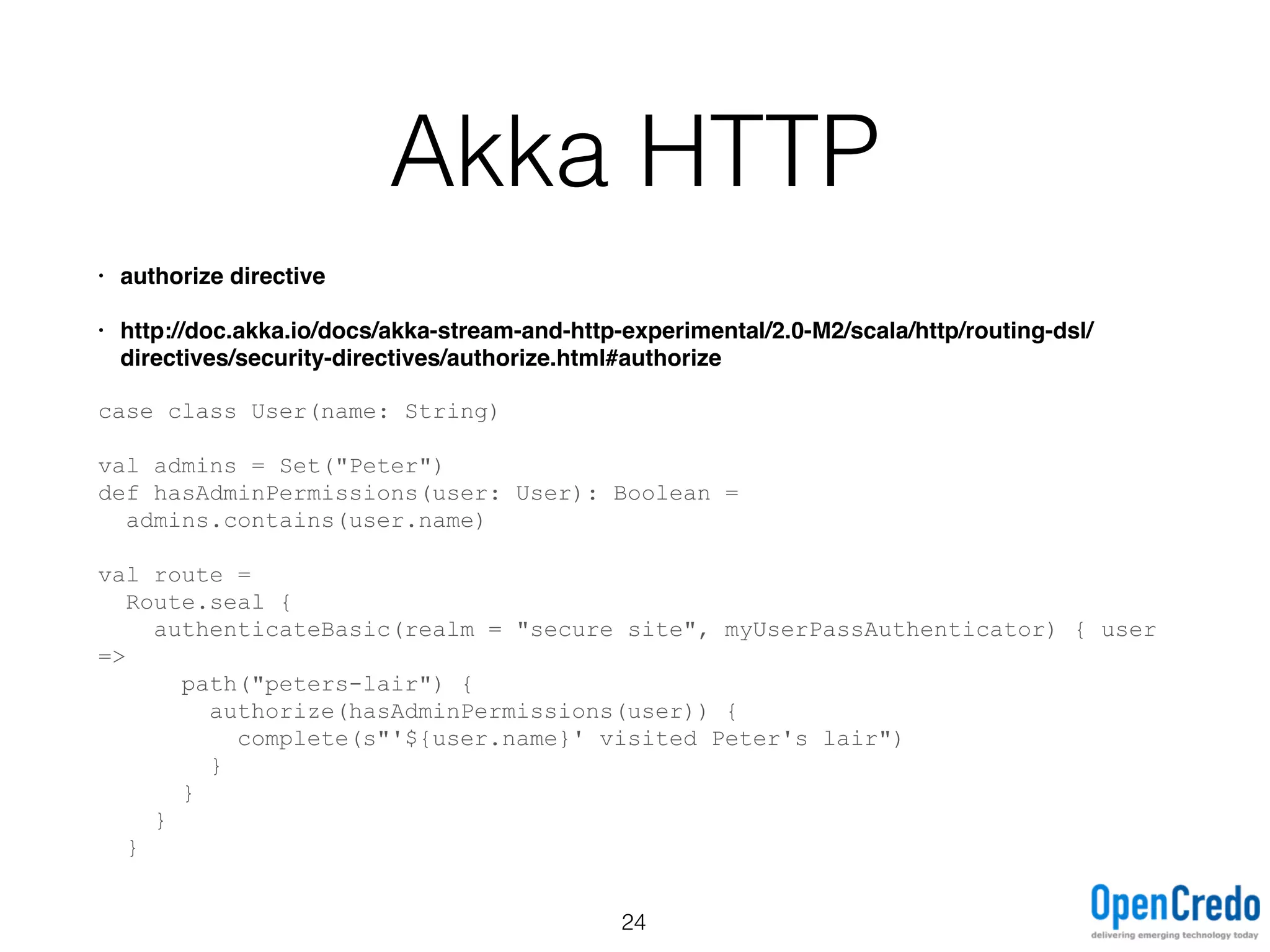

- 24. Akka HTTP • authorizedirective • http://doc.akka.io/docs/akka-stream-and-http-experimental/2.0-M2/scala/http/routing-dsl/ directives/security-directives/authorize.html#authorize case class User(name: String) val admins = Set("Peter") def hasAdminPermissions(user: User): Boolean = admins.contains(user.name) val route = Route.seal { authenticateBasic(realm = "secure site", myUserPassAuthenticator) { user => path("peters-lair") { authorize(hasAdminPermissions(user)) { complete(s"'${user.name}' visited Peter's lair") } } } } 24
- 25. Key takeaways • Securingmicroservice based architectures is challenging • The technology landscape changes all the time • One size (solution) doesn’t fit all • Consider your requirements before committing to a technical solution 25

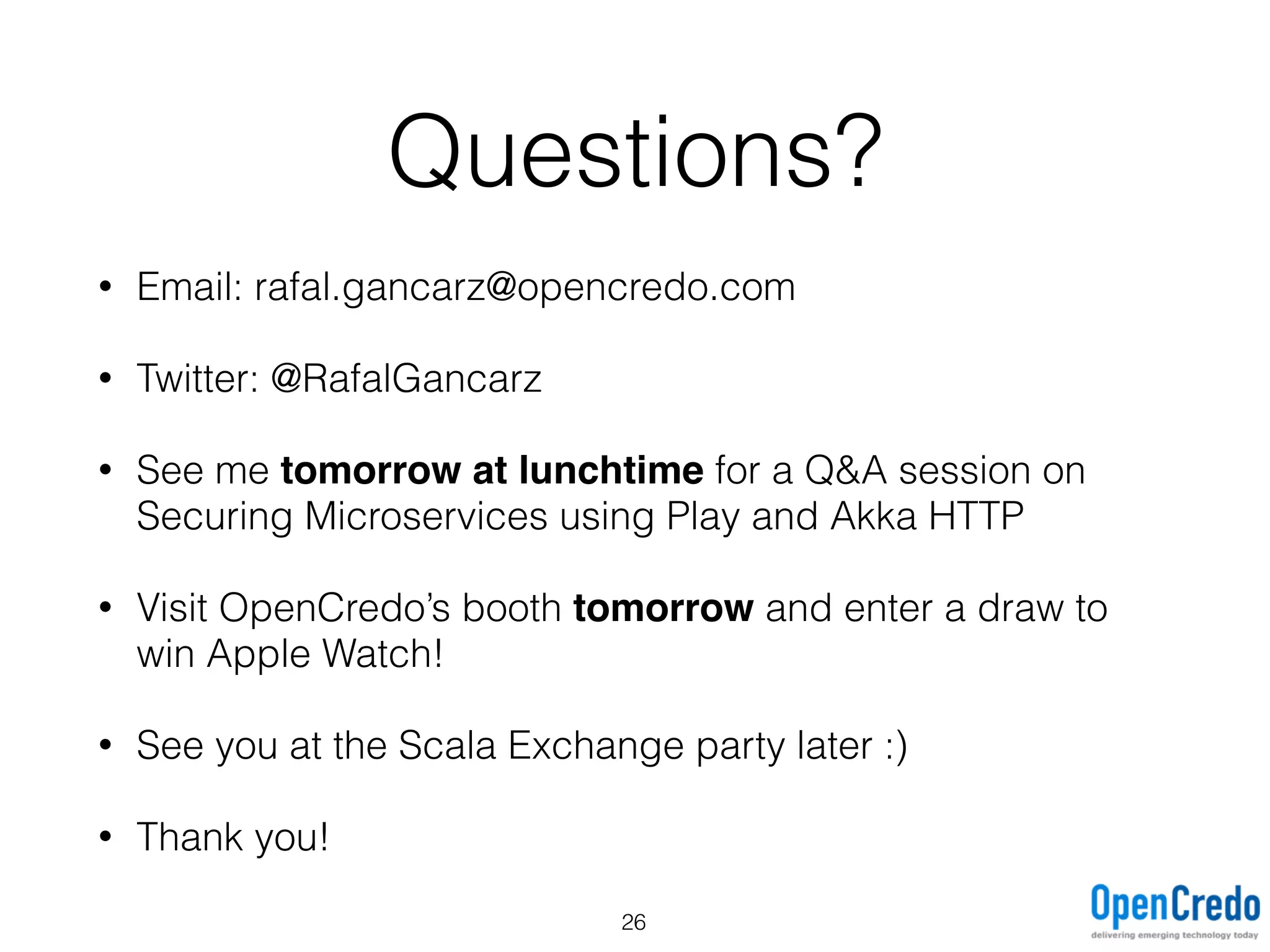

- 26. Questions? • Email: rafal.gancarz@opencredo.com •Twitter: @RafalGancarz • See me tomorrow at lunchtime for a Q&A session on Securing Microservices using Play and Akka HTTP • Visit OpenCredo’s booth tomorrow and enter a draw to win Apple Watch! • See you at the Scala Exchange party later :) • Thank you! 26
