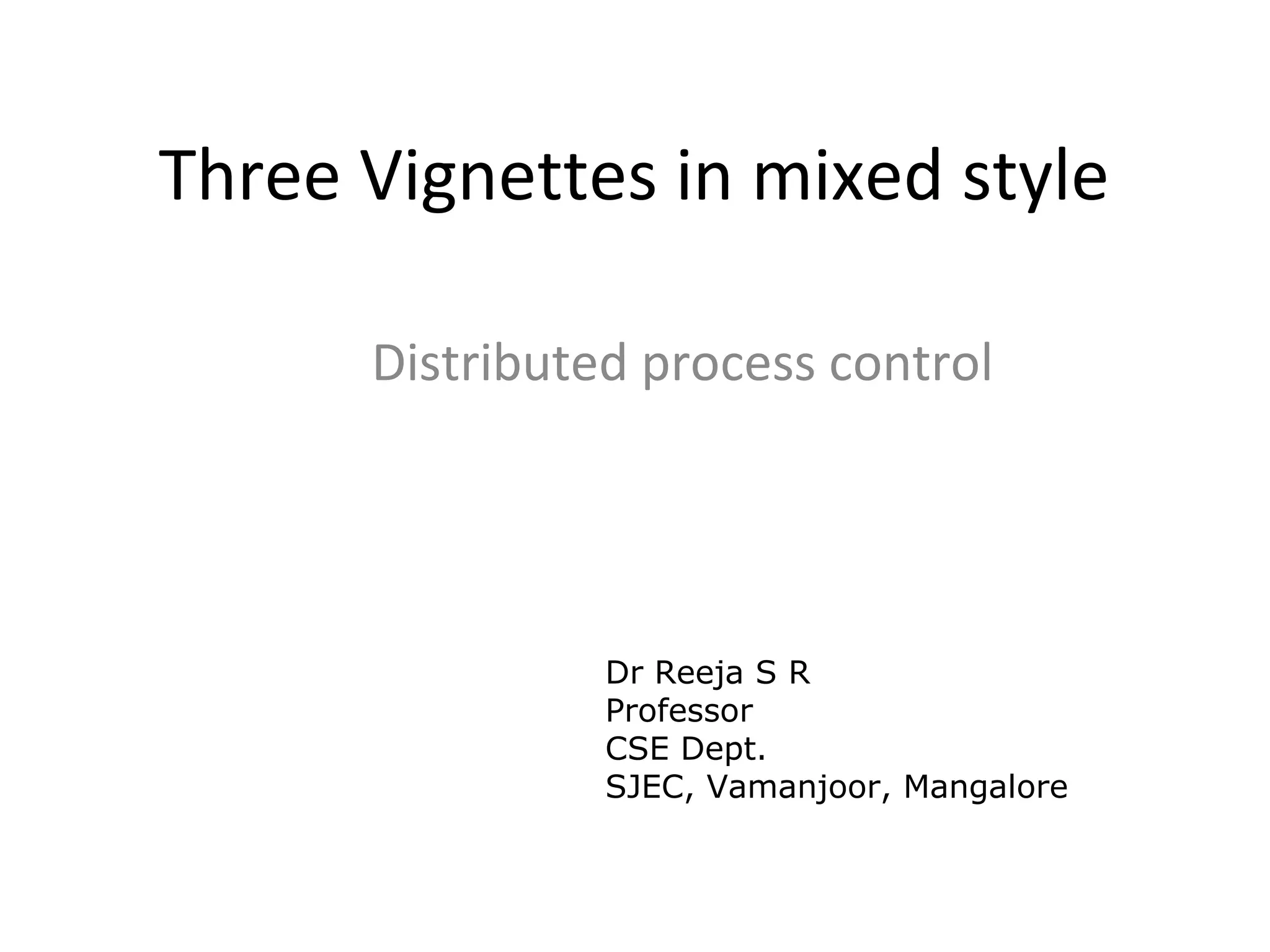

- 1. Three Vignettes inmixed style Distributed process control Dr Reeja S R Professor CSE Dept. SJEC, Vamanjoor, Mangalore

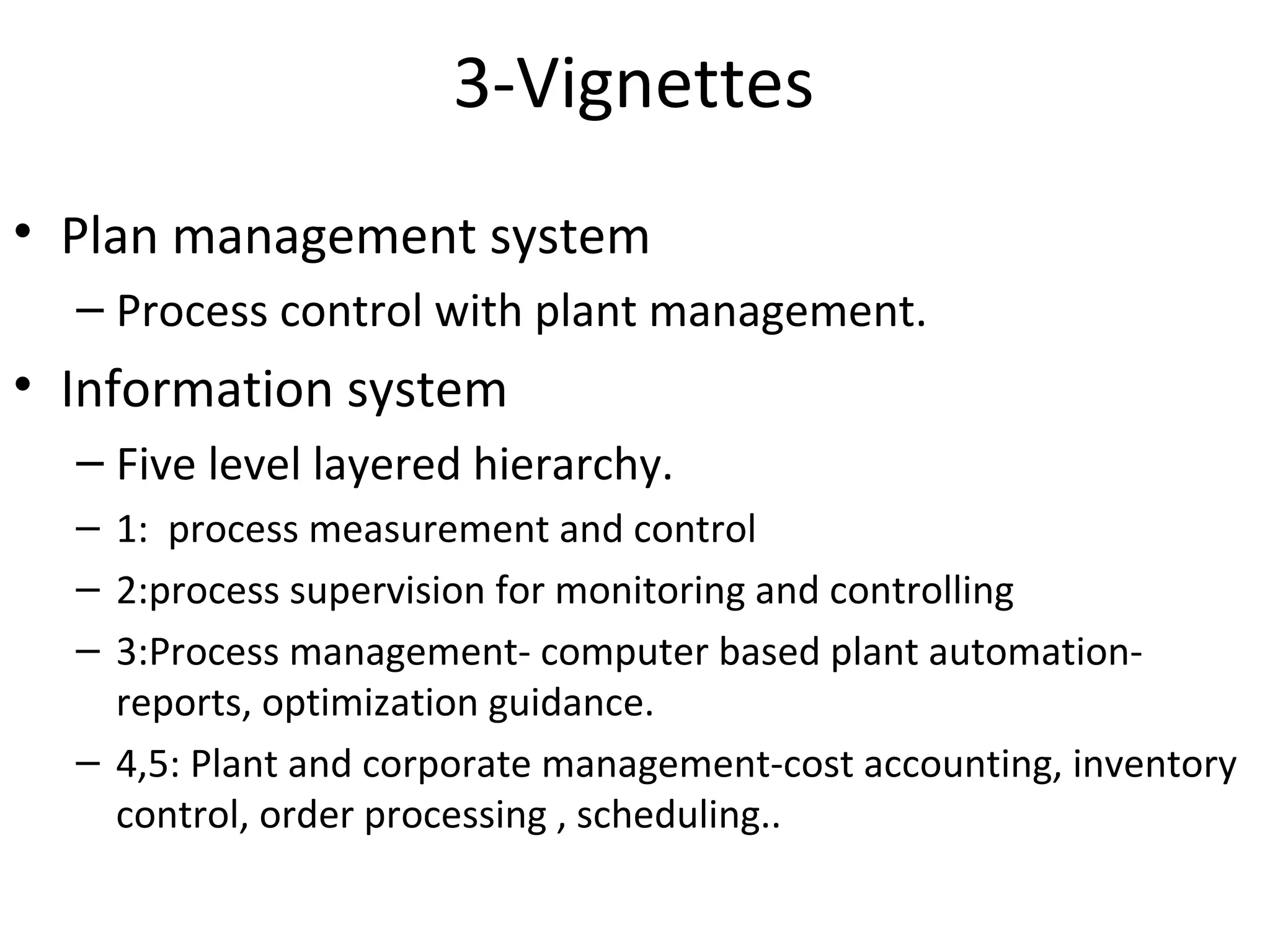

- 2. 3-Vignettes • Plan managementsystem – Process control with plant management. • Information system – Five level layered hierarchy. – 1: process measurement and control – 2:process supervision for monitoring and controlling – 3:Process management- computer based plant automation- reports, optimization guidance. – 4,5: Plant and corporate management-cost accounting, inventory control, order processing , scheduling..

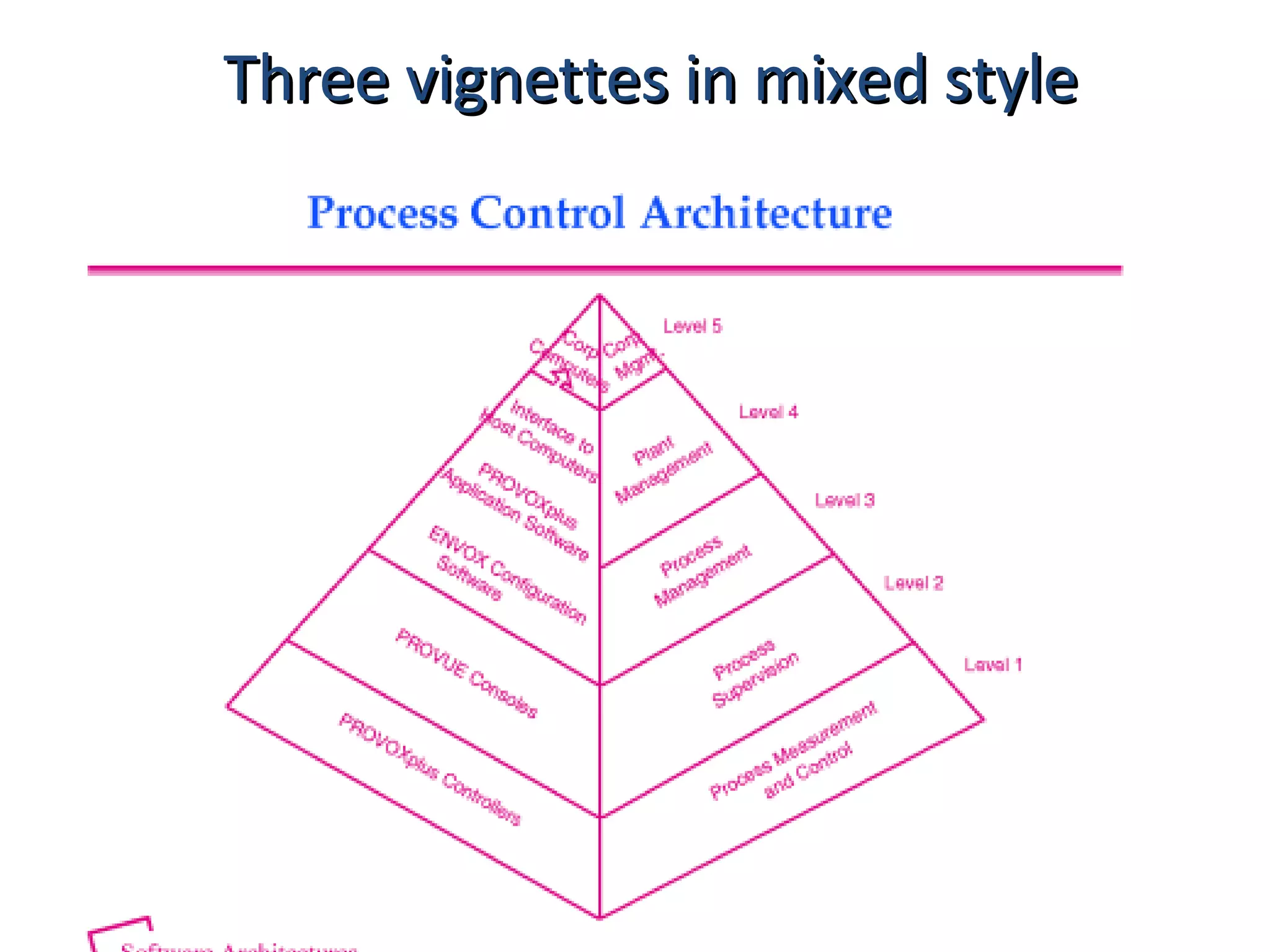

- 3. Three vignettes inmixed styleThree vignettes in mixed style

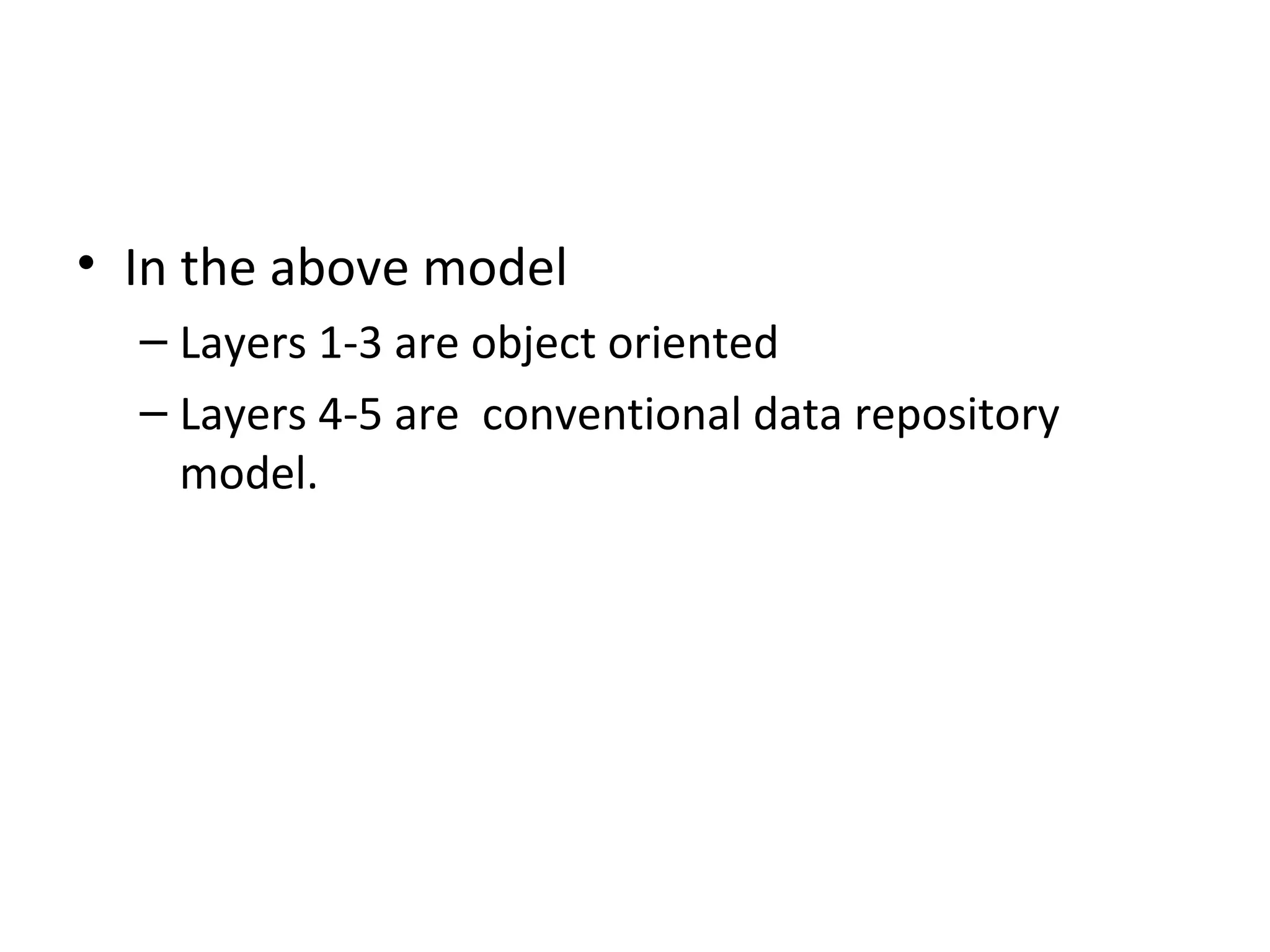

- 4. • In theabove model – Layers 1-3 are object oriented – Layers 4-5 are conventional data repository model.

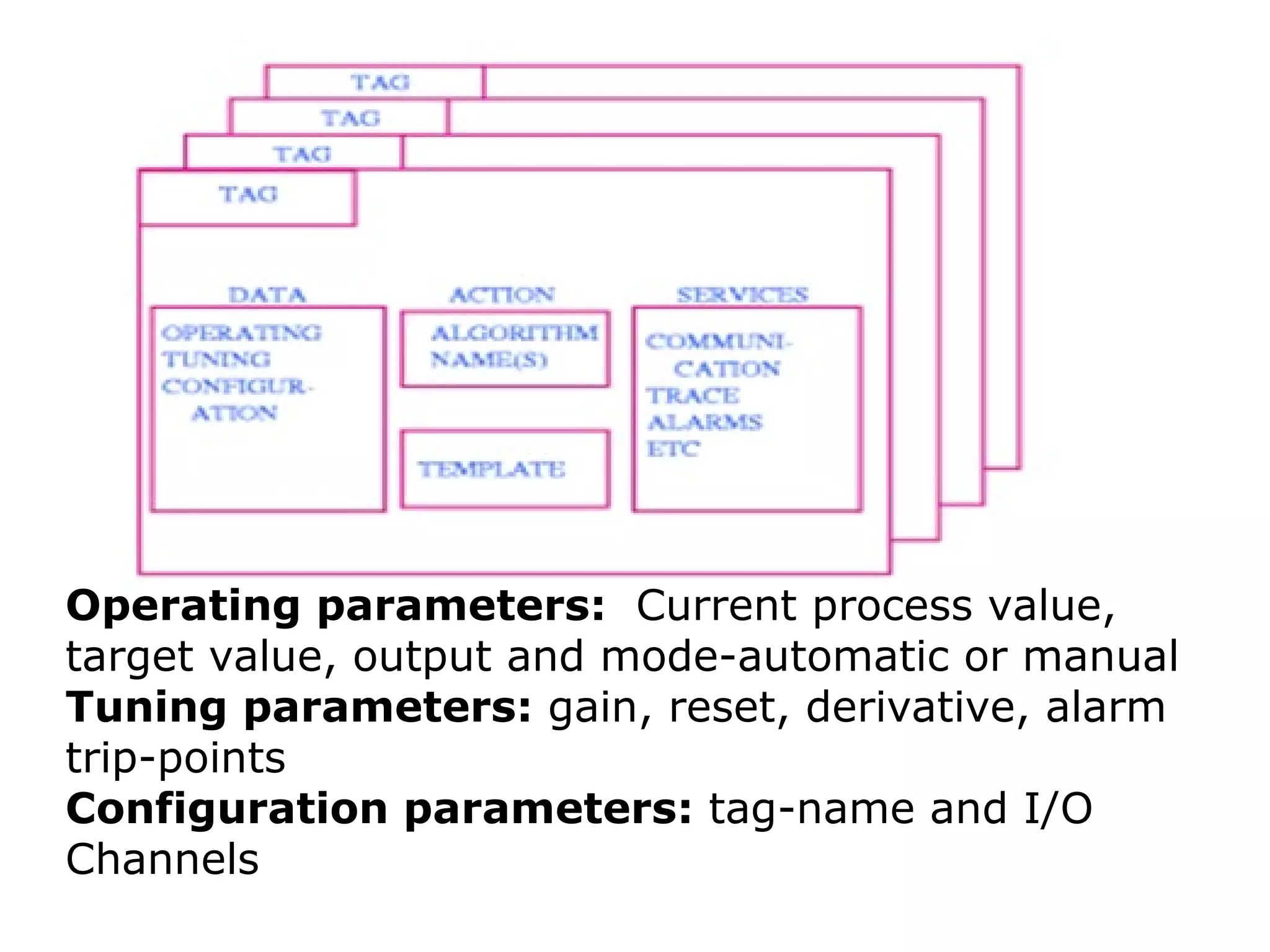

- 5. Operating parameters: Currentprocess value, target value, output and mode-automatic or manual Tuning parameters: gain, reset, derivative, alarm trip-points Configuration parameters: tag-name and I/O Channels

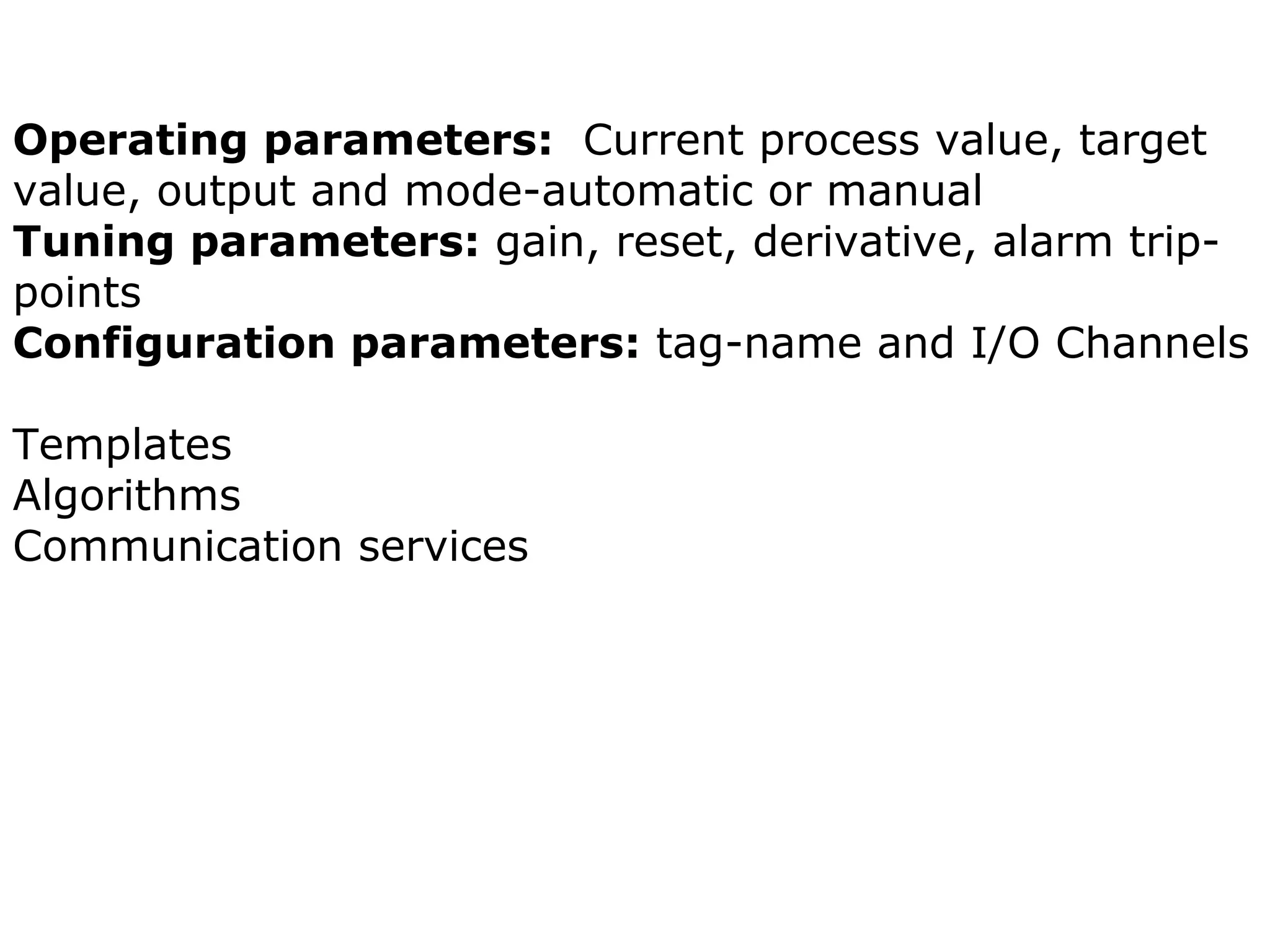

- 6. Operating parameters: Currentprocess value, target value, output and mode-automatic or manual Tuning parameters: gain, reset, derivative, alarm trip- points Configuration parameters: tag-name and I/O Channels Templates Algorithms Communication services

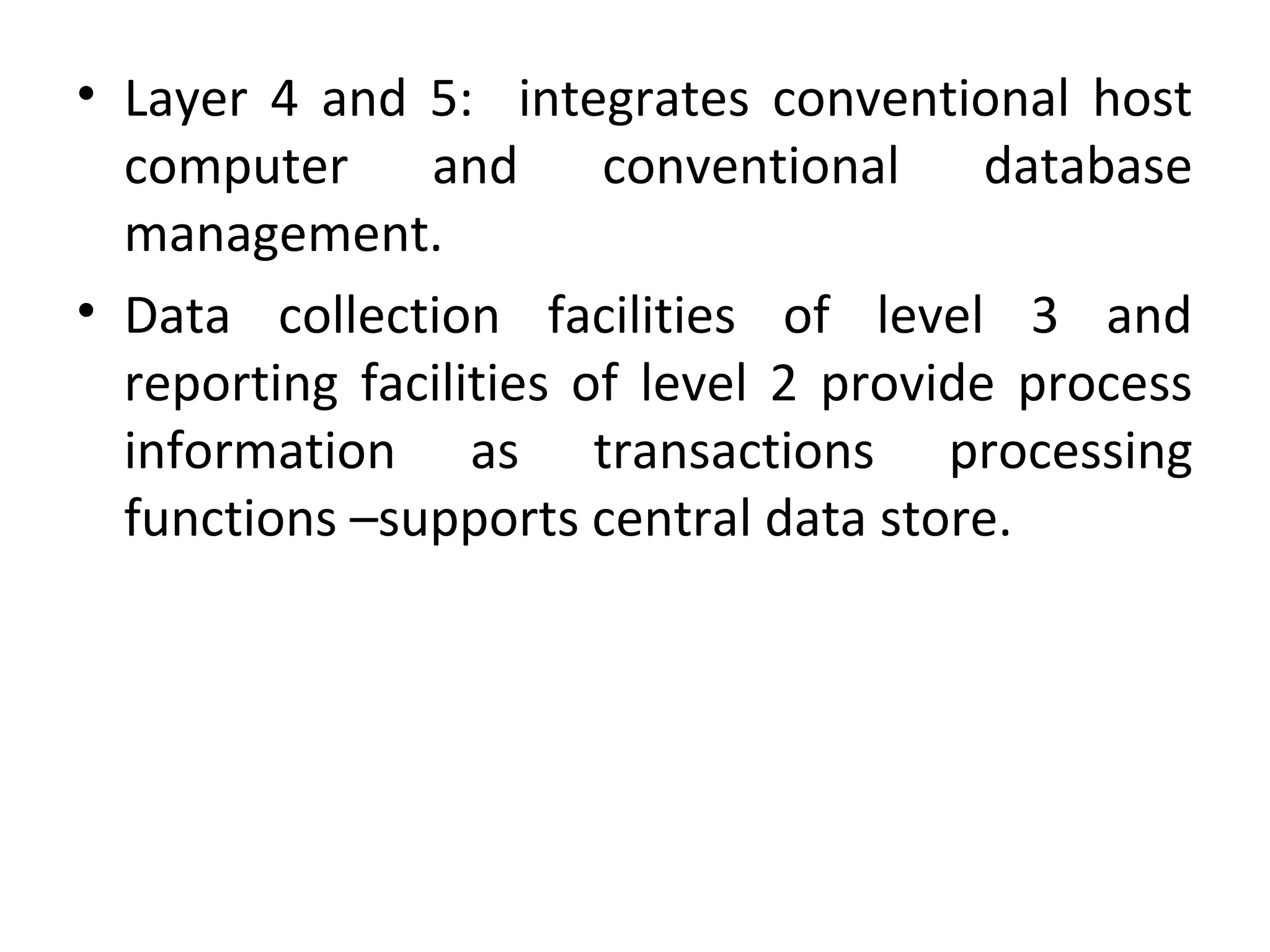

- 7. • Layer 4and 5: integrates conventional host computer and conventional database management. • Data collection facilities of level 3 and reporting facilities of level 2 provide process information as transactions processing functions –supports central data store.

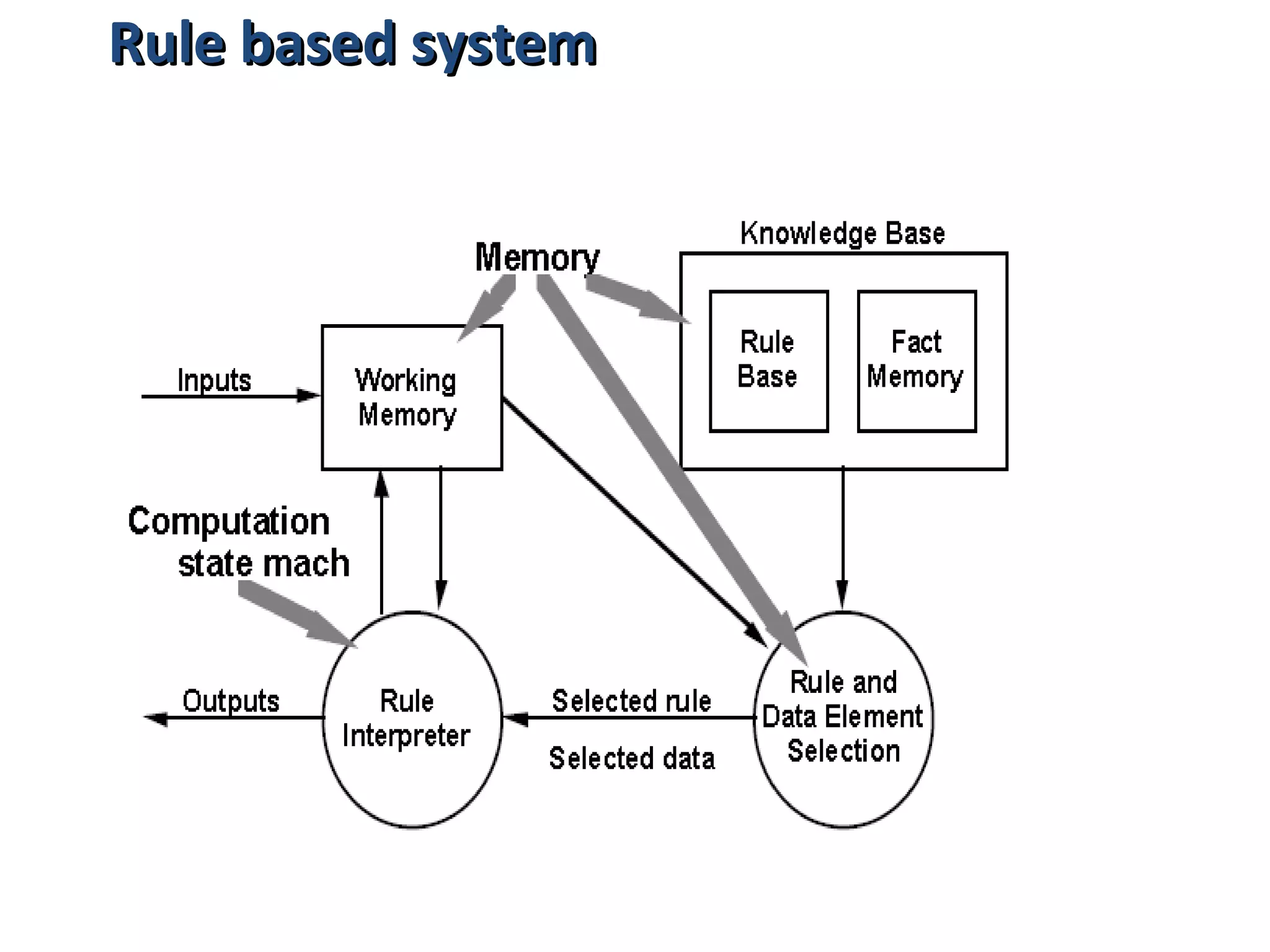

- 8. Rule based systemRulebased system

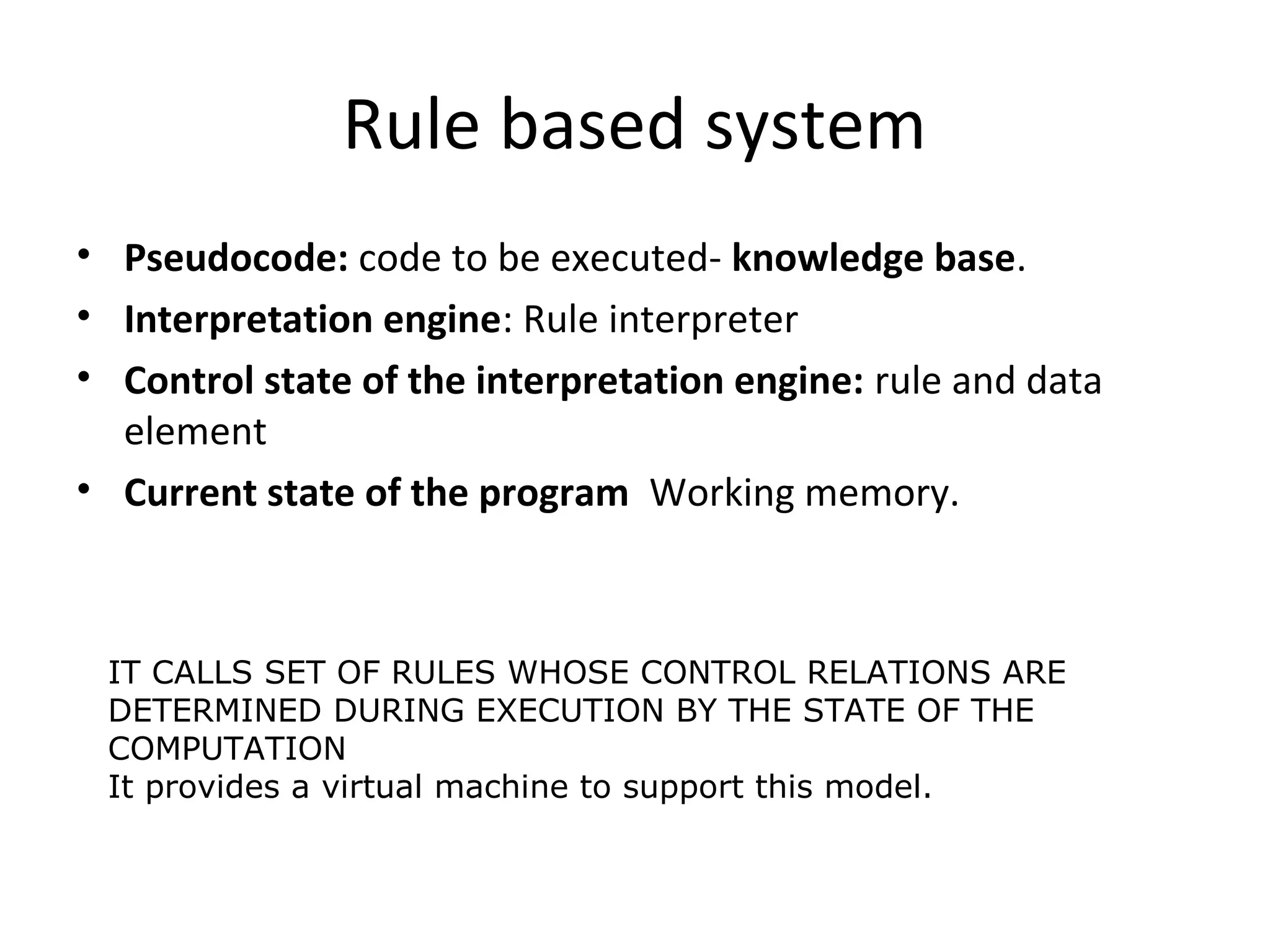

- 9. Rule based system •Pseudocode: code to be executed- knowledge base. • Interpretation engine: Rule interpreter • Control state of the interpretation engine: rule and data element • Current state of the program Working memory. IT CALLS SET OF RULES WHOSE CONTROL RELATIONS ARE DETERMINED DURING EXECUTION BY THE STATE OF THE COMPUTATION It provides a virtual machine to support this model.

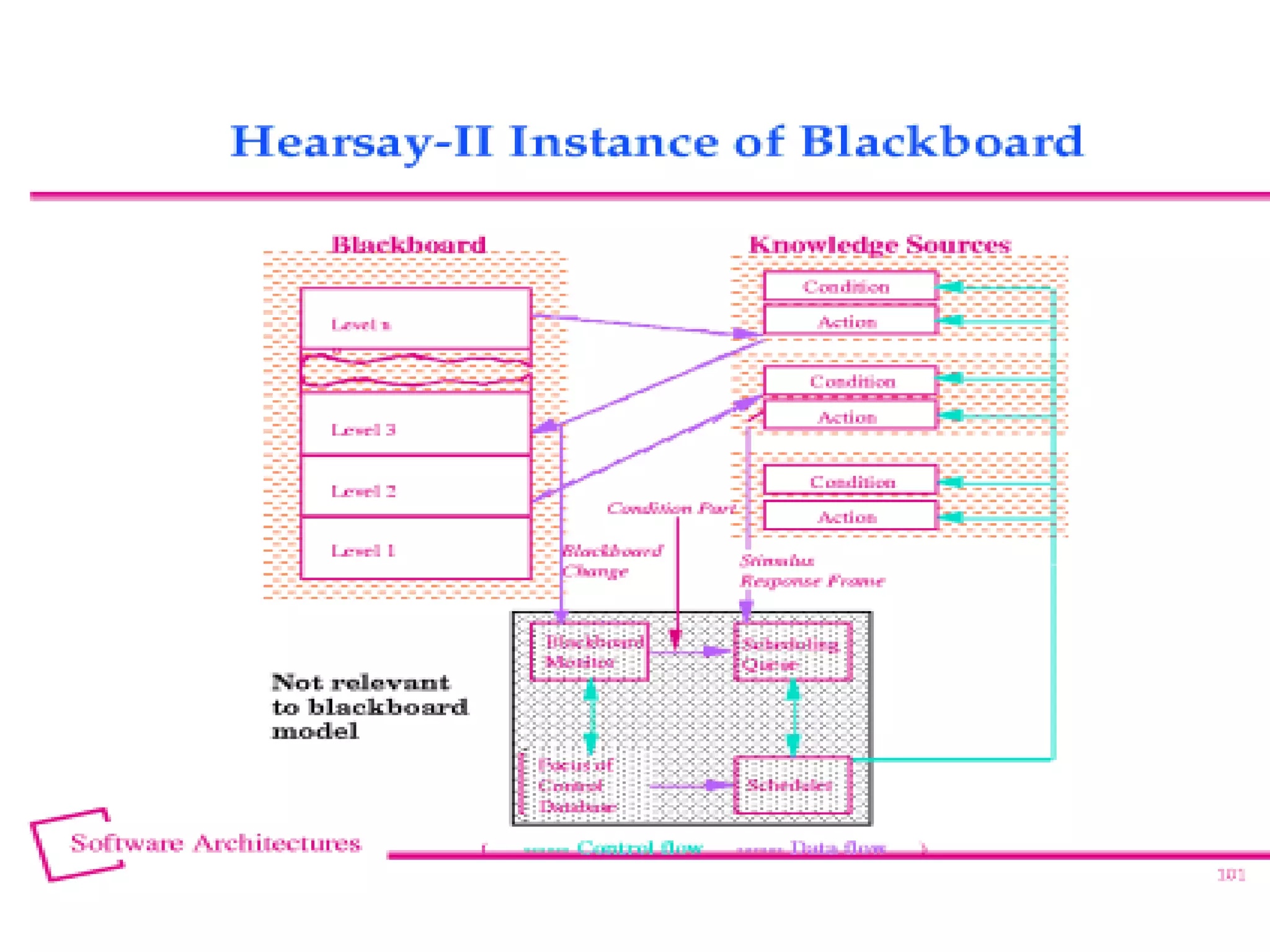

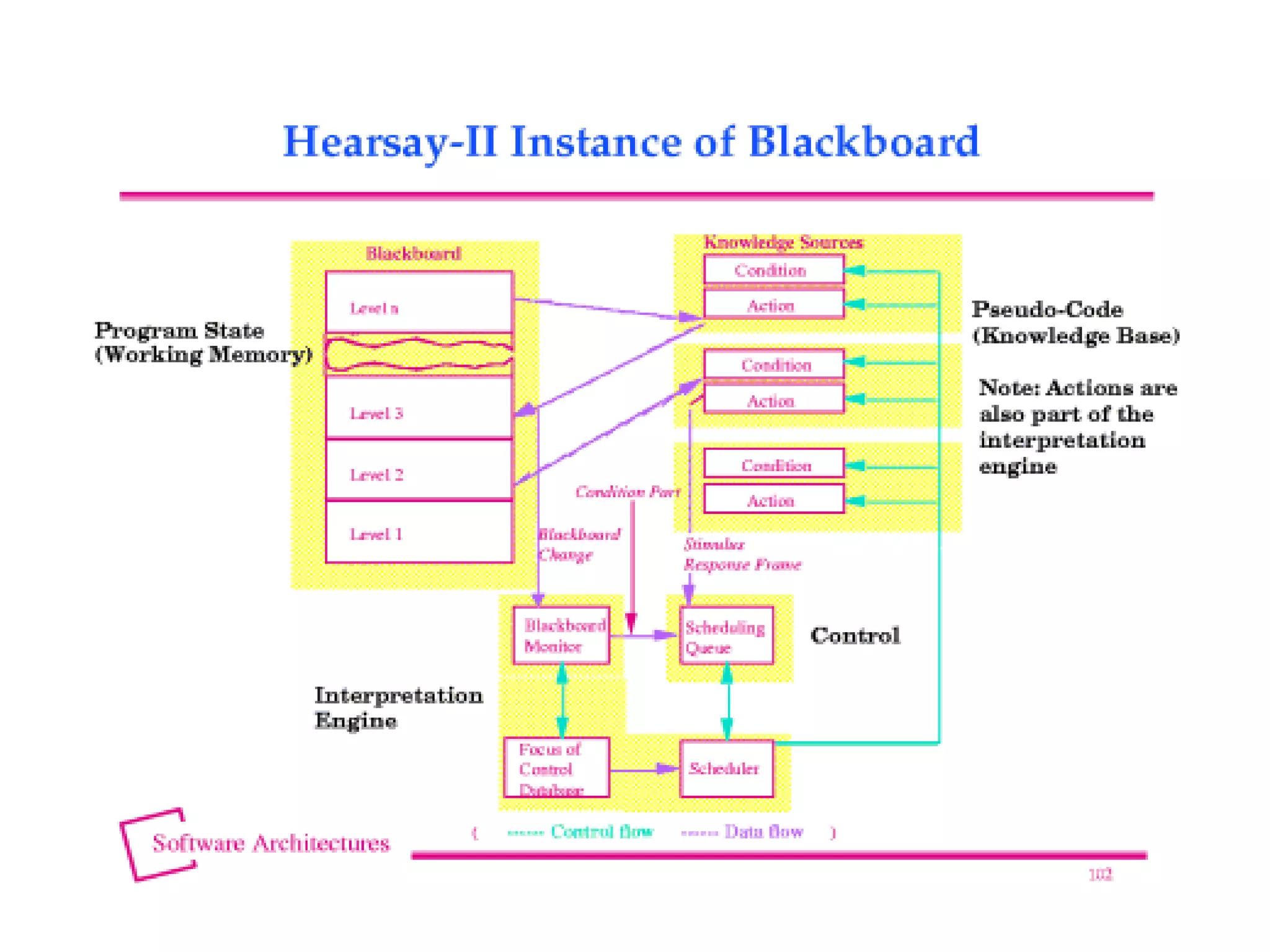

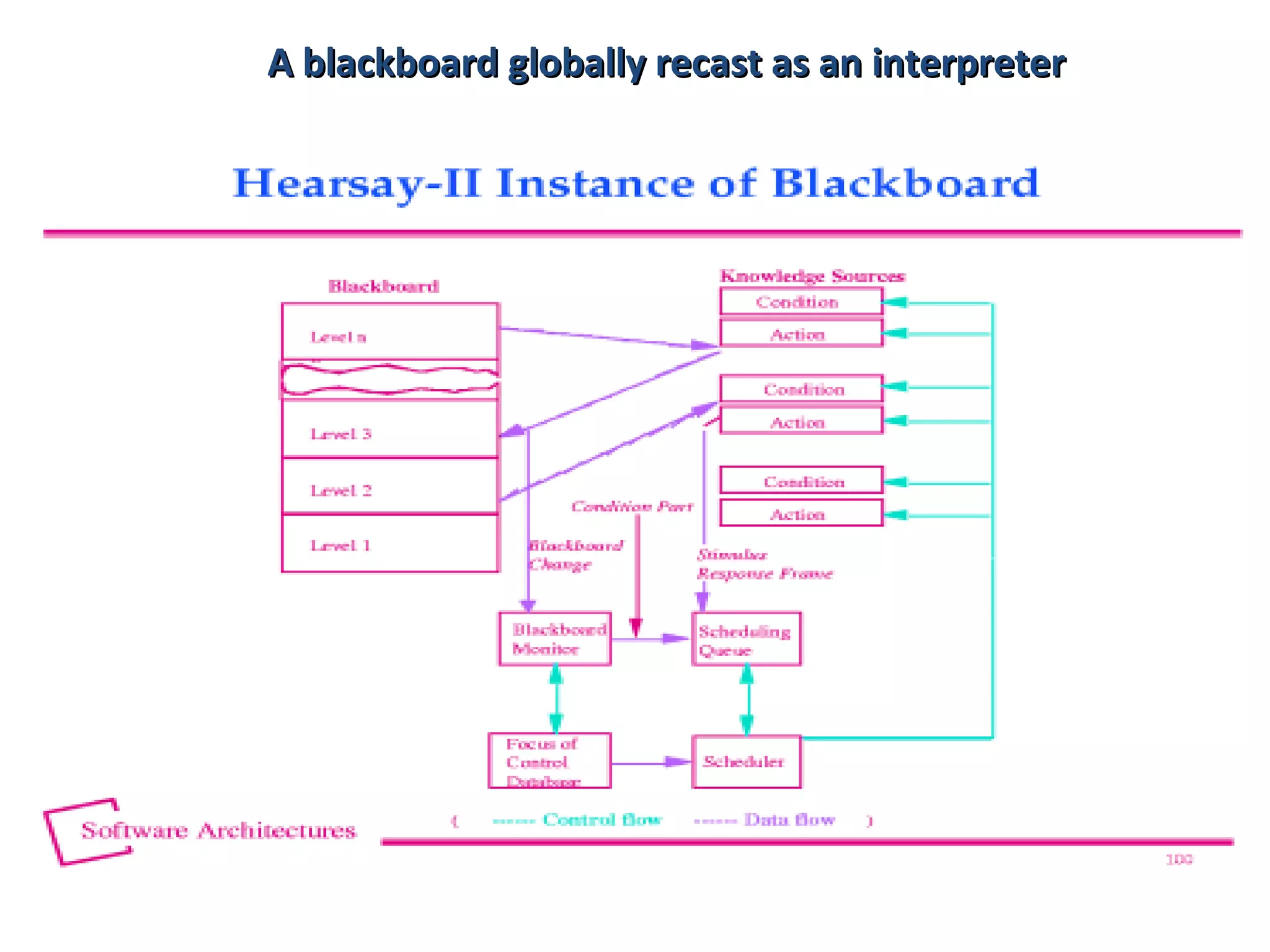

- 10. A blackboard globallyrecast as an interpreterA blackboard globally recast as an interpreter

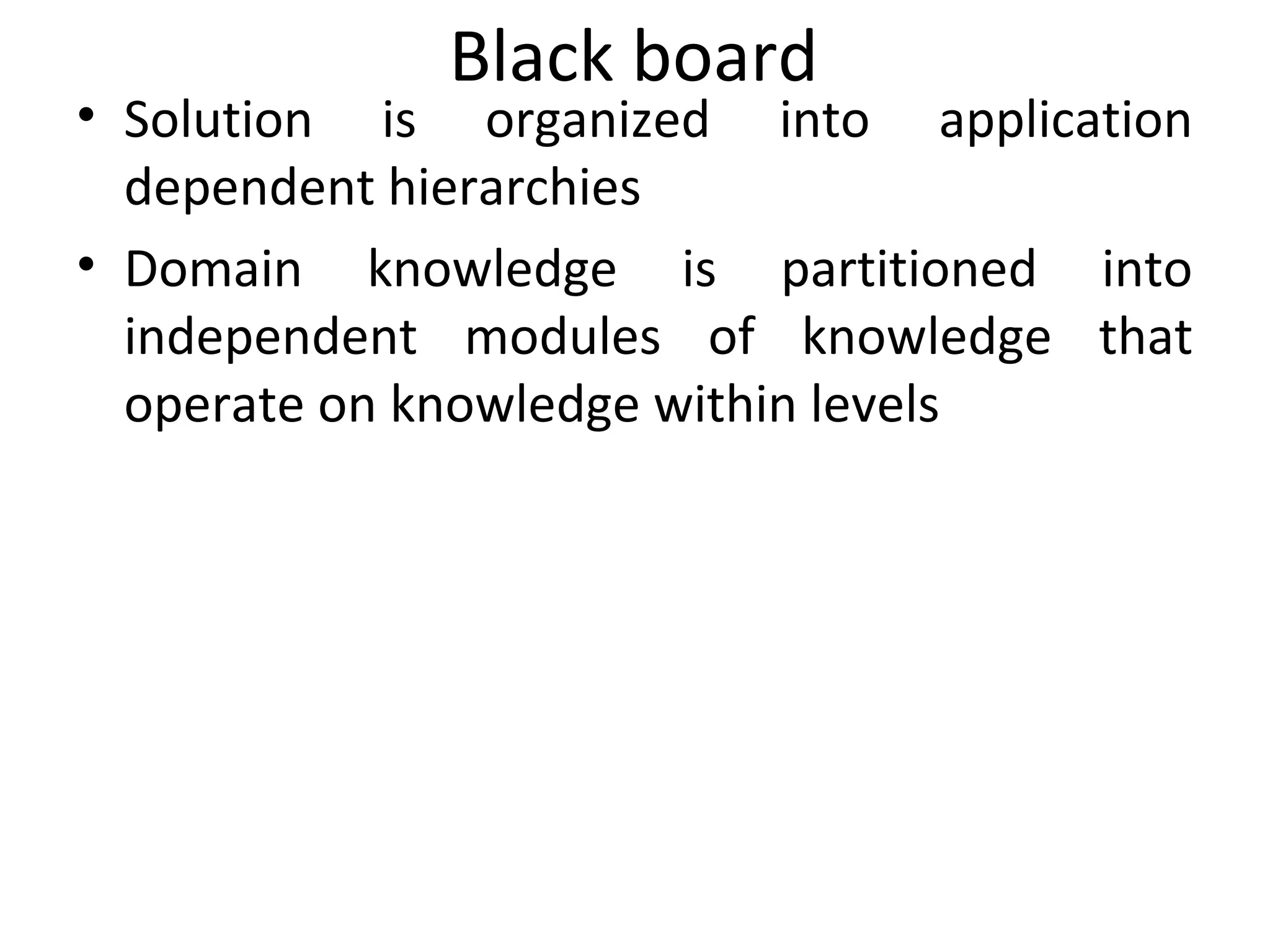

- 11. Black board • Solutionis organized into application dependent hierarchies • Domain knowledge is partitioned into independent modules of knowledge that operate on knowledge within levels
