RxJS 5 in Depth
The document discusses RxJS 5, a library for reactive programming using observables, detailing its purpose, benefits, and usage examples. It emphasizes the importance of observables for handling asynchronous data streams and provides insights into key operators, debugging techniques, and use cases like handling HTTP requests and event management. The content is anchored on the presentation given at QCon conferences, aiming to empower software development through knowledge sharing and innovation.
More Related Content
RxJS 5 in Depth
- 1. RxJS 5RxJS 5RxJS5RxJS 5 In-depthIn-depth by Gerard Sans (@gerardsans)
- 2. InfoQ.com: News &Community Site • 750,000 unique visitors/month • Published in 4 languages (English, Chinese, Japanese and Brazilian Portuguese) • Post content from our QCon conferences • News 15-20 / week • Articles 3-4 / week • Presentations (videos) 12-15 / week • Interviews 2-3 / week • Books 1 / month Watch the video with slide synchronization on InfoQ.com! https://www.infoq.com/presentations/ rxjs-5
- 3. Purpose of QCon -to empower software development by facilitating the spread of knowledge and innovation Strategy - practitioner-driven conference designed for YOU: influencers of change and innovation in your teams - speakers and topics driving the evolution and innovation - connecting and catalyzing the influencers and innovators Highlights - attended by more than 12,000 delegates since 2007 - held in 9 cities worldwide Presented at QCon London www.qconlondon.com
- 4. A little aboutmeA little about me
- 5. a bit more...abit more...

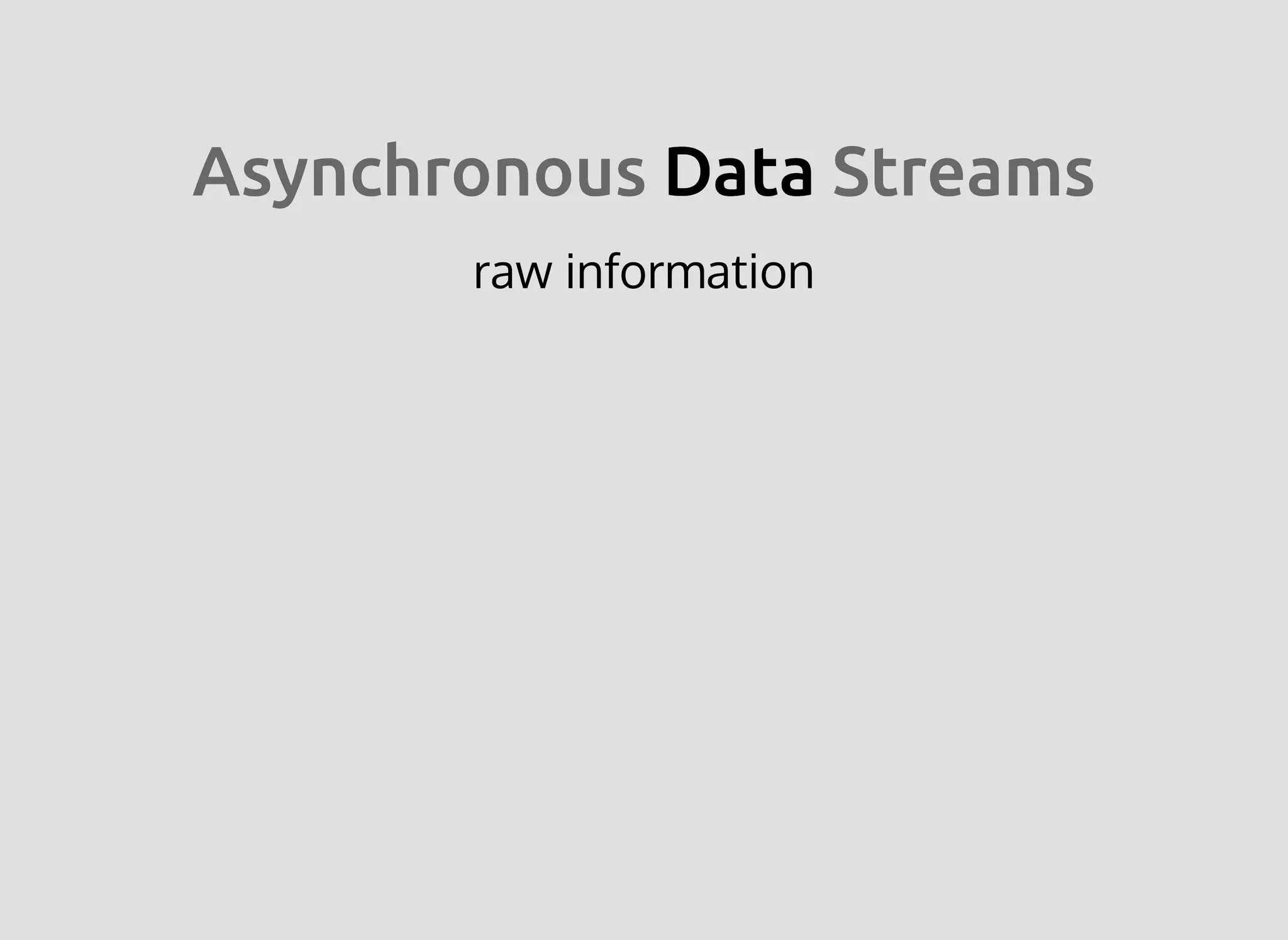

- 7. AAAAsynchronous Data StreamssynchronousData Streamssynchronous Data Streamssynchronous Data Streams
- 9. AsynchronousAsynchronous DataData StreamsStreams willhappen some time in the future
- 10.

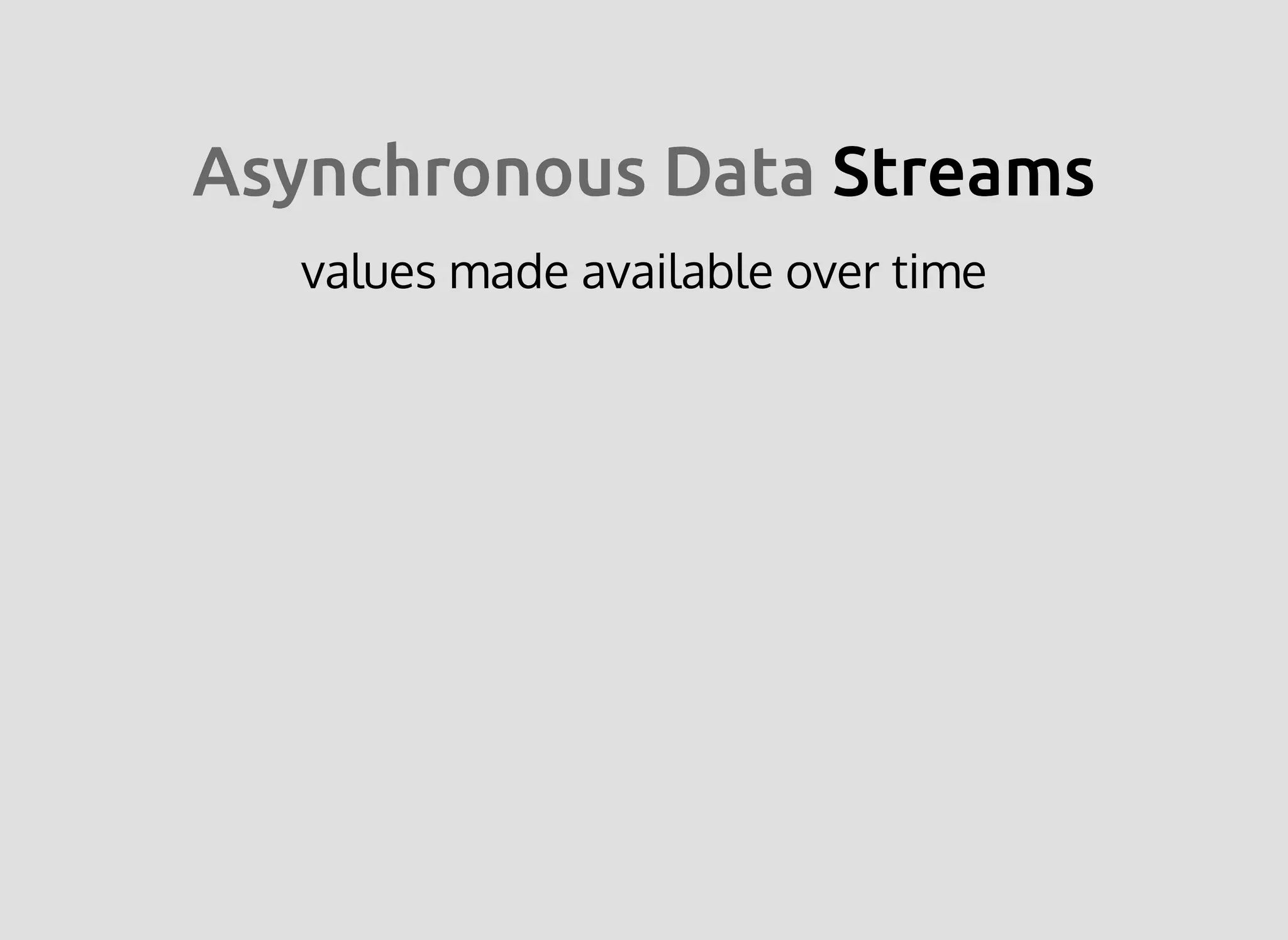

- 11. Asynchronous DataAsynchronous DataStreamsStreams values made available over time

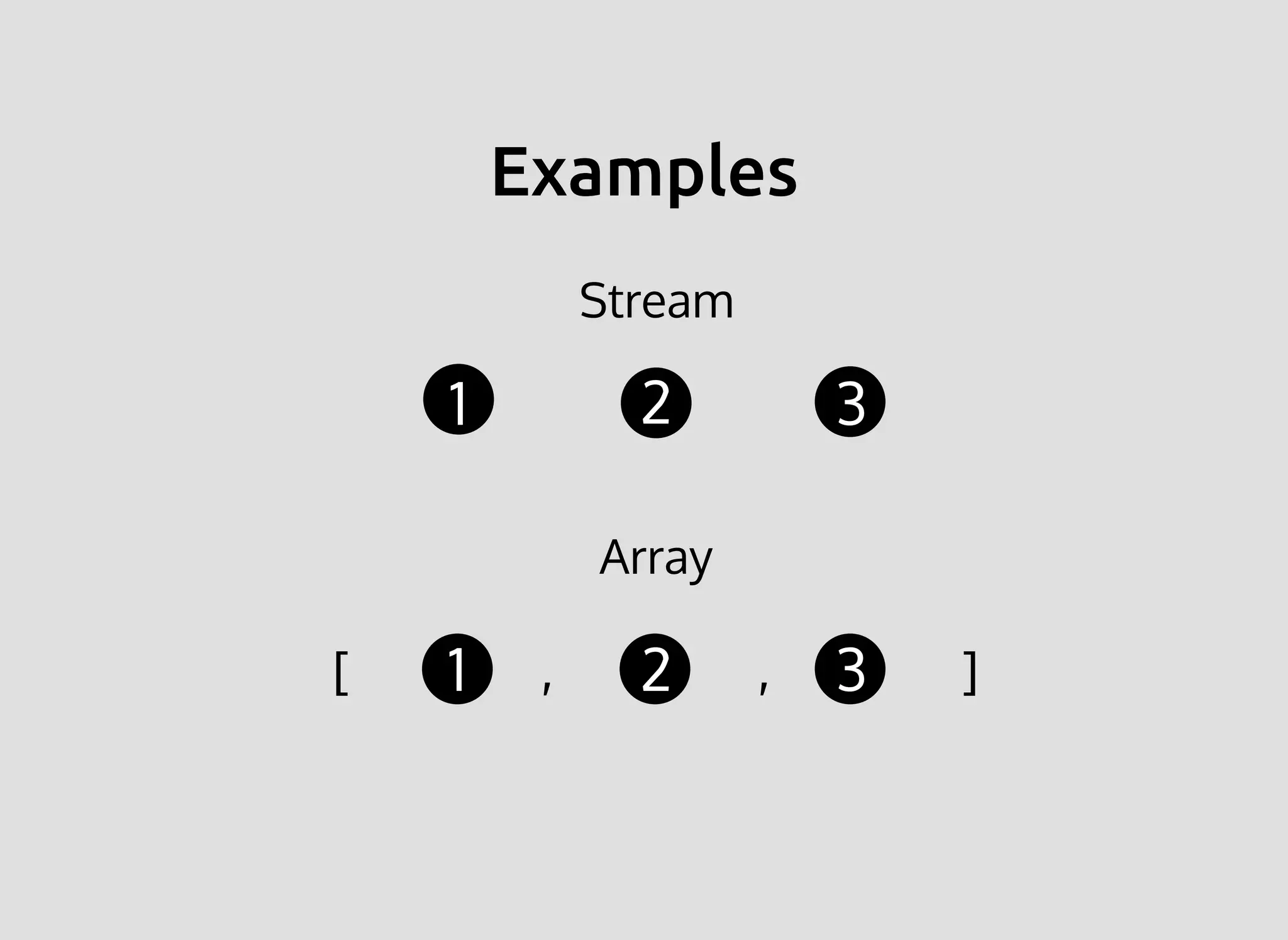

- 12. ExamplesExamples 1 1 2 2 3 3[ , ,] Stream Array

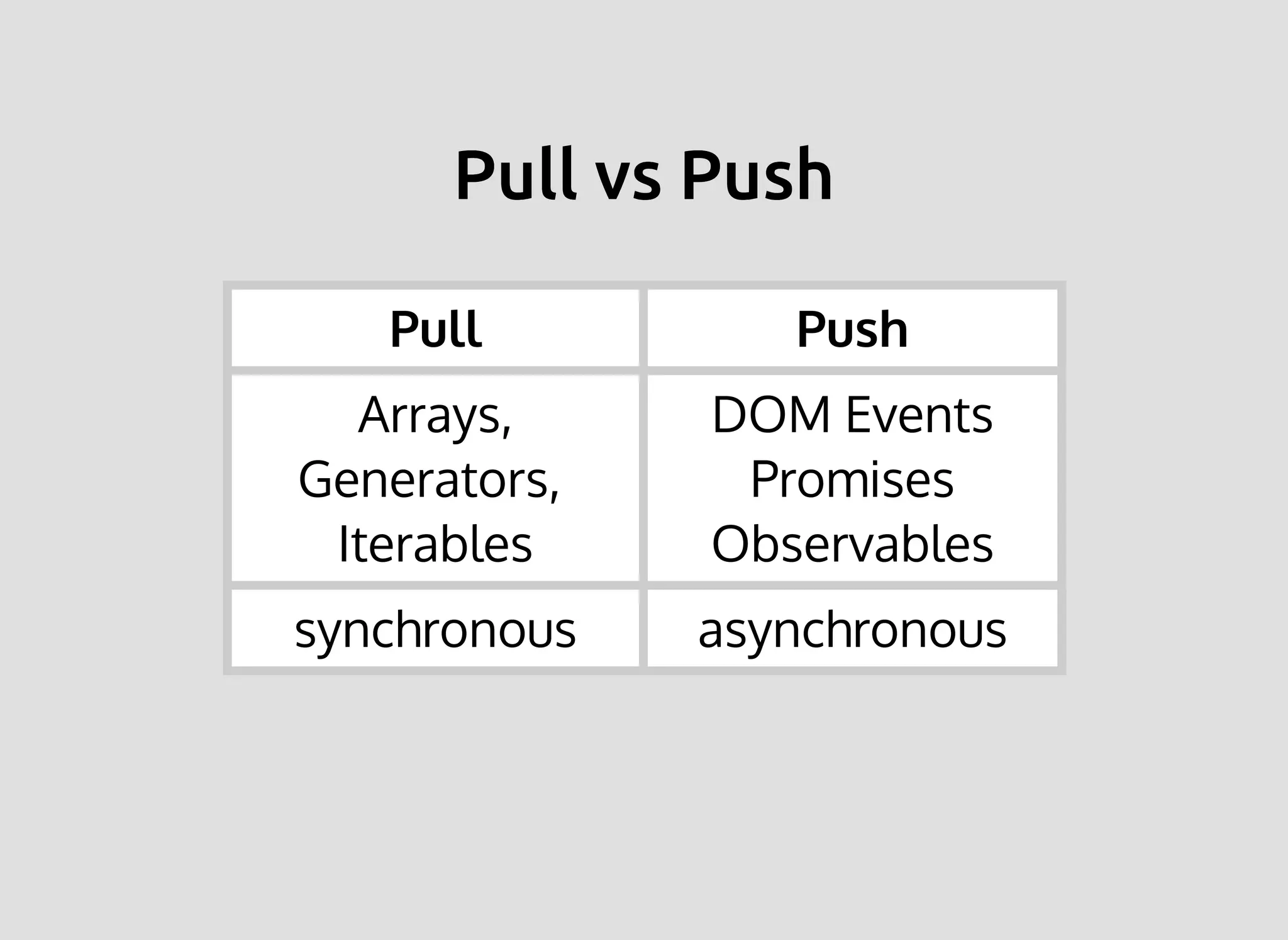

- 13. Pull vs PushPullvs Push Pull Push Arrays, Generators, Iterables DOM Events Promises Observables synchronous asynchronous

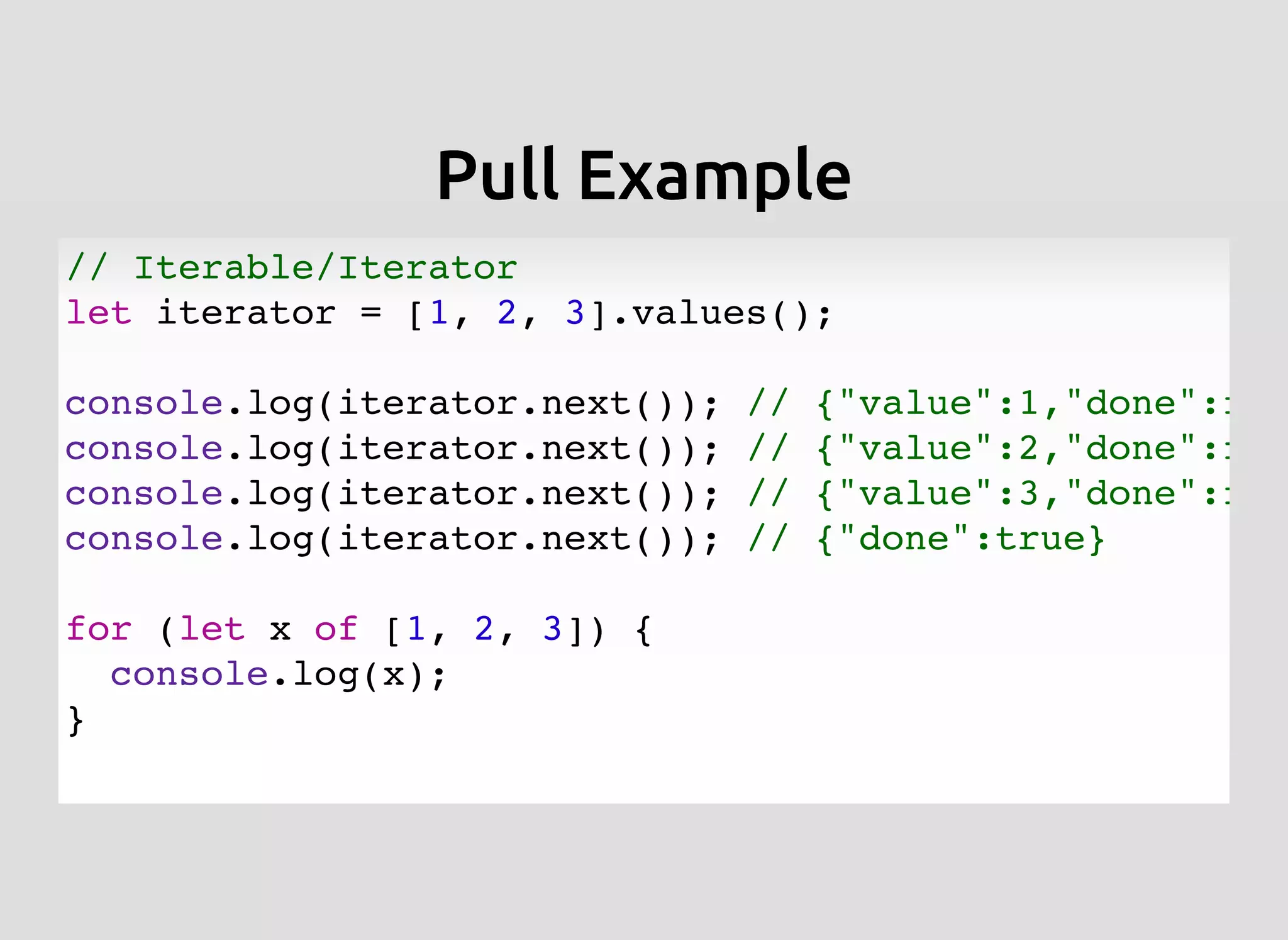

- 14. Pull ExamplePull Example //Iterable/Iterator let iterator = [1, 2, 3].values(); console.log(iterator.next()); // {"value":1,"done":fal console.log(iterator.next()); // {"value":2,"done":fal console.log(iterator.next()); // {"value":3,"done":fal console.log(iterator.next()); // {"done":true} for (let x of [1, 2, 3]) { console.log(x); }

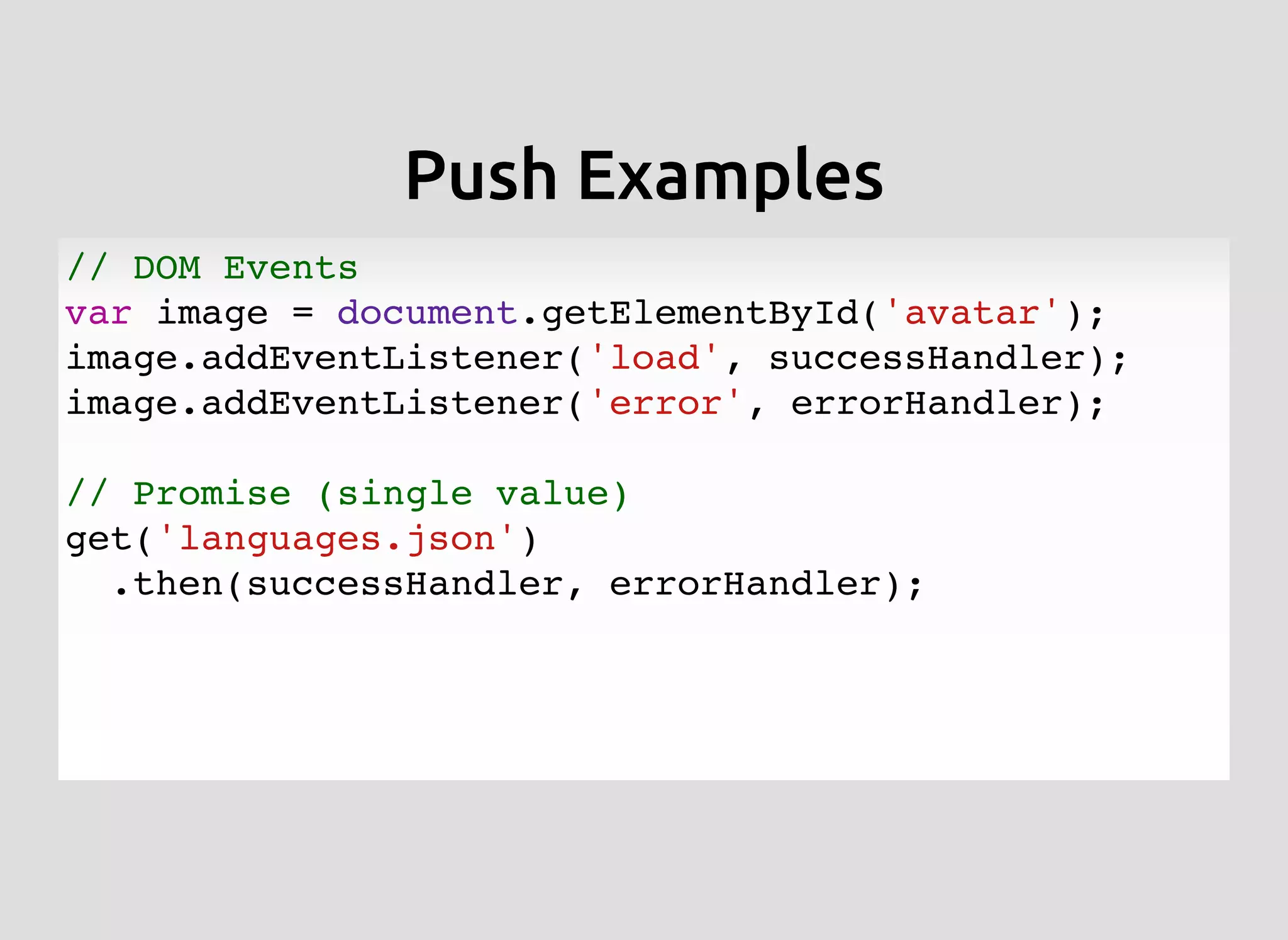

- 15. Push ExamplesPush Examples //DOM Events var image = document.getElementById('avatar'); image.addEventListener('load', successHandler); image.addEventListener('error', errorHandler); // Promise (single value) get('languages.json') .then(successHandler, errorHandler);

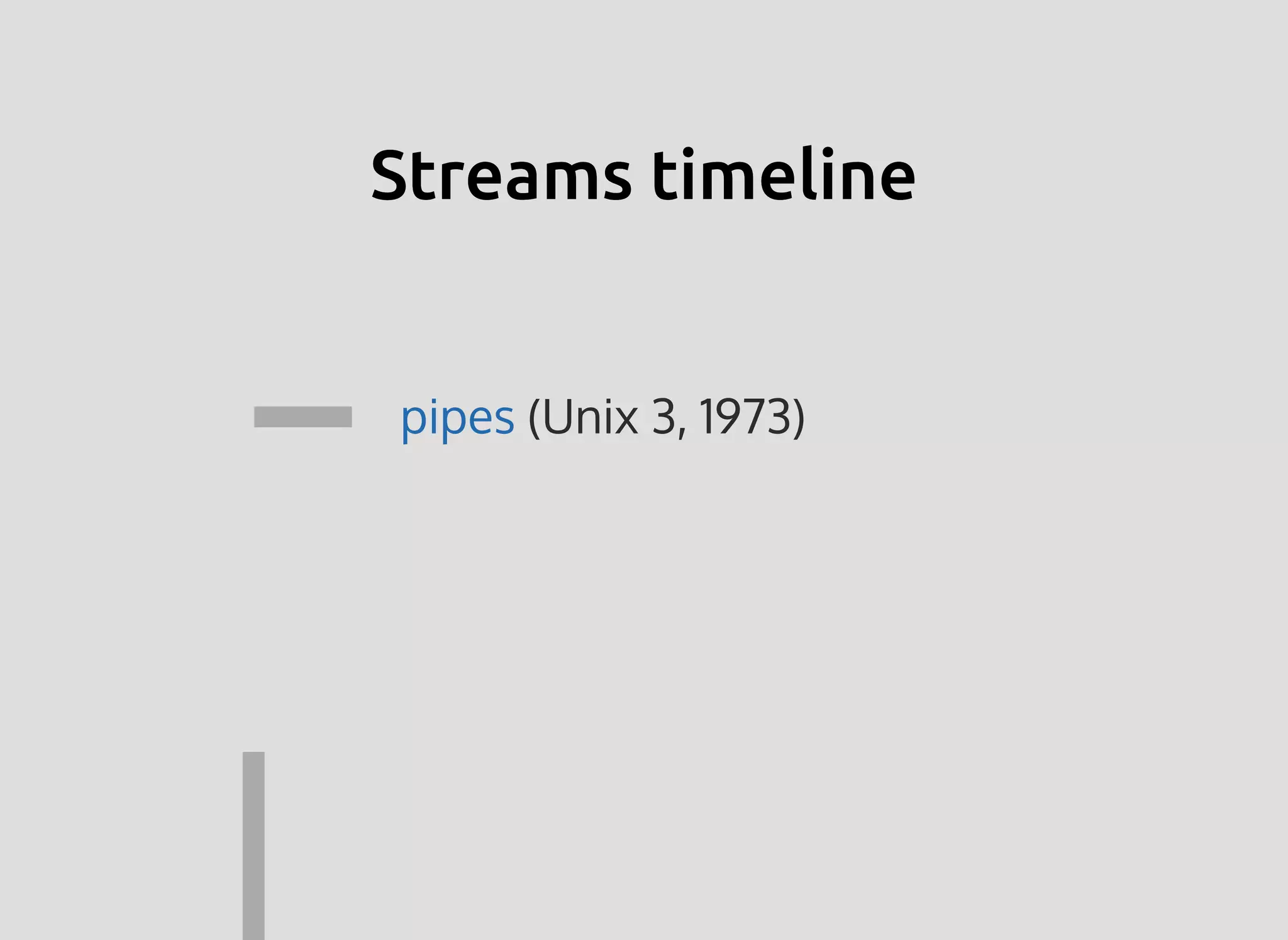

- 16. Streams timelineStreams timeline (Unix3, 1973)pipes
- 17.
- 18.
- 19.

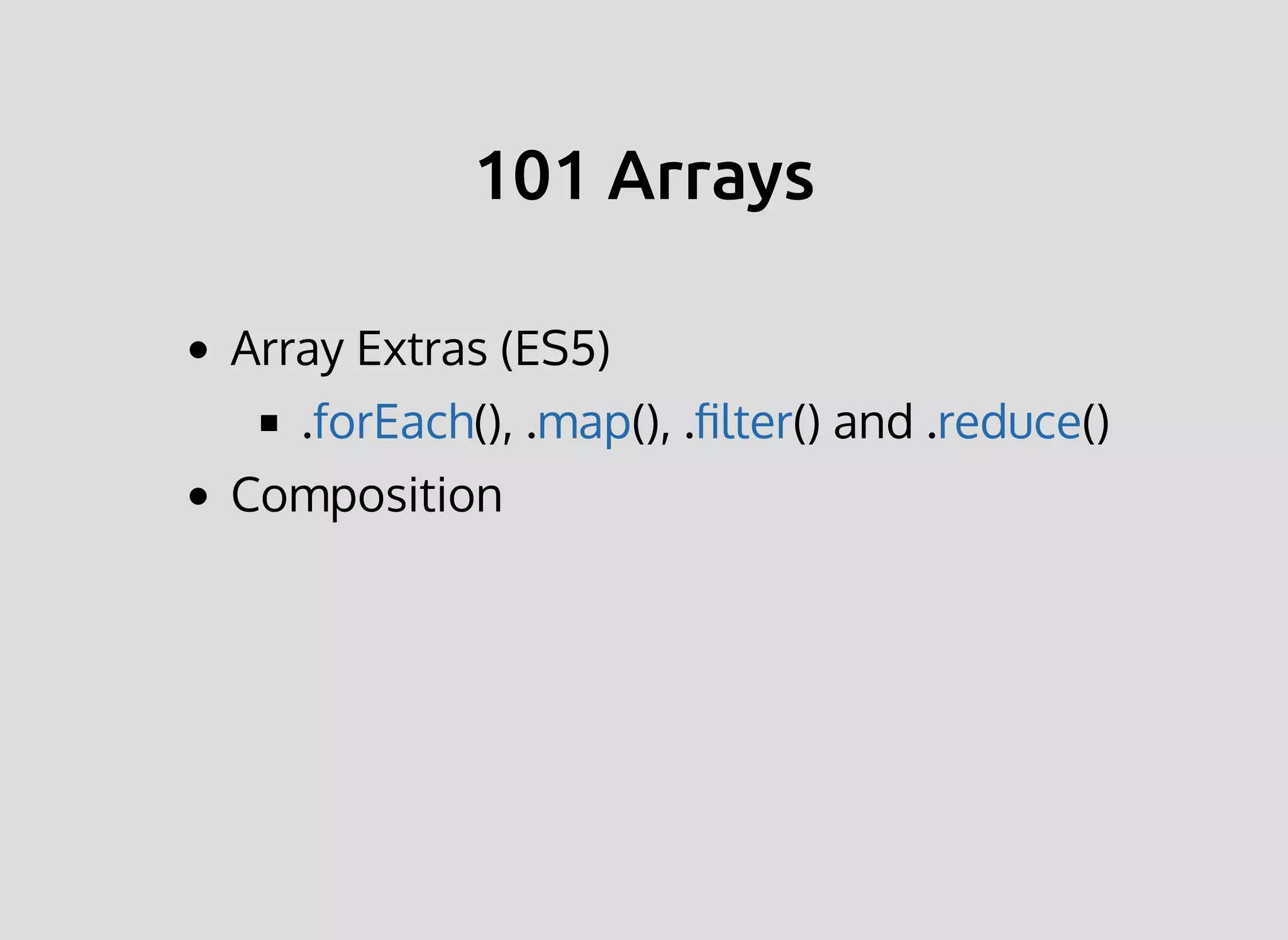

- 20. 101 Arrays101 Arrays ArrayExtras (ES5) . (), . (), . () and . ()forEach map filter reduce Composition

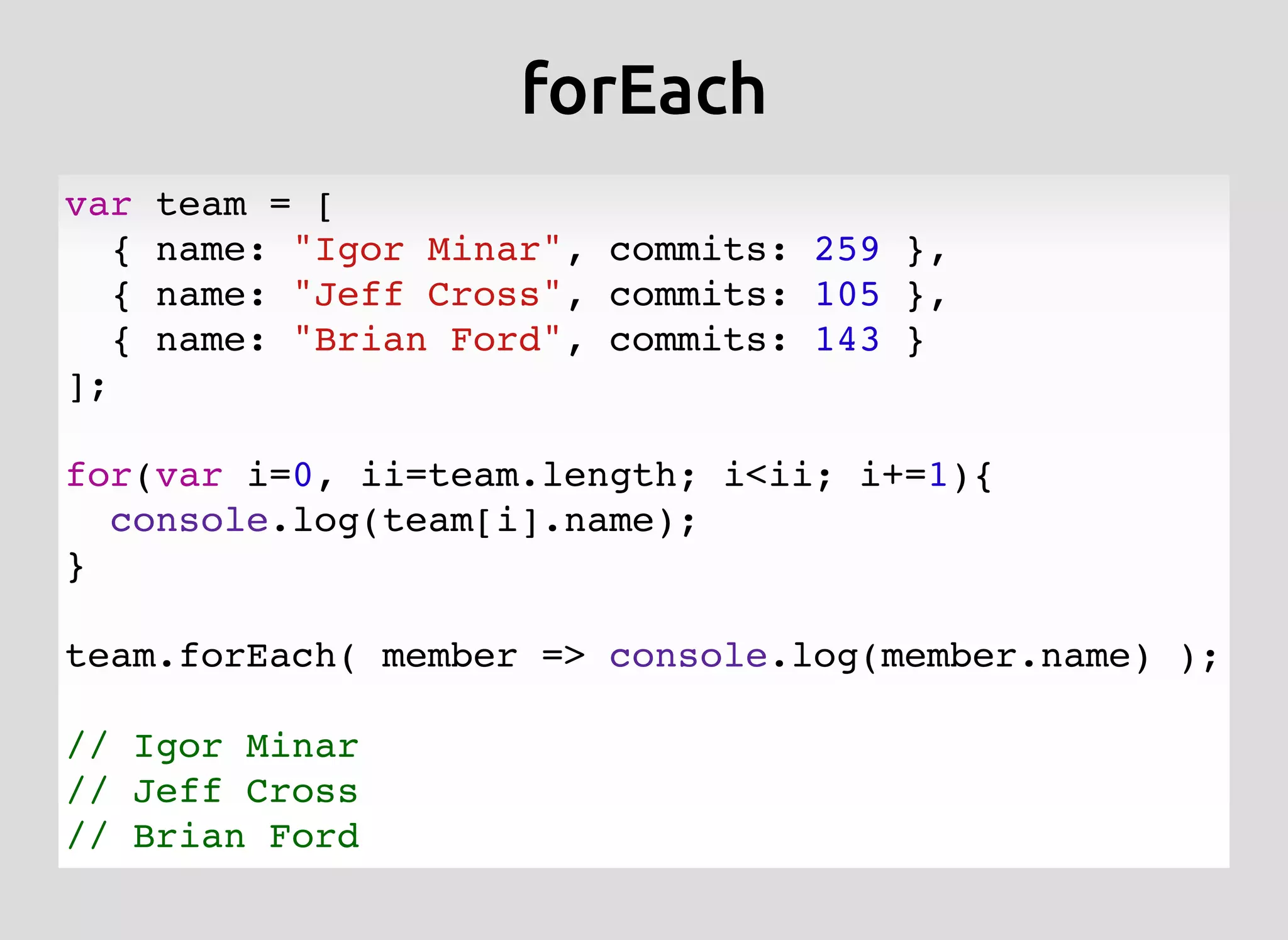

- 21. forEachforEach var team =[ { name: "Igor Minar", commits: 259 }, { name: "Jeff Cross", commits: 105 }, { name: "Brian Ford", commits: 143 } ]; for(var i=0, ii=team.length; i<ii; i+=1){ console.log(team[i].name); } team.forEach( member => console.log(member.name) ); // Igor Minar // Jeff Cross // Brian Ford

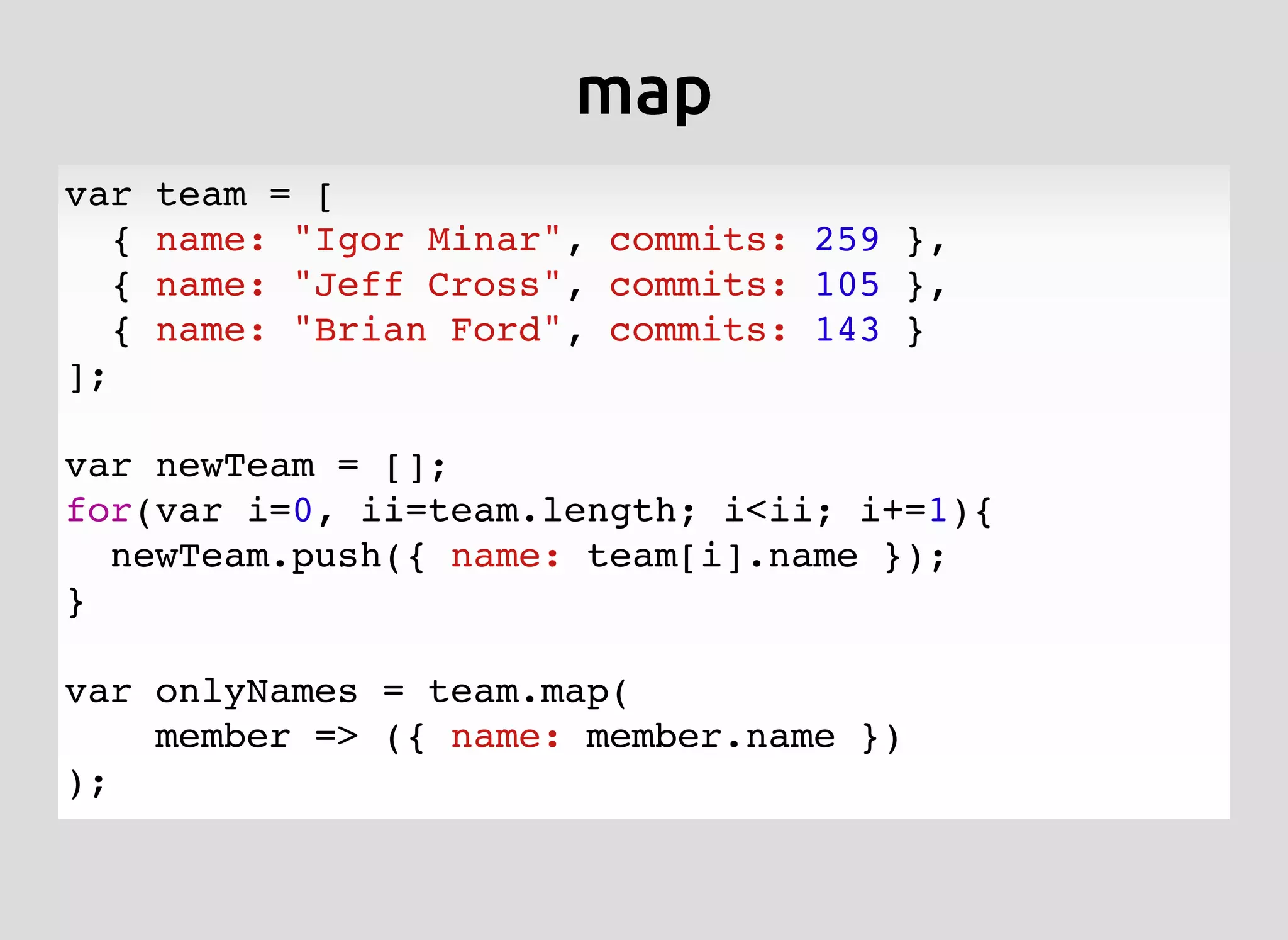

- 22. mapmap var team =[ { name: "Igor Minar", commits: 259 }, { name: "Jeff Cross", commits: 105 }, { name: "Brian Ford", commits: 143 } ]; var newTeam = []; for(var i=0, ii=team.length; i<ii; i+=1){ newTeam.push({ name: team[i].name }); } var onlyNames = team.map( member => ({ name: member.name }) );
- 23. filterfilter var team =[ { name: "Igor Minar", commits: 259 }, { name: "Jeff Cross", commits: 105 }, { name: "Brian Ford", commits: 143 } ]; var onlyOver120Commits = []; for(var i=0, ii=team.length; i<ii; i+=1){ if (team[i].commits>120) { onlyOver120Commits.push(team[i]); } } var onlyOver120Commits = team.filter( member => member.commits>120 );

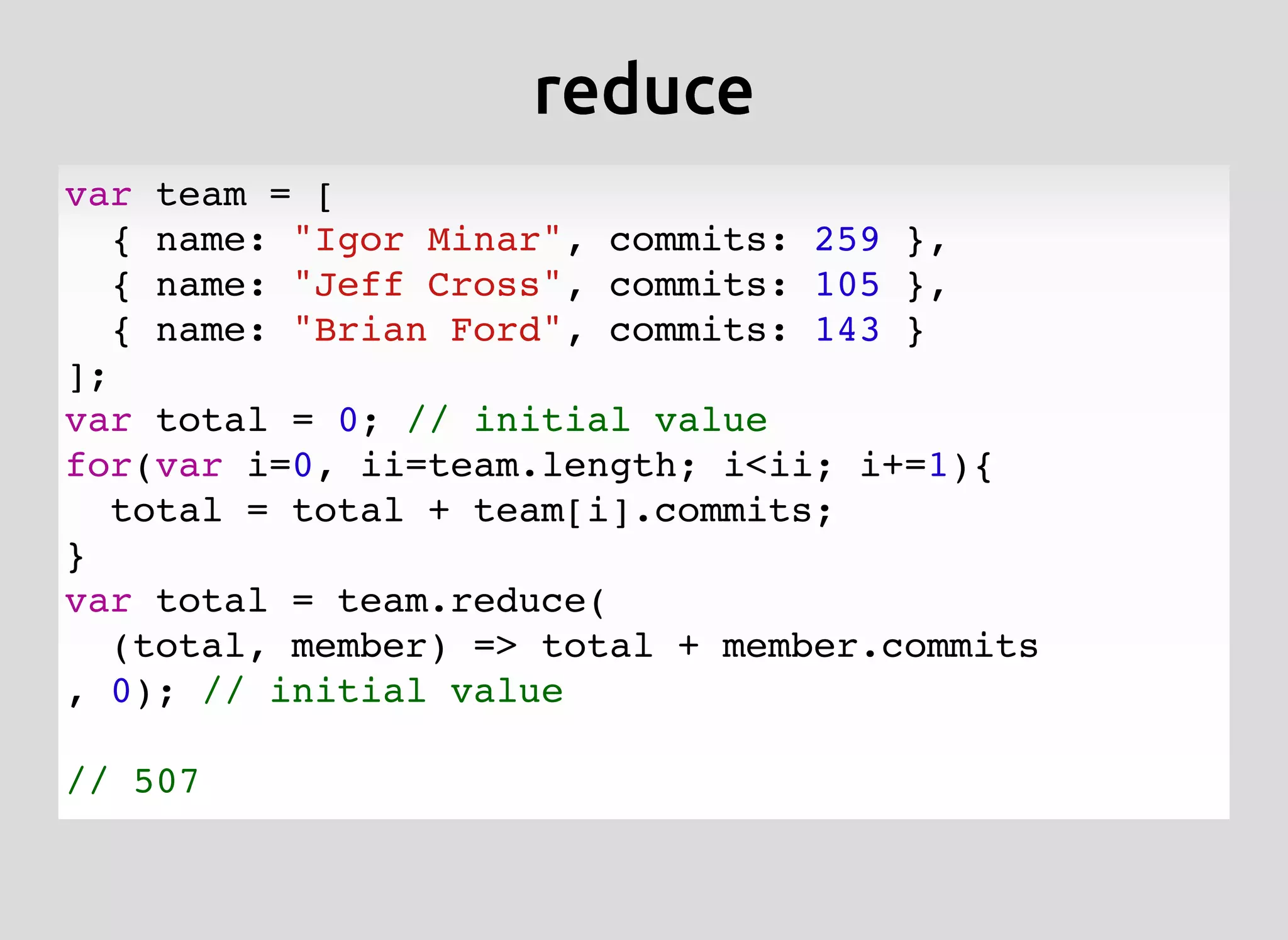

- 24. reducereduce var team =[ { name: "Igor Minar", commits: 259 }, { name: "Jeff Cross", commits: 105 }, { name: "Brian Ford", commits: 143 } ]; var total = 0; // initial value for(var i=0, ii=team.length; i<ii; i+=1){ total = total + team[i].commits; } var total = team.reduce( (total, member) => total + member.commits , 0); // initial value // 507

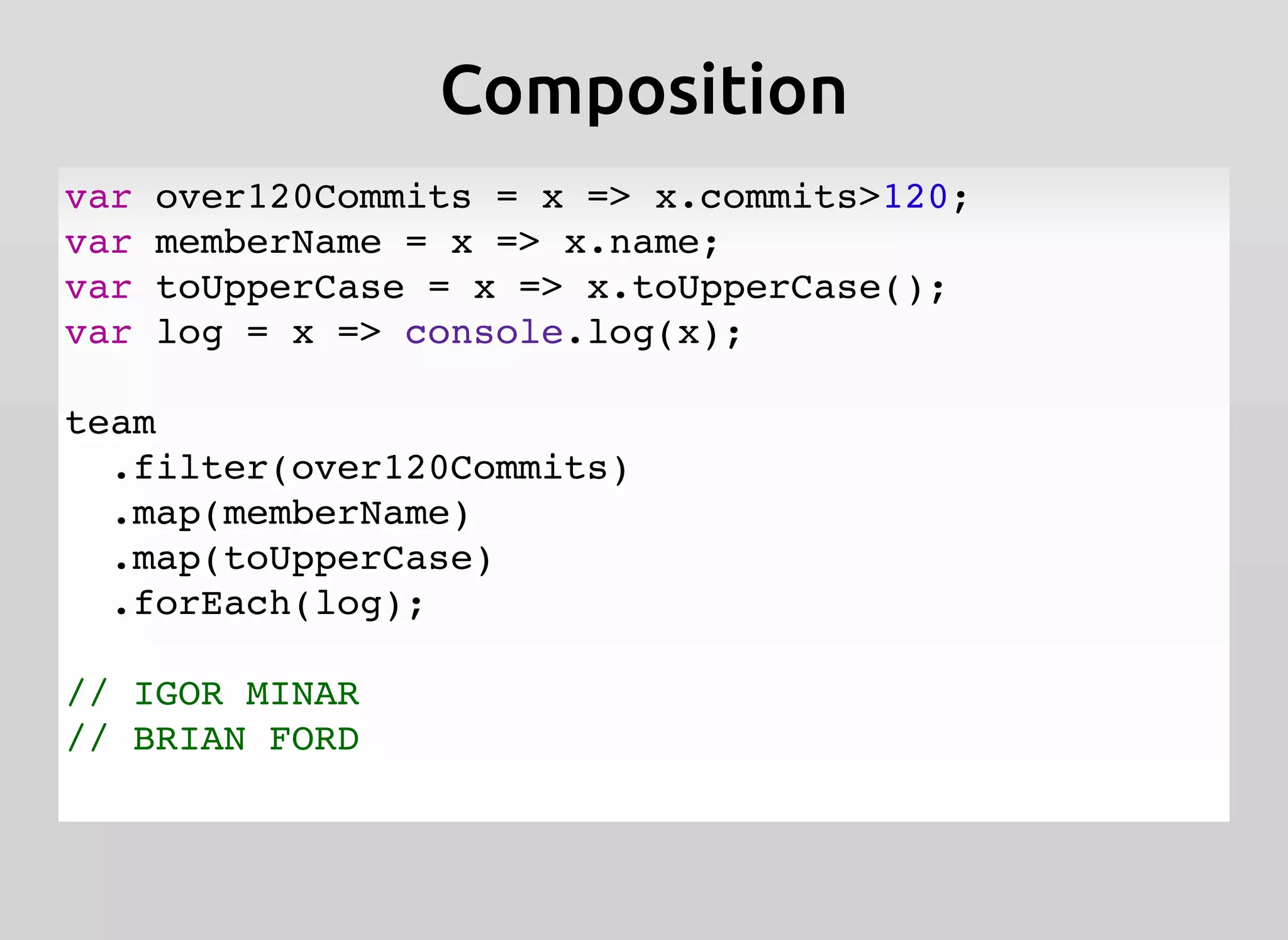

- 25. CompositionComposition var over120Commits =x => x.commits>120; var memberName = x => x.name; var toUpperCase = x => x.toUpperCase(); var log = x => console.log(x); team .filter(over120Commits) .map(memberName) .map(toUpperCase) .forEach(log); // IGOR MINAR // BRIAN FORD
- 27.
- 28. Main ContributorsMain Contributors @BenLesh@AndreStaltz@_ojkwon @trxcllnt@robwormald Paul Taylor

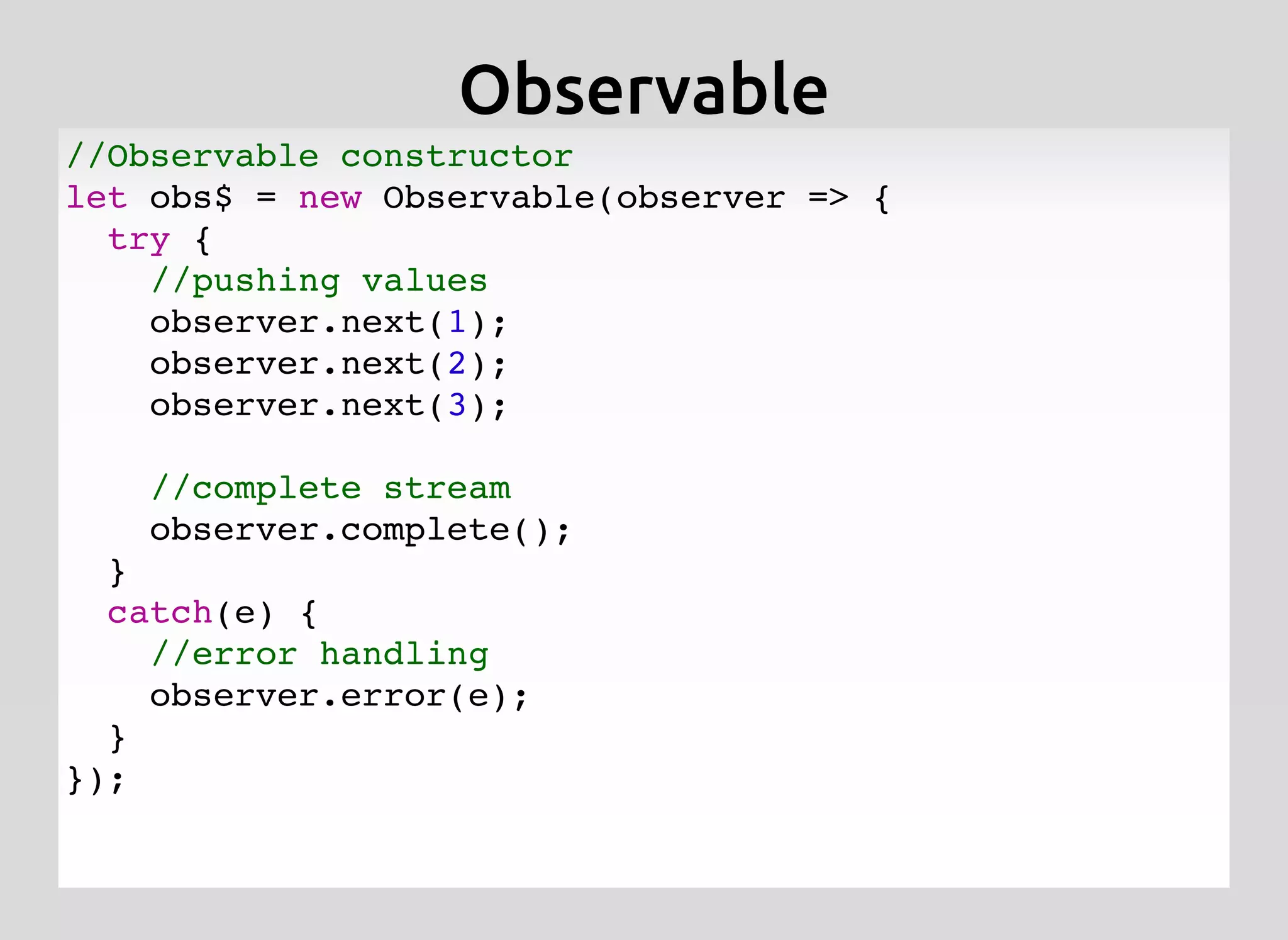

- 29. //Observable constructor let obs$= new Observable(observer => { try { //pushing values observer.next(1); observer.next(2); observer.next(3); //complete stream observer.complete(); } catch(e) { //error handling observer.error(e); } }); ObservableObservable

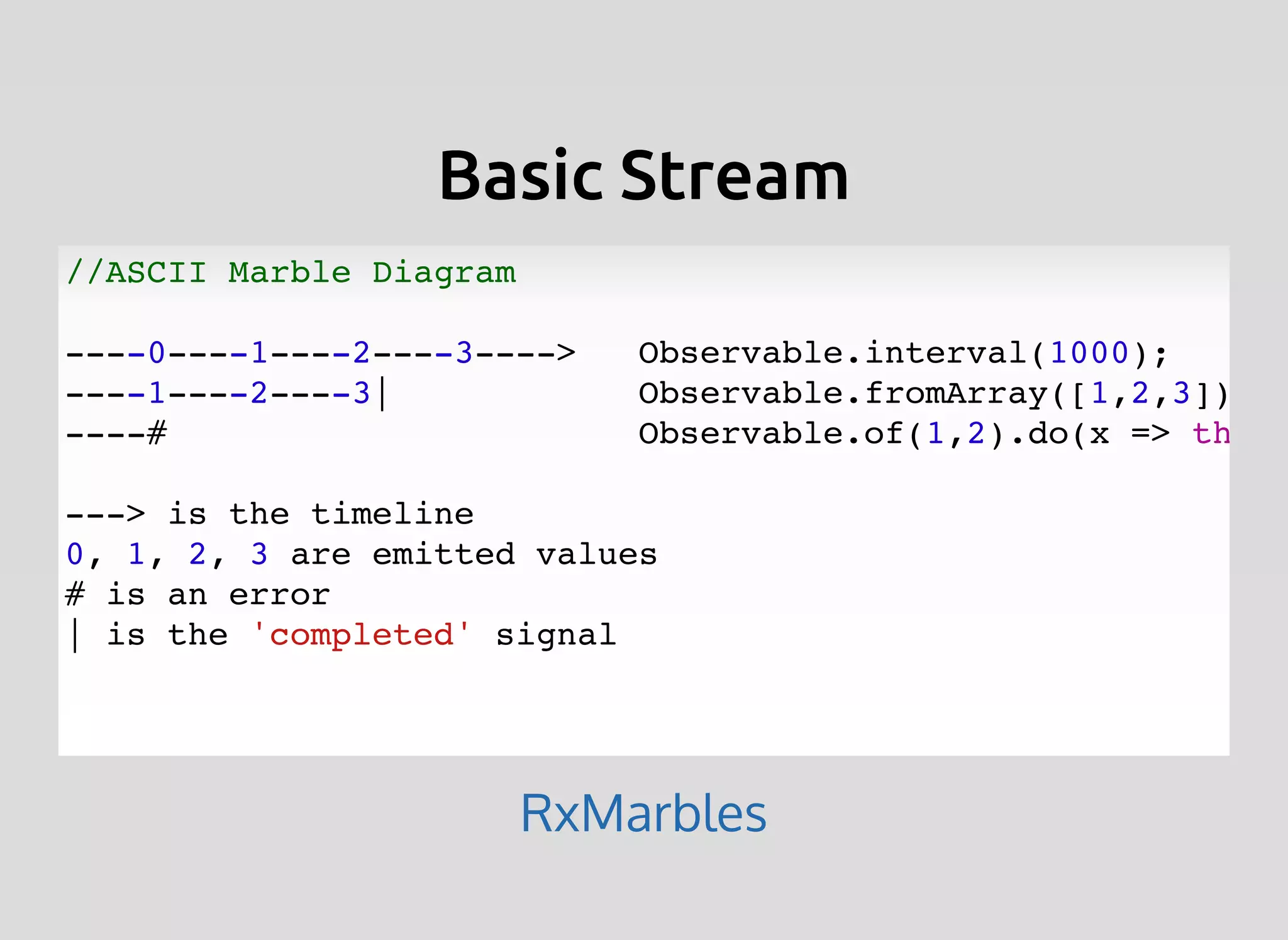

- 30. Basic StreamBasic Stream //ASCIIMarble Diagram ----0----1----2----3----> Observable.interval(1000); ----1----2----3| Observable.fromArray([1,2,3]); ----# Observable.of(1,2).do(x => throw ---> is the timeline 0, 1, 2, 3 are emitted values # is an error | is the 'completed' signal RxMarbles

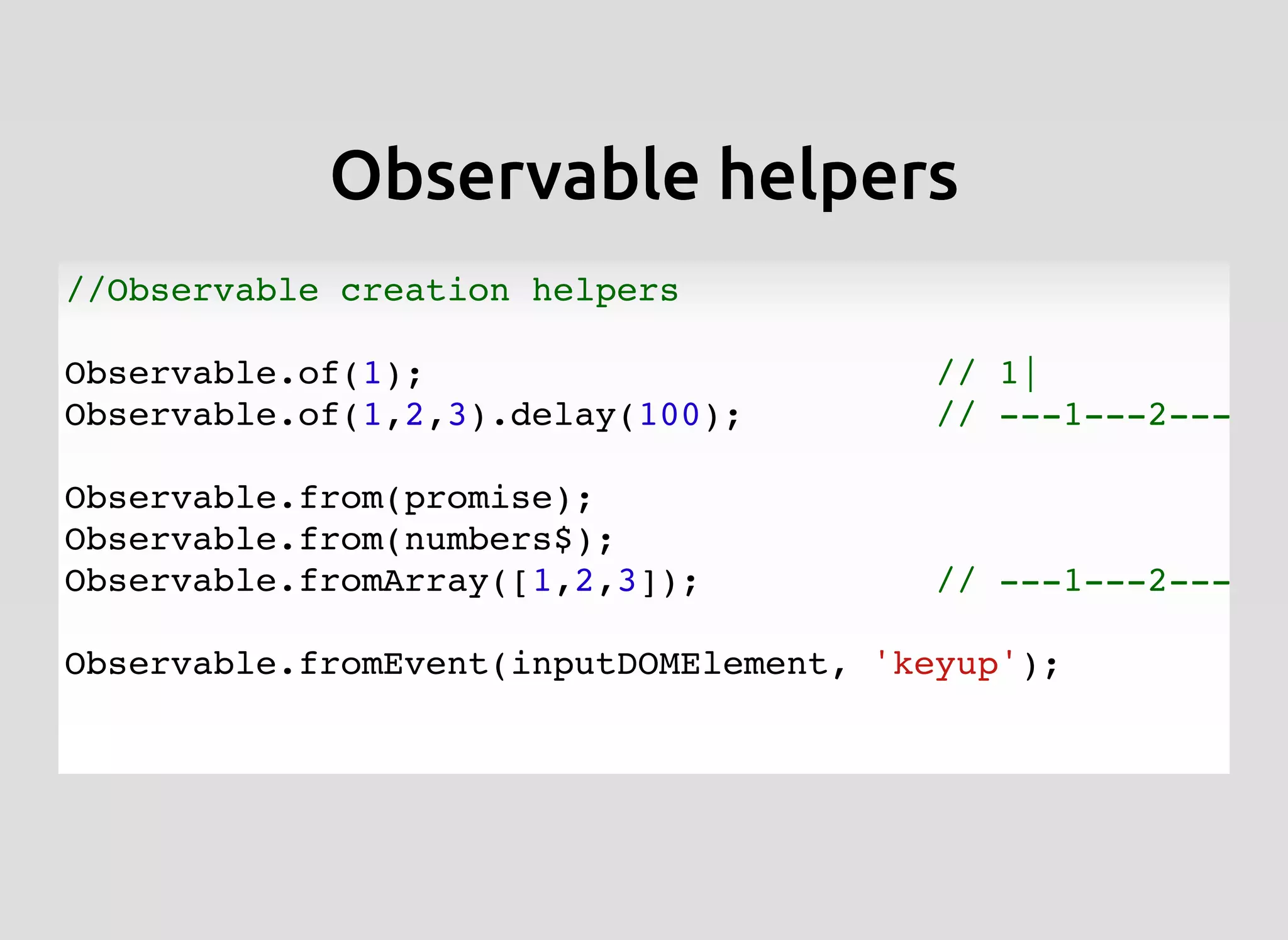

- 31. Observable helpersObservable helpers //Observablecreation helpers Observable.of(1); // 1| Observable.of(1,2,3).delay(100); // ---1---2---3| Observable.from(promise); Observable.from(numbers$); Observable.fromArray([1,2,3]); // ---1---2---3| Observable.fromEvent(inputDOMElement, 'keyup');

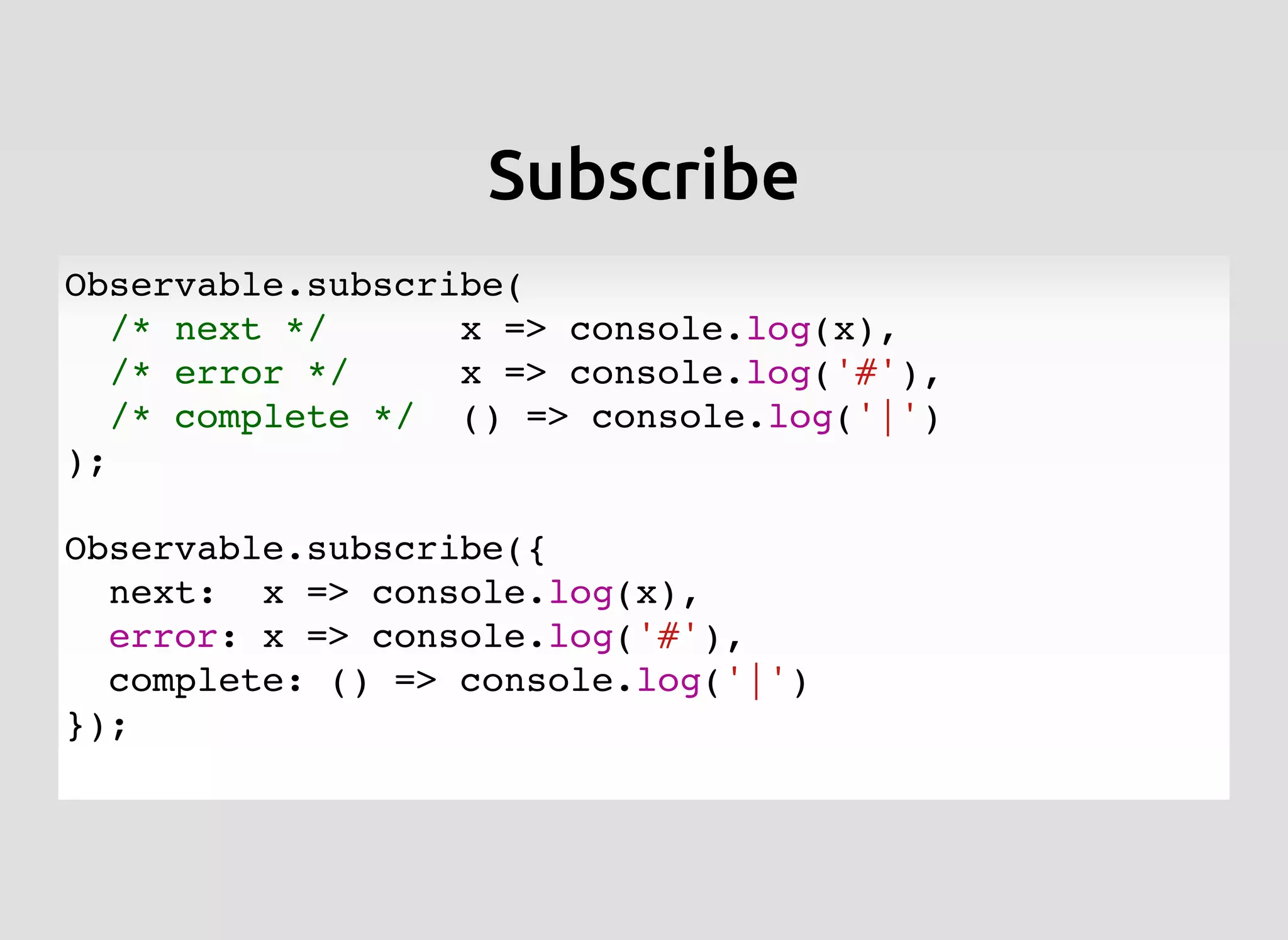

- 32. SubscribeSubscribe Observable.subscribe( /* next */x => console.log(x), /* error */ x => console.log('#'), /* complete */ () => console.log('|') ); Observable.subscribe({ next: x => console.log(x), error: x => console.log('#'), complete: () => console.log('|') });

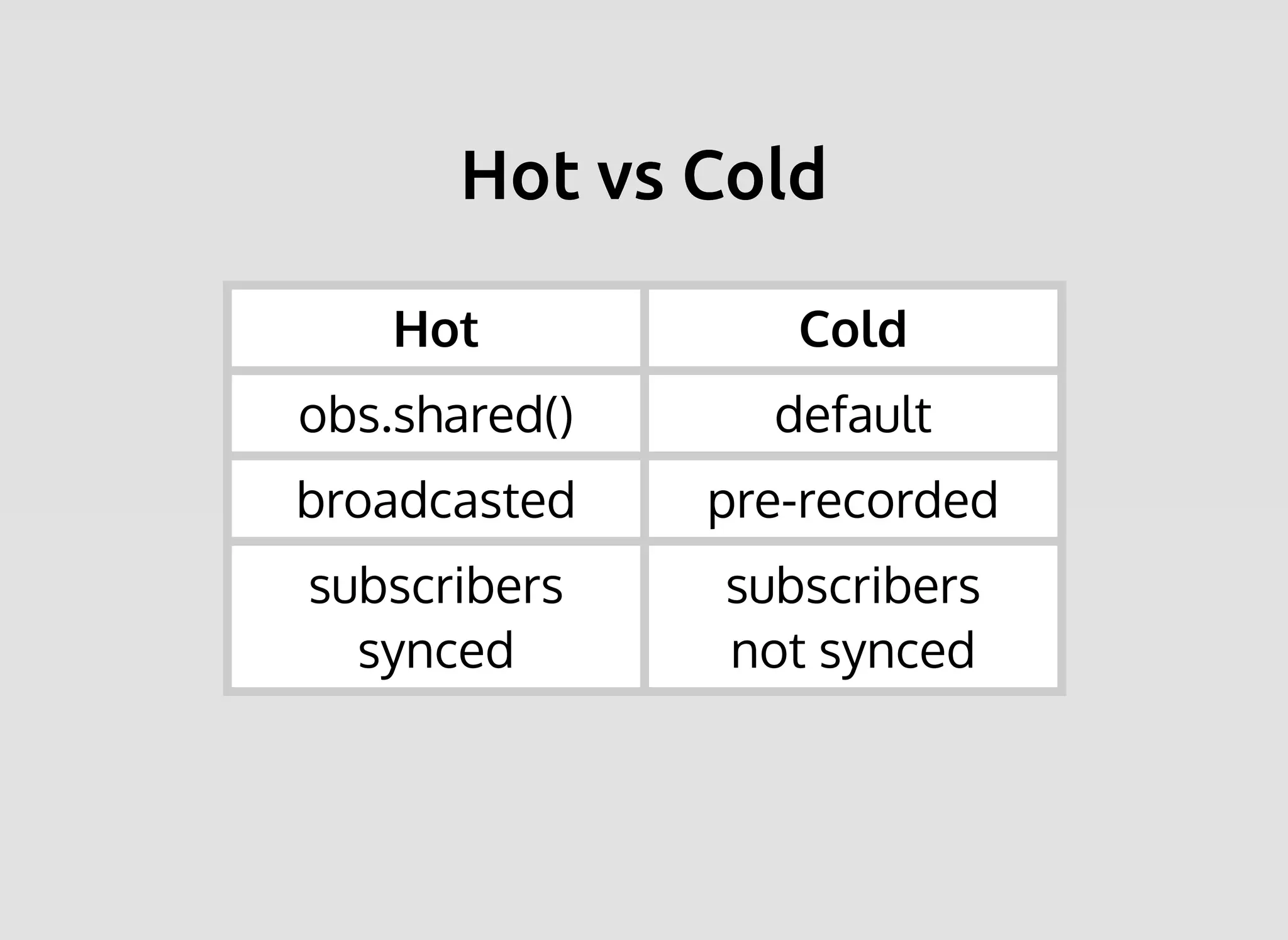

- 33. Hot vs ColdHotvs Cold Hot Cold obs.shared() default broadcasted pre-recorded subscribers synced subscribers not synced

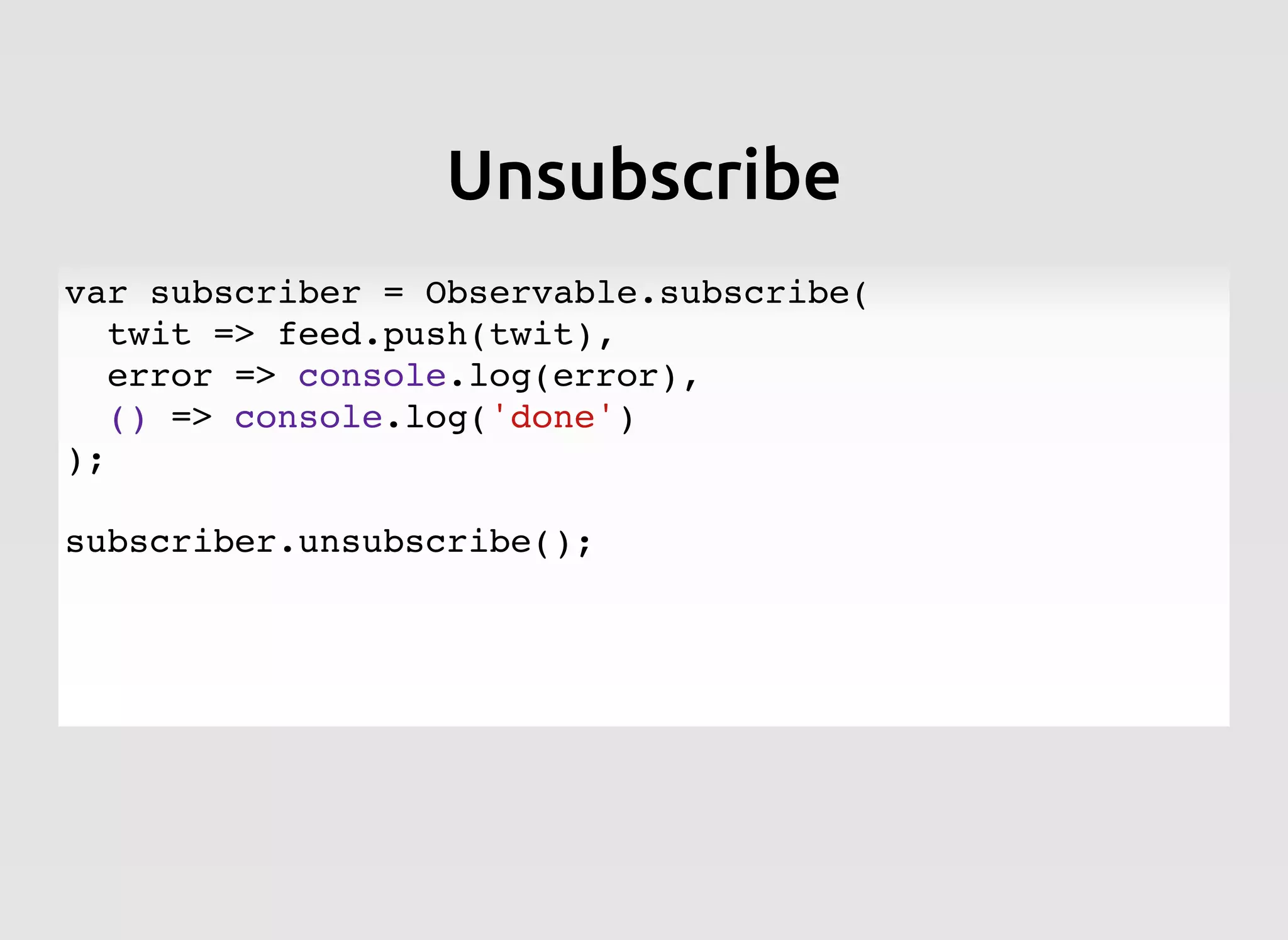

- 34. UnsubscribeUnsubscribe var subscriber =Observable.subscribe( twit => feed.push(twit), error => console.log(error), () => console.log('done') ); subscriber.unsubscribe();

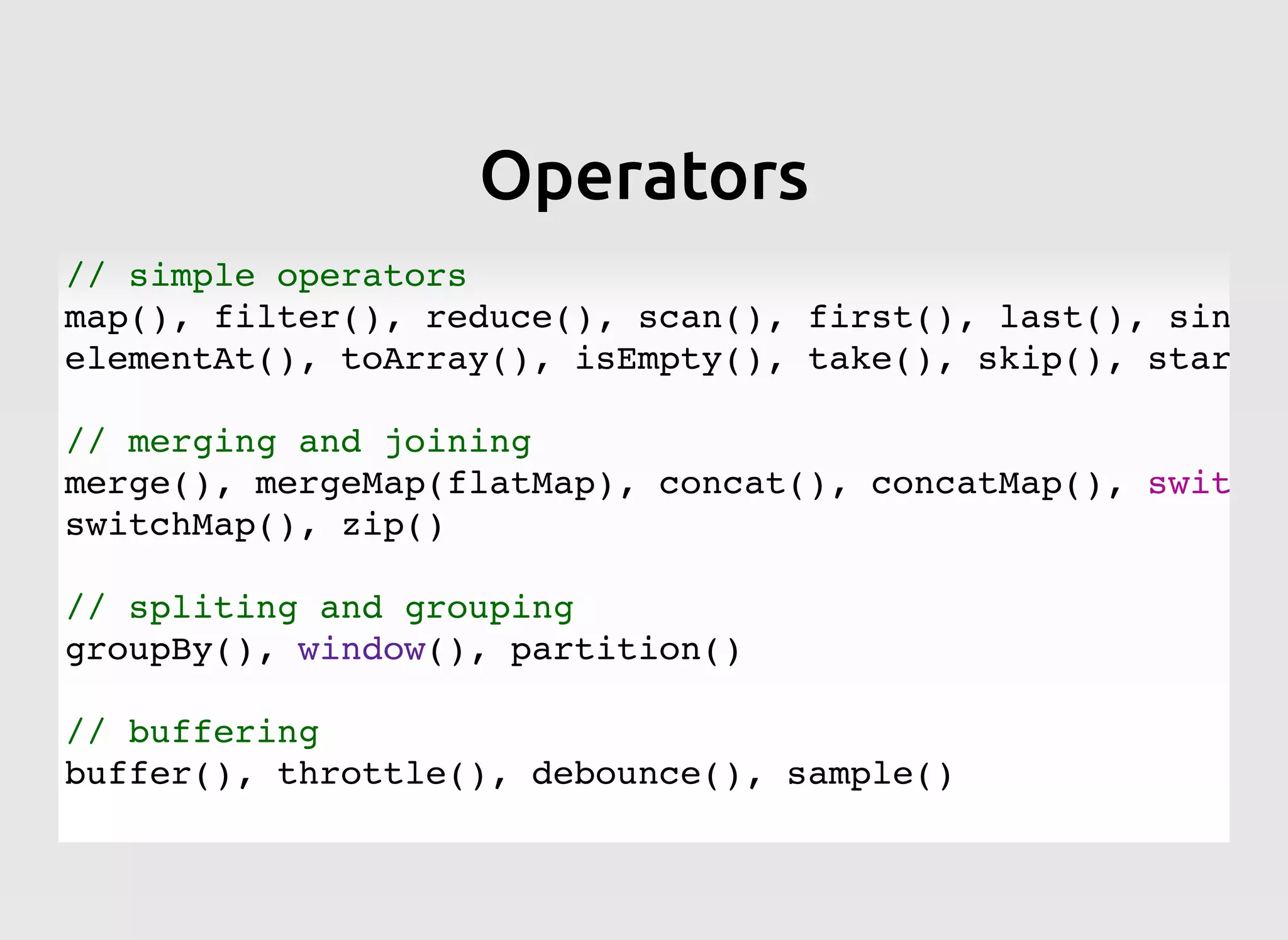

- 35. OperatorsOperators // simple operators map(),filter(), reduce(), scan(), first(), last(), single elementAt(), toArray(), isEmpty(), take(), skip(), startWi // merging and joining merge(), mergeMap(flatMap), concat(), concatMap(), switch( switchMap(), zip() // spliting and grouping groupBy(), window(), partition() // buffering buffer(), throttle(), debounce(), sample()

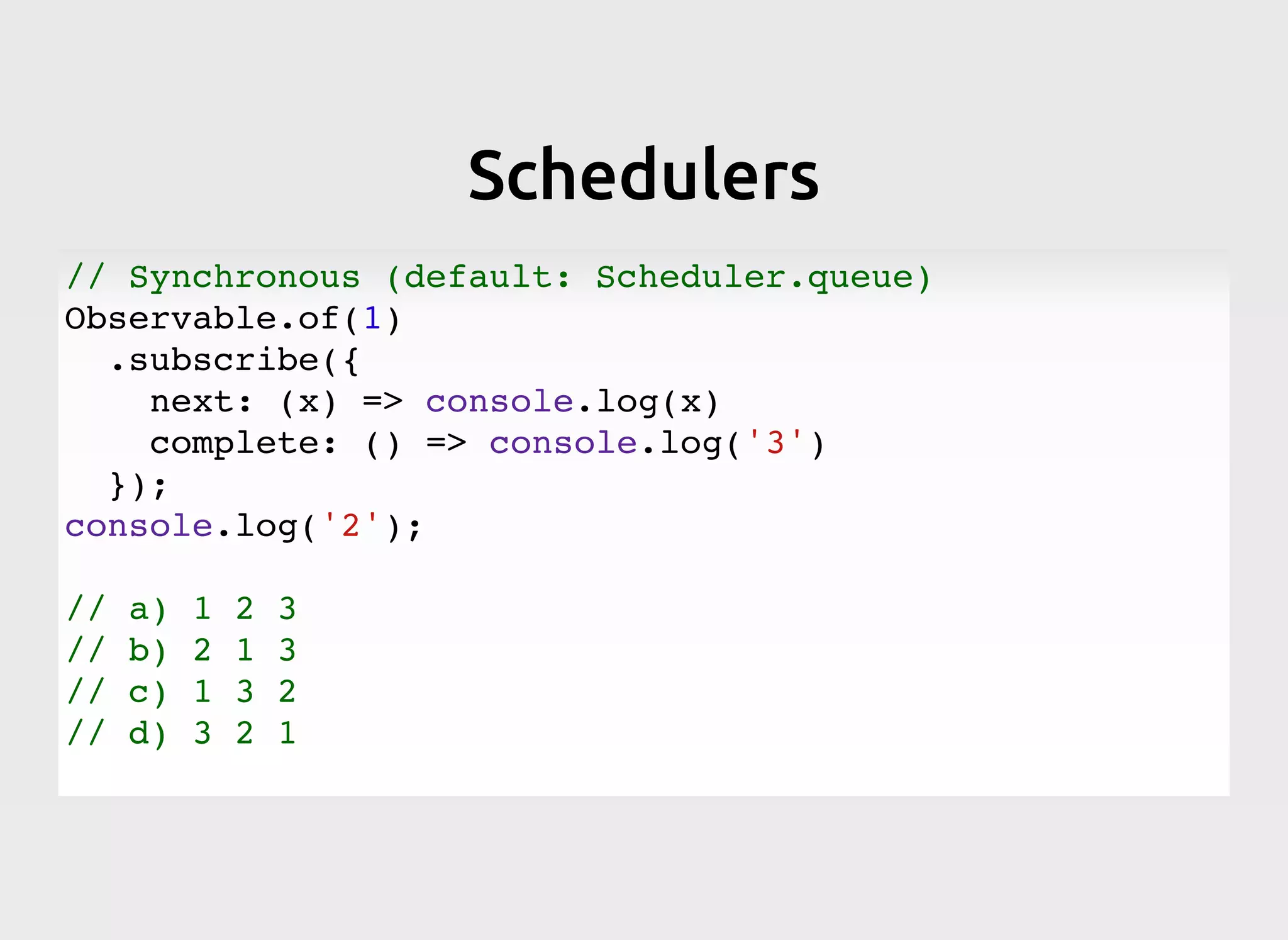

- 37. SchedulersSchedulers // Synchronous (default:Scheduler.queue) Observable.of(1) .subscribe({ next: (x) => console.log(x) complete: () => console.log('3') }); console.log('2'); // a) 1 2 3 // b) 2 1 3 // c) 1 3 2 // d) 3 2 1
- 38. SchedulersSchedulers // Asynchronous Observable.of(1) .observeOn(Scheduler.asap) .subscribe({ next: (x)=> console.log(x) complete: () => console.log('3') }); console.log('2'); // a) 1 2 3 // b) 2 1 3 // c) 1 3 2 // d) 3 2 1

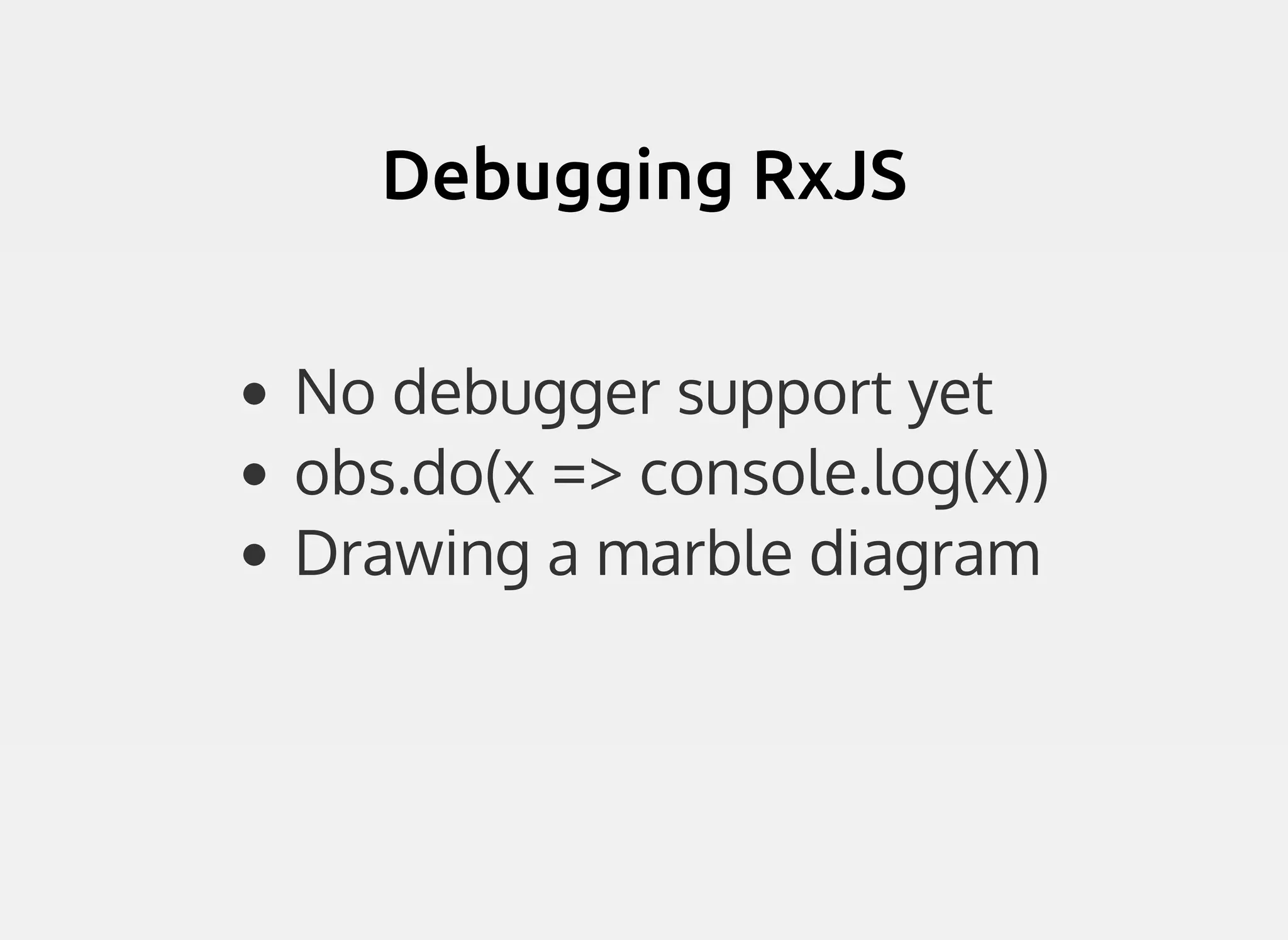

- 40. Debugging RxJSDebugging RxJS Nodebugger support yet obs.do(x => console.log(x)) Drawing a marble diagram

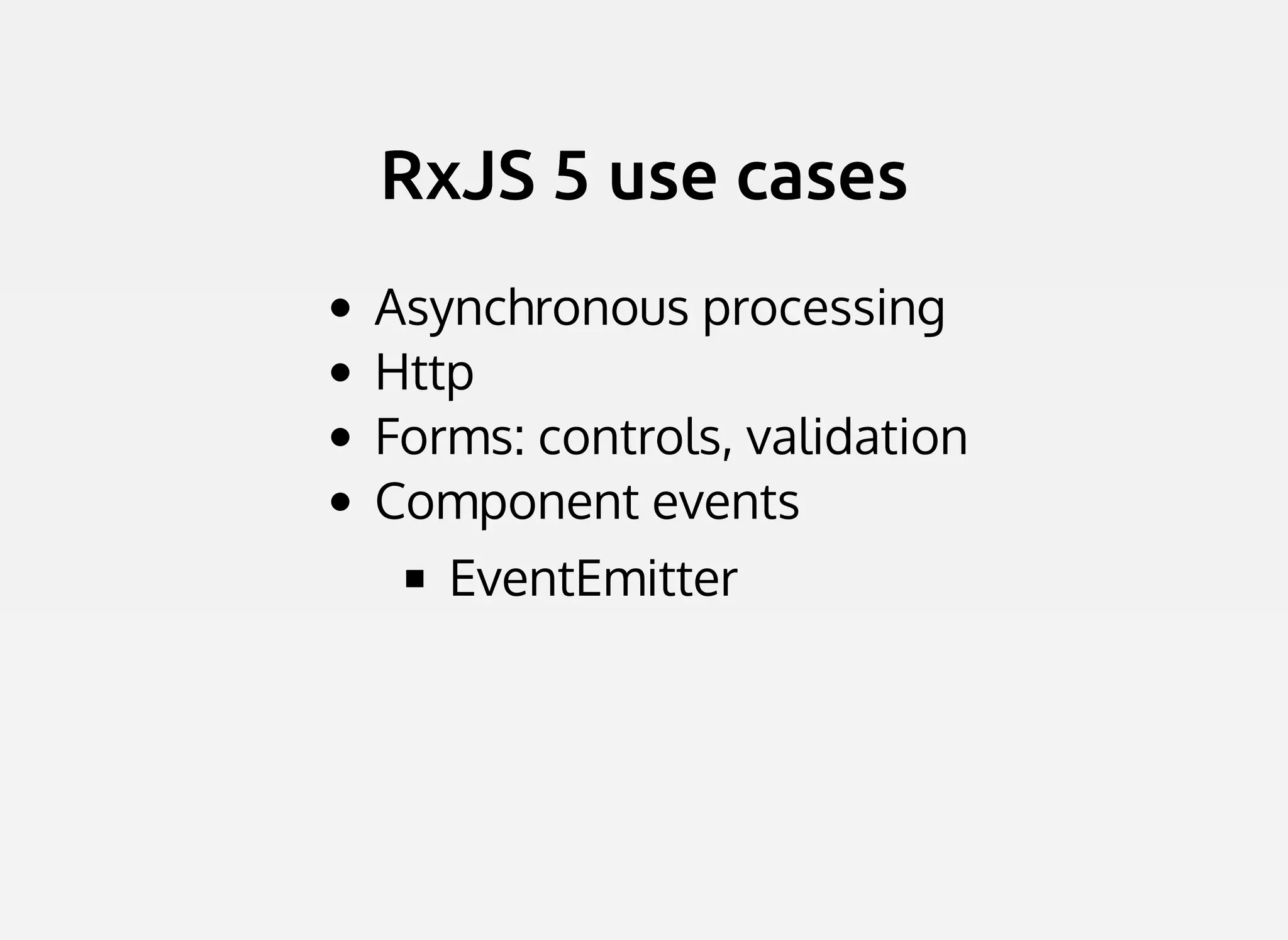

- 41. RxJS 5 usecasesRxJS 5 use cases Asynchronous processing Http Forms: controls, validation Component events EventEmitter

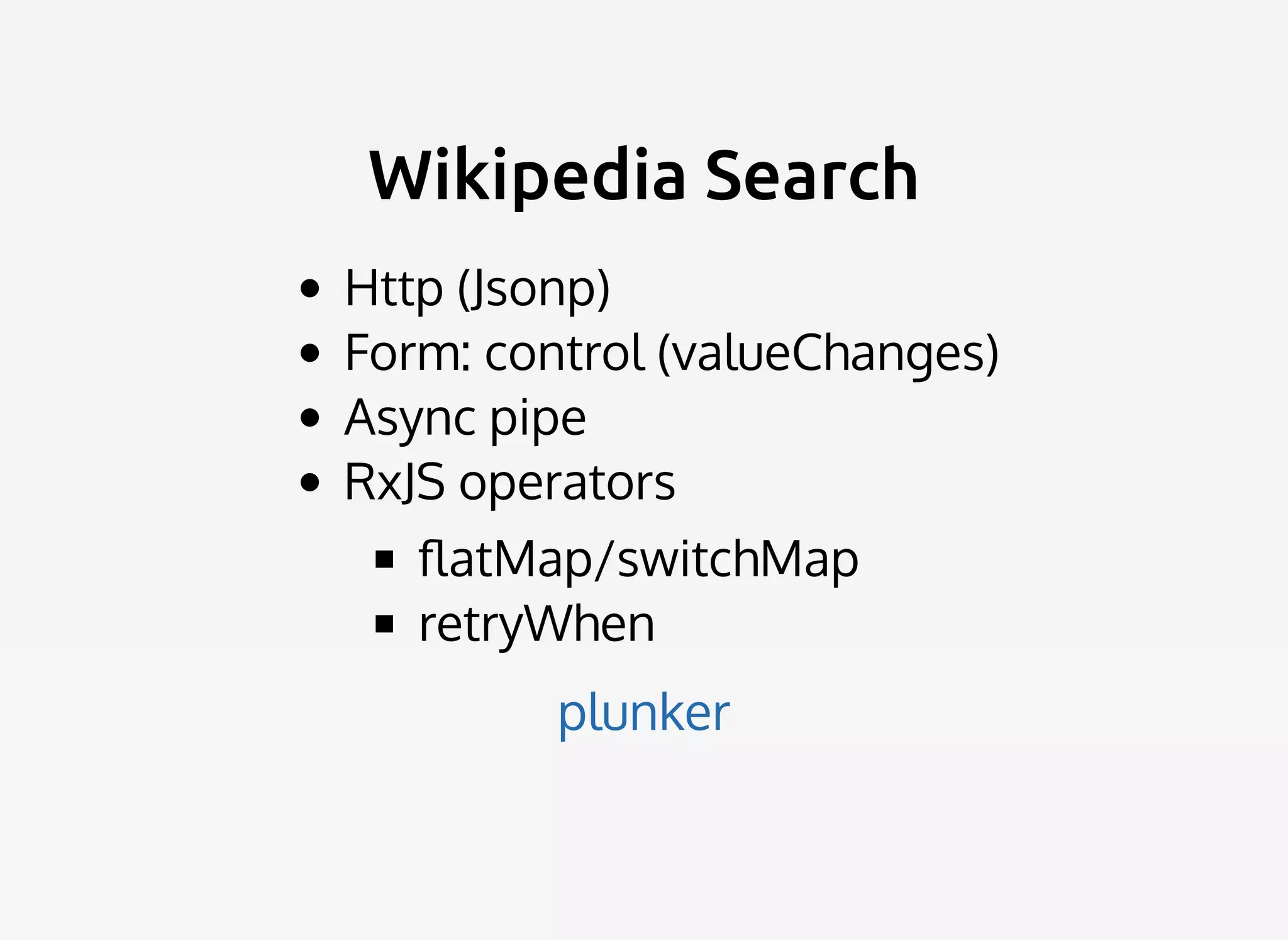

- 42. Wikipedia SearchWikipedia Search Http(Jsonp) Form: control (valueChanges) Async pipe RxJS operators flatMap/switchMap retryWhen plunker

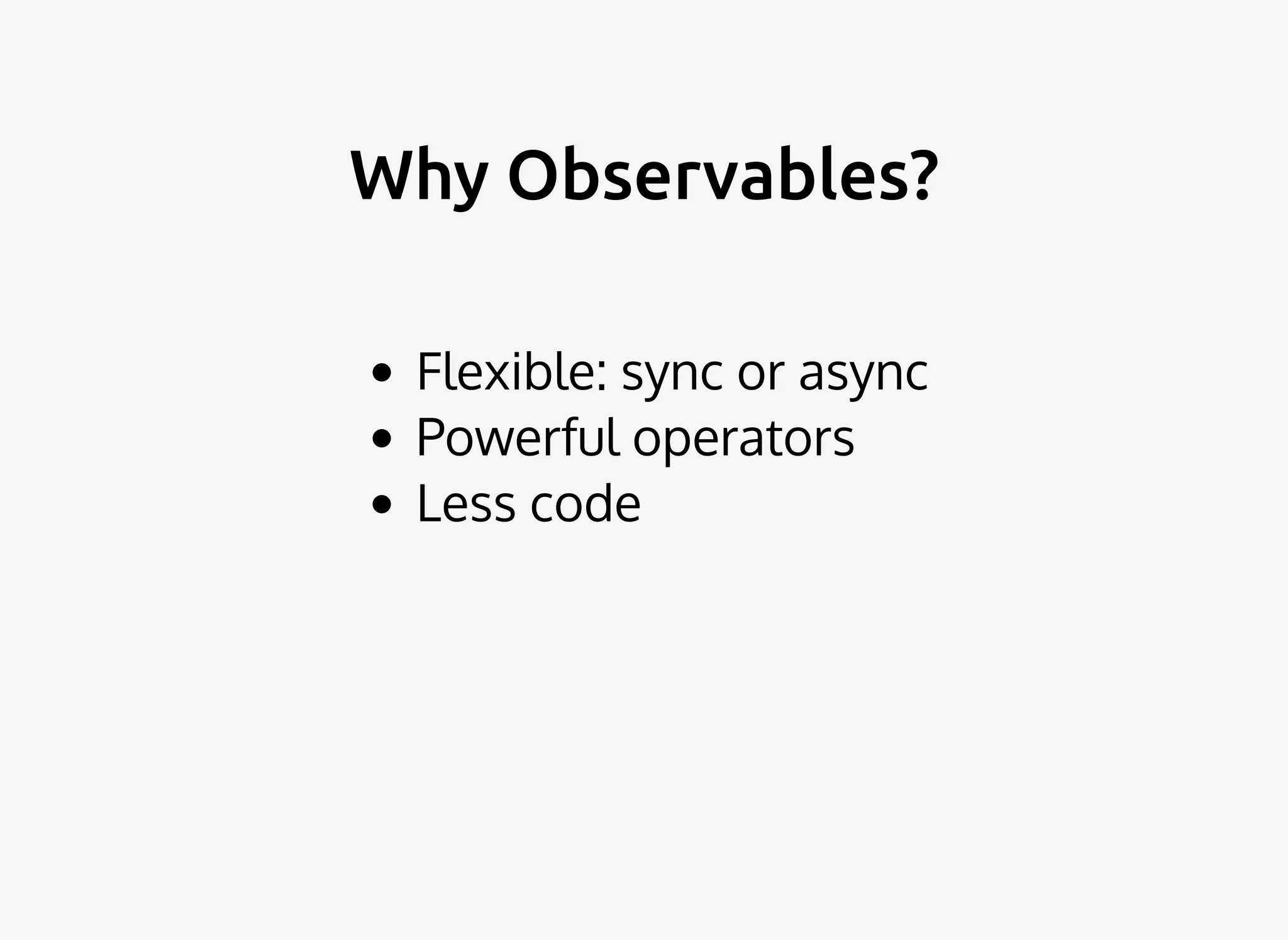

- 43. Why Observables?Why Observables? Flexible:sync or async Powerful operators Less code

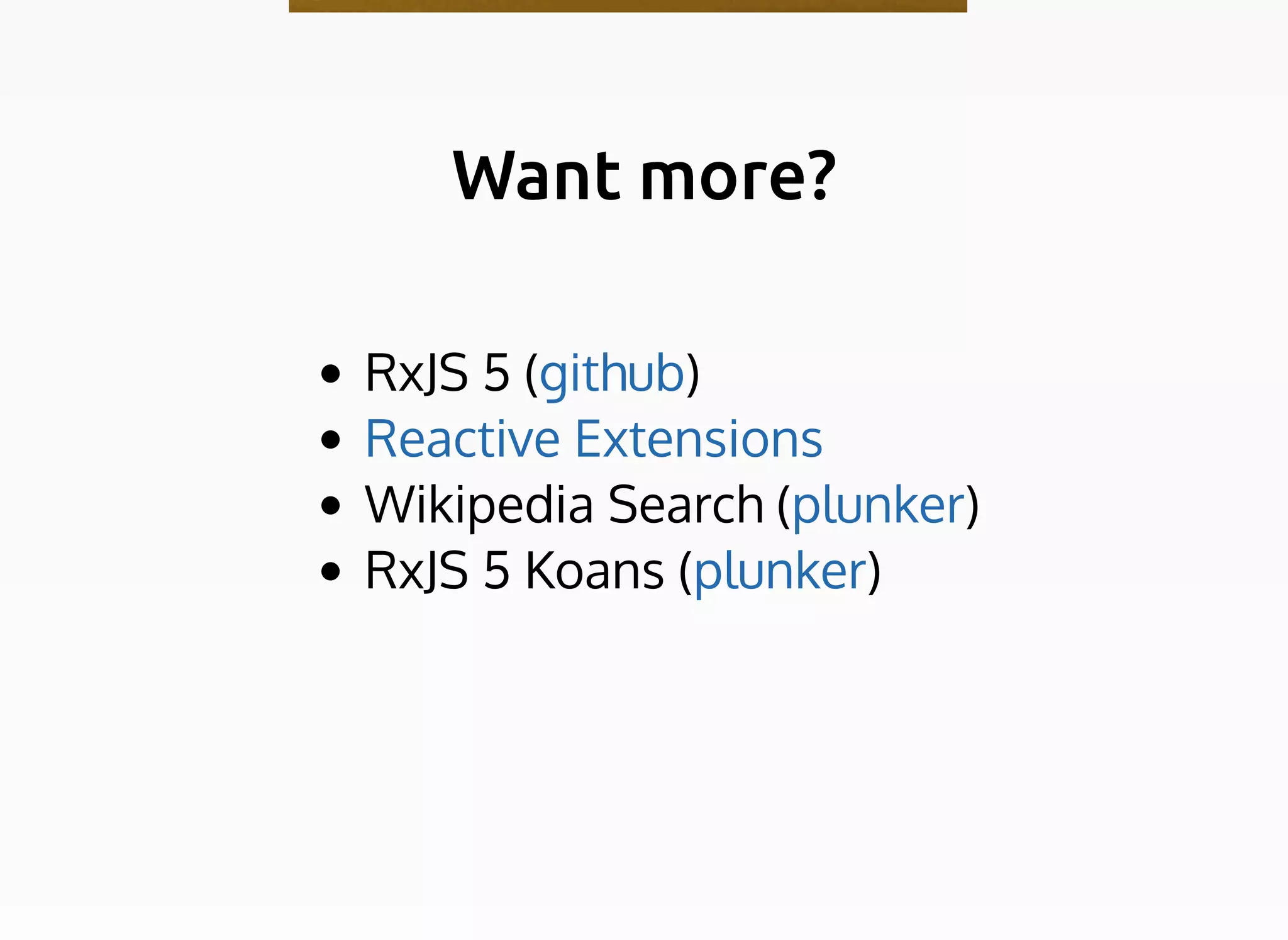

- 45. Want more?Want more? RxJS5 ( ) Wikipedia Search ( ) RxJS 5 Koans ( ) github Reactive Extensions plunker plunker
- 46.
- 47. Watch the videowith slide synchronization on InfoQ.com! https://www.infoq.com/presentations/ rxjs-5
