React-Native Lecture 11: In App Storage
This document discusses using local databases in mobile apps. It introduces AsyncStorage, which is a simple key-value storage, and Realm, a more powerful object-relational database. It explains how to install and use Realm, including defining schemas, performing queries, and updating data. Realm allows complex data modeling with features like objects, lists, indexing, sorting and auto-updating results. The document provides code examples for basic Realm operations like creating, reading, updating and deleting data.
More Related Content
![[Devil's camp 2019] 혹시 Elixir 아십니까? 정.말.갓.언.어.입.니.다](https://cdn.slidesharecdn.com/ss_thumbnails/devilscamp2019-elixirintroduce-190630161657-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to React-Native Lecture 11: In App Storage
![[Lecture 3] AI and Deep Learning: Logistic Regression (Coding)](https://cdn.slidesharecdn.com/ss_thumbnails/lecture3empty-180216132805-thumbnail.jpg?width=640&height=640&fit=bounds)
![[Lecture 4] AI and Deep Learning: Neural Network (Theory)](https://cdn.slidesharecdn.com/ss_thumbnails/lecture4ink-180216131712-thumbnail.jpg?width=640&height=640&fit=bounds)
![[Lecture 2] AI and Deep Learning: Logistic Regression (Theory)](https://cdn.slidesharecdn.com/ss_thumbnails/lecture2-ink-180216131533-thumbnail.jpg?width=640&height=640&fit=bounds)
React-Native Lecture 11: In App Storage
- 1. Lecture 11: Databasein App: AsyncStorage, Realm. by Completing Selfies Scoreboard App Kobkrit Viriyayudhakorn, Ph.D. CEO of iApp Technology Limited. kobkrit@gmail.com http://www.kobkrit.com
- 2. Important Links • SourceCodes https://github.com/kobkrit/learn-react-native • Course Materials http://www.kobkrit.com/category/programming/react- native/ • Score Announcement http://bit.ly/its484quizscore • Facebook Group https://web.facebook.com/groups/ReactNativeThai/

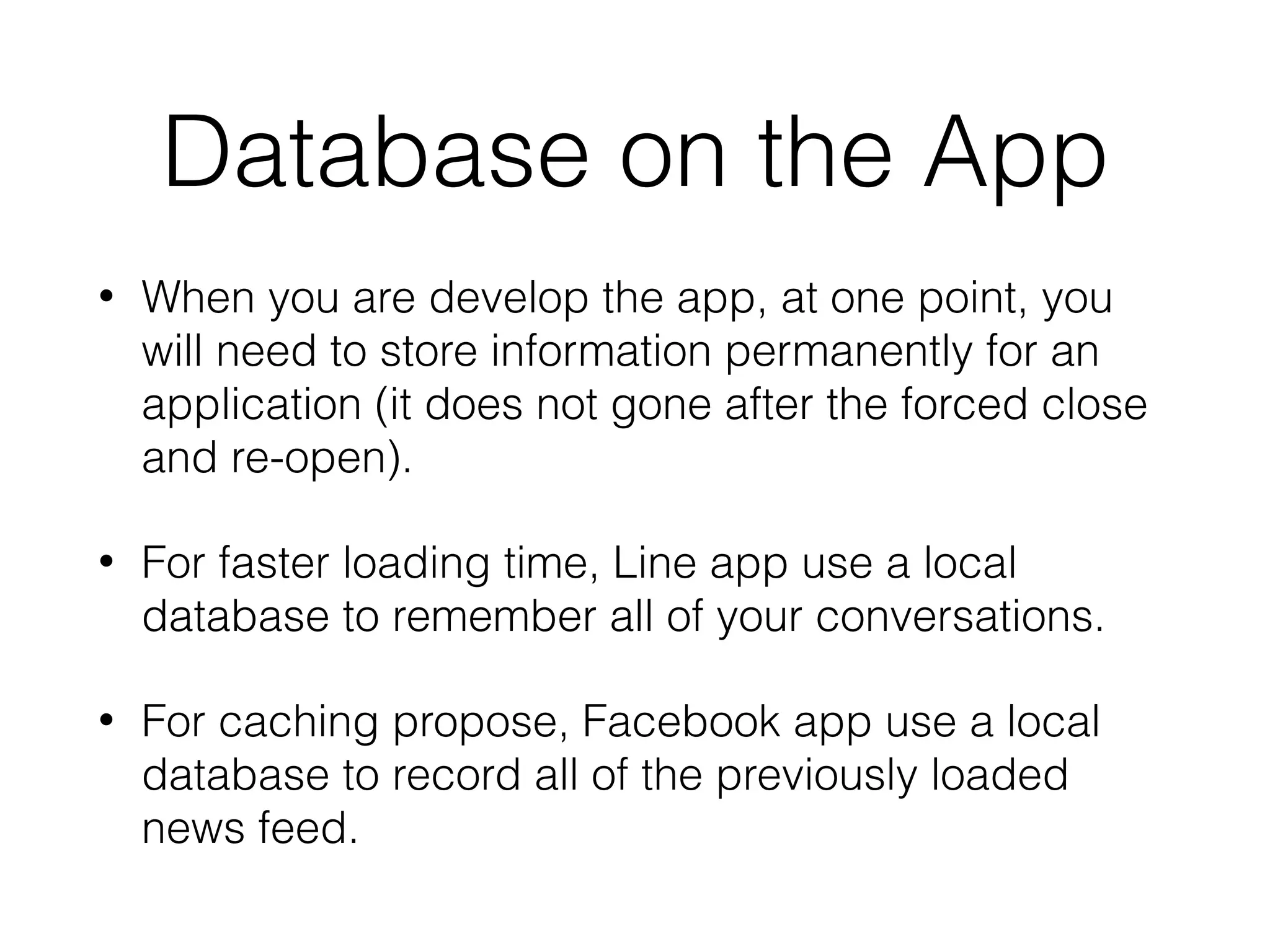

- 3. Database on theApp • When you are develop the app, at one point, you will need to store information permanently for an application (it does not gone after the forced close and re-open). • For faster loading time, Line app use a local database to remember all of your conversations. • For caching propose, Facebook app use a local database to record all of the previously loaded news feed.

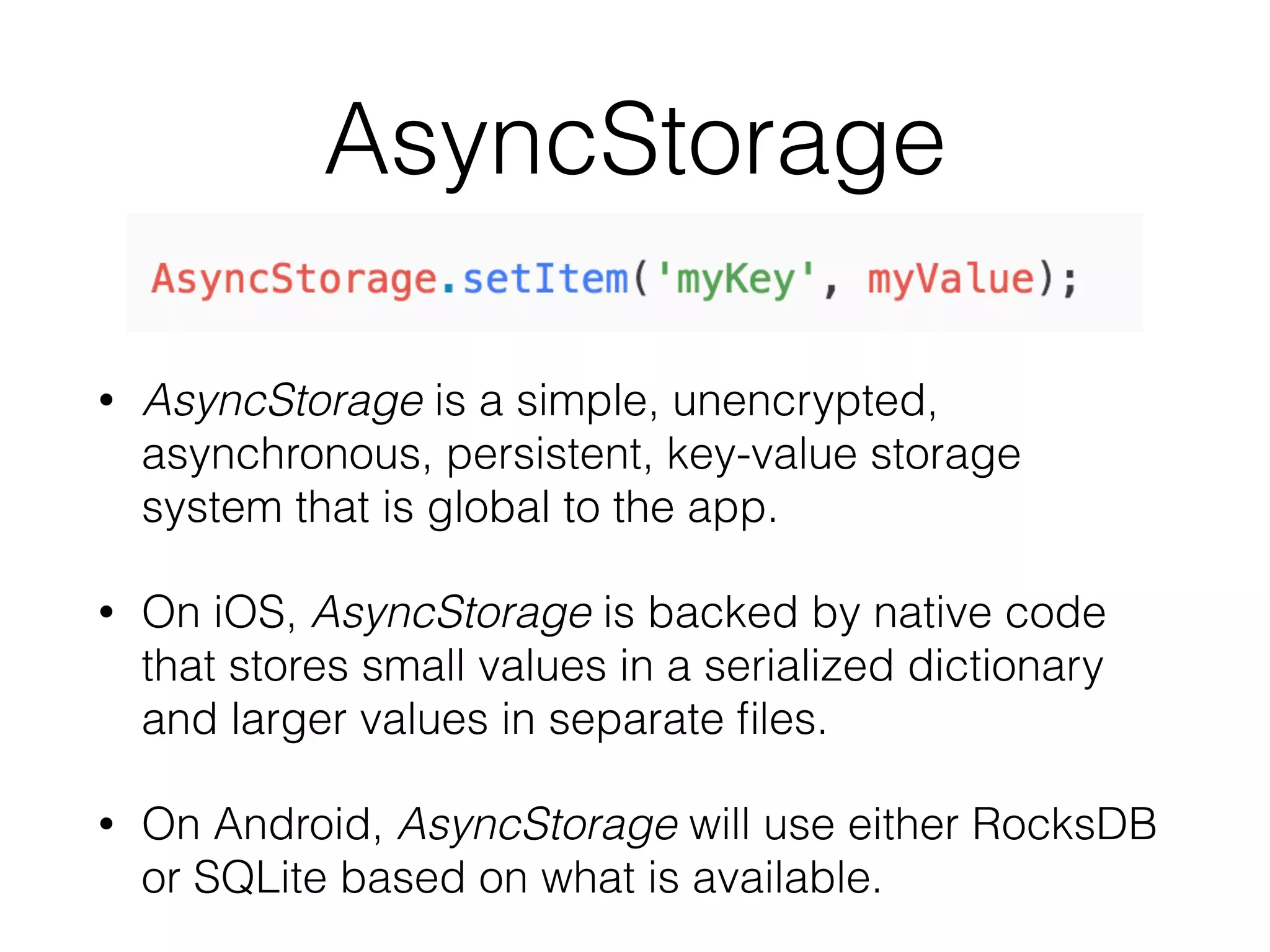

- 4. AsyncStorage • AsyncStorage isa simple, unencrypted, asynchronous, persistent, key-value storage system that is global to the app. • On iOS, AsyncStorage is backed by native code that stores small values in a serialized dictionary and larger values in separate files. • On Android, AsyncStorage will use either RocksDB or SQLite based on what is available.

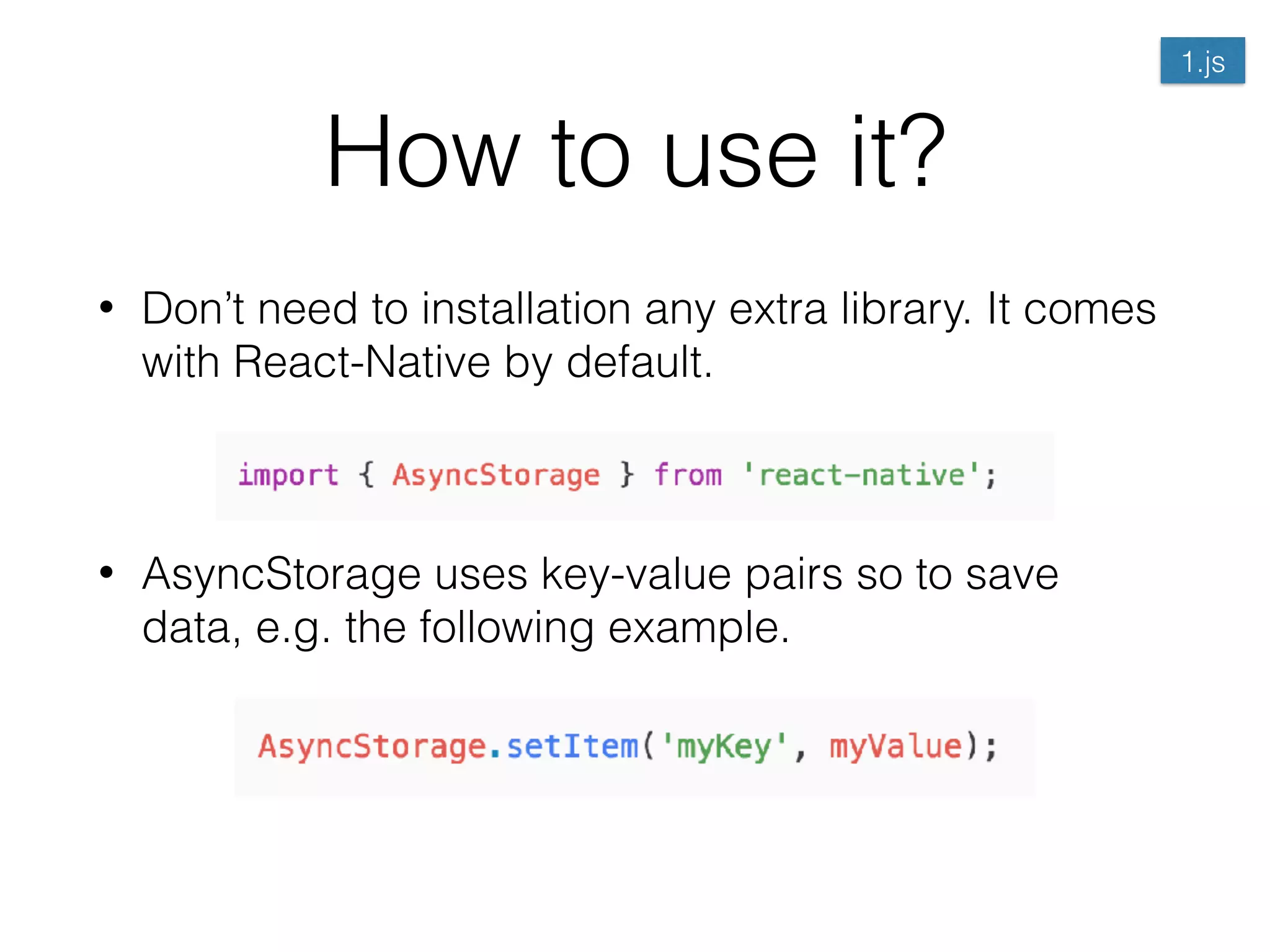

- 5. How to useit? • Don’t need to installation any extra library. It comes with React-Native by default. • AsyncStorage uses key-value pairs so to save data, e.g. the following example. 1.js

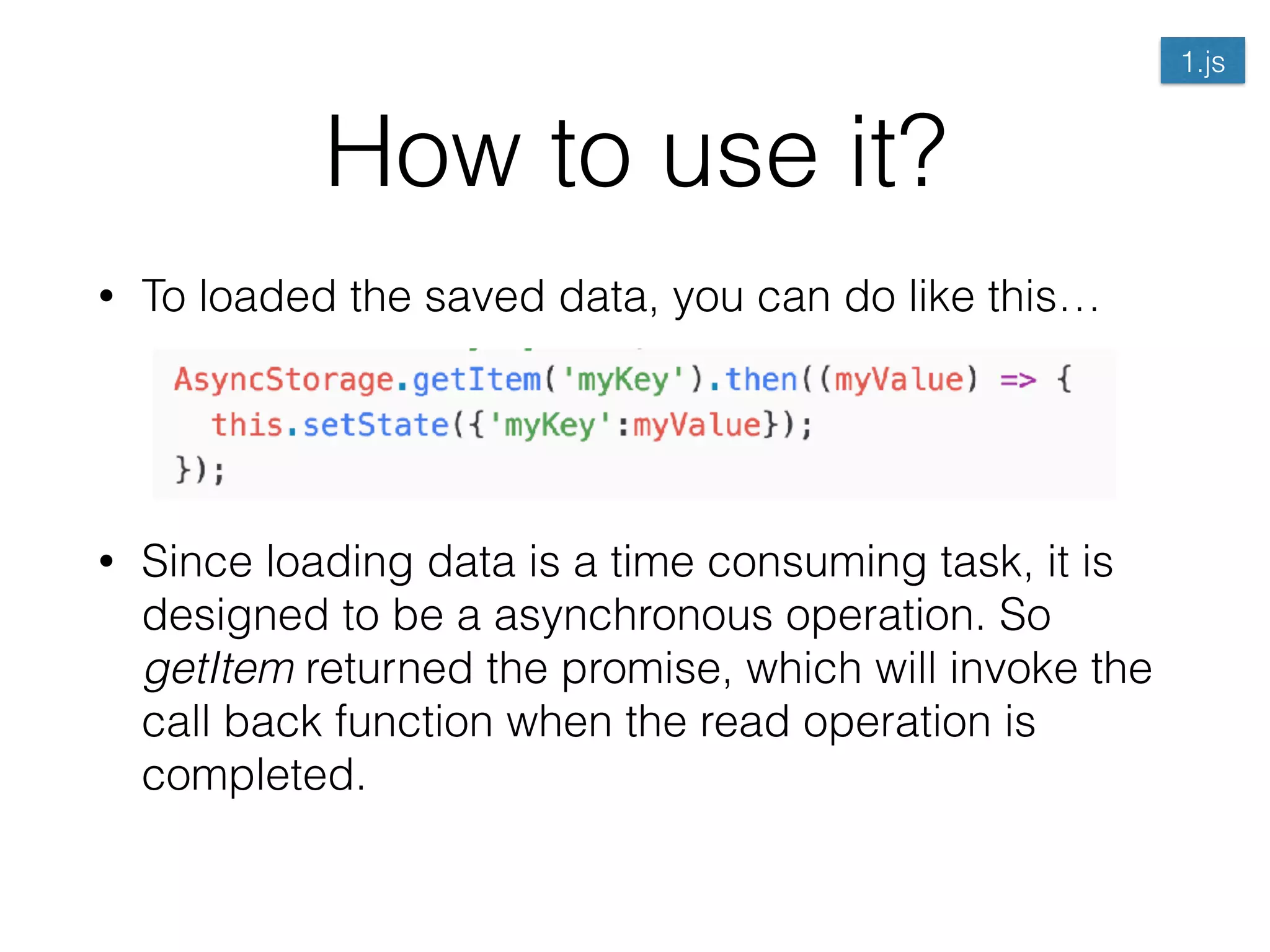

- 6. How to useit? • To loaded the saved data, you can do like this… • Since loading data is a time consuming task, it is designed to be a asynchronous operation. So getItem returned the promise, which will invoke the call back function when the read operation is completed. 1.js

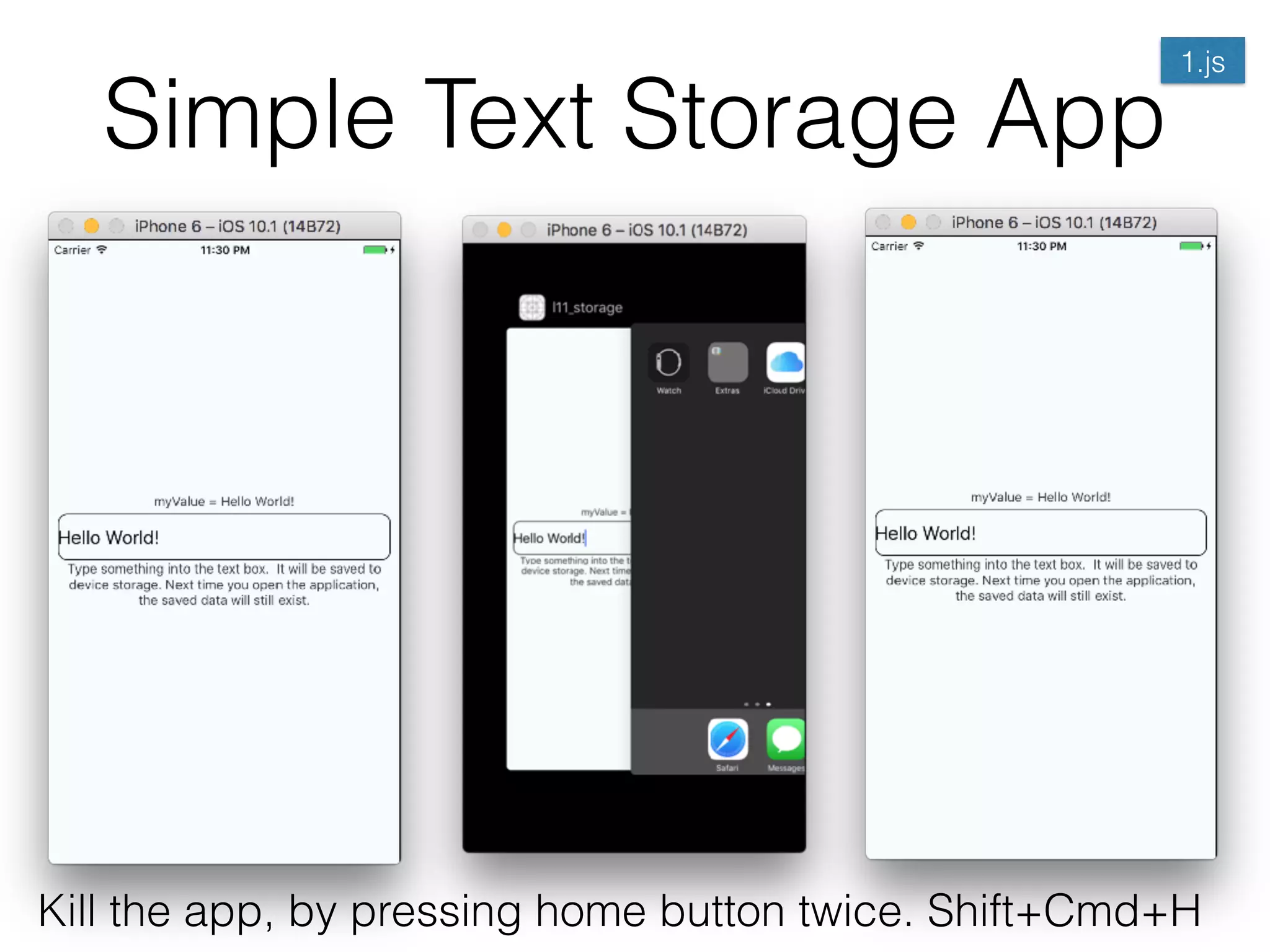

- 7. Simple Text StorageApp Kill the app, by pressing home button twice. Shift+Cmd+H 1.js

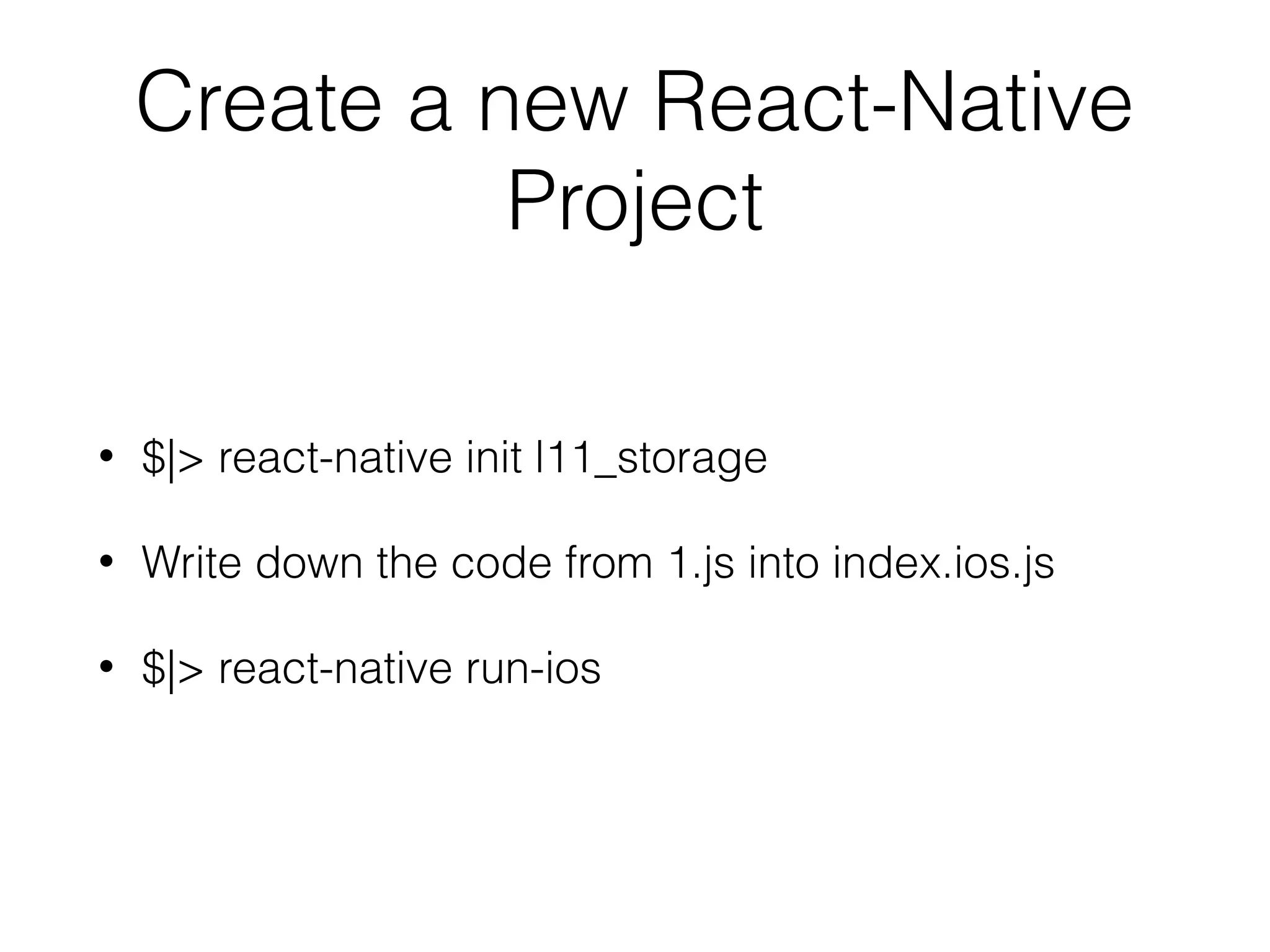

- 8. Create a newReact-Native Project • $|> react-native init l11_storage • Write down the code from 1.js into index.ios.js • $|> react-native run-ios

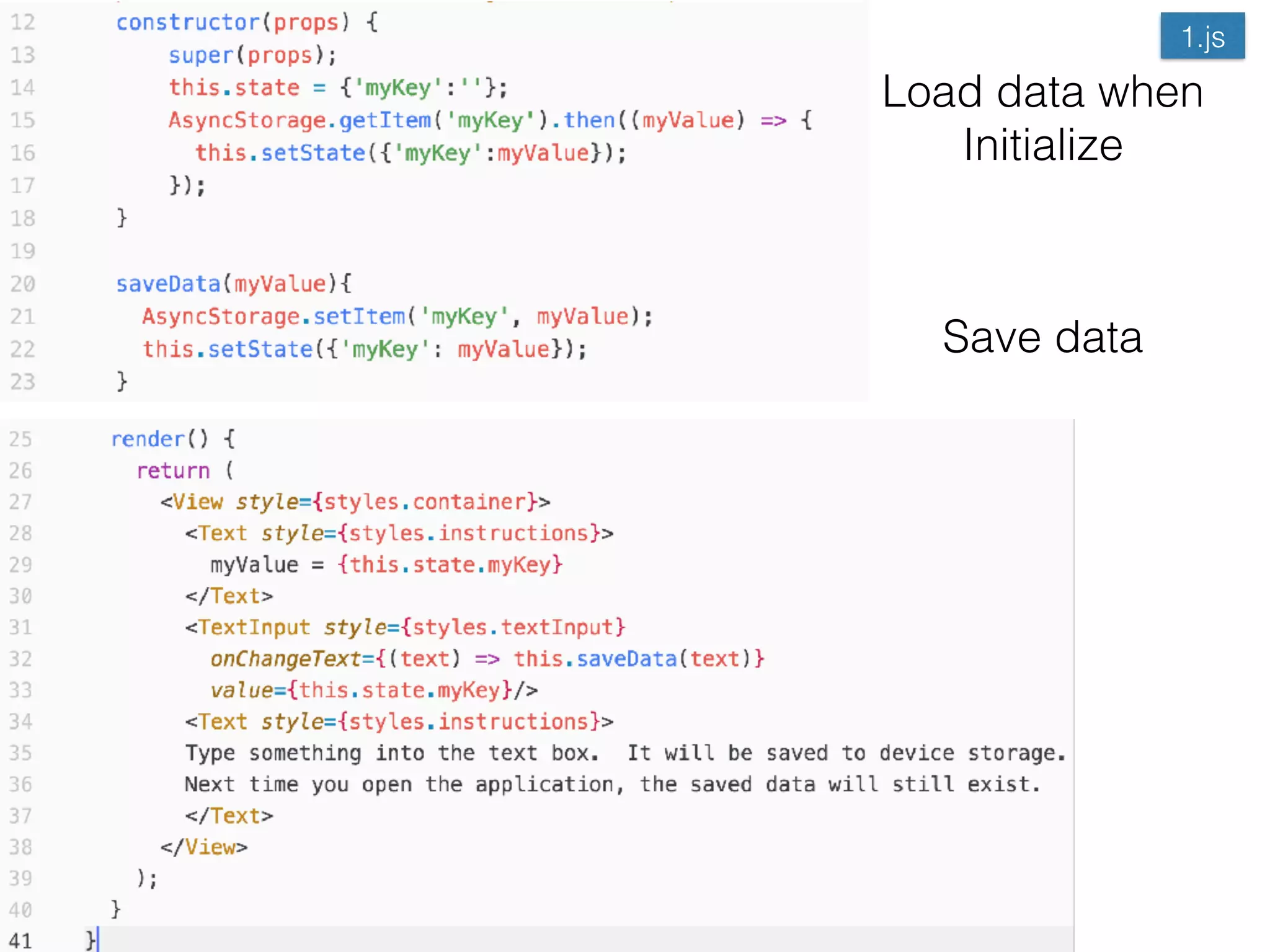

- 9. Save data Load datawhen Initialize 1.js

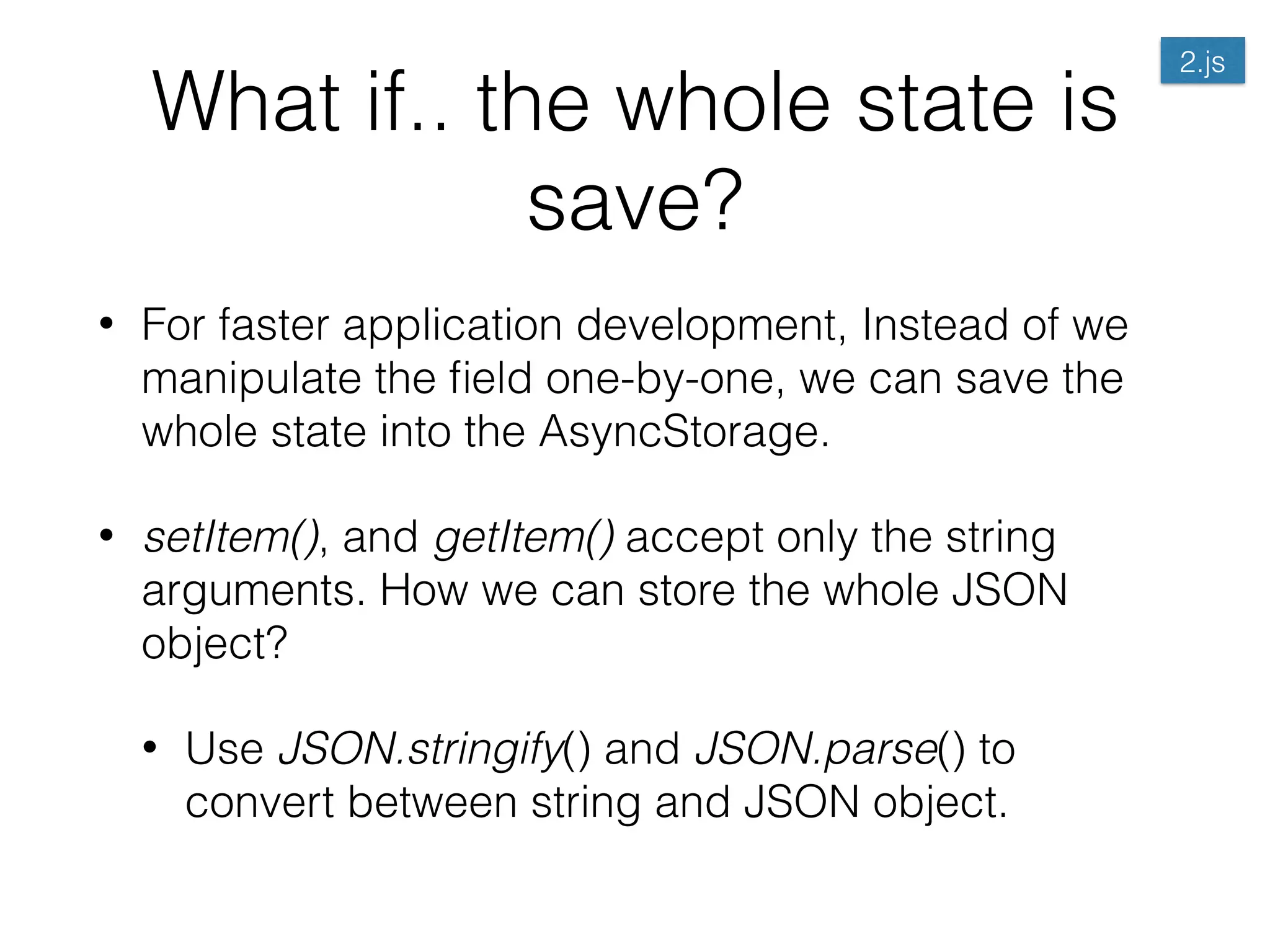

- 10. What if.. thewhole state is save? • For faster application development, Instead of we manipulate the field one-by-one, we can save the whole state into the AsyncStorage. • setItem(), and getItem() accept only the string arguments. How we can store the whole JSON object? • Use JSON.stringify() and JSON.parse() to convert between string and JSON object. 2.js

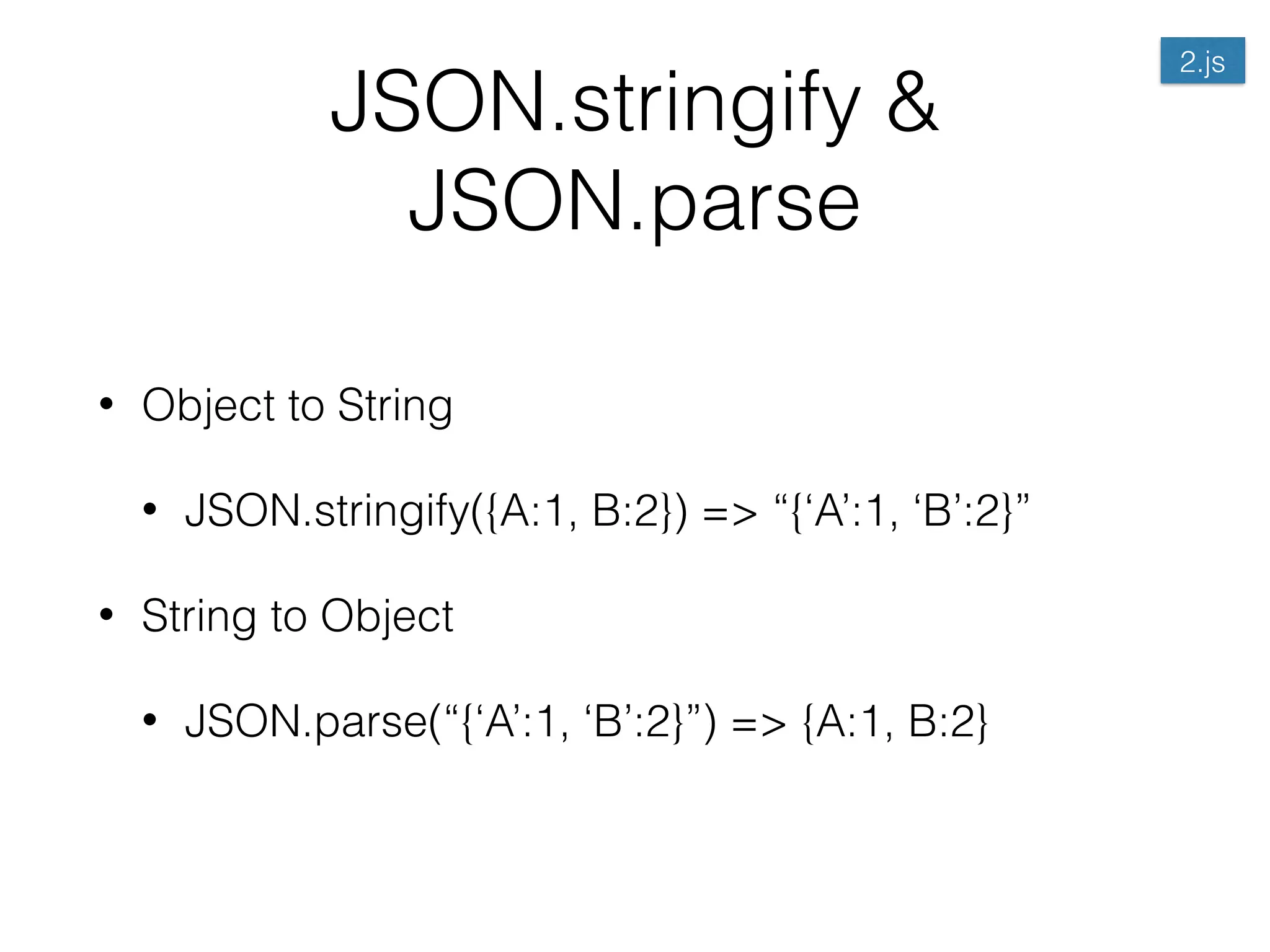

- 11. JSON.stringify & JSON.parse • Objectto String • JSON.stringify({A:1, B:2}) => “{‘A’:1, ‘B’:2}” • String to Object • JSON.parse(“{‘A’:1, ‘B’:2}”) => {A:1, B:2} 2.js

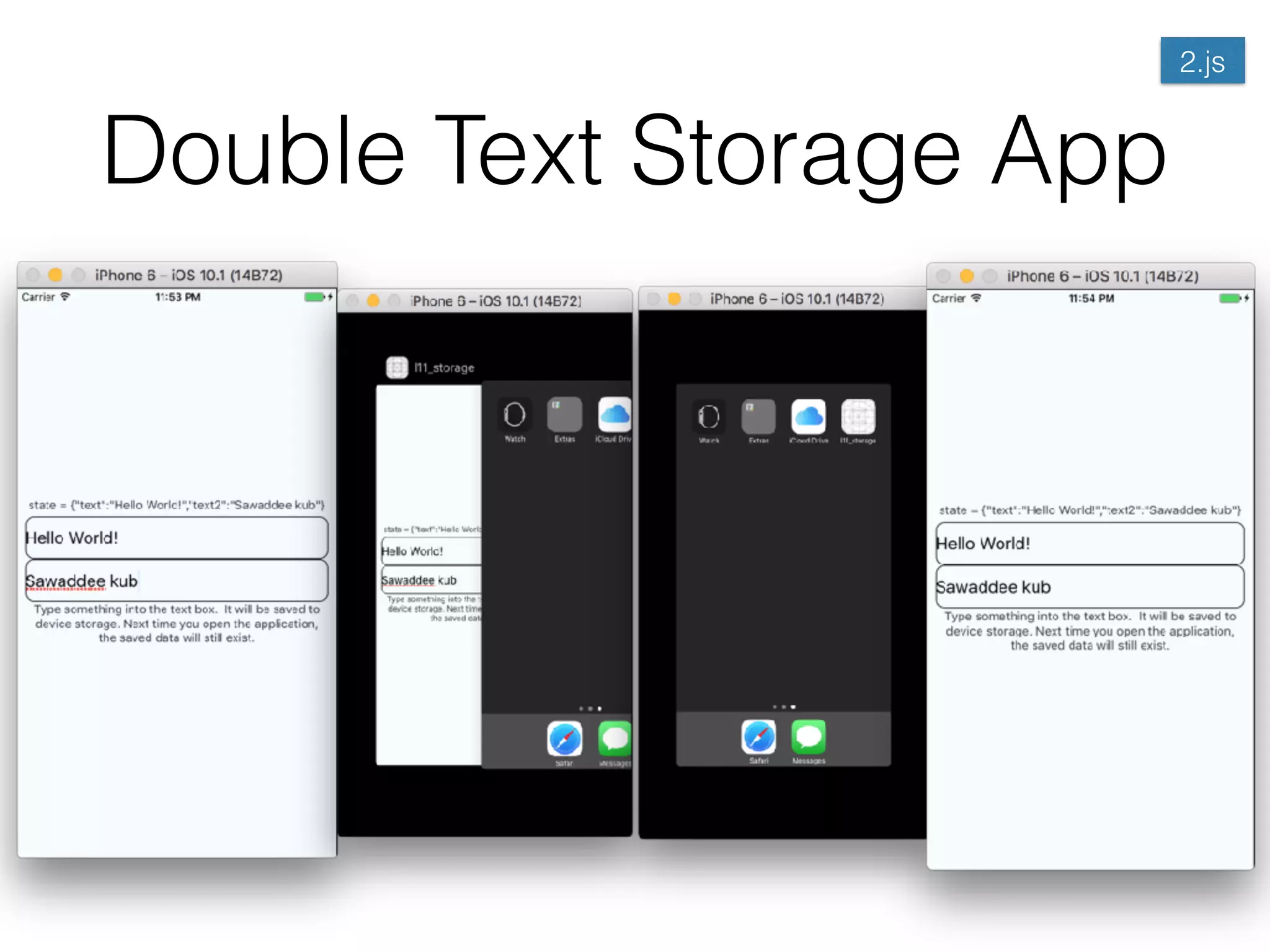

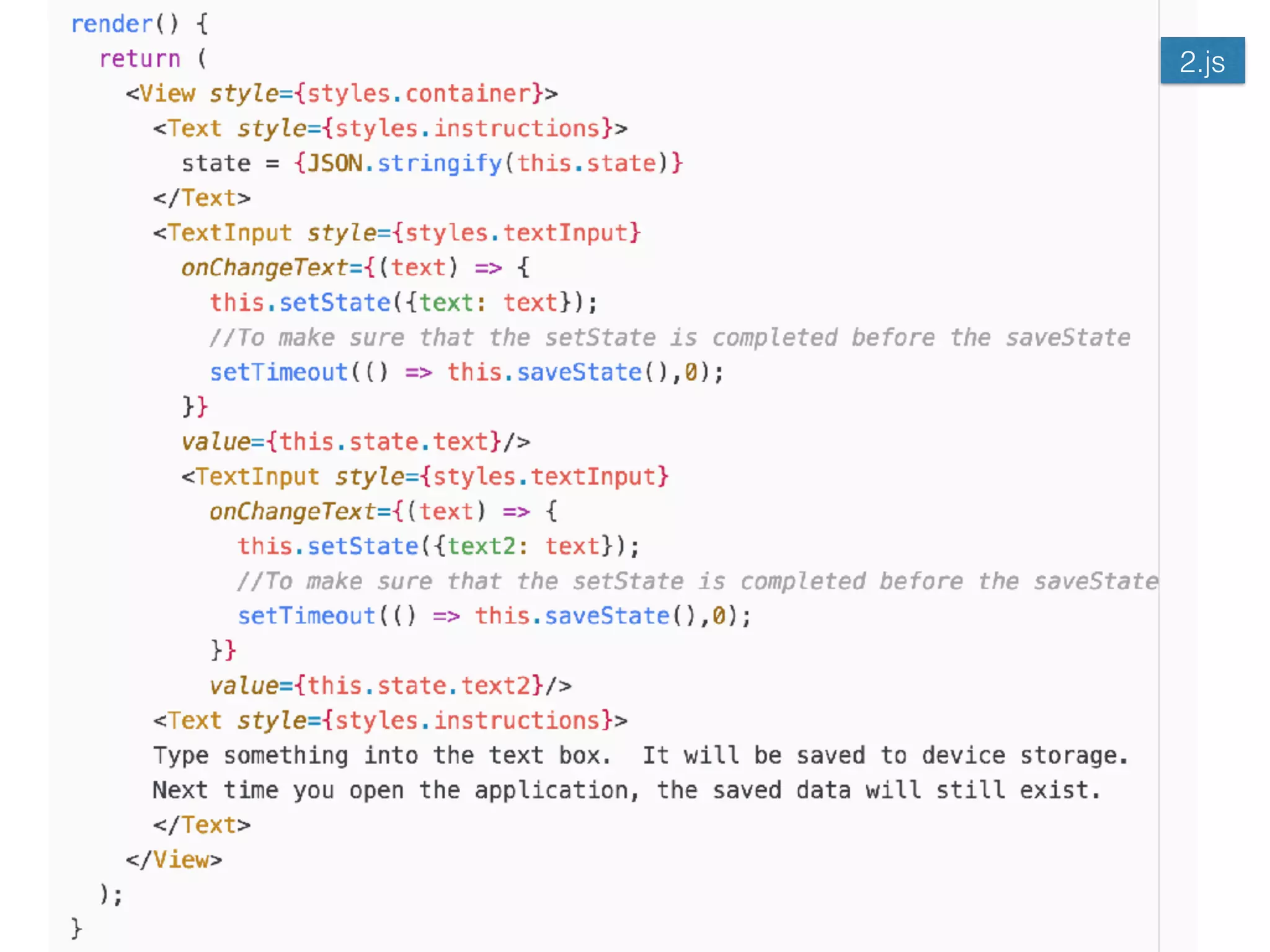

- 12. Double Text StorageApp 2.js

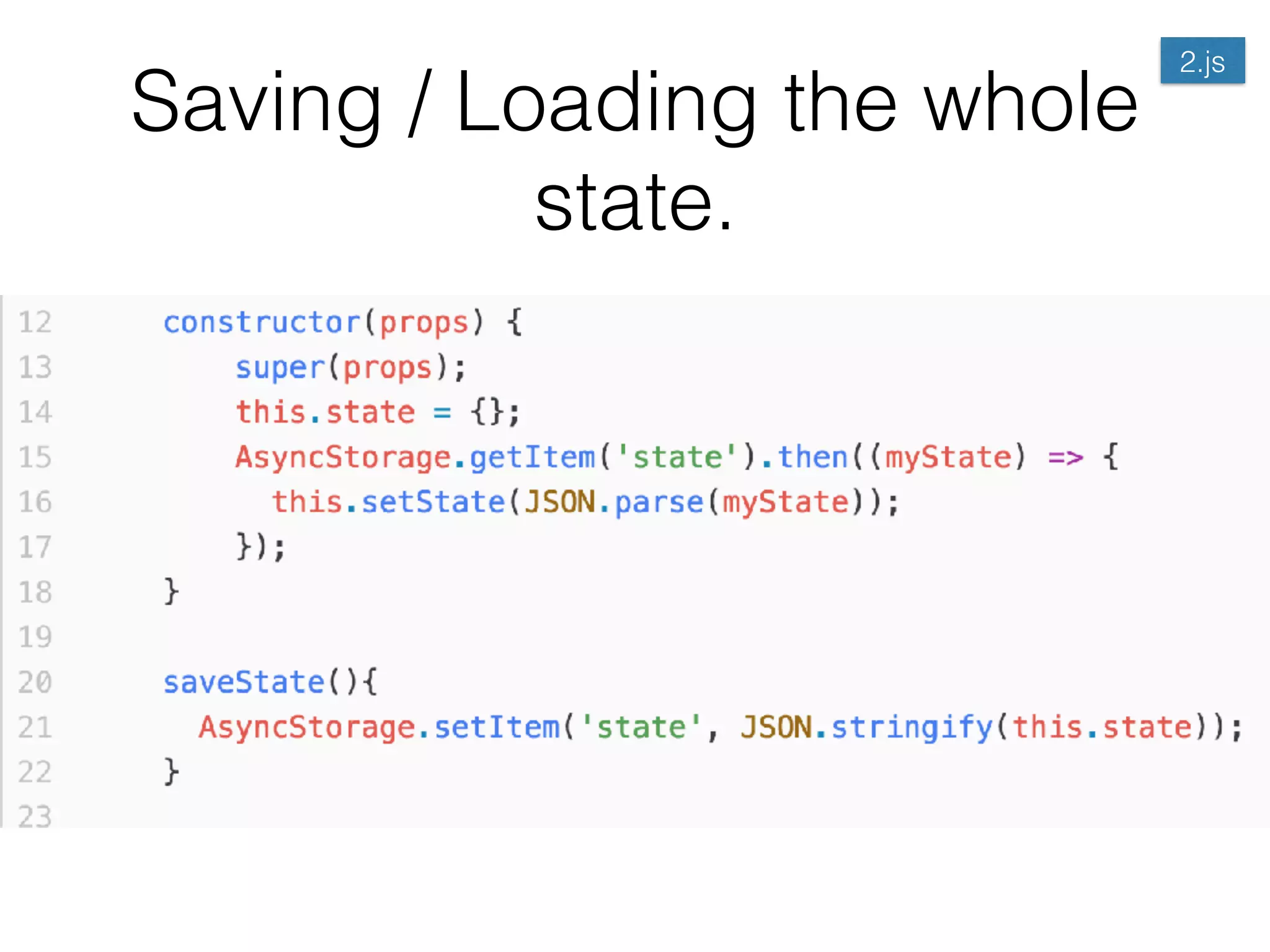

- 13. Saving / Loadingthe whole state. 2.js

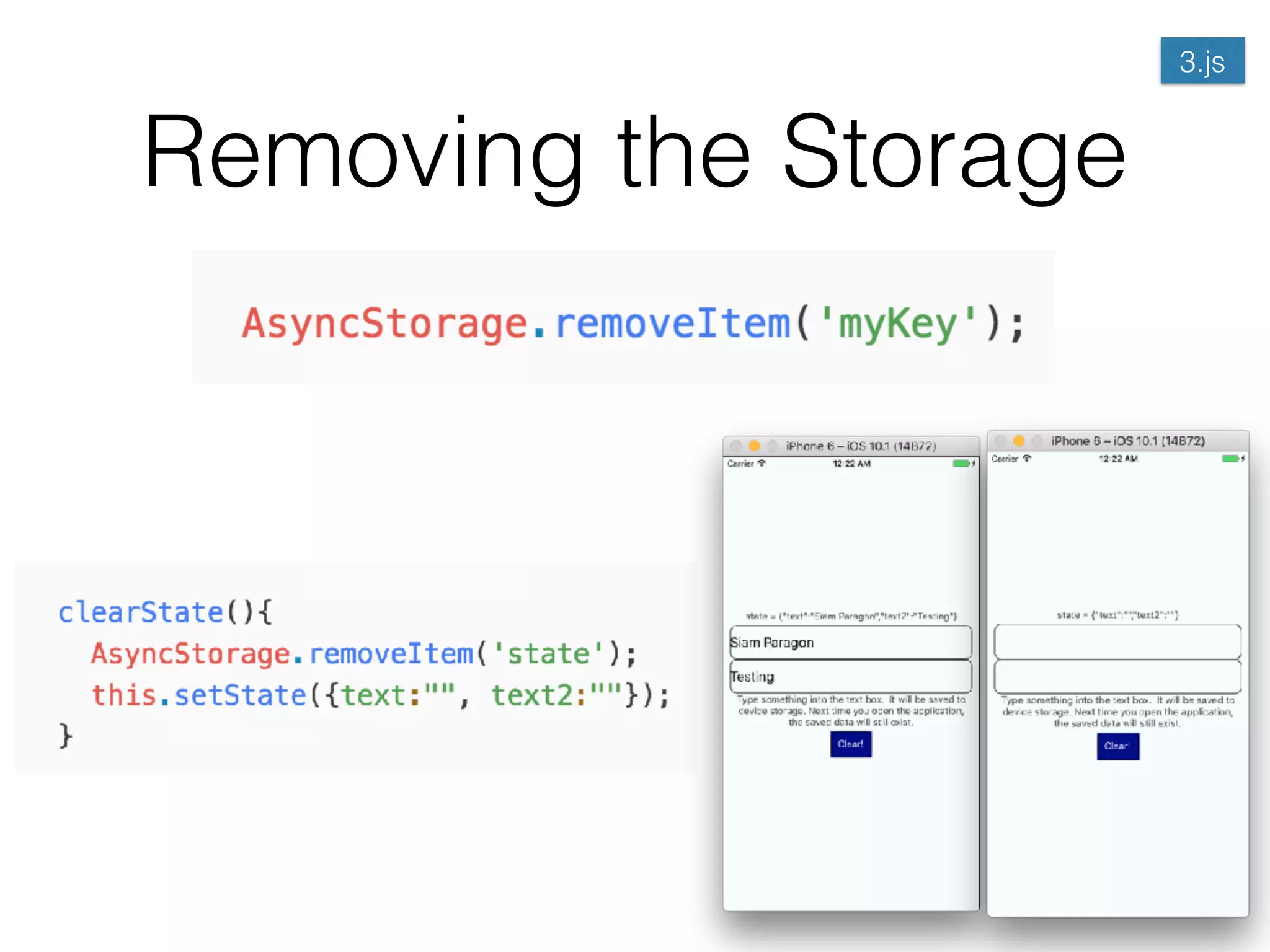

- 14.
- 15.

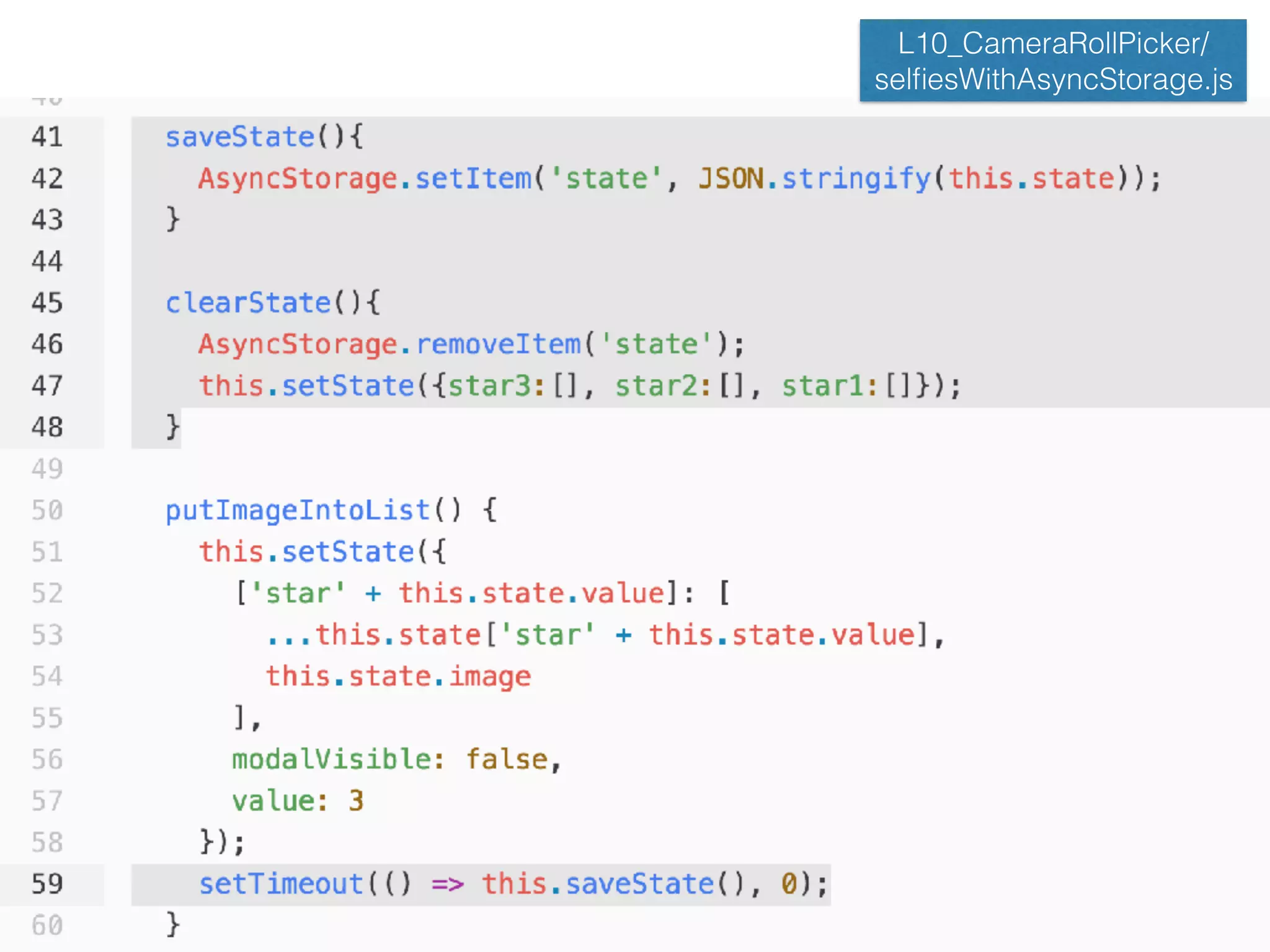

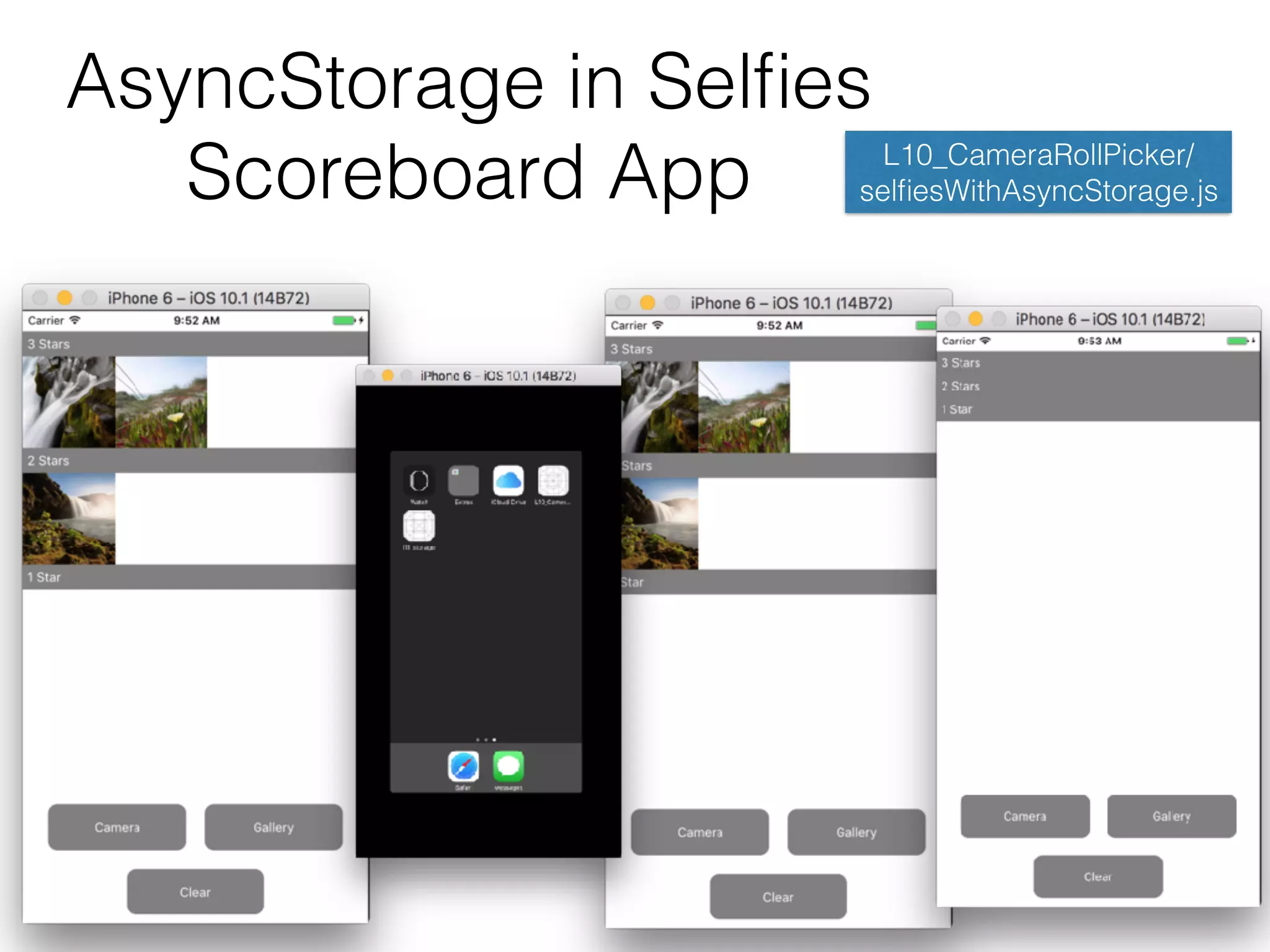

- 16. AsyncStorage in Selfies ScoreboardApp L10_CameraRollPicker/ selfiesWithAsyncStorage.js

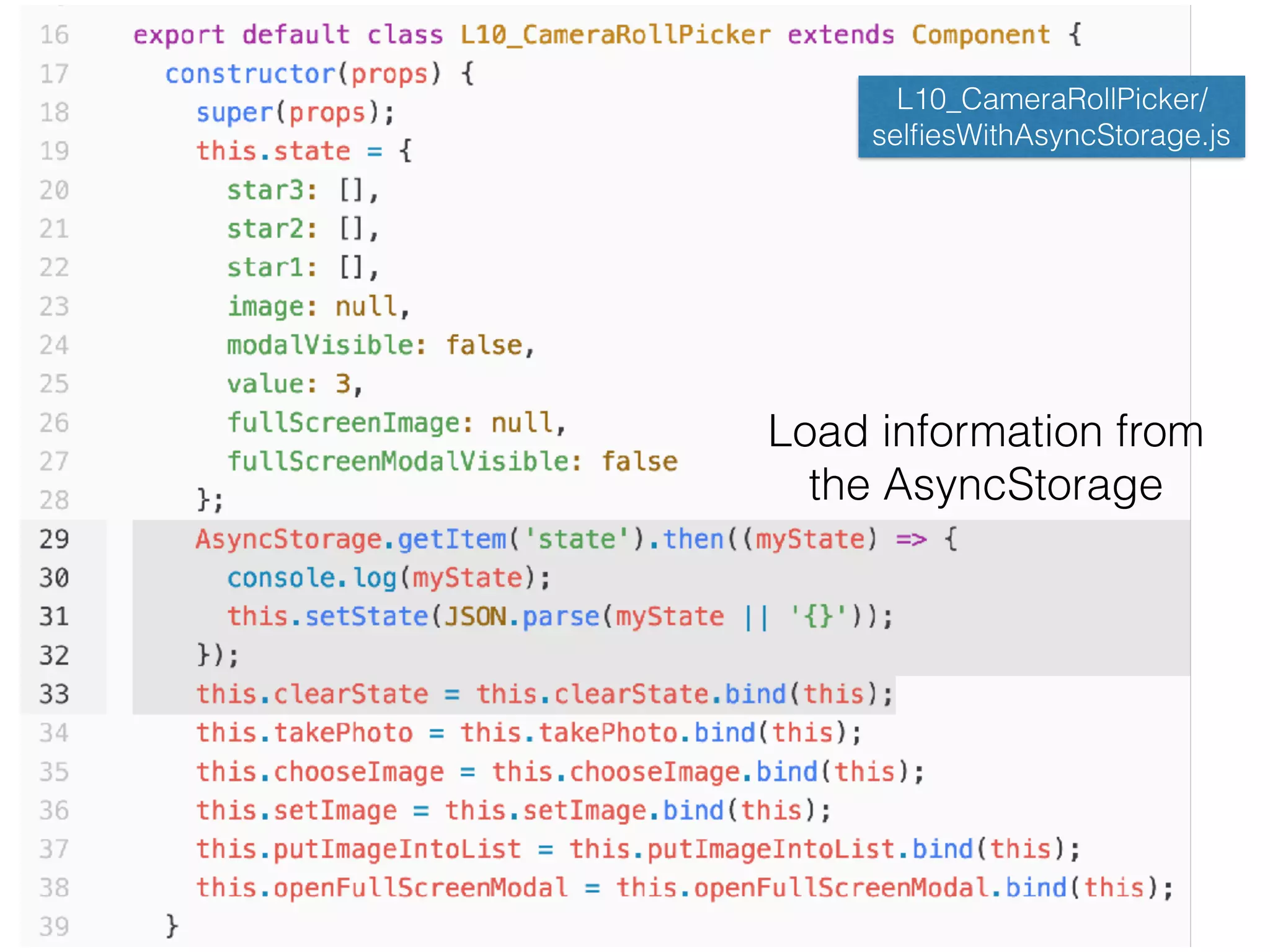

- 17. Load information from the AsyncStorage L10_CameraRollPicker/ selfiesWithAsyncStorage.js

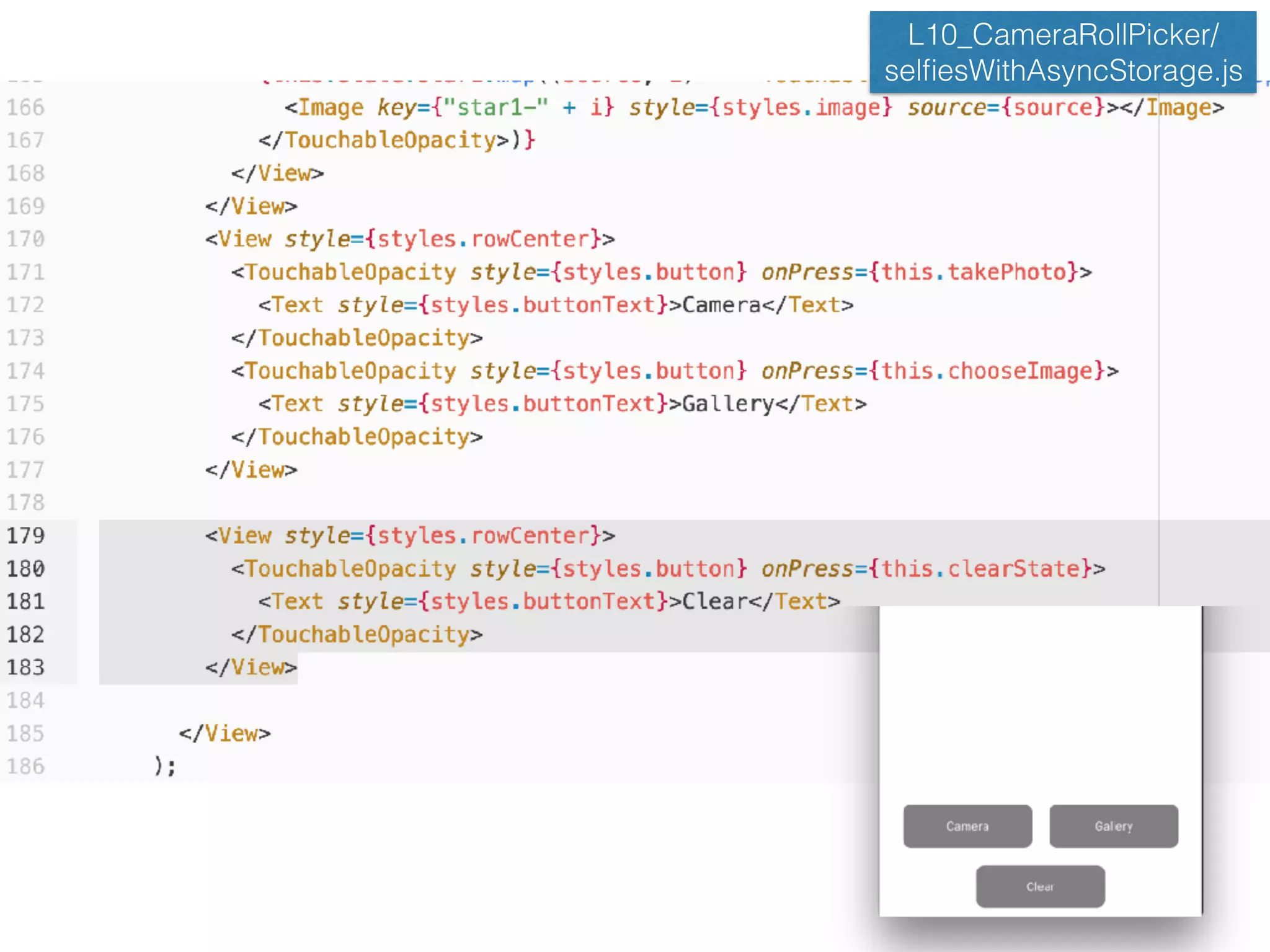

- 18.
- 19.

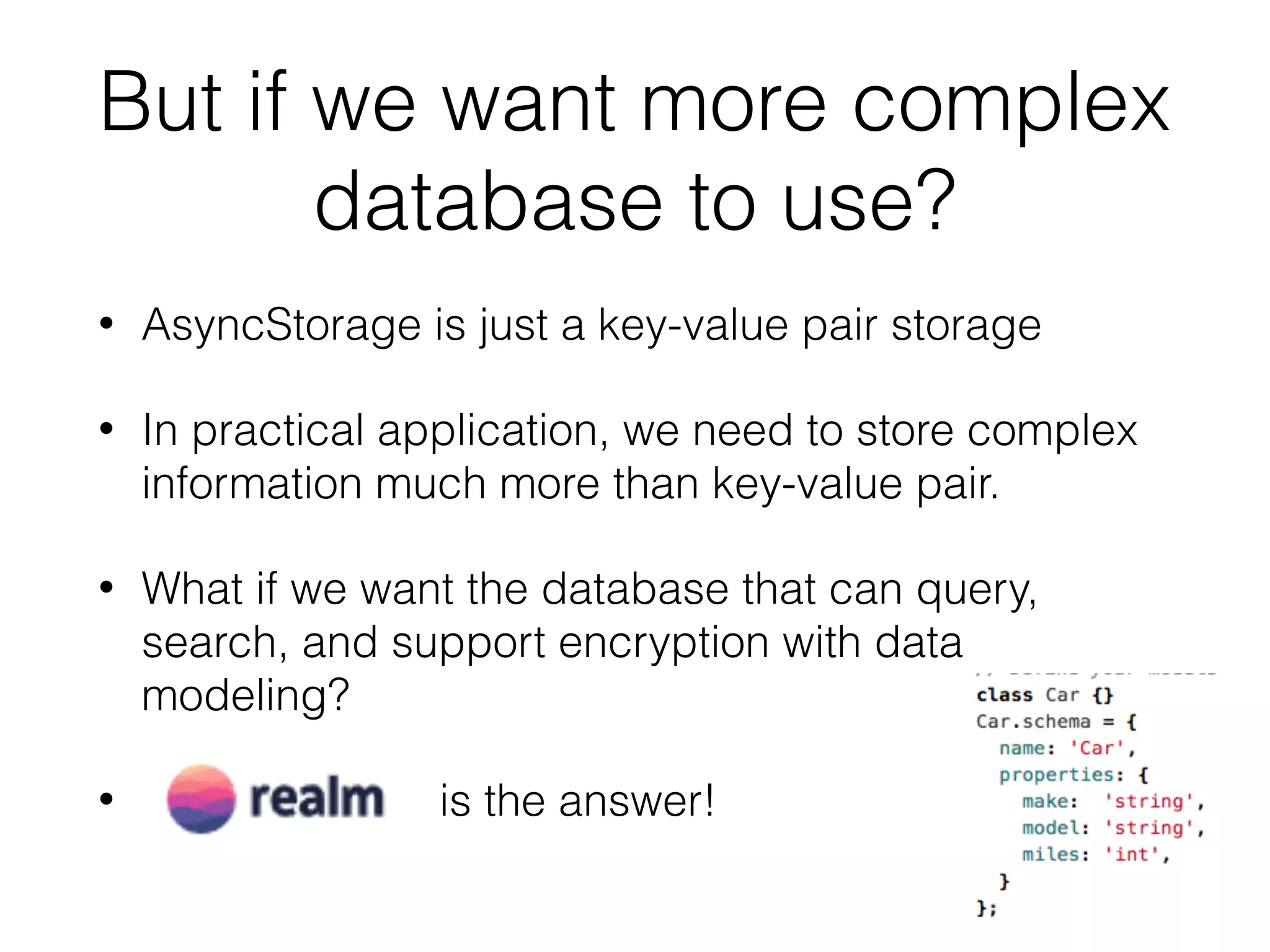

- 20. But if wewant more complex database to use? • AsyncStorage is just a key-value pair storage • In practical application, we need to store complex information much more than key-value pair. • What if we want the database that can query, search, and support encryption with data modeling? • is the answer!

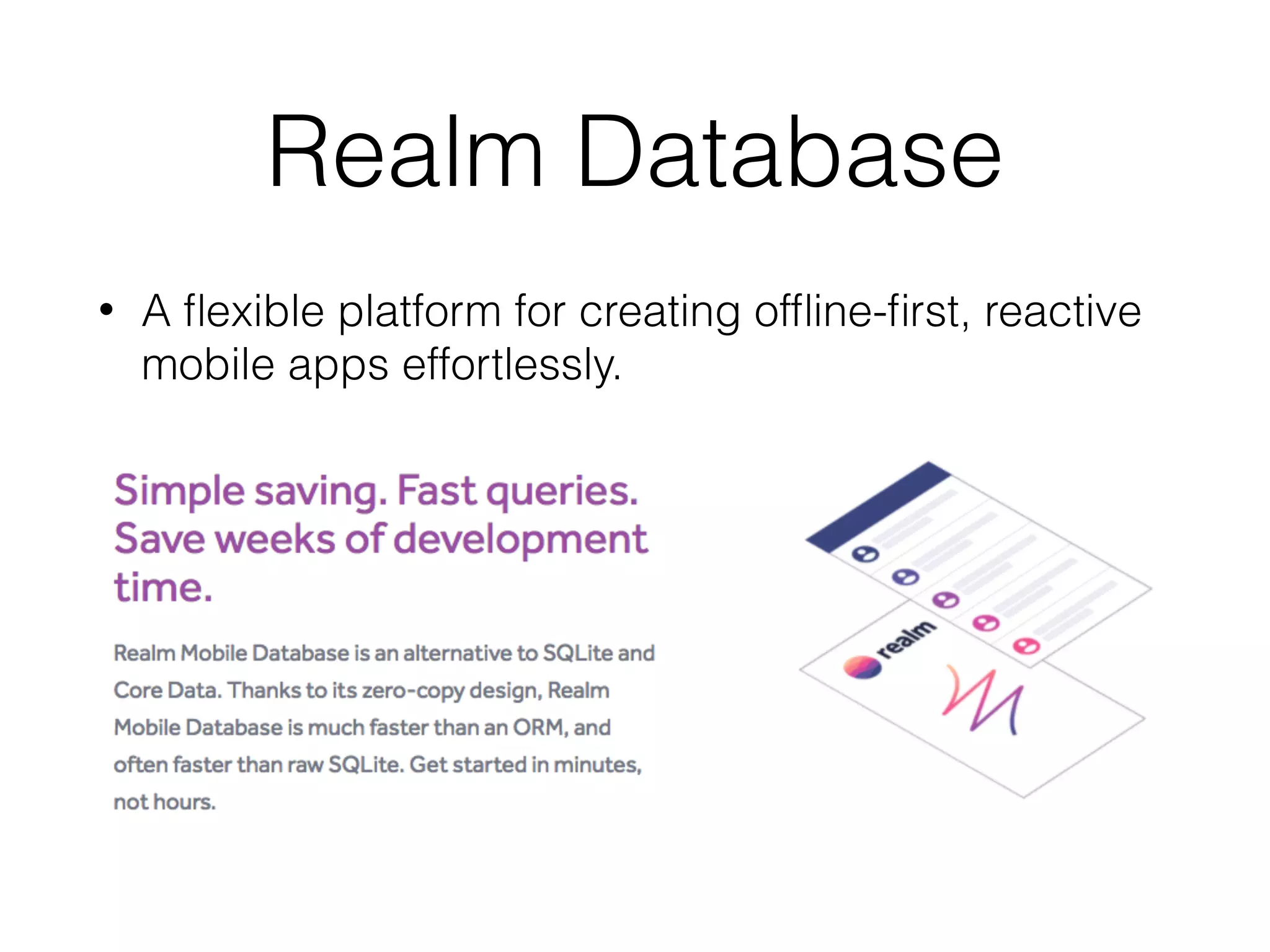

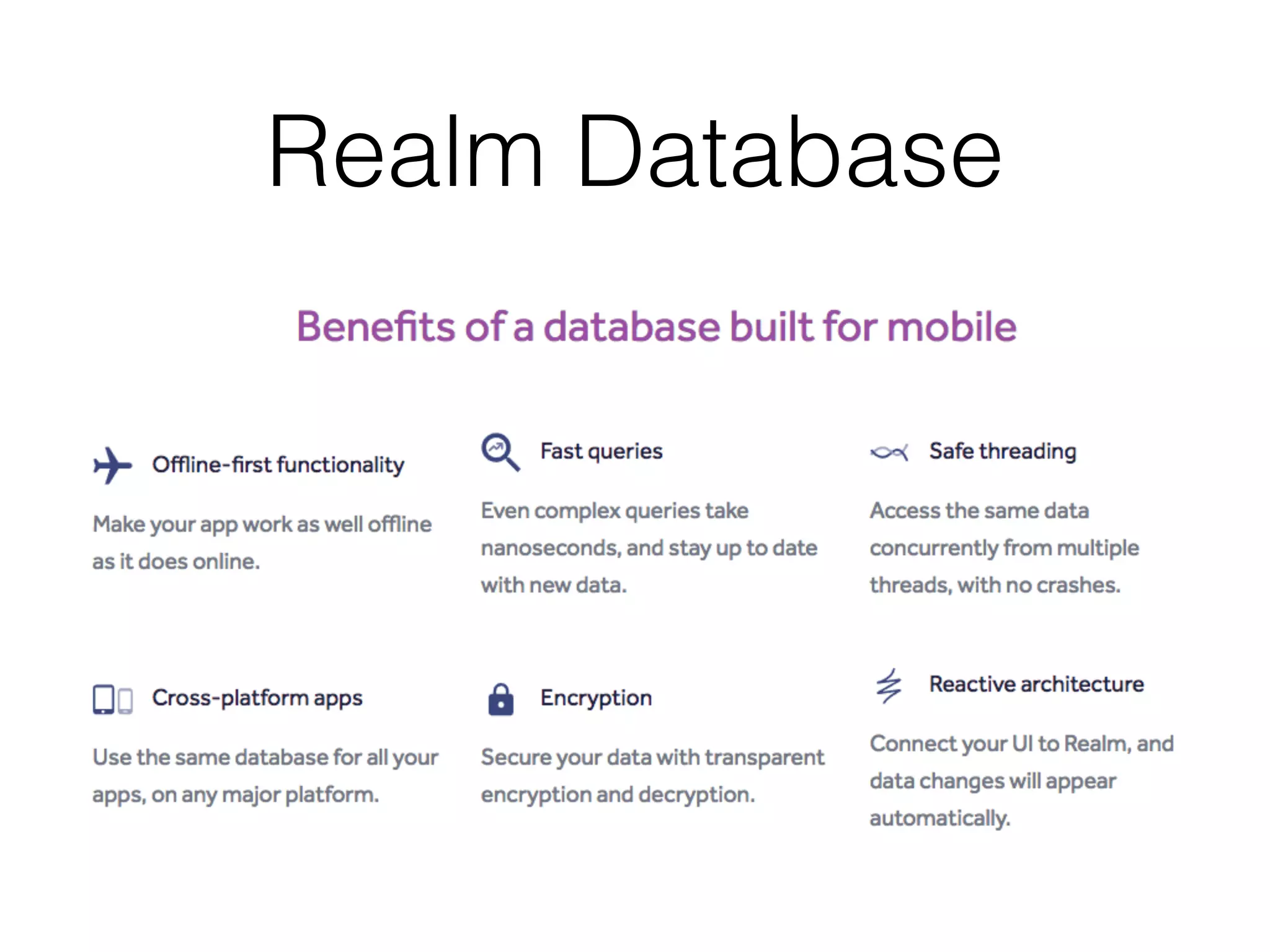

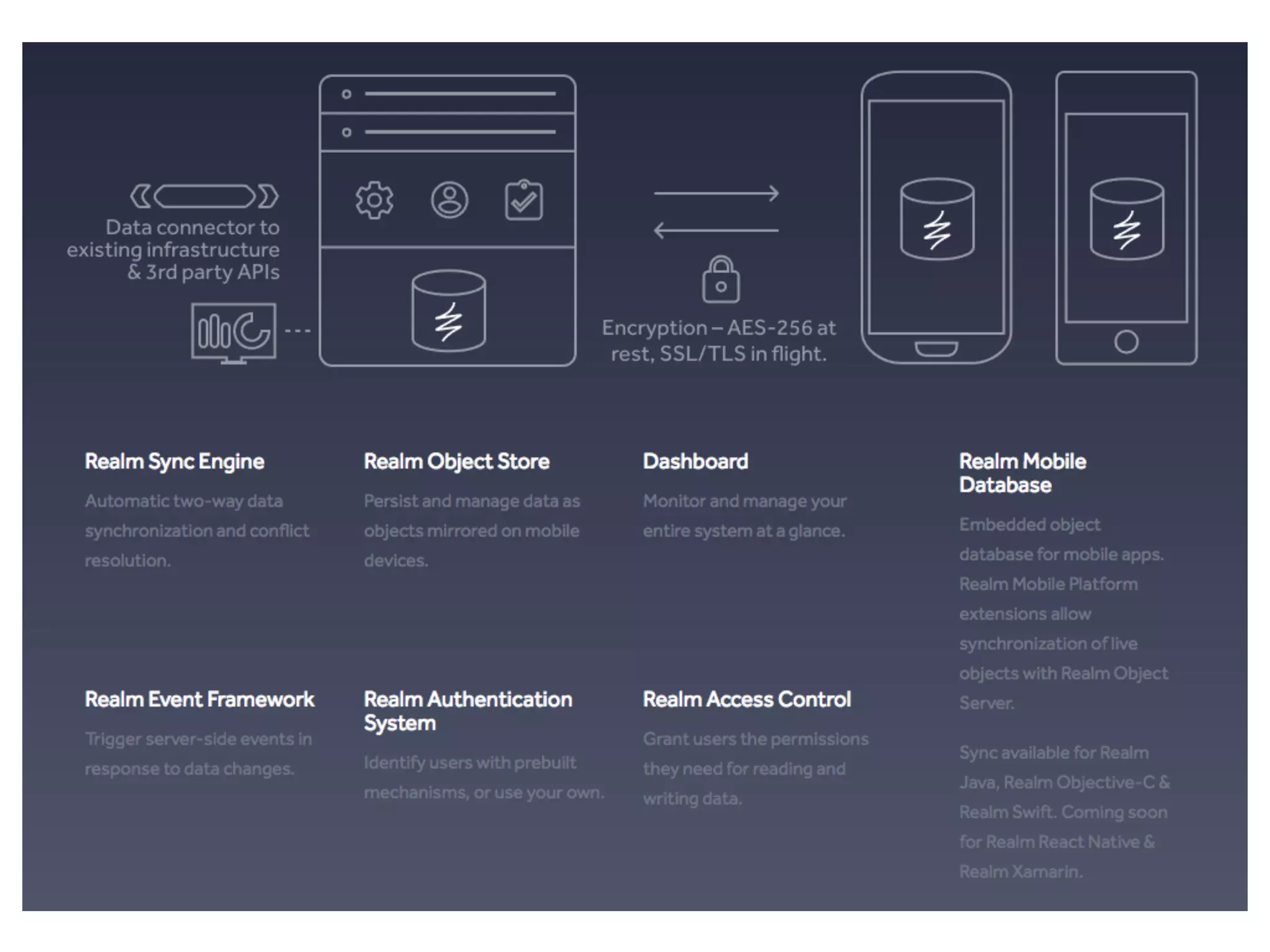

- 21. Realm Database • Aflexible platform for creating offline-first, reactive mobile apps effortlessly.
- 22.

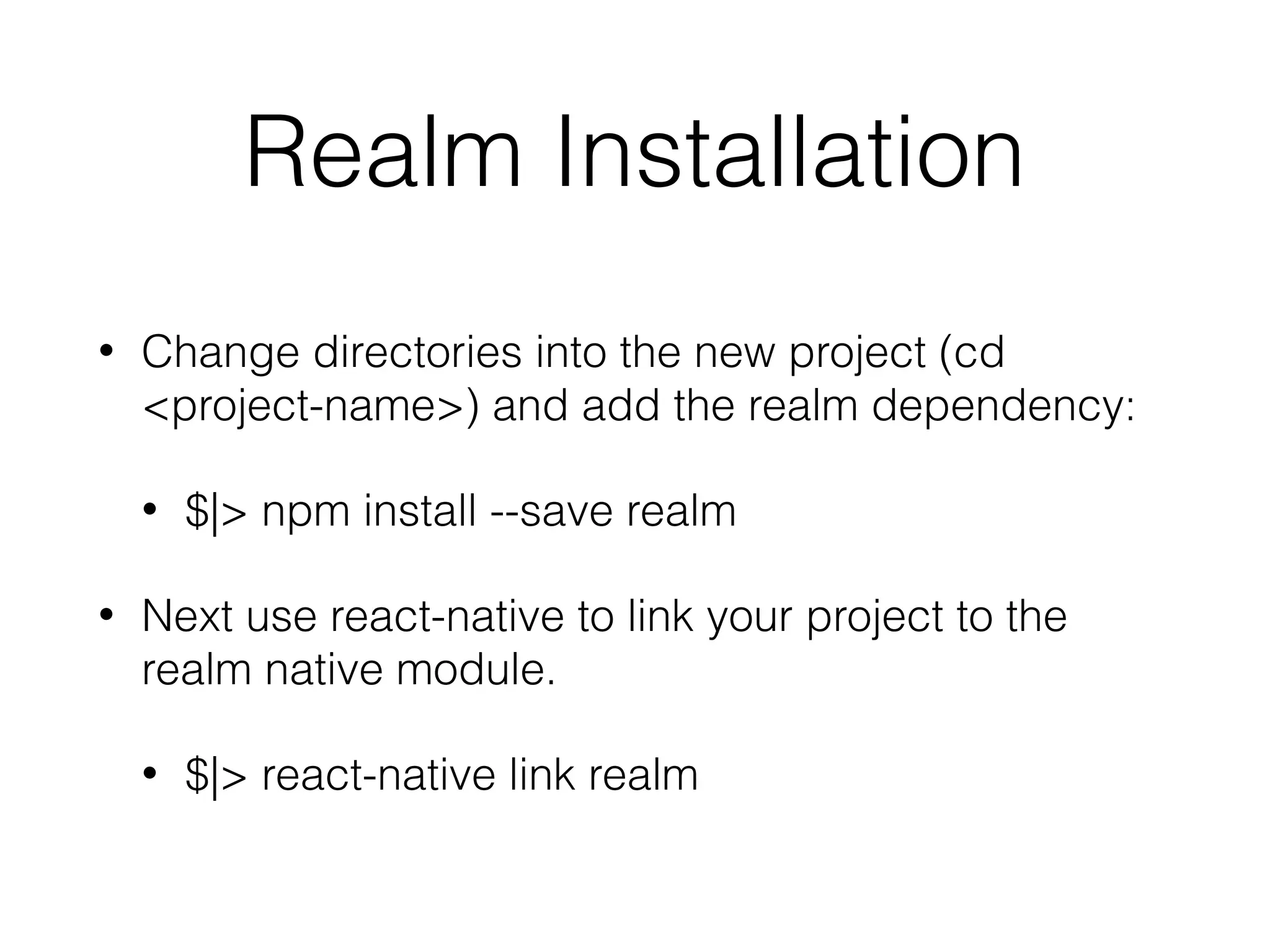

- 24. Realm Installation • Changedirectories into the new project (cd <project-name>) and add the realm dependency: • $|> npm install --save realm • Next use react-native to link your project to the realm native module. • $|> react-native link realm

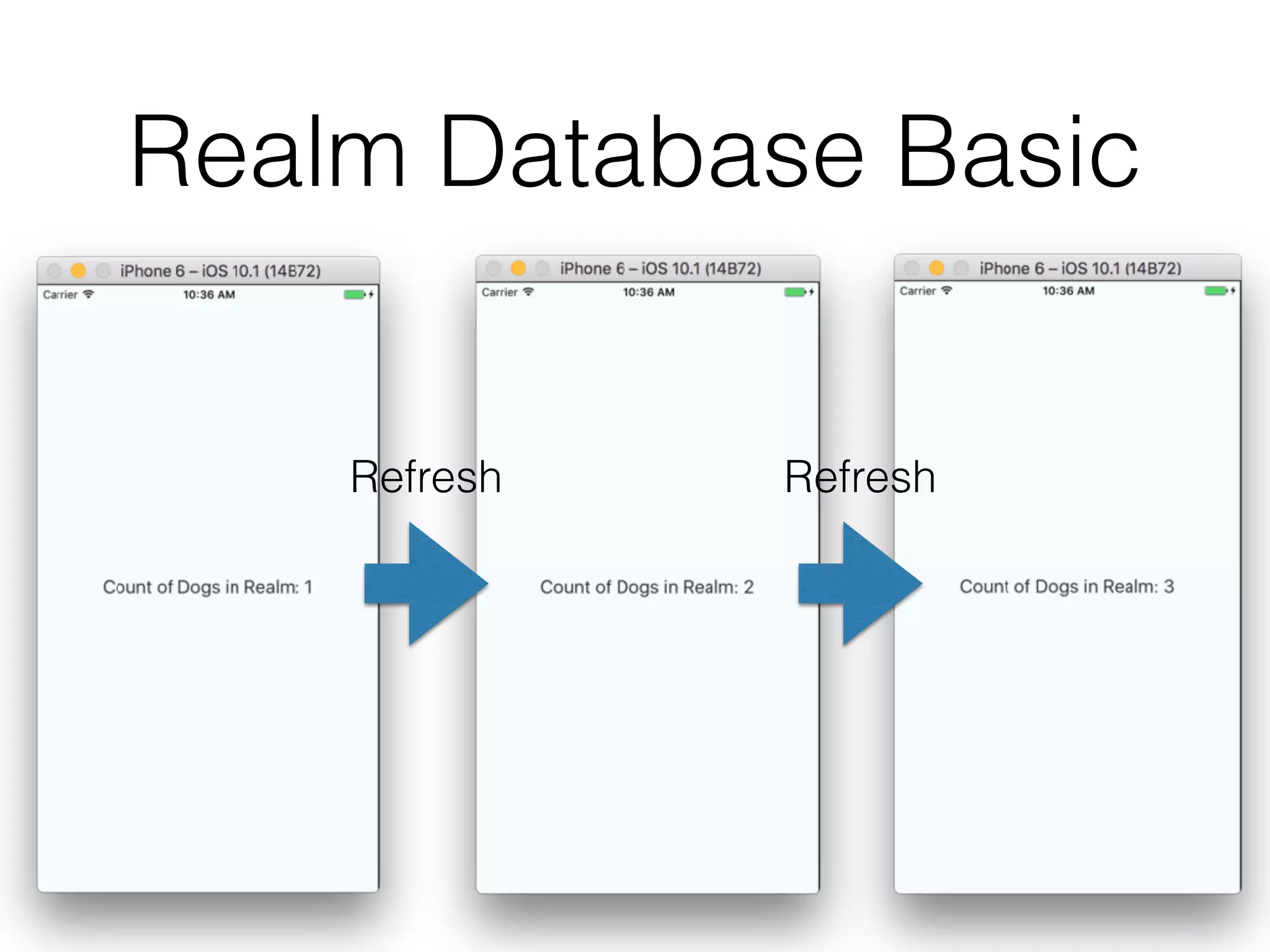

- 25. Realm Database Basic RefreshRefresh

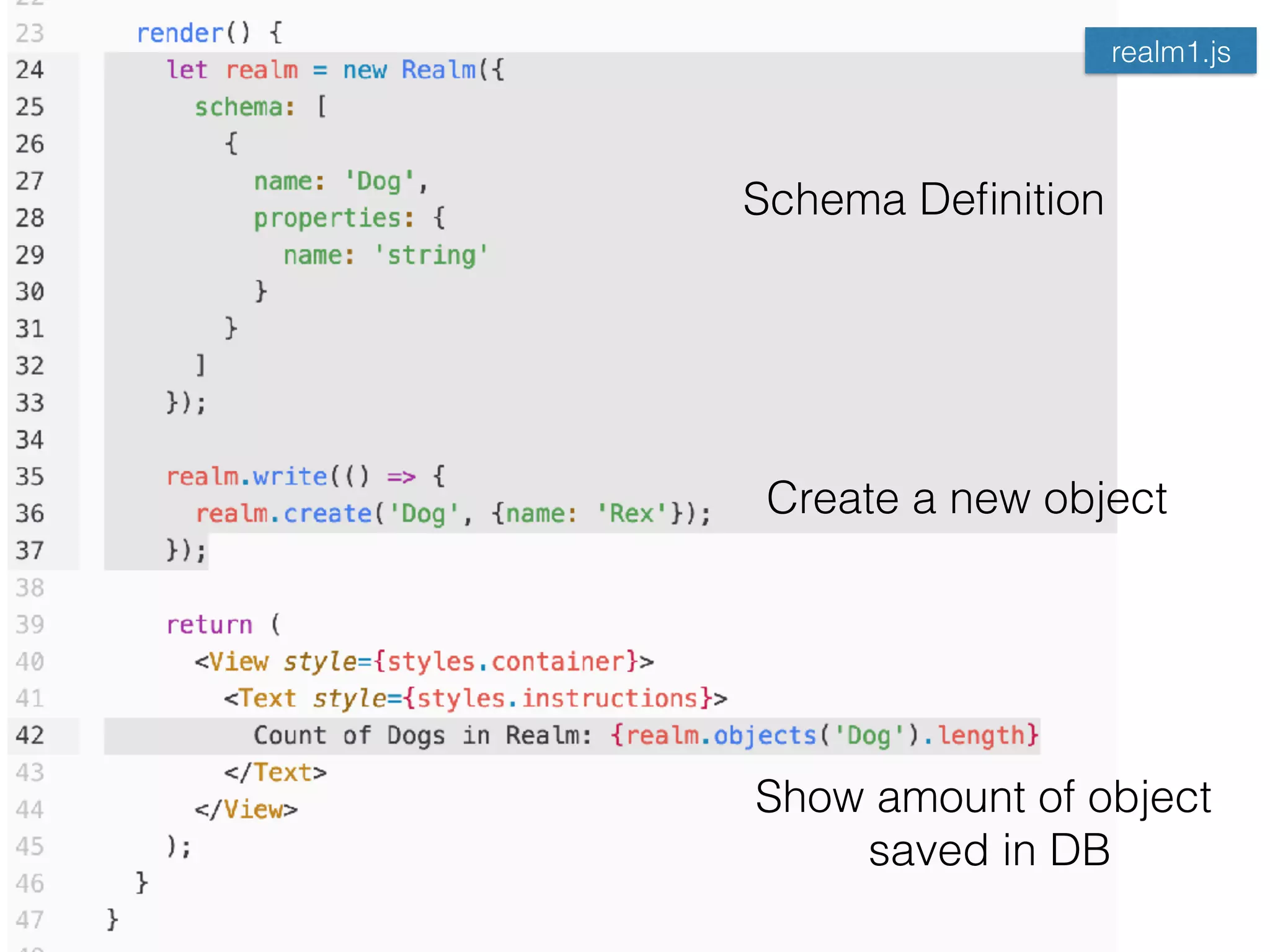

- 26. realm1.js Schema Definition Create anew object Show amount of object saved in DB

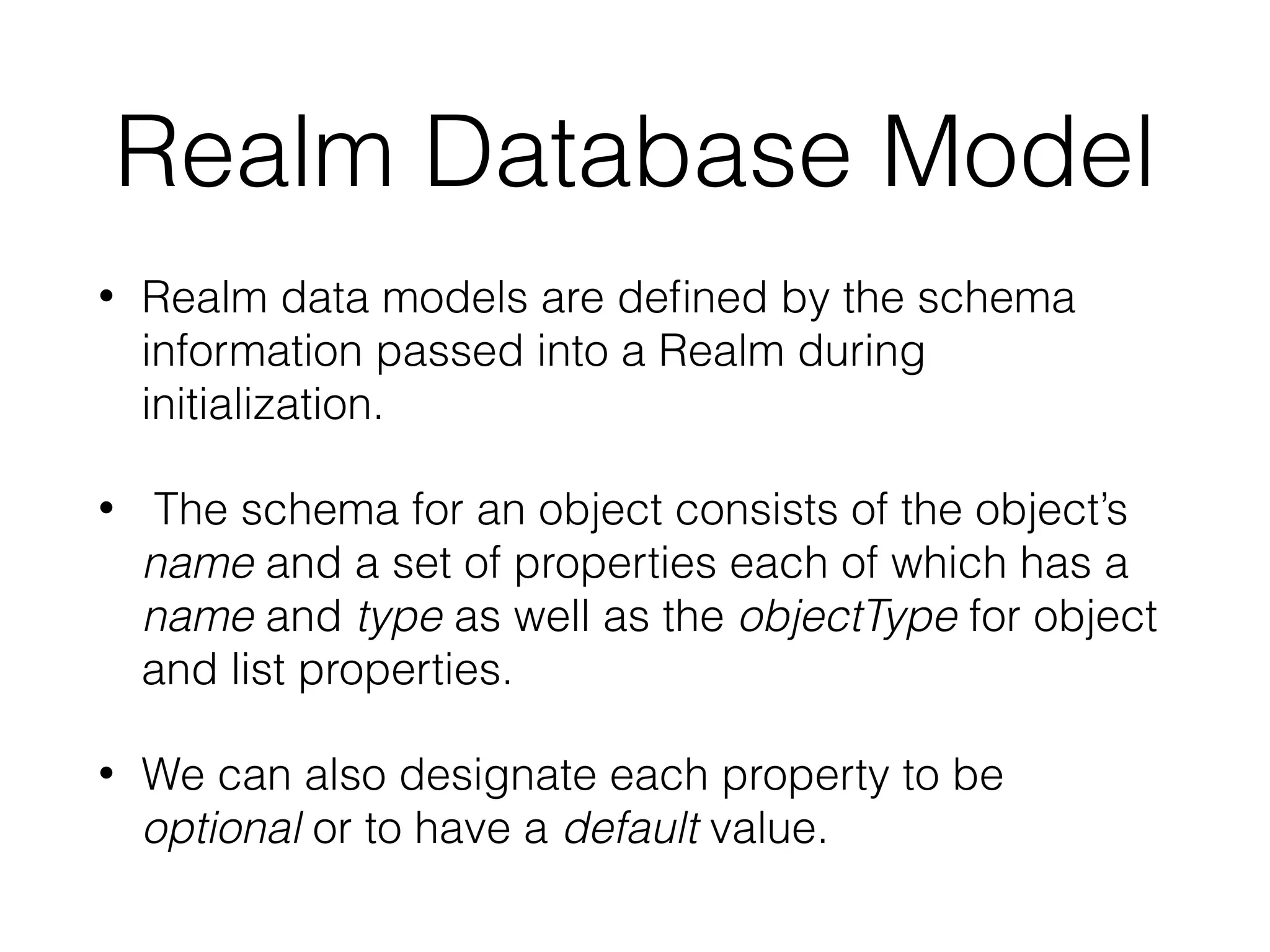

- 27. Realm Database Model •Realm data models are defined by the schema information passed into a Realm during initialization. • The schema for an object consists of the object’s name and a set of properties each of which has a name and type as well as the objectType for object and list properties. • We can also designate each property to be optional or to have a default value.

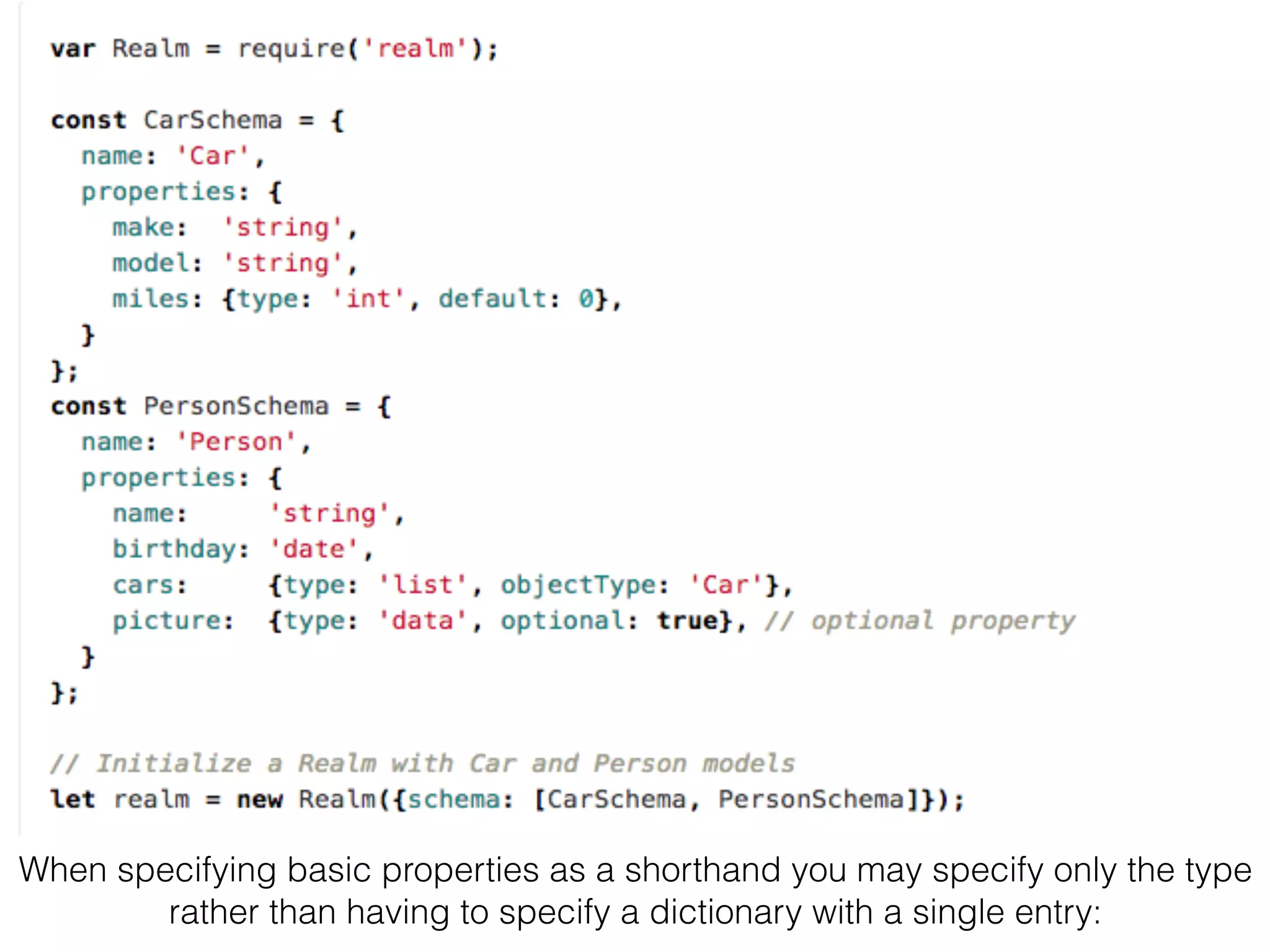

- 28. When specifying basicproperties as a shorthand you may specify only the type rather than having to specify a dictionary with a single entry:

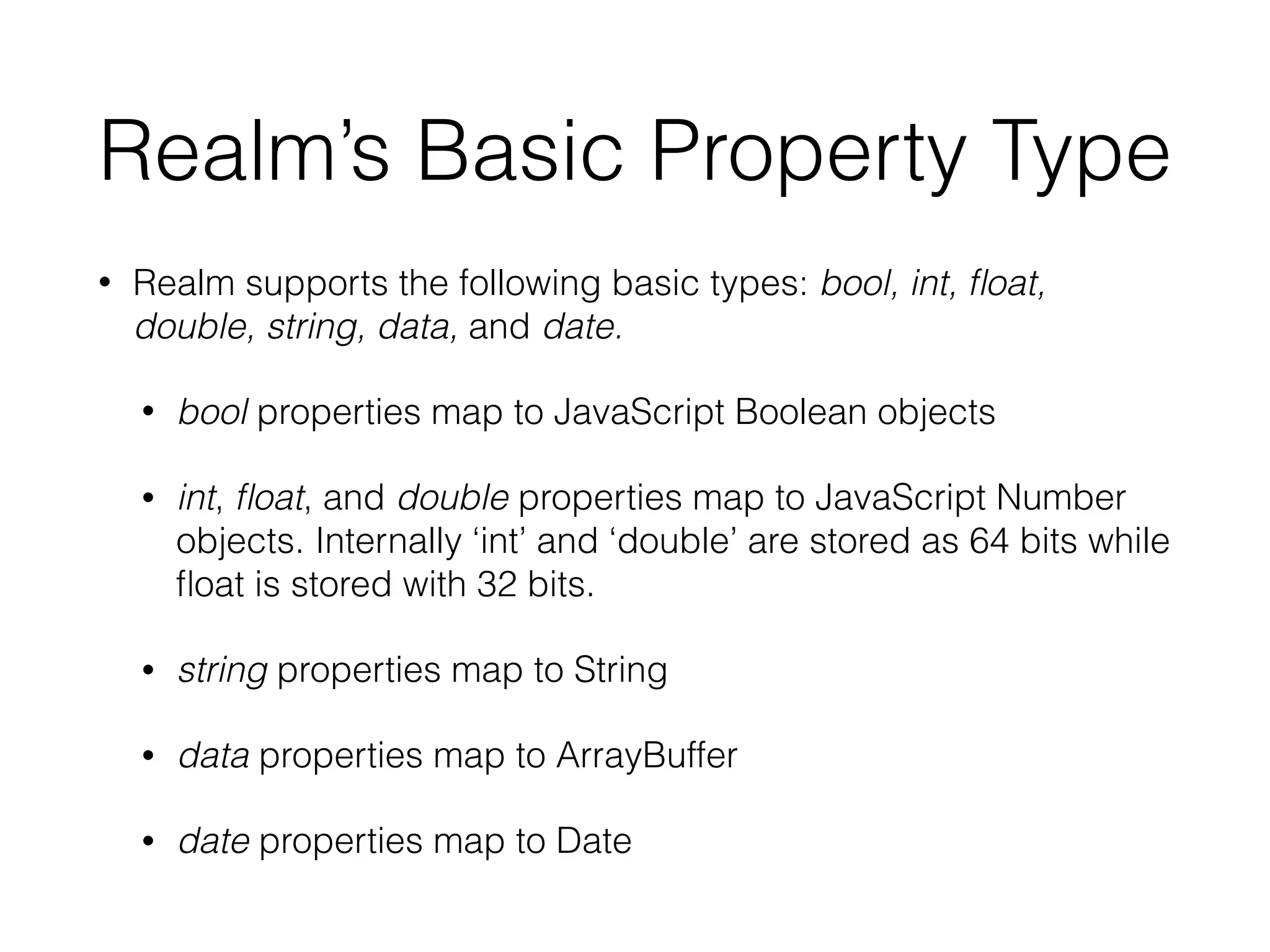

- 29. Realm’s Basic PropertyType • Realm supports the following basic types: bool, int, float, double, string, data, and date. • bool properties map to JavaScript Boolean objects • int, float, and double properties map to JavaScript Number objects. Internally ‘int’ and ‘double’ are stored as 64 bits while float is stored with 32 bits. • string properties map to String • data properties map to ArrayBuffer • date properties map to Date

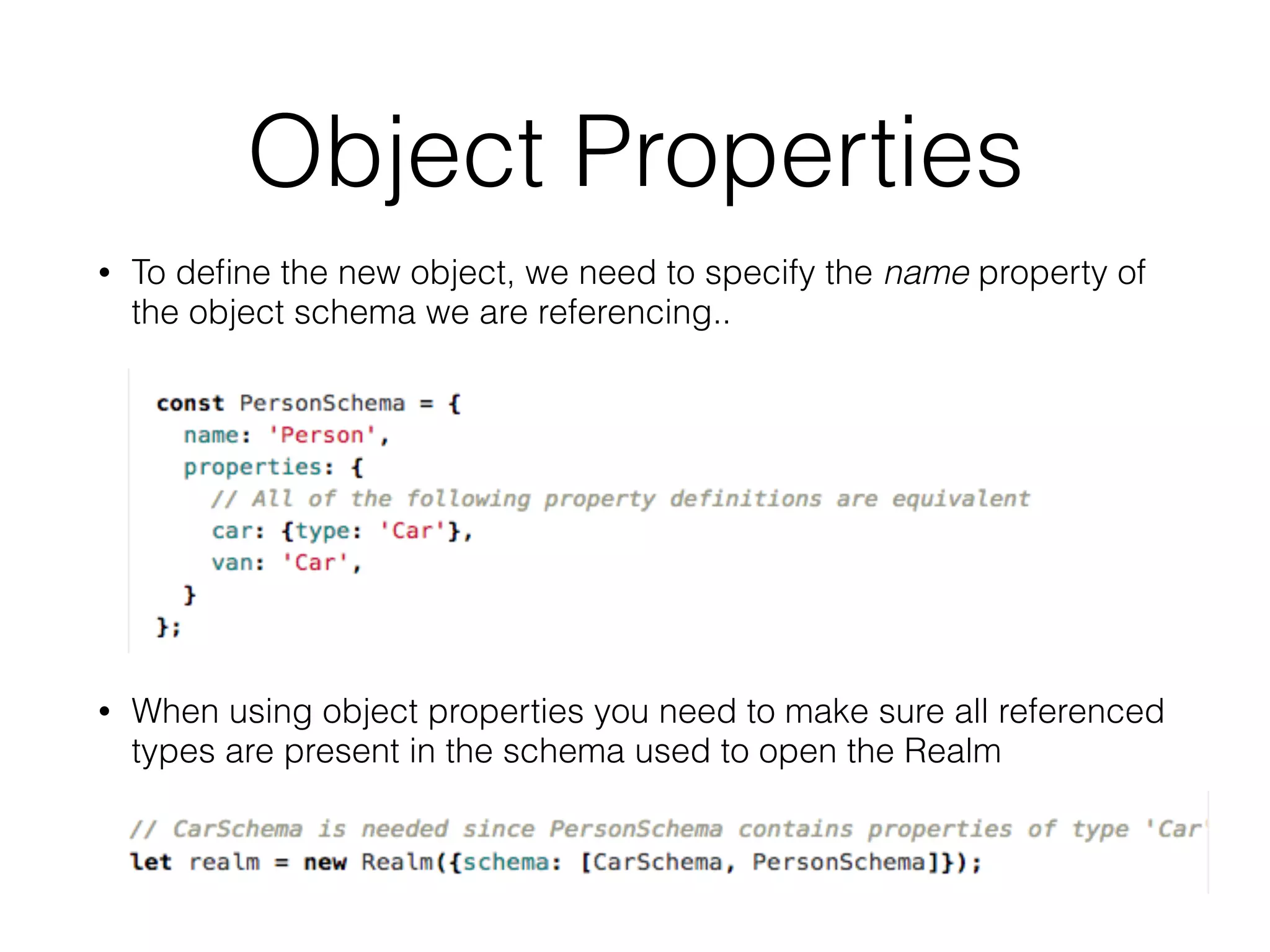

- 30. Object Properties • Todefine the new object, we need to specify the name property of the object schema we are referencing.. • When using object properties you need to make sure all referenced types are present in the schema used to open the Realm

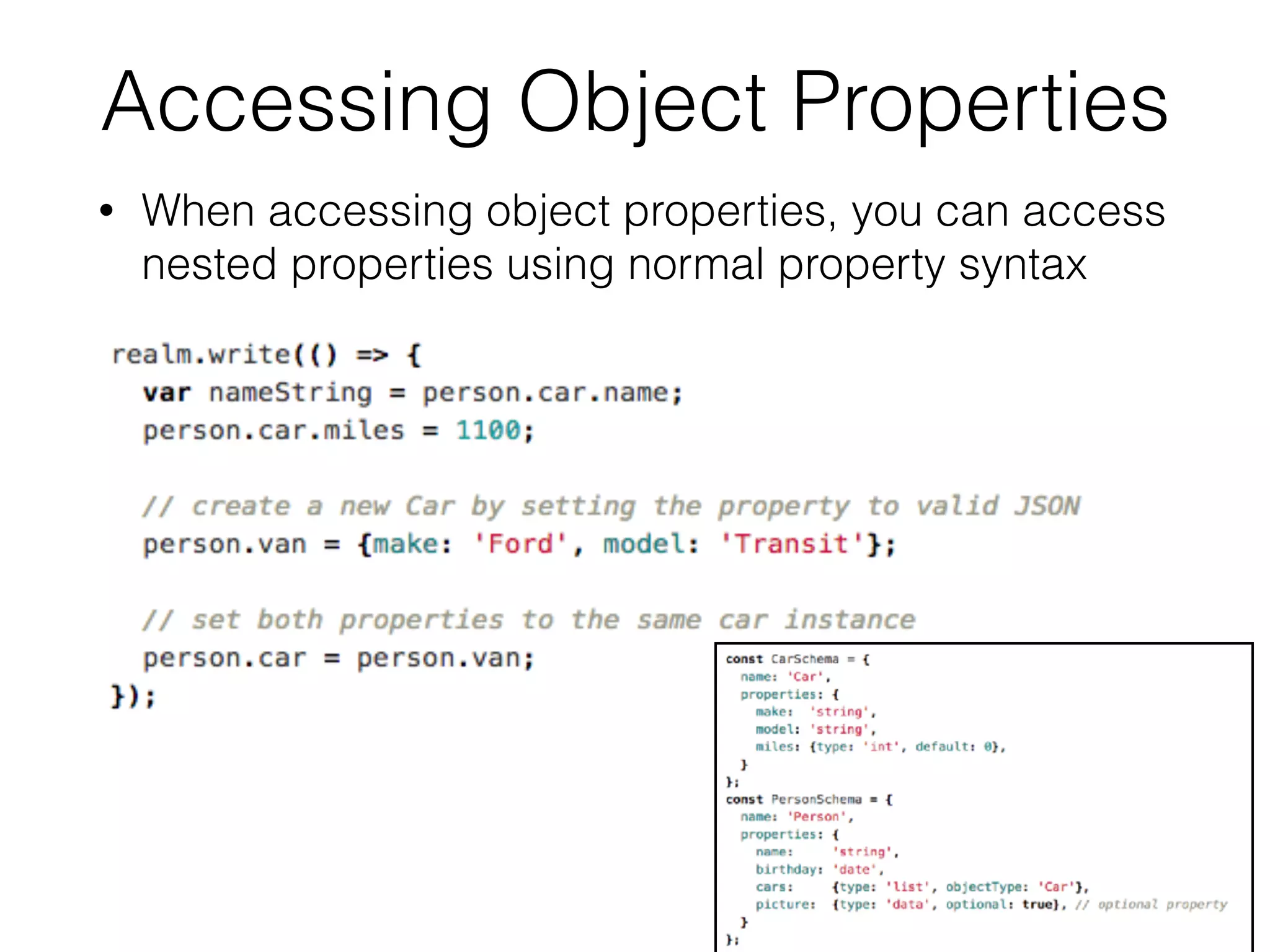

- 31. Accessing Object Properties •When accessing object properties, you can access nested properties using normal property syntax

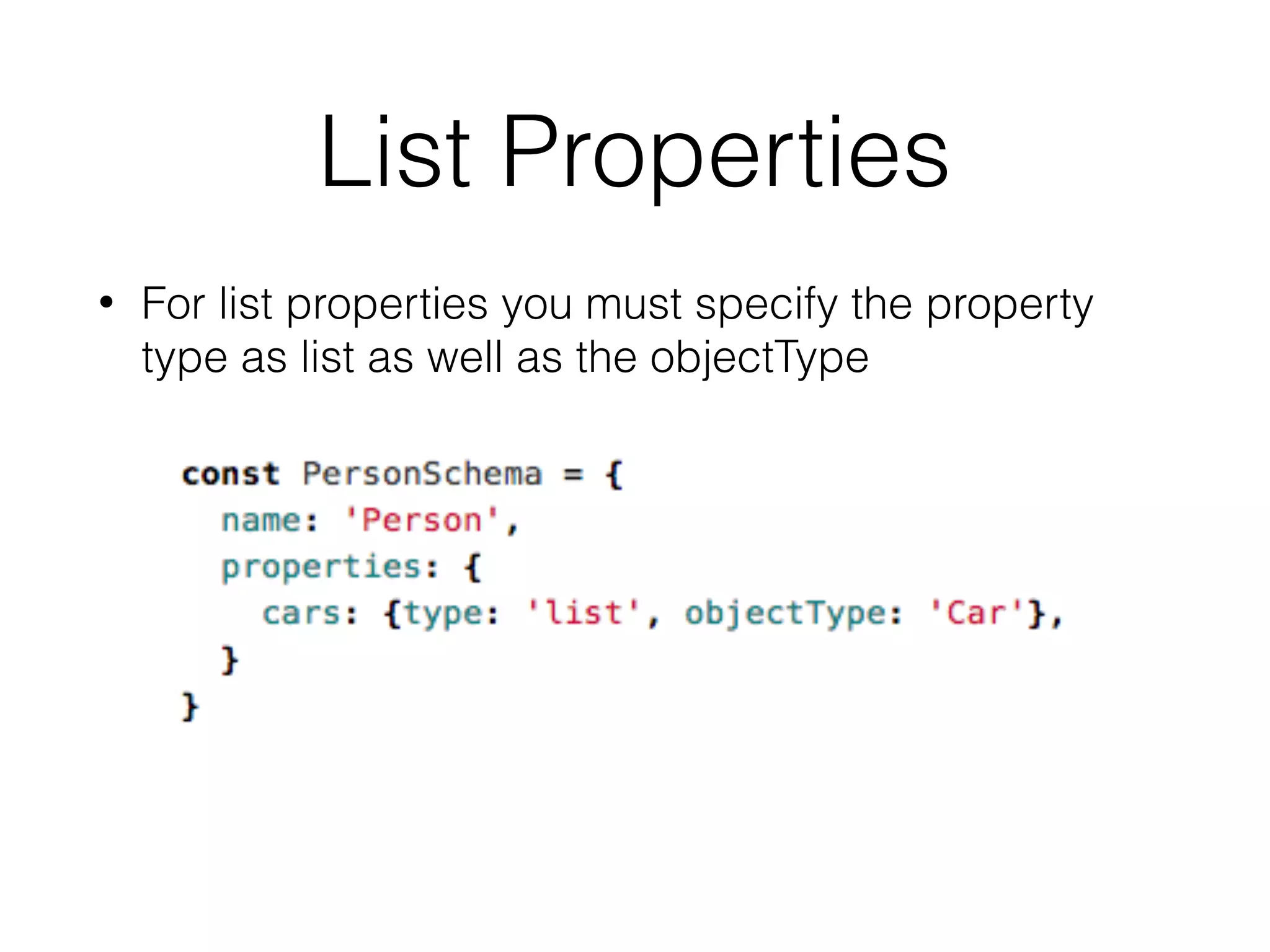

- 32. List Properties • Forlist properties you must specify the property type as list as well as the objectType

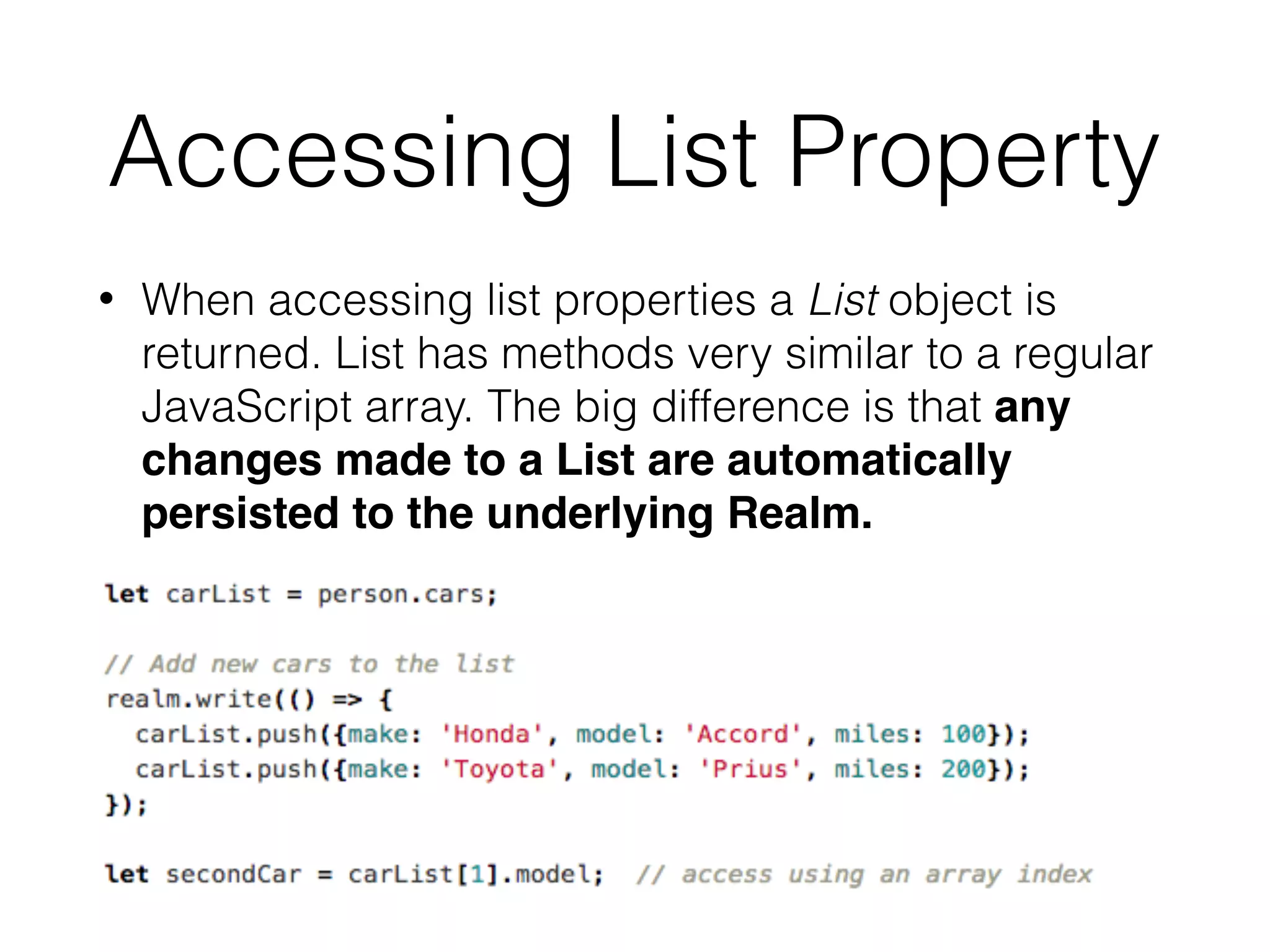

- 33. Accessing List Property •When accessing list properties a List object is returned. List has methods very similar to a regular JavaScript array. The big difference is that any changes made to a List are automatically persisted to the underlying Realm.
- 34. Optional Properties • Propertiescan be declared as optional or non- optional by specifying the optional designator in your property definition:

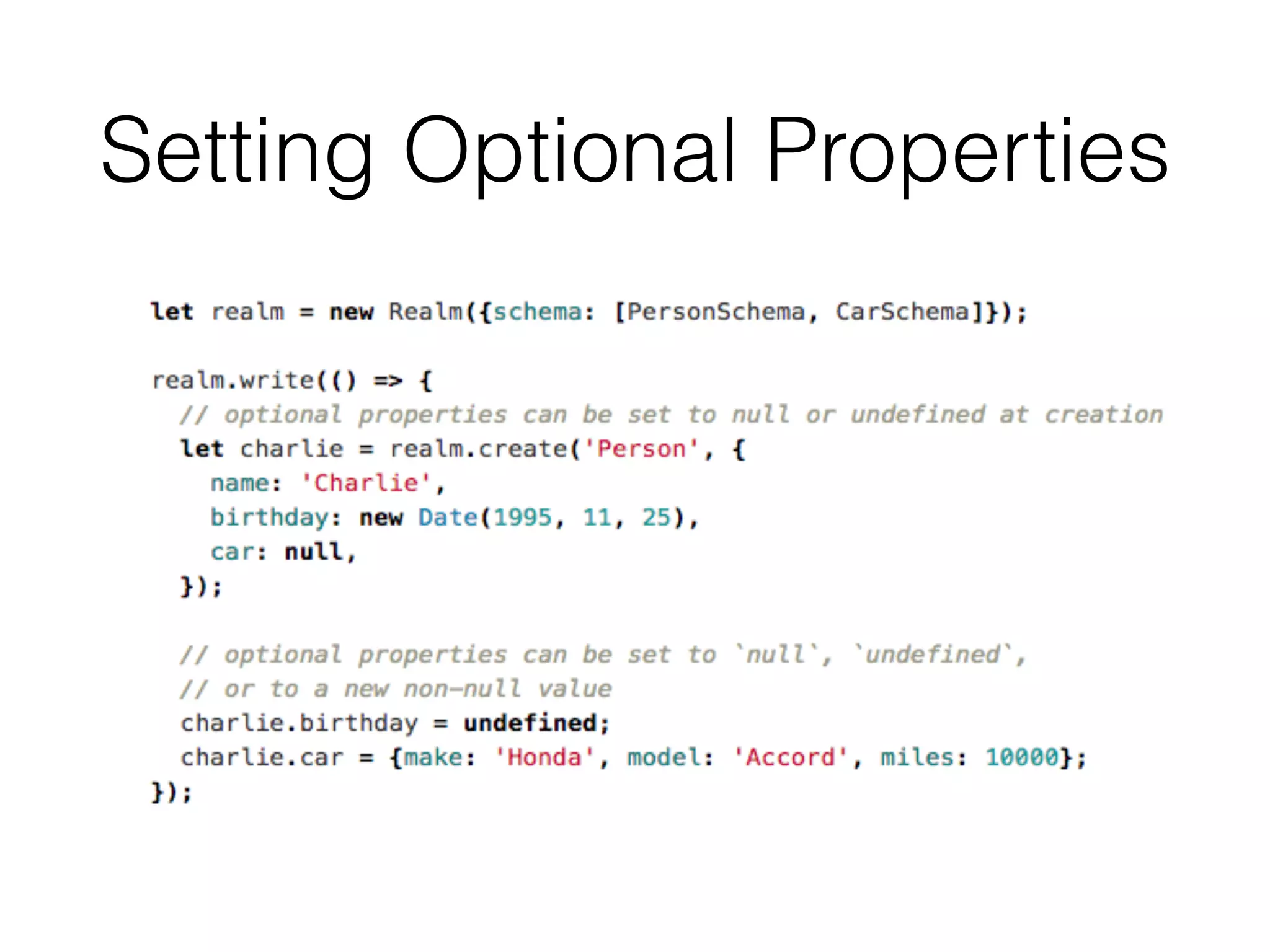

- 35.
- 36. Default Property • Defaultproperty values can be specified by setting the default designator in the property definition. To use a default value, leave the property unspecified during object creation.

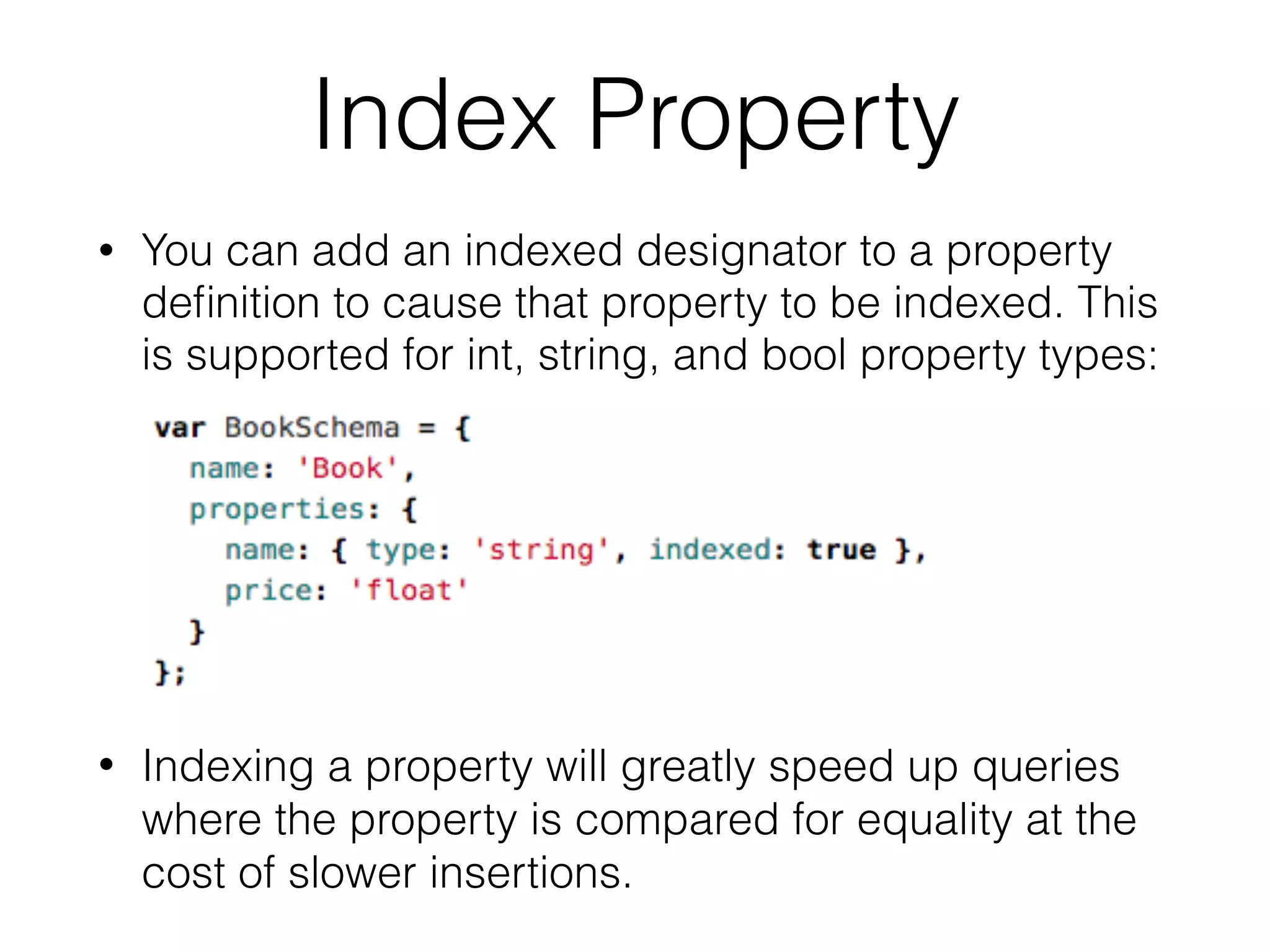

- 37. Index Property • Youcan add an indexed designator to a property definition to cause that property to be indexed. This is supported for int, string, and bool property types: • Indexing a property will greatly speed up queries where the property is compared for equality at the cost of slower insertions.

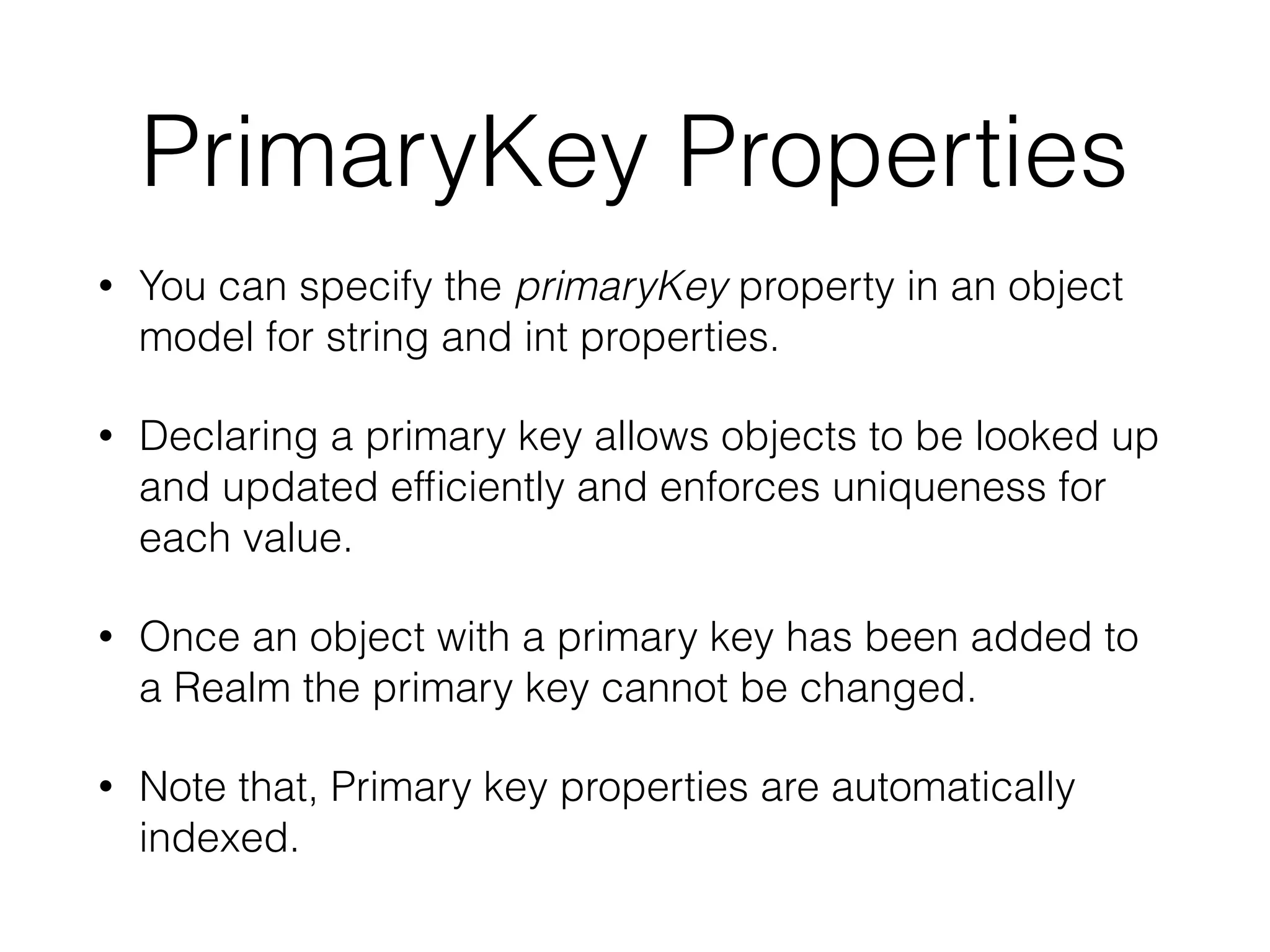

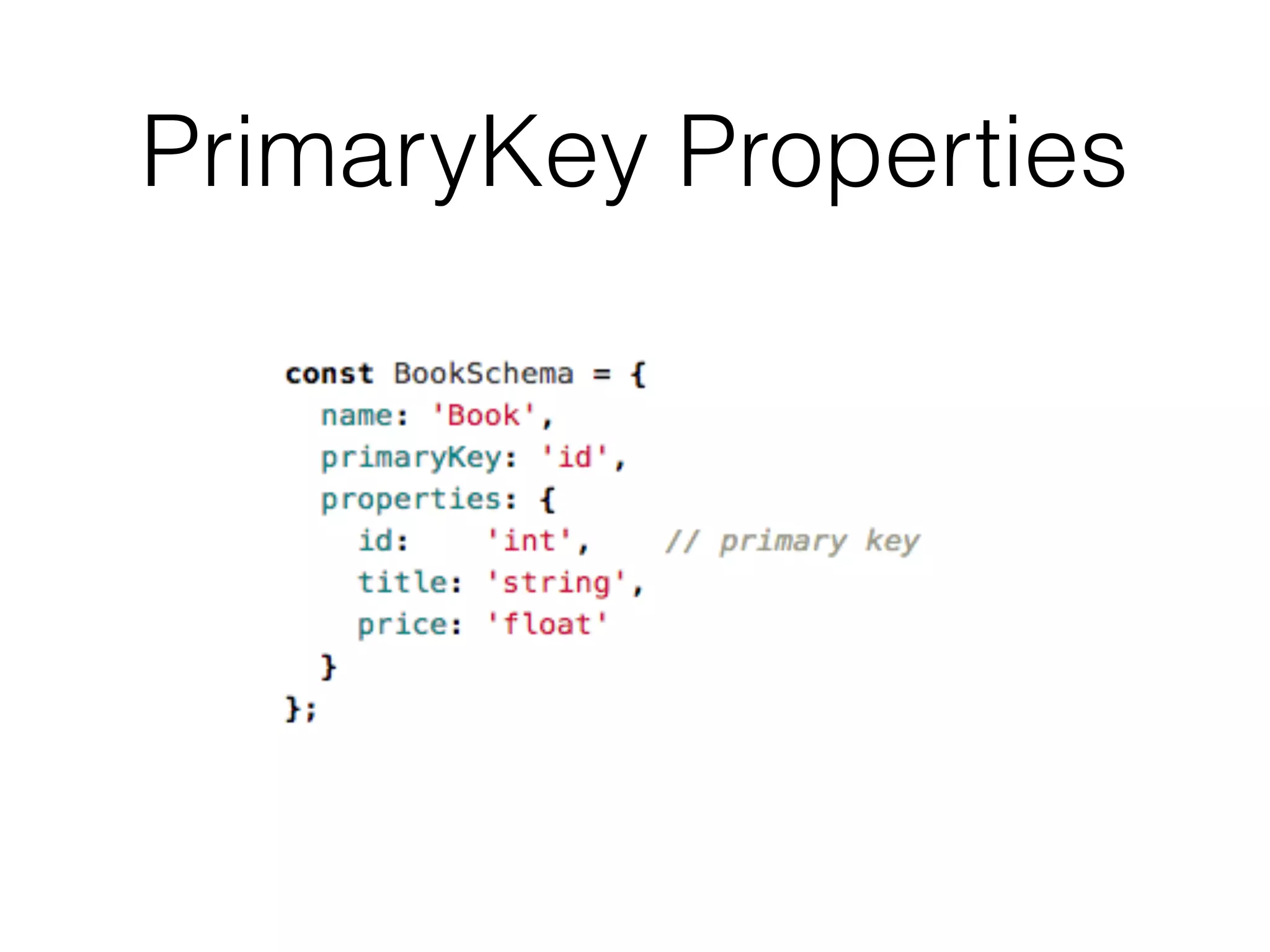

- 38. PrimaryKey Properties • Youcan specify the primaryKey property in an object model for string and int properties. • Declaring a primary key allows objects to be looked up and updated efficiently and enforces uniqueness for each value. • Once an object with a primary key has been added to a Realm the primary key cannot be changed. • Note that, Primary key properties are automatically indexed.
- 39.

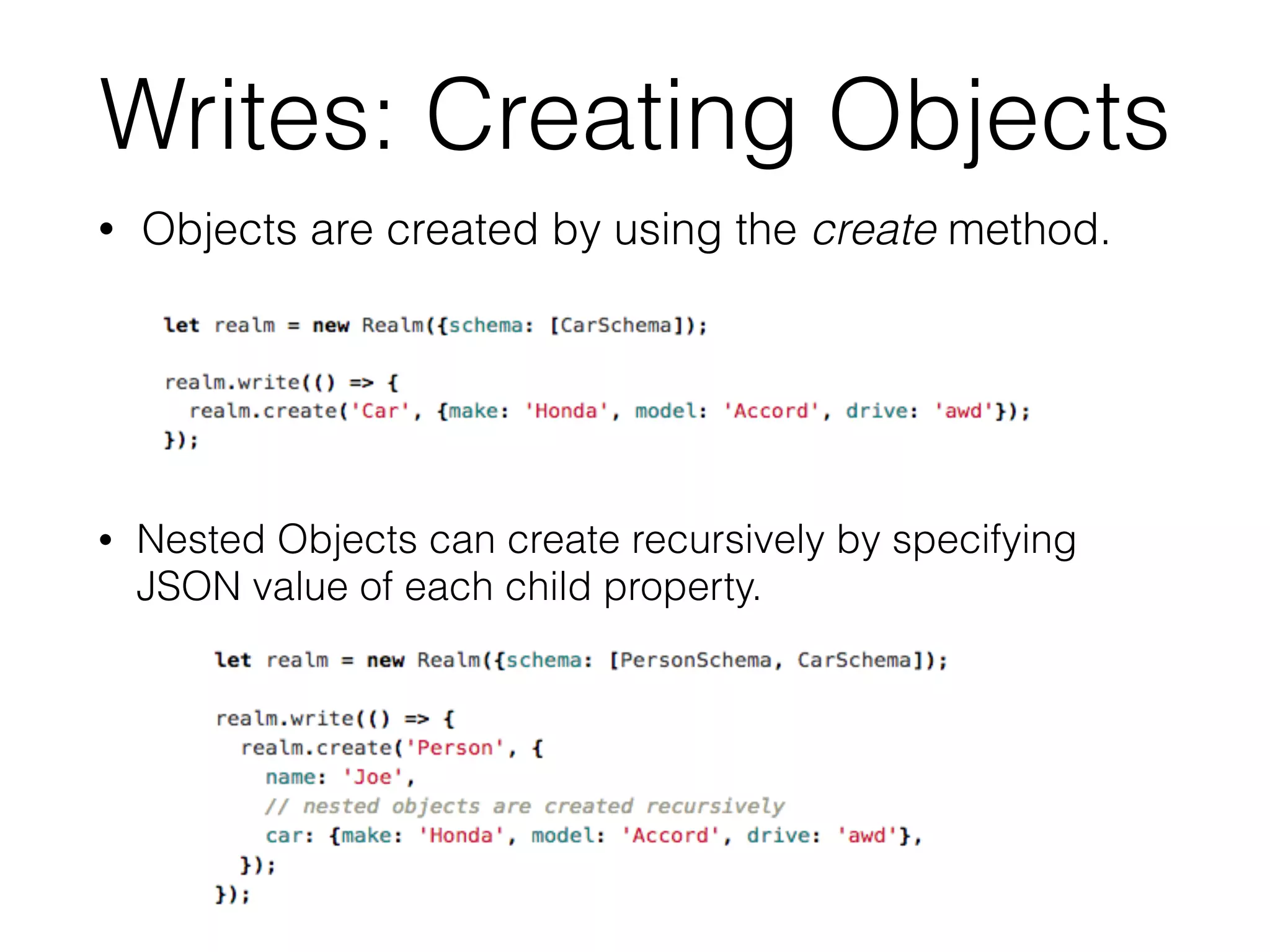

- 40. Writes: Creating Objects •Objects are created by using the create method. • Nested Objects can create recursively by specifying JSON value of each child property.

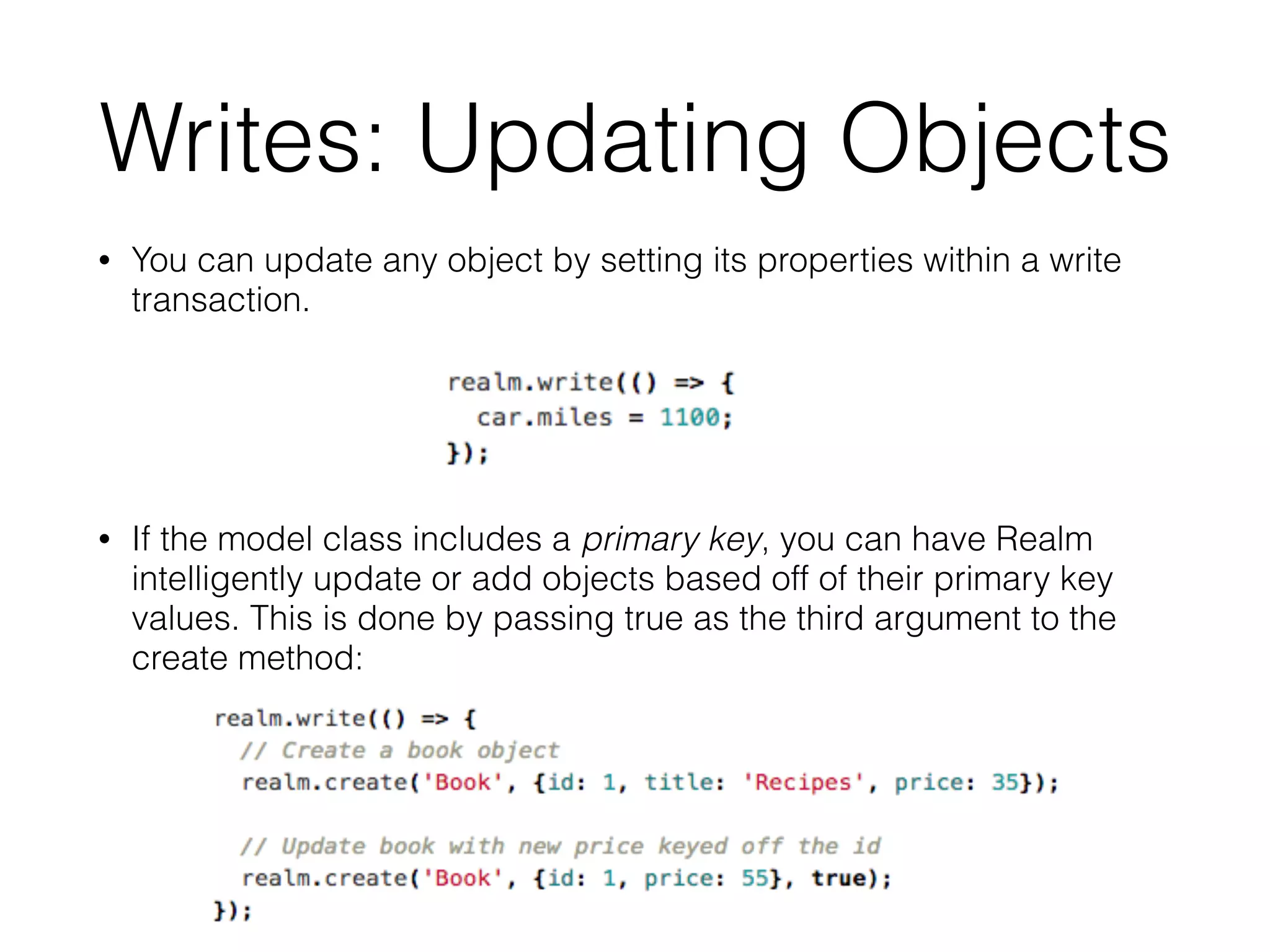

- 41. Writes: Updating Objects •You can update any object by setting its properties within a write transaction. • If the model class includes a primary key, you can have Realm intelligently update or add objects based off of their primary key values. This is done by passing true as the third argument to the create method:

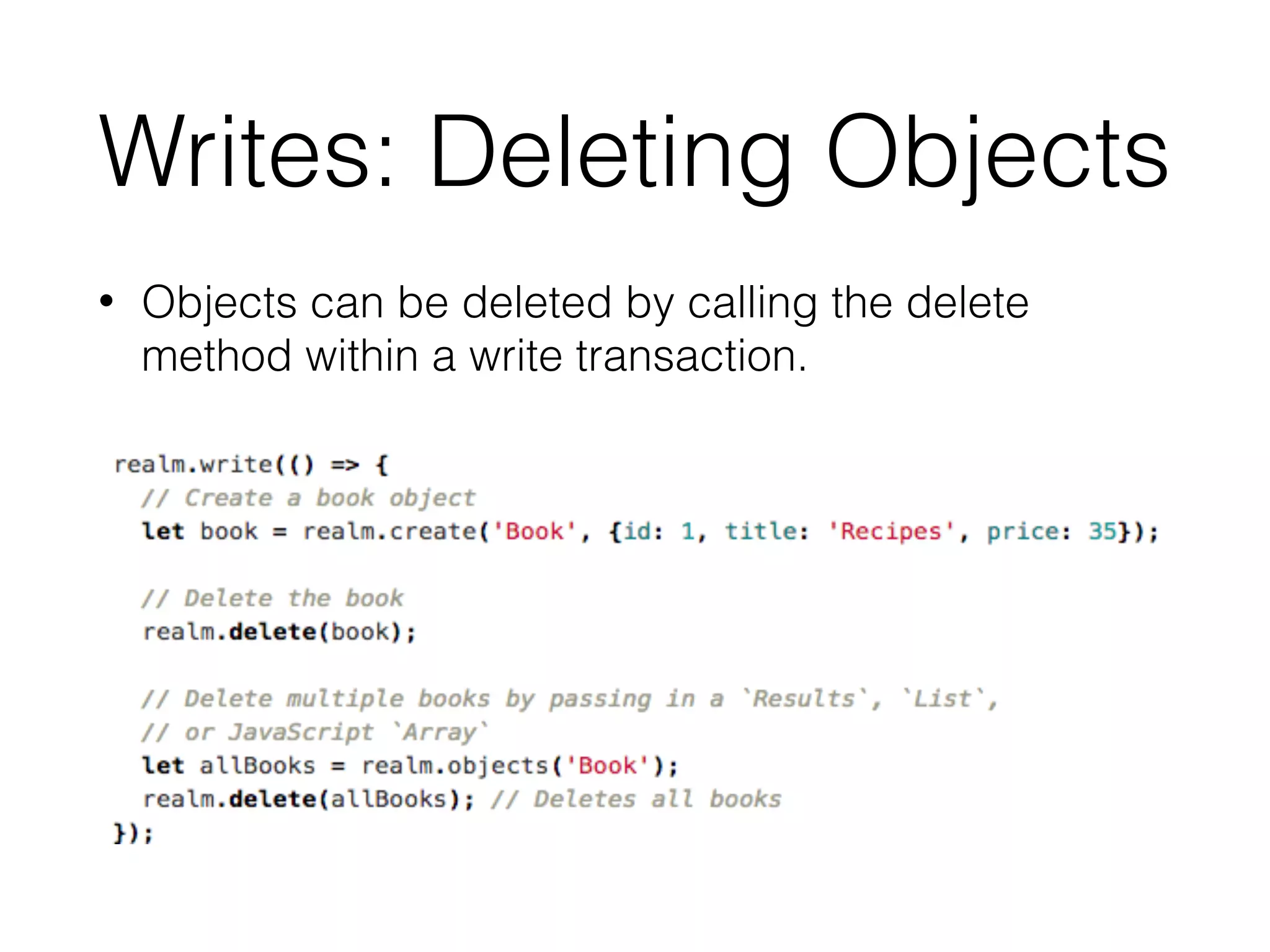

- 42. Writes: Deleting Objects •Objects can be deleted by calling the delete method within a write transaction.

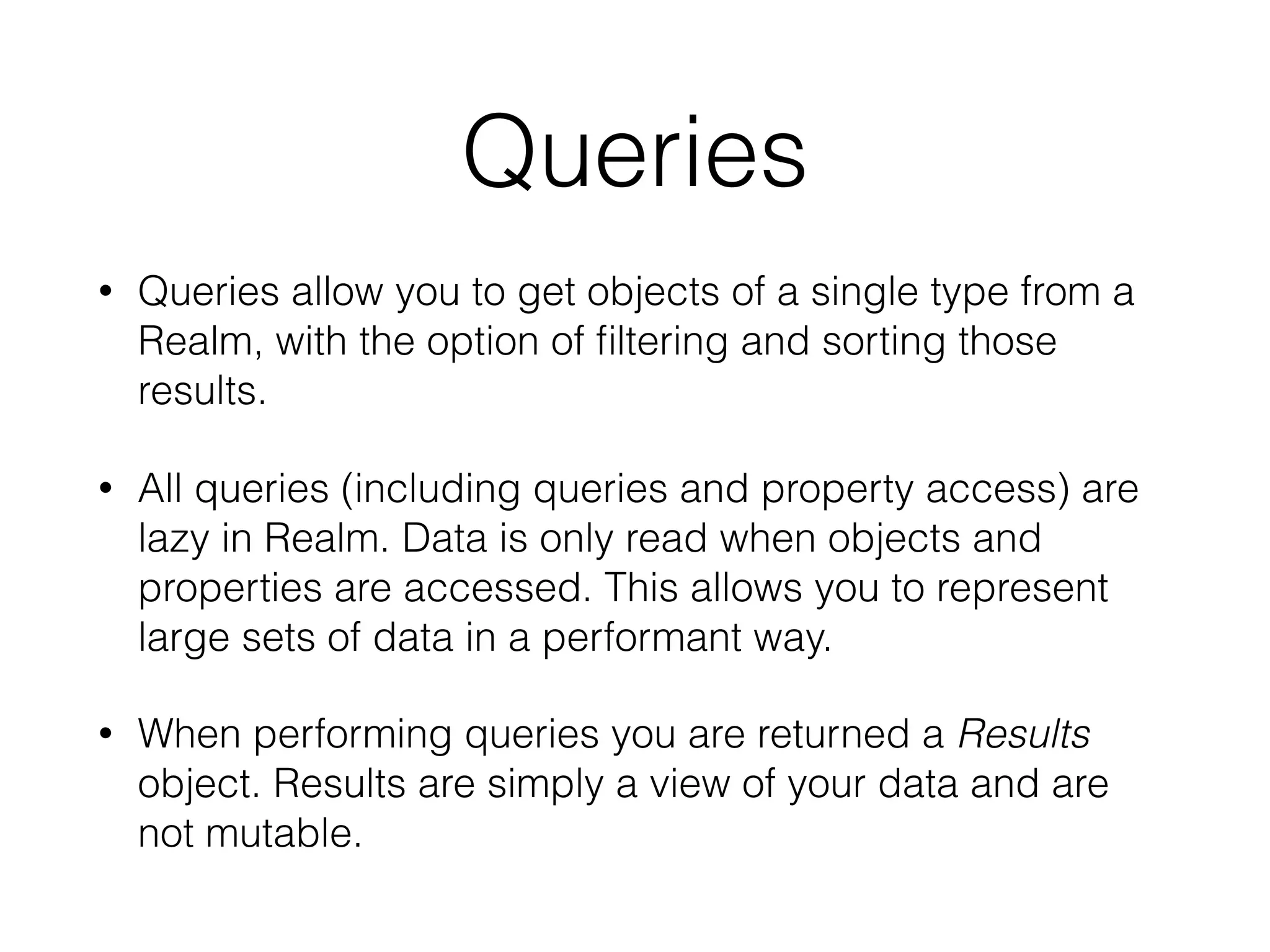

- 43. Queries • Queries allowyou to get objects of a single type from a Realm, with the option of filtering and sorting those results. • All queries (including queries and property access) are lazy in Realm. Data is only read when objects and properties are accessed. This allows you to represent large sets of data in a performant way. • When performing queries you are returned a Results object. Results are simply a view of your data and are not mutable.

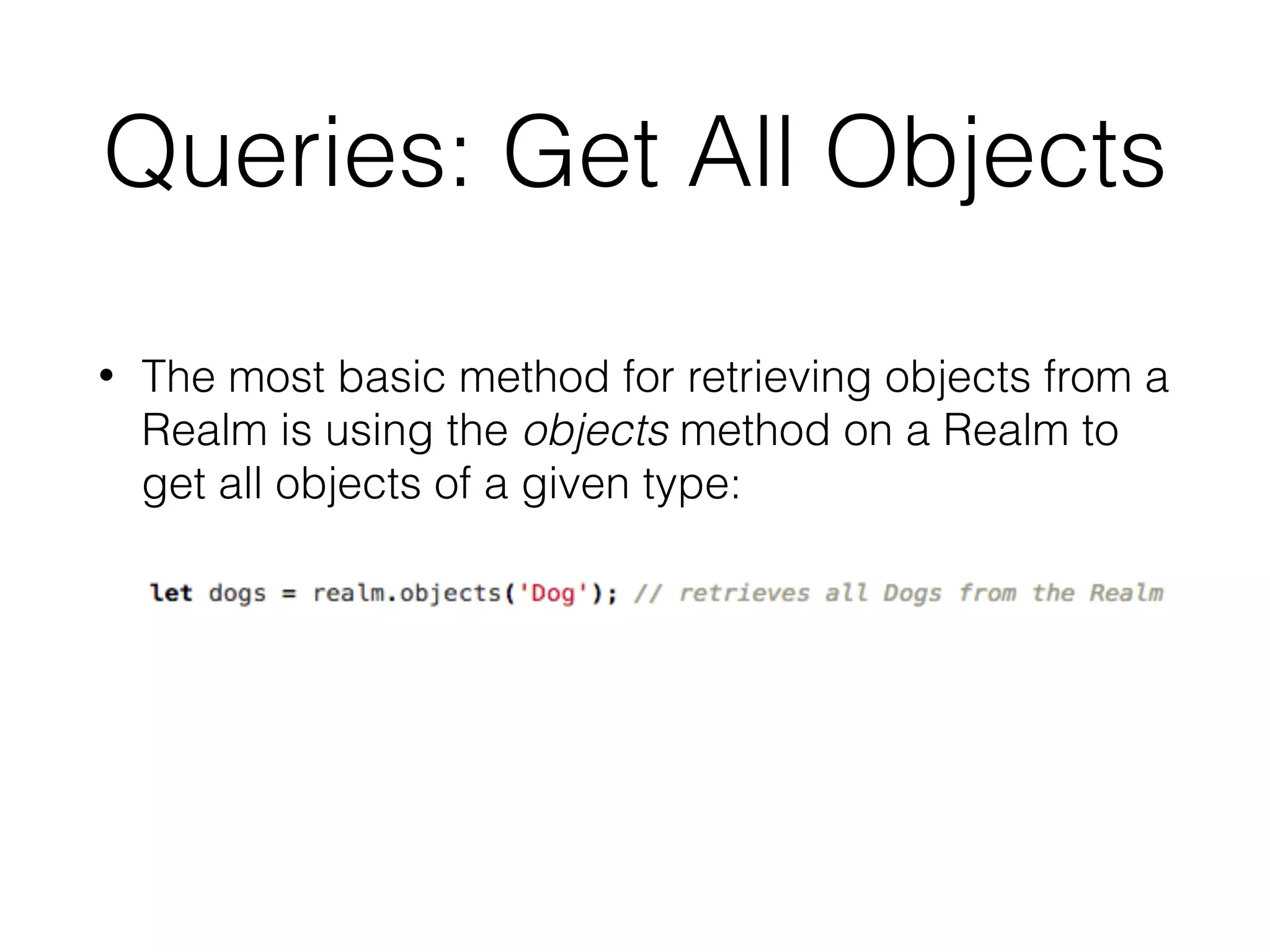

- 44. Queries: Get AllObjects • The most basic method for retrieving objects from a Realm is using the objects method on a Realm to get all objects of a given type:

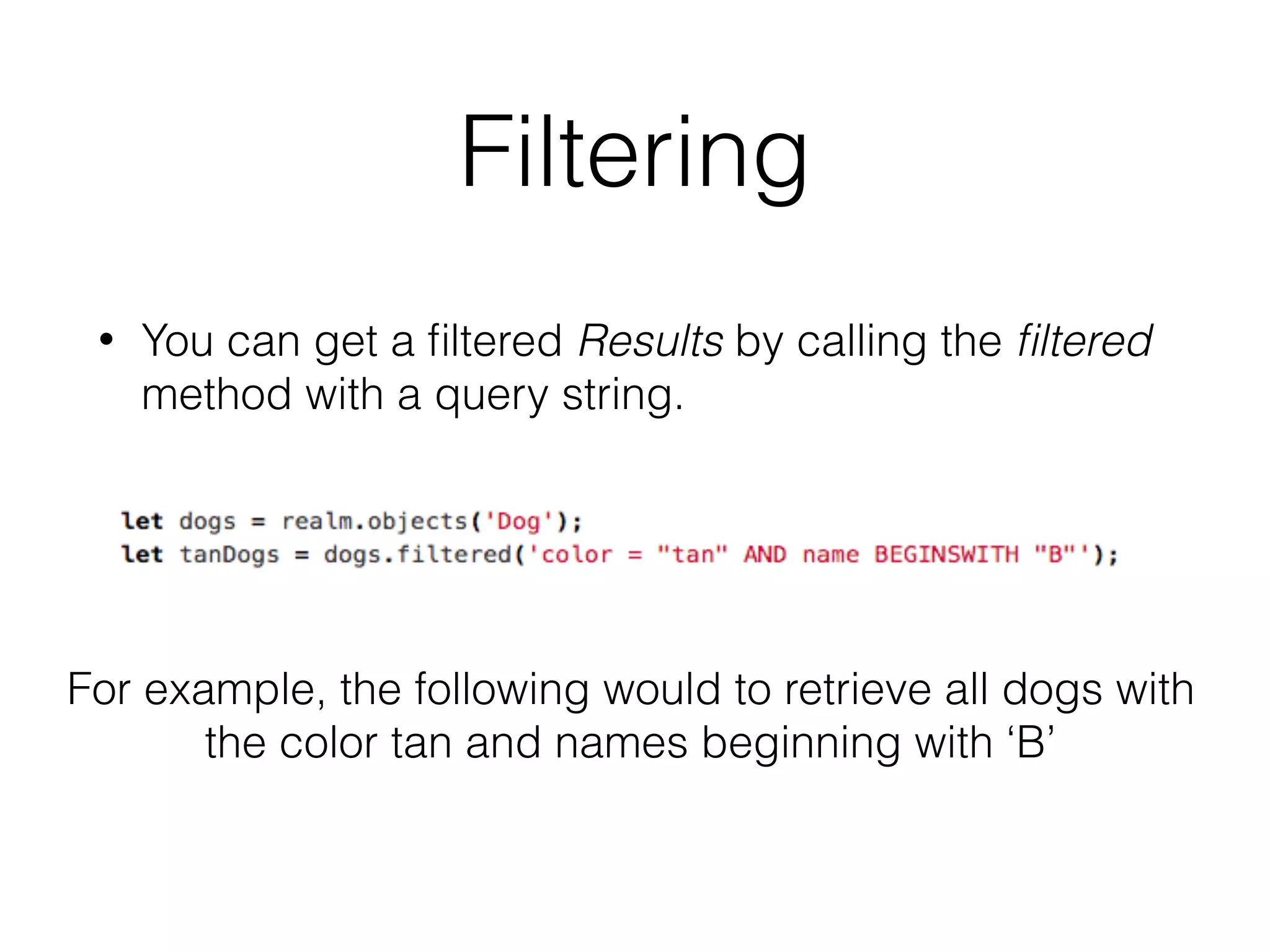

- 45. Filtering • You canget a filtered Results by calling the filtered method with a query string. For example, the following would to retrieve all dogs with the color tan and names beginning with ‘B’

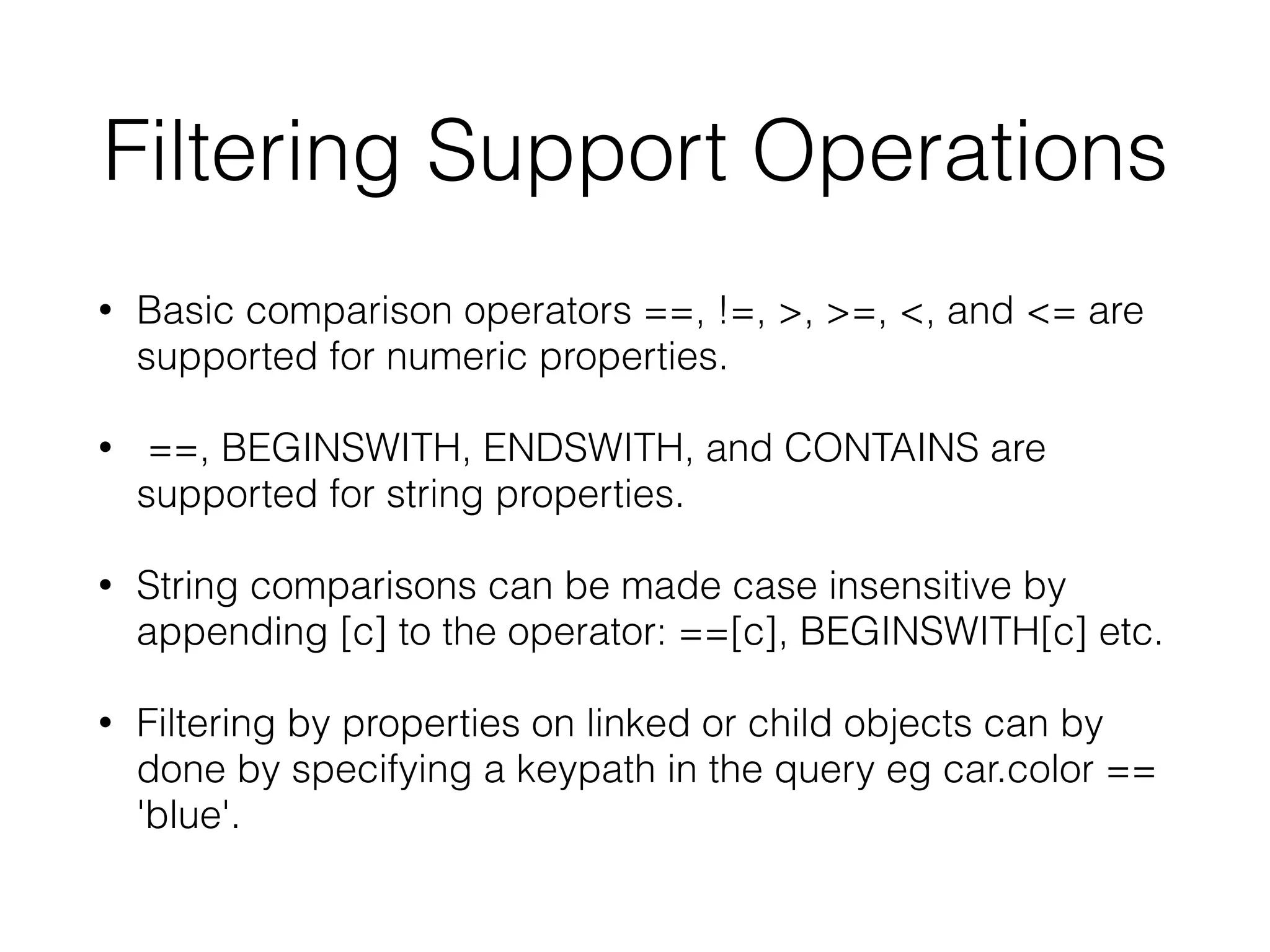

- 46. Filtering Support Operations •Basic comparison operators ==, !=, >, >=, <, and <= are supported for numeric properties. • ==, BEGINSWITH, ENDSWITH, and CONTAINS are supported for string properties. • String comparisons can be made case insensitive by appending [c] to the operator: ==[c], BEGINSWITH[c] etc. • Filtering by properties on linked or child objects can by done by specifying a keypath in the query eg car.color == 'blue'.

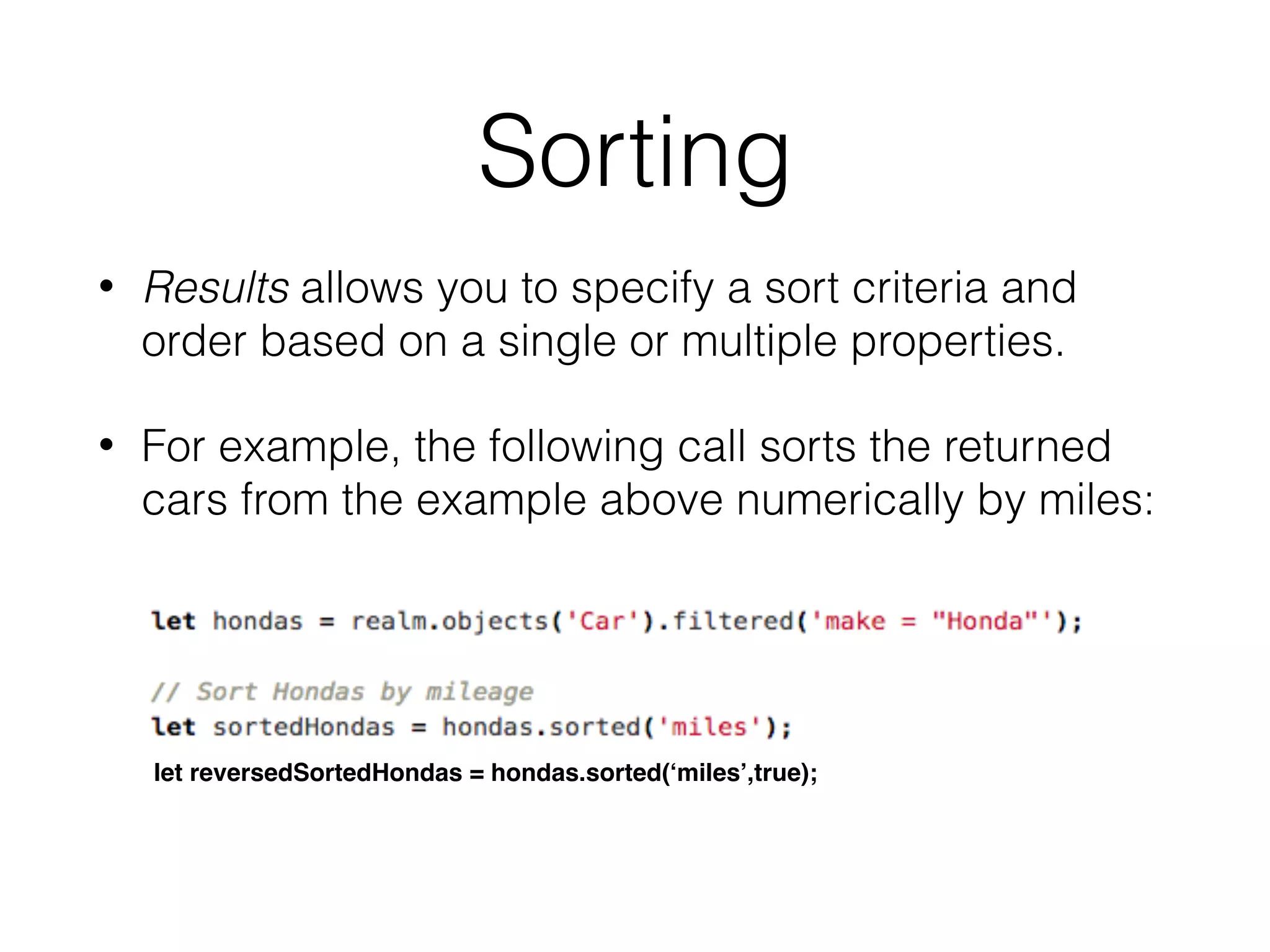

- 47. Sorting • Results allowsyou to specify a sort criteria and order based on a single or multiple properties. • For example, the following call sorts the returned cars from the example above numerically by miles: let reversedSortedHondas = hondas.sorted(‘miles’,true);

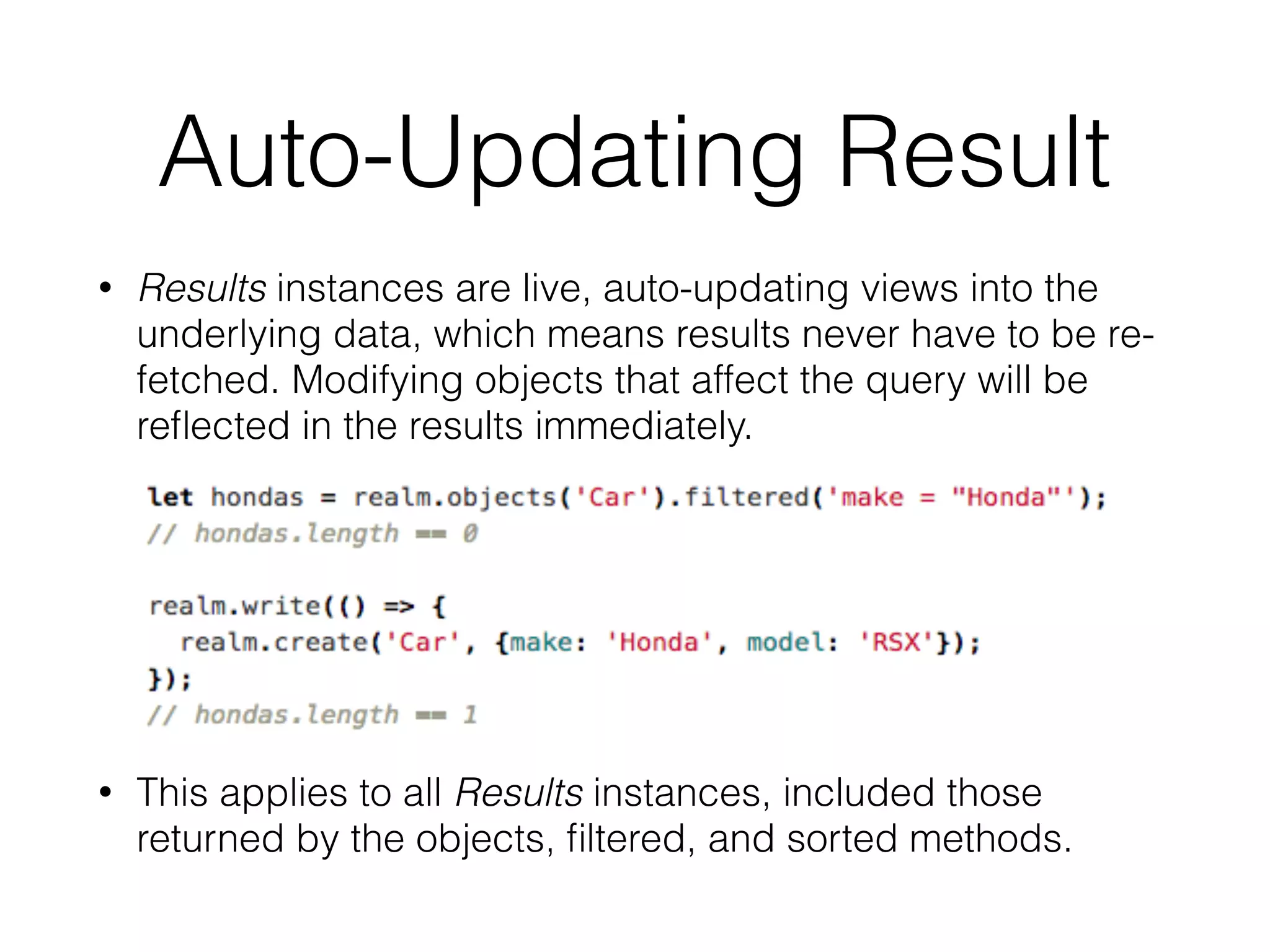

- 48. Auto-Updating Result • Resultsinstances are live, auto-updating views into the underlying data, which means results never have to be re- fetched. Modifying objects that affect the query will be reflected in the results immediately. • This applies to all Results instances, included those returned by the objects, filtered, and sorted methods.

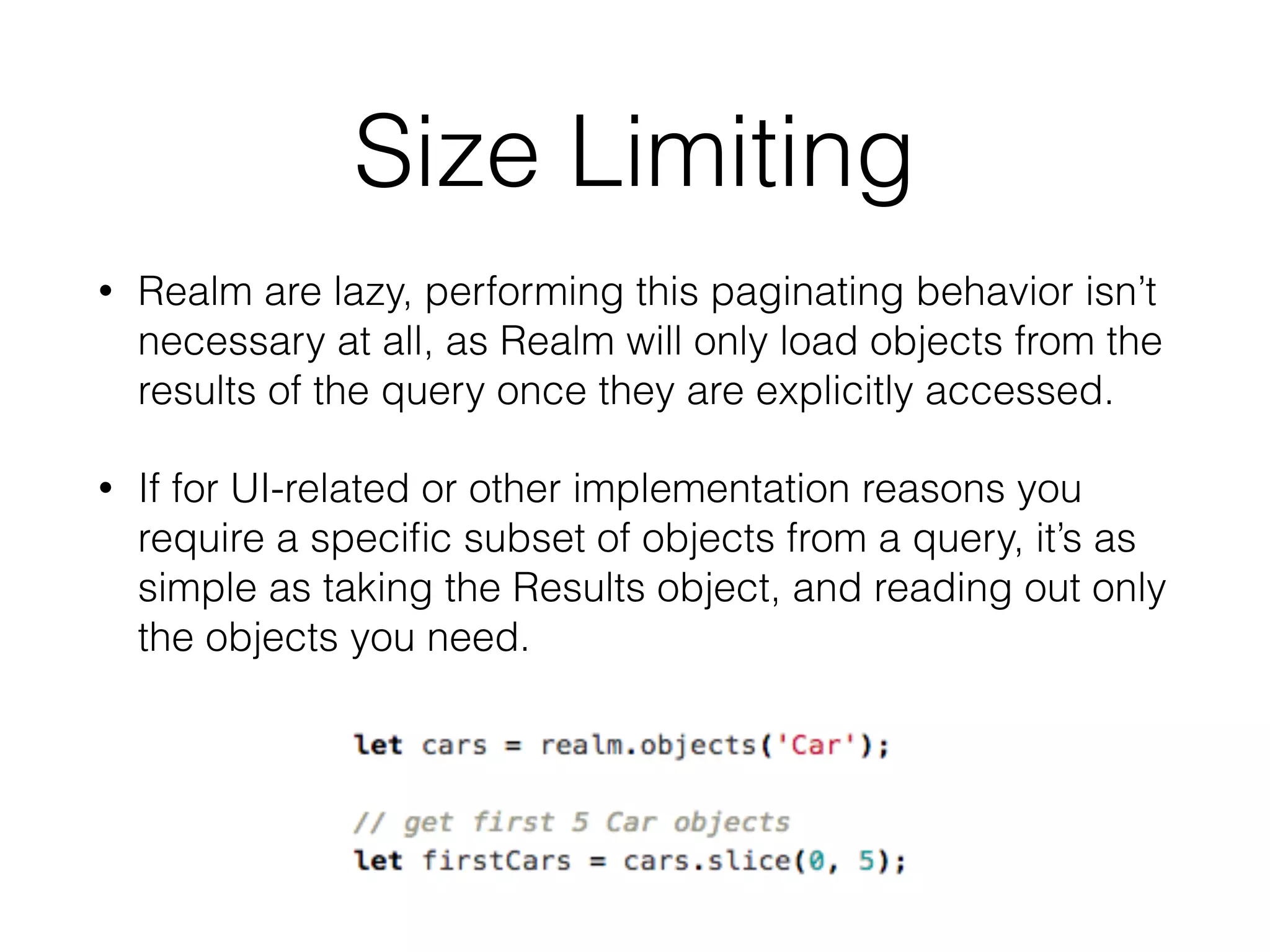

- 49. Size Limiting • Realmare lazy, performing this paginating behavior isn’t necessary at all, as Realm will only load objects from the results of the query once they are explicitly accessed. • If for UI-related or other implementation reasons you require a specific subset of objects from a query, it’s as simple as taking the Results object, and reading out only the objects you need.

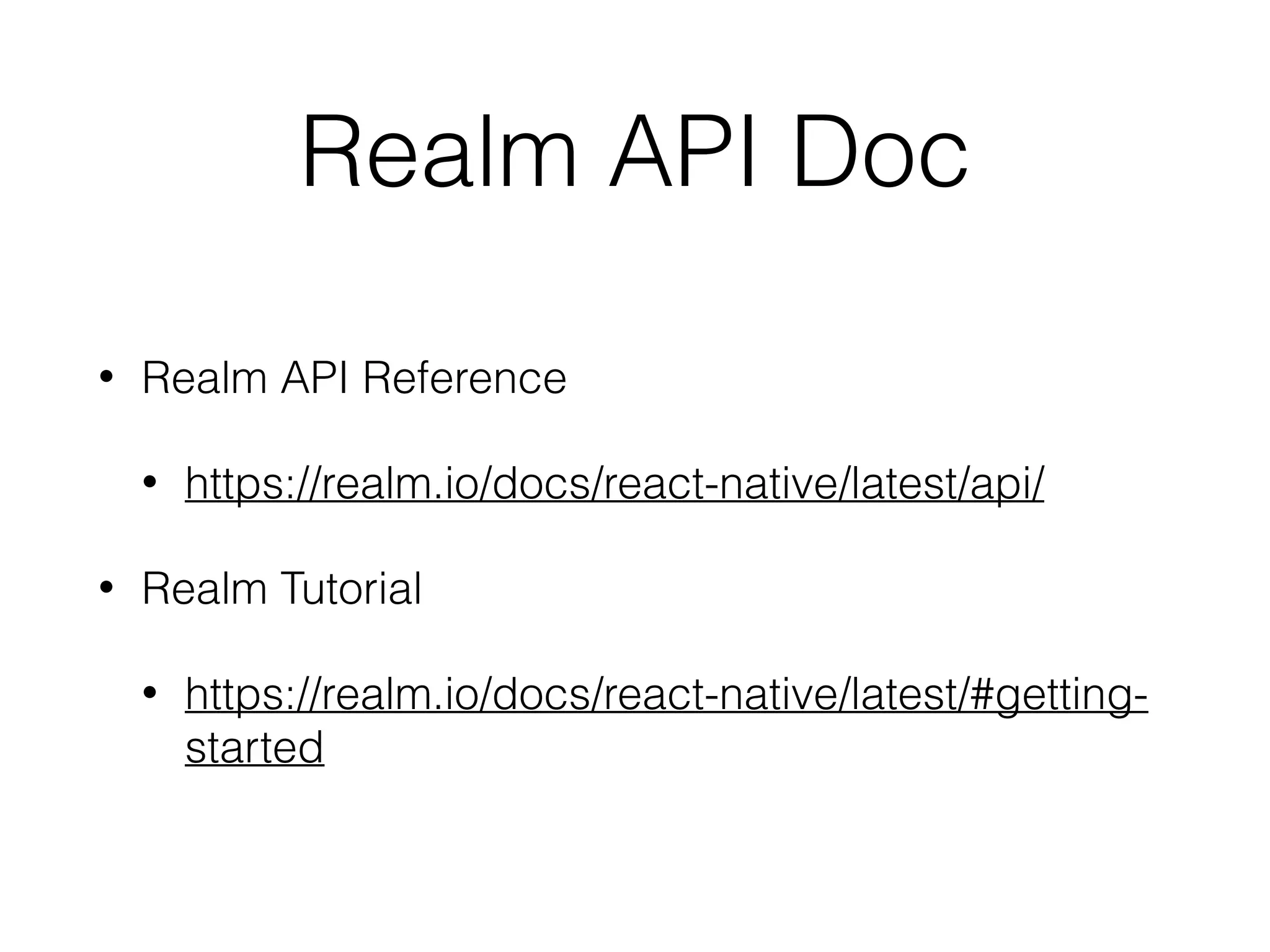

- 50. Realm API Doc •Realm API Reference • https://realm.io/docs/react-native/latest/api/ • Realm Tutorial • https://realm.io/docs/react-native/latest/#getting- started
