Ratpack Web Framework

This document provides an overview of Ratpack, an open-source web framework for Java and Groovy applications. It summarizes Ratpack's key features including its non-blocking and high performance architecture using Netty, support for Groovy and Java, integration with build tools like Gradle, and handler-based routing model. The document also discusses how Ratpack handles asynchronous operations, blocking operations, and real-time capabilities like server-sent events.

Embed presentation

Download as PDF, PPTX
http://www.ratpack.io Dan Woods #ratpack #learningratpack
•  Member of the Ratpack core team •  Work at Netflix •  Writing Learning Ratpack for O’Reilly •  Follow me on Twitter: @danveloper

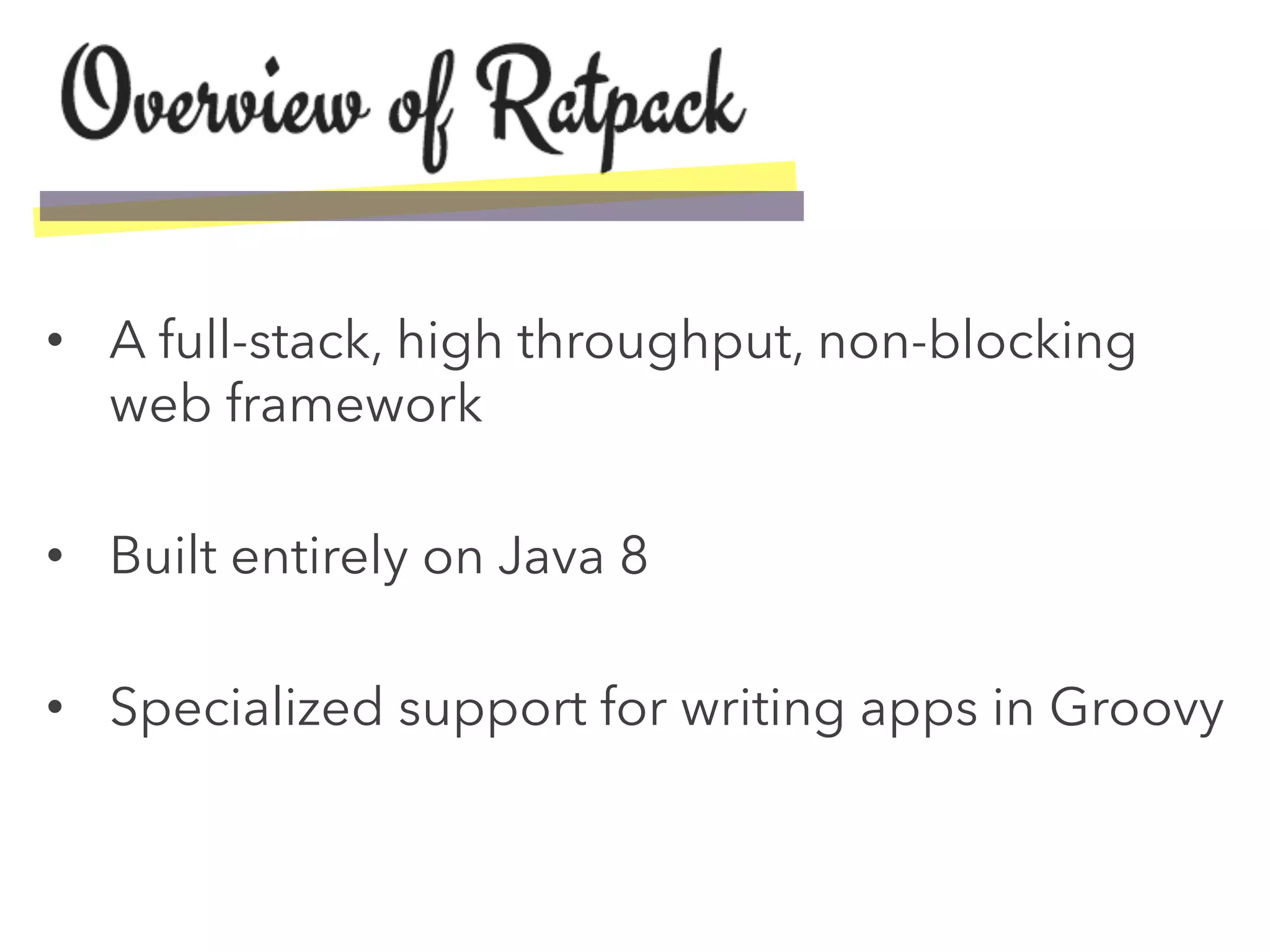

•  A full-stack, high throughput, non-blocking web framework •  Built entirely on Java 8 •  Specialized support for writing apps in Groovy

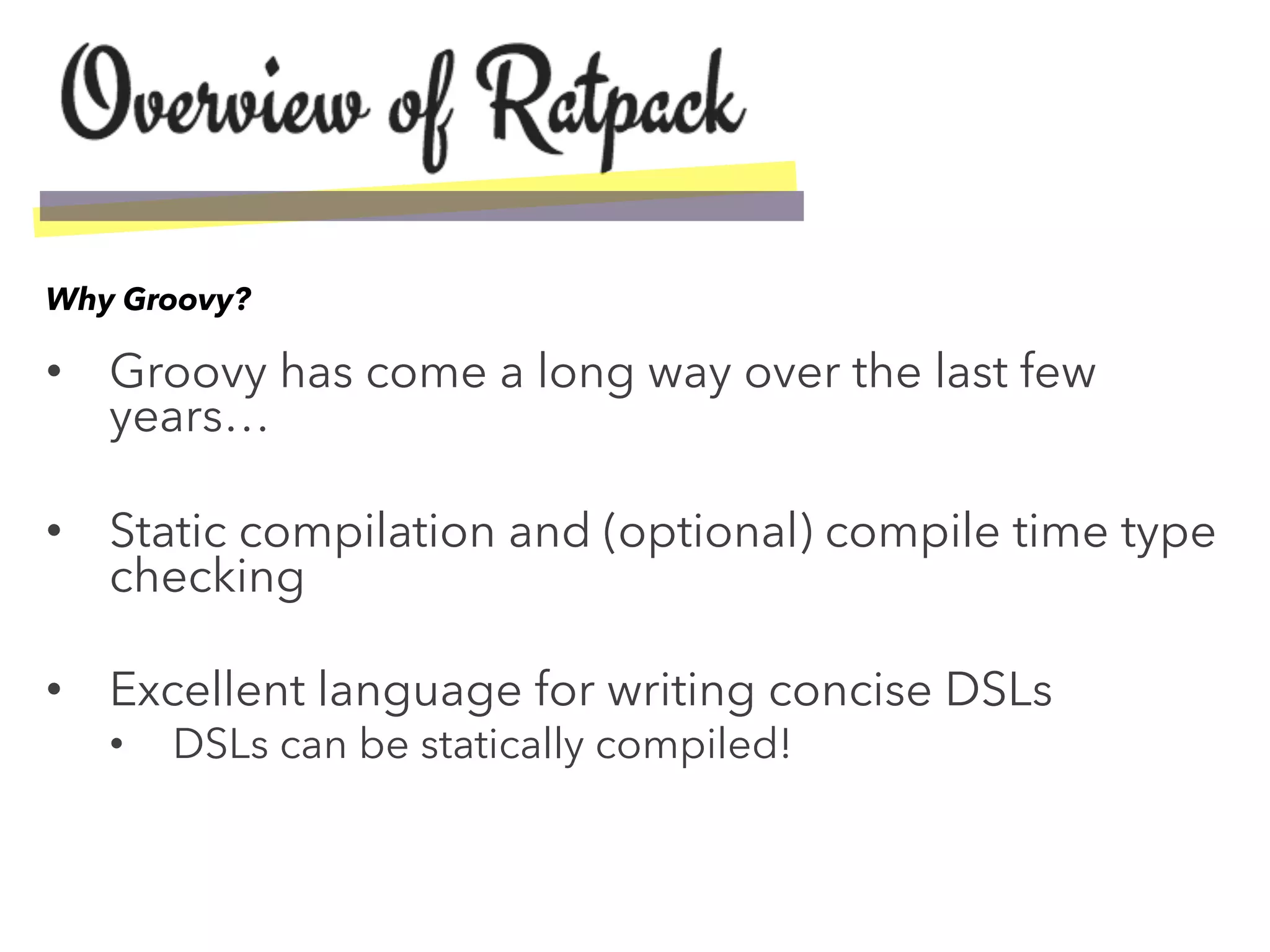

•  Groovy has come a long way over the last few years… •  Static compilation and (optional) compile time type checking •  Excellent language for writing concise DSLs •  DSLs can be statically compiled! Why Groovy?

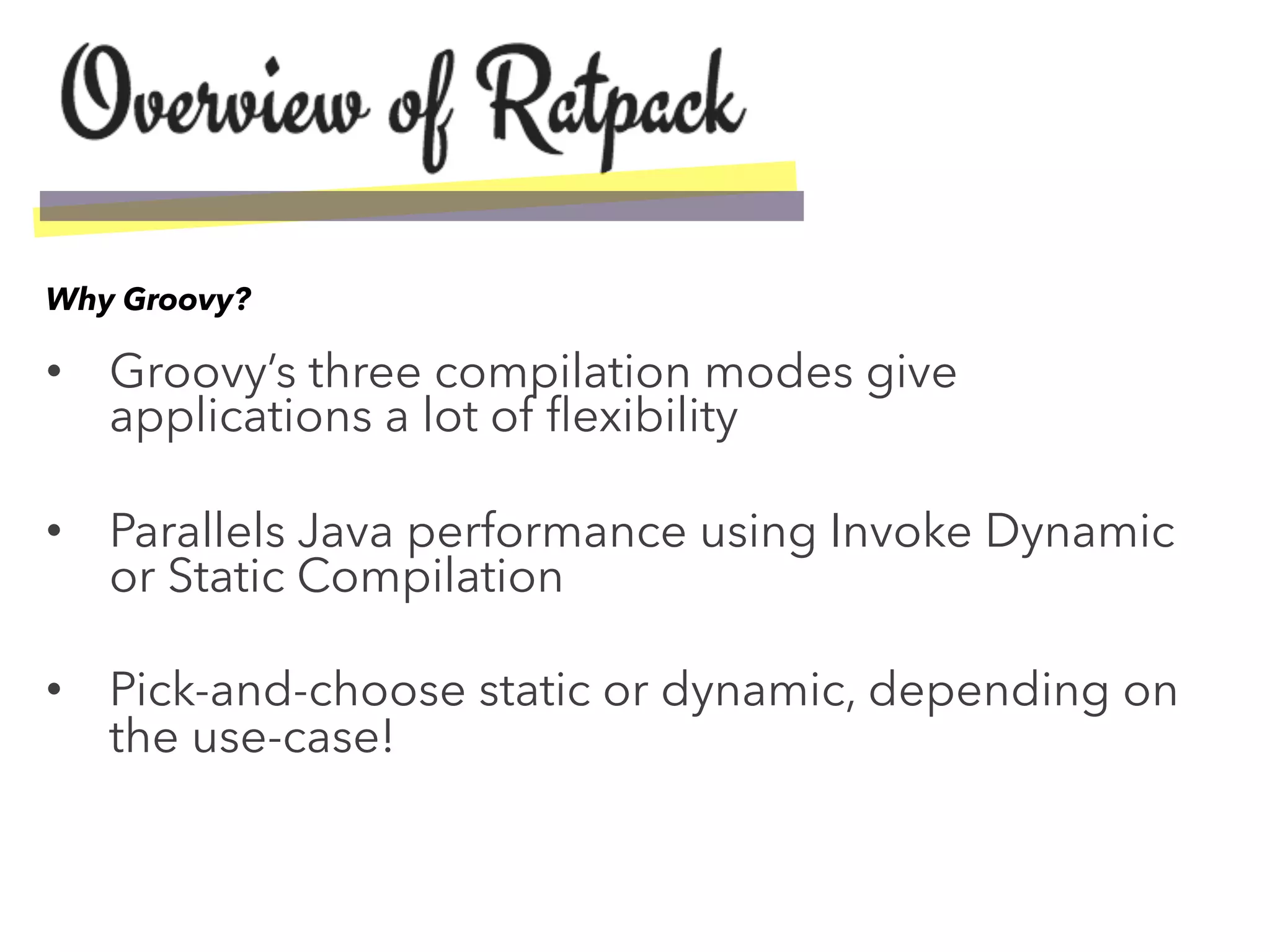

•  Groovy’s three compilation modes give applications a lot of flexibility •  Parallels Java performance using Invoke Dynamic or Static Compilation •  Pick-and-choose static or dynamic, depending on the use-case! Why Groovy?

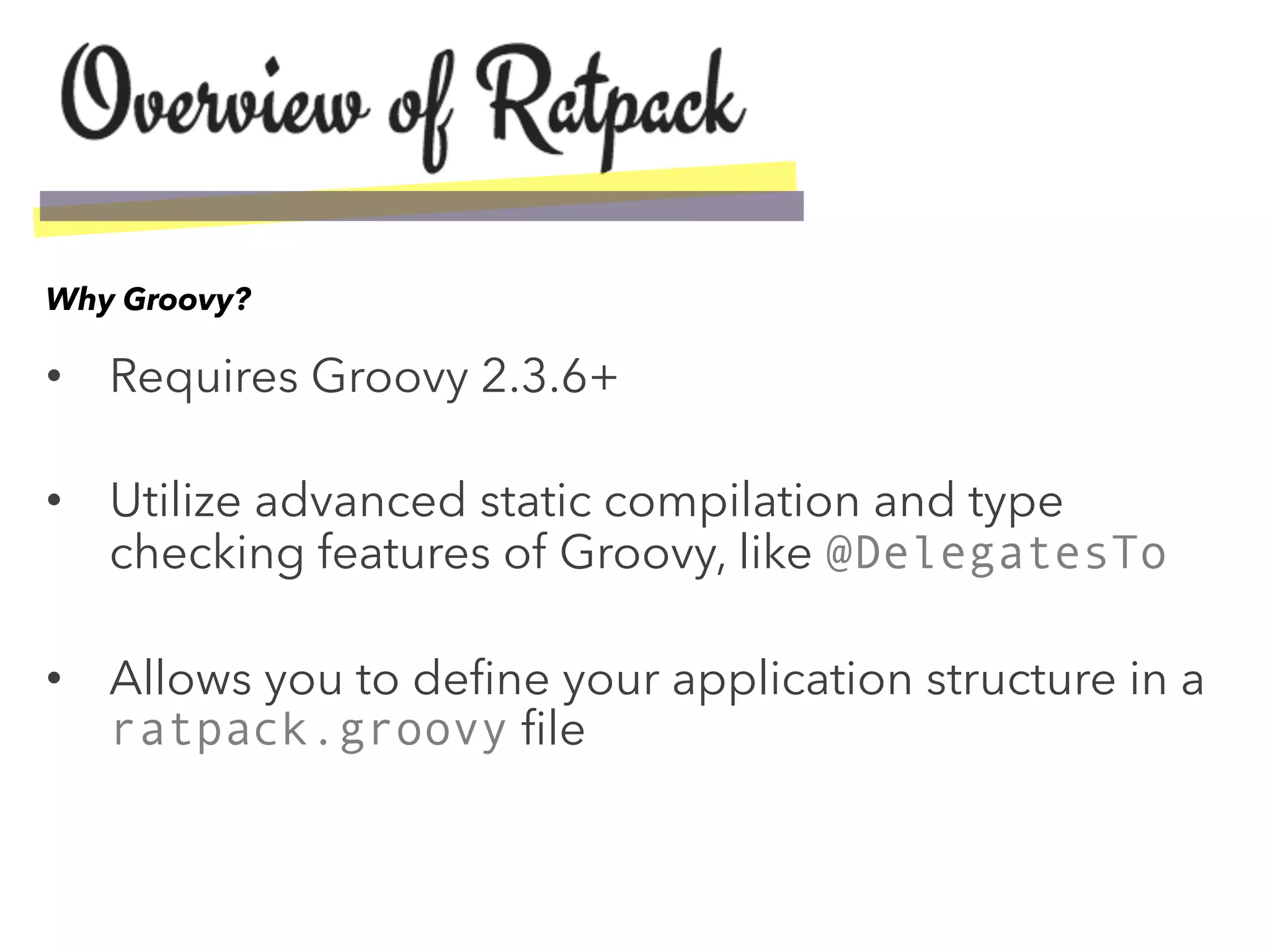

•  Requires Groovy 2.3.6+ •  Utilize advanced static compilation and type checking features of Groovy, like @DelegatesTo •  Allows you to define your application structure in a ratpack.groovy file Why Groovy?

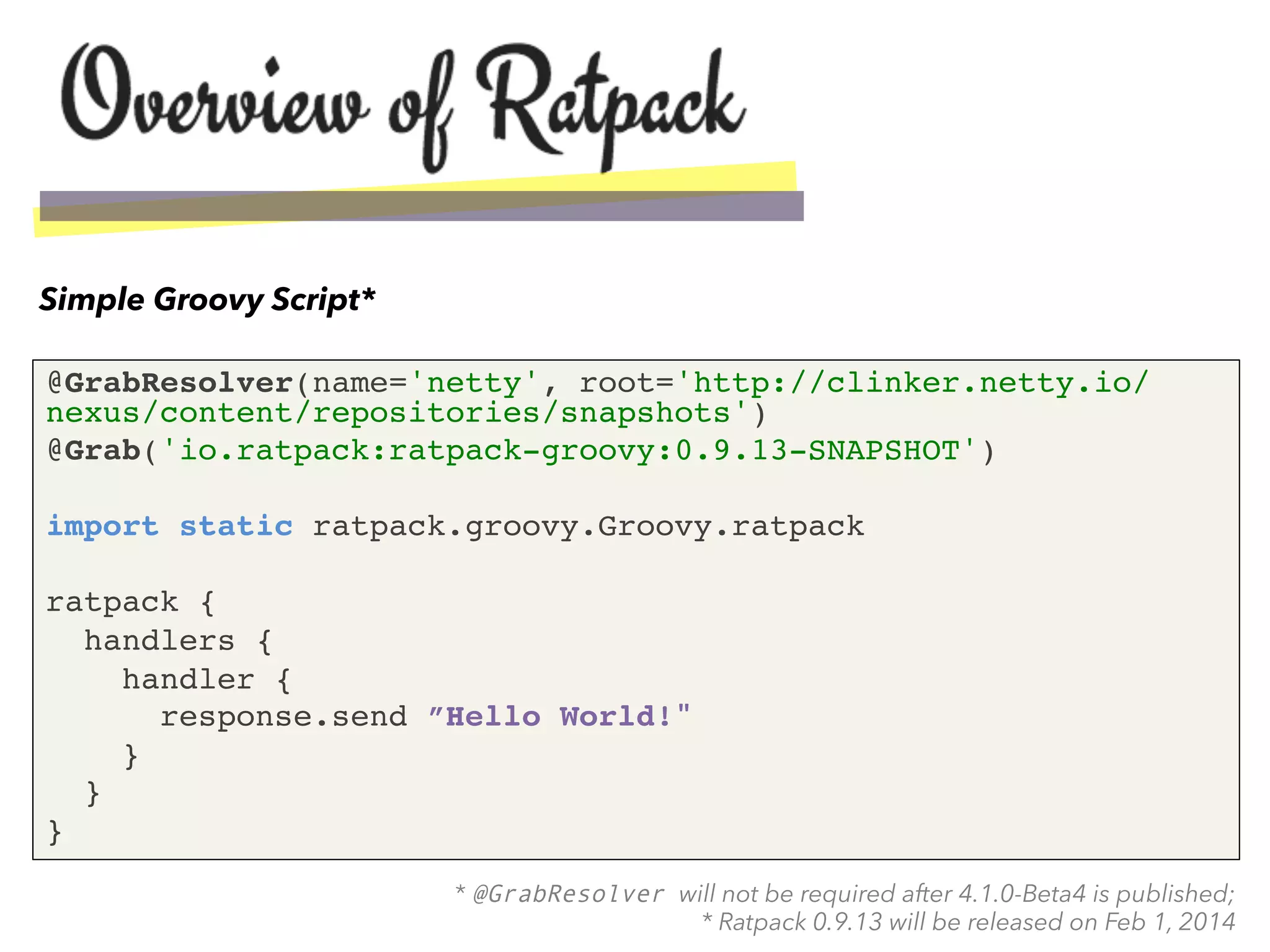

@GrabResolver(name='netty', root='http://clinker.netty.io/ nexus/content/repositories/snapshots')! @Grab('io.ratpack:ratpack-groovy:0.9.13-SNAPSHOT')! ! import static ratpack.groovy.Groovy.ratpack! ! ratpack {! handlers {! handler { ! response.send ”Hello World!"! }! }! }! Simple Groovy Script* * @GrabResolver will not be required after 4.1.0-Beta4 is published; * Ratpack 0.9.13 will be released on Feb 1, 2014

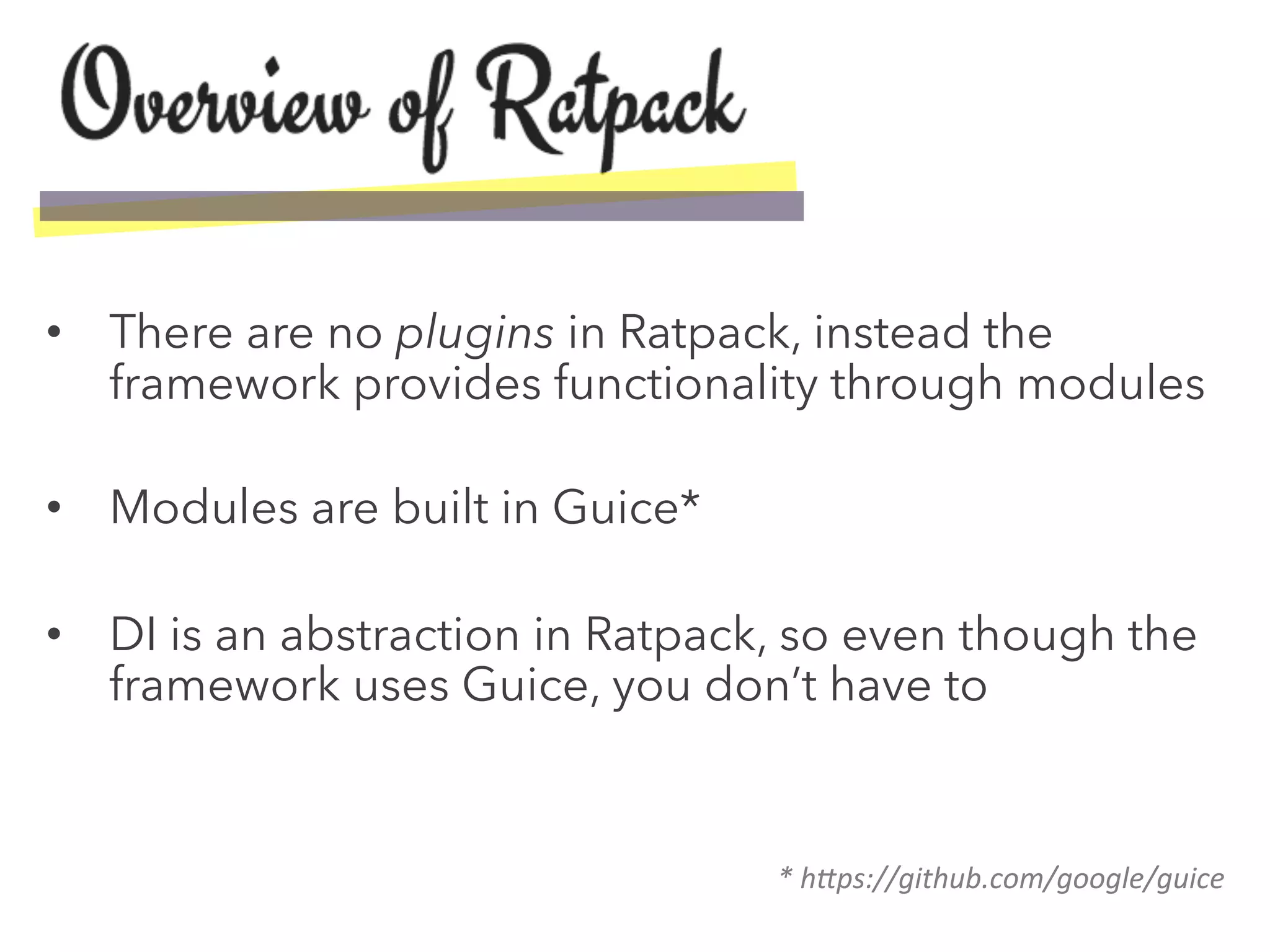

•  There are no plugins in Ratpack, instead the framework provides functionality through modules •  Modules are built in Guice* •  DI is an abstraction in Ratpack, so even though the framework uses Guice, you don’t have to *  h$ps://github.com/google/guice

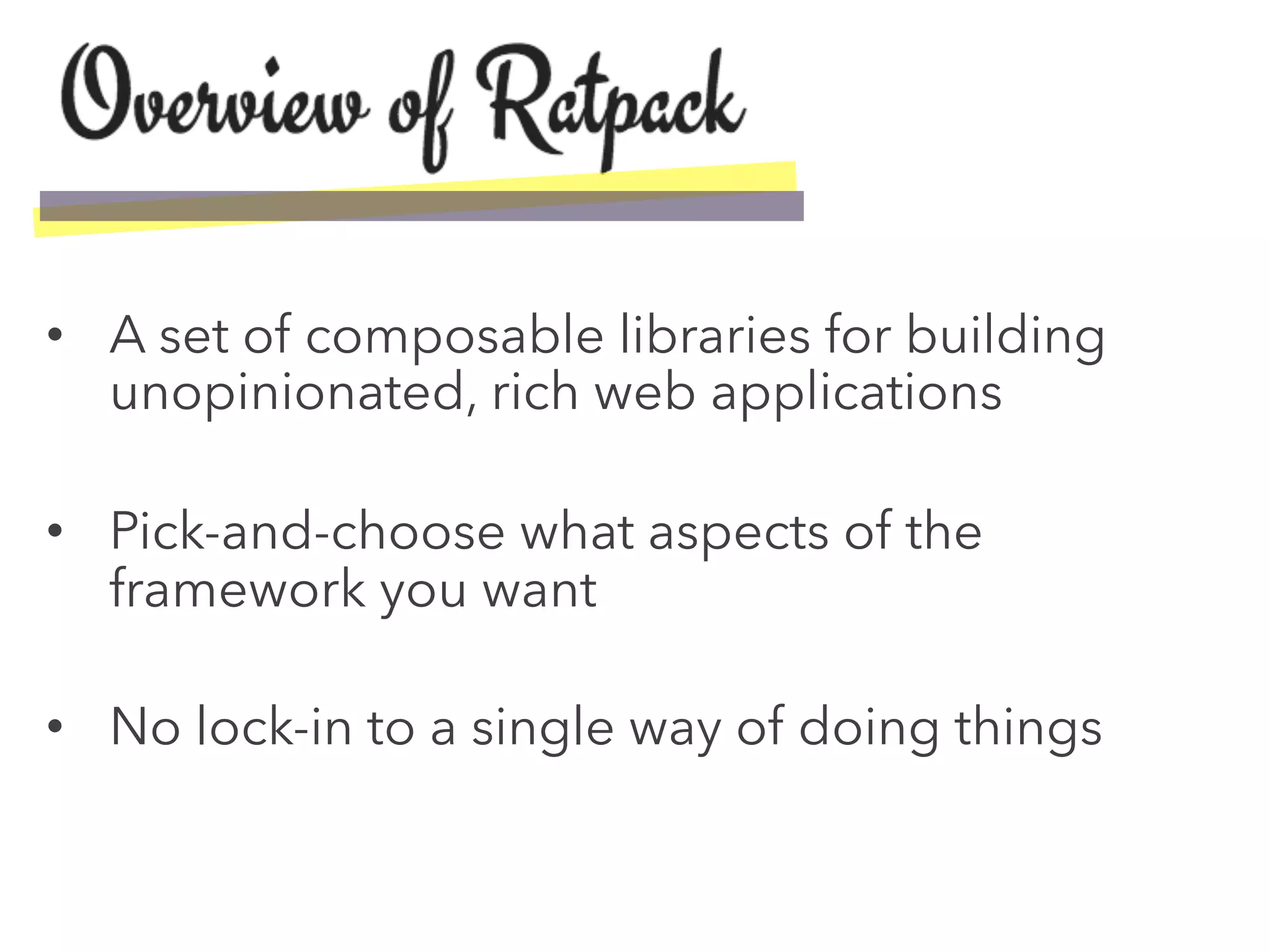

•  A set of composable libraries for building unopinionated, rich web applications •  Pick-and-choose what aspects of the framework you want •  No lock-in to a single way of doing things

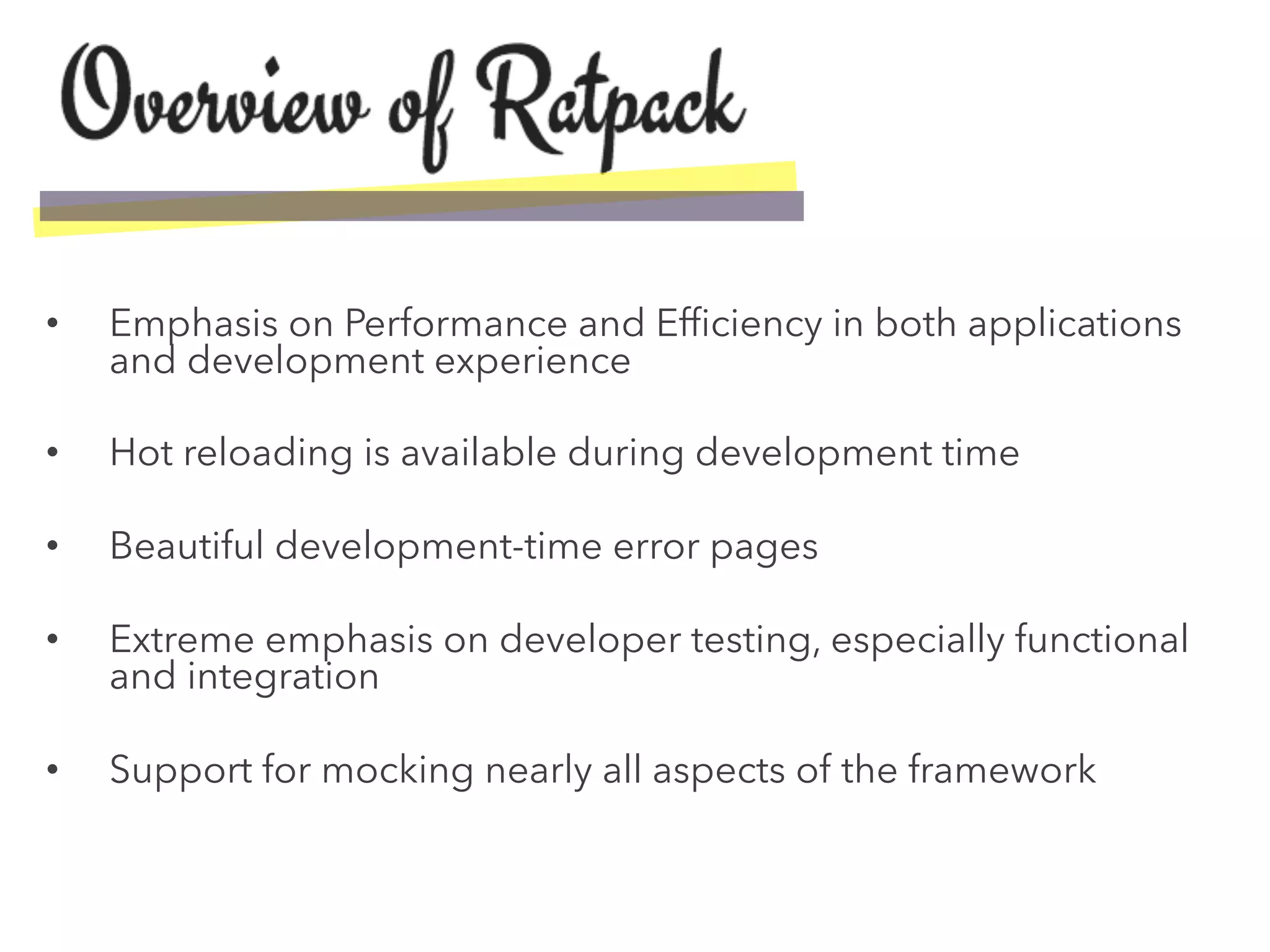

•  Emphasis on Performance and Efficiency in both applications and development experience •  Hot reloading is available during development time •  Beautiful development-time error pages •  Extreme emphasis on developer testing, especially functional and integration •  Support for mocking nearly all aspects of the framework

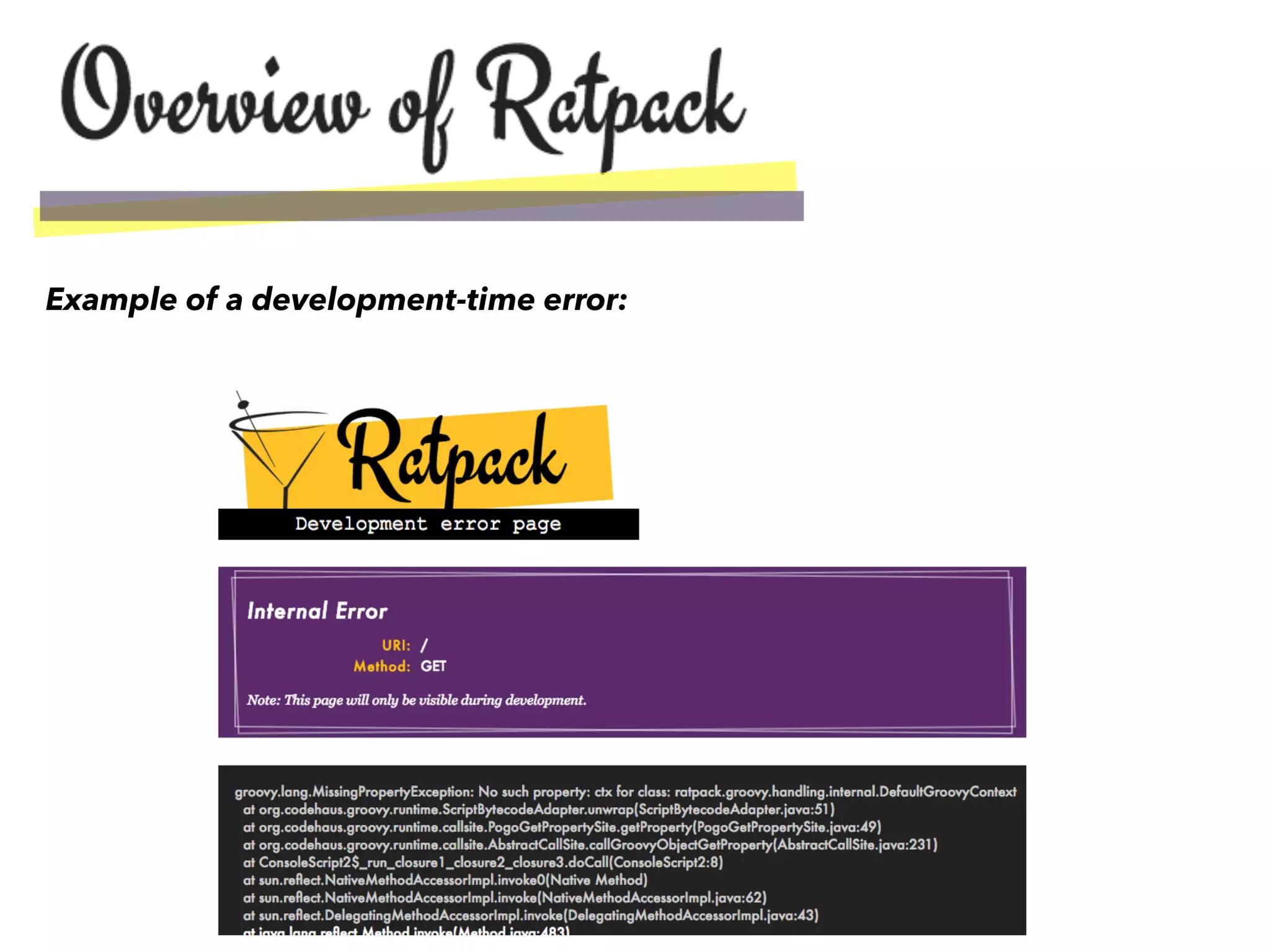

Example of a development-time error:

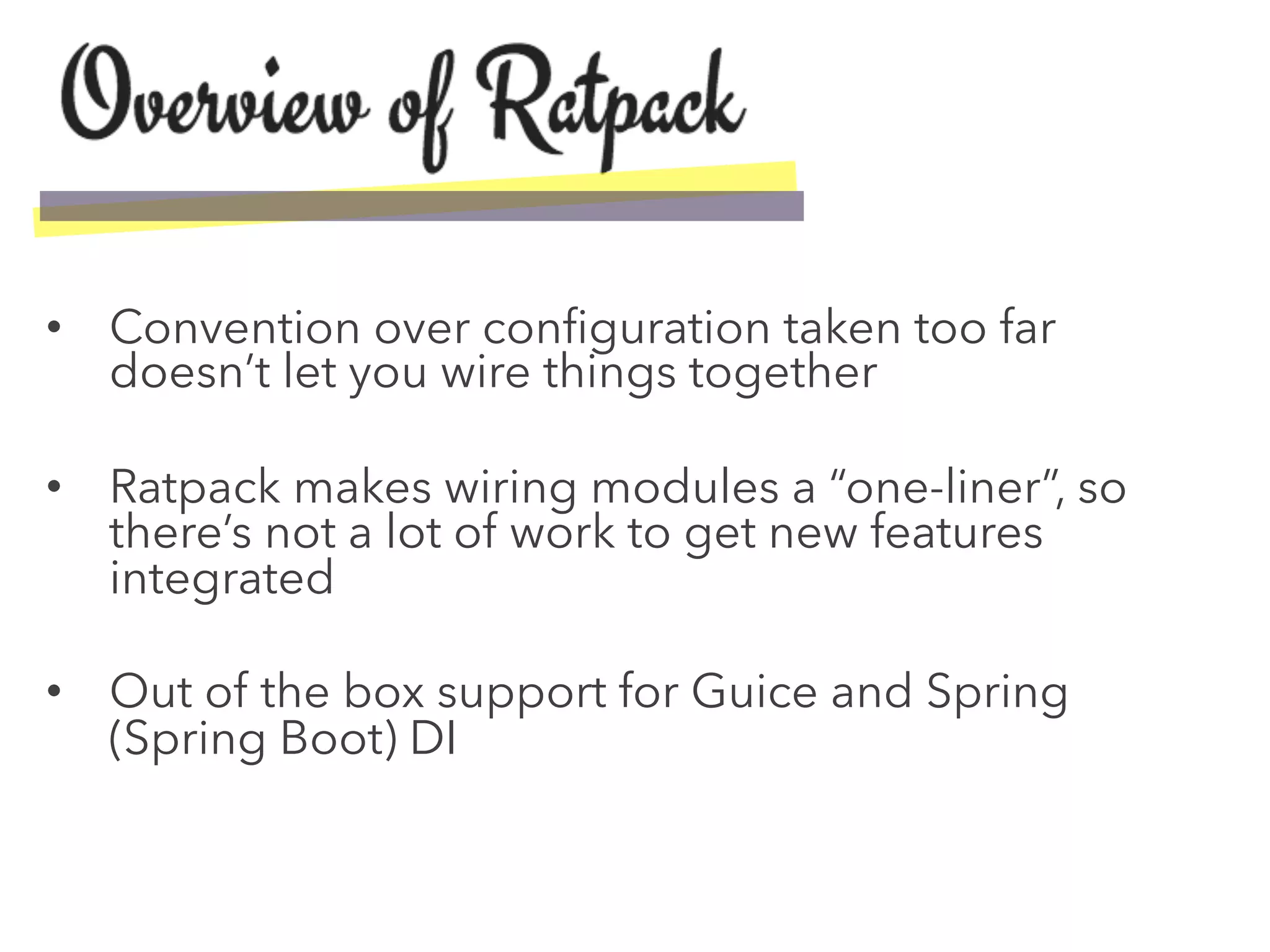

•  Convention over configuration taken too far doesn’t let you wire things together •  Ratpack makes wiring modules a “one-liner”, so there’s not a lot of work to get new features integrated •  Out of the box support for Guice and Spring (Spring Boot) DI

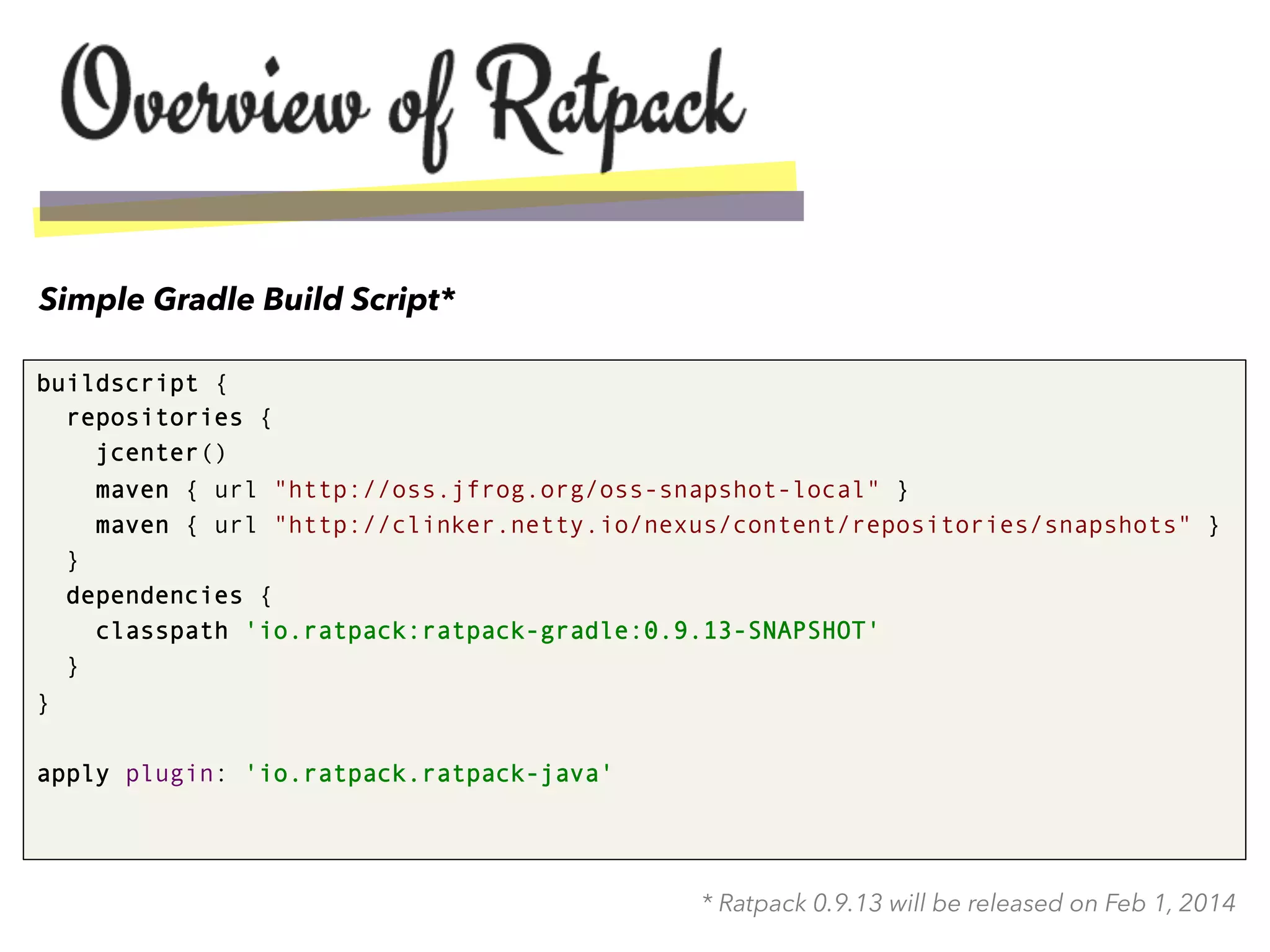

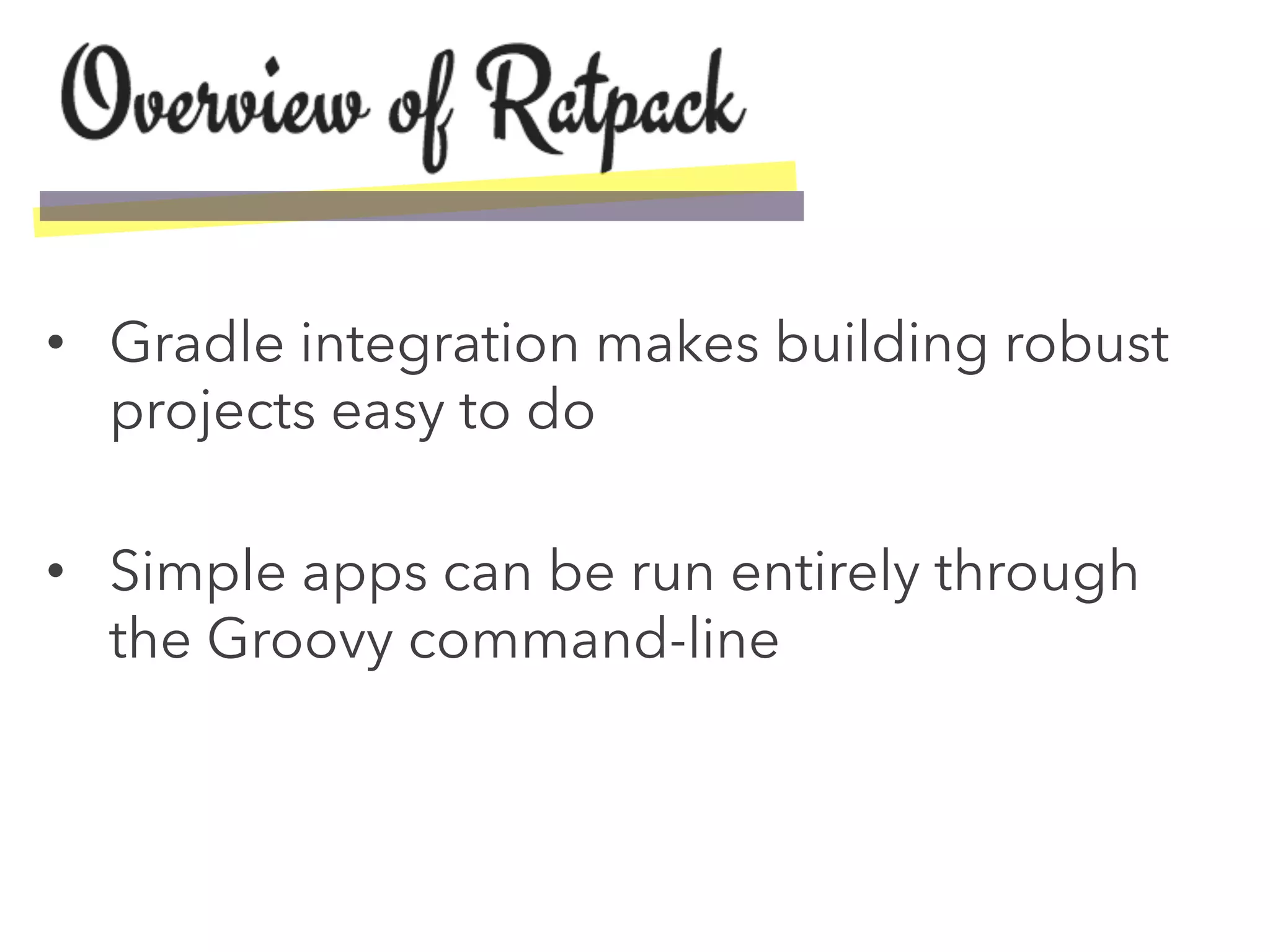

•  Gradle integration makes building robust projects easy to do •  Simple apps can be run entirely through the Groovy command-line
buildscript { repositories { jcenter() maven { url "http://oss.jfrog.org/oss-snapshot-local" } maven { url "http://clinker.netty.io/nexus/content/repositories/snapshots" } } dependencies { classpath 'io.ratpack:ratpack-gradle:0.9.13-SNAPSHOT' } } apply plugin: 'io.ratpack.ratpack-java' Simple Gradle Build Script* * Ratpack 0.9.13 will be released on Feb 1, 2014

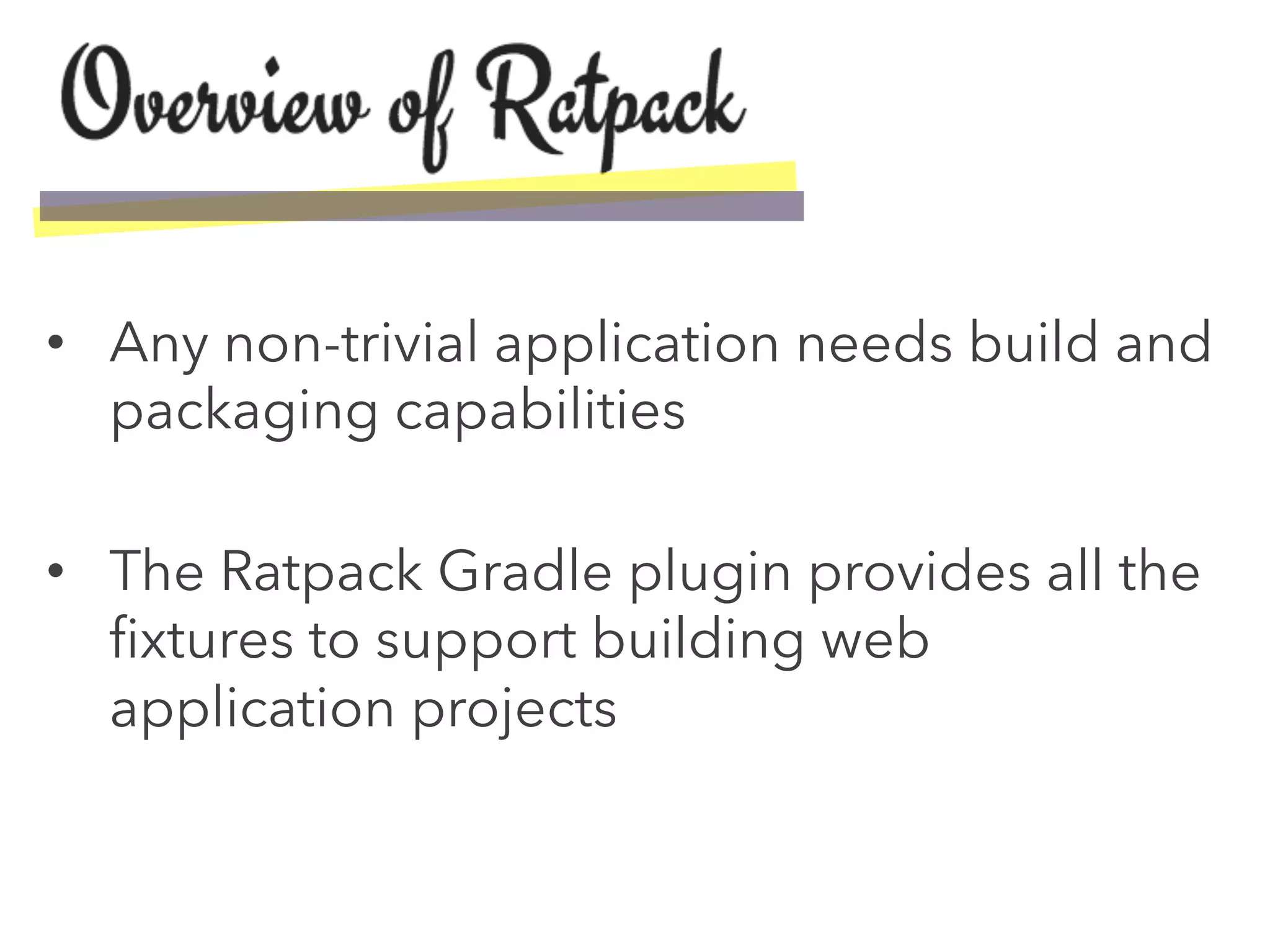

•  Any non-trivial application needs build and packaging capabilities •  The Ratpack Gradle plugin provides all the fixtures to support building web application projects
•  Ratpack is built on Netty, which provides the infrastructure for highly performant, non-blocking networking

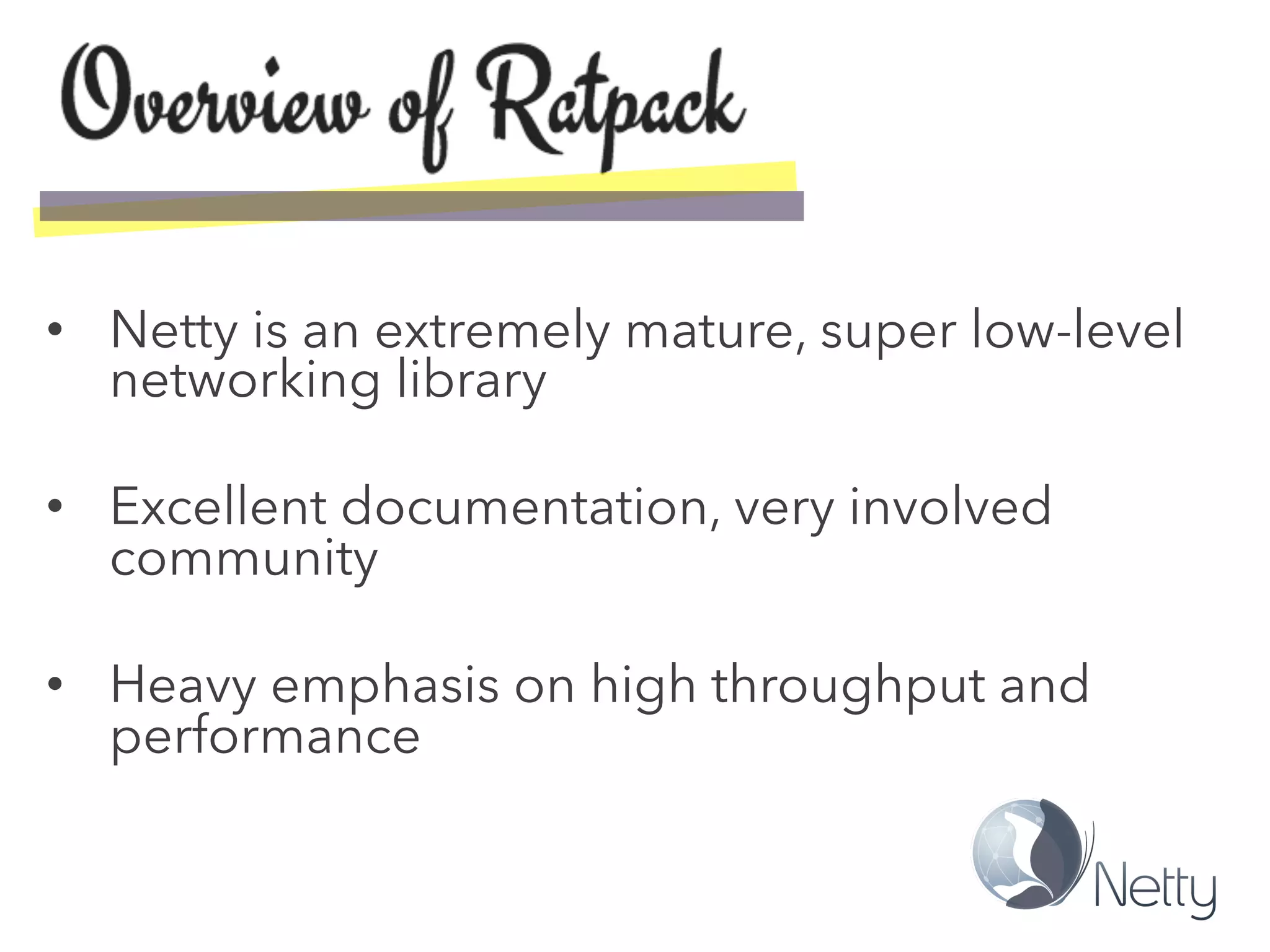

•  Netty is an extremely mature, super low-level networking library •  Excellent documentation, very involved community •  Heavy emphasis on high throughput and performance

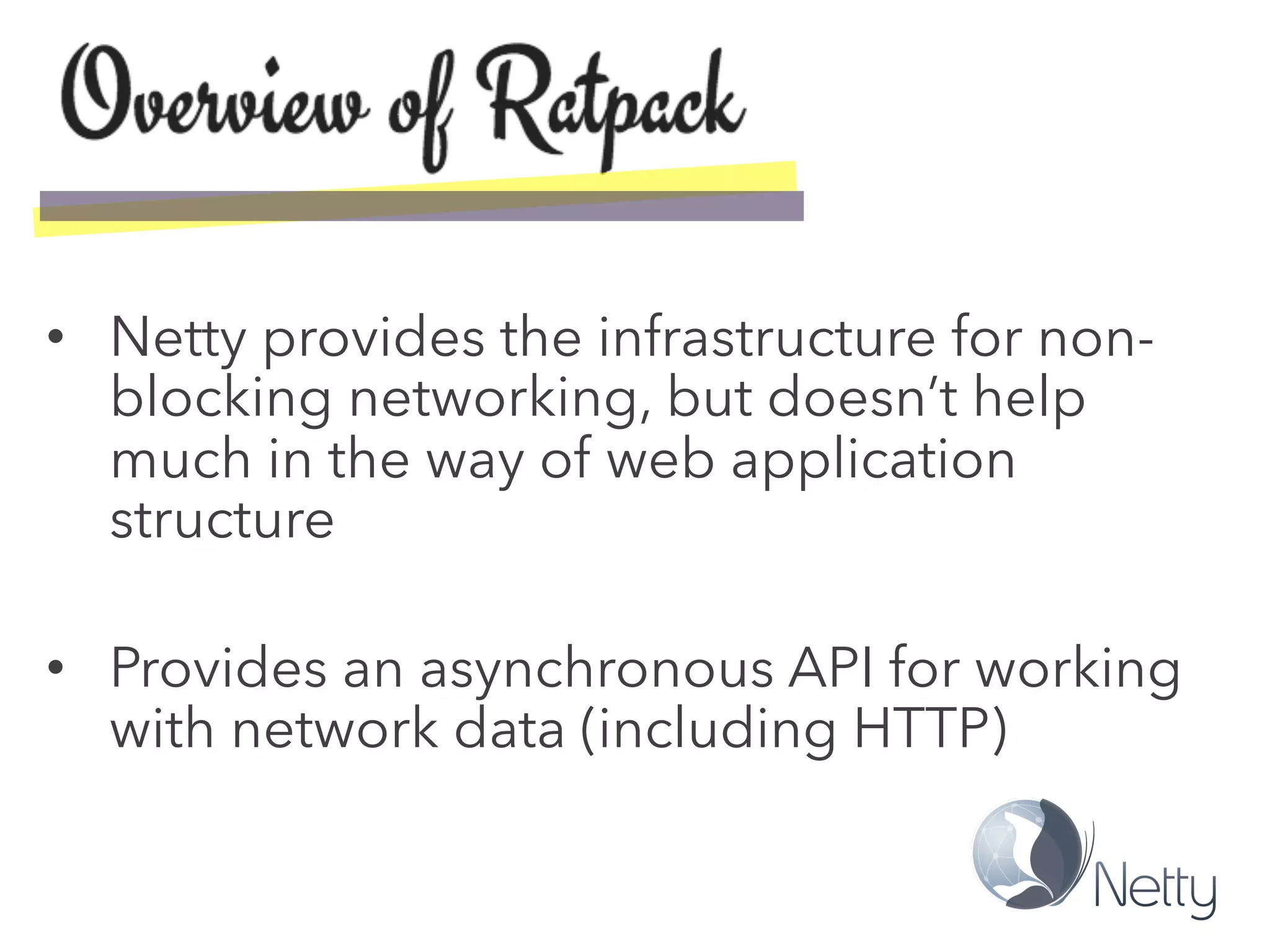

•  Netty provides the infrastructure for non- blocking networking, but doesn’t help much in the way of web application structure •  Provides an asynchronous API for working with network data (including HTTP)

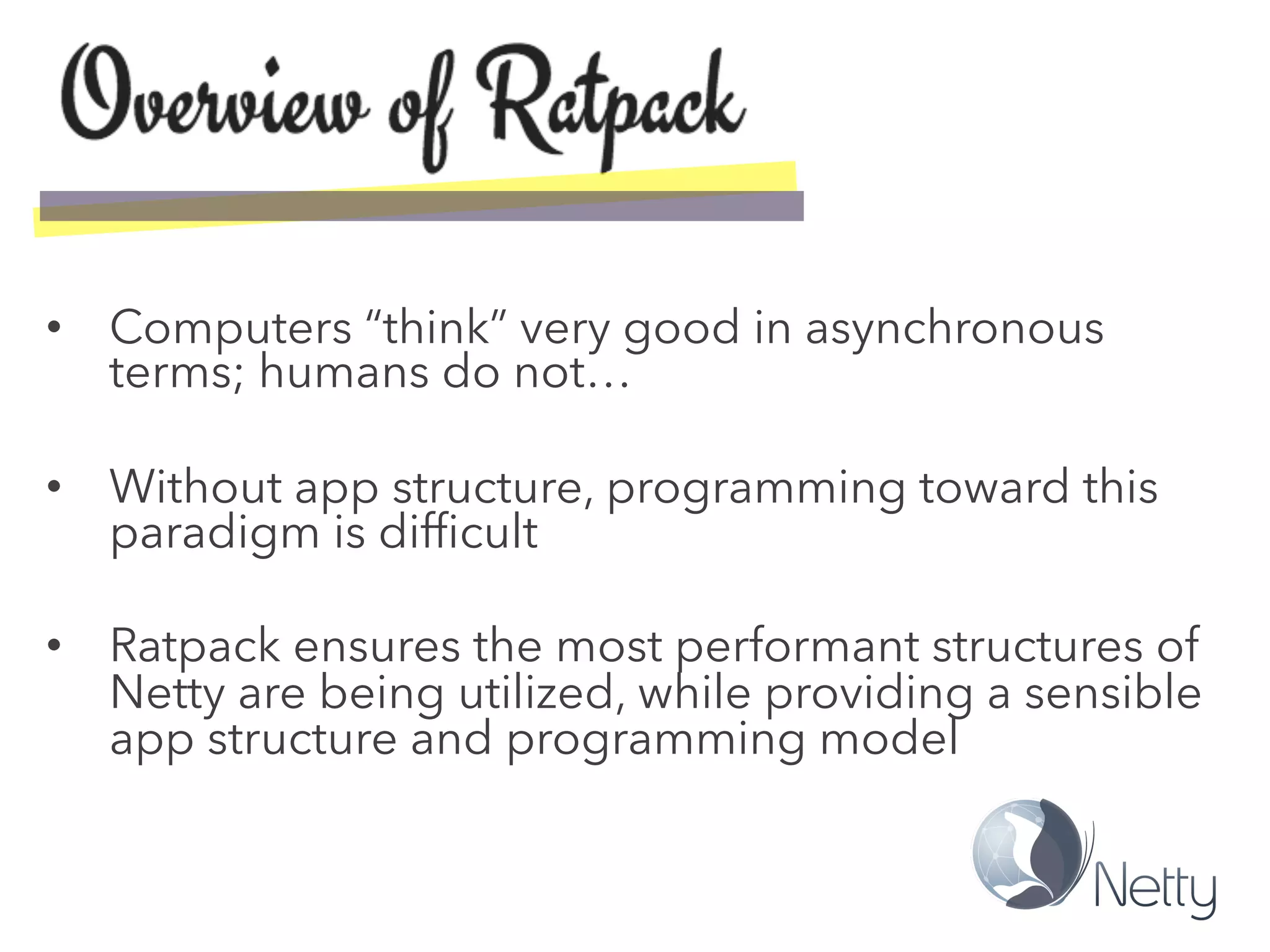

•  Computers “think” very good in asynchronous terms; humans do not… •  Without app structure, programming toward this paradigm is difficult •  Ratpack ensures the most performant structures of Netty are being utilized, while providing a sensible app structure and programming model

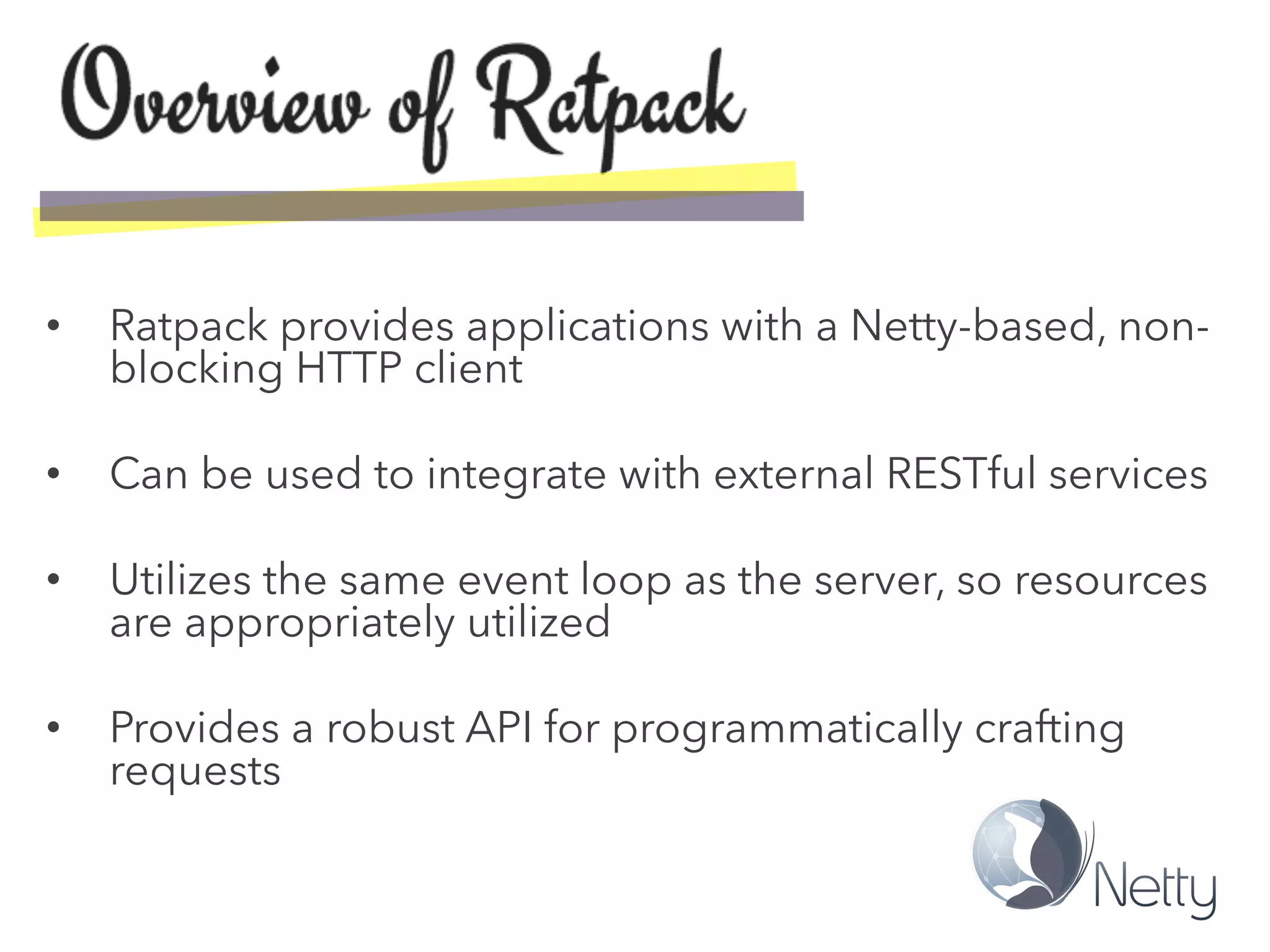

•  Ratpack provides applications with a Netty-based, non- blocking HTTP client •  Can be used to integrate with external RESTful services •  Utilizes the same event loop as the server, so resources are appropriately utilized •  Provides a robust API for programmatically crafting requests
Above all else… Ratpack is your GATEWAY DRUG to non-blocking

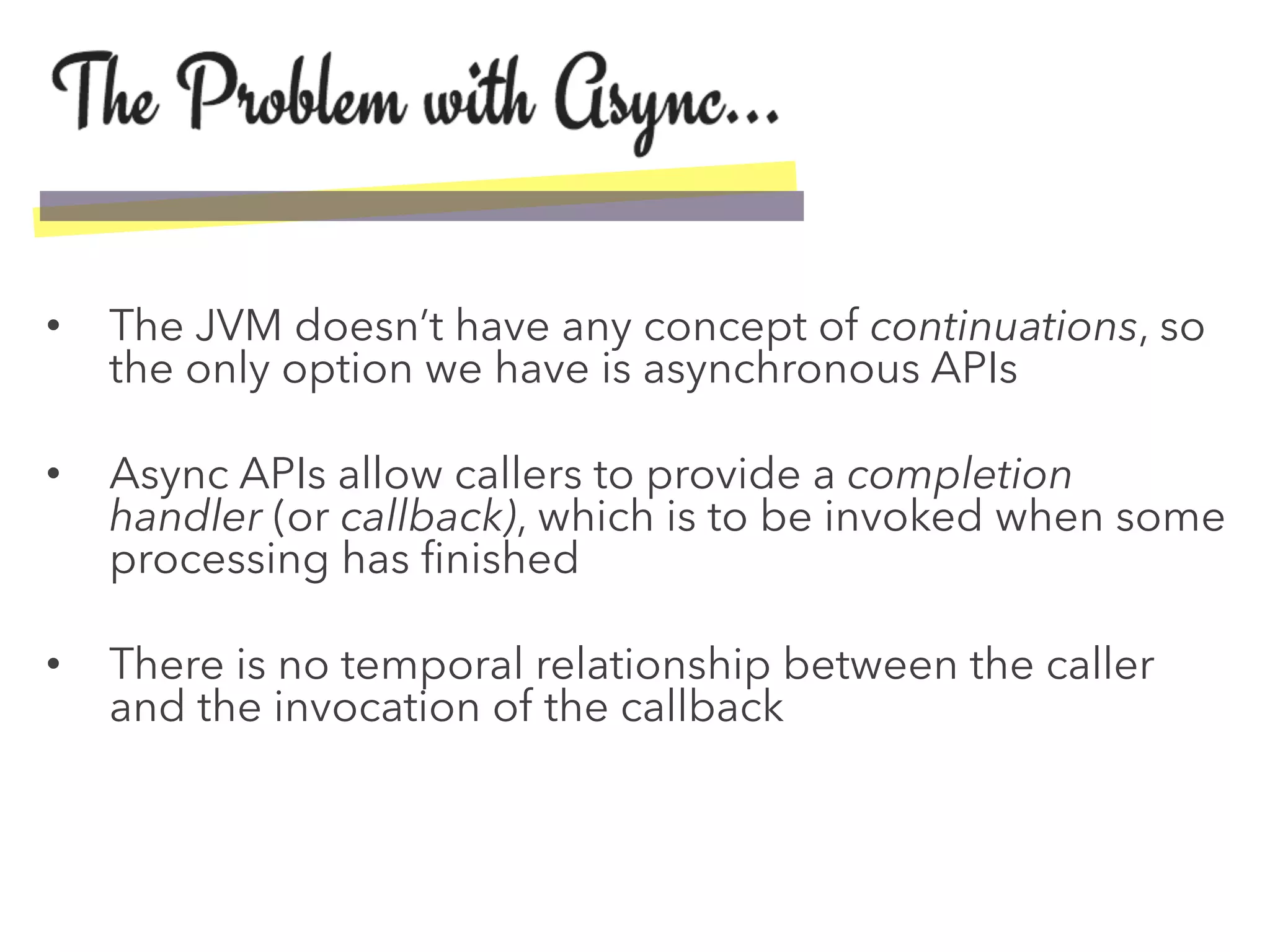

•  The JVM doesn’t have any concept of continuations, so the only option we have is asynchronous APIs •  Async APIs allow callers to provide a completion handler (or callback), which is to be invoked when some processing has finished •  There is no temporal relationship between the caller and the invocation of the callback

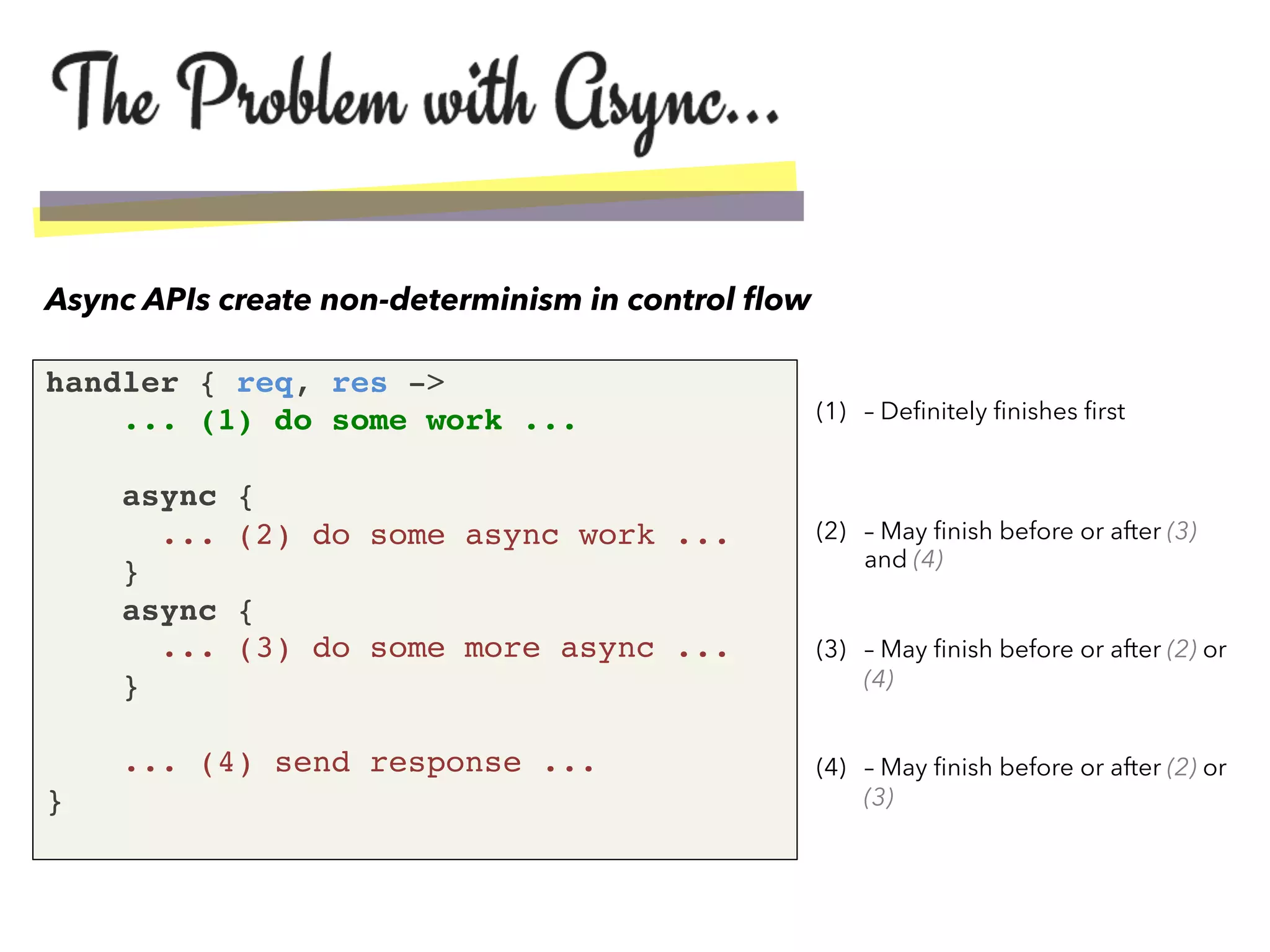

handler { req, res ->! ... (1) do some work ...! ! async {! ... (2) do some async work ...! }! async {! ... (3) do some more async ...! }! ! ... (4) send response ...! }! (1)  – Definitely finishes first (2)  – May finish before or after (3) and (4) (3)  – May finish before or after (2) or (4) (4)  – May finish before or after (2) or (3) Async APIs create non-determinism in control flow

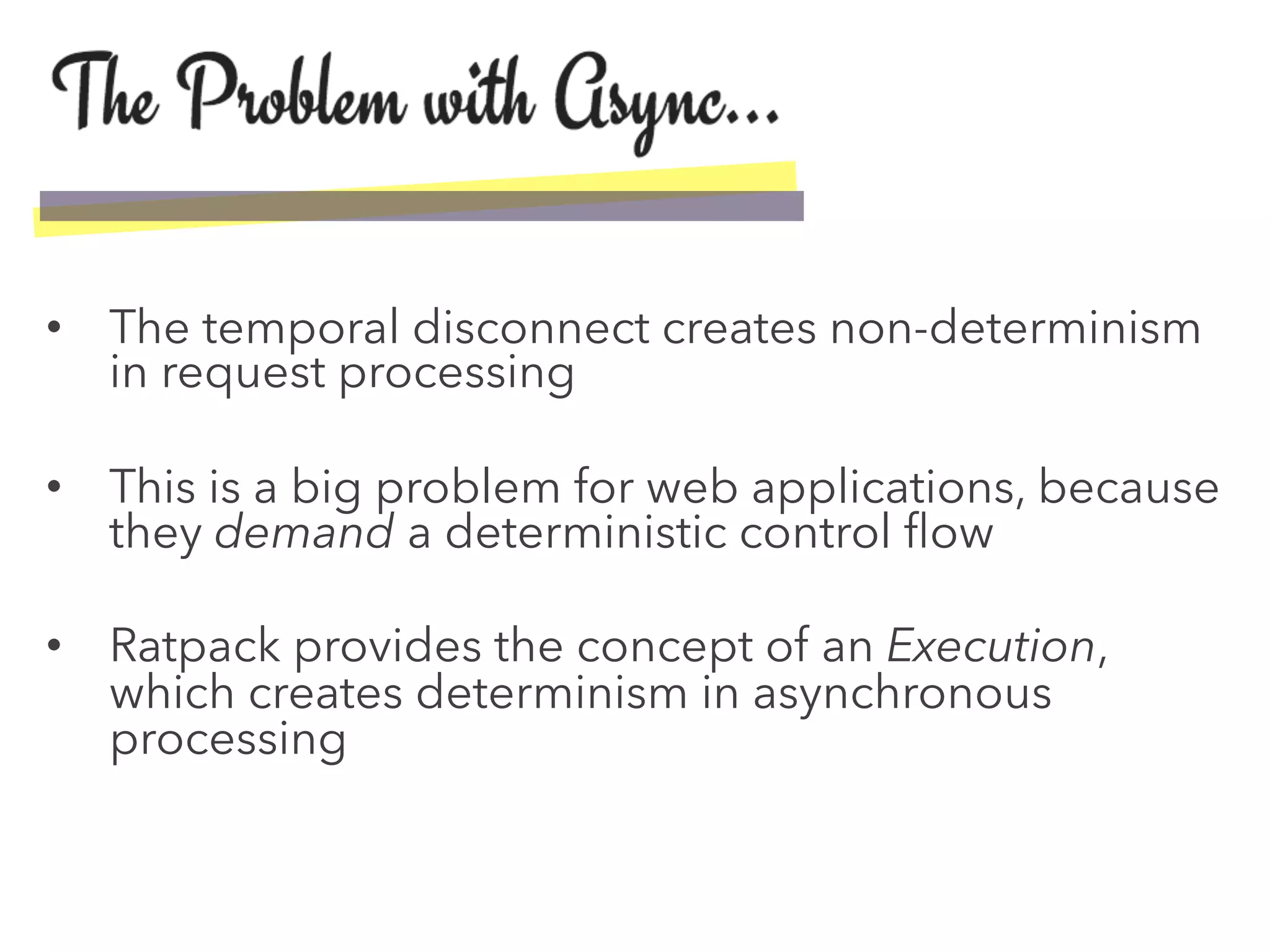

•  The temporal disconnect creates non-determinism in request processing •  This is a big problem for web applications, because they demand a deterministic control flow •  Ratpack provides the concept of an Execution, which creates determinism in asynchronous processing

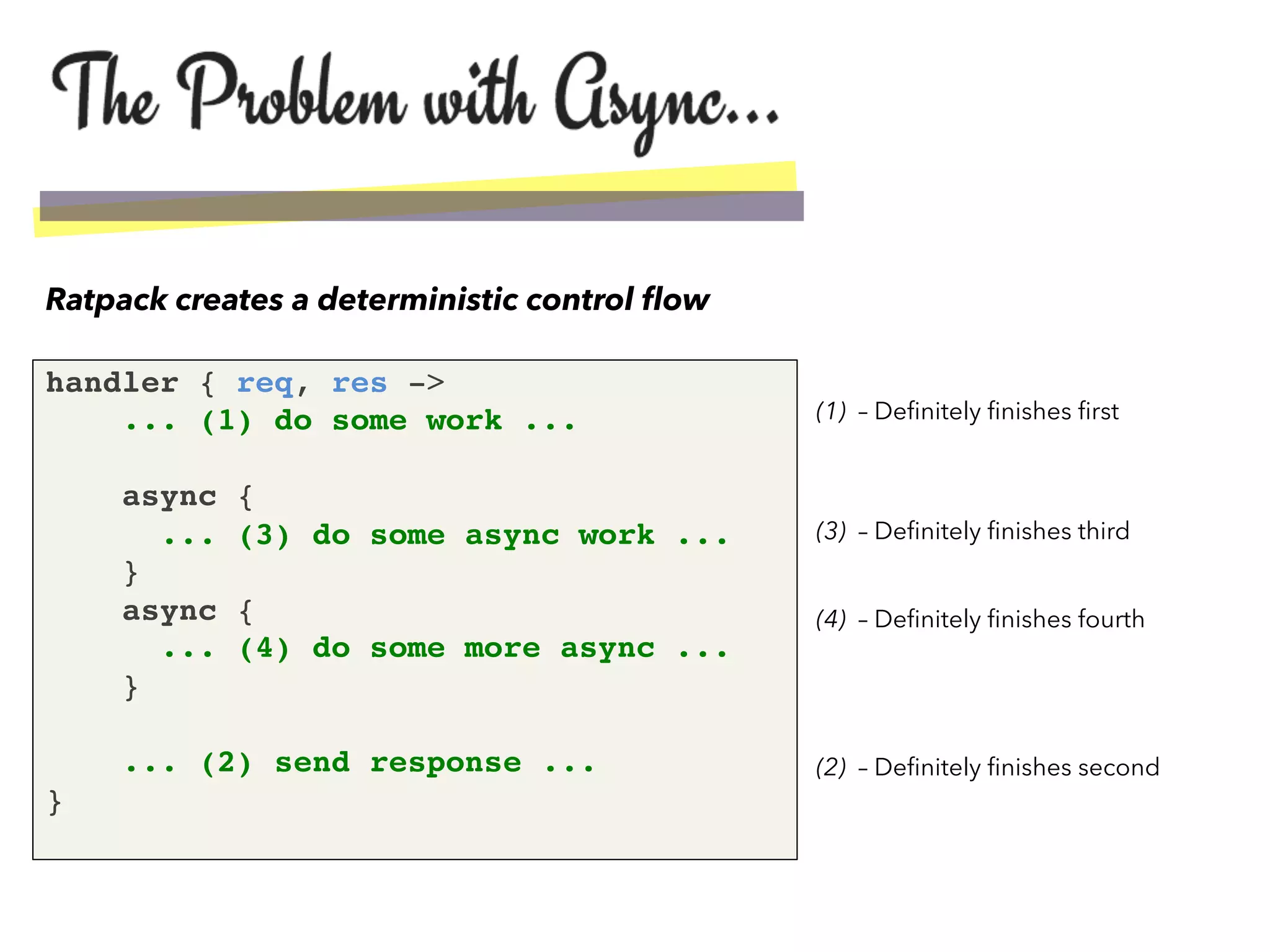

handler { req, res ->! ... (1) do some work ...! ! async {! ... (3) do some async work ...! }! async {! ... (4) do some more async ...! }! ! ... (2) send response ...! }! (1) – Definitely finishes first (3) – Definitely finishes third (4) – Definitely finishes fourth (2) – Definitely finishes second Ratpack creates a deterministic control flow

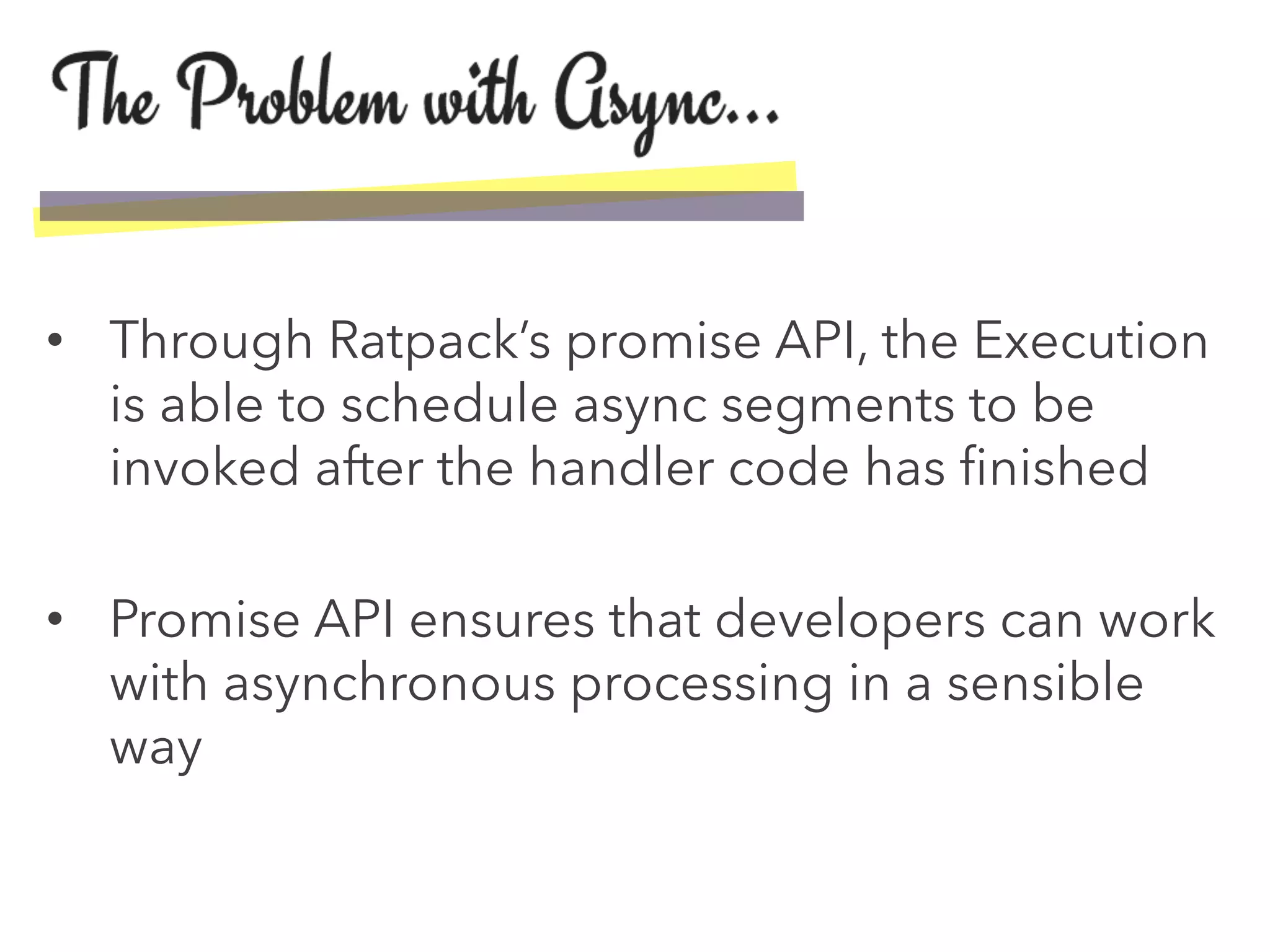

•  Through Ratpack’s promise API, the Execution is able to schedule async segments to be invoked after the handler code has finished •  Promise API ensures that developers can work with asynchronous processing in a sensible way

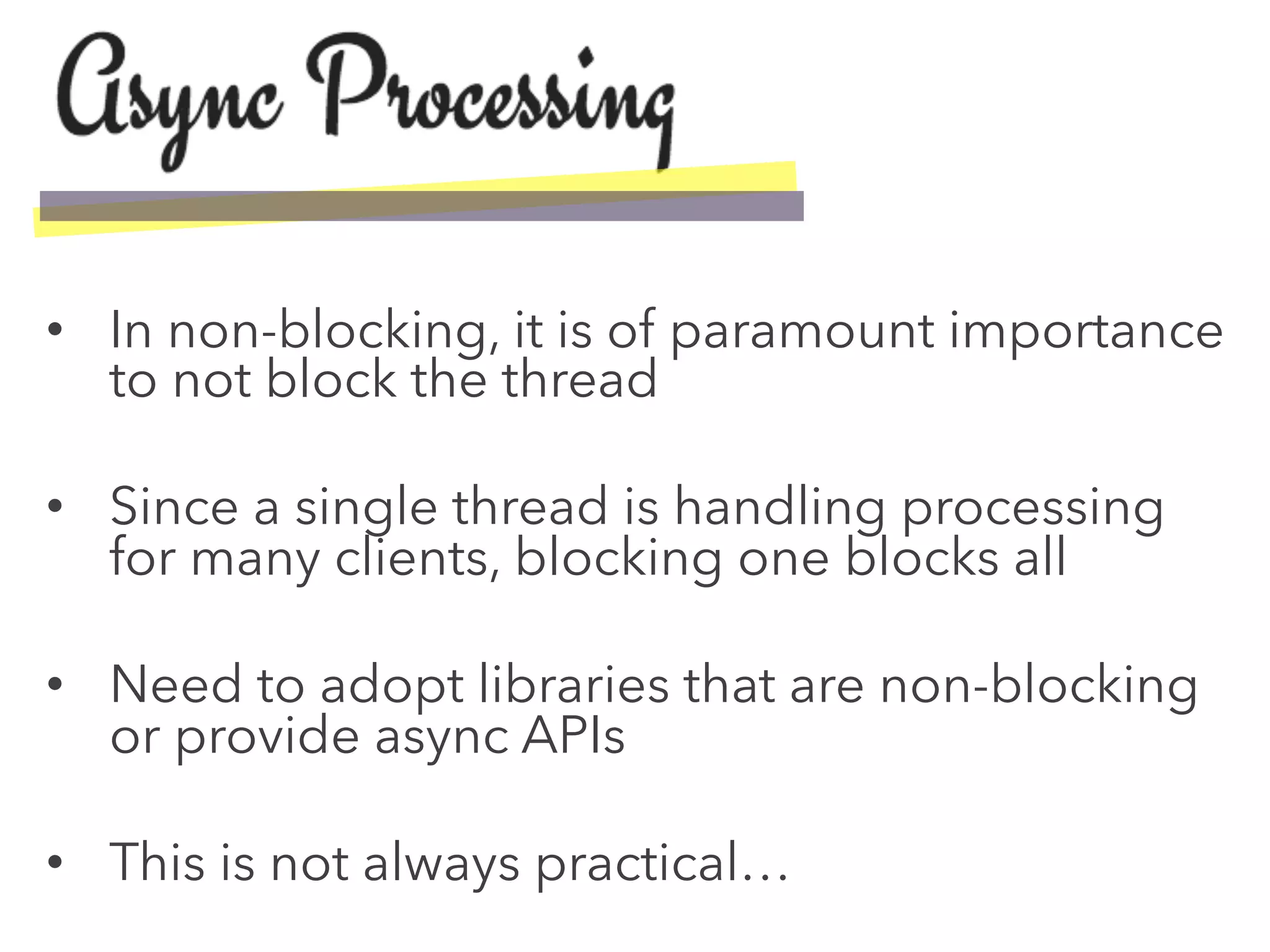

•  In non-blocking, it is of paramount importance to not block the thread •  Since a single thread is handling processing for many clients, blocking one blocks all •  Need to adopt libraries that are non-blocking or provide async APIs •  This is not always practical…

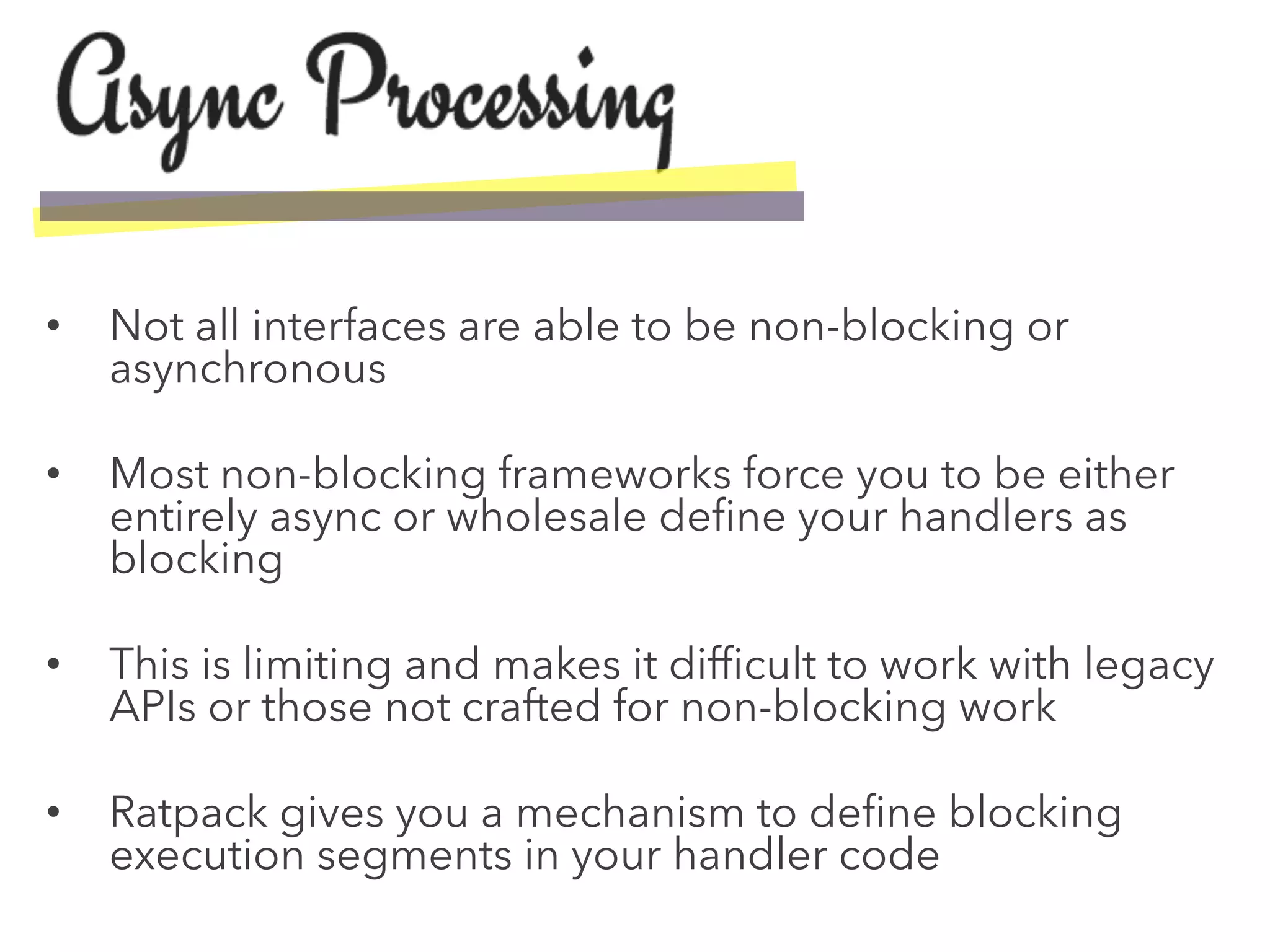

•  Not all interfaces are able to be non-blocking or asynchronous •  Most non-blocking frameworks force you to be either entirely async or wholesale define your handlers as blocking •  This is limiting and makes it difficult to work with legacy APIs or those not crafted for non-blocking work •  Ratpack gives you a mechanism to define blocking execution segments in your handler code

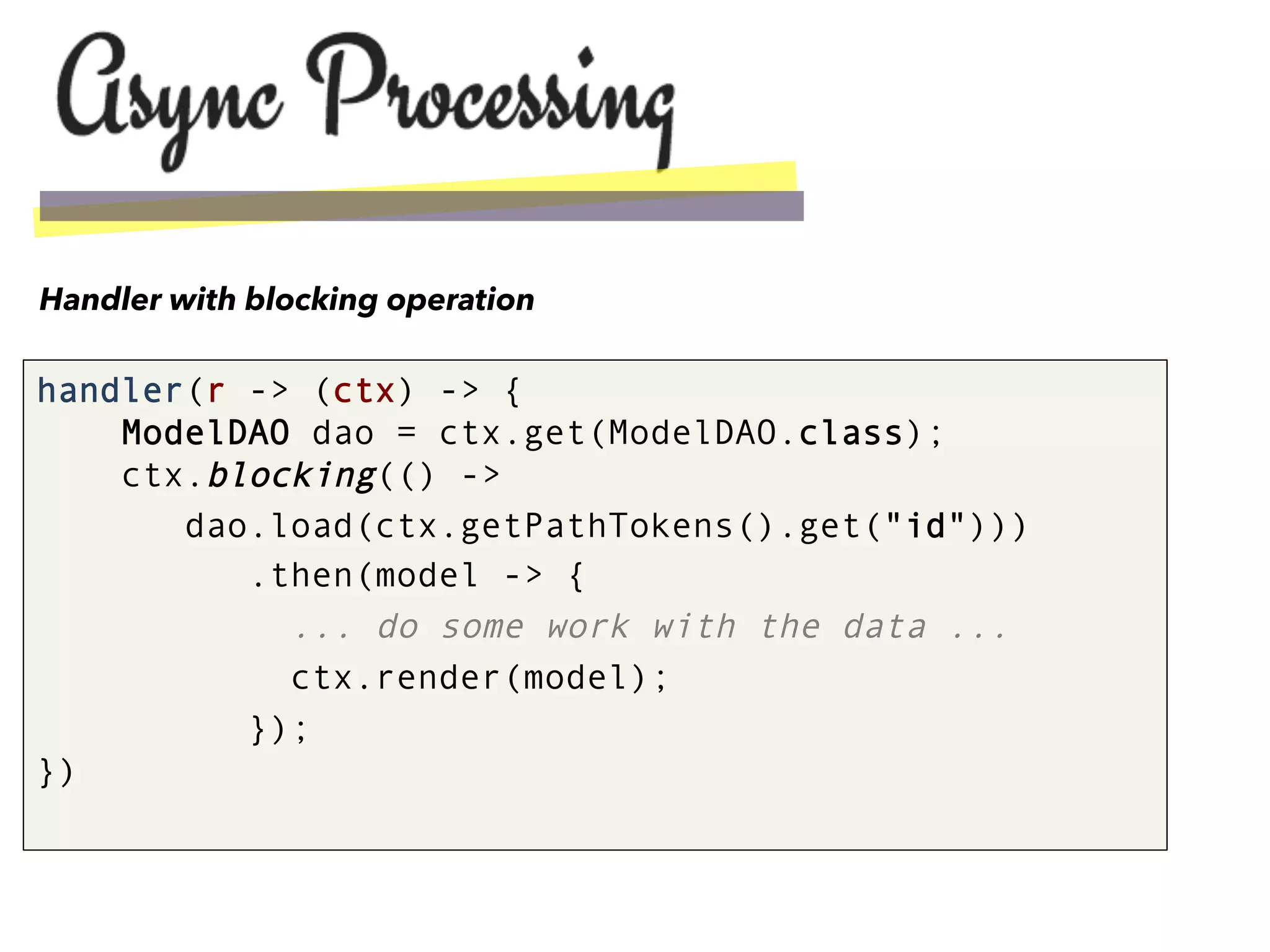

handler(r -> (ctx) -> { ModelDAO dao = ctx.get(ModelDAO.class); ctx.blocking(() -> dao.load(ctx.getPathTokens().get("id"))) .then(model -> { ... do some work with the data ... ctx.render(model); }); }) Handler with blocking operation

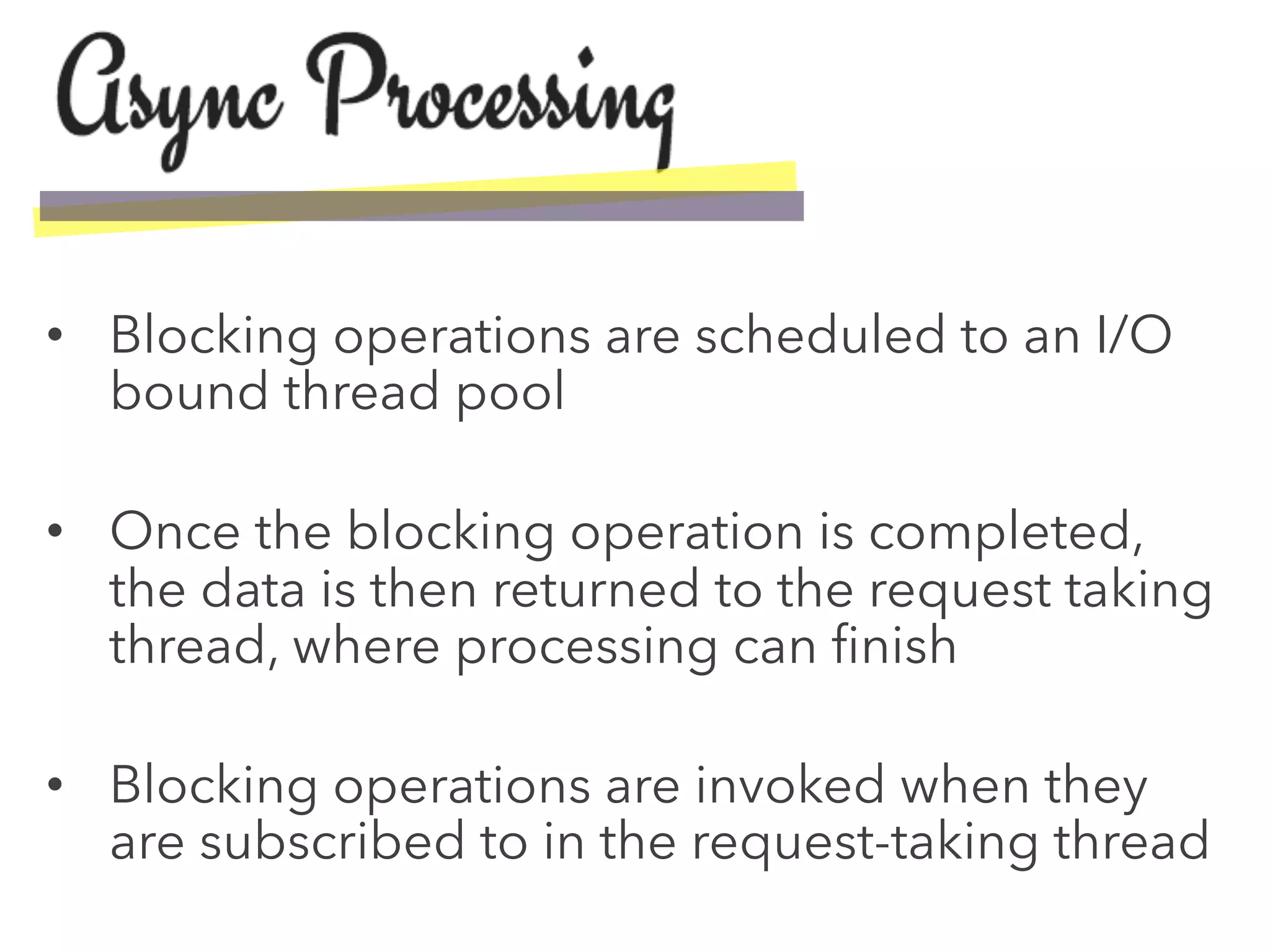

•  Blocking operations are scheduled to an I/O bound thread pool •  Once the blocking operation is completed, the data is then returned to the request taking thread, where processing can finish •  Blocking operations are invoked when they are subscribed to in the request-taking thread

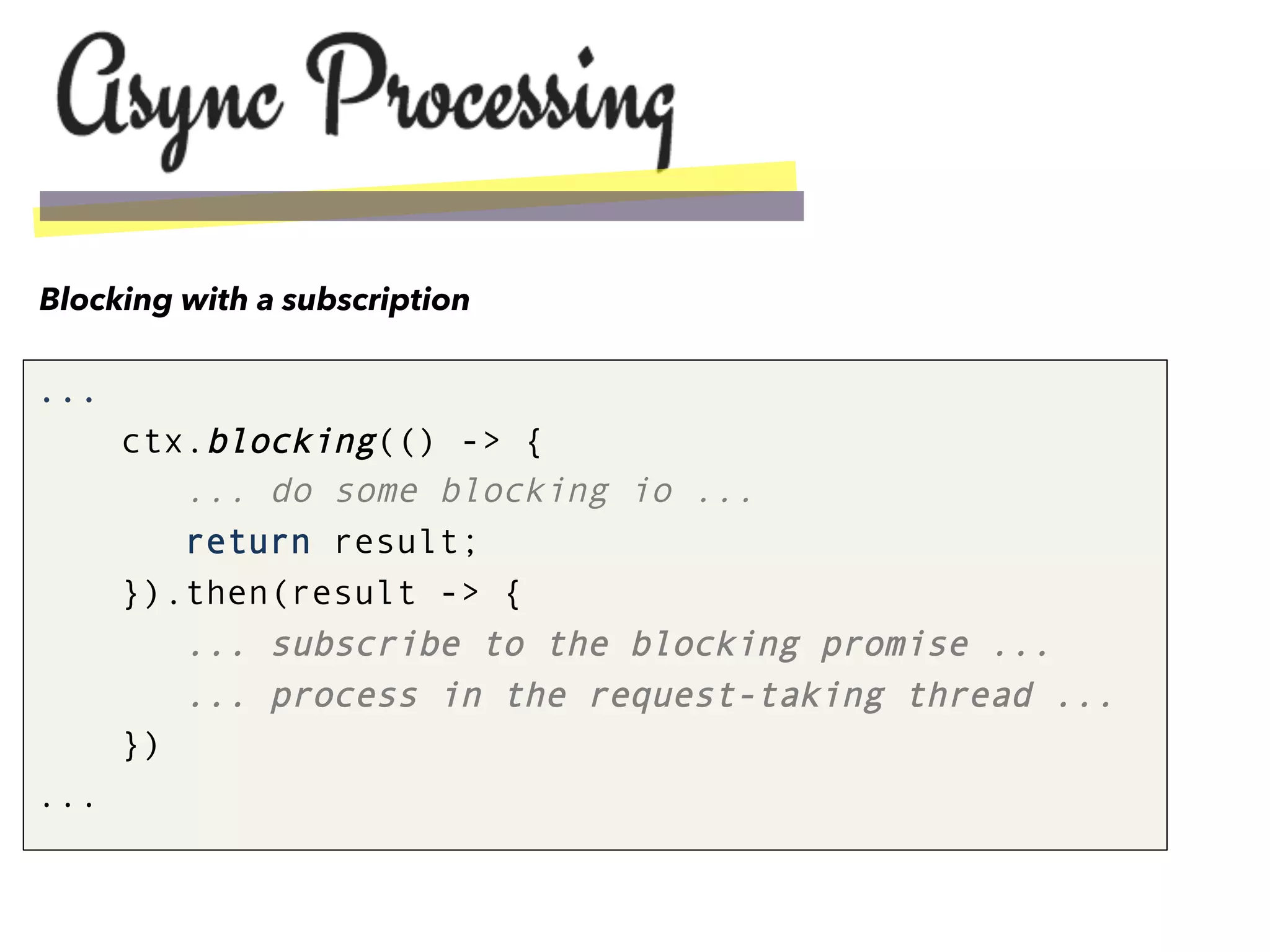

... ctx.blocking(() -> { ... do some blocking io ... return result; }).then(result -> { ... subscribe to the blocking promise ... ... process in the request-taking thread ... }) ... Blocking with a subscription

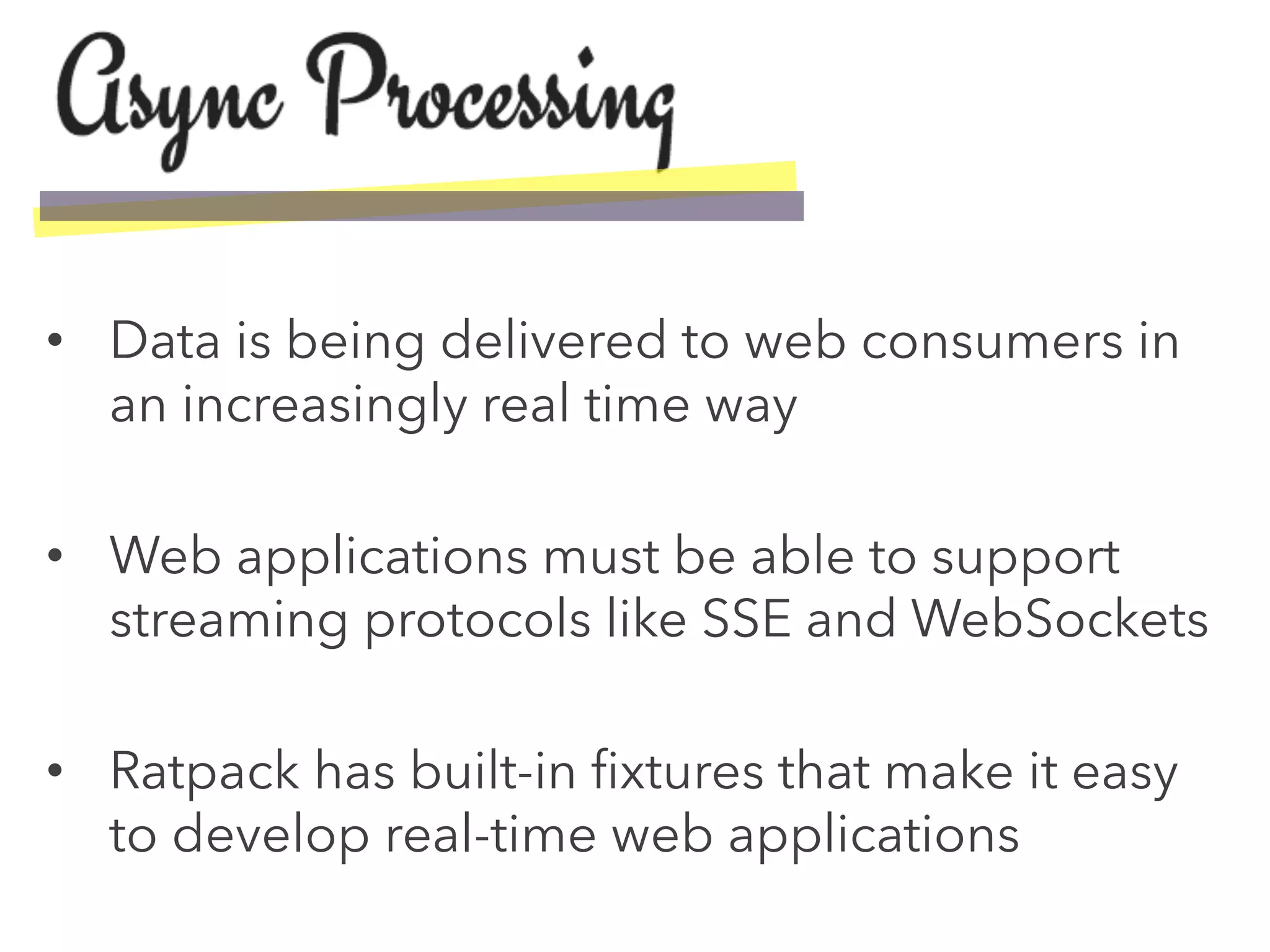

•  Data is being delivered to web consumers in an increasingly real time way •  Web applications must be able to support streaming protocols like SSE and WebSockets •  Ratpack has built-in fixtures that make it easy to develop real-time web applications

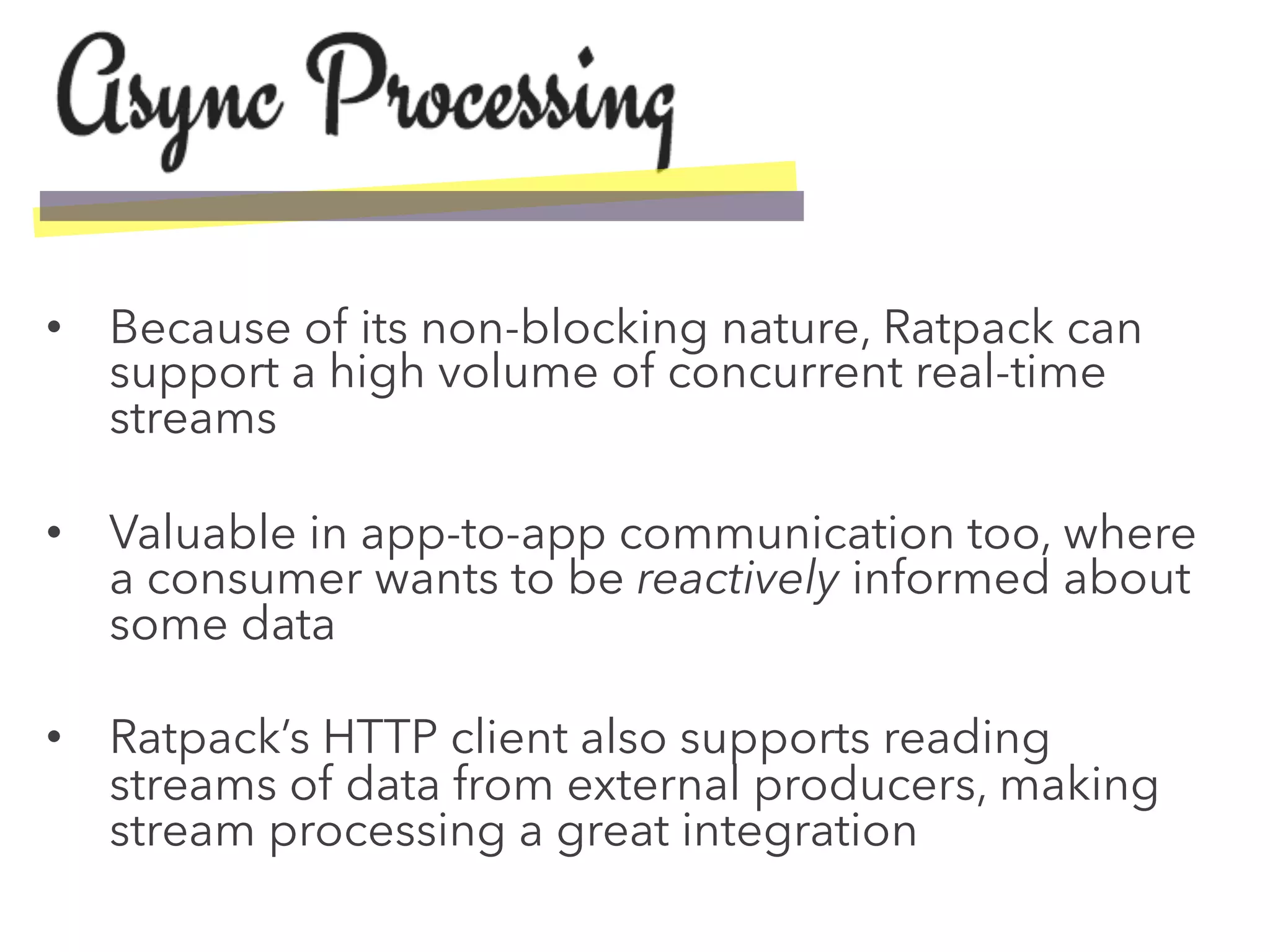

•  Because of its non-blocking nature, Ratpack can support a high volume of concurrent real-time streams •  Valuable in app-to-app communication too, where a consumer wants to be reactively informed about some data •  Ratpack’s HTTP client also supports reading streams of data from external producers, making stream processing a great integration

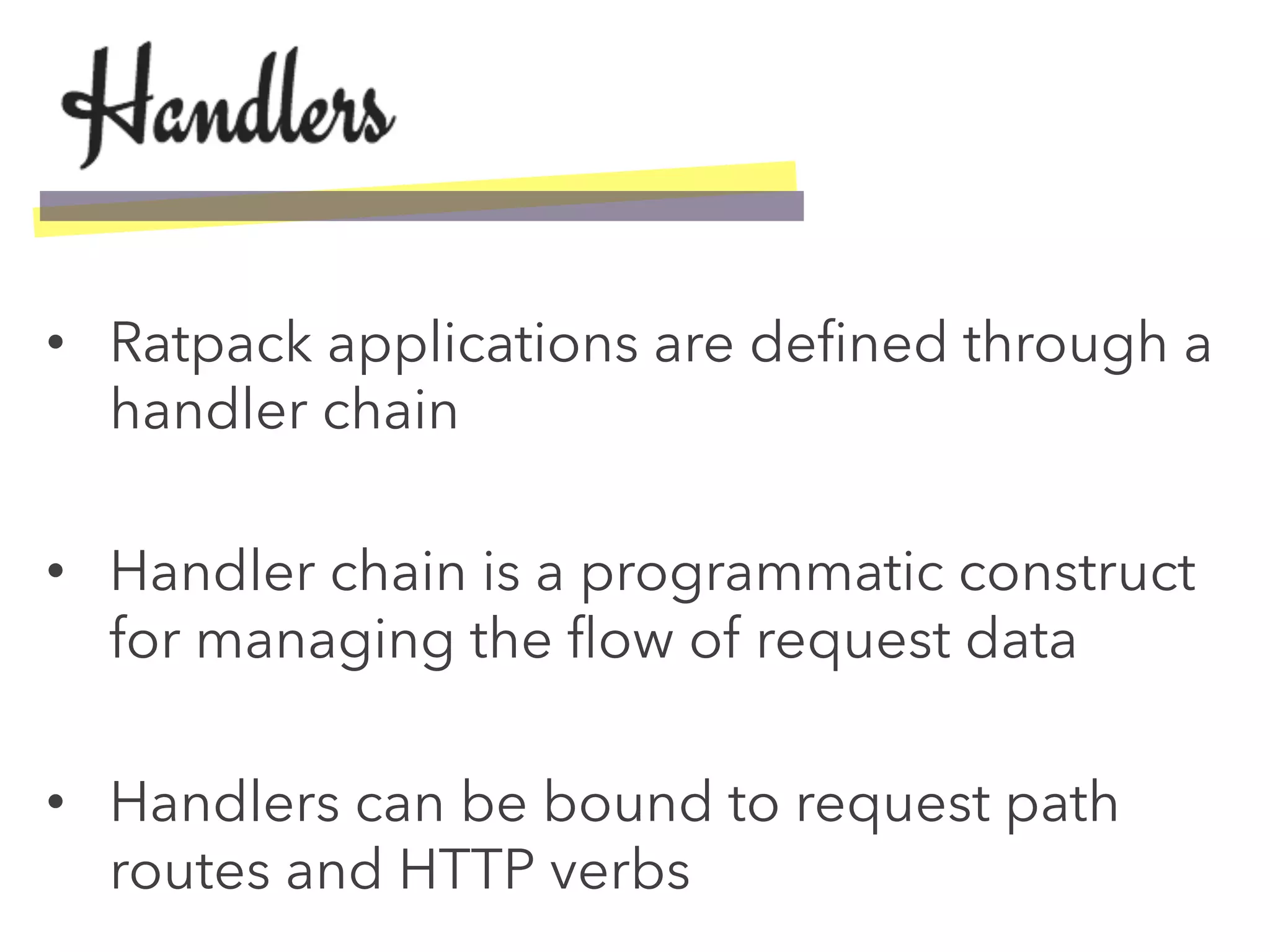

•  Ratpack applications are defined through a handler chain •  Handler chain is a programmatic construct for managing the flow of request data •  Handlers can be bound to request path routes and HTTP verbs

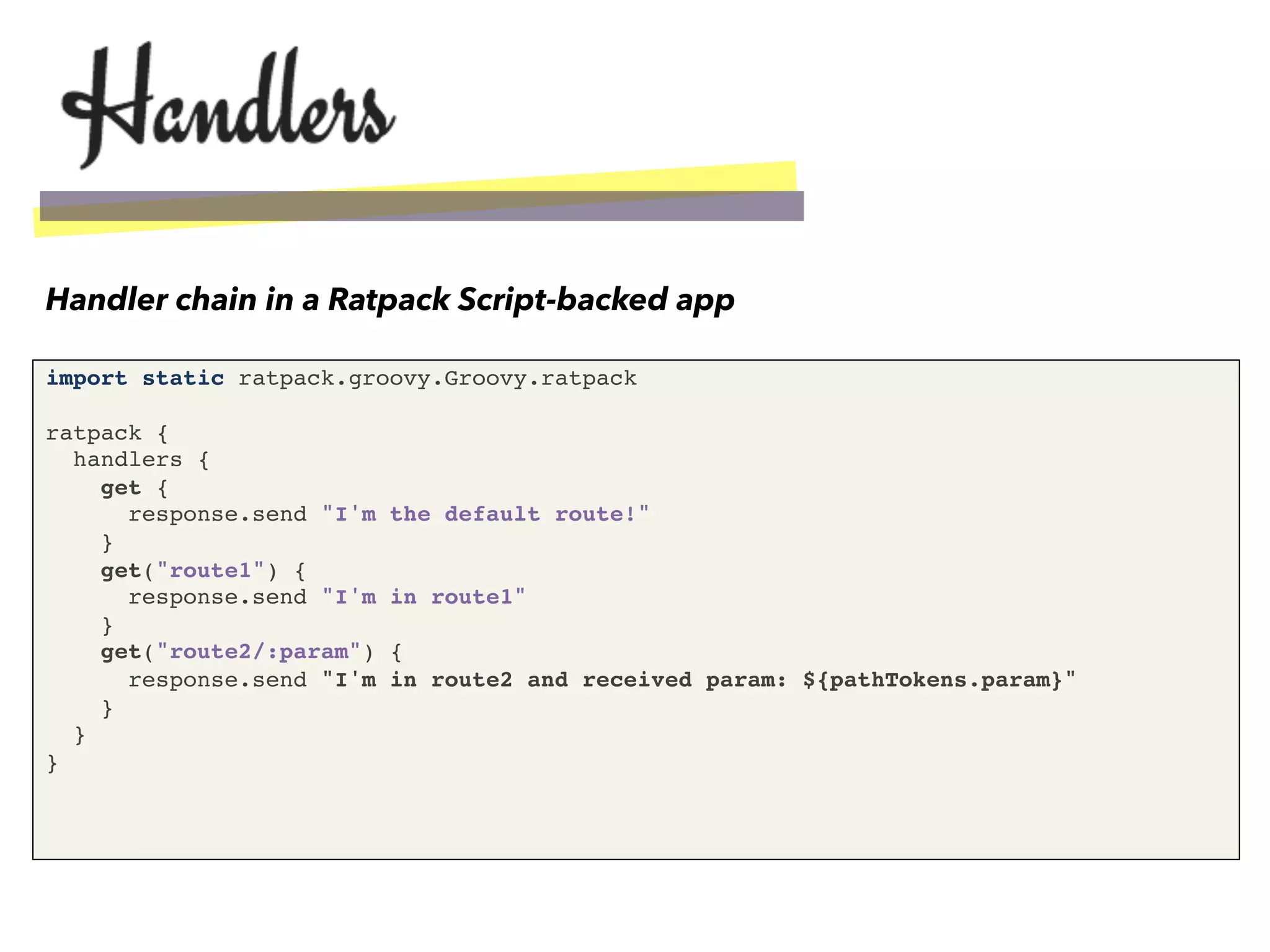

import static ratpack.groovy.Groovy.ratpack! ! ratpack {! handlers {! get {! response.send "I'm the default route!"! }! get("route1") {! response.send "I'm in route1"! }! get("route2/:param") {! response.send "I'm in route2 and received param: ${pathTokens.param}"! }! }! }! Handler chain in a Ratpack Script-backed app

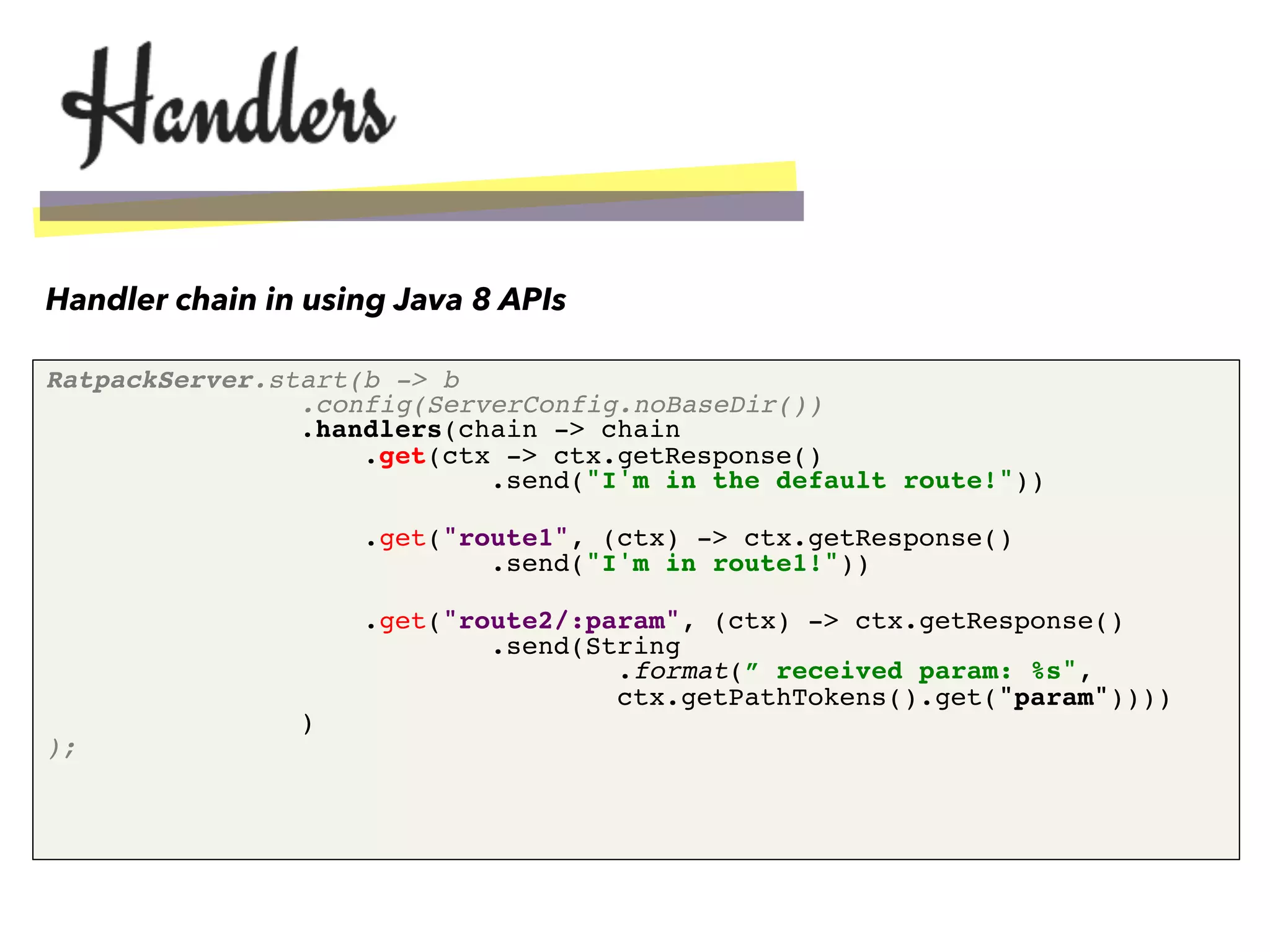

RatpackServer.start(b -> b
 .config(ServerConfig.noBaseDir())
 .handlers(chain -> chain
 .get(ctx -> ctx.getResponse()
 .send("I'm in the default route!"))
 ! .get("route1", (ctx) -> ctx.getResponse()
 .send("I'm in route1!"))
 ! .get("route2/:param", (ctx) -> ctx.getResponse()
 .send(String
 .format(” received param: %s",
 ctx.getPathTokens().get("param"))))
 )
 );" Handler chain in using Java 8 APIs
•  Ratpack applications are defined through a handler chain •  Handler chain is a programmatic construct for managing the flow of request data •  Handlers can be bound to request path routes and HTTP verbs

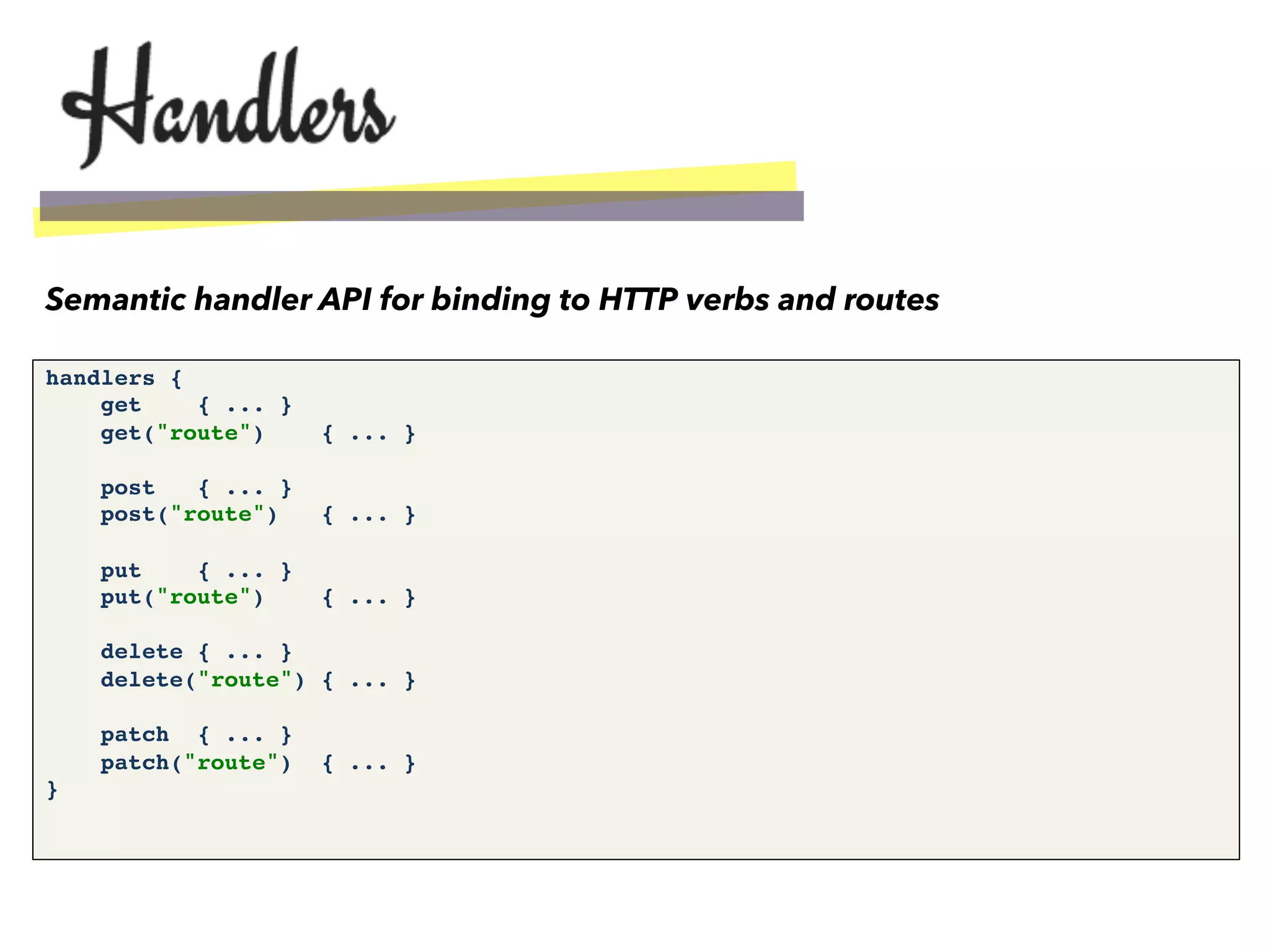

handlers {! get { ... }! get("route") { ... }! ! post { ... }! post("route") { ... }! ! put { ... }! put("route") { ... }! ! delete { ... }! delete("route") { ... }! ! patch { ... }! patch("route") { ... }! }! Semantic handler API for binding to HTTP verbs and routes

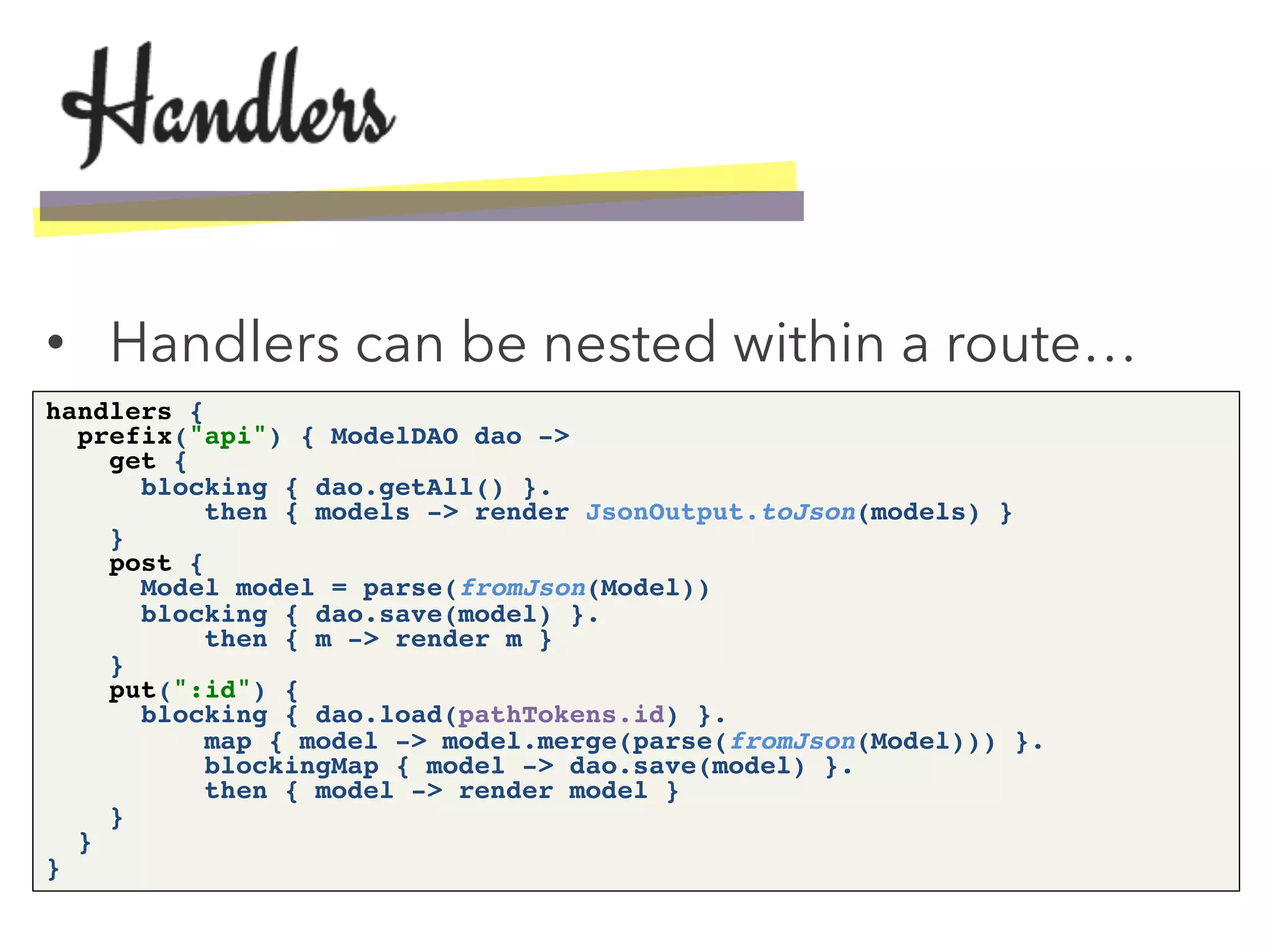

•  Handlers can be nested within a route… handlers {
 prefix("api") { ModelDAO dao ->
 get {
 blocking { dao.getAll() }.
 then { models -> render JsonOutput.toJson(models) }
 }
 post {
 Model model = parse(fromJson(Model))
 blocking { dao.save(model) }.
 then { m -> render m }
 }
 put(":id") {
 blocking { dao.load(pathTokens.id) }.
 map { model -> model.merge(parse(fromJson(Model))) }.
 blockingMap { model -> dao.save(model) }.
 then { model -> render model }
 }
 }
 }!

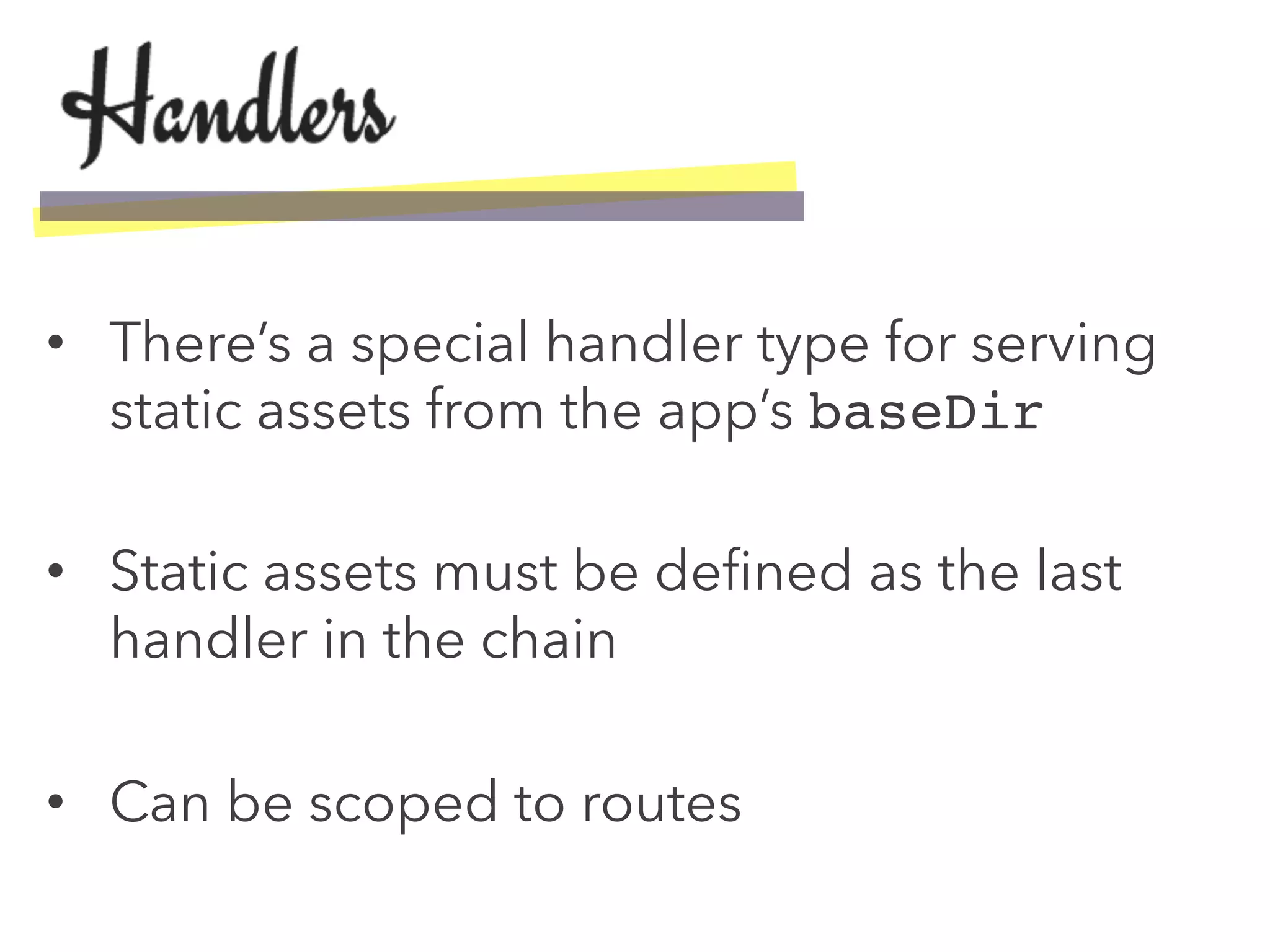

•  There’s a special handler type for serving static assets from the app’s baseDir! •  Static assets must be defined as the last handler in the chain •  Can be scoped to routes

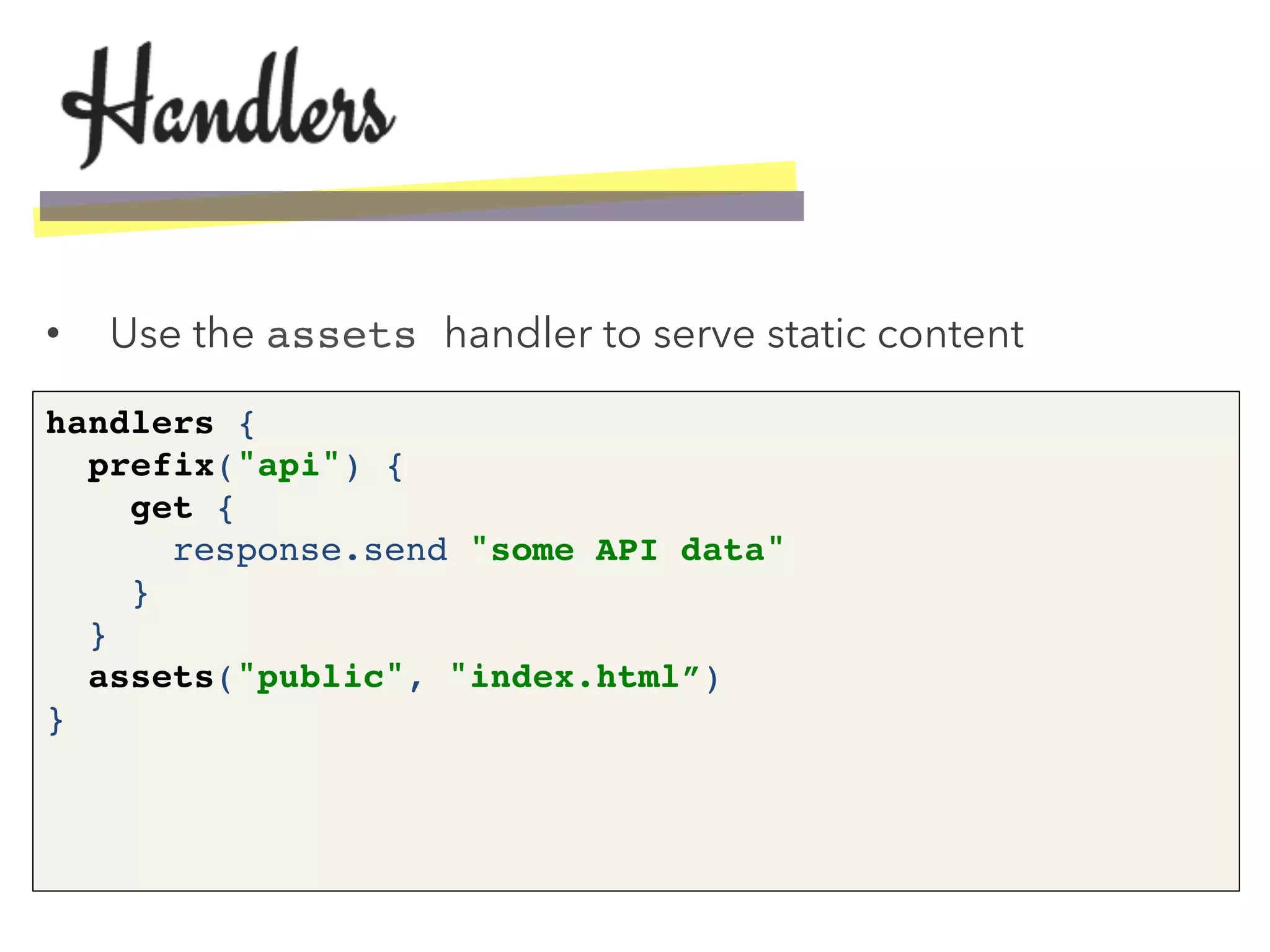

•  Use the assets handler to serve static content handlers {
 prefix("api") {
 get {
 response.send "some API data"
 }
 }
 assets("public", "index.html”)
 }!

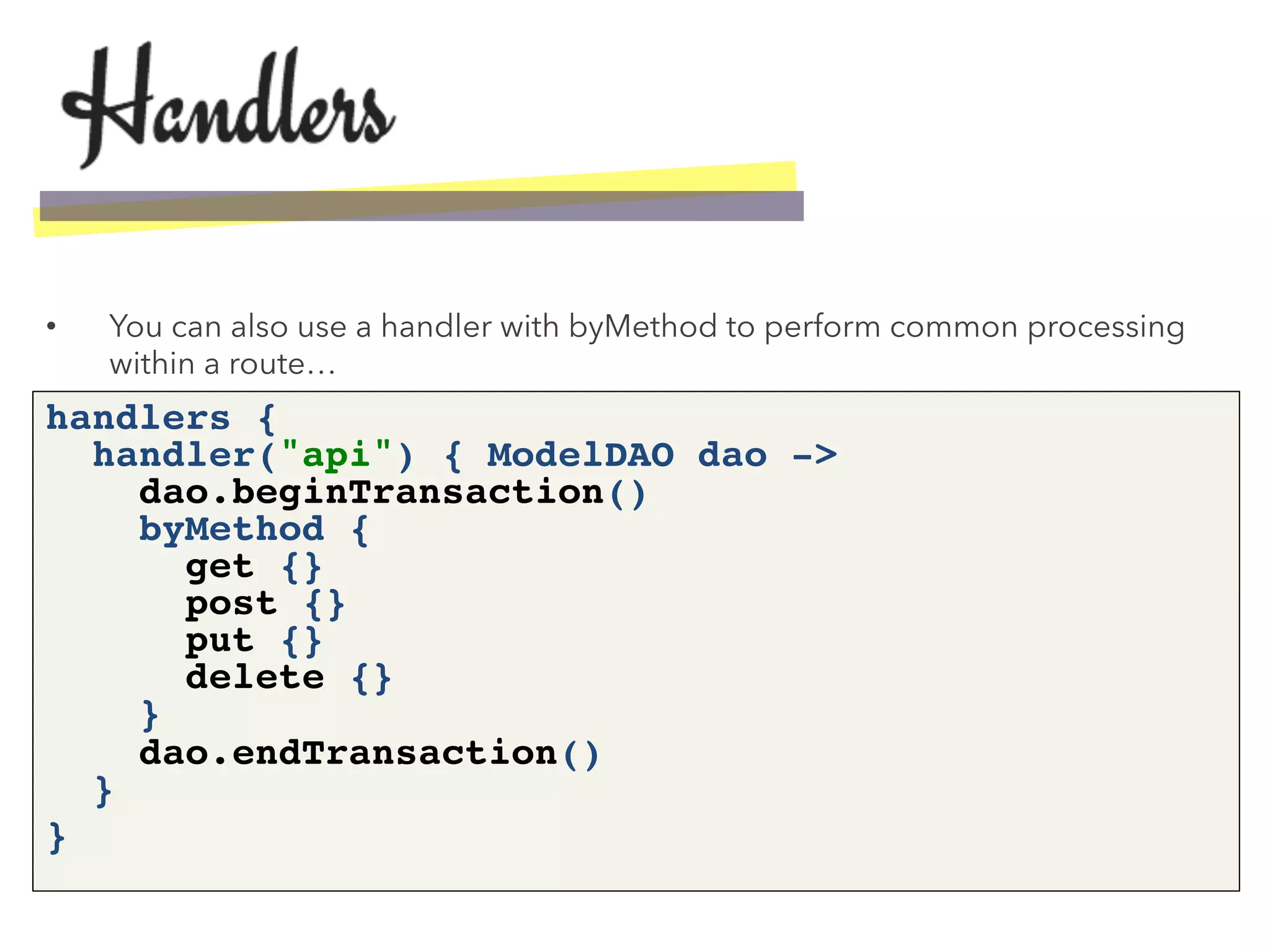

•  You can also use a handler with byMethod to perform common processing within a route… handlers {
 handler("api") { ModelDAO dao ->
 dao.beginTransaction()
 byMethod {
 get {}
 post {}
 put {}
 delete {}
 }
 dao.endTransaction()
 }! }!

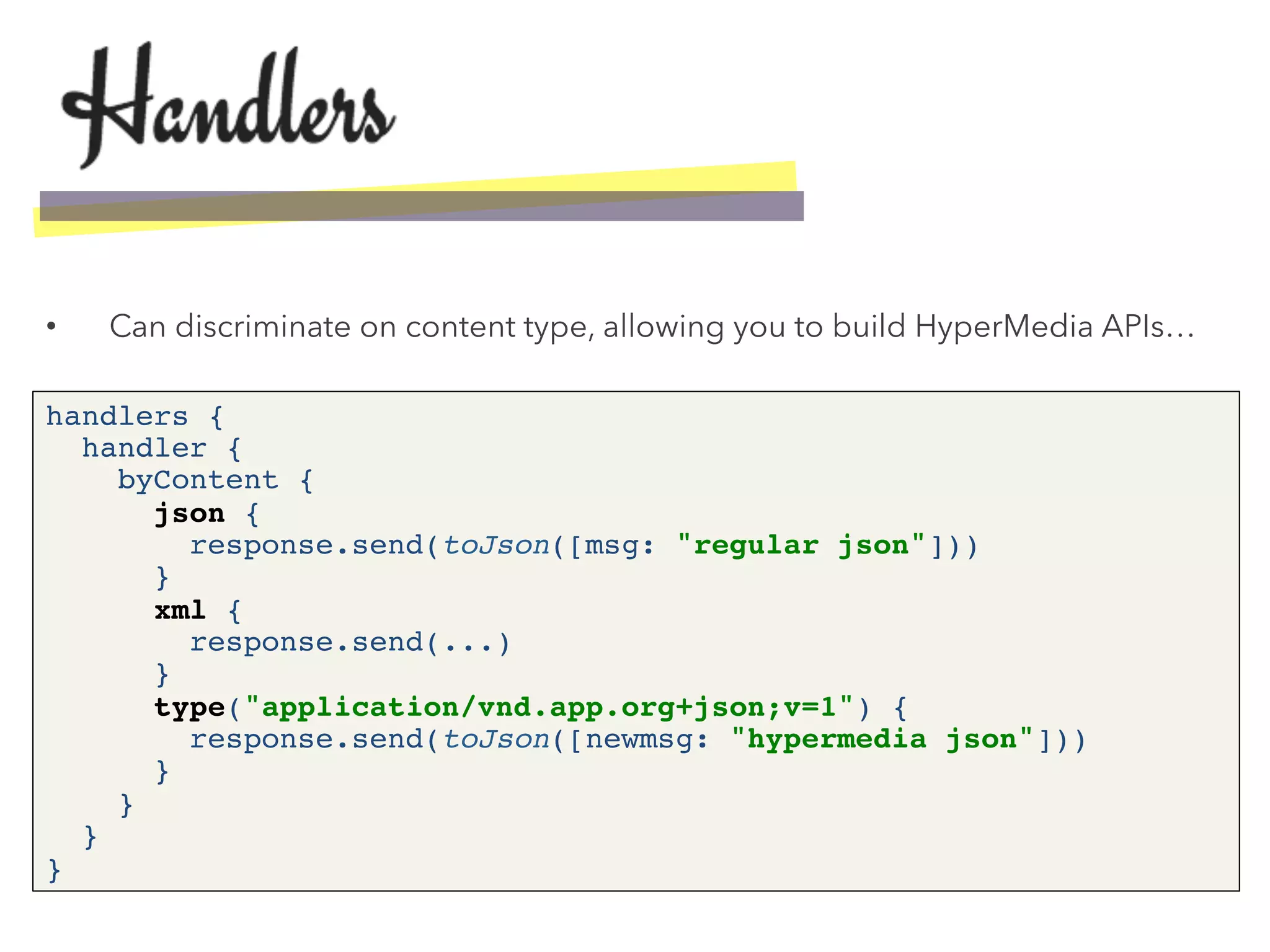

•  Can discriminate on content type, allowing you to build HyperMedia APIs… handlers {
 handler {
 byContent {
 json {
 response.send(toJson([msg: "regular json"]))
 }
 xml {
 response.send(...)
 }
 type("application/vnd.app.org+json;v=1") {
 response.send(toJson([newmsg: "hypermedia json"]))
 }
 }
 }
 }!

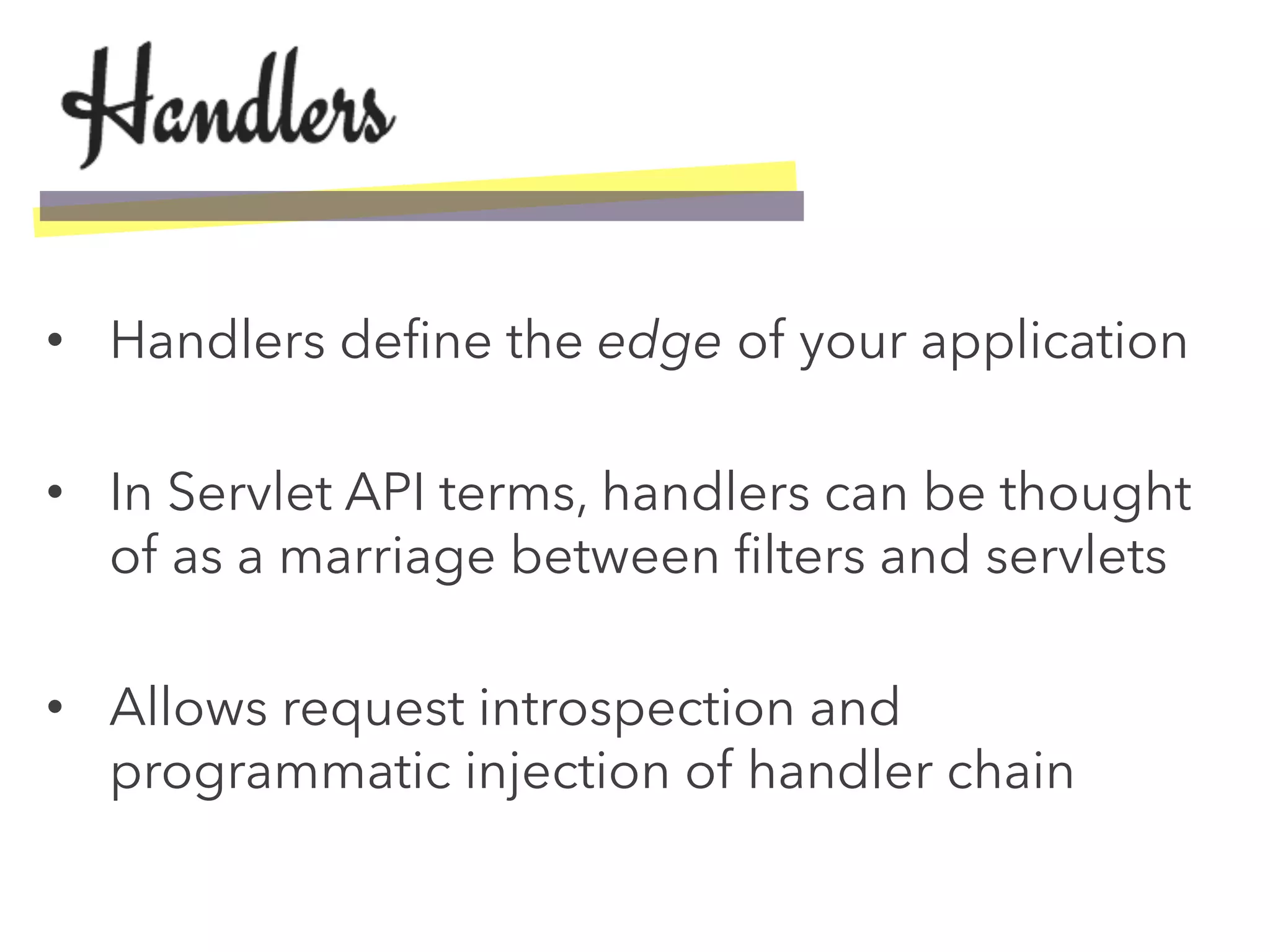

•  Handlers define the edge of your application •  In Servlet API terms, handlers can be thought of as a marriage between filters and servlets •  Allows request introspection and programmatic injection of handler chain

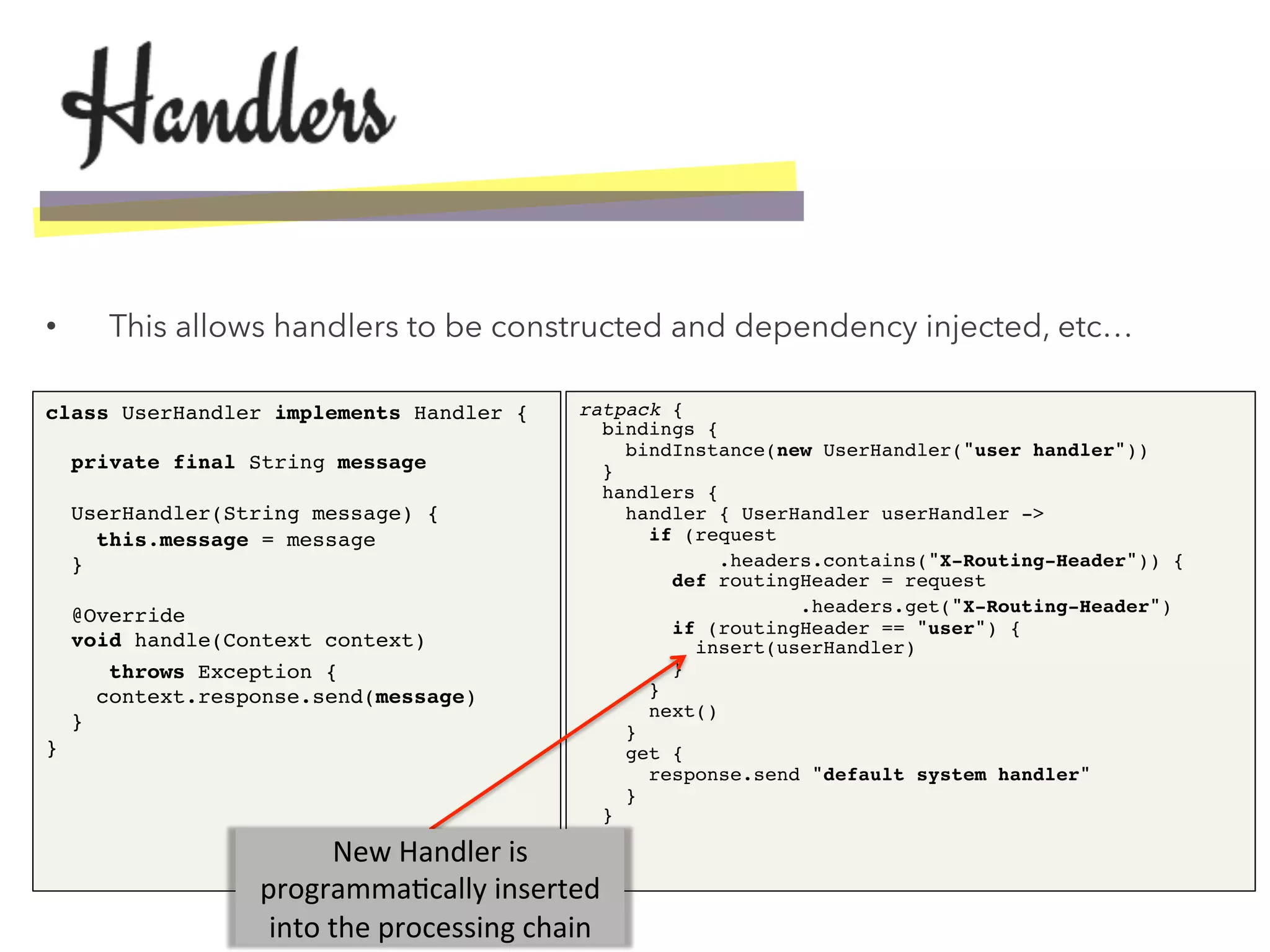

•  This allows handlers to be constructed and dependency injected, etc… class UserHandler implements Handler {

 private final String message

 UserHandler(String message) {
 this.message = message
 }

 @Override
 void handle(Context context) ! !throws Exception {
 context.response.send(message)
 }
 }! ratpack {
 bindings {
 bindInstance(new UserHandler("user handler"))
 }
 handlers {
 handler { UserHandler userHandler ->
 if (request! .headers.contains("X-Routing-Header")) {
 def routingHeader = request! .headers.get("X-Routing-Header")
 if (routingHeader == "user") {
 insert(userHandler)
 }
 }
 next()
 }
 get {
 response.send "default system handler"
 }
 }
 }! New  Handler  is   programma1cally  inserted   into  the  processing  chain

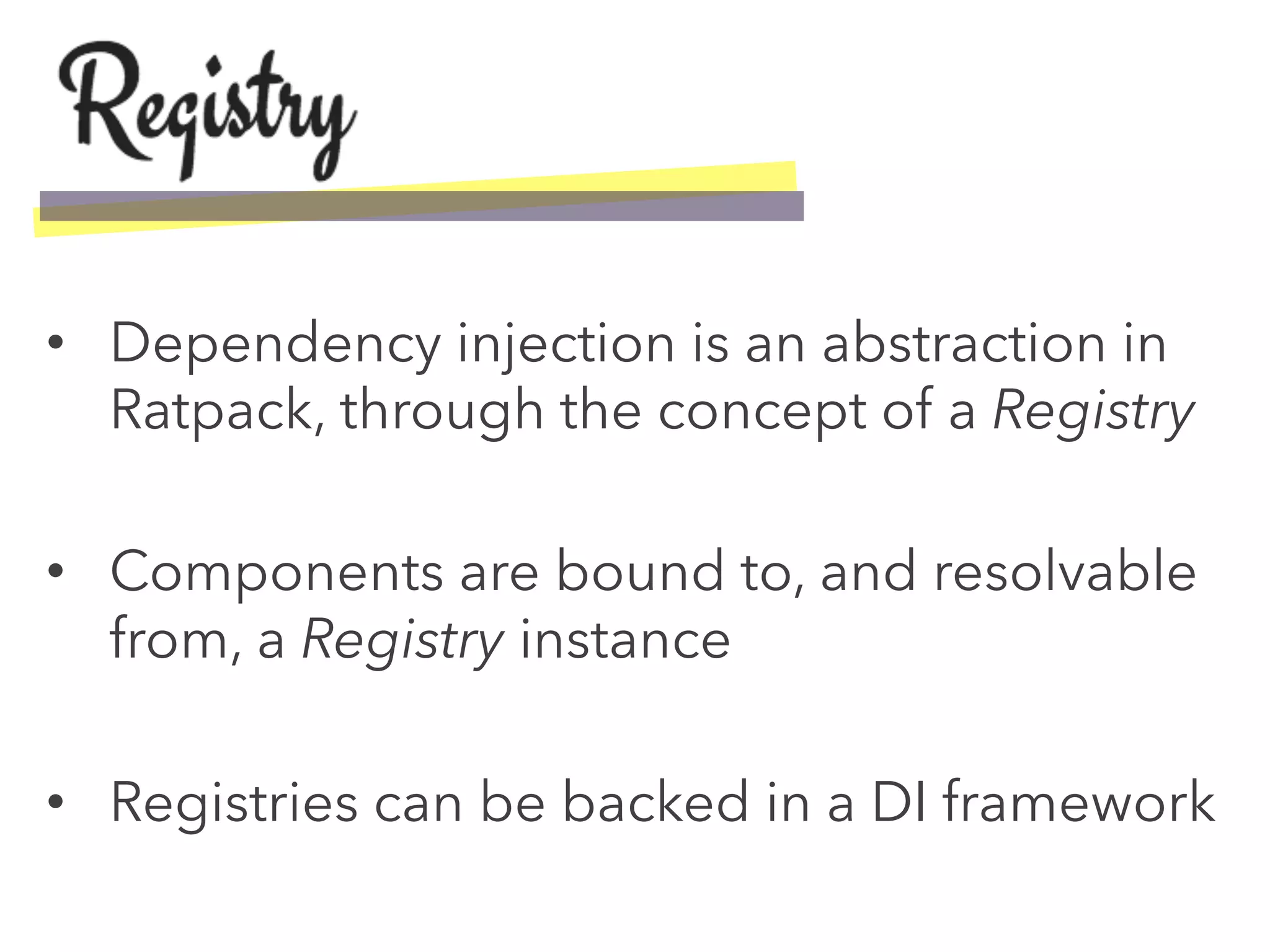

•  Dependency injection is an abstraction in Ratpack, through the concept of a Registry •  Components are bound to, and resolvable from, a Registry instance •  Registries can be backed in a DI framework

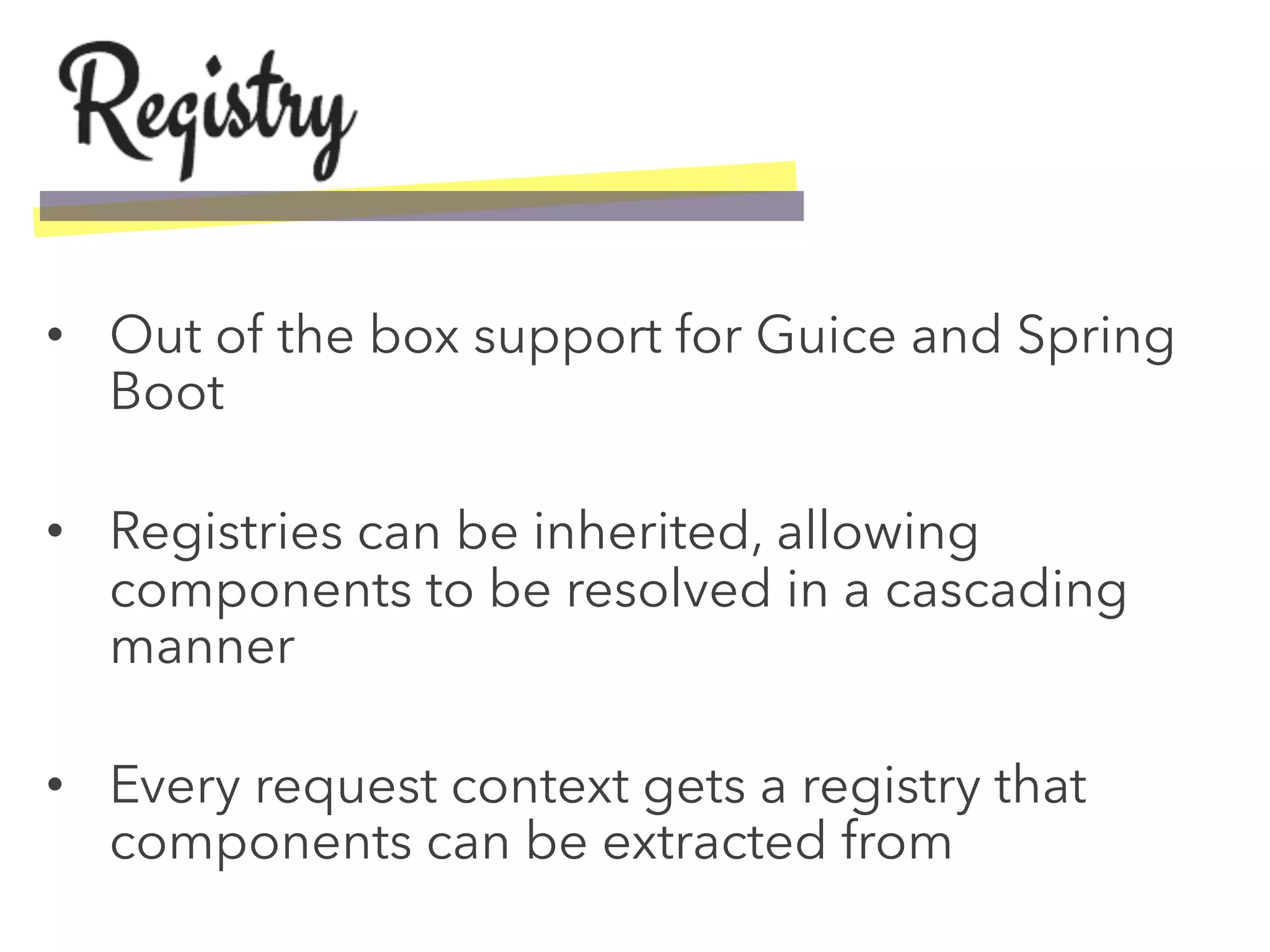

•  Out of the box support for Guice and Spring Boot •  Registries can be inherited, allowing components to be resolved in a cascading manner •  Every request context gets a registry that components can be extracted from

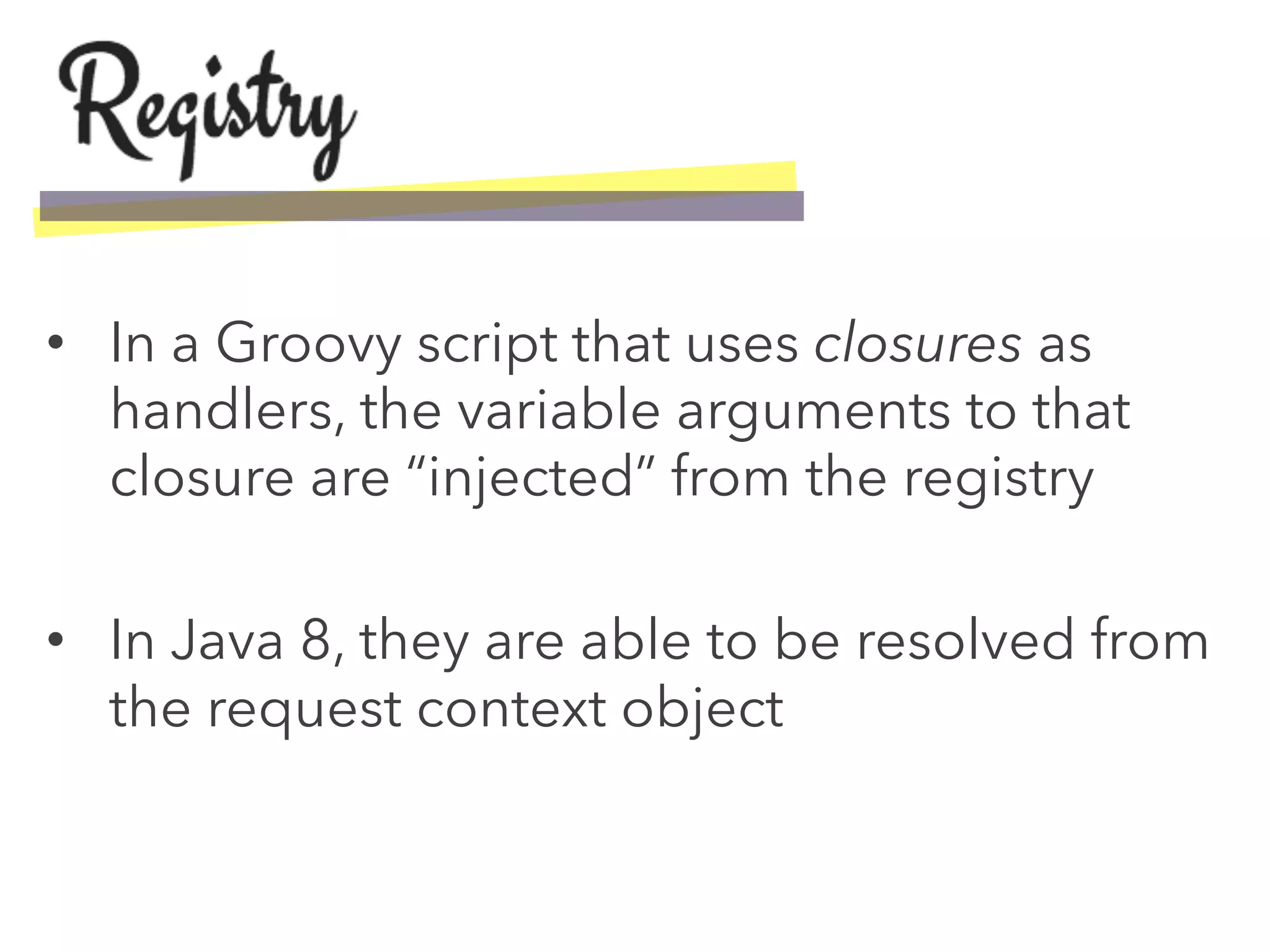

•  In a Groovy script that uses closures as handlers, the variable arguments to that closure are “injected” from the registry •  In Java 8, they are able to be resolved from the request context object

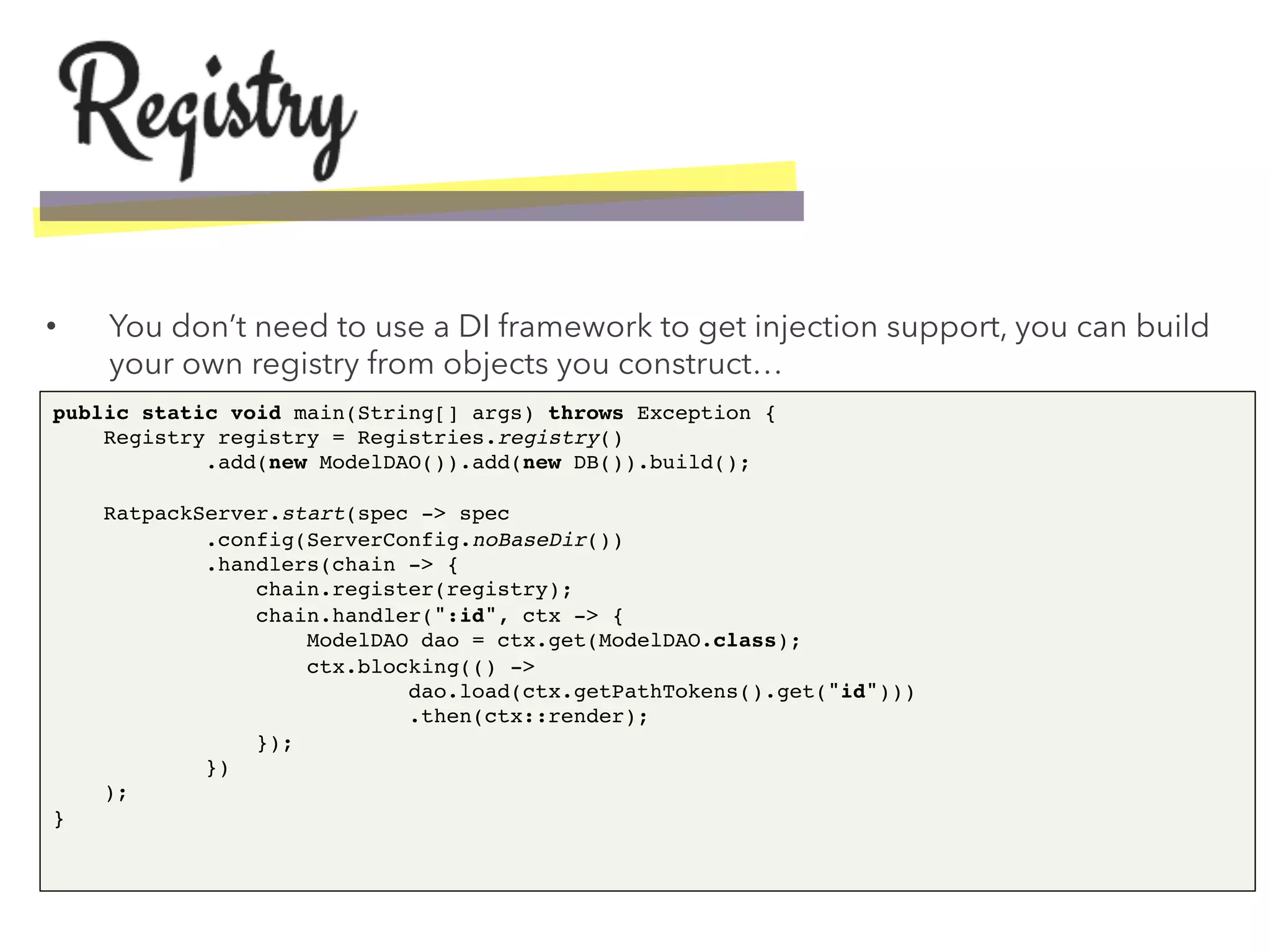

•  You don’t need to use a DI framework to get injection support, you can build your own registry from objects you construct… public static void main(String[] args) throws Exception {
 Registry registry = Registries.registry()
 .add(new ModelDAO()).add(new DB()).build();

 RatpackServer.start(spec -> spec
 .config(ServerConfig.noBaseDir())
 .handlers(chain -> {
 chain.register(registry);
 chain.handler(":id", ctx -> {
 ModelDAO dao = ctx.get(ModelDAO.class);
 ctx.blocking(() ->
 dao.load(ctx.getPathTokens().get("id")))
 .then(ctx::render);
 });
 })
 );
 }!

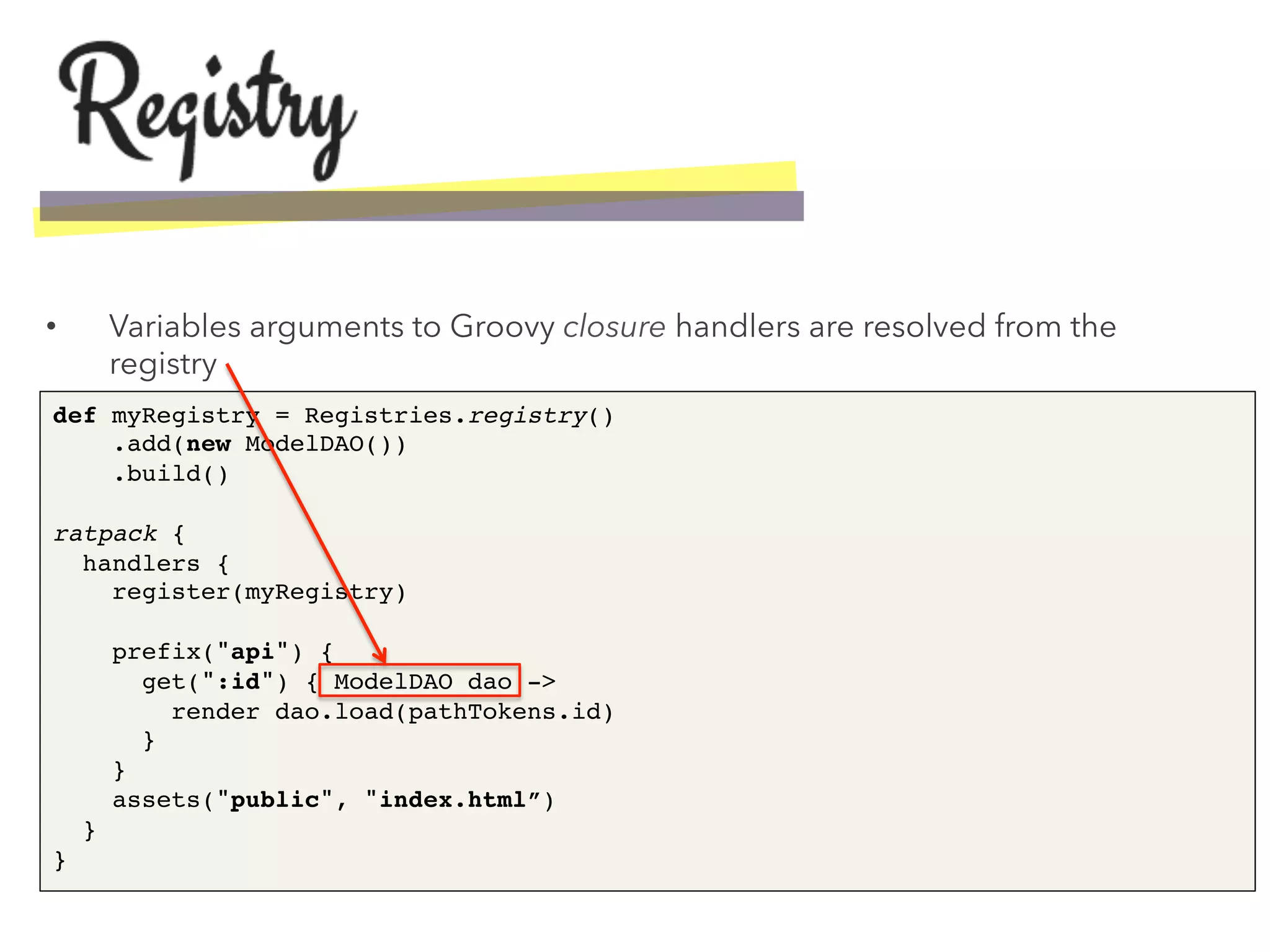

•  Variables arguments to Groovy closure handlers are resolved from the registry def myRegistry = Registries.registry()
 .add(new ModelDAO())
 .build()

 ratpack {
 handlers {
 register(myRegistry)

 prefix("api") {
 get(":id") { ModelDAO dao ->
 render dao.load(pathTokens.id)
 }
 }
 assets("public", "index.html”)
 }
 }!

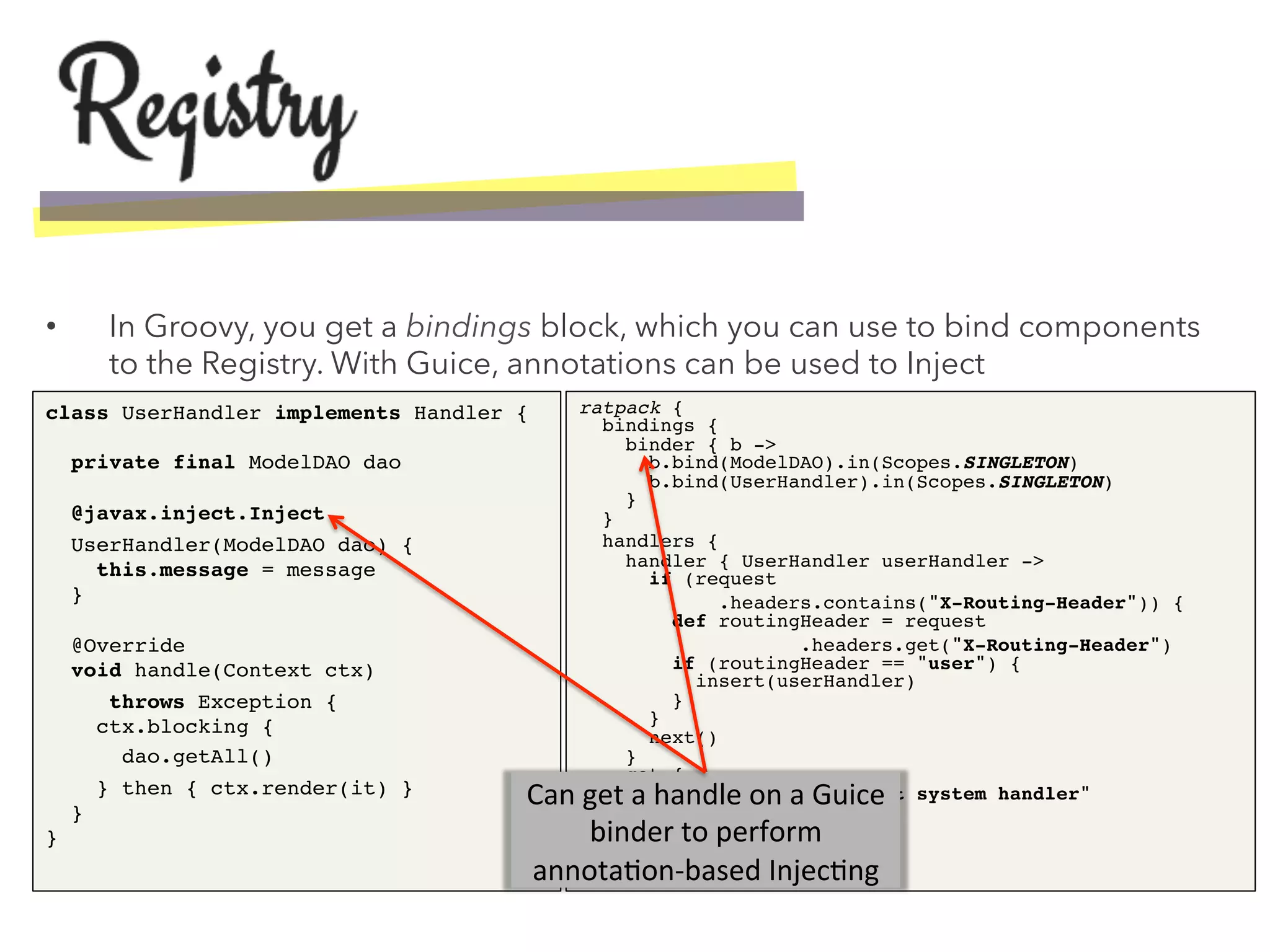

•  In Groovy, you get a bindings block, which you can use to bind components to the Registry. With Guice, annotations can be used to Inject class UserHandler implements Handler {

 private final ModelDAO dao

 @javax.inject.Inject! UserHandler(ModelDAO dao) {
 this.message = message
 }

 @Override
 void handle(Context ctx) ! !throws Exception {
 ctx.blocking {! dao.getAll()! } then { ctx.render(it) }
 }
 }! ratpack {
 bindings {
 binder { b ->
 b.bind(ModelDAO).in(Scopes.SINGLETON)
 b.bind(UserHandler).in(Scopes.SINGLETON)
 }
 }! handlers {
 handler { UserHandler userHandler ->
 if (request! .headers.contains("X-Routing-Header")) {
 def routingHeader = request! .headers.get("X-Routing-Header")
 if (routingHeader == "user") {
 insert(userHandler)
 }
 }
 next()
 }
 get {
 response.send "default system handler"
 }
 }
 }! Can  get  a  handle  on  a  Guice   binder  to  perform   annota1on-­‐based  Injec1ng

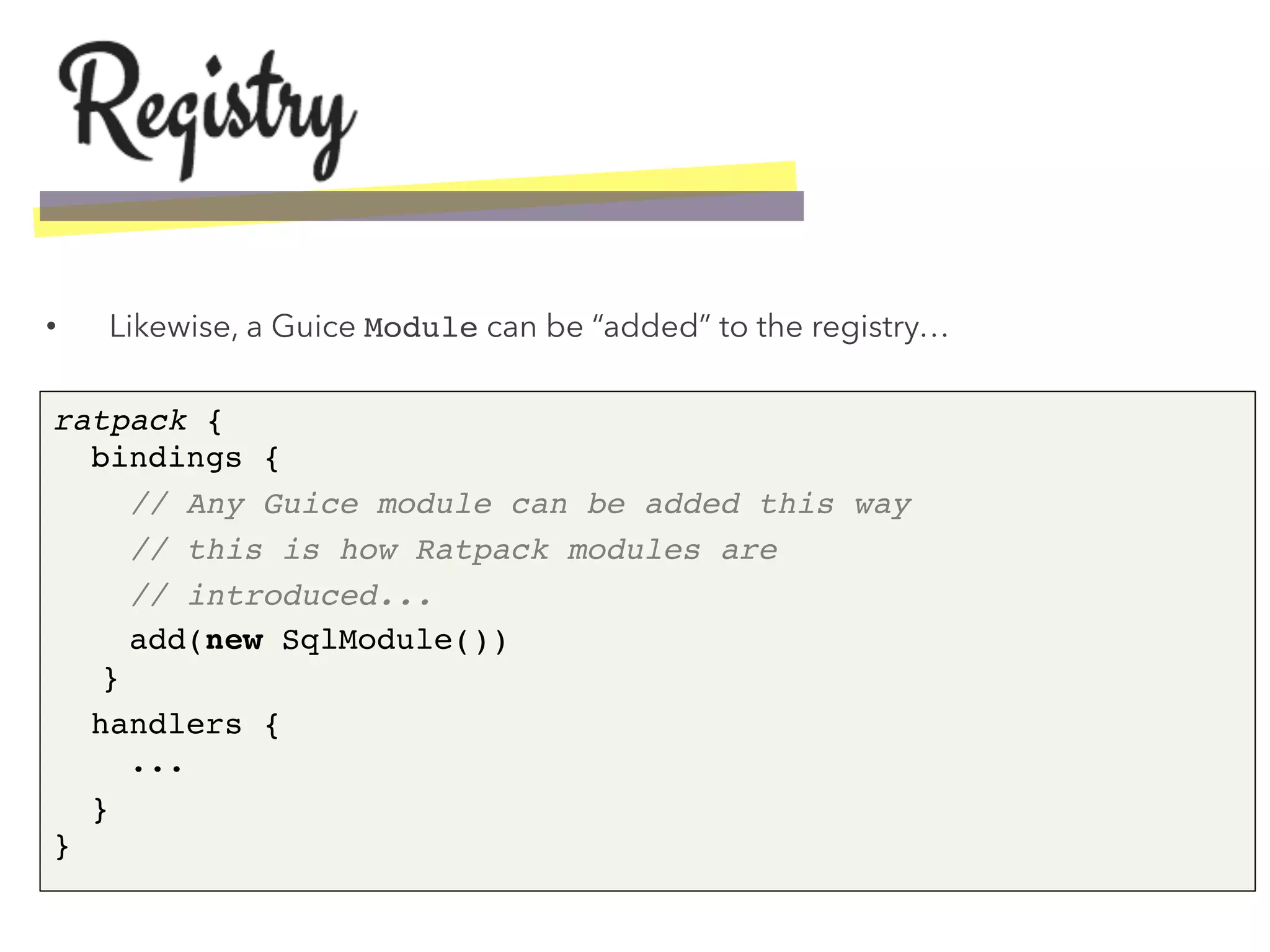

•  Likewise, a Guice Module can be “added” to the registry… ratpack {
 bindings {! // Any Guice module can be added this way! // this is how Ratpack modules are" // introduced... " add(new SqlModule())
 }! handlers {
 ...! }
 }!

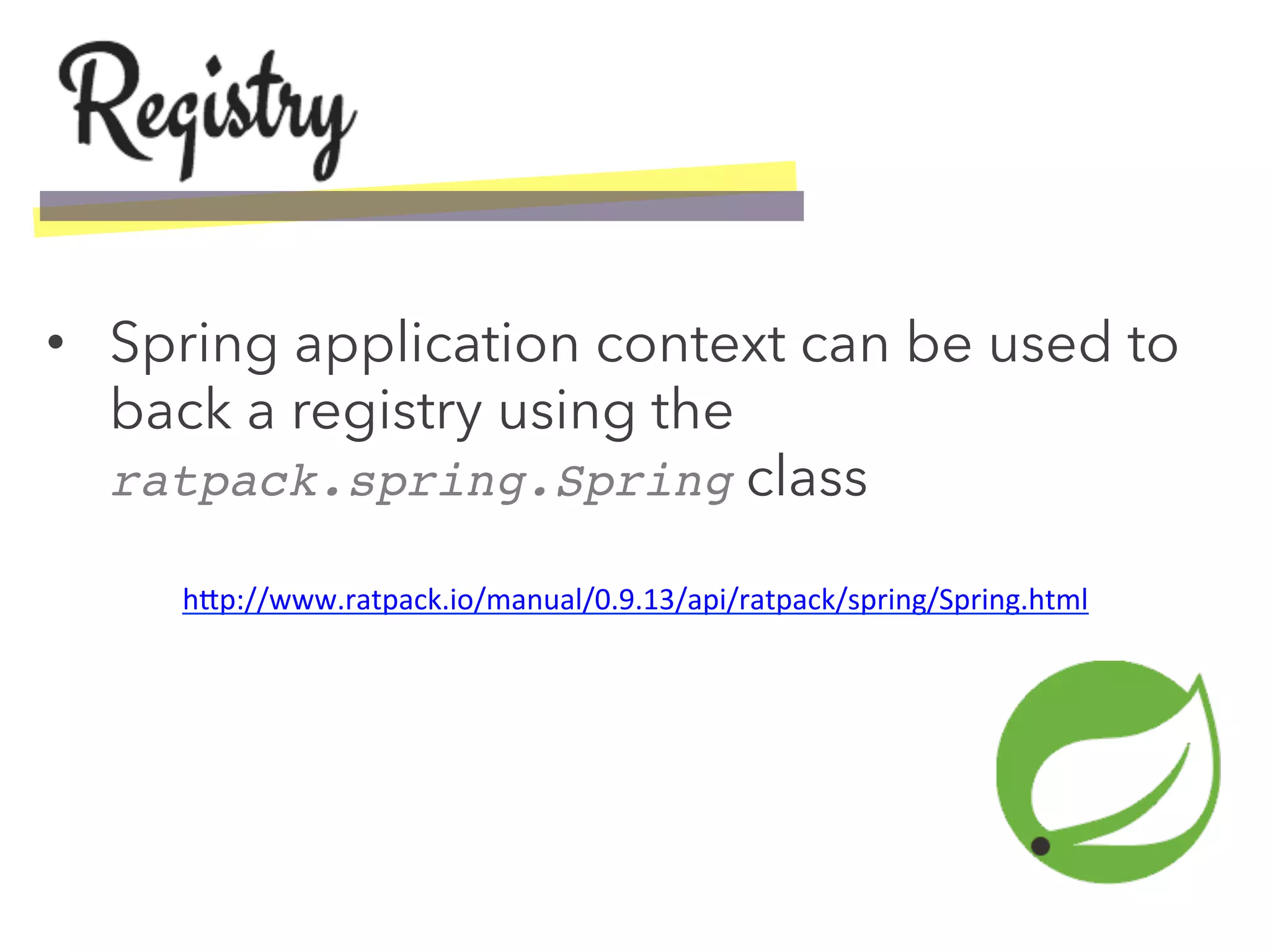

•  Spring application context can be used to back a registry using the ratpack.spring.Spring class h>p://www.ratpack.io/manual/0.9.13/api/ratpack/spring/Spring.html

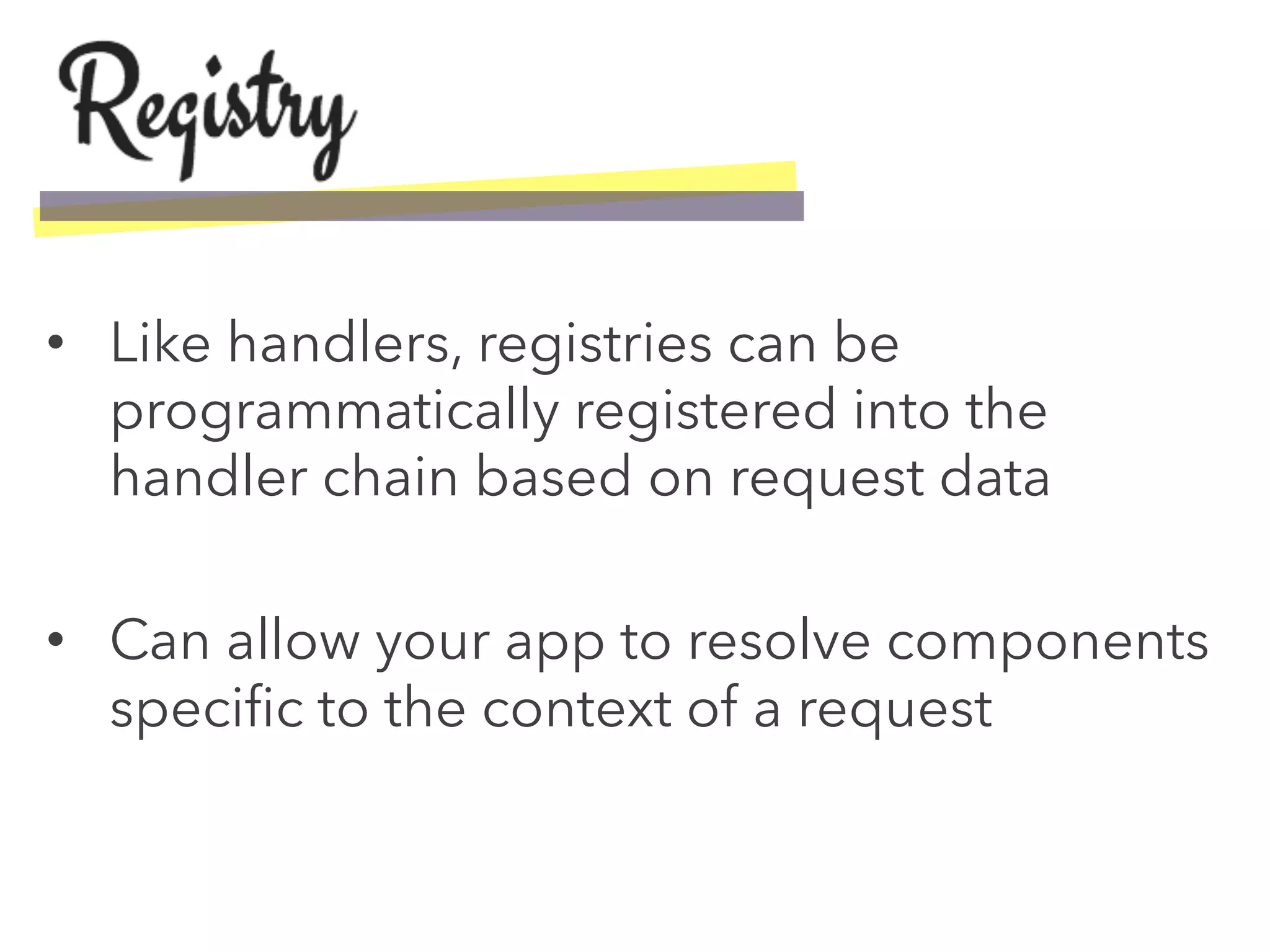

•  Like handlers, registries can be programmatically registered into the handler chain based on request data •  Can allow your app to resolve components specific to the context of a request

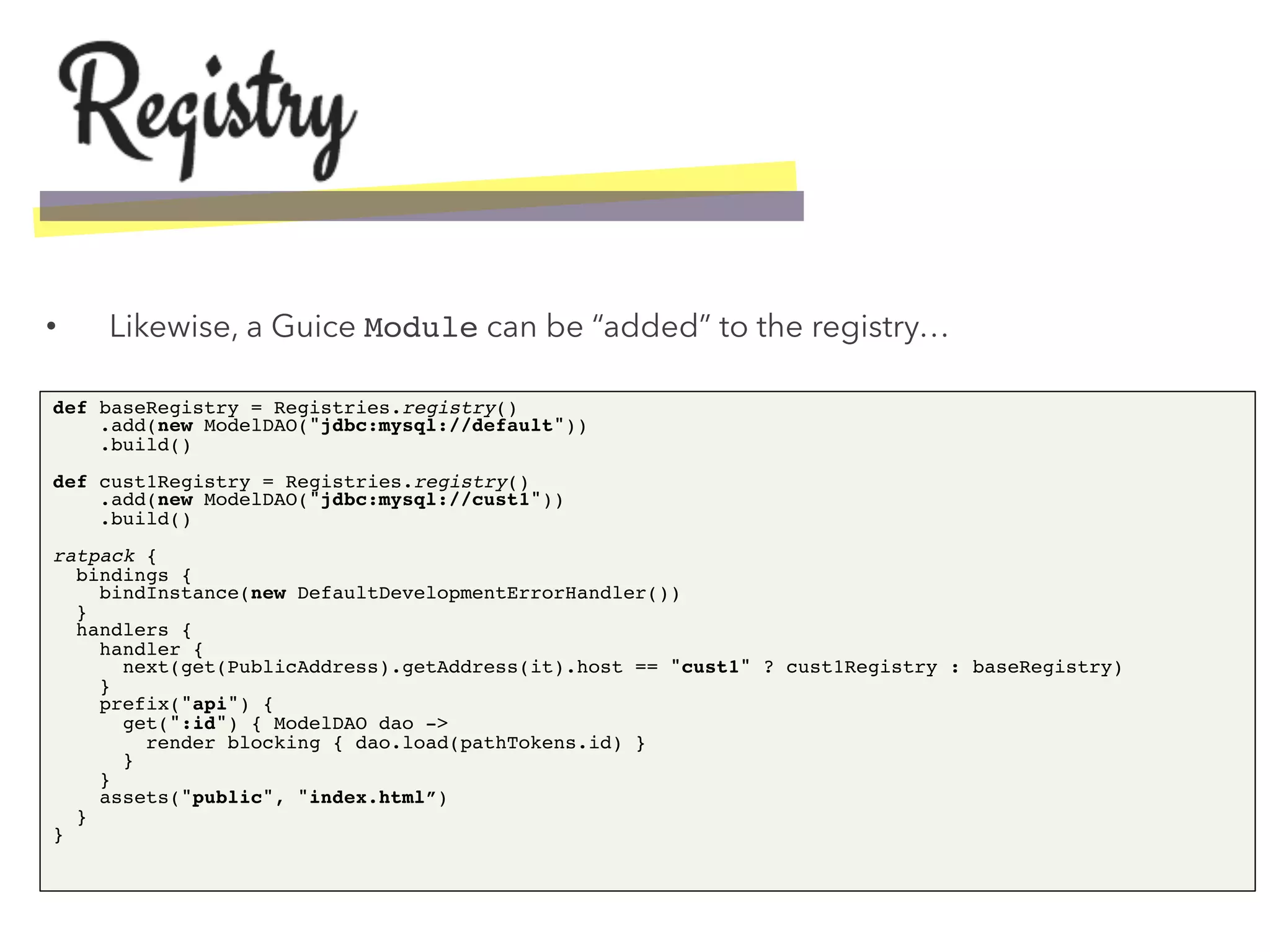

•  Likewise, a Guice Module can be “added” to the registry… def baseRegistry = Registries.registry()
 .add(new ModelDAO("jdbc:mysql://default"))
 .build()

 def cust1Registry = Registries.registry()
 .add(new ModelDAO("jdbc:mysql://cust1"))
 .build()

 ratpack {
 bindings {
 bindInstance(new DefaultDevelopmentErrorHandler())
 }
 handlers {
 handler {
 next(get(PublicAddress).getAddress(it).host == "cust1" ? cust1Registry : baseRegistry)
 }
 prefix("api") {
 get(":id") { ModelDAO dao ->
 render blocking { dao.load(pathTokens.id) }
 }
 }
 assets("public", "index.html”)
 }
 }!

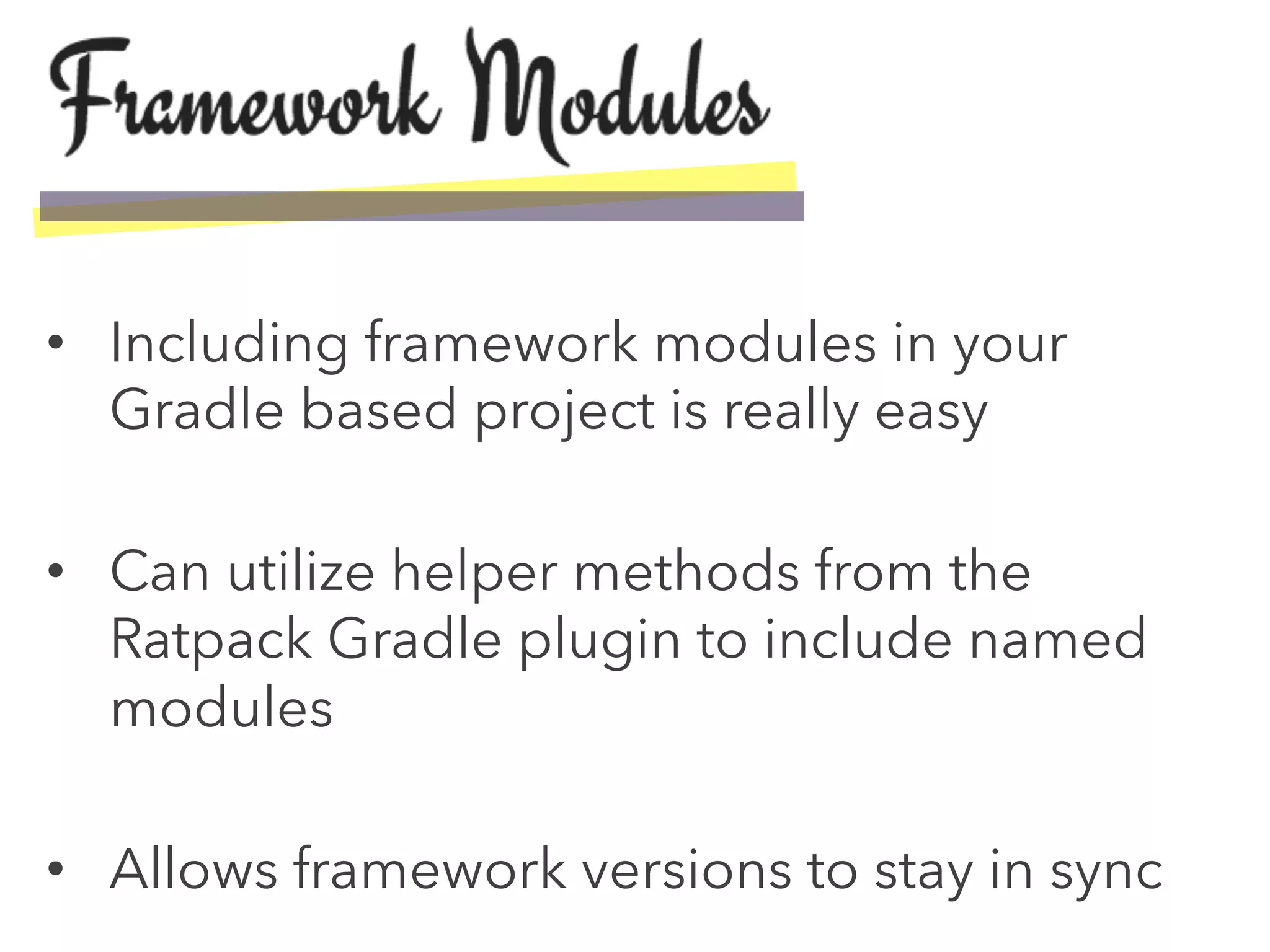

•  Including framework modules in your Gradle based project is really easy •  Can utilize helper methods from the Ratpack Gradle plugin to include named modules •  Allows framework versions to stay in sync

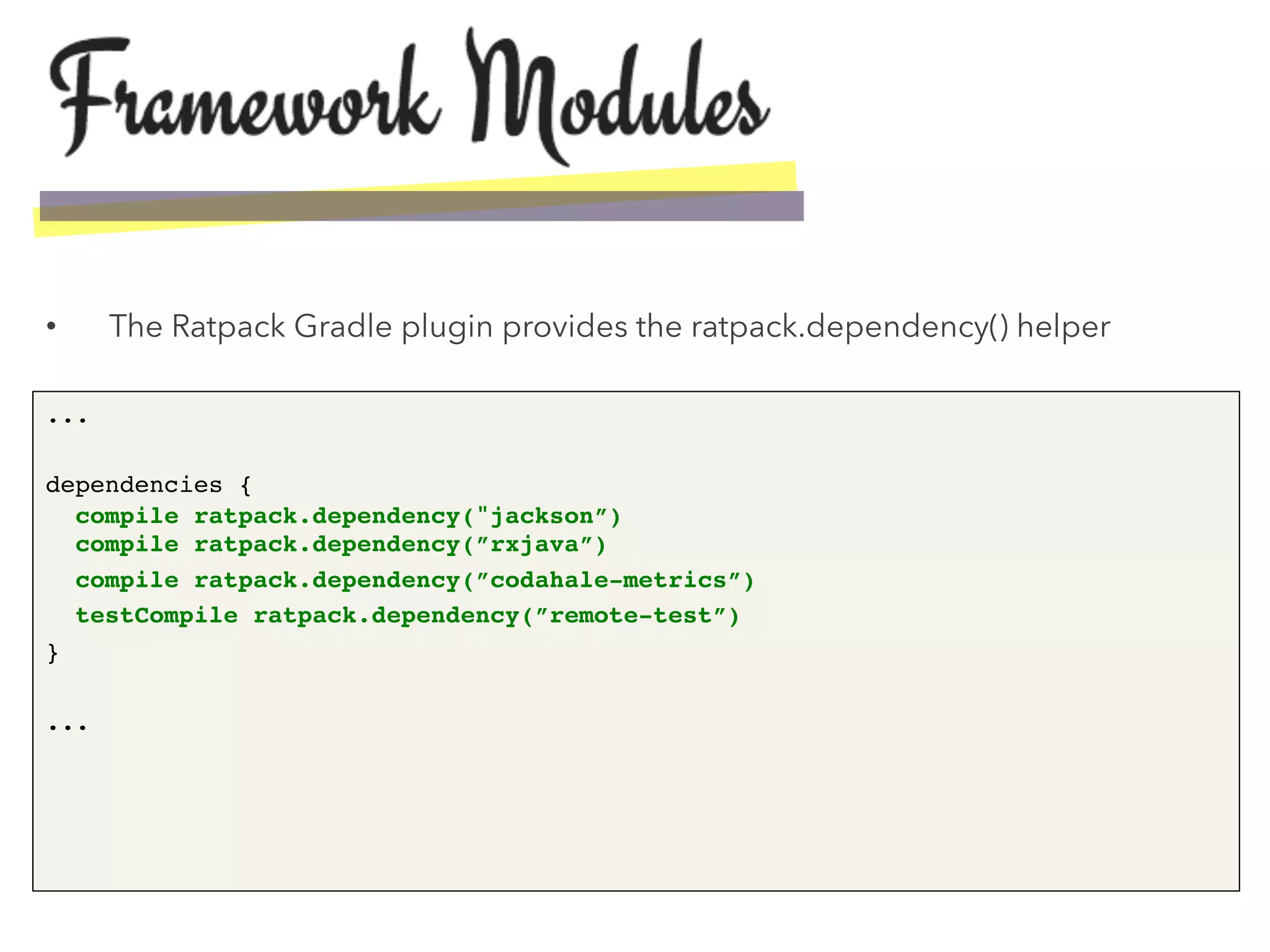

•  The Ratpack Gradle plugin provides the ratpack.dependency() helper ...! ! dependencies {
 compile ratpack.dependency("jackson”)
 compile ratpack.dependency(”rxjava”)! compile ratpack.dependency(”codahale-metrics”)! testCompile ratpack.dependency(”remote-test”) ! }! ! ...!
•  Including framework modules in your Gradle based project is really easy •  Can utilize helper methods from the Ratpack Gradle plugin to include named modules •  Allows framework versions to stay in sync

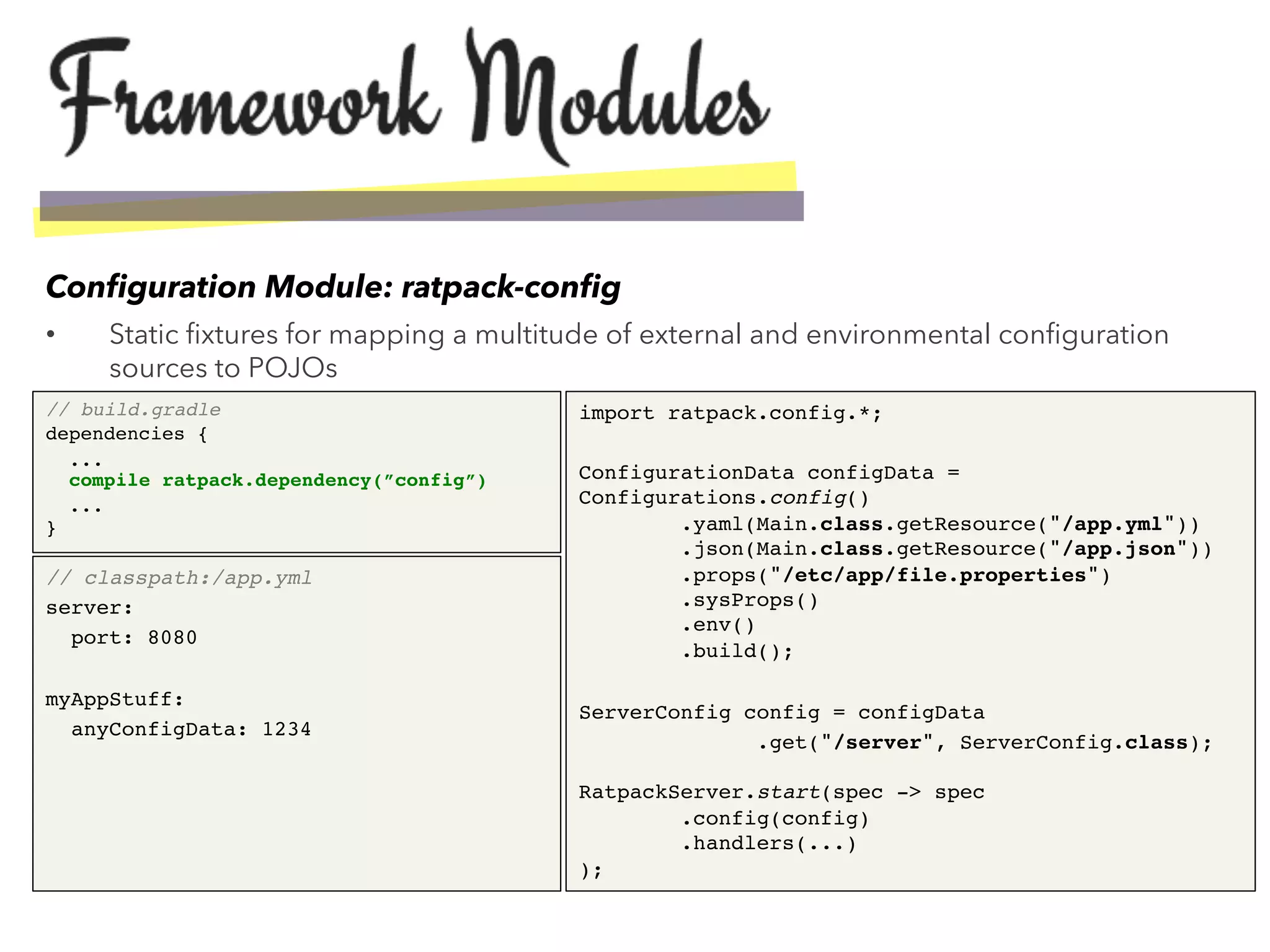

•  Static fixtures for mapping a multitude of external and environmental configuration sources to POJOs Configuration Module: ratpack-config // build.gradle" dependencies {! ...
 compile ratpack.dependency(”config”)! ...
 }! import ratpack.config.*;! ! ConfigurationData configData = Configurations.config()
 .yaml(Main.class.getResource("/app.yml"))
 .json(Main.class.getResource("/app.json"))
 .props("/etc/app/file.properties")
 .sysProps()
 .env()
 .build();! ! ServerConfig config = configData! .get("/server", ServerConfig.class);

 RatpackServer.start(spec -> spec
 .config(config)
 .handlers(...)
 );! // classpath:/app.yml" server:! port: 8080! ! myAppStuff:! anyConfigData: 1234!

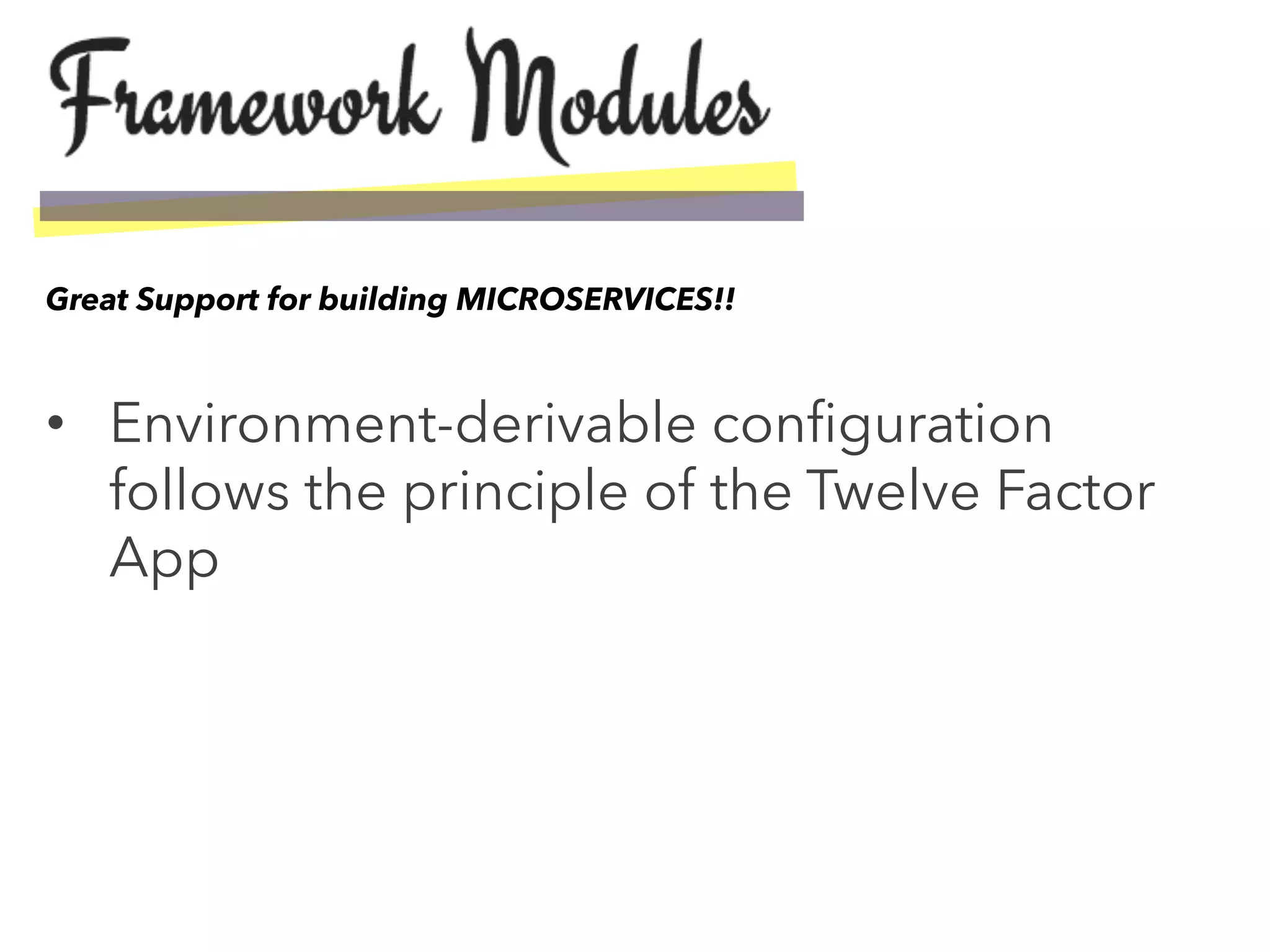

•  Environment-derivable configuration follows the principle of the Twelve Factor App Great Support for building MICROSERVICES!!

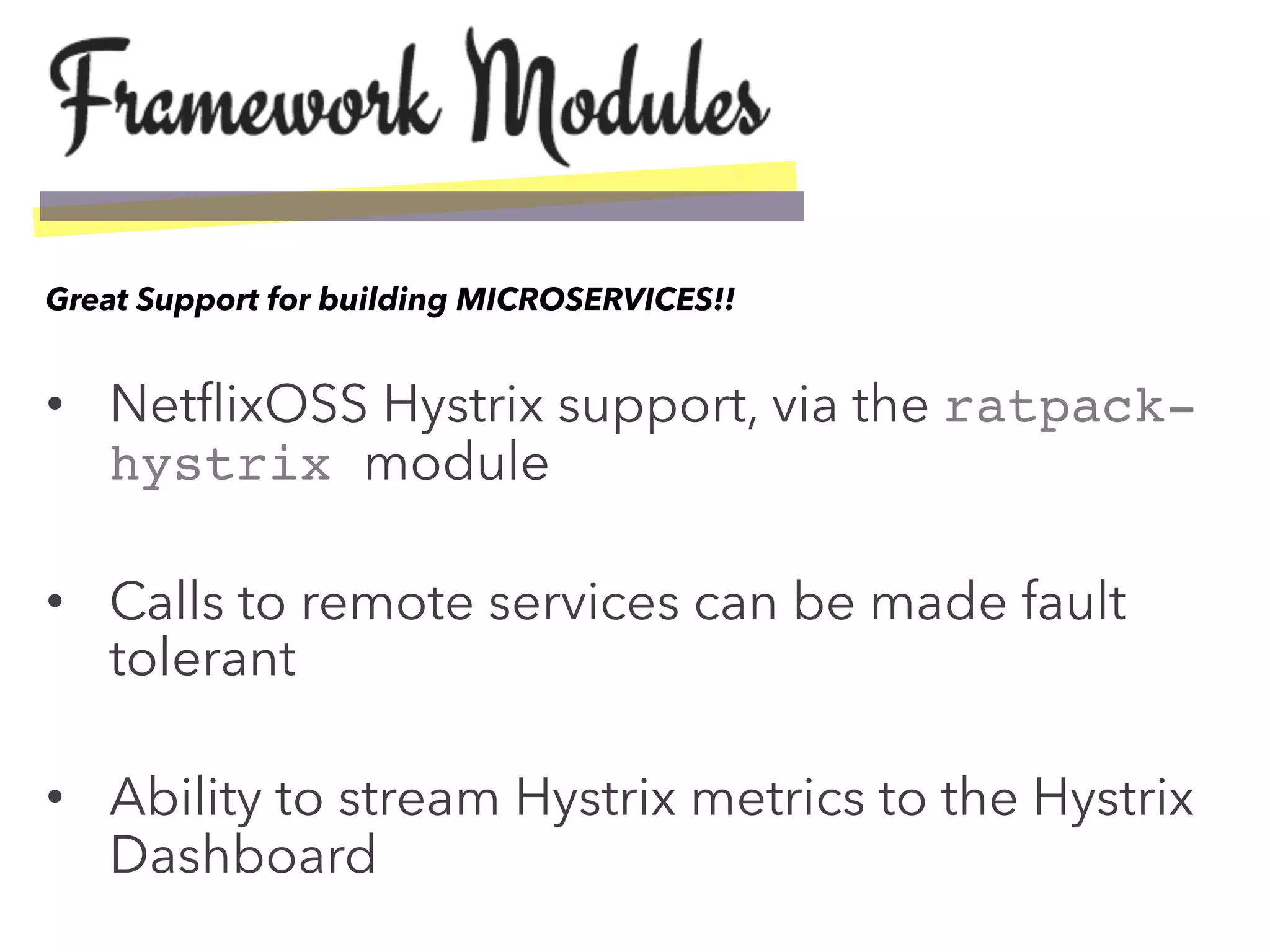

•  NetflixOSS Hystrix support, via the ratpack- hystrix module •  Calls to remote services can be made fault tolerant •  Ability to stream Hystrix metrics to the Hystrix Dashboard Great Support for building MICROSERVICES!!

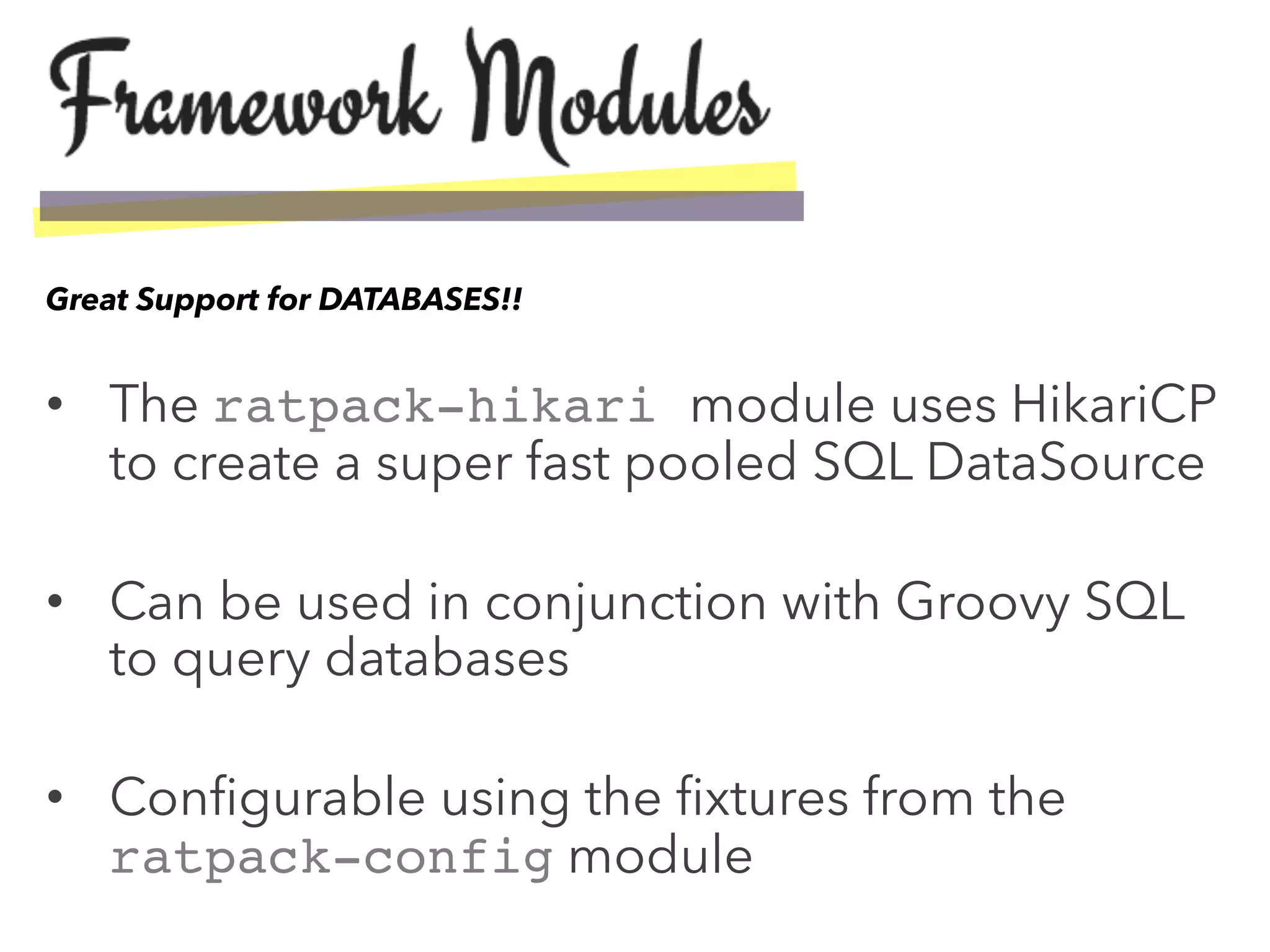

•  The ratpack-hikari module uses HikariCP to create a super fast pooled SQL DataSource •  Can be used in conjunction with Groovy SQL to query databases •  Configurable using the fixtures from the ratpack-config module Great Support for DATABASES!!

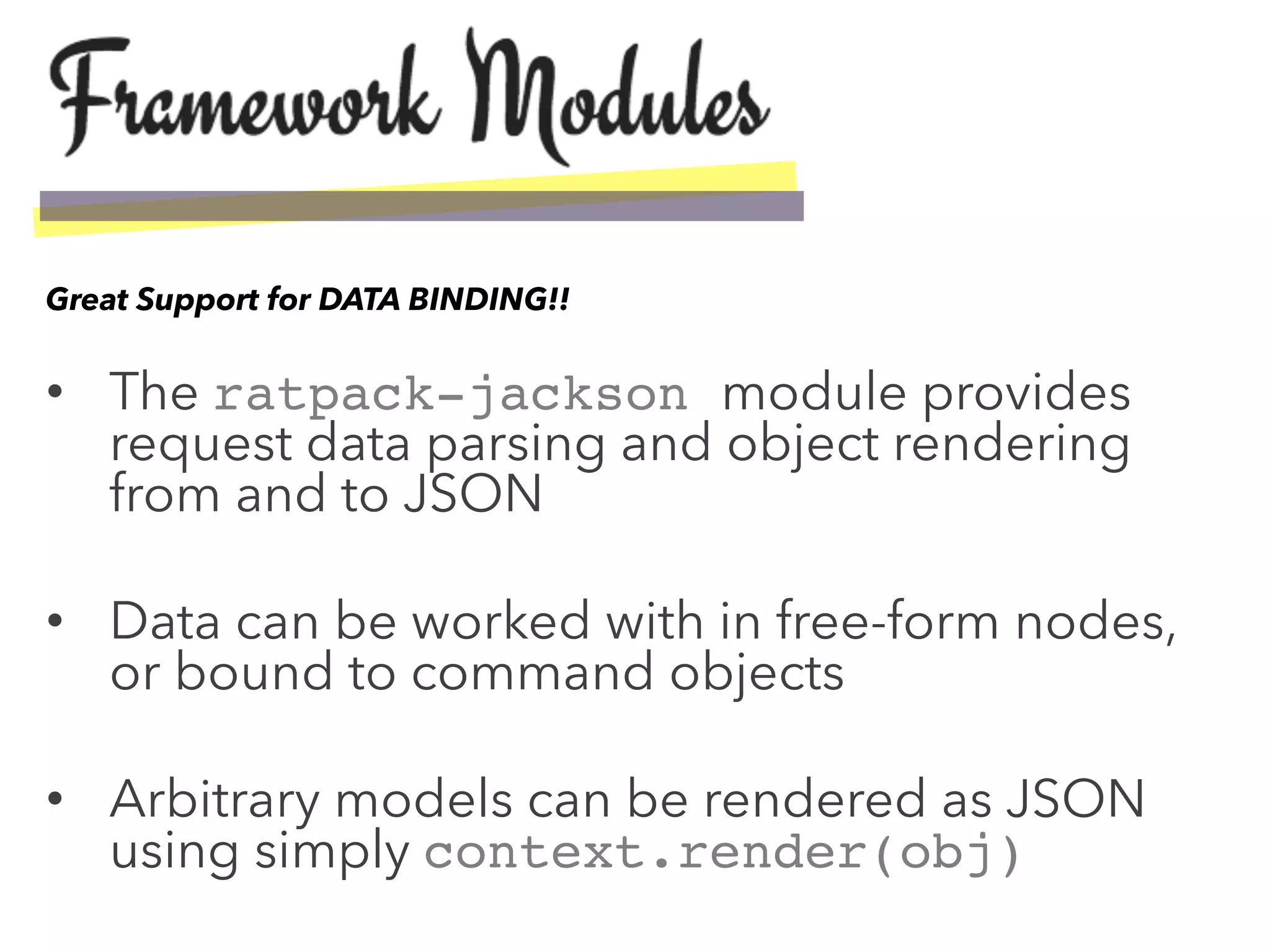

•  The ratpack-jackson module provides request data parsing and object rendering from and to JSON •  Data can be worked with in free-form nodes, or bound to command objects •  Arbitrary models can be rendered as JSON using simply context.render(obj)! Great Support for DATA BINDING!!

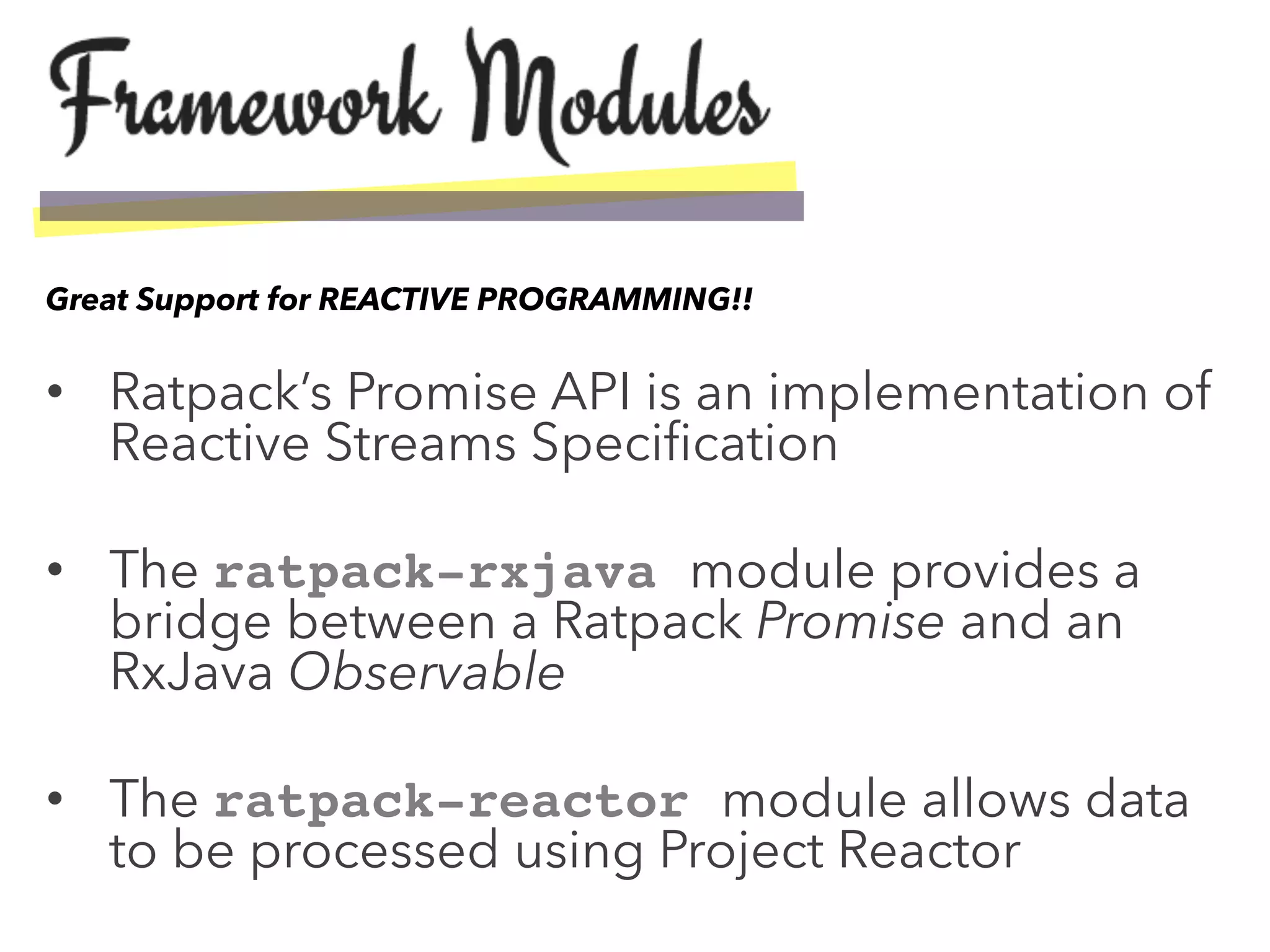

•  Ratpack’s Promise API is an implementation of Reactive Streams Specification •  The ratpack-rxjava module provides a bridge between a Ratpack Promise and an RxJava Observable •  The ratpack-reactor module allows data to be processed using Project Reactor Great Support for REACTIVE PROGRAMMING!!

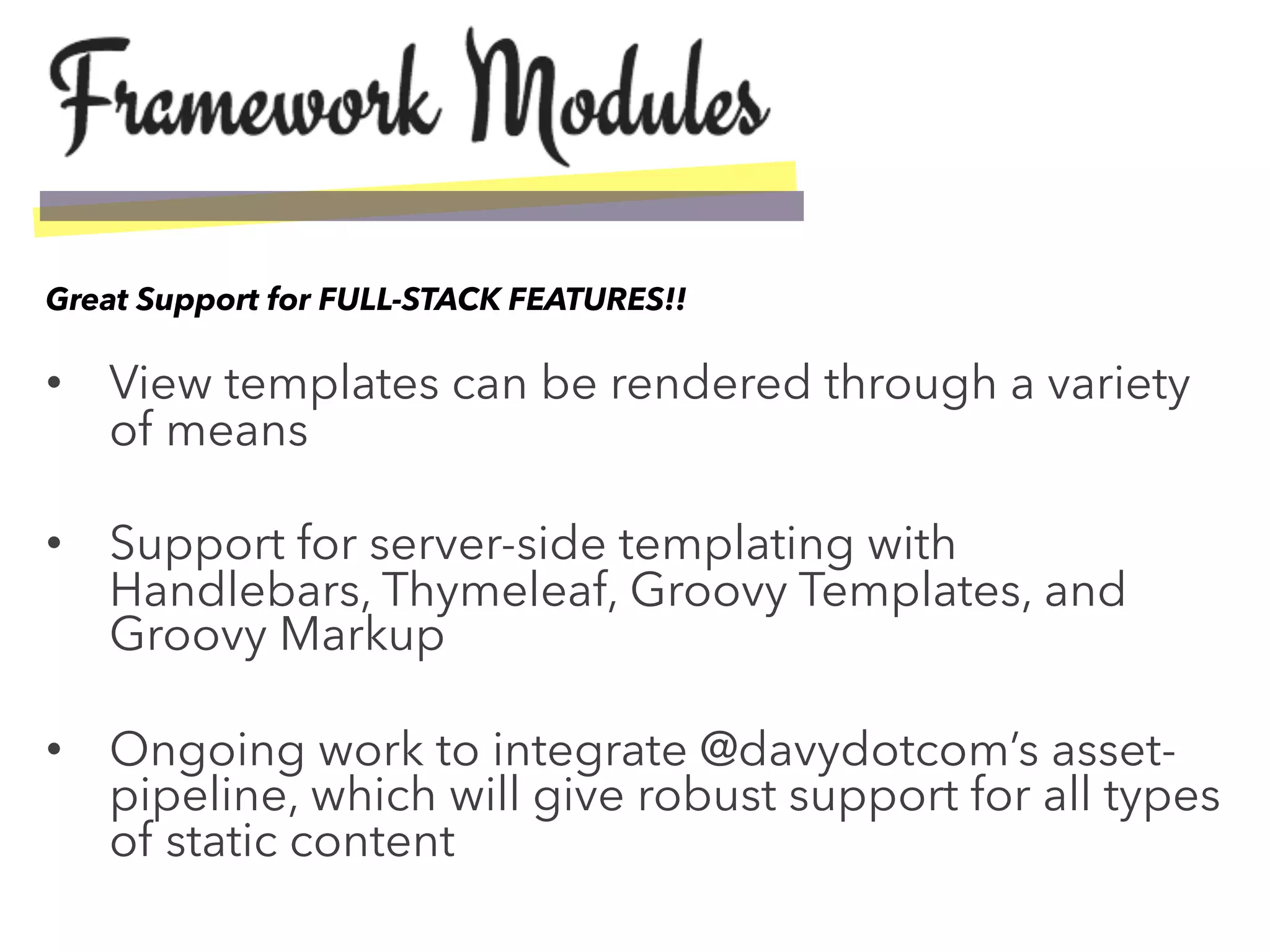

•  View templates can be rendered through a variety of means •  Support for server-side templating with Handlebars, Thymeleaf, Groovy Templates, and Groovy Markup •  Ongoing work to integrate @davydotcom’s asset- pipeline, which will give robust support for all types of static content Great Support for FULL-STACK FEATURES!!

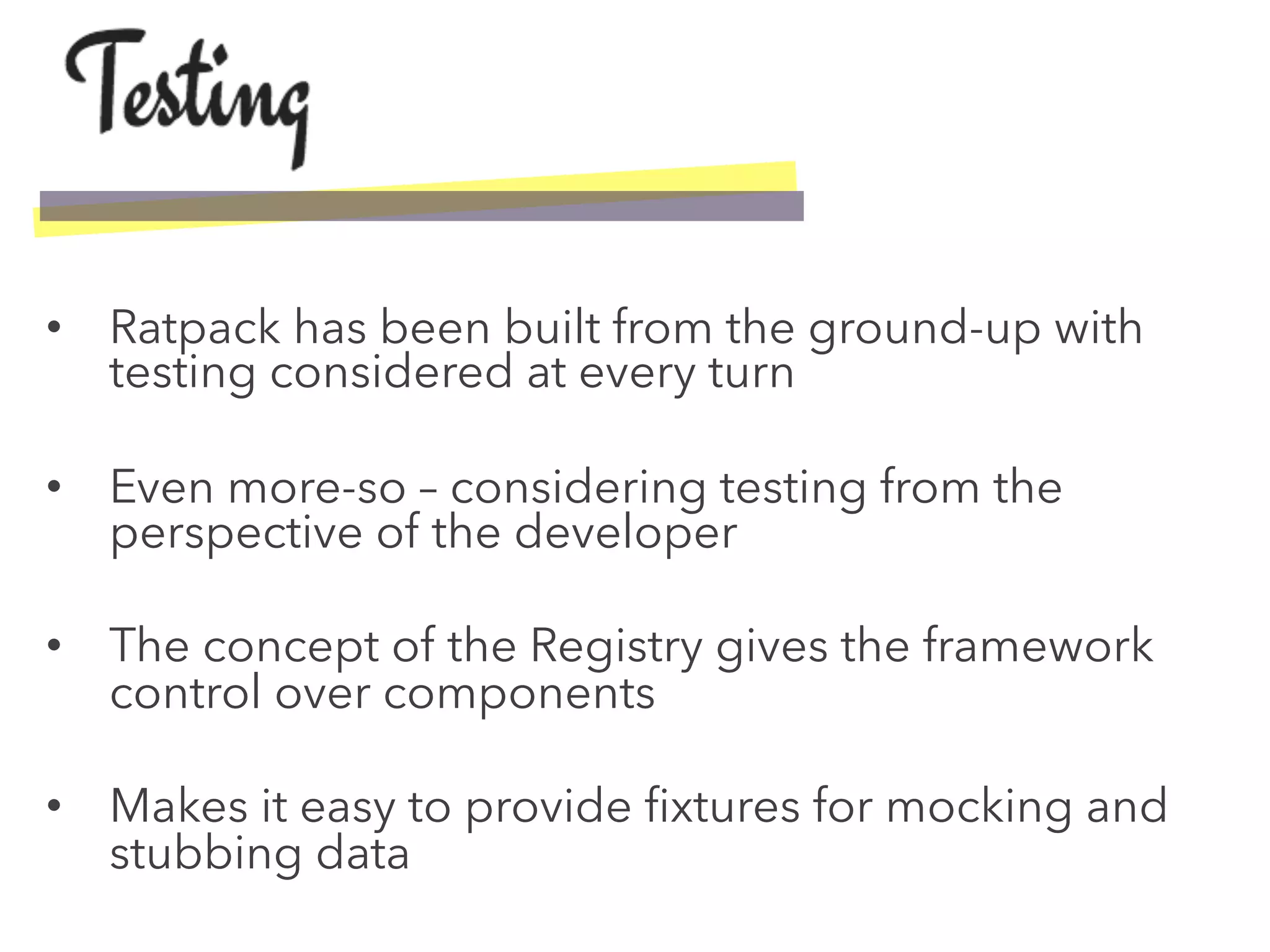

•  Ratpack has been built from the ground-up with testing considered at every turn •  Even more-so – considering testing from the perspective of the developer •  The concept of the Registry gives the framework control over components •  Makes it easy to provide fixtures for mocking and stubbing data

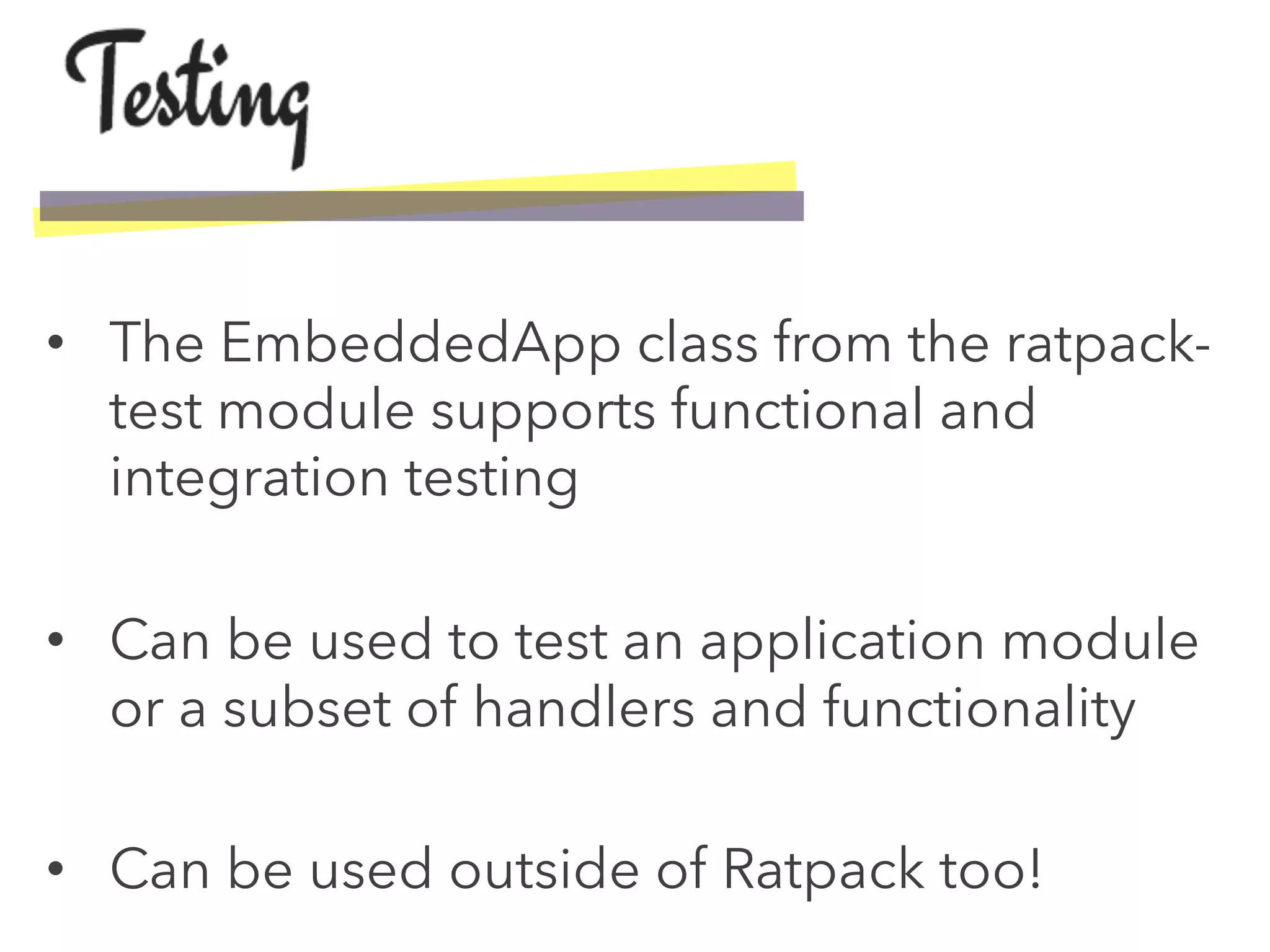

•  The EmbeddedApp class from the ratpack- test module supports functional and integration testing •  Can be used to test an application module or a subset of handlers and functionality •  Can be used outside of Ratpack too!

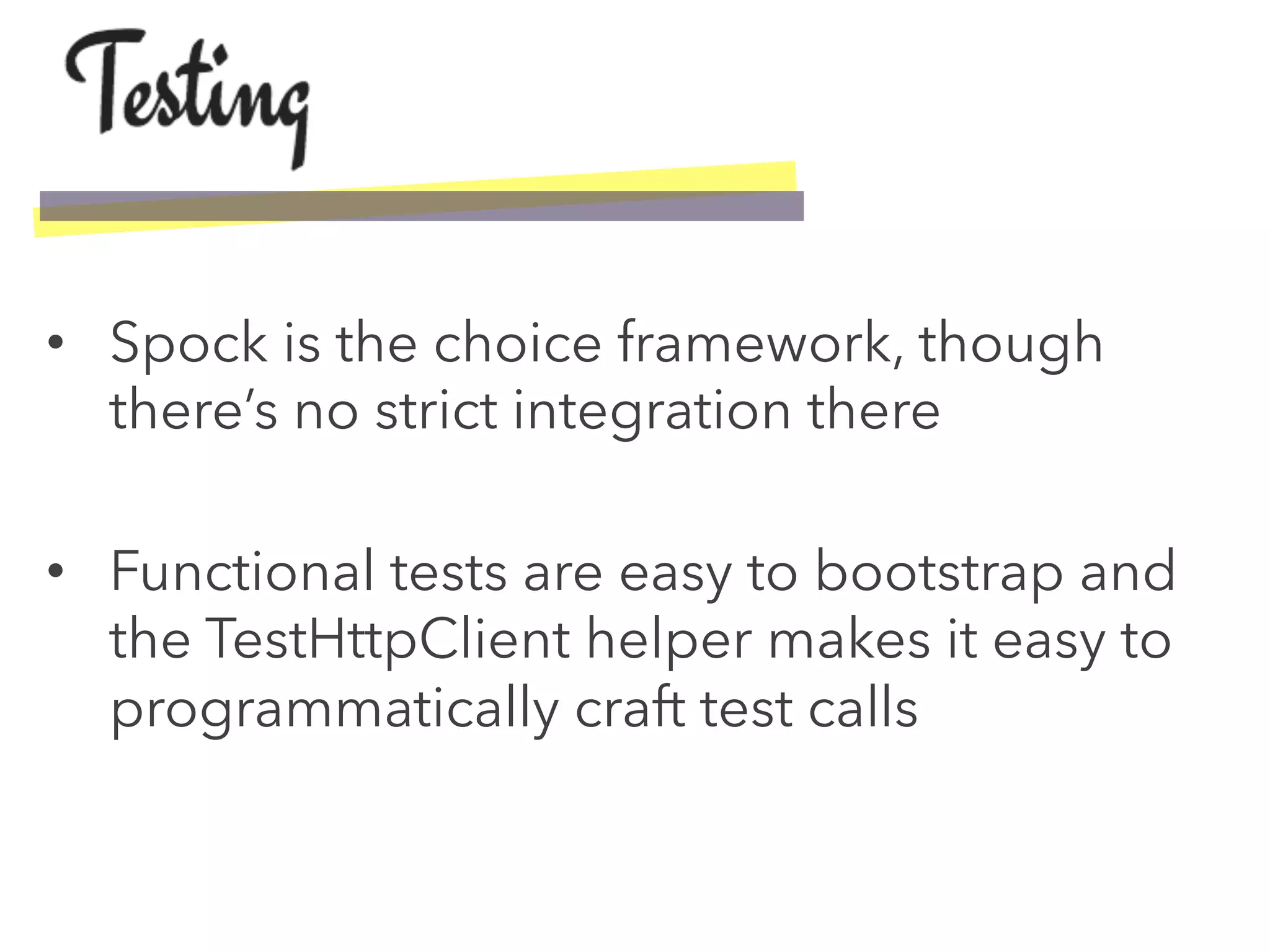

•  Spock is the choice framework, though there’s no strict integration there •  Functional tests are easy to bootstrap and the TestHttpClient helper makes it easy to programmatically craft test calls

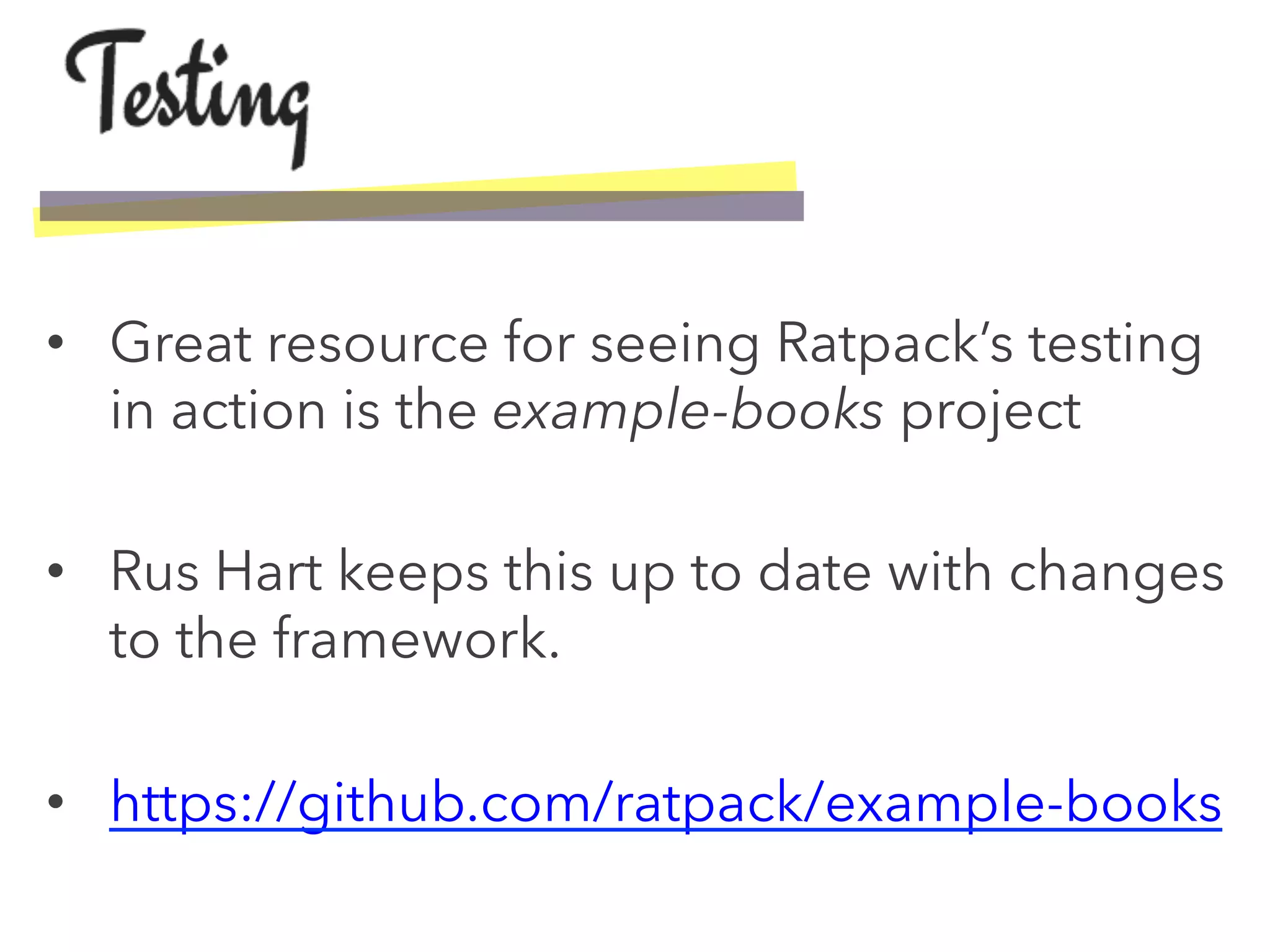

•  Great resource for seeing Ratpack’s testing in action is the example-books project •  Rus Hart keeps this up to date with changes to the framework. •  https://github.com/ratpack/example-books
Twitter people to follow:! ! •  @ldaley! •  @rus_hart! •  @varzof! •  @Lspacewalker! •  @marcinerdmann! •  @ratpackweb! •  @davydotcom! •  @johnrengelman! •  @rfletcherEW! •  @beckje01!
