• 1.
  Running a programCompiling A program, called a compiler , translates the source code into machine code The CPU then executes the machine code C, FORTRAN, Pascal, COBOL, BASIC Interpreting A program, called an interpreter, reads the source code and executes the instructions BASIC, LISP, Perl, Python
• 2.
  Java Code ExecutionCompiler (javac) translates source code (.java file) to byte code (.class file) Byte code is machine independent Byte code is interpreted by the Java run-time program program (java), the IDE (BlueJ), the appletviewer, or the web browser. The program can be compiled on one machine and interpreted on another.
• 3.

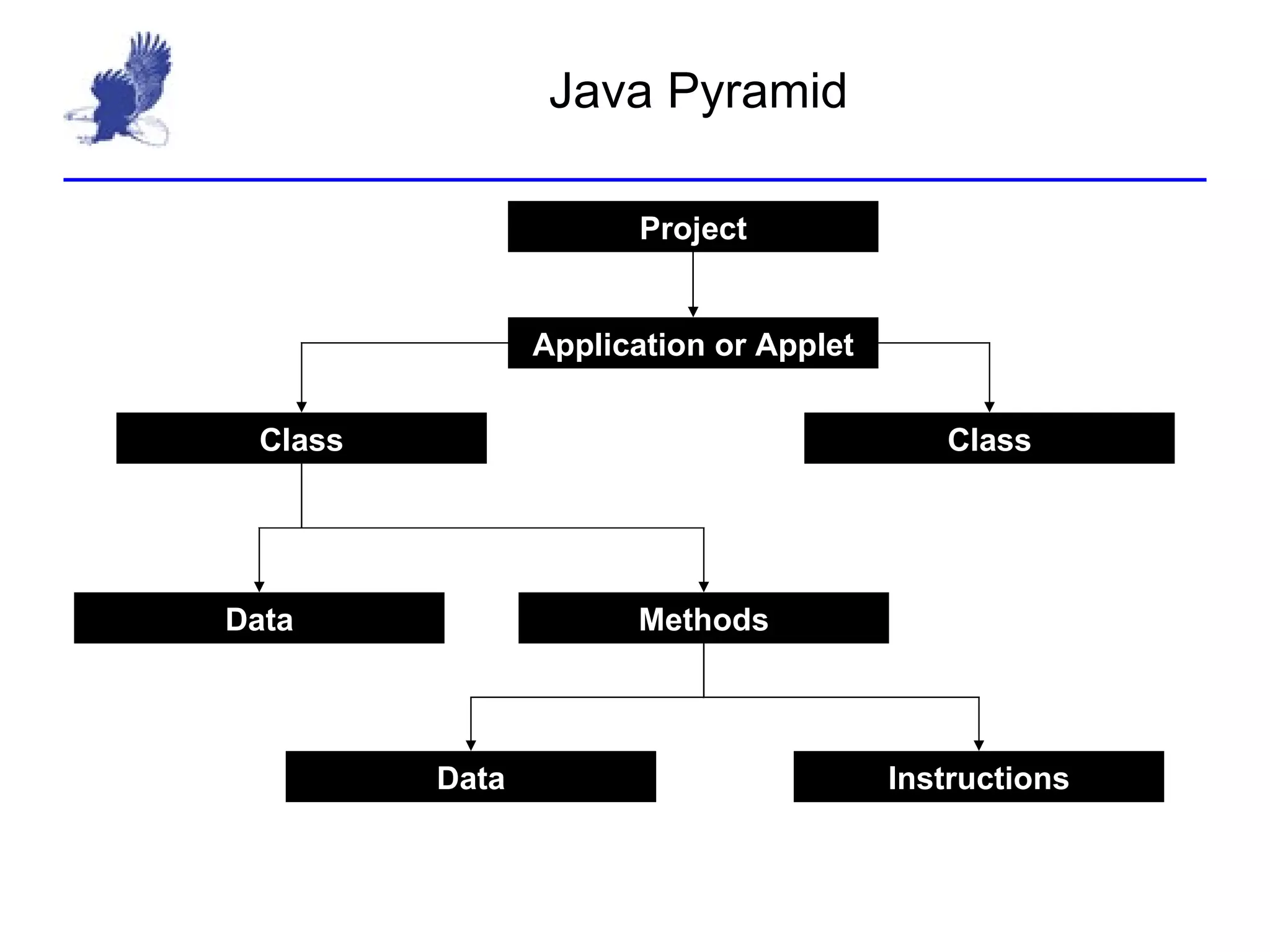

  Java Pyramid Applicationor Applet Class Class Project Data Methods Data Instructions
• 4.

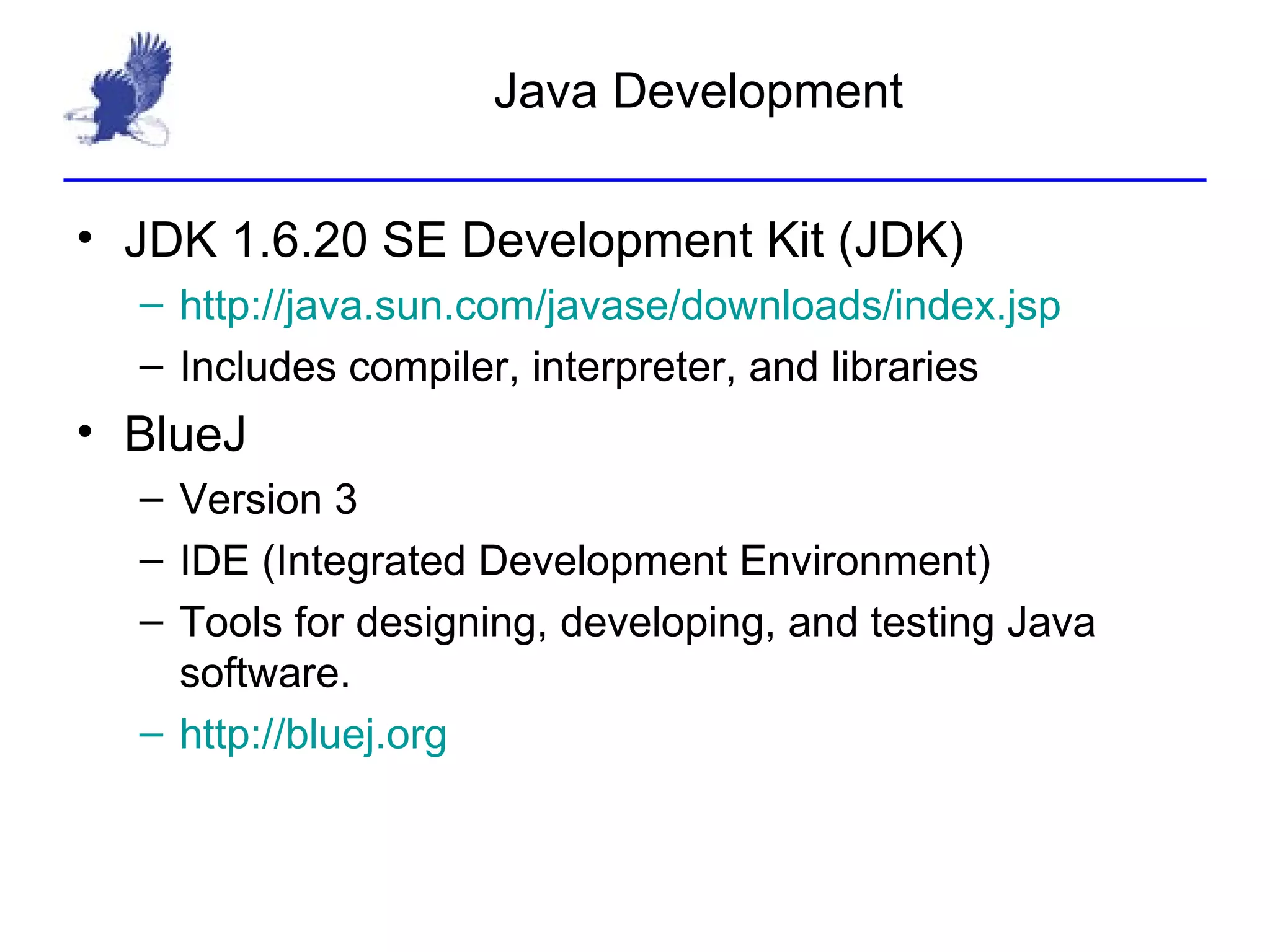

  Java Development JDK1.6.20 SE Development Kit (JDK) http:// java.sun.com/javase/downloads/index.jsp Includes compiler, interpreter, and libraries BlueJ Version 3 IDE (Integrated Development Environment) Tools for designing, developing, and testing Java software. http:// bluej.org
• 5.

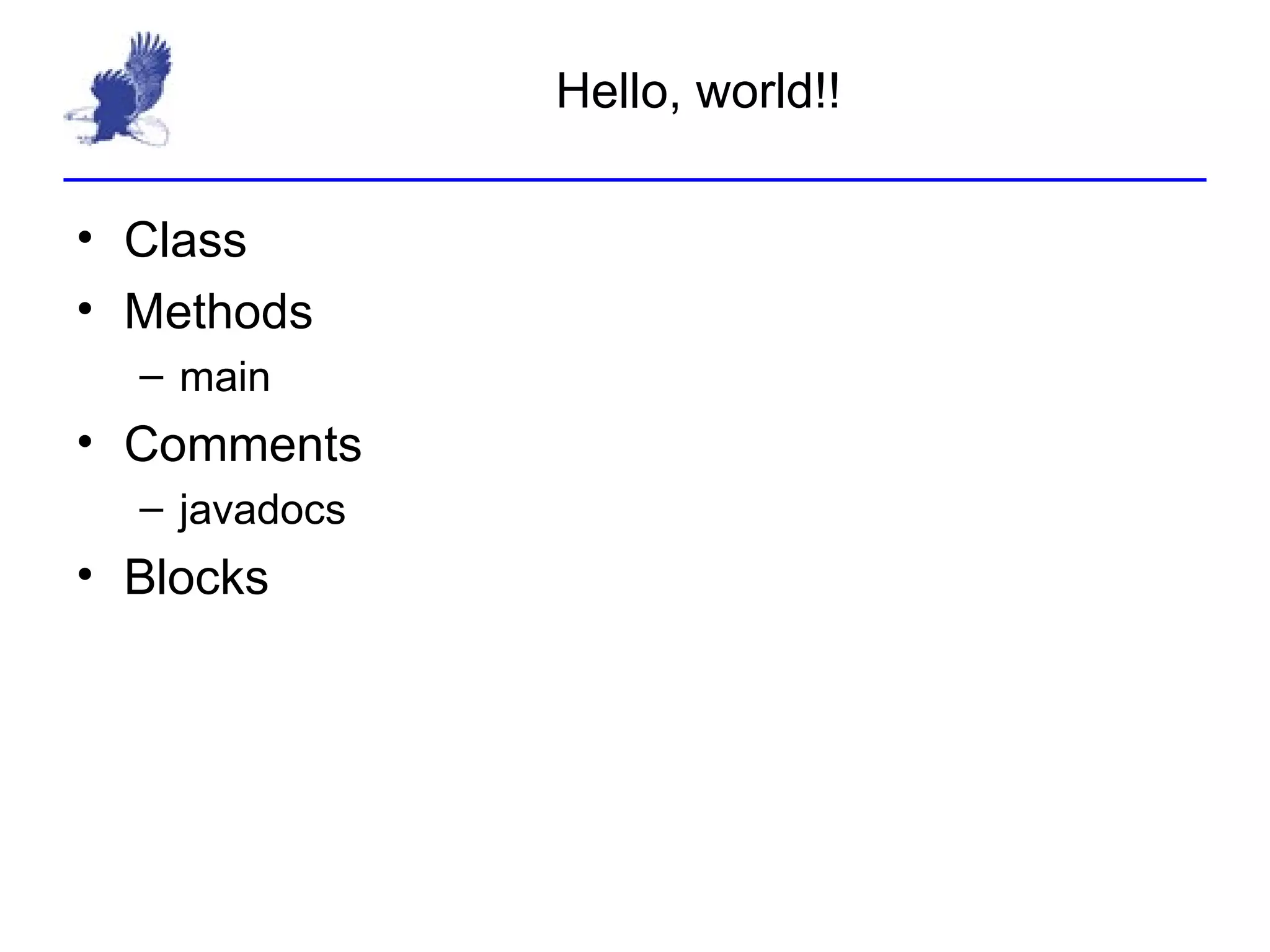

  Hello, world!! ClassMethods main Comments javadocs Blocks
• 6.

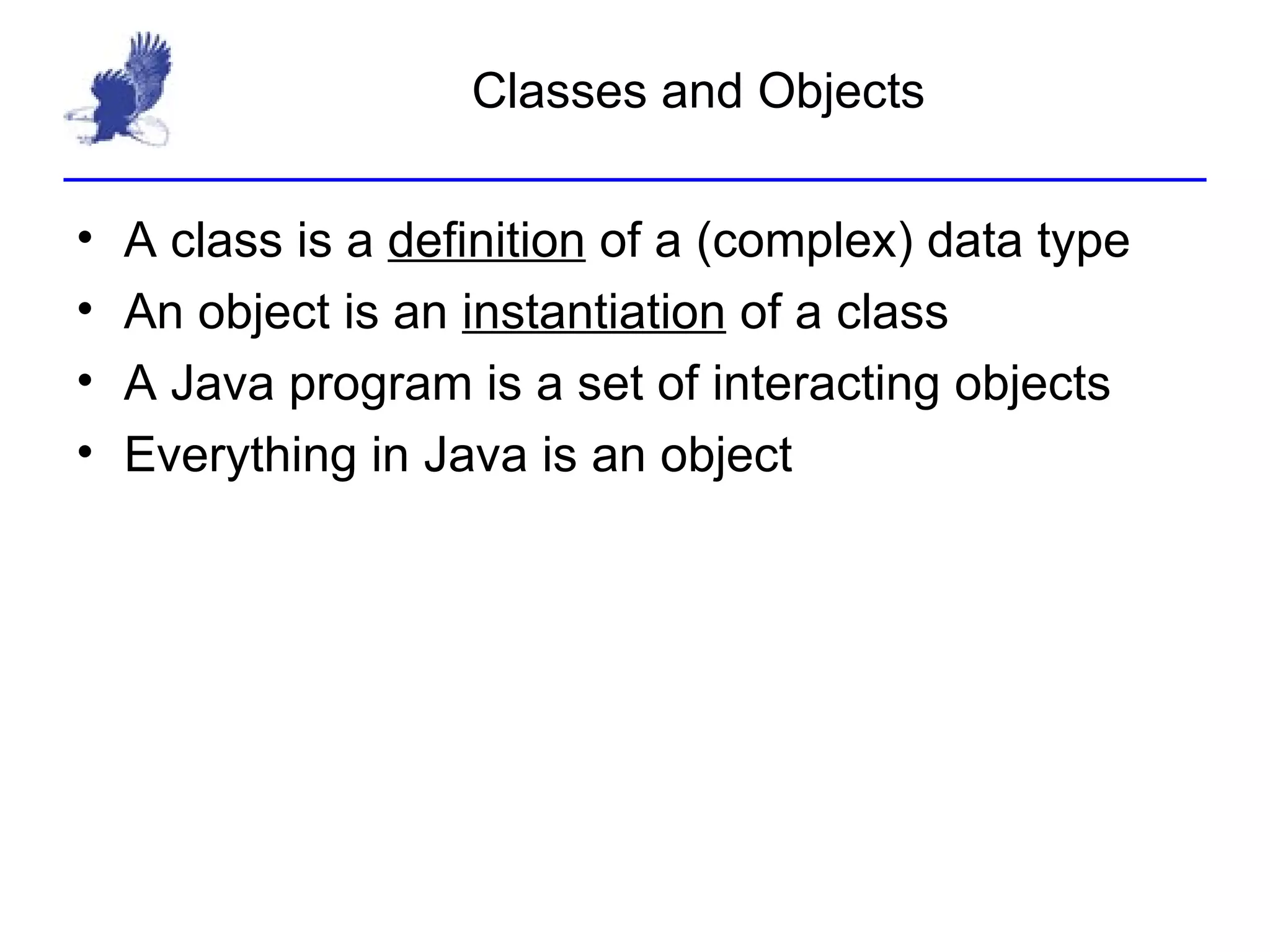

  Classes and ObjectsA class is a definition of a (complex) data type An object is an instantiation of a class A Java program is a set of interacting objects Everything in Java is an object
• 7.

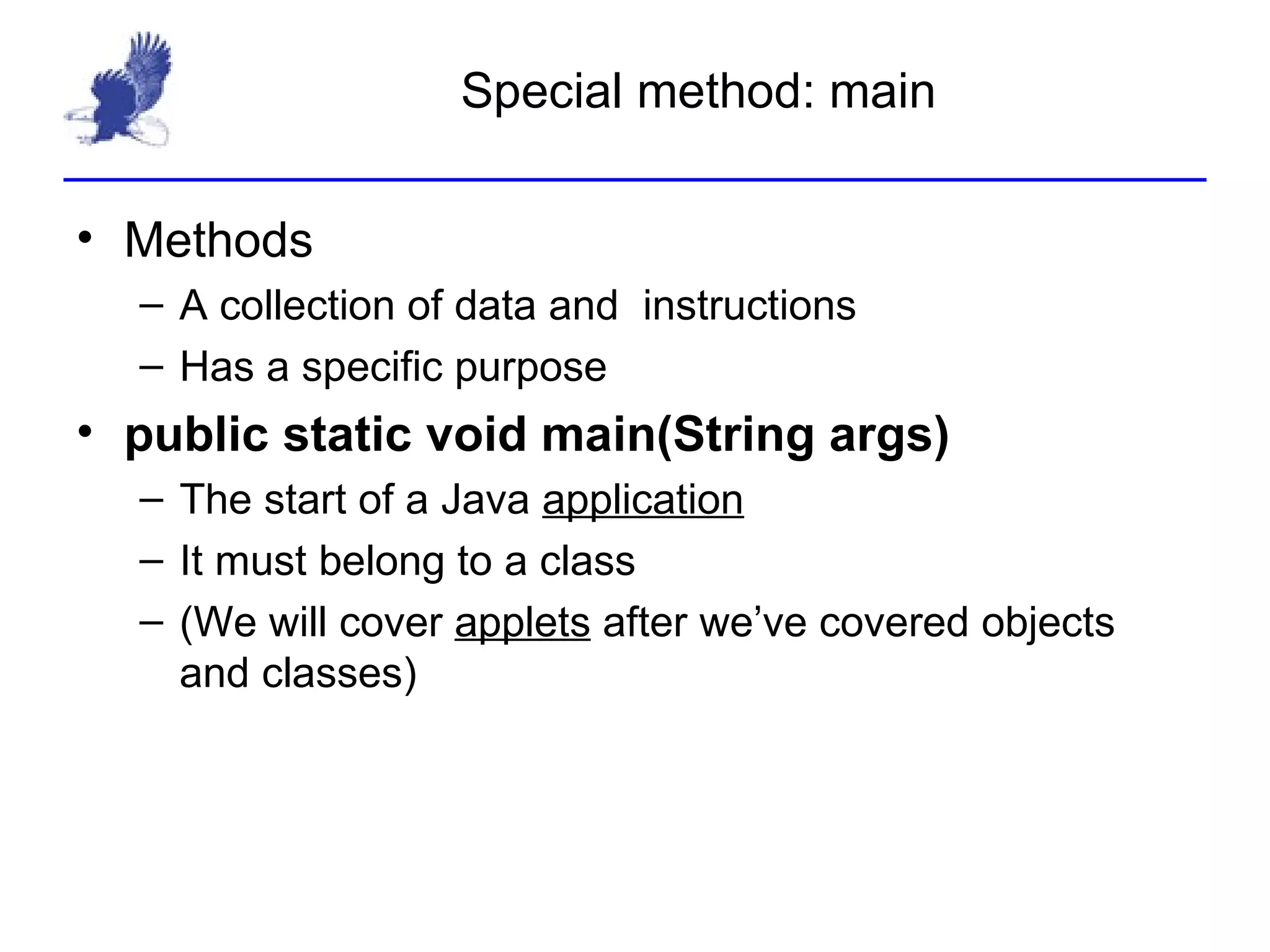

  Special method: mainMethods A collection of data and instructions Has a specific purpose public static void main(String args) The start of a Java application It must belong to a class (We will cover applets after we’ve covered objects and classes)
• 8.

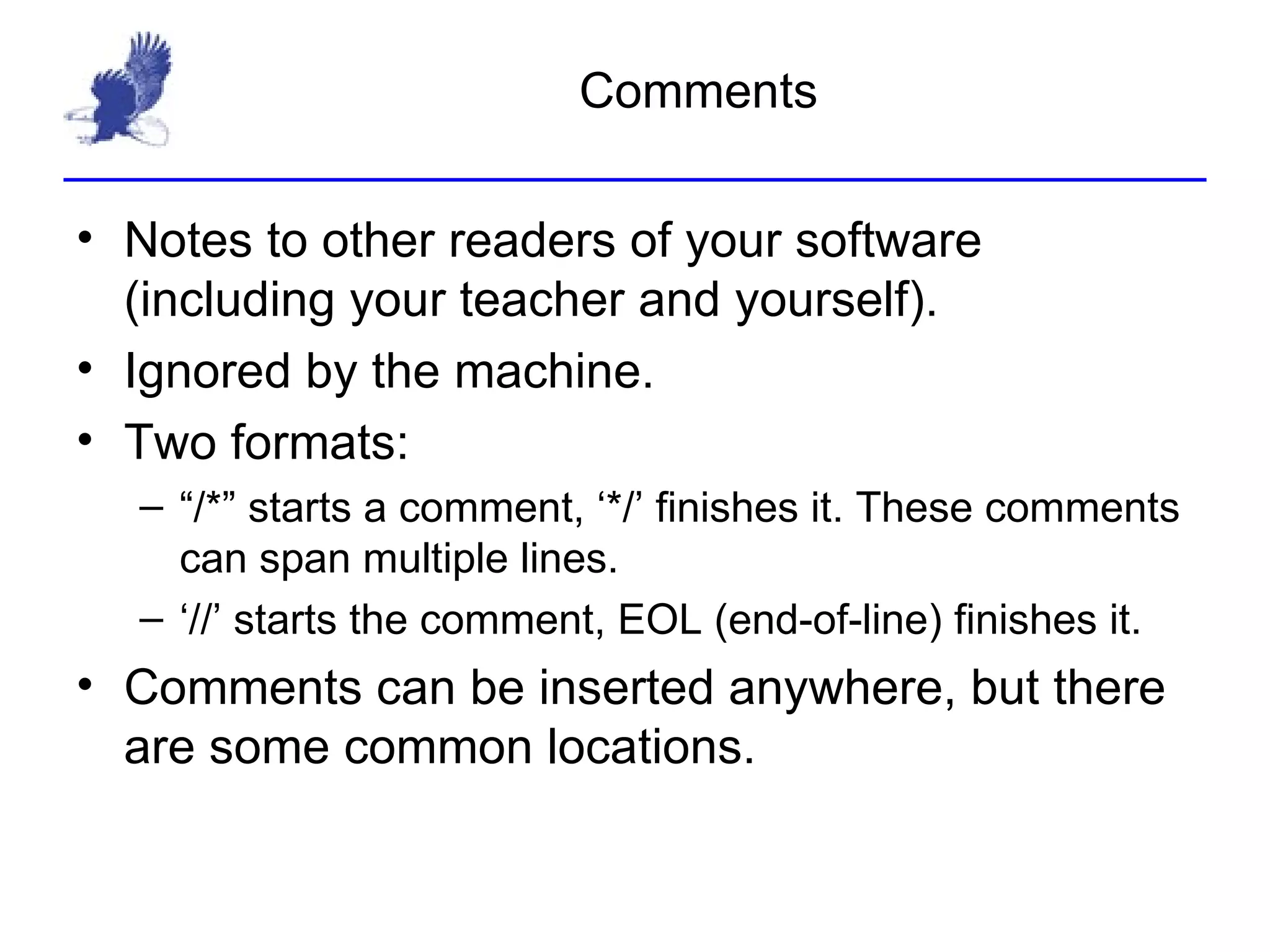

  Comments Notes toother readers of your software (including your teacher and yourself). Ignored by the machine. Two formats: “/*” starts a comment, ‘*/’ finishes it. These comments can span multiple lines. ‘//’ starts the comment, EOL (end-of-line) finishes it. Comments can be inserted anywhere, but there are some common locations.
• 9.

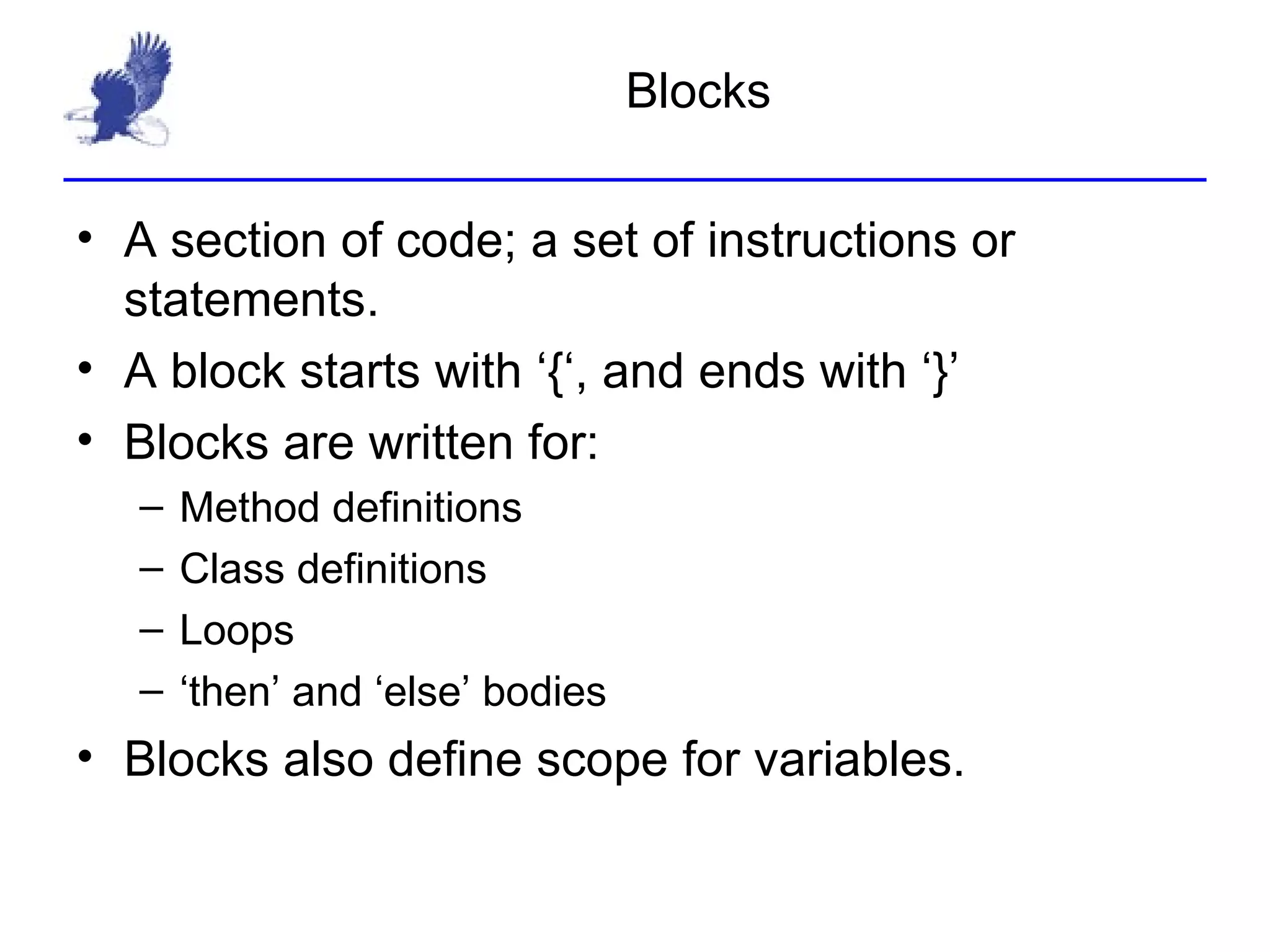

  Blocks A sectionof code; a set of instructions or statements. A block starts with ‘{‘, and ends with ‘}’ Blocks are written for: Method definitions Class definitions Loops ‘then’ and ‘else’ bodies Blocks also define scope for variables.
• 10.

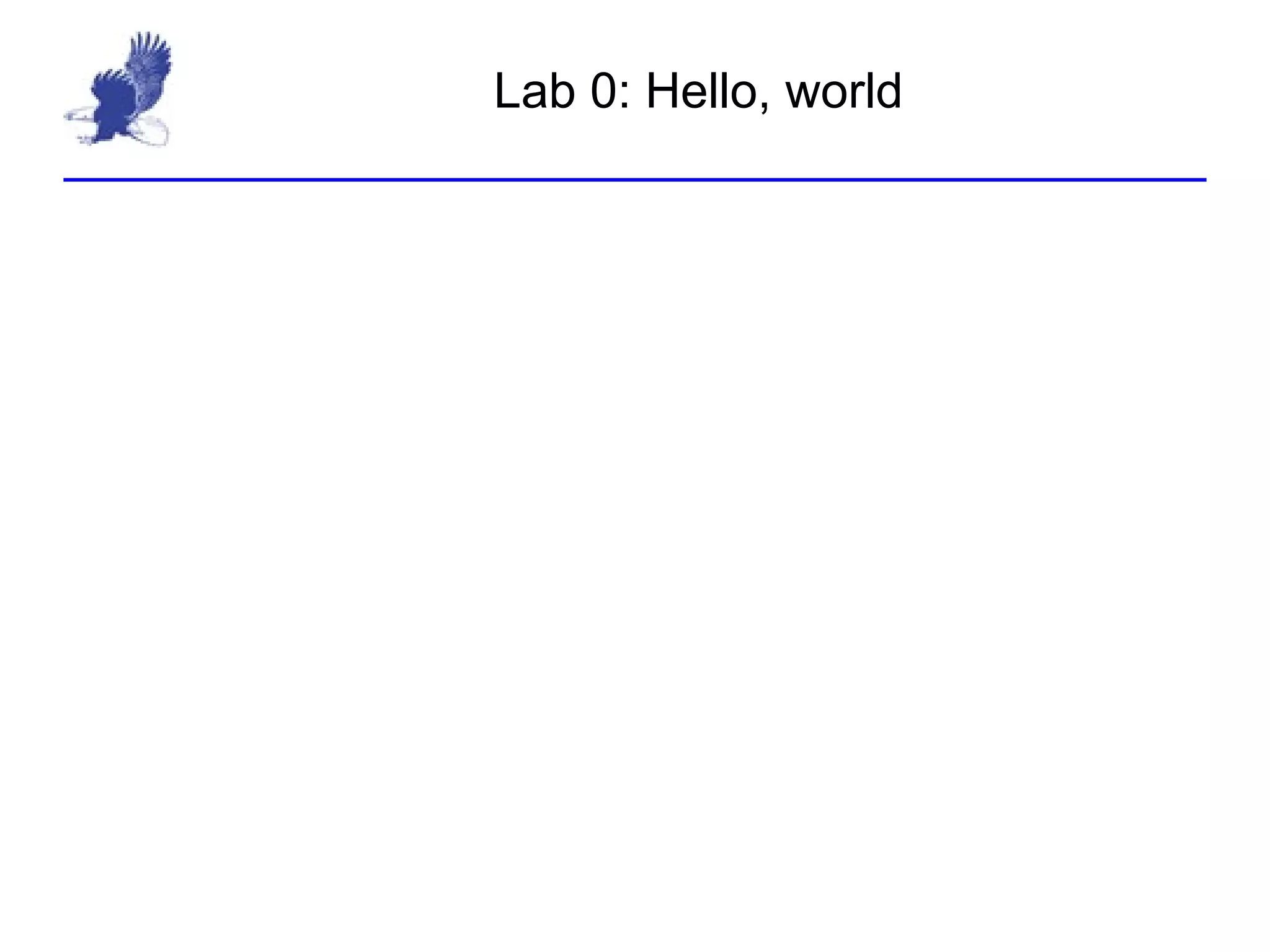

  Lab 0: Hello,world
• 11.

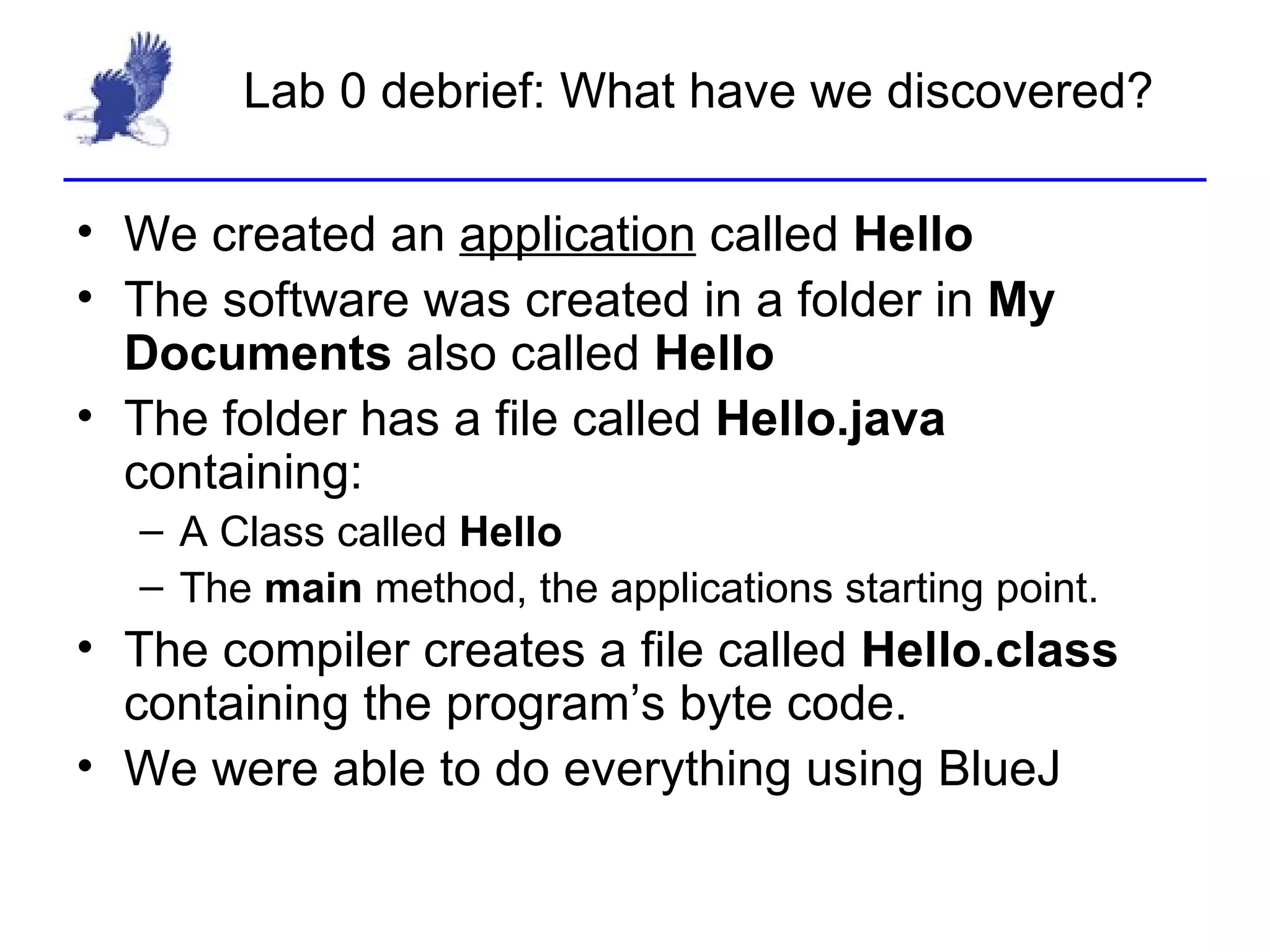

  Lab 0 debrief:What have we discovered? We created an application called Hello The software was created in a folder in My Documents also called Hello The folder has a file called Hello.java containing: A Class called Hello The main method, the applications starting point. The compiler creates a file called Hello.class containing the program’s byte code. We were able to do everything using BlueJ
