![The Search Form
<%= form_tag(searches_path, :id => 'search-form', :method => :get) do |f| %>
<span>
<%= text_field_tag :query, params[:query] %>
<%= submit_tag 'Search', :id => 'commit' %>
</span>
<% end %>
/app/views/layouts/_search.html.erb
• Just a simple view partial…
• That’s rendered by the site’s layout](https://image.slidesharecdn.com/railsandsolr-120325192554-phpapp01/75/Rails-and-the-Apache-SOLR-Search-Engine-21-2048.jpg)
![Search Results
resources :searches, :only => [:index]
config/routes.rb
<% if @posts.present? %>
<%= will_paginate @posts, :container => false %>
<table>
<% for post in @posts %>
<tr><td"><%= raw(post.title) %></td></tr>
<tr><td><%= post.body.truncate(300) %></td></tr>
<% end %>
</table>
<%= page_entries_info @posts %>
<%= will_paginate @posts, :container => false %>
<% else %>
<p>No search results are available. Please try another search.</p>
<% end %>
app/views/searches/index.html.erb](https://image.slidesharecdn.com/railsandsolr-120325192554-phpapp01/75/Rails-and-the-Apache-SOLR-Search-Engine-22-2048.jpg)
![Search Controller
class SearchesController < ApplicationController
def index ActiveRecord Search
if params[:query].present? Integration
search = Post.search {
fulltext params[:query]
paginate :page => params[:page].present? ? params[:page] : 1,
:per_page => 10
}
Pagination integrates
@posts = search.results
w/ will_paginate gem
else
@posts = nil
end
end
end Security: Params[:query]
must be scrubbed if it will app/controllers/searches_controller.rb
be re-displayed…](https://image.slidesharecdn.com/railsandsolr-120325192554-phpapp01/75/Rails-and-the-Apache-SOLR-Search-Engine-23-2048.jpg)
![Search Weighting
Titles seem more important…can we weight the
title higher than the body?
search = Post.search {
fulltext params[:query]
paginate :page => params[:page].present? ? params[:page] : 1,
:per_page => 10
}
BEFORE
search = Post.search {
fulltext params[:query] do
boost_fields :title => 2.0
end
paginate :page => params[:page].present? ? params[:page] : 1,
:per_page => 10
}
AFTER](https://image.slidesharecdn.com/railsandsolr-120325192554-phpapp01/75/Rails-and-the-Apache-SOLR-Search-Engine-30-2048.jpg)
![Filtering
search = Post.search {
fulltext params[:query] do
boost_fields :title => 2.0
end
with(:featured, true)
}
/app/controllers/searches_controller.rb
• Text fields are searched
• The boolean “featured” attribute is filtered
• Search returns only featured posts that match
the full‐text search criteria](https://image.slidesharecdn.com/railsandsolr-120325192554-phpapp01/75/Rails-and-the-Apache-SOLR-Search-Engine-33-2048.jpg)
![Hit Highlighting
class Post < ActiveRecord::Base @search = Post.search {
searchable do fulltext params[:query] do
... highlight :body
text :body, :stored => true end
end }
/app/controllers/searches_controller.rb
end
/app/models/post.rb
@search.hits.each do |hit| Post #1
puts "Post ##{hit.primary_key}" I use *git* on my project
hit.highlights(:body).each do |highlight| Post #2
puts " " + highlight.format { |word| "*#{word}*" } the *git* utility is cool
end
OUTPUT
end
/app/views/searches/index.html.erb](https://image.slidesharecdn.com/railsandsolr-120325192554-phpapp01/75/Rails-and-the-Apache-SOLR-Search-Engine-34-2048.jpg)
Uploaded byDavid Keener
Rails and the Apache SOLR Search Engine
The document discusses a conference presentation by David Keener on the development of a search application using Rails and Solr technology. It outlines the need for an effective search feature, the technology stack involving Lucene and Solr, and details the implementation of a simple blog app with search capabilities. Additional topics include data indexing, search customization, and security considerations in search applications.
More Related Content
Similar to Rails and the Apache SOLR Search Engine
Rails and the Apache SOLR Search Engine
- 2.
- 3.
- 4. Part 1: Why? “Why the Lucky Stiff” at a conference in 2006… - innovative, eccentric, suddenly retired from public life…

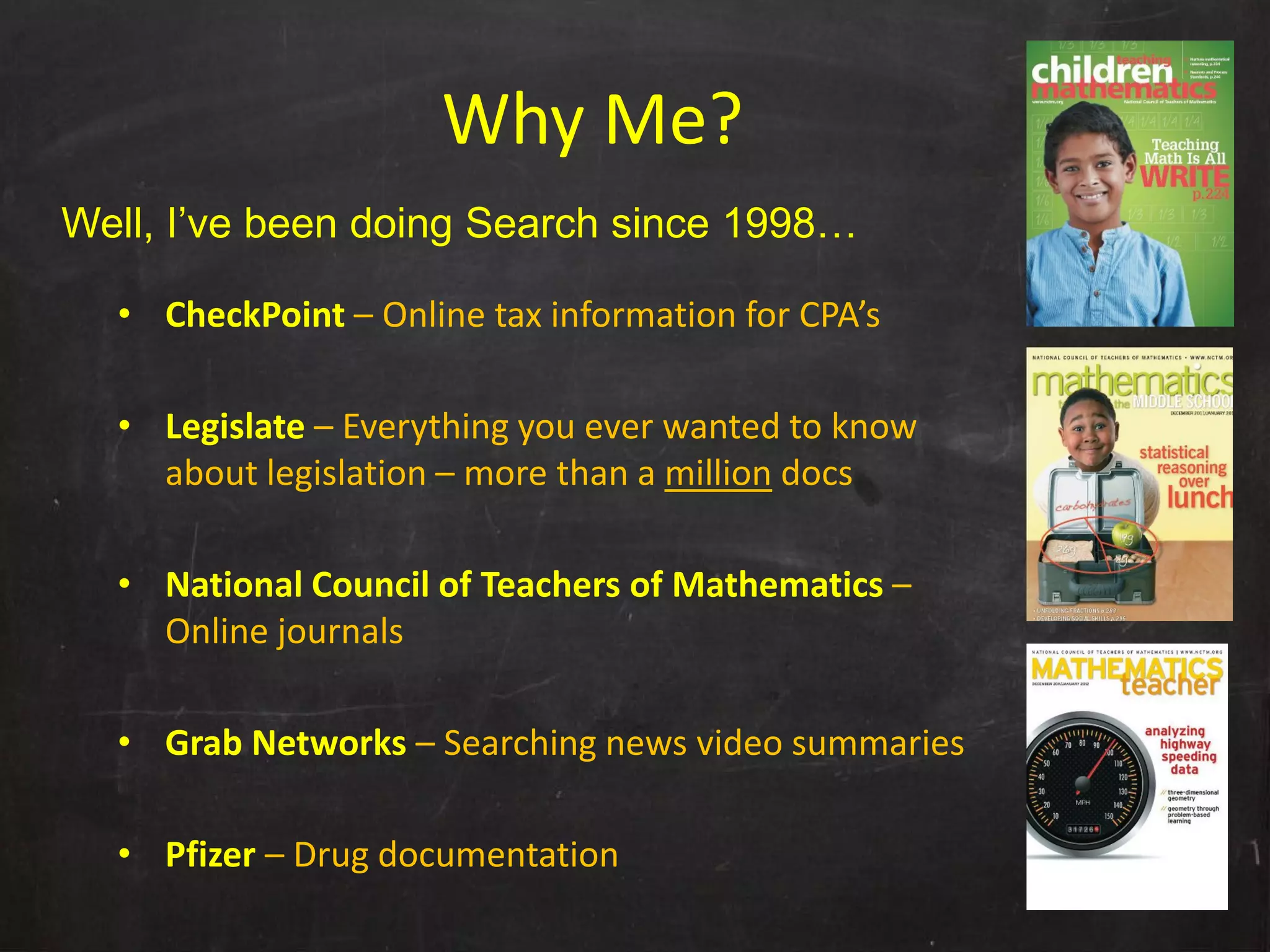

- 5. Why Me? Well, I’ve beendoing Search since 1998… • CheckPoint – Online tax information for CPA’s • Legislate – Everything you ever wanted to know about legislation – more than a million docs • National Council of Teachers of Mathematics – Online journals • Grab Networks – Searching news video summaries • Pfizer – Drug documentation
- 6.

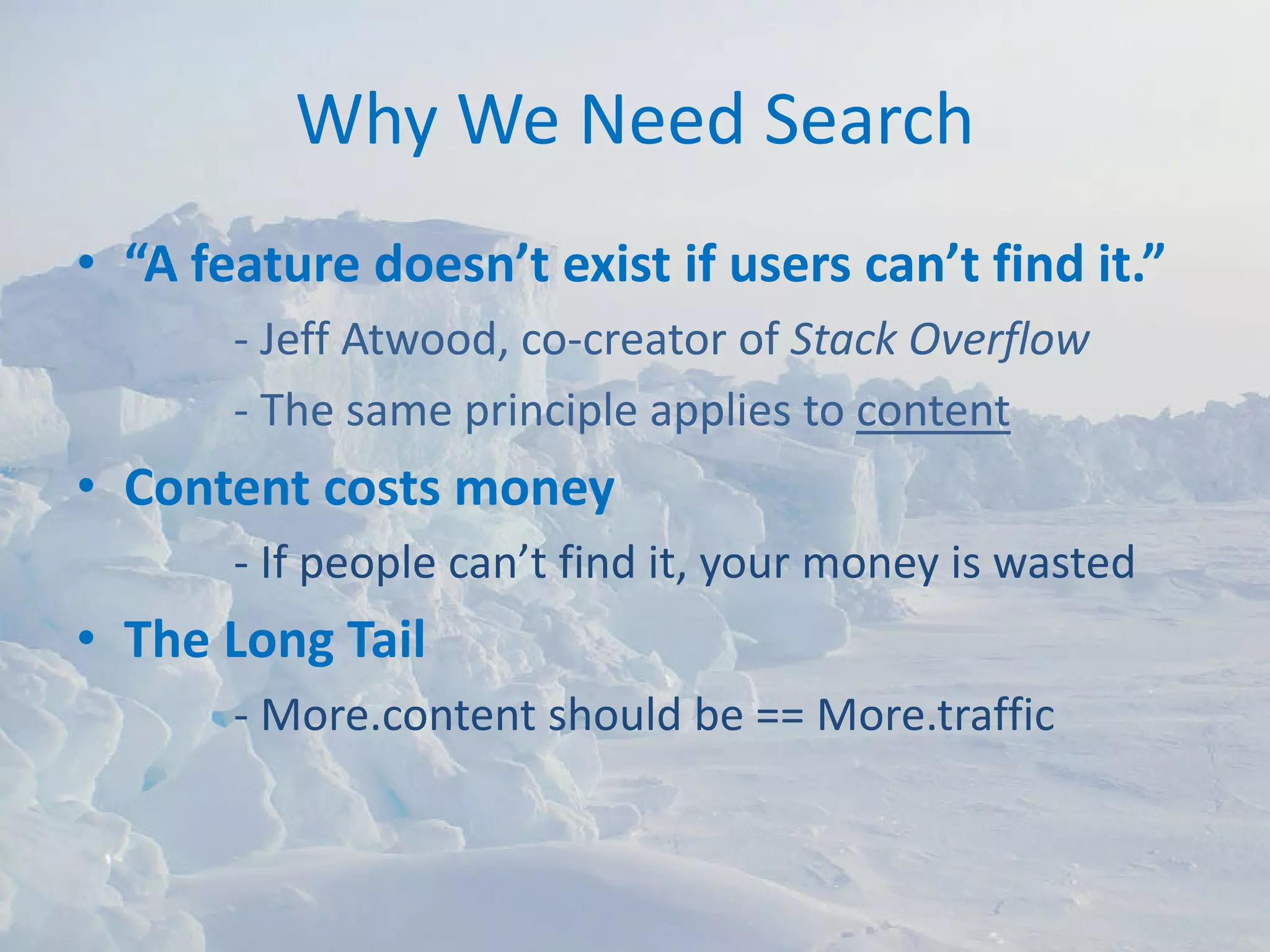

- 7. Why We Need Search • “A feature doesn’t exist if users can’t find it.” ‐ Jeff Atwood, co‐creator of Stack Overflow ‐ The same principle applies to content • Content costs money ‐ If people can’t find it, your money is wasted • The Long Tail ‐ More.content should be == More.traffic
- 8. Part 2: Technology Stack

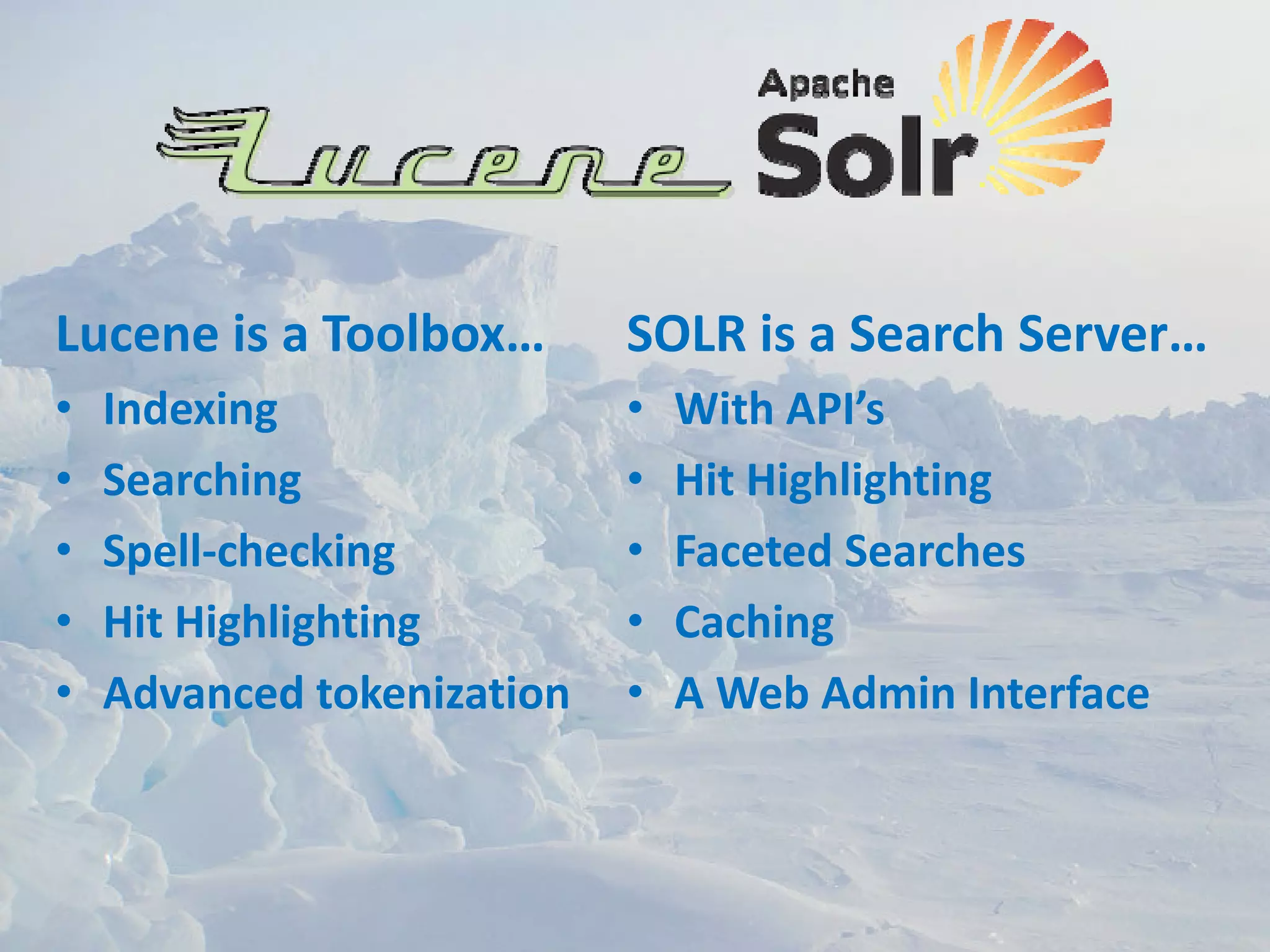

- 9. Lucene is a Toolbox… SOLR is a Search Server… • Indexing • With API’s • Searching • Hit Highlighting • Spell‐checking • Faceted Searches • Hit Highlighting • Caching • Advanced tokenization • A Web Admin Interface
- 11. SOLR and Luceneneed Java 1.4 or higher

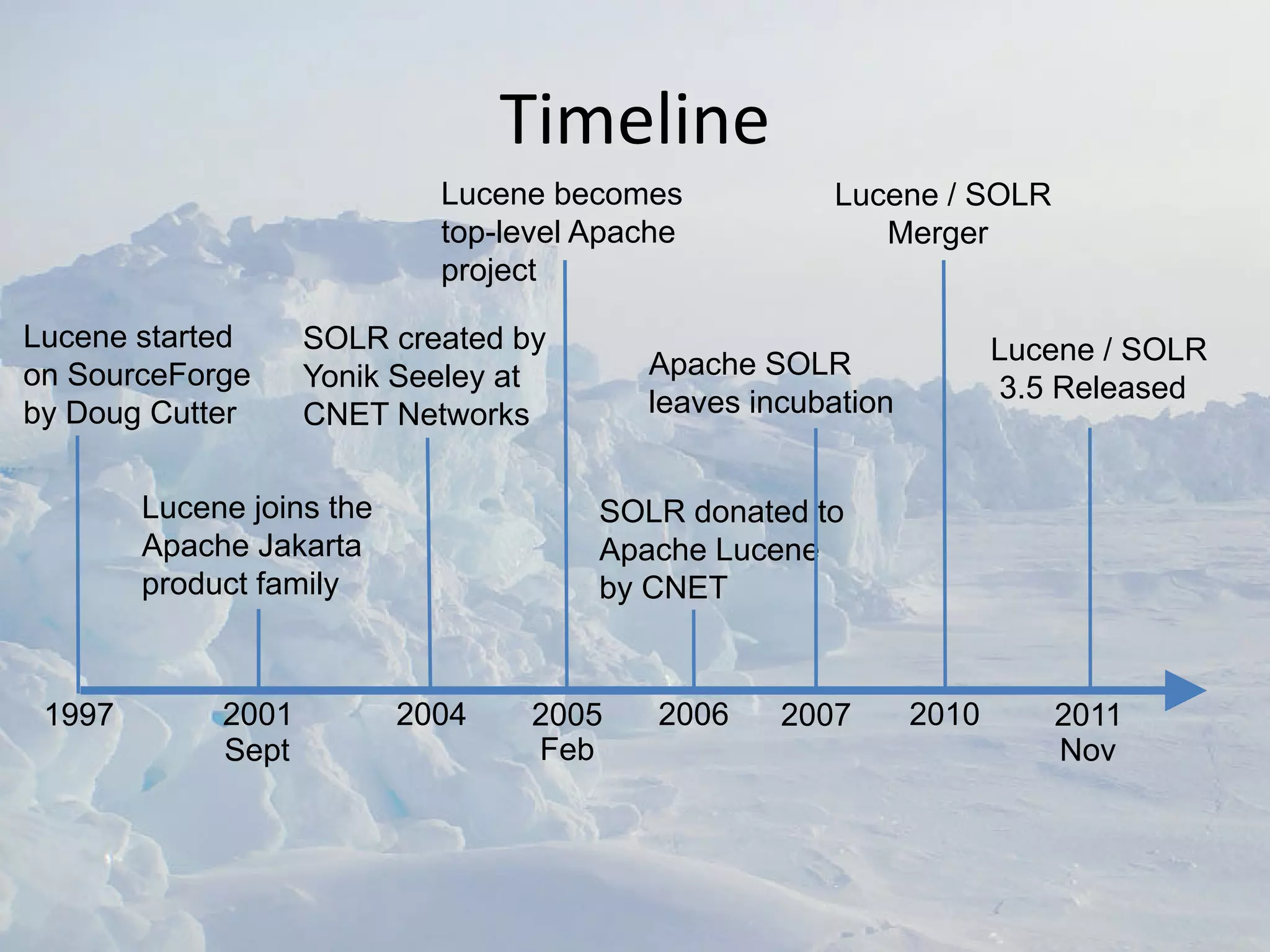

- 12. Timeline Lucene becomes Lucene / SOLR top-level Apache Merger project Lucene started SOLR created by Lucene / SOLR on SourceForge Yonik Seeley at Apache SOLR leaves incubation 3.5 Released by Doug Cutter CNET Networks Lucene joins the SOLR donated to Apache Jakarta Apache Lucene product family by CNET 1997 2001 2004 2005 2006 2007 2010 2011 Sept Feb Nov

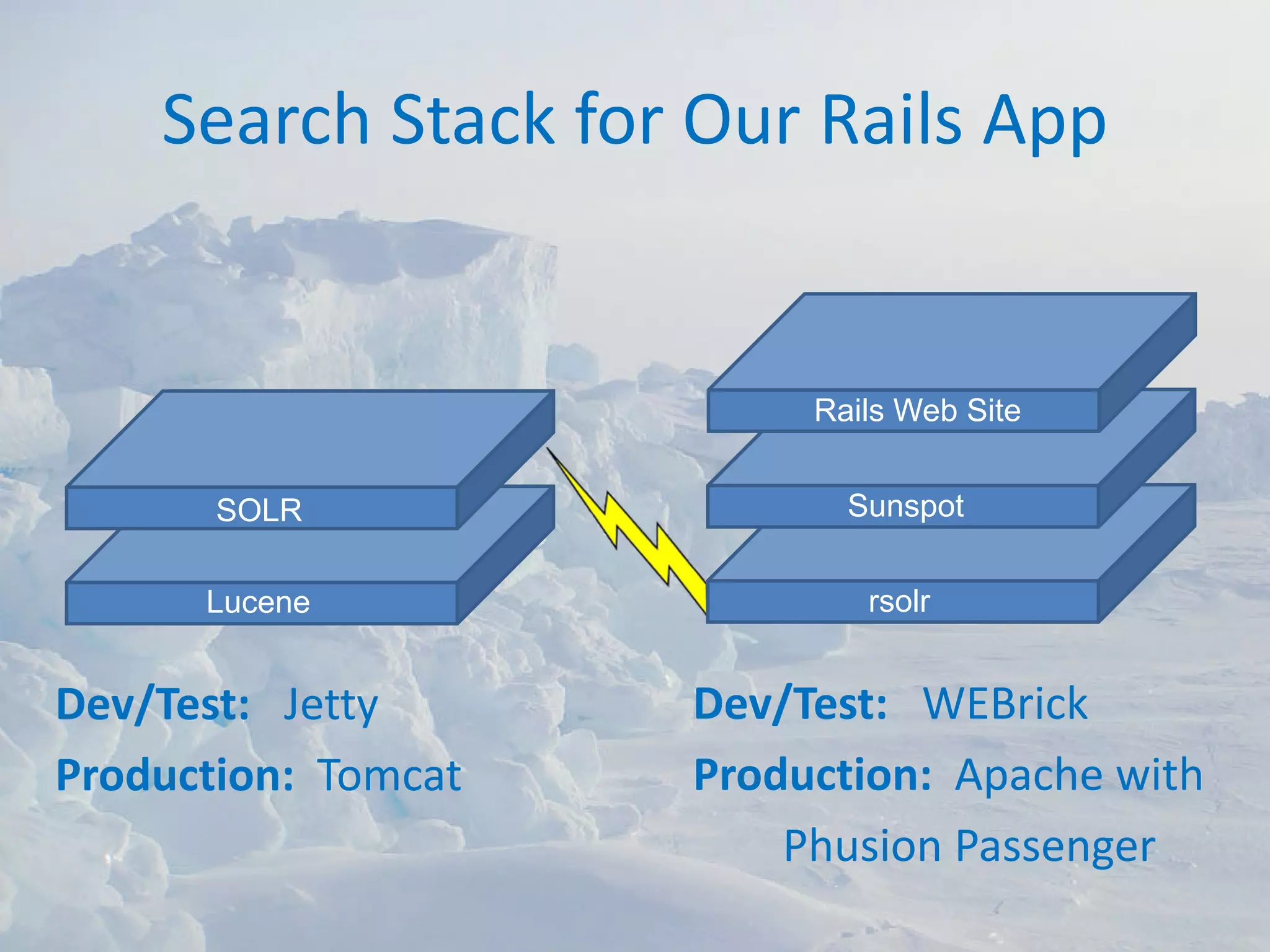

- 13. Search Stack for Our Rails App Rails Web Site SOLR Sunspot Lucene rsolr Dev/Test: Jetty Dev/Test: WEBrick Production: Tomcat Production: Apache with Phusion Passenger

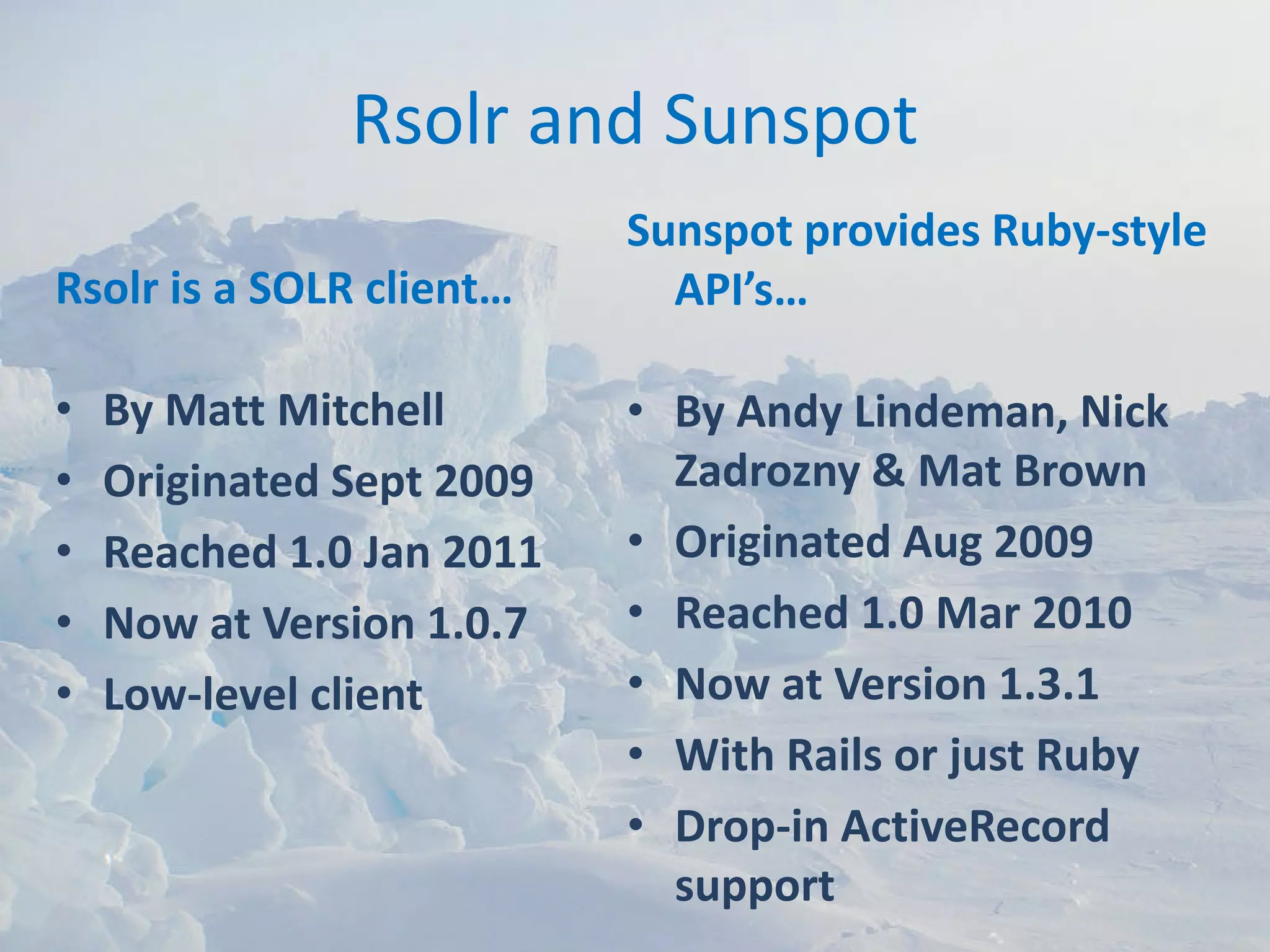

- 14. Rsolr and Sunspot Sunspot provides Ruby‐style Rsolr is a SOLR client… API’s… • By Matt Mitchell • By Andy Lindeman, Nick • Originated Sept 2009 Zadrozny & Mat Brown • Reached 1.0 Jan 2011 • Originated Aug 2009 • Now at Version 1.0.7 • Reached 1.0 Mar 2010 • Low‐level client • Now at Version 1.3.1 • With Rails or just Ruby • Drop‐in ActiveRecord support
- 15. Part 3: Our First App Another First… The world’s first amphibious lamborghini

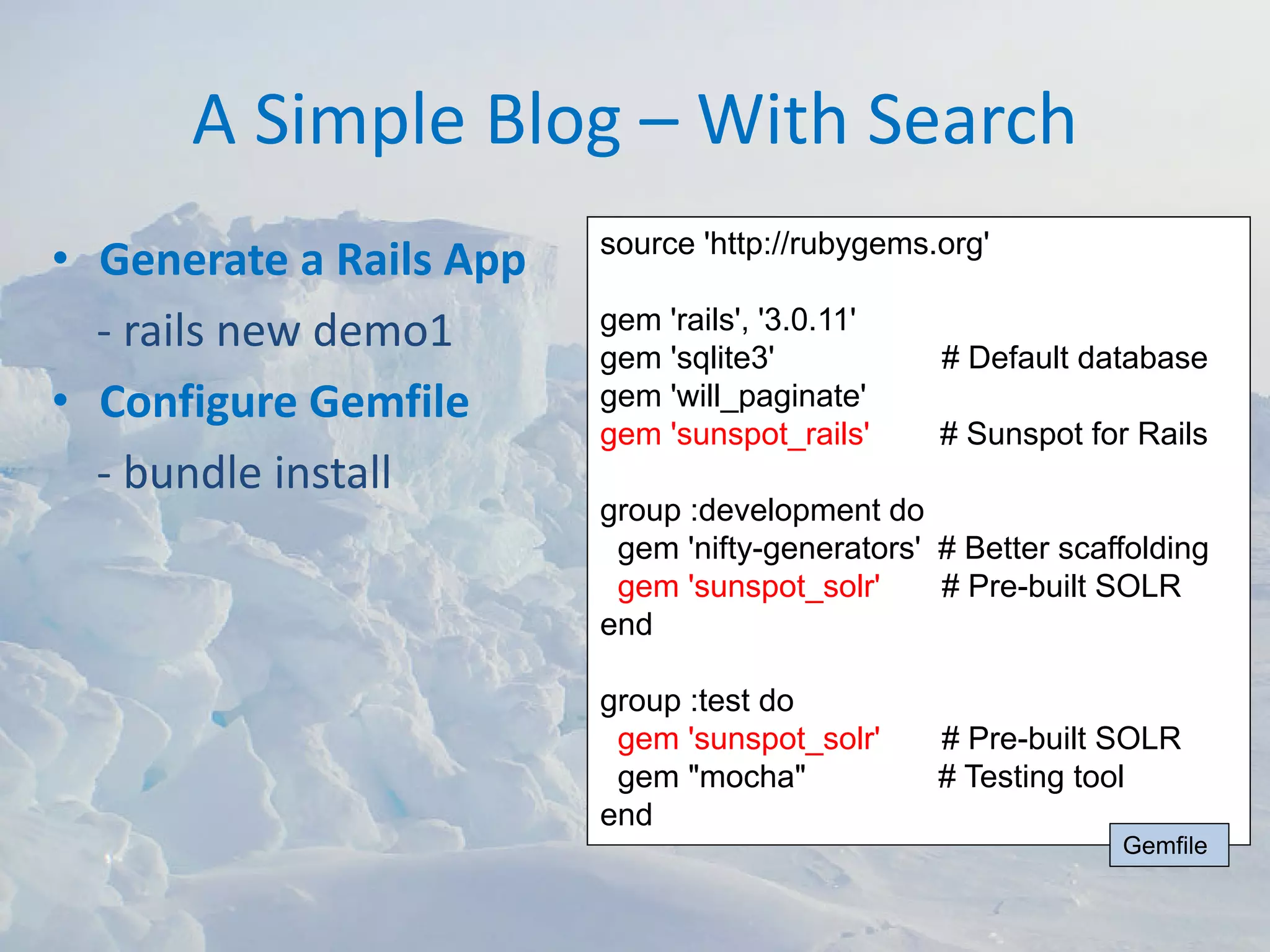

- 16. A Simple Blog – With Search source 'http://rubygems.org' • Generate a Rails App ‐ rails new demo1 gem 'rails', '3.0.11' gem 'sqlite3' # Default database • Configure Gemfile gem 'will_paginate' gem 'sunspot_rails' # Sunspot for Rails ‐ bundle install group :development do gem 'nifty-generators' # Better scaffolding gem 'sunspot_solr' # Pre-built SOLR end group :test do gem 'sunspot_solr' # Pre-built SOLR gem "mocha" # Testing tool end Gemfile

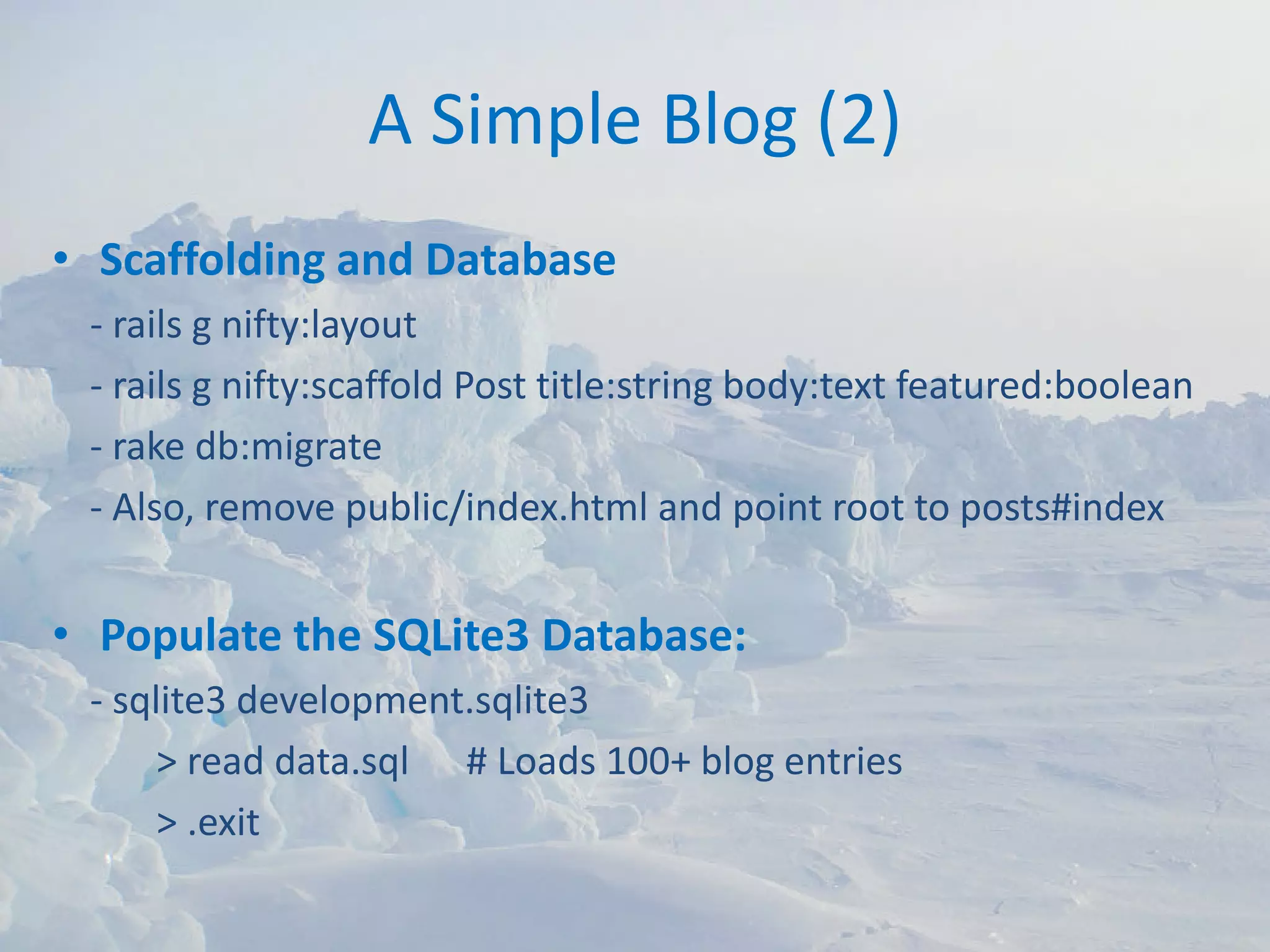

- 17. A Simple Blog (2) • Scaffolding and Database ‐rails g nifty:layout ‐ rails g nifty:scaffold Post title:string body:text featured:boolean ‐ rake db:migrate ‐ Also, remove public/index.html and point root to posts#index • Populate the SQLite3 Database: ‐ sqlite3 development.sqlite3 > read data.sql # Loads 100+ blog entries > .exit

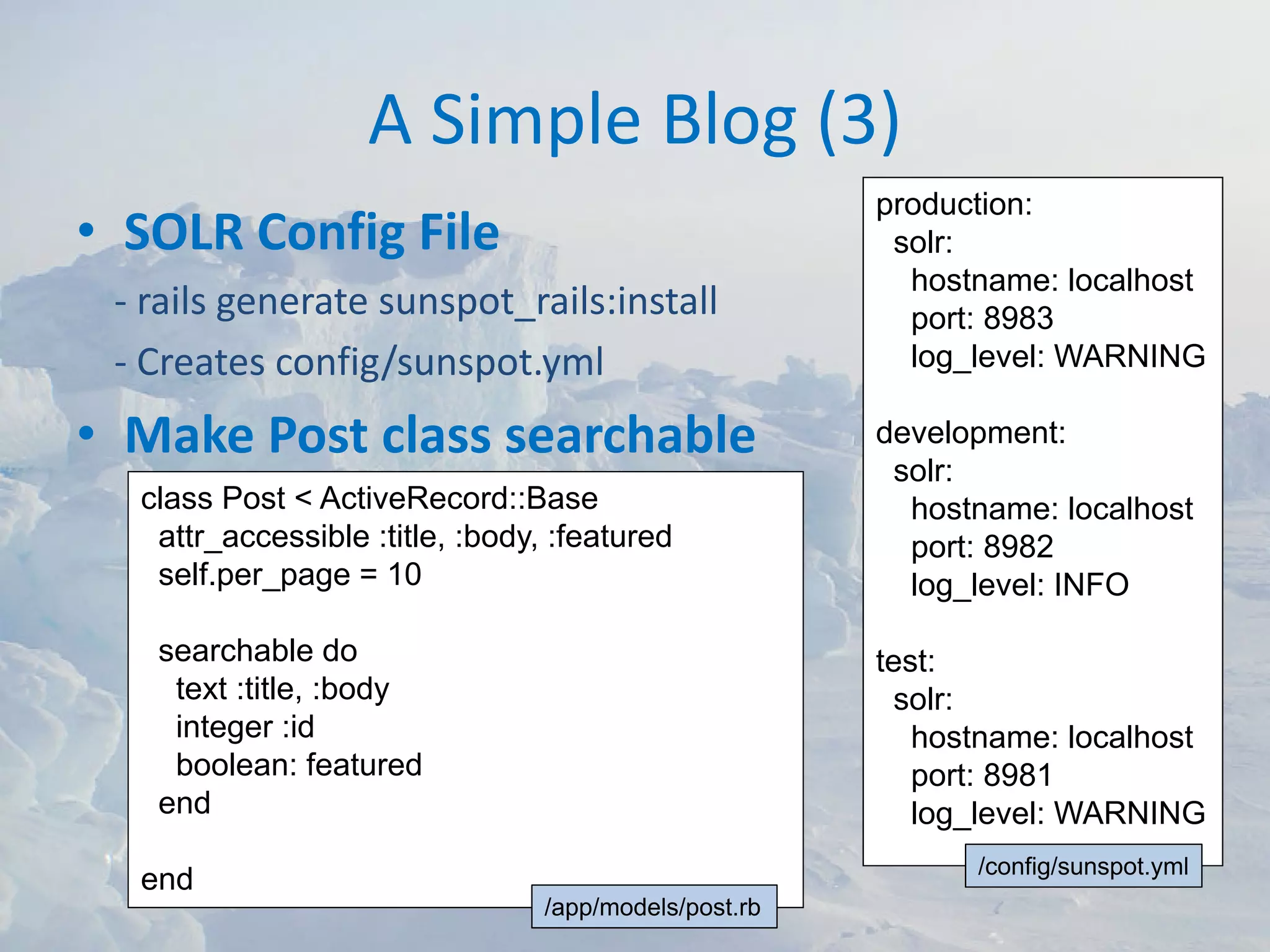

- 18. A Simple Blog (3) production: • SOLR Config File solr: hostname: localhost ‐ rails generate sunspot_rails:install port: 8983 ‐ Creates config/sunspot.yml log_level: WARNING • Make Post class searchable development: solr: class Post < ActiveRecord::Base hostname: localhost attr_accessible :title, :body, :featured port: 8982 self.per_page = 10 log_level: INFO searchable do test: text :title, :body solr: integer :id hostname: localhost boolean: featured port: 8981 end log_level: WARNING /config/sunspot.yml end /app/models/post.rb

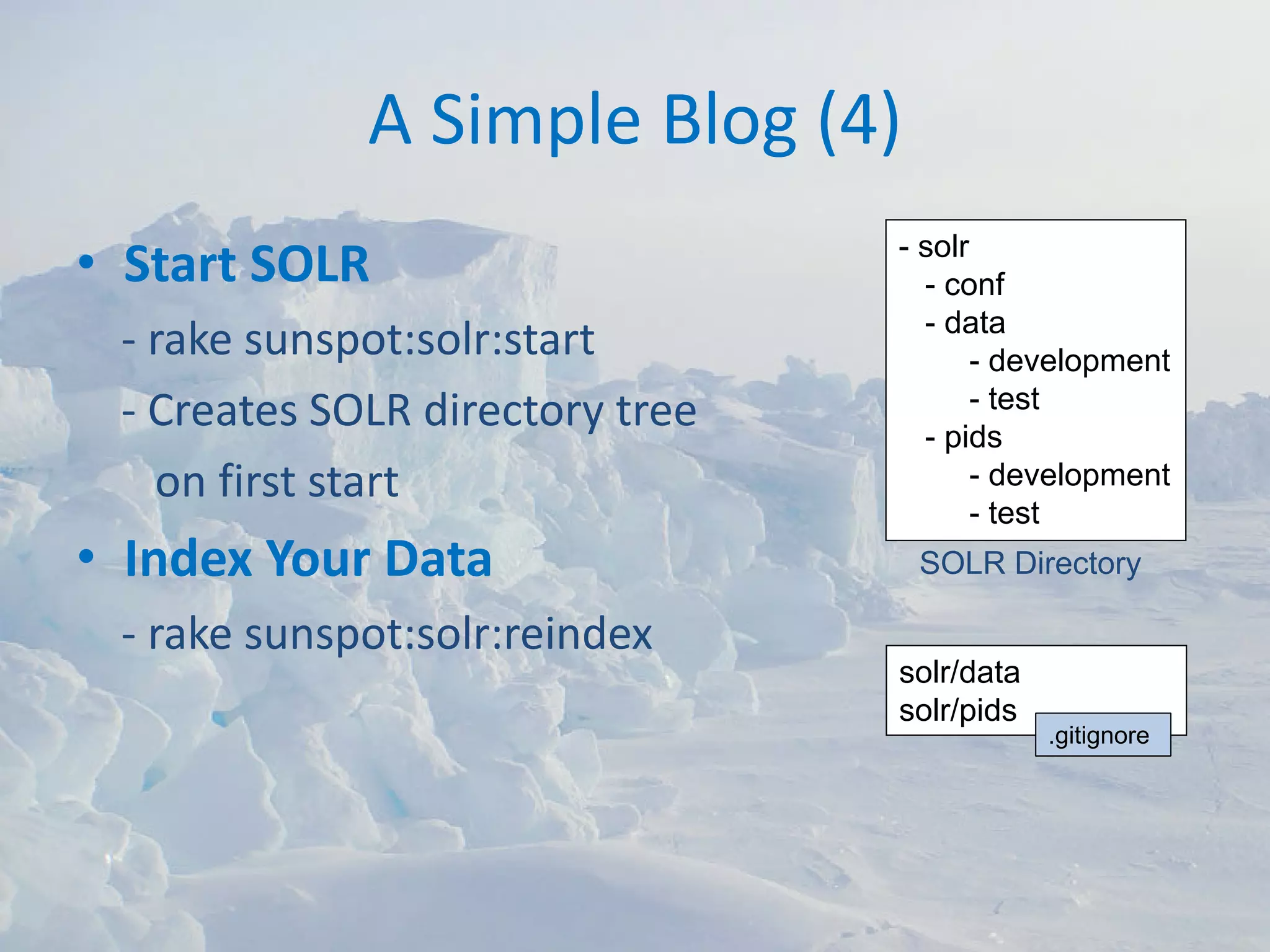

- 19. A Simple Blog (4) - solr • Start SOLR - conf - data ‐ rake sunspot:solr:start - development - test ‐ Creates SOLR directory tree - pids on first start - development - test • Index Your Data SOLR Directory ‐ rake sunspot:solr:reindex solr/data solr/pids .gitignore

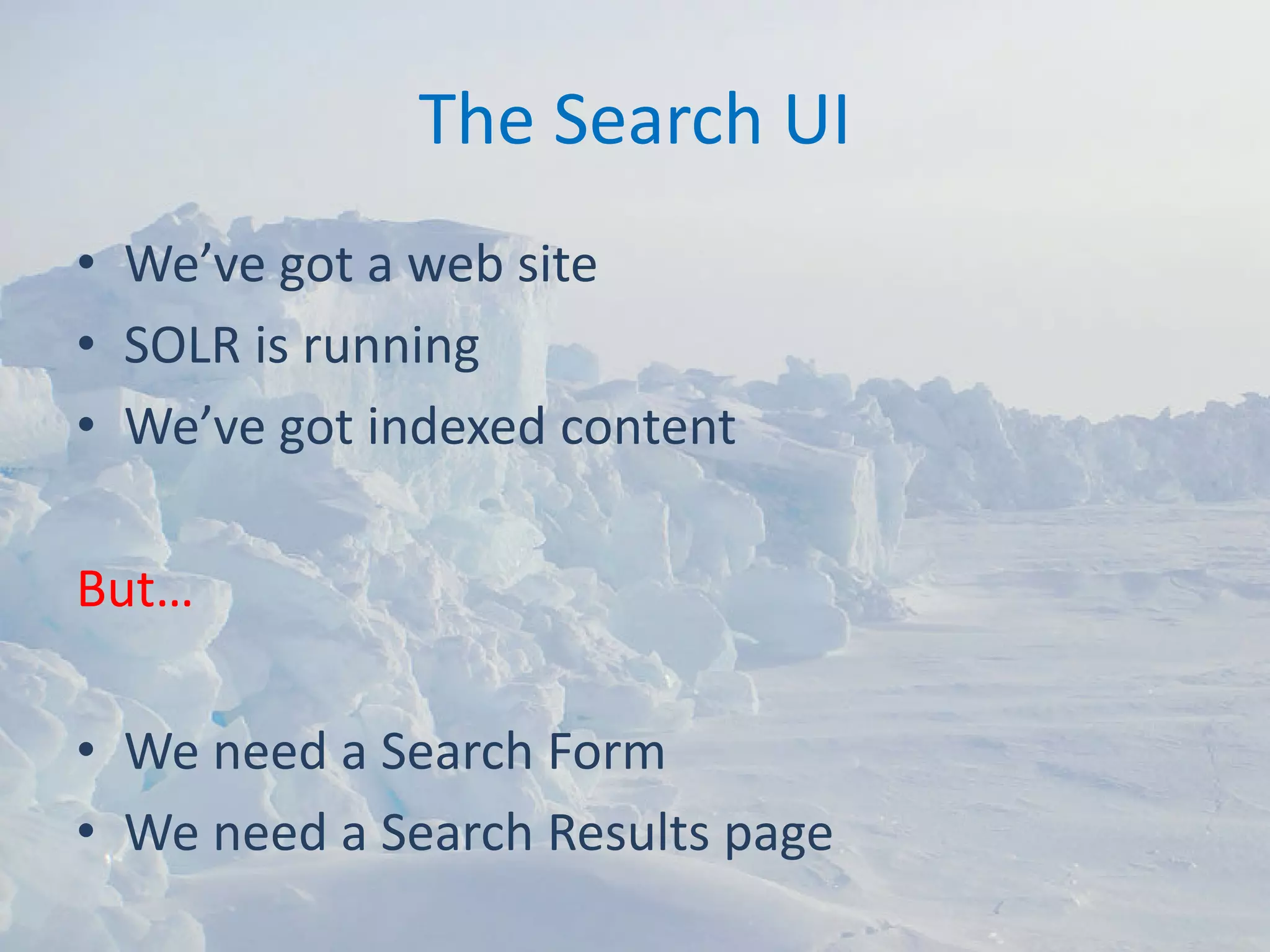

- 20. The Search UI • We’ve got a web site • SOLR is running •We’ve got indexed content But… • We need a Search Form • We need a Search Results page

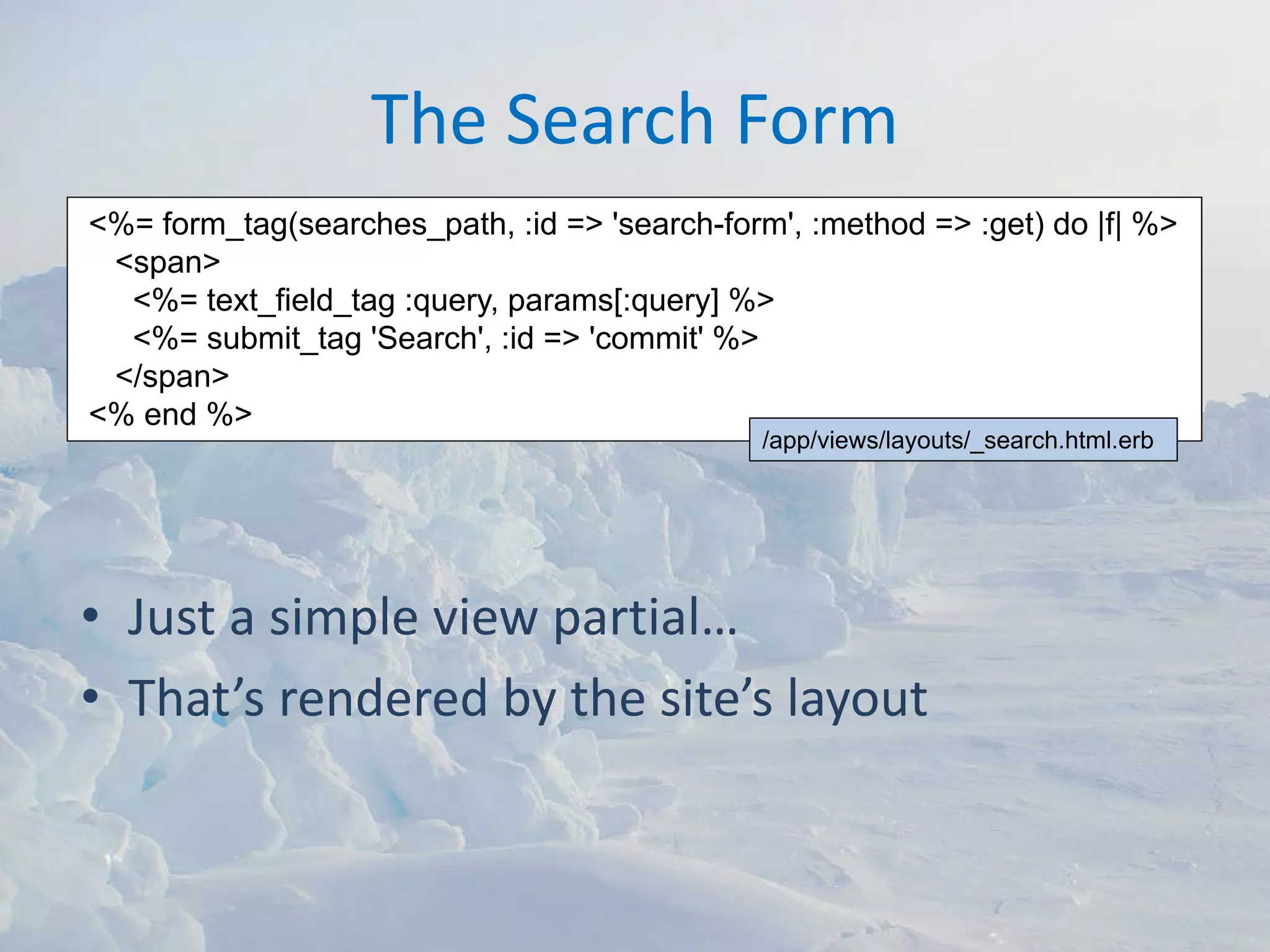

- 21. The Search Form <%= form_tag(searches_path, :id=> 'search-form', :method => :get) do |f| %> <span> <%= text_field_tag :query, params[:query] %> <%= submit_tag 'Search', :id => 'commit' %> </span> <% end %> /app/views/layouts/_search.html.erb • Just a simple view partial… • That’s rendered by the site’s layout

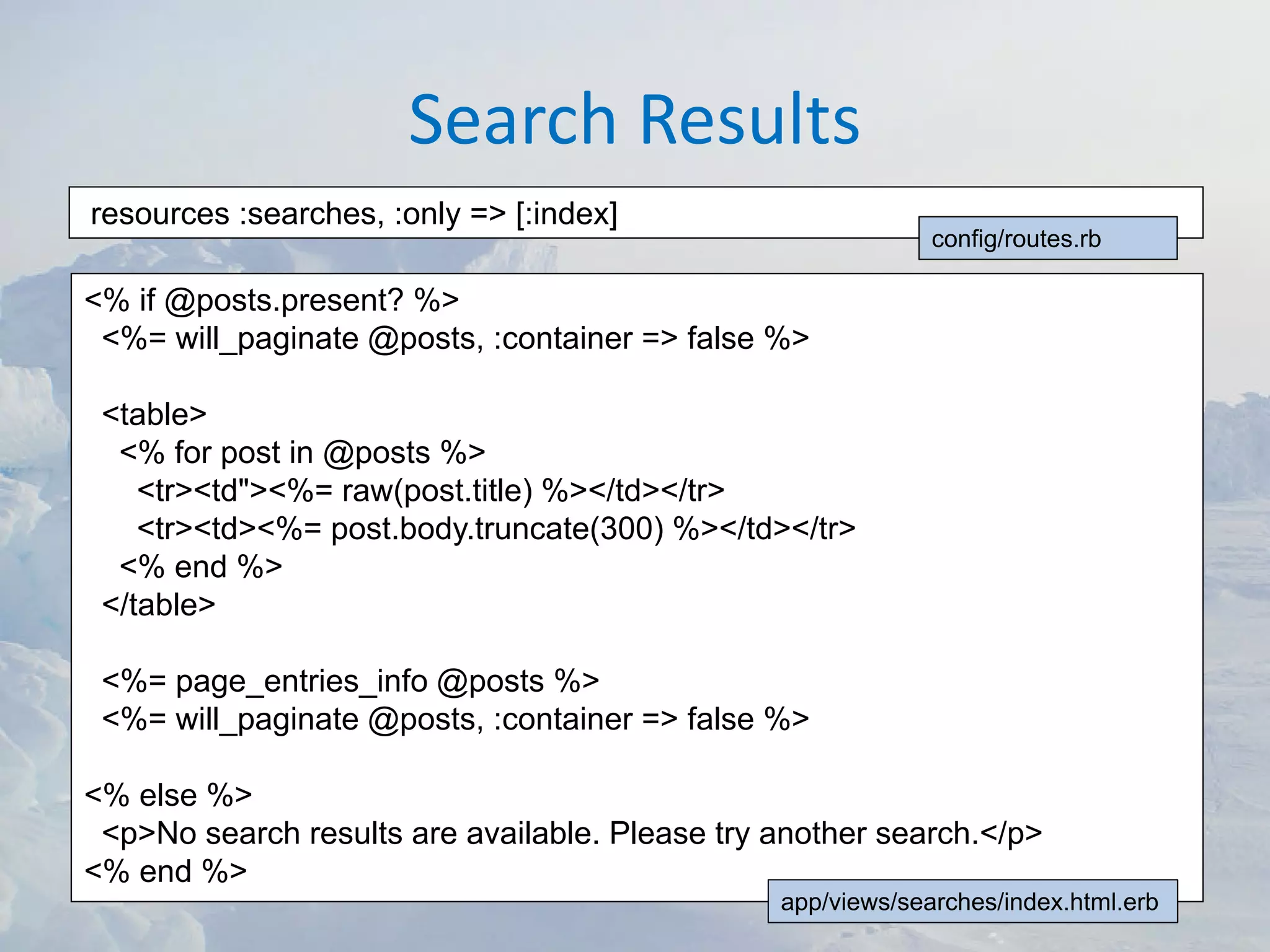

- 22. Search Results resources :searches, :only=> [:index] config/routes.rb <% if @posts.present? %> <%= will_paginate @posts, :container => false %> <table> <% for post in @posts %> <tr><td"><%= raw(post.title) %></td></tr> <tr><td><%= post.body.truncate(300) %></td></tr> <% end %> </table> <%= page_entries_info @posts %> <%= will_paginate @posts, :container => false %> <% else %> <p>No search results are available. Please try another search.</p> <% end %> app/views/searches/index.html.erb

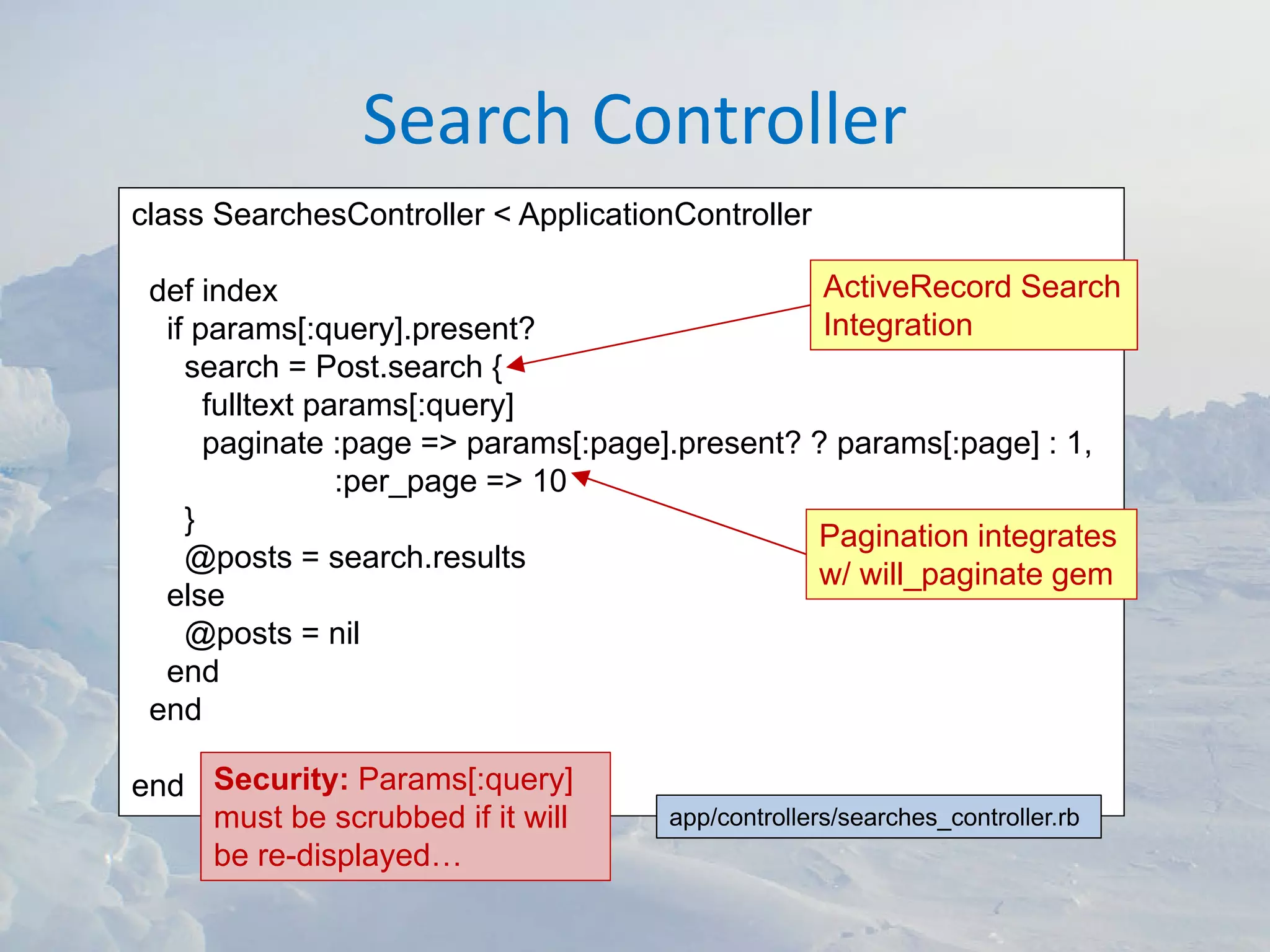

- 23. Search Controller class SearchesController <ApplicationController def index ActiveRecord Search if params[:query].present? Integration search = Post.search { fulltext params[:query] paginate :page => params[:page].present? ? params[:page] : 1, :per_page => 10 } Pagination integrates @posts = search.results w/ will_paginate gem else @posts = nil end end end Security: Params[:query] must be scrubbed if it will app/controllers/searches_controller.rb be re-displayed…

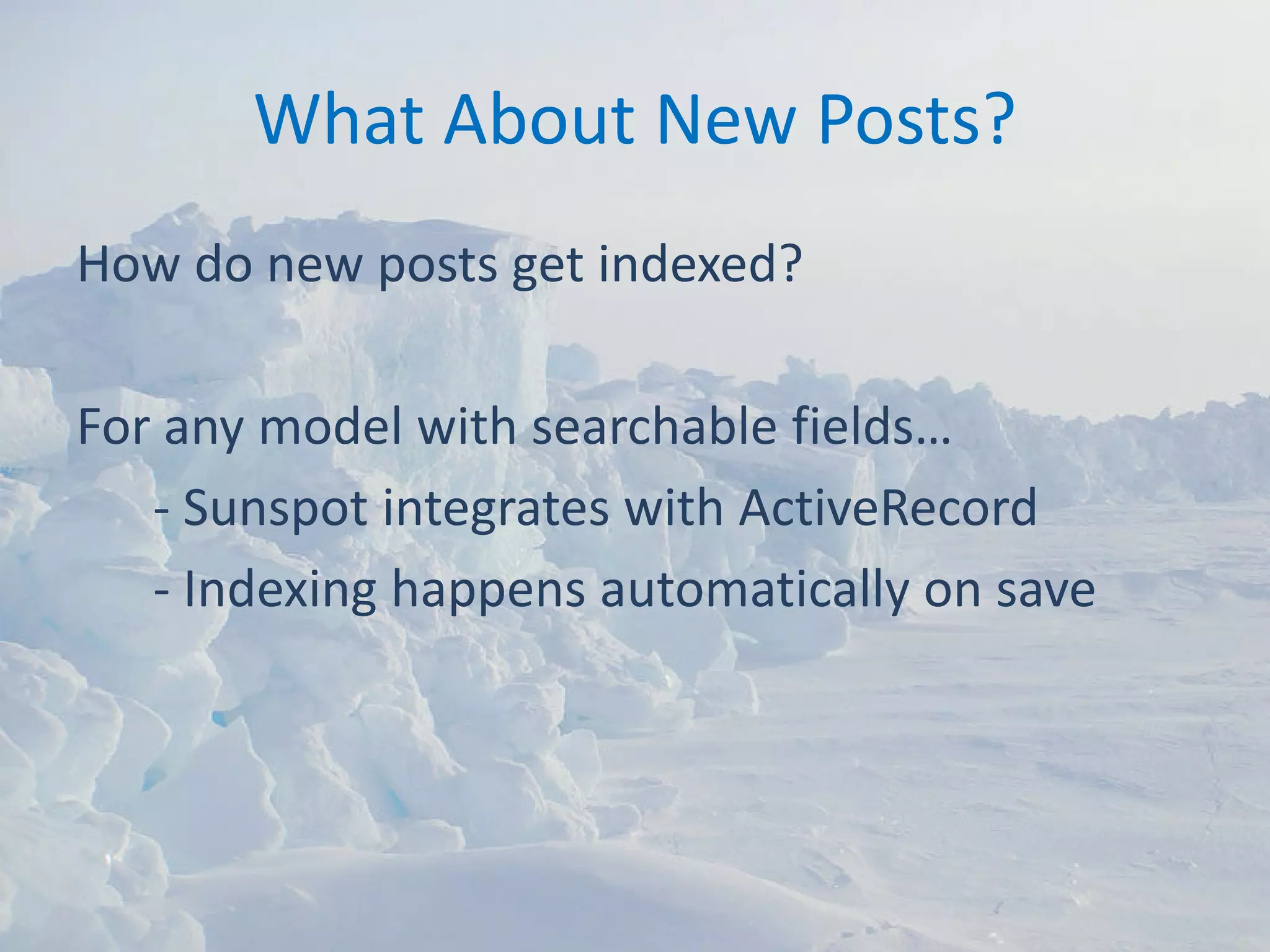

- 24. What About New Posts? How do new posts get indexed? For any model with searchable fields… ‐ Sunspot integrates with ActiveRecord ‐ Indexing happens automatically on save
- 26.
- 27.

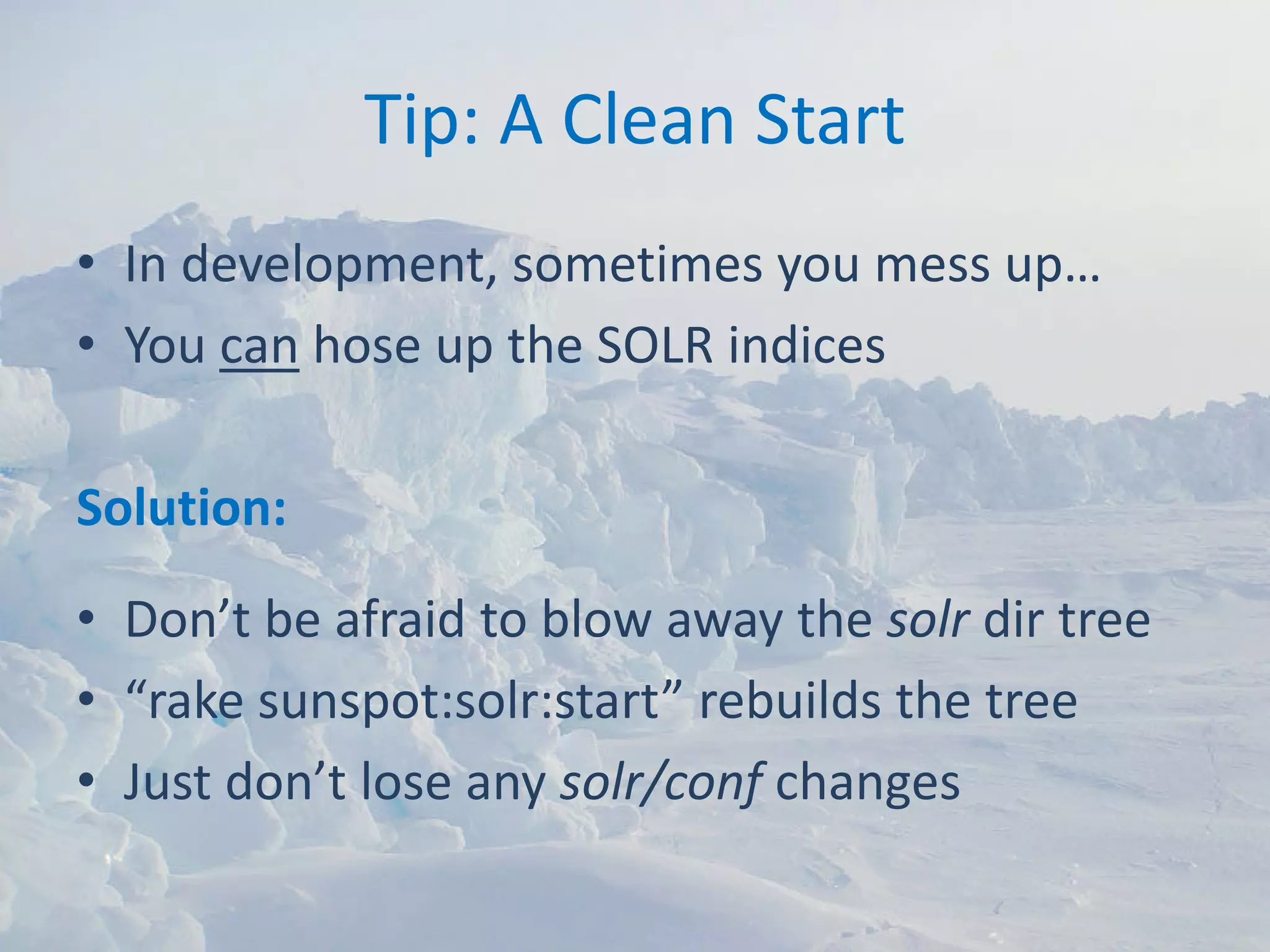

- 29. Tip: A Clean Start • In development, sometimes you mess up… • You canhose up the SOLR indices Solution: • Don’t be afraid to blow away the solr dir tree • “rake sunspot:solr:start” rebuilds the tree • Just don’t lose any solr/conf changes

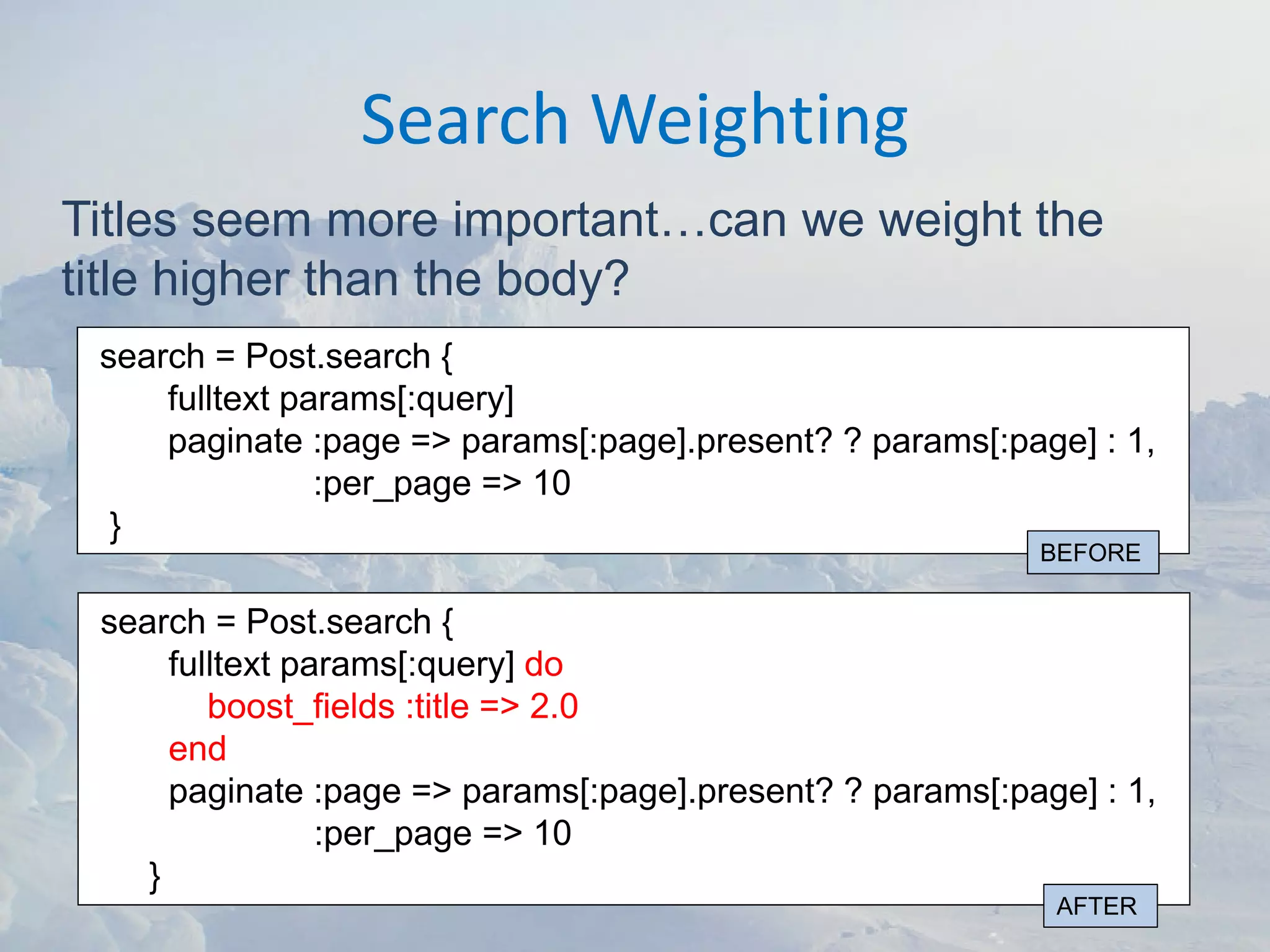

- 30. Search Weighting Titles seem moreimportant…can we weight the title higher than the body? search = Post.search { fulltext params[:query] paginate :page => params[:page].present? ? params[:page] : 1, :per_page => 10 } BEFORE search = Post.search { fulltext params[:query] do boost_fields :title => 2.0 end paginate :page => params[:page].present? ? params[:page] : 1, :per_page => 10 } AFTER

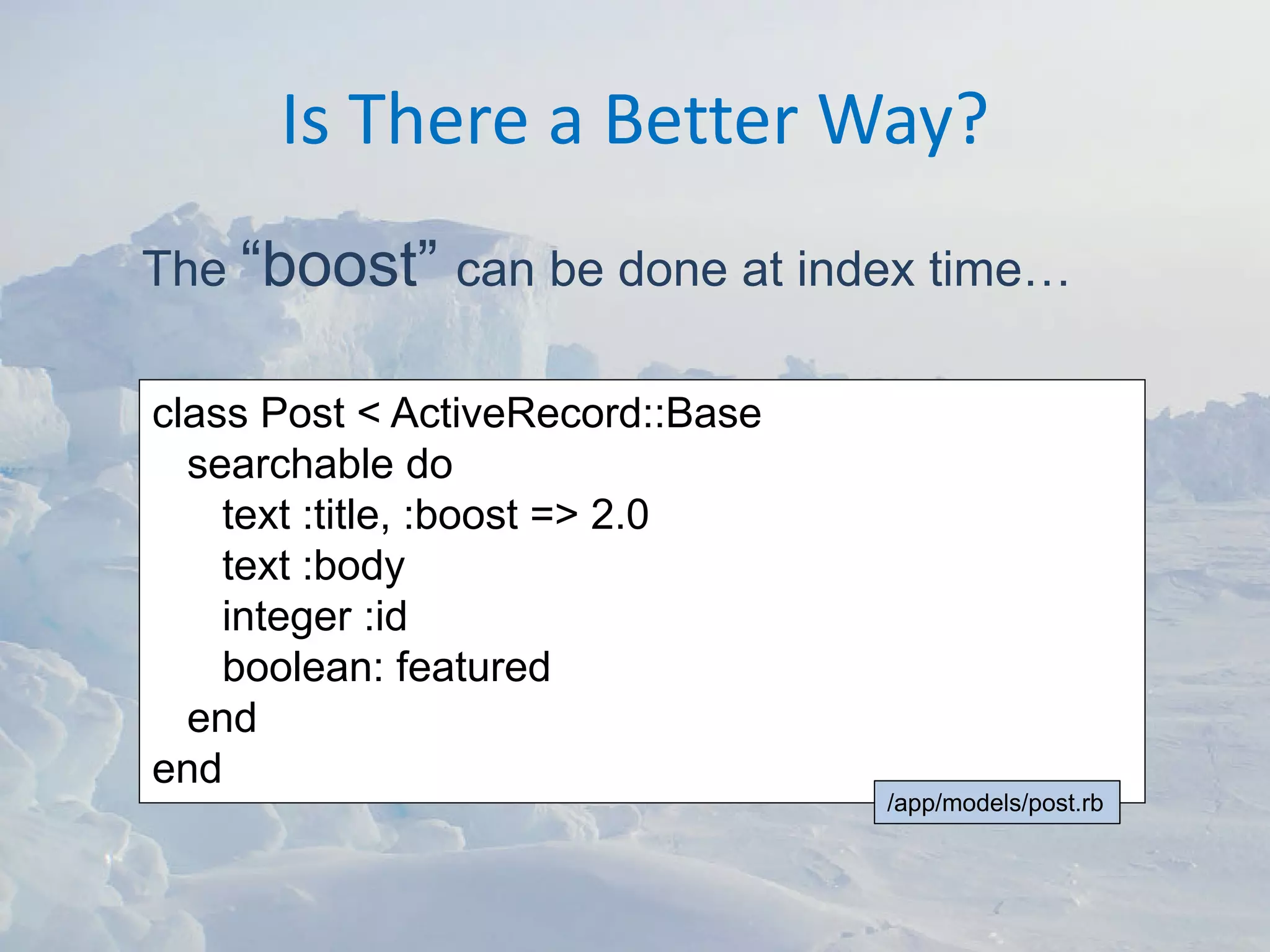

- 31. Is There a Better Way? The “boost” canbe done at index time… class Post < ActiveRecord::Base searchable do text :title, :boost => 2.0 text :body integer :id boolean: featured end end /app/models/post.rb

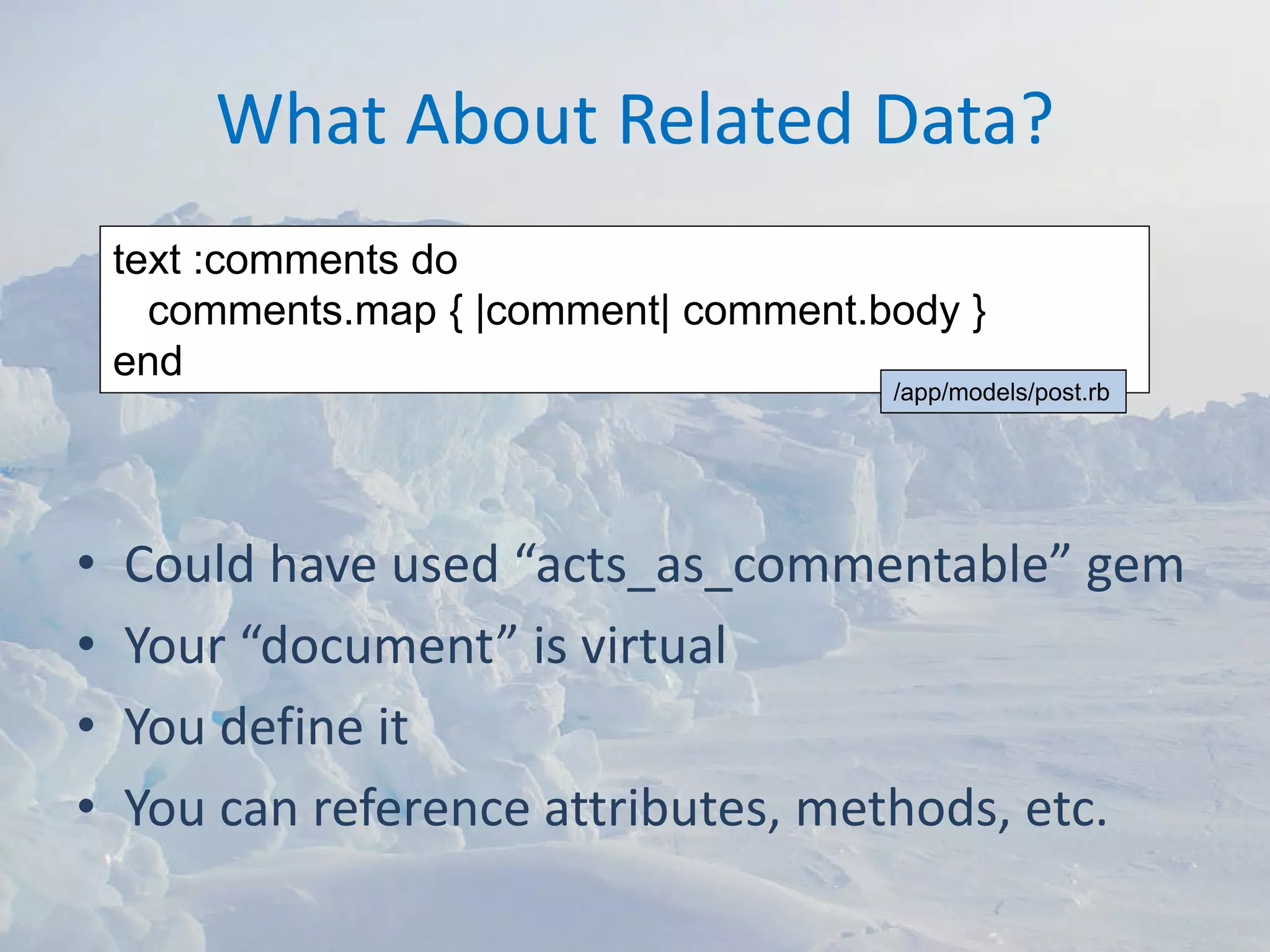

- 32. What About Related Data? text :comments do comments.map { |comment| comment.body } end /app/models/post.rb • Could have used “acts_as_commentable” gem • Your “document” is virtual • You define it • You can reference attributes, methods, etc.

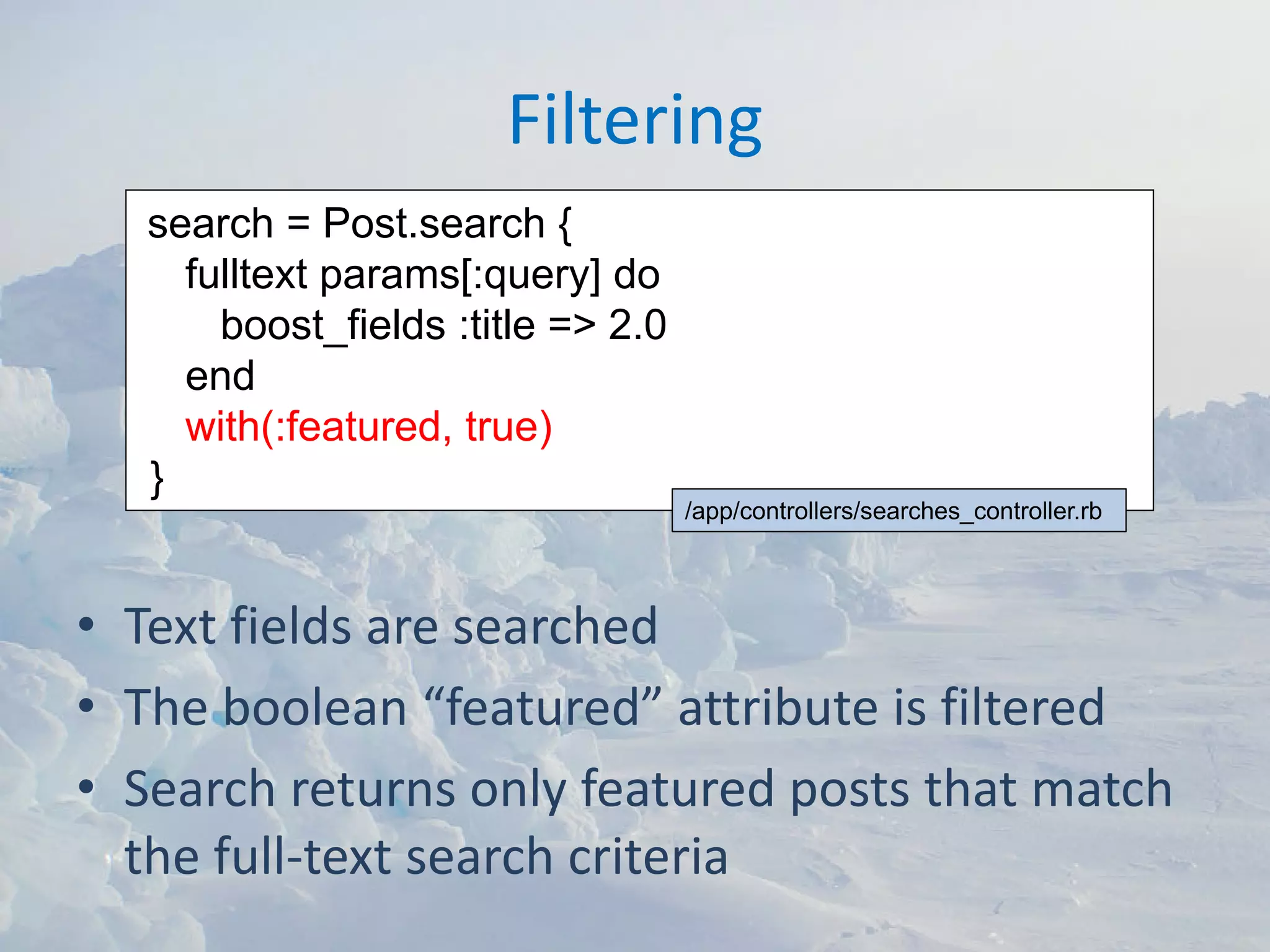

- 33. Filtering search = Post.search { fulltext params[:query] do boost_fields :title => 2.0 end with(:featured, true) } /app/controllers/searches_controller.rb • Text fields are searched • The boolean “featured” attribute is filtered • Search returns only featured posts that match the full‐text search criteria

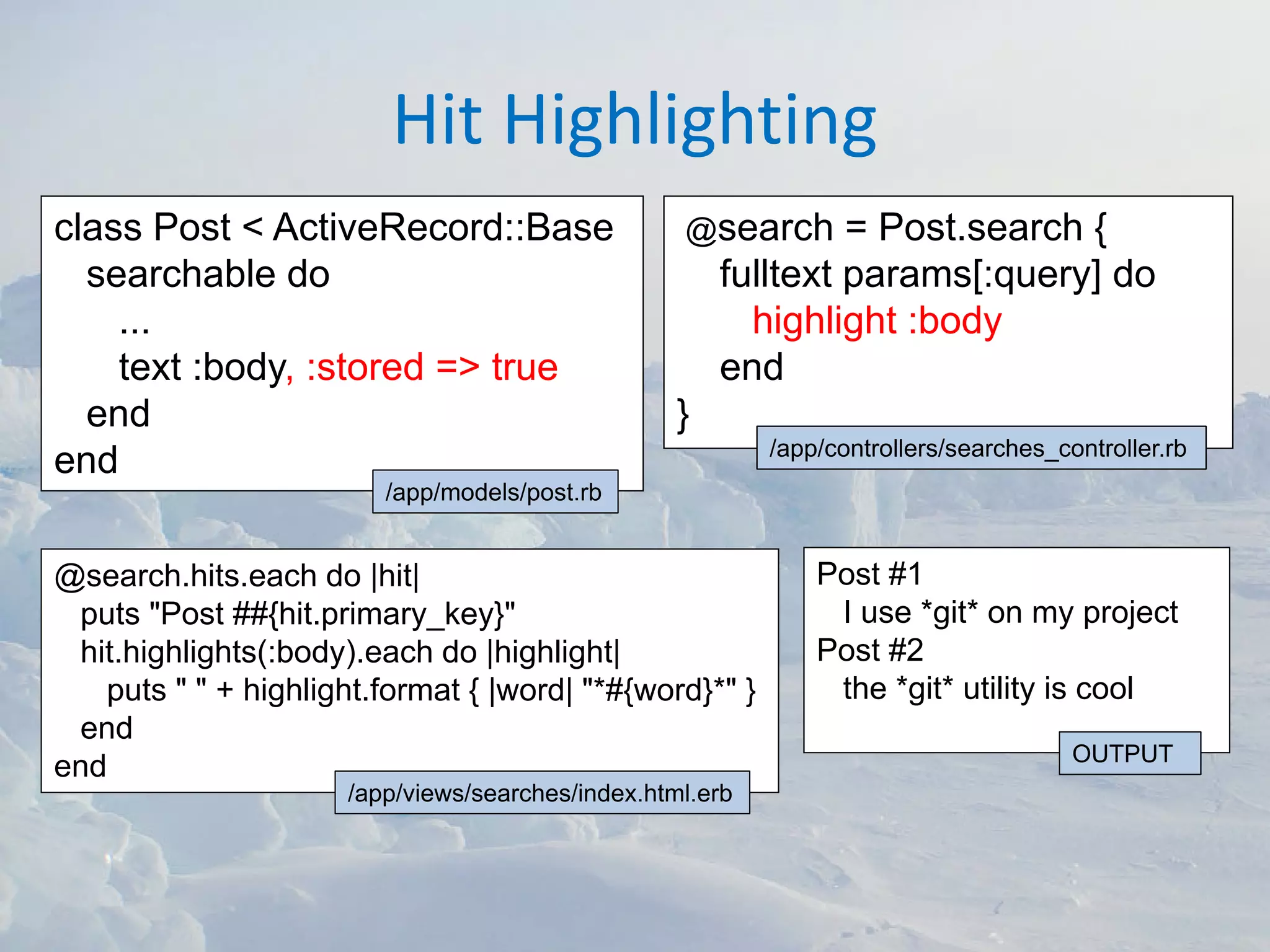

- 34. Hit Highlighting class Post <ActiveRecord::Base @search = Post.search { searchable do fulltext params[:query] do ... highlight :body text :body, :stored => true end end } /app/controllers/searches_controller.rb end /app/models/post.rb @search.hits.each do |hit| Post #1 puts "Post ##{hit.primary_key}" I use *git* on my project hit.highlights(:body).each do |highlight| Post #2 puts " " + highlight.format { |word| "*#{word}*" } the *git* utility is cool end OUTPUT end /app/views/searches/index.html.erb

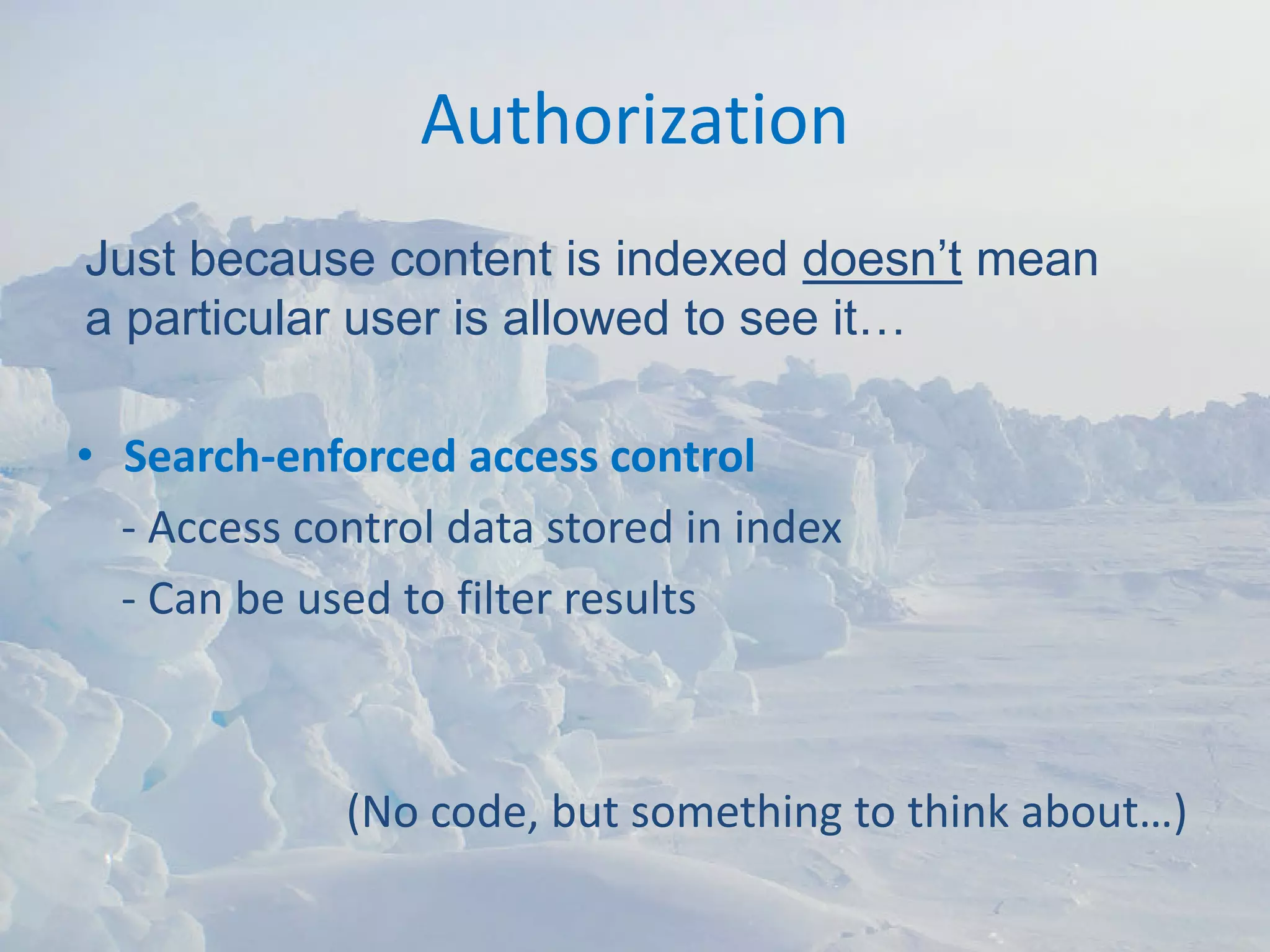

- 35. Authorization Just because contentis indexed doesn’t mean a particular user is allowed to see it… • Search‐enforced access control ‐ Access control data stored in index ‐ Can be used to filter results (No code, but something to think about…)
- 36.
- 37.

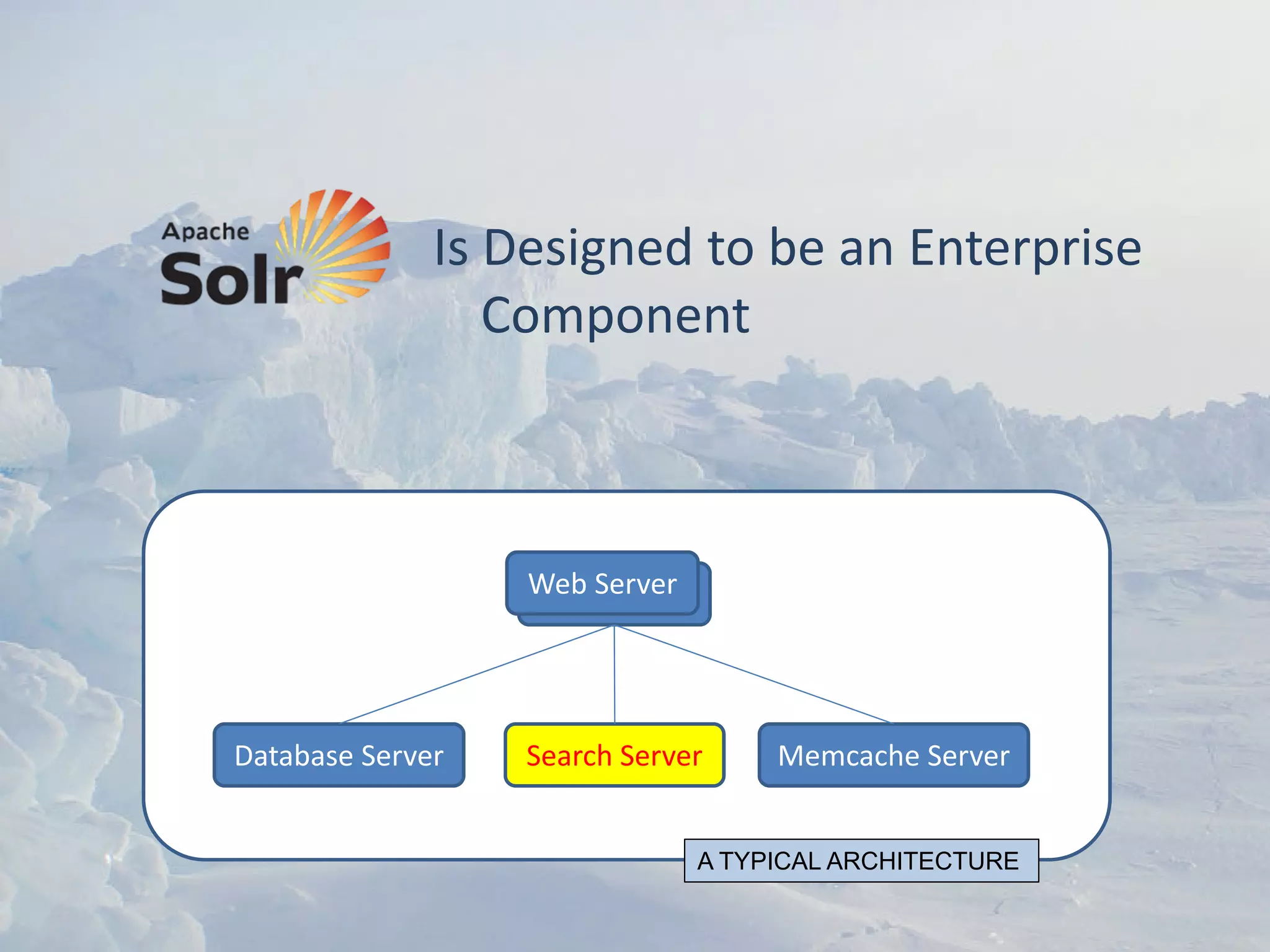

- 38. Is Designed to be an Enterprise Component Web Server Database Server Search Server Memcache Server A TYPICAL ARCHITECTURE
- 39.

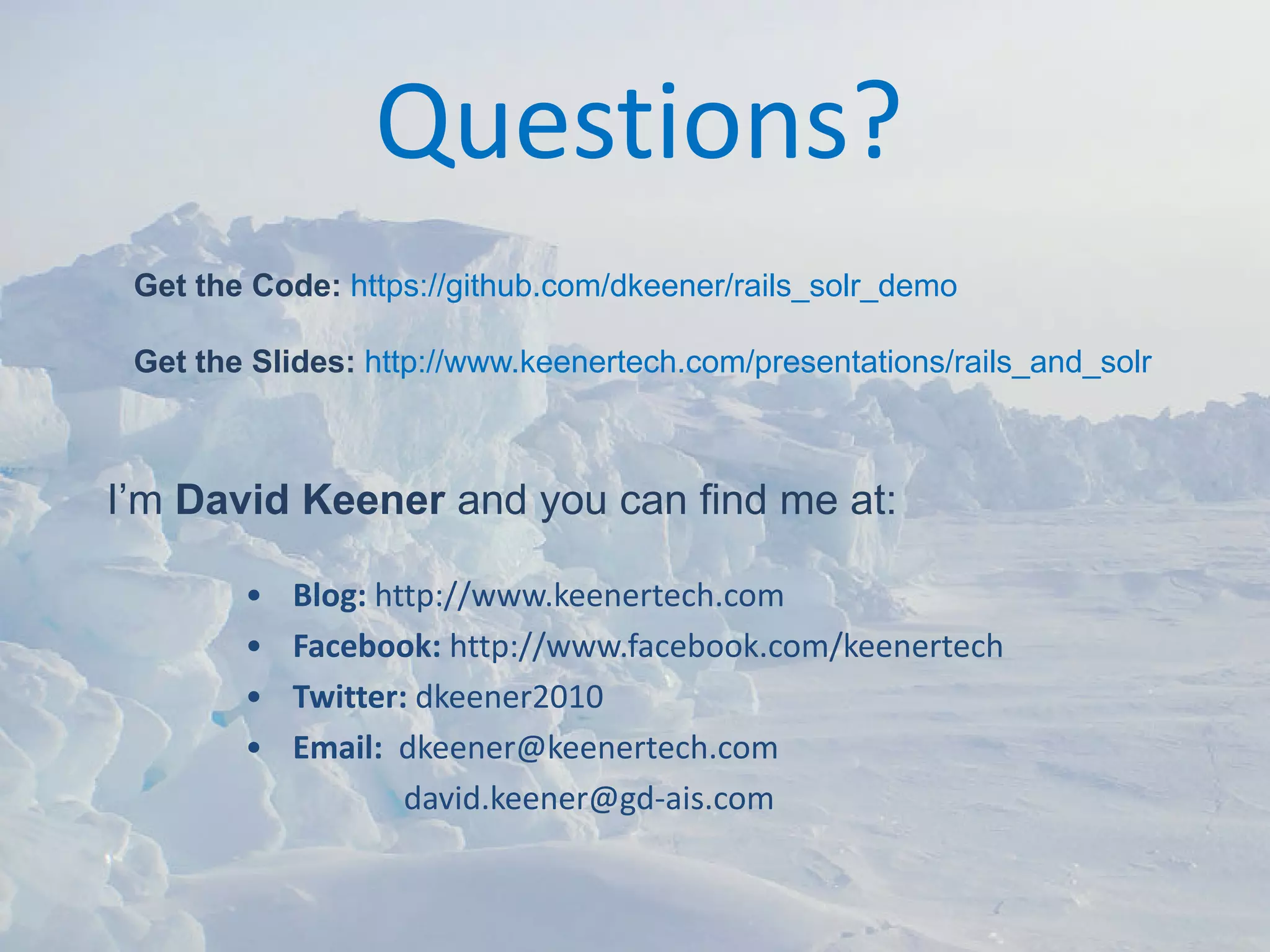

- 40. Questions? Get theCode: https://github.com/dkeener/rails_solr_demo Get the Slides: http://www.keenertech.com/presentations/rails_and_solr I’m David Keener and you can find me at: • Blog: http://www.keenertech.com • Facebook: http://www.facebook.com/keenertech • Twitter: dkeener2010 • Email: dkeener@keenertech.com david.keener@gd‐ais.com
