Pitfalls of object_oriented_programming_gcap_09
This document summarizes some of the pitfalls of object-oriented programming and provides recommendations to improve performance. It discusses how CPU and memory performance have changed significantly since the development of C++, with memory access now being much slower relative to CPU speed. This can negatively impact object-oriented code that encapsulates both data and behavior, leading to excessive cache misses. The document recommends using a data-oriented design that processes data in a linear, sequential way to optimize for cache usage and minimize misses. It provides an example comparing object and data-oriented approaches to updating and culling a scene graph.
Pitfalls of object_oriented_programming_gcap_09
- 1. Sony Computer EntertainmentEurope Research & Development Division Pitfalls of Object Oriented Programming Tony Albrecht – Technical Consultant Developer Services
- 2. What I willbe covering • A quick look at Object Oriented (OO) programming • A common example • Optimisation of that example • Summary Slide 2

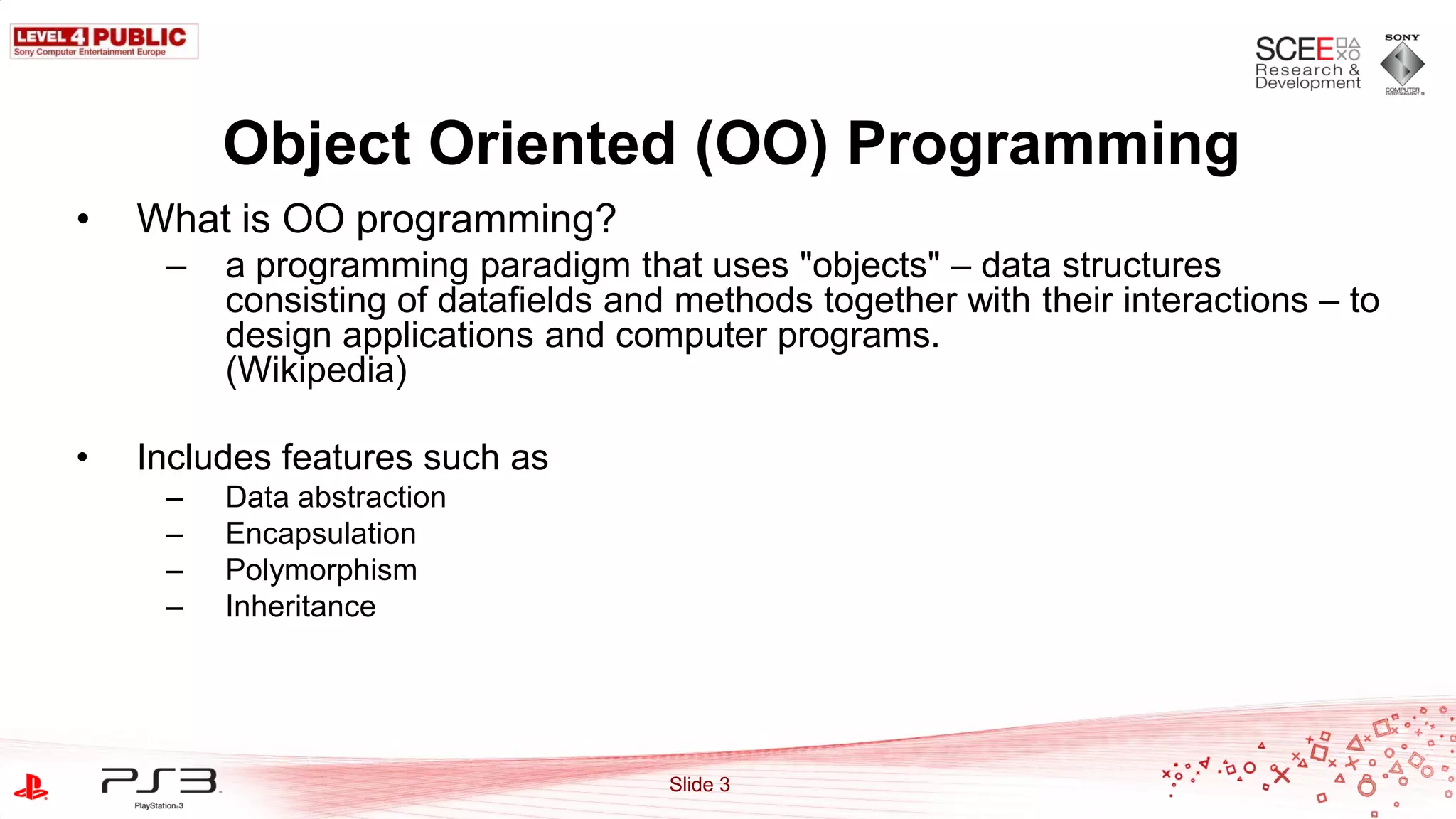

- 3. Object Oriented (OO)Programming • What is OO programming? – a programming paradigm that uses "objects" – data structures consisting of datafields and methods together with their interactions – to design applications and computer programs. (Wikipedia) • Includes features such as – Data abstraction – Encapsulation – Polymorphism – Inheritance Slide 3

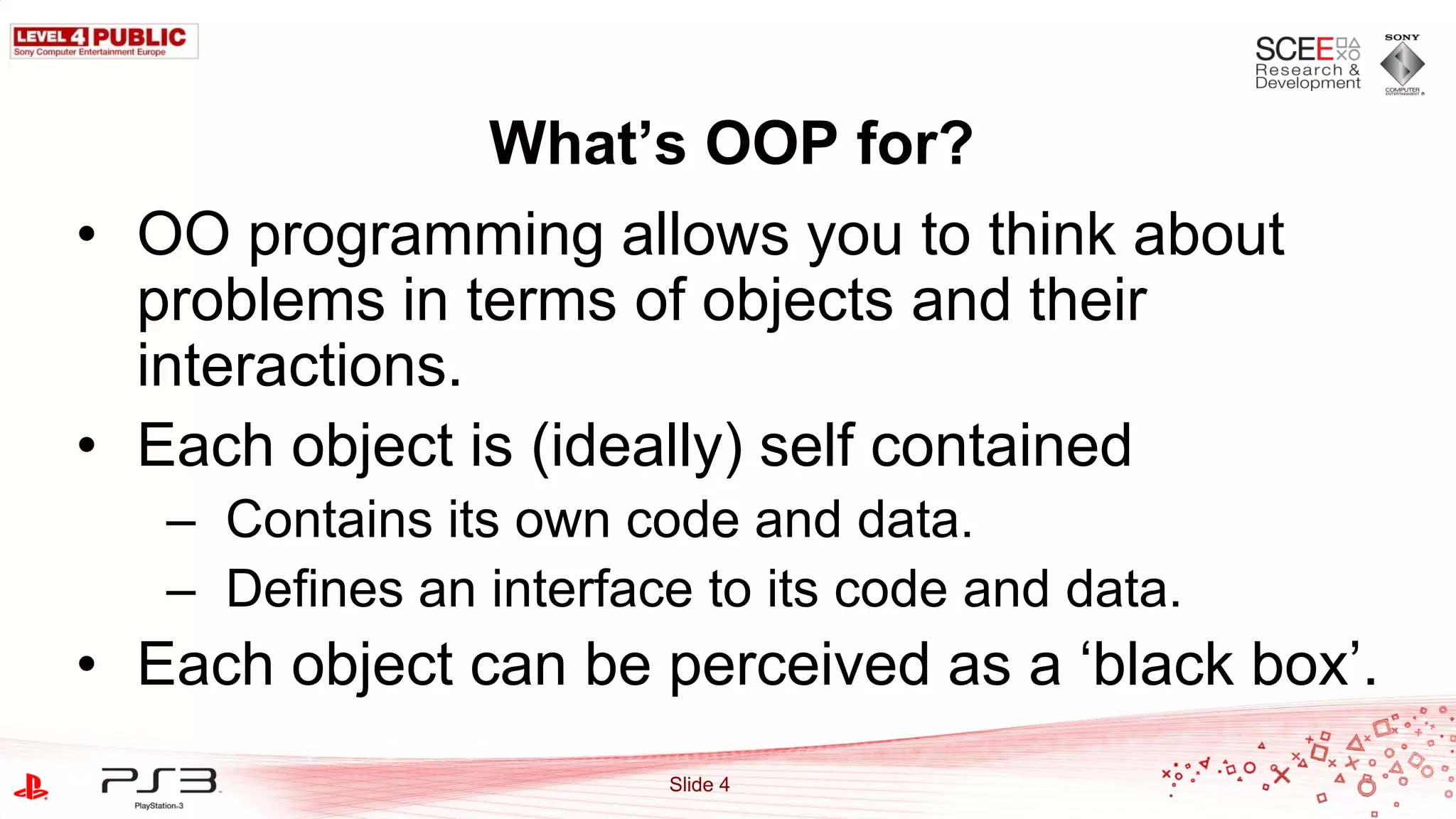

- 4. What’s OOP for? •OO programming allows you to think about problems in terms of objects and their interactions. • Each object is (ideally) self contained – Contains its own code and data. – Defines an interface to its code and data. • Each object can be perceived as a „black box‟. Slide 4
- 5. Objects • If objectsare self contained then they can be – Reused. – Maintained without side effects. – Used without understanding internal implementation/representation. • This is good, yes? Slide 5
- 6. Are Objects Good? •Well, yes • And no. • First some history. Slide 6

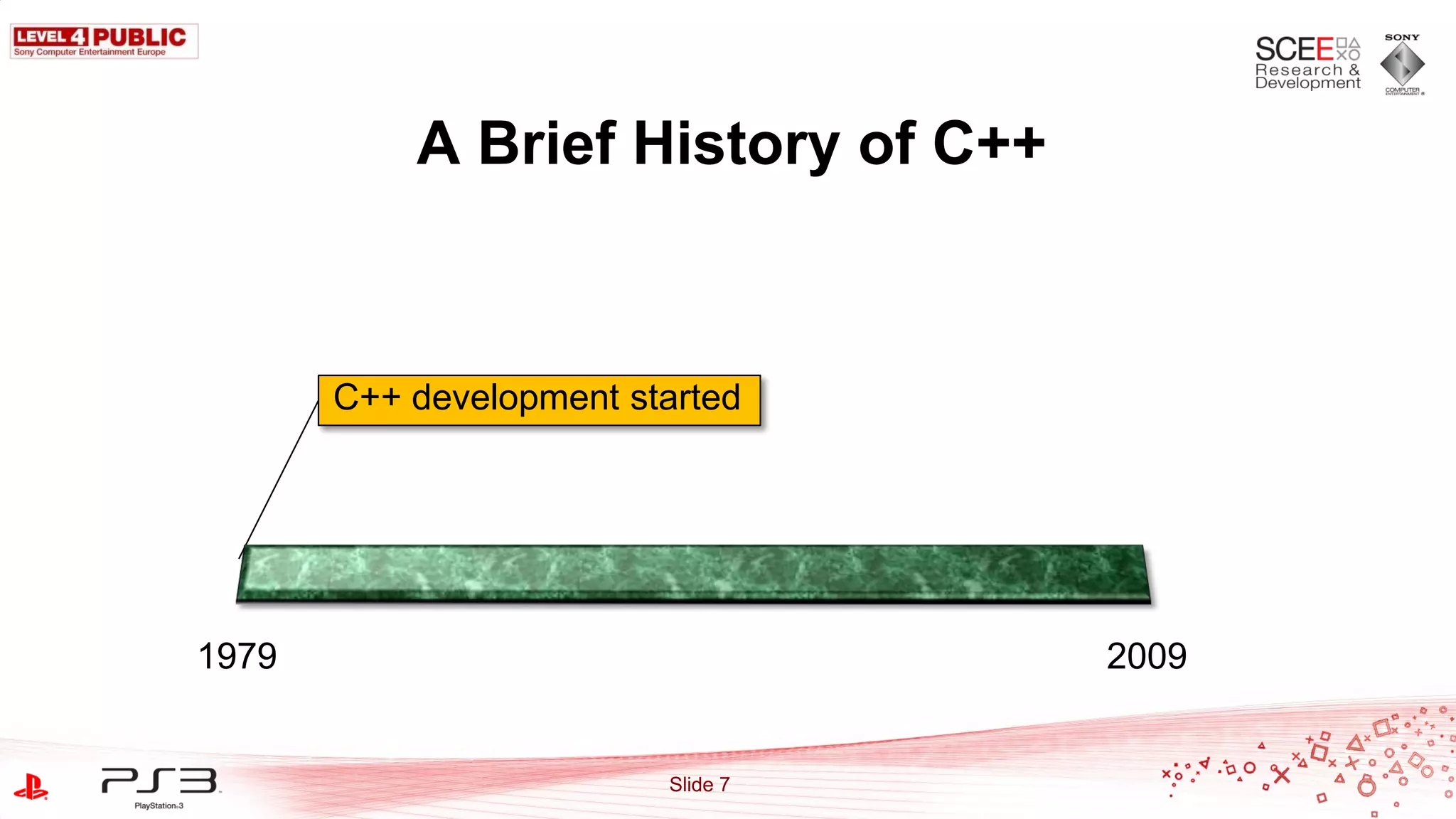

- 7. A Brief Historyof C++ C++ development started 1979 2009 Slide 7

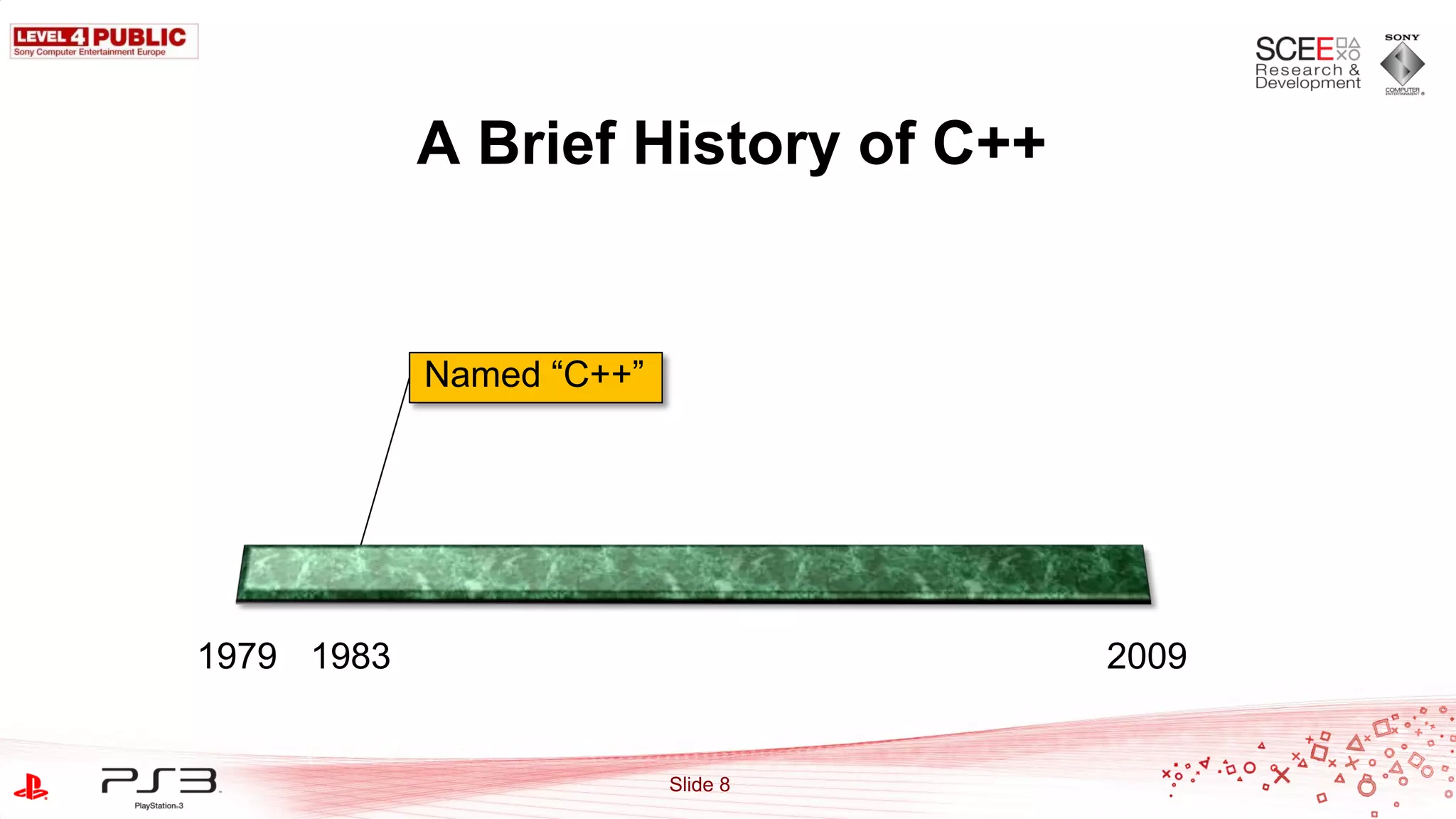

- 8. A Brief Historyof C++ Named “C++” 1979 1983 2009 Slide 8

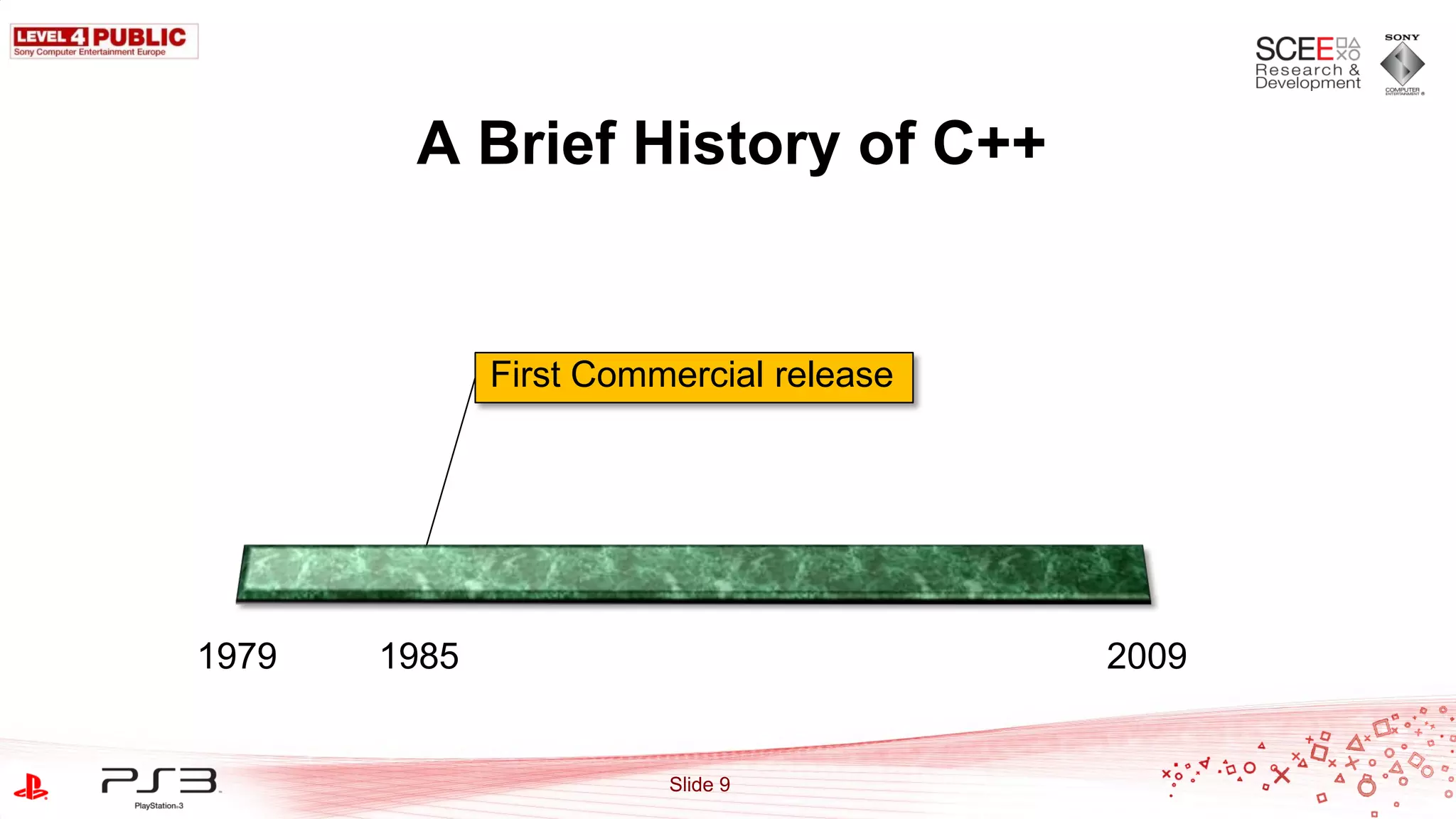

- 9. A Brief Historyof C++ First Commercial release 1979 1985 2009 Slide 9

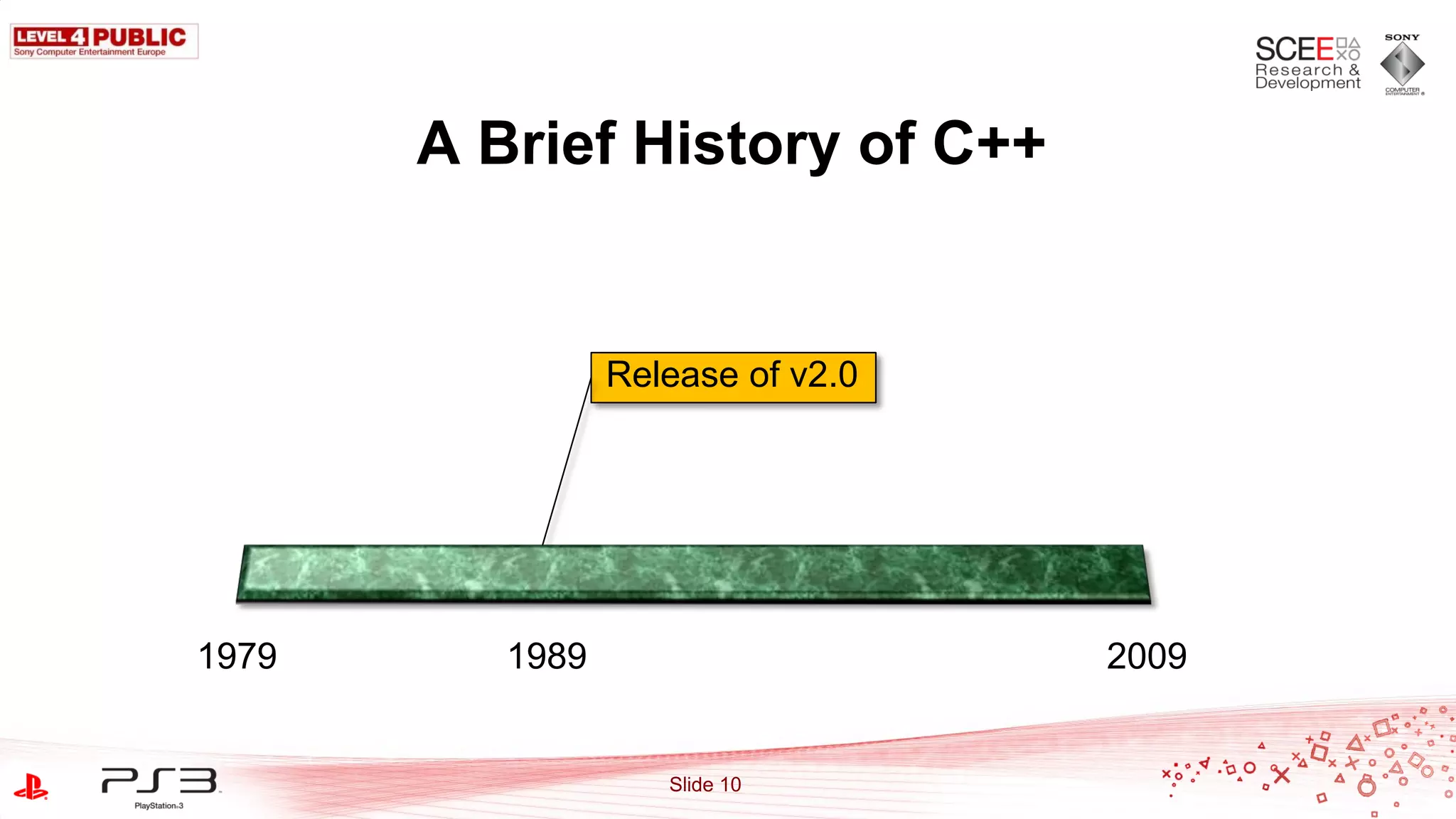

- 10. A Brief Historyof C++ Release of v2.0 1979 1989 2009 Slide 10

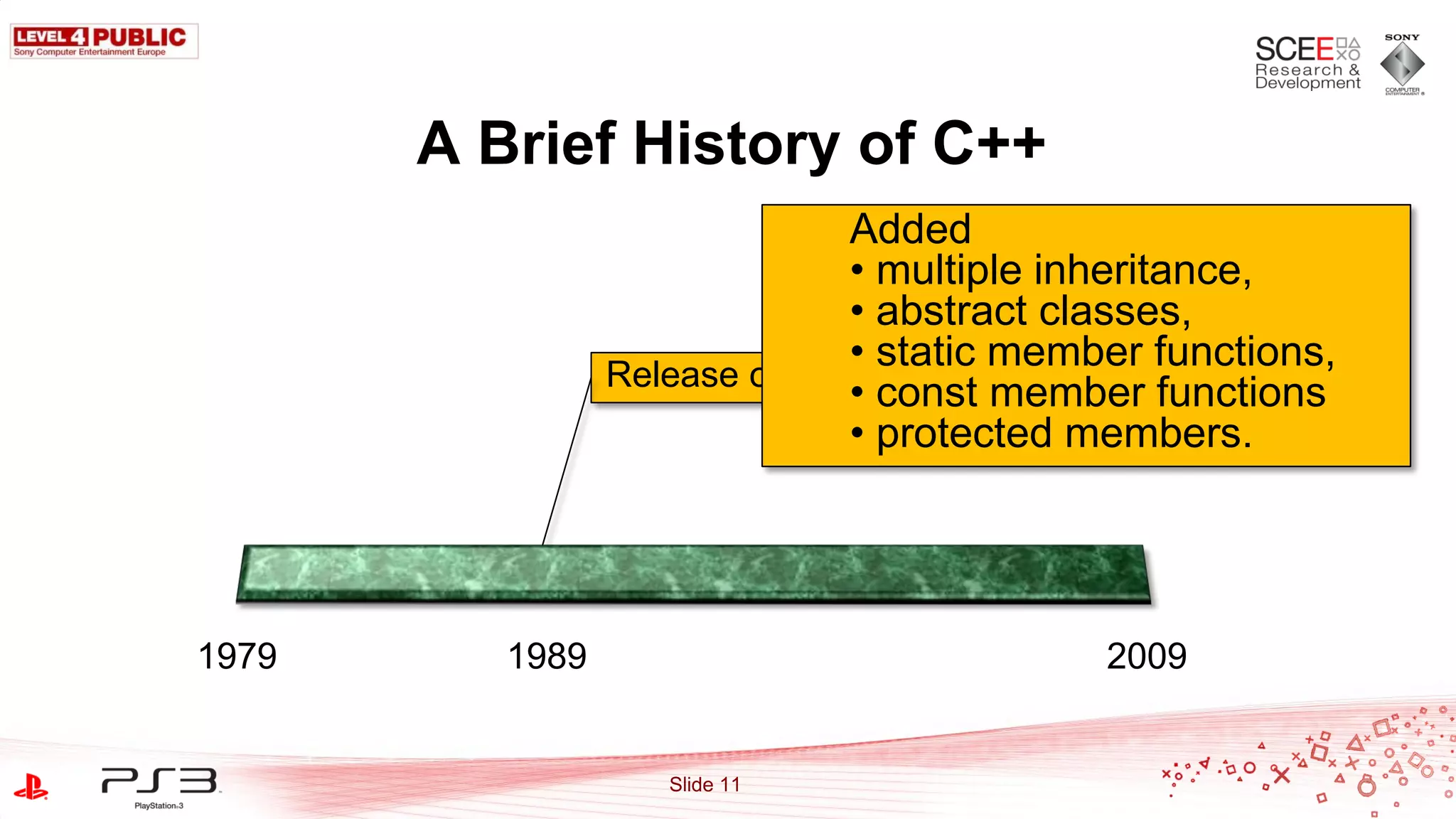

- 11. A Brief Historyof C++ Added • multiple inheritance, • abstract classes, Release of v2.0 • static member functions, • const member functions • protected members. 1979 1989 2009 Slide 11

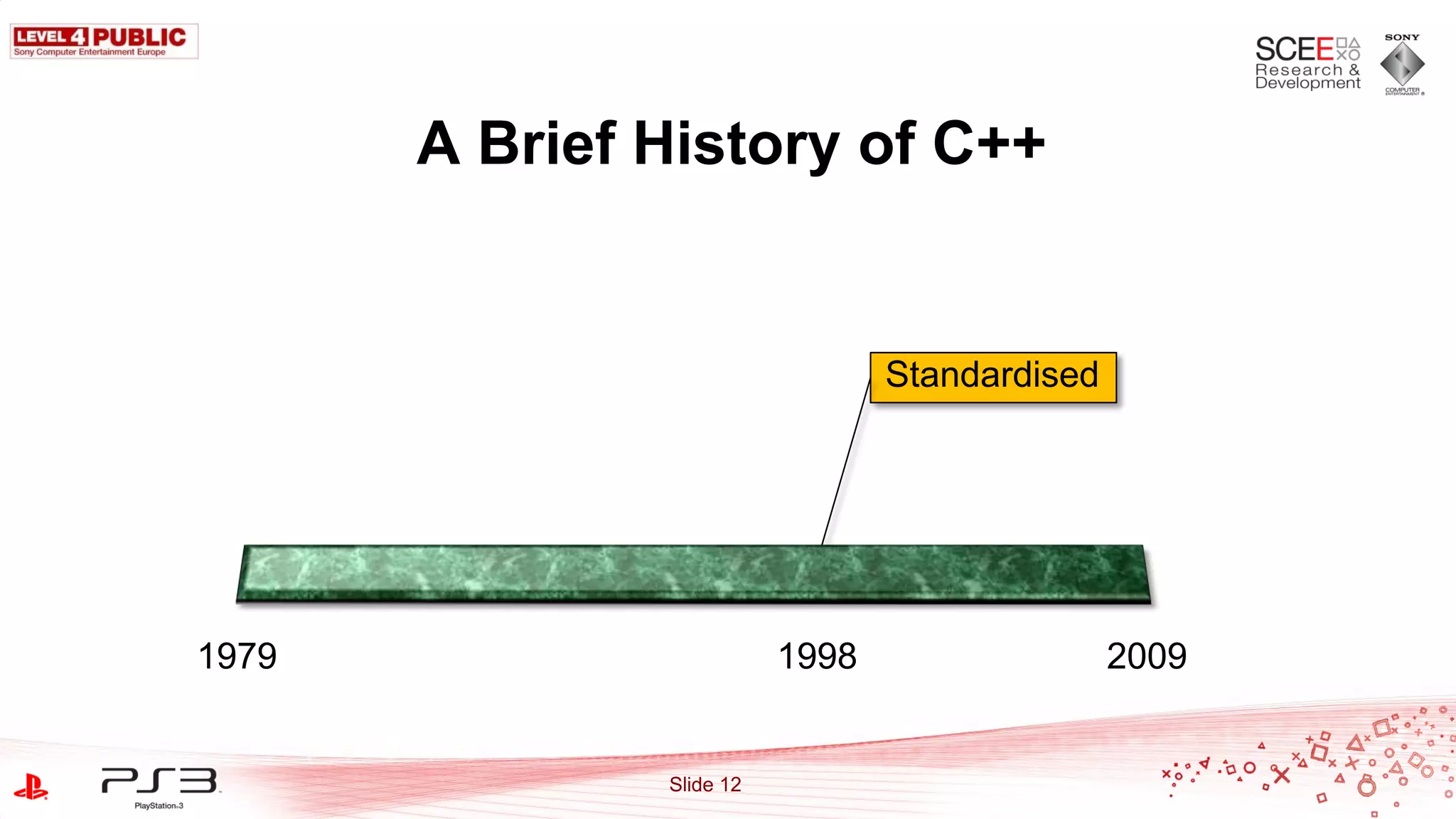

- 12. A Brief Historyof C++ Standardised 1979 1998 2009 Slide 12

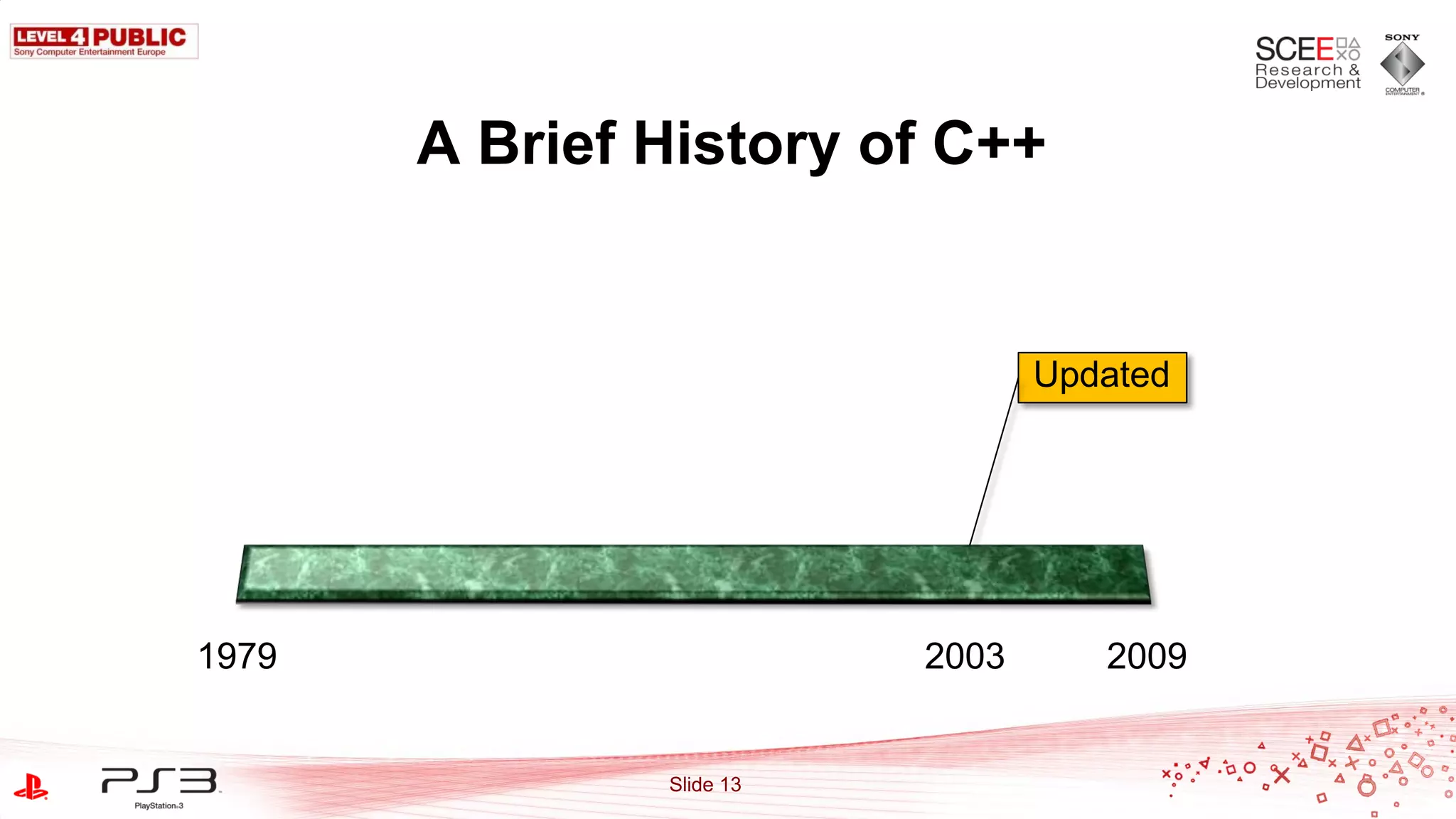

- 13. A Brief Historyof C++ Updated 1979 2003 2009 Slide 13
- 14. A Brief Historyof C++ C++0x 1979 2009 ? Slide 14
- 15. So what haschanged since 1979? • Many more features have been added to C++ • CPUs have become much faster. • Transition to multiple cores • Memory has become faster. http://www.vintagecomputing.com Slide 15

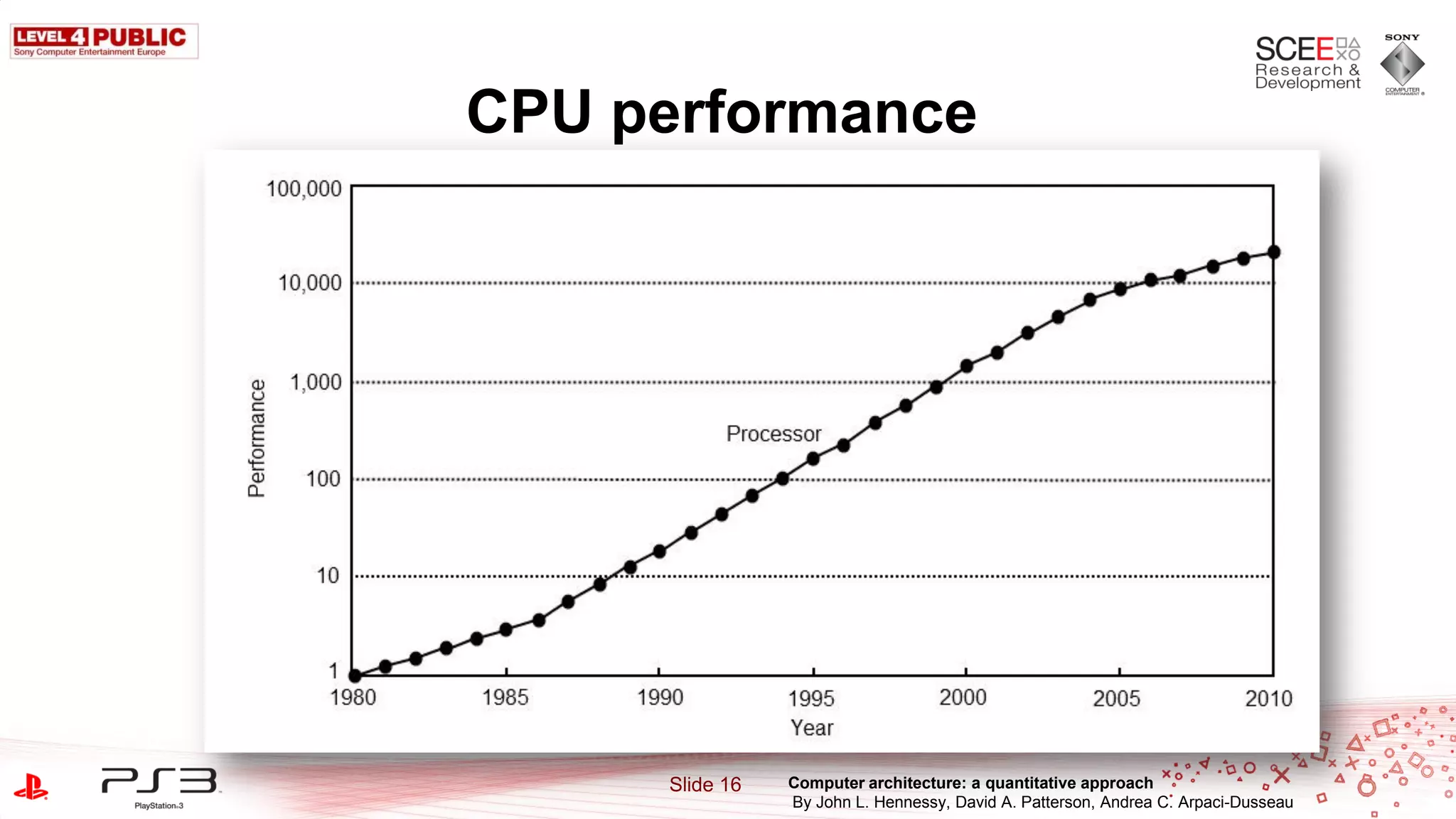

- 16. CPU performance Slide 16 Computer architecture: a quantitative approach By John L. Hennessy, David A. Patterson, Andrea C. Arpaci-Dusseau

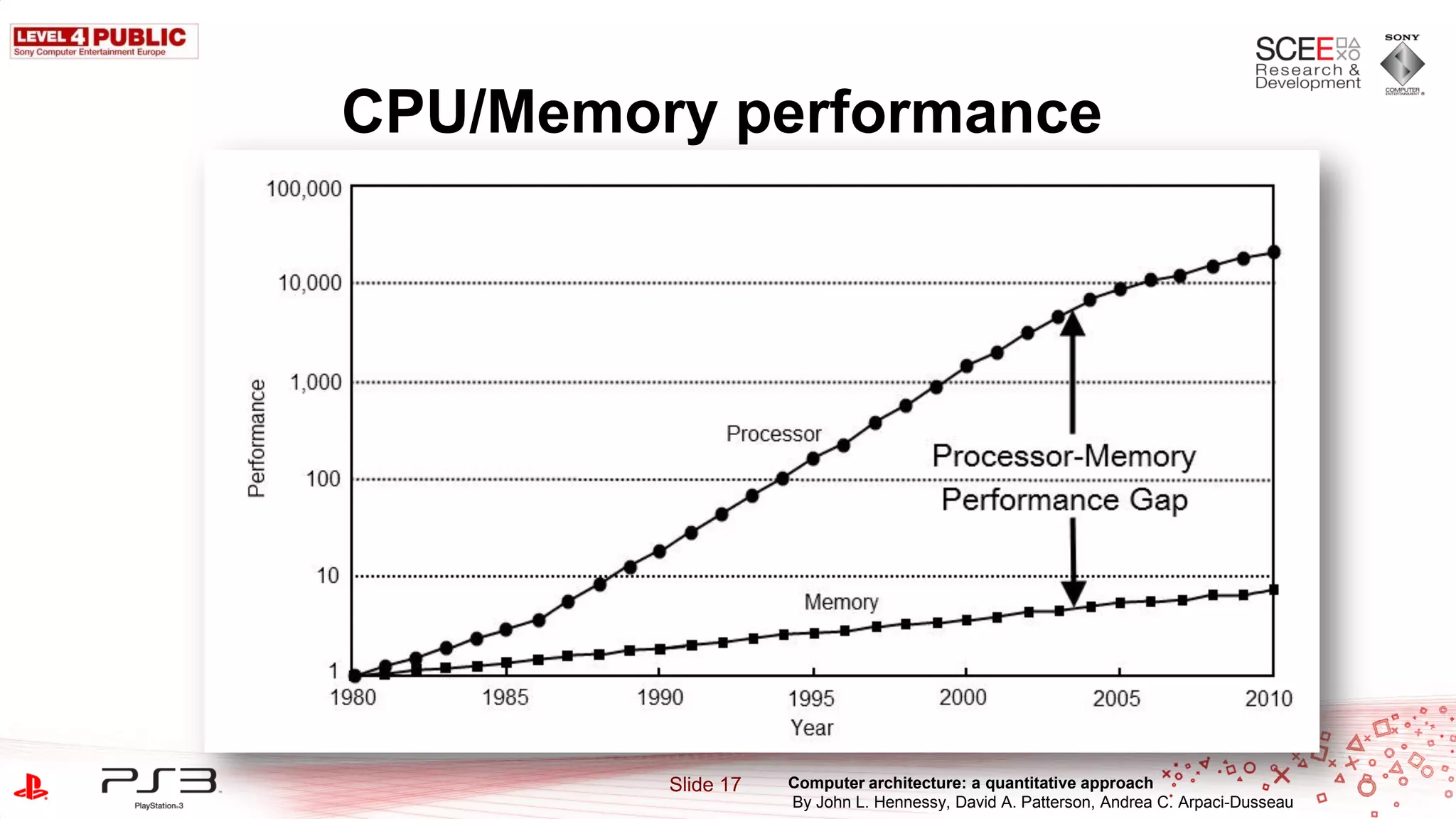

- 17. CPU/Memory performance Slide 17 Computer architecture: a quantitative approach By John L. Hennessy, David A. Patterson, Andrea C. Arpaci-Dusseau

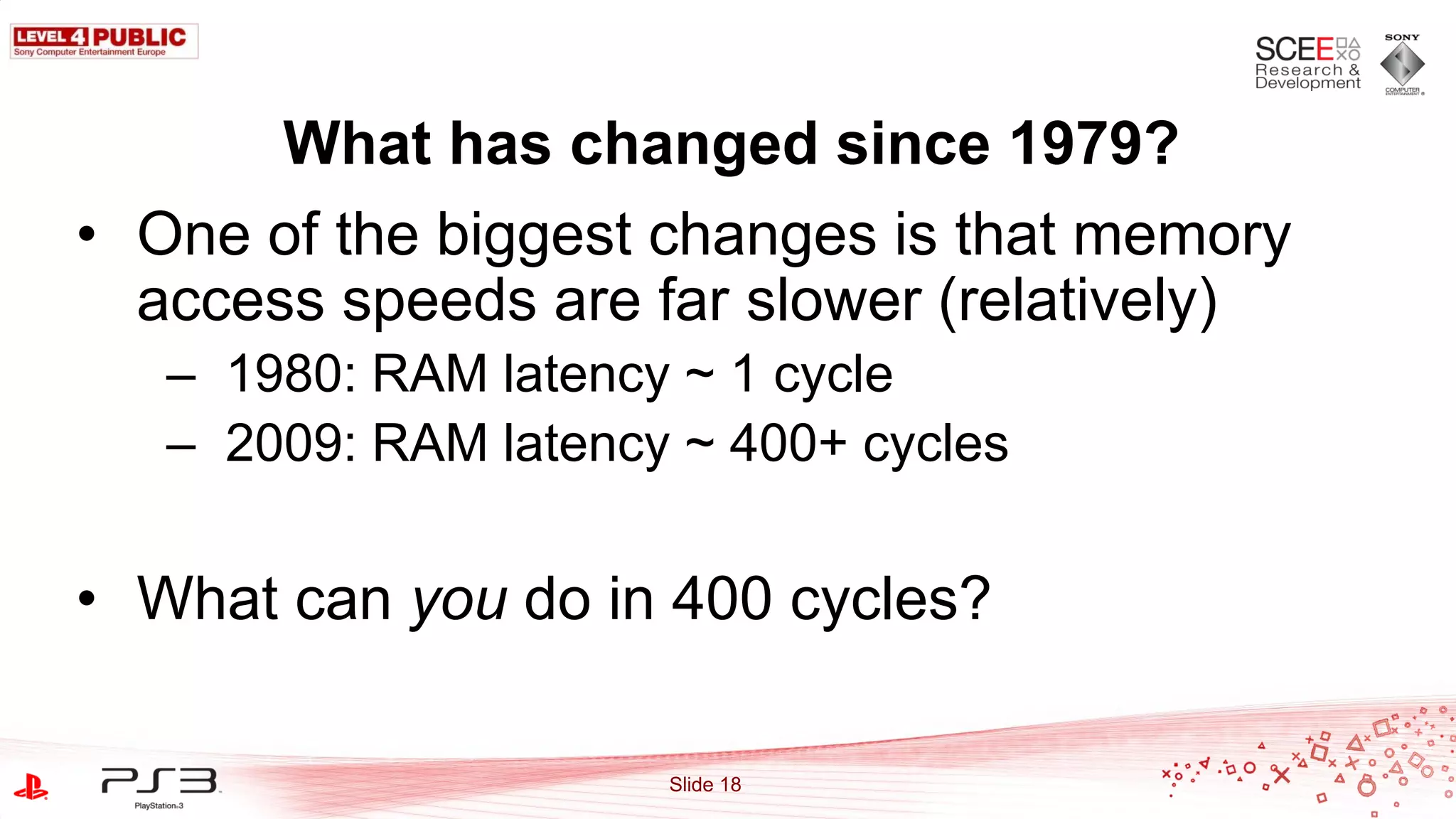

- 18. What has changedsince 1979? • One of the biggest changes is that memory access speeds are far slower (relatively) – 1980: RAM latency ~ 1 cycle – 2009: RAM latency ~ 400+ cycles • What can you do in 400 cycles? Slide 18

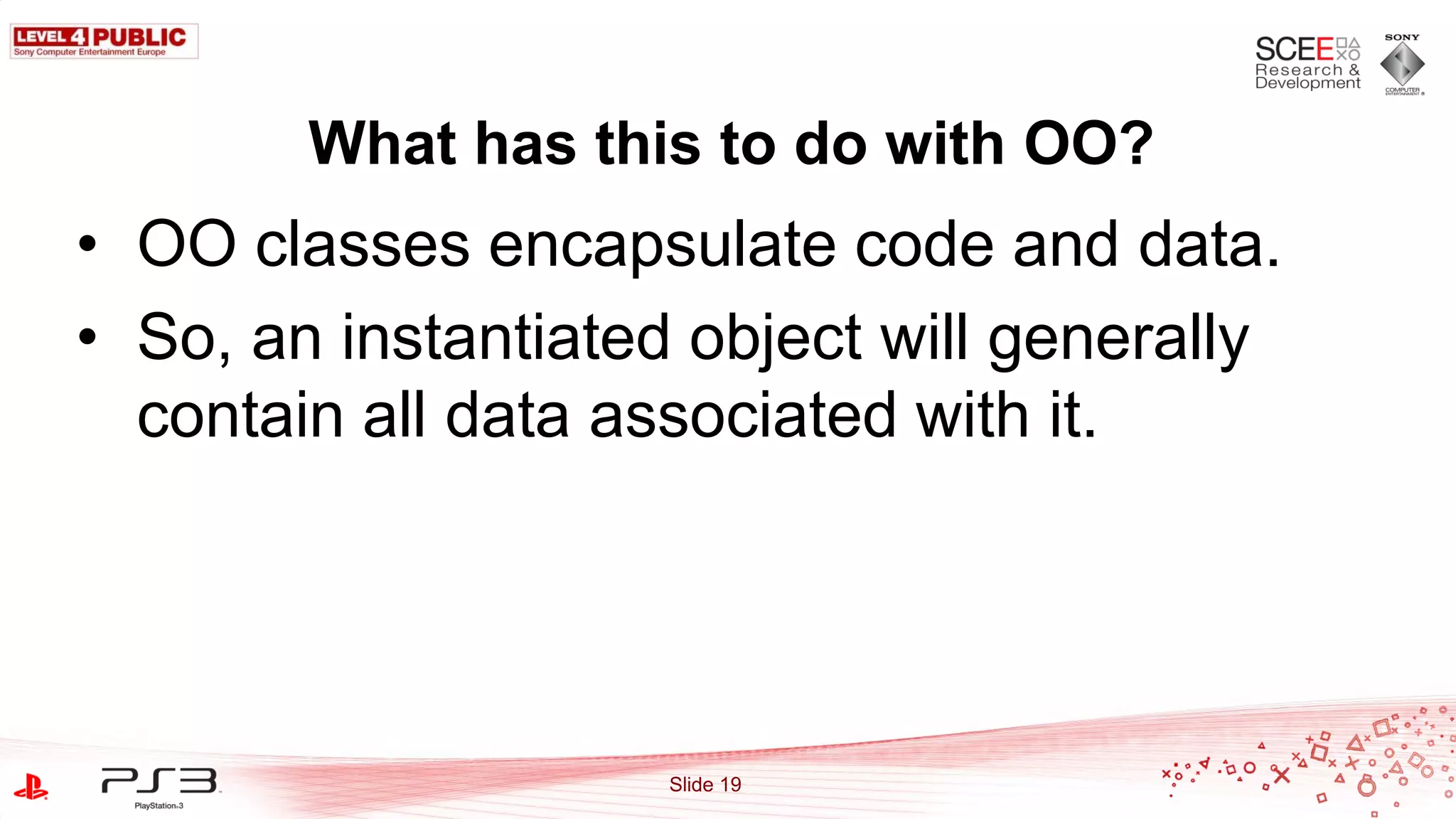

- 19. What has thisto do with OO? • OO classes encapsulate code and data. • So, an instantiated object will generally contain all data associated with it. Slide 19
- 20. My Claim • Withmodern HW (particularly consoles), excessive encapsulation is BAD. • Data flow should be fundamental to your design (Data Oriented Design) Slide 20

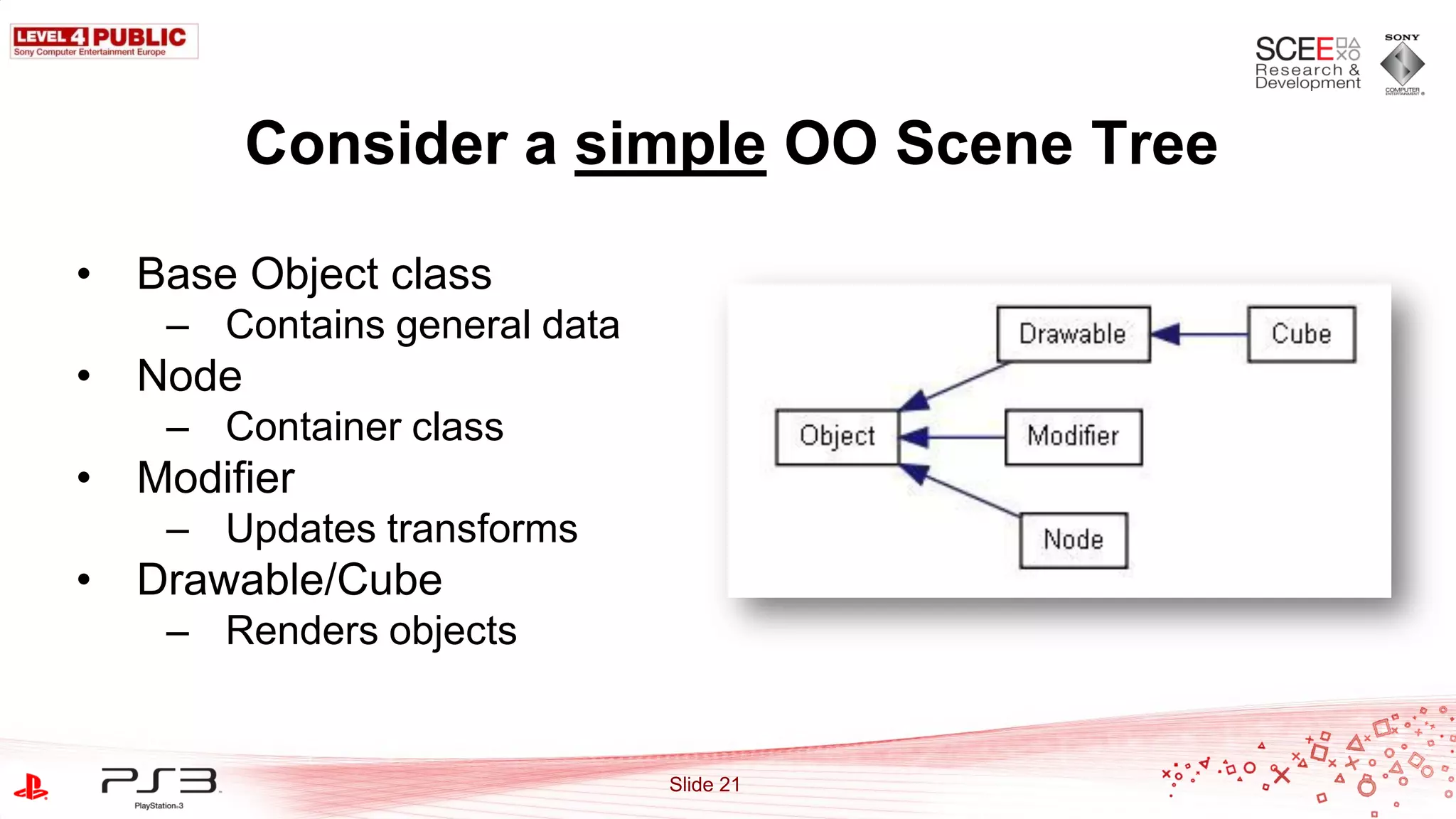

- 21. Consider a simpleOO Scene Tree • Base Object class – Contains general data • Node – Container class • Modifier – Updates transforms • Drawable/Cube – Renders objects Slide 21

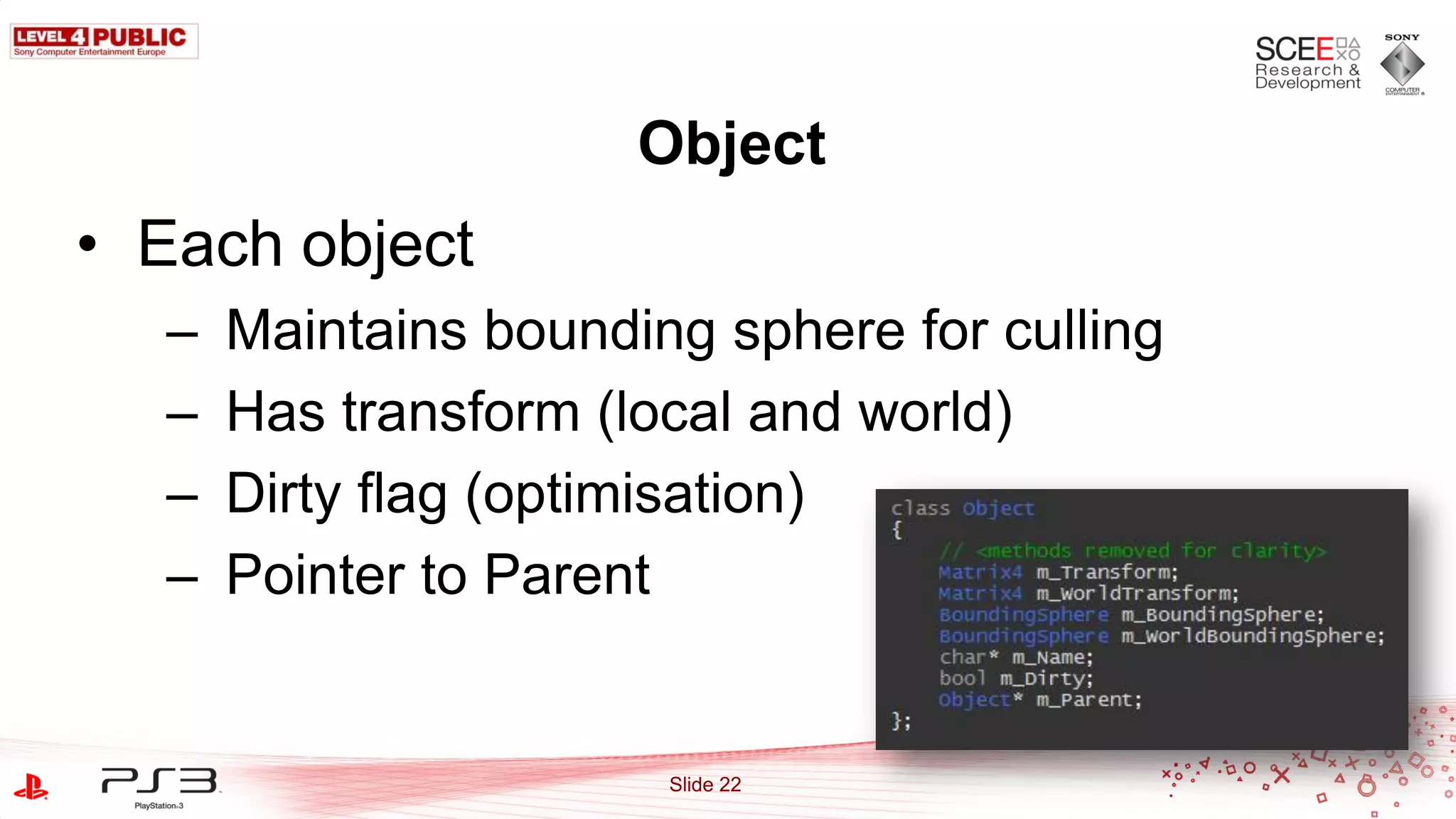

- 22. Object • Each object – Maintains bounding sphere for culling – Has transform (local and world) – Dirty flag (optimisation) – Pointer to Parent Slide 22

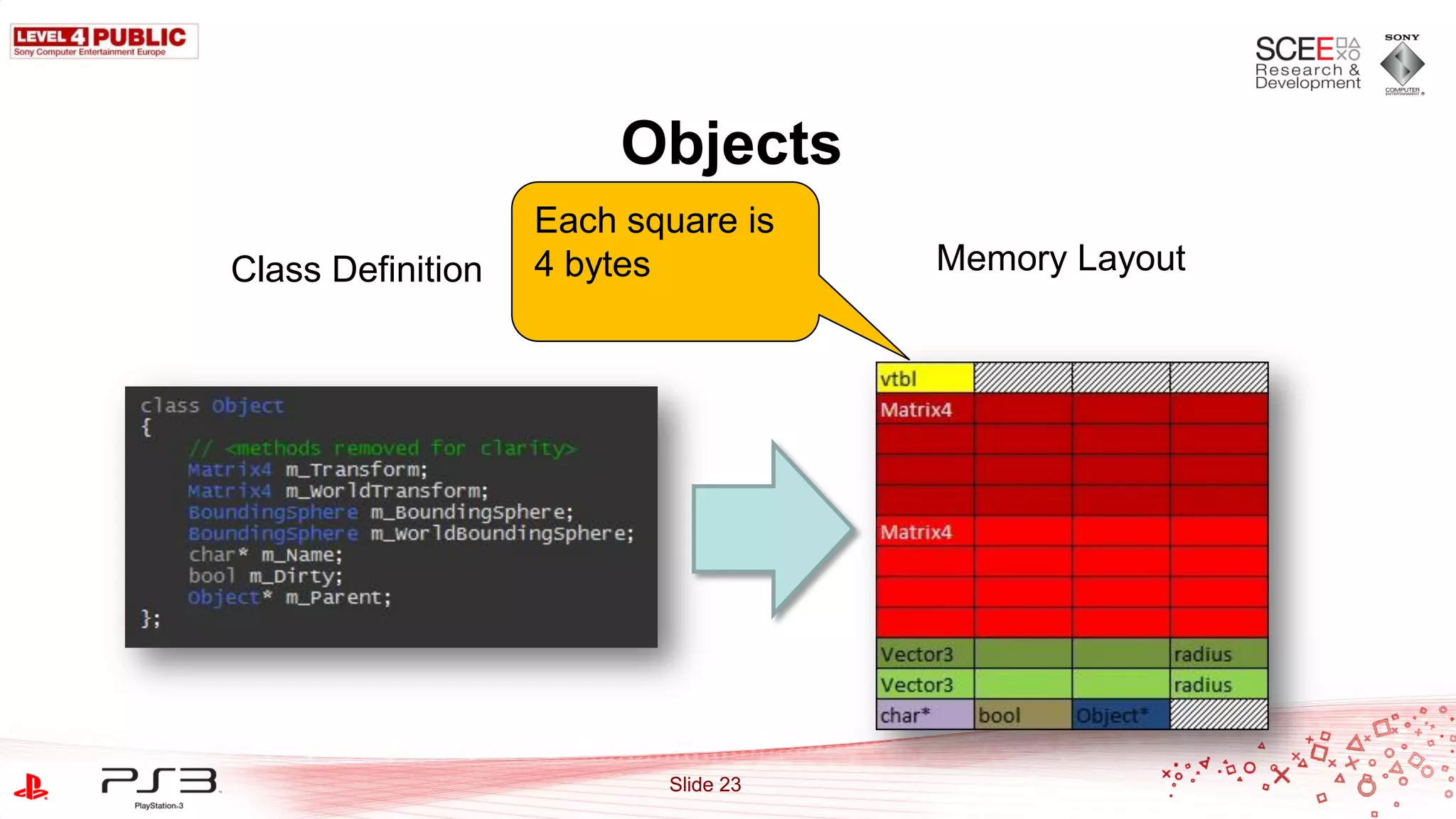

- 23. Objects Each square is Class Definition 4 bytes Memory Layout Slide 23

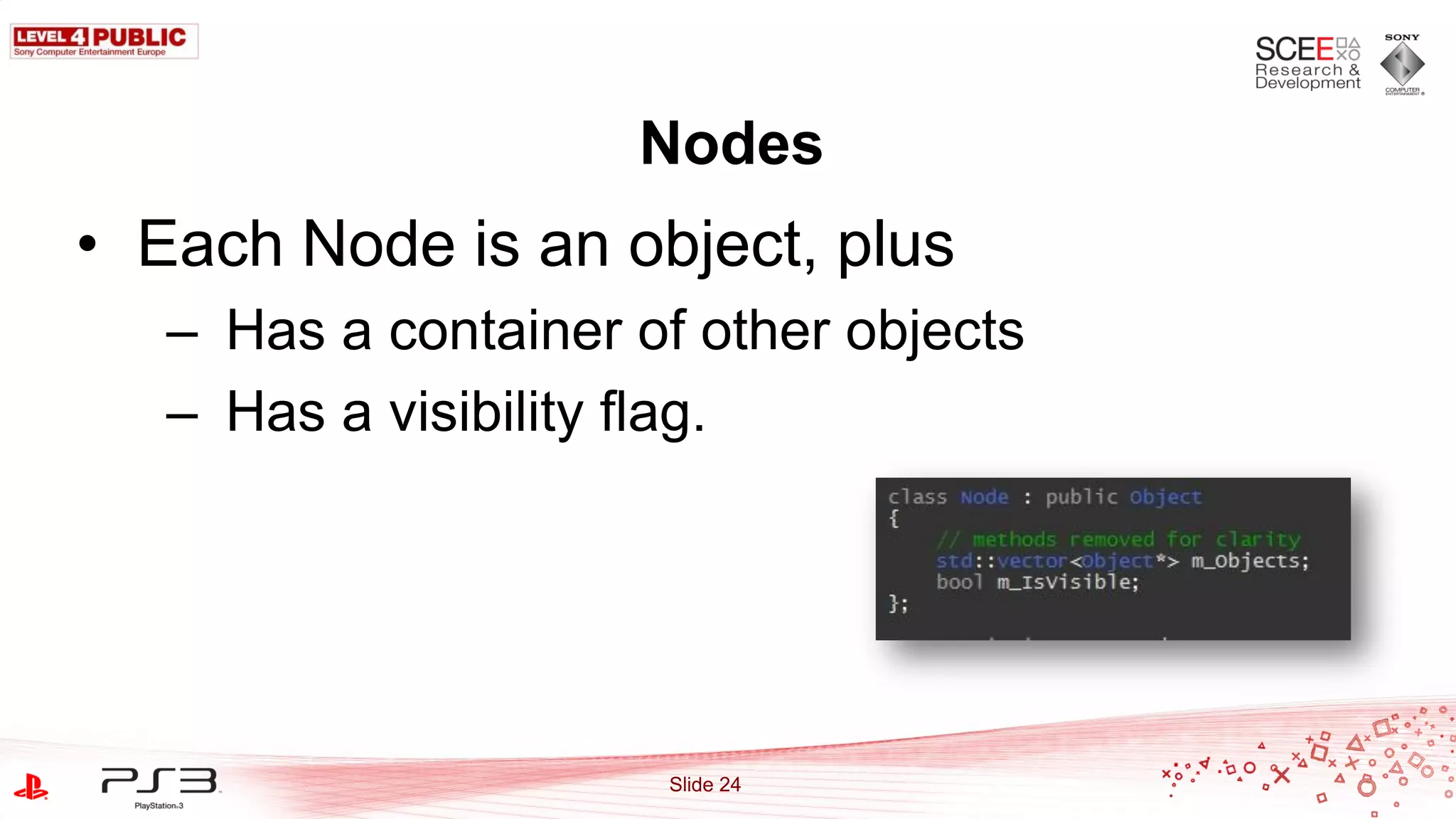

- 24. Nodes • Each Nodeis an object, plus – Has a container of other objects – Has a visibility flag. Slide 24

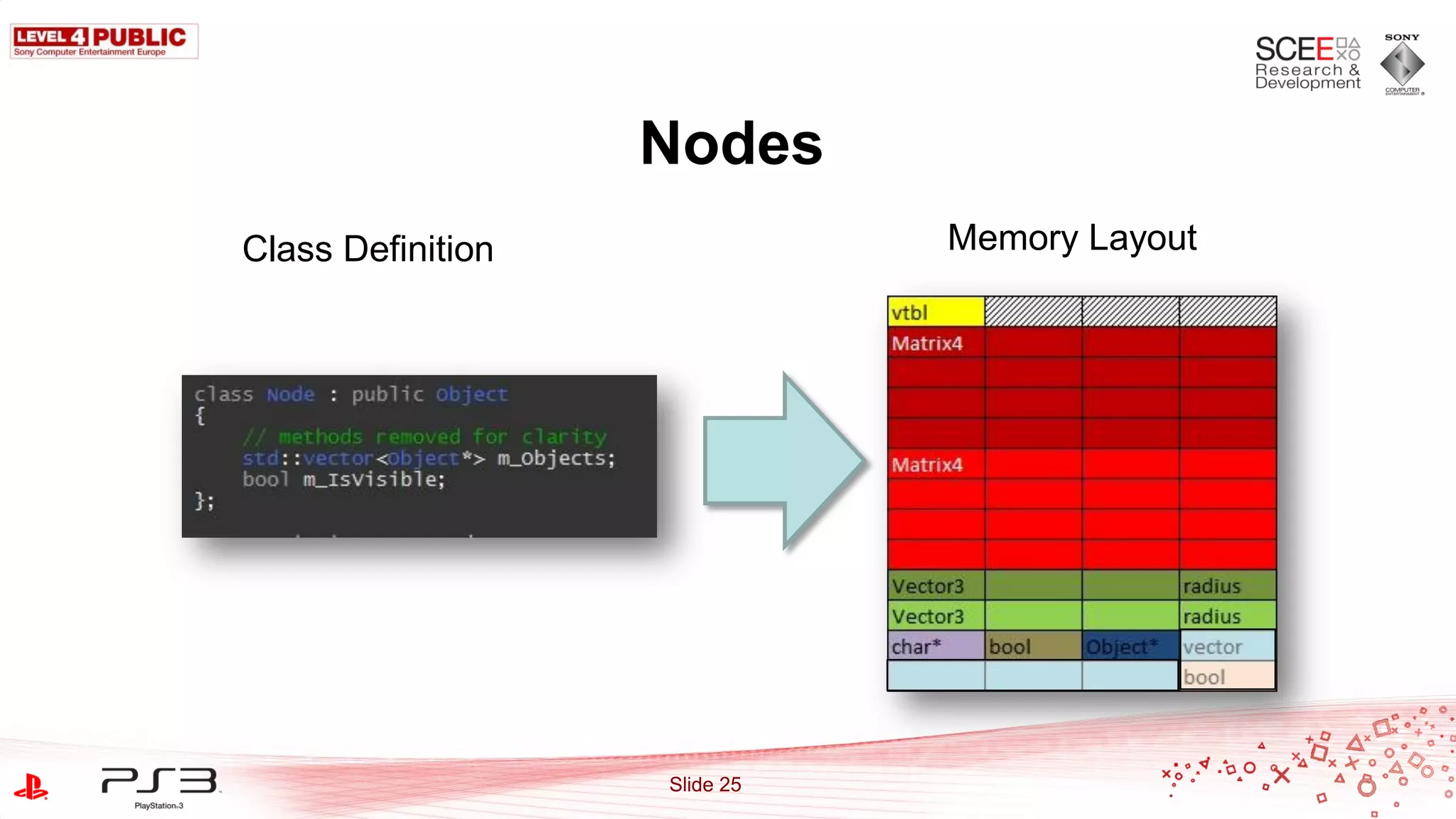

- 25. Nodes Class Definition Memory Layout Slide 25

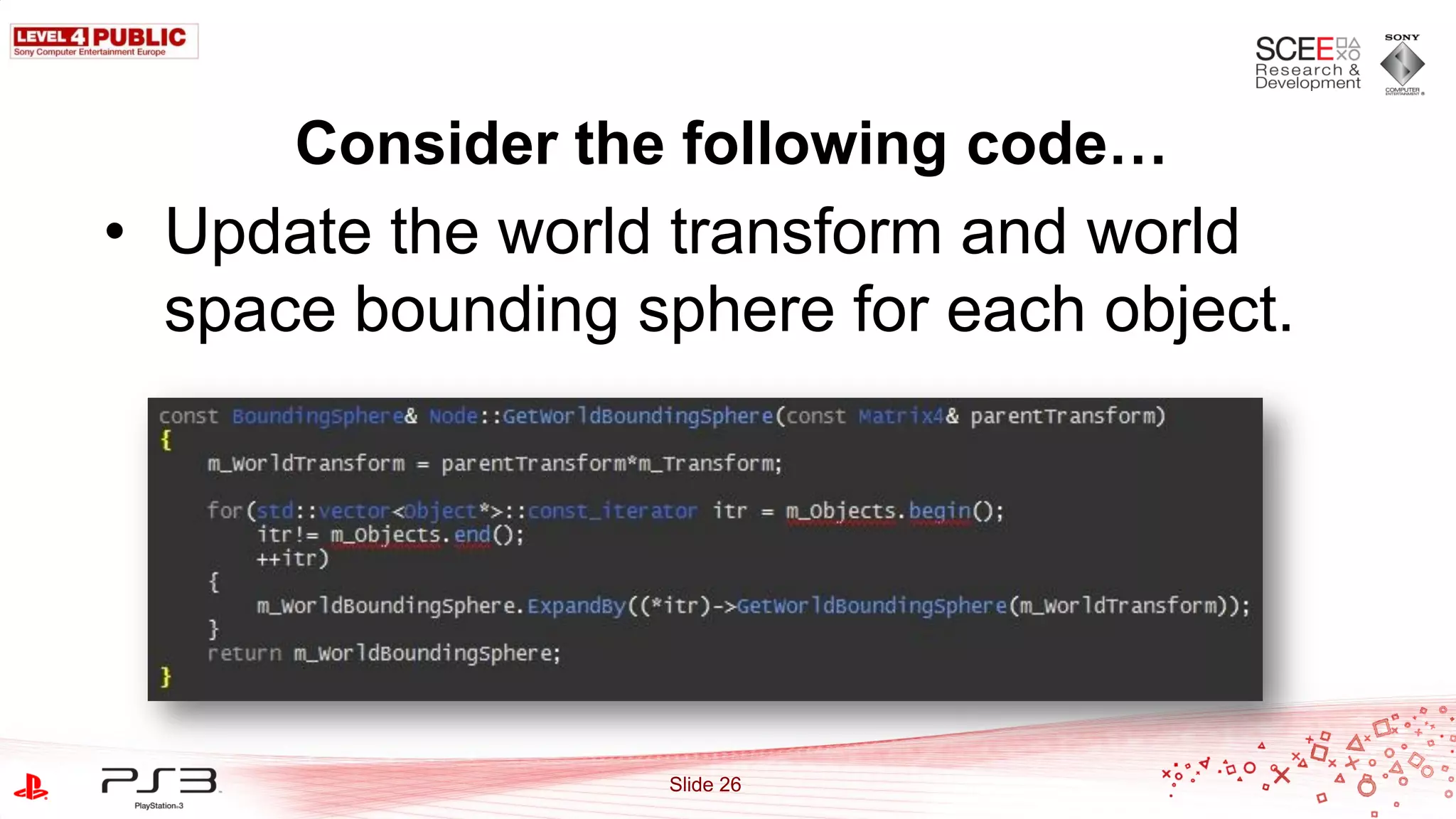

- 26. Consider the followingcode… • Update the world transform and world space bounding sphere for each object. Slide 26

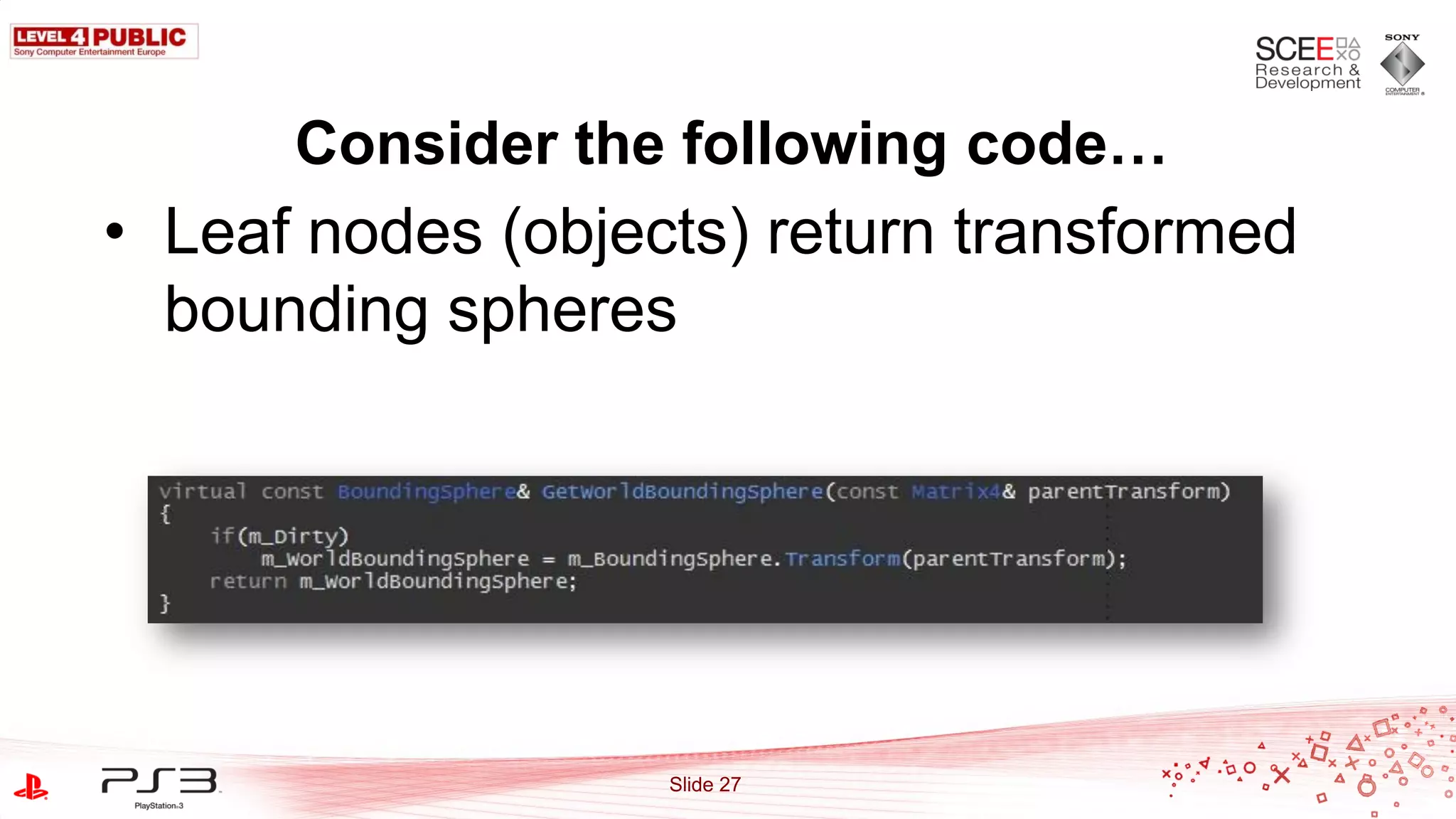

- 27. Consider the followingcode… • Leaf nodes (objects) return transformed bounding spheres Slide 27

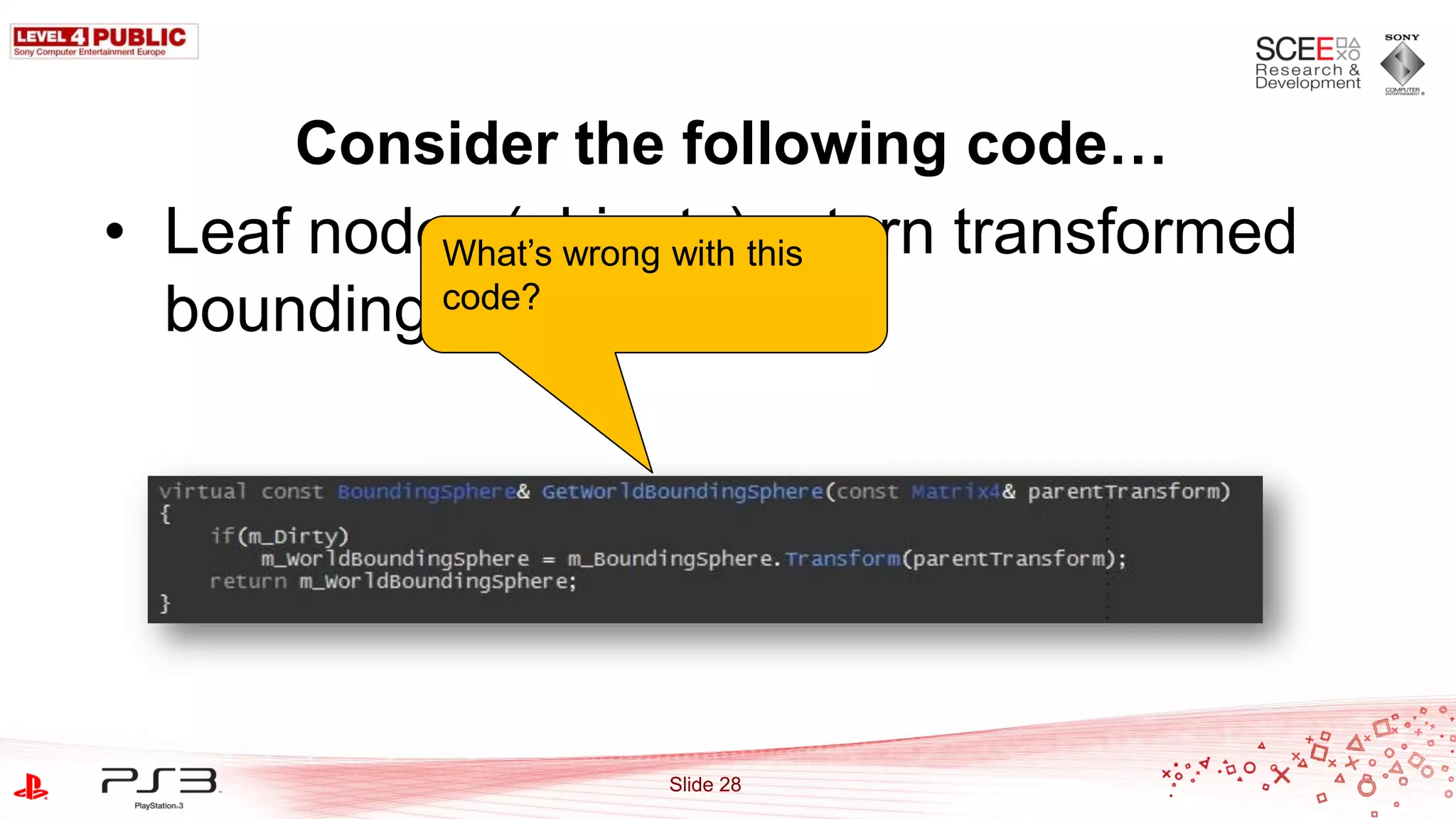

- 28. Consider the followingcode… • Leaf nodes (objects)this What‟s wrong with return transformed bounding code? spheres Slide 28
- 29. Consider the followingcode… • Leaf nodesm_Dirty=false thenreturn transformed If (objects) we get branch bounding misprediction which costs 23 or 24 spheres cycles. Slide 29

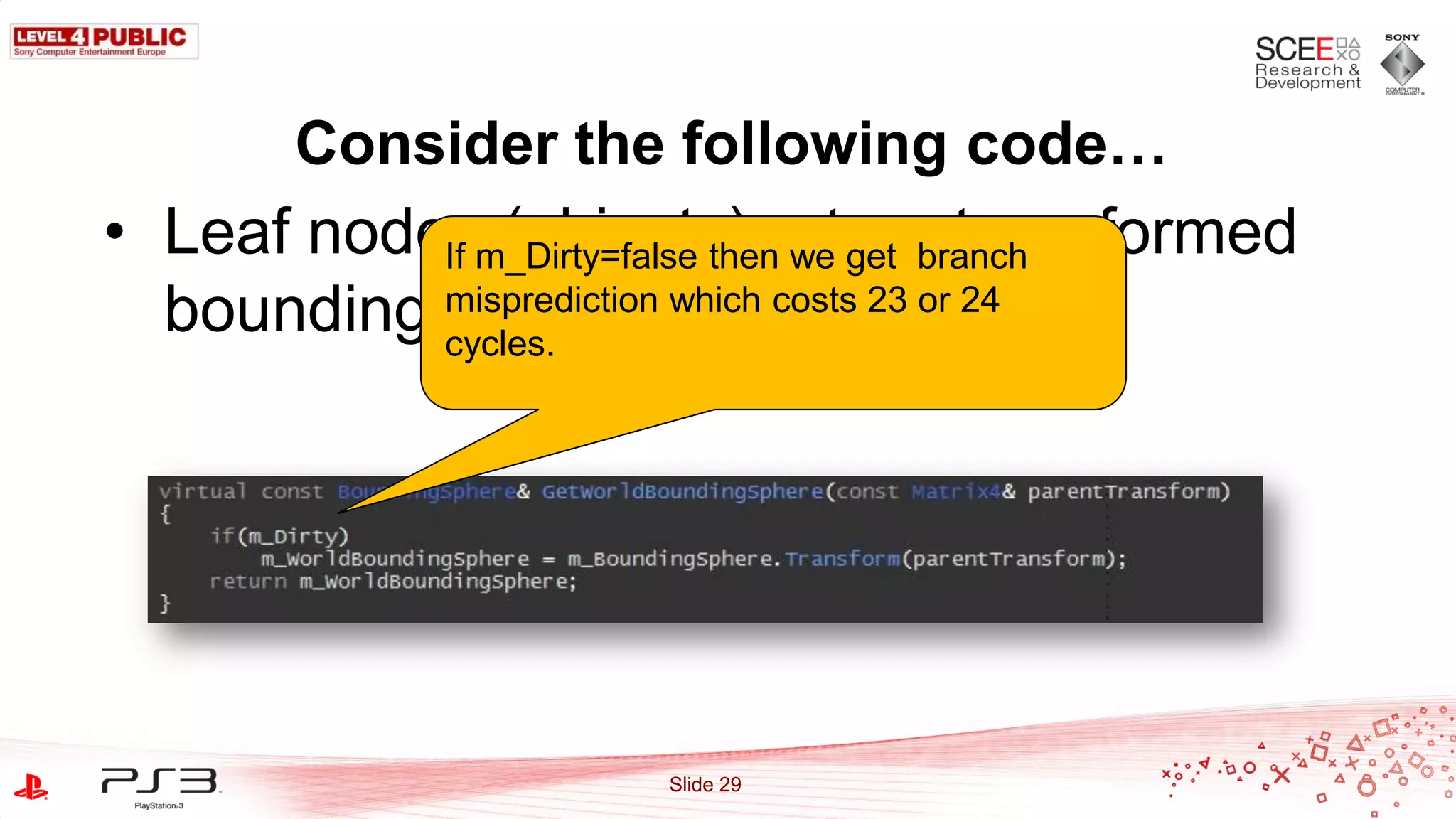

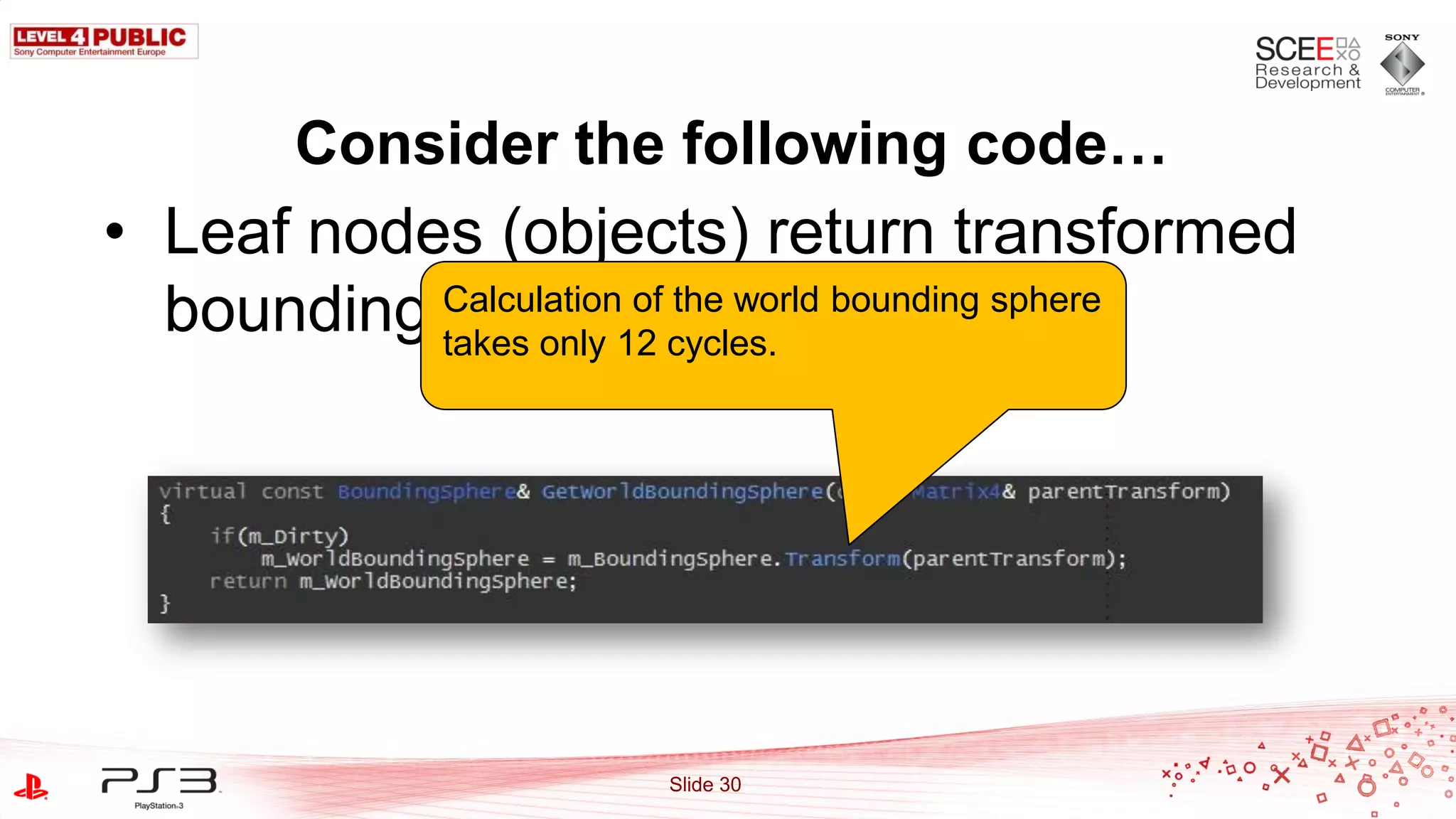

- 30. Consider the followingcode… • Leaf nodes (objects) return transformed bounding Calculation12 cycles. bounding sphere spheresthe world takes only of Slide 30

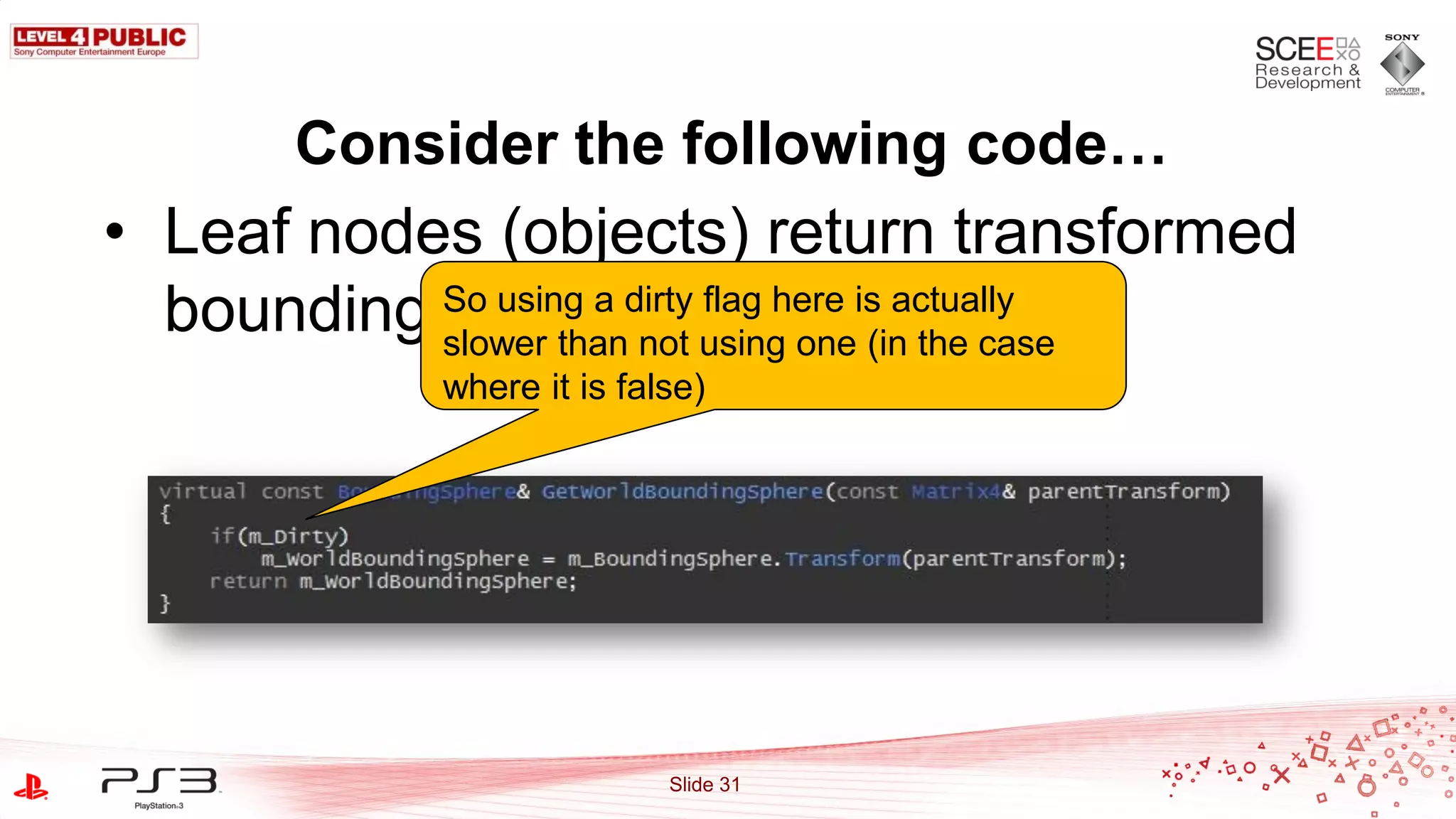

- 31. Consider the followingcode… • Leaf nodes (objects) return transformed bounding So using a dirty using oneis actually spheres flag here (in the case slower than not where it is false) Slide 31

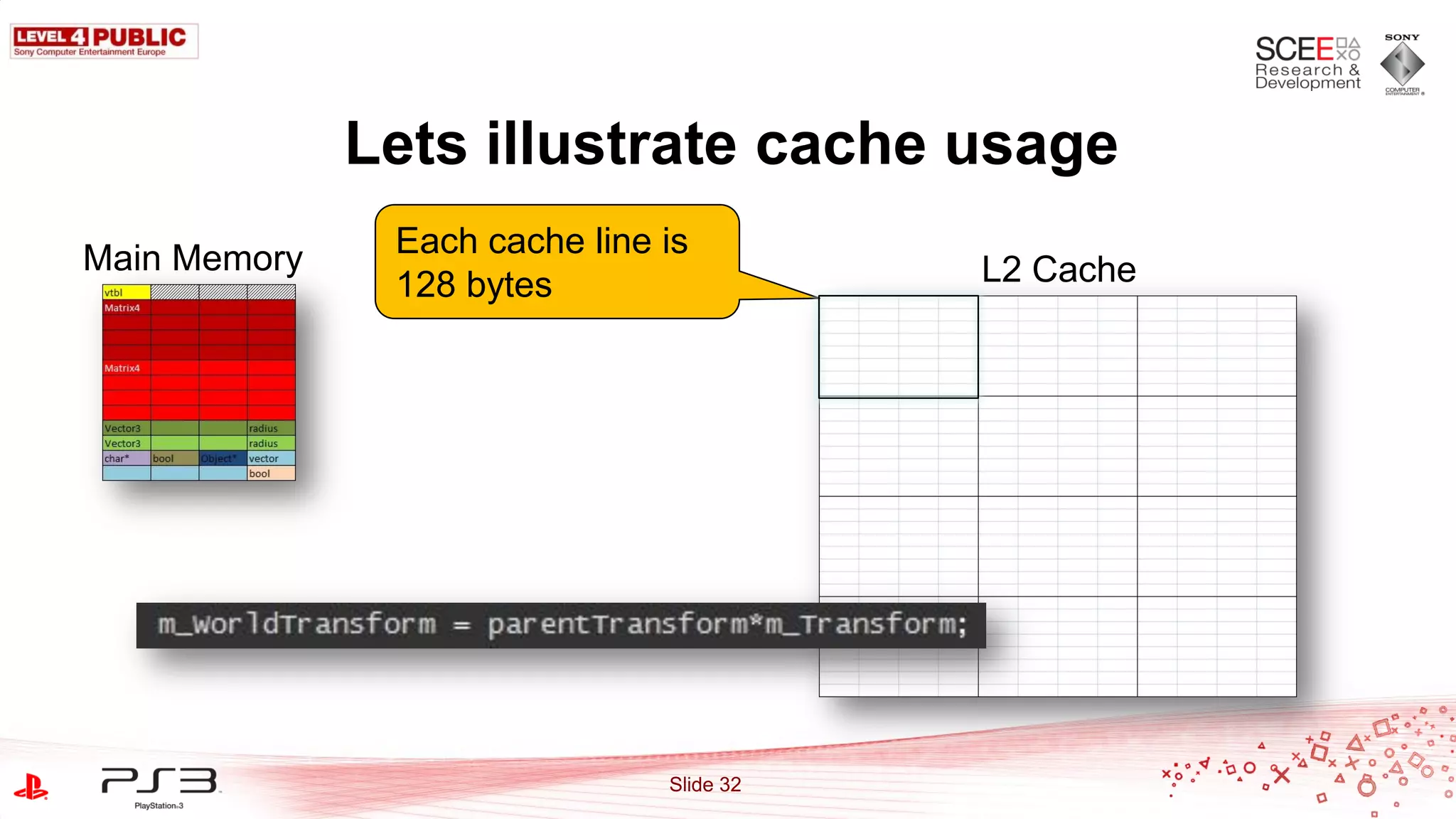

- 32. Lets illustrate cacheusage Main Memory Each cache line is 128 bytes L2 Cache Slide 32

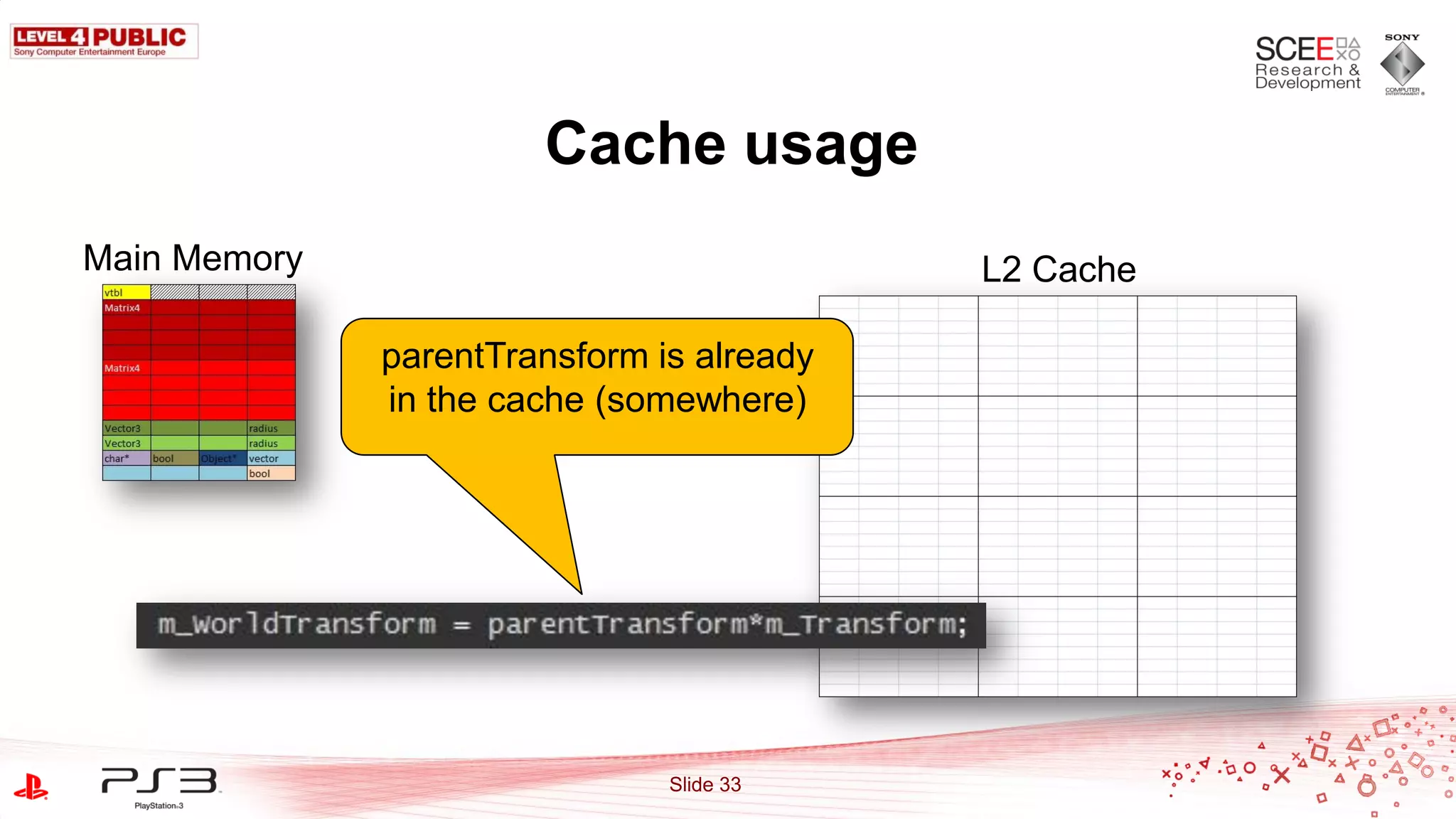

- 33. Cache usage Main Memory L2 Cache parentTransform is already in the cache (somewhere) Slide 33

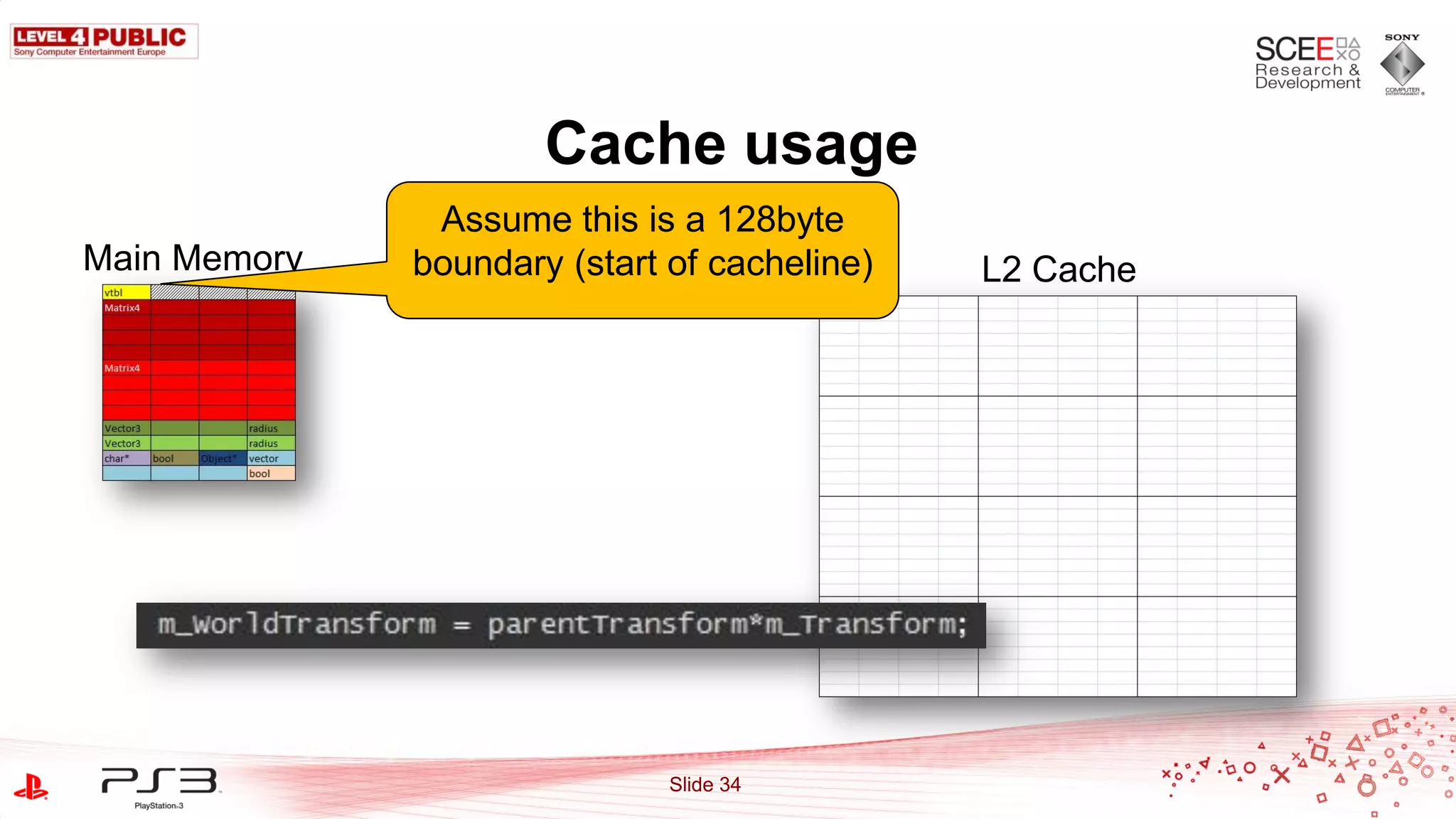

- 34. Cache usage Assume this is a 128byte Main Memory boundary (start of cacheline) L2 Cache Slide 34

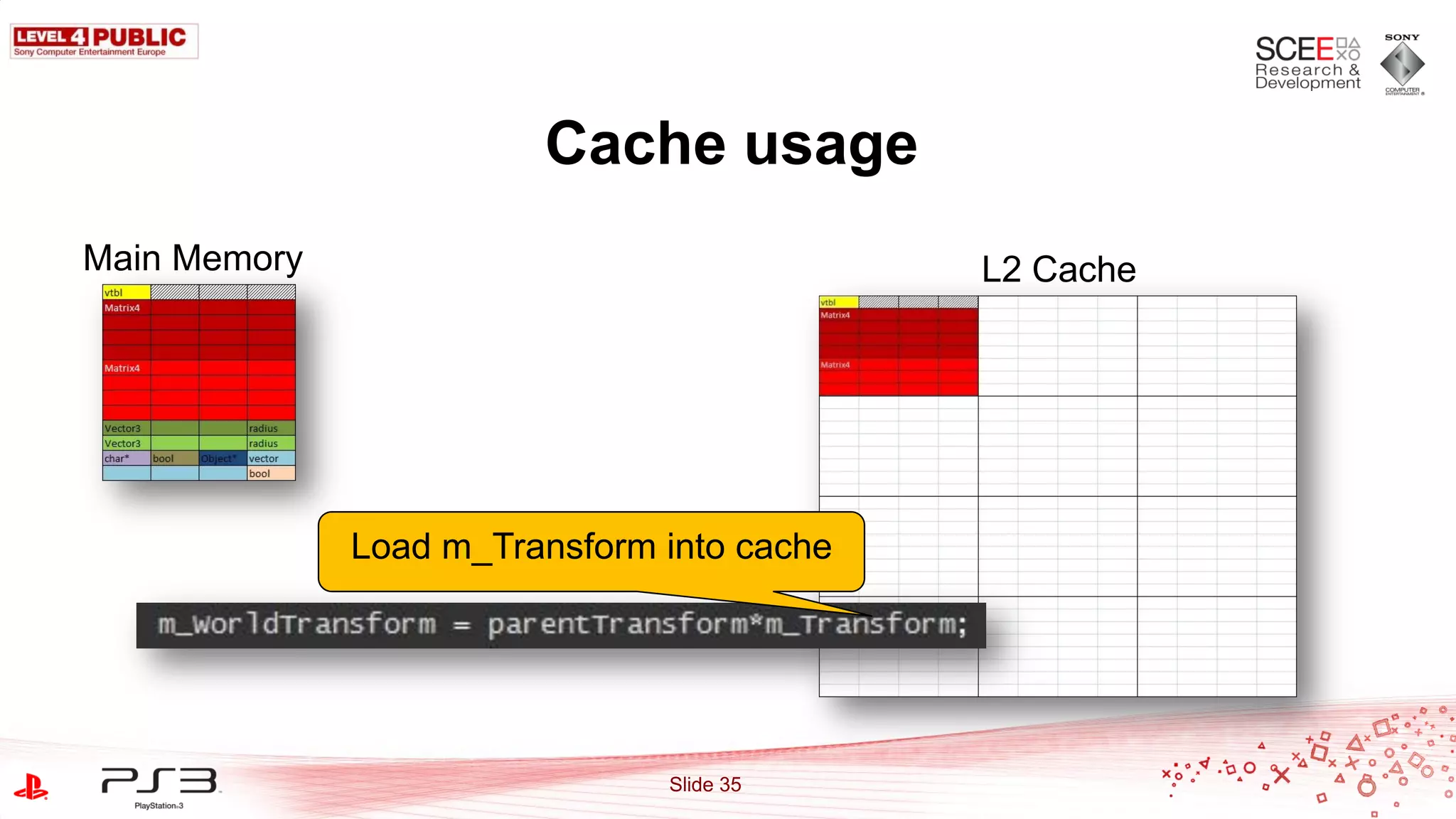

- 35. Cache usage Main Memory L2 Cache Load m_Transform into cache Slide 35

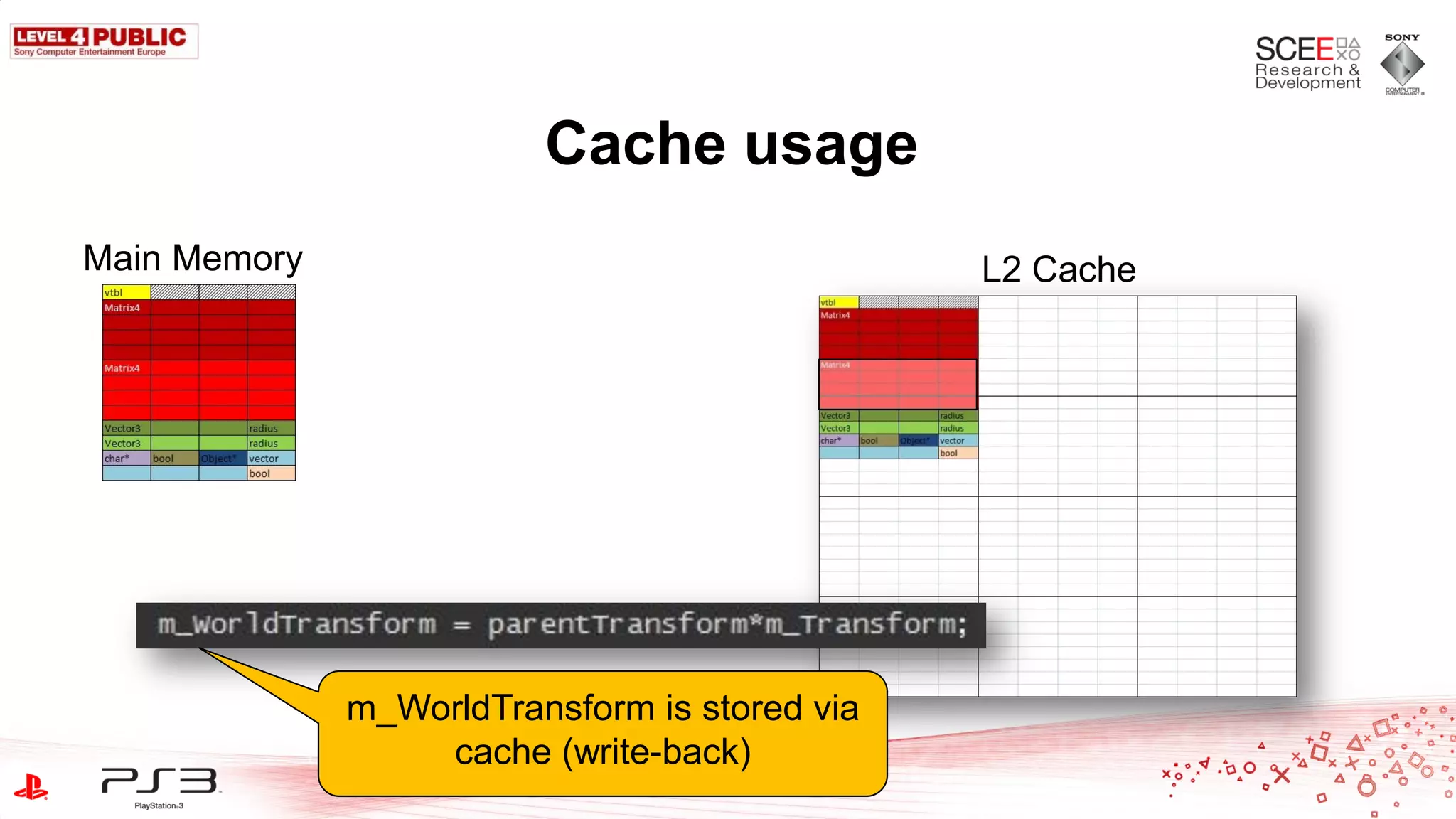

- 36. Cache usage Main Memory L2 Cache m_WorldTransform is stored via cache (write-back) Slide 36

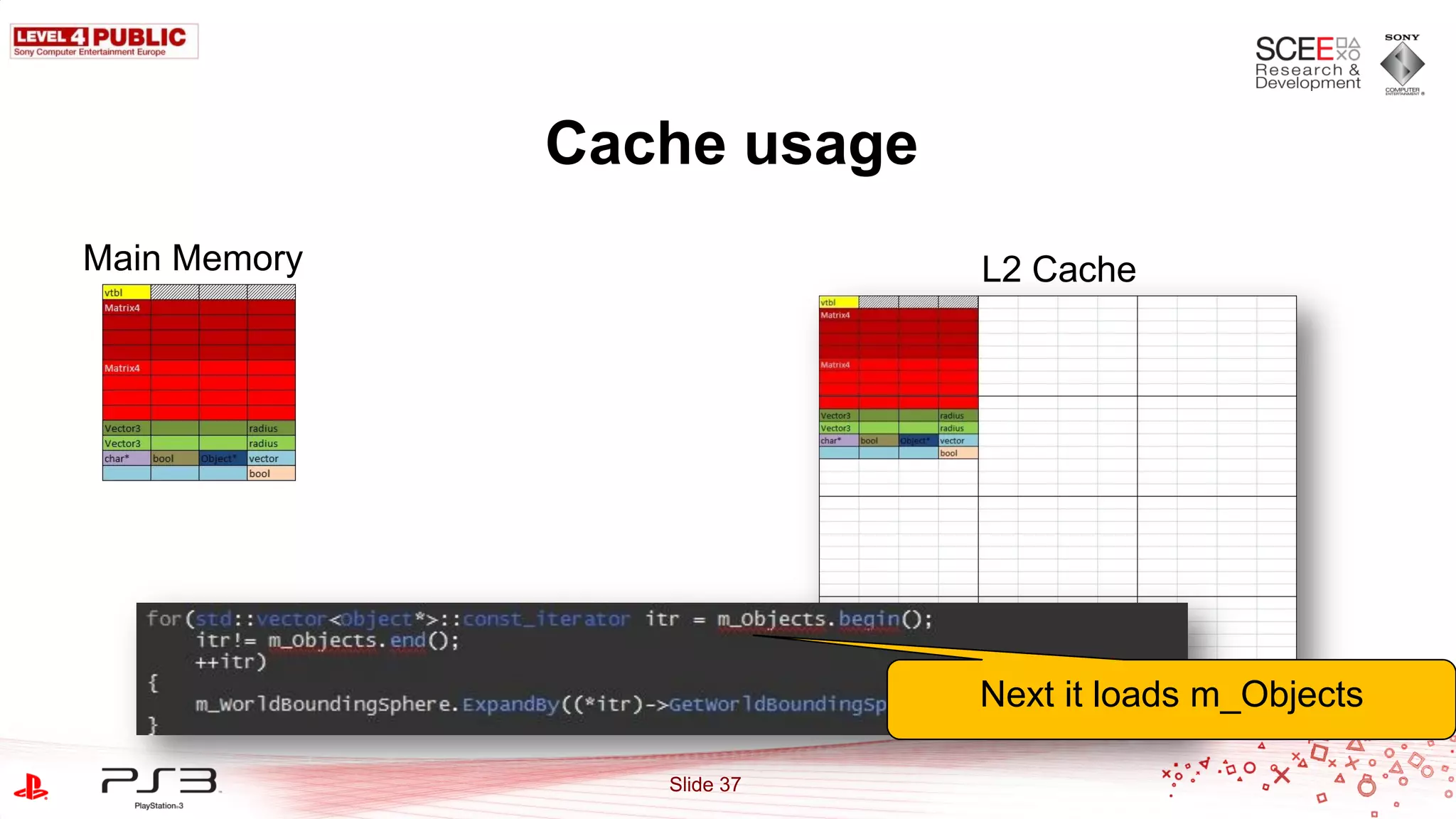

- 37. Cache usage Main Memory L2 Cache Next it loads m_Objects Slide 37

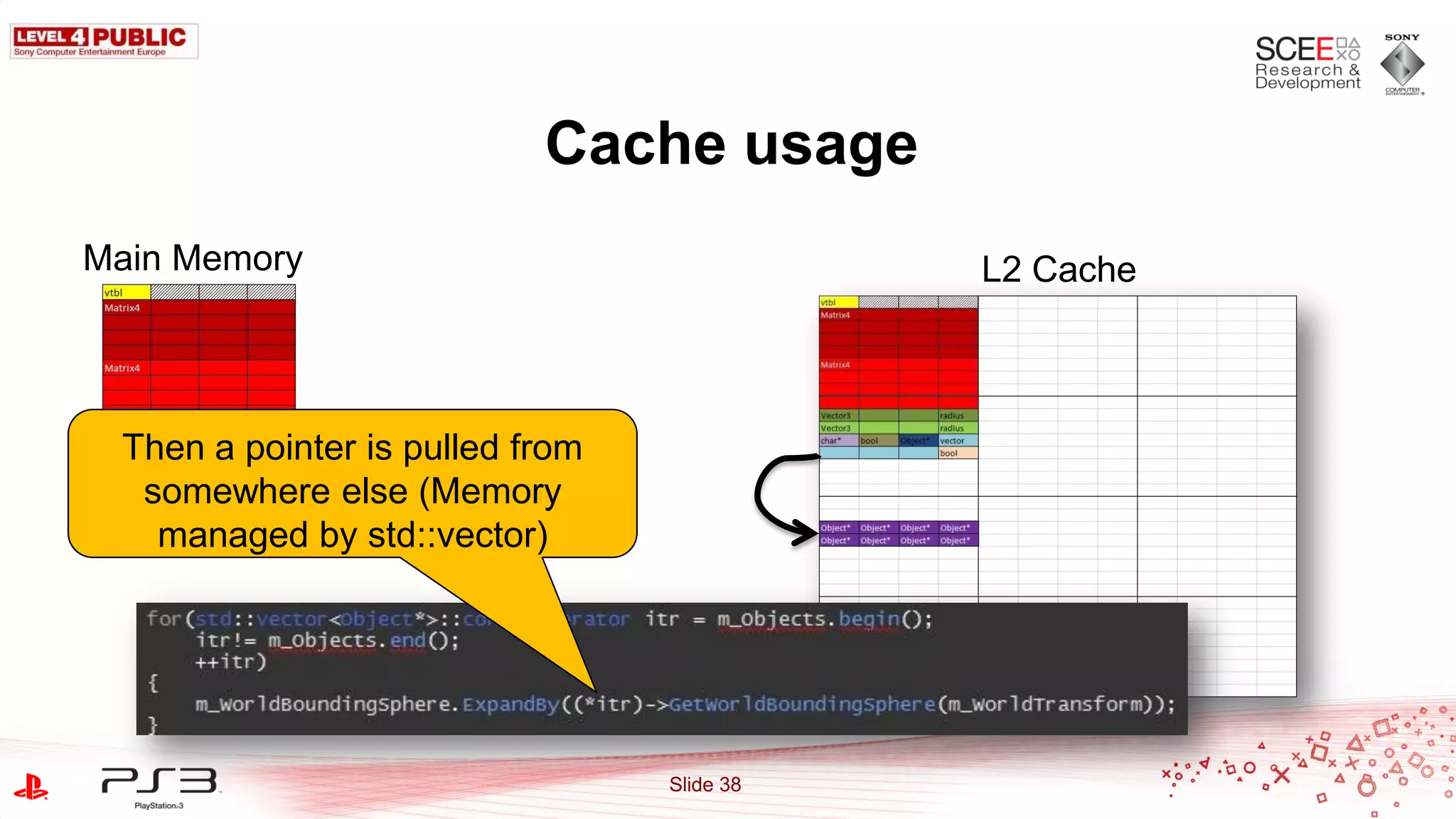

- 38. Cache usage Main Memory L2 Cache Then a pointer is pulled from somewhere else (Memory managed by std::vector) Slide 38

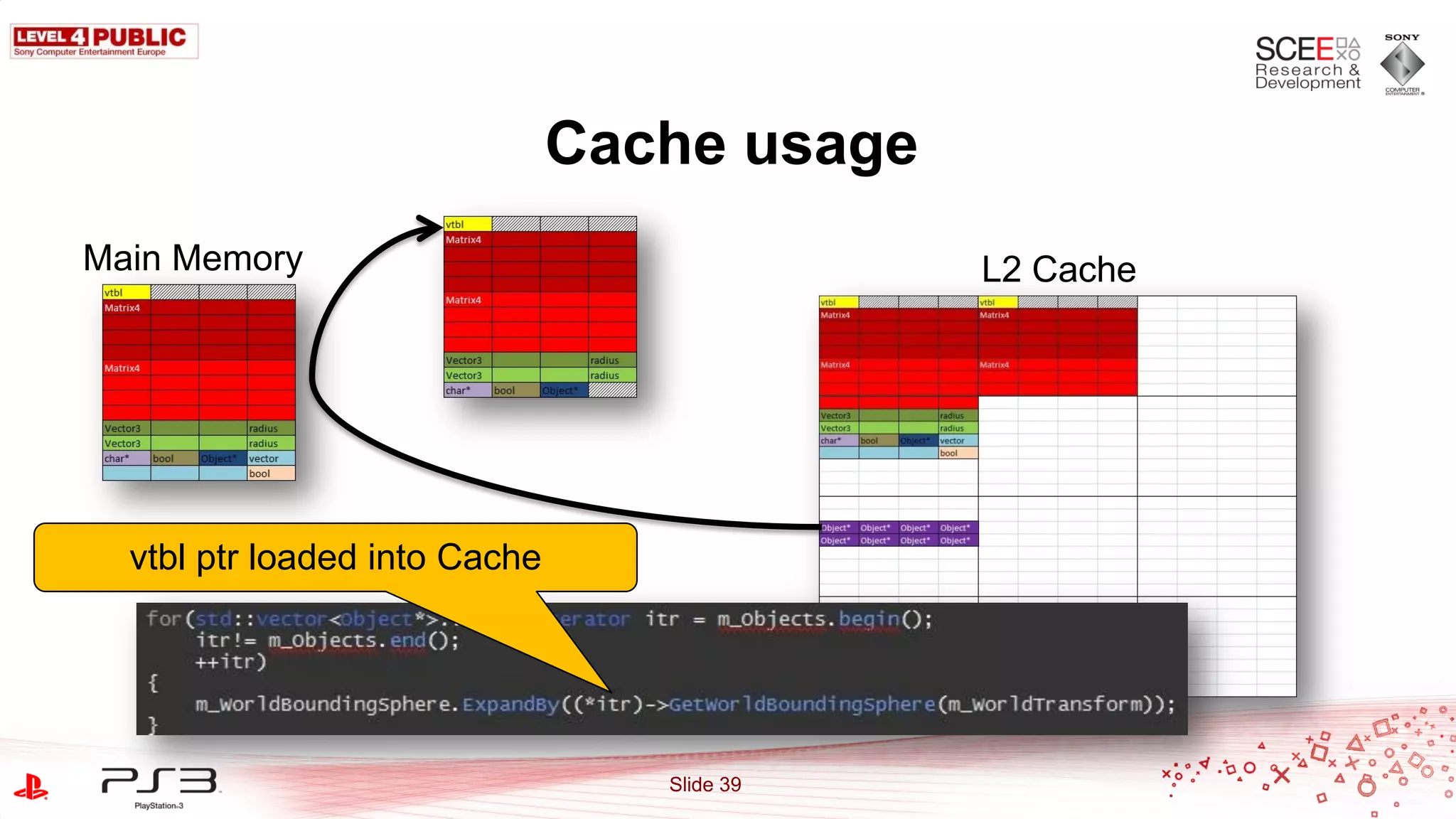

- 39. Cache usage Main Memory L2 Cache vtbl ptr loaded into Cache Slide 39

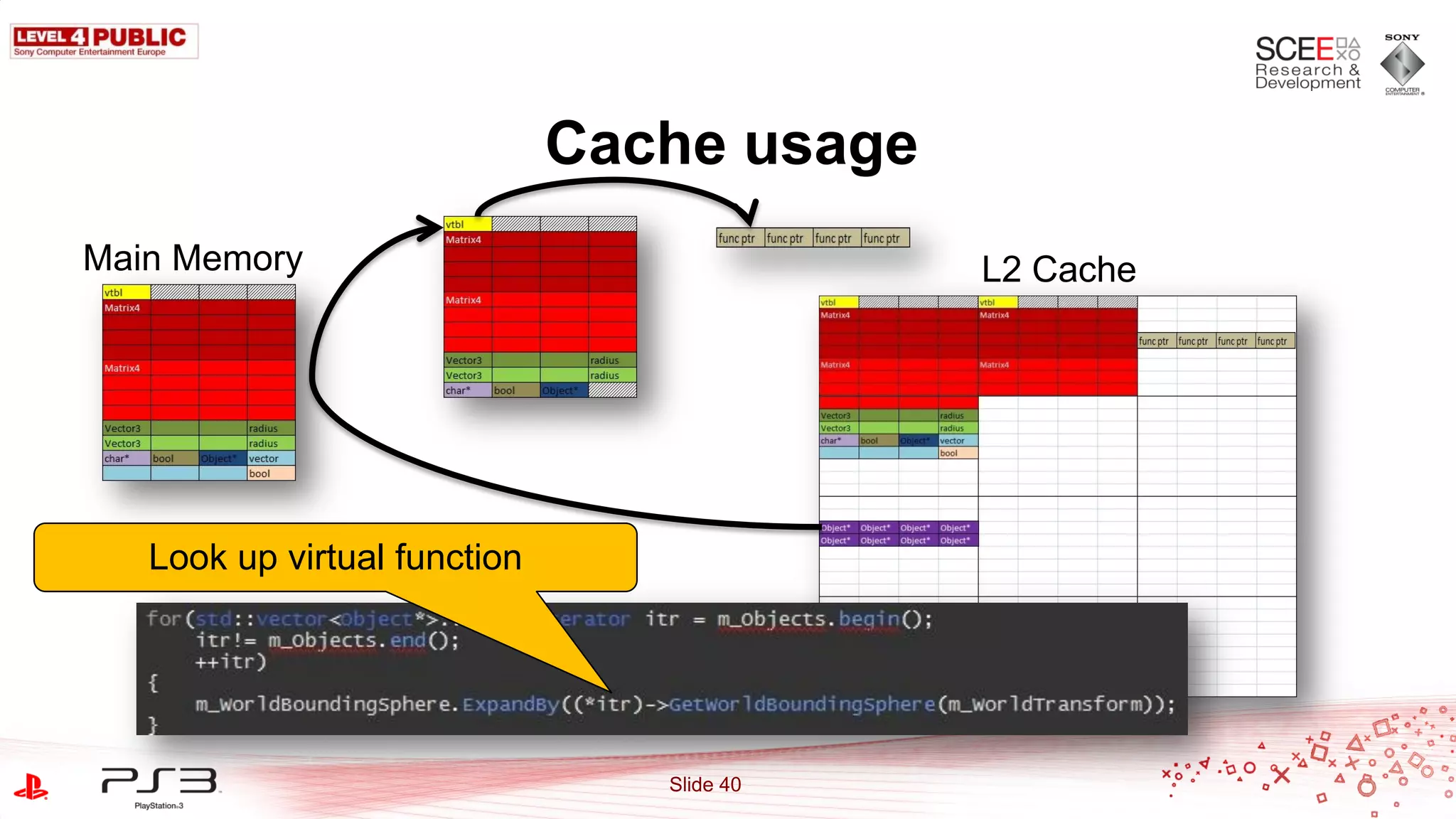

- 40. Cache usage Main Memory L2 Cache Look up virtual function Slide 40

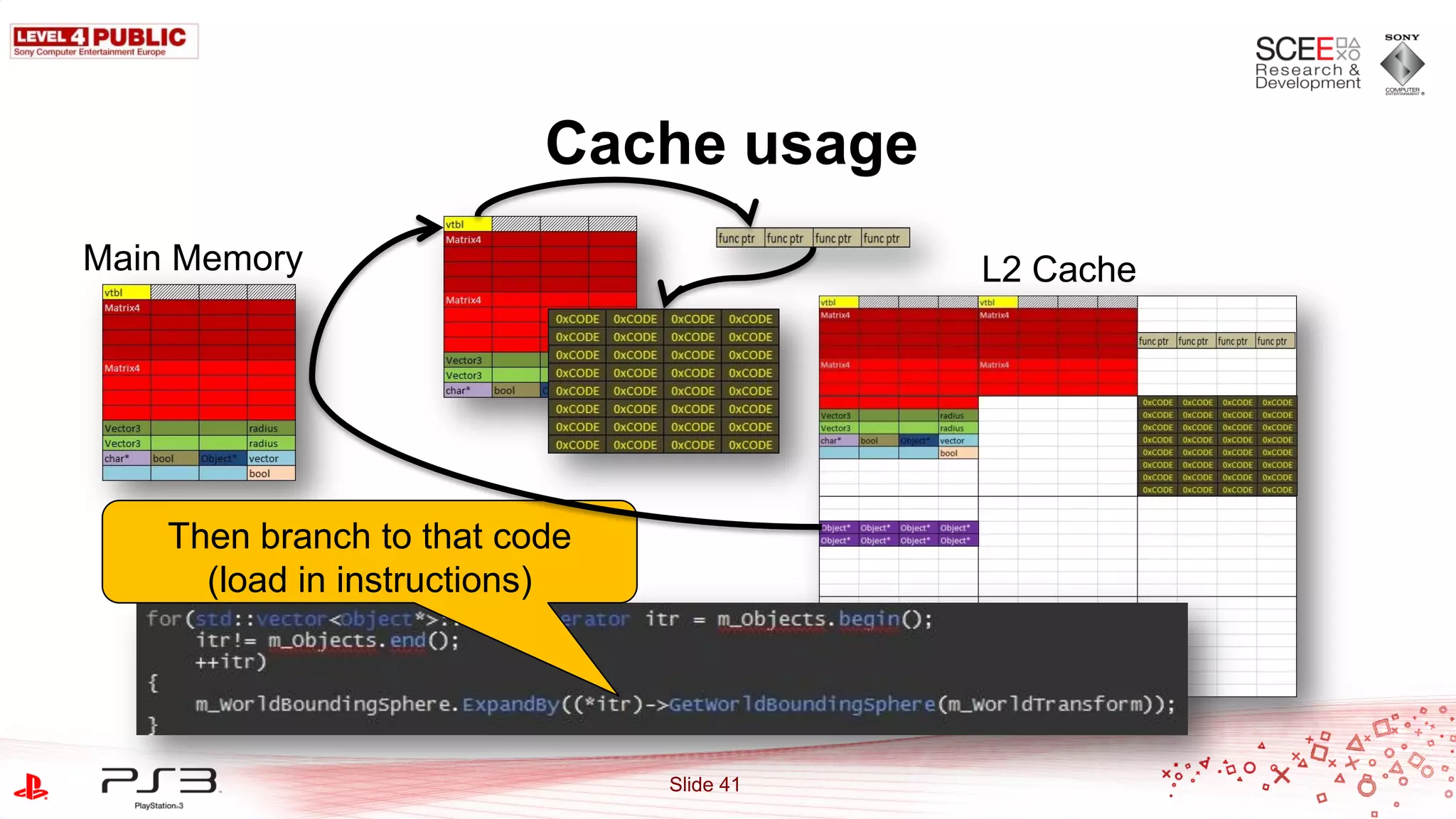

- 41. Cache usage Main Memory L2 Cache Then branch to that code (load in instructions) Slide 41

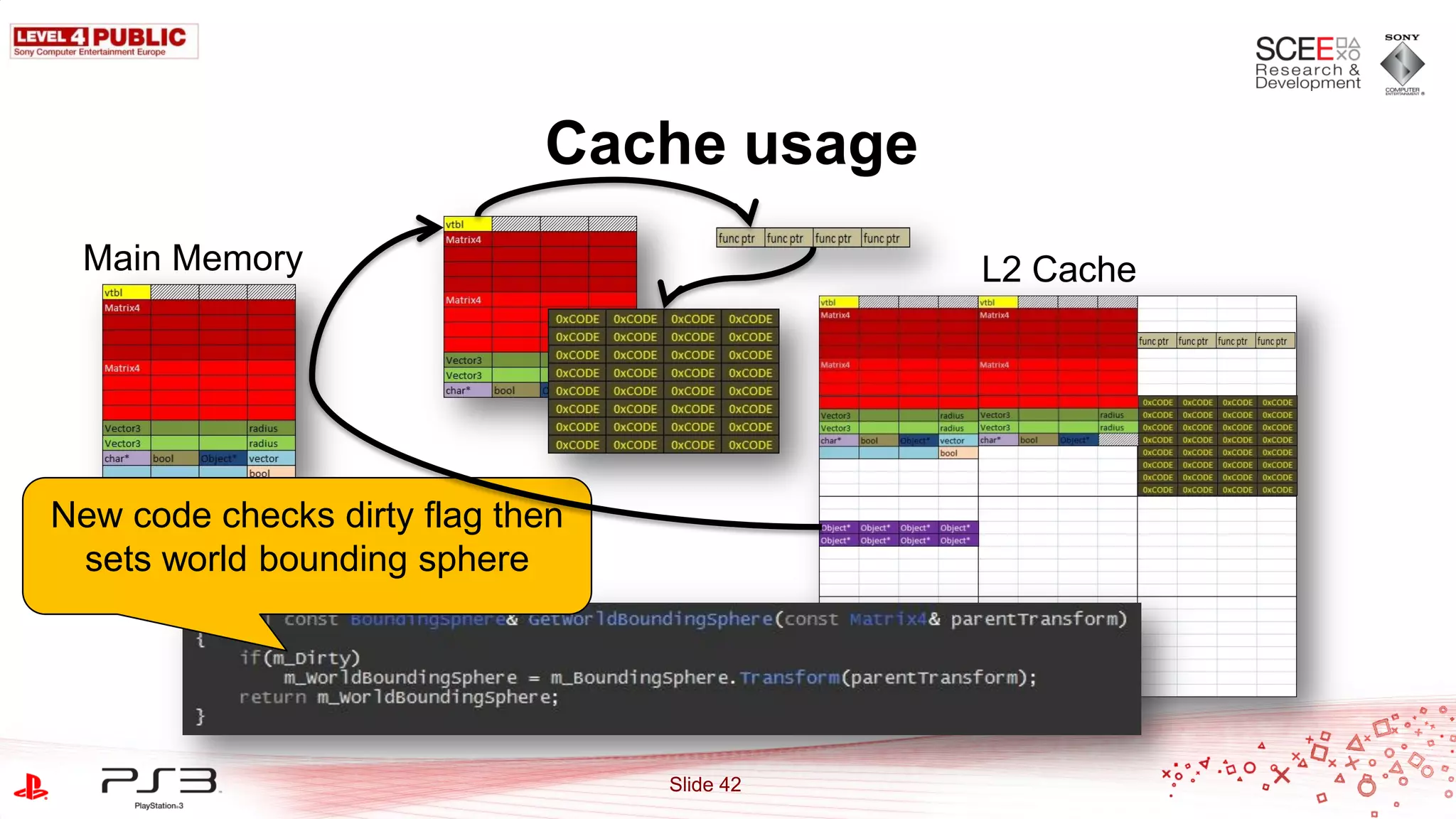

- 42. Cache usage MainMemory L2 Cache New code checks dirty flag then sets world bounding sphere Slide 42

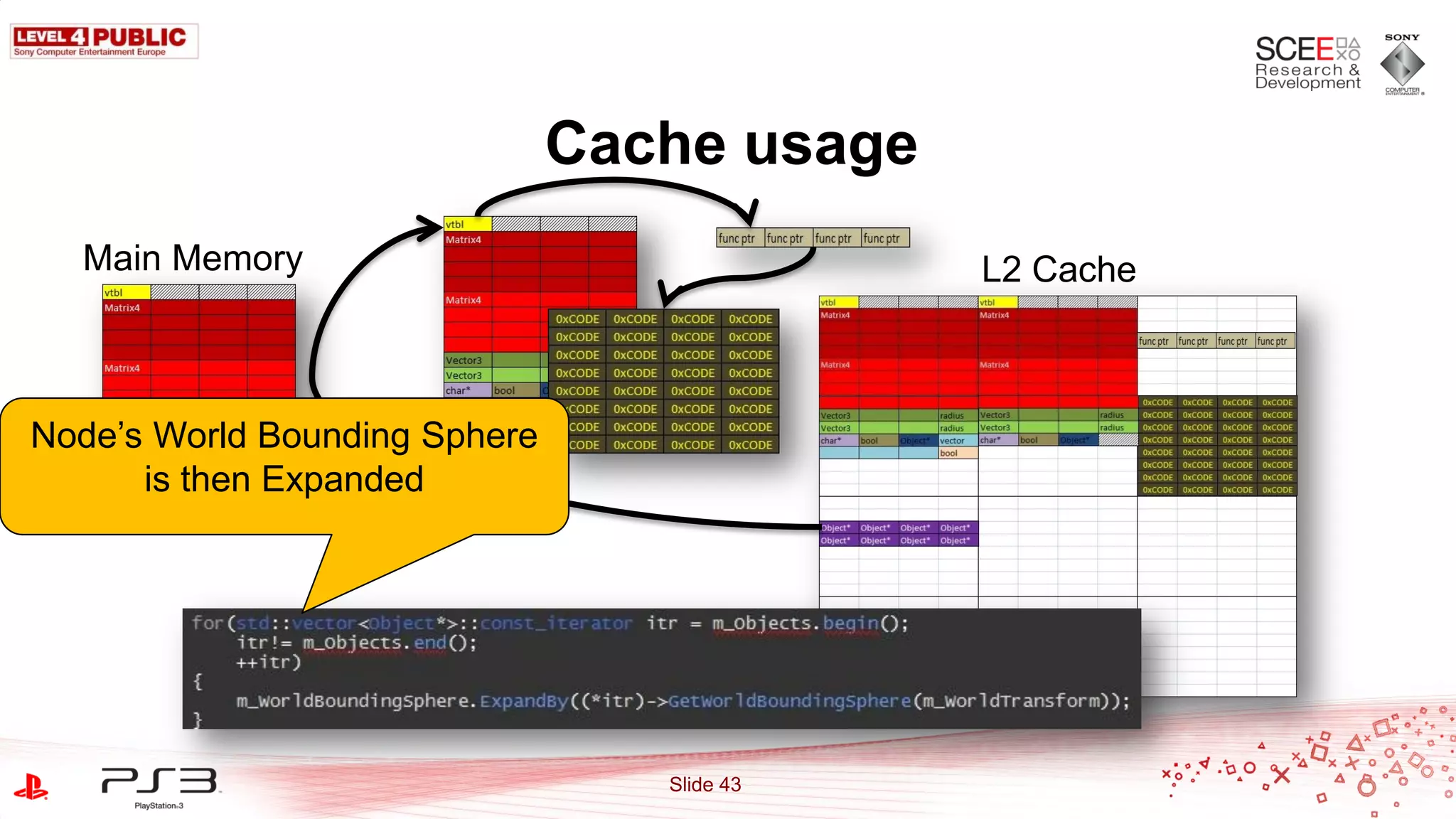

- 43. Cache usage Main Memory L2 Cache Node‟s World Bounding Sphere is then Expanded Slide 43

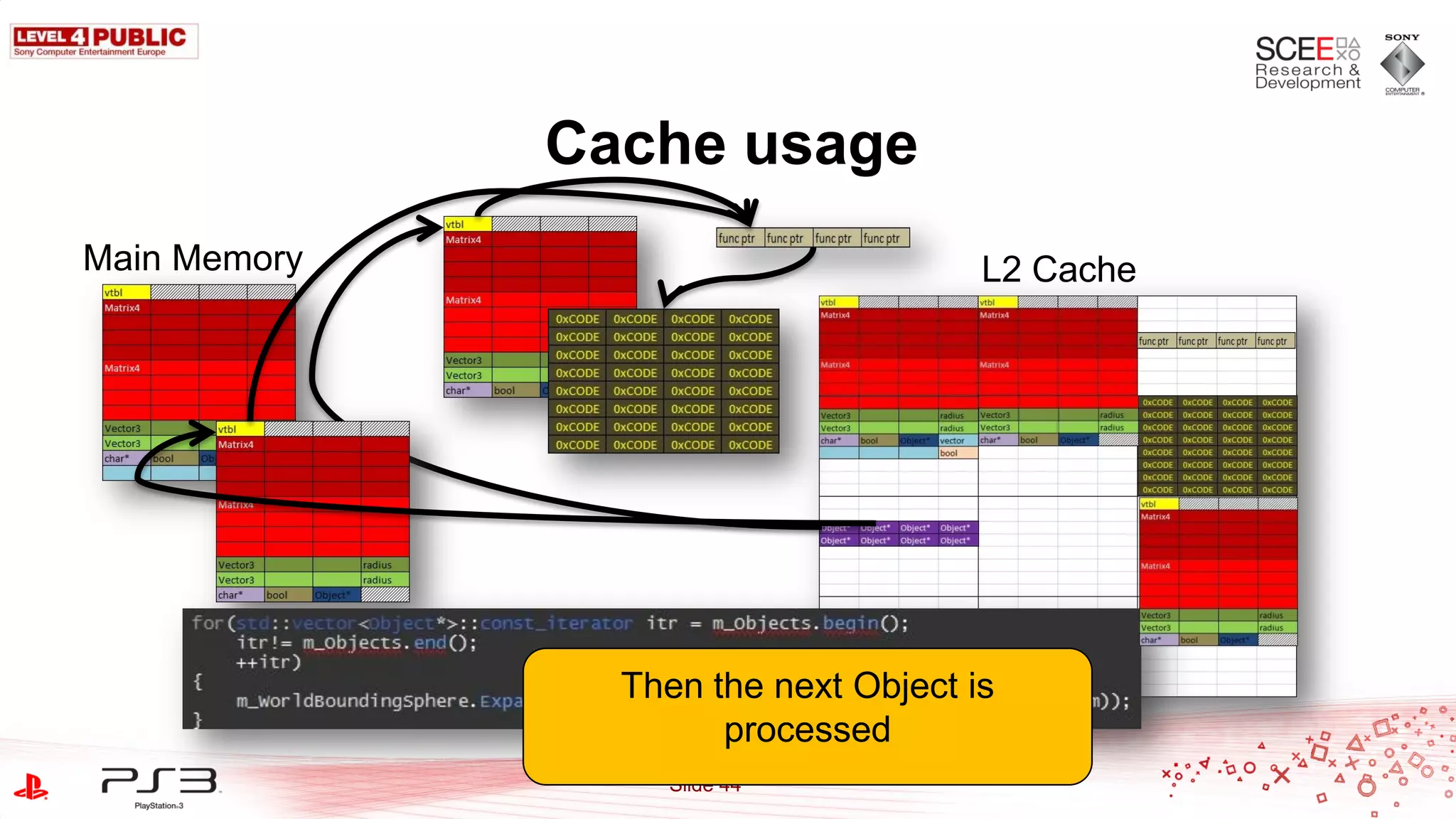

- 44. Cache usage Main Memory L2 Cache Then the next Object is processed Slide 44

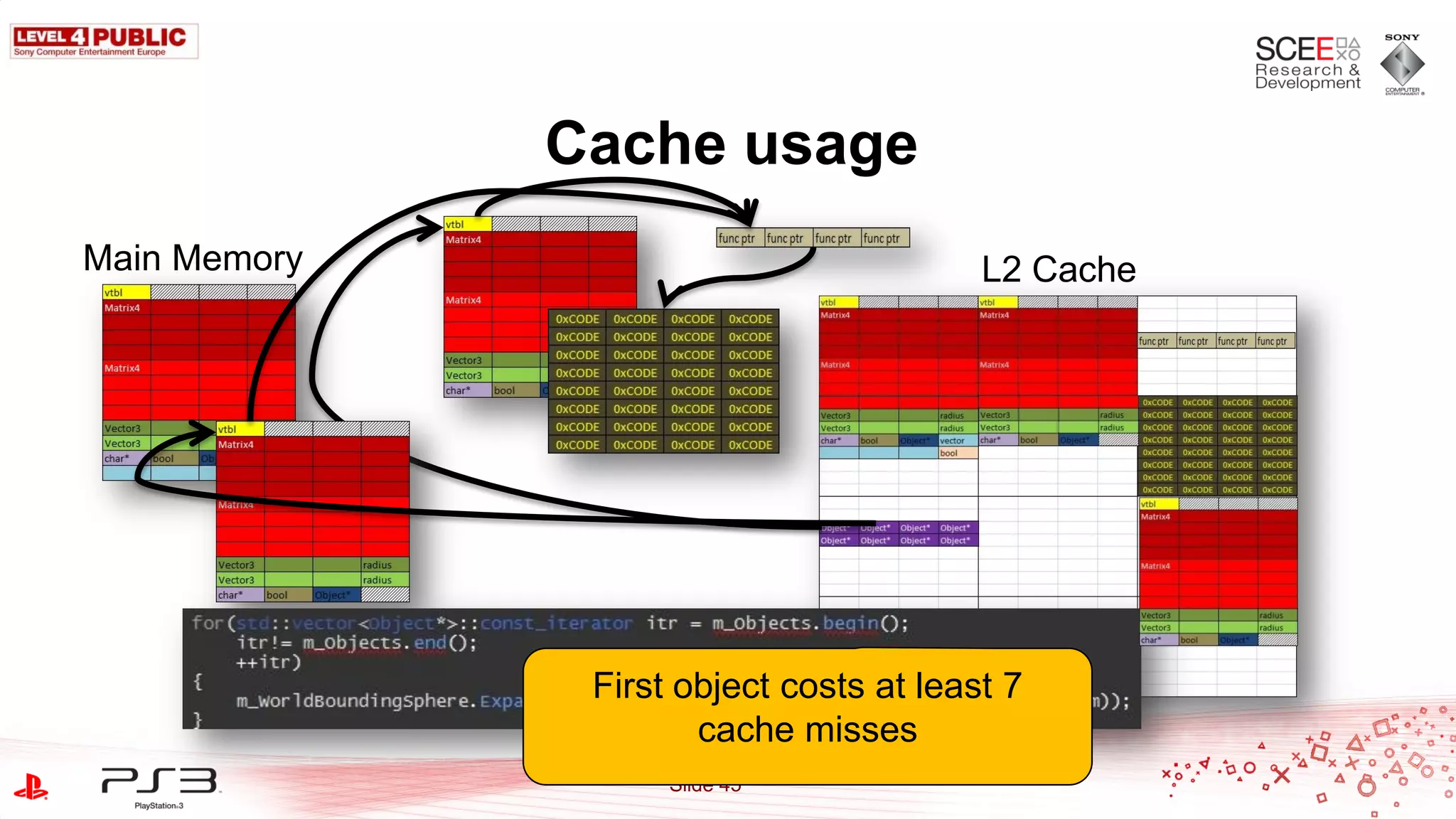

- 45. Cache usage Main Memory L2 Cache First object costs at least 7 cache misses Slide 45
- 46. Cache usage Main Memory L2 Cache Subsequent objects cost at least 2 cache misses each Slide 46

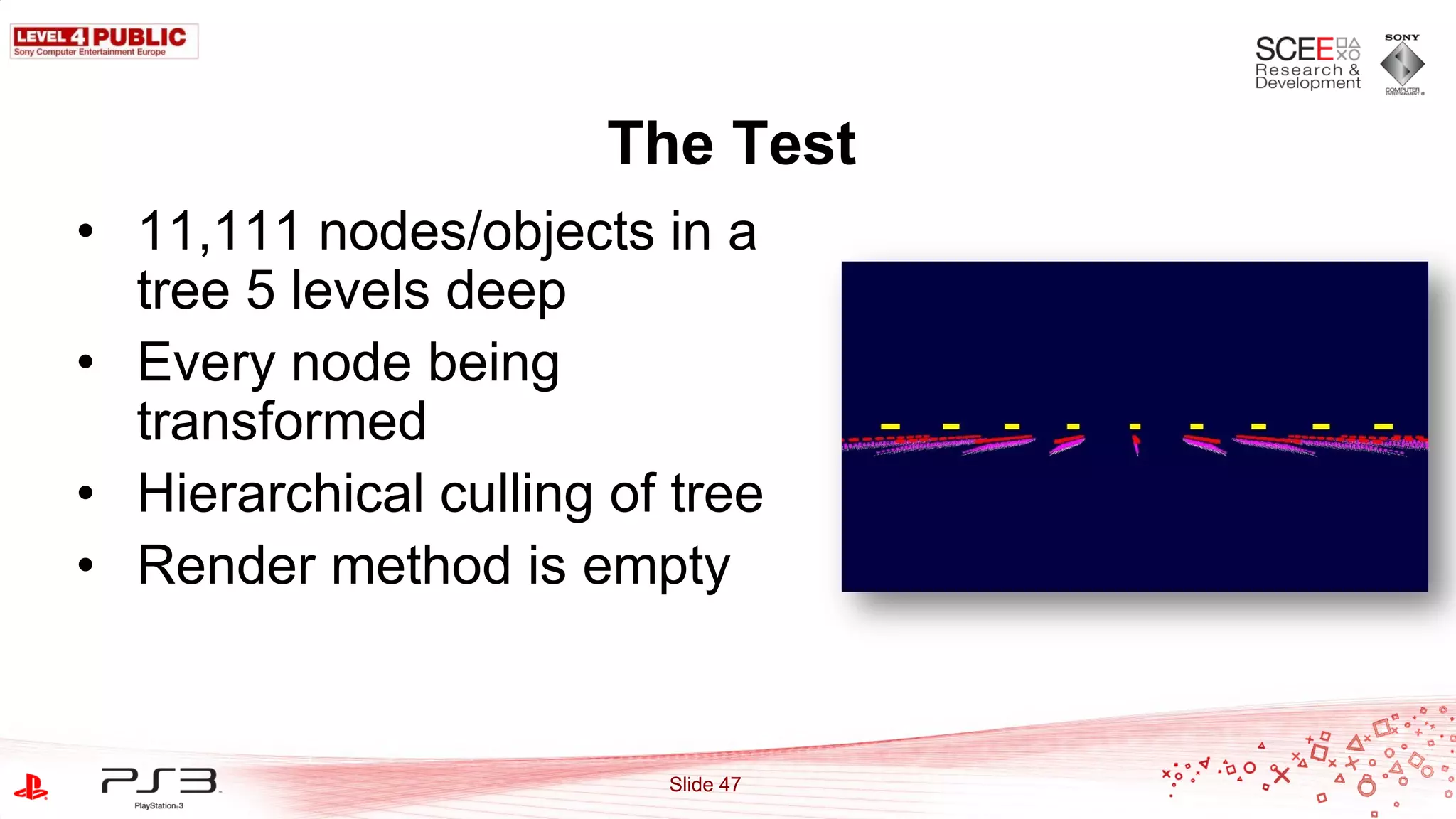

- 47. The Test • 11,111nodes/objects in a tree 5 levels deep • Every node being transformed • Hierarchical culling of tree • Render method is empty Slide 47

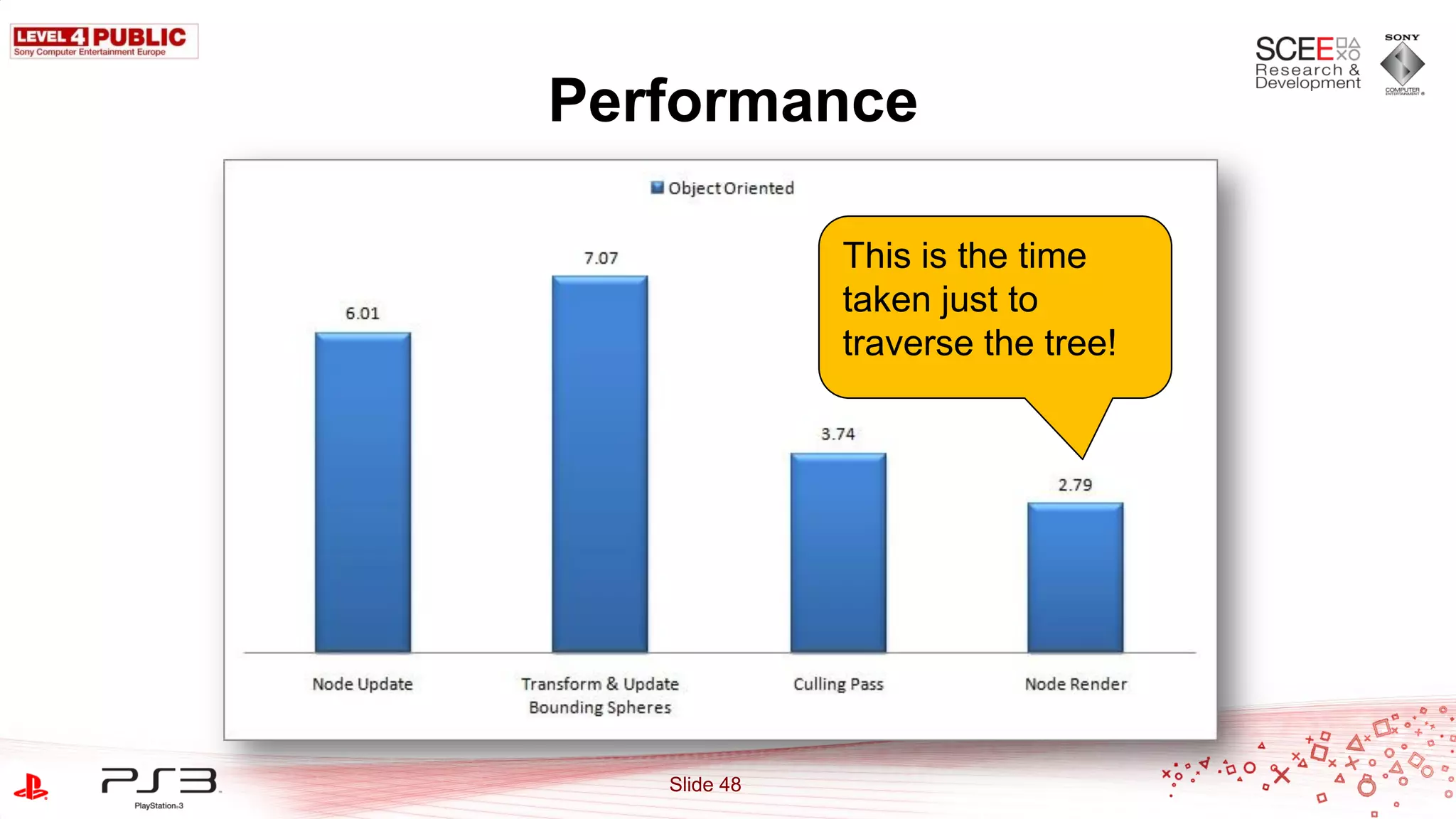

- 48. Performance This is the time taken just to traverse the tree! Slide 48

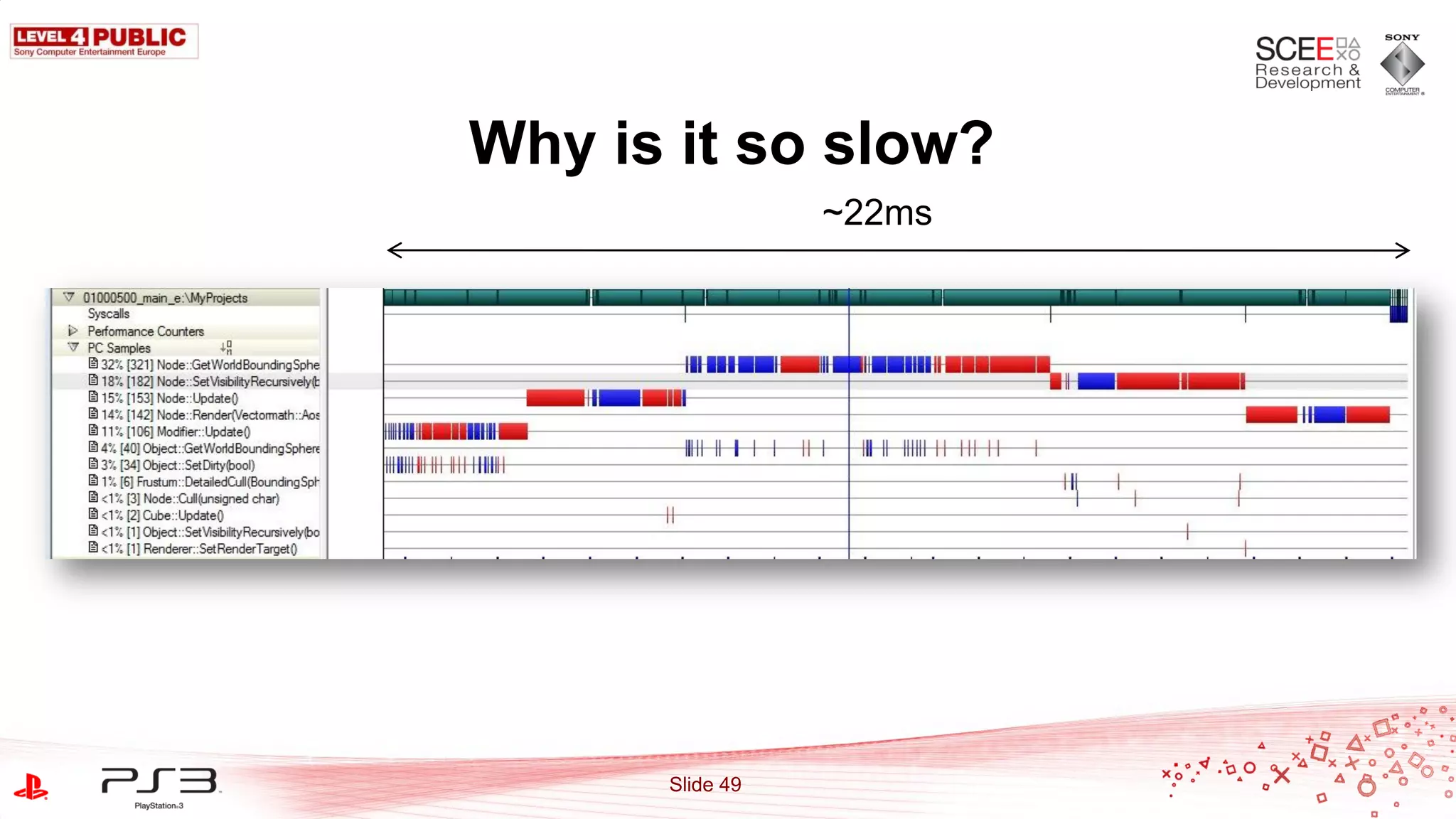

- 49. Why is itso slow? ~22ms Slide 49

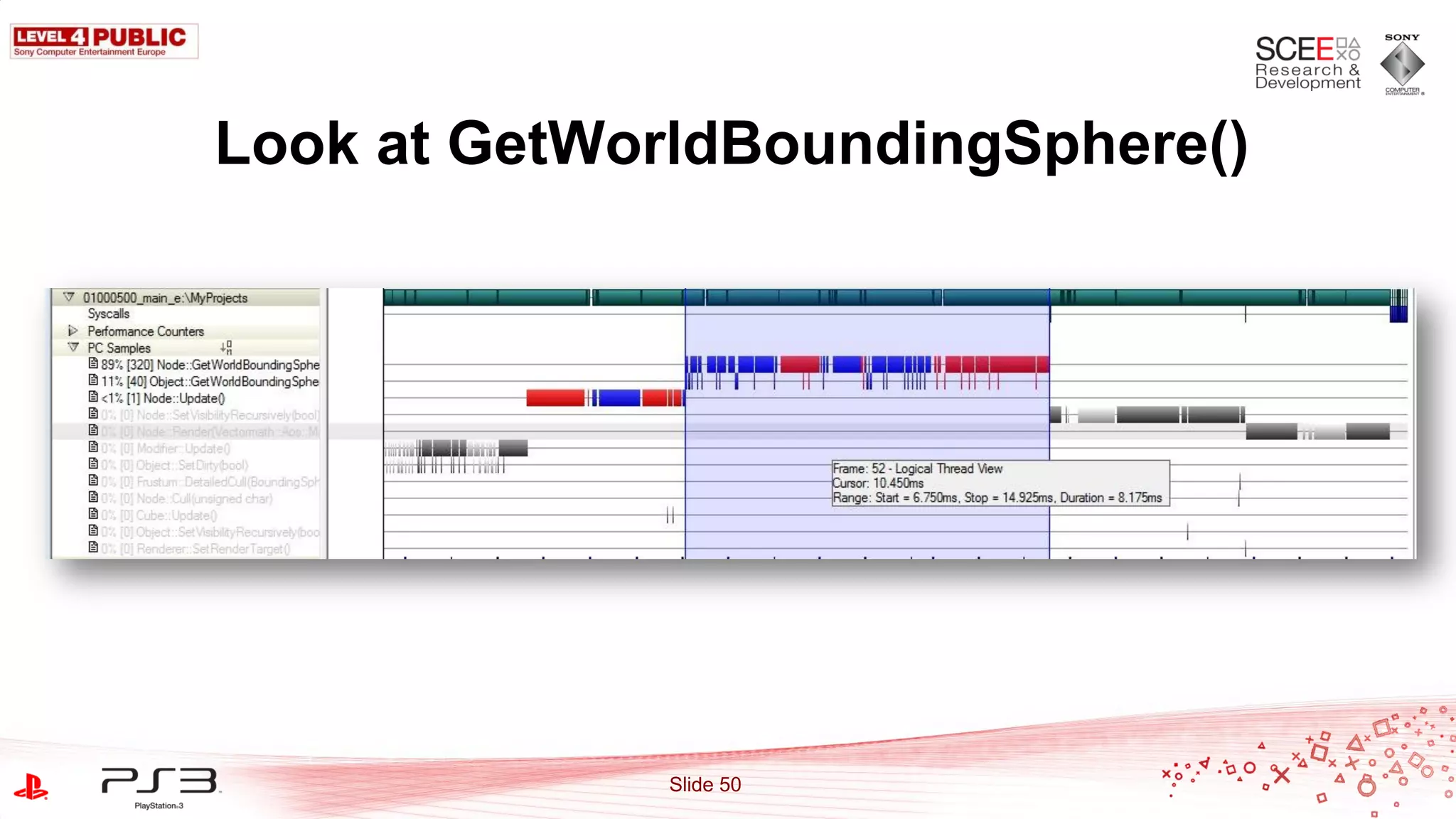

- 50. Look at GetWorldBoundingSphere() Slide 50

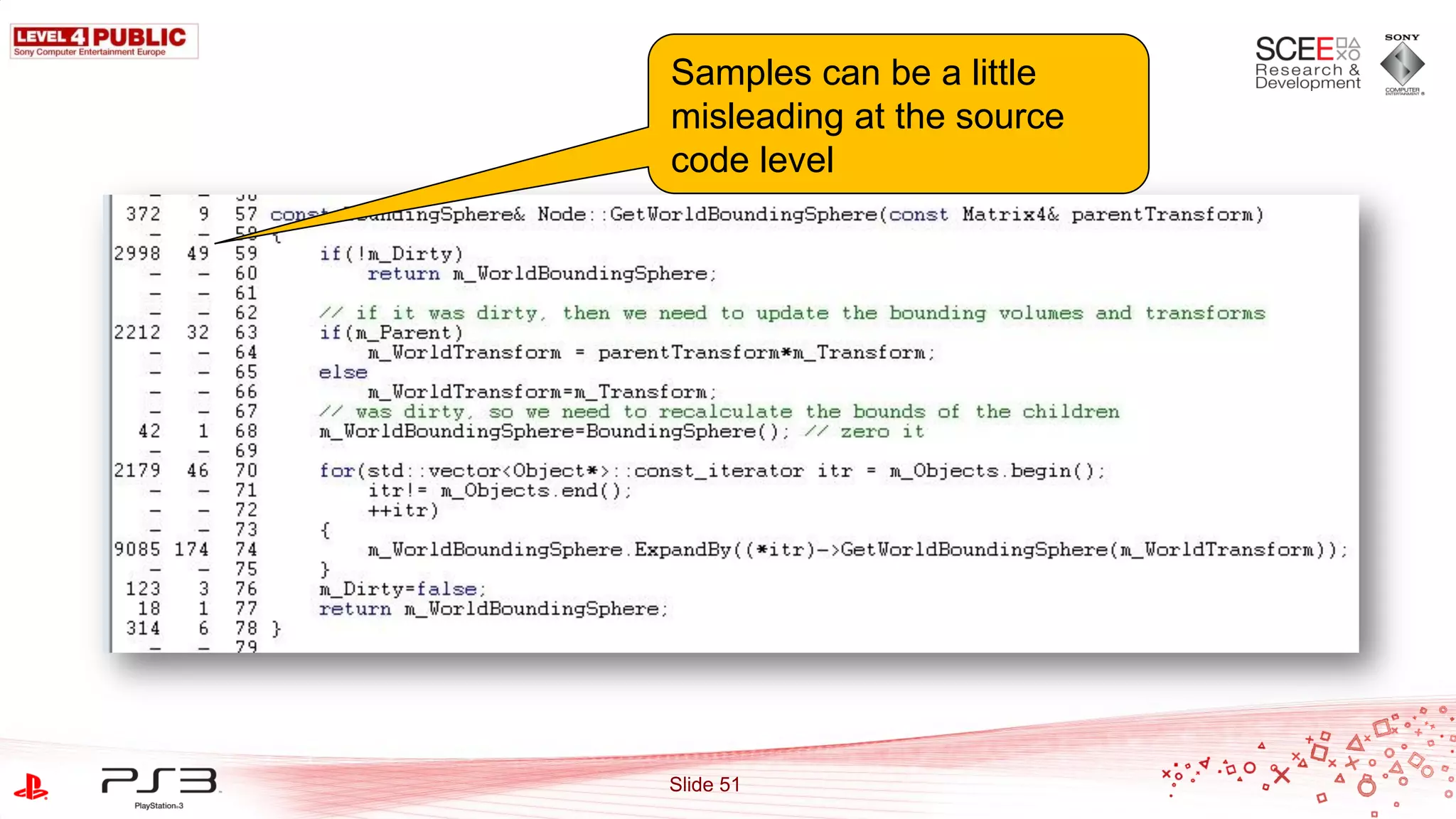

- 51. Samples can bea little misleading at the source code level Slide 51

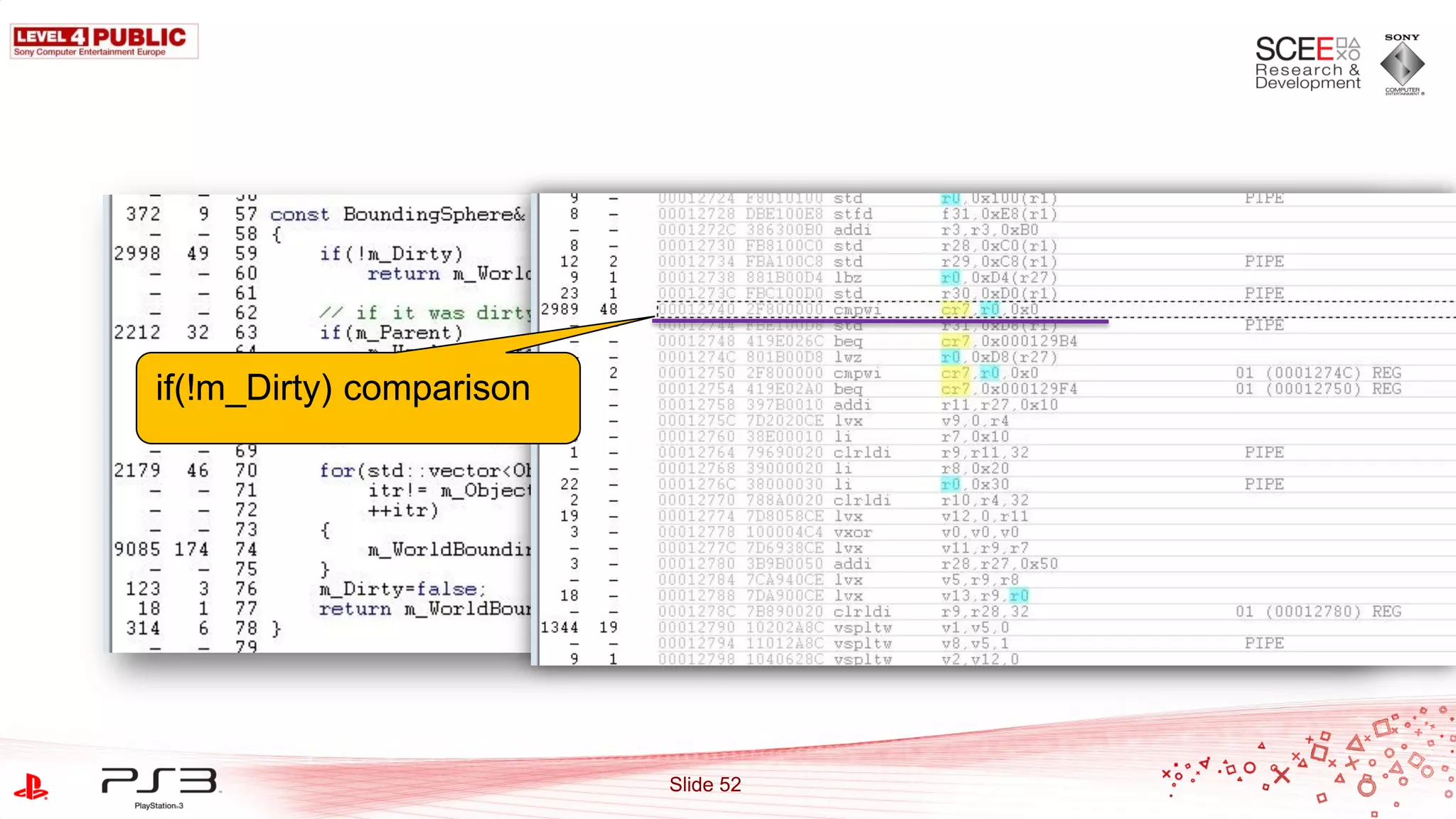

- 52. if(!m_Dirty) comparison Slide 52

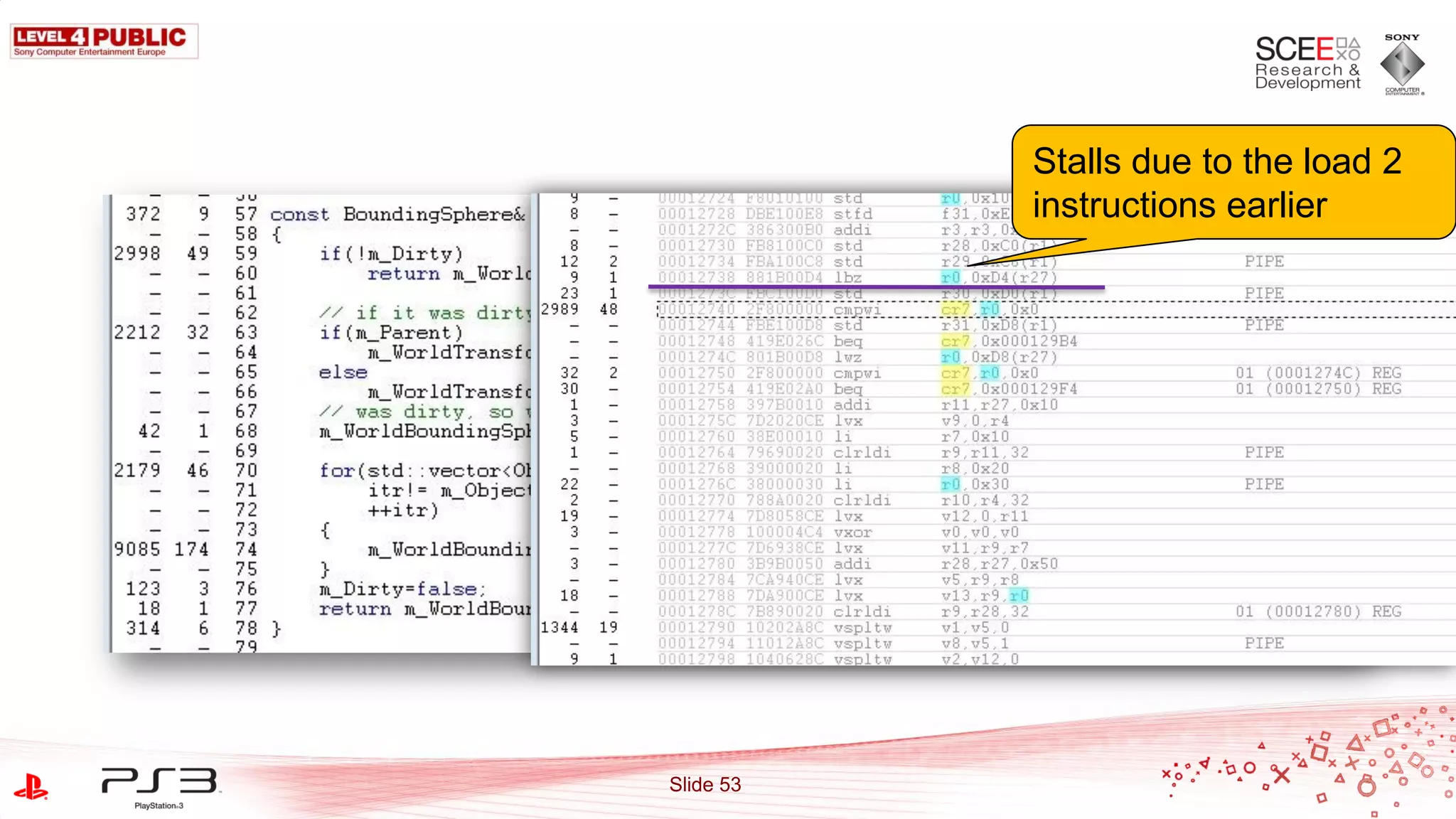

- 53. Stalls due tothe load 2 instructions earlier Slide 53

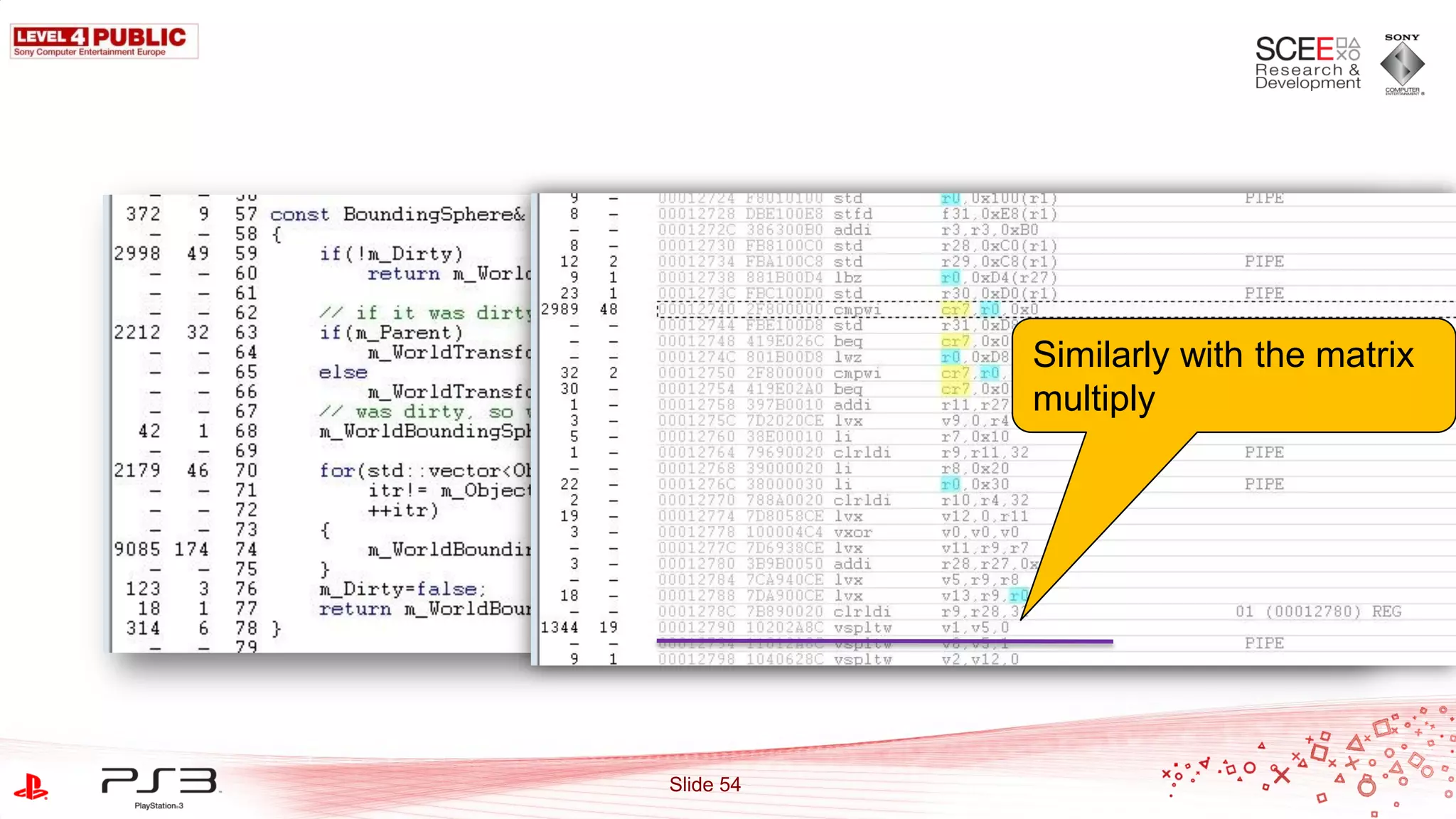

- 54. Similarly with thematrix multiply Slide 54

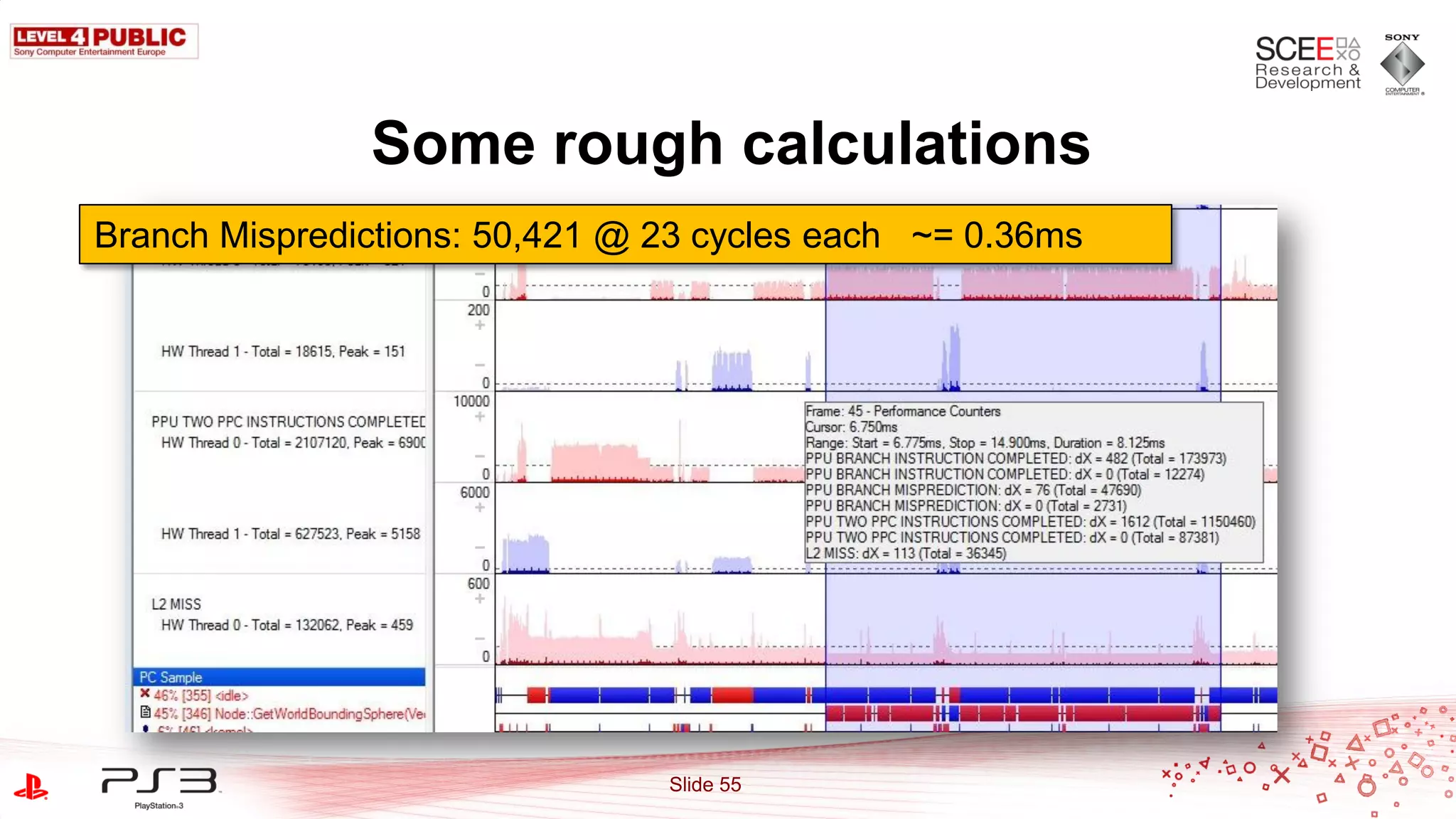

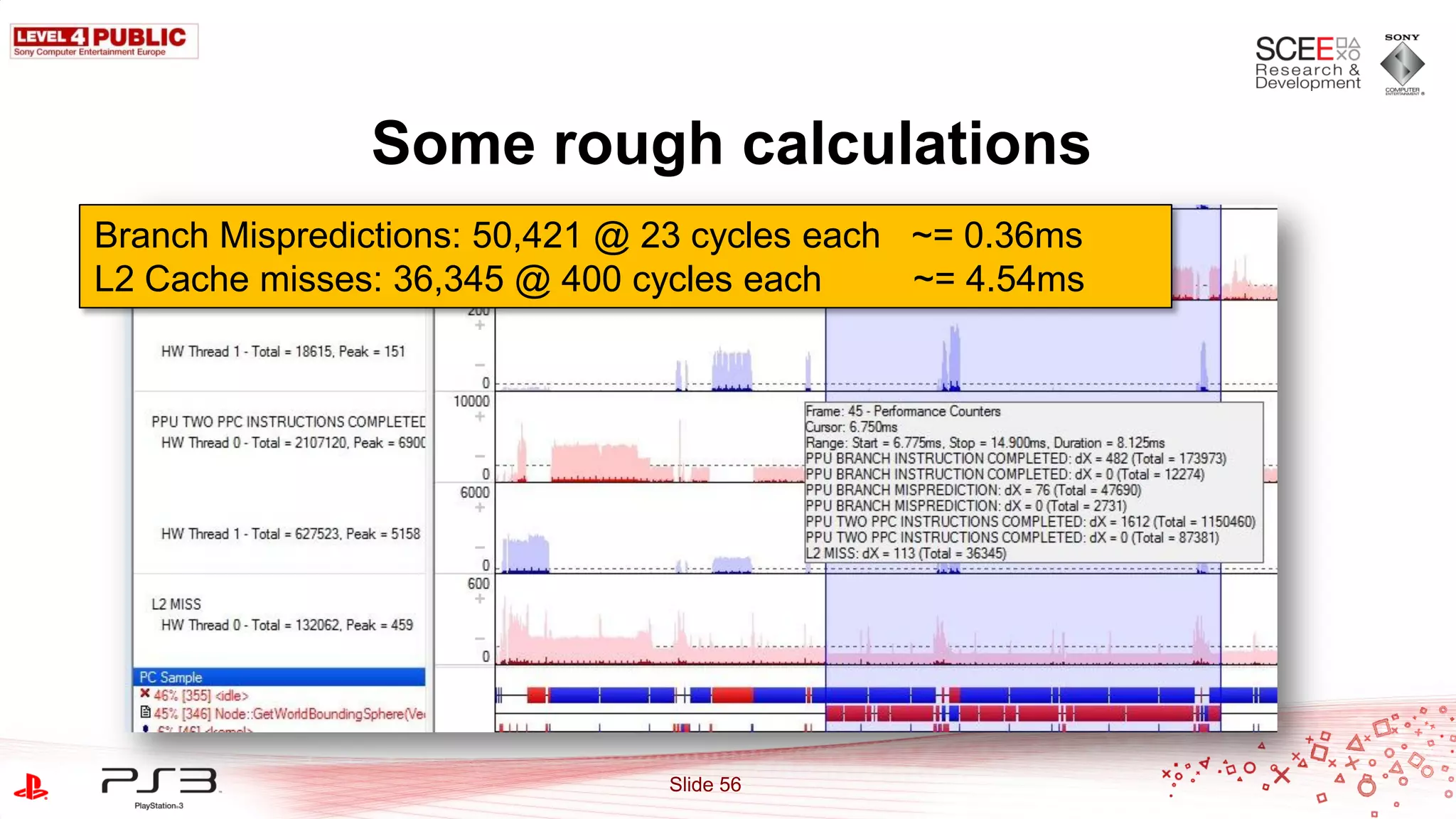

- 55. Some rough calculations BranchMispredictions: 50,421 @ 23 cycles each ~= 0.36ms Slide 55
- 56. Some rough calculations BranchMispredictions: 50,421 @ 23 cycles each ~= 0.36ms L2 Cache misses: 36,345 @ 400 cycles each ~= 4.54ms Slide 56

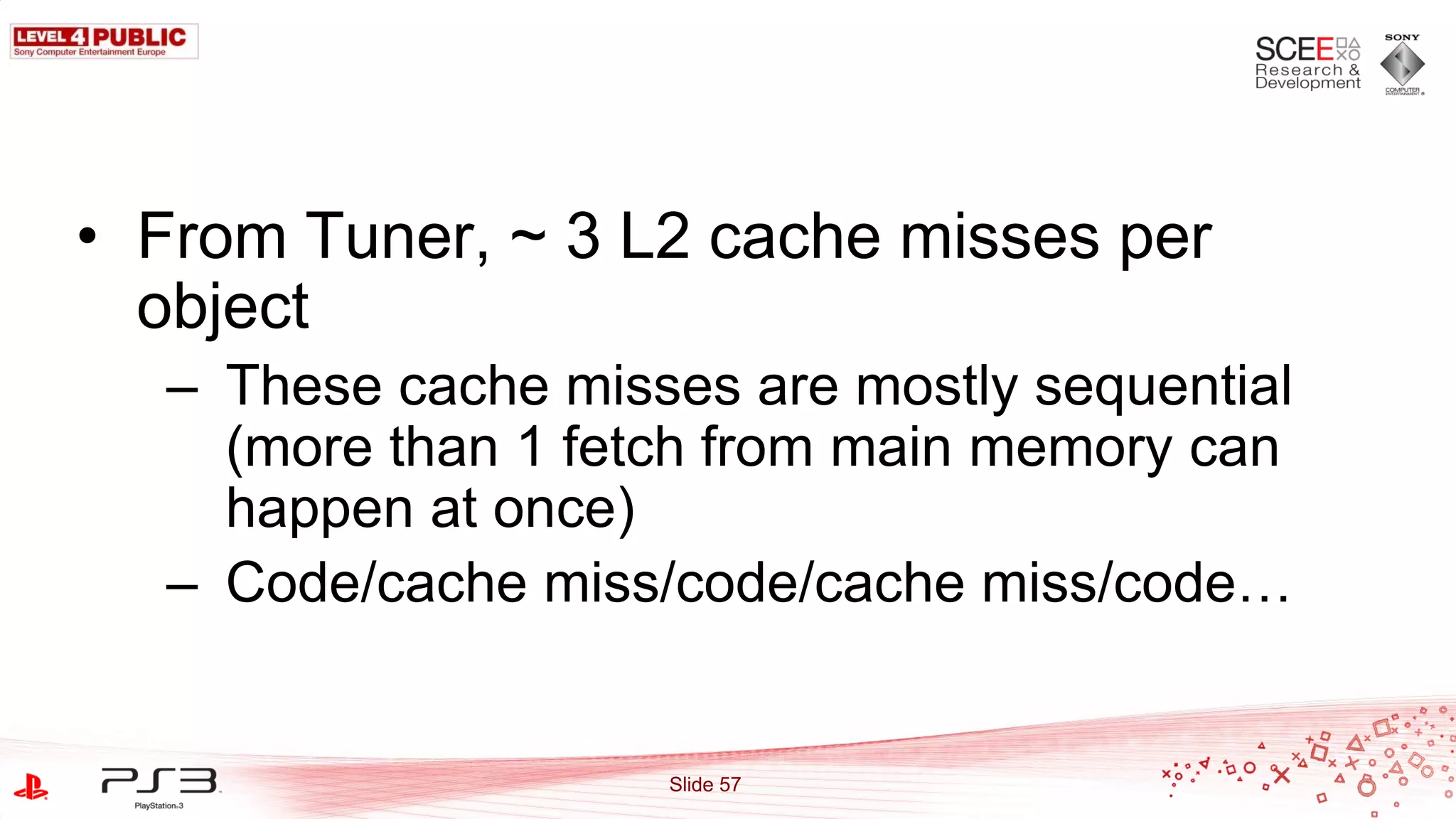

- 57. • From Tuner,~ 3 L2 cache misses per object – These cache misses are mostly sequential (more than 1 fetch from main memory can happen at once) – Code/cache miss/code/cache miss/code… Slide 57
- 58. Slow memory isthe problem here • How can we fix it? • And still keep the same functionality and interface? Slide 58

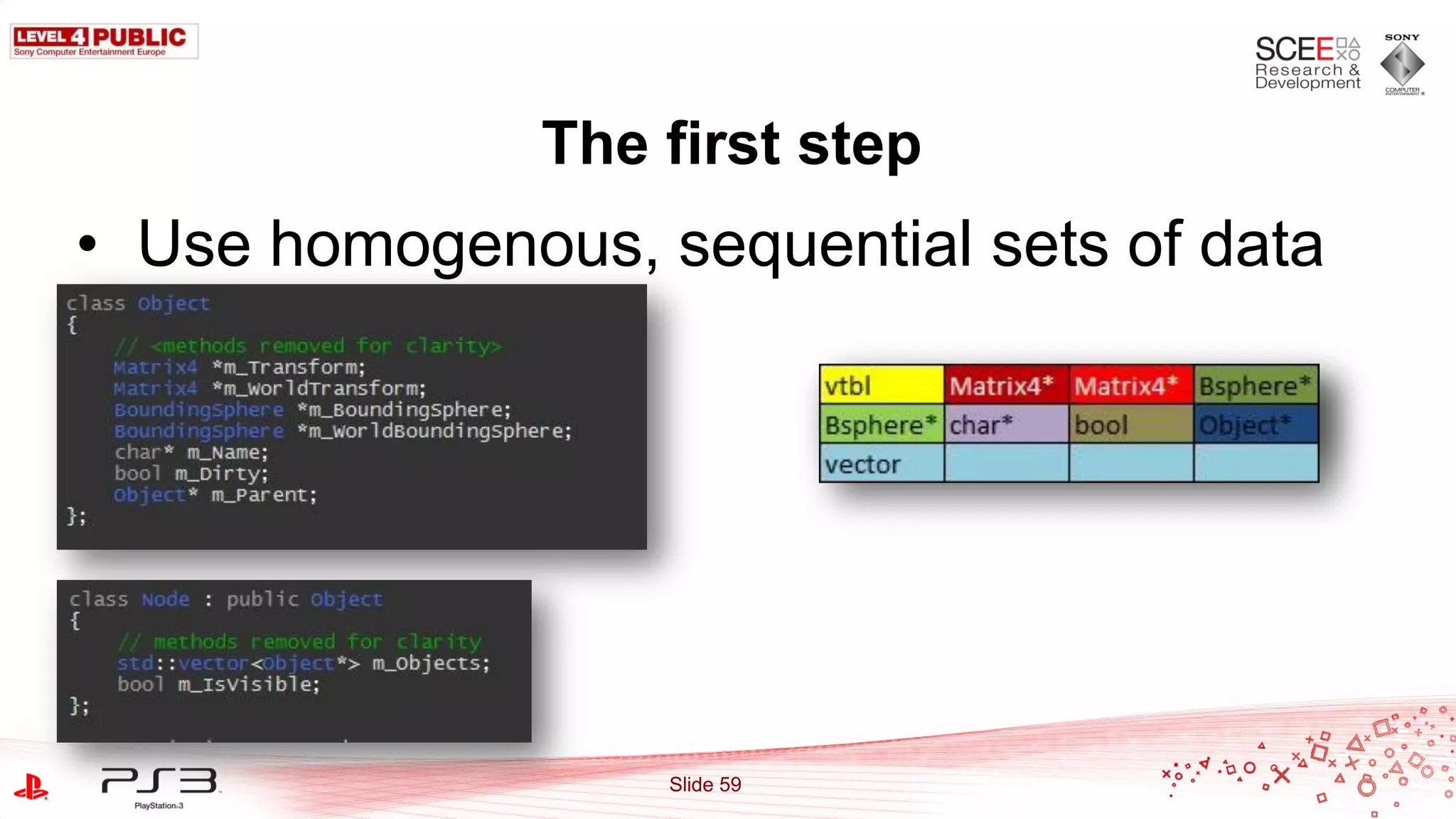

- 59. The first step •Use homogenous, sequential sets of data Slide 59

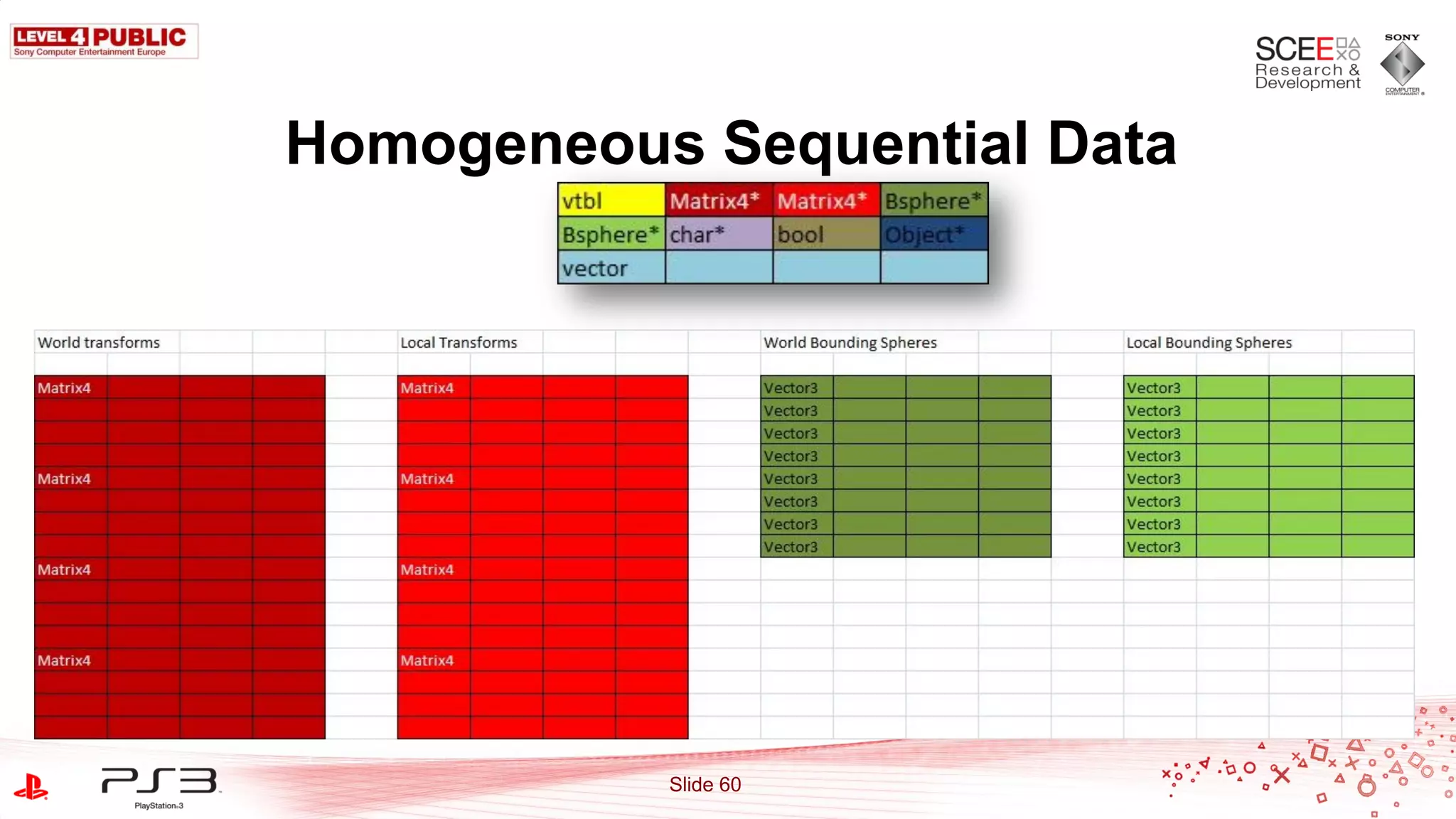

- 60. Homogeneous Sequential Data Slide 60

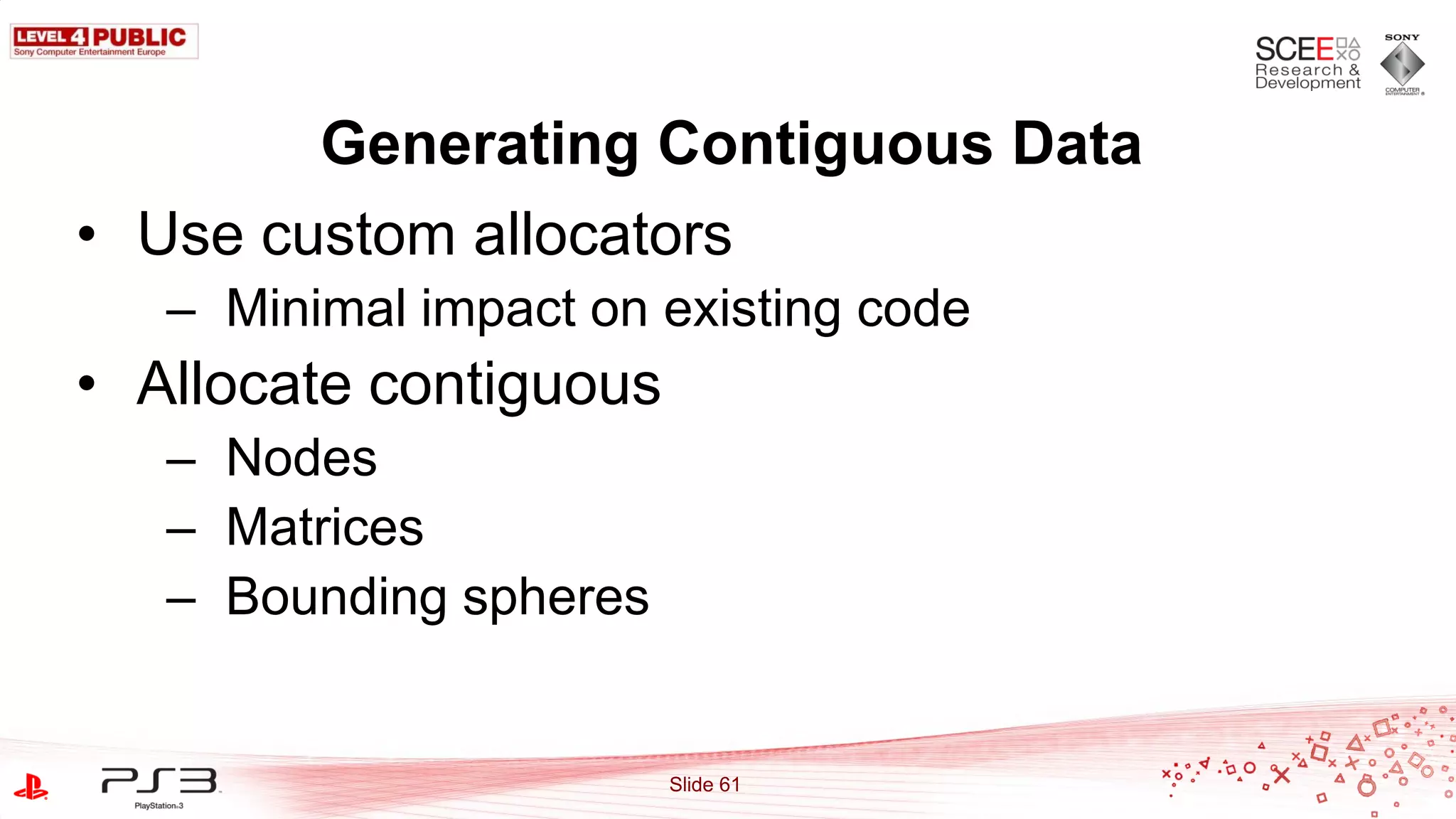

- 61. Generating Contiguous Data •Use custom allocators – Minimal impact on existing code • Allocate contiguous – Nodes – Matrices – Bounding spheres Slide 61

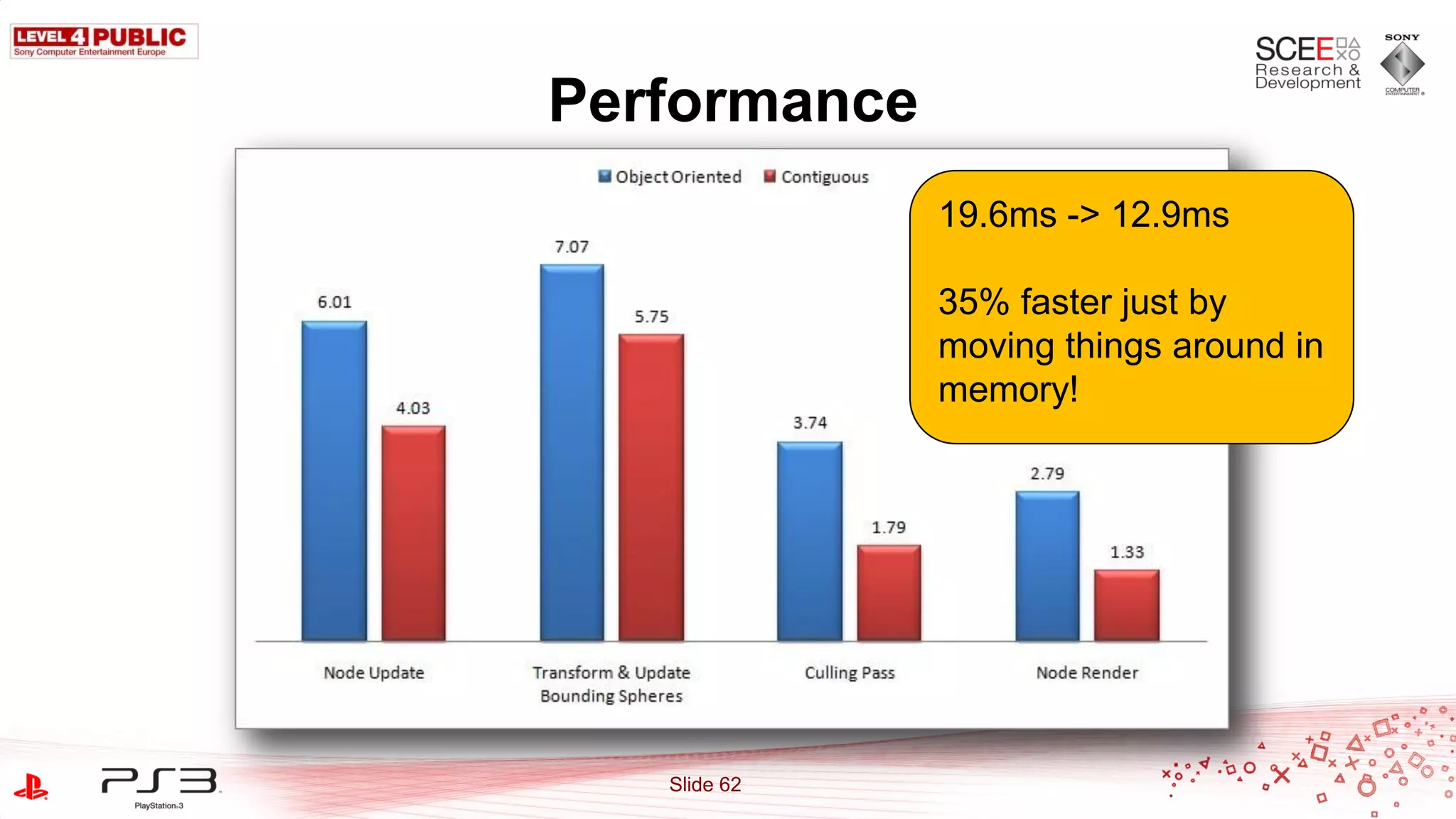

- 62. Performance 19.6ms -> 12.9ms 35% faster just by moving things around in memory! Slide 62
- 63. What next? • Processdata in order • Use implicit structure for hierarchy – Minimise to and fro from nodes. • Group logic to optimally use what is already in cache. • Remove regularly called virtuals. Slide 63

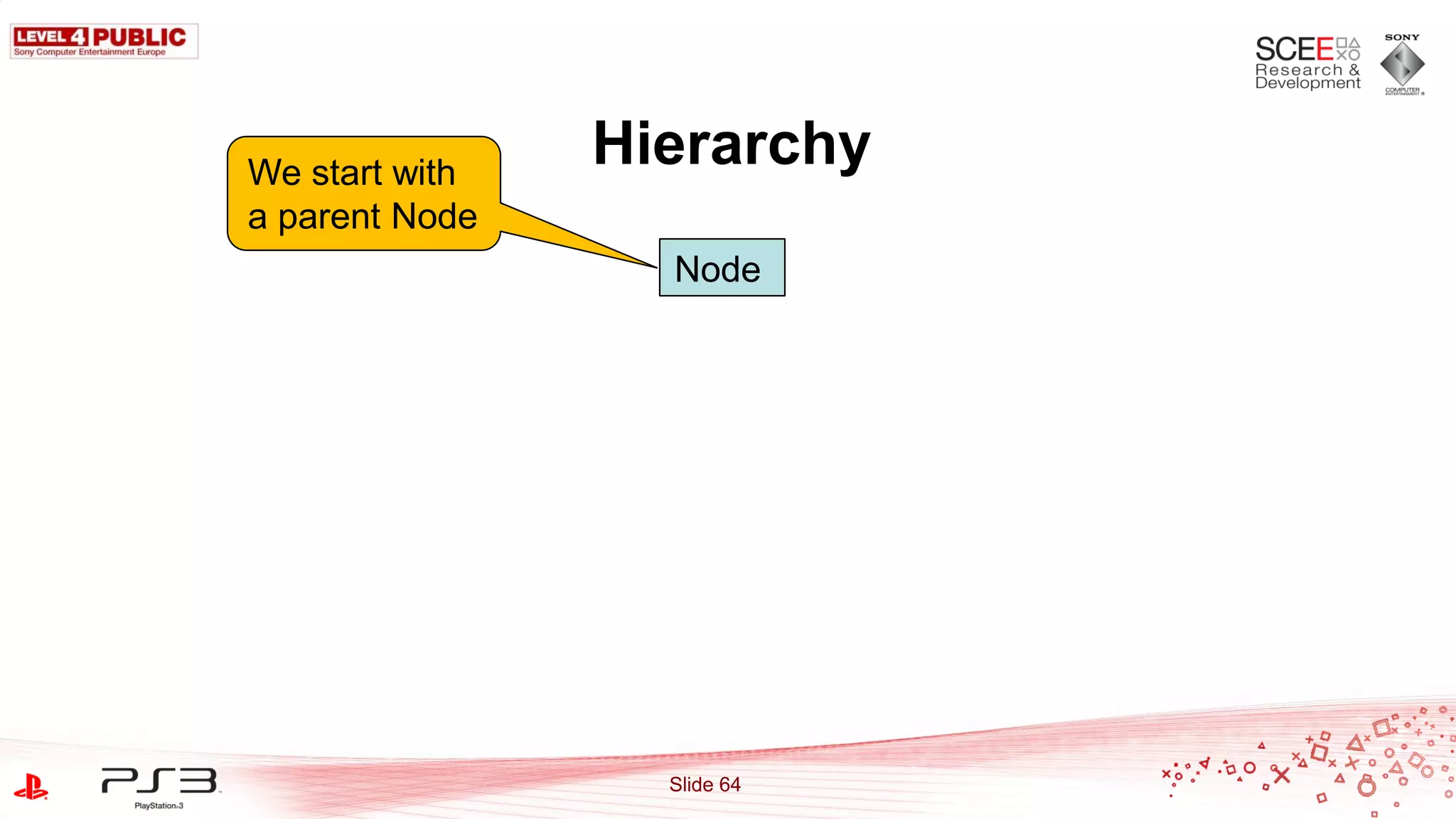

- 64. We start with Hierarchy a parent Node Node Slide 64

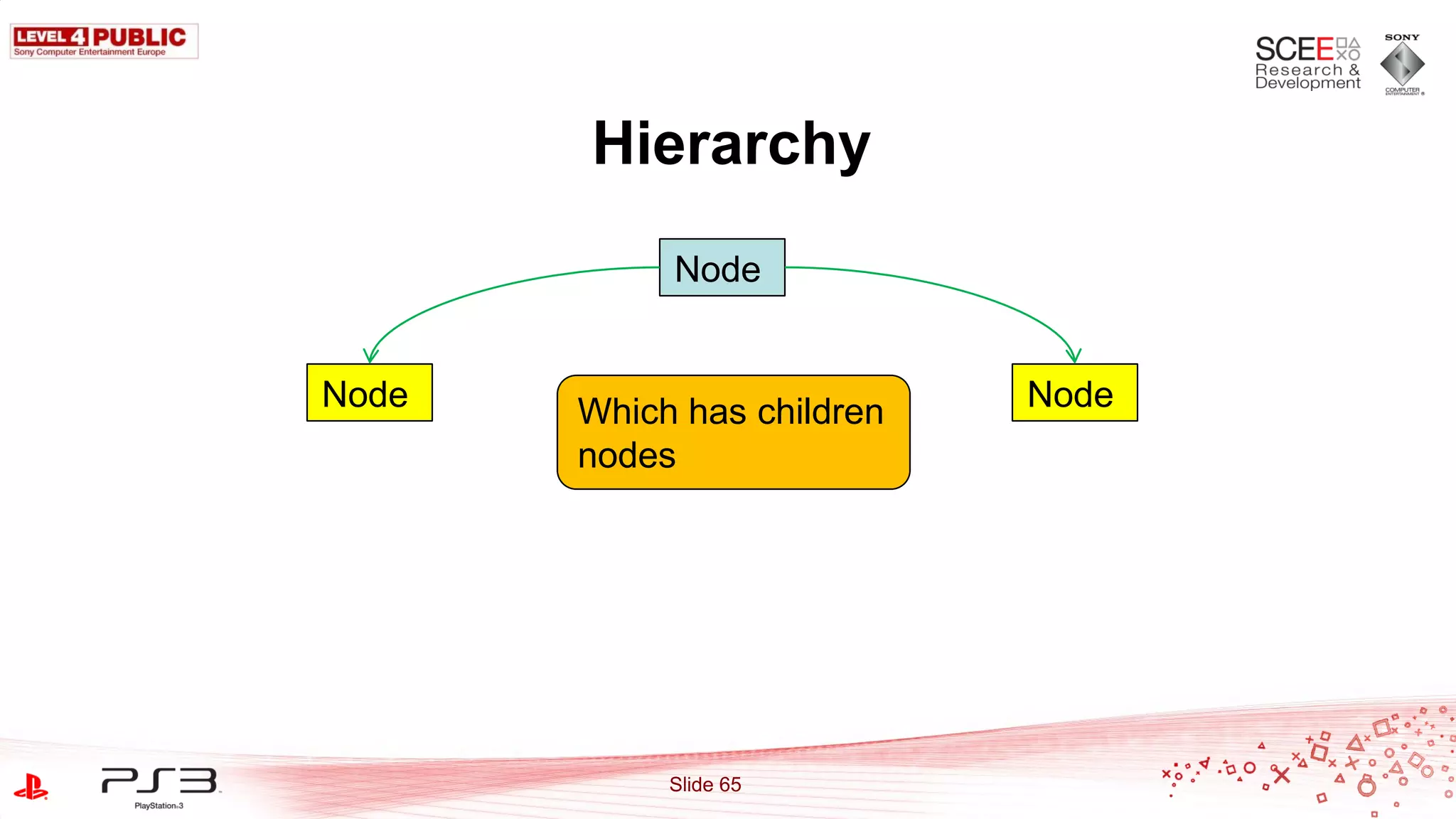

- 65. Hierarchy Node Node Which has children Node nodes Slide 65

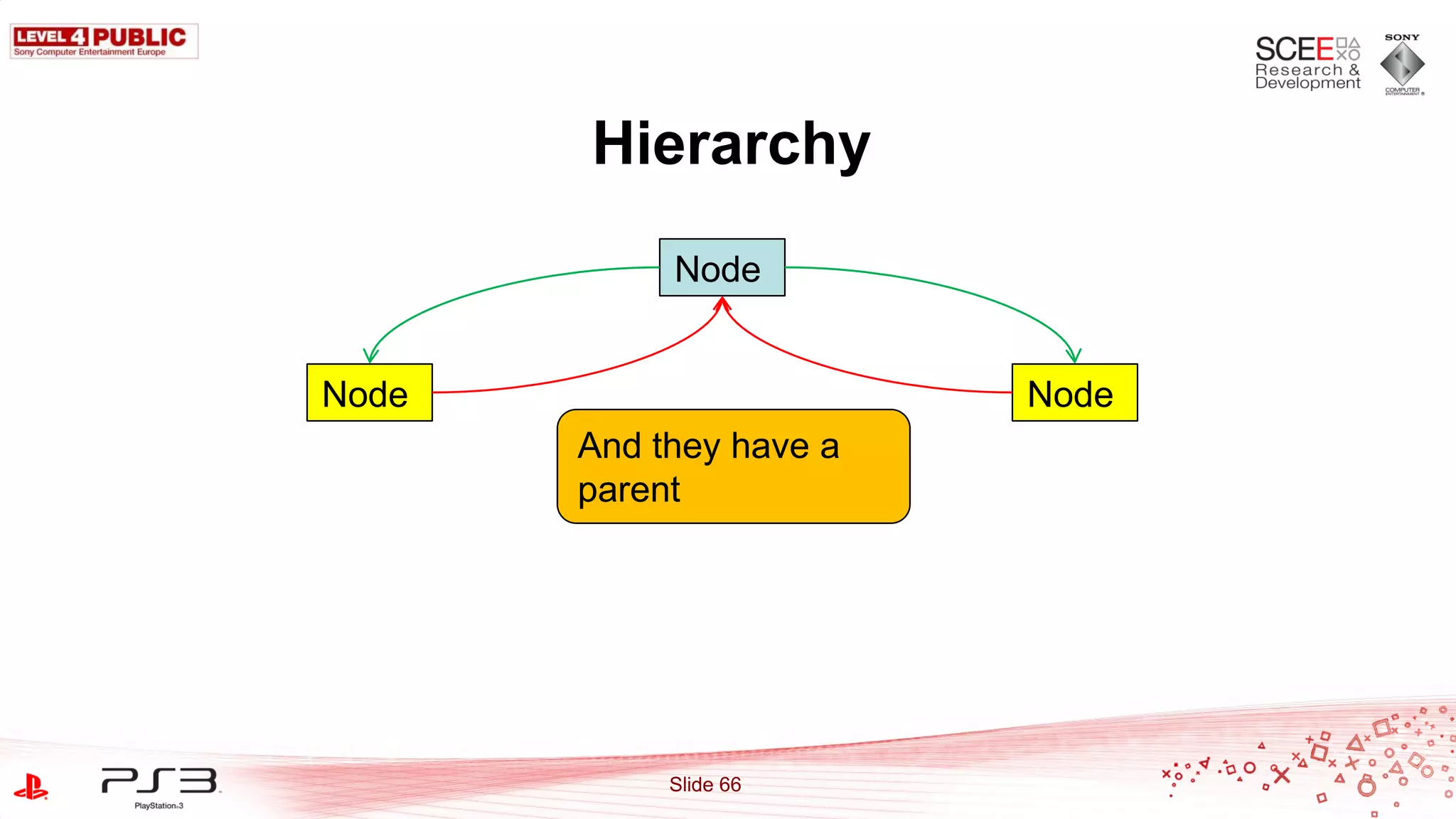

- 66. Hierarchy Node Node Node And they have a parent Slide 66

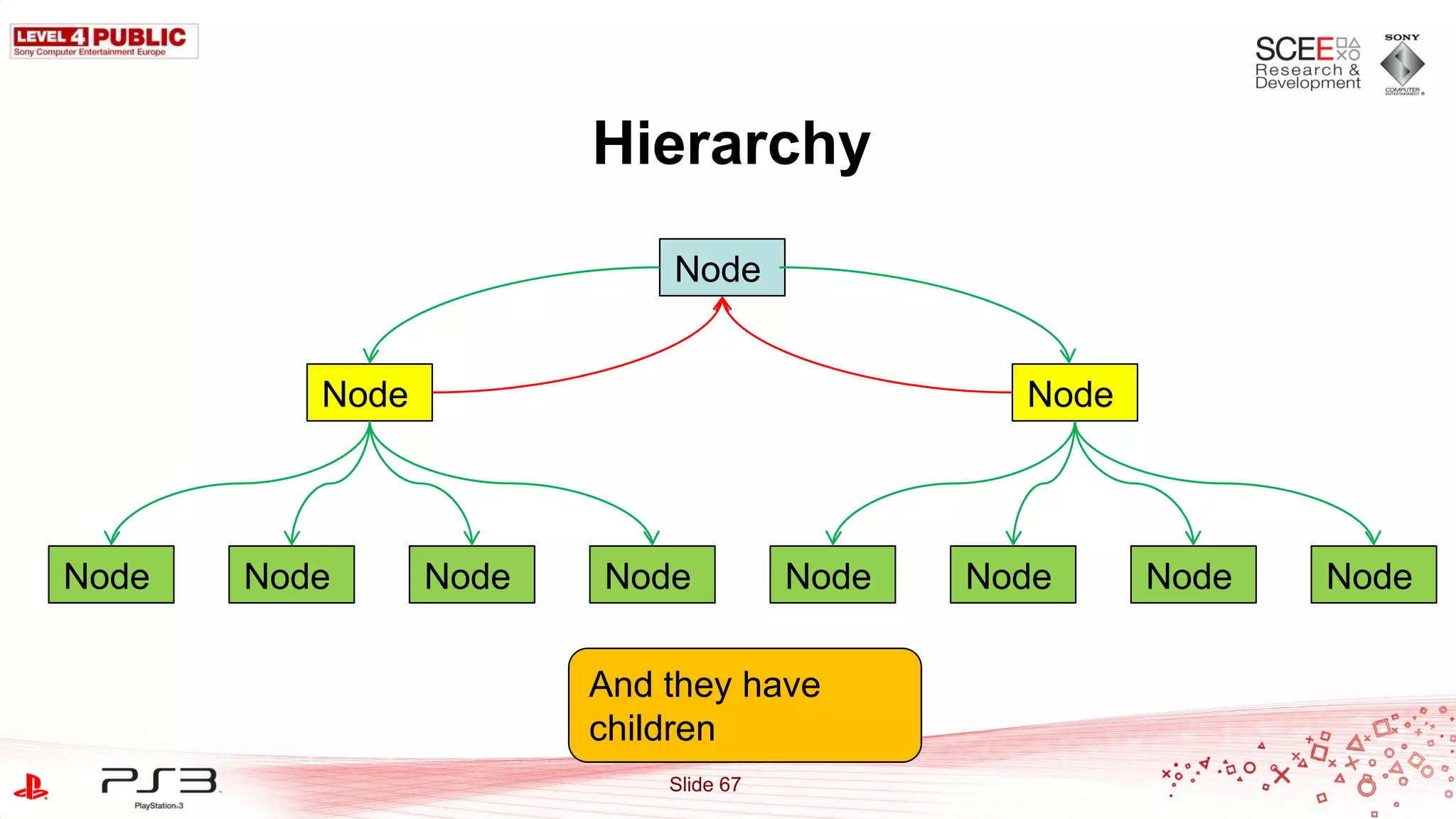

- 67. Hierarchy Node Node Node Node Node Node Node Node Node Node Node And they have children Slide 67

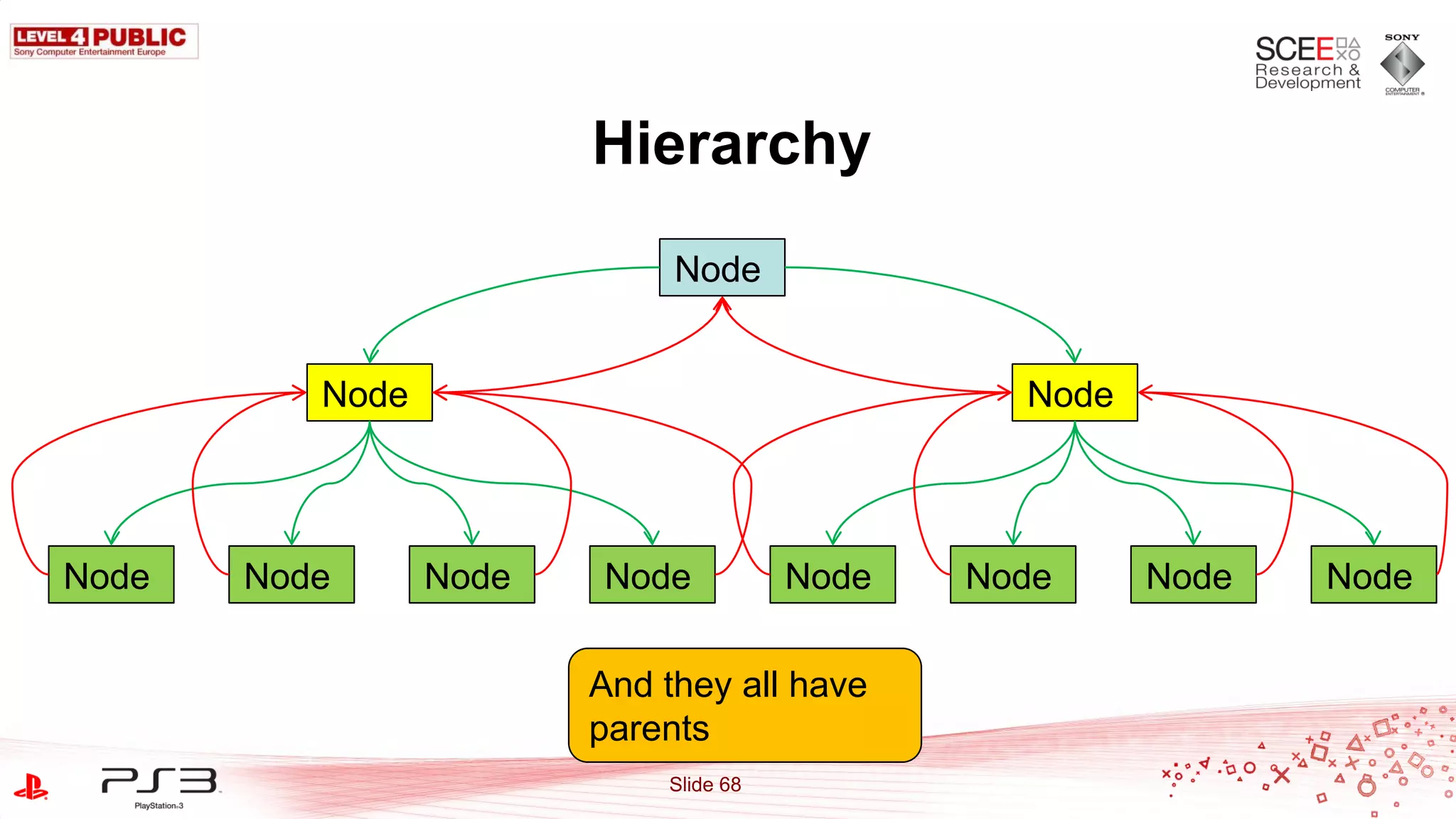

- 68. Hierarchy Node Node Node Node Node Node Node Node Node Node Node And they all have parents Slide 68

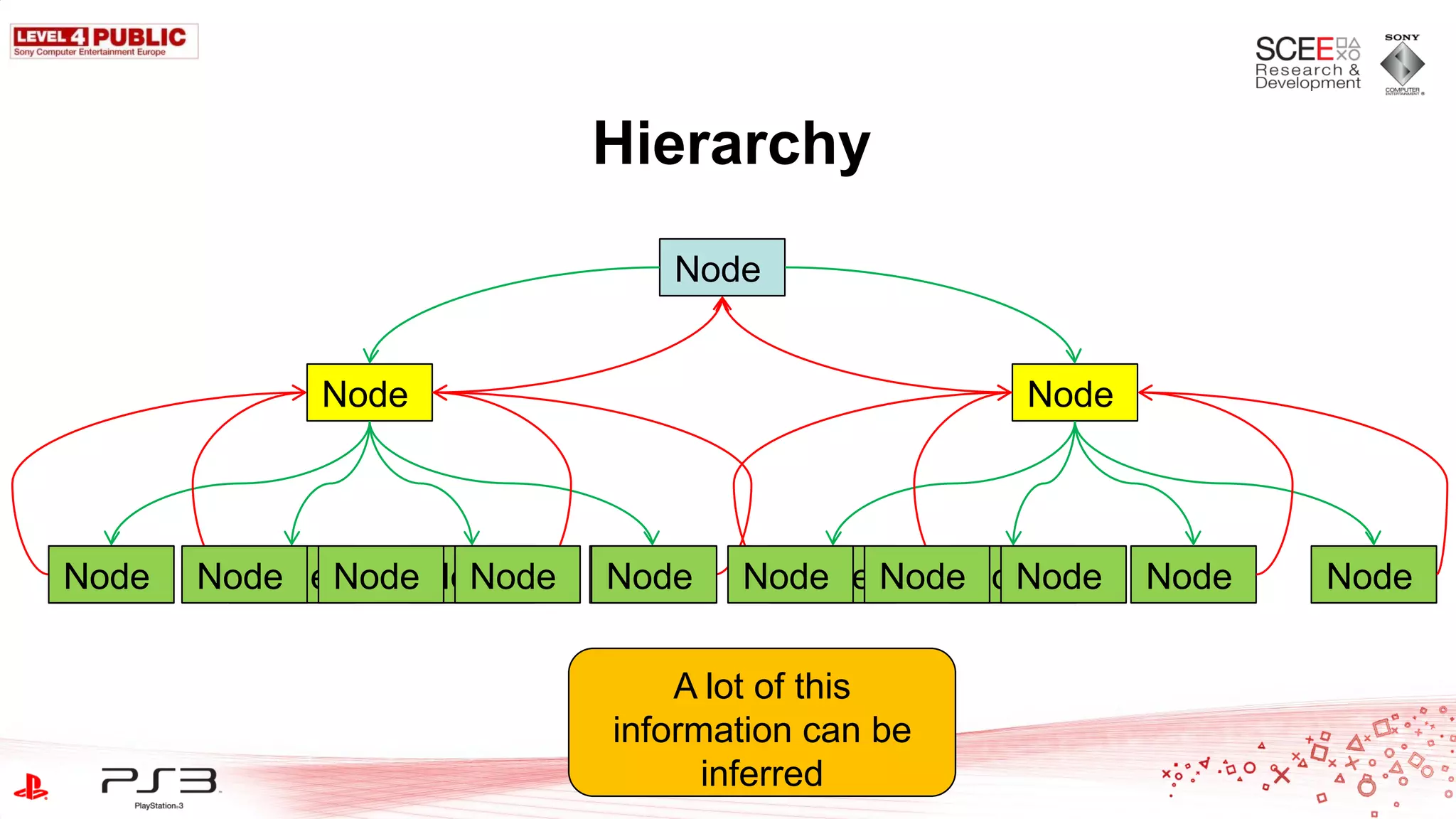

- 69. Hierarchy Node Node Node Node Node Node Node Node Node Node Node NodeNode Node Node Node Node A lot of this information can be inferred Slide 69

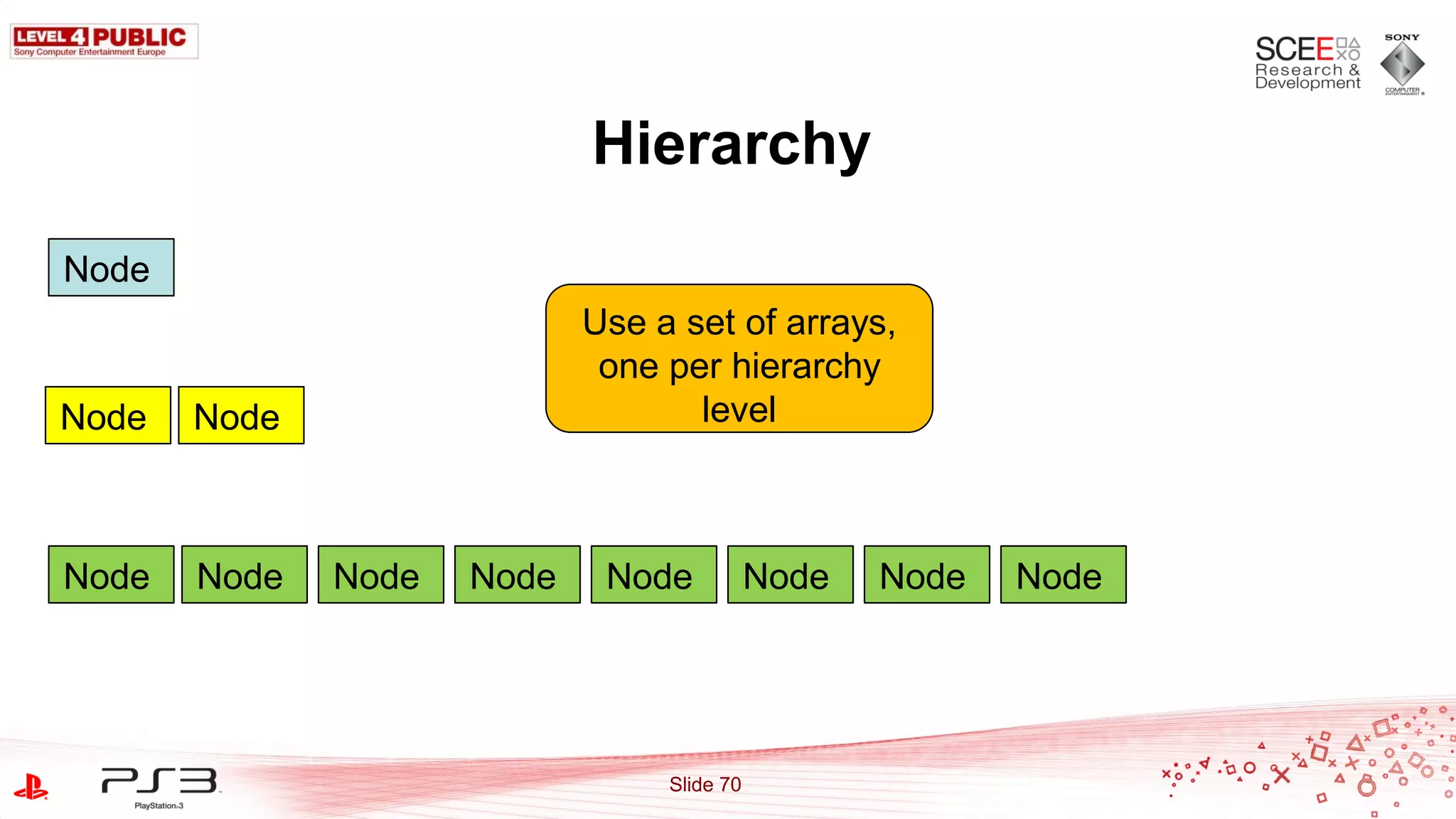

- 70. Hierarchy Node Use a set of arrays, one per hierarchy Node Node level Node Node Node Node Node Node Node Node Slide 70

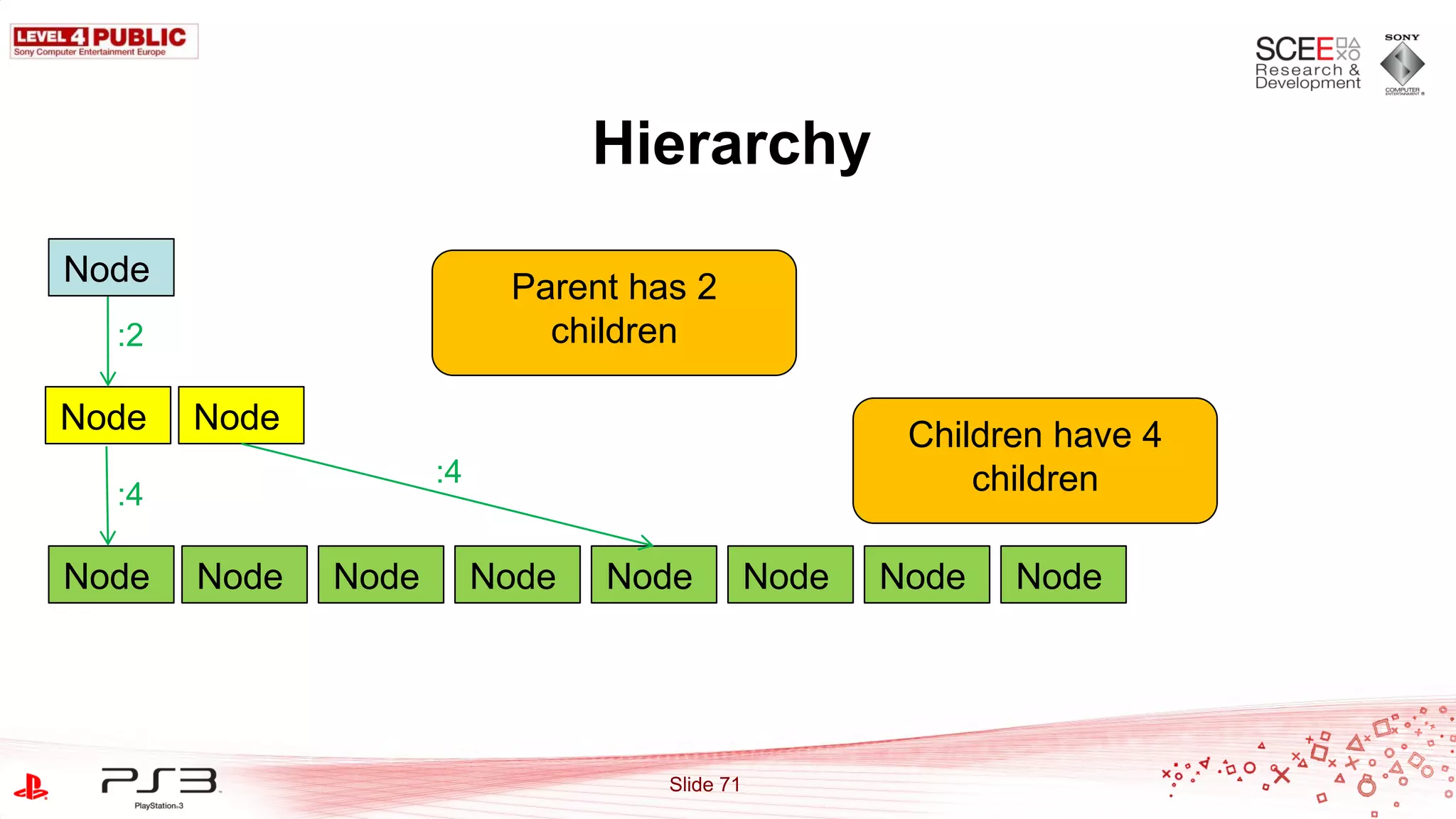

- 71. Hierarchy Node Parent has 2 :2 children Node Node Children have 4 :4 children :4 Node Node Node Node Node Node Node Node Slide 71

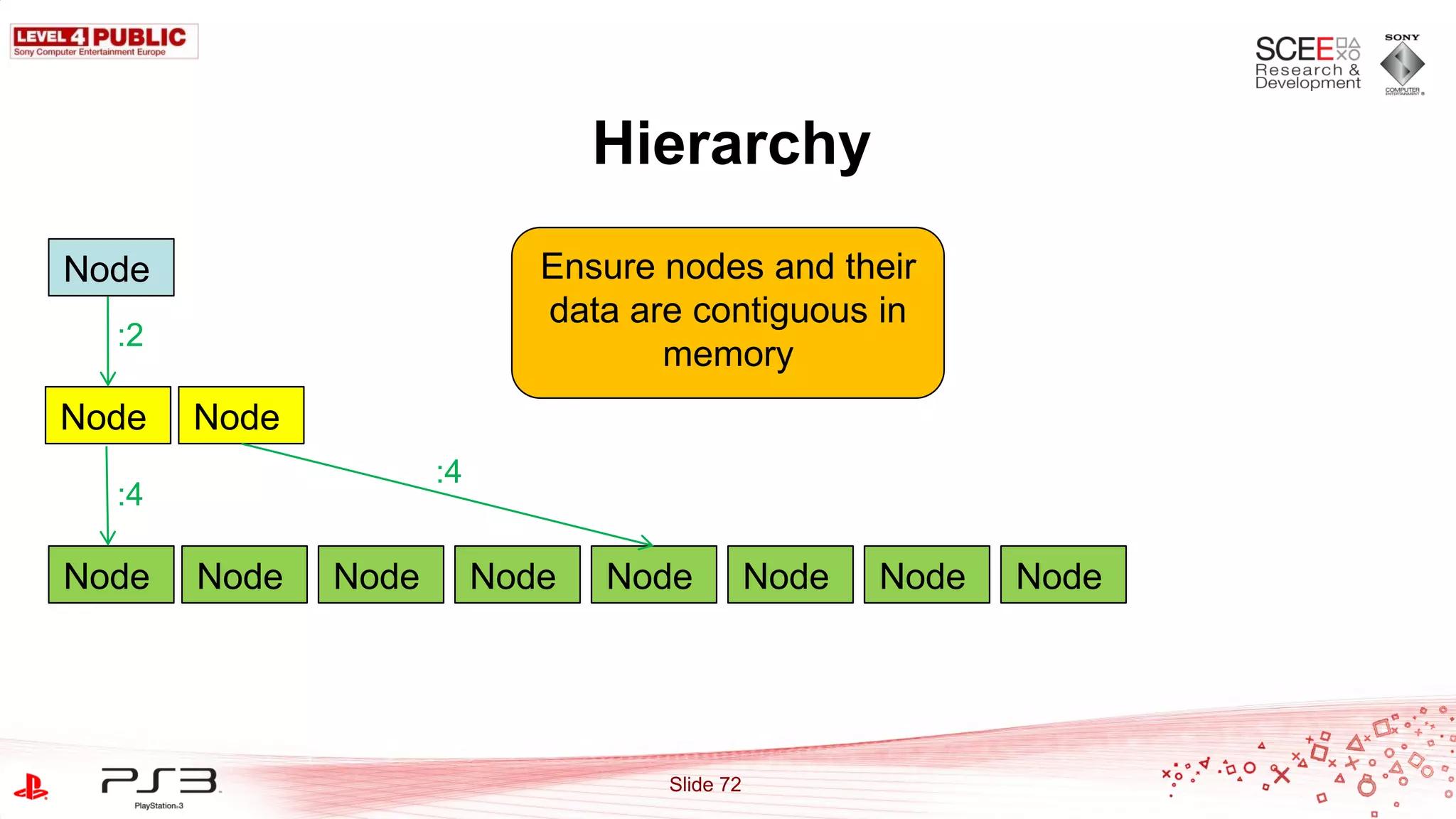

- 72. Hierarchy Node Ensure nodes and their data are contiguous in :2 memory Node Node :4 :4 Node Node Node Node Node Node Node Node Slide 72

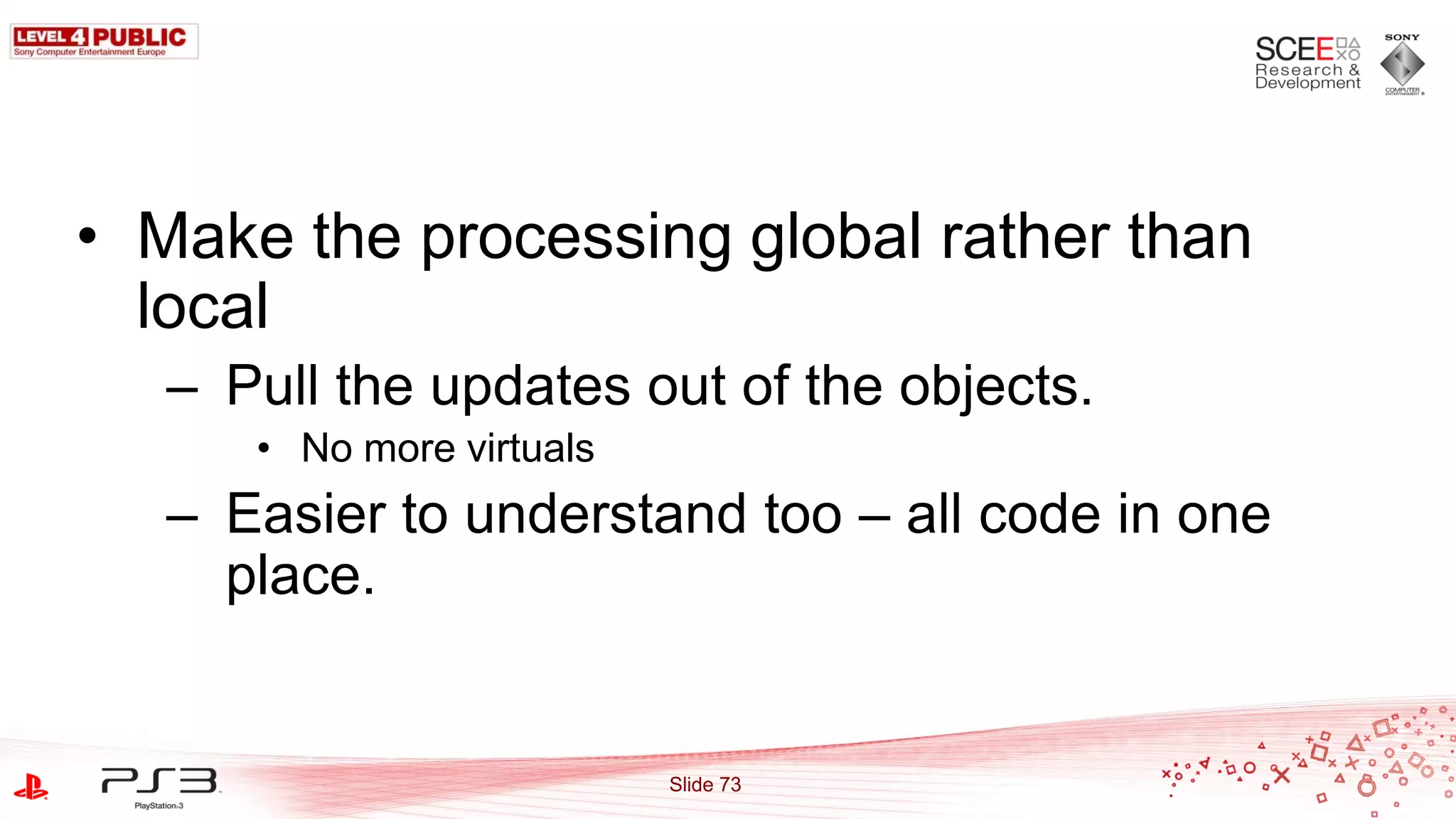

- 73. • Make theprocessing global rather than local – Pull the updates out of the objects. • No more virtuals – Easier to understand too – all code in one place. Slide 73

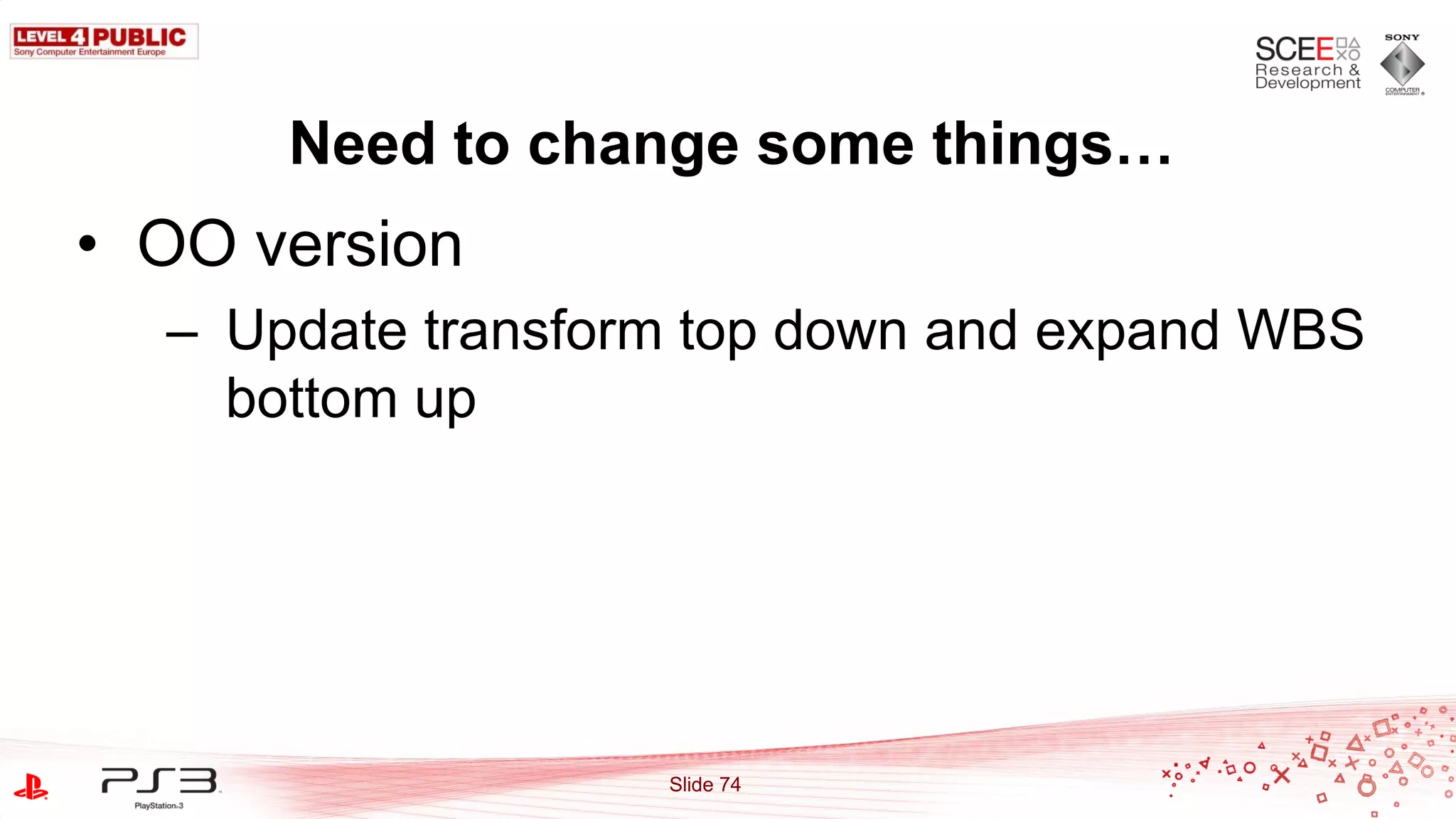

- 74. Need to changesome things… • OO version – Update transform top down and expand WBS bottom up Slide 74
- 75. Update transform Node Node Node Node Node Node Node Node Node Node Node Slide 75

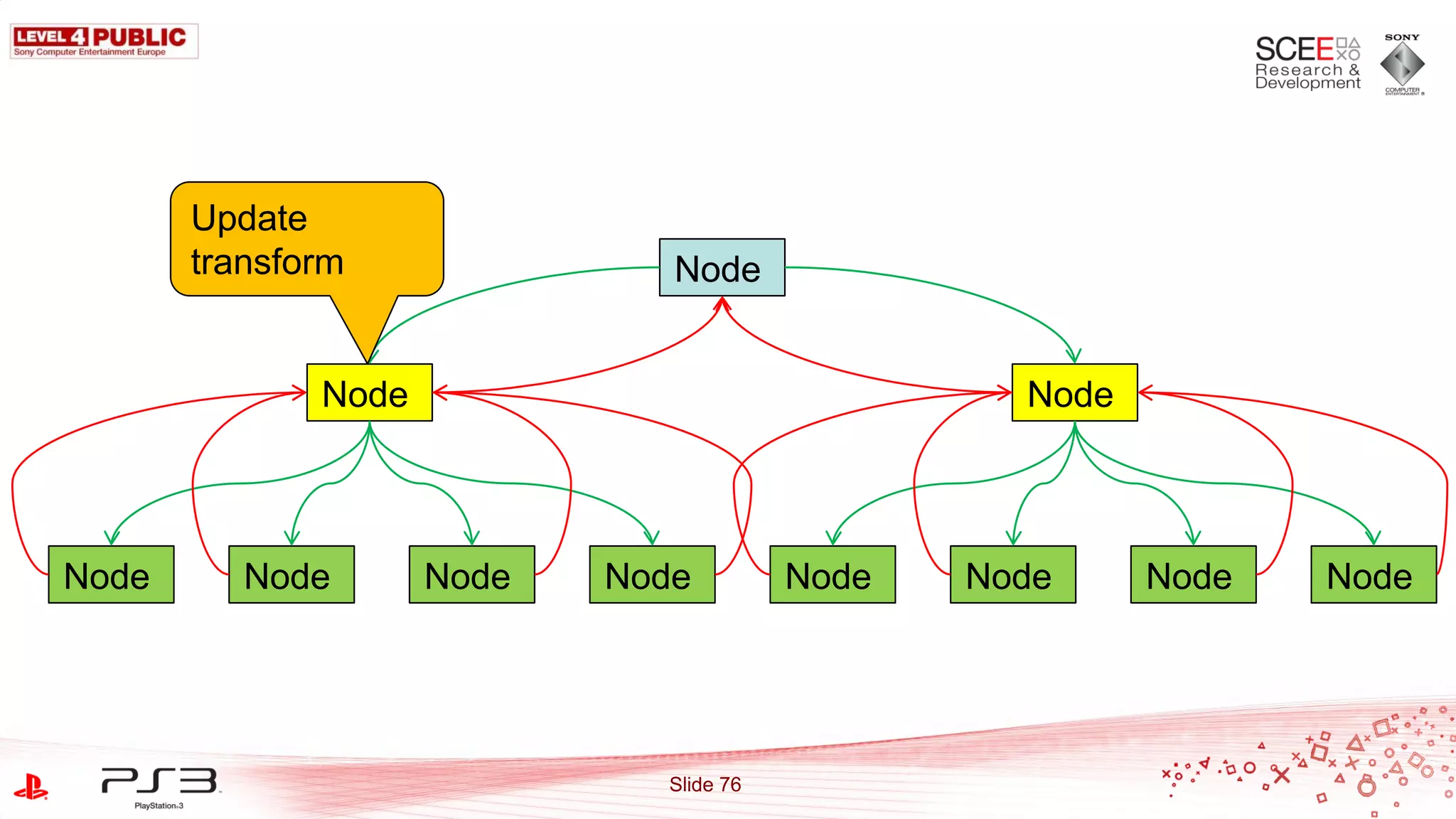

- 76. Update transform Node Node Node Node Node Node Node Node Node Node Node Slide 76

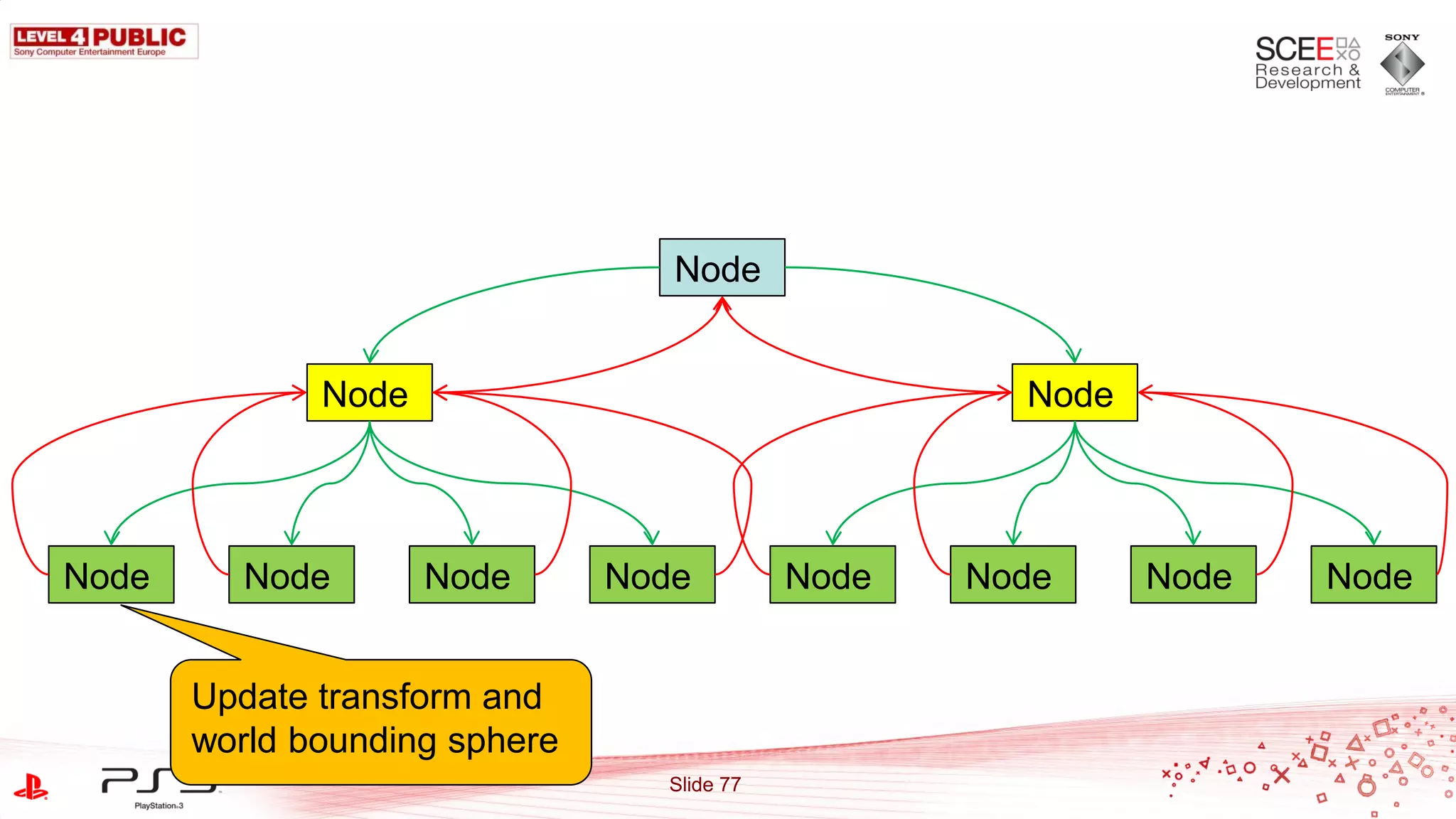

- 77. Node Node Node Node Node Node Node Node Node Node Node Update transform and world bounding sphere Slide 77
- 78. Node Node Node Node Node Node Node Node Node Node Node Add bounding sphere of child Slide 78

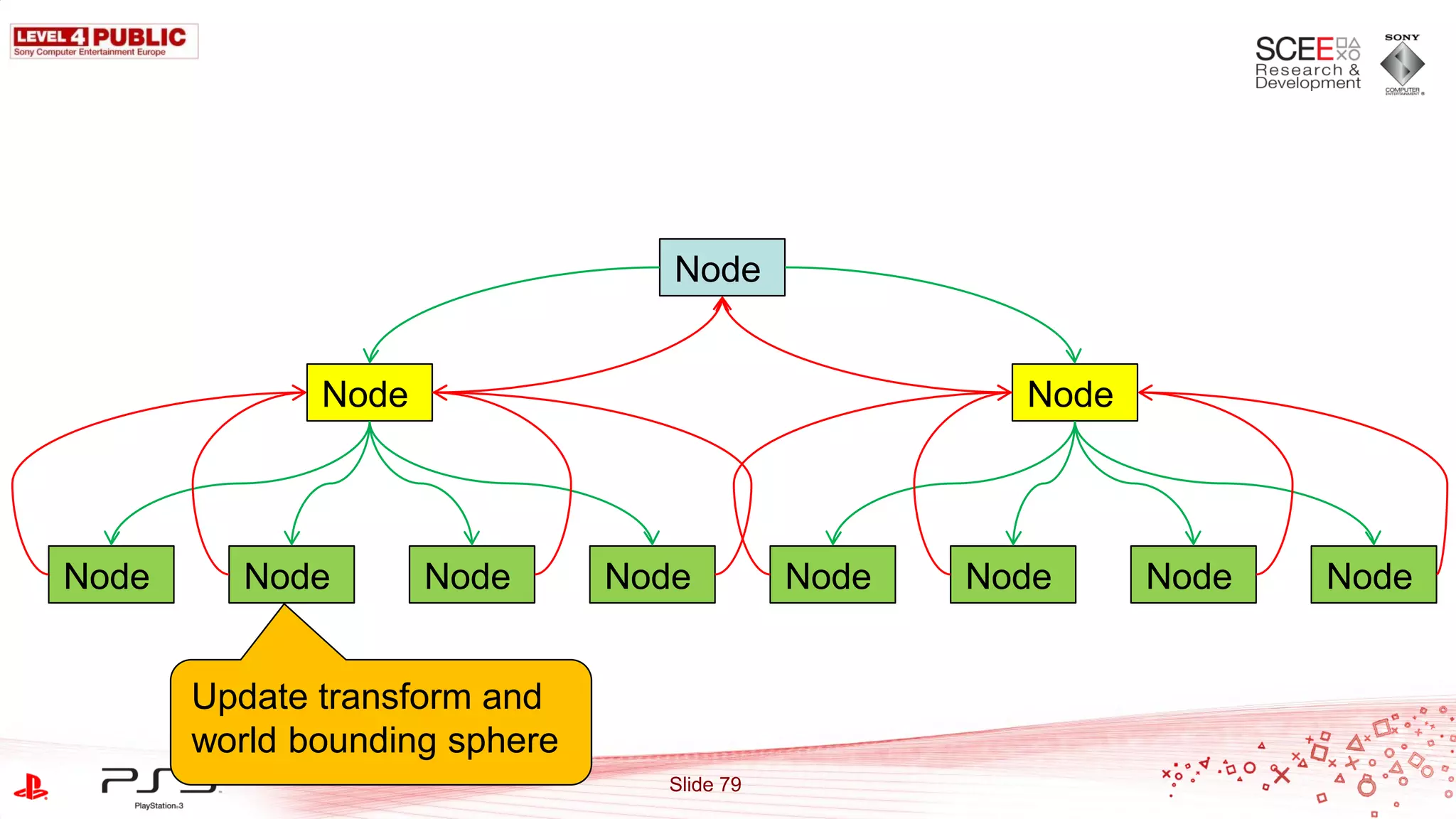

- 79. Node Node Node Node Node Node Node Node Node Node Node Update transform and world bounding sphere Slide 79

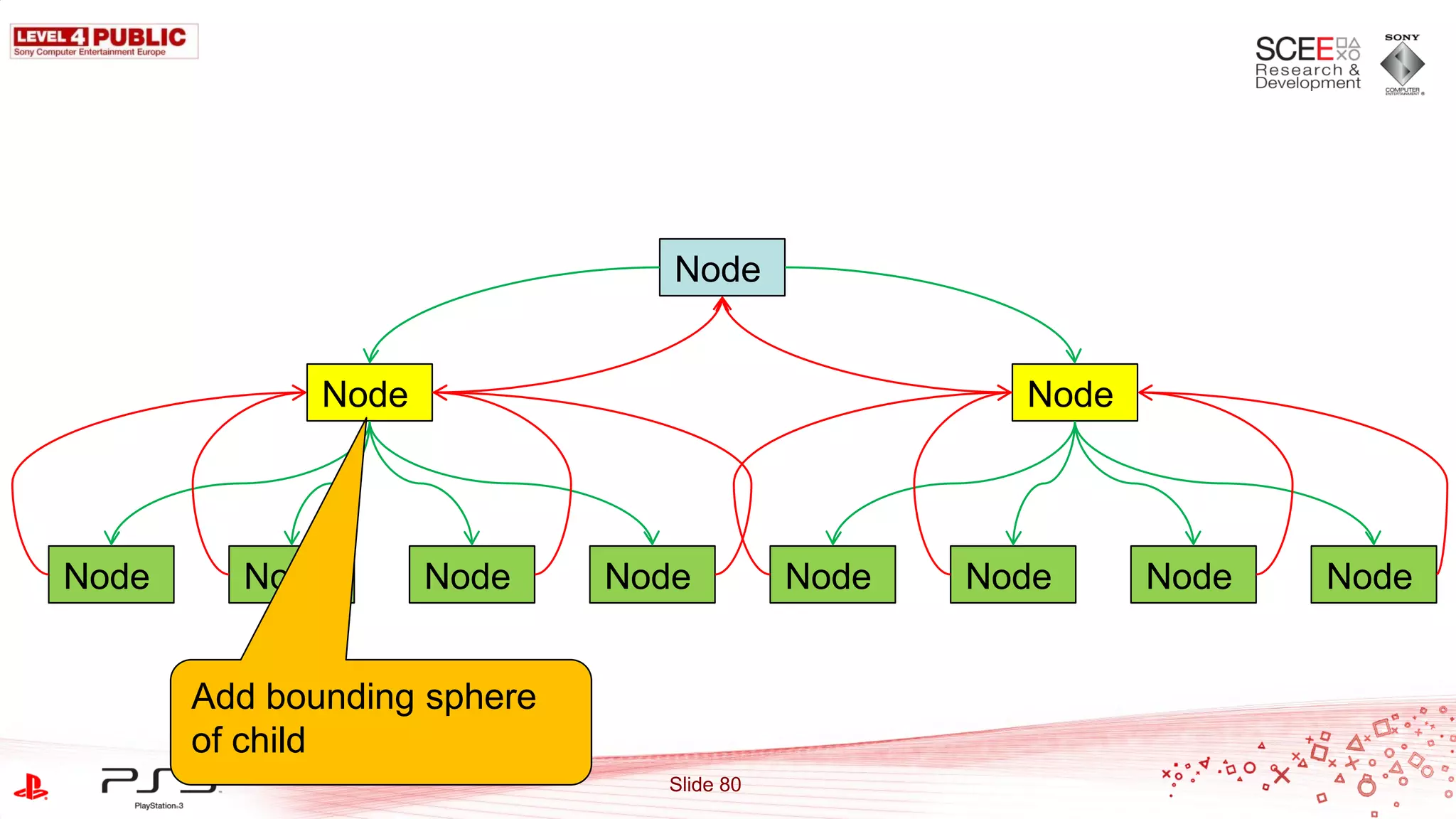

- 80. Node Node Node Node Node Node Node Node Node Node Node Add bounding sphere of child Slide 80
- 81. Node Node Node Node Node Node Node Node Node Node Node Update transform and world bounding sphere Slide 81
- 82. Node Node Node Node Node Node Node Node Node Node Node Add bounding sphere of child Slide 82
- 83. • Hierarchical boundingspheres pass info up • Transforms cascade down • Data use and code is „striped‟. – Processing is alternating Slide 83

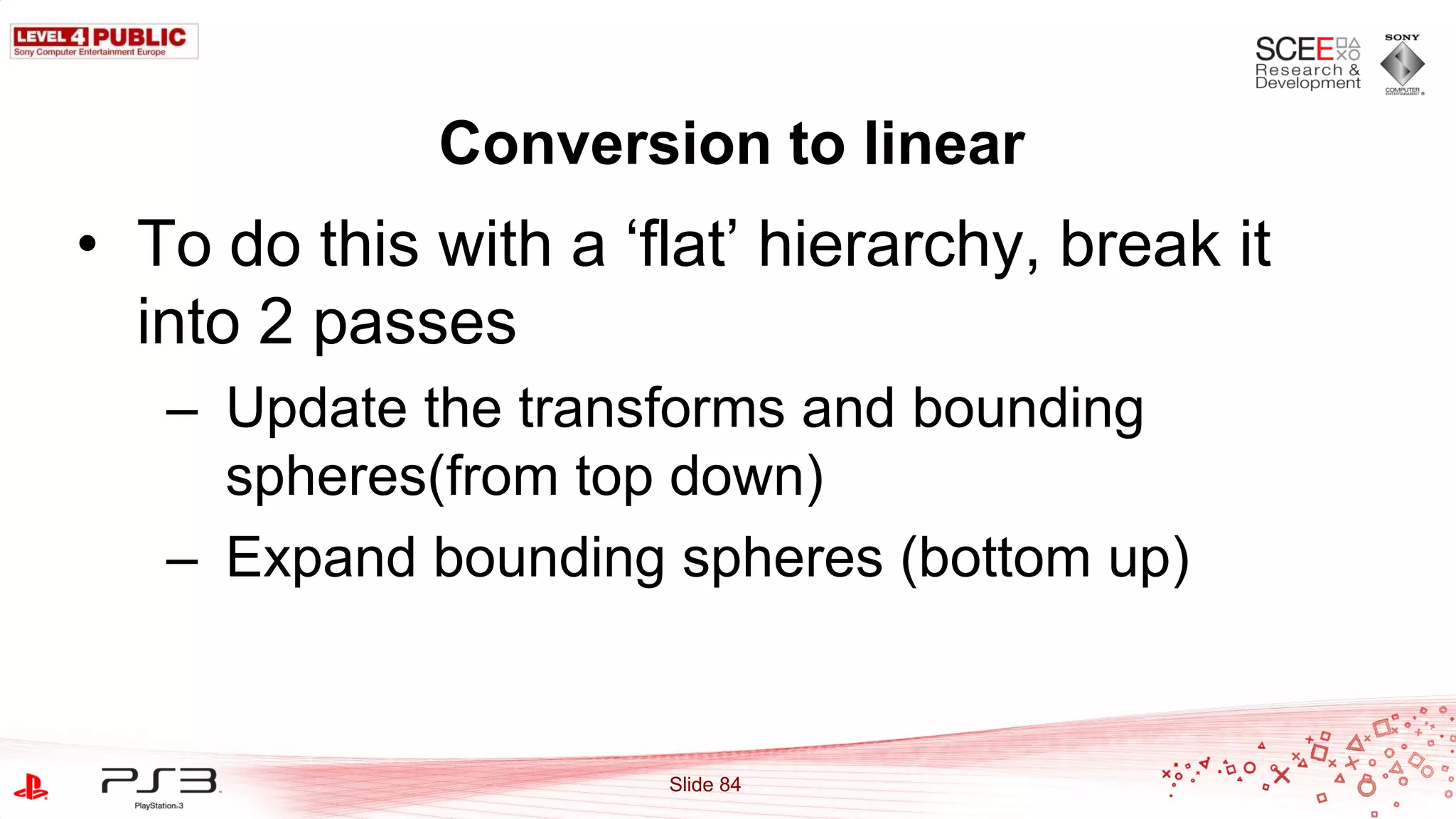

- 84. Conversion to linear •To do this with a „flat‟ hierarchy, break it into 2 passes – Update the transforms and bounding spheres(from top down) – Expand bounding spheres (bottom up) Slide 84

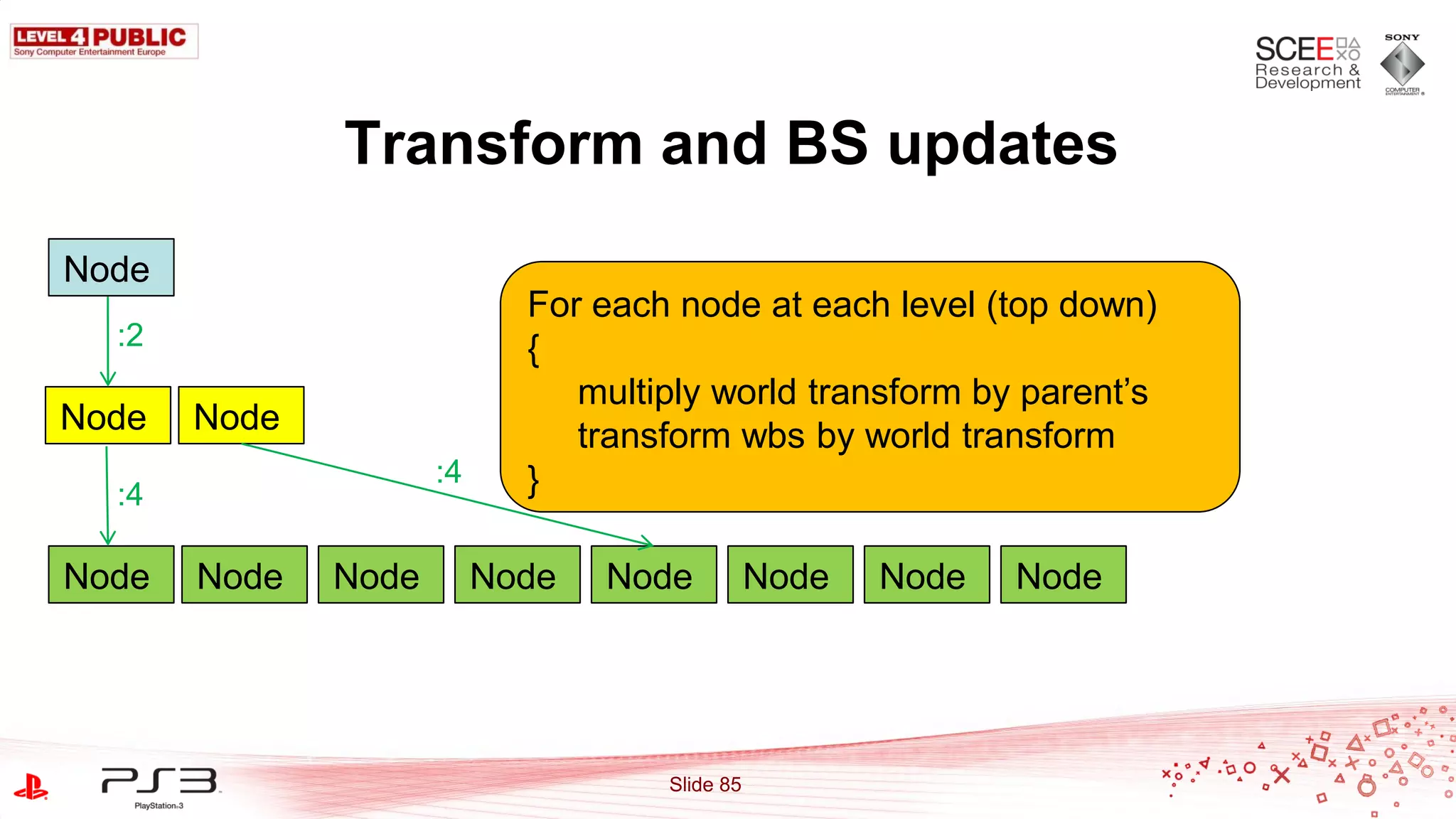

- 85. Transform and BSupdates Node For each node at each level (top down) :2 { multiply world transform by parent‟s Node Node transform wbs by world transform :4 } :4 Node Node Node Node Node Node Node Node Slide 85

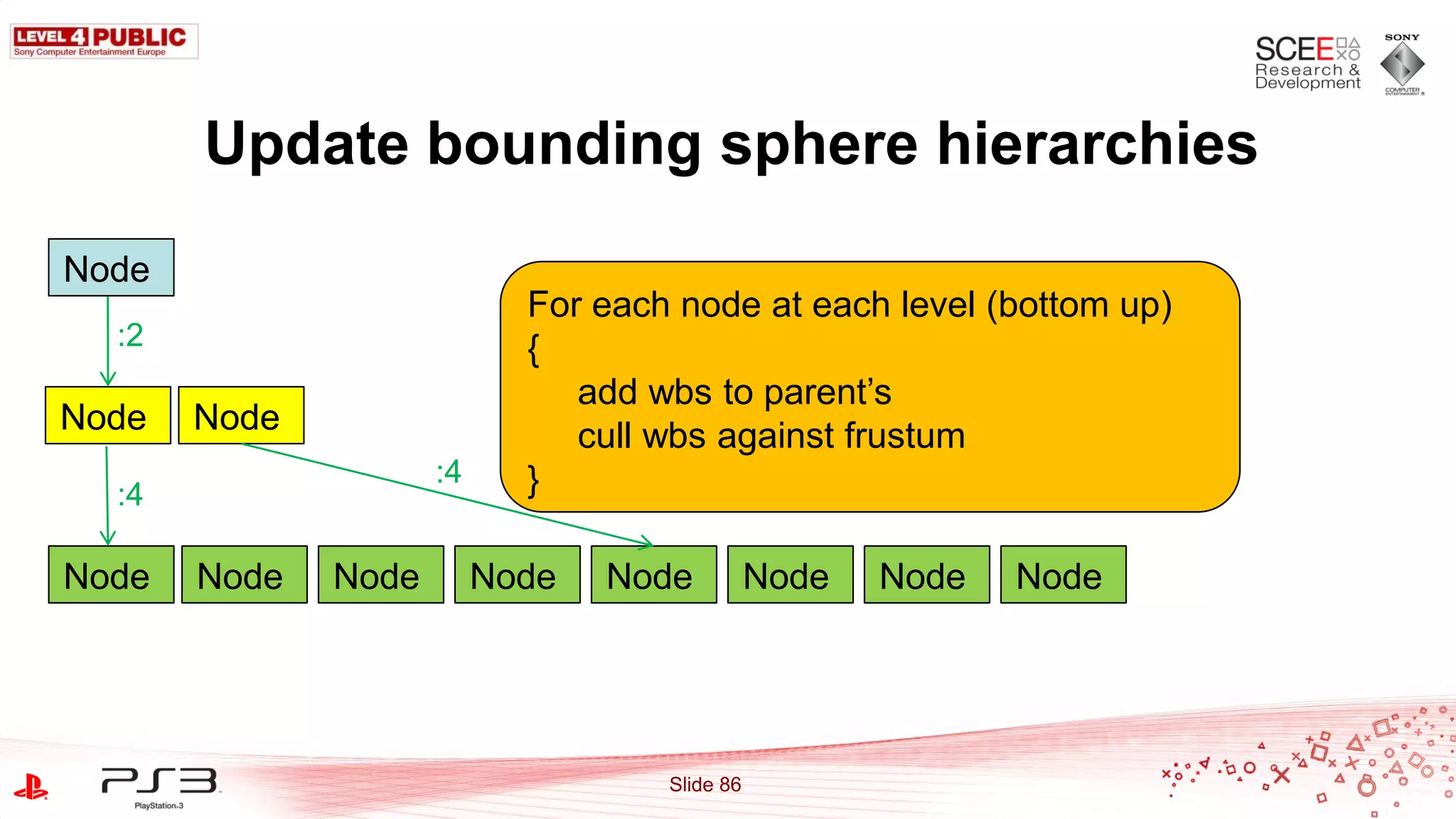

- 86. Update bounding spherehierarchies Node For each node at each level (bottom up) :2 { add wbs to parent‟s Node Node } cull wbs against frustum :4 } :4 Node Node Node Node Node Node Node Node Slide 86

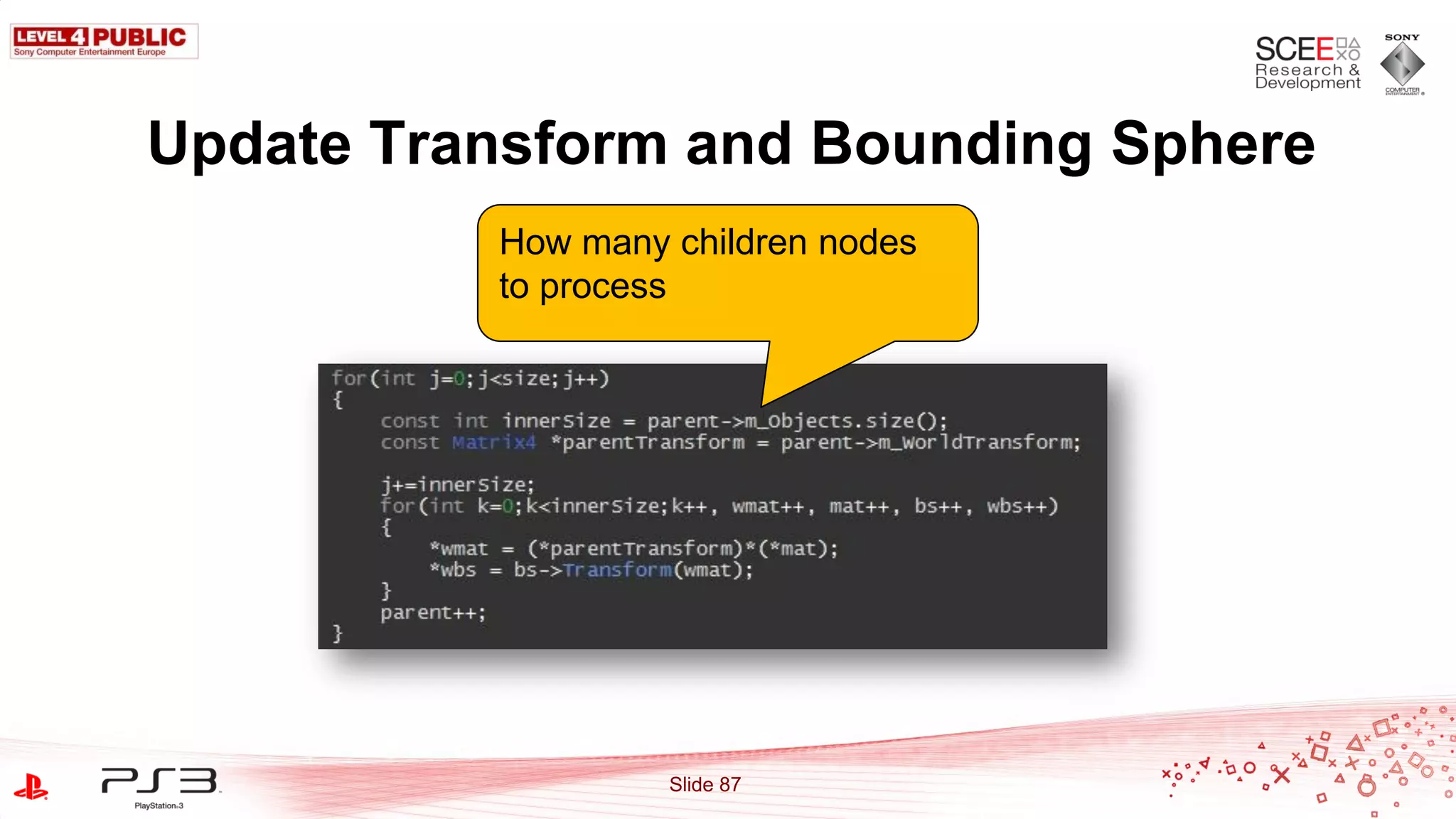

- 87. Update Transform andBounding Sphere How many children nodes to process Slide 87
- 88. Update Transform andBounding Sphere For each child, update transform and bounding sphere Slide 88

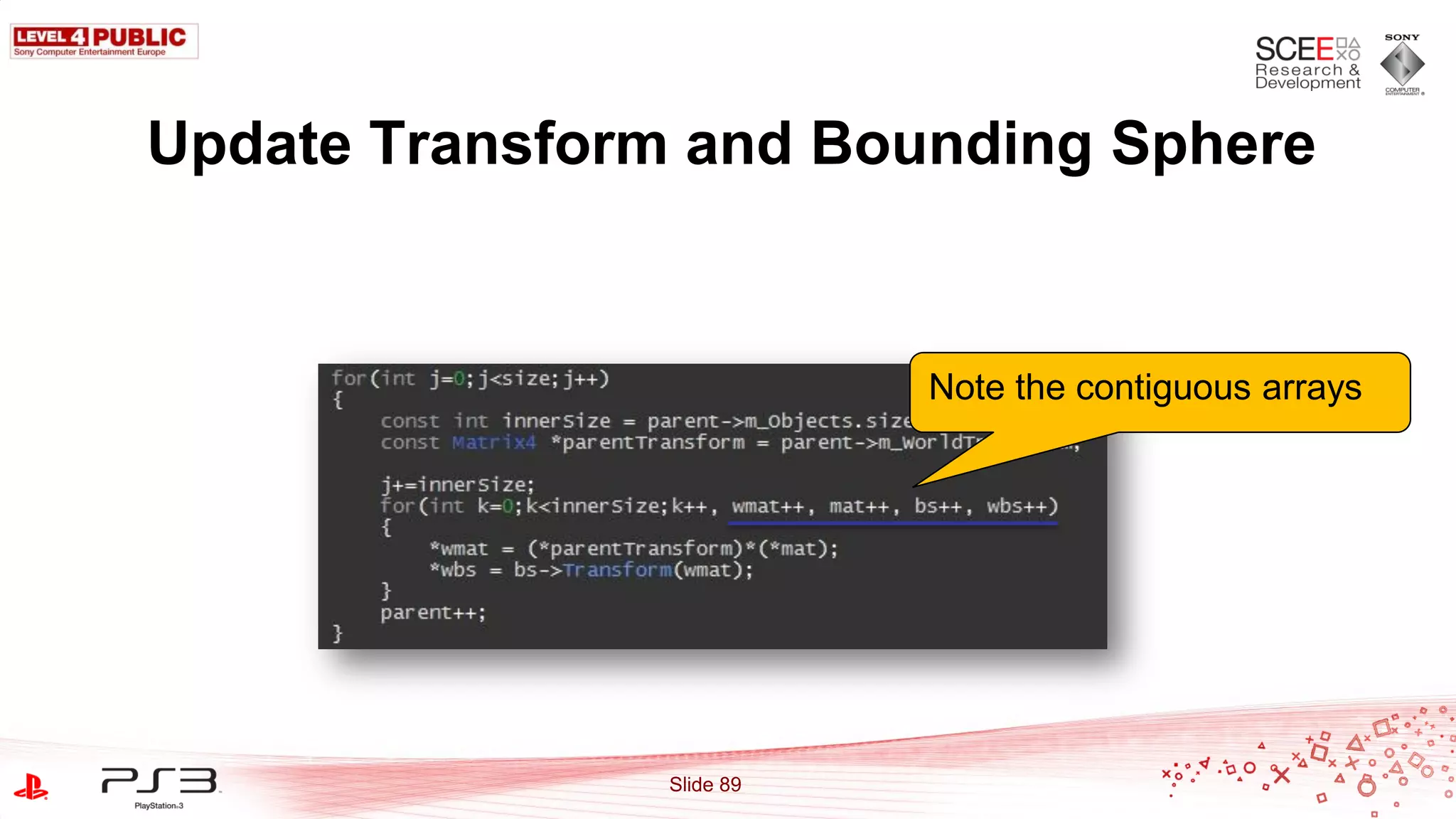

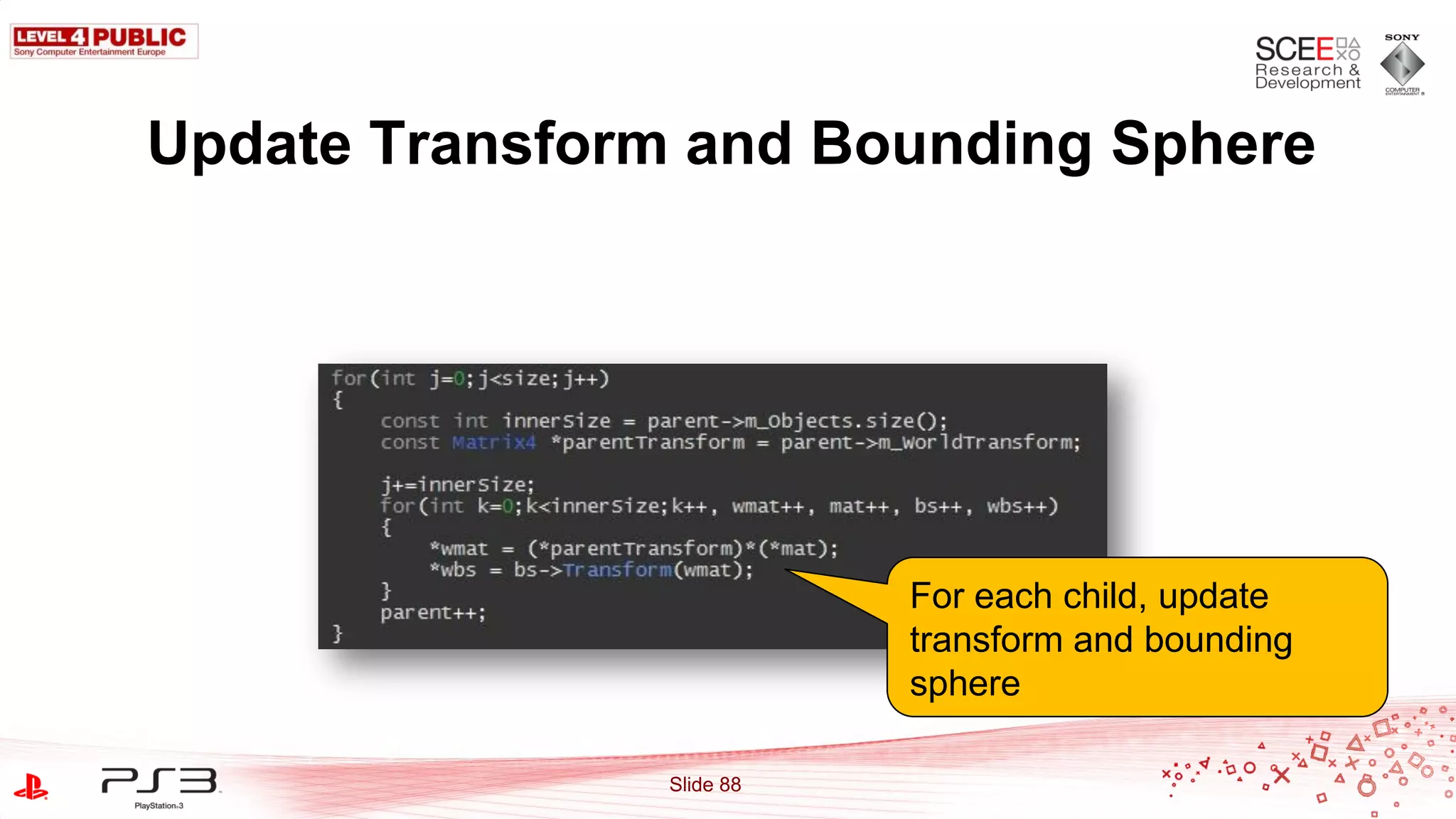

- 89. Update Transform andBounding Sphere Note the contiguous arrays Slide 89

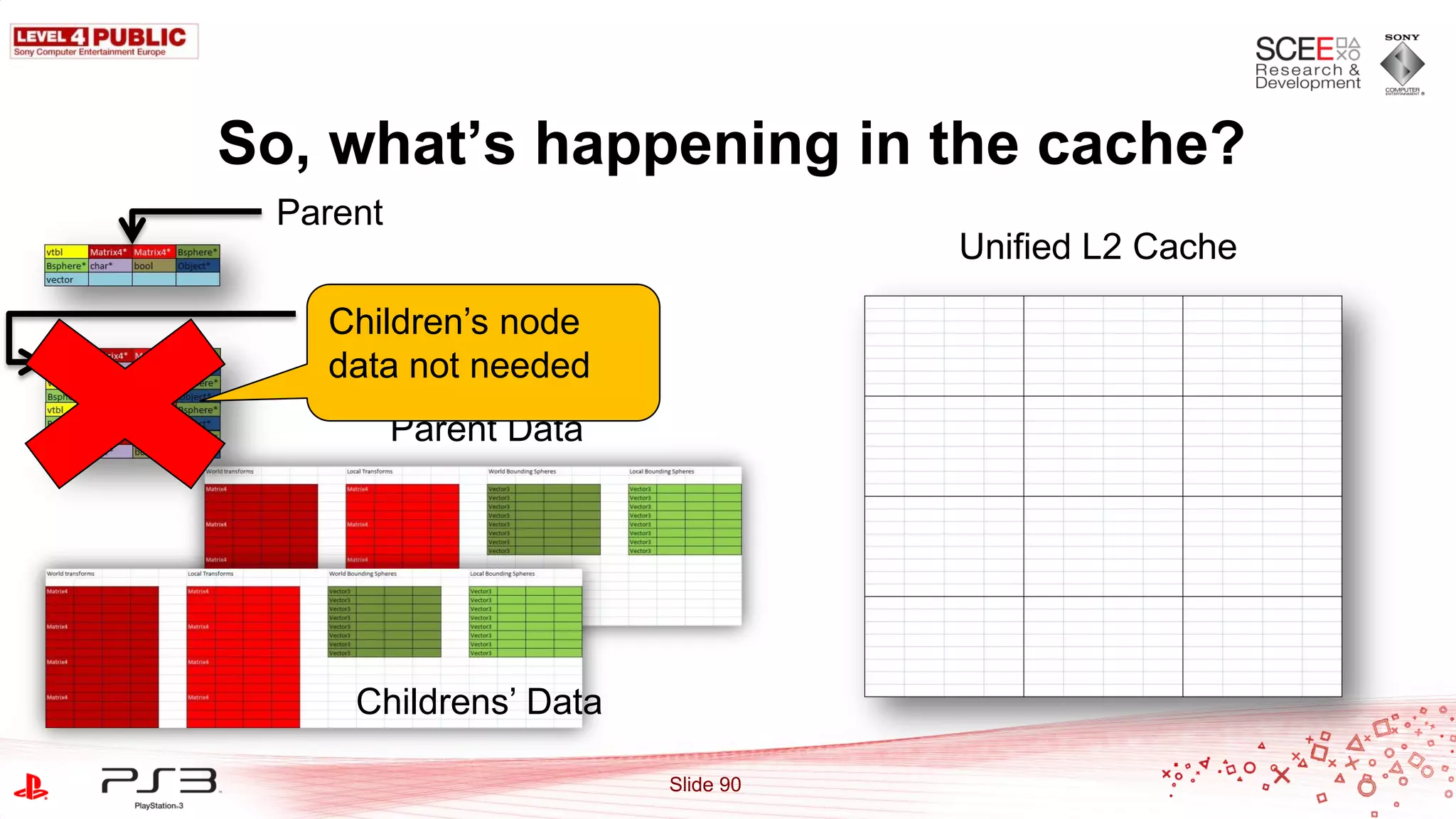

- 90. So, what’s happeningin the cache? Parent Unified L2 Cache Children node Children‟s data not needed Parent Data Childrens‟ Data Slide 90

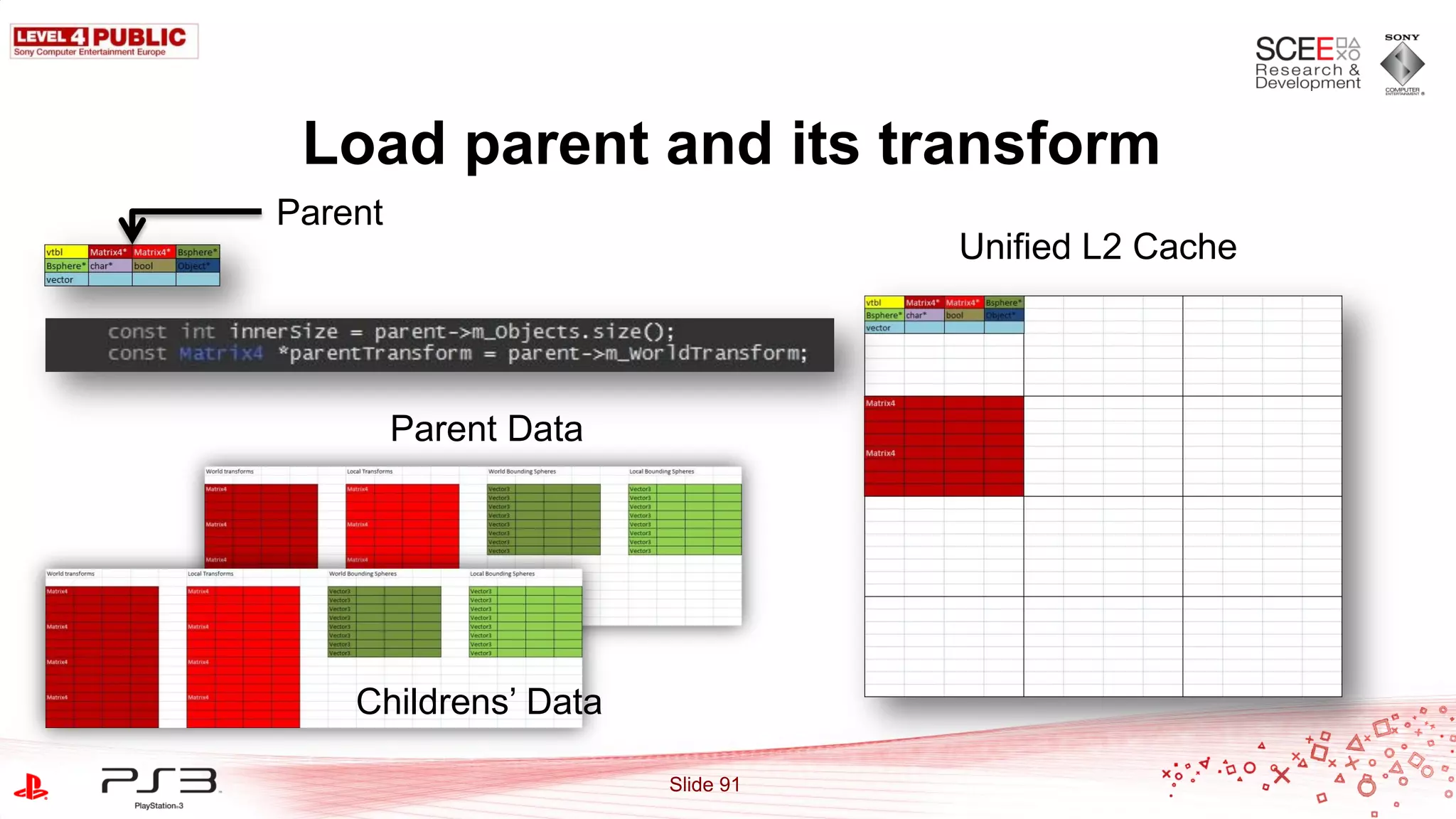

- 91. Load parent andits transform Parent Unified L2 Cache Parent Data Childrens‟ Data Slide 91

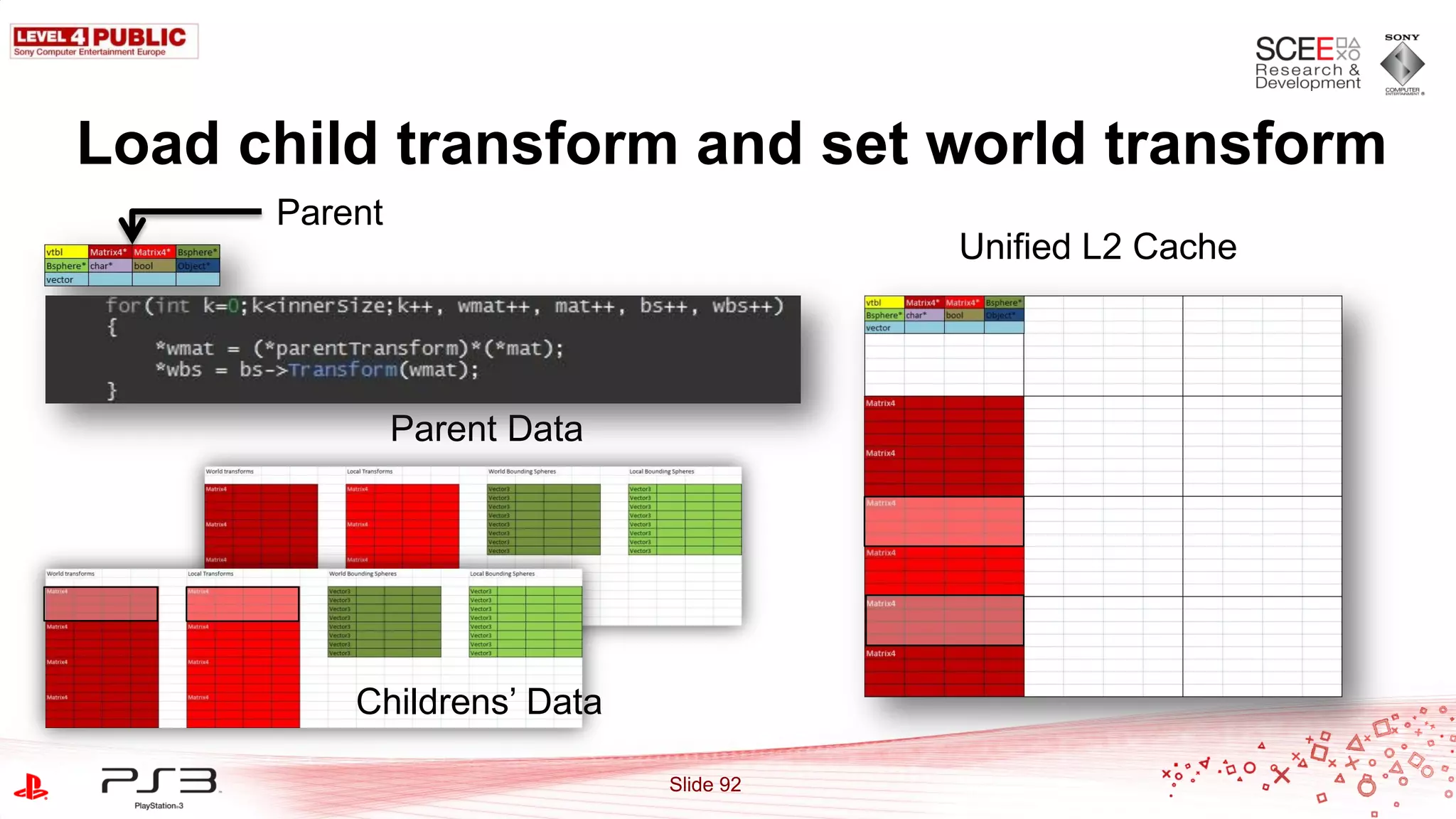

- 92. Load child transformand set world transform Parent Unified L2 Cache Parent Data Childrens‟ Data Slide 92

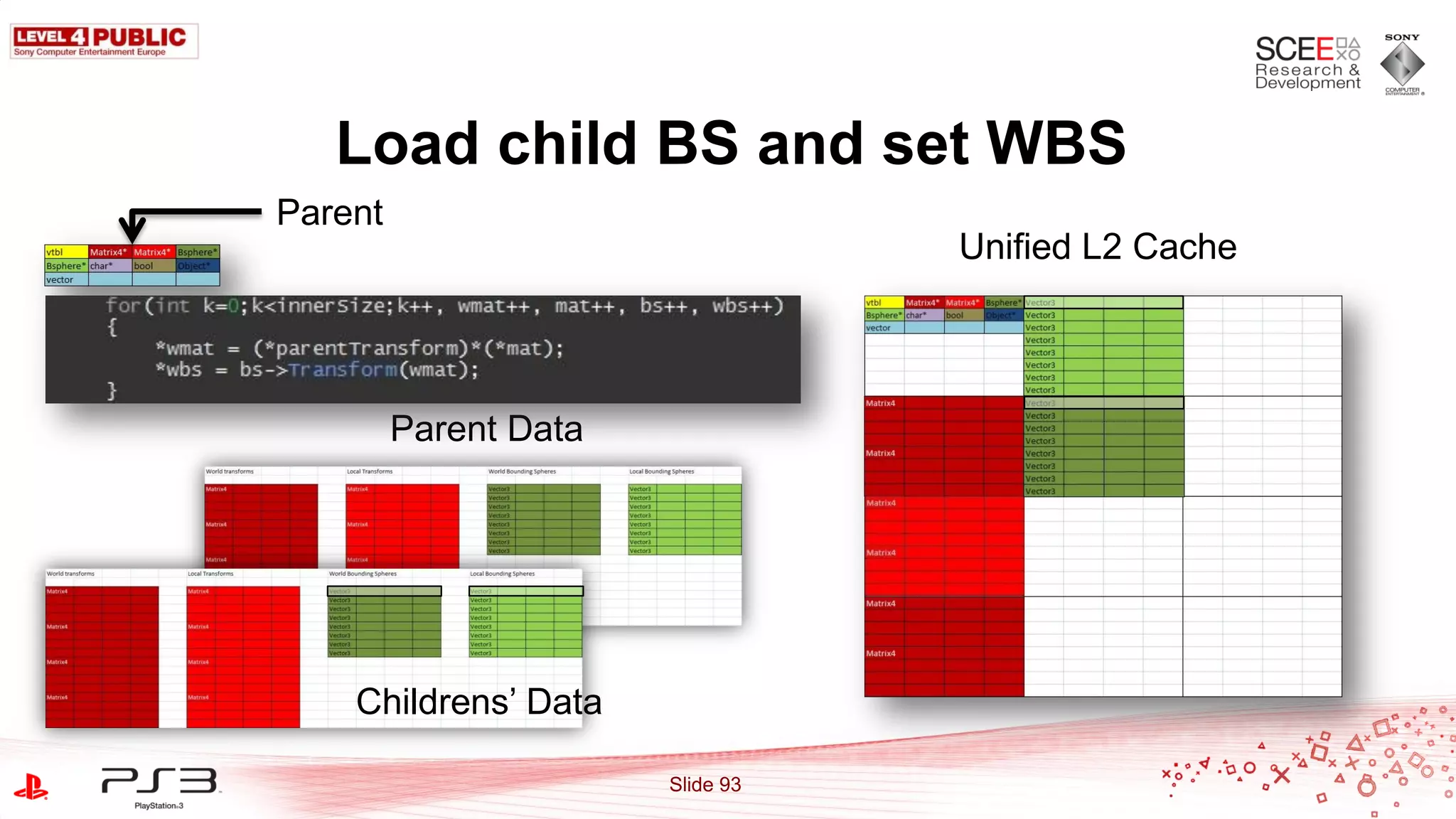

- 93. Load child BSand set WBS Parent Unified L2 Cache Parent Data Childrens‟ Data Slide 93

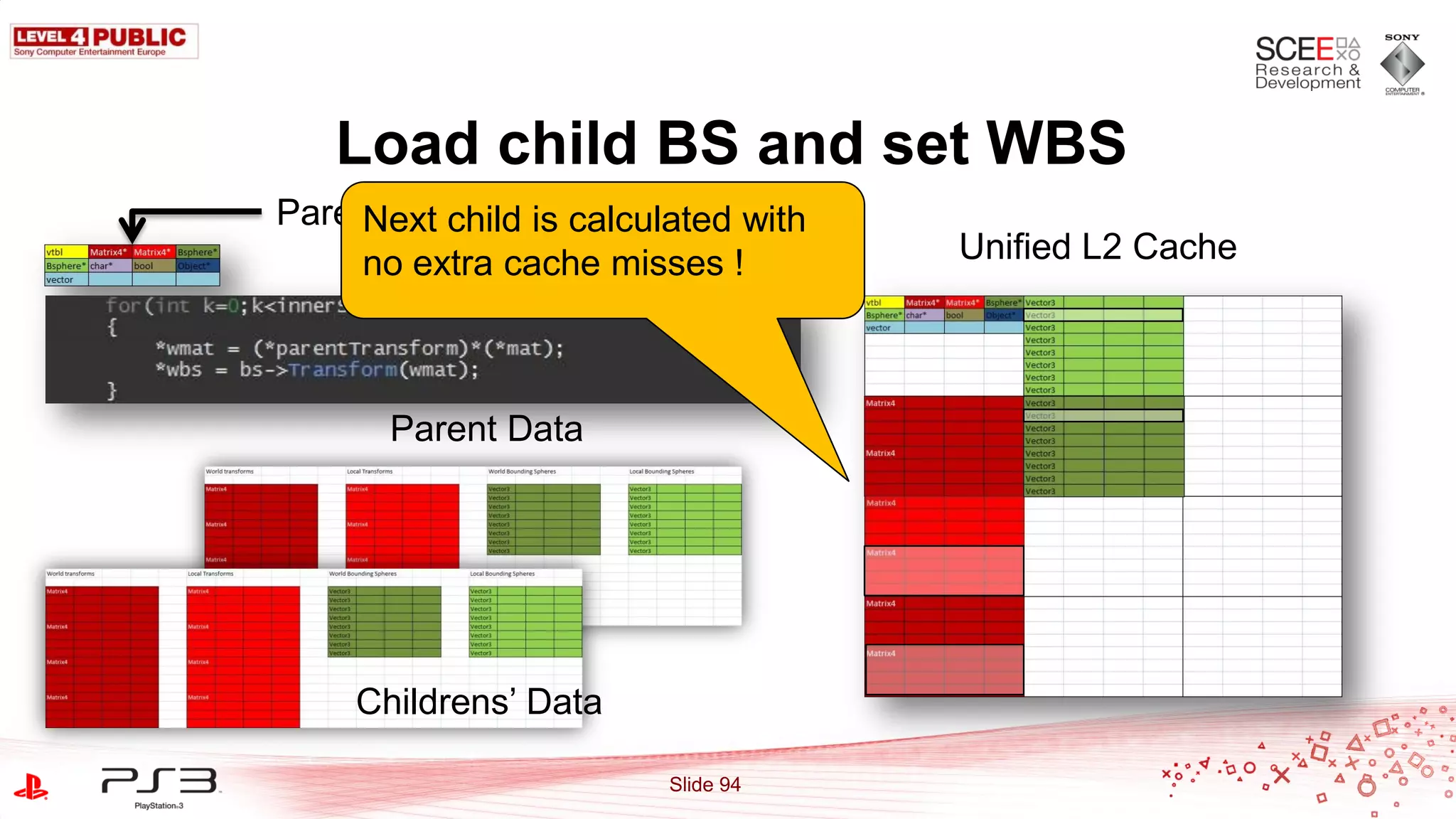

- 94. Load child BSand set WBS Parent Next child is calculated with no extra cache misses ! Unified L2 Cache Parent Data Childrens‟ Data Slide 94

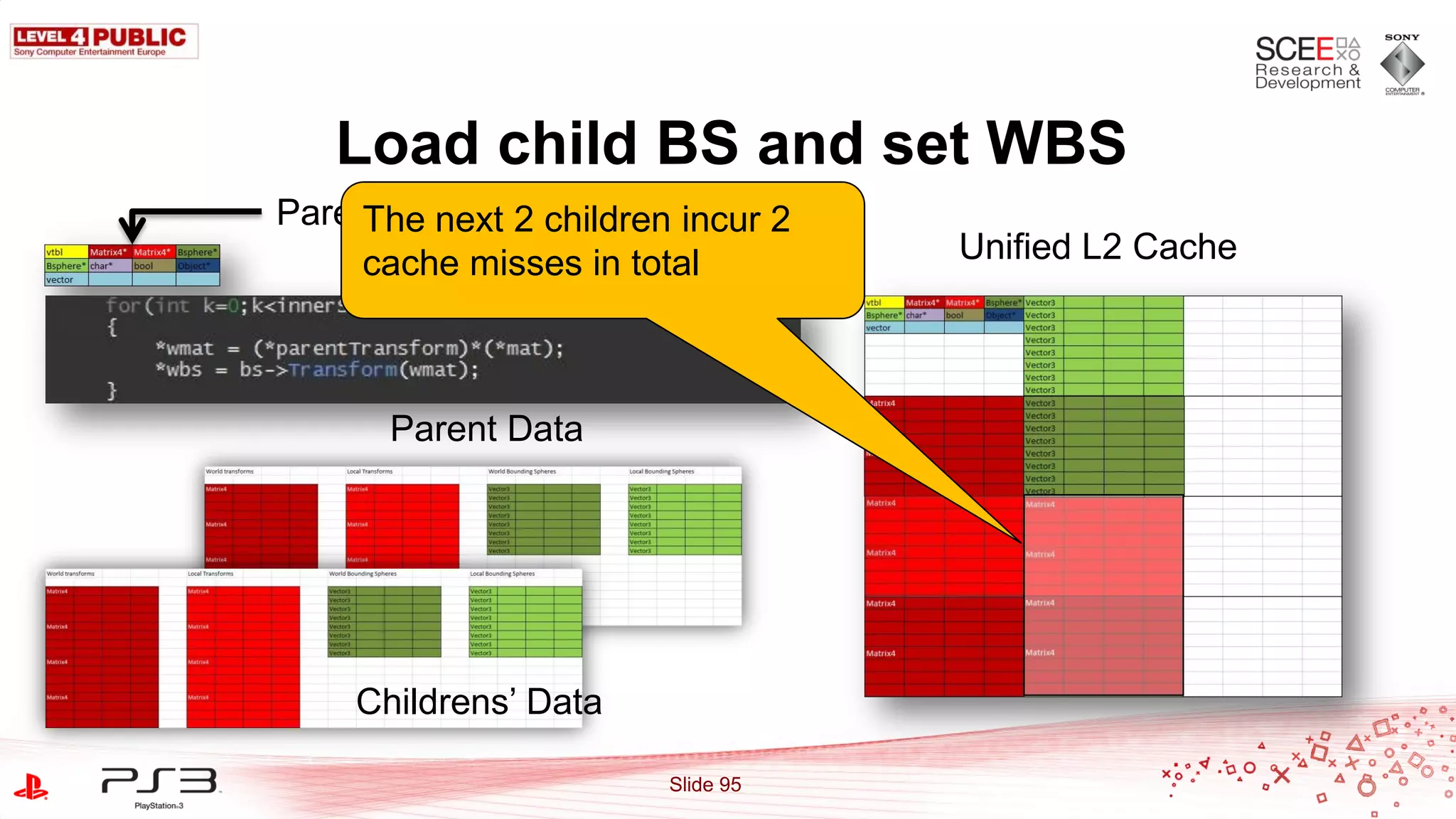

- 95. Load child BSand set WBS Parent next 2 children incur 2 The cache misses in total Unified L2 Cache Parent Data Childrens‟ Data Slide 95

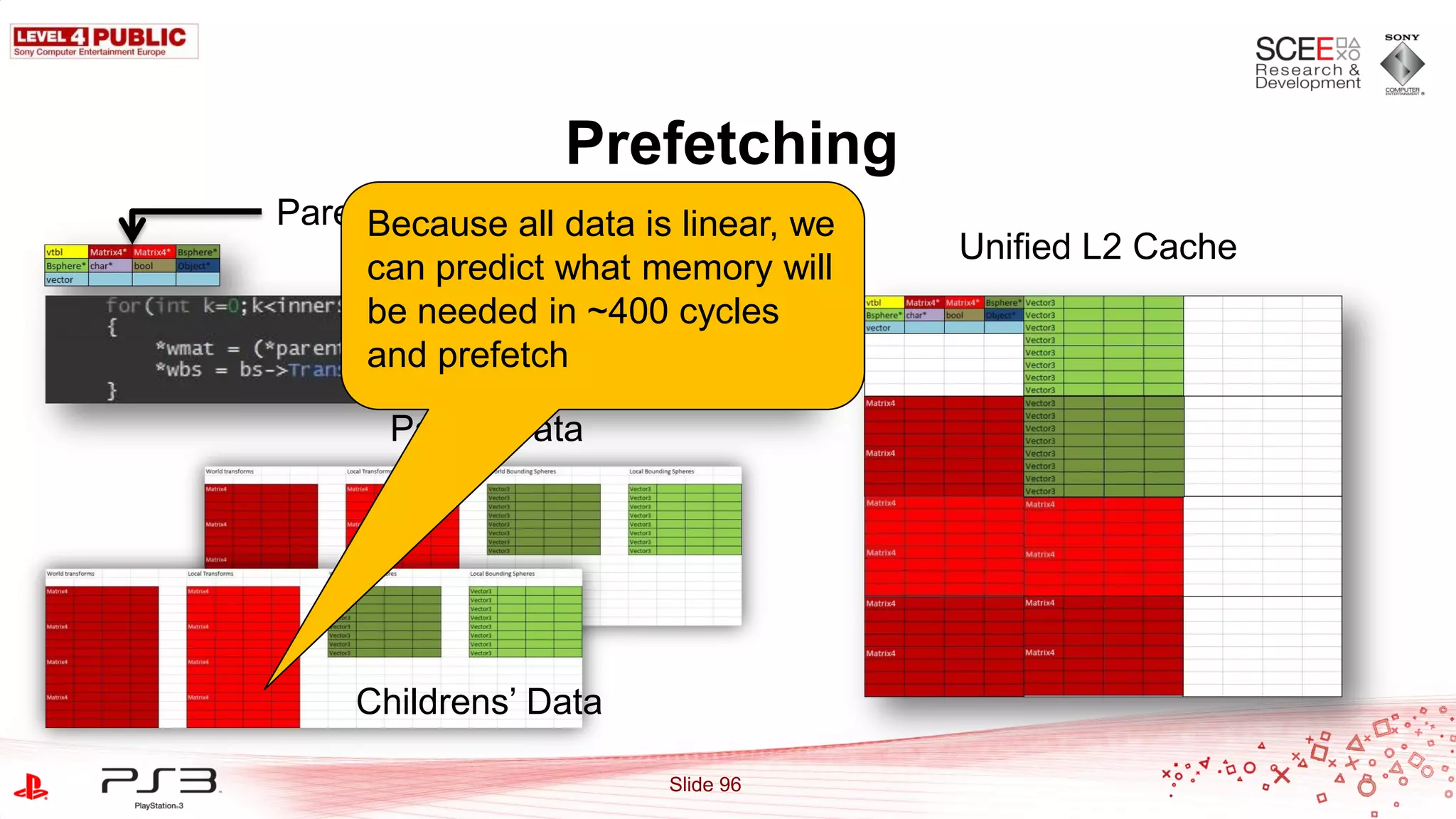

- 96. Prefetching Parent Because all data is linear, we Unified L2 Cache can predict what memory will be needed in ~400 cycles and prefetch Parent Data Childrens‟ Data Slide 96

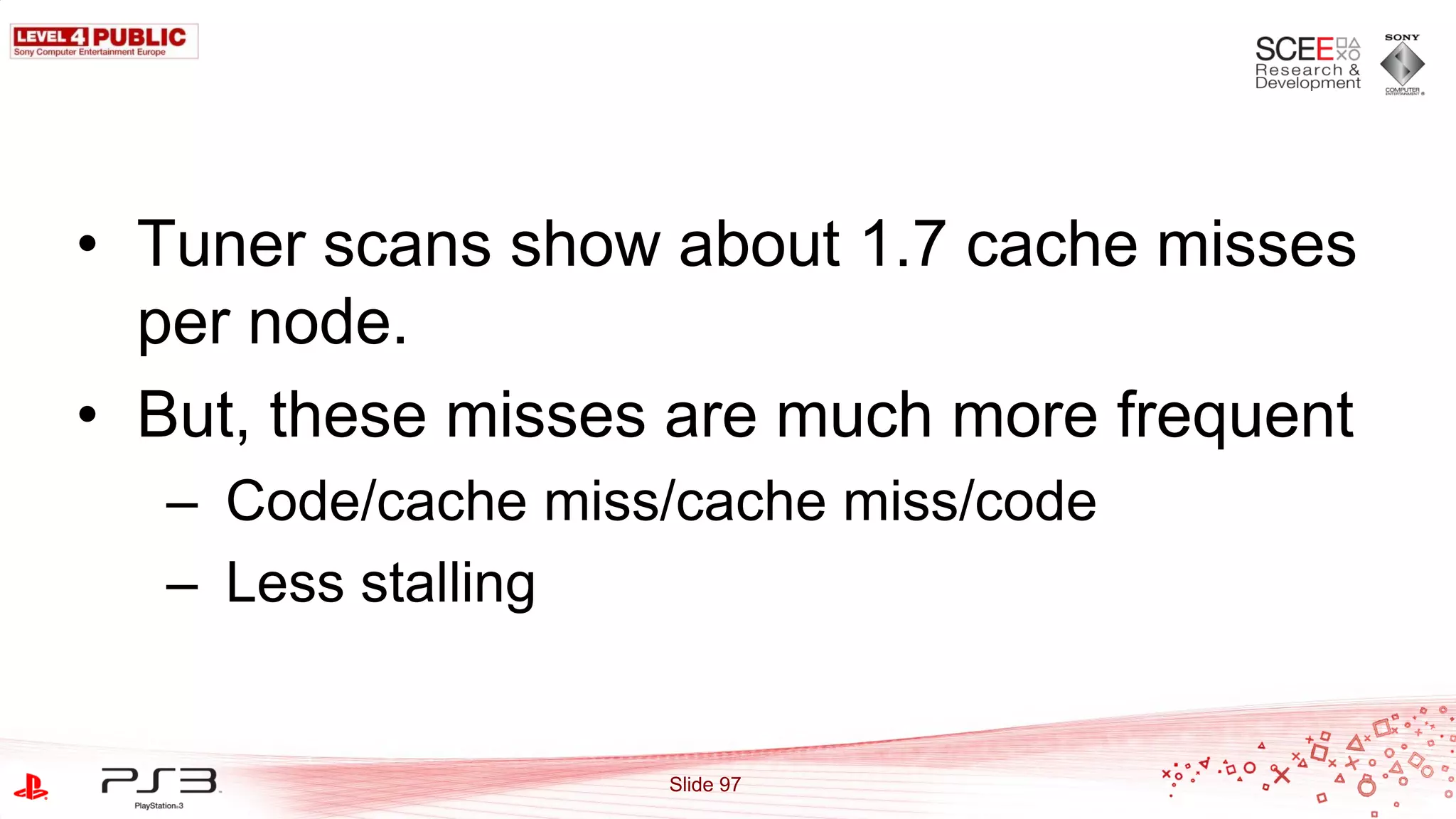

- 97. • Tuner scansshow about 1.7 cache misses per node. • But, these misses are much more frequent – Code/cache miss/cache miss/code – Less stalling Slide 97

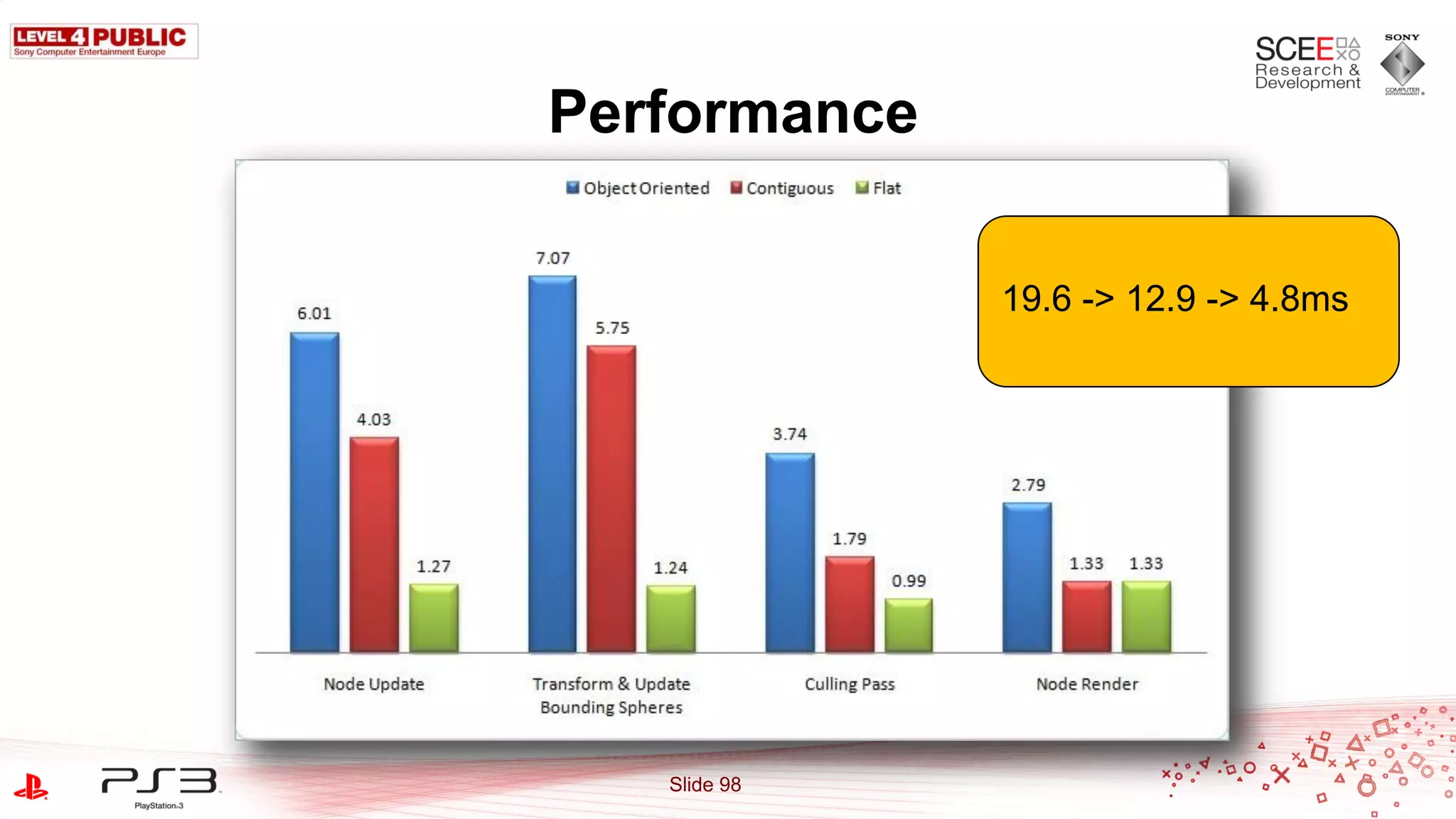

- 98. Performance 19.6 -> 12.9 -> 4.8ms Slide 98

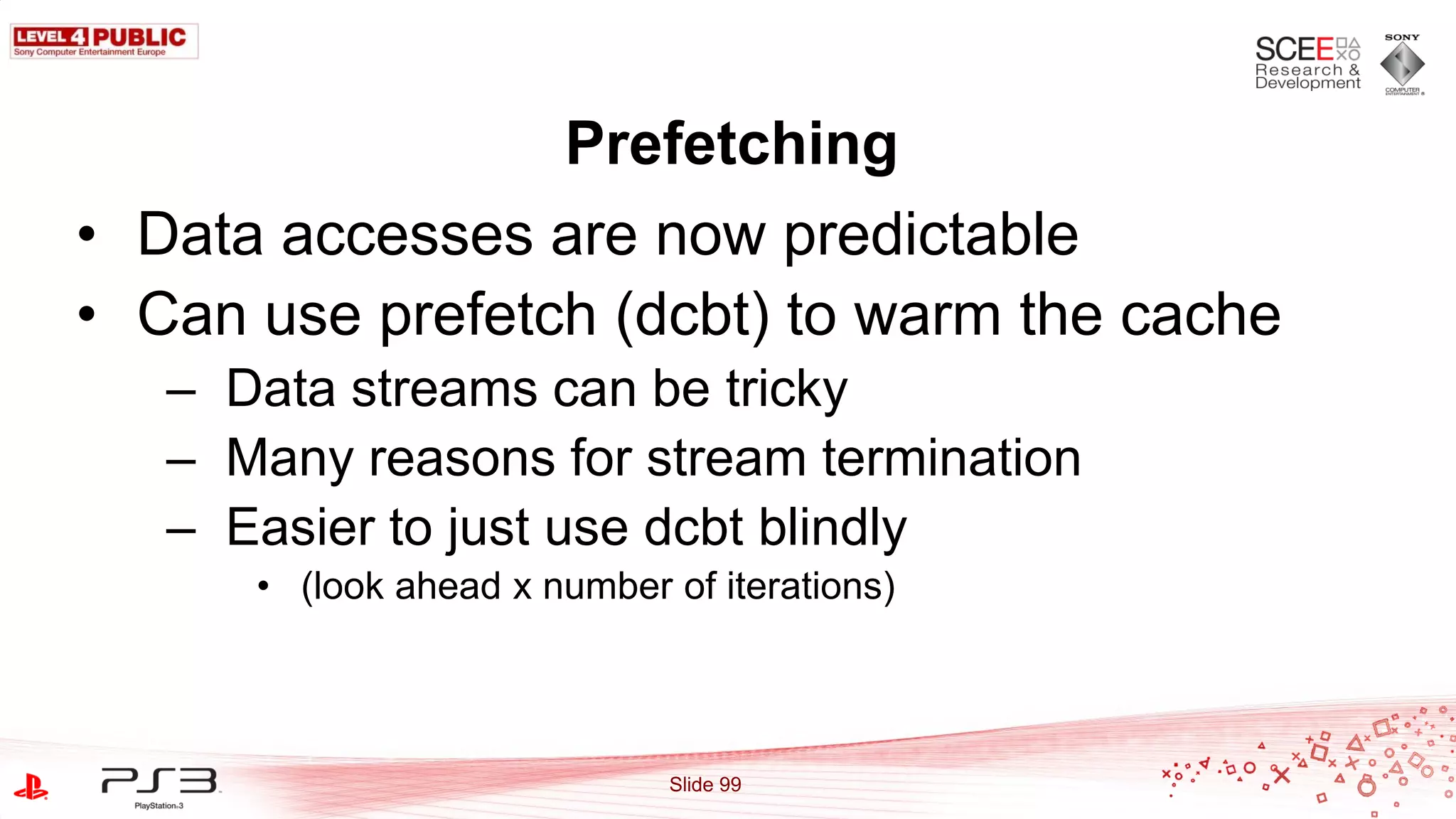

- 99. Prefetching • Data accessesare now predictable • Can use prefetch (dcbt) to warm the cache – Data streams can be tricky – Many reasons for stream termination – Easier to just use dcbt blindly • (look ahead x number of iterations) Slide 99

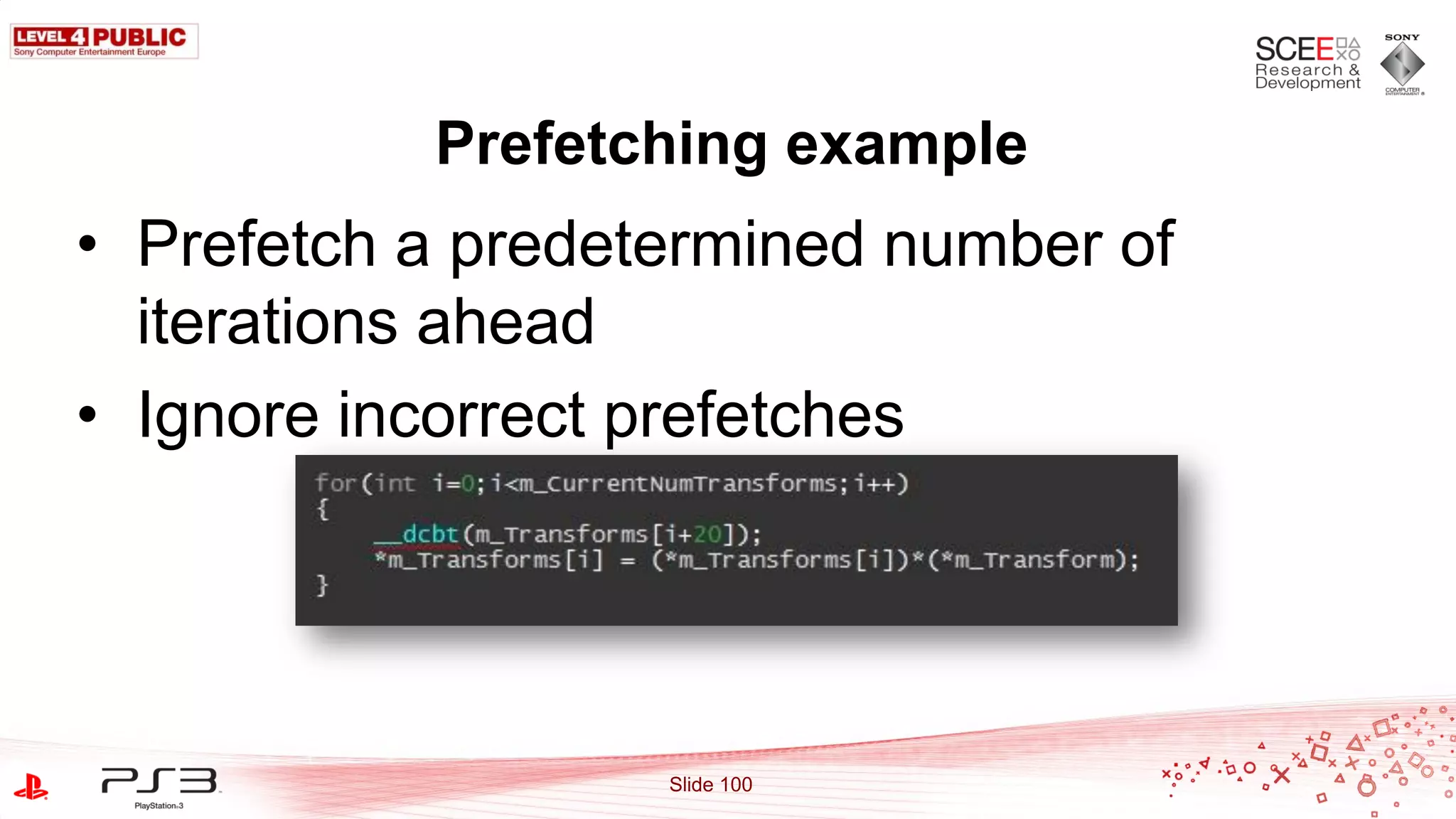

- 100. Prefetching example • Prefetcha predetermined number of iterations ahead • Ignore incorrect prefetches Slide 100

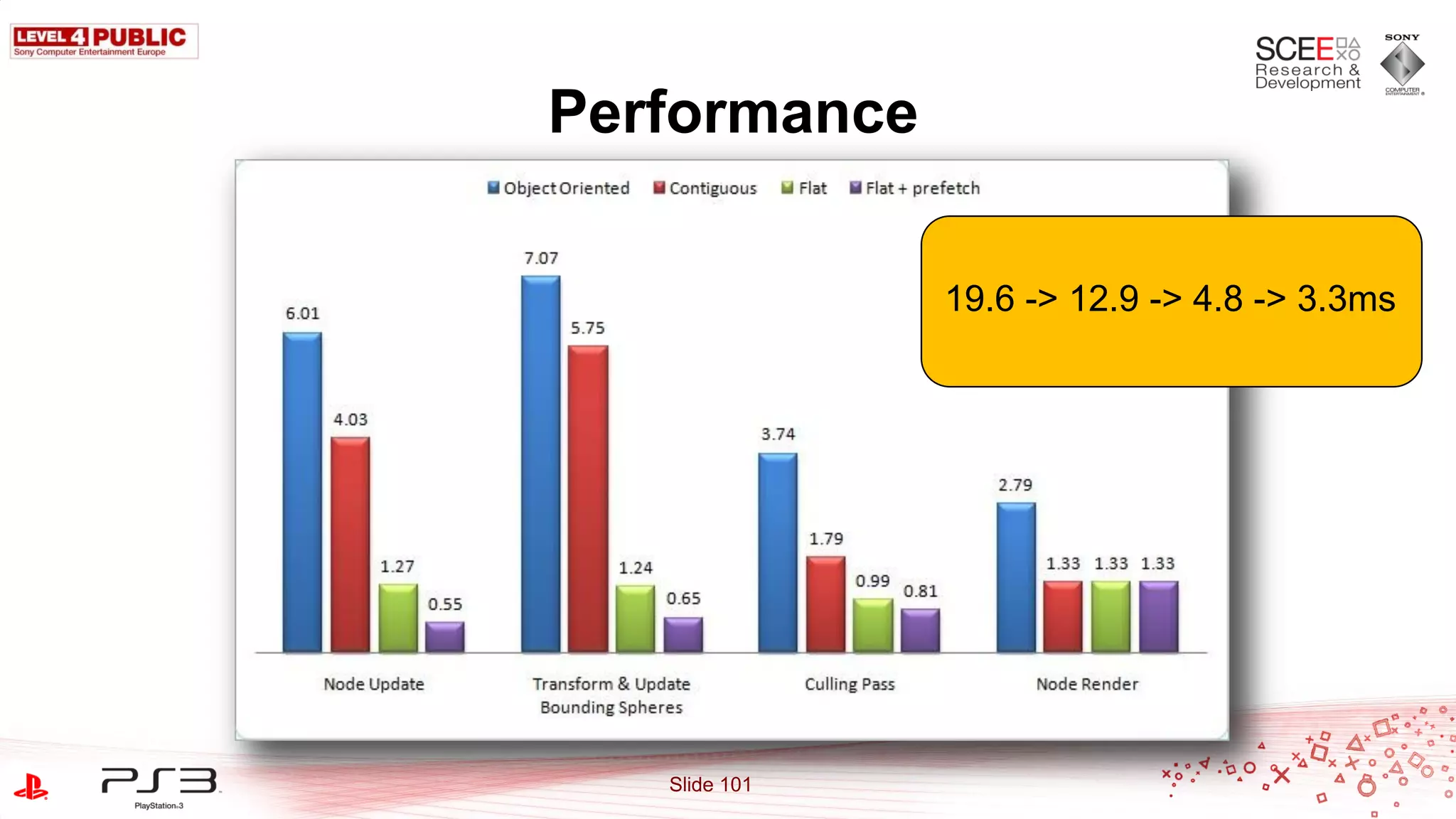

- 101. Performance 19.6 -> 12.9 -> 4.8 -> 3.3ms Slide 101

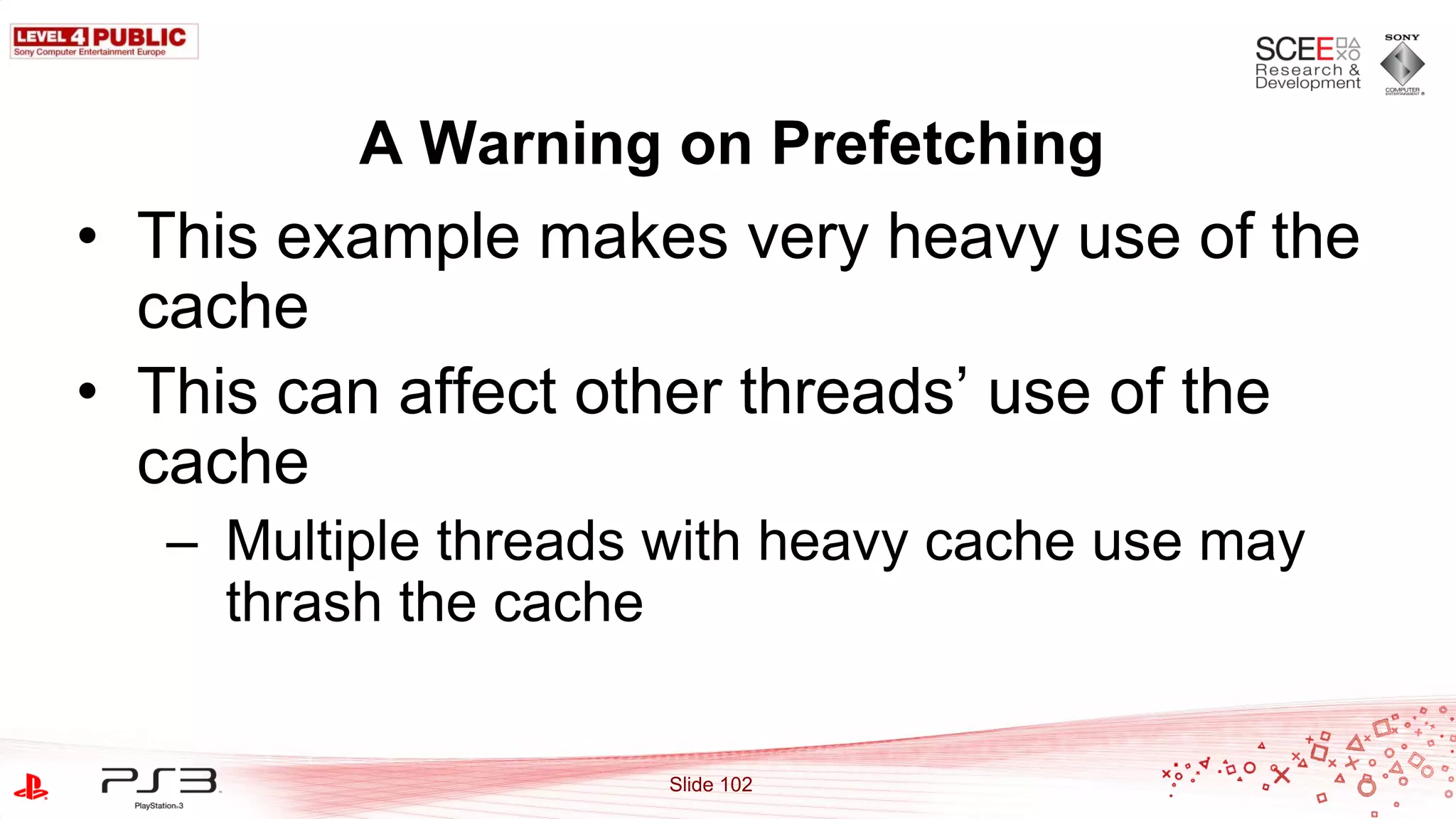

- 102. A Warning onPrefetching • This example makes very heavy use of the cache • This can affect other threads‟ use of the cache – Multiple threads with heavy cache use may thrash the cache Slide 102

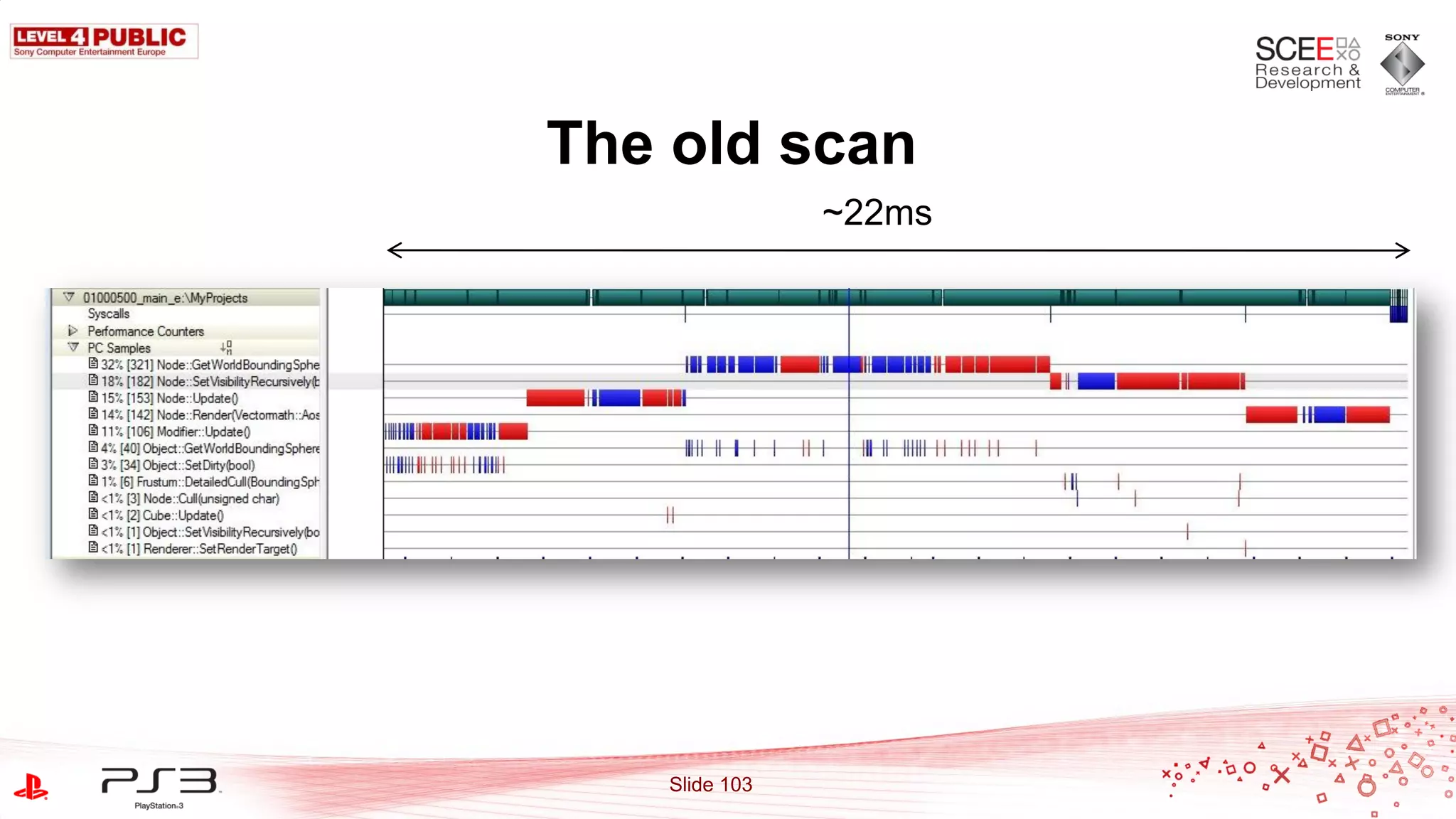

- 103. The old scan ~22ms Slide 103

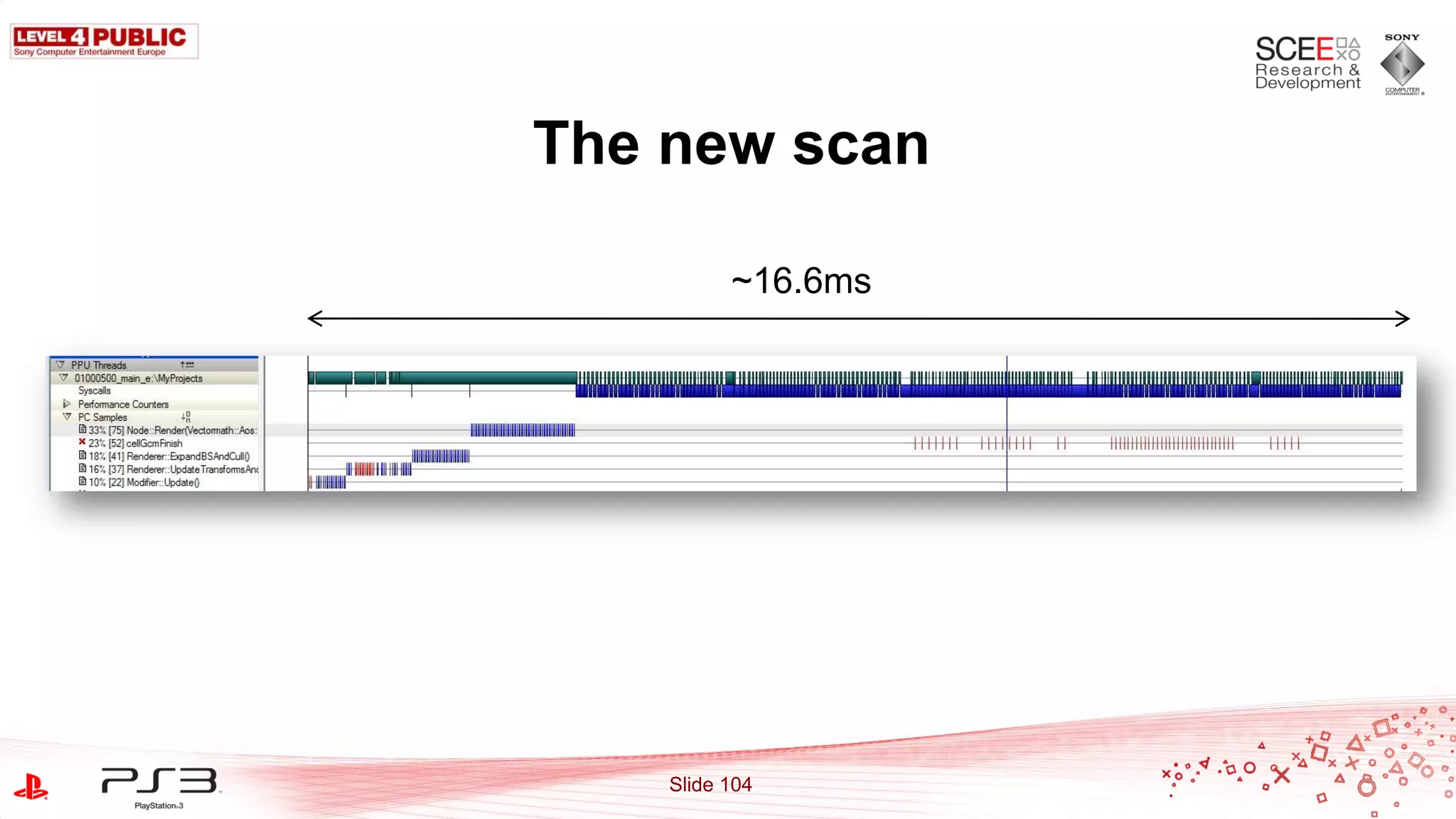

- 104. The new scan ~16.6ms Slide 104

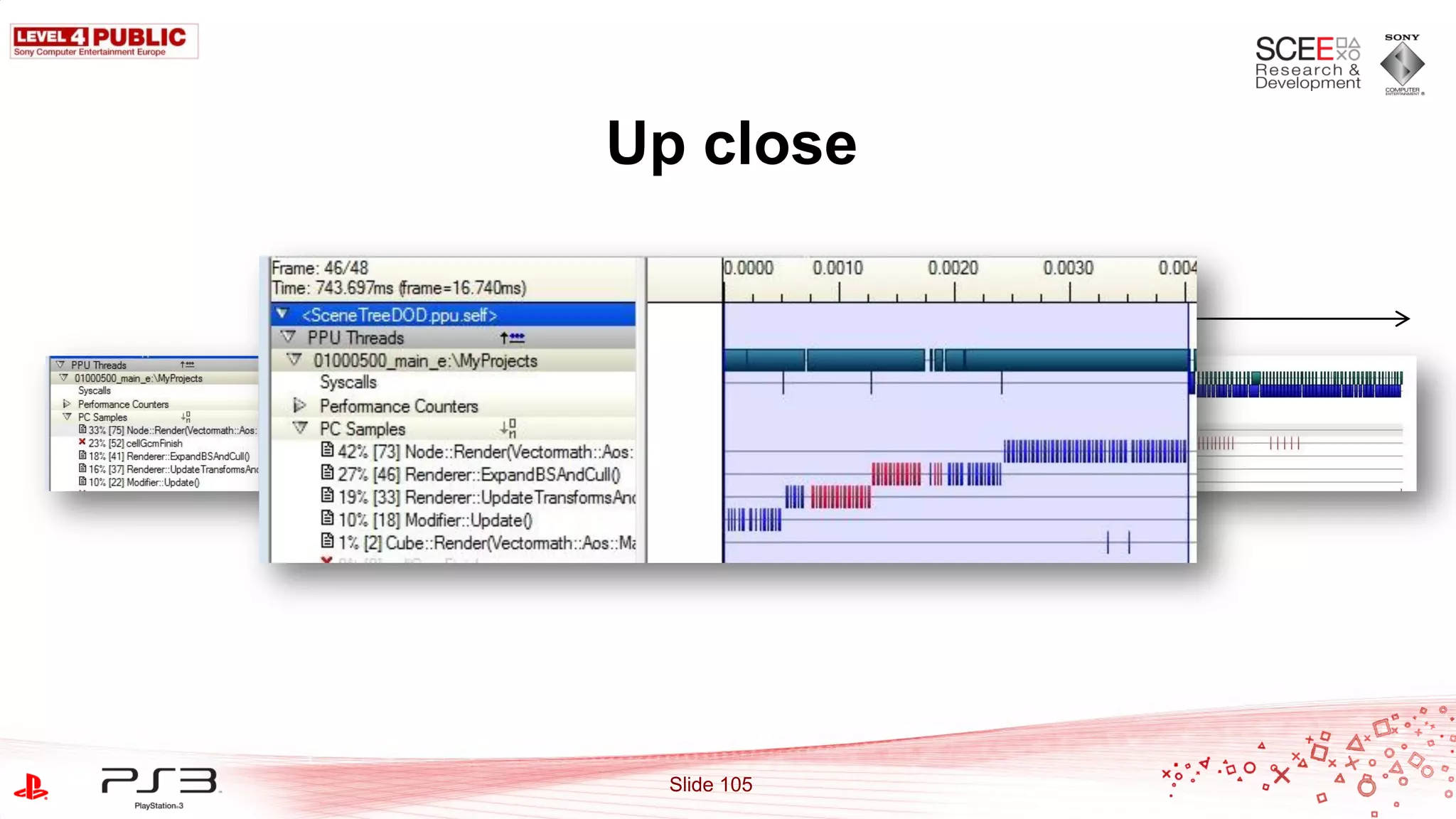

- 105. Up close ~16.6ms Slide 105

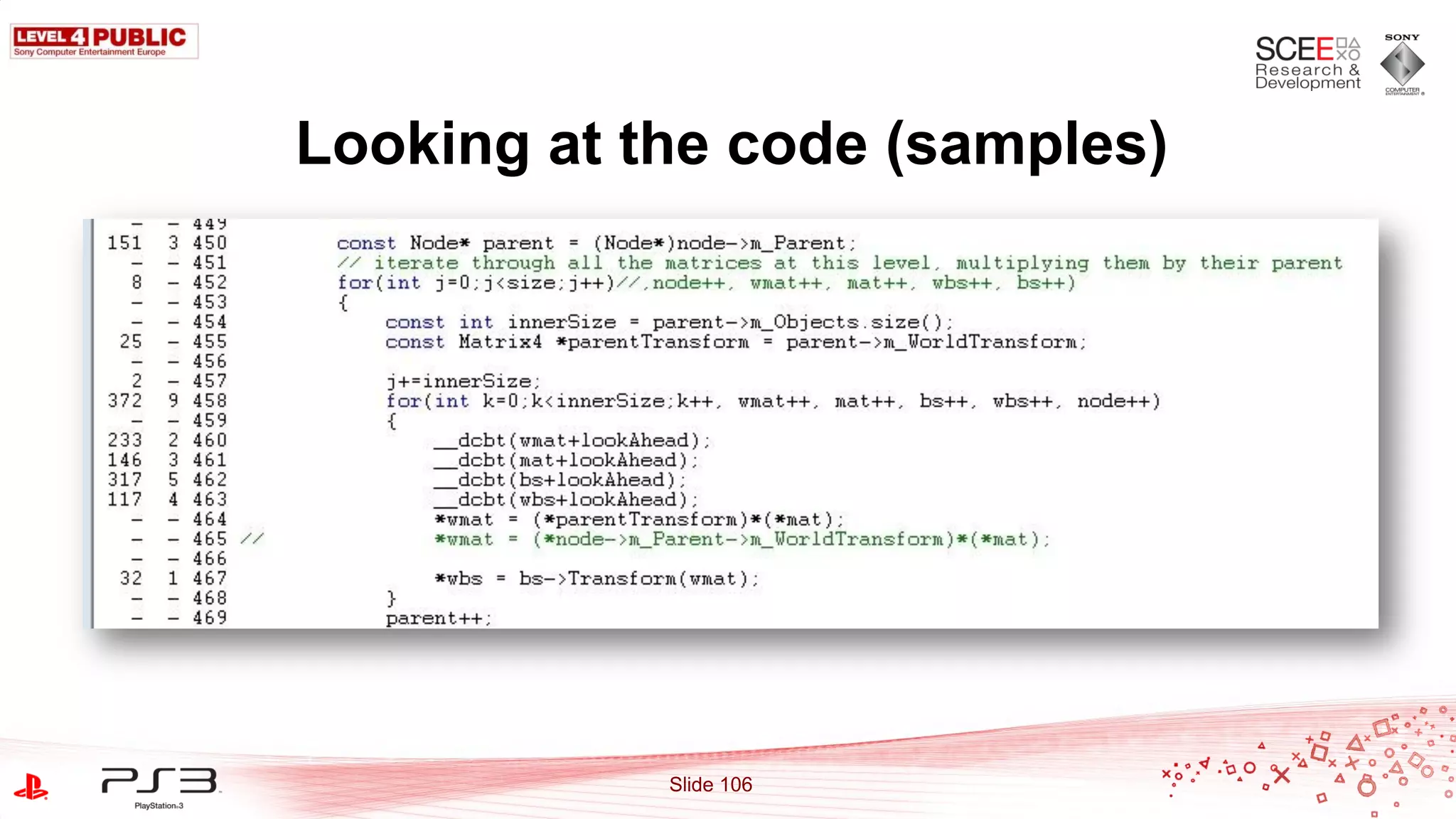

- 106. Looking at thecode (samples) Slide 106

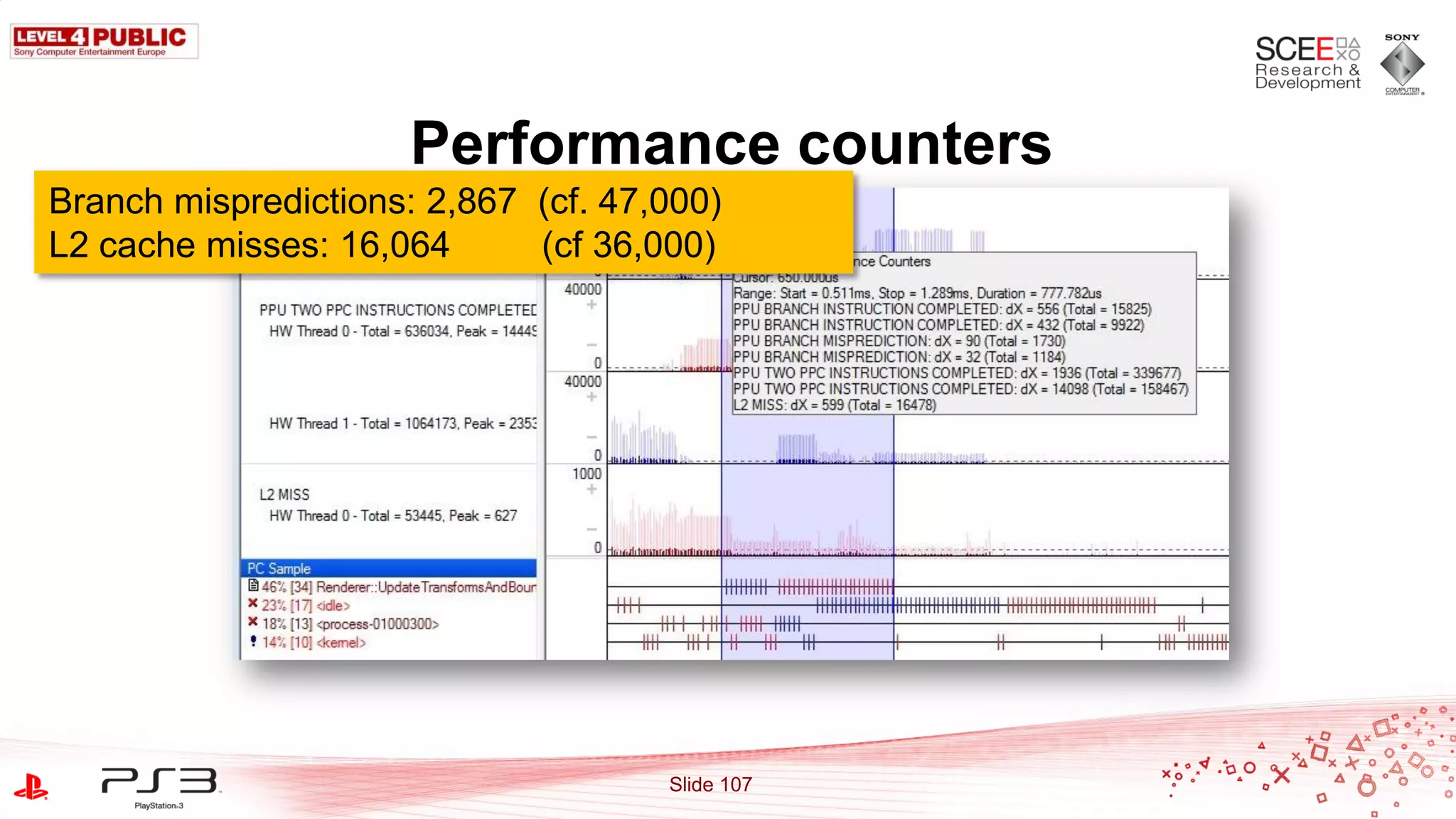

- 107. Performance counters Branch mispredictions:2,867 (cf. 47,000) L2 cache misses: 16,064 (cf 36,000) Slide 107

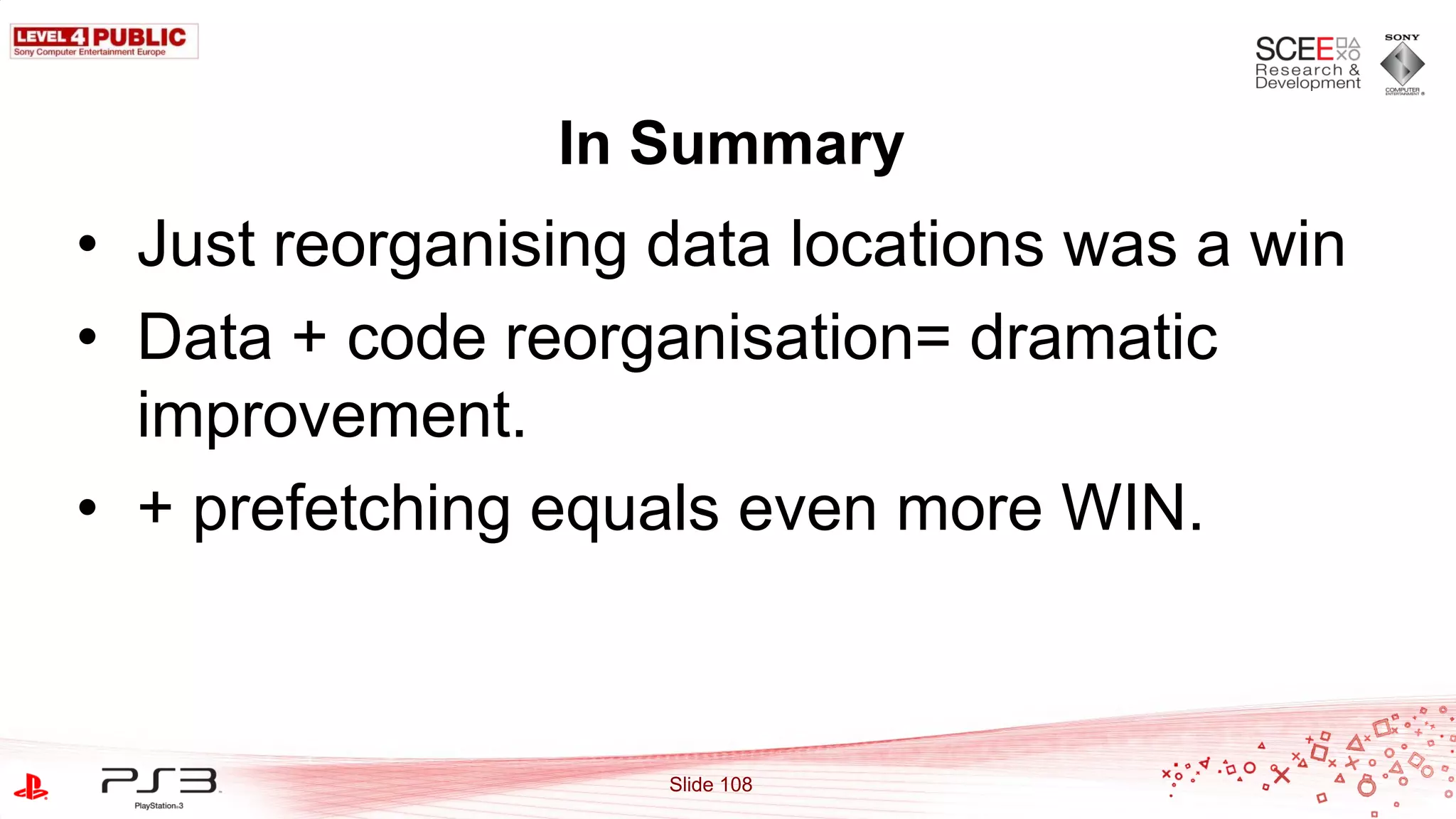

- 108. In Summary • Justreorganising data locations was a win • Data + code reorganisation= dramatic improvement. • + prefetching equals even more WIN. Slide 108
- 109. OO is notnecessarily EVIL • Be careful not to design yourself into a corner • Consider data in your design – Can you decouple data from objects? – …code from objects? • Be aware of what the compiler and HW are doing Slide 109

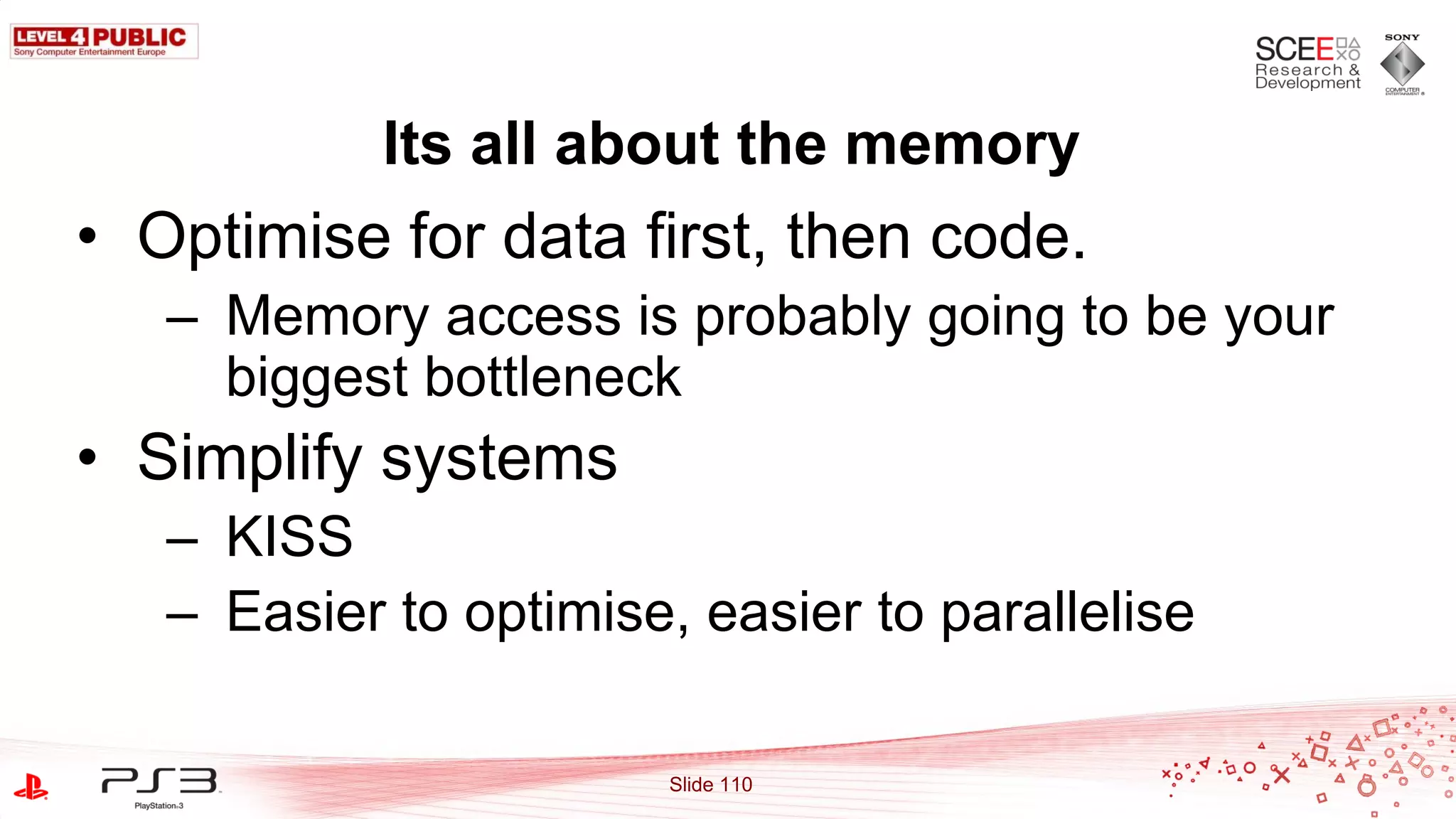

- 110. Its all aboutthe memory • Optimise for data first, then code. – Memory access is probably going to be your biggest bottleneck • Simplify systems – KISS – Easier to optimise, easier to parallelise Slide 110

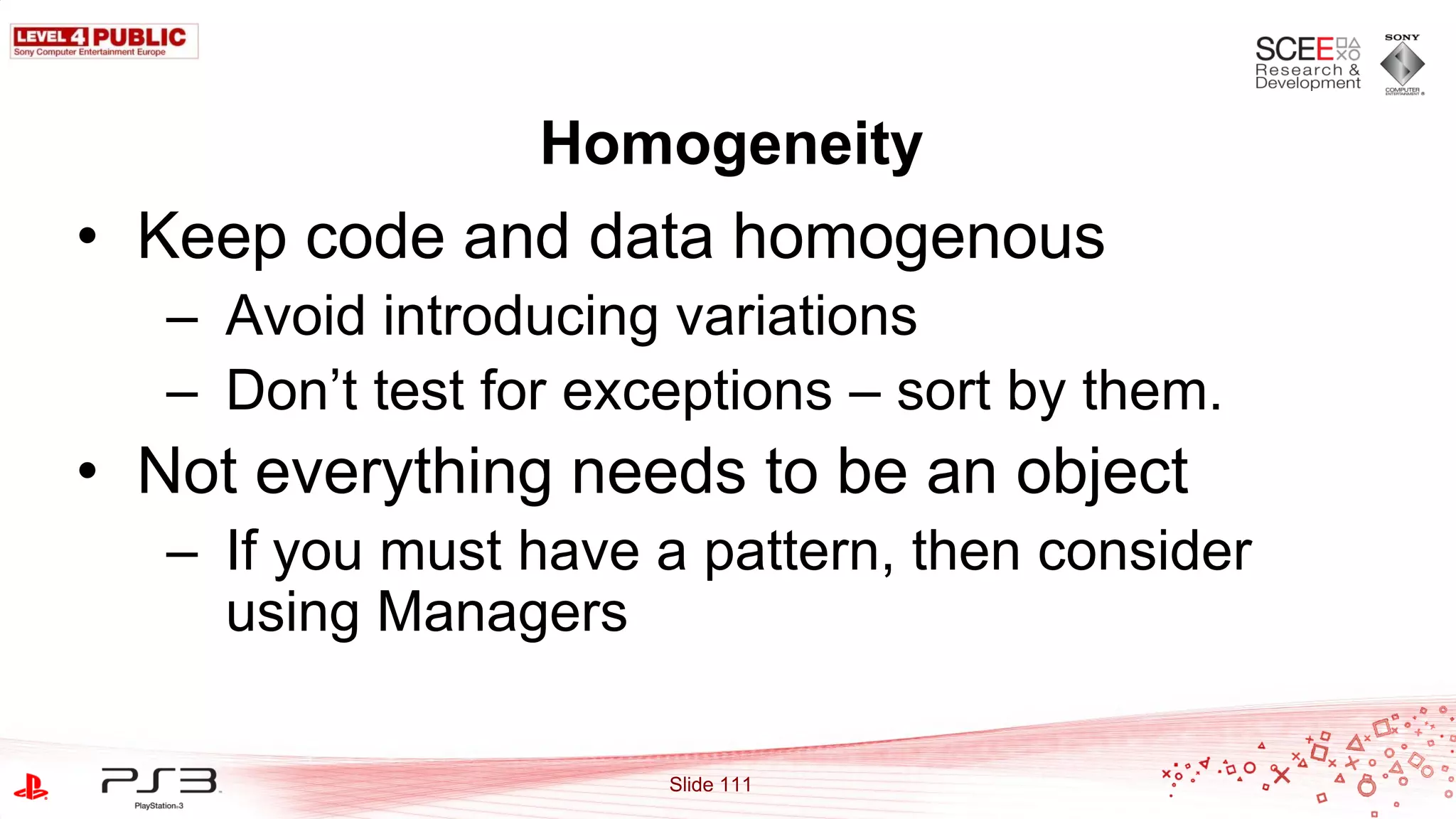

- 111. Homogeneity • Keep codeand data homogenous – Avoid introducing variations – Don‟t test for exceptions – sort by them. • Not everything needs to be an object – If you must have a pattern, then consider using Managers Slide 111

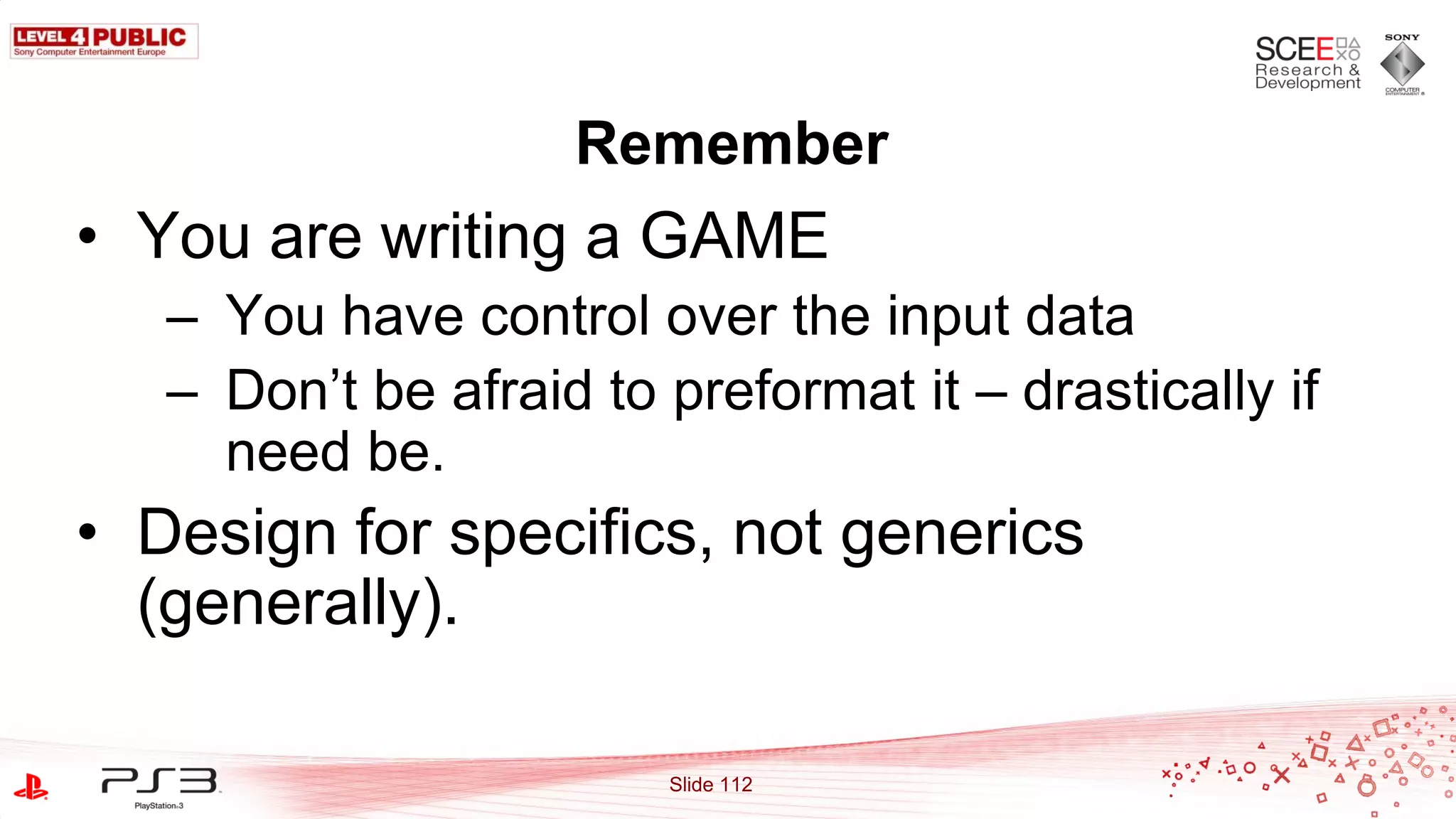

- 112. Remember • You arewriting a GAME – You have control over the input data – Don‟t be afraid to preformat it – drastically if need be. • Design for specifics, not generics (generally). Slide 112

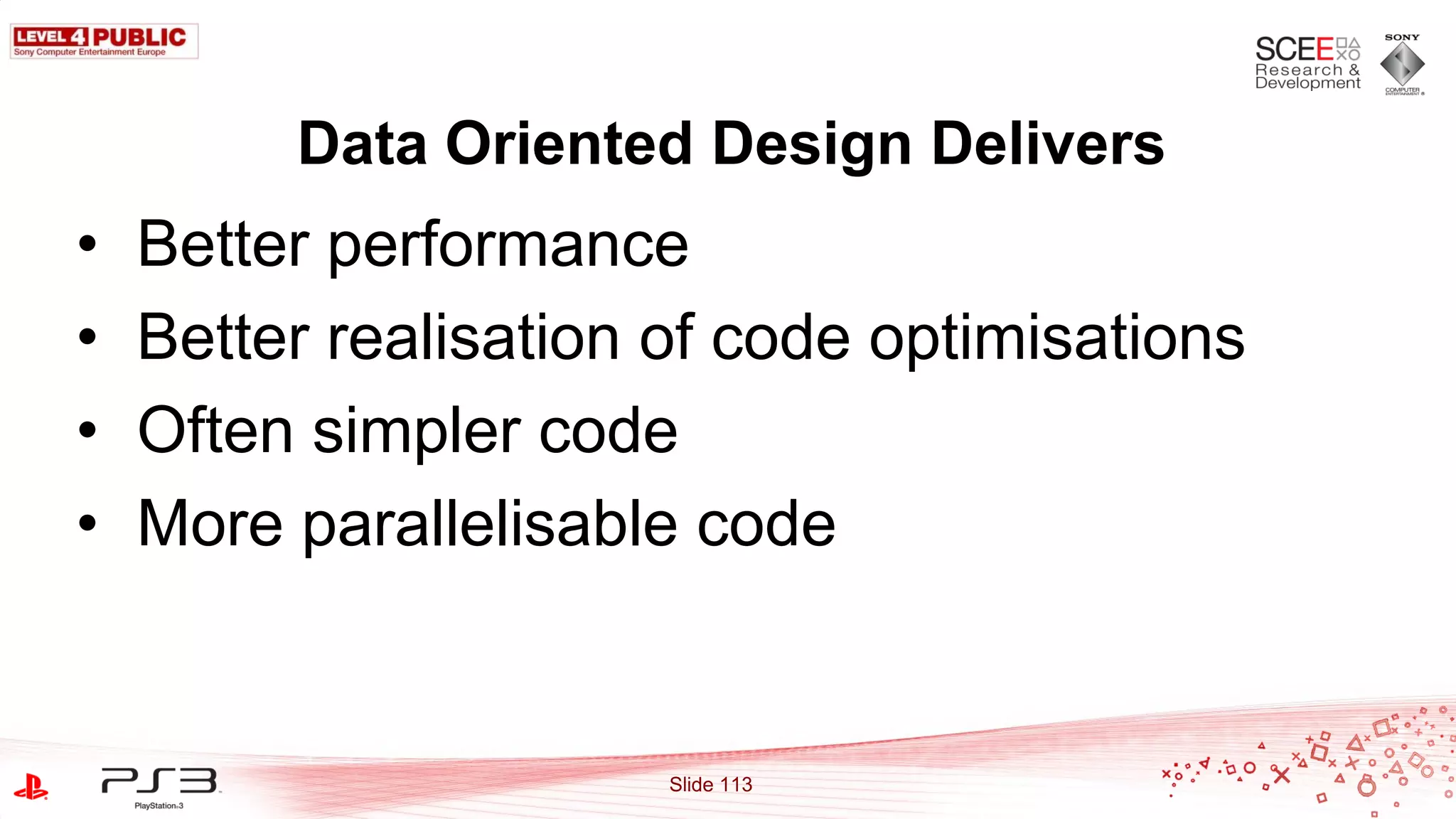

- 113. Data Oriented DesignDelivers • Better performance • Better realisation of code optimisations • Often simpler code • More parallelisable code Slide 113
- 114. The END • Questions? Slide 114
