  Parallel K-means Clustering usingCUDA Lan Liu Pritha D N 12/06/2016 1
• 2.
  Outline ● Performance Analysis ●Overview of CUDA ● Future Work 2
• 3.
  Review of Parallelization ●Complexity of sequential K-Means algorithm: O(N*D*K*T) N: # of datas. D: # of dimension. K: # of clusters. T: # of iterations. ● Complexity of each iteration step: Part2: compute the new center as mean of new cluster datas. O((N+K)*D)--> O((2*delta+K)*D) delta: #of membership change. 3 Part1: for each data point, compute the distance with K cluster centers and assign to the nearest one. O(N*D*K) Parallelize on CUDA (SIMD: single instruction multiple data)
• 4.

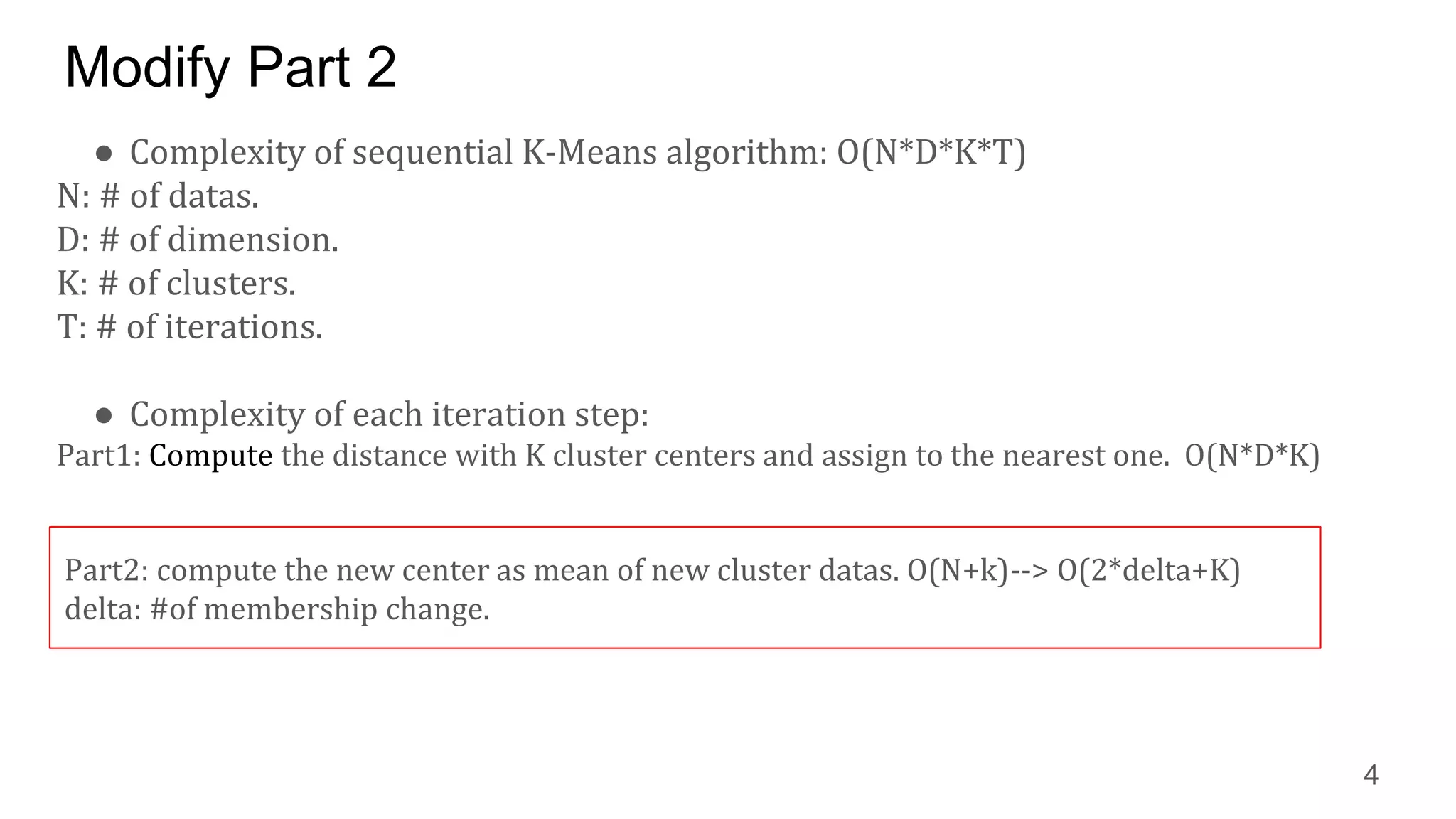

  Modify Part 2 ●Complexity of sequential K-Means algorithm: O(N*D*K*T) N: # of datas. D: # of dimension. K: # of clusters. T: # of iterations. ● Complexity of each iteration step: Part1: Compute the distance with K cluster centers and assign to the nearest one. O(N*D*K) 4 Part2: compute the new center as mean of new cluster datas. O(N+k)--> O(2*delta+K) delta: #of membership change.
• 5.
  Performance Analysis 5 Experiment1: setK=128, D=1000, changing size N.
• 6.

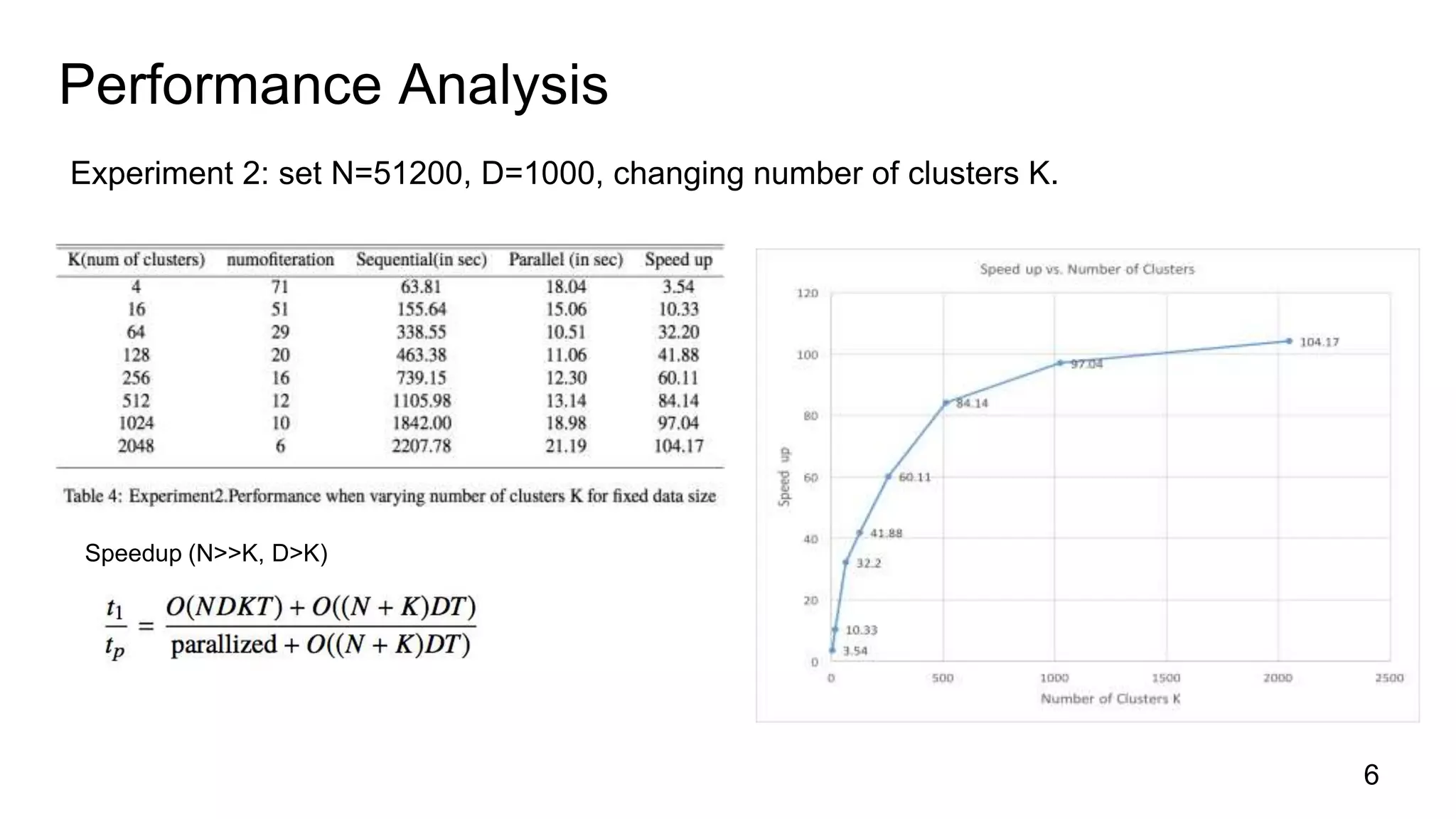

  Performance Analysis Experiment 2:set N=51200, D=1000, changing number of clusters K. 6 Speedup (N>>K, D>K)
• 7.
  Performance Analysis Experiment 3:set N=51200, D=1000, T=30. changing number of clusters K. 7
• 8.
  Performance Analysis Experiment 3continue.. 8 Slope~1, K double, running time double
• 9.

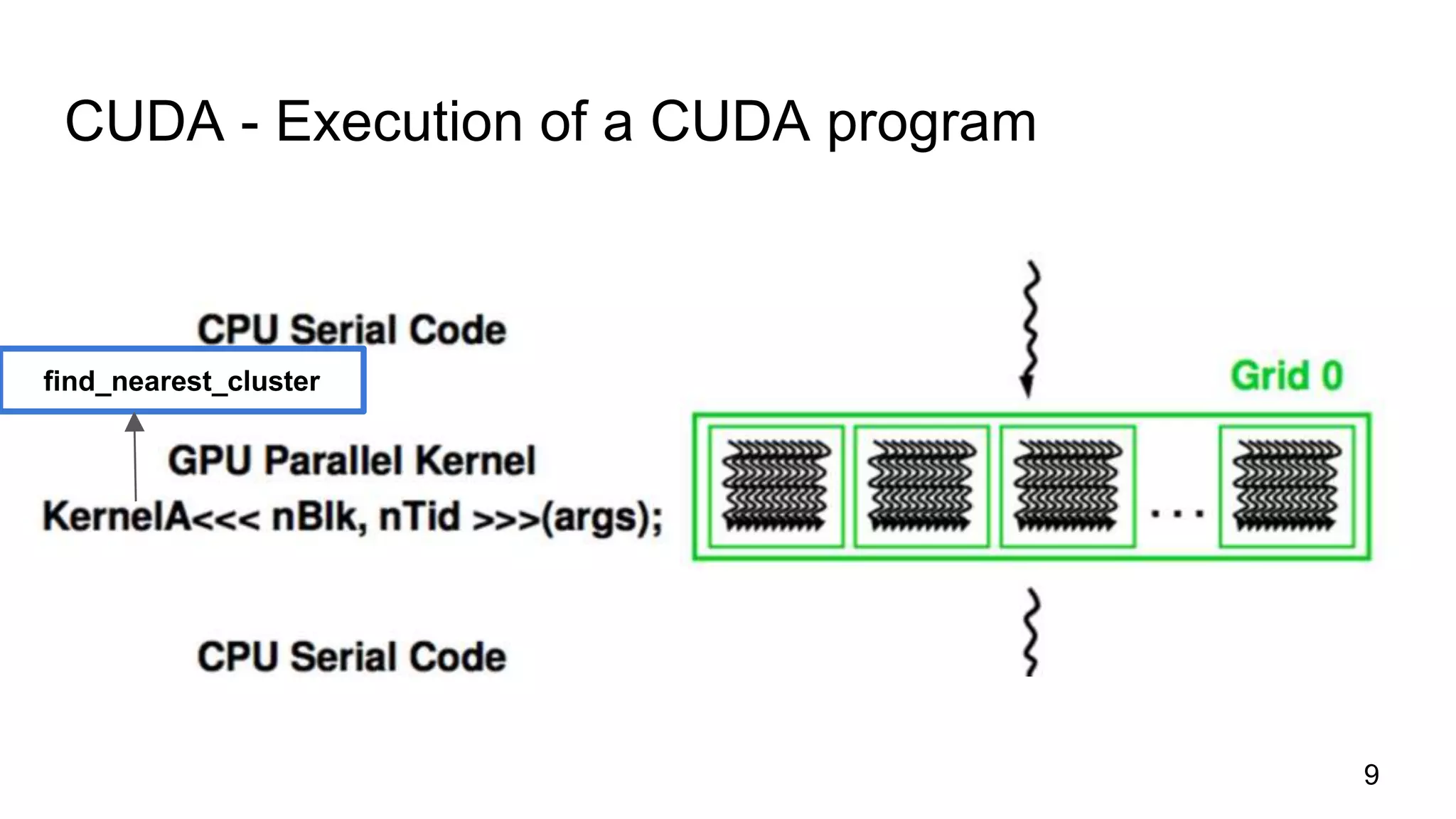

  CUDA - Executionof a CUDA program 9 find_nearest_cluster
• 10.

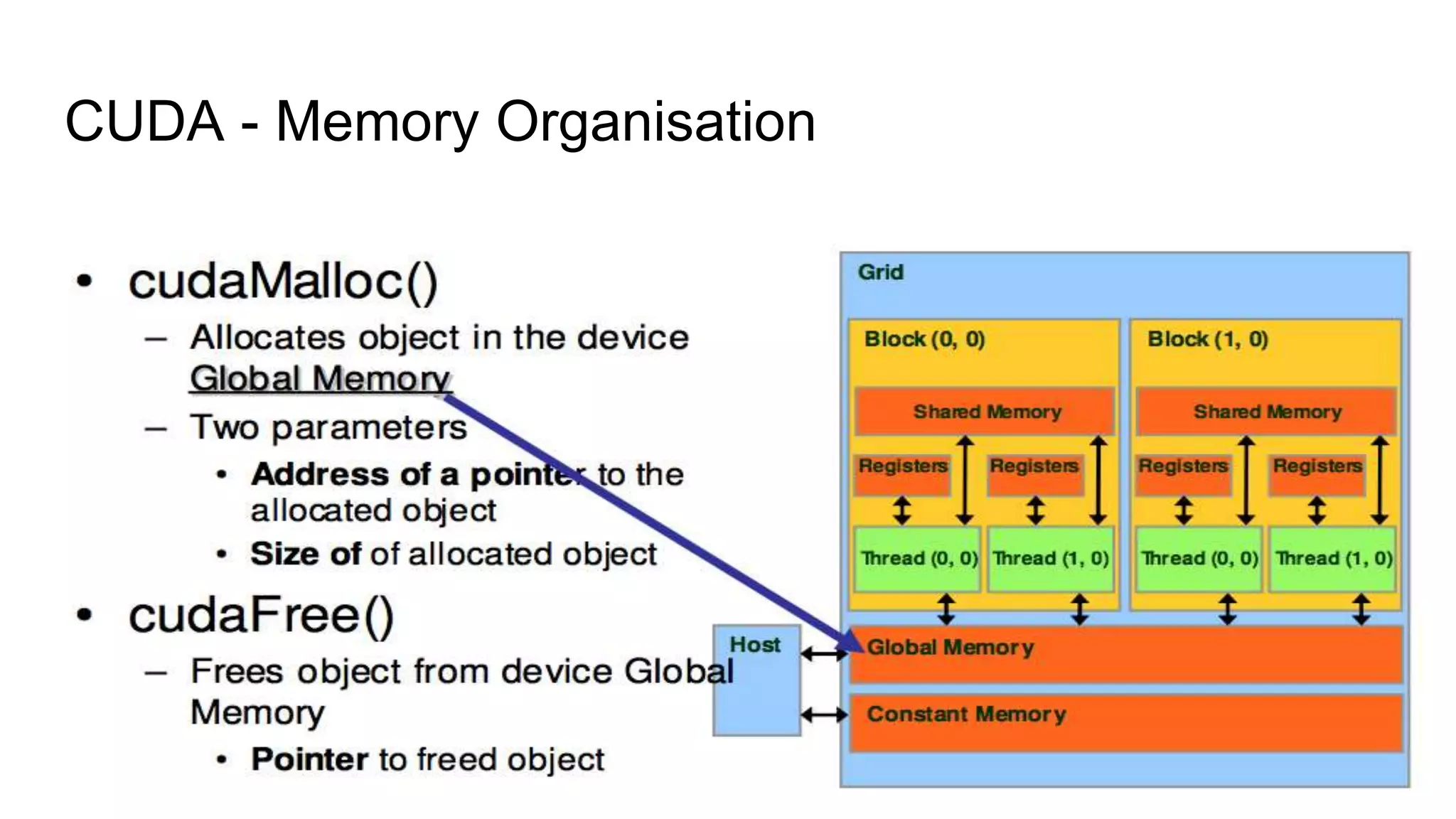

  CUDA - MemoryOrganisation 10
• 11.
  CUDA - ThreadOrganization Execution resources are organized into Streaming Multiprocessors(SM). Blocks are assigned to Streaming Multiprocessors in arbitrary order. Blocks are further partitioned into warps. SM executes only one of its resident warps at a time. The goal is to keep an SM max occupied. 11 Threads per Warp 32 Max Warps per Multiprocessor 64 Max Thread Blocks per Multiprocessor 16
• 12.

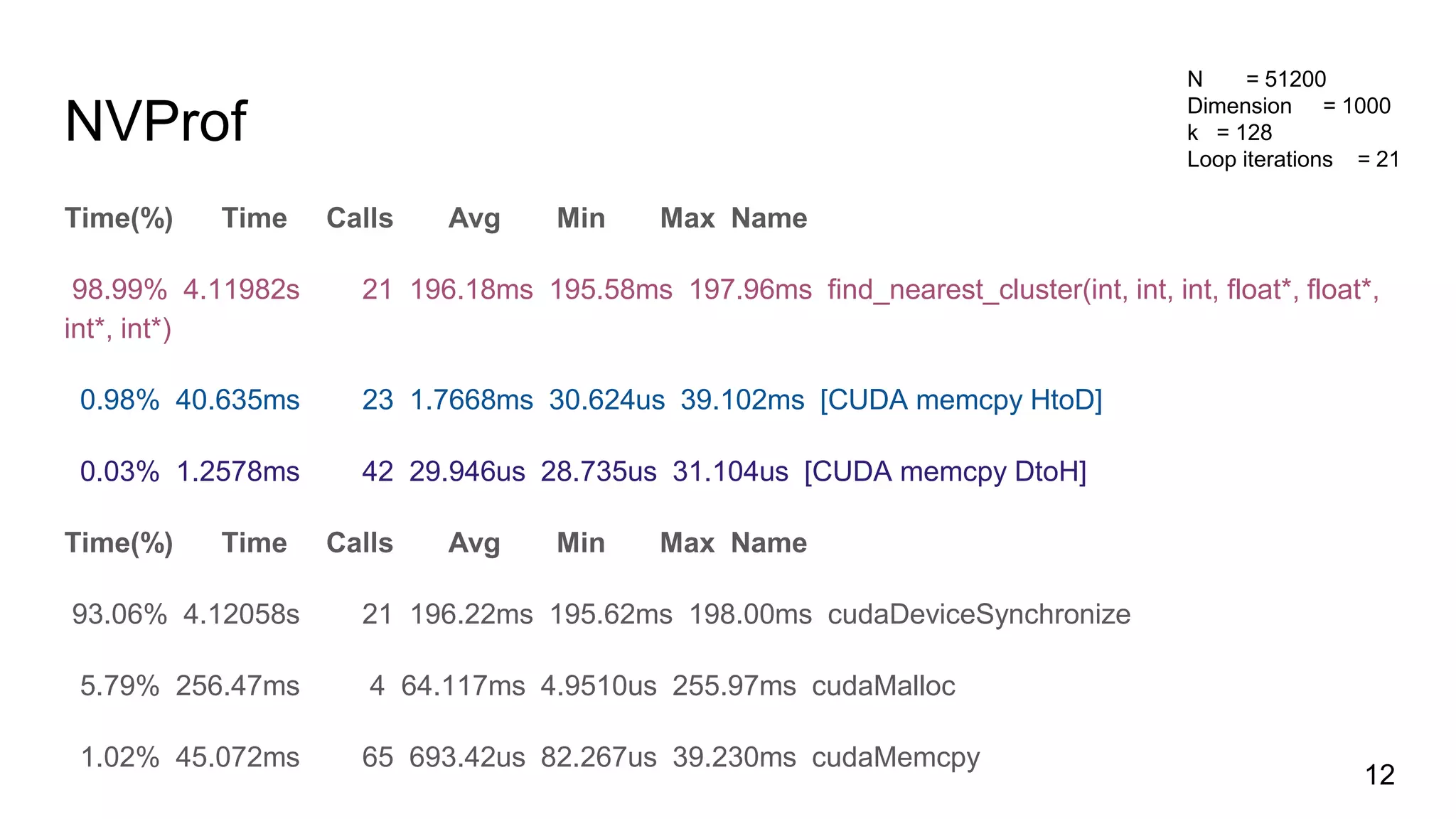

  NVProf Time(%) Time CallsAvg Min Max Name 98.99% 4.11982s 21 196.18ms 195.58ms 197.96ms find_nearest_cluster(int, int, int, float*, float*, int*, int*) 0.98% 40.635ms 23 1.7668ms 30.624us 39.102ms [CUDA memcpy HtoD] 0.03% 1.2578ms 42 29.946us 28.735us 31.104us [CUDA memcpy DtoH] Time(%) Time Calls Avg Min Max Name 93.06% 4.12058s 21 196.22ms 195.62ms 198.00ms cudaDeviceSynchronize 5.79% 256.47ms 4 64.117ms 4.9510us 255.97ms cudaMalloc 1.02% 45.072ms 65 693.42us 82.267us 39.230ms cudaMemcpy 12 N = 51200 Dimension = 1000 k = 128 Loop iterations = 21
• 13.

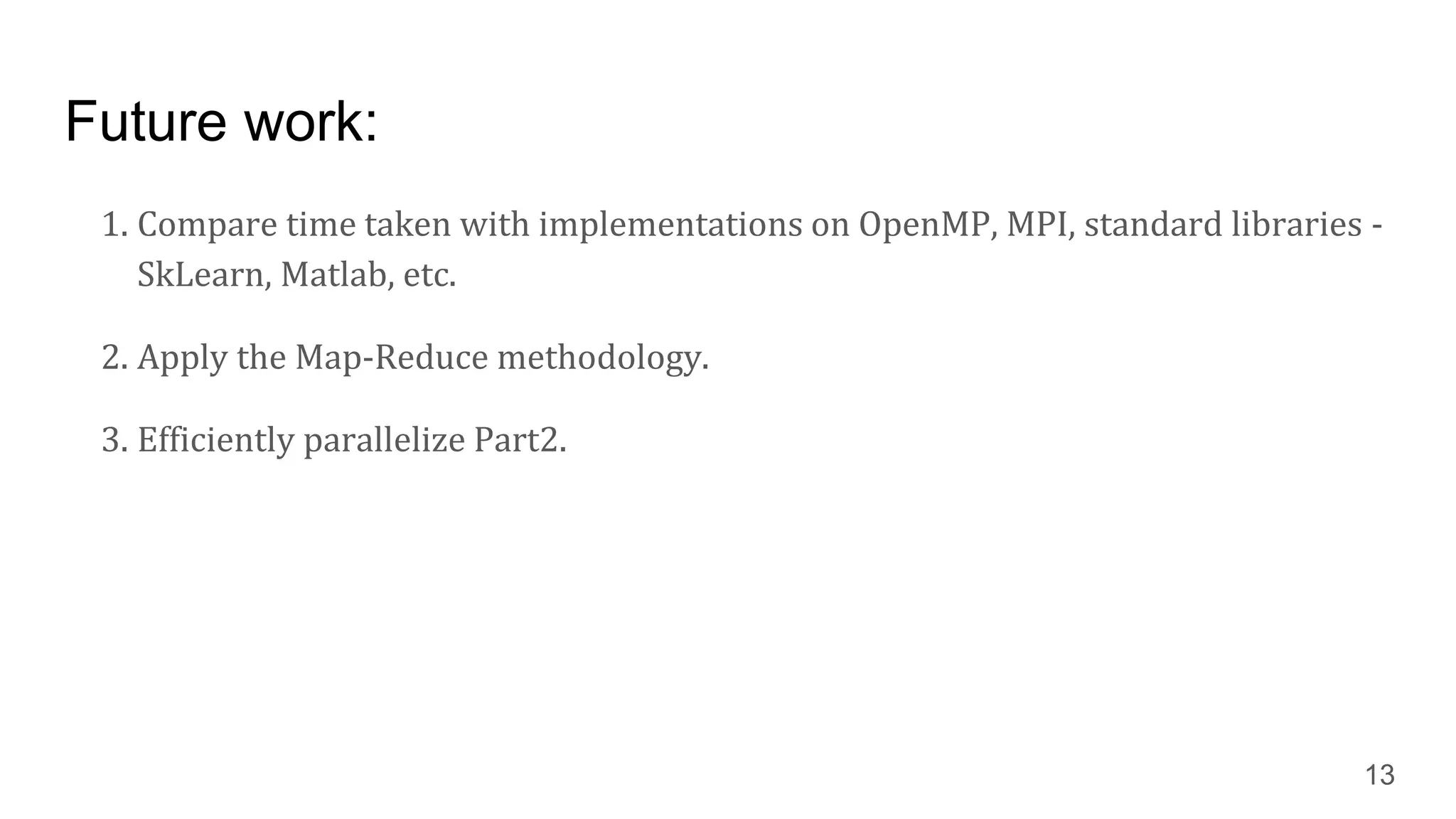

  Future work: 1. Comparetime taken with implementations on OpenMP, MPI, standard libraries - SkLearn, Matlab, etc. 2. Apply the Map-Reduce methodology. 3. Efficiently parallelize Part2. 13
• 14.
  Thank You! Questions? 14
• 15.

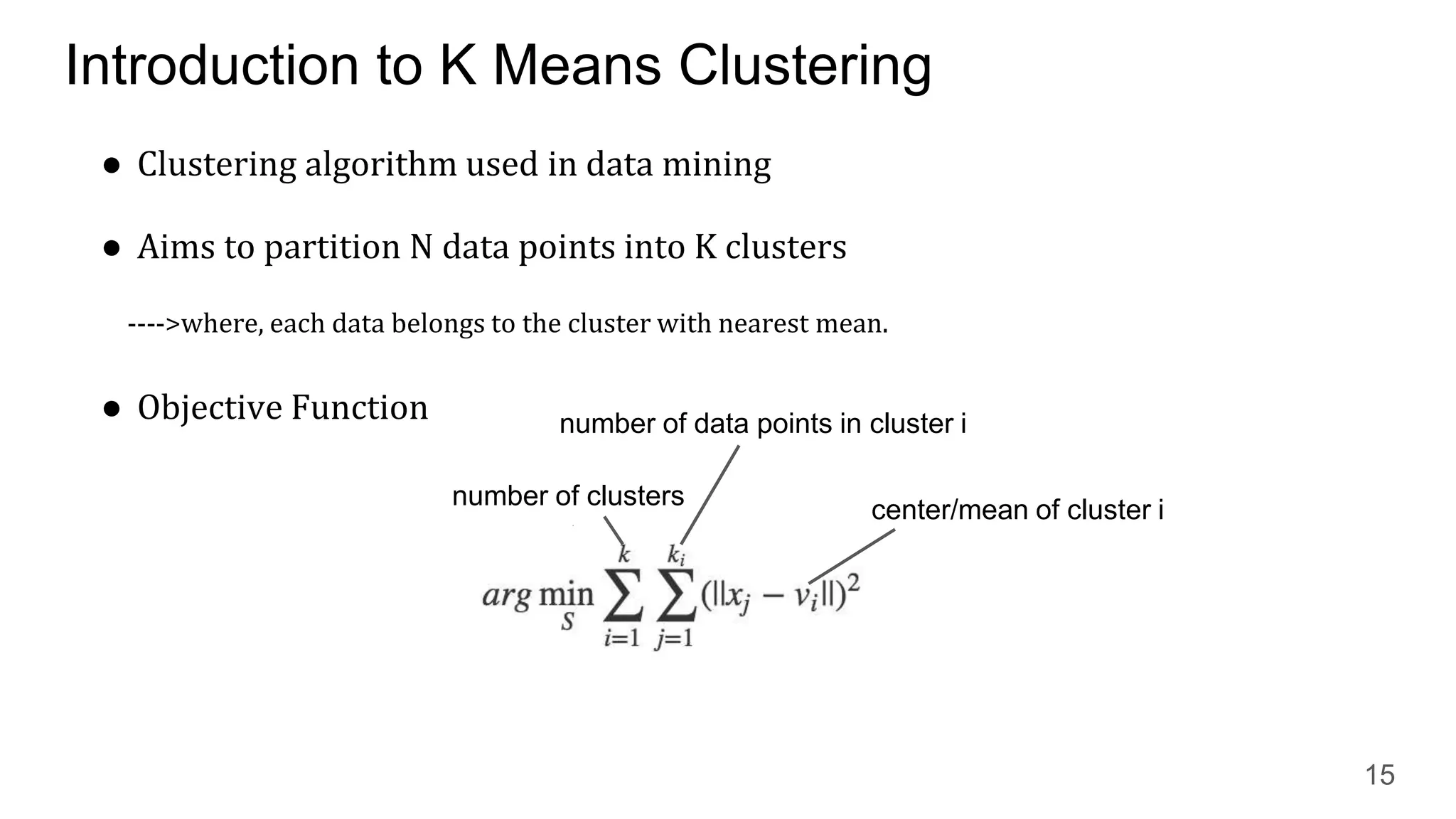

  Introduction to KMeans Clustering ● Clustering algorithm used in data mining ● Aims to partition N data points into K clusters ---->where, each data belongs to the cluster with nearest mean. ● Objective Function 15 number of clusters center/mean of cluster i number of data points in cluster i
• 16.

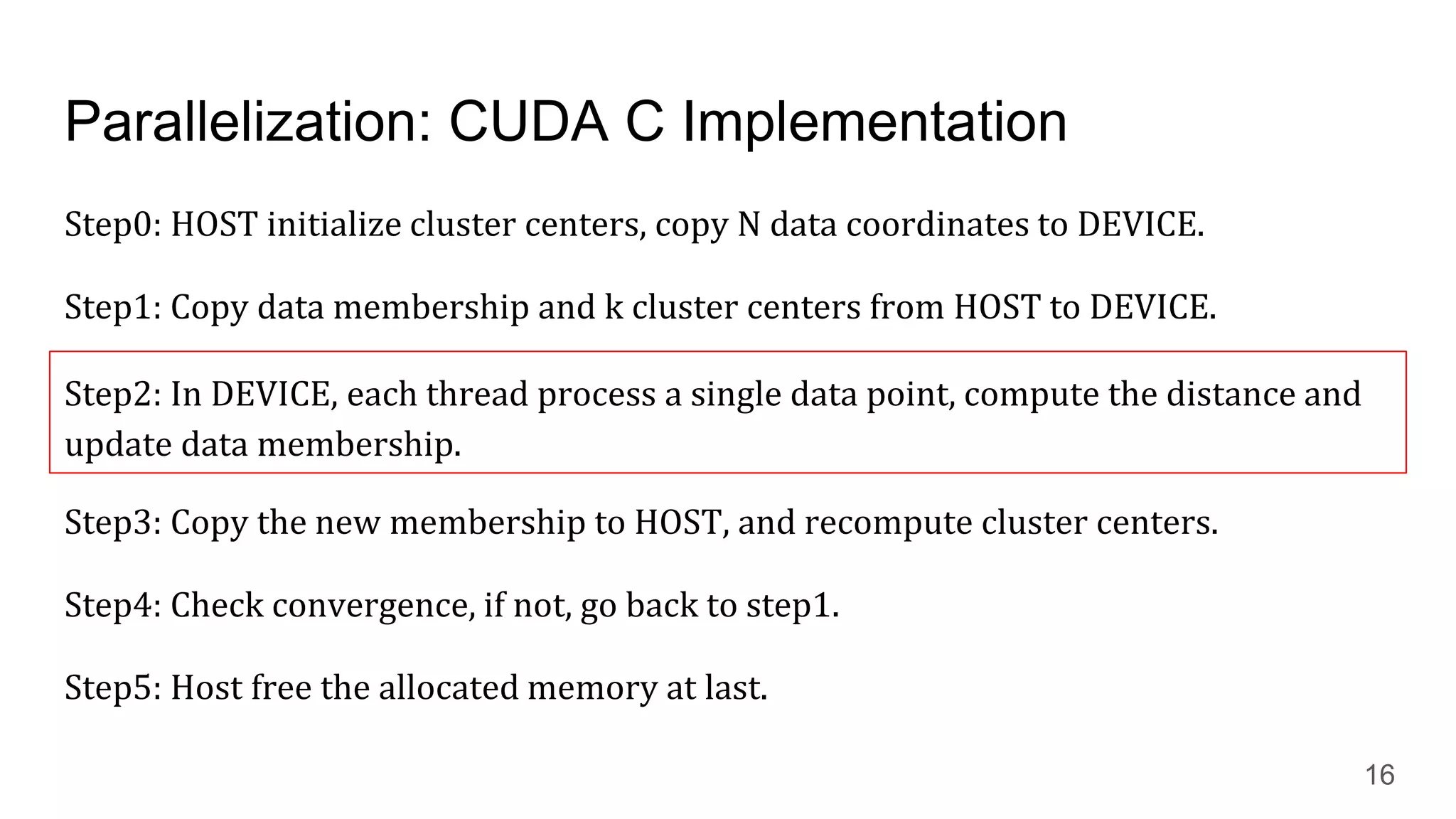

  Parallelization: CUDA CImplementation Step0: HOST initialize cluster centers, copy N data coordinates to DEVICE. Step1: Copy data membership and k cluster centers from HOST to DEVICE. Step2: In DEVICE, each thread process a single data point, compute the distance and update data membership. Step3: Copy the new membership to HOST, and recompute cluster centers. Step4: Check convergence, if not, go back to step1. Step5: Host free the allocated memory at last. 16 Step2: In DEVICE, each thread process a single data point, compute the distance and update data membership.
• 17.

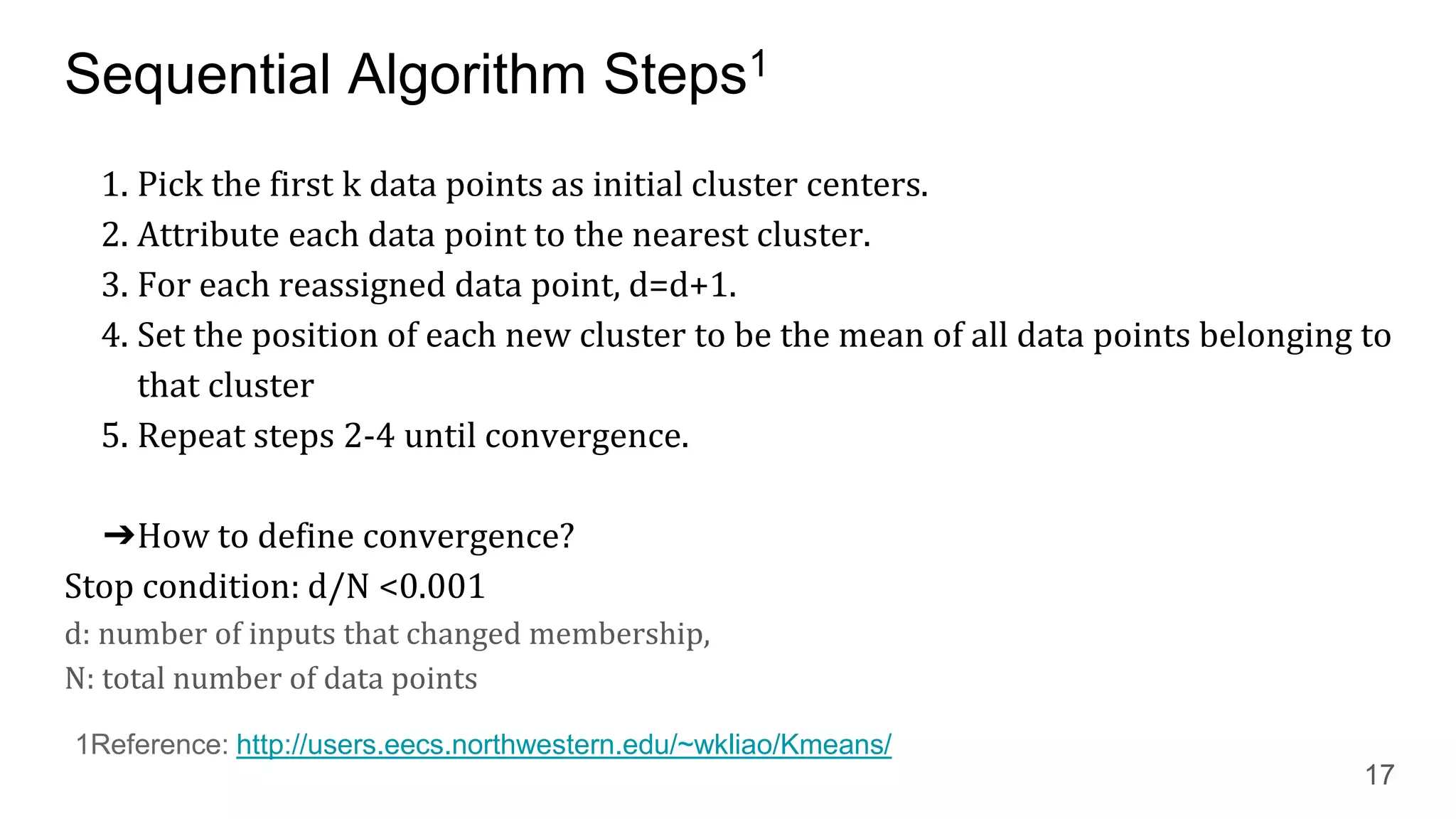

  1. Pick thefirst k data points as initial cluster centers. 2. Attribute each data point to the nearest cluster. 3. For each reassigned data point, d=d+1. 4. Set the position of each new cluster to be the mean of all data points belonging to that cluster 5. Repeat steps 2-4 until convergence. ➔How to define convergence? Stop condition: d/N <0.001 d: number of inputs that changed membership, N: total number of data points 17 Sequential Algorithm Steps1 1Reference: http://users.eecs.northwestern.edu/~wkliao/Kmeans/
• 18.

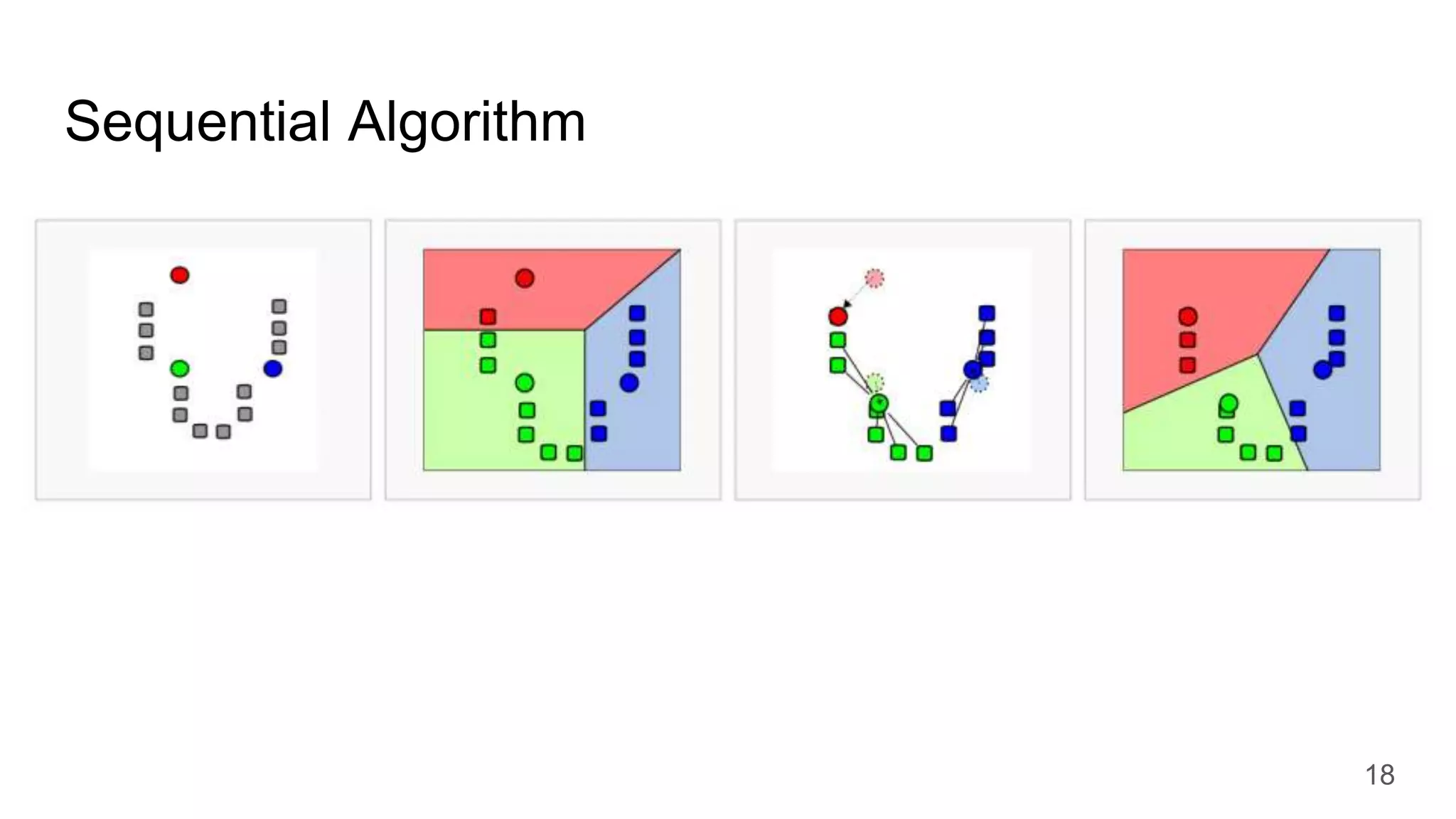

  Sequential Algorithm 18
• 19.
  GPU based----CUDA C IfCPU has p cores, n datas, each core process n/p datas. GPU process one element per thread.(The number of threads are very large ~1000 or more) GPU is more effective than CPU when dealing with large blocks of data in parallel. CUDA C: Host---> CPU, Device-->GPU. The host launches a kernel that execute on the device. 19
