OVHcloud TechTalks - ML serving
The document discusses OVHcloud's machine learning (ML) serving capabilities, simplifying the deployment of ML models by automating processes via APIs and reducing time-to-production. It highlights features such as model lifecycle management, scaling, monitoring, and supporting various model formats like ONNX, TensorFlow, and PMML. Additionally, it emphasizes ease of integration through web APIs for converting input/output data types and managing content types.
More Related Content
Similar to OVHcloud TechTalks - ML serving
OVHcloud TechTalks - ML serving
- 1.
- 2. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou OVHcloudML Serving Maël Le Gal github:mael-le-gal Christophe Rannou @ChrisRannou

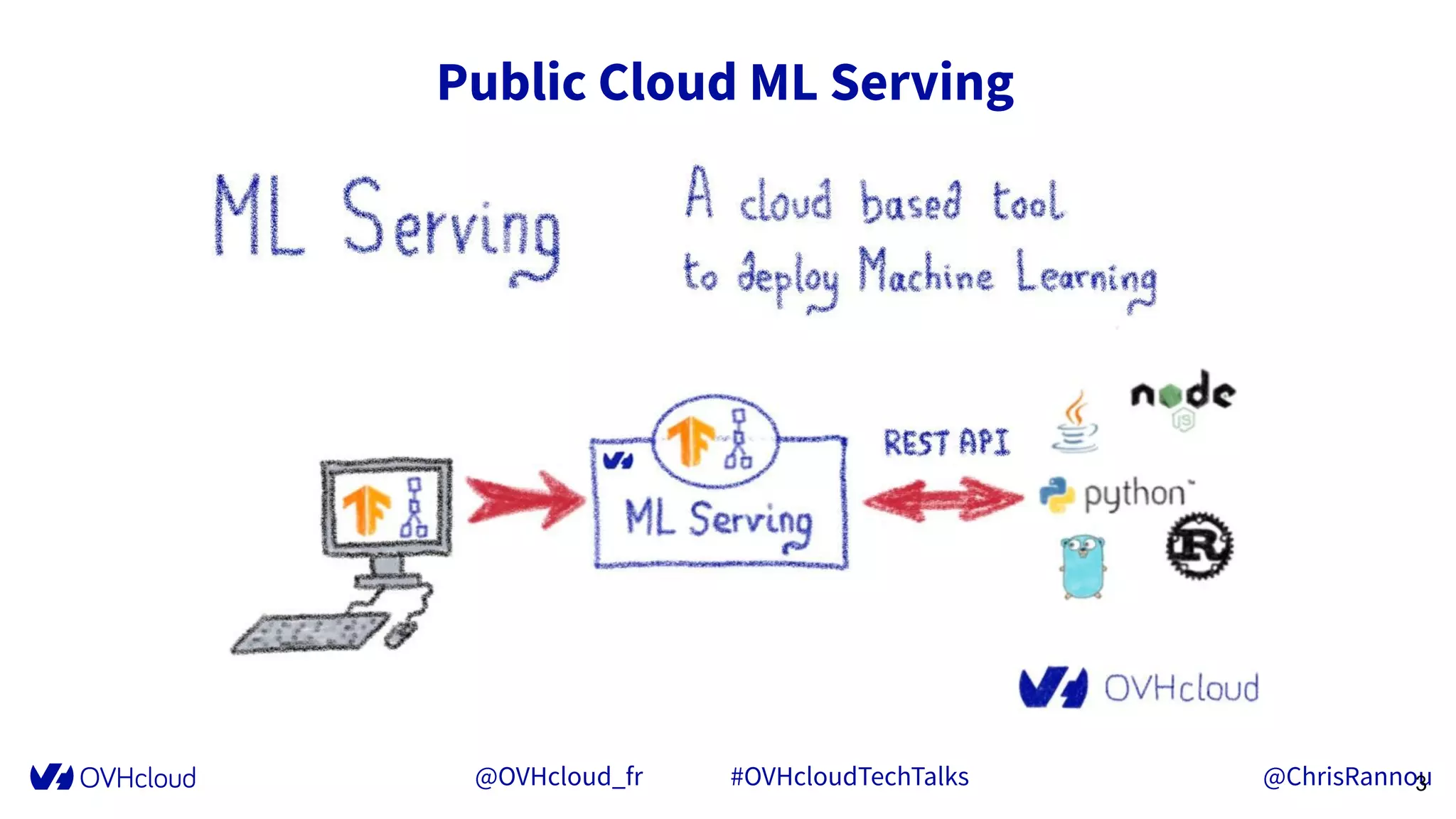

- 3. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou PublicCloud ML Serving 3

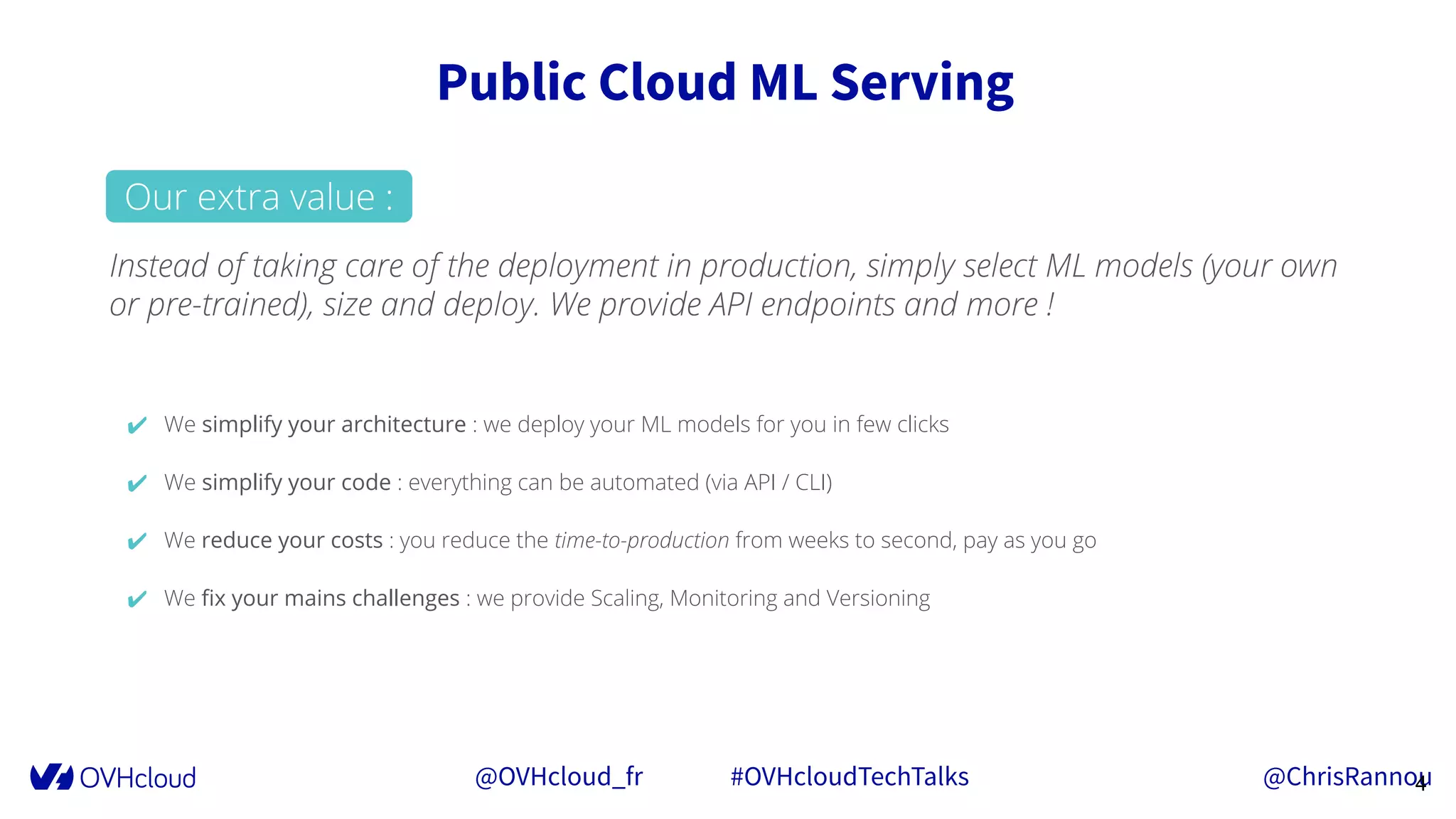

- 4. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou PublicCloud ML Serving 4 Instead of taking care of the deployment in production, simply select ML models (your own or pre-trained), size and deploy. We provide API endpoints and more ! ✔ We simplify your architecture : we deploy your ML models for you in few clicks ✔ We simplify your code : everything can be automated (via API / CLI) ✔ We reduce your costs : you reduce the time-to-production from weeks to second, pay as you go ✔ We fix your mains challenges : we provide Scaling, Monitoring and Versioning Our extra value :
- 5.

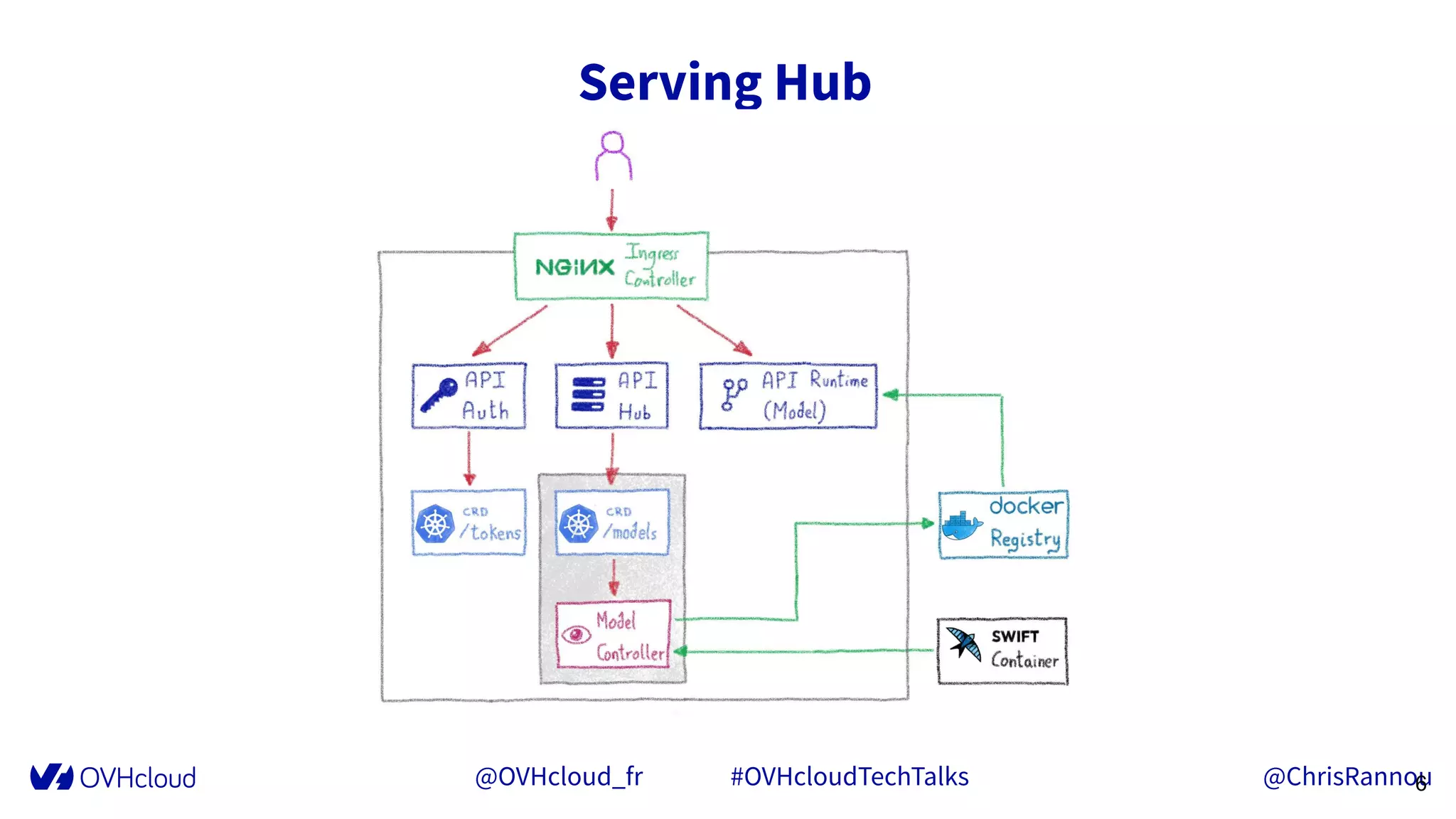

- 6.

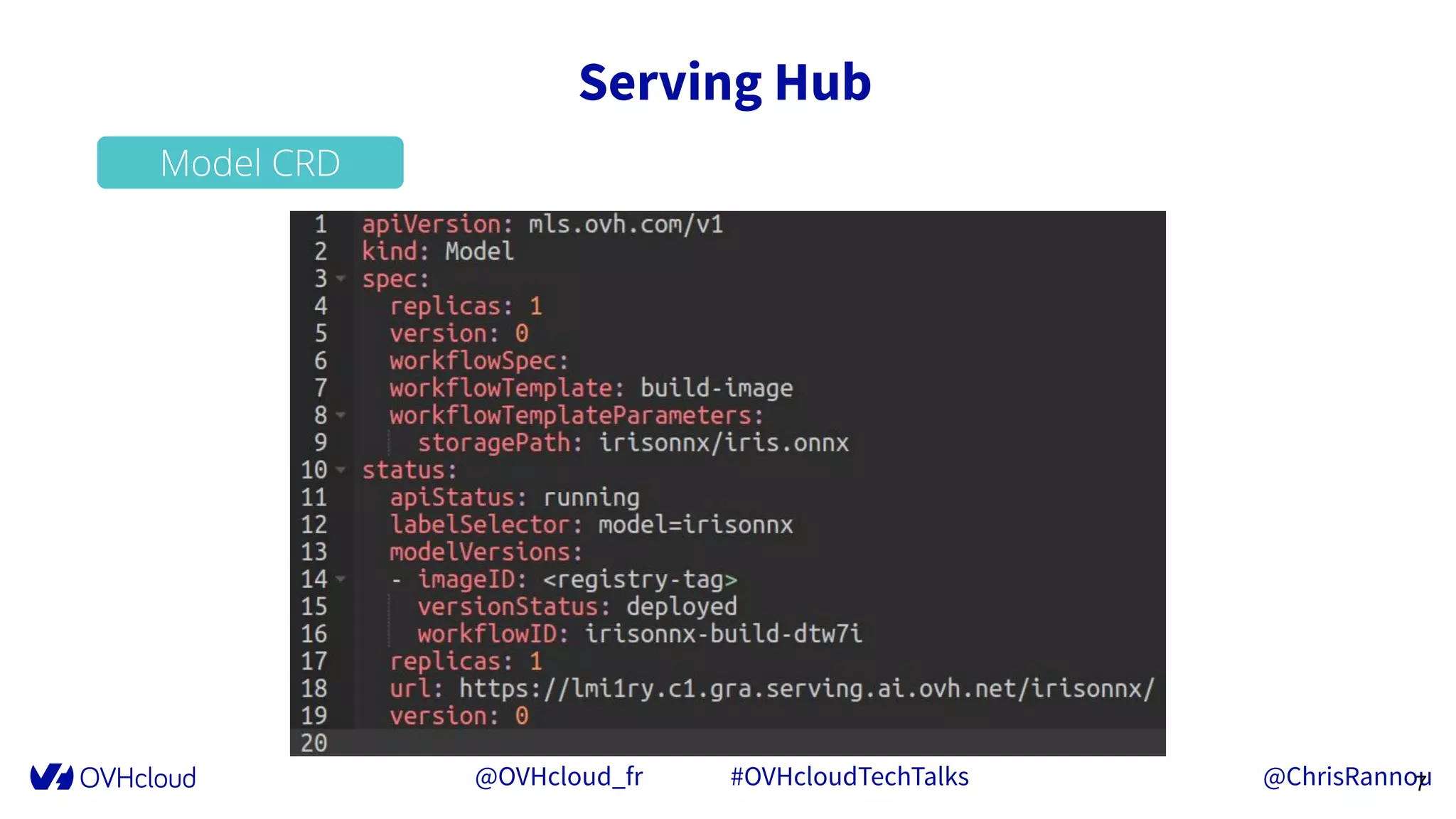

- 7. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou ServingHub 7 Model CRD

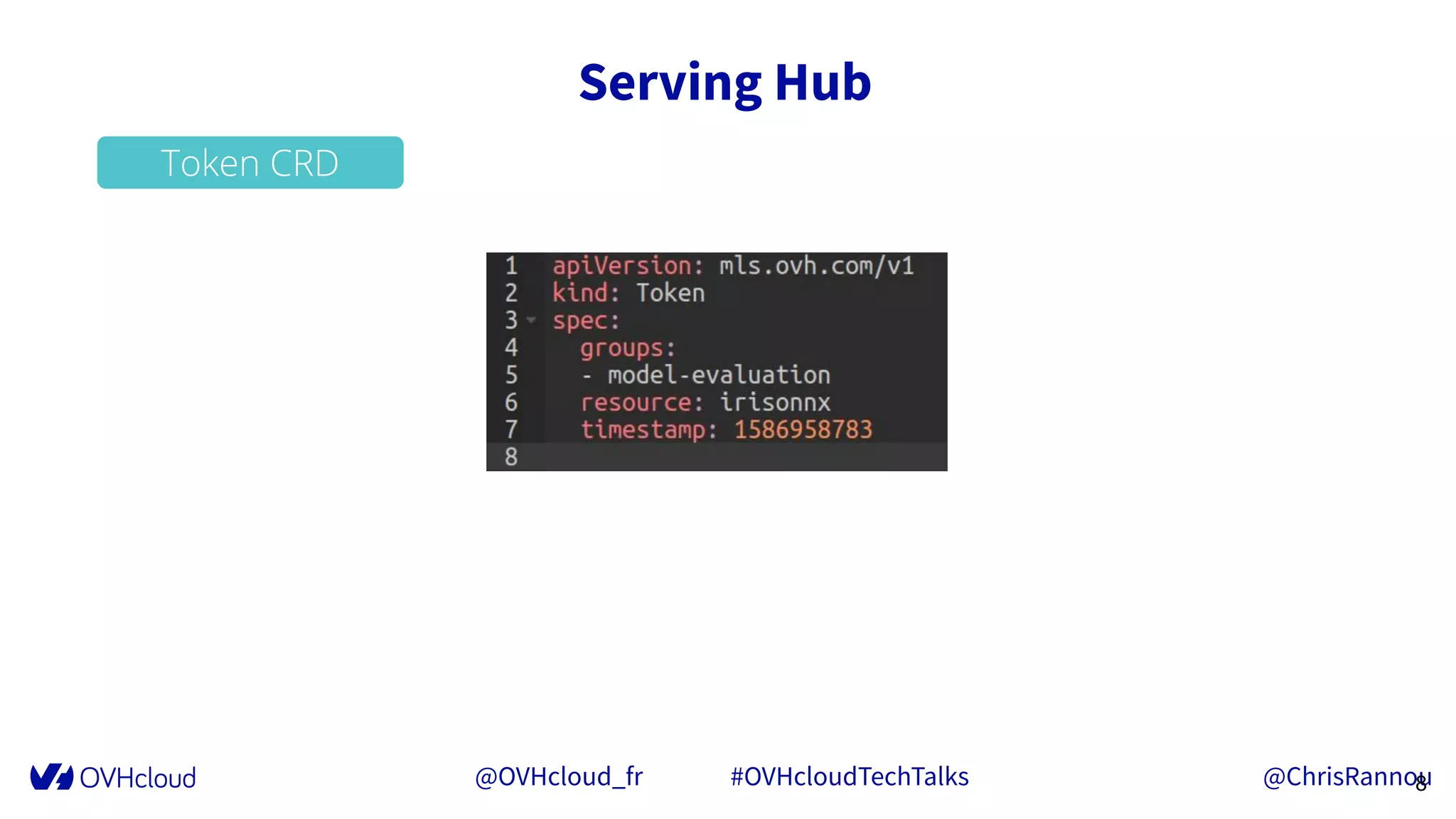

- 8. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou ServingHub 8 Token CRD

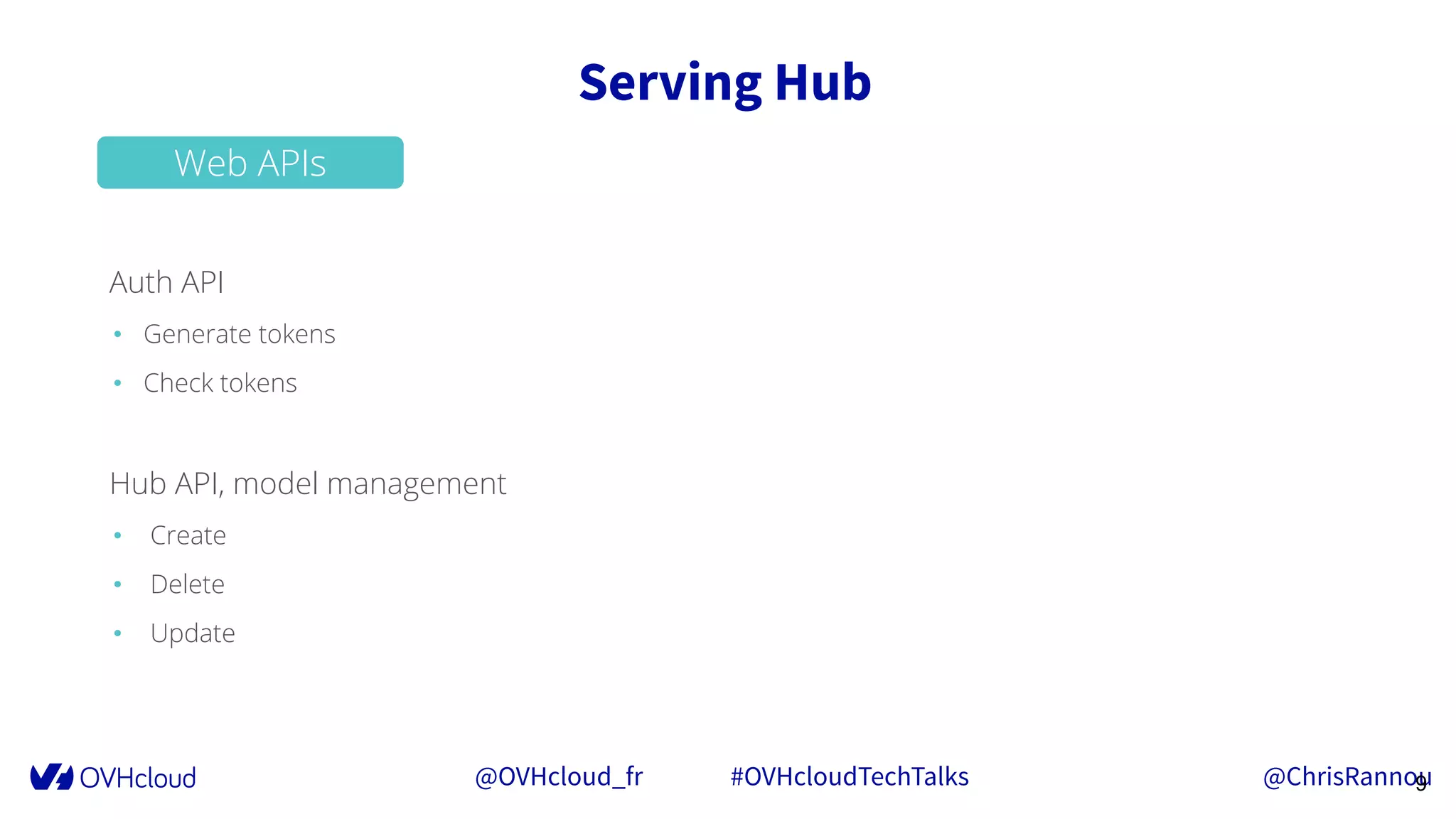

- 9. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou ServingHub 9 Auth API • Generate tokens • Check tokens Hub API, model management • Create • Delete • Update Web APIs

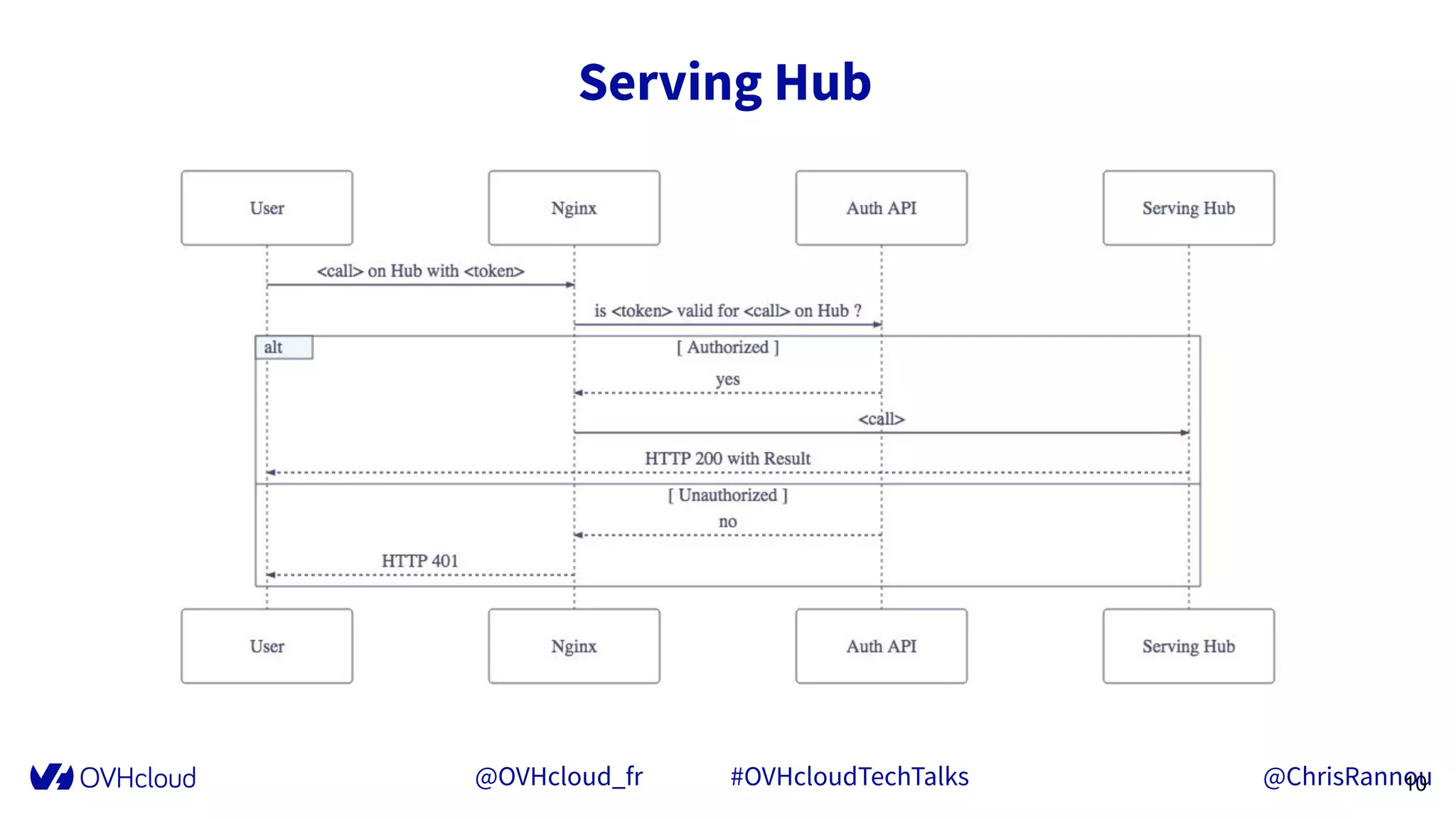

- 10.

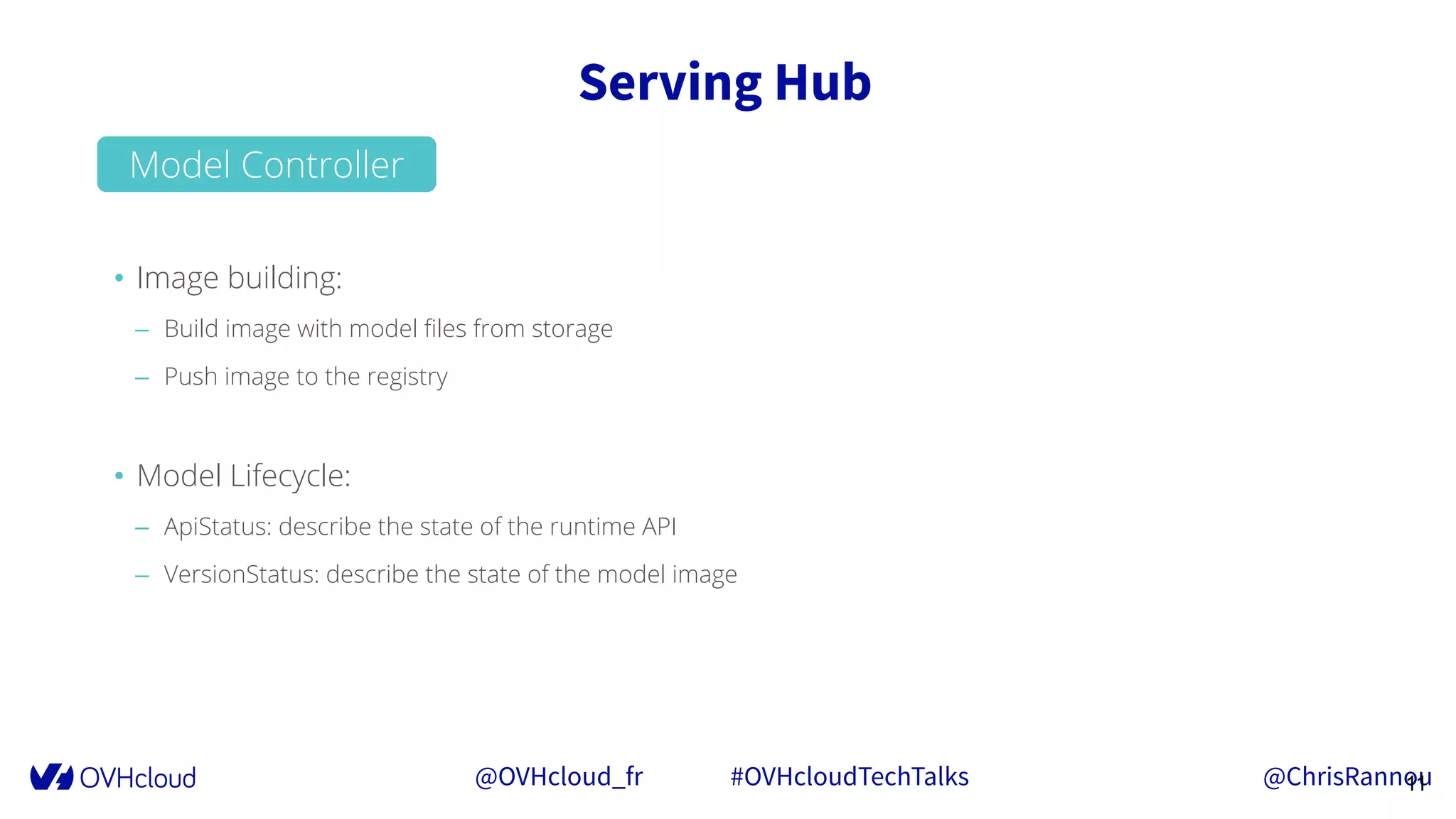

- 11. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou ServingHub 11 • Image building: – Build image with model files from storage – Push image to the registry • Model Lifecycle: – ApiStatus: describe the state of the runtime API – VersionStatus: describe the state of the model image Model Controller

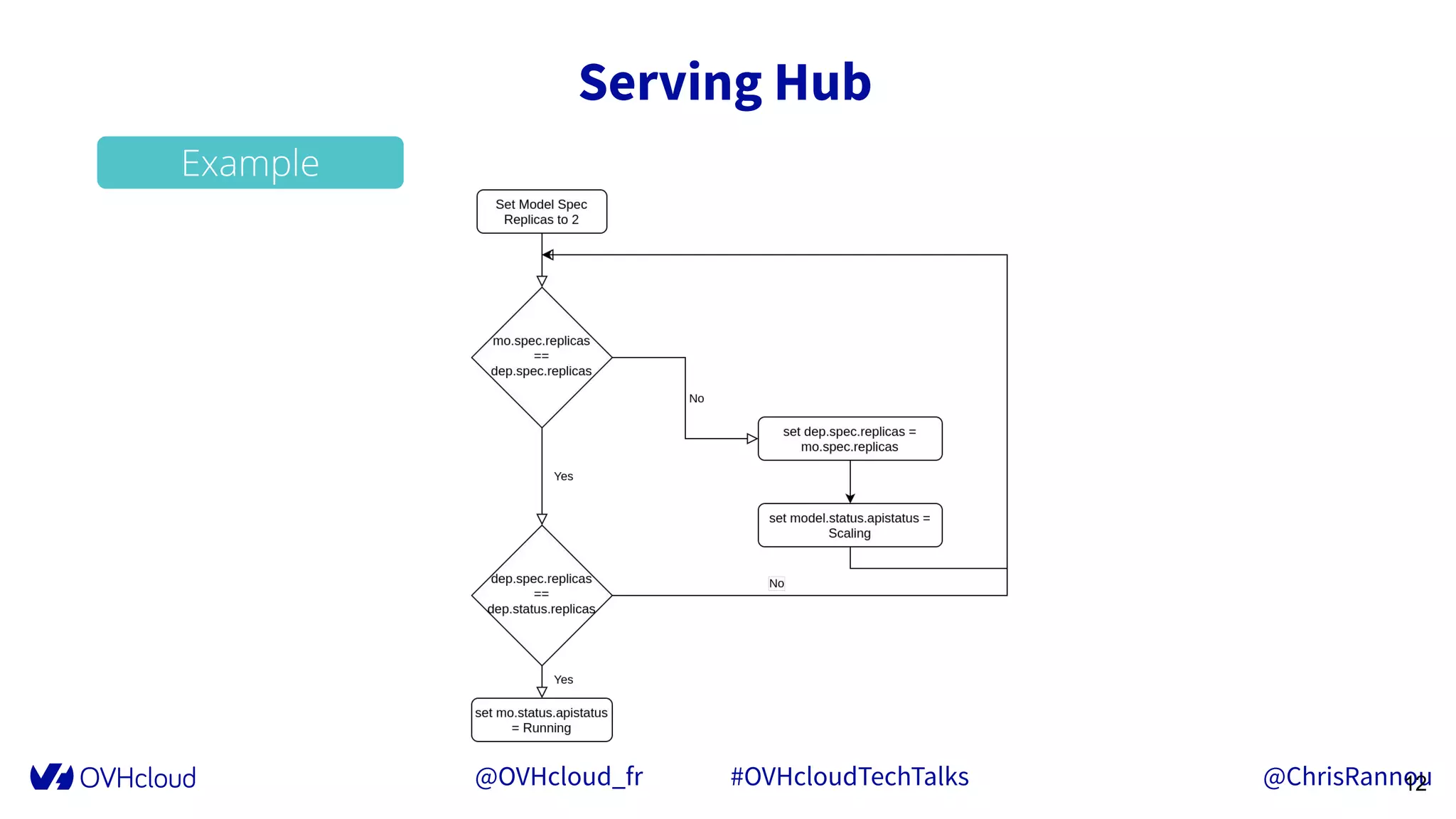

- 12. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou ServingHub 12 Example
- 13.

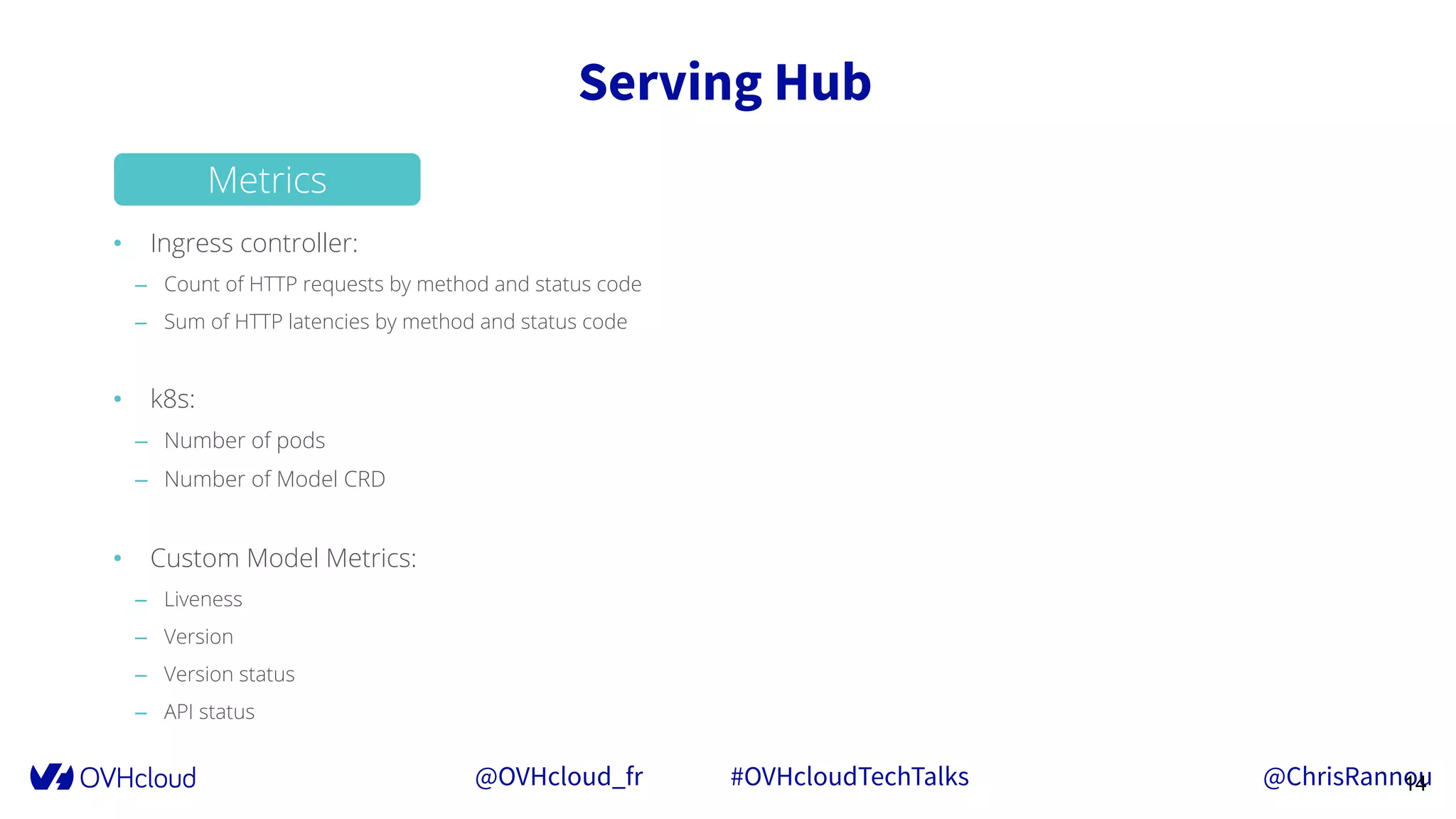

- 14. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou ServingHub 14 • Ingress controller: – Count of HTTP requests by method and status code – Sum of HTTP latencies by method and status code • k8s: – Number of pods – Number of Model CRD • Custom Model Metrics: – Liveness – Version – Version status – API status Metrics

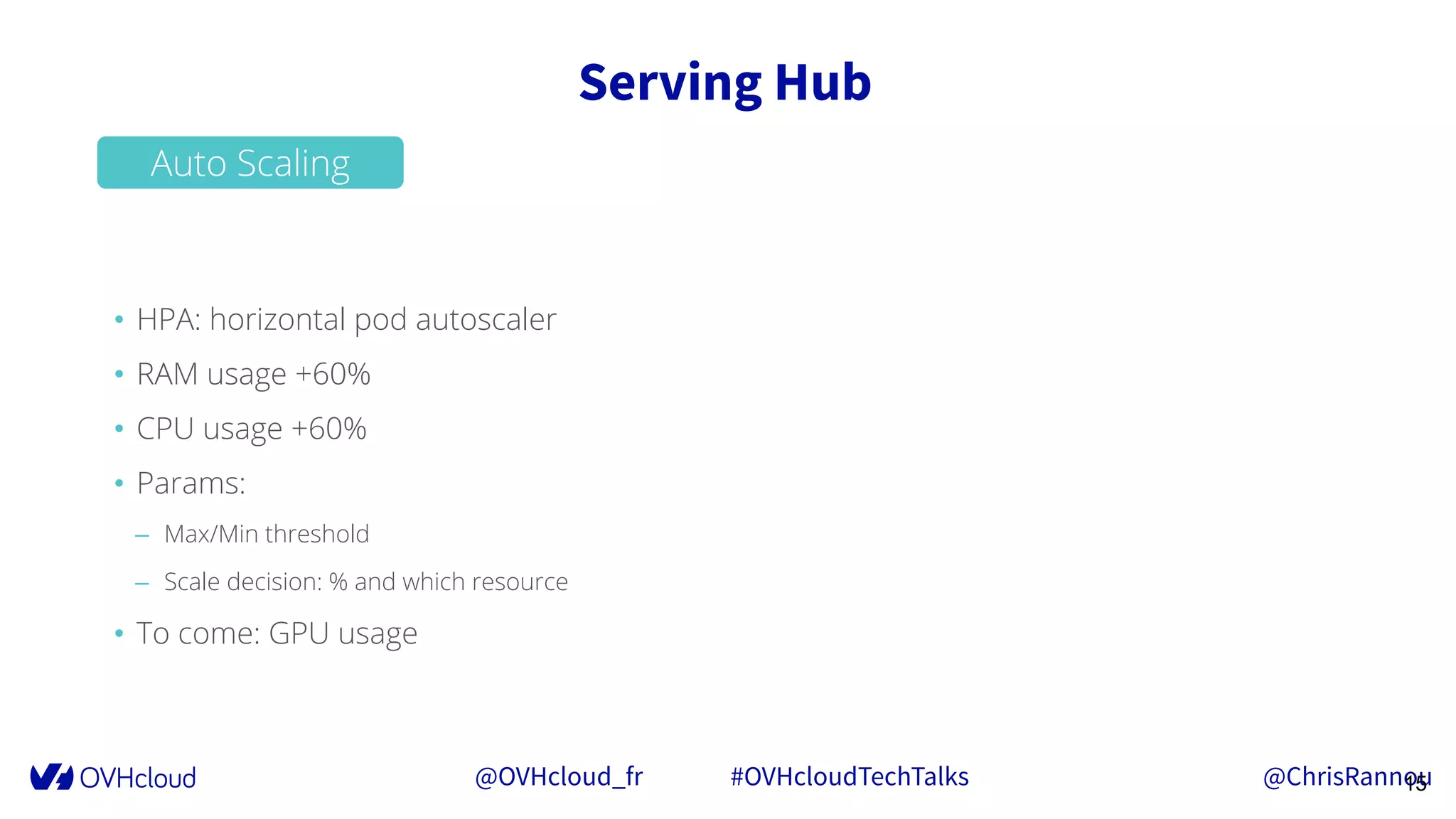

- 15. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou ServingHub 15 • HPA: horizontal pod autoscaler • RAM usage +60% • CPU usage +60% • Params: – Max/Min threshold – Scale decision: % and which resource • To come: GPU usage Auto Scaling
- 16.

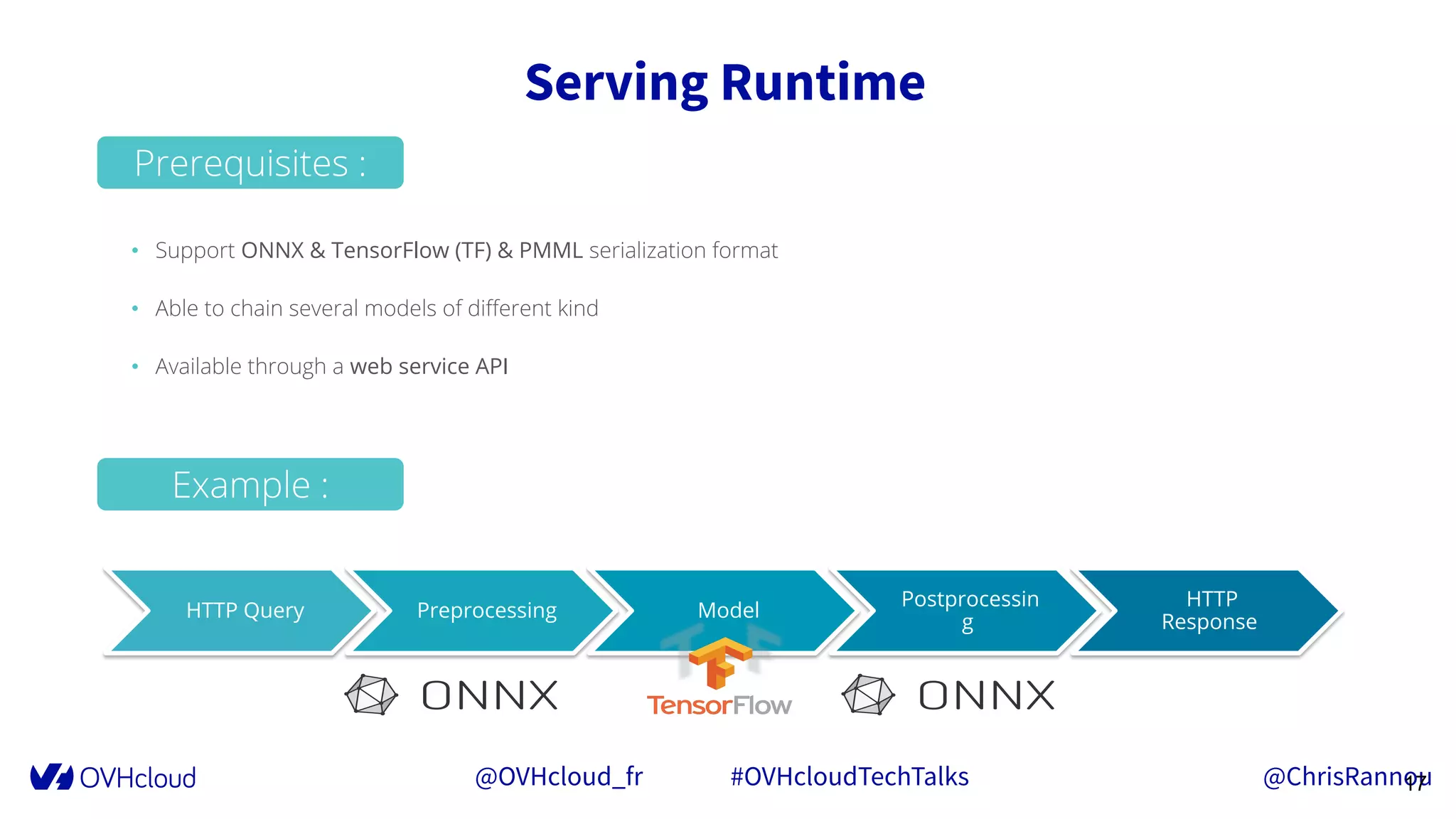

- 17. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou ServingRuntime 17 Prerequisites : • Support ONNX & TensorFlow (TF) & PMML serialization format • Able to chain several models of different kind • Available through a web service API HTTP Query Preprocessing Model Postprocessin g HTTP Response Example :

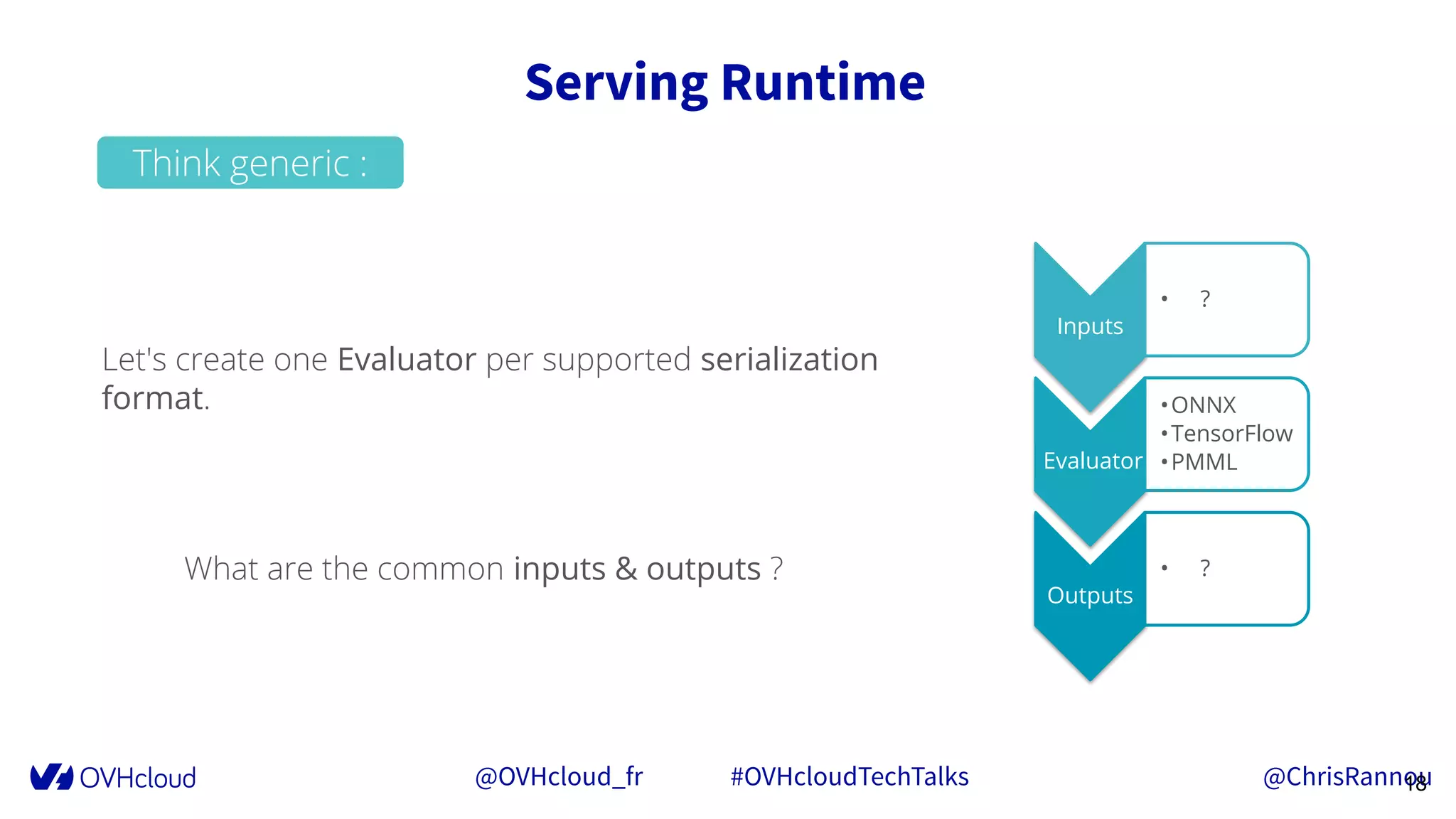

- 18. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou ServingRuntime 18 Inputs • ? Evaluator •ONNX •TensorFlow •PMML Outputs • ? Think generic : Let's create one Evaluator per supported serialization format. What are the common inputs & outputs ?

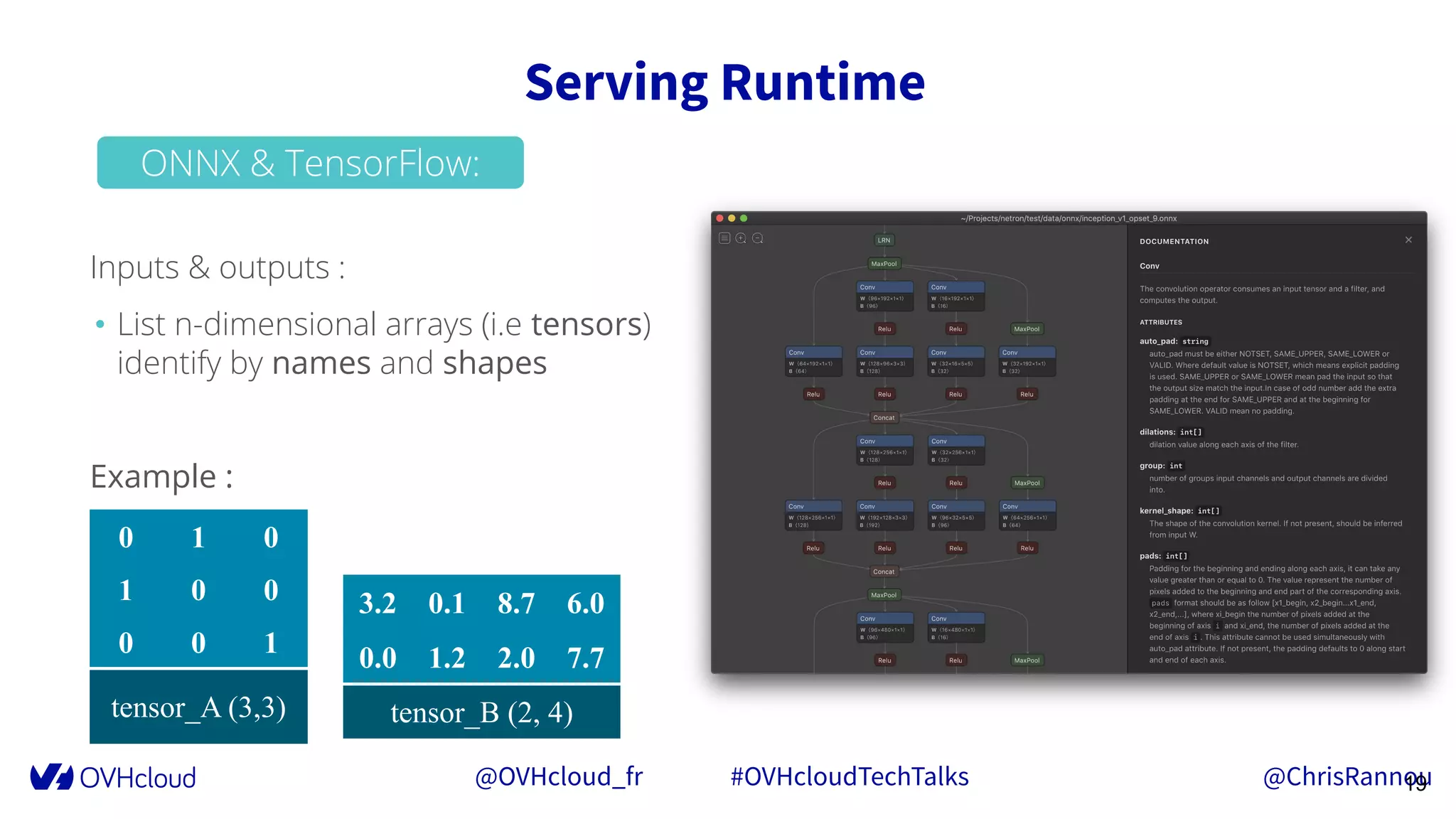

- 19. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou ServingRuntime 19 ONNX & TensorFlow: Inputs & outputs : • List n-dimensional arrays (i.e tensors) identify by names and shapes Example : 0 1 0 1 0 0 0 0 1 tensor_A (3,3) 3.2 0.1 8.7 6.0 0.0 1.2 2.0 7.7 tensor_B (2, 4)

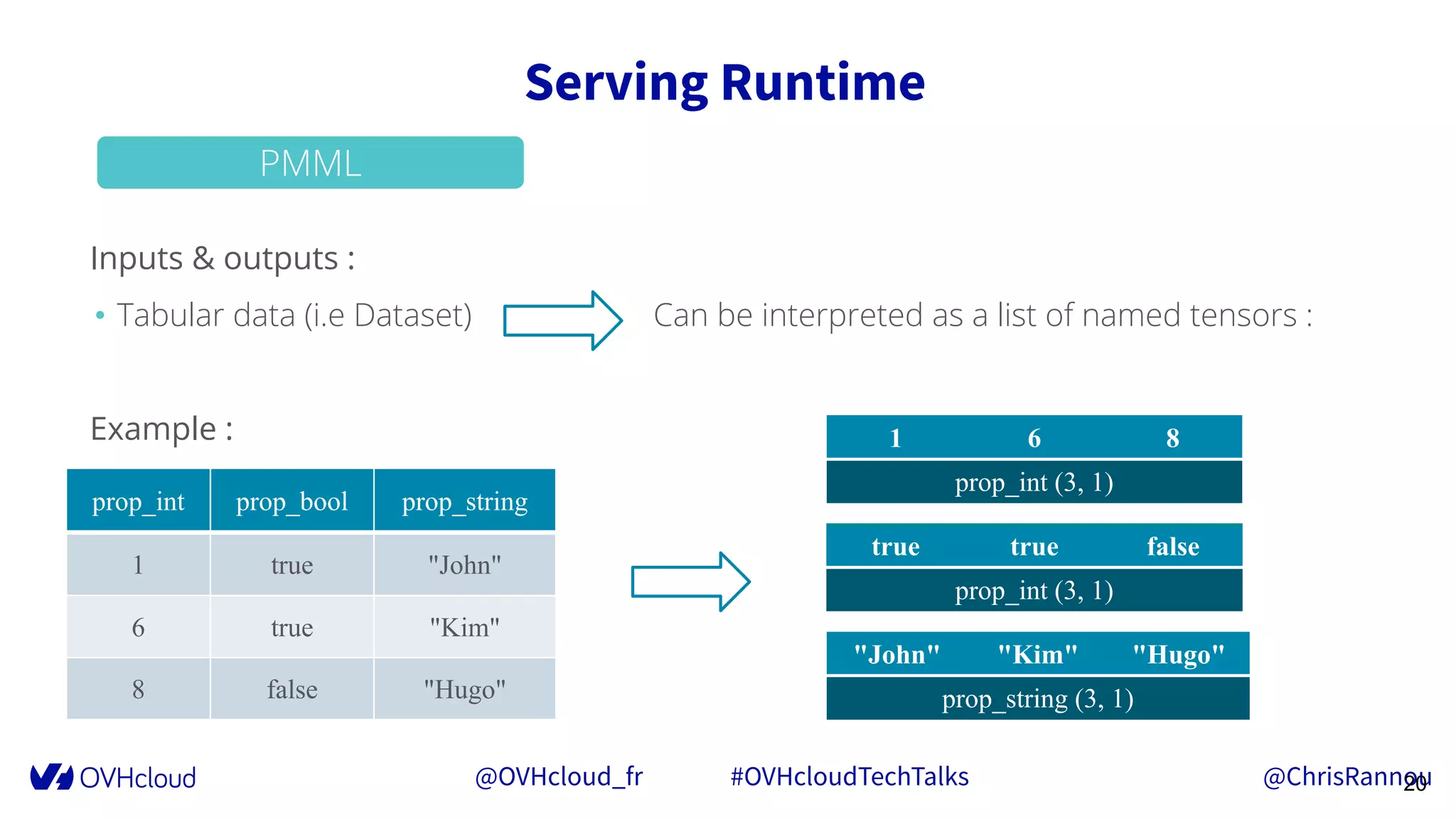

- 20. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou ServingRuntime 20 PMML Inputs & outputs : • Tabular data (i.e Dataset) Can be interpreted as a list of named tensors : Example : prop_int prop_bool prop_string 1 true "John" 6 true "Kim" 8 false "Hugo" 1 6 8 prop_int (3, 1) true true false prop_int (3, 1) "John" "Kim" "Hugo" prop_string (3, 1)

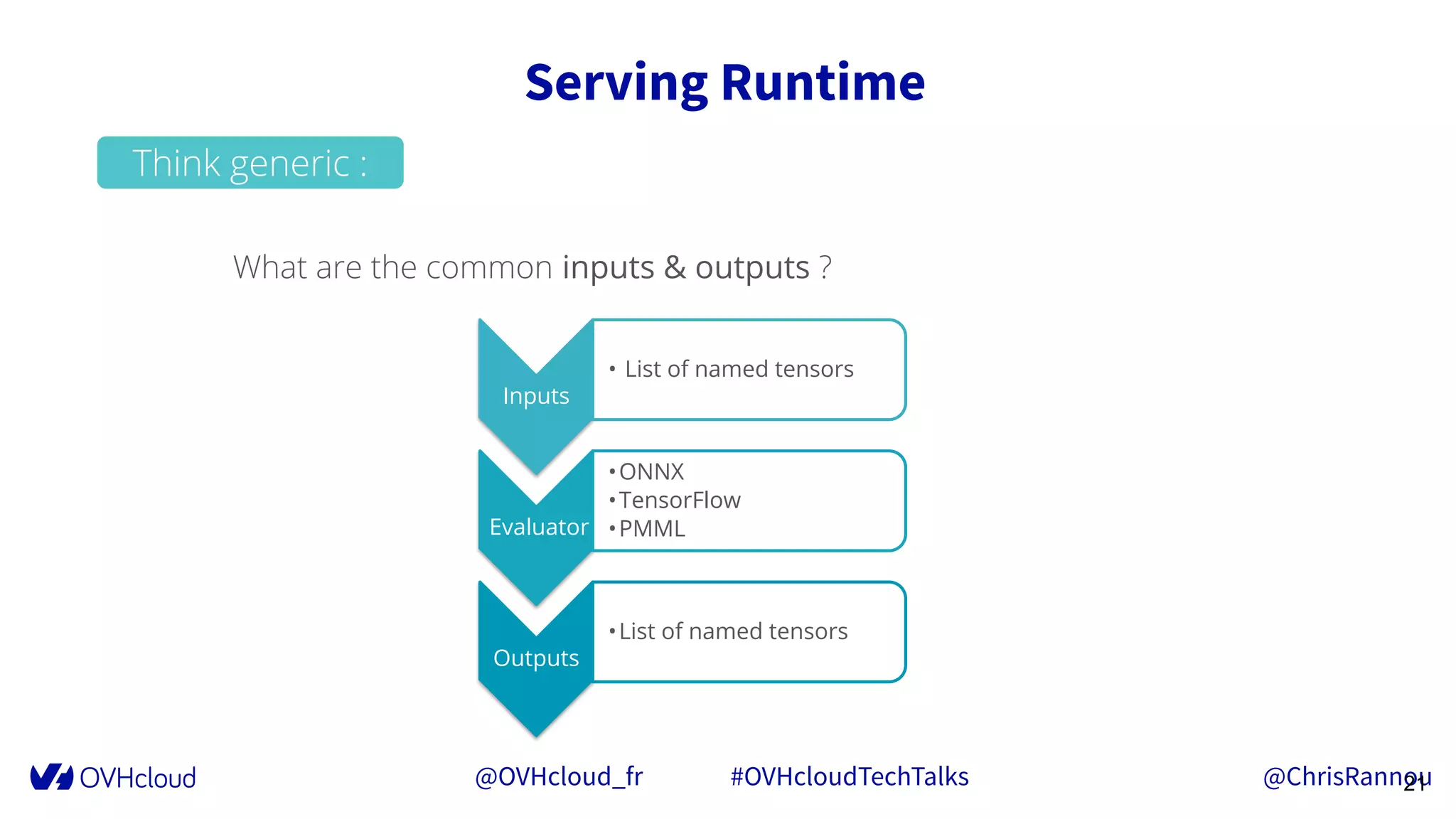

- 21. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou ServingRuntime 21 Inputs • List of named tensors Evaluator •ONNX •TensorFlow •PMML Outputs •List of named tensors Think generic : What are the common inputs & outputs ?

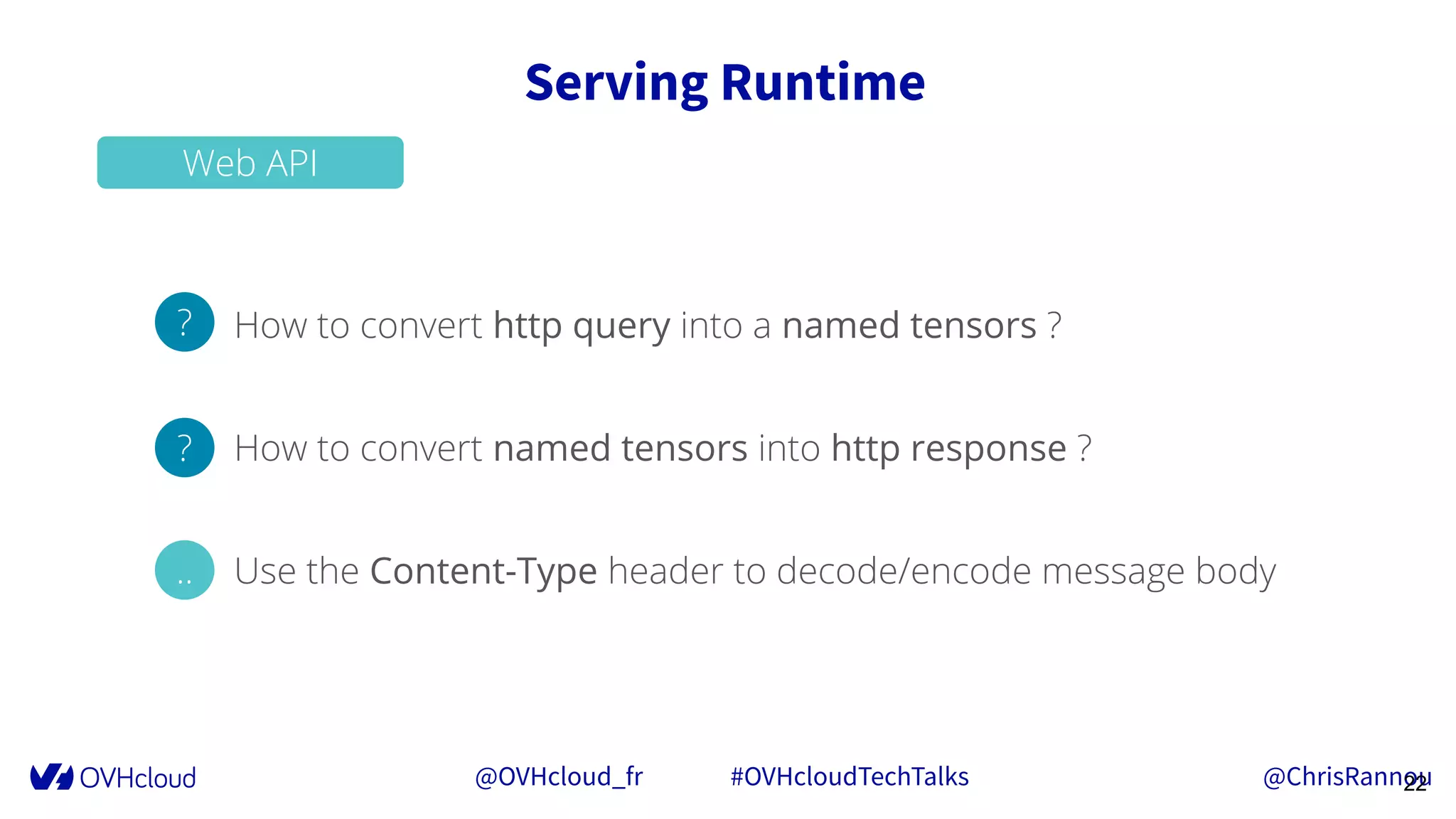

- 22. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou ServingRuntime 22 Web API How to convert http query into a named tensors ? How to convert named tensors into http response ? Use the Content-Type header to decode/encode message body ? ? ..

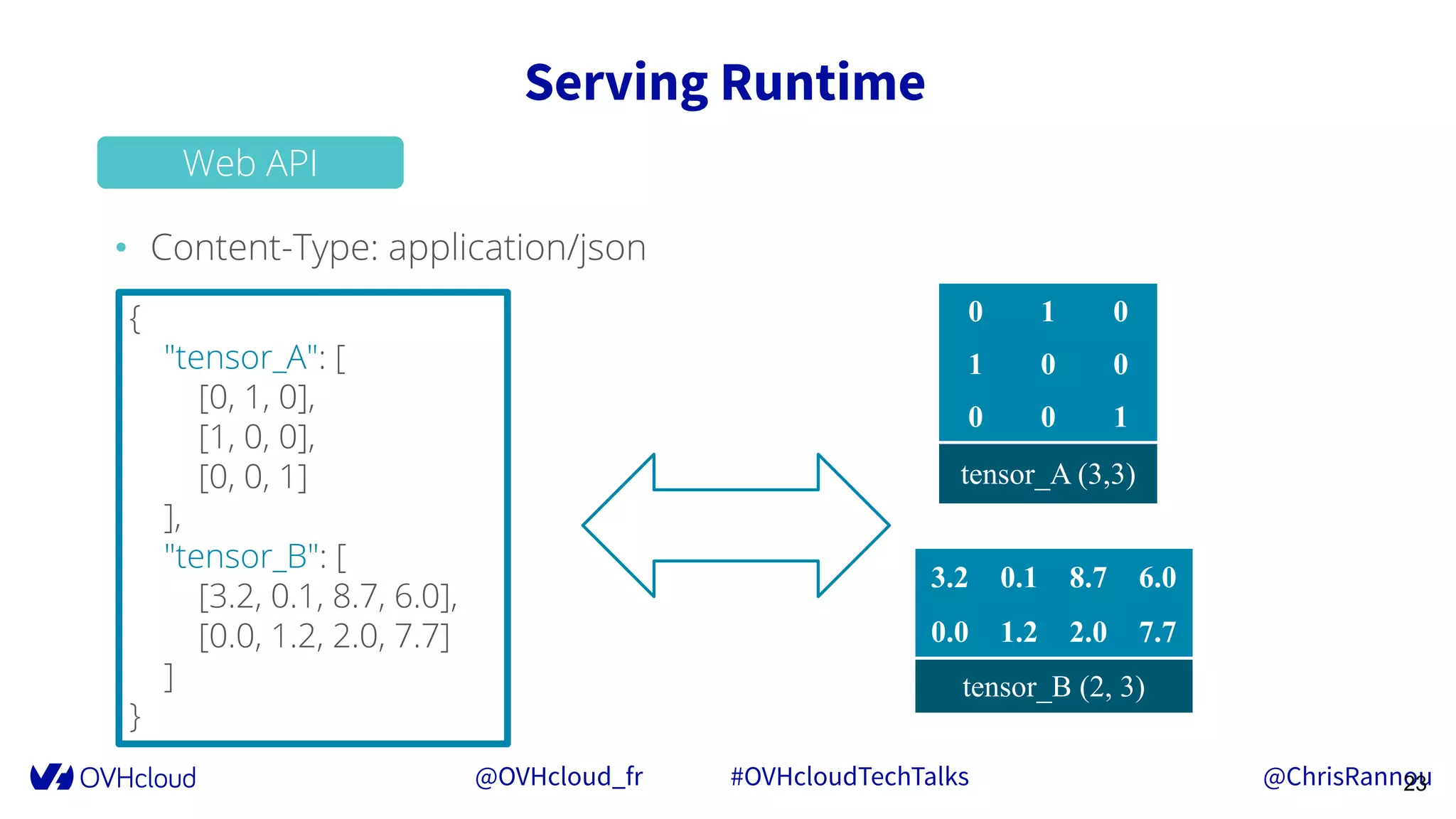

- 23. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou ServingRuntime 23 Web API • Content-Type: application/json 0 1 0 1 0 0 0 0 1 tensor_A (3,3) 3.2 0.1 8.7 6.0 0.0 1.2 2.0 7.7 tensor_B (2, 3) { "tensor_A": [ [0, 1, 0], [1, 0, 0], [0, 0, 1] ], "tensor_B": [ [3.2, 0.1, 8.7, 6.0], [0.0, 1.2, 2.0, 7.7] ] }

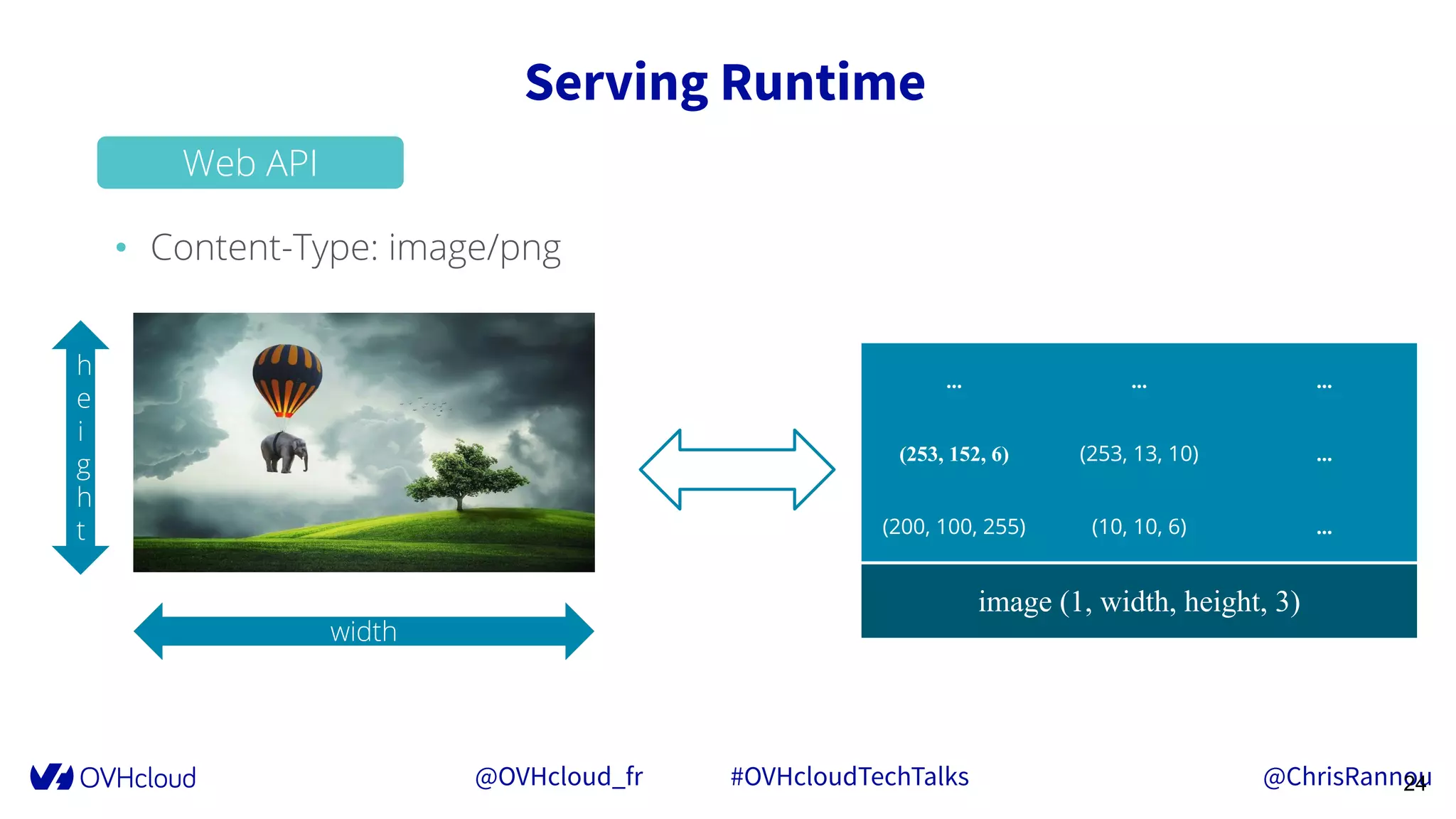

- 24. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou ServingRuntime 24 Web API • Content-Type: image/png ... ... ... (253, 152, 6) (253, 13, 10) ... (200, 100, 255) (10, 10, 6) ... image (1, width, height, 3) width h e i g h t

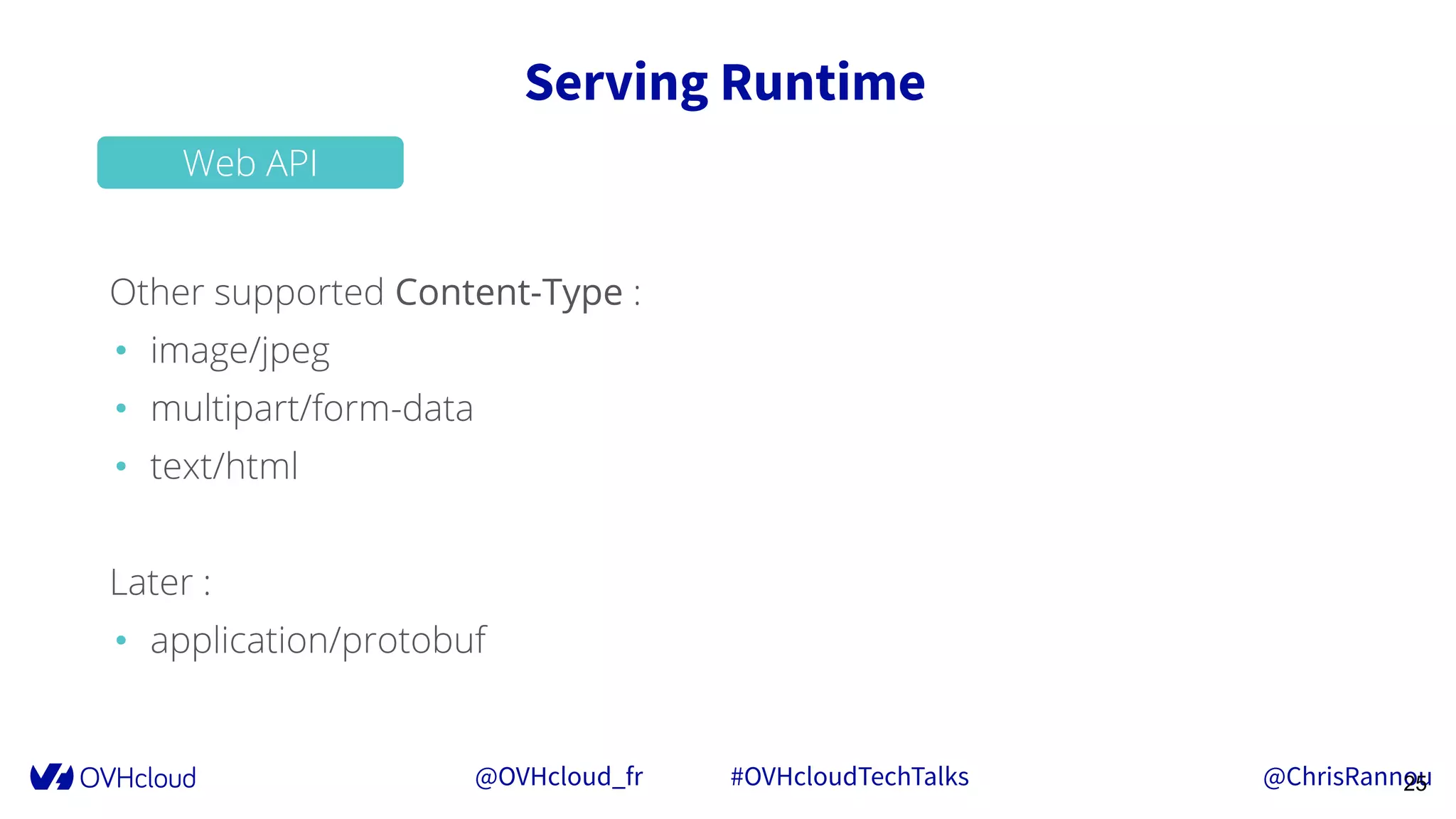

- 25. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou ServingRuntime 25 Web API Other supported Content-Type : • image/jpeg • multipart/form-data • text/html Later : • application/protobuf

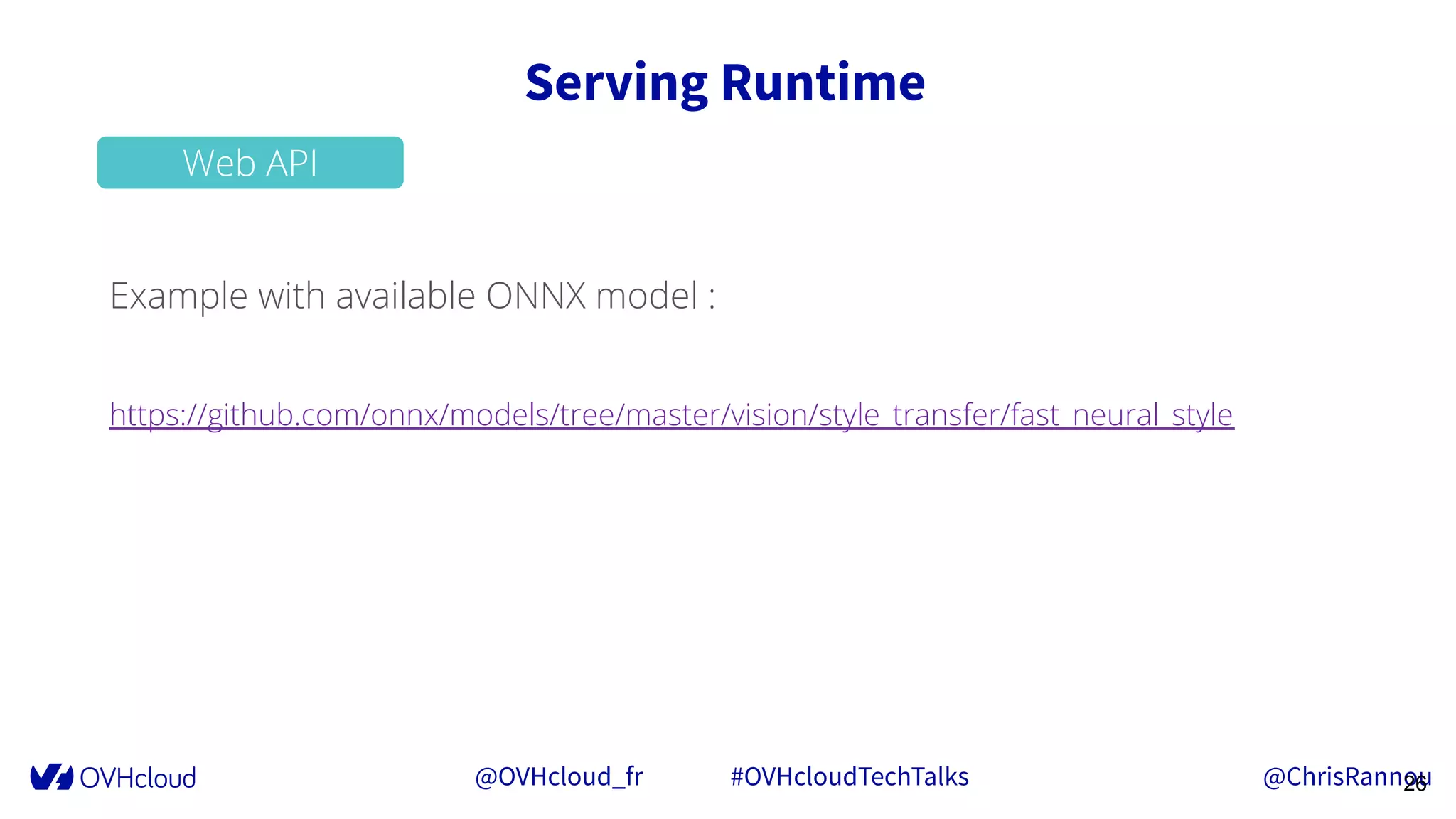

- 26. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou ServingRuntime 26 Web API Example with available ONNX model : https://github.com/onnx/models/tree/master/vision/style_transfer/fast_neural_style
- 27.
- 28. @OVHcloud_fr #OVHcloudTechTalks @ChrisRannou Thanks! MaëlLe Gal github:mael-le-gal Christophe Rannou @ChrisRannou
