Multithreading/Multitasking.
Task Parallel Library.
Patterns.
by Oleksandr Kravchuk, JR .NET Developer

What is the Multithreading?
An ability that allows you to run several
sections of code simultaneously.
Or pretend like. //For 1 CPU
core

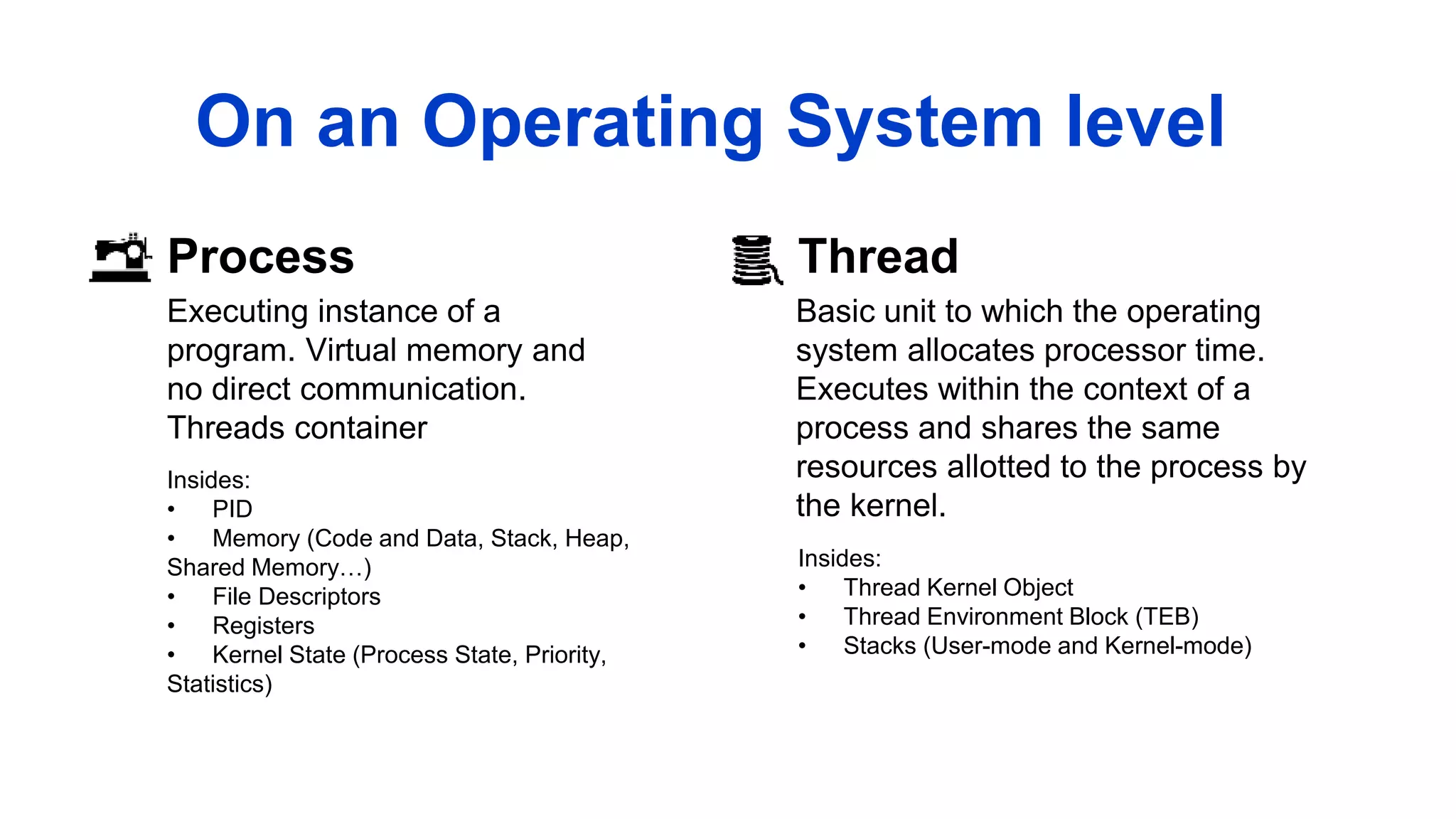

Process
Executing instance of a
program. Virtual memory and
no direct communication.
Threads container
Thread
Basic unit to which the operating
system allocates processor time.
Executes within the context of a
process and shares the same
resources allotted to the process by
the kernel.
On an Operating System level
Insides:
• PID
• Memory (Code and Data, Stack, Heap,
Shared Memory…)
• File Descriptors
• Registers
• Kernel State (Process State, Priority,
Statistics)
Insides:
• Thread Kernel Object
• Thread Environment Block (TEB)
• Stacks (User-mode and Kernel-mode)

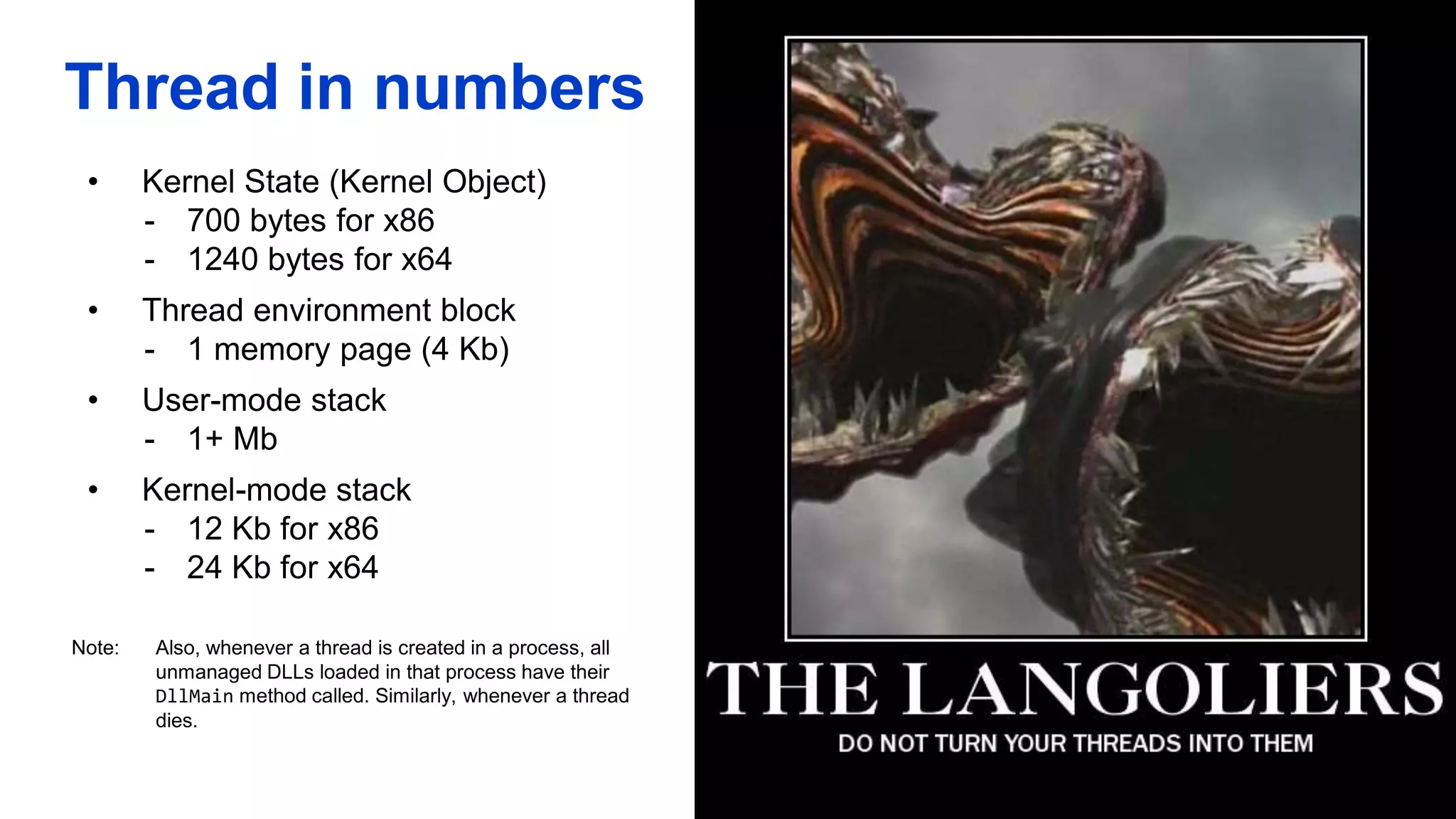

Thread in numbers
• Kernel State (Kernel Object)
- 700 bytes for x86
- 1240 bytes for x64
• Thread environment block
- 1 memory page (4 Kb)
• User-mode stack
- 1+ Mb
• Kernel-mode stack
- 12 Kb for x86
- 24 Kb for x64
Note: Also, whenever a thread is created in a process, all
unmanaged DLLs loaded in that process have their
DllMain method called. Similarly, whenever a thread
dies.

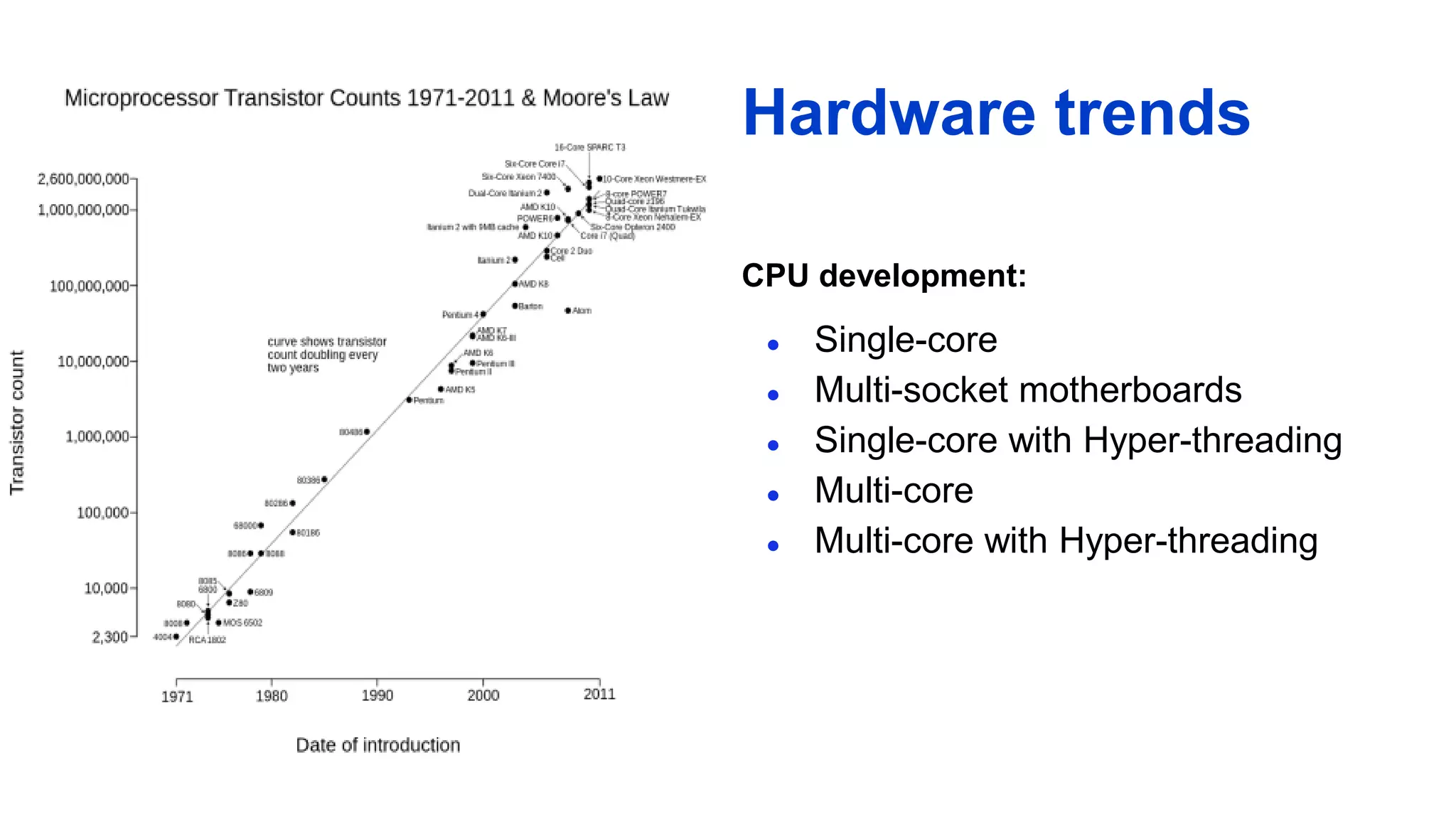

Hardware trends
CPU development:
● Single-core
● Multi-socket motherboards
● Single-core with Hyper-threading
● Multi-core
● Multi-core with Hyper-threading

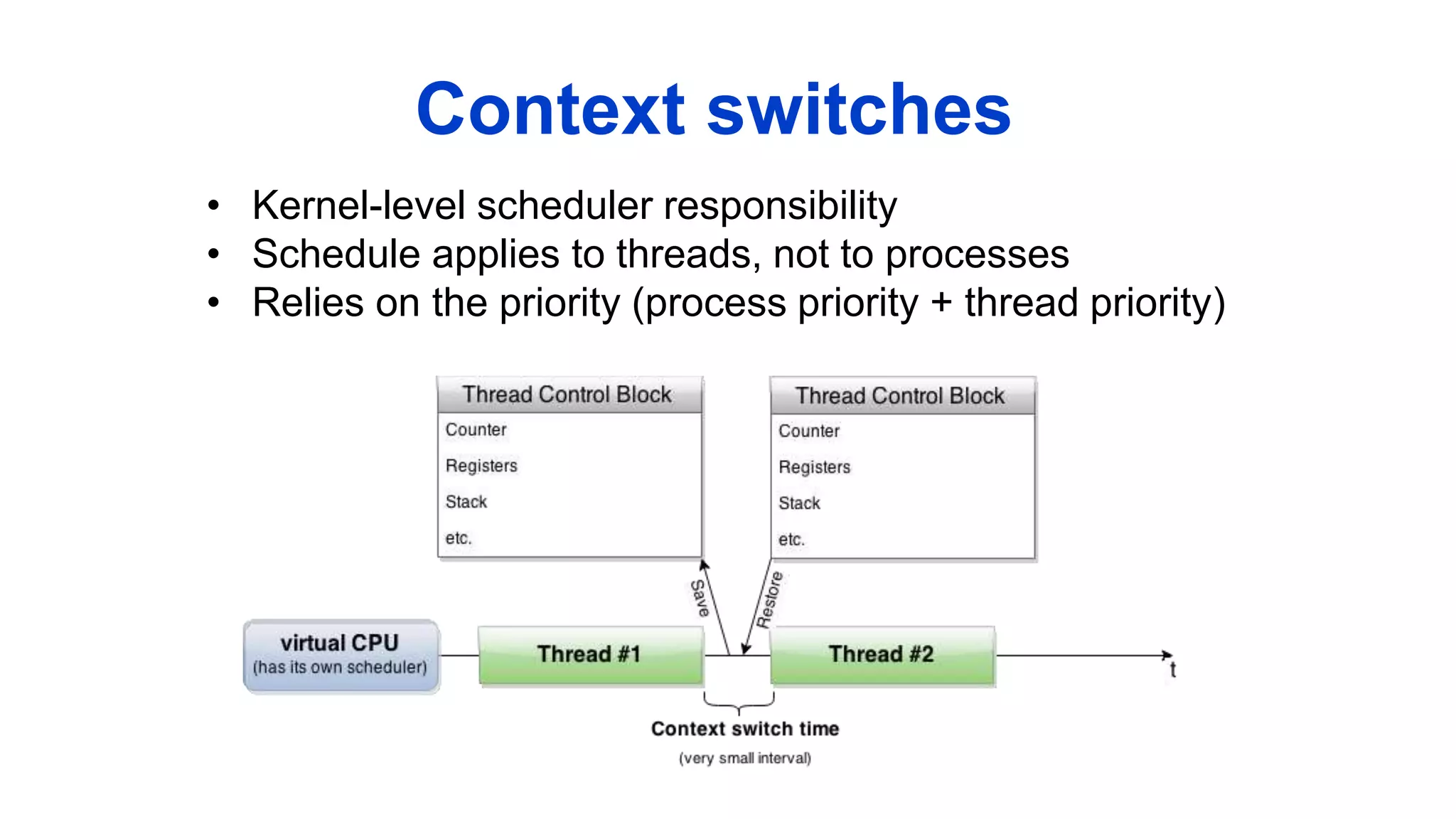

Context switches
• Kernel-level scheduler responsibility
• Schedule applies to threads, not to processes
• Relies on the priority (process priority + thread priority)

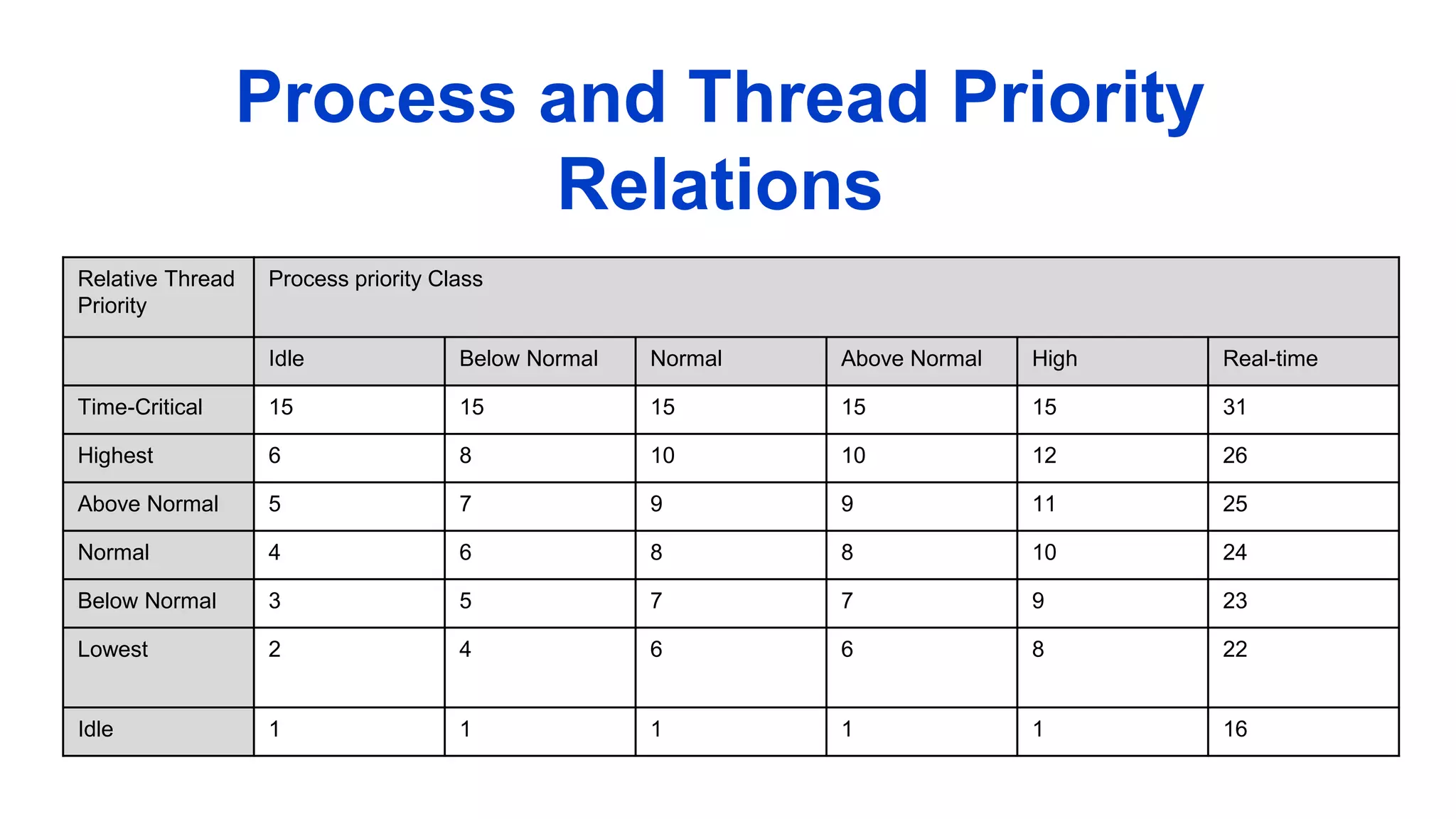

Process and Thread Priority
Relations
Relative Thread
Priority
Process priority Class
Idle Below Normal Normal Above Normal High Real-time
Time-Critical 15 15 15 15 15 31
Highest 6 8 10 10 12 26
Above Normal 5 7 9 9 11 25
Normal 4 6 8 8 10 24
Below Normal 3 5 7 7 9 23
Lowest 2 4 6 6 8 22
Idle 1 1 1 1 1 16

Where should I use
Threads?
• Client-side GUI applications where
responsiveness is important.
• Client-side and server-side
applications where non-sequentially
execution is possible. For
performance improvements

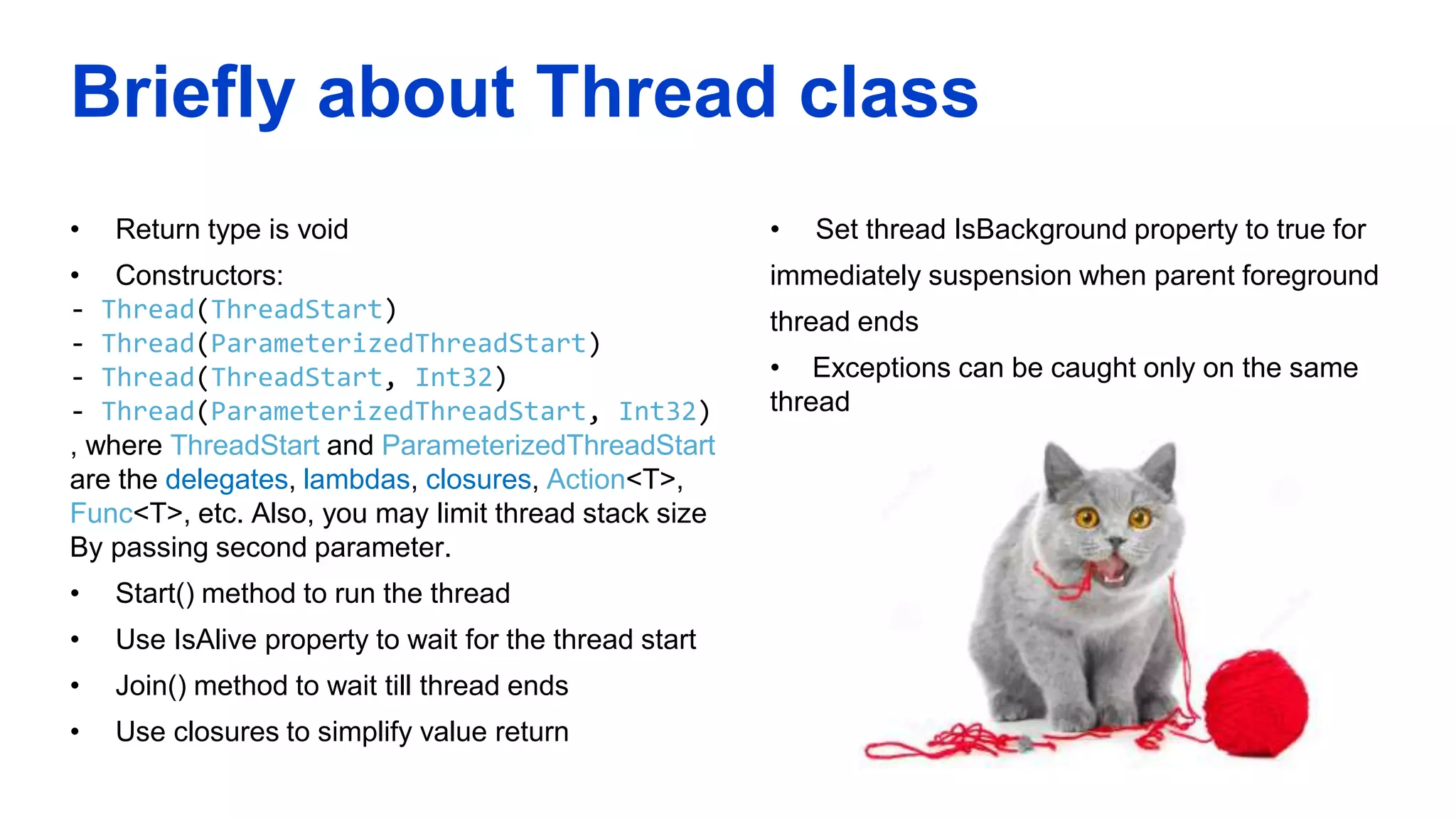

Briefly about Thread class
• Return type is void
• Constructors:
- Thread(ThreadStart)
- Thread(ParameterizedThreadStart)
- Thread(ThreadStart, Int32)
- Thread(ParameterizedThreadStart, Int32)
, where ThreadStart and ParameterizedThreadStart
are the delegates, lambdas, closures, Action<T>,
Func<T>, etc. Also, you may limit thread stack size
By passing second parameter.
• Start() method to run the thread
• Use IsAlive property to wait for the thread start
• Join() method to wait till thread ends
• Use closures to simplify value return
• Set thread IsBackground property to true for
immediately suspension when parent foreground
thread ends
• Exceptions can be caught only on the same
thread

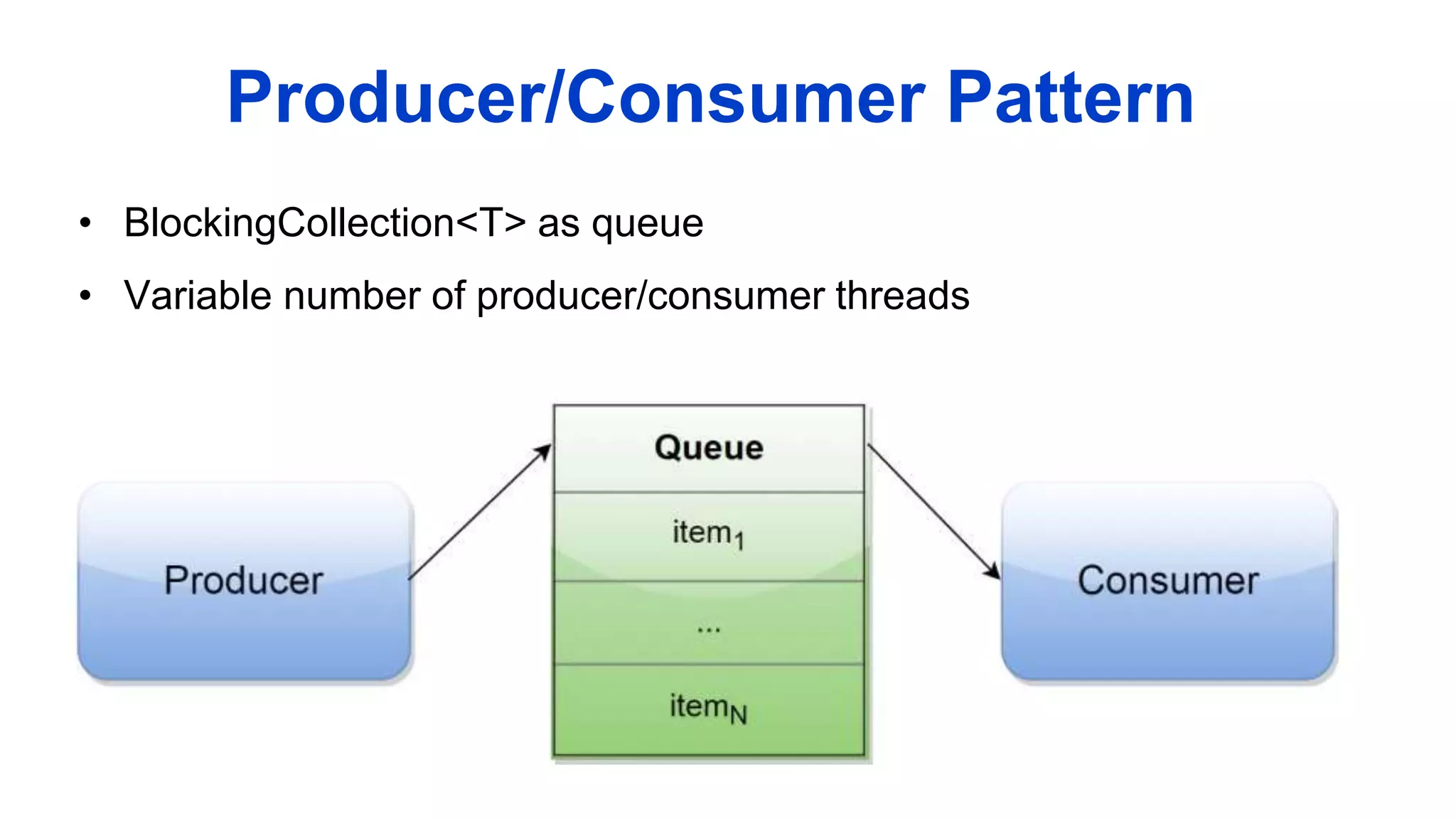

Producer/Consumer Pattern
• BlockingCollection<T> as queue
• Variable number of producer/consumer threads

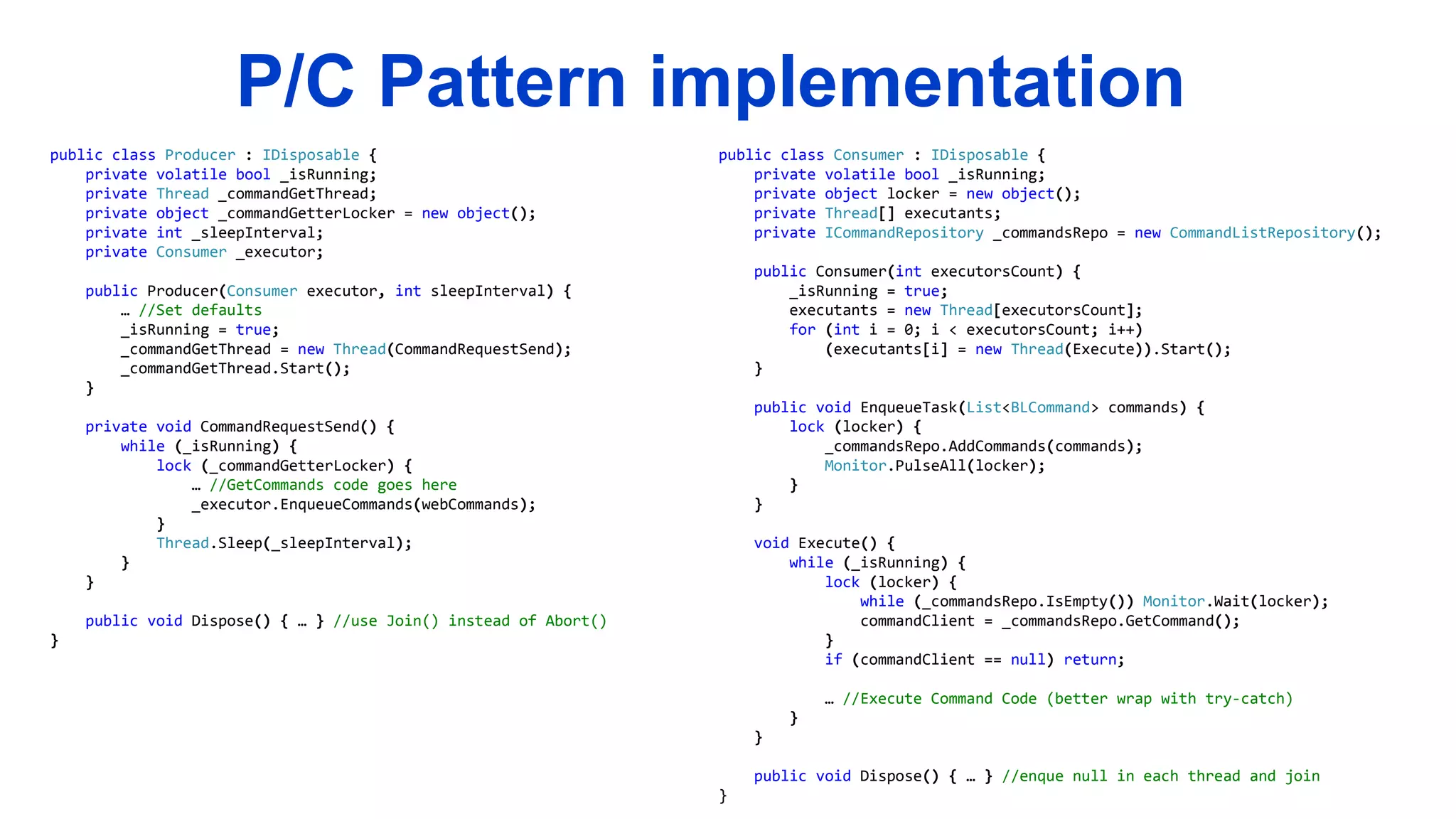

P/C Pattern implementation
public class Producer : IDisposable {
private volatile bool _isRunning;
private Thread _commandGetThread;
private object _commandGetterLocker = new object();
private int _sleepInterval;
private Consumer _executor;
public Producer(Consumer executor, int sleepInterval) {
… //Set defaults
_isRunning = true;
_commandGetThread = new Thread(CommandRequestSend);
_commandGetThread.Start();
}
private void CommandRequestSend() {
while (_isRunning) {
lock (_commandGetterLocker) {
… //GetCommands code goes here
_executor.EnqueueCommands(webCommands);
}
Thread.Sleep(_sleepInterval);
}
}
public void Dispose() { … } //use Join() instead of Abort()
}
public class Consumer : IDisposable {
private volatile bool _isRunning;
private object locker = new object();
private Thread[] executants;
private ICommandRepository _commandsRepo = new CommandListRepository();
public Consumer(int executorsCount) {
_isRunning = true;
executants = new Thread[executorsCount];
for (int i = 0; i < executorsCount; i++)
(executants[i] = new Thread(Execute)).Start();
}
public void EnqueueTask(List<BLCommand> commands) {
lock (locker) {
_commandsRepo.AddCommands(commands);
Monitor.PulseAll(locker);
}
}
void Execute() {
while (_isRunning) {
lock (locker) {
while (_commandsRepo.IsEmpty()) Monitor.Wait(locker);
commandClient = _commandsRepo.GetCommand();
}
if (commandClient == null) return;
… //Execute Command Code (better wrap with try-catch)
}
}
public void Dispose() { … } //enque null in each thread and join
}

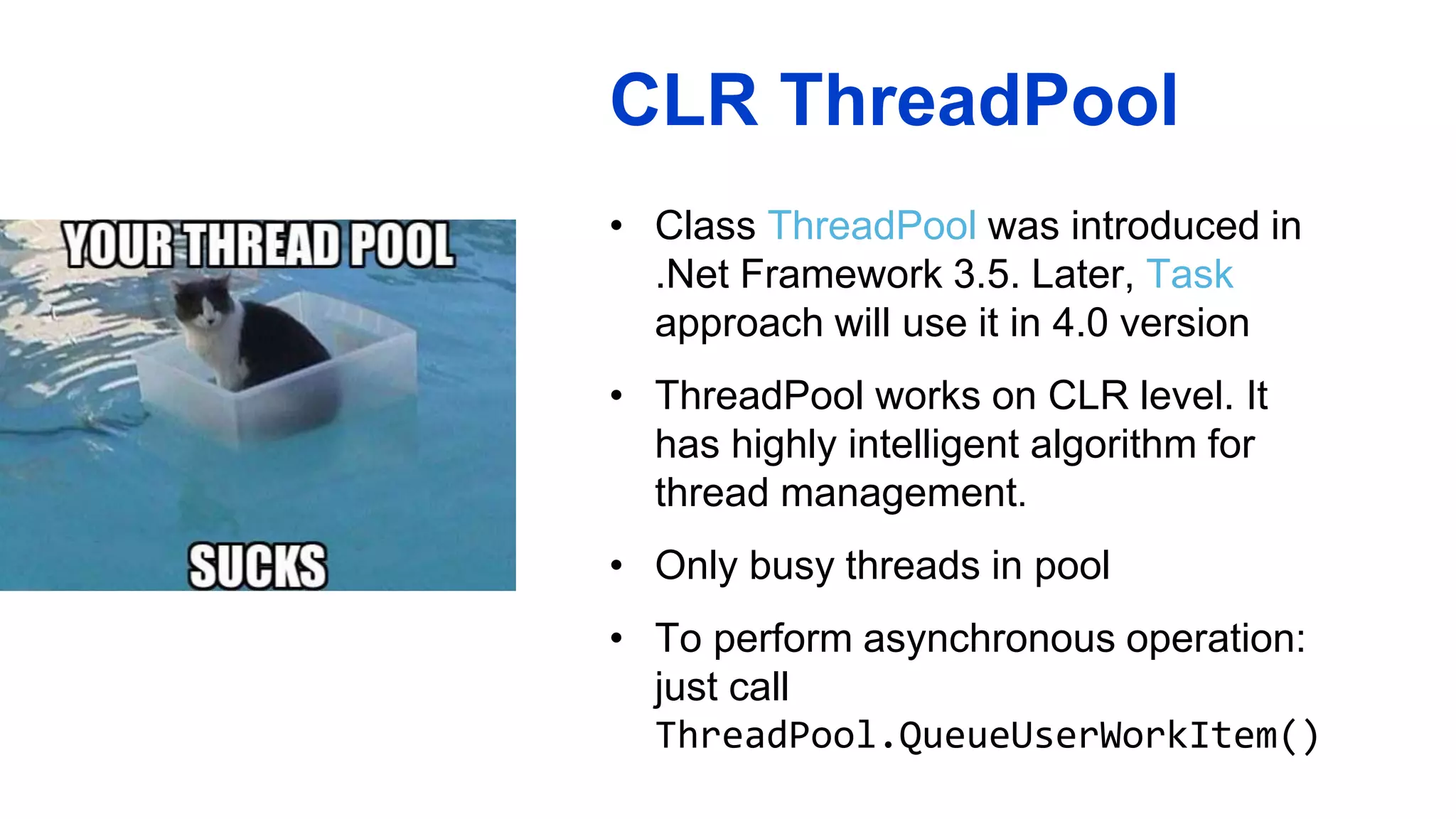

CLR ThreadPool
• Class ThreadPool was introduced in
.Net Framework 3.5. Later, Task
approach will use it in 4.0 version
• ThreadPool works on CLR level. It
has highly intelligent algorithm for
thread management.
• Only busy threads in pool
• To perform asynchronous operation:
just call
ThreadPool.QueueUserWorkItem()

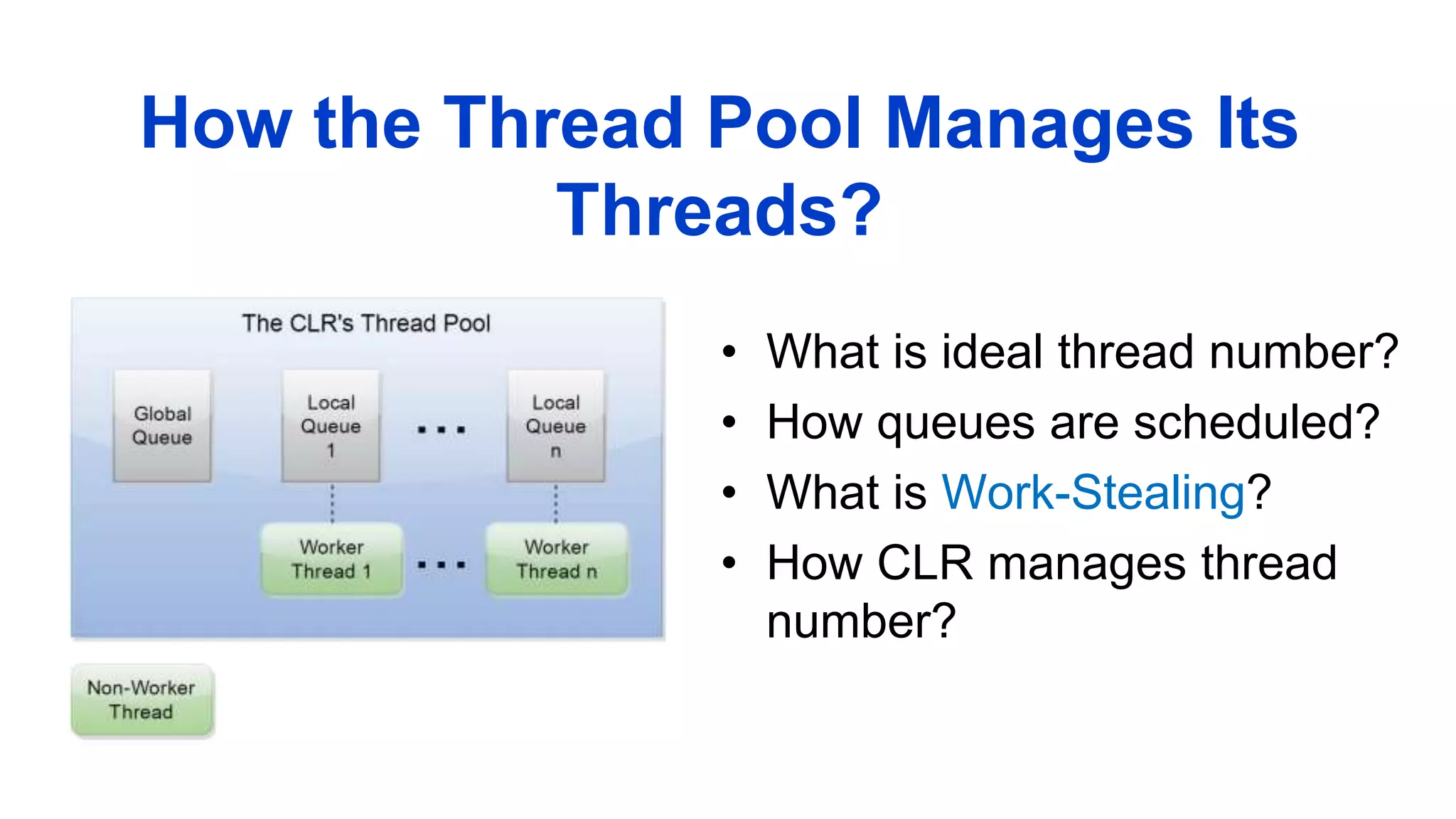

• What is ideal thread number?
• How queues are scheduled?
• What is Work-Stealing?
• How CLR manages thread
number?
How the Thread Pool Manages Its
Threads?

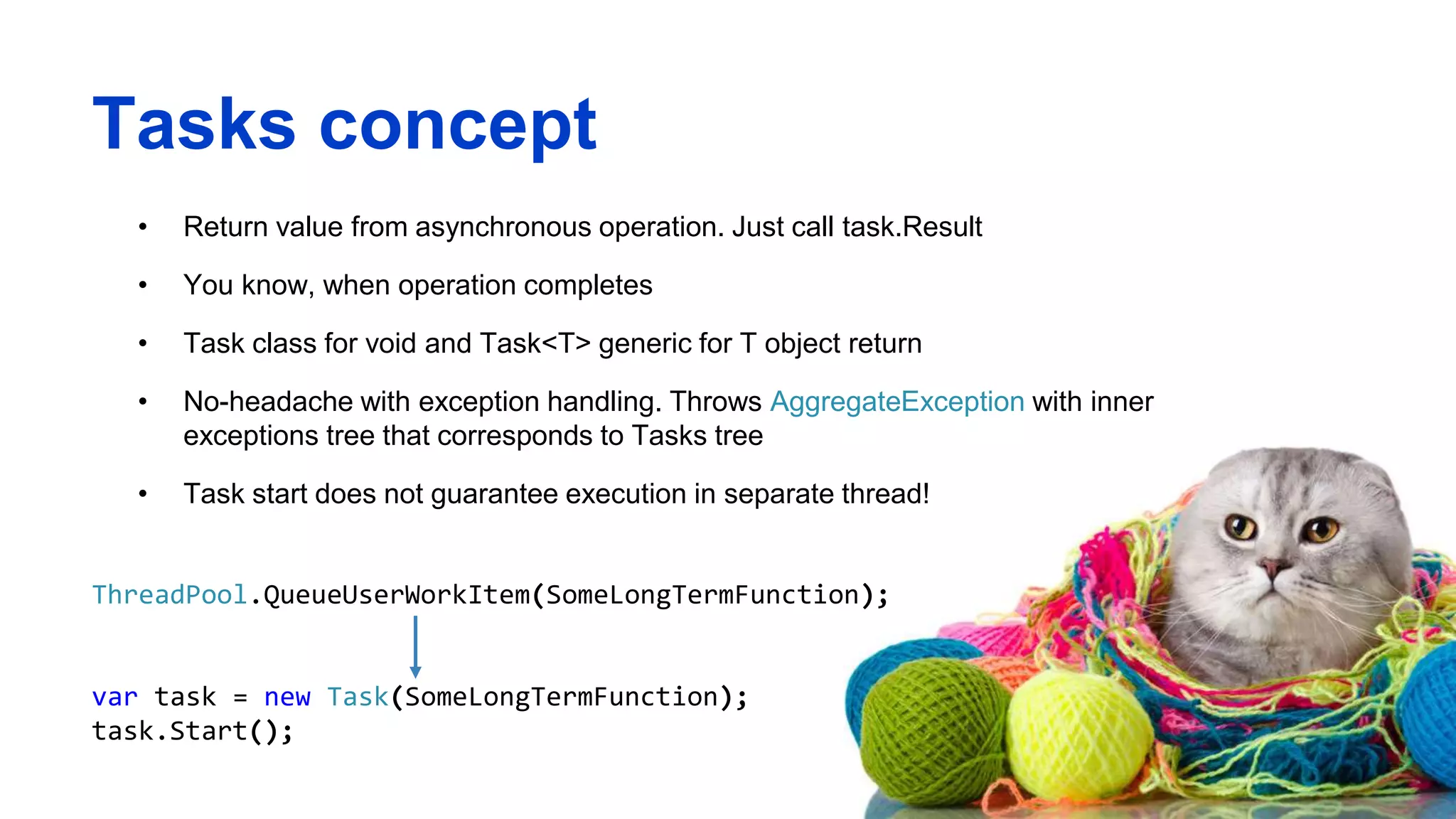

Tasks concept
• Return value from asynchronous operation. Just call task.Result
• You know, when operation completes
• Task class for void and Task<T> generic for T object return
• No-headache with exception handling. Throws AggregateException with inner
exceptions tree that corresponds to Tasks tree
• Task start does not guarantee execution in separate thread!
ThreadPool.QueueUserWorkItem(SomeLongTermFunction);
var task = new Task(SomeLongTermFunction);
task.Start();

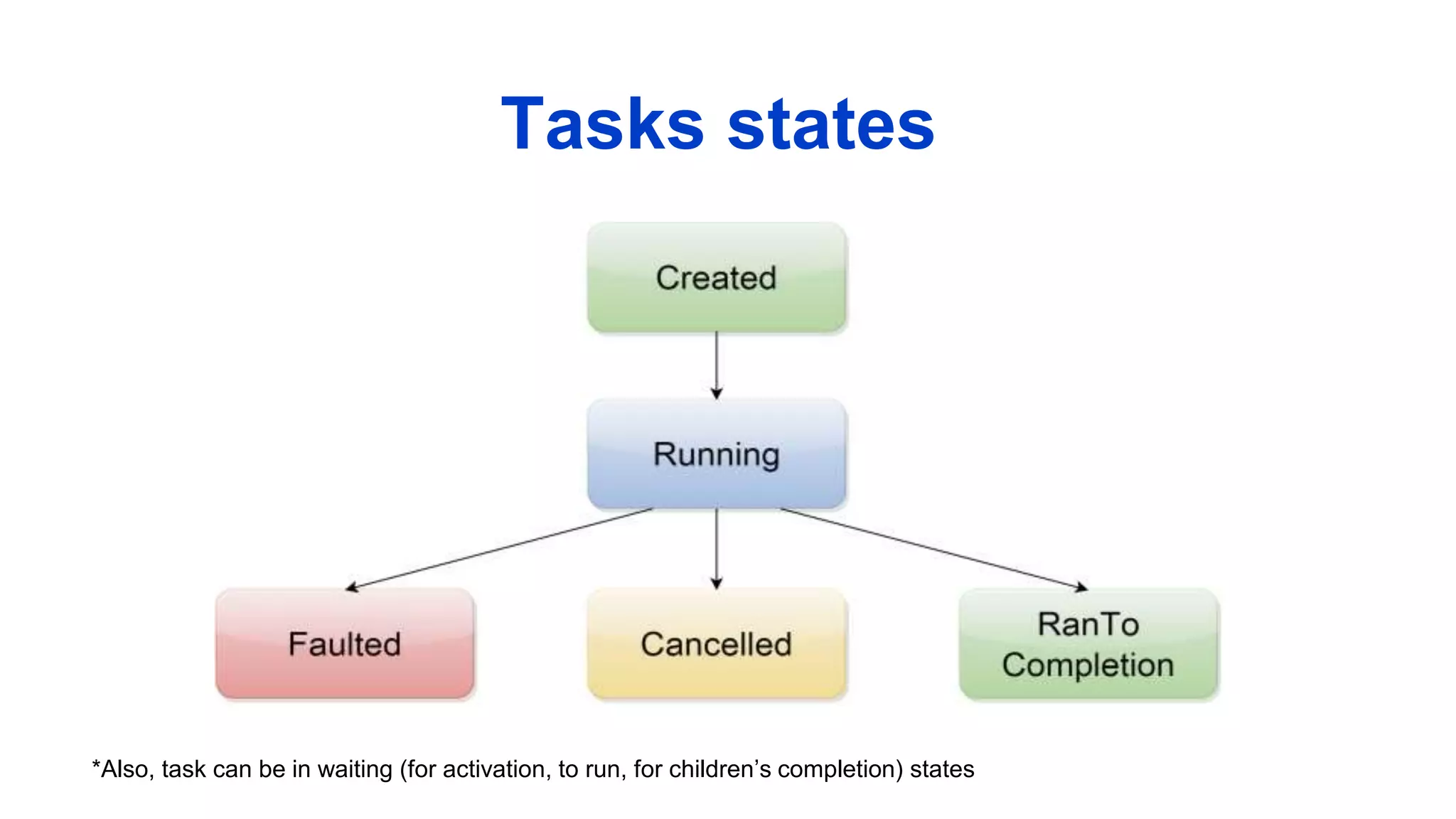

Tasks states
*Also, task can be in waiting (for activation, to run, for children’s completion) states

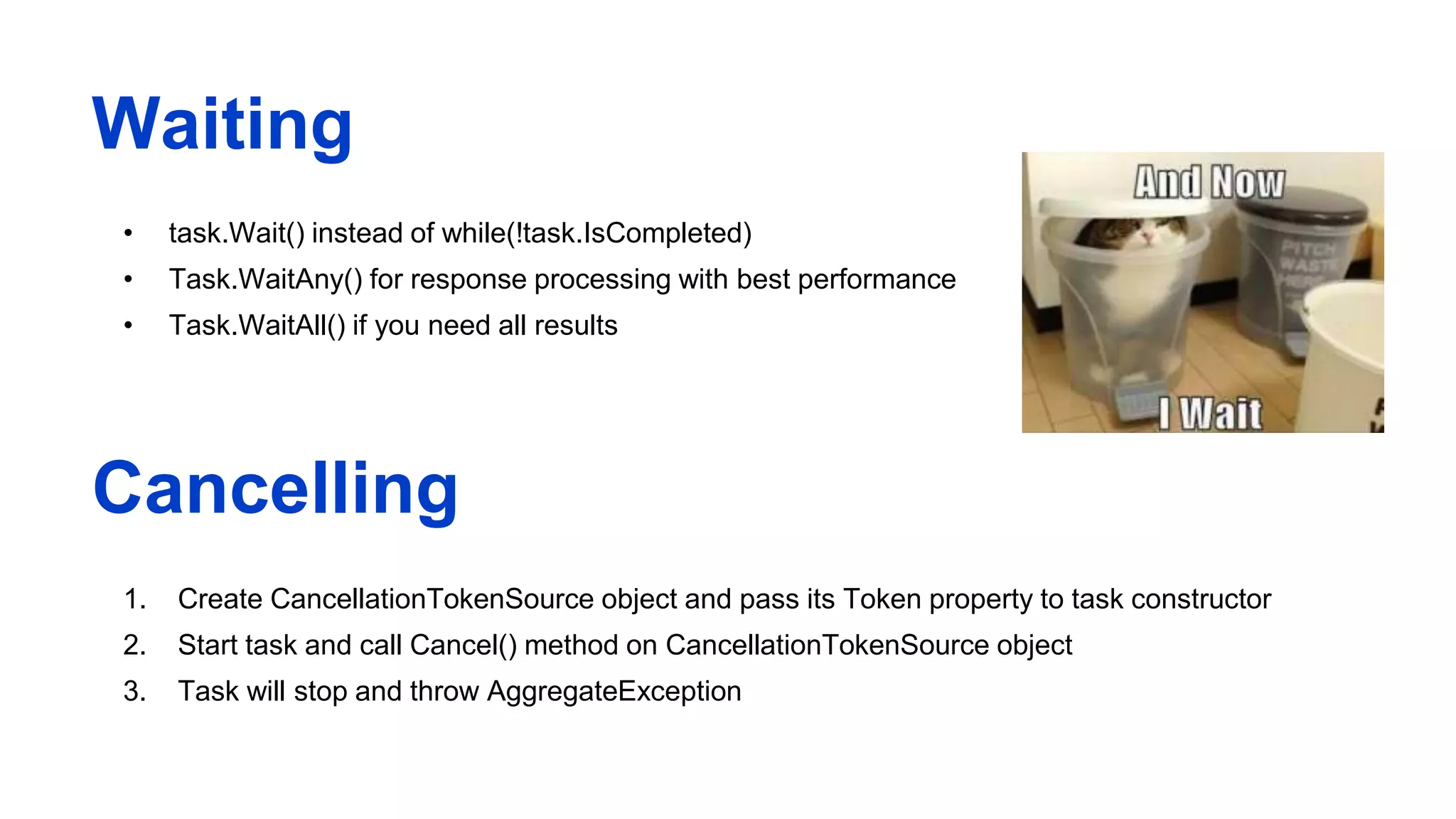

Waiting
• task.Wait() instead of while(!task.IsCompleted)
• Task.WaitAny() for response processing with best performance
• Task.WaitAll() if you need all results
Cancelling
1. Create CancellationTokenSource object and pass its Token property to task constructor
2. Start task and call Cancel() method on CancellationTokenSource object
3. Task will stop and throw AggregateException

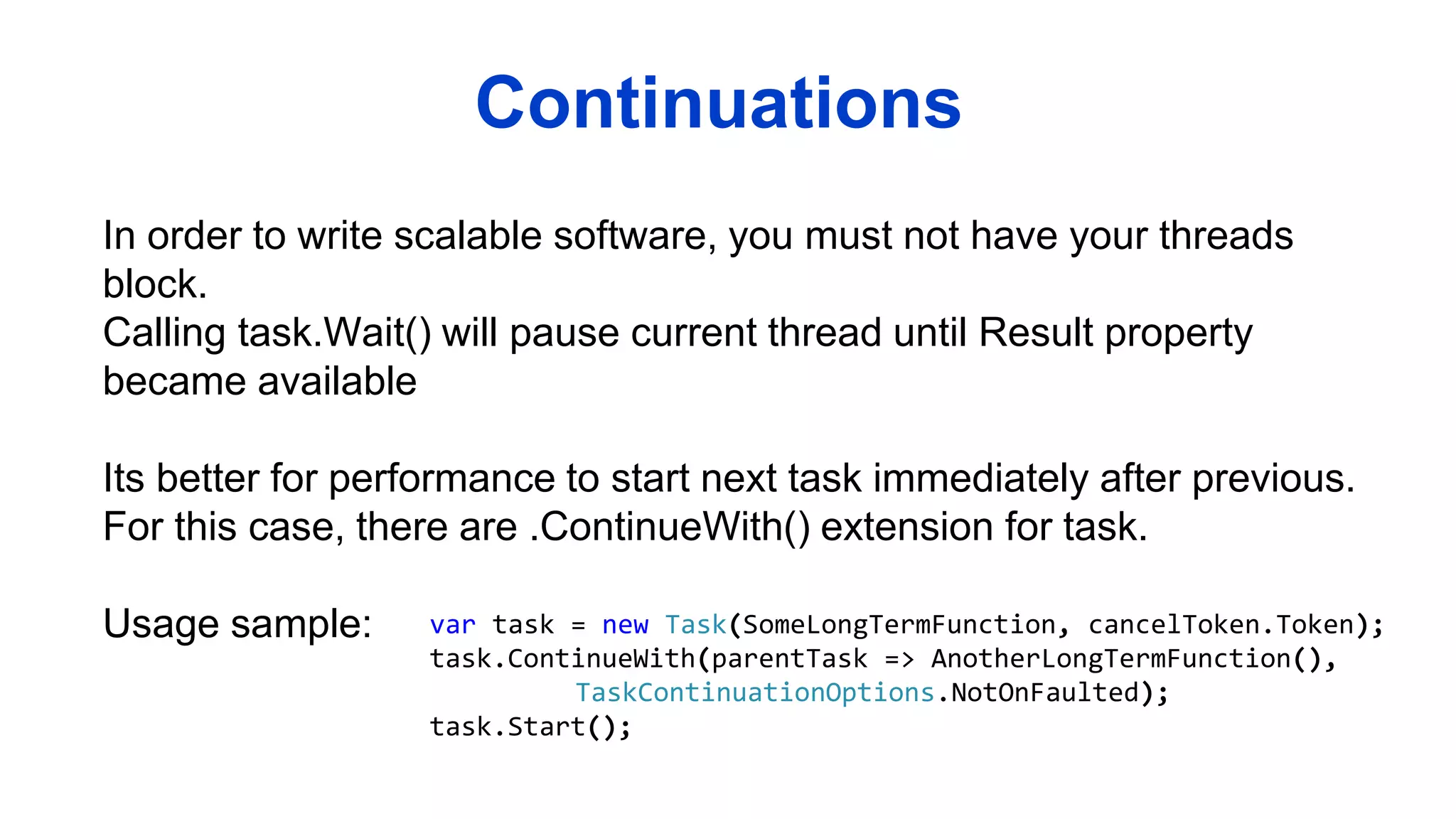

Continuations
In order to write scalable software, you must not have your threads
block.
Calling task.Wait() will pause current thread until Result property
became available
Its better for performance to start next task immediately after previous.
For this case, there are .ContinueWith() extension for task.
Usage sample: var task = new Task(SomeLongTermFunction, cancelToken.Token);
task.ContinueWith(parentTask => AnotherLongTermFunction(),
TaskContinuationOptions.NotOnFaulted);
task.Start();

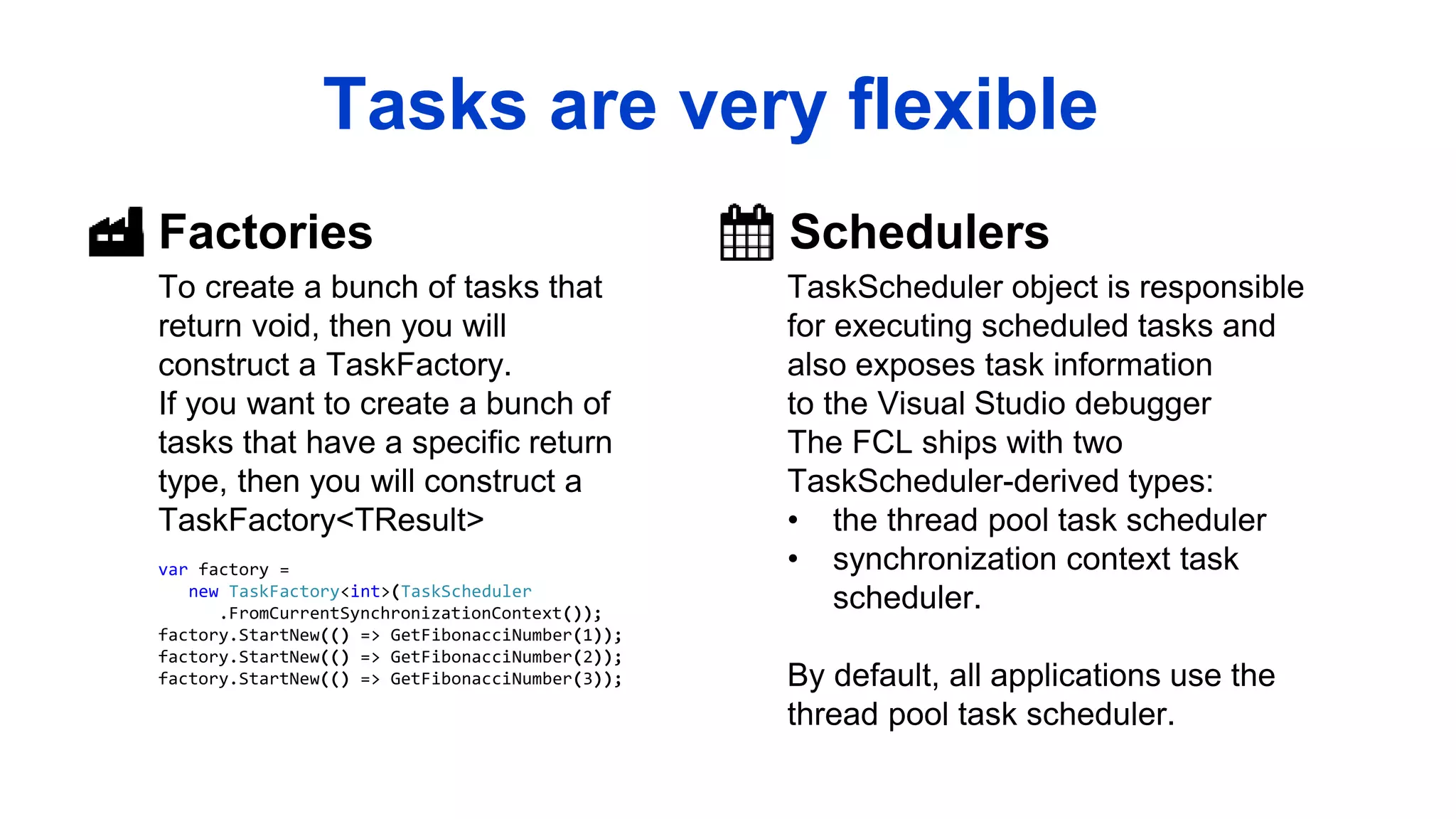

Factories
To create a bunch of tasks that
return void, then you will
construct a TaskFactory.
If you want to create a bunch of
tasks that have a specific return
type, then you will construct a
TaskFactory<TResult>
Schedulers
TaskScheduler object is responsible
for executing scheduled tasks and
also exposes task information
to the Visual Studio debugger
The FCL ships with two
TaskScheduler-derived types:
• the thread pool task scheduler
• synchronization context task
scheduler.
By default, all applications use the
thread pool task scheduler.
Tasks are very flexible
var factory =
new TaskFactory<int>(TaskScheduler
.FromCurrentSynchronizationContext());
factory.StartNew(() => GetFibonacciNumber(1));

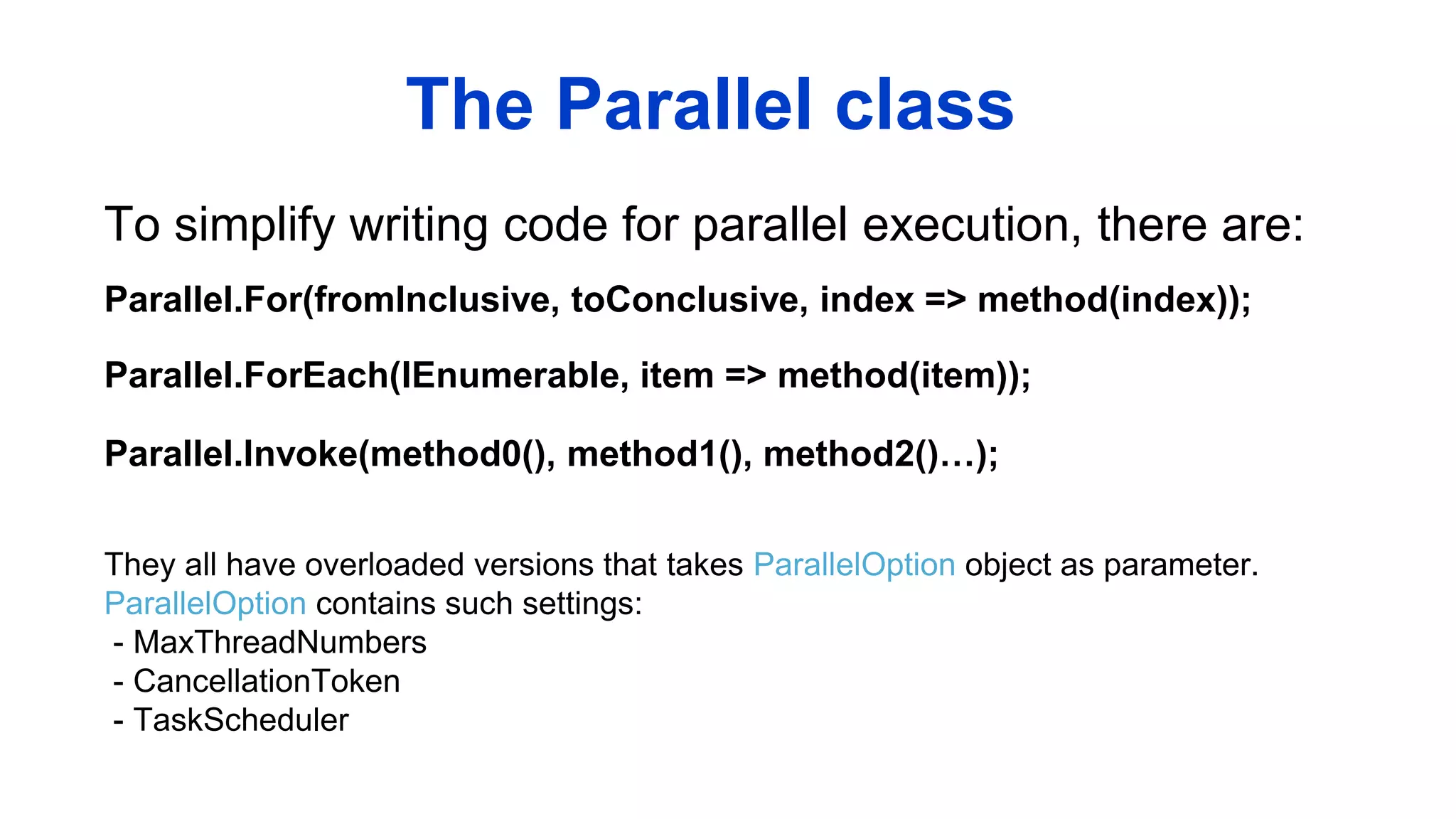

To simplify writing code for parallel execution, there are:
The Parallel class
Parallel.For(fromInclusive, toConclusive, index => method(index));
Parallel.ForEach(IEnumerable, item => method(item));
Parallel.Invoke(method0(), method1(), method2()…);
They all have overloaded versions that takes ParallelOption object as parameter.
ParallelOption contains such settings:
- MaxThreadNumbers
- CancellationToken
- TaskScheduler

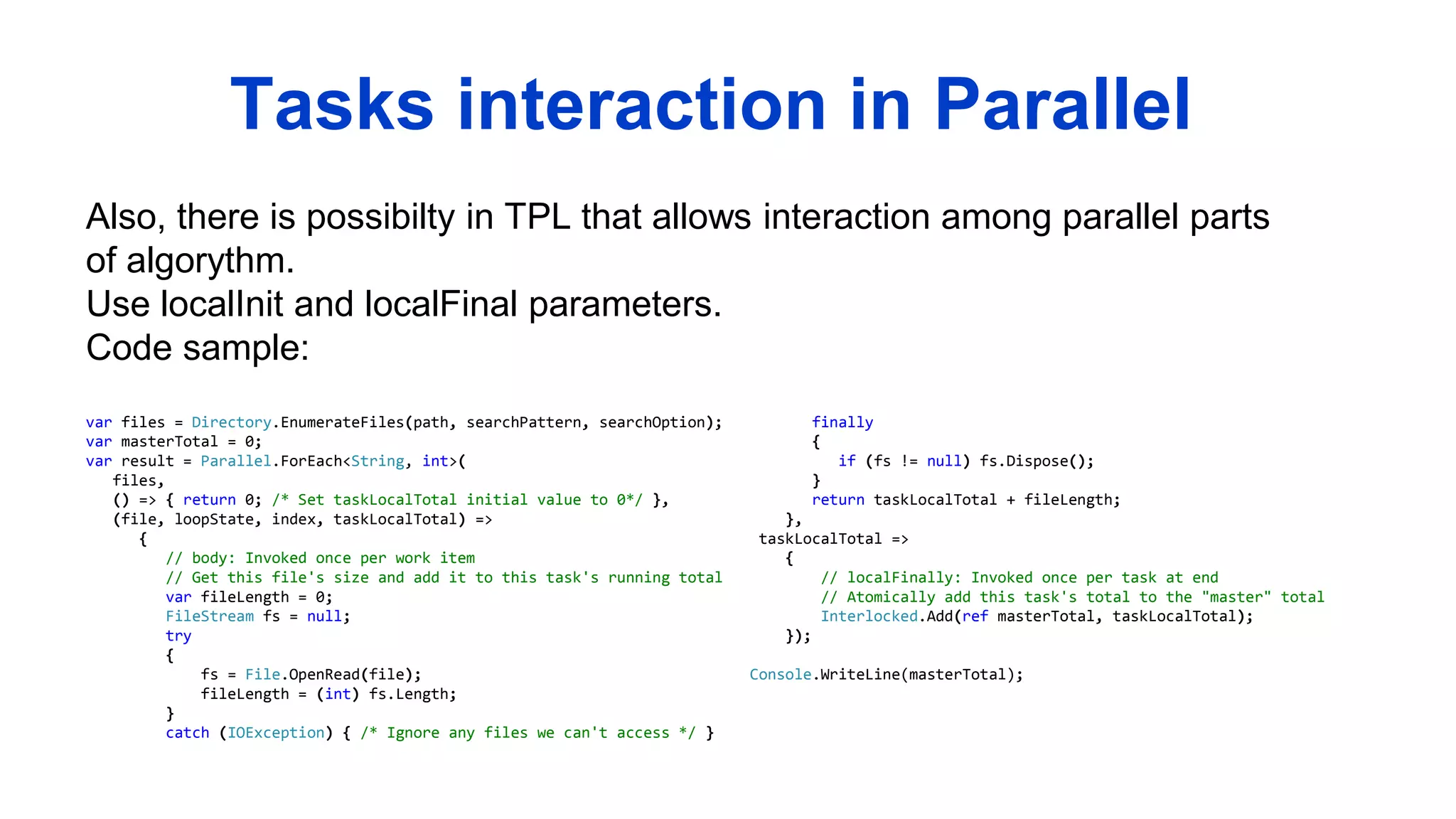

Also, there is possibilty in TPL that allows interaction among parallel parts
of algorythm.
Use localInit and localFinal parameters.
Code sample:
Tasks interaction in Parallel
var files = Directory.EnumerateFiles(path, searchPattern, searchOption);
var masterTotal = 0;
var result = Parallel.ForEach<String, int>(
files,
() => { return 0; /* Set taskLocalTotal initial value to 0*/ },
(file, loopState, index, taskLocalTotal) =>
{
// body: Invoked once per work item
// Get this file's size and add it to this task's running total
var fileLength = 0;
FileStream fs = null;
try
{
fs = File.OpenRead(file);
fileLength = (int) fs.Length;
}
catch (IOException) { /* Ignore any files we can't access */ }
finally
{
if (fs != null) fs.Dispose();
}
return taskLocalTotal + fileLength;
},
taskLocalTotal =>
{
// localFinally: Invoked once per task at end
// Atomically add this task's total to the "master" total
Interlocked.Add(ref masterTotal, taskLocalTotal);
});
Console.WriteLine(masterTotal);

Not every algorithm could be
parallel

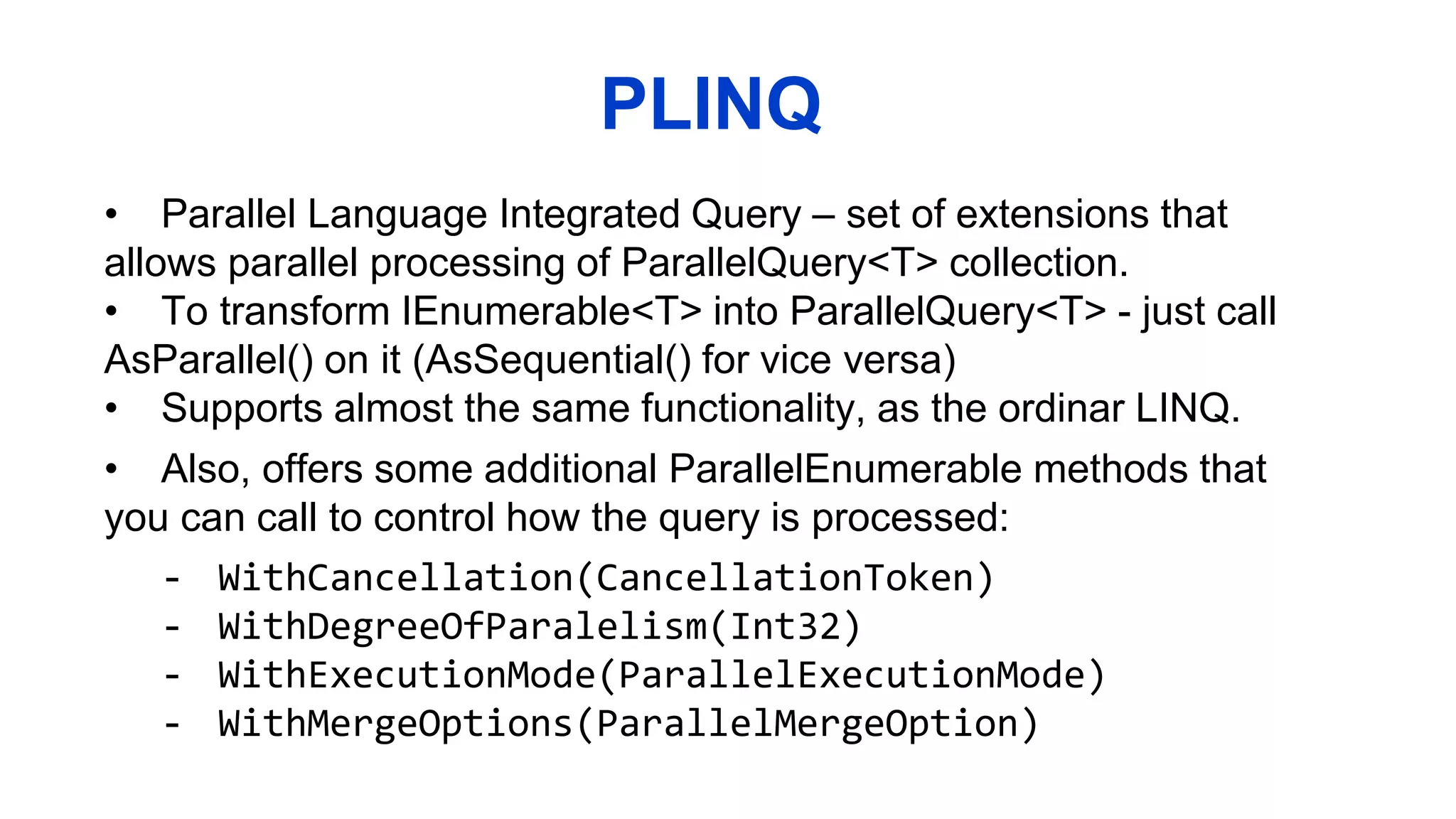

PLINQ
• Parallel Language Integrated Query – set of extensions that
allows parallel processing of ParallelQuery<T> collection.
• To transform IEnumerable<T> into ParallelQuery<T> - just call
AsParallel() on it (AsSequential() for vice versa)
• Supports almost the same functionality, as the ordinar LINQ.
• Also, offers some additional ParallelEnumerable methods that
you can call to control how the query is processed:
- WithCancellation(CancellationToken)
- WithDegreeOfParalelism(Int32)
- WithExecutionMode(ParallelExecutionMode)
- WithMergeOptions(ParallelMergeOption)

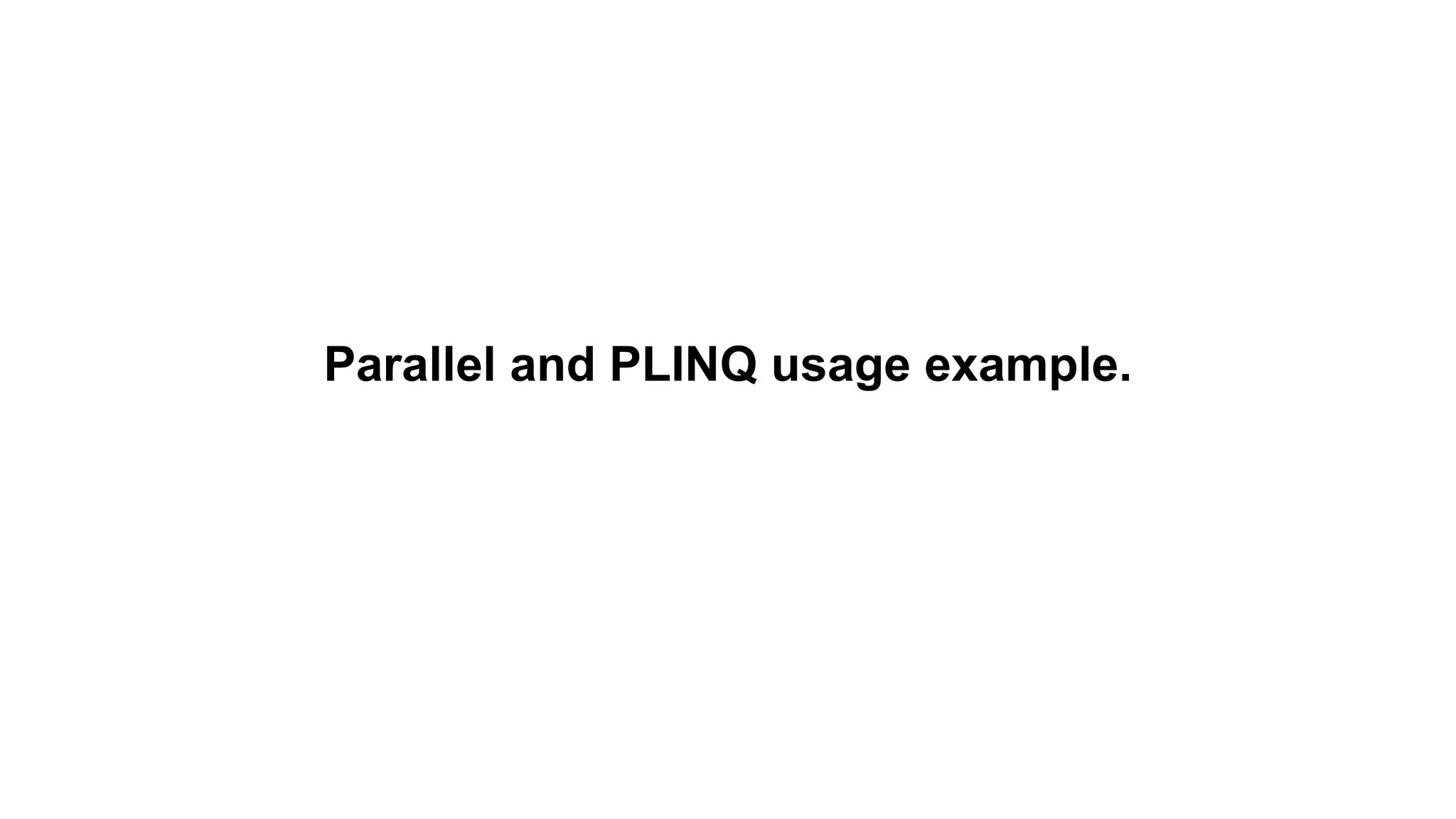

Parallel and PLINQ usage example.

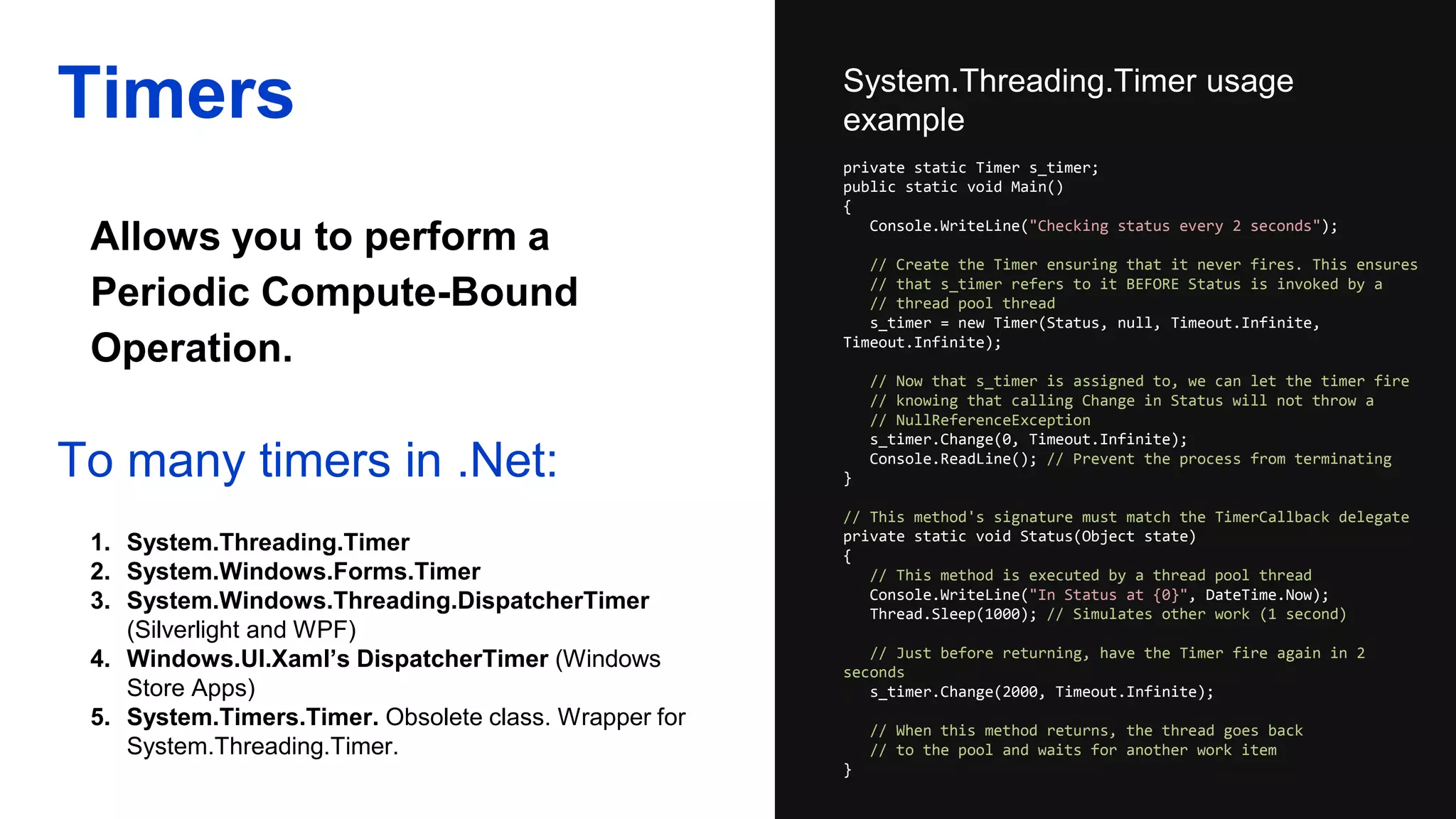

Allows you to perform a
Periodic Compute-Bound
Operation.
Timers System.Threading.Timer usage
example
To many timers in .Net:
1. System.Threading.Timer
2. System.Windows.Forms.Timer
3. System.Windows.Threading.DispatcherTimer
(Silverlight and WPF)
4. Windows.UI.Xaml’s DispatcherTimer (Windows
Store Apps)
5. System.Timers.Timer. Obsolete class. Wrapper for
System.Threading.Timer.
private static Timer s_timer;
public static void Main()
{
Console.WriteLine("Checking status every 2 seconds");
// Create the Timer ensuring that it never fires. This ensures
// that s_timer refers to it BEFORE Status is invoked by a
// thread pool thread
s_timer = new Timer(Status, null, Timeout.Infinite,
Timeout.Infinite);
// Now that s_timer is assigned to, we can let the timer fire
// knowing that calling Change in Status will not throw a
// NullReferenceException
s_timer.Change(0, Timeout.Infinite);
Console.ReadLine(); // Prevent the process from terminating
}
// This method's signature must match the TimerCallback delegate
private static void Status(Object state)
{
// This method is executed by a thread pool thread
Console.WriteLine("In Status at {0}", DateTime.Now);
Thread.Sleep(1000); // Simulates other work (1 second)
// Just before returning, have the Timer fire again in 2
seconds
s_timer.Change(2000, Timeout.Infinite);
// When this method returns, the thread goes back
// to the pool and waits for another work item
}

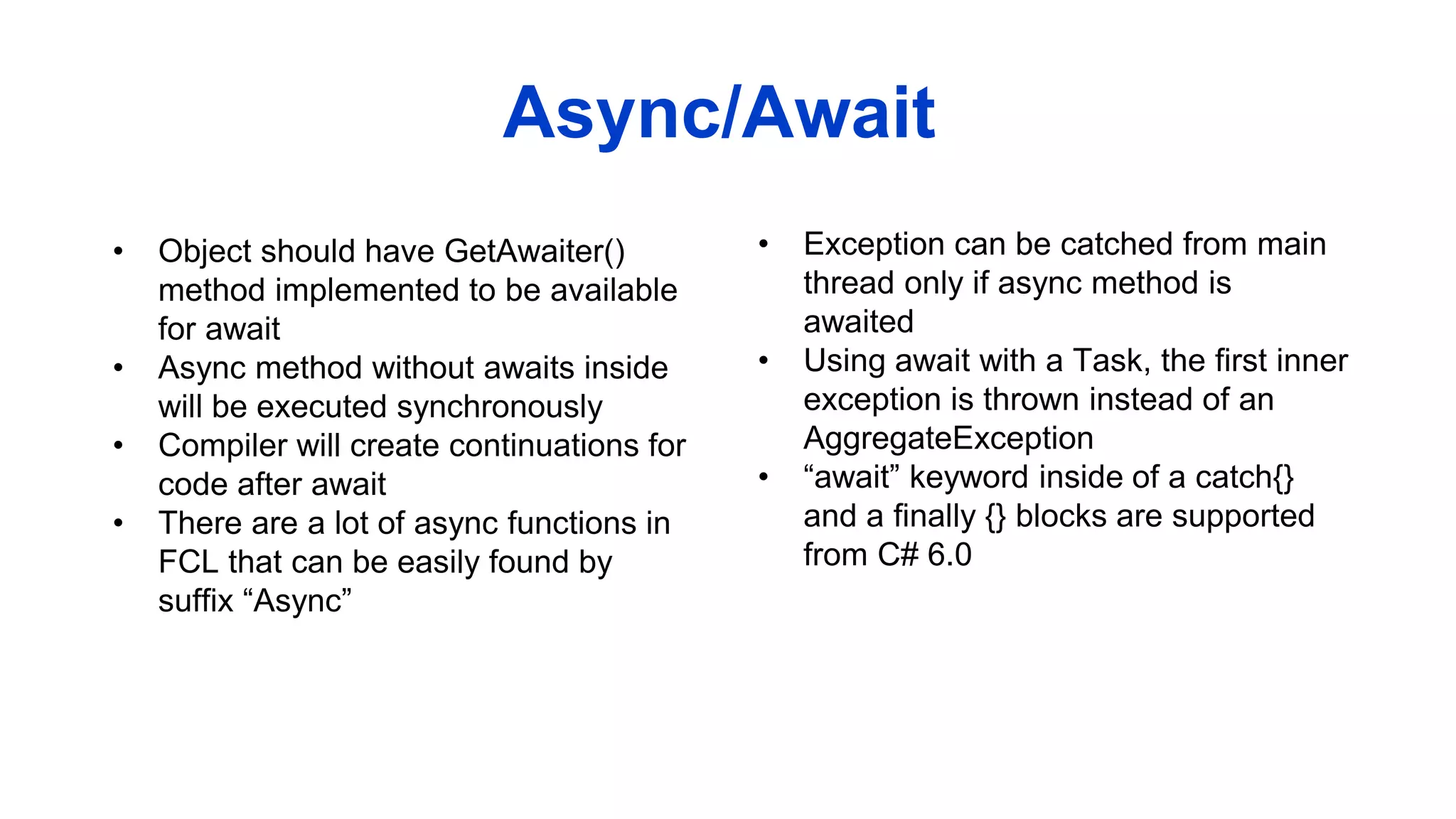

• Object should have GetAwaiter()
method implemented to be available
for await
• Async method without awaits inside
will be executed synchronously
• Compiler will create continuations for
code after await
• There are a lot of async functions in
FCL that can be easily found by
suffix “Async”
Async/Await
• Exception can be catched from main
thread only if async method is
awaited
• Using await with a Task, the first inner
exception is thrown instead of an
AggregateException
• “await” keyword inside of a catch{}
and a finally {} blocks are supported
from C# 6.0

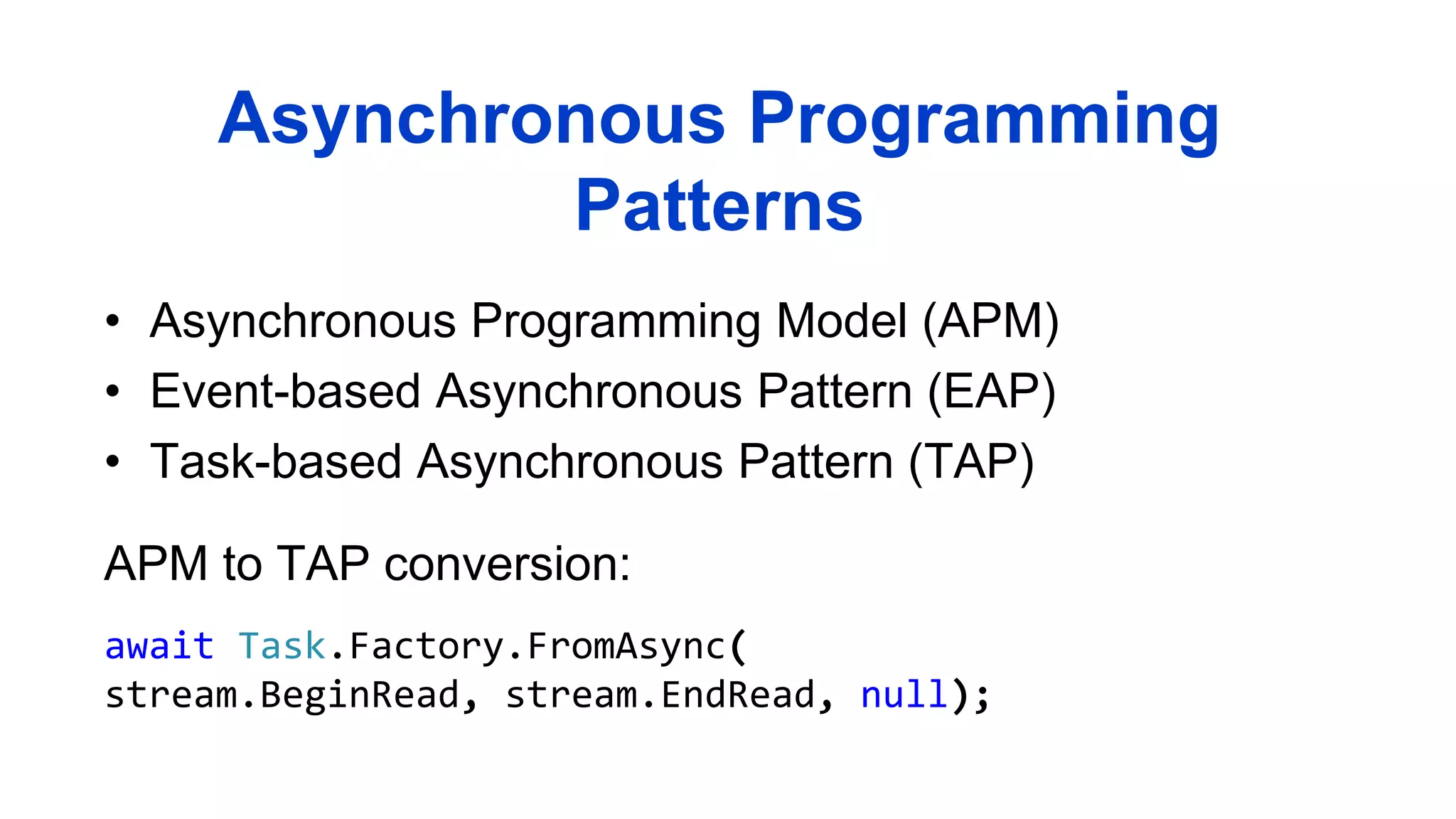

• Asynchronous Programming Model (APM)
• Event-based Asynchronous Pattern (EAP)
• Task-based Asynchronous Pattern (TAP)
Asynchronous Programming
Patterns
APM to TAP conversion:
await Task.Factory.FromAsync(
stream.BeginRead, stream.EndRead, null);

Inspired by Technology.
Driven by Value.
Find us at eleks.com
Have a question? Write to eleksinfo@eleks.com

.NET Multithreading/Multitasking

More Related Content

What's hot

Similar to .NET Multithreading/Multitasking

Recently uploaded

.NET Multithreading/Multitasking
