MODULE-1_CCN.pptx

COMPUTER NETWORK
(18EC71)
Dr. Shivashankar
Professor
Department of Electronics & Communication
Engineering
RRIT, Bangalore
2/11/2023 1
Dr. Shivashankar, E&CE, RRIT

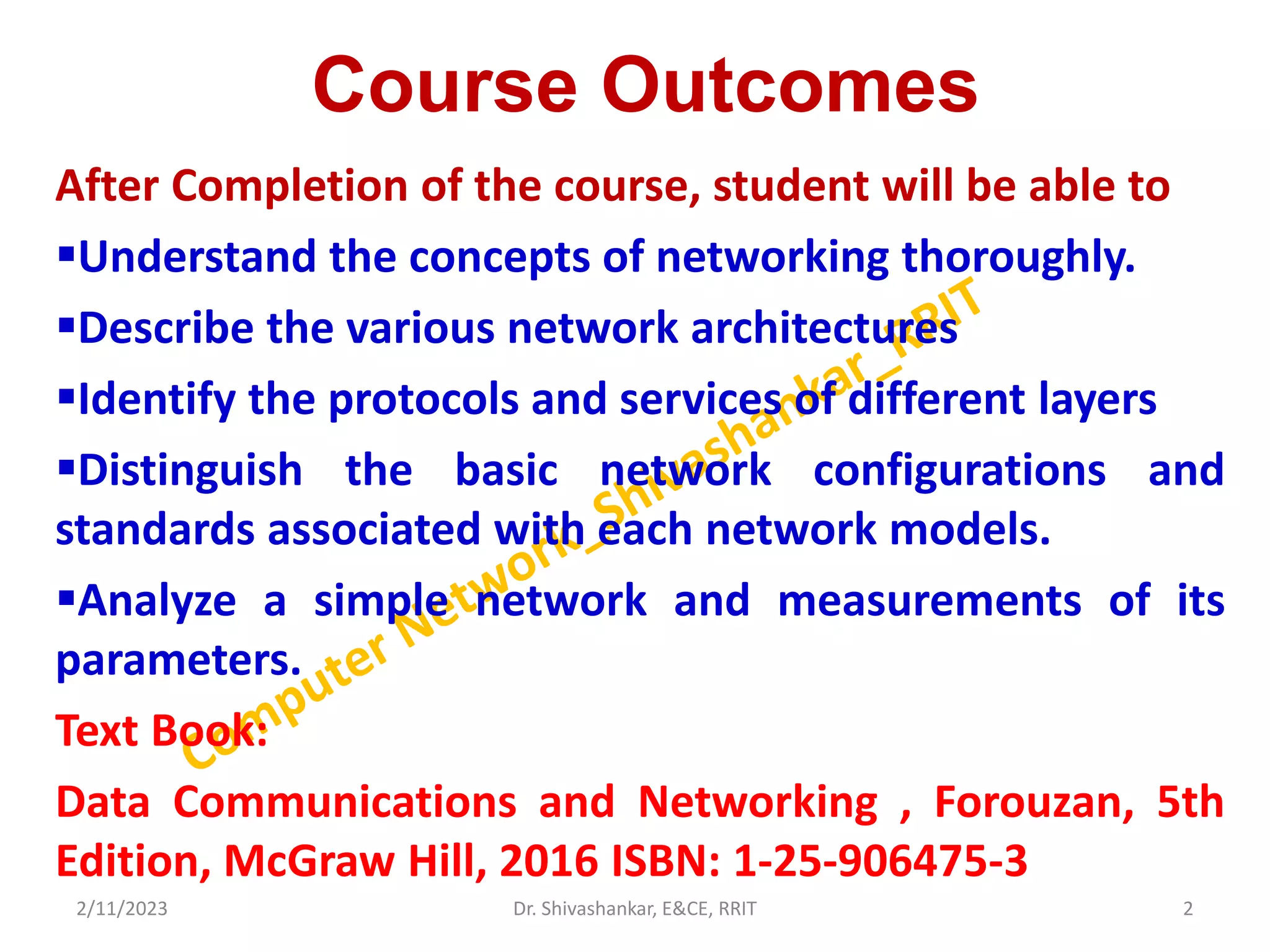

Course Outcomes
After Completion of the course, student will be able to
Understand the concepts of networking thoroughly.
Describe the various network architectures
Identify the protocols and services of different layers
Distinguish the basic network configurations and
standards associated with each network models.
Analyze a simple network and measurements of its
parameters.
Text Book:
Data Communications and Networking , Forouzan, 5th
Edition, McGraw Hill, 2016 ISBN: 1-25-906475-3
2/11/2023 2

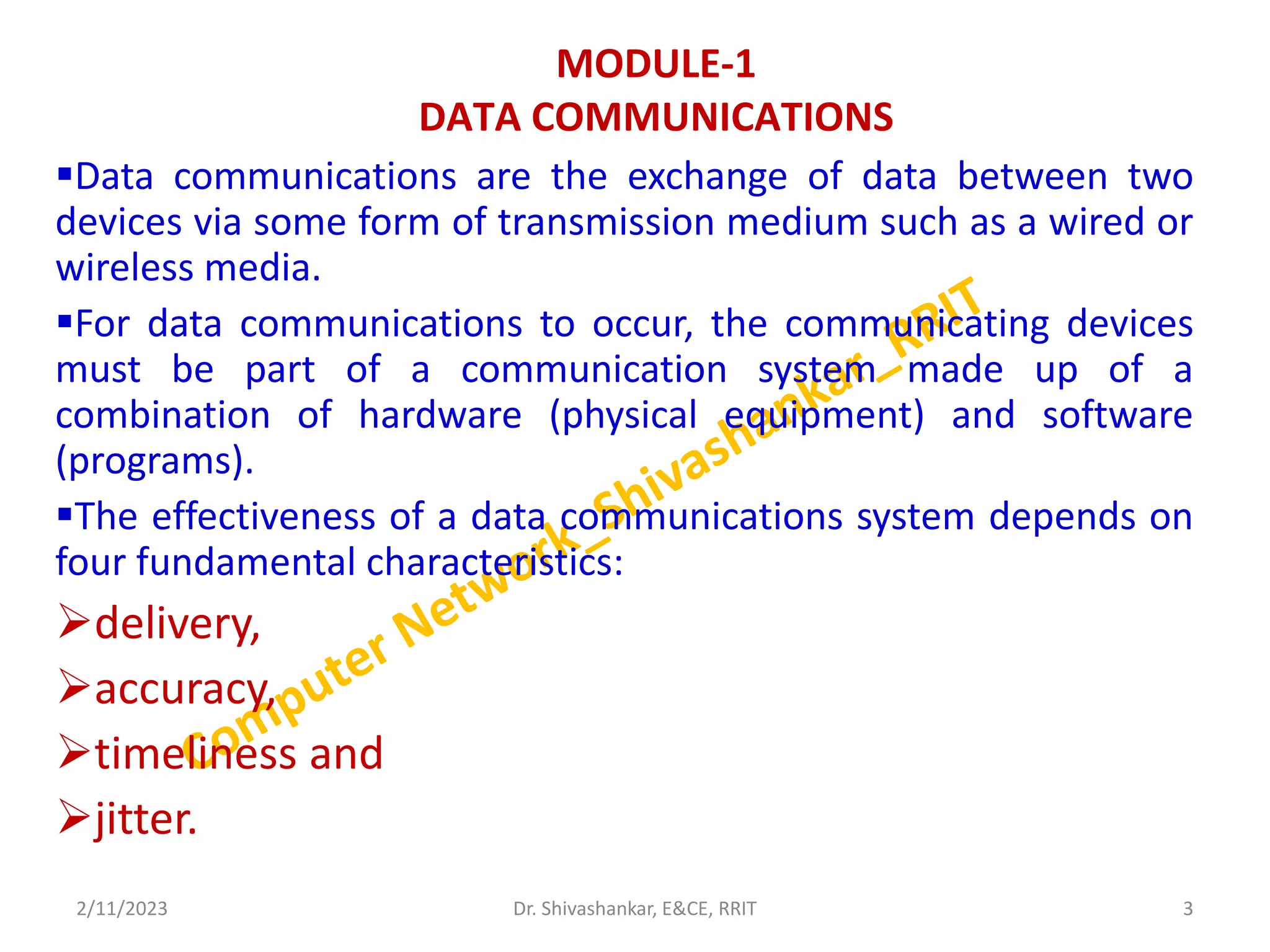

MODULE-1
DATA COMMUNICATIONS
Data communications are the exchange of data between two
devices via some form of transmission medium such as a wired or
wireless media.
For data communications to occur, the communicating devices
must be part of a communication system made up of a
combination of hardware (physical equipment) and software
(programs).
The effectiveness of a data communications system depends on
four fundamental characteristics:
delivery,
accuracy,
timeliness and
jitter.
2/11/2023 3

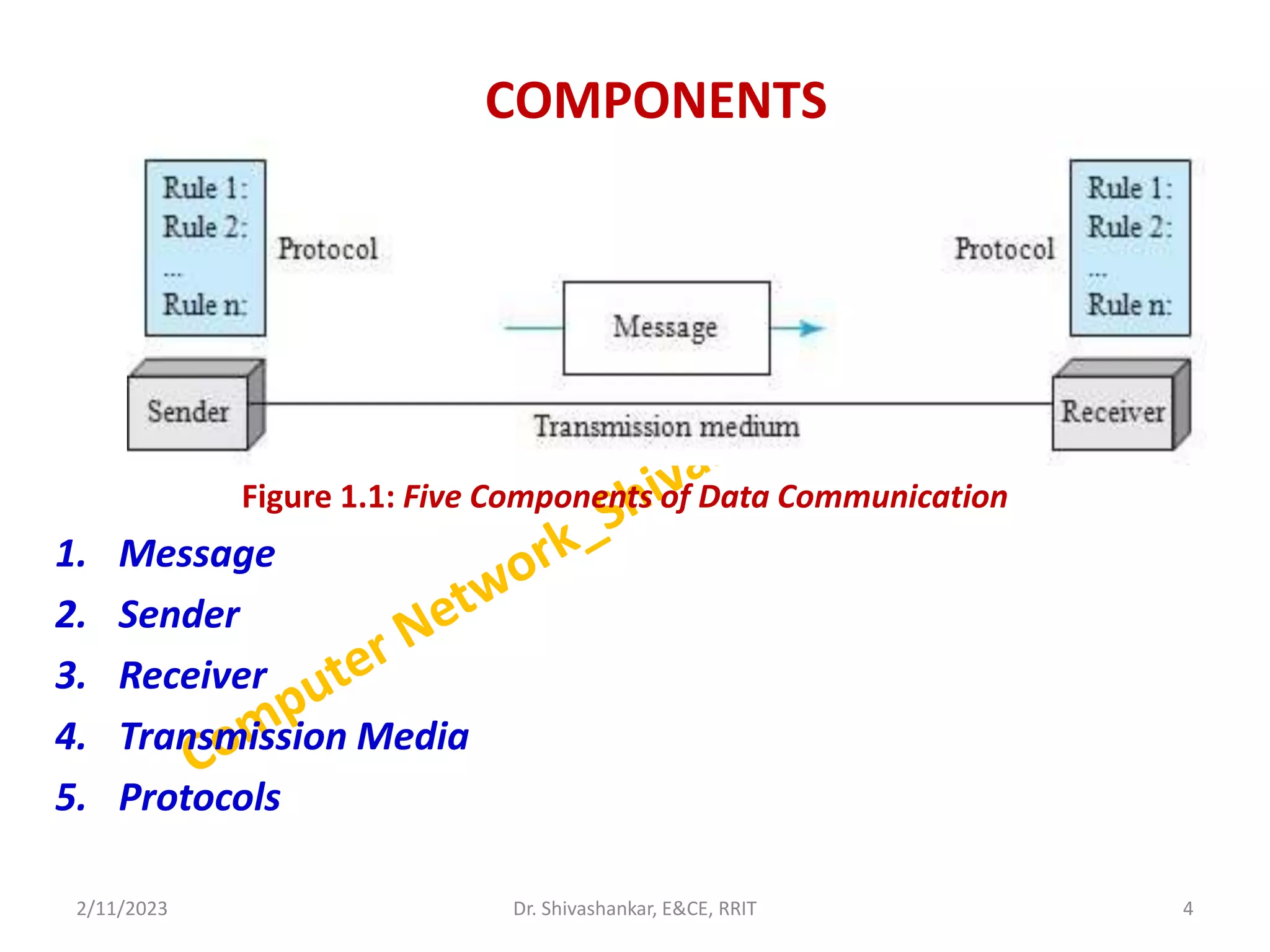

COMPONENTS
Figure 1.1: Five Components of Data Communication
1. Message
2. Sender
3. Receiver
4. Transmission Media
5. Protocols
2/11/2023 4

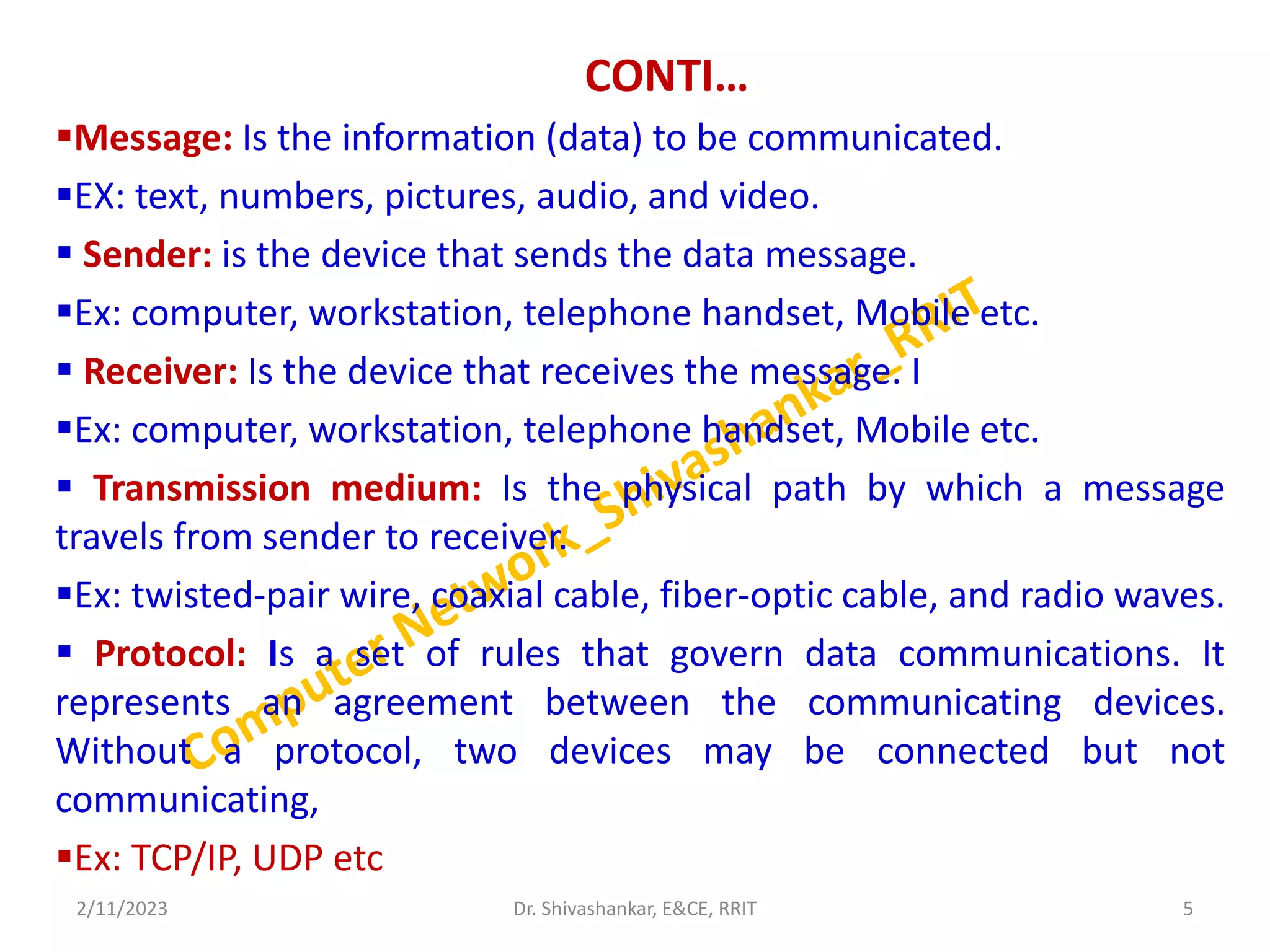

CONTI…
Message: Is the information (data) to be communicated.
EX: text, numbers, pictures, audio, and video.
 Sender: is the device that sends the data message.
Ex: computer, workstation, telephone handset, Mobile etc.
 Receiver: Is the device that receives the message. I
Ex: computer, workstation, telephone handset, Mobile etc.
 Transmission medium: Is the physical path by which a message
travels from sender to receiver.
Ex: twisted-pair wire, coaxial cable, fiber-optic cable, and radio waves.
 Protocol: Is a set of rules that govern data communications. It
represents an agreement between the communicating devices.
Without a protocol, two devices may be connected but not
communicating,
Ex: TCP/IP, UDP etc
2/11/2023 5

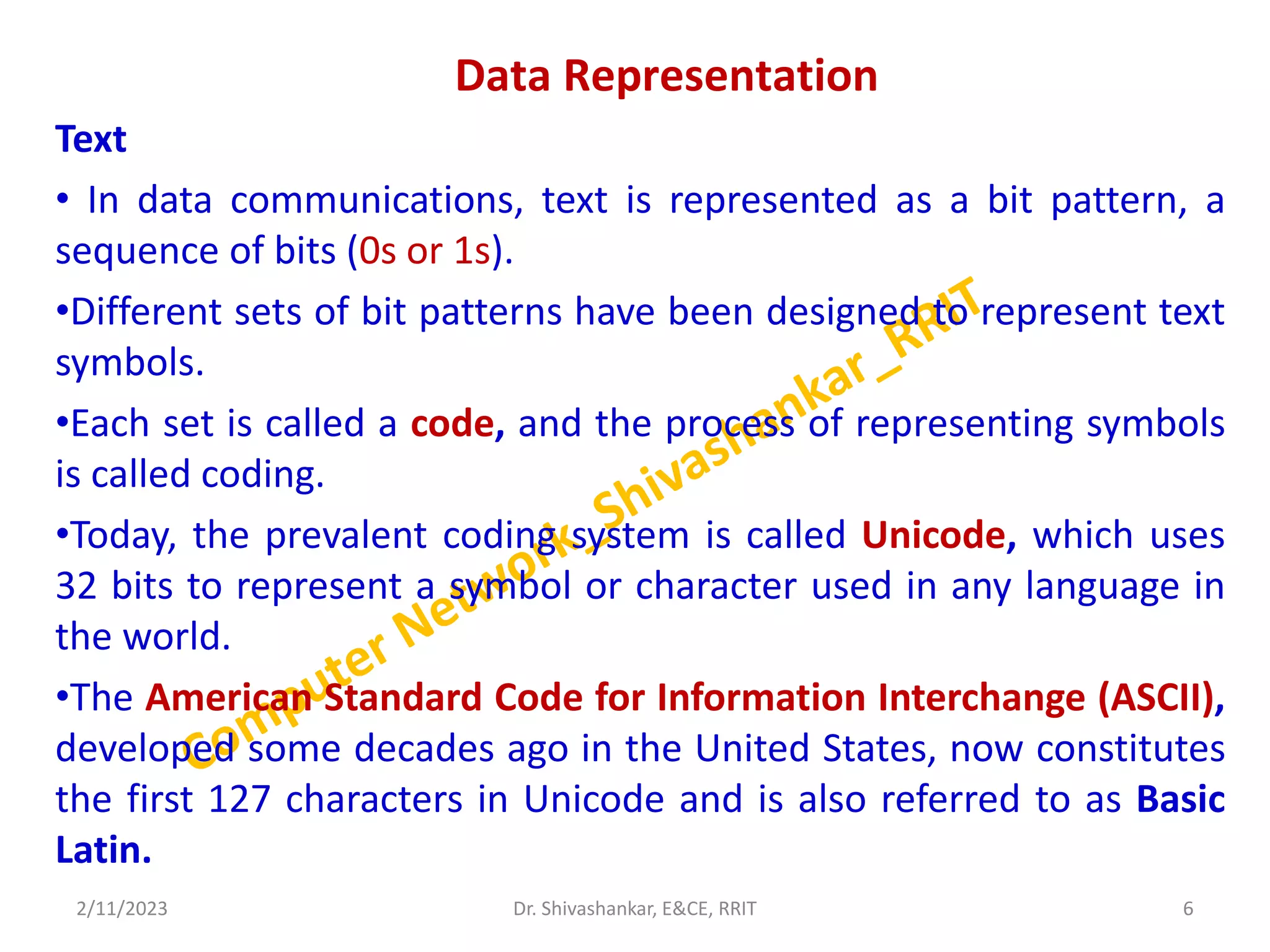

Data Representation
Text
• In data communications, text is represented as a bit pattern, a
sequence of bits (0s or 1s).
•Different sets of bit patterns have been designed to represent text
symbols.
•Each set is called a code, and the process of representing symbols
is called coding.
•Today, the prevalent coding system is called Unicode, which uses
32 bits to represent a symbol or character used in any language in
the world.
•The American Standard Code for Information Interchange (ASCII),
developed some decades ago in the United States, now constitutes
the first 127 characters in Unicode and is also referred to as Basic
Latin.
2/11/2023 6

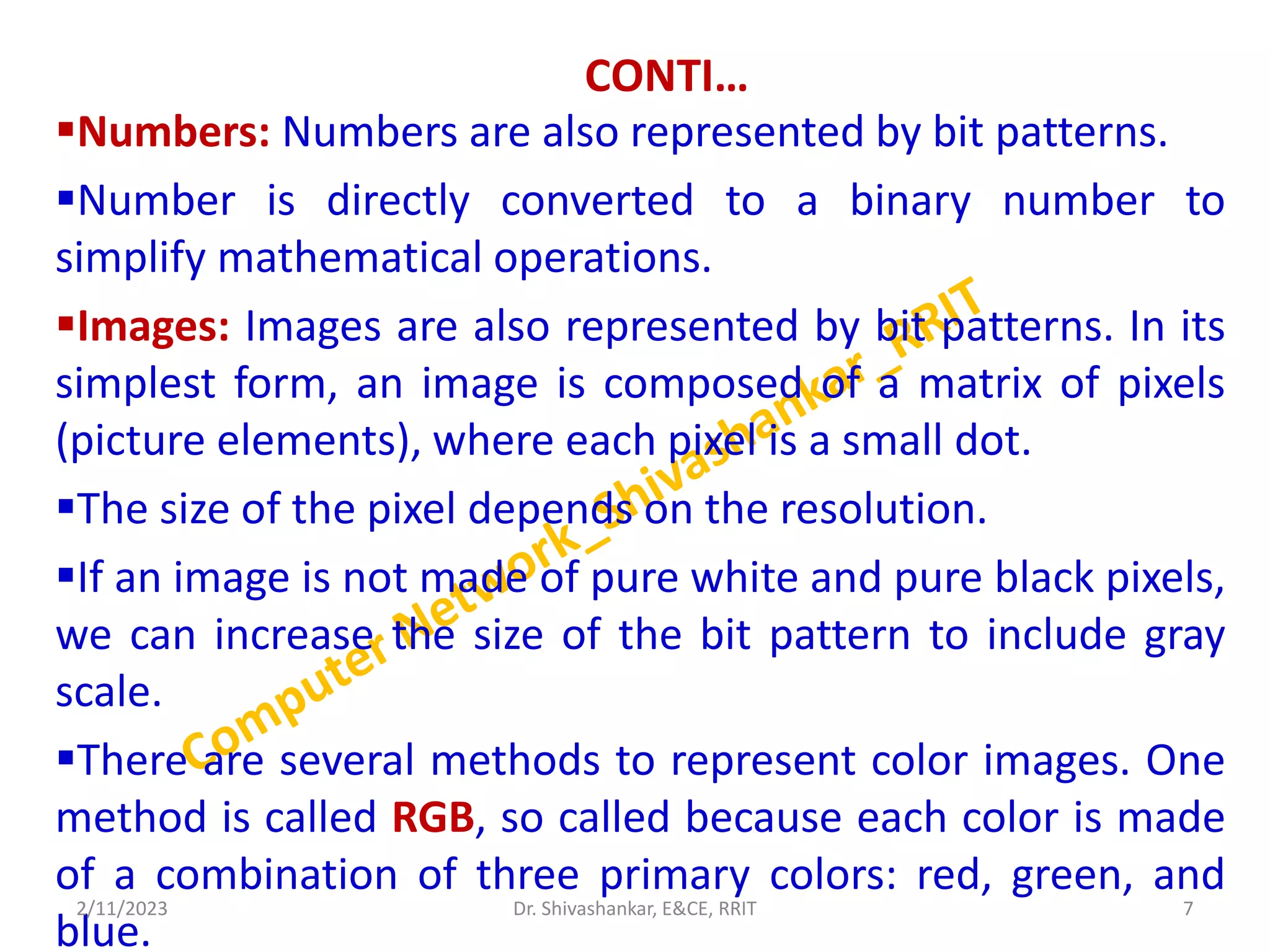

CONTI…
Numbers: Numbers are also represented by bit patterns.
Number is directly converted to a binary number to
simplify mathematical operations.
Images: Images are also represented by bit patterns. In its
simplest form, an image is composed of a matrix of pixels
(picture elements), where each pixel is a small dot.
The size of the pixel depends on the resolution.
If an image is not made of pure white and pure black pixels,
we can increase the size of the bit pattern to include gray
scale.
There are several methods to represent color images. One
method is called RGB, so called because each color is made
of a combination of three primary colors: red, green, and
blue.
2/11/2023 7

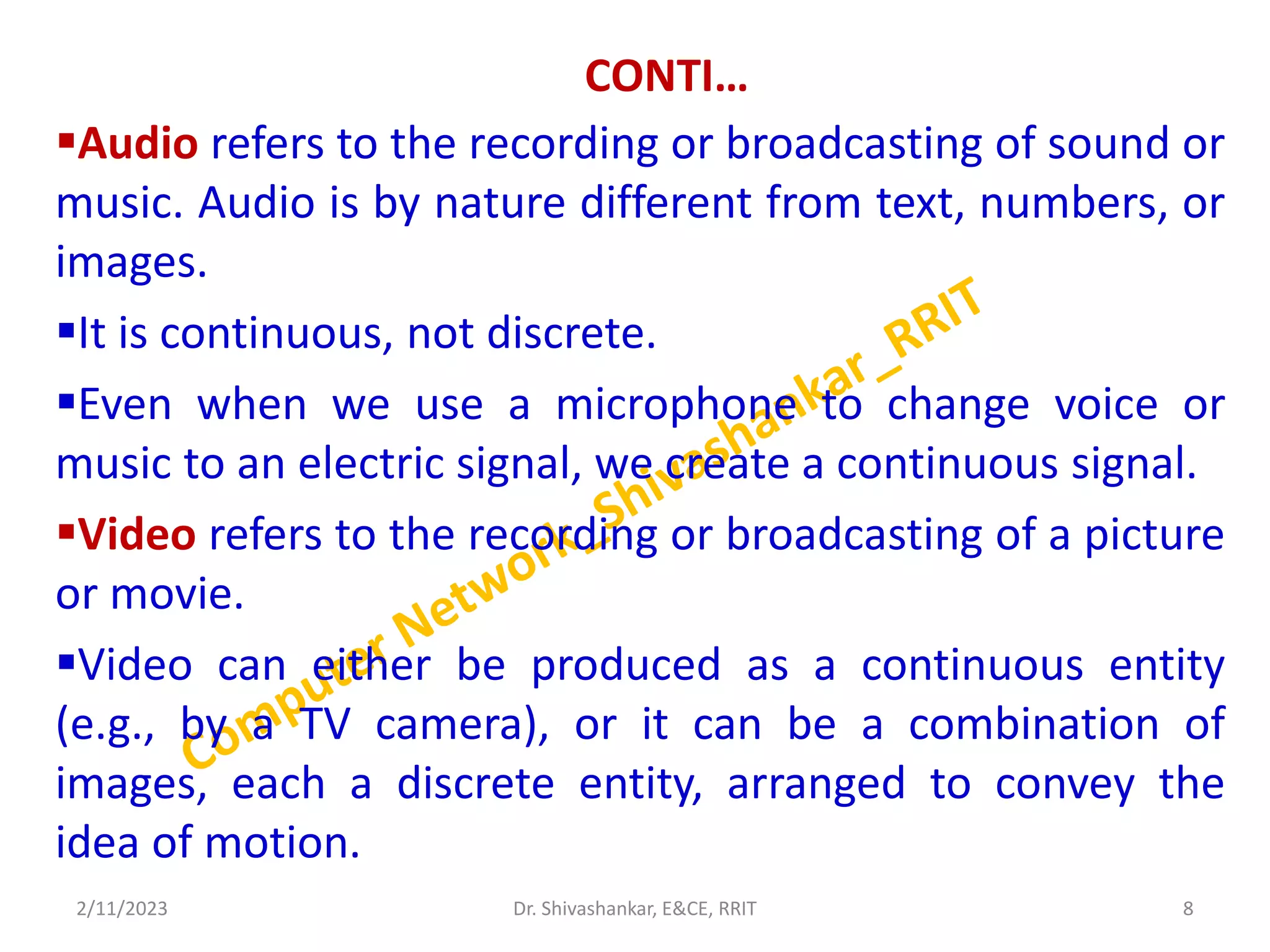

CONTI…
Audio refers to the recording or broadcasting of sound or
music. Audio is by nature different from text, numbers, or
images.
It is continuous, not discrete.
Even when we use a microphone to change voice or
music to an electric signal, we create a continuous signal.
Video refers to the recording or broadcasting of a picture
or movie.
Video can either be produced as a continuous entity
(e.g., by a TV camera), or it can be a combination of
images, each a discrete entity, arranged to convey the
idea of motion.
2/11/2023 8

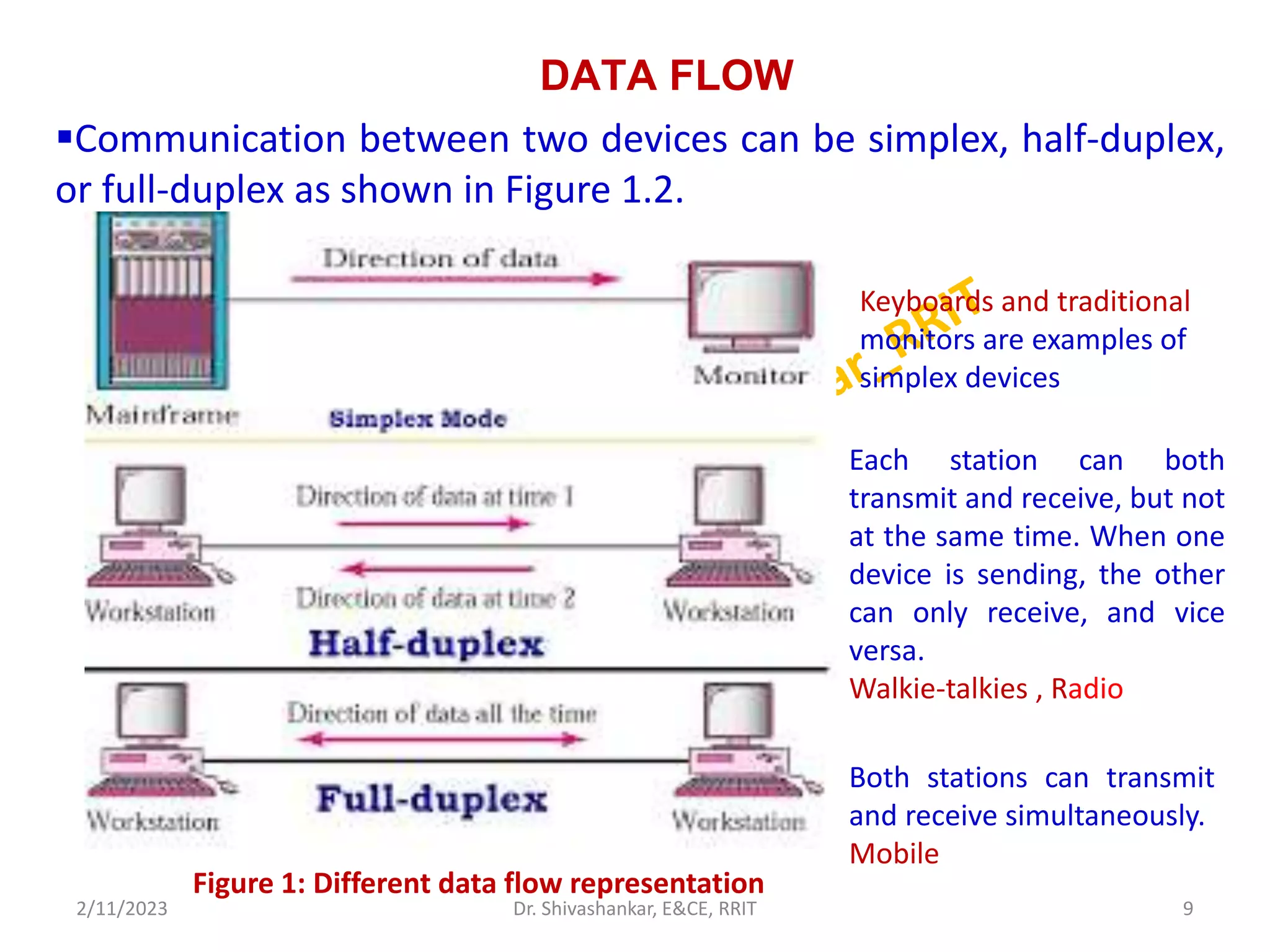

DATA FLOW
Communication between two devices can be simplex, half-duplex,
or full-duplex as shown in Figure 1.2.
Figure 1: Different data flow representation
Keyboards and traditional
monitors are examples of
simplex devices
Each station can both
transmit and receive, but not
at the same time. When one
device is sending, the other
can only receive, and vice
versa.
Walkie-talkies , Radio
Both stations can transmit
and receive simultaneously.
Mobile
2/11/2023 9

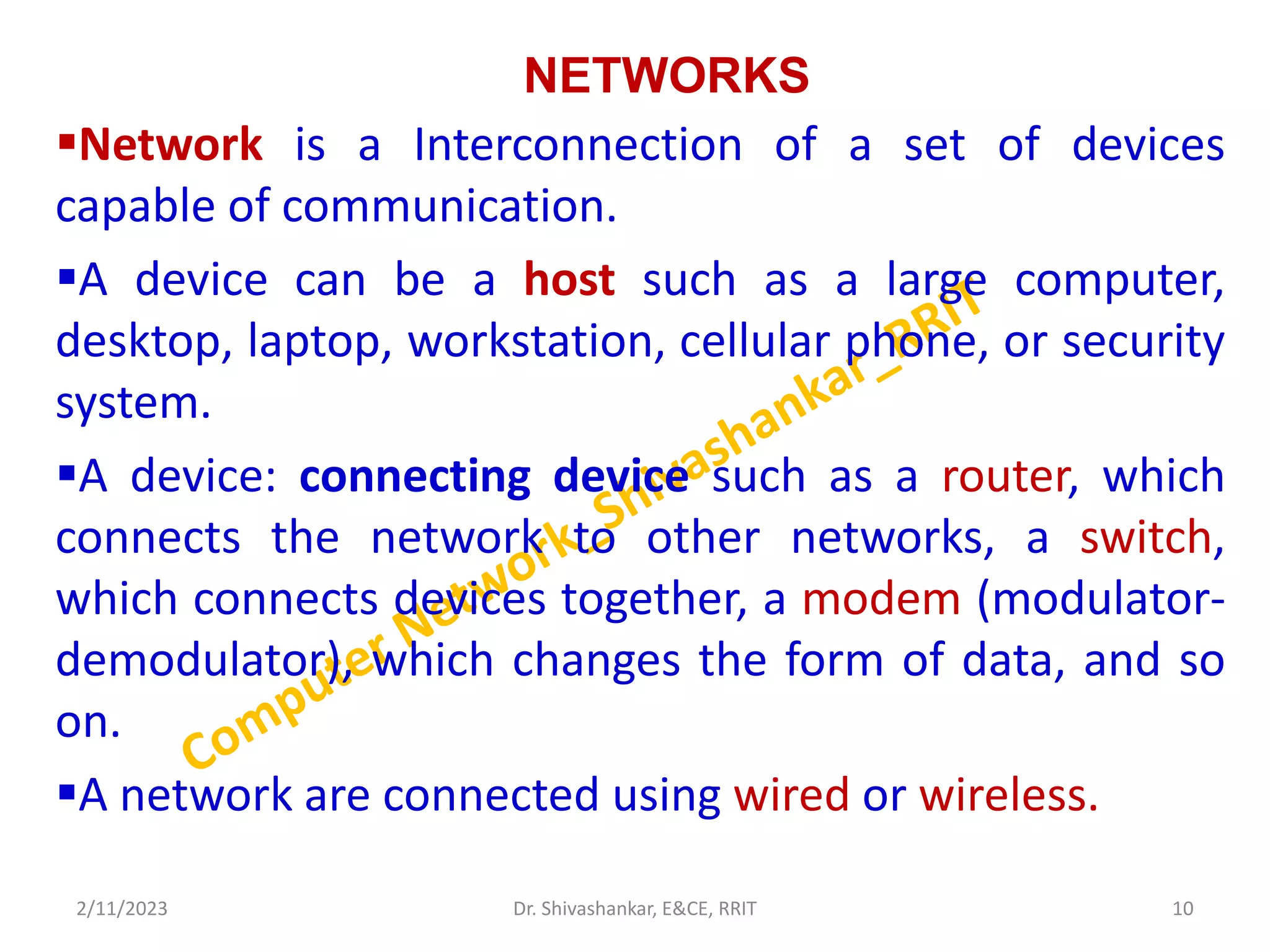

NETWORKS
Network is a Interconnection of a set of devices
capable of communication.
A device can be a host such as a large computer,
desktop, laptop, workstation, cellular phone, or security
system.
A device: connecting device such as a router, which
connects the network to other networks, a switch,
which connects devices together, a modem (modulator-
demodulator), which changes the form of data, and so
on.
A network are connected using wired or wireless.
2/11/2023 10

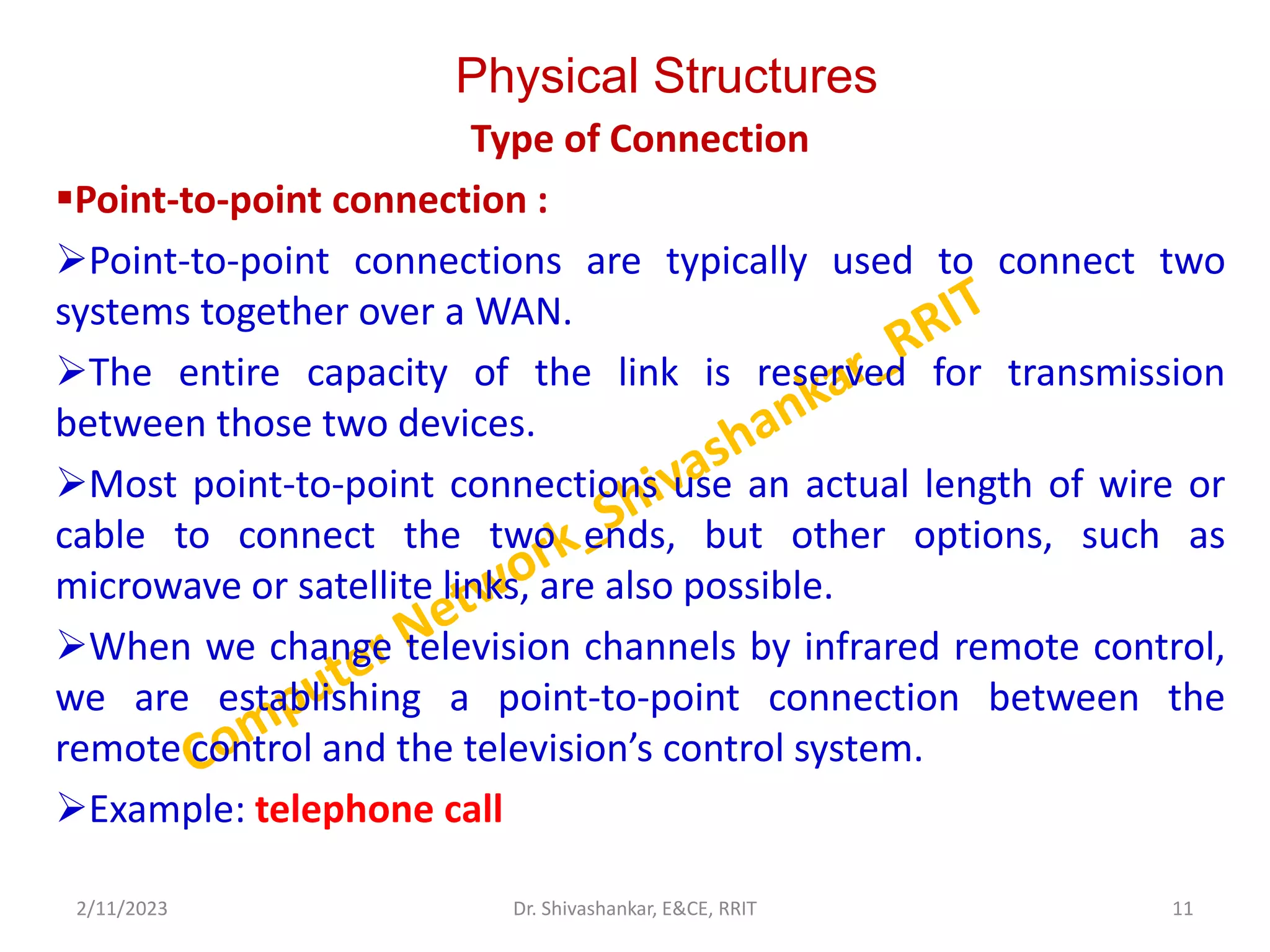

Physical Structures
Type of Connection
Point-to-point connection :
Point-to-point connections are typically used to connect two
systems together over a WAN.
The entire capacity of the link is reserved for transmission
between those two devices.
Most point-to-point connections use an actual length of wire or
cable to connect the two ends, but other options, such as
microwave or satellite links, are also possible.
When we change television channels by infrared remote control,
we are establishing a point-to-point connection between the
remote control and the television’s control system.
Example: telephone call
2/11/2023 11

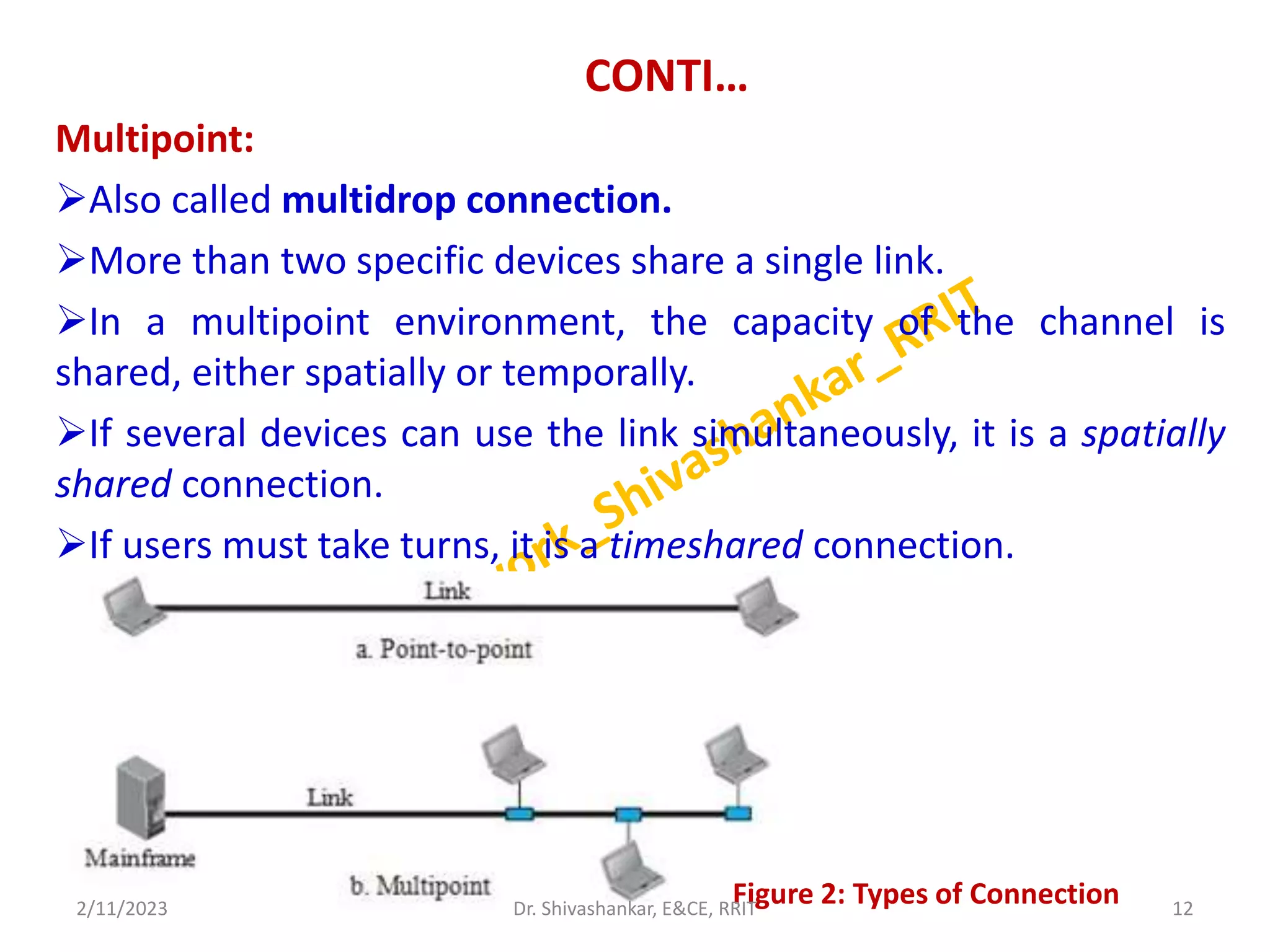

CONTI…
Multipoint:
Also called multidrop connection.
More than two specific devices share a single link.
In a multipoint environment, the capacity of the channel is
shared, either spatially or temporally.
If several devices can use the link simultaneously, it is a spatially
shared connection.
If users must take turns, it is a timeshared connection.
Figure 2: Types of Connection
2/11/2023 12

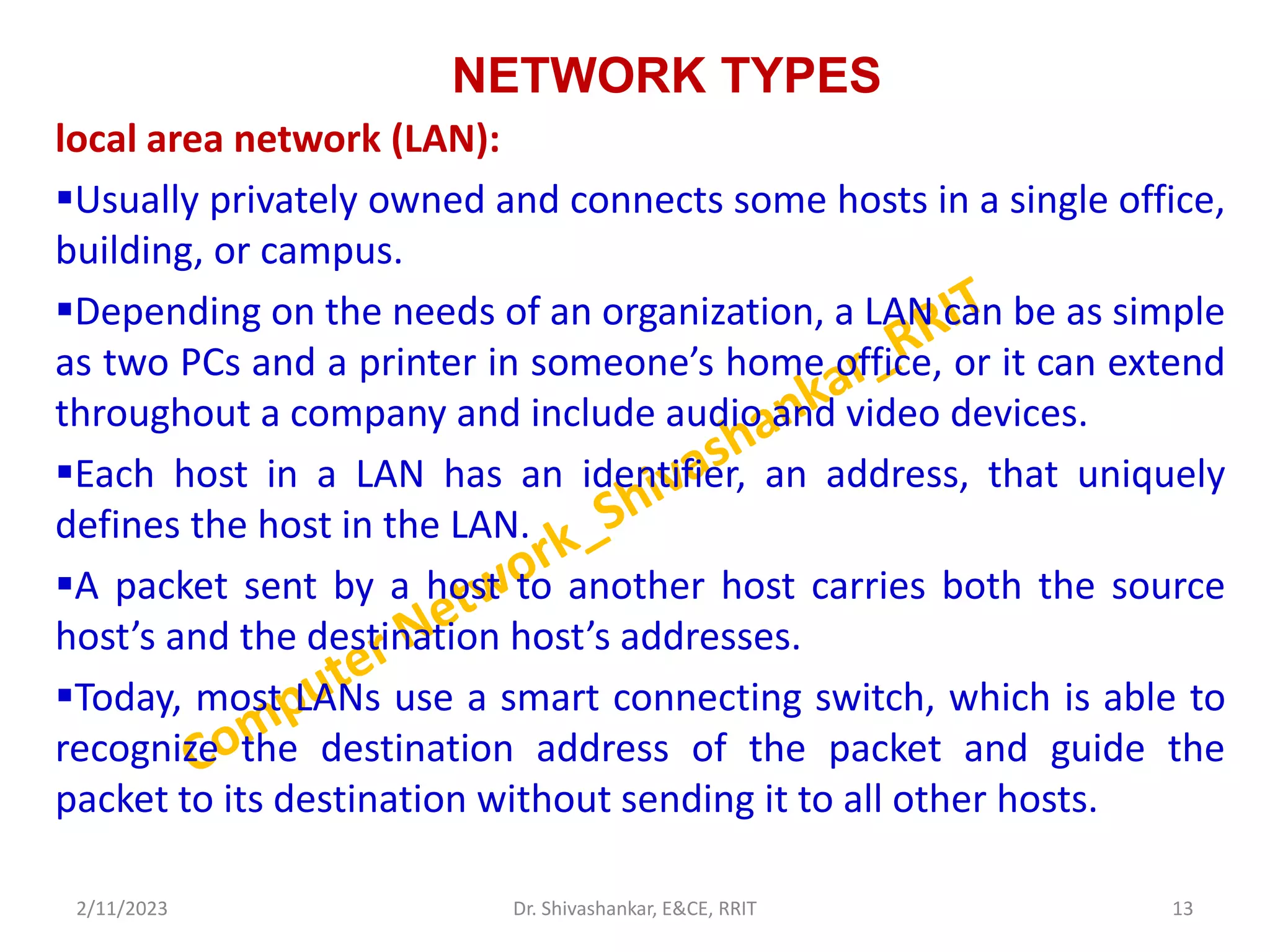

NETWORK TYPES
local area network (LAN):
Usually privately owned and connects some hosts in a single office,
building, or campus.
Depending on the needs of an organization, a LAN can be as simple
as two PCs and a printer in someone’s home office, or it can extend
throughout a company and include audio and video devices.
Each host in a LAN has an identifier, an address, that uniquely
defines the host in the LAN.
A packet sent by a host to another host carries both the source
host’s and the destination host’s addresses.
Today, most LANs use a smart connecting switch, which is able to
recognize the destination address of the packet and guide the
packet to its destination without sending it to all other hosts.
2/11/2023 13

CONTI…
Figure 1.8 An isolated LAN in the past and today
2/11/2023 14

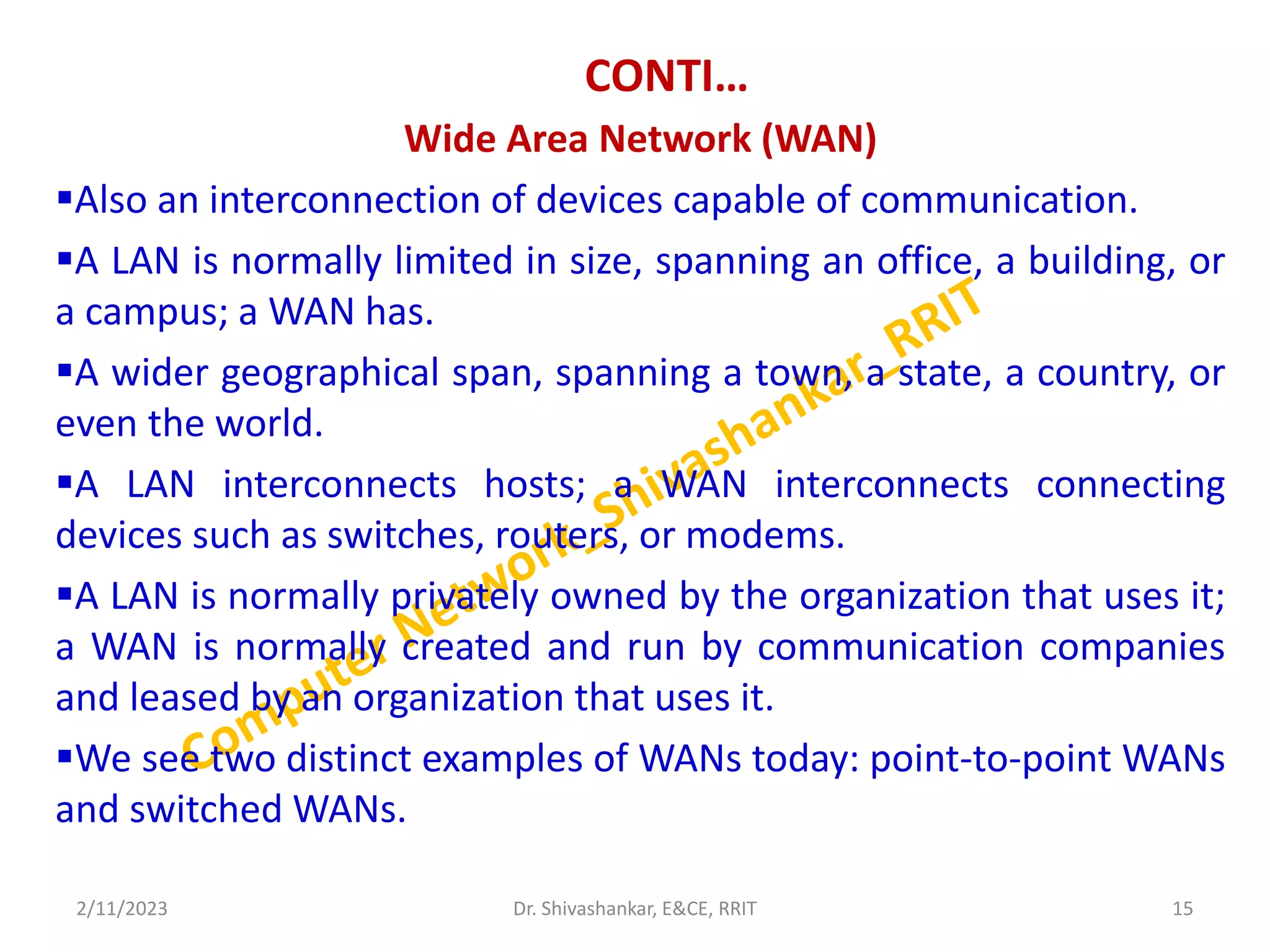

CONTI…
Wide Area Network (WAN)
Also an interconnection of devices capable of communication.
A LAN is normally limited in size, spanning an office, a building, or
a campus; a WAN has.
A wider geographical span, spanning a town, a state, a country, or
even the world.
A LAN interconnects hosts; a WAN interconnects connecting
devices such as switches, routers, or modems.
A LAN is normally privately owned by the organization that uses it;
a WAN is normally created and run by communication companies
and leased by an organization that uses it.
We see two distinct examples of WANs today: point-to-point WANs
and switched WANs.
2/11/2023 15

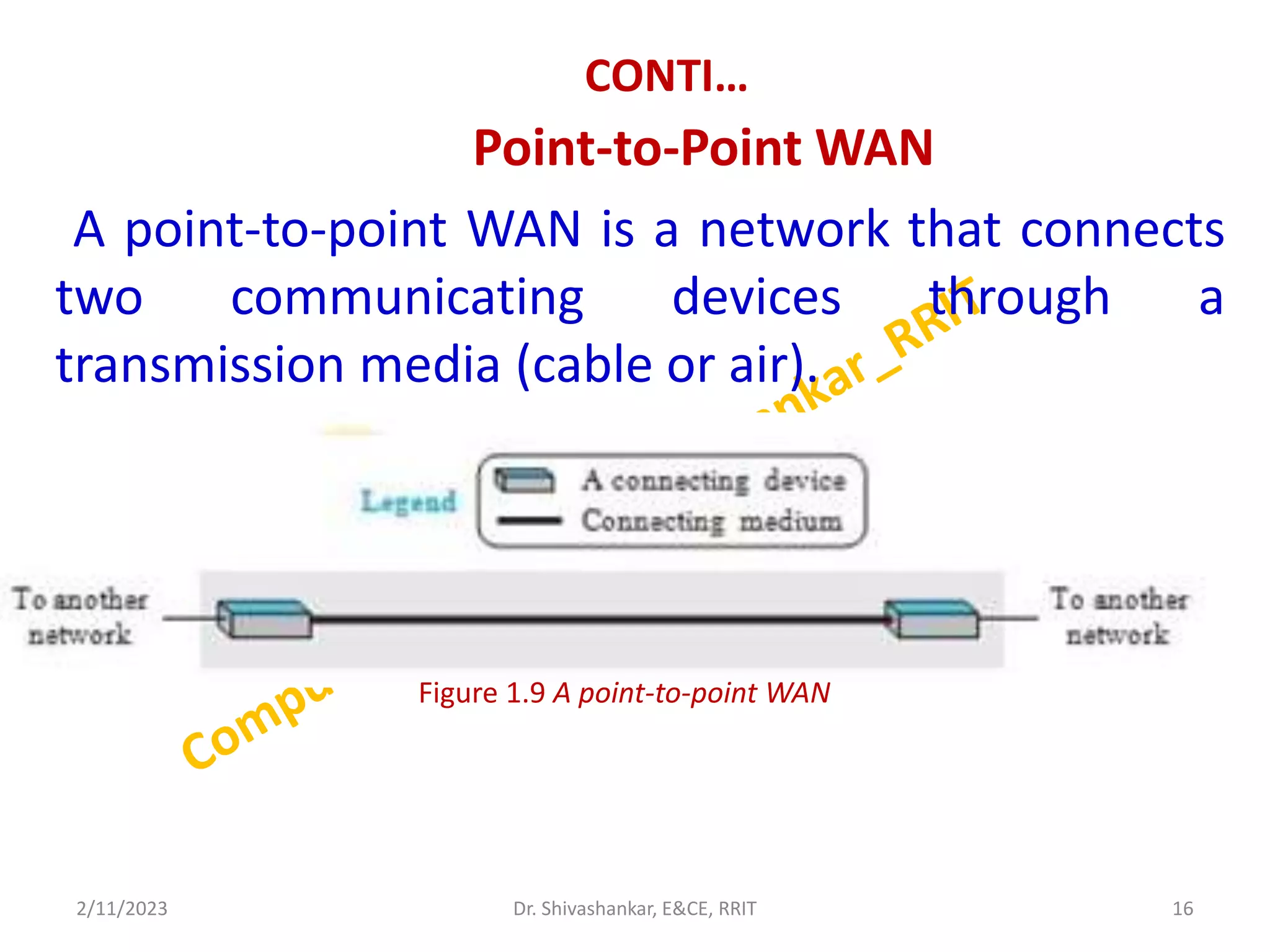

CONTI…
Point-to-Point WAN
A point-to-point WAN is a network that connects
two communicating devices through a
transmission media (cable or air).
2/11/2023 16
Figure 1.9 A point-to-point WAN

CONTI…

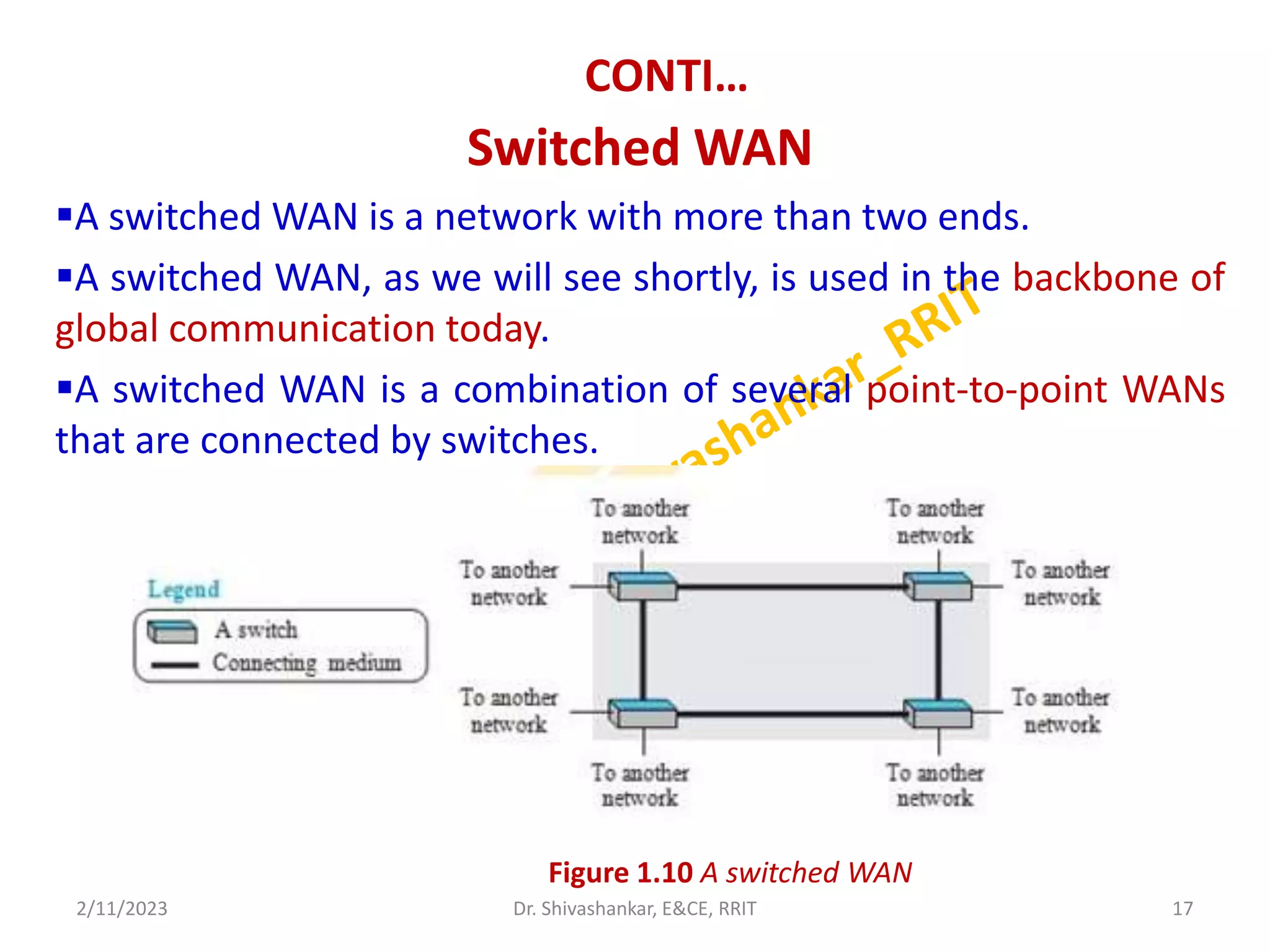

Switched WAN
A switched WAN is a network with more than two ends.
A switched WAN, as we will see shortly, is used in the backbone of
global communication today.
A switched WAN is a combination of several point-to-point WANs
that are connected by switches.
2/11/2023 17
Figure 1.10 A switched WAN

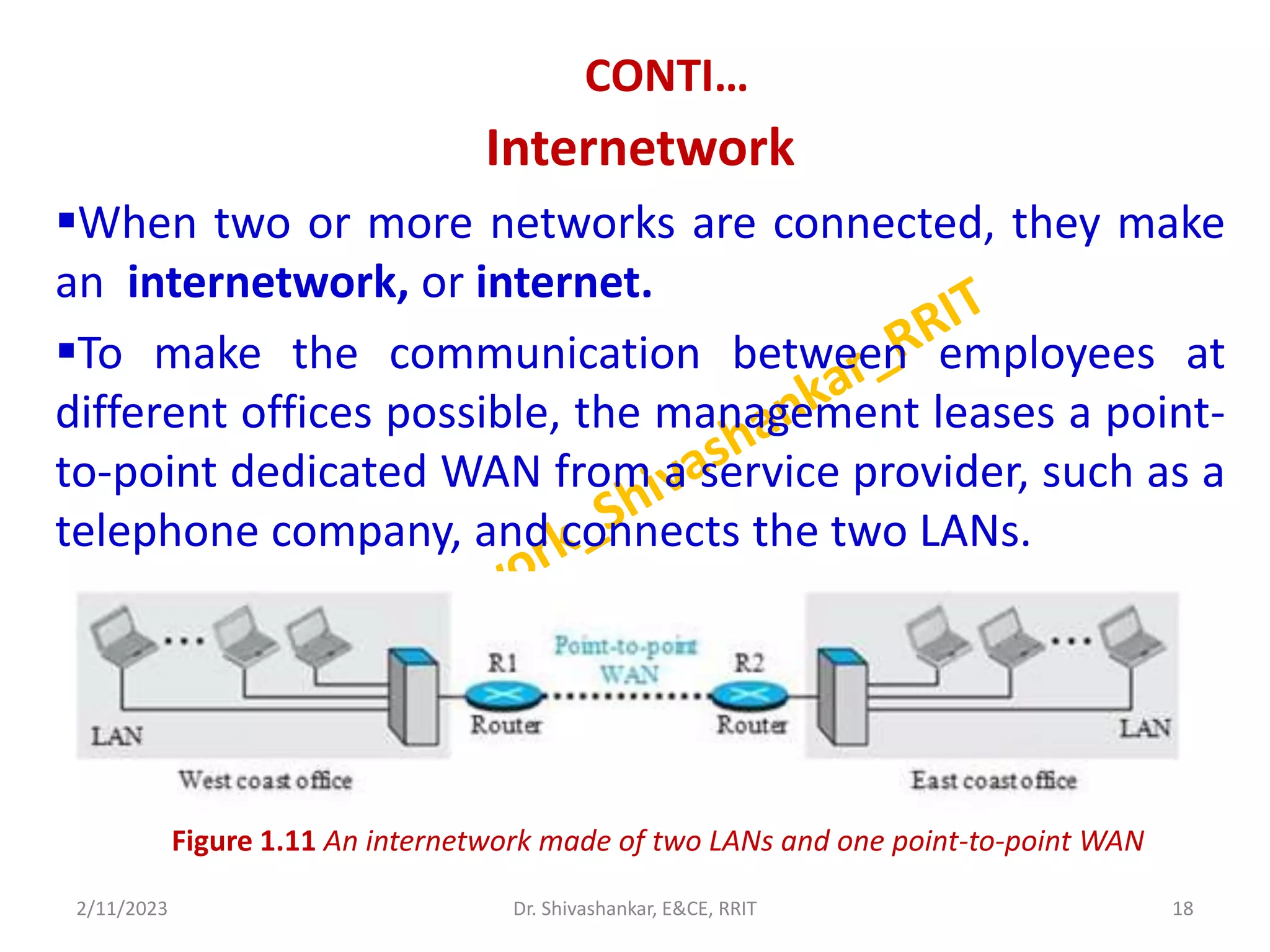

CONTI…
Internetwork
When two or more networks are connected, they make
an internetwork, or internet.
To make the communication between employees at
different offices possible, the management leases a point-
to-point dedicated WAN from a service provider, such as a
telephone company, and connects the two LANs.
2/11/2023 18
Figure 1.11 An internetwork made of two LANs and one point-to-point WAN

CONTI…
Switching
An internet is a switched network in which a switch
connects at least two links together.
A switch needs to forward data from a network to
another network when required.
The two most common types of switched networks:
 Circuit-switched and
Packet-switched networks.
2/11/2023 19

Cont..
Circuit-Switched Network
• In a circuit-switched network, a dedicated connection, called
a circuit, is always available between the two end systems; the
switch can only make it active or inactive.
2/11/2023 Dr. Shivashankar, E&CE, RRIT 20
Figure 8: A circuit Switched Network

Cont…
2/11/2023 Dr. Shivashankar, E&CE, RRIT 21
Packet-Switched Network
• In a computer network, the communication
between the two ends is done in blocks of
data called packets.
Figure 9: A packet-switched network

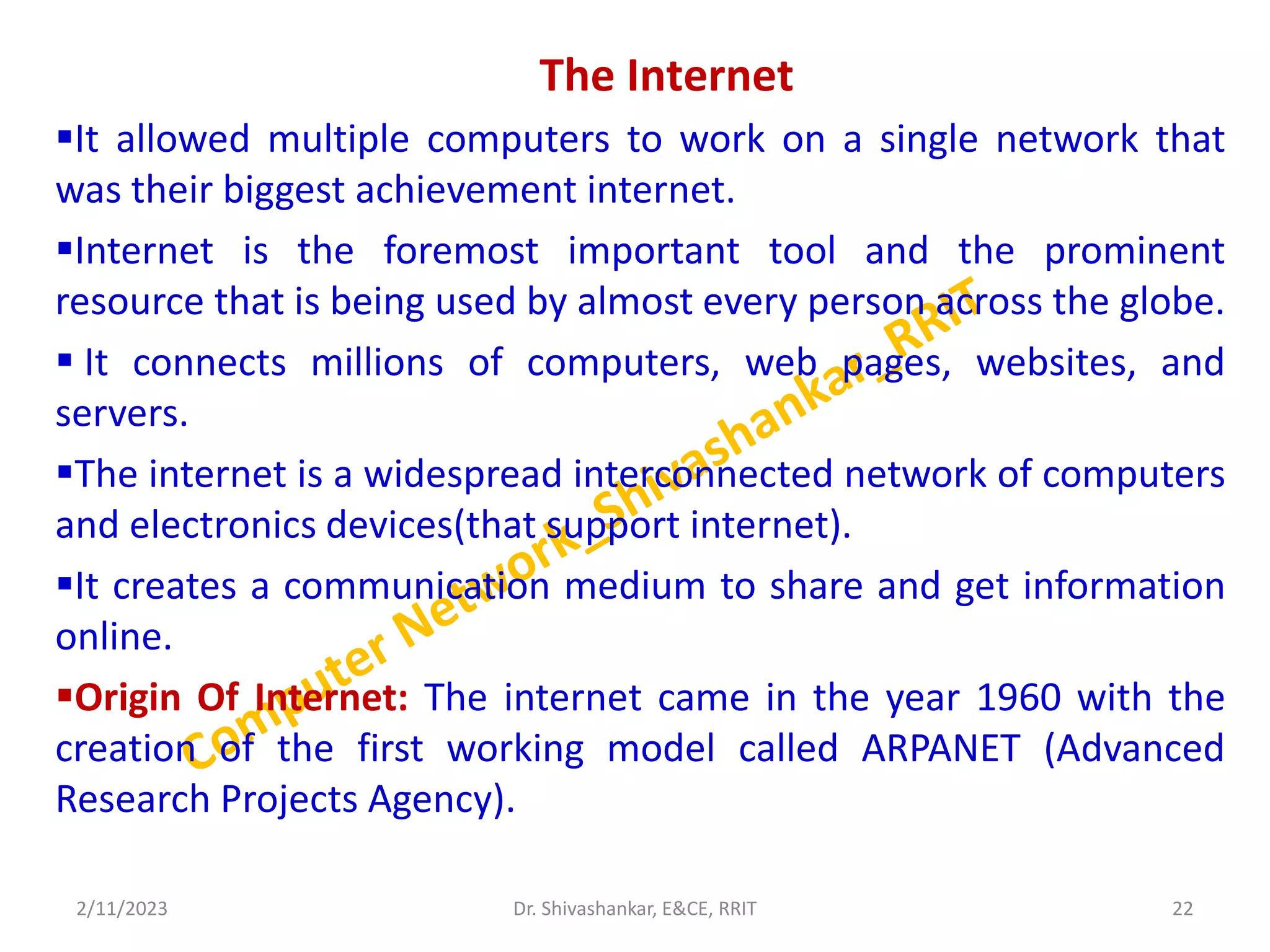

The Internet
It allowed multiple computers to work on a single network that
was their biggest achievement internet.
Internet is the foremost important tool and the prominent
resource that is being used by almost every person across the globe.
 It connects millions of computers, web pages, websites, and
servers.
The internet is a widespread interconnected network of computers
and electronics devices(that support internet).
It creates a communication medium to share and get information
online.
Origin Of Internet: The internet came in the year 1960 with the
creation of the first working model called ARPANET (Advanced
Research Projects Agency).
2/11/2023 22

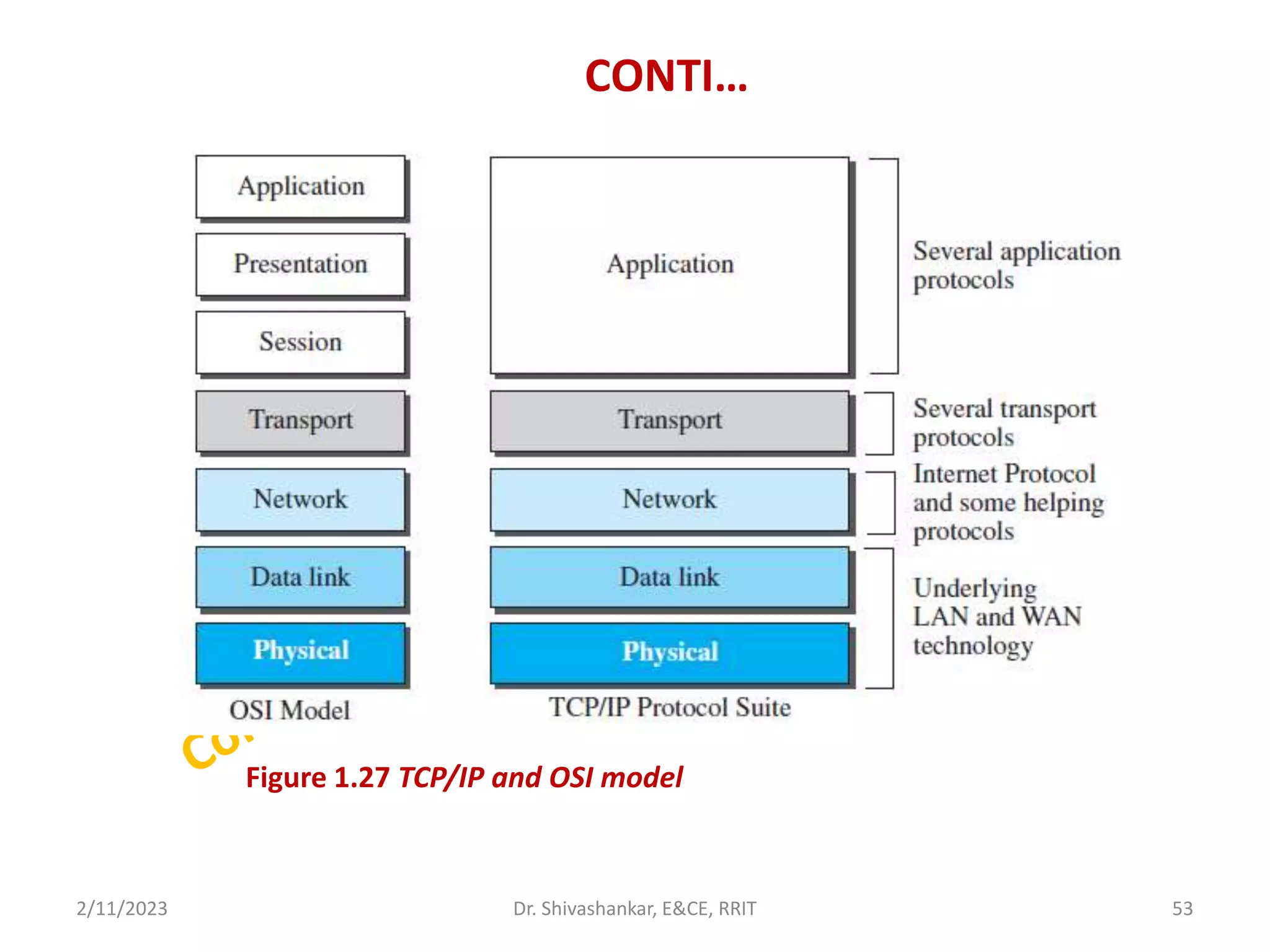

Network Models
PROTOCOL LAYERING
In data communication and networking, a protocol defines
the rules that both the sender and receiver and all
intermediate devices need to follow to be able to
communicate effectively.
When communication is simple, we may need only one
simple protocol;
when the communication is complex, we may need to
divide the task between different layers, in which case we
need a protocol at each layer, or this technique we used to
call protocol layering.
This layering allows us to separate the services from the
implementation.
2/11/2023 23

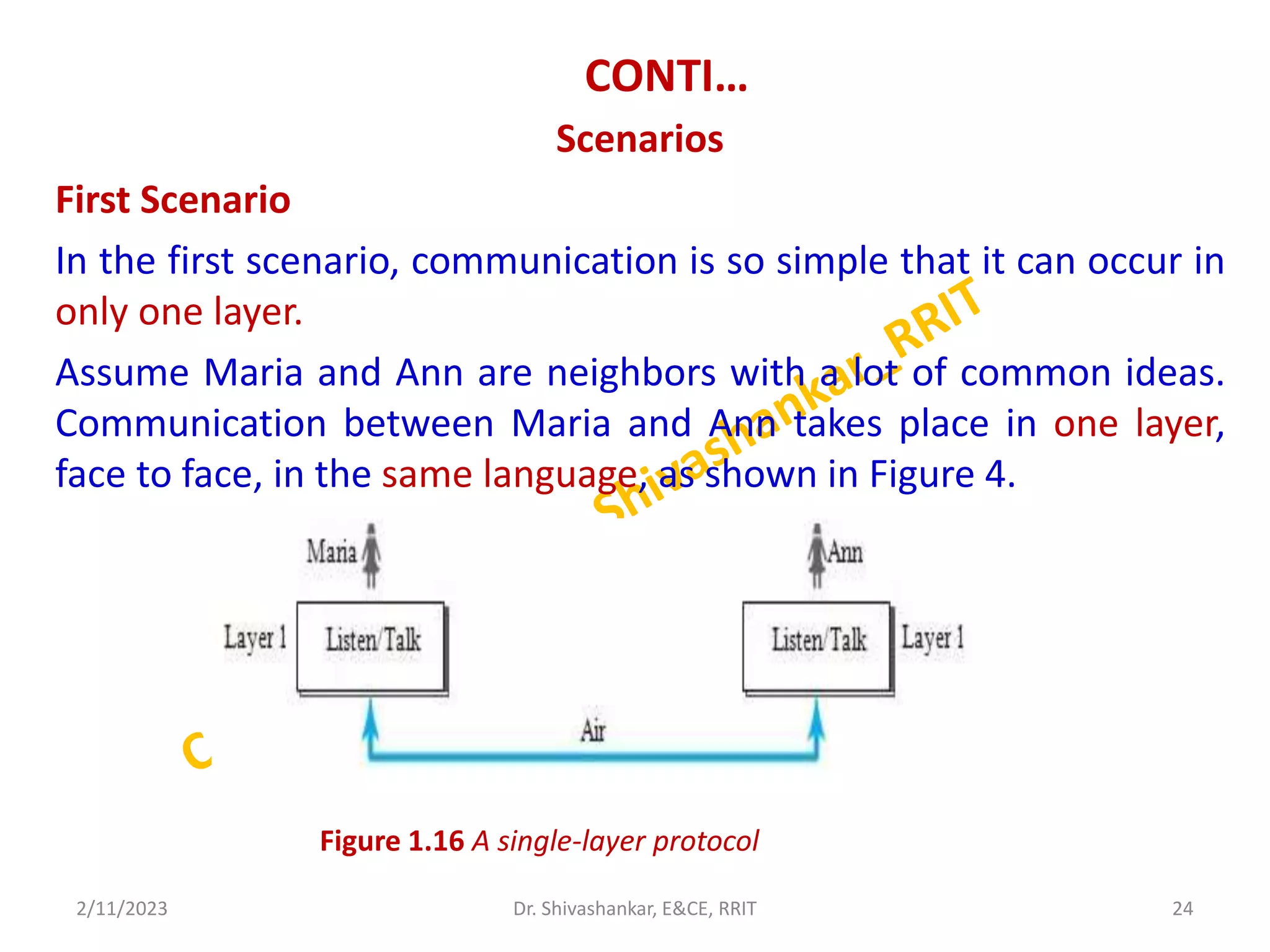

CONTI…
Scenarios
First Scenario
In the first scenario, communication is so simple that it can occur in
only one layer.
Assume Maria and Ann are neighbors with a lot of common ideas.
Communication between Maria and Ann takes place in one layer,
face to face, in the same language, as shown in Figure 4.
2/11/2023 24
Figure 1.16 A single-layer protocol

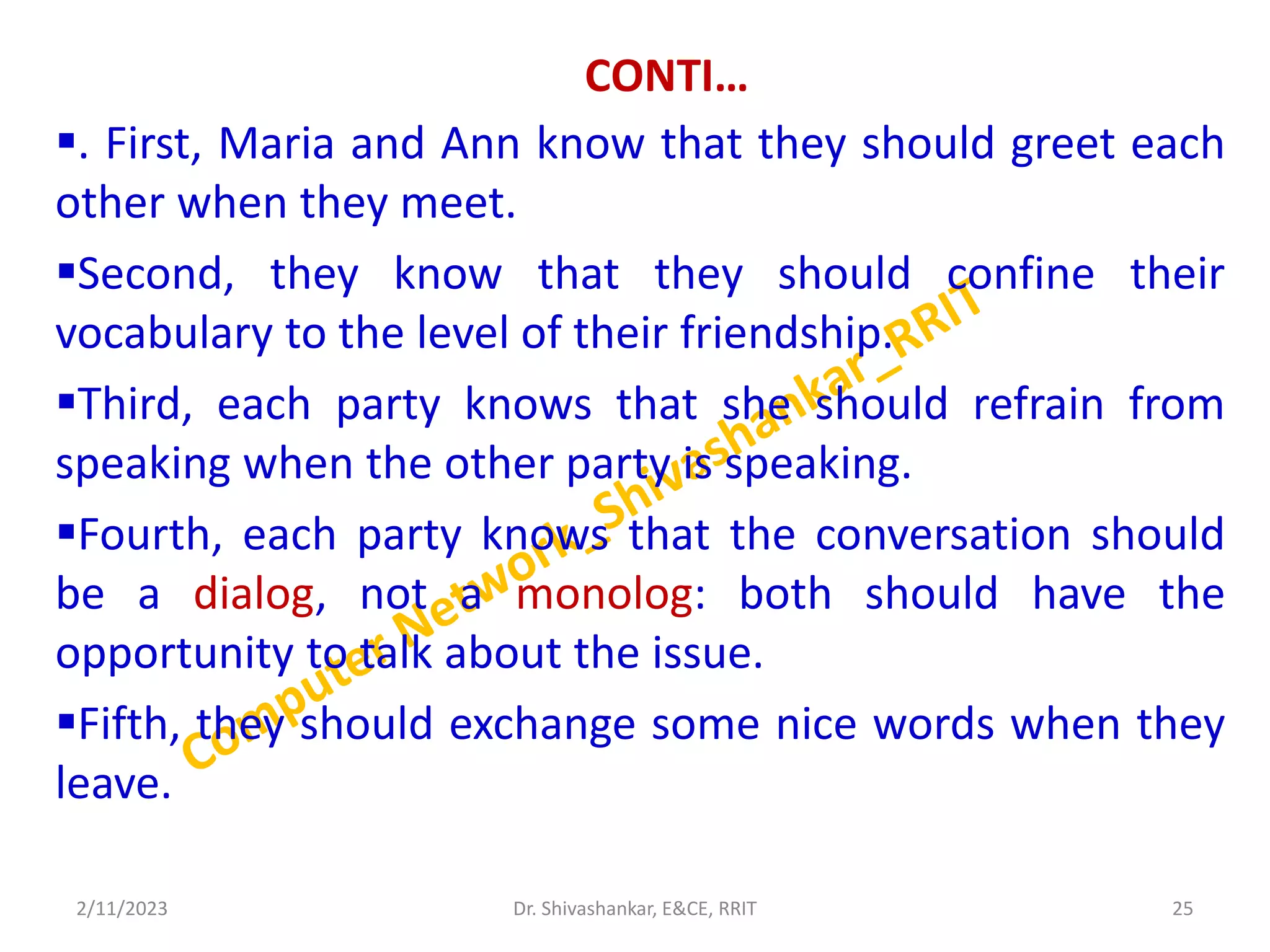

CONTI…
. First, Maria and Ann know that they should greet each
other when they meet.
Second, they know that they should confine their
vocabulary to the level of their friendship.
Third, each party knows that she should refrain from
speaking when the other party is speaking.
Fourth, each party knows that the conversation should
be a dialog, not a monolog: both should have the
opportunity to talk about the issue.
Fifth, they should exchange some nice words when they
leave.
2/11/2023 25

CONTI…

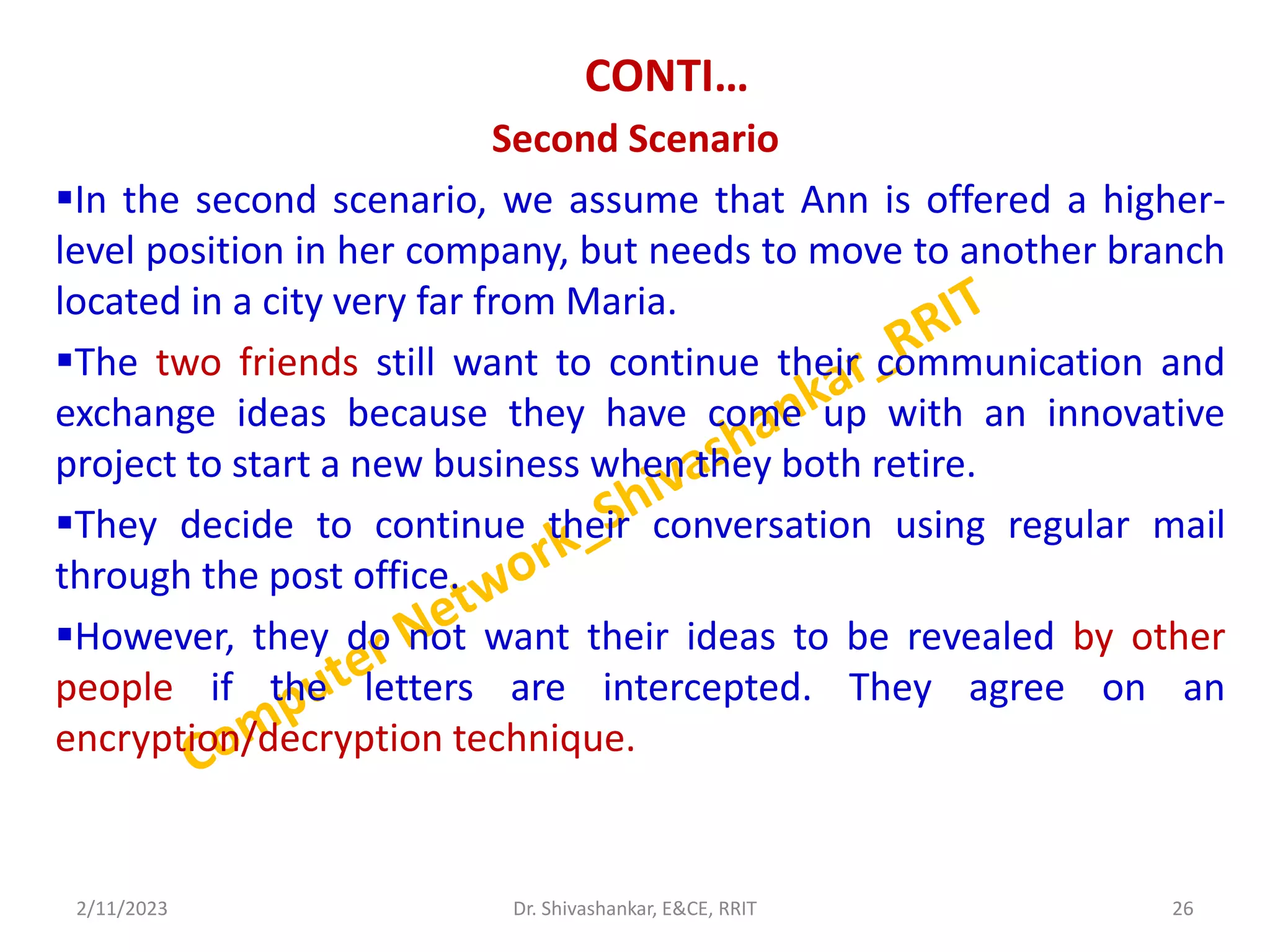

Second Scenario
In the second scenario, we assume that Ann is offered a higher-
level position in her company, but needs to move to another branch
located in a city very far from Maria.
The two friends still want to continue their communication and
exchange ideas because they have come up with an innovative
project to start a new business when they both retire.
They decide to continue their conversation using regular mail
through the post office.
However, they do not want their ideas to be revealed by other
people if the letters are intercepted. They agree on an
encryption/decryption technique.
2/11/2023 26

CONTI…

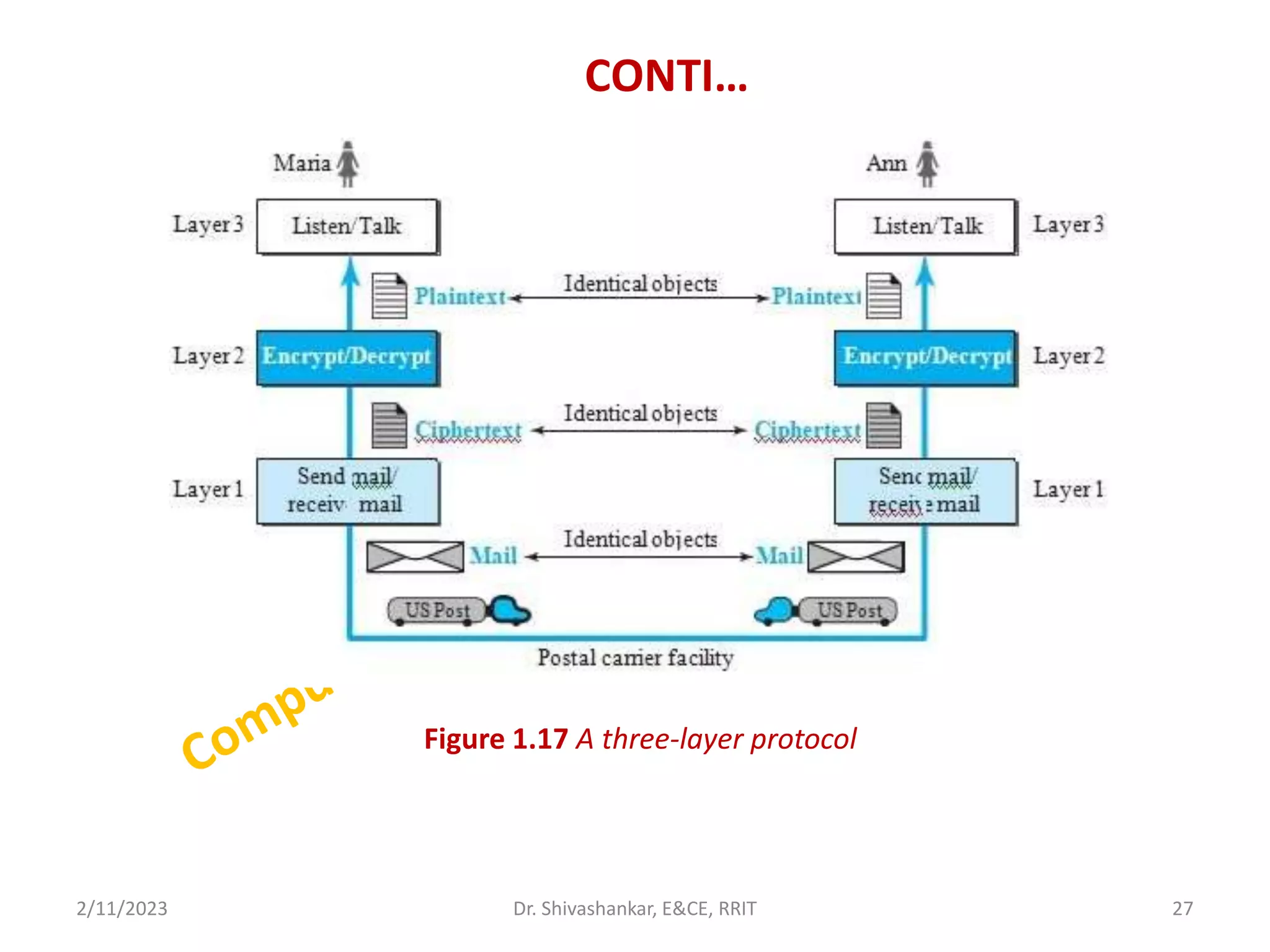

Figure 1.17 A three-layer protocol
2/11/2023 27

CONTI…

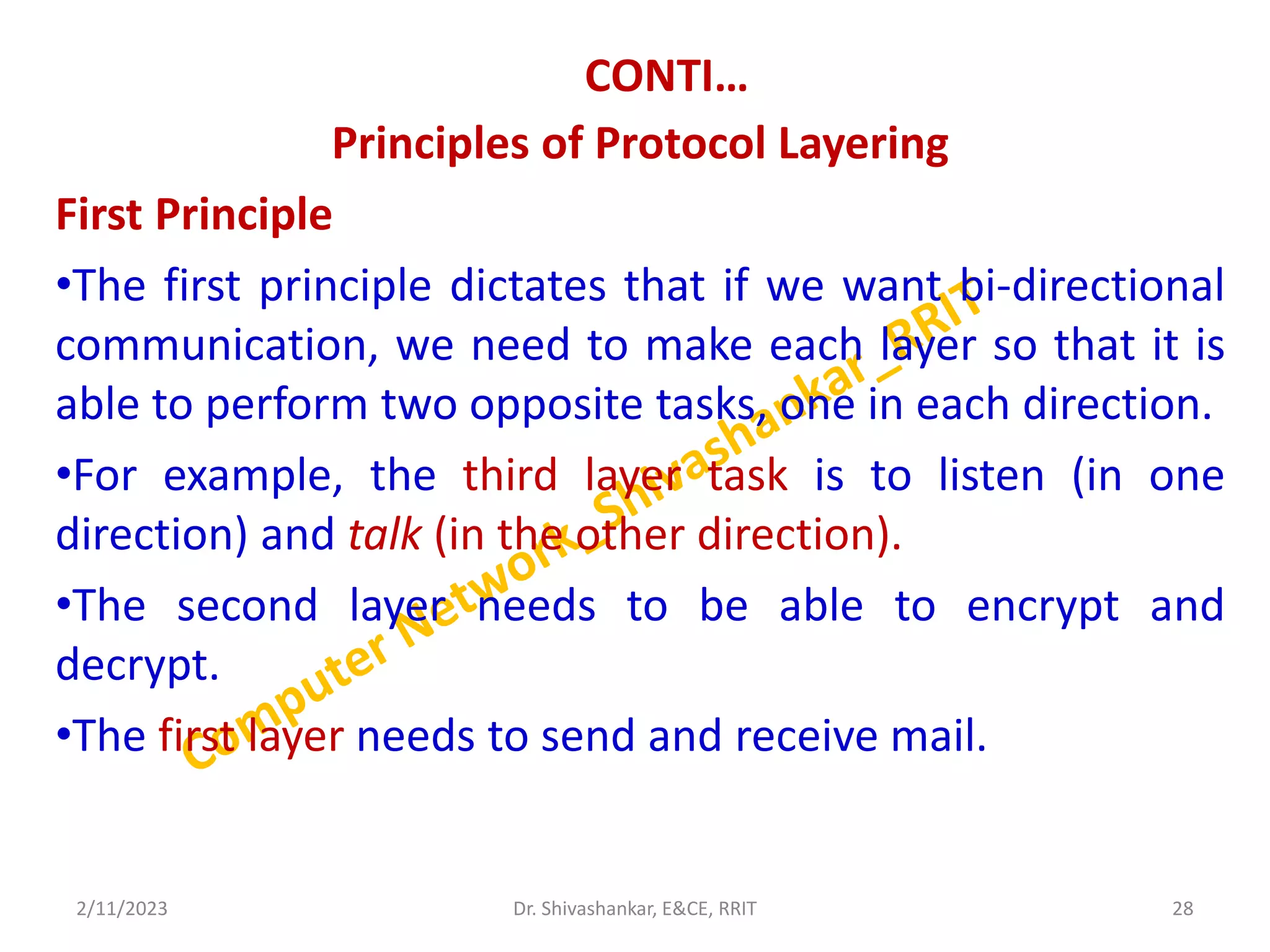

Principles of Protocol Layering
First Principle
•The first principle dictates that if we want bi-directional
communication, we need to make each layer so that it is
able to perform two opposite tasks, one in each direction.
•For example, the third layer task is to listen (in one
direction) and talk (in the other direction).
•The second layer needs to be able to encrypt and
decrypt.
•The first layer needs to send and receive mail.
2/11/2023 28

CONTI…
Second Principle

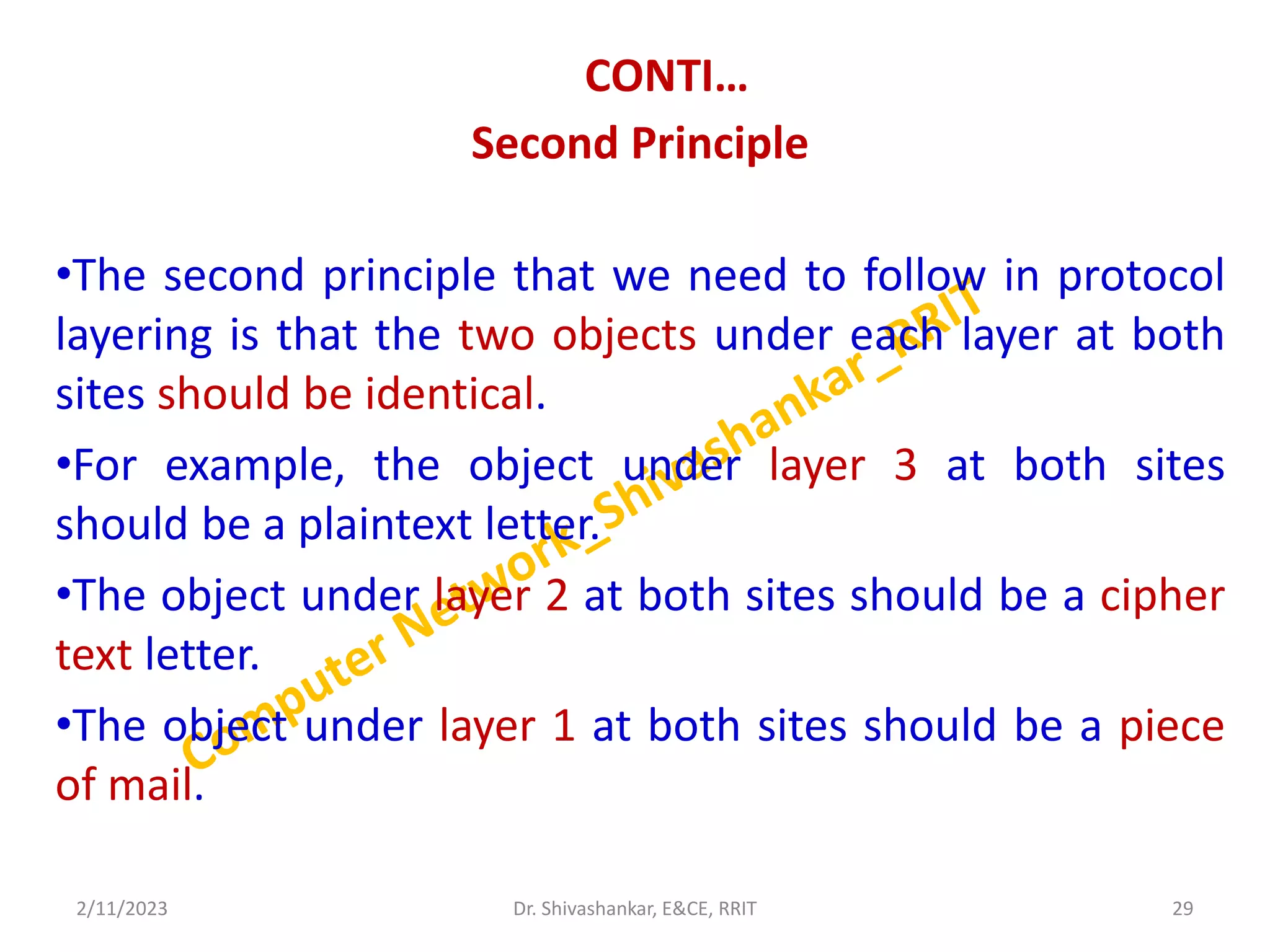

•The second principle that we need to follow in protocol
layering is that the two objects under each layer at both
sites should be identical.
•For example, the object under layer 3 at both sites
should be a plaintext letter.
•The object under layer 2 at both sites should be a cipher
text letter.
•The object under layer 1 at both sites should be a piece
of mail.
2/11/2023 29

CONTI…

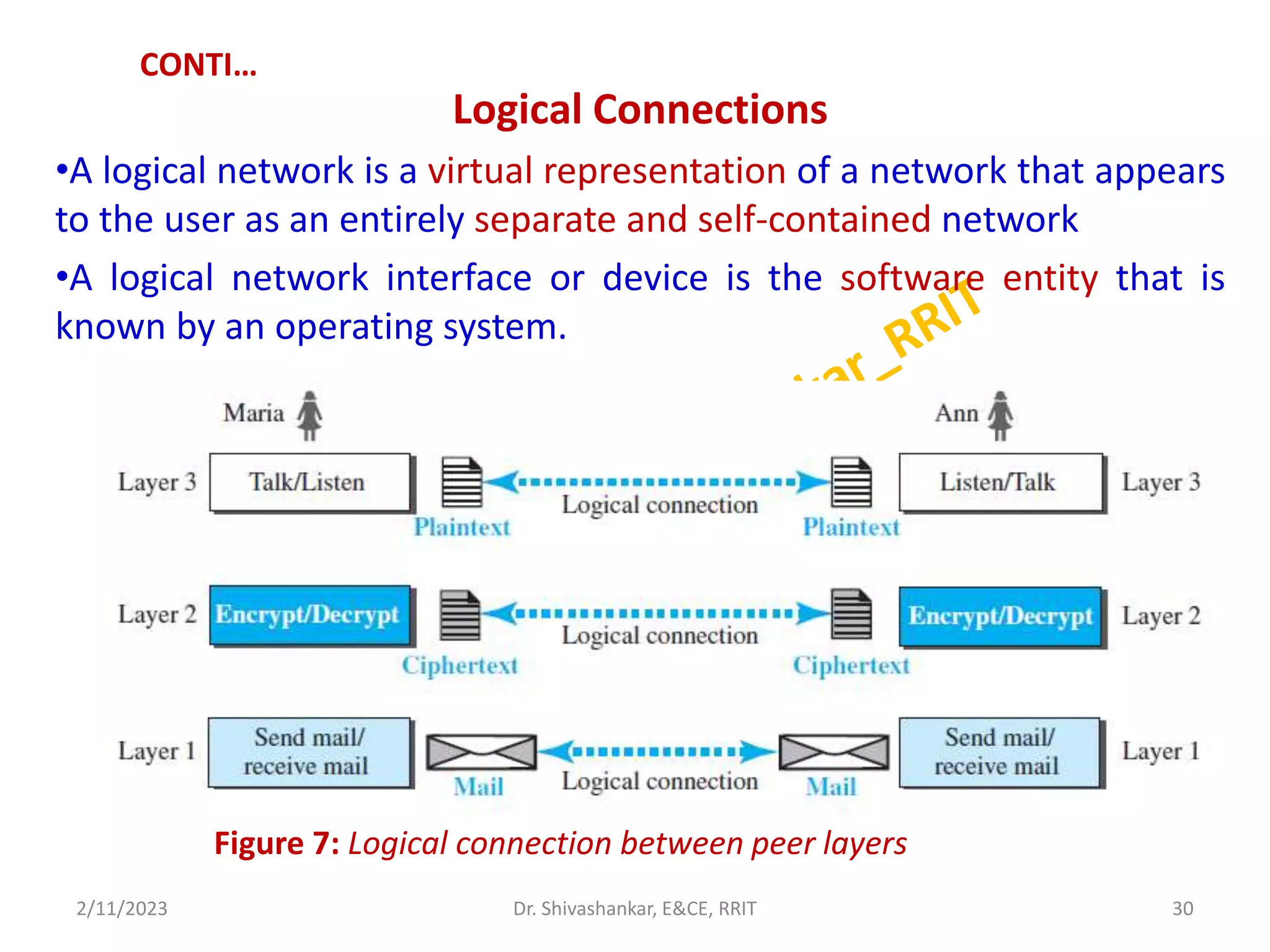

Logical Connections
•A logical network is a virtual representation of a network that appears
to the user as an entirely separate and self-contained network
•A logical network interface or device is the software entity that is
known by an operating system.
2/11/2023 30
Figure 7: Logical connection between peer layers

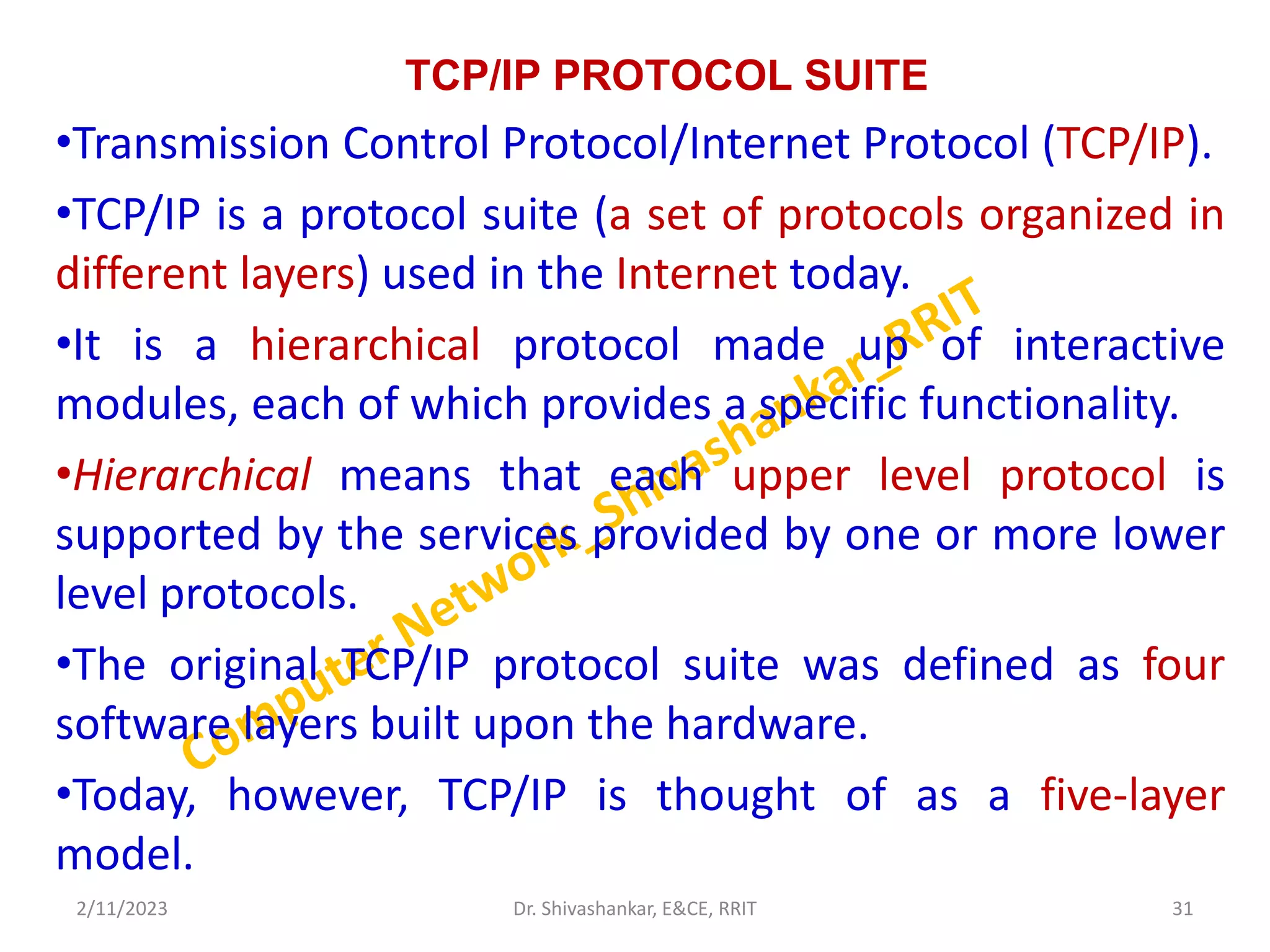

TCP/IP PROTOCOL SUITE
•Transmission Control Protocol/Internet Protocol (TCP/IP).
•TCP/IP is a protocol suite (a set of protocols organized in
different layers) used in the Internet today.
•It is a hierarchical protocol made up of interactive
modules, each of which provides a specific functionality.
•Hierarchical means that each upper level protocol is
supported by the services provided by one or more lower
level protocols.
•The original TCP/IP protocol suite was defined as four
software layers built upon the hardware.
•Today, however, TCP/IP is thought of as a five-layer
model.
2/11/2023 31

CONTI…
2/11/2023 32

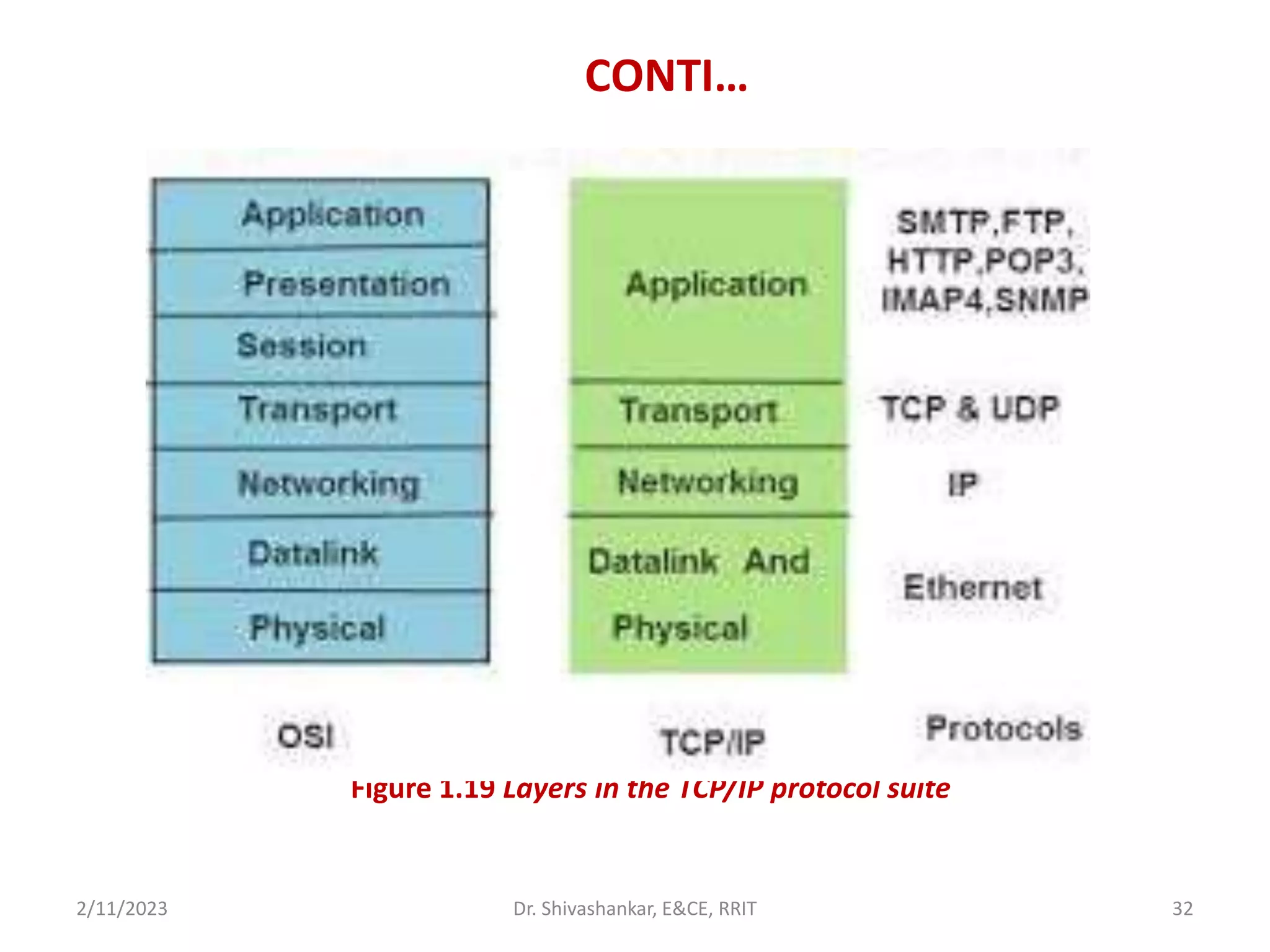

Figure 1.19 Layers in the TCP/IP protocol suite

CONTI…

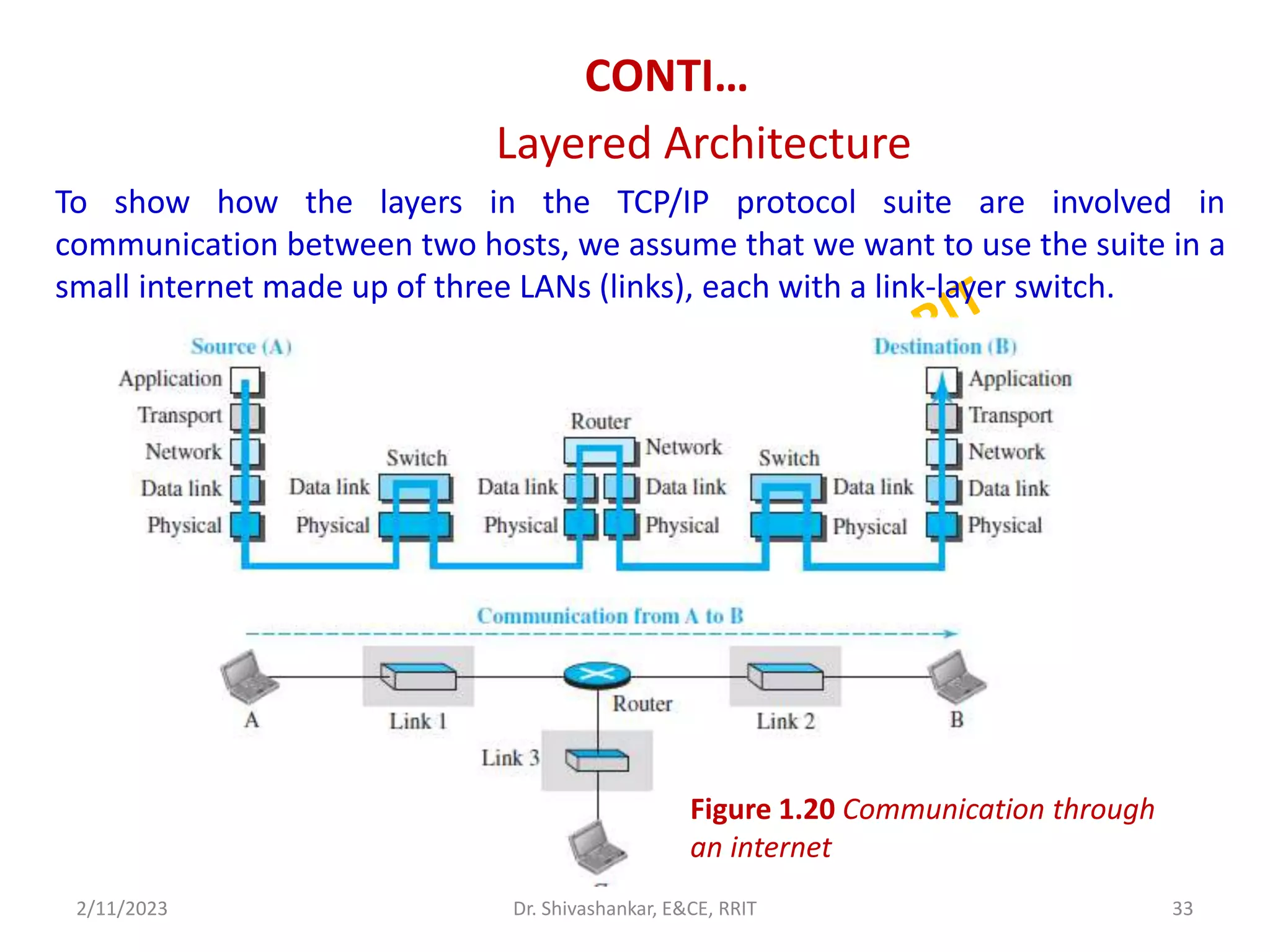

Layered Architecture
To show how the layers in the TCP/IP protocol suite are involved in
communication between two hosts, we assume that we want to use the suite in a
small internet made up of three LANs (links), each with a link-layer switch.
2/11/2023 33
Figure 1.20 Communication through
an internet

CONTI…

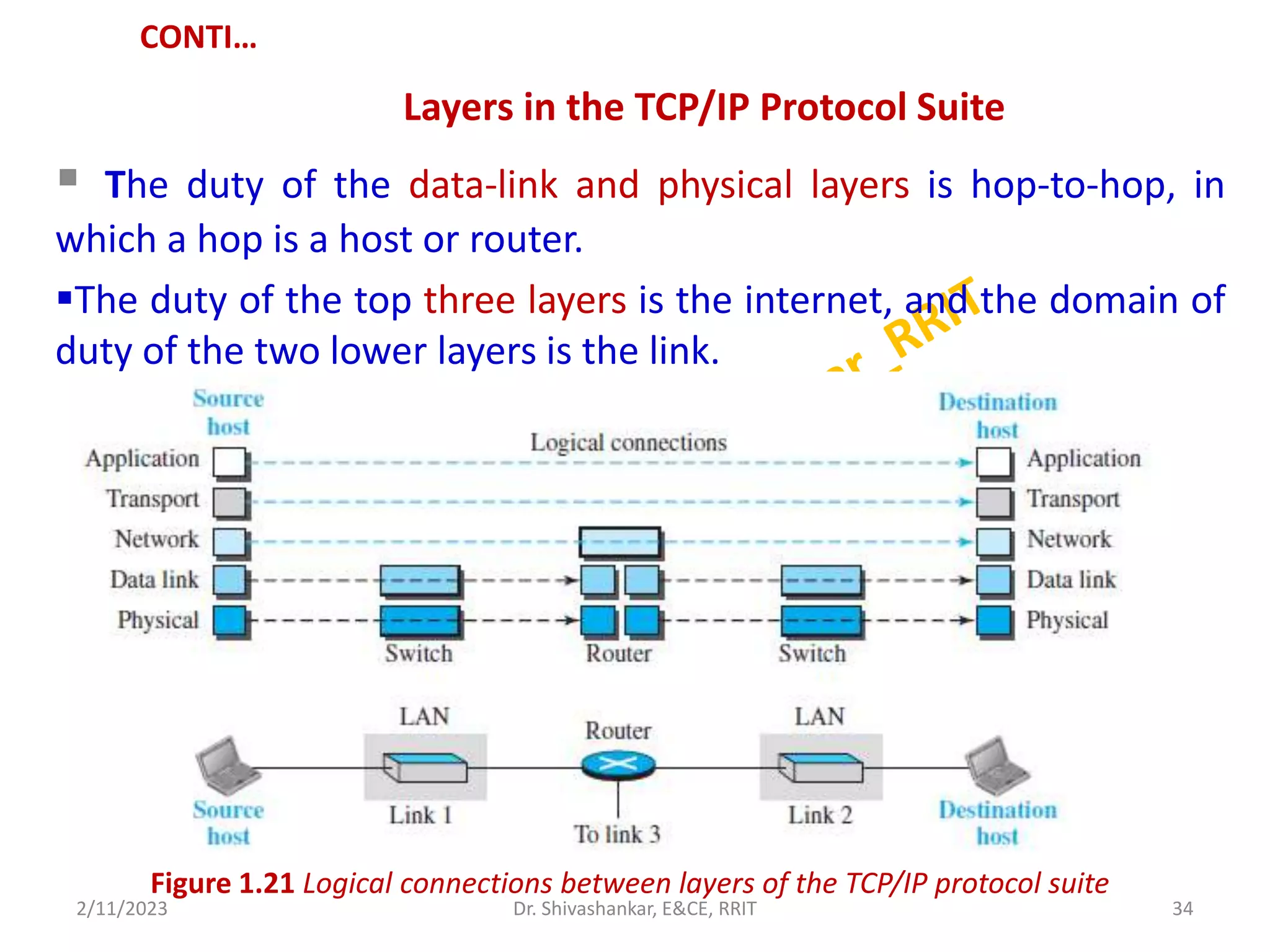

Layers in the TCP/IP Protocol Suite
 The duty of the data-link and physical layers is hop-to-hop, in
which a hop is a host or router.
The duty of the top three layers is the internet, and the domain of
duty of the two lower layers is the link.
2/11/2023 34
Figure 1.21 Logical connections between layers of the TCP/IP protocol suite

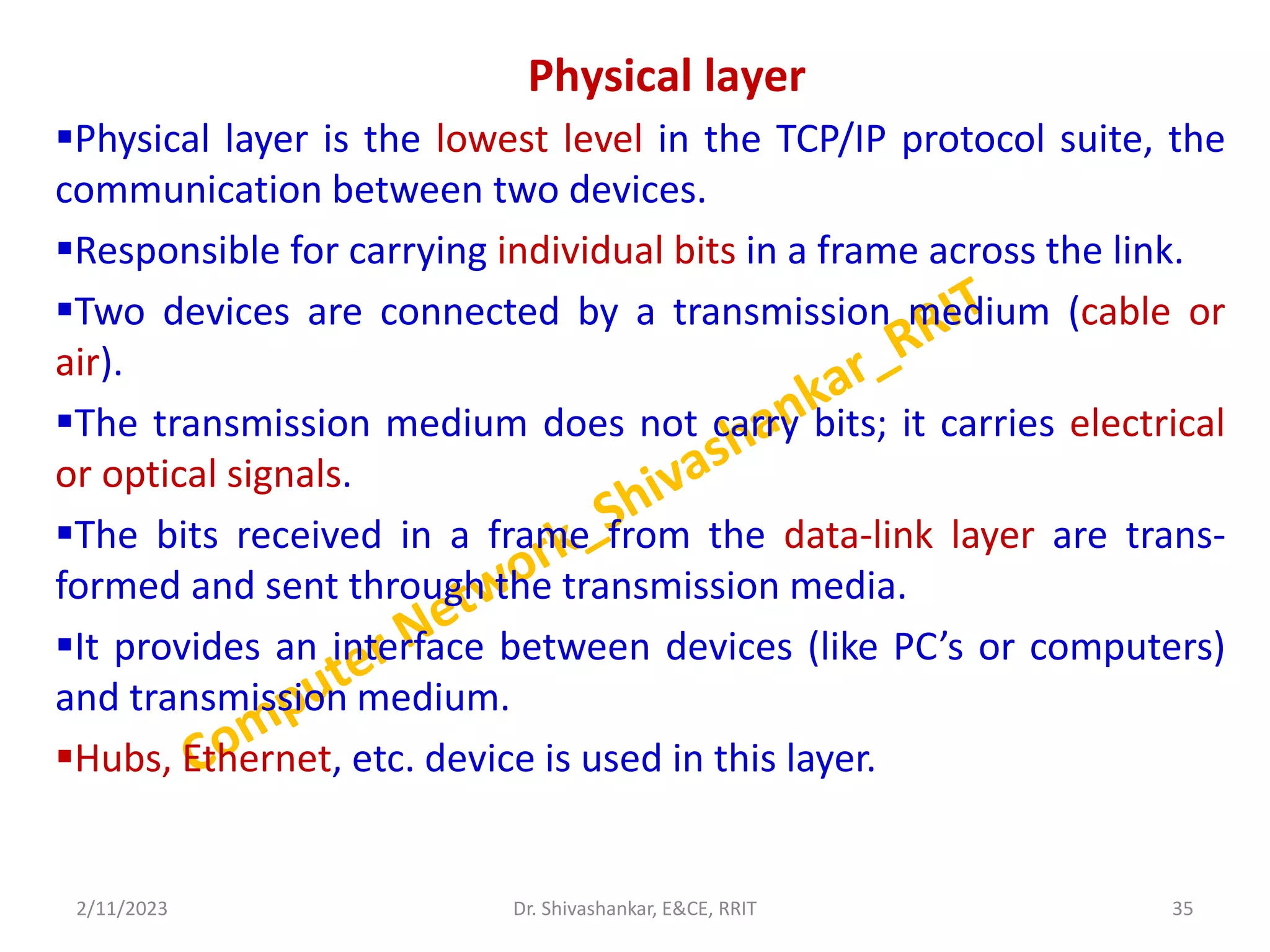

Physical layer
Physical layer is the lowest level in the TCP/IP protocol suite, the
communication between two devices.
Responsible for carrying individual bits in a frame across the link.
Two devices are connected by a transmission medium (cable or
air).
The transmission medium does not carry bits; it carries electrical
or optical signals.
The bits received in a frame from the data-link layer are trans-
formed and sent through the transmission media.
It provides an interface between devices (like PC’s or computers)
and transmission medium.
Hubs, Ethernet, etc. device is used in this layer.
2/11/2023 35

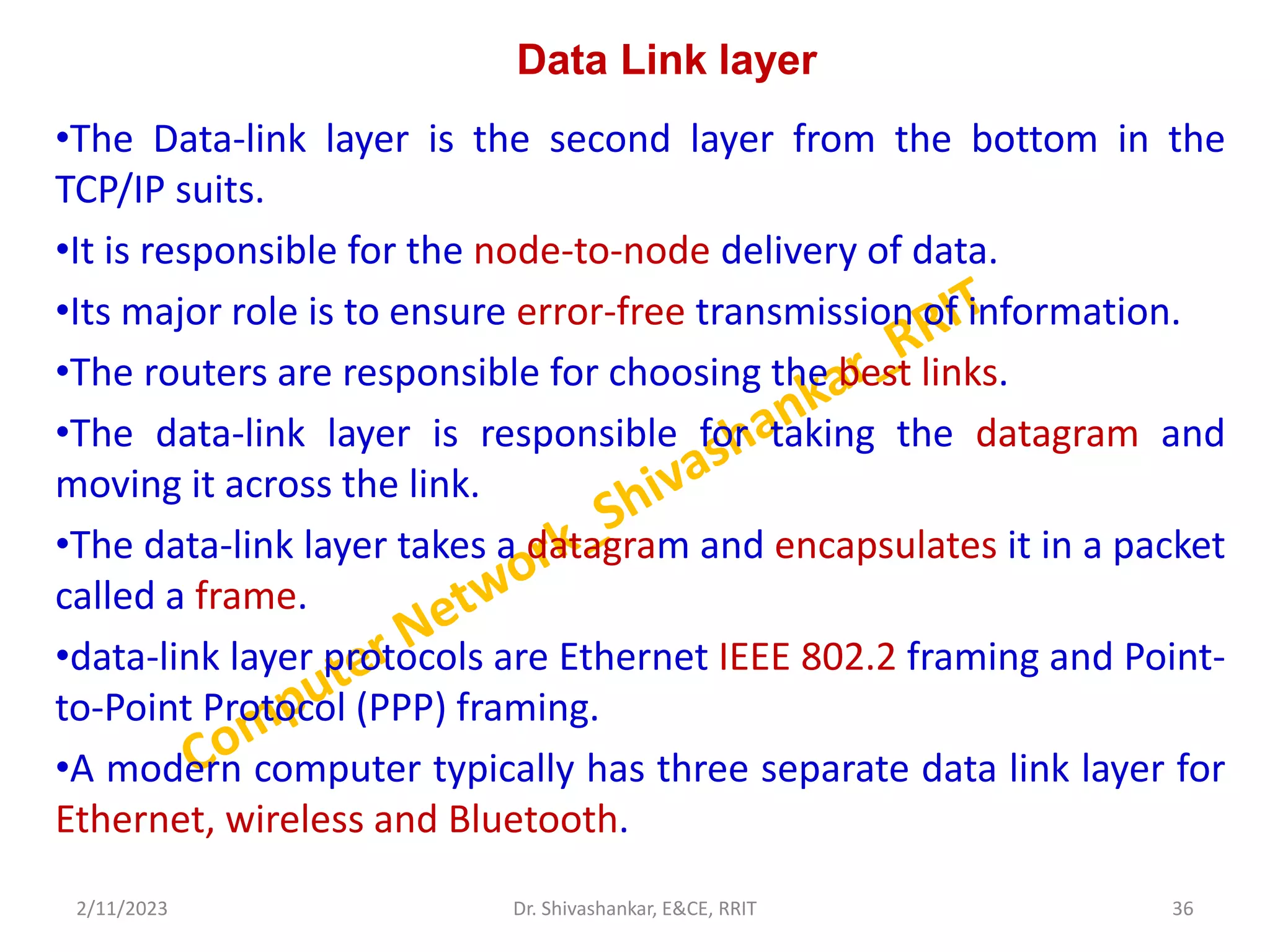

Data Link layer
•The Data-link layer is the second layer from the bottom in the
TCP/IP suits.
•It is responsible for the node-to-node delivery of data.
•Its major role is to ensure error-free transmission of information.
•The routers are responsible for choosing the best links.
•The data-link layer is responsible for taking the datagram and
moving it across the link.
•The data-link layer takes a datagram and encapsulates it in a packet
called a frame.
•data-link layer protocols are Ethernet IEEE 802.2 framing and Point-
to-Point Protocol (PPP) framing.
•A modern computer typically has three separate data link layer for
Ethernet, wireless and Bluetooth.
2/11/2023 36

CONTI…

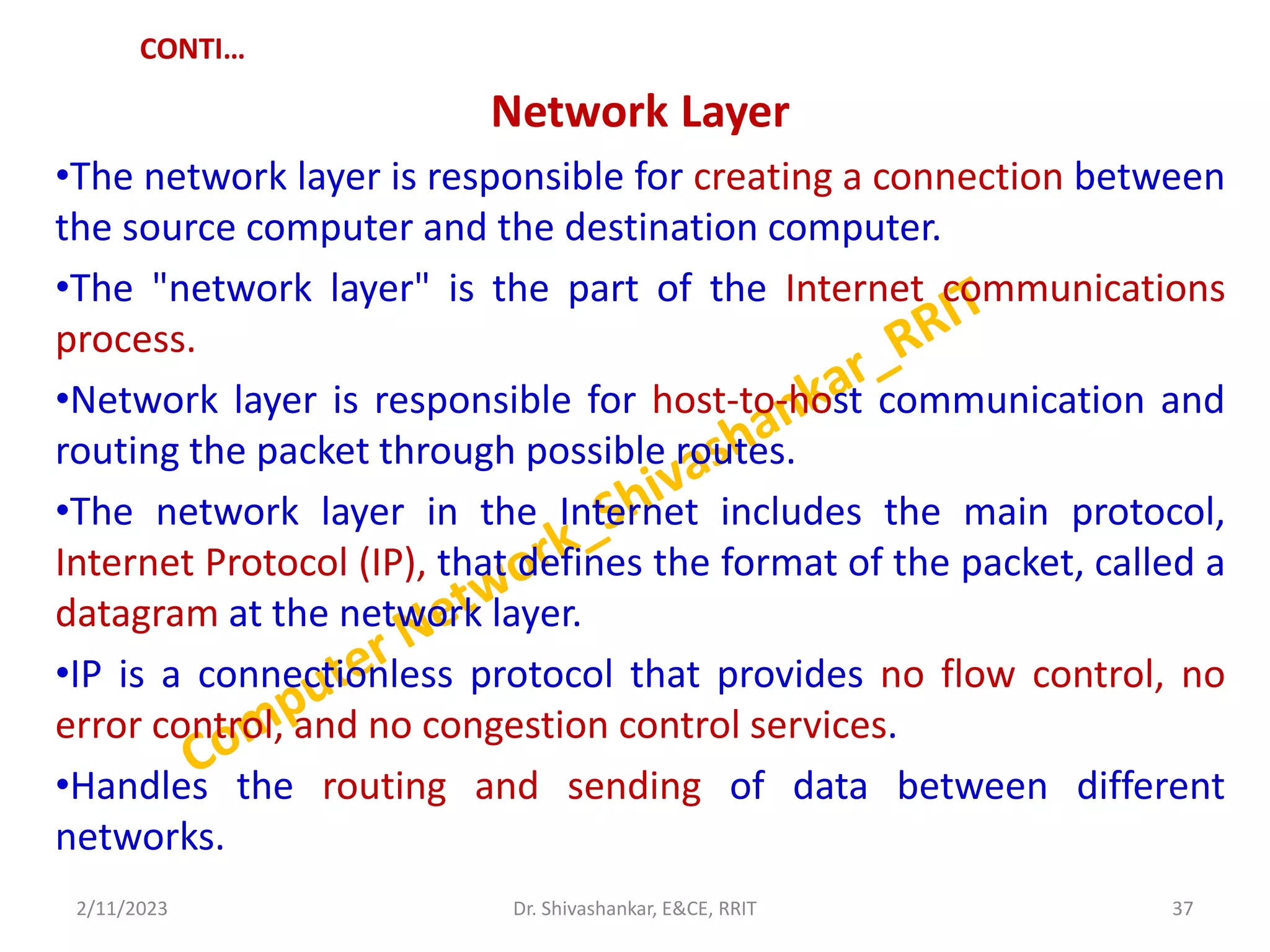

Network Layer
•The network layer is responsible for creating a connection between
the source computer and the destination computer.
•The "network layer" is the part of the Internet communications
process.
•Network layer is responsible for host-to-host communication and
routing the packet through possible routes.
•The network layer in the Internet includes the main protocol,
Internet Protocol (IP), that defines the format of the packet, called a
datagram at the network layer.
•IP is a connectionless protocol that provides no flow control, no
error control, and no congestion control services.
•Handles the routing and sending of data between different
networks.
2/11/2023 37

CONTI…

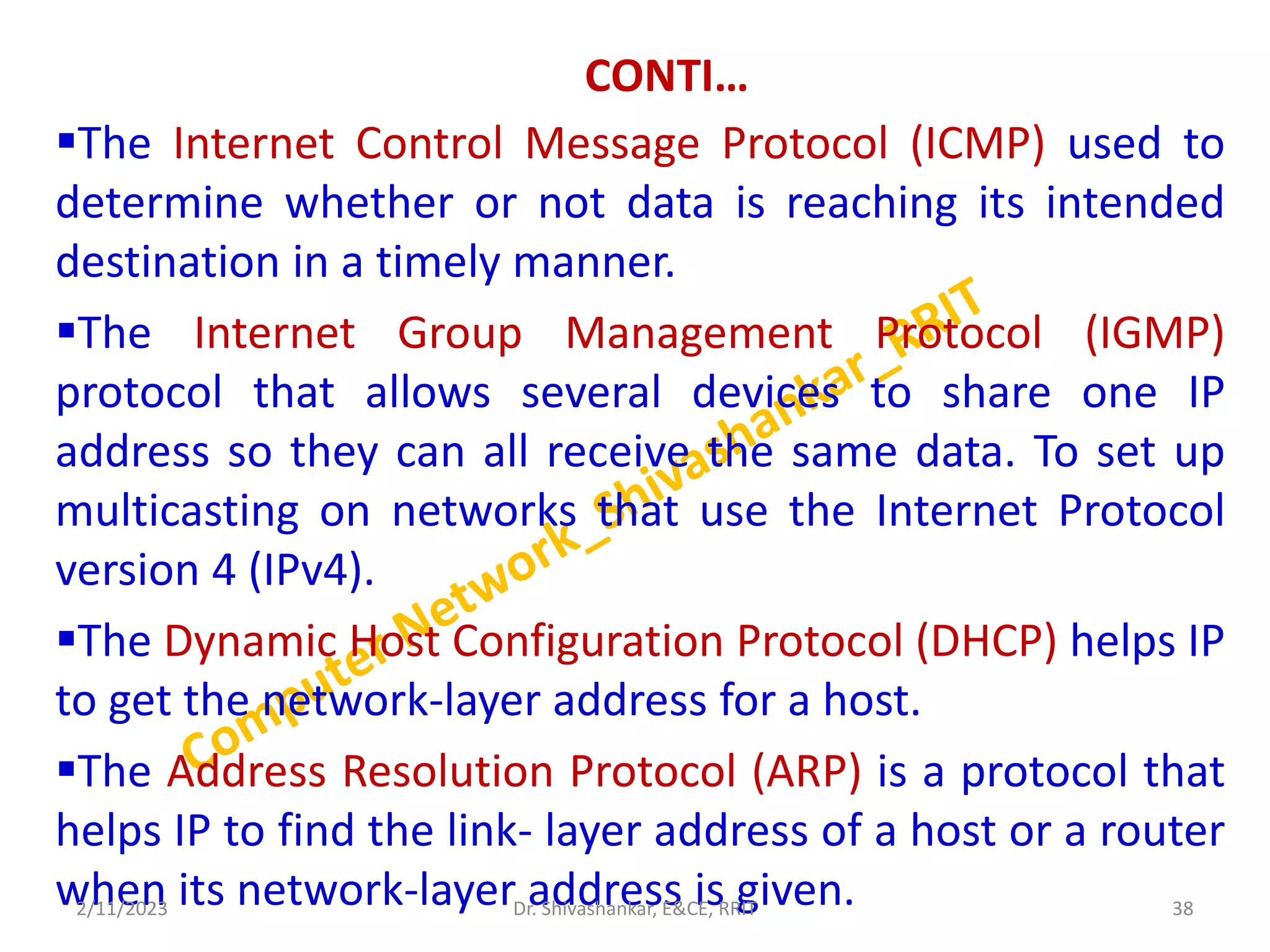

The Internet Control Message Protocol (ICMP) used to
determine whether or not data is reaching its intended
destination in a timely manner.
The Internet Group Management Protocol (IGMP)
protocol that allows several devices to share one IP
address so they can all receive the same data. To set up
multicasting on networks that use the Internet Protocol
version 4 (IPv4).
The Dynamic Host Configuration Protocol (DHCP) helps IP
to get the network-layer address for a host.
The Address Resolution Protocol (ARP) is a protocol that
helps IP to find the link- layer address of a host or a router
when its network-layer address is given.
2/11/2023 38

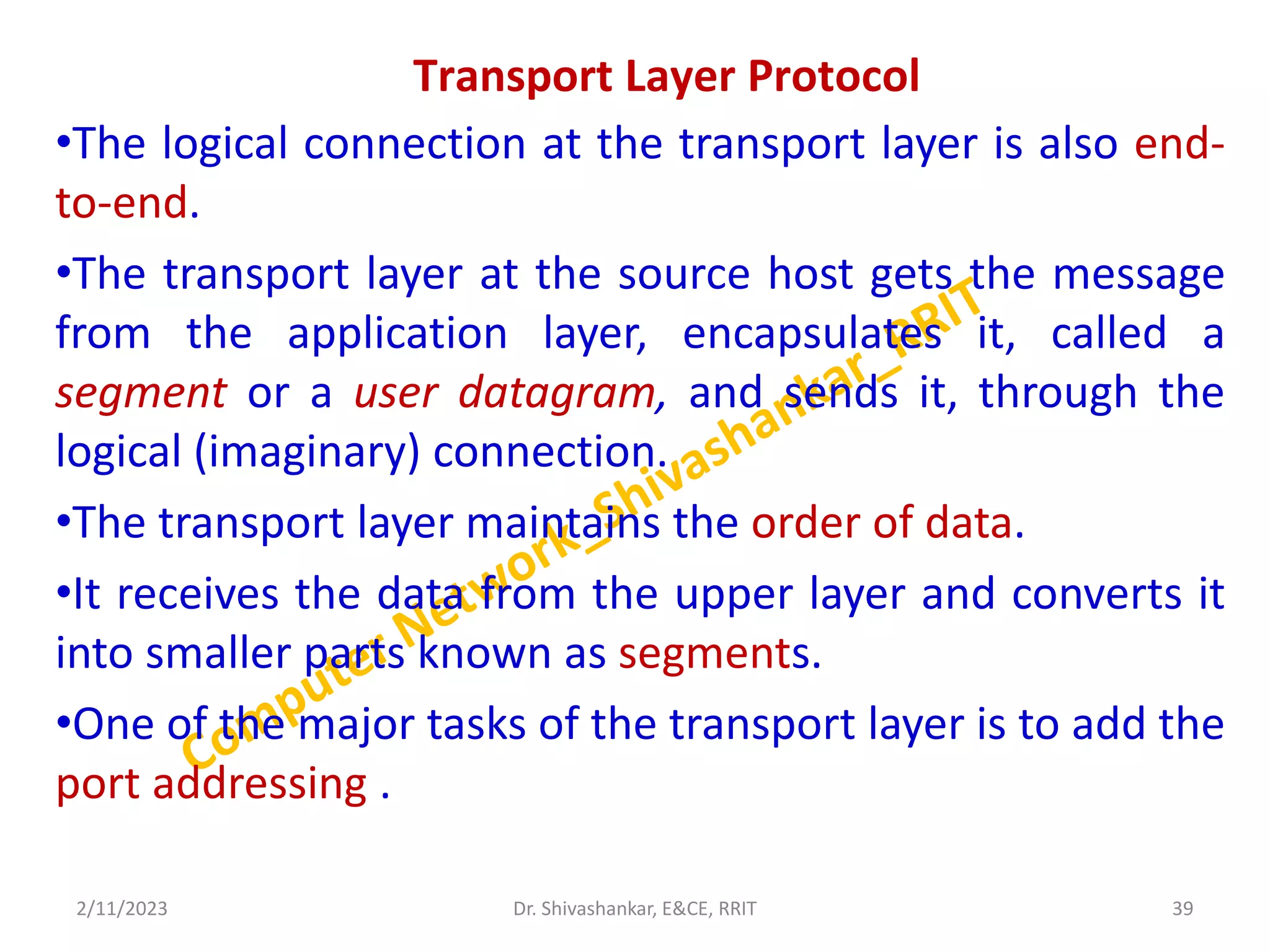

Transport Layer Protocol
•The logical connection at the transport layer is also end-
to-end.
•The transport layer at the source host gets the message
from the application layer, encapsulates it, called a
segment or a user datagram, and sends it, through the
logical (imaginary) connection.
•The transport layer maintains the order of data.
•It receives the data from the upper layer and converts it
into smaller parts known as segments.
•One of the major tasks of the transport layer is to add the
port addressing .
2/11/2023 39

CONTI…

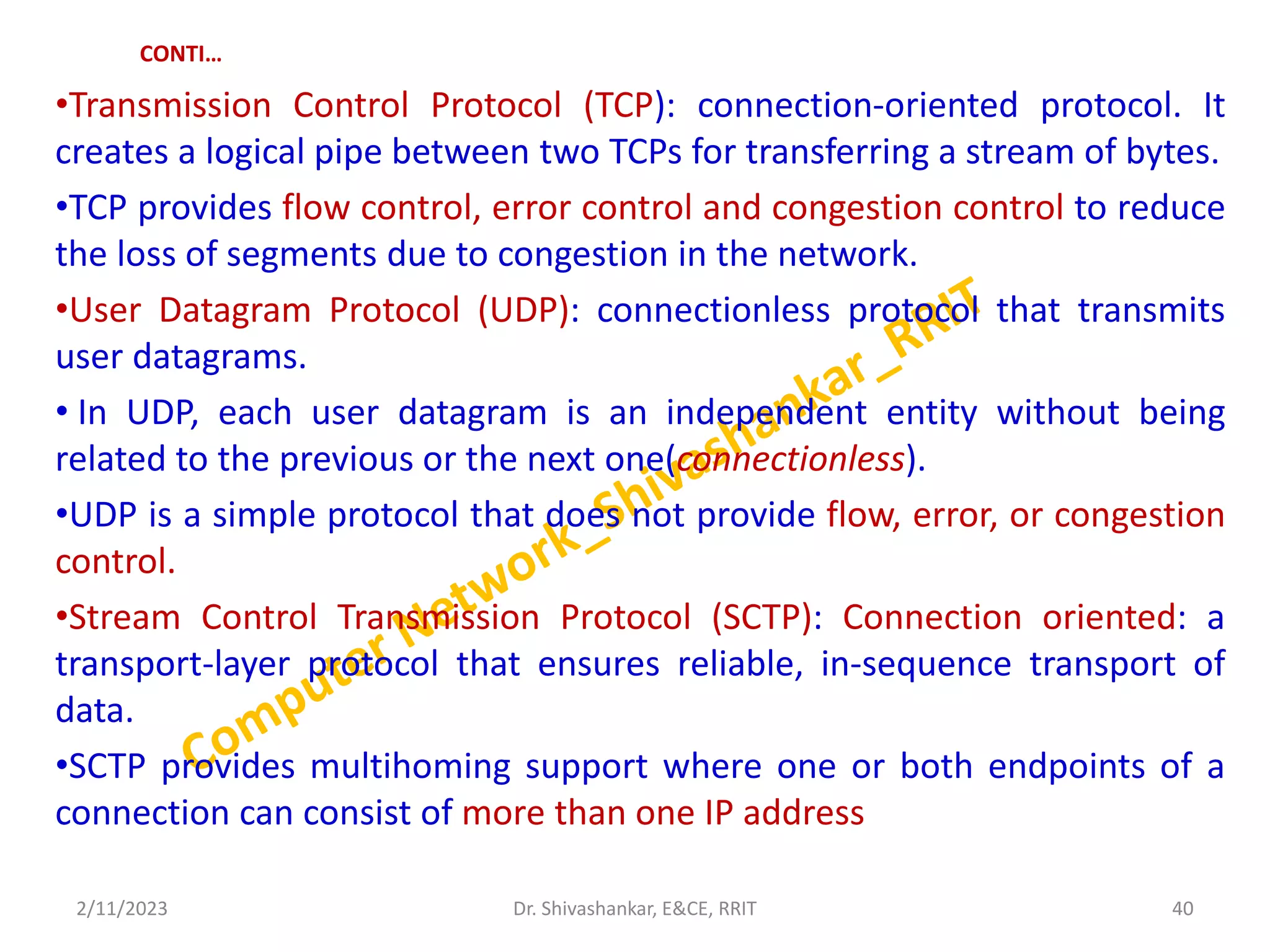

•Transmission Control Protocol (TCP): connection-oriented protocol. It
creates a logical pipe between two TCPs for transferring a stream of bytes.
•TCP provides flow control, error control and congestion control to reduce
the loss of segments due to congestion in the network.
•User Datagram Protocol (UDP): connectionless protocol that transmits
user datagrams.
• In UDP, each user datagram is an independent entity without being
related to the previous or the next one(connectionless).
•UDP is a simple protocol that does not provide flow, error, or congestion
control.
•Stream Control Transmission Protocol (SCTP): Connection oriented: a
transport-layer protocol that ensures reliable, in-sequence transport of
data.
•SCTP provides multihoming support where one or both endpoints of a
connection can consist of more than one IP address
2/11/2023 40

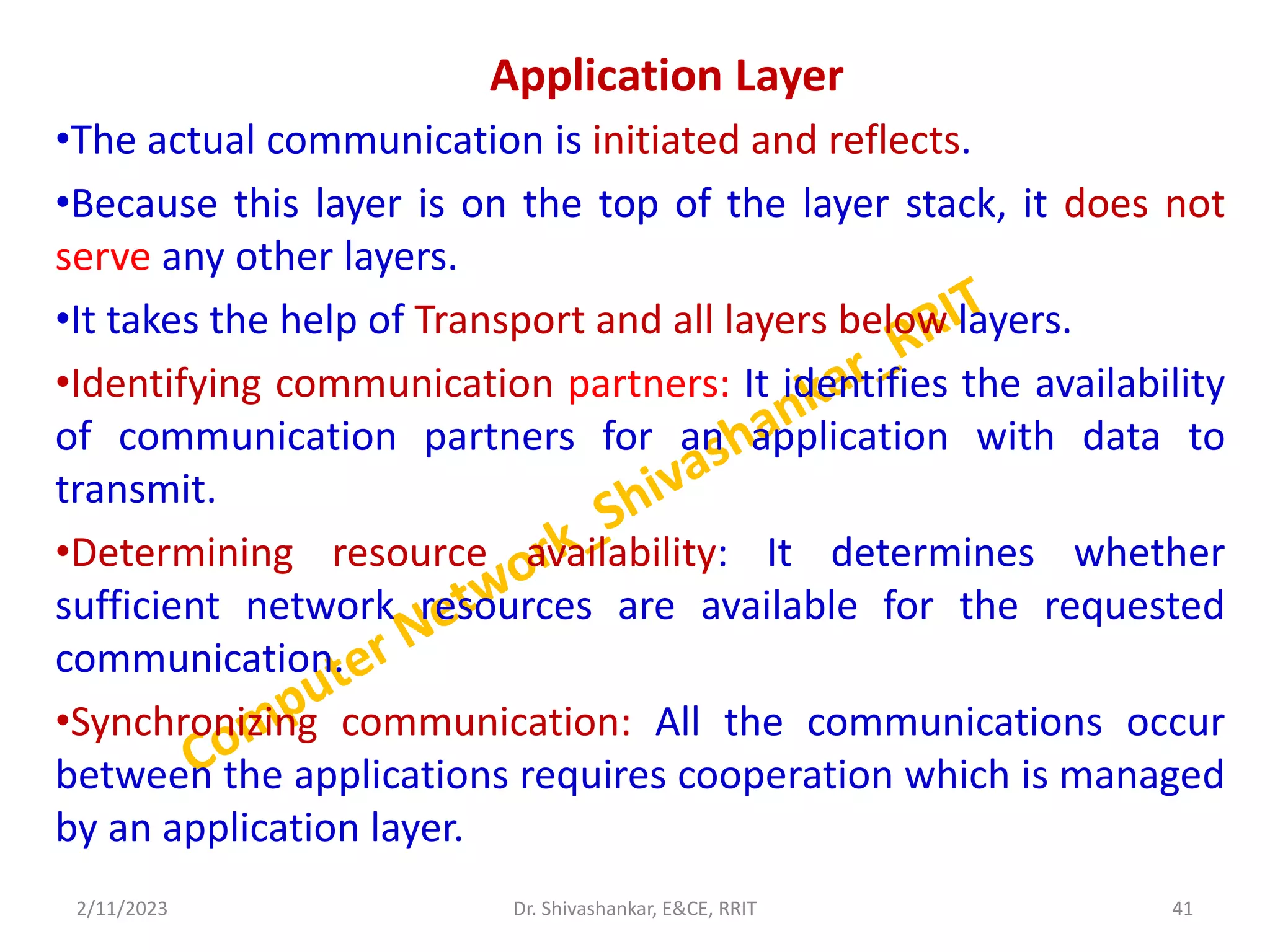

Application Layer
•The actual communication is initiated and reflects.
•Because this layer is on the top of the layer stack, it does not
serve any other layers.
•It takes the help of Transport and all layers below layers.
•Identifying communication partners: It identifies the availability
of communication partners for an application with data to
transmit.
•Determining resource availability: It determines whether
sufficient network resources are available for the requested
communication.
•Synchronizing communication: All the communications occur
between the applications requires cooperation which is managed
by an application layer.
2/11/2023 41

CONTI…
•The Hypertext Transfer Protocol (HTTP): foundation of any data
exchange on the Web(www) and it is a client-server protocol
•The Simple Mail Transfer Protocol (SMTP): the main protocol
used in electronic mail (e-mail) service.
•The File Transfer Protocol (FTP): used for transferring files from
one host to another.
•The Terminal Network (TELNET) and Secure Shell (SSH) are used
for accessing a site remotely.
•The Simple Network Management Protocol (SNMP): used by an
administrator to manage the Internet at global and local levels.
•The Domain Name System (DNS): used by other protocols to
find the network-layer address of a computer.
2/11/2023 42

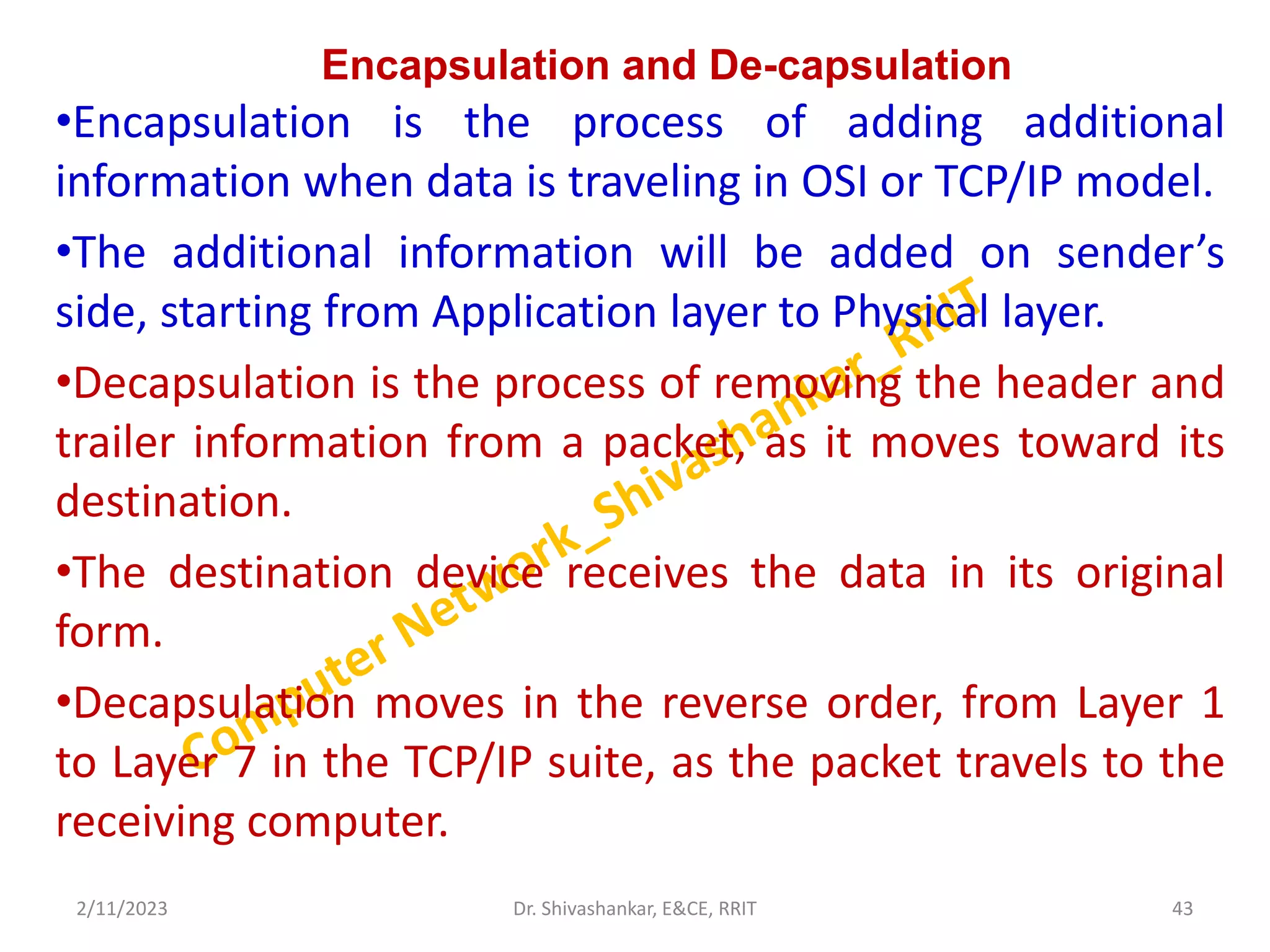

Encapsulation and De-capsulation
•Encapsulation is the process of adding additional
information when data is traveling in OSI or TCP/IP model.
•The additional information will be added on sender’s
side, starting from Application layer to Physical layer.
•Decapsulation is the process of removing the header and
trailer information from a packet, as it moves toward its
destination.
•The destination device receives the data in its original
form.
•Decapsulation moves in the reverse order, from Layer 1
to Layer 7 in the TCP/IP suite, as the packet travels to the
receiving computer.
2/11/2023 43

CONTI…
2/11/2023 44

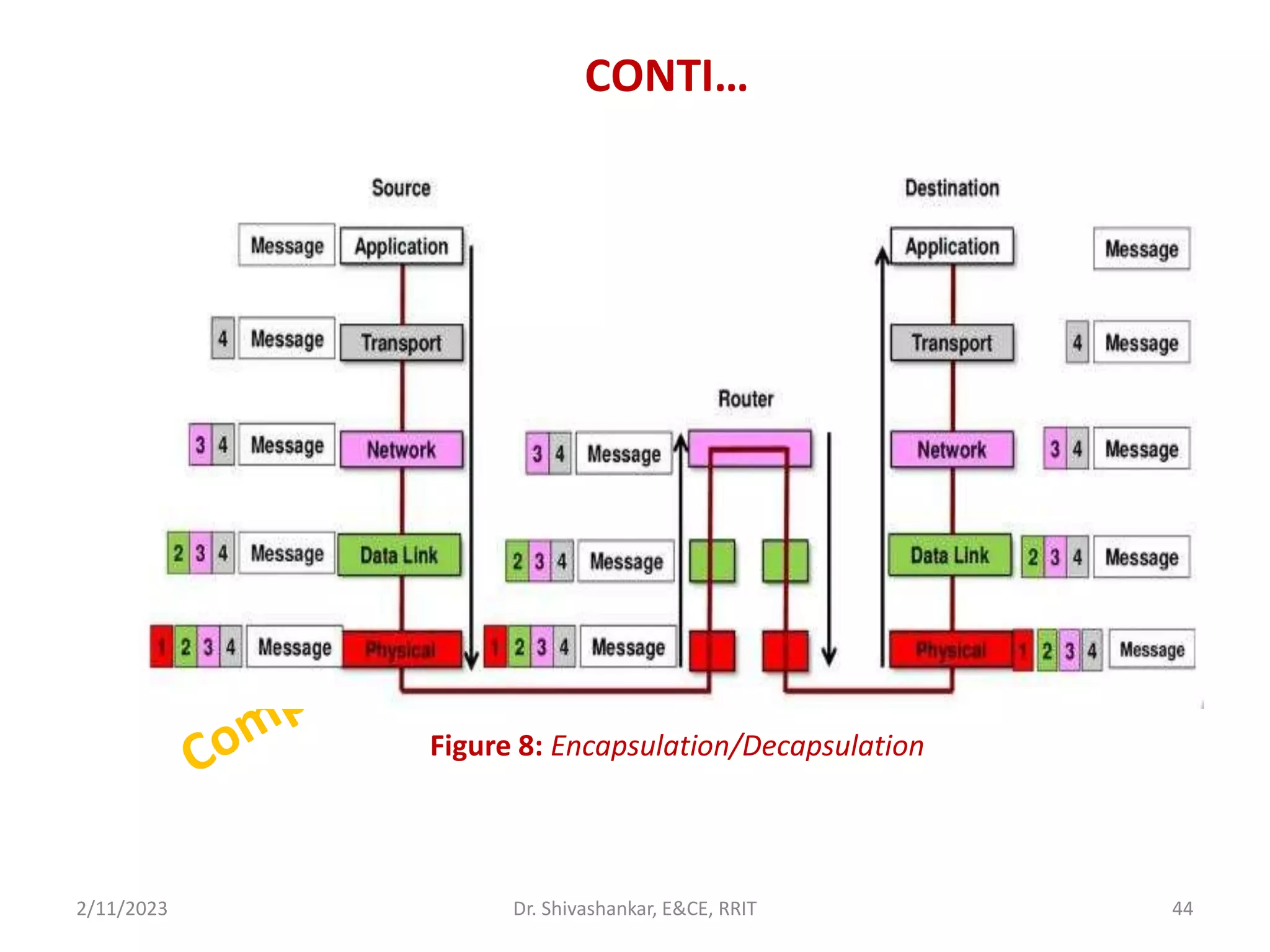

Figure 8: Encapsulation/Decapsulation

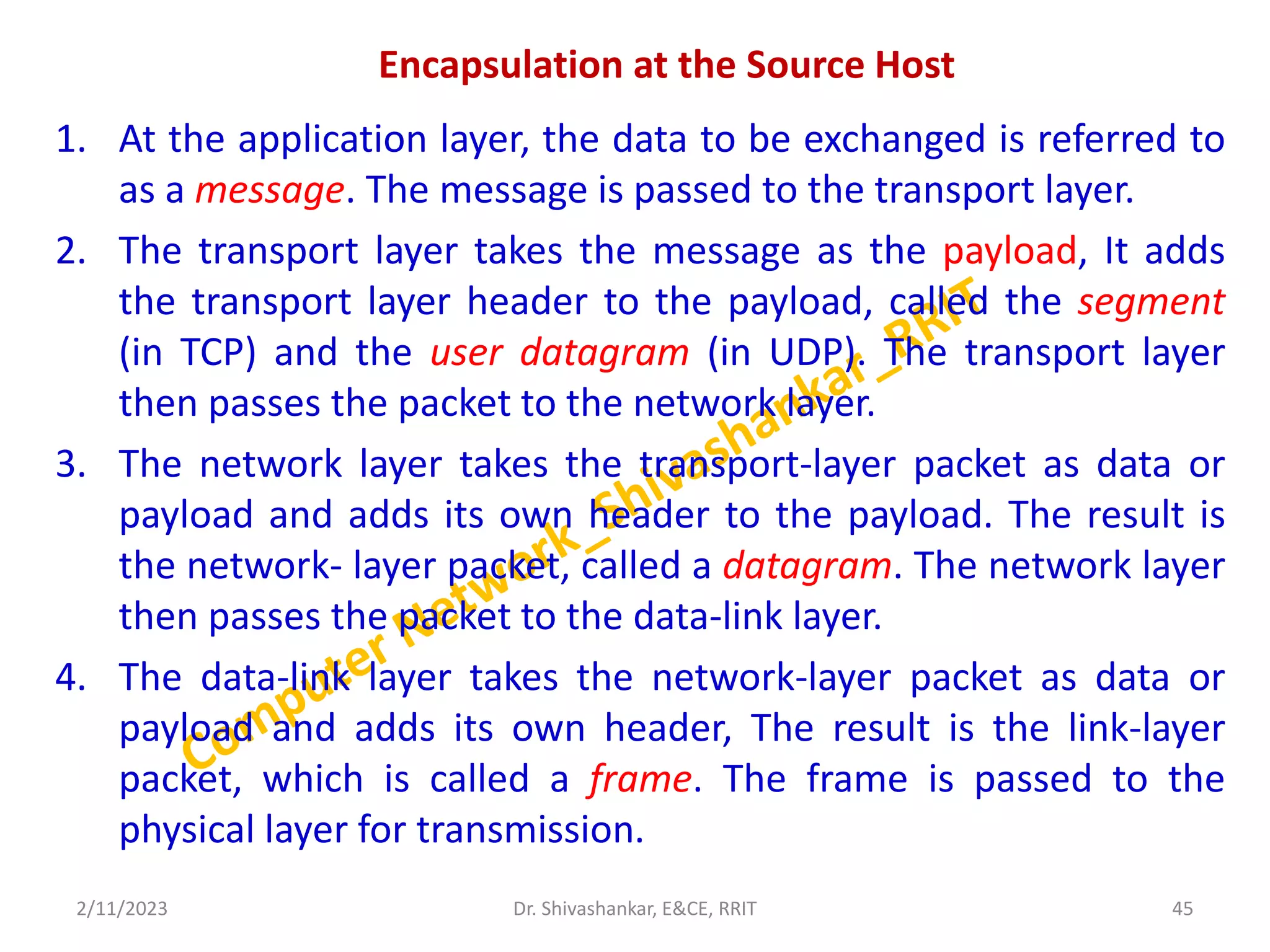

Encapsulation at the Source Host
1. At the application layer, the data to be exchanged is referred to
as a message. The message is passed to the transport layer.
2. The transport layer takes the message as the payload, It adds
the transport layer header to the payload, called the segment
(in TCP) and the user datagram (in UDP). The transport layer
then passes the packet to the network layer.
3. The network layer takes the transport-layer packet as data or
payload and adds its own header to the payload. The result is
the network- layer packet, called a datagram. The network layer
then passes the packet to the data-link layer.
4. The data-link layer takes the network-layer packet as data or
payload and adds its own header, The result is the link-layer
packet, which is called a frame. The frame is passed to the
physical layer for transmission.
2/11/2023 45

CONTI…

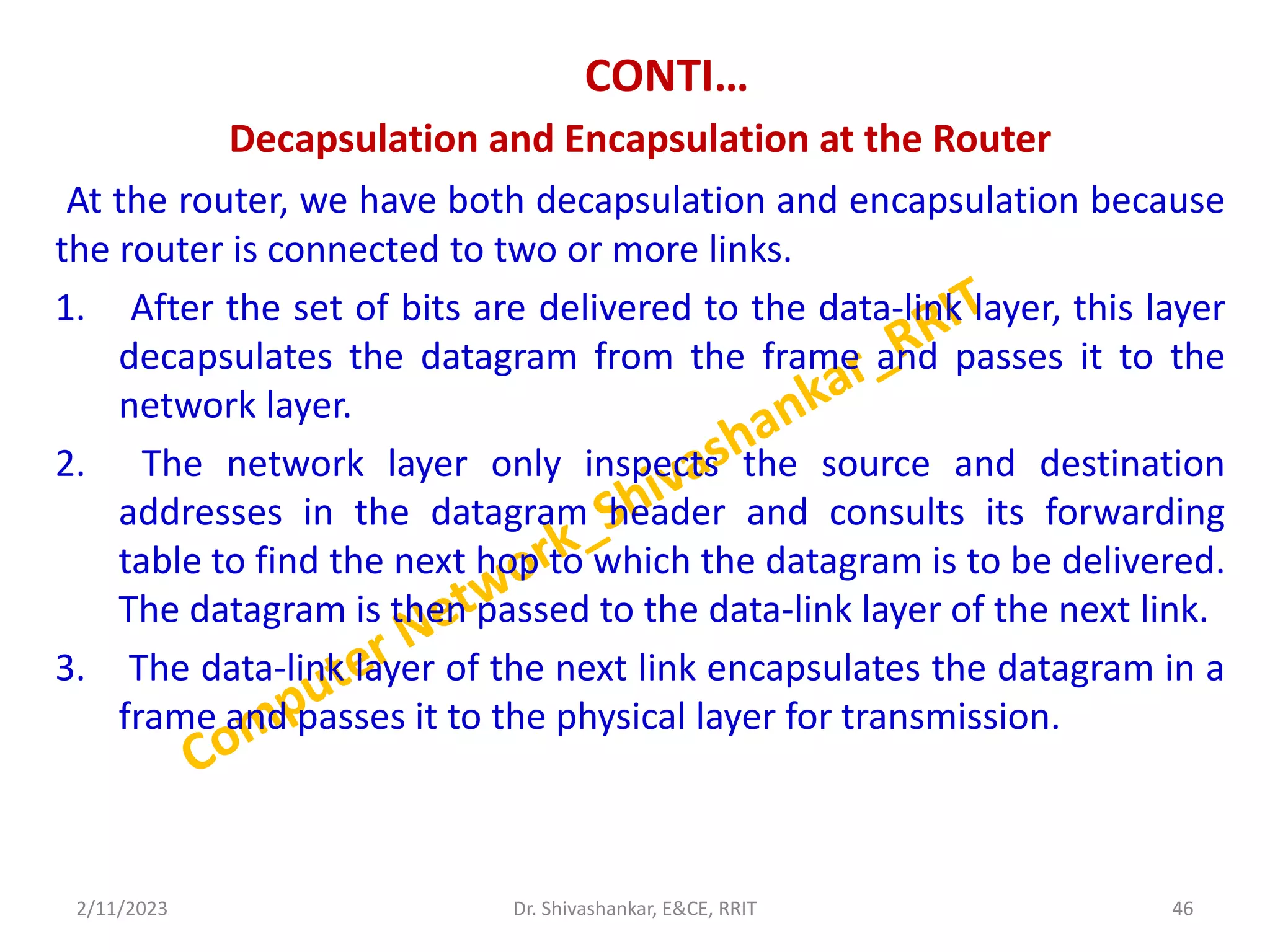

Decapsulation and Encapsulation at the Router
At the router, we have both decapsulation and encapsulation because
the router is connected to two or more links.
1. After the set of bits are delivered to the data-link layer, this layer
decapsulates the datagram from the frame and passes it to the
network layer.
2. The network layer only inspects the source and destination
addresses in the datagram header and consults its forwarding
table to find the next hop to which the datagram is to be delivered.
The datagram is then passed to the data-link layer of the next link.
3. The data-link layer of the next link encapsulates the datagram in a
frame and passes it to the physical layer for transmission.
2/11/2023 46

CONTI…
Decapsulation at the Destination Host
At the destination host, each layer only decapsulates the packet
received, removes the payload, and delivers the payload to the
next-higher layer protocol until the message reaches the application
layer.
It is necessary to say that decapsulation in the host involves error
checking.
2/11/2023 47

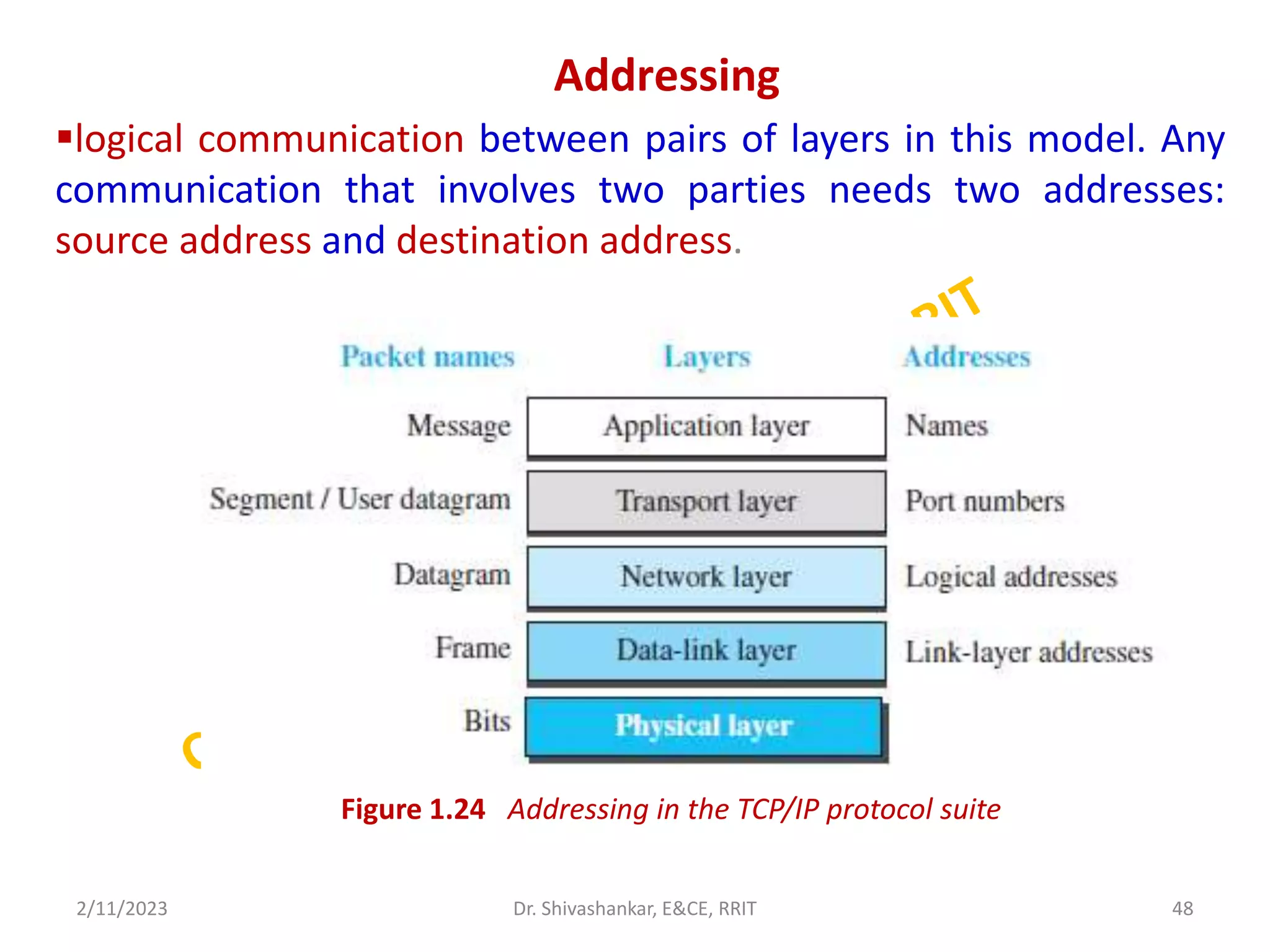

Addressing
logical communication between pairs of layers in this model. Any
communication that involves two parties needs two addresses:
source address and destination address.
2/11/2023 48
Figure 1.24 Addressing in the TCP/IP protocol suite

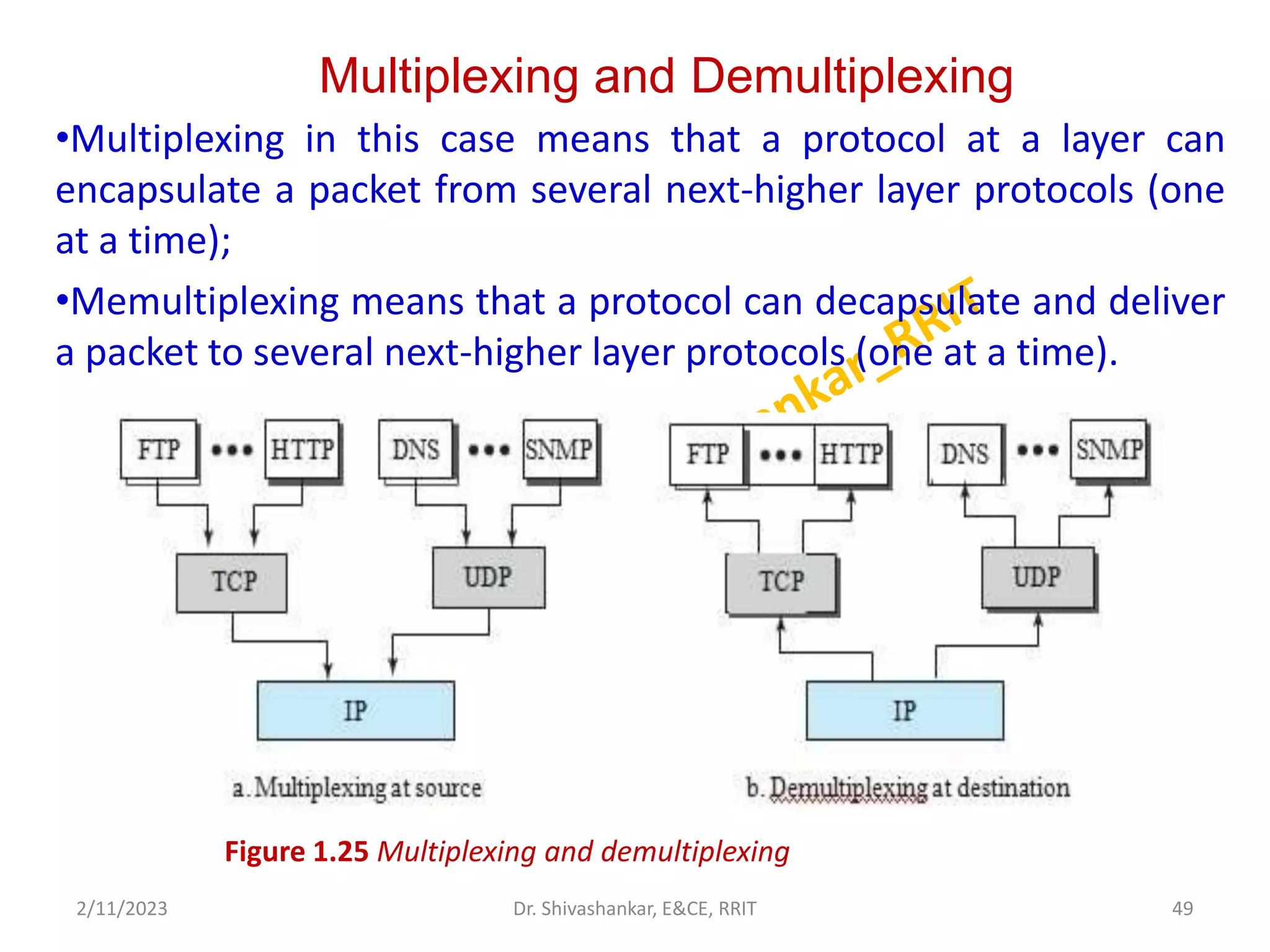

Multiplexing and Demultiplexing
•Multiplexing in this case means that a protocol at a layer can
encapsulate a packet from several next-higher layer protocols (one
at a time);
•Memultiplexing means that a protocol can decapsulate and deliver
a packet to several next-higher layer protocols (one at a time).
2/11/2023 49
Figure 1.25 Multiplexing and demultiplexing

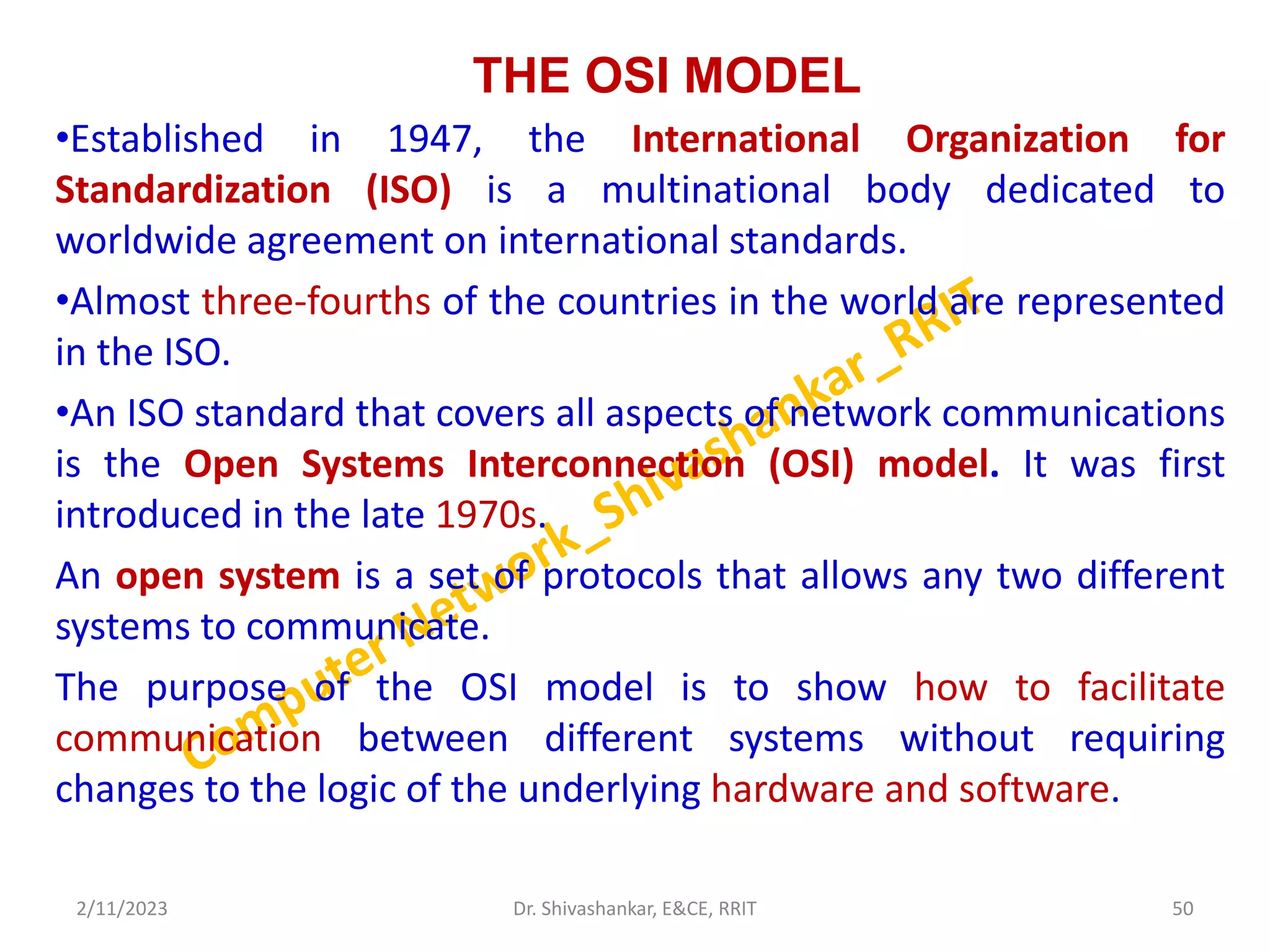

THE OSI MODEL
•Established in 1947, the International Organization for
Standardization (ISO) is a multinational body dedicated to
worldwide agreement on international standards.
•Almost three-fourths of the countries in the world are represented
in the ISO.
•An ISO standard that covers all aspects of network communications
is the Open Systems Interconnection (OSI) model. It was first
introduced in the late 1970s.
An open system is a set of protocols that allows any two different
systems to communicate.
The purpose of the OSI model is to show how to facilitate
communication between different systems without requiring
changes to the logic of the underlying hardware and software.
2/11/2023 50

CONTI…
2/11/2023 51

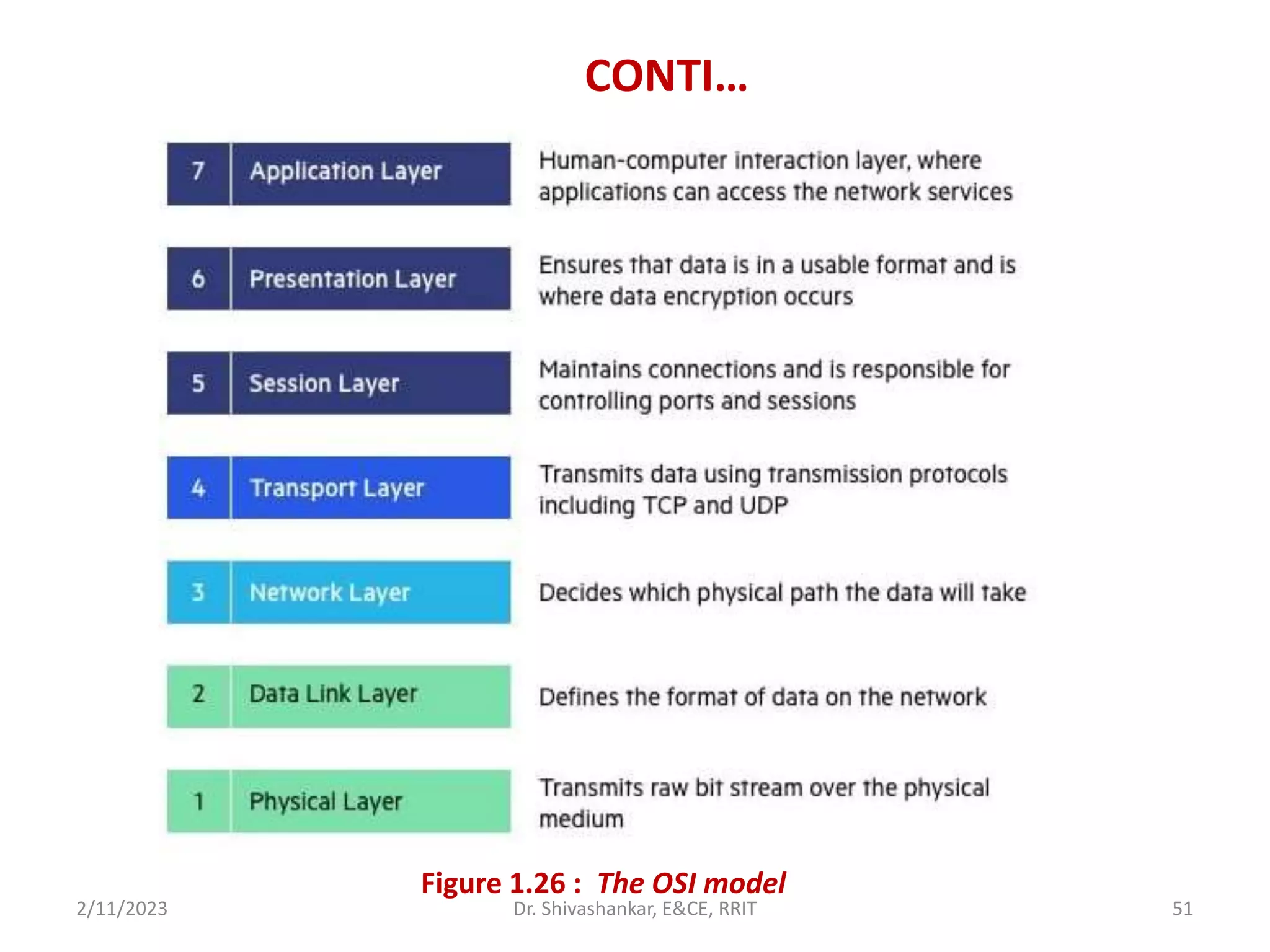

Figure 1.26 : The OSI model

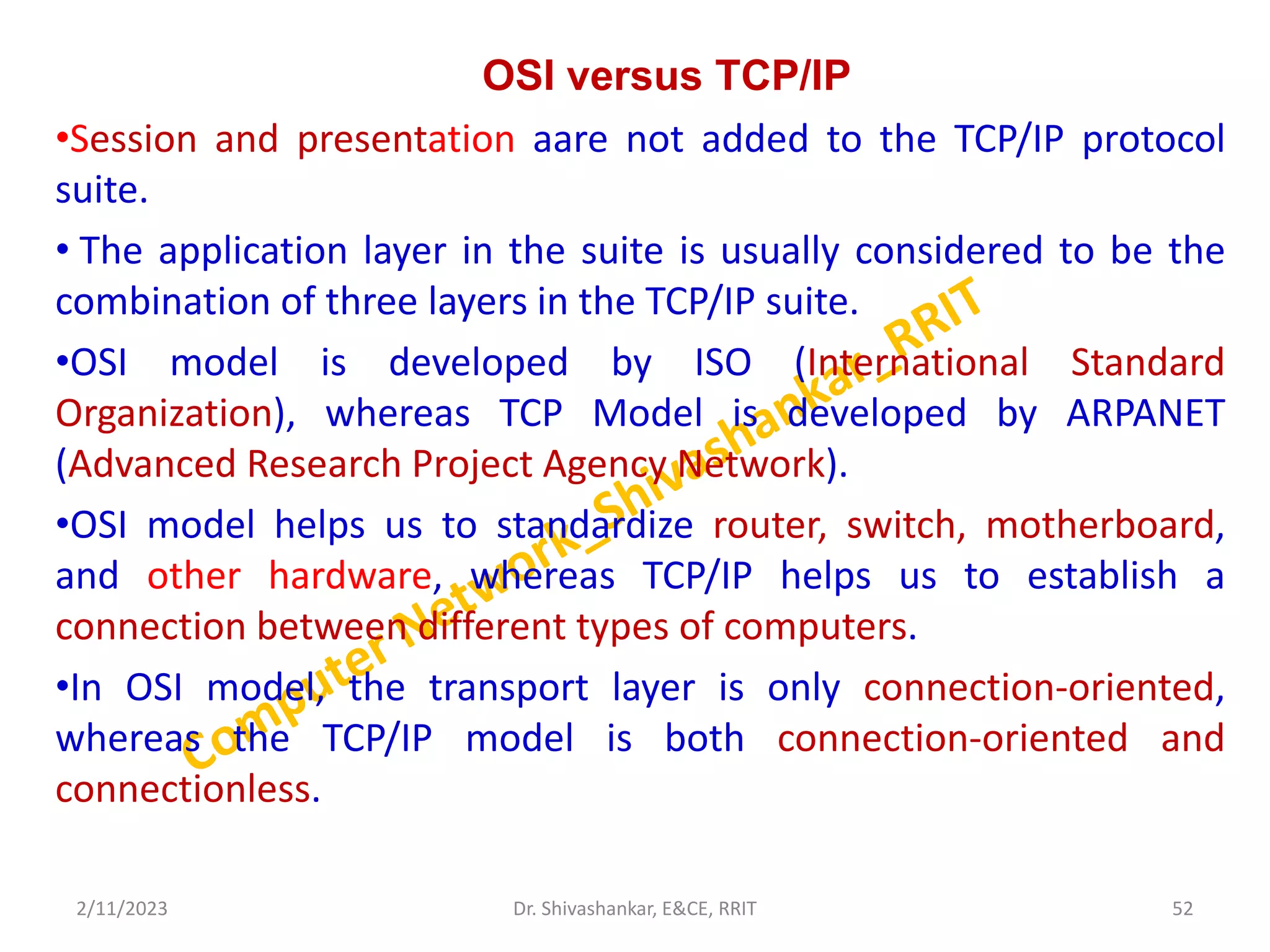

OSI versus TCP/IP
•Session and presentation aare not added to the TCP/IP protocol
suite.
• The application layer in the suite is usually considered to be the
combination of three layers in the TCP/IP suite.
•OSI model is developed by ISO (International Standard
Organization), whereas TCP Model is developed by ARPANET
(Advanced Research Project Agency Network).
•OSI model helps us to standardize router, switch, motherboard,
and other hardware, whereas TCP/IP helps us to establish a
connection between different types of computers.
•In OSI model, the transport layer is only connection-oriented,
whereas the TCP/IP model is both connection-oriented and
connectionless.
2/11/2023 52

CONTI…
2/11/2023 53
Figure 1.27 TCP/IP and OSI model

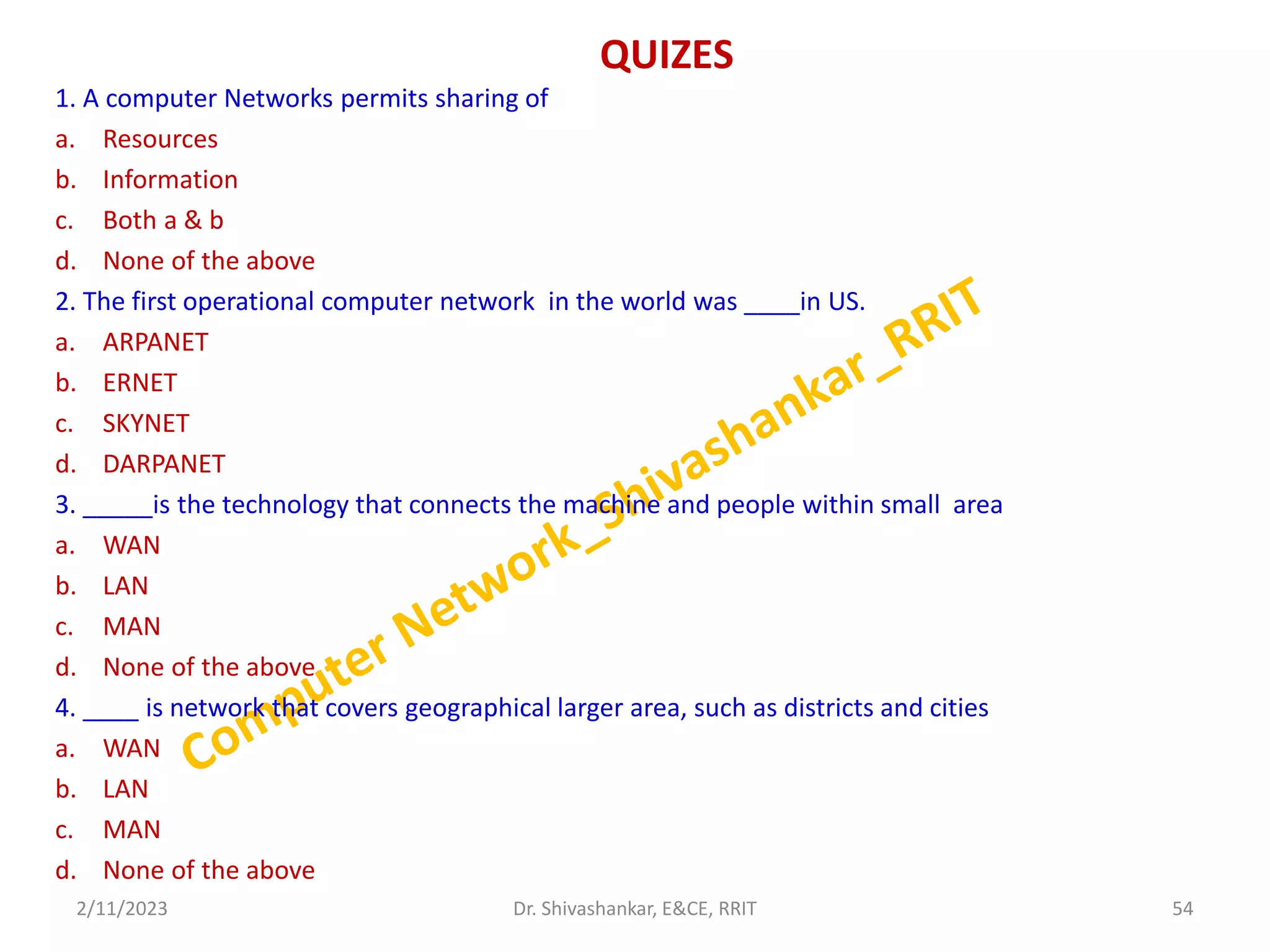

QUIZES
1. A computer Networks permits sharing of
a. Resources
b. Information
c. Both a & b
d. None of the above
2. The first operational computer network in the world was ____in US.
a. ARPANET
b. ERNET
c. SKYNET
d. DARPANET
3. _____is the technology that connects the machine and people within small area
a. WAN
b. LAN
c. MAN
4. ____ is network that covers geographical larger area, such as districts and cities
a. WAN
b. LAN
c. MAN
2/11/2023 54

CONTI…

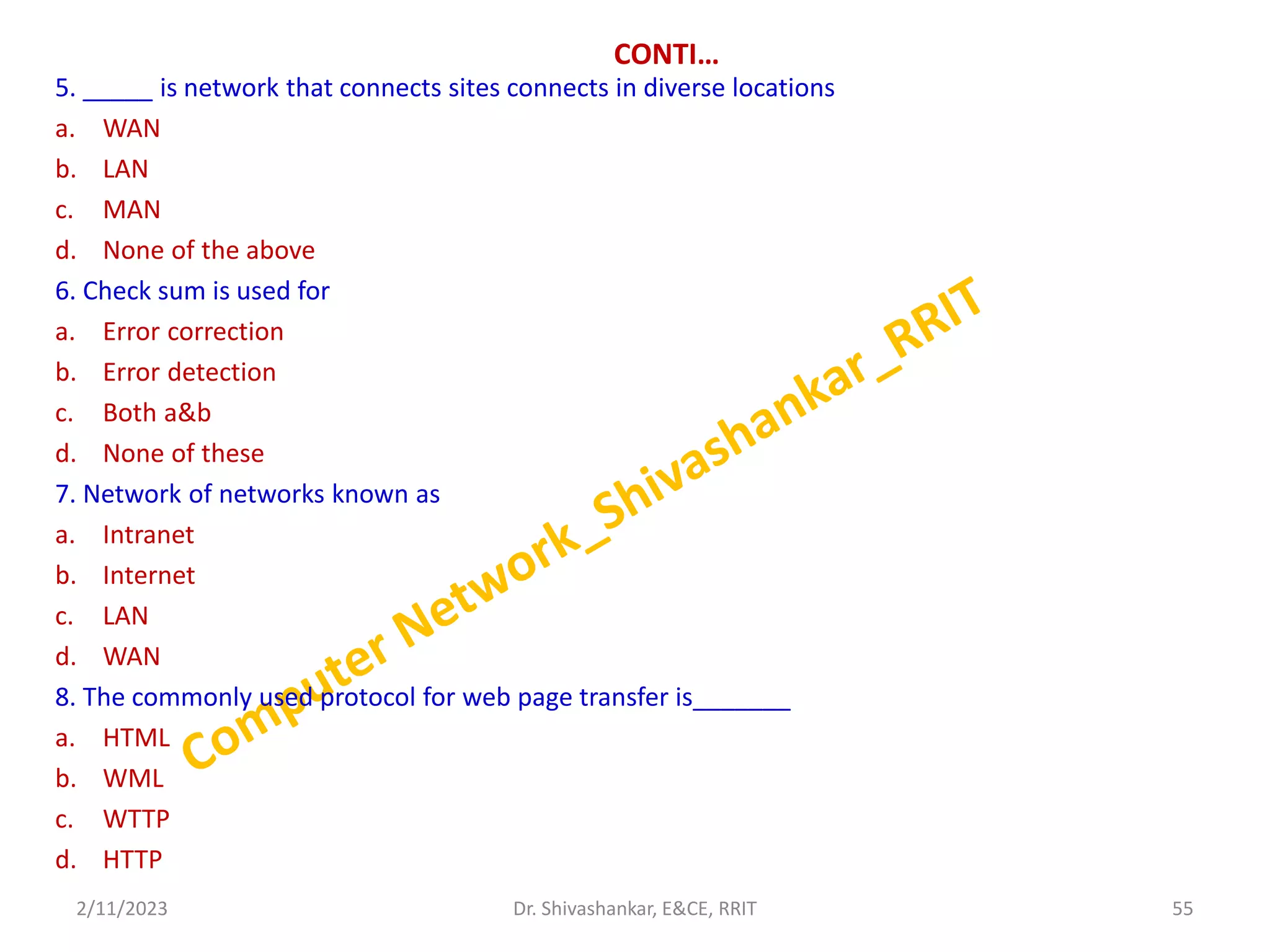

5. _____ is network that connects sites connects in diverse locations
a. WAN
b. LAN
c. MAN
6. Check sum is used for
a. Error correction
b. Error detection
c. Both a&b
d. None of these
7. Network of networks known as
a. Intranet
b. Internet
c. LAN
d. WAN
8. The commonly used protocol for web page transfer is_______
a. HTML
b. WML
c. WTTP
d. HTTP
2/11/2023 55

MODULE-1_CCN.pptx

More Related Content

What's hot

Similar to MODULE-1_CCN.pptx

More from Dr. Shivashankar

Recently uploaded

MODULE-1_CCN.pptx
