Module 1 Introduction to Computer Networks.pptx

The document provides a comprehensive overview of computer networks, defining them as interconnected nodes for transmitting data, and detailing types such as local area networks (LAN) and wide area networks (WAN). It also covers network criteria including performance, reliability, and security, as well as various network topologies such as bus, ring, star, mesh, tree, and hybrid. Additionally, it discusses the OSI reference model, outlining its seven layers, which contribute to the functions of networking systems and their applications.

Embed presentation

Download to read offline
Introduction Module 1

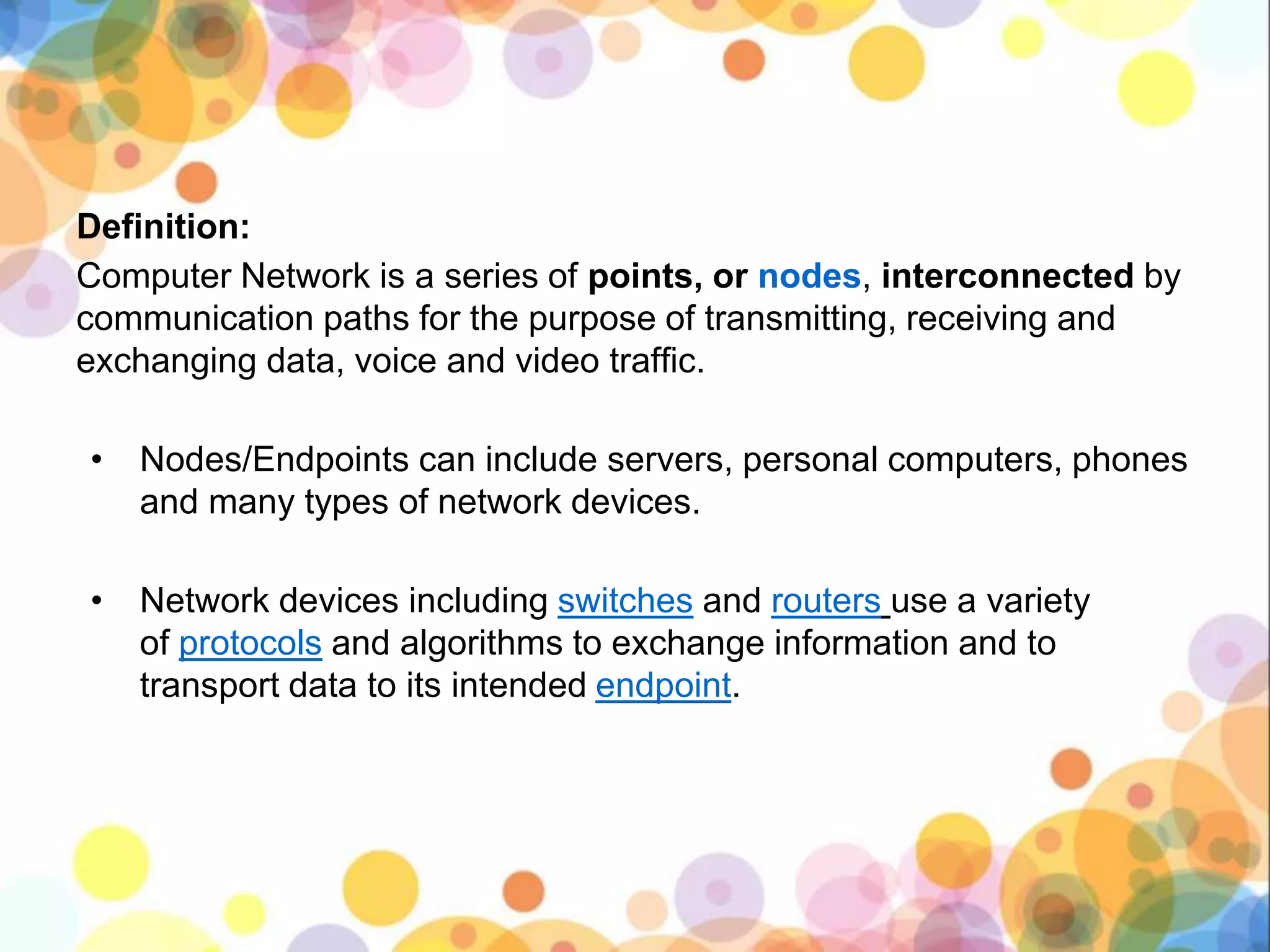

Definition: Computer Network is a series of points, or nodes, interconnected by communication paths for the purpose of transmitting, receiving and exchanging data, voice and video traffic. • Nodes/Endpoints can include servers, personal computers, phones and many types of network devices. • Network devices including switches and routers use a variety of protocols and algorithms to exchange information and to transport data to its intended endpoint.

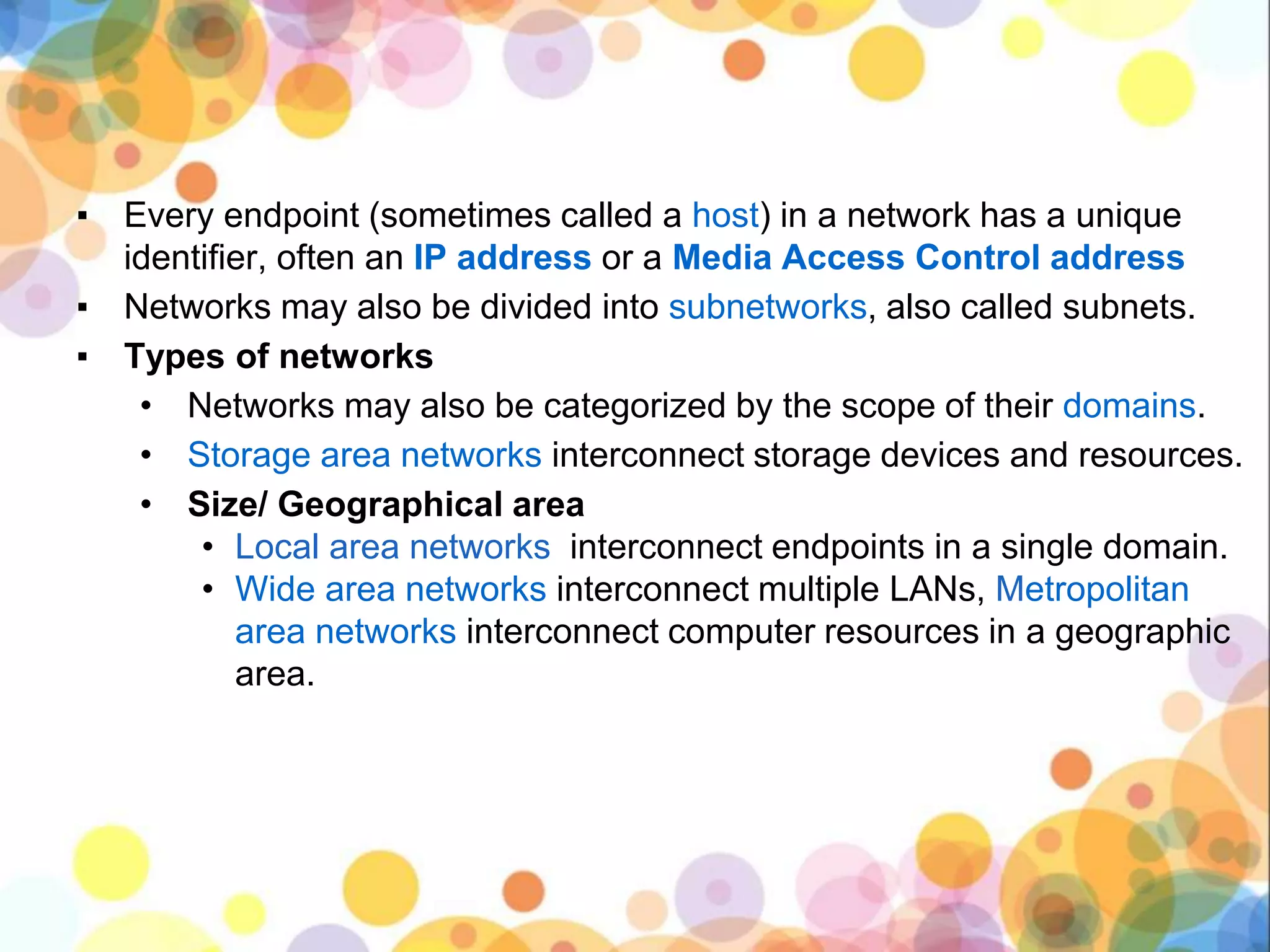

▪ Every endpoint (sometimes called a host) in a network has a unique identifier, often an IP address or a Media Access Control address ▪ Networks may also be divided into subnetworks, also called subnets. ▪ Types of networks • Networks may also be categorized by the scope of their domains. • Storage area networks interconnect storage devices and resources. • Size/ Geographical area • Local area networks interconnect endpoints in a single domain. • Wide area networks interconnect multiple LANs, Metropolitan area networks interconnect computer resources in a geographic area.

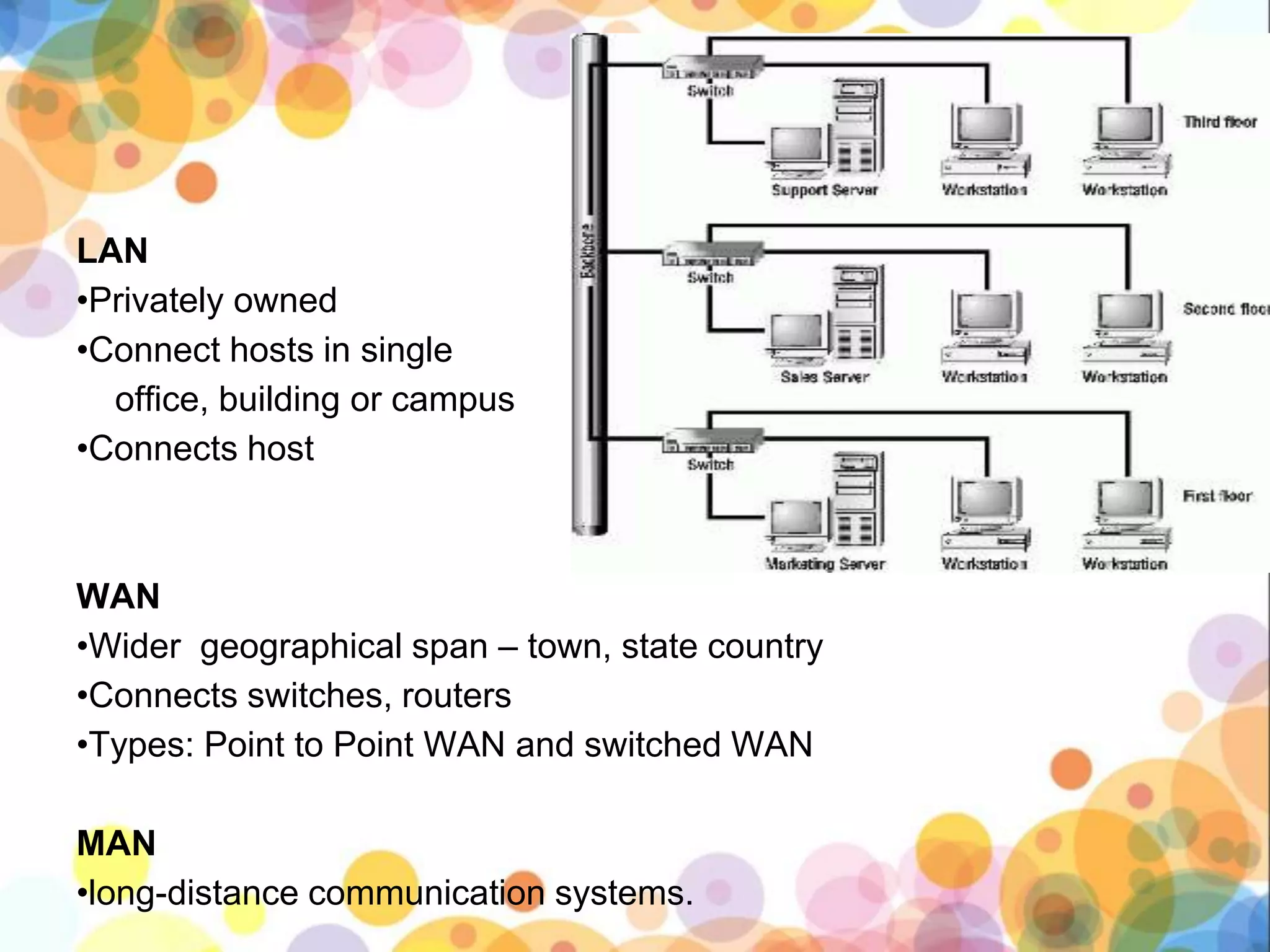

LAN •Privately owned •Connect hosts in single office, building or campus •Connects host WAN •Wider geographical span – town, state country •Connects switches, routers •Types: Point to Point WAN and switched WAN MAN •long-distance communication systems.

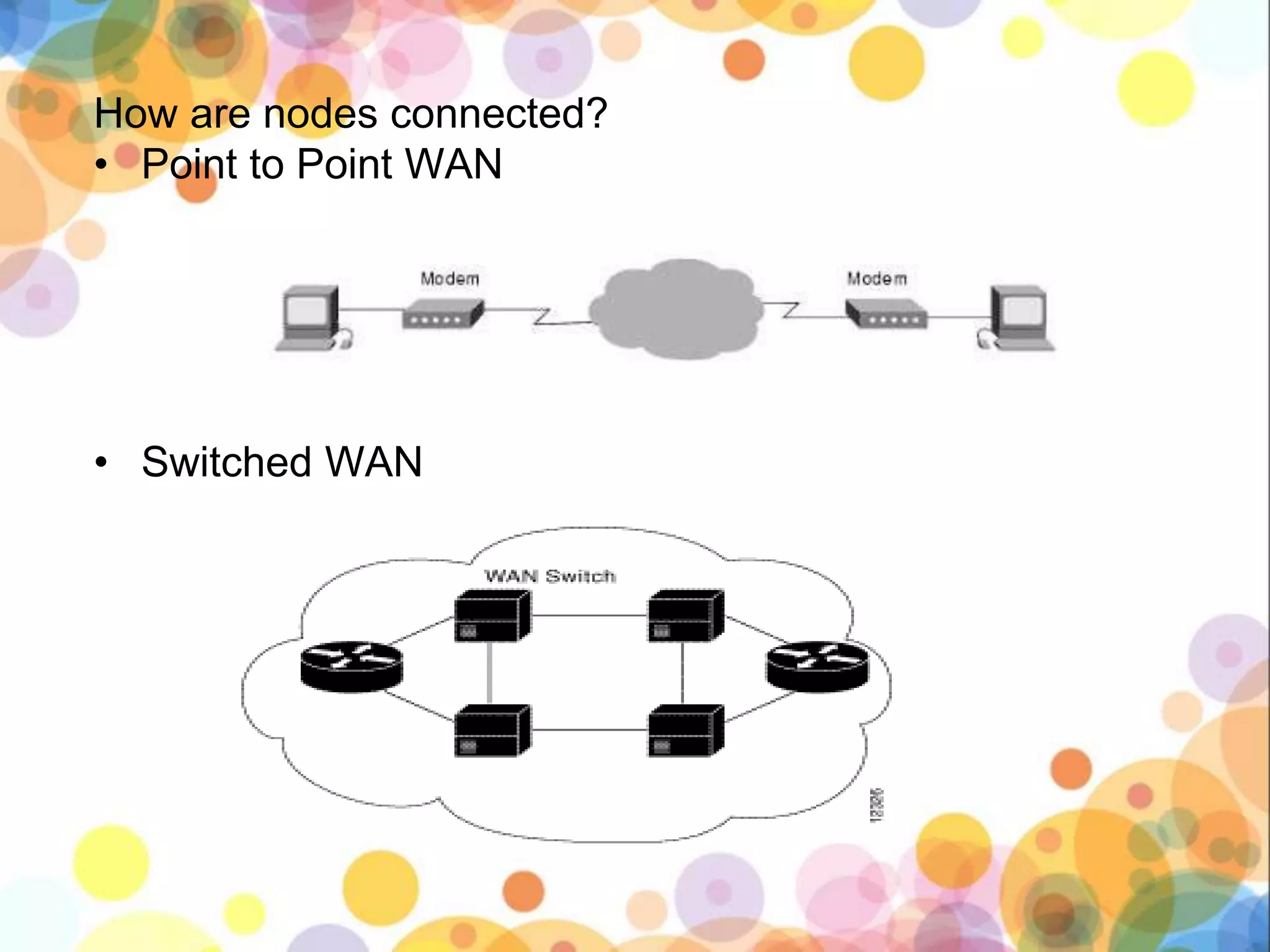

How are nodes connected? • Point to Point WAN • Switched WAN

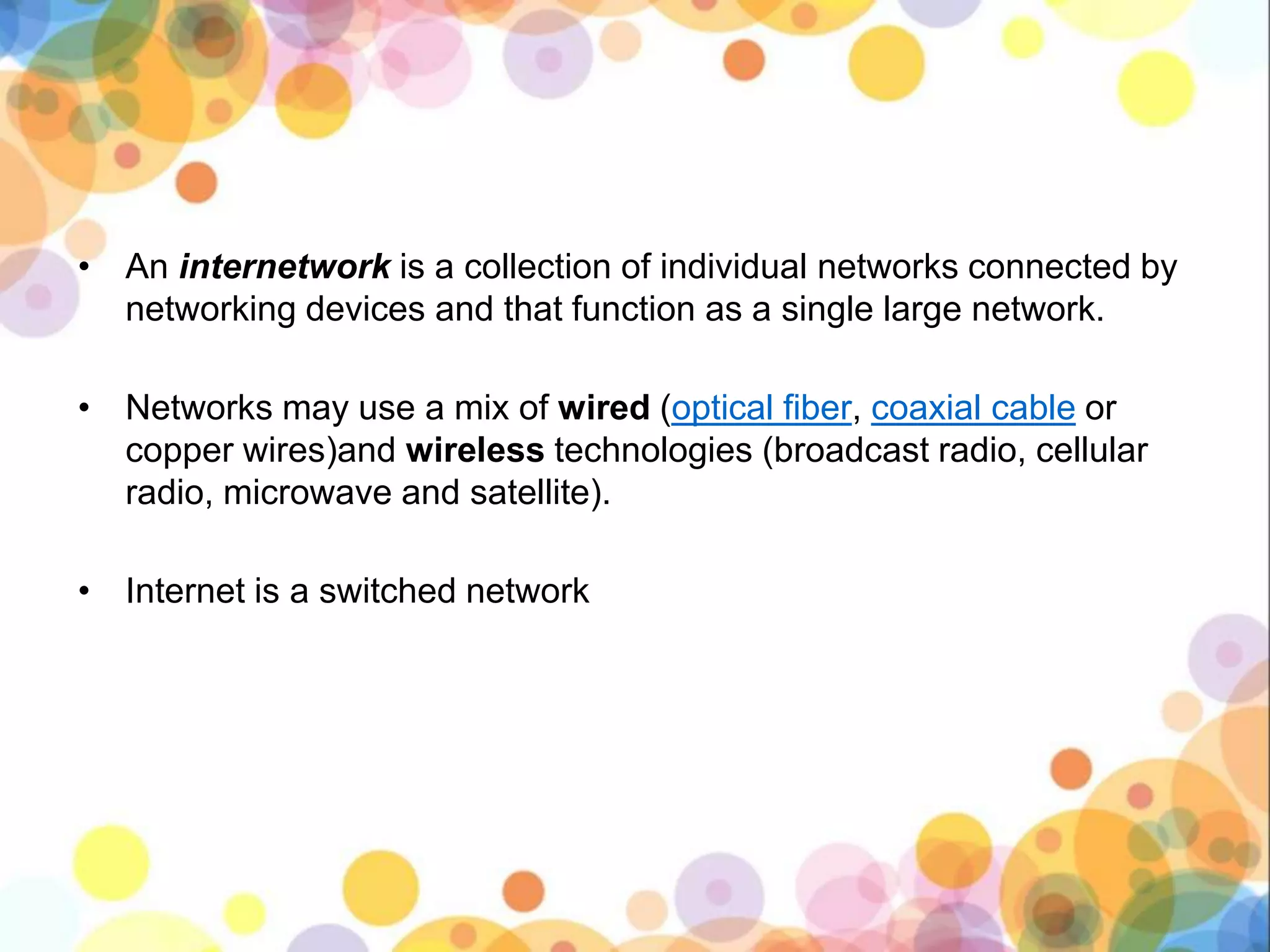

• An internetwork is a collection of individual networks connected by networking devices and that function as a single large network. • Networks may use a mix of wired (optical fiber, coaxial cable or copper wires)and wireless technologies (broadcast radio, cellular radio, microwave and satellite). • Internet is a switched network

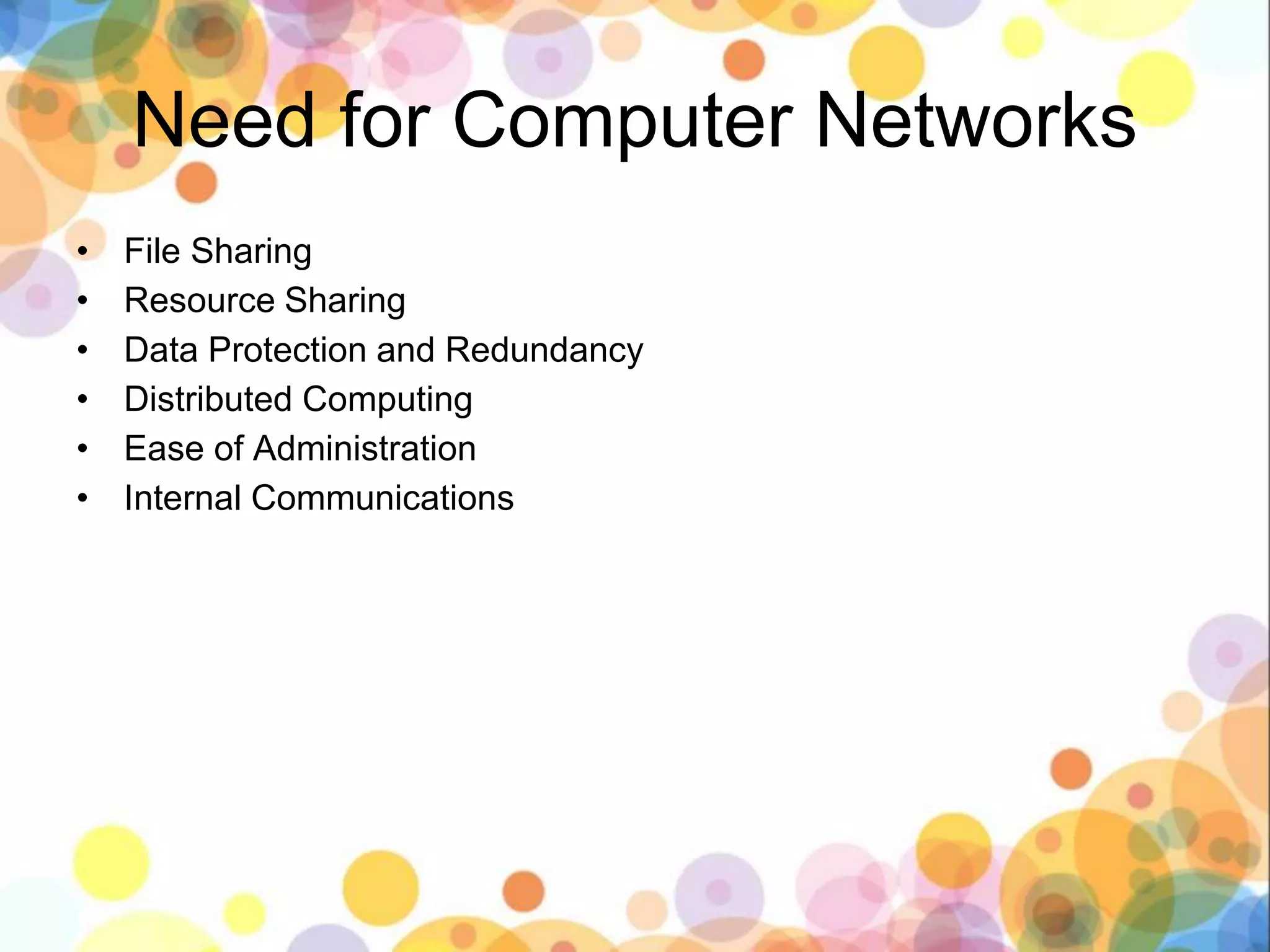

Need for Computer Networks • File Sharing • Resource Sharing • Data Protection and Redundancy • Distributed Computing • Ease of Administration • Internal Communications

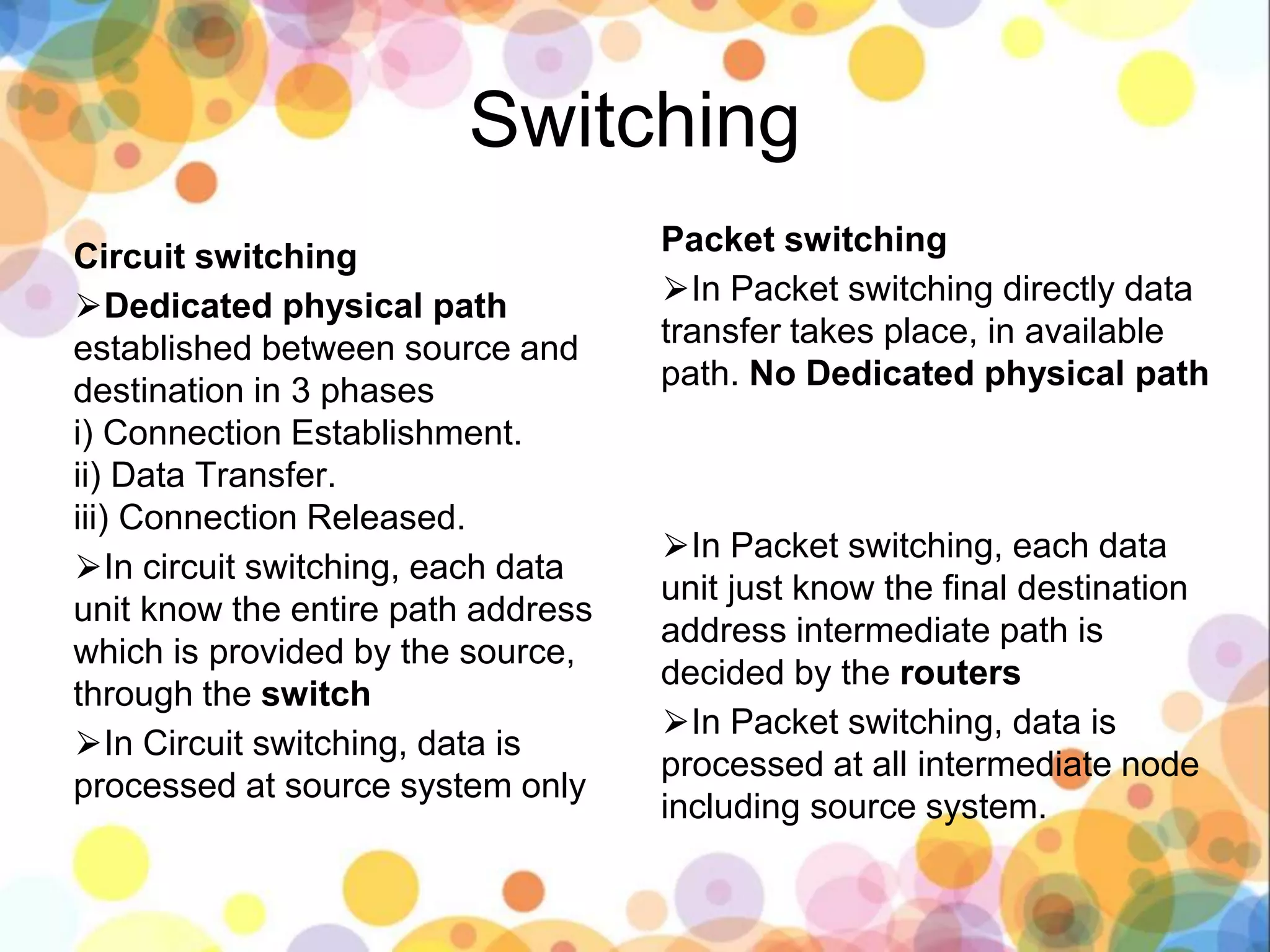

Circuit switching ⮚Dedicated physical path established between source and destination in 3 phases i) Connection Establishment. ii) Data Transfer. iii) Connection Released. ⮚In circuit switching, each data unit know the entire path address which is provided by the source, through the switch ⮚In Circuit switching, data is processed at source system only Packet switching ⮚In Packet switching directly data transfer takes place, in available path. No Dedicated physical path ⮚In Packet switching, each data unit just know the final destination address intermediate path is decided by the routers ⮚In Packet switching, data is processed at all intermediate node including source system. Switching

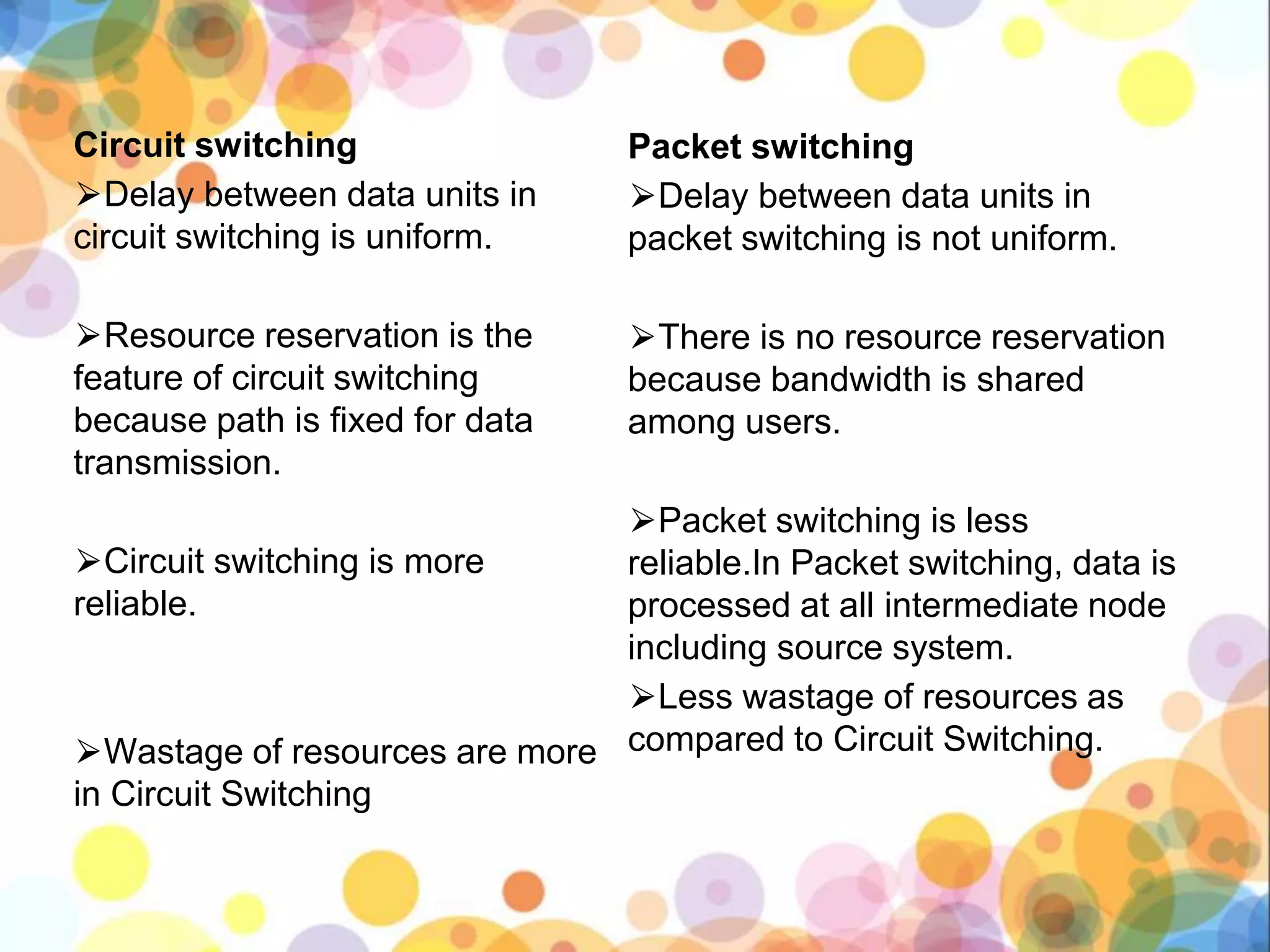

Circuit switching ⮚Delay between data units in circuit switching is uniform. ⮚Resource reservation is the feature of circuit switching because path is fixed for data transmission. ⮚Circuit switching is more reliable. ⮚Wastage of resources are more in Circuit Switching Packet switching ⮚Delay between data units in packet switching is not uniform. ⮚There is no resource reservation because bandwidth is shared among users. ⮚Packet switching is less reliable.In Packet switching, data is processed at all intermediate node including source system. ⮚Less wastage of resources as compared to Circuit Switching.

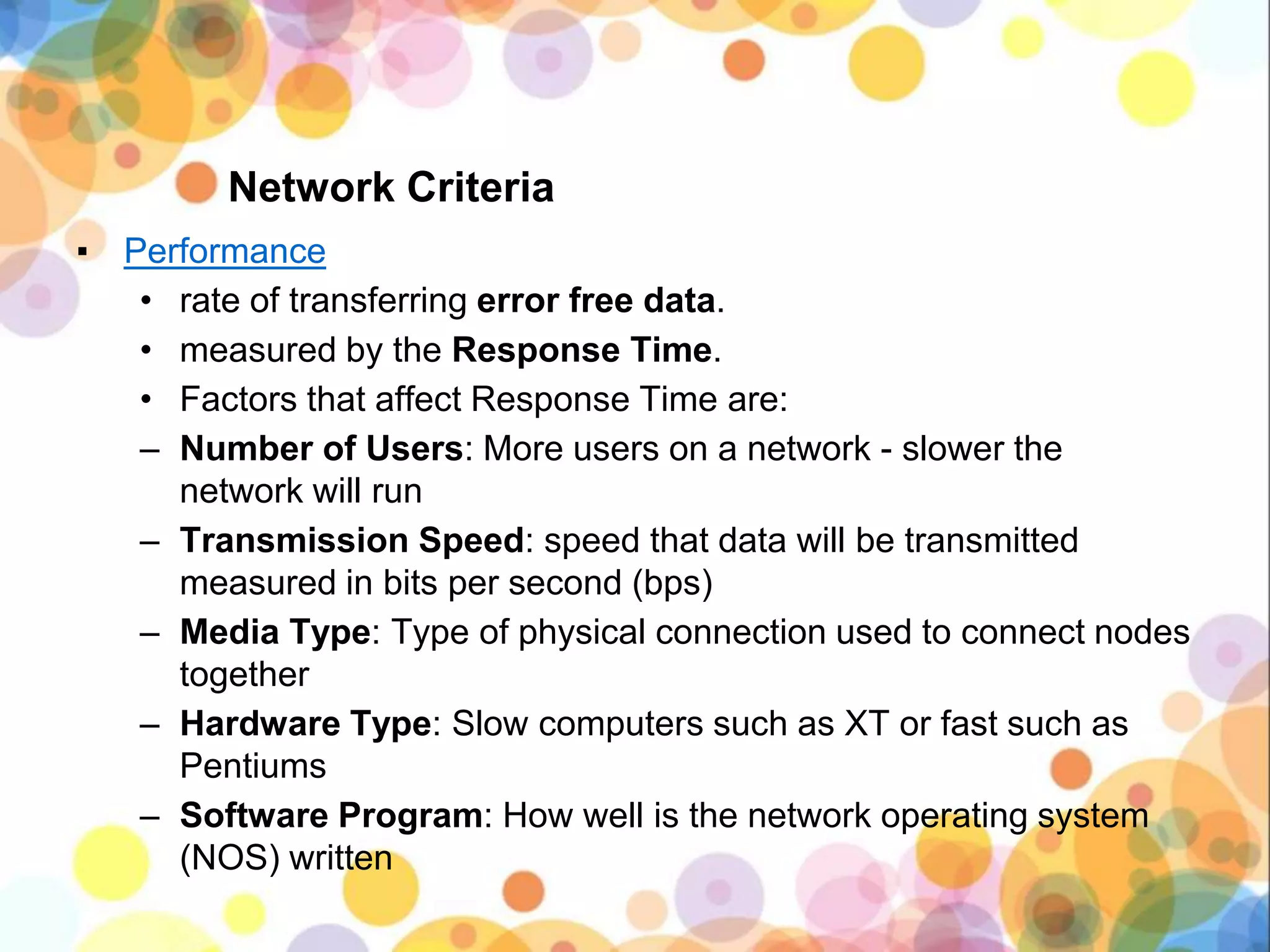

Network Criteria ▪ Performance • rate of transferring error free data. • measured by the Response Time. • Factors that affect Response Time are: – Number of Users: More users on a network - slower the network will run – Transmission Speed: speed that data will be transmitted measured in bits per second (bps) – Media Type: Type of physical connection used to connect nodes together – Hardware Type: Slow computers such as XT or fast such as Pentiums – Software Program: How well is the network operating system (NOS) written

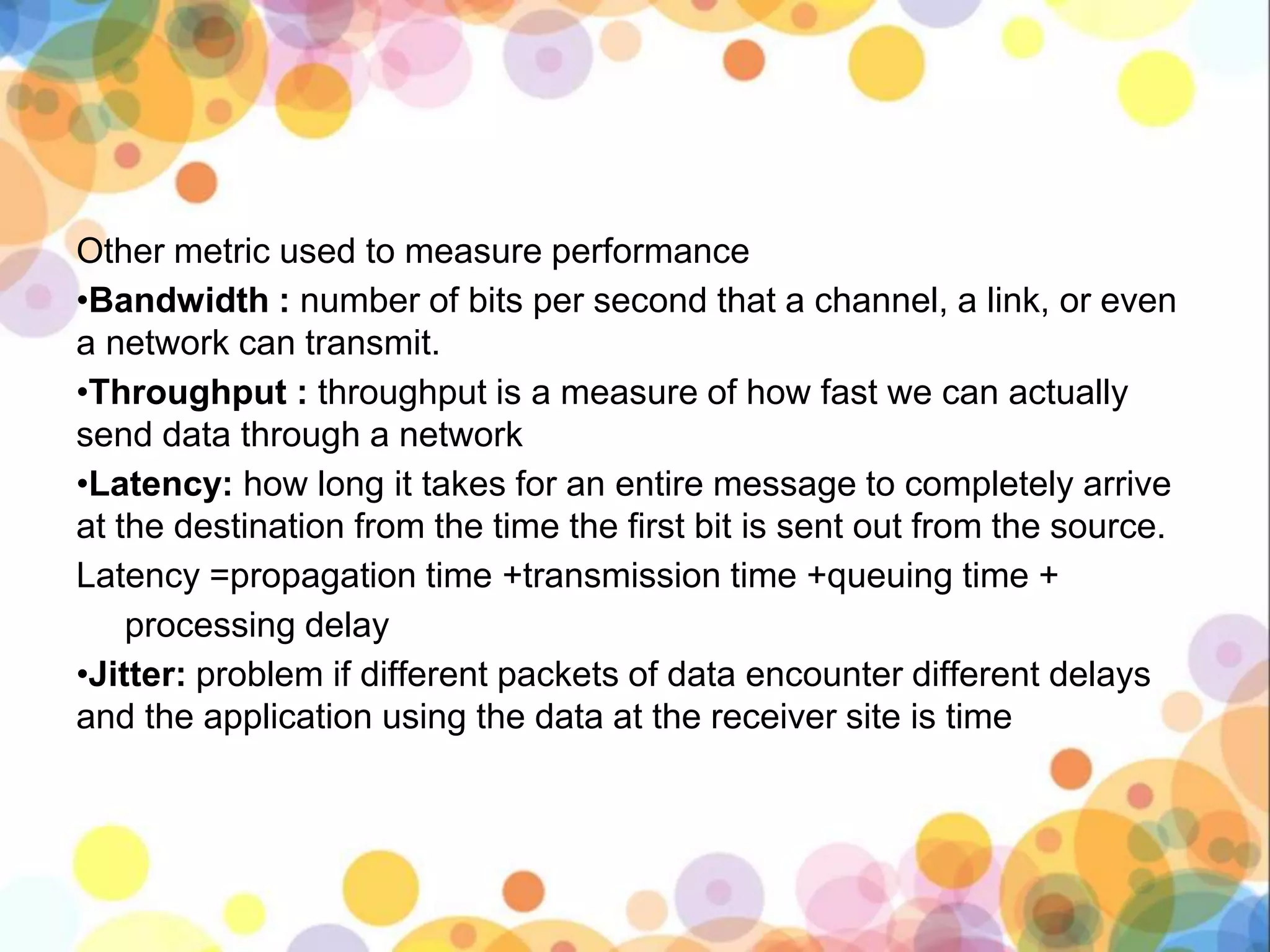

Other metric used to measure performance •Bandwidth : number of bits per second that a channel, a link, or even a network can transmit. •Throughput : throughput is a measure of how fast we can actually send data through a network •Latency: how long it takes for an entire message to completely arrive at the destination from the time the first bit is sent out from the source. Latency =propagation time +transmission time +queuing time + processing delay •Jitter: problem if different packets of data encounter different delays and the application using the data at the receiver site is time

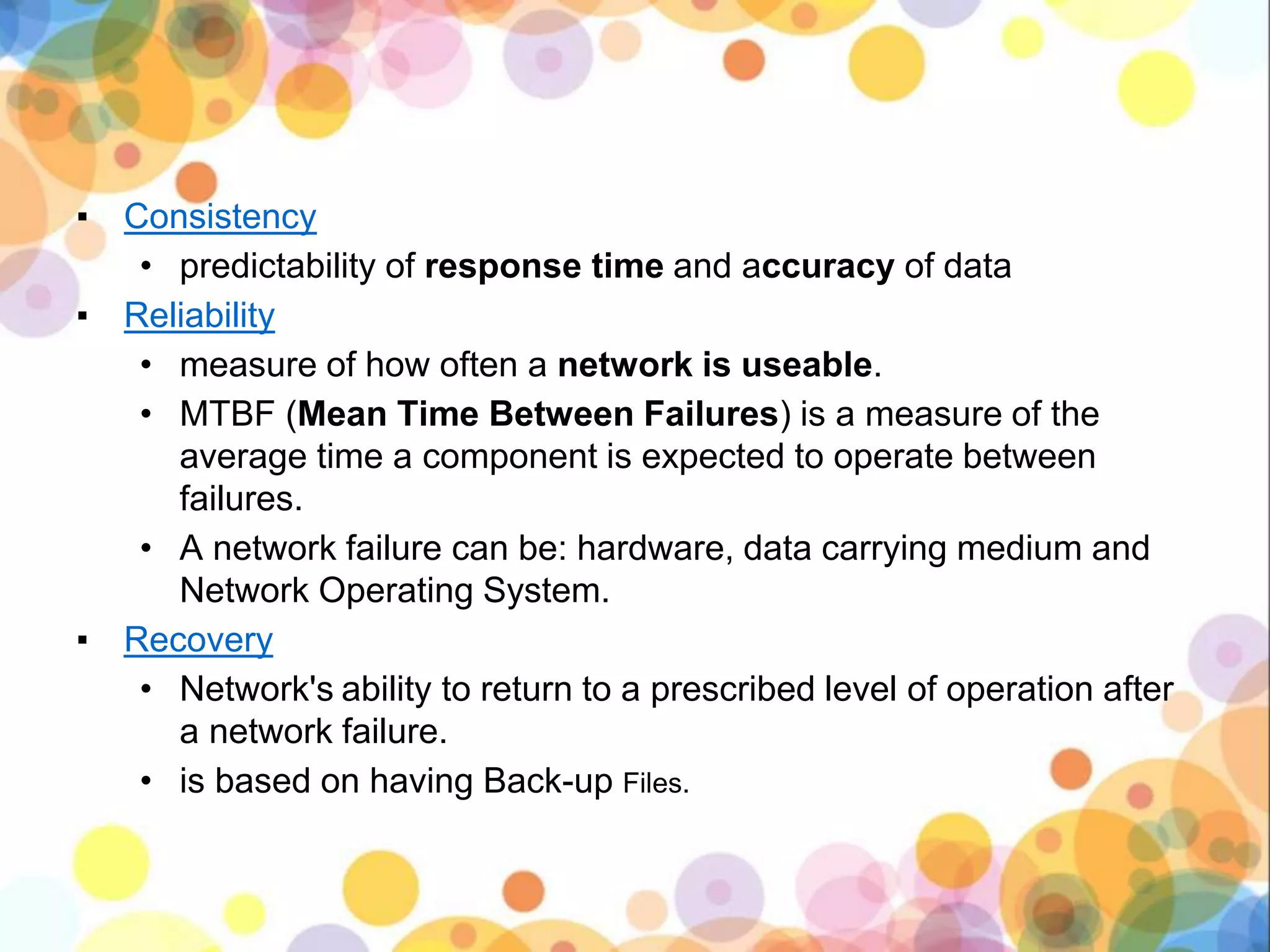

▪ Consistency • predictability of response time and accuracy of data ▪ Reliability • measure of how often a network is useable. • MTBF (Mean Time Between Failures) is a measure of the average time a component is expected to operate between failures. • A network failure can be: hardware, data carrying medium and Network Operating System. ▪ Recovery • Network's ability to return to a prescribed level of operation after a network failure. • is based on having Back-up Files.

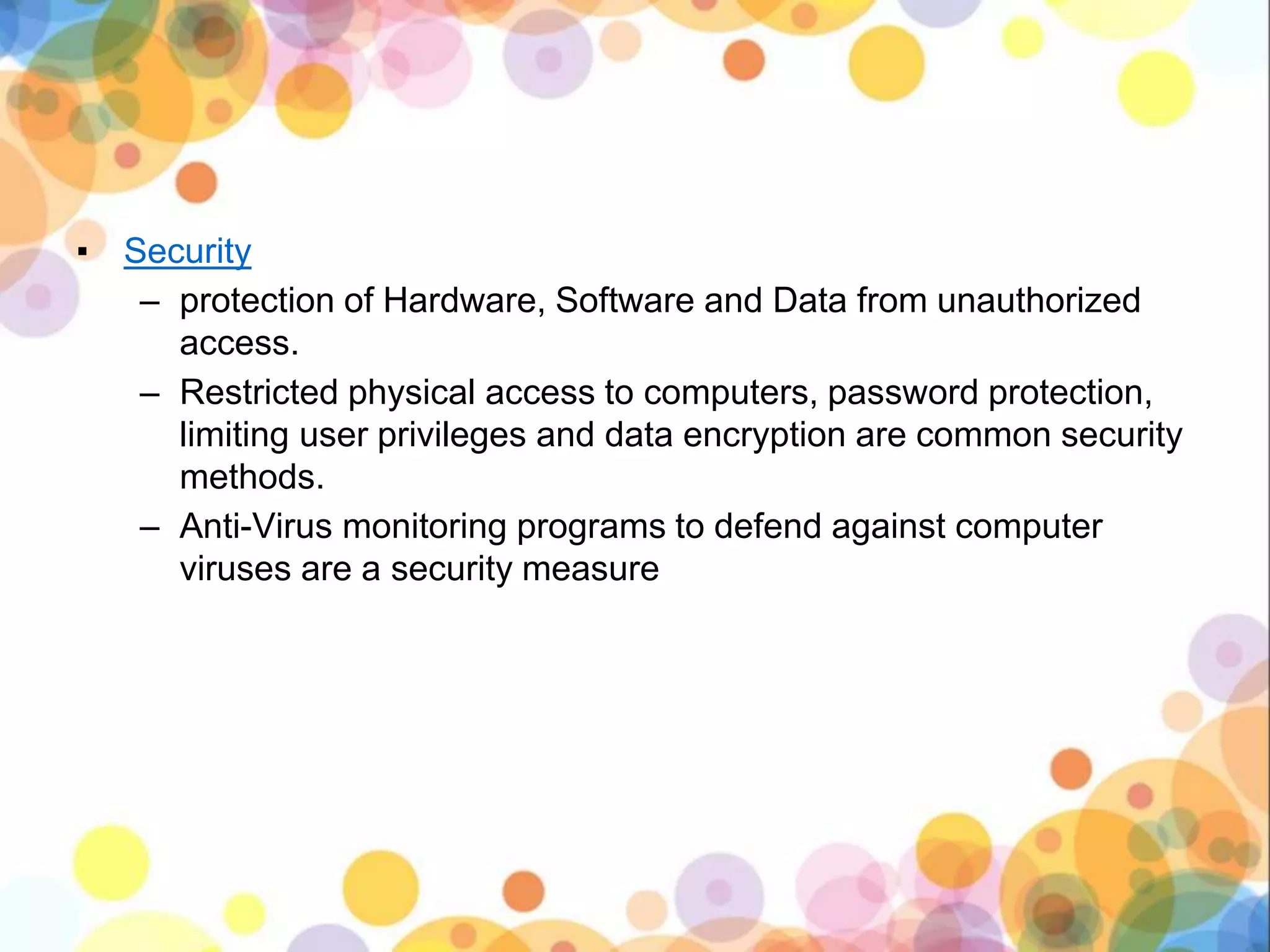

▪ Security – protection of Hardware, Software and Data from unauthorized access. – Restricted physical access to computers, password protection, limiting user privileges and data encryption are common security methods. – Anti-Virus monitoring programs to defend against computer viruses are a security measure

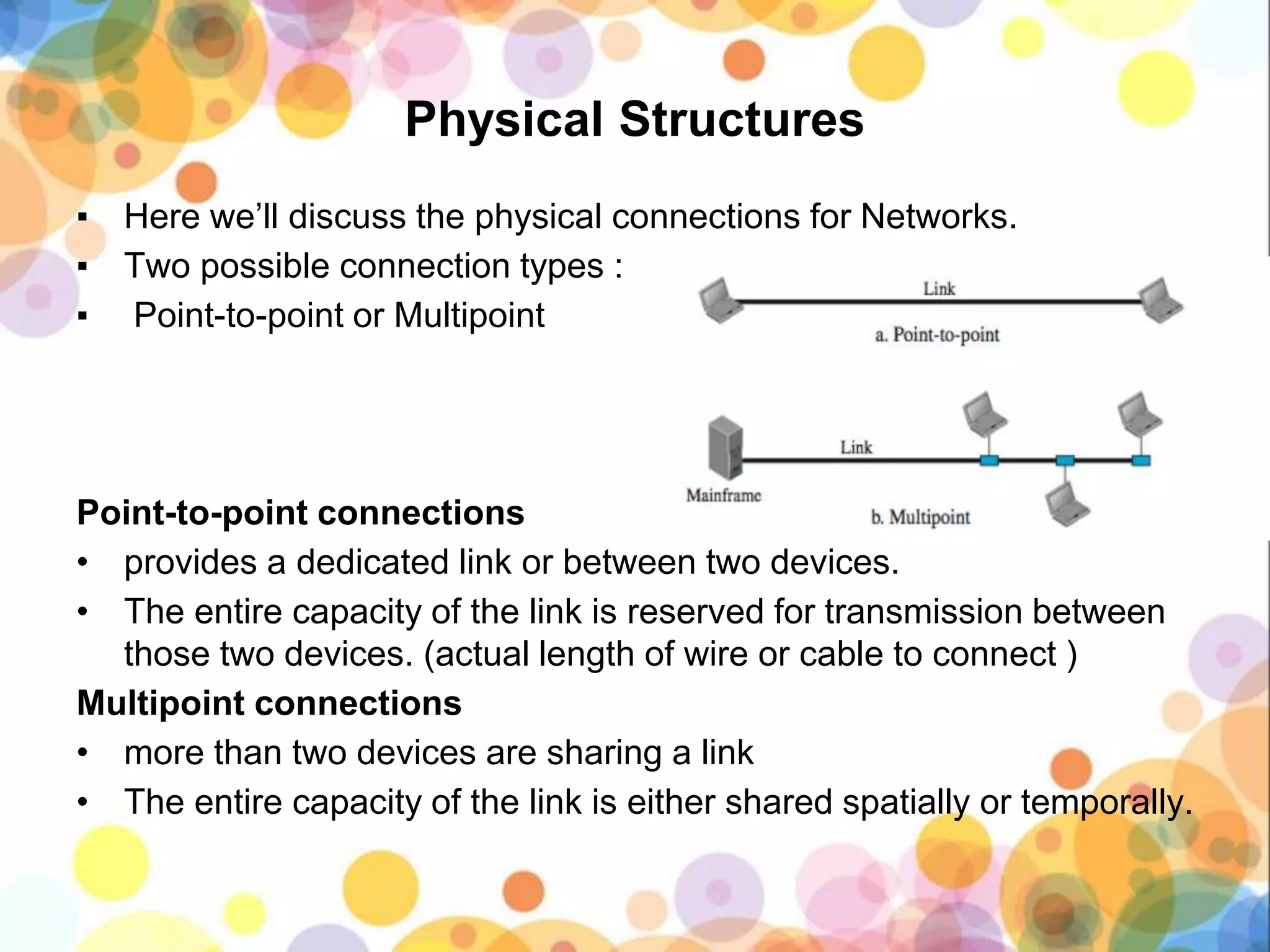

Physical Structures ▪ Here we’ll discuss the physical connections for Networks. ▪ Two possible connection types : ▪ Point-to-point or Multipoint Point-to-point connections • provides a dedicated link or between two devices. • The entire capacity of the link is reserved for transmission between those two devices. (actual length of wire or cable to connect ) Multipoint connections • more than two devices are sharing a link • The entire capacity of the link is either shared spatially or temporally.

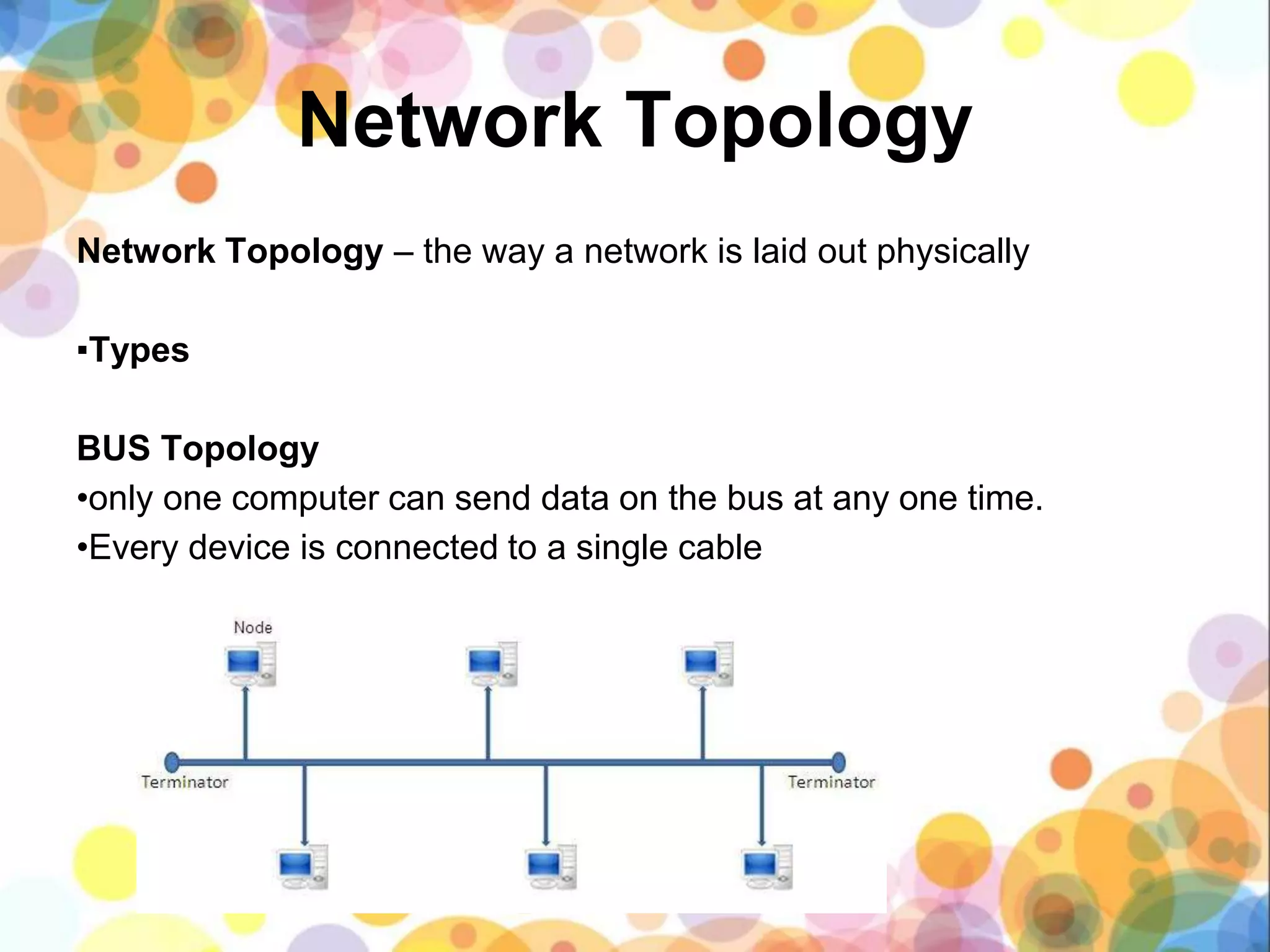

Network Topology – the way a network is laid out physically ▪Types BUS Topology •only one computer can send data on the bus at any one time. •Every device is connected to a single cable Network Topology

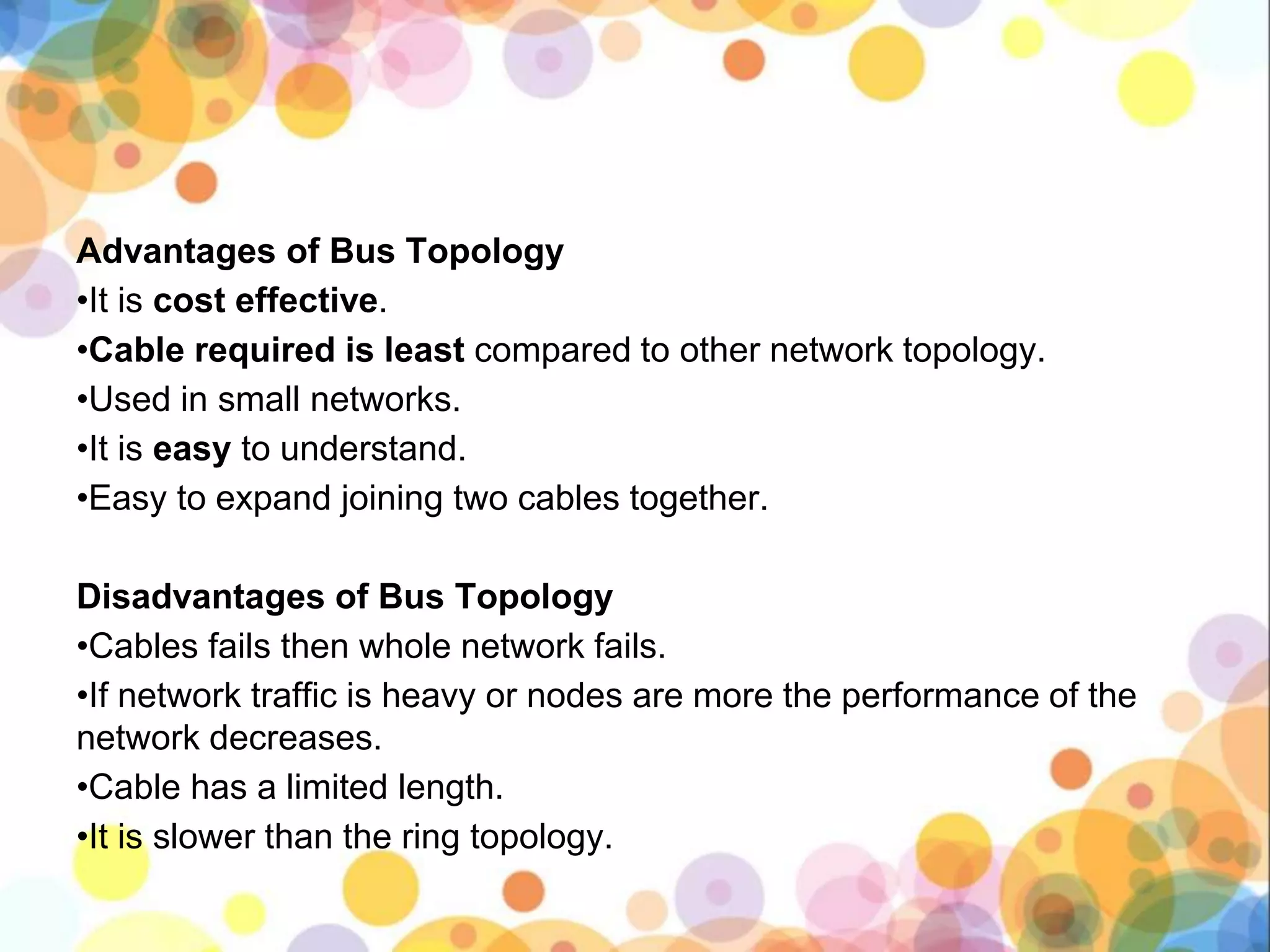

Advantages of Bus Topology •It is cost effective. •Cable required is least compared to other network topology. •Used in small networks. •It is easy to understand. •Easy to expand joining two cables together. Disadvantages of Bus Topology •Cables fails then whole network fails. •If network traffic is heavy or nodes are more the performance of the network decreases. •Cable has a limited length. •It is slower than the ring topology.

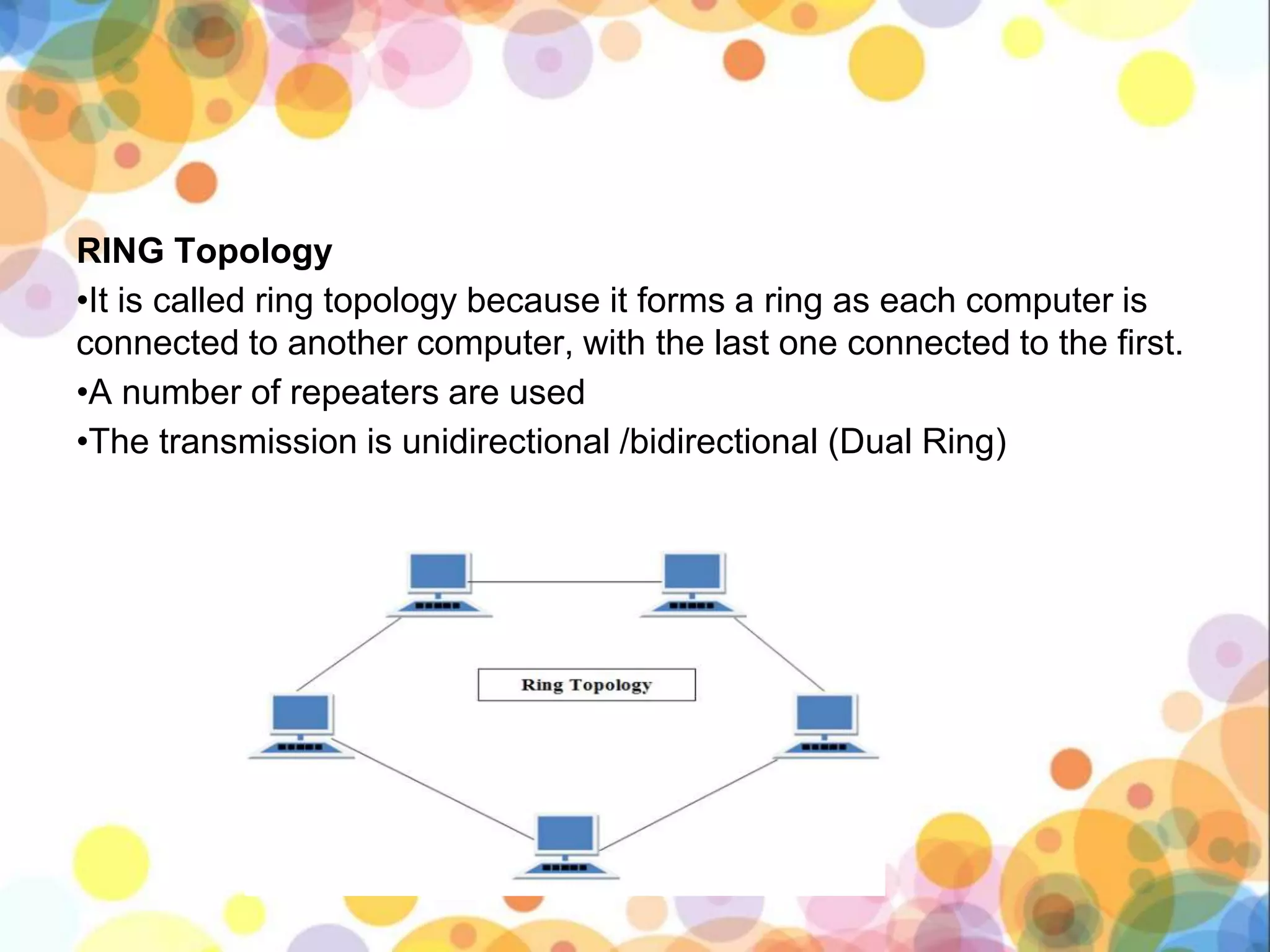

RING Topology •It is called ring topology because it forms a ring as each computer is connected to another computer, with the last one connected to the first. •A number of repeaters are used •The transmission is unidirectional /bidirectional (Dual Ring)

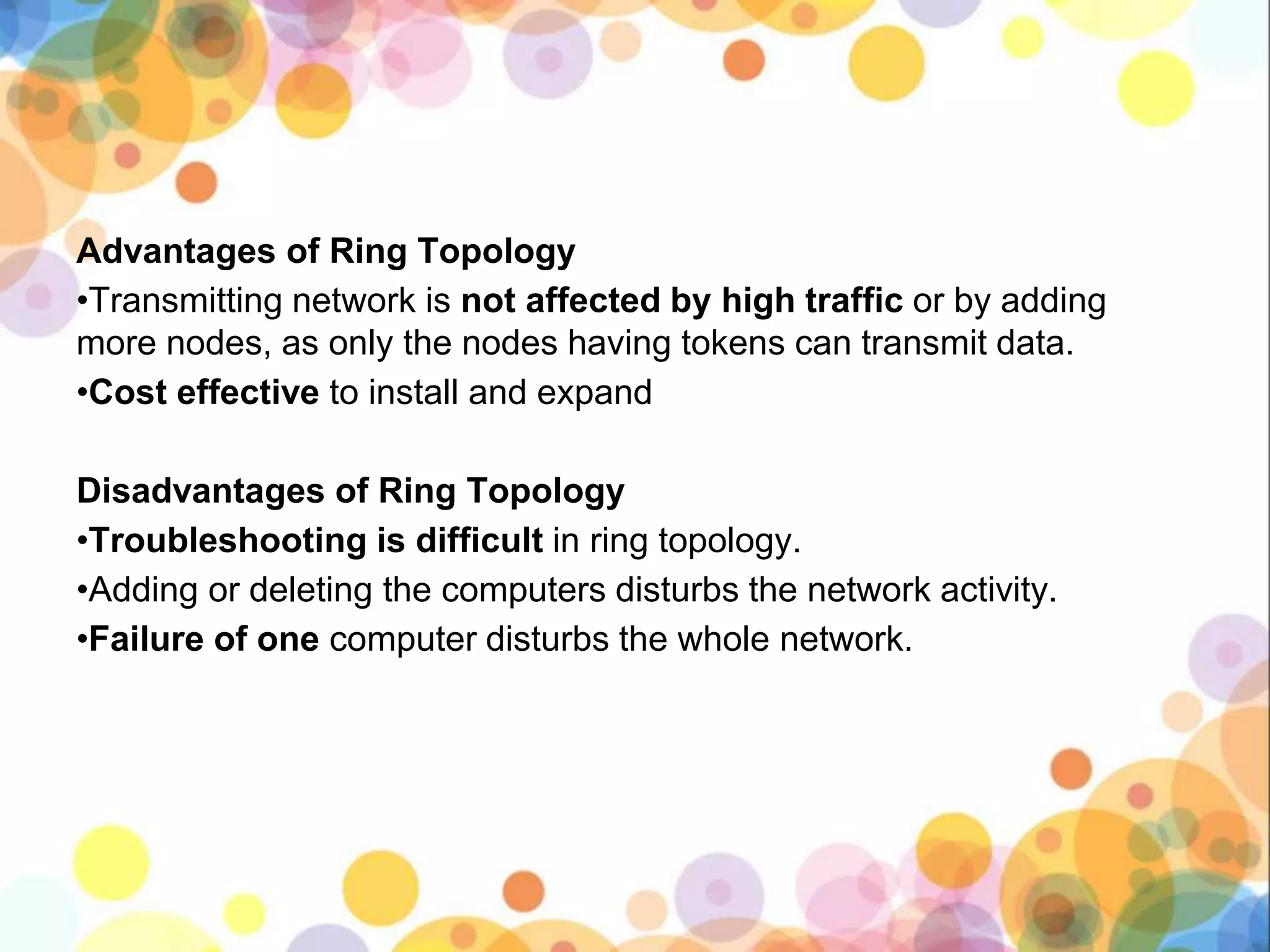

Advantages of Ring Topology •Transmitting network is not affected by high traffic or by adding more nodes, as only the nodes having tokens can transmit data. •Cost effective to install and expand Disadvantages of Ring Topology •Troubleshooting is difficult in ring topology. •Adding or deleting the computers disturbs the network activity. •Failure of one computer disturbs the whole network.

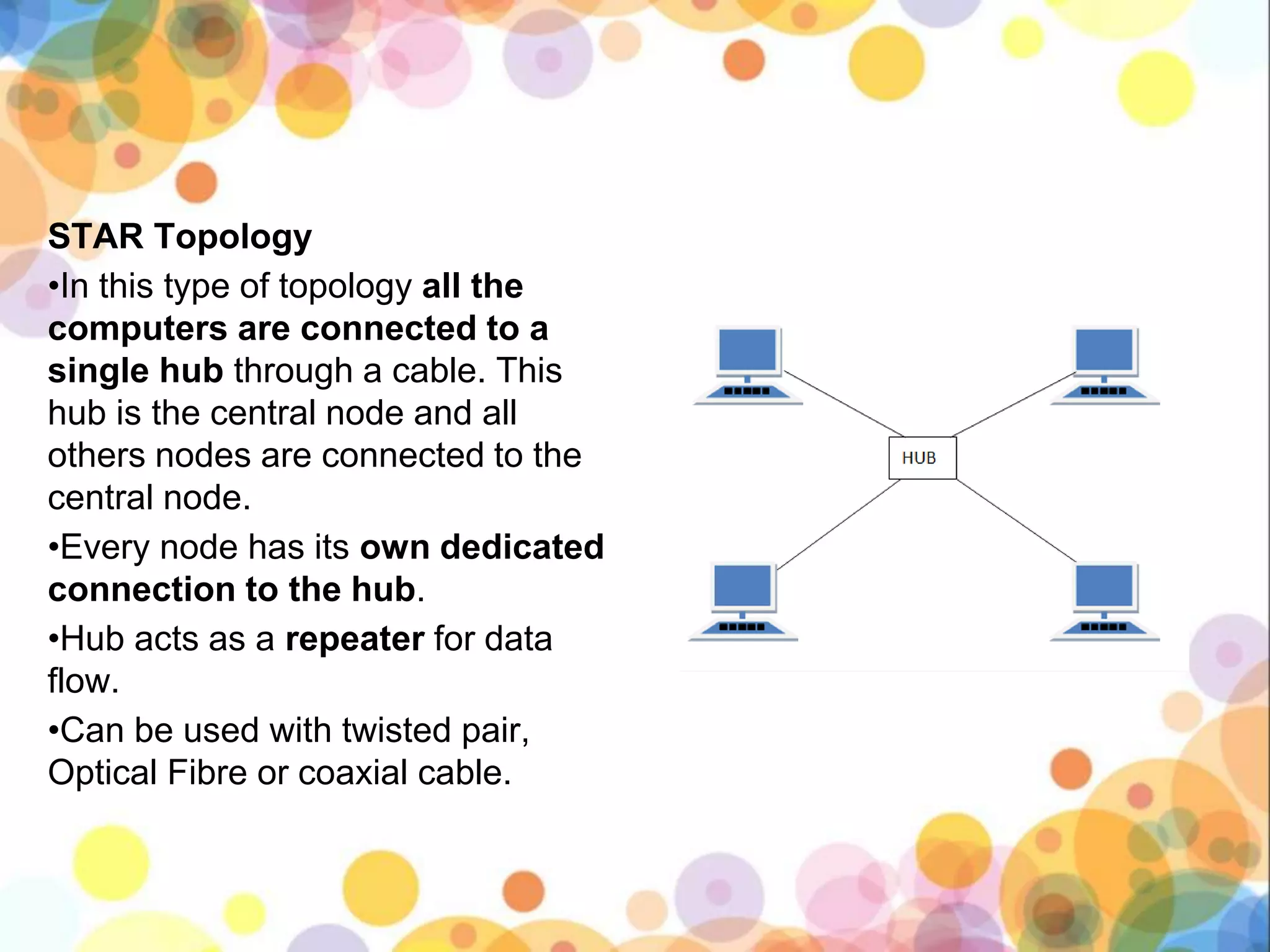

STAR Topology •In this type of topology all the computers are connected to a single hub through a cable. This hub is the central node and all others nodes are connected to the central node. •Every node has its own dedicated connection to the hub. •Hub acts as a repeater for data flow. •Can be used with twisted pair, Optical Fibre or coaxial cable.

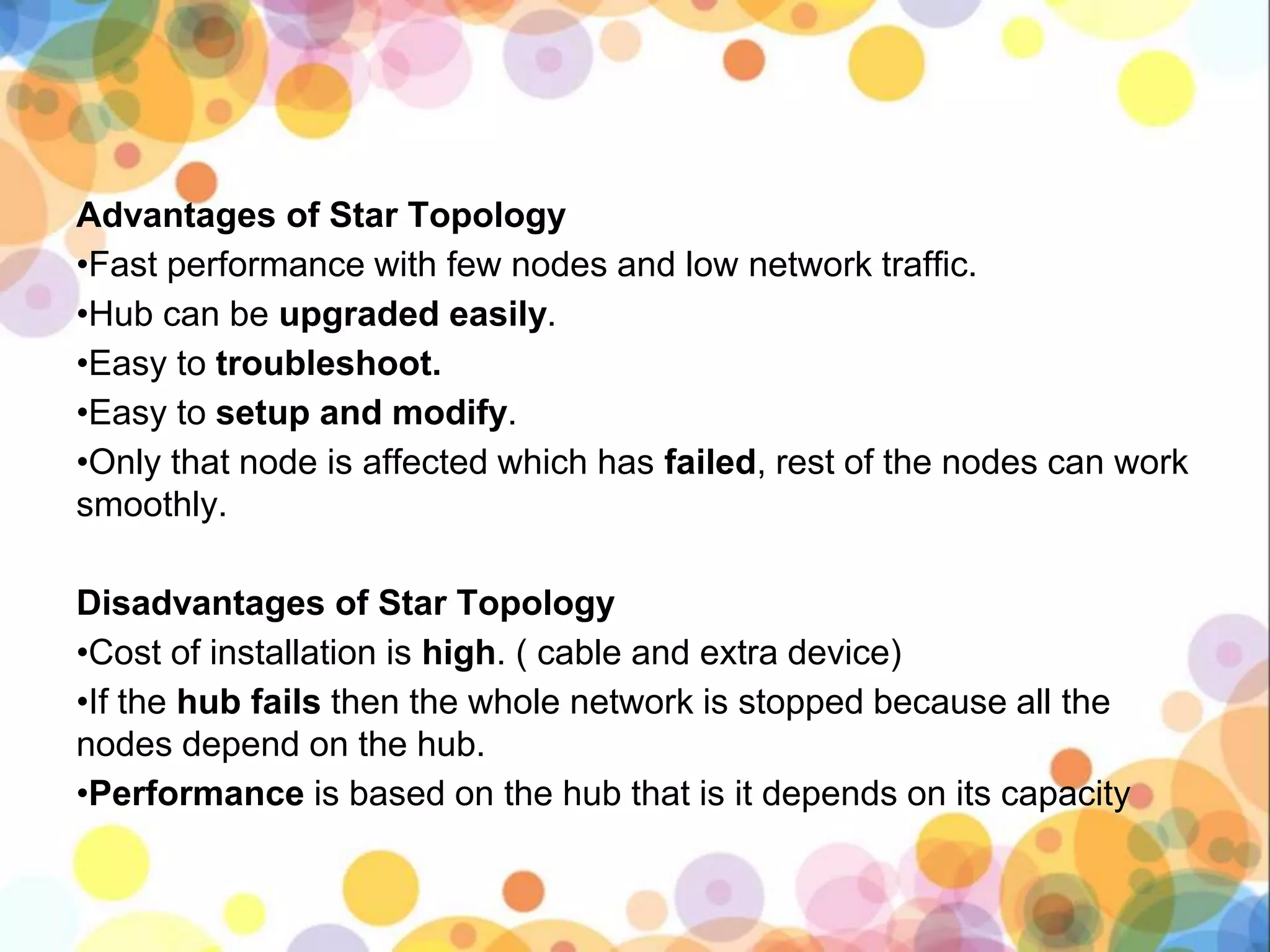

Advantages of Star Topology •Fast performance with few nodes and low network traffic. •Hub can be upgraded easily. •Easy to troubleshoot. •Easy to setup and modify. •Only that node is affected which has failed, rest of the nodes can work smoothly. Disadvantages of Star Topology •Cost of installation is high. ( cable and extra device) •If the hub fails then the whole network is stopped because all the nodes depend on the hub. •Performance is based on the hub that is it depends on its capacity

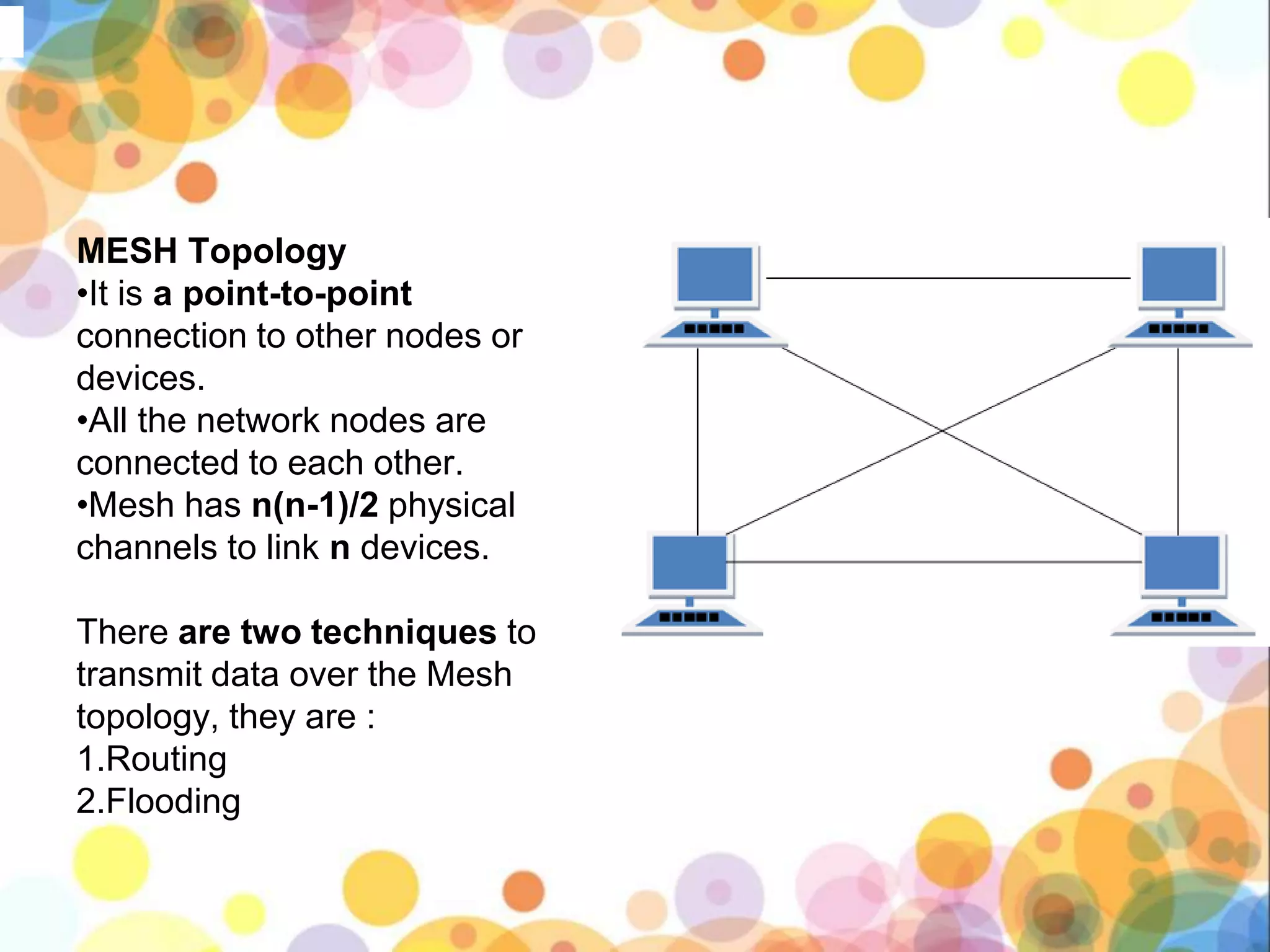

MESH Topology •It is a point-to-point connection to other nodes or devices. •All the network nodes are connected to each other. •Mesh has n(n-1)/2 physical channels to link n devices. There are two techniques to transmit data over the Mesh topology, they are : 1.Routing 2.Flooding

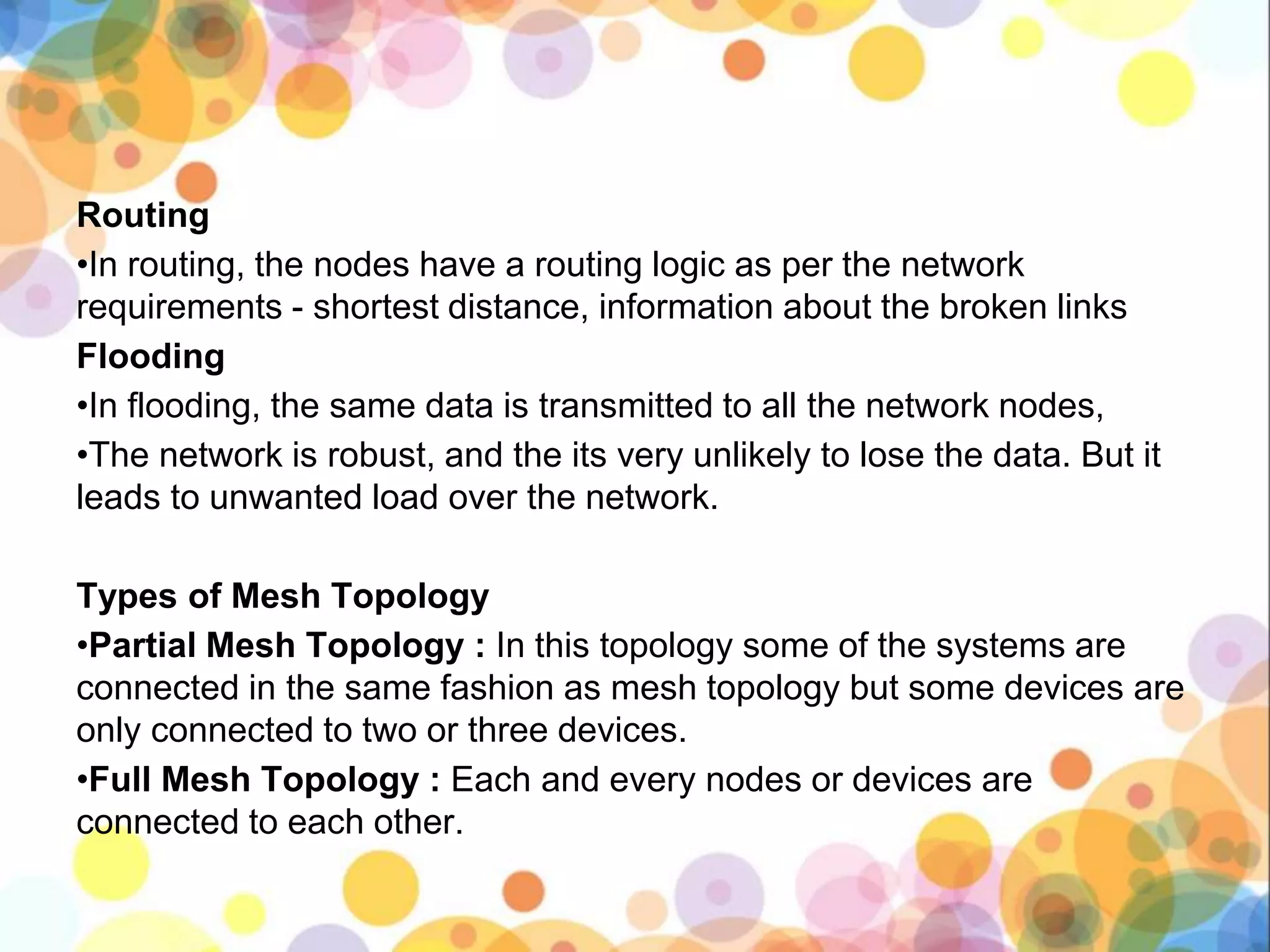

Routing •In routing, the nodes have a routing logic as per the network requirements - shortest distance, information about the broken links Flooding •In flooding, the same data is transmitted to all the network nodes, •The network is robust, and the its very unlikely to lose the data. But it leads to unwanted load over the network. Types of Mesh Topology •Partial Mesh Topology : In this topology some of the systems are connected in the same fashion as mesh topology but some devices are only connected to two or three devices. •Full Mesh Topology : Each and every nodes or devices are connected to each other.

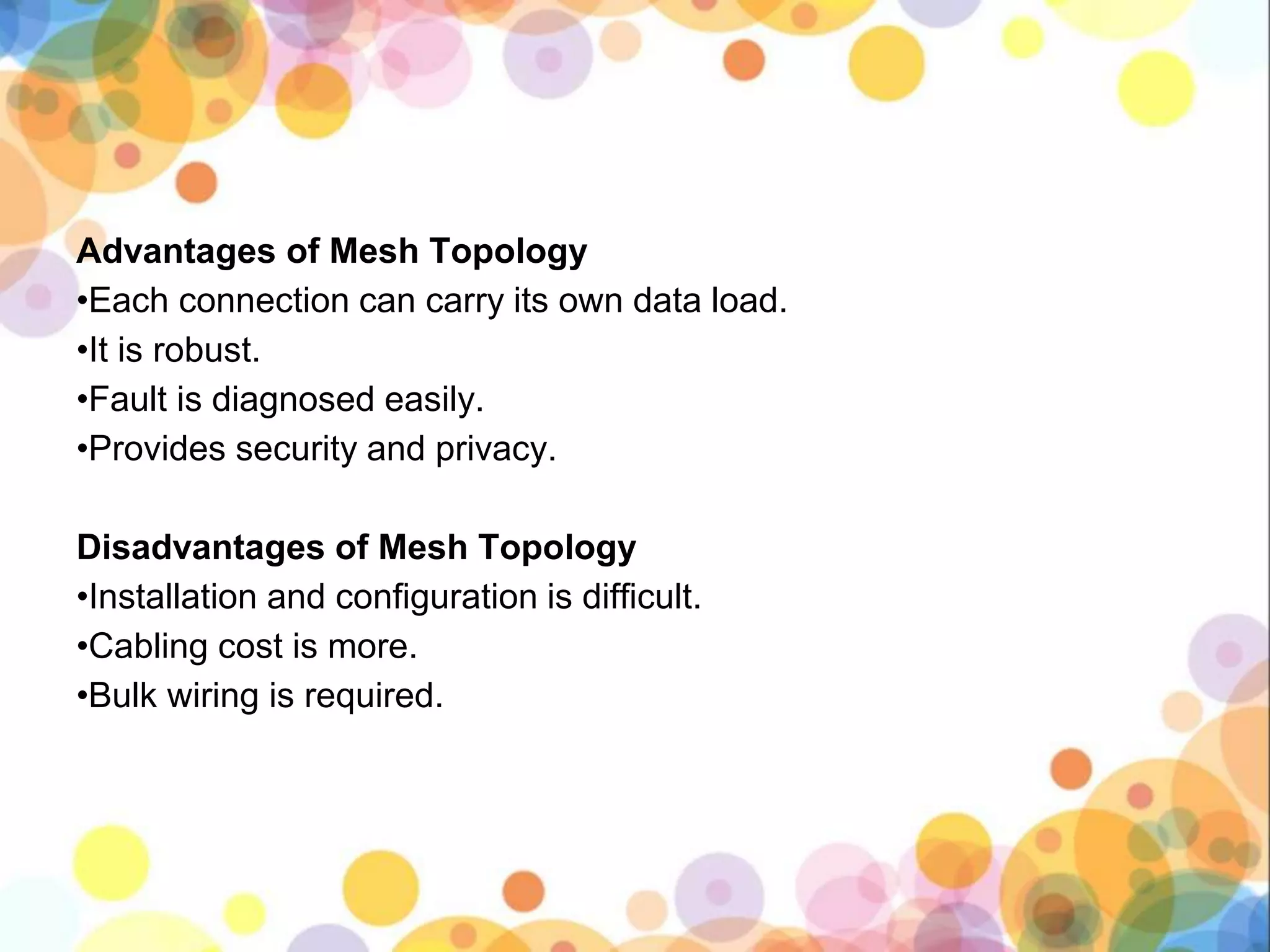

Advantages of Mesh Topology •Each connection can carry its own data load. •It is robust. •Fault is diagnosed easily. •Provides security and privacy. Disadvantages of Mesh Topology •Installation and configuration is difficult. •Cabling cost is more. •Bulk wiring is required.

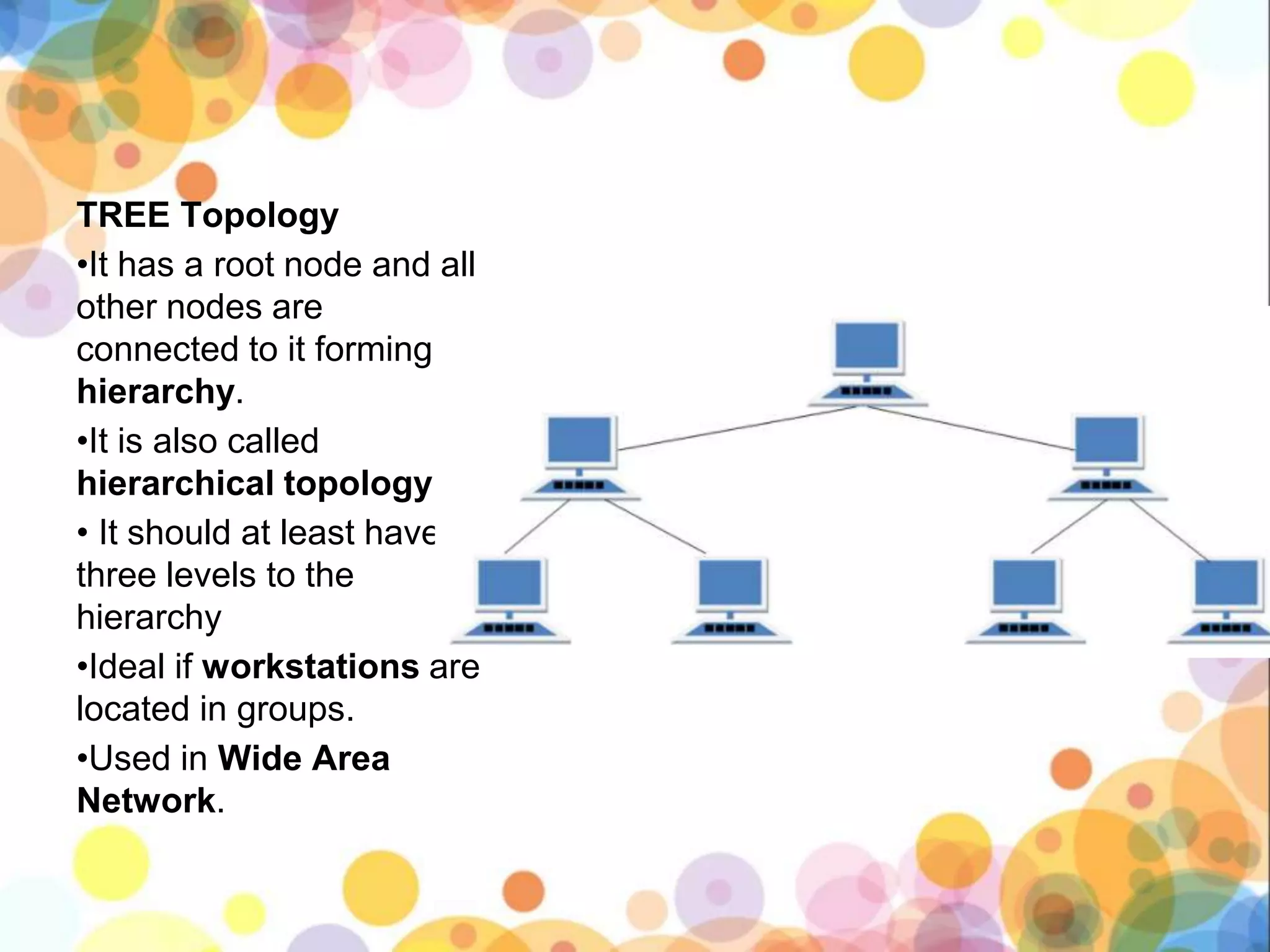

TREE Topology •It has a root node and all other nodes are connected to it forming a hierarchy. •It is also called hierarchical topology. • It should at least have three levels to the hierarchy •Ideal if workstations are located in groups. •Used in Wide Area Network.

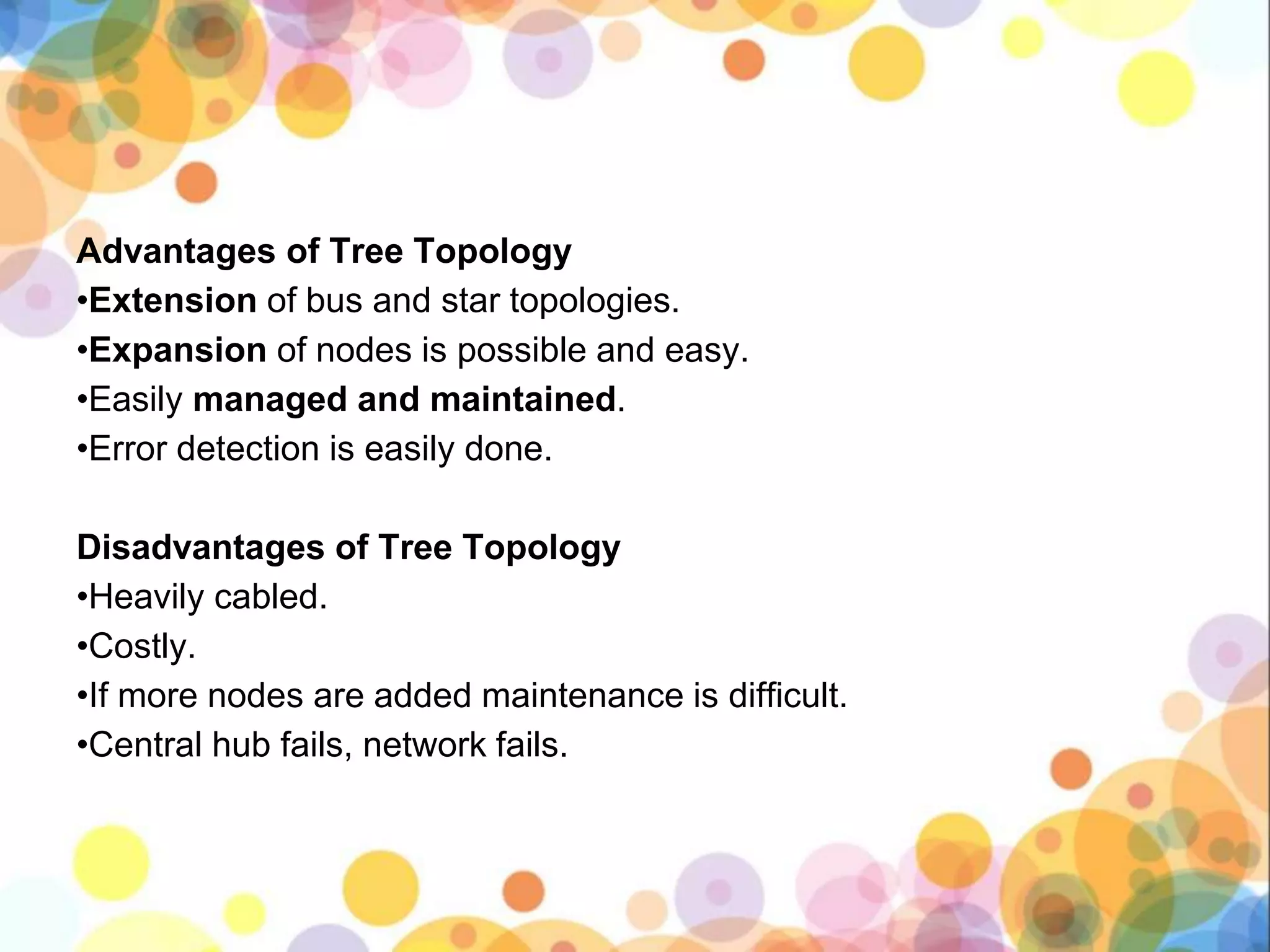

Advantages of Tree Topology •Extension of bus and star topologies. •Expansion of nodes is possible and easy. •Easily managed and maintained. •Error detection is easily done. Disadvantages of Tree Topology •Heavily cabled. •Costly. •If more nodes are added maintenance is difficult. •Central hub fails, network fails.

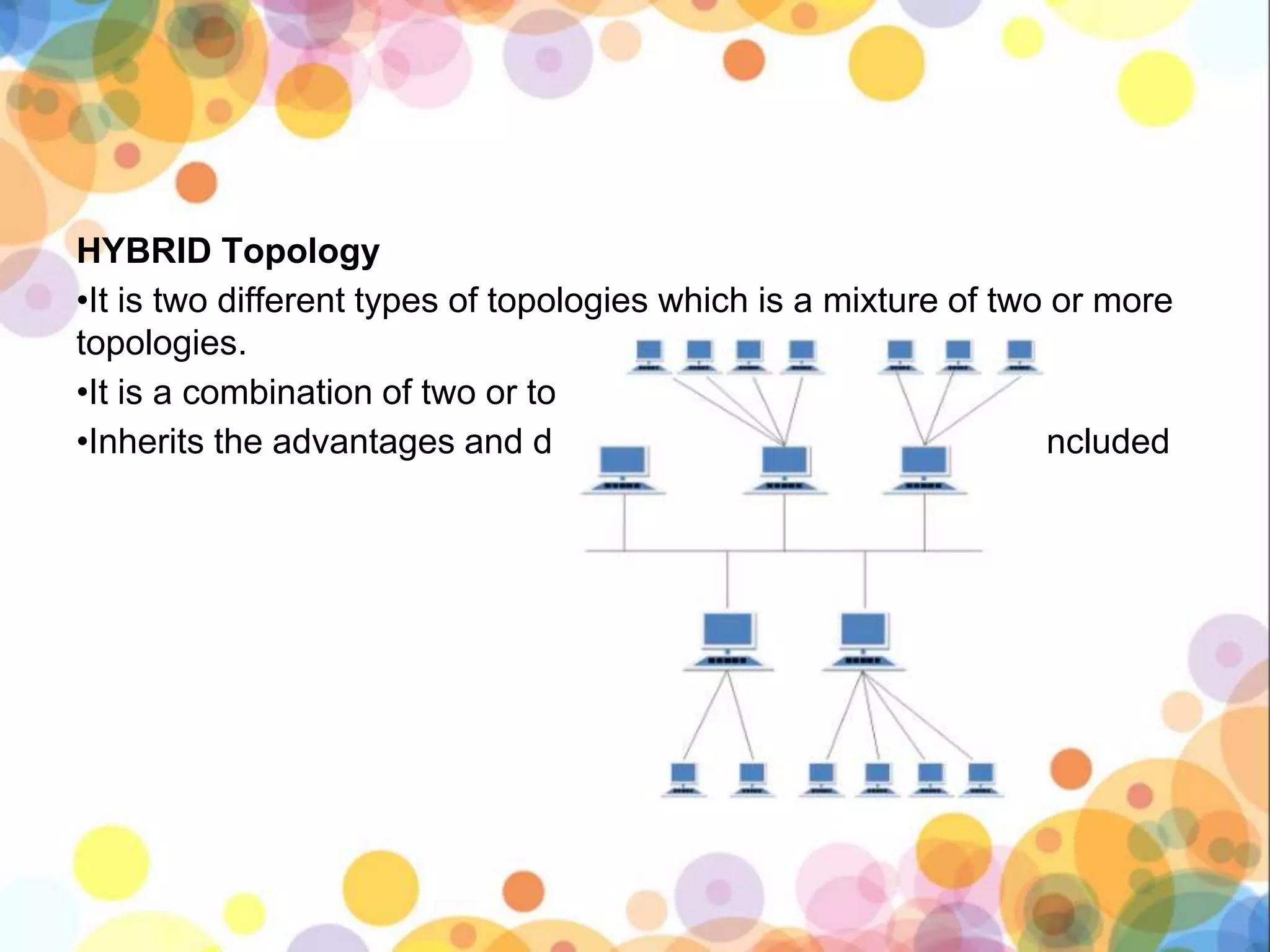

HYBRID Topology •It is two different types of topologies which is a mixture of two or more topologies. •It is a combination of two or topologies •Inherits the advantages and disadvantages of the topologies included

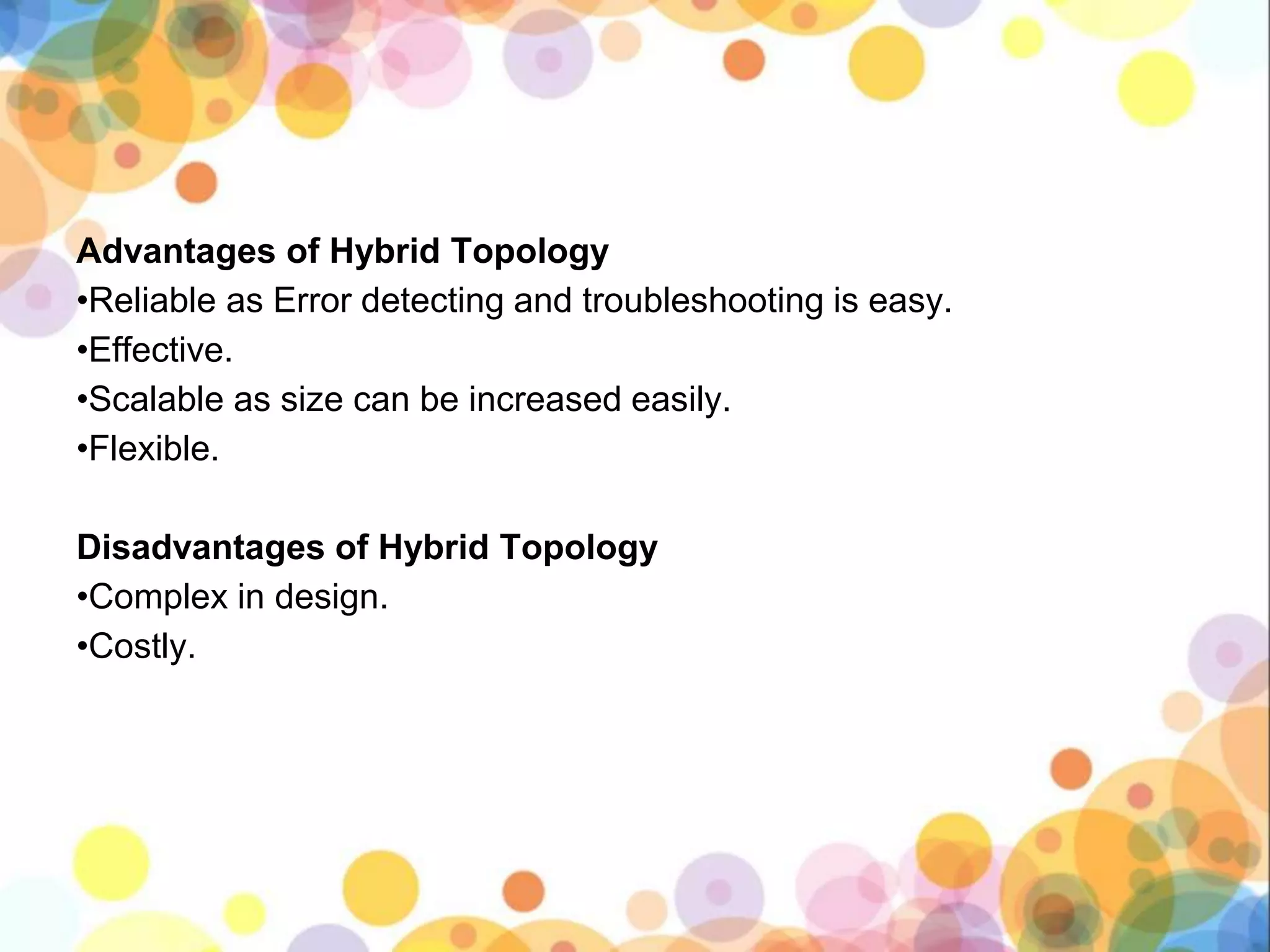

Advantages of Hybrid Topology •Reliable as Error detecting and troubleshooting is easy. •Effective. •Scalable as size can be increased easily. •Flexible. Disadvantages of Hybrid Topology •Complex in design. •Costly.

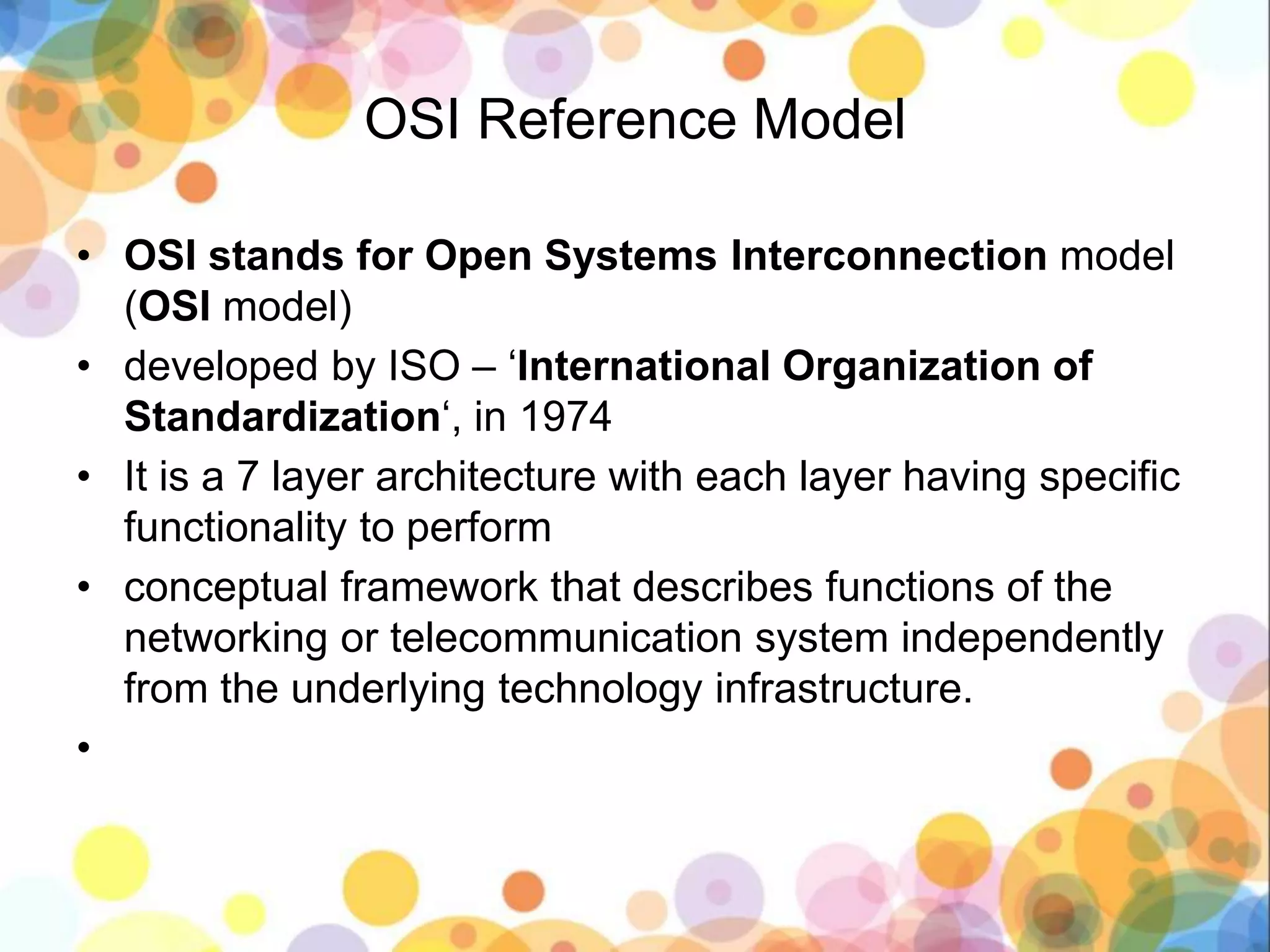

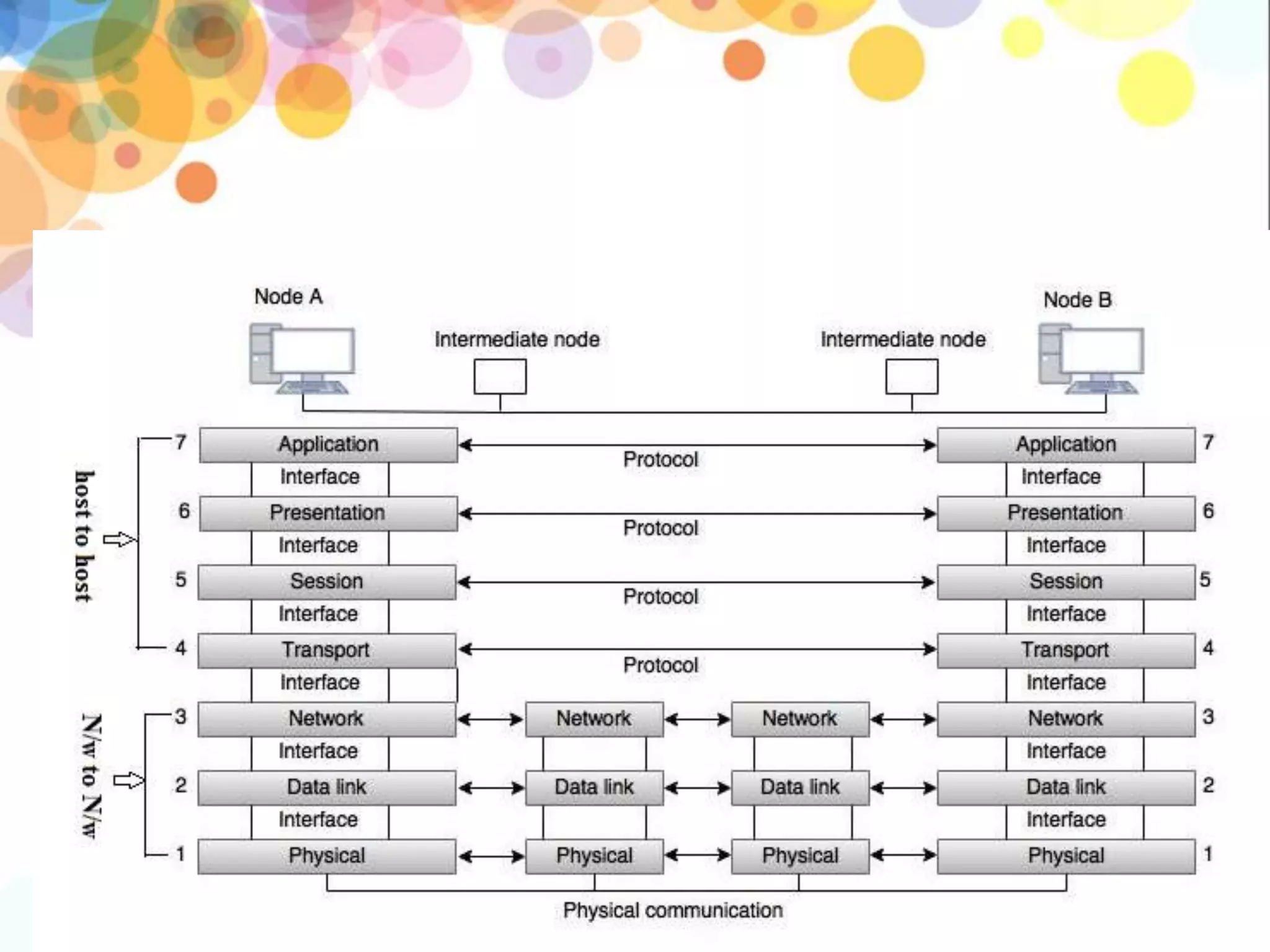

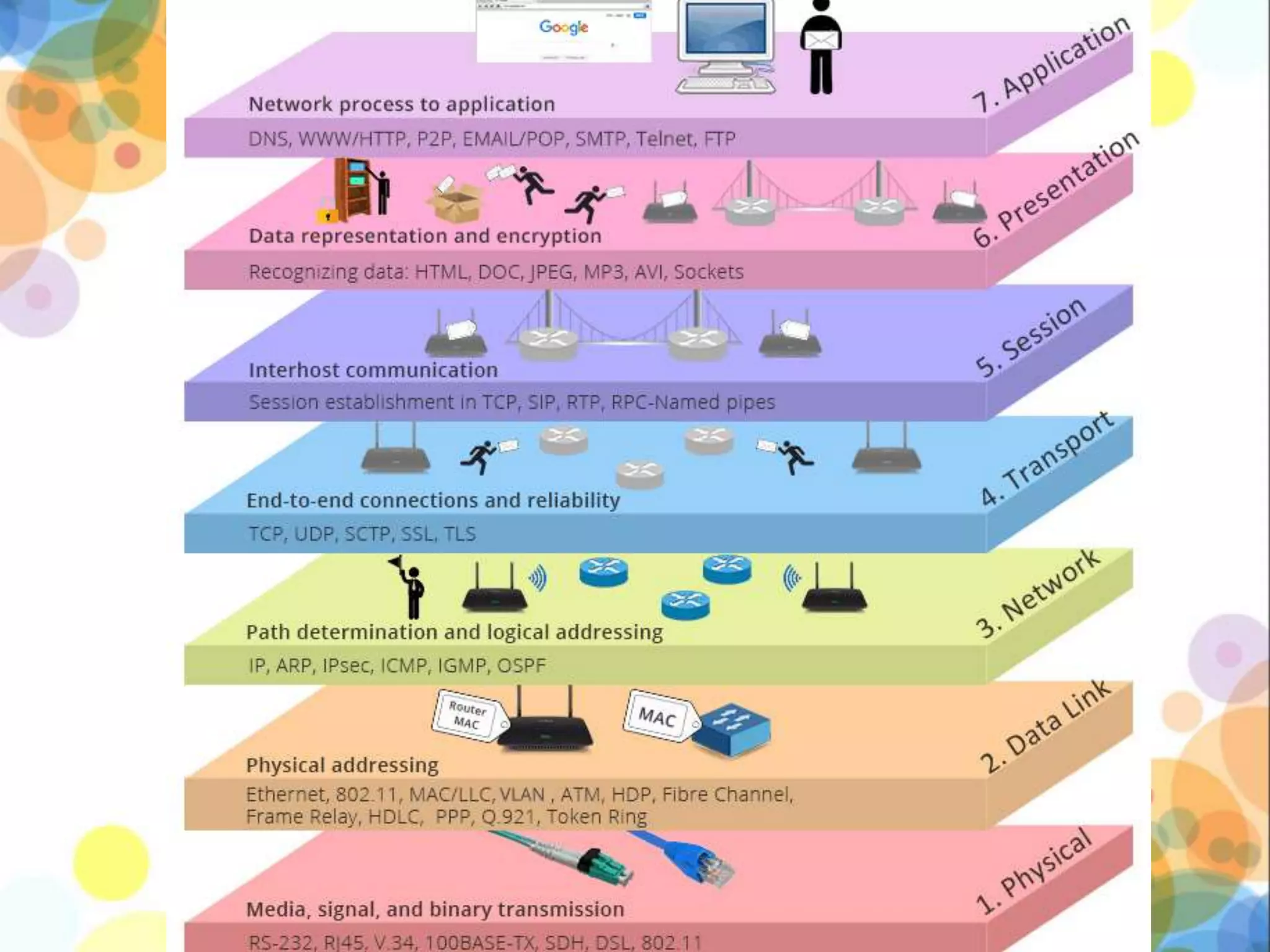

OSI Reference Model • OSI stands for Open Systems Interconnection model (OSI model) • developed by ISO – ‘International Organization of Standardization‘, in 1974 • It is a 7 layer architecture with each layer having specific functionality to perform • conceptual framework that describes functions of the networking or telecommunication system independently from the underlying technology infrastructure. •

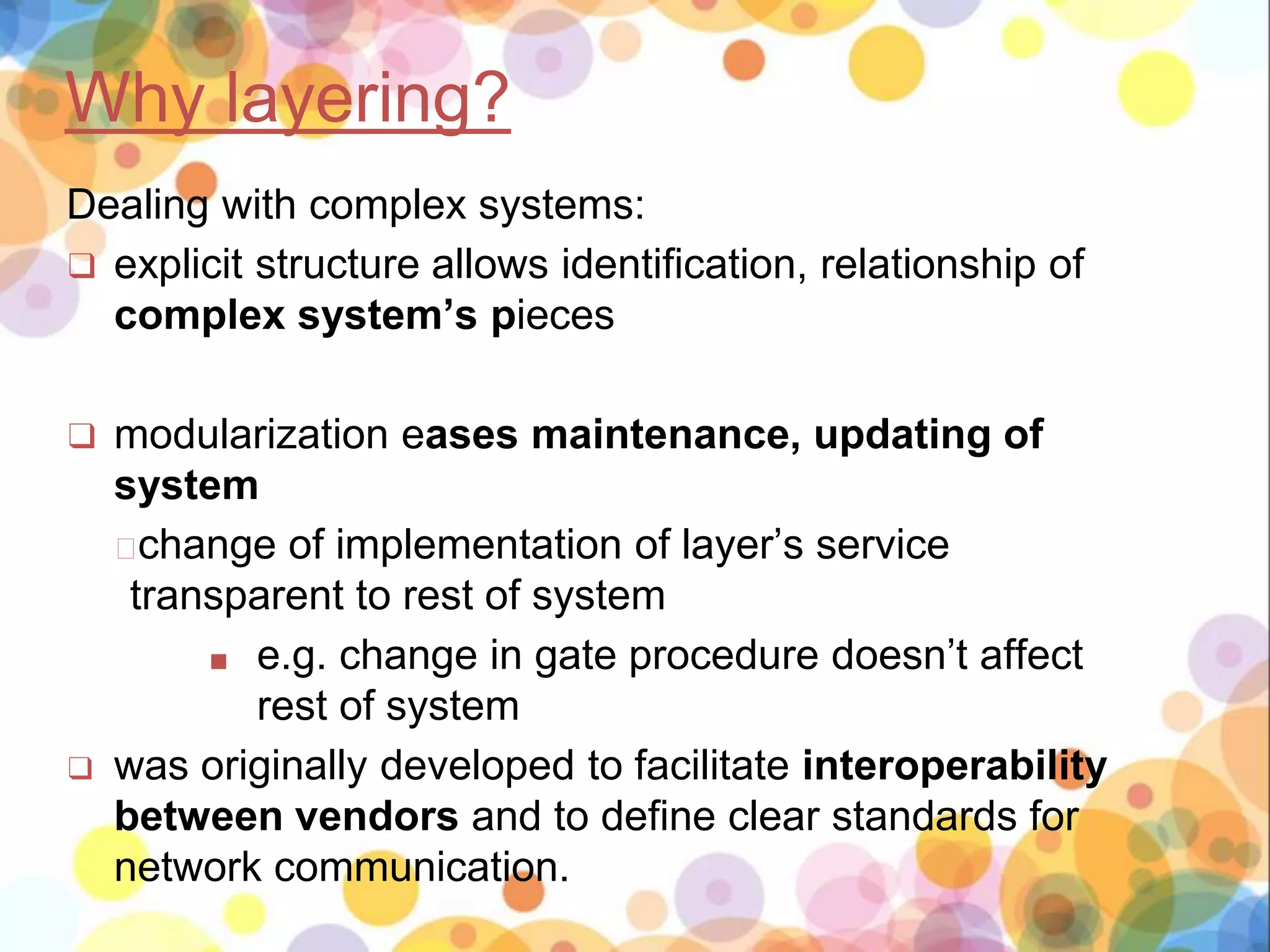

Why layering? Dealing with complex systems: ❑ explicit structure allows identification, relationship of complex system’s pieces ❑ modularization eases maintenance, updating of system �change of implementation of layer’s service transparent to rest of system ■ e.g. change in gate procedure doesn’t affect rest of system ❑ was originally developed to facilitate interoperability between vendors and to define clear standards for network communication.

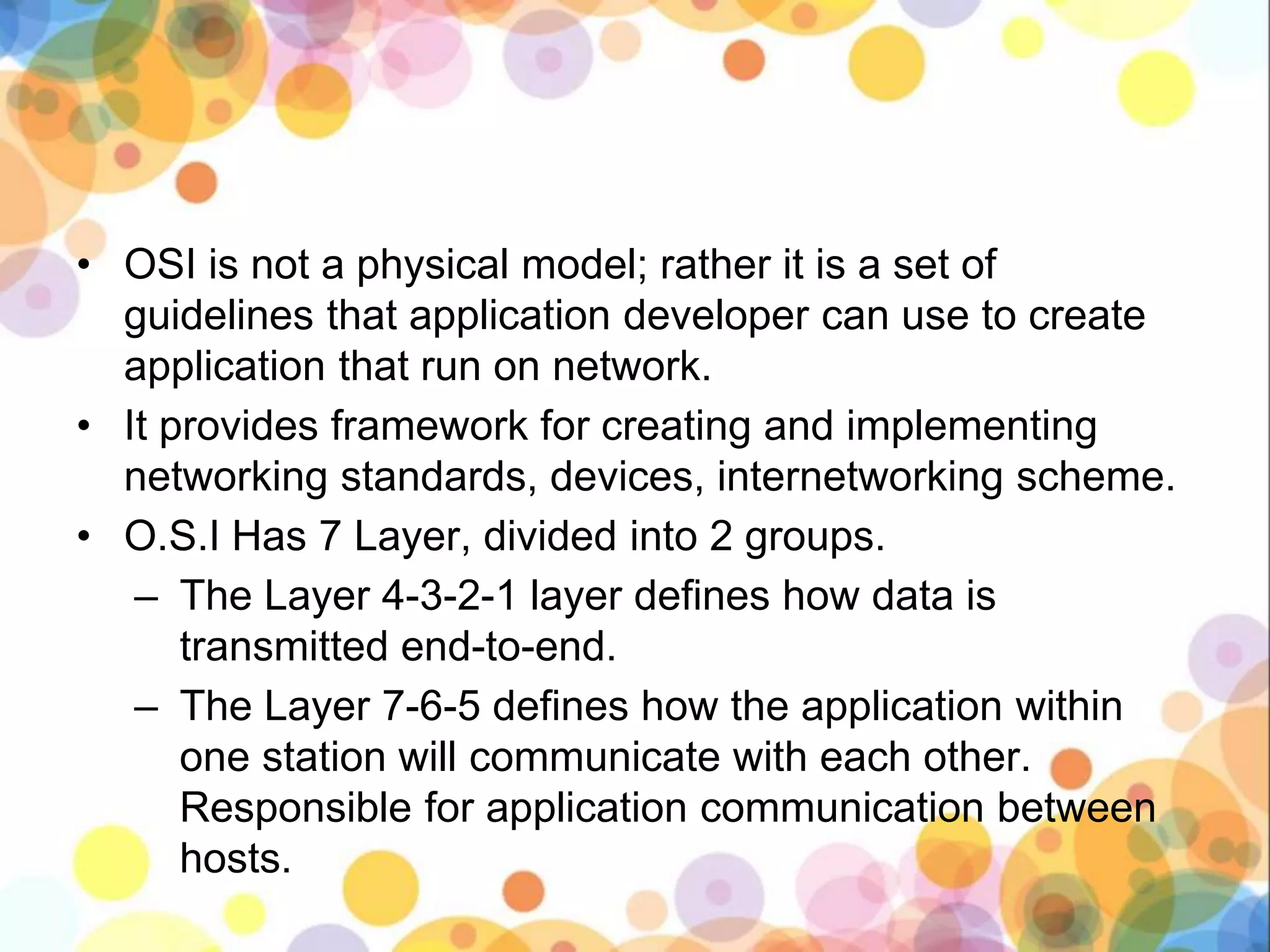

• OSI is not a physical model; rather it is a set of guidelines that application developer can use to create application that run on network. • It provides framework for creating and implementing networking standards, devices, internetworking scheme. • O.S.I Has 7 Layer, divided into 2 groups. – The Layer 4-3-2-1 layer defines how data is transmitted end-to-end. – The Layer 7-6-5 defines how the application within one station will communicate with each other. Responsible for application communication between hosts.

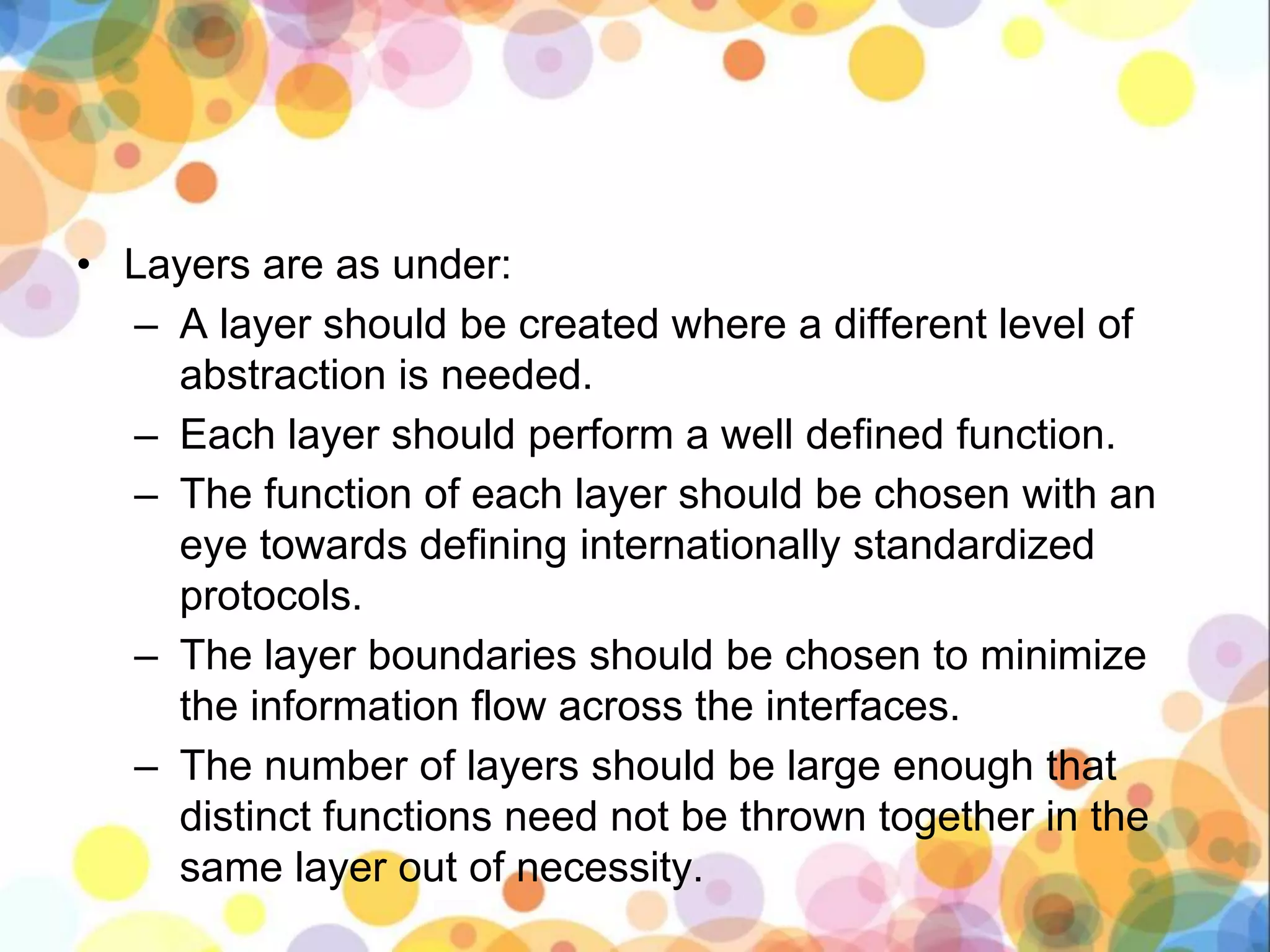

• Layers are as under: – A layer should be created where a different level of abstraction is needed. – Each layer should perform a well defined function. – The function of each layer should be chosen with an eye towards defining internationally standardized protocols. – The layer boundaries should be chosen to minimize the information flow across the interfaces. – The number of layers should be large enough that distinct functions need not be thrown together in the same layer out of necessity.

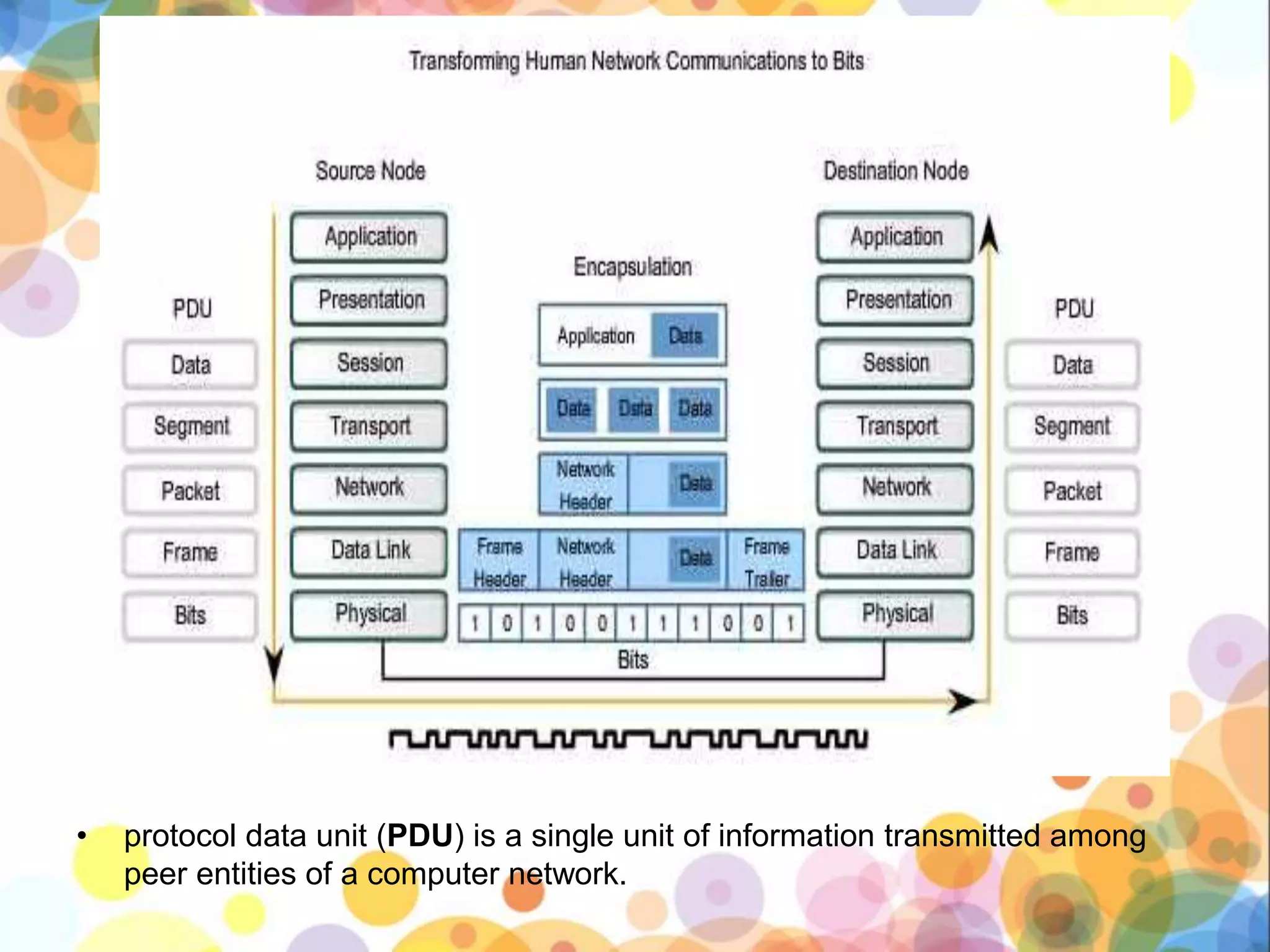

• protocol data unit (PDU) is a single unit of information transmitted among peer entities of a computer network.

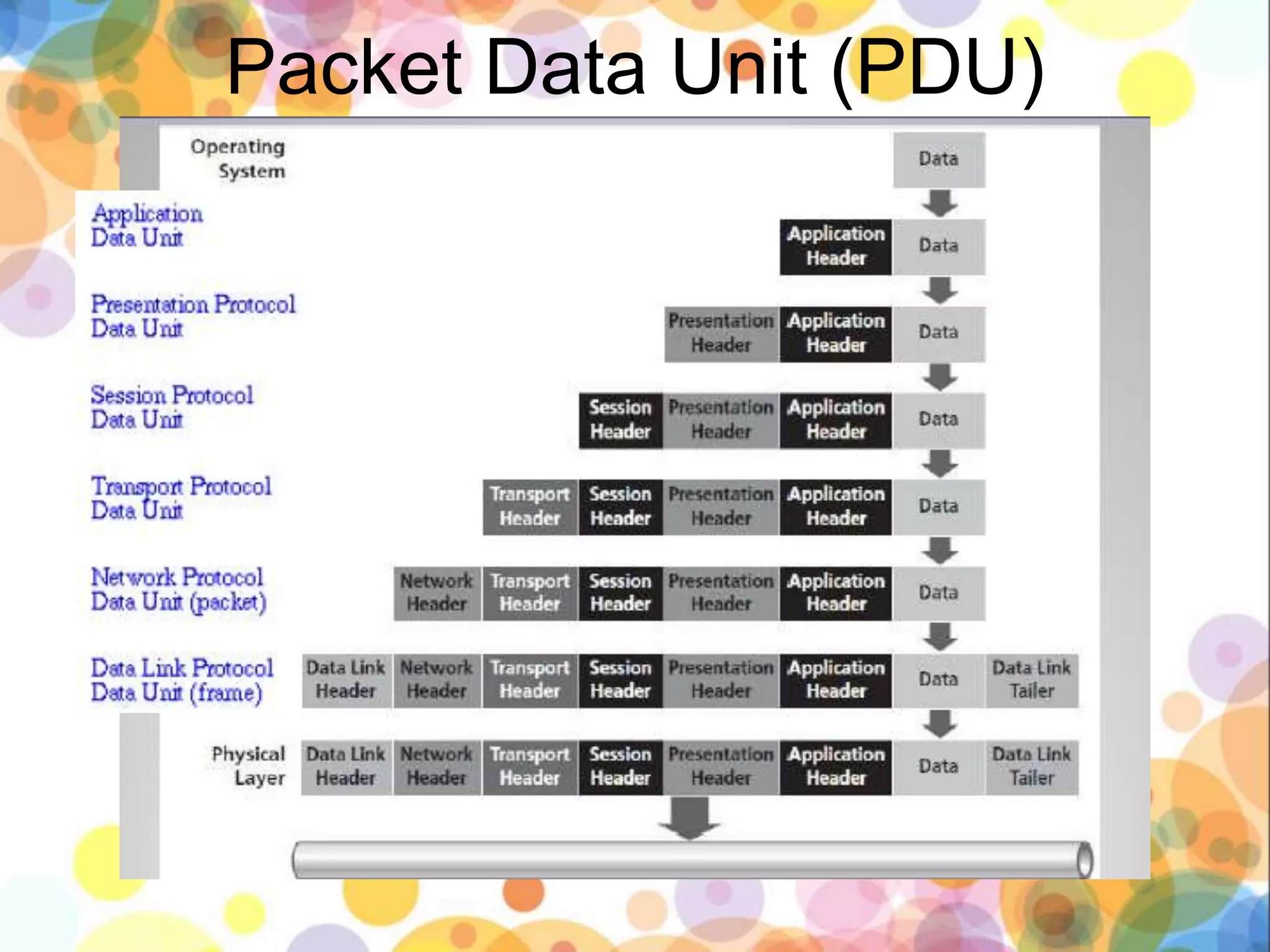

Packet Data Unit (PDU)
Application Layer: • This layer provides the operational system with direct access to the network services and is responsible to generate Data ( user info/ system commands) • It also provides an interface so that Application (Web Browser) that are running on the local machine can access the network services. So It enables user or software to access the network. • It provides user interfaces and support for services such as electronic mail, remote file access and transfer, shared database management, and other types of distributed information services.

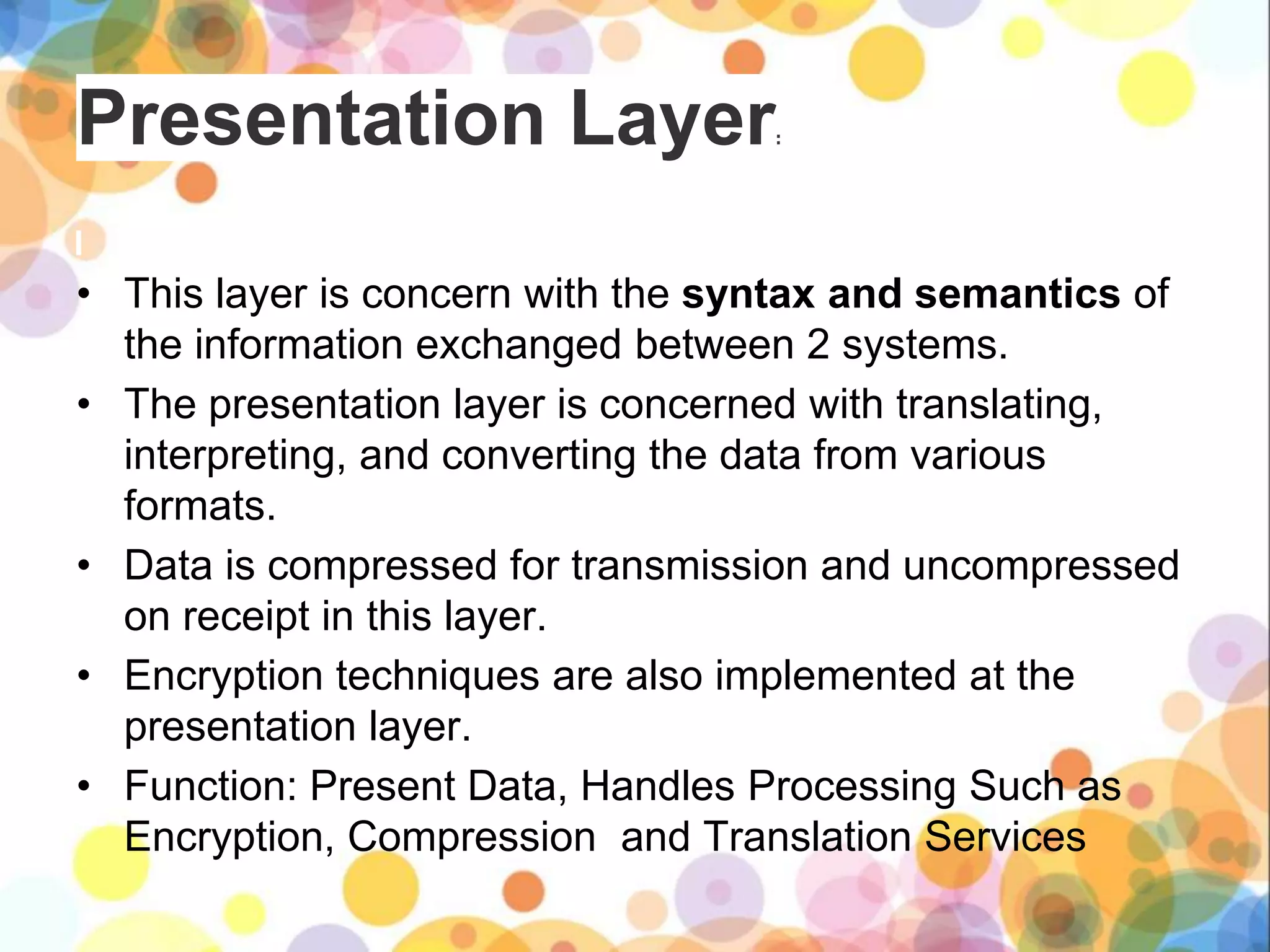

Presentation Layer: • This layer is concern with the syntax and semantics of the information exchanged between 2 systems. • The presentation layer is concerned with translating, interpreting, and converting the data from various formats. • Data is compressed for transmission and uncompressed on receipt in this layer. • Encryption techniques are also implemented at the presentation layer. • Function: Present Data, Handles Processing Such as Encryption, Compression and Translation Services

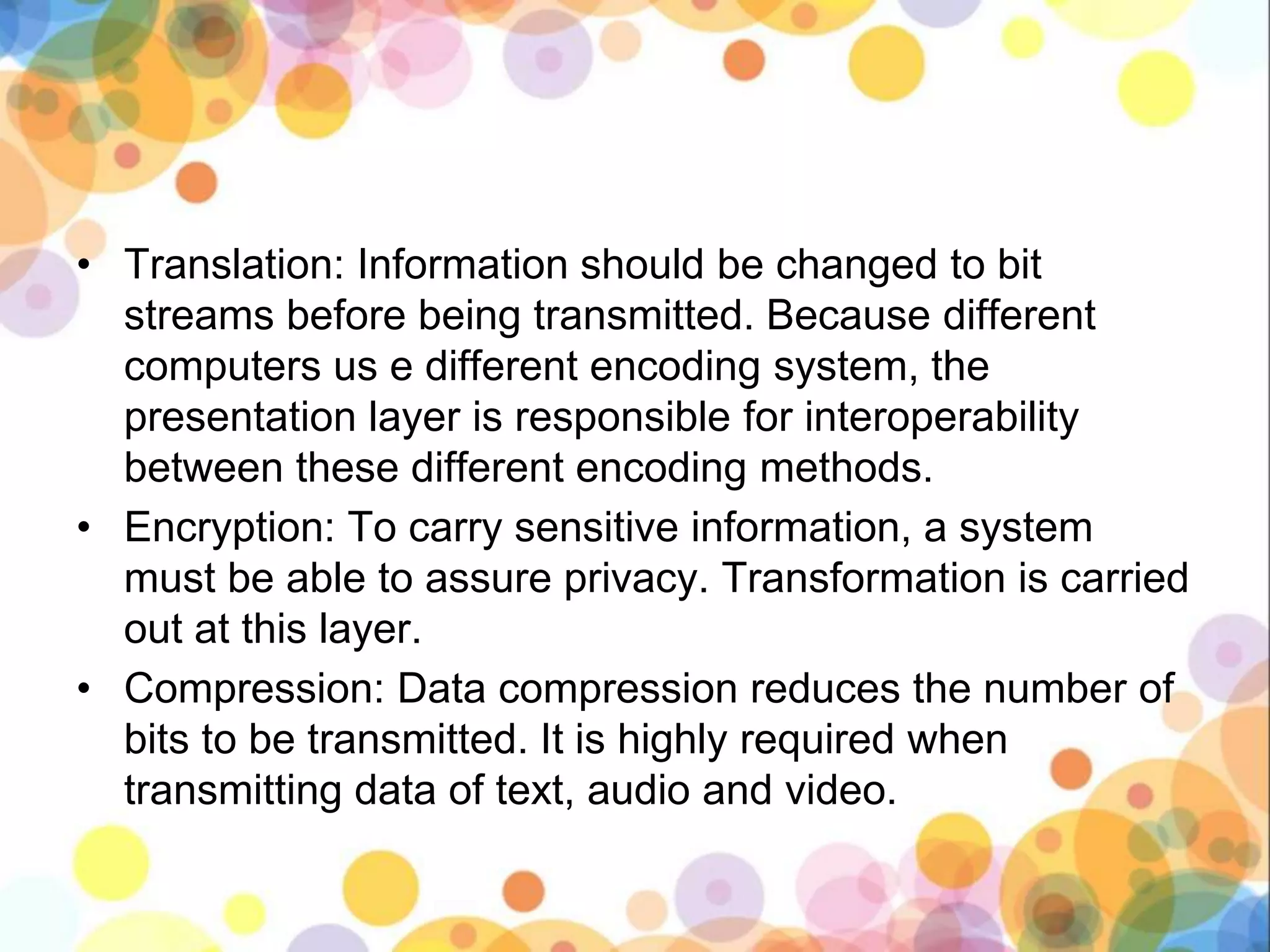

• Translation: Information should be changed to bit streams before being transmitted. Because different computers us e different encoding system, the presentation layer is responsible for interoperability between these different encoding methods. • Encryption: To carry sensitive information, a system must be able to assure privacy. Transformation is carried out at this layer. • Compression: Data compression reduces the number of bits to be transmitted. It is highly required when transmitting data of text, audio and video.

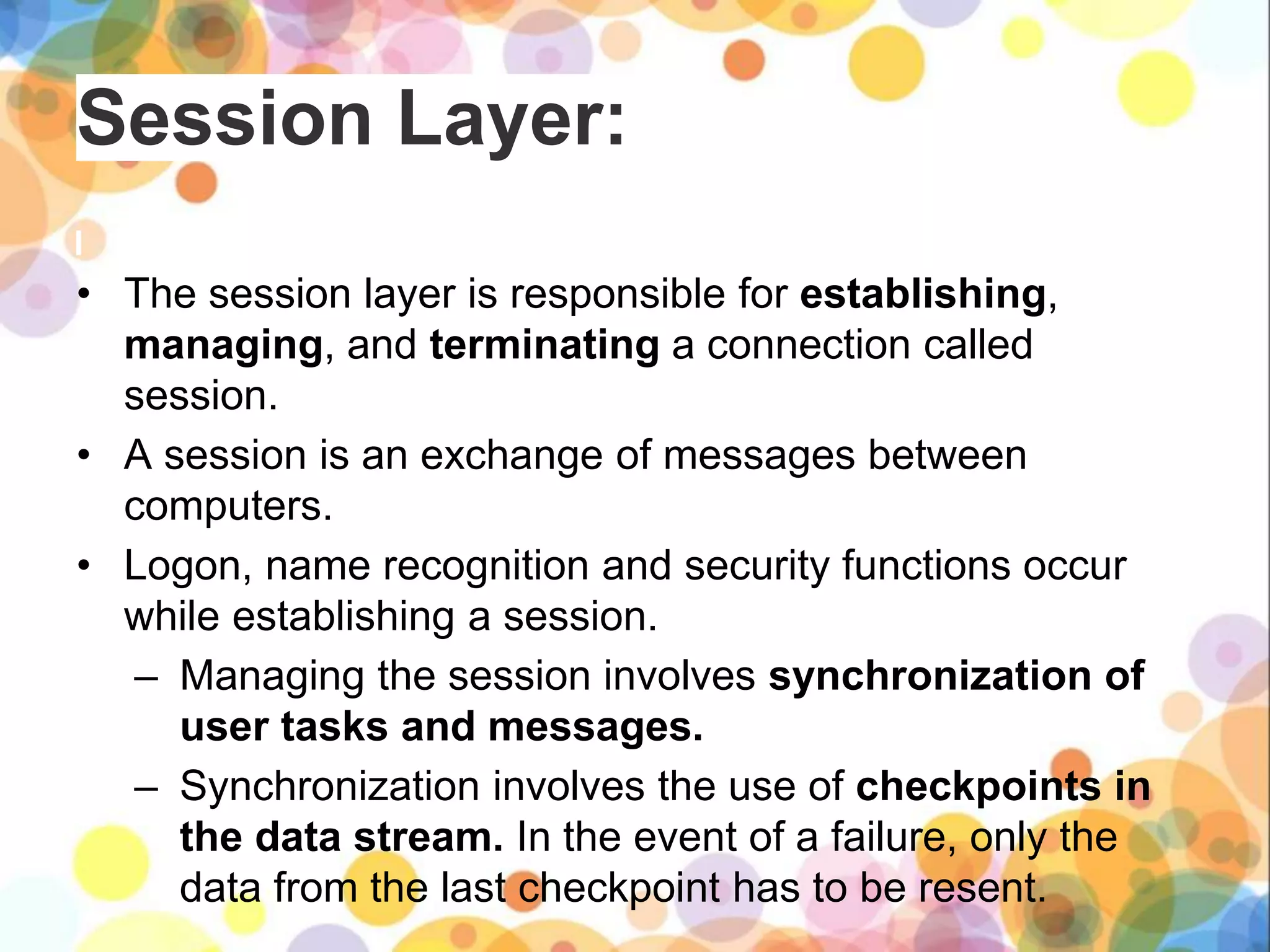

Session Layer: • The session layer is responsible for establishing, managing, and terminating a connection called session. • A session is an exchange of messages between computers. • Logon, name recognition and security functions occur while establishing a session. – Managing the session involves synchronization of user tasks and messages. – Synchronization involves the use of checkpoints in the data stream. In the event of a failure, only the data from the last checkpoint has to be resent.

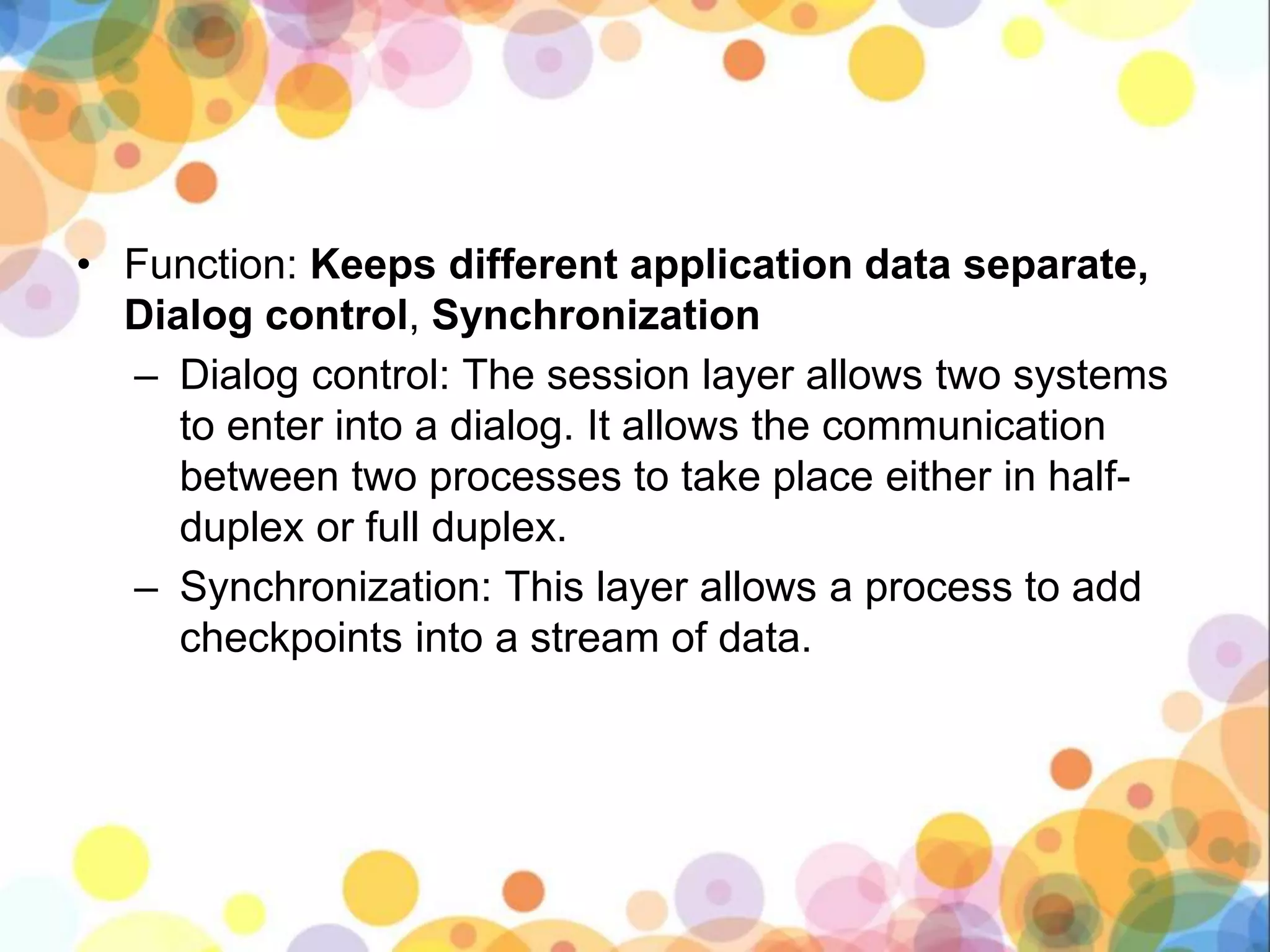

• Function: Keeps different application data separate, Dialog control, Synchronization – Dialog control: The session layer allows two systems to enter into a dialog. It allows the communication between two processes to take place either in half- duplex or full duplex. – Synchronization: This layer allows a process to add checkpoints into a stream of data.

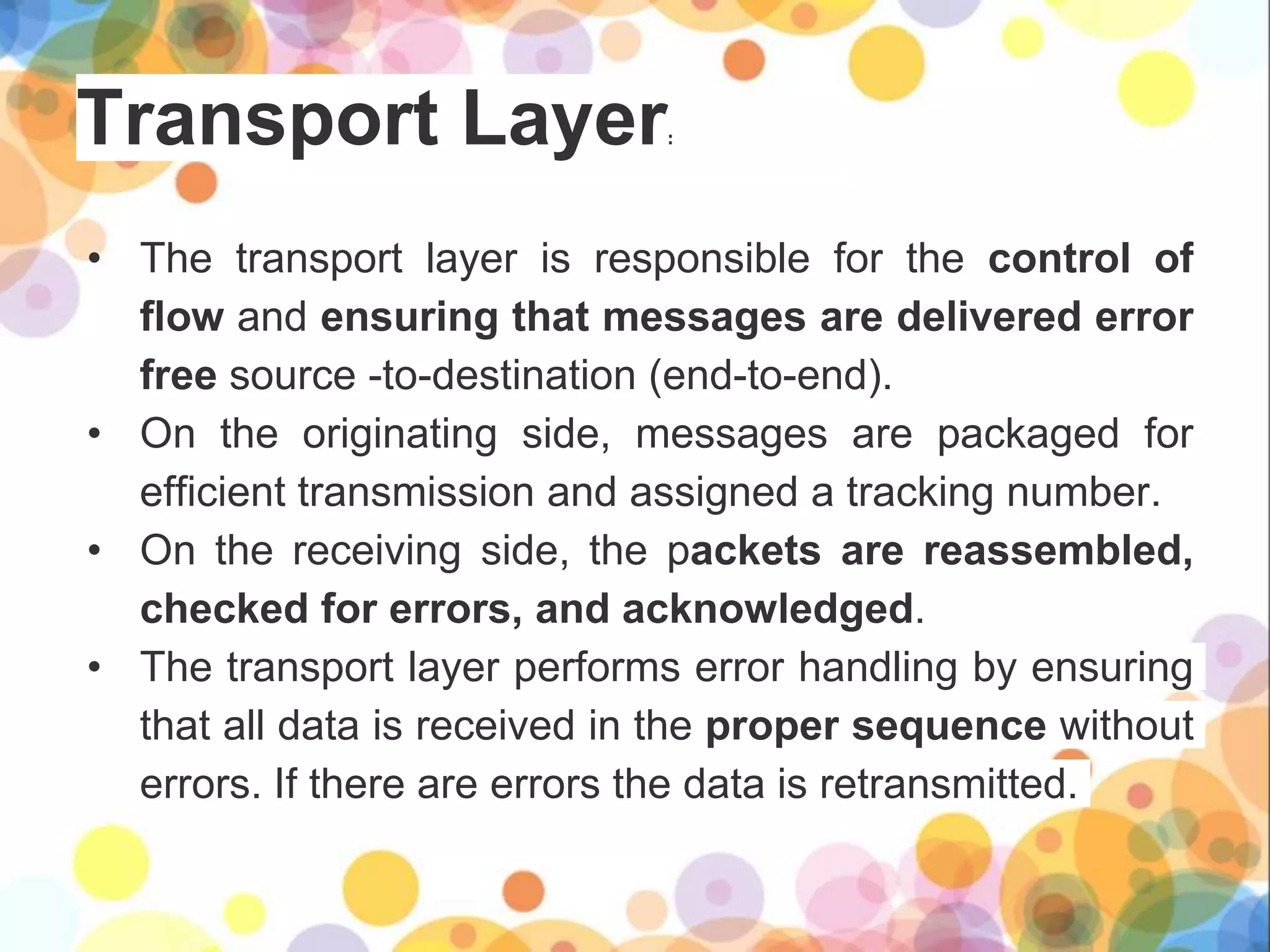

Transport Layer: • The transport layer is responsible for the control of flow and ensuring that messages are delivered error free source -to-destination (end-to-end). • On the originating side, messages are packaged for efficient transmission and assigned a tracking number. • On the receiving side, the packets are reassembled, checked for errors, and acknowledged. • The transport layer performs error handling by ensuring that all data is received in the proper sequence without errors. If there are errors the data is retransmitted.

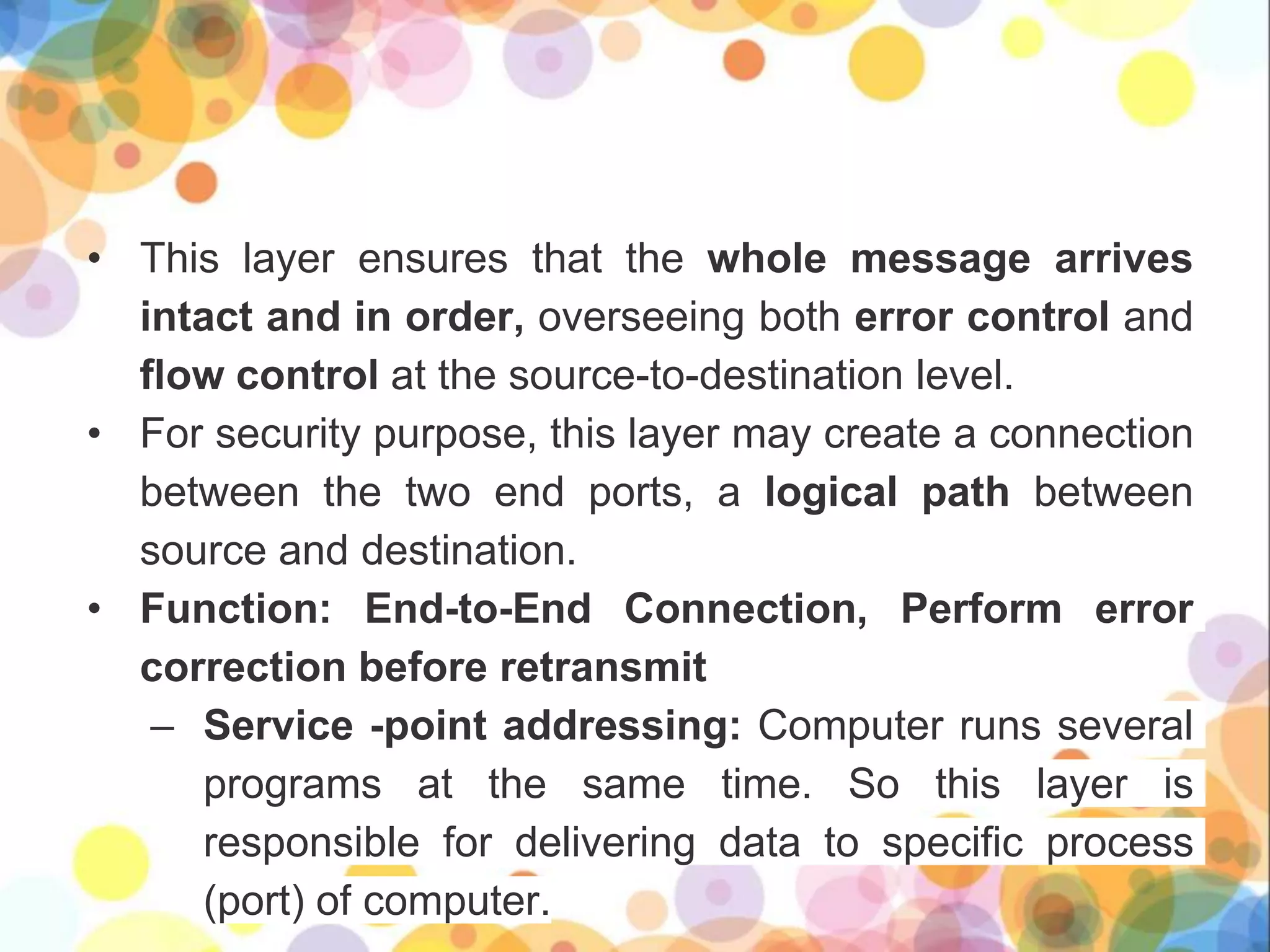

• This layer ensures that the whole message arrives intact and in order, overseeing both error control and flow control at the source-to-destination level. • For security purpose, this layer may create a connection between the two end ports, a logical path between source and destination. • Function: End-to-End Connection, Perform error correction before retransmit – Service -point addressing: Computer runs several programs at the same time. So this layer is responsible for delivering data to specific process (port) of computer.

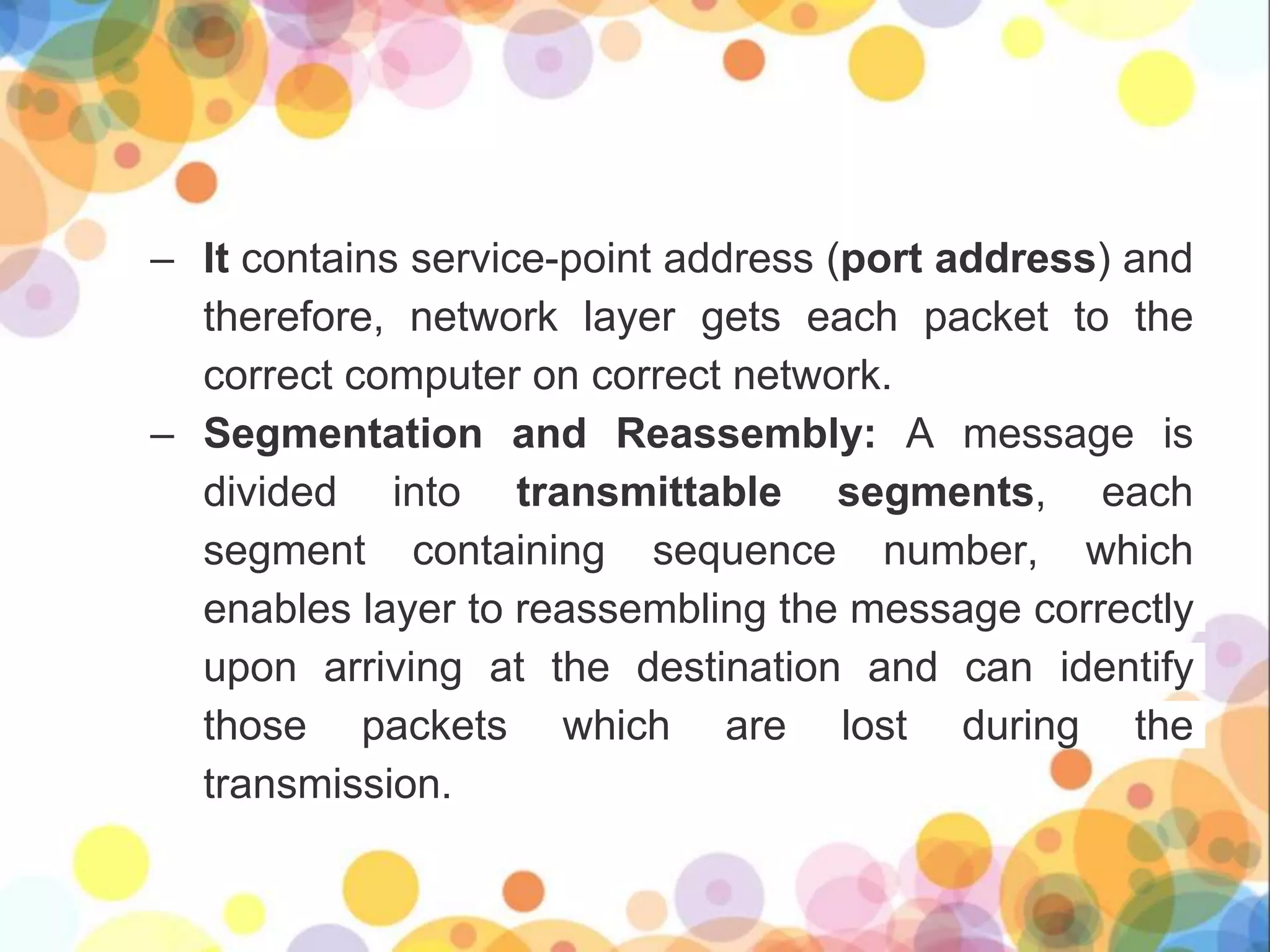

– It contains service-point address (port address) and therefore, network layer gets each packet to the correct computer on correct network. – Segmentation and Reassembly: A message is divided into transmittable segments, each segment containing sequence number, which enables layer to reassembling the message correctly upon arriving at the destination and can identify those packets which are lost during the transmission.

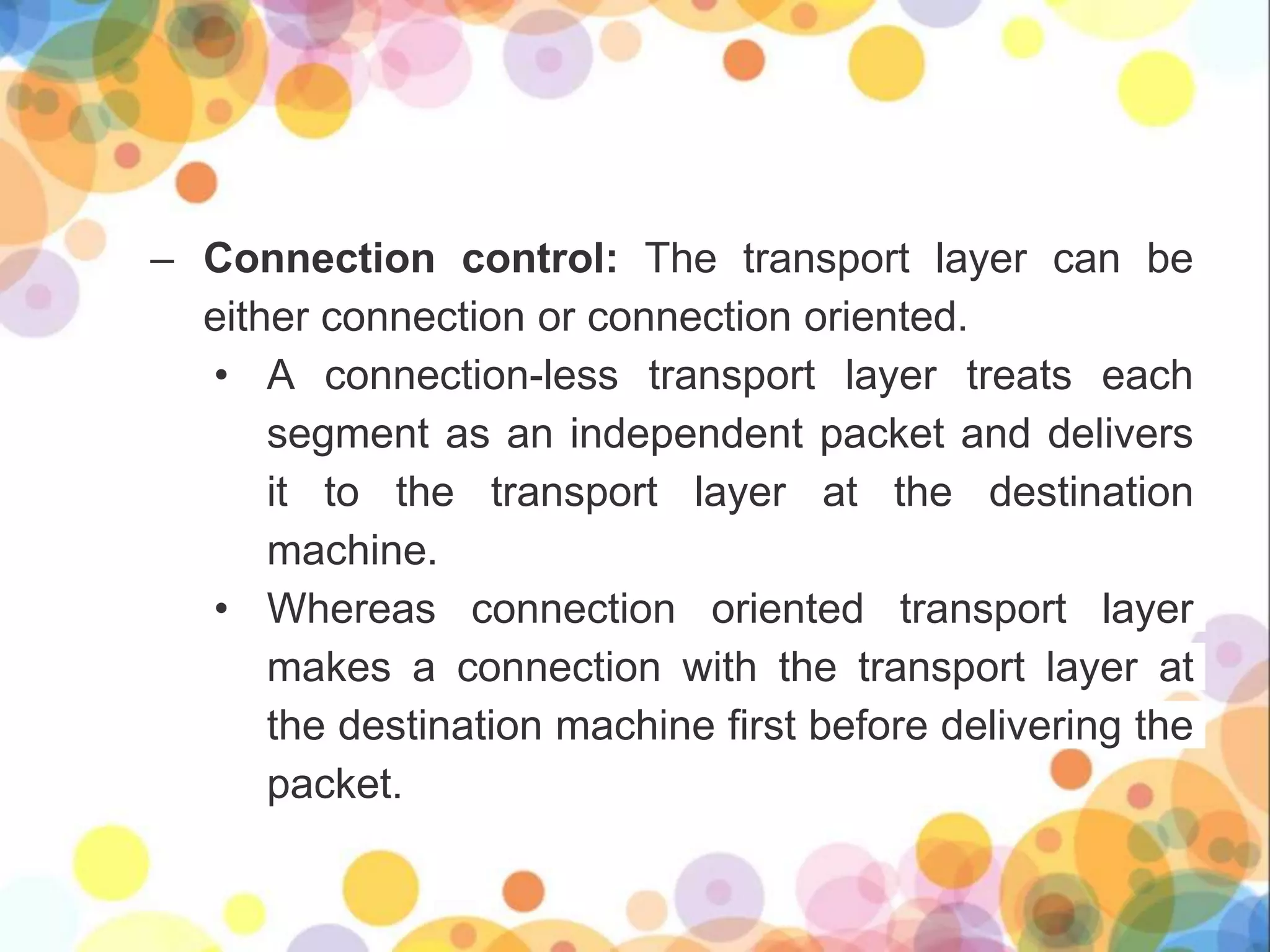

– Connection control: The transport layer can be either connection or connection oriented. • A connection-less transport layer treats each segment as an independent packet and delivers it to the transport layer at the destination machine. • Whereas connection oriented transport layer makes a connection with the transport layer at the destination machine first before delivering the packet.

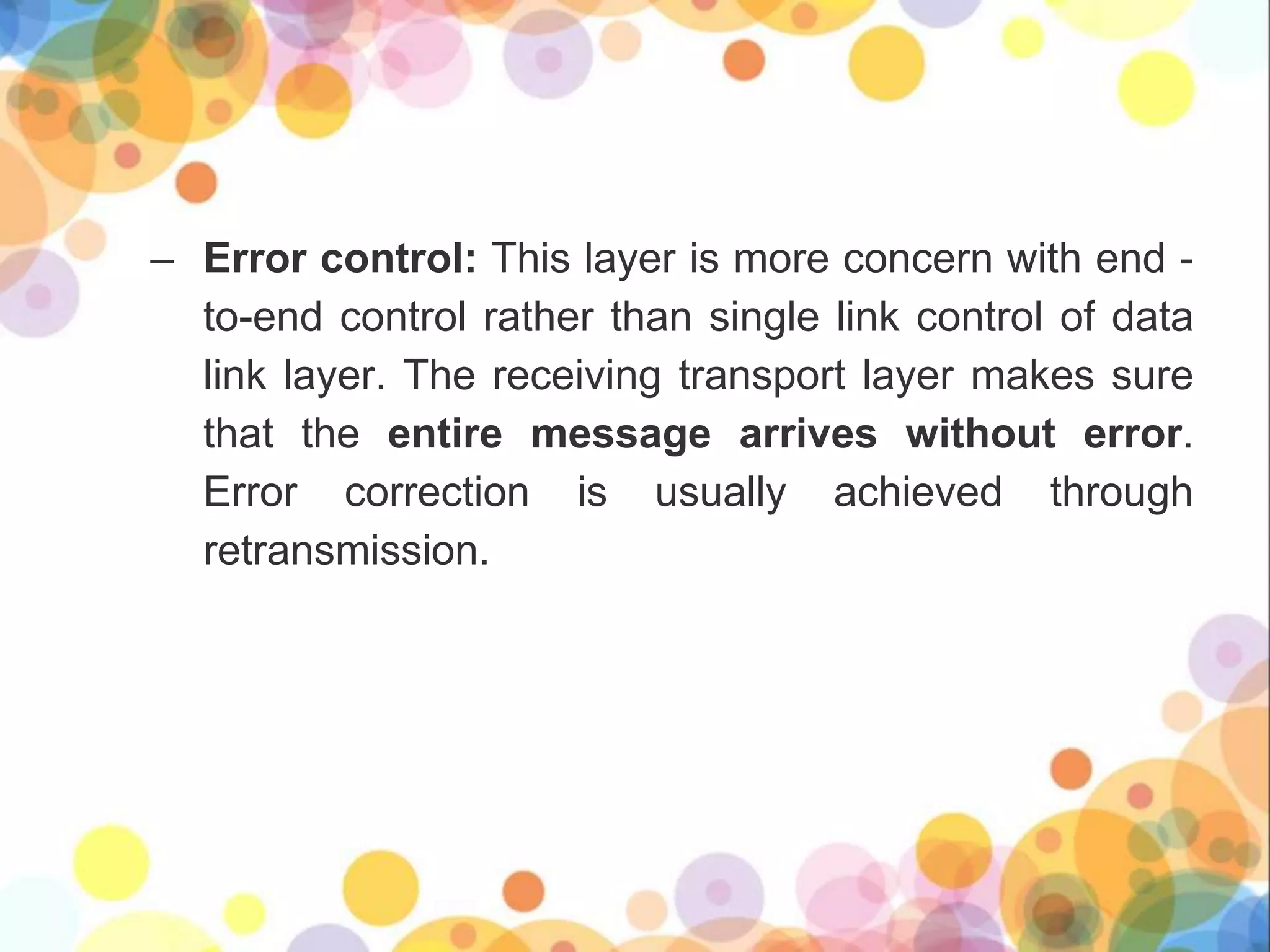

– Error control: This layer is more concern with end - to-end control rather than single link control of data link layer. The receiving transport layer makes sure that the entire message arrives without error. Error correction is usually achieved through retransmission.

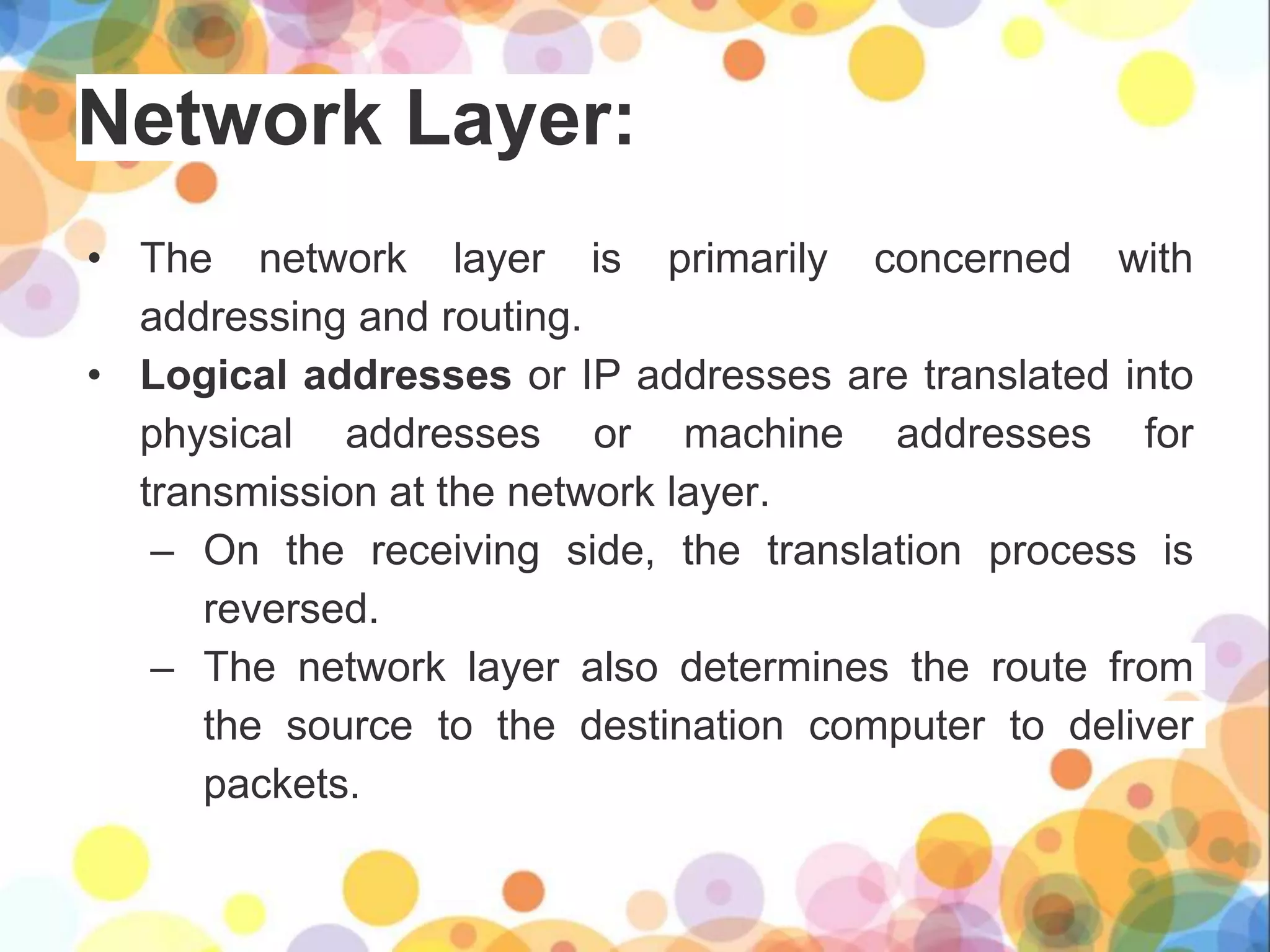

Network Layer: • The network layer is primarily concerned with addressing and routing. • Logical addresses or IP addresses are translated into physical addresses or machine addresses for transmission at the network layer. – On the receiving side, the translation process is reversed. – The network layer also determines the route from the source to the destination computer to deliver packets.

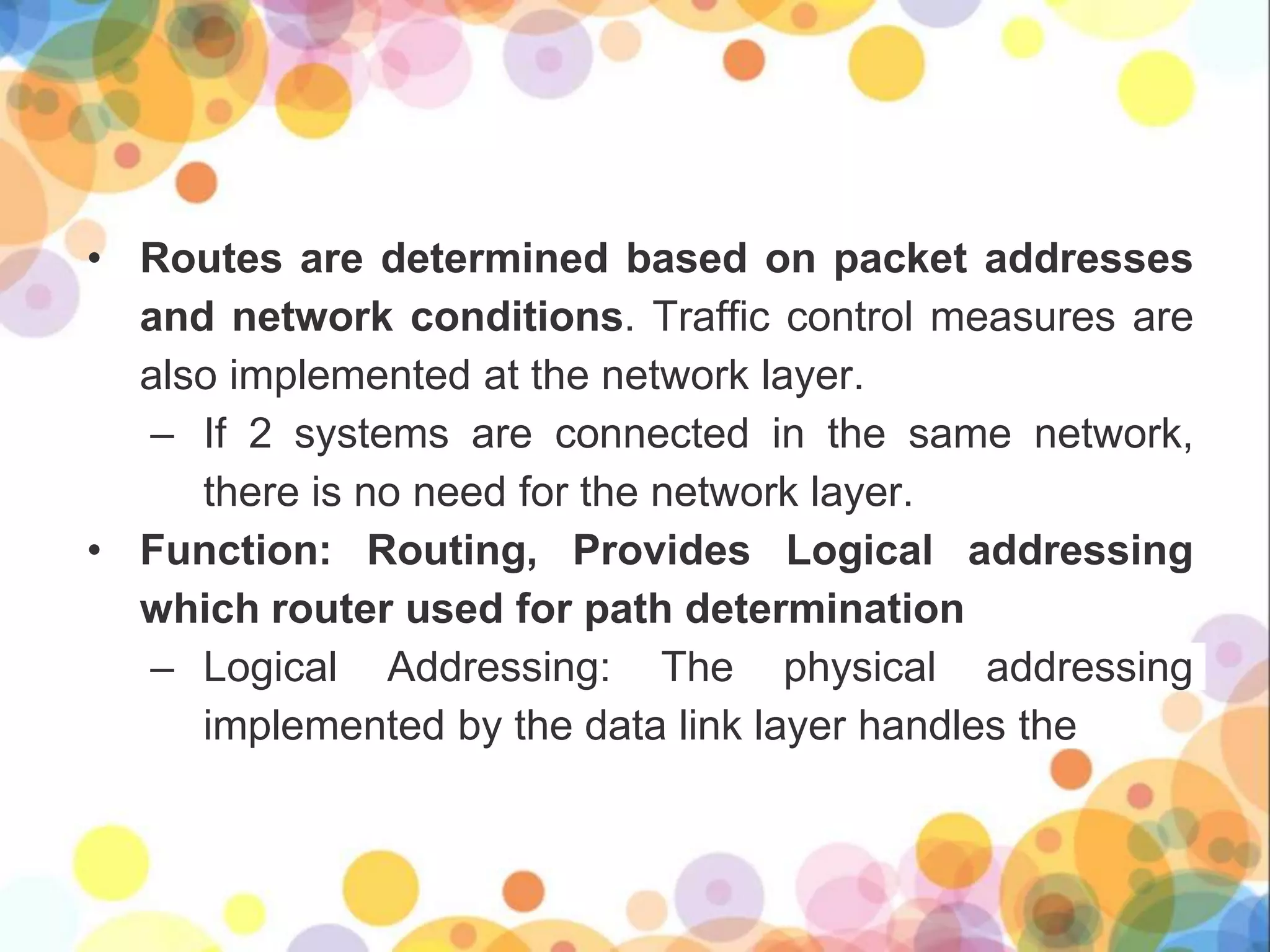

• Routes are determined based on packet addresses and network conditions. Traffic control measures are also implemented at the network layer. – If 2 systems are connected in the same network, there is no need for the network layer. • Function: Routing, Provides Logical addressing which router used for path determination – Logical Addressing: The physical addressing implemented by the data link layer handles the

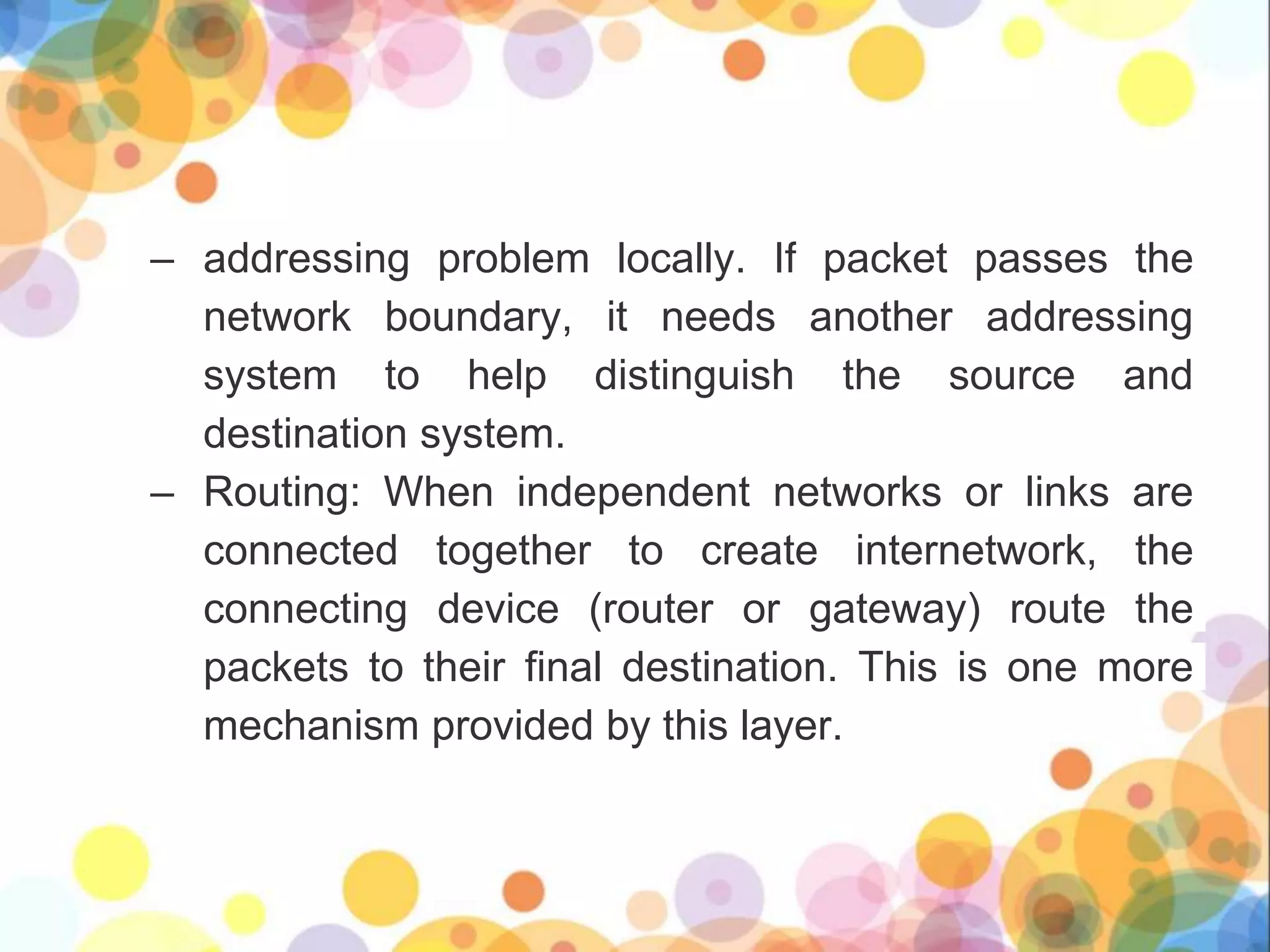

– addressing problem locally. If packet passes the network boundary, it needs another addressing system to help distinguish the source and destination system. – Routing: When independent networks or links are connected together to create internetwork, the connecting device (router or gateway) route the packets to their final destination. This is one more mechanism provided by this layer.

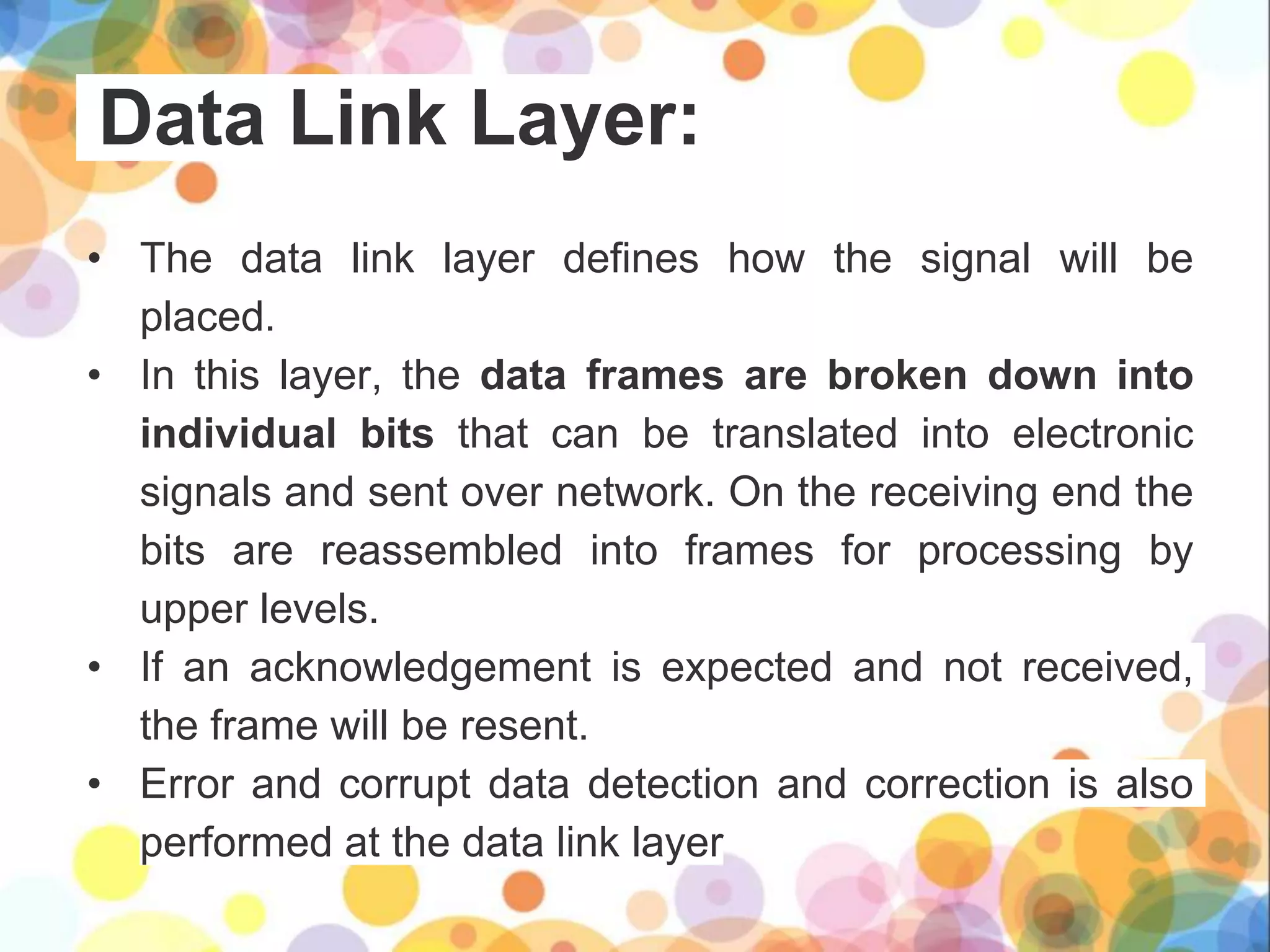

Data Link Layer: • The data link layer defines how the signal will be placed. • In this layer, the data frames are broken down into individual bits that can be translated into electronic signals and sent over network. On the receiving end the bits are reassembled into frames for processing by upper levels. • If an acknowledgement is expected and not received, the frame will be resent. • Error and corrupt data detection and correction is also performed at the data link layer

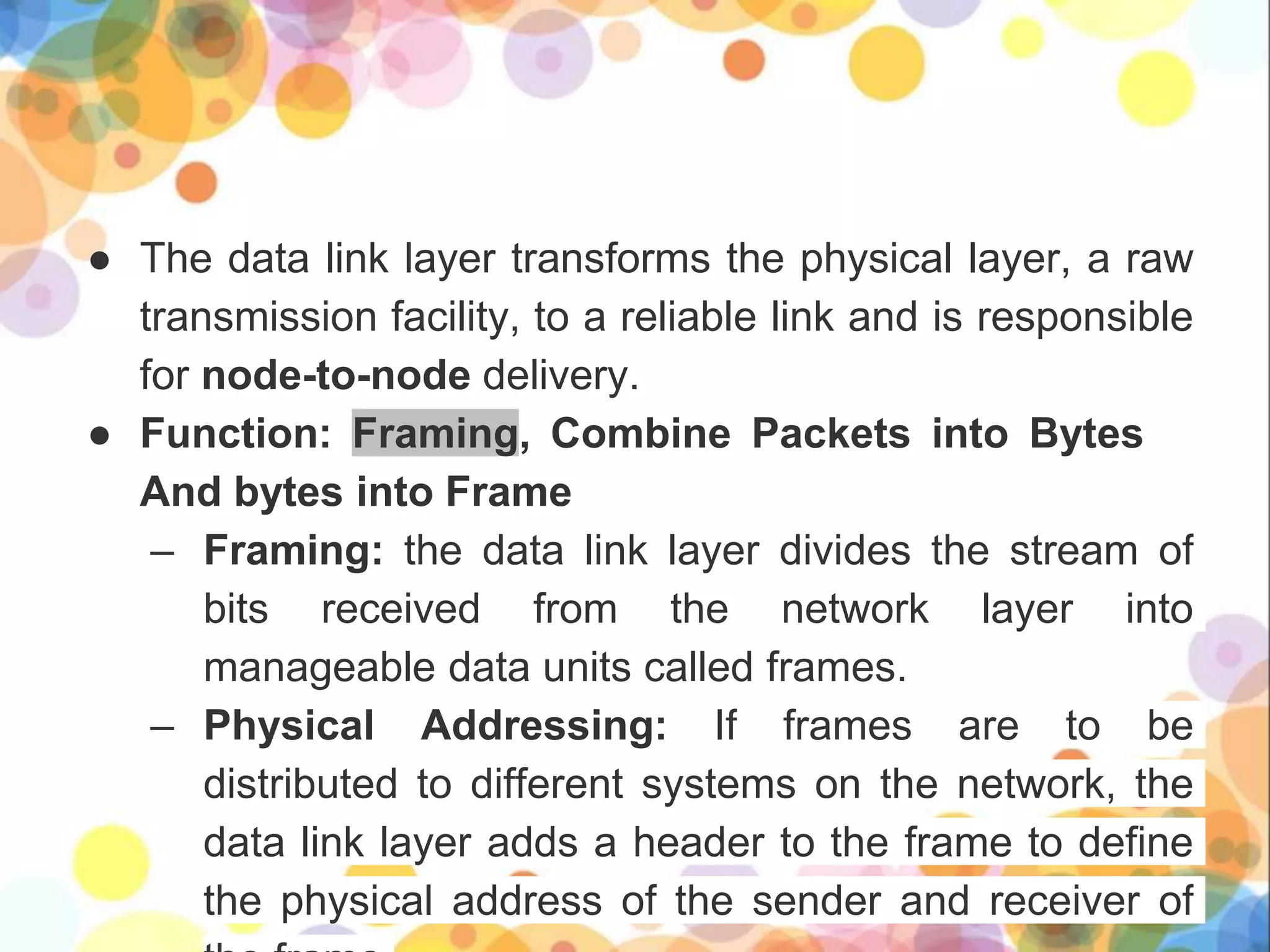

● The data link layer transforms the physical layer, a raw transmission facility, to a reliable link and is responsible for node-to-node delivery. ● Function: Framing, Combine Packets into Bytes And bytes into Frame – Framing: the data link layer divides the stream of bits received from the network layer into manageable data units called frames. – Physical Addressing: If frames are to be distributed to different systems on the network, the data link layer adds a header to the frame to define the physical address of the sender and receiver of

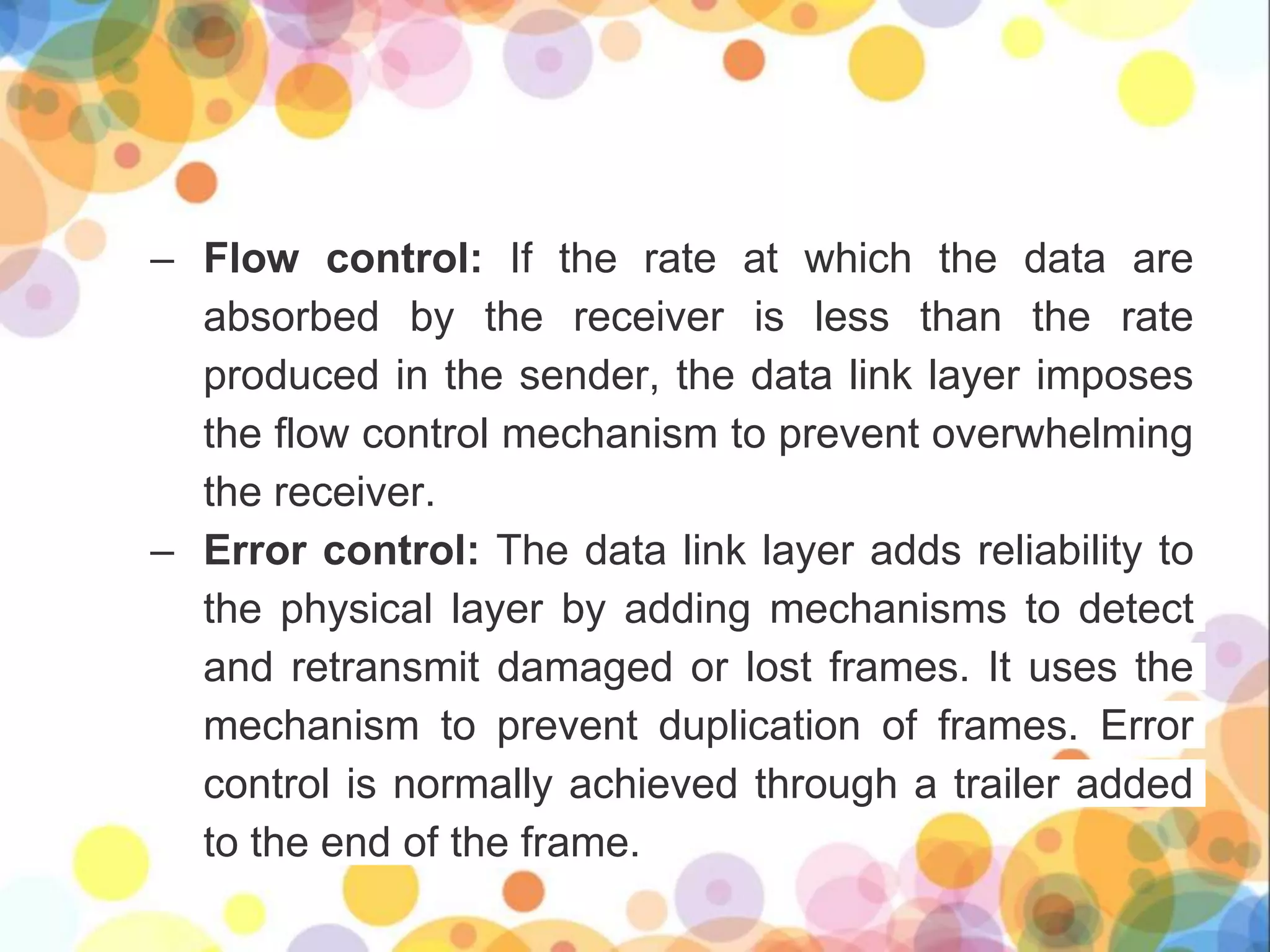

– Flow control: If the rate at which the data are absorbed by the receiver is less than the rate produced in the sender, the data link layer imposes the flow control mechanism to prevent overwhelming the receiver. – Error control: The data link layer adds reliability to the physical layer by adding mechanisms to detect and retransmit damaged or lost frames. It uses the mechanism to prevent duplication of frames. Error control is normally achieved through a trailer added to the end of the frame.

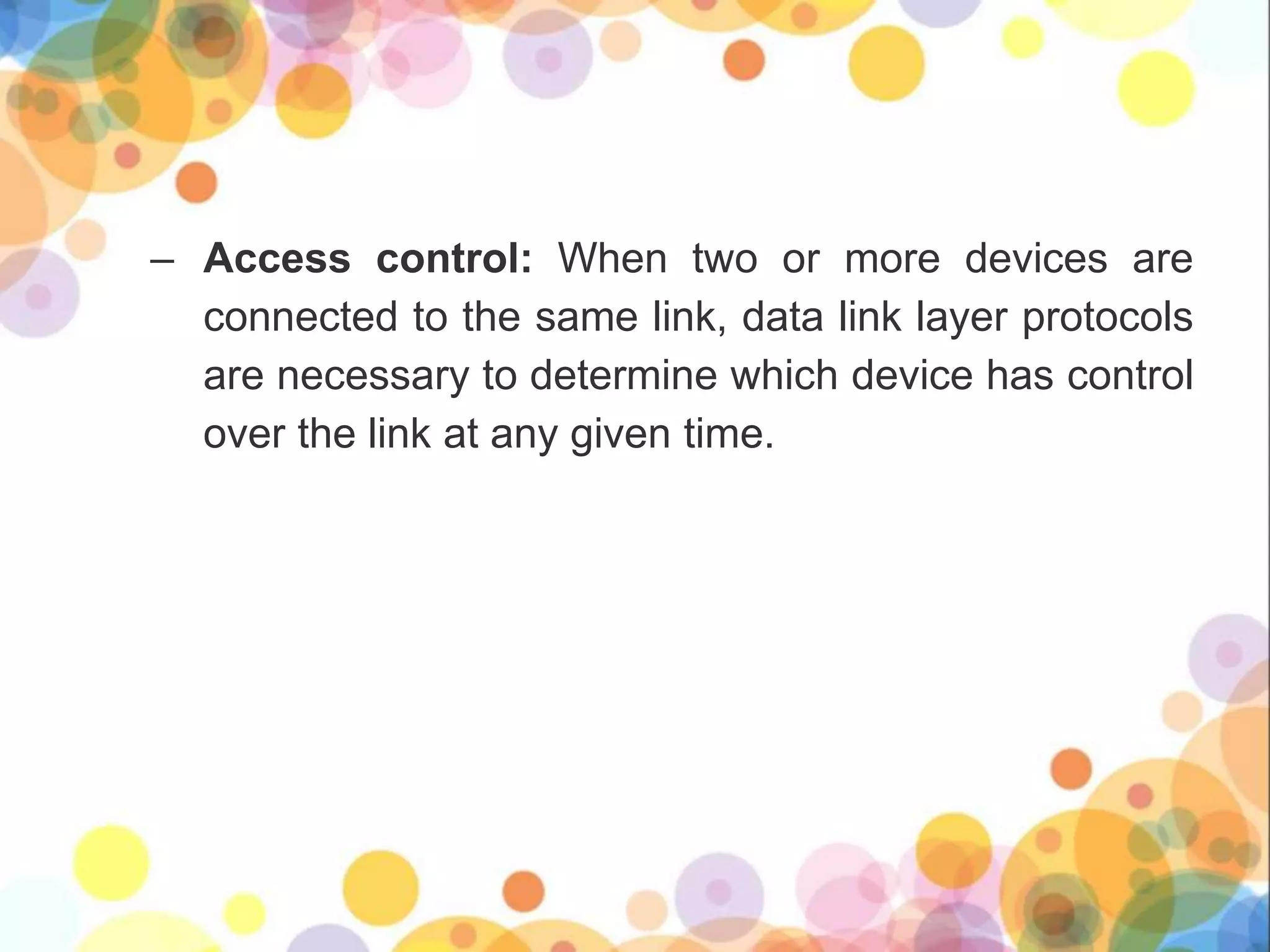

– Access control: When two or more devices are connected to the same link, data link layer protocols are necessary to determine which device has control over the link at any given time.

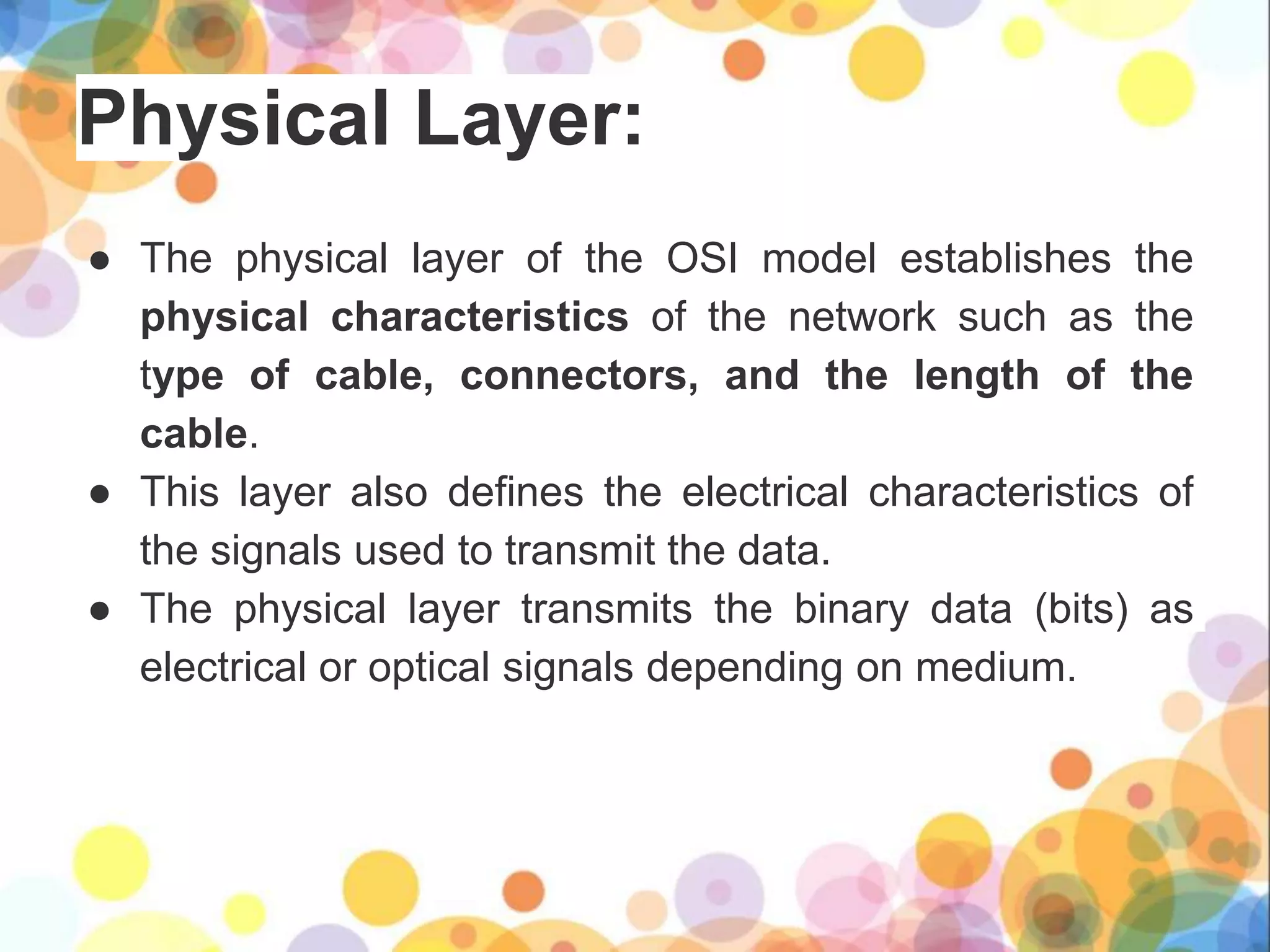

Physical Layer: ● The physical layer of the OSI model establishes the physical characteristics of the network such as the type of cable, connectors, and the length of the cable. ● This layer also defines the electrical characteristics of the signals used to transmit the data. ● The physical layer transmits the binary data (bits) as electrical or optical signals depending on medium.

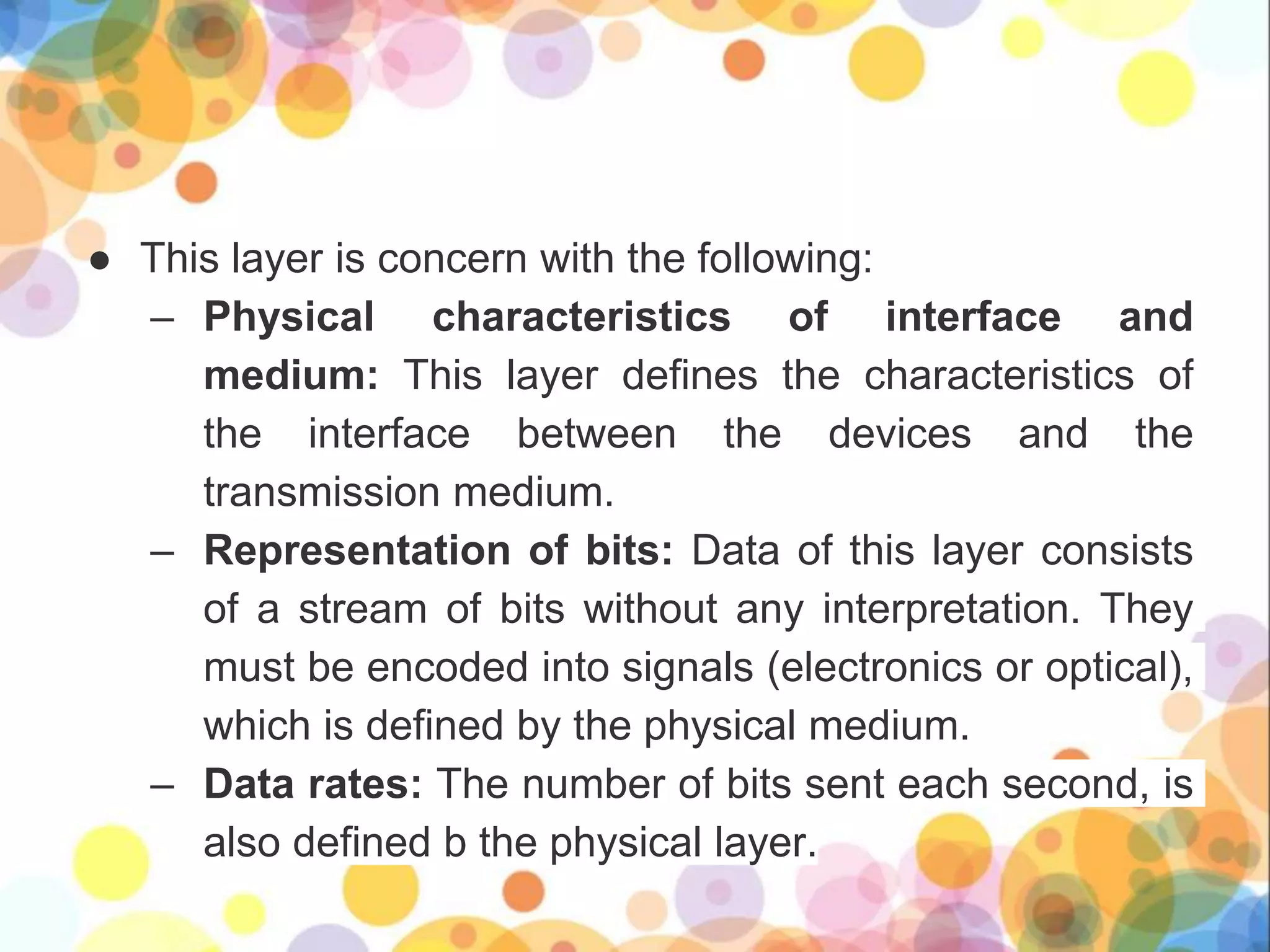

● This layer is concern with the following: – Physical characteristics of interface and medium: This layer defines the characteristics of the interface between the devices and the transmission medium. – Representation of bits: Data of this layer consists of a stream of bits without any interpretation. They must be encoded into signals (electronics or optical), which is defined by the physical medium. – Data rates: The number of bits sent each second, is also defined b the physical layer.

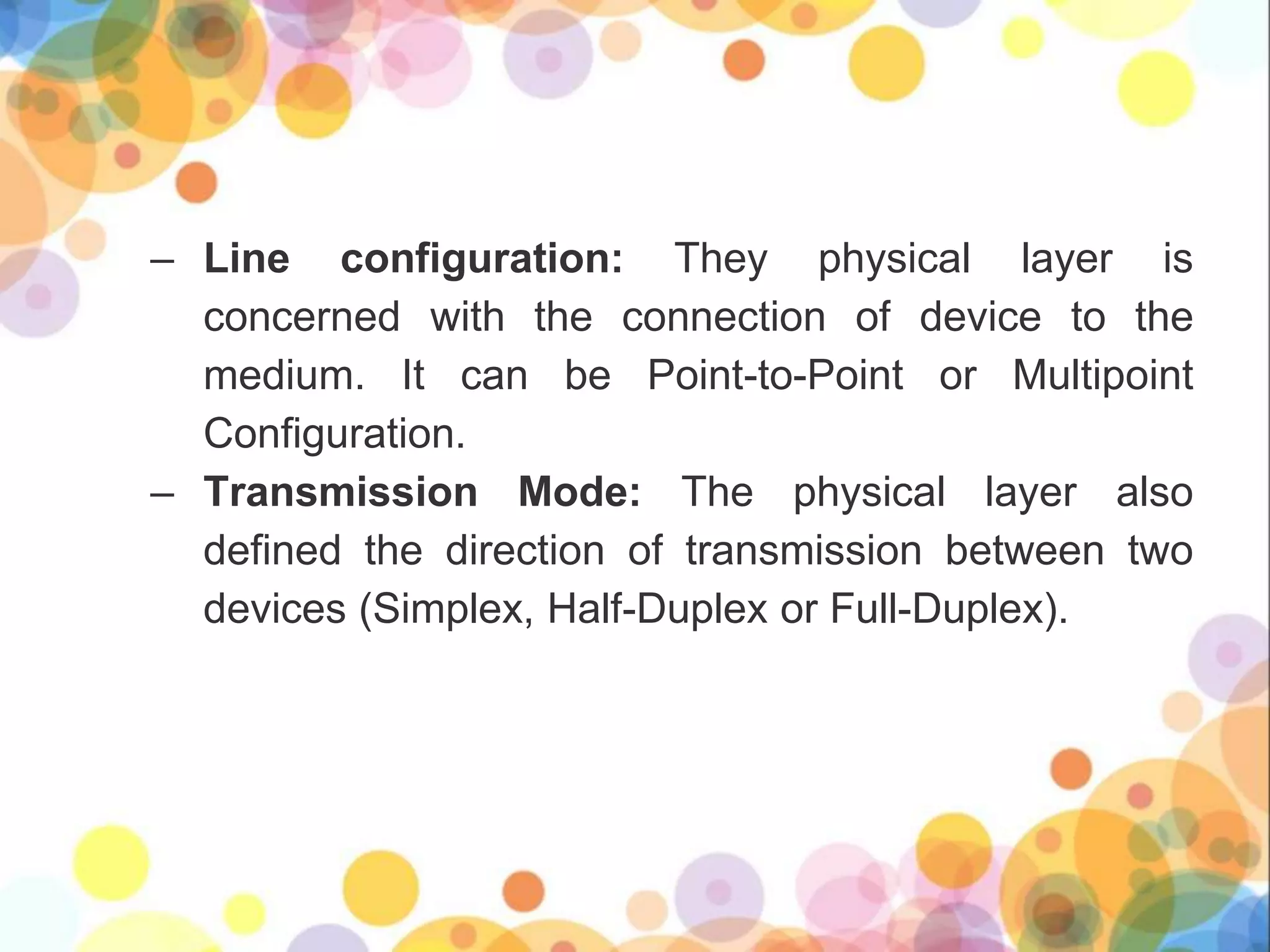

– Line configuration: They physical layer is concerned with the connection of device to the medium. It can be Point-to-Point or Multipoint Configuration. – Transmission Mode: The physical layer also defined the direction of transmission between two devices (Simplex, Half-Duplex or Full-Duplex).

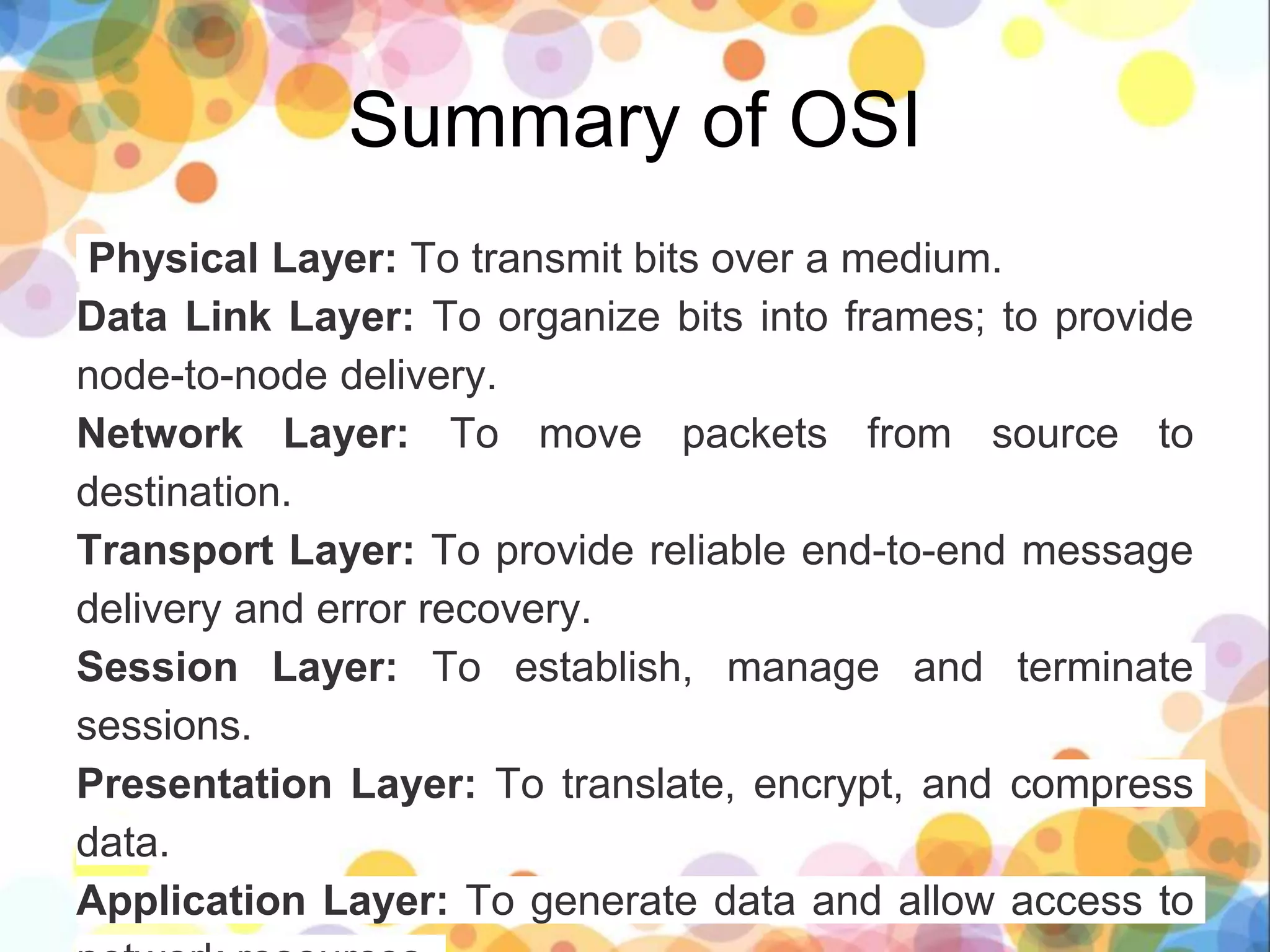

Summary of OSI Physical Layer: To transmit bits over a medium. Data Link Layer: To organize bits into frames; to provide node-to-node delivery. Network Layer: To move packets from source to destination. Transport Layer: To provide reliable end-to-end message delivery and error recovery. Session Layer: To establish, manage and terminate sessions. Presentation Layer: To translate, encrypt, and compress data. Application Layer: To generate data and allow access to

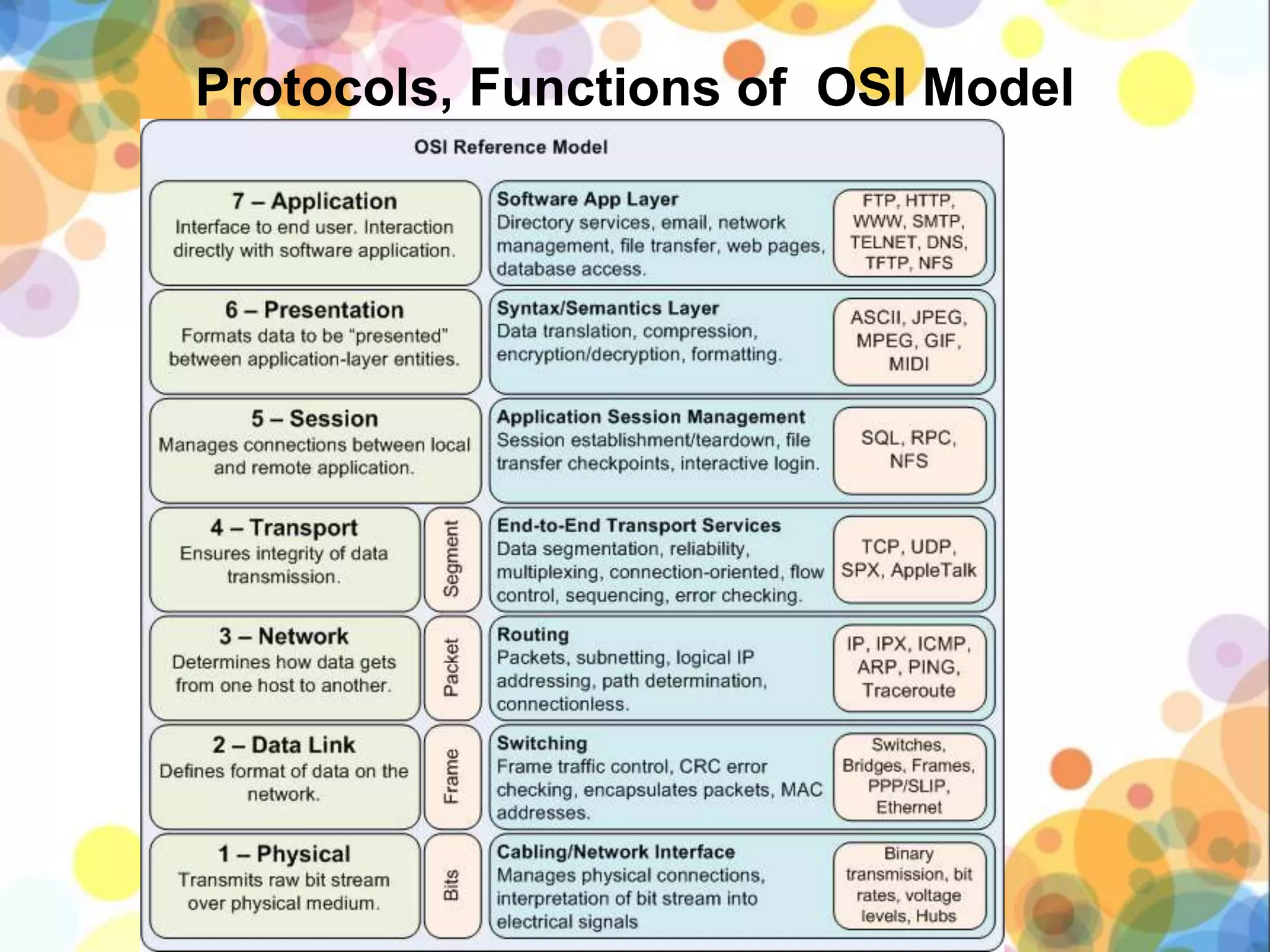

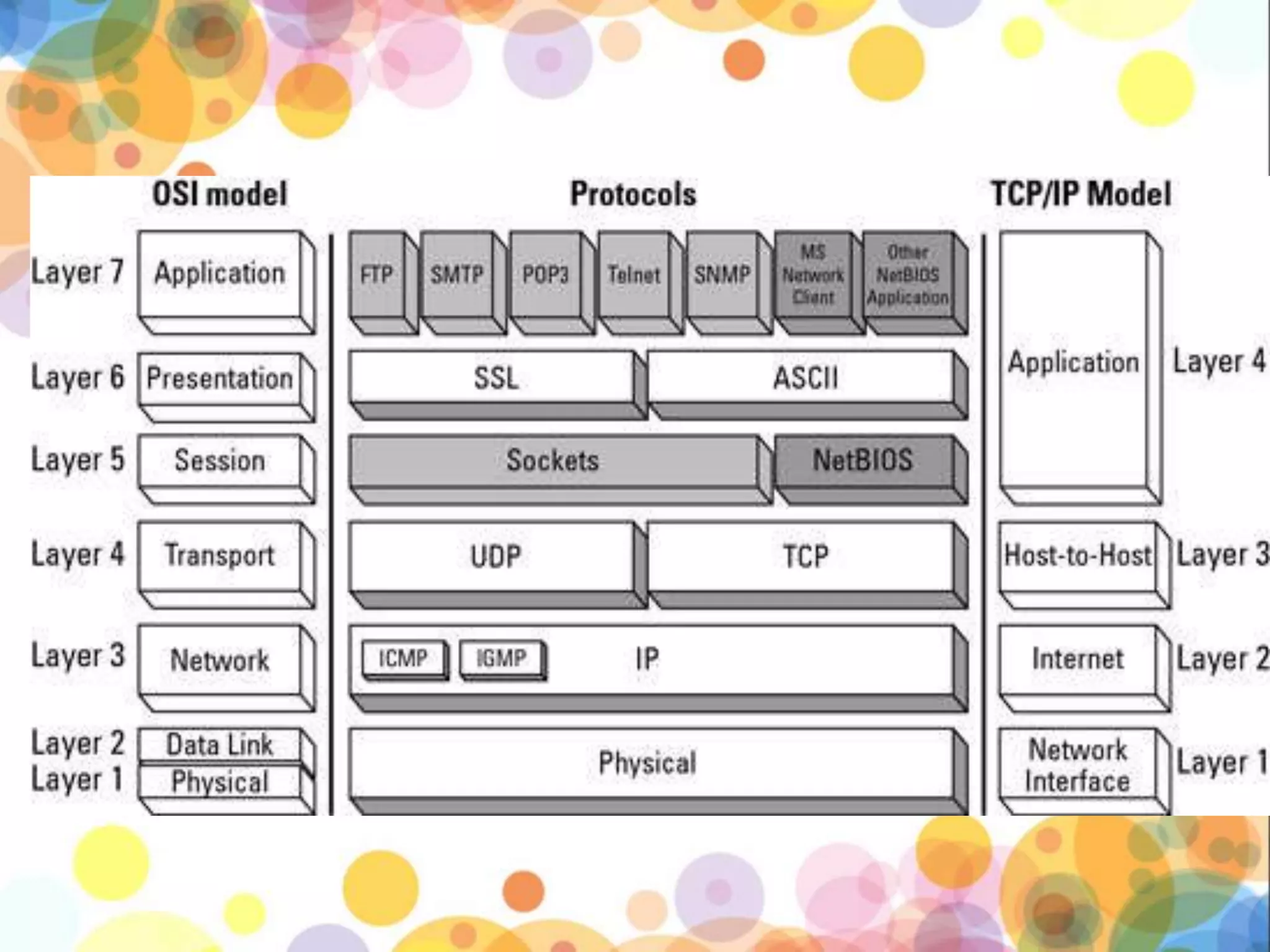

Protocols, Functions of OSI Model

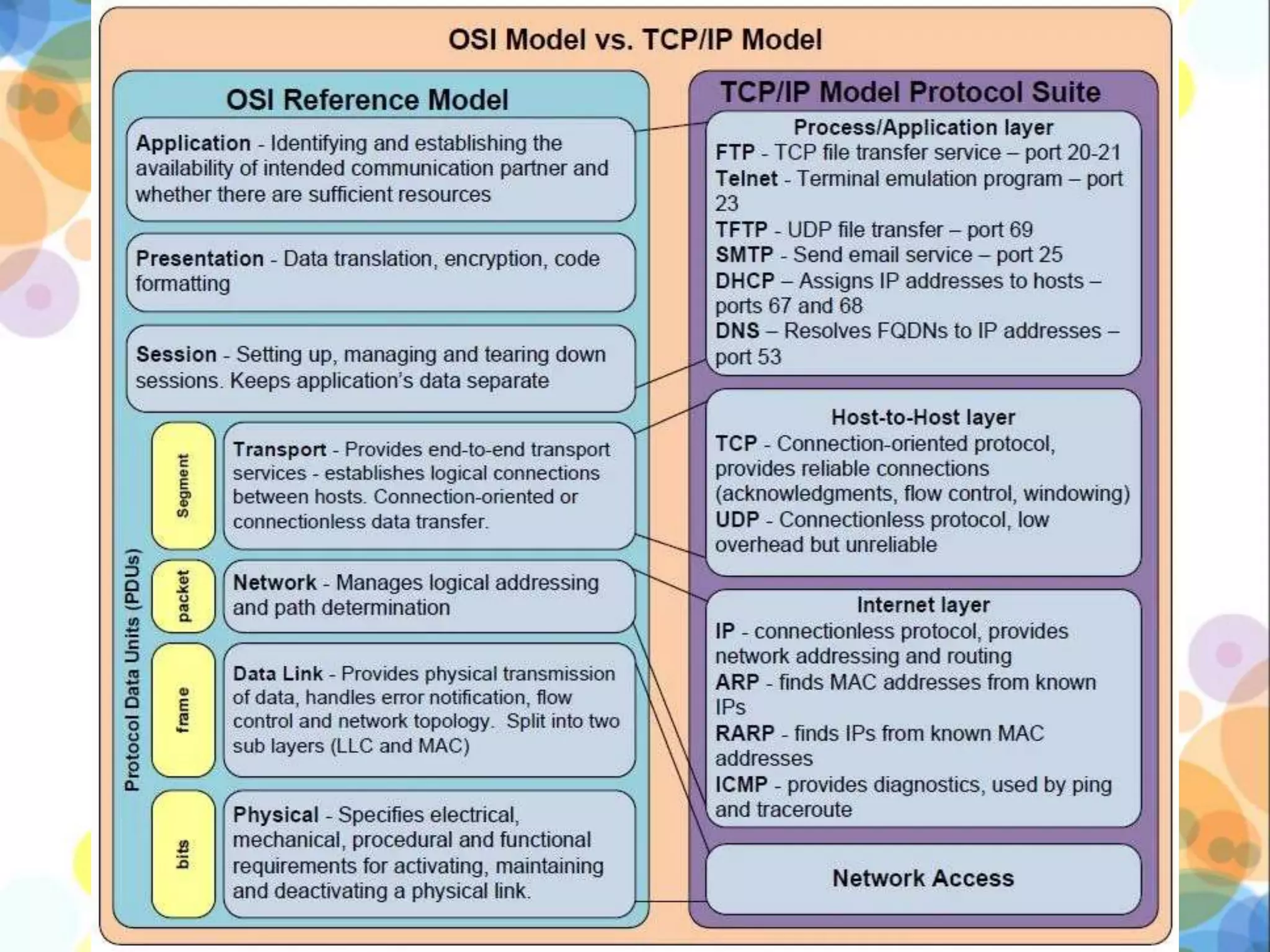

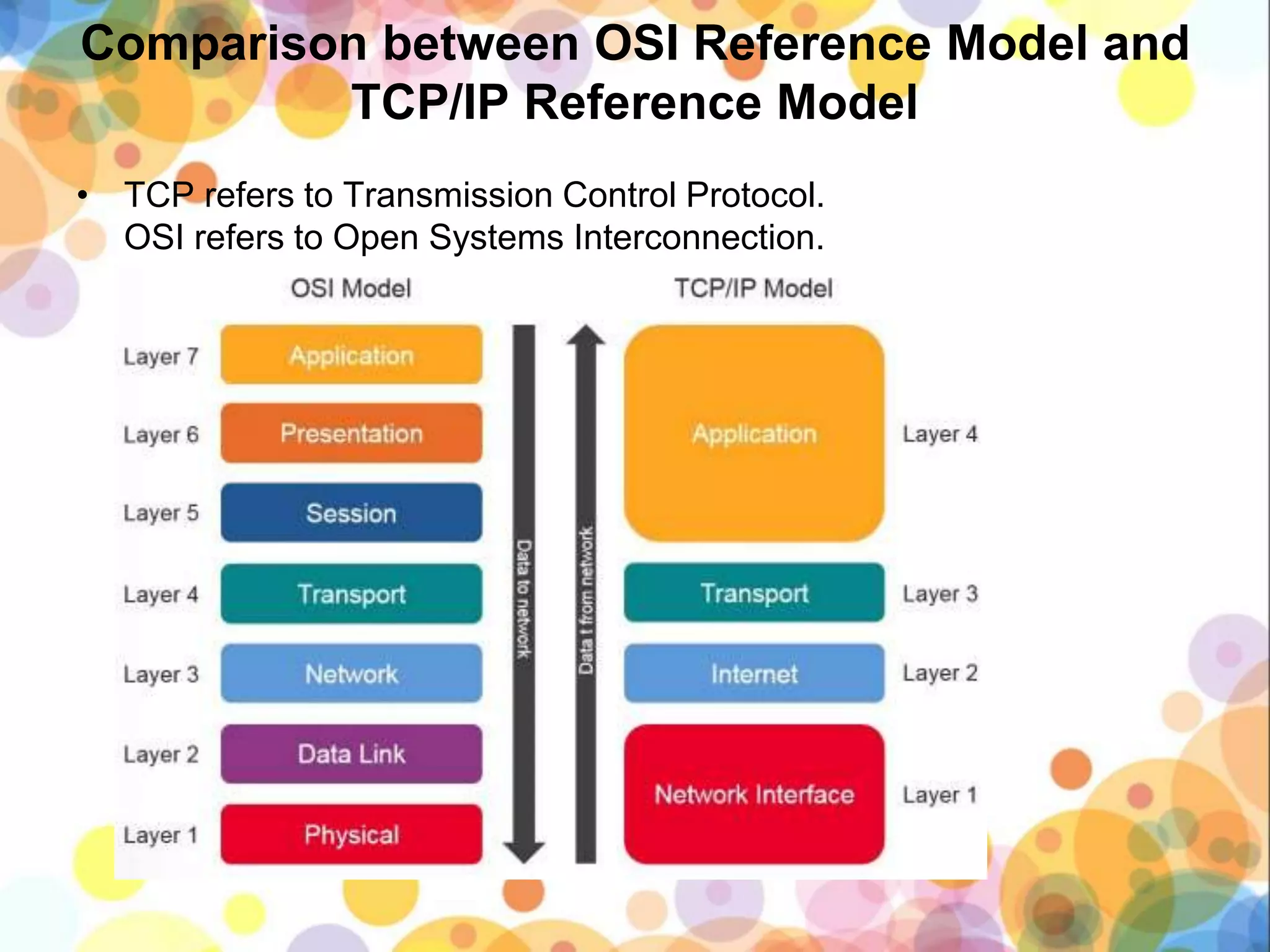

Comparison between OSI Reference Model and TCP/IP Reference Model • TCP refers to Transmission Control Protocol. OSI refers to Open Systems Interconnection.

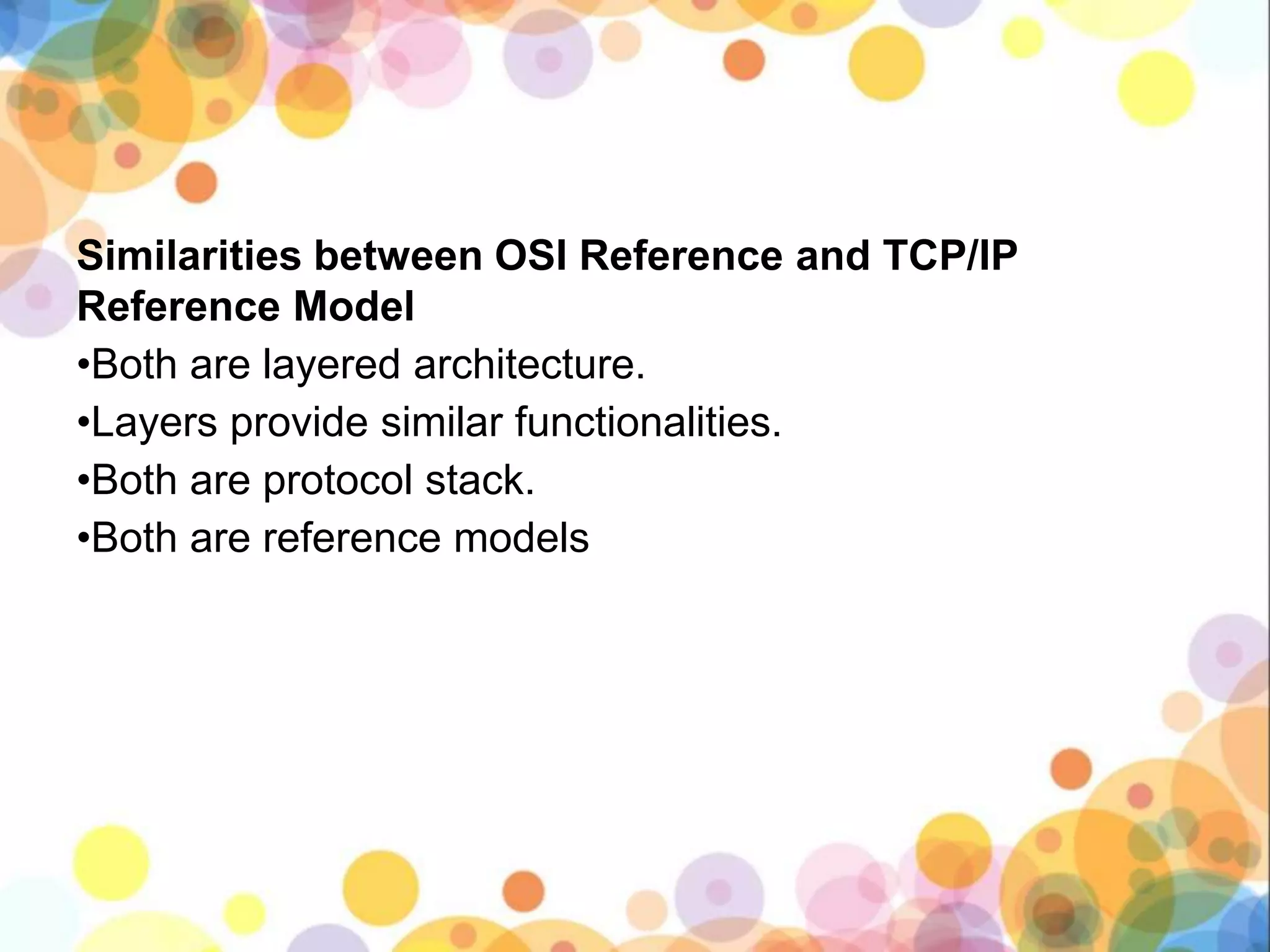

Similarities between OSI Reference and TCP/IP Reference Model •Both are layered architecture. •Layers provide similar functionalities. •Both are protocol stack. •Both are reference models

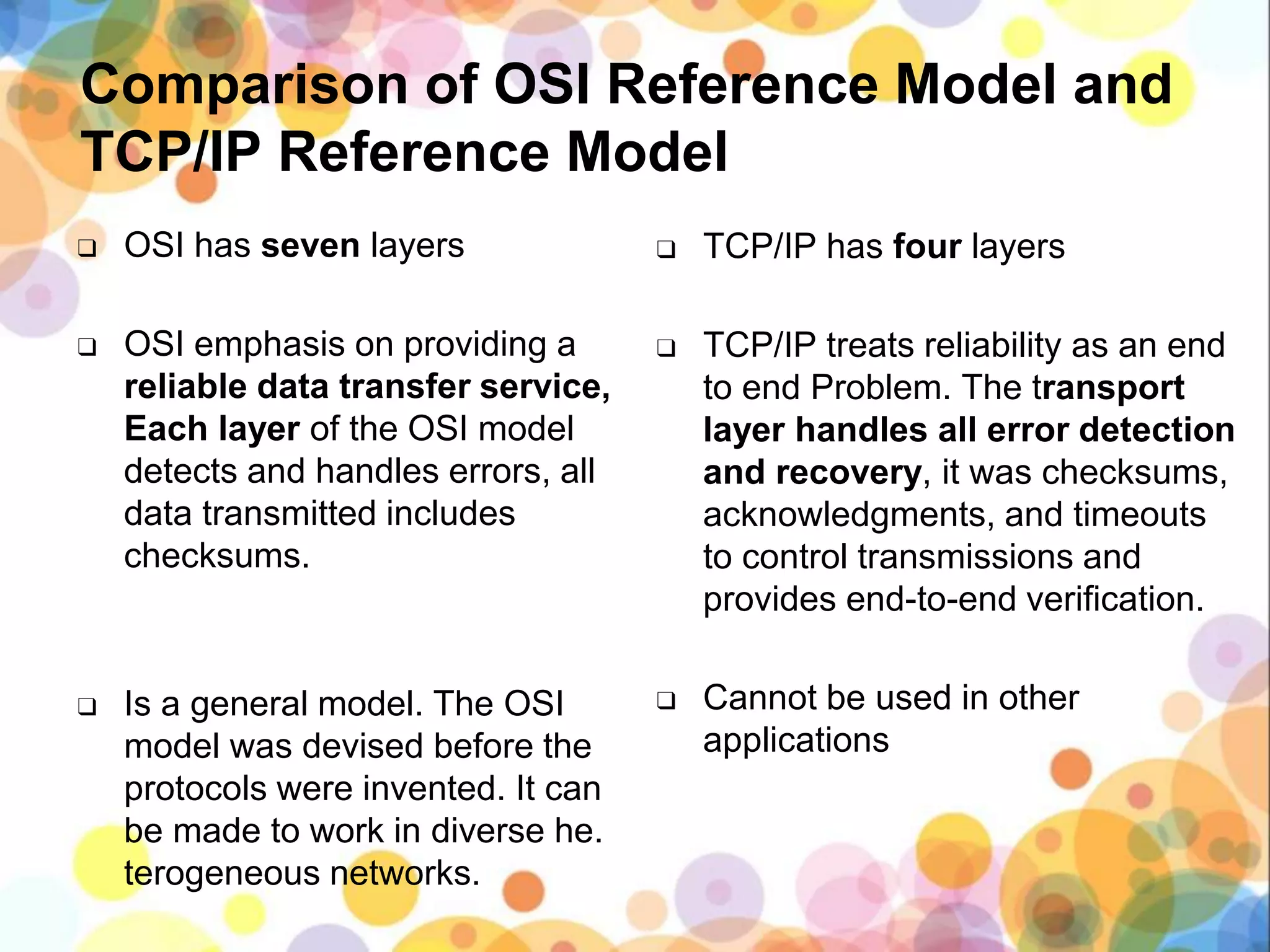

Comparison of OSI Reference Model and TCP/IP Reference Model ❑ OSI has seven layers ❑ OSI emphasis on providing a reliable data transfer service, Each layer of the OSI model detects and handles errors, all data transmitted includes checksums. ❑ Is a general model. The OSI model was devised before the protocols were invented. It can be made to work in diverse he. terogeneous networks. ❑ TCP/IP has four layers ❑ TCP/IP treats reliability as an end to end Problem. The transport layer handles all error detection and recovery, it was checksums, acknowledgments, and timeouts to control transmissions and provides end-to-end verification. ❑ Cannot be used in other applications

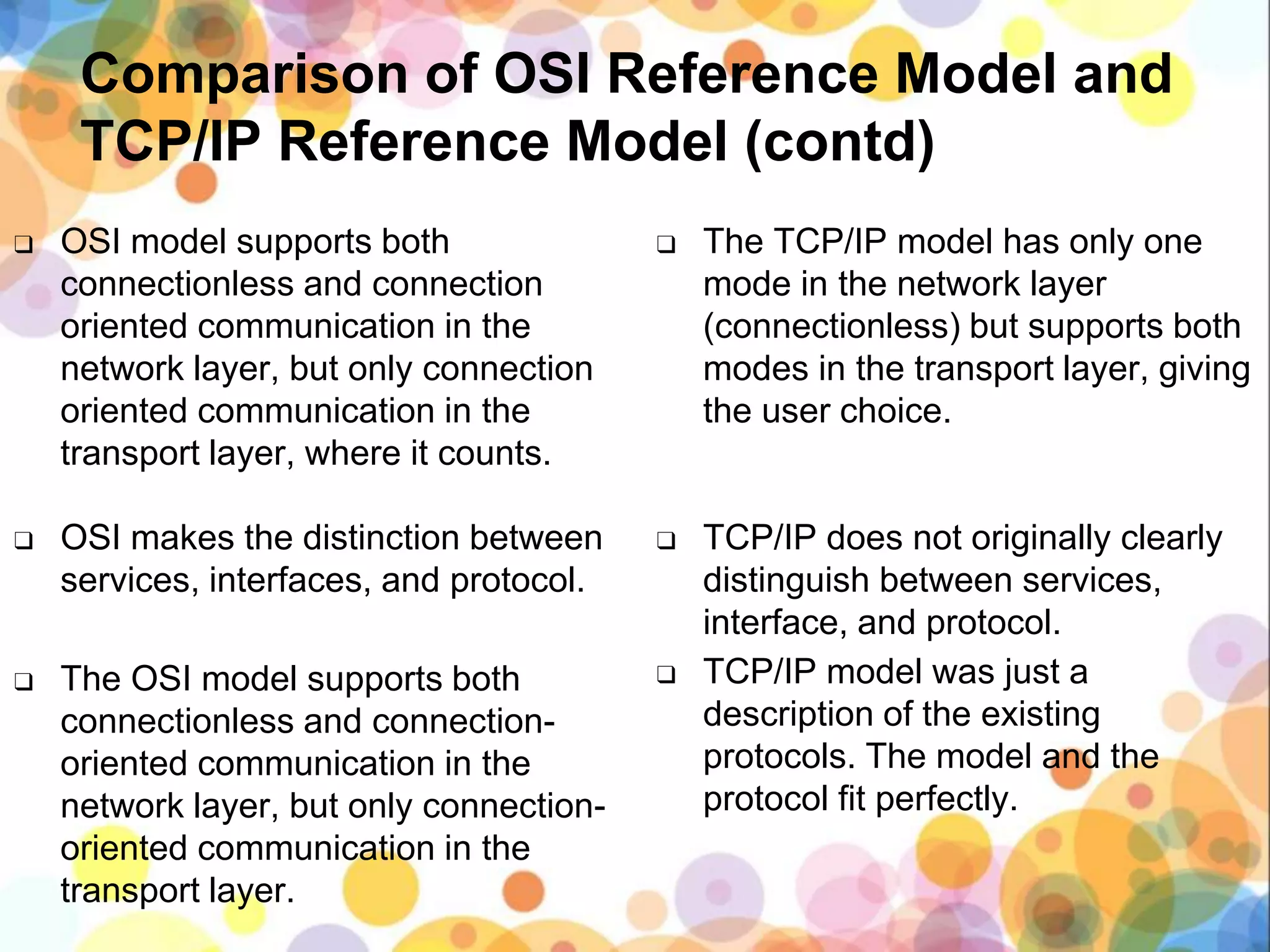

Comparison of OSI Reference Model and TCP/IP Reference Model (contd) ❑ OSI model supports both connectionless and connection oriented communication in the network layer, but only connection oriented communication in the transport layer, where it counts. ❑ OSI makes the distinction between services, interfaces, and protocol. ❑ The OSI model supports both connectionless and connection- oriented communication in the network layer, but only connection- oriented communication in the transport layer. ❑ The TCP/IP model has only one mode in the network layer (connectionless) but supports both modes in the transport layer, giving the user choice. ❑ TCP/IP does not originally clearly distinguish between services, interface, and protocol. ❑ TCP/IP model was just a description of the existing protocols. The model and the protocol fit perfectly.

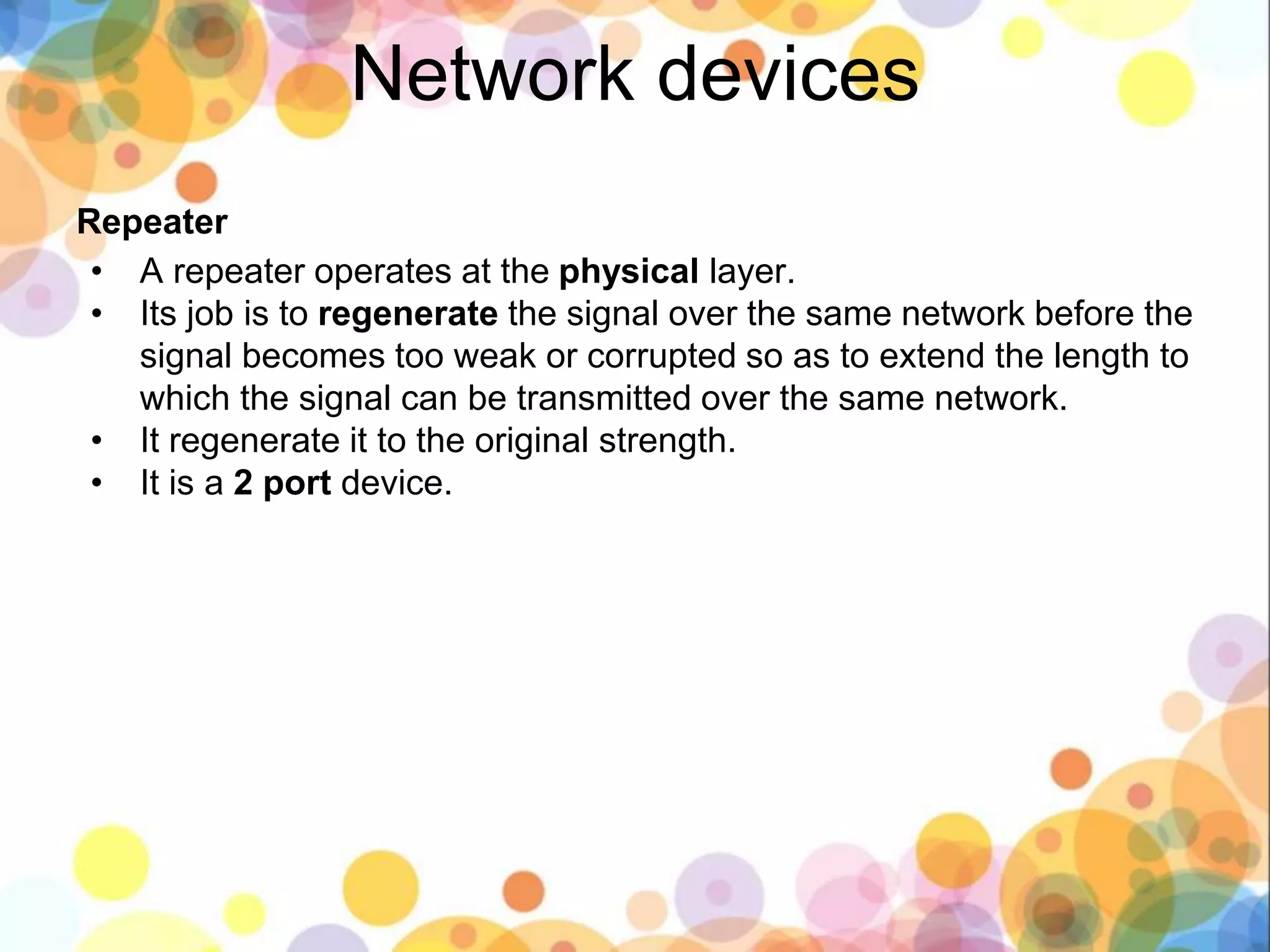

Network devices Repeater • A repeater operates at the physical layer. • Its job is to regenerate the signal over the same network before the signal becomes too weak or corrupted so as to extend the length to which the signal can be transmitted over the same network. • It regenerate it to the original strength. • It is a 2 port device.

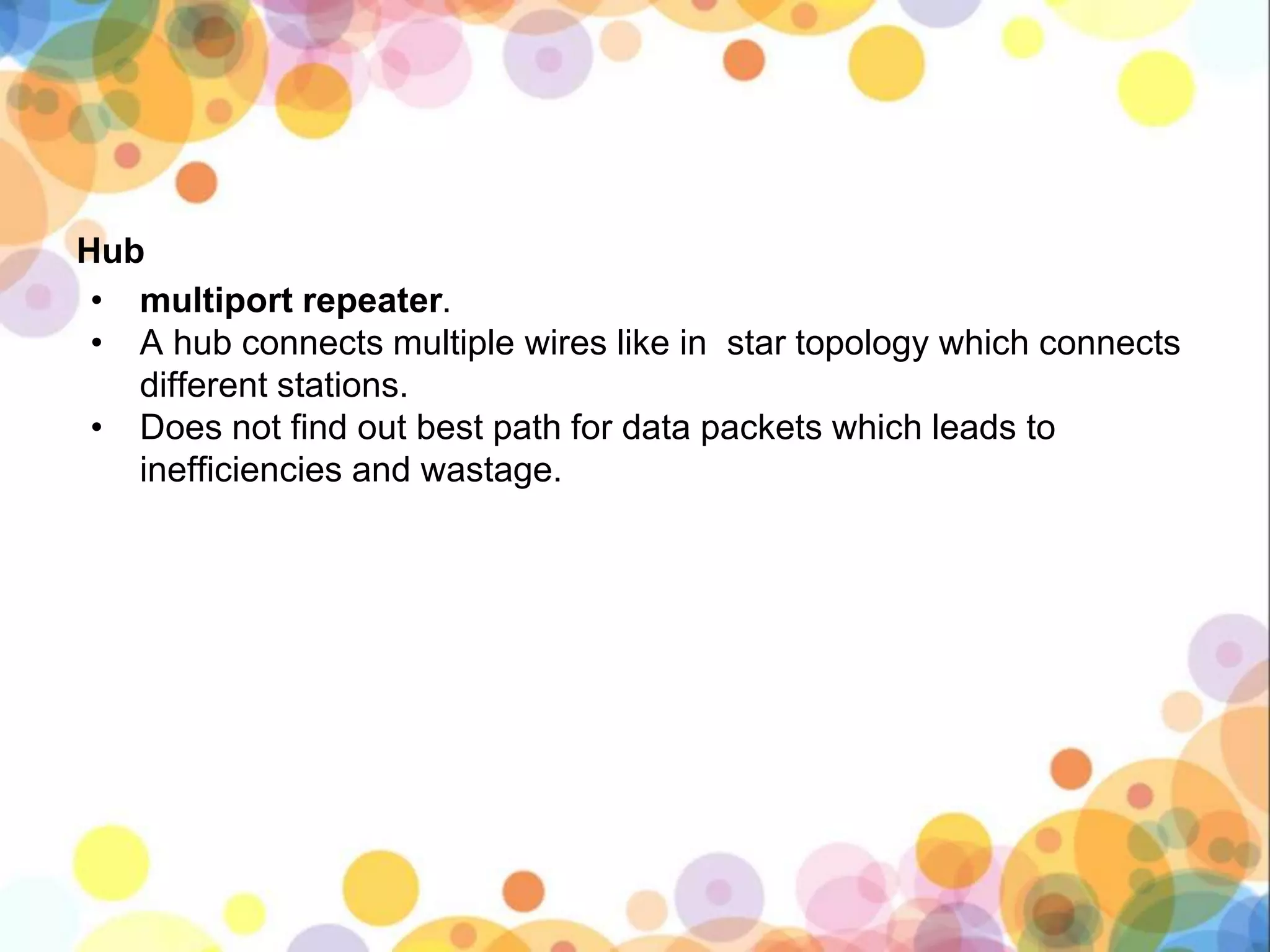

Hub • multiport repeater. • A hub connects multiple wires like in star topology which connects different stations. • Does not find out best path for data packets which leads to inefficiencies and wastage.

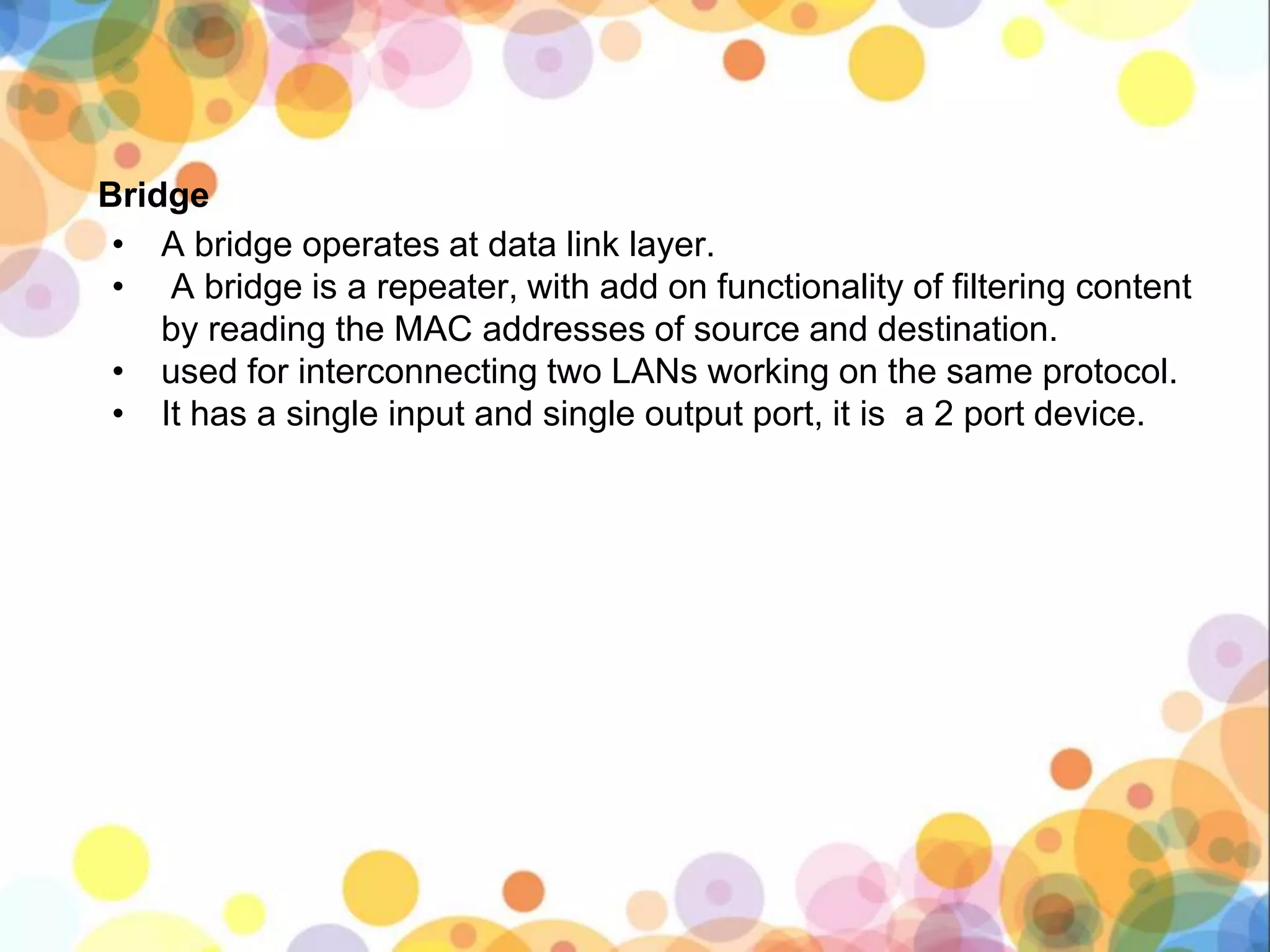

Bridge • A bridge operates at data link layer. • A bridge is a repeater, with add on functionality of filtering content by reading the MAC addresses of source and destination. • used for interconnecting two LANs working on the same protocol. • It has a single input and single output port, it is a 2 port device.
Switch • A switch is a multi port bridge with a buffer and a design that can boost its efficiency(large number of ports imply less traffic) and performance. • Switch is data link layer device. • Switch can perform error checking before forwarding data, that makes it very efficient as it does not forward packets that have errors and forward good packets selectively to correct port only.

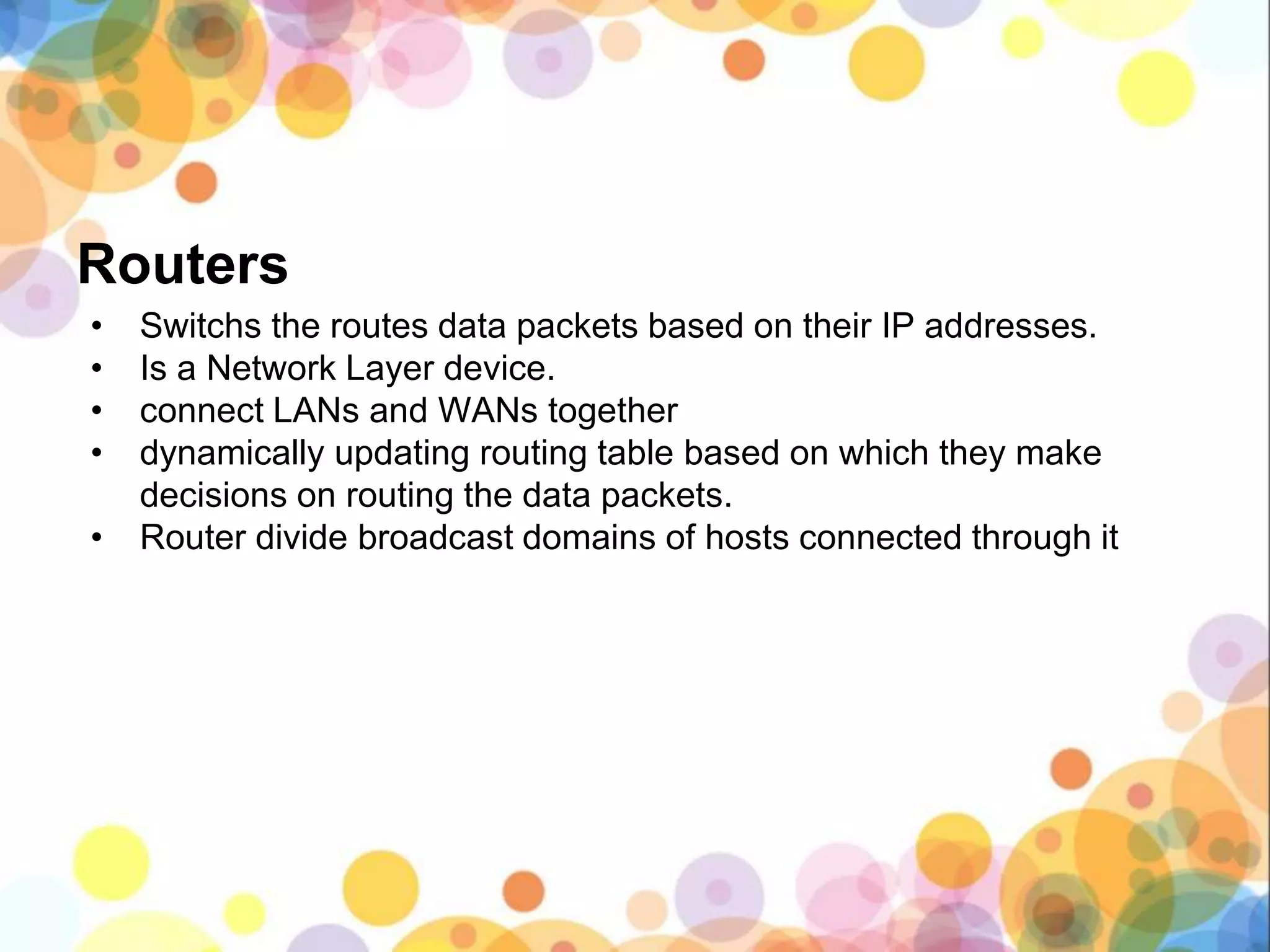

Routers • Switchs the routes data packets based on their IP addresses. • Is a Network Layer device. • connect LANs and WANs together • dynamically updating routing table based on which they make decisions on routing the data packets. • Router divide broadcast domains of hosts connected through it

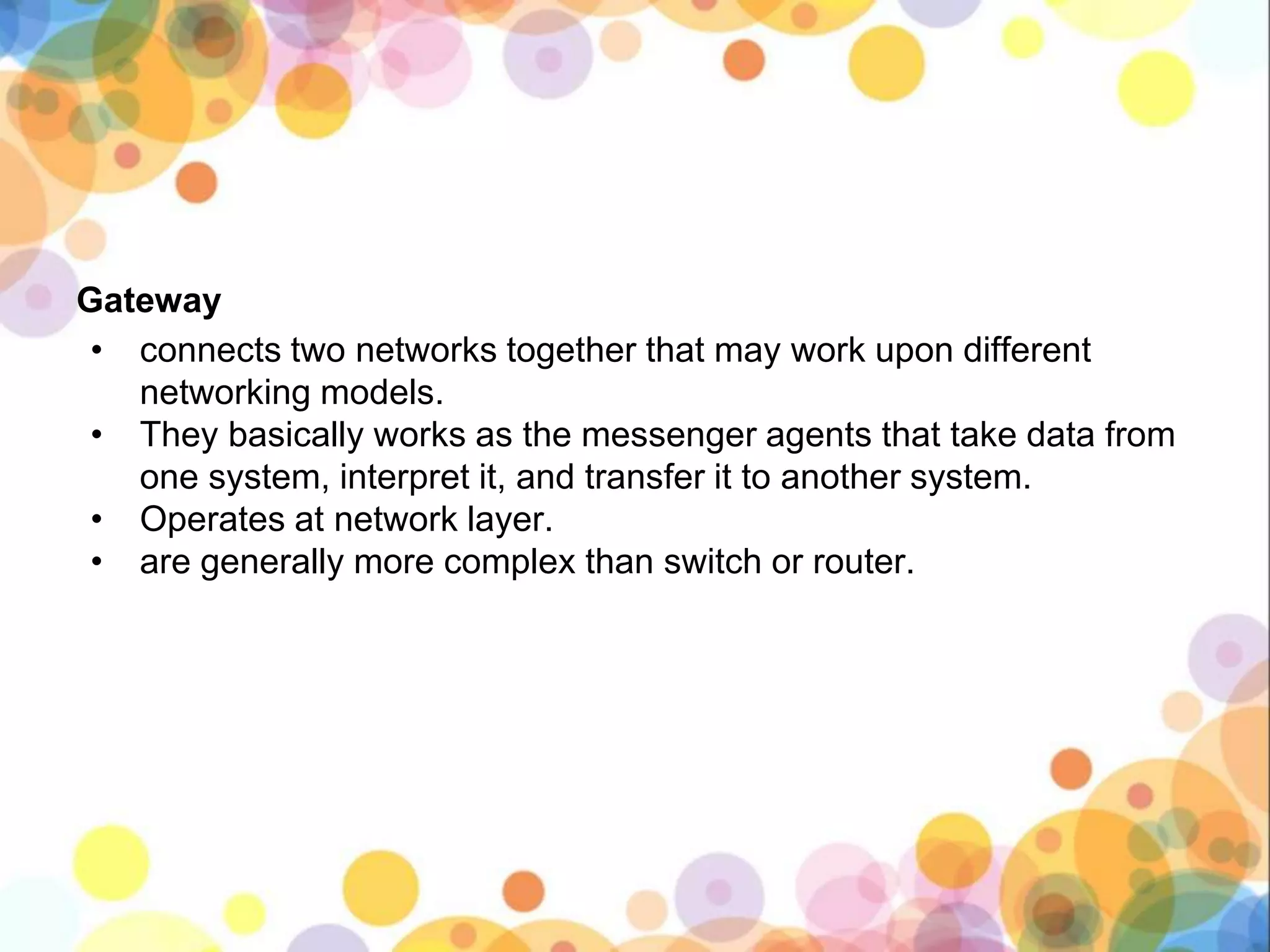

Gateway • connects two networks together that may work upon different networking models. • They basically works as the messenger agents that take data from one system, interpret it, and transfer it to another system. • Operates at network layer. • are generally more complex than switch or router.

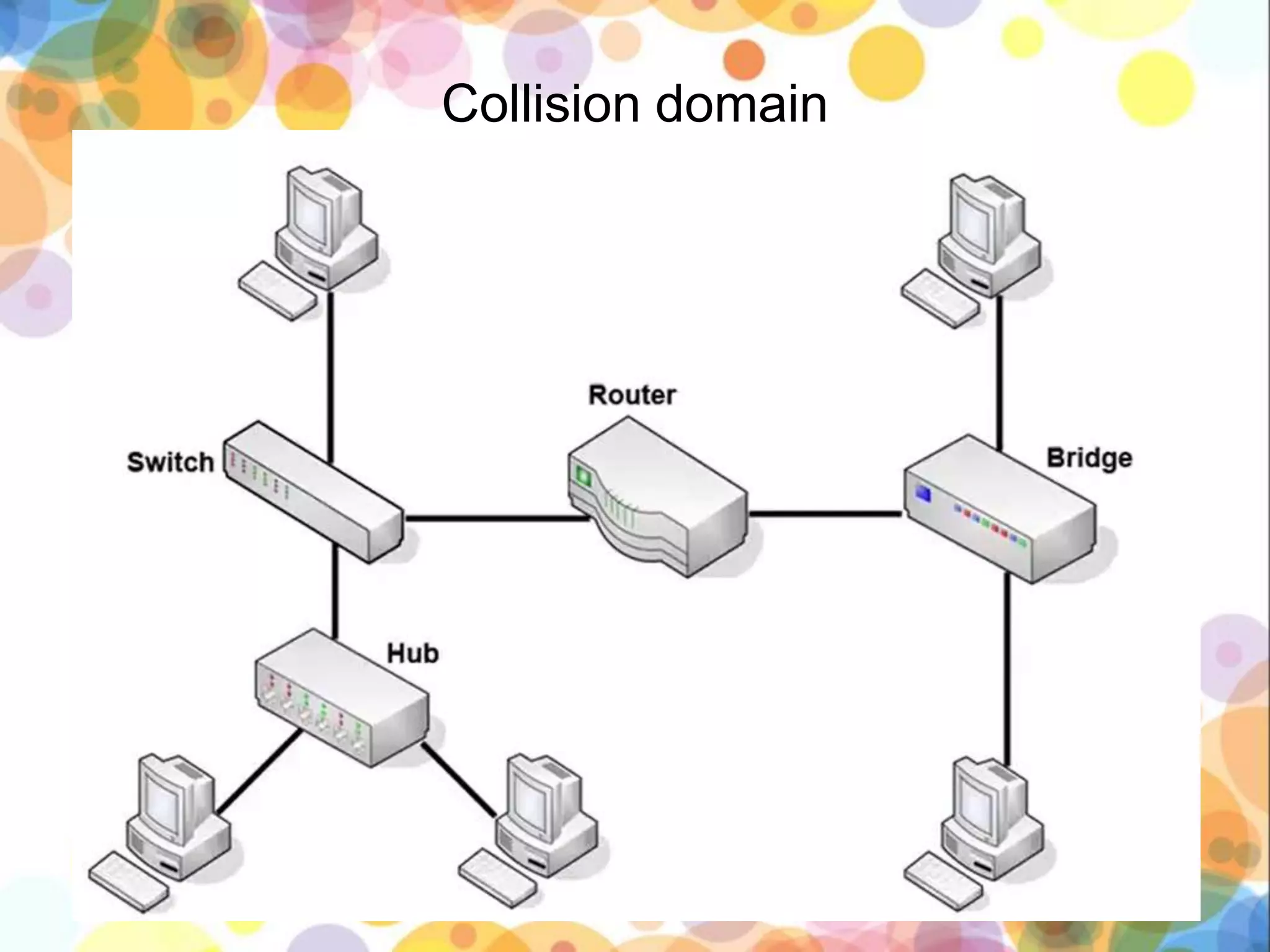

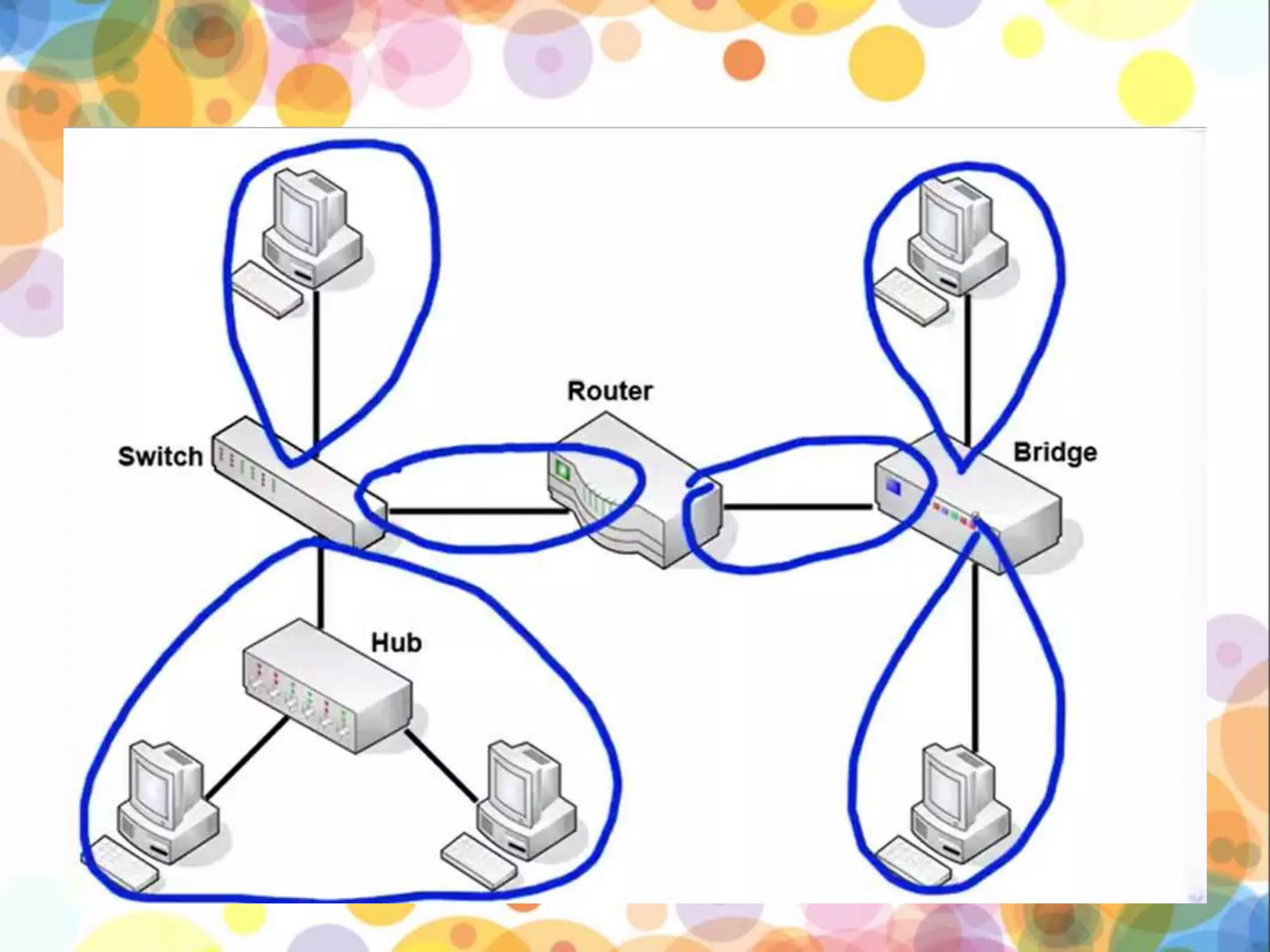

Collision domain
Module 1 Introduction to Computer Networks.pptx
Module 1 Introduction to Computer Networks.pptx
Module 1 Introduction to Computer Networks.pptx

More Related Content

PPTX
Data Communication and Networks
byChAwais15

PPTX
Introduction to computer networks
byamudha arul

PPTX
Computer Network Complete Introduction
byAhmar Hashmi

PPT
Introduction to computer network
byOnline

DOCX
Network architecture
byDr. Shalini Pandey

PPTX
Introduction to IEEE STANDARDS and its different types.pptx
byupamatechverse

PPTX
Computer Network Architecture.pptx
byAshokRachapalli1

PPTX
Lan internetworking devices
byQAU ISLAMABAD,PAKISTAN

Data Communication and Networks
byChAwais15

Introduction to computer networks
byamudha arul

Computer Network Complete Introduction
byAhmar Hashmi

Introduction to computer network
byOnline

Network architecture
byDr. Shalini Pandey

Introduction to IEEE STANDARDS and its different types.pptx
byupamatechverse

Computer Network Architecture.pptx
byAshokRachapalli1

Lan internetworking devices
byQAU ISLAMABAD,PAKISTAN


What's hot

PPTX
Detailed description about Hubs Switches Modems and their working
byrockingprashik

PPT
Ports and Connectors
bydipaknandankar

PPTX
Broadband isdn
byEr Varun Kumar

PPT
Computer network
byNeha Gupta

PPTX
Computer networks
bySakshiGupta964978

PPTX
Networks
byTalha Mudassar

PPT
Chapter7 Computer Networks
byMuhammad Waqas

PPTX
Motherboard ppt
byVipin Gupta

PPTX
Computer cables and connectors
byscottmartin3917

PPT
Power supply
byMansoor Shar

PPTX
Introduction to Network Applications & Network Services
byMuhammadRizaHilmi

PPTX
IP Address
bybaabtra.com - No. 1 supplier of quality freshers

PPTX
Network devices.pptx
byAslamCh3

PPTX
PPT On Ports | Full Concept | Ports In Depth
byUmesh Kumar

PPTX
Data Communication Basics
byHetauda City College

PPT
Comparison between 2g, 2.5g, 3g, lte and lte a
byManish Srivastava

PPT
Basic concepts of computer Networking
byHj Habib

PPTX
Switch
byMLG College of Learning, Inc

PPTX
Power Supply
byMOHIT DADU

PPTX
Bandwidth
byChristopher Brown

Detailed description about Hubs Switches Modems and their working
byrockingprashik

Ports and Connectors
bydipaknandankar

Broadband isdn
byEr Varun Kumar

Computer network
byNeha Gupta

Computer networks
bySakshiGupta964978

Networks
byTalha Mudassar

Chapter7 Computer Networks
byMuhammad Waqas

Motherboard ppt
byVipin Gupta

Computer cables and connectors
byscottmartin3917

Power supply
byMansoor Shar

Introduction to Network Applications & Network Services
byMuhammadRizaHilmi

IP Address
bybaabtra.com - No. 1 supplier of quality freshers

Network devices.pptx
byAslamCh3

PPT On Ports | Full Concept | Ports In Depth
byUmesh Kumar

Data Communication Basics
byHetauda City College

Comparison between 2g, 2.5g, 3g, lte and lte a
byManish Srivastava

Basic concepts of computer Networking
byHj Habib

Switch
byMLG College of Learning, Inc

Power Supply
byMOHIT DADU

Bandwidth
byChristopher Brown


Similar to Module 1 Introduction to Computer Networks.pptx

PPTX
Computer Networks like lan man wan and all the transmission media
byKausar Bohra

PPTX
Data communication and Computer Network Material (1).pptx
bytarrebulehora

PPTX
Networking basics
bySahil Showkat

PPTX
CN_1_comnputer_network_78783848398978.pptx
by1nt23is130mounesh

PPT
Networking & Physical Layer, covering Network Types, TCP/IP & OSI Models, Net...
bynilayarajait

PDF
Unit_1.pdf computer networks and computer topology
by22i261

PPTX
Unit_1.pptx
byMayura shelke

PDF
CN UNIT1 TO UNIT 5.pdf
bySaranyaShanmugam28

PPT
CN-UNIT-1 09.01.23.ppt
byjayapal385

PPTX
Ccna(routing &and switching)
byShweta Kumari

PPTX
INTRODUCTION TO COMPUTER NETWORKS ND EXPLINATION
bythisismanasa

PPTX
Computer Networks
byRaj vardhan

PPTX
Introduction of network
bysharone singh

PPTX
OSI REFERENCE MODEL ND TCP IP MODEL TOPOLOGIES
bythisismanasa

PPT
UNIT-1 Network Basis, Physical Layer ServicesPPT.ppt
bycnpnraja

PPTX
Tata Chuna
byRamesh Sibal

PPT
NETWORK AND DATABASE CONCEPTS UNIT 1 CHAPTER 2 MRS.SOWMYA JYOTHI
bySowmya Jyothi

PPTX
Data Communication Network Unit 1 sgbau .pptx
byneha540357

PPT
1 introduction to-networking
byNor Zailani

PPT
networking.ppt
bysuchita74

Computer Networks like lan man wan and all the transmission media
byKausar Bohra

Data communication and Computer Network Material (1).pptx
bytarrebulehora

Networking basics
bySahil Showkat

CN_1_comnputer_network_78783848398978.pptx
by1nt23is130mounesh

Networking & Physical Layer, covering Network Types, TCP/IP & OSI Models, Net...
bynilayarajait

Unit_1.pdf computer networks and computer topology
by22i261

Unit_1.pptx
byMayura shelke

CN UNIT1 TO UNIT 5.pdf
bySaranyaShanmugam28

CN-UNIT-1 09.01.23.ppt
byjayapal385

Ccna(routing &and switching)
byShweta Kumari

INTRODUCTION TO COMPUTER NETWORKS ND EXPLINATION
bythisismanasa

Computer Networks
byRaj vardhan

Introduction of network
bysharone singh

OSI REFERENCE MODEL ND TCP IP MODEL TOPOLOGIES
bythisismanasa

UNIT-1 Network Basis, Physical Layer ServicesPPT.ppt
bycnpnraja

Tata Chuna
byRamesh Sibal

NETWORK AND DATABASE CONCEPTS UNIT 1 CHAPTER 2 MRS.SOWMYA JYOTHI
bySowmya Jyothi

Data Communication Network Unit 1 sgbau .pptx
byneha540357

1 introduction to-networking
byNor Zailani

networking.ppt
bysuchita74


Recently uploaded

PDF
The Pity of War: Form, Fragment, and the Artificial Echo | Understanding War ...
byNidhi Pandya

PPTX
Accounting Skills Paper-II (Registers of PACs and Credit Co-operative Societies)
byDr. Sushil Bansode

PDF
Nutrients & Role in Horticulture.pdf, Dr. Sharad Bisen Horticulture
bybisensharad

PDF
Projecte de la porta de primer B: L'antic Egipte
byeduardrubio1

PDF
Models of Teaching - TNTEU - B.Ed I Semester - Teaching and Learning - BD1TL ...
byDr Raja Mohammed T

PDF
NAVIGATE PHARMACY CAREER OPPORTUNITIES.pdf
byMd. Zakaria Faruki

PDF
Principles and Practices of GST 2.0 Study material
bySri Ramakrishna College of Arts and science

PDF
State and Sovereignty – Forms of Government & Comparative Analysis of Differe...
byDr Raja Mohammed T

PDF
Projecte de la porta de la classe de primer A: Mar i cel.
byeduardrubio1

PDF
1ST APPLICATION FOR ANNULMENT (4)8787666.pdf
bykonstantinantountoum1

PDF
The Drift Principle: When Information Accelerates Faster Than Minds Can Compress
byReality Drift Archive

PDF
Blue / Green: Troop Leading Procedure (TLP) Overview.pdf
byBlue / Green Training

PPTX
York "Collaboration for Research Support at U-M Library"
byNational Information Standards Organization (NISO)

PDF
The Tale of Melon City poem ppt by Sahasra
bybitrasahasra

PDF
Digital Wellness in University Communities: Libraries as Guardians of Healthy...
bySylvester Ebhonu

PDF
Ketogenic diet in Epilepsy in children..
bymirzasania0810

PPTX
Unit I — Introduction to Anatomical Terms and Organization of the Human Body
byRAKESH SAJJAN

PDF
Orchard Floor Managment.pdf Orchard Floor Management
bybisensharad

PPTX
Pain. definition, causes, factor influencing pain & pain assessment.pptx
byPompi Begum

PPTX
Limpitlaw "Licensing: From Mindset to Milestones"
byNational Information Standards Organization (NISO)

The Pity of War: Form, Fragment, and the Artificial Echo | Understanding War ...
byNidhi Pandya

Accounting Skills Paper-II (Registers of PACs and Credit Co-operative Societies)
byDr. Sushil Bansode

Nutrients & Role in Horticulture.pdf, Dr. Sharad Bisen Horticulture
bybisensharad

Projecte de la porta de primer B: L'antic Egipte
byeduardrubio1

Models of Teaching - TNTEU - B.Ed I Semester - Teaching and Learning - BD1TL ...
byDr Raja Mohammed T

NAVIGATE PHARMACY CAREER OPPORTUNITIES.pdf
byMd. Zakaria Faruki

Principles and Practices of GST 2.0 Study material
bySri Ramakrishna College of Arts and science

State and Sovereignty – Forms of Government & Comparative Analysis of Differe...
byDr Raja Mohammed T

Projecte de la porta de la classe de primer A: Mar i cel.
byeduardrubio1

1ST APPLICATION FOR ANNULMENT (4)8787666.pdf
bykonstantinantountoum1

The Drift Principle: When Information Accelerates Faster Than Minds Can Compress
byReality Drift Archive

Blue / Green: Troop Leading Procedure (TLP) Overview.pdf
byBlue / Green Training

York "Collaboration for Research Support at U-M Library"
byNational Information Standards Organization (NISO)

The Tale of Melon City poem ppt by Sahasra
bybitrasahasra

Digital Wellness in University Communities: Libraries as Guardians of Healthy...
bySylvester Ebhonu

Ketogenic diet in Epilepsy in children..
bymirzasania0810

Unit I — Introduction to Anatomical Terms and Organization of the Human Body
byRAKESH SAJJAN

Orchard Floor Managment.pdf Orchard Floor Management
bybisensharad

Pain. definition, causes, factor influencing pain & pain assessment.pptx
byPompi Begum

Limpitlaw "Licensing: From Mindset to Milestones"
byNational Information Standards Organization (NISO)


Module 1 Introduction to Computer Networks.pptx

  • 1.
  • 2.
    Definition: Computer Network isa series of points, or nodes, interconnected by communication paths for the purpose of transmitting, receiving and exchanging data, voice and video traffic. • Nodes/Endpoints can include servers, personal computers, phones and many types of network devices. • Network devices including switches and routers use a variety of protocols and algorithms to exchange information and to transport data to its intended endpoint.
  • 3.
    ▪ Every endpoint(sometimes called a host) in a network has a unique identifier, often an IP address or a Media Access Control address ▪ Networks may also be divided into subnetworks, also called subnets. ▪ Types of networks • Networks may also be categorized by the scope of their domains. • Storage area networks interconnect storage devices and resources. • Size/ Geographical area • Local area networks interconnect endpoints in a single domain. • Wide area networks interconnect multiple LANs, Metropolitan area networks interconnect computer resources in a geographic area.
  • 4.
    LAN •Privately owned •Connect hostsin single office, building or campus •Connects host WAN •Wider geographical span – town, state country •Connects switches, routers •Types: Point to Point WAN and switched WAN MAN •long-distance communication systems.
  • 5.
    How are nodesconnected? • Point to Point WAN • Switched WAN
  • 6.
    • An internetworkis a collection of individual networks connected by networking devices and that function as a single large network. • Networks may use a mix of wired (optical fiber, coaxial cable or copper wires)and wireless technologies (broadcast radio, cellular radio, microwave and satellite). • Internet is a switched network
  • 7.
    Need for ComputerNetworks • File Sharing • Resource Sharing • Data Protection and Redundancy • Distributed Computing • Ease of Administration • Internal Communications
  • 8.
    Circuit switching ⮚Dedicated physicalpath established between source and destination in 3 phases i) Connection Establishment. ii) Data Transfer. iii) Connection Released. ⮚In circuit switching, each data unit know the entire path address which is provided by the source, through the switch ⮚In Circuit switching, data is processed at source system only Packet switching ⮚In Packet switching directly data transfer takes place, in available path. No Dedicated physical path ⮚In Packet switching, each data unit just know the final destination address intermediate path is decided by the routers ⮚In Packet switching, data is processed at all intermediate node including source system. Switching
  • 9.
    Circuit switching ⮚Delay betweendata units in circuit switching is uniform. ⮚Resource reservation is the feature of circuit switching because path is fixed for data transmission. ⮚Circuit switching is more reliable. ⮚Wastage of resources are more in Circuit Switching Packet switching ⮚Delay between data units in packet switching is not uniform. ⮚There is no resource reservation because bandwidth is shared among users. ⮚Packet switching is less reliable.In Packet switching, data is processed at all intermediate node including source system. ⮚Less wastage of resources as compared to Circuit Switching.
  • 10.
    Network Criteria ▪ Performance •rate of transferring error free data. • measured by the Response Time. • Factors that affect Response Time are: – Number of Users: More users on a network - slower the network will run – Transmission Speed: speed that data will be transmitted measured in bits per second (bps) – Media Type: Type of physical connection used to connect nodes together – Hardware Type: Slow computers such as XT or fast such as Pentiums – Software Program: How well is the network operating system (NOS) written
  • 11.
    Other metric usedto measure performance •Bandwidth : number of bits per second that a channel, a link, or even a network can transmit. •Throughput : throughput is a measure of how fast we can actually send data through a network •Latency: how long it takes for an entire message to completely arrive at the destination from the time the first bit is sent out from the source. Latency =propagation time +transmission time +queuing time + processing delay •Jitter: problem if different packets of data encounter different delays and the application using the data at the receiver site is time
  • 12.
    ▪ Consistency • predictabilityof response time and accuracy of data ▪ Reliability • measure of how often a network is useable. • MTBF (Mean Time Between Failures) is a measure of the average time a component is expected to operate between failures. • A network failure can be: hardware, data carrying medium and Network Operating System. ▪ Recovery • Network's ability to return to a prescribed level of operation after a network failure. • is based on having Back-up Files.
  • 13.
    ▪ Security – protectionof Hardware, Software and Data from unauthorized access. – Restricted physical access to computers, password protection, limiting user privileges and data encryption are common security methods. – Anti-Virus monitoring programs to defend against computer viruses are a security measure
  • 14.
    Physical Structures ▪ Herewe’ll discuss the physical connections for Networks. ▪ Two possible connection types : ▪ Point-to-point or Multipoint Point-to-point connections • provides a dedicated link or between two devices. • The entire capacity of the link is reserved for transmission between those two devices. (actual length of wire or cable to connect ) Multipoint connections • more than two devices are sharing a link • The entire capacity of the link is either shared spatially or temporally.
  • 15.
    Network Topology –the way a network is laid out physically ▪Types BUS Topology •only one computer can send data on the bus at any one time. •Every device is connected to a single cable Network Topology
  • 16.
    Advantages of BusTopology •It is cost effective. •Cable required is least compared to other network topology. •Used in small networks. •It is easy to understand. •Easy to expand joining two cables together. Disadvantages of Bus Topology •Cables fails then whole network fails. •If network traffic is heavy or nodes are more the performance of the network decreases. •Cable has a limited length. •It is slower than the ring topology.
  • 17.
    RING Topology •It iscalled ring topology because it forms a ring as each computer is connected to another computer, with the last one connected to the first. •A number of repeaters are used •The transmission is unidirectional /bidirectional (Dual Ring)
  • 18.
    Advantages of RingTopology •Transmitting network is not affected by high traffic or by adding more nodes, as only the nodes having tokens can transmit data. •Cost effective to install and expand Disadvantages of Ring Topology •Troubleshooting is difficult in ring topology. •Adding or deleting the computers disturbs the network activity. •Failure of one computer disturbs the whole network.
  • 19.
    STAR Topology •In thistype of topology all the computers are connected to a single hub through a cable. This hub is the central node and all others nodes are connected to the central node. •Every node has its own dedicated connection to the hub. •Hub acts as a repeater for data flow. •Can be used with twisted pair, Optical Fibre or coaxial cable.
  • 20.
    Advantages of StarTopology •Fast performance with few nodes and low network traffic. •Hub can be upgraded easily. •Easy to troubleshoot. •Easy to setup and modify. •Only that node is affected which has failed, rest of the nodes can work smoothly. Disadvantages of Star Topology •Cost of installation is high. ( cable and extra device) •If the hub fails then the whole network is stopped because all the nodes depend on the hub. •Performance is based on the hub that is it depends on its capacity
  • 21.
    MESH Topology •It isa point-to-point connection to other nodes or devices. •All the network nodes are connected to each other. •Mesh has n(n-1)/2 physical channels to link n devices. There are two techniques to transmit data over the Mesh topology, they are : 1.Routing 2.Flooding
  • 22.
    Routing •In routing, thenodes have a routing logic as per the network requirements - shortest distance, information about the broken links Flooding •In flooding, the same data is transmitted to all the network nodes, •The network is robust, and the its very unlikely to lose the data. But it leads to unwanted load over the network. Types of Mesh Topology •Partial Mesh Topology : In this topology some of the systems are connected in the same fashion as mesh topology but some devices are only connected to two or three devices. •Full Mesh Topology : Each and every nodes or devices are connected to each other.
  • 23.
    Advantages of MeshTopology •Each connection can carry its own data load. •It is robust. •Fault is diagnosed easily. •Provides security and privacy. Disadvantages of Mesh Topology •Installation and configuration is difficult. •Cabling cost is more. •Bulk wiring is required.
  • 24.
    TREE Topology •It hasa root node and all other nodes are connected to it forming a hierarchy. •It is also called hierarchical topology. • It should at least have three levels to the hierarchy •Ideal if workstations are located in groups. •Used in Wide Area Network.
  • 25.
    Advantages of TreeTopology •Extension of bus and star topologies. •Expansion of nodes is possible and easy. •Easily managed and maintained. •Error detection is easily done. Disadvantages of Tree Topology •Heavily cabled. •Costly. •If more nodes are added maintenance is difficult. •Central hub fails, network fails.
  • 26.
    HYBRID Topology •It istwo different types of topologies which is a mixture of two or more topologies. •It is a combination of two or topologies •Inherits the advantages and disadvantages of the topologies included
  • 27.
    Advantages of HybridTopology •Reliable as Error detecting and troubleshooting is easy. •Effective. •Scalable as size can be increased easily. •Flexible. Disadvantages of Hybrid Topology •Complex in design. •Costly.
  • 28.
    OSI Reference Model •OSI stands for Open Systems Interconnection model (OSI model) • developed by ISO – ‘International Organization of Standardization‘, in 1974 • It is a 7 layer architecture with each layer having specific functionality to perform • conceptual framework that describes functions of the networking or telecommunication system independently from the underlying technology infrastructure. •
  • 29.
    Why layering? Dealing withcomplex systems: ❑ explicit structure allows identification, relationship of complex system’s pieces ❑ modularization eases maintenance, updating of system �change of implementation of layer’s service transparent to rest of system ■ e.g. change in gate procedure doesn’t affect rest of system ❑ was originally developed to facilitate interoperability between vendors and to define clear standards for network communication.
  • 30.
    • OSI isnot a physical model; rather it is a set of guidelines that application developer can use to create application that run on network. • It provides framework for creating and implementing networking standards, devices, internetworking scheme. • O.S.I Has 7 Layer, divided into 2 groups. – The Layer 4-3-2-1 layer defines how data is transmitted end-to-end. – The Layer 7-6-5 defines how the application within one station will communicate with each other. Responsible for application communication between hosts.
  • 31.
    • Layers areas under: – A layer should be created where a different level of abstraction is needed. – Each layer should perform a well defined function. – The function of each layer should be chosen with an eye towards defining internationally standardized protocols. – The layer boundaries should be chosen to minimize the information flow across the interfaces. – The number of layers should be large enough that distinct functions need not be thrown together in the same layer out of necessity.
  • 32.
    • protocol dataunit (PDU) is a single unit of information transmitted among peer entities of a computer network.
  • 33.
  • 36.
    Application Layer: • Thislayer provides the operational system with direct access to the network services and is responsible to generate Data ( user info/ system commands) • It also provides an interface so that Application (Web Browser) that are running on the local machine can access the network services. So It enables user or software to access the network. • It provides user interfaces and support for services such as electronic mail, remote file access and transfer, shared database management, and other types of distributed information services.
  • 37.
    Presentation Layer: • Thislayer is concern with the syntax and semantics of the information exchanged between 2 systems. • The presentation layer is concerned with translating, interpreting, and converting the data from various formats. • Data is compressed for transmission and uncompressed on receipt in this layer. • Encryption techniques are also implemented at the presentation layer. • Function: Present Data, Handles Processing Such as Encryption, Compression and Translation Services
  • 38.
    • Translation: Informationshould be changed to bit streams before being transmitted. Because different computers us e different encoding system, the presentation layer is responsible for interoperability between these different encoding methods. • Encryption: To carry sensitive information, a system must be able to assure privacy. Transformation is carried out at this layer. • Compression: Data compression reduces the number of bits to be transmitted. It is highly required when transmitting data of text, audio and video.
  • 39.
    Session Layer: • Thesession layer is responsible for establishing, managing, and terminating a connection called session. • A session is an exchange of messages between computers. • Logon, name recognition and security functions occur while establishing a session. – Managing the session involves synchronization of user tasks and messages. – Synchronization involves the use of checkpoints in the data stream. In the event of a failure, only the data from the last checkpoint has to be resent.
  • 40.
    • Function: Keepsdifferent application data separate, Dialog control, Synchronization – Dialog control: The session layer allows two systems to enter into a dialog. It allows the communication between two processes to take place either in half- duplex or full duplex. – Synchronization: This layer allows a process to add checkpoints into a stream of data.
  • 41.
    Transport Layer: • Thetransport layer is responsible for the control of flow and ensuring that messages are delivered error free source -to-destination (end-to-end). • On the originating side, messages are packaged for efficient transmission and assigned a tracking number. • On the receiving side, the packets are reassembled, checked for errors, and acknowledged. • The transport layer performs error handling by ensuring that all data is received in the proper sequence without errors. If there are errors the data is retransmitted.
  • 42.
    • This layerensures that the whole message arrives intact and in order, overseeing both error control and flow control at the source-to-destination level. • For security purpose, this layer may create a connection between the two end ports, a logical path between source and destination. • Function: End-to-End Connection, Perform error correction before retransmit – Service -point addressing: Computer runs several programs at the same time. So this layer is responsible for delivering data to specific process (port) of computer.
  • 43.
    – It containsservice-point address (port address) and therefore, network layer gets each packet to the correct computer on correct network. – Segmentation and Reassembly: A message is divided into transmittable segments, each segment containing sequence number, which enables layer to reassembling the message correctly upon arriving at the destination and can identify those packets which are lost during the transmission.
  • 44.
    – Connection control:The transport layer can be either connection or connection oriented. • A connection-less transport layer treats each segment as an independent packet and delivers it to the transport layer at the destination machine. • Whereas connection oriented transport layer makes a connection with the transport layer at the destination machine first before delivering the packet.
  • 45.
    – Error control:This layer is more concern with end - to-end control rather than single link control of data link layer. The receiving transport layer makes sure that the entire message arrives without error. Error correction is usually achieved through retransmission.
  • 46.
    Network Layer: • Thenetwork layer is primarily concerned with addressing and routing. • Logical addresses or IP addresses are translated into physical addresses or machine addresses for transmission at the network layer. – On the receiving side, the translation process is reversed. – The network layer also determines the route from the source to the destination computer to deliver packets.
  • 47.
    • Routes aredetermined based on packet addresses and network conditions. Traffic control measures are also implemented at the network layer. – If 2 systems are connected in the same network, there is no need for the network layer. • Function: Routing, Provides Logical addressing which router used for path determination – Logical Addressing: The physical addressing implemented by the data link layer handles the
  • 48.
    – addressing problemlocally. If packet passes the network boundary, it needs another addressing system to help distinguish the source and destination system. – Routing: When independent networks or links are connected together to create internetwork, the connecting device (router or gateway) route the packets to their final destination. This is one more mechanism provided by this layer.
  • 49.
    Data Link Layer: •The data link layer defines how the signal will be placed. • In this layer, the data frames are broken down into individual bits that can be translated into electronic signals and sent over network. On the receiving end the bits are reassembled into frames for processing by upper levels. • If an acknowledgement is expected and not received, the frame will be resent. • Error and corrupt data detection and correction is also performed at the data link layer
  • 50.
    ● The datalink layer transforms the physical layer, a raw transmission facility, to a reliable link and is responsible for node-to-node delivery. ● Function: Framing, Combine Packets into Bytes And bytes into Frame – Framing: the data link layer divides the stream of bits received from the network layer into manageable data units called frames. – Physical Addressing: If frames are to be distributed to different systems on the network, the data link layer adds a header to the frame to define the physical address of the sender and receiver of
  • 51.
    – Flow control:If the rate at which the data are absorbed by the receiver is less than the rate produced in the sender, the data link layer imposes the flow control mechanism to prevent overwhelming the receiver. – Error control: The data link layer adds reliability to the physical layer by adding mechanisms to detect and retransmit damaged or lost frames. It uses the mechanism to prevent duplication of frames. Error control is normally achieved through a trailer added to the end of the frame.
  • 52.
    – Access control:When two or more devices are connected to the same link, data link layer protocols are necessary to determine which device has control over the link at any given time.
  • 53.
    Physical Layer: ● Thephysical layer of the OSI model establishes the physical characteristics of the network such as the type of cable, connectors, and the length of the cable. ● This layer also defines the electrical characteristics of the signals used to transmit the data. ● The physical layer transmits the binary data (bits) as electrical or optical signals depending on medium.
  • 54.
    ● This layeris concern with the following: – Physical characteristics of interface and medium: This layer defines the characteristics of the interface between the devices and the transmission medium. – Representation of bits: Data of this layer consists of a stream of bits without any interpretation. They must be encoded into signals (electronics or optical), which is defined by the physical medium. – Data rates: The number of bits sent each second, is also defined b the physical layer.
  • 55.
    – Line configuration:They physical layer is concerned with the connection of device to the medium. It can be Point-to-Point or Multipoint Configuration. – Transmission Mode: The physical layer also defined the direction of transmission between two devices (Simplex, Half-Duplex or Full-Duplex).
  • 56.
    Summary of OSI PhysicalLayer: To transmit bits over a medium. Data Link Layer: To organize bits into frames; to provide node-to-node delivery. Network Layer: To move packets from source to destination. Transport Layer: To provide reliable end-to-end message delivery and error recovery. Session Layer: To establish, manage and terminate sessions. Presentation Layer: To translate, encrypt, and compress data. Application Layer: To generate data and allow access to
  • 57.
  • 59.
    Comparison between OSIReference Model and TCP/IP Reference Model • TCP refers to Transmission Control Protocol. OSI refers to Open Systems Interconnection.
  • 61.
    Similarities between OSIReference and TCP/IP Reference Model •Both are layered architecture. •Layers provide similar functionalities. •Both are protocol stack. •Both are reference models
  • 62.
    Comparison of OSIReference Model and TCP/IP Reference Model ❑ OSI has seven layers ❑ OSI emphasis on providing a reliable data transfer service, Each layer of the OSI model detects and handles errors, all data transmitted includes checksums. ❑ Is a general model. The OSI model was devised before the protocols were invented. It can be made to work in diverse he. terogeneous networks. ❑ TCP/IP has four layers ❑ TCP/IP treats reliability as an end to end Problem. The transport layer handles all error detection and recovery, it was checksums, acknowledgments, and timeouts to control transmissions and provides end-to-end verification. ❑ Cannot be used in other applications
  • 63.
    Comparison of OSIReference Model and TCP/IP Reference Model (contd) ❑ OSI model supports both connectionless and connection oriented communication in the network layer, but only connection oriented communication in the transport layer, where it counts. ❑ OSI makes the distinction between services, interfaces, and protocol. ❑ The OSI model supports both connectionless and connection- oriented communication in the network layer, but only connection- oriented communication in the transport layer. ❑ The TCP/IP model has only one mode in the network layer (connectionless) but supports both modes in the transport layer, giving the user choice. ❑ TCP/IP does not originally clearly distinguish between services, interface, and protocol. ❑ TCP/IP model was just a description of the existing protocols. The model and the protocol fit perfectly.
  • 64.
    Network devices Repeater • Arepeater operates at the physical layer. • Its job is to regenerate the signal over the same network before the signal becomes too weak or corrupted so as to extend the length to which the signal can be transmitted over the same network. • It regenerate it to the original strength. • It is a 2 port device.
  • 65.
    Hub • multiport repeater. •A hub connects multiple wires like in star topology which connects different stations. • Does not find out best path for data packets which leads to inefficiencies and wastage.
  • 66.
    Bridge • A bridgeoperates at data link layer. • A bridge is a repeater, with add on functionality of filtering content by reading the MAC addresses of source and destination. • used for interconnecting two LANs working on the same protocol. • It has a single input and single output port, it is a 2 port device.
  • 67.
    Switch • A switchis a multi port bridge with a buffer and a design that can boost its efficiency(large number of ports imply less traffic) and performance. • Switch is data link layer device. • Switch can perform error checking before forwarding data, that makes it very efficient as it does not forward packets that have errors and forward good packets selectively to correct port only.
  • 68.
    Routers • Switchs theroutes data packets based on their IP addresses. • Is a Network Layer device. • connect LANs and WANs together • dynamically updating routing table based on which they make decisions on routing the data packets. • Router divide broadcast domains of hosts connected through it
  • 70.
    Gateway • connects twonetworks together that may work upon different networking models. • They basically works as the messenger agents that take data from one system, interpret it, and transfer it to another system. • Operates at network layer. • are generally more complex than switch or router.
