![19
COSC 3P92
Set associative mapping
• [4.39]
• use same hash function as direct mapping, except
that each cache slot holds multiple data blocks
– usually max. 4 blocks (“4-way”)
• searching blocks in a slot done associatively:
simultaneous pattern matching
• more flexible than direct: multiple blocks in set
• use smaller tag than associative, therefore
cheaper to implement associative matching
• commonly used in larger systems (VAX 11-780)
• which line should be replaced when slot full?
– eg. LRU (least recently used)](https://image.slidesharecdn.com/7memcache-251214102208-5fe1c42d/75/Memory-Organization-In-Assembly-Language-19-2048.jpg)
Memory Organization In Assembly Language
- 1. 1 COSC 3P92 Cosc 3P92 Week9 Lecture slides The human brain starts working the moment you are born and never stops until you stand up to speak in public. George Jessel

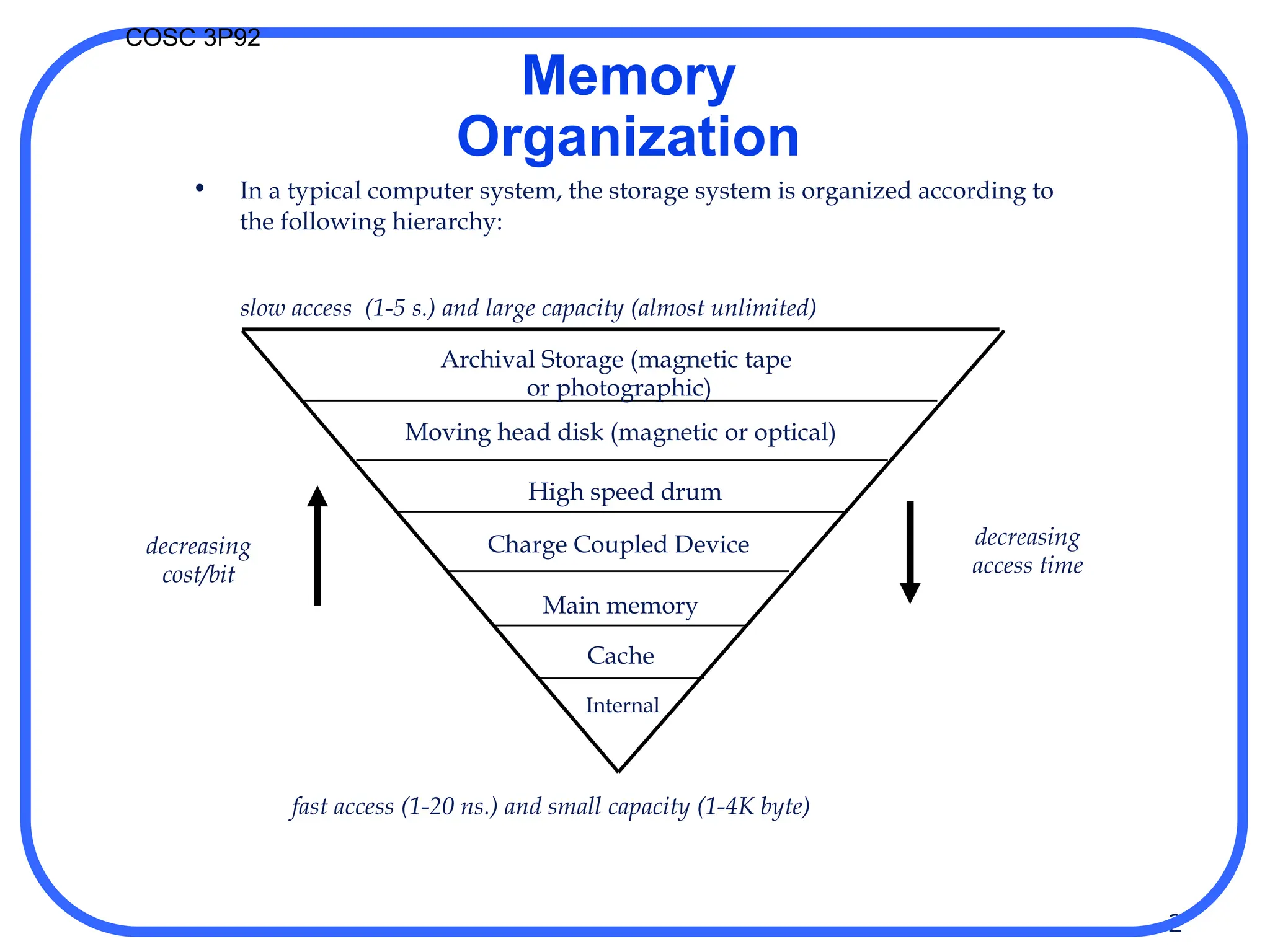

- 2. 2 COSC 3P92 • Ina typical computer system, the storage system is organized according to the following hierarchy: Archival Storage (magnetic tape or photographic) Moving head disk (magnetic or optical) High speed drum Charge Coupled Device Main memory Cache Internal decreasing cost/bit decreasing access time fast access (1-20 ns.) and small capacity (1-4K byte) slow access (1-5 s.) and large capacity (almost unlimited) Memory Organization

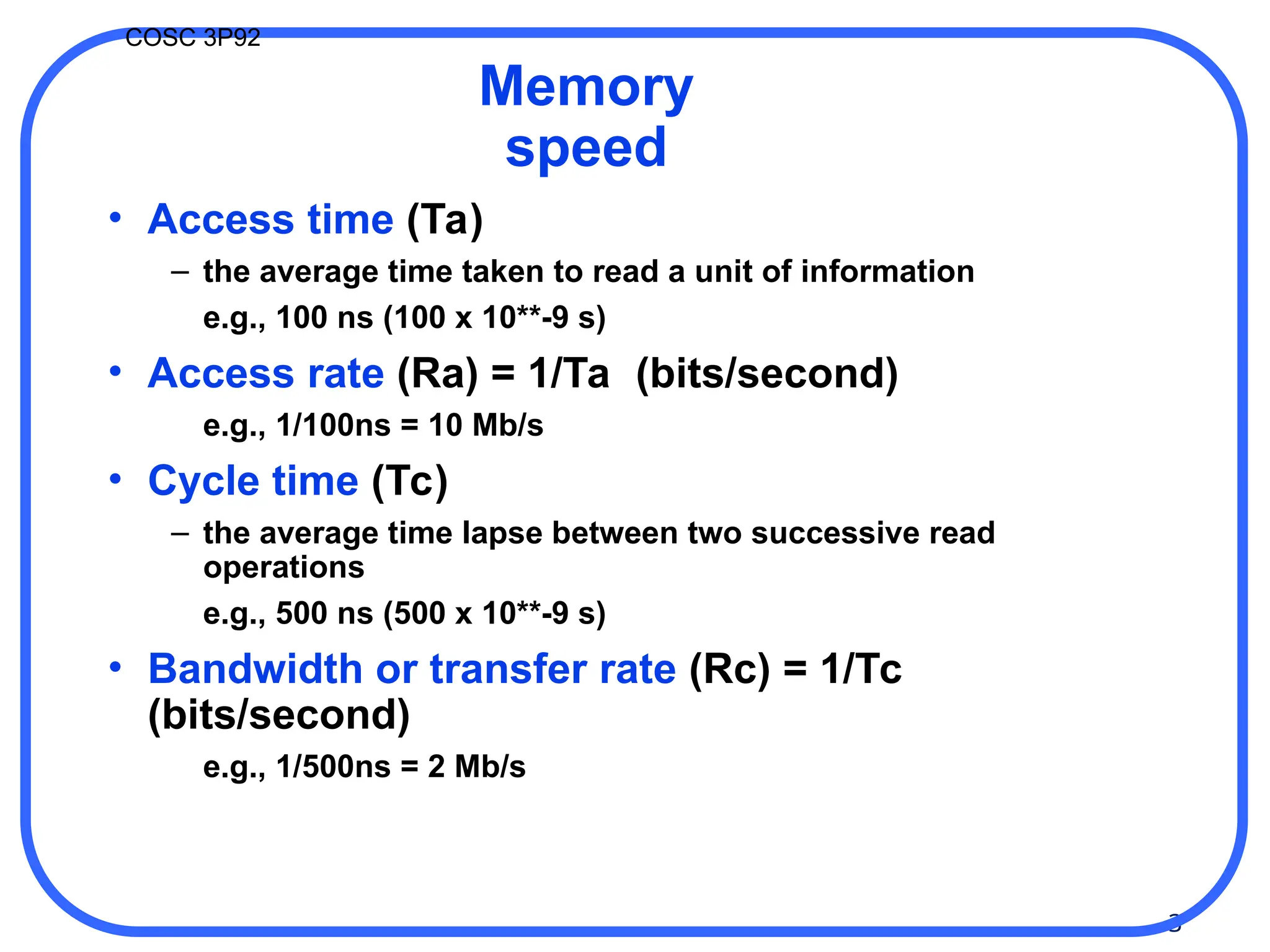

- 3. 3 COSC 3P92 Memory speed • Accesstime (Ta) – the average time taken to read a unit of information e.g., 100 ns (100 x 10**-9 s) • Access rate (Ra) = 1/Ta (bits/second) e.g., 1/100ns = 10 Mb/s • Cycle time (Tc) – the average time lapse between two successive read operations e.g., 500 ns (500 x 10**-9 s) • Bandwidth or transfer rate (Rc) = 1/Tc (bits/second) e.g., 1/500ns = 2 Mb/s

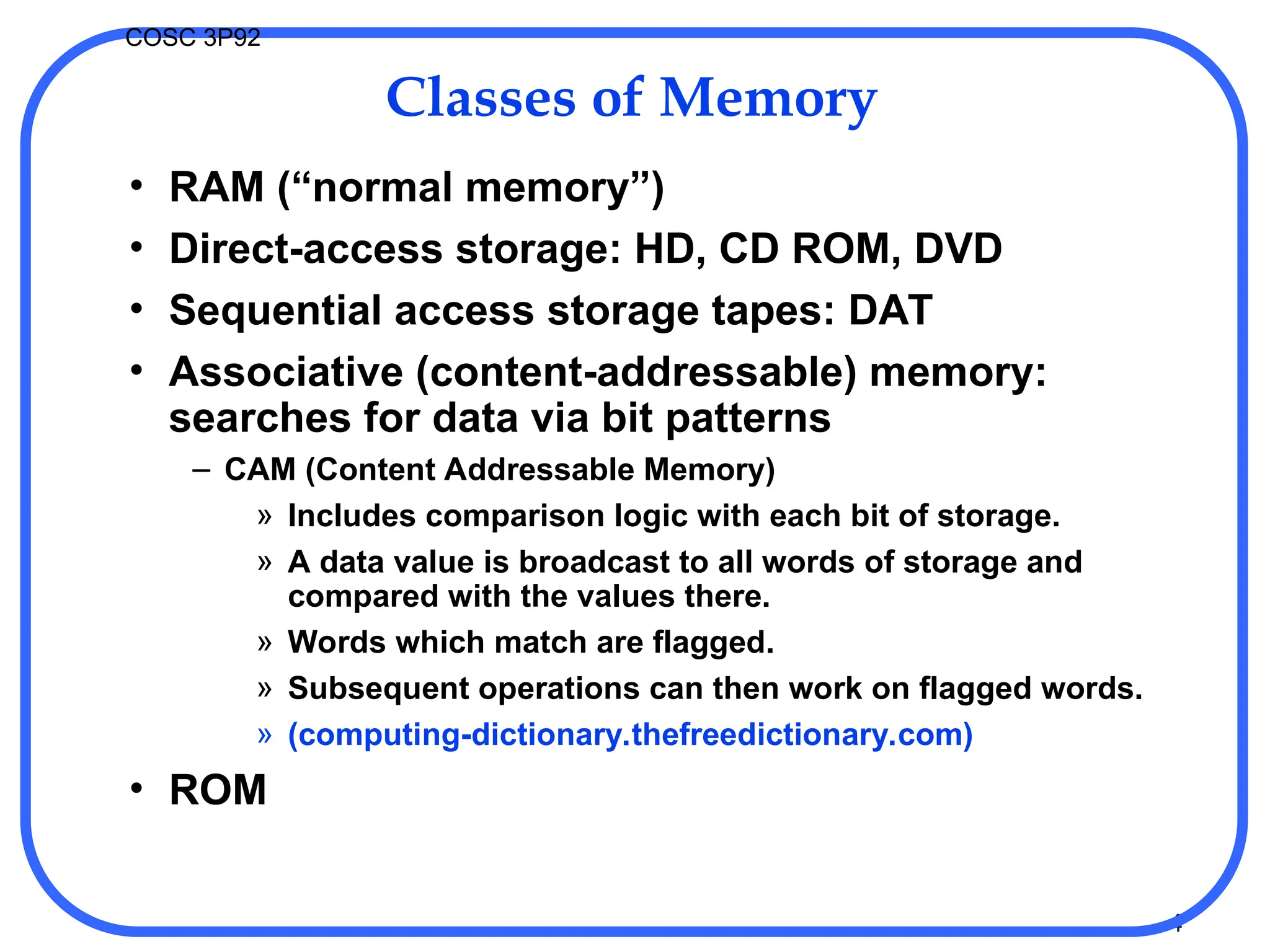

- 4. 4 COSC 3P92 Classes ofMemory • RAM (“normal memory”) • Direct-access storage: HD, CD ROM, DVD • Sequential access storage tapes: DAT • Associative (content-addressable) memory: searches for data via bit patterns – CAM (Content Addressable Memory) » Includes comparison logic with each bit of storage. » A data value is broadcast to all words of storage and compared with the values there. » Words which match are flagged. » Subsequent operations can then work on flagged words. » (computing-dictionary.thefreedictionary.com) • ROM

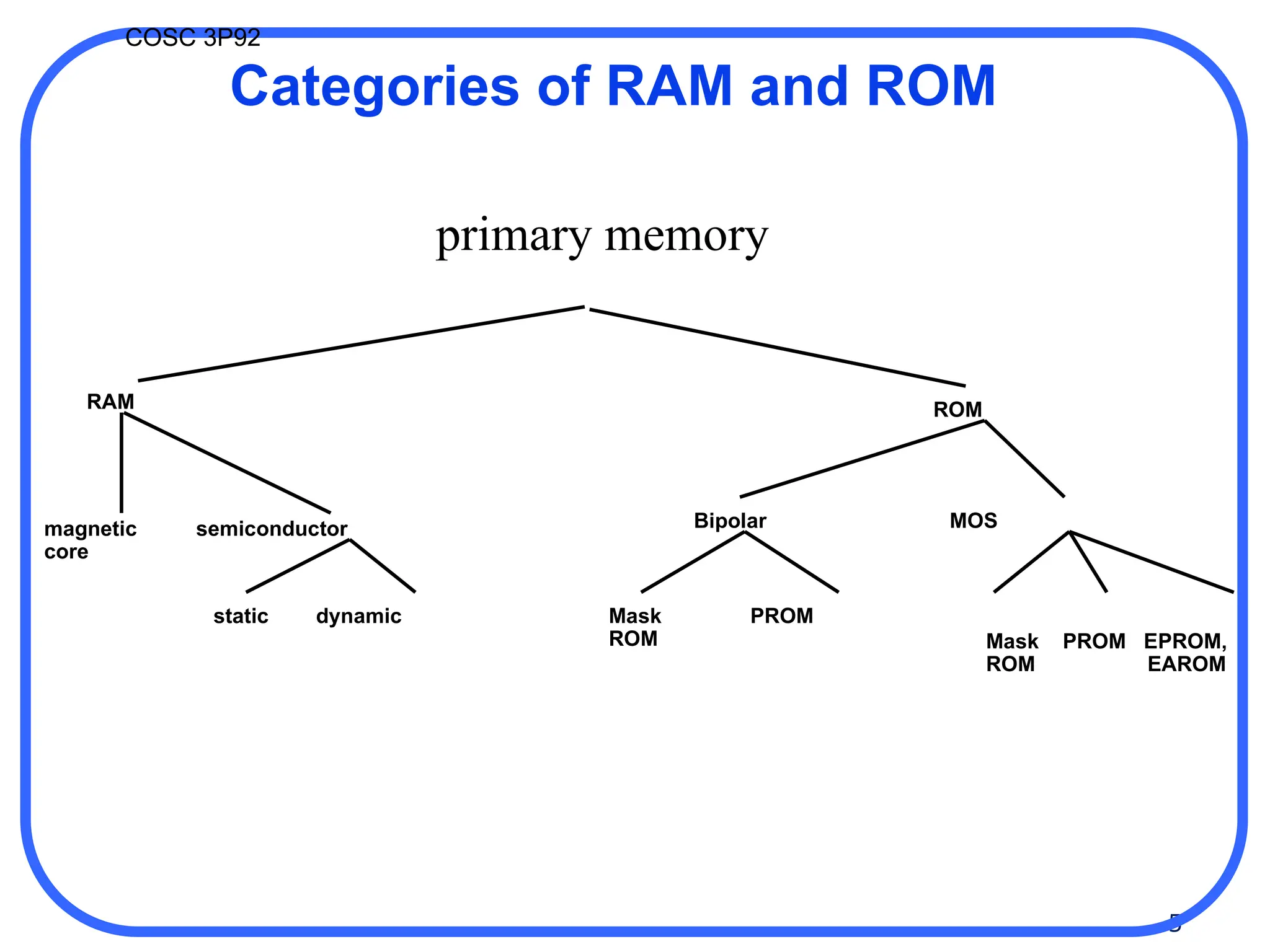

- 5. 5 COSC 3P92 Categories ofRAM and ROM Mask PROM EPROM, ROM EAROM RAM ROM magnetic semiconductor core static dynamic Bipolar MOS Mask PROM ROM primary memory

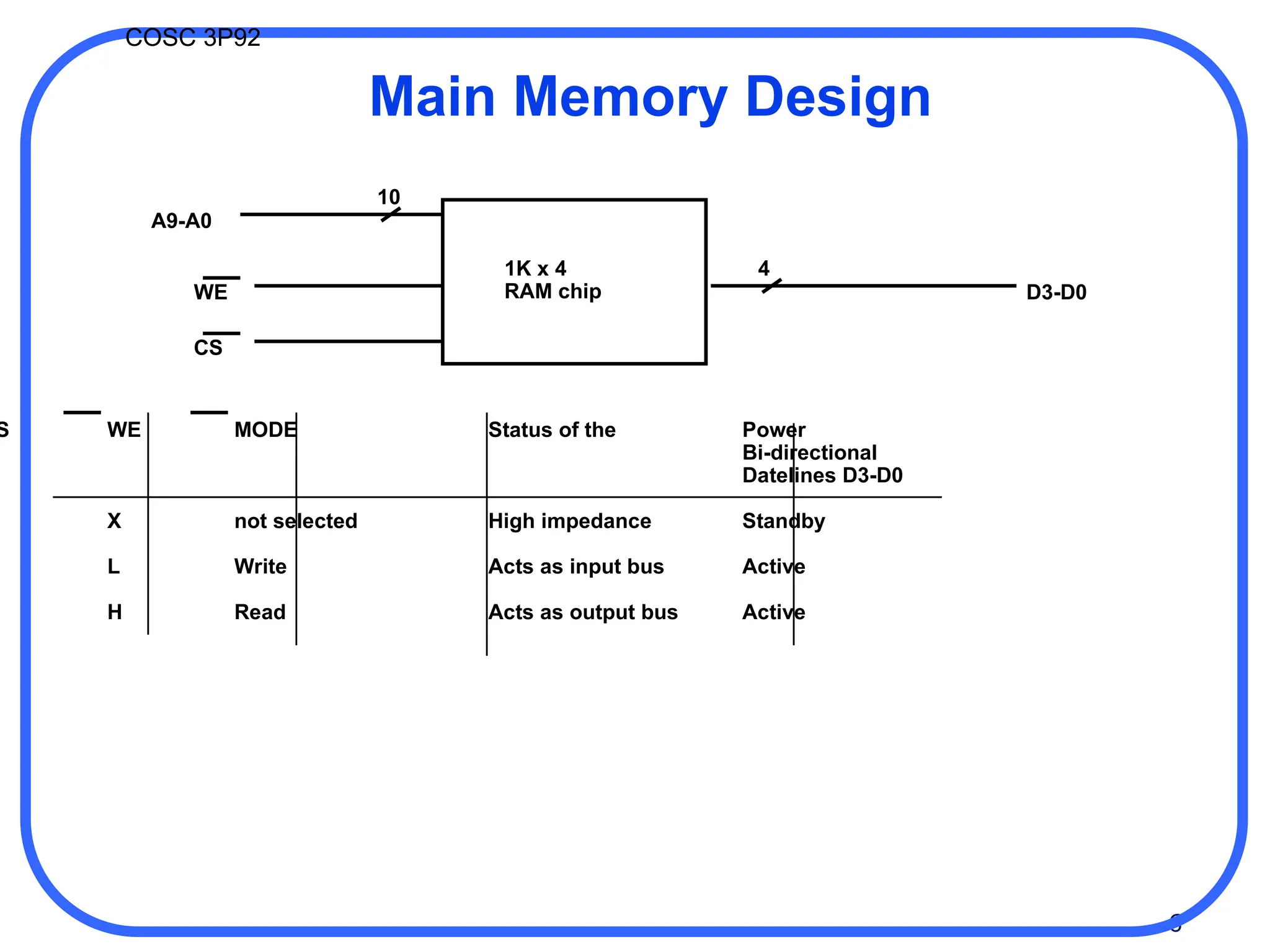

- 6. 6 COSC 3P92 Main MemoryDesign 1K x 4 RAM chip 10 4 A9-A0 WE CS D3-D0 S WE MODE Status of the Power Bi-directional Datelines D3-D0 X not selected High impedance Standby L Write Acts as input bus Active H Read Acts as output bus Active

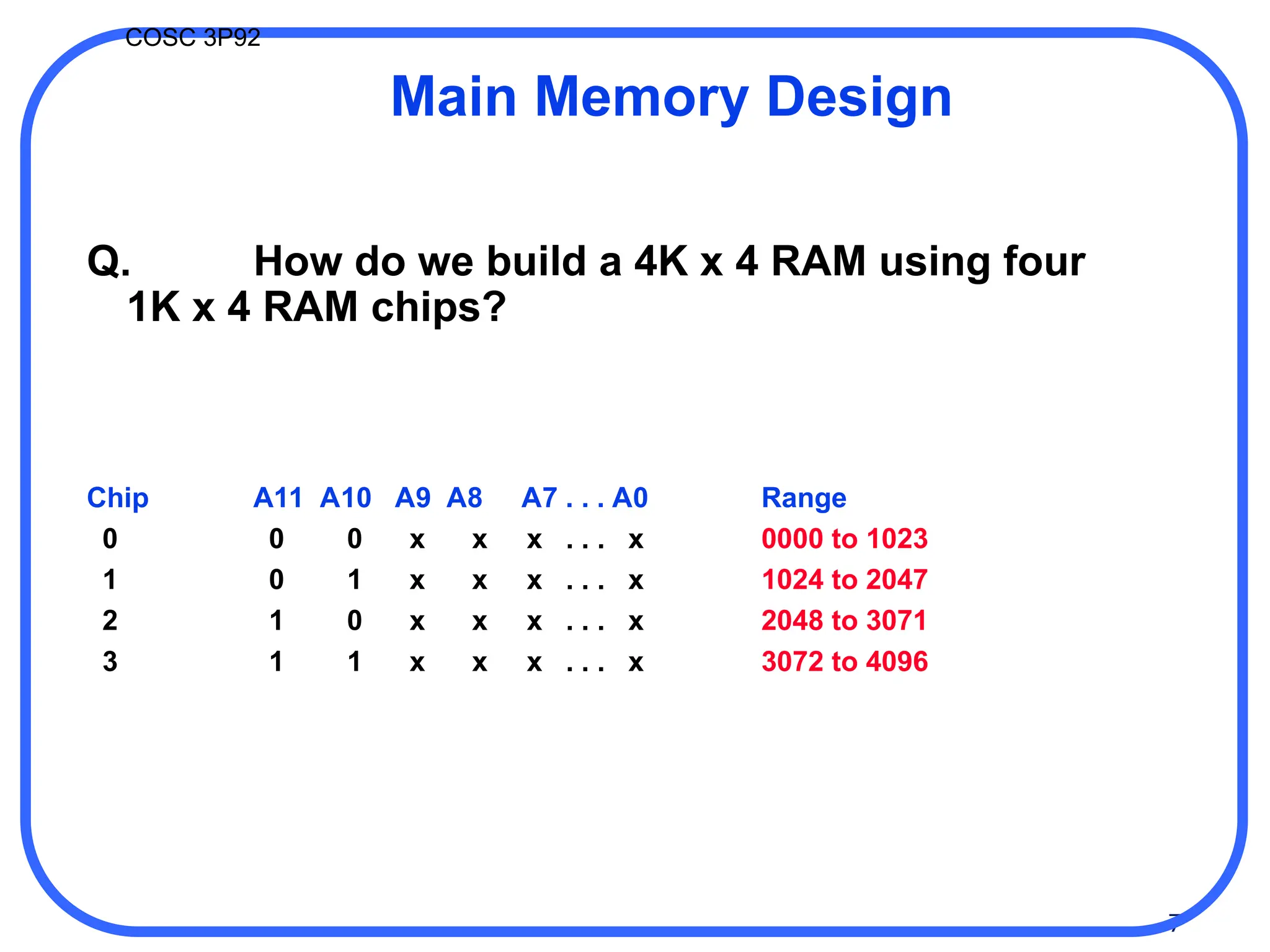

- 7. 7 COSC 3P92 Main MemoryDesign Q. How do we build a 4K x 4 RAM using four 1K x 4 RAM chips? Chip A11 A10 A9 A8 A7 . . . A0 Range 0 0 0 x x x . . . x 0000 to 1023 1 0 1 x x x . . . x 1024 to 2047 2 1 0 x x x . . . x 2048 to 3071 3 1 1 x x x . . . x 3072 to 4096

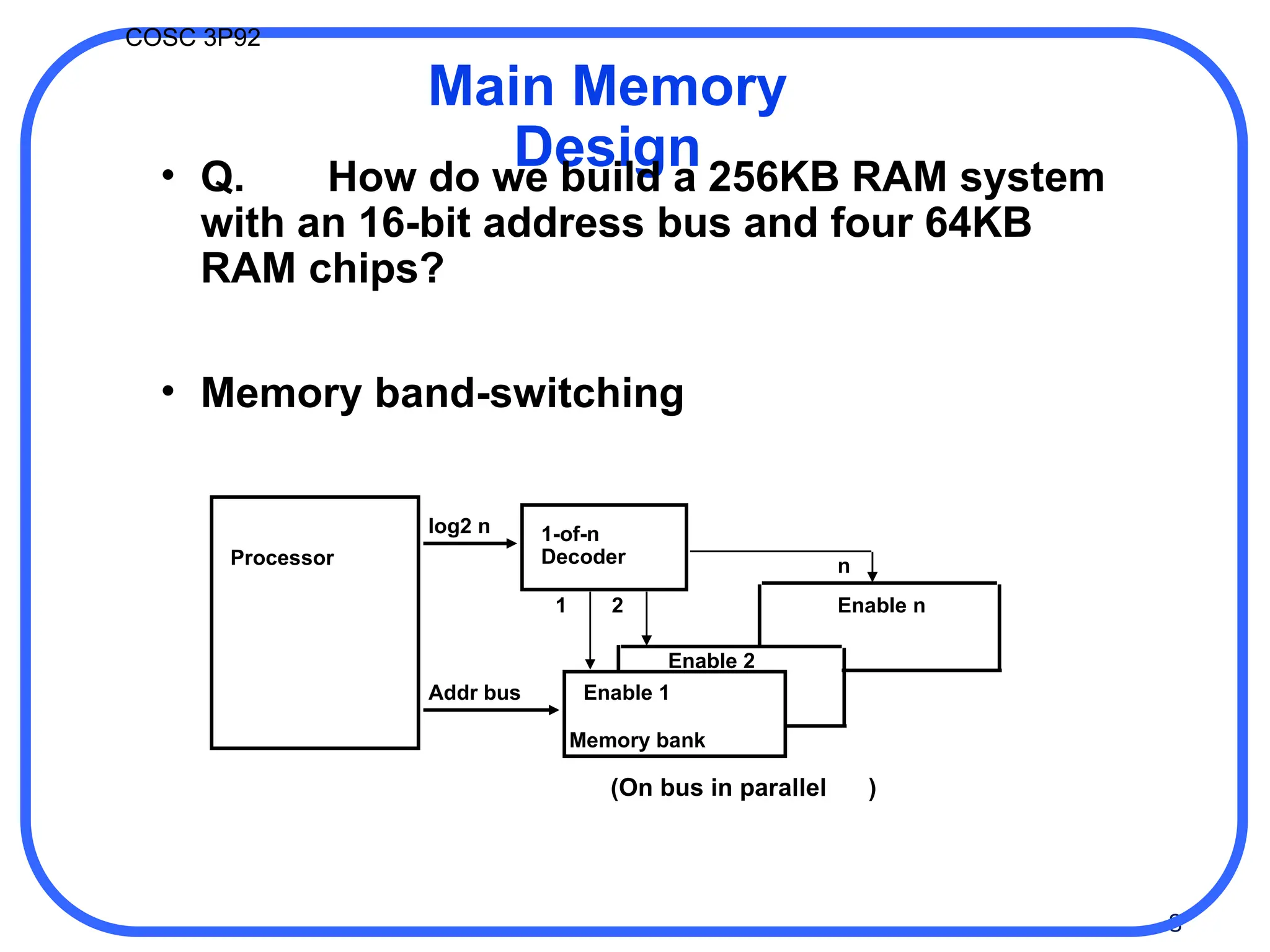

- 8. 8 COSC 3P92 Processor log2 n1-of-n Decoder Addr bus Memory bank Enable 1 Enable 2 Enable n 1 2 n (On bus in parallel ) Main Memory Design • Q. How do we build a 256KB RAM system with an 16-bit address bus and four 64KB RAM chips? • Memory band-switching

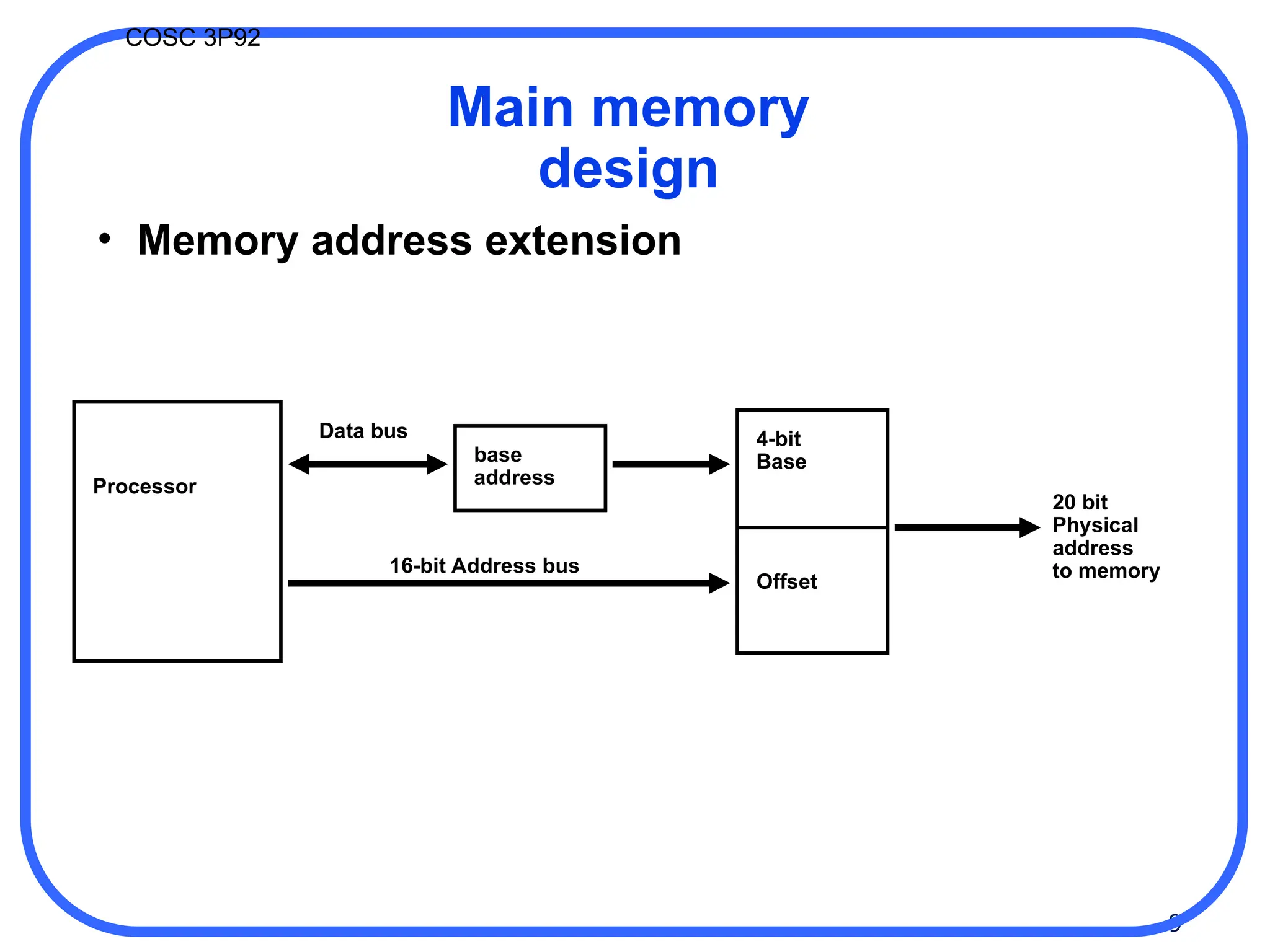

- 9. 9 COSC 3P92 Processor Data bus base address 4-bit Base 16-bitAddress bus Offset 20 bit Physical address to memory Main memory design • Memory address extension

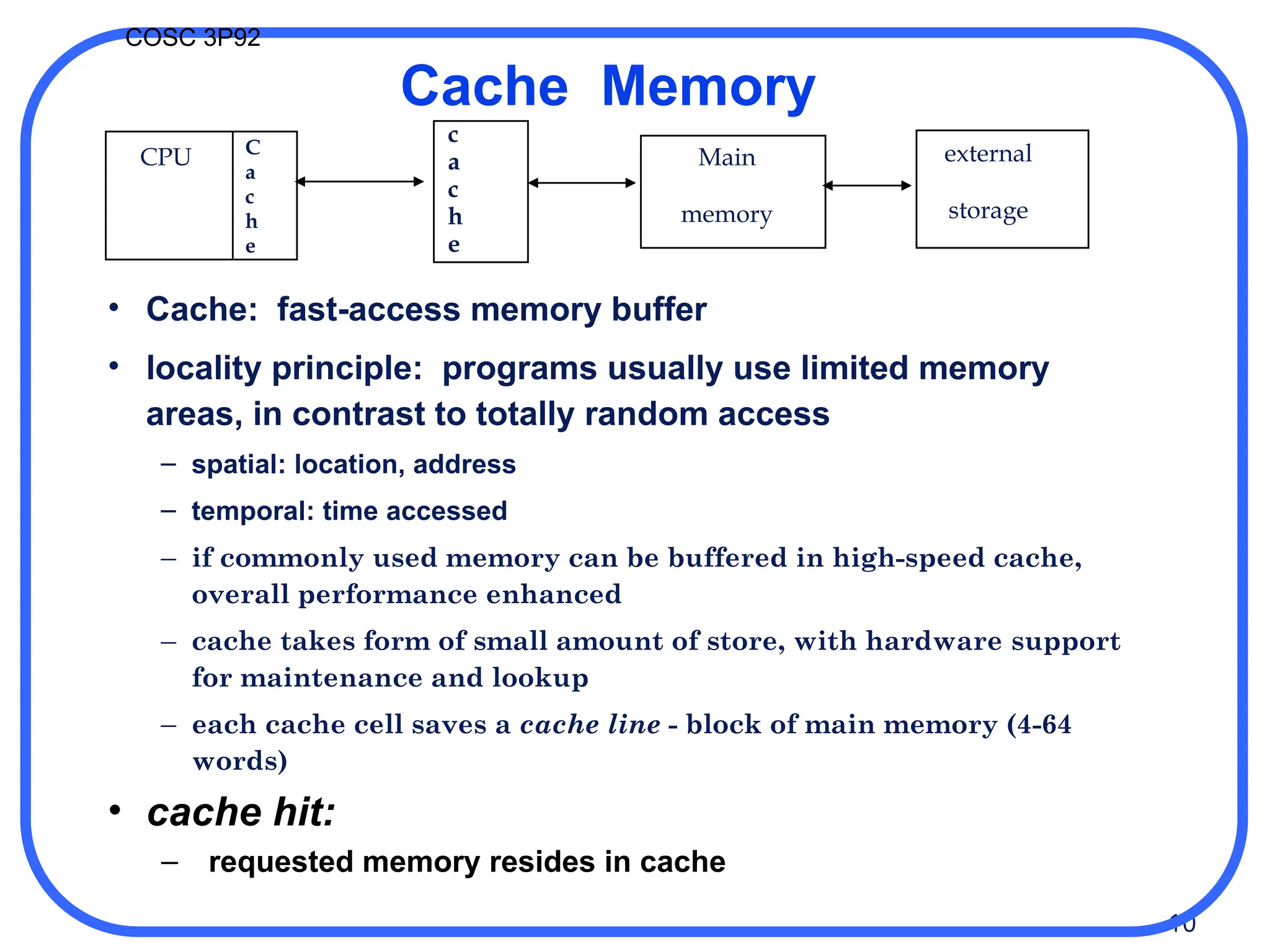

- 10. 10 COSC 3P92 CPU c a c h e Main memory external storage C a c h e Cache Memory •Cache: fast-access memory buffer • locality principle: programs usually use limited memory areas, in contrast to totally random access – spatial: location, address – temporal: time accessed – if commonly used memory can be buffered in high-speed cache, overall performance enhanced – cache takes form of small amount of store, with hardware support for maintenance and lookup – each cache cell saves a cache line - block of main memory (4-64 words) • cache hit: – requested memory resides in cache

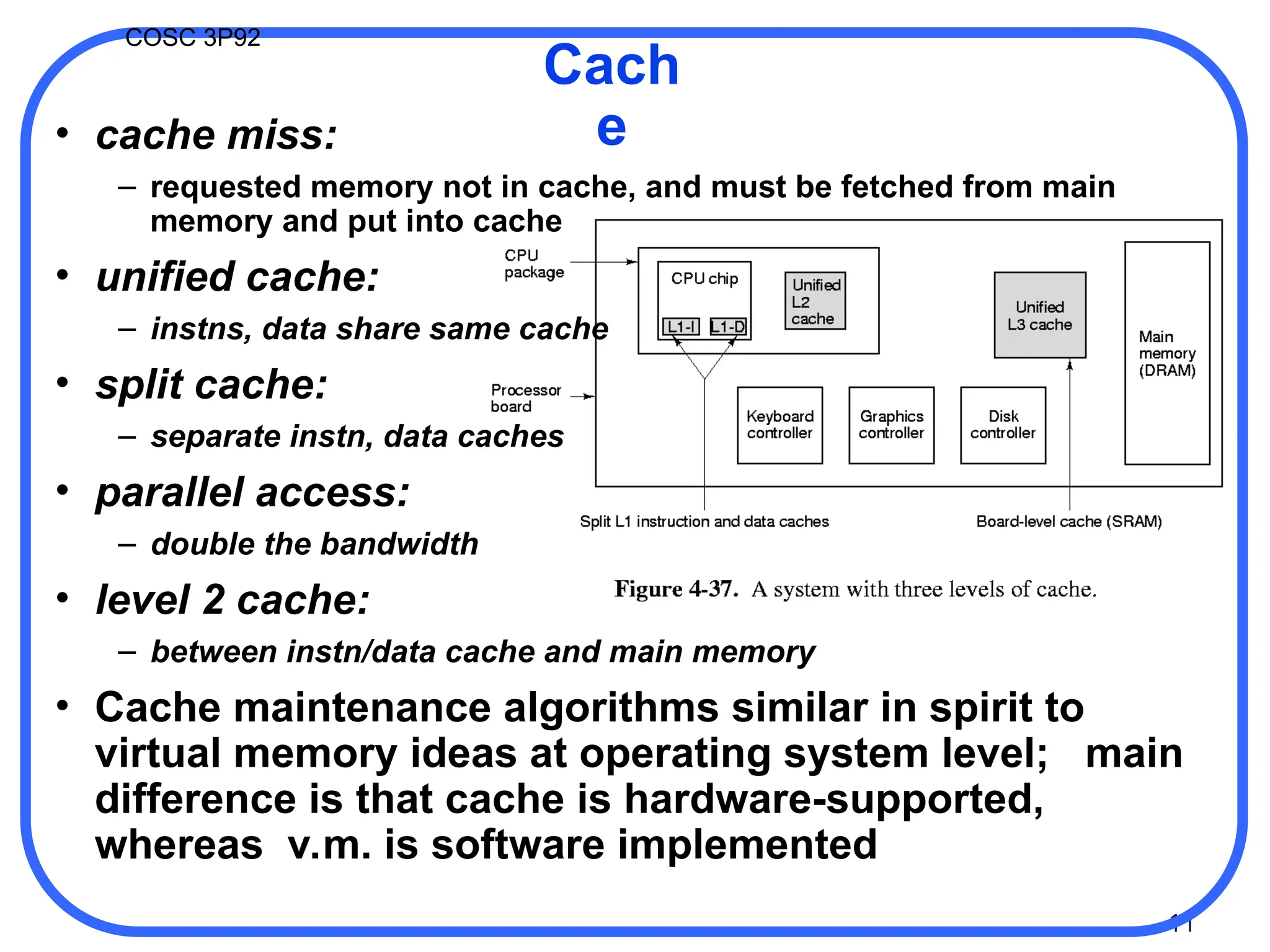

- 11. 11 COSC 3P92 • cachemiss: – requested memory not in cache, and must be fetched from main memory and put into cache • unified cache: – instns, data share same cache • split cache: – separate instn, data caches • parallel access: – double the bandwidth • level 2 cache: – between instn/data cache and main memory • Cache maintenance algorithms similar in spirit to virtual memory ideas at operating system level; main difference is that cache is hardware-supported, whereas v.m. is software implemented Cach e

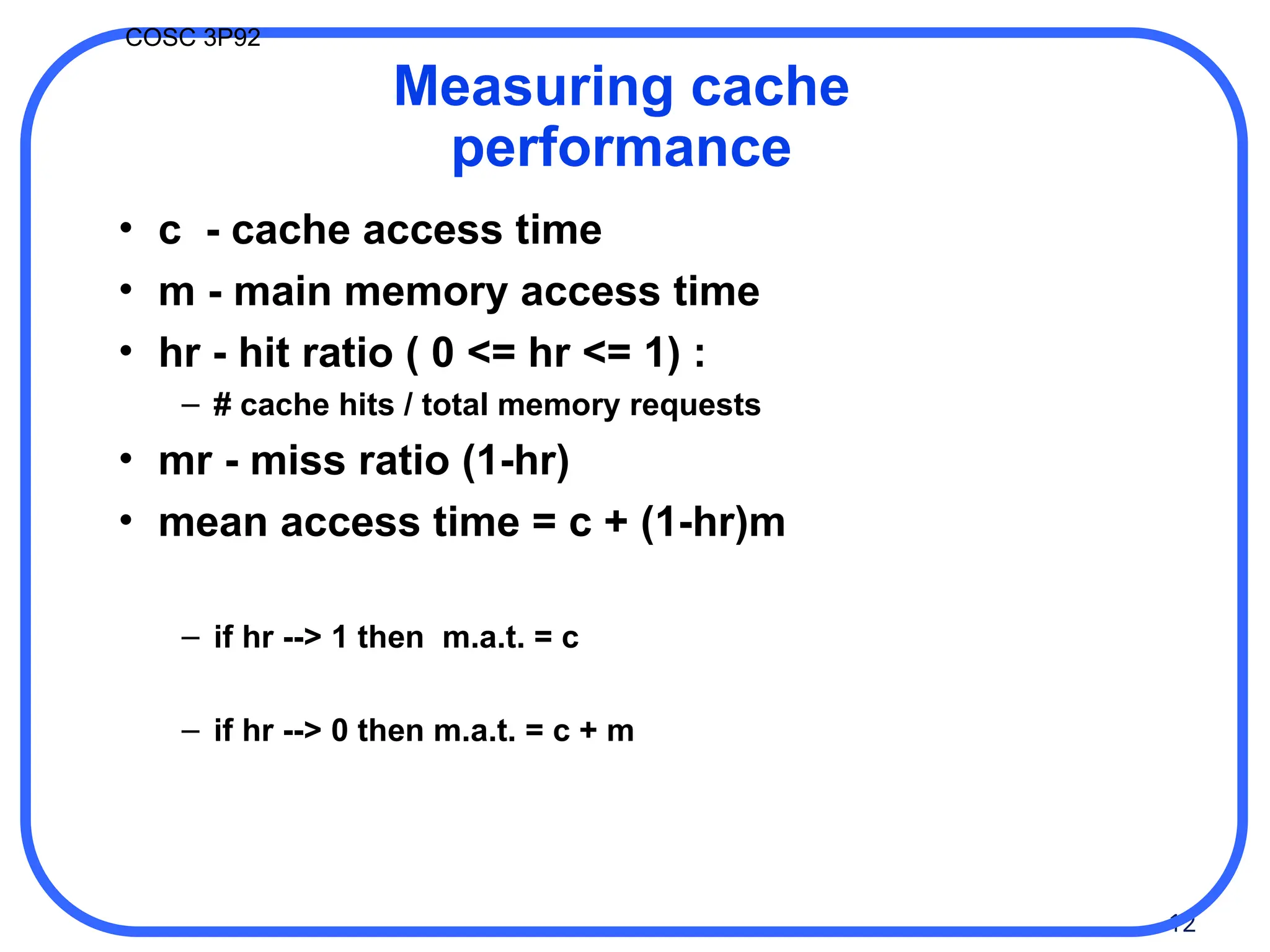

- 12. 12 COSC 3P92 Measuring cache performance •c - cache access time • m - main memory access time • hr - hit ratio ( 0 <= hr <= 1) : – # cache hits / total memory requests • mr - miss ratio (1-hr) • mean access time = c + (1-hr)m – if hr --> 1 then m.a.t. = c – if hr --> 0 then m.a.t. = c + m

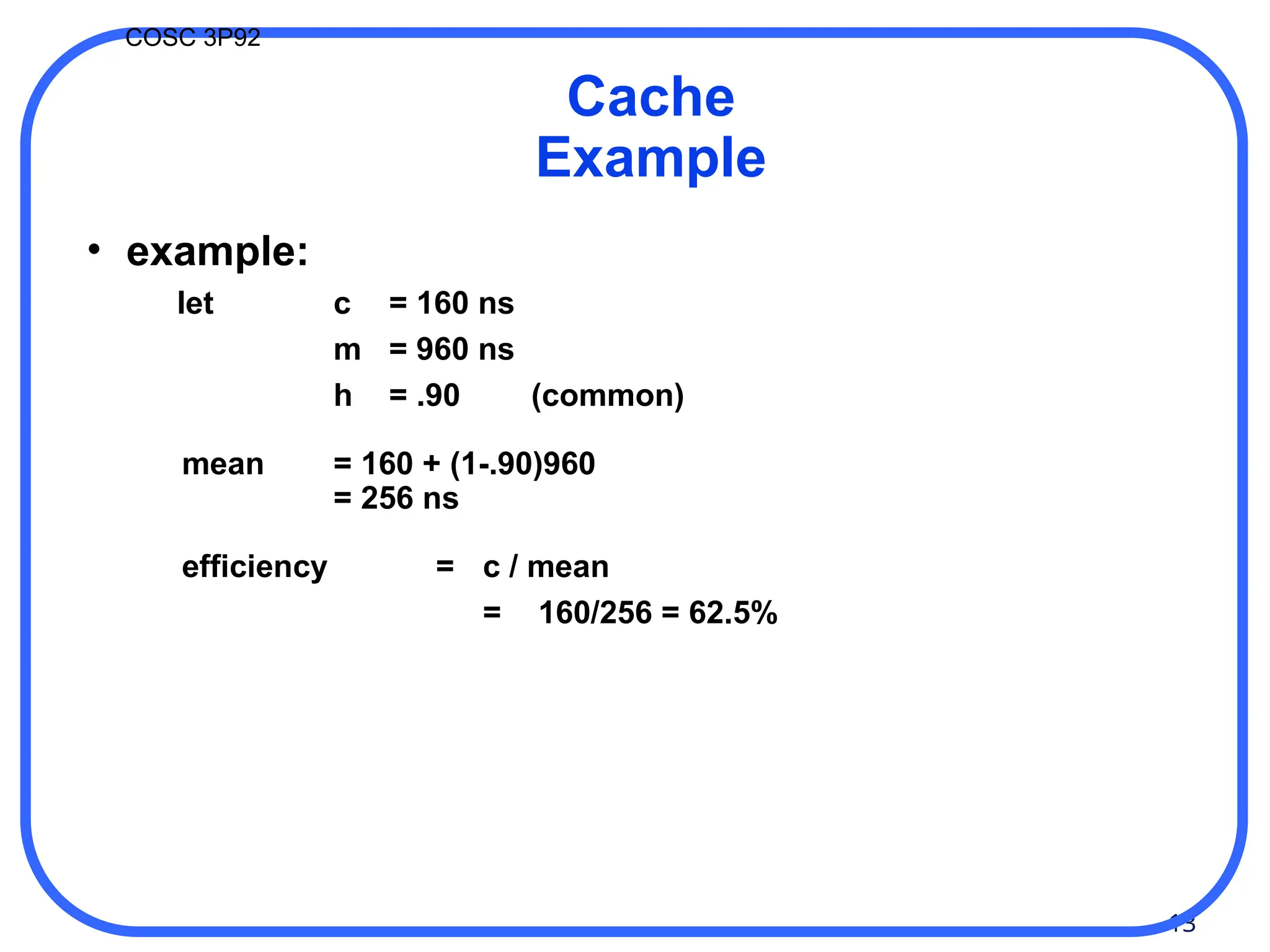

- 13. 13 COSC 3P92 Cache Example • example: letc = 160 ns m = 960 ns h = .90 (common) mean = 160 + (1-.90)960 = 256 ns efficiency = c / mean = 160/256 = 62.5%

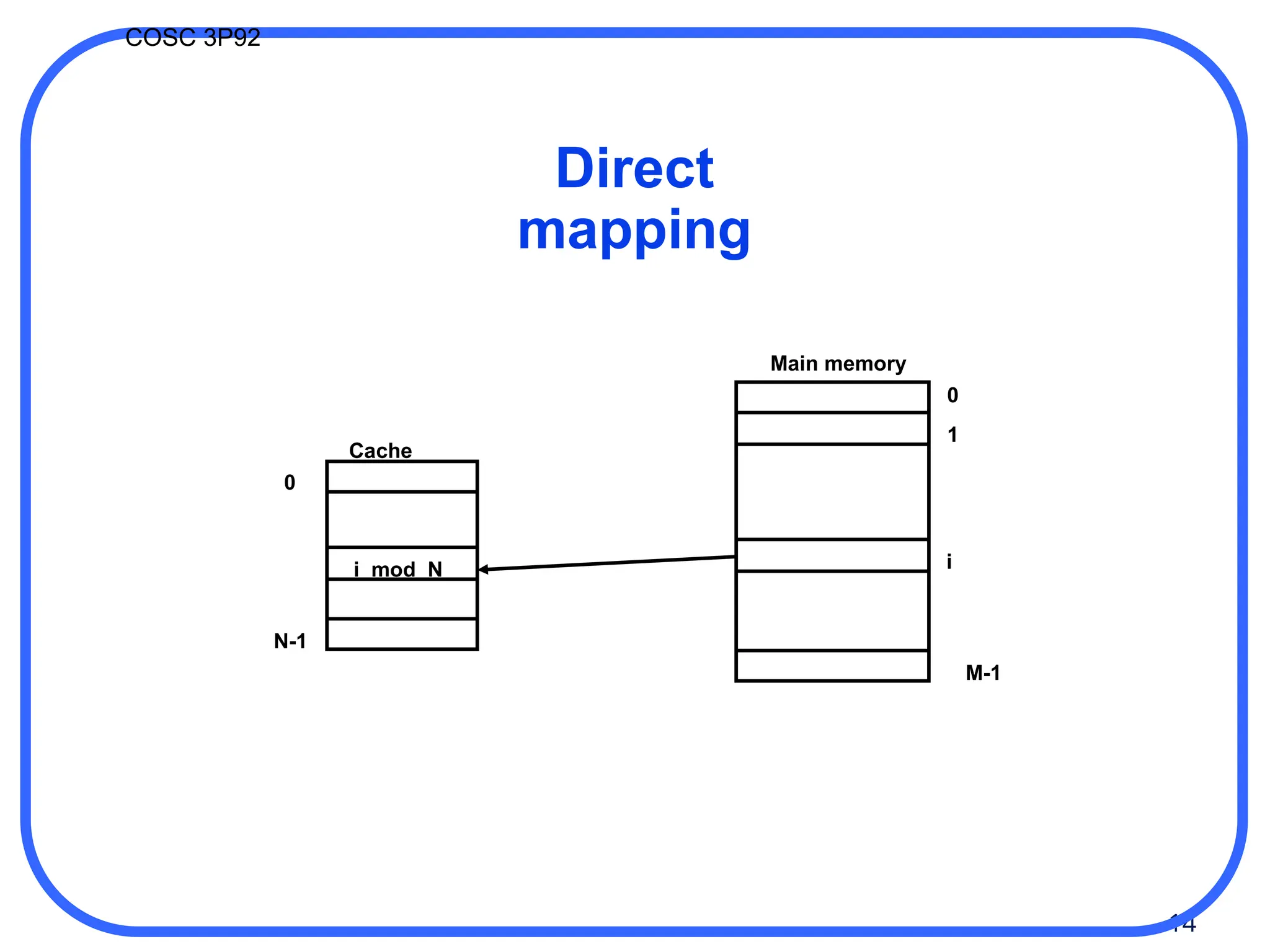

- 14.

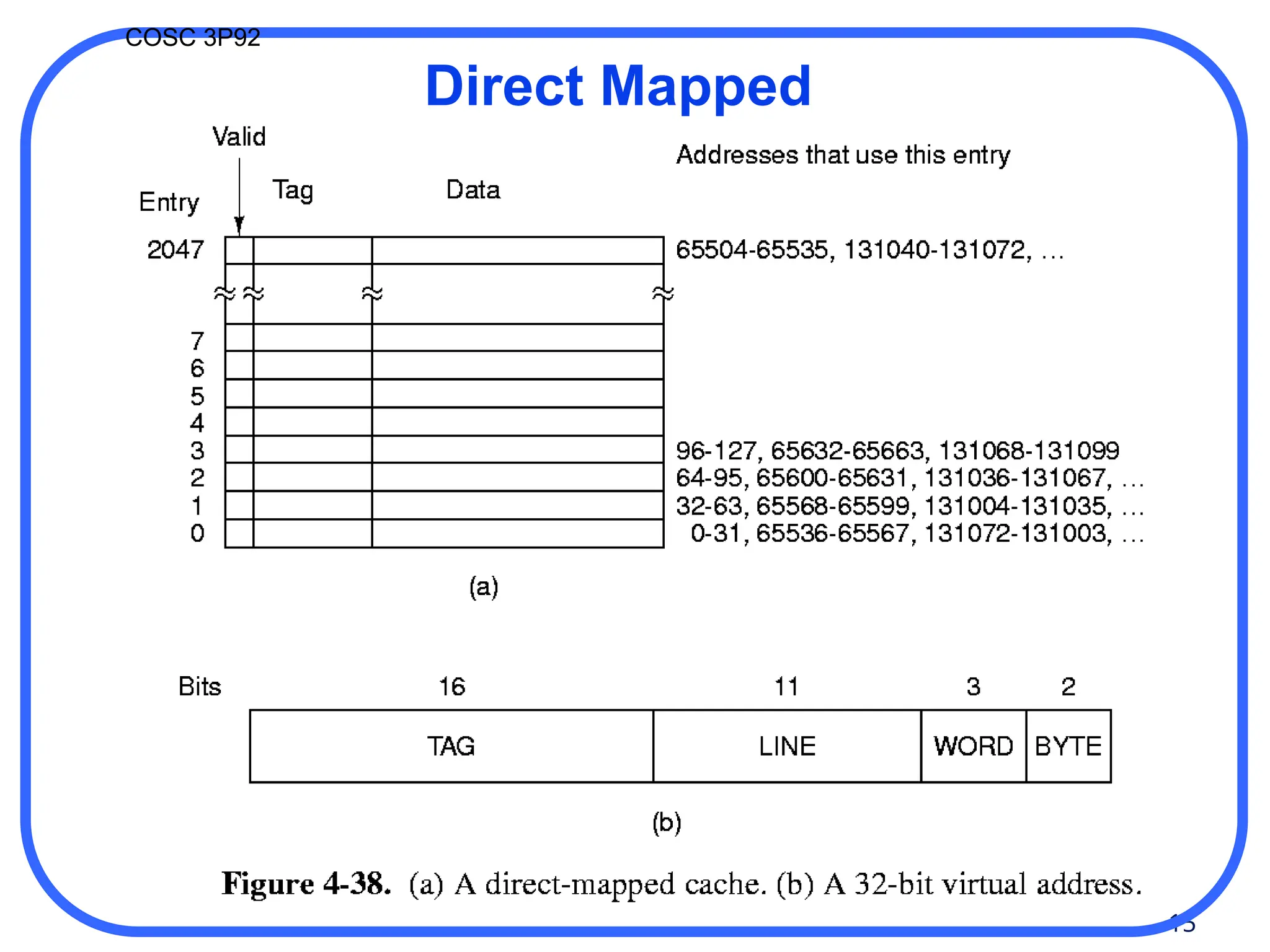

- 15.

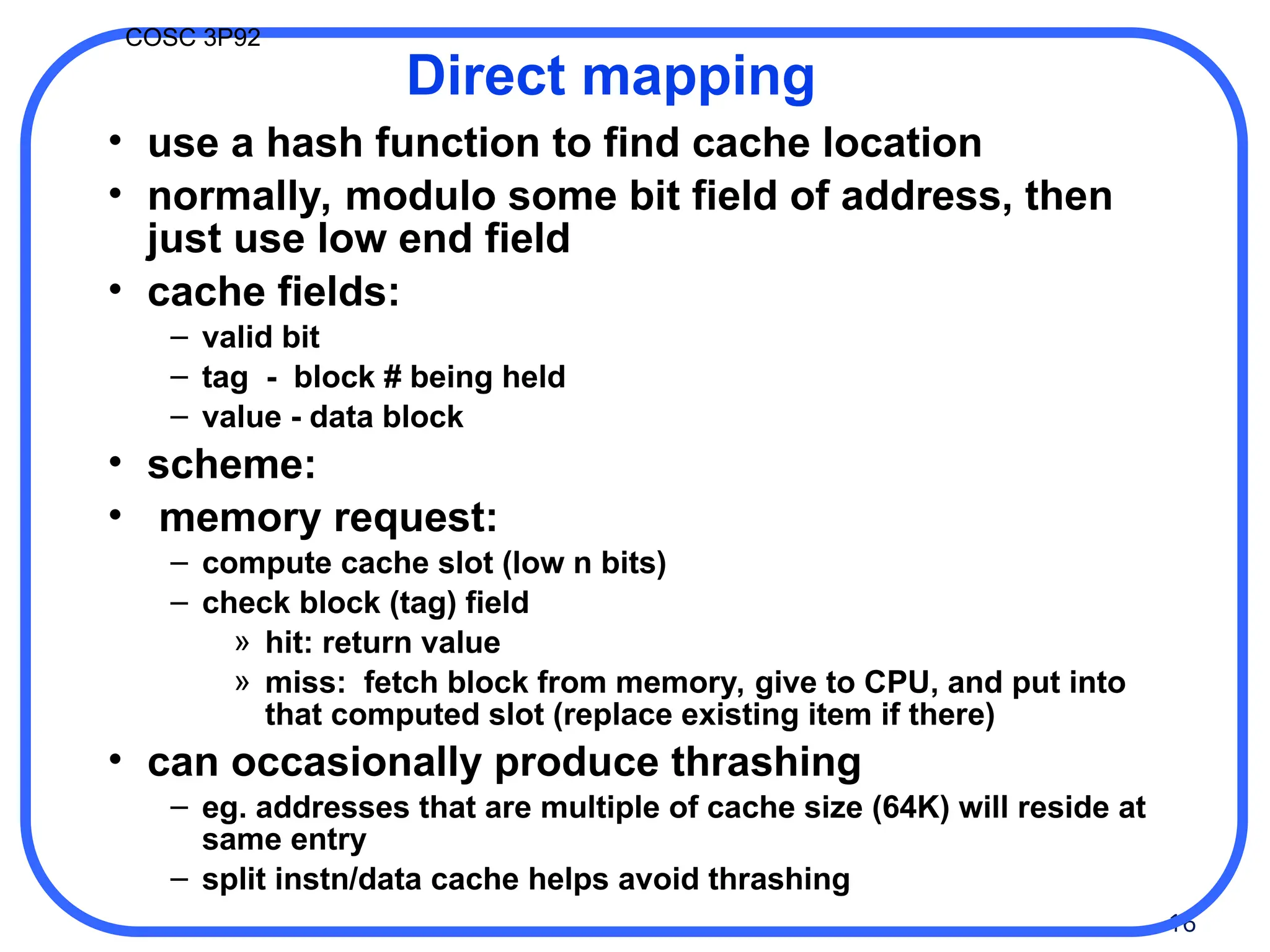

- 16. 16 COSC 3P92 Direct mapping •use a hash function to find cache location • normally, modulo some bit field of address, then just use low end field • cache fields: – valid bit – tag - block # being held – value - data block • scheme: • memory request: – compute cache slot (low n bits) – check block (tag) field » hit: return value » miss: fetch block from memory, give to CPU, and put into that computed slot (replace existing item if there) • can occasionally produce thrashing – eg. addresses that are multiple of cache size (64K) will reside at same entry – split instn/data cache helps avoid thrashing

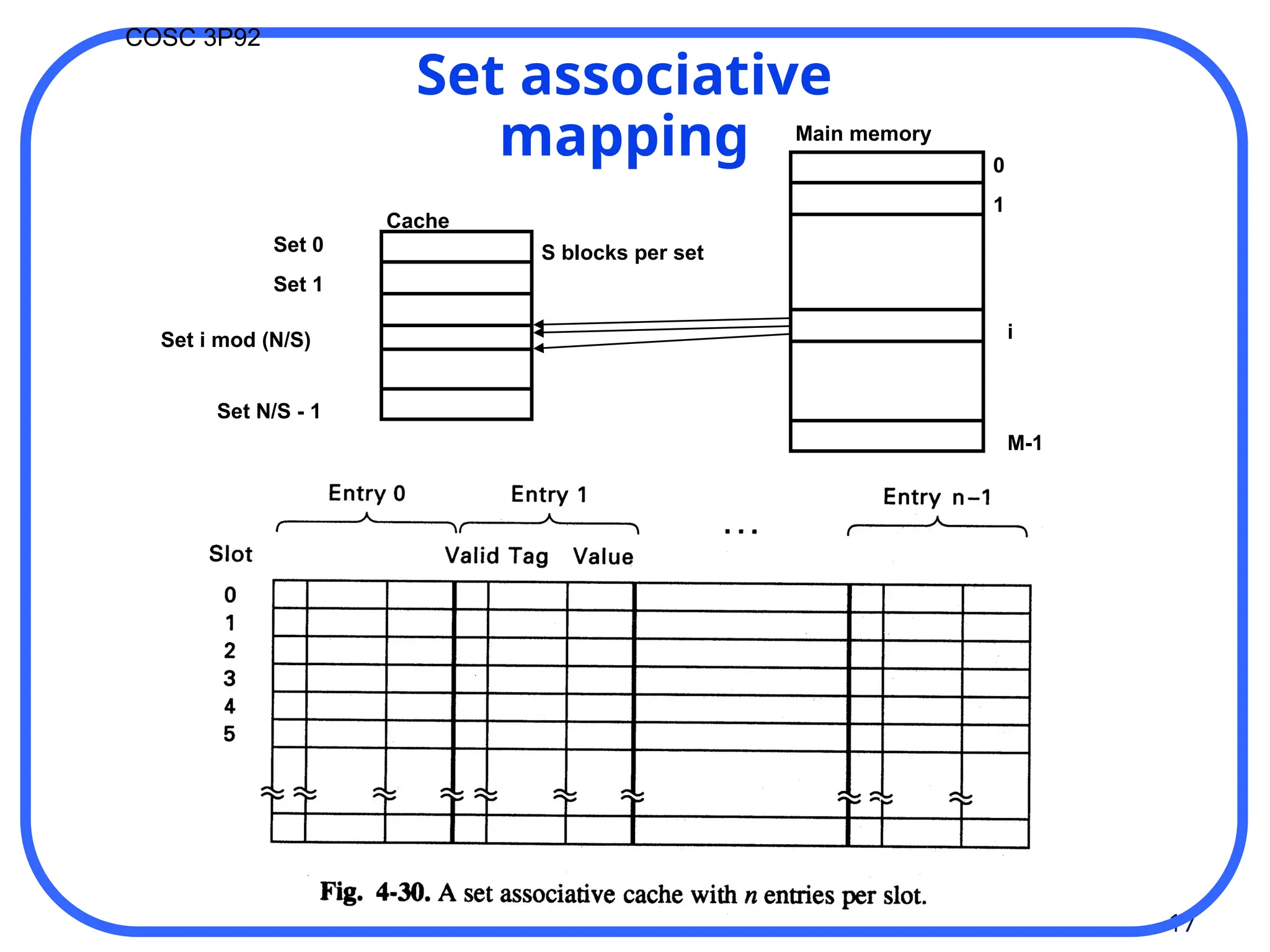

- 17. 17 COSC 3P92 Set associative mapping0 1 i M-1 Set 0 Set 1 Set N/S - 1 Cache Main memory Set i mod (N/S) S blocks per set
- 18.

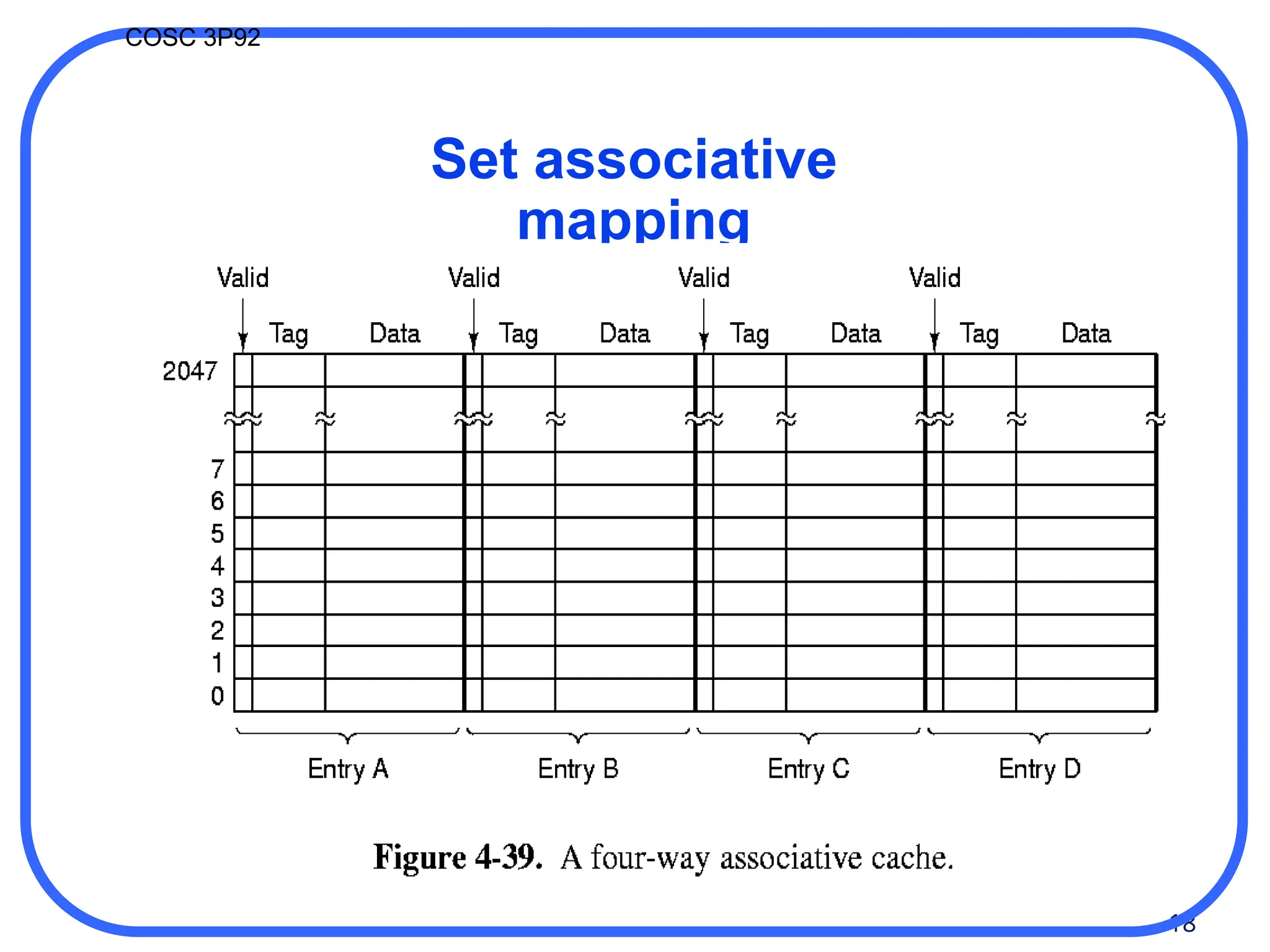

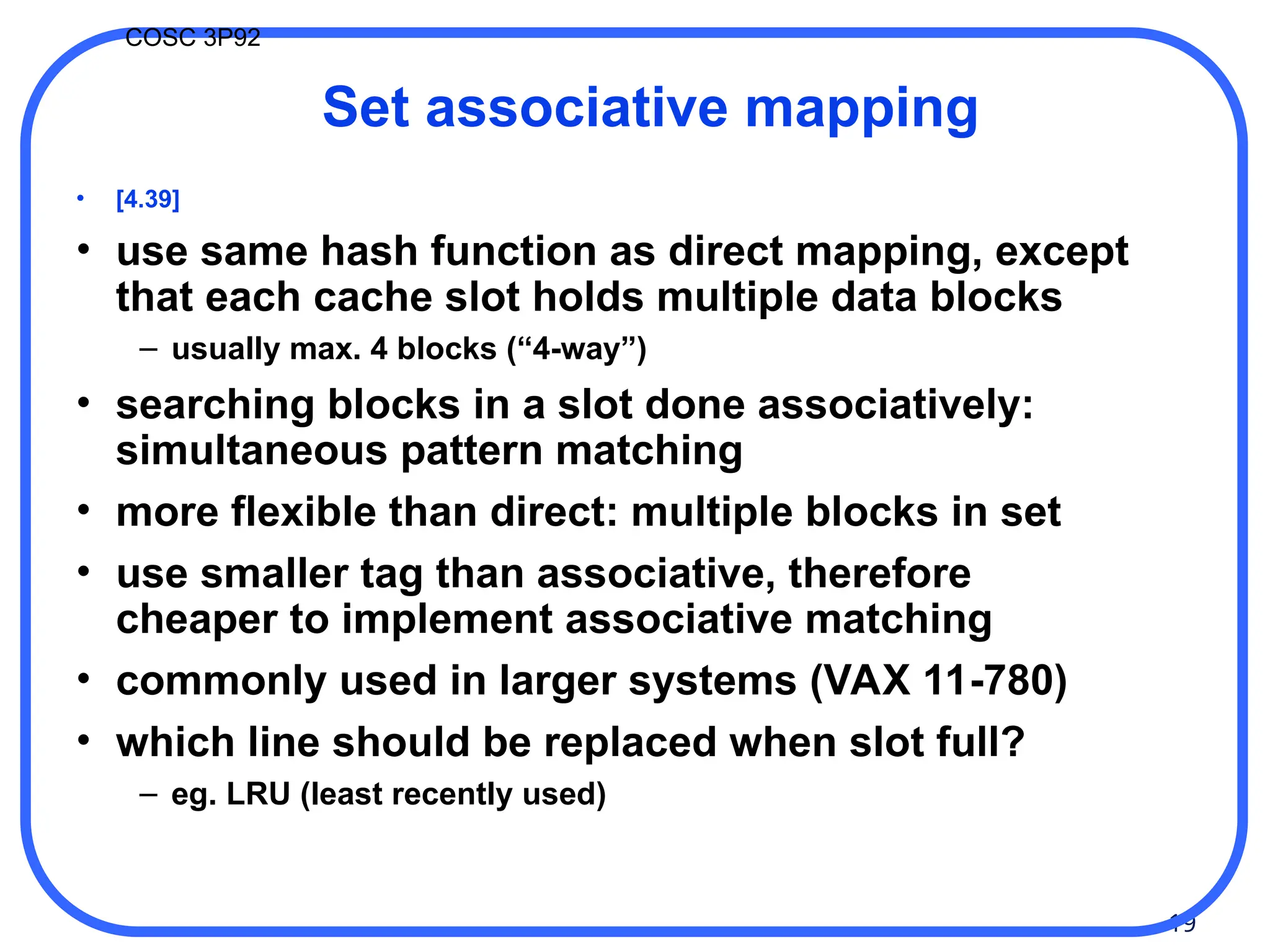

- 19. 19 COSC 3P92 Set associativemapping • [4.39] • use same hash function as direct mapping, except that each cache slot holds multiple data blocks – usually max. 4 blocks (“4-way”) • searching blocks in a slot done associatively: simultaneous pattern matching • more flexible than direct: multiple blocks in set • use smaller tag than associative, therefore cheaper to implement associative matching • commonly used in larger systems (VAX 11-780) • which line should be replaced when slot full? – eg. LRU (least recently used)

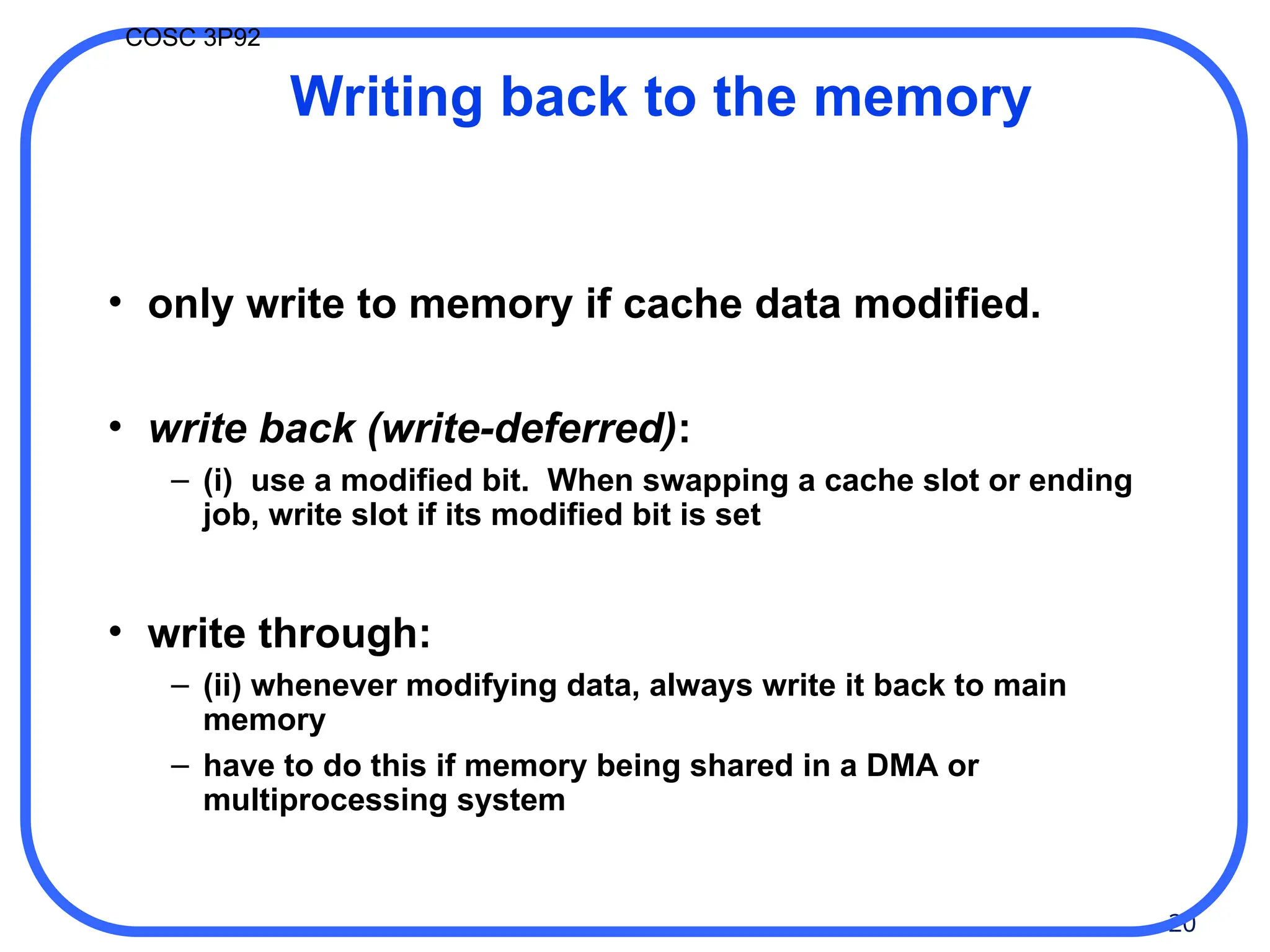

- 20. 20 COSC 3P92 Writing backto the memory • only write to memory if cache data modified. • write back (write-deferred): – (i) use a modified bit. When swapping a cache slot or ending job, write slot if its modified bit is set • write through: – (ii) whenever modifying data, always write it back to main memory – have to do this if memory being shared in a DMA or multiprocessing system

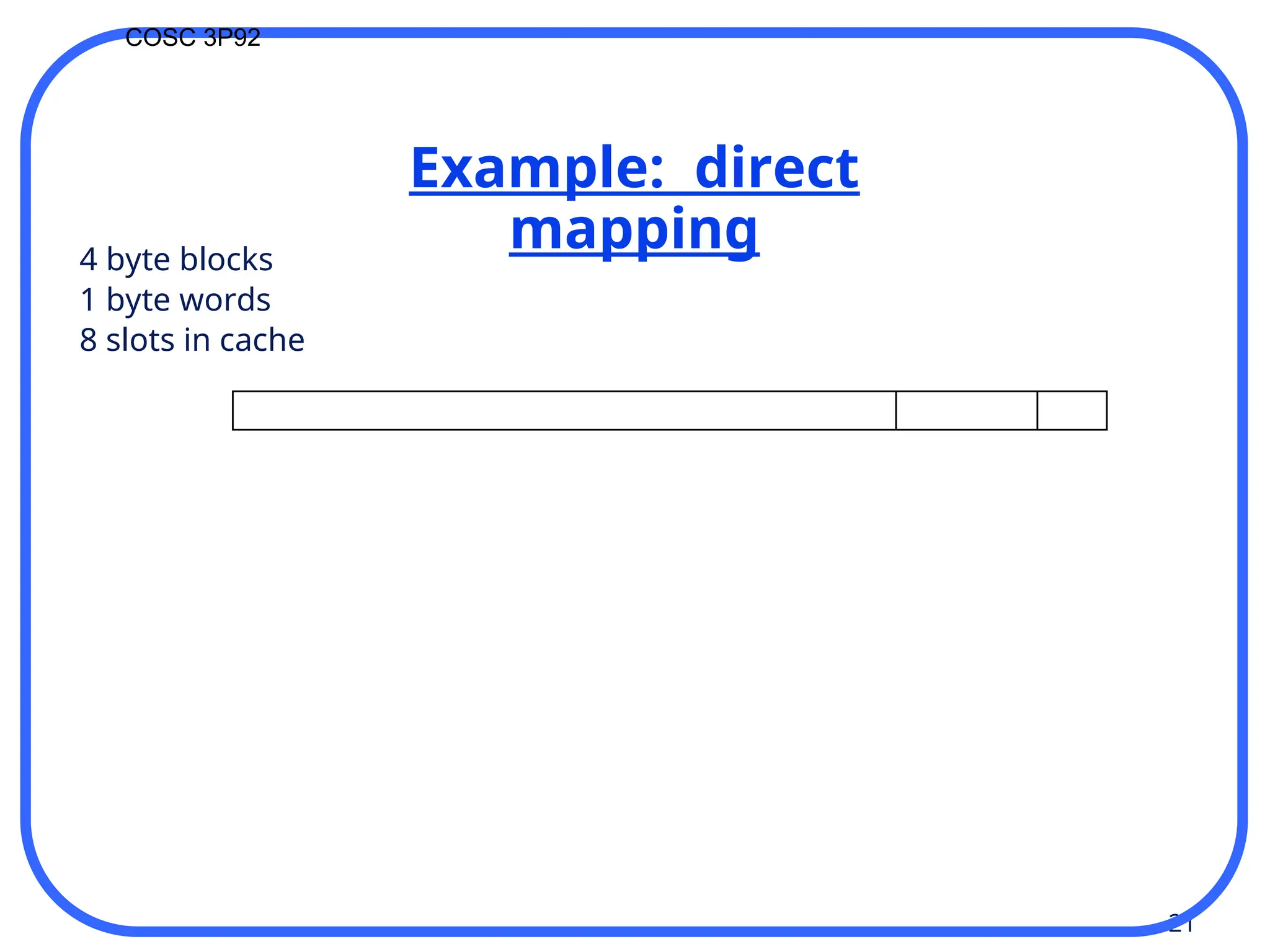

- 21. 21 COSC 3P92 Example: direct mapping 4byte blocks 1 byte words 8 slots in cache
- 22.
- 23.
