Machine learning Method and techniques
- 1.
- 2. Objectives Let uslook at some of the objectives under this Techniques of Machine Learning tutorial. Explain unsupervised learning with examples Describe semi-supervised learning and reinforcement learning Discuss supervised learning with examples Define some important models and techniques in Machine Learning
- 3. How do Machineslearn? There are various methods to do that. Which method to follow completely depends on the problem statement. Depending on the dataset, and our problem, there are two different ways to go deeper. One is supervised learning and the other is unsupervised learning. The following chart explains the further classification of machine learning methods. We will discuss them one by one.

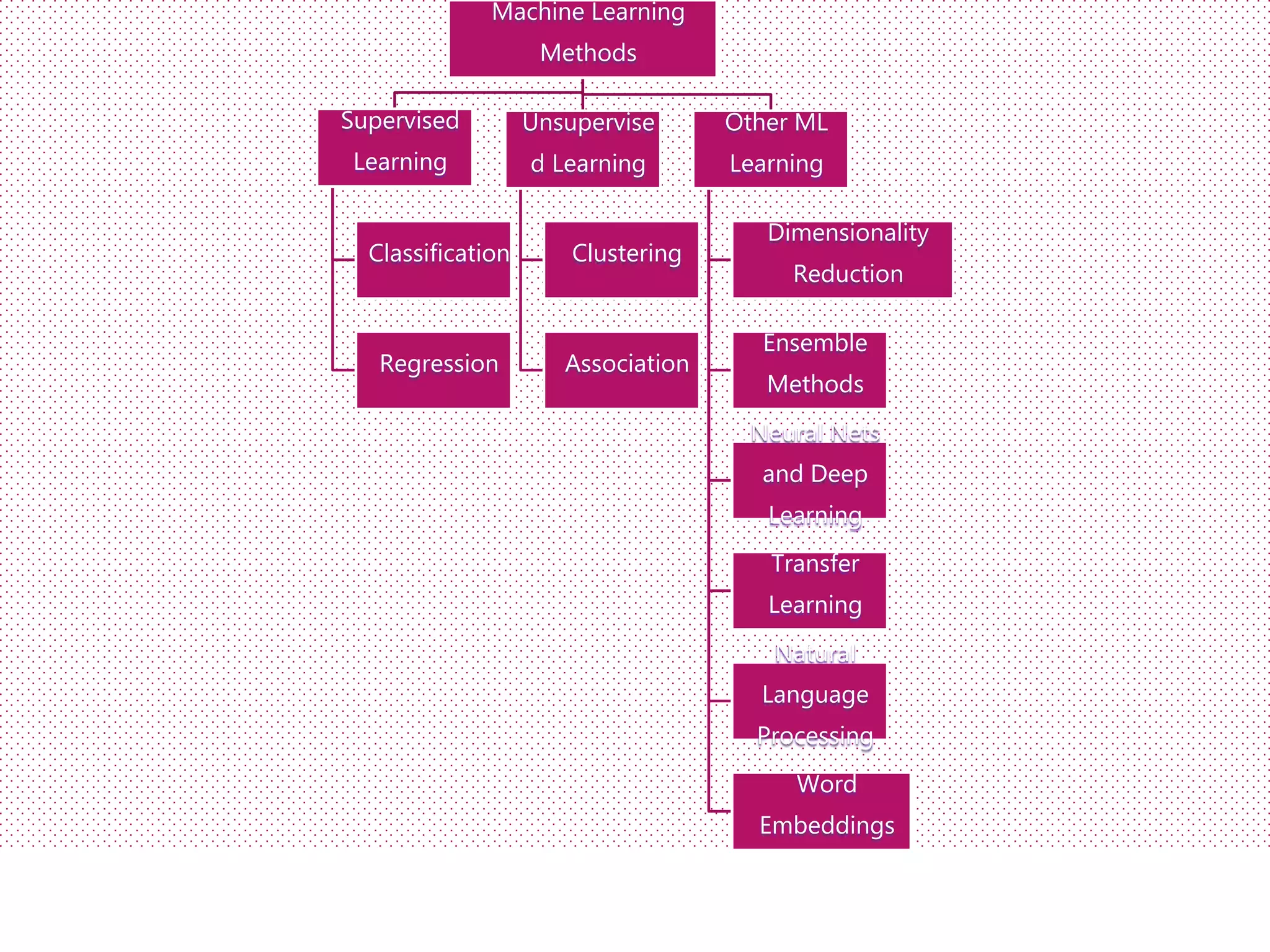

- 4. Machine Learning Methods Supervised Learning Classification Regression Unsupervise d Learning Clustering Association OtherML Learning Dimensionality Reduction Ensemble Methods Neural Nets and Deep Learning Transfer Learning Natural Language Processing Word Embeddings

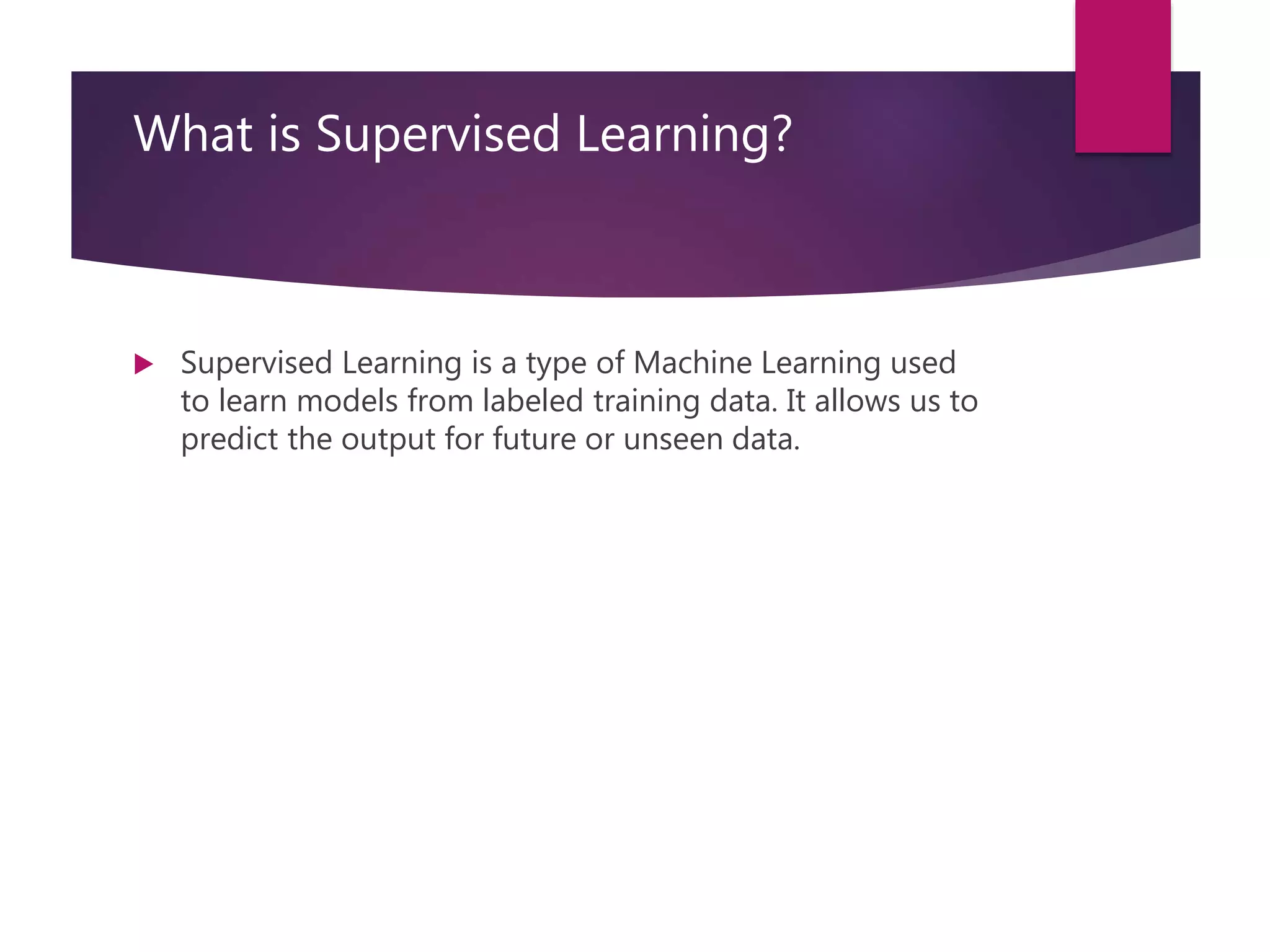

- 5. What is SupervisedLearning? Supervised Learning is a type of Machine Learning used to learn models from labeled training data. It allows us to predict the output for future or unseen data.

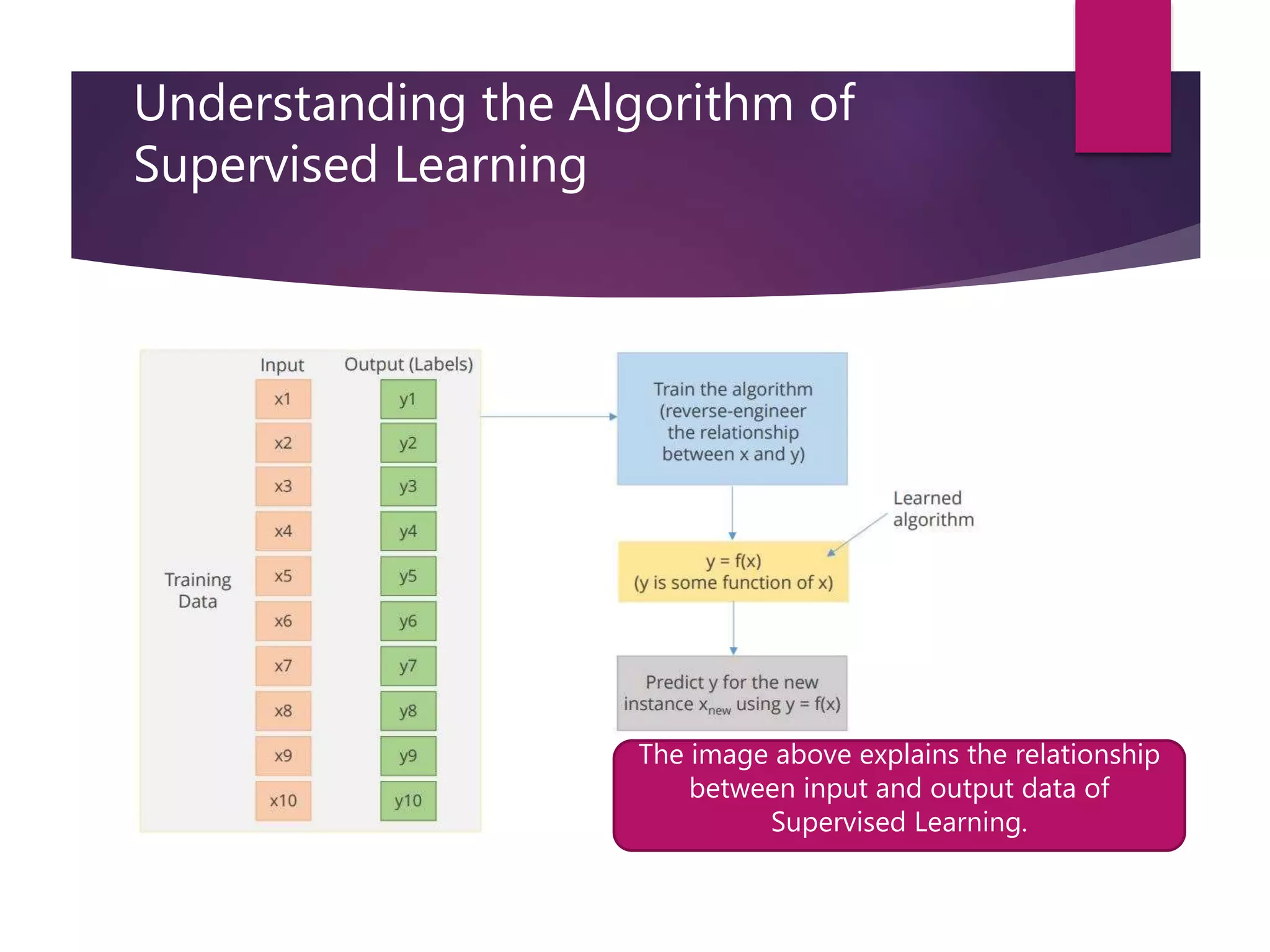

- 6. Understanding the Algorithmof Supervised Learning The image above explains the relationship between input and output data of Supervised Learning.

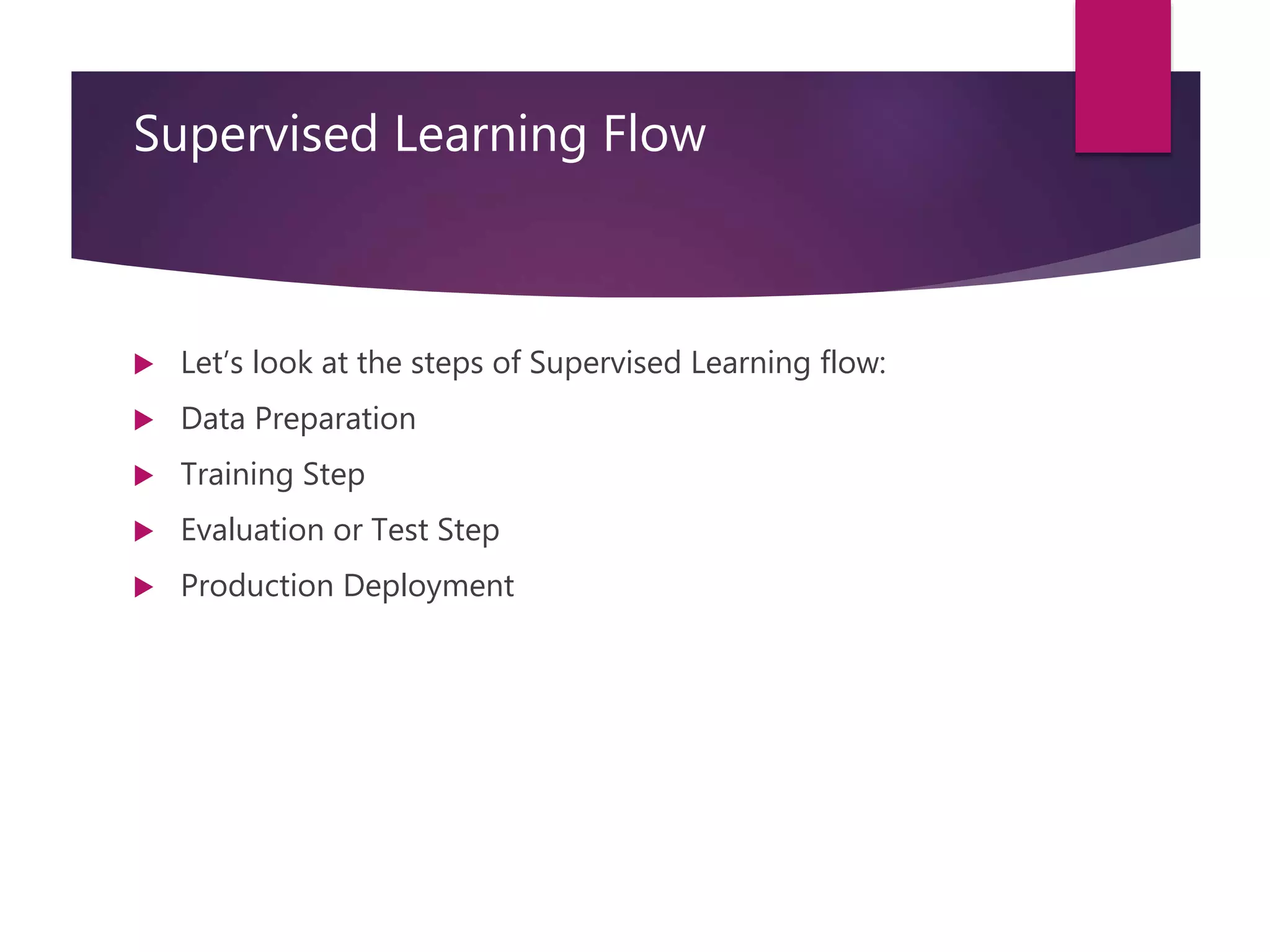

- 7. Supervised Learning Flow Let’s look at the steps of Supervised Learning flow: Data Preparation Training Step Evaluation or Test Step Production Deployment

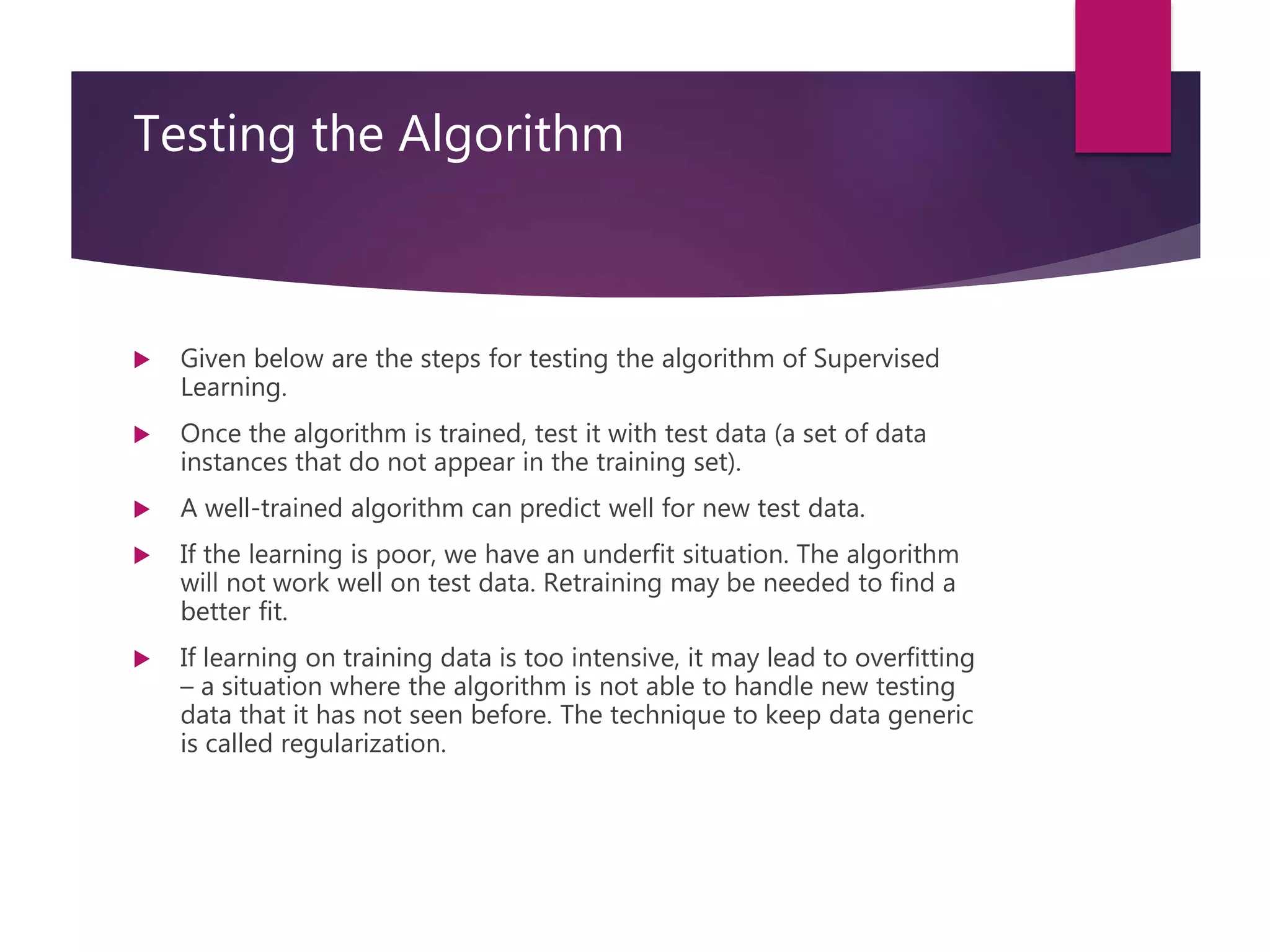

- 8. Testing the Algorithm Given below are the steps for testing the algorithm of Supervised Learning. Once the algorithm is trained, test it with test data (a set of data instances that do not appear in the training set). A well-trained algorithm can predict well for new test data. If the learning is poor, we have an underfit situation. The algorithm will not work well on test data. Retraining may be needed to find a better fit. If learning on training data is too intensive, it may lead to overfitting – a situation where the algorithm is not able to handle new testing data that it has not seen before. The technique to keep data generic is called regularization.

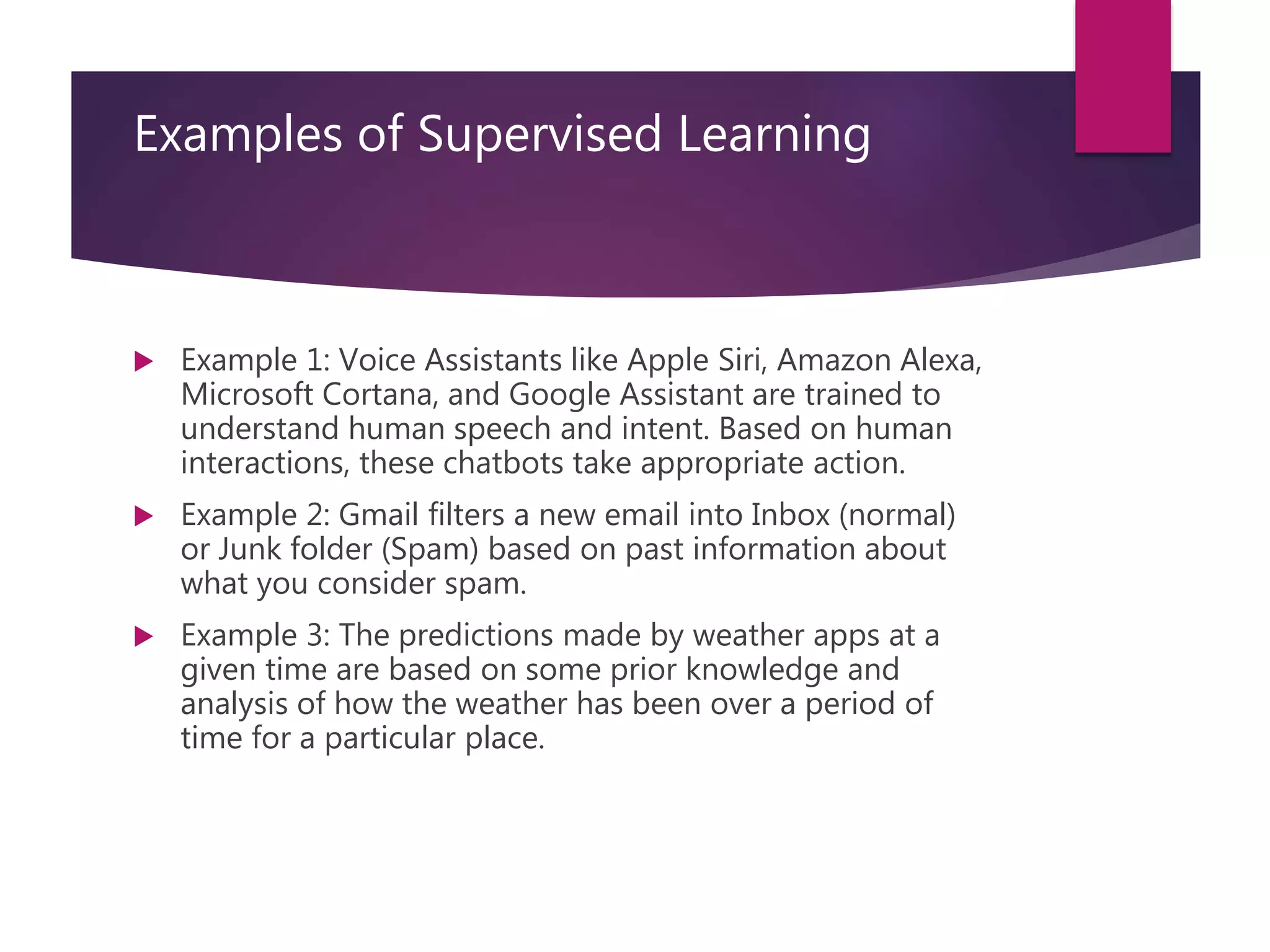

- 9. Examples of SupervisedLearning Example 1: Voice Assistants like Apple Siri, Amazon Alexa, Microsoft Cortana, and Google Assistant are trained to understand human speech and intent. Based on human interactions, these chatbots take appropriate action. Example 2: Gmail filters a new email into Inbox (normal) or Junk folder (Spam) based on past information about what you consider spam. Example 3: The predictions made by weather apps at a given time are based on some prior knowledge and analysis of how the weather has been over a period of time for a particular place.

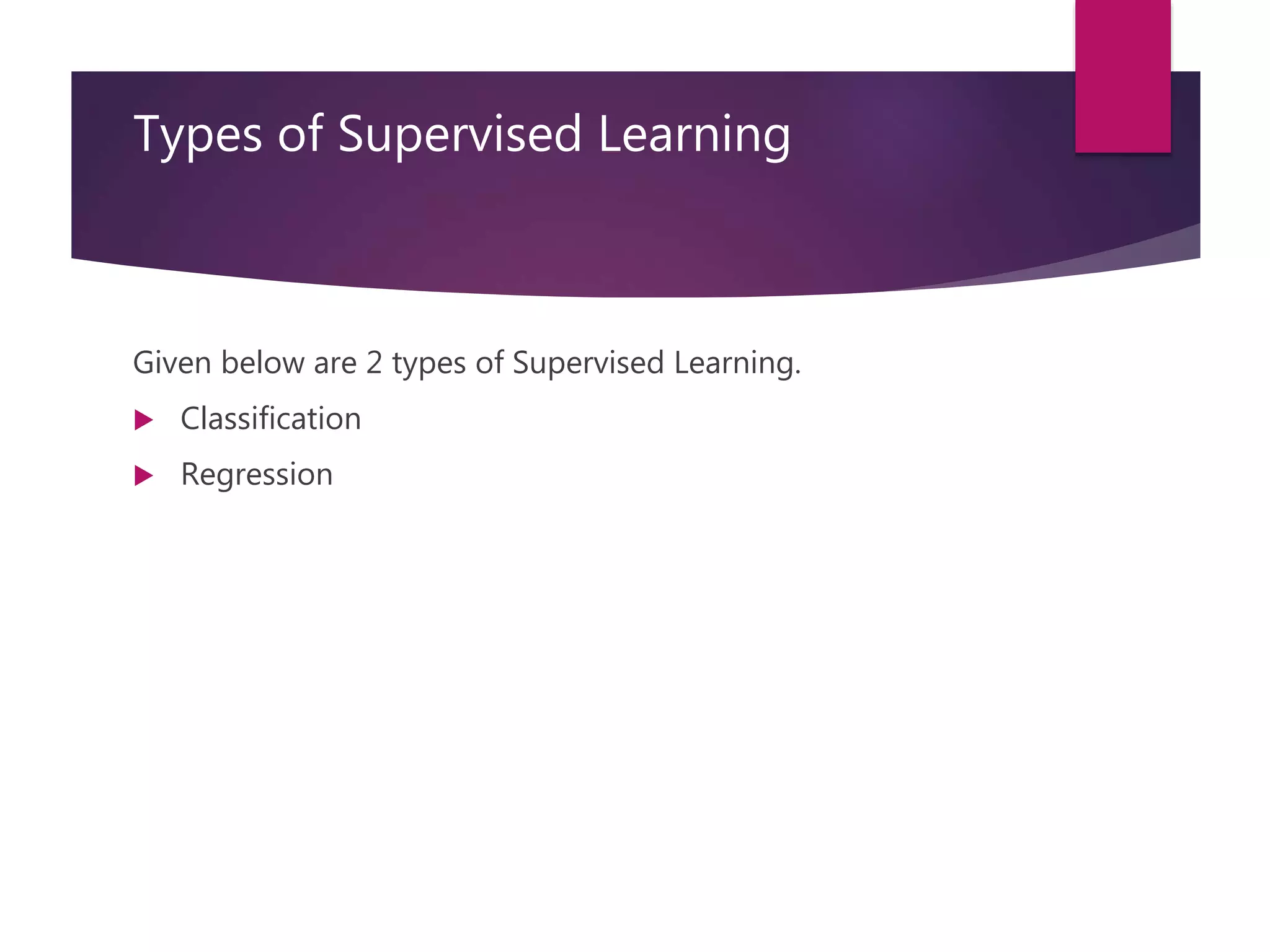

- 10. Types of SupervisedLearning Given below are 2 types of Supervised Learning. Classification Regression

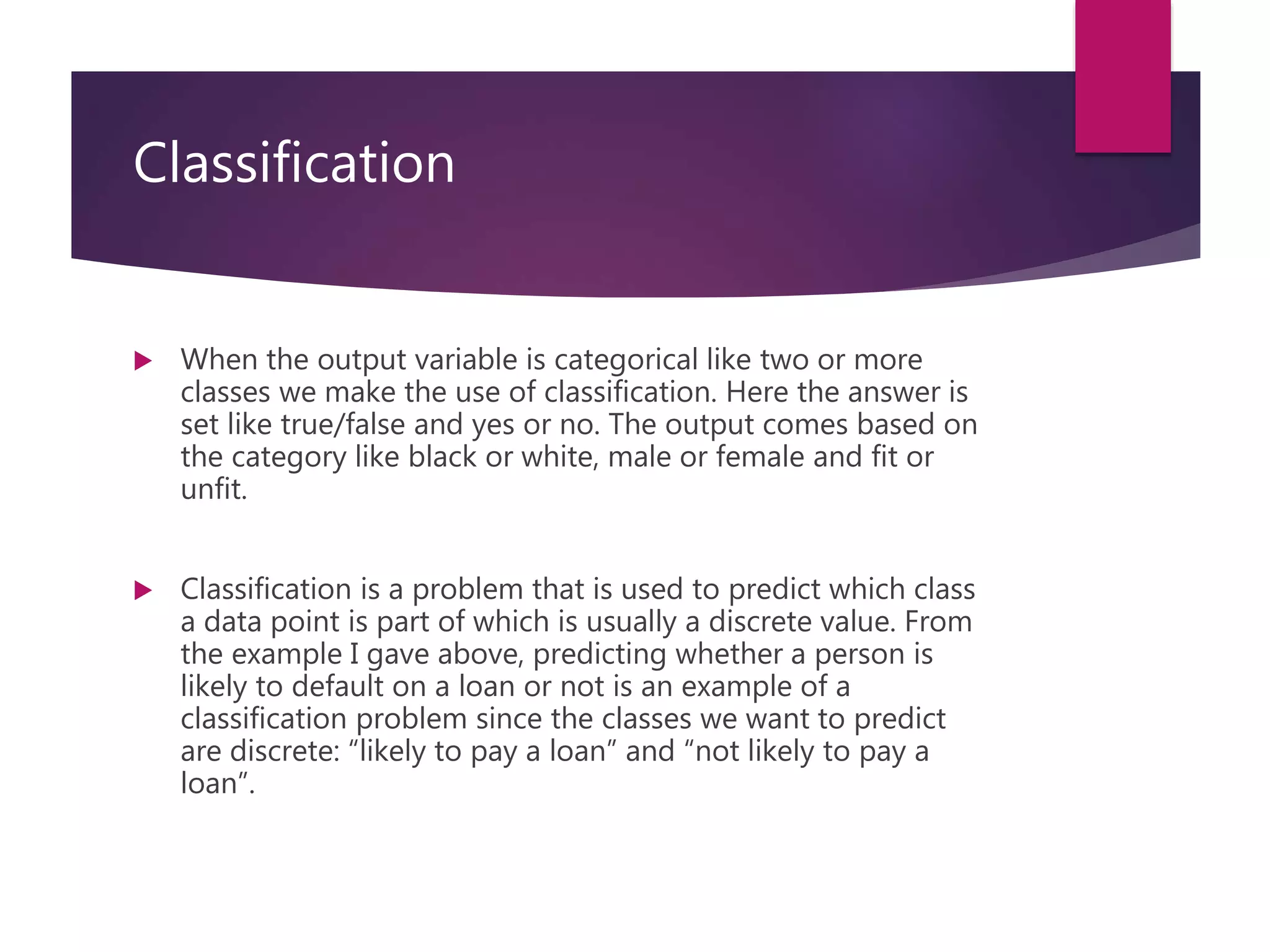

- 11. Classification When theoutput variable is categorical like two or more classes we make the use of classification. Here the answer is set like true/false and yes or no. The output comes based on the category like black or white, male or female and fit or unfit. Classification is a problem that is used to predict which class a data point is part of which is usually a discrete value. From the example I gave above, predicting whether a person is likely to default on a loan or not is an example of a classification problem since the classes we want to predict are discrete: “likely to pay a loan” and “not likely to pay a loan”.

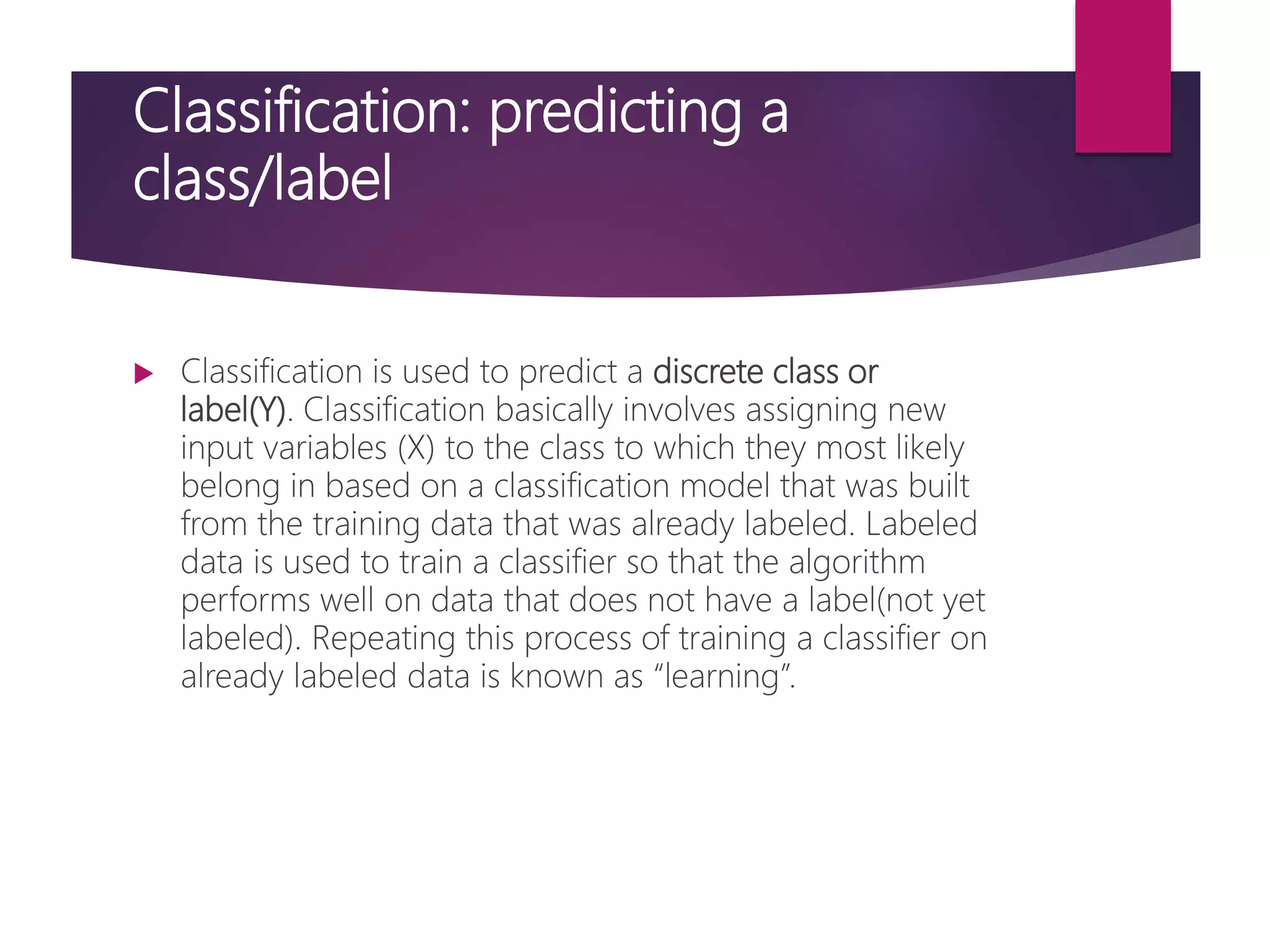

- 12. Classification: predicting a class/label Classification is used to predict a discrete class or label(Y). Classification basically involves assigning new input variables (X) to the class to which they most likely belong in based on a classification model that was built from the training data that was already labeled. Labeled data is used to train a classifier so that the algorithm performs well on data that does not have a label(not yet labeled). Repeating this process of training a classifier on already labeled data is known as “learning”.

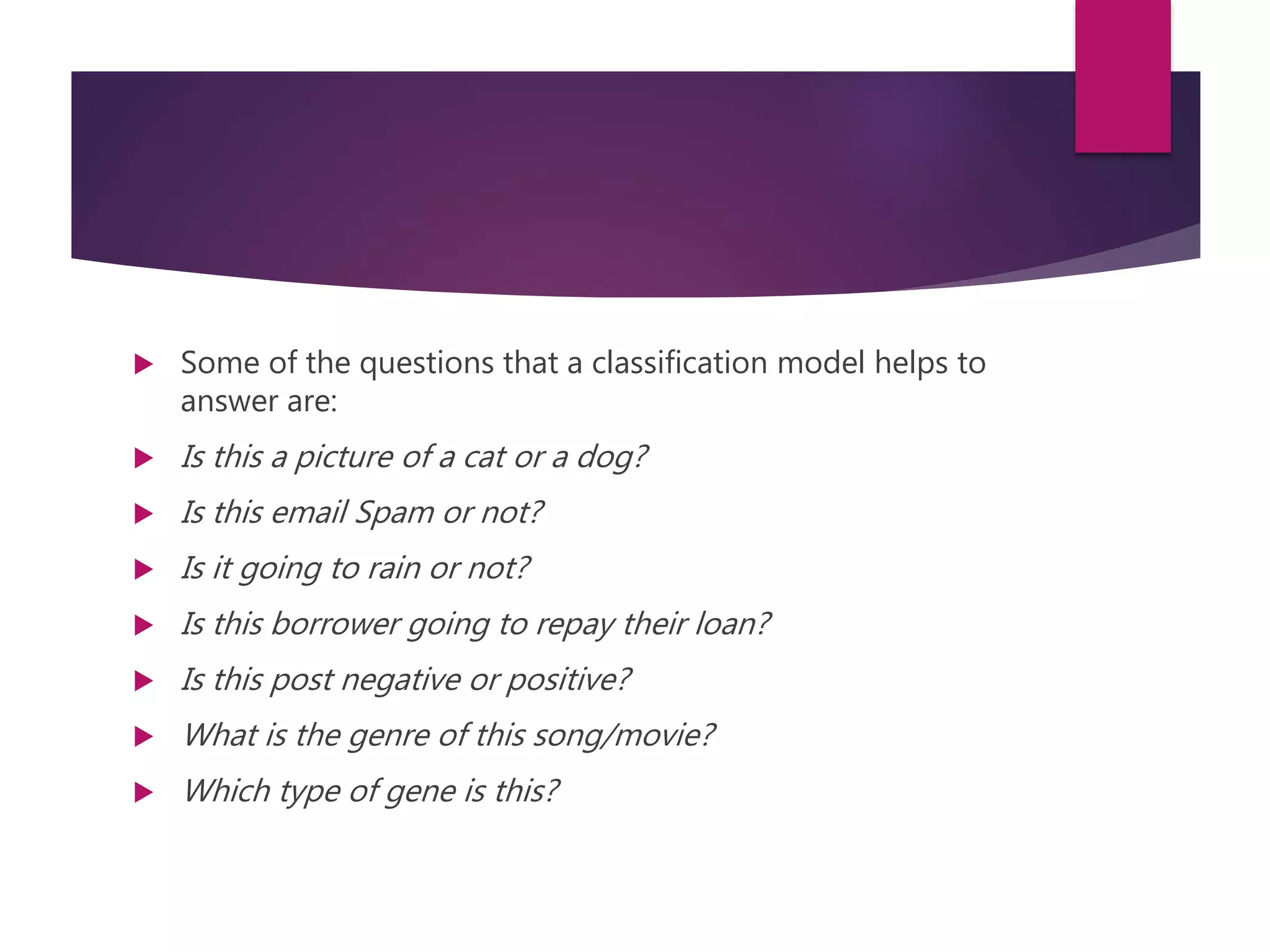

- 13. Some ofthe questions that a classification model helps to answer are: Is this a picture of a cat or a dog? Is this email Spam or not? Is it going to rain or not? Is this borrower going to repay their loan? Is this post negative or positive? What is the genre of this song/movie? Which type of gene is this?

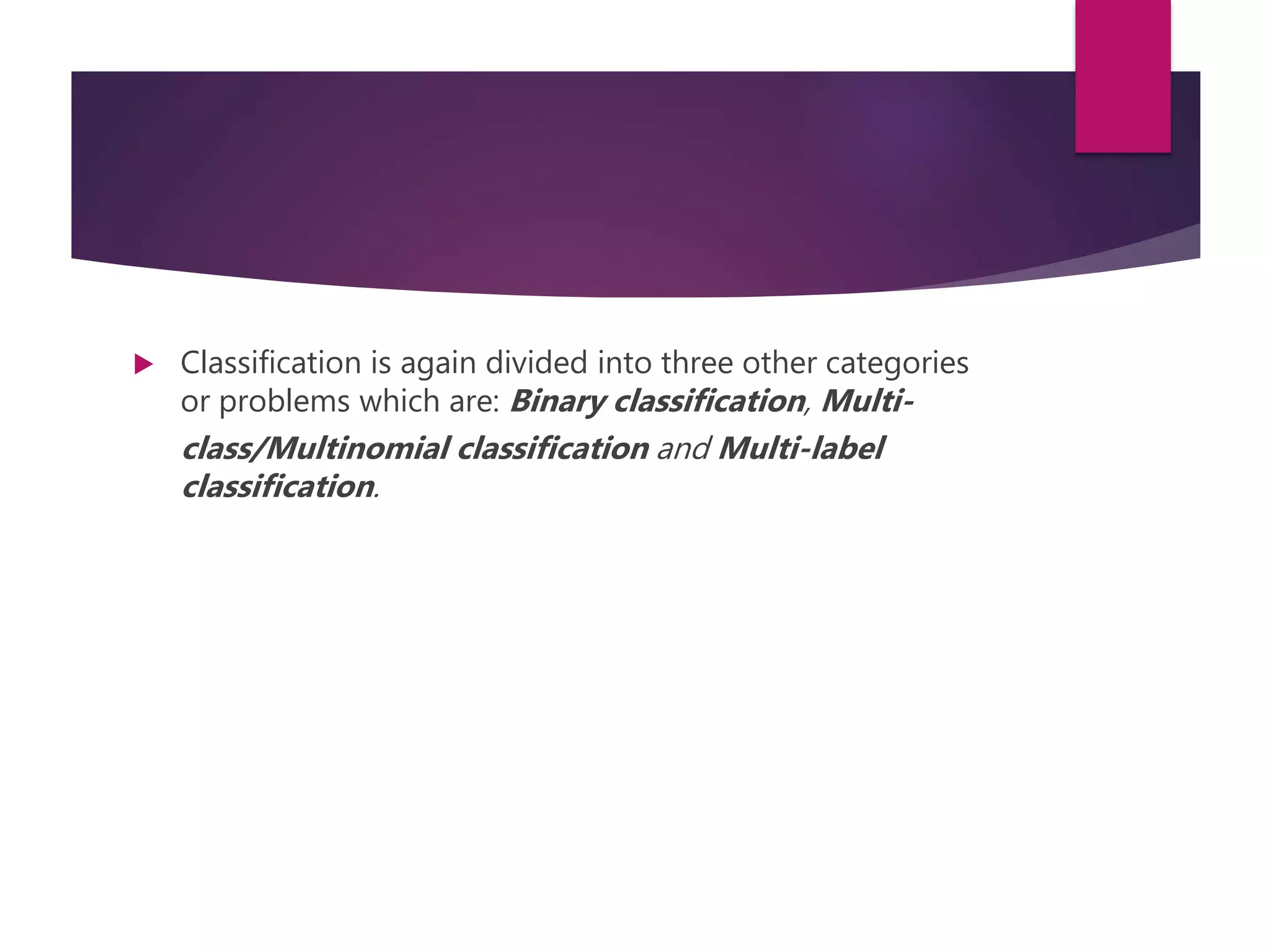

- 14. Classification isagain divided into three other categories or problems which are: Binary classification, Multi- class/Multinomial classification and Multi-label classification.
- 15. Binary classification Thisis a task of classifying the elements/input variables of a given set into two groups i.e predicting which of the two groups each variable belongs to. Problems like predicting whether a picture is of a cat or dog or predicting whether an email is Spam or not are Binary classification problems.

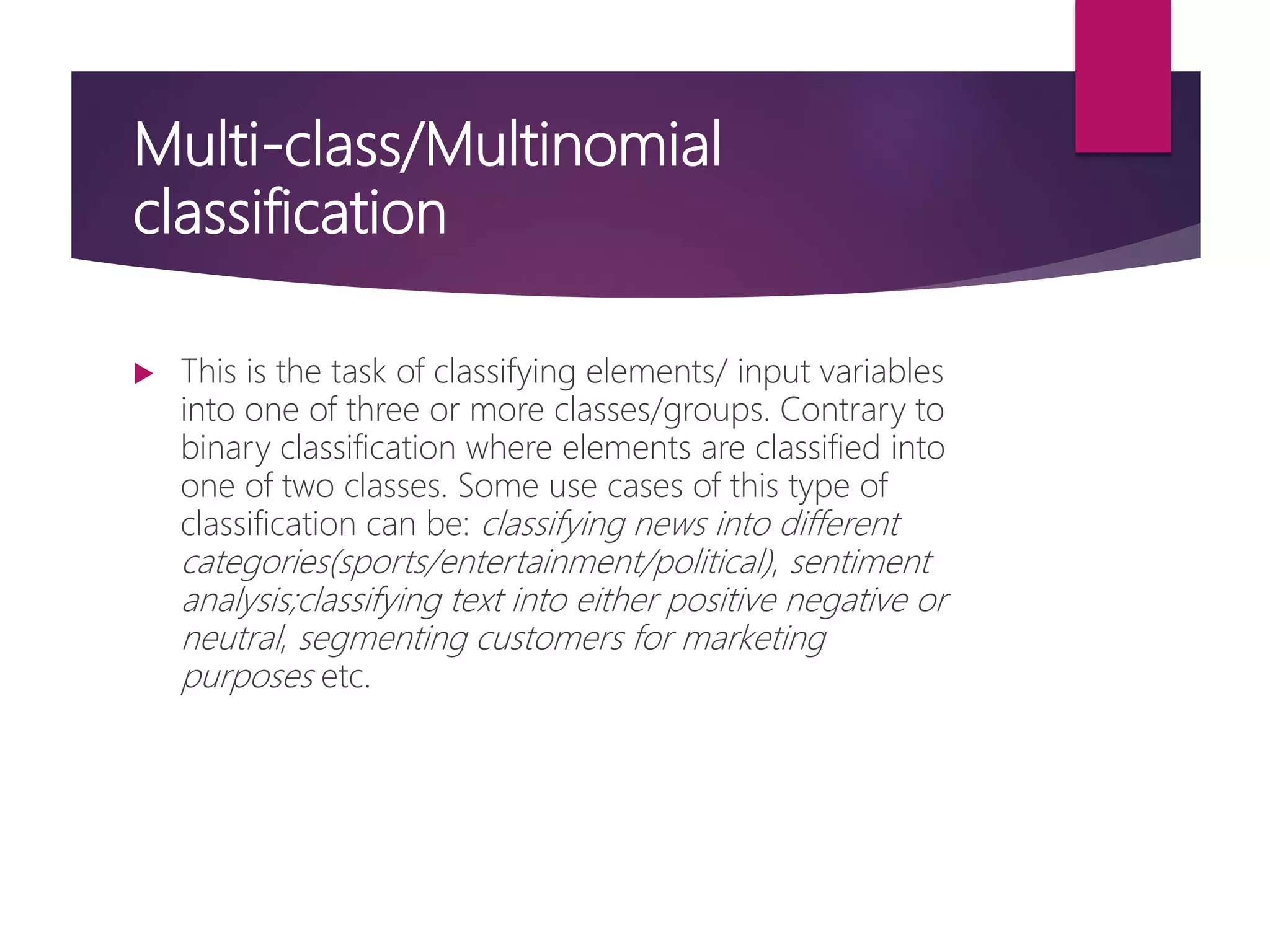

- 16. Multi-class/Multinomial classification This isthe task of classifying elements/ input variables into one of three or more classes/groups. Contrary to binary classification where elements are classified into one of two classes. Some use cases of this type of classification can be: classifying news into different categories(sports/entertainment/political), sentiment analysis;classifying text into either positive negative or neutral, segmenting customers for marketing purposes etc.

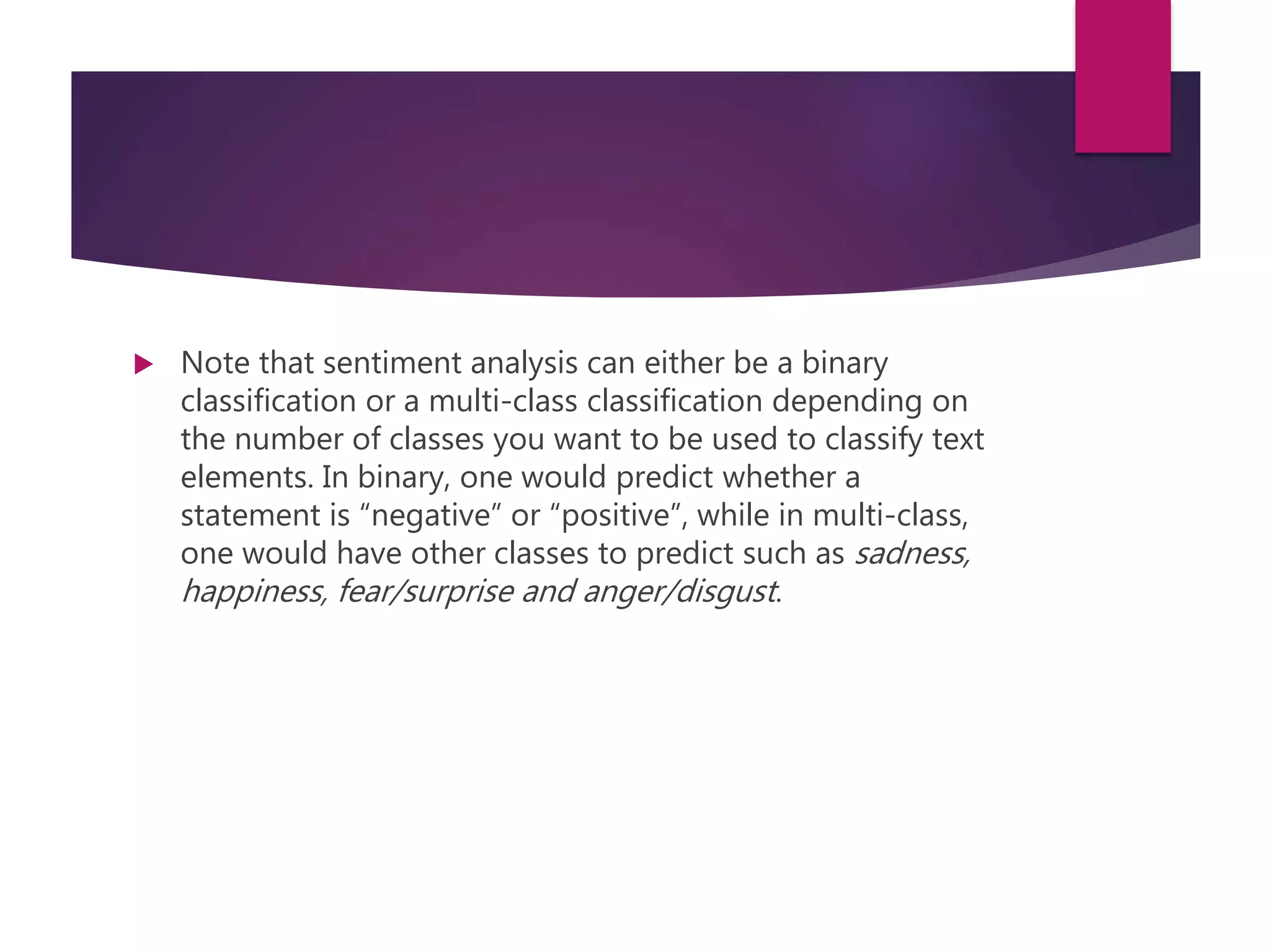

- 17. Note thatsentiment analysis can either be a binary classification or a multi-class classification depending on the number of classes you want to be used to classify text elements. In binary, one would predict whether a statement is “negative” or “positive”, while in multi-class, one would have other classes to predict such as sadness, happiness, fear/surprise and anger/disgust.
- 18. Multi-label classification Thisclassification problem can be easily confused with the multi-class classification but they have a distinct difference. Multi-label is a generalization of multi-class which is a single-label problem of categorizing instances into precisely one of more than two classes. In this case, we have more than one discrete classes.

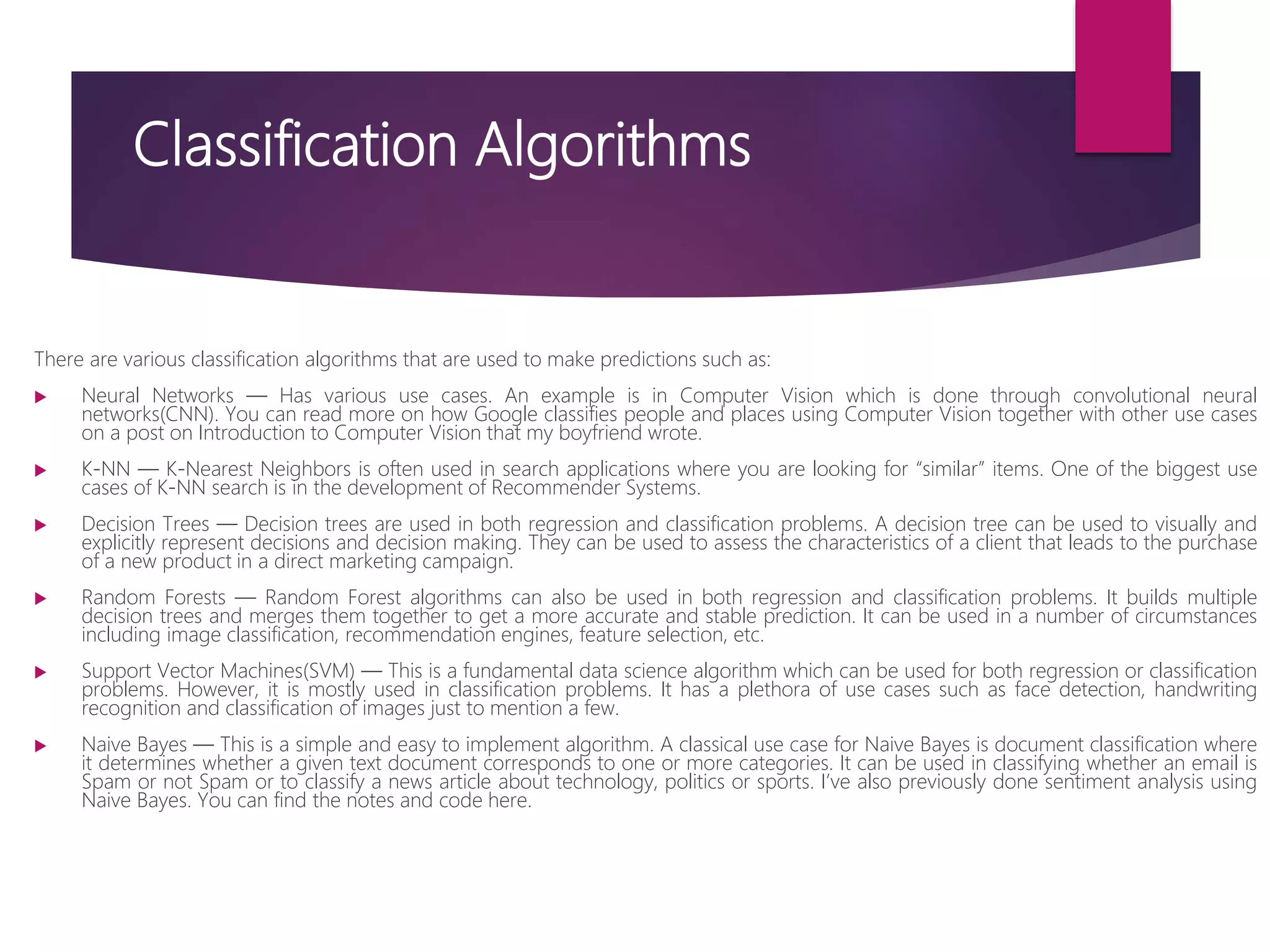

- 19. Classification Algorithms There arevarious classification algorithms that are used to make predictions such as: Neural Networks — Has various use cases. An example is in Computer Vision which is done through convolutional neural networks(CNN). You can read more on how Google classifies people and places using Computer Vision together with other use cases on a post on Introduction to Computer Vision that my boyfriend wrote. K-NN — K-Nearest Neighbors is often used in search applications where you are looking for “similar” items. One of the biggest use cases of K-NN search is in the development of Recommender Systems. Decision Trees — Decision trees are used in both regression and classification problems. A decision tree can be used to visually and explicitly represent decisions and decision making. They can be used to assess the characteristics of a client that leads to the purchase of a new product in a direct marketing campaign. Random Forests — Random Forest algorithms can also be used in both regression and classification problems. It builds multiple decision trees and merges them together to get a more accurate and stable prediction. It can be used in a number of circumstances including image classification, recommendation engines, feature selection, etc. Support Vector Machines(SVM) — This is a fundamental data science algorithm which can be used for both regression or classification problems. However, it is mostly used in classification problems. It has a plethora of use cases such as face detection, handwriting recognition and classification of images just to mention a few. Naive Bayes — This is a simple and easy to implement algorithm. A classical use case for Naive Bayes is document classification where it determines whether a given text document corresponds to one or more categories. It can be used in classifying whether an email is Spam or not Spam or to classify a news article about technology, politics or sports. I’ve also previously done sentiment analysis using Naive Bayes. You can find the notes and code here.

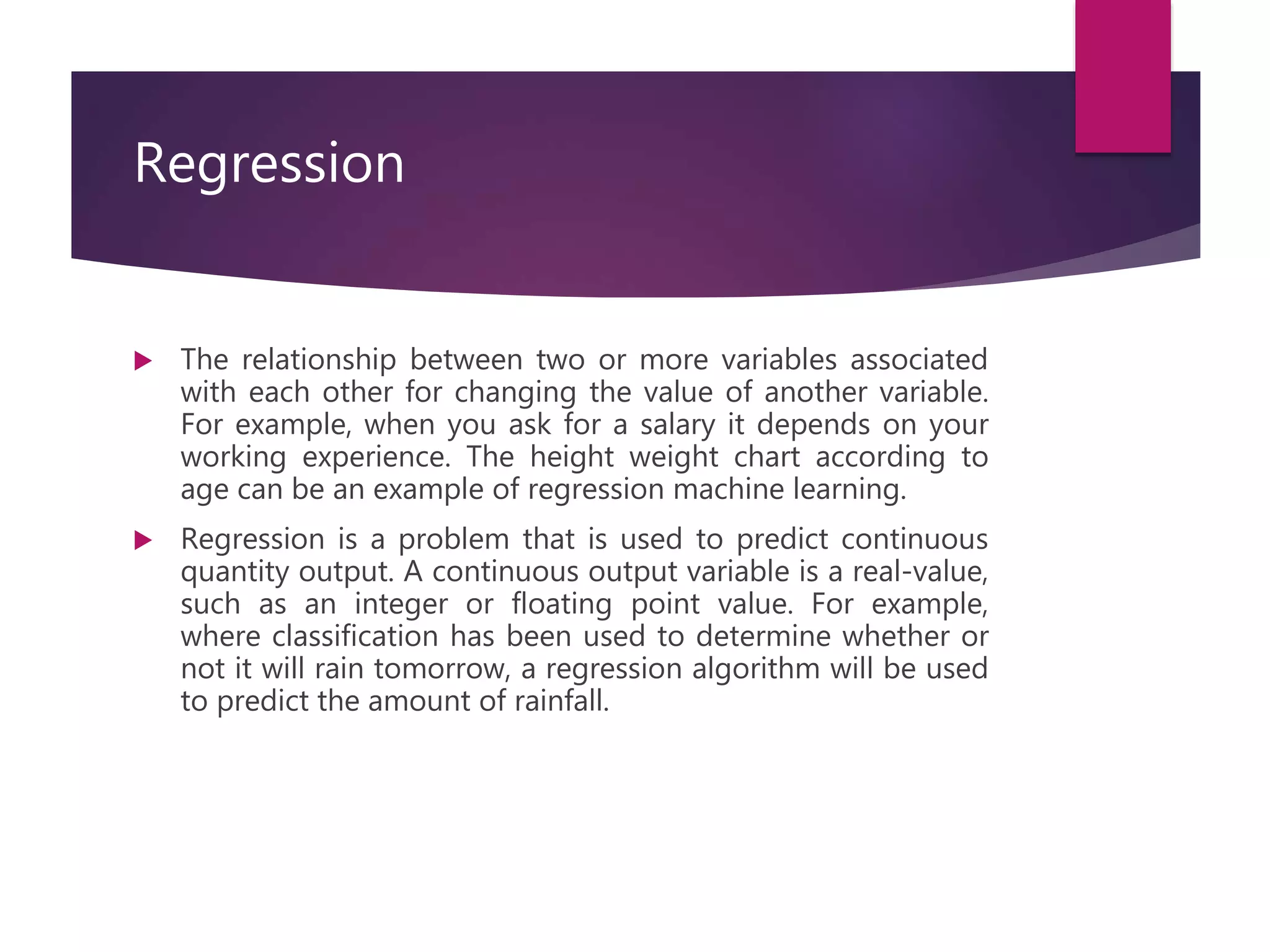

- 20. Regression The relationshipbetween two or more variables associated with each other for changing the value of another variable. For example, when you ask for a salary it depends on your working experience. The height weight chart according to age can be an example of regression machine learning. Regression is a problem that is used to predict continuous quantity output. A continuous output variable is a real-value, such as an integer or floating point value. For example, where classification has been used to determine whether or not it will rain tomorrow, a regression algorithm will be used to predict the amount of rainfall.

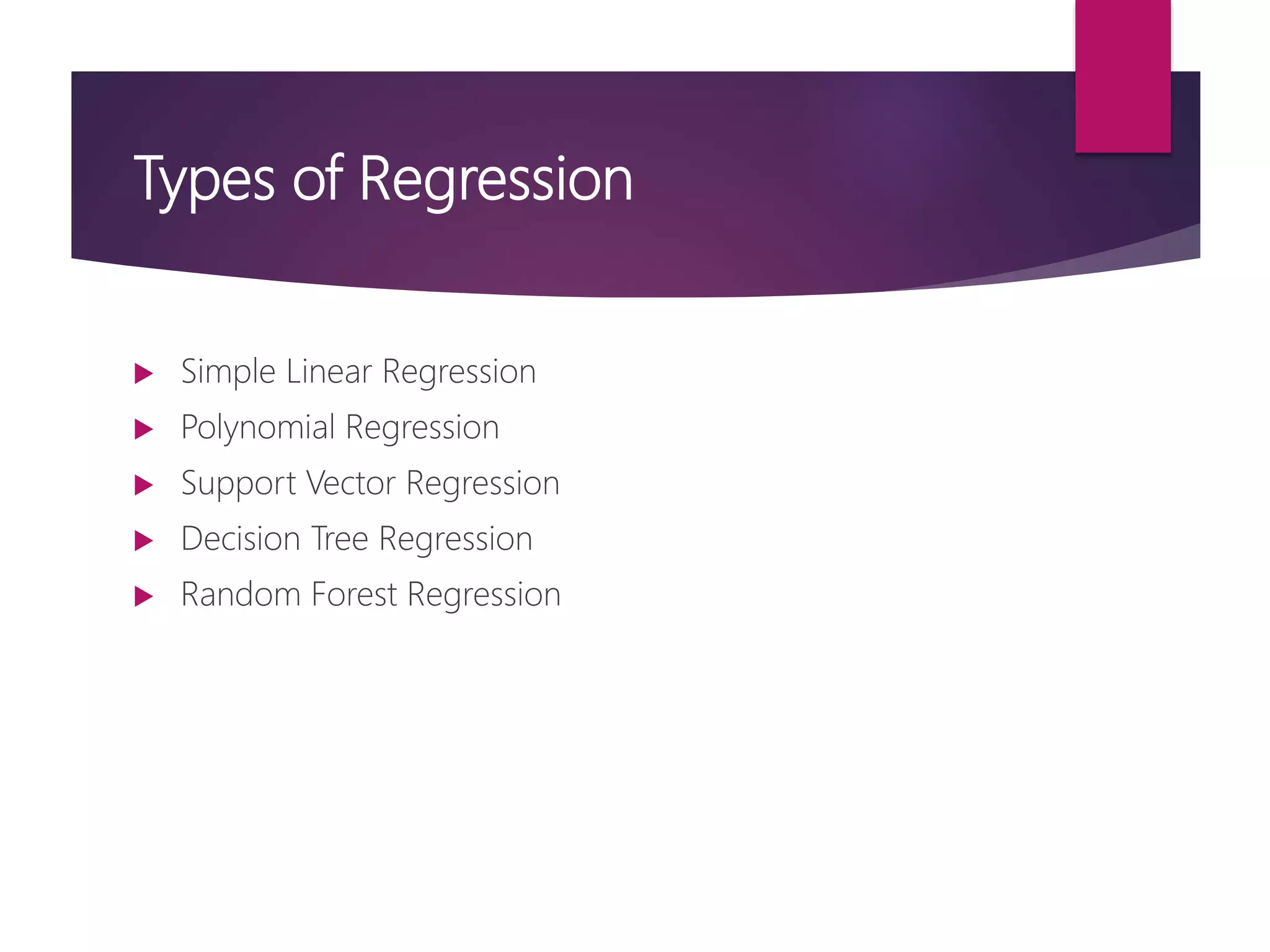

- 21. Types of Regression Simple Linear Regression Polynomial Regression Support Vector Regression Decision Tree Regression Random Forest Regression

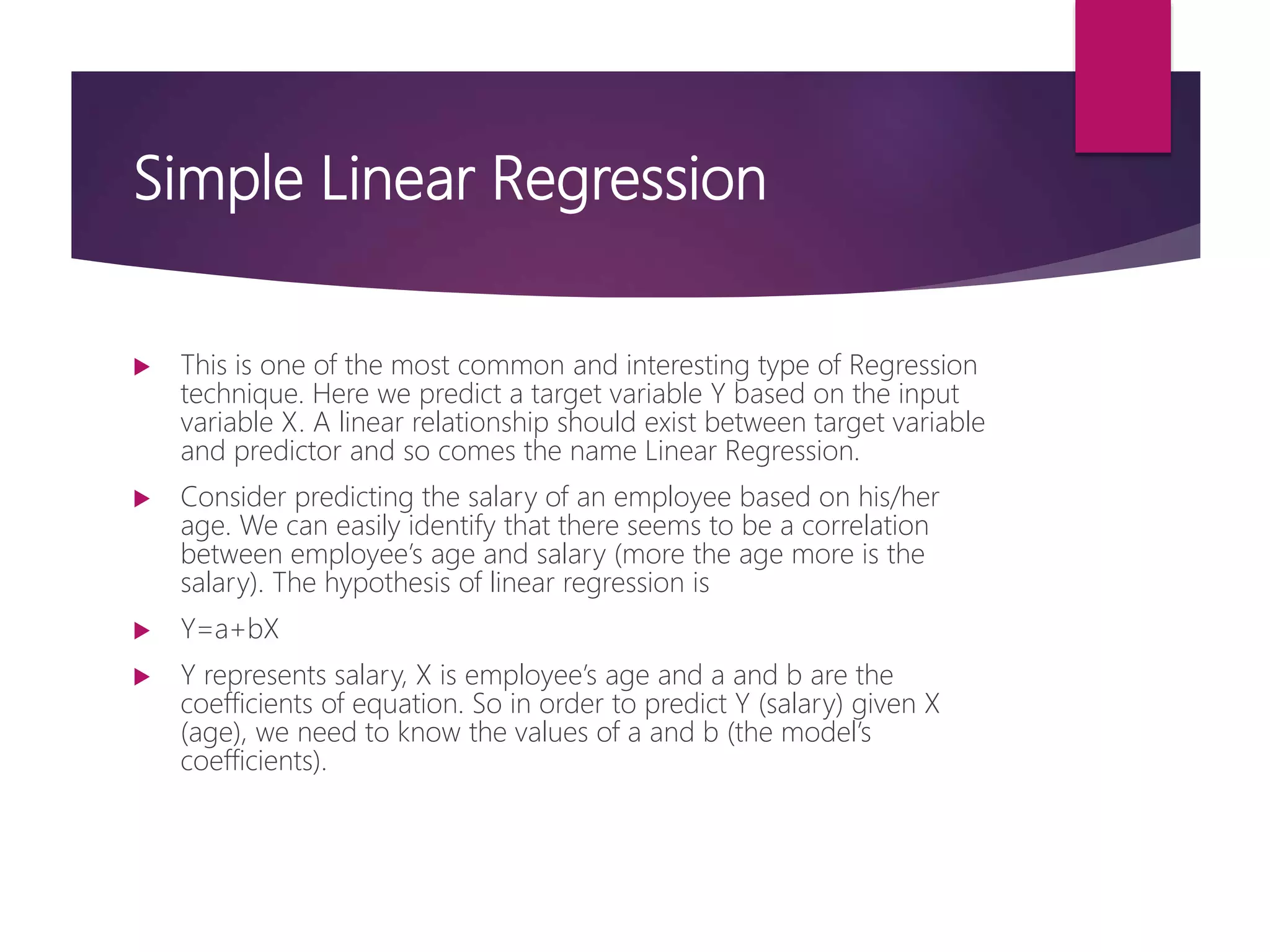

- 22. Simple Linear Regression This is one of the most common and interesting type of Regression technique. Here we predict a target variable Y based on the input variable X. A linear relationship should exist between target variable and predictor and so comes the name Linear Regression. Consider predicting the salary of an employee based on his/her age. We can easily identify that there seems to be a correlation between employee’s age and salary (more the age more is the salary). The hypothesis of linear regression is Y=a+bX Y represents salary, X is employee’s age and a and b are the coefficients of equation. So in order to predict Y (salary) given X (age), we need to know the values of a and b (the model’s coefficients).

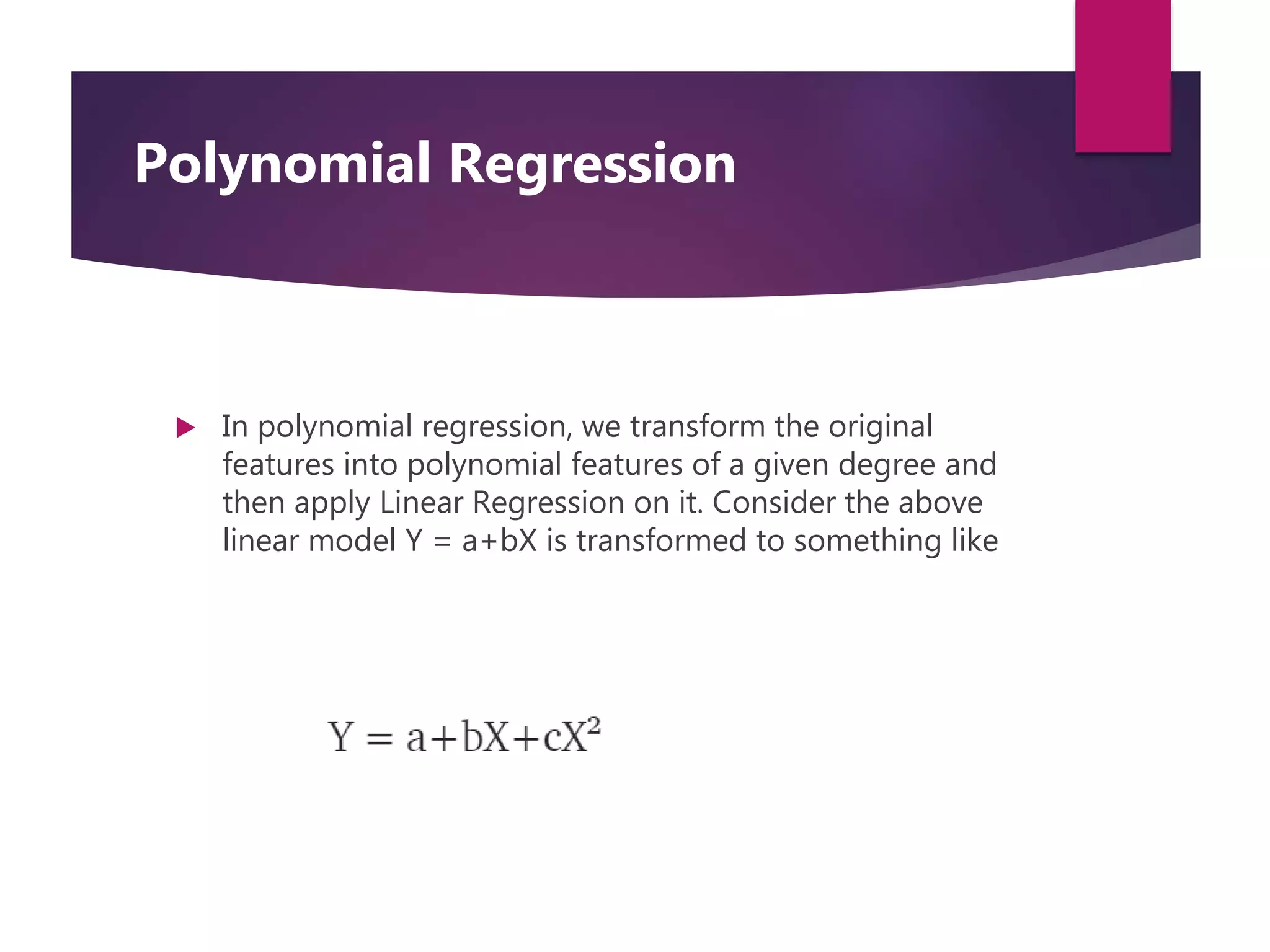

- 23. In polynomialregression, we transform the original features into polynomial features of a given degree and then apply Linear Regression on it. Consider the above linear model Y = a+bX is transformed to something like Polynomial Regression

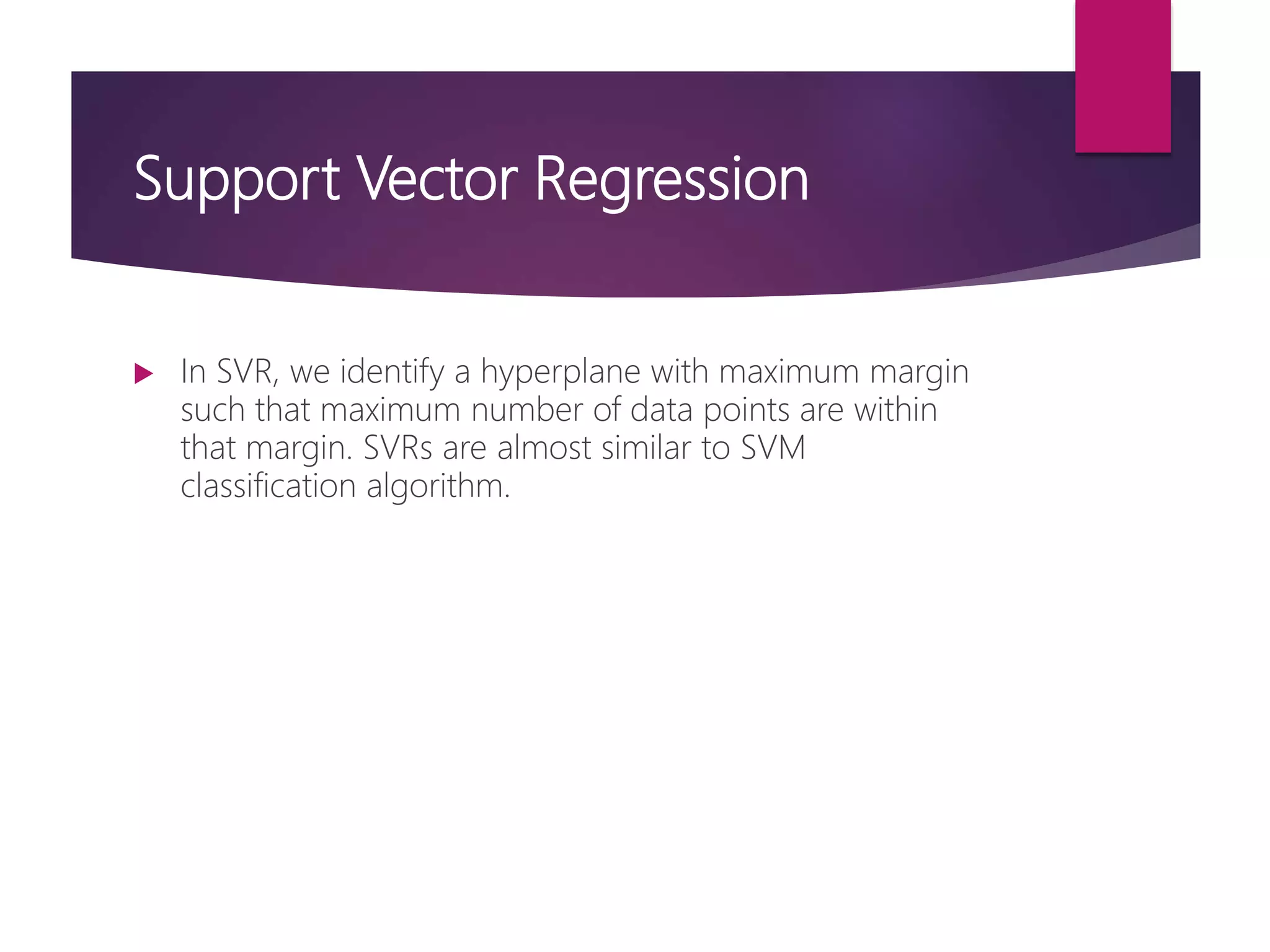

- 24. Support Vector Regression In SVR, we identify a hyperplane with maximum margin such that maximum number of data points are within that margin. SVRs are almost similar to SVM classification algorithm.

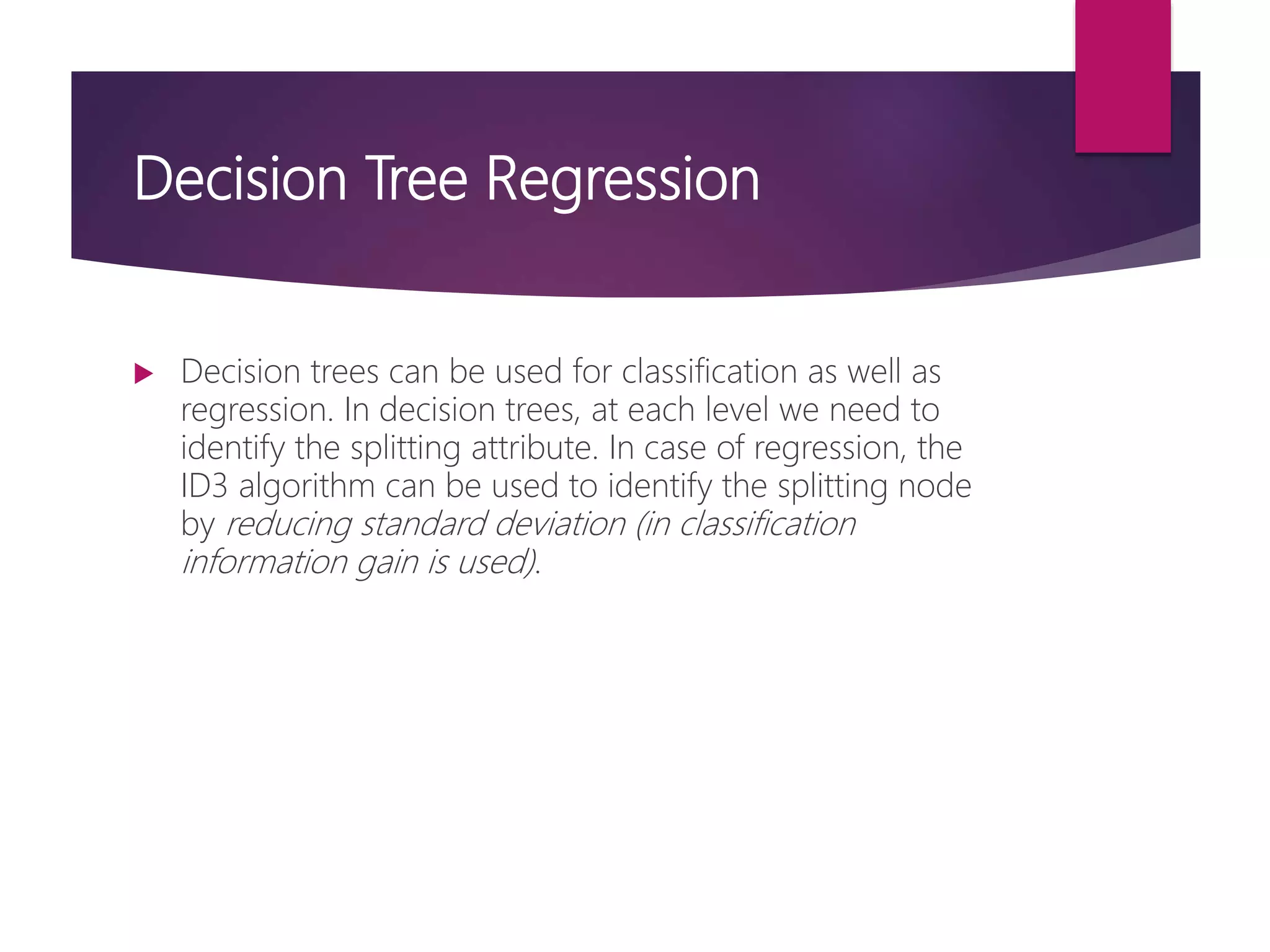

- 25. Decision Tree Regression Decision trees can be used for classification as well as regression. In decision trees, at each level we need to identify the splitting attribute. In case of regression, the ID3 algorithm can be used to identify the splitting node by reducing standard deviation (in classification information gain is used).

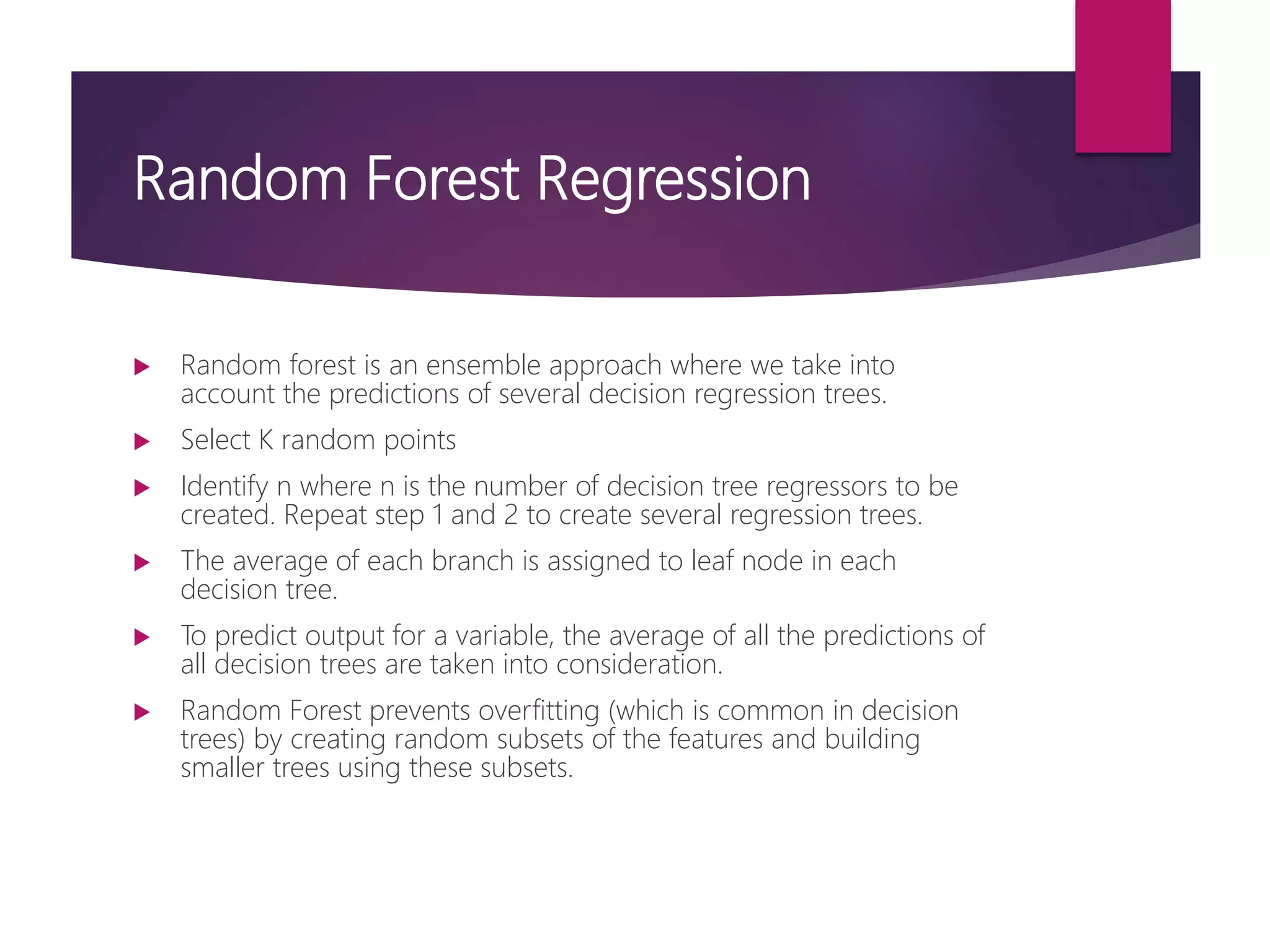

- 26. Random Forest Regression Random forest is an ensemble approach where we take into account the predictions of several decision regression trees. Select K random points Identify n where n is the number of decision tree regressors to be created. Repeat step 1 and 2 to create several regression trees. The average of each branch is assigned to leaf node in each decision tree. To predict output for a variable, the average of all the predictions of all decision trees are taken into consideration. Random Forest prevents overfitting (which is common in decision trees) by creating random subsets of the features and building smaller trees using these subsets.

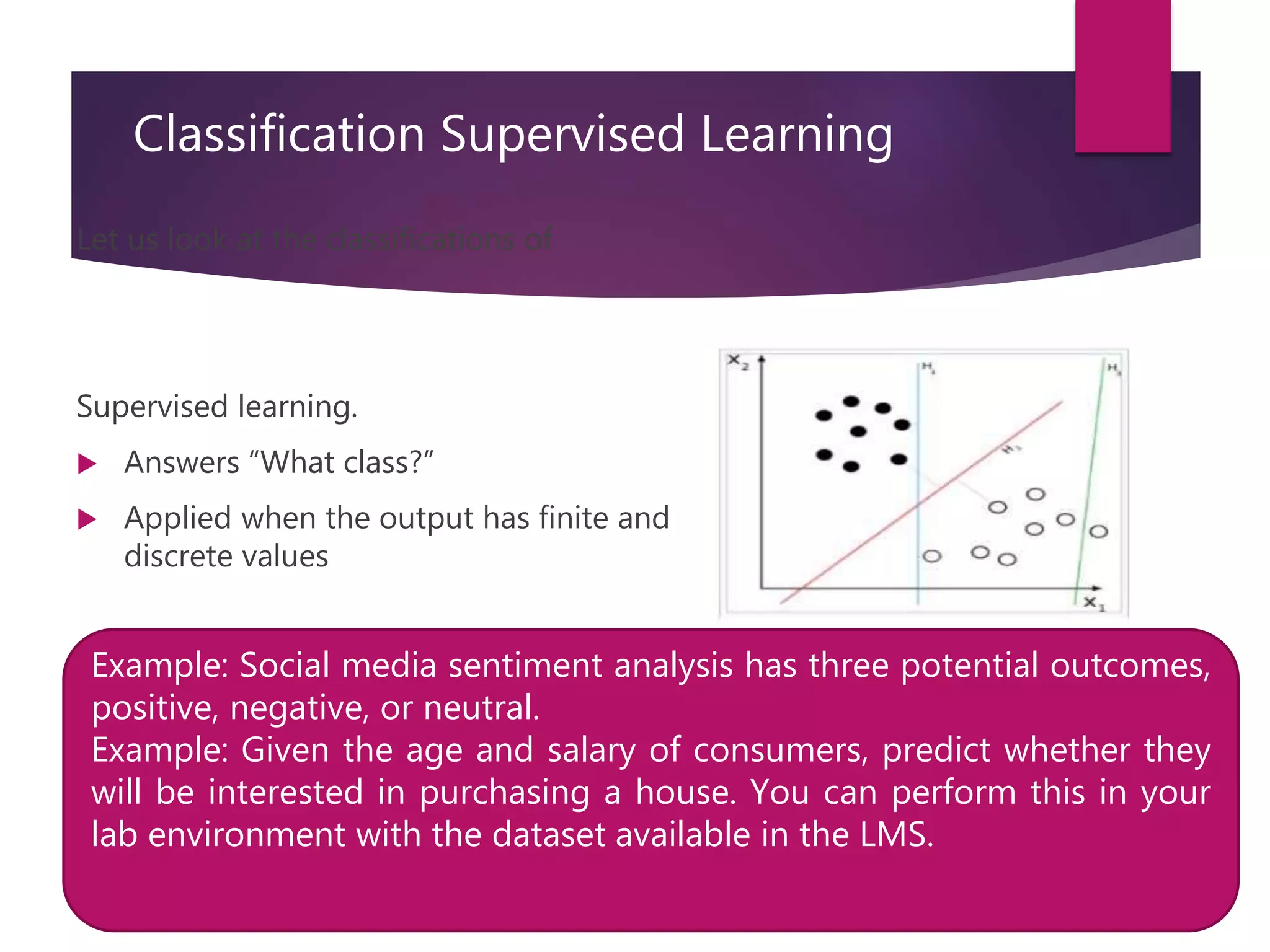

- 27. Classification Supervised Learning Letus look at the classifications of Supervised learning. Answers “What class?” Applied when the output has finite and discrete values Example: Social media sentiment analysis has three potential outcomes, positive, negative, or neutral. Example: Given the age and salary of consumers, predict whether they will be interested in purchasing a house. You can perform this in your lab environment with the dataset available in the LMS.

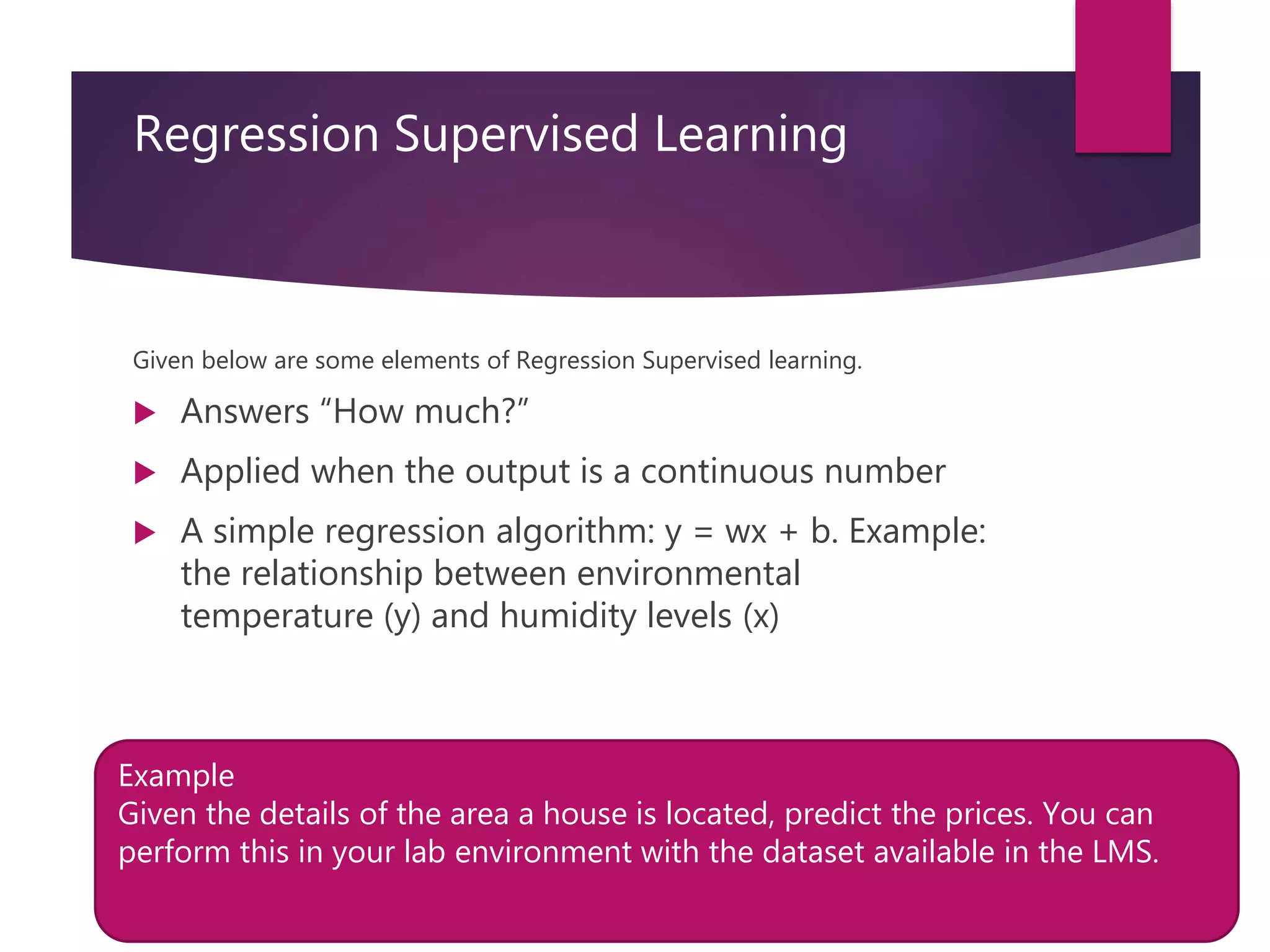

- 28. Regression Supervised Learning Givenbelow are some elements of Regression Supervised learning. Answers “How much?” Applied when the output is a continuous number A simple regression algorithm: y = wx + b. Example: the relationship between environmental temperature (y) and humidity levels (x) Example Given the details of the area a house is located, predict the prices. You can perform this in your lab environment with the dataset available in the LMS.

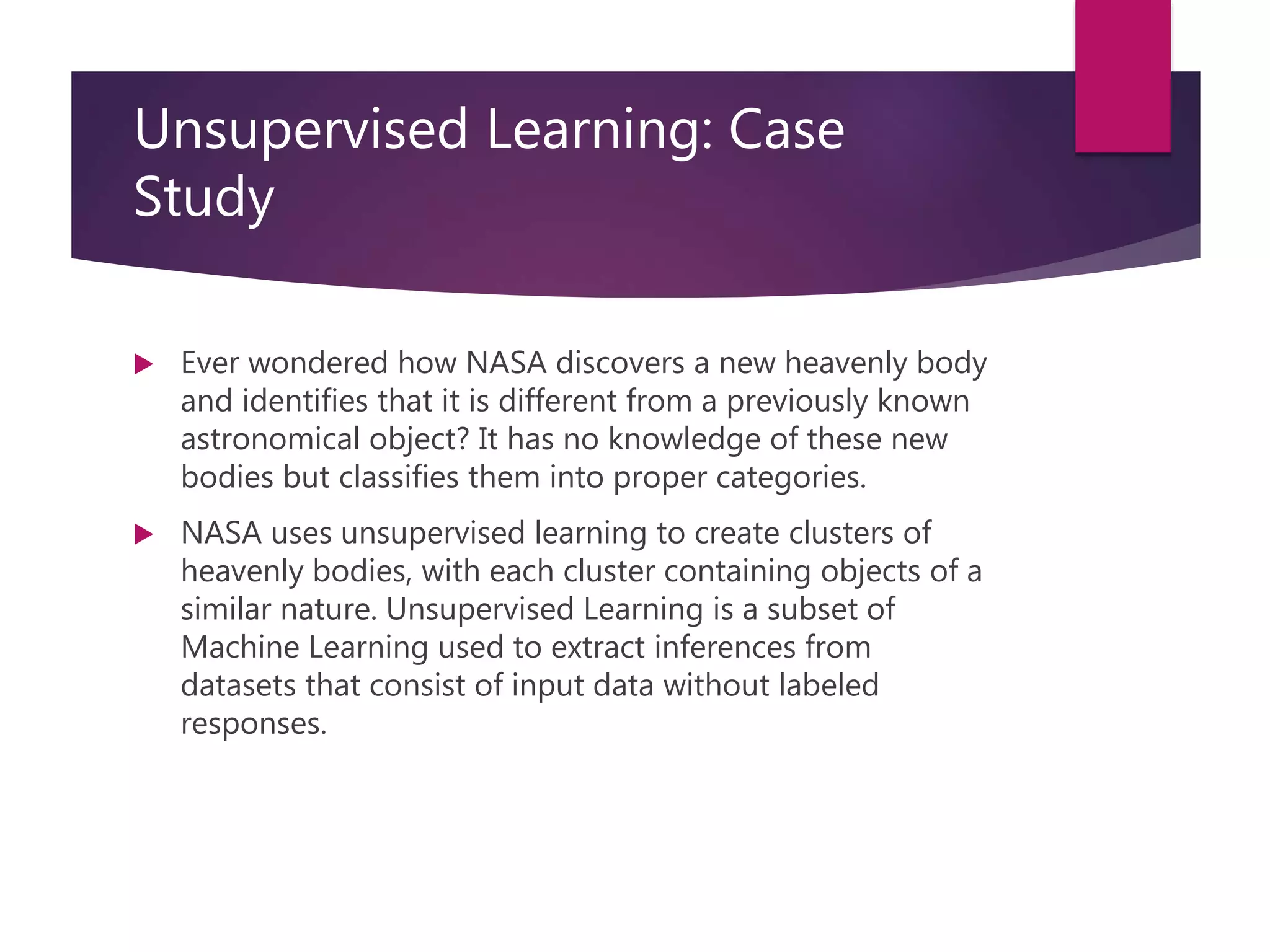

- 29. Unsupervised Learning: Case Study Ever wondered how NASA discovers a new heavenly body and identifies that it is different from a previously known astronomical object? It has no knowledge of these new bodies but classifies them into proper categories. NASA uses unsupervised learning to create clusters of heavenly bodies, with each cluster containing objects of a similar nature. Unsupervised Learning is a subset of Machine Learning used to extract inferences from datasets that consist of input data without labeled responses.

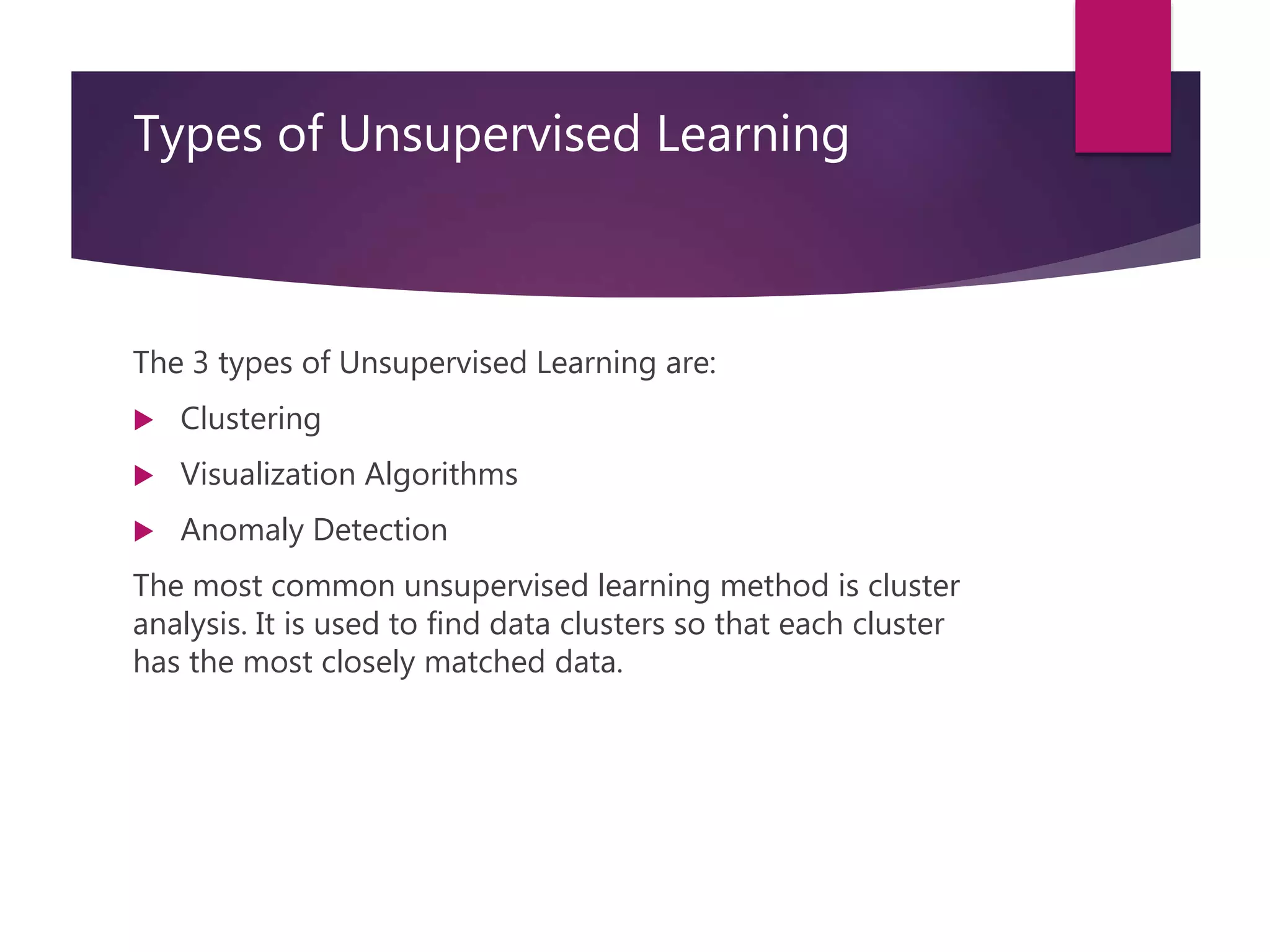

- 30. Types of UnsupervisedLearning The 3 types of Unsupervised Learning are: Clustering Visualization Algorithms Anomaly Detection The most common unsupervised learning method is cluster analysis. It is used to find data clusters so that each cluster has the most closely matched data.

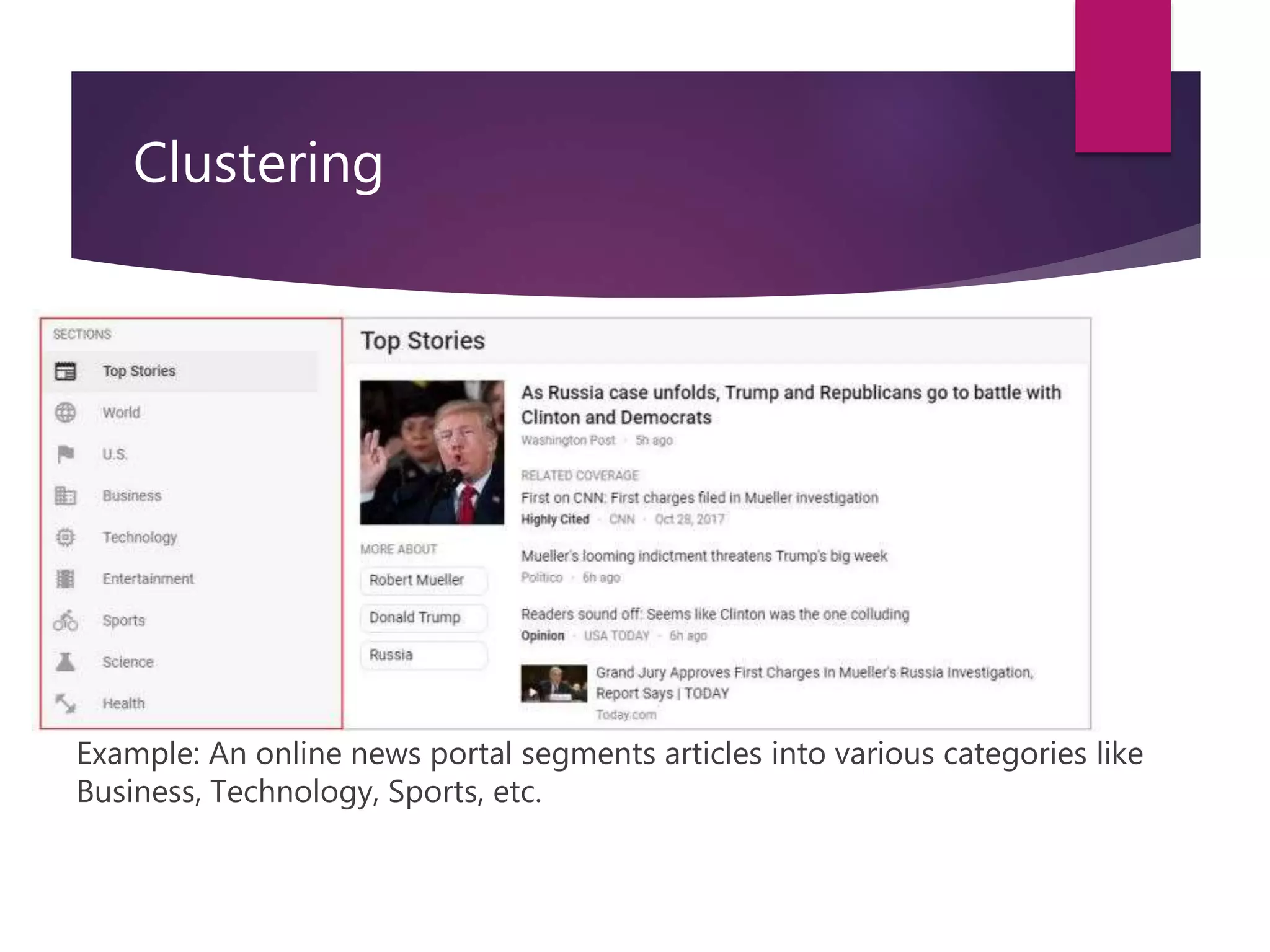

- 31. Clustering Example: An onlinenews portal segments articles into various categories like Business, Technology, Sports, etc.

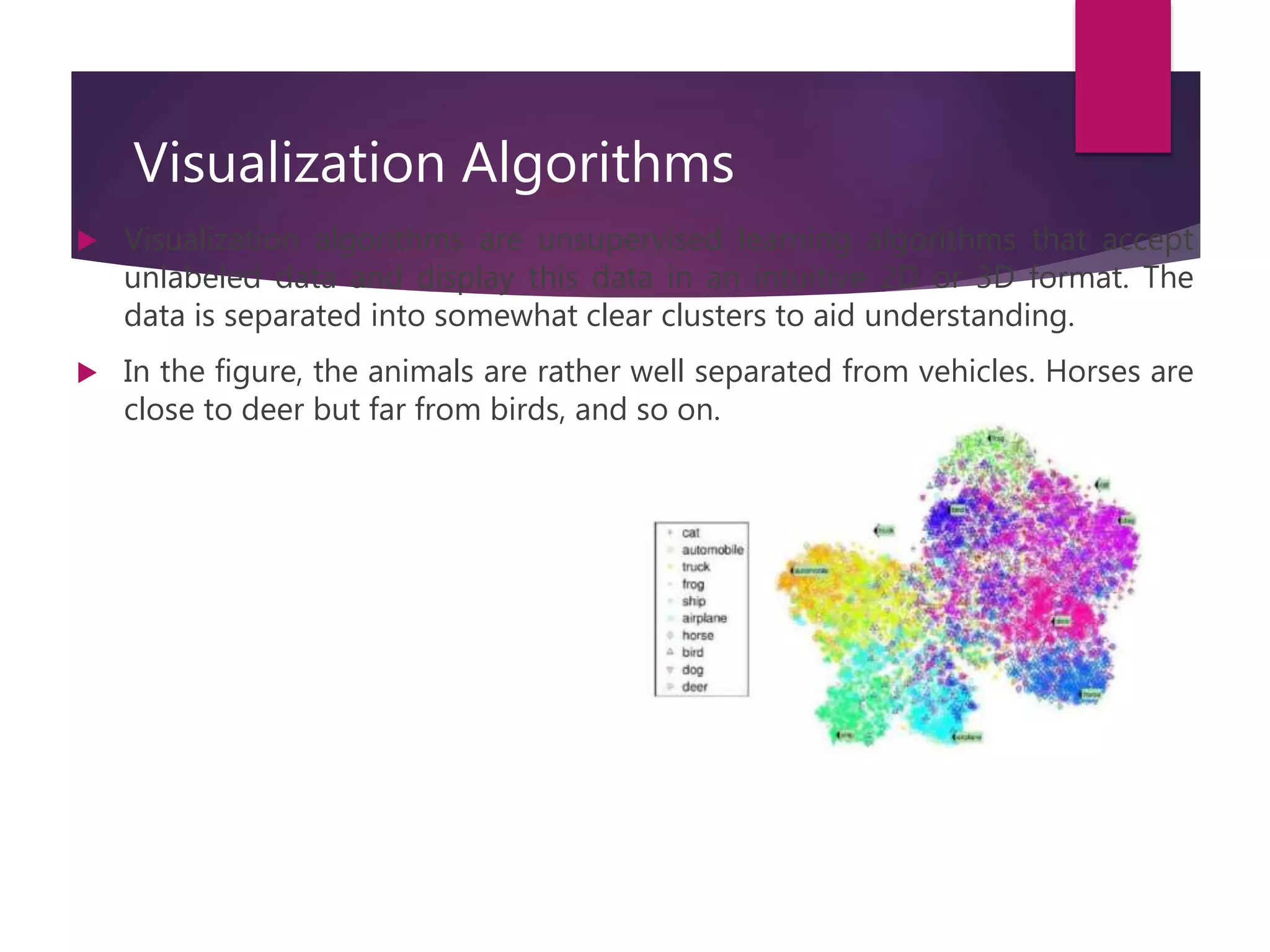

- 32. Visualization Algorithms Visualizationalgorithms are unsupervised learning algorithms that accept unlabeled data and display this data in an intuitive 2D or 3D format. The data is separated into somewhat clear clusters to aid understanding. In the figure, the animals are rather well separated from vehicles. Horses are close to deer but far from birds, and so on.

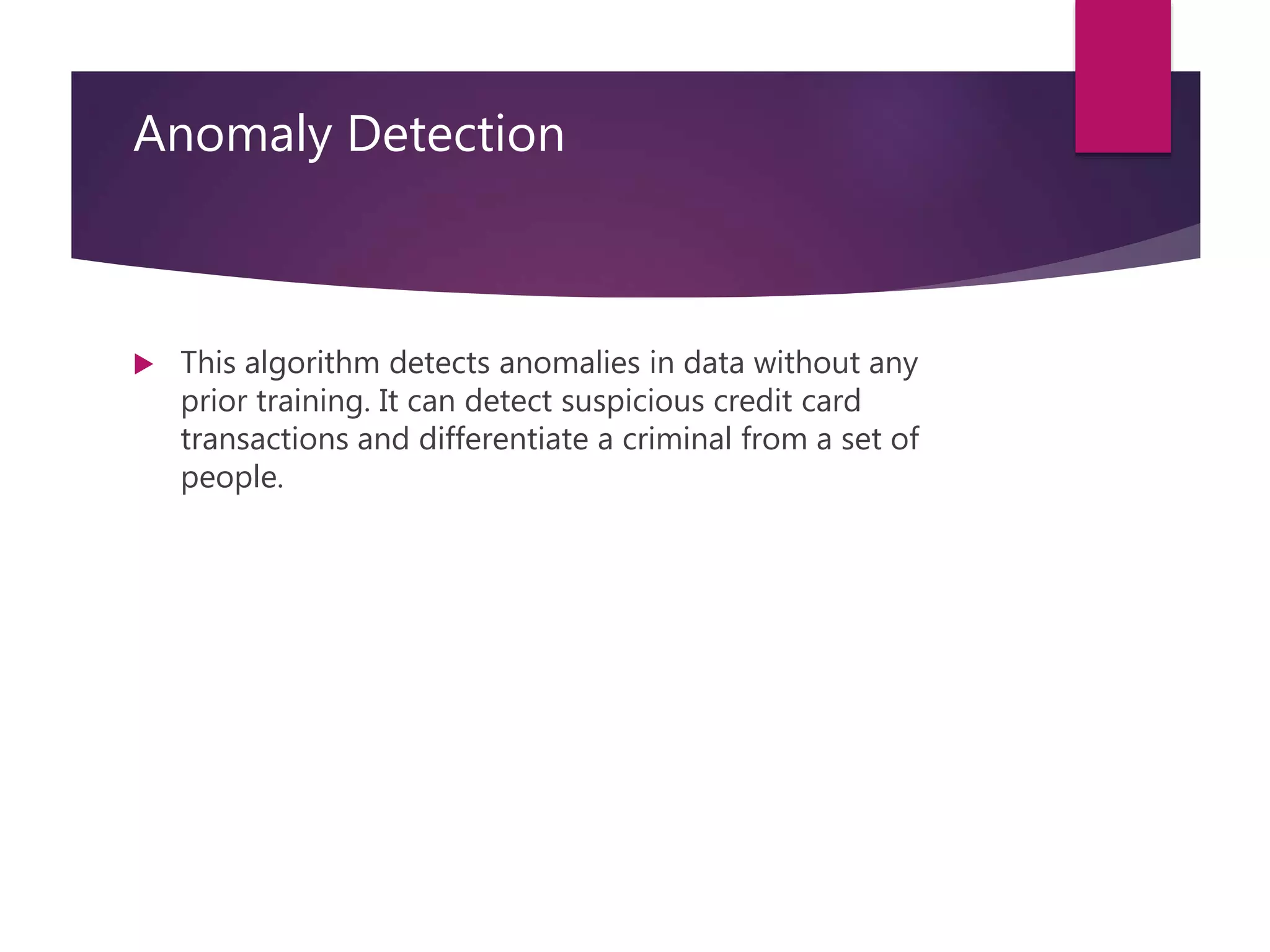

- 33. Anomaly Detection Thisalgorithm detects anomalies in data without any prior training. It can detect suspicious credit card transactions and differentiate a criminal from a set of people.

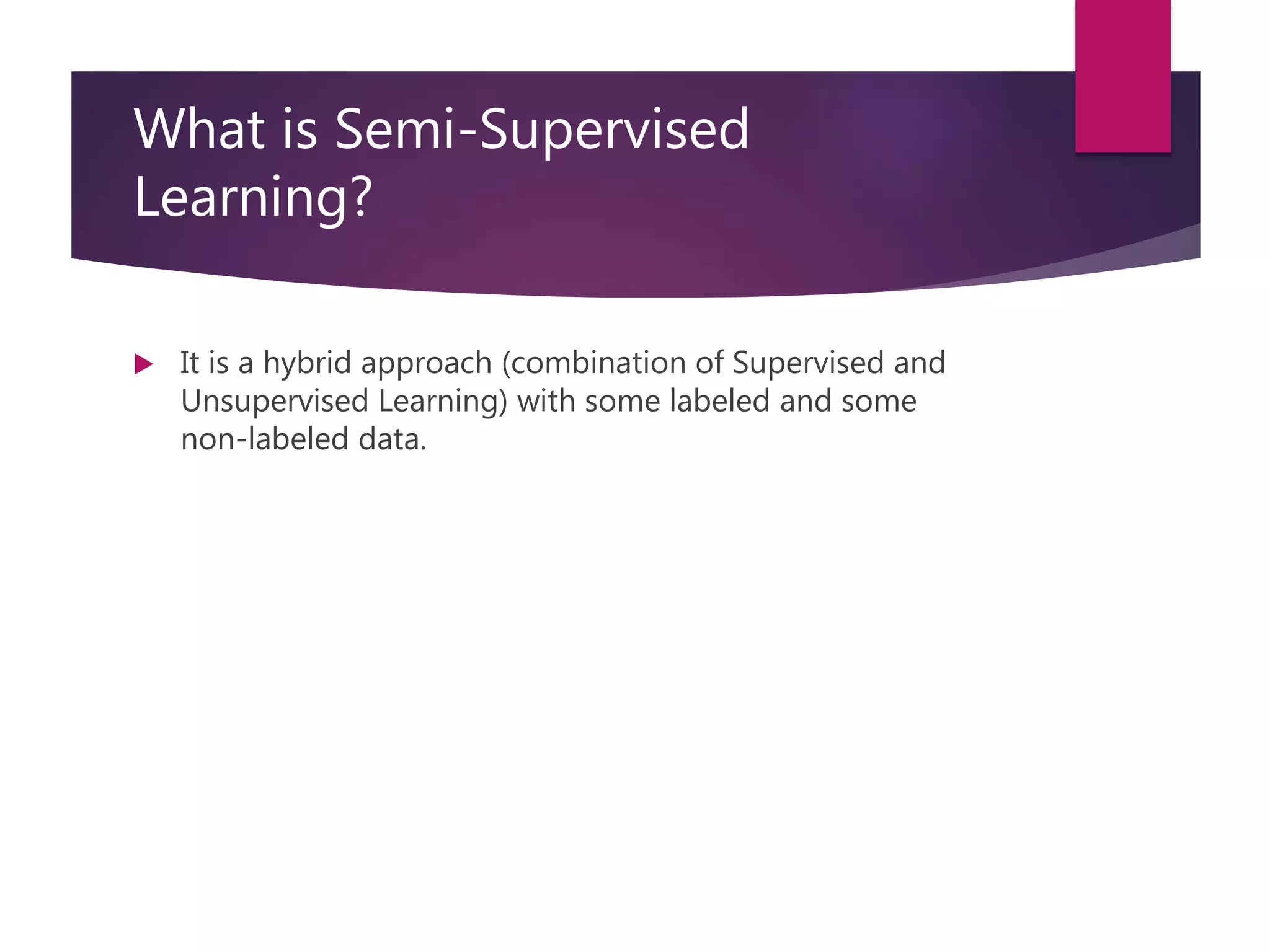

- 34. What is Semi-Supervised Learning? It is a hybrid approach (combination of Supervised and Unsupervised Learning) with some labeled and some non-labeled data.

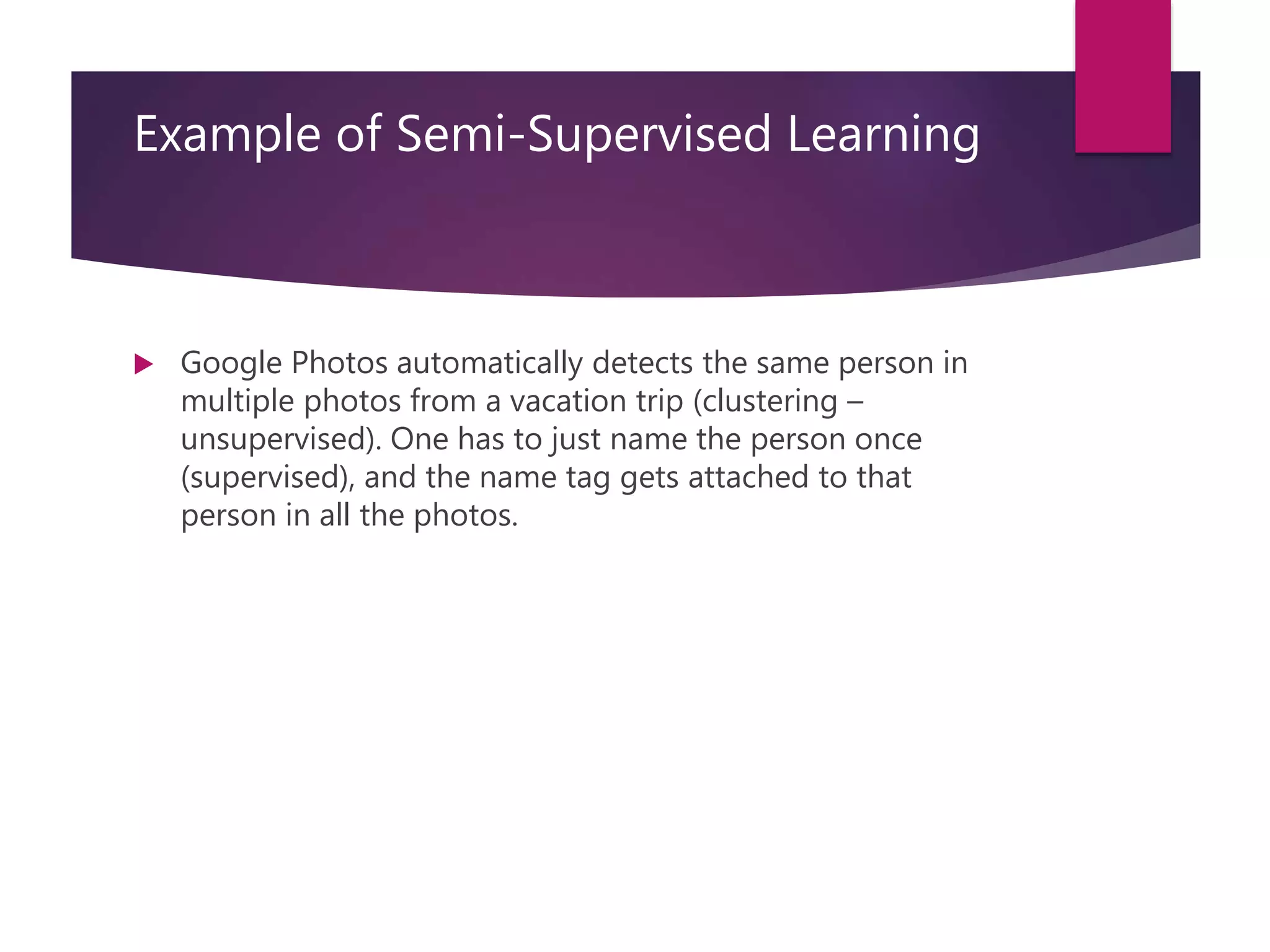

- 35. Example of Semi-SupervisedLearning Google Photos automatically detects the same person in multiple photos from a vacation trip (clustering – unsupervised). One has to just name the person once (supervised), and the name tag gets attached to that person in all the photos.
- 36. What is ReinforcementLearning? Reinforcement Learning is a type of Machine Learning that allows the learning system to observe the environment and learn the ideal behavior based on trying to maximize some notion of cumulative reward.

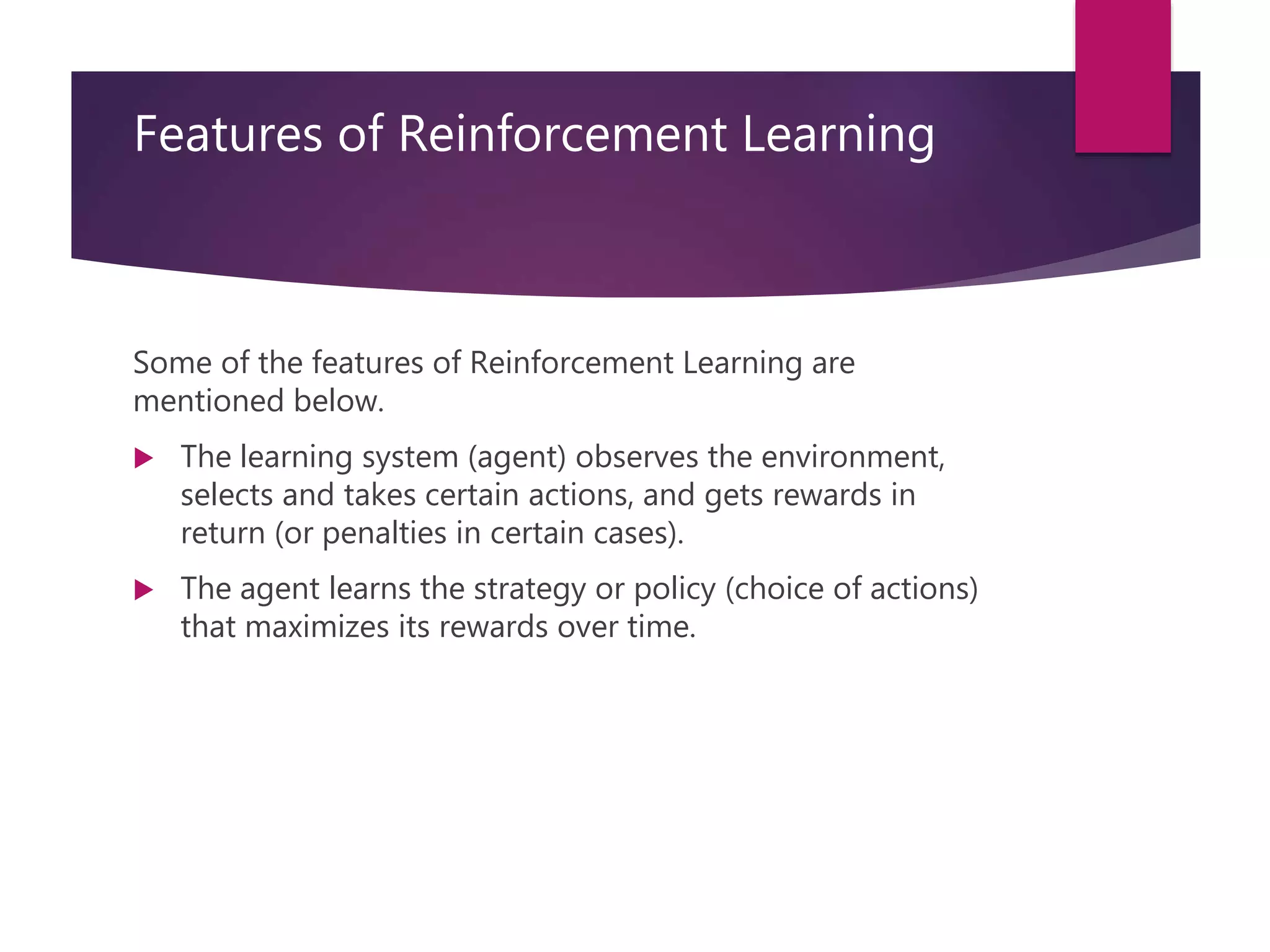

- 37. Features of ReinforcementLearning Some of the features of Reinforcement Learning are mentioned below. The learning system (agent) observes the environment, selects and takes certain actions, and gets rewards in return (or penalties in certain cases). The agent learns the strategy or policy (choice of actions) that maximizes its rewards over time.

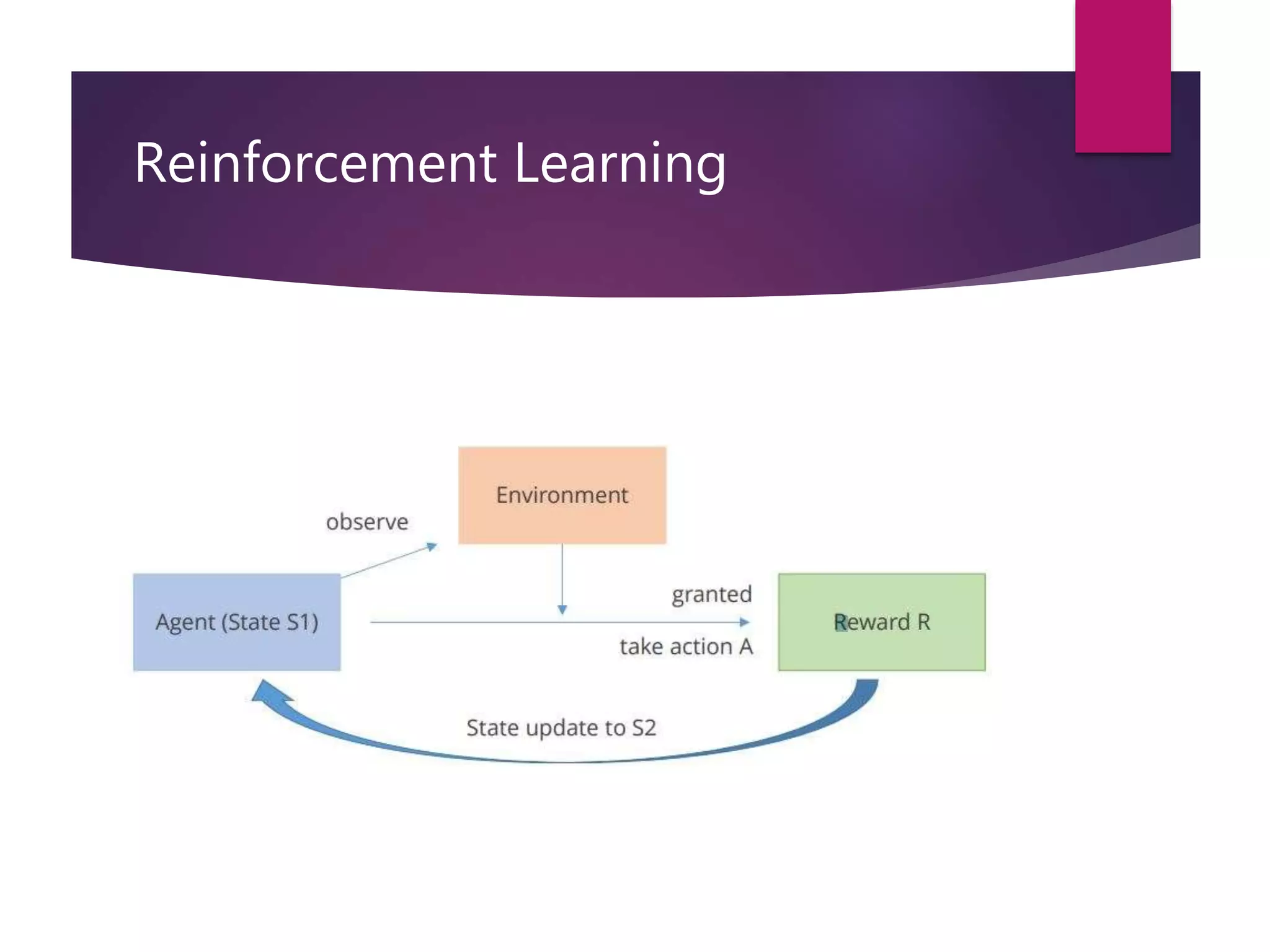

- 38.

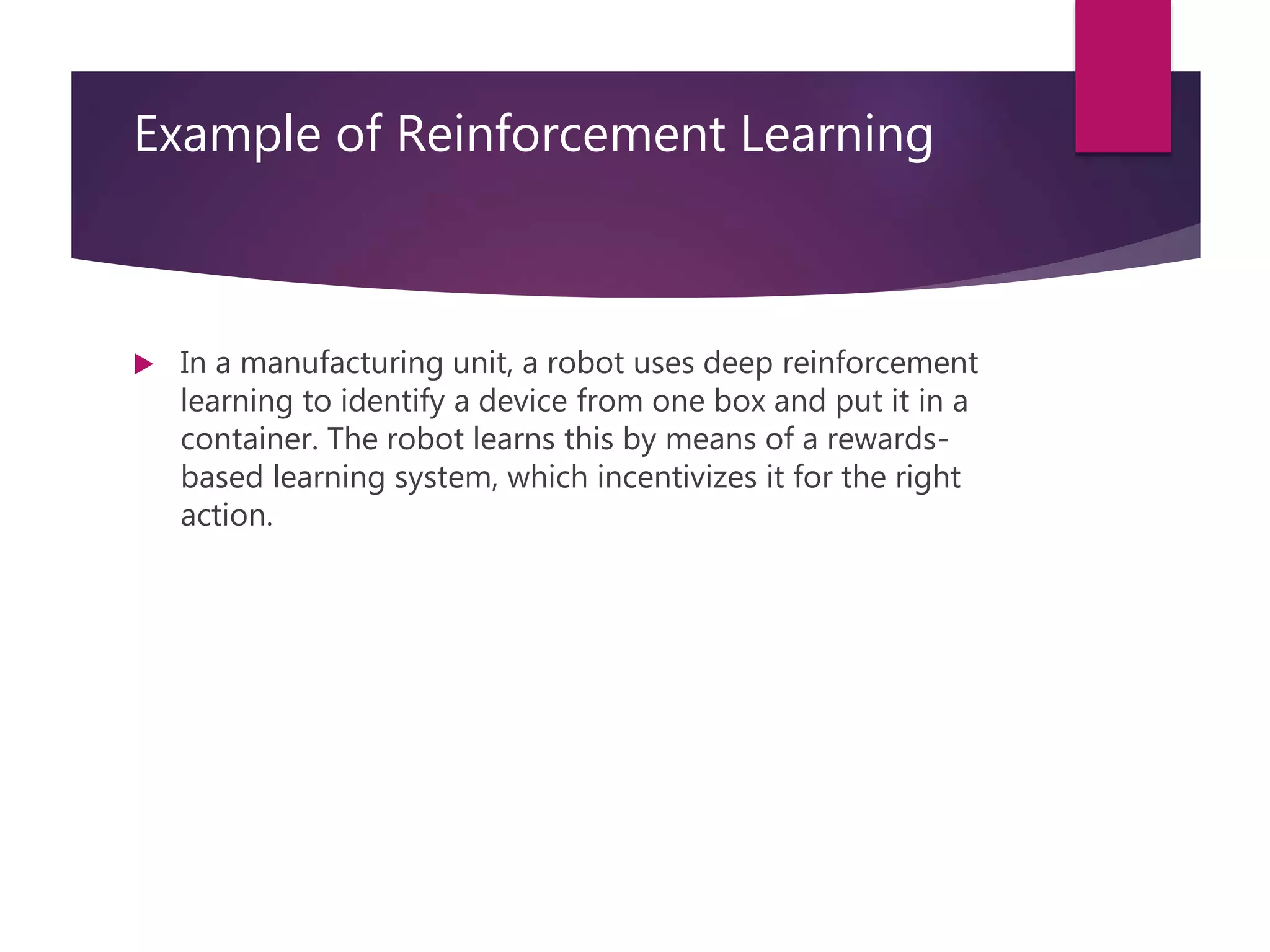

- 39. Example of ReinforcementLearning In a manufacturing unit, a robot uses deep reinforcement learning to identify a device from one box and put it in a container. The robot learns this by means of a rewards- based learning system, which incentivizes it for the right action.

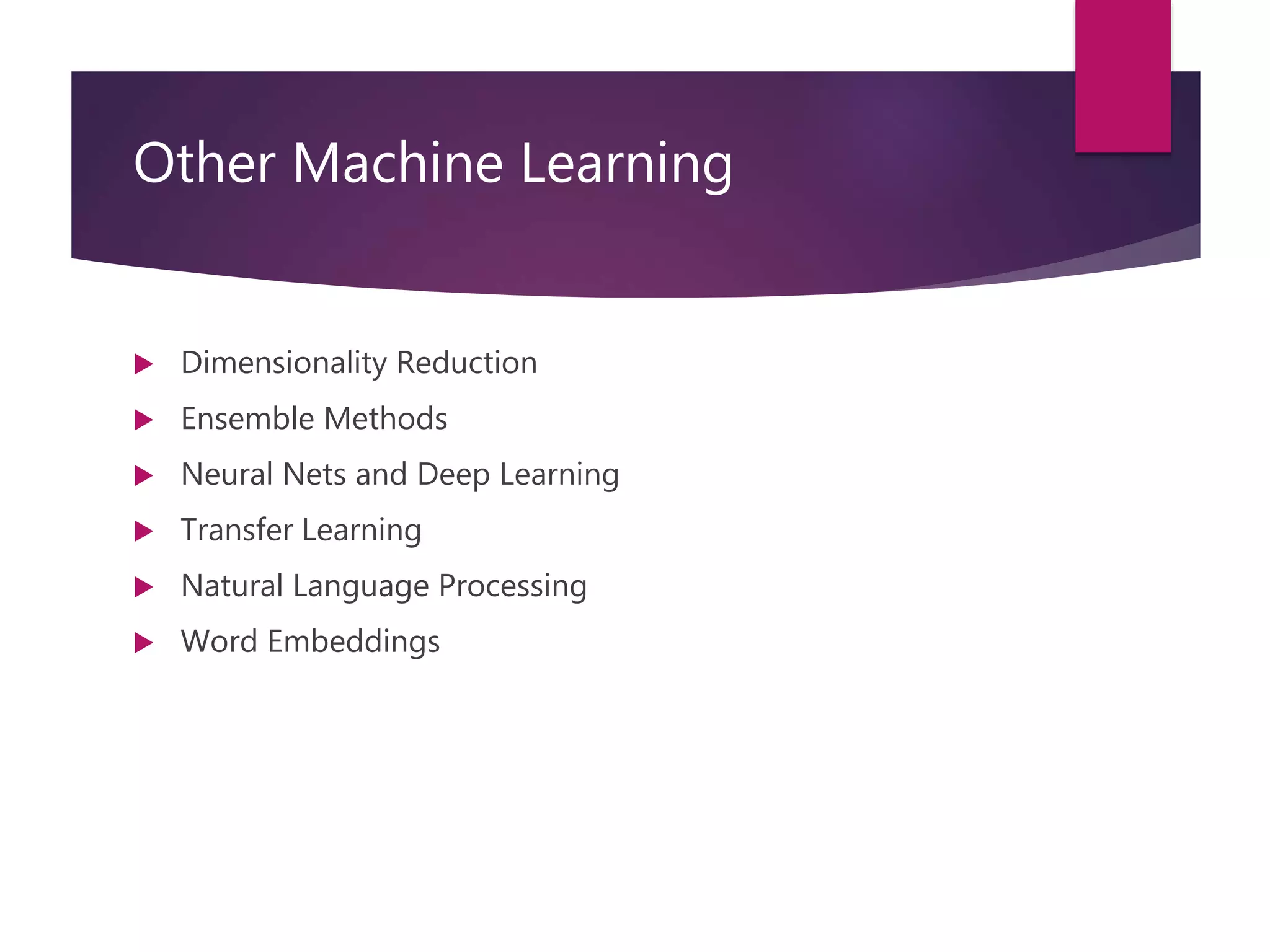

- 40. Other Machine Learning Dimensionality Reduction Ensemble Methods Neural Nets and Deep Learning Transfer Learning Natural Language Processing Word Embeddings

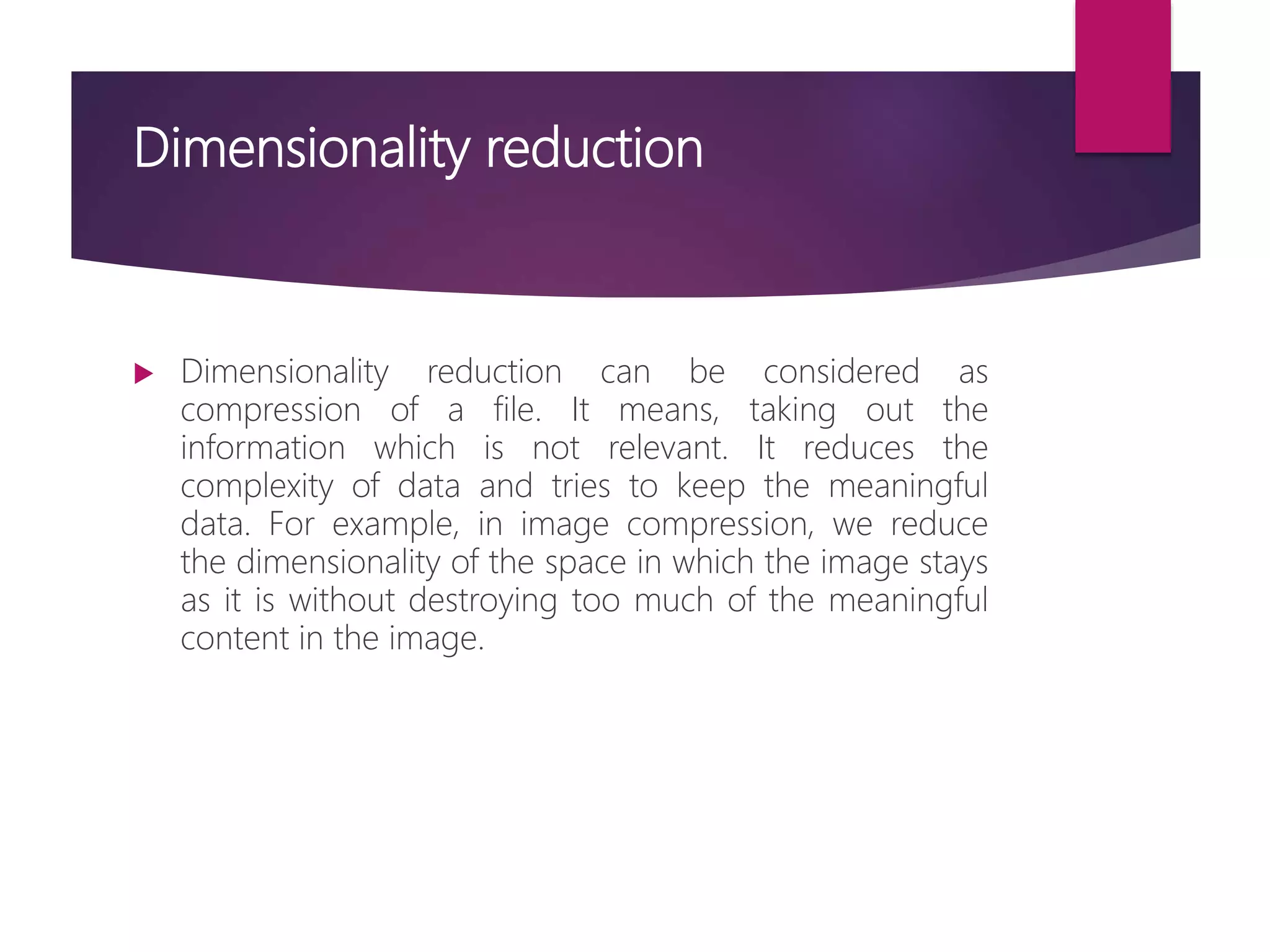

- 41. Dimensionality reduction Dimensionalityreduction can be considered as compression of a file. It means, taking out the information which is not relevant. It reduces the complexity of data and tries to keep the meaningful data. For example, in image compression, we reduce the dimensionality of the space in which the image stays as it is without destroying too much of the meaningful content in the image.

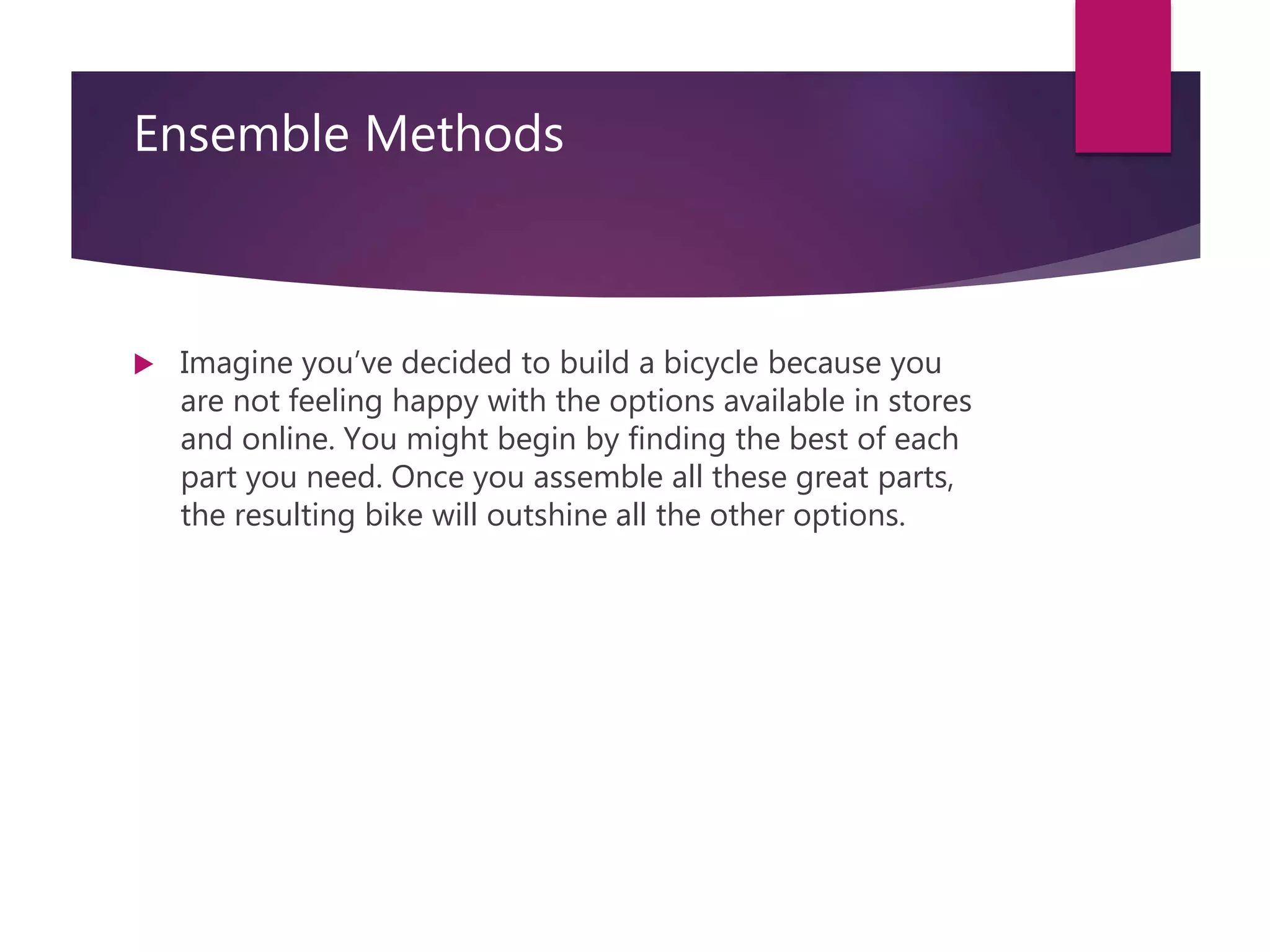

- 42. Ensemble Methods Imagineyou’ve decided to build a bicycle because you are not feeling happy with the options available in stores and online. You might begin by finding the best of each part you need. Once you assemble all these great parts, the resulting bike will outshine all the other options.
- 43. Ensemble methodsuse this same idea of combining several predictive models (supervised ML) to get higher quality predictions than each of the models could provide on its own. For example, the Random Forest algorithms is an ensemble method that combines many Decision Trees trained with different samples of the data sets. As a result, the quality of the predictions of a Random Forest is higher than the quality of the predictions estimated with a single Decision Tree.

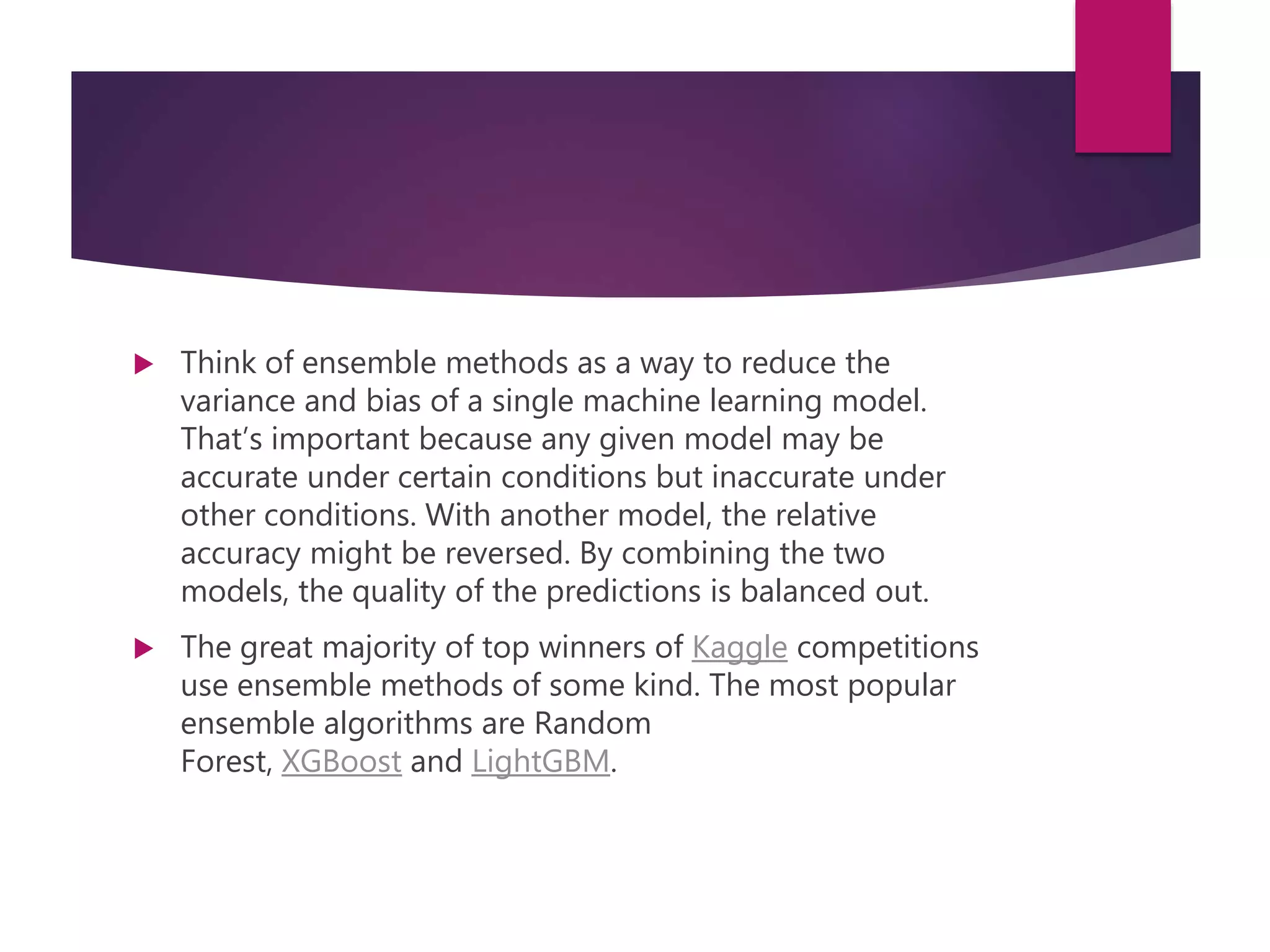

- 44. Think ofensemble methods as a way to reduce the variance and bias of a single machine learning model. That’s important because any given model may be accurate under certain conditions but inaccurate under other conditions. With another model, the relative accuracy might be reversed. By combining the two models, the quality of the predictions is balanced out. The great majority of top winners of Kaggle competitions use ensemble methods of some kind. The most popular ensemble algorithms are Random Forest, XGBoost and LightGBM.

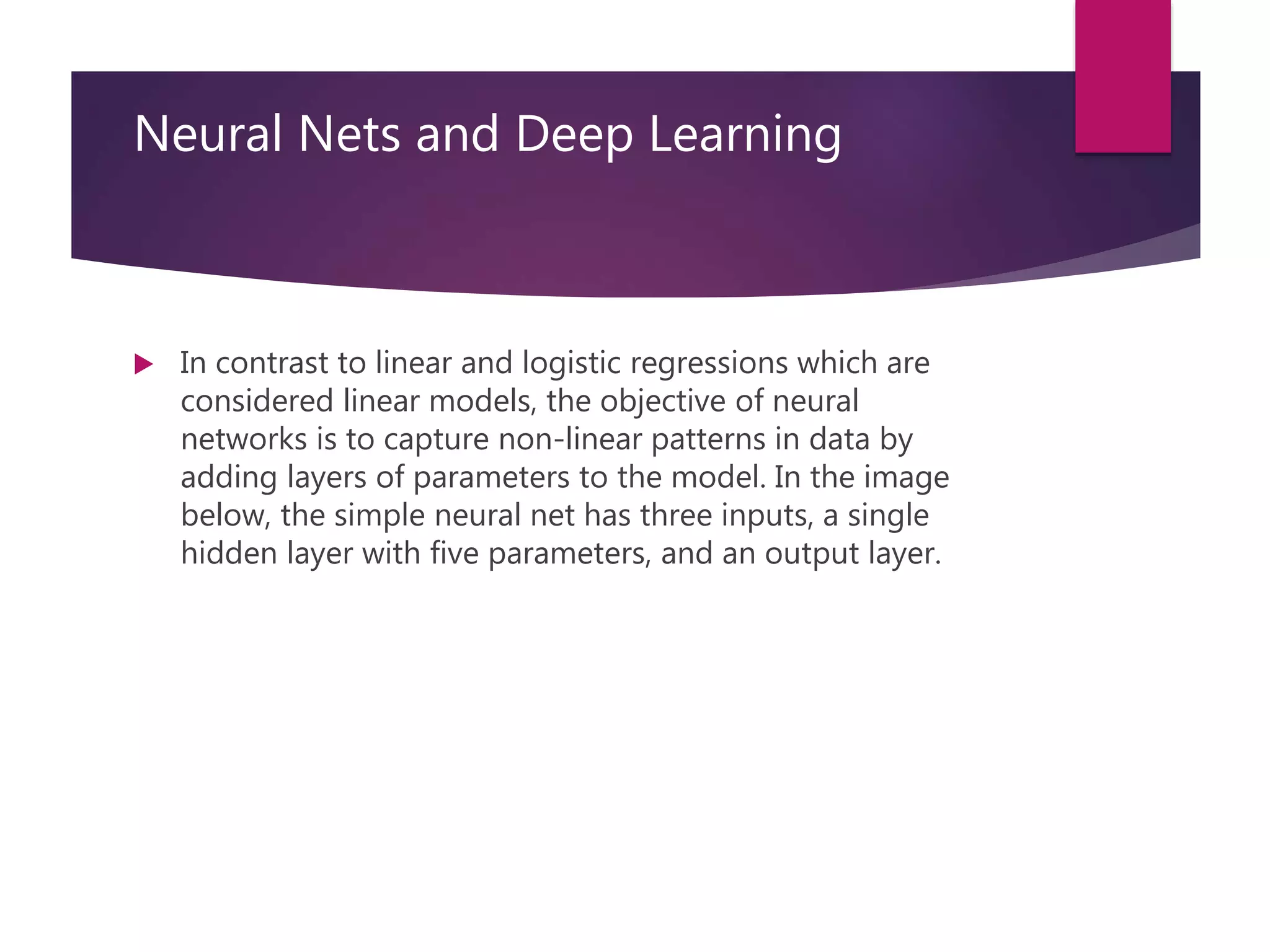

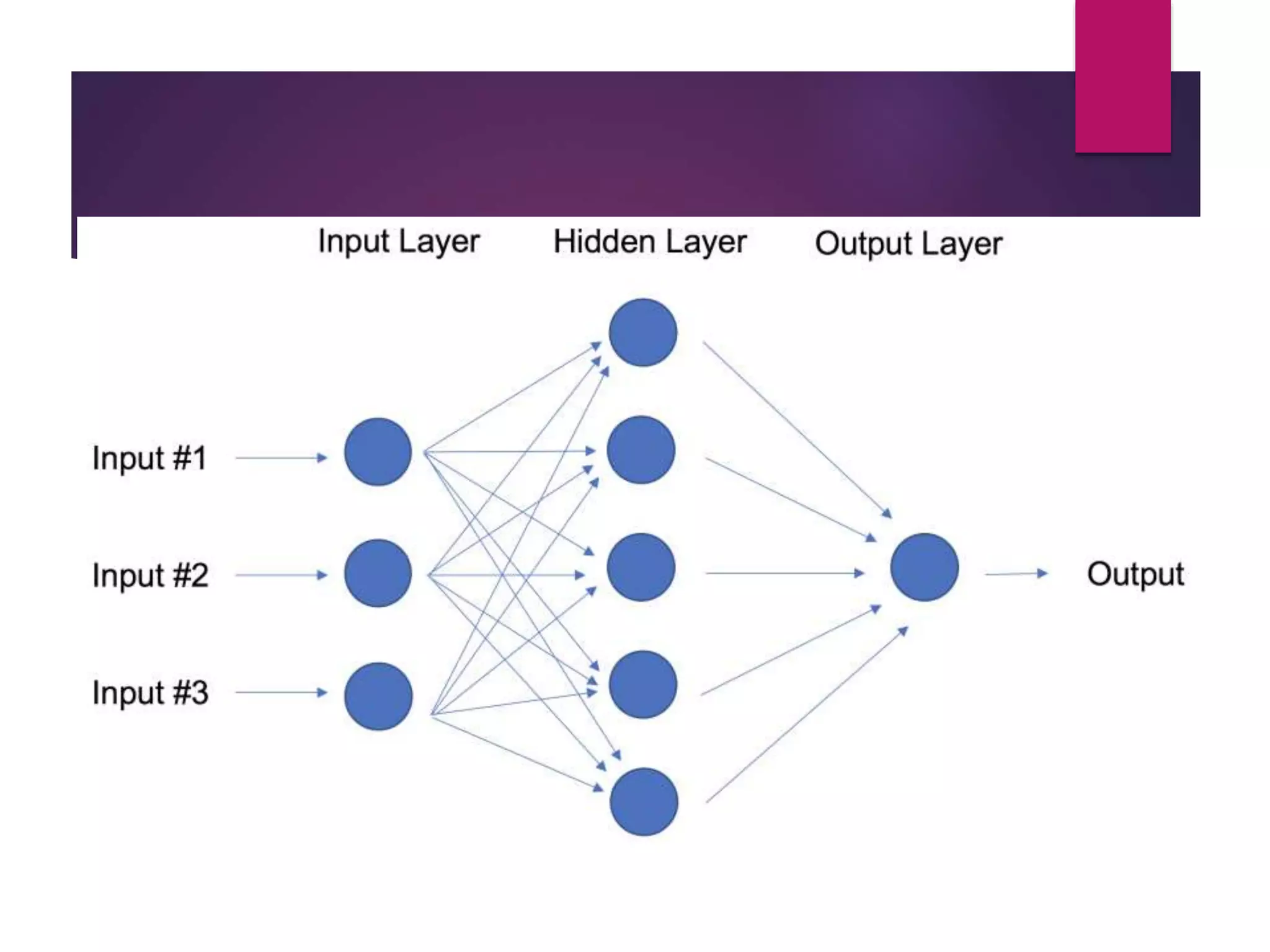

- 45. Neural Nets andDeep Learning In contrast to linear and logistic regressions which are considered linear models, the objective of neural networks is to capture non-linear patterns in data by adding layers of parameters to the model. In the image below, the simple neural net has three inputs, a single hidden layer with five parameters, and an output layer.
- 47. In fact,the structure of neural networks is flexible enough to build our well-known linear and logistic regression. The term Deep learning comes from a neural net with many hidden layers (see next Figure) and encapsulates a wide variety of architectures.

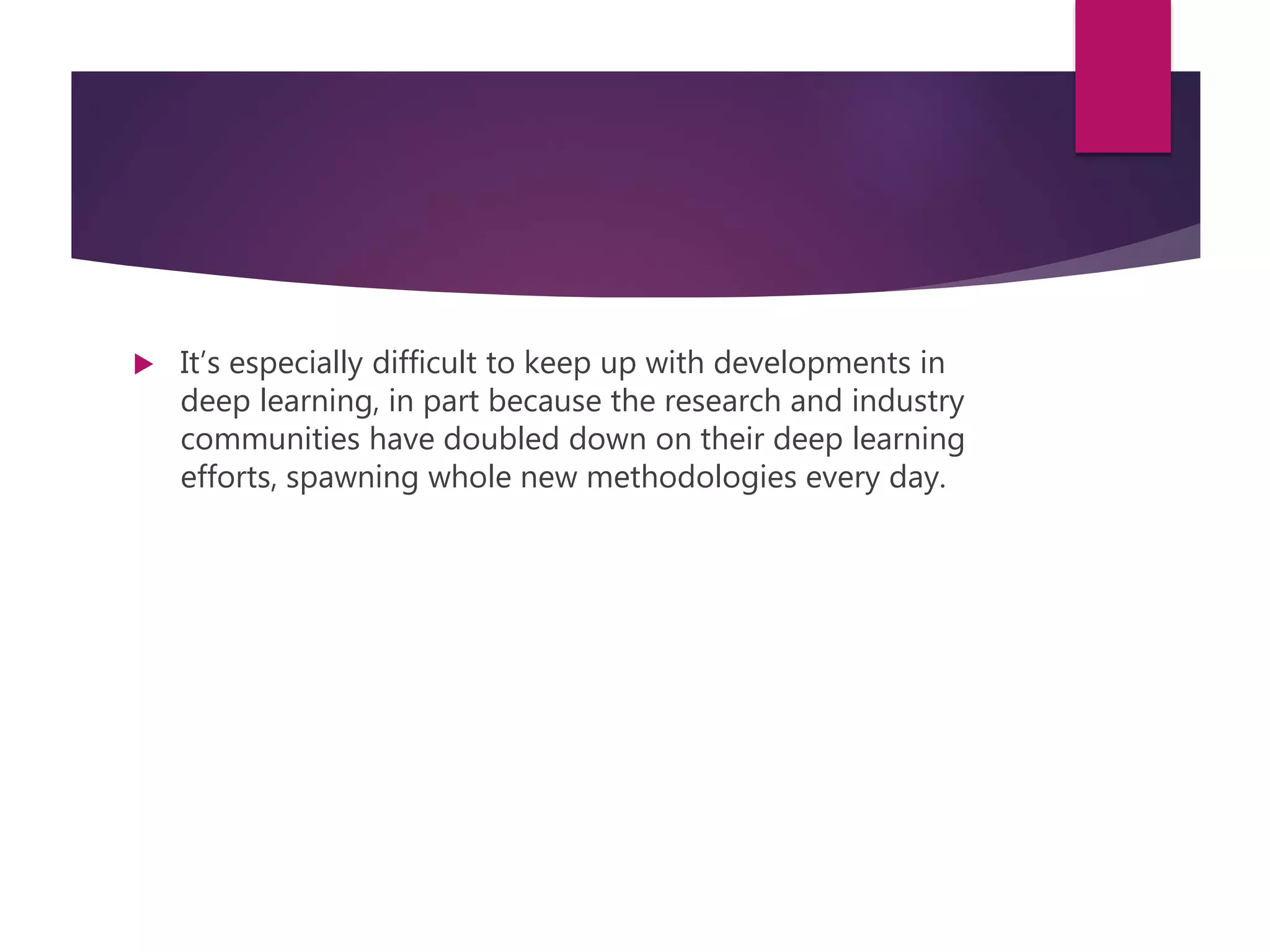

- 48. It’s especiallydifficult to keep up with developments in deep learning, in part because the research and industry communities have doubled down on their deep learning efforts, spawning whole new methodologies every day.

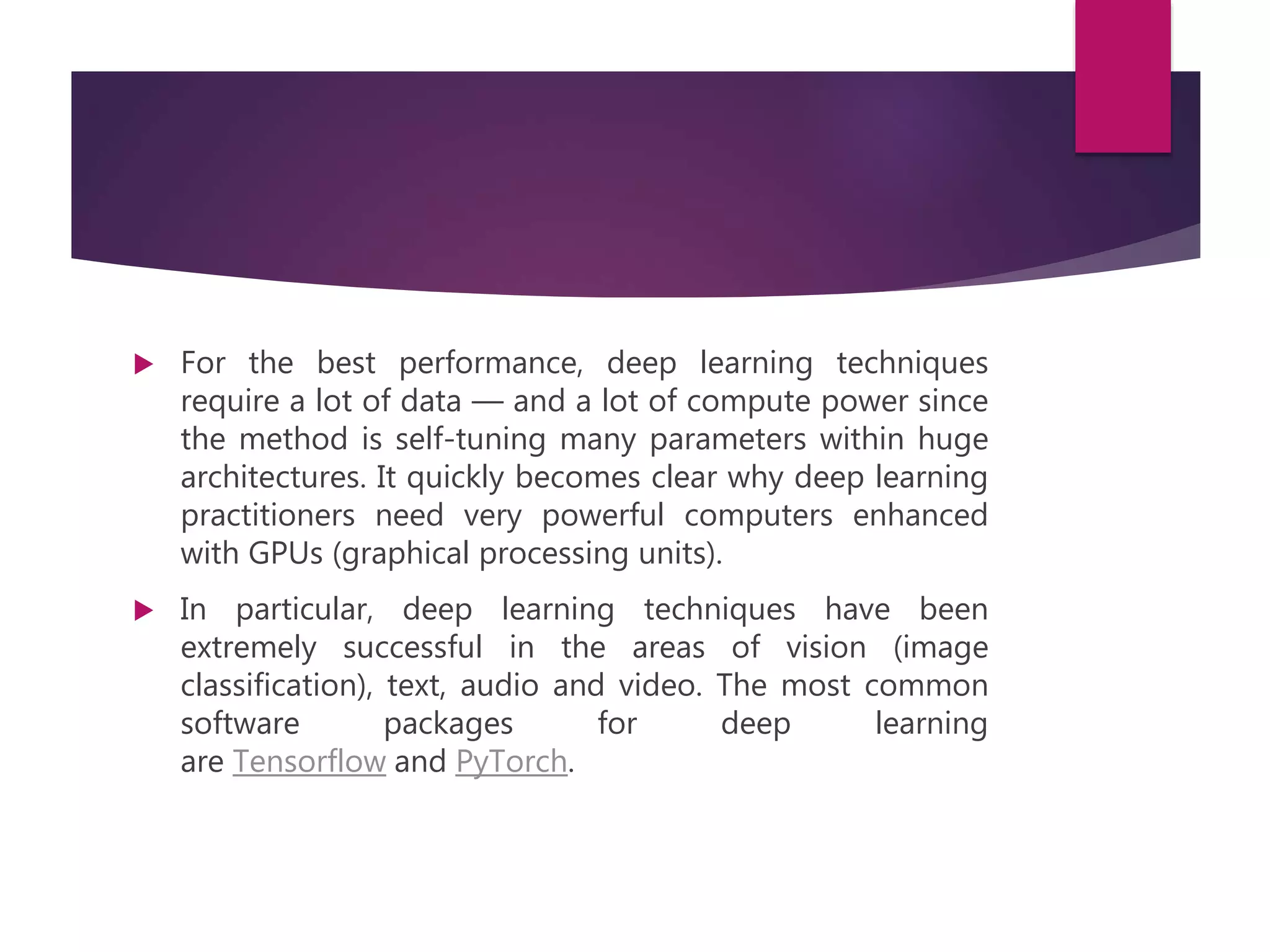

- 50. For thebest performance, deep learning techniques require a lot of data — and a lot of compute power since the method is self-tuning many parameters within huge architectures. It quickly becomes clear why deep learning practitioners need very powerful computers enhanced with GPUs (graphical processing units). In particular, deep learning techniques have been extremely successful in the areas of vision (image classification), text, audio and video. The most common software packages for deep learning are Tensorflow and PyTorch.
- 51. Transfer Learning Let’spretend that you’re a data scientist working in the retail industry. You’ve spent months training a high- quality model to classify images as shirts, t-shirts and polos. Your new task is to build a similar model to classify images of dresses as jeans, cargo, casual, and dress pants. Can you transfer the knowledge built into the first model and apply it to the second model? Yes, you can, using Transfer Learning.

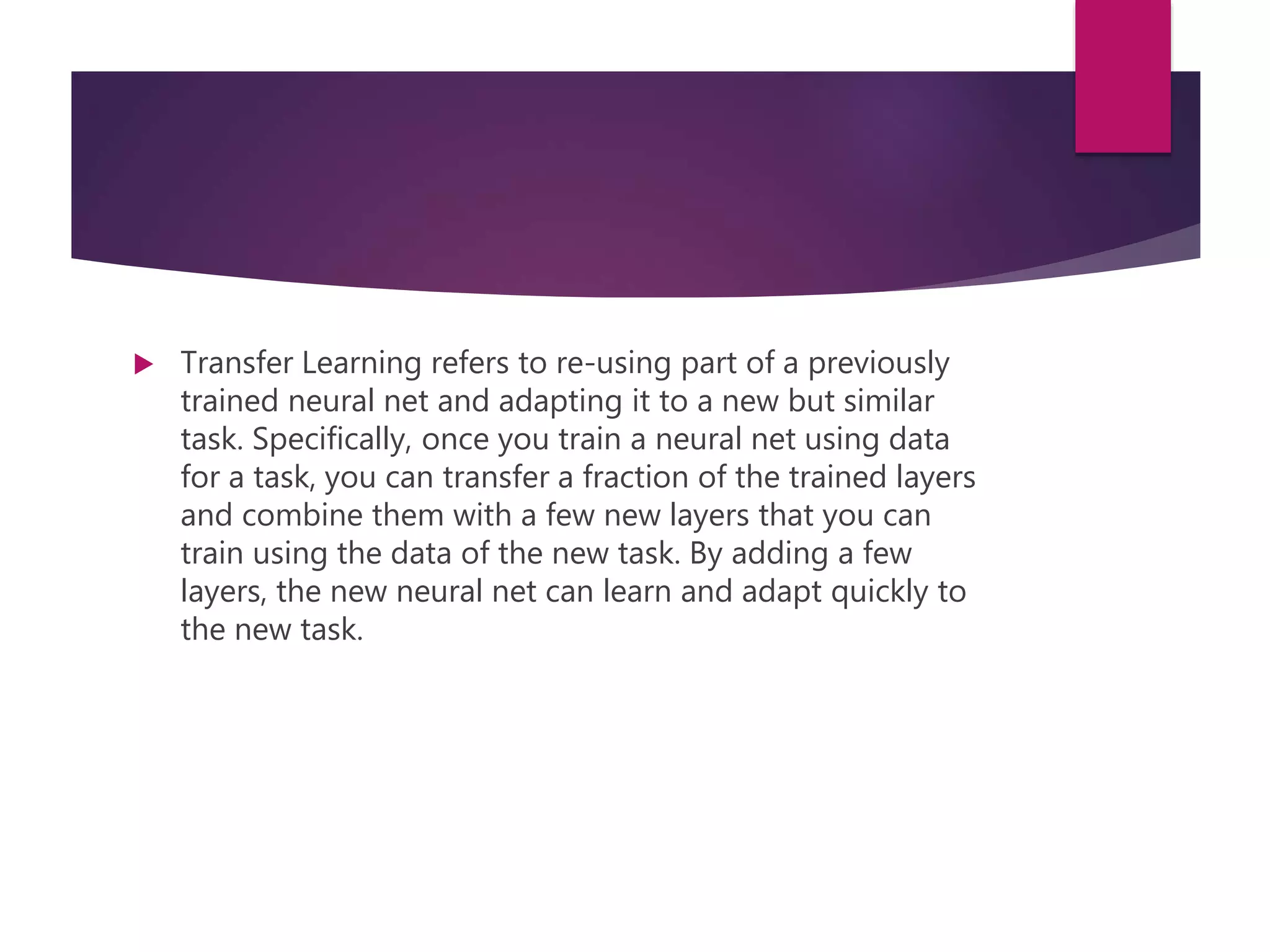

- 52. Transfer Learningrefers to re-using part of a previously trained neural net and adapting it to a new but similar task. Specifically, once you train a neural net using data for a task, you can transfer a fraction of the trained layers and combine them with a few new layers that you can train using the data of the new task. By adding a few layers, the new neural net can learn and adapt quickly to the new task.

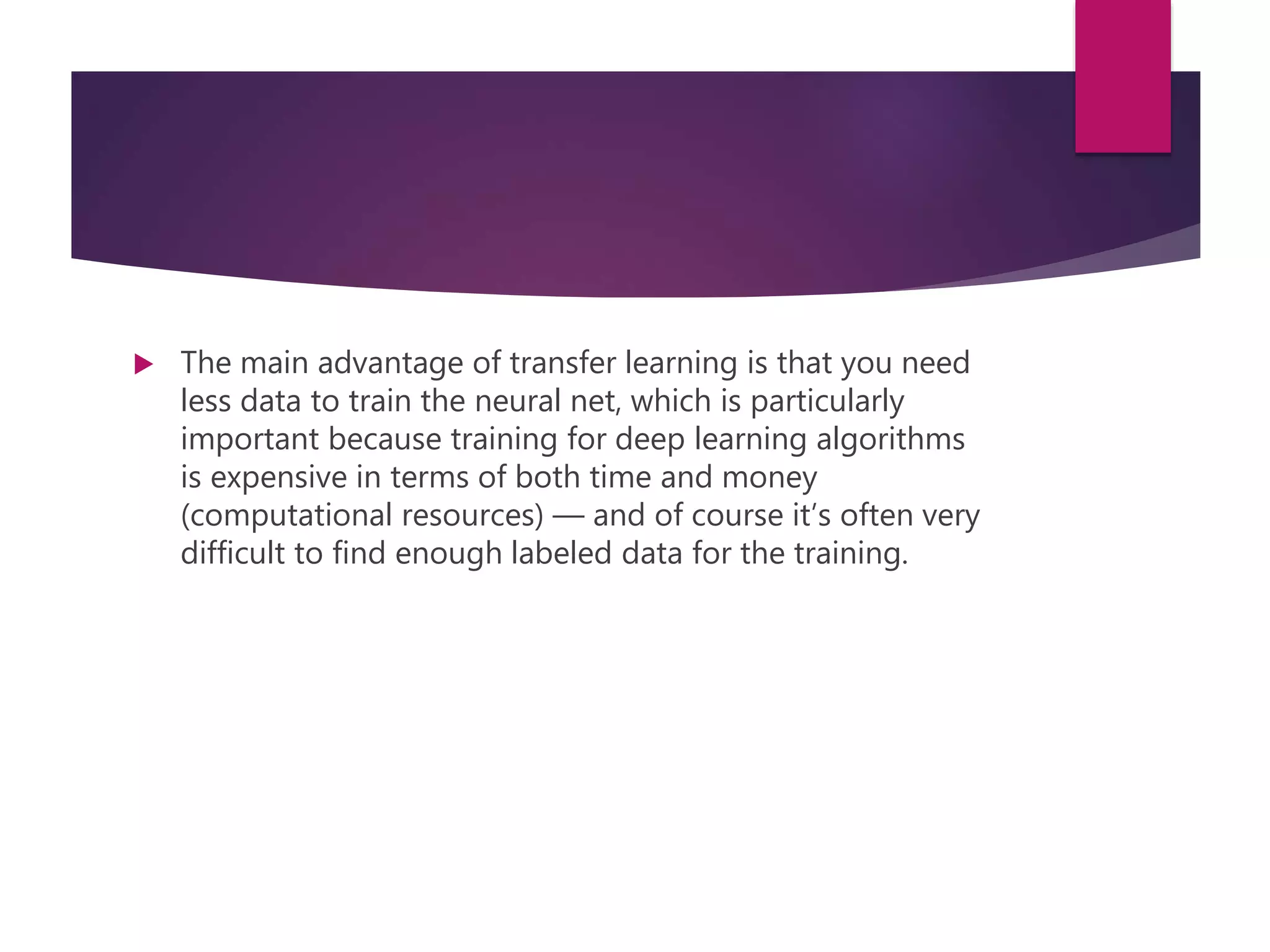

- 53. The mainadvantage of transfer learning is that you need less data to train the neural net, which is particularly important because training for deep learning algorithms is expensive in terms of both time and money (computational resources) — and of course it’s often very difficult to find enough labeled data for the training.

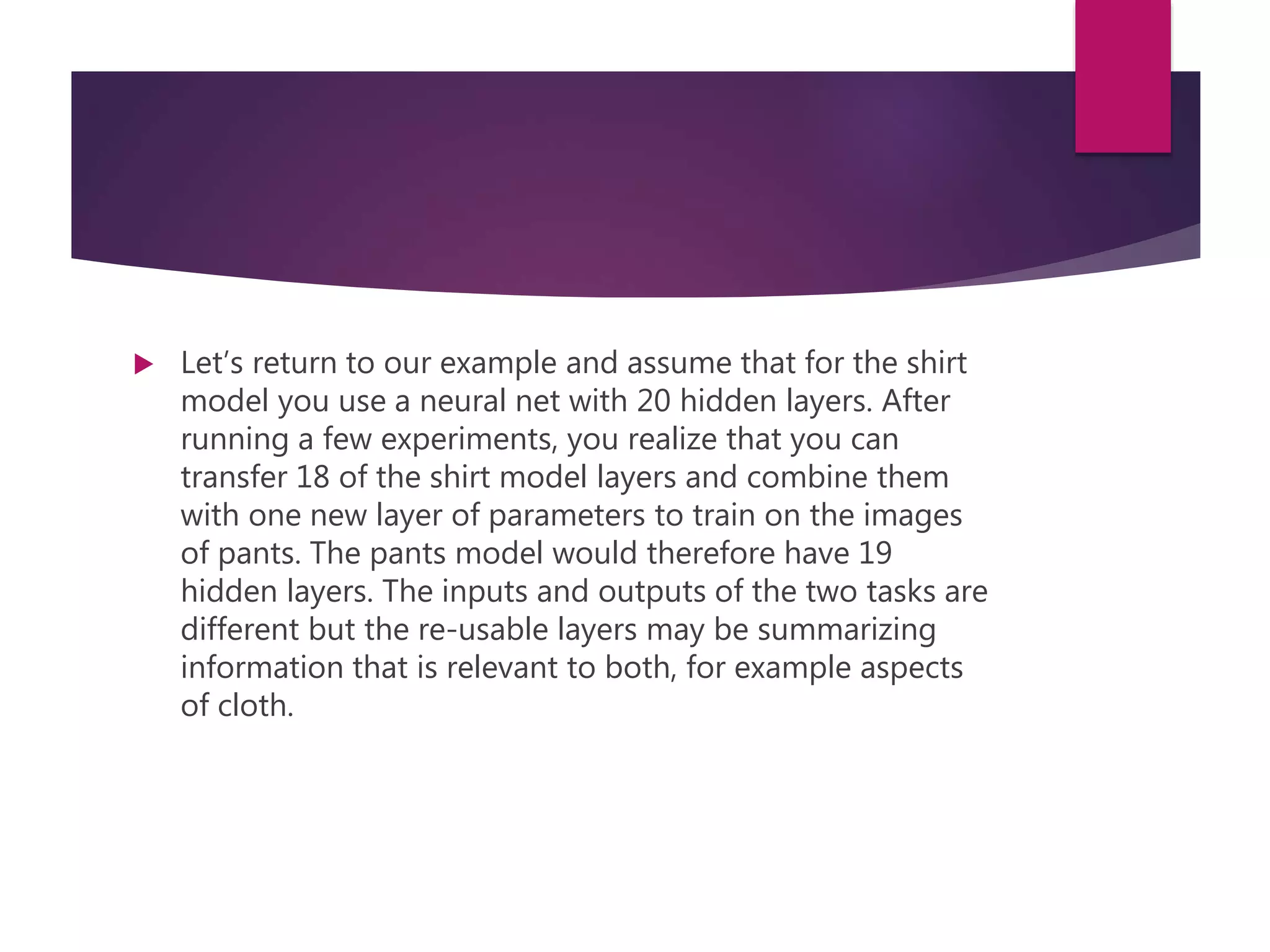

- 54. Let’s returnto our example and assume that for the shirt model you use a neural net with 20 hidden layers. After running a few experiments, you realize that you can transfer 18 of the shirt model layers and combine them with one new layer of parameters to train on the images of pants. The pants model would therefore have 19 hidden layers. The inputs and outputs of the two tasks are different but the re-usable layers may be summarizing information that is relevant to both, for example aspects of cloth.
- 55. Transfer learninghas become more and more popular and there are now many solid pre-trained models available for common deep learning tasks like image and text classification.

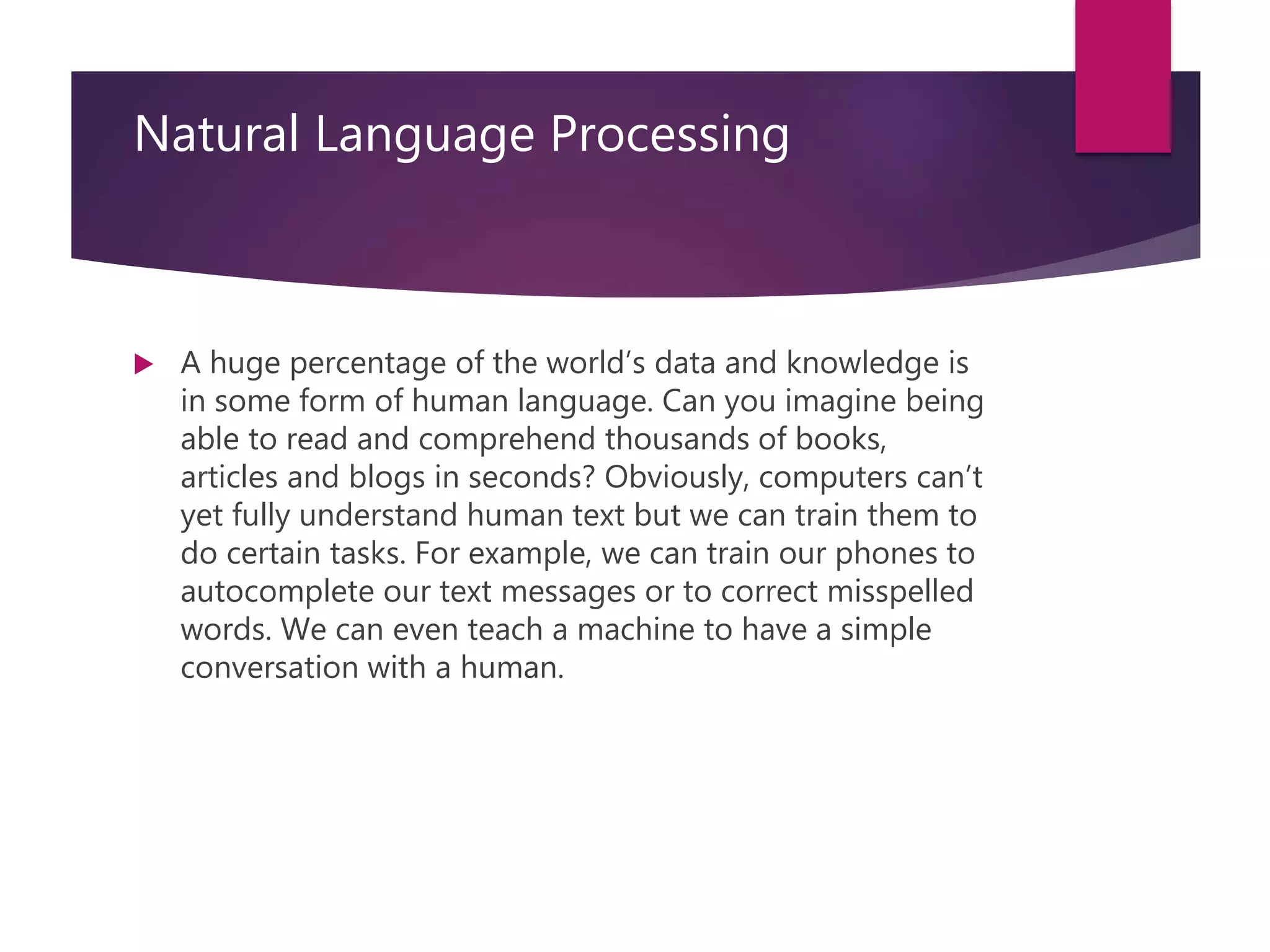

- 56. Natural Language Processing A huge percentage of the world’s data and knowledge is in some form of human language. Can you imagine being able to read and comprehend thousands of books, articles and blogs in seconds? Obviously, computers can’t yet fully understand human text but we can train them to do certain tasks. For example, we can train our phones to autocomplete our text messages or to correct misspelled words. We can even teach a machine to have a simple conversation with a human.

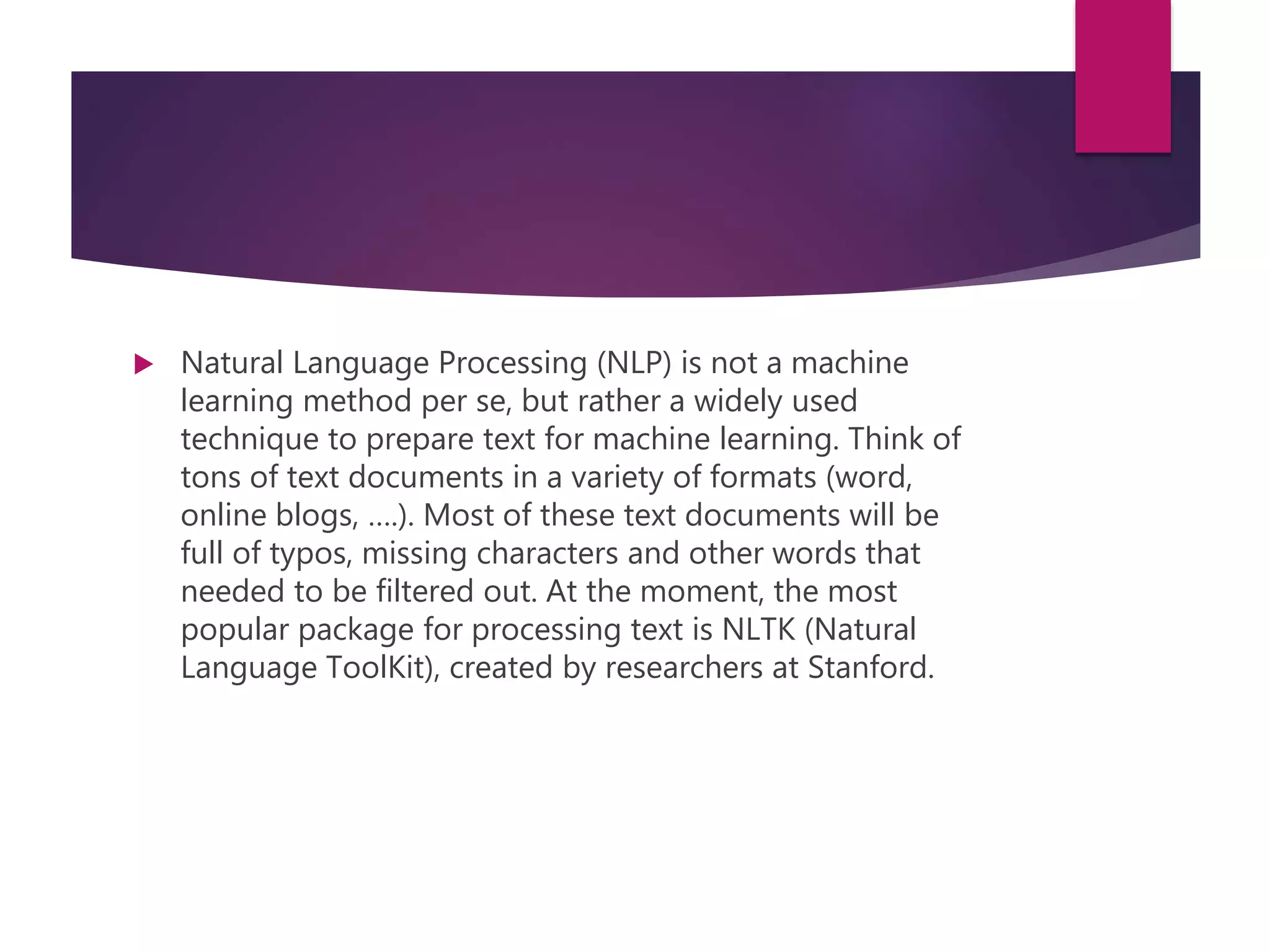

- 57. Natural LanguageProcessing (NLP) is not a machine learning method per se, but rather a widely used technique to prepare text for machine learning. Think of tons of text documents in a variety of formats (word, online blogs, ….). Most of these text documents will be full of typos, missing characters and other words that needed to be filtered out. At the moment, the most popular package for processing text is NLTK (Natural Language ToolKit), created by researchers at Stanford.
- 58. The simplestway to map text into a numerical representation is to compute the frequency of each word within each text document. Think of a matrix of integers where each row represents a text document and each column represents a word. This matrix representation of the word frequencies is commonly called Term Frequency Matrix (TFM). From there, we can create another popular matrix representation of a text document by dividing each entry on the matrix by a weight of how important each word is within the entire corpus of documents. We call this method Term Frequency Inverse Document Frequency (TFIDF) and it typically works better for machine learning tasks.
- 59. Word Embeddings TFM andTFIDF are numerical representations of text documents that only consider frequency and weighted frequencies to represent text documents. By contrast, word embeddings can capture the context of a word in a document. With the word context, embeddings can quantify the similarity between words, which in turn allows us to do arithmetic with words.

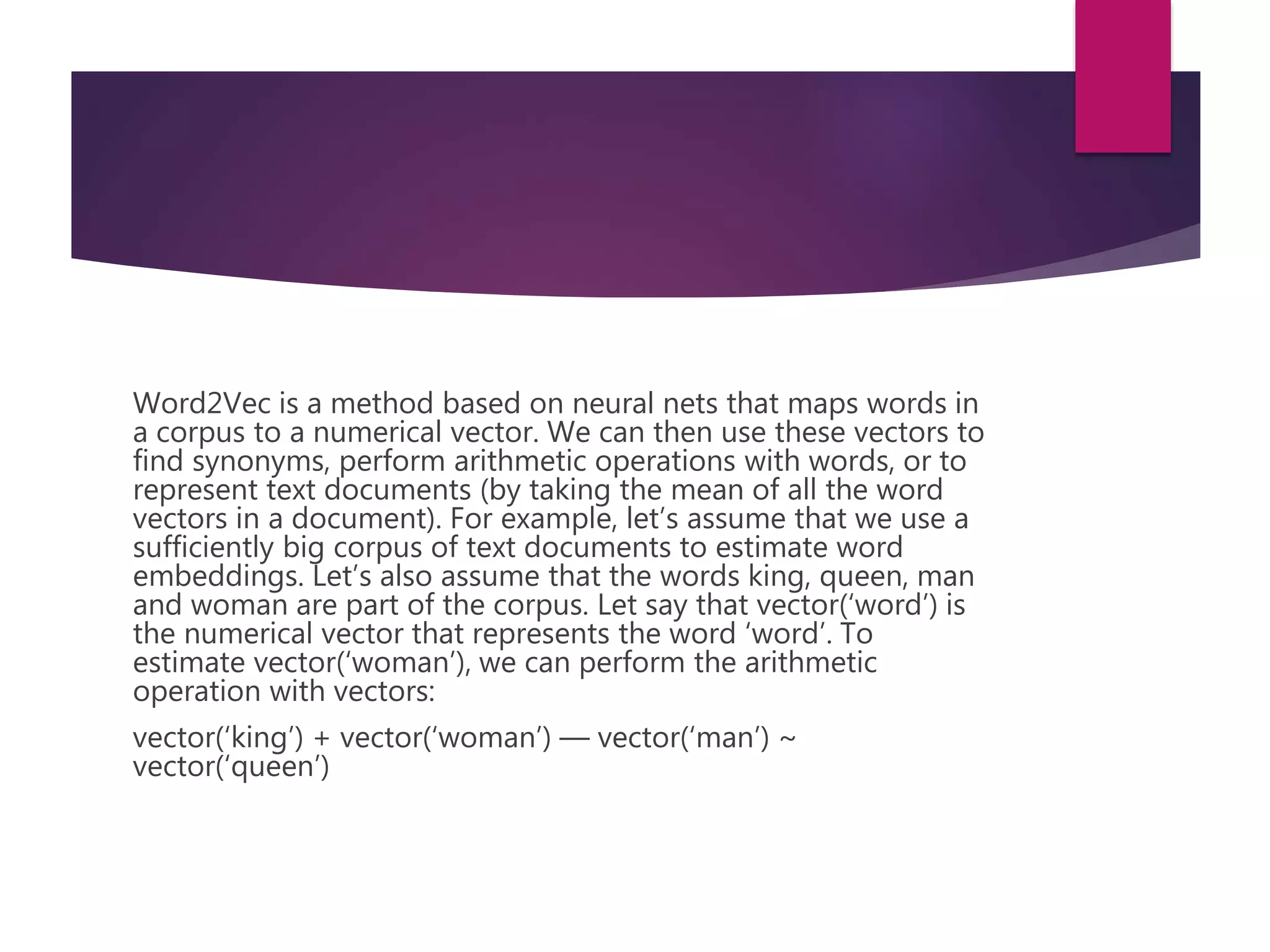

- 60. Word2Vec is amethod based on neural nets that maps words in a corpus to a numerical vector. We can then use these vectors to find synonyms, perform arithmetic operations with words, or to represent text documents (by taking the mean of all the word vectors in a document). For example, let’s assume that we use a sufficiently big corpus of text documents to estimate word embeddings. Let’s also assume that the words king, queen, man and woman are part of the corpus. Let say that vector(‘word’) is the numerical vector that represents the word ‘word’. To estimate vector(‘woman’), we can perform the arithmetic operation with vectors: vector(‘king’) + vector(‘woman’) — vector(‘man’) ~ vector(‘queen’)

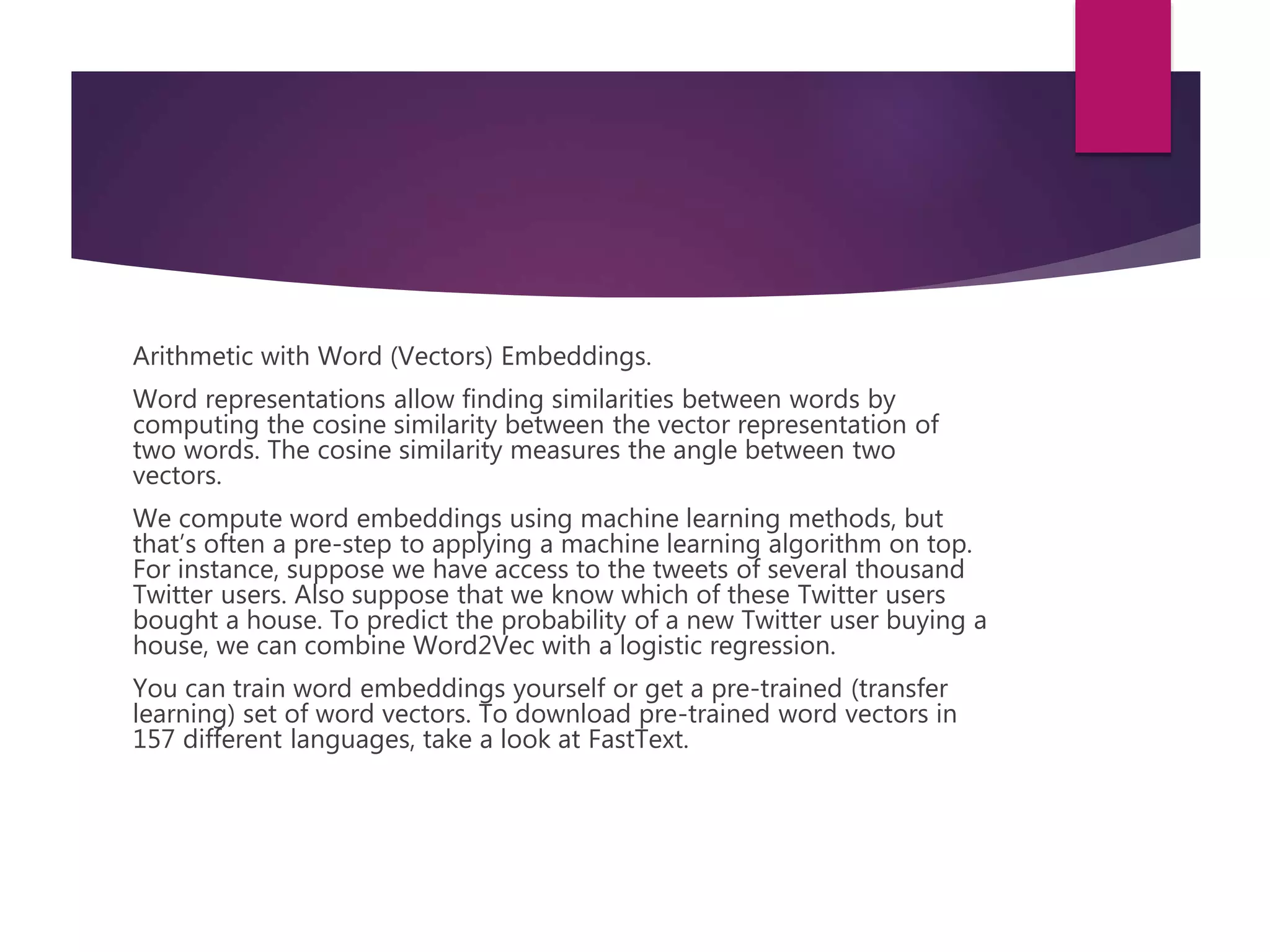

- 61. Arithmetic with Word(Vectors) Embeddings. Word representations allow finding similarities between words by computing the cosine similarity between the vector representation of two words. The cosine similarity measures the angle between two vectors. We compute word embeddings using machine learning methods, but that’s often a pre-step to applying a machine learning algorithm on top. For instance, suppose we have access to the tweets of several thousand Twitter users. Also suppose that we know which of these Twitter users bought a house. To predict the probability of a new Twitter user buying a house, we can combine Word2Vec with a logistic regression. You can train word embeddings yourself or get a pre-trained (transfer learning) set of word vectors. To download pre-trained word vectors in 157 different languages, take a look at FastText.

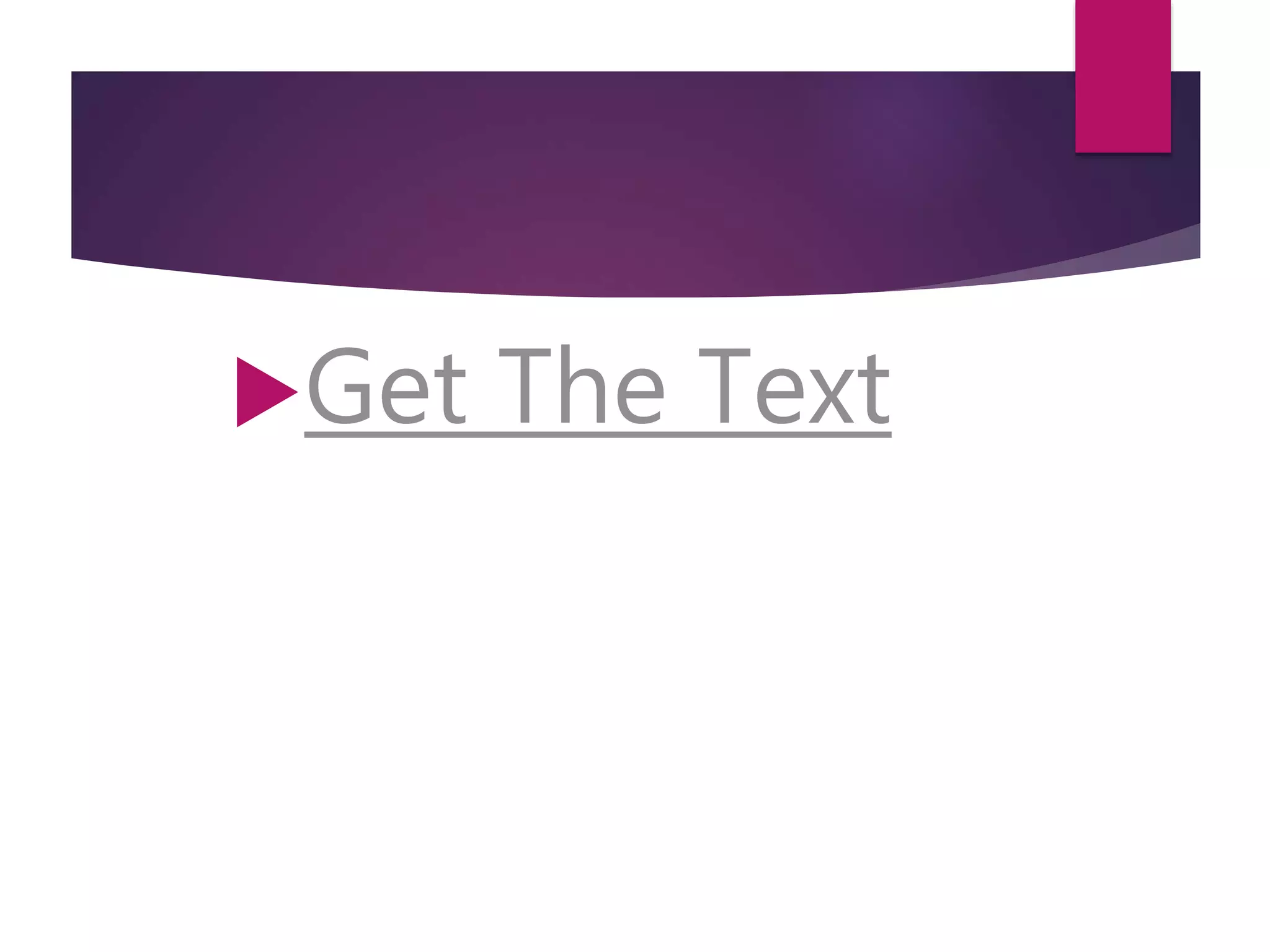

- 62.
