- 1. Animation Principles Prepared by RaziaNisar Noorani
- 2. Outline 1. Principles ofTraditional Animation Applied to Computer Animation (Lasseter, 1987) 2. Animation: Can it facilitate? (Tversky and Morrison, 2002) 3. On Creating Animated Presentations (Zongker and Salesin, 2003)

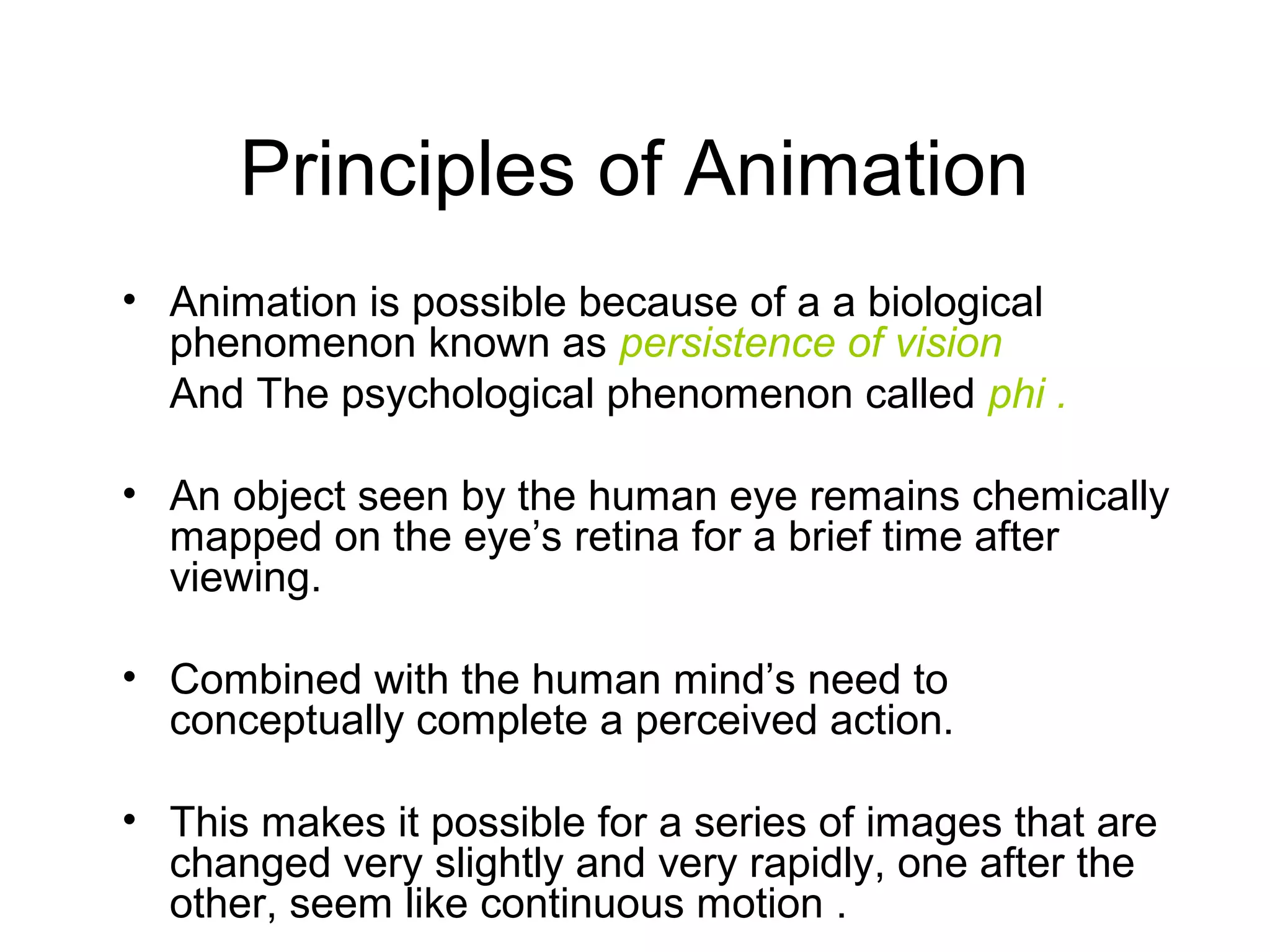

- 3. Principles of Animation •Animation is possible because of a a biological phenomenon known as persistence of vision And The psychological phenomenon called phi . • An object seen by the human eye remains chemically mapped on the eye’s retina for a brief time after viewing. • Combined with the human mind’s need to conceptually complete a perceived action. • This makes it possible for a series of images that are changed very slightly and very rapidly, one after the other, seem like continuous motion .

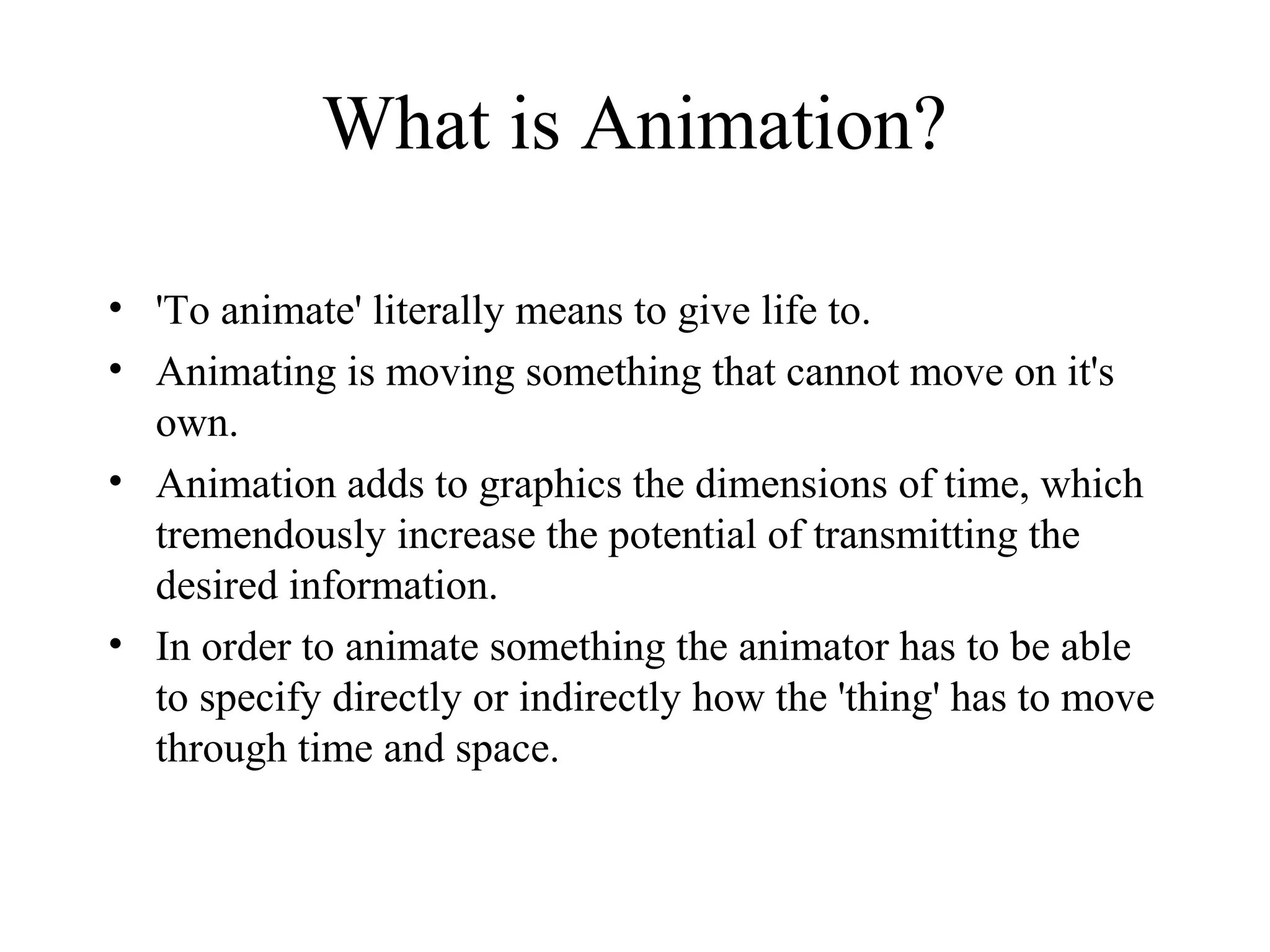

- 4. What is Animation? •'To animate' literally means to give life to. • Animating is moving something that cannot move on it's own. • Animation adds to graphics the dimensions of time, which tremendously increase the potential of transmitting the desired information. • In order to animate something the animator has to be able to specify directly or indirectly how the 'thing' has to move through time and space.

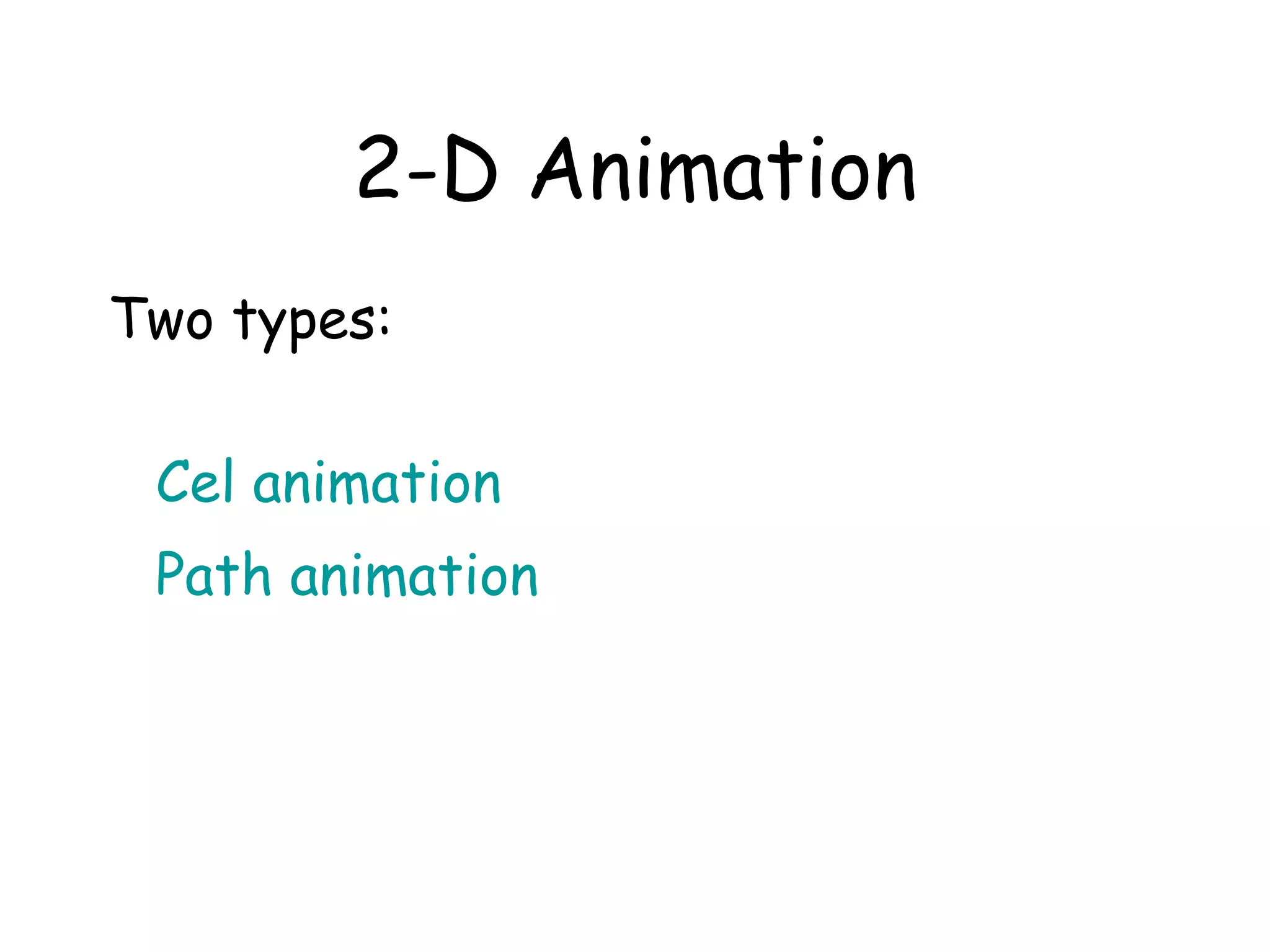

- 5. 2-D Animation Two types: Celanimation Path animation

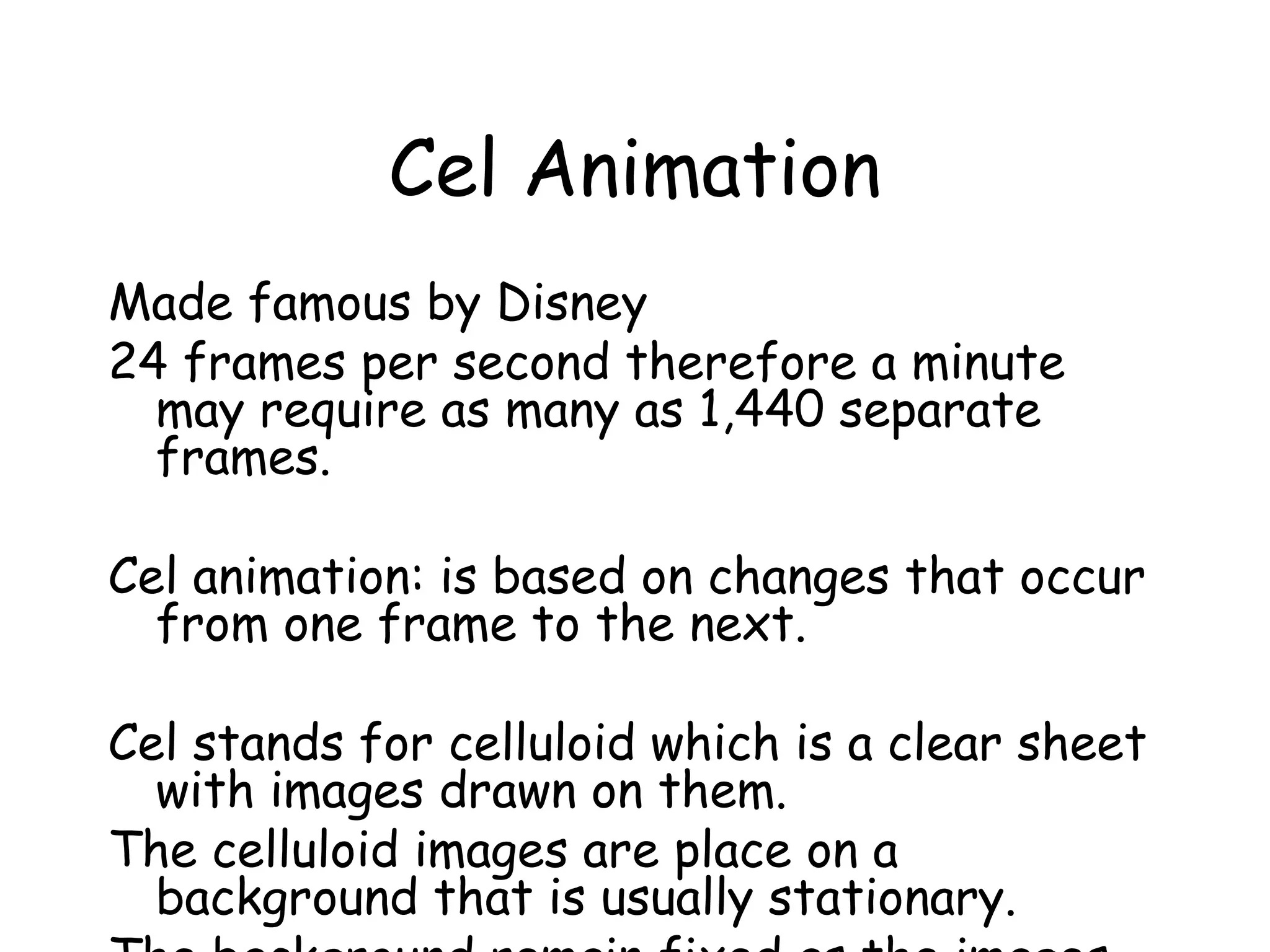

- 6. Cel Animation Made famousby Disney 24 frames per second therefore a minute may require as many as 1,440 separate frames. Cel animation: is based on changes that occur from one frame to the next. Cel stands for celluloid which is a clear sheet with images drawn on them. The celluloid images are place on a background that is usually stationary.

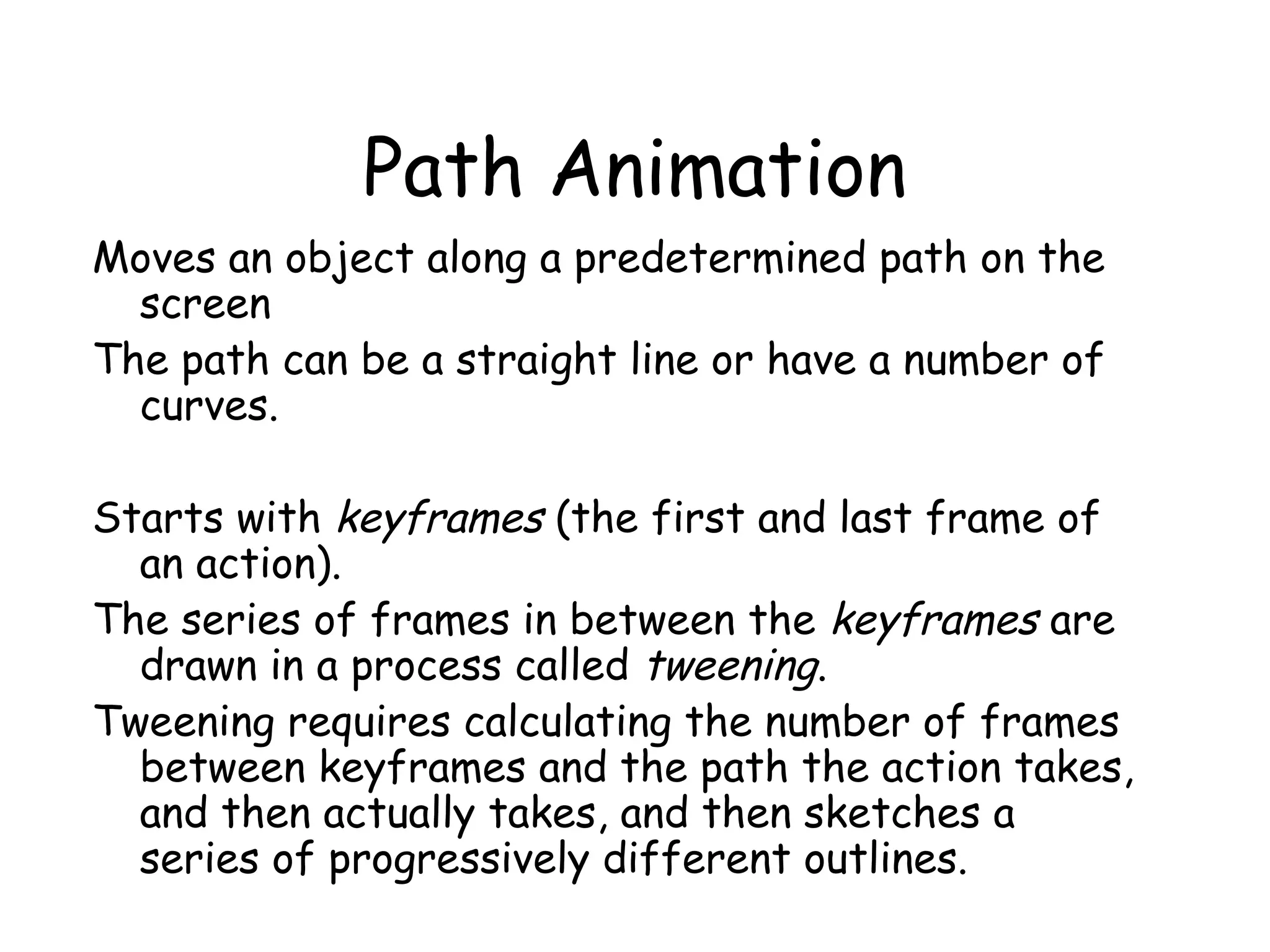

- 7. Path Animation Moves anobject along a predetermined path on the screen The path can be a straight line or have a number of curves. Starts with keyframes (the first and last frame of an action). The series of frames in between the keyframes are drawn in a process called tweening. Tweening requires calculating the number of frames between keyframes and the path the action takes, and then actually takes, and then sketches a series of progressively different outlines.

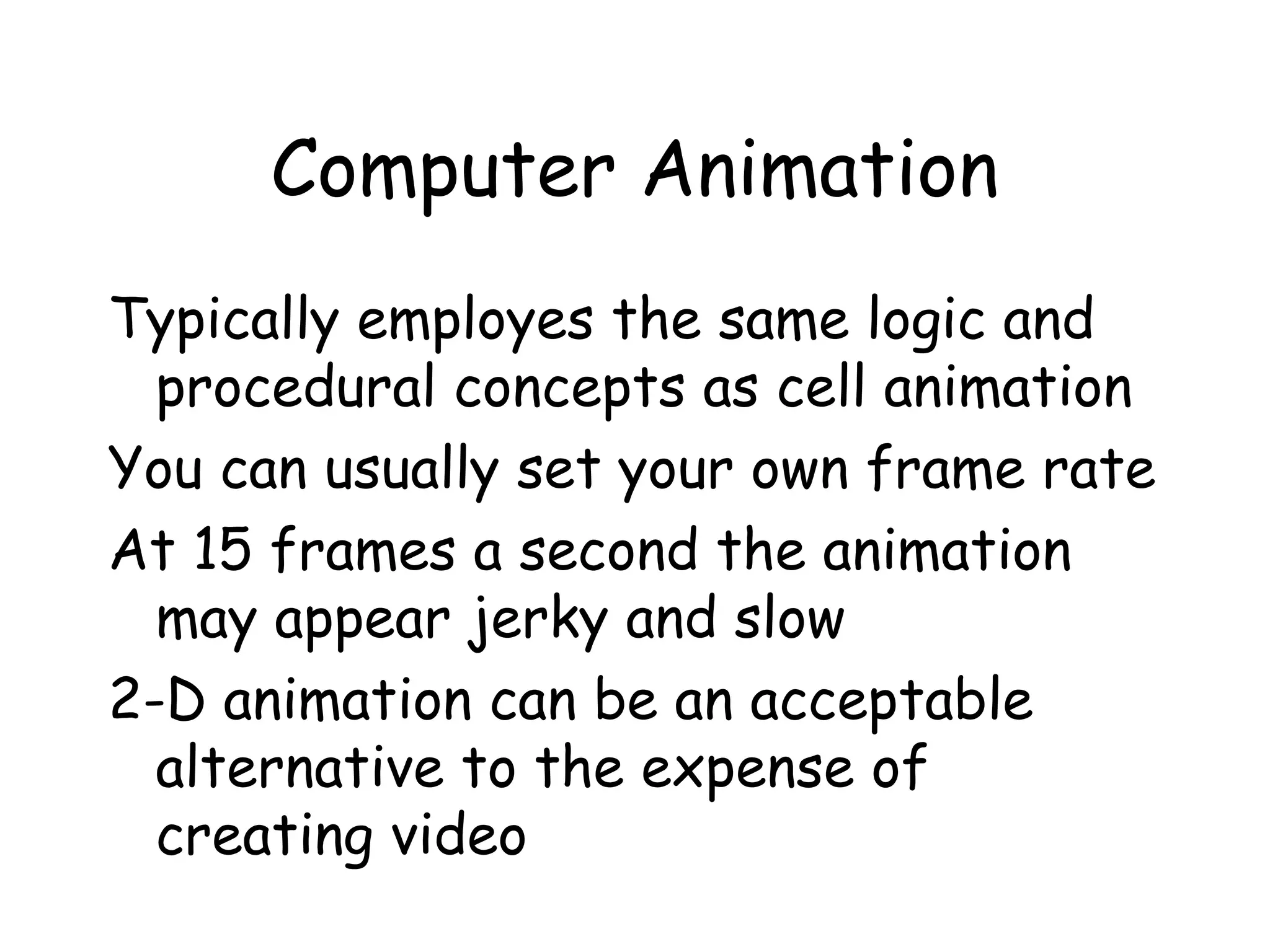

- 8. Computer Animation Typically employesthe same logic and procedural concepts as cell animation You can usually set your own frame rate At 15 frames a second the animation may appear jerky and slow 2-D animation can be an acceptable alternative to the expense of creating video

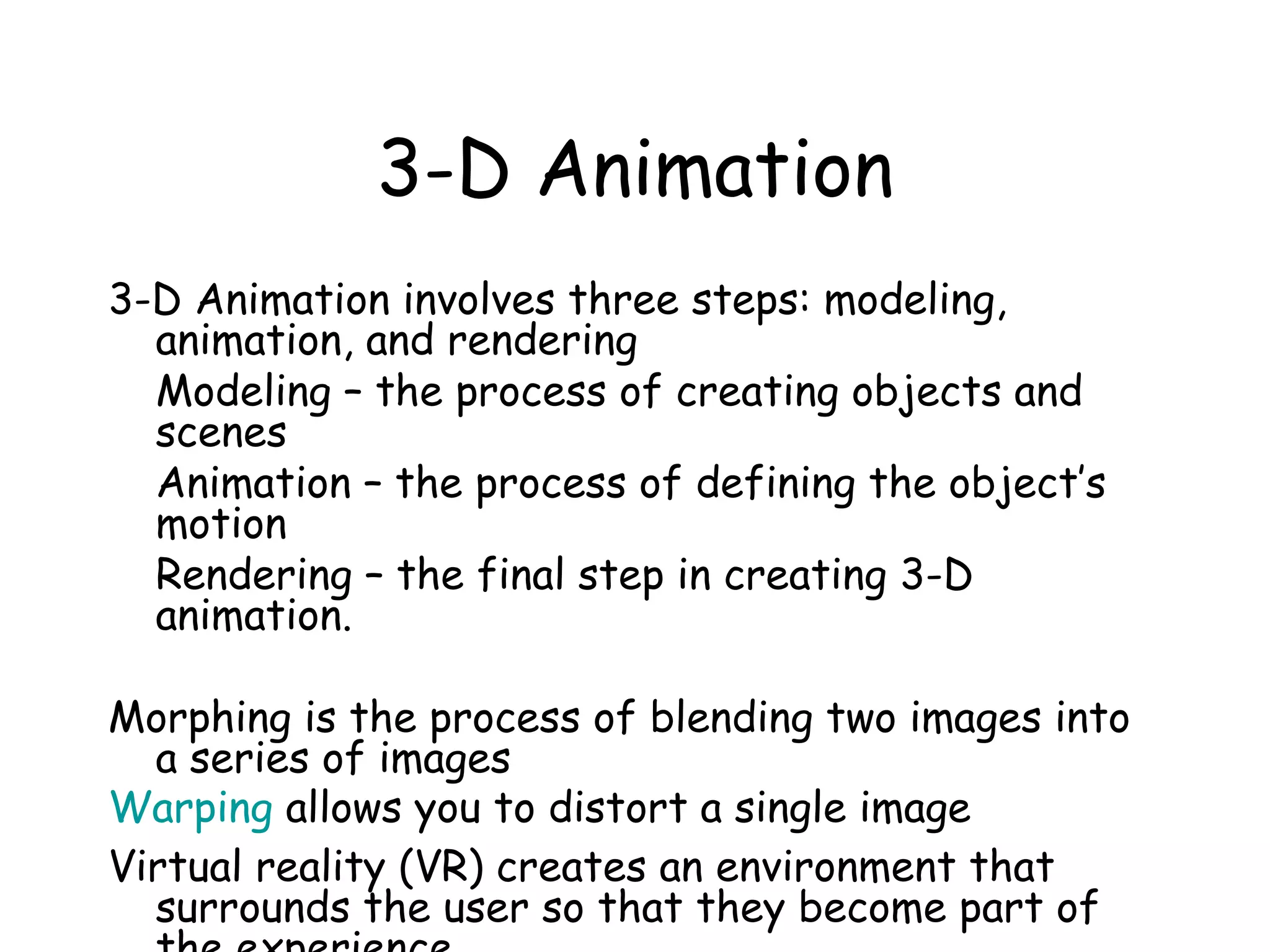

- 9. 3-D Animation 3-D Animationinvolves three steps: modeling, animation, and rendering Modeling – the process of creating objects and scenes Animation – the process of defining the object’s motion Rendering – the final step in creating 3-D animation. Morphing is the process of blending two images into a series of images Warping allows you to distort a single image Virtual reality (VR) creates an environment that surrounds the user so that they become part of

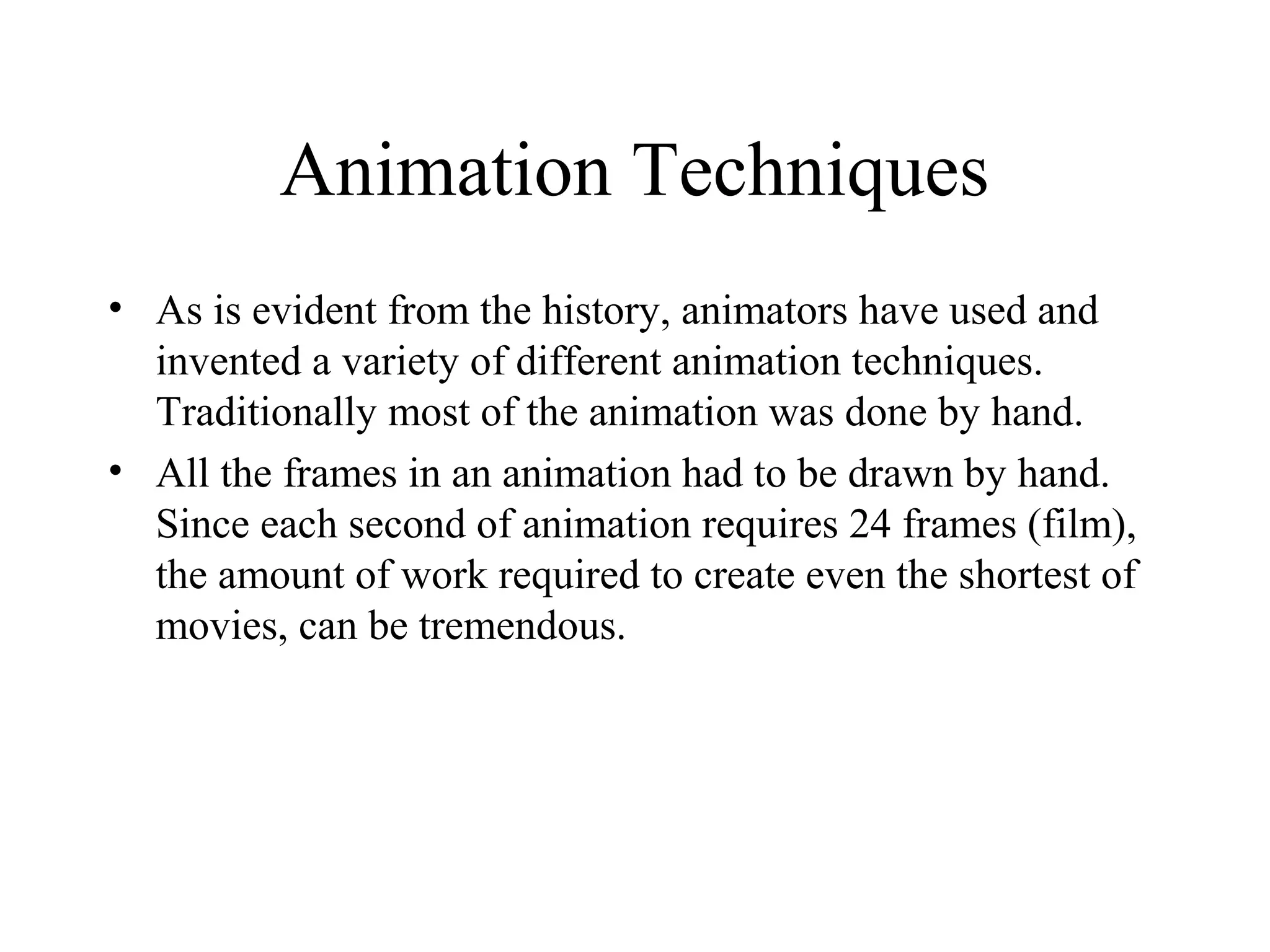

- 10. Animation Techniques • Asis evident from the history, animators have used and invented a variety of different animation techniques. Traditionally most of the animation was done by hand. • All the frames in an animation had to be drawn by hand. Since each second of animation requires 24 frames (film), the amount of work required to create even the shortest of movies, can be tremendous.

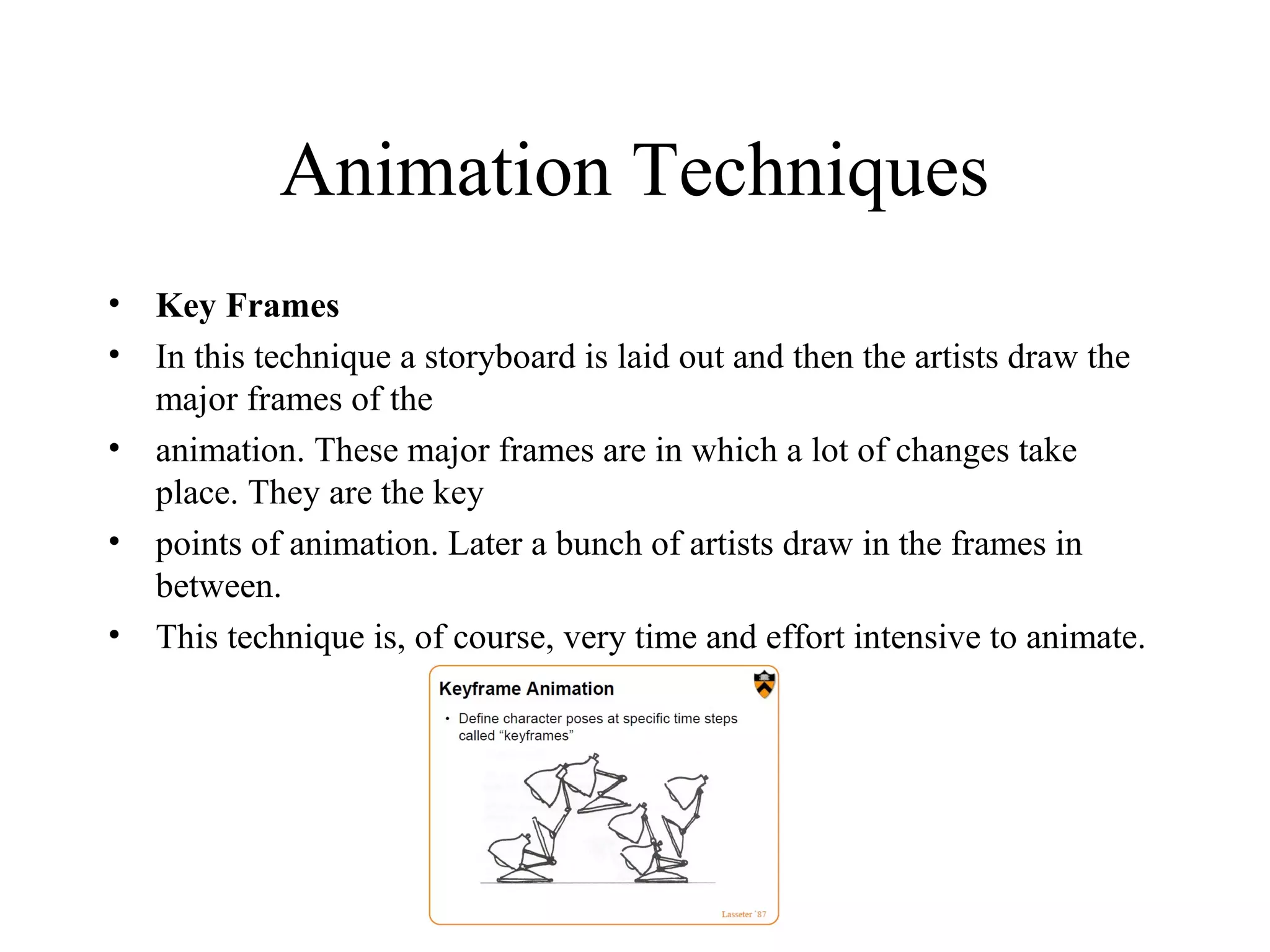

- 11. Animation Techniques • KeyFrames • In this technique a storyboard is laid out and then the artists draw the major frames of the • animation. These major frames are in which a lot of changes take place. They are the key • points of animation. Later a bunch of artists draw in the frames in between. • This technique is, of course, very time and effort intensive to animate.

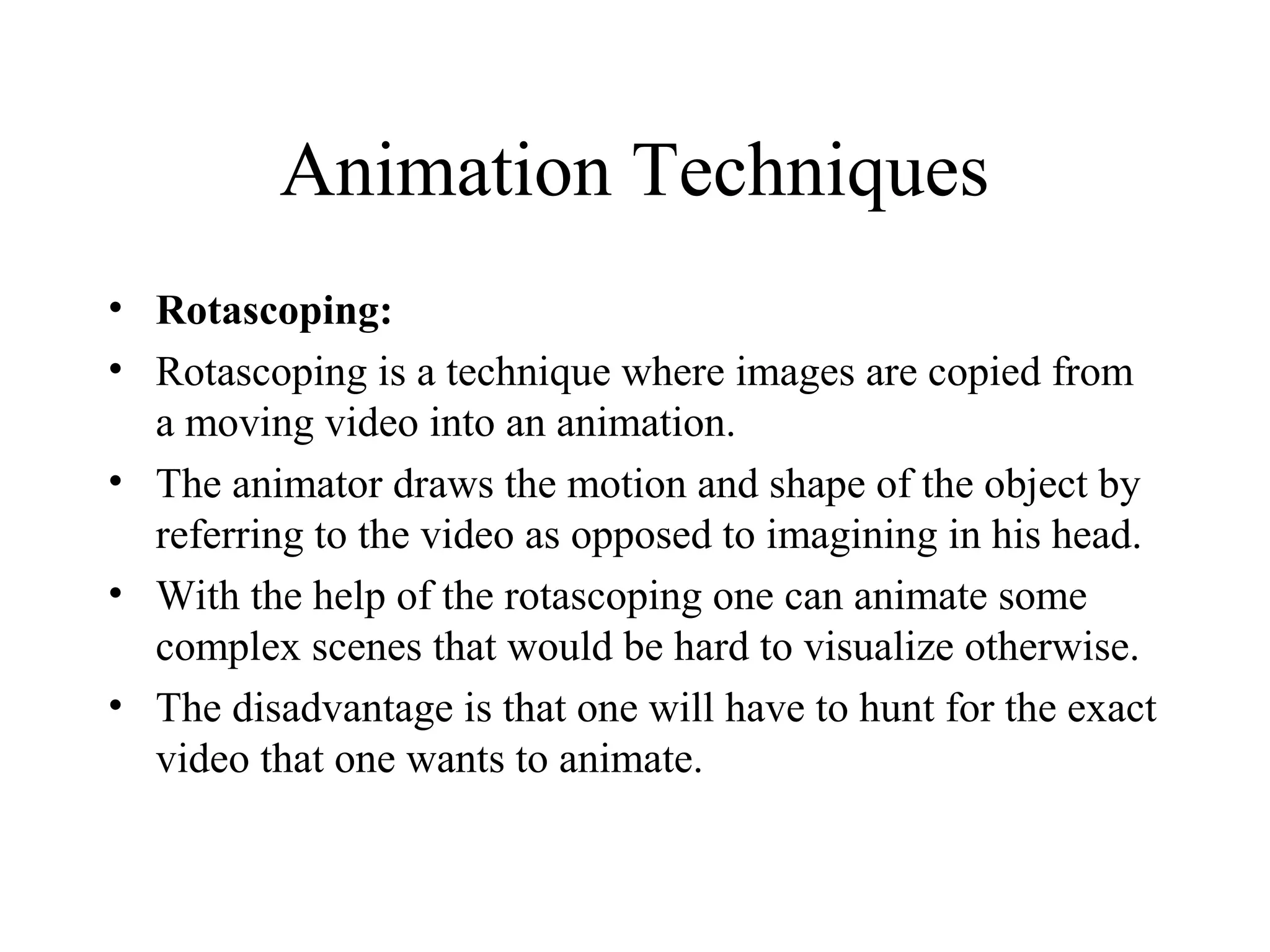

- 12. Animation Techniques • Rotascoping: •Rotascoping is a technique where images are copied from a moving video into an animation. • The animator draws the motion and shape of the object by referring to the video as opposed to imagining in his head. • With the help of the rotascoping one can animate some complex scenes that would be hard to visualize otherwise. • The disadvantage is that one will have to hunt for the exact video that one wants to animate.

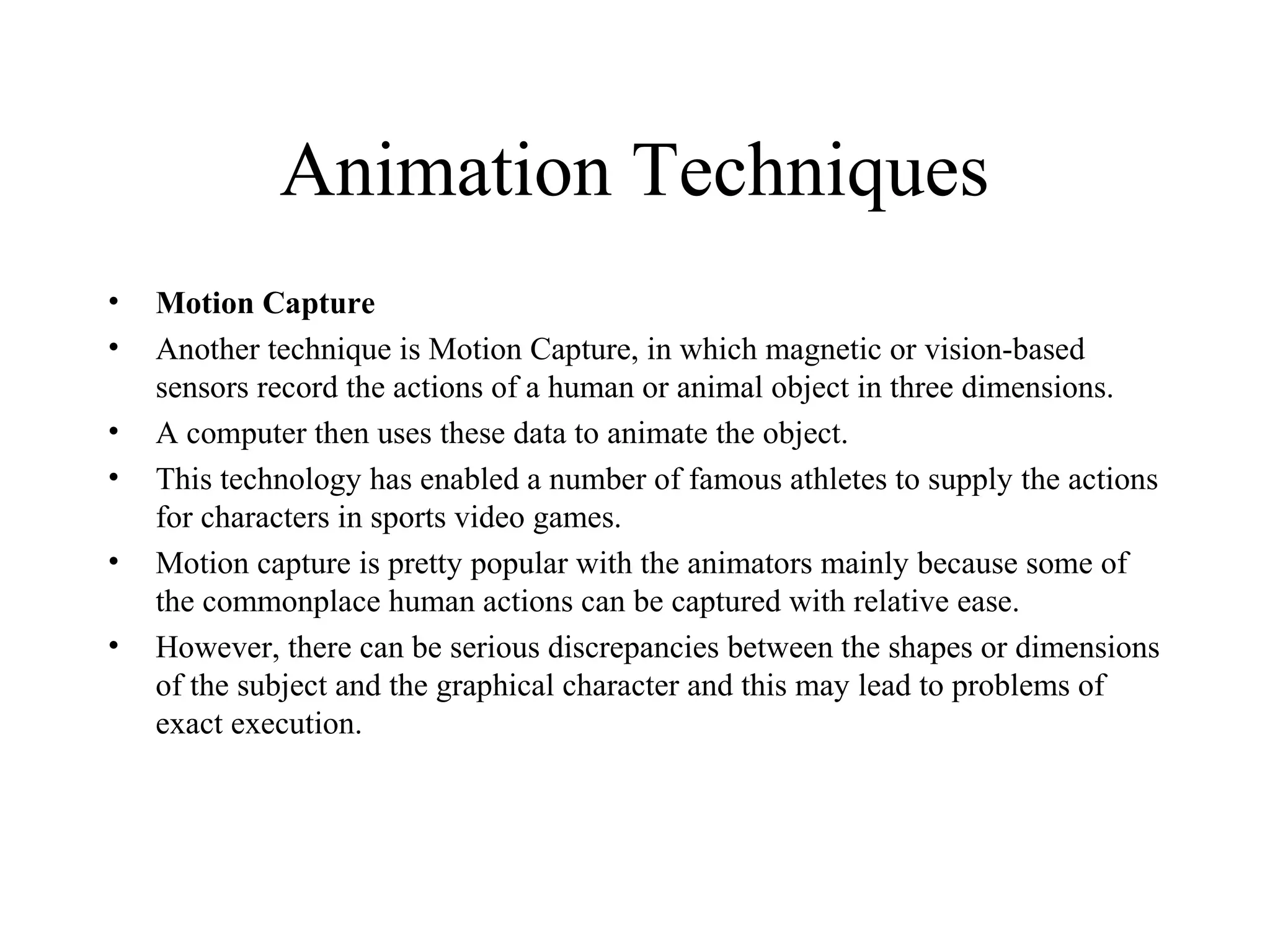

- 13. Animation Techniques • MotionCapture • Another technique is Motion Capture, in which magnetic or vision-based sensors record the actions of a human or animal object in three dimensions. • A computer then uses these data to animate the object. • This technology has enabled a number of famous athletes to supply the actions for characters in sports video games. • Motion capture is pretty popular with the animators mainly because some of the commonplace human actions can be captured with relative ease. • However, there can be serious discrepancies between the shapes or dimensions of the subject and the graphical character and this may lead to problems of exact execution.

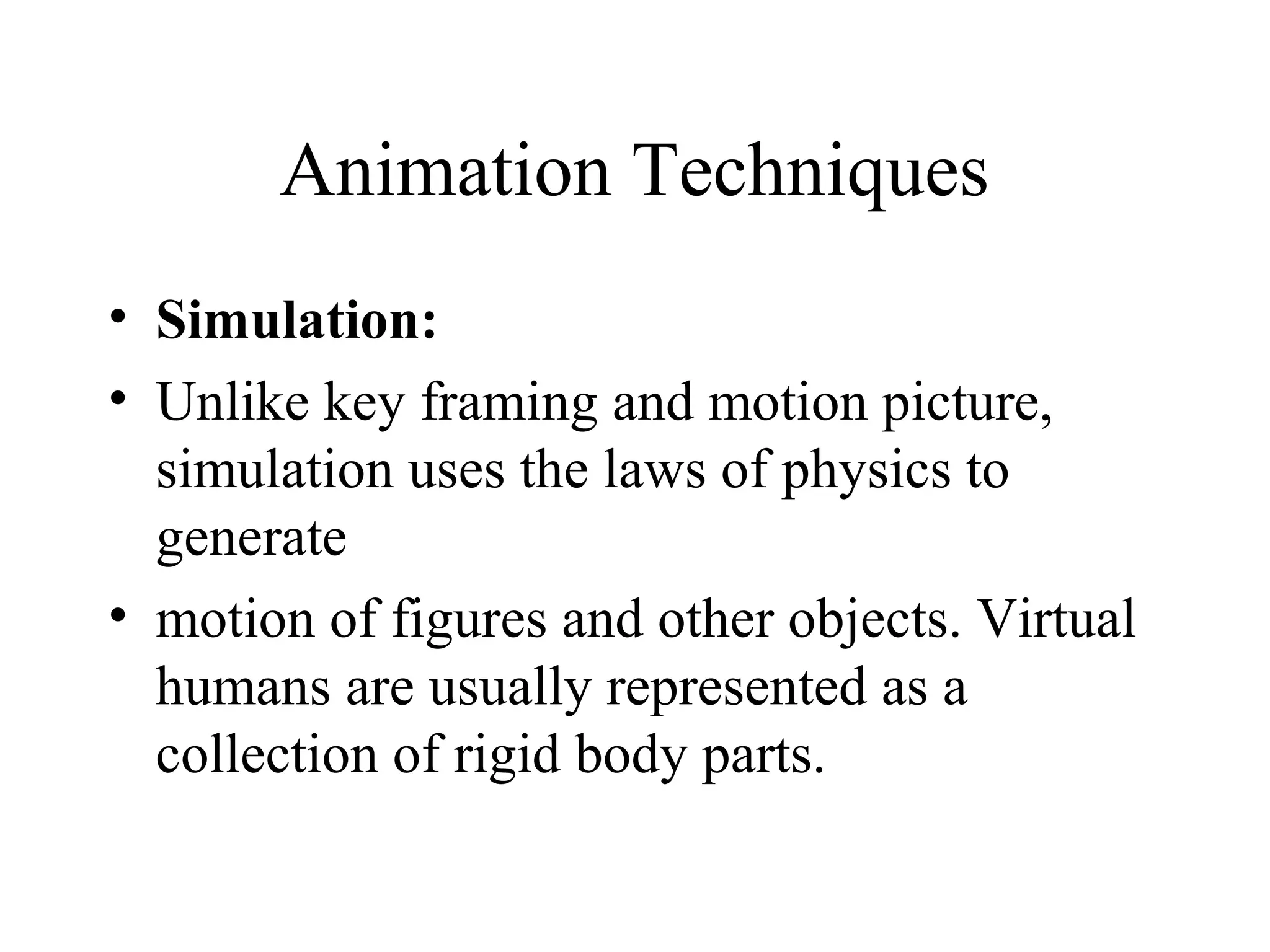

- 14. Animation Techniques • Simulation: •Unlike key framing and motion picture, simulation uses the laws of physics to generate • motion of figures and other objects. Virtual humans are usually represented as a collection of rigid body parts.

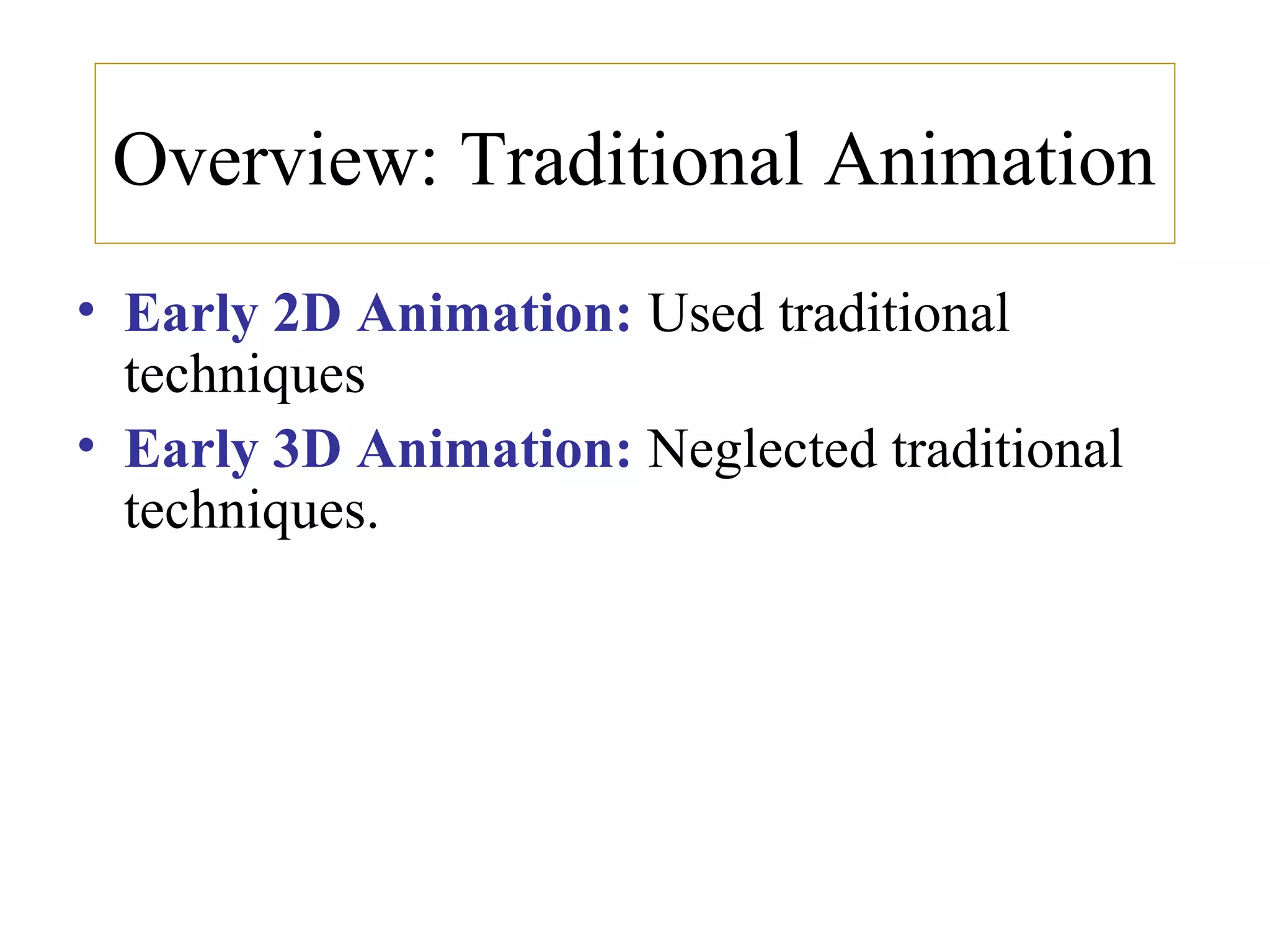

- 15. Overview: Traditional Animation •Early 2D Animation: Used traditional techniques • Early 3D Animation: Neglected traditional techniques.

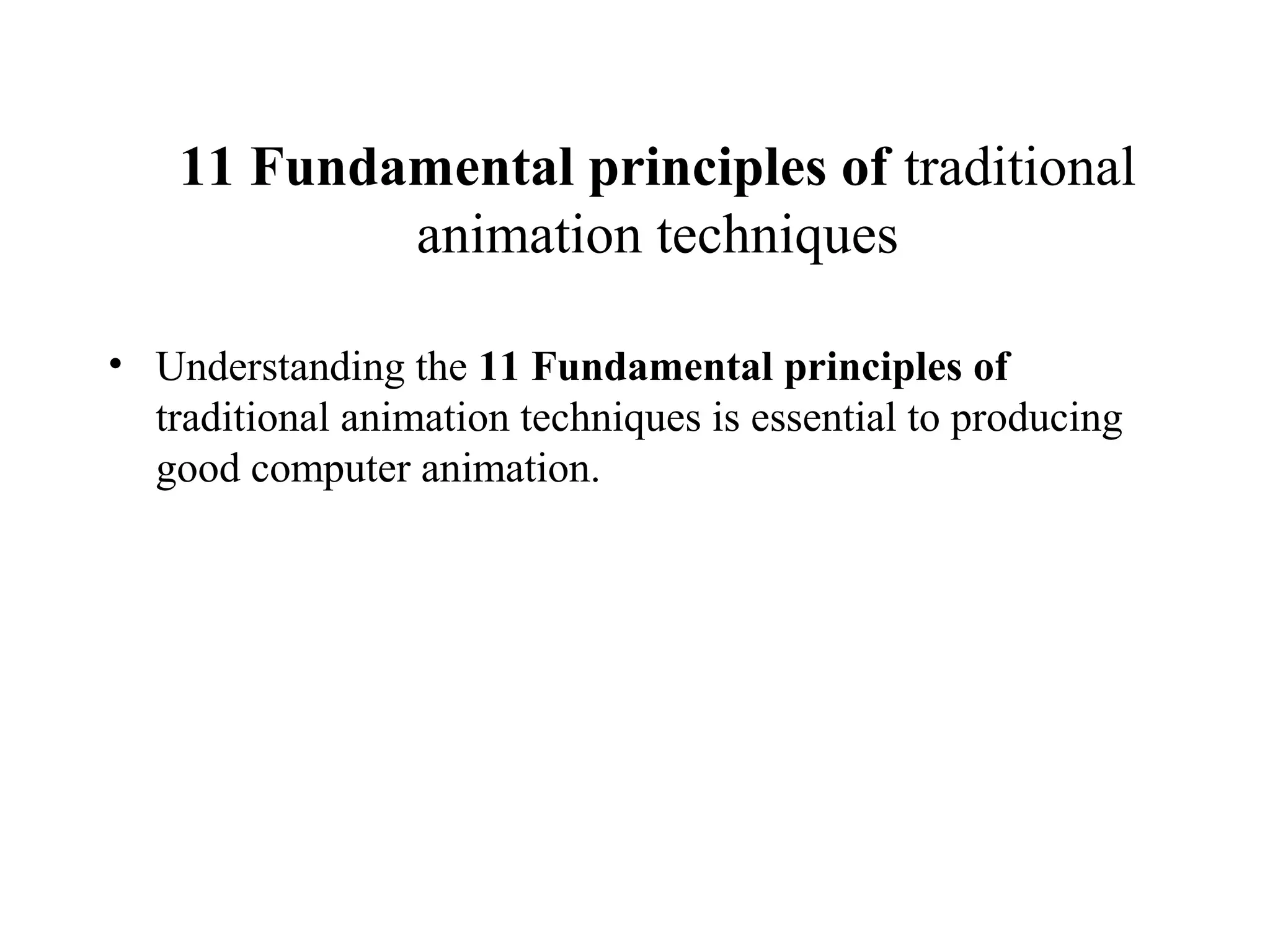

- 16. 11 Fundamental principlesof traditional animation techniques • Understanding the 11 Fundamental principles of traditional animation techniques is essential to producing good computer animation.

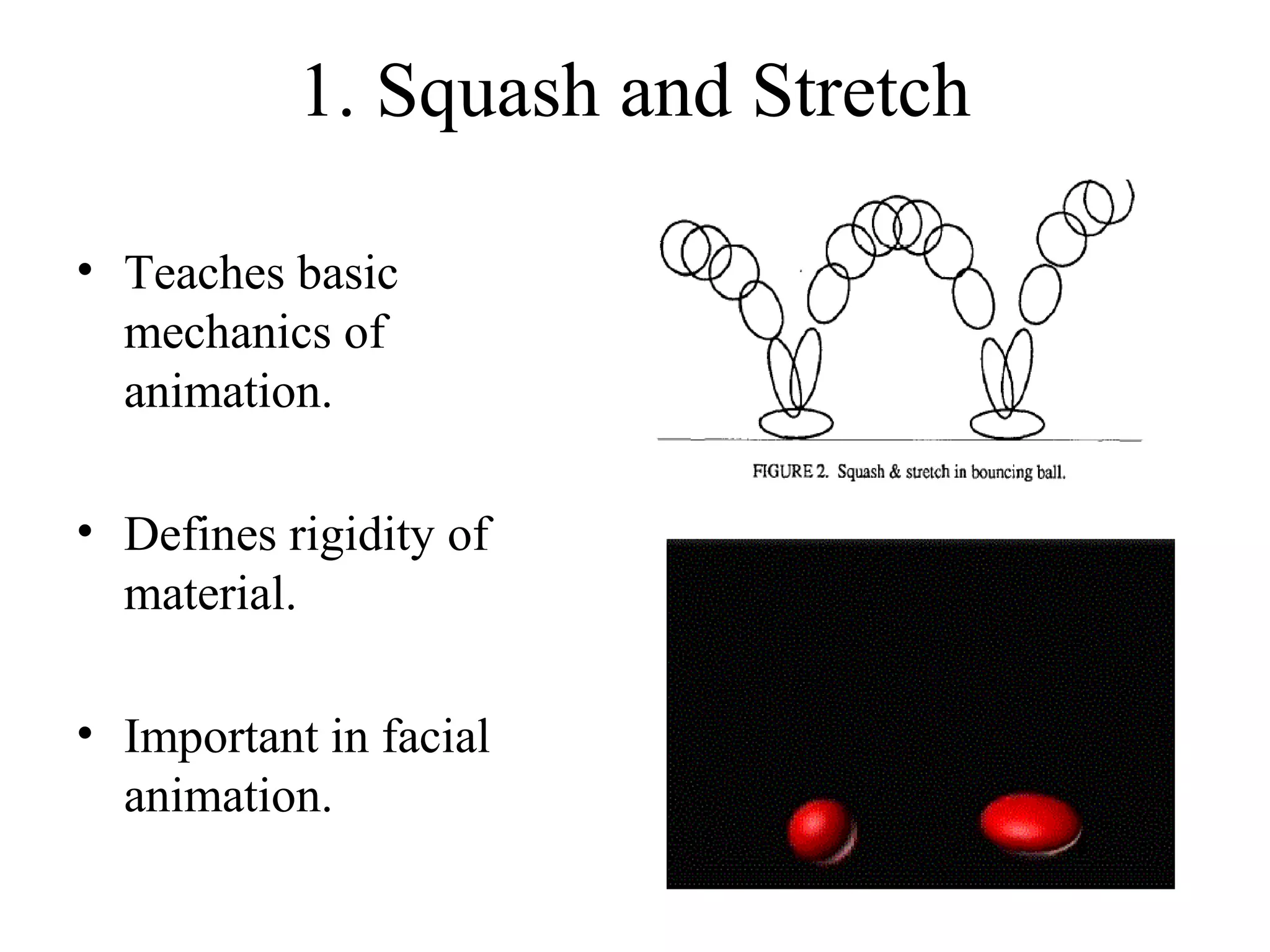

- 17. 1. Squash andStretch • Teaches basic mechanics of animation. • Defines rigidity of material. • Important in facial animation.

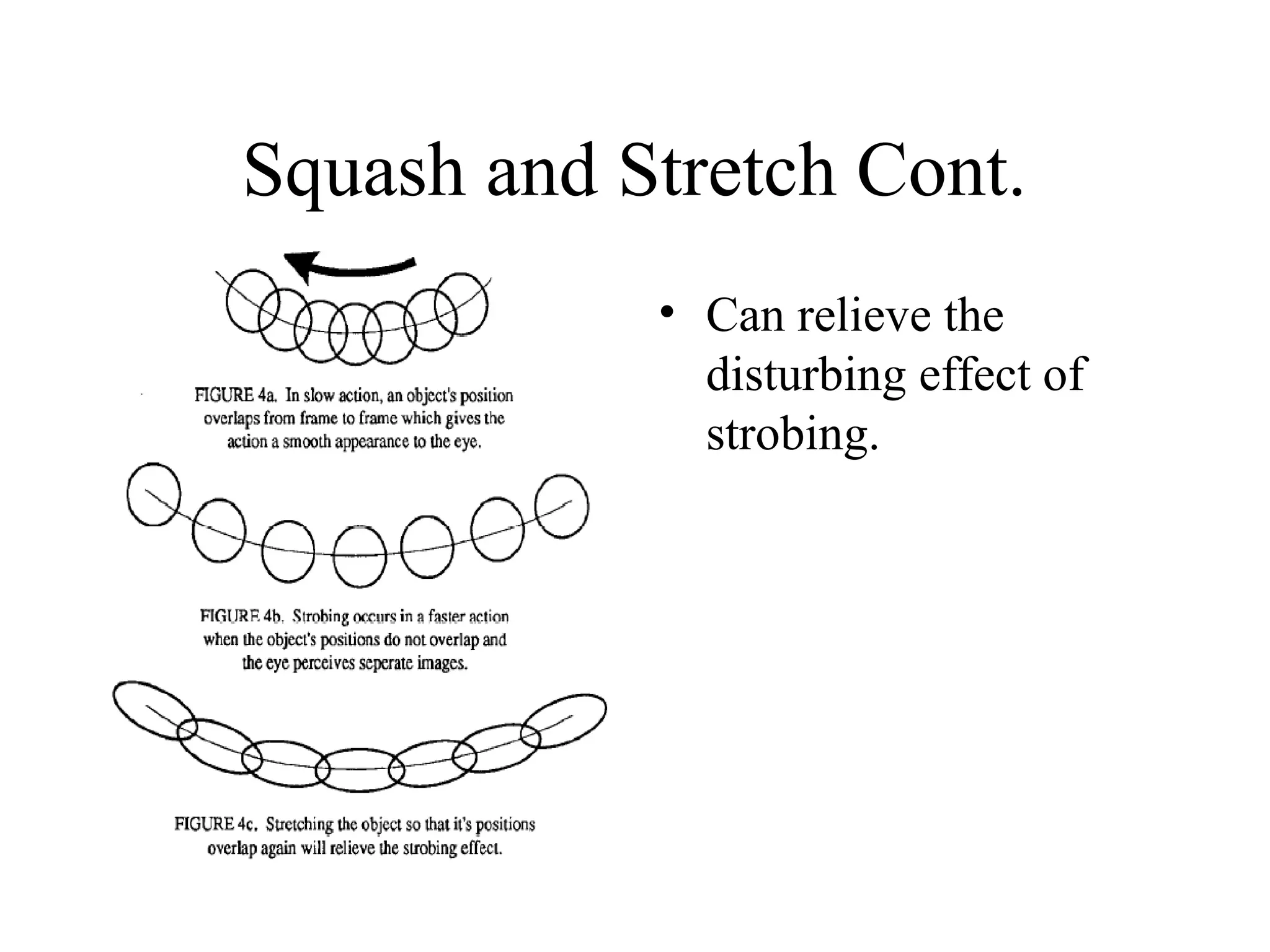

- 18. Squash and StretchCont. • Can relieve the disturbing effect of strobing.

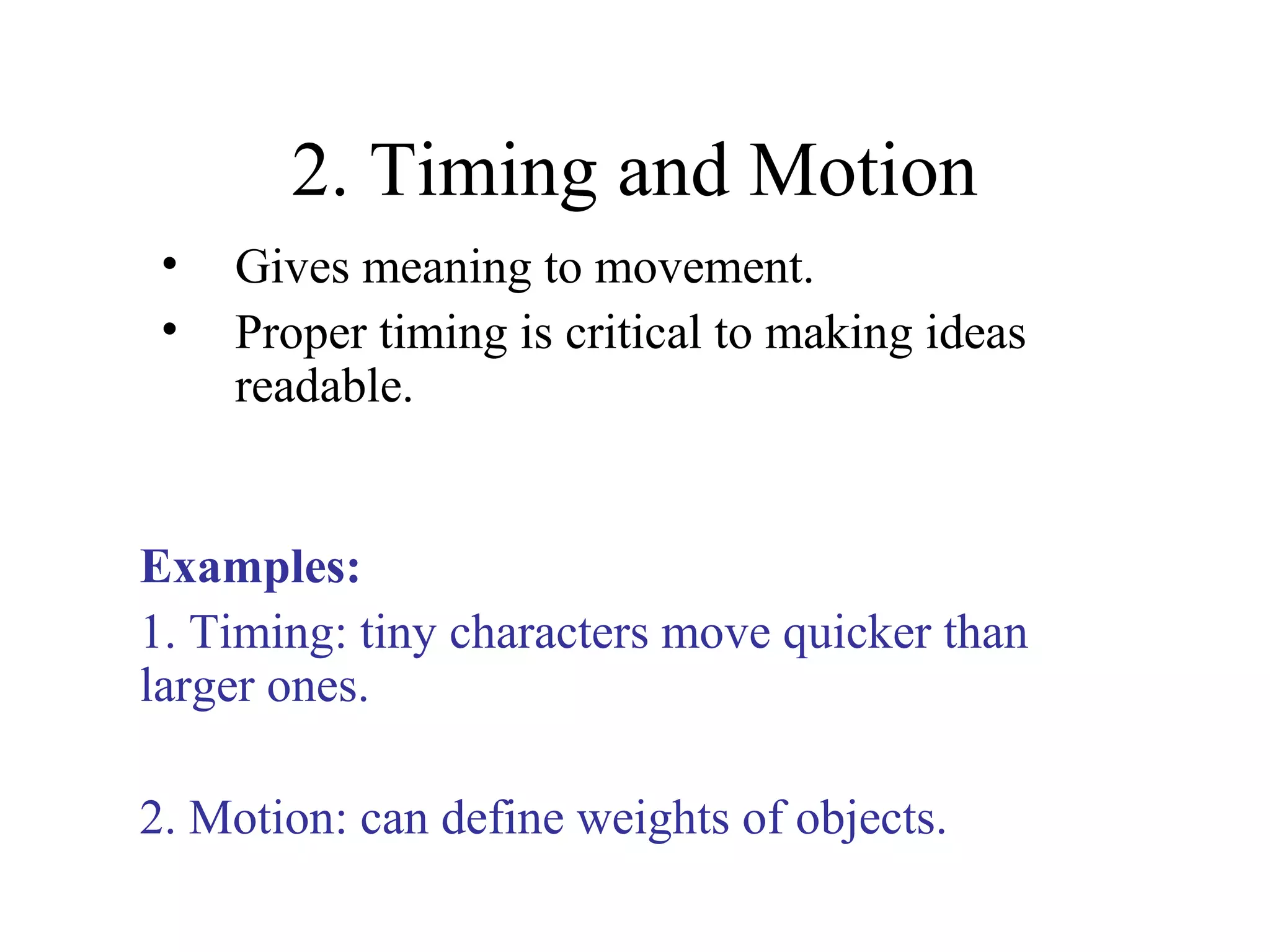

- 19. 2. Timing andMotion • Gives meaning to movement. • Proper timing is critical to making ideas readable. Examples: 1. Timing: tiny characters move quicker than larger ones. 2. Motion: can define weights of objects.

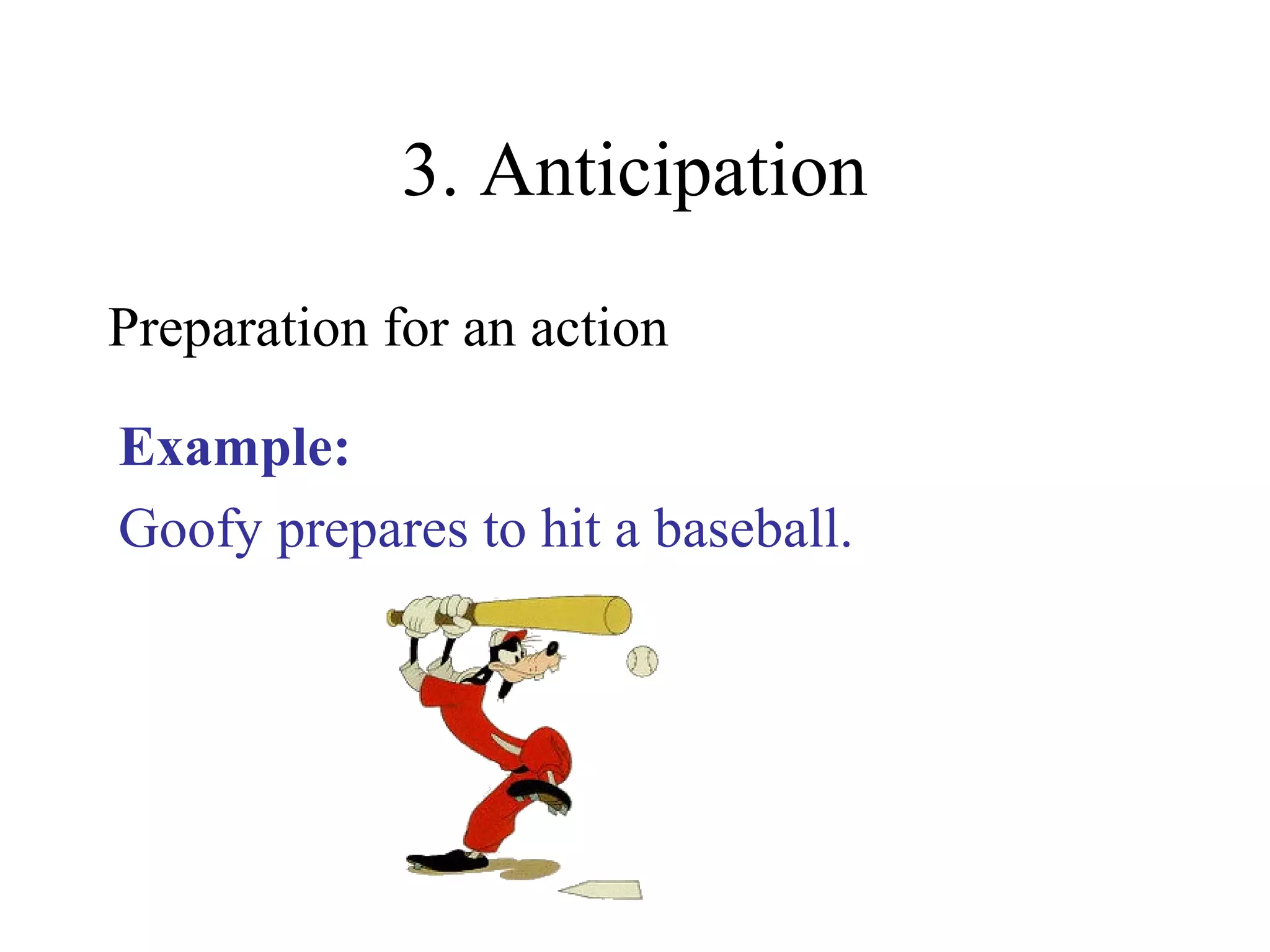

- 20. 3. Anticipation Preparation foran action Example: Goofy prepares to hit a baseball.

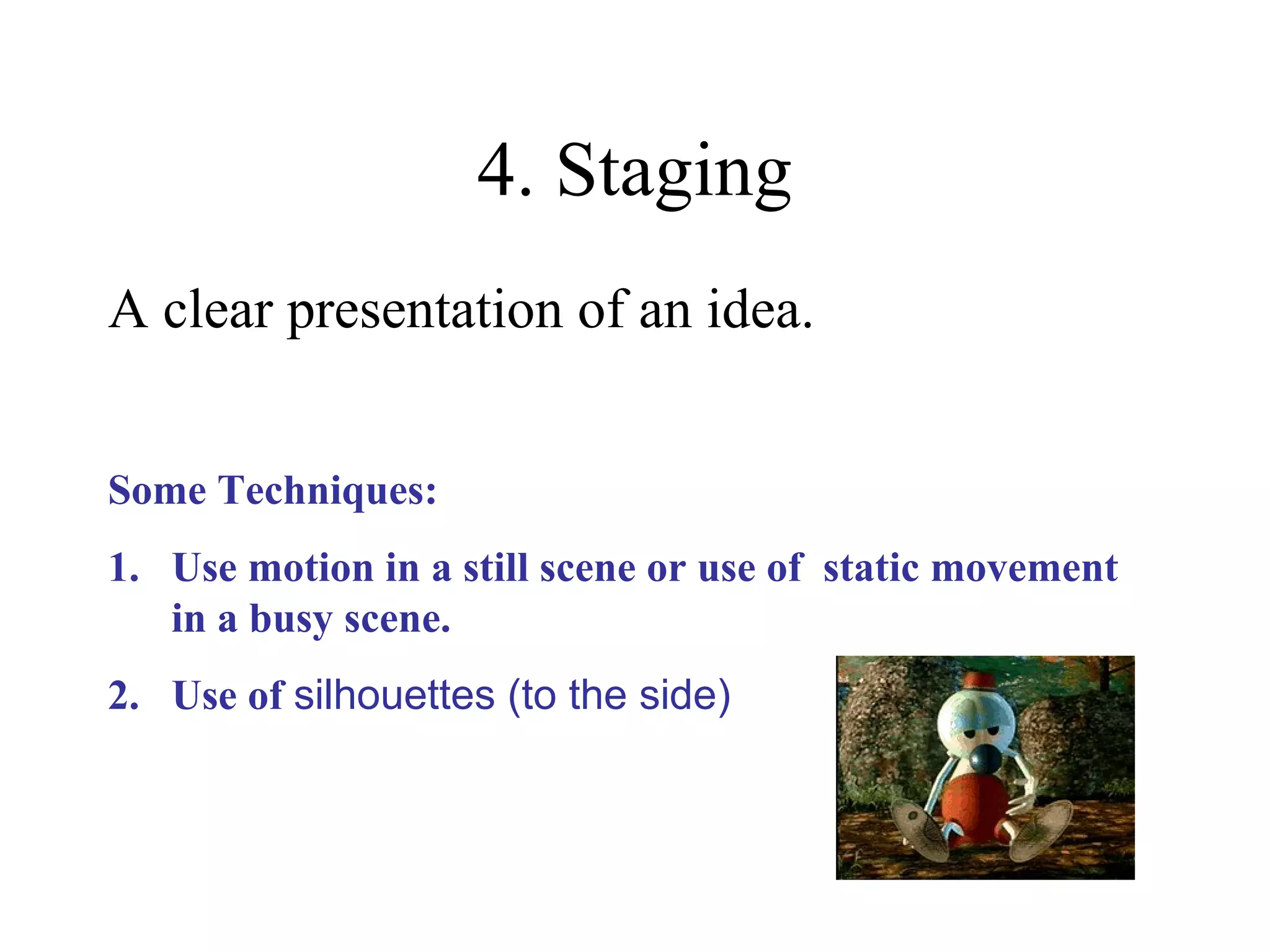

- 21. 4. Staging A clearpresentation of an idea. Some Techniques: 1. Use motion in a still scene or use of static movement in a busy scene. 2. Use of silhouettes (to the side)

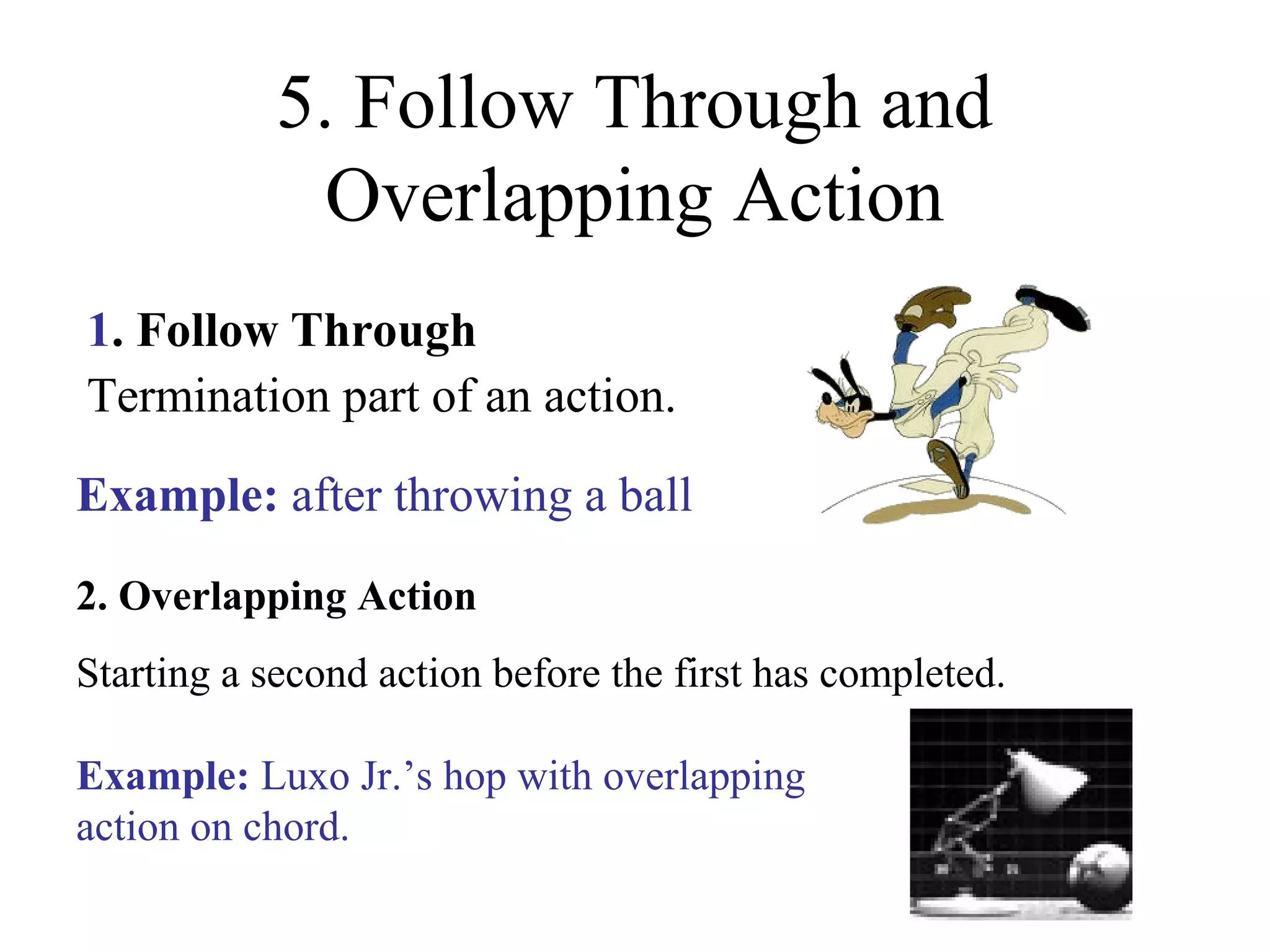

- 22. 5. Follow Throughand Overlapping Action 1. Follow Through Termination part of an action. 2. Overlapping Action Starting a second action before the first has completed. Example: after throwing a ball Example: Luxo Jr.’s hop with overlapping action on chord.

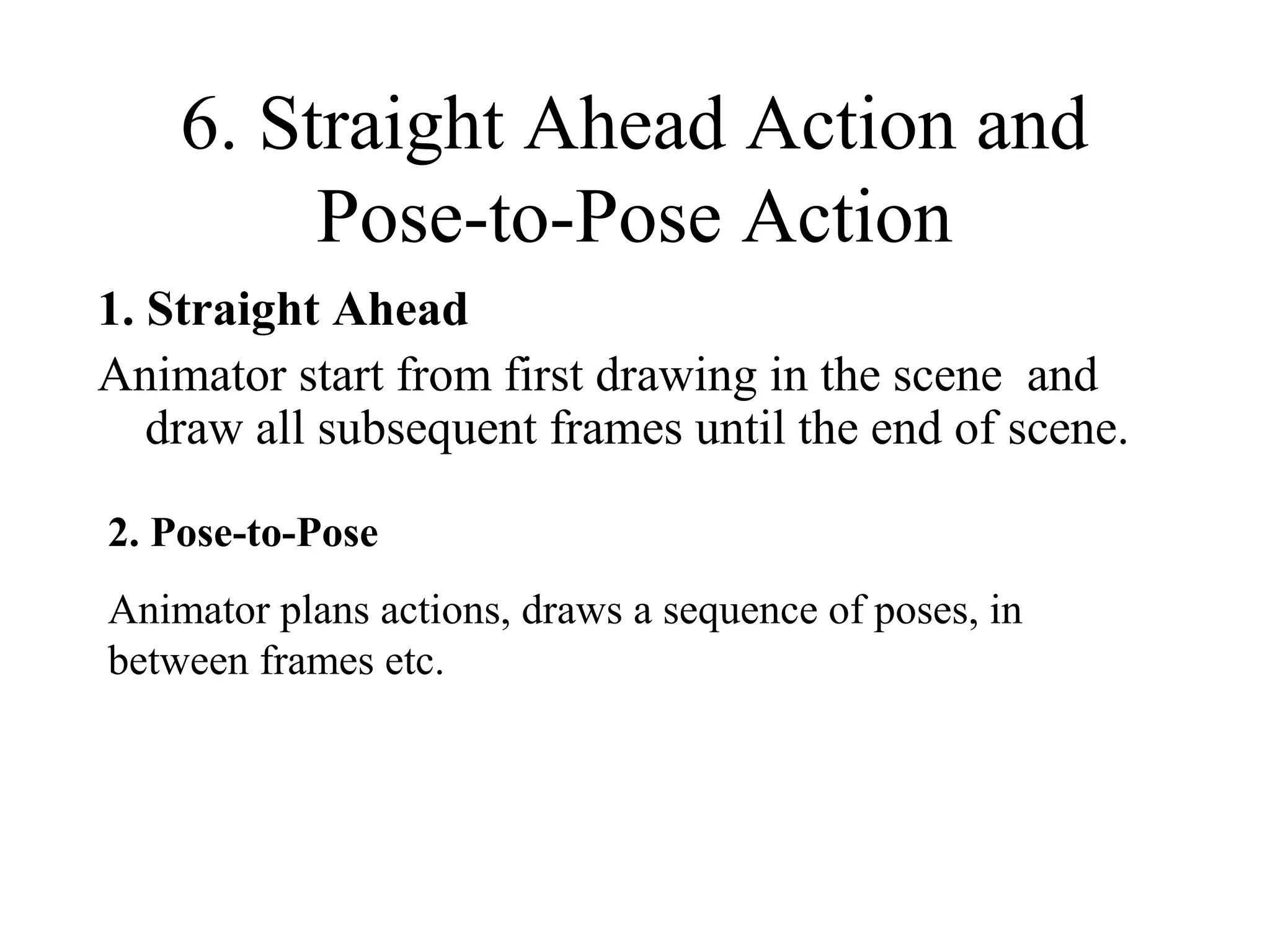

- 23. 6. Straight AheadAction and Pose-to-Pose Action 1. Straight Ahead Animator start from first drawing in the scene and draw all subsequent frames until the end of scene. 2. Pose-to-Pose Animator plans actions, draws a sequence of poses, in between frames etc.

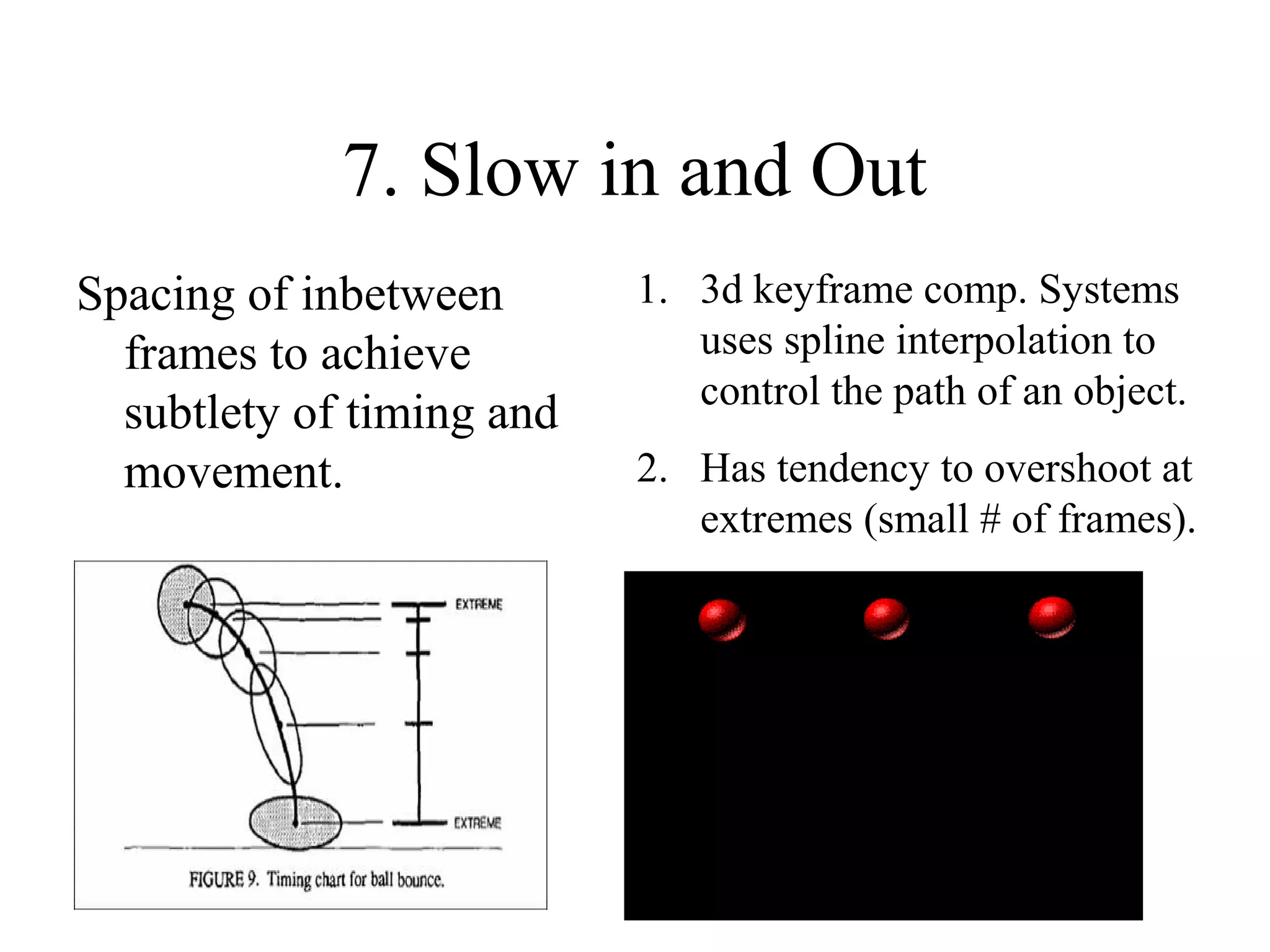

- 24. 7. Slow inand Out Spacing of inbetween frames to achieve subtlety of timing and movement. 1. 3d keyframe comp. Systems uses spline interpolation to control the path of an object. 2. Has tendency to overshoot at extremes (small # of frames).

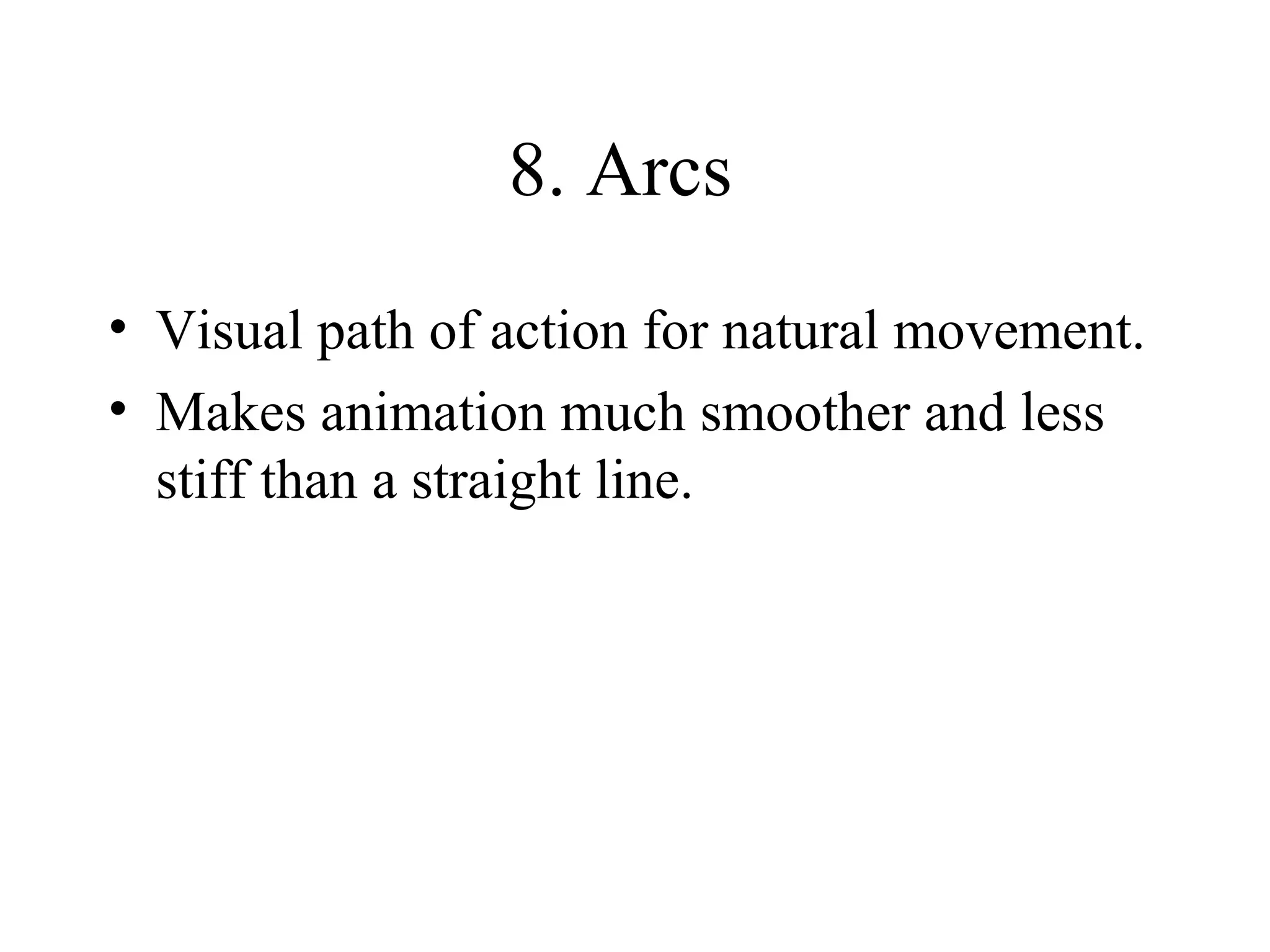

- 25. 8. Arcs • Visualpath of action for natural movement. • Makes animation much smoother and less stiff than a straight line.

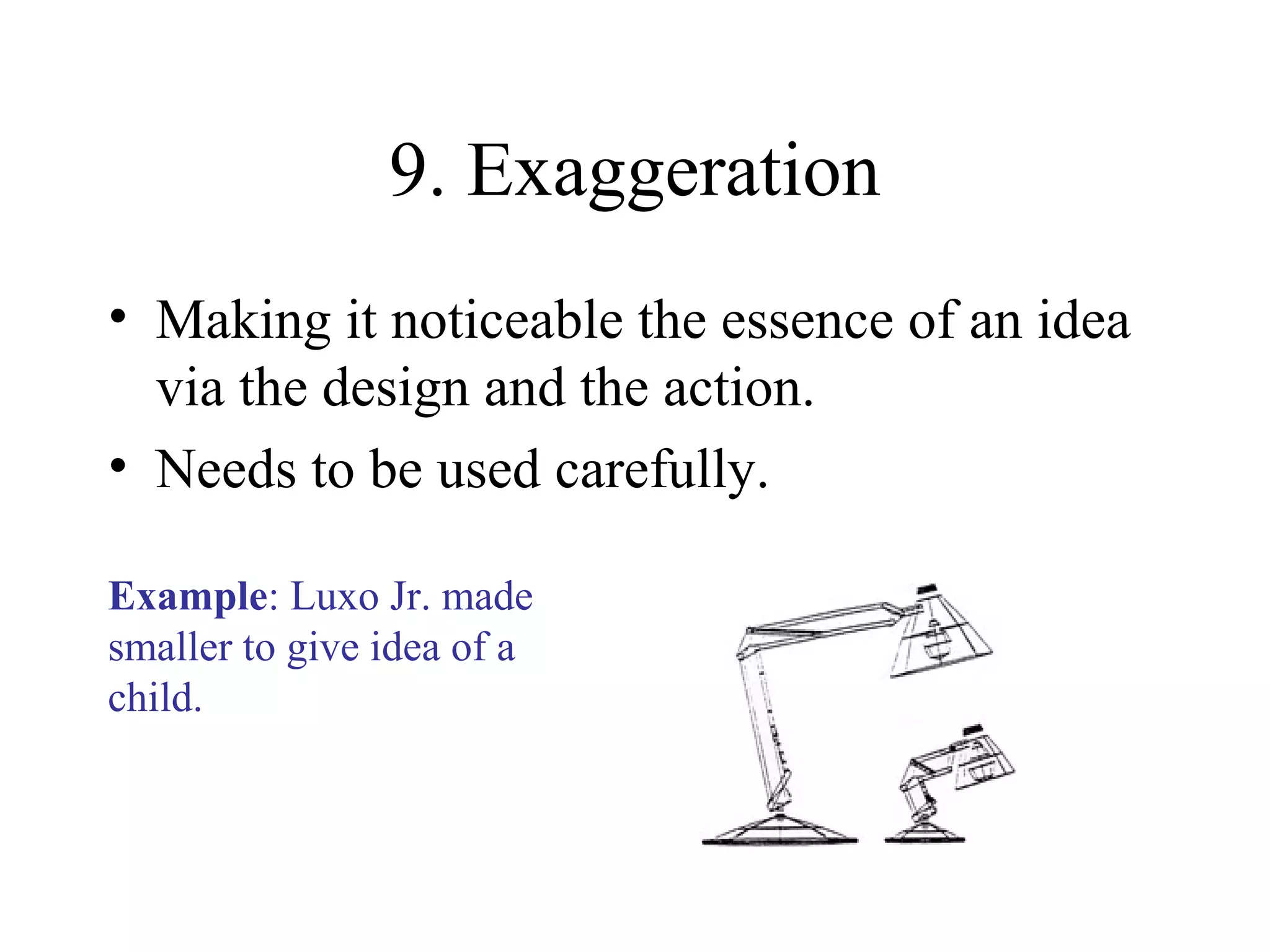

- 26. 9. Exaggeration • Makingit noticeable the essence of an idea via the design and the action. • Needs to be used carefully. Example: Luxo Jr. made smaller to give idea of a child.

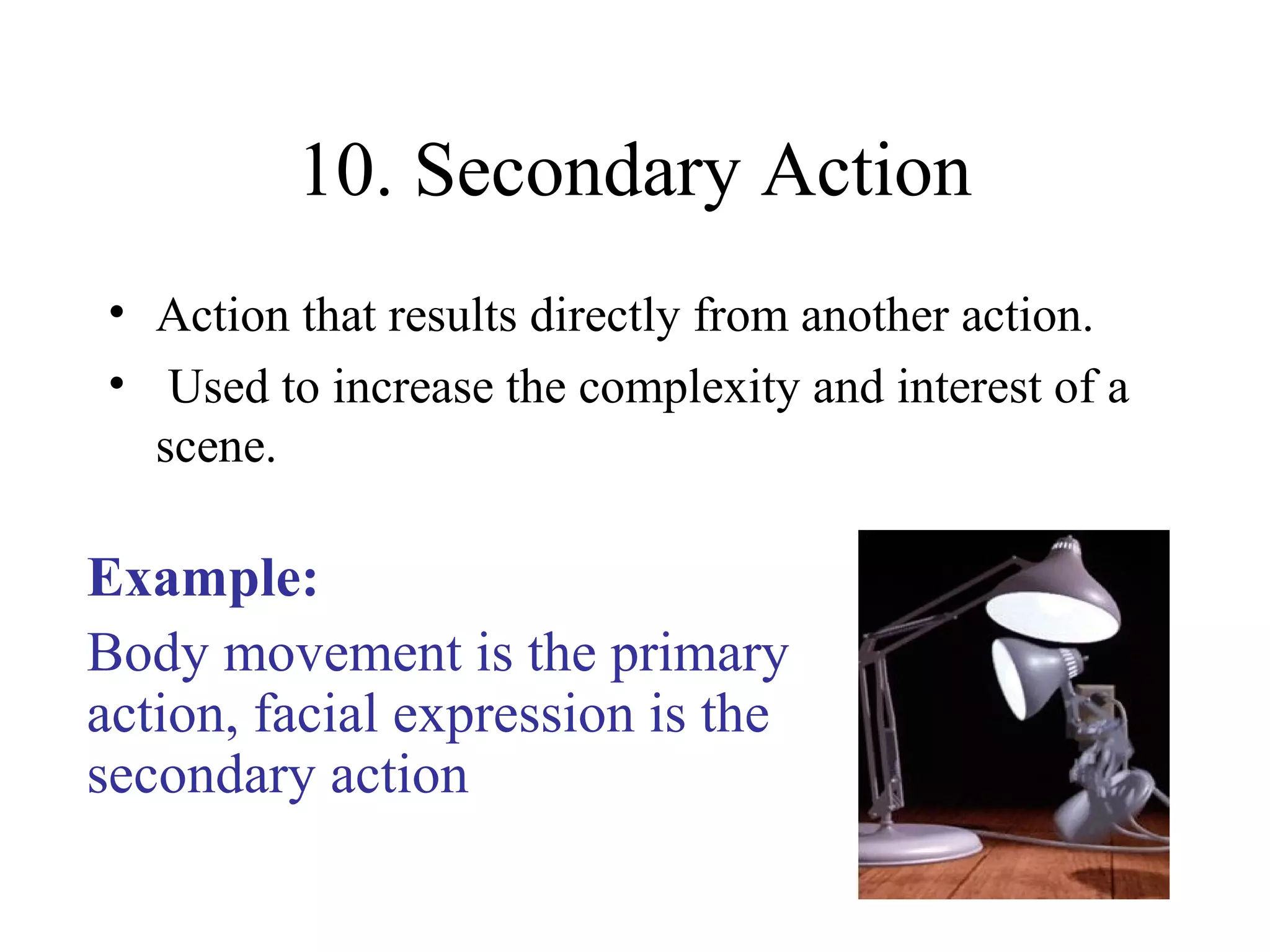

- 27. 10. Secondary Action •Action that results directly from another action. • Used to increase the complexity and interest of a scene. Example: Body movement is the primary action, facial expression is the secondary action

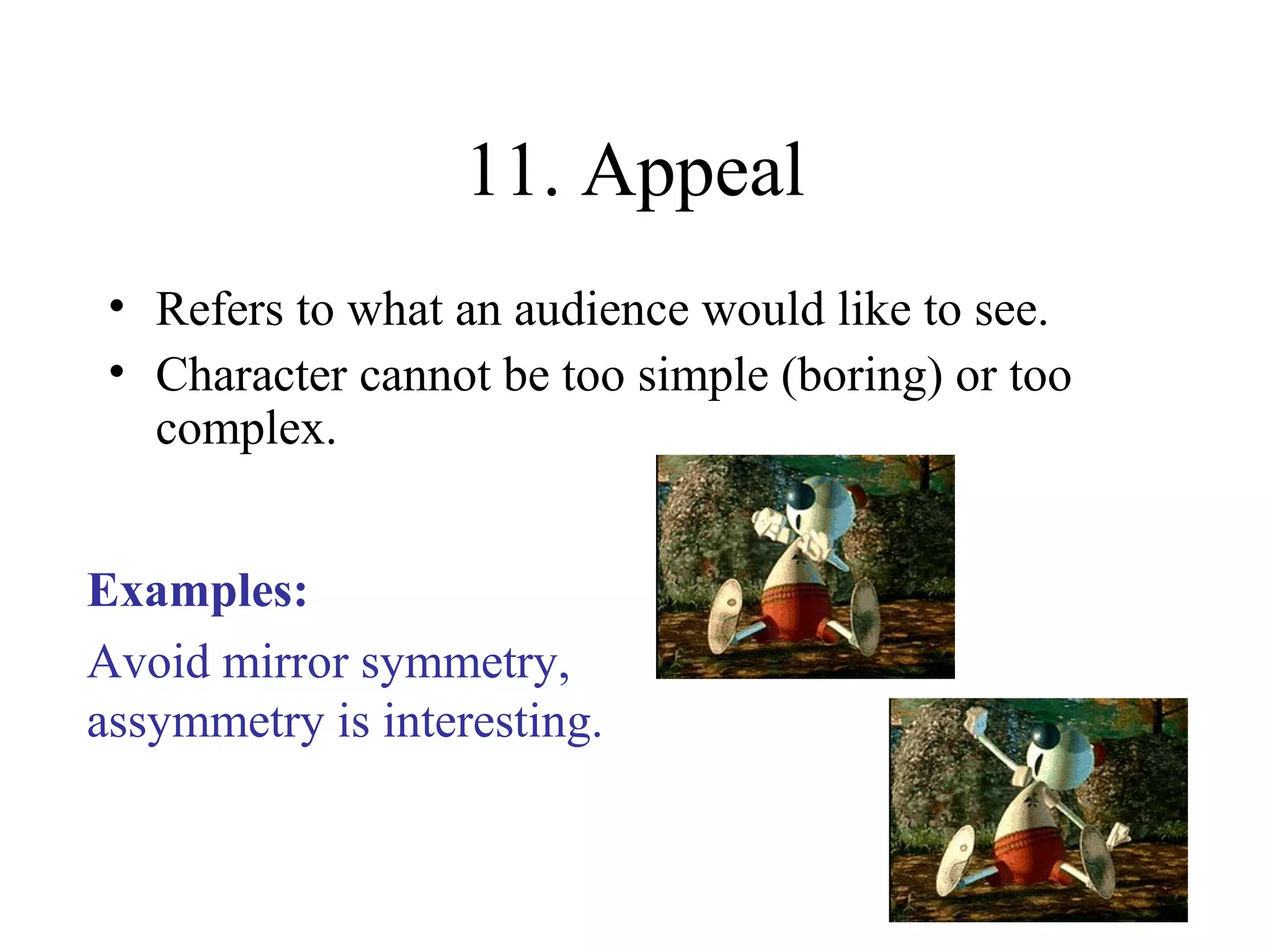

- 28. 11. Appeal • Refersto what an audience would like to see. • Character cannot be too simple (boring) or too complex. Examples: Avoid mirror symmetry, assymmetry is interesting.

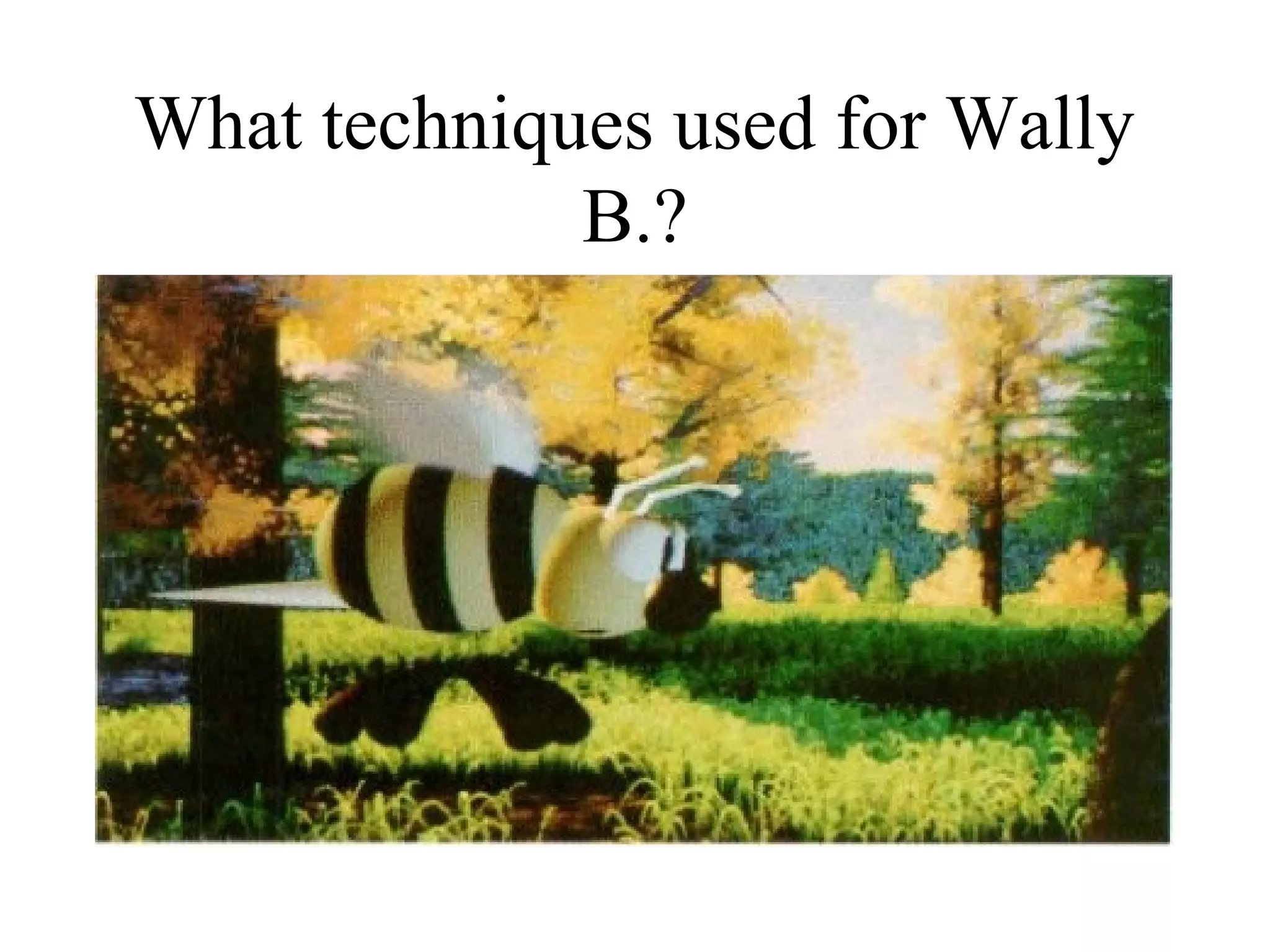

- 29. What techniques usedfor Wally B.?

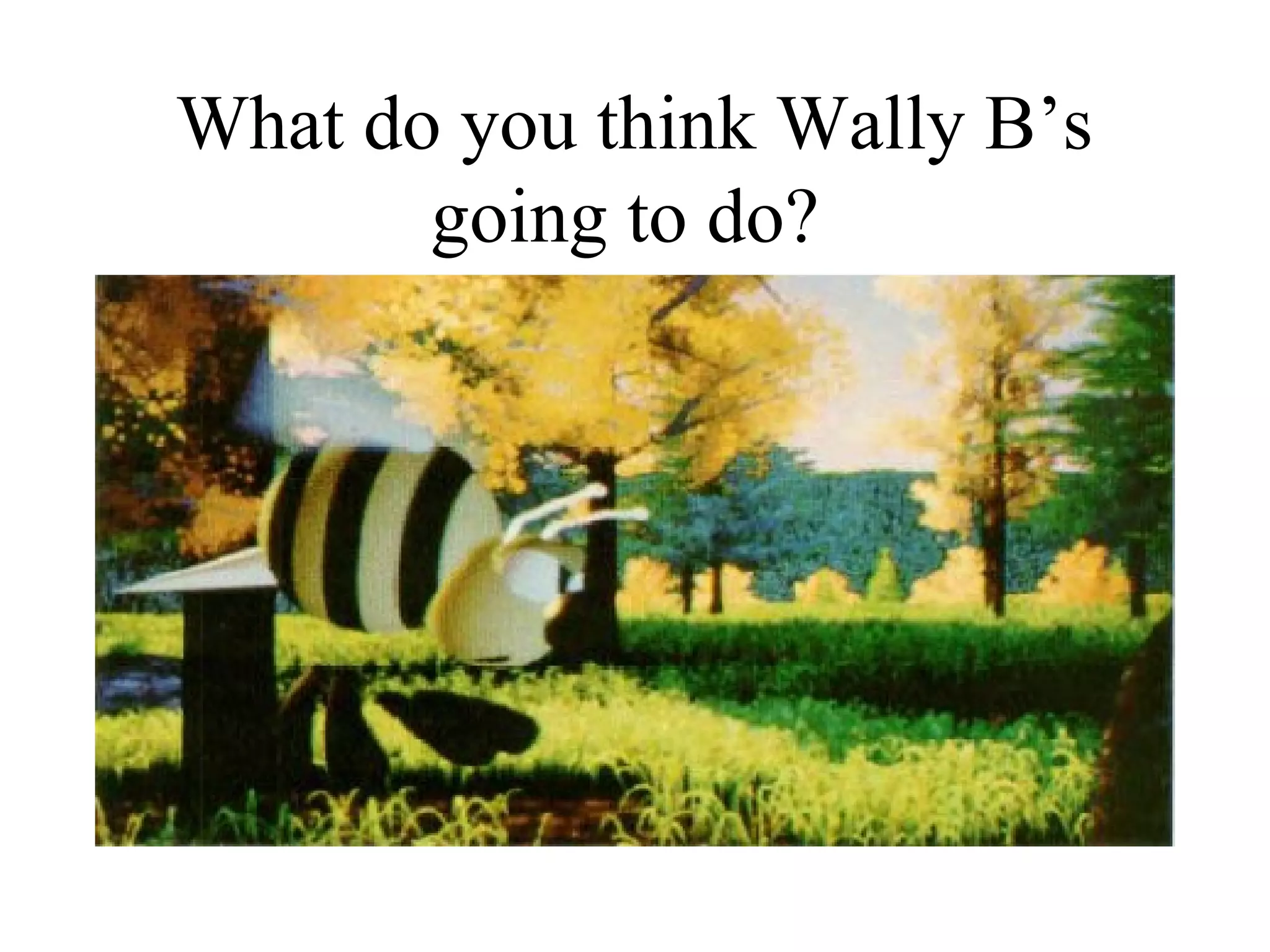

- 30. What do youthink Wally B’s going to do?

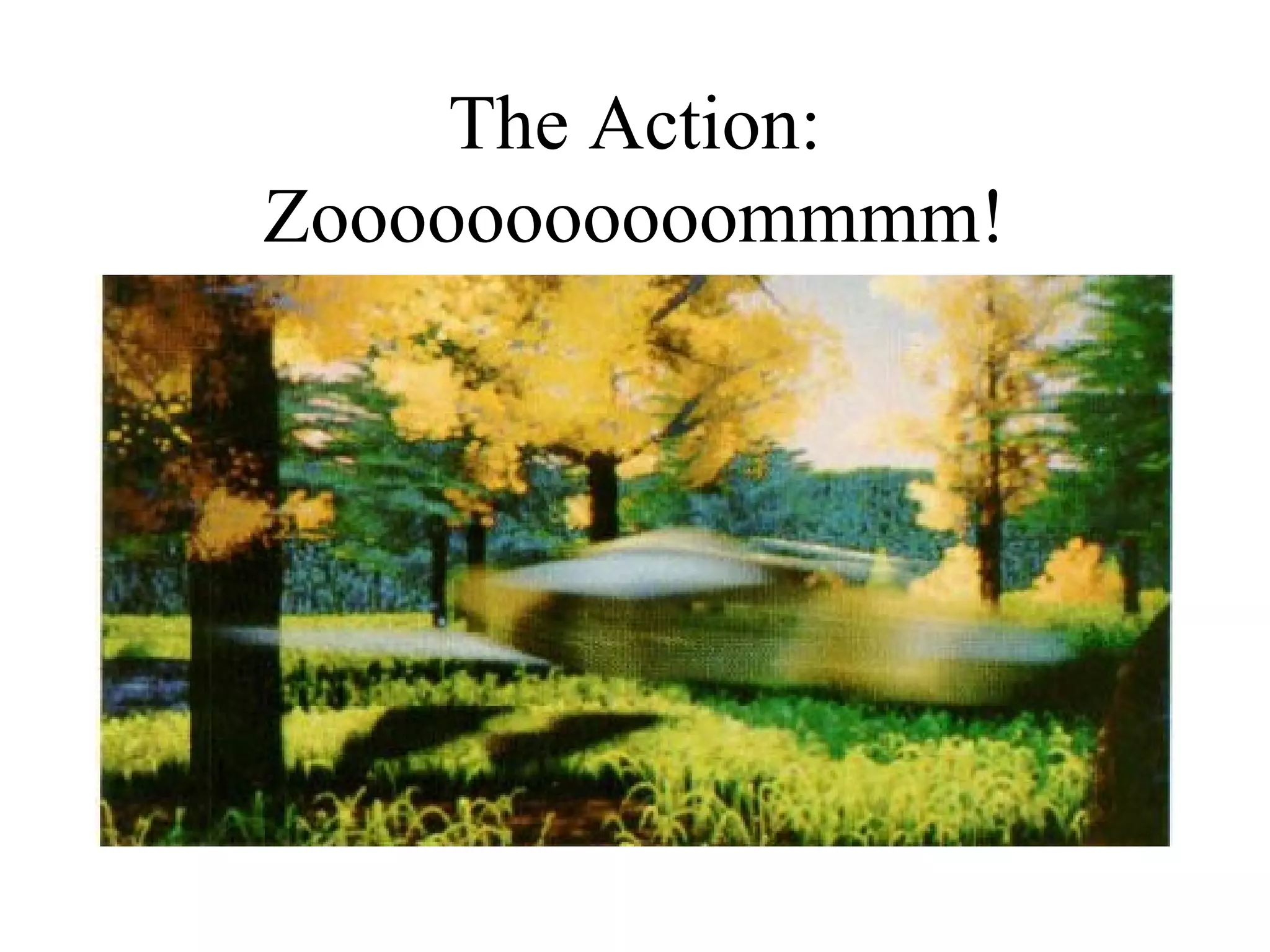

- 31.
- 32.

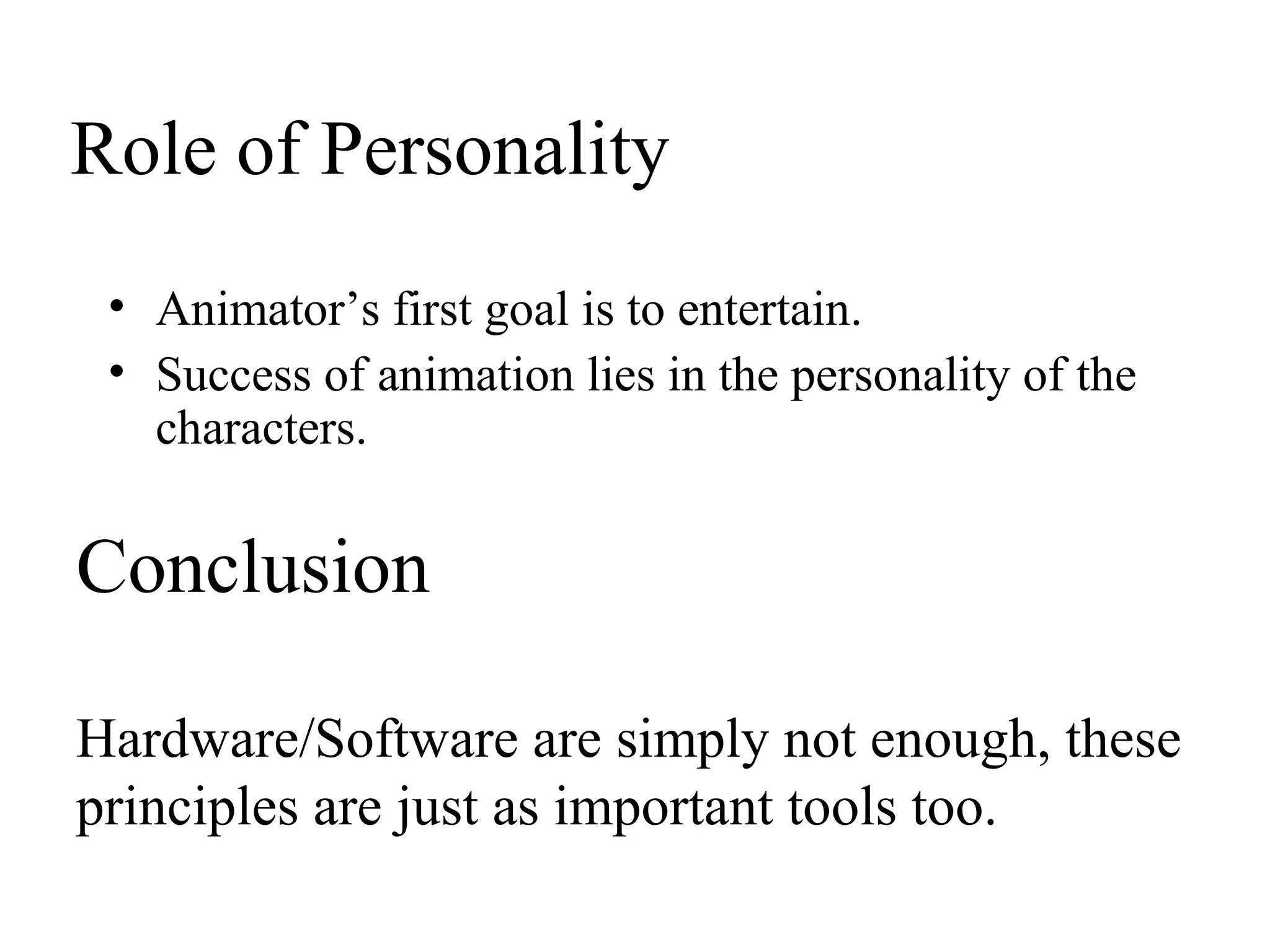

- 33. Role of Personality •Animator’s first goal is to entertain. • Success of animation lies in the personality of the characters. Conclusion Hardware/Software are simply not enough, these principles are just as important tools too.

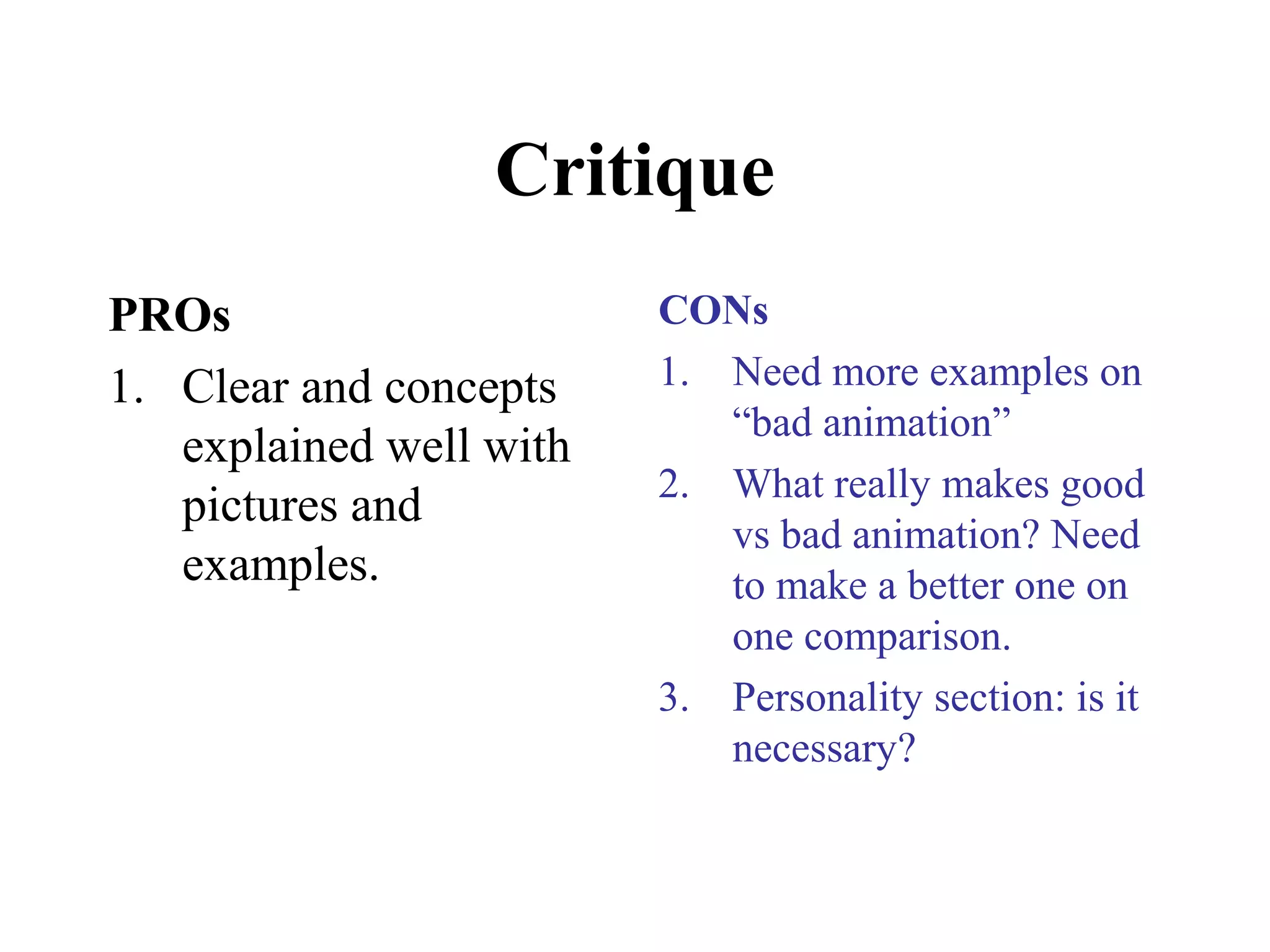

- 34. Critique PROs 1. Clear andconcepts explained well with pictures and examples. CONs 1. Need more examples on “bad animation” 2. What really makes good vs bad animation? Need to make a better one on one comparison. 3. Personality section: is it necessary?

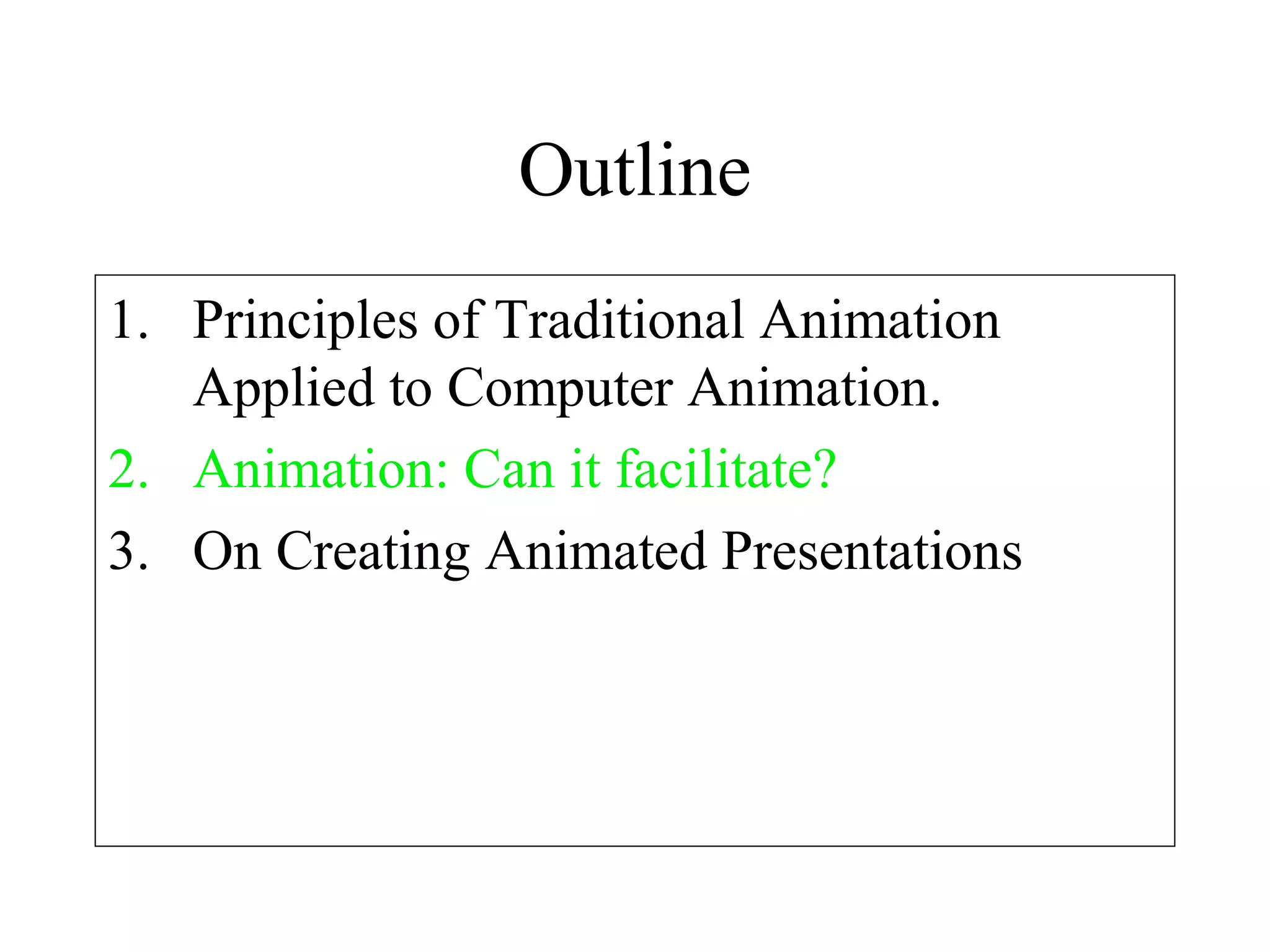

- 35. Outline 1. Principles ofTraditional Animation Applied to Computer Animation. 2. Animation: Can it facilitate? 3. On Creating Animated Presentations

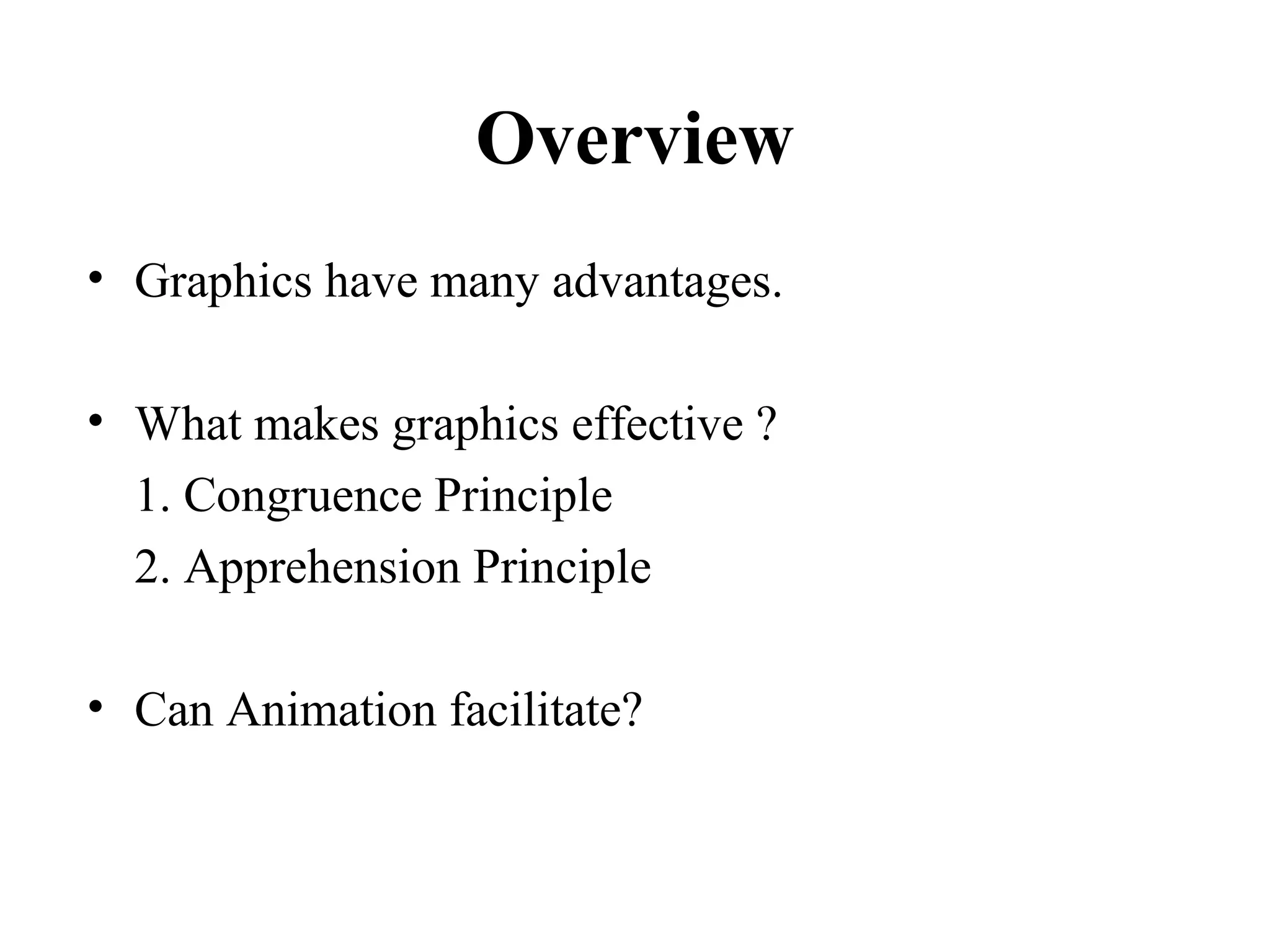

- 36. Overview • Graphics havemany advantages. • What makes graphics effective ? 1. Congruence Principle 2. Apprehension Principle • Can Animation facilitate?

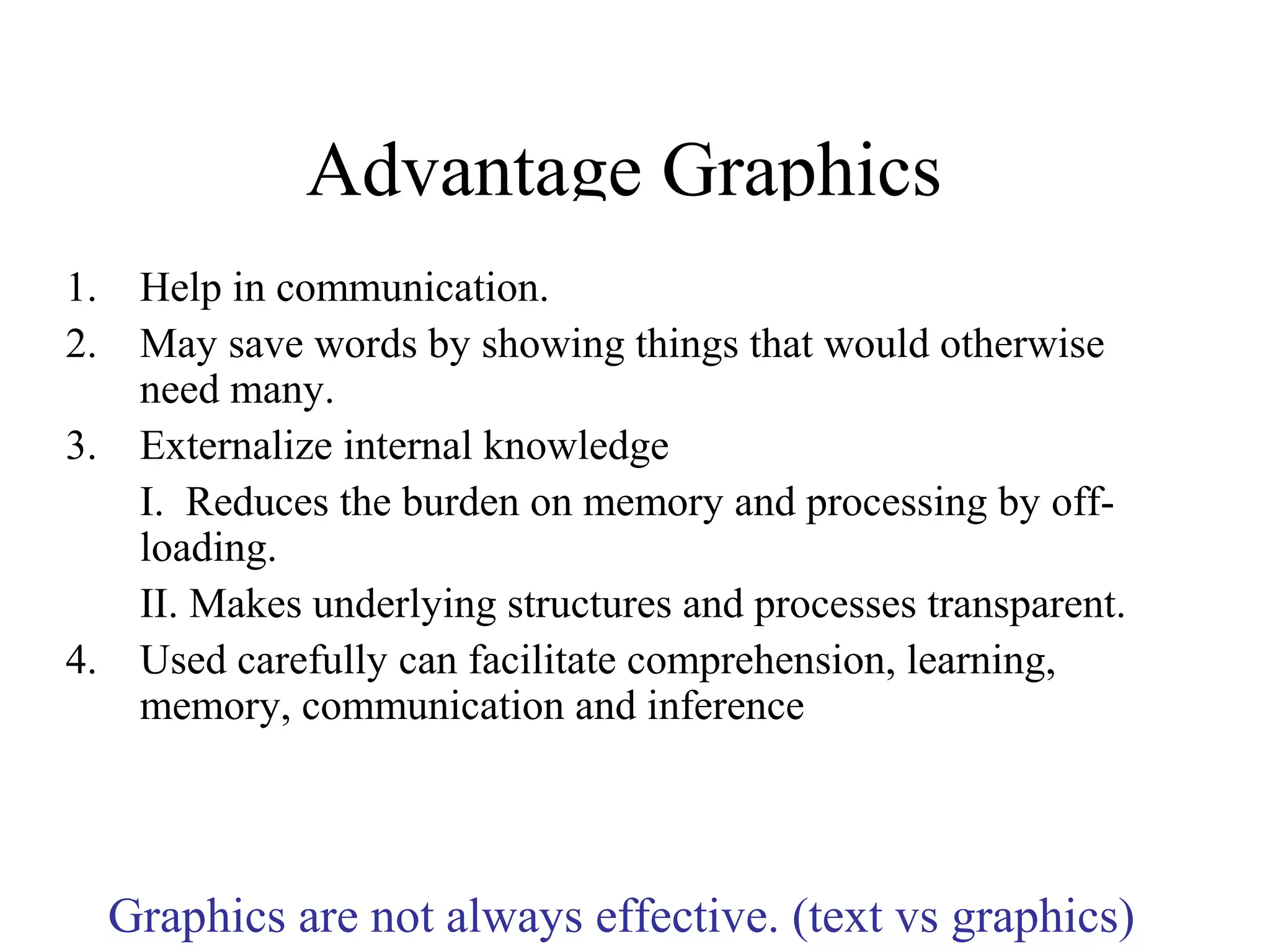

- 37. Advantage Graphics 1. Helpin communication. 2. May save words by showing things that would otherwise need many. 3. Externalize internal knowledge I. Reduces the burden on memory and processing by off- loading. II. Makes underlying structures and processes transparent. 4. Used carefully can facilitate comprehension, learning, memory, communication and inference Graphics are not always effective. (text vs graphics)

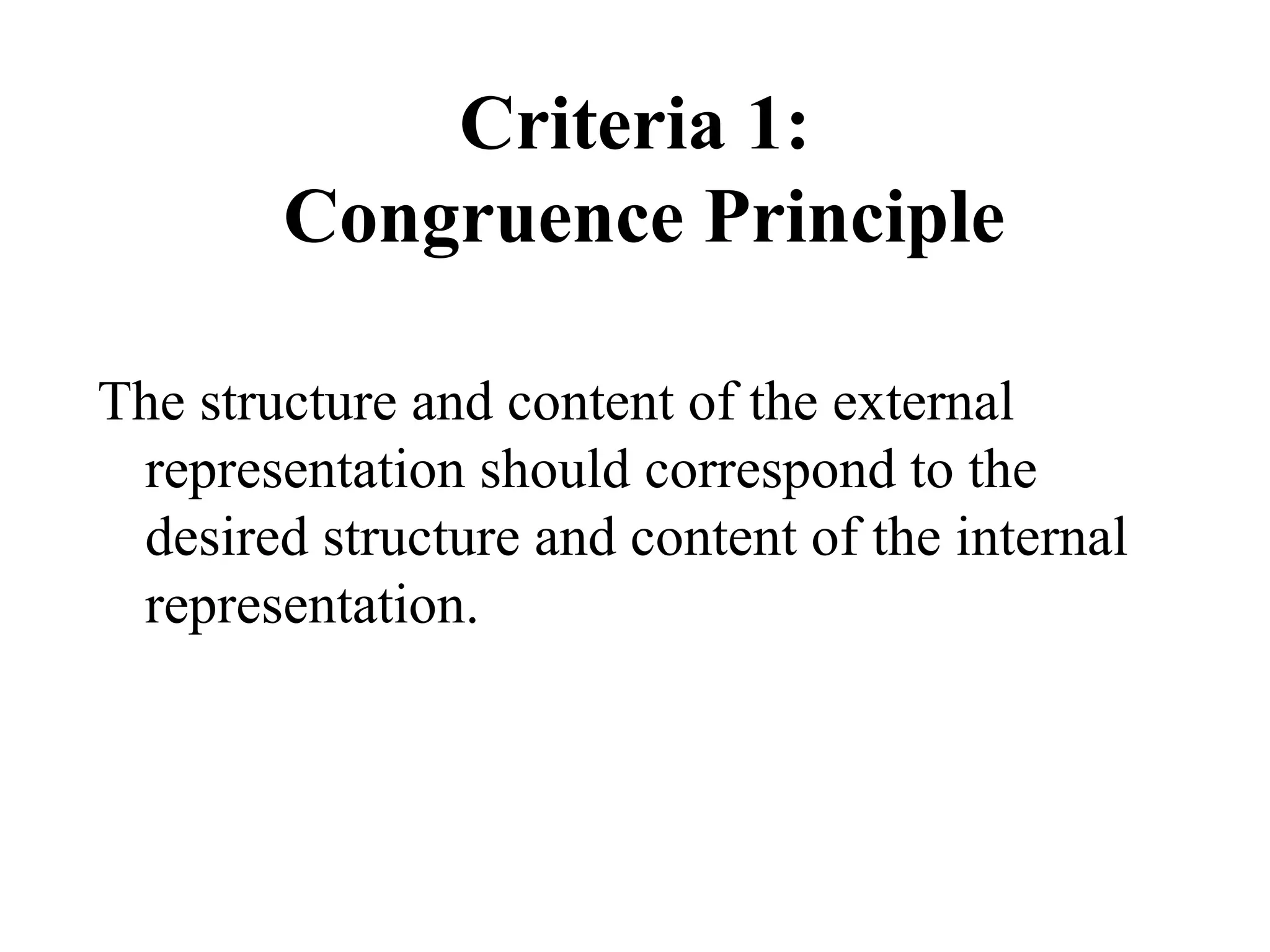

- 38. Criteria 1: Congruence Principle Thestructure and content of the external representation should correspond to the desired structure and content of the internal representation.

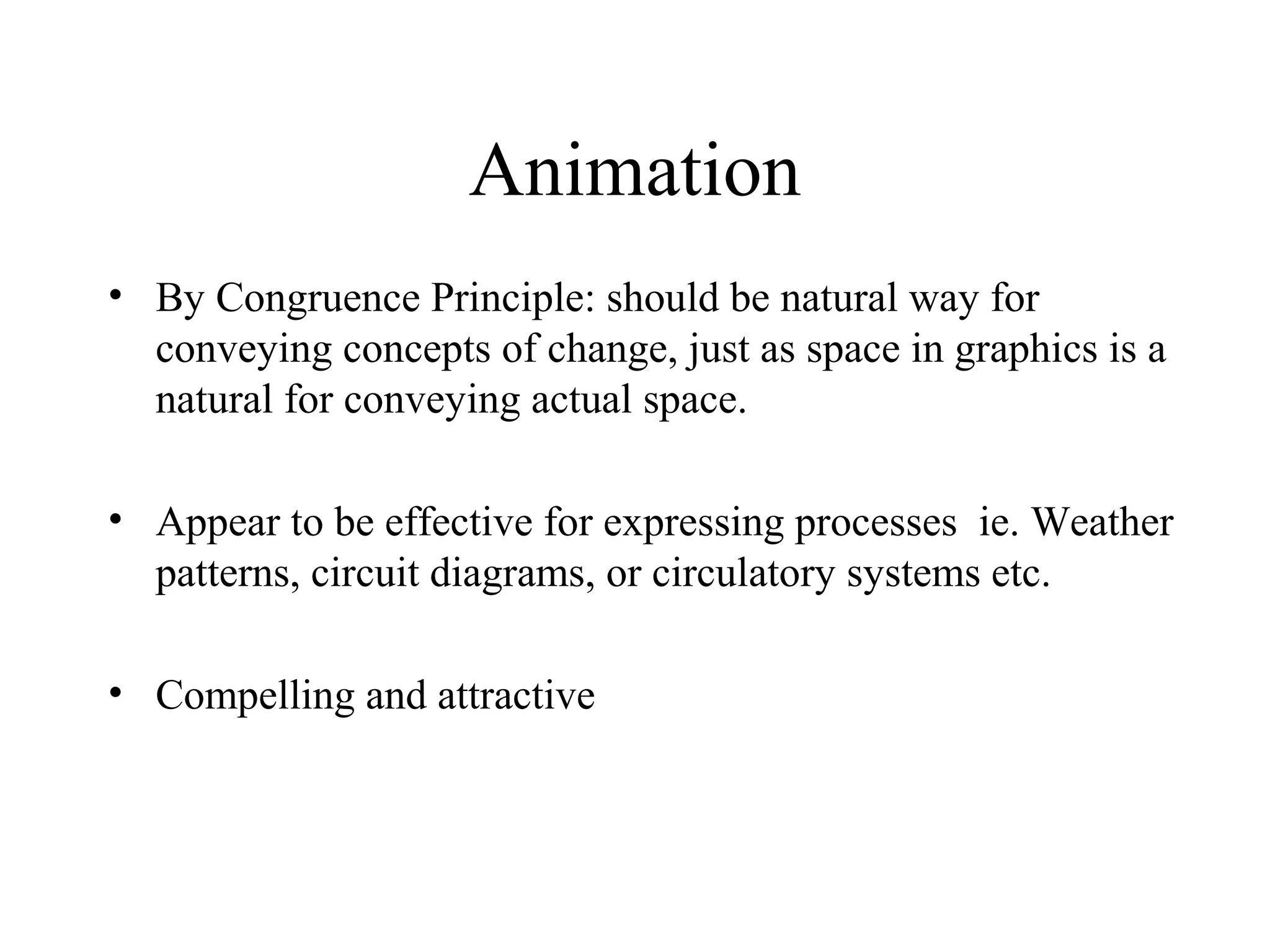

- 39. Animation • By CongruencePrinciple: should be natural way for conveying concepts of change, just as space in graphics is a natural for conveying actual space. • Appear to be effective for expressing processes ie. Weather patterns, circuit diagrams, or circulatory systems etc. • Compelling and attractive

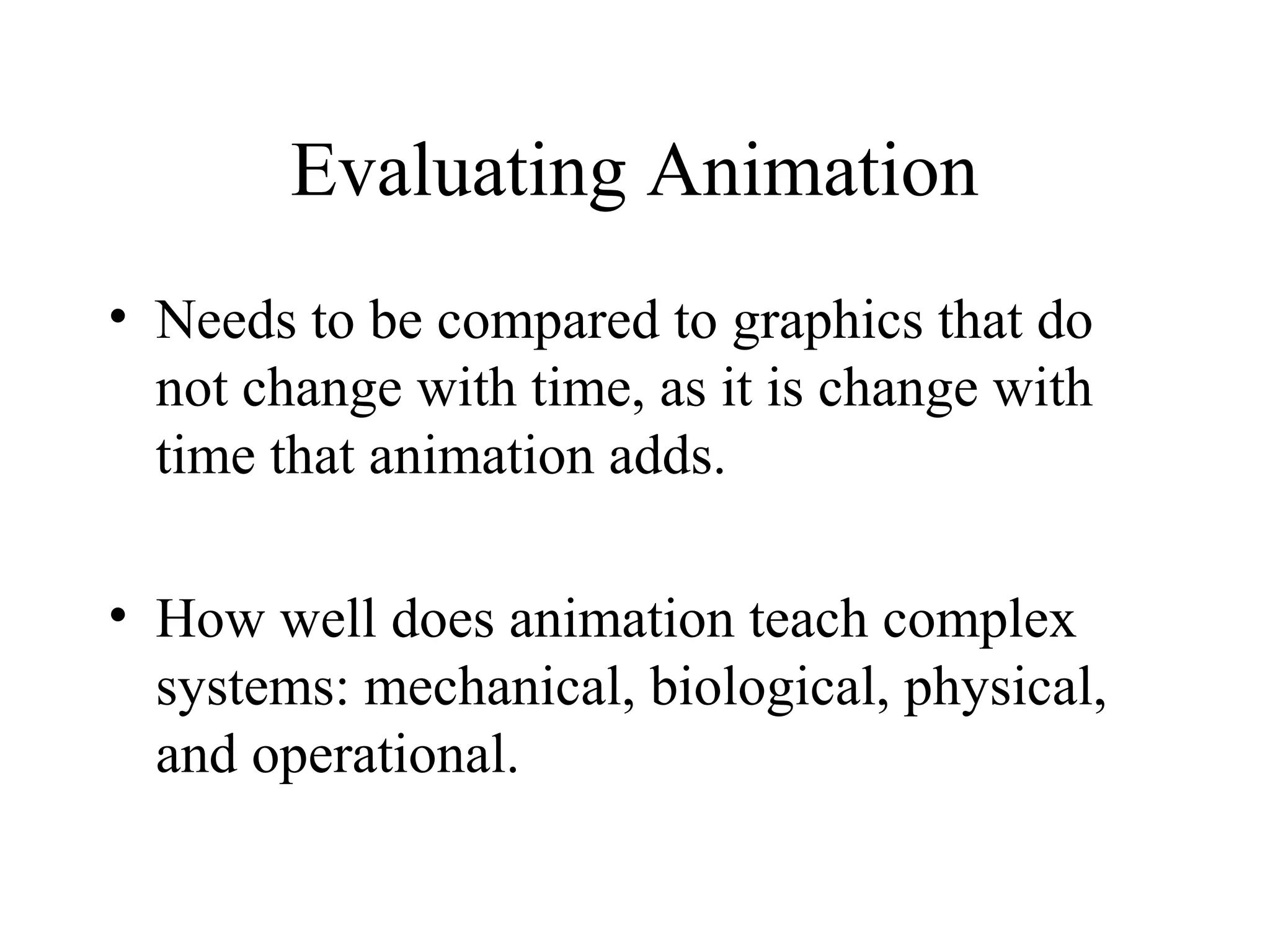

- 40. Evaluating Animation • Needsto be compared to graphics that do not change with time, as it is change with time that animation adds. • How well does animation teach complex systems: mechanical, biological, physical, and operational.

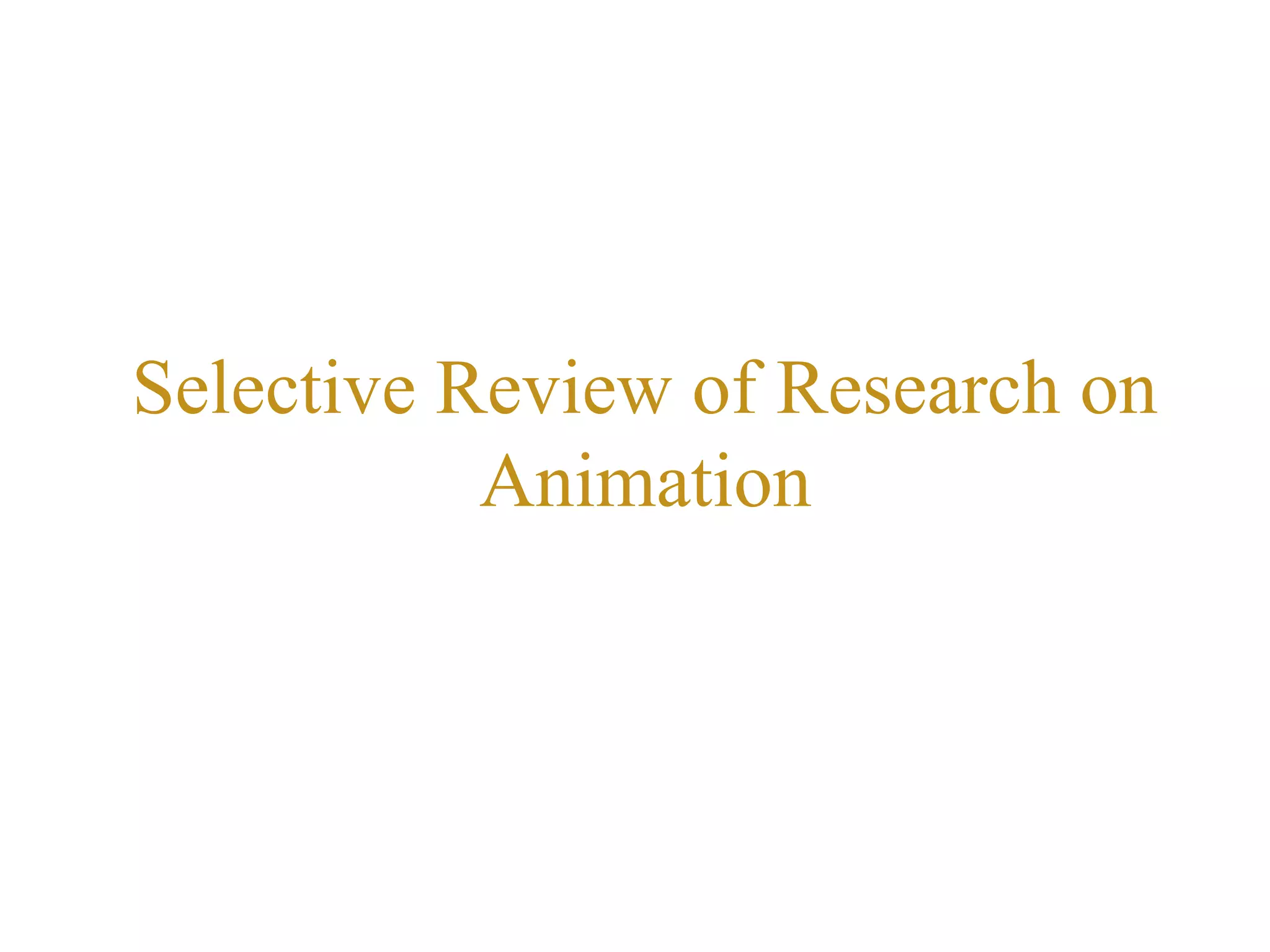

- 41. Selective Review ofResearch on Animation

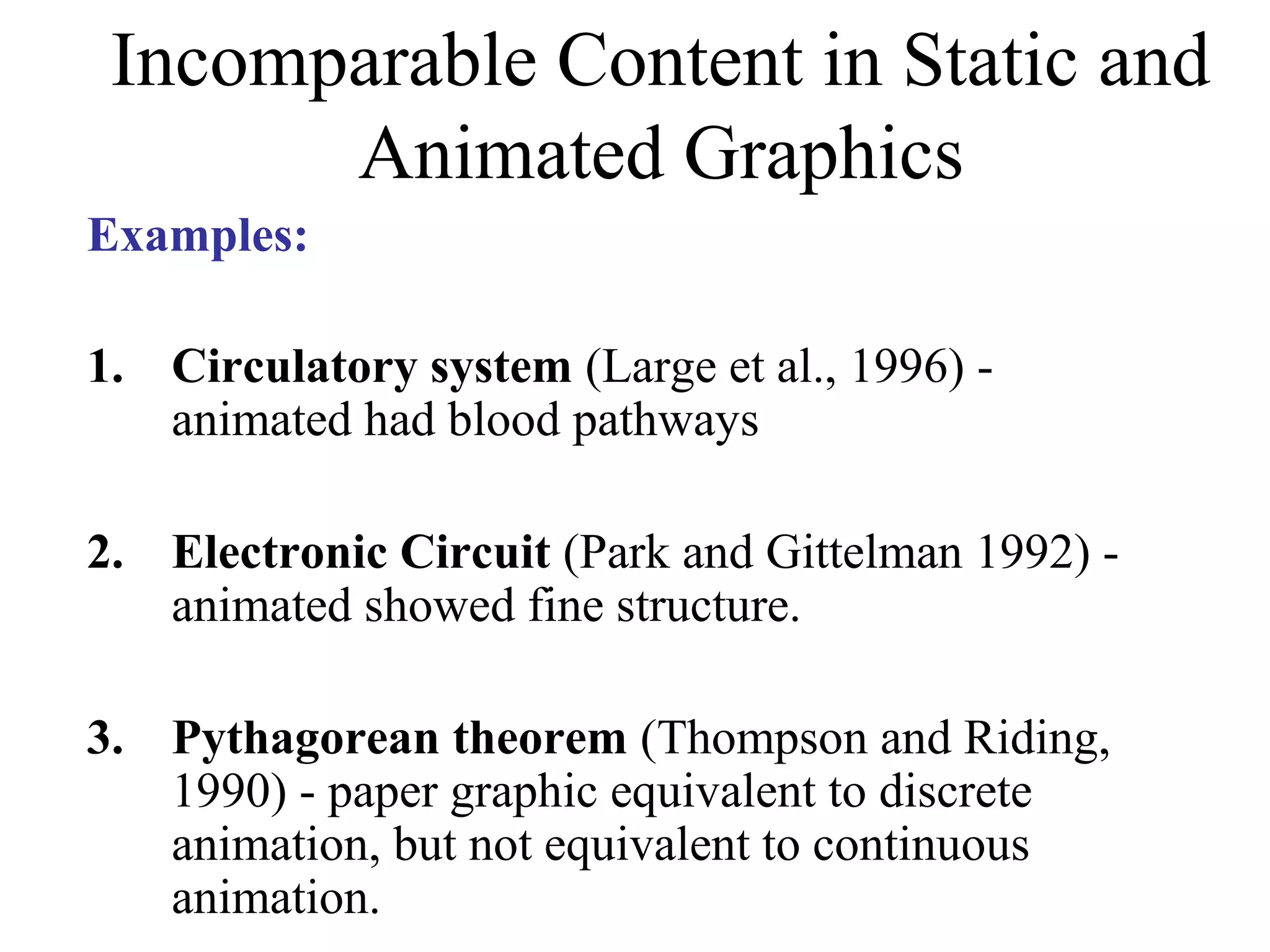

- 42. Incomparable Content inStatic and Animated Graphics Examples: 1. Circulatory system (Large et al., 1996) - animated had blood pathways 2. Electronic Circuit (Park and Gittelman 1992) - animated showed fine structure. 3. Pythagorean theorem (Thompson and Riding, 1990) - paper graphic equivalent to discrete animation, but not equivalent to continuous animation.

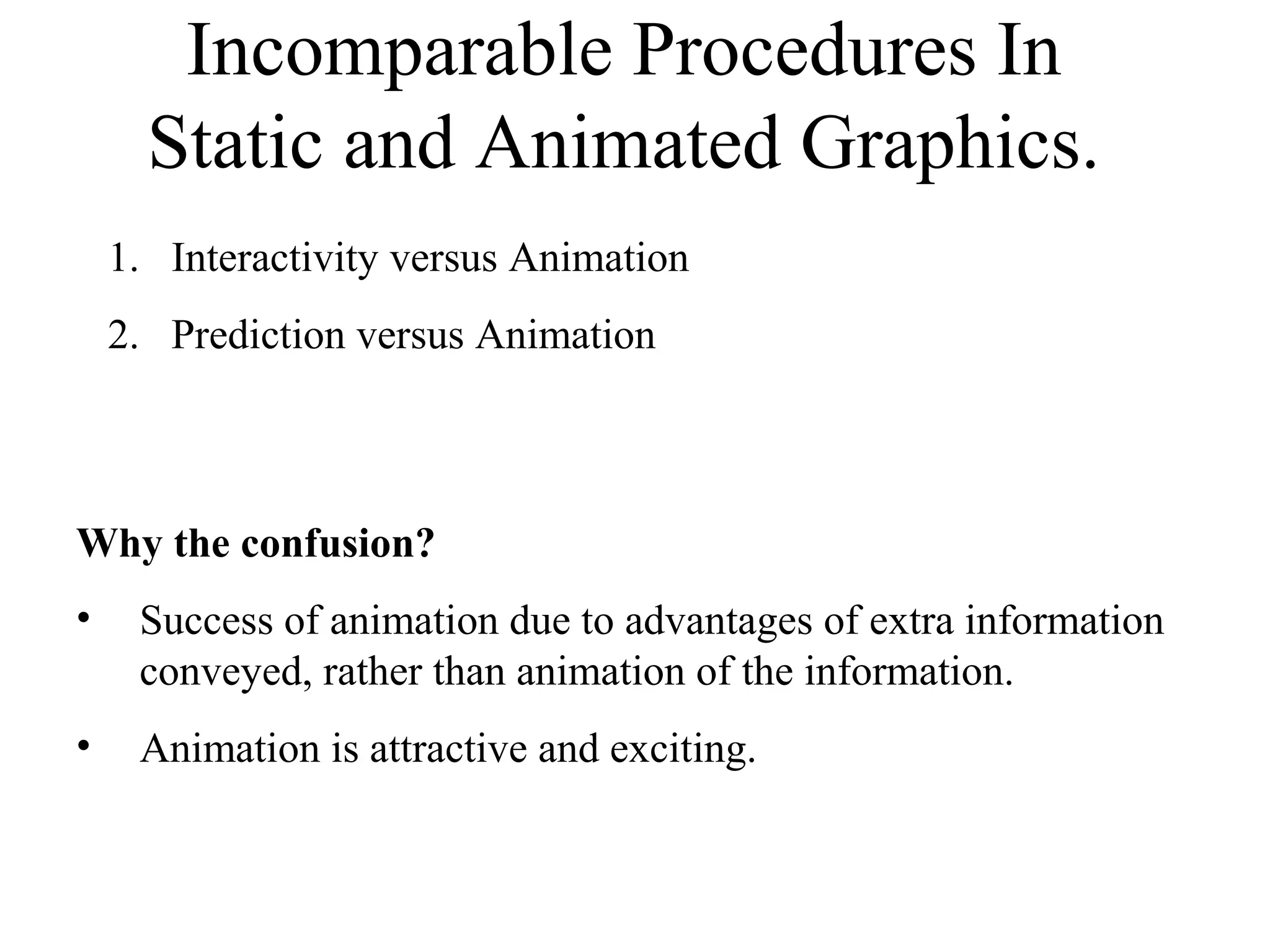

- 43. Incomparable Procedures In Staticand Animated Graphics. 1. Interactivity versus Animation 2. Prediction versus Animation Why the confusion? • Success of animation due to advantages of extra information conveyed, rather than animation of the information. • Animation is attractive and exciting.

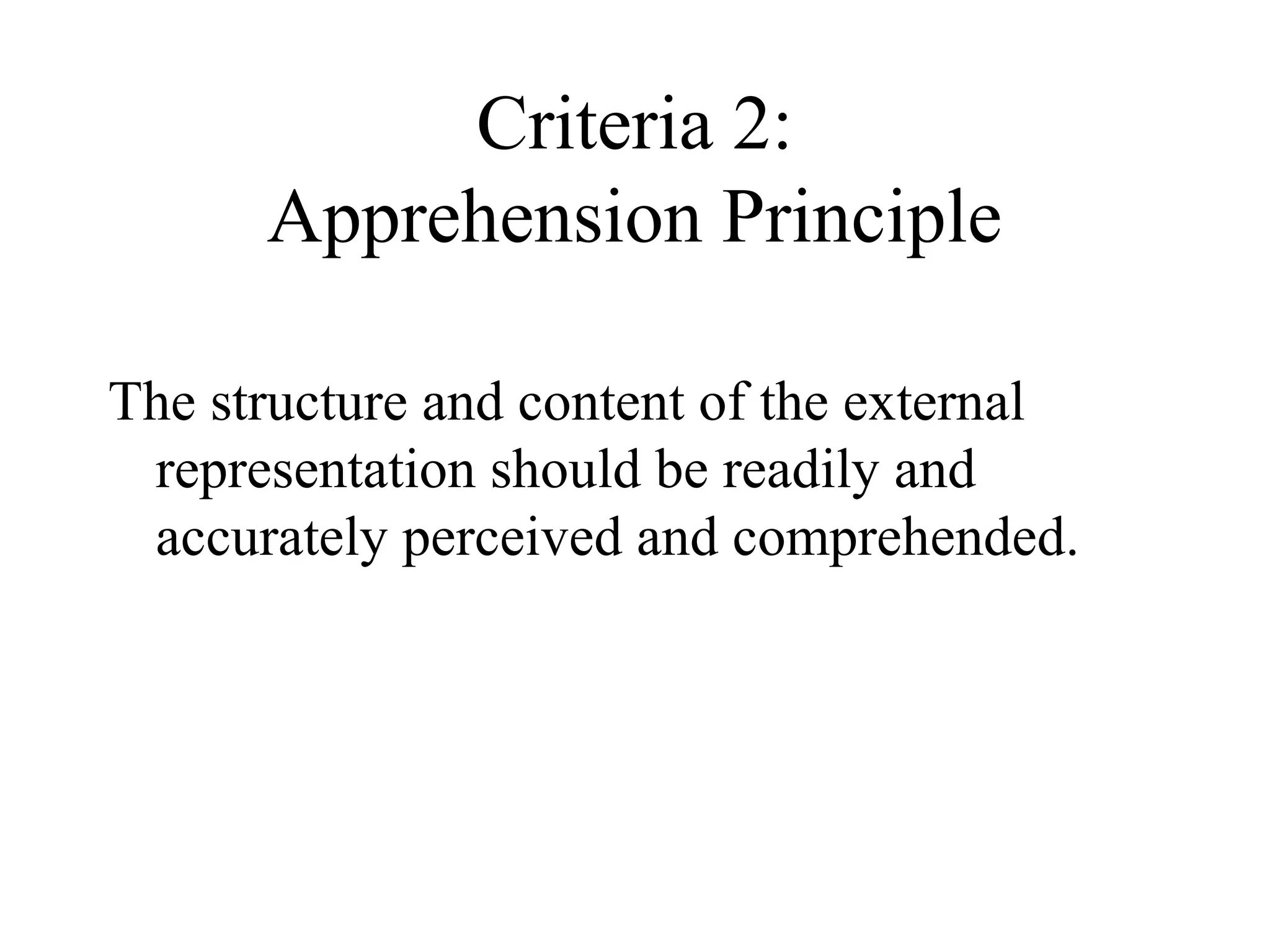

- 44. Criteria 2: Apprehension Principle Thestructure and content of the external representation should be readily and accurately perceived and comprehended.

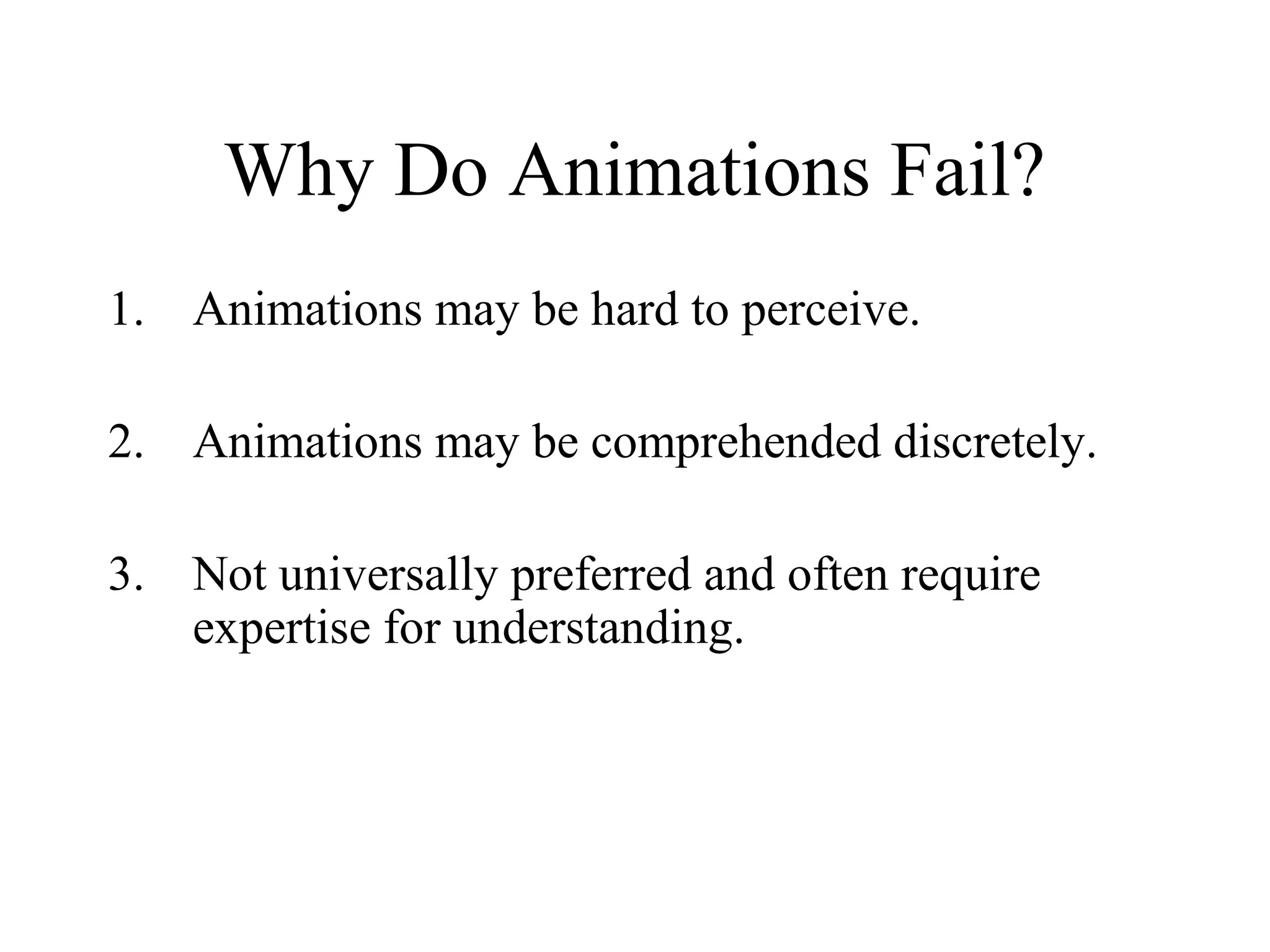

- 45. Why Do AnimationsFail? 1. Animations may be hard to perceive. 2. Animations may be comprehended discretely. 3. Not universally preferred and often require expertise for understanding.

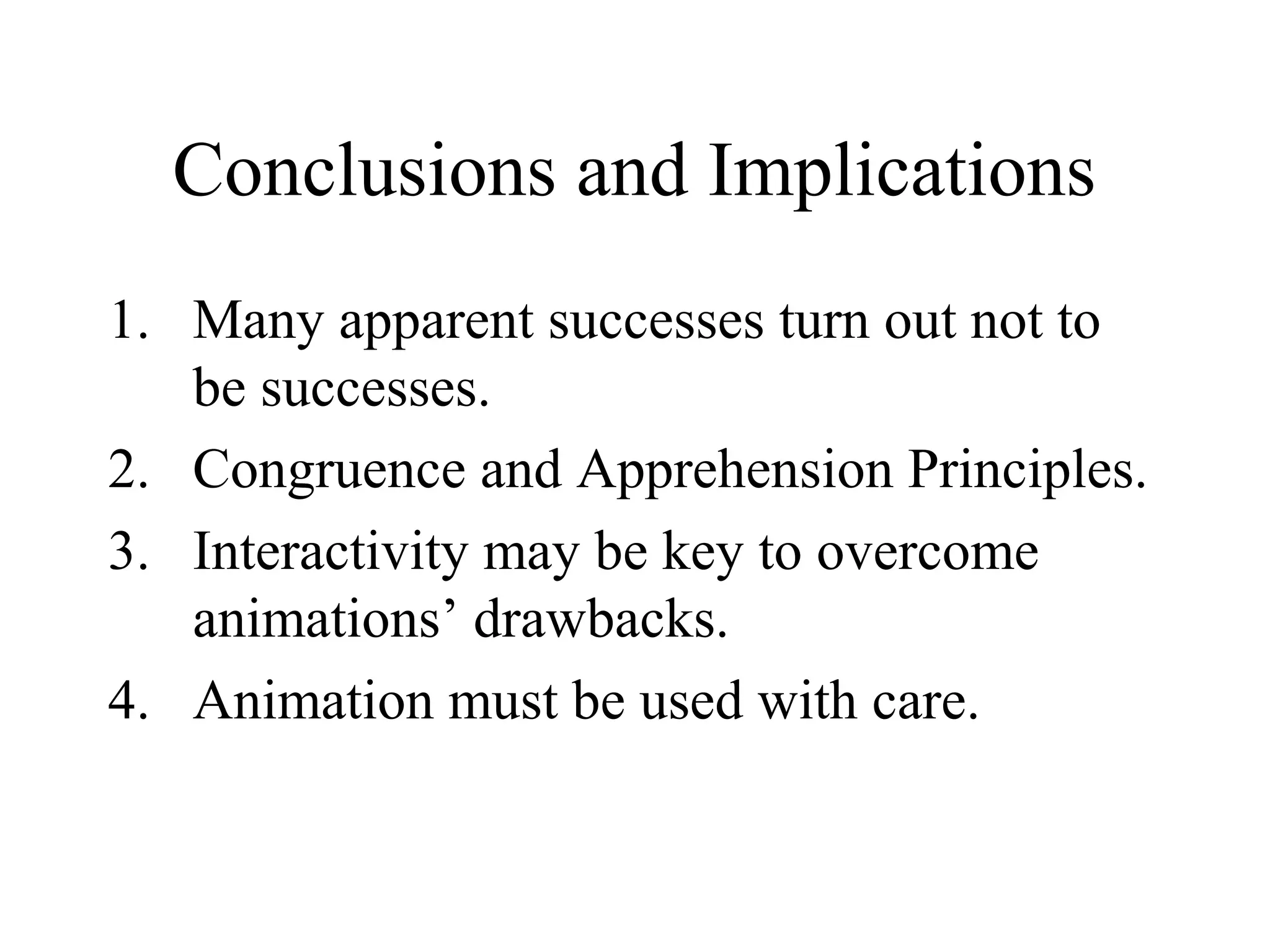

- 46. Conclusions and Implications 1.Many apparent successes turn out not to be successes. 2. Congruence and Apprehension Principles. 3. Interactivity may be key to overcome animations’ drawbacks. 4. Animation must be used with care.

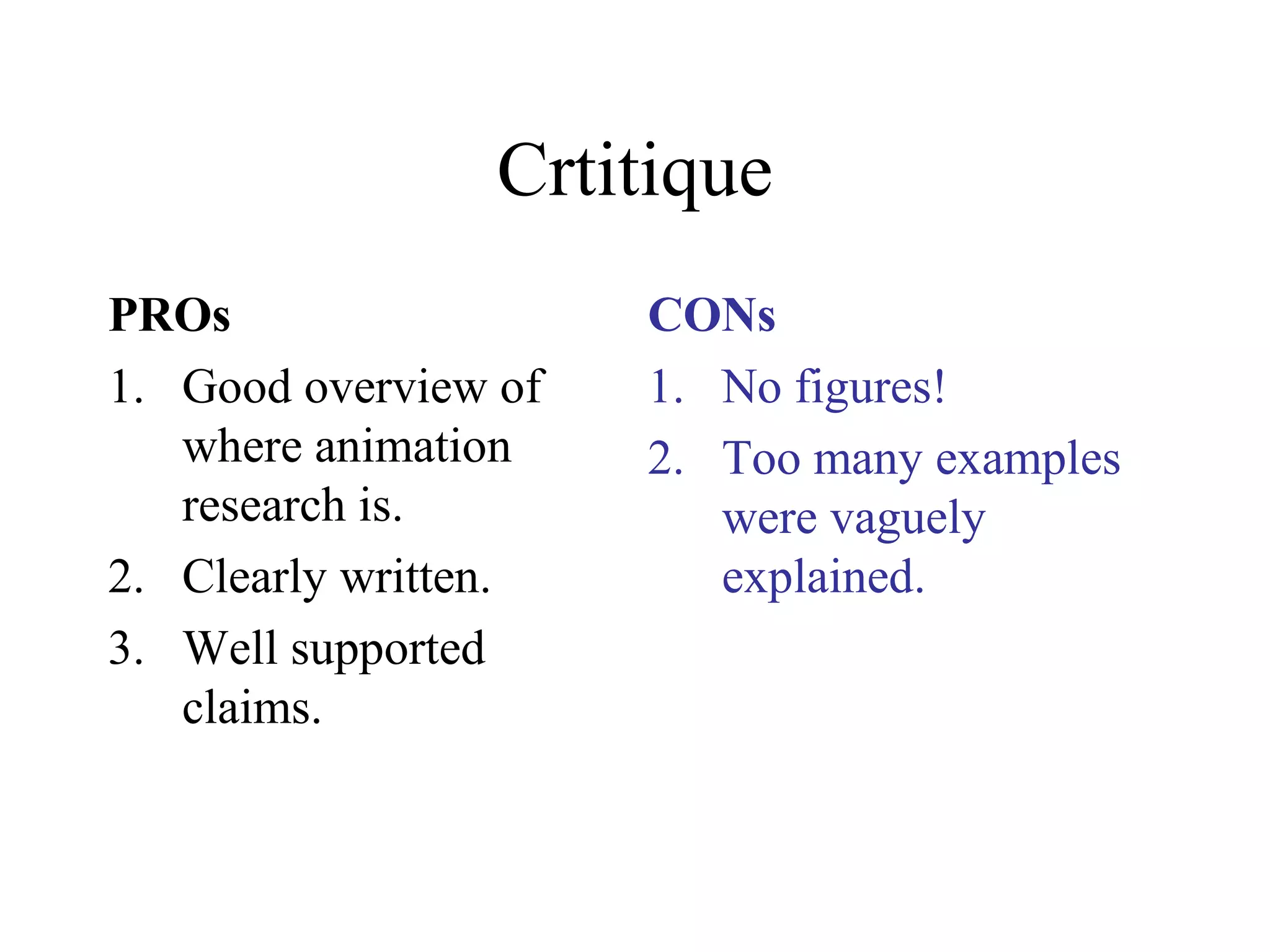

- 47. Crtitique PROs 1. Good overviewof where animation research is. 2. Clearly written. 3. Well supported claims. CONs 1. No figures! 2. Too many examples were vaguely explained.

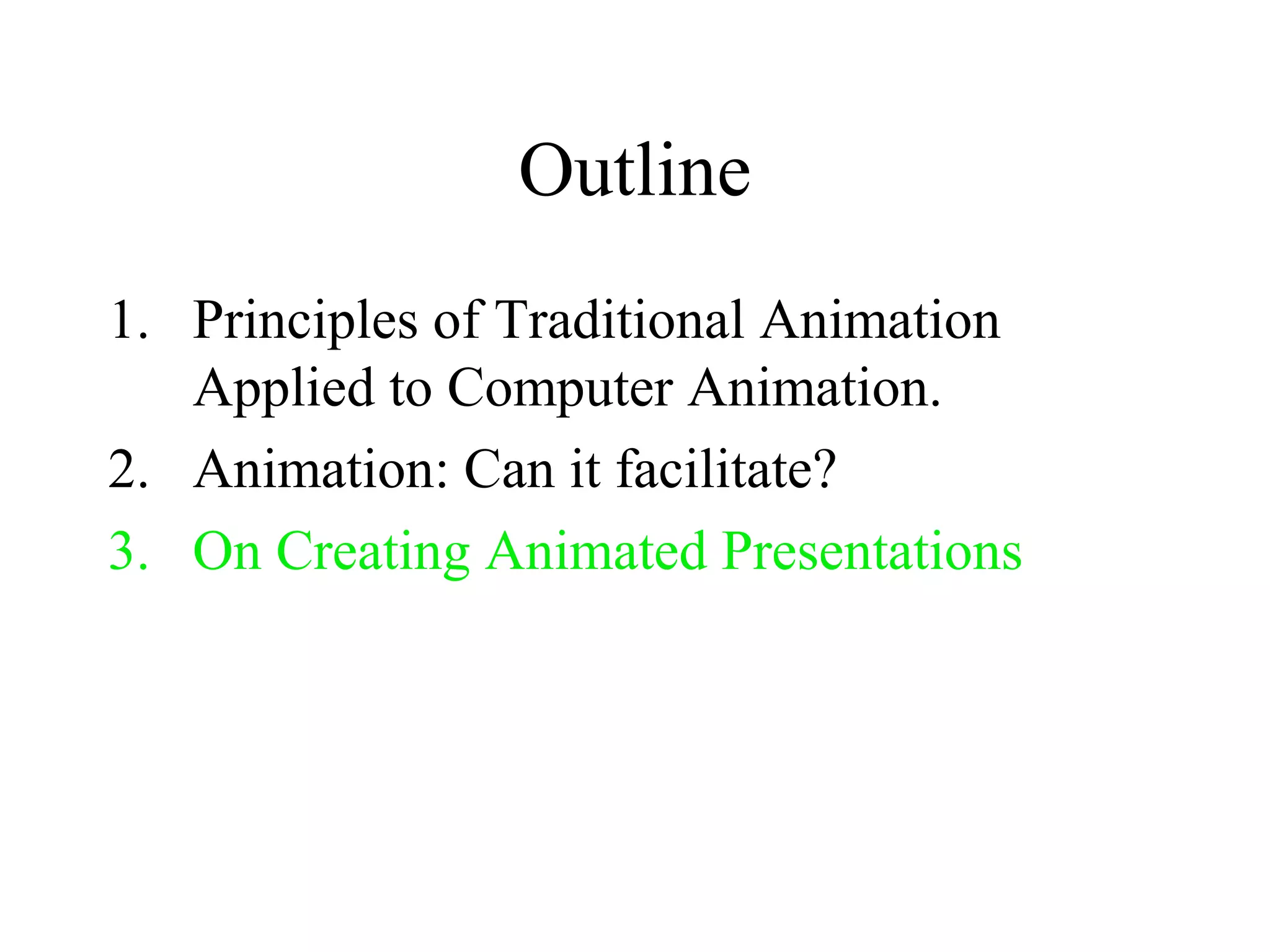

- 48. Outline 1. Principles ofTraditional Animation Applied to Computer Animation. 2. Animation: Can it facilitate? 3. On Creating Animated Presentations

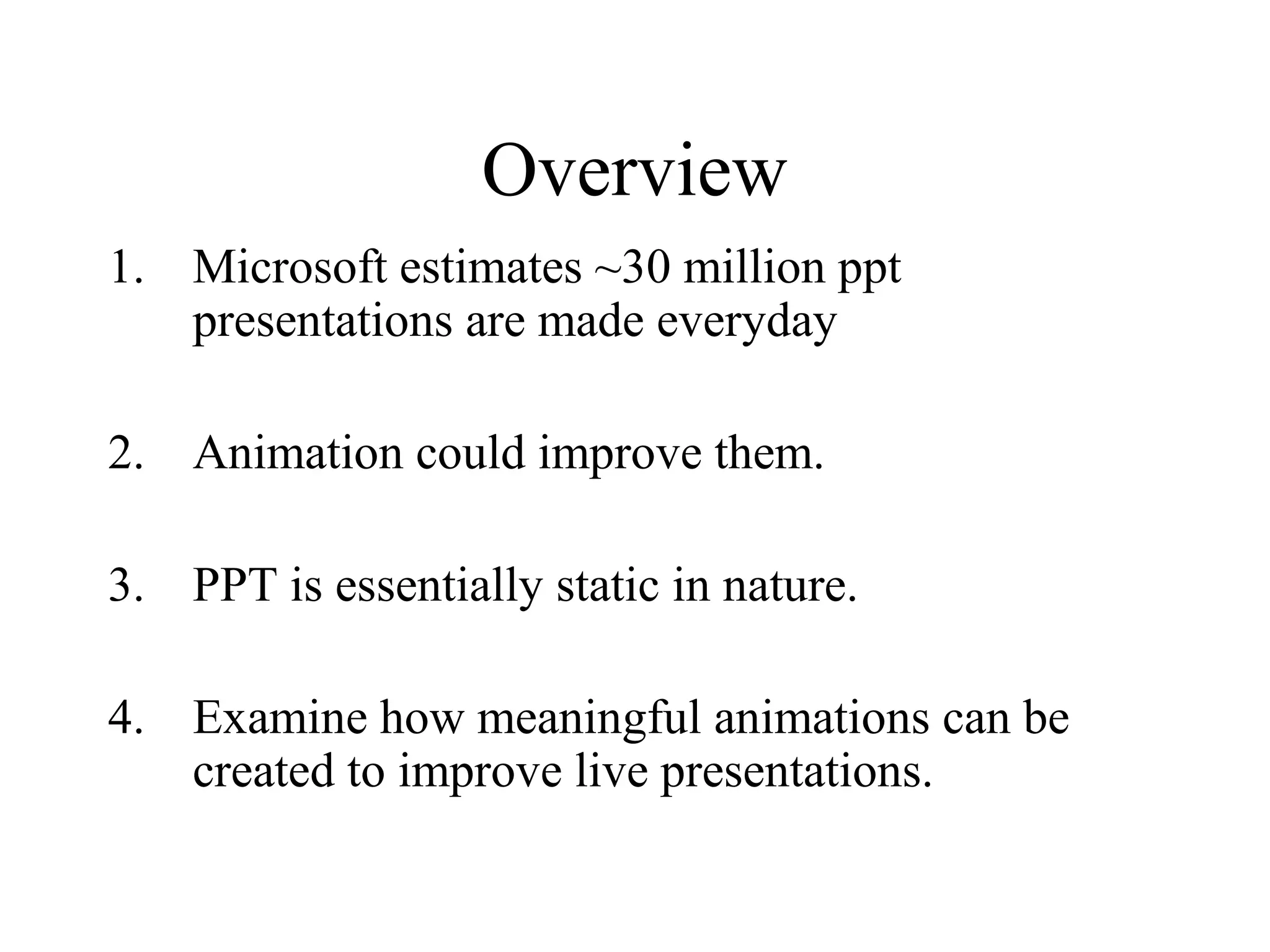

- 49. Overview 1. Microsoft estimates~30 million ppt presentations are made everyday 2. Animation could improve them. 3. PPT is essentially static in nature. 4. Examine how meaningful animations can be created to improve live presentations.

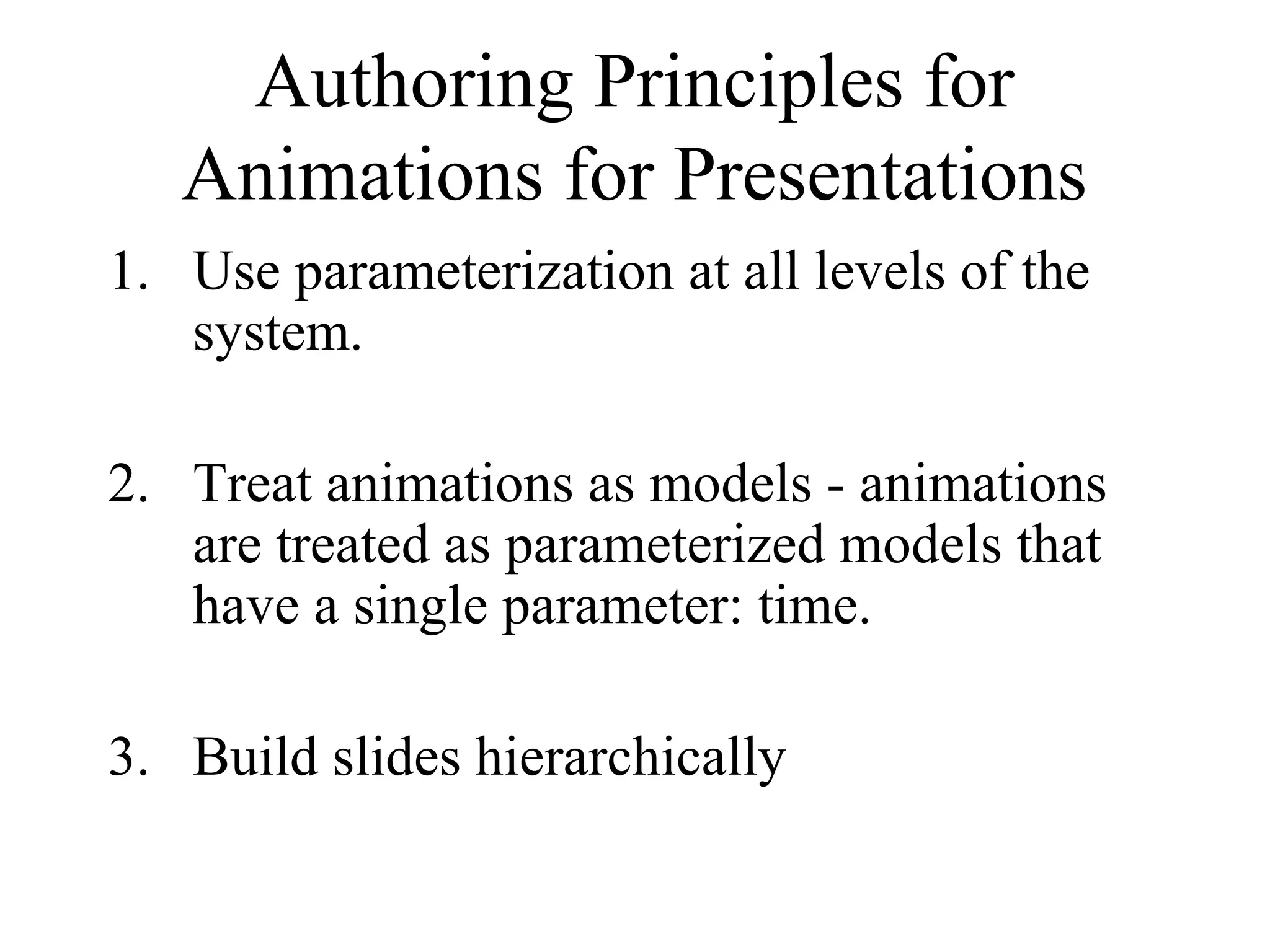

- 50. Authoring Principles for Animationsfor Presentations 1. Use parameterization at all levels of the system. 2. Treat animations as models - animations are treated as parameterized models that have a single parameter: time. 3. Build slides hierarchically

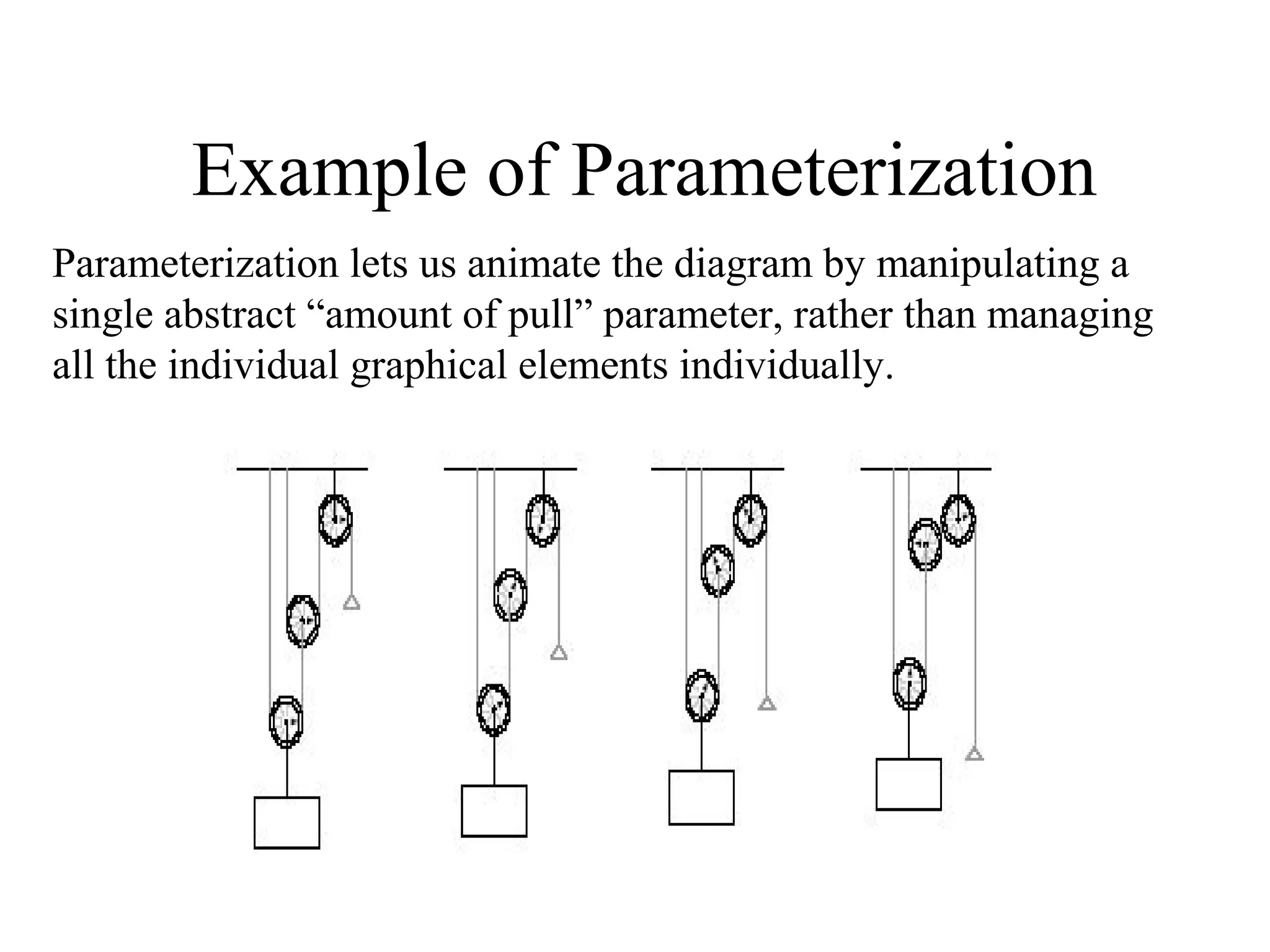

- 51. Example of Parameterization Parameterizationlets us animate the diagram by manipulating a single abstract “amount of pull” parameter, rather than managing all the individual graphical elements individually.

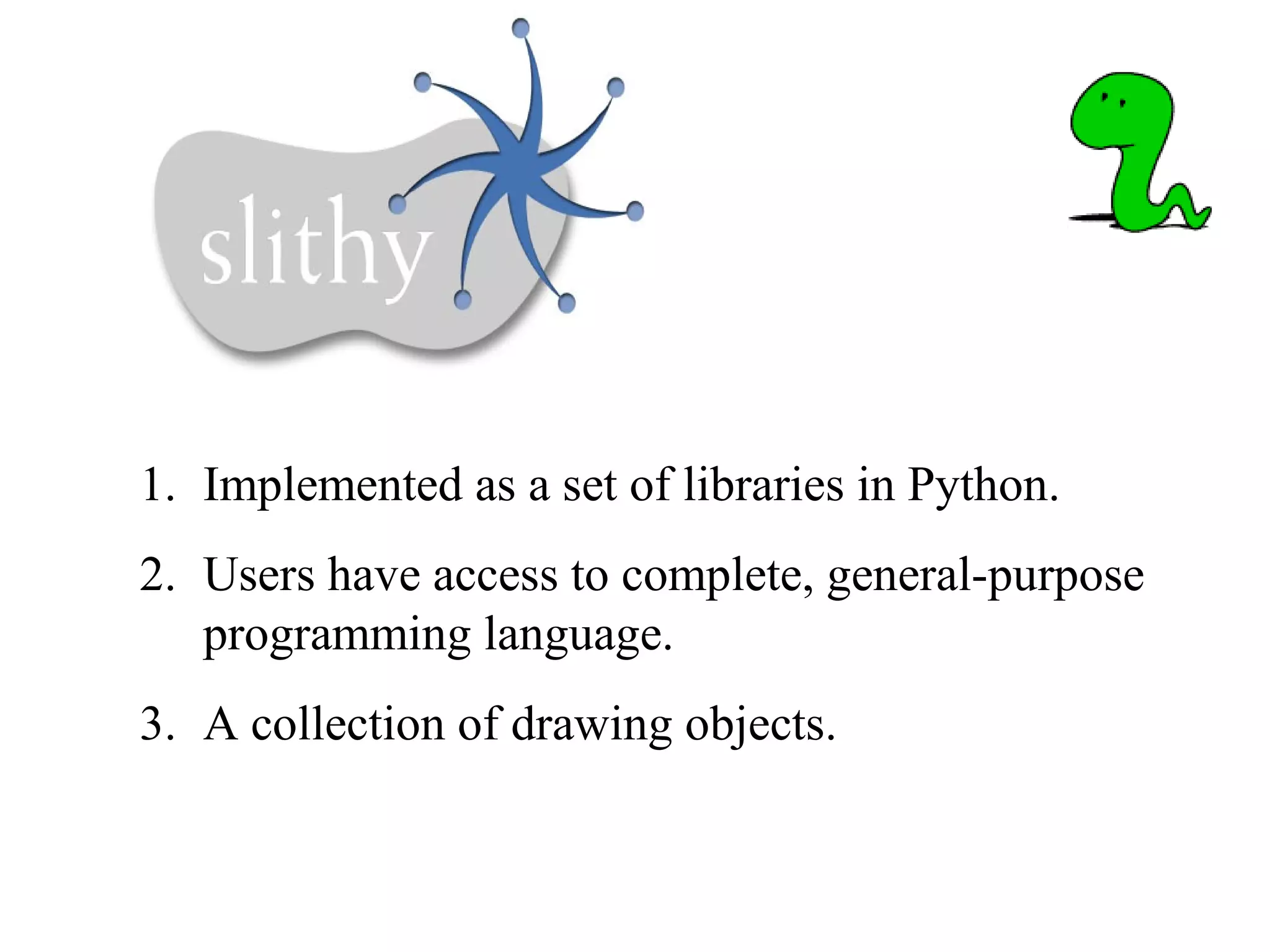

- 52. 1. Implemented asa set of libraries in Python. 2. Users have access to complete, general-purpose programming language. 3. A collection of drawing objects.

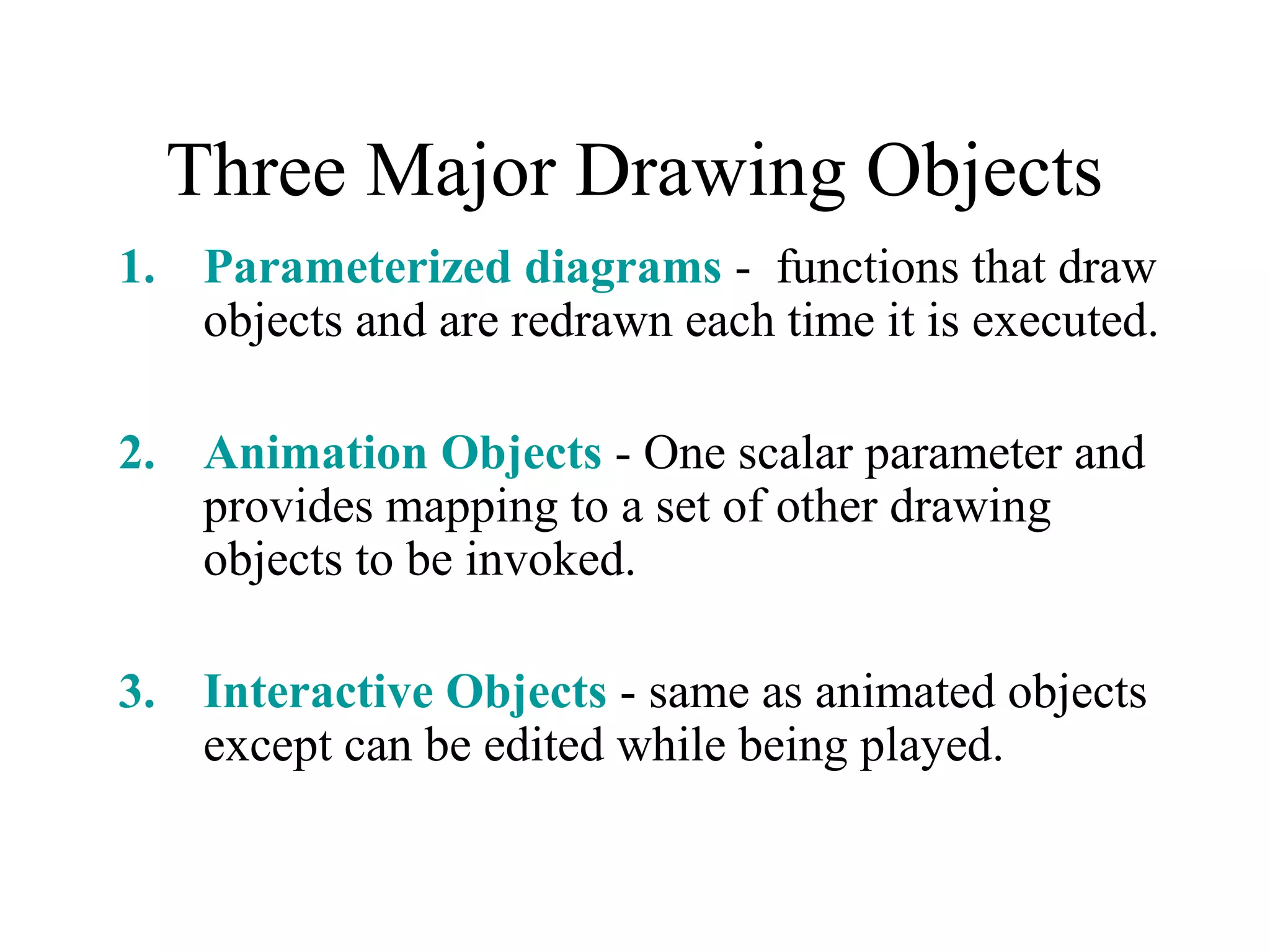

- 53. Three Major DrawingObjects 1. Parameterized diagrams - functions that draw objects and are redrawn each time it is executed. 2. Animation Objects - One scalar parameter and provides mapping to a set of other drawing objects to be invoked. 3. Interactive Objects - same as animated objects except can be edited while being played.

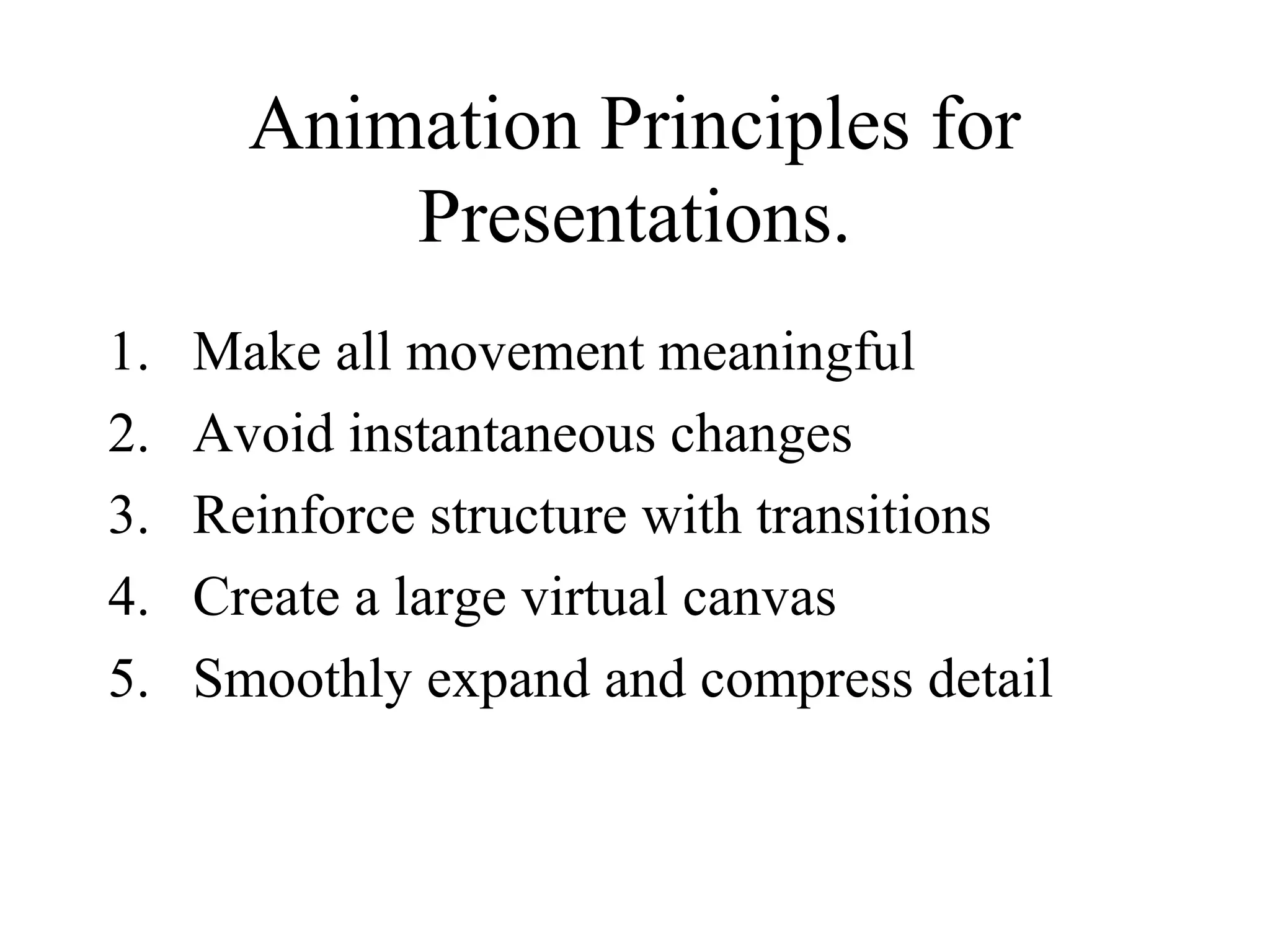

- 54. Animation Principles for Presentations. 1.Make all movement meaningful 2. Avoid instantaneous changes 3. Reinforce structure with transitions 4. Create a large virtual canvas 5. Smoothly expand and compress detail

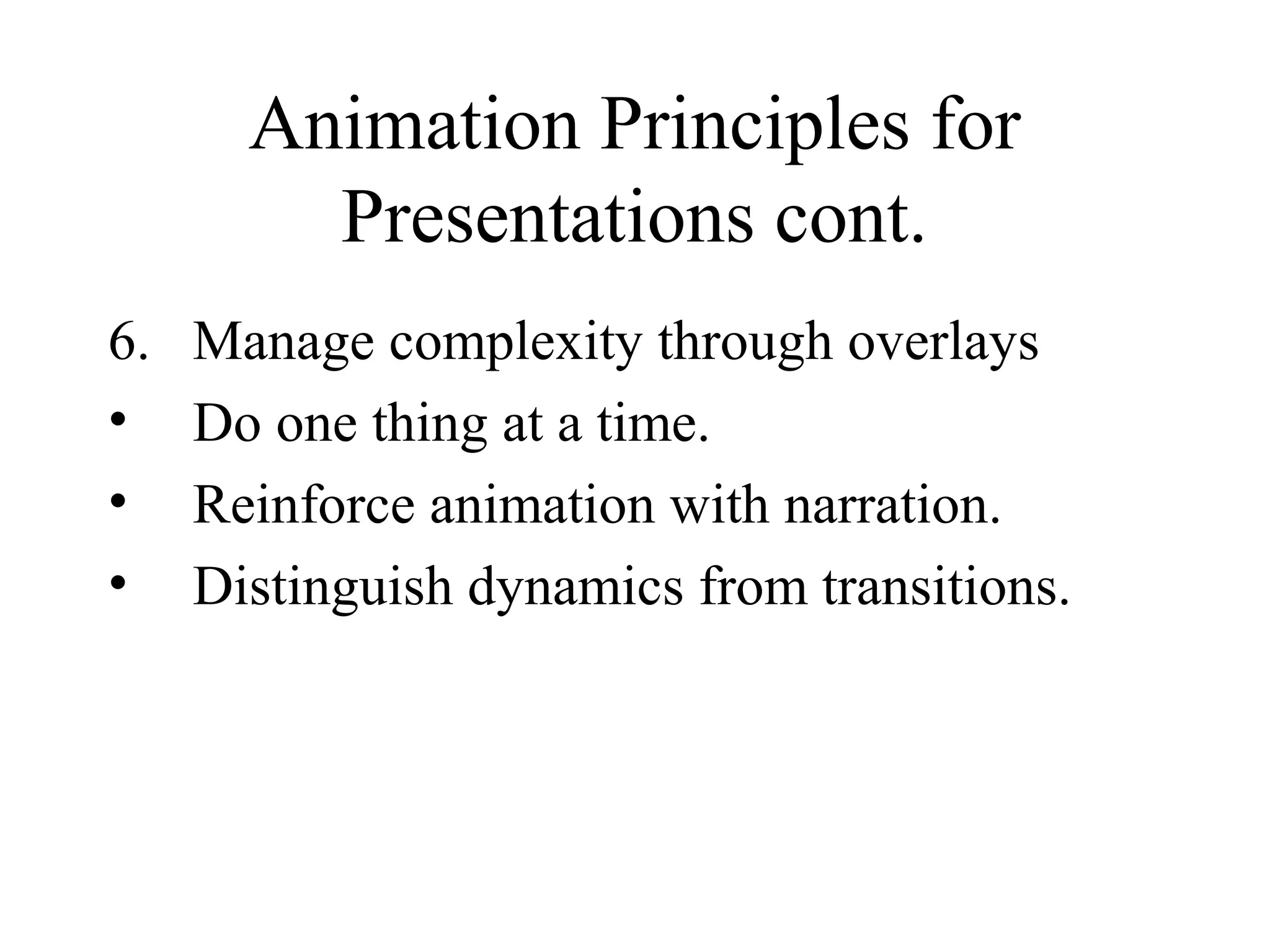

- 55. Animation Principles for Presentationscont. 6. Manage complexity through overlays • Do one thing at a time. • Reinforce animation with narration. • Distinguish dynamics from transitions.

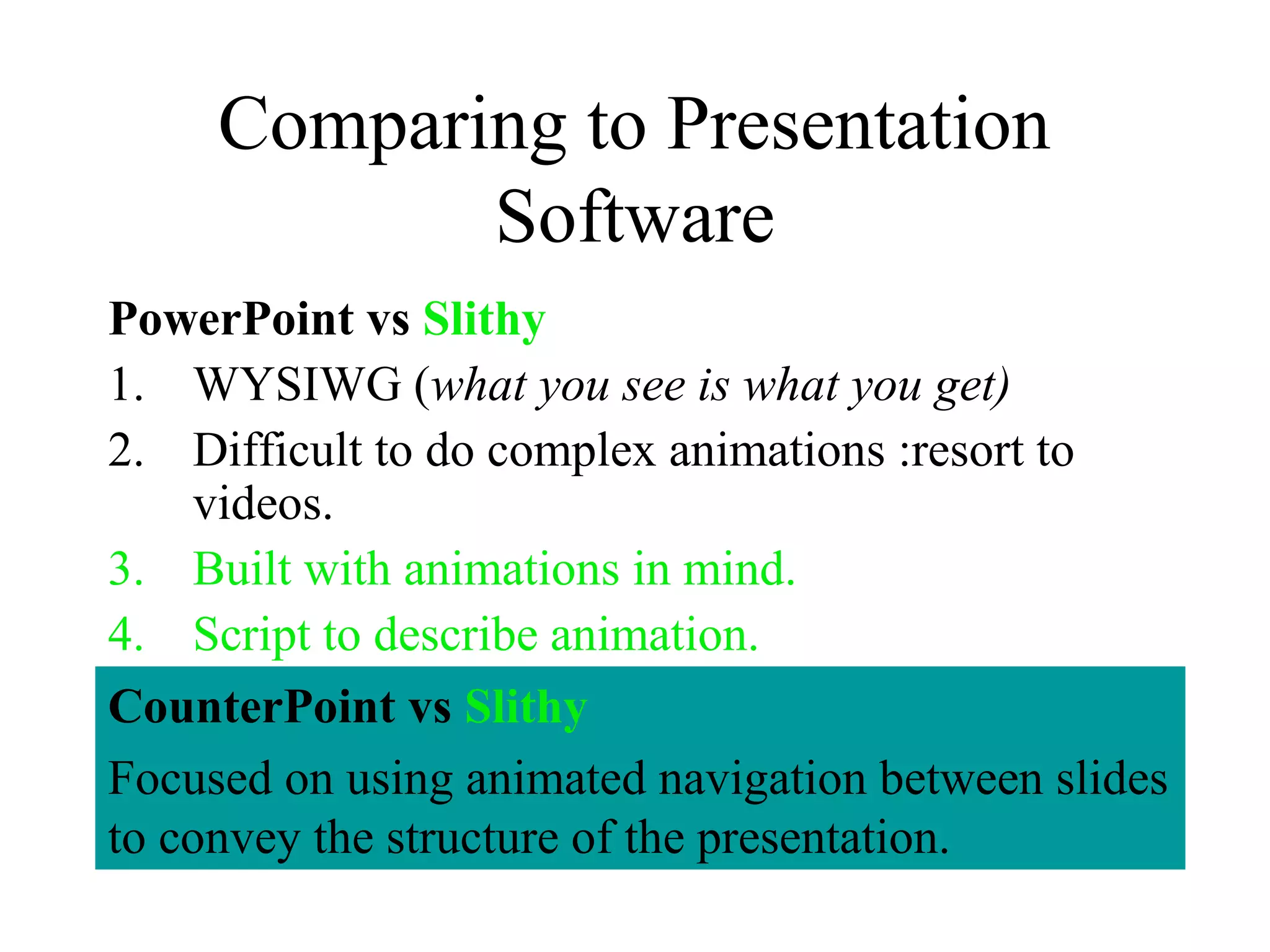

- 56. Comparing to Presentation Software PowerPointvs Slithy 1. WYSIWG (what you see is what you get) 2. Difficult to do complex animations :resort to videos. 3. Built with animations in mind. 4. Script to describe animation. CounterPoint vs Slithy Focused on using animated navigation between slides to convey the structure of the presentation.

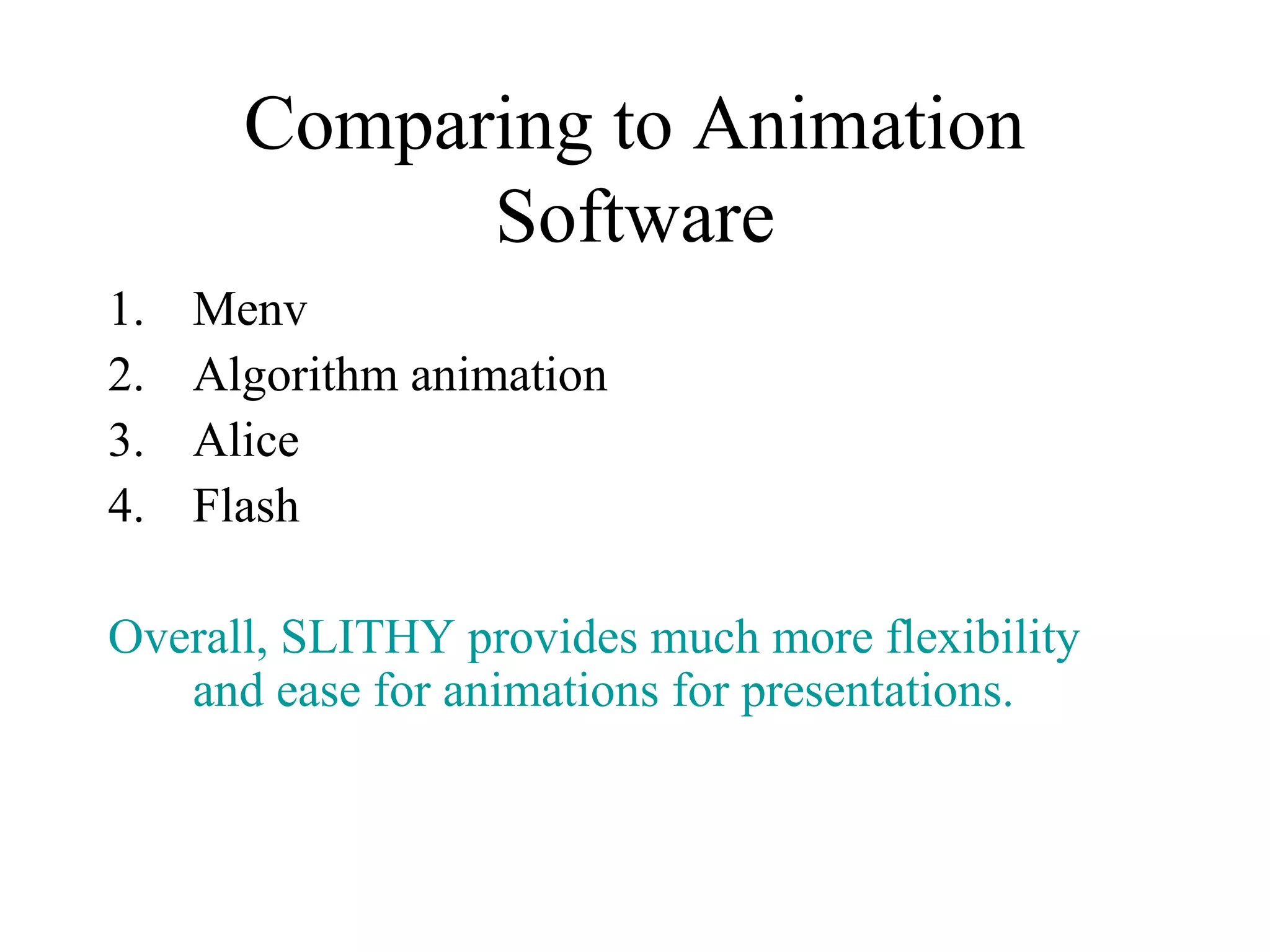

- 57. Comparing to Animation Software 1.Menv 2. Algorithm animation 3. Alice 4. Flash Overall, SLITHY provides much more flexibility and ease for animations for presentations.

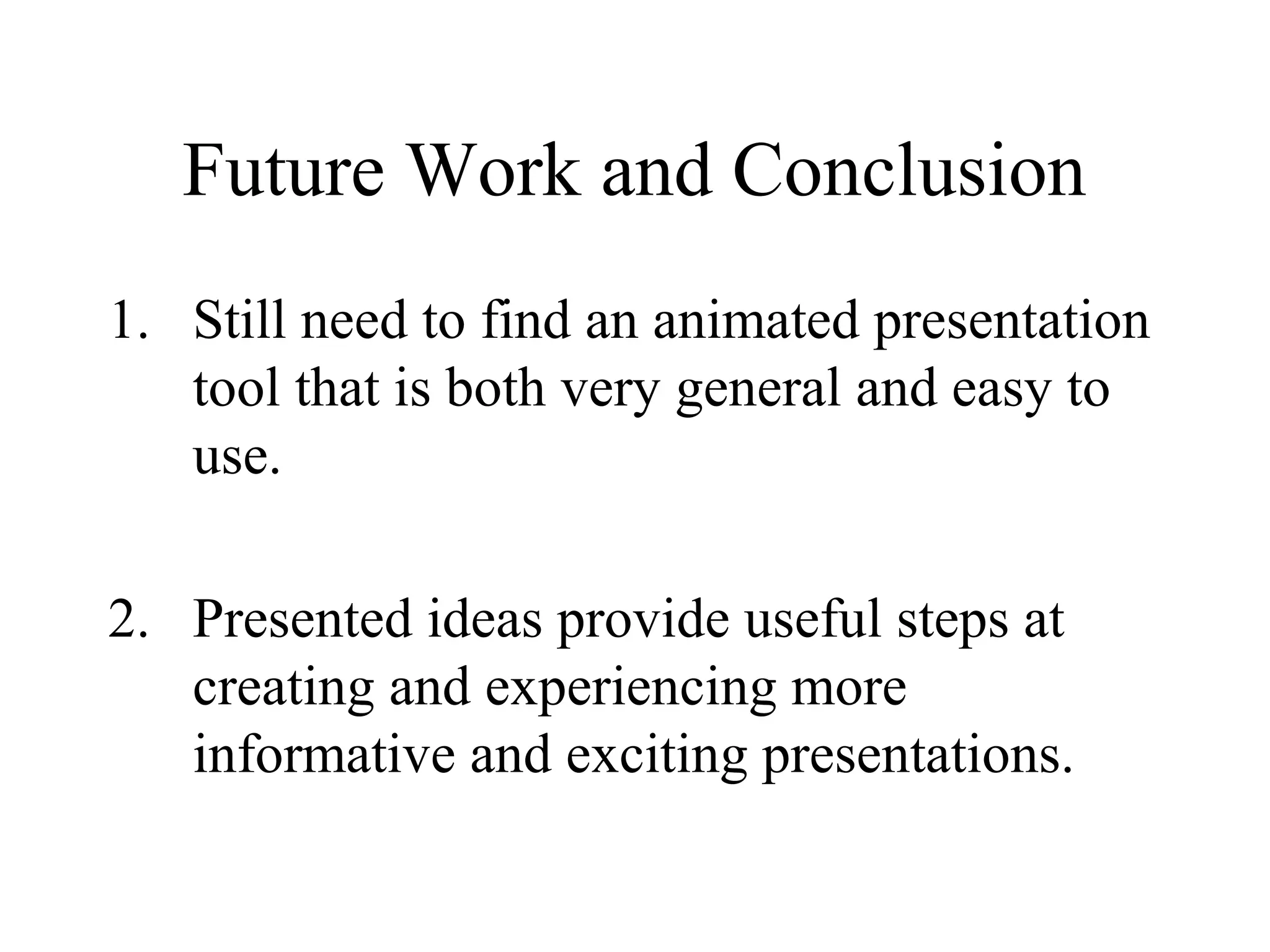

- 58. Future Work andConclusion 1. Still need to find an animated presentation tool that is both very general and easy to use. 2. Presented ideas provide useful steps at creating and experiencing more informative and exciting presentations.

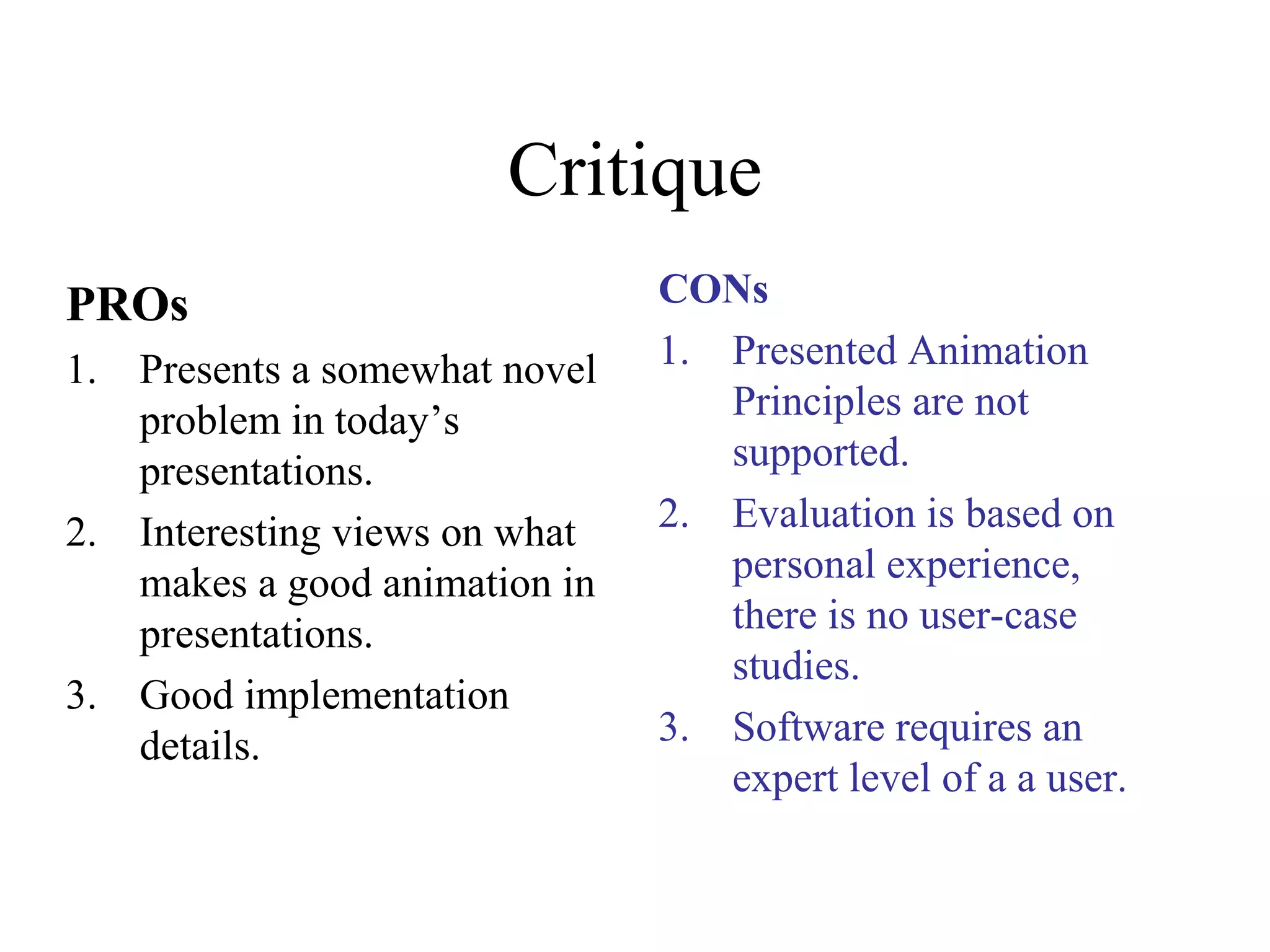

- 59. Critique PROs 1. Presents asomewhat novel problem in today’s presentations. 2. Interesting views on what makes a good animation in presentations. 3. Good implementation details. CONs 1. Presented Animation Principles are not supported. 2. Evaluation is based on personal experience, there is no user-case studies. 3. Software requires an expert level of a a user.
