Kafka Tutorial: Advanced Producers

™
Cassandra / Kafka Support in EC2/AWS. Kafka Training, Kafka Consulting, Kafka
Tutorial
Working with Kafka Producers
Kafka Producer
Advanced
Working with producers in
Java
Details and advanced topics

™
Tutorial
Objectives Create Producer
❖ Cover advanced topics regarding Java Kafka
Consumers
❖ Custom Serializers
❖ Custom Partitioners
❖ Batching
❖ Compression
❖ Retries and Timeouts
2

™
Tutorial

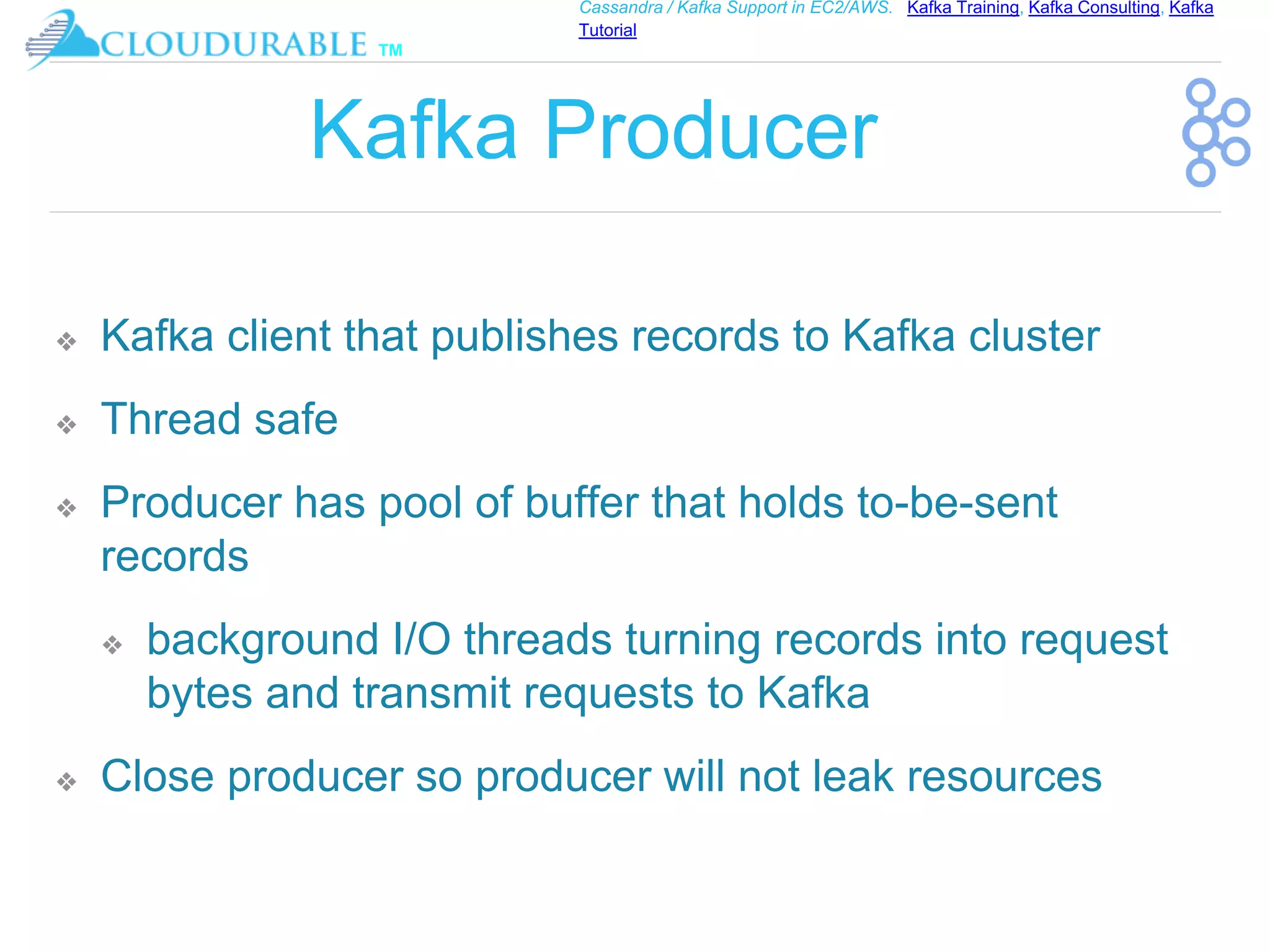

Kafka Producer
❖ Kafka client that publishes records to Kafka cluster
❖ Thread safe
❖ Producer has pool of buffer that holds to-be-sent
records
❖ background I/O threads turning records into request
bytes and transmit requests to Kafka
❖ Close producer so producer will not leak resources

™
Tutorial

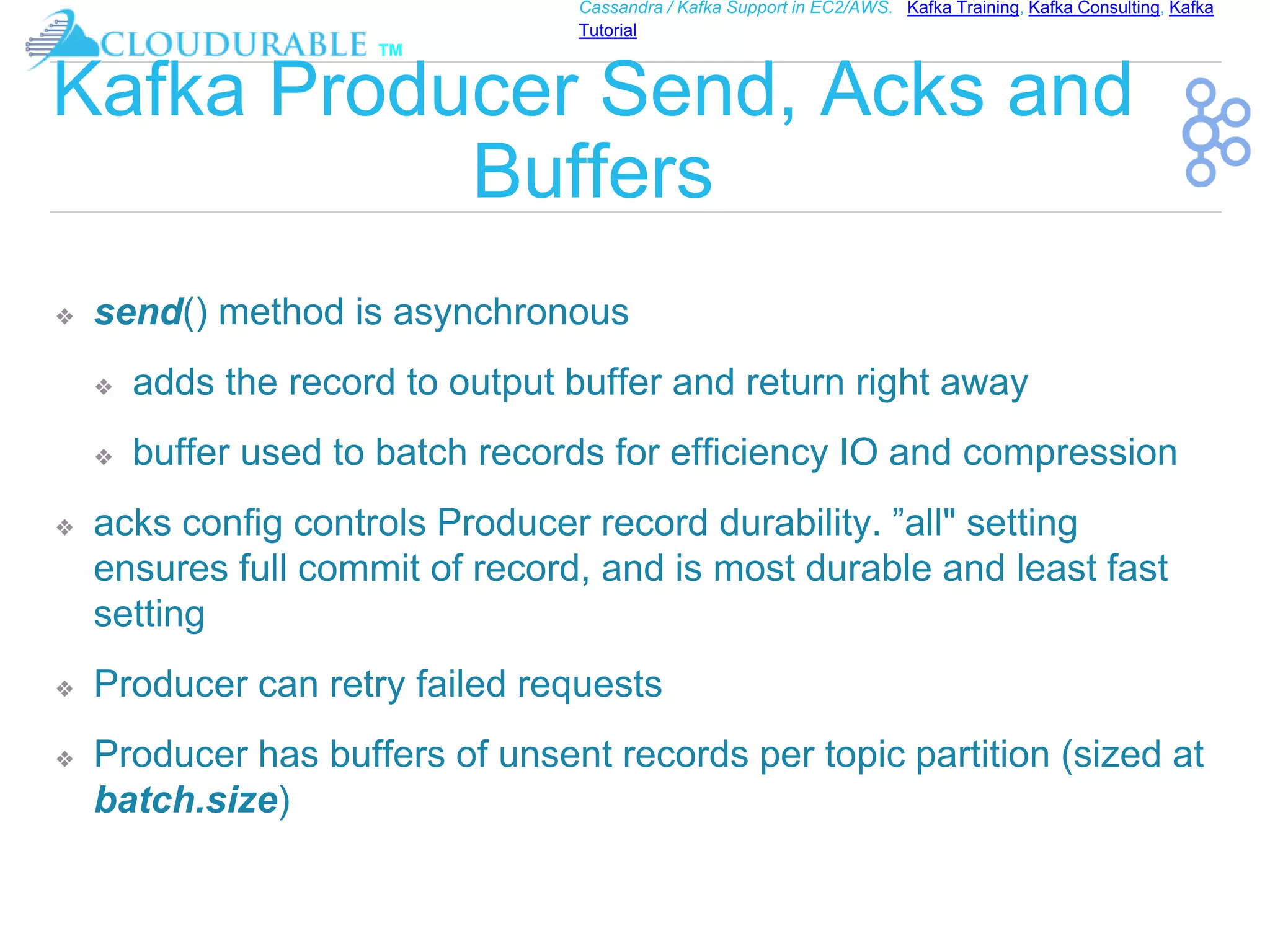

Kafka Producer Send, Acks and
Buffers
❖ send() method is asynchronous
❖ adds the record to output buffer and return right away
❖ buffer used to batch records for efficiency IO and compression
❖ acks config controls Producer record durability. ”all" setting
ensures full commit of record, and is most durable and least fast
setting
❖ Producer can retry failed requests
❖ Producer has buffers of unsent records per topic partition (sized at
batch.size)

™
Tutorial

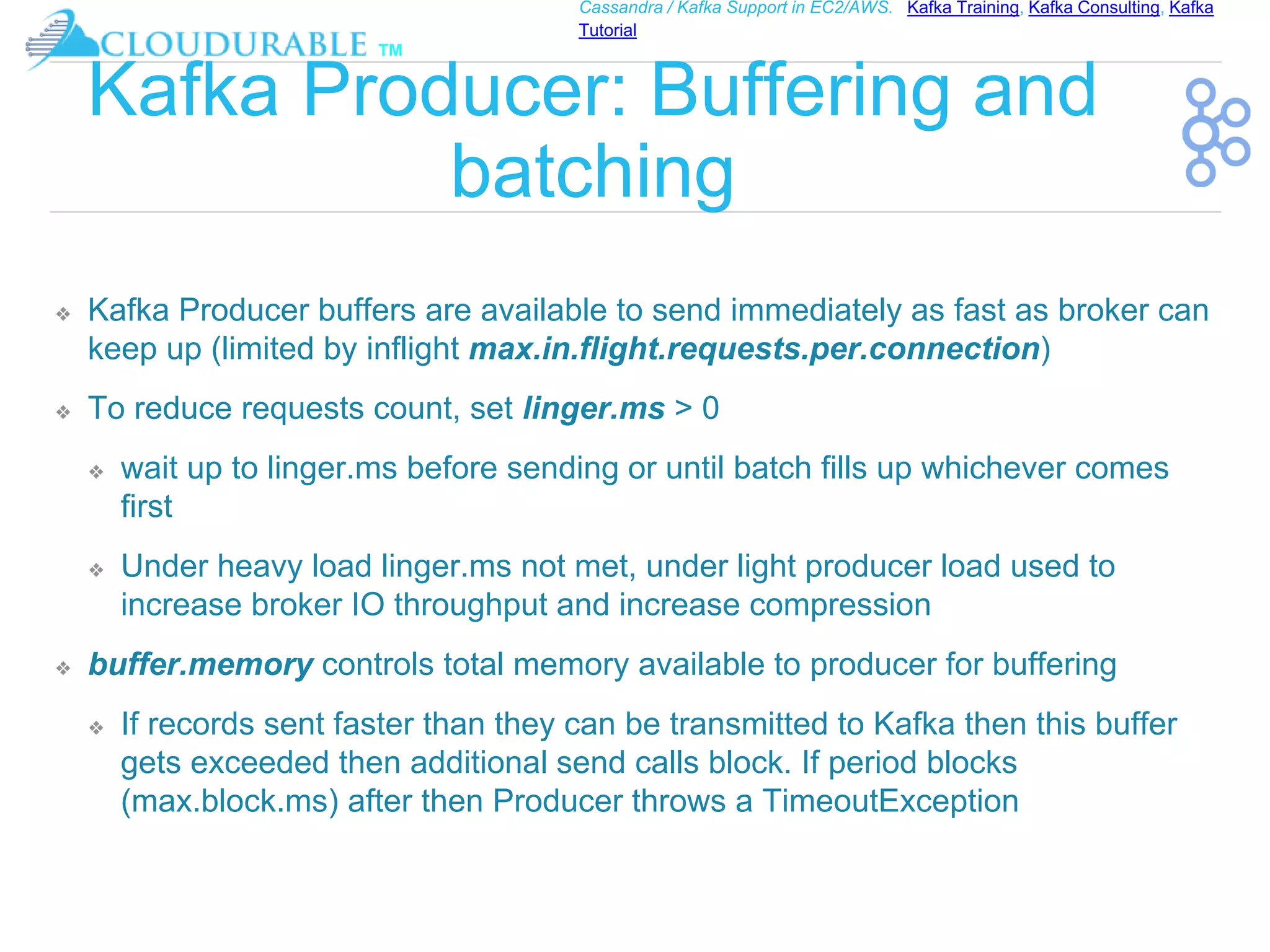

Kafka Producer: Buffering and
batching
❖ Kafka Producer buffers are available to send immediately as fast as broker can
keep up (limited by inflight max.in.flight.requests.per.connection)
❖ To reduce requests count, set linger.ms > 0
❖ wait up to linger.ms before sending or until batch fills up whichever comes
first
❖ Under heavy load linger.ms not met, under light producer load used to
increase broker IO throughput and increase compression
❖ buffer.memory controls total memory available to producer for buffering
❖ If records sent faster than they can be transmitted to Kafka then this buffer
gets exceeded then additional send calls block. If period blocks
(max.block.ms) after then Producer throws a TimeoutException

™
Tutorial

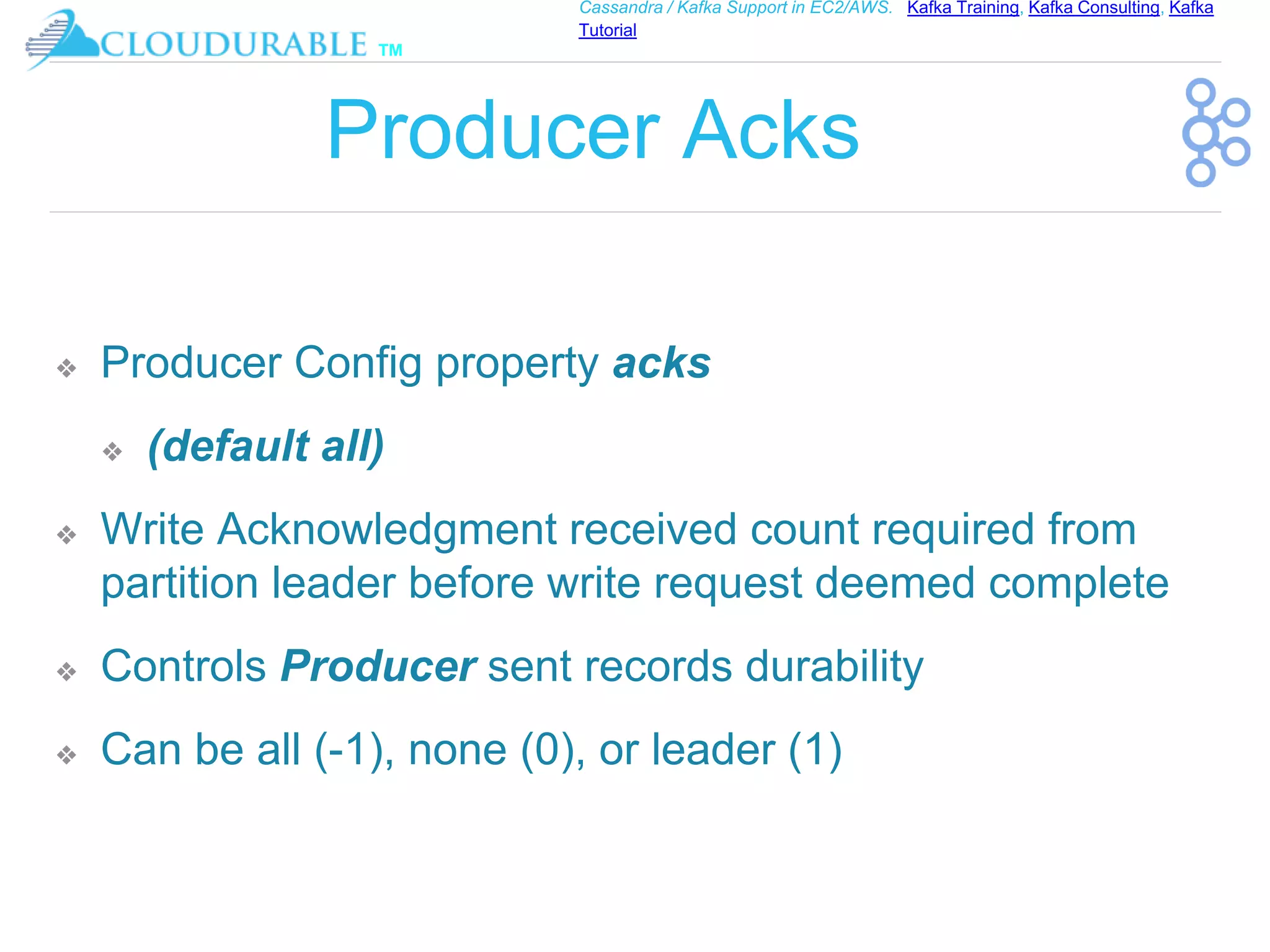

Producer Acks
❖ Producer Config property acks
❖ (default all)
❖ Write Acknowledgment received count required from
partition leader before write request deemed complete
❖ Controls Producer sent records durability
❖ Can be all (-1), none (0), or leader (1)

™
Tutorial

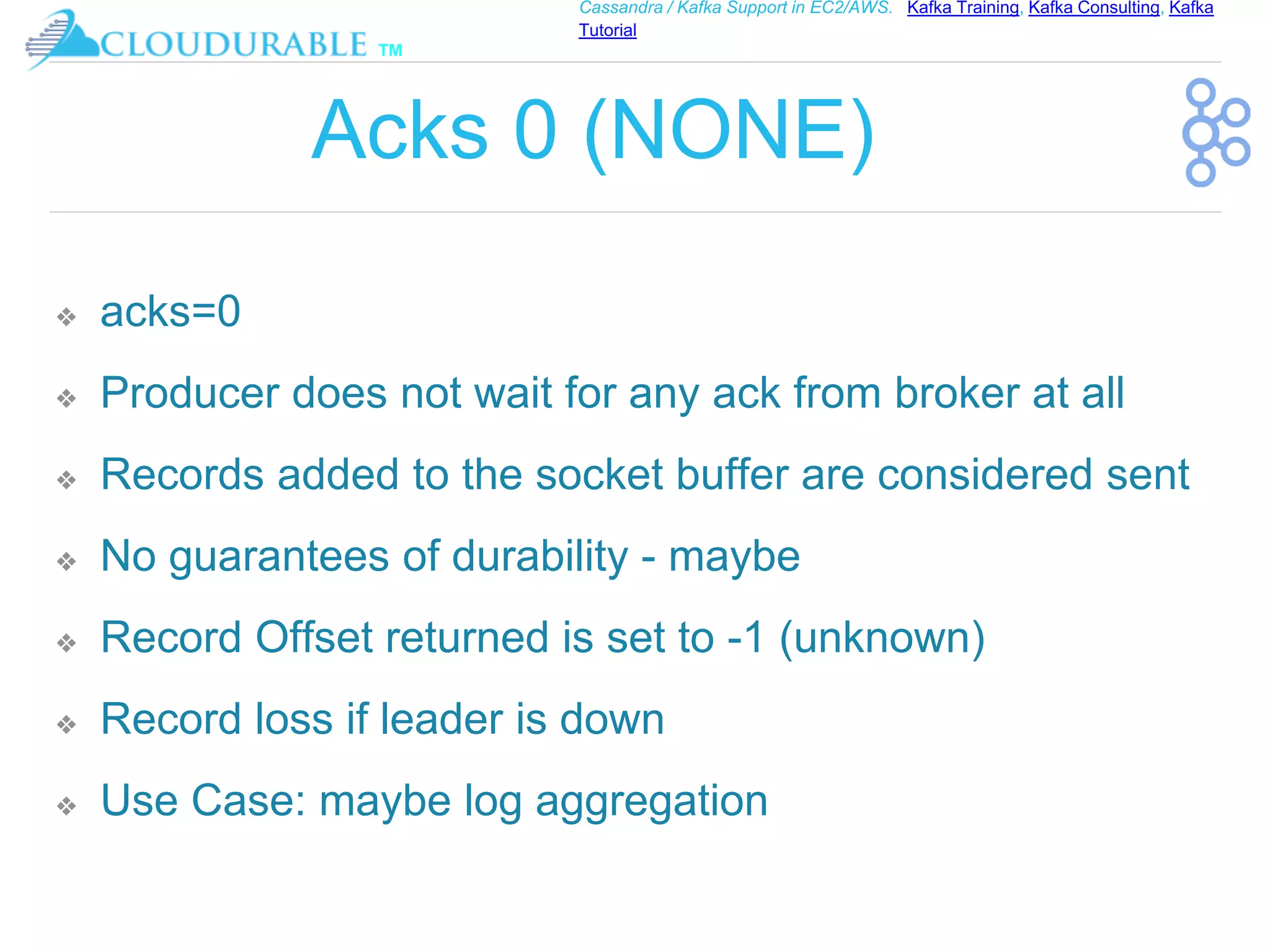

Acks 0 (NONE)
❖ acks=0
❖ Producer does not wait for any ack from broker at all
❖ Records added to the socket buffer are considered sent
❖ No guarantees of durability - maybe
❖ Record Offset returned is set to -1 (unknown)
❖ Record loss if leader is down
❖ Use Case: maybe log aggregation

™
Tutorial

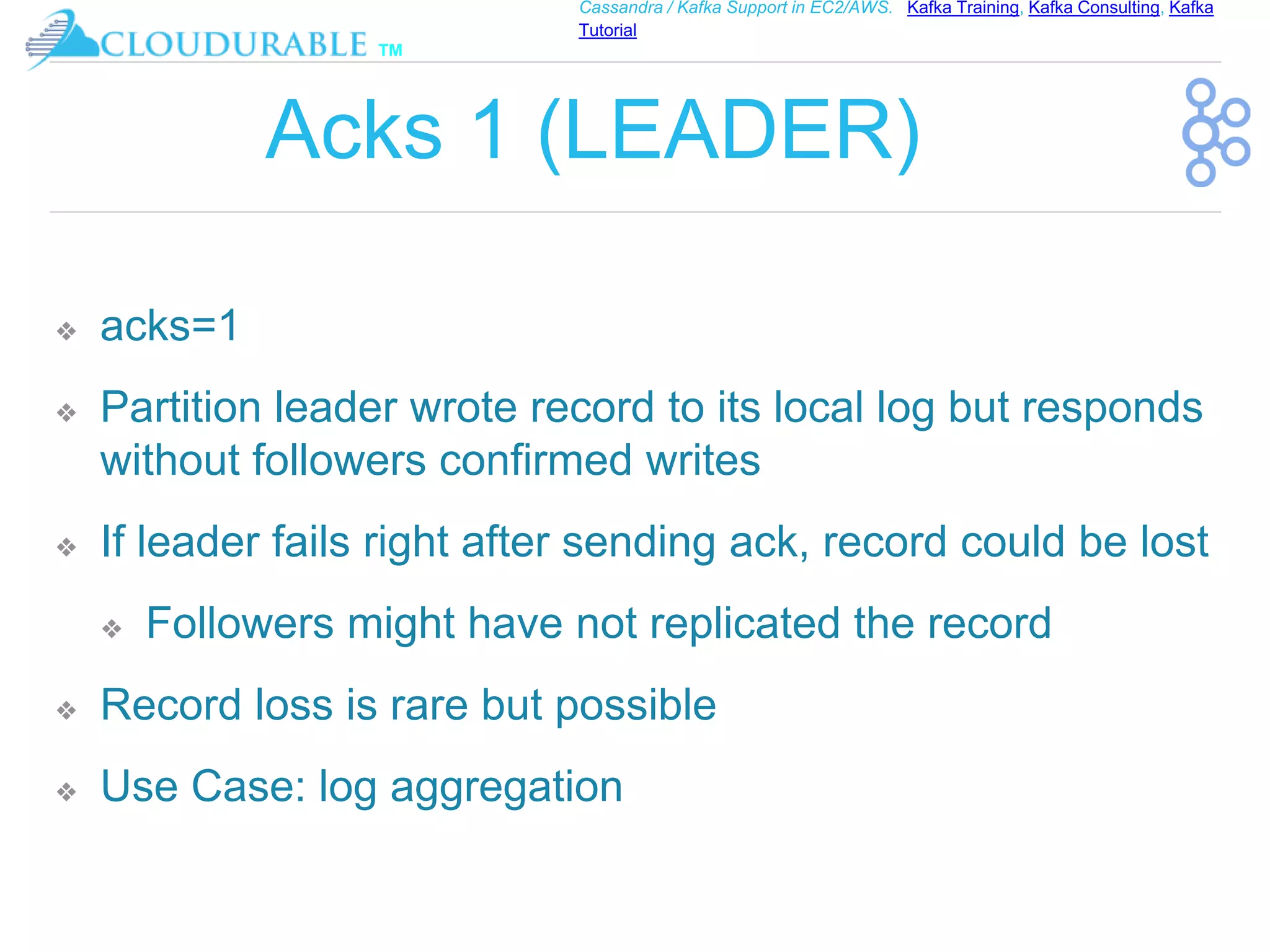

Acks 1 (LEADER)
❖ acks=1
❖ Partition leader wrote record to its local log but responds
without followers confirmed writes
❖ If leader fails right after sending ack, record could be lost
❖ Followers might have not replicated the record
❖ Record loss is rare but possible
❖ Use Case: log aggregation

™
Tutorial

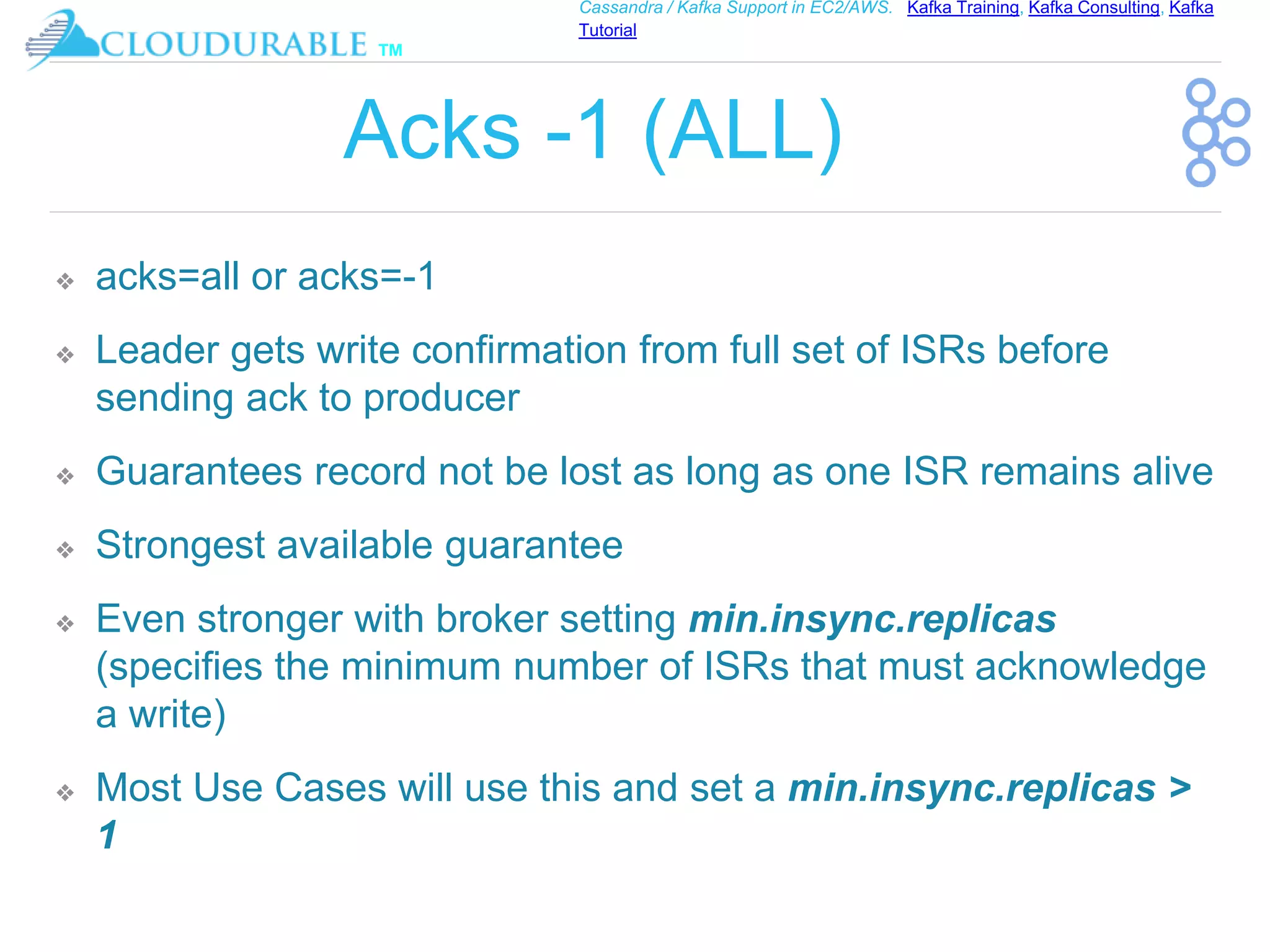

Acks -1 (ALL)
❖ acks=all or acks=-1
❖ Leader gets write confirmation from full set of ISRs before
sending ack to producer
❖ Guarantees record not be lost as long as one ISR remains alive
❖ Strongest available guarantee

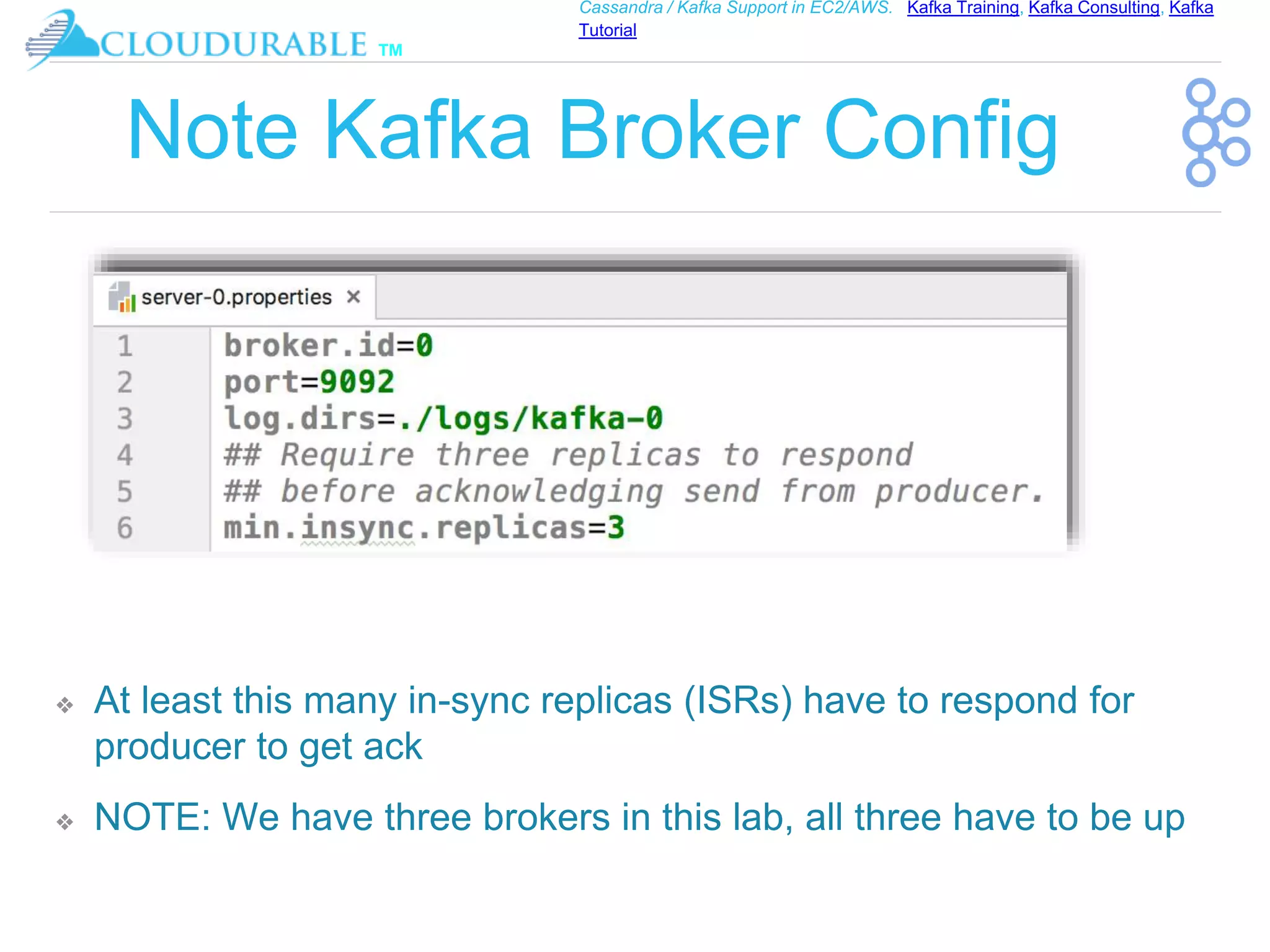

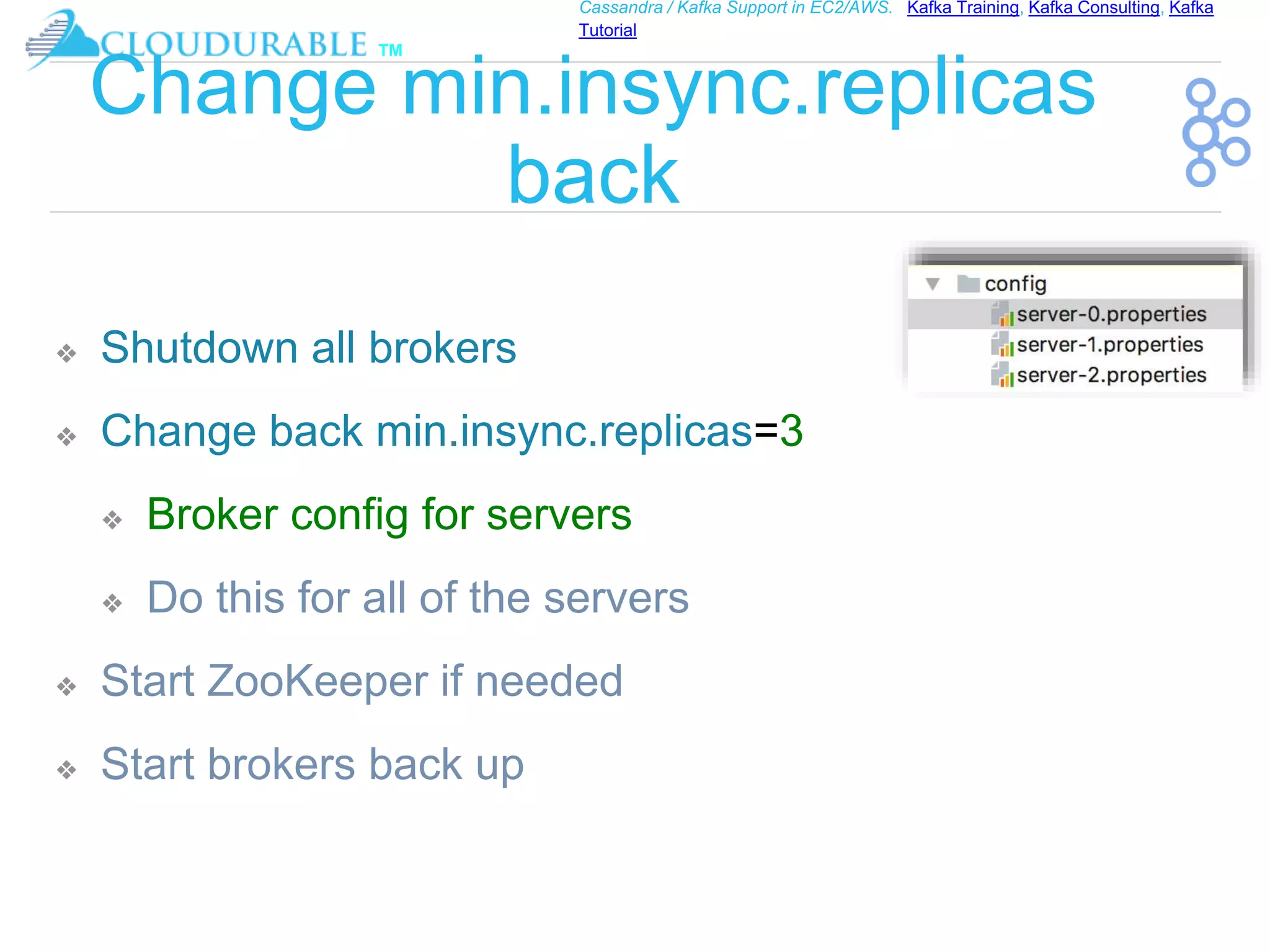

❖ Even stronger with broker setting min.insync.replicas
(specifies the minimum number of ISRs that must acknowledge
a write)
❖ Most Use Cases will use this and set a min.insync.replicas >
1

™
Tutorial

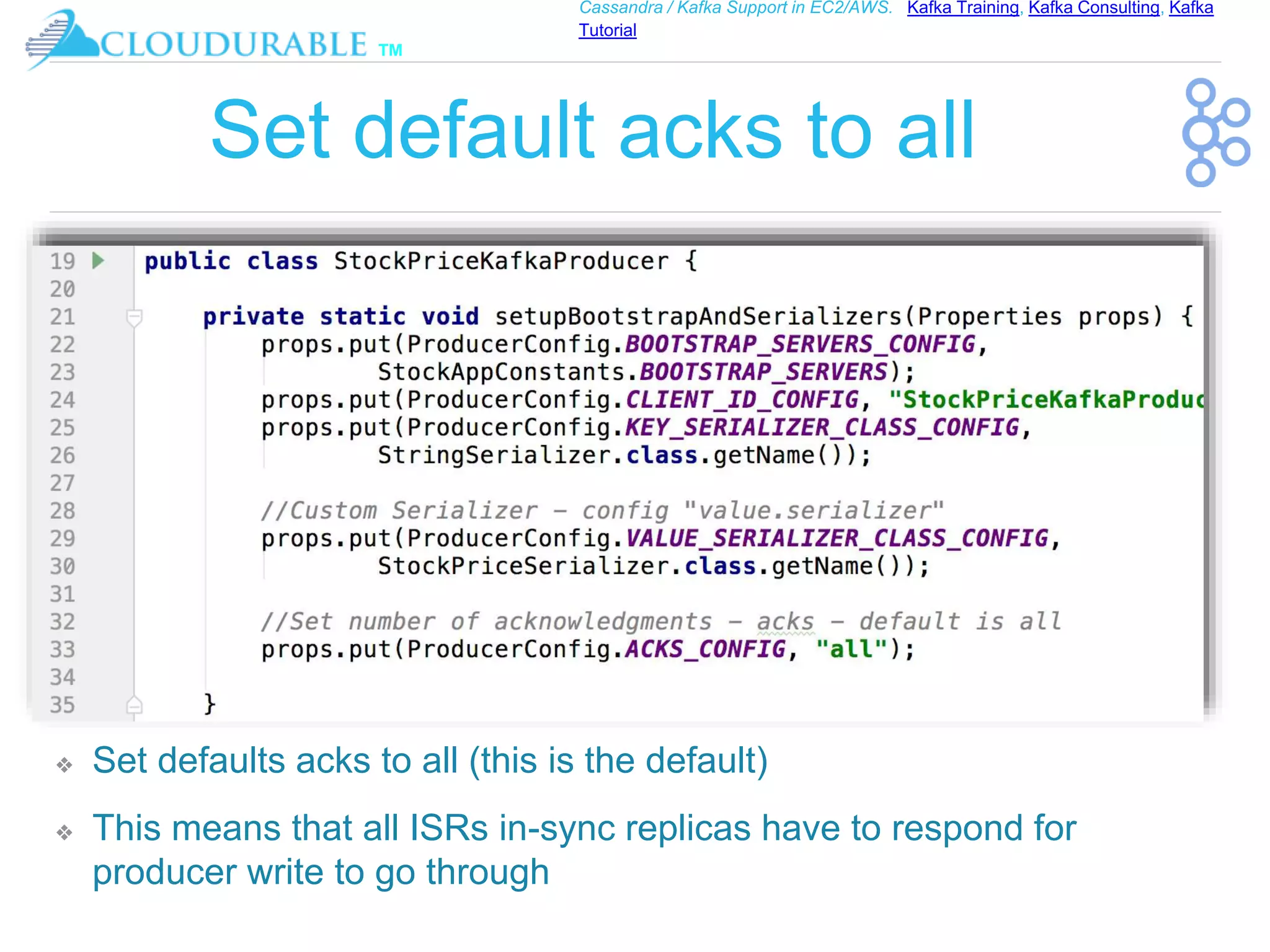

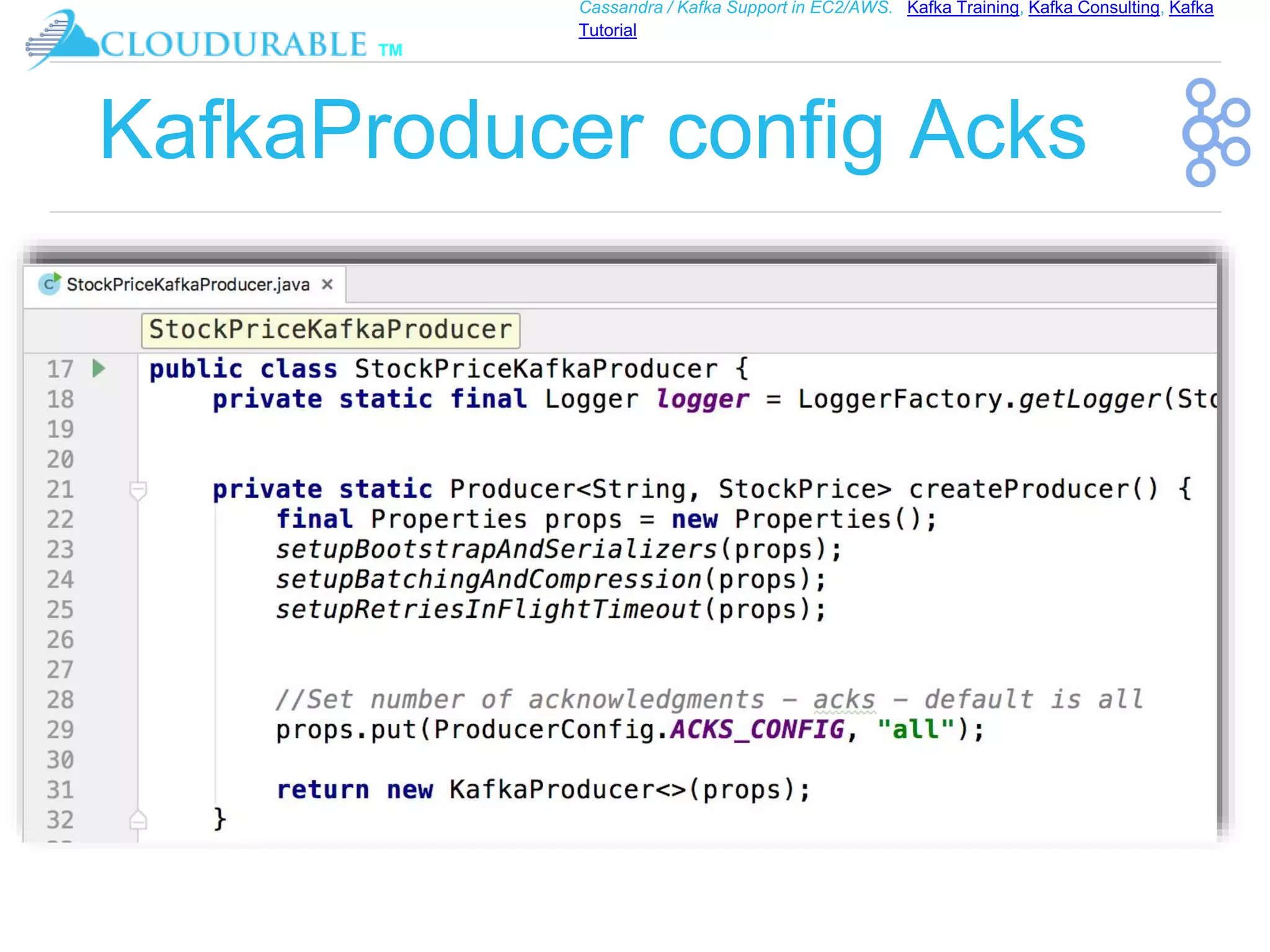

KafkaProducer config Acks

™
Tutorial

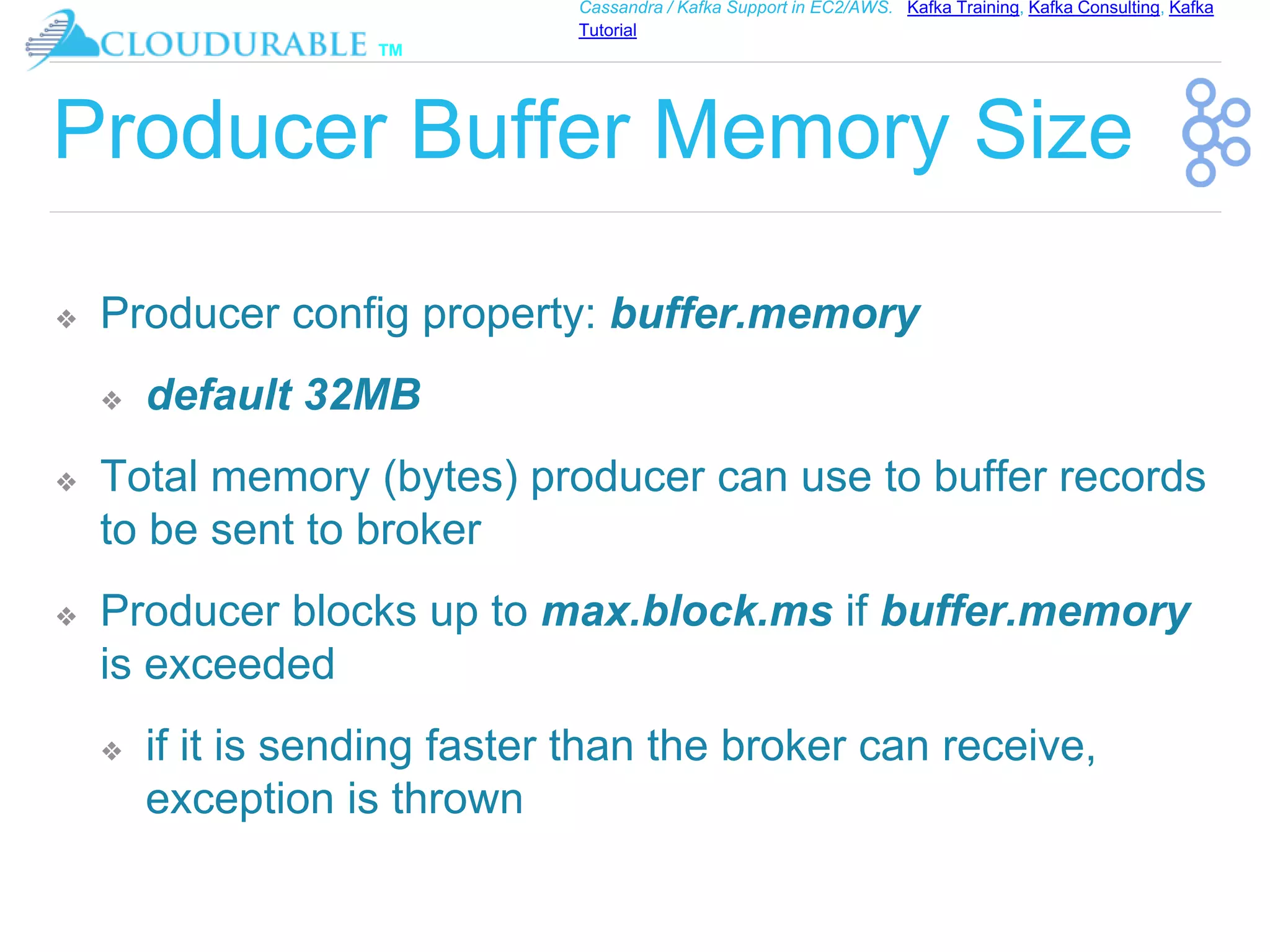

Producer Buffer Memory Size
❖ Producer config property: buffer.memory
❖ default 32MB
❖ Total memory (bytes) producer can use to buffer records
to be sent to broker
❖ Producer blocks up to max.block.ms if buffer.memory
is exceeded
❖ if it is sending faster than the broker can receive,
exception is thrown

™
Tutorial

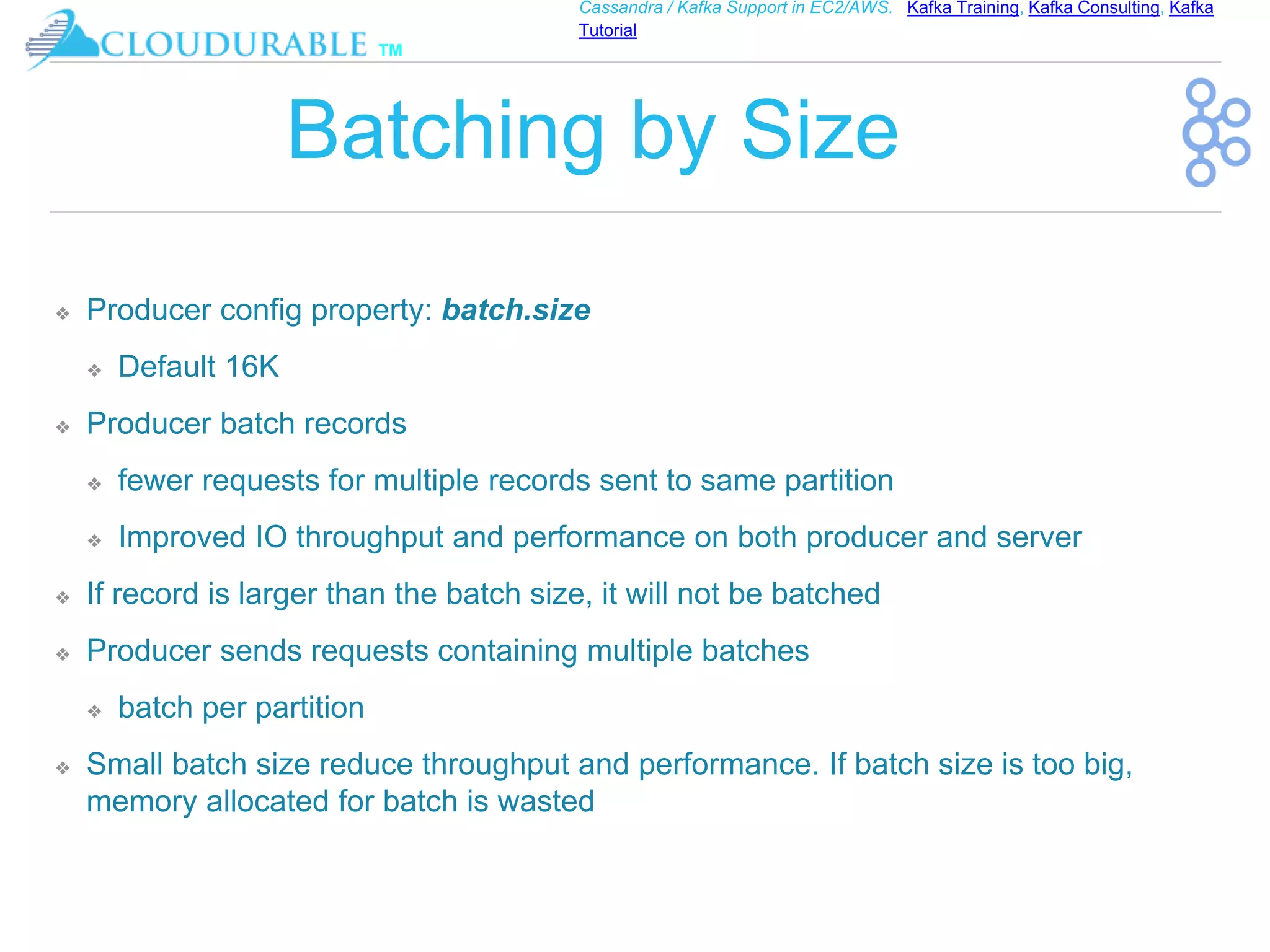

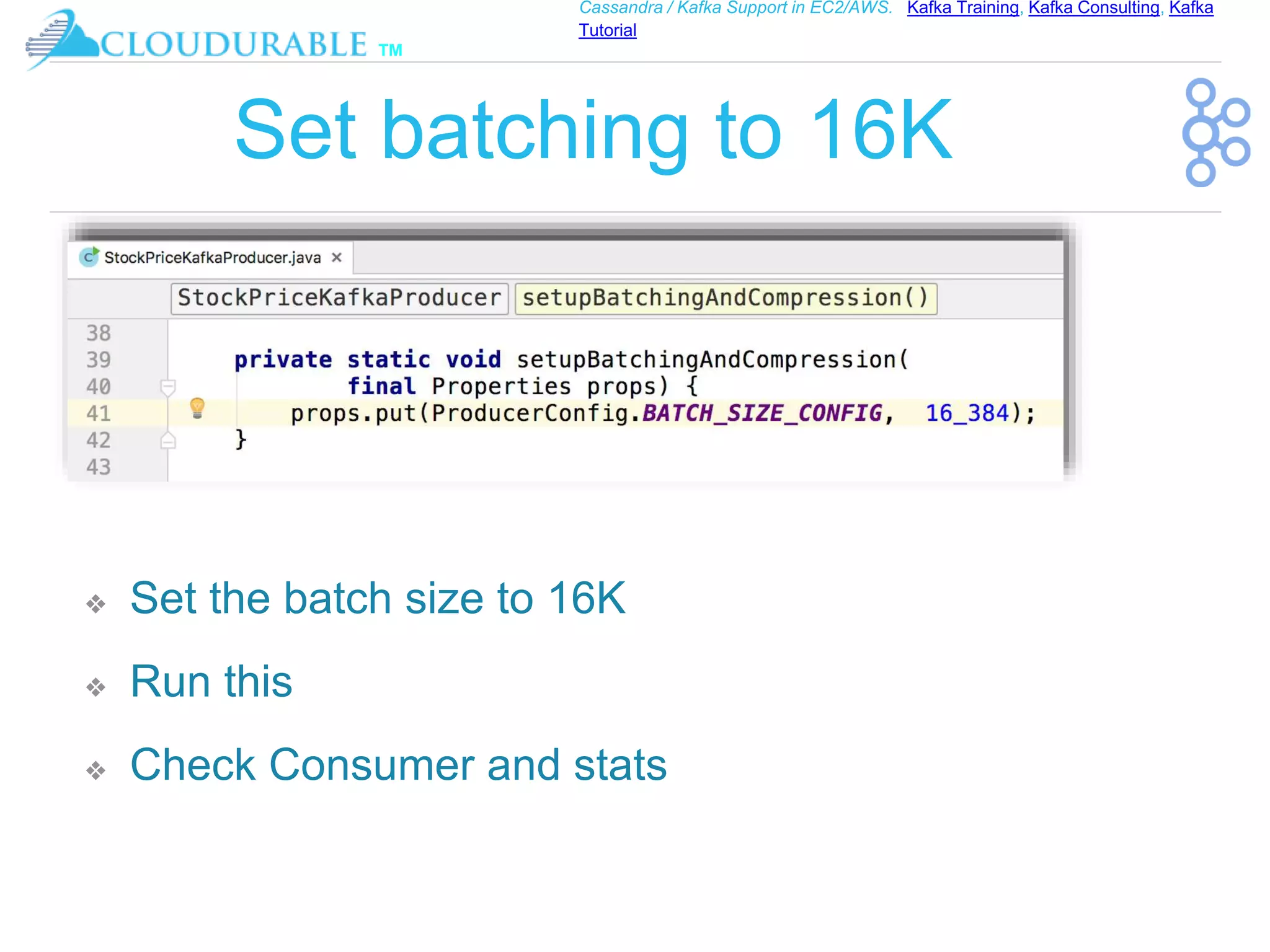

Batching by Size
❖ Producer config property: batch.size
❖ Default 16K
❖ Producer batch records
❖ fewer requests for multiple records sent to same partition
❖ Improved IO throughput and performance on both producer and server
❖ If record is larger than the batch size, it will not be batched
❖ Producer sends requests containing multiple batches
❖ batch per partition
❖ Small batch size reduce throughput and performance. If batch size is too big,
memory allocated for batch is wasted

™
Tutorial

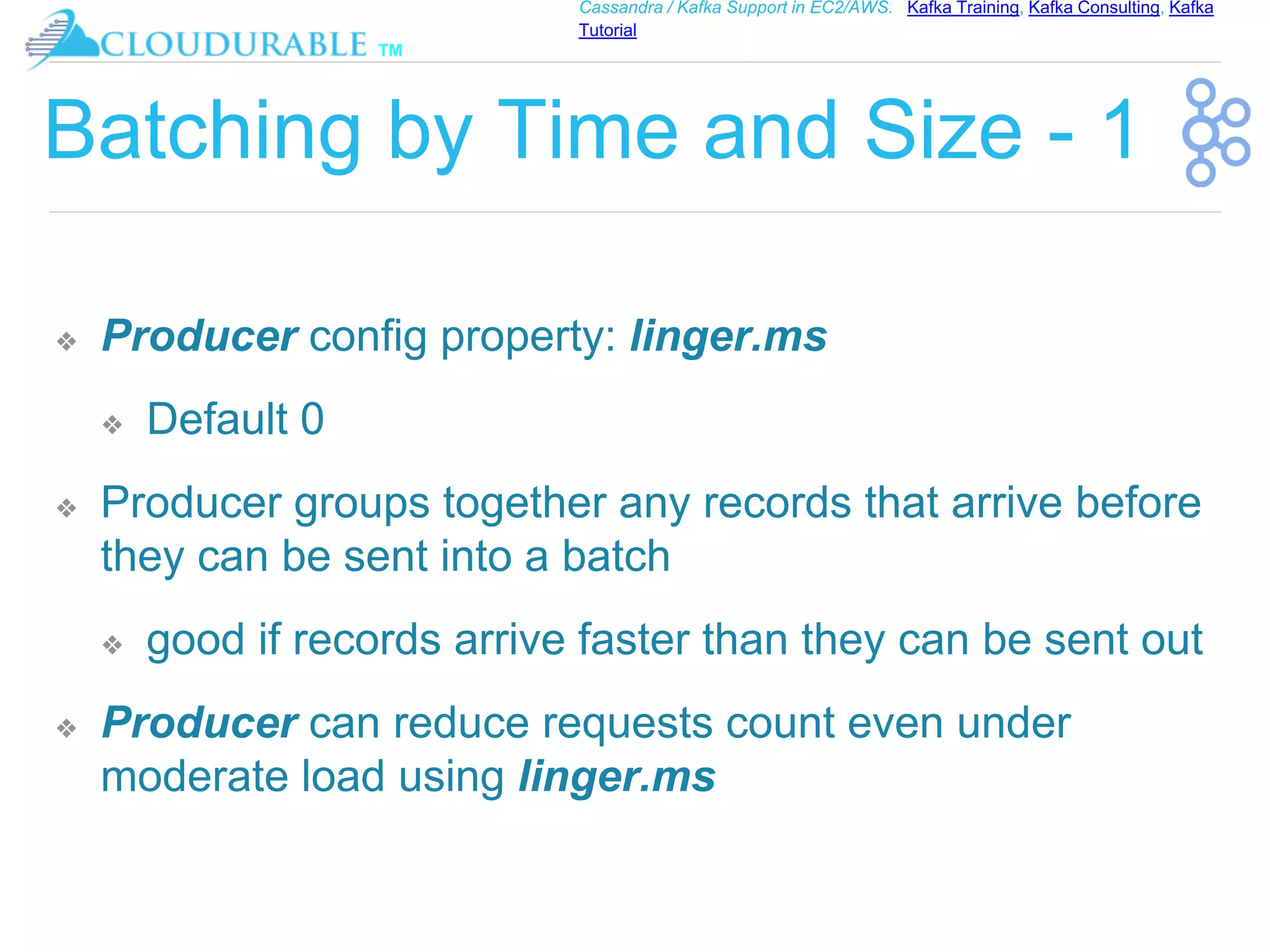

Batching by Time and Size - 1
❖ Producer config property: linger.ms
❖ Default 0
❖ Producer groups together any records that arrive before
they can be sent into a batch
❖ good if records arrive faster than they can be sent out
❖ Producer can reduce requests count even under
moderate load using linger.ms

™
Tutorial

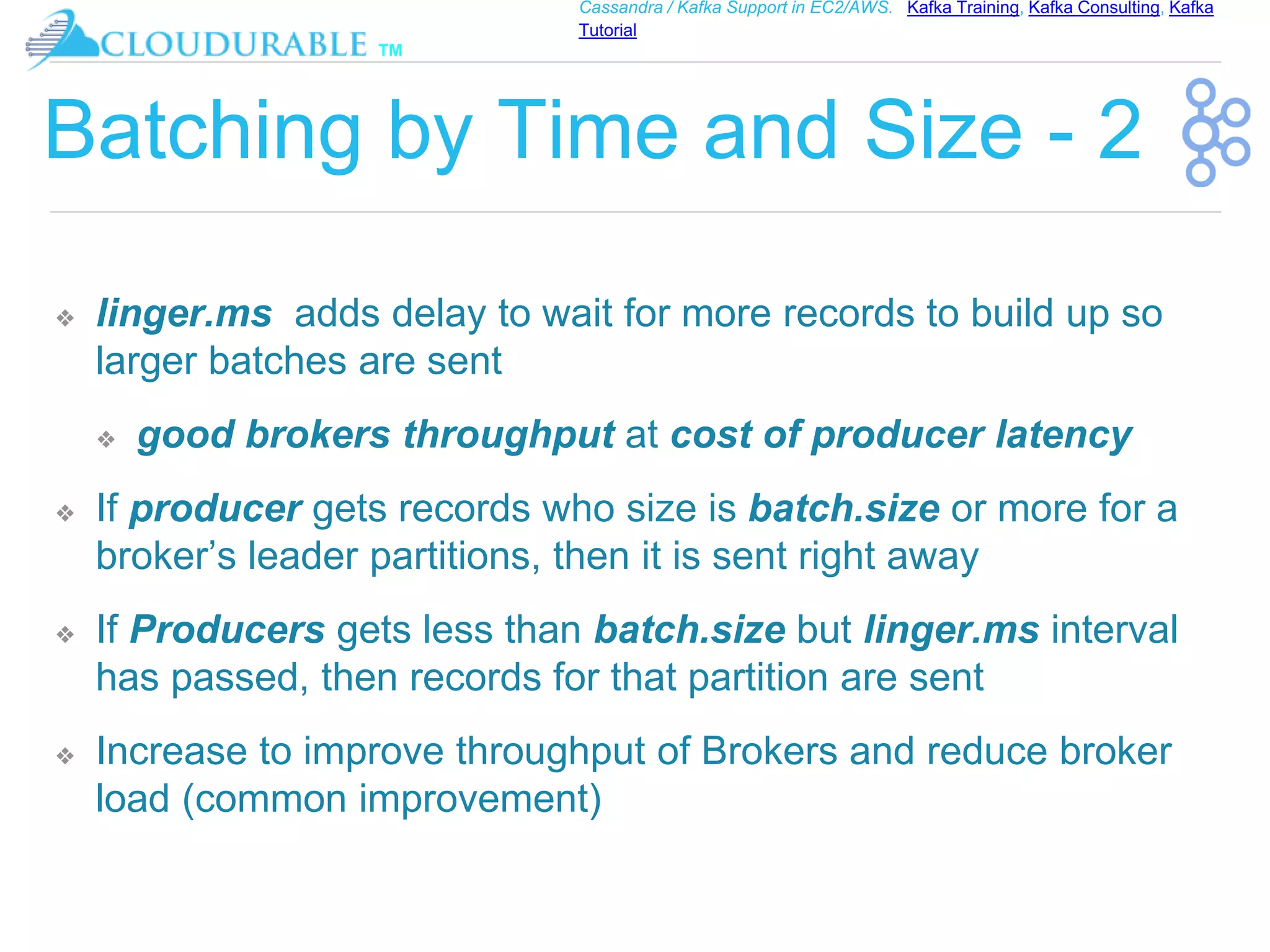

Batching by Time and Size - 2
❖ linger.ms adds delay to wait for more records to build up so
larger batches are sent
❖ good brokers throughput at cost of producer latency
❖ If producer gets records who size is batch.size or more for a
broker’s leader partitions, then it is sent right away
❖ If Producers gets less than batch.size but linger.ms interval
has passed, then records for that partition are sent
❖ Increase to improve throughput of Brokers and reduce broker
load (common improvement)

™
Tutorial

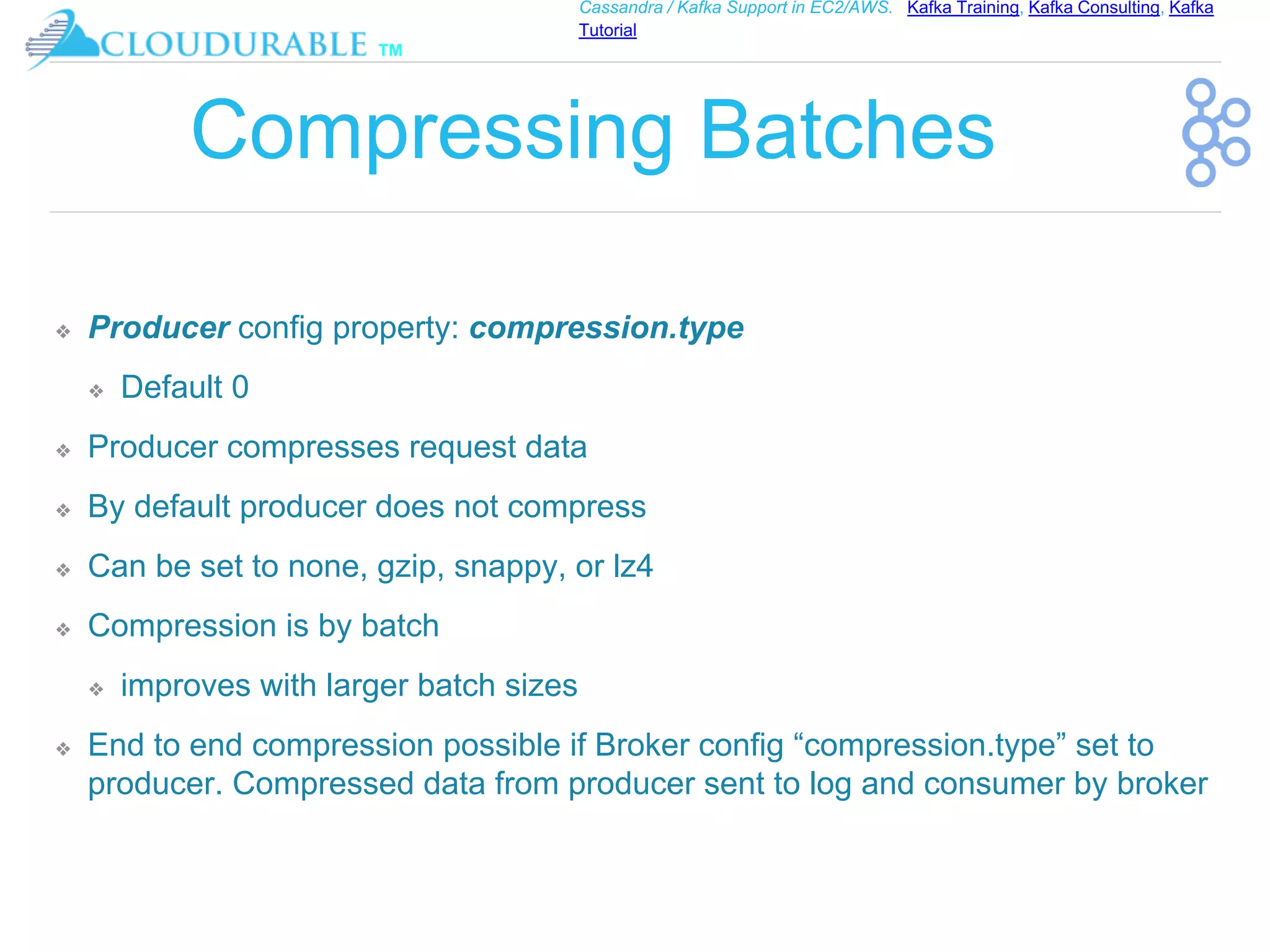

Compressing Batches
❖ Producer config property: compression.type
❖ Default 0
❖ Producer compresses request data
❖ By default producer does not compress
❖ Can be set to none, gzip, snappy, or lz4
❖ Compression is by batch
❖ improves with larger batch sizes
❖ End to end compression possible if Broker config “compression.type” set to
producer. Compressed data from producer sent to log and consumer by broker

™
Tutorial

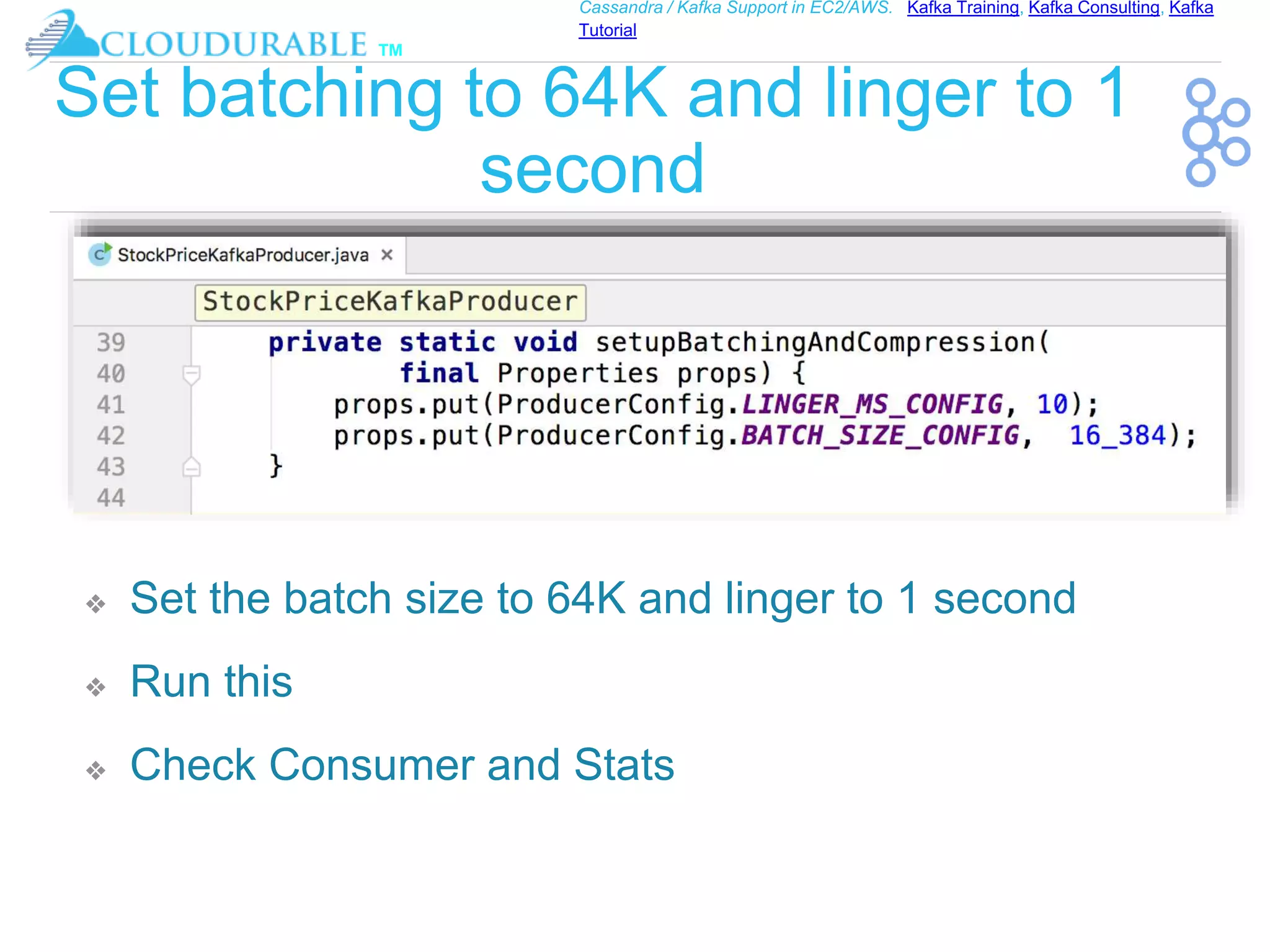

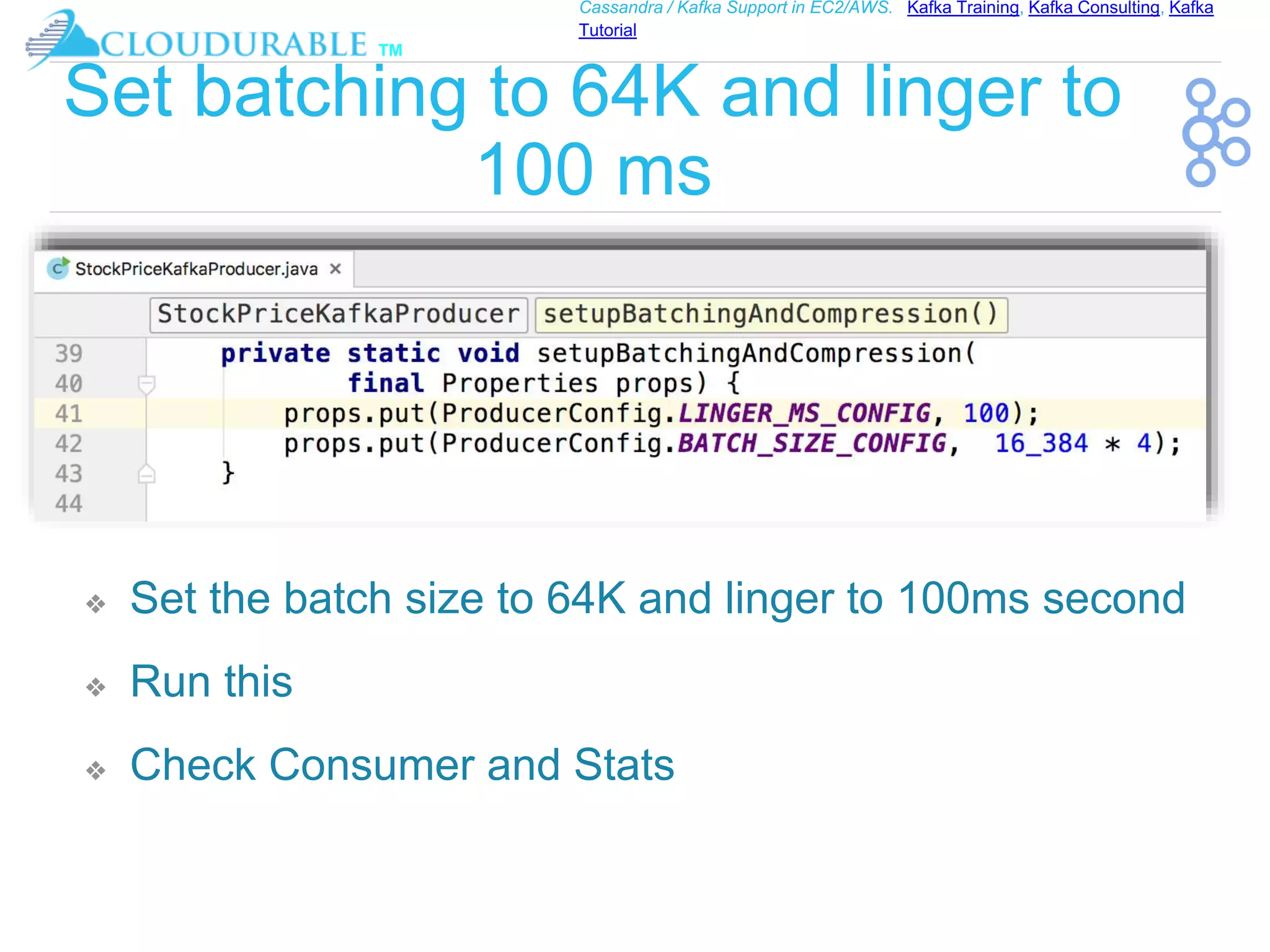

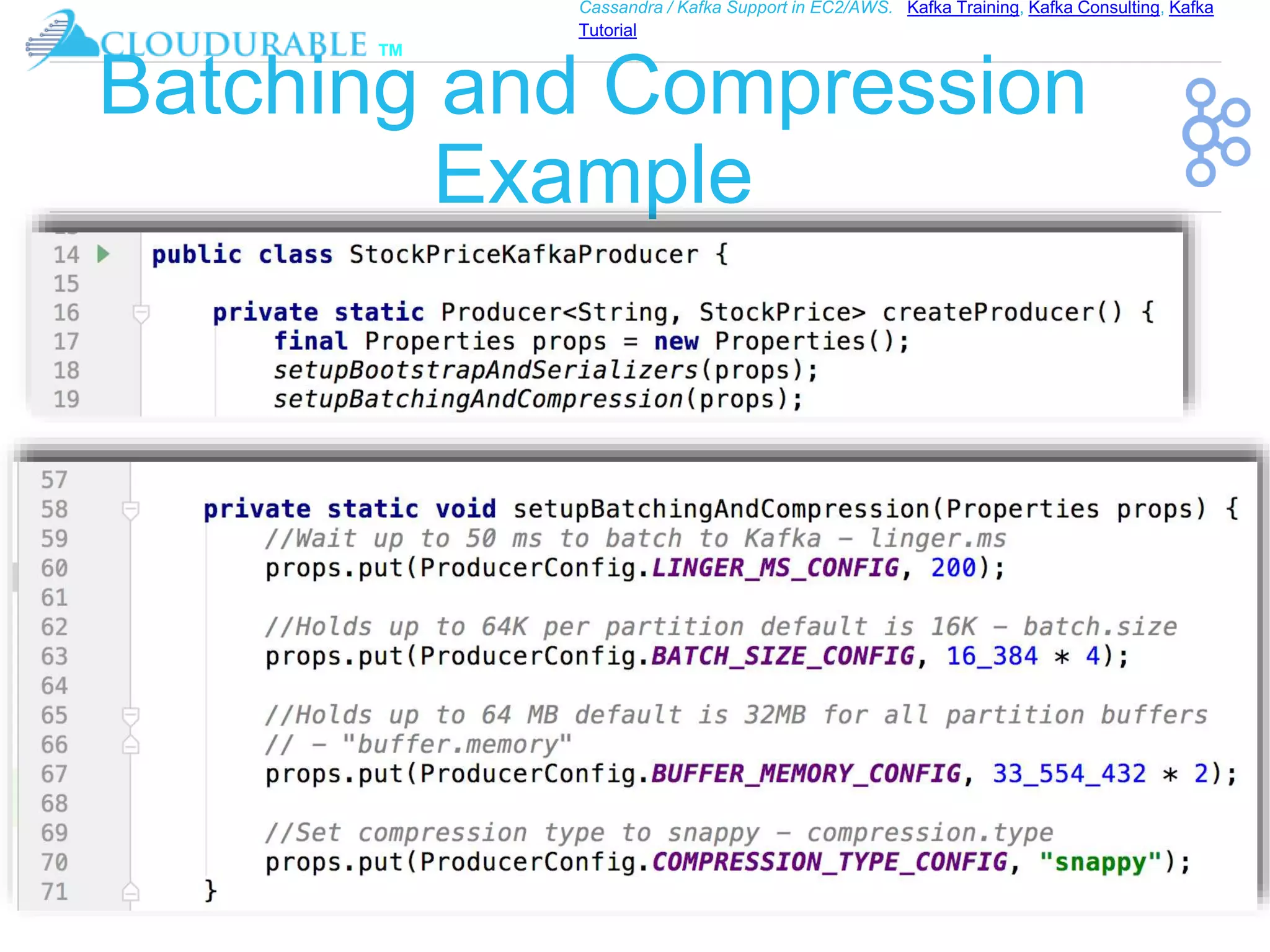

Batching and Compression
Example

™
Tutorial

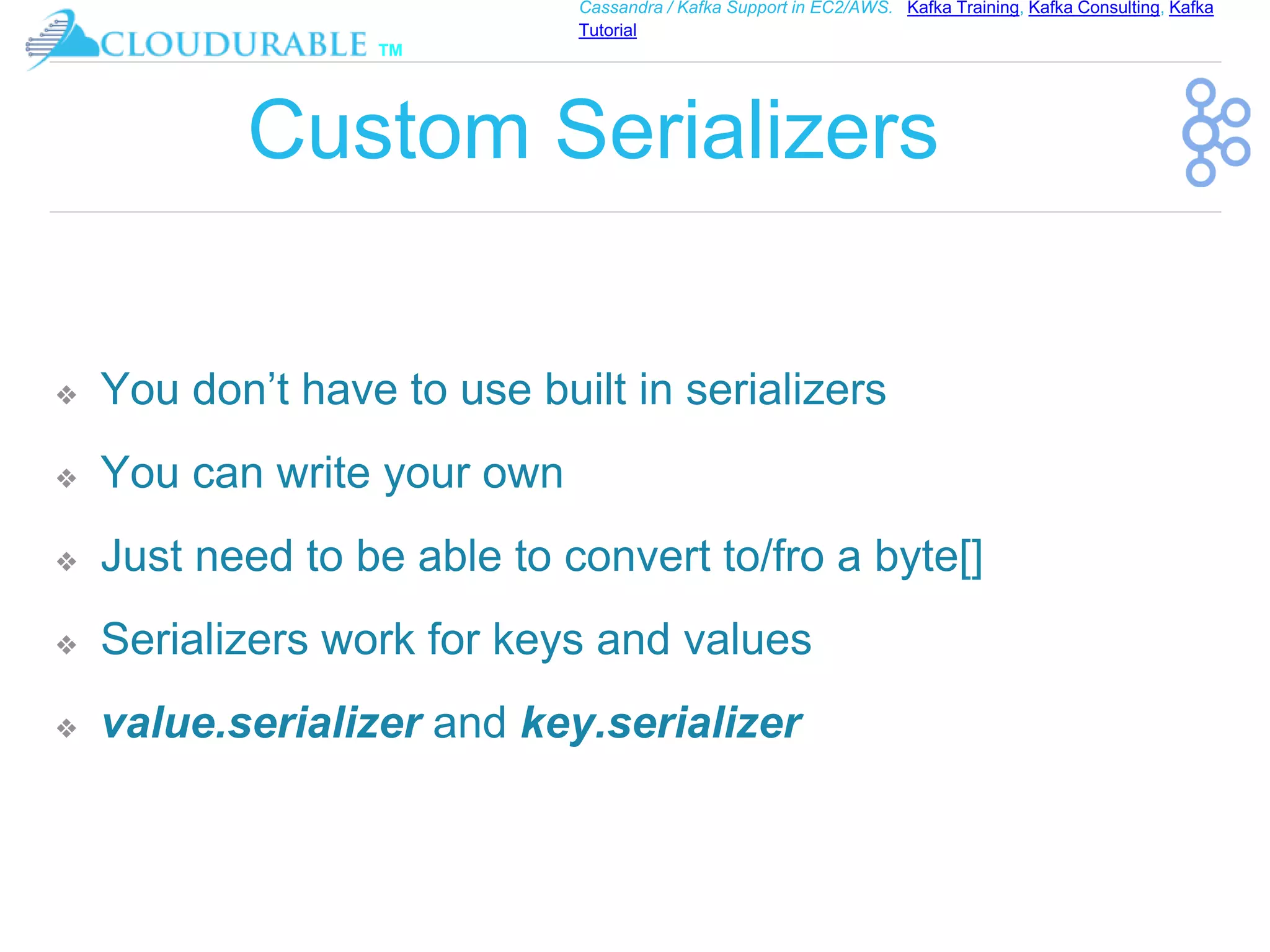

Custom Serializers
❖ You don’t have to use built in serializers
❖ You can write your own
❖ Just need to be able to convert to/fro a byte[]
❖ Serializers work for keys and values
❖ value.serializer and key.serializer

™
Tutorial

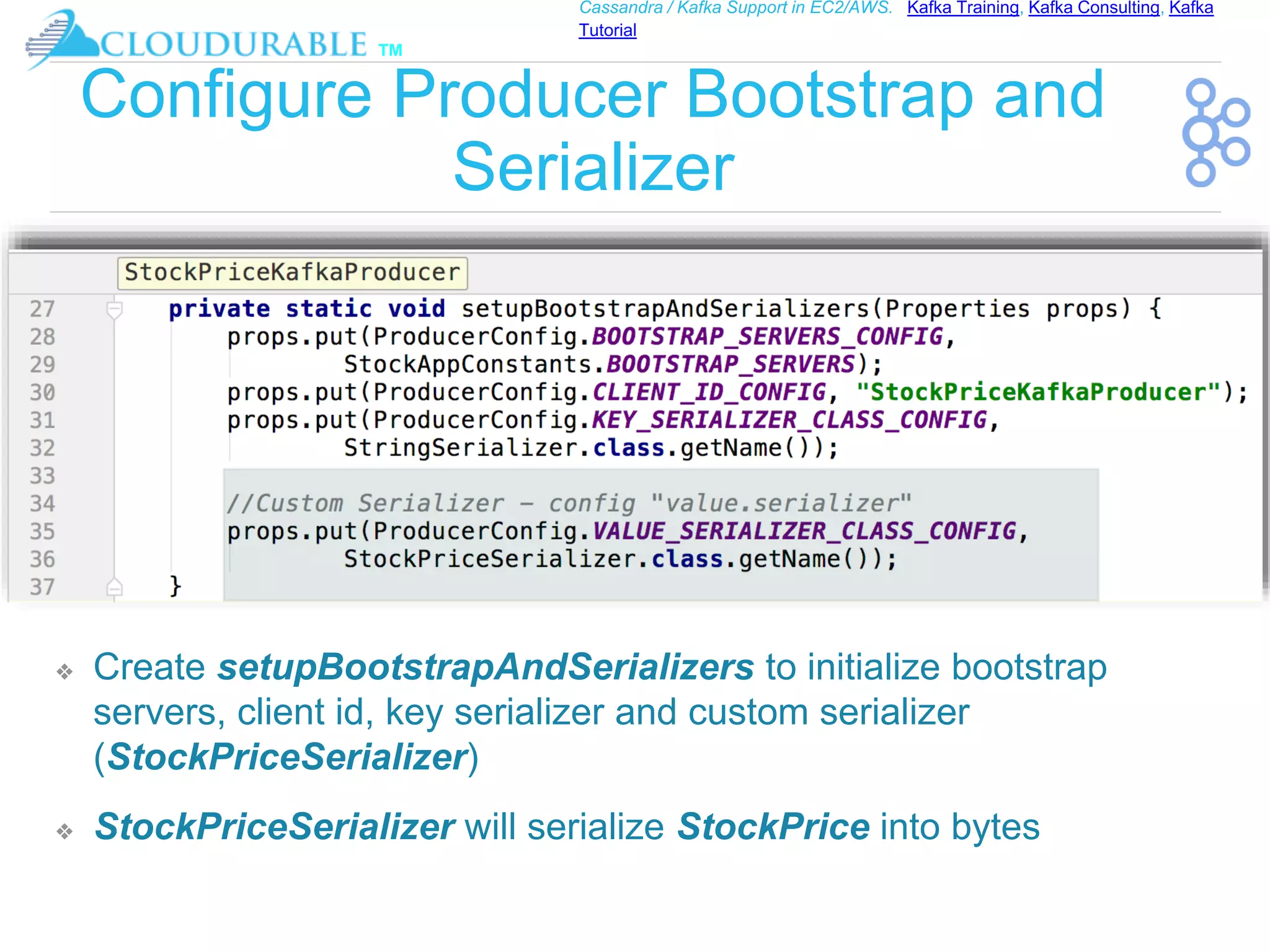

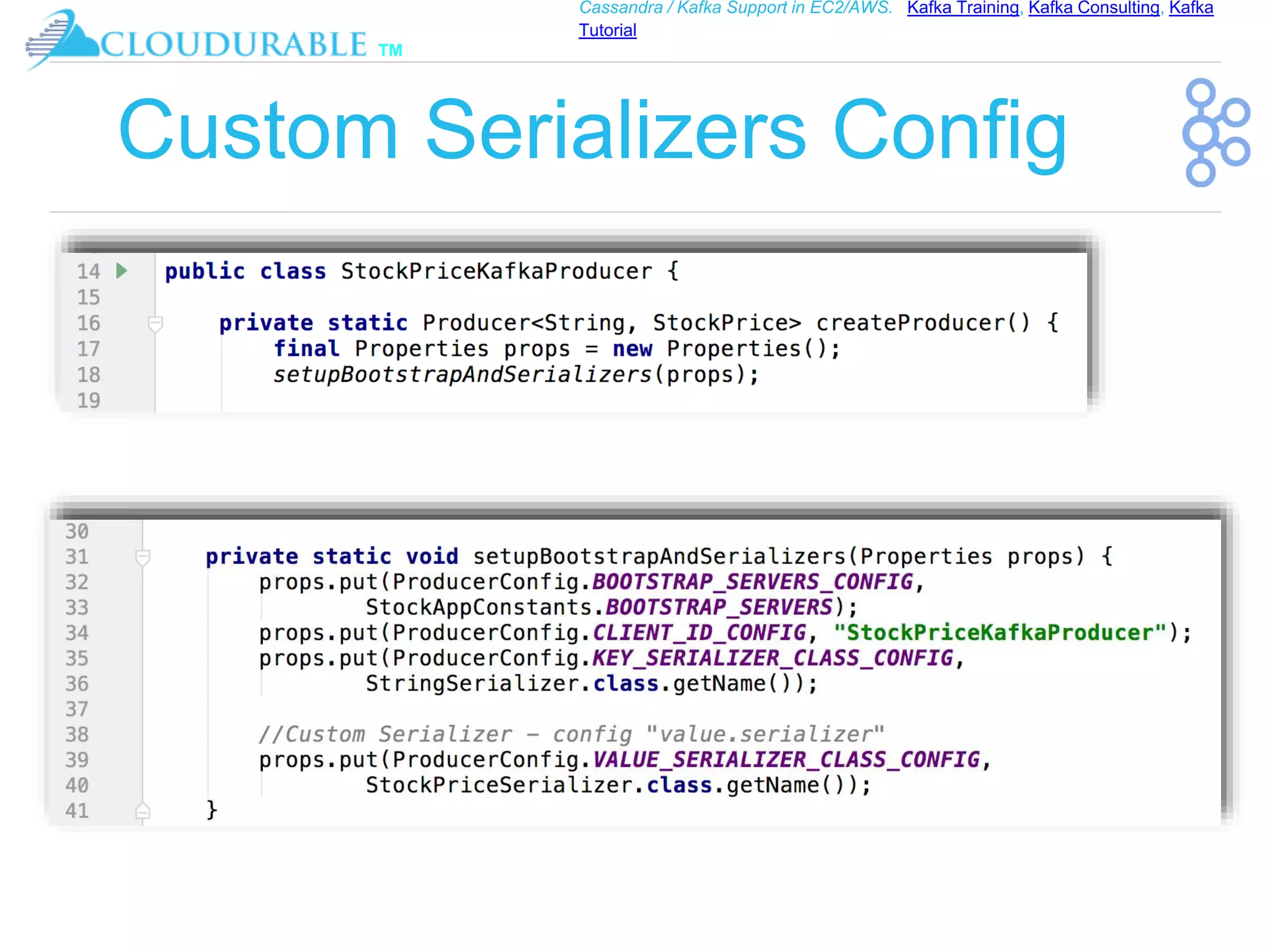

Custom Serializers Config

™
Tutorial

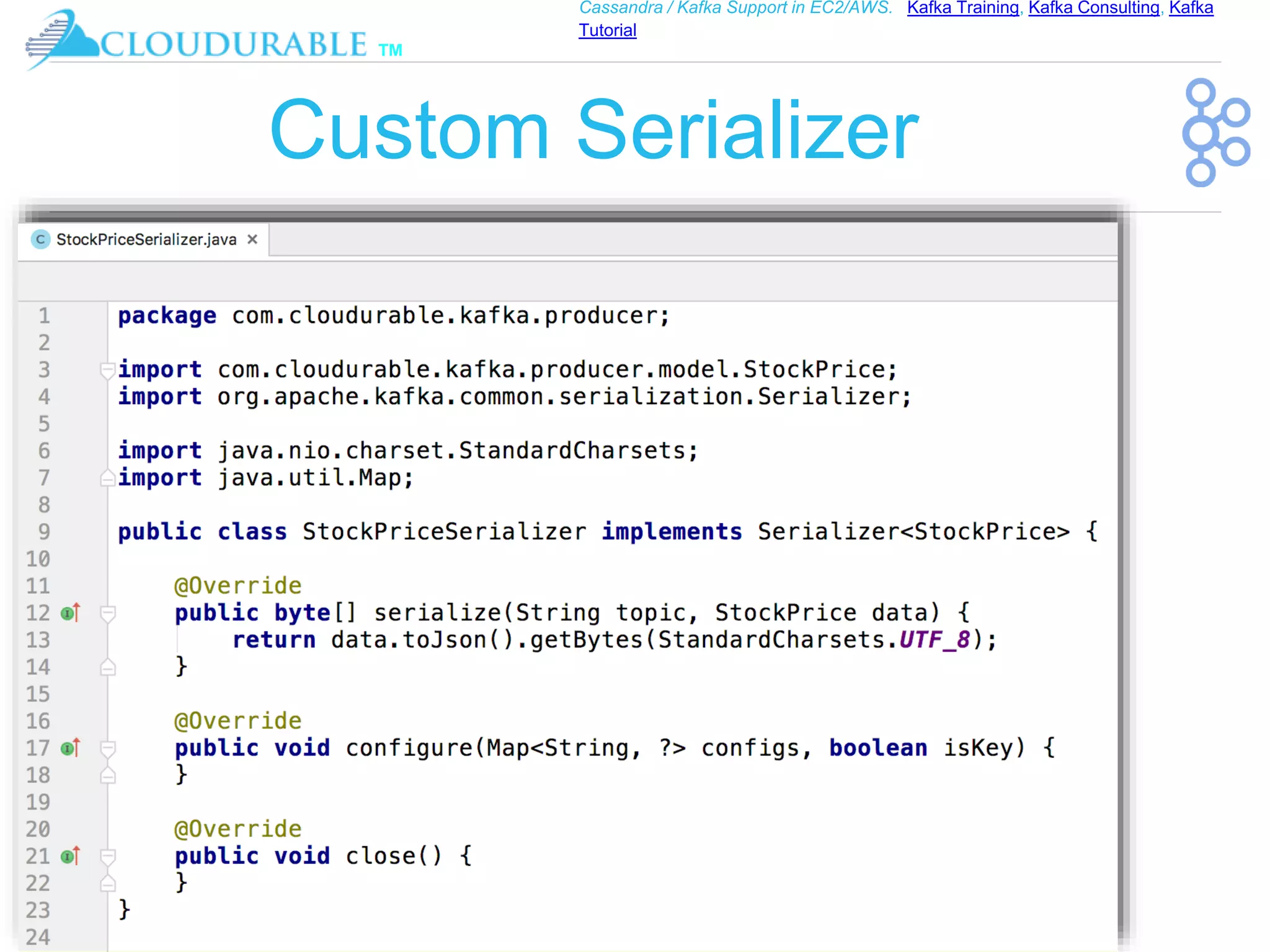

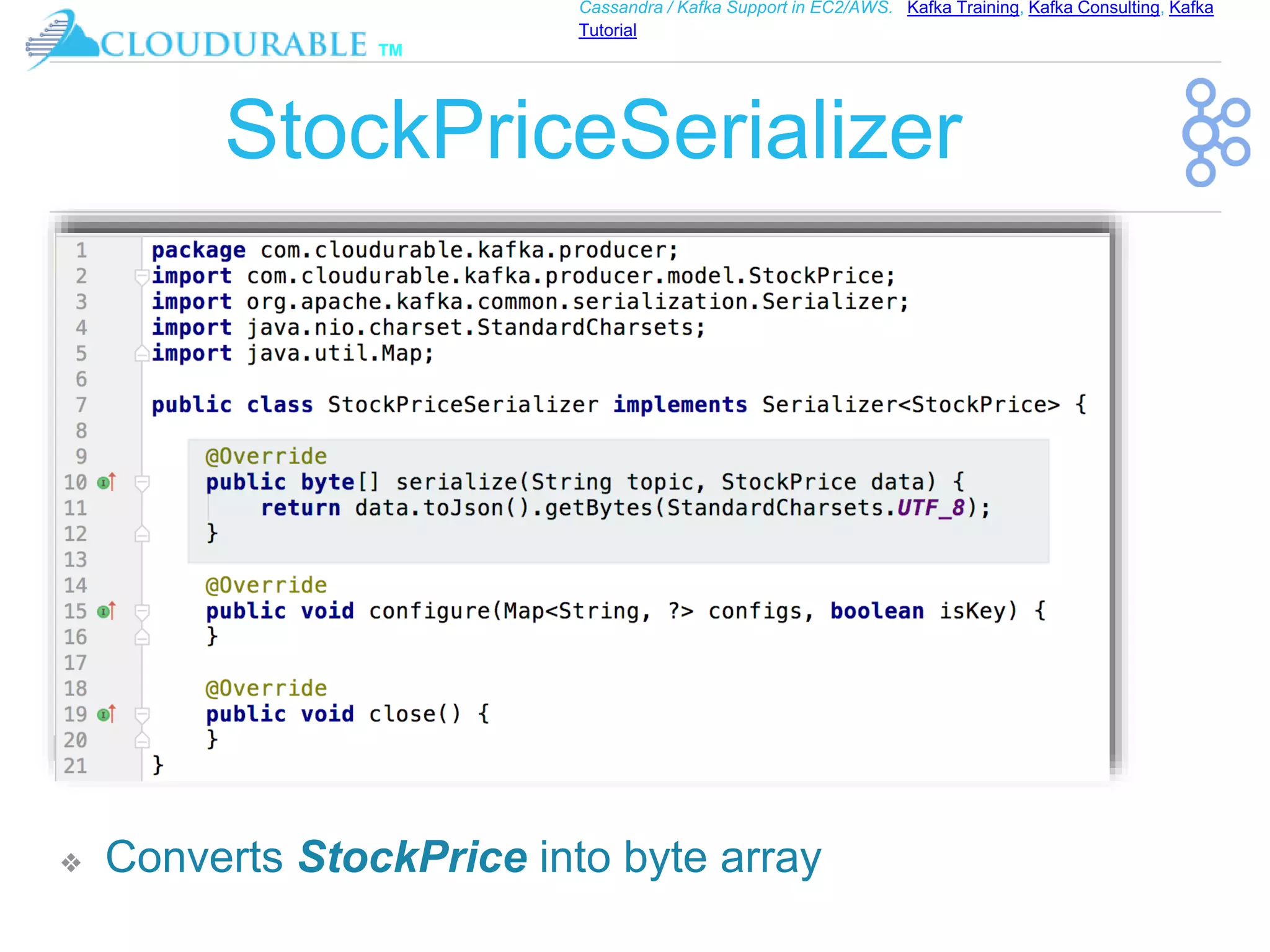

Custom Serializer

™
Tutorial

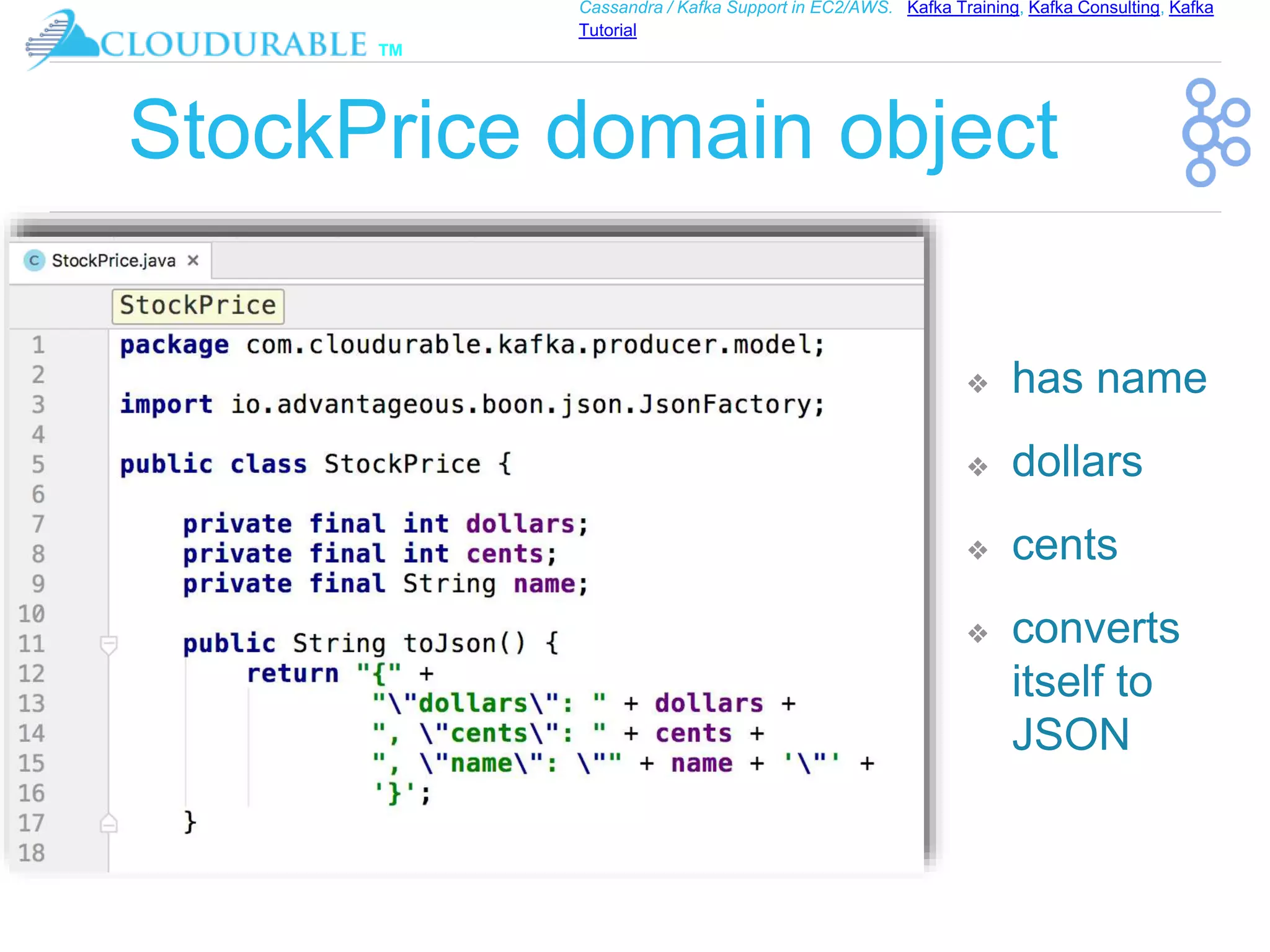

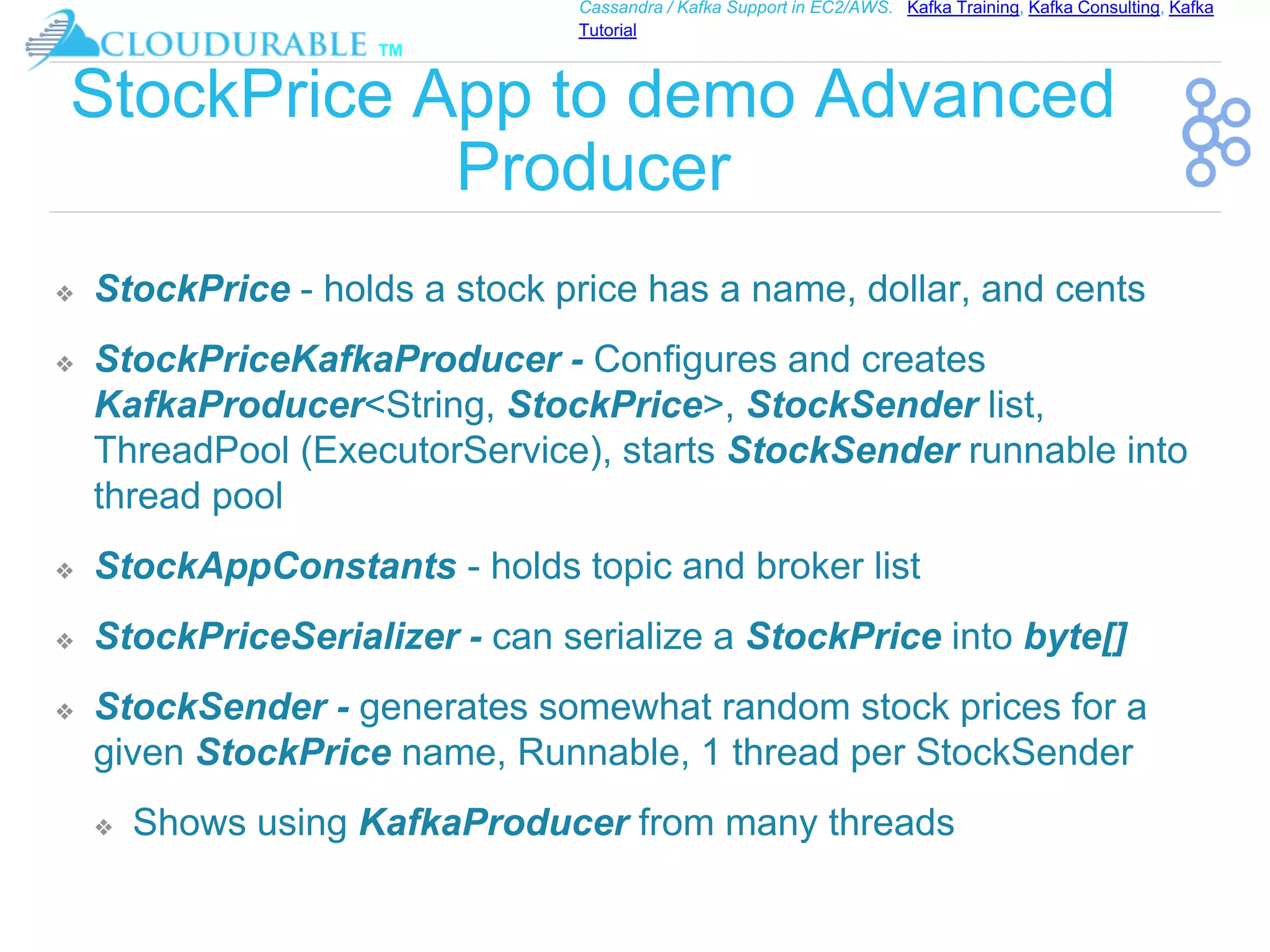

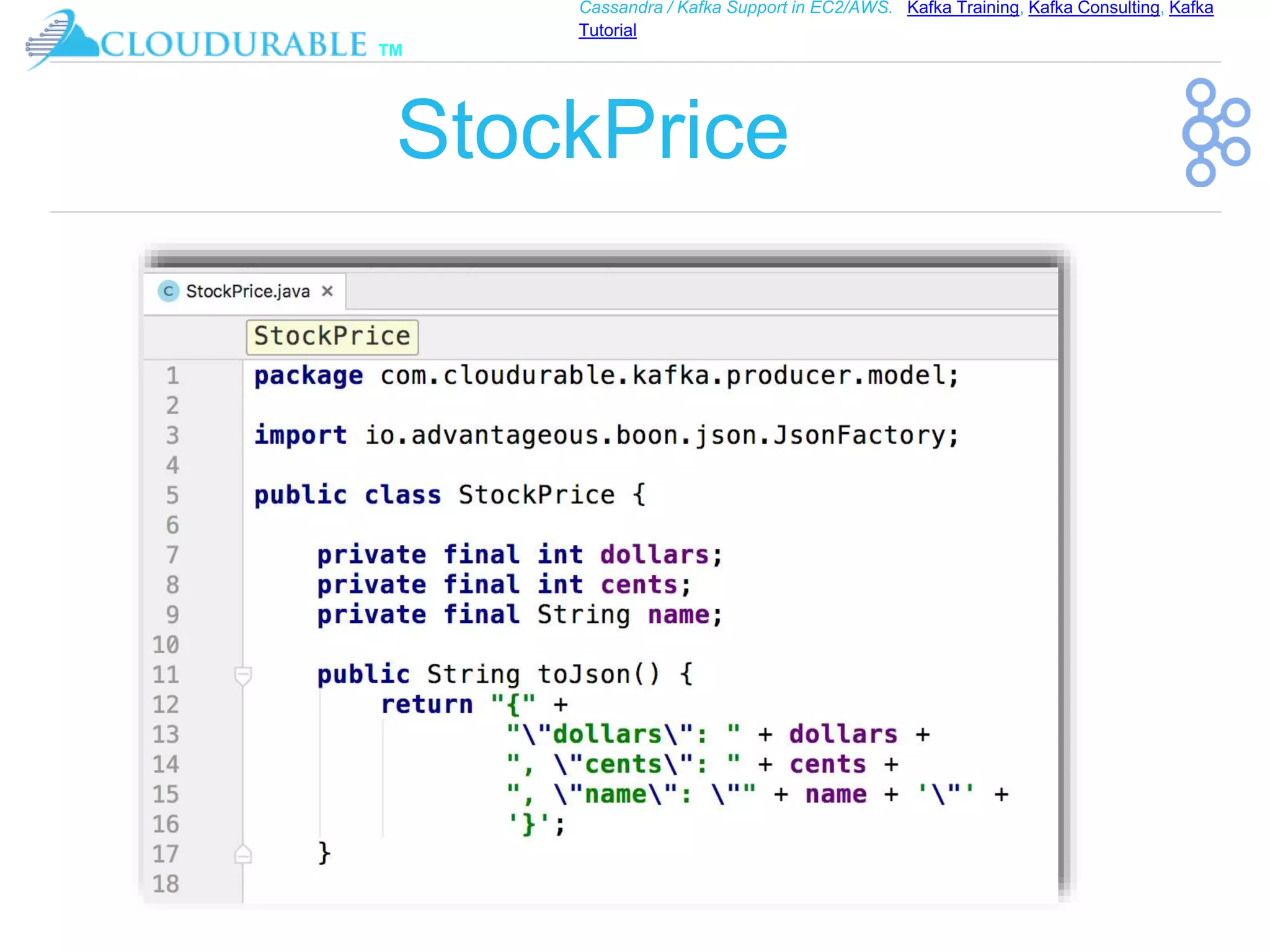

StockPrice

™
Tutorial

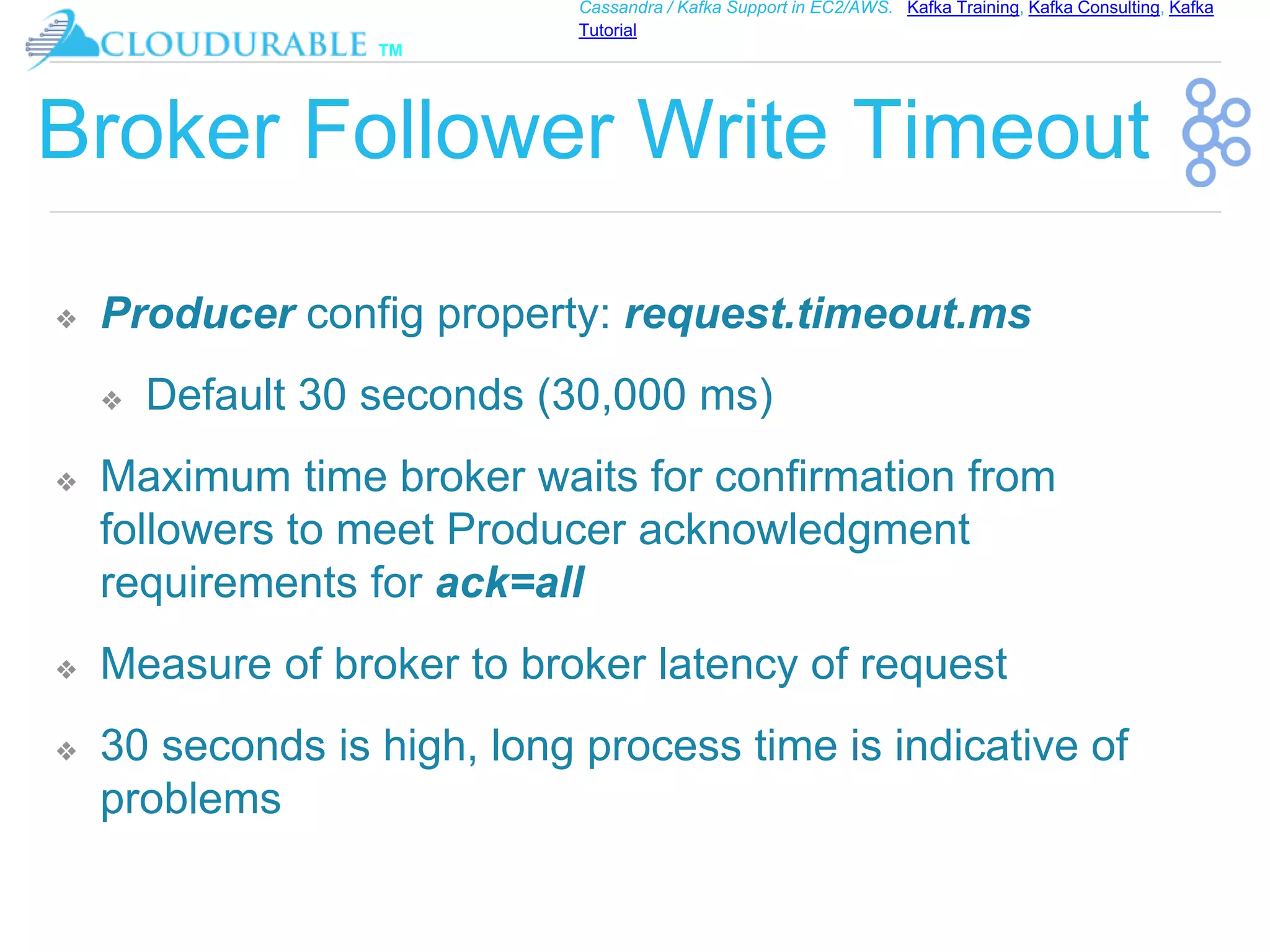

Broker Follower Write Timeout
❖ Producer config property: request.timeout.ms
❖ Default 30 seconds (30,000 ms)
❖ Maximum time broker waits for confirmation from
followers to meet Producer acknowledgment
requirements for ack=all
❖ Measure of broker to broker latency of request
❖ 30 seconds is high, long process time is indicative of
problems

™
Tutorial

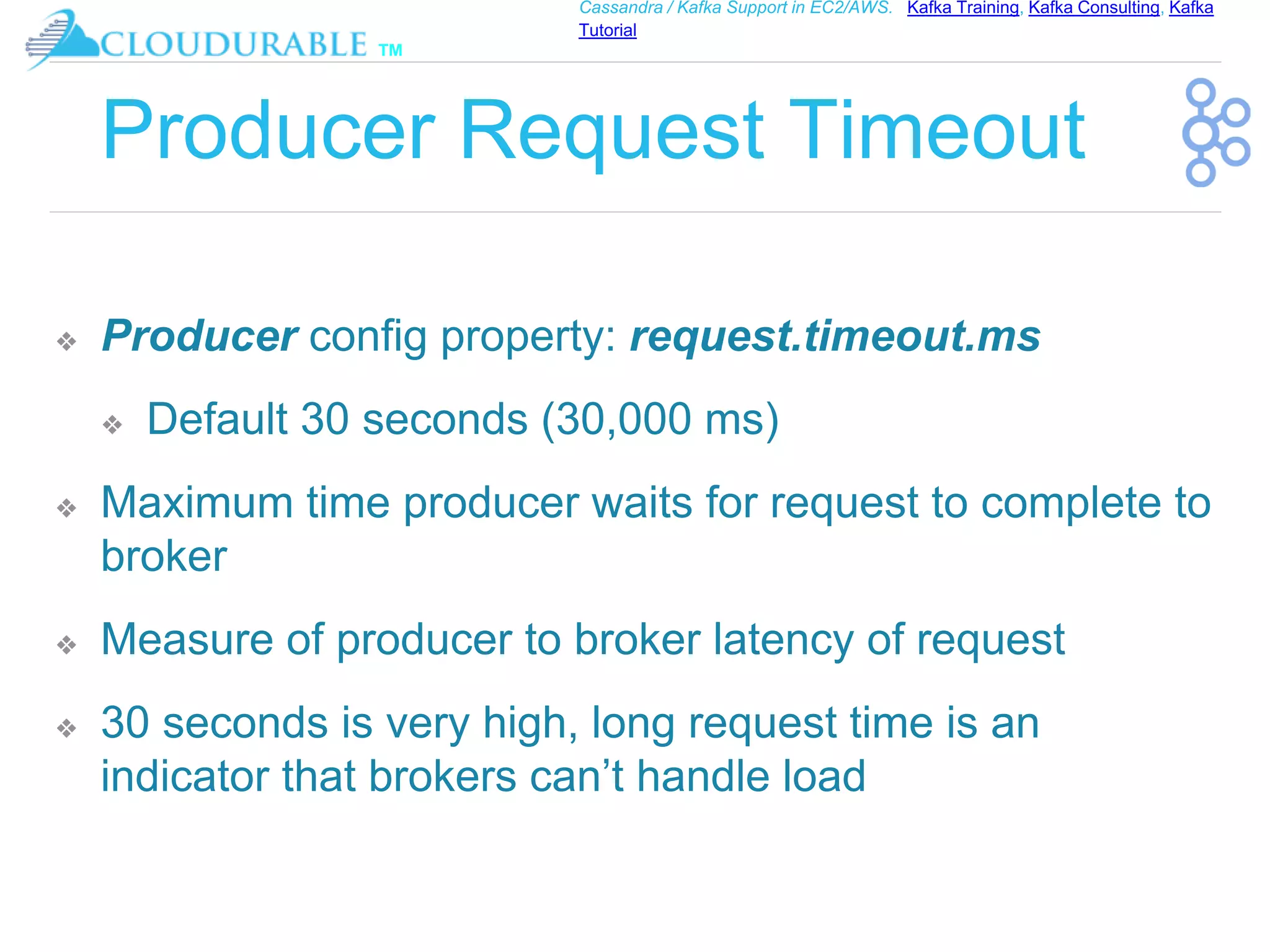

Producer Request Timeout
❖ Producer config property: request.timeout.ms
❖ Default 30 seconds (30,000 ms)
❖ Maximum time producer waits for request to complete to
broker
❖ Measure of producer to broker latency of request
❖ 30 seconds is very high, long request time is an
indicator that brokers can’t handle load

™
Tutorial

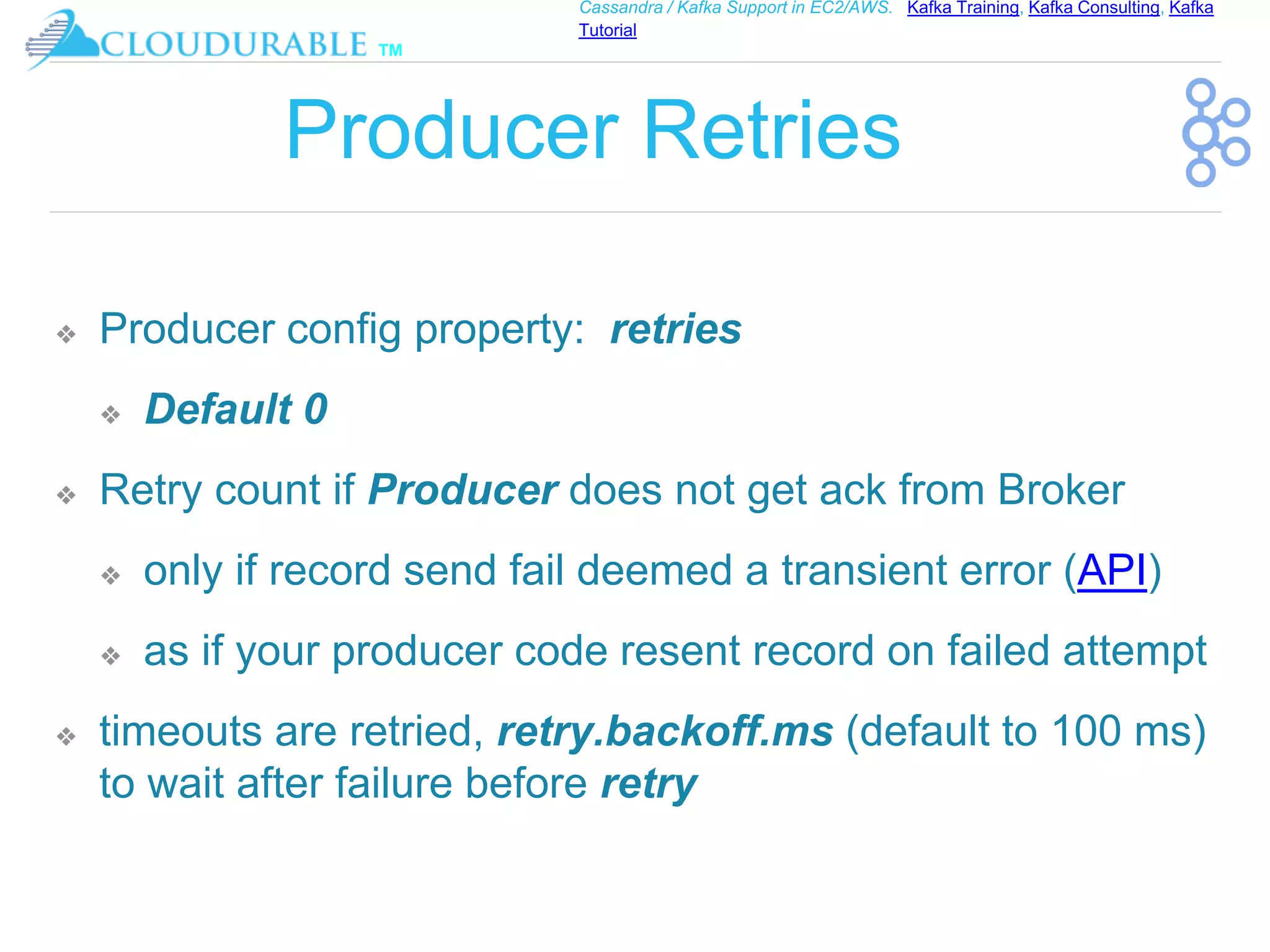

Producer Retries
❖ Producer config property: retries
❖ Default 0
❖ Retry count if Producer does not get ack from Broker
❖ only if record send fail deemed a transient error (API)
❖ as if your producer code resent record on failed attempt
❖ timeouts are retried, retry.backoff.ms (default to 100 ms)
to wait after failure before retry

™
Tutorial

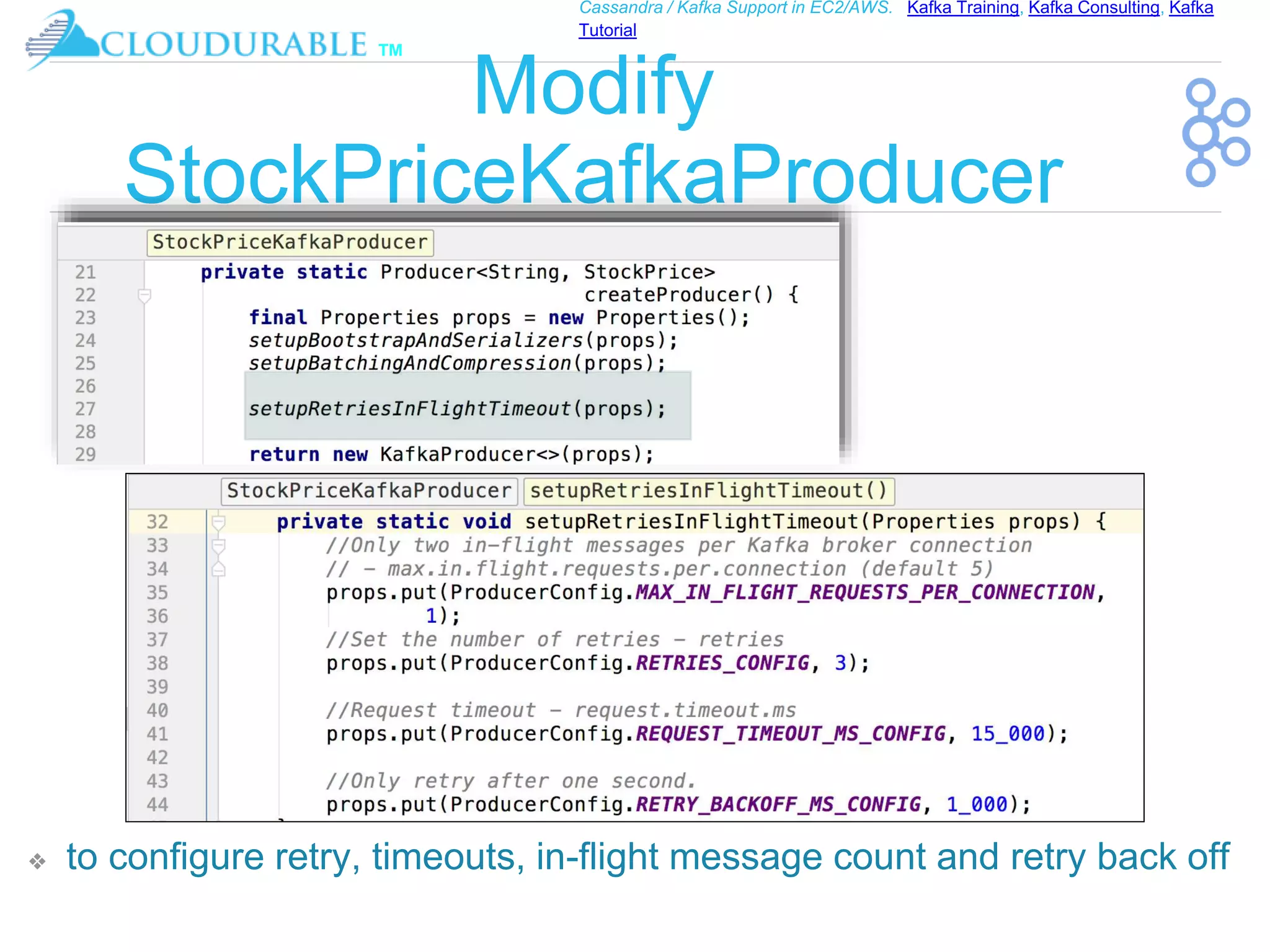

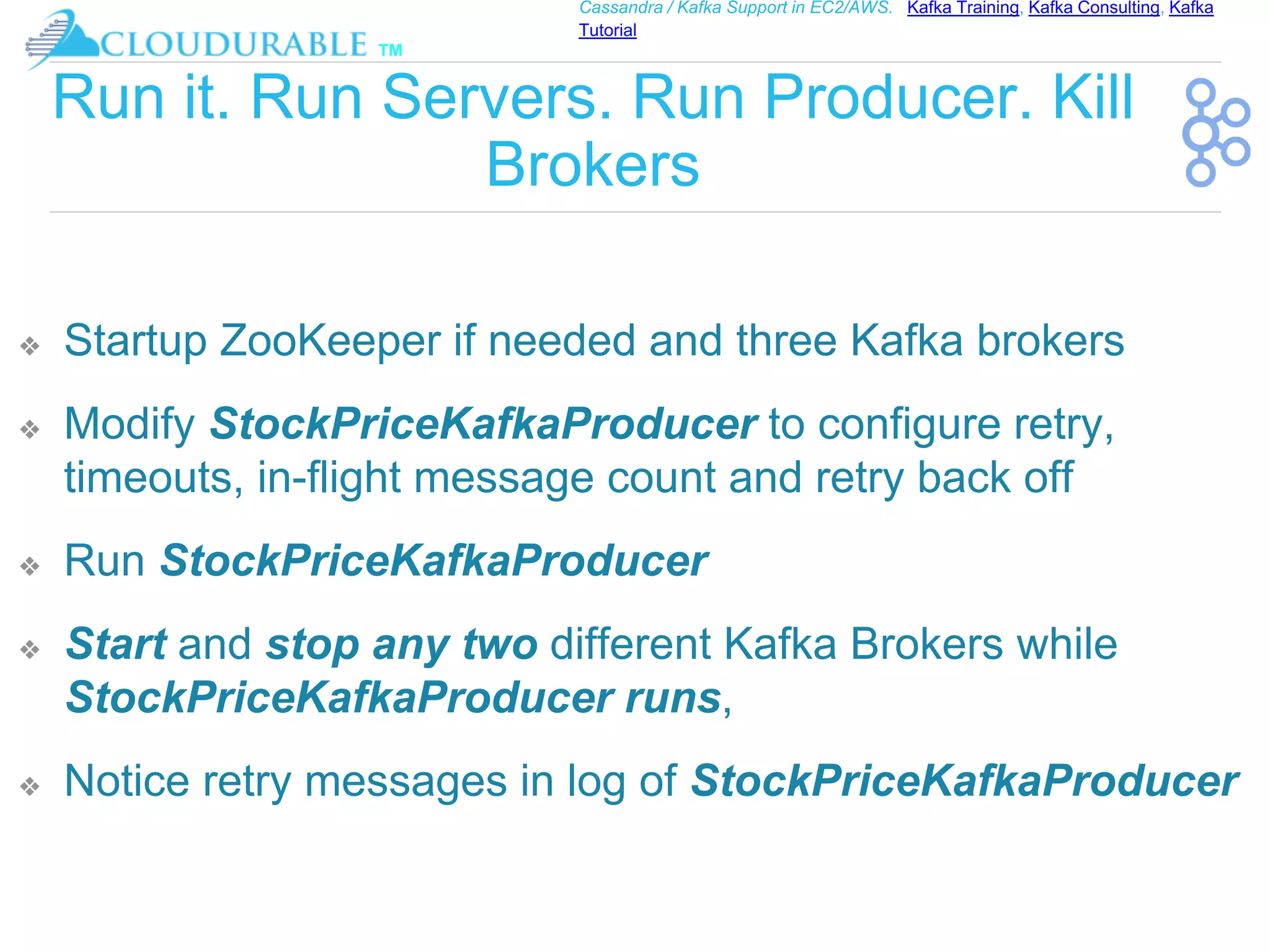

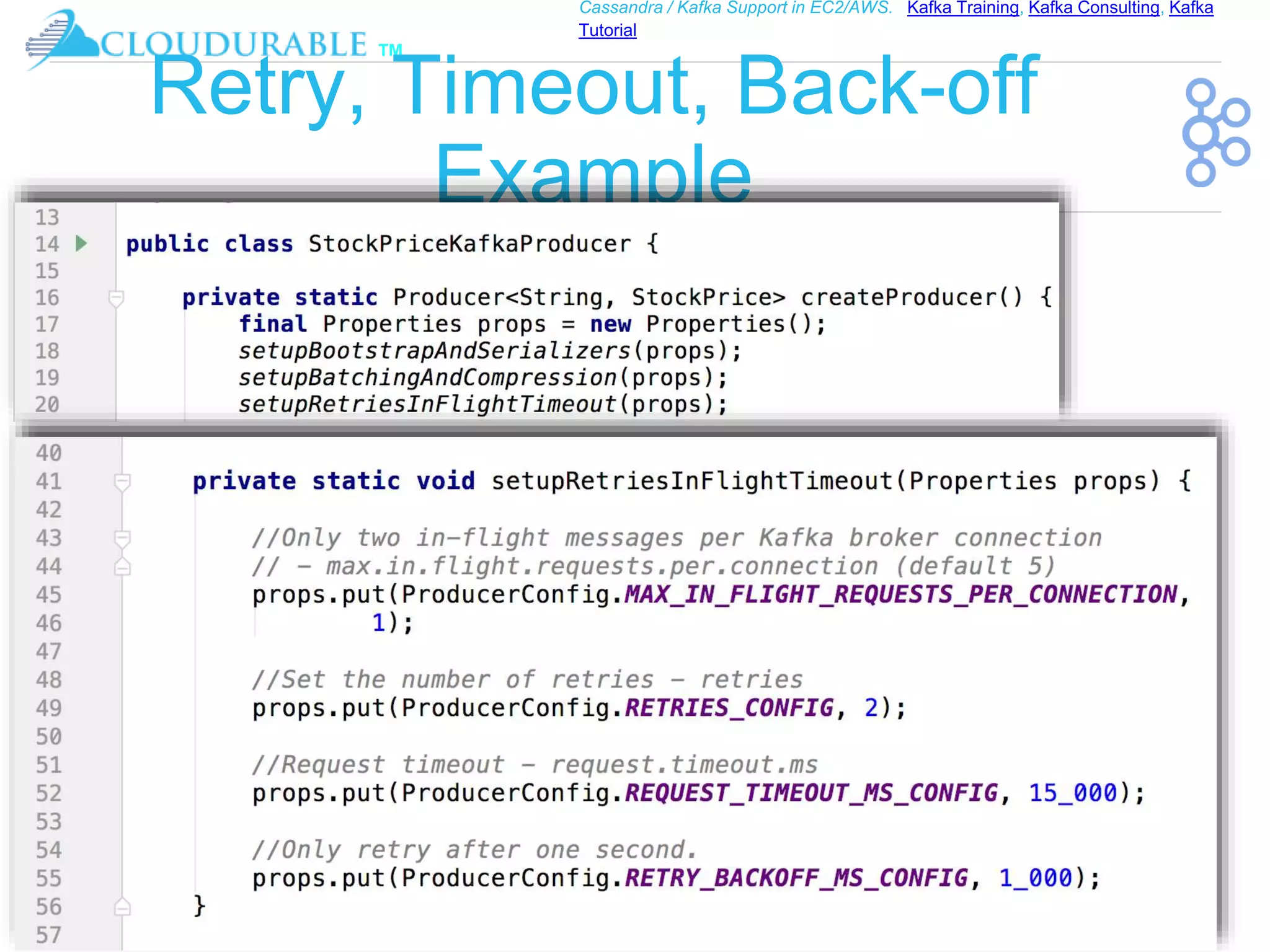

Retry, Timeout, Back-off
Example

™
Tutorial

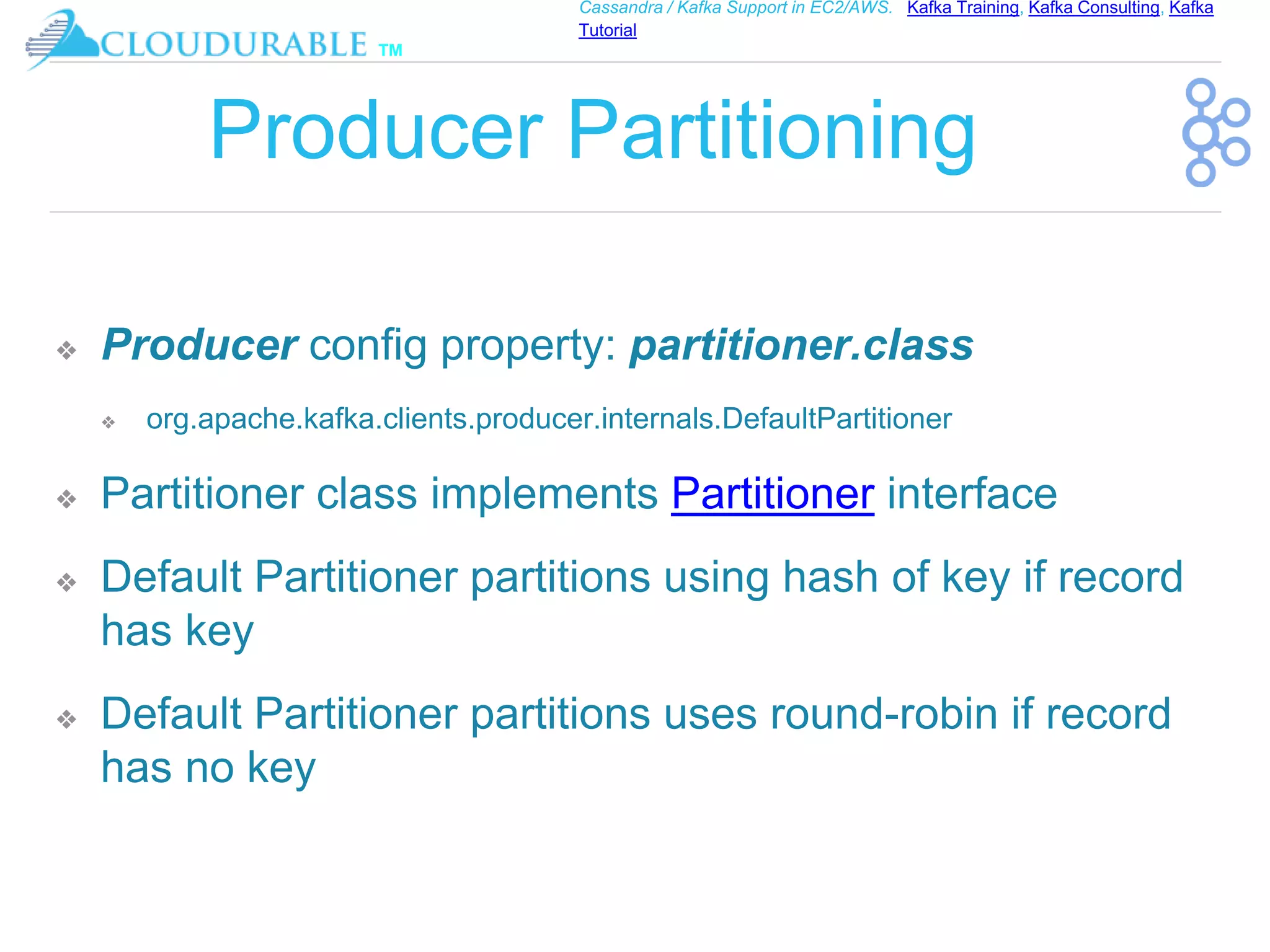

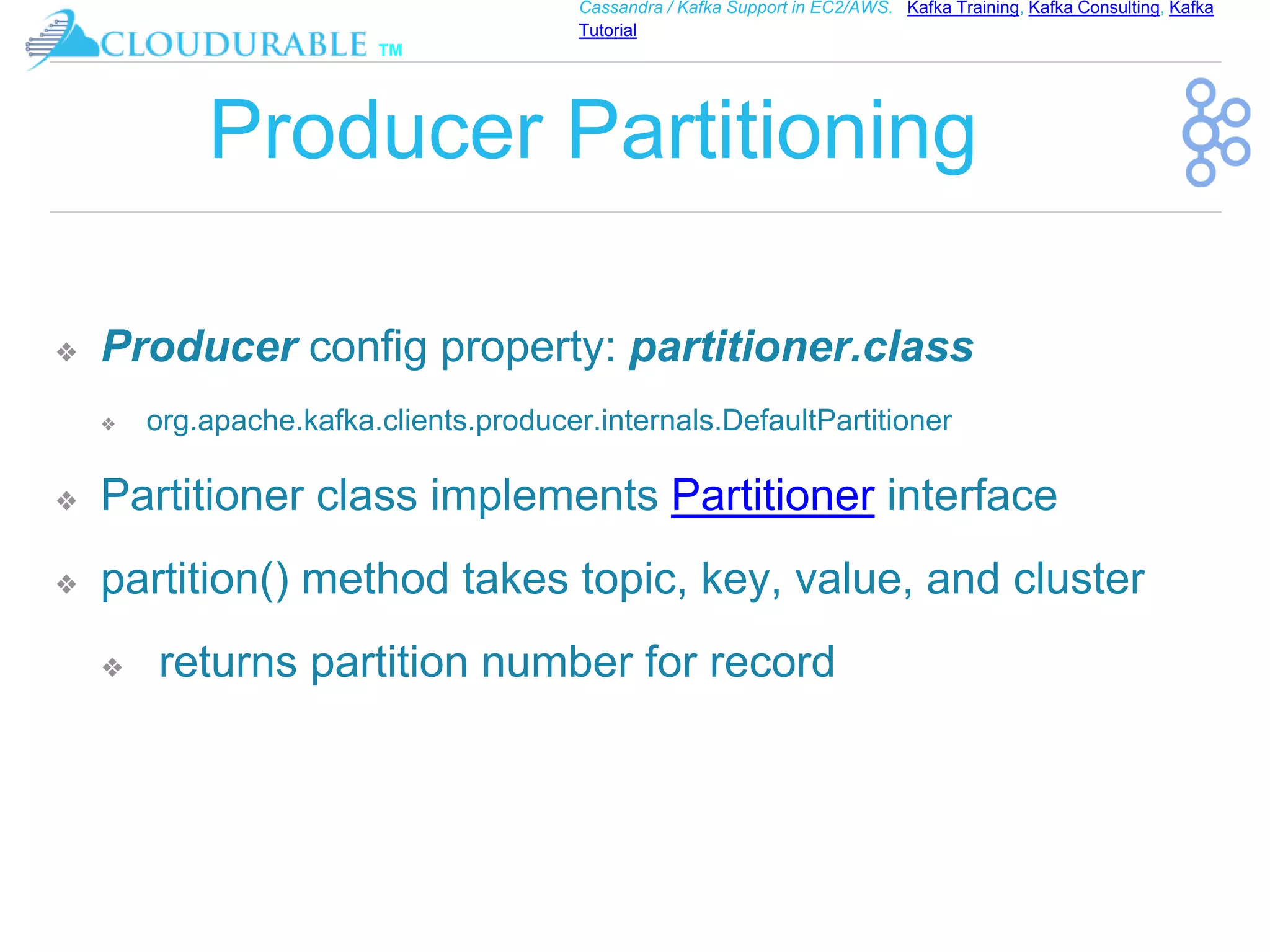

Producer Partitioning
❖ Producer config property: partitioner.class
❖ org.apache.kafka.clients.producer.internals.DefaultPartitioner
❖ Partitioner class implements Partitioner interface
❖ Default Partitioner partitions using hash of key if record
has key
❖ Default Partitioner partitions uses round-robin if record
has no key

™
Tutorial

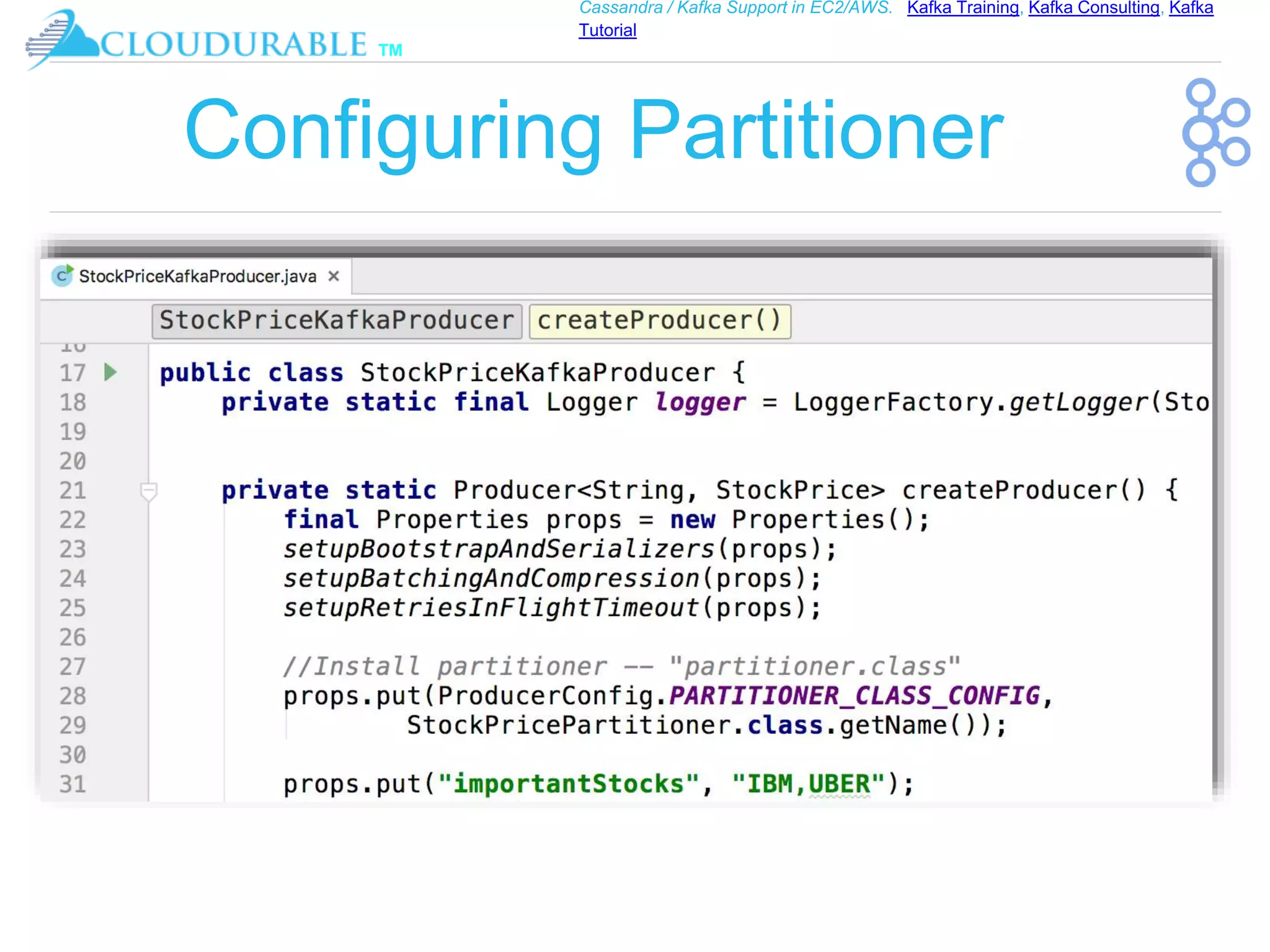

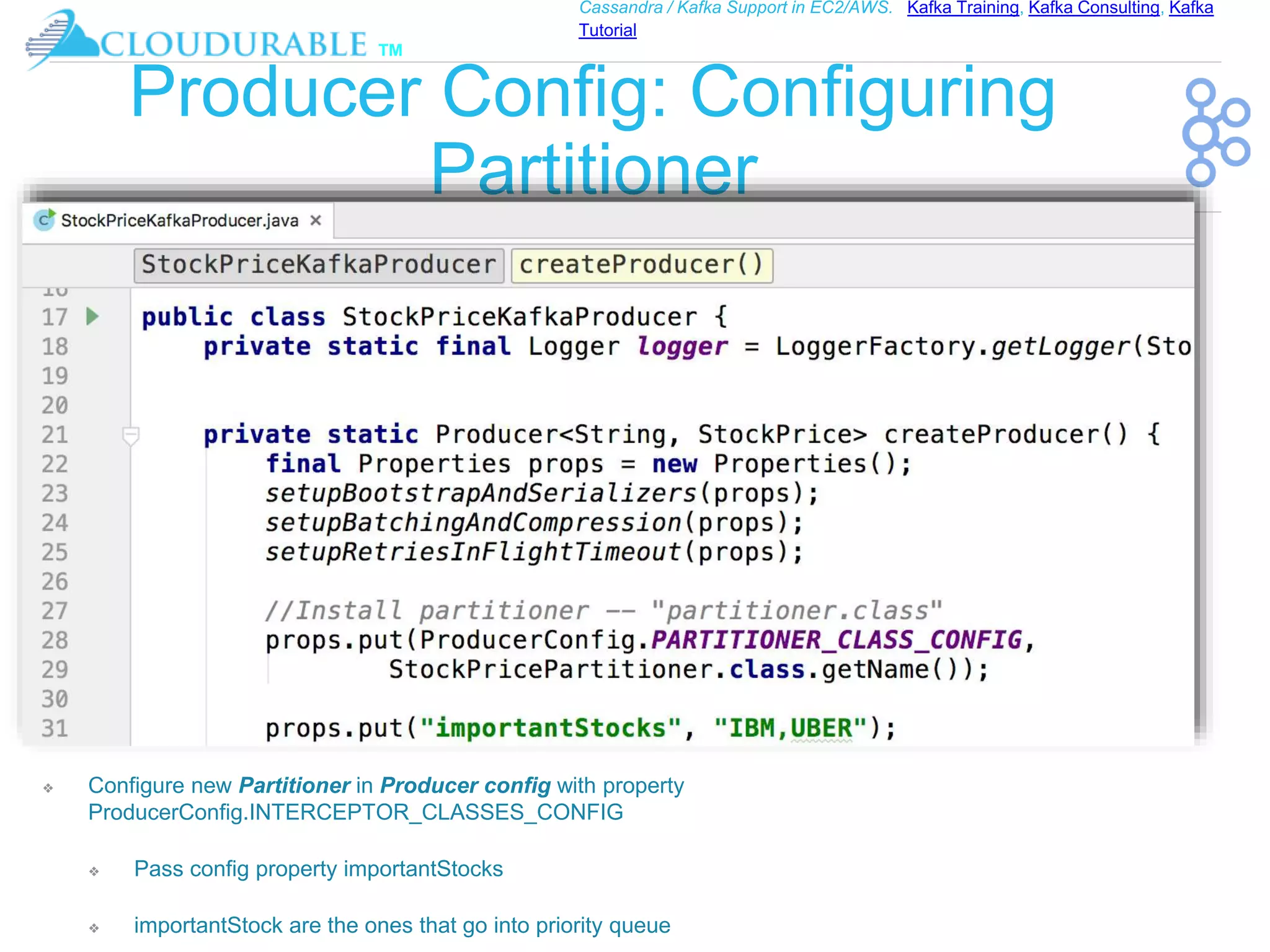

Configuring Partitioner

™
Tutorial

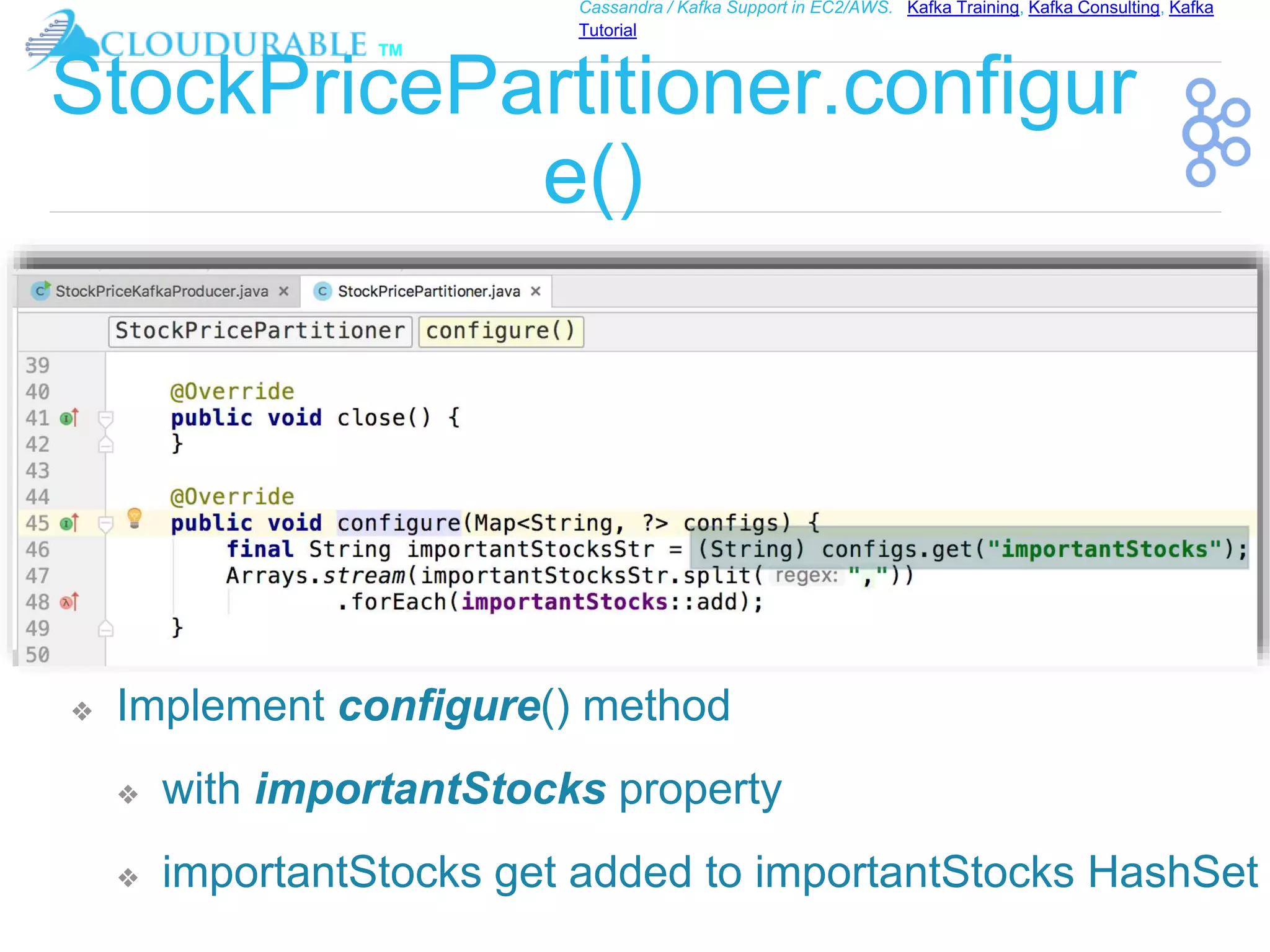

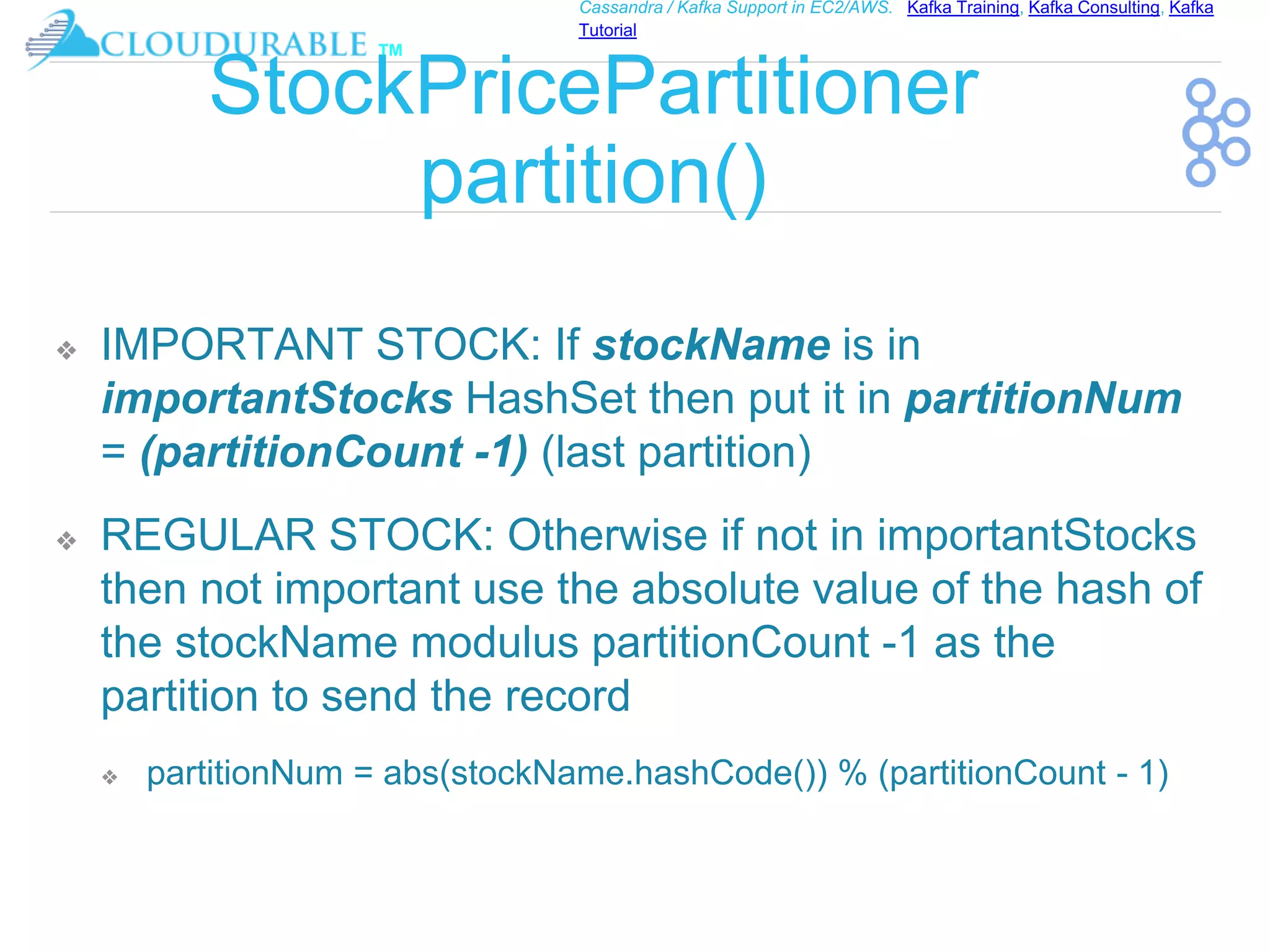

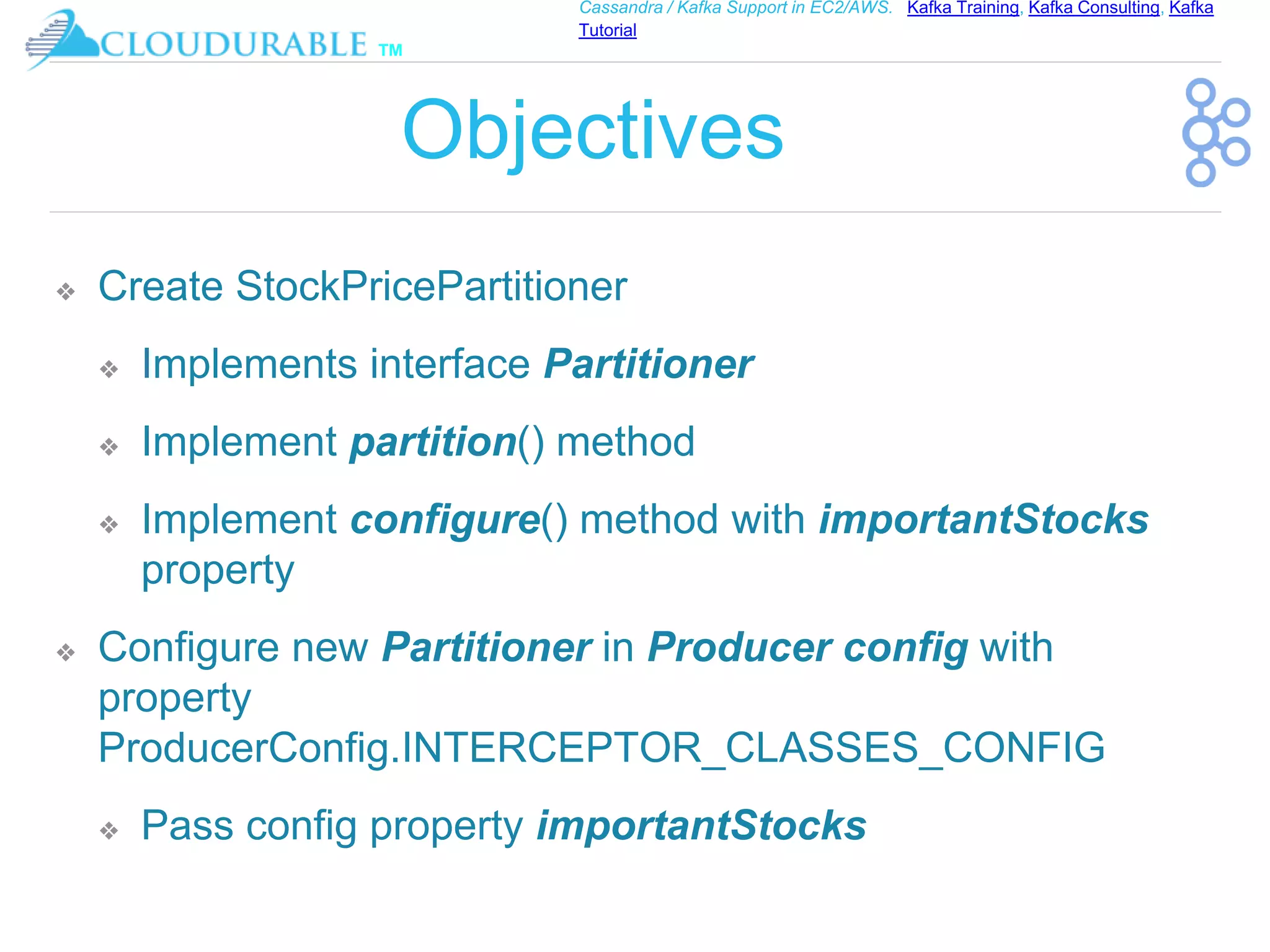

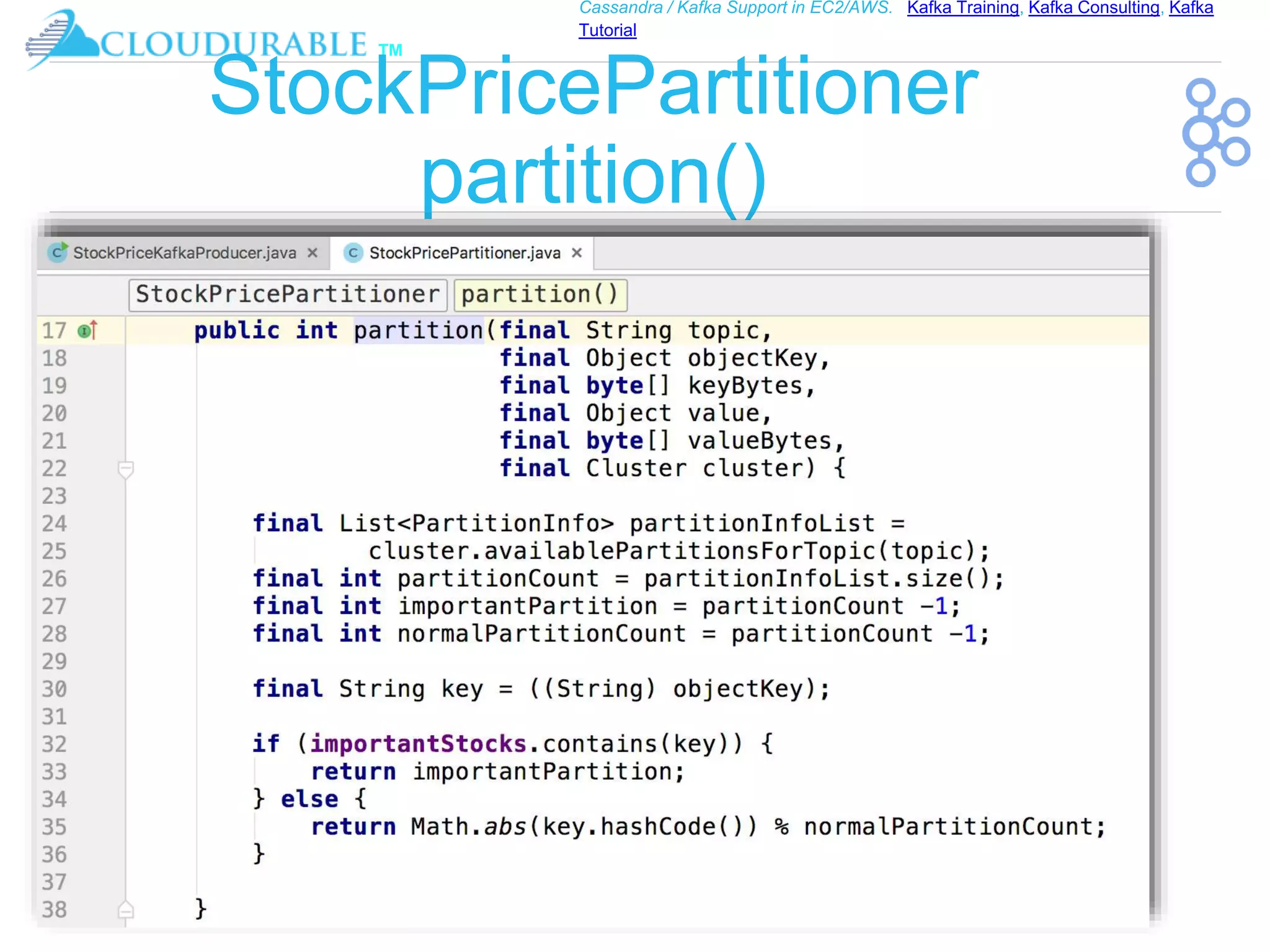

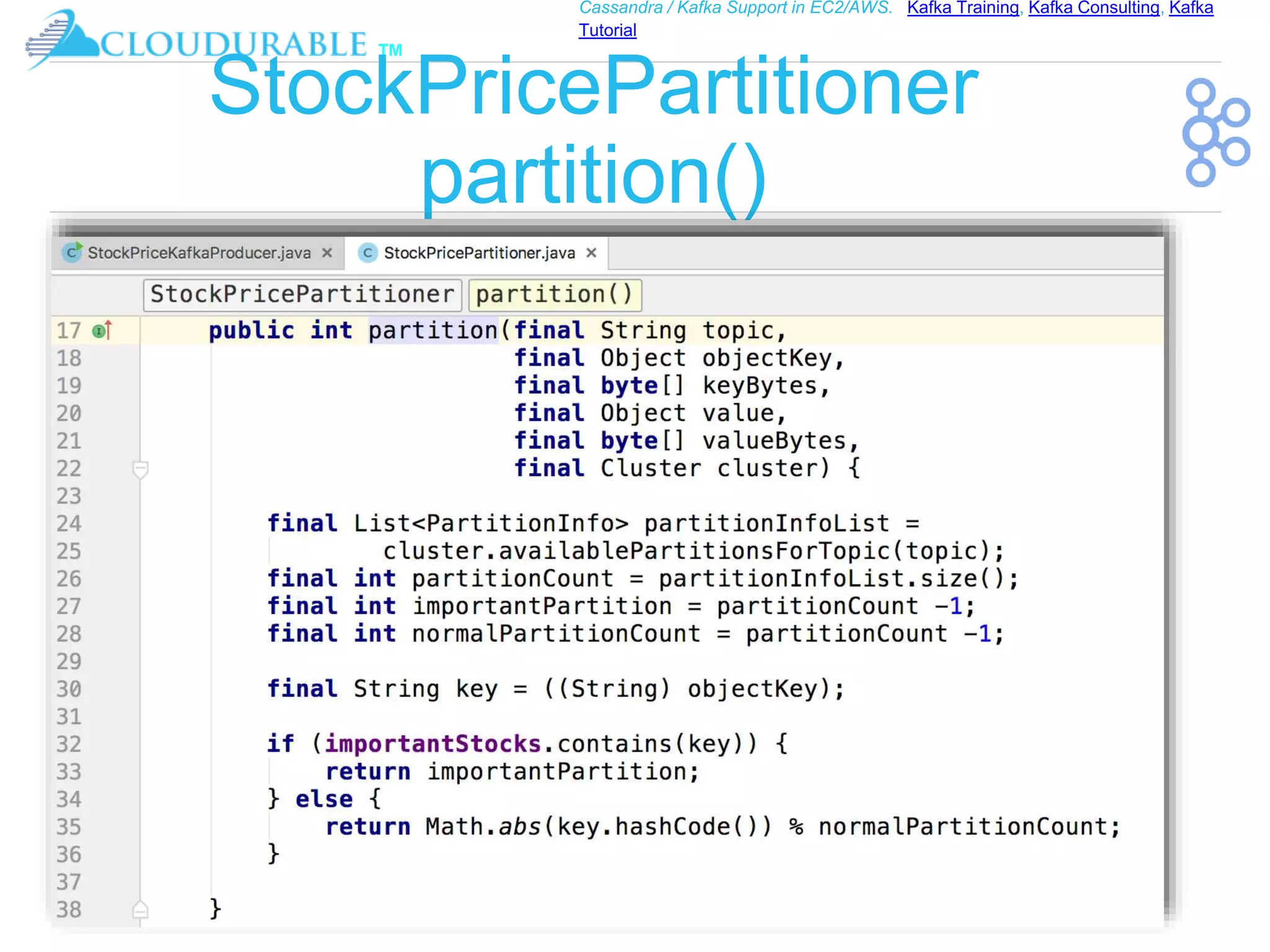

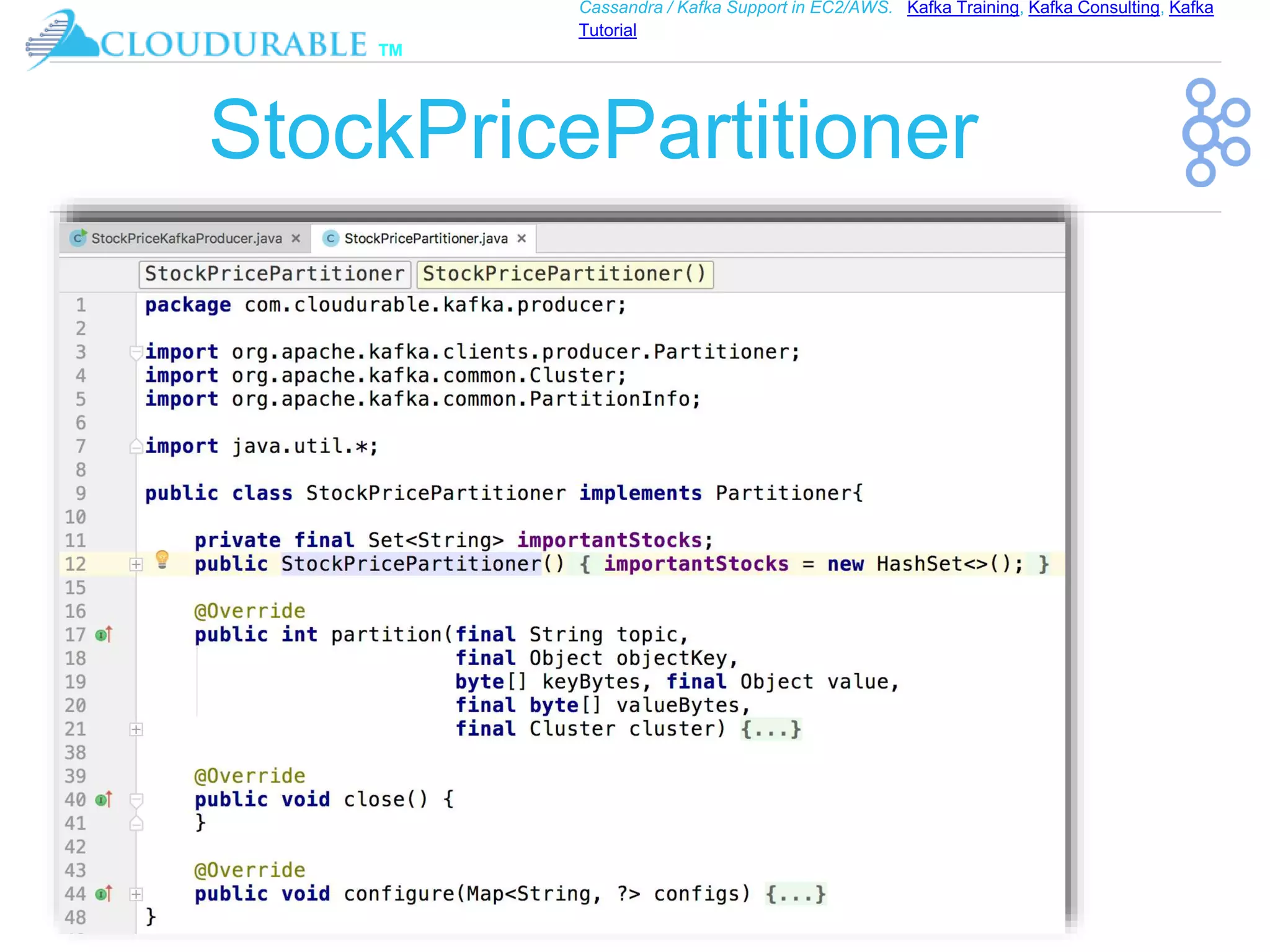

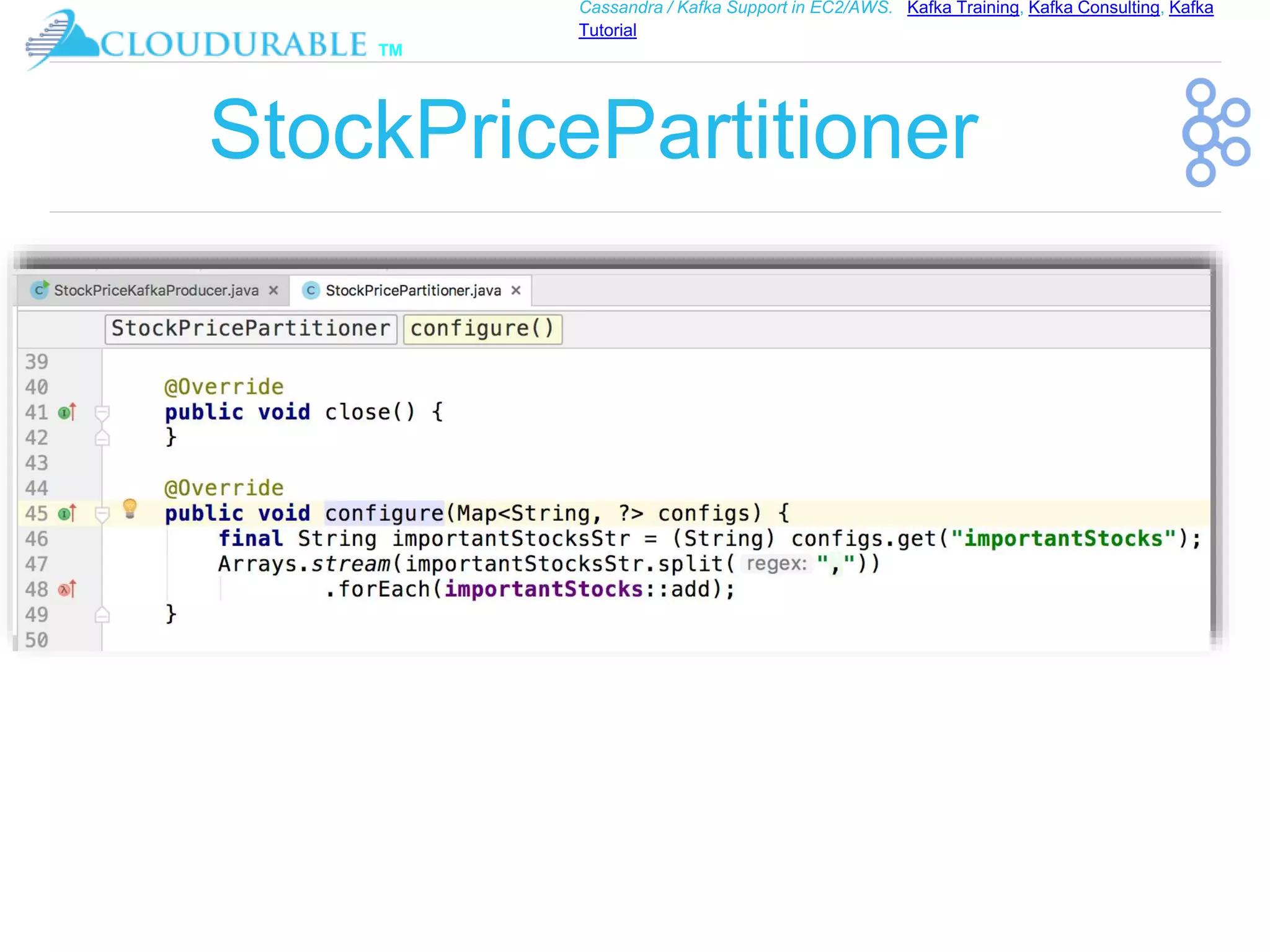

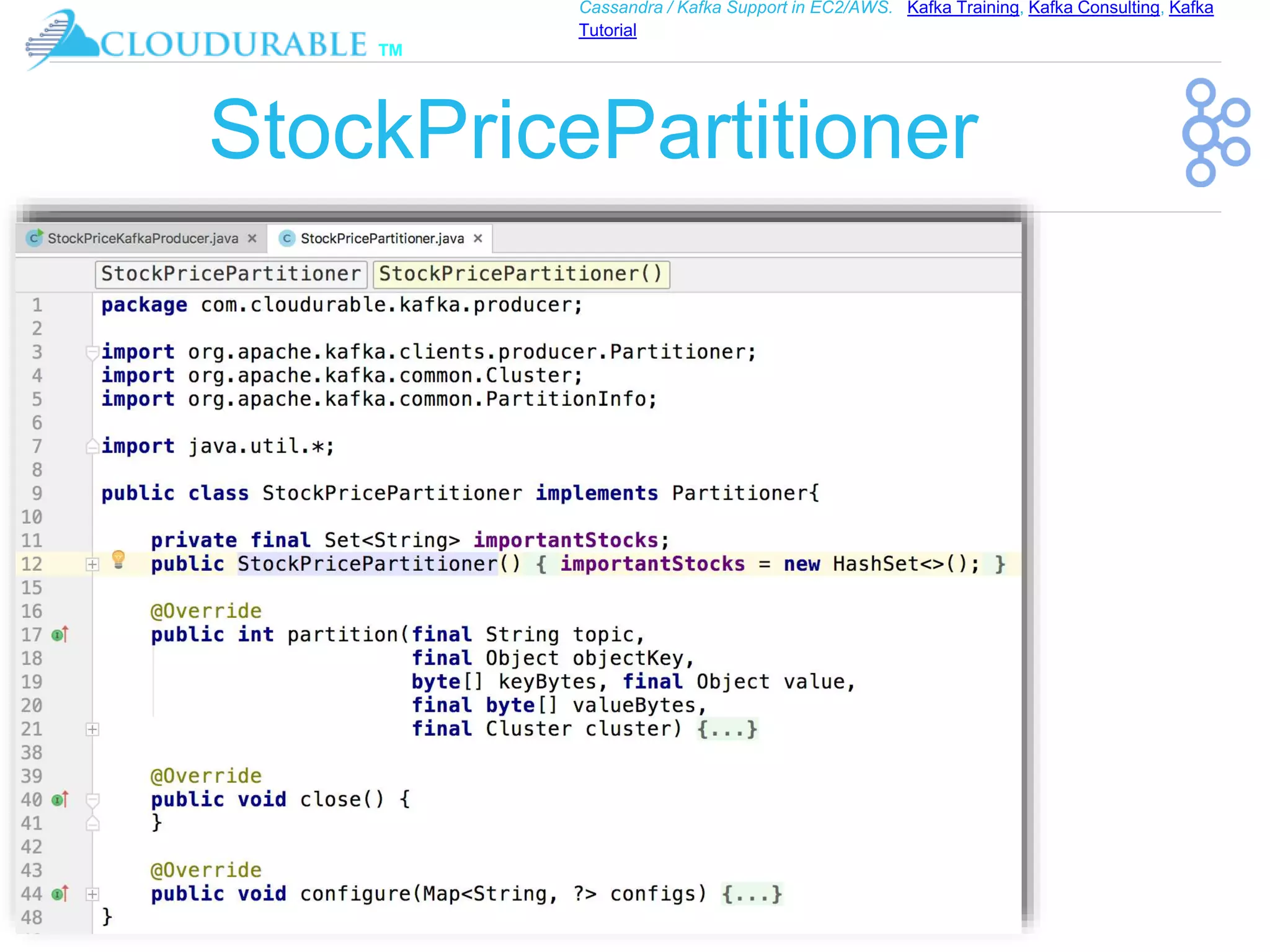

StockPricePartitioner

™
Tutorial
partition()

™
Tutorial

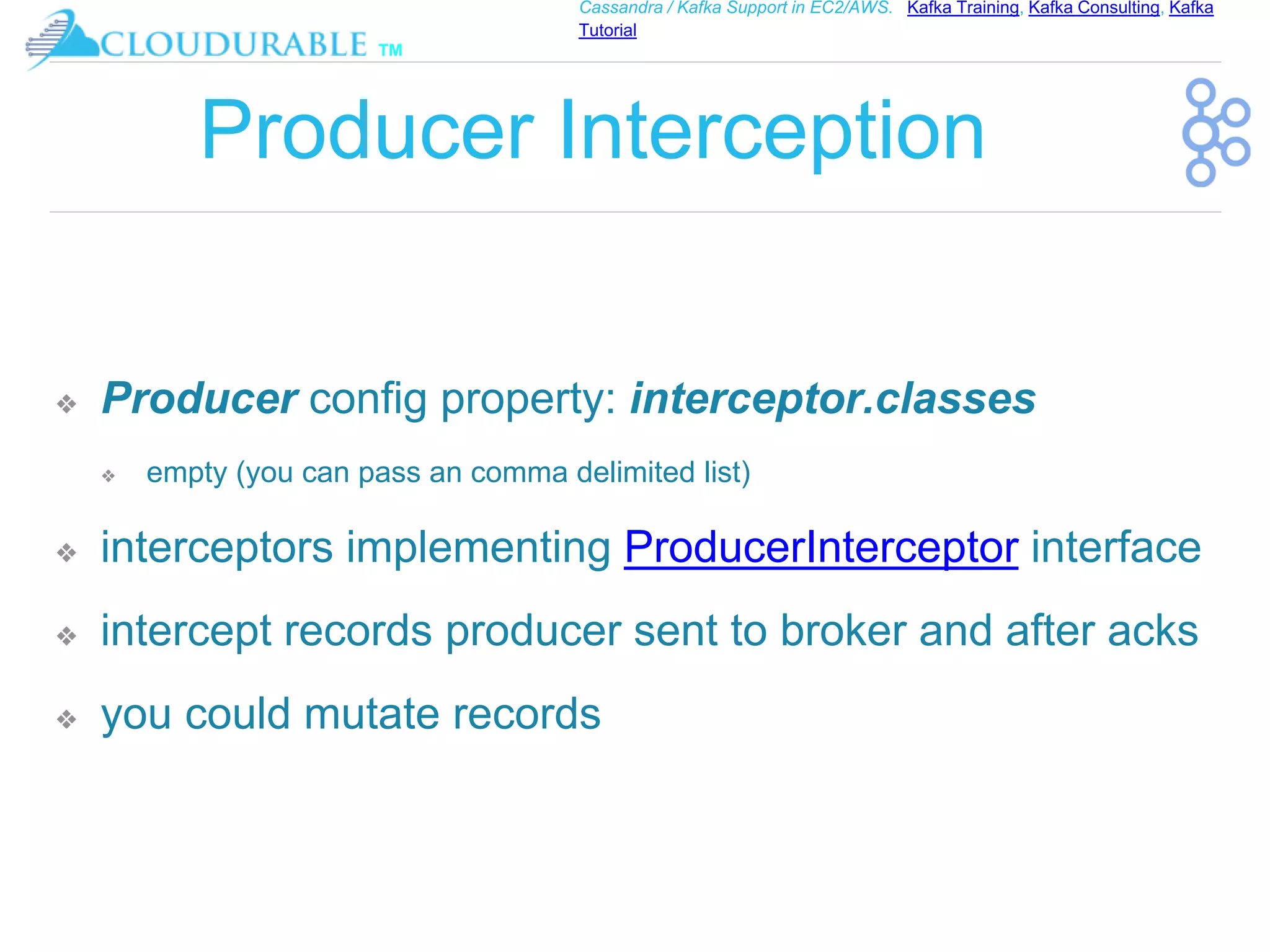

Producer Interception
❖ Producer config property: interceptor.classes
❖ empty (you can pass an comma delimited list)
❖ interceptors implementing ProducerInterceptor interface
❖ intercept records producer sent to broker and after acks
❖ you could mutate records

™
Tutorial

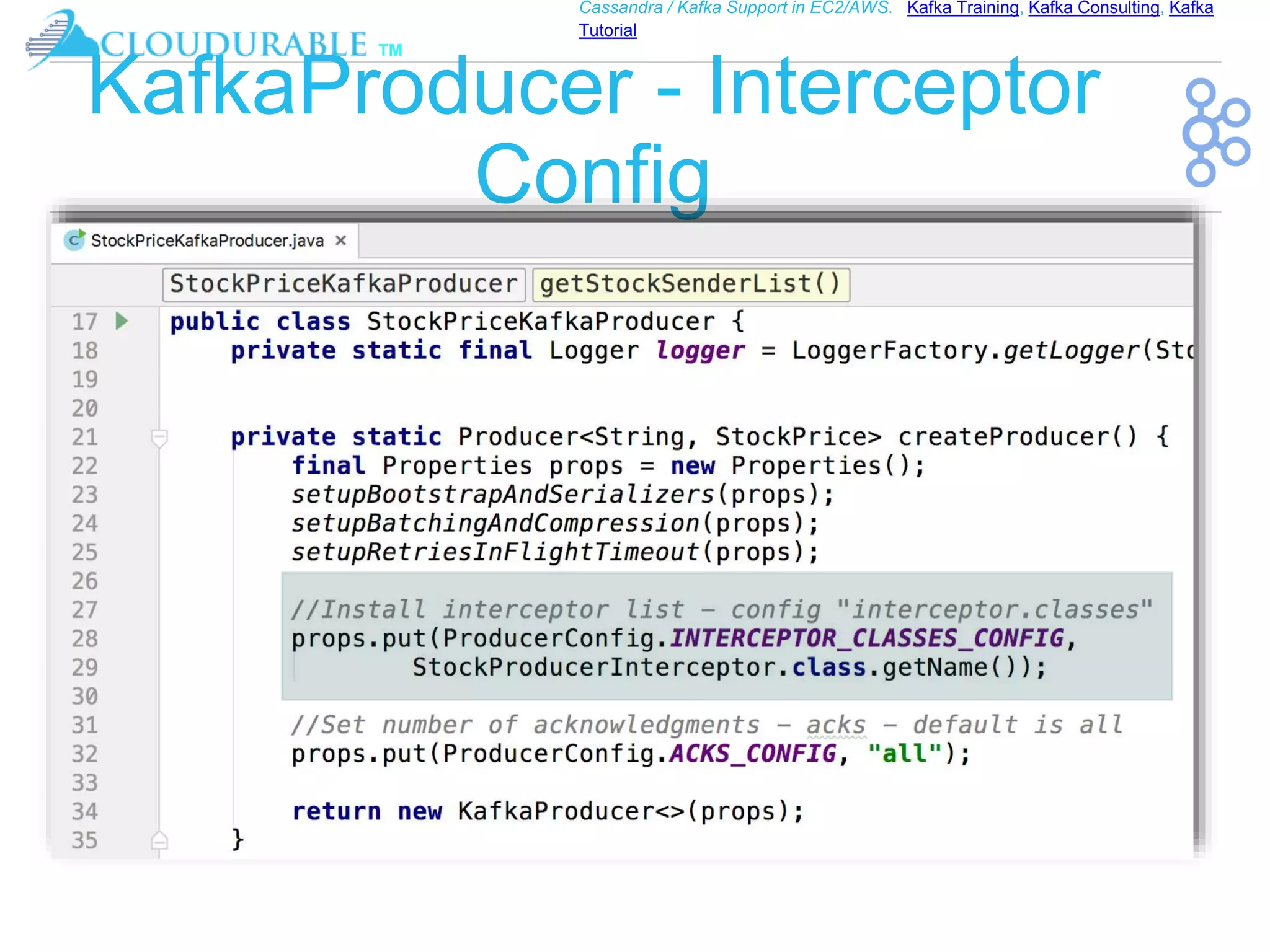

KafkaProducer - Interceptor
Config

™
Tutorial

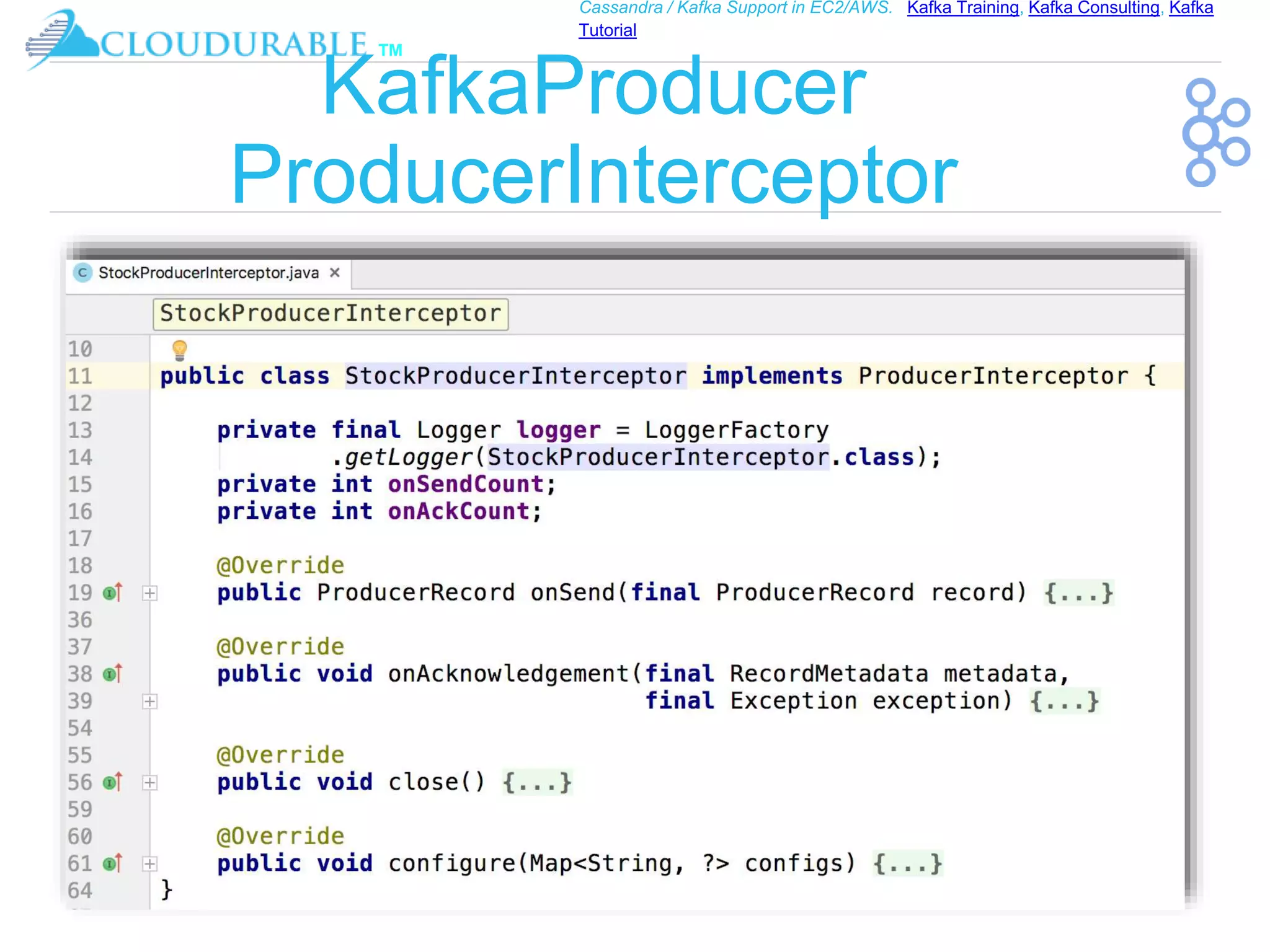

KafkaProducer
ProducerInterceptor

™

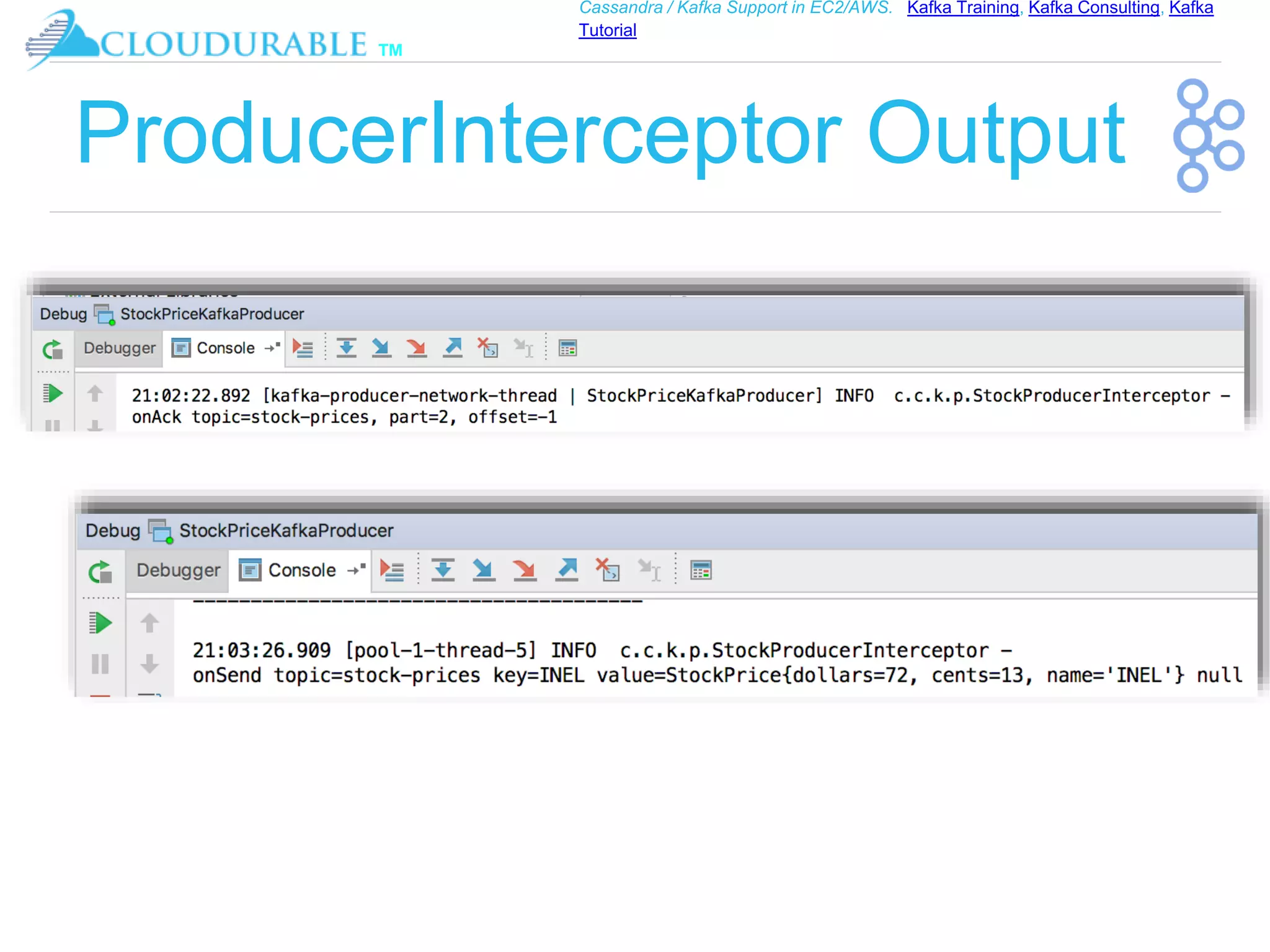

Tutorial

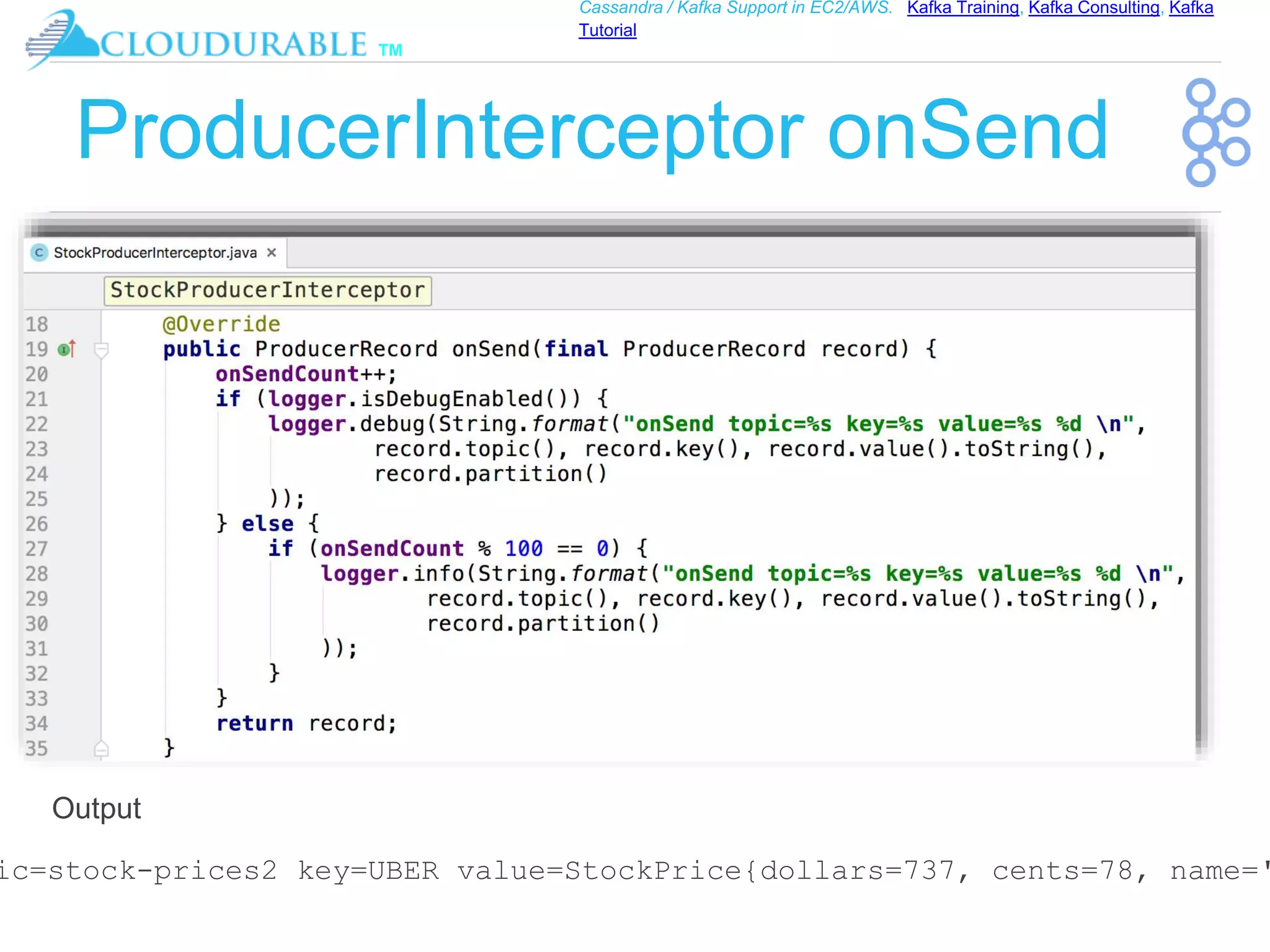

ProducerInterceptor onSend
ic=stock-prices2 key=UBER value=StockPrice{dollars=737, cents=78, name='
Output

™
Tutorial

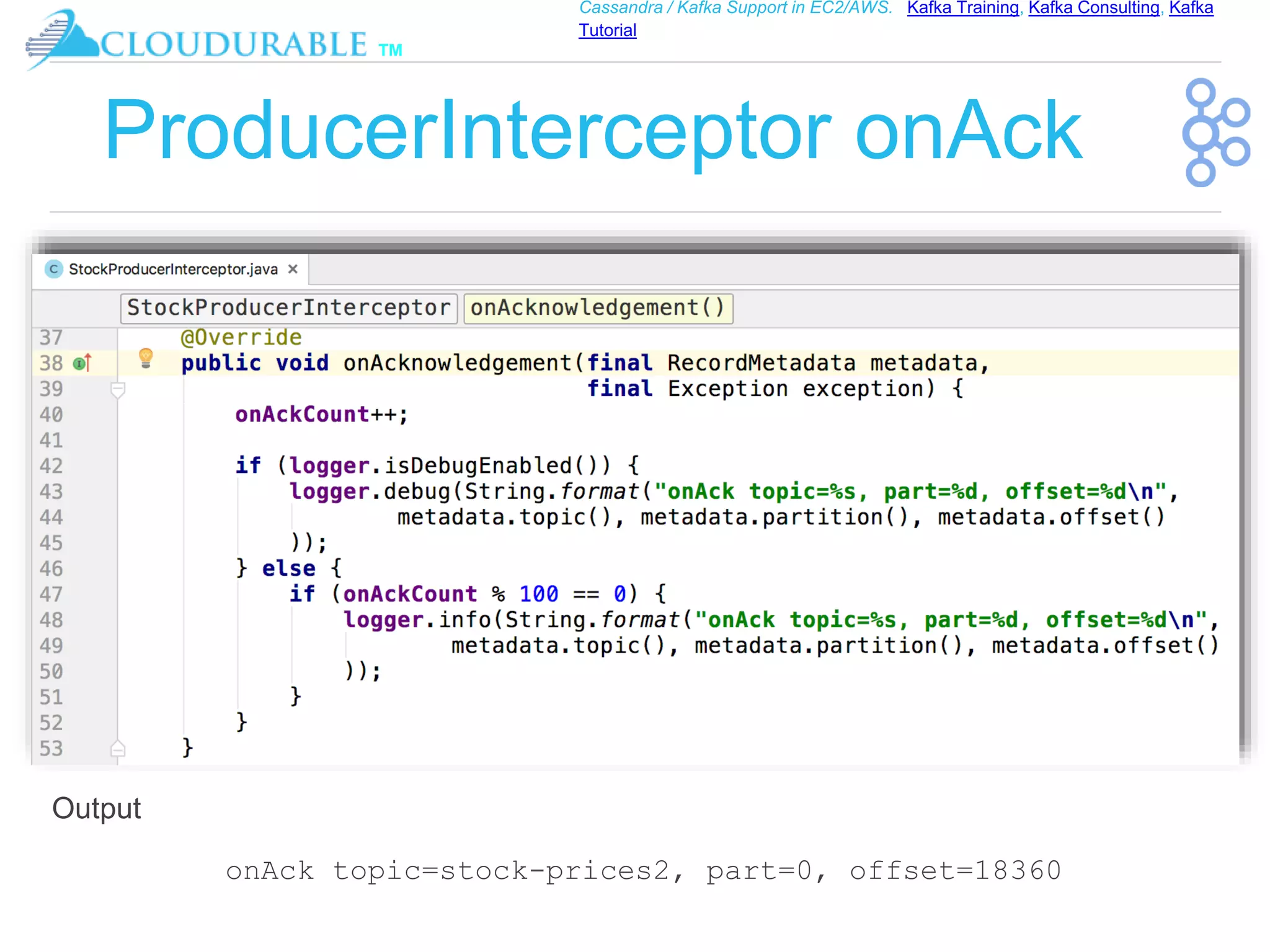

ProducerInterceptor onAck
onAck topic=stock-prices2, part=0, offset=18360
Output

™
Tutorial

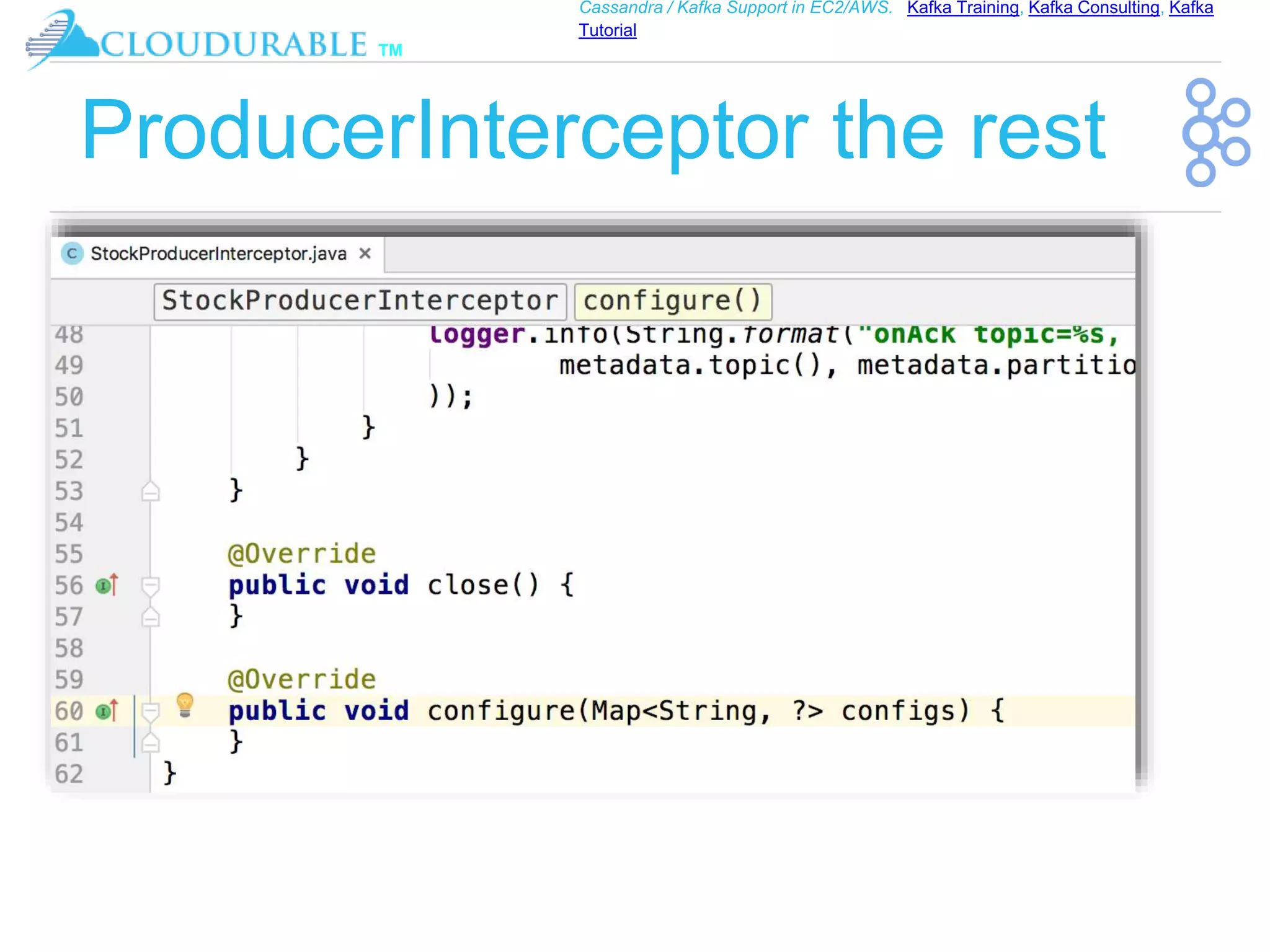

ProducerInterceptor the rest

™
Tutorial

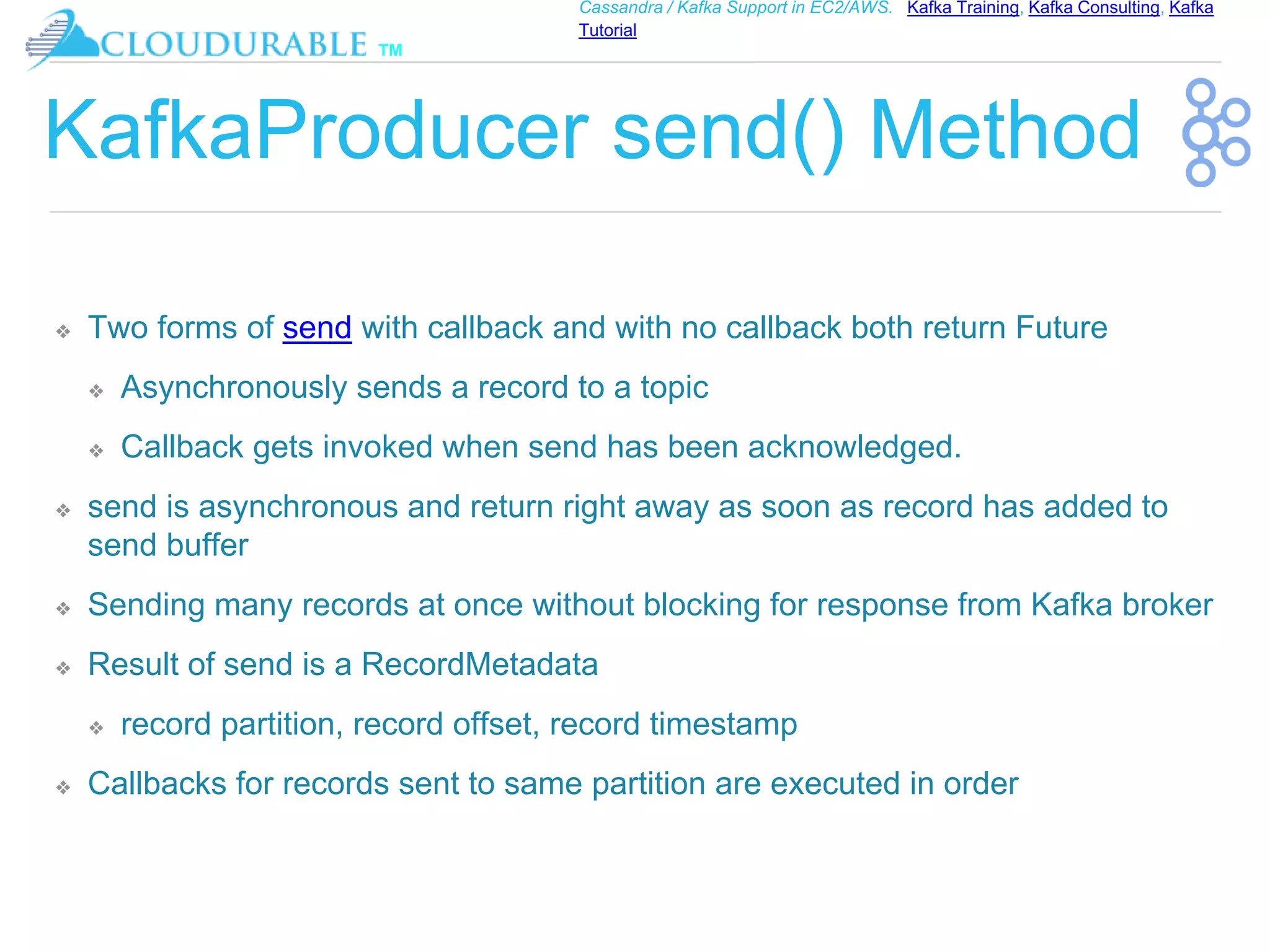

KafkaProducer send() Method
❖ Two forms of send with callback and with no callback both return Future
❖ Asynchronously sends a record to a topic
❖ Callback gets invoked when send has been acknowledged.
❖ send is asynchronous and return right away as soon as record has added to
send buffer
❖ Sending many records at once without blocking for response from Kafka broker
❖ Result of send is a RecordMetadata
❖ record partition, record offset, record timestamp
❖ Callbacks for records sent to same partition are executed in order

™
Tutorial

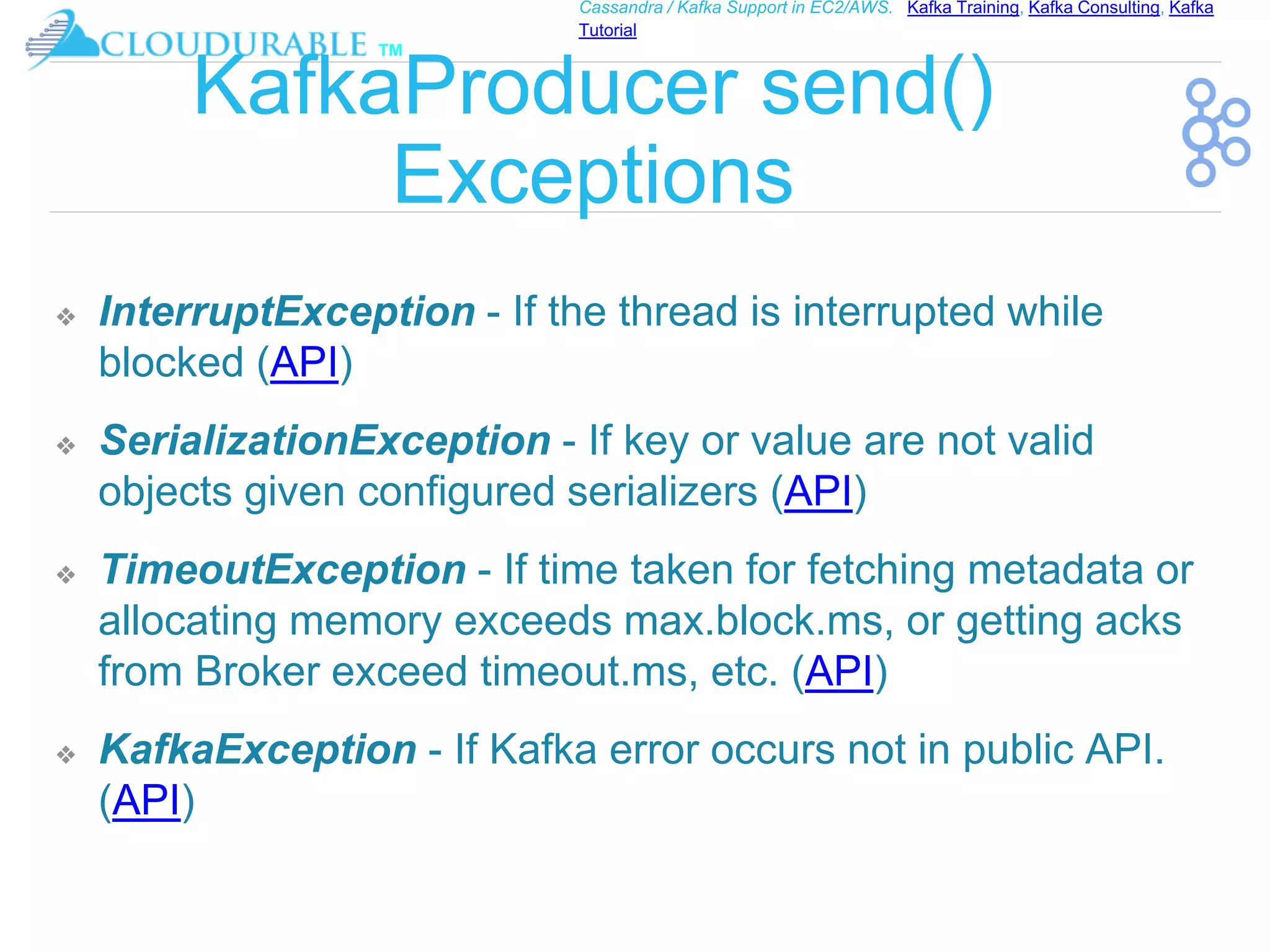

KafkaProducer send()
Exceptions
❖ InterruptException - If the thread is interrupted while
blocked (API)
❖ SerializationException - If key or value are not valid
objects given configured serializers (API)
❖ TimeoutException - If time taken for fetching metadata or
allocating memory exceeds max.block.ms, or getting acks
from Broker exceed timeout.ms, etc. (API)
❖ KafkaException - If Kafka error occurs not in public API.
(API)

™
Tutorial

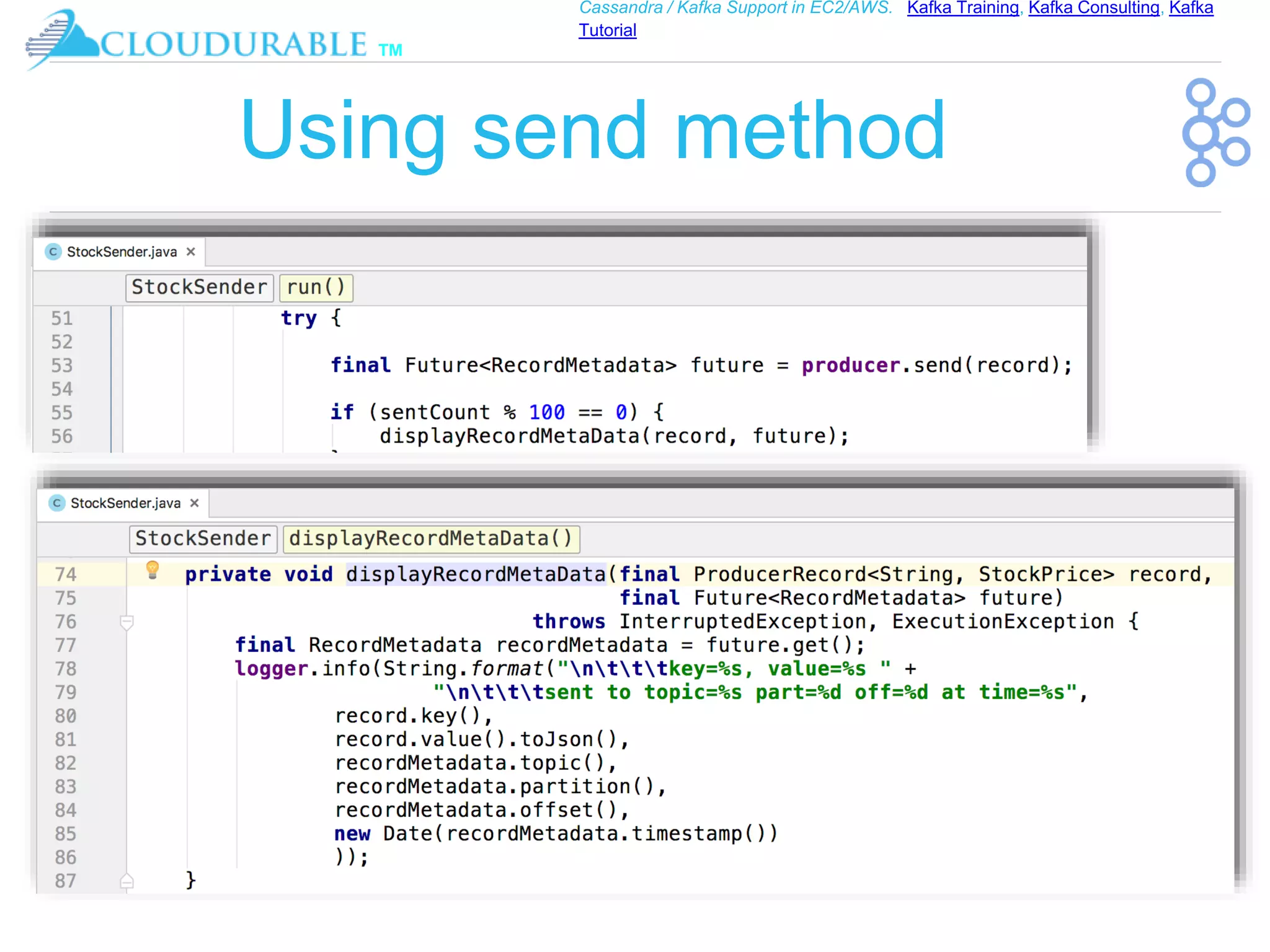

Using send method

™
Tutorial

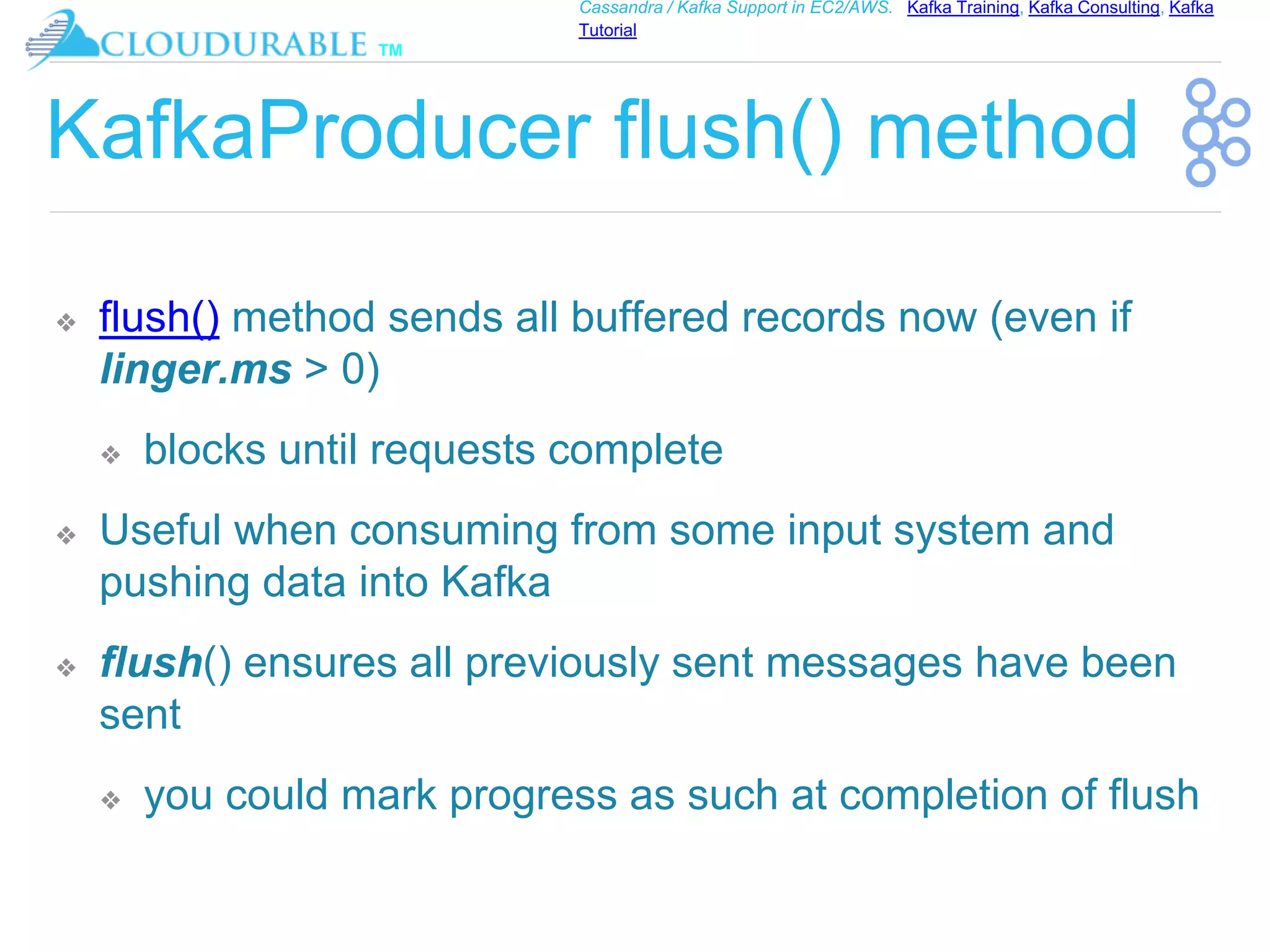

KafkaProducer flush() method
❖ flush() method sends all buffered records now (even if
linger.ms > 0)
❖ blocks until requests complete
❖ Useful when consuming from some input system and
pushing data into Kafka
❖ flush() ensures all previously sent messages have been
sent
❖ you could mark progress as such at completion of flush

™
Tutorial

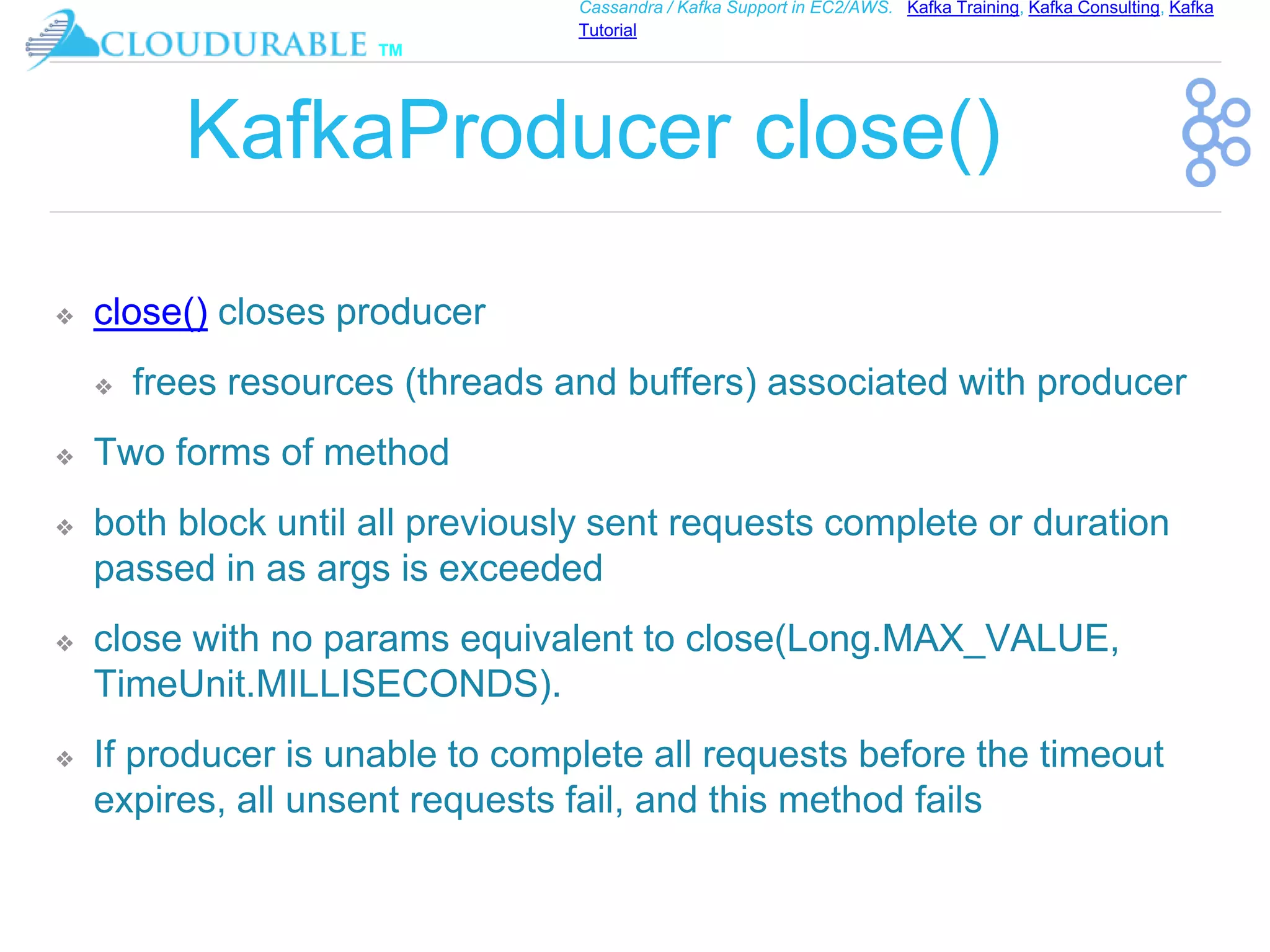

KafkaProducer close()
❖ close() closes producer
❖ frees resources (threads and buffers) associated with producer
❖ Two forms of method
❖ both block until all previously sent requests complete or duration
passed in as args is exceeded
❖ close with no params equivalent to close(Long.MAX_VALUE,
TimeUnit.MILLISECONDS).
❖ If producer is unable to complete all requests before the timeout
expires, all unsent requests fail, and this method fails

™
Tutorial

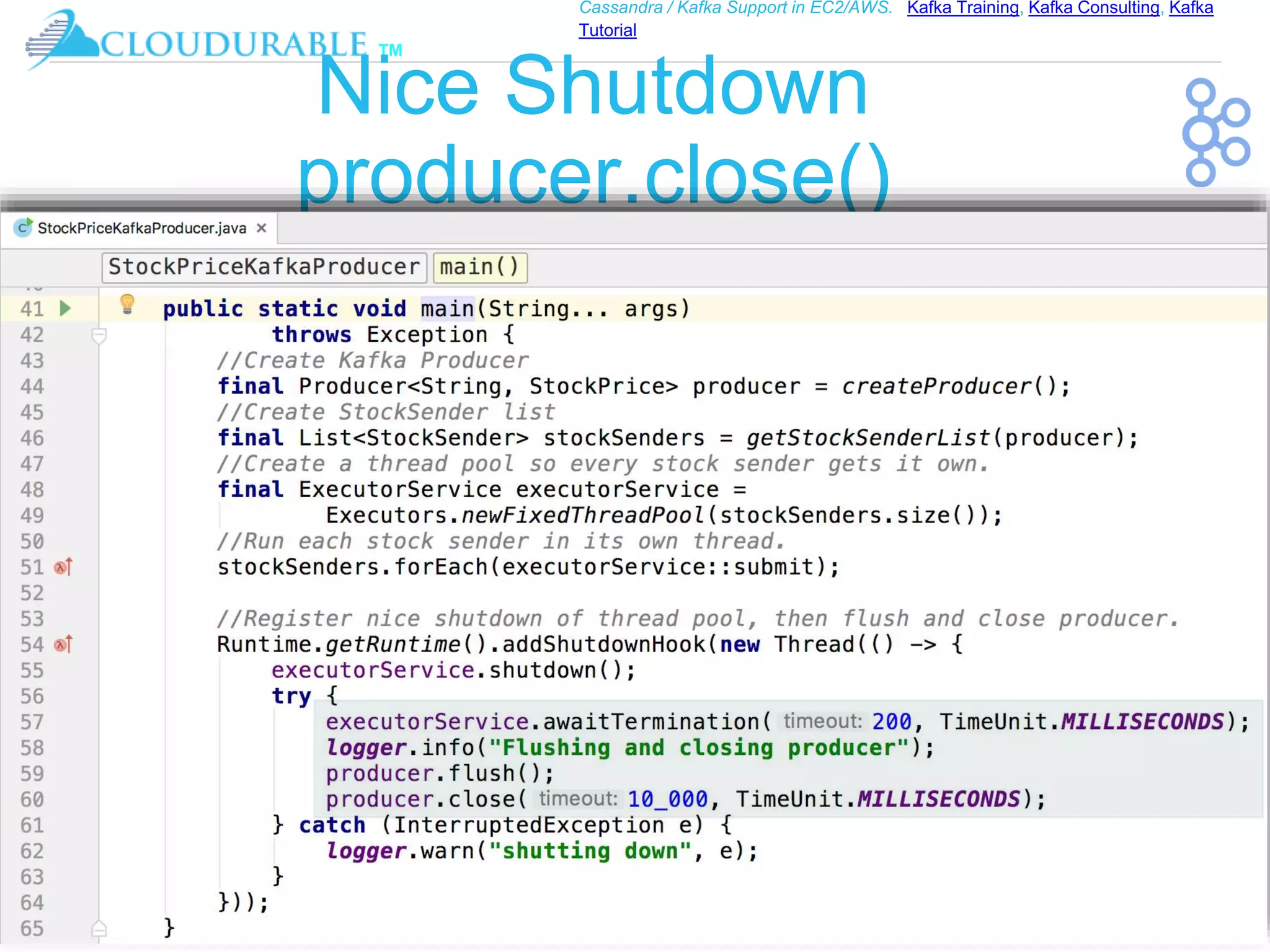

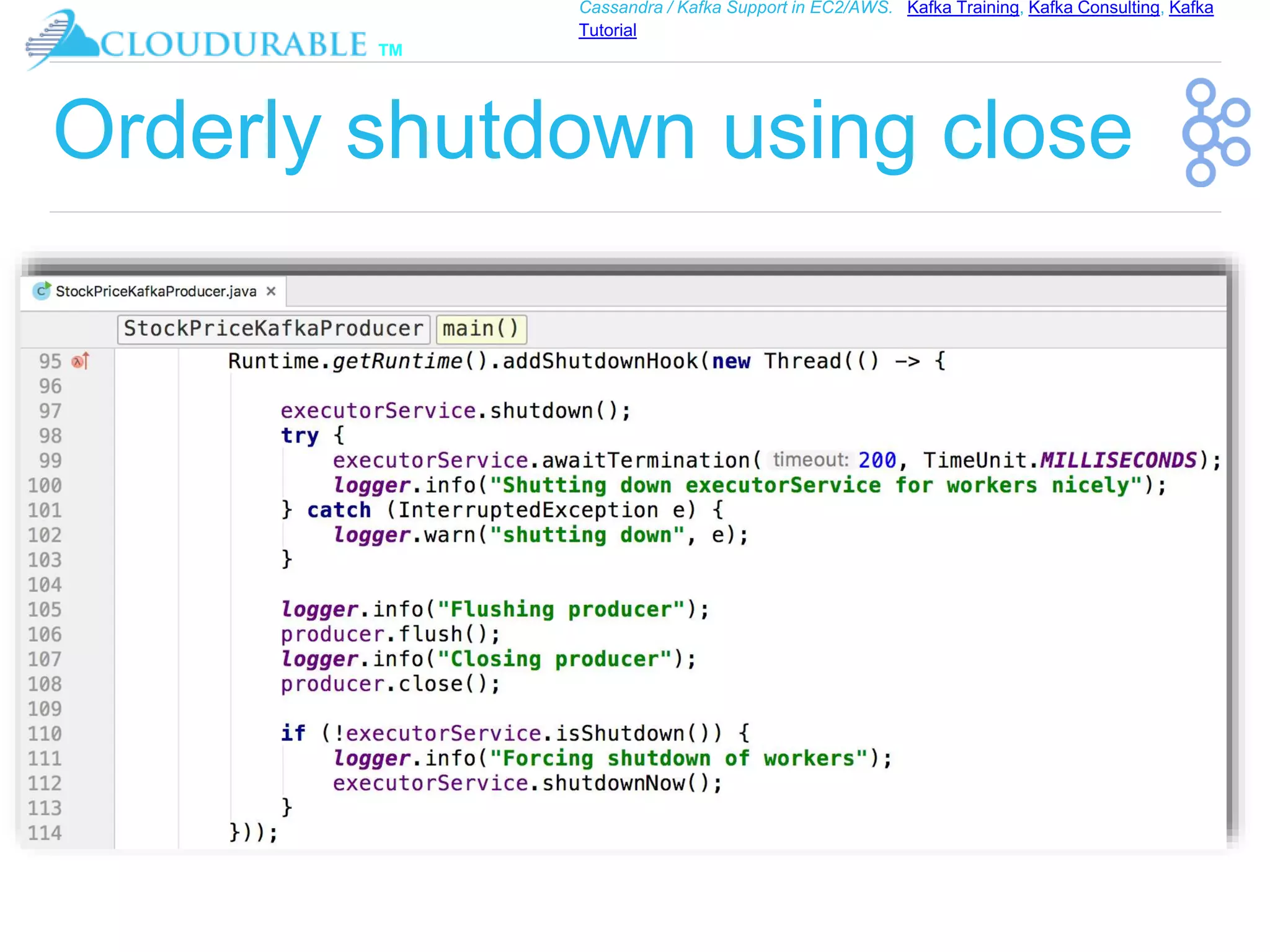

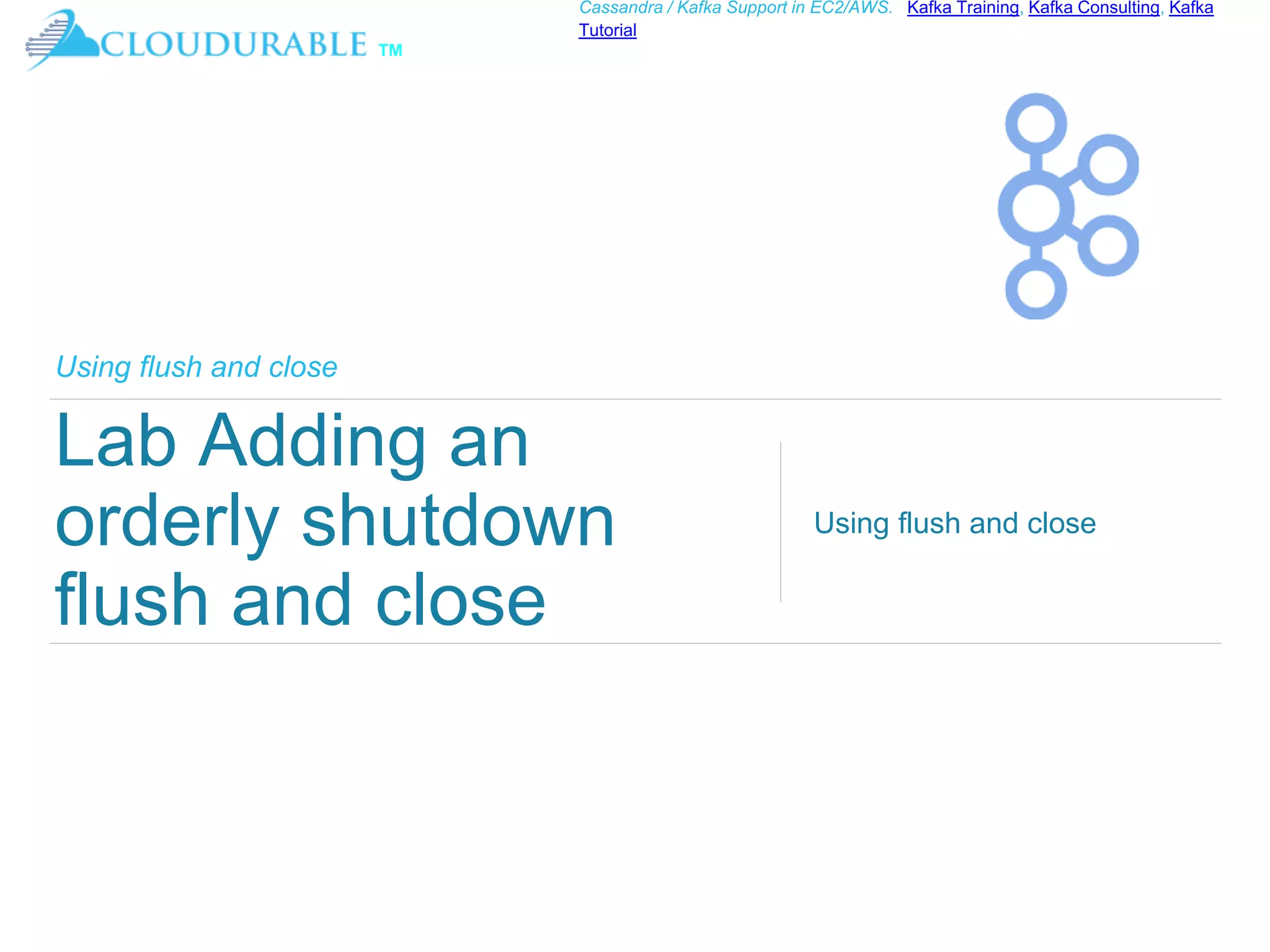

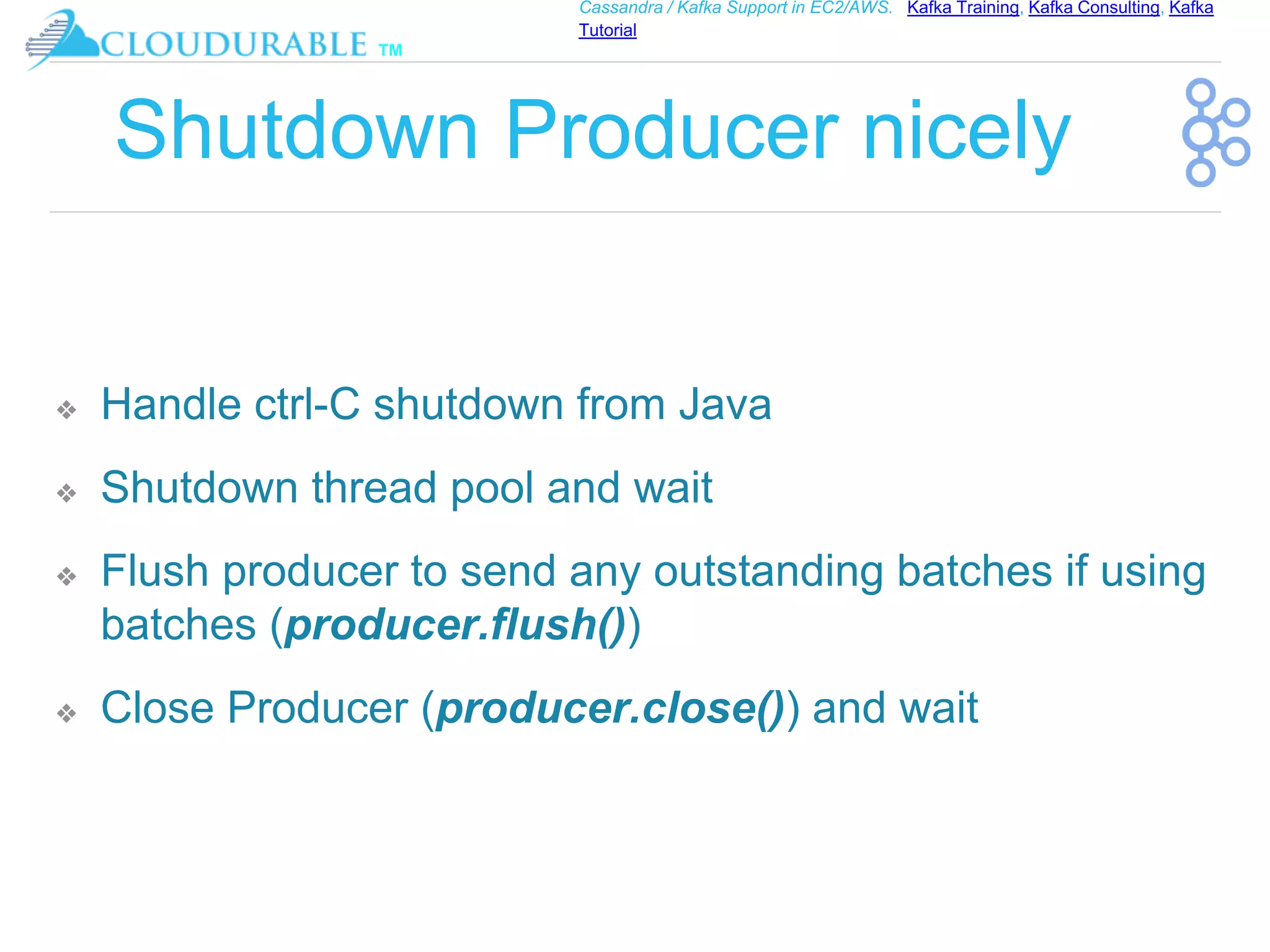

Orderly shutdown using close

™
Tutorial

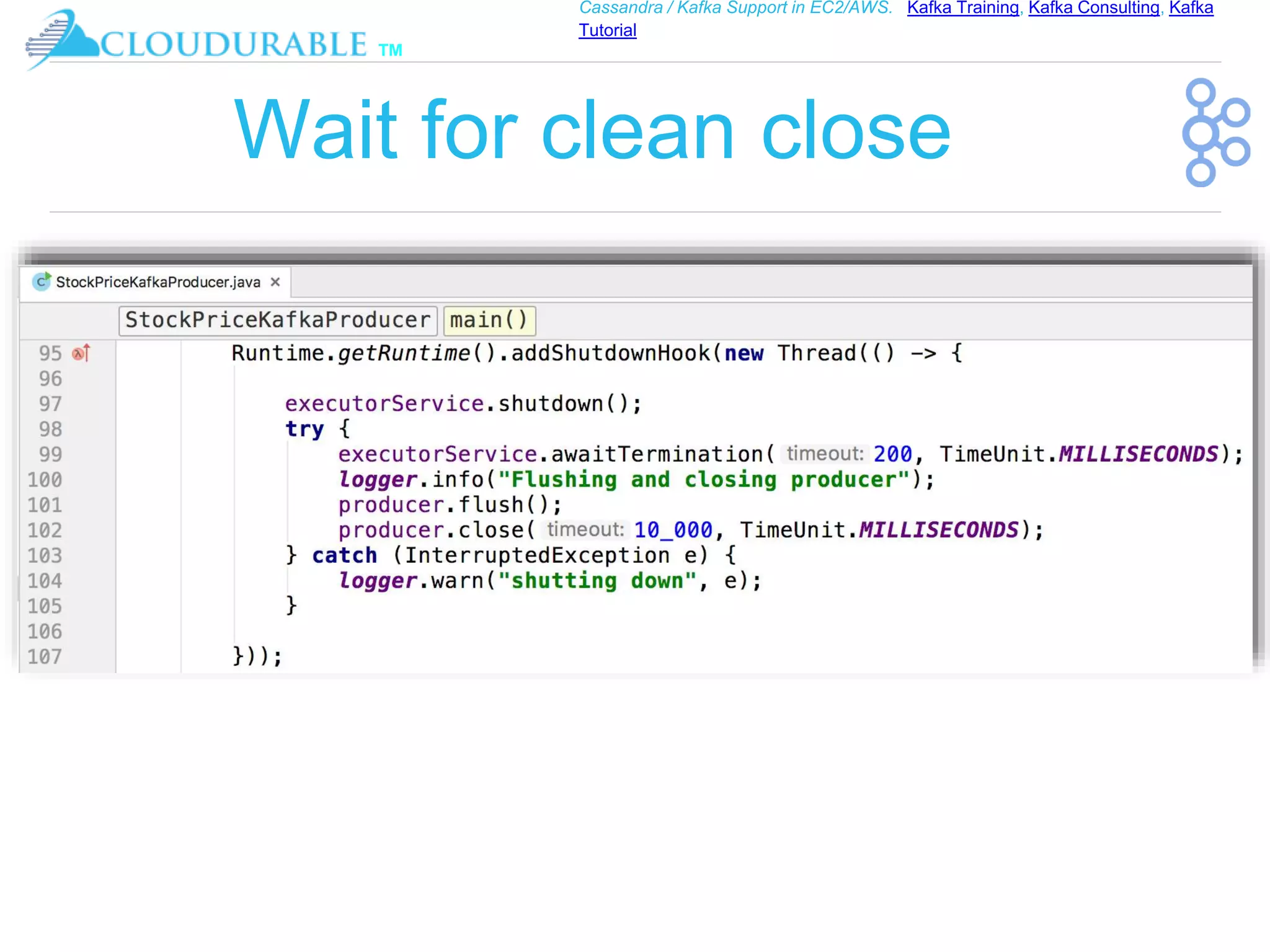

Wait for clean close

™
Tutorial

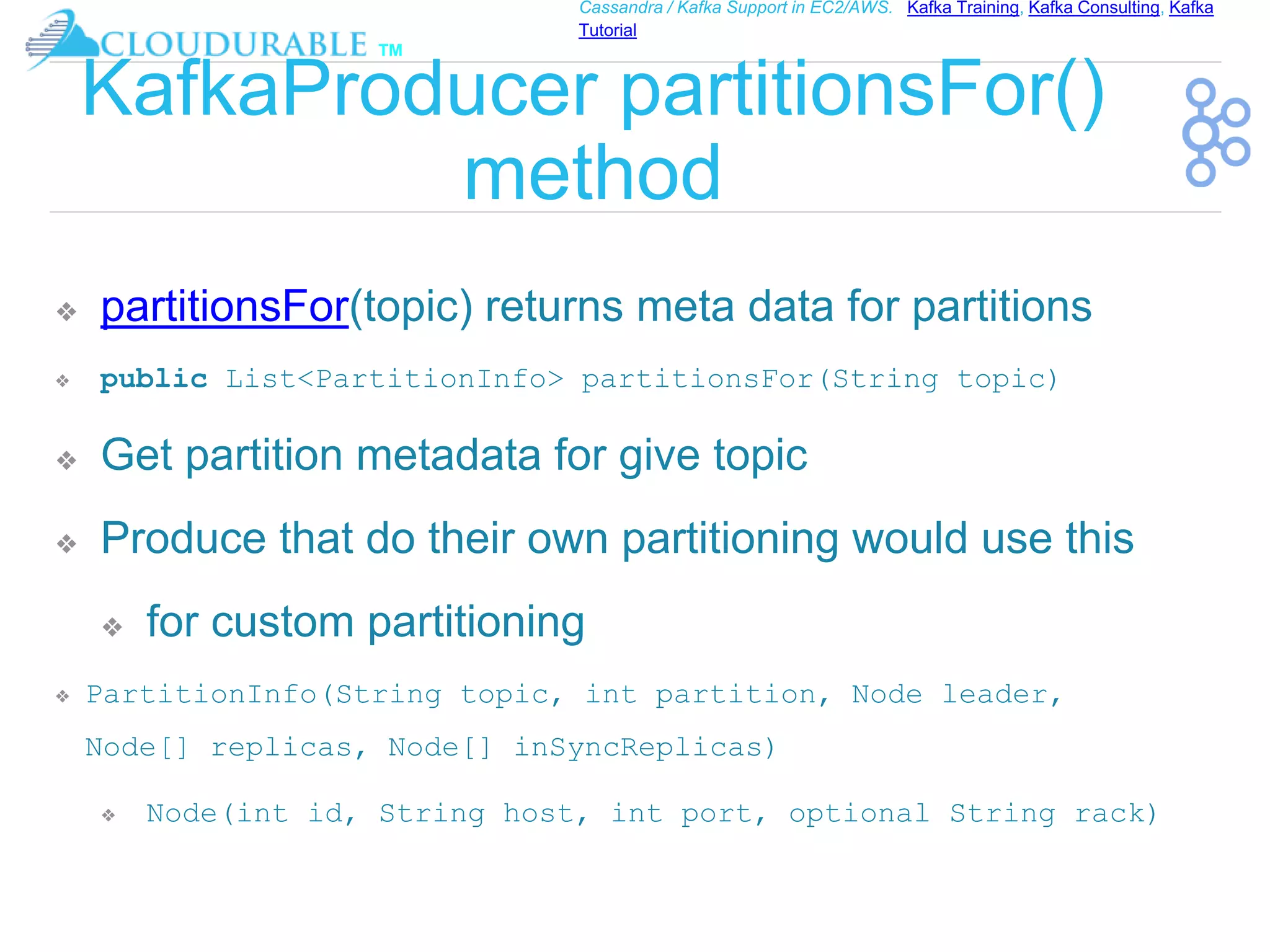

KafkaProducer partitionsFor()
method
❖ partitionsFor(topic) returns meta data for partitions
❖ public List<PartitionInfo> partitionsFor(String topic)
❖ Get partition metadata for give topic
❖ Produce that do their own partitioning would use this
❖ for custom partitioning
❖ PartitionInfo(String topic, int partition, Node leader,
Node[] replicas, Node[] inSyncReplicas)
❖ Node(int id, String host, int port, optional String rack)

™
Tutorial

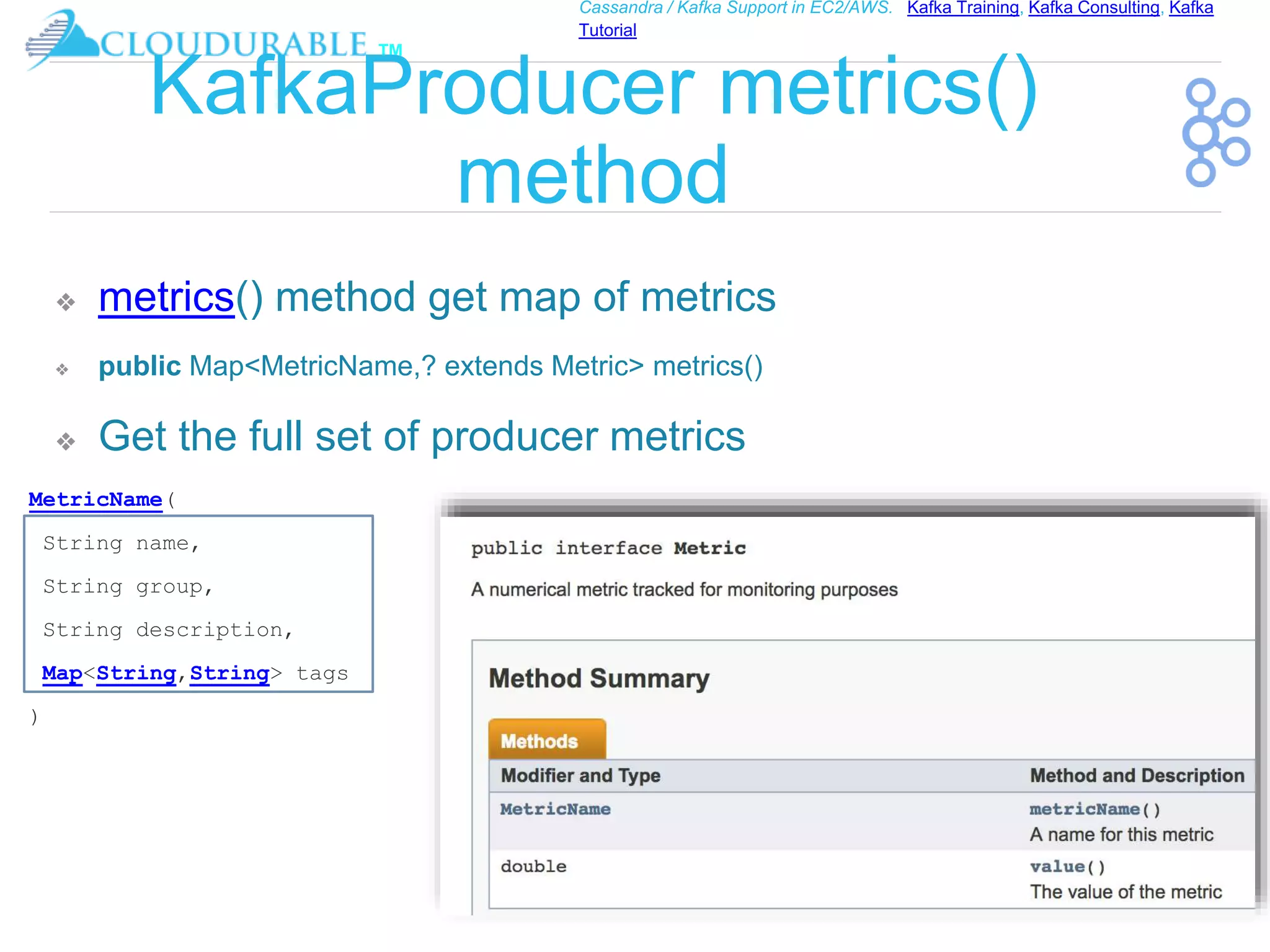

KafkaProducer metrics()
method
❖ metrics() method get map of metrics
❖ public Map<MetricName,? extends Metric> metrics()
❖ Get the full set of producer metrics
MetricName(
String name,
String group,
String description,
Map<String,String> tags
)

™
Tutorial

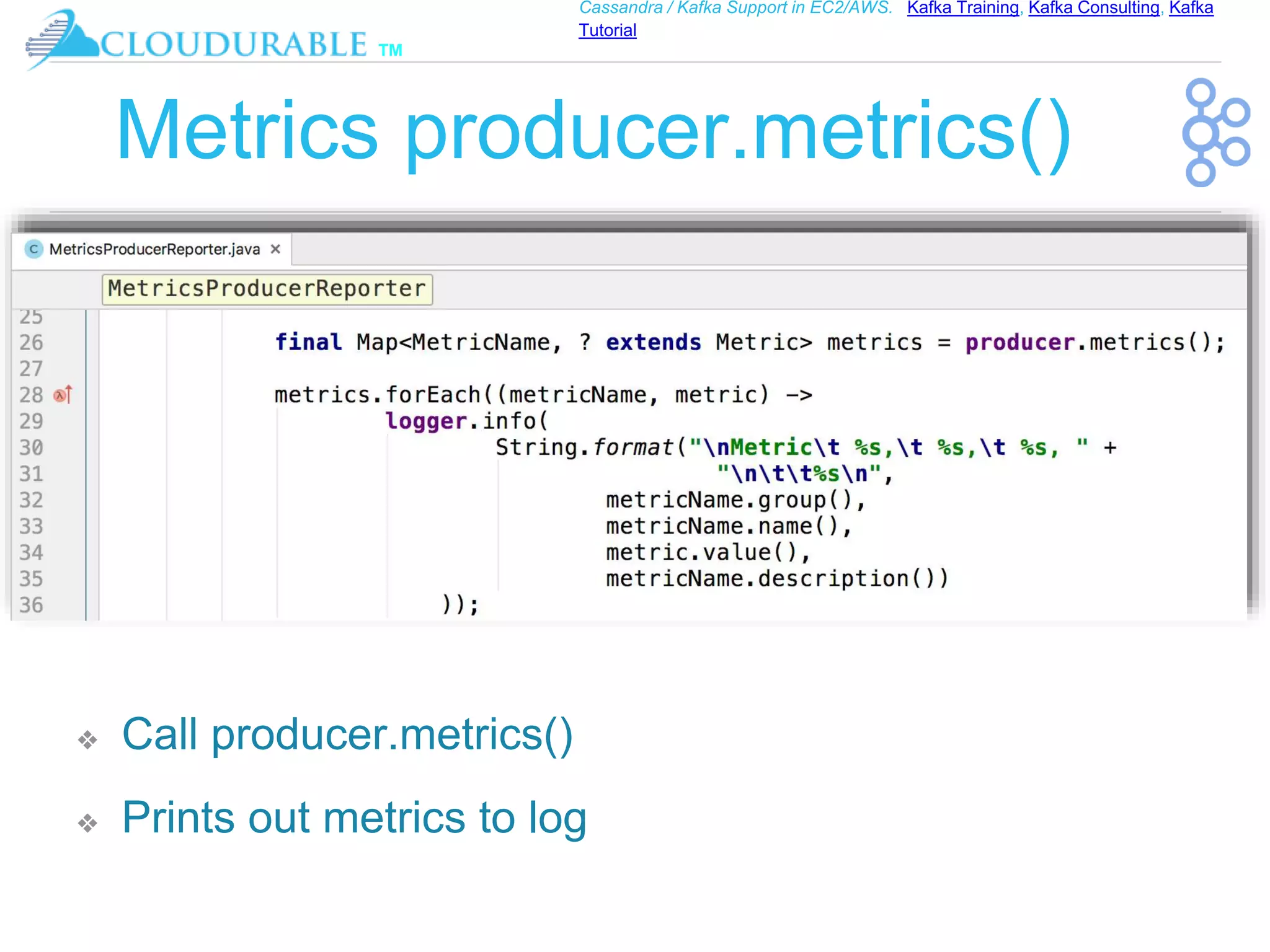

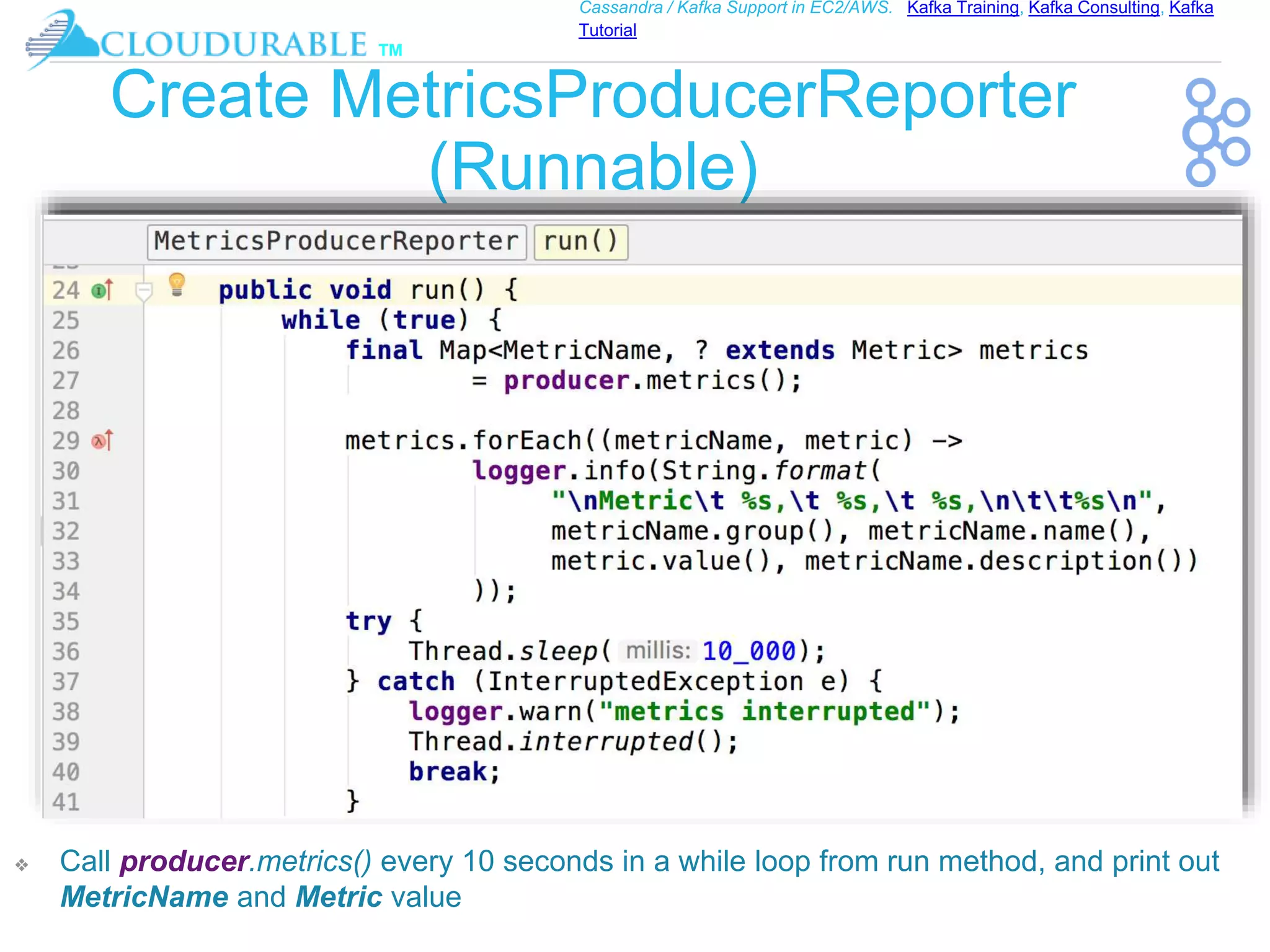

Metrics producer.metrics()
❖ Call producer.metrics()
❖ Prints out metrics to log

™
Tutorial

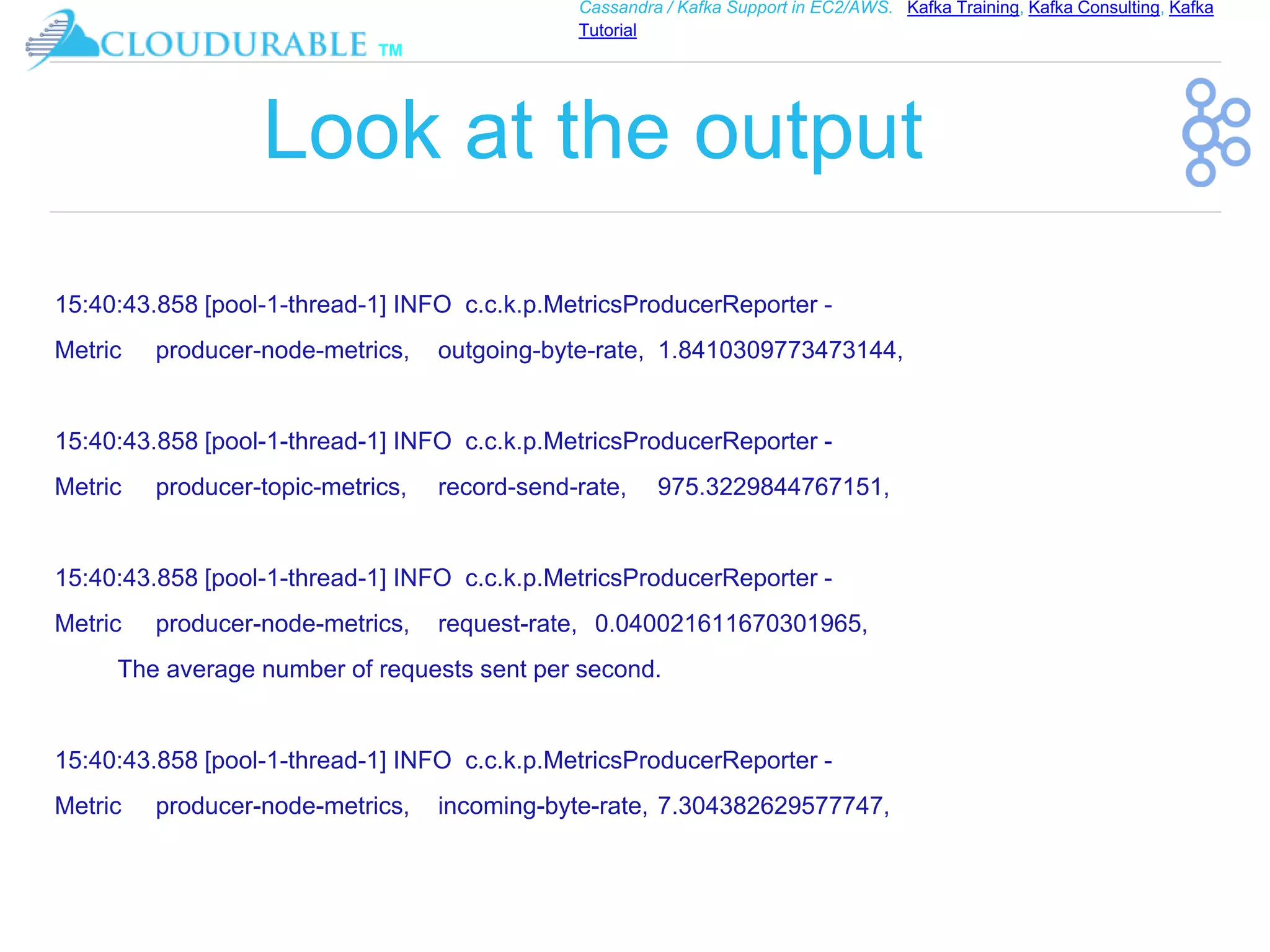

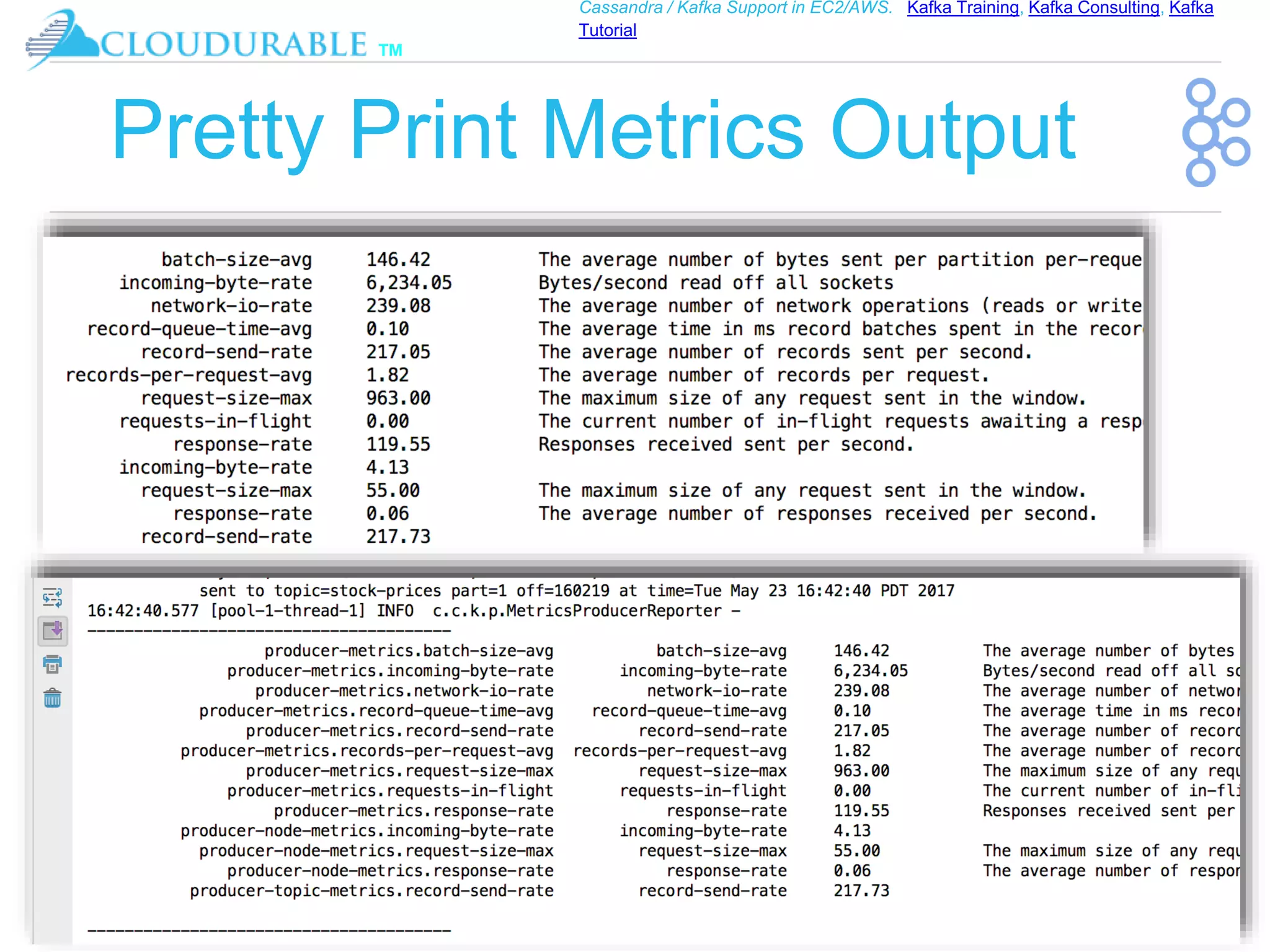

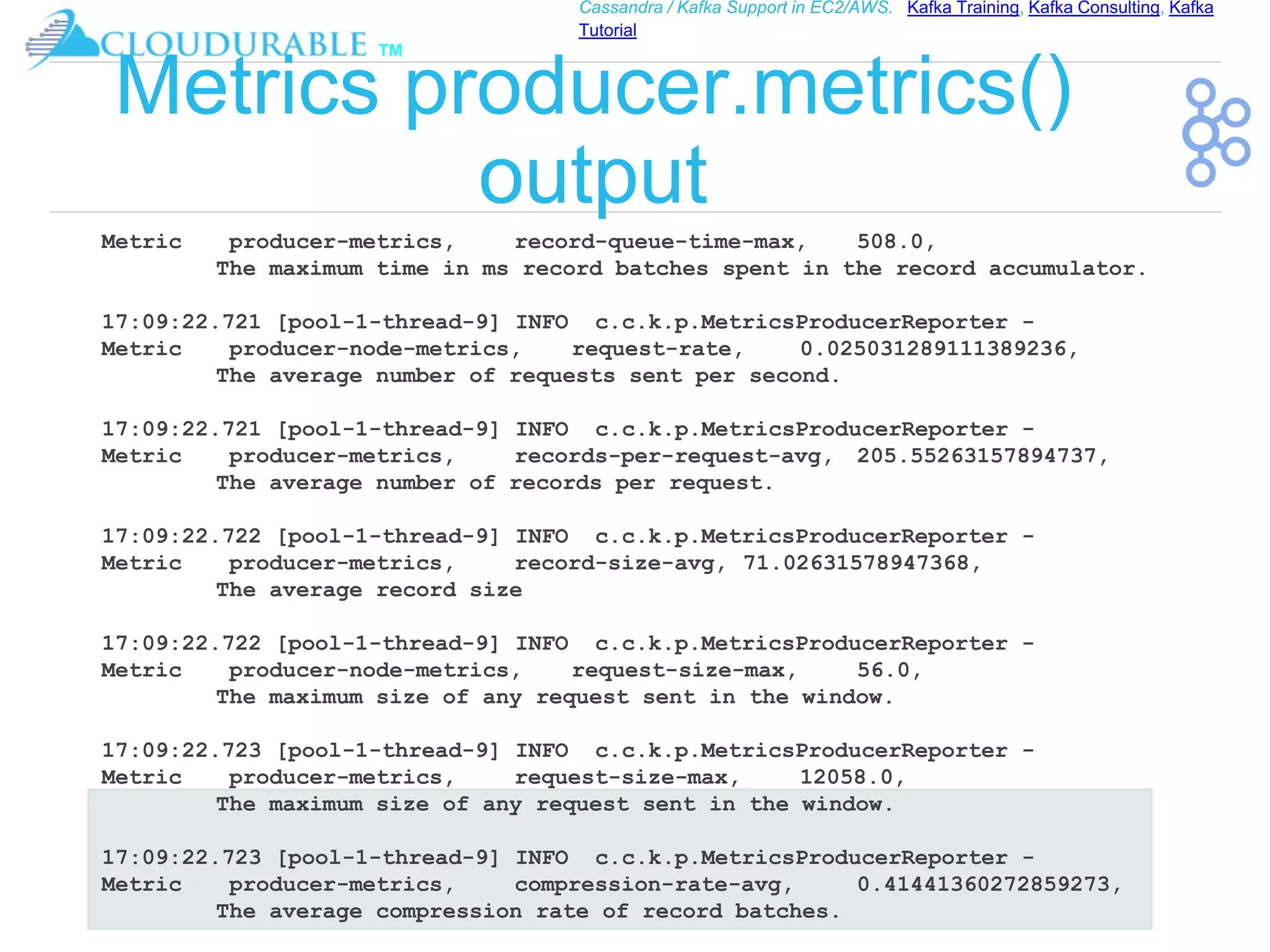

Metrics producer.metrics()
output
Metric producer-metrics, record-queue-time-max, 508.0,
The maximum time in ms record batches spent in the record accumulator.
17:09:22.721 [pool-1-thread-9] INFO c.c.k.p.MetricsProducerReporter -
Metric producer-node-metrics, request-rate, 0.025031289111389236,
The average number of requests sent per second.
Metric producer-metrics, records-per-request-avg, 205.55263157894737,
The average number of records per request.
Metric producer-metrics, record-size-avg, 71.02631578947368,
The average record size
Metric producer-node-metrics, request-size-max, 56.0,
The maximum size of any request sent in the window.
Metric producer-metrics, request-size-max, 12058.0,
The maximum size of any request sent in the window.
Metric producer-metrics, compression-rate-avg, 0.41441360272859273,
The average compression rate of record batches.

™
Tutorial

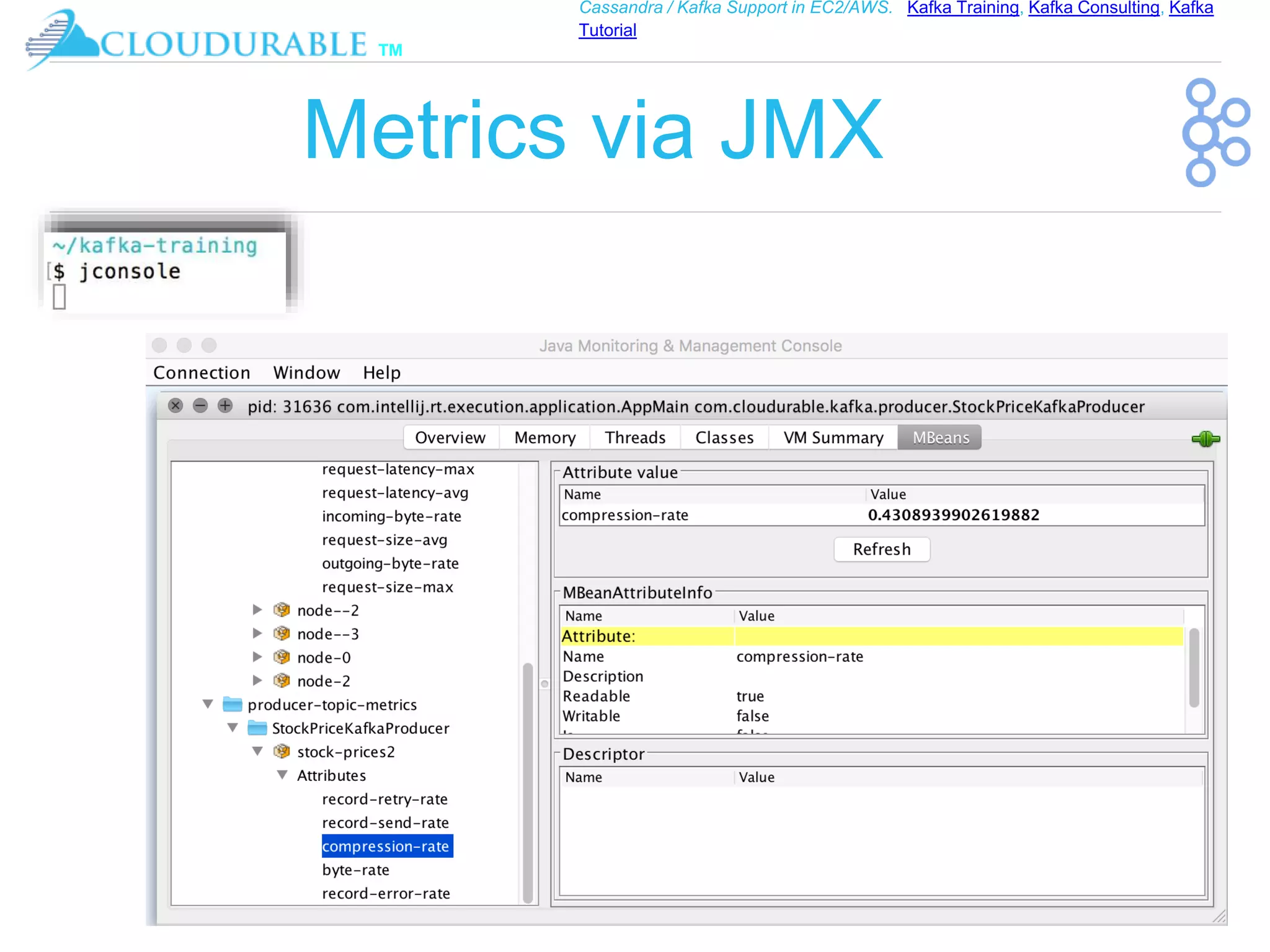

Metrics via JMX

™
Tutorial
StockPrice Producer Java Example
Lab StockPrice
Producer Java
Example

™
Tutorial
StockPrice App to demo Advanced
Producer
❖ StockPrice - holds a stock price has a name, dollar, and cents
❖ StockPriceKafkaProducer - Configures and creates
KafkaProducer<String, StockPrice>, StockSender list,
ThreadPool (ExecutorService), starts StockSender runnable into
thread pool
❖ StockAppConstants - holds topic and broker list
❖ StockPriceSerializer - can serialize a StockPrice into byte[]
❖ StockSender - generates somewhat random stock prices for a
given StockPrice name, Runnable, 1 thread per StockSender
❖ Shows using KafkaProducer from many threads

™
Tutorial
StockPrice domain object
❖ has name
❖ dollars
❖ cents
❖ converts
itself to
JSON

™

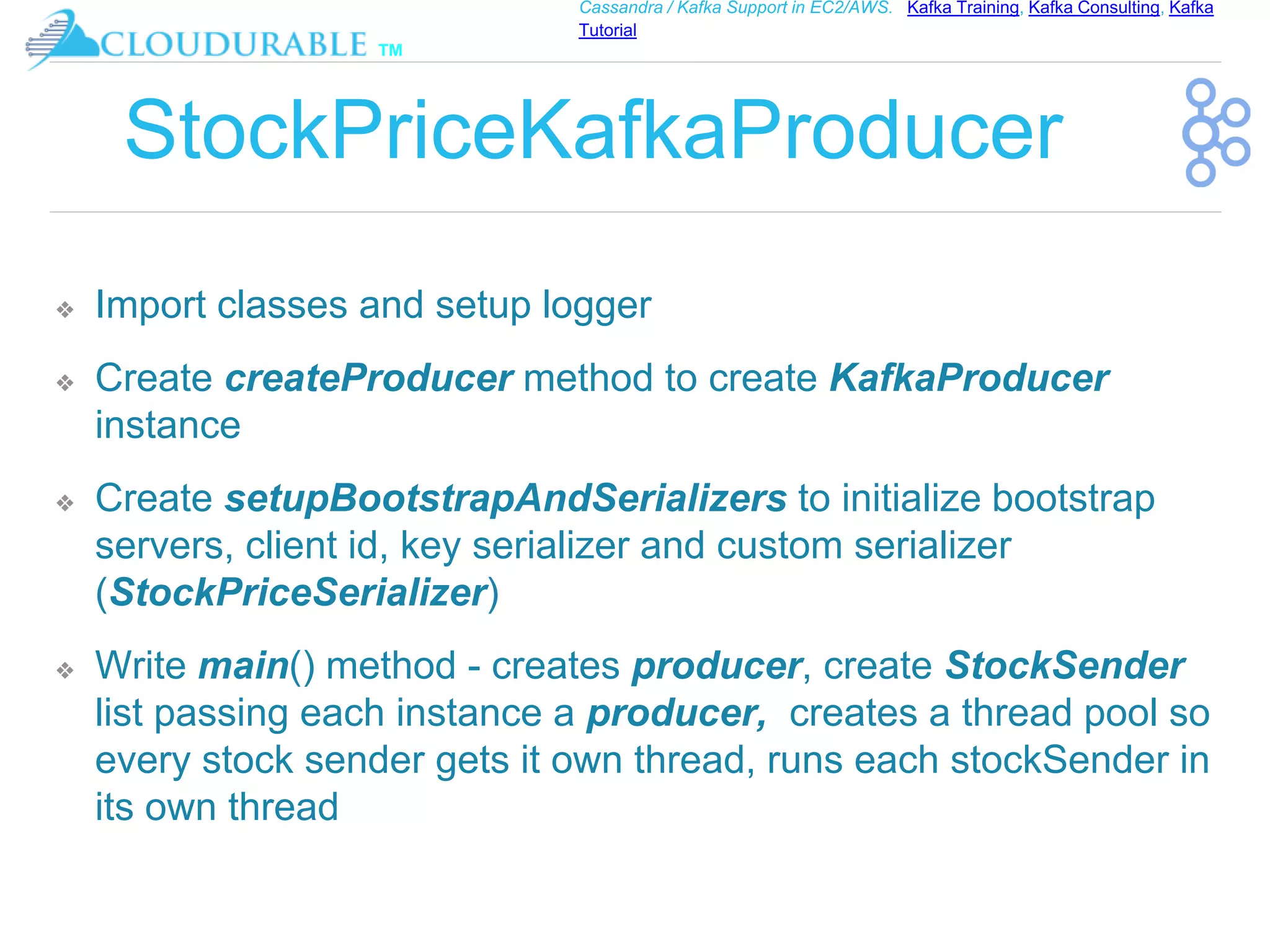

Tutorial
StockPriceKafkaProducer
❖ Import classes and setup logger
❖ Create createProducer method to create KafkaProducer
instance
❖ Create setupBootstrapAndSerializers to initialize bootstrap
servers, client id, key serializer and custom serializer
(StockPriceSerializer)
❖ Write main() method - creates producer, create StockSender
list passing each instance a producer, creates a thread pool so
every stock sender gets it own thread, runs each stockSender in
its own thread

™
Tutorial

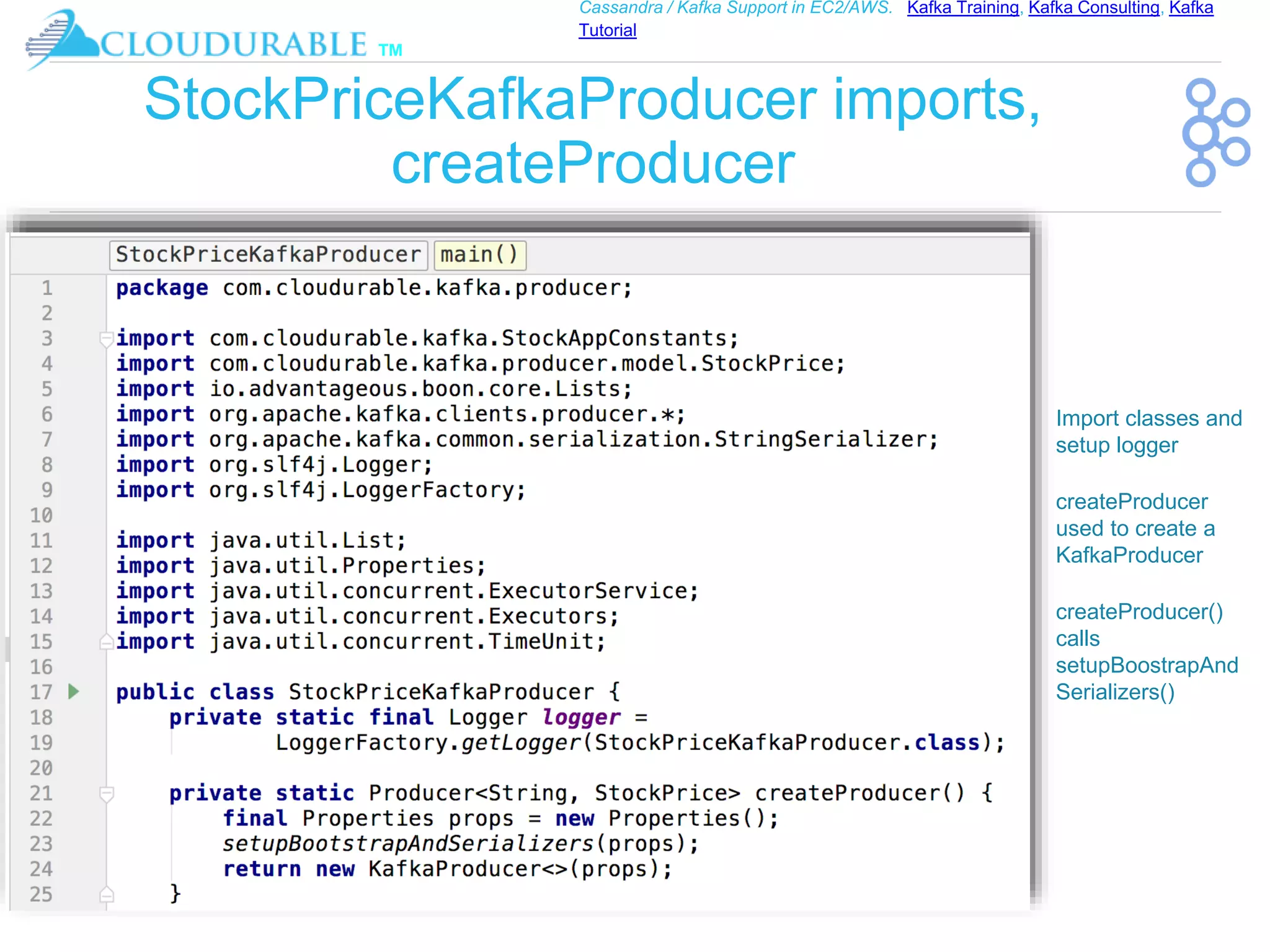

StockPriceKafkaProducer imports,
createProducer
❖ Import classes and
setup logger
❖ createProducer
used to create a
KafkaProducer
❖ createProducer()
calls
setupBoostrapAnd
Serializers()

™
Tutorial
Configure Producer Bootstrap and
Serializer
❖ Create setupBootstrapAndSerializers to initialize bootstrap
servers, client id, key serializer and custom serializer
(StockPriceSerializer)
❖ StockPriceSerializer will serialize StockPrice into bytes

™
Tutorial

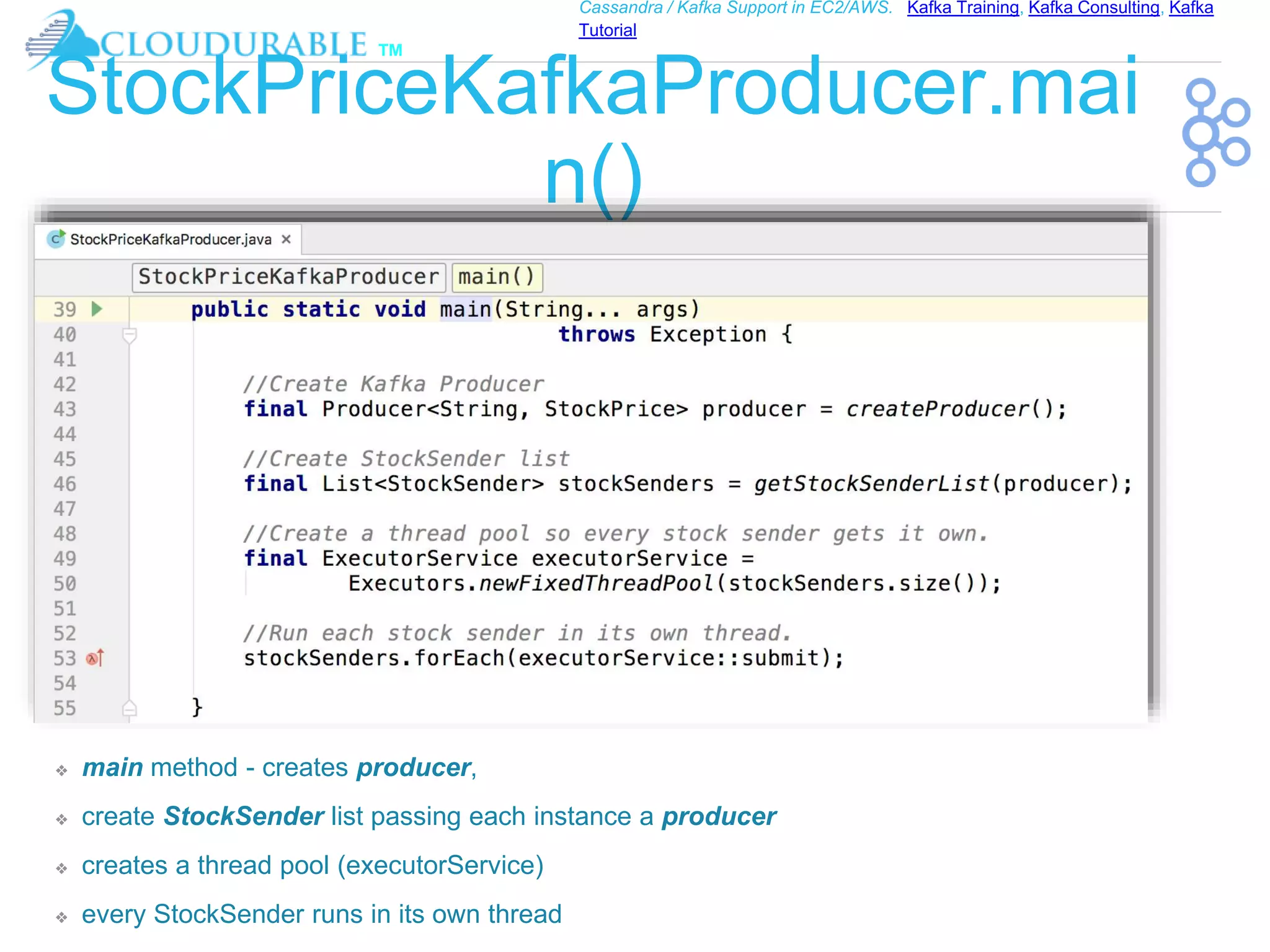

StockPriceKafkaProducer.mai
n()
❖ main method - creates producer,
❖ create StockSender list passing each instance a producer
❖ creates a thread pool (executorService)
❖ every StockSender runs in its own thread

™
Tutorial

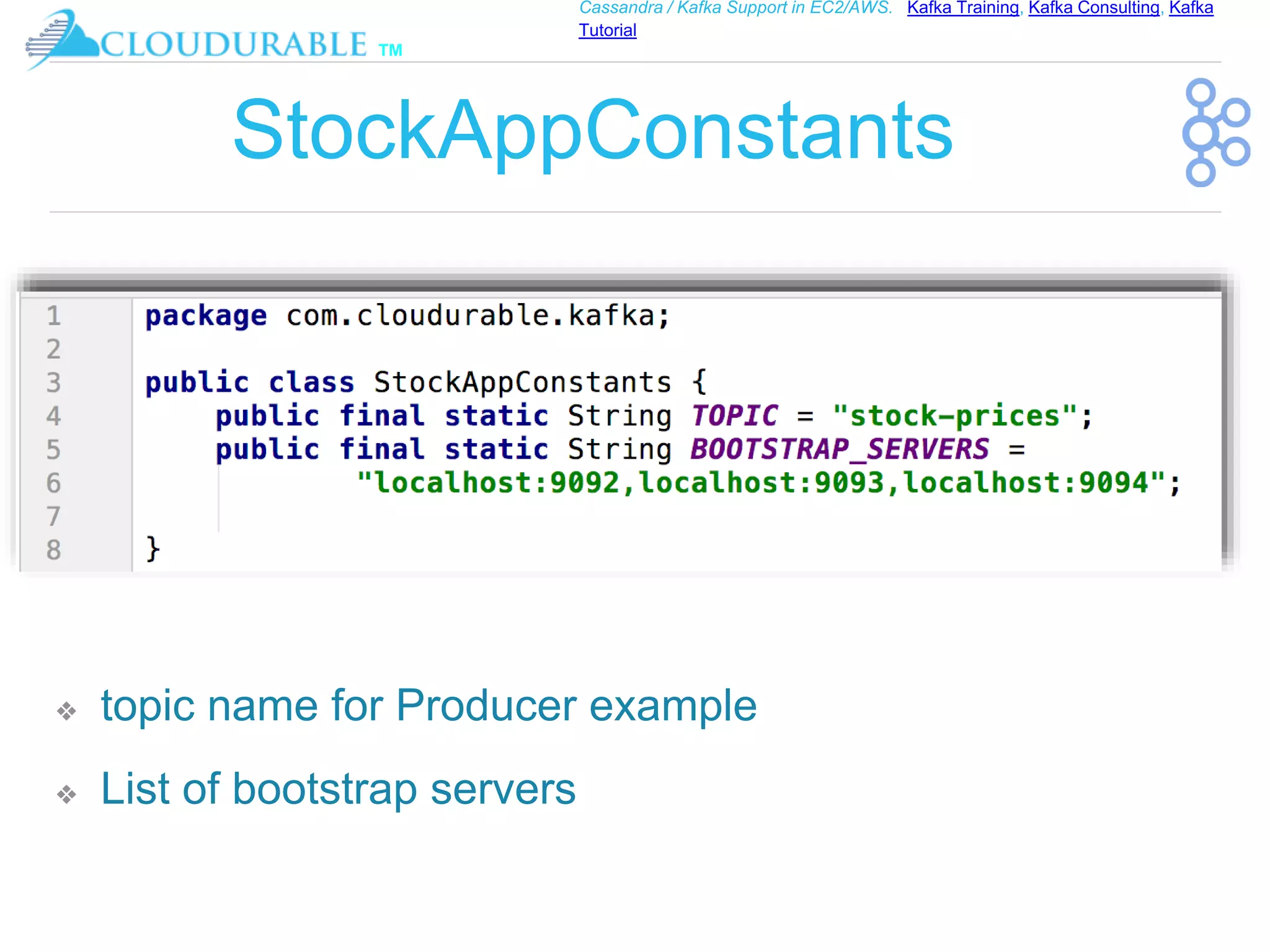

StockAppConstants
❖ topic name for Producer example
❖ List of bootstrap servers

™
Tutorial

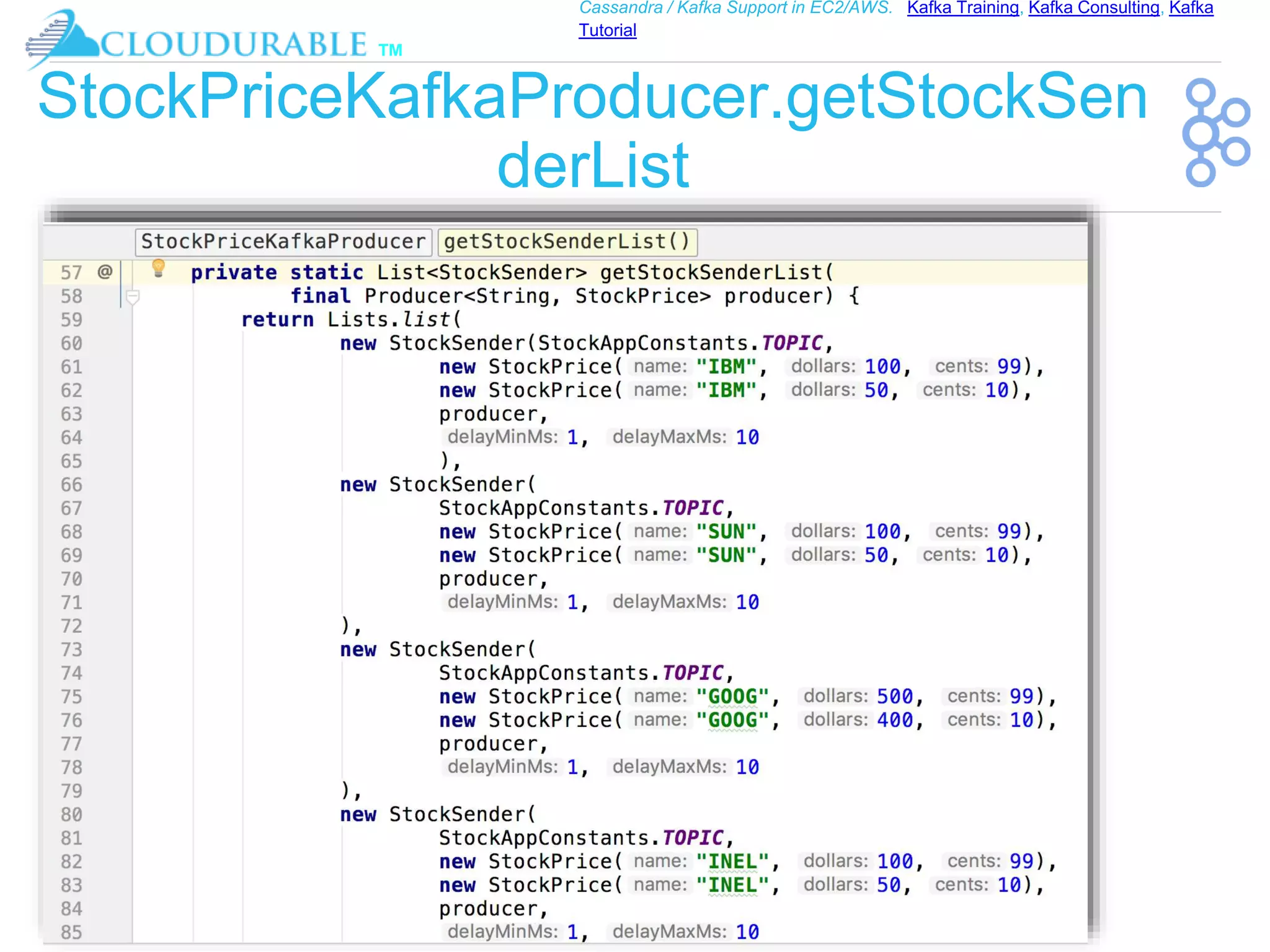

StockPriceKafkaProducer.getStockSen
derList

™
Tutorial
StockPriceSerializer
❖ Converts StockPrice into byte array

™
Tutorial

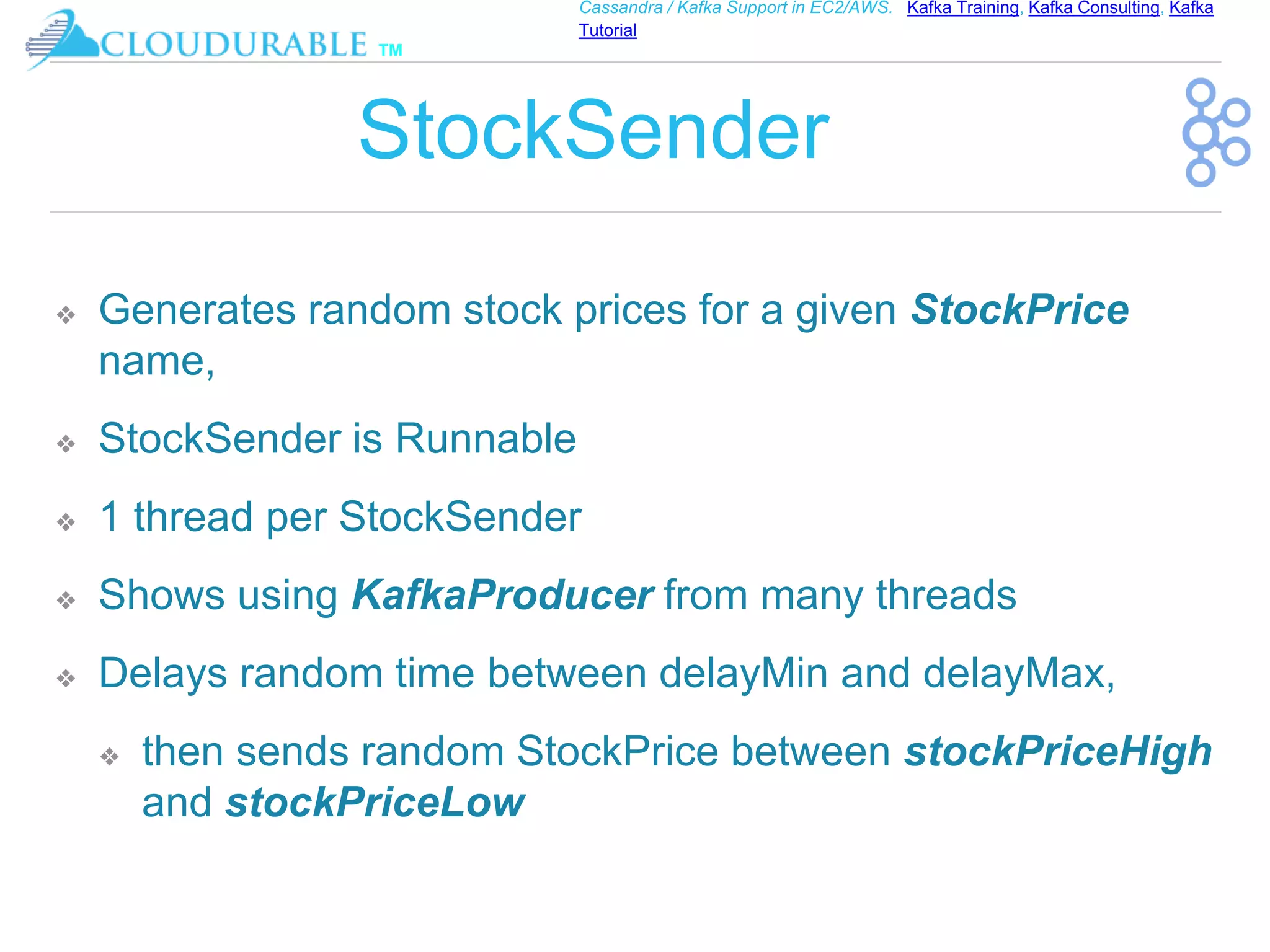

StockSender
❖ Generates random stock prices for a given StockPrice
name,
❖ StockSender is Runnable
❖ 1 thread per StockSender
❖ Shows using KafkaProducer from many threads
❖ Delays random time between delayMin and delayMax,
❖ then sends random StockPrice between stockPriceHigh
and stockPriceLow

™
Tutorial

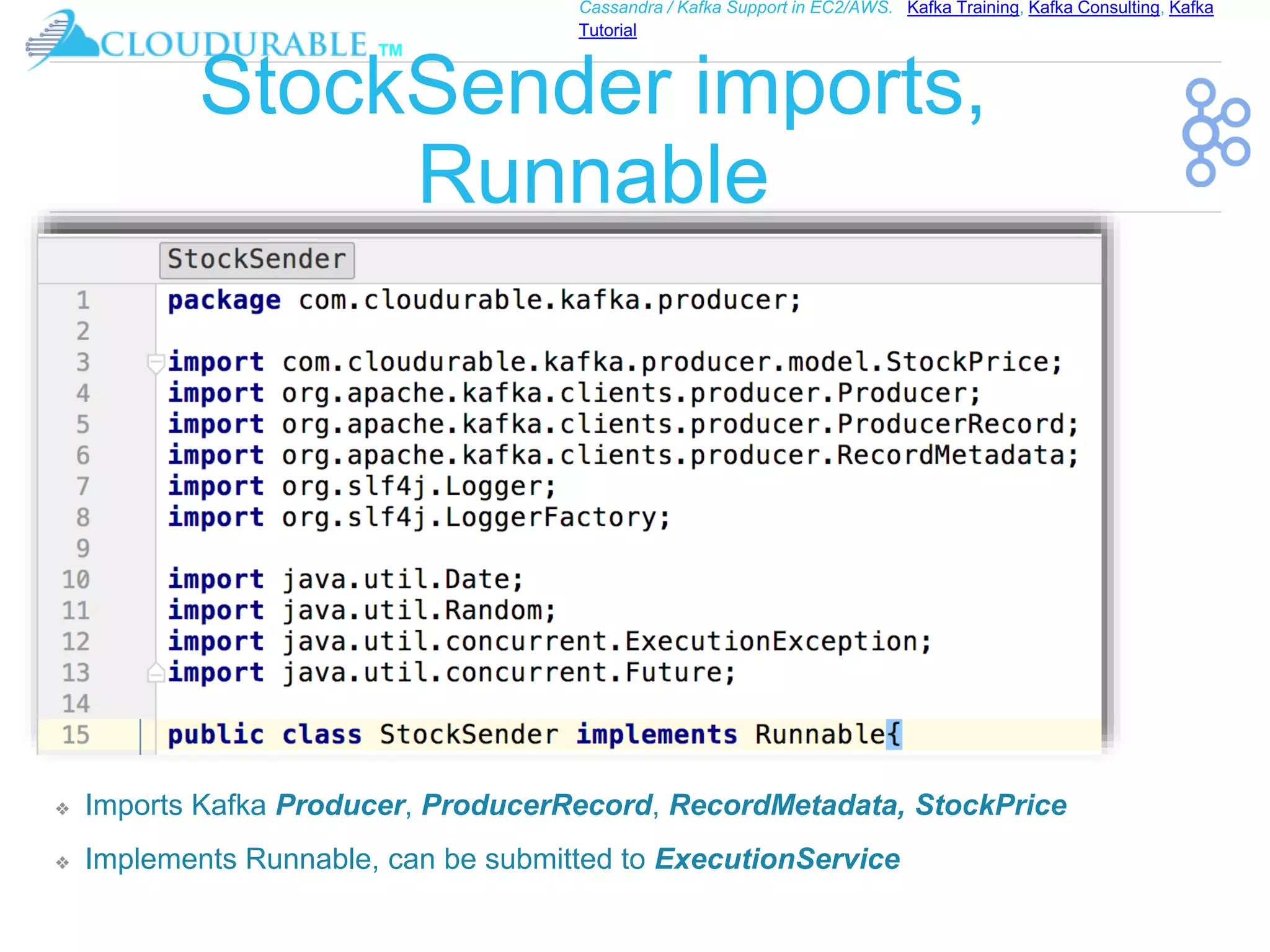

StockSender imports,
Runnable
❖ Imports Kafka Producer, ProducerRecord, RecordMetadata, StockPrice
❖ Implements Runnable, can be submitted to ExecutionService

™
Tutorial

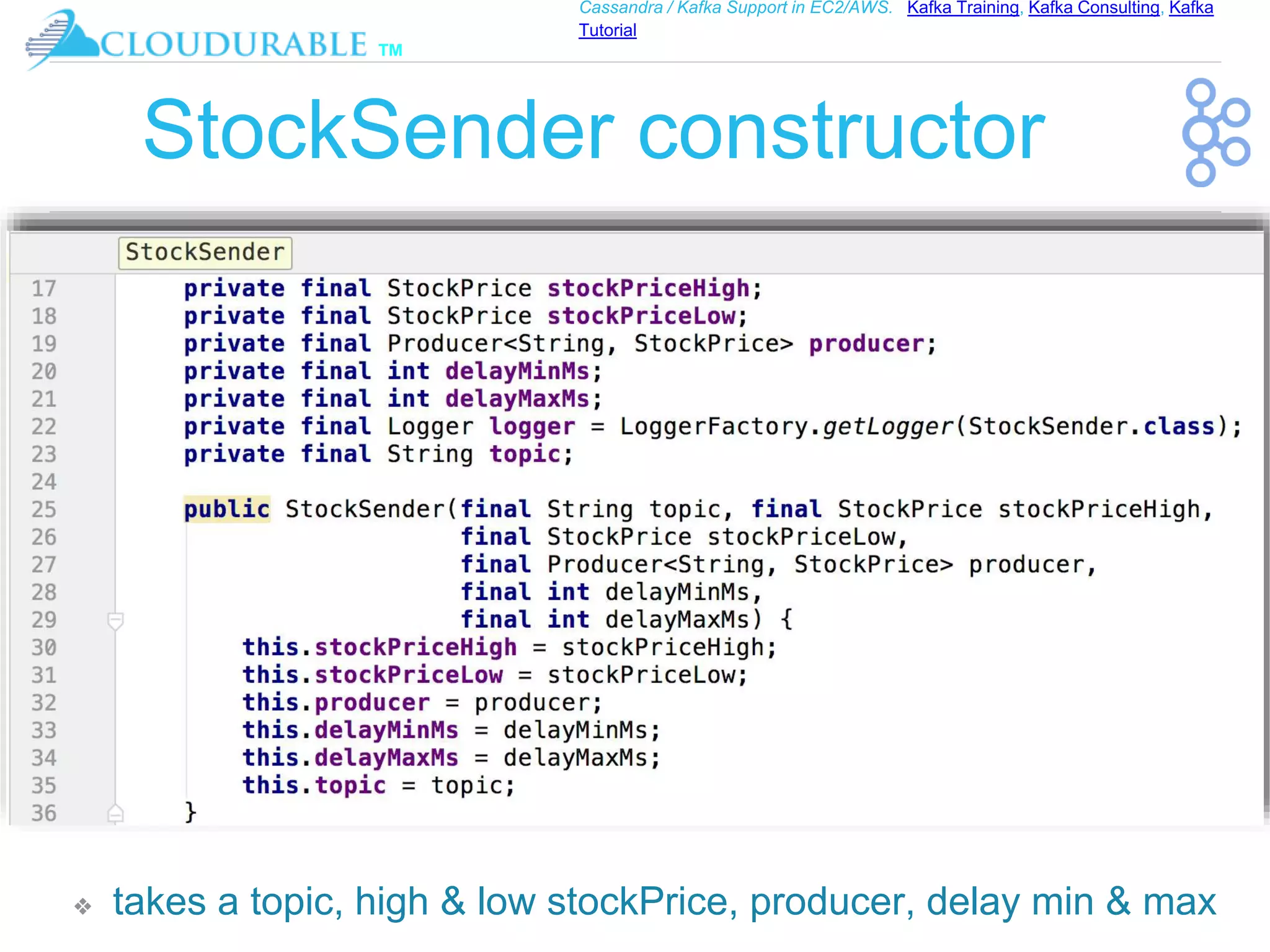

StockSender constructor
❖ takes a topic, high & low stockPrice, producer, delay min & max

™
Tutorial

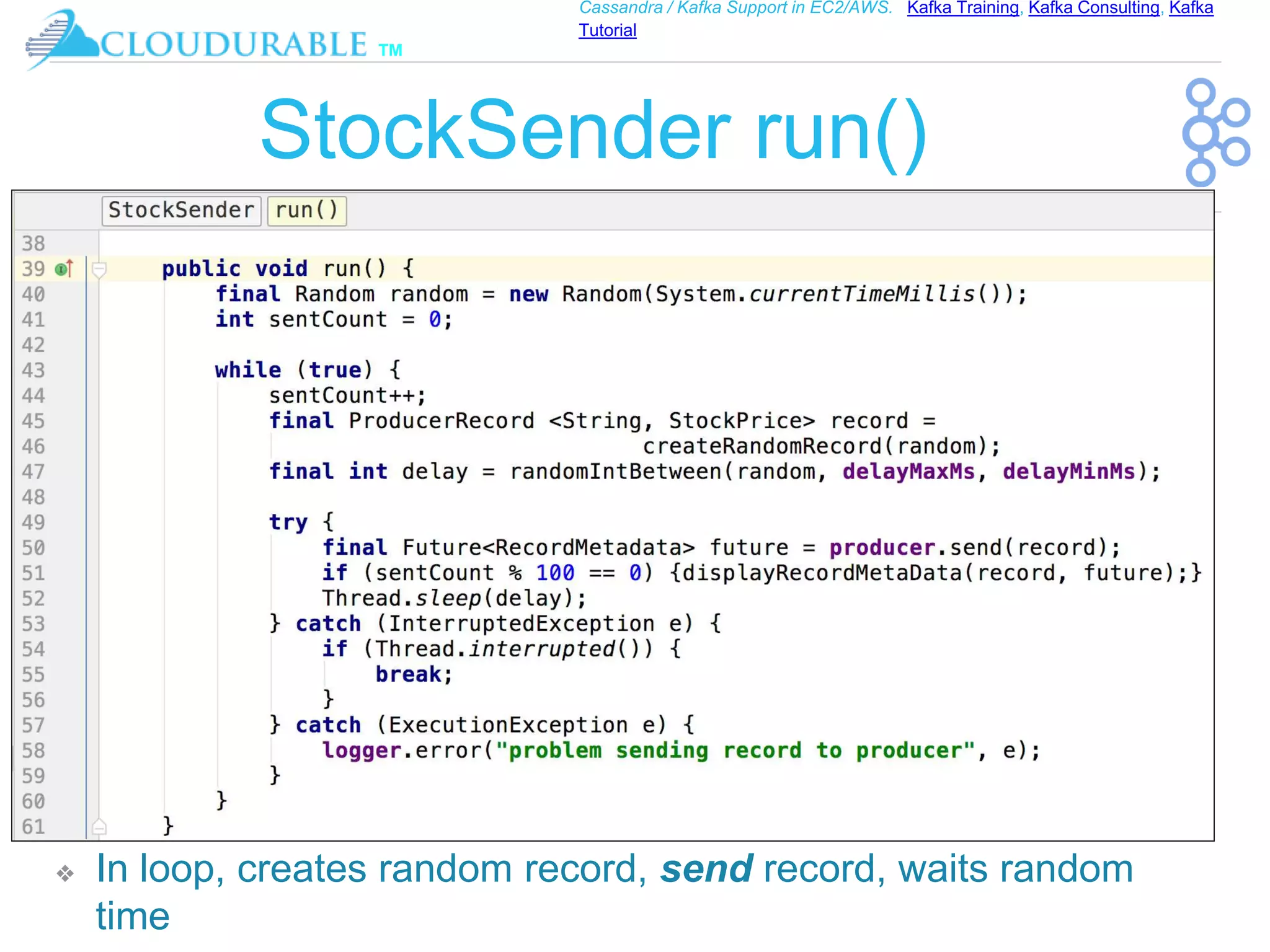

StockSender run()
❖ In loop, creates random record, send record, waits random
time

™

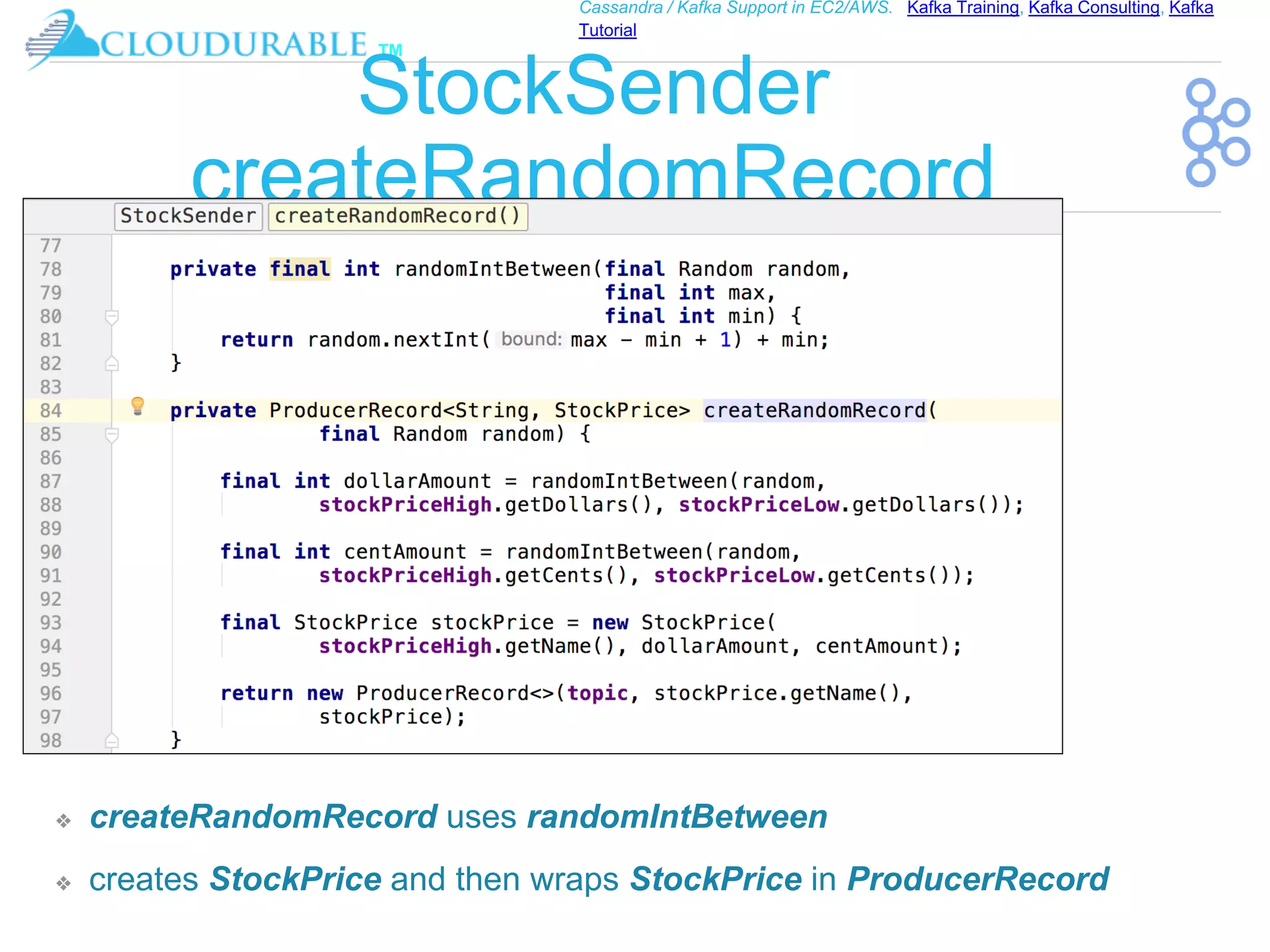

Tutorial
StockSender
createRandomRecord
❖ createRandomRecord uses randomIntBetween
❖ creates StockPrice and then wraps StockPrice in ProducerRecord

™

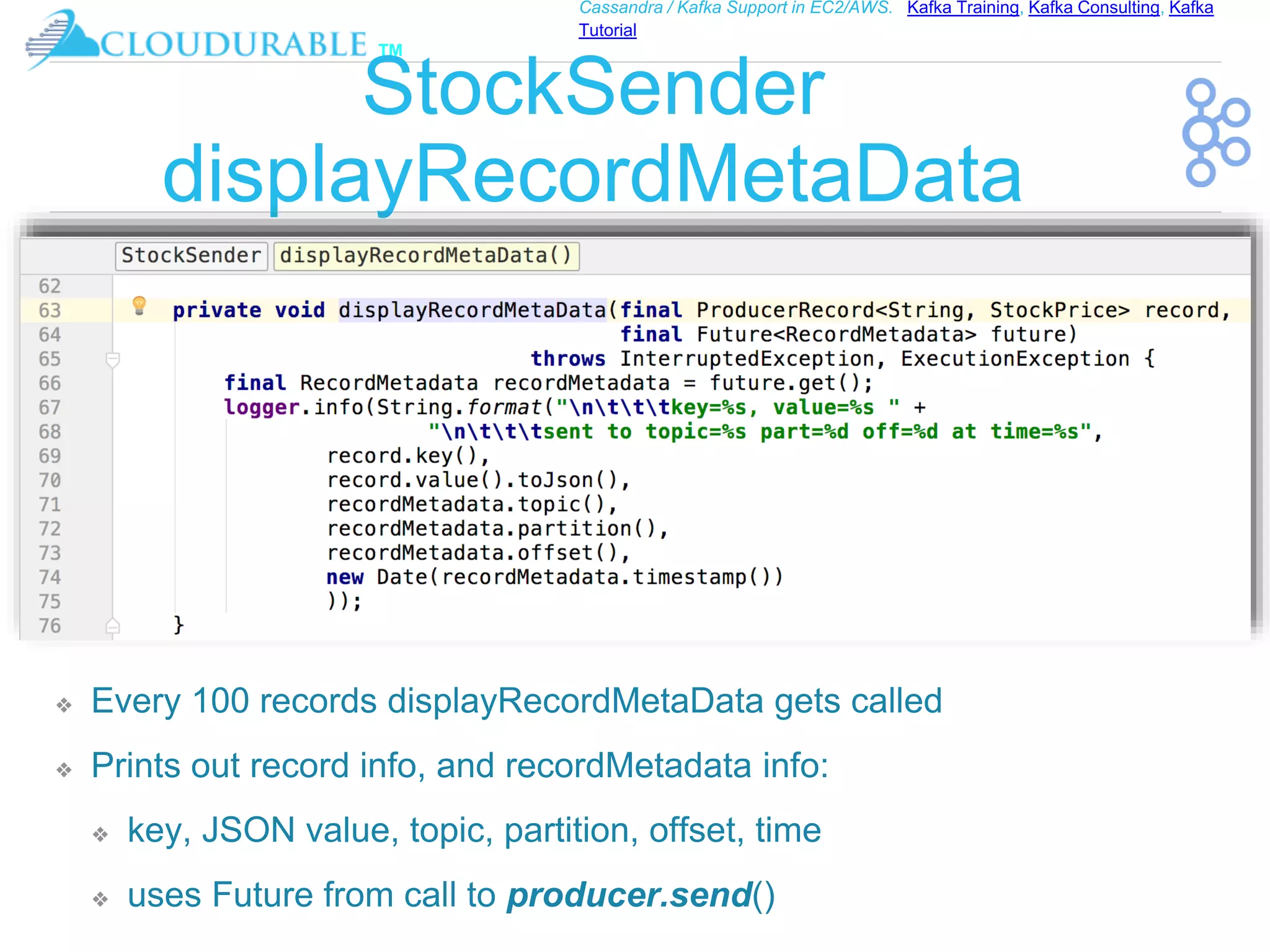

Tutorial
StockSender
displayRecordMetaData
❖ Every 100 records displayRecordMetaData gets called
❖ Prints out record info, and recordMetadata info:
❖ key, JSON value, topic, partition, offset, time
❖ uses Future from call to producer.send()

™
Tutorial

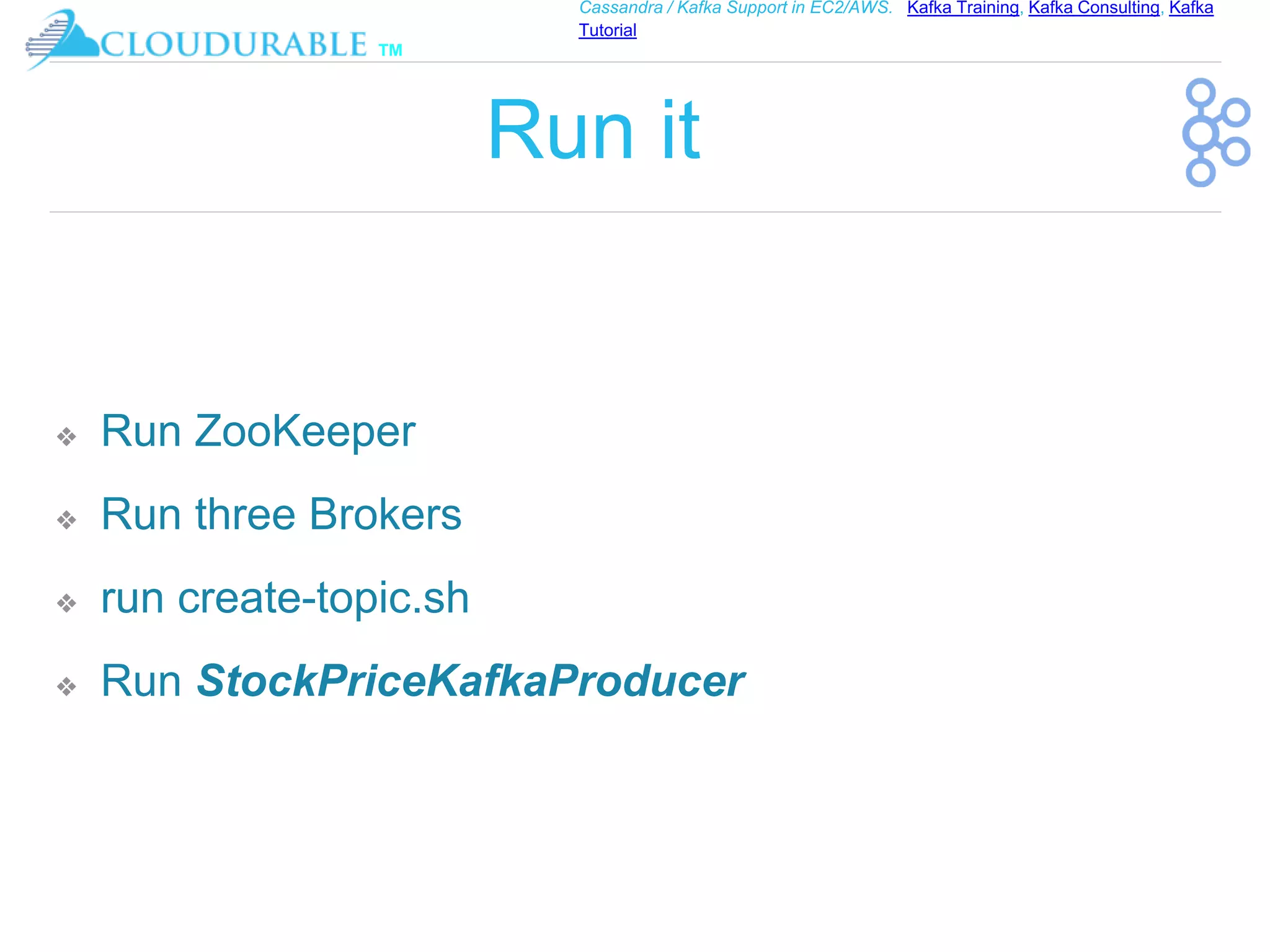

Run it
❖ Run ZooKeeper
❖ Run three Brokers
❖ run create-topic.sh
❖ Run StockPriceKafkaProducer

™
Tutorial

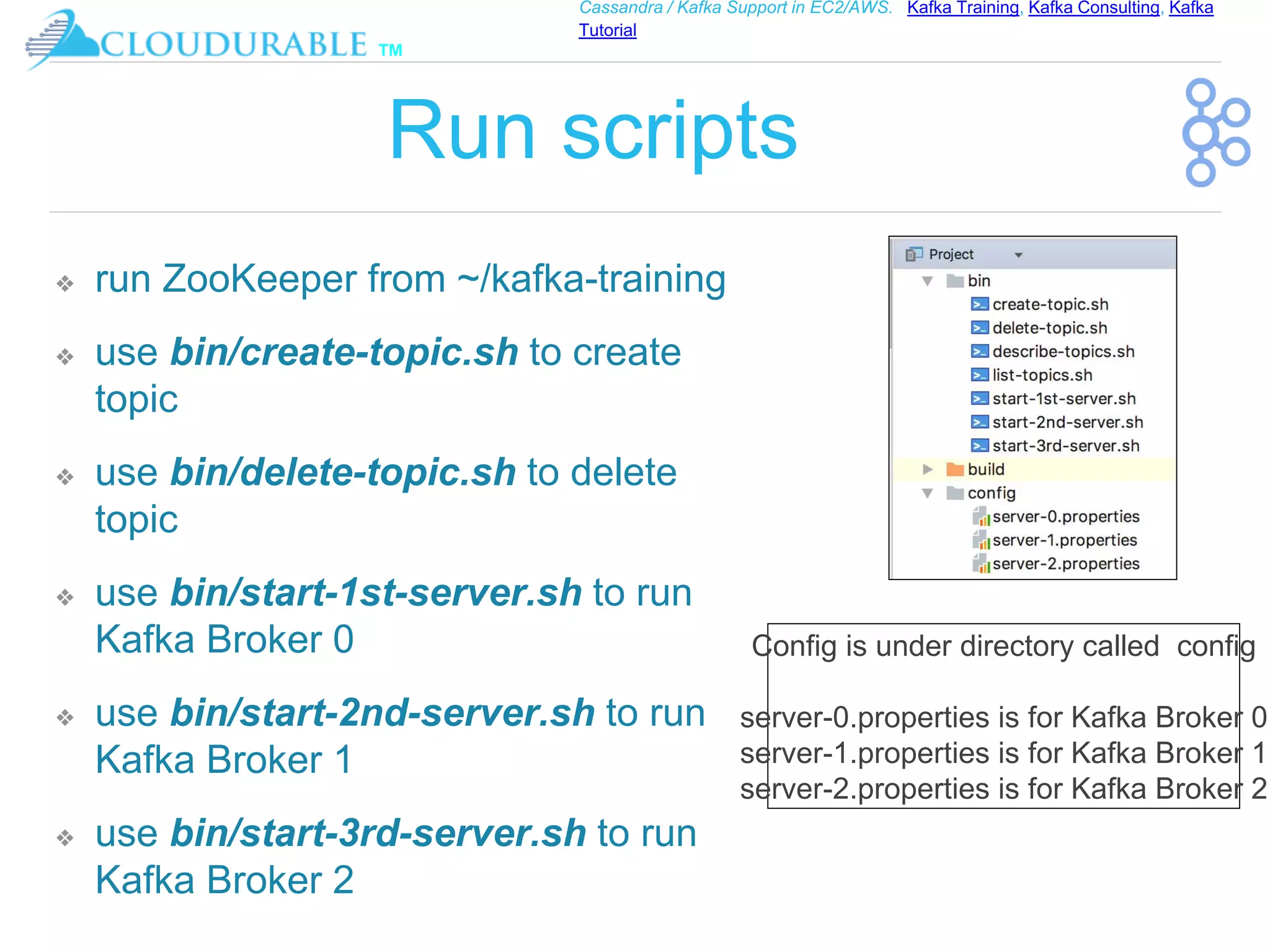

Run scripts
❖ run ZooKeeper from ~/kafka-training
❖ use bin/create-topic.sh to create
topic
❖ use bin/delete-topic.sh to delete
topic
❖ use bin/start-1st-server.sh to run
Kafka Broker 0
❖ use bin/start-2nd-server.sh to run
Kafka Broker 1
❖ use bin/start-3rd-server.sh to run
Kafka Broker 2
Config is under directory called config
server-0.properties is for Kafka Broker 0

™
Tutorial

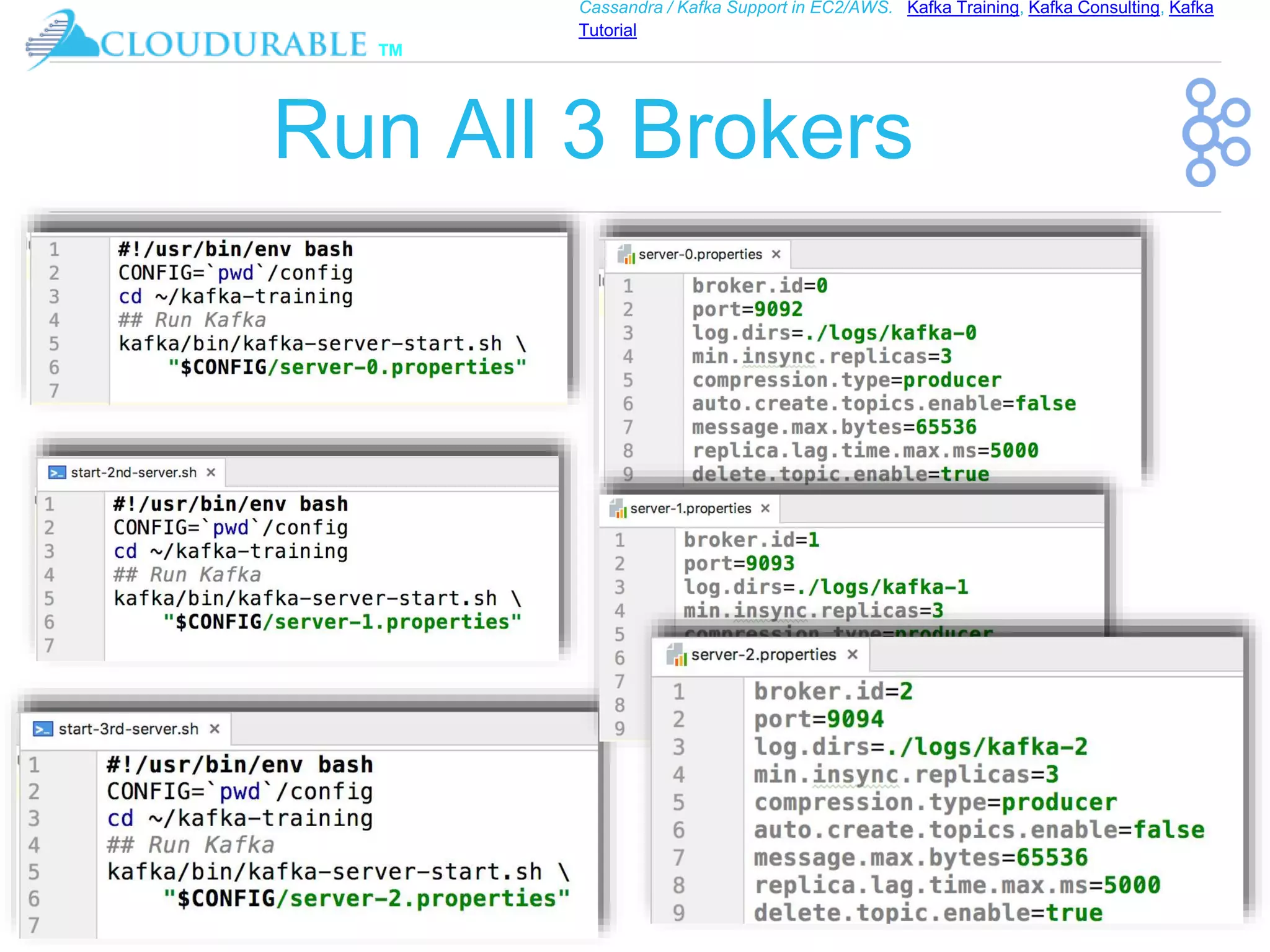

Run All 3 Brokers

™
Tutorial

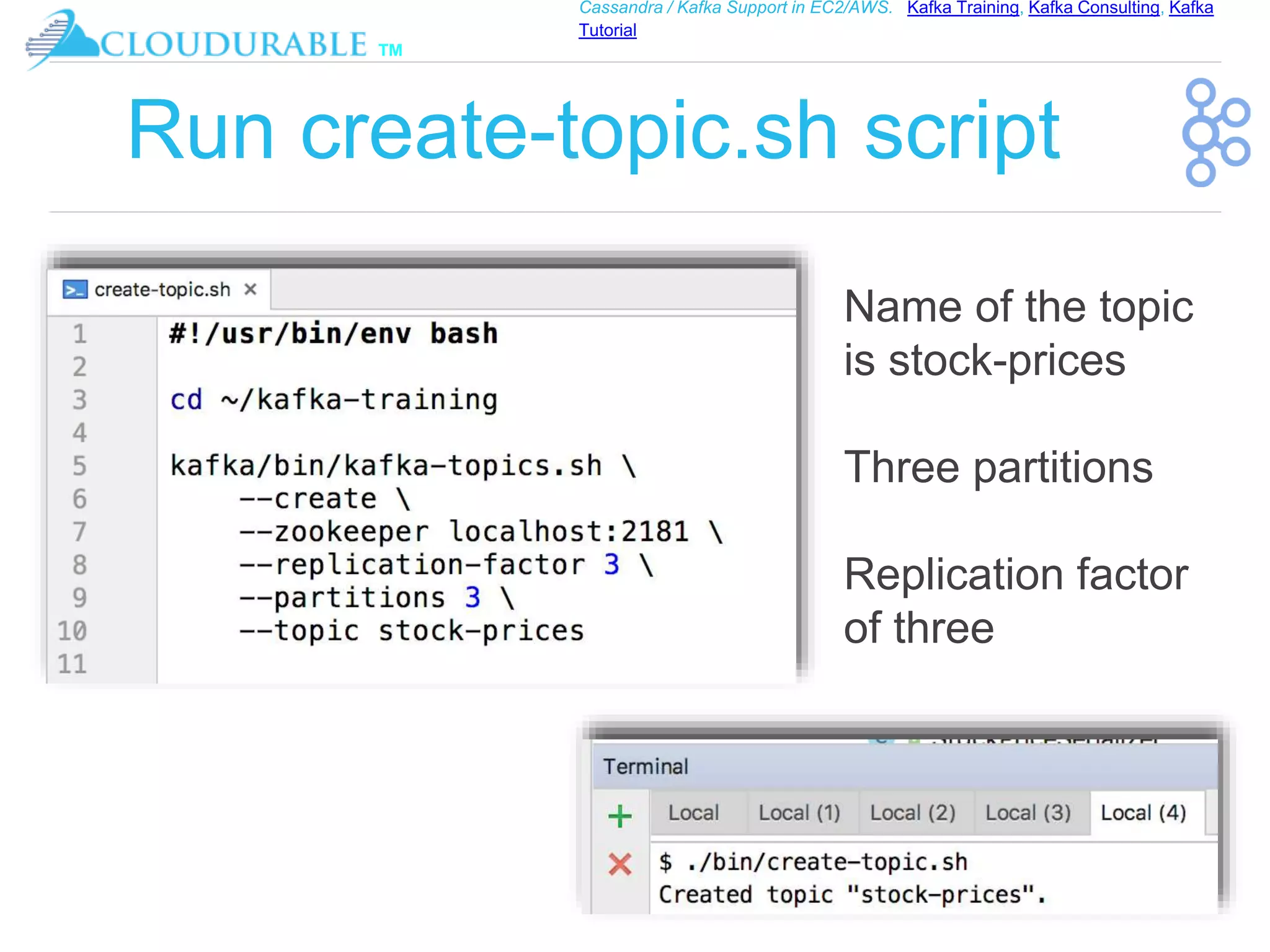

Run create-topic.sh script
Name of the topic
is stock-prices
Three partitions
Replication factor
of three

™
Tutorial

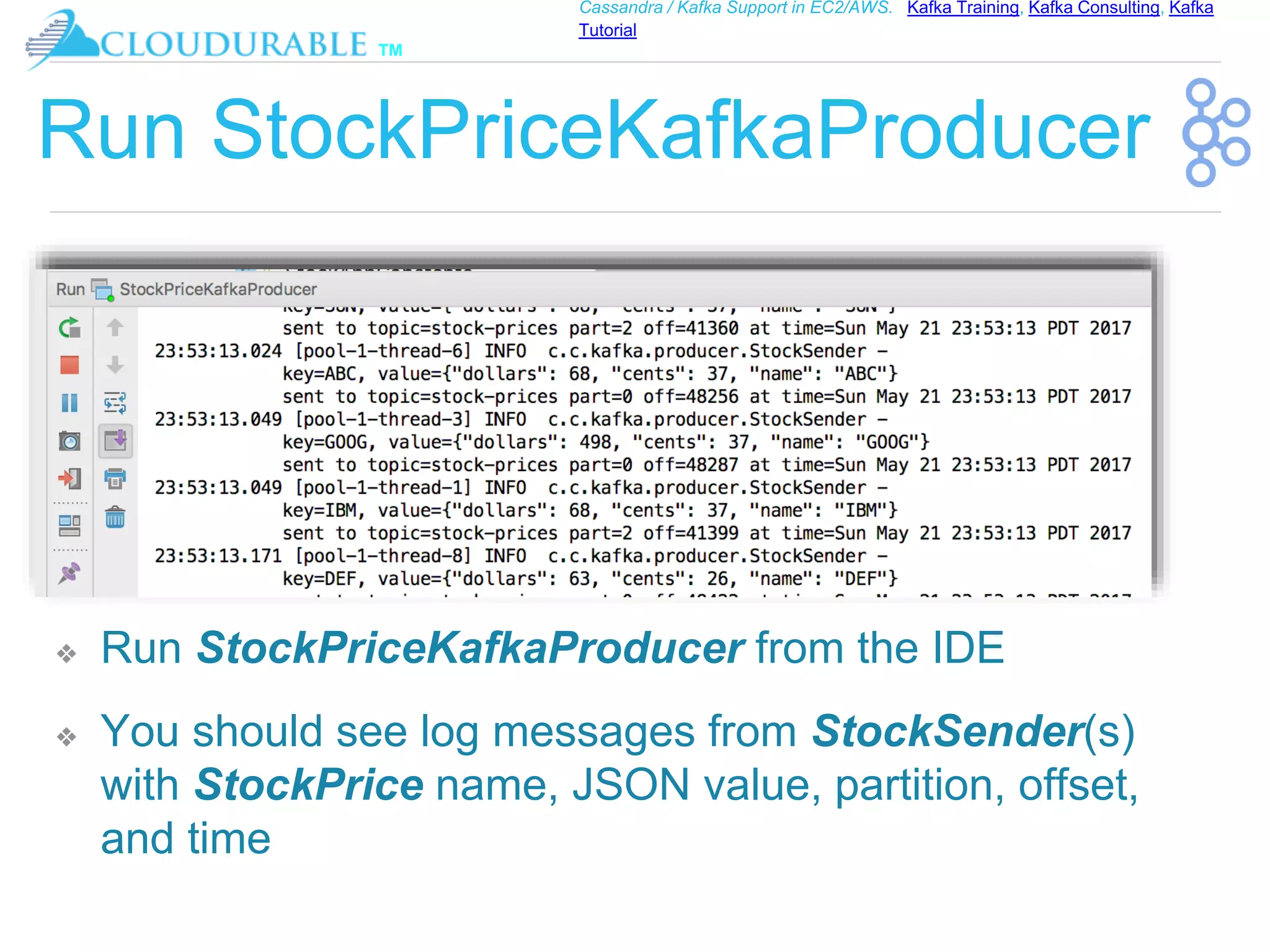

Run StockPriceKafkaProducer
❖ Run StockPriceKafkaProducer from the IDE
❖ You should see log messages from StockSender(s)
with StockPrice name, JSON value, partition, offset,
and time

™
Tutorial
Using flush and close
Lab Adding an
orderly shutdown
flush and close
Using flush and close

™
Tutorial
Shutdown Producer nicely
❖ Handle ctrl-C shutdown from Java
❖ Shutdown thread pool and wait
❖ Flush producer to send any outstanding batches if using
batches (producer.flush())
❖ Close Producer (producer.close()) and wait

™
Tutorial
Nice Shutdown
producer.close()

™
Tutorial
Restart Producer then shut it
down
❖ Add shutdown hook
❖ Start StockPriceKafkaProducer
❖ Now stop it (CTRL-C or hit stop button in IDE)

™
Tutorial
Lab Configuring
Producer Durability

™
Tutorial
Set default acks to all
❖ Set defaults acks to all (this is the default)
❖ This means that all ISRs in-sync replicas have to respond for
producer write to go through

™
Tutorial
Note Kafka Broker Config
❖ At least this many in-sync replicas (ISRs) have to respond for
producer to get ack
❖ NOTE: We have three brokers in this lab, all three have to be up

™
Tutorial

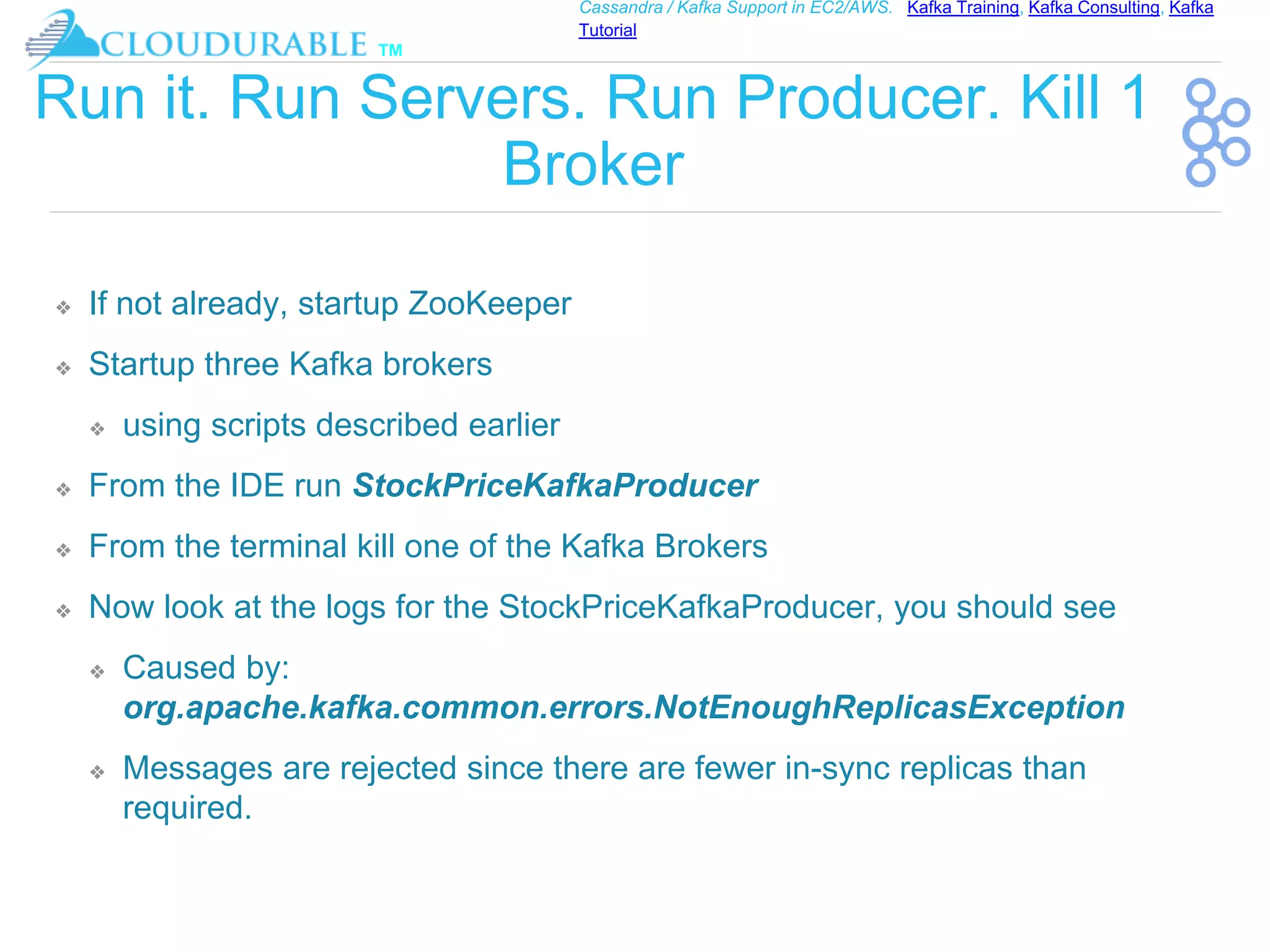

Run it. Run Servers. Run Producer. Kill 1
Broker
❖ If not already, startup ZooKeeper
❖ Startup three Kafka brokers
❖ using scripts described earlier
❖ From the IDE run StockPriceKafkaProducer
❖ From the terminal kill one of the Kafka Brokers
❖ Now look at the logs for the StockPriceKafkaProducer, you should see
❖ Caused by:
org.apache.kafka.common.errors.NotEnoughReplicasException
❖ Messages are rejected since there are fewer in-sync replicas than
required.

™
Tutorial

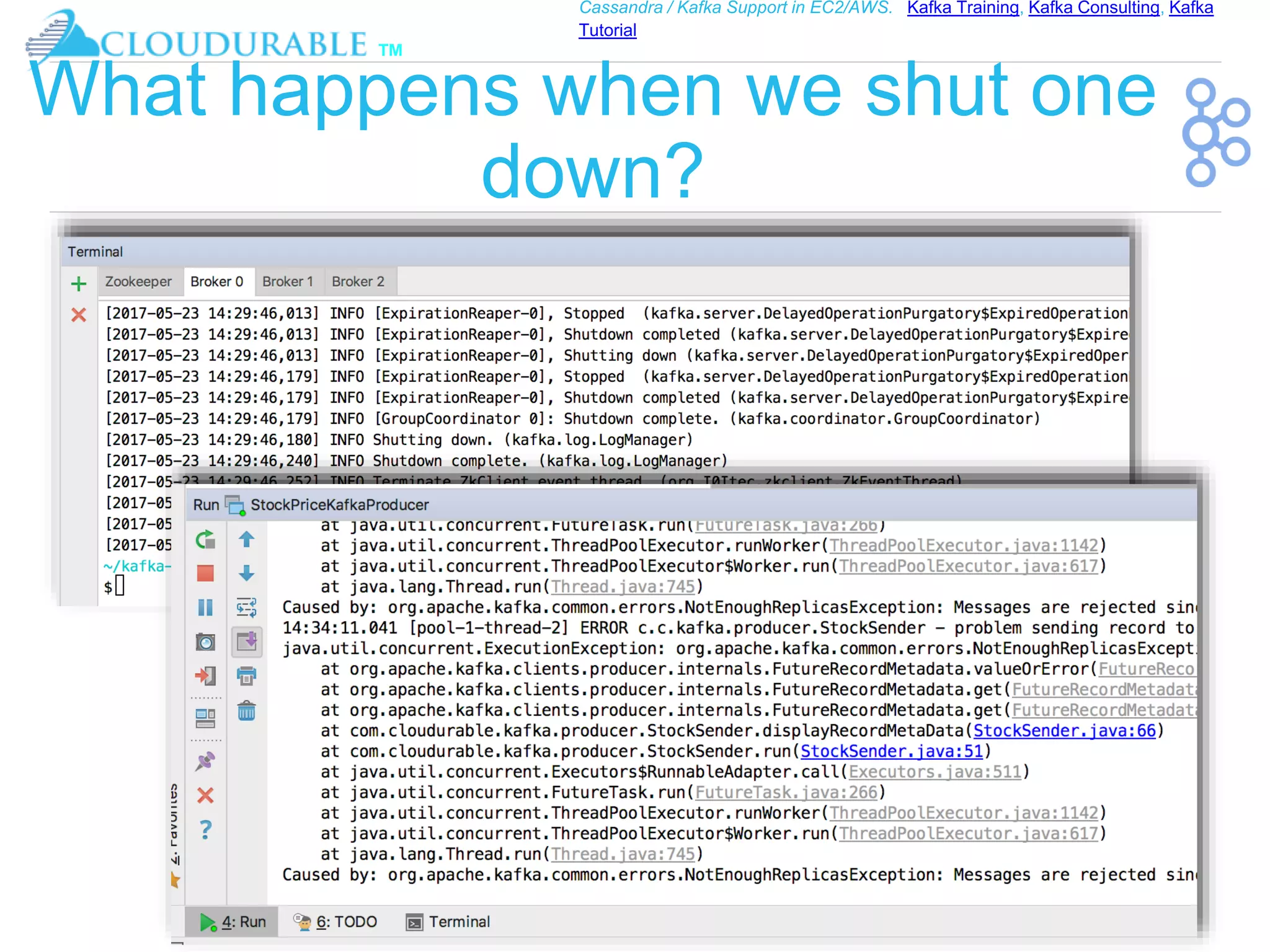

What happens when we shut one
down?

™
Tutorial

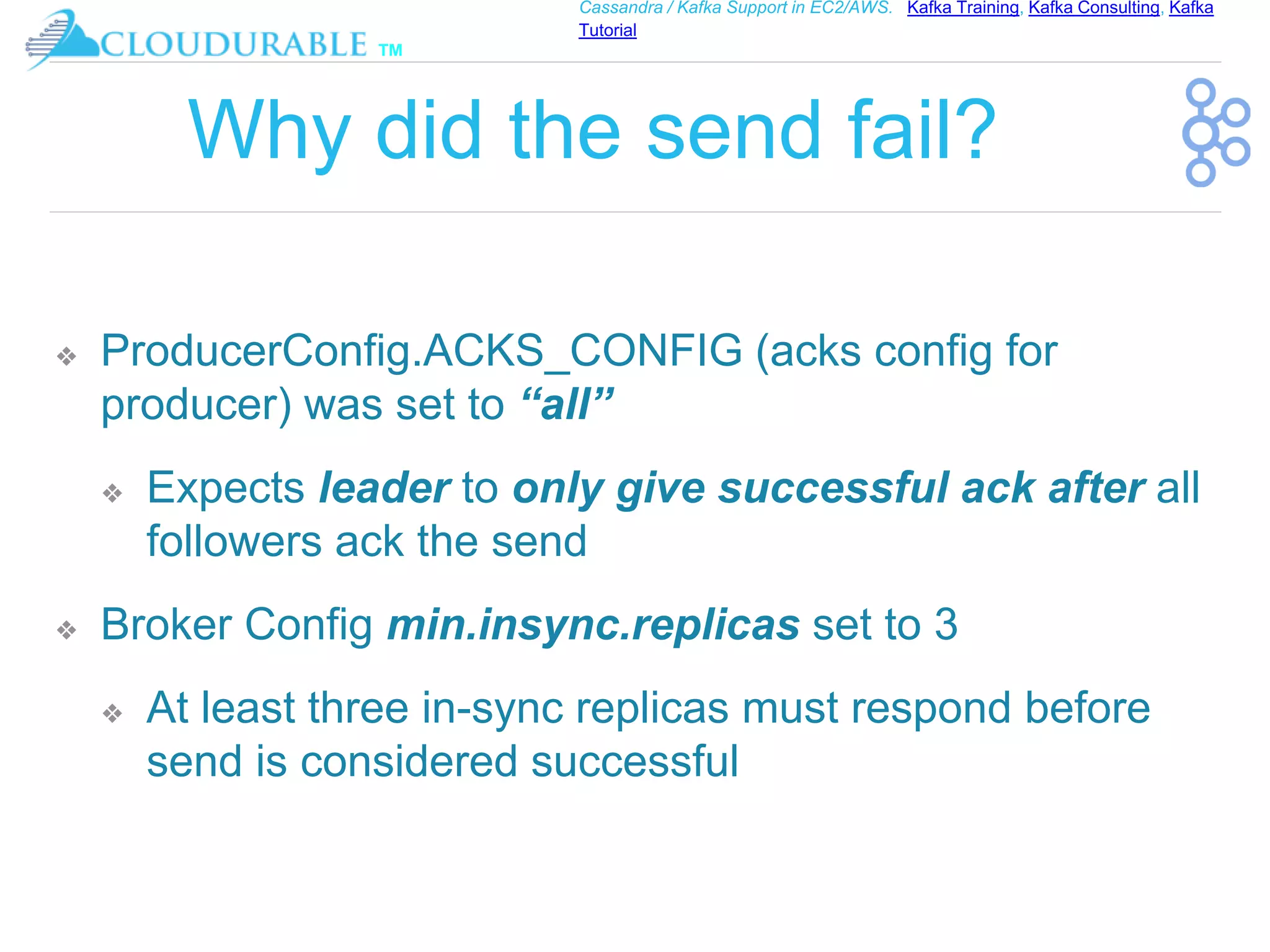

Why did the send fail?
❖ ProducerConfig.ACKS_CONFIG (acks config for
producer) was set to “all”
❖ Expects leader to only give successful ack after all
followers ack the send
❖ Broker Config min.insync.replicas set to 3
❖ At least three in-sync replicas must respond before
send is considered successful

™
Tutorial
Run it. Run Servers. Run Producer. Kill 1
Broker
❖ Ensure all three Kafka Brokers are running if not running
❖ Change StockPriceKafkaProducer acks config to 1
props.put(ProducerConfig.ACKS_CONFIG, “1"); (leader
sends ack after write to log)
❖ From the IDE run StockPriceKafkaProducer
❖ From the terminal kill one of the Kafka Brokers
❖ StockPriceKafkaProducer runs normally

™
Tutorial

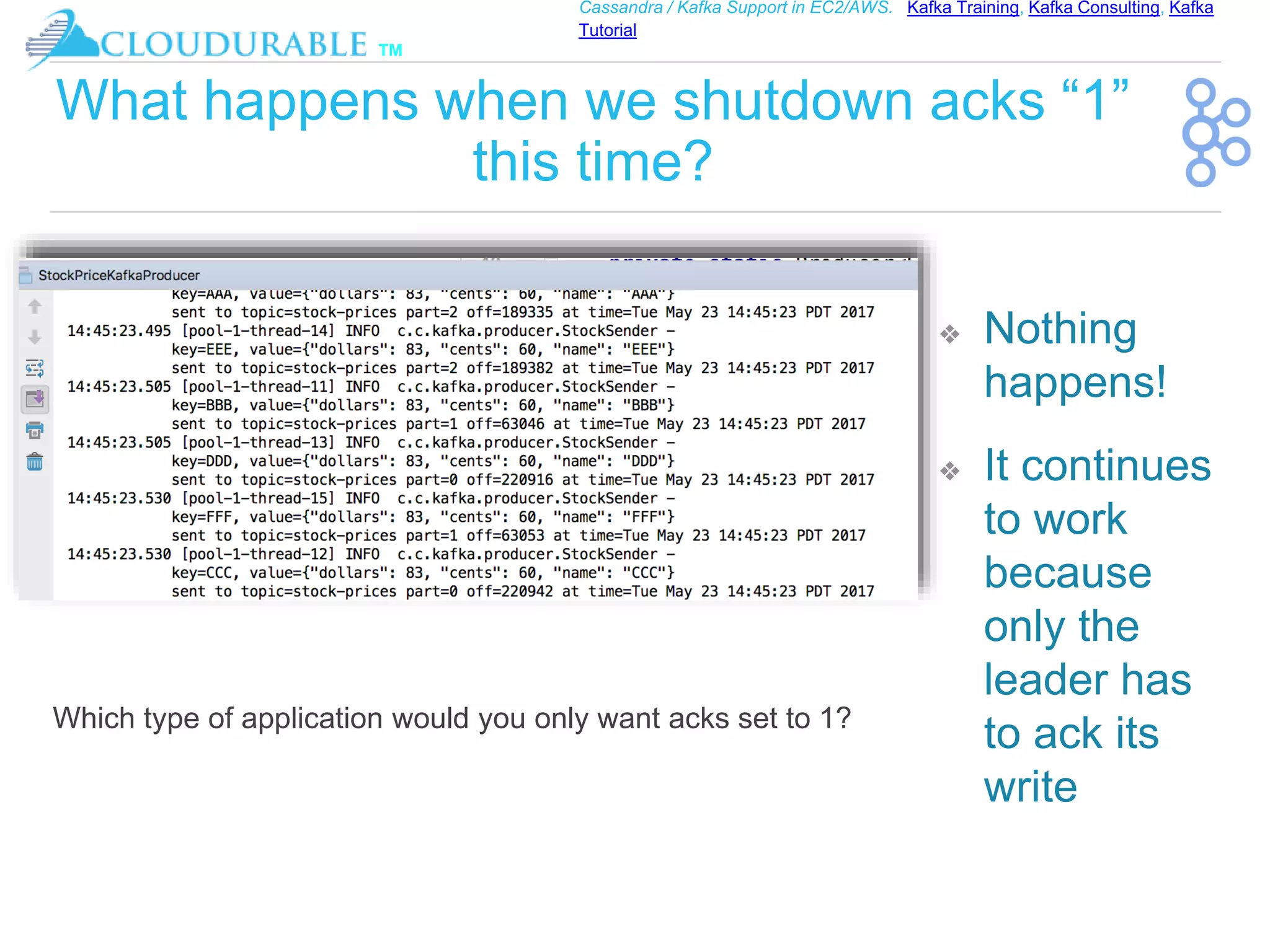

What happens when we shutdown acks “1”
this time?
❖ Nothing
happens!
❖ It continues
to work
because
only the
leader has
to ack its
write
Which type of application would you only want acks set to 1?

™
Tutorial

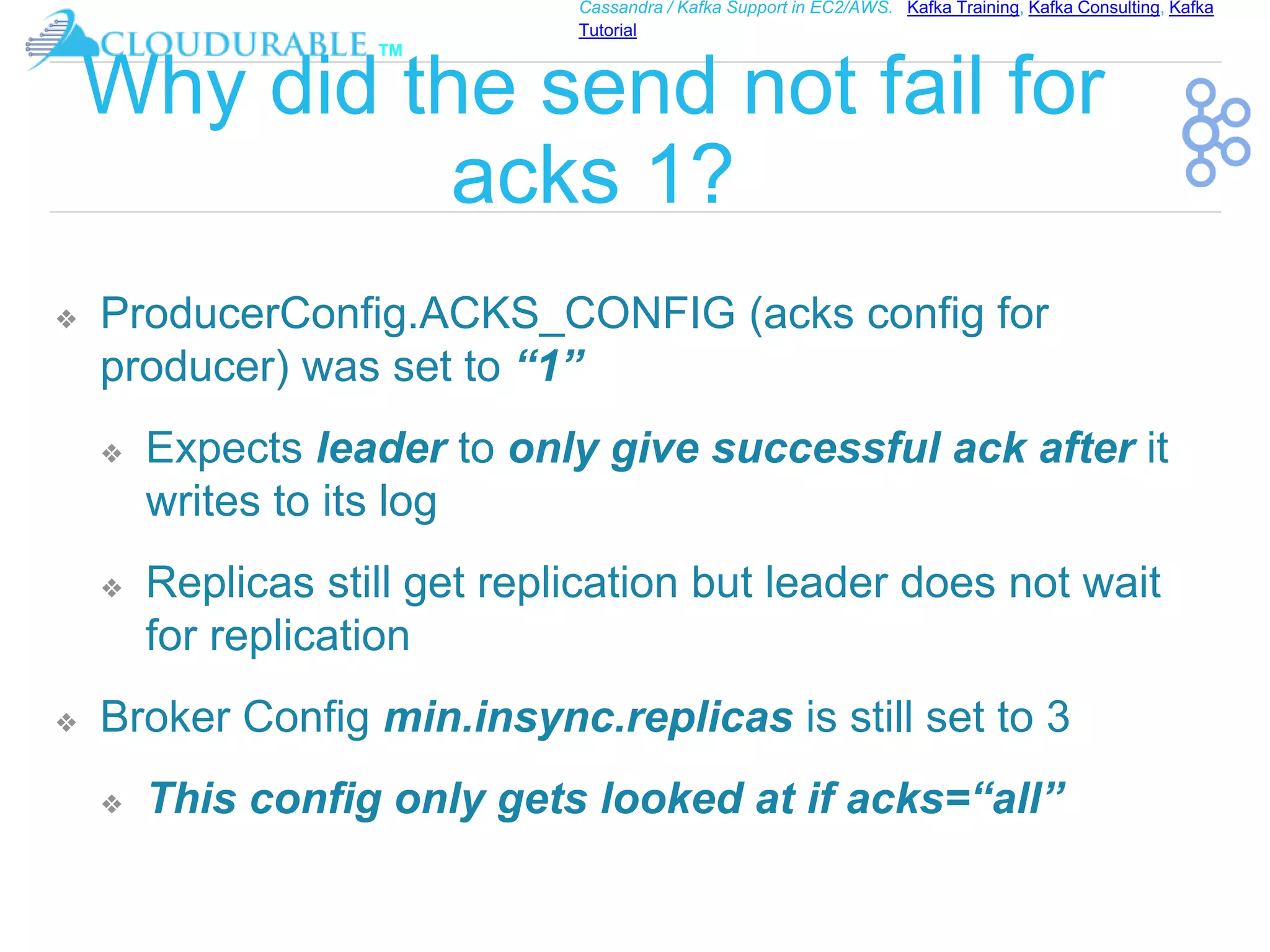

Why did the send not fail for
acks 1?
❖ ProducerConfig.ACKS_CONFIG (acks config for
producer) was set to “1”
❖ Expects leader to only give successful ack after it
writes to its log
❖ Replicas still get replication but leader does not wait
for replication
❖ Broker Config min.insync.replicas is still set to 3
❖ This config only gets looked at if acks=“all”

™
Tutorial

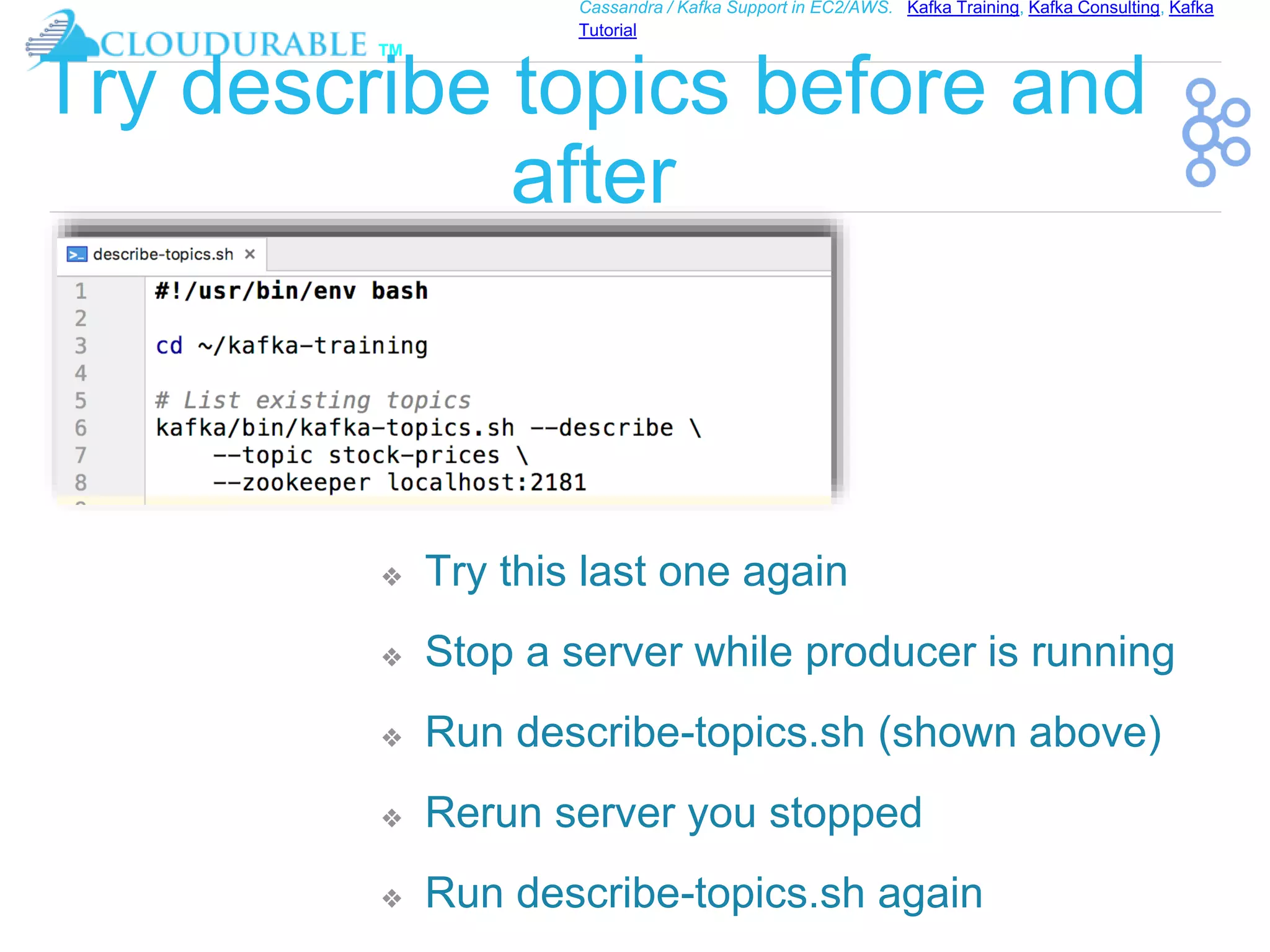

Try describe topics before and
after
❖ Try this last one again
❖ Stop a server while producer is running
❖ Run describe-topics.sh (shown above)
❖ Rerun server you stopped
❖ Run describe-topics.sh again

™
Tutorial

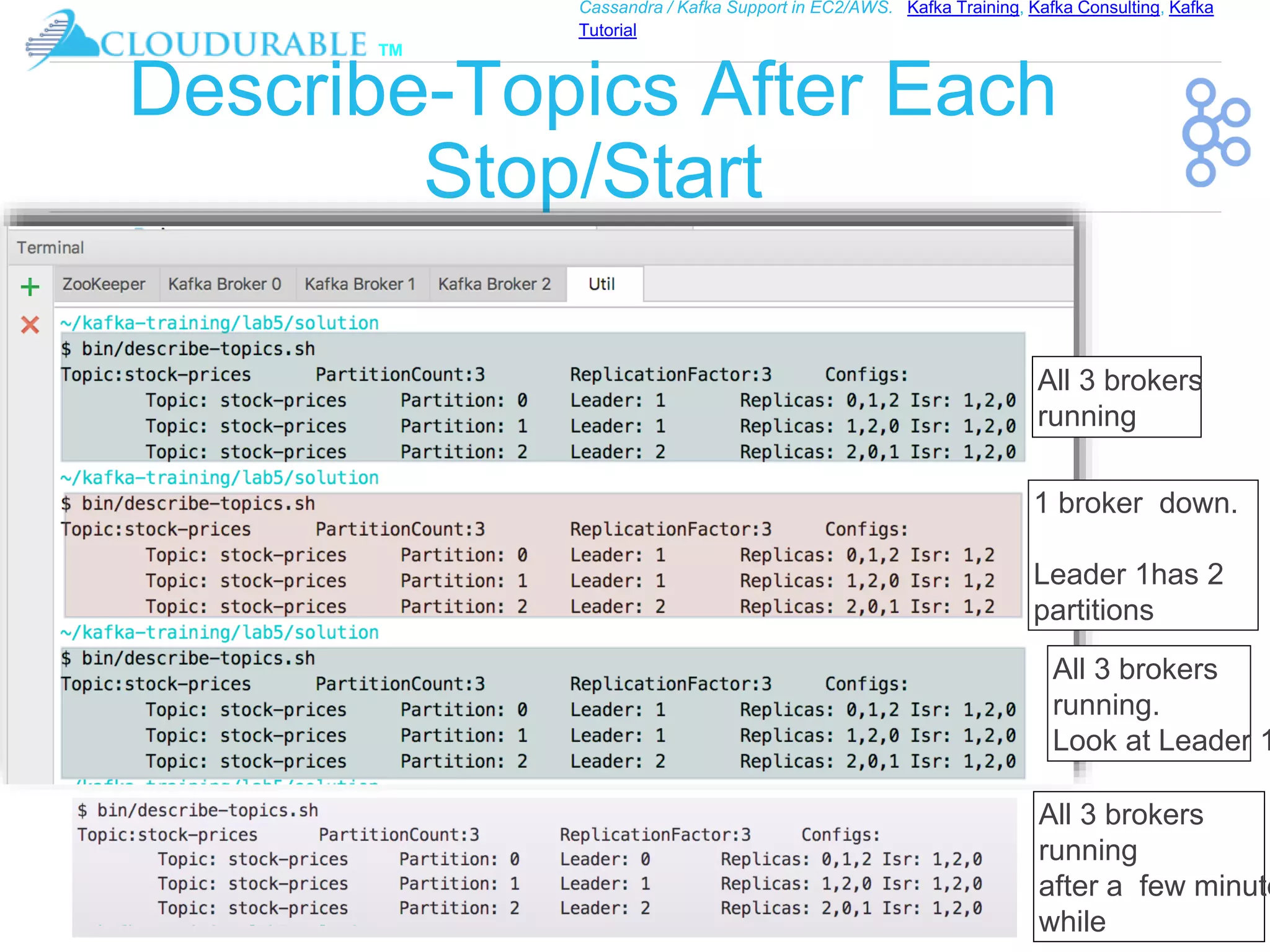

Describe-Topics After Each
Stop/Start
All 3 brokers
running
1 broker down.
Leader 1has 2
partitions
All 3 brokers
running.
Look at Leader 1
All 3 brokers
running
after a few minute
while

™
Tutorial

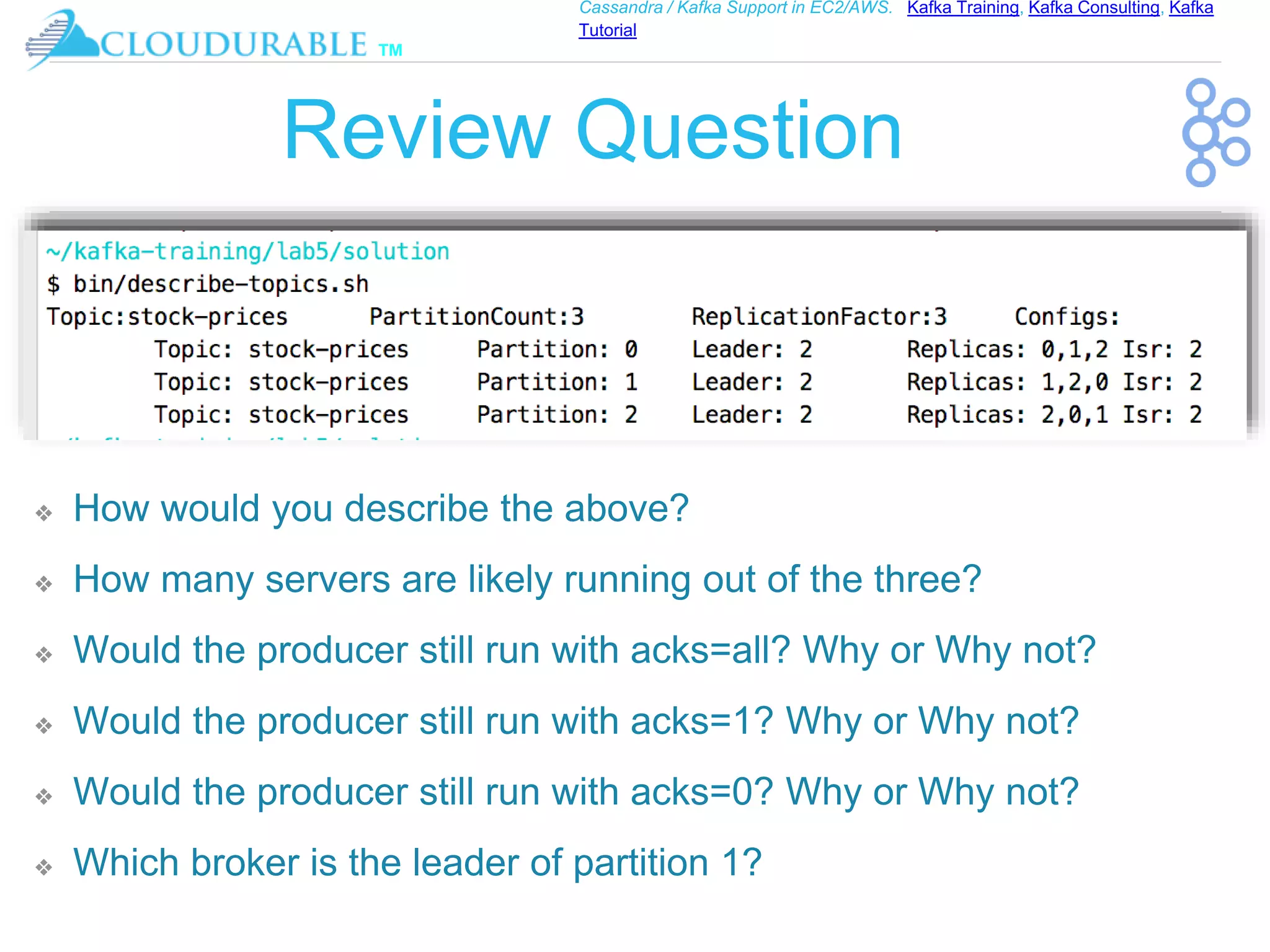

Review Question
❖ How would you describe the above?
❖ How many servers are likely running out of the three?
❖ Would the producer still run with acks=all? Why or Why not?
❖ Would the producer still run with acks=1? Why or Why not?
❖ Would the producer still run with acks=0? Why or Why not?
❖ Which broker is the leader of partition 1?

™
Tutorial

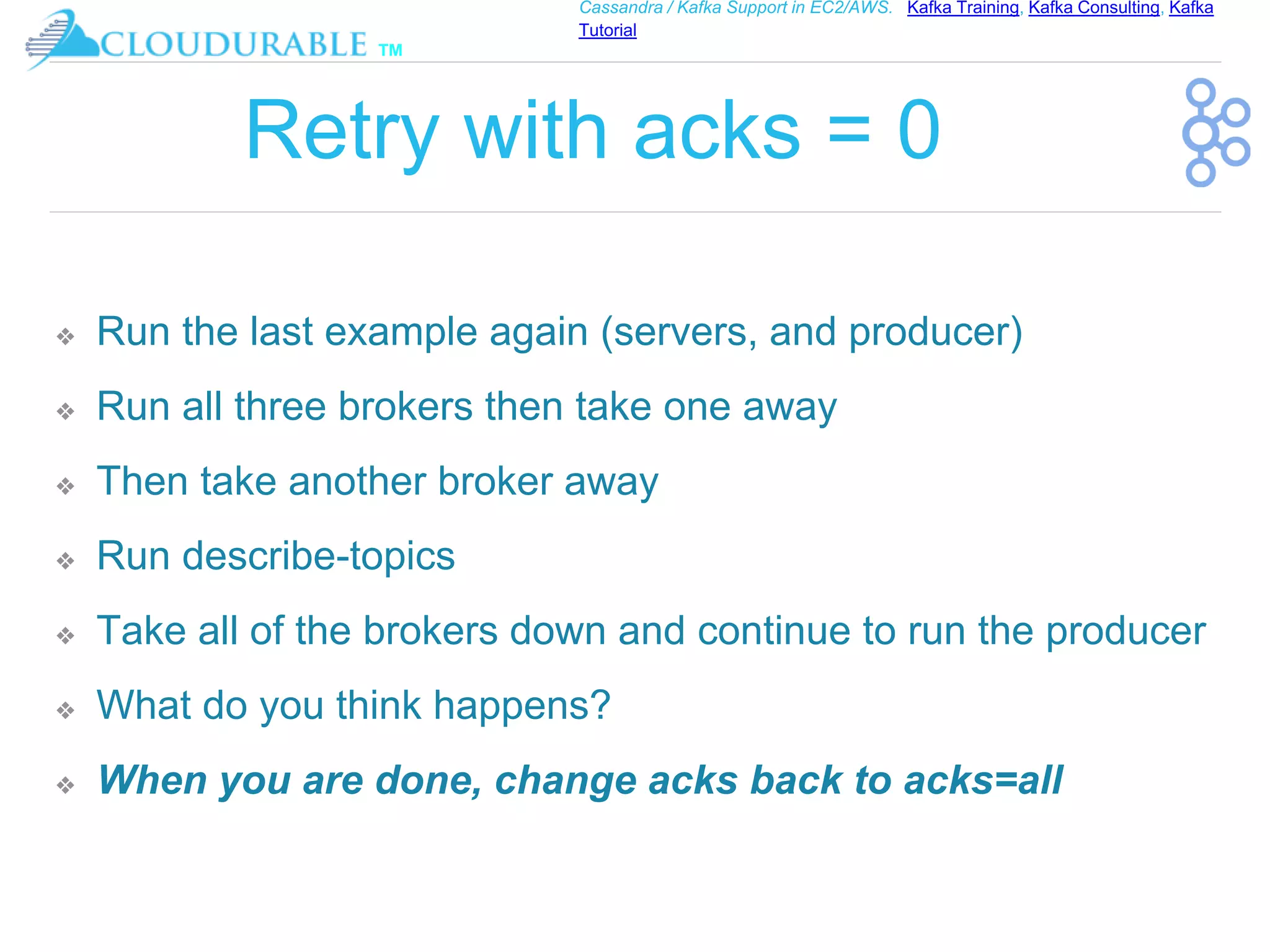

Retry with acks = 0
❖ Run the last example again (servers, and producer)
❖ Run all three brokers then take one away
❖ Then take another broker away
❖ Run describe-topics
❖ Take all of the brokers down and continue to run the producer
❖ What do you think happens?
❖ When you are done, change acks back to acks=all

™
Tutorial
Using Kafka built-in Producer Metrics
Adding Producer Metrics
and
Replication Verification
Metrics

™
Tutorial

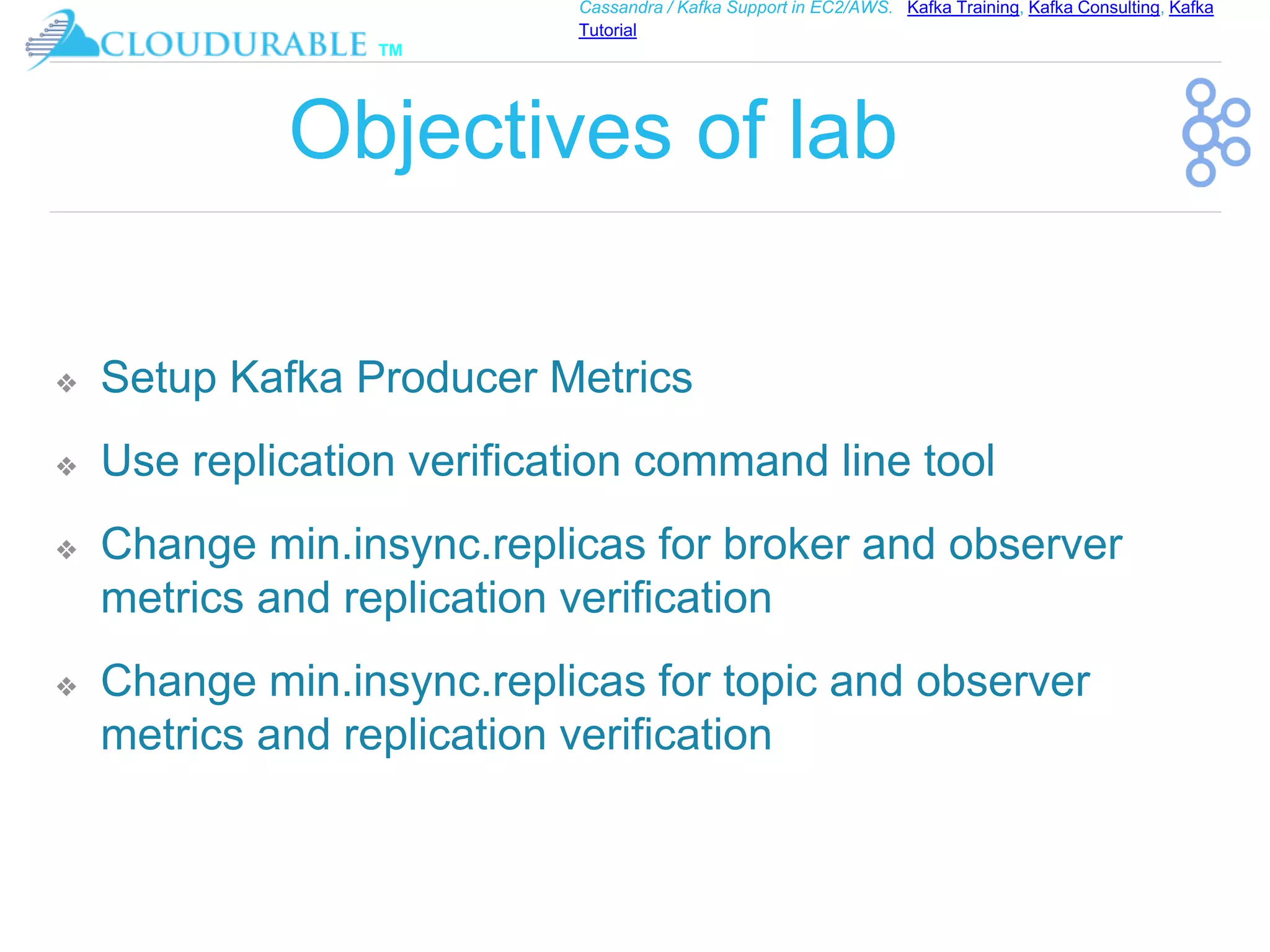

Objectives of lab
❖ Setup Kafka Producer Metrics
❖ Use replication verification command line tool
❖ Change min.insync.replicas for broker and observer
metrics and replication verification
❖ Change min.insync.replicas for topic and observer
metrics and replication verification

™
Tutorial

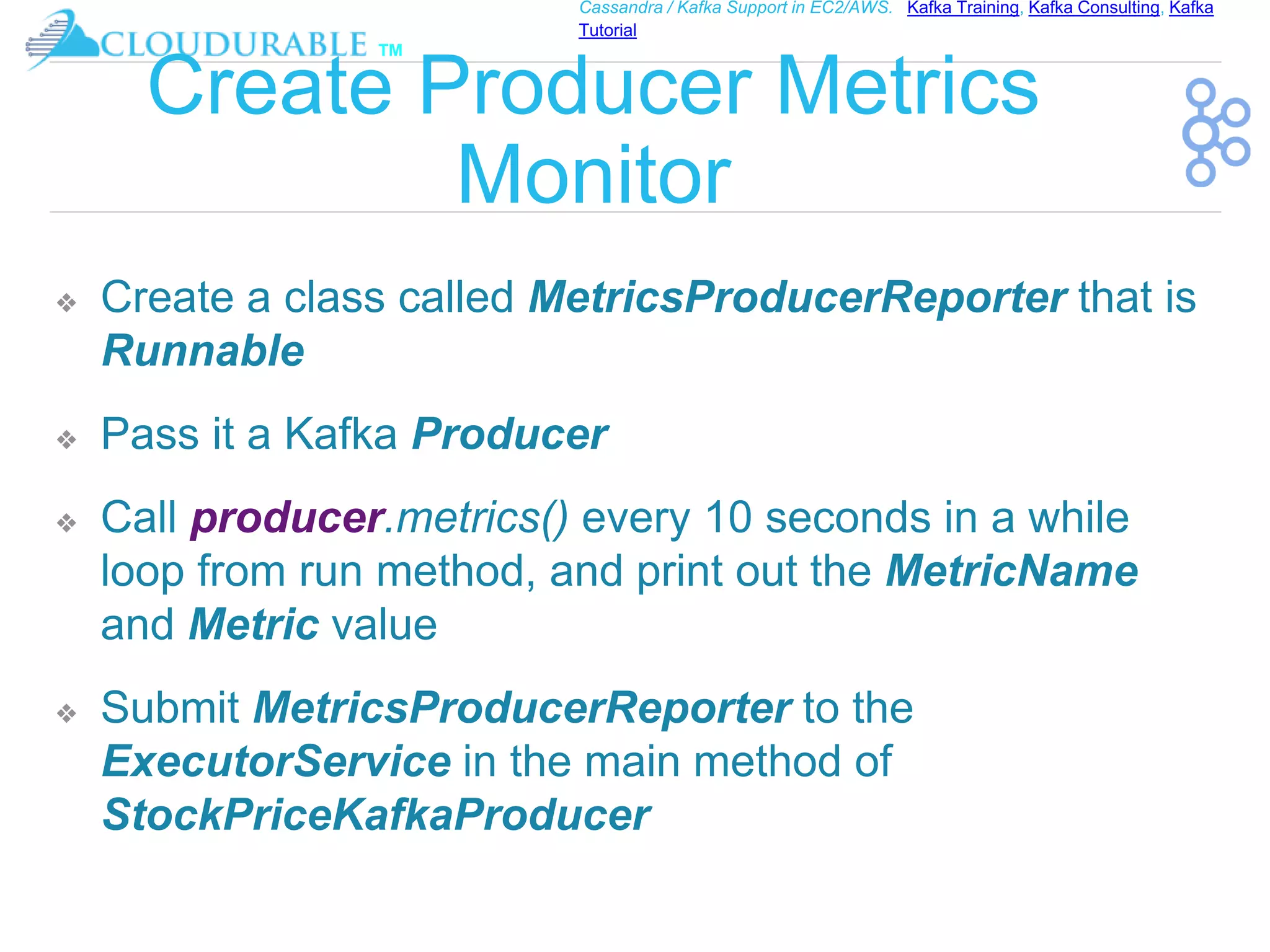

Create Producer Metrics
Monitor
❖ Create a class called MetricsProducerReporter that is
Runnable
❖ Pass it a Kafka Producer
❖ Call producer.metrics() every 10 seconds in a while
loop from run method, and print out the MetricName
and Metric value
❖ Submit MetricsProducerReporter to the
ExecutorService in the main method of

™
Tutorial
Create MetricsProducerReporter
(Runnable)
❖ Implements Runnable takes a producer

™
Tutorial
(Runnable)
❖ Call producer.metrics() every 10 seconds in a while loop from run method, and print out
MetricName and Metric value

™

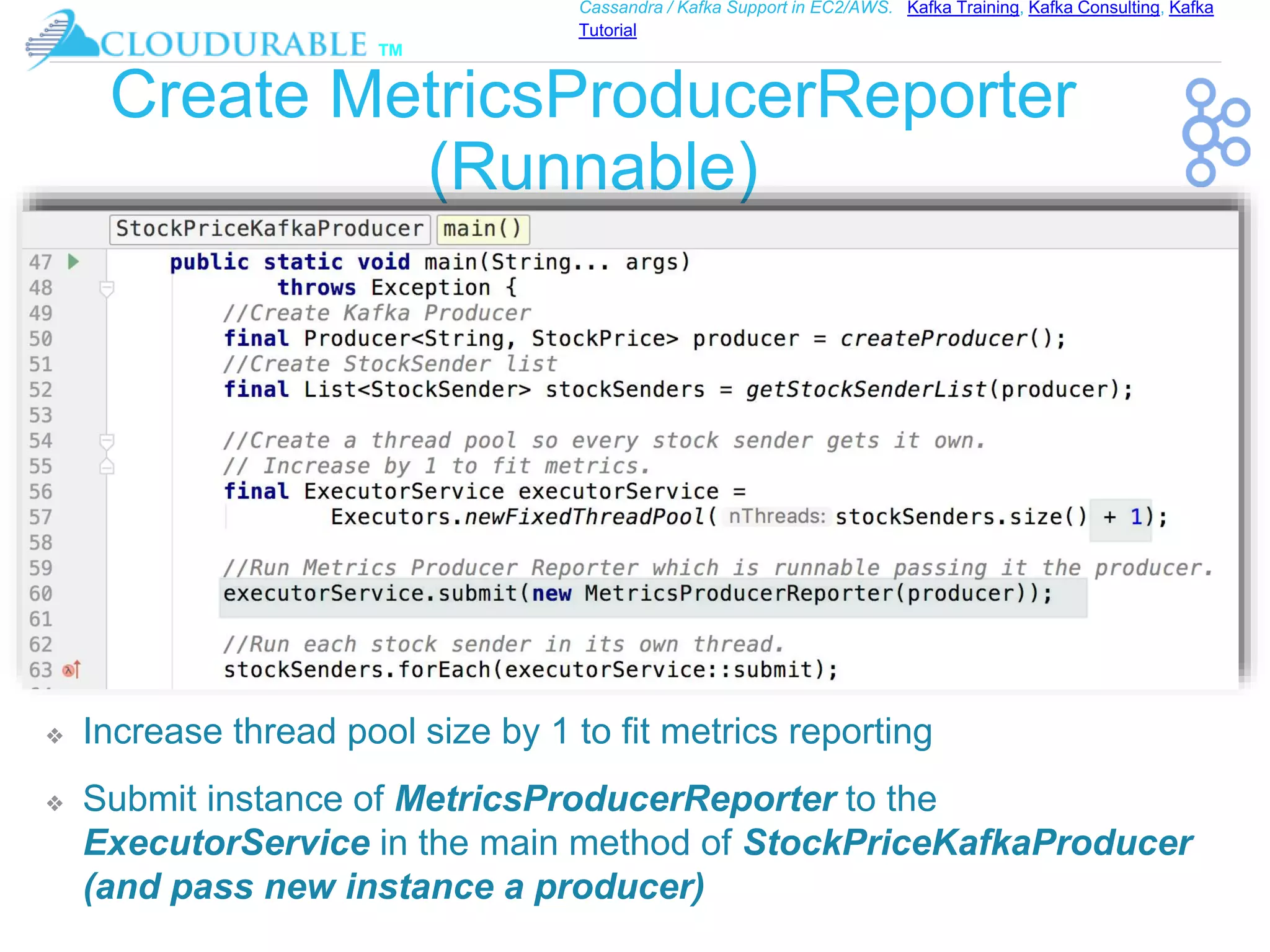

Tutorial
(Runnable)
❖ Increase thread pool size by 1 to fit metrics reporting
❖ Submit instance of MetricsProducerReporter to the
ExecutorService in the main method of StockPriceKafkaProducer
(and pass new instance a producer)

™
Tutorial

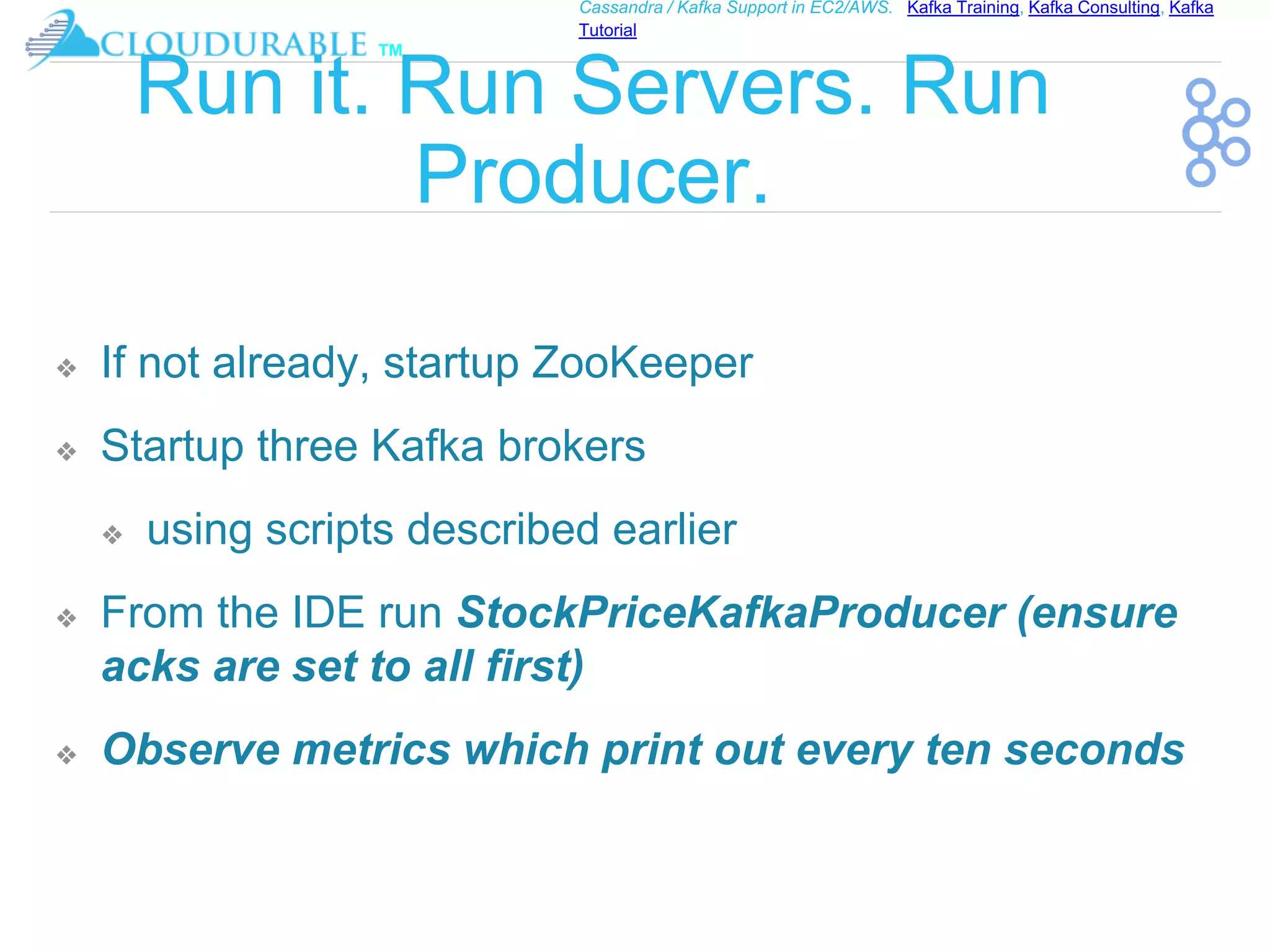

Run it. Run Servers. Run
Producer.
❖ Startup three Kafka brokers
❖ using scripts described earlier
❖ From the IDE run StockPriceKafkaProducer (ensure
acks are set to all first)
❖ Observe metrics which print out every ten seconds

™
Tutorial
Look at the output
Metric producer-node-metrics, outgoing-byte-rate, 1.8410309773473144,
Metric producer-topic-metrics, record-send-rate, 975.3229844767151,
Metric producer-node-metrics, request-rate, 0.040021611670301965,
The average number of requests sent per second.
Metric producer-node-metrics, incoming-byte-rate, 7.304382629577747,

™
Tutorial

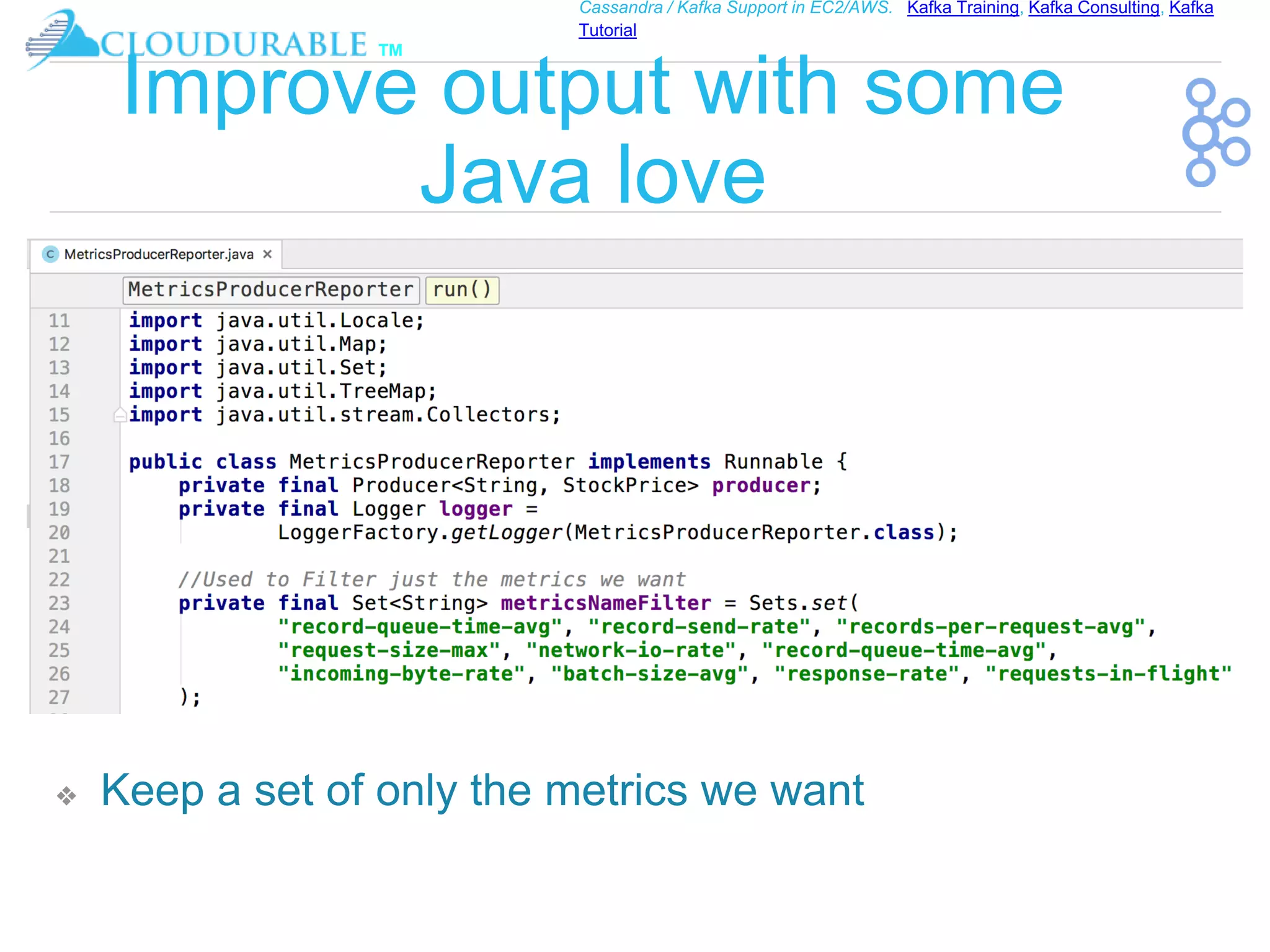

Improve output with some
Java love
❖ Keep a set of only the metrics we want

™
Tutorial
Improve output: Filter metrics
❖ Use Java 8 Stream to filter and sort metrics
❖ Get rid of metric values that are NaN, Infinite numbers and 0s
❖ Sort map my converting it to TreeMap<String, MetricPair>
❖ MetricPair is helper class that has a Metric and a MetricName

™
Tutorial

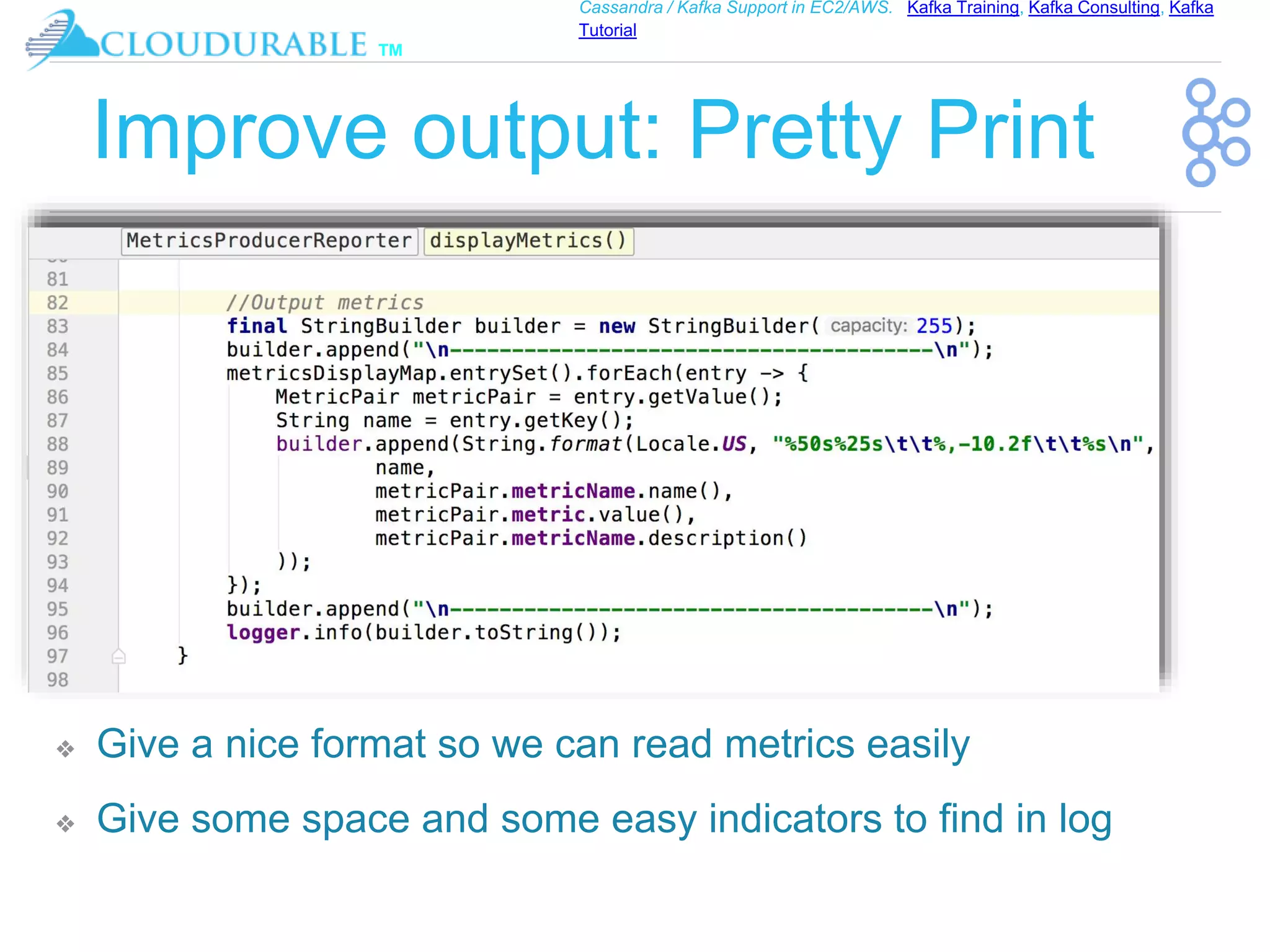

Improve output: Pretty Print
❖ Give a nice format so we can read metrics easily
❖ Give some space and some easy indicators to find in log

™
Tutorial
Pretty Print Metrics Output

™
Tutorial

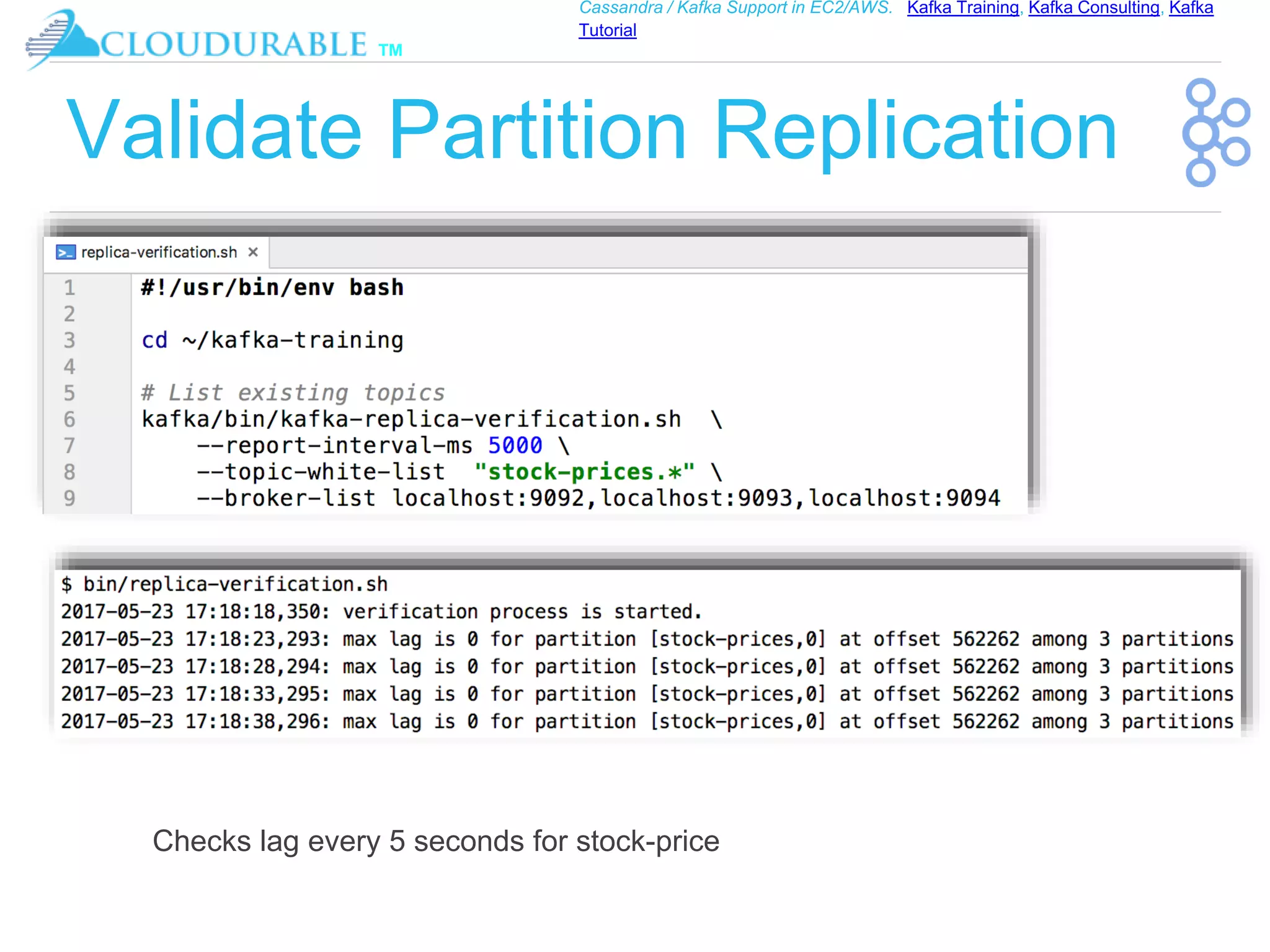

Validate Partition Replication
Checks lag every 5 seconds for stock-price

™
Tutorial

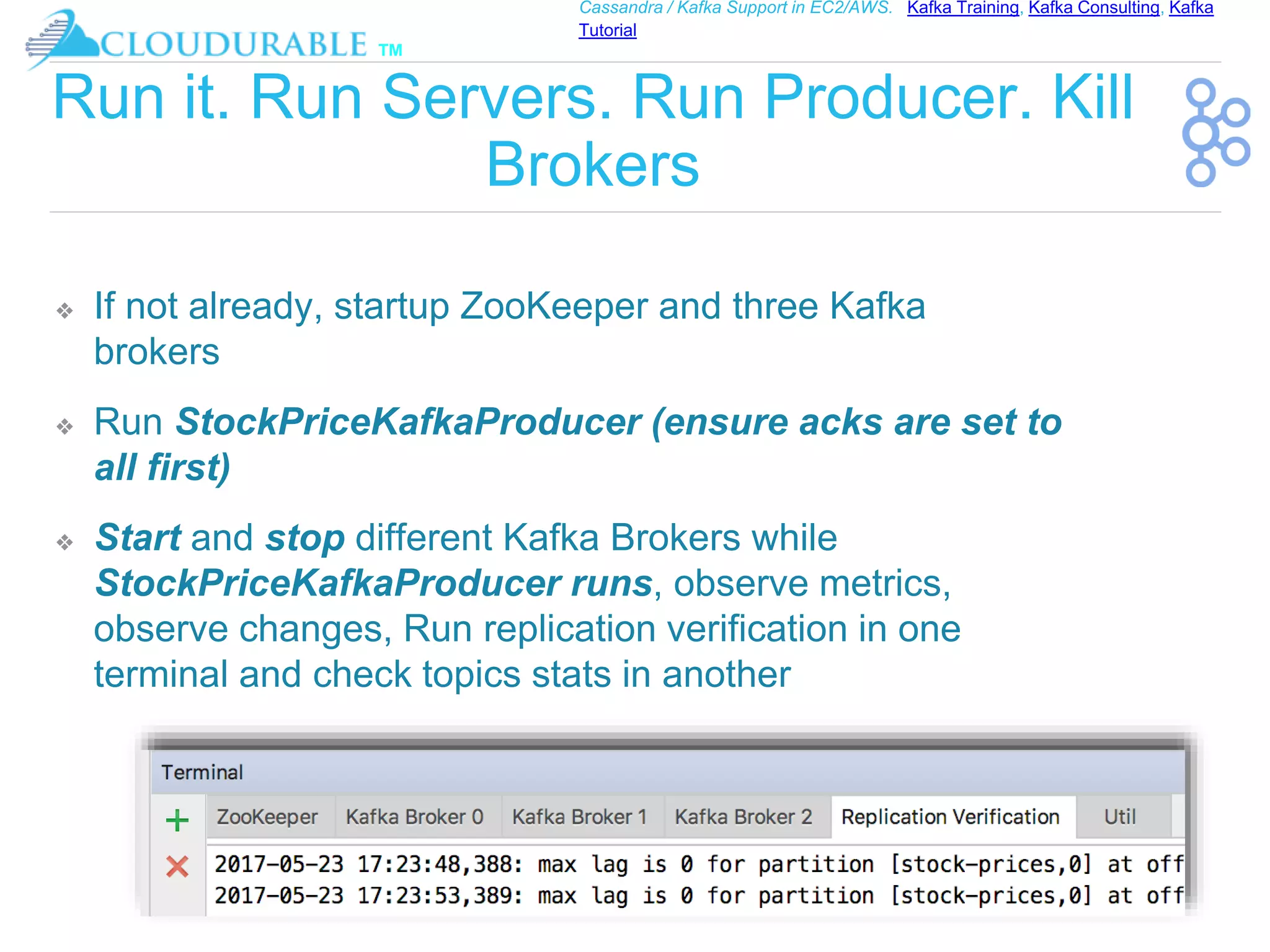

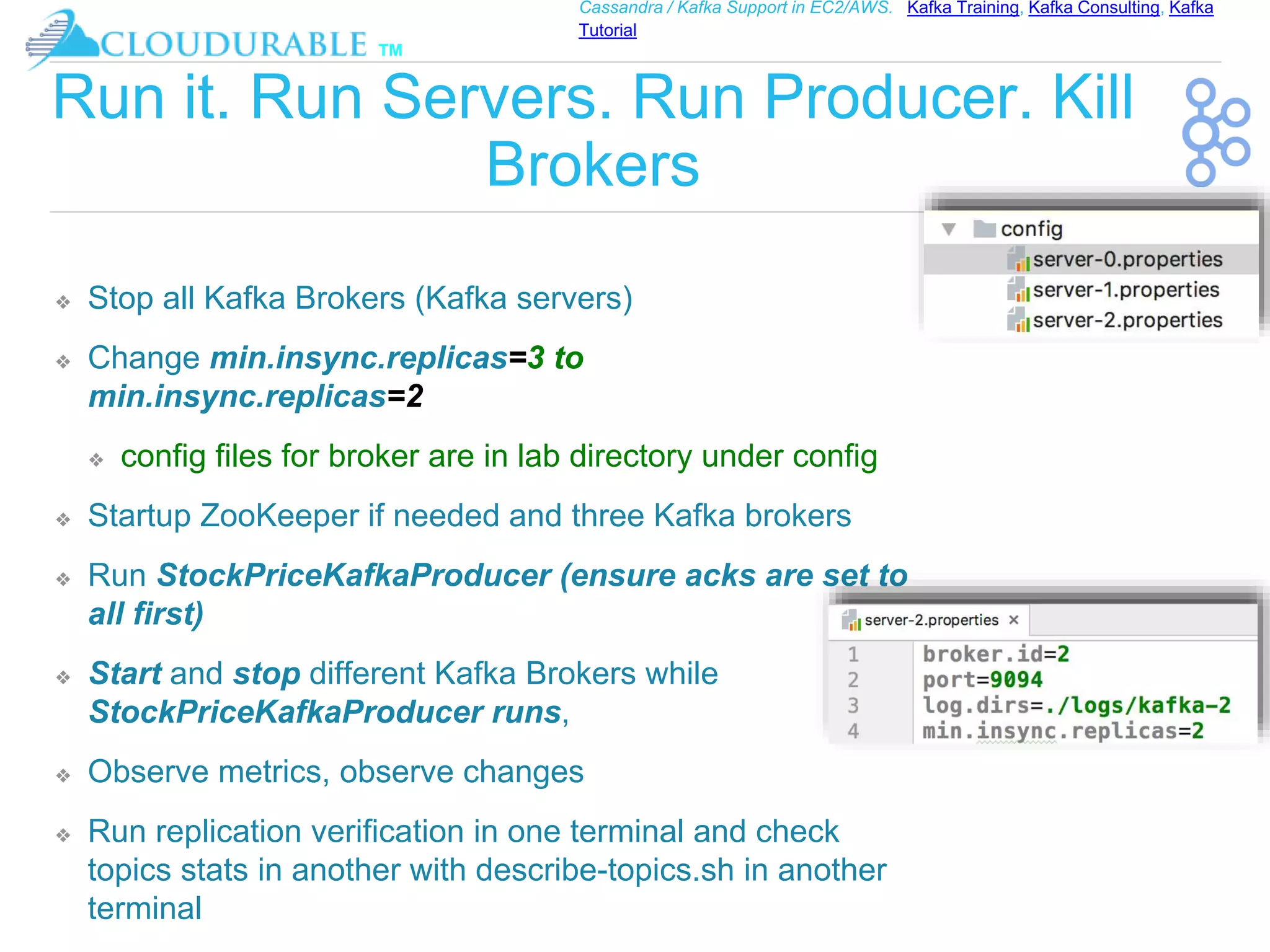

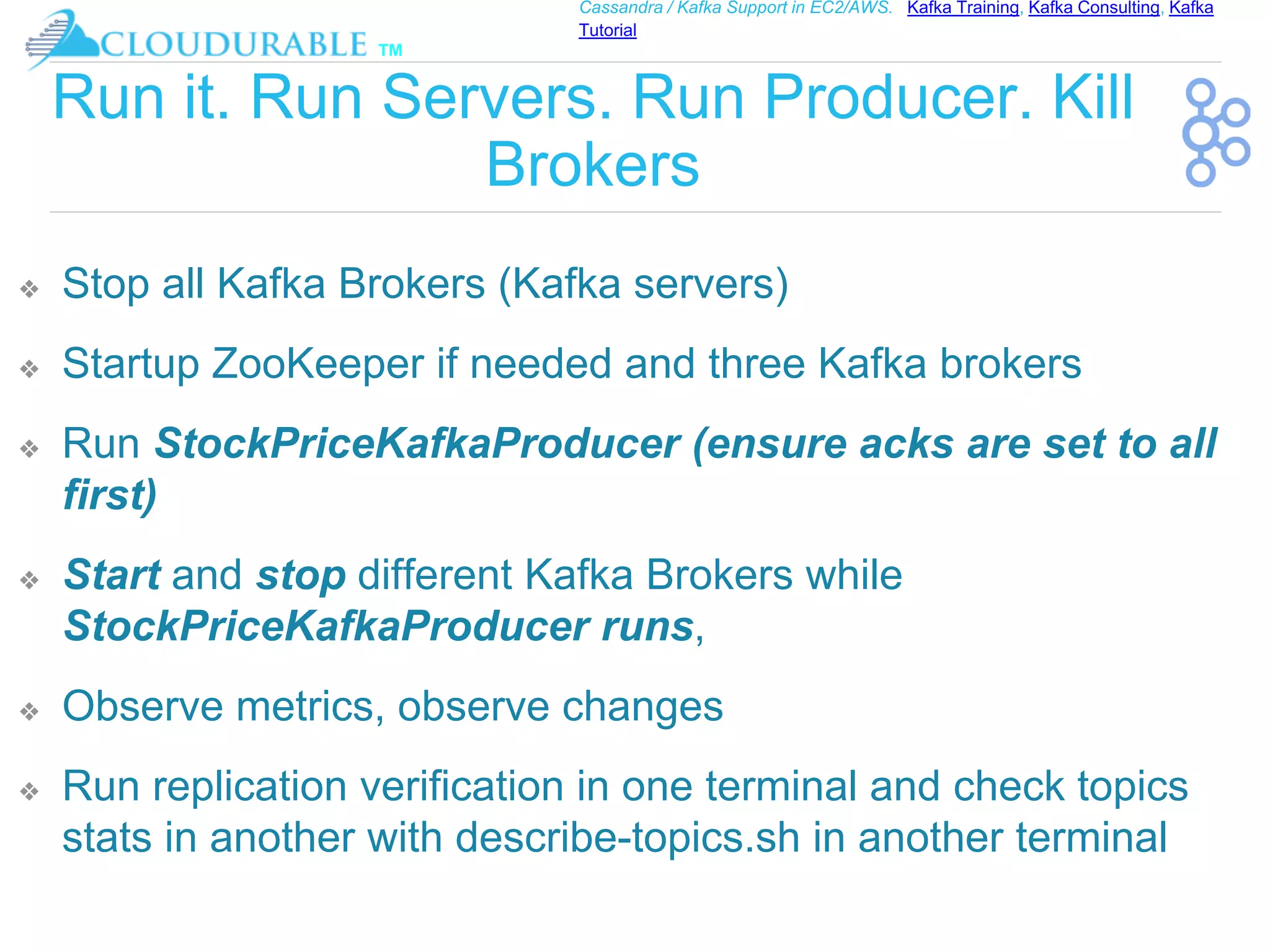

Run it. Run Servers. Run Producer. Kill
Brokers
❖ If not already, startup ZooKeeper and three Kafka
brokers
❖ Run StockPriceKafkaProducer (ensure acks are set to
all first)
❖ Start and stop different Kafka Brokers while
StockPriceKafkaProducer runs, observe metrics,
observe changes, Run replication verification in one
terminal and check topics stats in another

™
Tutorial

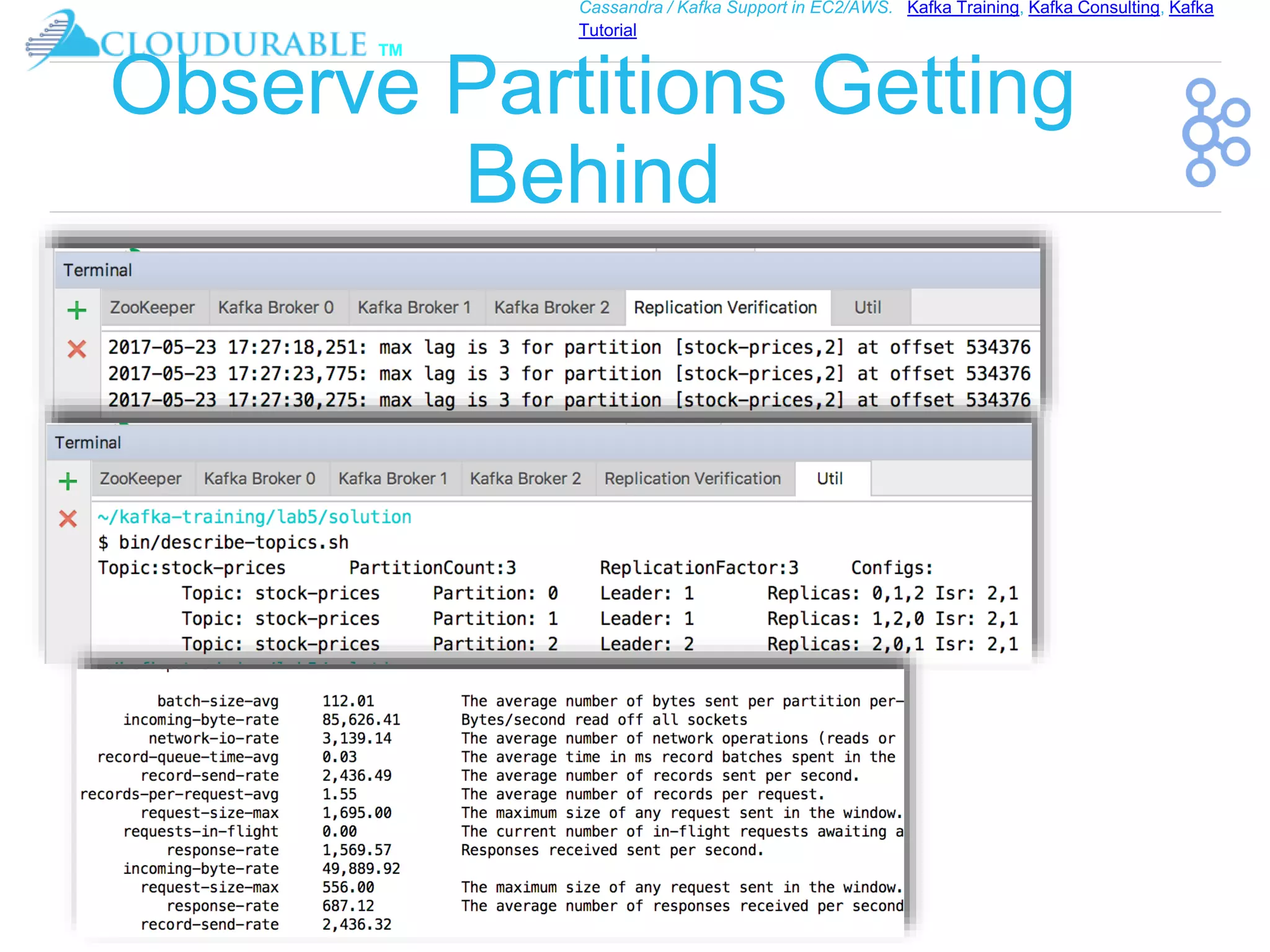

Observe Partitions Getting
Behind

™
Tutorial

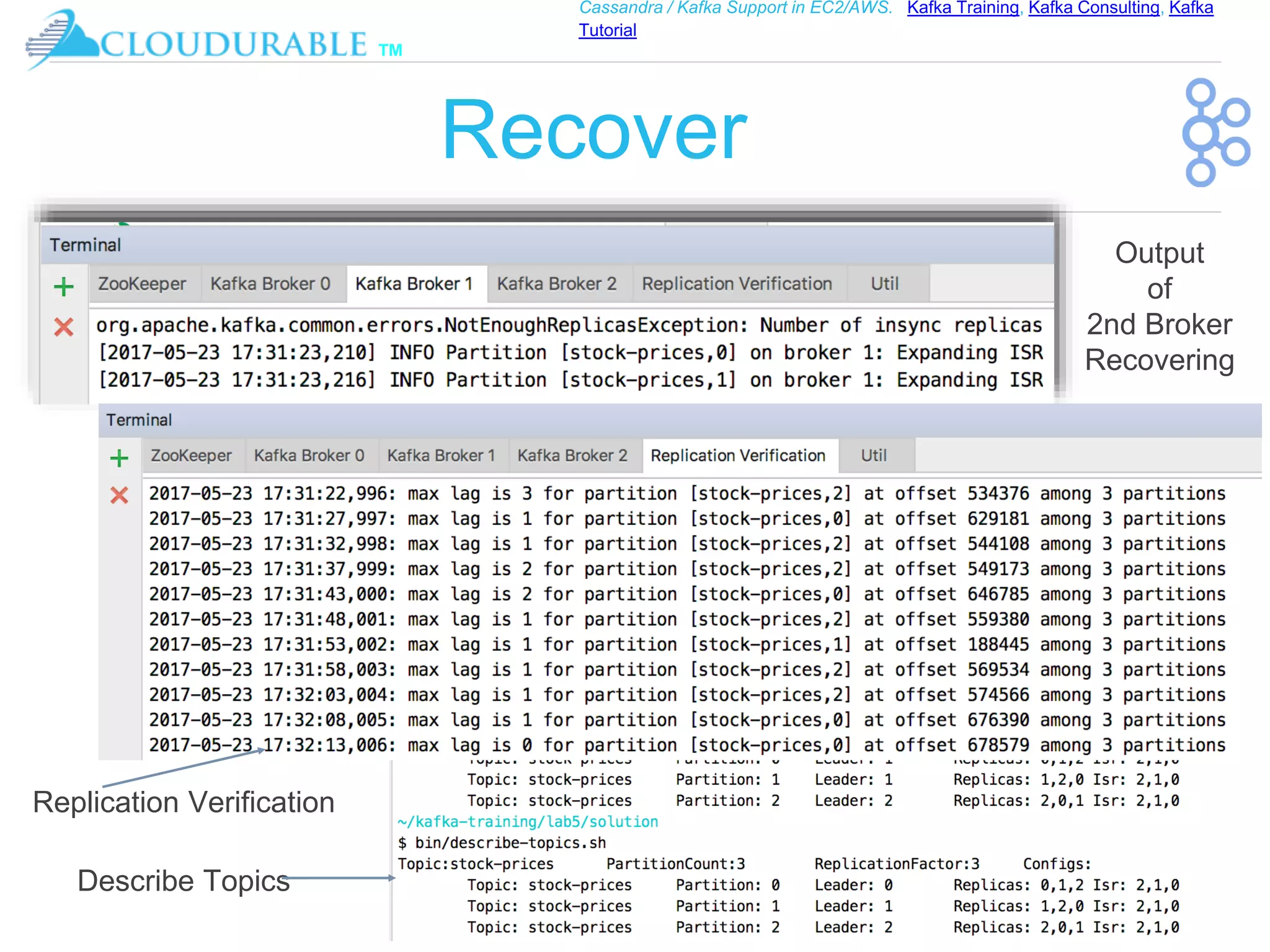

Recover
Describe Topics
Output
of
2nd Broker
Recovering

™
Tutorial
Brokers
❖ Stop all Kafka Brokers (Kafka servers)
❖ Change min.insync.replicas=3 to
min.insync.replicas=2
❖ config files for broker are in lab directory under config
❖ Startup ZooKeeper if needed and three Kafka brokers
❖ Run StockPriceKafkaProducer (ensure acks are set to
all first)
StockPriceKafkaProducer runs,
❖ Observe metrics, observe changes
❖ Run replication verification in one terminal and check
topics stats in another with describe-topics.sh in another
terminal

™
Tutorial

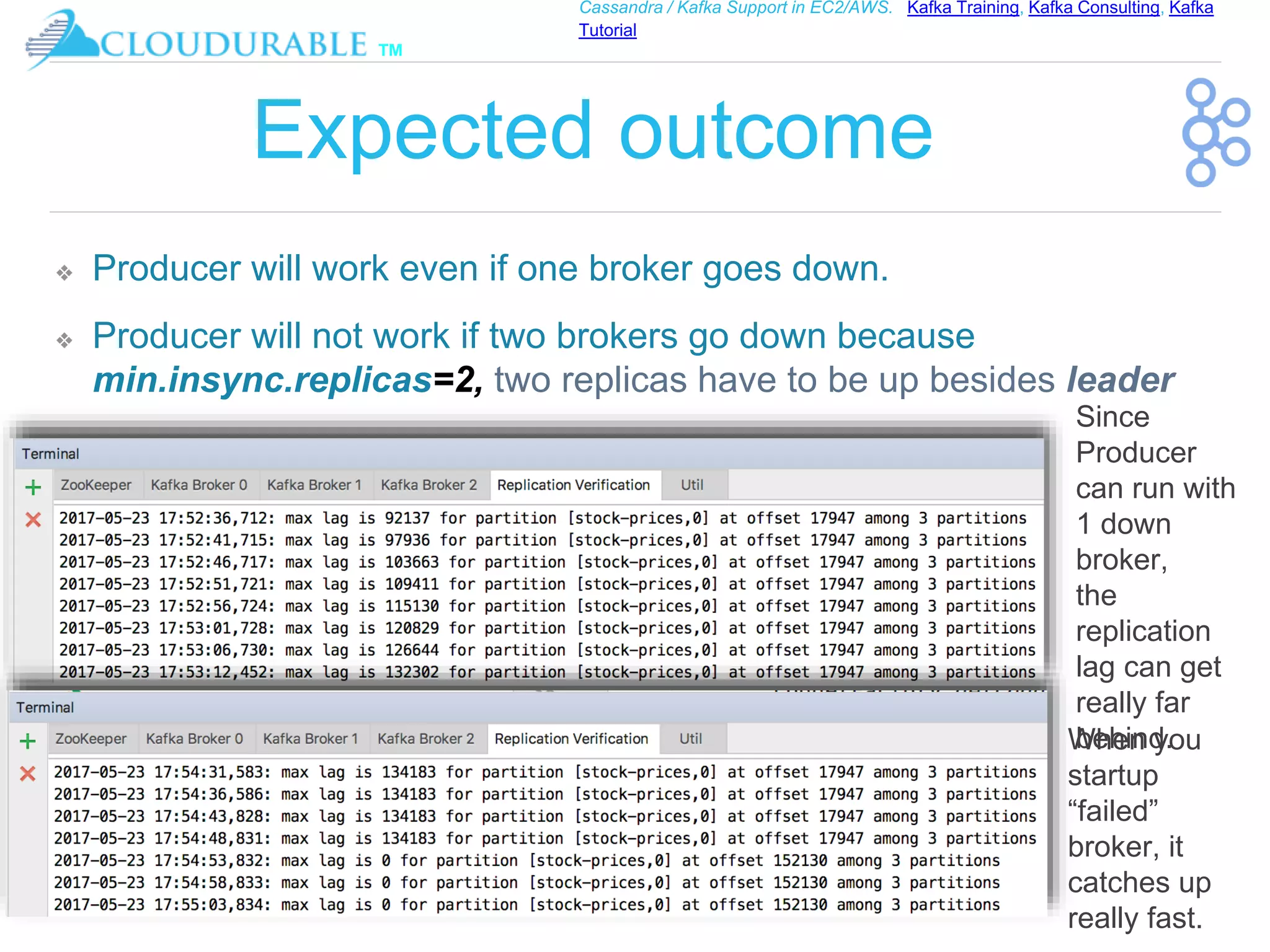

Expected outcome
❖ Producer will work even if one broker goes down.
❖ Producer will not work if two brokers go down because
min.insync.replicas=2, two replicas have to be up besides leader
Since
Producer
can run with
1 down
broker,
the
replication
lag can get
really far
behind.When you
startup
“failed”
broker, it
catches up
really fast.

™
Tutorial
Change min.insync.replicas
back
❖ Shutdown all brokers
❖ Change back min.insync.replicas=3
❖ Broker config for servers
❖ Do this for all of the servers
❖ Start ZooKeeper if needed
❖ Start brokers back up

™
Tutorial

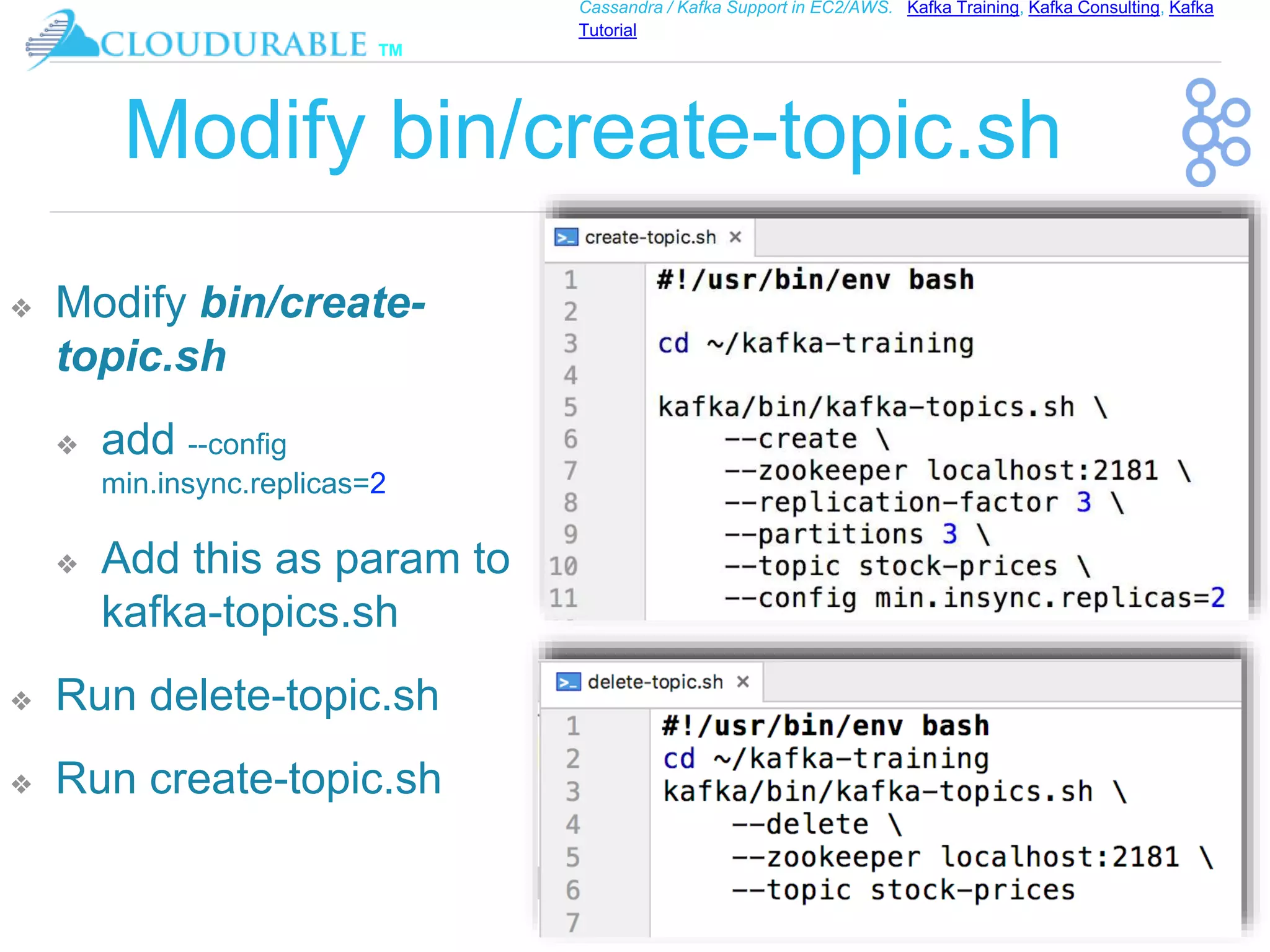

Modify bin/create-topic.sh
❖ Modify bin/create-
topic.sh
❖ add --config
min.insync.replicas=2
❖ Add this as param to
kafka-topics.sh
❖ Run delete-topic.sh
❖ Run create-topic.sh

™
Tutorial

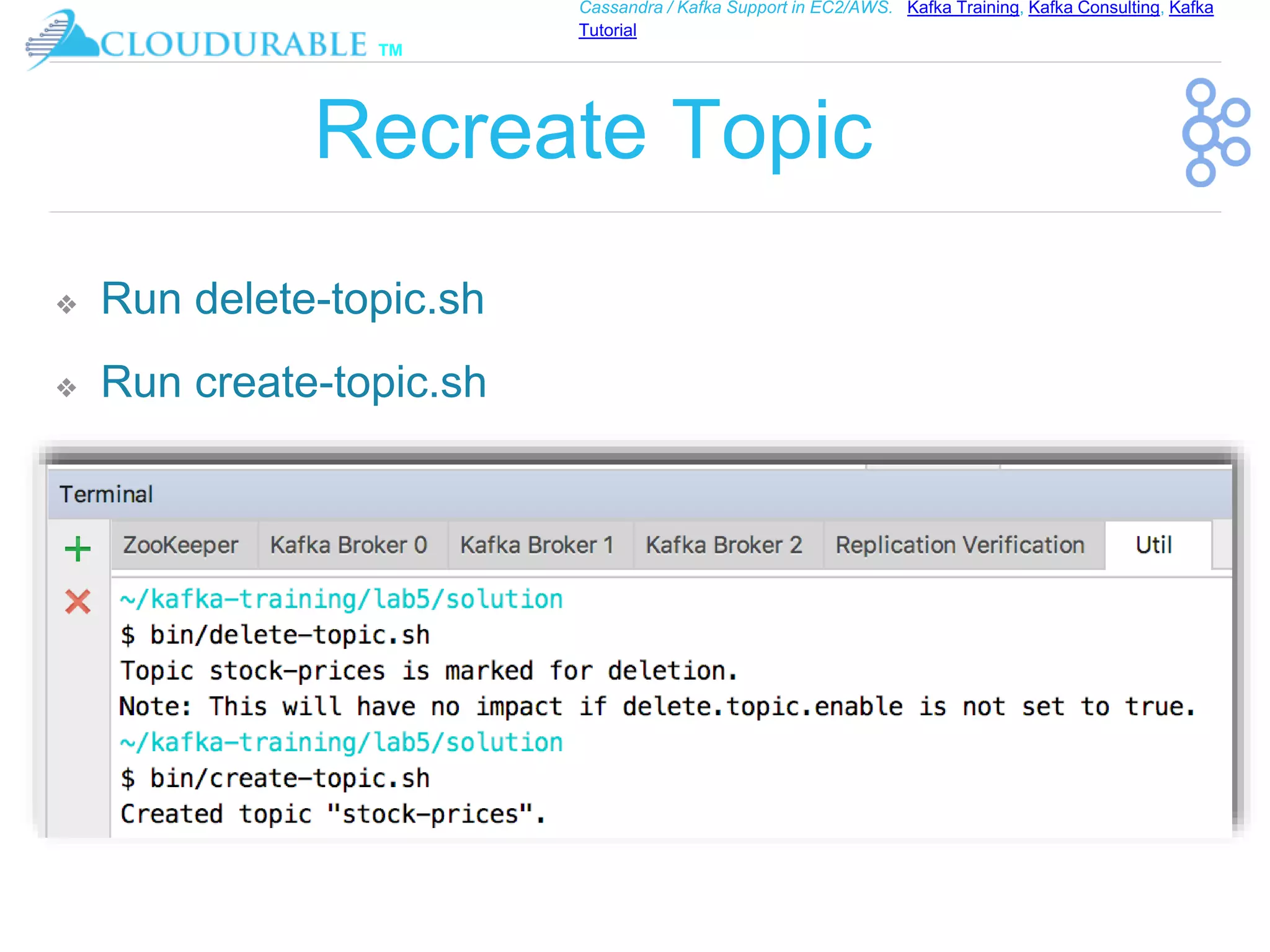

Recreate Topic
❖ Run delete-topic.sh
❖ Run create-topic.sh

™
Tutorial
Brokers
❖ Stop all Kafka Brokers (Kafka servers)
❖ Run StockPriceKafkaProducer (ensure acks are set to all
first)
❖ Observe metrics, observe changes
❖ Run replication verification in one terminal and check topics
stats in another with describe-topics.sh in another terminal

™
Tutorial

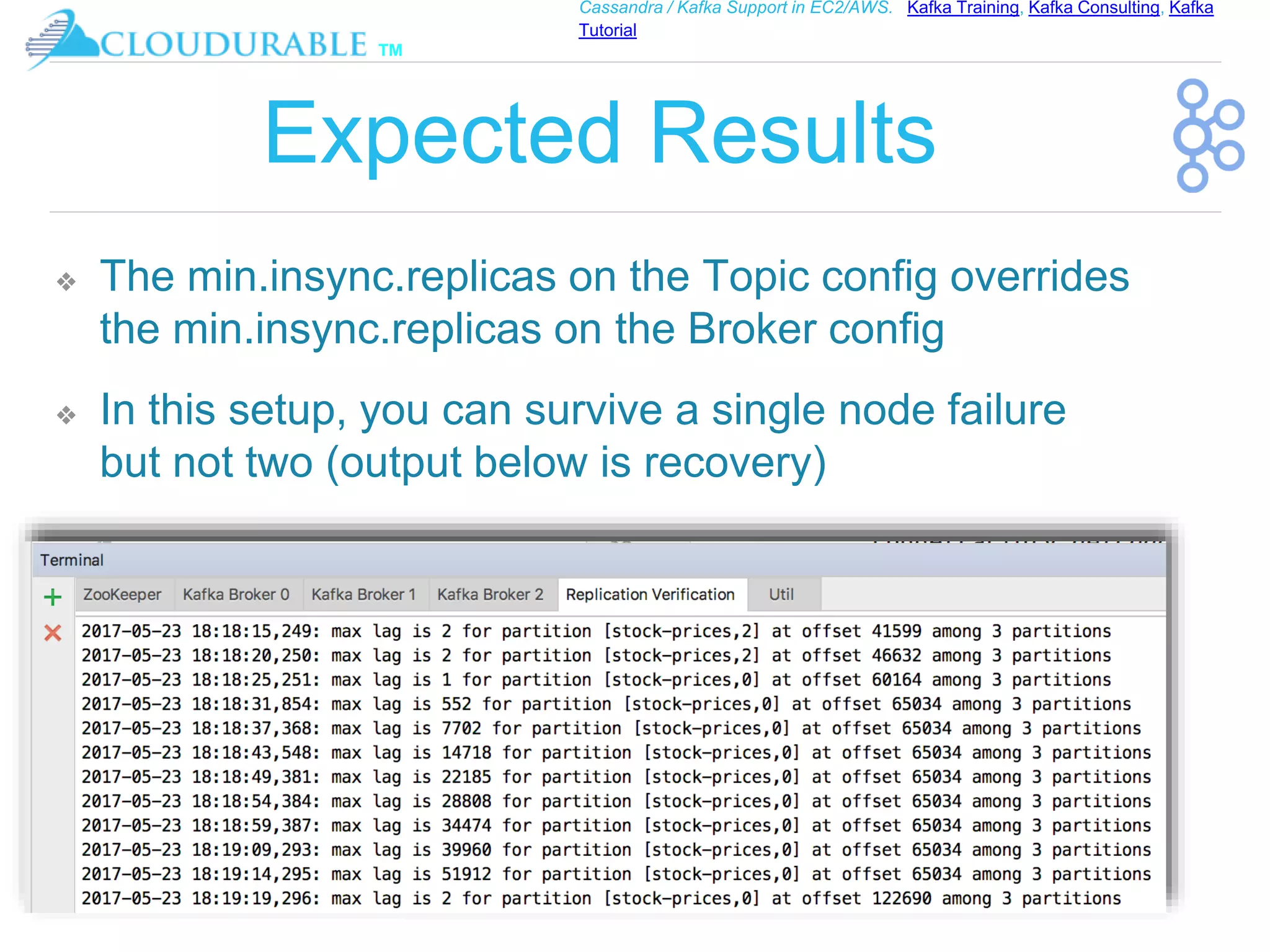

Expected Results
❖ The min.insync.replicas on the Topic config overrides
the min.insync.replicas on the Broker config
❖ In this setup, you can survive a single node failure
but not two (output below is recovery)

™
Tutorial

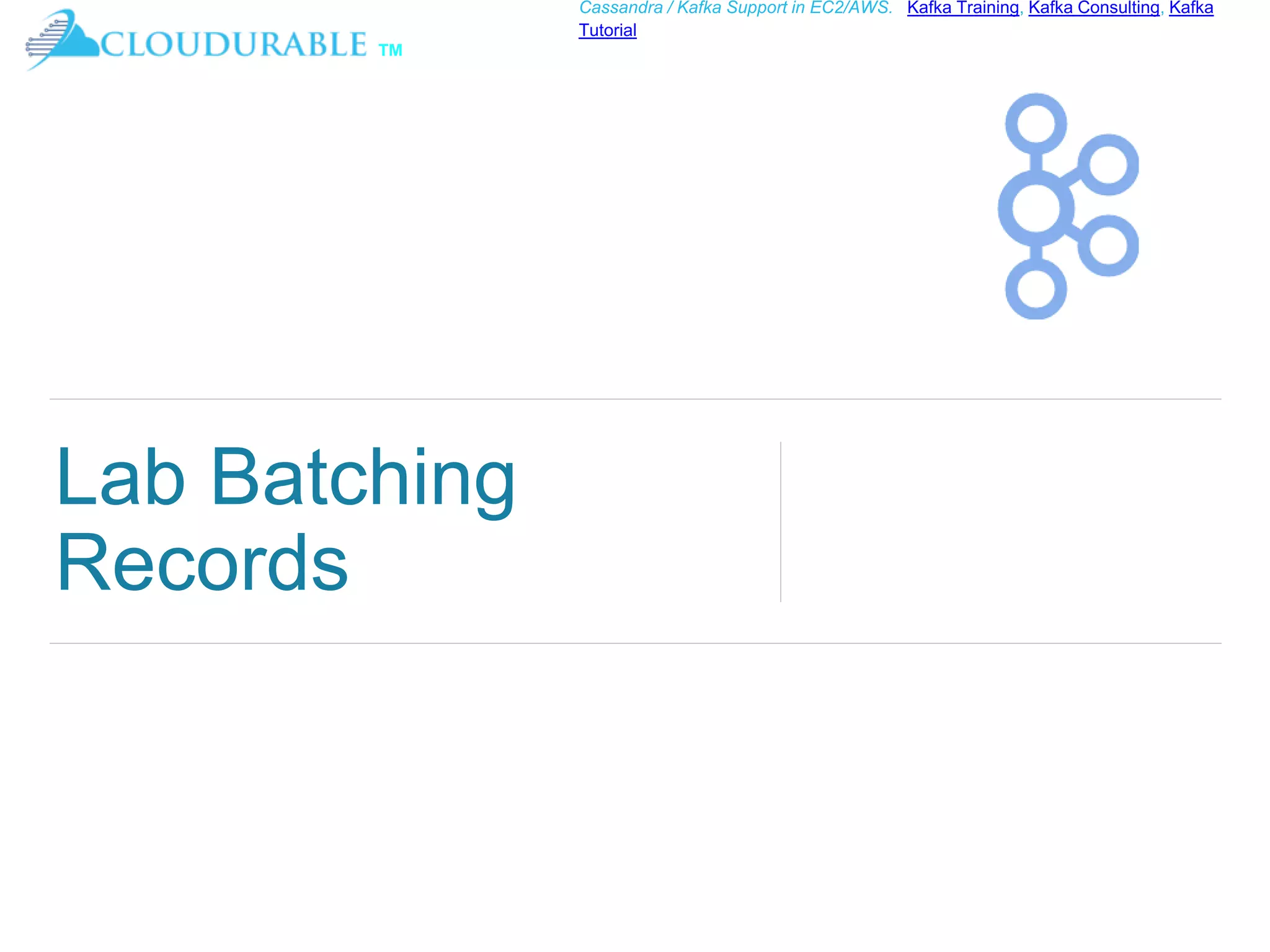

Lab Batching
Records

™
Tutorial

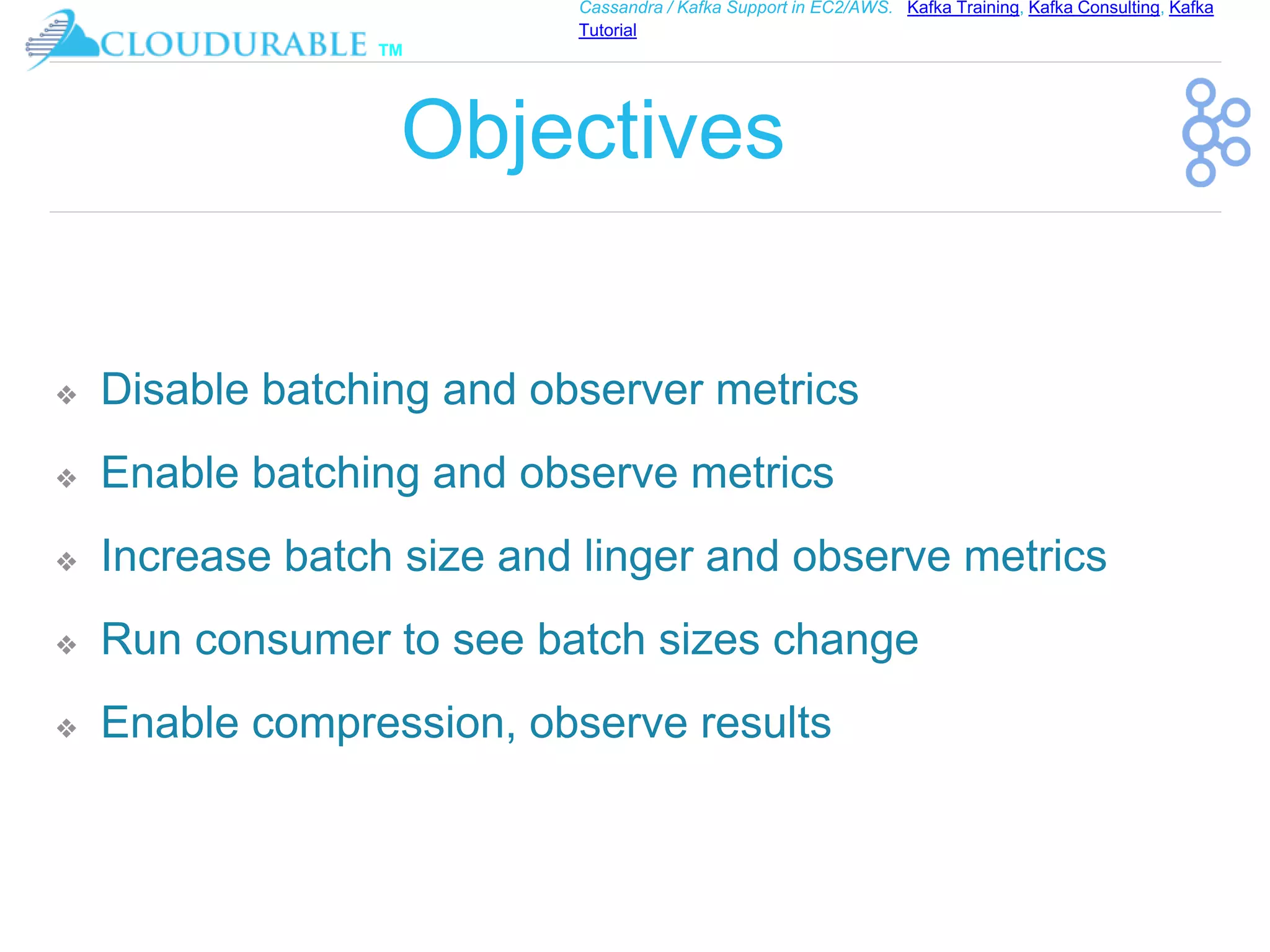

Objectives
❖ Disable batching and observer metrics
❖ Enable batching and observe metrics
❖ Increase batch size and linger and observe metrics
❖ Run consumer to see batch sizes change
❖ Enable compression, observe results

™
Tutorial

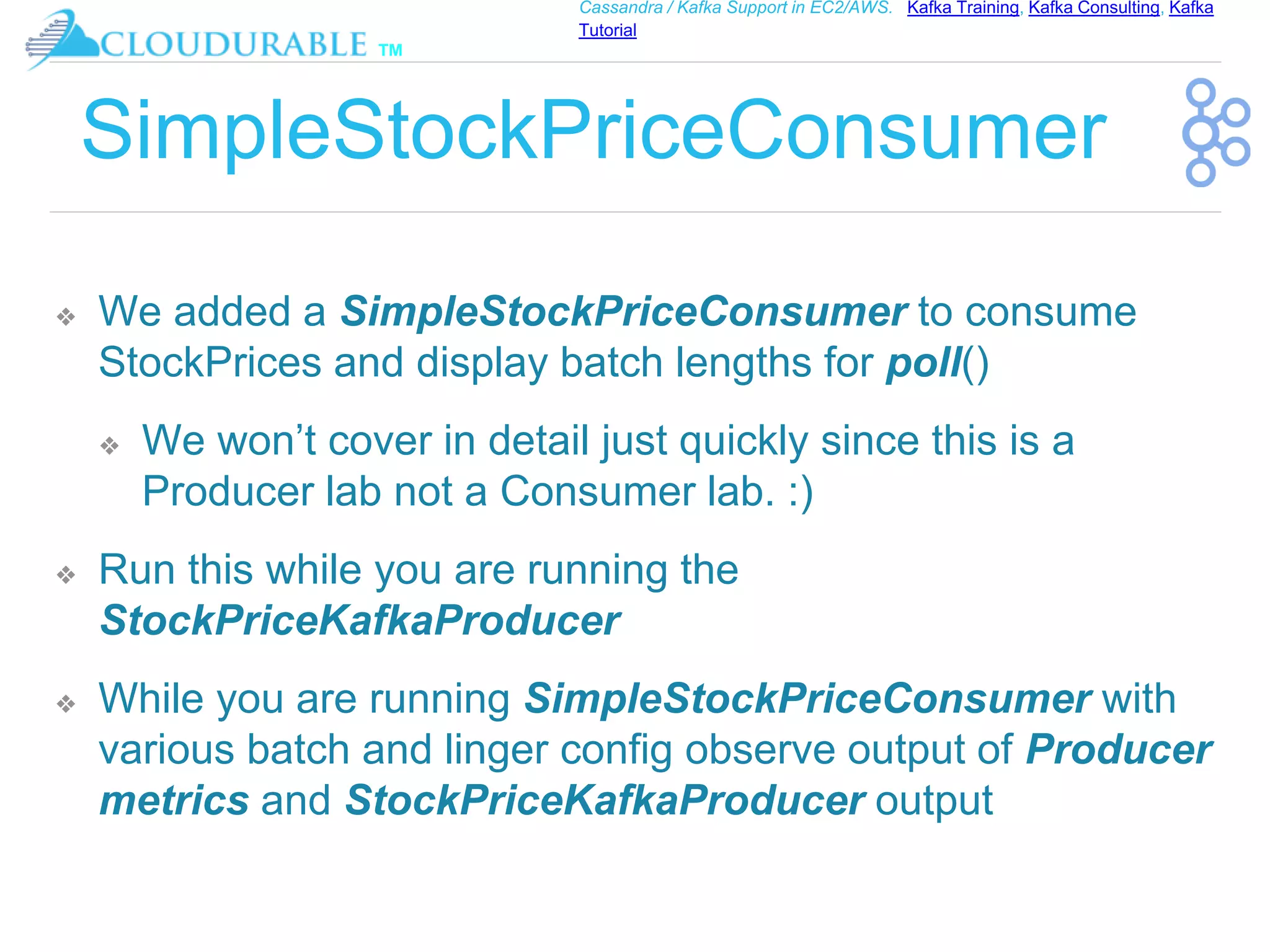

SimpleStockPriceConsumer
❖ We added a SimpleStockPriceConsumer to consume
StockPrices and display batch lengths for poll()
❖ We won’t cover in detail just quickly since this is a
Producer lab not a Consumer lab. :)
❖ Run this while you are running the
❖ While you are running SimpleStockPriceConsumer with
various batch and linger config observe output of Producer
metrics and StockPriceKafkaProducer output

™
Tutorial

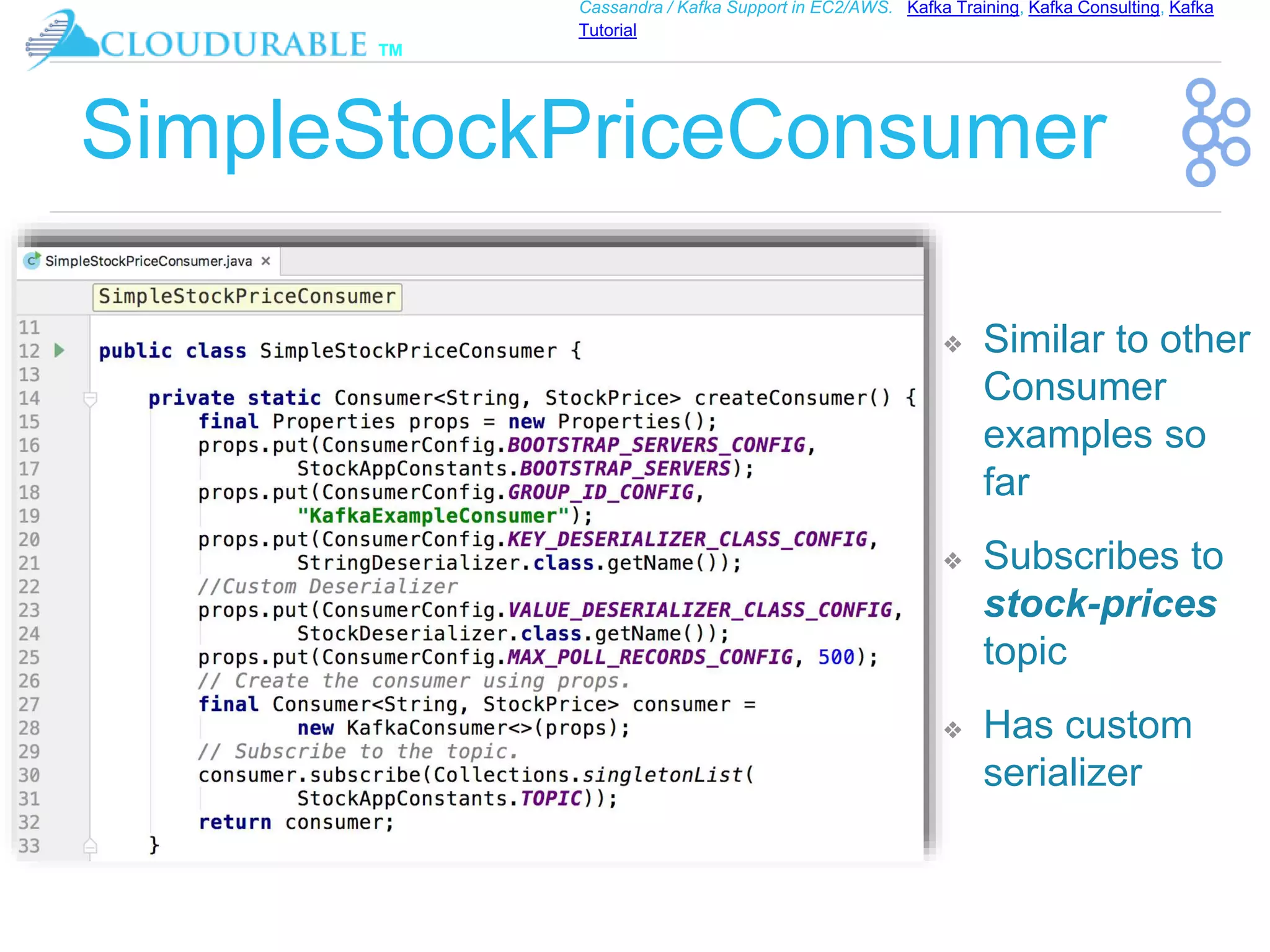

SimpleStockPriceConsumer
❖ Similar to other
Consumer
examples so
far
❖ Subscribes to
stock-prices
topic
❖ Has custom
serializer

™
Tutorial

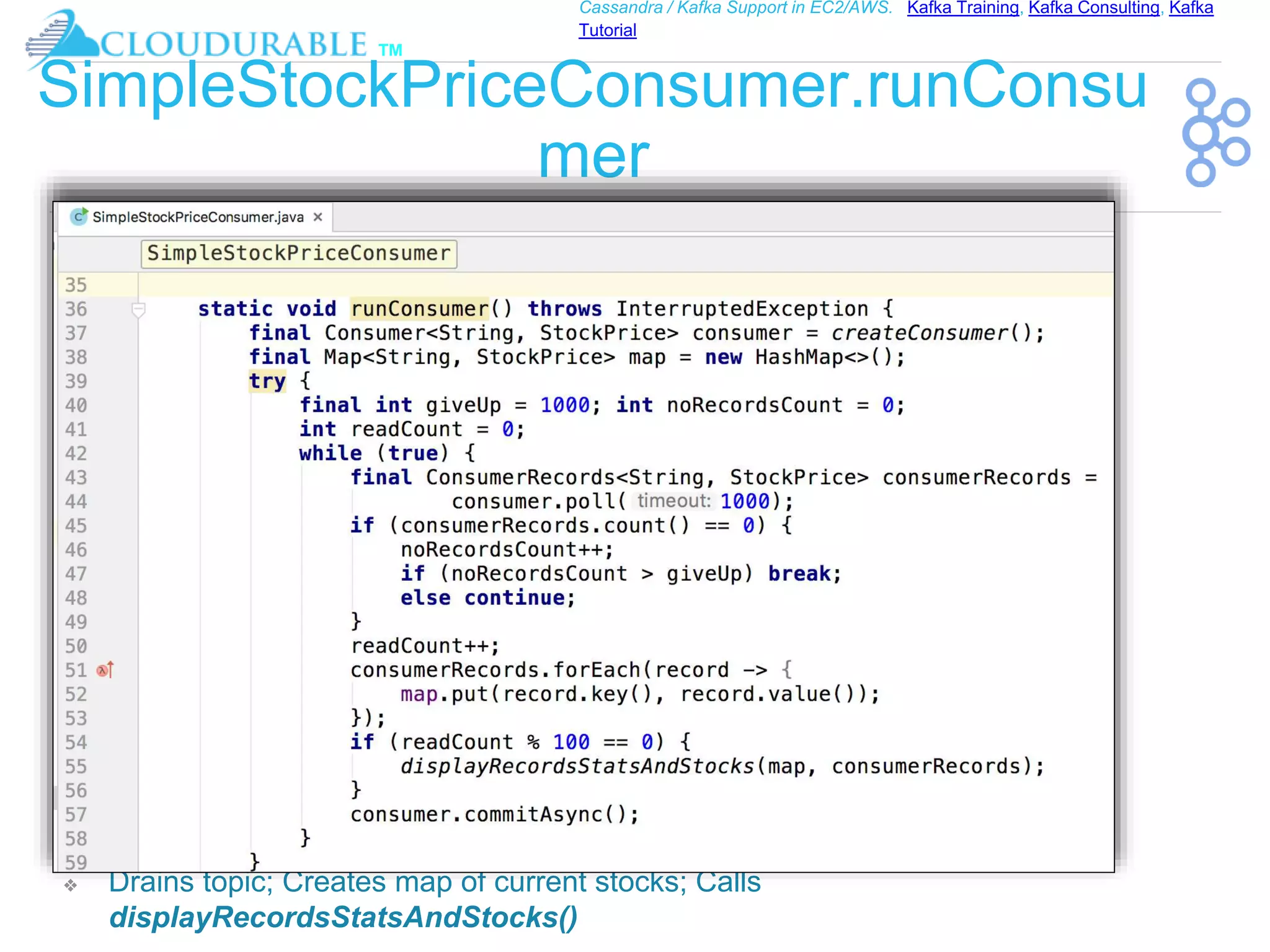

SimpleStockPriceConsumer.runConsu
mer
❖ Drains topic; Creates map of current stocks; Calls
displayRecordsStatsAndStocks()

™
Tutorial

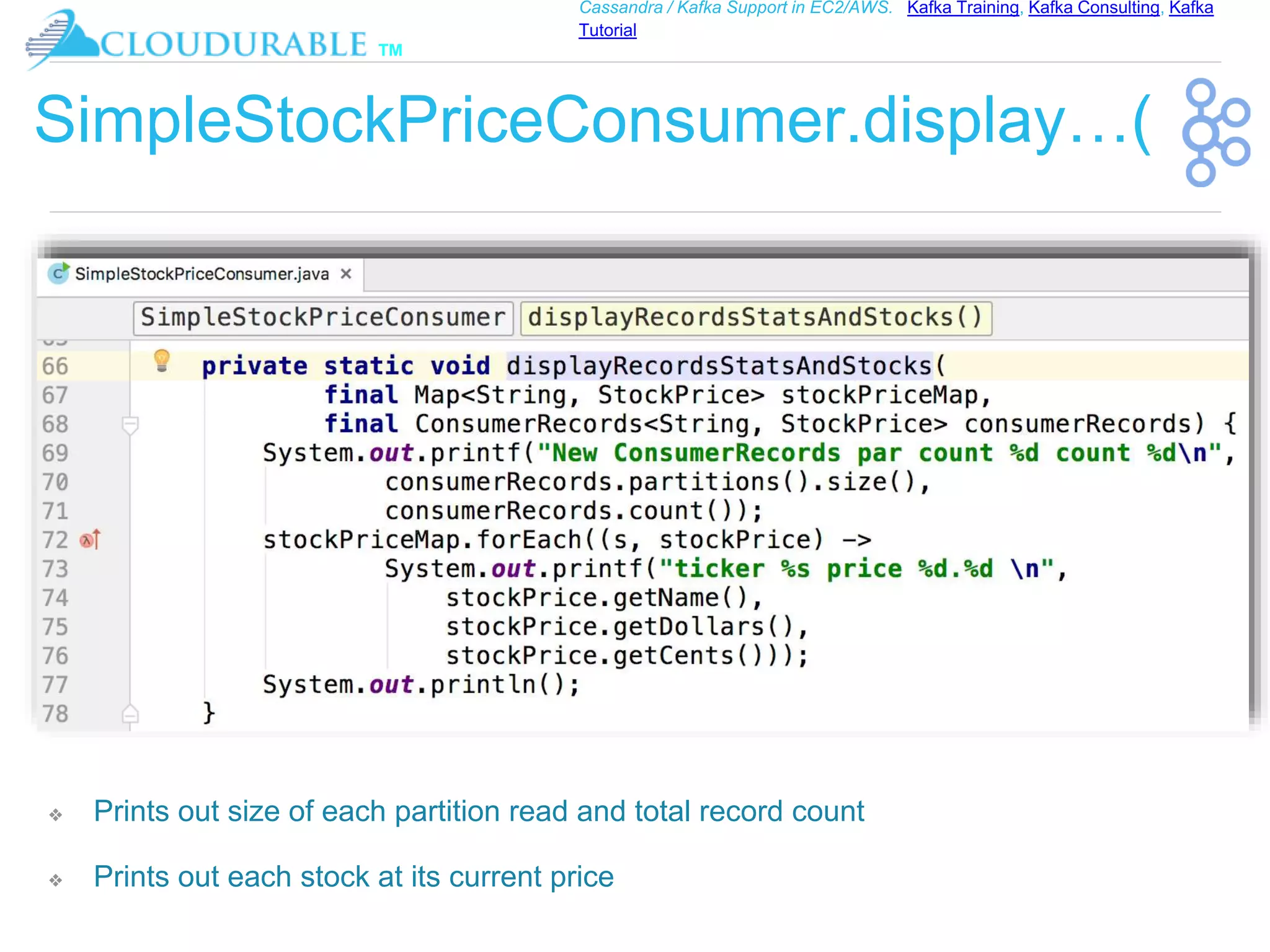

SimpleStockPriceConsumer.display…(
❖ Prints out size of each partition read and total record count
❖ Prints out each stock at its current price

™
Tutorial

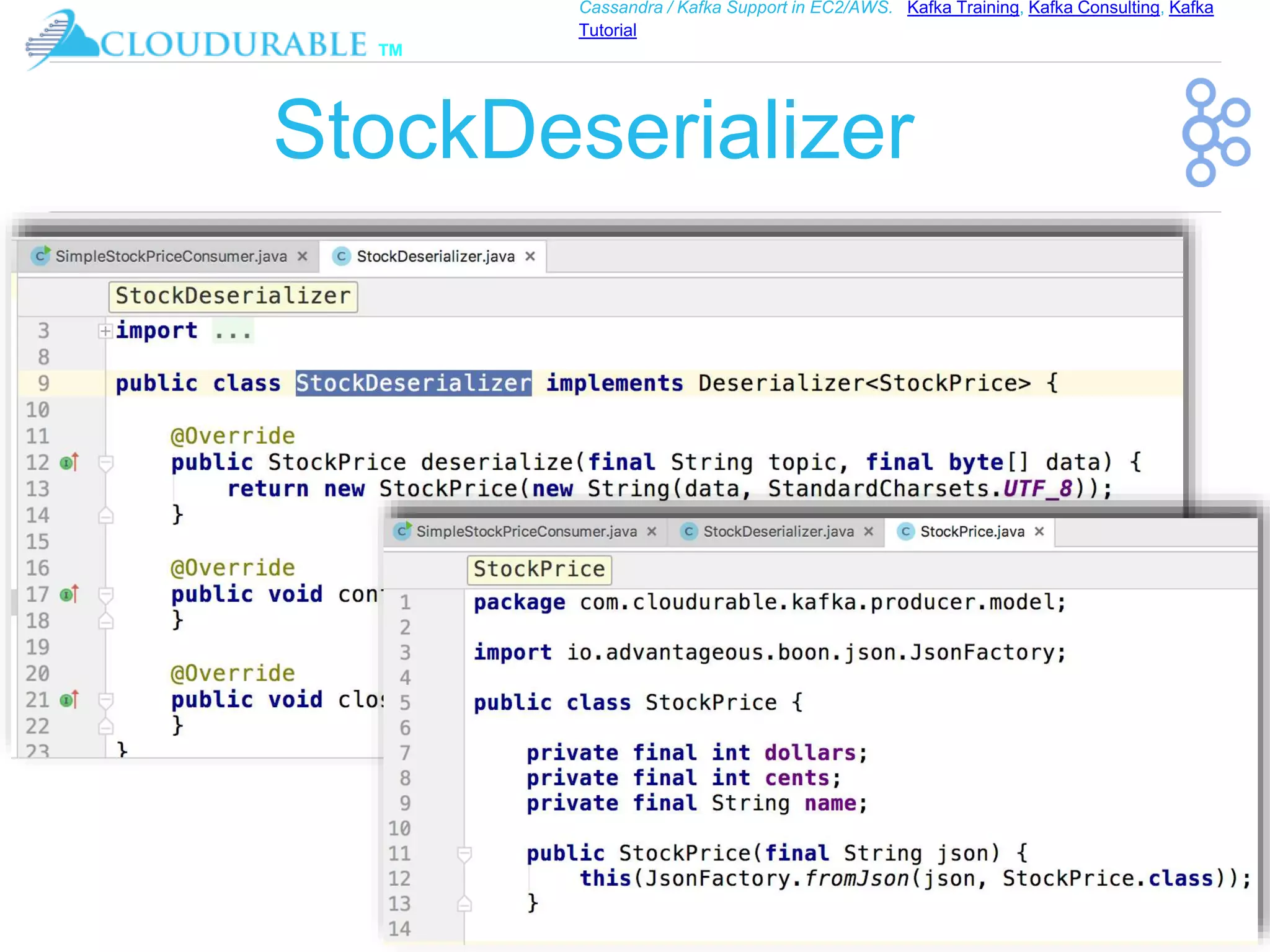

StockDeserializer

™
Tutorial

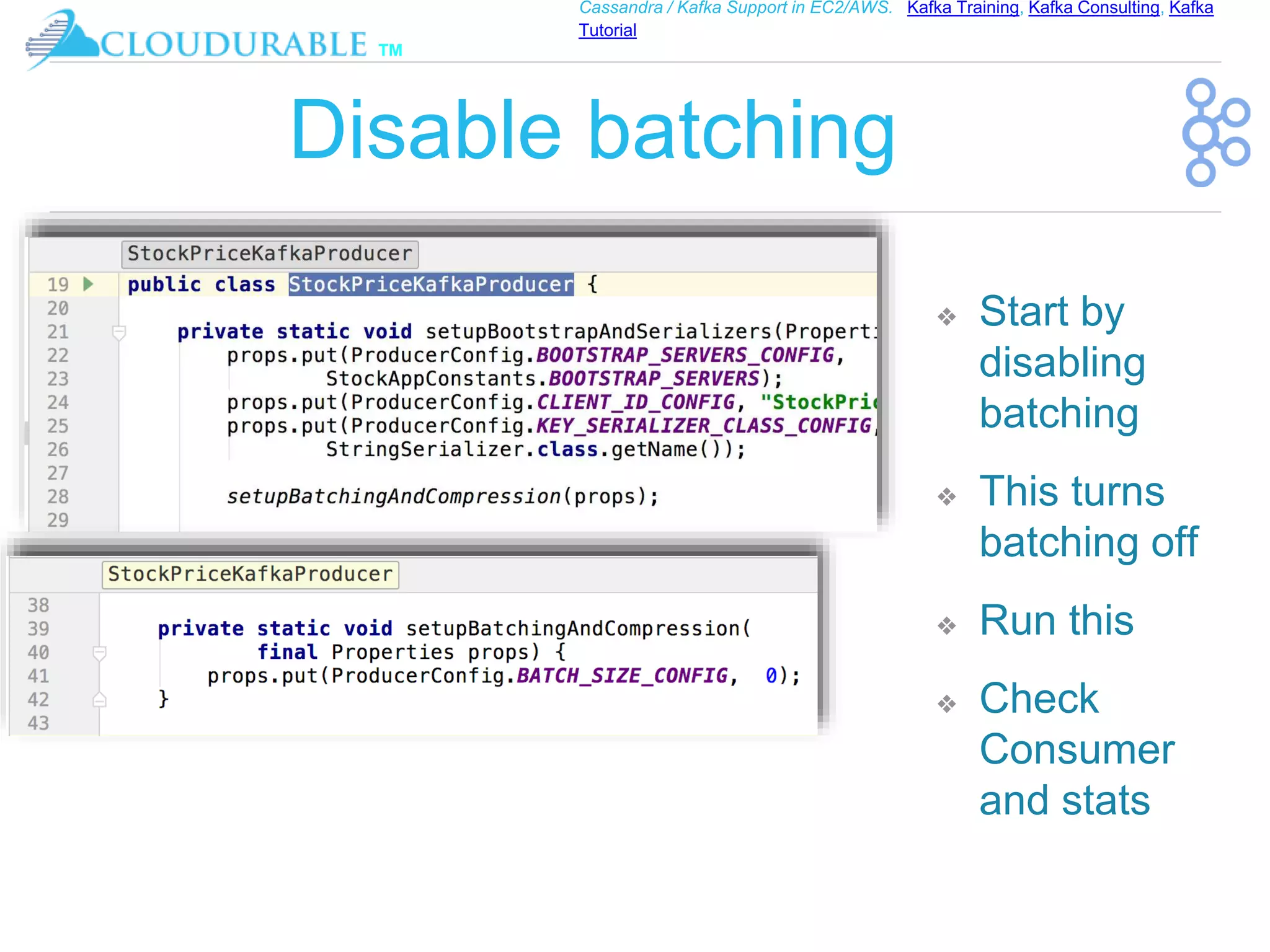

Disable batching
❖ Start by
disabling
batching
❖ This turns
batching off
❖ Run this
❖ Check
Consumer
and stats

™
Tutorial

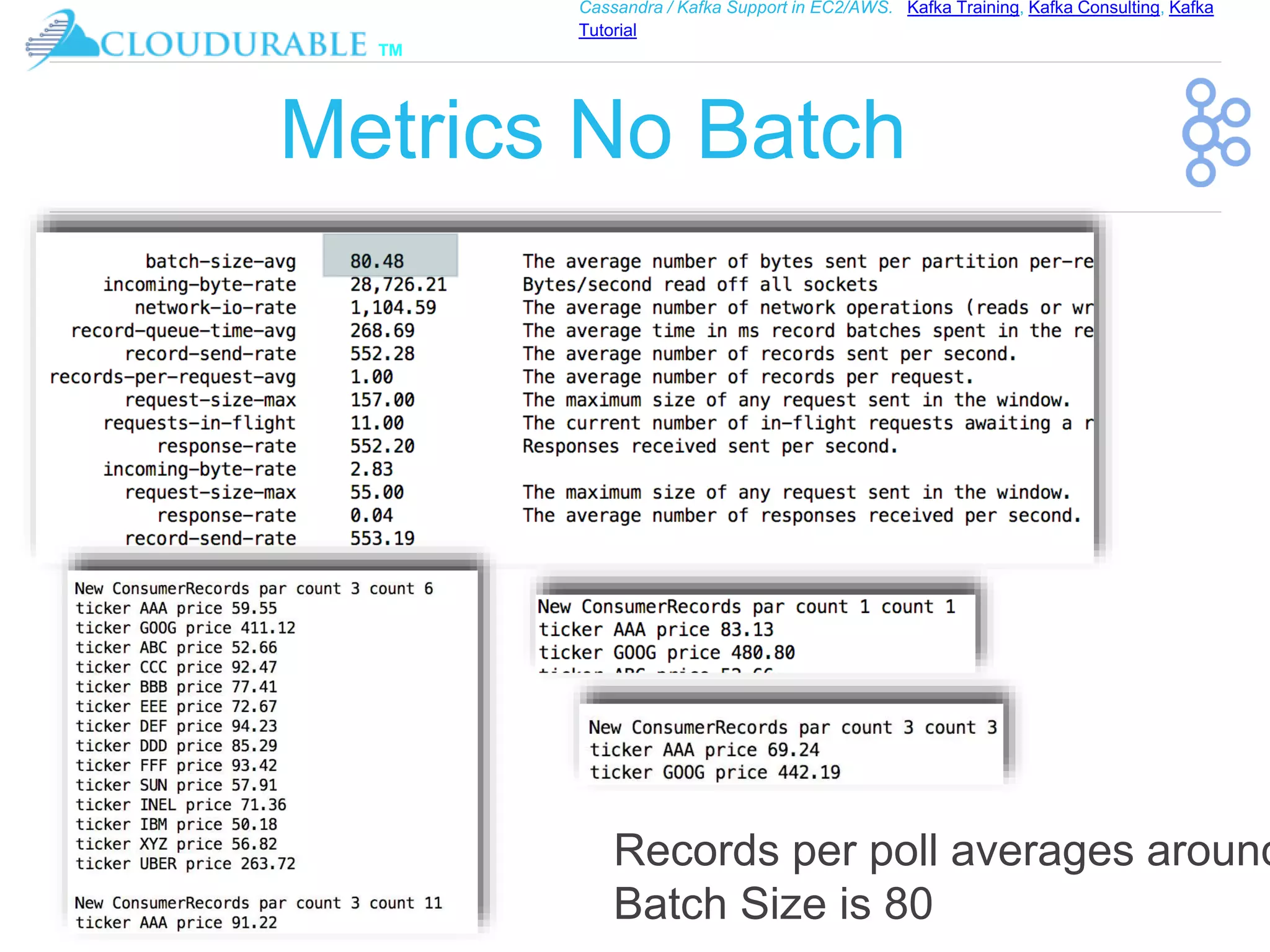

Metrics No Batch
Records per poll averages around
Batch Size is 80

™
Tutorial
Set batching to 16K
❖ Set the batch size to 16K
❖ Run this
❖ Check Consumer and stats

™
Tutorial

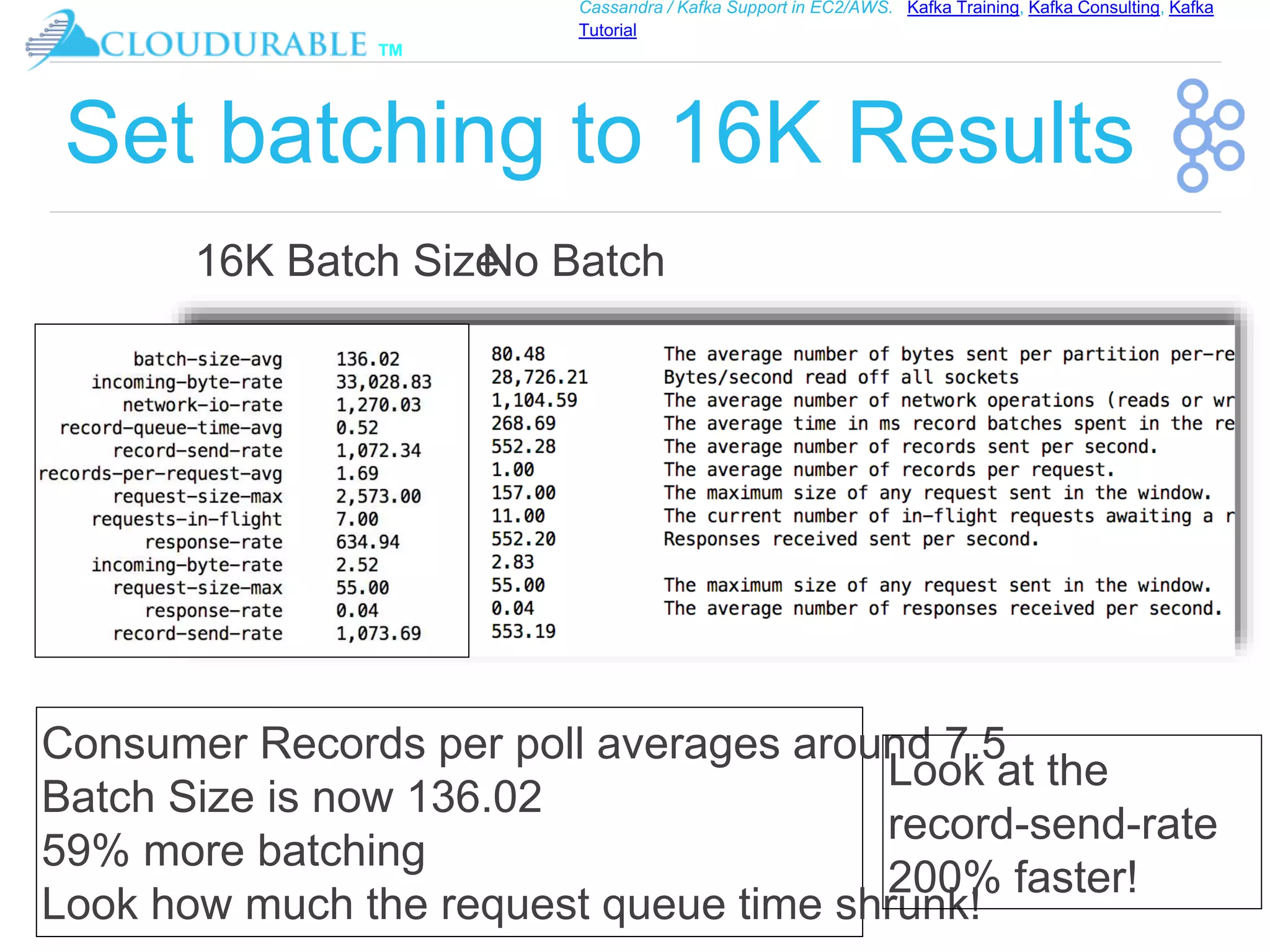

Set batching to 16K Results
Consumer Records per poll averages around 7.5
Batch Size is now 136.02
59% more batching
Look how much the request queue time shrunk!
16K Batch SizeNo Batch
Look at the
record-send-rate
200% faster!

™
Tutorial

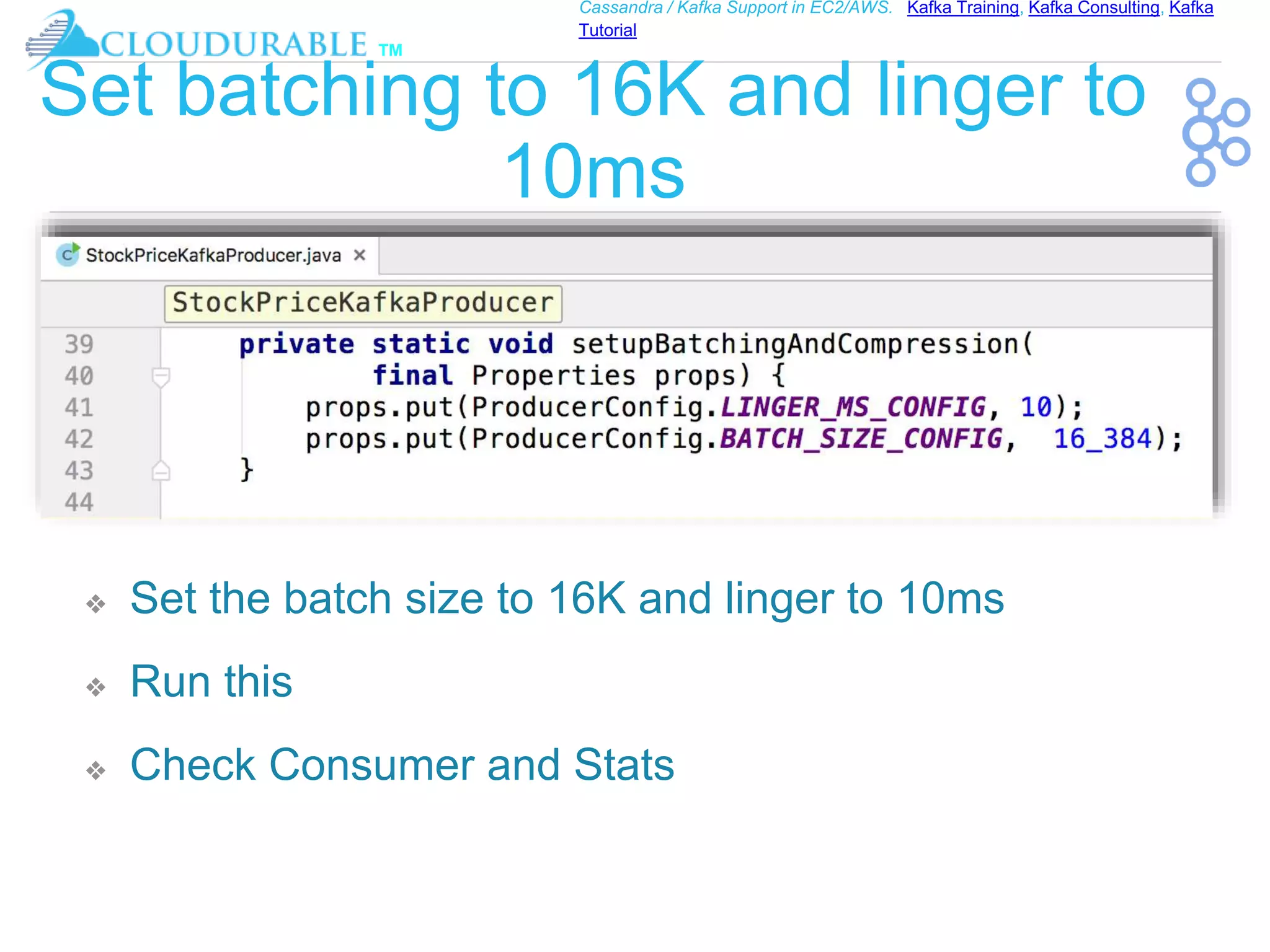

Set batching to 16K and linger to
10ms
❖ Set the batch size to 16K and linger to 10ms
❖ Run this
❖ Check Consumer and Stats

™
Tutorial

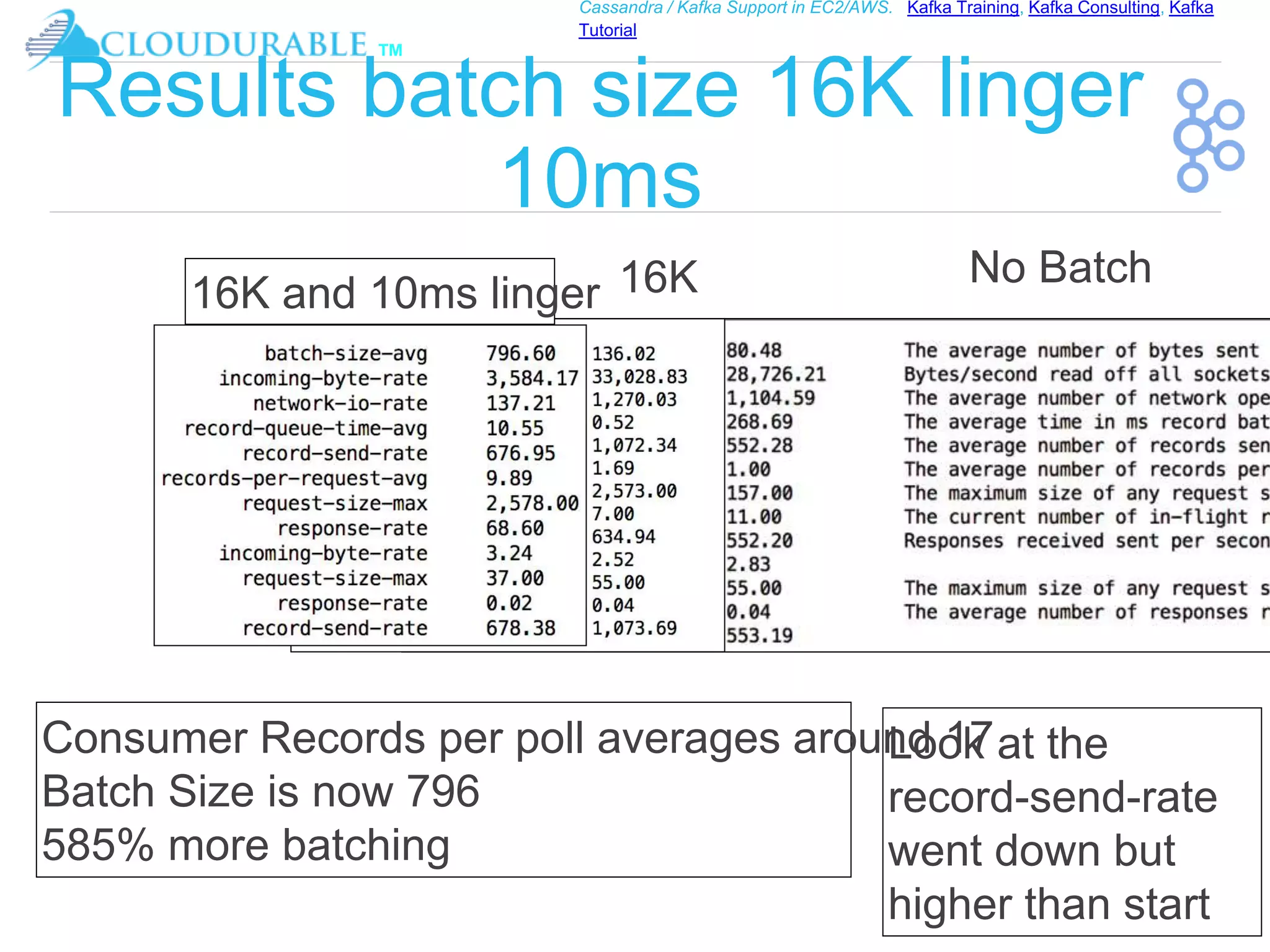

Results batch size 16K linger
10ms
Consumer Records per poll averages around 17
Batch Size is now 796
585% more batching
16K No Batch
Look at the
record-send-rate
went down but
higher than start
16K and 10ms linger

™
Tutorial
Set batching to 64K and linger to 1
second
❖ Set the batch size to 64K and linger to 1 second
❖ Run this

™
Tutorial

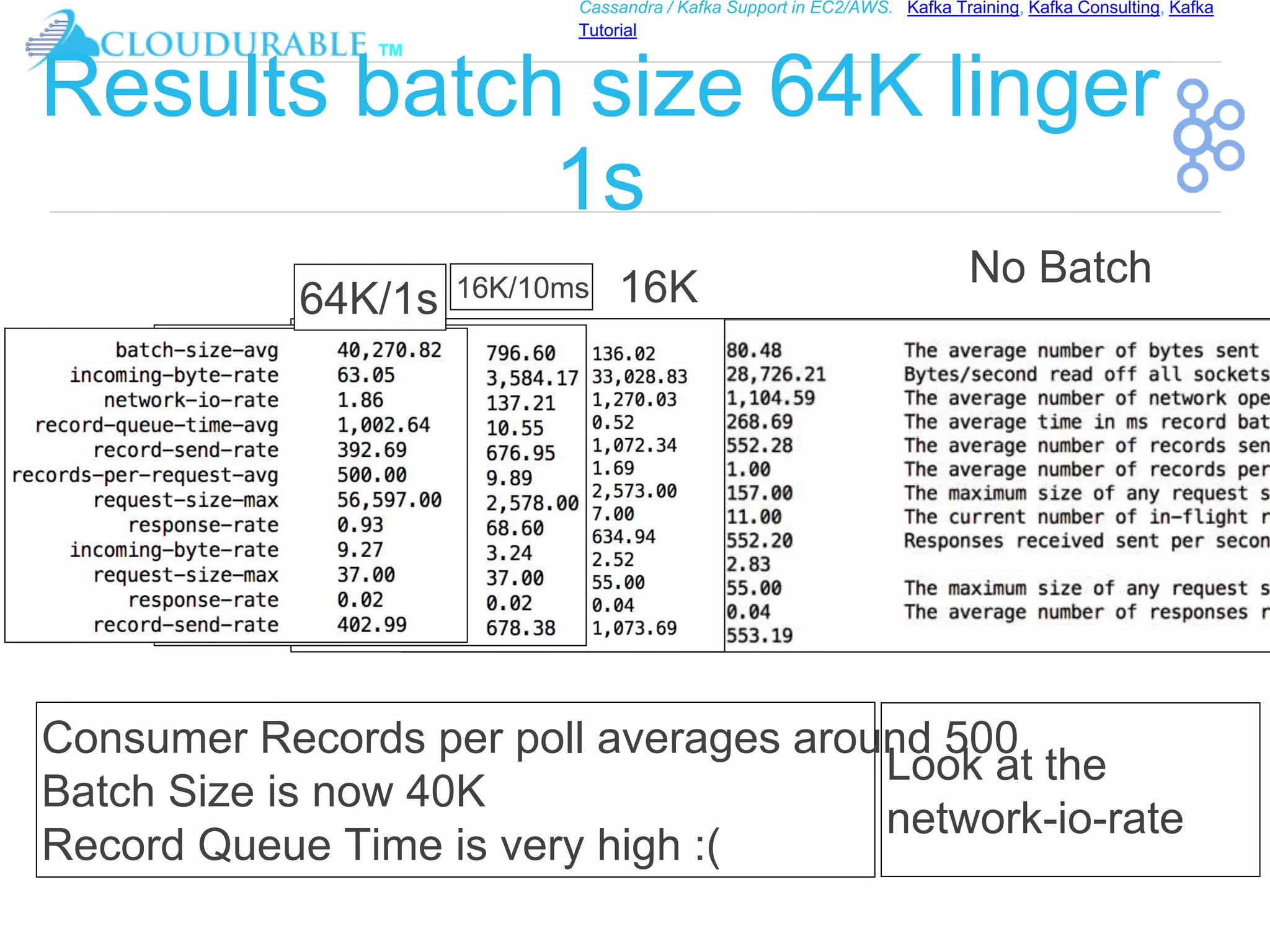

1s
Consumer Records per poll averages around 500
Batch Size is now 40K
Record Queue Time is very high :(
16K No Batch
Look at the
network-io-rate
16K/10ms
64K/1s

™
Tutorial
Set batching to 64K and linger to
100 ms
❖ Set the batch size to 64K and linger to 100ms second
❖ Run this

™
Tutorial

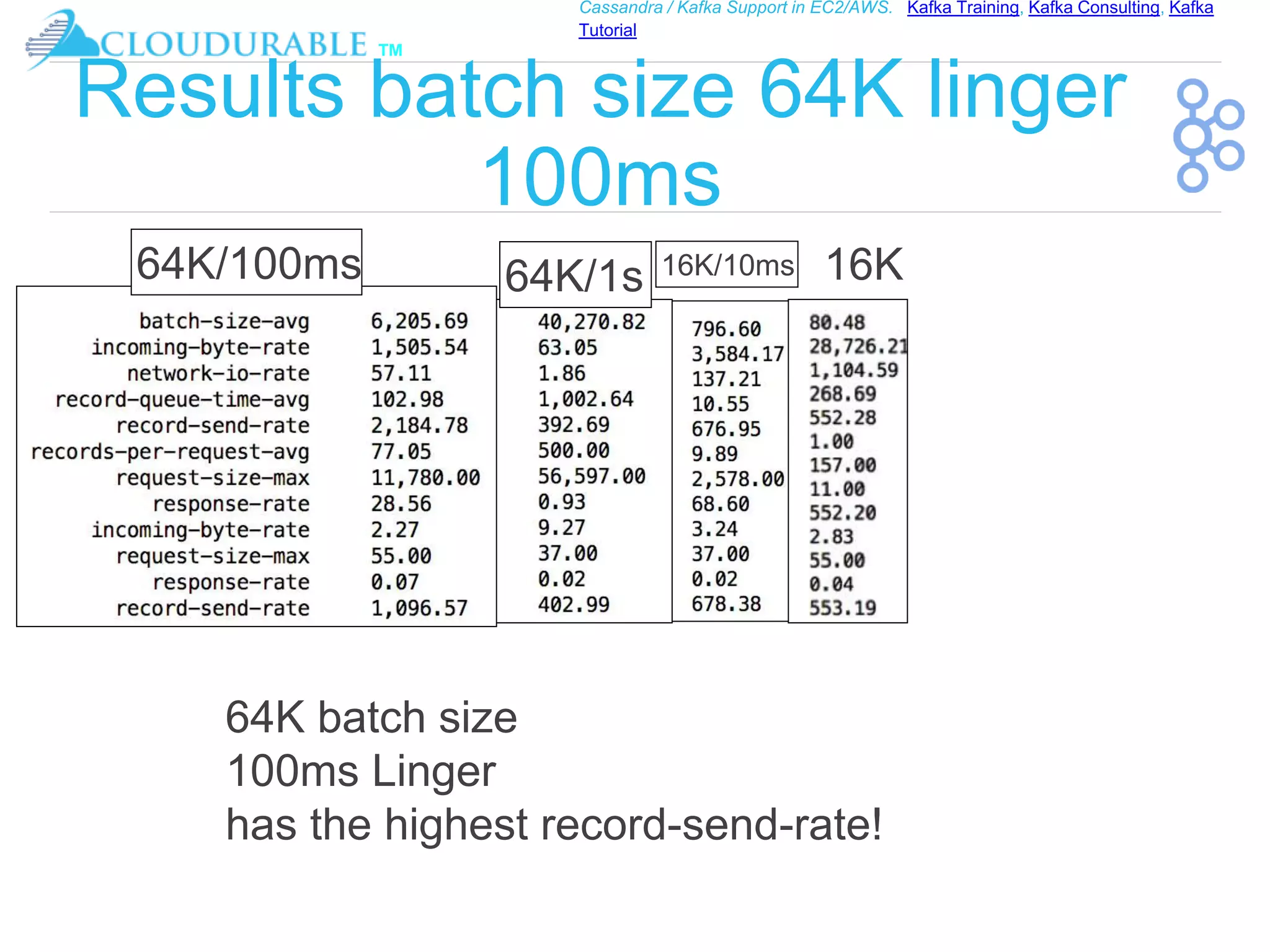

100ms
16K16K/10ms
64K/1s64K/100ms
64K batch size
100ms Linger
has the highest record-send-rate!

™
Tutorial

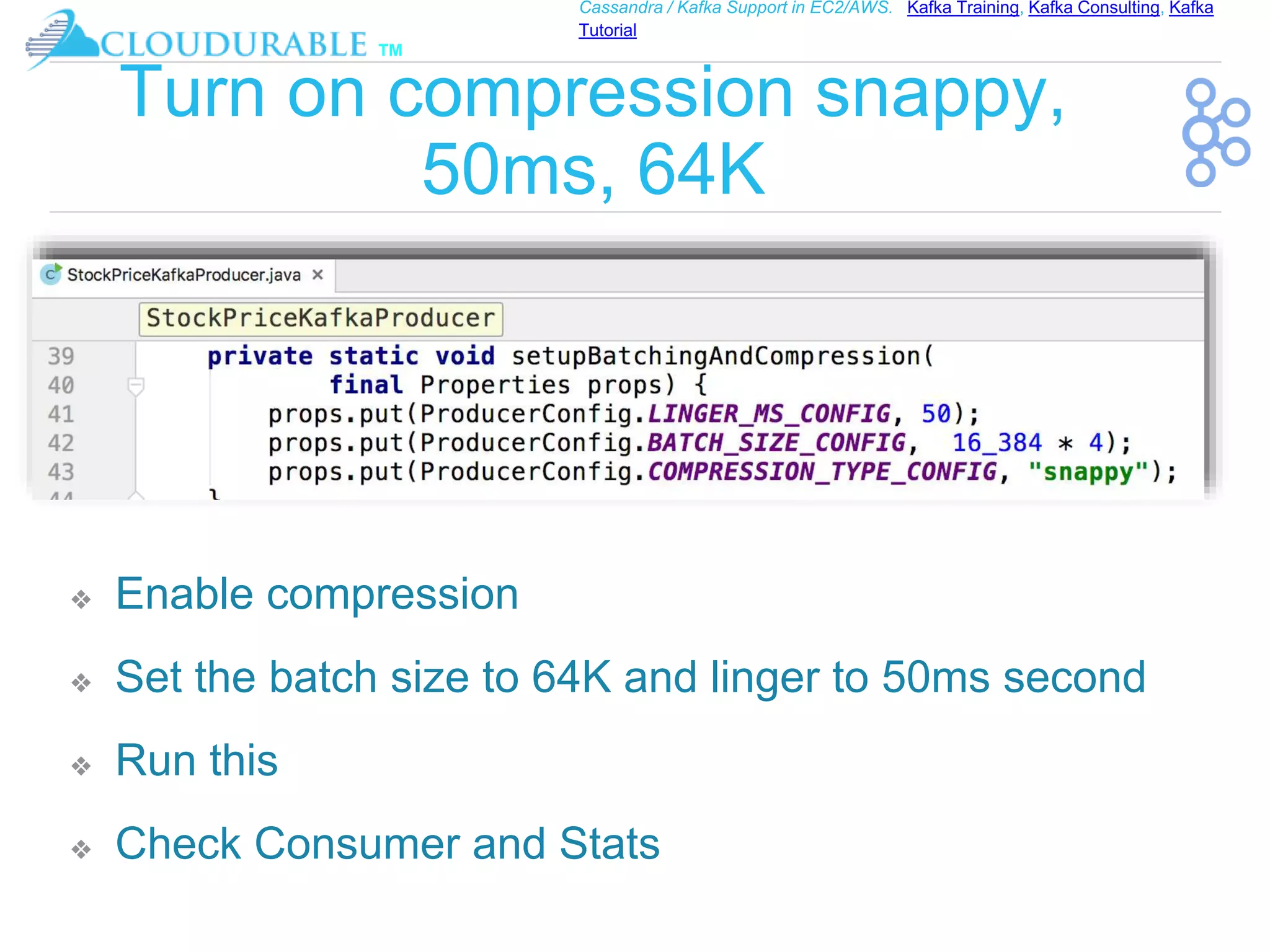

Turn on compression snappy,
50ms, 64K
❖ Enable compression
❖ Set the batch size to 64K and linger to 50ms second
❖ Run this

™
Tutorial

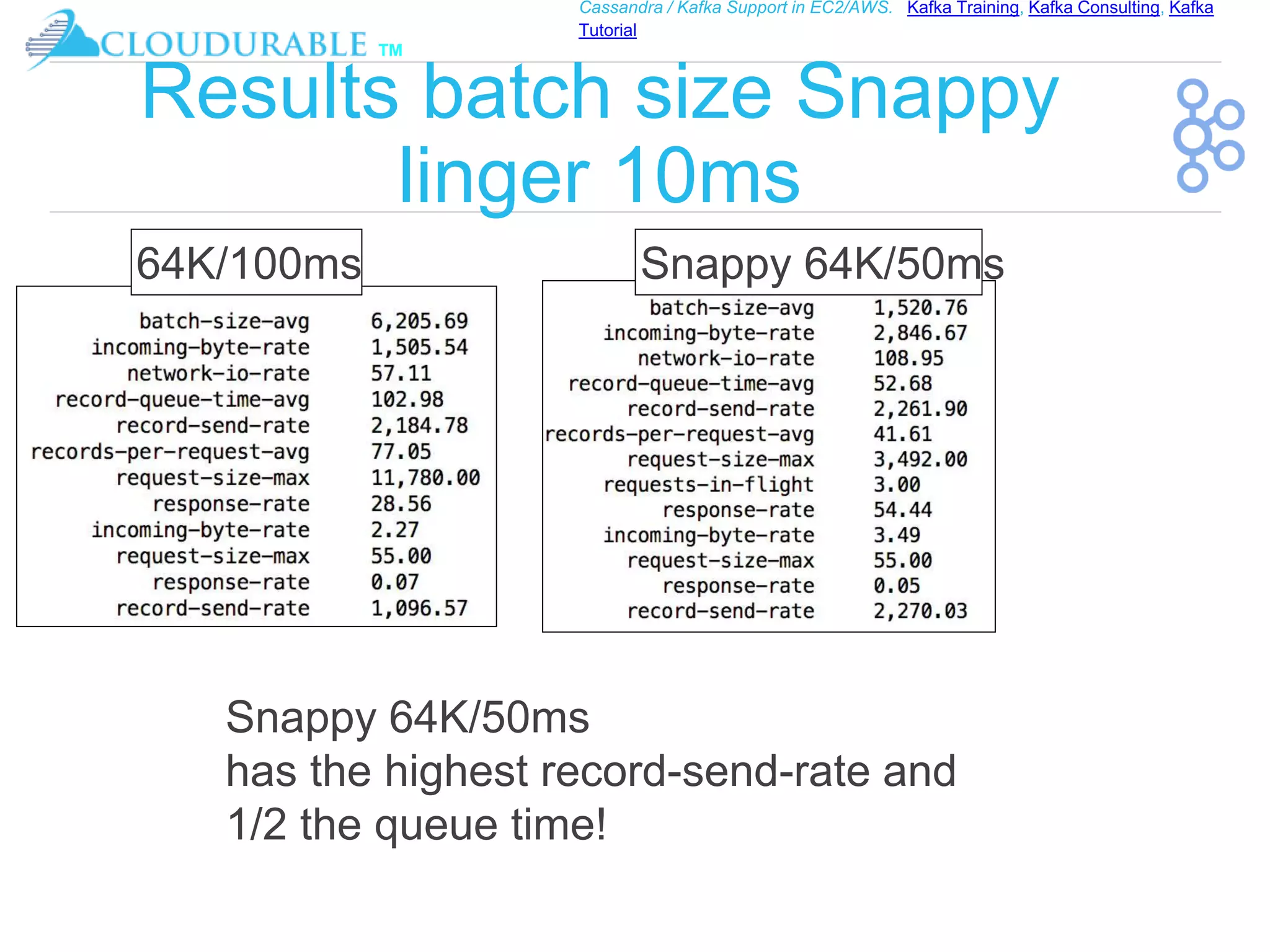

Results batch size Snappy
linger 10ms
64K/100ms Snappy 64K/50ms
Snappy 64K/50ms
has the highest record-send-rate and
1/2 the queue time!

™
Tutorial

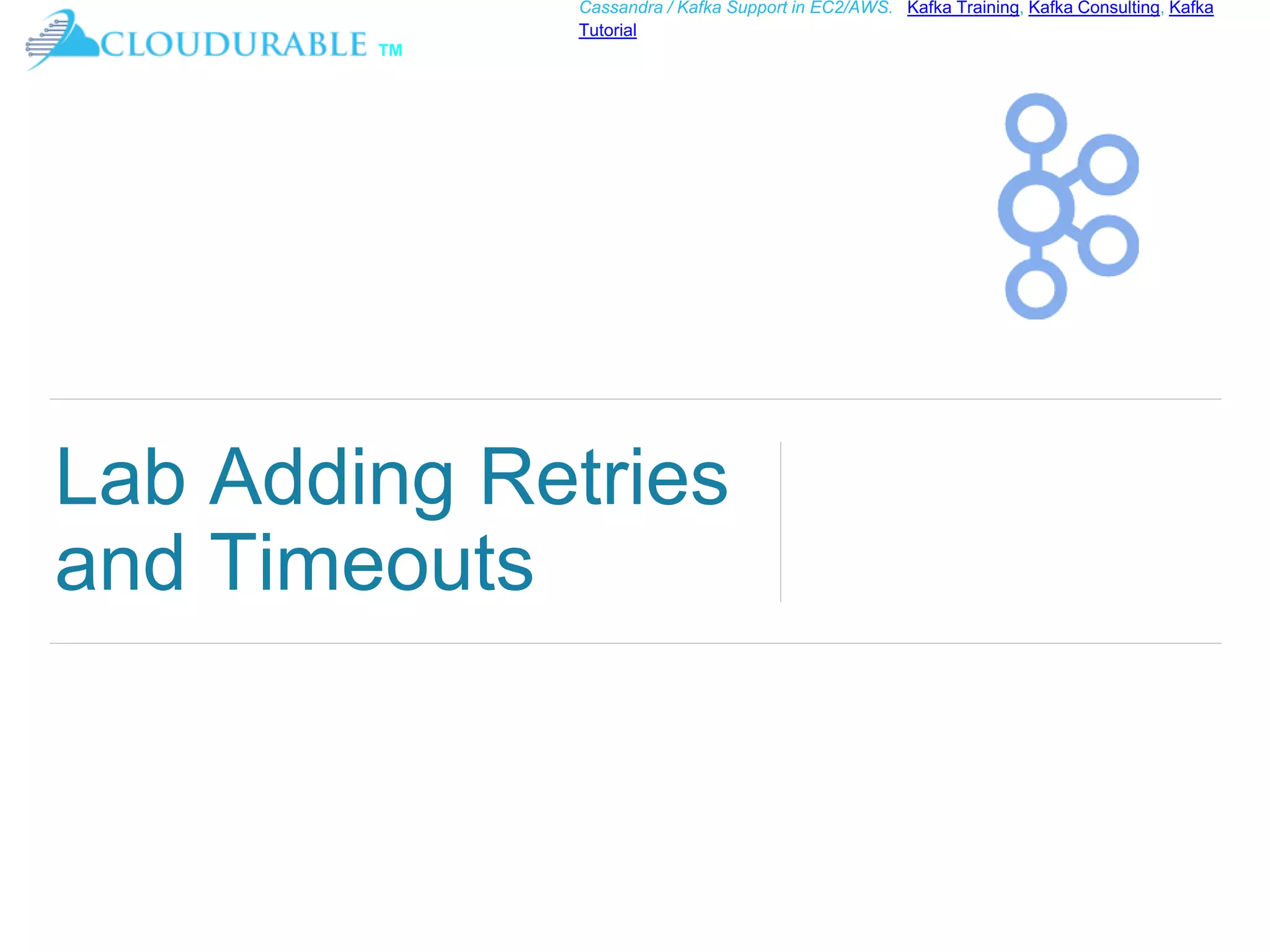

Lab Adding Retries
and Timeouts

™
Tutorial

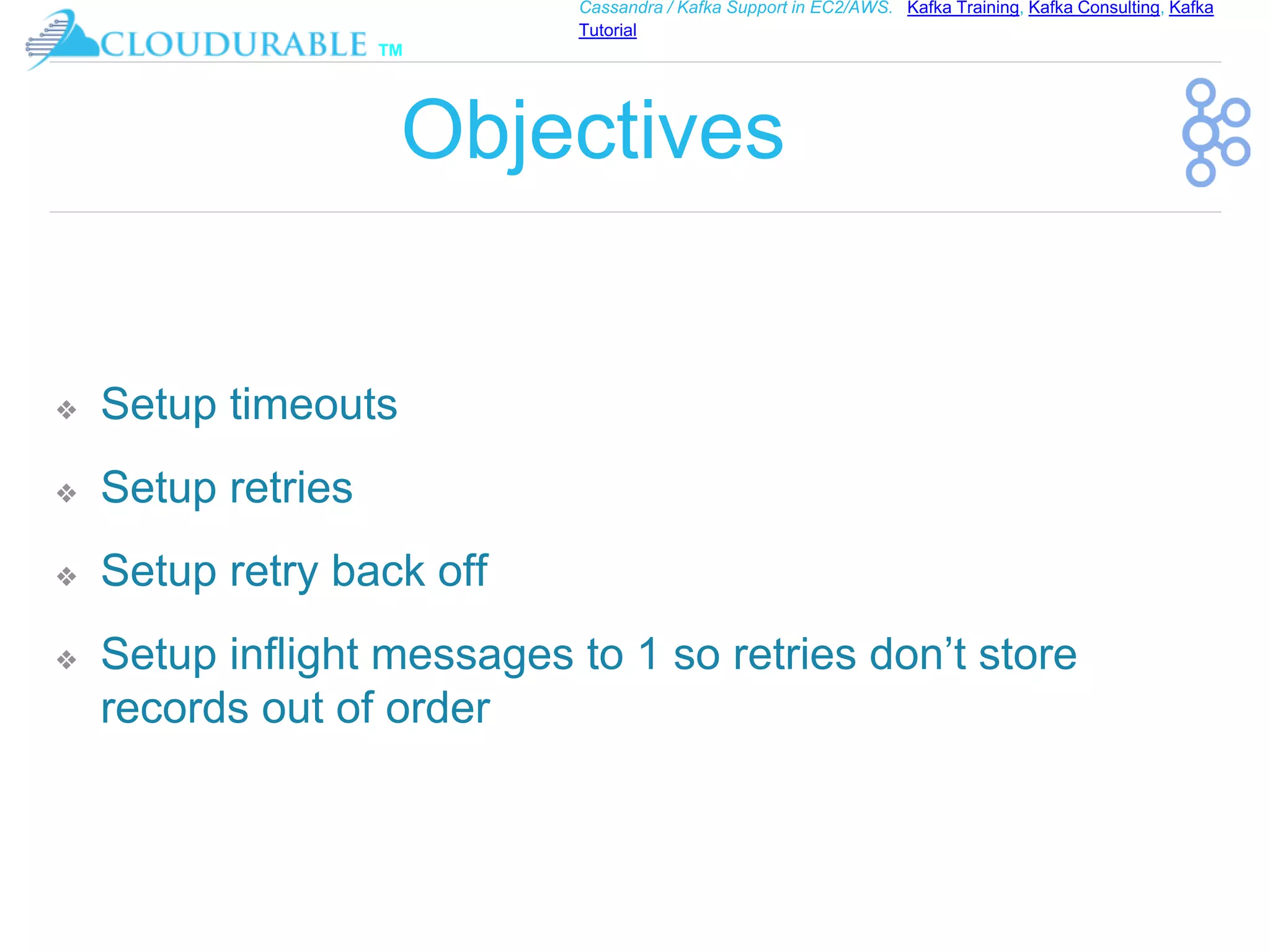

Objectives
❖ Setup timeouts
❖ Setup retries
❖ Setup retry back off
❖ Setup inflight messages to 1 so retries don’t store
records out of order

™
Tutorial
Brokers
❖ Modify StockPriceKafkaProducer to configure retry,
timeouts, in-flight message count and retry back off
❖ Start and stop any two different Kafka Brokers while
❖ Notice retry messages in log of StockPriceKafkaProducer

™
Tutorial
Modify
❖ to configure retry, timeouts, in-flight message count and retry back off

™
Tutorial

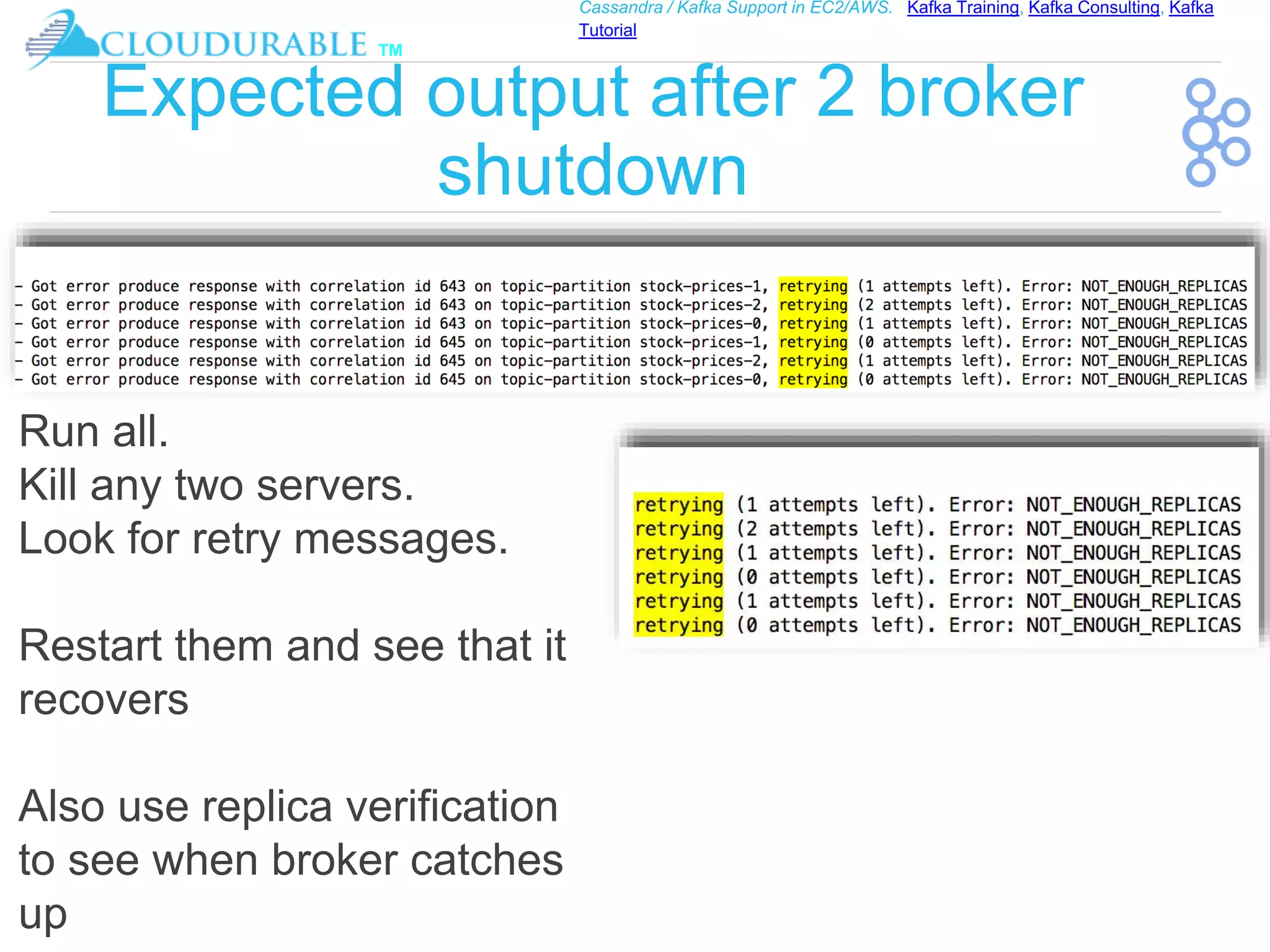

Expected output after 2 broker
shutdown
Run all.
Kill any two servers.
Look for retry messages.
Restart them and see that it
recovers
Also use replica verification
to see when broker catches
up

™
Tutorial
WARN Inflight Message Count
❖ MAX_IN_FLIGHT_REQUESTS_PER_CONNECTION
"max.in.flight.requests.per.connection"
❖ max number of unacknowledged requests client sends on a single
connection before blocking
❖ If >1 and
❖ failed sends, then
❖ Risk message re-ordering on partition during retry attempt
❖ Depends on use but for StockPrices not good, you should pick retries > 1
or inflight > 1 but not both. Avoid duplicates. :)
❖ June 2017 release might fix this with sequence from producer

™
Tutorial

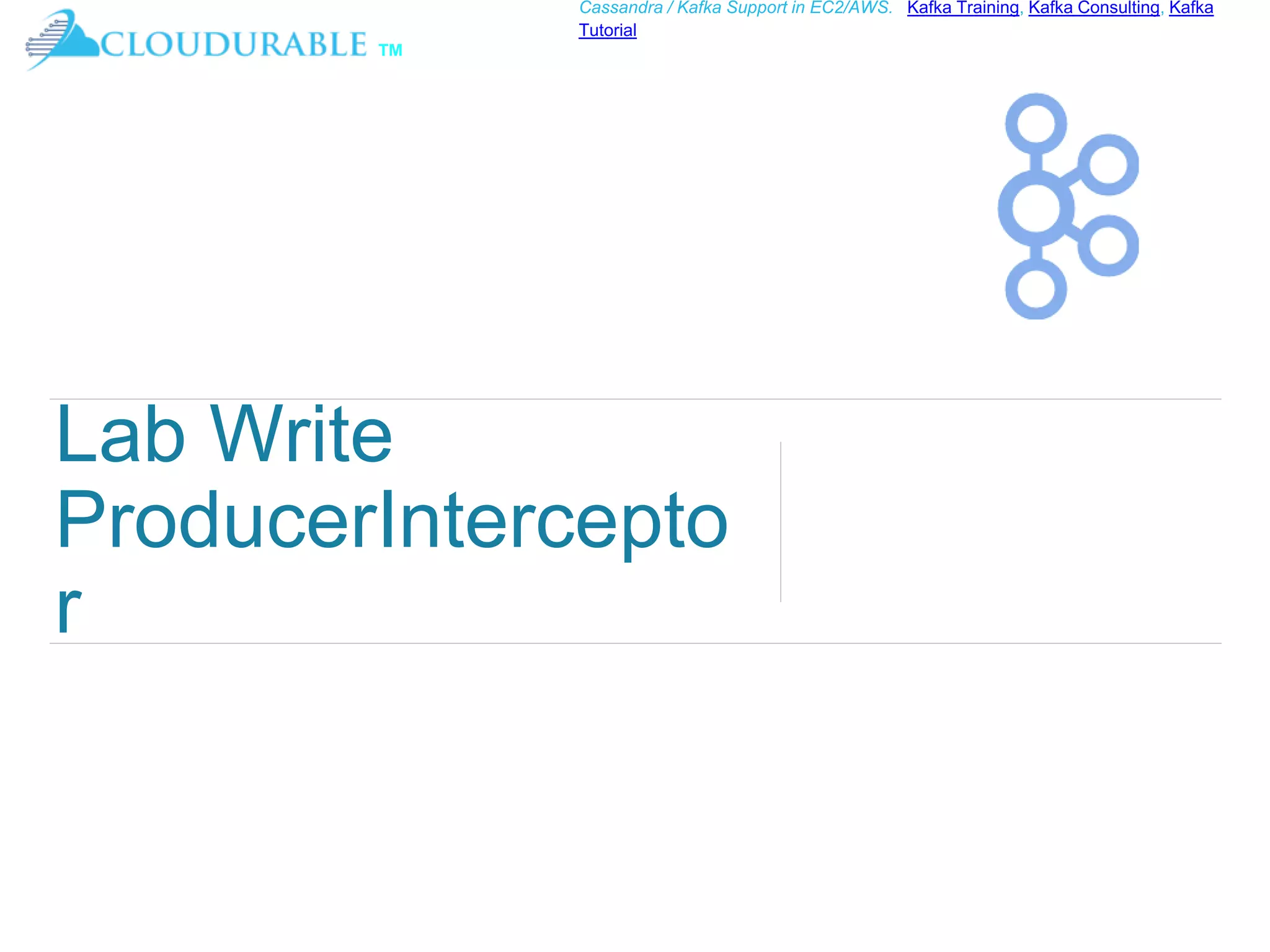

Lab Write
ProducerIntercepto
r

™
Tutorial

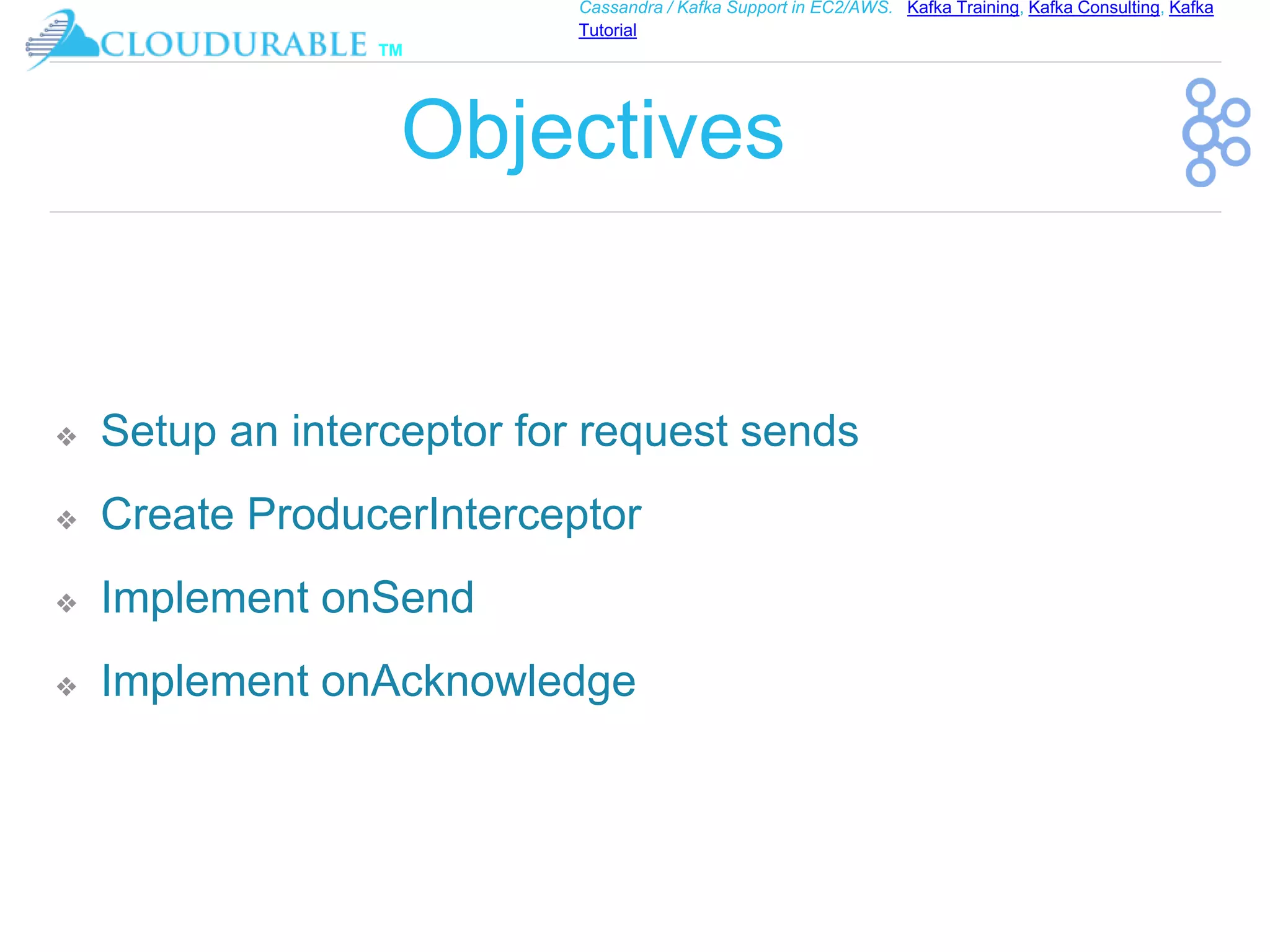

Objectives
❖ Setup an interceptor for request sends
❖ Create ProducerInterceptor
❖ Implement onSend
❖ Implement onAcknowledge

™
Tutorial

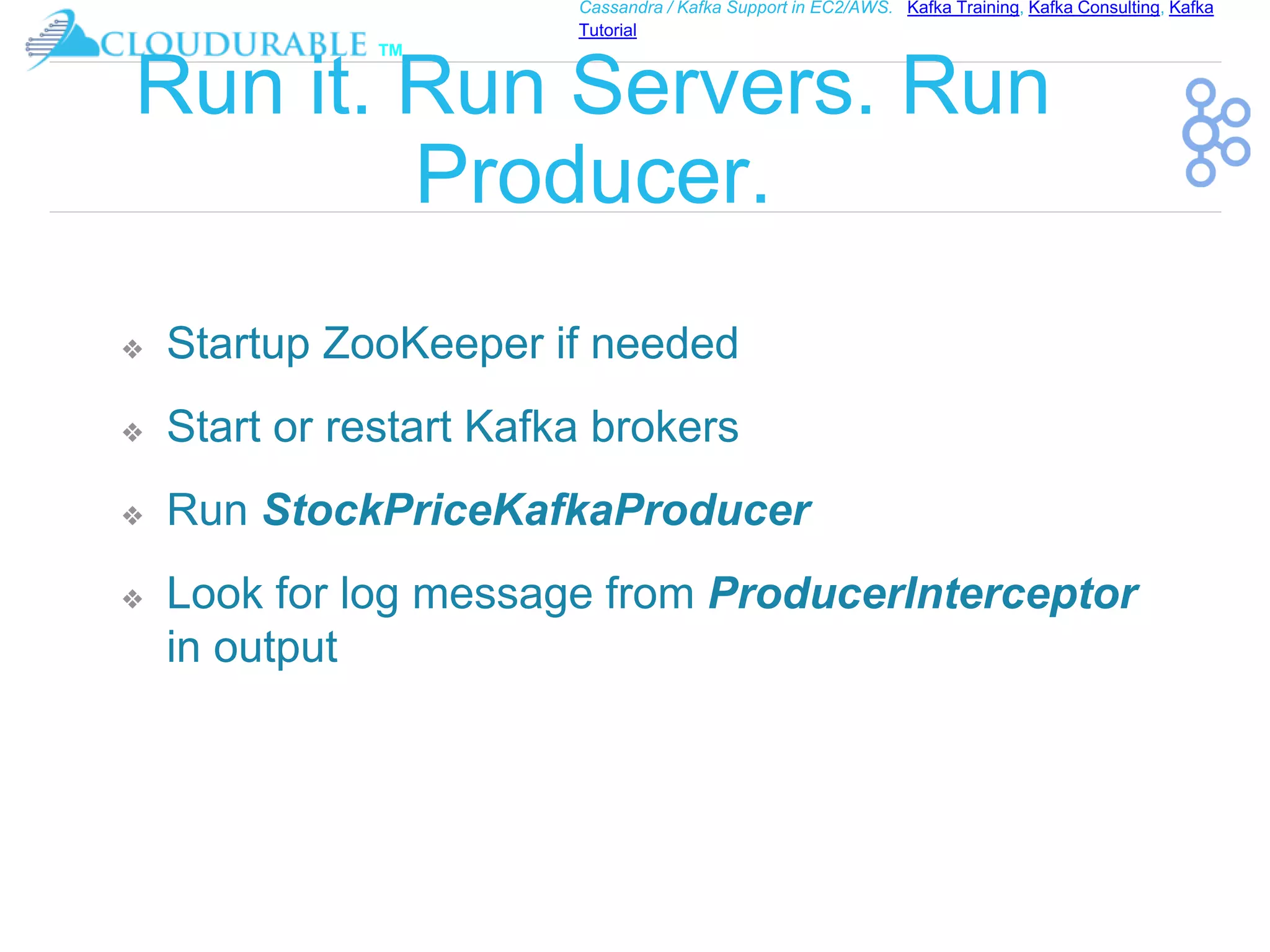

Run it. Run Servers. Run
Producer.
❖ Startup ZooKeeper if needed
❖ Start or restart Kafka brokers
❖ Look for log message from ProducerInterceptor
in output

™
Tutorial
ProducerInterceptor Output

™
Tutorial

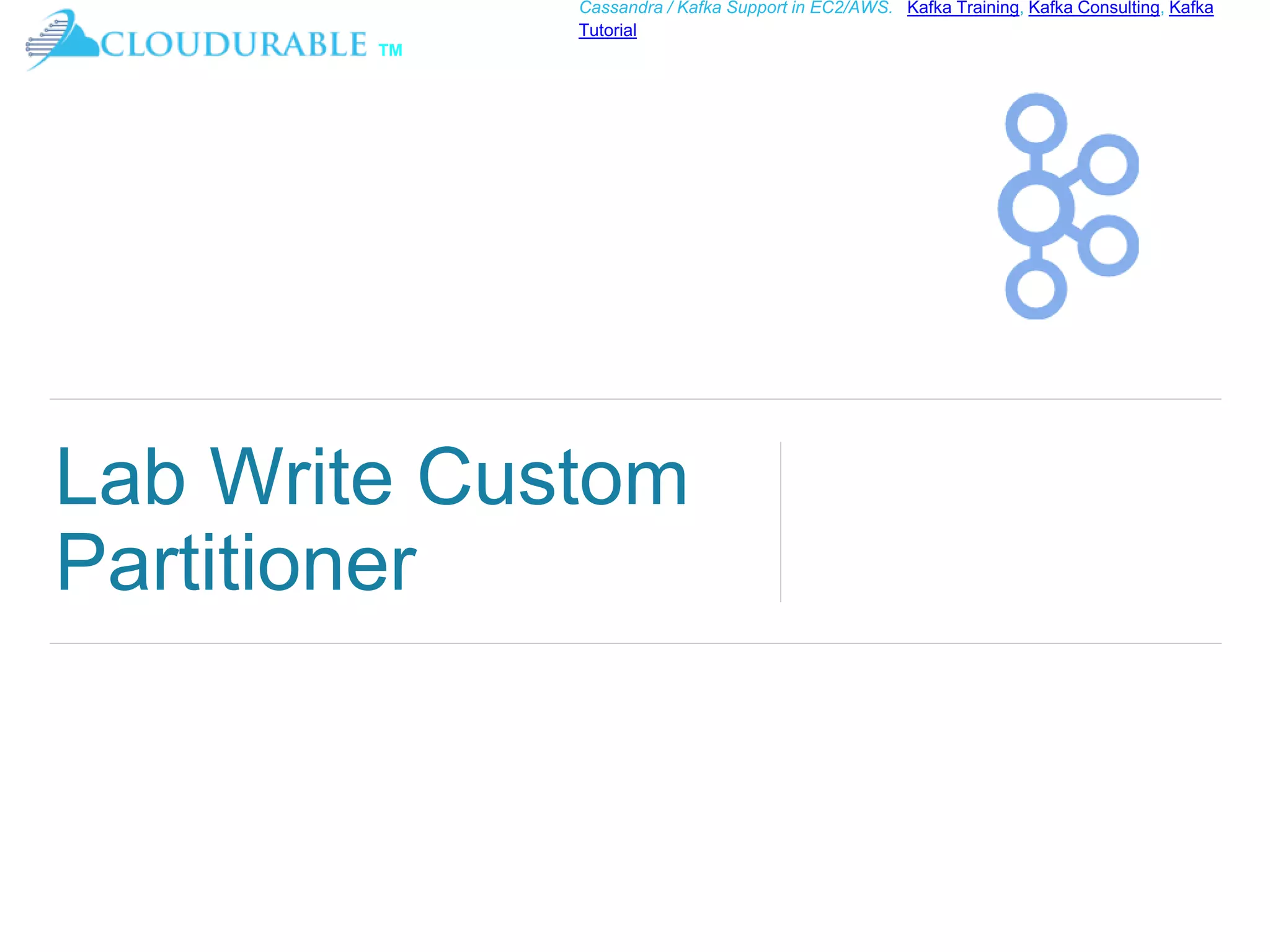

Lab Write Custom
Partitioner

™
Tutorial
Objectives
❖ Create StockPricePartitioner
❖ Implements interface Partitioner
❖ Implement partition() method
❖ Implement configure() method with importantStocks
property
❖ Configure new Partitioner in Producer config with
property
ProducerConfig.INTERCEPTOR_CLASSES_CONFIG
❖ Pass config property importantStocks

™
Tutorial
Producer Partitioning
❖ Producer config property: partitioner.class
❖ org.apache.kafka.clients.producer.internals.DefaultPartitioner
❖ Partitioner class implements Partitioner interface
❖ partition() method takes topic, key, value, and cluster
❖ returns partition number for record

™
Tutorial
StockPricePartitioner.configur
e()
❖ Implement configure() method
❖ with importantStocks property
❖ importantStocks get added to importantStocks HashSet

™
Tutorial
partition()
❖ IMPORTANT STOCK: If stockName is in
importantStocks HashSet then put it in partitionNum
= (partitionCount -1) (last partition)
❖ REGULAR STOCK: Otherwise if not in importantStocks
then not important use the absolute value of the hash of
the stockName modulus partitionCount -1 as the
partition to send the record
❖ partitionNum = abs(stockName.hashCode()) % (partitionCount - 1)

™
Tutorial
Producer Config: Configuring
Partitioner
❖ Configure new Partitioner in Producer config with property
ProducerConfig.INTERCEPTOR_CLASSES_CONFIG
❖ Pass config property importantStocks
❖ importantStock are the ones that go into priority queue

™
Tutorial

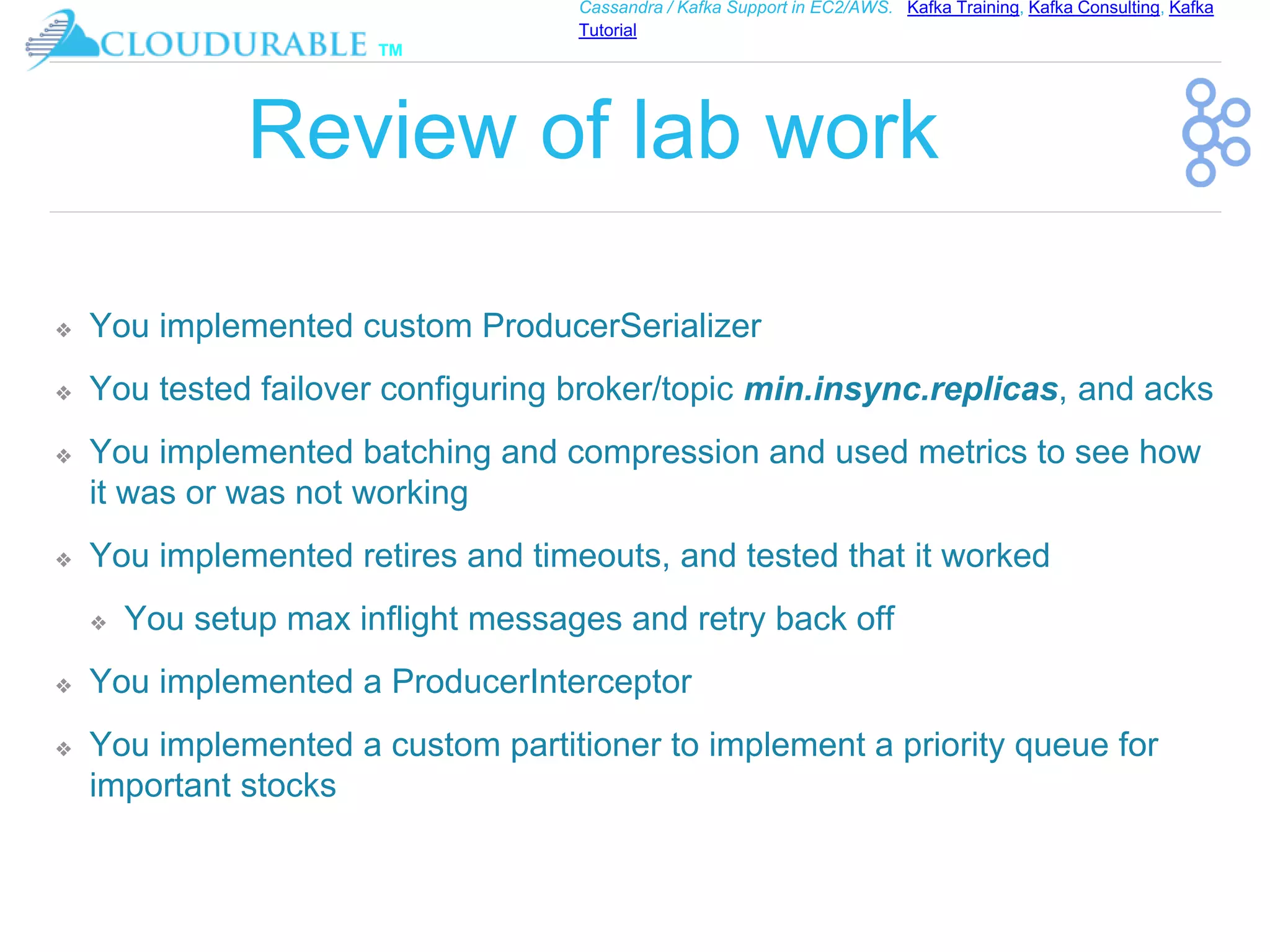

Review of lab work
❖ You implemented custom ProducerSerializer
❖ You tested failover configuring broker/topic min.insync.replicas, and acks
❖ You implemented batching and compression and used metrics to see how
it was or was not working
❖ You implemented retires and timeouts, and tested that it worked
❖ You setup max inflight messages and retry back off
❖ You implemented a ProducerInterceptor
❖ You implemented a custom partitioner to implement a priority queue for
important stocks

Kafka Tutorial: Advanced Producers

More Related Content

What's hot

Similar to Kafka Tutorial: Advanced Producers

More from Jean-Paul Azar

Recently uploaded

Kafka Tutorial: Advanced Producers

Editor's Notes
