Jmeter Performance Testing

Apache Jmeter Tool
www.jmeter4u.com | Email: jmeter4u@gmail.com | Skype: jmeter.experts
“Performance Testing using Apache JMeter”

2www.jmeter4u.com | Email: jmeter4u@gmail.com | Skype: jmeter.experts
“Opportunities are everywhere, if choose to see them”

Chapter 1
Introduction

What’s Inside
1.1 - Overview of PerformanceTesting
1.2 - Purpose of PerformanceTesting
1.3 - KeyTypes of PerformanceTesting
1.4 - Goal of PerformanceTesting
1.5 - Pre-Requisites PerformanceTesting
1.6 - Performance Management
1.7 - PerformanceTesting Life Cycle
1.8 - Why to use performanceTesting tool?
1.9 - Performance Symptoms and Issues
1.10 - Typical order of Fixes
1.11 - Challenged with PerformanceTesting
1.12 - Gather Non-Functional Requirements
1.13 - Proof of Concept

Overview of Performance Testing
Performance testing is an non-functional testing to determine the
system responsiveness i.e. speed, stability, reliability and scalability.
Speed - “How Fast?” Stability - “How Long?”
Reliability - “How Often?” Scalability - “How Much?”

Purpose of Performance Testing
Performance Testing ensures that your application works under real-
world loads before your customers find out that it doesn't!
GOAL/OBJECTIVE IS TO FIND THE BOTTLE NECK IN THE SYSTEM

Key Types of Performance Testing
Load Testing
Focus: “Response Time”
Stress Testing
Focus: “Response Time” and “Throughput"
Volume/Capacity
Testing
Focus: “Response Time”
Endurance Testing
Focus: “Memory”
Scalable Testing
Focus: “Response Time” and “Throughput"

Goal of Performance Testing
 Access the Production Readiness.
 Compare two platforms with the same software to see which
performs better.
 Compare Performance characteristics of system configurations.
 Evaluate System against performance criteria.
 Discover what parts of the application perform poorly and under
what conditions.
 Finding the source of performance problems.
 Support system tuning.

Pre-Requisites Performance Testing
 Stable and defect-free dedicated environment.
 Performance testing environment similar to production environment.
 No other testing should be performed while Performance Testing.
 Performance testing before going live.
 Performance testing plan development.
 Test Data Preparation.
 Performance testing requirements gathering.
 Application architecture.
 Servers information.
 Application usage information.
 Performance Acceptance criteria.

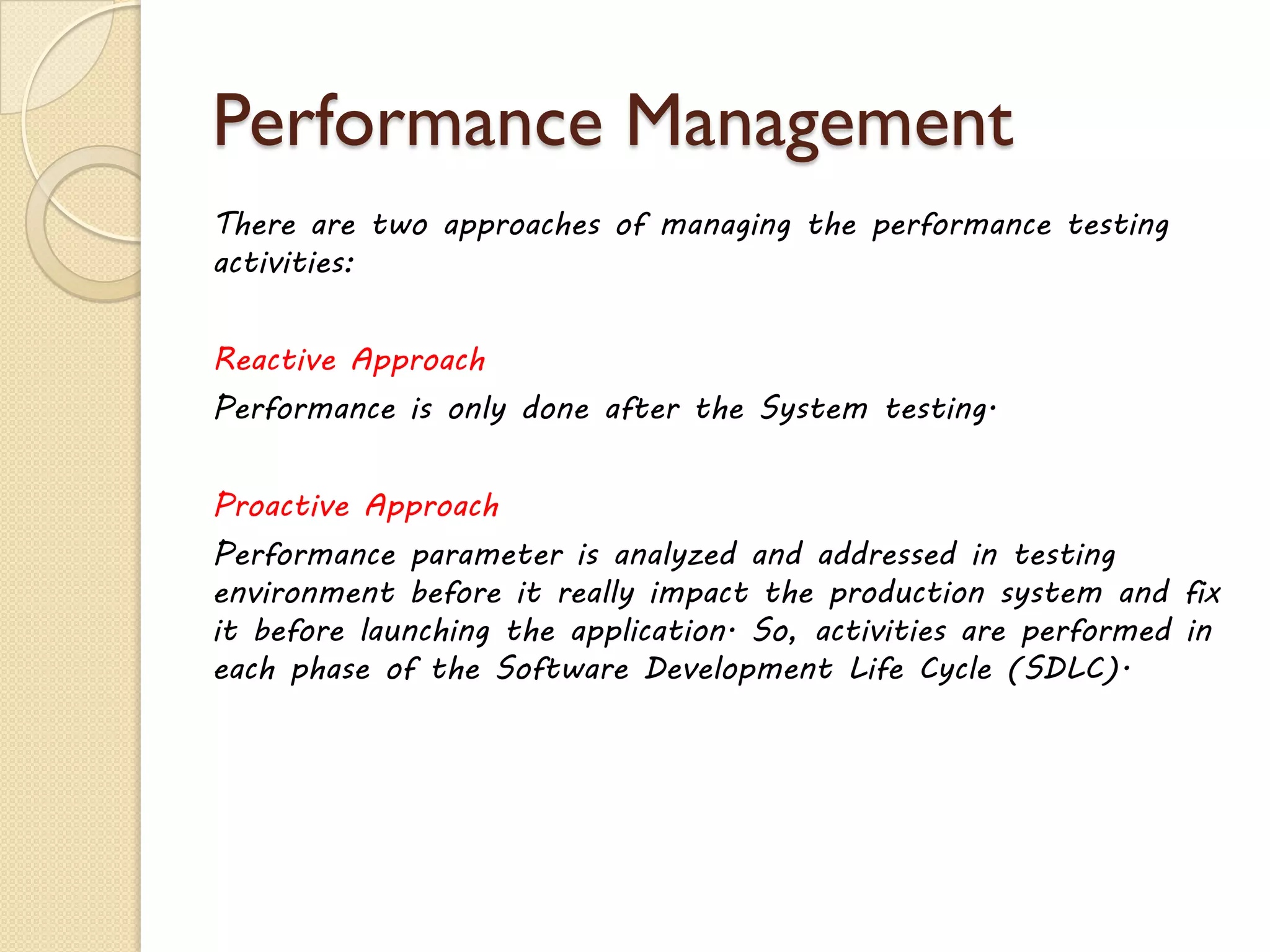

Performance Management
There are two approaches of managing the performance testing activities:
Reactive Approach
Performance is only done after the System testing.
Proactive Approach
Performance parameter is analyzed and addressed in testing environment
before it really impact the production system and fix it before launching
the application.
 Non-Functional Requirements Gathering phase
 Design phase Development phase
 Development phase
 Test Execution phase
 Maintenance

Performance Testing Life Cycle
The performance testing core activities are displayed as follows:
Perform Tuning/Change Configuration
Analyze Results
Run Test
Record Test Plan
Prepare Test Environment
Plan & Design Tests
Identifying Acceptance Criteria
Identifying Test Environment

Why to use performance Testing tool?
 Almost impossible without one!
 Without tool relies on massive hardware and personnel to generate
load.
The cost of repeating a 'manual' test never diminishes.
Without a tool, no end reports are created.
 Reponses Time
 CPU Utilization
 Disk I/O
 Network I/O
 Other

Performance Symptoms and Issues
Performance
Symptoms
Long
response
time Memory
leaks
High CPU
usage
Too many
open
connections
Length
queues for
requests
Too many
table scans
of database
Database
deadlocks
Erroneous
data
returned
HTTP errors
Pages not
available
Page check
errors
• Poor database tuning.
• Poor cache management.
• Poor session management.
Application
Server
• Poor server design.
• Poor configuration & usage.
Web Server
• Insufficient indexing.
• Fragmented databases.
• Faulty application design.
Database
Server
• Firewall throughput.
• Load balancers, gateways,
routers.
Network
Server

Typical order of Fixes
 Improve current application design: Algorithms, caching, DB calls,
memory use.
 Upgrade hardware: RAM, CPU, network bandwidth
 Upgrade software infrastructure: OS, web server, database (database
connection polling)
 Upgrade system architecture: Client-server to basic n-tier, basic n-
tier to enterprise n-tier, software and hardware changes, Use Apache
HTTPD in front of Tomcat to serve static resources, Use hardware
load balancing /SSL.

Challenged with Performance Testing
Following is a list of challenges with Performance Testing:
 Test environment setup
 Collection and Analysis of huge data
 Bottleneck root cause identification
 Obtaining accurate results
 Client involvement
 Testing inside the firewall
 Performance testing of new technologies
 Testing on live environment
 Expensive
 Cooperative effort required (Product vendors, Architects, Developers,
Testers, Database administrators, System administrators, Network
administrators)

Gather Non-Functional Requirements
 Clear and complete requirements are mandatory for successful
performance testing.
 What we need to start the performance testing?
 What is the type of application and its architecture?
 What are the known current as well as previous performance bottlenecks?
 Which application scenarios to be tested?
 Requirement gathering from 3 areas:
General
Information
Workload Model
Performance
Goals

Proof of Concept
 To identify technical evaluation of the performance testing tool.
 To determine scripting effort & feasibility.
 To demonstrates the capabilities & pitfalls of the performance
testing using testing tool.
Prerequisites
Process
Deliverables
POC Checklist
Post-Test Phase: Analyze Results, Report, Retest
Performance Test Execution
Performance Test Build
Scripting
Test Environment Build
Pre-Engagement NFR Capture
Performance test execution checklist

Chapter 2
Get Started

What’s Inside
2.1 - What is Jmeter?
2.2 - What can you test in JMeter
2.3 - Installing Jmeter
2.4 - Setting up Environment
2.5 - Configuration Jmeter

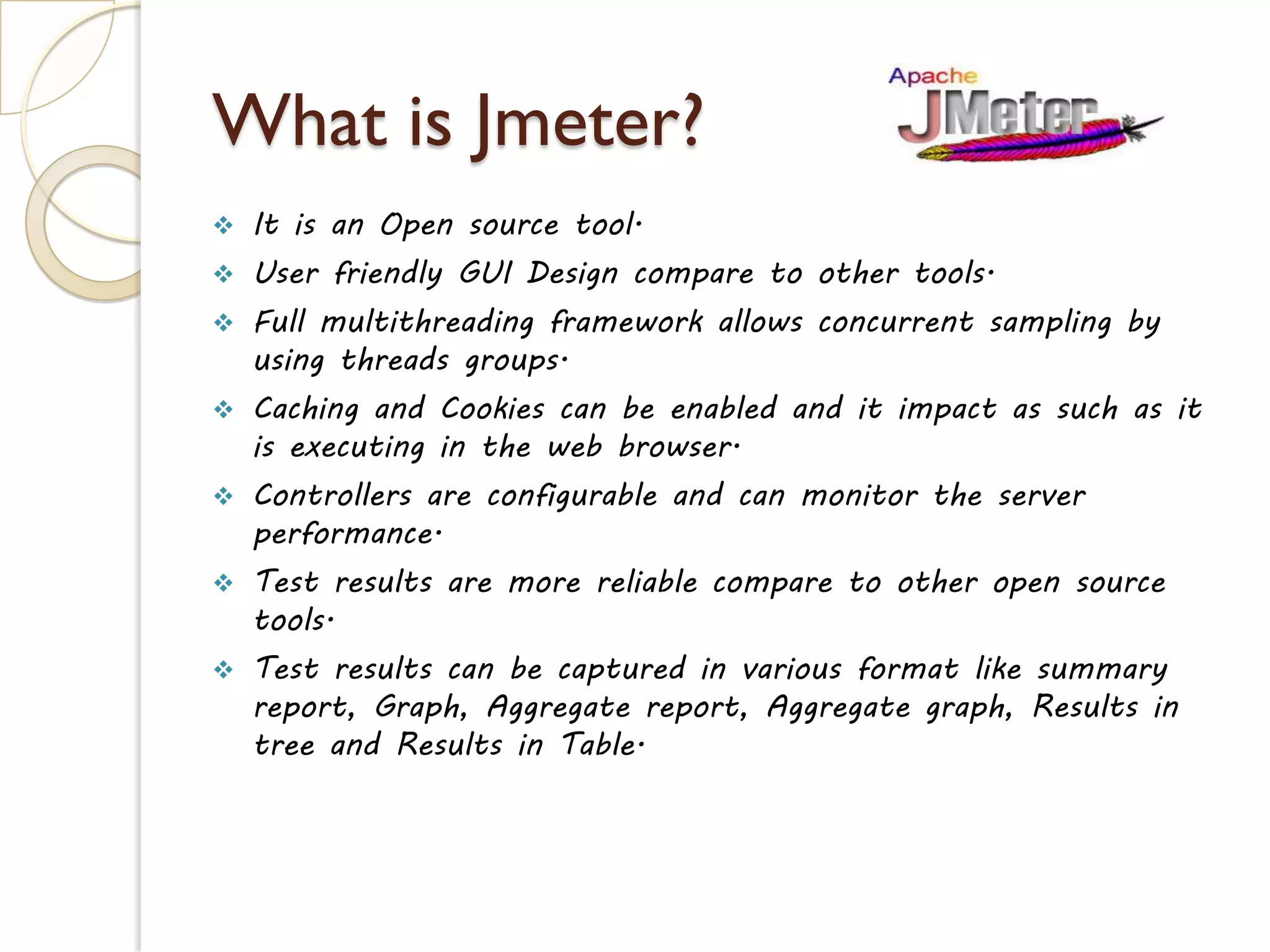

What is Jmeter?
 Open source tool
 Friendly GUI Design
 Platform Independent
 Full multithreading framework
 Visualize Test Results
 Easy Installation
 Support multi-protocol
 HTTP proxy recording server
 Caching and offline analysis/replaying of test results
Jmeter Works:
Send request to
target server
Get statistics
information of
target server
Generate test
report in different
format

What can you test in Jmeter?
 Apache Jmeter enables to perform functional, load, performance and
regression tests on an application.
 The application may be running on a Web server or it could be a
standalone in nature.
 It supports testing on both client-server and web model containing
static and dynamic resources.

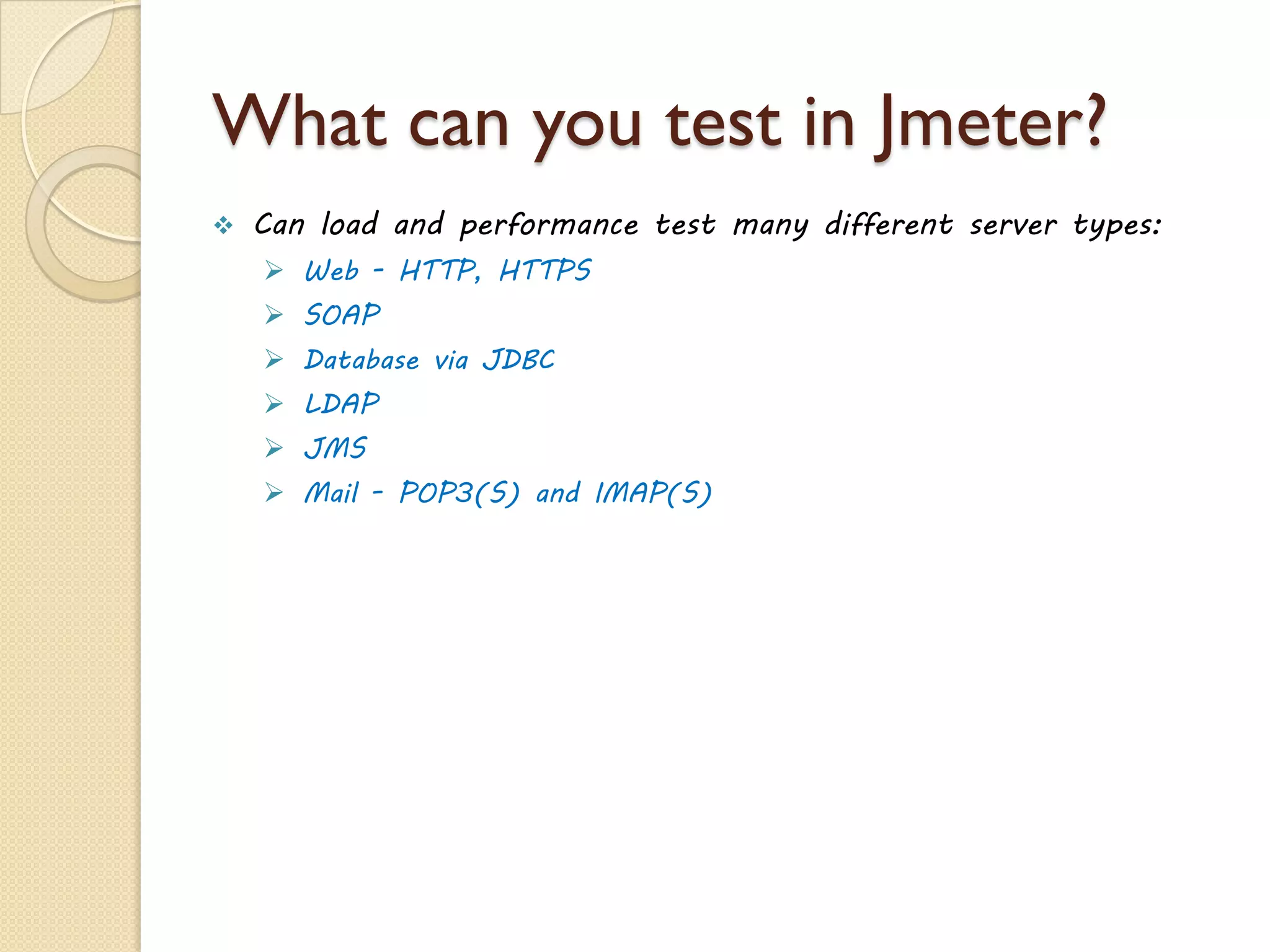

 Can load and performance test many different server types:
 Web - HTTP, HTTPS
 SOAP / REST
 FTP
 Database via JDBC
 LDAP
 Message-oriented middleware (MOM) via JMS
 Mail - SMTP(S), POP3(S) and IMAP(S)
 MongoDB (NoSQL)
 Native commands or shell scripts
 TCP

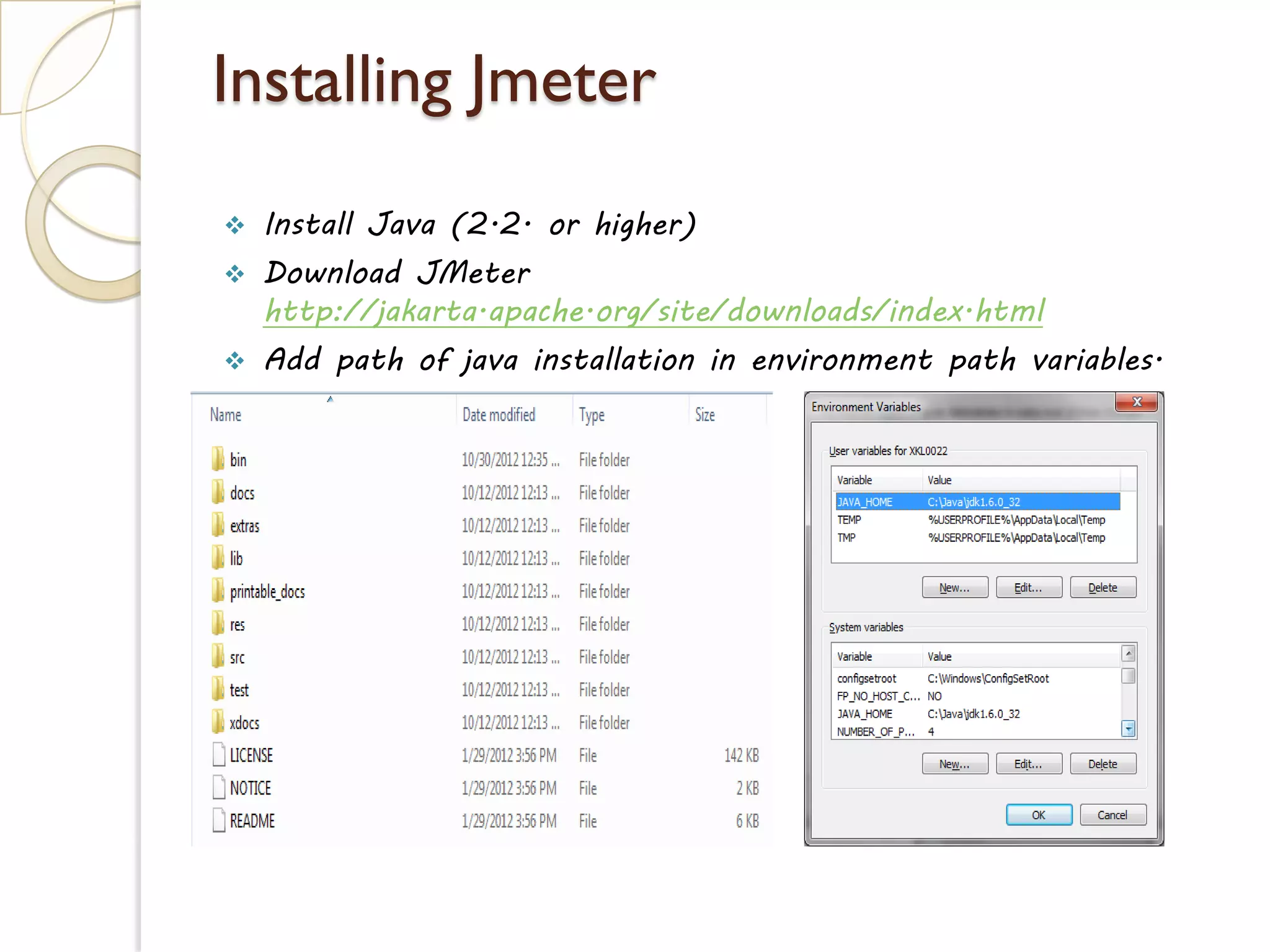

Installing Jmeter
 Install Java 7 or higher
 Download Jmeter
 Add JAVA_HOME environment variable.
 Add JAVA_HOME/bin in Path.
 Add JMETER_HOME environment variable.

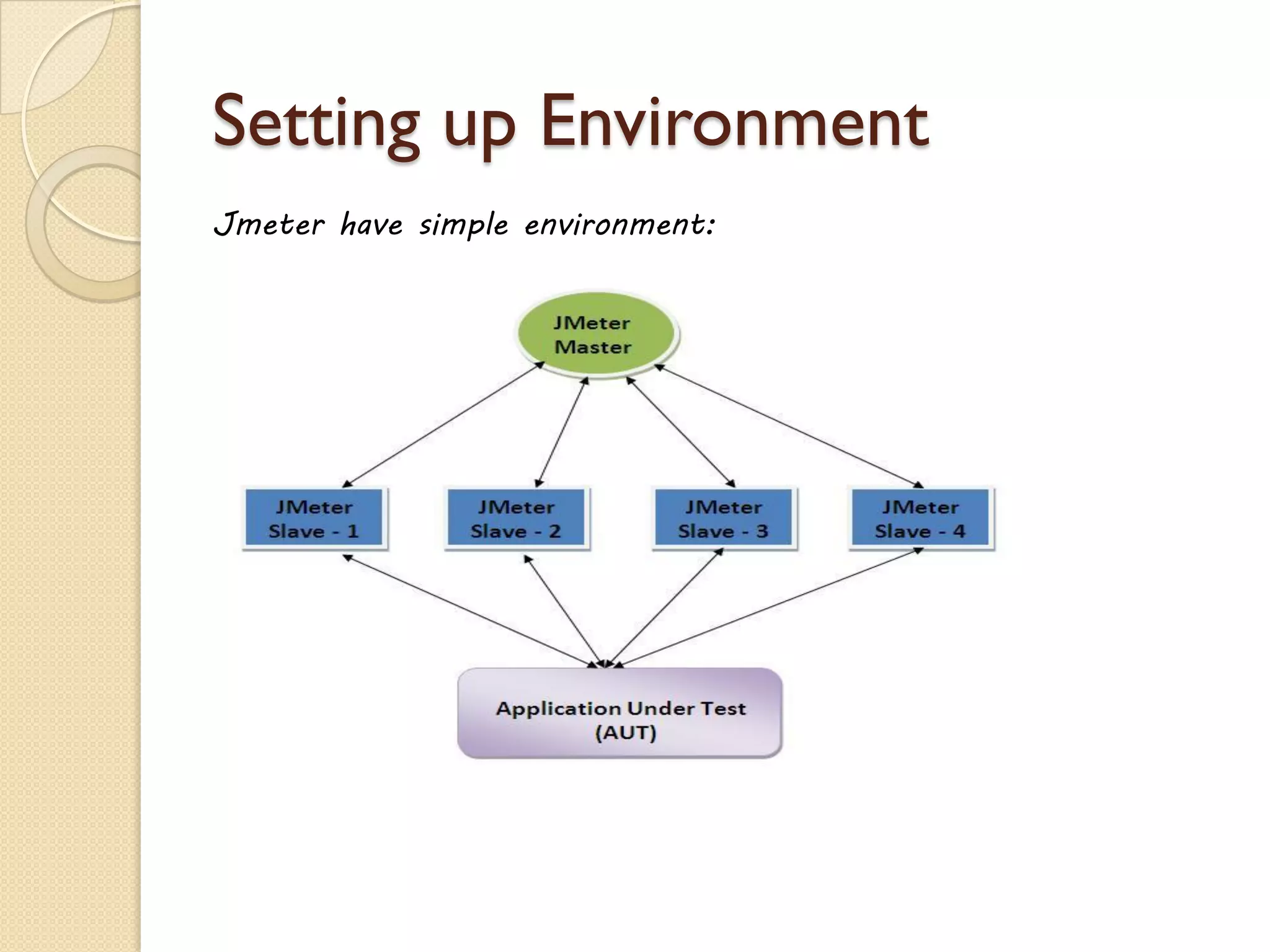

Setting up Environment
Jmeter have simple environment:

Configure JMeter
To customize JMeter default values, need to edit the properties files.
There are three type of files to edit properties:
jmeter.properties
• Results Config
• remote_hosts
• not_in_menu
user.properties
• search_paths
• user.classpath
system.properties
• SSL settings
• Key stores
• Certificates

Chapter 3
Recording & Playback First Test

What’s Inside
3.1 - Concept of Recording & Playback
3.2 - Recording with Badboy
3.3 - Configuring the JMeter HTTP(S)Test Script Recorder
3.4 - Setting up your browser to use the proxy server
3.5 - Case Study
3.6 - Record First Scenario
3.7 - Running First Scenario in GUI Mode
3.8 - Running First Scenario in Non GUI Mode

Concept of Recording & Playback
 Jmeter can act as a proxy server between your browser and the
web recording your actions.
 This can help in writing your web tests.
– HTTP(S) Test Script Recorder
– Script Recoding Tool (Badboy, Blazemeter)

Recording with Badboy
 A solution for web developers and testers to capture & replay.
 Lots of features including a simple yet comprehensive capture/replay
interface, powerful load testing support, detailed reports, graphs
and much more!
 Download Badboy: http://www.badboy.com.au/

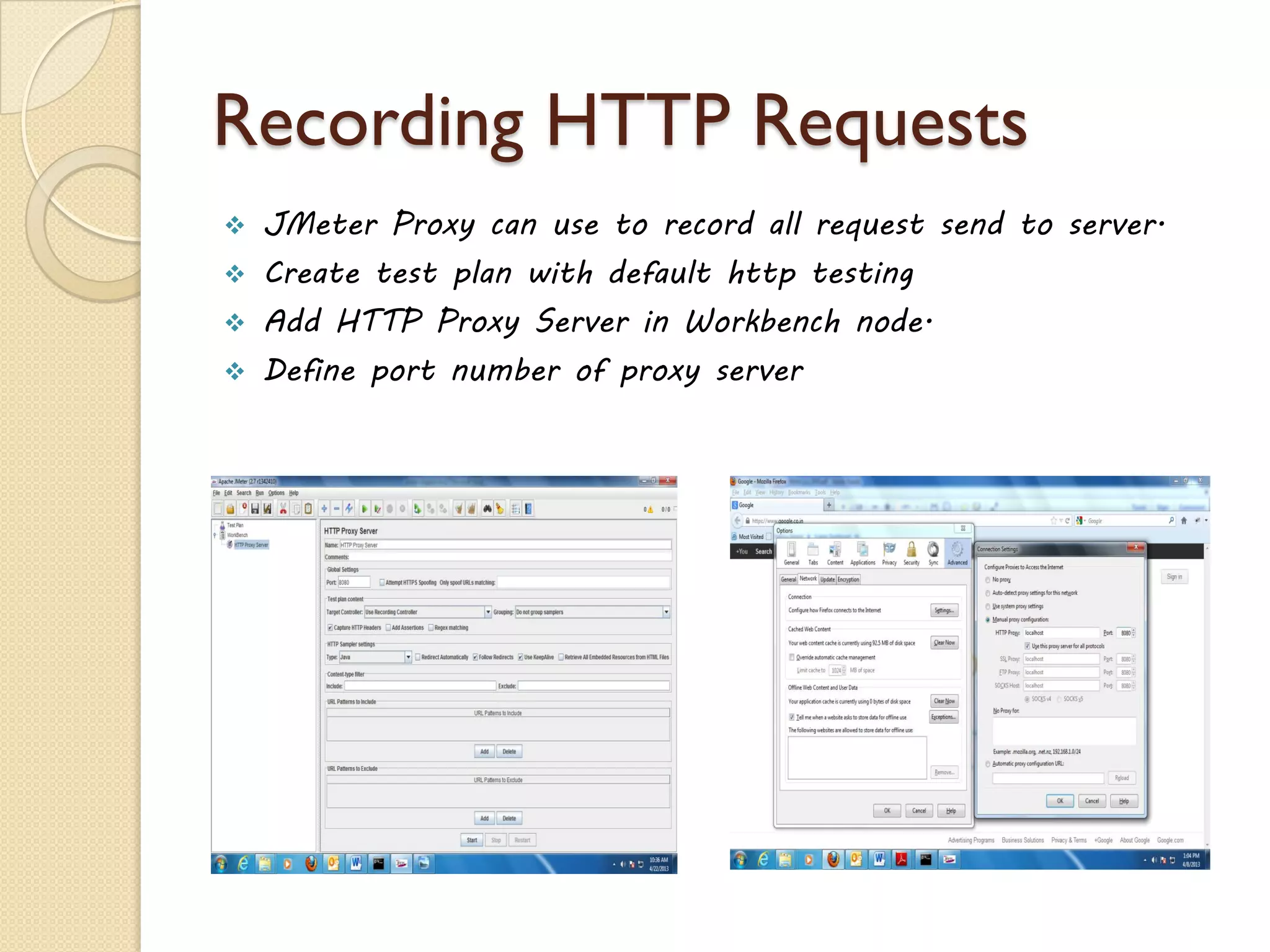

Configuring the JMeter HTTP(S) Test
Script Recorder
Start JMeter.
Add Test Plan | Thread Group | Recording Controller.
Right-click on WorkBench and navigate to Add | Non-Test Elements | HTTP(S)
Test Script Recorder
Enter port to 9099.
Under the Test plan content section, choose the option Test Plan > Thread
Group from the Target Controller drop-down.
Under the Test plan content section, choose the option Put each group in a new
transaction controller from the Grouping drop-down.
Click on Add suggested Excludes (under URL Patterns to Exclude).

Setting up your browser to use the proxy
server
Open Mozilla Firefox.
Click on Network and Internet.
Click on Tools >> Options >> Advanced >> Network >> Settings.
Click on the Manual proxy configuration radio button.
In the proxy Address box, enter localhost in the IP address.
In the Port number text box, enter 9099.
Select the checkbox "Use this proxy server for all protocols".

Case Study
 Jmeter4u
 OfBiz
 Magento
 Case 1:
 Load of 5 users accessing the server.
 Navigating to Home Page -> About Us Page
 Generate Report
 Case 2:
 Load of 50 users browsing the Ecommerce Website (Ofbiz).
 Navigating to Home Page -> Category Page -> Product Page -> Add to Cart -> Checkout
 Generate Report

Record First Scenario
Start the HTTP(S) Test Script Recorder by clicking on the Start button.
In browser, enter http://www.jmeter4u.com/.
Click on the ‘Home Page’
Click on the ‘About Me’
Stop the HTTP(S) Test Script Recorder by clicking on the Stop button.

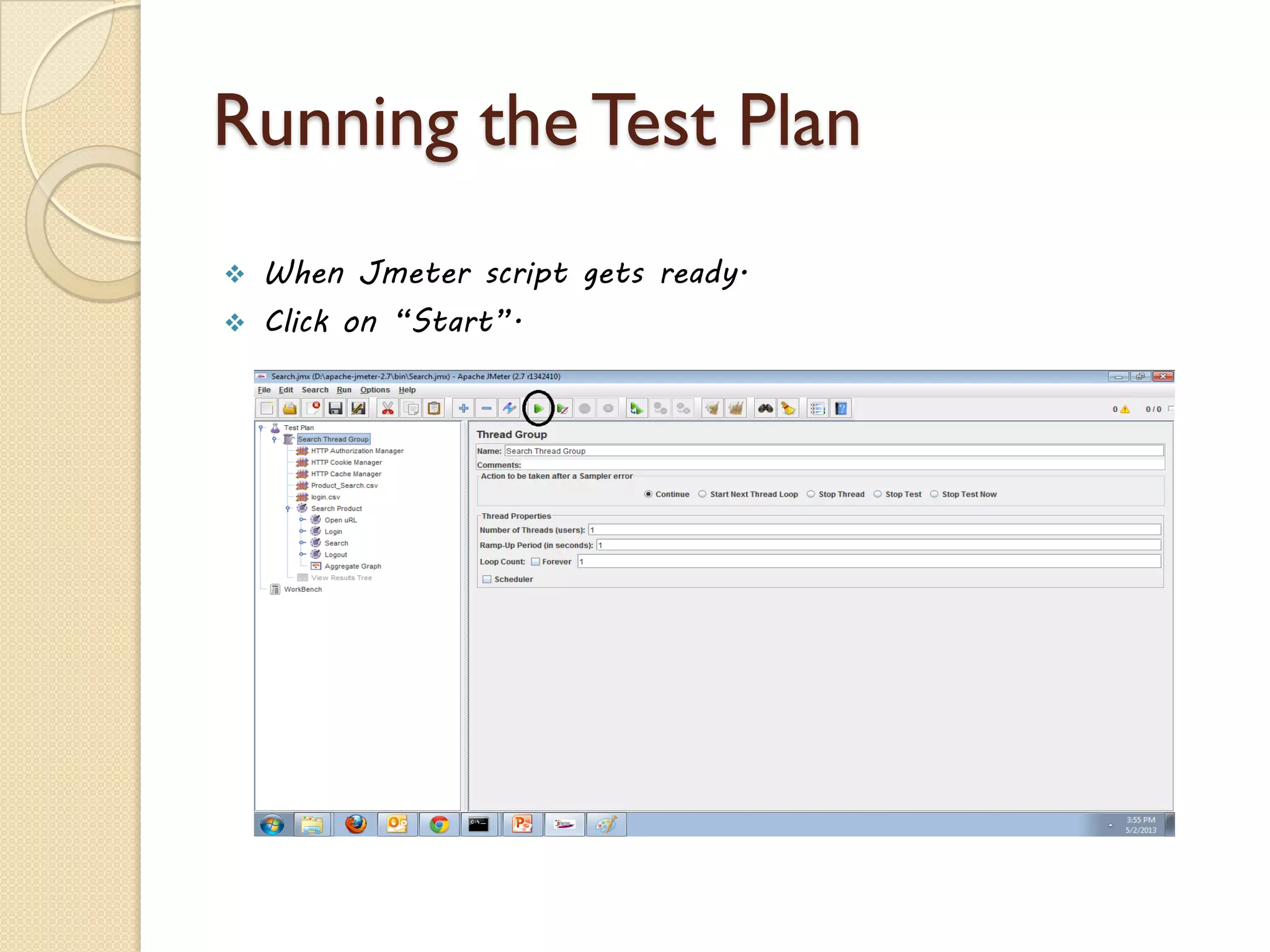

Running First Scenario in GUI Mode

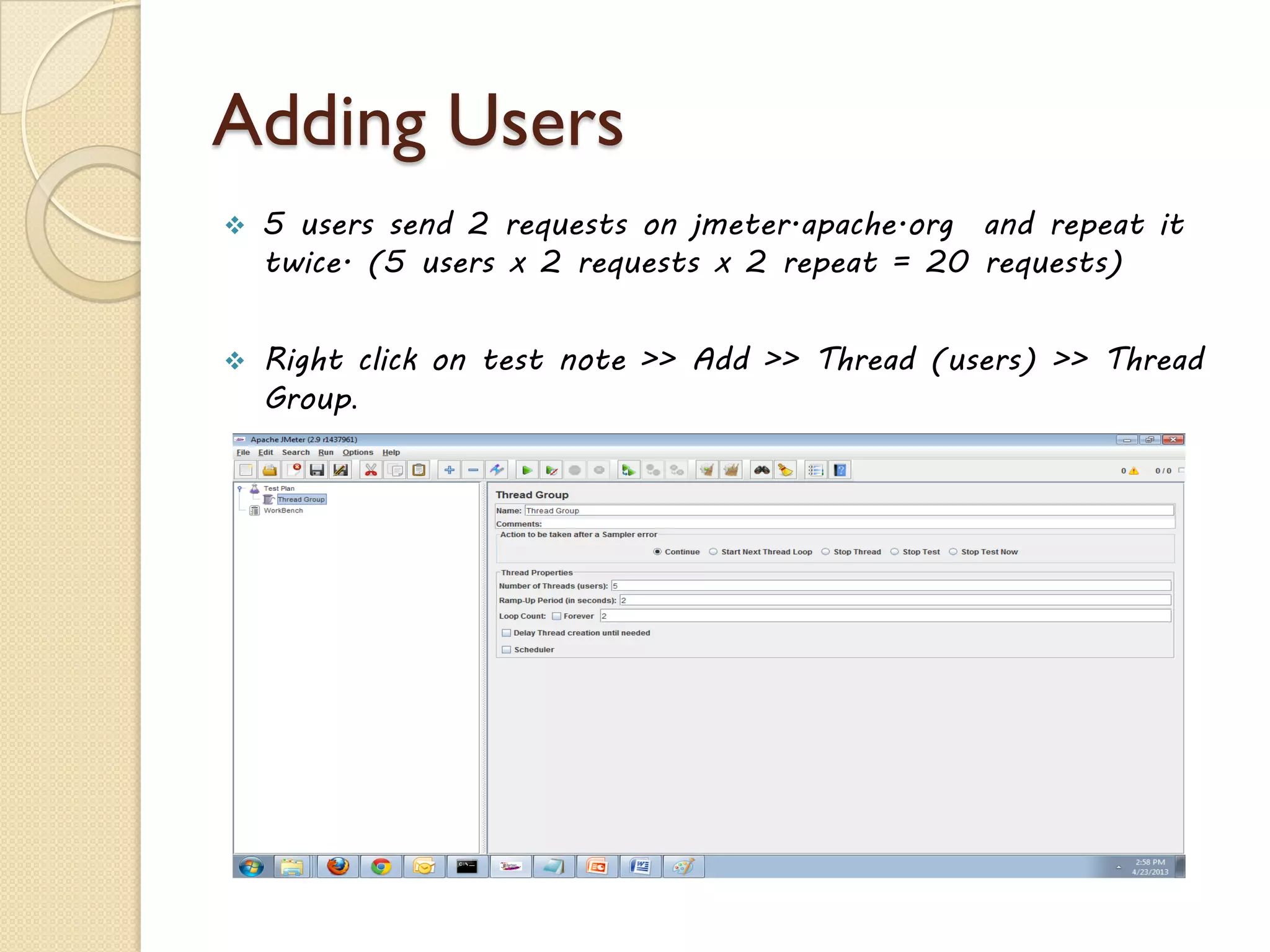

Click on Thread Group.
Under Thread Properties set the values as follows:
Number of Threads (users): 10
Ramp-Up Period (in seconds): 15
Loop Count: 30

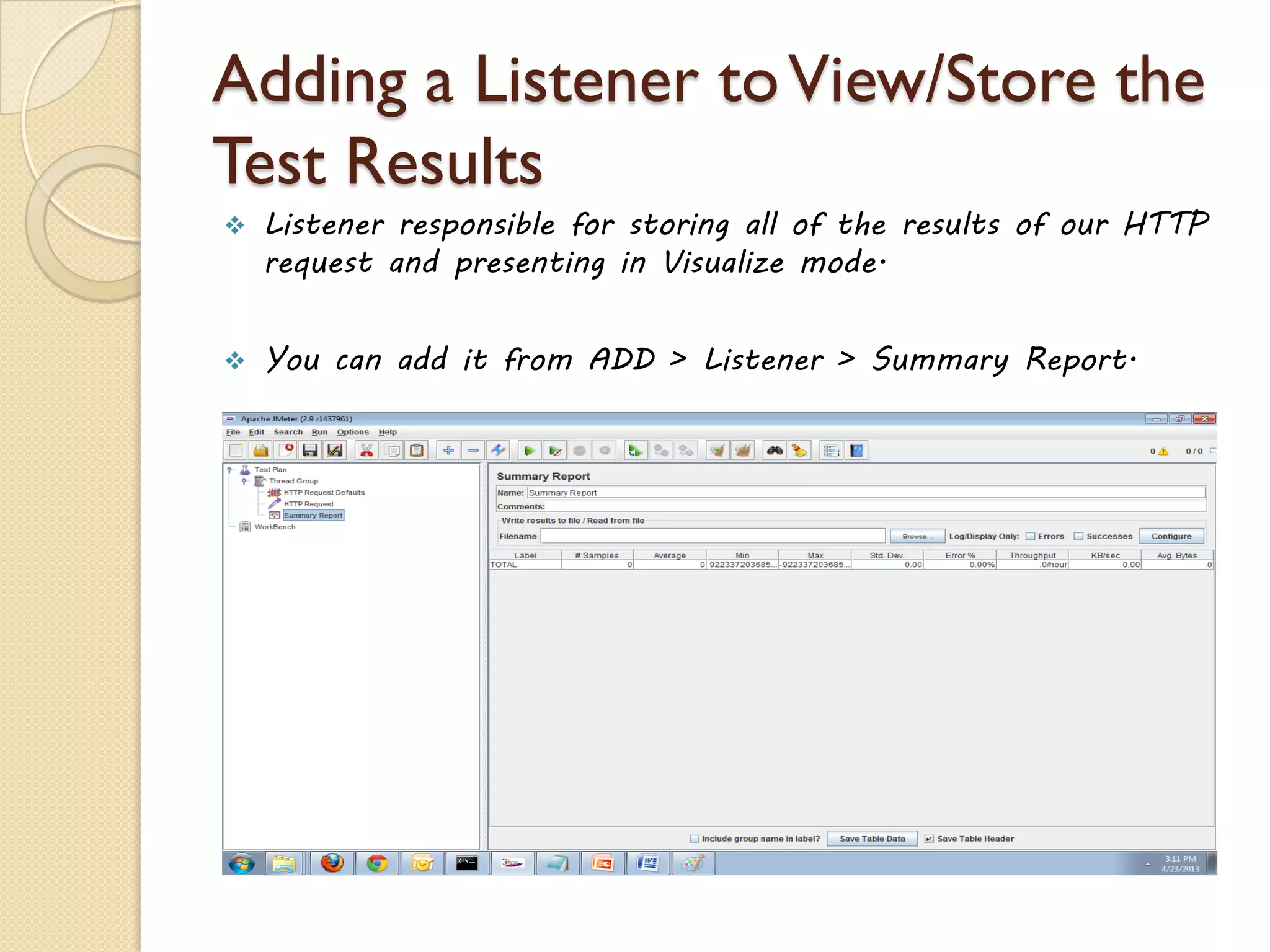

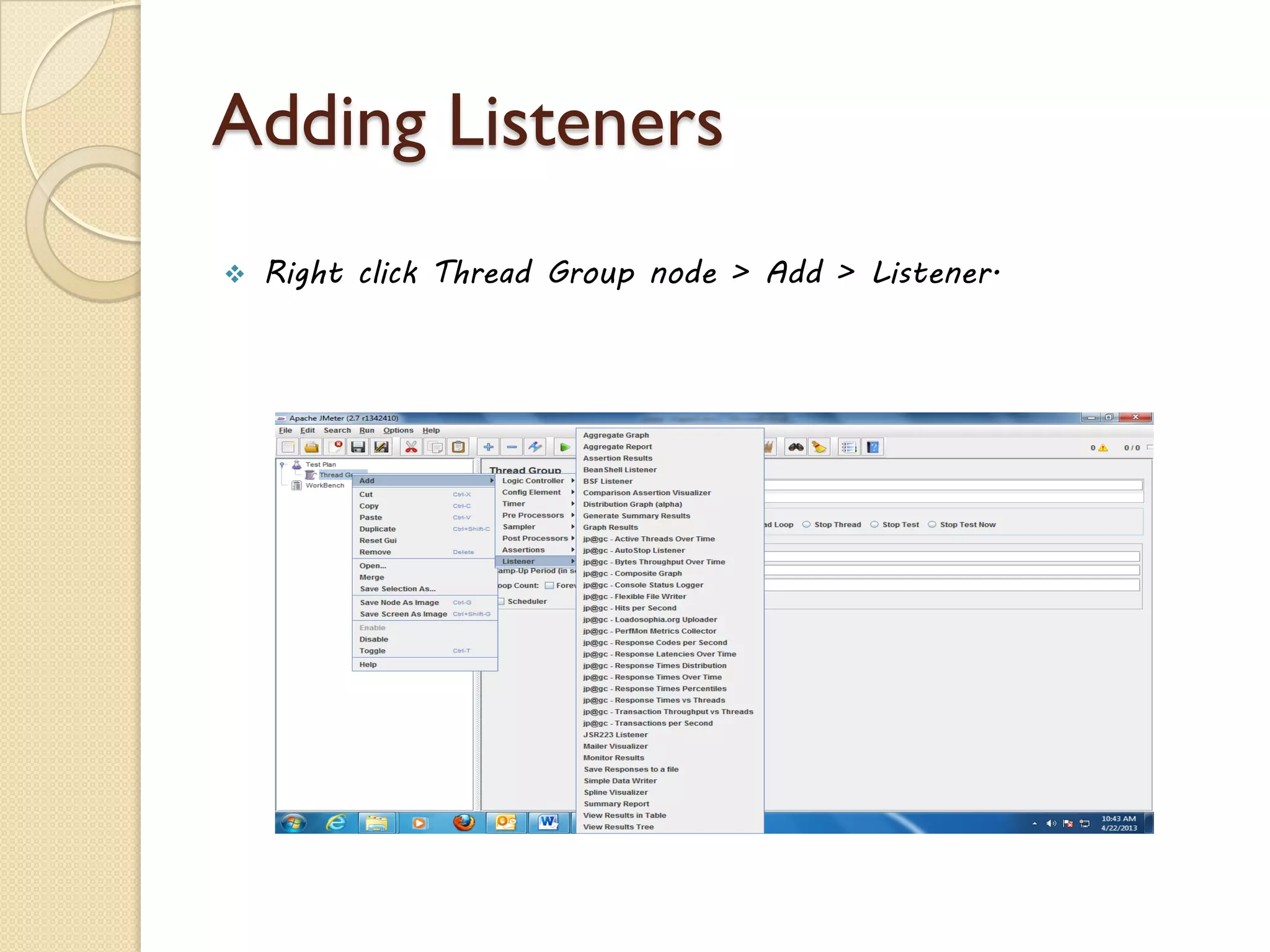

Add Listener on Test Plan and navigate to Add | Listener | View Results Tree.
Add Listener on Test Plan and navigate to Add | Listener | Summary Report.

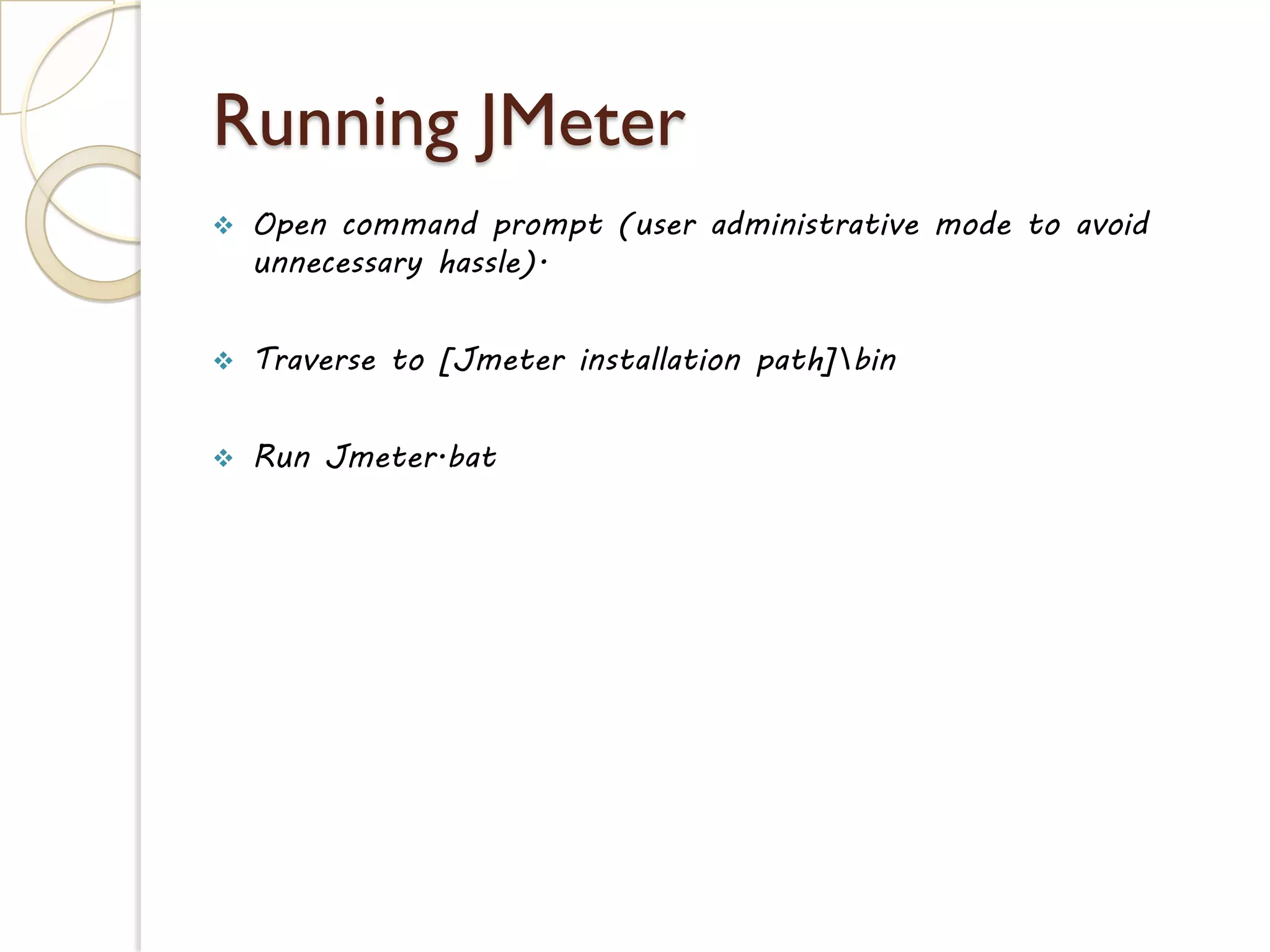

Running First Scenario in Non-GUI Mode
Open command prompt.
Navigate to JMETER_HOME/bin folder (Scripts needs to be here)
jmeter –n –t jmeter4u.jmx –l log.jtl
jmeter -Jusers=5 -n -t jmeter4u-non.jmx -l log2.jtl
Once test is over then open jmeter GUI and add any listener i.e Summary
Report
Import generated jtl file to see results.

Chapter 4
Introduction to Elements of Jmeter Test Plan

What’s Inside
4.1 - First Look at Apache Jmeter GUI
4.2 - Test Plan
4.3 - Workbench
4.4 - Thread Group
4.5 - Samplers
4.6 - Logic Controllers
4.7 - Pre-Processor Elements
4.8 - Post-Processor Elements
4.9 - Timers
4.10 - Assertions
4.11 - Configuration Elements
4.12 - Listeners
4.13 - Execution Order
4.14 - Scoping Rules

First Look at Apache Jmeter GUI
 Open Jmeter by %JMETER_HOME%/bin/jmeter.bat
 Isn't Jmeter GUI looks clear and simple?

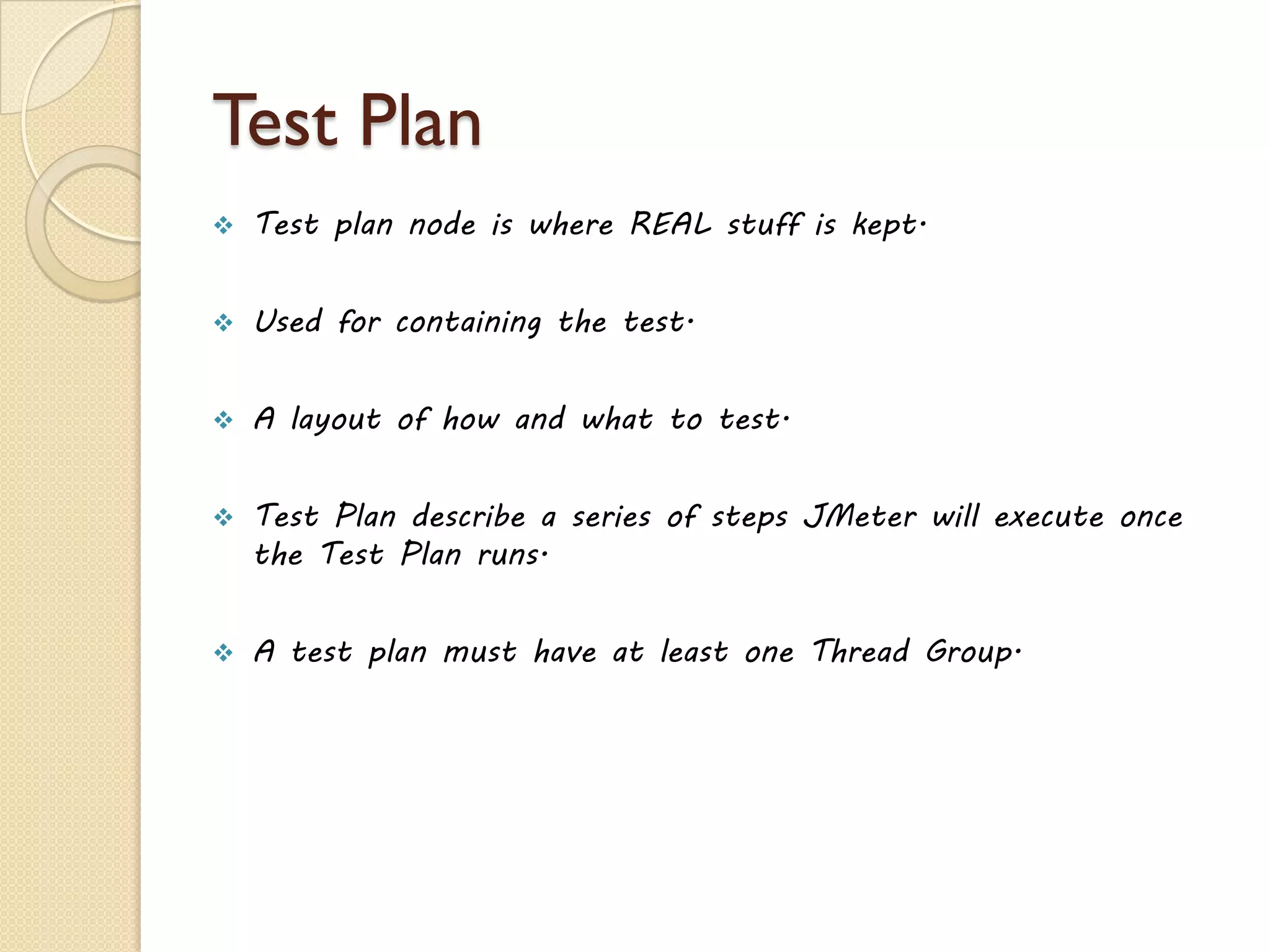

Test Plan
 Test plan node is where REAL stuff is kept.
 Used for containing the test.
 A layout of how and what to test.
 Describe series of steps JMeter will execute once the test plan runs.
 A test plan must have at least one Thread Group.

Workbench
 Provides a place to temporarily store test elements while not in use.
 For copy/paste purposes or any other purpose you desire.
 By default workbench items are not saved, unless you check "Save
Workbench" option.
 Your WorkBench can be saved independently.
Work
Bench
HTTP Mirror Server
HTTP(S) Test Script Recorder
Property Display

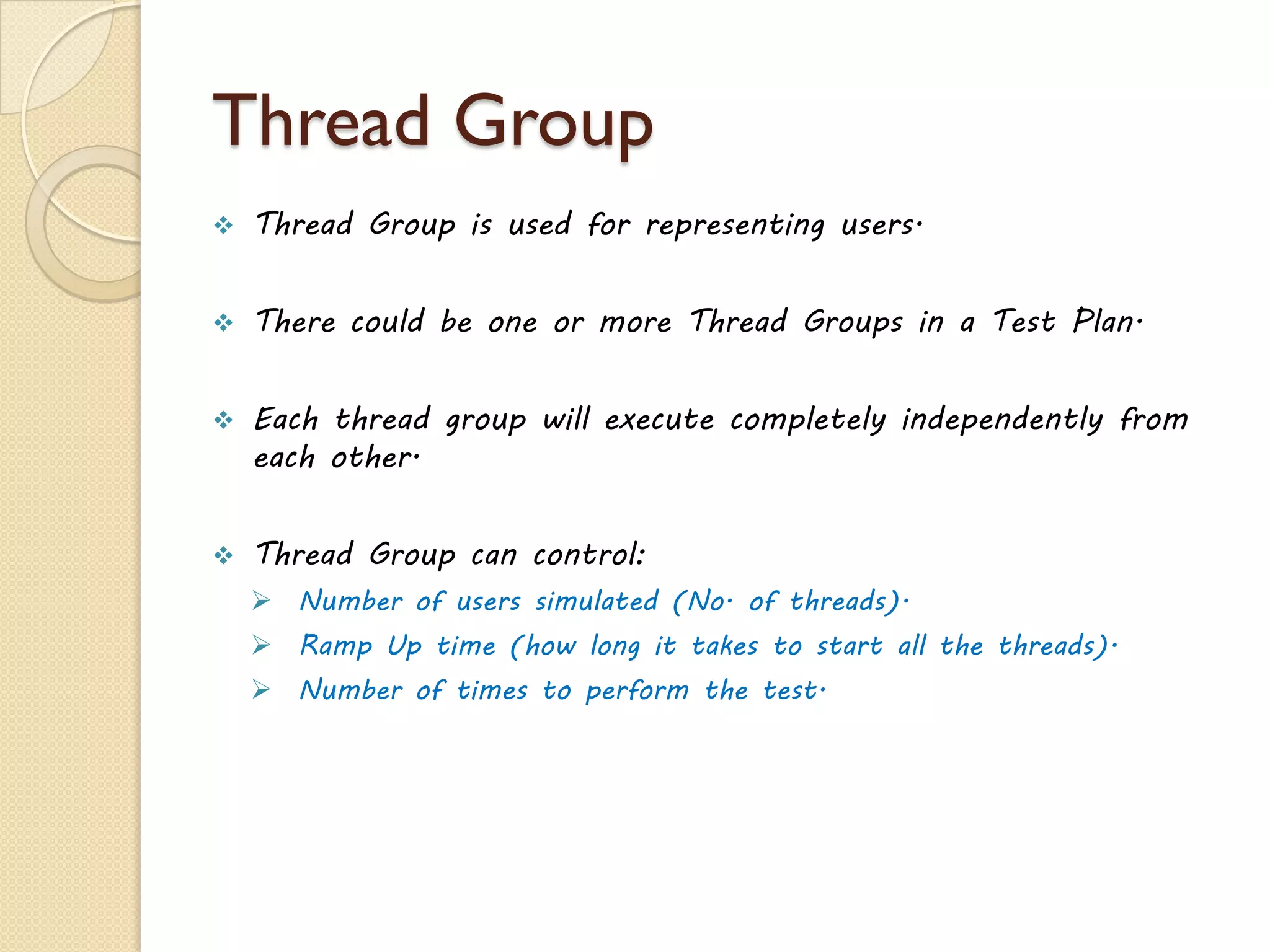

Thread Group
 Thread Group is used for representing users.
 There could be one or more Thread Groups in a Test Plan.
 Each thread group will execute completely independently from each
other.
 Thread Group can control:
 Number of users simulated (No. of threads).
 Ramp Up time (how long it takes to start all the threads).
 Number of times to perform the test.

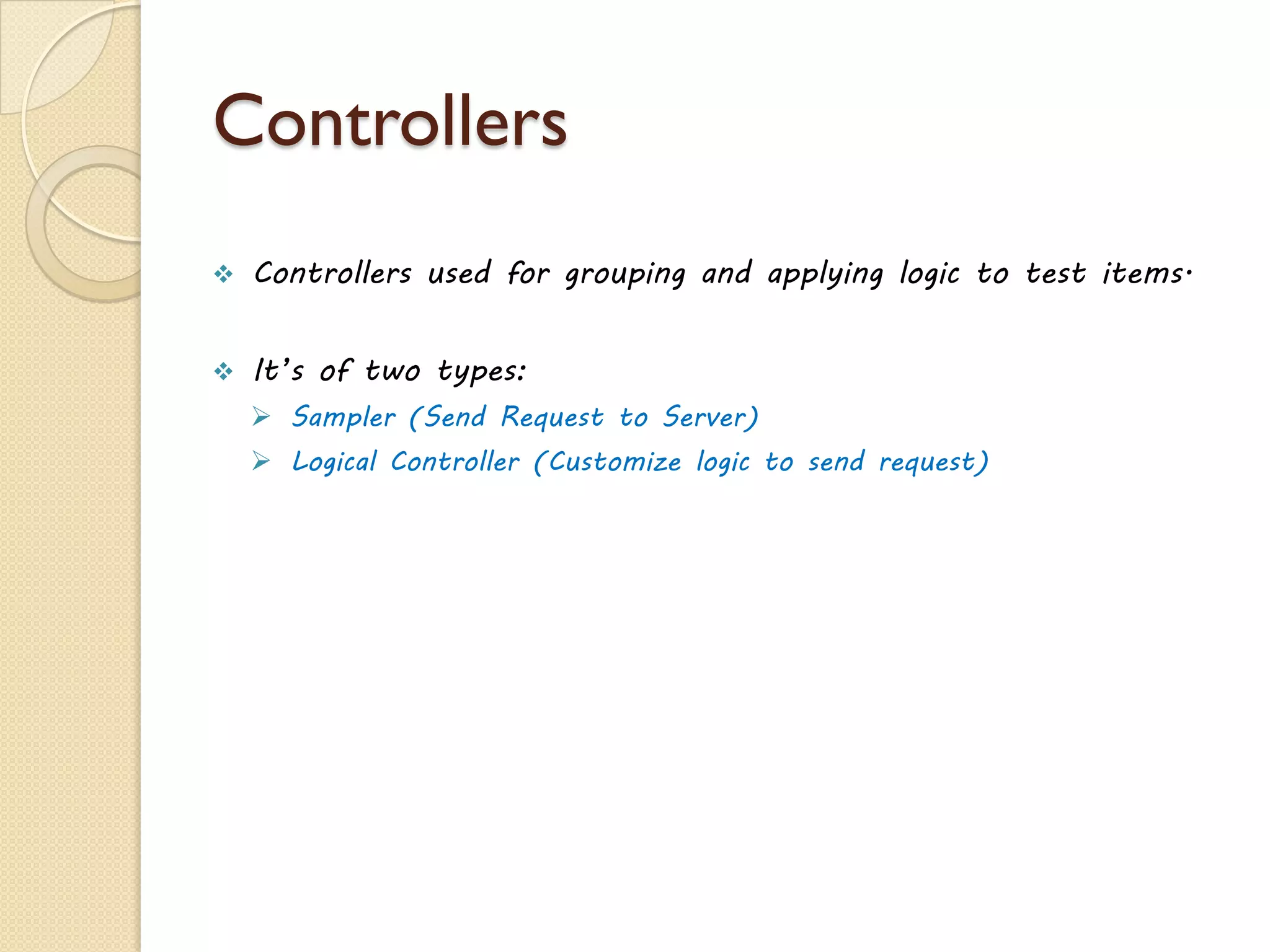

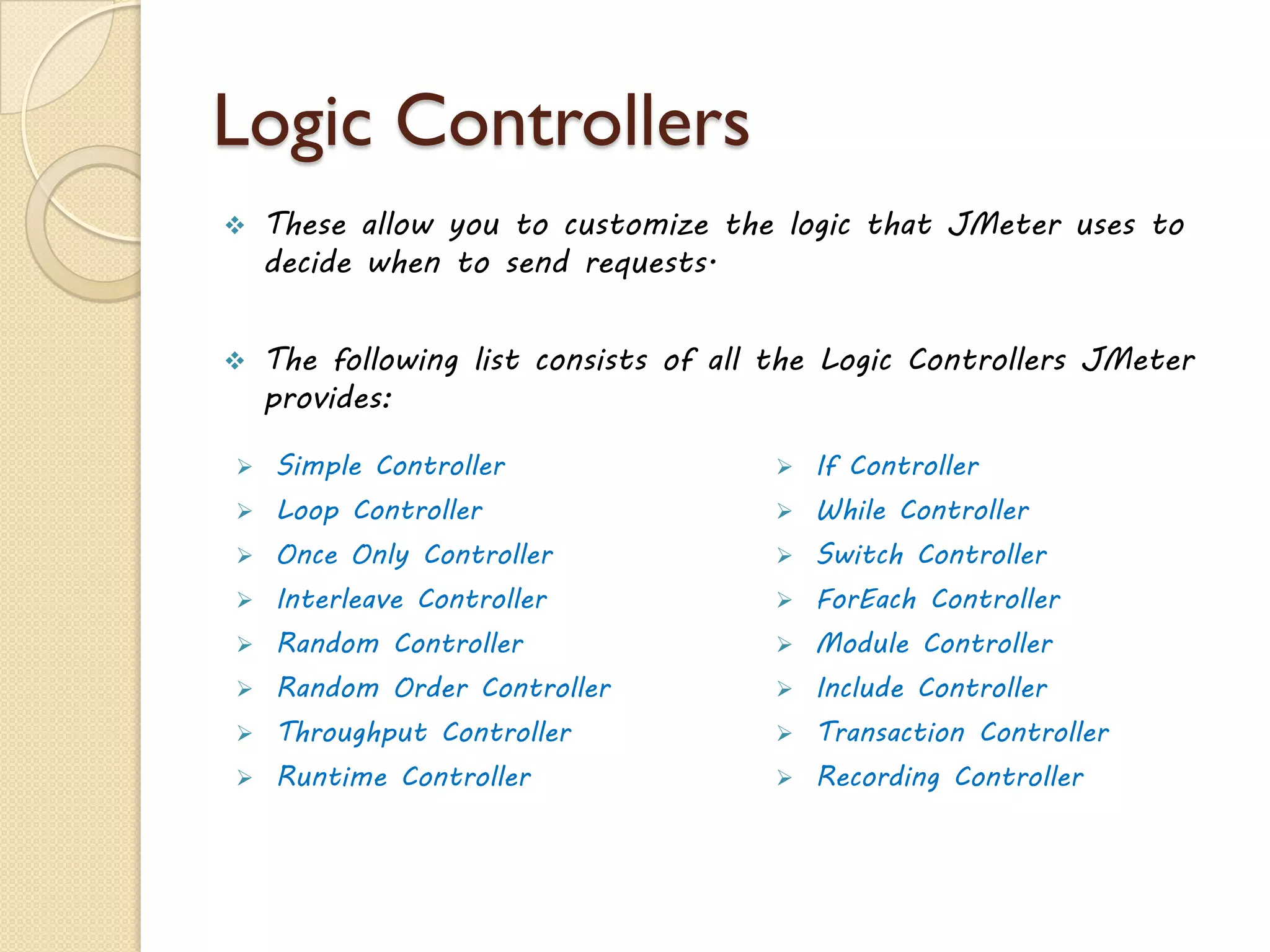

Logic Controller
 These allow you to customize the logic that JMeter uses to decide
when to send requests.
 The following list consists of all the Logic Controllers JMeter
provides:
Logic
Controller
Recording Controller
Simple Controller
Loop Controller
Transaction Controller
Random Controller
Random Order Controller
Run Time Controller
Interleave Controller
If Controller
While Controller
Module Controller
Throughput Controller

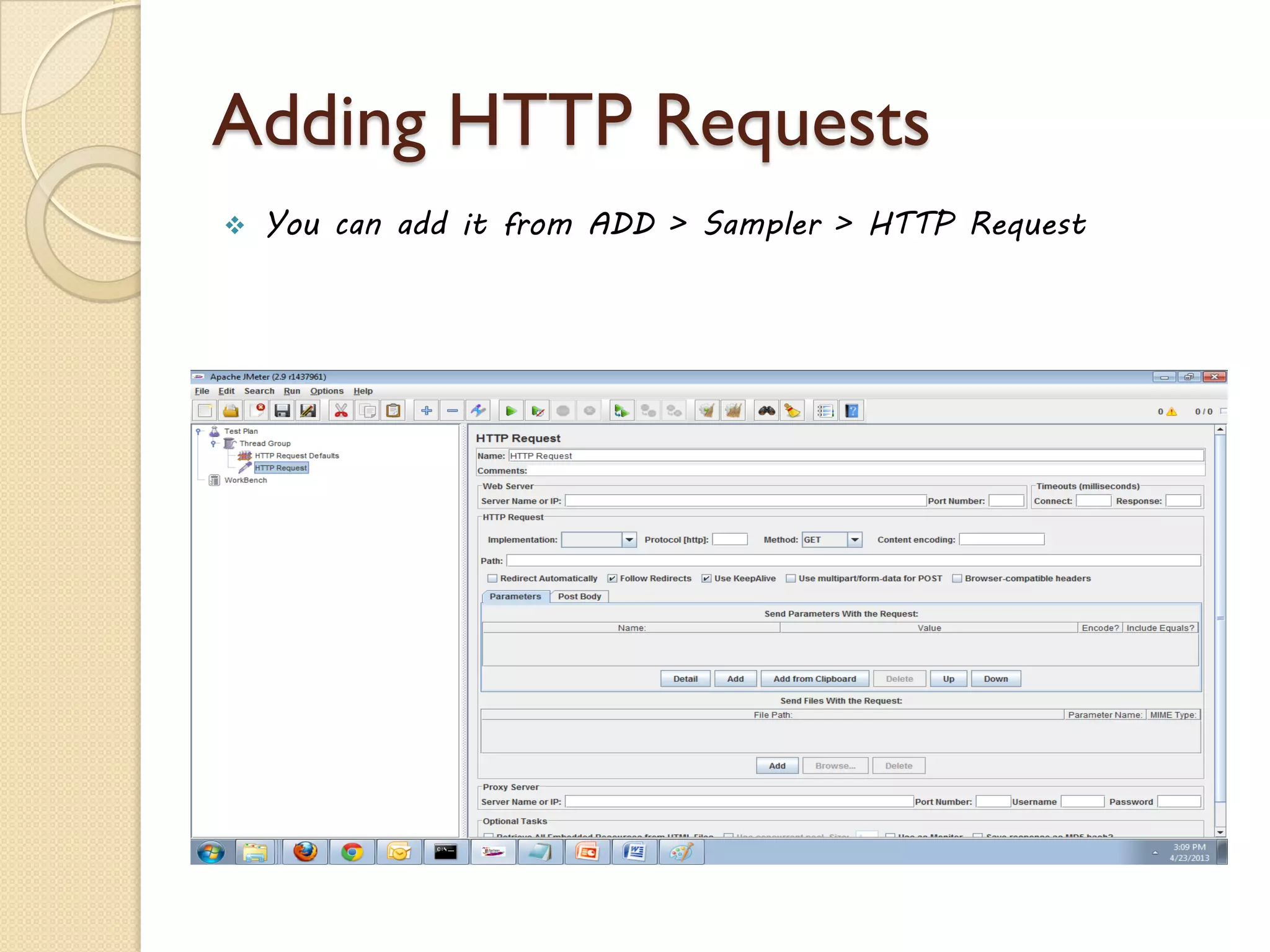

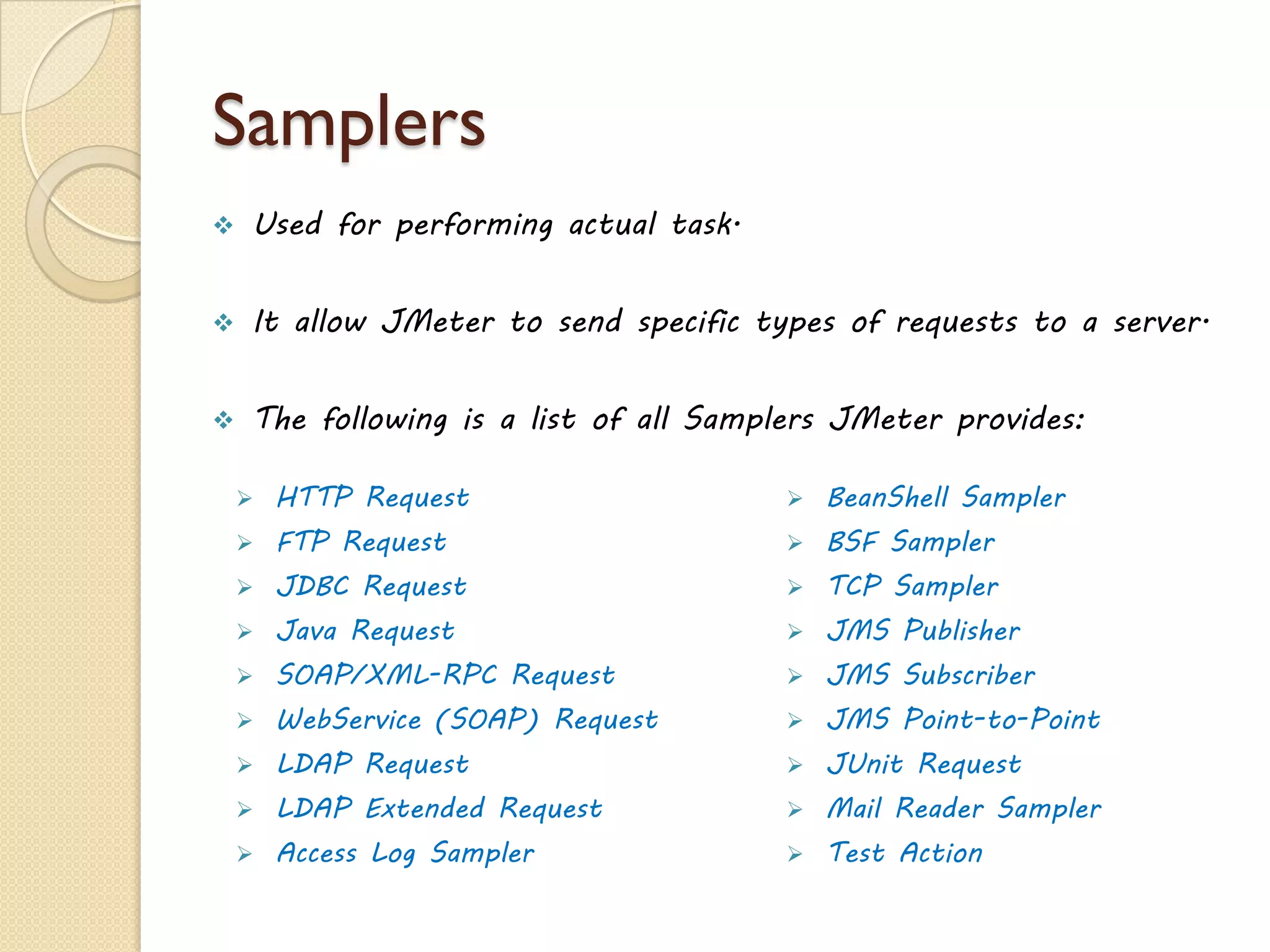

Samplers
 Used for performing actual task.
 It allow JMeter to send specific types of requests to a server.
 The following is a list of all Samplers JMeter provides:
Sampler
HTTP Request
FTP Request
JDBC Request
SOAP/XML-RPC request
SMTP Sampler
Debug Sampler

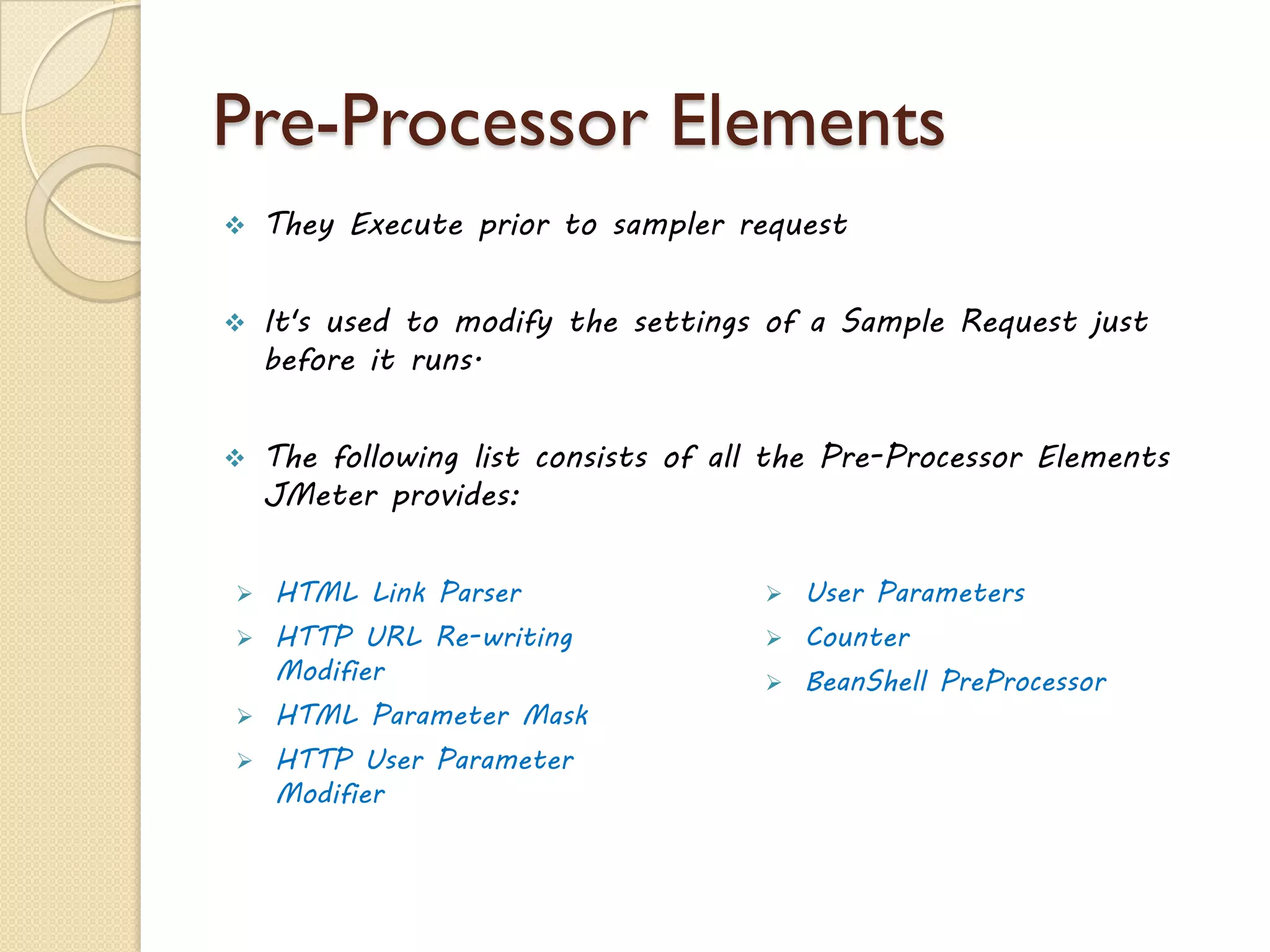

Pre-Processor Elements
 They Execute prior to sampler request.
 It's used to modify the settings of a Sample Request just before it
runs.
 The following list consists of all the Pre-Processor Elements JMeter
provides:
Pre-
Processor
HTML Link Parser
HTTP URL Re-writing Modifier
User Parameters
Bean Shell PreProcessor

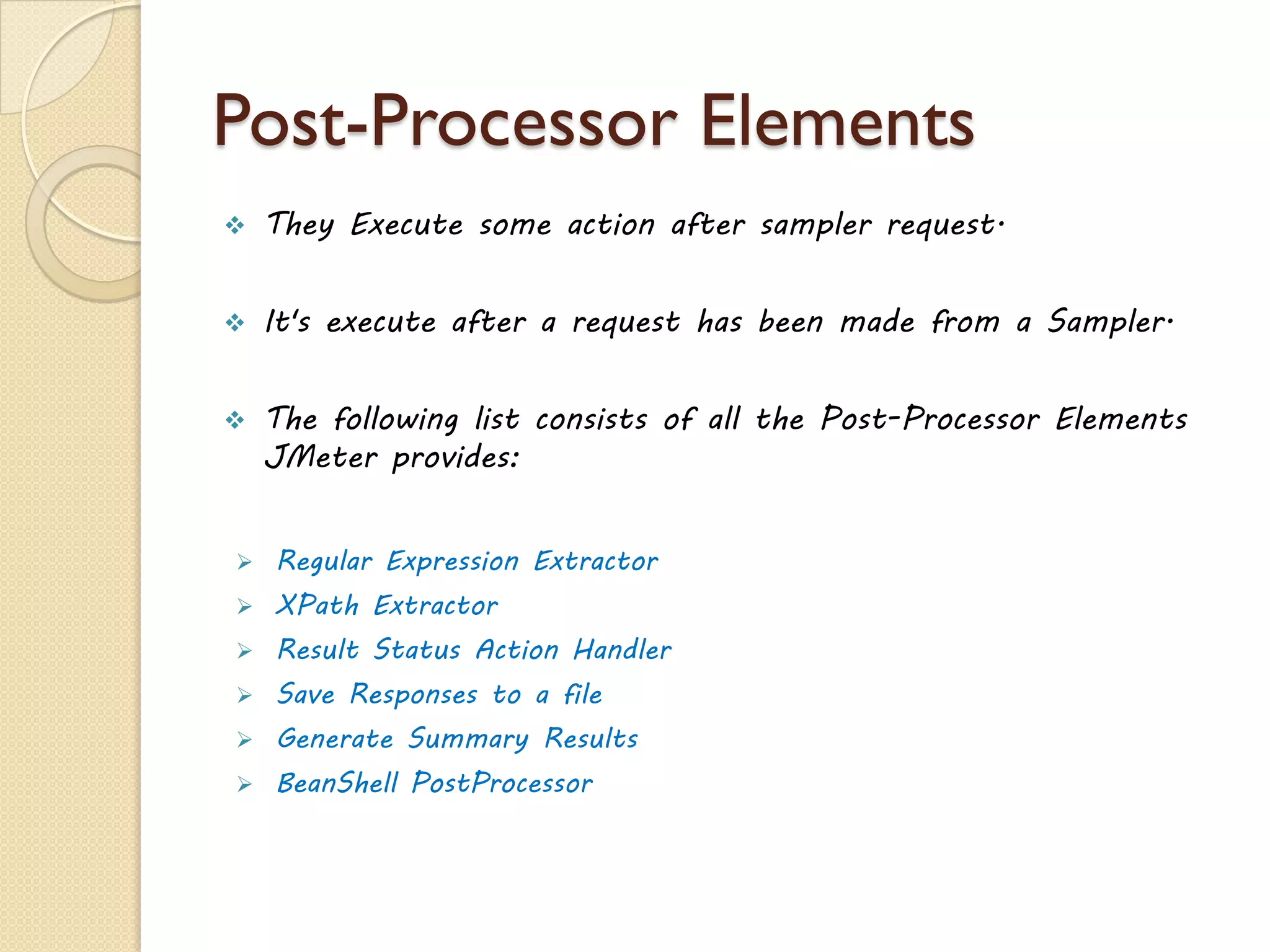

Post-Processor Elements
 They Execute some action after sampler request.
 It's execute after a request has been made from a Sampler.
 The following list consists of all the Post-Processor Elements
JMeter provides:
Post-
Processor
Regular Expression Extractor
XPath Extractor
Result Status Action Handler
Bean Shell PostProcessor

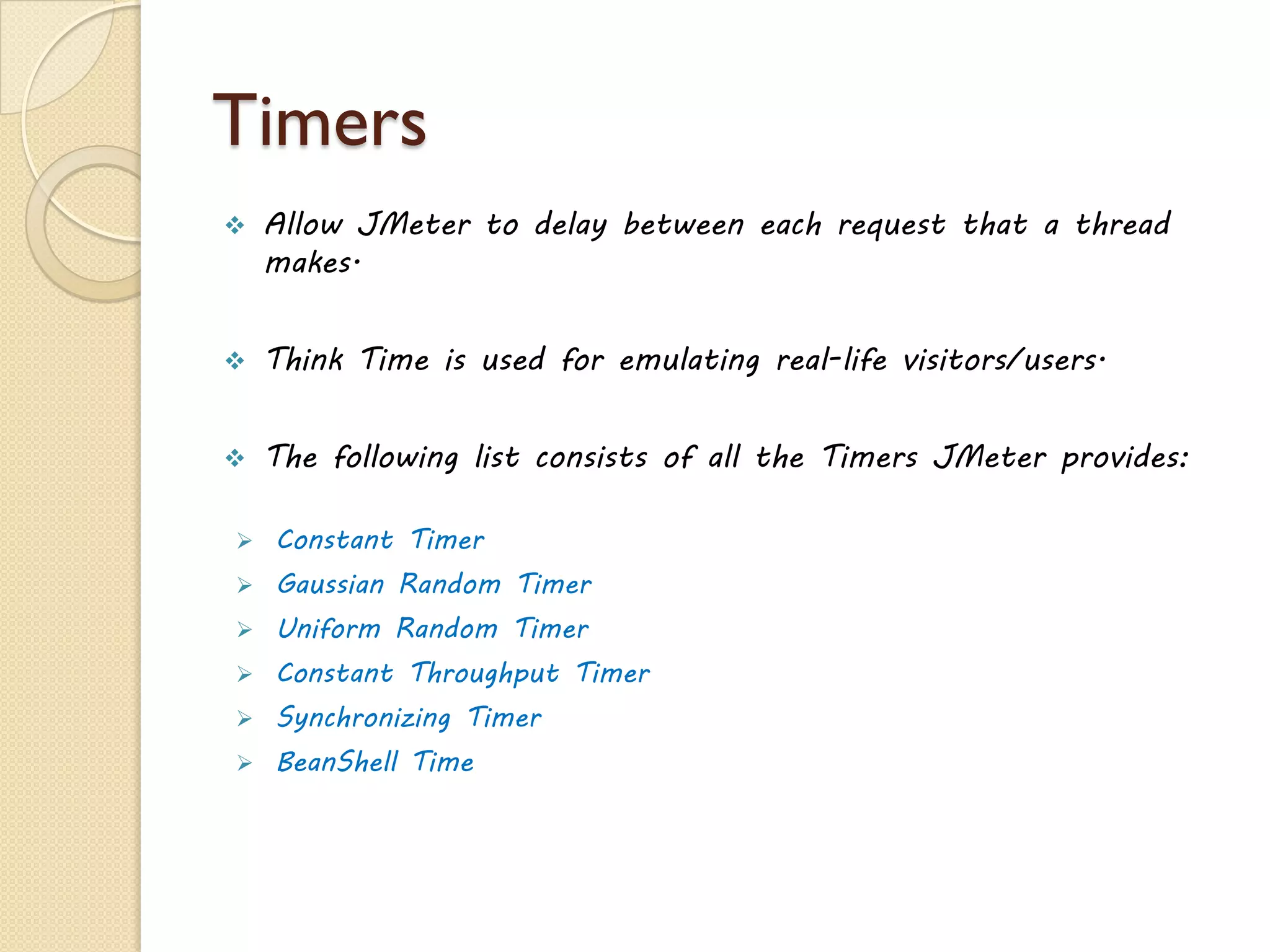

Timers
 Allow JMeter to delay between each request that a thread makes.
 Think Time is used for emulating real-life visitors/users.
 The following list consists of all the Timers JMeter provides:
Timers
Constant Timer
Uniform Random Timer
Gaussian Random Timer
Synchronizing Timer
Constant Throughput Timer
Poisson Timer

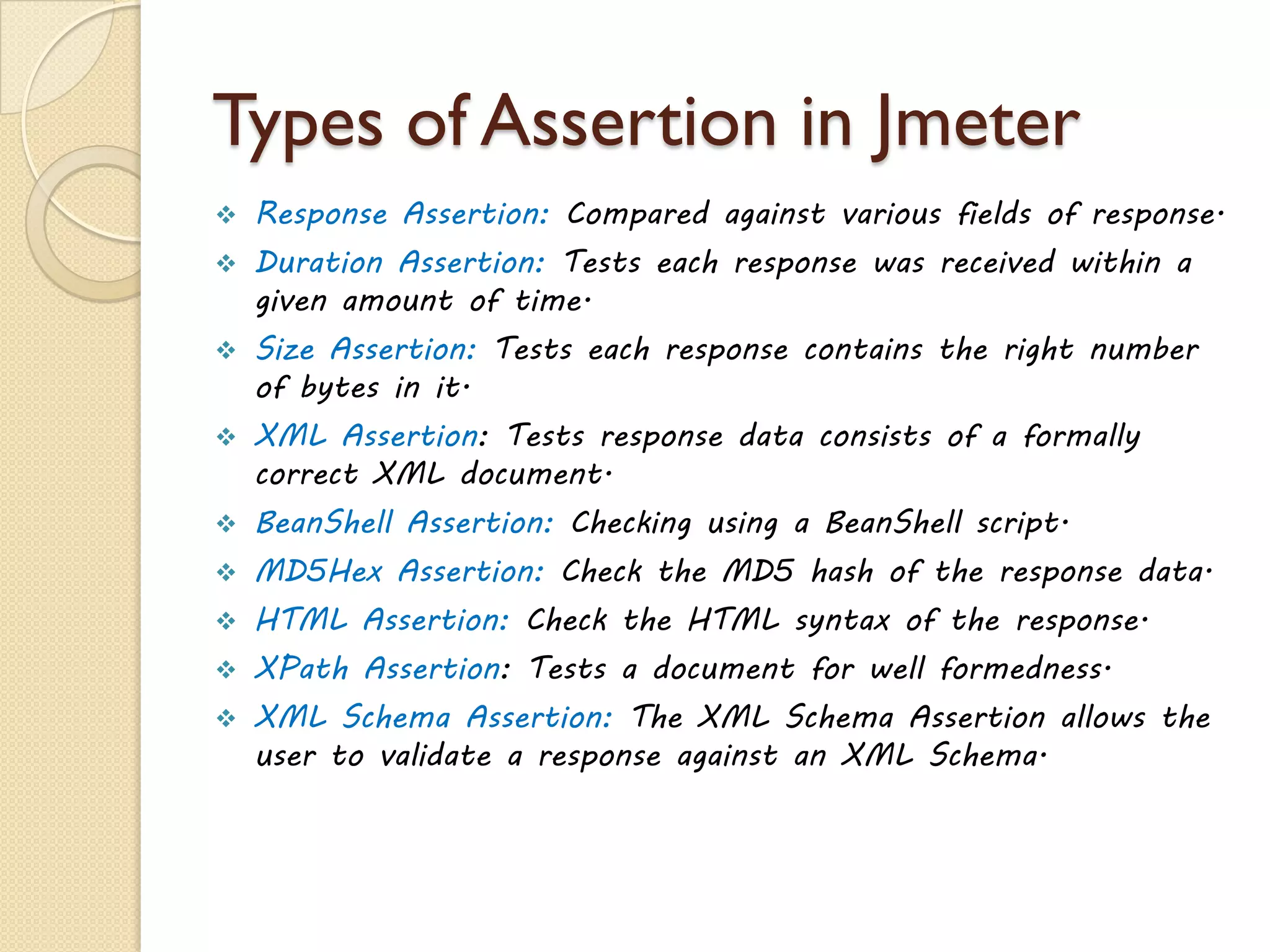

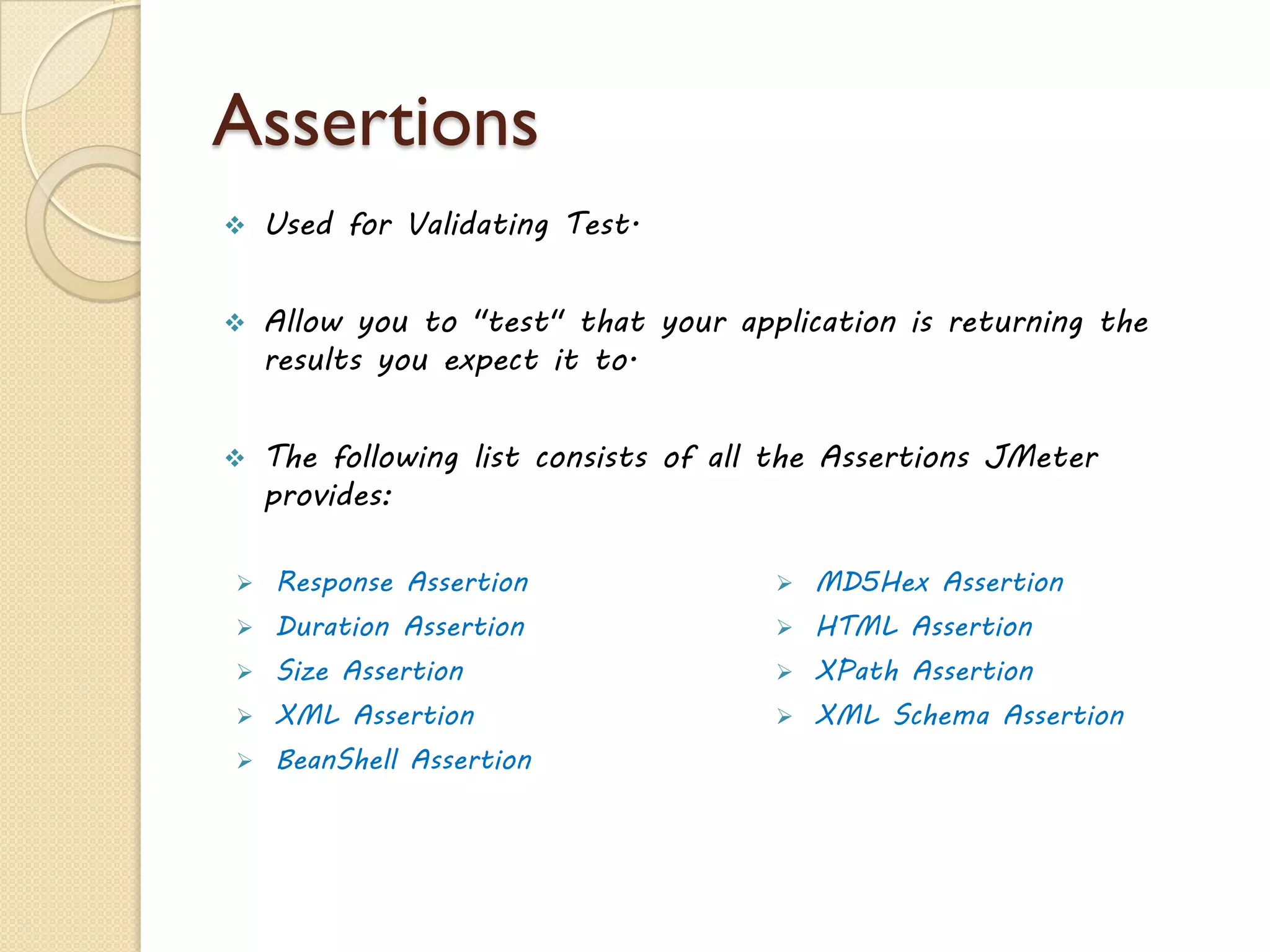

Assertions
 Used for Validating Test.
 Allow you to "test" that your application is returning the results
you expect it to.
 The following list consists of all the Assertions JMeter provides:
Assertion
Response Assertion
Duration Assertion
Size Assertion
HTML Assertion
XPath Assertion

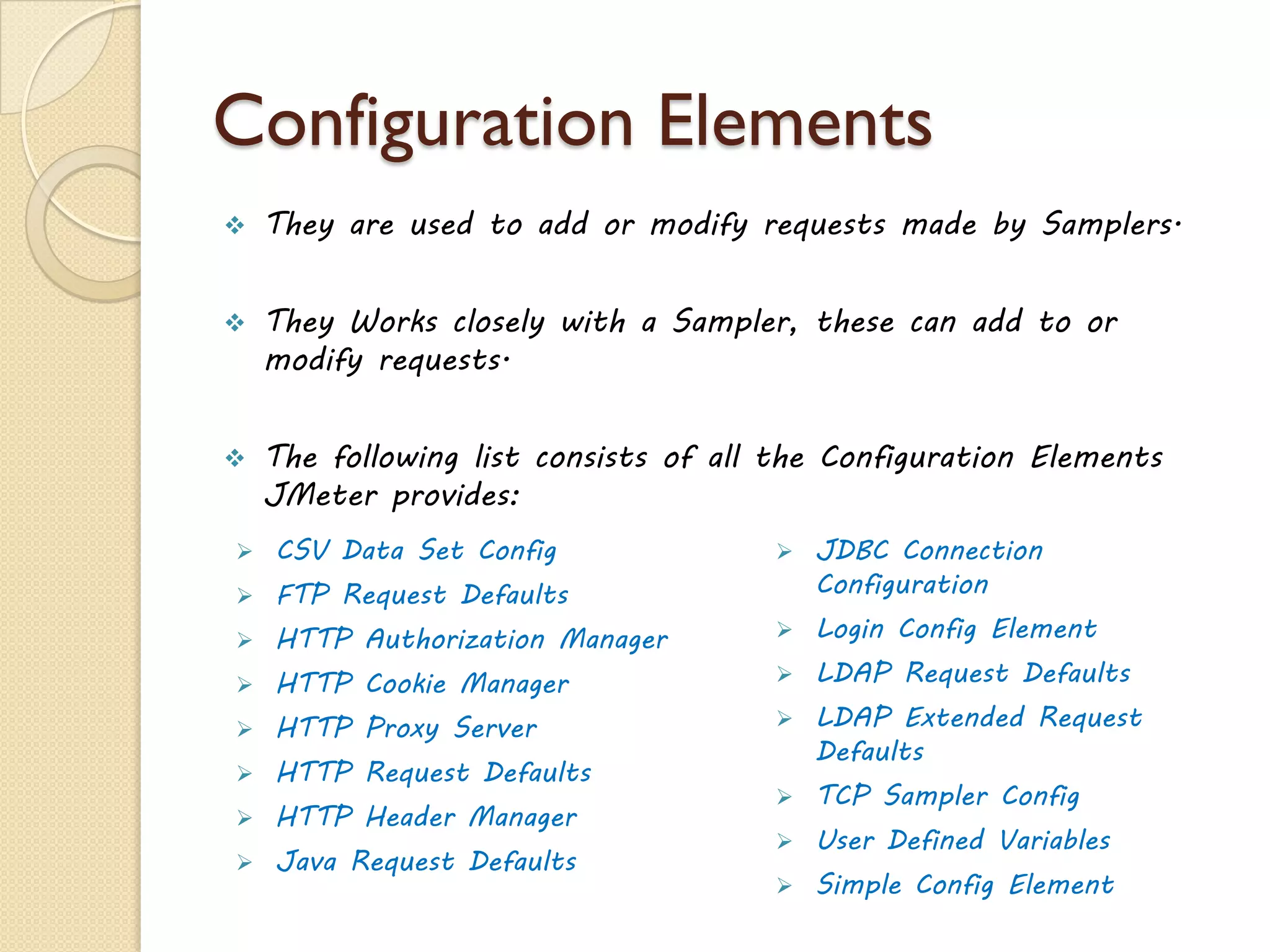

Configuration Elements
 They are used to add or modify requests made by Samplers.
 They Works closely with a Sampler, these can add to or modify
requests.
 The following list consists of all the Configuration Elements JMeter
provides:
Configuration
Element

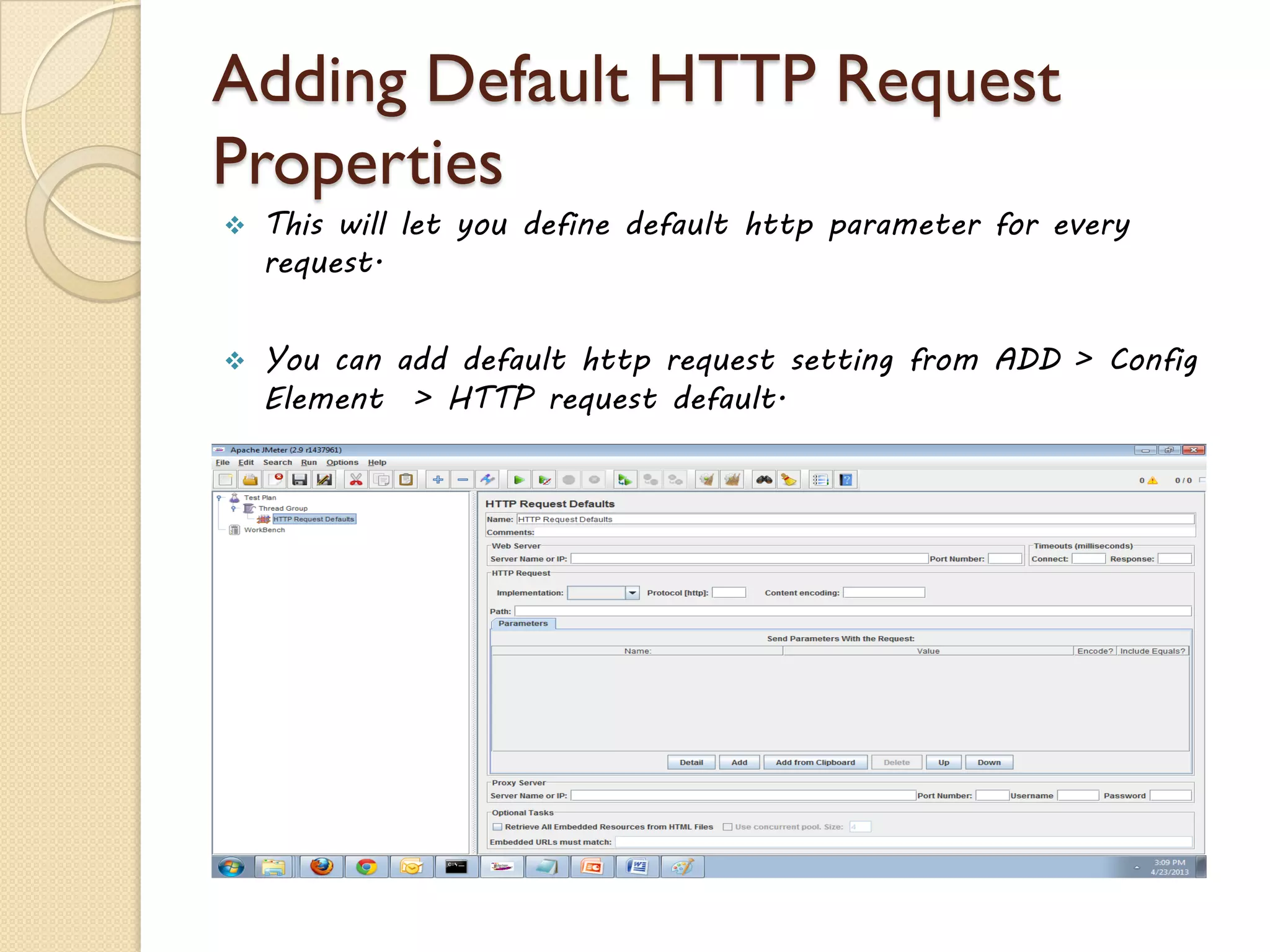

HTTP Request Defaults
FTP Request Defaults

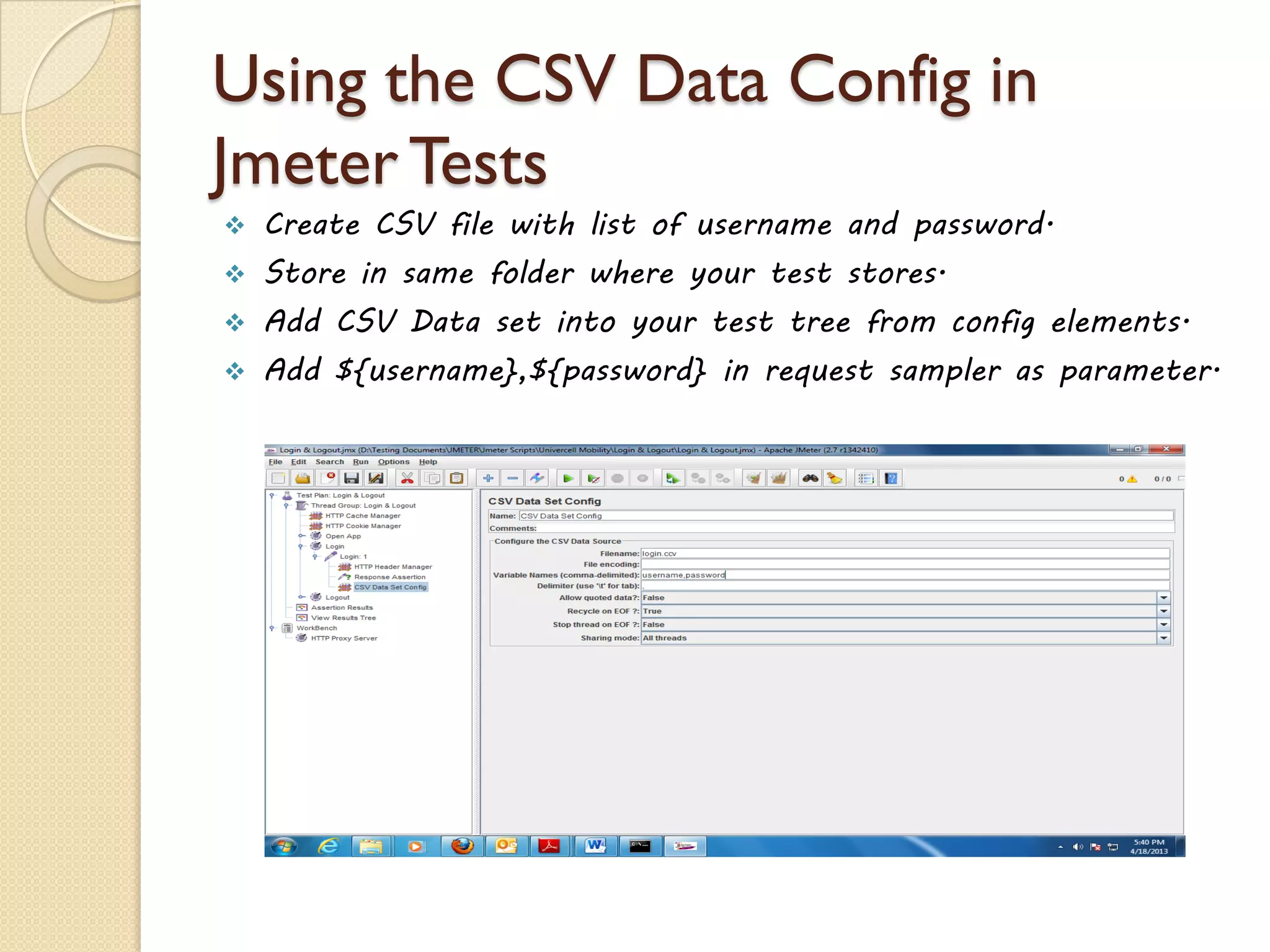

CSV Data Set Config
HTTP Authorization Manager
HTTP Cookie Manager
HTTP Cache Manager
JDBC Connection Configuration

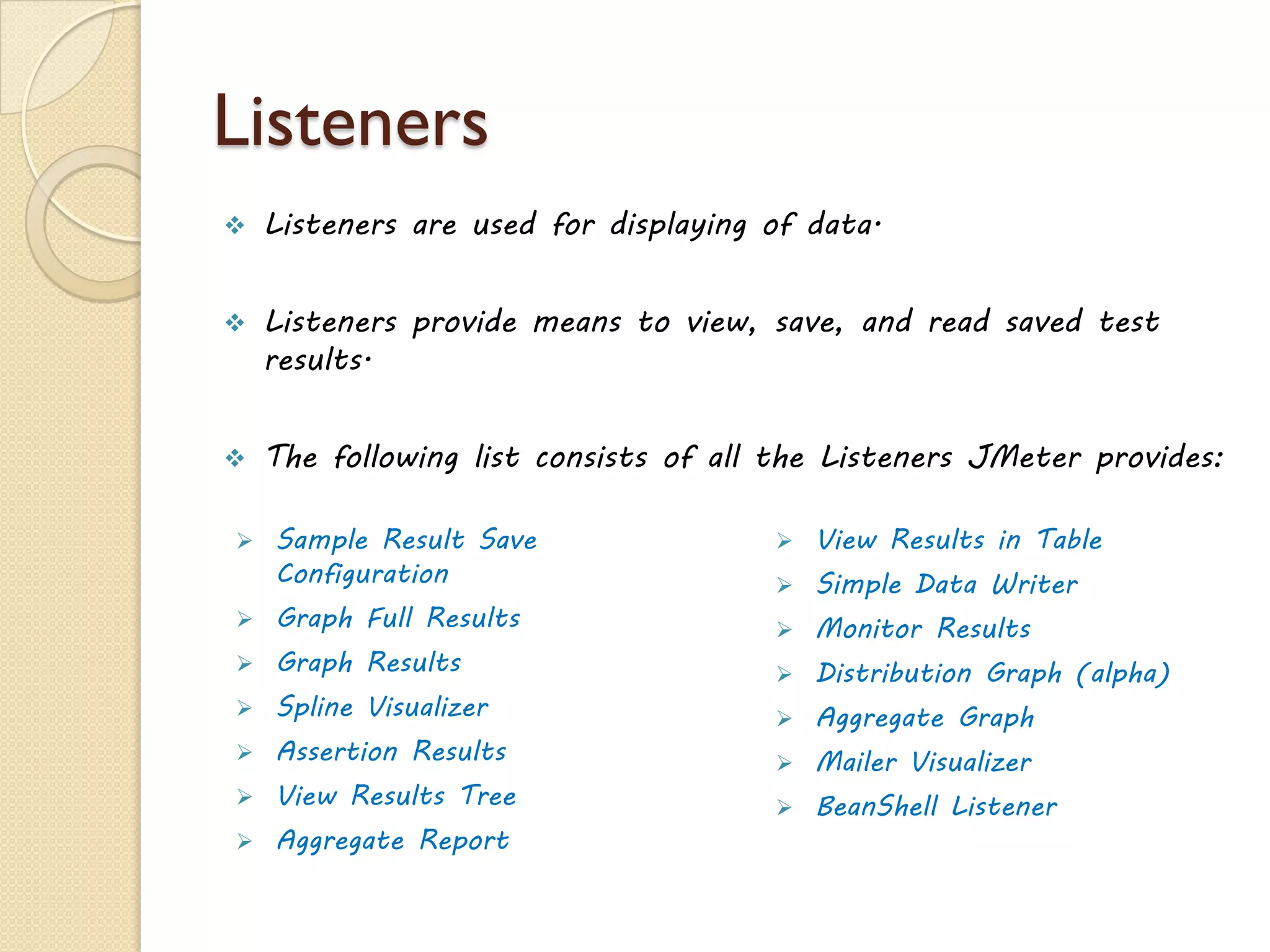

Listeners
 Listeners are used for displaying of data.
 Listeners provide means to view, save, and read saved test results.
 The following list consists of all the Listeners JMeter provides:
Listeners
View Results Tree
Summary Report
Aggregate Report
Assertion Results
View Results in Table
Simple Data Writer
Save Responses to a file
External Plugin (Jmeter PerfMon)

Execution Order
 JMeter execute test in below order:
o Configuration Elements
o Pre-Processors
o Timers
o Sampler
o Post-Processors
o Assertions
o Listeners
 Timers, Assertions, Pre- and Post-Processors are only processed if
there is a sampler to which they apply.
 Logic Controllers and Samplers are processed in the order in which
they appear in the tree.

Scoping Rule
 JMeter test tree contains elements that are both hierarchical and
ordered.
 Strictly hierarchical (Config Elements, Pre-Processors, Timers, Post-
Processor, Assertions, Listeners)
 Primarily ordered (controllers, samplers).
The order of requests will
be, One, Two, Three,
Four.
Assertion #1 is applied only
to Request One, while
Assertion #2 is applied
to Requests Two and
Three.
Timer #1 will apply to Requests Two,
Three, and Four (notice how
order is irrelevant for
hierarchical elements). Assertion
#1 will apply only to Request
Three. Timer #2 will affect all the
requests.

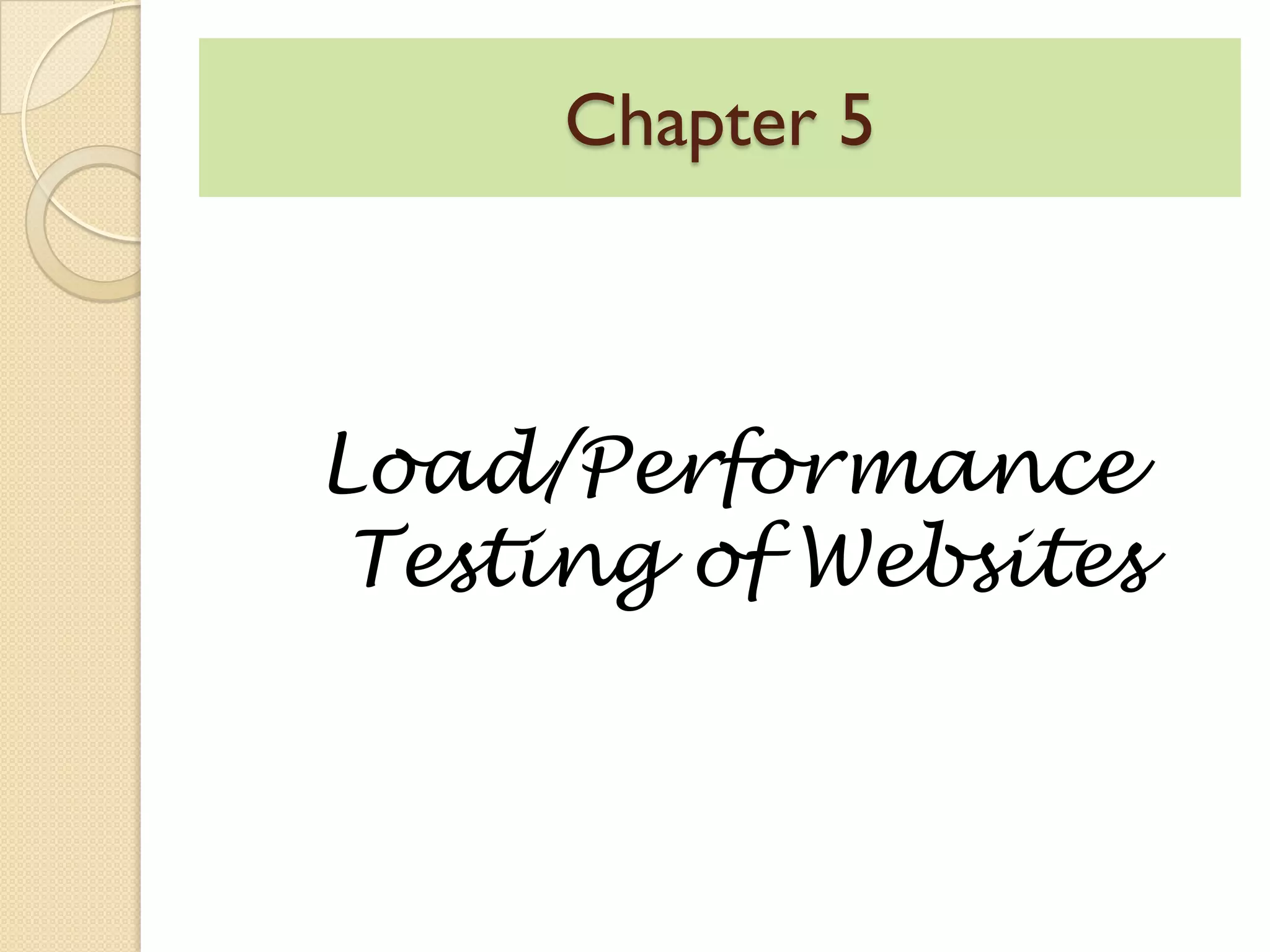

Chapter 5
Load/Performance Testing of Websites

What’s Inside
5.1 - Preparing for Load Testing
5.2 - Need to Know
5.3 - Some Helpful Tips to Get Better Results
5.4 - Using Jmeter Components
5.5 - Workload Modeling
5.6 - Phases of Workload Modeling
5.7 - Workload Modeling - Case Study
5.8 - Running theTest Plan
5.9 - Interpreting the Results
5.10 - Monitoring the Server's Performance
5.11 - Performance Test Reporting

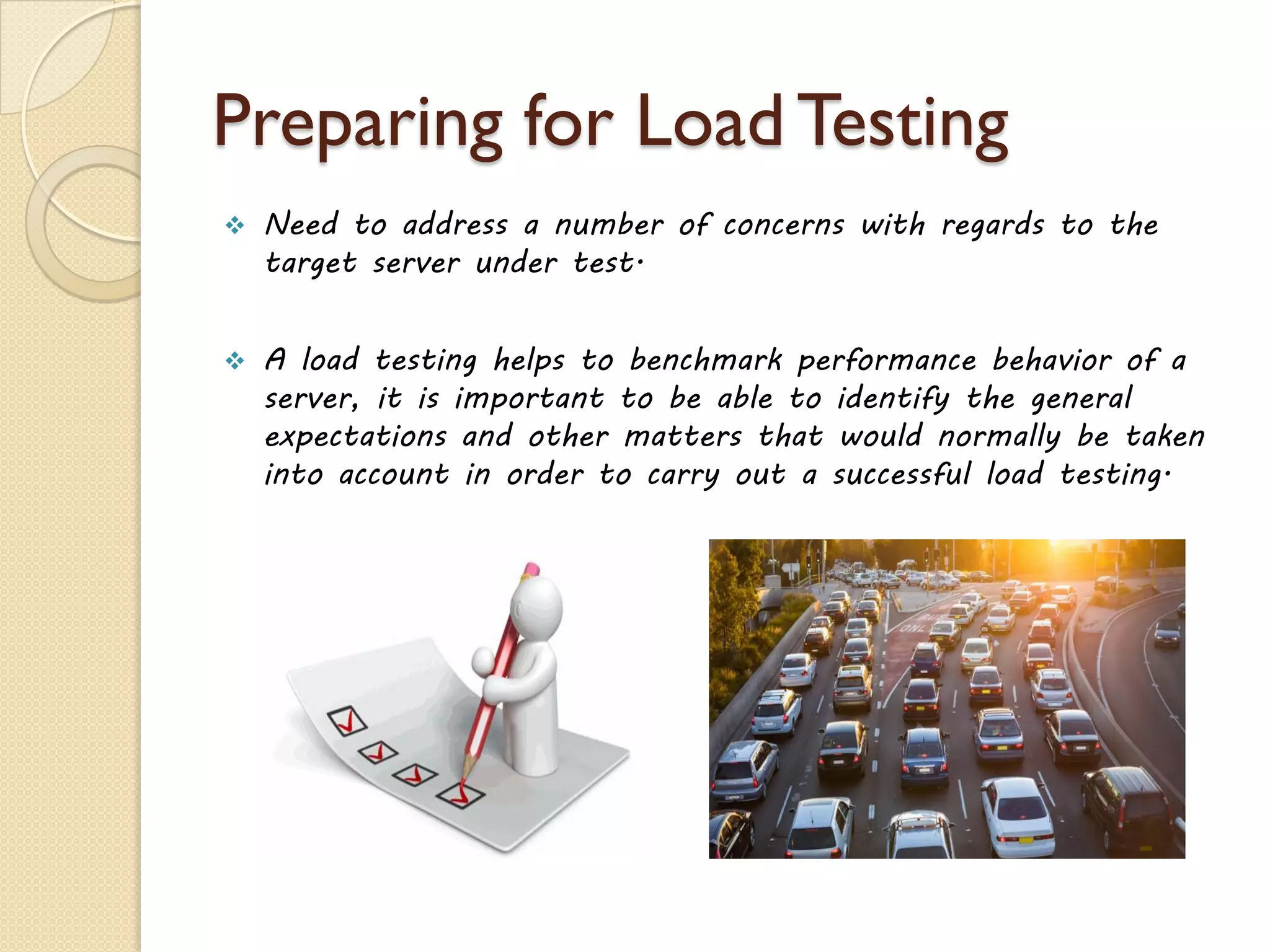

Preparing for Load Testing
 Need to address a number of concerns with regards to the target
server under test.
 A load testing helps to benchmark performance behavior of a server,
it is important to be able to identify the general expectations and
other matters that would normally be taken into account in order
to carry out a successful load testing.

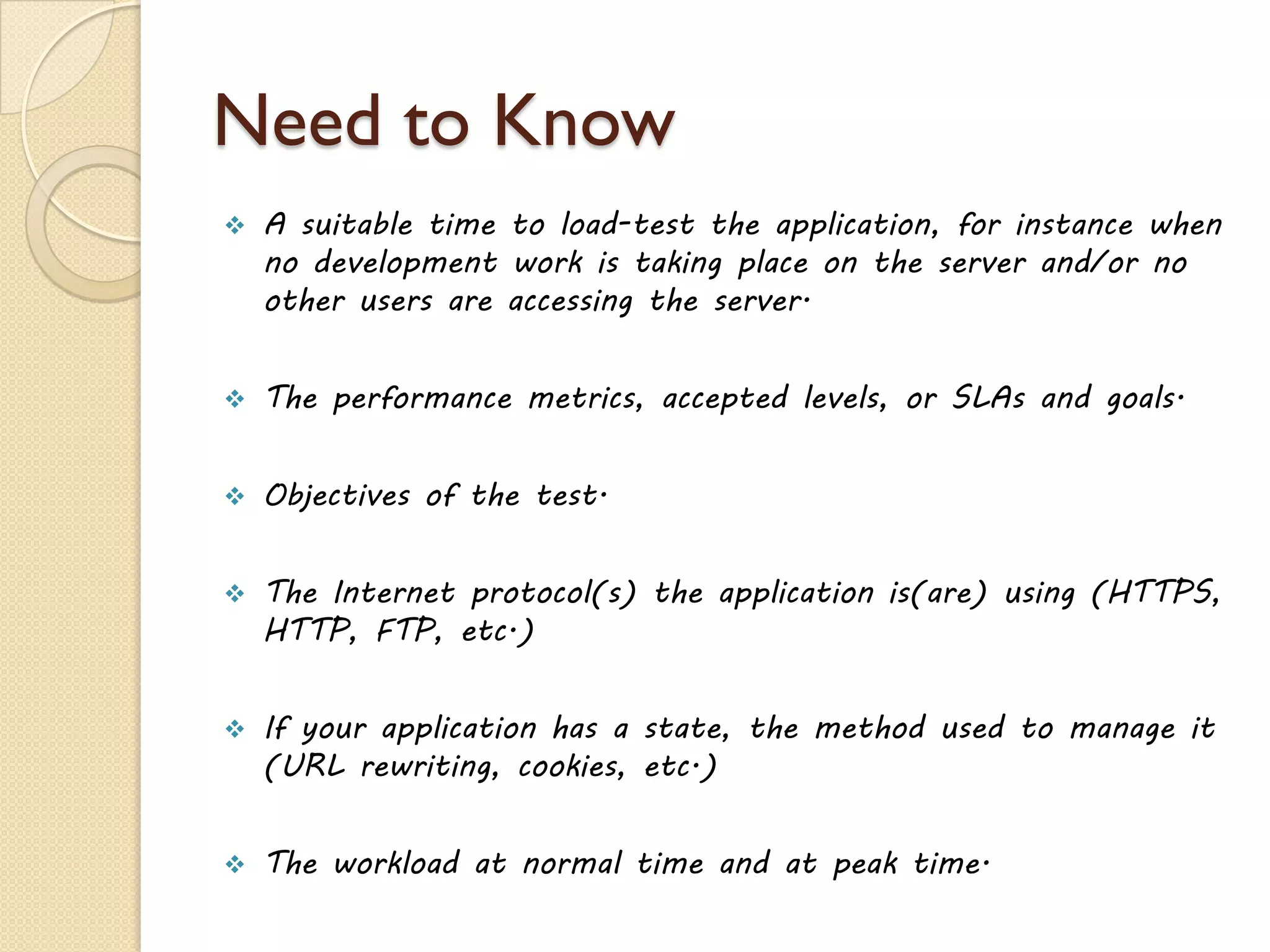

Need to Know
 A suitable time to load-test the application, for instance when no
development work is taking place on the server and/or no other
users are accessing the server.
 The performance metrics, accepted levels, or SLAs and goals.
 Objectives of the test.
 The Internet protocol(s) the application is (are) using (HTTPS,
HTTP, FTP, etc.)
 If your application has a state, the method used to manage it
(URL rewriting, cookies, etc.)
 The workload at normal time and at peak time.

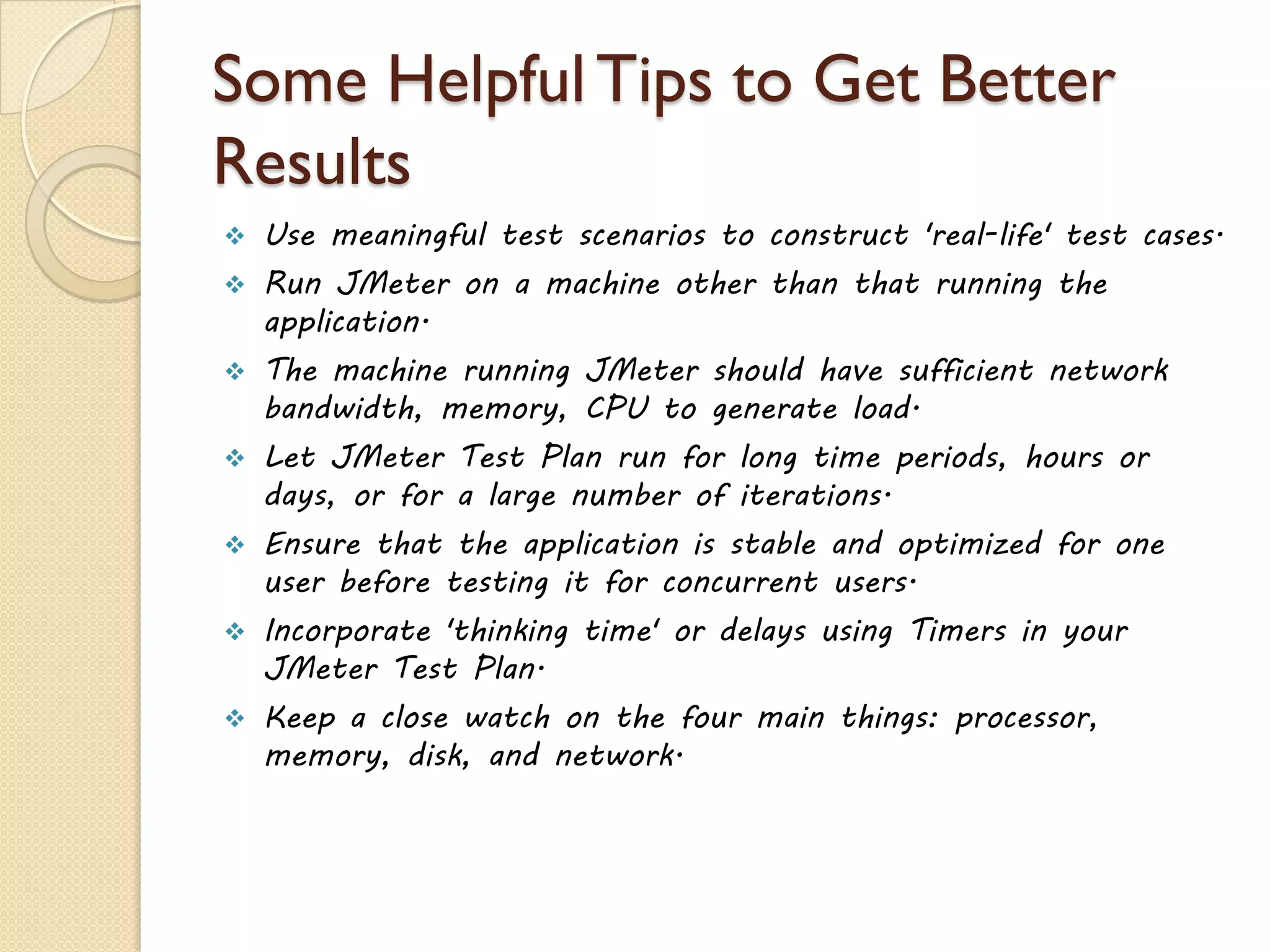

Some Helpful Tips to Get Better Results
 Use meaningful test scenarios to construct 'real-life' test cases.
 Run JMeter on a machine other than that running the application.
 The machine running JMeter should have sufficient network bandwidth,
memory, CPU to generate load.
 Let JMeter Test Plan run for long time periods, hours or days, or for
a large number of iterations.
 Ensure that the application is stable and optimized for one user before
testing it for concurrent users.
 Incorporate 'thinking time' or delays using Timers in your JMeter Test
Plan.
 Keep a close watch on the four main things: processor, memory, disk,
and network.

Using Jmeter Components
 We will test five key scenarios:-
 Homepage
 Login
 Search Item
 Select Item
 Checkout
These scenarios will be included in a single JMeter Test Plan, for
simplicity reasons.

Workload Modeling
 Load distribution across all the identified scenarios of AUT is called
the Workload.
 Workload model of an application depicts how this application will be
used in the production environment.
 Workload modeling can be divided into:
 Business Workload: Set of user actions or business scenarios performed within the
test to achieve the business objectives and goals is called the business workload.
 Infrastructure Workload: The amount of resources/infrastructure used by the
business scenarios to achieve their desired goals is called the Infrastructure
workload.
 Importance of Workload Modeling
 Performance Scenarios Identification
 Performance Test SLAs
 Test Data Preparation
 Required Number of Load Injectors

Phases of Workload Modeling
Workload Design Miscellaneous Options
Identify Target Load Levels
Relative Load Distribution
Identify Unique Test Data
Navigation Paths of Key Scenarios
Key Scenarios Identification
Application Understanding
Test Objectives Identification

Workload Modeling- Case Study
Workload Model
User Scenarios Percentage of work distribution Active Users= 500
Home Page 40 200
Login 15 75
Search Item 15 75
Select Item 20 100
Checkout 10 50

Run Test Plan
 When Jmeter script gets ready.
 Click on “Start”.

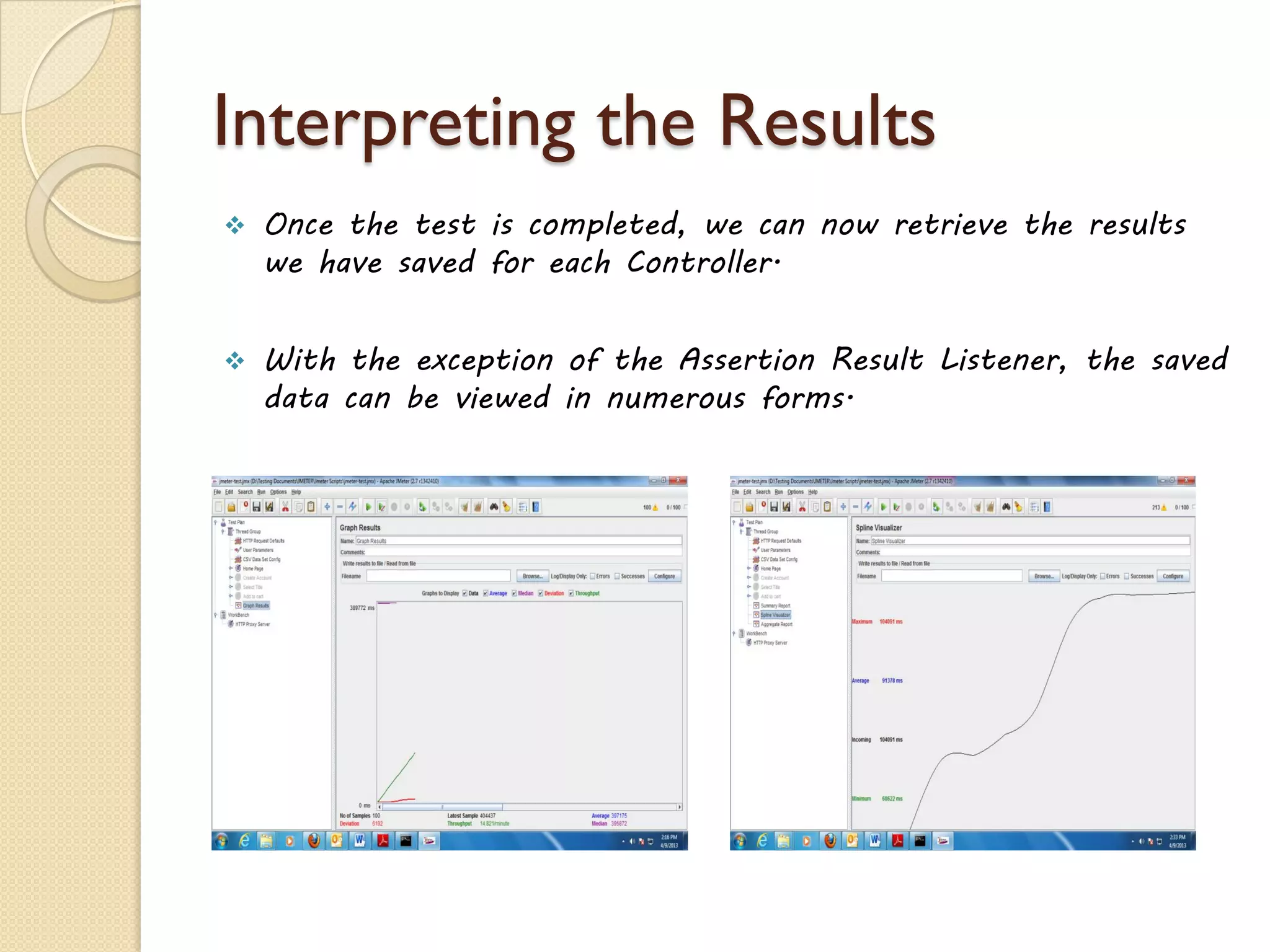

Interpreting the Results
 Summary Report
 Aggregate Report
 Assertion Result
 View Result Tree

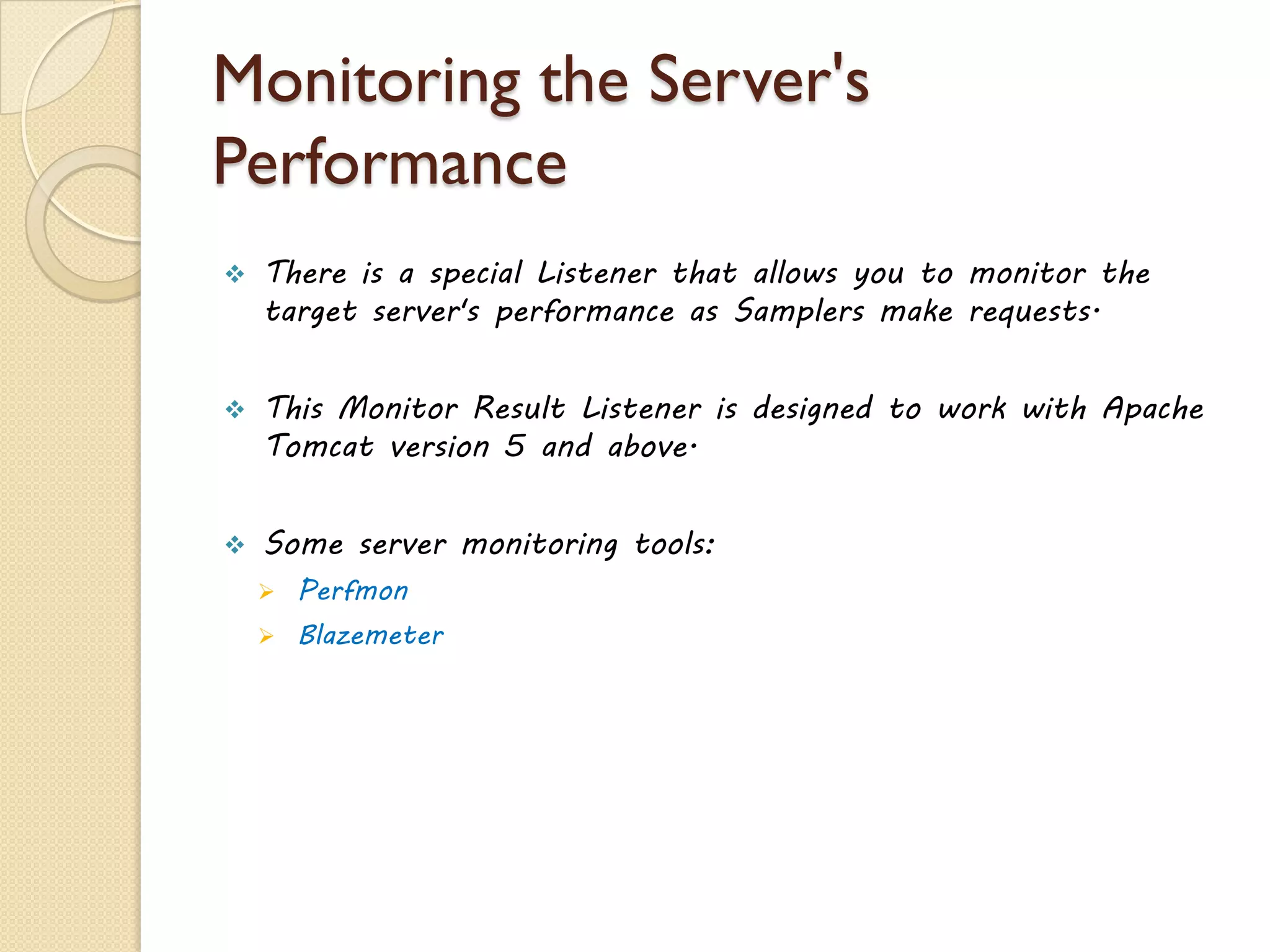

Monitoring the Server's Performance
 There is a special Listener that allows you to monitor the target
server's performance as Samplers make requests.
 Some server monitoring tools:
 PerfMon
 Blazemeter
 Loadosophia

Performance Test Reporting
 Introduction
 Test Environment (Software and Hardware)
 Goals of this Report
 Assumptions
 Performance requirements
 Workload Scenario
 Performance Testing Approach
 Results
 Samples Response Monitoring (Jmeter results)
o Run Date: 6/01/2014
o Duration: 1 hour, 38 minutes, 30 seconds
o High Load Count: 2 users every 300 seconds (varies)
o Ramp-up Increment: 35 users
o Think Time: varies
o Connection Speed: Broadband

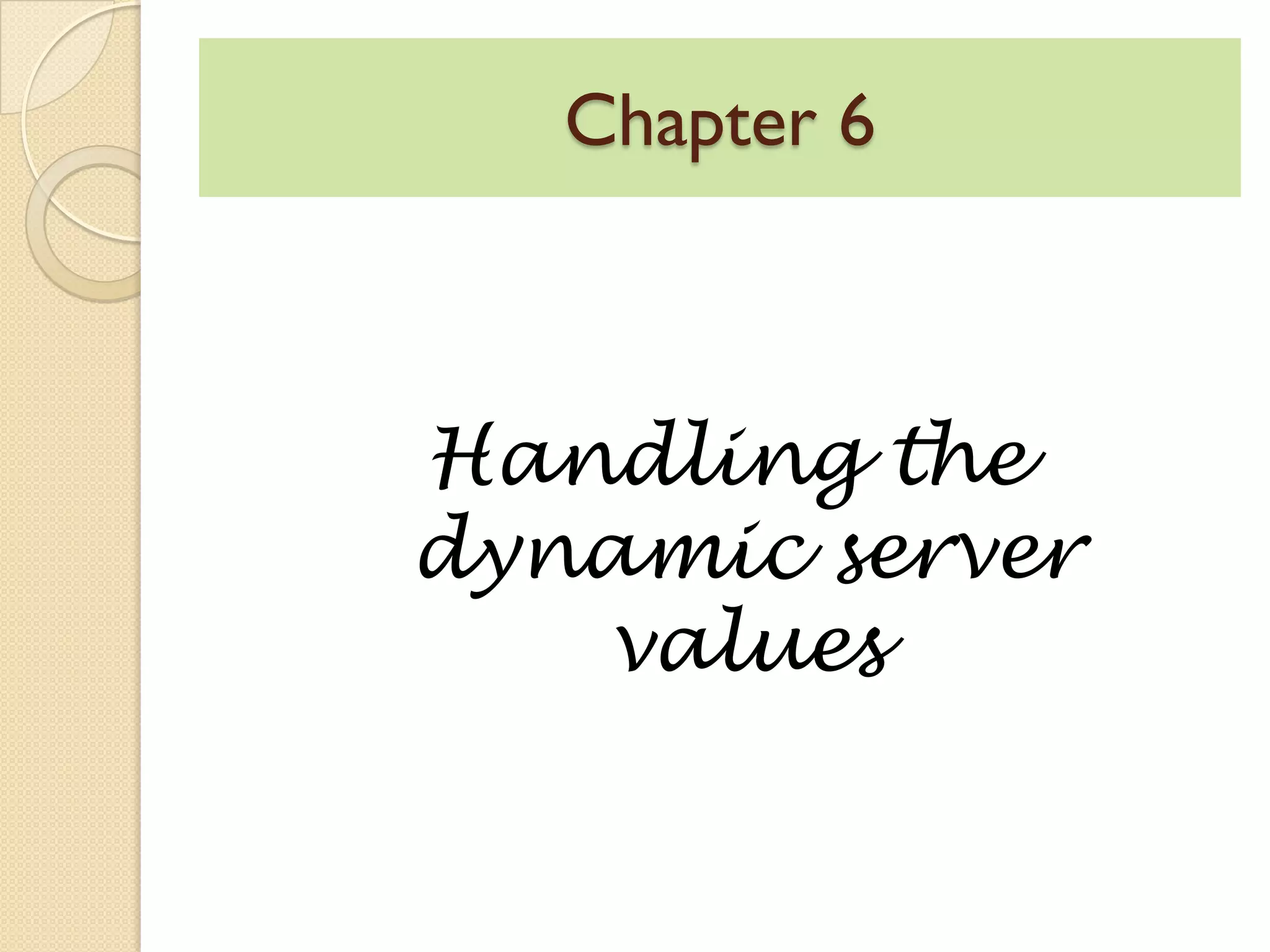

Chapter 6
Handling the dynamic server values

What’s Inside
6.1 - What is Correlation
6.2 - Regular Expression
6.3 – Meta Characters for RegEx
6.4 - Managing session with Regular Expression Extractor

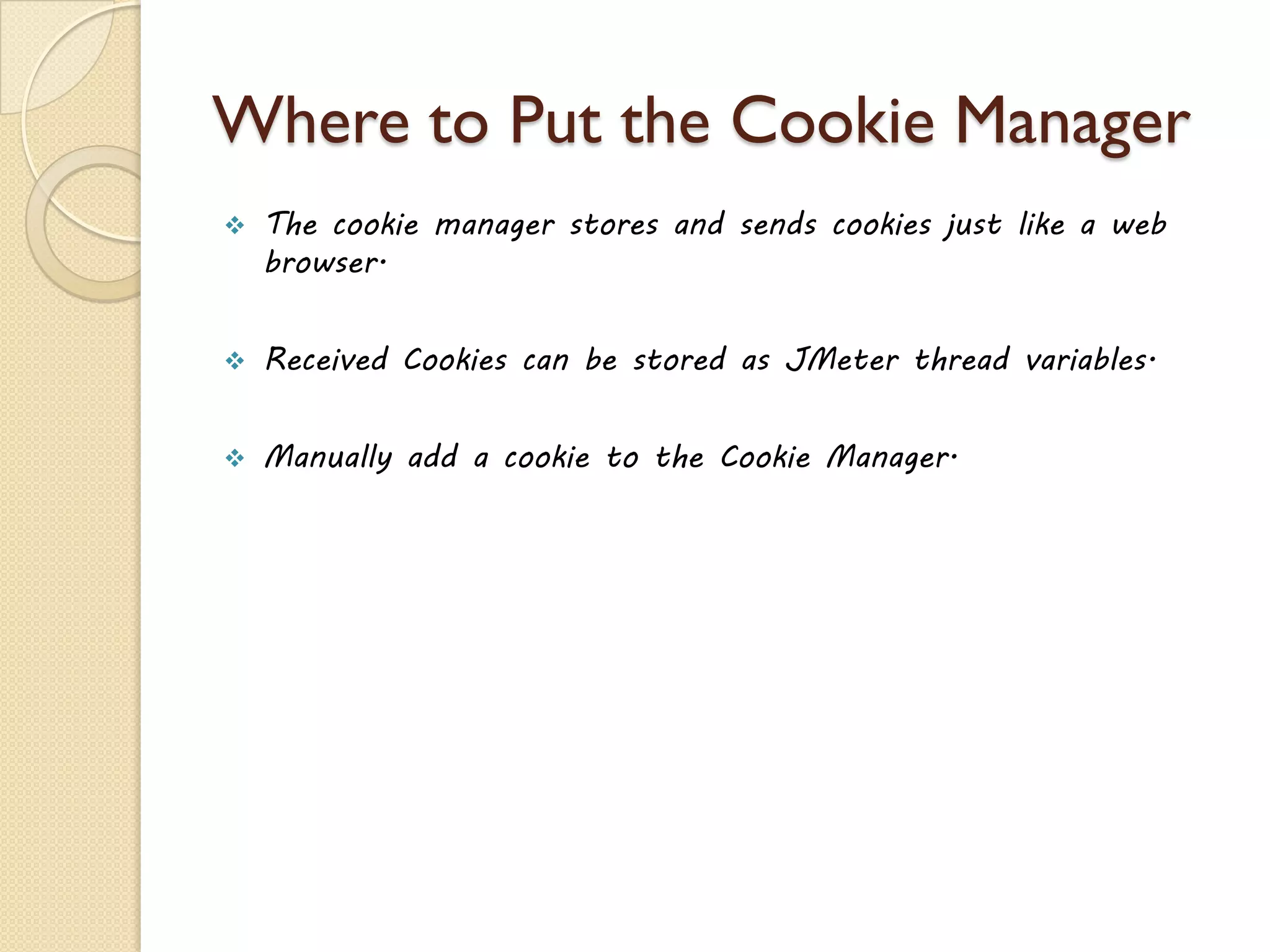

6.5 - Managing sessions with cookies
6.6 - Managing sessions with URL rewriting

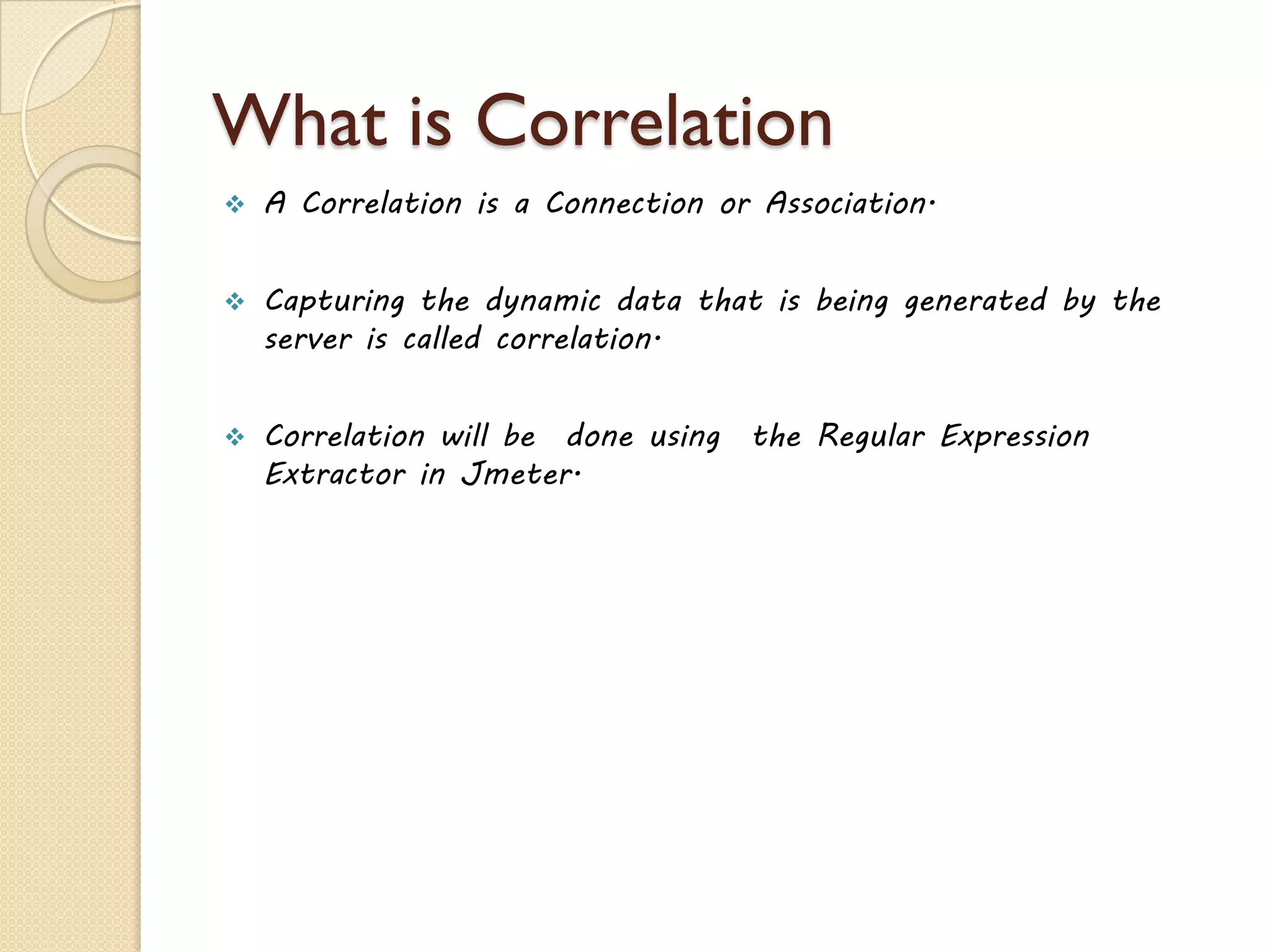

What is Correlation
 A Correlation is a Connection or Association.
 Capturing the dynamic data that is being generated by the server is called
correlation.

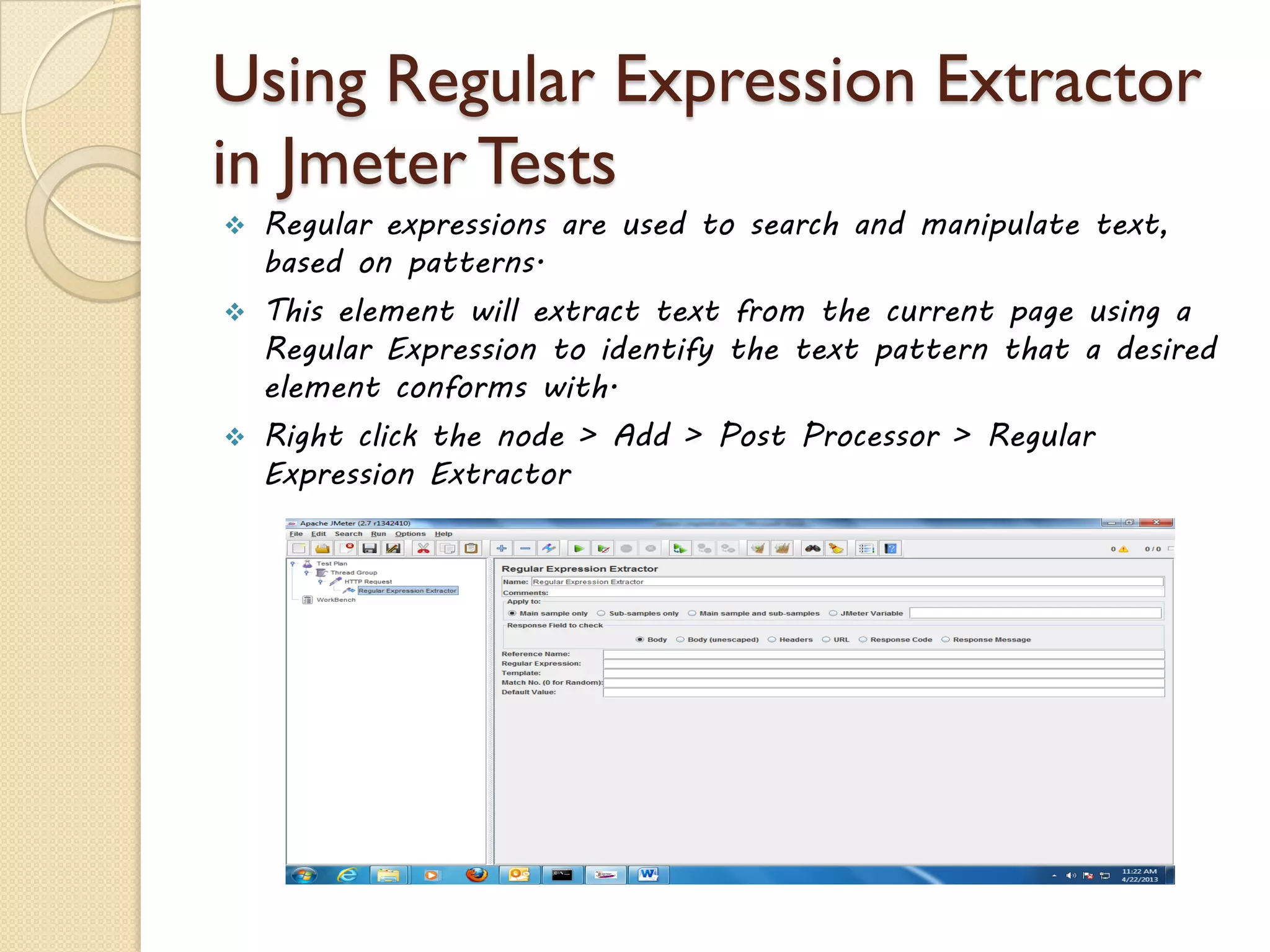

 Correlation will be done using the Regular Expression Extractor in Jmeter.

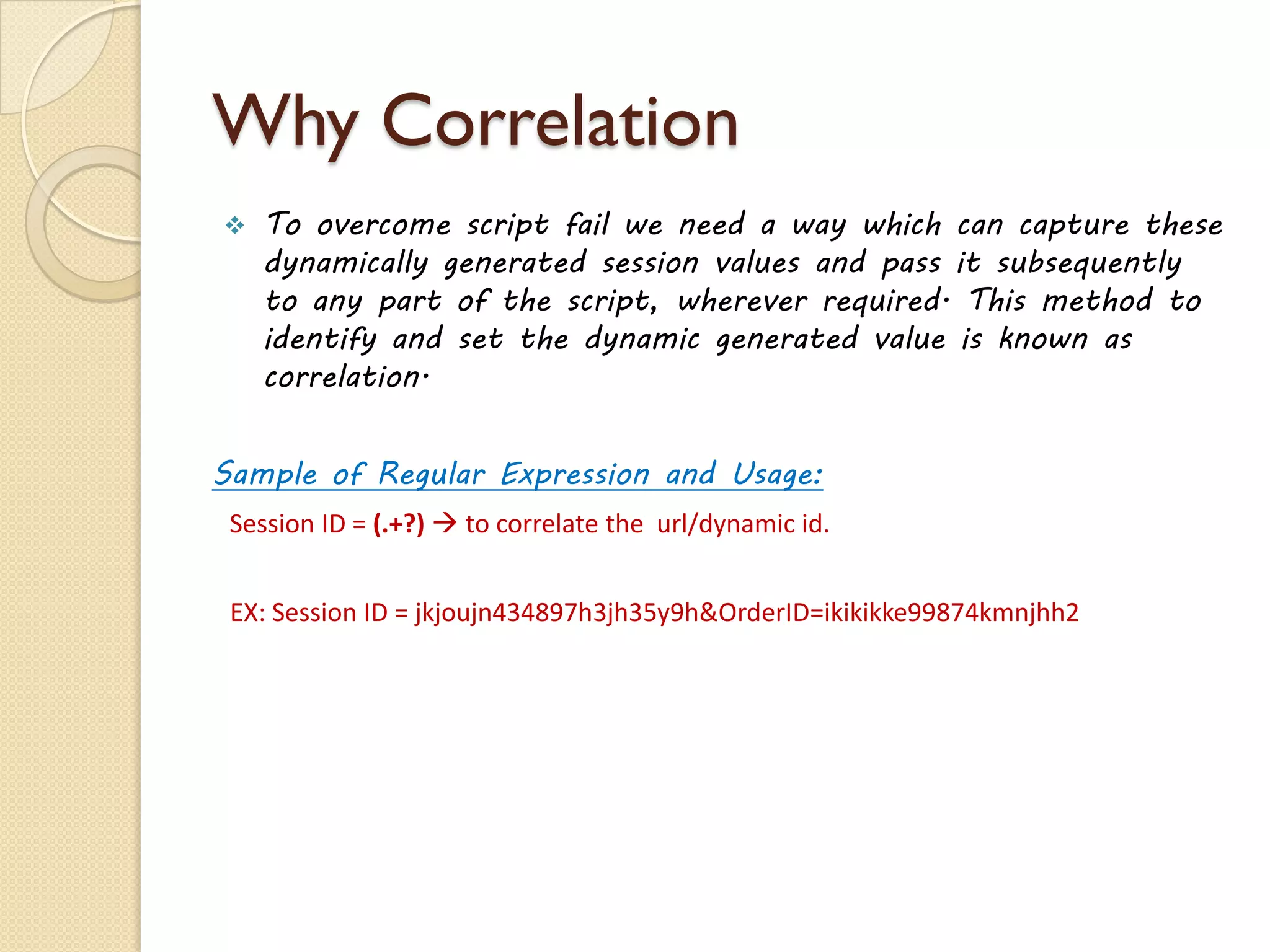

Reason to Correlation:
To overcome script fail we need a way which can capture these dynamically
generated session values and pass it subsequently to any part of the script,
wherever required. This method to identify and set the dynamic generated
value is known as correlation.

Regular Expression
 Extract single string
o Suppose you want to match the following portion of a web-page:
o name="file" value="readme.txt">
o And you want to extract readme.txt .
o A suitable regular expression would be:
o name="file" value="(.+?)">
o The special characters above are:
o ( and ) - enclose the portion of the match string to be returned
o . - match any character
o + - one or more times
o ? - don't be greedy, i.e. stop when first match succeeds

Meta Characters for RegEx
 Regular expressions use certain characters as meta characters - these
characters have a special meaning to the RE engine. Such characters must be
escaped by preceding them with (backslash) in order to treat them as
ordinary characters.
 List of the meta characters and their meaning:
Meta Character Definition
( and ) Grouping
[ and ] Character classes
{ and } Repetition
*, + and ? Repetition
. Wild-Card Character
Escape Character
| Alternatives
^ and $ Start and End of string or line

Managing session with Regular Expression Extractor
 Name Regular Expression Extractor : jsessionid.
 Reference Name : jsessionid
 Enter Regular Expression : jsessionid = "(.+?)" />
o (.+?) this refers JMeter captures any values in between LB and RB)
 Template : $1$ (this is for grouping)
 Match No : 1
 Default Value : NONE (To pass default value enter string here)

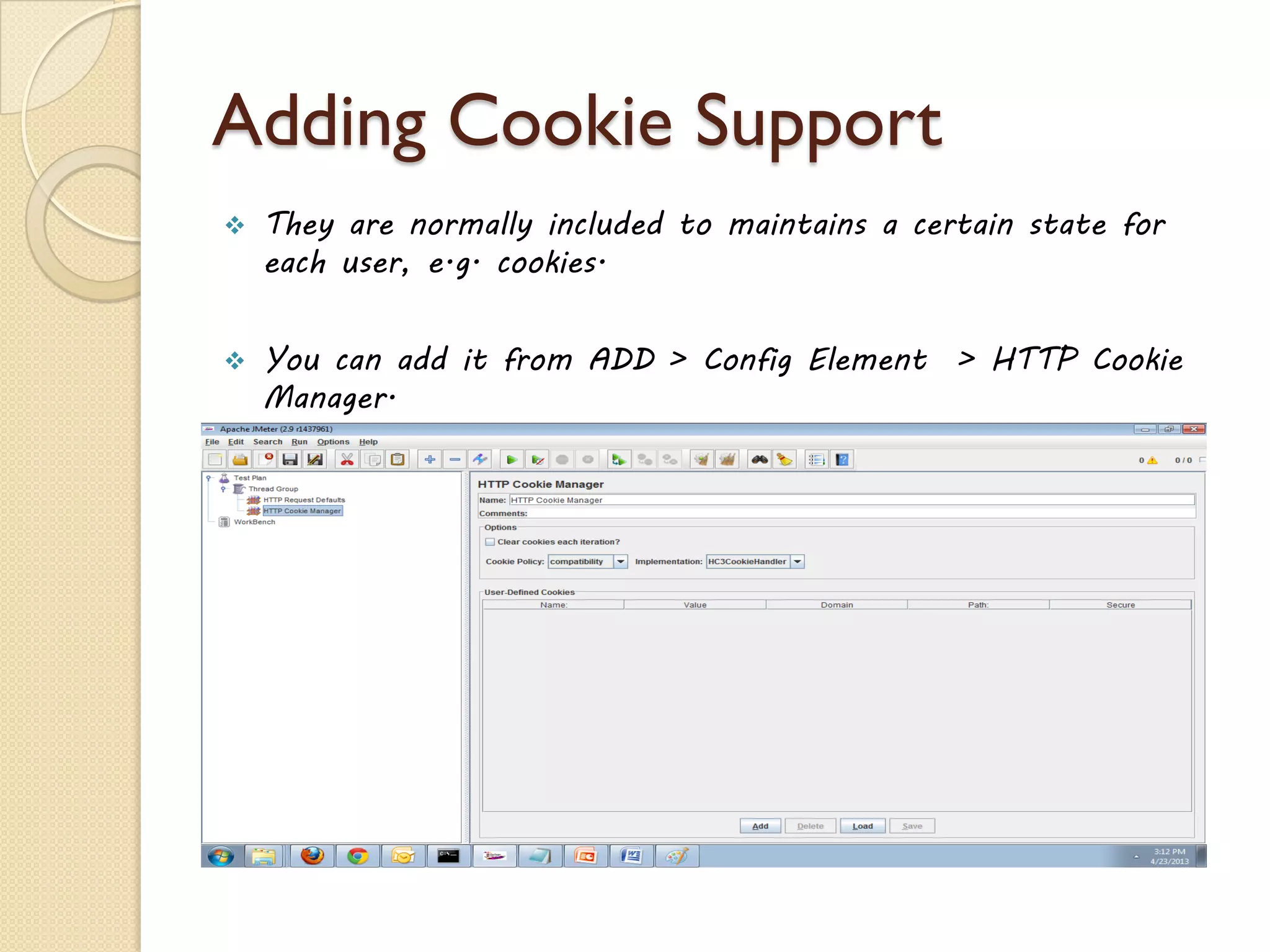

Managing sessions with cookies
 A majority of web applications rely on cookies to maintain the
session state. It's used to store a lot more information, such as
user IDs and location preferences.
 Start JMeter.
 Navigate to Test Plan | Thread Group | Recording Controller
 Add Test Script Recorder to Workbench.
 In the browser, go to http://demo-old-ofbiz.apache.org/ecommerce/.
 Click on Login tab.
 Enter admin in the Username field & ofbiz in the Password field.
 Click on Login & Logout.
 Add Cookie Manager from Config Element.
 Save the test plan.

Managing sessions with URL rewriting
 When session ID is attached to all URLs then technique used known as URL rewriting.
 This ensures that the session ID is automatically sent back to the server as part of the
request, without the need of putting it in the header.
 The advantage of this technique is that it works even if a client browser has cookies
disabled.
 Start JMeter.
 Navigate to Test Plan | Thread Group | Recording Controller
 Add Test Script Recorder to Workbench.
 In the browser, go to http://demo-old-ofbiz.apache.org/ecommerce/.
 Click on Login tab.
 Enter admin in the Username field & ofbiz in the Password field.
 Click on Login & Logout.
 Add “HTTP URL Re-writing Modifier” and check ‘Path Extension’ & ‘Cache Session Id’.
 Clean up test plan is the already existing session IDs that were captured during our recording.
 Save the test plan.

Chapter 7
Parameterize with test data

What’s Inside
7.1 - What is Parameterization
7.2 - Why Parameterize
7.3 - Identifying the test data on AUT
7.4 - Using the CSV Data Config in JmeterTests

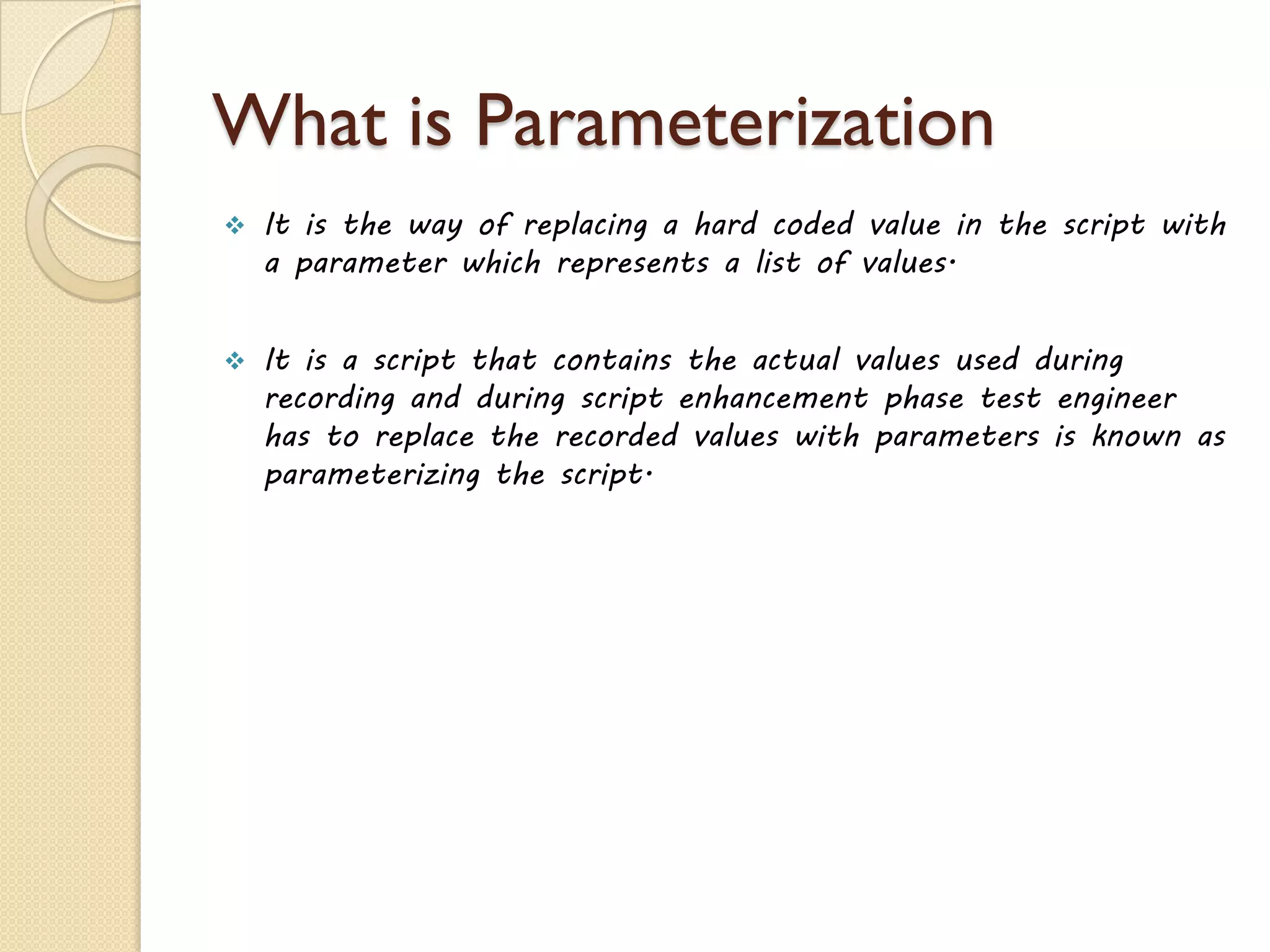

What is Parameterization
 It is the way of replacing a hard coded value in the script with a
parameter which represents a list of values.
 It is a script that contains the actual values used during recording
and during script enhancement phase test engineer has to replace
the recorded values with parameters is known as parameterizing the
script.

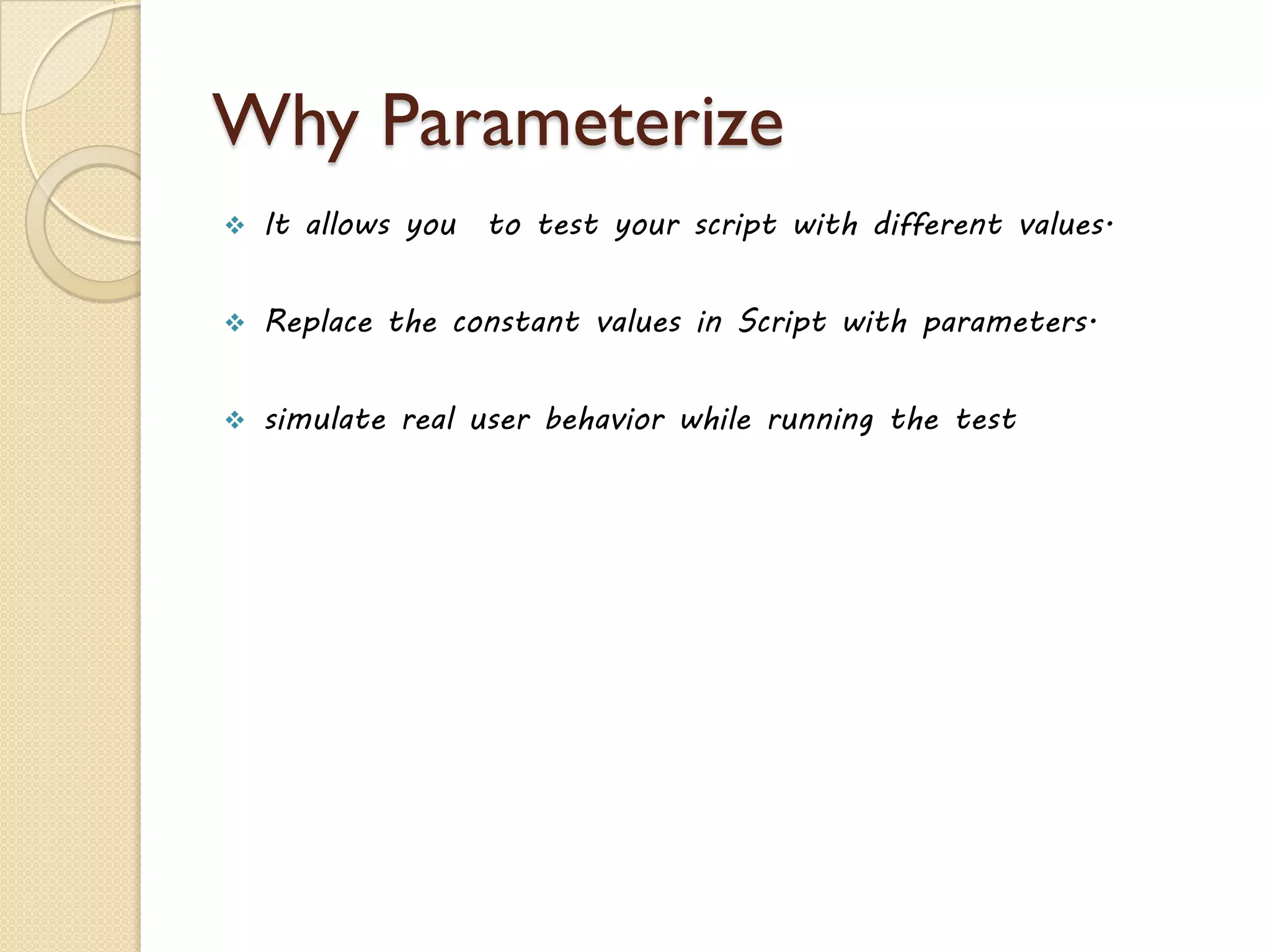

Why Parameterize
 It allows you to test your script with different values.
 Replace the constant values in Script with parameters.
 Simulate real user behavior while running the test.

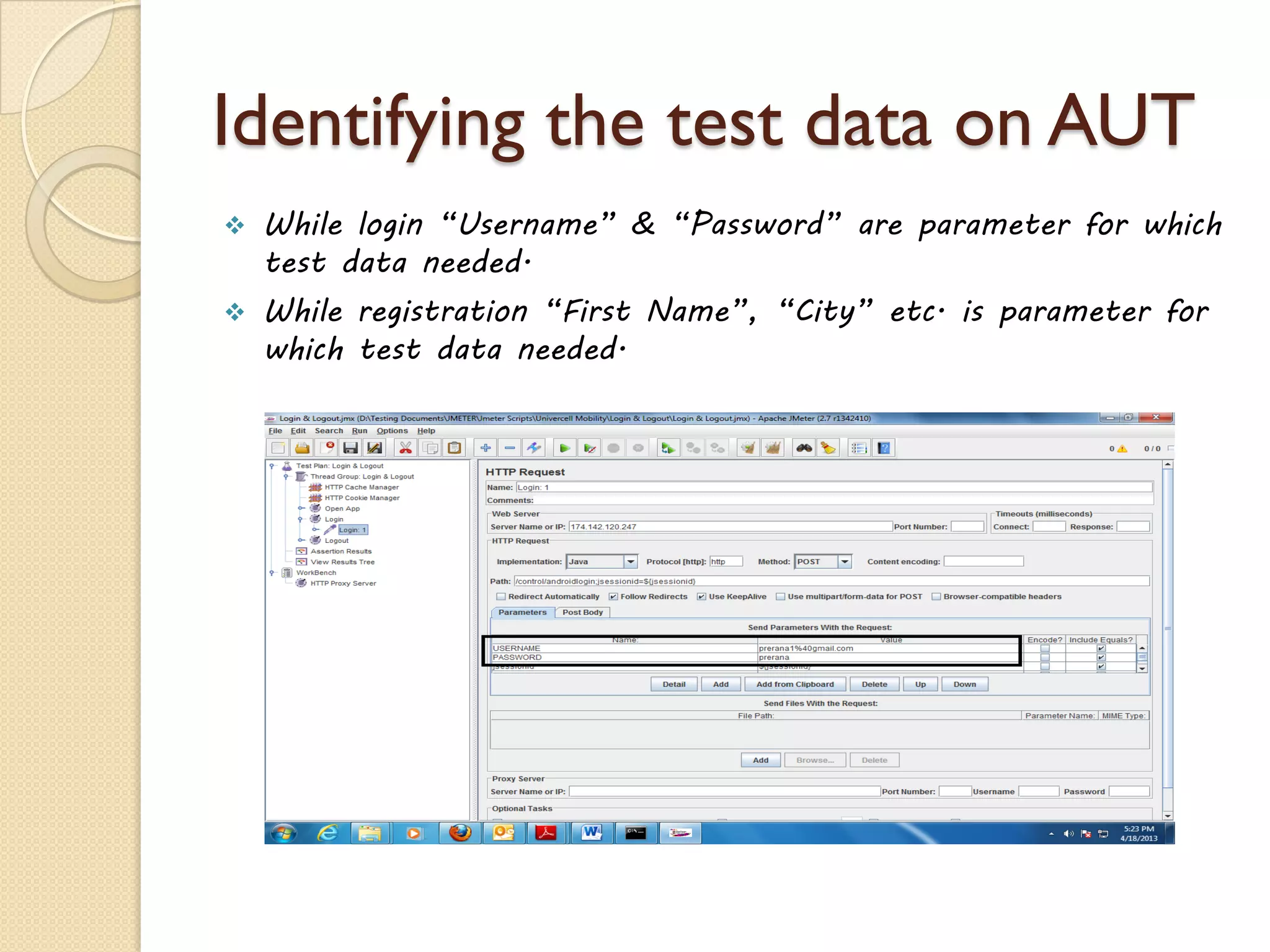

Identifying the test data on AUT
 While login “Username” & “Password” are parameter for which test
data needed.
 While registration “First Name”, “City” etc. is parameter for which
test data needed.

Using the CSV Data Config in Jmeter Tests
 Create CSV file with list of username and password.
 Store in same folder where your test stores.
 Add CSV Data set into your test tree from config elements.
 Add ${username},${password} in request sampler as parameter.

Chapter 8
Project Case Study

What’s Inside
8.1 - Goals of PerformanceTest
8.2 - PerformanceTest Approach
8.3 - Test Design
8.4 - Test Preparation
8.5 - Test Run
8.6 - Test Results
8.7 - Conclusion

Goals of Performance Test
 The objectives are derived from the customer request to compare
user experience under anticipated production workload against new
production environment.
 To verify response times and stability of the system under
increasing user loads.
 To identify potential performance problems and provide
recommendations to address potentials problems.

Performance Test Approach
 Defining workload models for application:
Workload Model
Test Scenarios
Percentage of
Load
distribution
Active Users= 100 Active Users= 200 Active Users= 300
Home Page 40 % 40 80 120
Login_Browse 15 % 15 30 45
Search_Select_Item 15 % 15 30 45
Registration 20 % 20 40 60
Checkout 10 % 10 20 30

Test Design
 Designing test cases for workload model 1:
Test Plan Thread Group Thread Properties Transaction
Test Plan: Workload_01
TG: Home_Page
No. of Thread = 40
Ramp up =10
Loop = 3
1. Navigate to Home Page.
TG: Login_Browse
No. of Thread = 15
Ramp up =5
Loop = 3
2. Click on Login Page.
3. Enter Login Details & Submit.
4. Browse the Items.
5. Logout
TG: Search_Select_Item
No. of Thread = 15
Ramp up =5
Loop = 3
2. In search bar, enter ‘Tiny Gizmos’.
3. Click on Search.
4. Select the Item.
TG: Registration
No. of Thread = 20
Ramp up =5
Loop = 3
2. Click on Register.
3. Fill all required details
4. Click on Register.
TG: Checkout
No. of Thread = 10
Ramp up =5
Loop = 3
2. Click on Login Page.
3. Enter Login Details & Submit.
4. Select the Item.
5. Add to cart
6. Proceed to checkout
7. Order confirmation
8. Logout

Test Preparation
 Test Data
• Registered user should be created.
• Item with categories should be present.
 Jmeter Script
• Record using HTTP proxy server
• Create test plan as per workload design
• Apply proper Assertions, timers and Listeners.
 Server Monitoring & Logging
• To get better graphs install PerfMon plugin on each server.
• Application & MySQL server logs should be enabled.
 Dry Runs
• Test to make sure all test execution issues are surfaced and resolved.

Test Run
 All team are informed before test execution starts. And all
activates during execution are monitored and logged for post
execution analysis.
 Run Baseline test before actual load testing.
 Run workload model and monitor the server while test in execution.
 Keep wait time before going for another test cycle.
 Restore the Application & Database for another cycle.

Test Results
 Goal of analysis are:
• Load/Stress
• Tuning/Optimization
• Resource utilizations
 Real Rime Analysis
• Response times
• CPU, DISK, MEMORY, NETWORK
Post Execution Analysis
• Vuser
• Response Time
• Throughput
• Resource Utilization

Conclusion
 Once test run on both old production and new production
environment then observation should be reported to management
and action needs to taken on it.

Chapter 9
Best Practices

What’s Inside
9.1 - Tips to scale Jmeter Usage
9.2 – Client Side PerformanceTestingTools
9.3 - Jmeter Functions
9.4 - Debugging with Debug Sampler

Tips to scale Jmeter Usage
 A machine with 4GB RAM and a quad-core 2.4 GHz processor, running JMeter
with 1GB of heap, can usually run 250-300 users.
 Do not use GUI mode better use non-GUI mode.
 Use Remote and Distributed testing for larger load testing.
 Use naming conventions for all the elements.
 Don't use "View Results Tree" or "View Results in Table" listeners during the load
test; use them only during scripting phase to debug your scripts.
 Only save the data that you need.
 Use as few Assertions as possible.
 Use timers in your scripts.
 Use as few Listeners as possible.
 Understand the application requirements and the test target goals.
 Keep a profiler and monitoring tools close at hand.

Client Side Performance Tools
 Some methods of client side performance testing in order to make
your users happier with responsive web sites.
 Yslow
 Pagespeed
 Gtmetrix (My Personal Favourite)
 HTTPFox
 Httpwatch
 Webpagetest
 Pingdom

Jmeter Functions
 JMeter functions are special values that can populate fields of any Sampler.
 A function call looks like this: ${__functionName(var1,var2,var3)}

Debugging with Debug Sampler
 Debug Sampler generates a sample containing the values of all JMeter
variables and/or properties.
 Debug Sampler” has three options:
• JMeter properties
• JMeter variables
• System properties
 Prints sampler properties which will be useful to find the actual problem in
the sampler.
Debug PostProcessor
 Debug PostProcessor creates a subSample with the details of the previous
Sampler properties, JMeter variables, properties and/or System Properties.

Chapter 10
Advanced Features

What’s Inside
10.1 - Testing SOAPWeb Services
10.2 - Testing RESTWeb Services

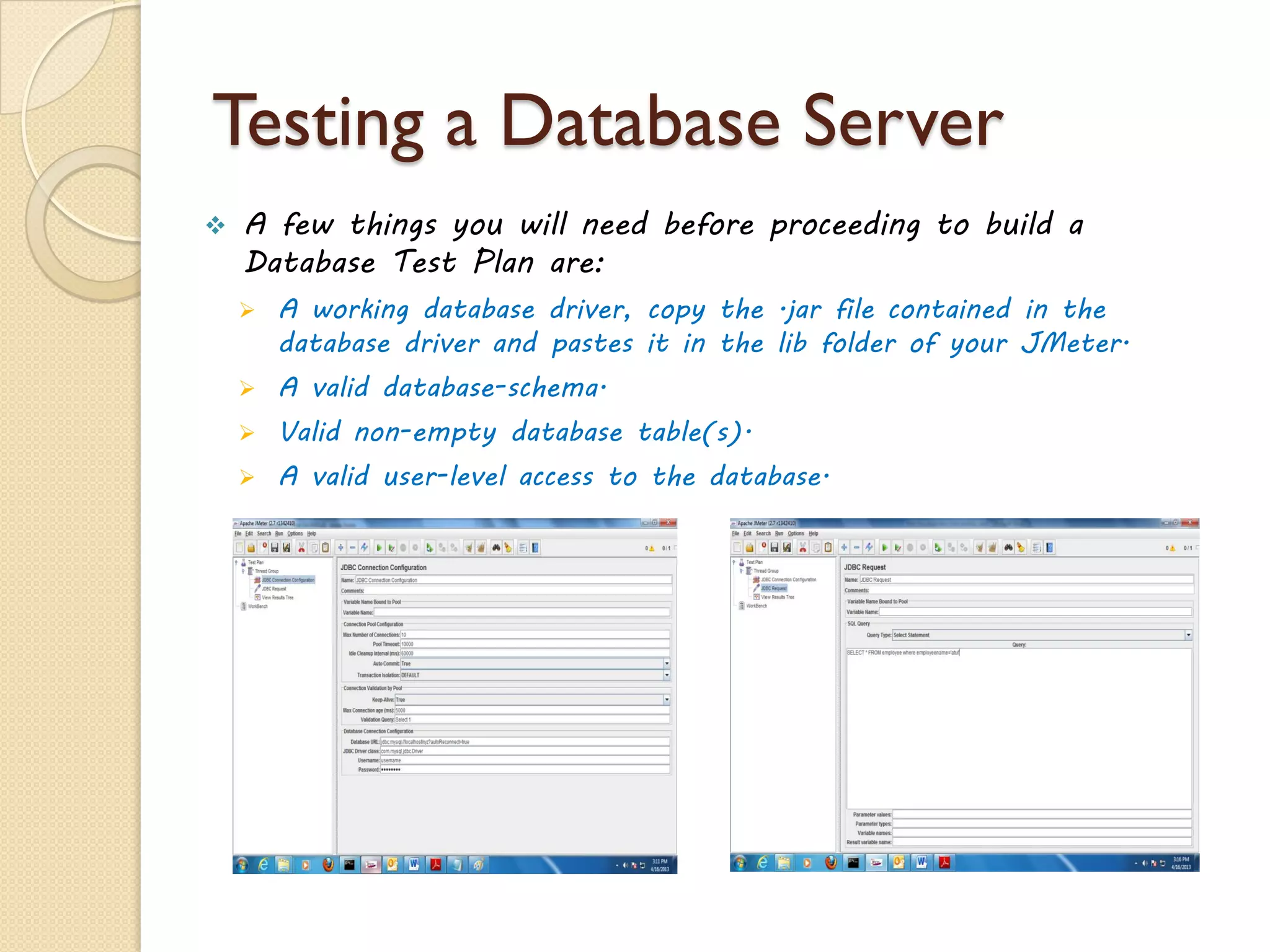

10.3 - Testing a Database Server
10.4 - Testing an FTP Server

Testing SOAP Web Services
 SOAP is a protocol specification to exchange information between network
systems.
 Communication and negotiation between systems is done by passing XML
message formats over a variety of transport protocols, including HTTP,
JMS, Mail, VFS, and so on.
 SOAP is a protocol and is governed by standards whereas REST is an
architectural style.
 Due to SOAP's characteristics (extensibility, neutrality, and
independence),its used to communicate effectively without needing to be on
the same platform or in the same programming language.
 JMeter offers two components:
 SOAP/XML-RPC Request
 HTTP Request

 Start JMeter.
 Add Test Plan | Thread Group | Add Sampler | SOAP/XML-RPC Request.
 Enter following details in SOAP/XML-RPC Request:
 URL: http://wsf.cdyne.com/WeatherWS/Weather.asmx
 Send SOAPAction: http://ws.cdyne.com/WeatherWS/GetCityWeatherByZIP
 SOAP/XML-RPC Data: This is given by the following code snippet:
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/
soap/envelope/" xmlns:weat="http://ws.cdyne.com/WeatherWS/">
<soapenv:Header/>
<soapenv:Body>
<weat:GetCityWeatherByZIP>
<weat:ZIP>${__Random(60601,60610)}</weat:ZIP>
</weat:GetCityWeatherByZIP>
</soapenv:Body>
</soapenv:Envelope>
 Make sure the checkbox for Send SOAPAction is checked.
 Navigating to Test Plan | Add| Listener | View Results Tree.
 Save test plan.

 Start JMeter.
 Add Test Plan | Thread Group | Add Sampler | Http Request.
 Enter following details in Http Request:
 Server Name or IP: wsf.cdyne.com
 ‰‰Method: POST
 ‰‰Path: /WeatherWS/Weather.asmx
 Body Data: This is given by the following code snippet:
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/
soap/envelope/" xmlns:weat="http://ws.cdyne.com/WeatherWS/">
<soapenv:Header/>
<soapenv:Body>
<weat:GetCityWeatherByZIP>
<weat:ZIP>${__Random(60601,60610)}</weat:ZIP>
</weat:GetCityWeatherByZIP>
</soapenv:Body>
</soapenv:Envelope>
 Add HTTP Header Manager as a child of HTTP Request | Add Config Element | HTTP Header Manager.
 Save test plan.
Name Value
Content-Type text/xml
SOAPAction http://ws.cdyne.com/WeatherWS/GetCityWeatherByZIP

Testing REST Web Services
 Representational State Transfer (REST) is the most widely used model for web
service implementation.
 REST is a simple stateless architecture that uses HTTP protocol.
 It is lightweight, not strongly typed and unlike SOAP isn't bound to only XML
format.
 REST web services adhere to the principles of REST and rely on the following
HTTP methods:
 GET is used to list or retrieve resource(s)
 PUT is used to replace or update resource(s)
 POST is used to create a new resource
 DELETE is used to delete resource(s)
 In a Client-Server Application most of the web services use REST API so that
clients, third party applications can access its resources using URI.

 Start JMeter.
 Navigating to Thread Group | Add | Config Element | HTTP Request Default
 Server Name or IP: api-jcb.herokuapp.com
 HTTP Header Manager component by navigating to Thread Group | Add |
Config Element | HTTP Header Manager.
 ‰‰Name: Content-Type
 ‰‰Value: application/json
 Navigating to Thread Group | Add | Sampler | Add HTTP Request. Update
the following details:
 ‰‰Name: Get All Requests
 ‰‰Path: /holiday-requests

10
0
 Navigating to Thread Group | Add | Sampler | Add HTTP Request. Update the
following details:
 ‰‰Name: Create Holiday Request
 ‰‰Path: /holiday-requests
 Method: POST
 ‰‰Body Data: This is given by the following code snippet:
{
"employeeId": 688,
"employeeName": "Stephen Lee",
"startDate": "2014-07-01T00:00:00Z",
"endDate": "2014-07-08T00:00:00Z"
}
 Navigating to Thread Group | Add | Sampler | HTTP Request. Fill in the following
details:
 ‰‰‰Name: Delete Holiday
 ‰‰Path: /holiday-requests/${id}
 ‰‰Method: DELETE
 Save test plan.

Testing FTP Server
10
1
 File Transfer Protocol (FTP) is a standard network protocol used to
transfer files between hosts over the Internet.
 Applications will normally use it as a means of uploading or downloading files
to/from different hosts.
 FTP was not designed as a secure protocol, and as a result has several
security vulnerabilities, the biggest being unencrypted traffic, which allows
eavesdropping.
 Because of security aspect, it is not desirable to use FTP in its standard
form.
 SFTP is secure FTP, allowing all FTP communication to be secure over
Secure Shell (SSH).

Testing FTP Server
10
2
 Start JMeter.
 Add Test Plan | Thread Group | Add Sampler | FTP Request.
 Enter following details in this element:
 Name − FTP Request Get
 Server Name or IP − demo.ftp.server
 Remote File − /home/download/sample.txt
 Local File − sample.txt
 Select get(RETR)
 Username − demo123
 Password − demo123
 Save test plan.

Testing Database Server
10
3
 Database is backbone of any application as data is converted to graphical user
interface (GUI) by a middleware to the end user.
 Database need to check outside the application as it helps to identify database
bottlenecks such as expensive table joins, missing table indexes, slow running
queries, and so on.
 Prerequisites for building a Database Test Plan are:
 A working database driver, copy the .jar file contained in the database driver and pastes it
in the lib folder of your JMeter.
 A valid database-schema.
 Valid non-empty database table(s).
 A valid user-level access to the database.

Testing Database Server
10
4
 Start JMeter.
 Add Test Plan | Thread Group | Config Element > JDBC Connection Configuration.
 Enter following details in this element:
 Variable Name: Var 1
 Database URL − jdbc:mysql://localhost:3306/tutorial
 JDBC Driver class: com.mysql.jdbc.Driver
 Username: root
 Password: admin
 Navigating to Test Plan | Thread Group | Sampler | Add JDBC Request.
 Variable Name: Var 1
 Name − Sample Test
 Enter the Pool Name − Var 1
 Query Type − Select statement.
 Enter the SQL Query String field "Select col from table"
 Save test plan.

Chapter 11
Extend Jmeter

What’s Inside
11.1 - Distributed Testing
11.2 - Sever Monitoring Tools (PerfMon)
11.3 - Database Monitoring Tool (Jet Profiler)
11.4 - Integration Selenium with Jmeter
11.5 - Integration test with Maven & Jmeter
11.6 - Continuous Integration with Maven & Jmeter
11.7 - Integration test with Ant & Jmeter
11.8 - Continuous Integration with Ant & Jmeter
11.9 - Testing with different Bandwidths
11.10 - Performance Testing using Cloud basedTools (Blazemeter, Floodio, OctoPerf)
11.11 - Jmeter BeanShell

Distributed Testing
 Distributed testing is a kind of
testing which use multiple
systems to perform stress
testing.
 Master: The system running Jmeter
GUI which control the test.
 Slave: The System running Jmeter-
server which takes commends from
the GUI and send the requests to
the target system.
 Target: The Web Server planned for
the load test.

Server Monitoring Tools (PerfMon)
 JMeter Plugins at Google Code (JP@GC) is a popular third-party plugins set for
JMeter.
 The project provides additional samplers, graphs, listeners, and so on, all of which
make it more fun to work with JMeter.
 Basically, the JP@GC set contains two types of plugins: graph plugins and
JMeter functionality extensions.
 Installation:
1. Go to the download section of http://jmeter-plugins.org/.
2. Download the JMeterPlugins-Standard-1.2.1.zip (JMeter custom plugins).
3. Download the ServerAgent-2.2.1.zip (Server resource monitoring agents).
4. Extract & paste the JMeterPlugins-Standard-1.2.1.zip file into lib/ext folder under JMeter installation
path.
5. Extract & paste the contents of the ServerAgent-2.2.1.zip file somewhere on the server.
6. Launch the agent using startAgent.sh script on Unix, or startAgent.bat script on Windows and the agent
will be started on port 4444.

Server Monitoring Tools (Graph Plugins)
1. Launch JMeter.
2. Open the test plan
3. Add a PerfMon Metrics Collector listener by navigating to Test Plan | Add |
Listener |jp@gc – PerfMon Metrics Collector
 Add one row each to gather these metrics (CPU, Memory, Network I/O, Disks I/O)
 Host/IP: localhost
 Port: 4444
 Metrics to collect (dropdown): CPU/Memory/Network I/O, Disks I/O
4. Add a response time vs threads listener by navigating to Test Plan | Add |
Listener |jp@gc – Response Times over Time.
5. Add a Transactions per second listener by navigating to Test Plan | Add |
Listener |jp@gc – Transactions per Second.
6. Save the test plan.

Server Monitoring Tools (Functionality Extensions)
1. jp@gc - Stepping Thread Group
2. jp@gc - Ultimate Thread Group
3. jp@gc - Throughput Shaping Timer
4. BM.Sense Uploader

Database Monitoring Tool (Jet Profiler)
 Jet Profiler for MySQL is a query profiling tool for the MySQL
database server.
 Query, table and user performance
 Graphical Visualization
 Low overhead
 User friendly
 Detail Link: http://www.jetprofiler.com/

Integrating selenium with Jmeter
 JMeter can be used to record browser actions using proxy, but since
JMeter doesn’t handle JavaScript, it cannot be used on its own to simulate
realistic user interaction with a JavaScript/Ajax heavy web application.
 Selenium can be used to record user-interaction with a web application
where lots of interactions happen using Ajax.
 It’s simple to integrate Selenium with JMeter.
 Approach:
 Selenium WebDriver with Eclipse and then run selenium test script in Jmeter.
 Using "Web Driver Sampler" from JMeterPlugins-WebDriver.
 Details Approach on below link:
http://www.jmeter4u.com/2015/06/integrating-selenium-with-jmeter-for.html

Integration test with Maven & Jmeter
 Maven is a build automation tool and project configuration tool.
 Based on the concept of POM (Project Object Model) to manage build, reporting &
documentation from central piece of information.
 POM is an XML contain information about project & configuration to build project.
 Installation & Setup:
o Download Maven & Unzip.
o Set environment variables & path for Java & Maven.
o Verify maven installation using cmd, type mvn -version
Objective:
 To run my Jmeter tests in a specific maven phase and create the relevant Jmeter
test results html reports and publish them.
• Create a simple maven project
• Add the JMeter Maven plugin
• Create a JMeter test
• Run it in Maven

Continuous Integration with Maven & Jmeter
 Pre-requisites:
• Download Jenkins "jenkins.war"
• Install Jenkins by running command java -jar jenkins.war under root folder.
• Get Jenkins running.
• Configure the Java, Maven path using Manage Jenkins link.
• Install plugin (Performance Plugin, Maven Plugin, Git Plugin) using Manage Jenkins link.
 Create Jenkins job:
• Navigate to http://localhost:8080/.
• Click New Job & create a maven job
• Under source code management chose Git.
• Set the repository URL to https://github.com/jmeter4u/jmeter-jenkins.git
• Add a Maven build step with “verify” as the goal.
• Down in Post-build Actions check the Publish Performance test result report checkbox.
• Click the Add a new report box and choose JMeter
• For Report files specify **/*.jtl
• Also under Post-build Actions check the Archive the artifacts checkbox.
• Click Save & Build Now.

Integration test with Ant & Jmeter
 ANT stands for Another Neat Tool. It is a Java-based build tool from Apache.
 ANT to automate the build and deployment process in simple and easy steps.
 Need for a Build Tool:
• Compiling the code
• Packaging the binaries
• Deploying the binaries to the test server
• Testing the changes
 Installation & Setup:
o Download Ant & Unzip.
o Set environment variables & path for Java & Ant.
o Verify ant installation using cmd, type ant -version
Objective:
 To automate JMeter test plans using Ant. The Ant task executes one or more JMeter
test plans, and logs the results to a file.
• Create ANT-JMeter Project:
• Use existing build.xml and customize accordingly.
• Now run targets in existing file.

Continuous Integration with Ant & Jmeter
 Create Jenkins Job: Create a simple free style project.
 Invoke JMeter Test from Jenkins
 Jenkins-Performance Plugin
 Emailing the Results
 Summary

Testing with different bandwidths
 Bandwidth can be critical to the performance of a website. Now question is how it will
perform on different network speeds.
 JMeter provides a way to simulate various network bandwidths, where application under
test will react under various network conditions.
 It’s important as user can connect from any device or network.
 Open $JMETER_HOME/bin/jmeter.properties.
 Add the following properties to user properties.
 This specifies a mobile data GPRS: 171 Kbps bandwidth. Refer to the following parameters:
 ‰‰httpclient.socket.http.cps=21888
 ‰‰httpclient.socket.https.cps=21888
 This specifies a Wi-Fi 802.11a/g: 54 Mbps bandwidth. Refer to the following parameters:
 ‰httpclient.socket.http.cps=6912000
 ‰‰httpclient.socket.https.cps=6912000
 Save & Launch Jmeter
 Run the test and observe values reported in the KB/sec column in the Aggregate Report listener.
cps = (target bandwidth in kbps * 1024) / 8

Performance Testing of applications using BlazeMeter
 BlazeMeter is a commercial, self-service load testing platform-as-a-service (PaaS),
which is fully compatible with open-source Apache JMeter.
 BlazeMeter offers elastic performance testing Cloud.
1. Create a BlazeMeter account at http://blazemeter.com/
2. Log in to your account.
3. Click on the “create test” on the top navigation bar.
4. Click on the Upload Files button and upload the sample.jmx file.
5. Change the Rampup setting to 30 seconds.
6. Change the Duration setting to 10 minutes.
7. Change the JMeter version to 2.13.
8. Save the test.
9. Run Test.
10. Wait for the test to finish and observe the detailed reports.

Performance Testing of applications using Floodio
 Flood.io is a paid service.
 The free user account gives you a monthly quota of an hour and allows you to
run your tests for a maximum of five minutes after which it is shut-down.
 Check it out floodio cloud service:
1. Create a free account at http://flood.io
2. Sign-in to your account.
3. Once logged in, click on the Create Flood button.
4. Upload the jmeter script (jmeter4u.jmx).
5. Provide a name for your flood.
6. Select the only available grid on the free tier.
7. Optionally, you can enter the number of threads, ramp up, and duration into their respective
boxes, but for our purposes, you can skip them.
8. Click on the Start Flood button.

Performance Testing of applications using OctoPerf
 OctoPerf is realistic and accessible performance testing. Validate your website
speed under load in just a few clicks. Sign up and get a lifetime free account
to test!
 Check it out OctoPerf cloud service:
1. Navigate to https://octoperf.com/
2. Click on free account. It will take you to dashboard.
3. Create a "New Project"
4. Now Create Virtual User script by import the jmeter script (jmeter4u.jmx).
5. Click on Create Scenario to modify Thread group properties.
6. Click on Launch VUs.
7. Wait for test to complete. And Click on Export to View & Save Results.

Jmeter BeanShell
 BeanShell is a java like scripting language.
 It in some way is an extension to the mainstream Java language by providing scripting
capabilities.
 BeanShell aids in quick development and test of Java application.
 BeanShell can also be used as a configuration language as it supports creation of Java
based variables like strings, arrays, maps, collections and objects.
 JMeter provides the following components that can be used to write BeanShell scripts:
1. BeanShell Sampler
2. BeanShell PreProcessor
3. BeanShell PostProcessor
4. BeanShell Assertion
5. BeanShell Listener
6. BeanShell Timer

Jmeter BeanShell
 The following table shows some of the common variables used by the BeanShell
components:
 Conclusion
• BeanShell scripting language provides scripting capabilities to the Java language.
• In JMeter, you can use different BeanShell components to write the test scripts and execute the same.
• Each component is equipped with useful variables that can be used in the scripts to perform the control
flow.
• The scripting feature adds a powerful and useful dimension to the JMeter testing tool.
• The objective of the article was to show the usage of common Beanshell components and how one can write
test scripts to execute test.
Variable Name Description
ctx It holds context information about the current thread that includes sampler and its results.
vars This is a thread local set of variables stored in a map used by BeanShell components in the same thread.
props These are variables loaded as properties from an external file (jmeter.properties) stored in the classpath.
prev It holds the last result from the sampler
data It holds server response data

Chapter 12
Supporting Application & Books

What’s Inside
12.1 - Setting up Ecommerce Application in Local Machine
12.2 - Setting up Ecommerce Application in AWS
12.3 – Reference Books
12.4 – Job & Discussion Forum

Setting up Ecommerce Application in Local Machine
Pre-requestics Softwares:
• Install Java 1.7 or upper version and set the JAVA_HOME in windows environment Variable.
• Install Ant1.8 and upper version and set the ANT_HOME in windows environment Variable.
Steps to run ofbiz 12.04 (assuming java jdk is installed and set in environment :
1. Extract the ofbiz zip. And navigate to the extracted ofbiz directory using command prompt.
2. Download mysql jdbc driver and place in ${ofbiz install dir}/framework/entity/lib/jdbc
3. Open entityengine: ${ofbiz install dir}/framework/entity/config/entityengine.xml file:
• Change the "datasource-name" attribute under the from the default "localderby" to "localmysql"
• Change the "jdbc-uri" under "localmysql" to "jdbc:mysql://127.0.0.1/ofbiz?autoReconnect=true"
• Change the "jdbc-username" to “root"
• Change the "jdbc-password" to “root”
4. After the database setup, now you need to load data, using this initial command: ant load-demo
5. To start the ofbiz using command tools/startofbiz.bat on windows or tools/startofbiz.sh on linux.
6. Once the server is started go to following link http://localhost:8080/ecommerce for demo ecommerce
and https://localhost:8443/webtools/control/main for ofbiz backend using credentials admin/ofbiz.

Setting up Ecommerce Application in AWS
 Signing Up for free tier account, we need to set up a few security groups and users.
This will allow us to access services without using our root AWS account. It only takes
a few minutes and will set you up for future use.
1. Launch an Instance
2. Connect to Your Instance
3. Installing Ofbiz Ecommerce Application
4. Clean Up Your Instance
 Details on:
http://docs.aws.amazon.com/AWSEC2/latest/WindowsGuide/EC2_GetStarted.html

Reference Books
 Performance Testing JMeter Bayo Erinle
 JMeter - Cookbook Bayo Erinle
 Art Application Performance Testing
 Visit www.jmeter4u.com to buy these books. You can find in bottom of the page.

Job & Discussion Forum
 Jmeter Help Forum:
https://groups.google.com/forum/#!forum/jmeterhelp
 Performance Testing Jobs:
https://groups.google.com/forum/#!forum/performance-testing-jobs
 Nabble Jmeter Forum:
http://jmeter.512774.n5.nabble.com/
 Stack Overflow Jmeter:
http://stackoverflow.com/questions/tagged/jmeter

Thank You

Jmeter Performance Testing

More Related Content

What's hot

Viewers also liked

Similar to Jmeter Performance Testing

More from Atul Pant

Recently uploaded

Jmeter Performance Testing

Editor's Notes
