iOS Effective Coding: Run Loops & UI

iOS Effective Coding
Session #1 - Run Loops & UI
J.M. Schaeffer

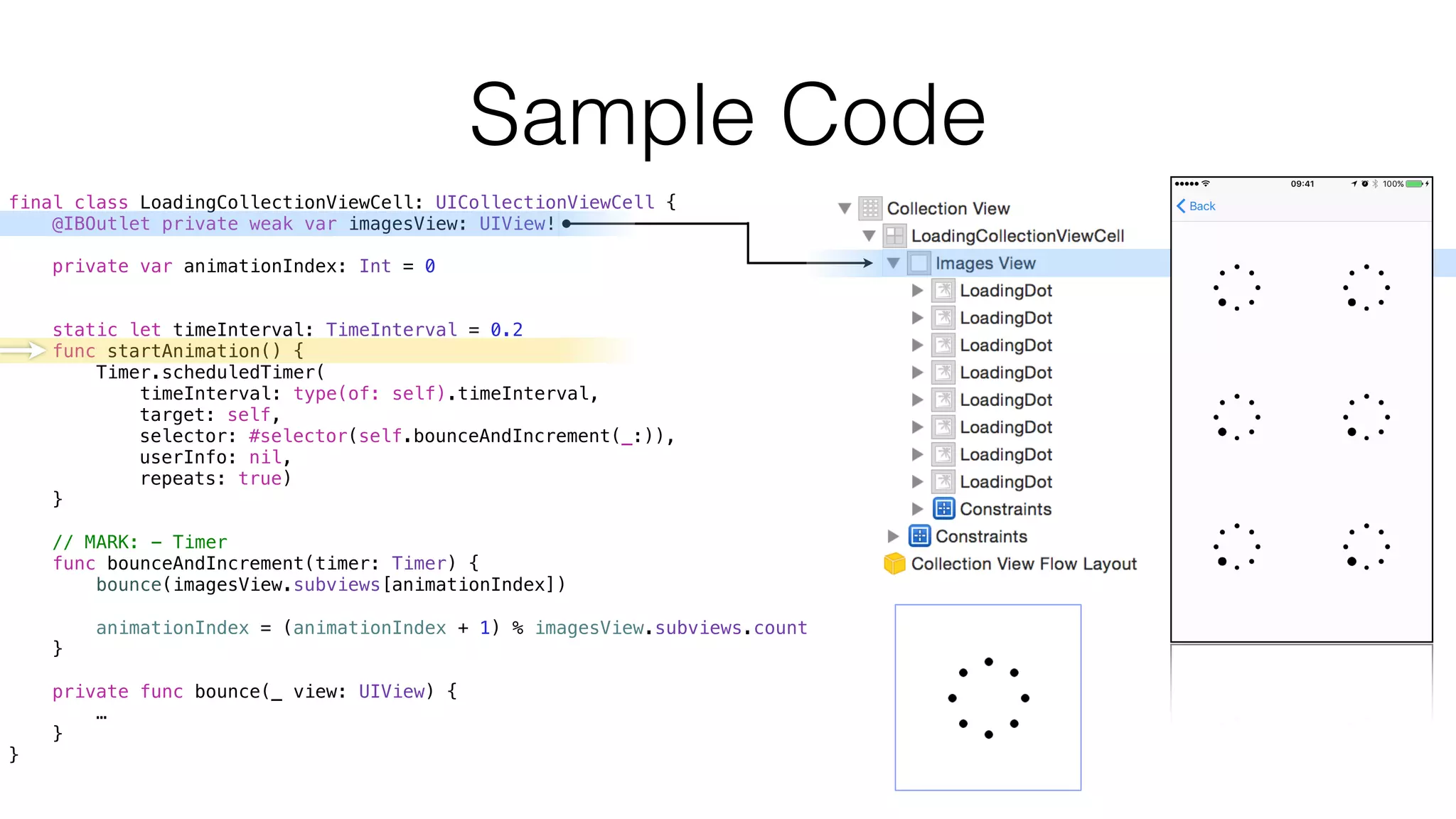

Sample Code
final class LoadingCollectionViewCell: UICollectionViewCell {
@IBOutlet private weak var imagesView: UIView!
private var animationIndex: Int = 0
static let timeInterval: TimeInterval = 0.2
func startAnimation() {
Timer.scheduledTimer(
timeInterval: type(of: self).timeInterval,
target: self,
selector: #selector(self.bounceAndIncrement(_:)),
userInfo: nil,
repeats: true)
}
// MARK: - Timer
func bounceAndIncrement(timer: Timer) {
bounce(imagesView.subviews[animationIndex])
animationIndex = (animationIndex + 1) % imagesView.subviews.count
}
private func bounce(_ view: UIView) {
…
}
}

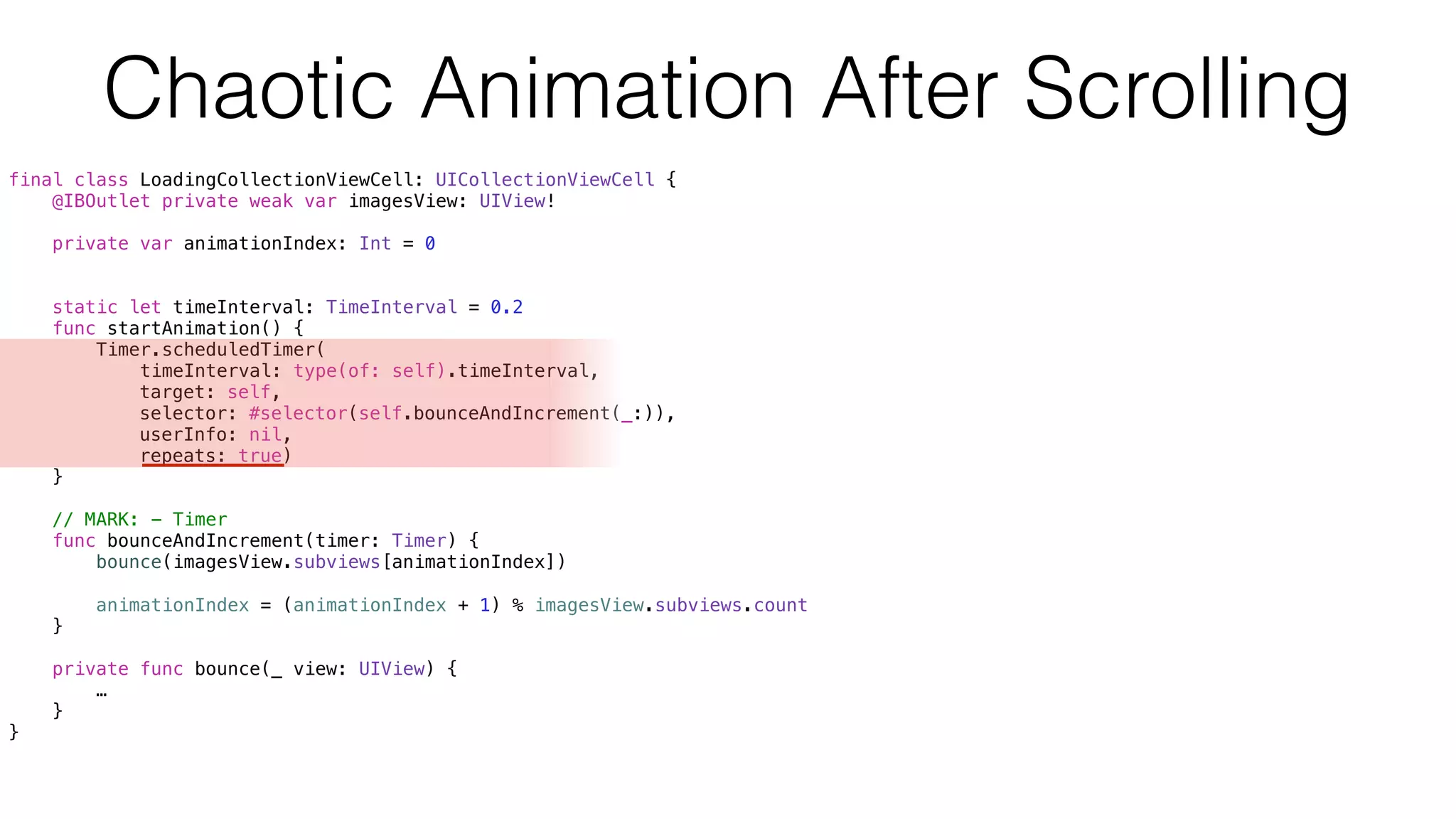

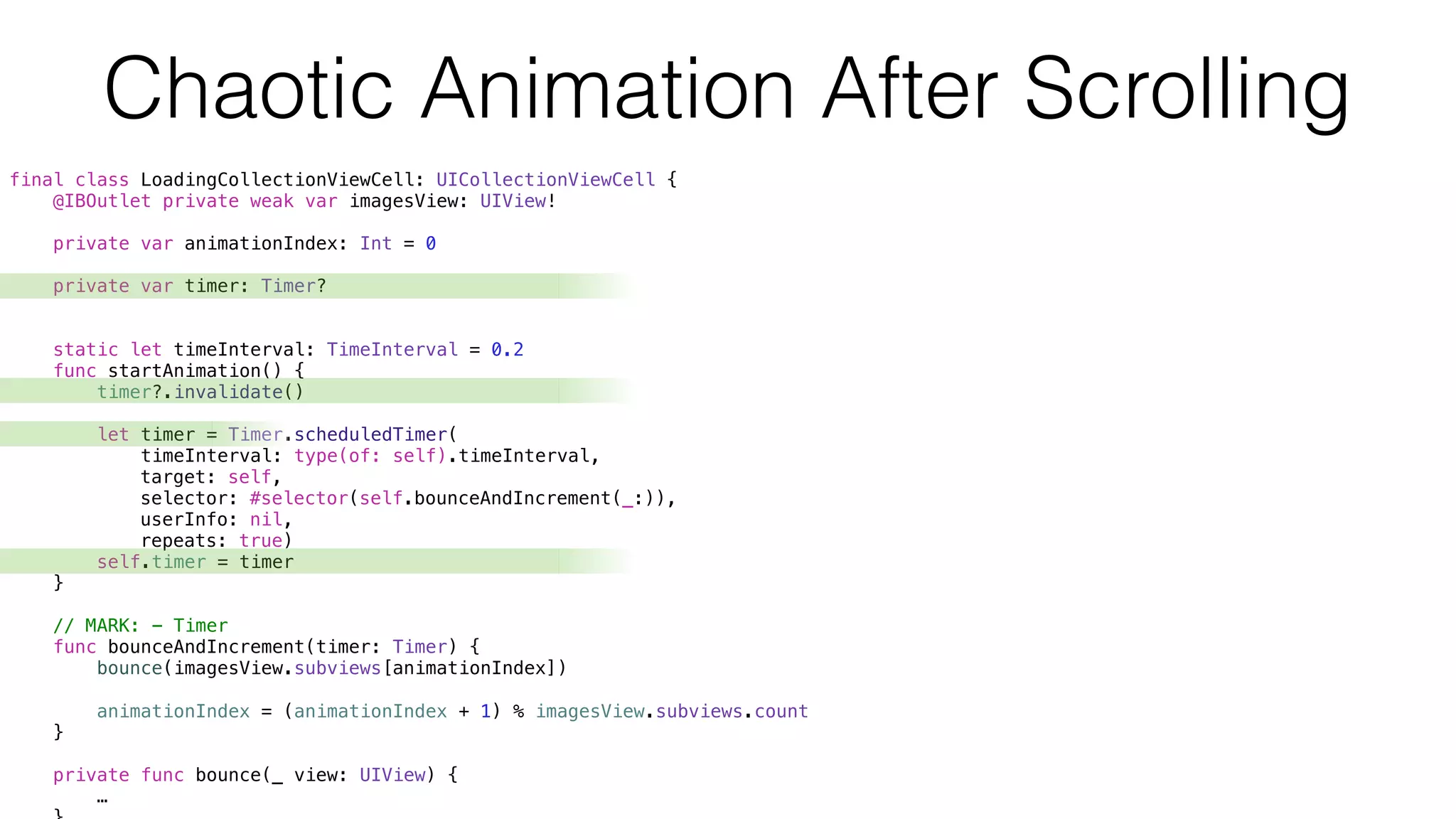

Chaotic Animation After Scrolling
Timer.scheduledTimer(
target: self,
userInfo: nil,
repeats: true)
}
// MARK: - Timer
}
…
}
}

private var timer: Timer?
timer?.invalidate()
let timer = Timer.scheduledTimer(
target: self,
userInfo: nil,
repeats: true)
self.timer = timer
}
// MARK: - Timer
}
…

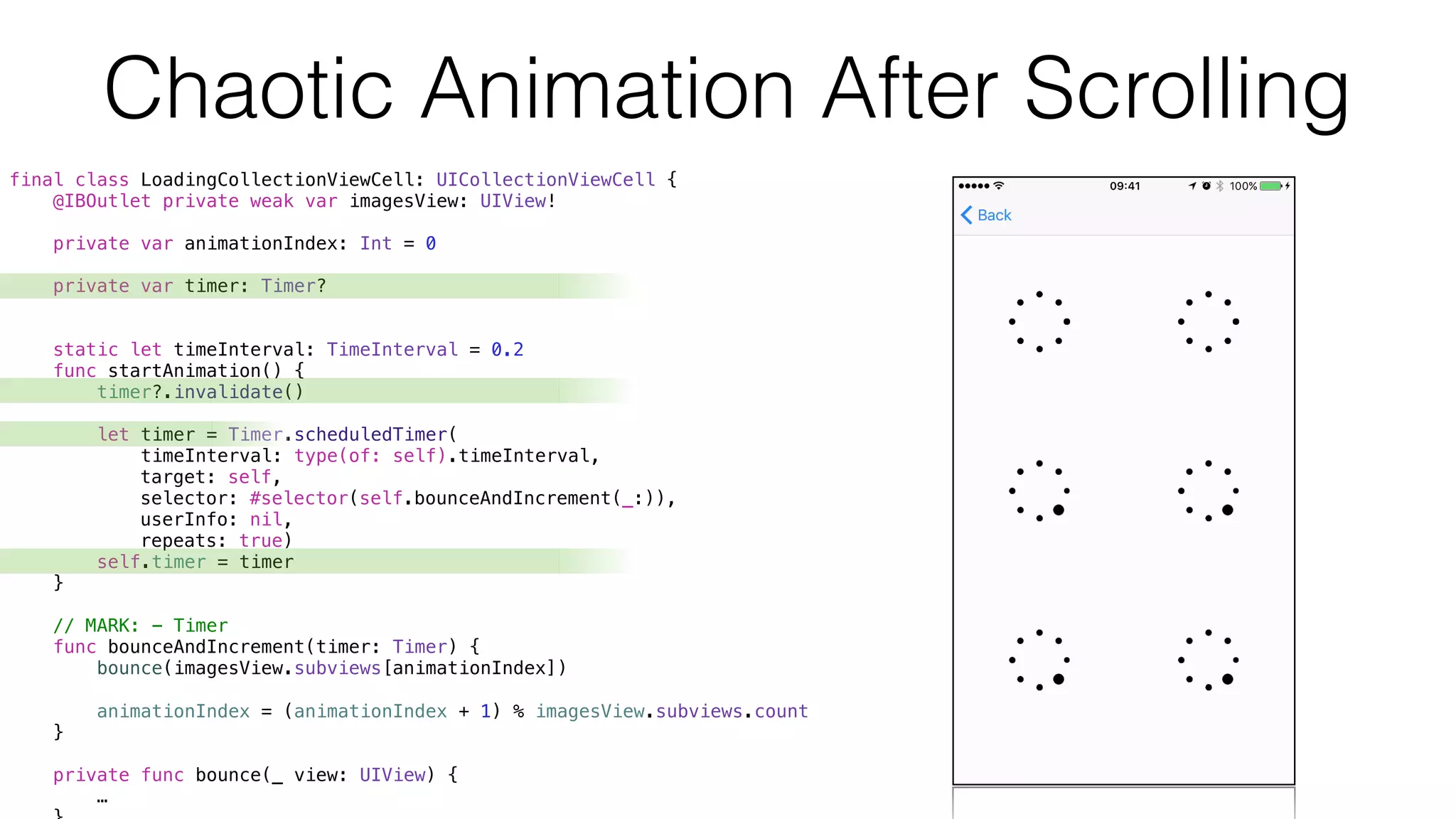

Chaotic Animation After Scrolling

private var timer: Timer?
timer?.invalidate()
target: self,
userInfo: nil,
repeats: true)
self.timer = timer
}
// MARK: - Timer
}
…

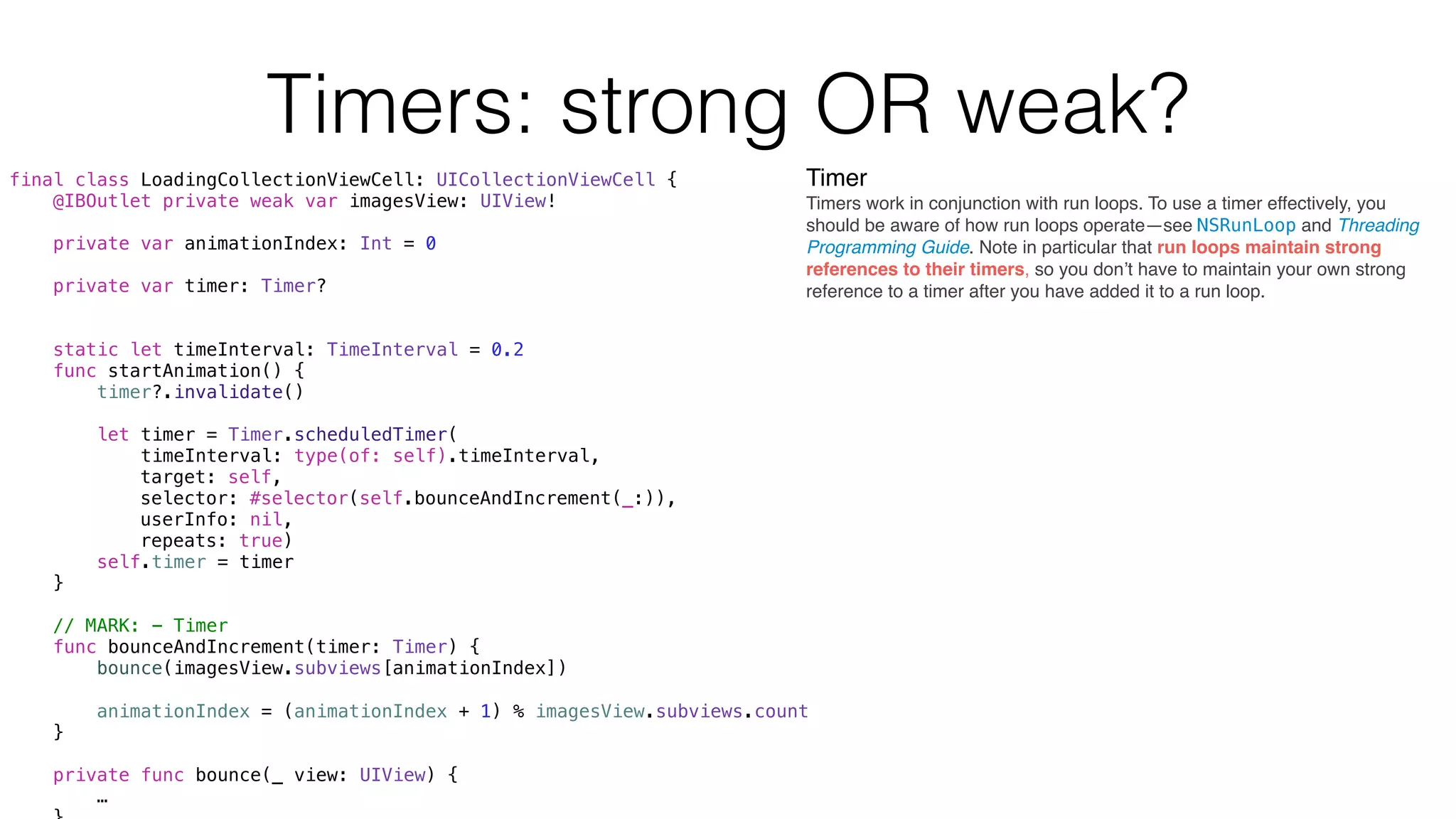

Timers: strong OR weak?
Timer
Timers work in conjunction with run loops. To use a timer effectively, you
should be aware of how run loops operate—see NSRunLoop and Threading
Programming Guide. Note in particular that run loops maintain strong
references to their timers, so you don’t have to maintain your own strong
reference to a timer after you have added it to a run loop.

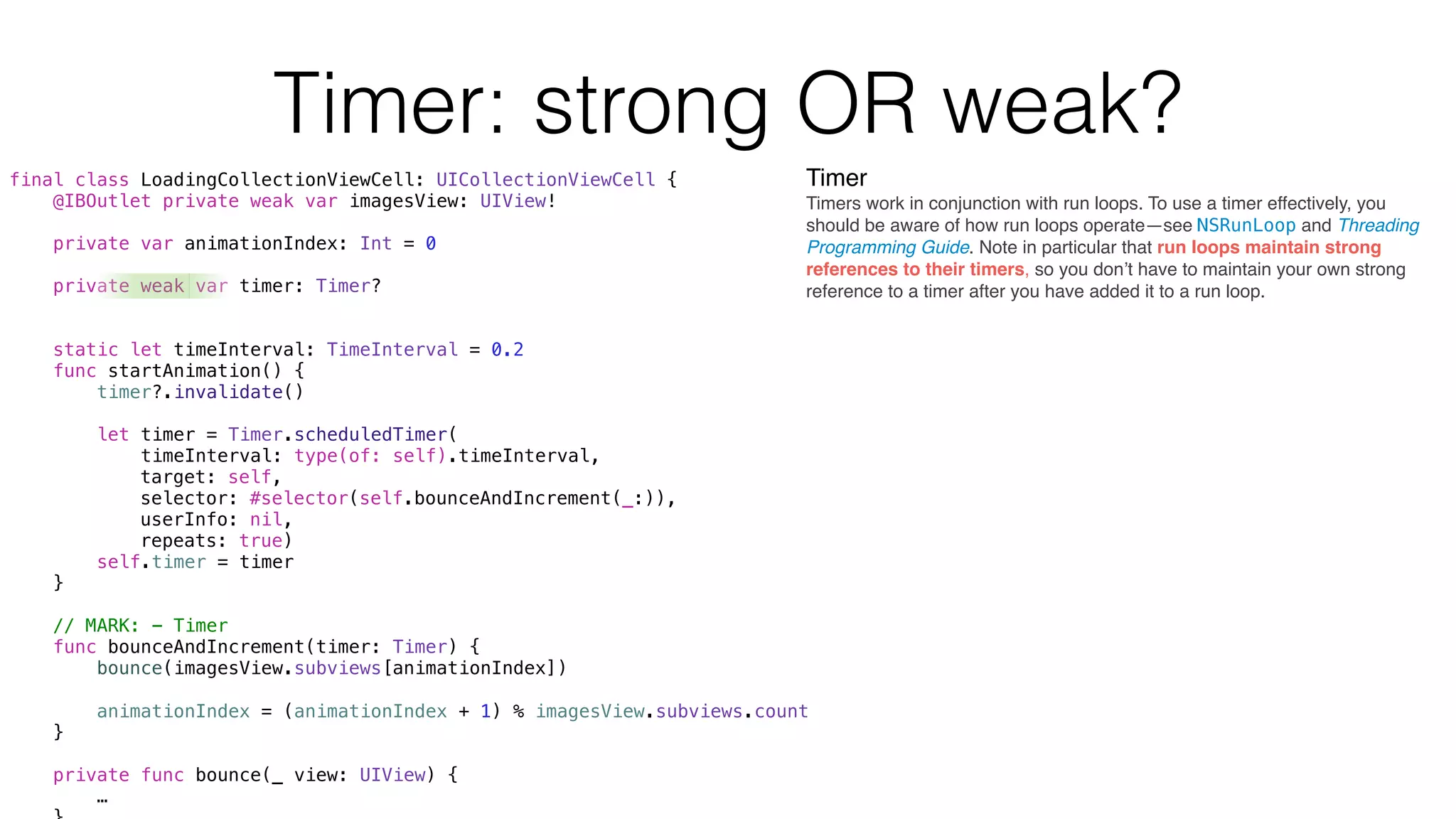

Timer: strong OR weak?
private weak var timer: Timer?
timer?.invalidate()
target: self,
userInfo: nil,
repeats: true)
self.timer = timer
}
// MARK: - Timer
}
…
Timer

Timer
timer?.invalidate()
target: self,
userInfo: nil,
repeats: true)
self.timer = timer
}
// MARK: - Timer
}
…
Once scheduled on a run loop, the timer fires at the specified interval until it
is invalidated. A non-repeating timer invalidates itself immediately after it
fires. However, for a repeating timer, you must invalidate the timer
object yourself by calling its invalidate method. Calling this method
requests the removal of the timer from the current run loop; as a result, you
should always call the invalidate method from the same thread on which
the timer was installed. Invalidating the timer immediately disables it so that
it no longer affects the run loop. The run loop then removes the timer (and
the strong reference it had to the timer), either just before the invalidate
method returns or at some later point. Once invalidated, timer objects
cannot be reused.

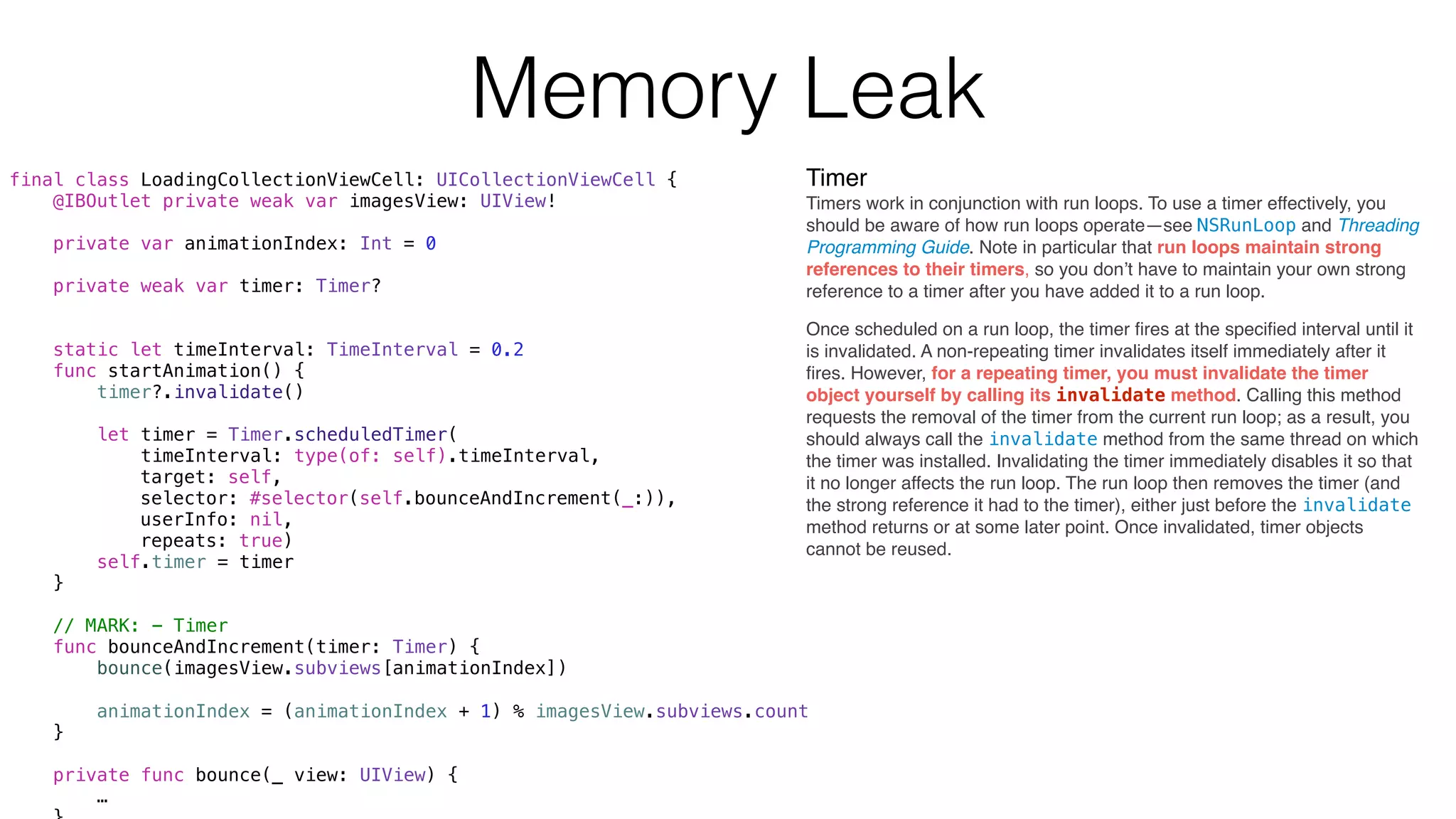

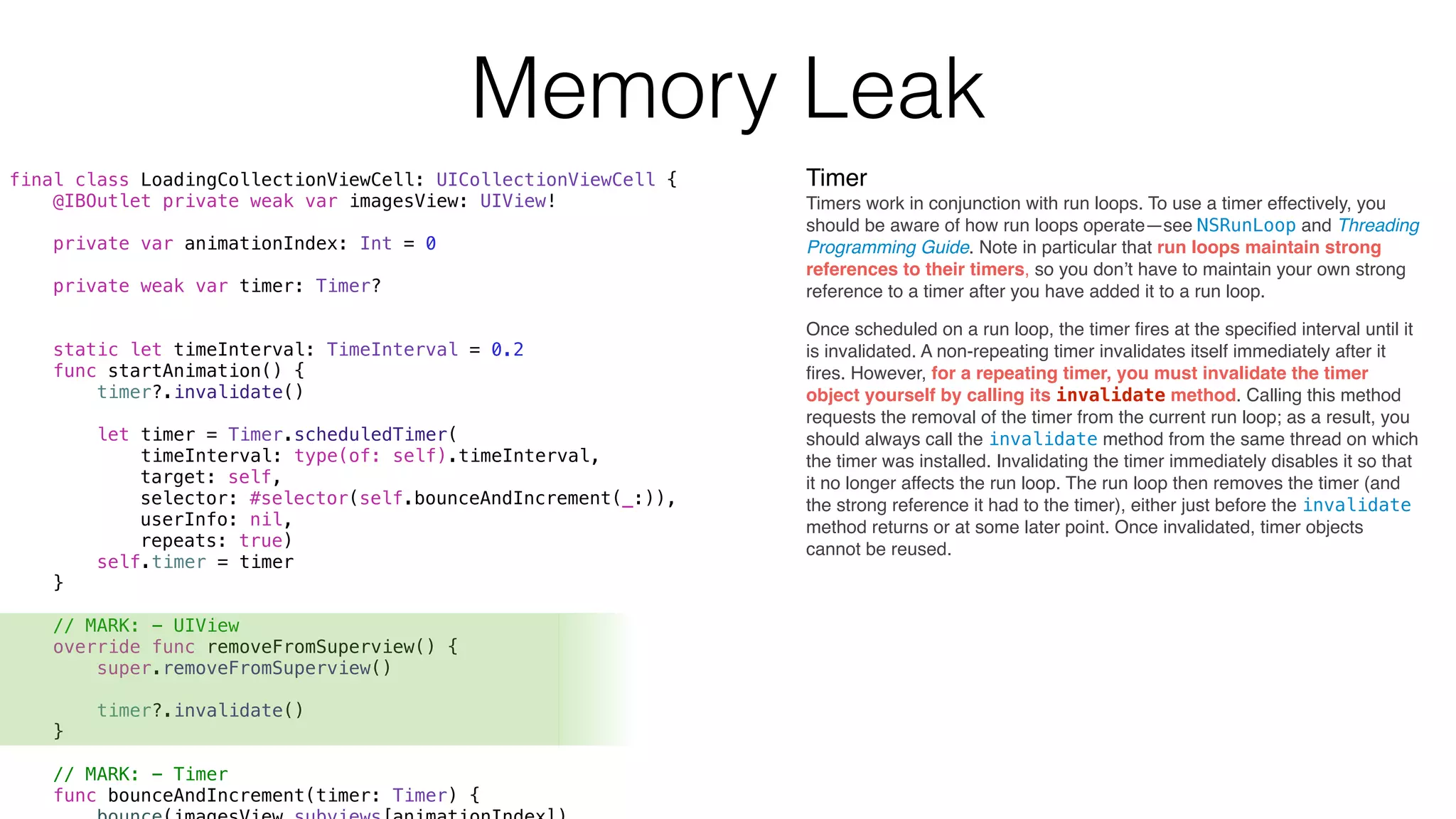

Memory Leak

Timer
timer?.invalidate()
target: self,
userInfo: nil,
repeats: true)
self.timer = timer
}
// MARK: - UIView
override func removeFromSuperview() {
super.removeFromSuperview()
timer?.invalidate()
}
// MARK: - Timer
Once scheduled on a run loop, the timer fires at the specified interval until it
is invalidated. A non-repeating timer invalidates itself immediately after it
fires. However, for a repeating timer, you must invalidate the timer
object yourself by calling its invalidate method. Calling this method
requests the removal of the timer from the current run loop; as a result, you
should always call the invalidate method from the same thread on which
the timer was installed. Invalidating the timer immediately disables it so that
it no longer affects the run loop. The run loop then removes the timer (and
the strong reference it had to the timer), either just before the invalidate
method returns or at some later point. Once invalidated, timer objects
cannot be reused.
Memory Leak

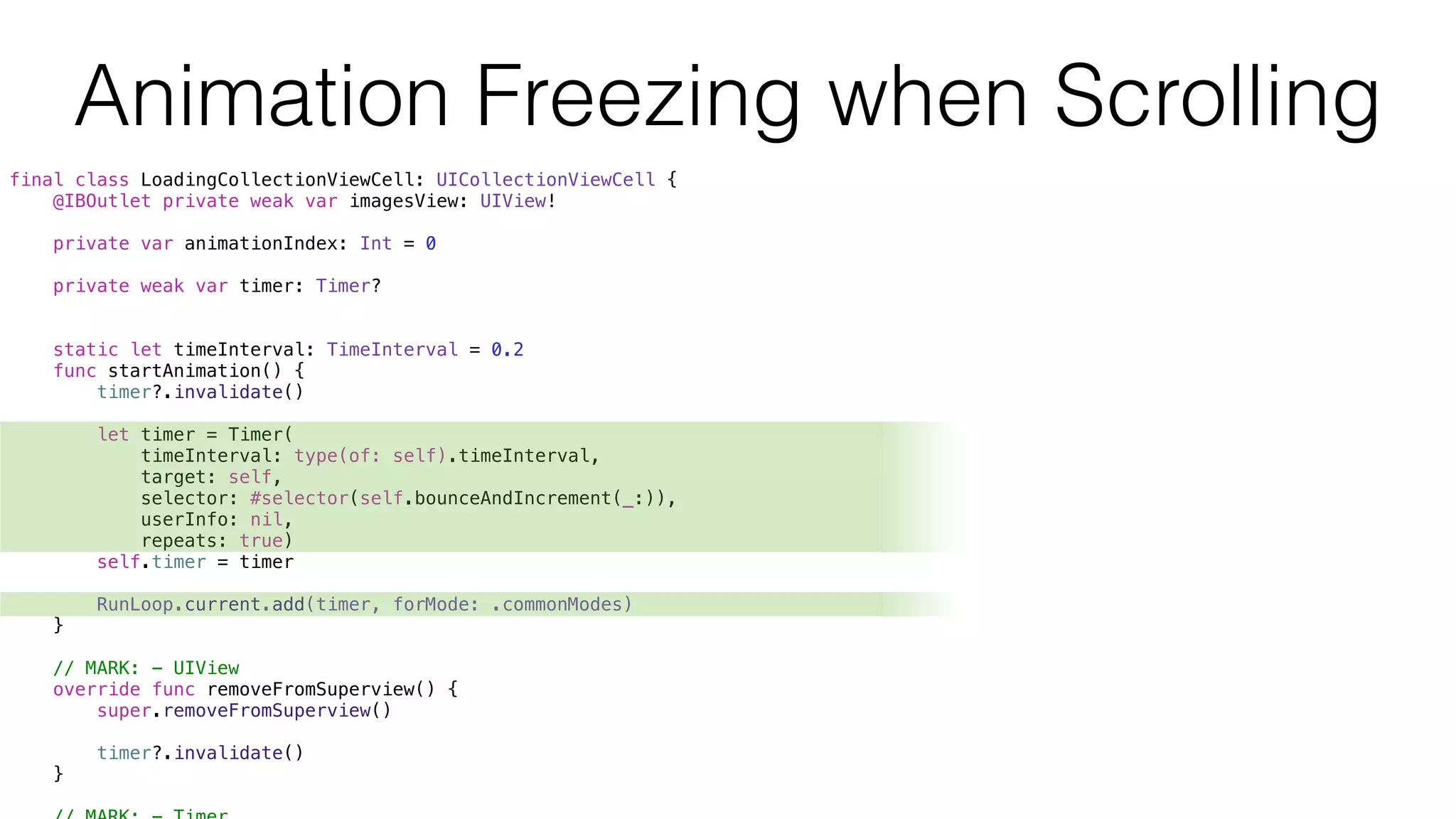

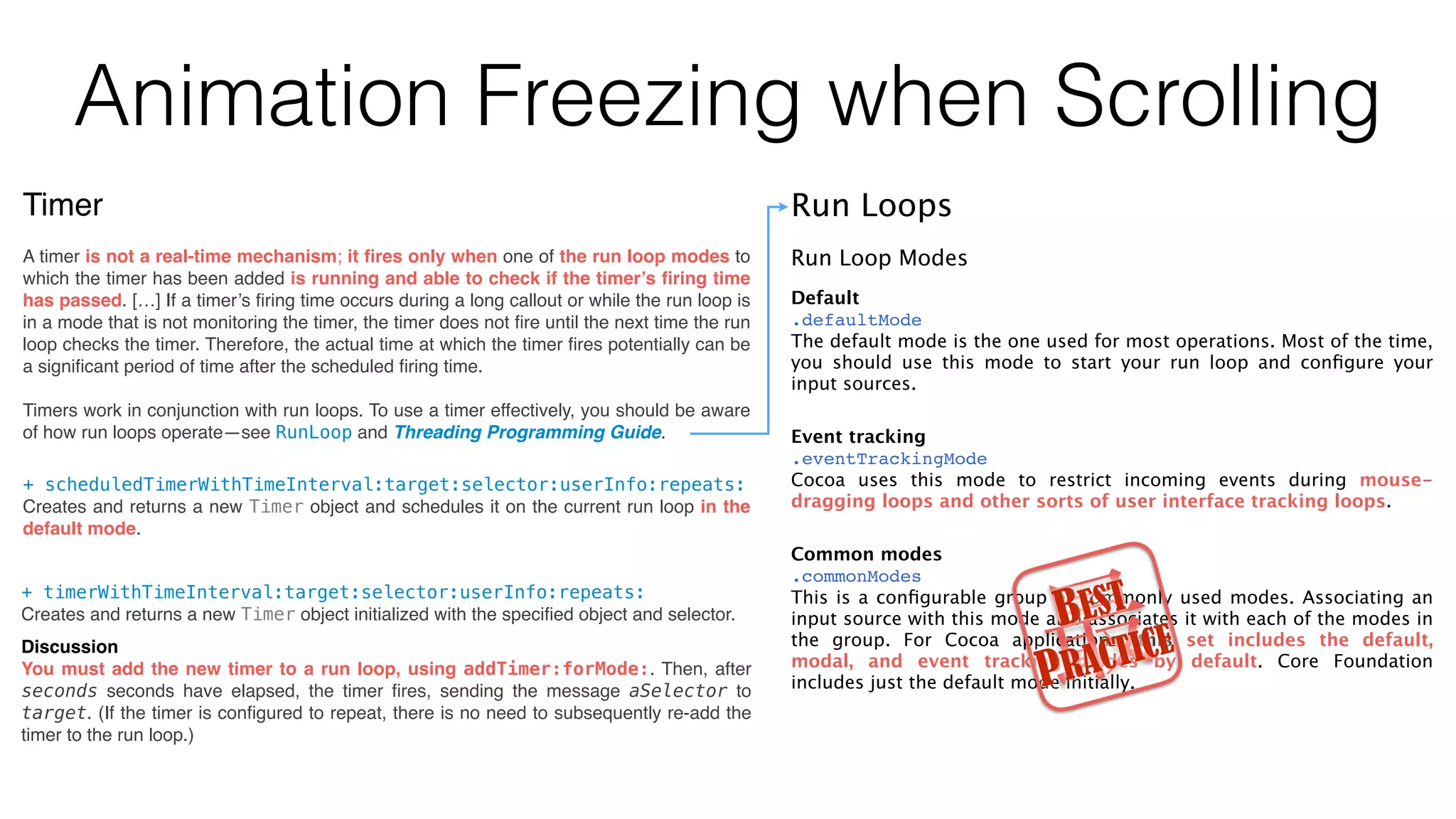

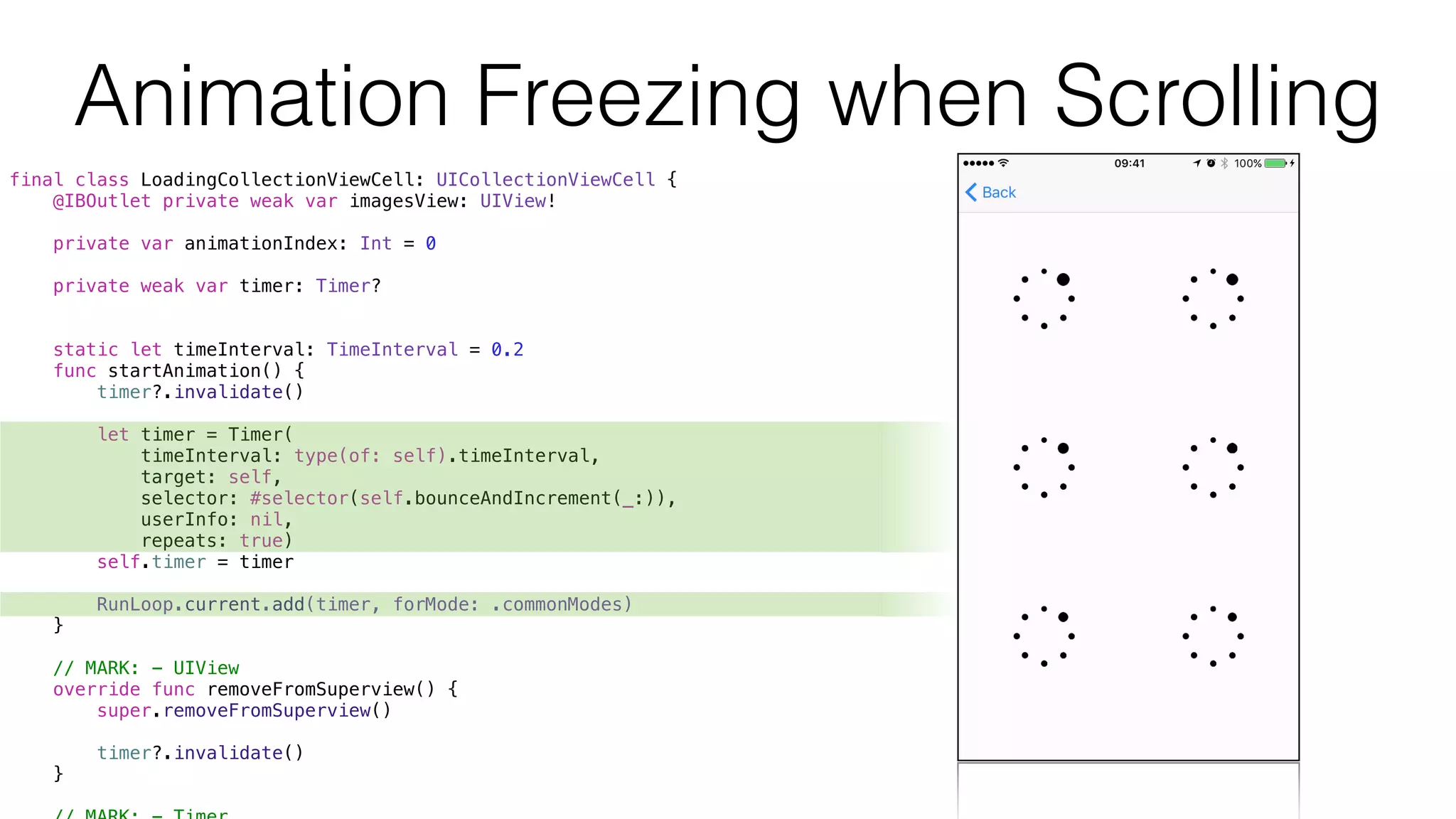

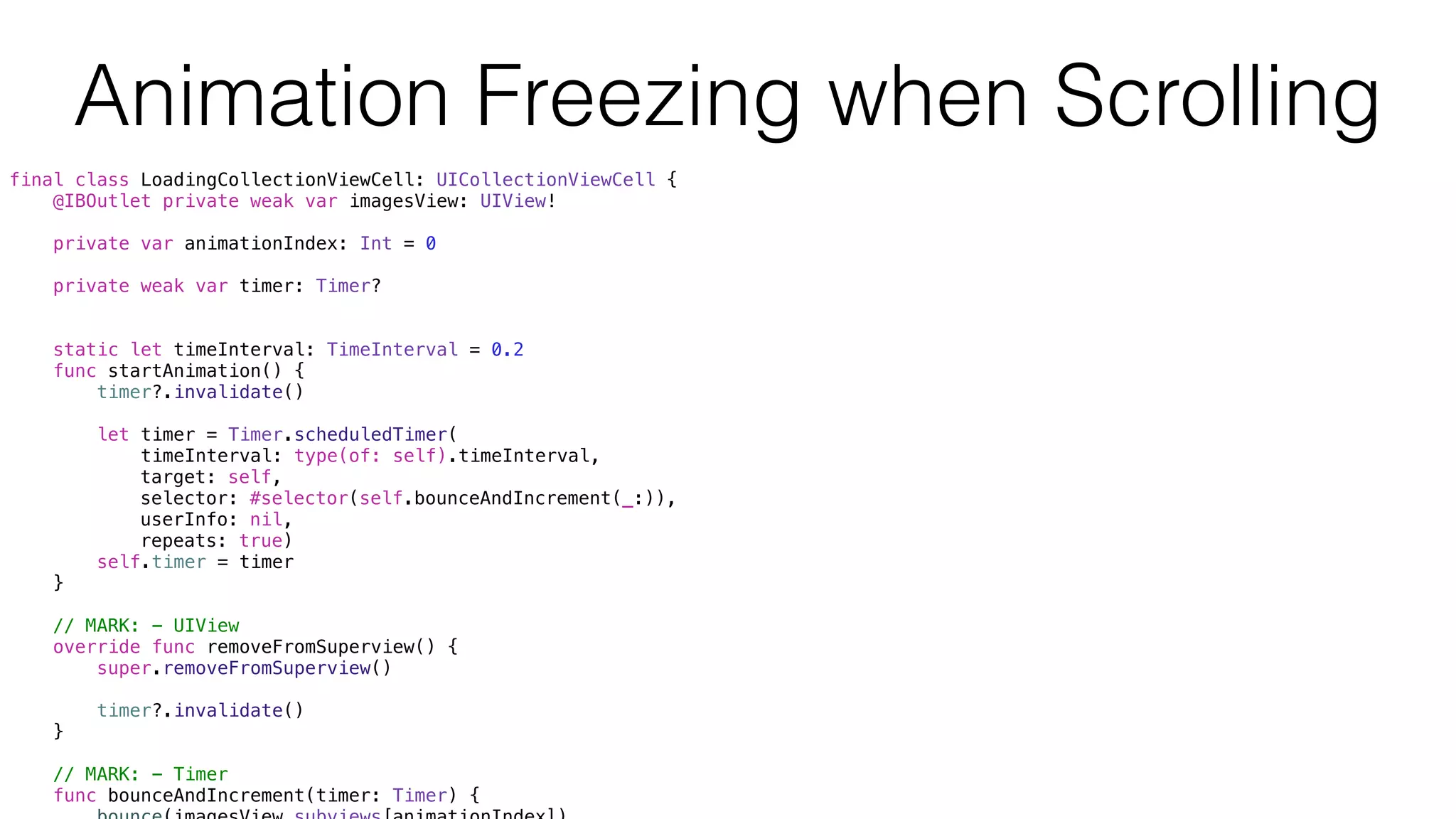

Animation Freezing when Scrolling
Timer
A timer is not a real-time mechanism; it fires only when one of the run loop modes to
which the timer has been added is running and able to check if the timer’s firing time
has passed. […] If a timer’s firing time occurs during a long callout or while the run loop is
in a mode that is not monitoring the timer, the timer does not fire until the next time the run
loop checks the timer. Therefore, the actual time at which the timer fires potentially can be
a significant period of time after the scheduled firing time.
Timers work in conjunction with run loops. To use a timer effectively, you should be aware
of how run loops operate—see RunLoop and Threading Programming Guide.
+ timerWithTimeInterval:target:selector:userInfo:repeats:
Creates and returns a new Timer object initialized with the specified object and selector.
Discussion
You must add the new timer to a run loop, using addTimer:forMode:. Then, after
seconds seconds have elapsed, the timer fires, sending the message aSelector to
target. (If the timer is configured to repeat, there is no need to subsequently re-add the
timer to the run loop.)
+ scheduledTimerWithTimeInterval:target:selector:userInfo:repeats:
Creates and returns a new Timer object and schedules it on the current run loop in the
default mode.
Run Loops
Run Loop Modes
Default
.defaultMode
The default mode is the one used for most operations. Most of the time,
you should use this mode to start your run loop and configure your
input sources.
Event tracking
.eventTrackingMode
Cocoa uses this mode to restrict incoming events during mouse-
dragging loops and other sorts of user interface tracking loops.
Common modes
.commonModes
This is a configurable group of commonly used modes. Associating an
input source with this mode also associates it with each of the modes in
the group. For Cocoa applications, this set includes the default,
modal, and event tracking modes by default. Core Foundation
includes just the default mode initially.最BEST
PRACTICE

timer?.invalidate()
target: self,
userInfo: nil,
repeats: true)
self.timer = timer
}
// MARK: - UIView
timer?.invalidate()
}
// MARK: - Timer

timer?.invalidate()
let timer = Timer(
target: self,
userInfo: nil,
repeats: true)
self.timer = timer
RunLoop.current.add(timer, forMode: .commonModes)
}
// MARK: - UIView
timer?.invalidate()
}

timer?.invalidate()
let timer = Timer(
target: self,
userInfo: nil,
repeats: true)
self.timer = timer
}
// MARK: - UIView
timer?.invalidate()
}

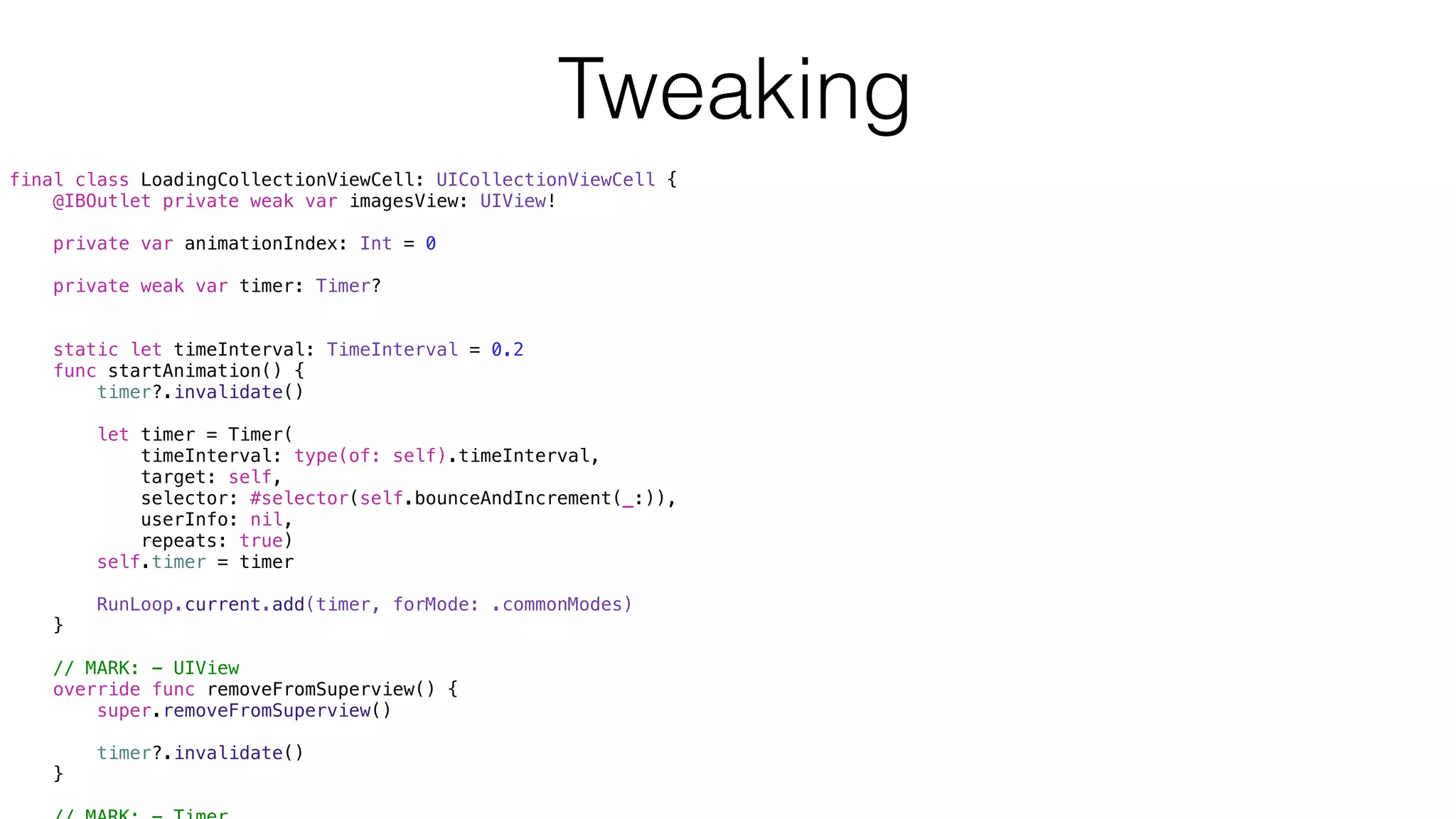

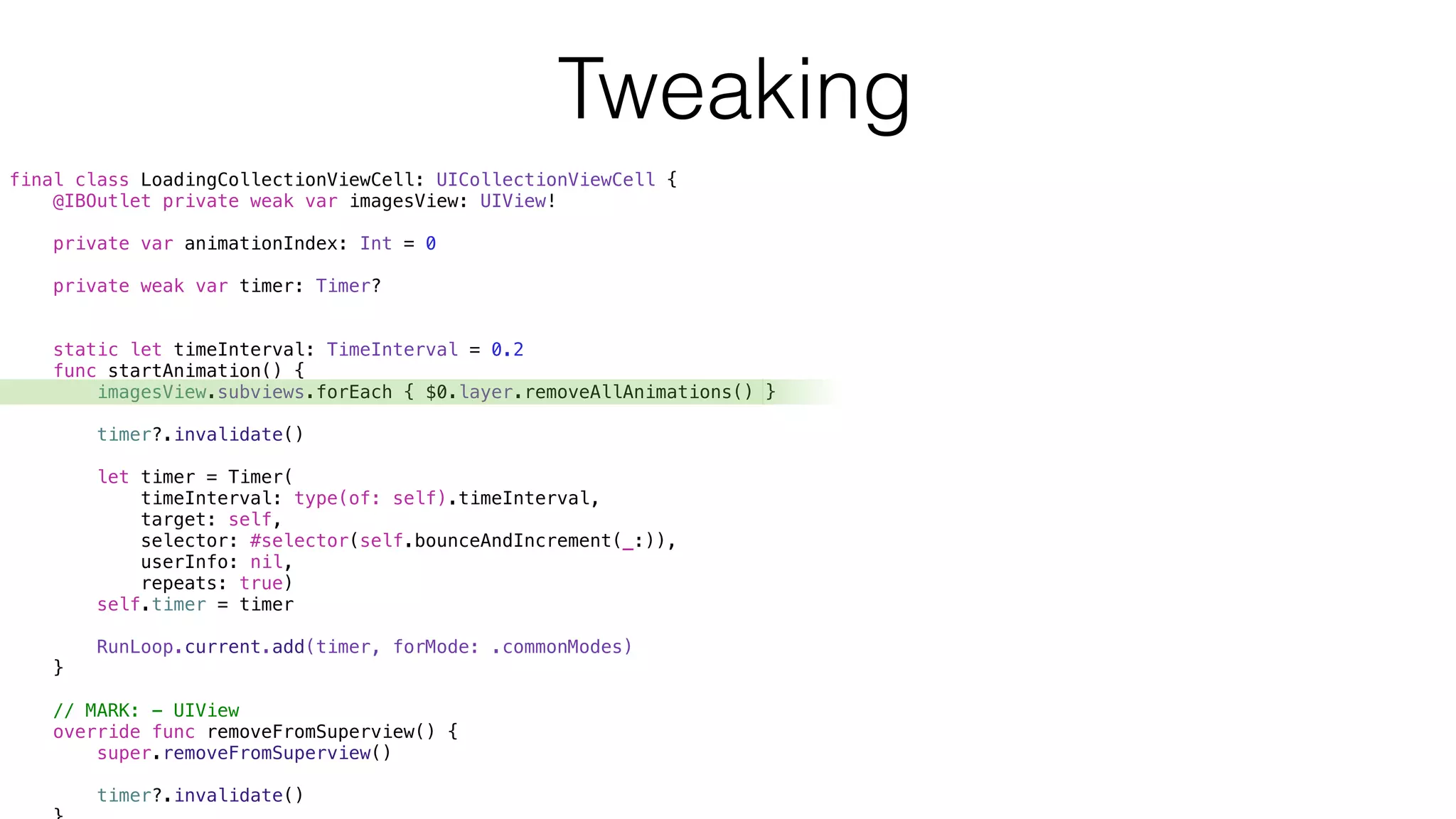

Tweaking

imagesView.subviews.forEach { $0.layer.removeAllAnimations() }
timer?.invalidate()
let timer = Timer(
target: self,
userInfo: nil,
repeats: true)
self.timer = timer
}
// MARK: - UIView
timer?.invalidate()

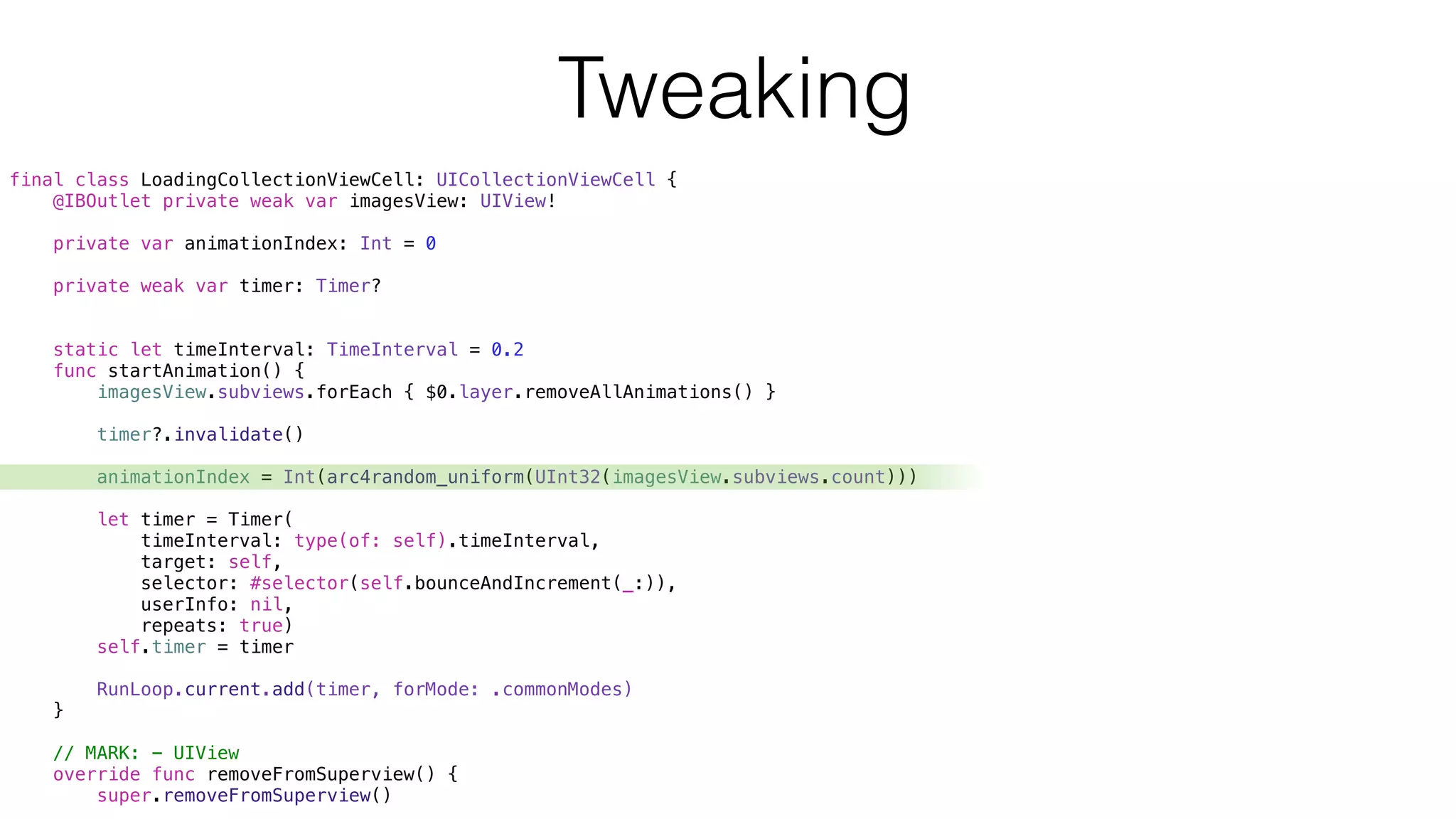

Tweaking

timer?.invalidate()
animationIndex = Int(arc4random_uniform(UInt32(imagesView.subviews.count)))
let timer = Timer(
target: self,
userInfo: nil,
repeats: true)
self.timer = timer
}
// MARK: - UIView

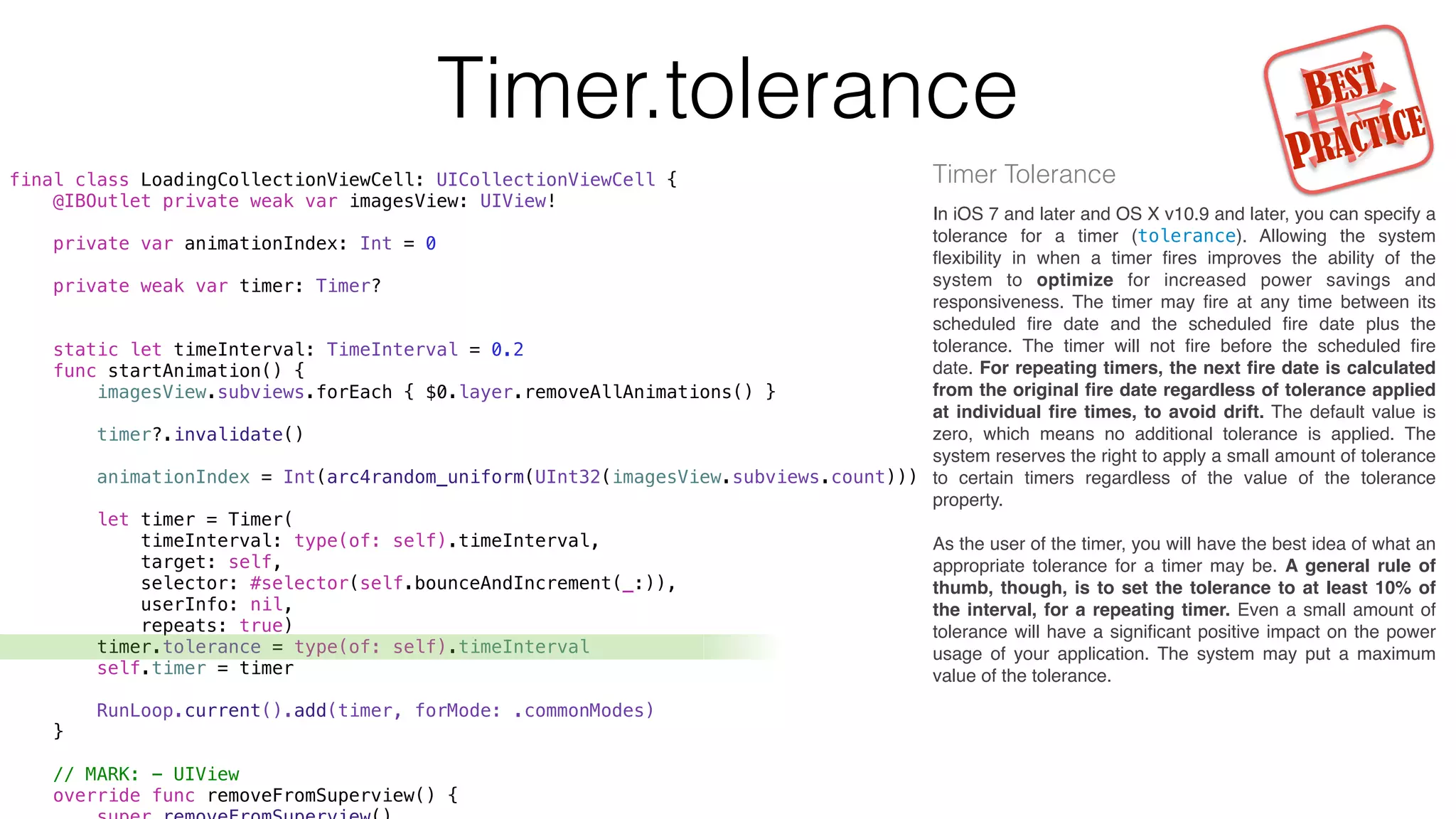

Tweaking

Timer.tolerance
timer?.invalidate()
animationIndex = Int(arc4random_uniform(UInt32(imagesView.subviews.count)))
let timer = Timer(
target: self,
userInfo: nil,
repeats: true)
timer.tolerance = type(of: self).timeInterval
self.timer = timer
RunLoop.current().add(timer, forMode: .commonModes)
}
// MARK: - UIView
Timer Tolerance
In iOS 7 and later and OS X v10.9 and later, you can specify a
tolerance for a timer (tolerance). Allowing the system
flexibility in when a timer fires improves the ability of the
system to optimize for increased power savings and
responsiveness. The timer may fire at any time between its
scheduled fire date and the scheduled fire date plus the
tolerance. The timer will not fire before the scheduled fire
date. For repeating timers, the next fire date is calculated
from the original fire date regardless of tolerance applied
at individual fire times, to avoid drift. The default value is
zero, which means no additional tolerance is applied. The
system reserves the right to apply a small amount of tolerance
to certain timers regardless of the value of the tolerance
property.
As the user of the timer, you will have the best idea of what an
appropriate tolerance for a timer may be. A general rule of
thumb, though, is to set the tolerance to at least 10% of
the interval, for a repeating timer. Even a small amount of
tolerance will have a significant positive impact on the power
usage of your application. The system may put a maximum
value of the tolerance.
最BEST
PRACTICE

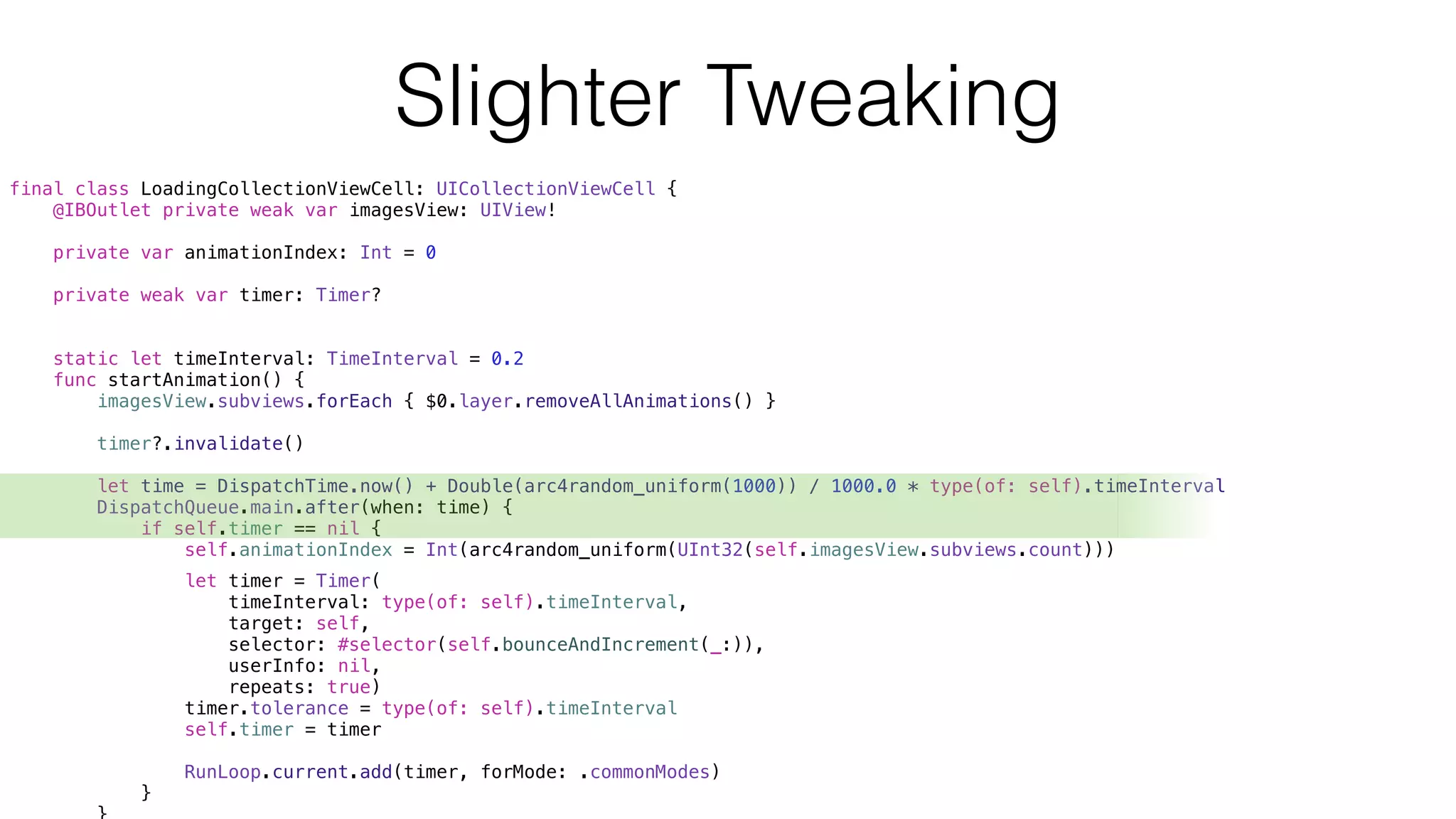

Slighter Tweaking
timer?.invalidate()
let time = DispatchTime.now() + Double(arc4random_uniform(1000)) / 1000.0 * type(of: self).timeInterval
DispatchQueue.main.after(when: time) {
if self.timer == nil {
self.animationIndex = Int(arc4random_uniform(UInt32(self.imagesView.subviews.count)))
let timer = Timer(
target: self,
userInfo: nil,
repeats: true)
timer.tolerance = type(of: self).timeInterval
self.timer = timer
}

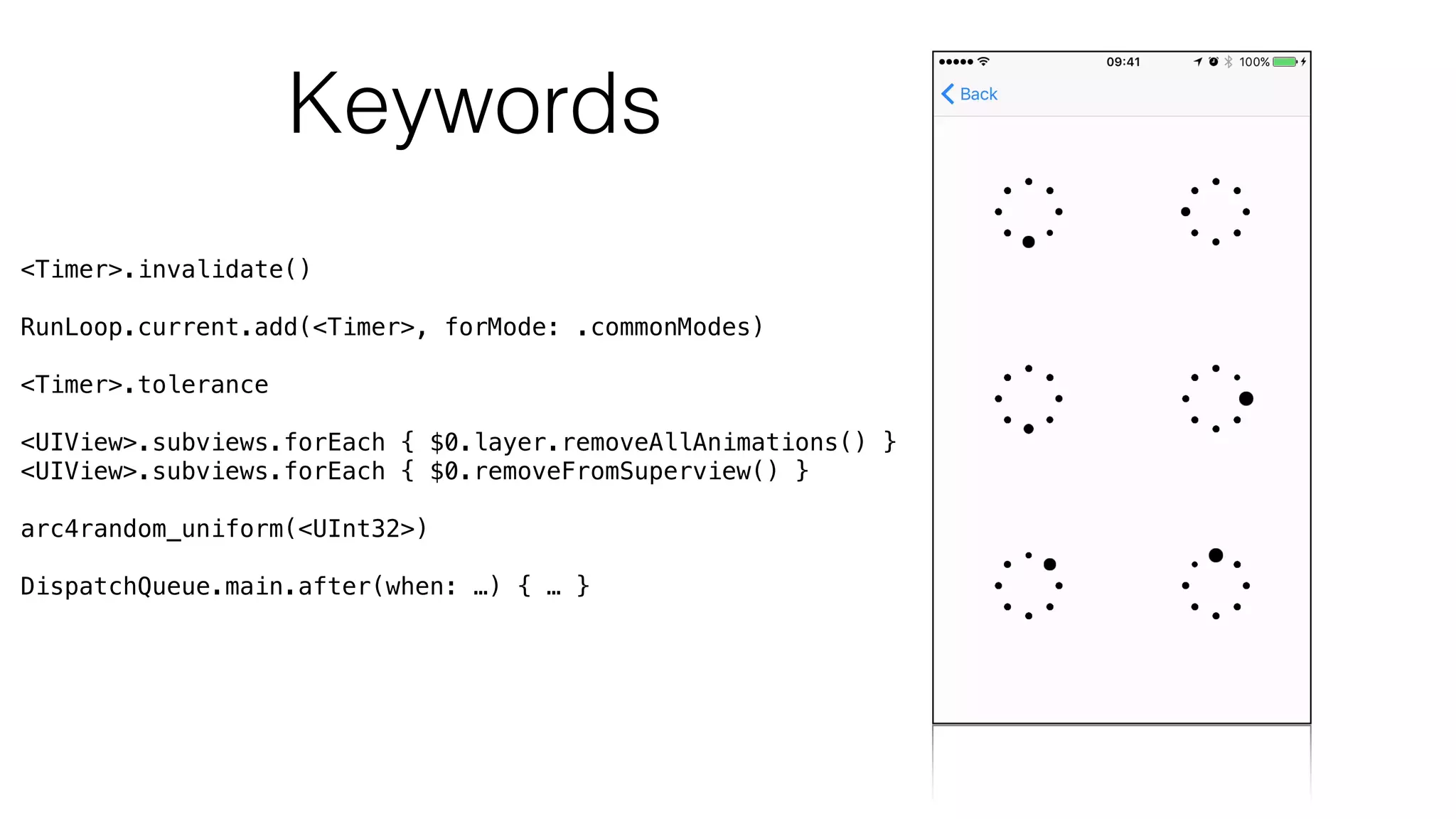

Keywords
<Timer>.invalidate()
RunLoop.current.add(<Timer>, forMode: .commonModes)
<Timer>.tolerance
<UIView>.subviews.forEach { $0.layer.removeAllAnimations() }
<UIView>.subviews.forEach { $0.removeFromSuperview() }
arc4random_uniform(<UInt32>)
DispatchQueue.main.after(when: …) { … }

userInfo: nil,
repeats: true)
timer.tolerance = LoadingCollectionViewCell.timeInterval
self.timer = timer
NSRunLoop.current.addTimer(timer, forMode: NSRunLoopCommonModes)
}
}
}
// MARK: - UIView
timer?.invalidate()
}
// MARK: - Timer
func bounceAndIncrement(_ timer: Timer) {
}
let scale = CGFloat(0.8)
view.transform = CGAffineTransform(scaleX: scale, y: scale)
UIView.animate(
withDuration: 1.0,
delay: 0.0,
usingSpringWithDamping: 0.5,
initialSpringVelocity: 200.0,
options: [],
animations: {
view.transform = .identity
},
completion: nil)
}
}

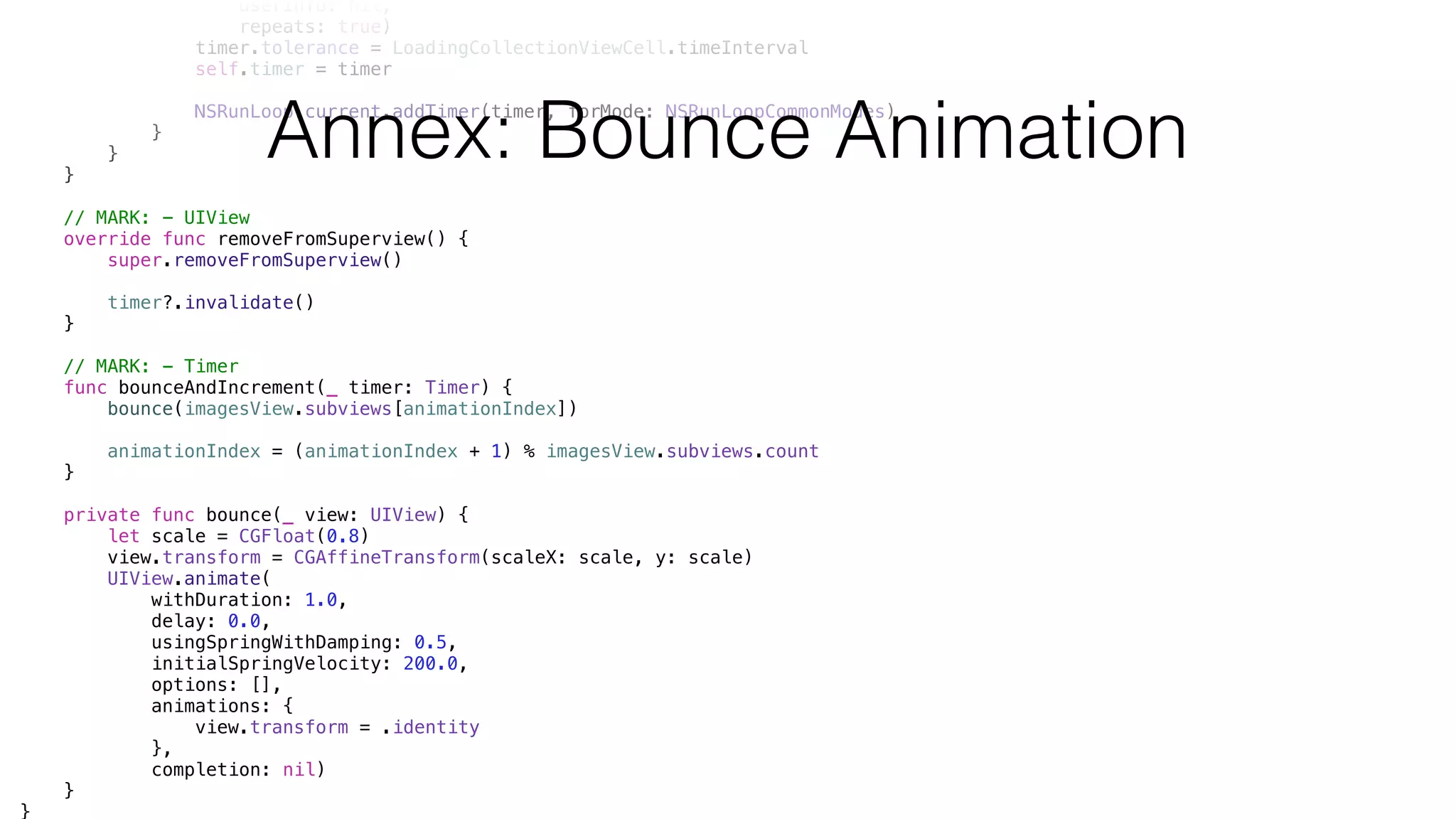

Annex: Bounce Animation
