Inside Flutter: Widgets, Elements, and RenderObjects
This document explains the architecture of Flutter, detailing the roles of widgets, elements, and renderobjects, and how they interact within Flutter's layers. It emphasizes the mutable nature of renderobjects and the immutability of widgets, which collectively enable both flexibility in programming and performance efficiency. The summary also highlights that widgets configure, elements manage, and renderobjects paint, showcasing the interdependency among these components.
More Related Content
Similar to Inside Flutter: Widgets, Elements, and RenderObjects
Inside Flutter: Widgets, Elements, and RenderObjects
- 1. Inside Flutter: Widgets, Elements,and RenderObjects Hansol Lee
- 2. TOC 💁♂ - Introduction -Flutter’s layers - dart:ui - RenderObjects - Widgets - Widgets, Elements, and RenderObjects - Summary
- 3. Introduction - Hansol Lee -Working at Kakao Corp. as Android Developer - Projects related with Flutter - https://github.com/giantsol/Blue-Diary - https://github.com/giantsol/Yellow-Box - Mentoring “Contributing to Flutter”: https://github.com/flutter-moum/flutter-moum - GitHub: https://github.com/giantsol
- 4. Introduction Widget, Element, RenderObject Whatare they? How do they work?
- 5.

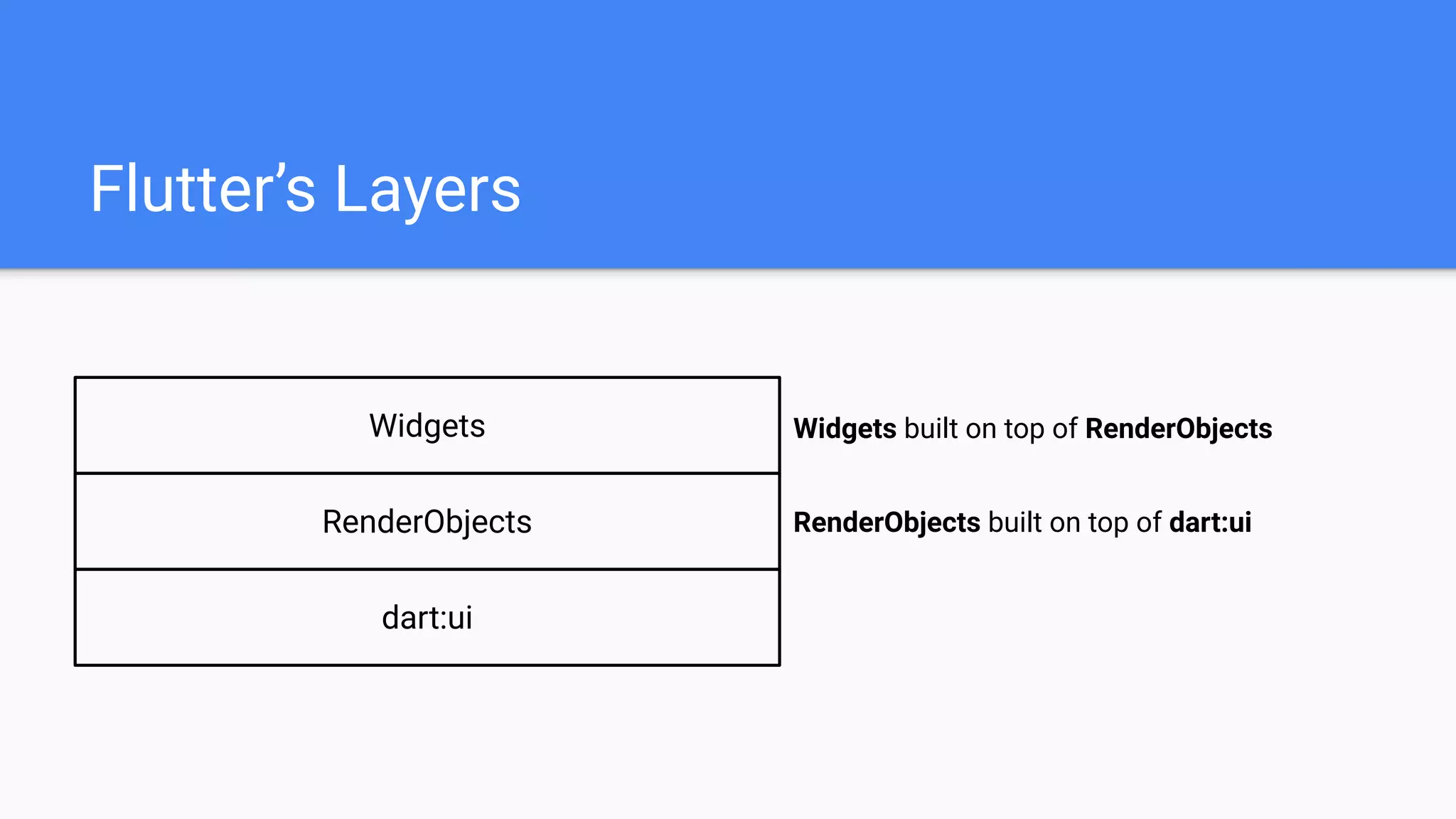

- 6. Flutter’s Layers dart:ui RenderObjects Widgets RenderObjects builton top of dart:ui Widgets built on top of RenderObjects

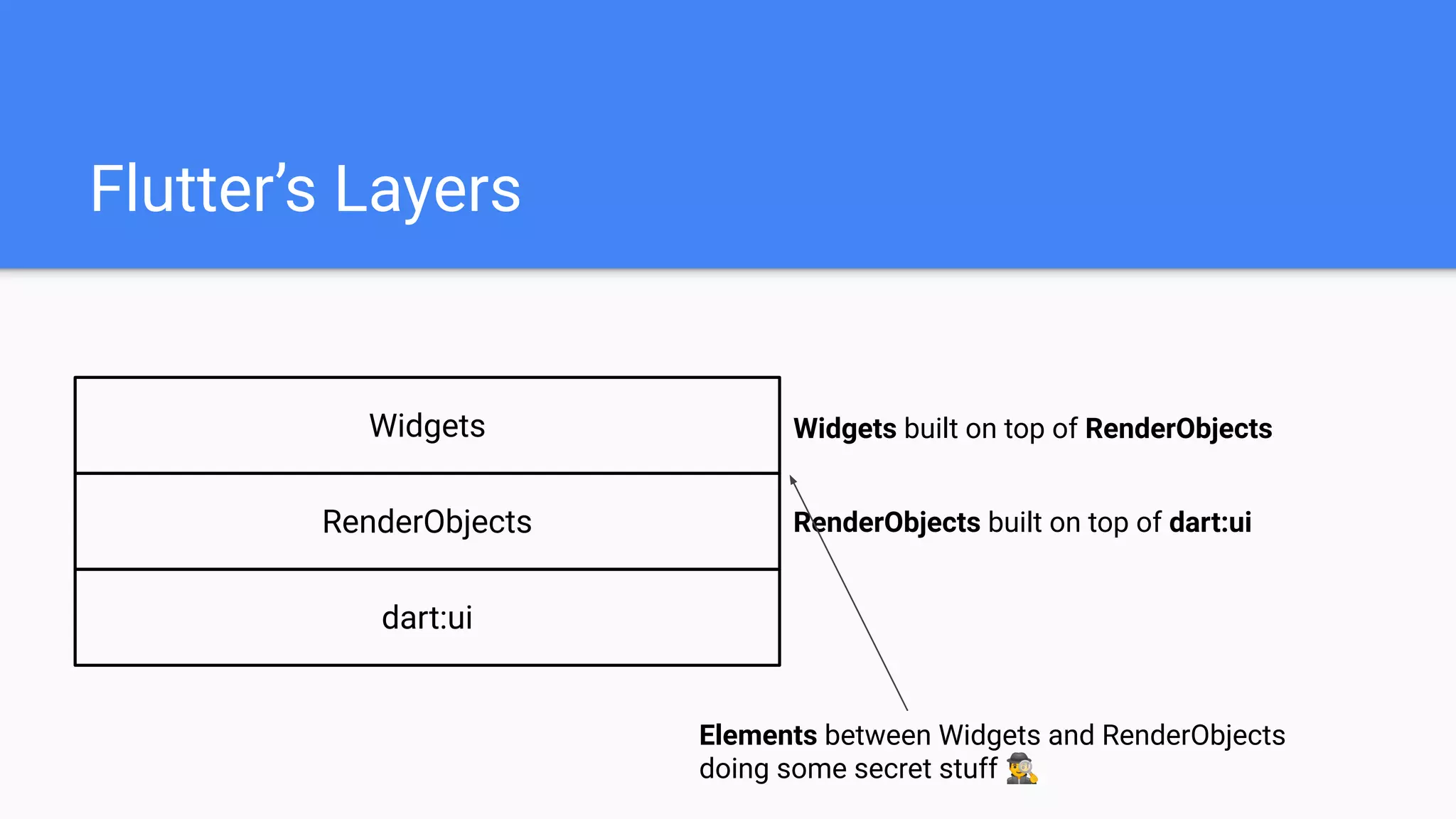

- 7. Elements between Widgetsand RenderObjects doing some secret stuff 🕵 Flutter’s Layers dart:ui RenderObjects Widgets RenderObjects built on top of dart:ui Widgets built on top of RenderObjects
- 8. Elements between Widgetsand RenderObjects doing some secret stuff 🕵 Flutter’s Layers RenderObjects Widgets RenderObjects built on top of dart:ui Widgets built on top of RenderObjects dart:ui

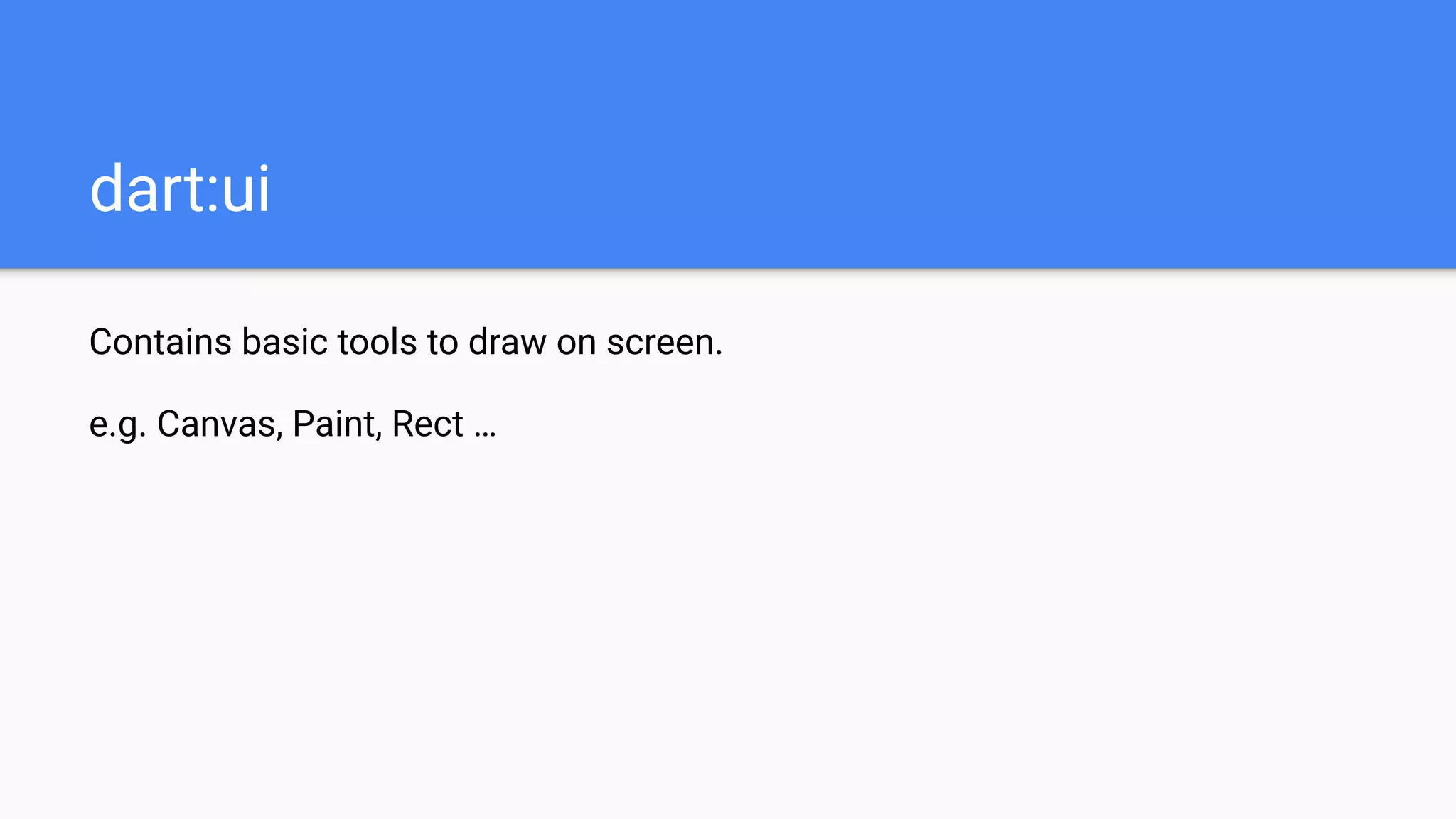

- 9. dart:ui Contains basic toolsto draw on screen. e.g. Canvas, Paint, Rect …
- 10. dart:ui Contains basic toolsto draw on screen. e.g. Canvas, Paint, Rect … You can create a Flutter app using dart:ui directly!
- 11.

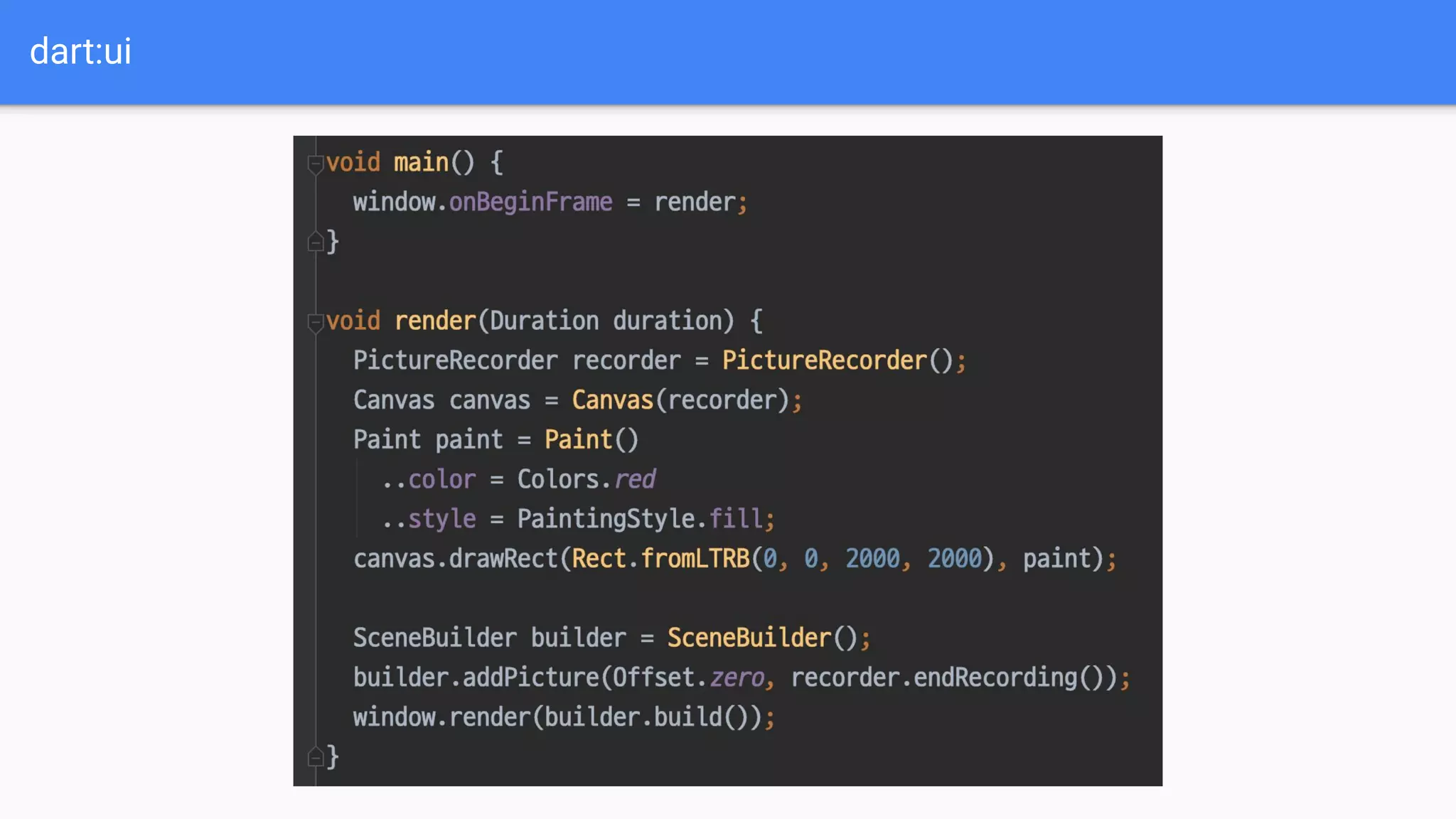

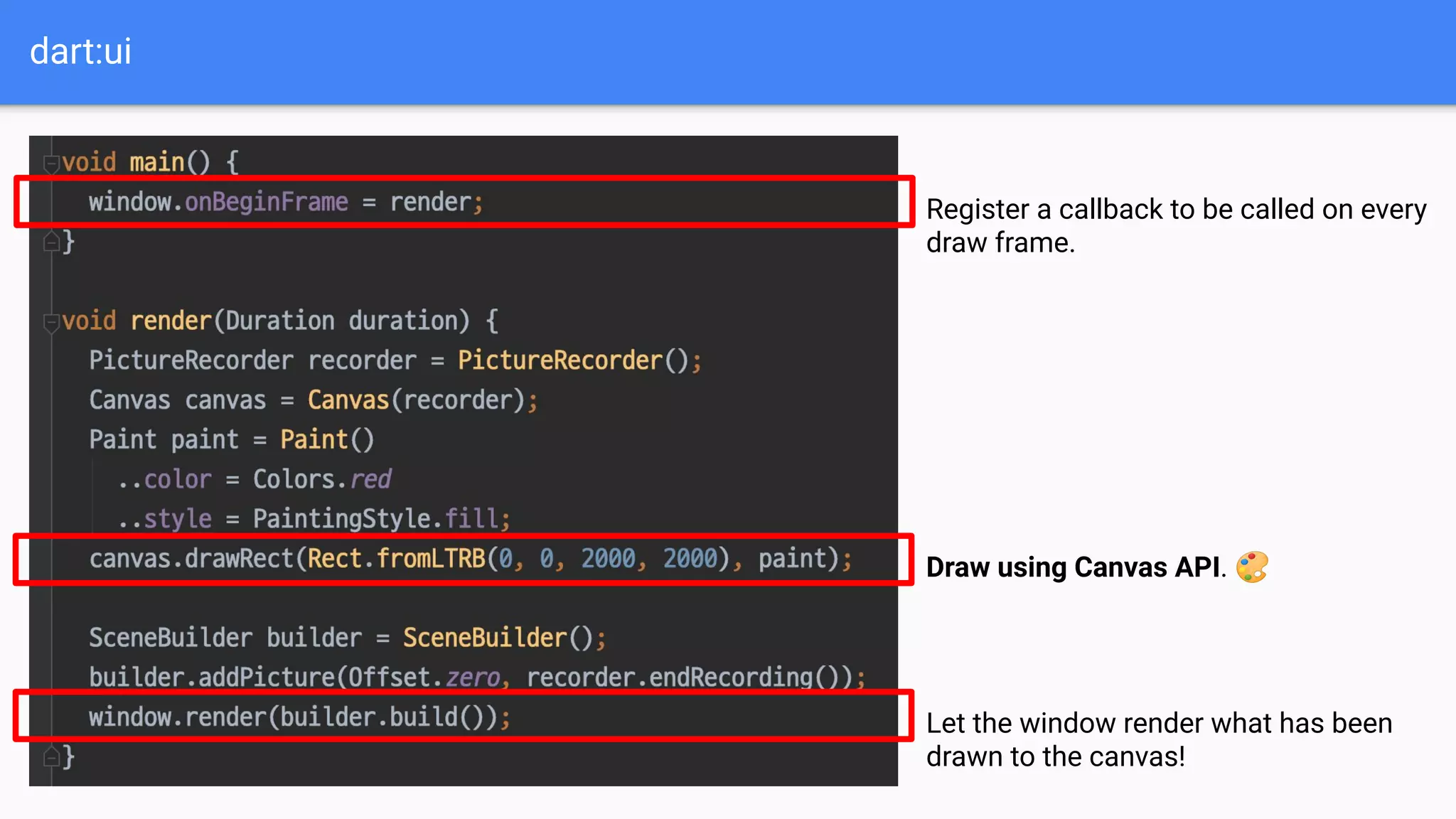

- 12. dart:ui Register a callbackto be called on every draw frame. Draw using Canvas API. 🎨 Let the window render what has been drawn to the canvas!

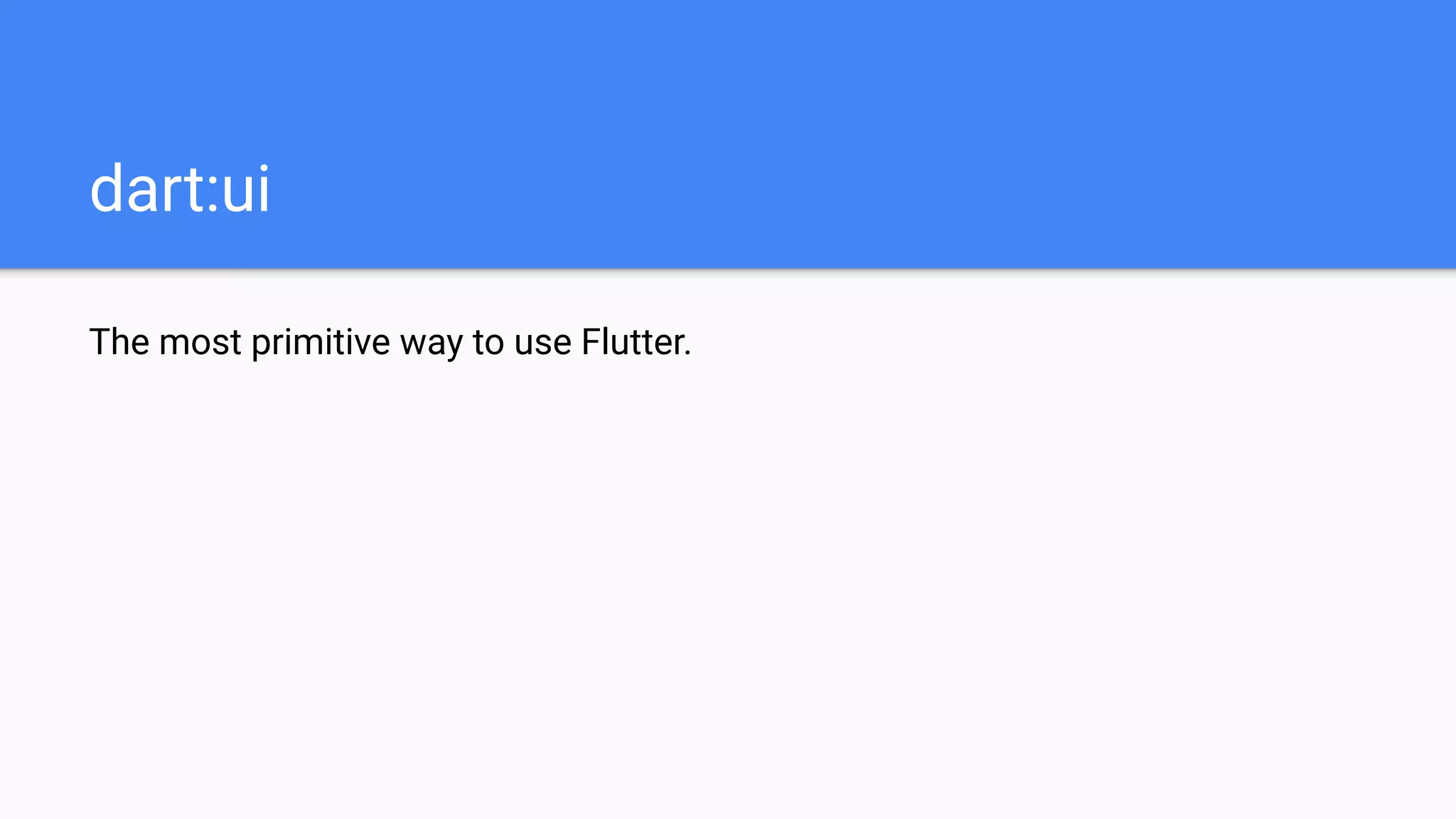

- 13. The most primitiveway to use Flutter. dart:ui

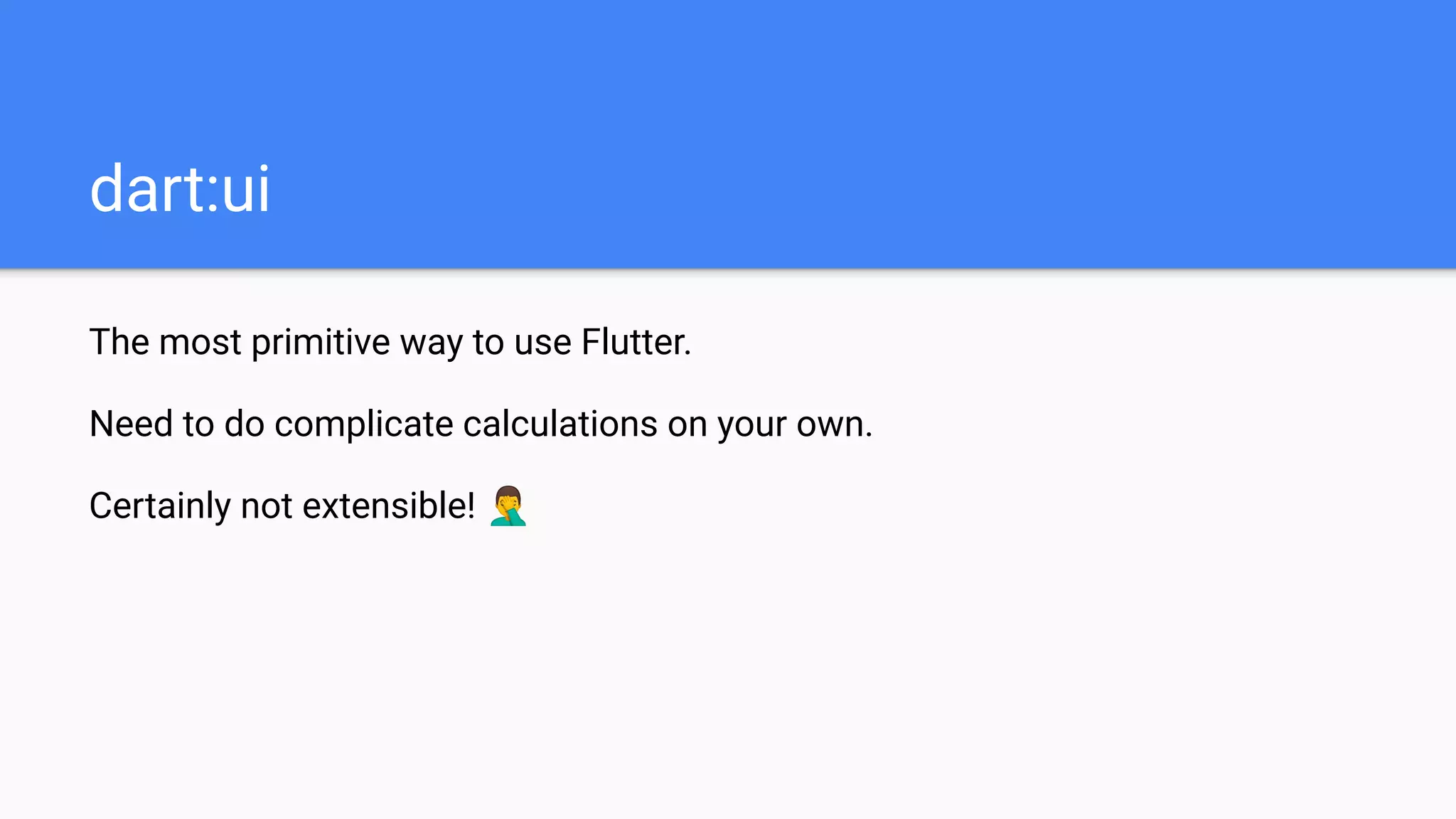

- 14. The most primitiveway to use Flutter. Need to do complicate calculations on your own. Certainly not extensible! 🤦♂ dart:ui

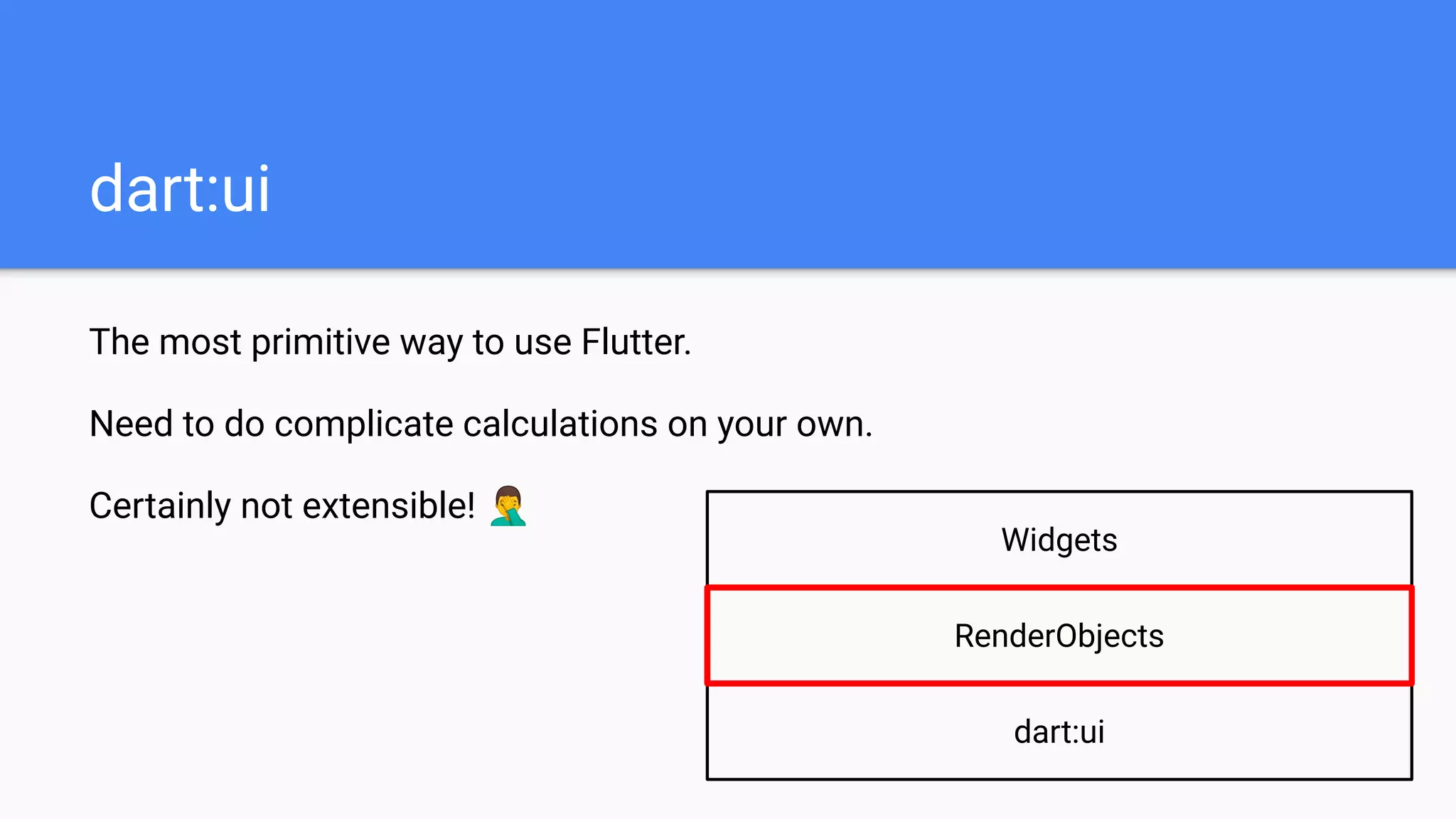

- 15. The most primitiveway to use Flutter. Need to do complicate calculations on your own. Certainly not extensible! 🤦♂ dart:ui dart:ui Widgets RenderObjects

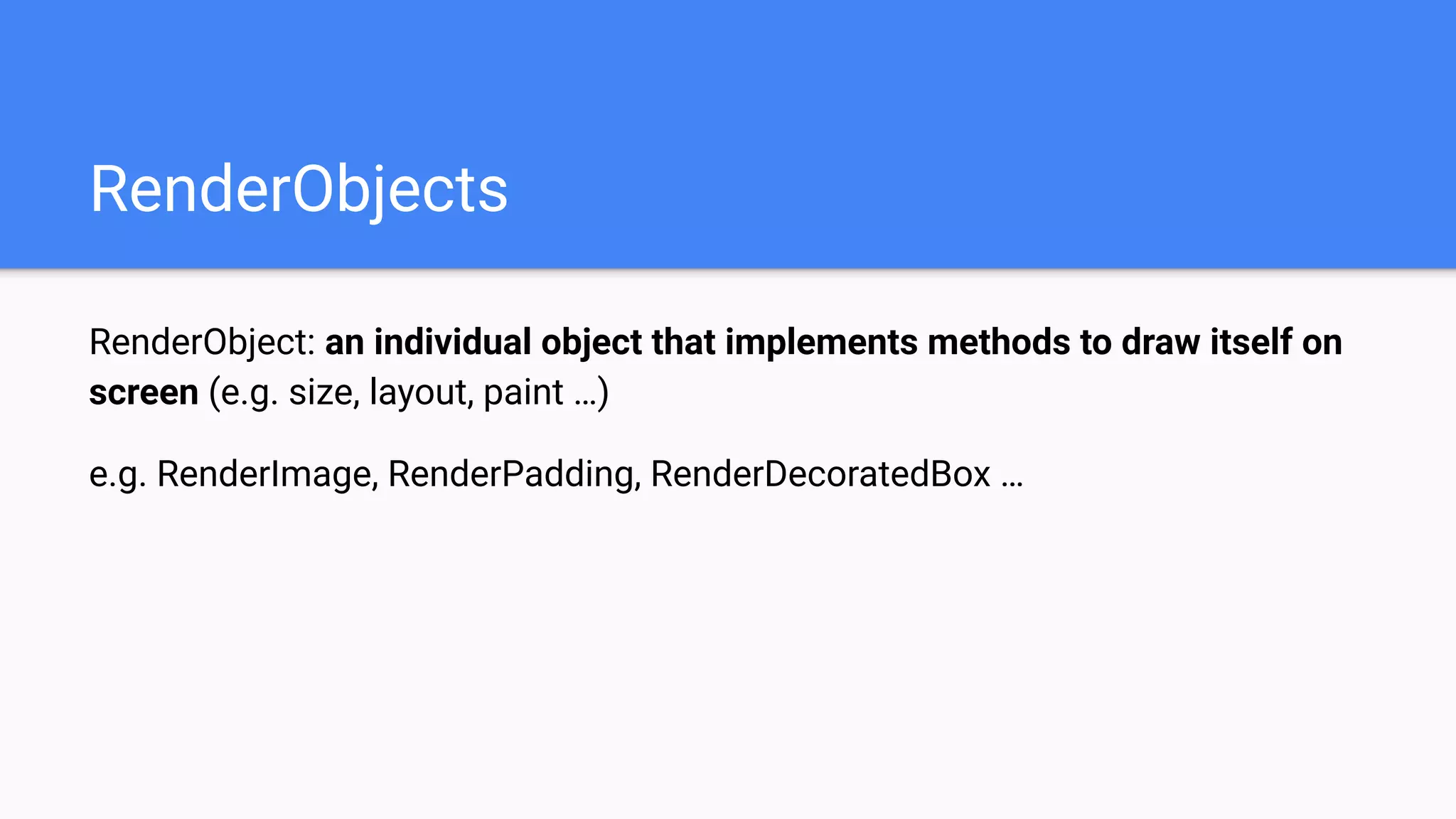

- 16. RenderObjects RenderObject: an individualobject that implements methods to draw itself on screen (e.g. size, layout, paint …) e.g. RenderImage, RenderPadding, RenderDecoratedBox …

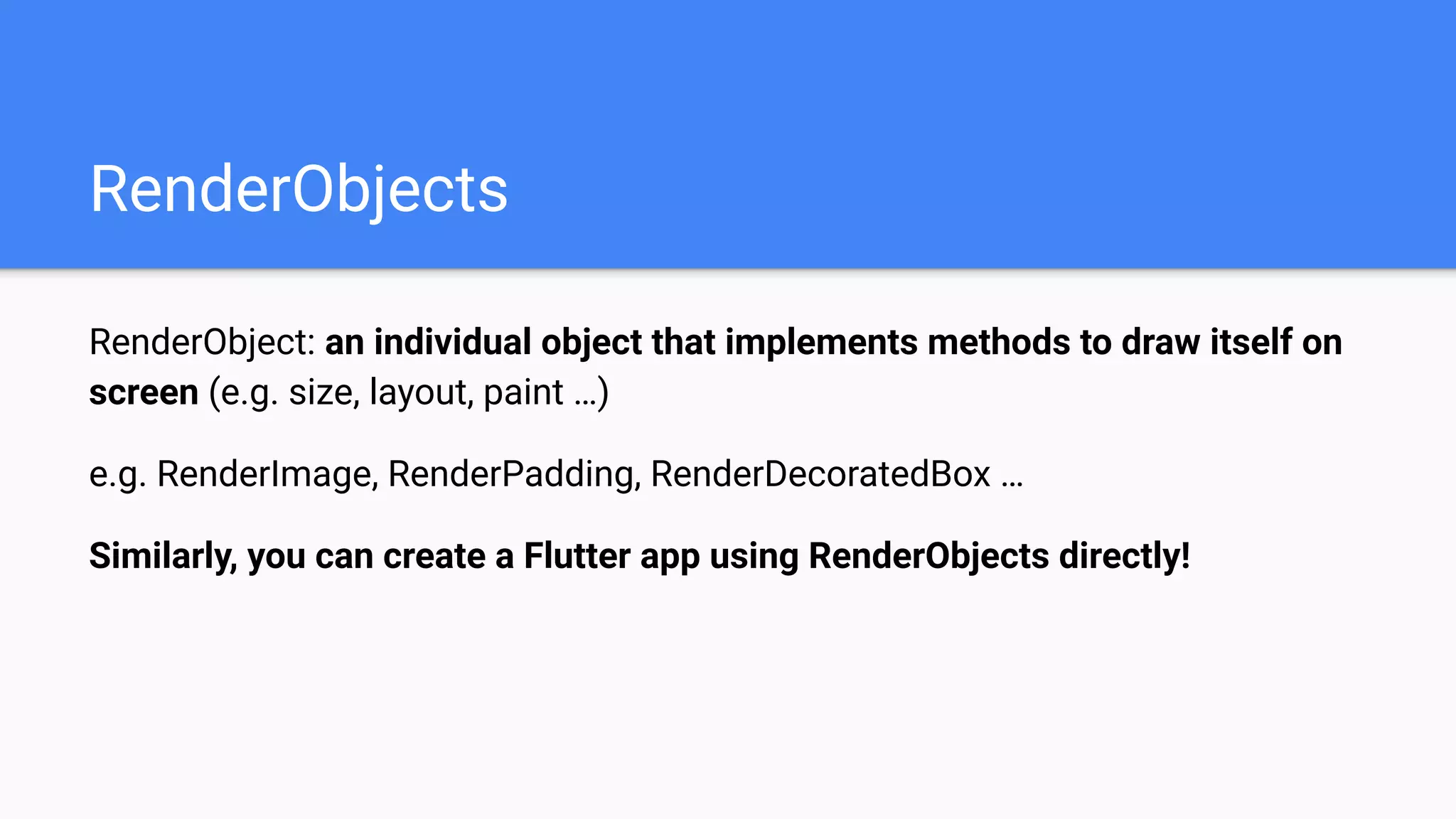

- 17. RenderObjects RenderObject: an individualobject that implements methods to draw itself on screen (e.g. size, layout, paint …) e.g. RenderImage, RenderPadding, RenderDecoratedBox … Similarly, you can create a Flutter app using RenderObjects directly!
- 18.

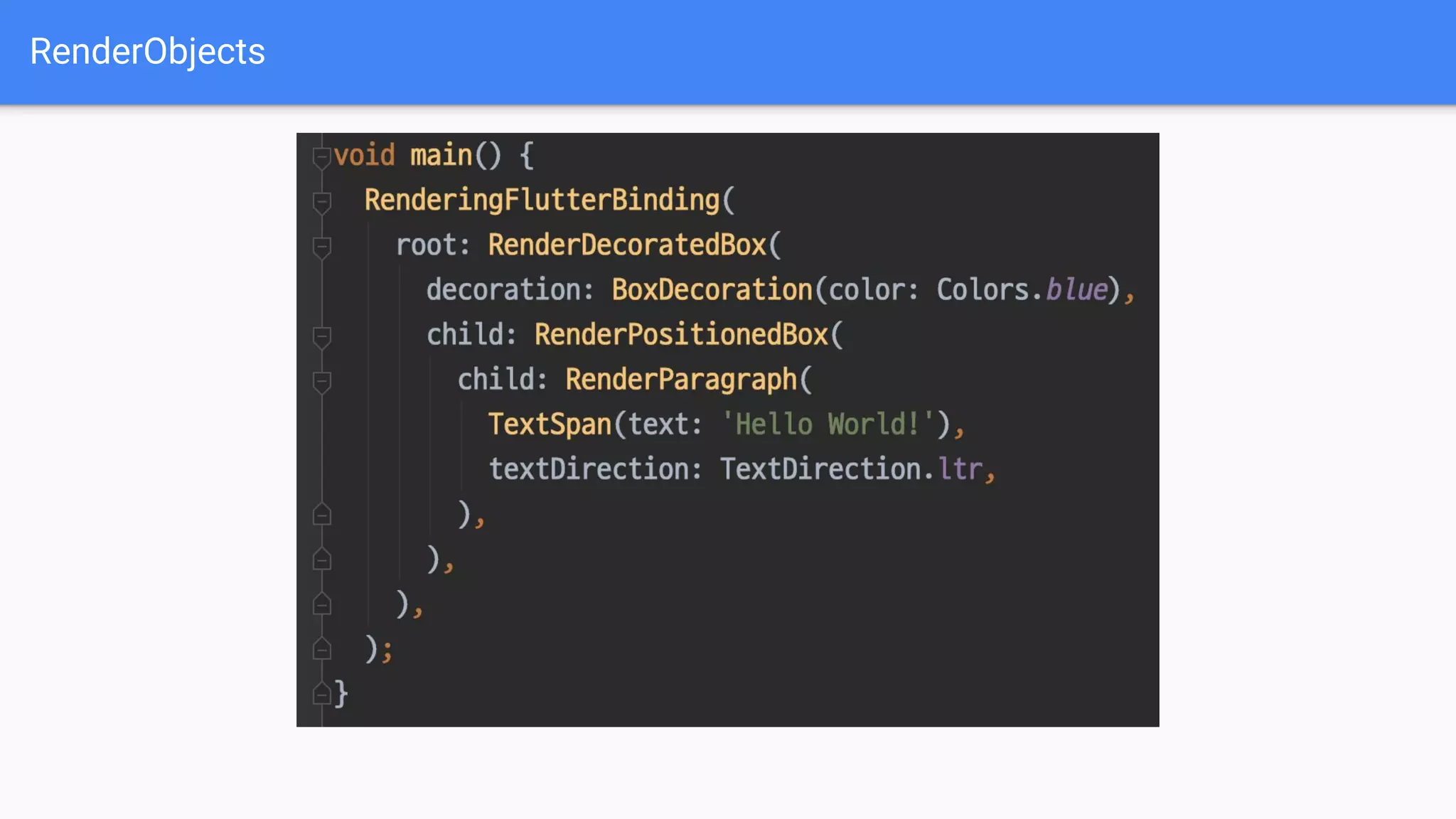

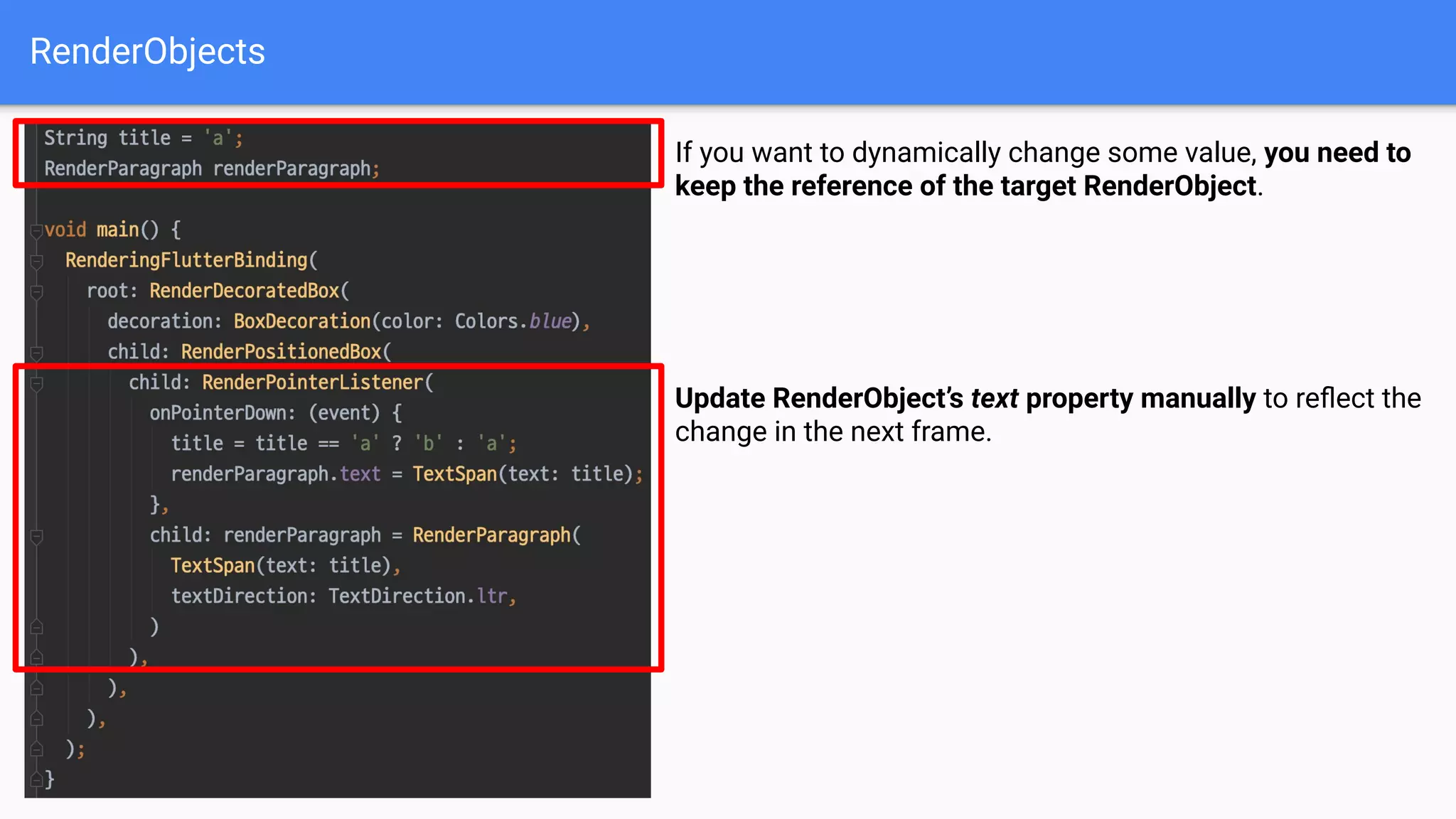

- 19. RenderObjects If you wantto dynamically change some value, you need to keep the reference of the target RenderObject. Update RenderObject’s text property manually to reflect the change in the next frame.

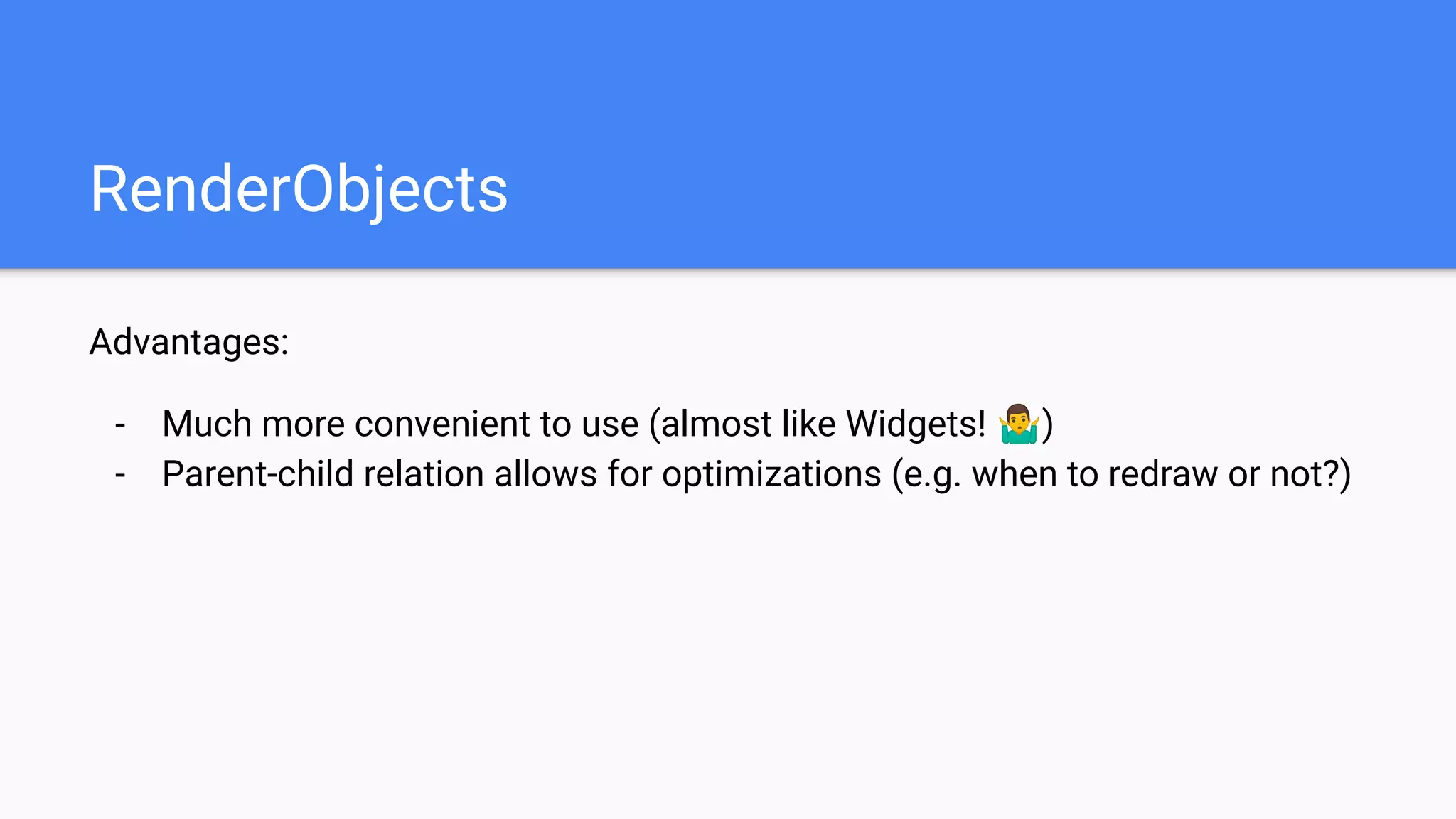

- 20. RenderObjects Advantages: - Much moreconvenient to use (almost like Widgets! 🤷♂) - Parent-child relation allows for optimizations (e.g. when to redraw or not?)

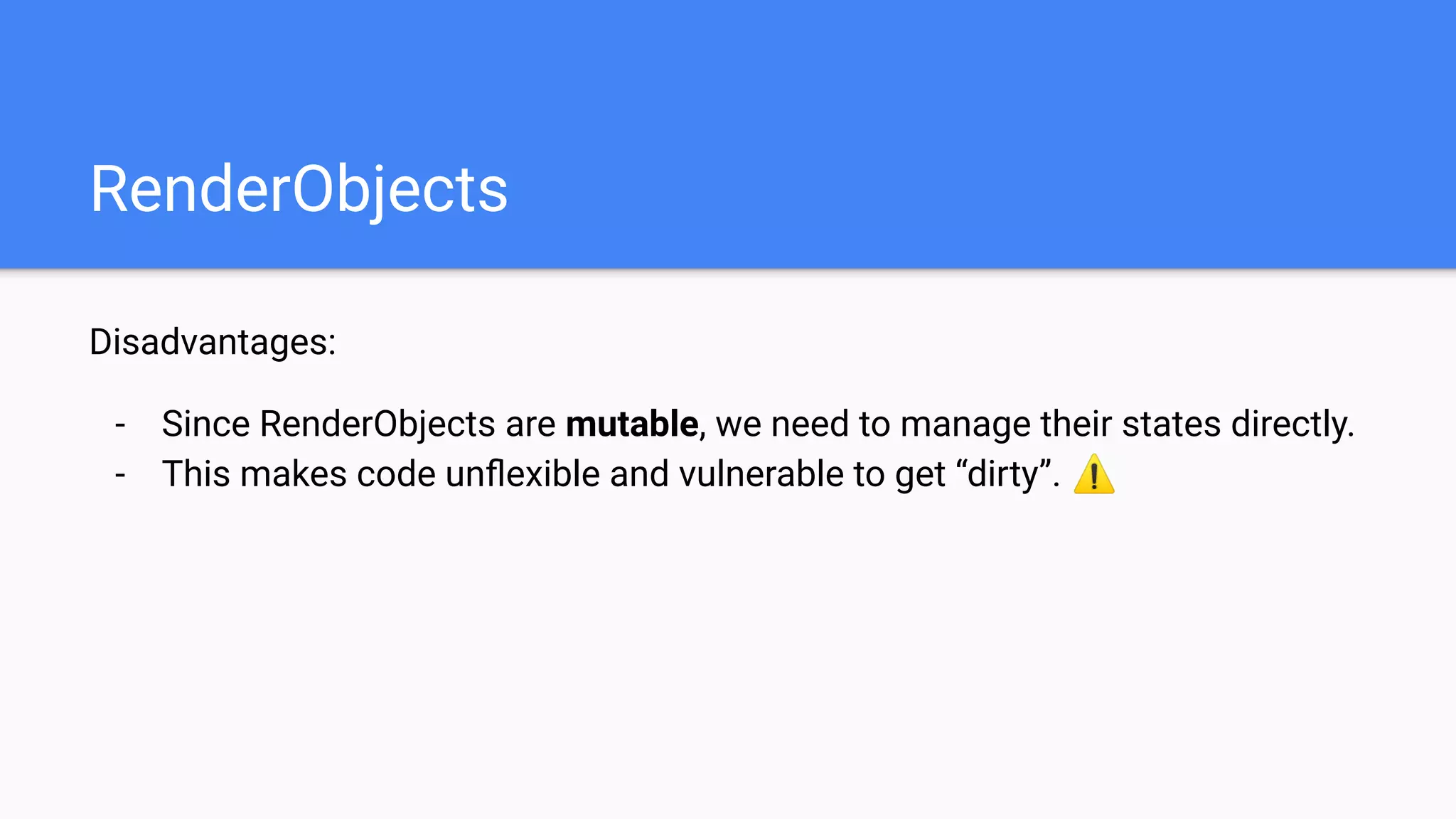

- 21. RenderObjects Disadvantages: - Since RenderObjectsare mutable, we need to manage their states directly. - This makes code unflexible and vulnerable to get “dirty”. ⚠

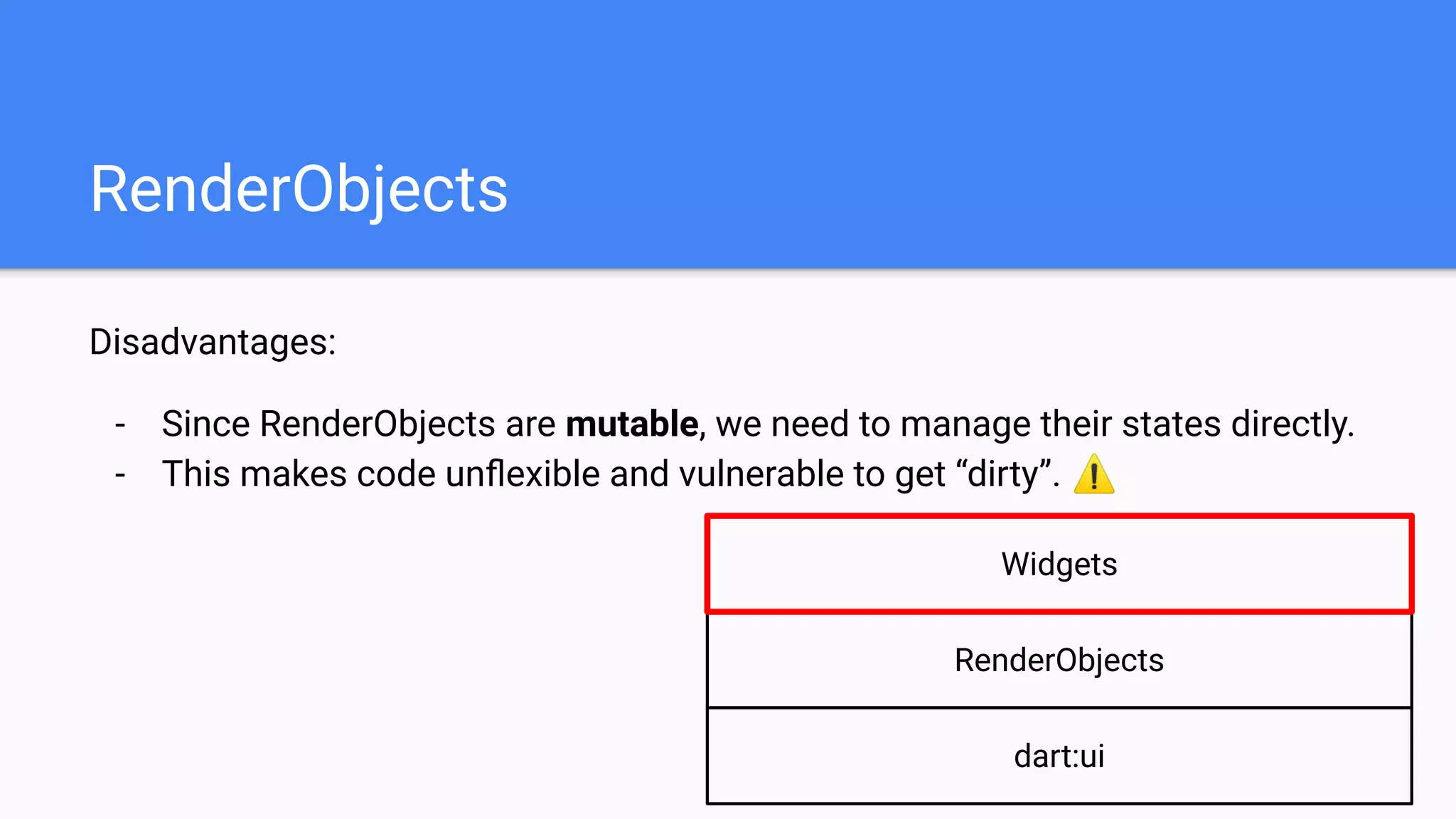

- 22. RenderObjects Disadvantages: - Since RenderObjectsare mutable, we need to manage their states directly. - This makes code unflexible and vulnerable to get “dirty”. ⚠ dart:ui RenderObjects Widgets

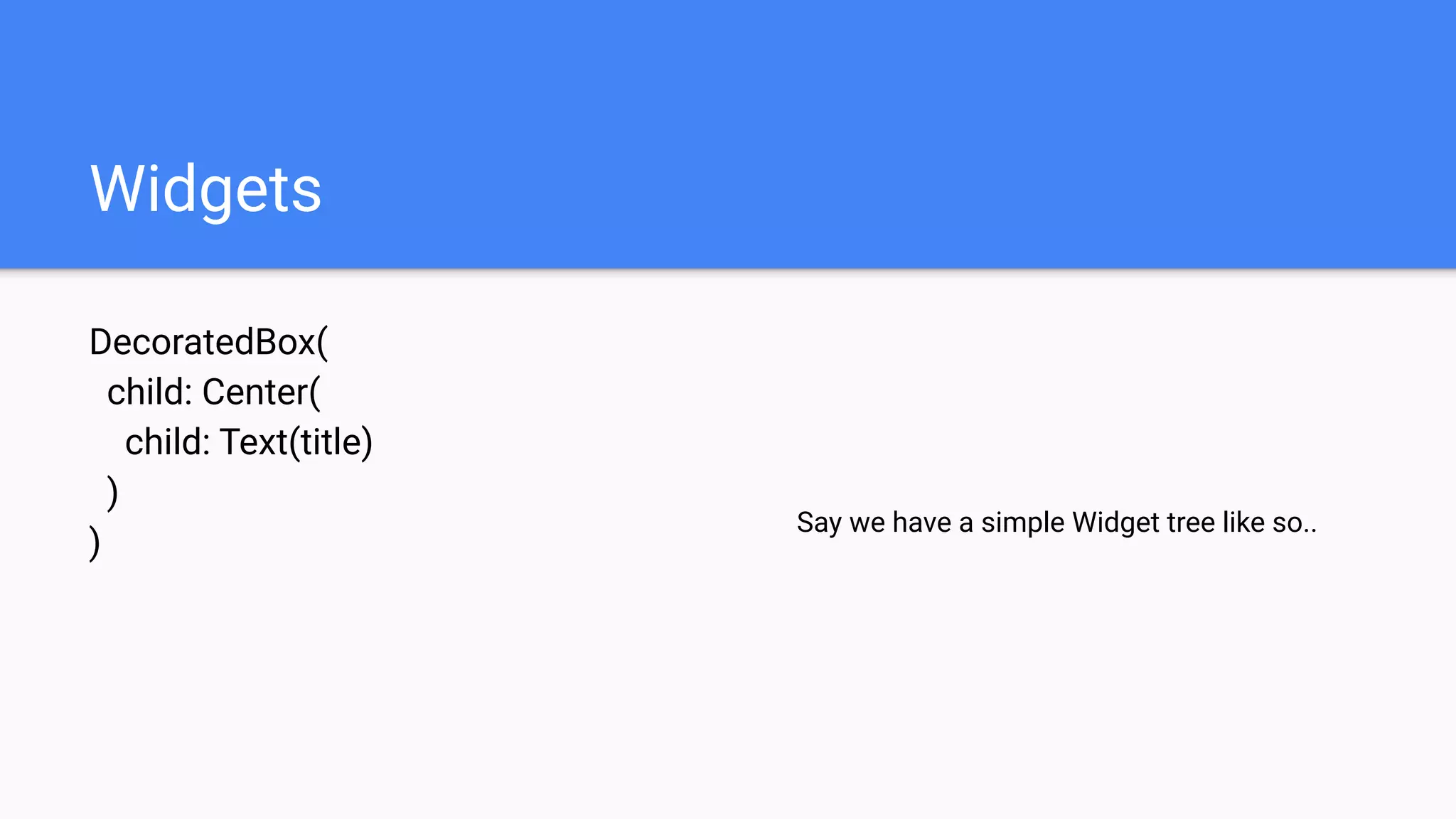

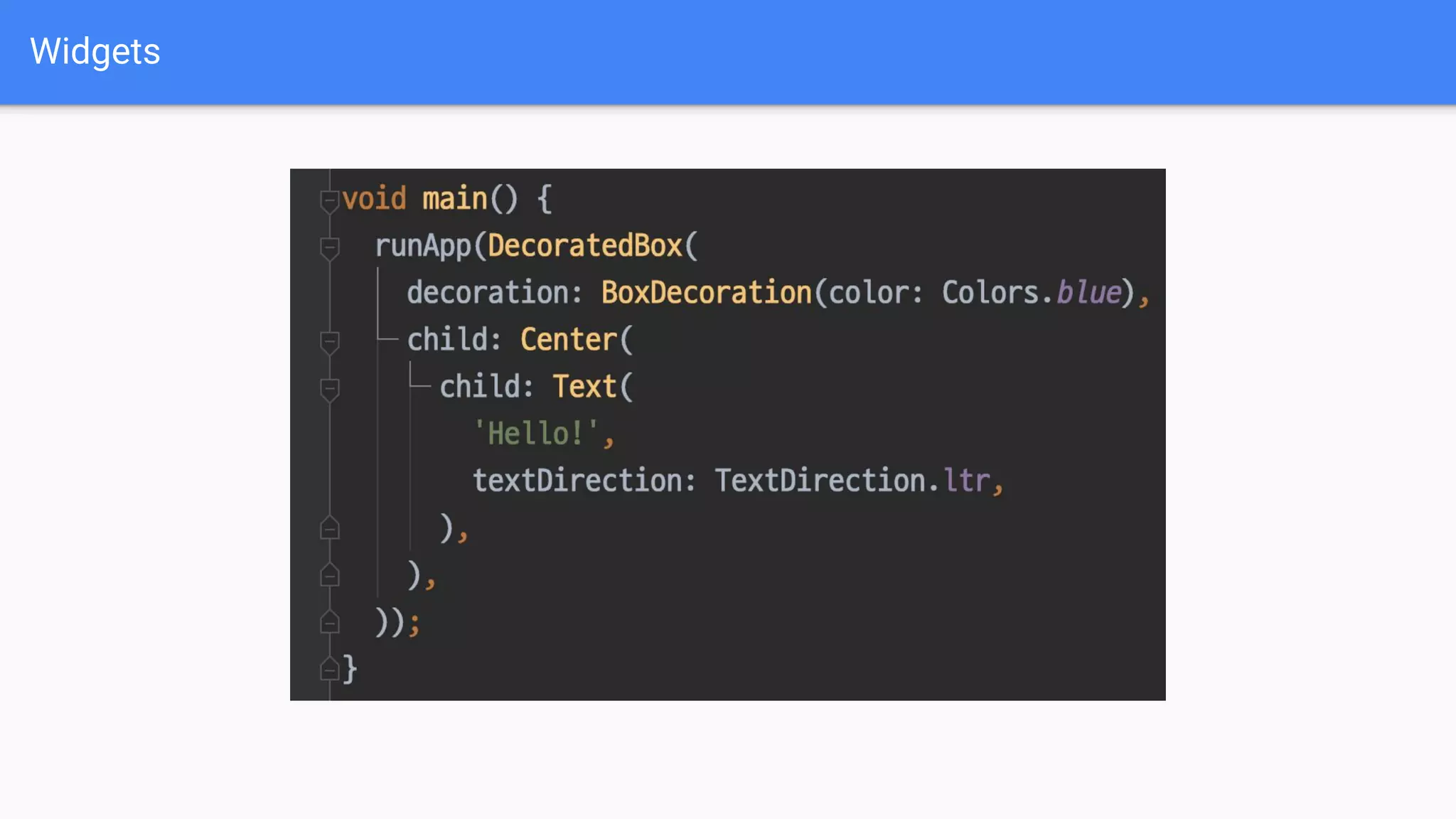

- 23. Widgets DecoratedBox( child: Center( child: Text(title) ) ) Saywe have a simple Widget tree like so..

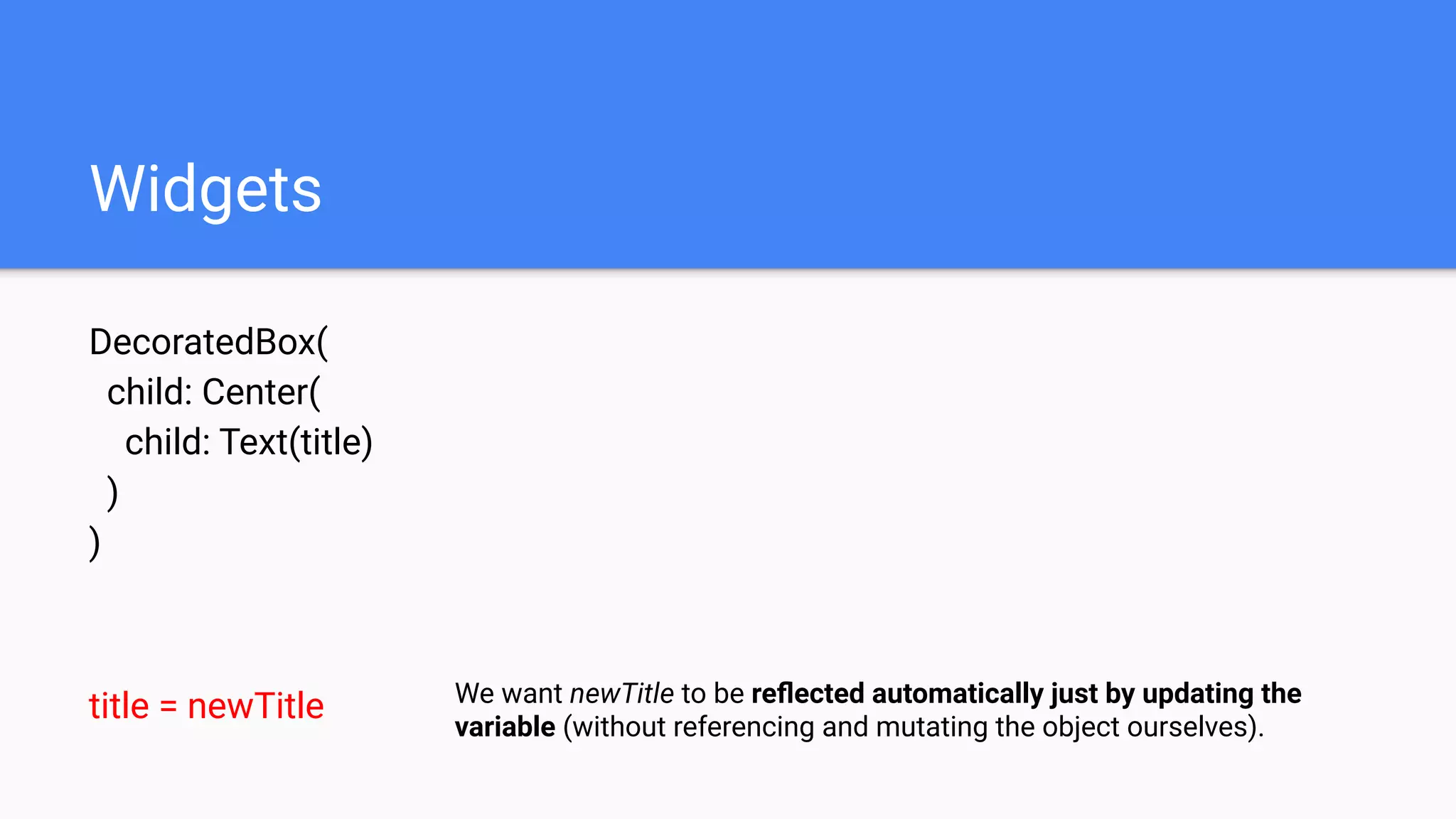

- 24. Widgets DecoratedBox( child: Center( child: Text(title) ) ) title= newTitle We want newTitle to be reflected automatically just by updating the variable (without referencing and mutating the object ourselves).

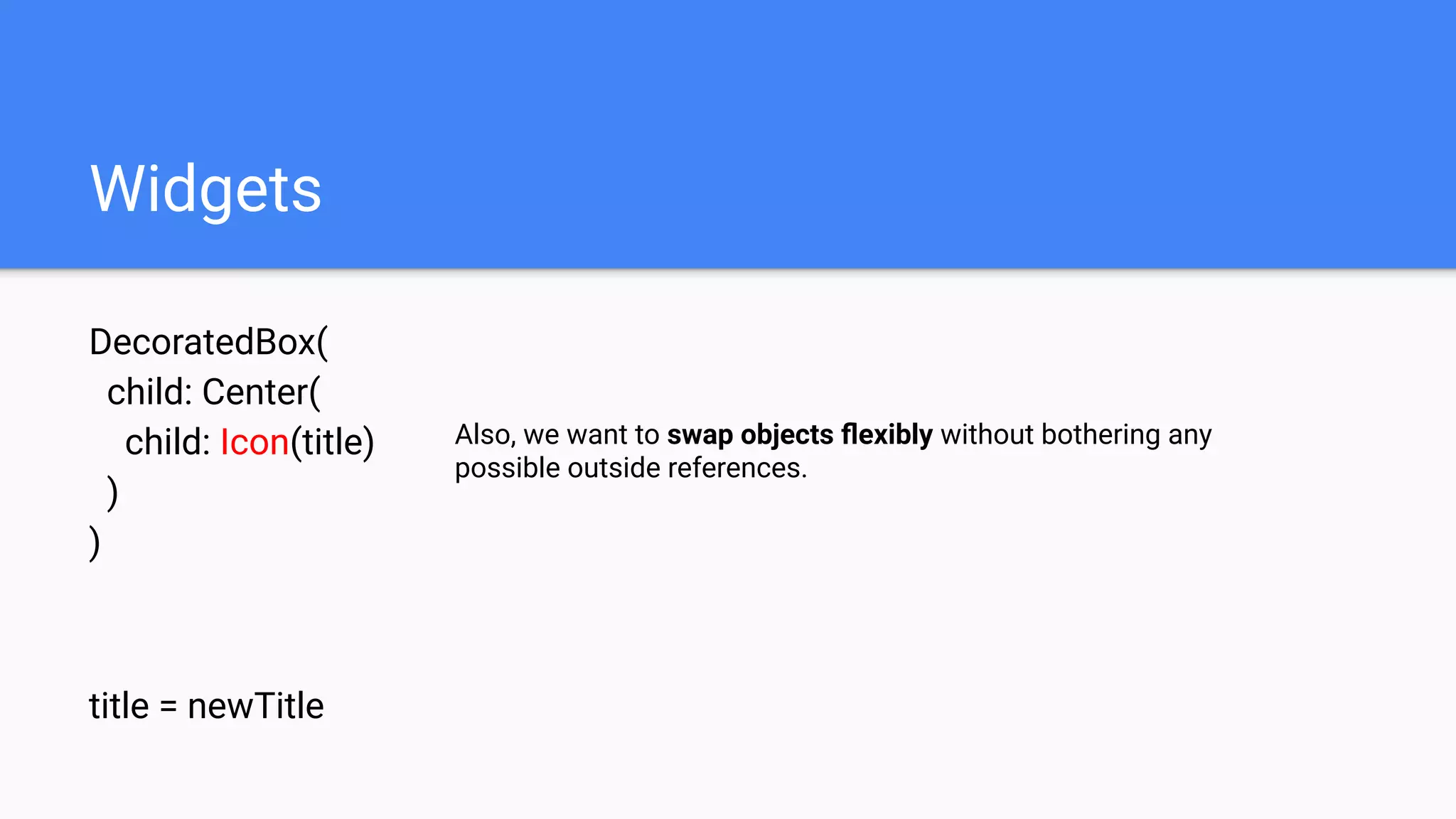

- 25. Widgets DecoratedBox( child: Center( child: Icon(title) ) ) title= newTitle Also, we want to swap objects flexibly without bothering any possible outside references.

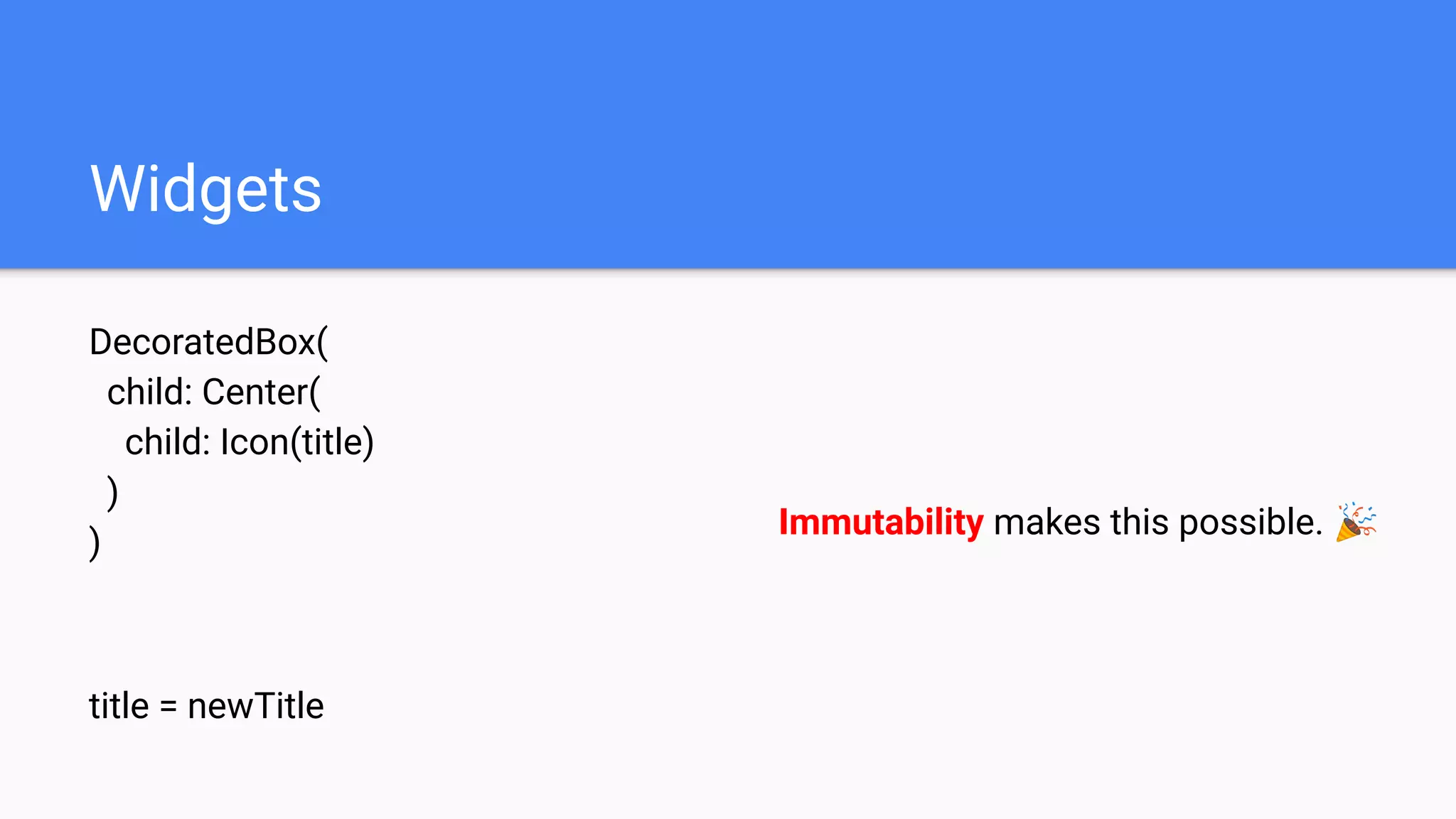

- 26. Widgets DecoratedBox( child: Center( child: Icon(title) ) ) title= newTitle Immutability makes this possible. 🎉

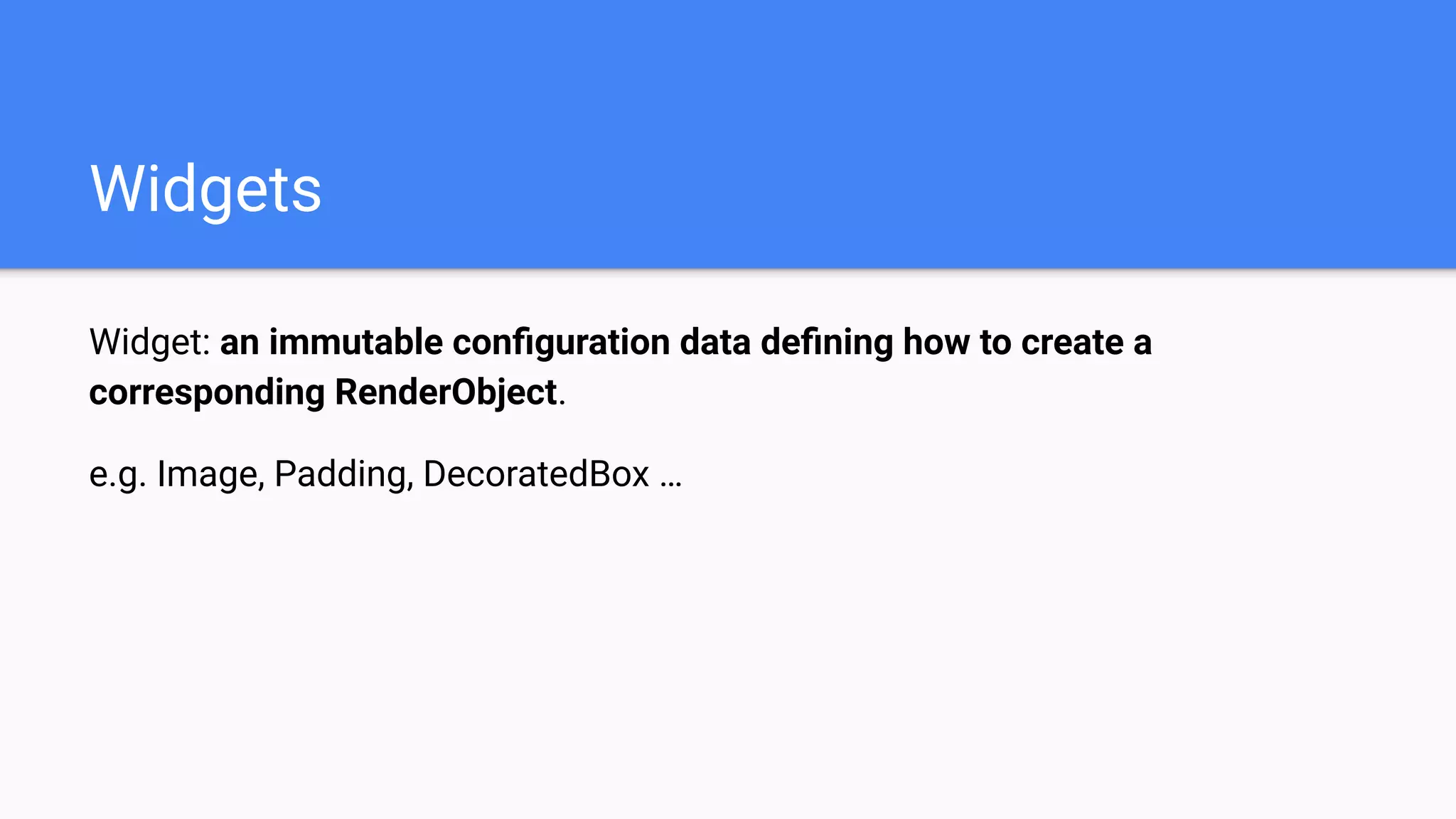

- 27. Widget: an immutableconfiguration data defining how to create a corresponding RenderObject. e.g. Image, Padding, DecoratedBox … Widgets

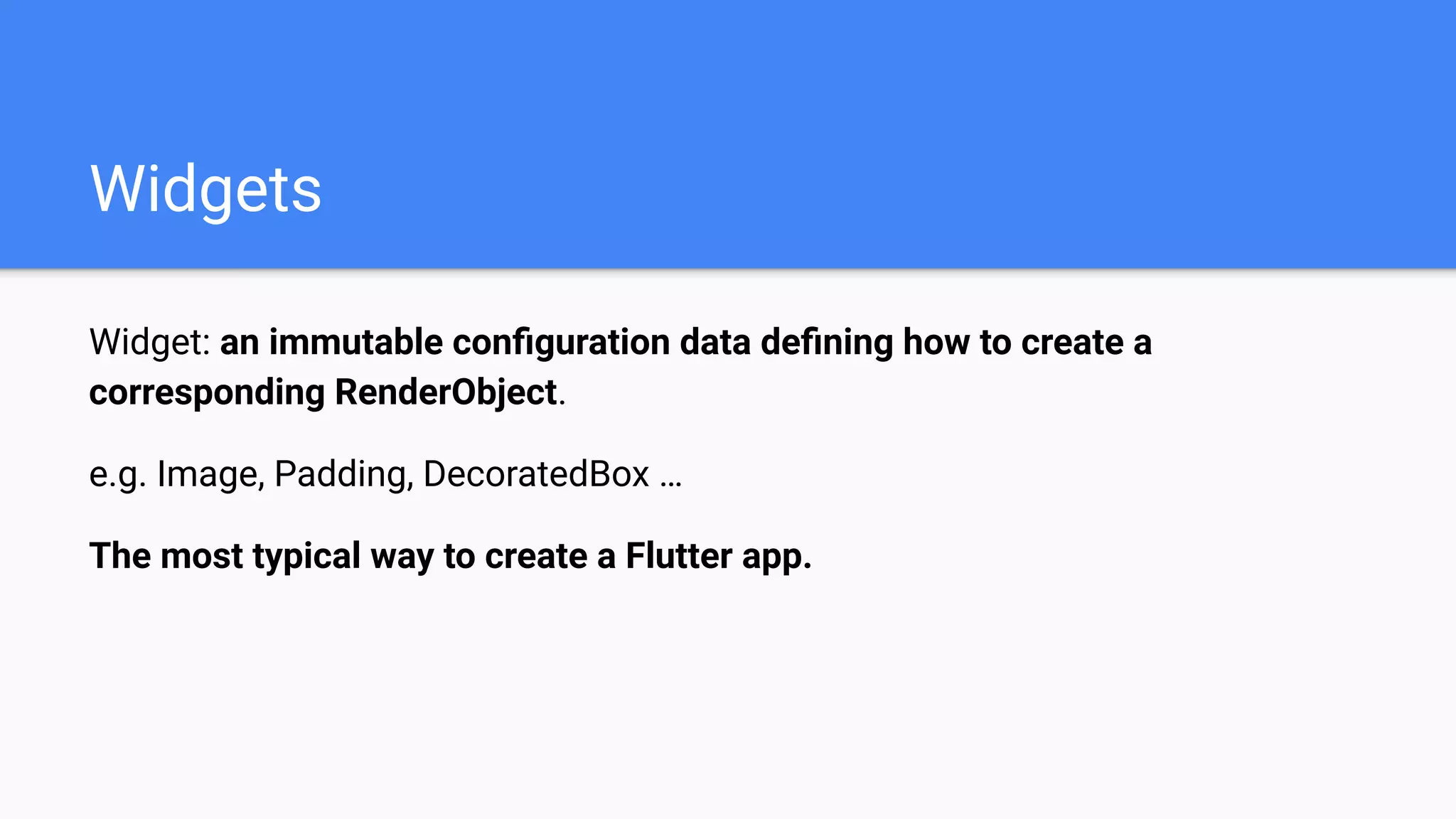

- 28. Widget: an immutableconfiguration data defining how to create a corresponding RenderObject. e.g. Image, Padding, DecoratedBox … The most typical way to create a Flutter app. Widgets
- 29.
- 30. Widgets How does thisWidget tree gets drawn on screen?

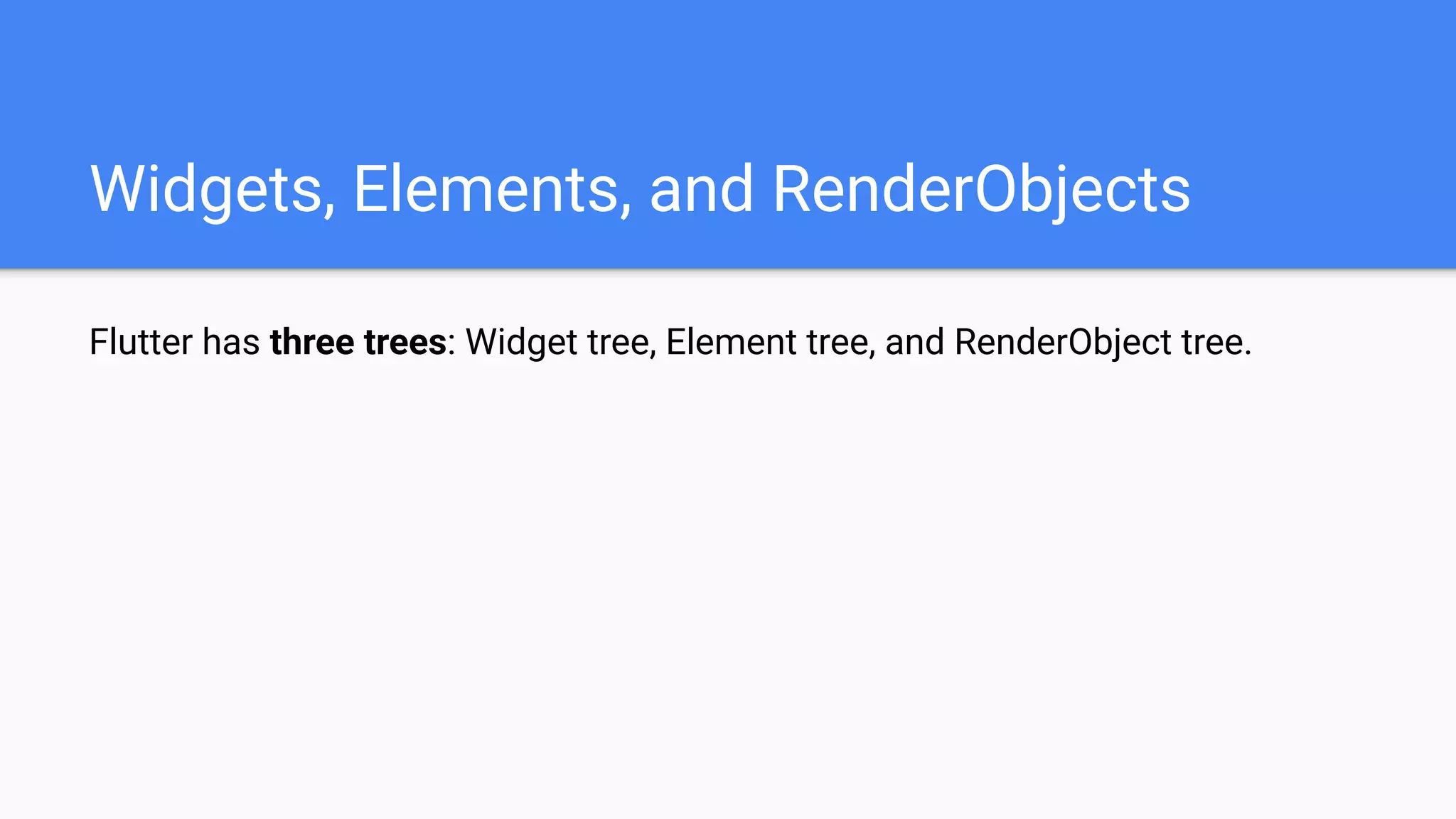

- 31. Flutter has threetrees: Widget tree, Element tree, and RenderObject tree. Widgets, Elements, and RenderObjects

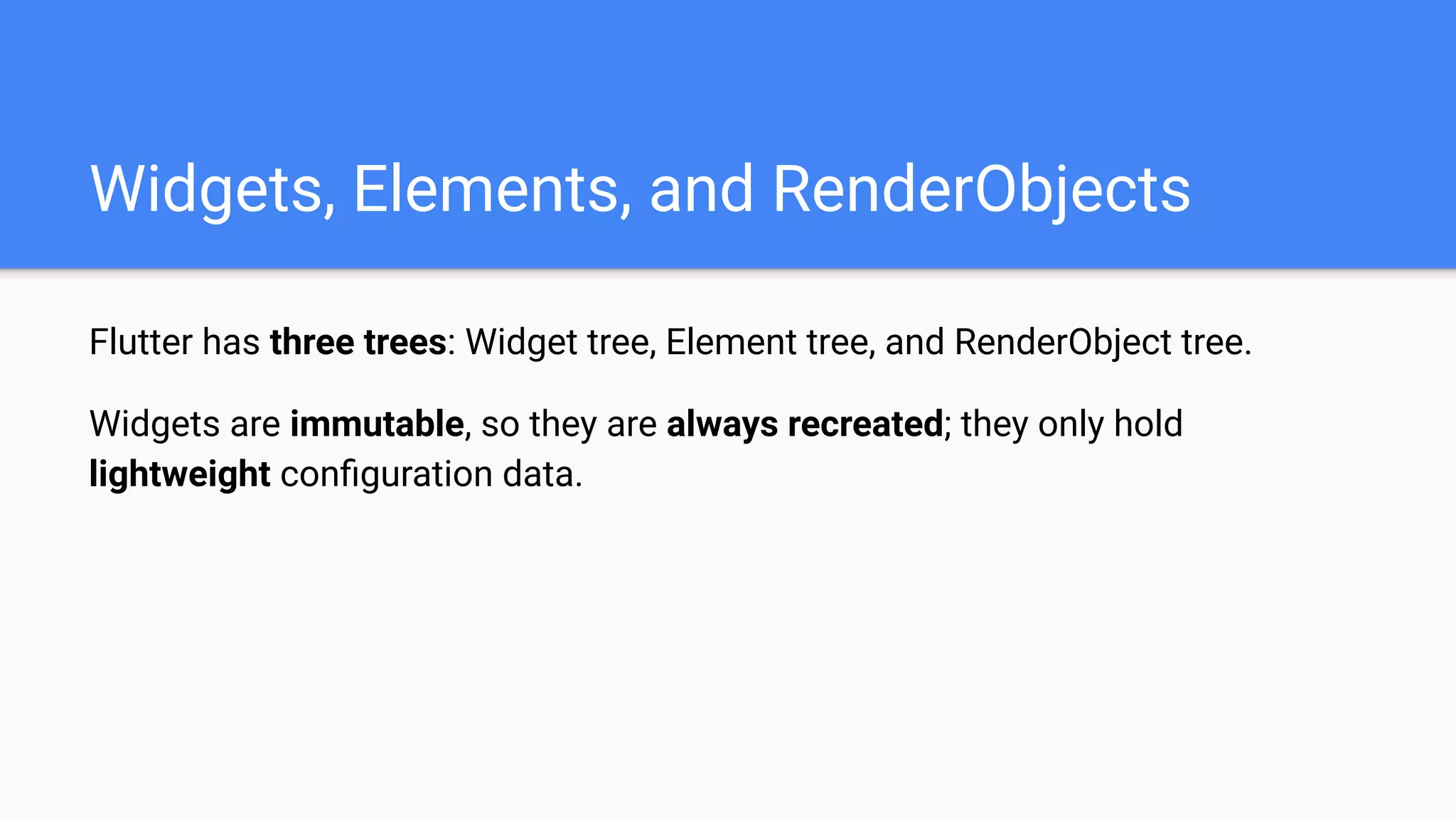

- 32. Flutter has threetrees: Widget tree, Element tree, and RenderObject tree. Widgets are immutable, so they are always recreated; they only hold lightweight configuration data. Widgets, Elements, and RenderObjects

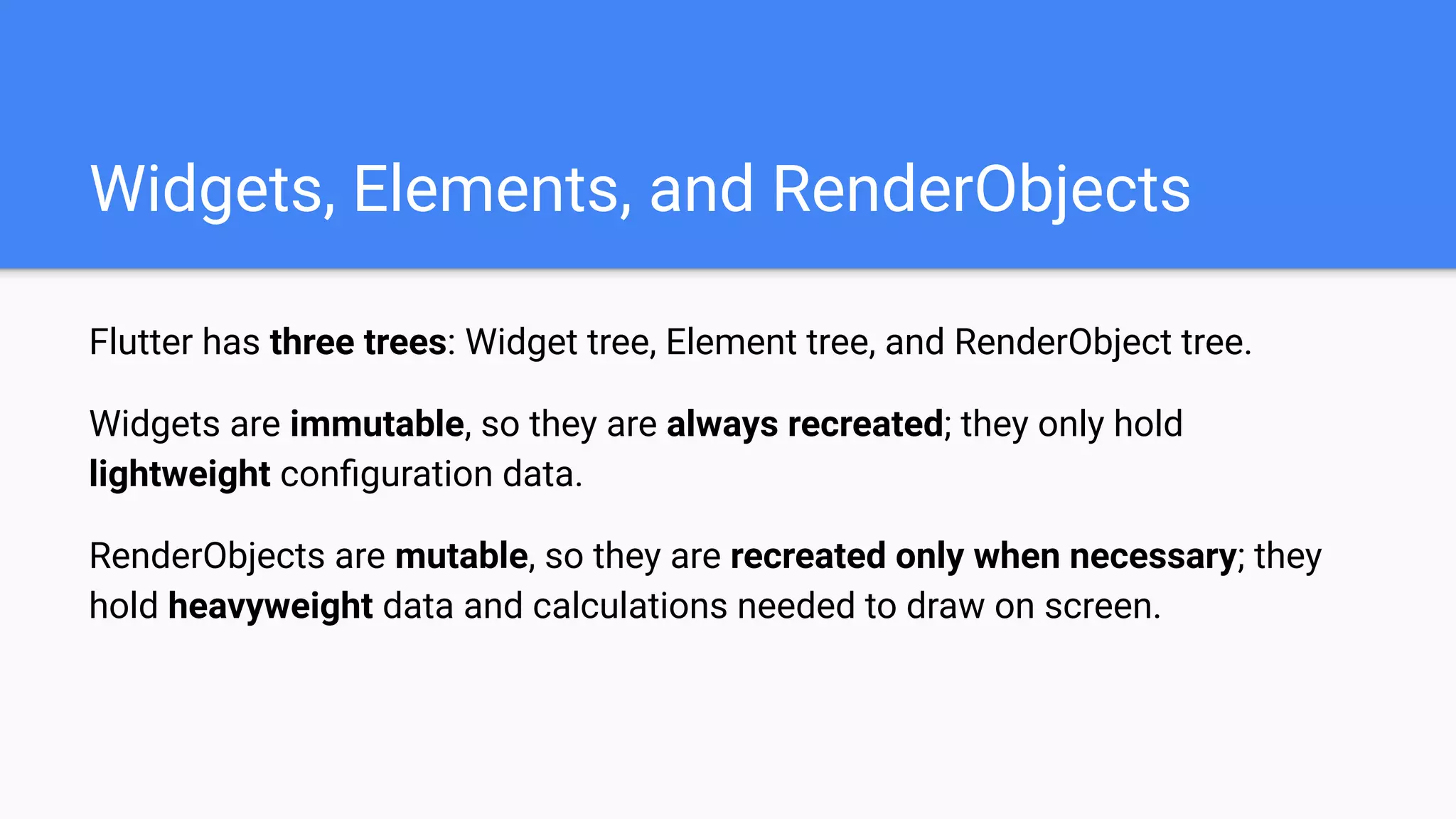

- 33. Flutter has threetrees: Widget tree, Element tree, and RenderObject tree. Widgets are immutable, so they are always recreated; they only hold lightweight configuration data. RenderObjects are mutable, so they are recreated only when necessary; they hold heavyweight data and calculations needed to draw on screen. Widgets, Elements, and RenderObjects

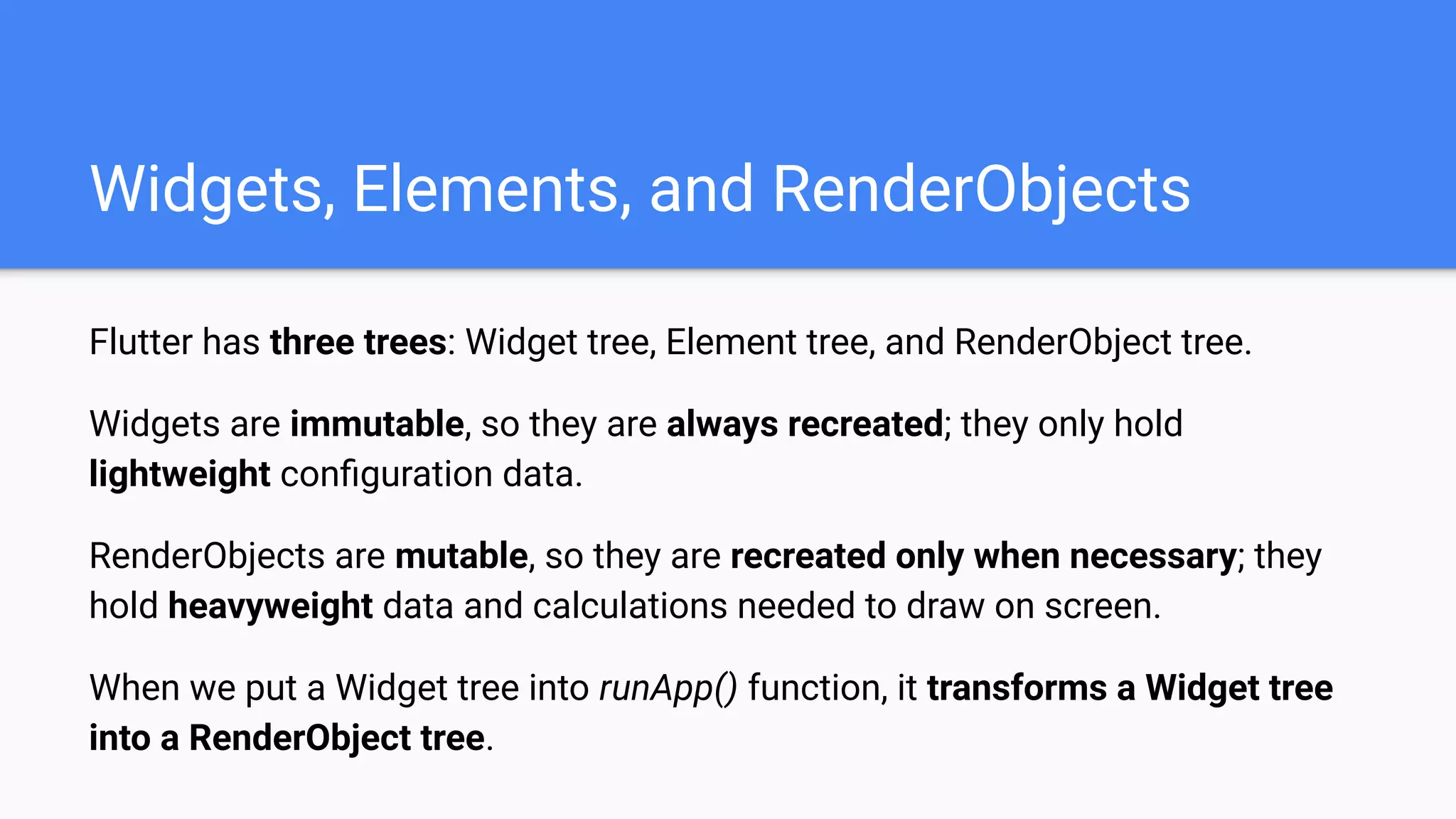

- 34. Flutter has threetrees: Widget tree, Element tree, and RenderObject tree. Widgets are immutable, so they are always recreated; they only hold lightweight configuration data. RenderObjects are mutable, so they are recreated only when necessary; they hold heavyweight data and calculations needed to draw on screen. When we put a Widget tree into runApp() function, it transforms a Widget tree into a RenderObject tree. Widgets, Elements, and RenderObjects

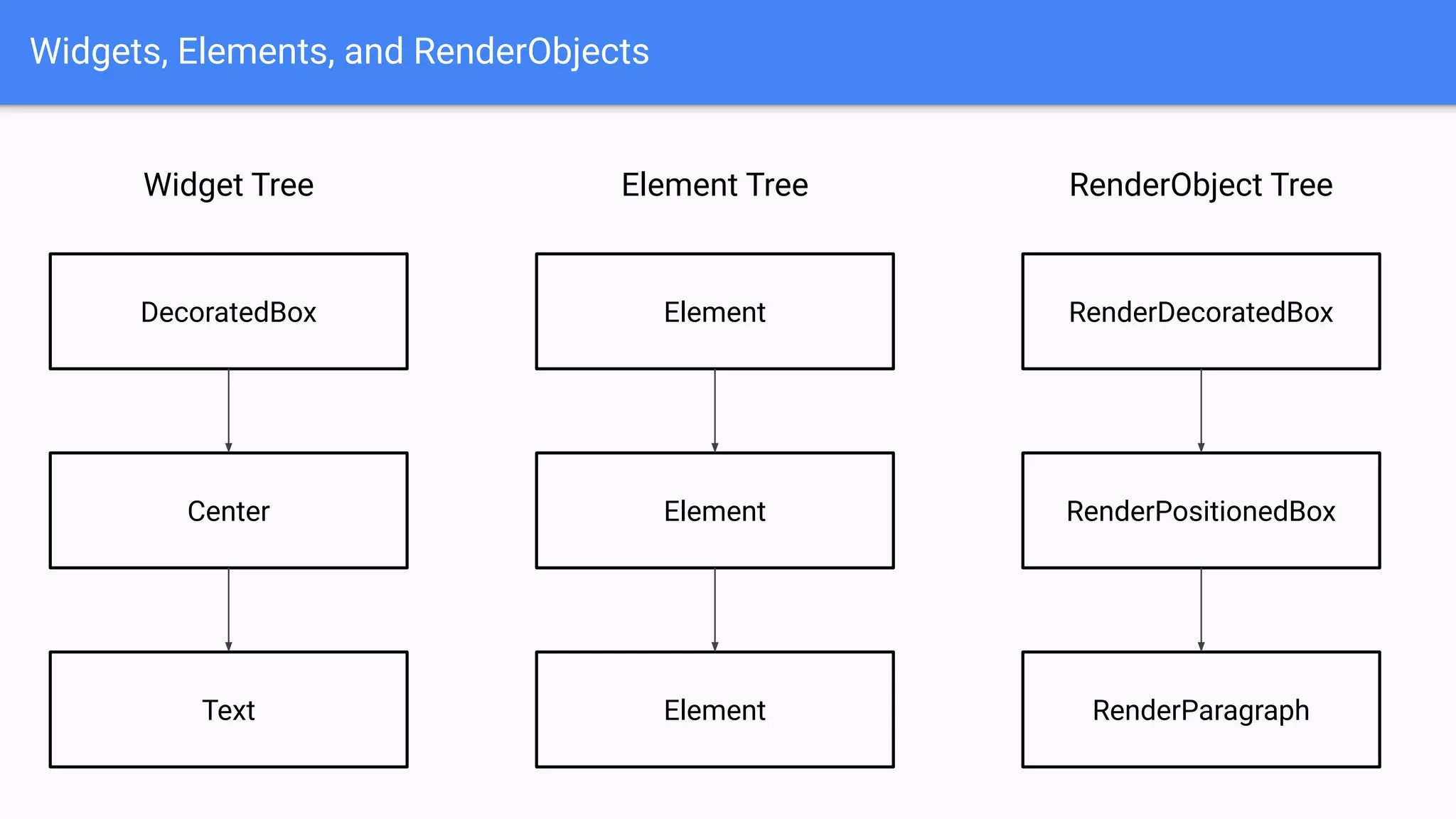

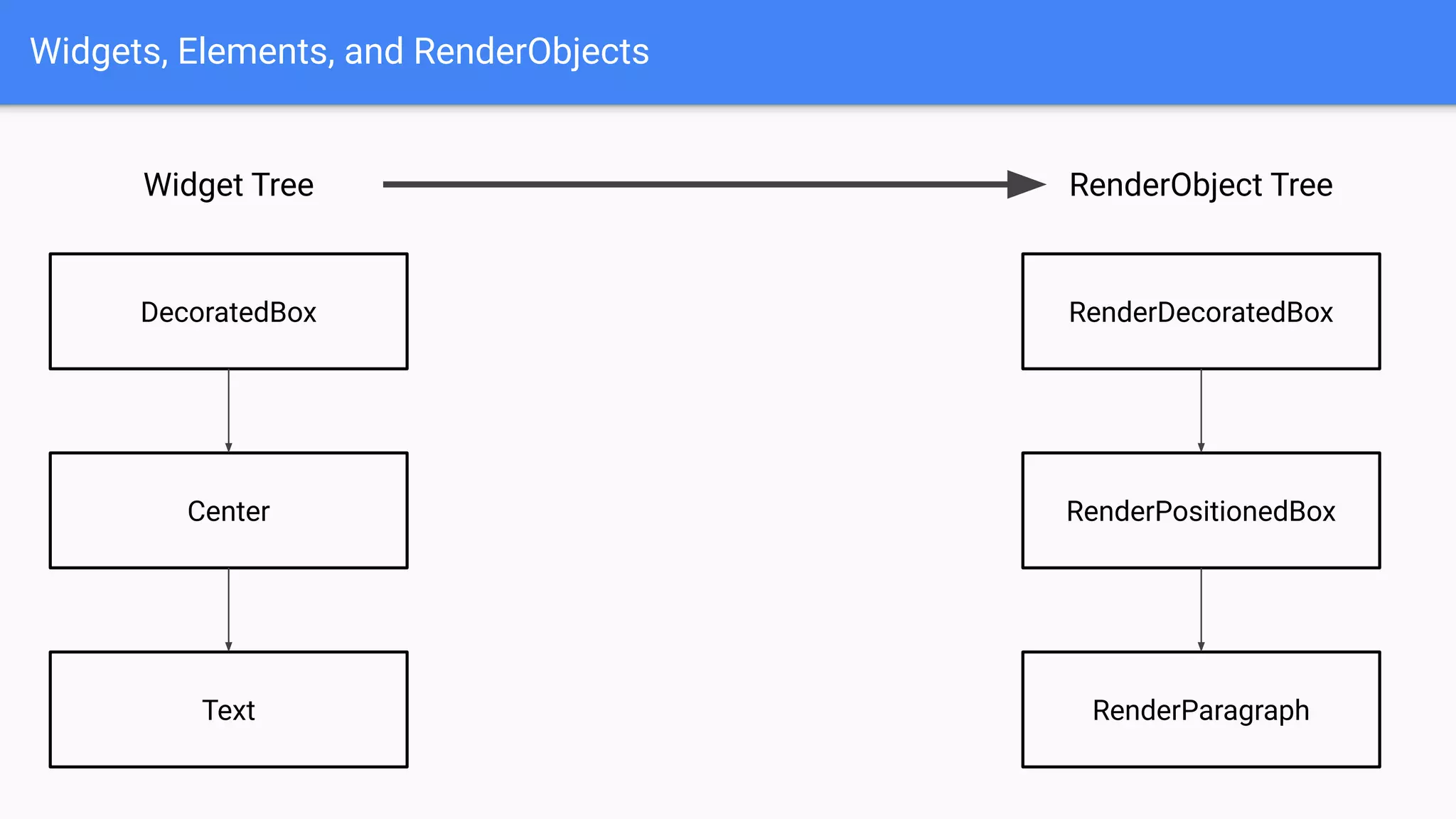

- 35. Widgets, Elements, andRenderObjects Widget Tree DecoratedBox Center Text RenderObject Tree RenderDecoratedBox RenderPositionedBox RenderParagraph

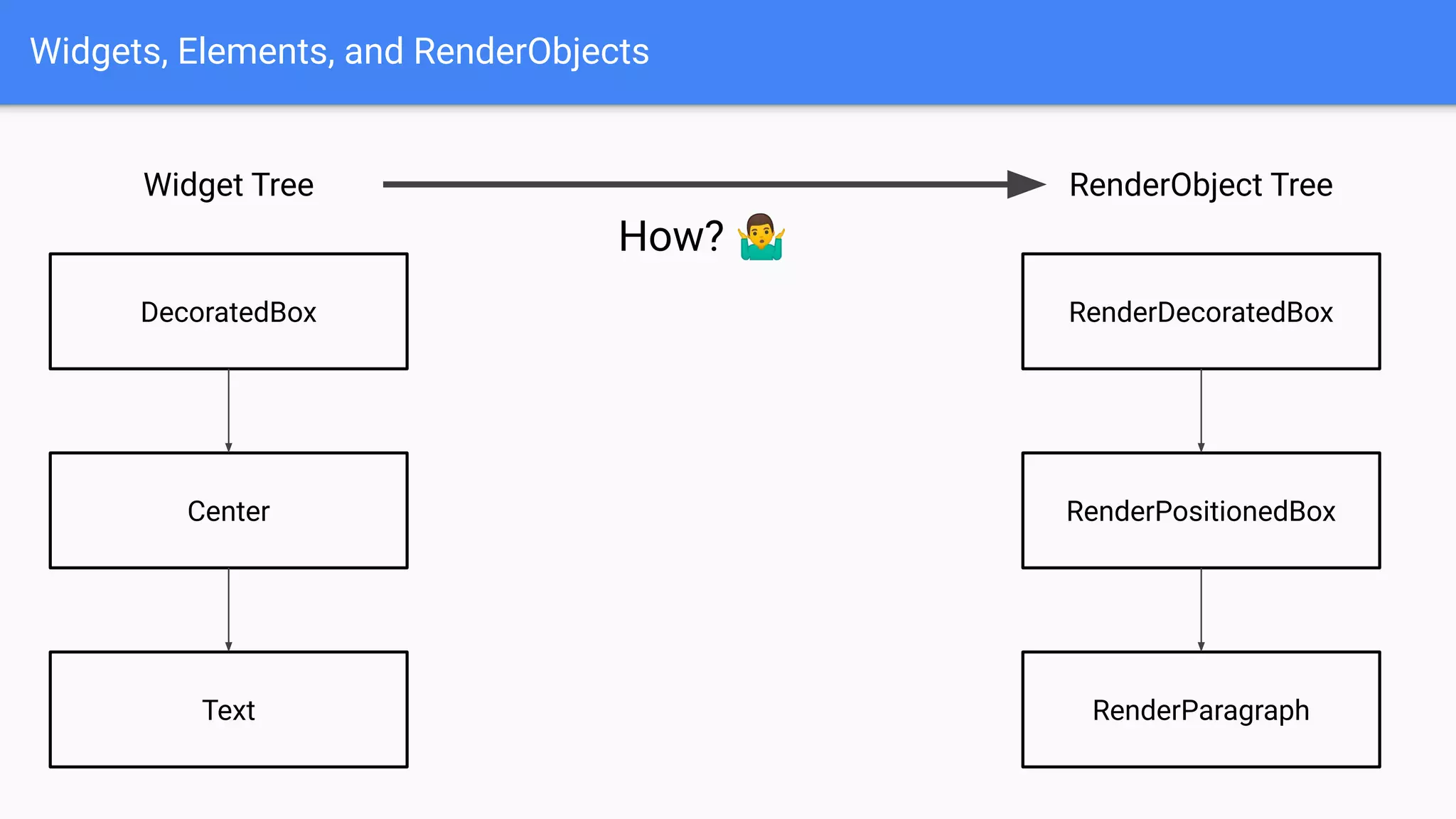

- 36. Widgets, Elements, andRenderObjects Widget Tree DecoratedBox Center Text RenderObject Tree RenderDecoratedBox RenderPositionedBox RenderParagraph How? 🤷♂
- 37. Widgets, Elements, andRenderObjects Widget Tree DecoratedBox Center Text RenderObject Tree RenderDecoratedBox RenderPositionedBox RenderParagraph Element Tree Element Element Element

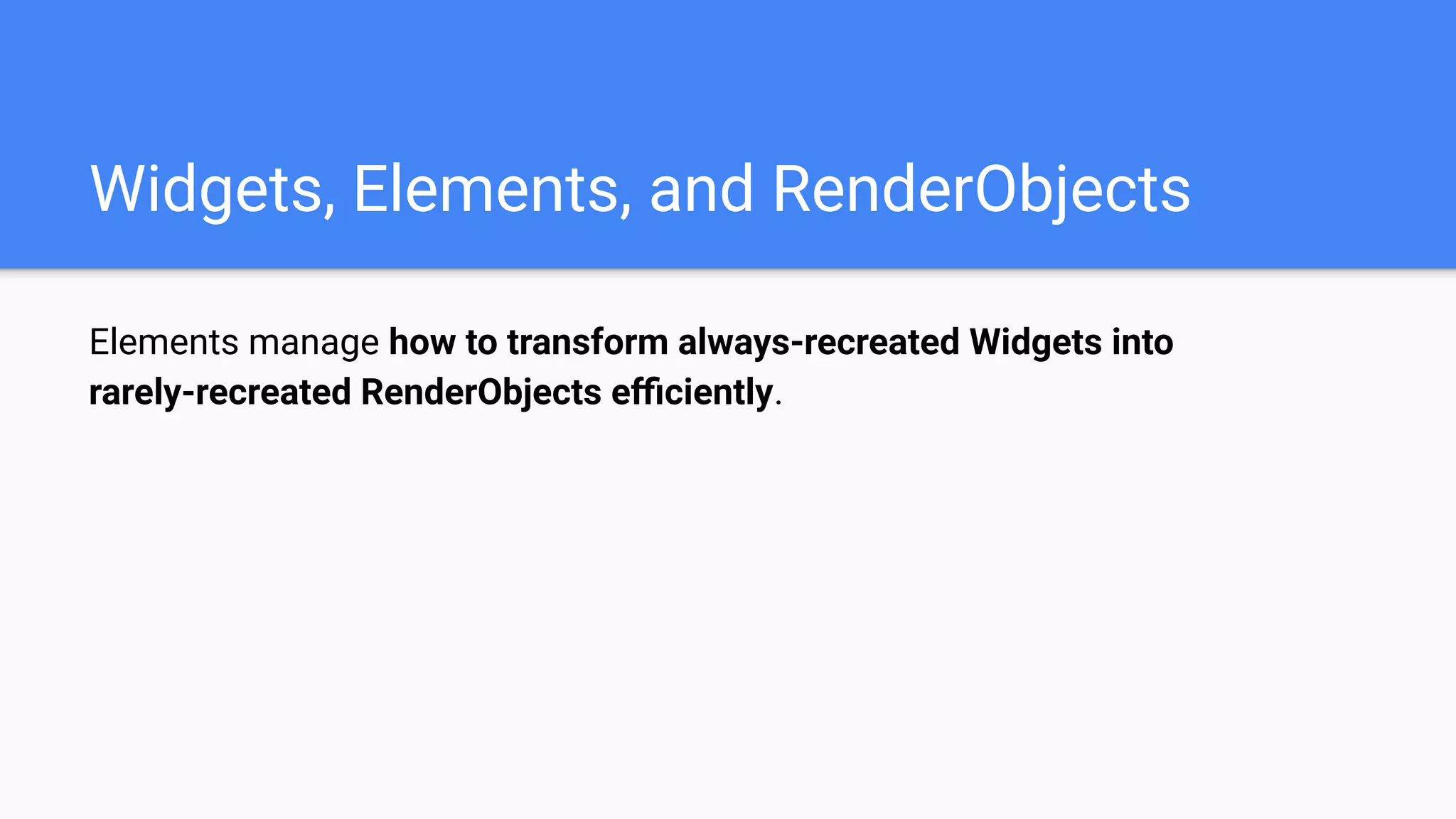

- 38. Elements manage howto transform always-recreated Widgets into rarely-recreated RenderObjects efficiently. Widgets, Elements, and RenderObjects

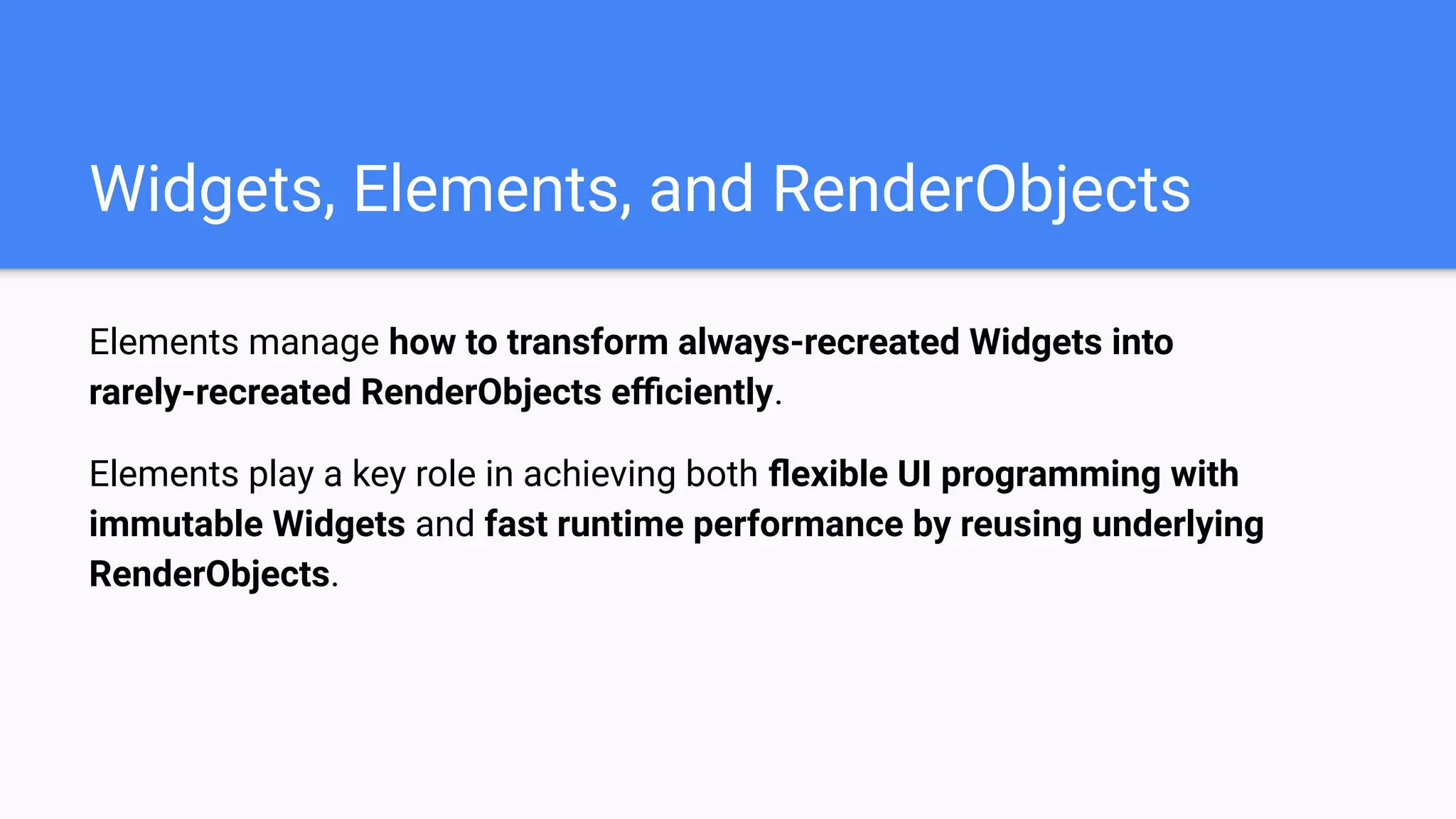

- 39. Elements manage howto transform always-recreated Widgets into rarely-recreated RenderObjects efficiently. Elements play a key role in achieving both flexible UI programming with immutable Widgets and fast runtime performance by reusing underlying RenderObjects. Widgets, Elements, and RenderObjects

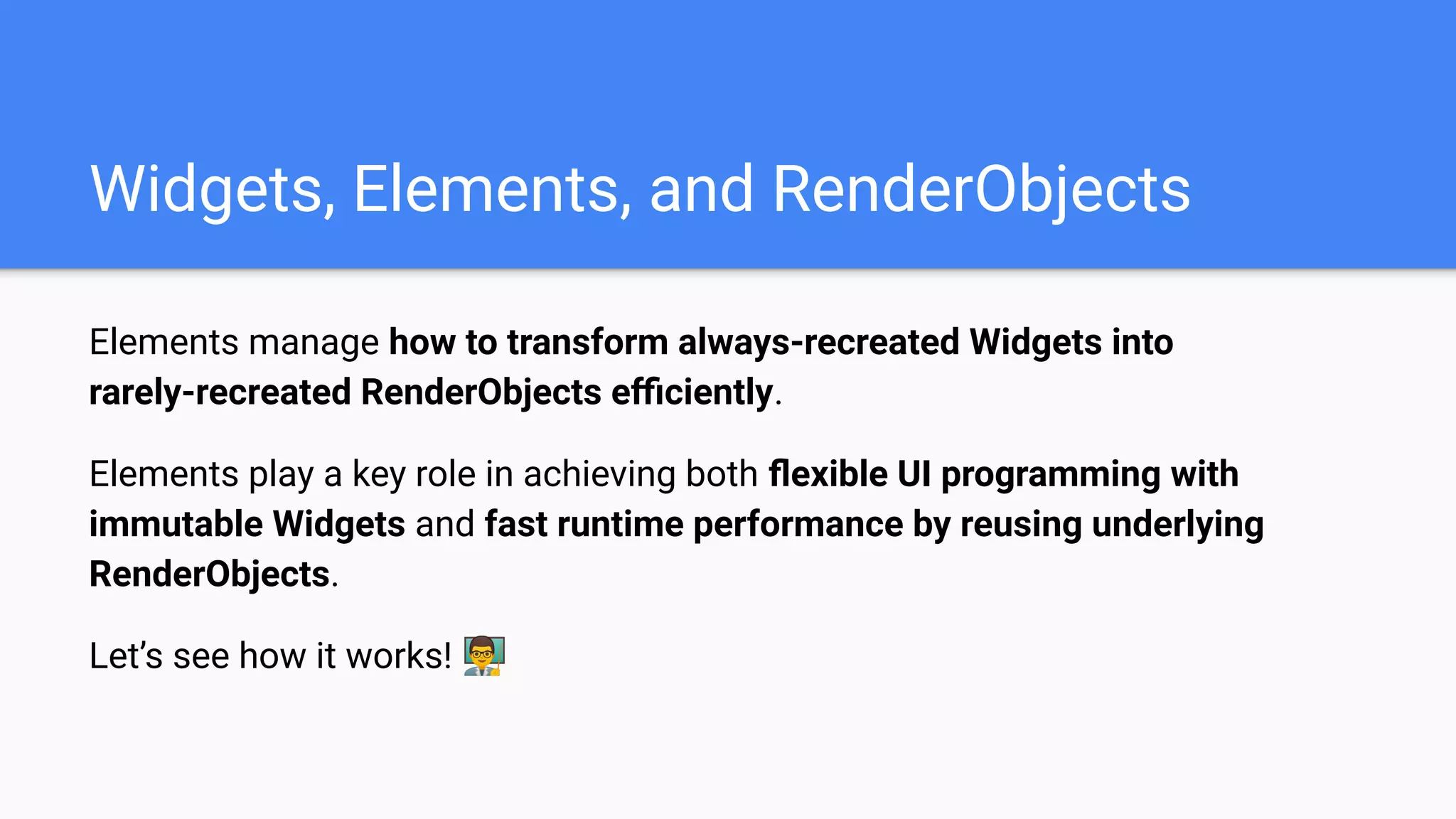

- 40. Elements manage howto transform always-recreated Widgets into rarely-recreated RenderObjects efficiently. Elements play a key role in achieving both flexible UI programming with immutable Widgets and fast runtime performance by reusing underlying RenderObjects. Let’s see how it works! 👨🏫 Widgets, Elements, and RenderObjects

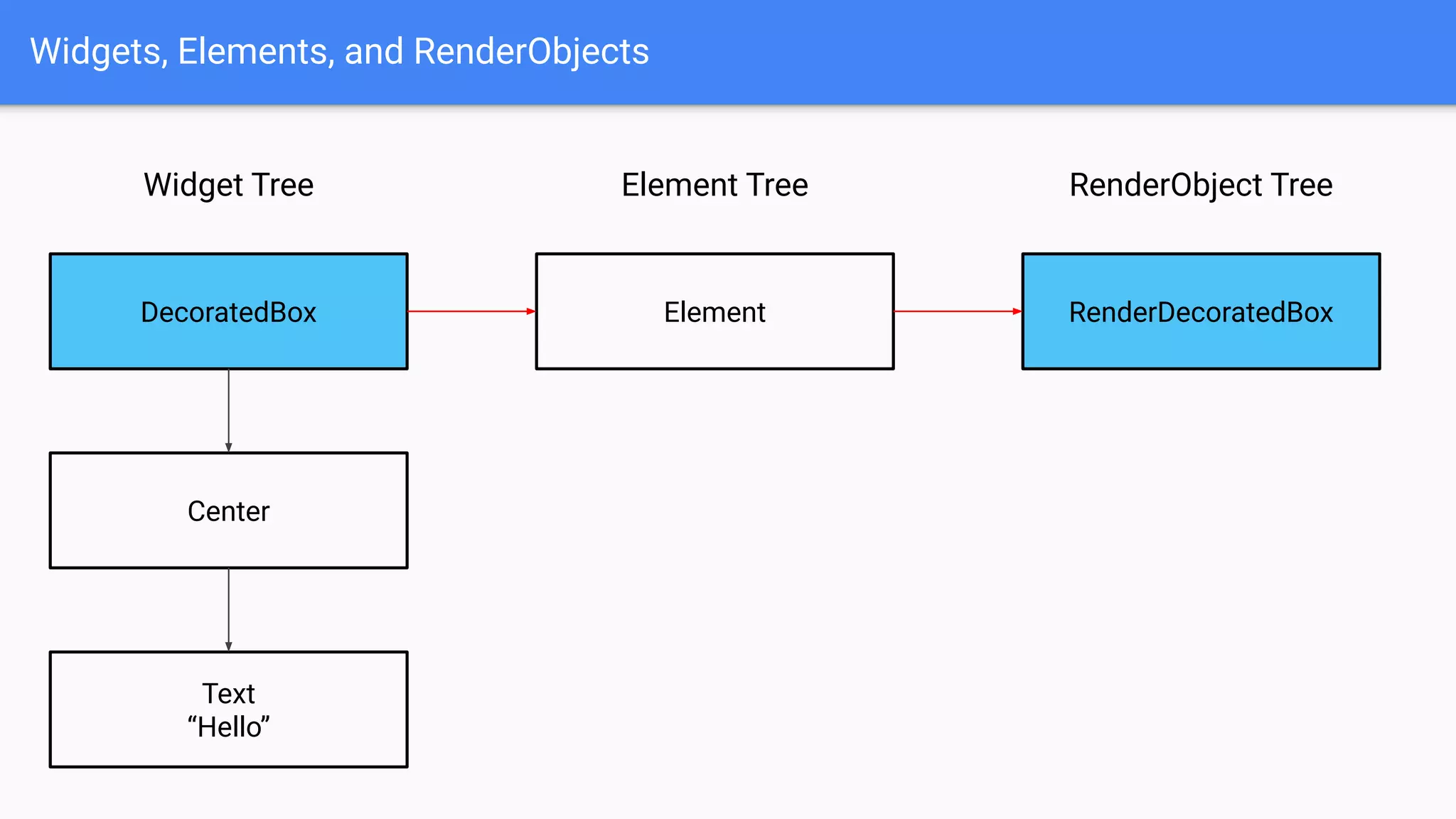

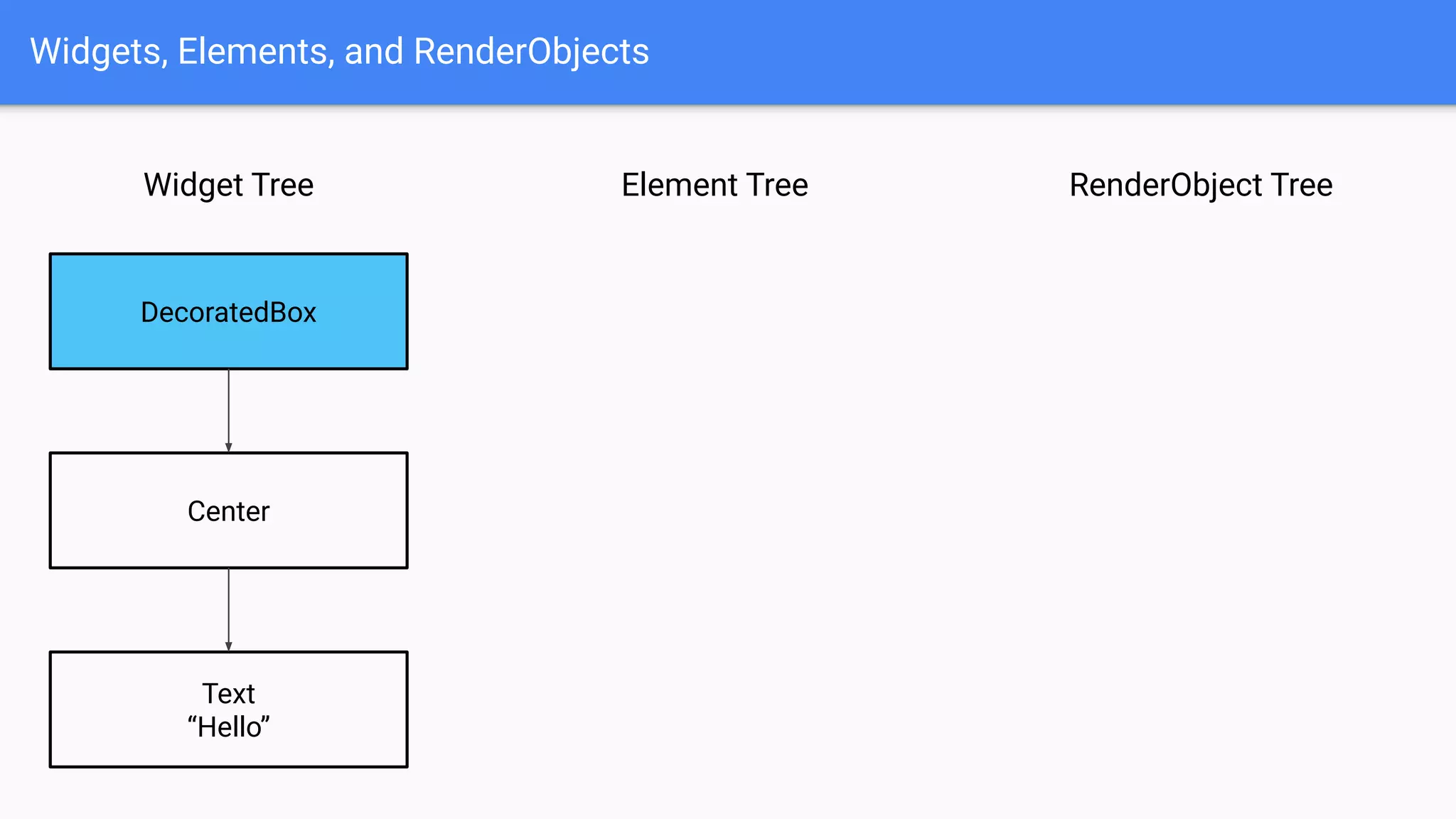

- 41. Widgets, Elements, andRenderObjects Widget Tree DecoratedBox Center Text “Hello” RenderObject TreeElement Tree

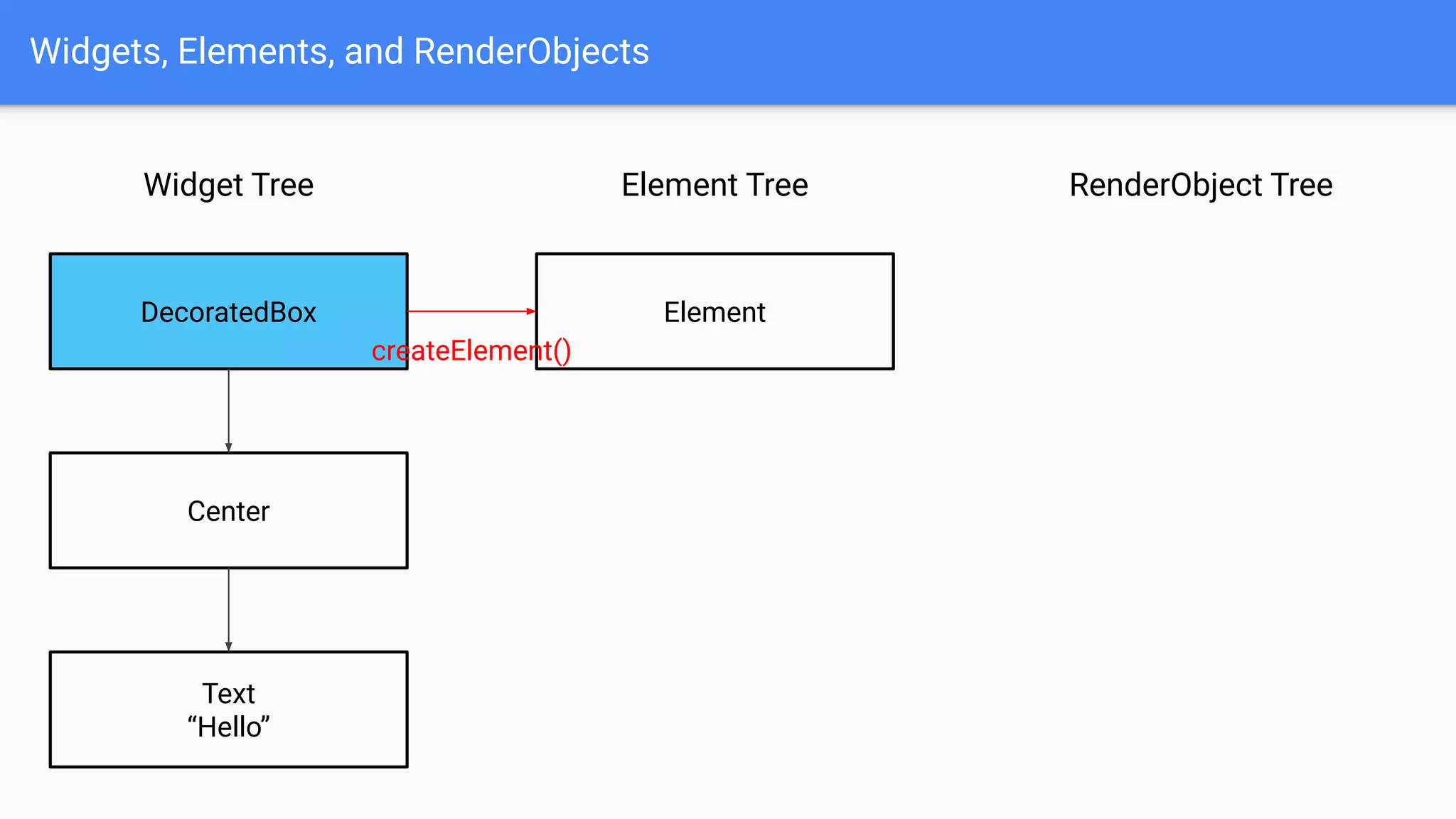

- 42. Widgets, Elements, andRenderObjects Widget Tree DecoratedBox Center Text “Hello” RenderObject TreeElement Tree Element createElement()
- 43. Widgets, Elements, andRenderObjects Widget Tree DecoratedBox Center Text “Hello” RenderObject TreeElement Tree Element createRenderObject()
- 44. Widgets, Elements, andRenderObjects Widget Tree DecoratedBox Center Text “Hello” RenderObject TreeElement Tree Element RenderDecoratedBox

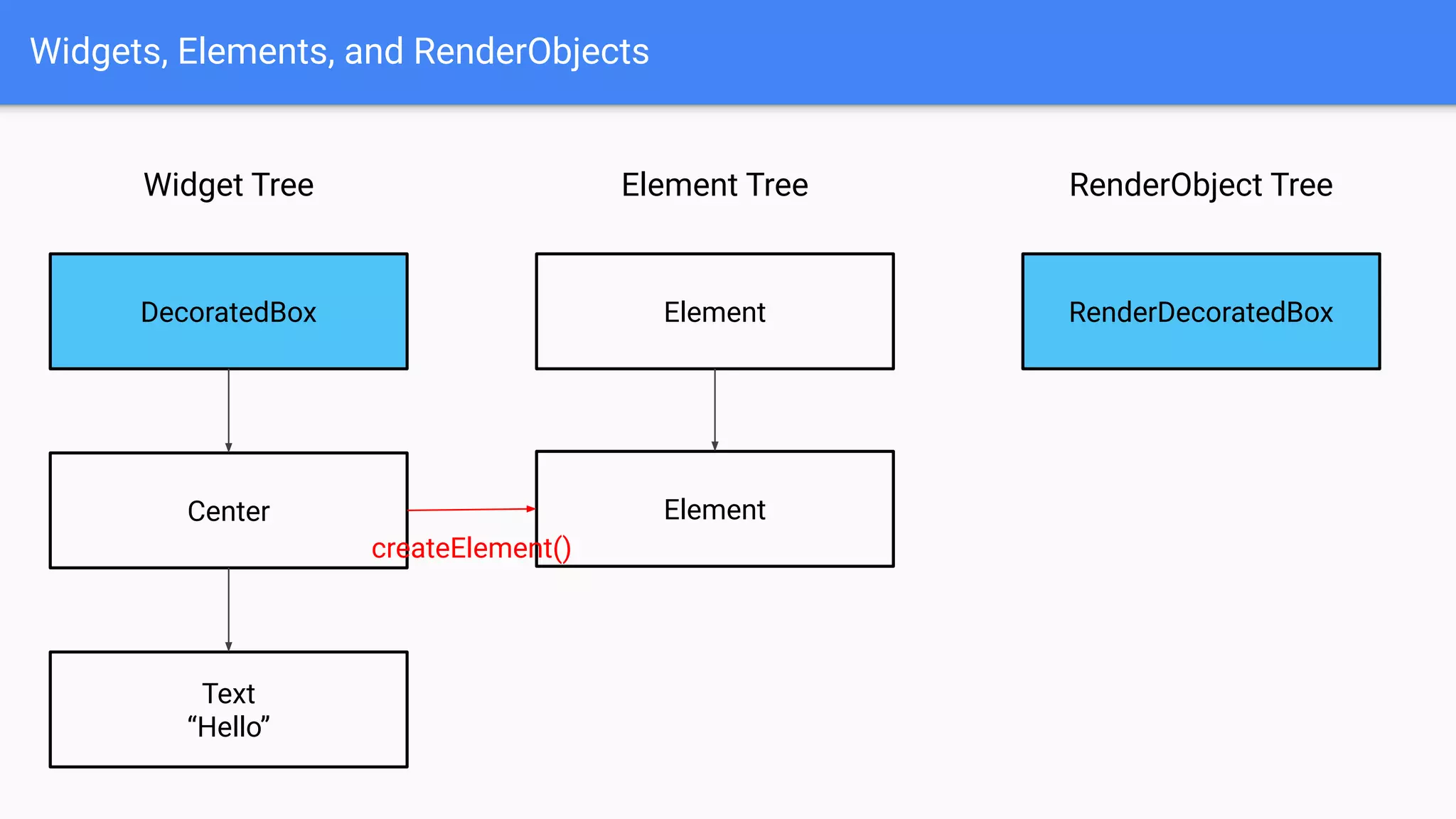

- 45. Widgets, Elements, andRenderObjects Widget Tree DecoratedBox Center Text “Hello” RenderObject TreeElement Tree Element RenderDecoratedBox Element createElement()

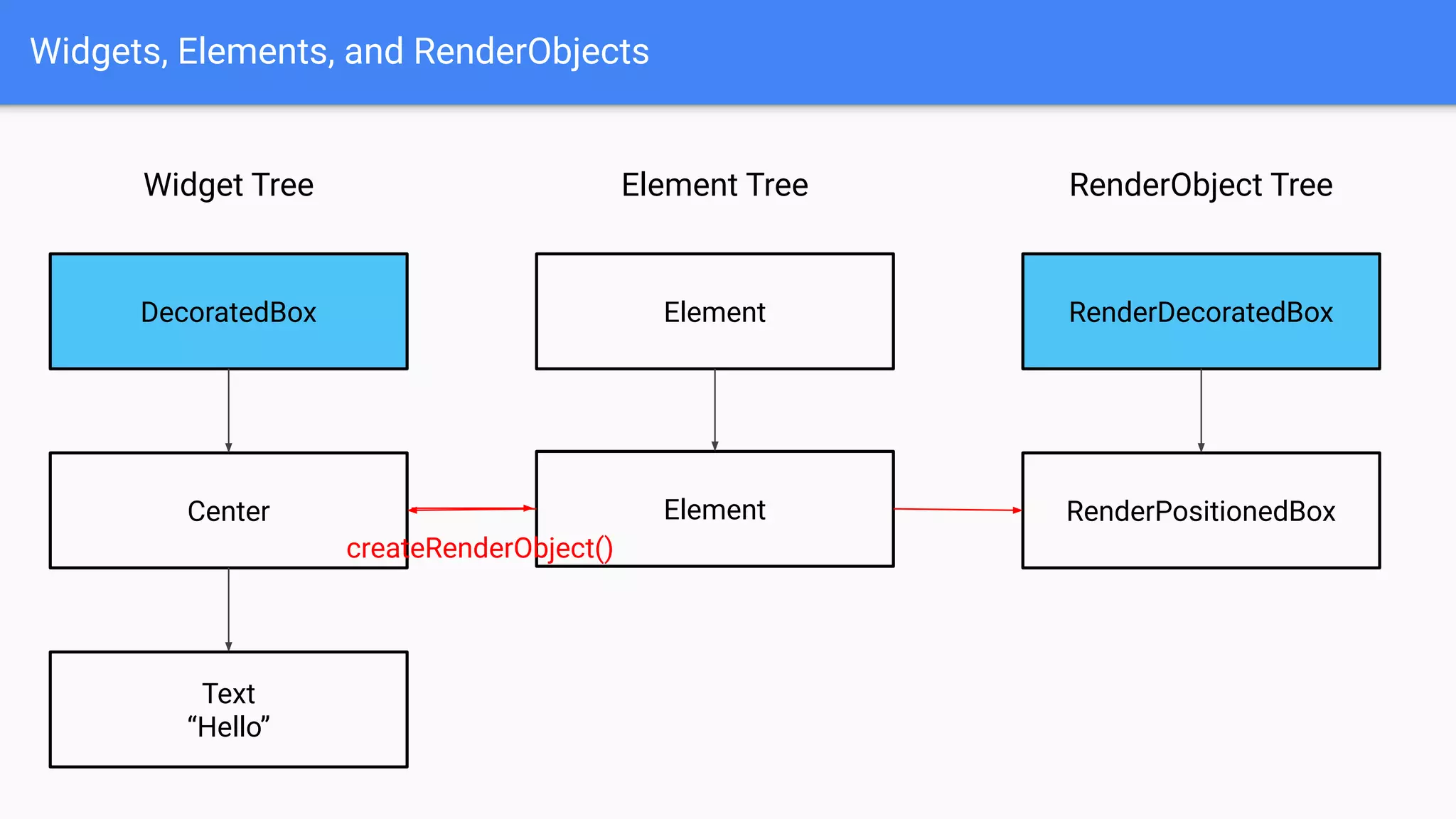

- 46. Widgets, Elements, andRenderObjects Widget Tree DecoratedBox Center Text “Hello” RenderObject TreeElement Tree Element RenderDecoratedBox Element createRenderObject() RenderPositionedBox
- 47. Widgets, Elements, andRenderObjects Widget Tree DecoratedBox Center Text “Hello” RenderObject TreeElement Tree Element RenderDecoratedBox Element RenderPositionedBox RenderParagraph “Hello” Element

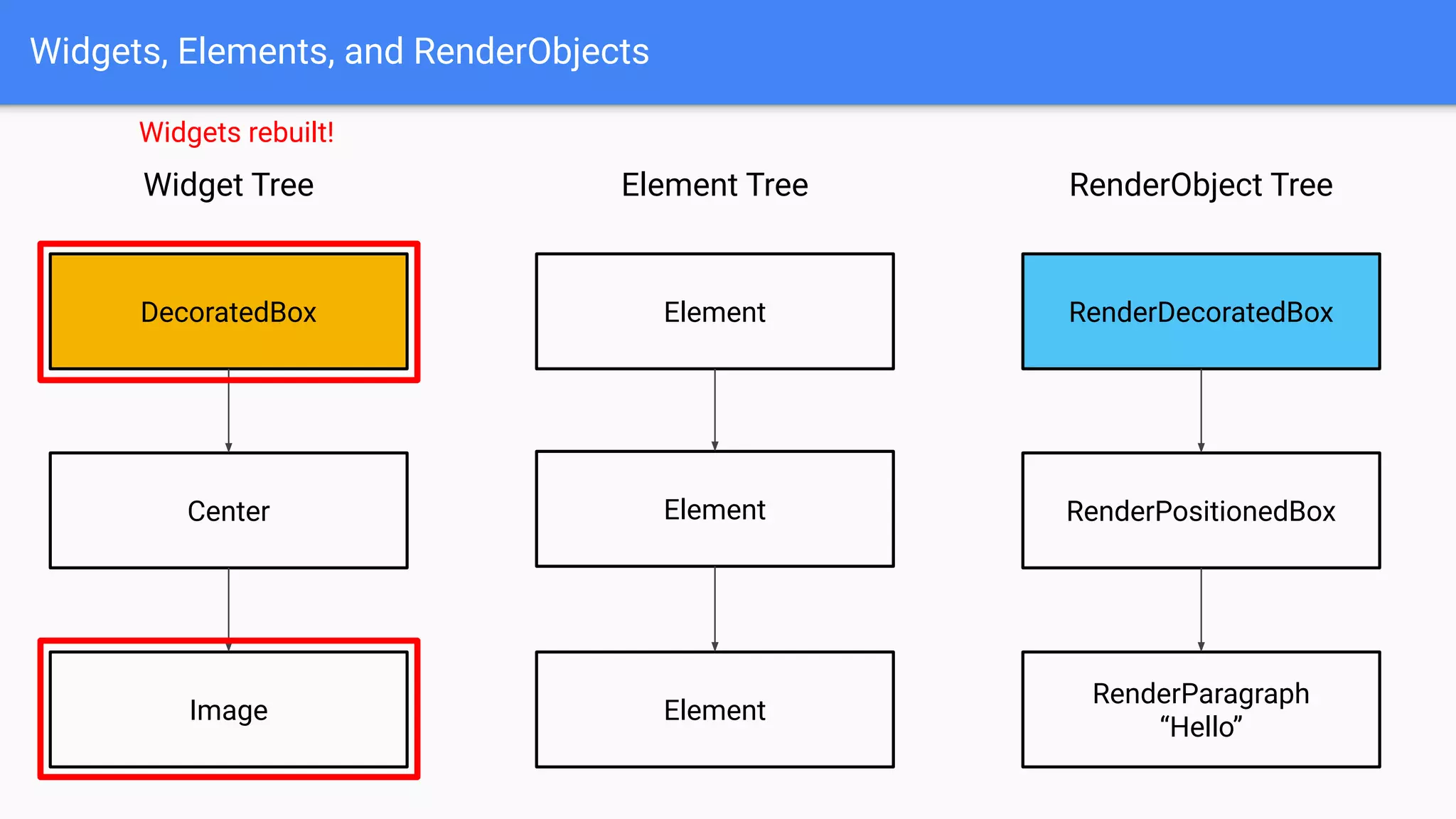

- 48. Widgets, Elements, andRenderObjects Widget Tree DecoratedBox Center Image RenderObject TreeElement Tree Element RenderDecoratedBox Element RenderPositionedBox RenderParagraph “Hello” Element Widgets rebuilt!

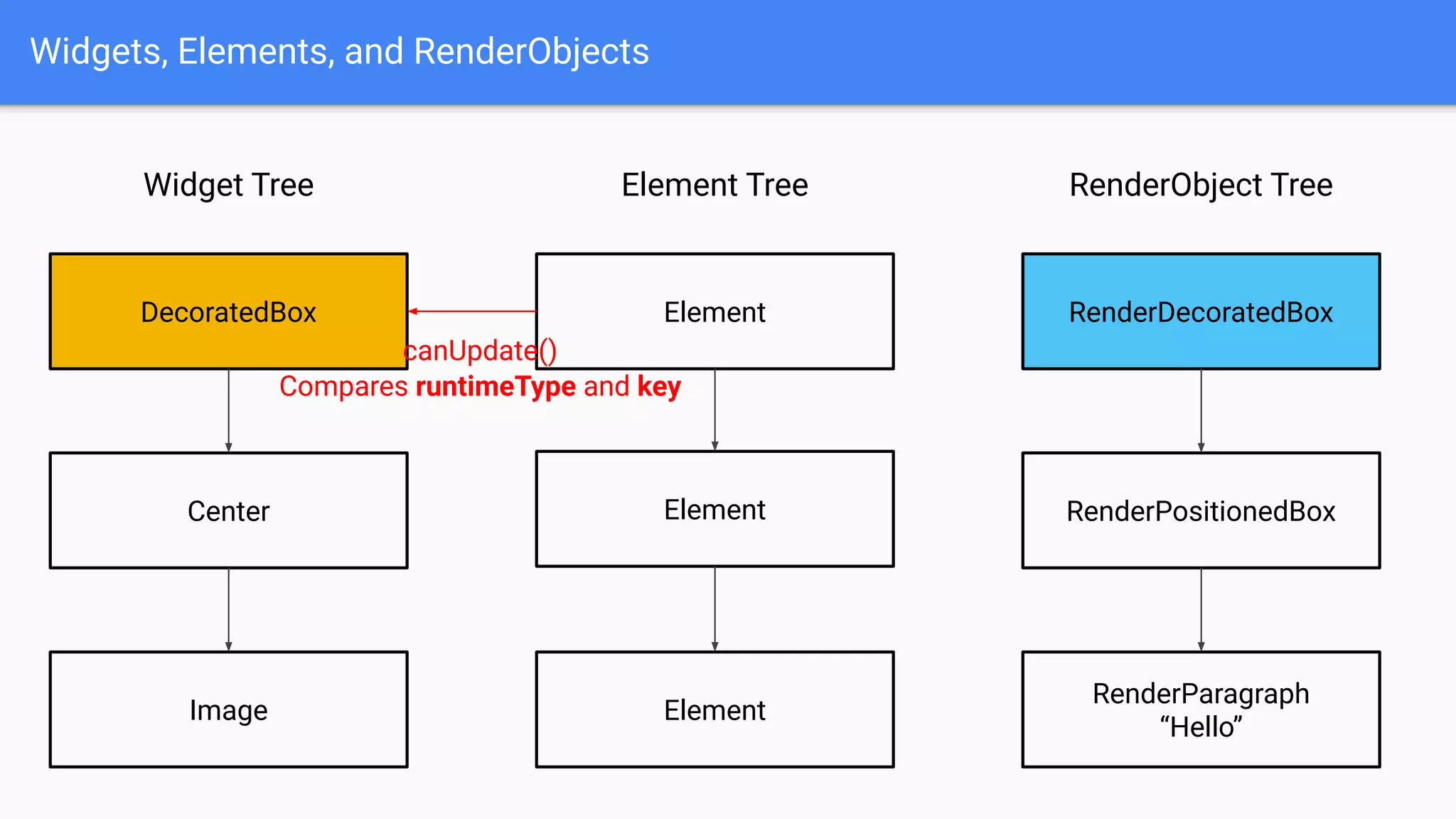

- 49. Widgets, Elements, andRenderObjects Widget Tree DecoratedBox Center Image RenderObject TreeElement Tree Element RenderDecoratedBox Element RenderPositionedBox RenderParagraph “Hello” Element canUpdate() Compares runtimeType and key

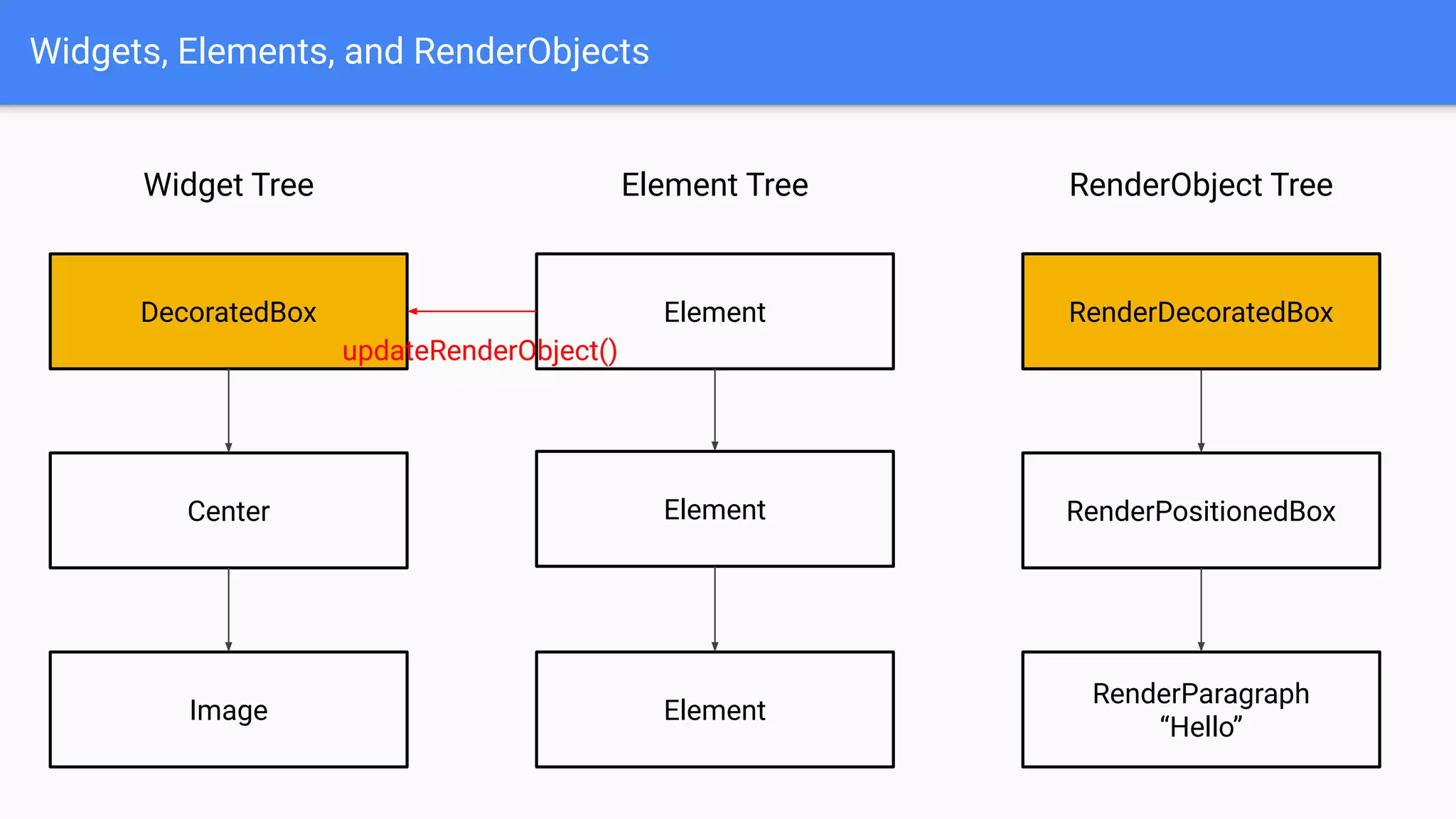

- 50. Widgets, Elements, andRenderObjects Widget Tree DecoratedBox Center Image RenderObject TreeElement Tree Element RenderDecoratedBox Element RenderPositionedBox RenderParagraph “Hello” Element updateRenderObject() RenderDecoratedBox

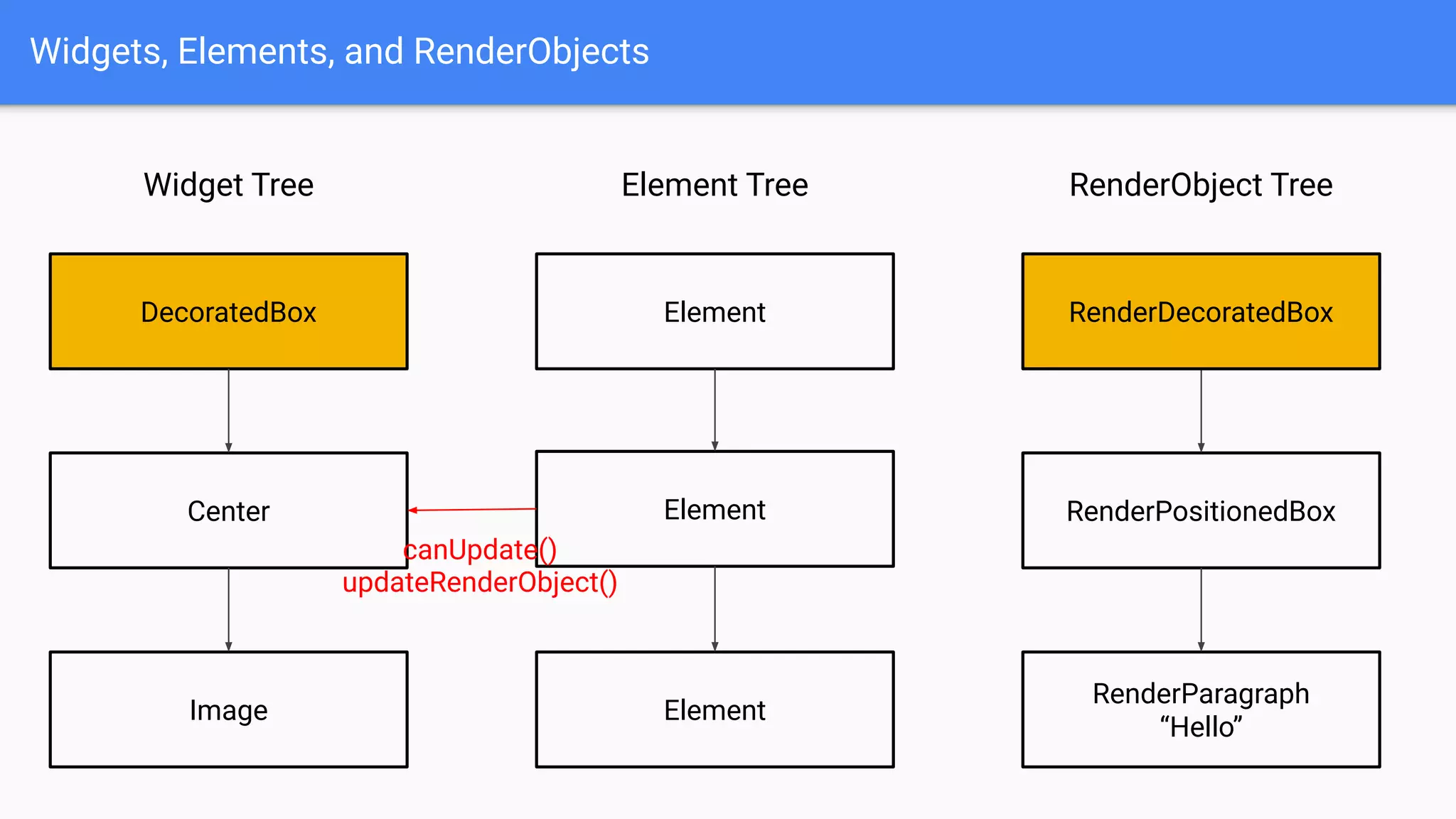

- 51. Widgets, Elements, andRenderObjects Widget Tree DecoratedBox Center Image RenderObject TreeElement Tree Element Element RenderPositionedBox RenderParagraph “Hello” Element RenderDecoratedBox canUpdate() updateRenderObject()

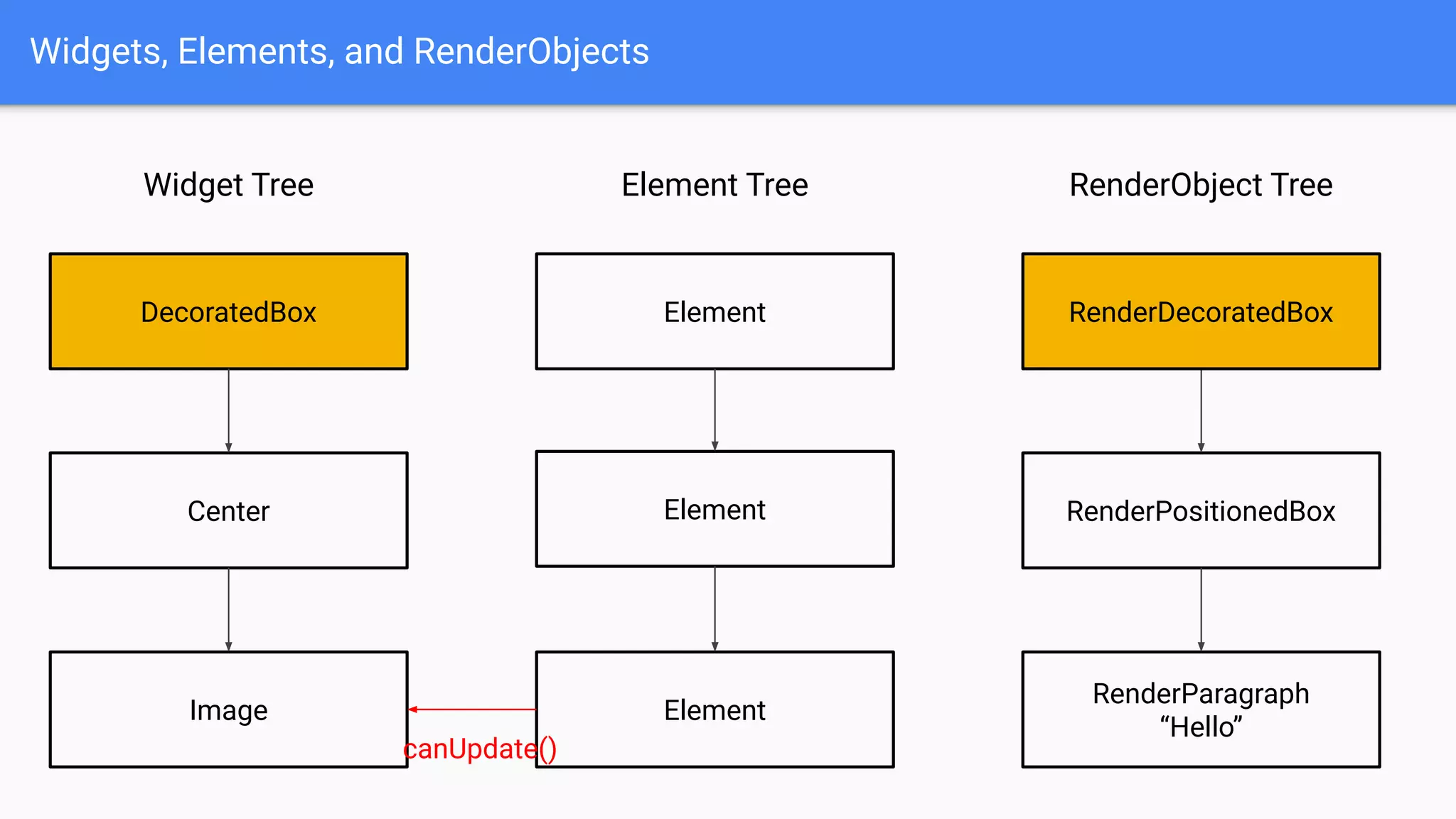

- 52. Widgets, Elements, andRenderObjects Widget Tree DecoratedBox Center Image RenderObject TreeElement Tree Element Element RenderPositionedBox RenderParagraph “Hello” Element RenderDecoratedBox canUpdate()

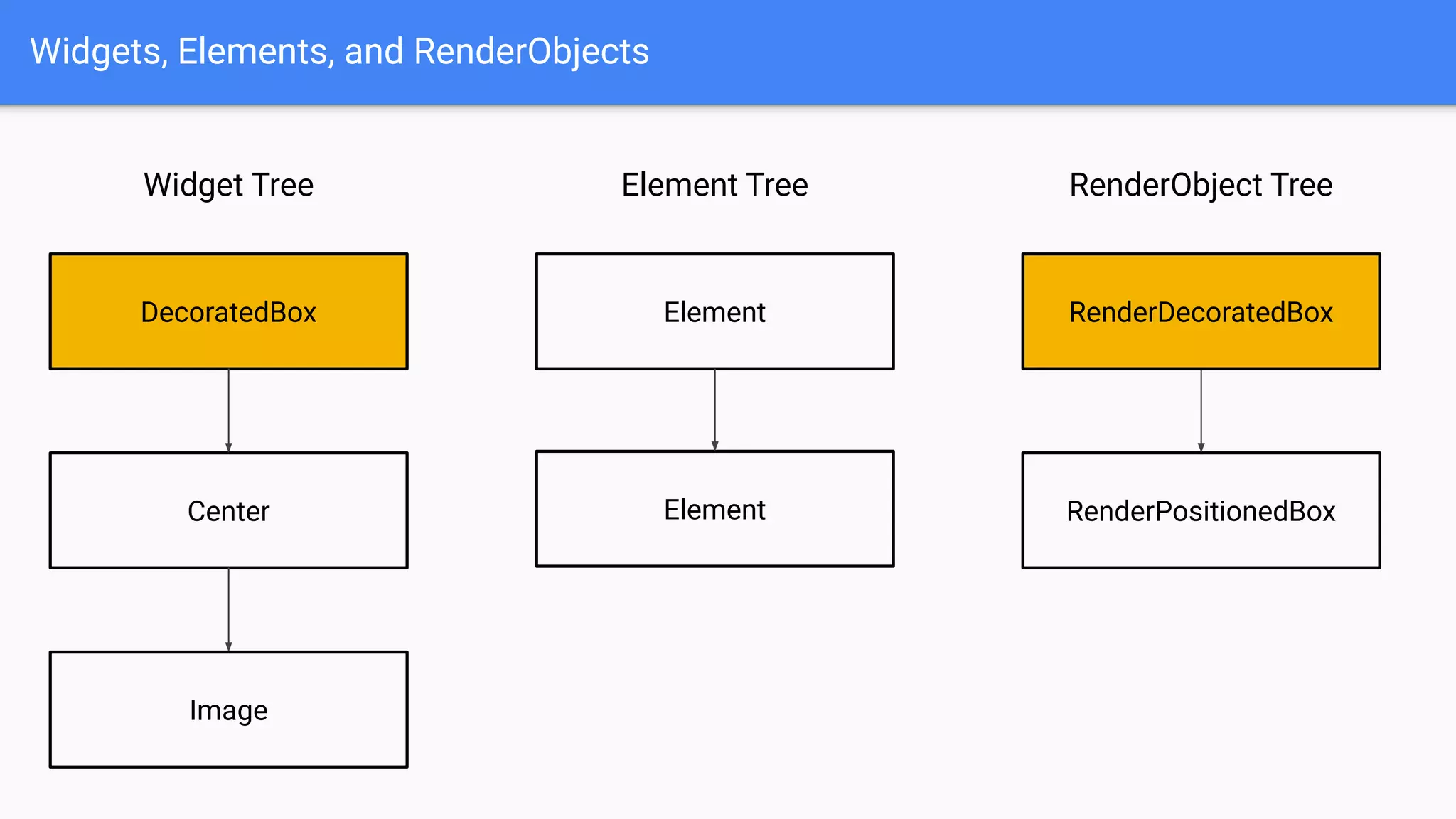

- 53. Widgets, Elements, andRenderObjects Widget Tree DecoratedBox Center Image RenderObject TreeElement Tree Element Element RenderPositionedBox RenderDecoratedBox

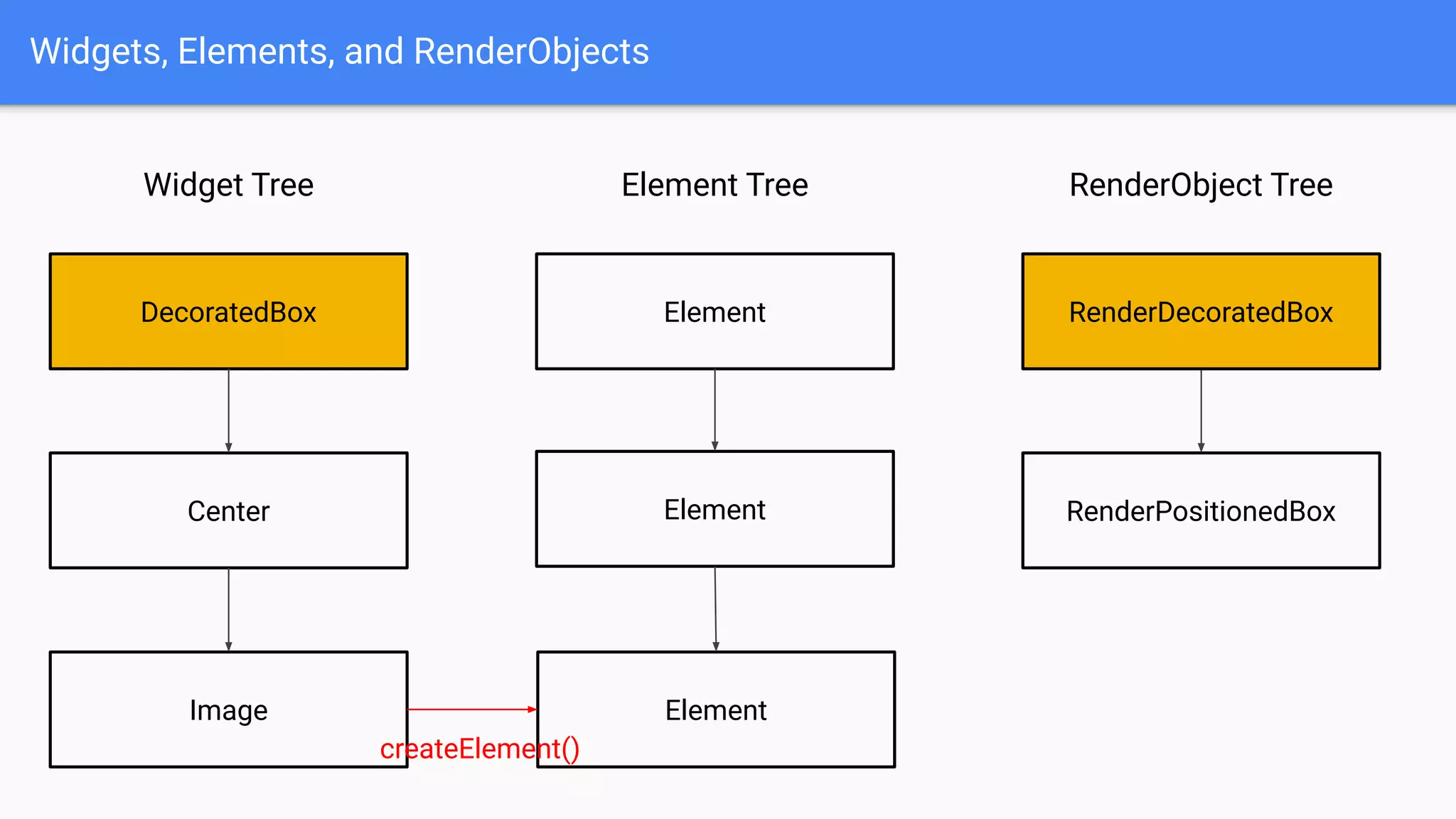

- 54. Widgets, Elements, andRenderObjects Widget Tree DecoratedBox Center Image RenderObject TreeElement Tree Element Element RenderPositionedBox RenderDecoratedBox Element createElement()

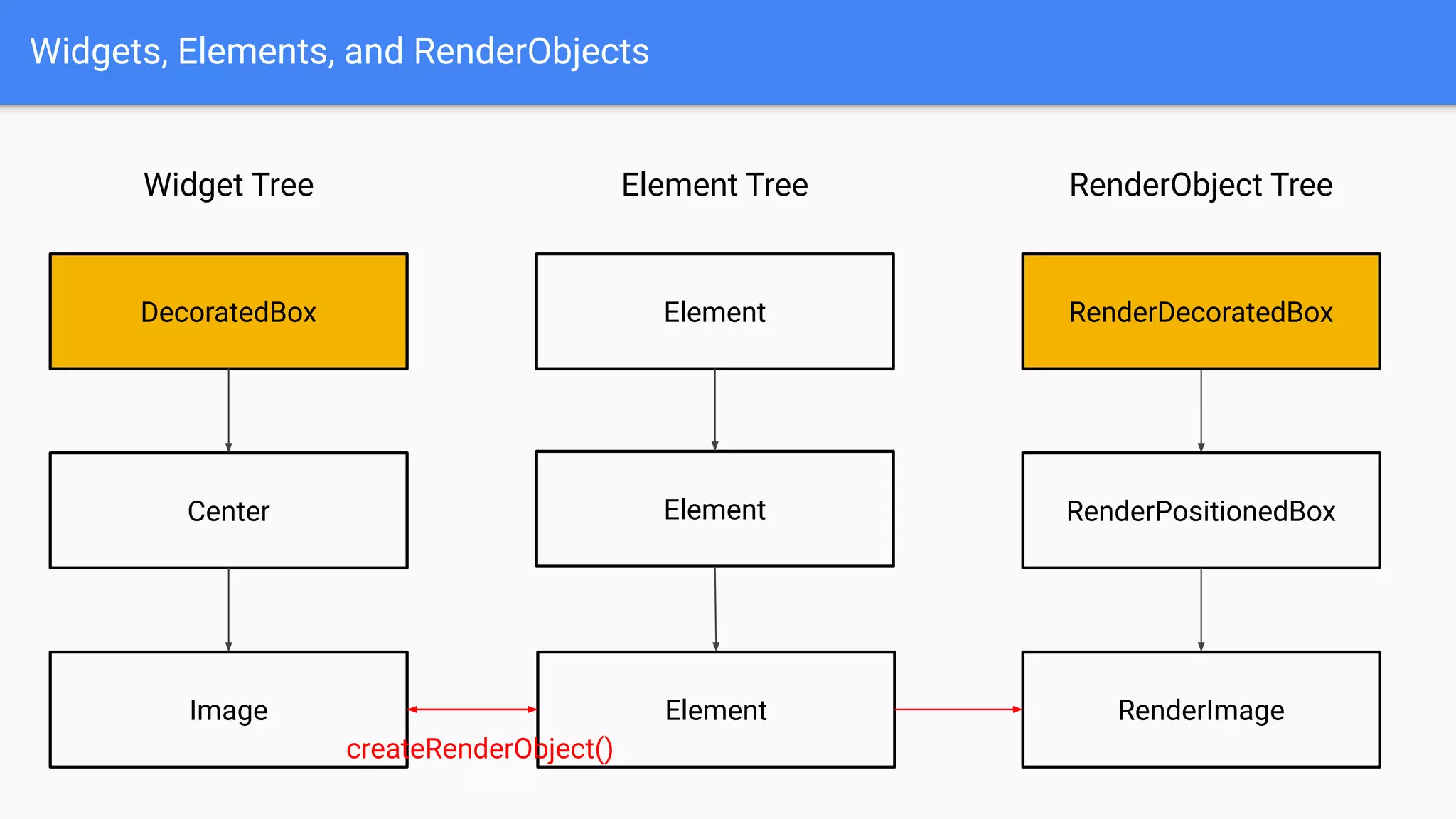

- 55. Widgets, Elements, andRenderObjects Widget Tree DecoratedBox Center Image RenderObject TreeElement Tree Element Element RenderPositionedBox RenderDecoratedBox Element createRenderObject() RenderImage

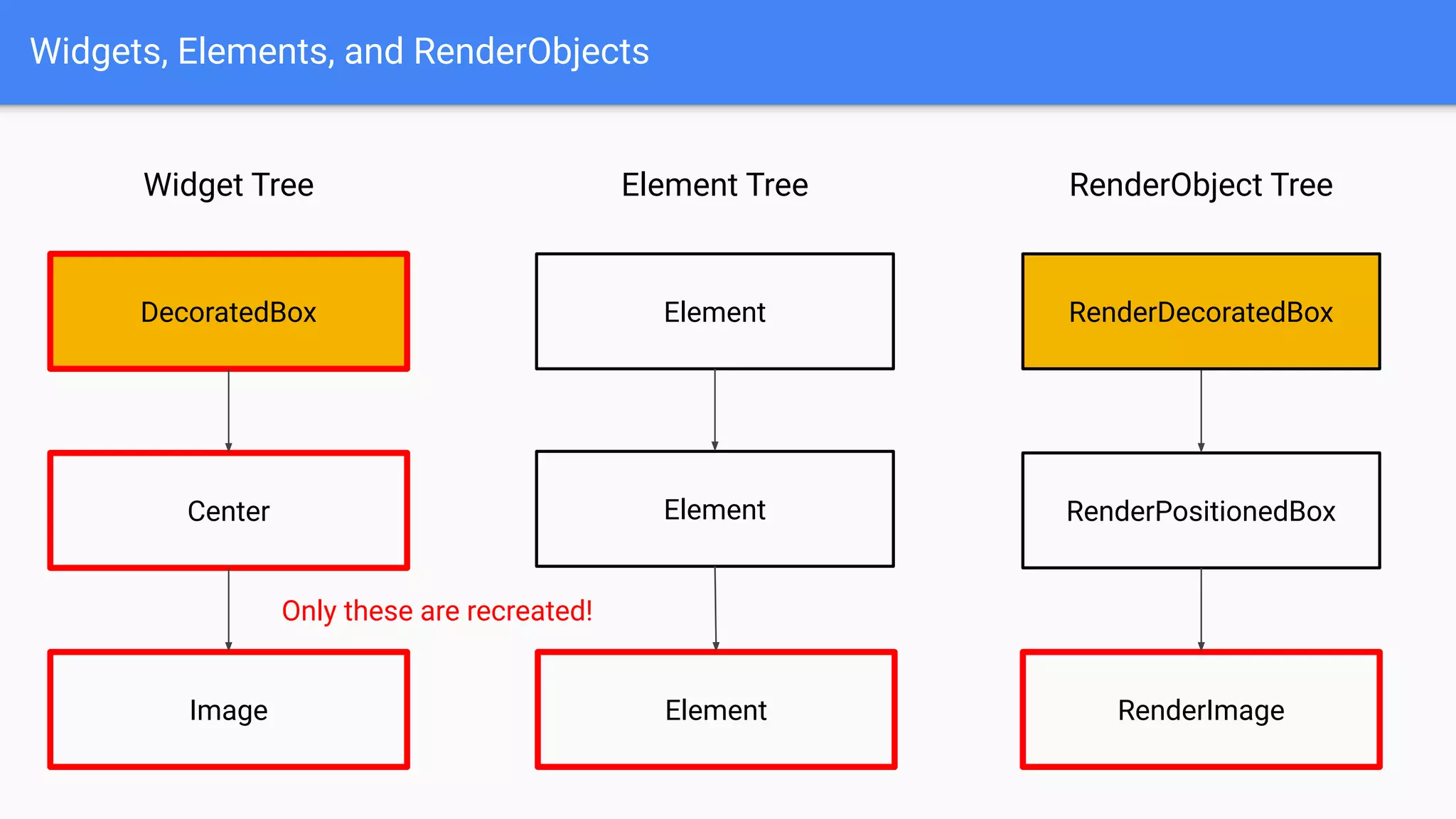

- 56. Widgets, Elements, andRenderObjects Widget Tree DecoratedBox Center Image RenderObject TreeElement Tree Element Element RenderPositionedBox RenderDecoratedBox Element RenderImage Only these are recreated!

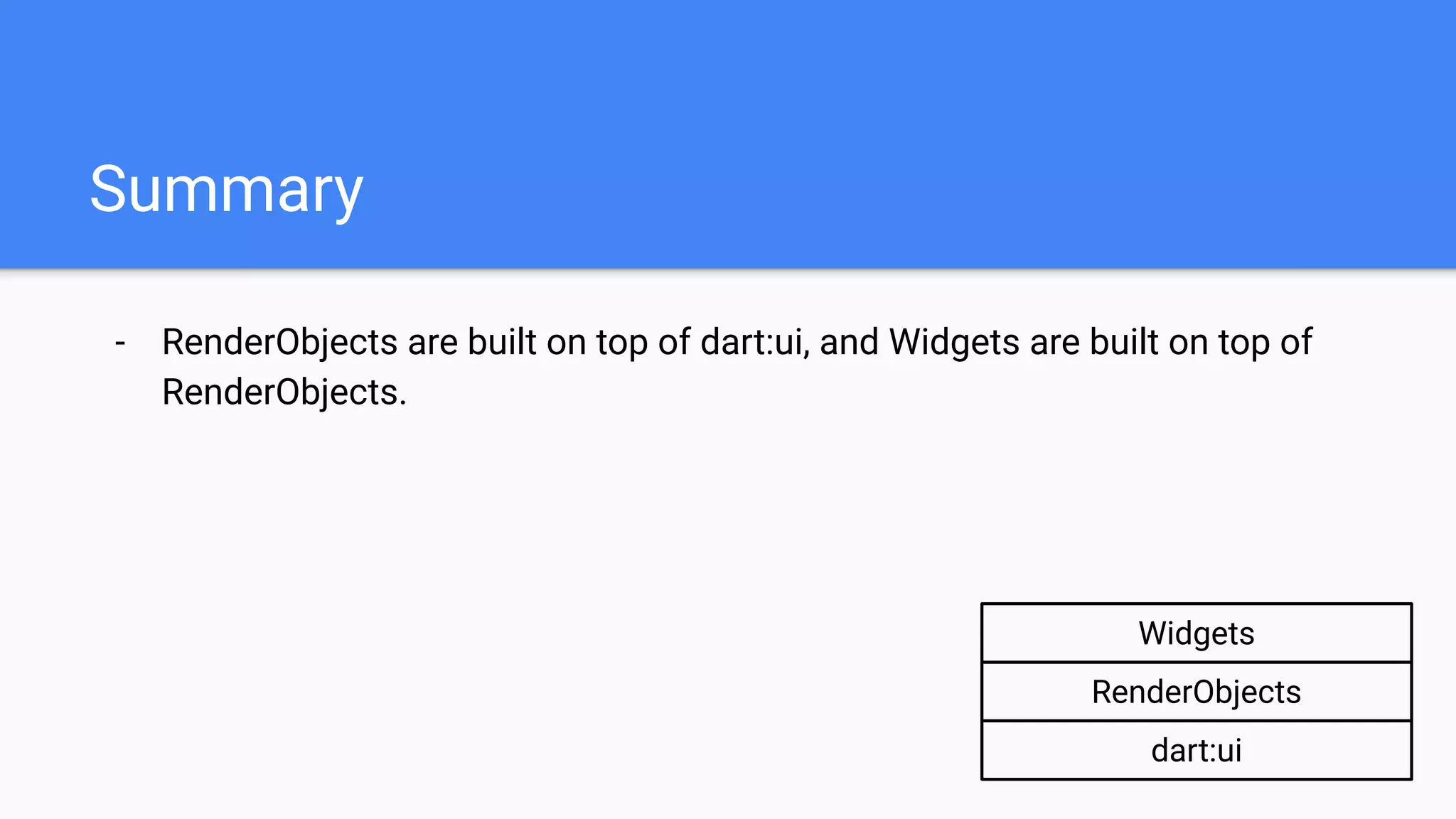

- 57. - RenderObjects arebuilt on top of dart:ui, and Widgets are built on top of RenderObjects. Summary dart:ui RenderObjects Widgets

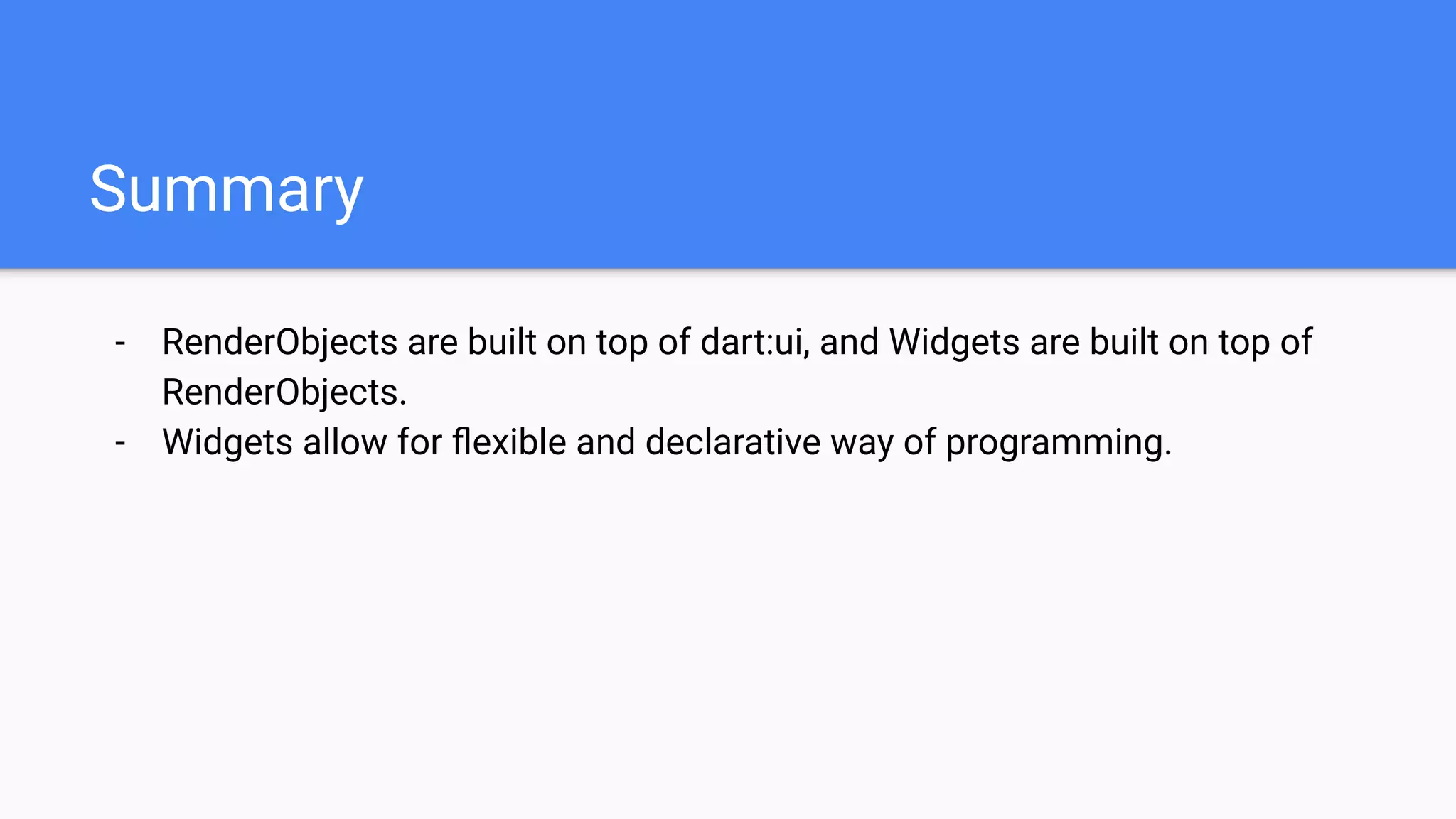

- 58. - RenderObjects arebuilt on top of dart:ui, and Widgets are built on top of RenderObjects. - Widgets allow for flexible and declarative way of programming. Summary

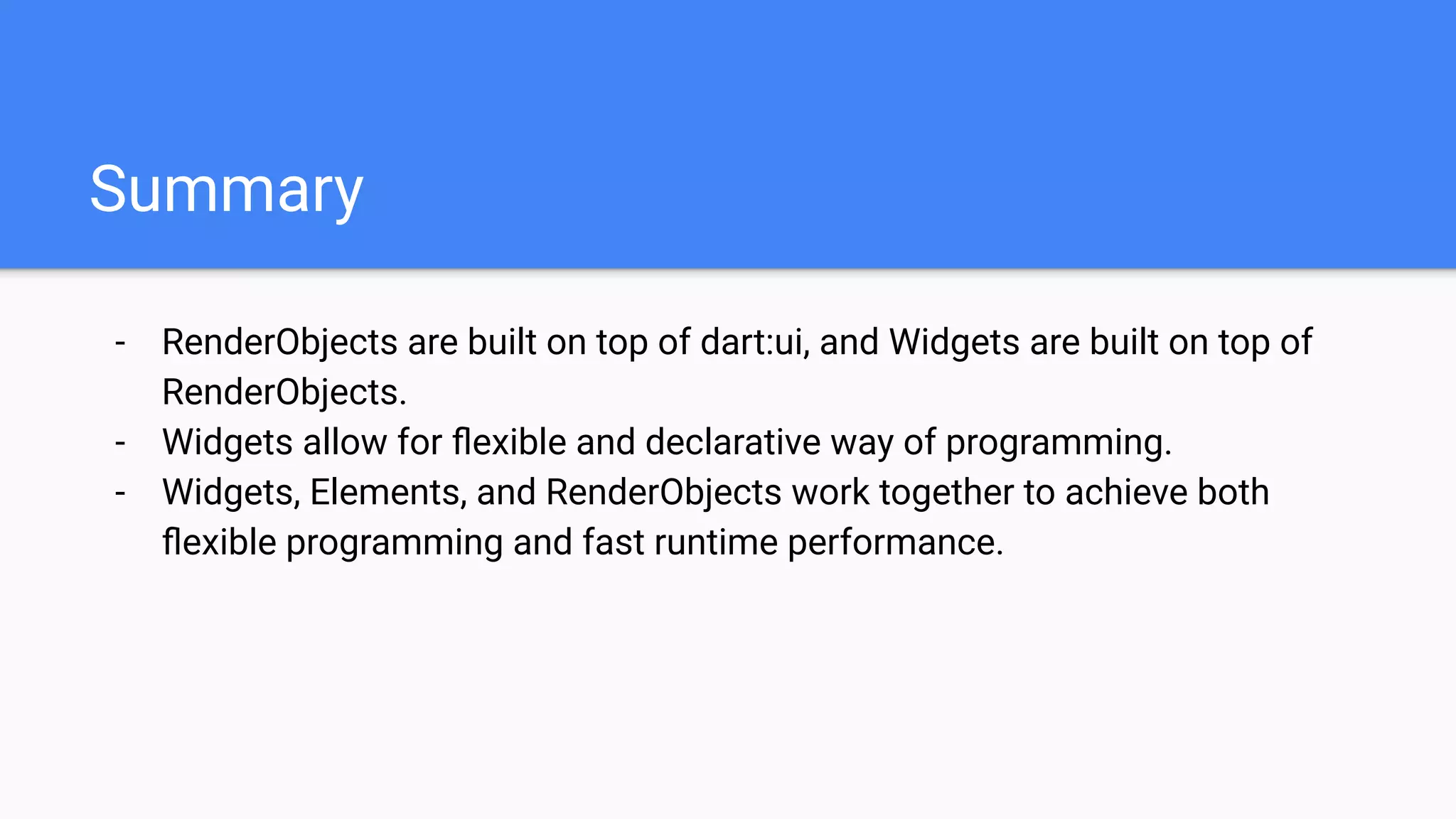

- 59. - RenderObjects arebuilt on top of dart:ui, and Widgets are built on top of RenderObjects. - Widgets allow for flexible and declarative way of programming. - Widgets, Elements, and RenderObjects work together to achieve both flexible programming and fast runtime performance. Summary

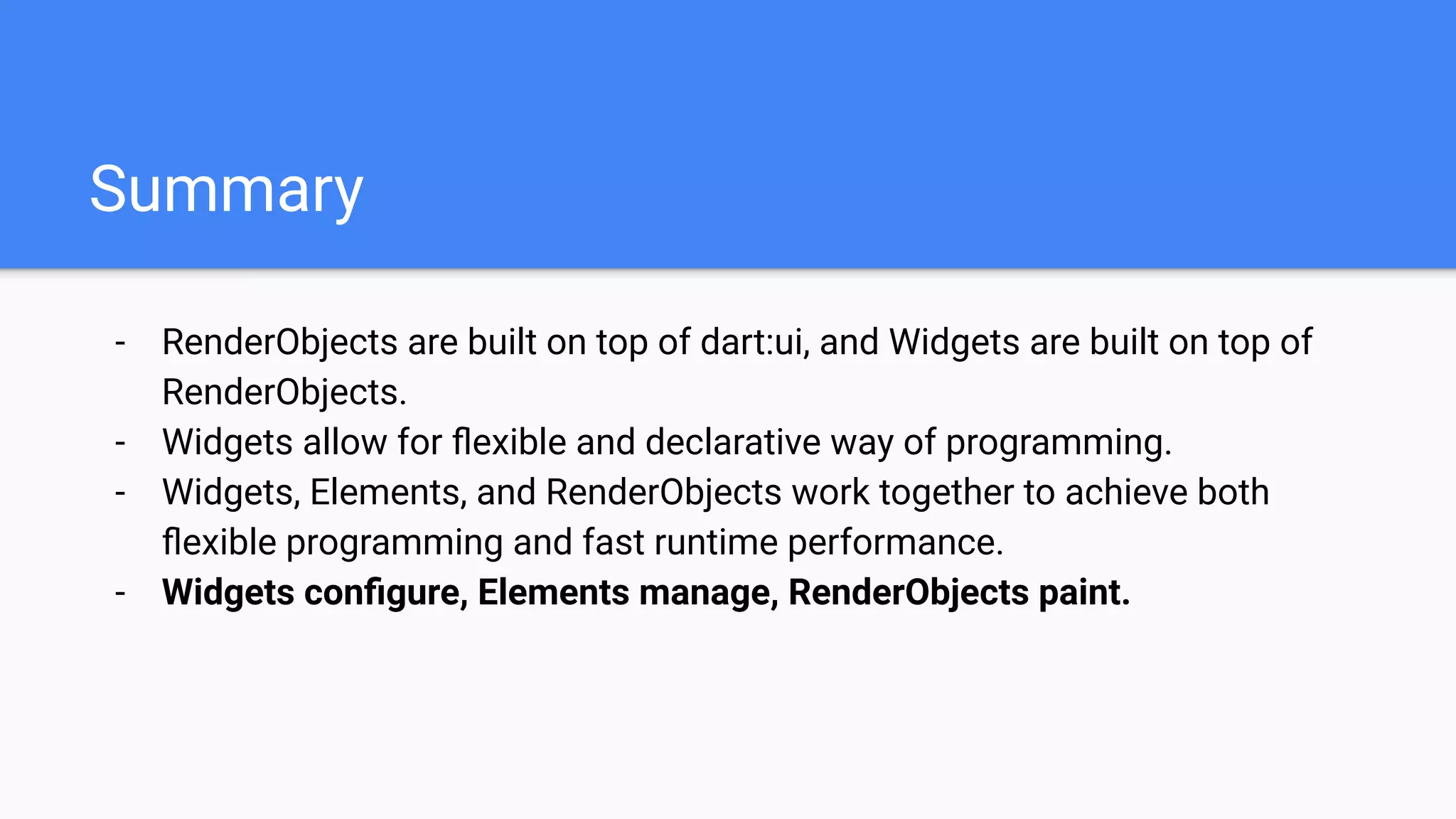

- 60. - RenderObjects arebuilt on top of dart:ui, and Widgets are built on top of RenderObjects. - Widgets allow for flexible and declarative way of programming. - Widgets, Elements, and RenderObjects work together to achieve both flexible programming and fast runtime performance. - Widgets configure, Elements manage, RenderObjects paint. Summary
