Hey! There's OCaml in my Rust!

HEY!There’s OCaml In My Rust!
Kel Cecil
@praisechaos

Incredible
Shrinking
Operating System
Steve Jones
DevOps Days 2015

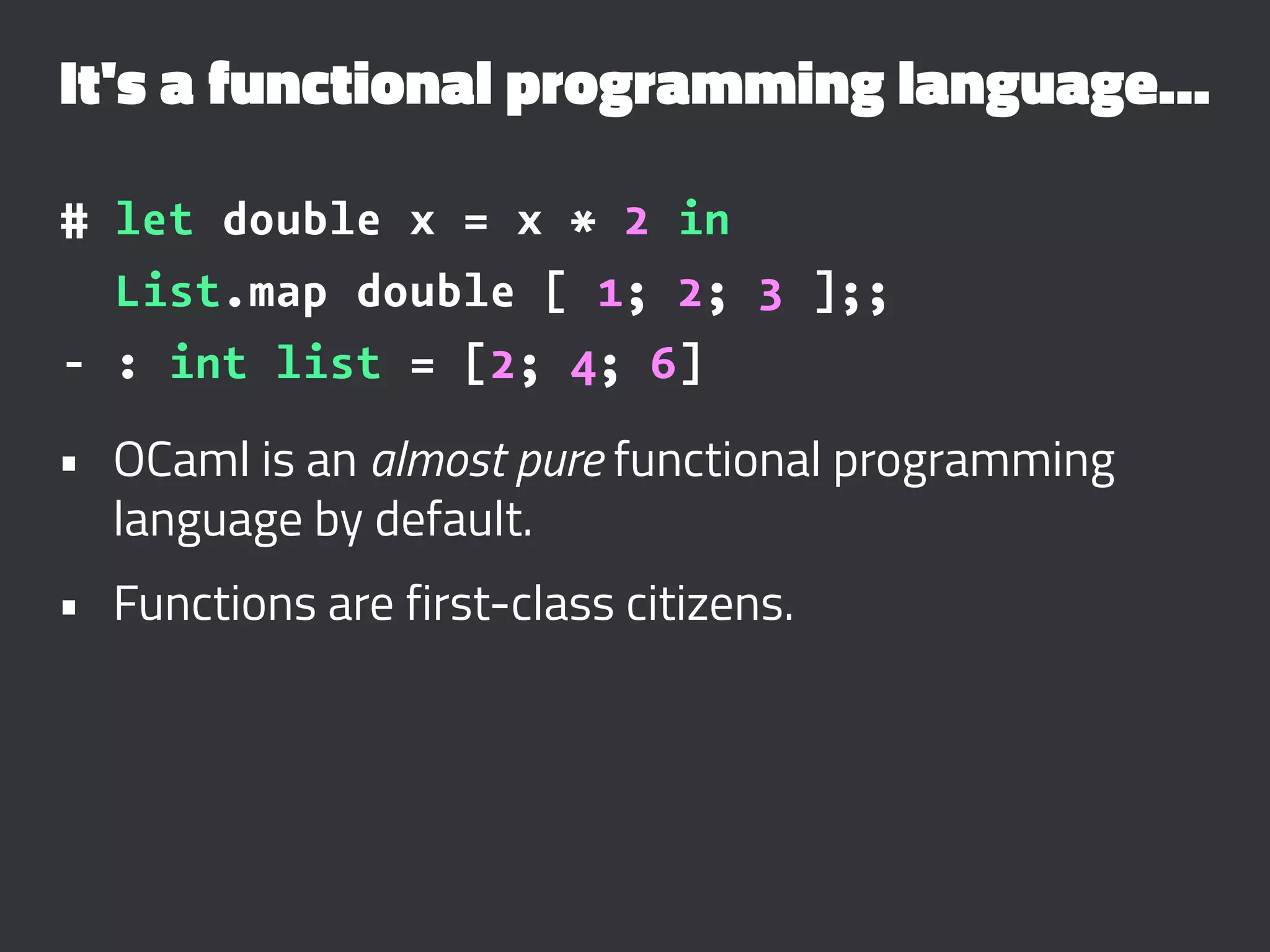

It's a functional programming language...
# let double x = x * 2 in
List.map double [ 1; 2; 3 ];;
- : int list = [2; 4; 6]
• OCaml is an almost pure functional programming
language by default.
• Functions are first-class citizens.

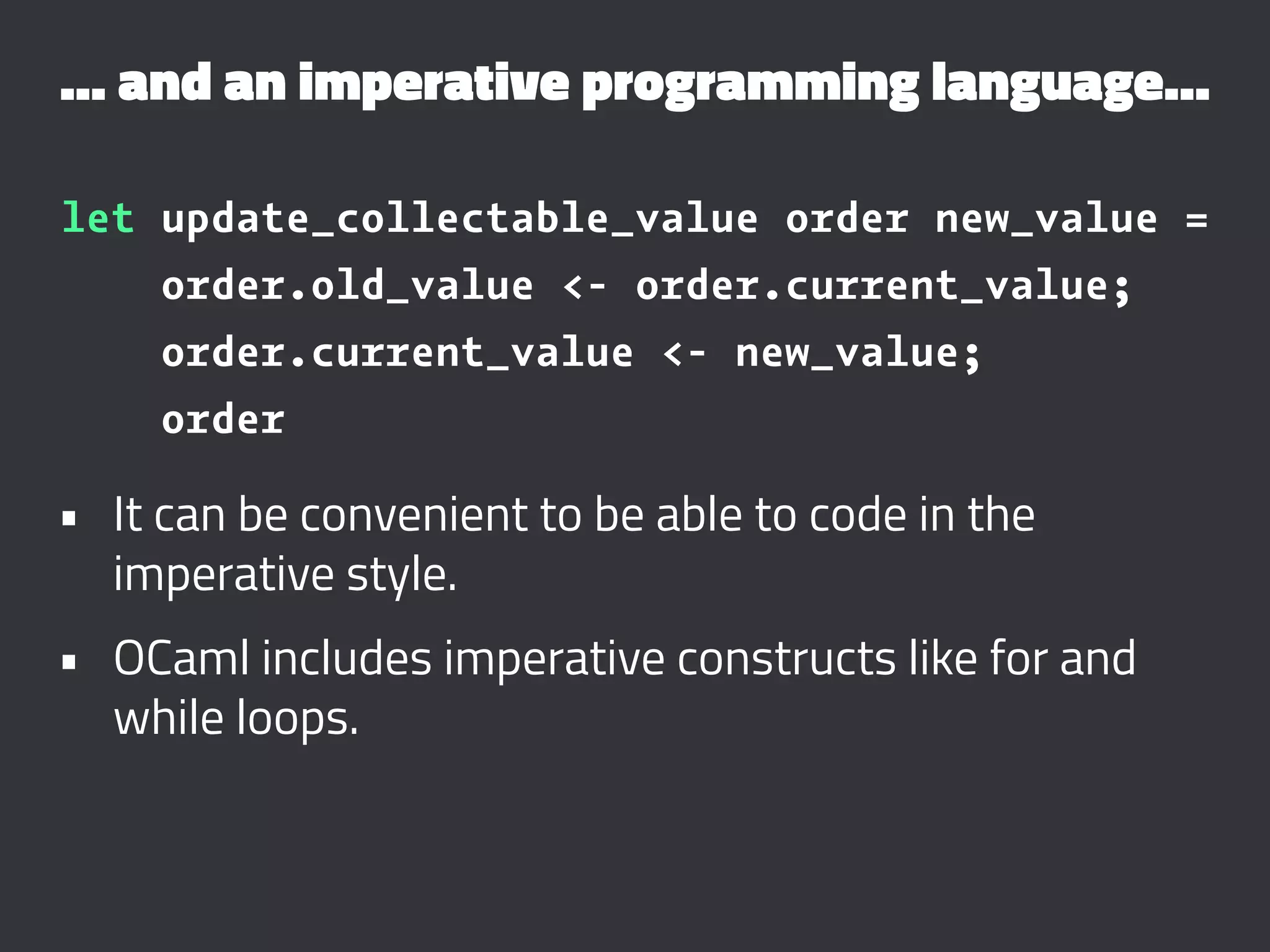

... and an imperative programming language...
let update_collectable_value order new_value =
order.old_value <- order.current_value;
order.current_value <- new_value;
order
• It can be convenient to be able to code in the
imperative style.
• OCaml includes imperative constructs like for and
while loops.

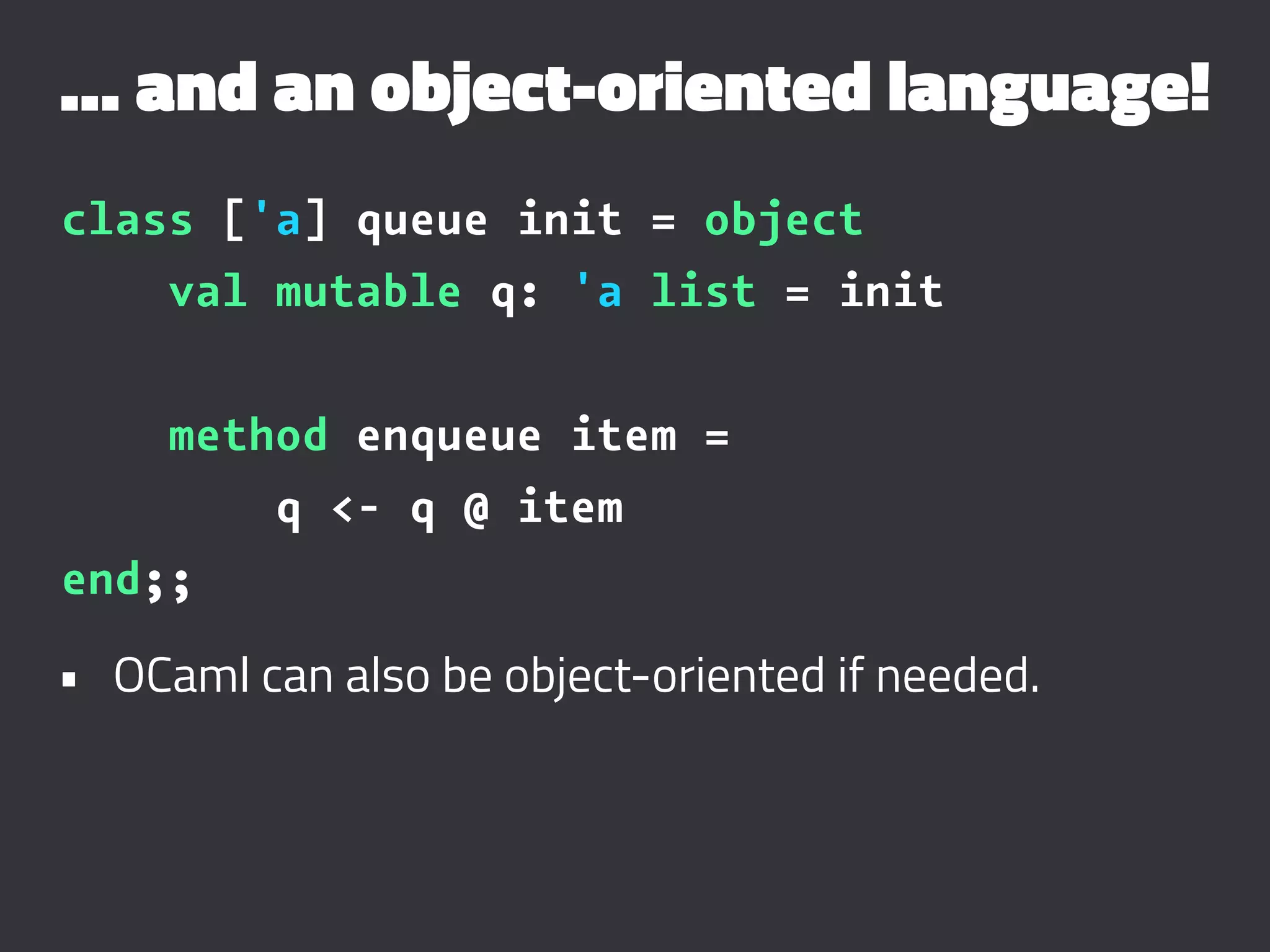

... and an object-oriented language!
class ['a] queue init = object
val mutable q: 'a list = init
method enqueue item =
q <- q @ item
end;;
• OCaml can also be object-oriented if needed.

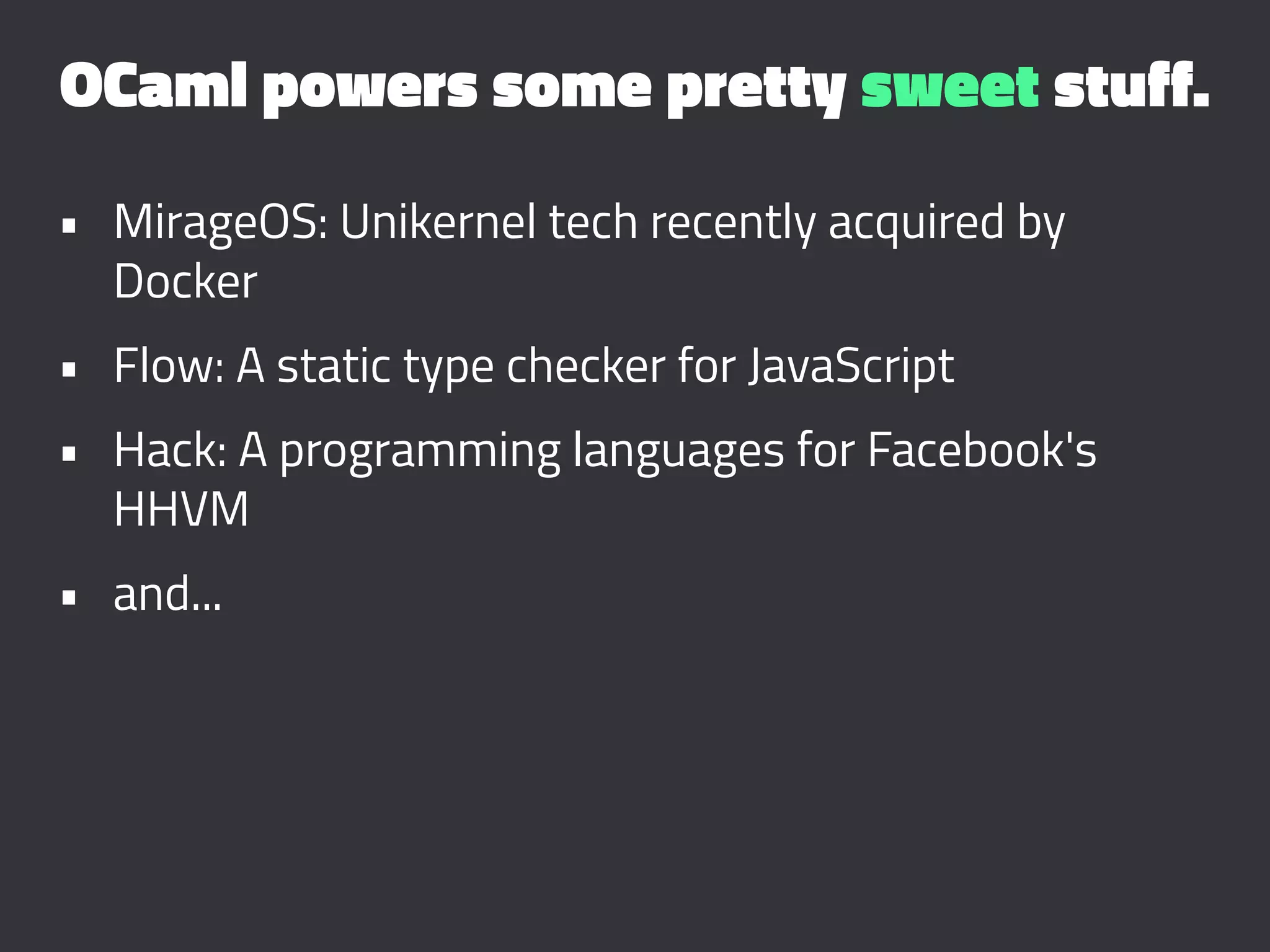

OCaml powers some pretty sweet stuff.
• MirageOS: Unikernel tech recently acquired by
Docker
• Flow: A static type checker for JavaScript
• Hack: A programming languages for Facebook's
HHVM
• and...

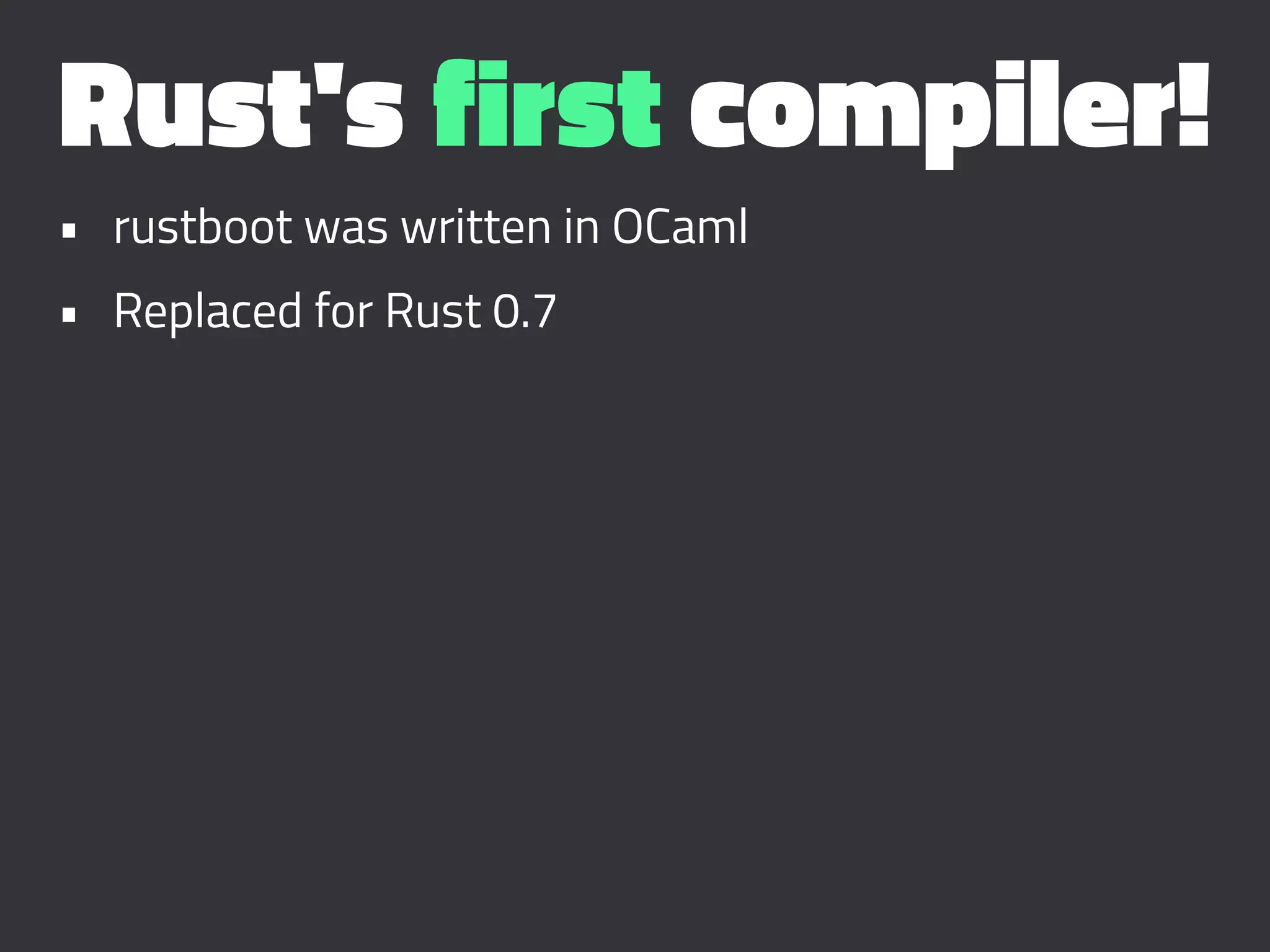

Rust's first compiler!
• rustboot was written in OCaml
• Replaced for Rust 0.7

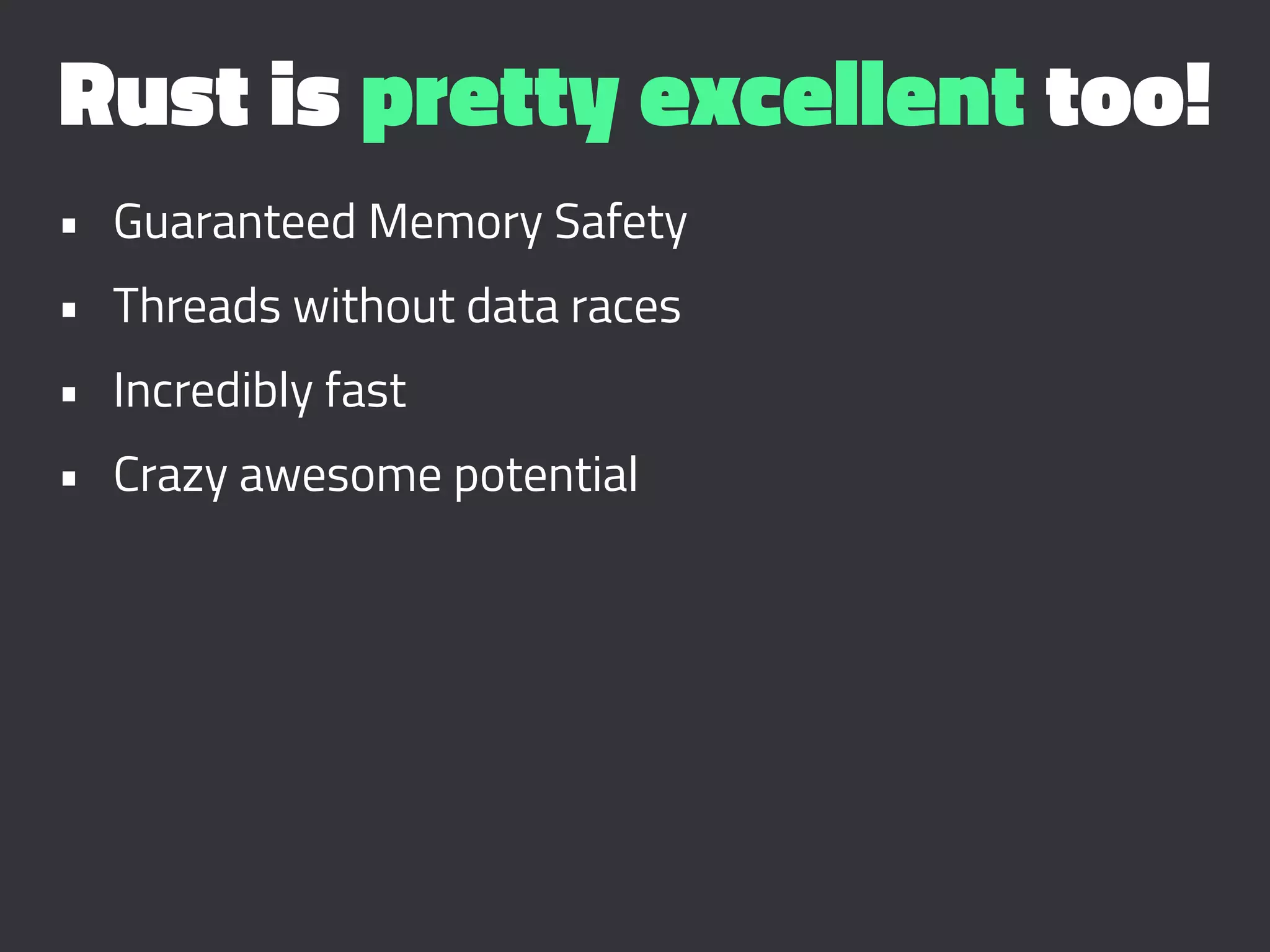

Rust is pretty excellent too!
• Guaranteed Memory Safety
• Threads without data races
• Incredibly fast
• Crazy awesome potential

Rust was inspired by OCaml
in a few interesting ways!

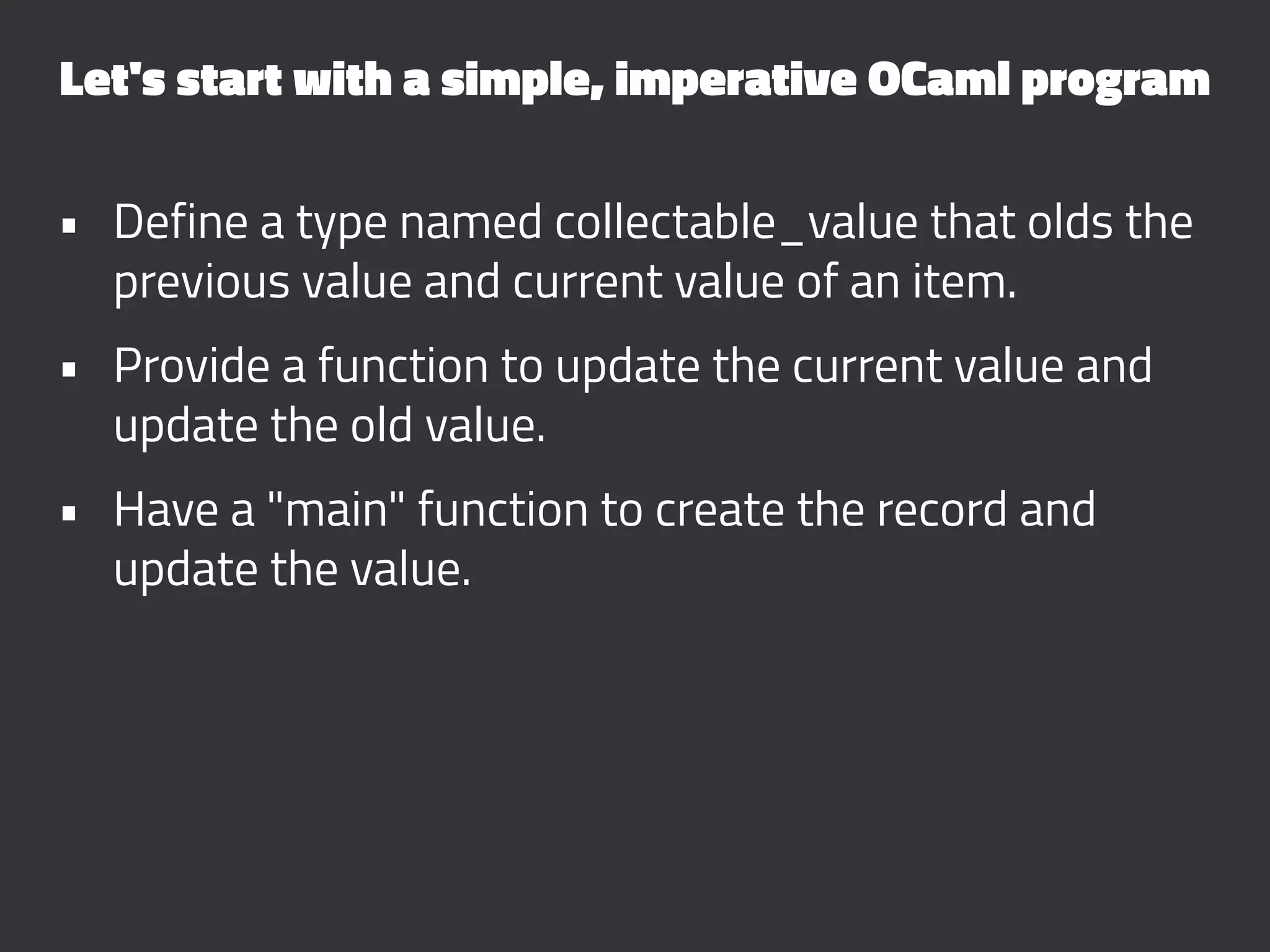

Let's start with a simple, imperative OCaml program
• Define a type named collectable_value that olds the
previous value and current value of an item.
• Provide a function to update the current value and
update the old value.
• Have a "main" function to create the record and
update the value.

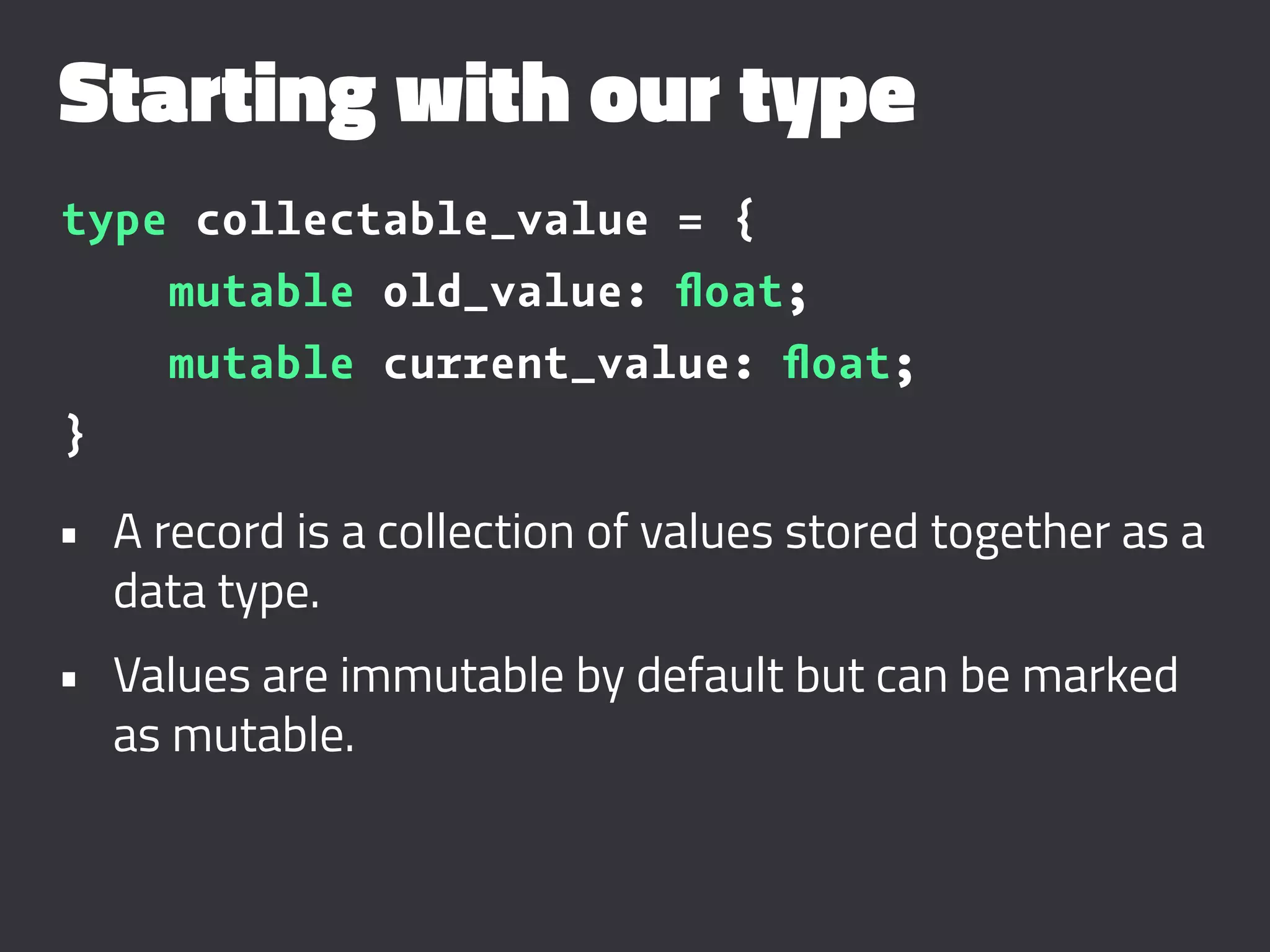

Starting with our type
type collectable_value = {
mutable old_value: ﬂoat;
mutable current_value: ﬂoat;
}
• A record is a collection of values stored together as a
data type.
• Values are immutable by default but can be marked
as mutable.

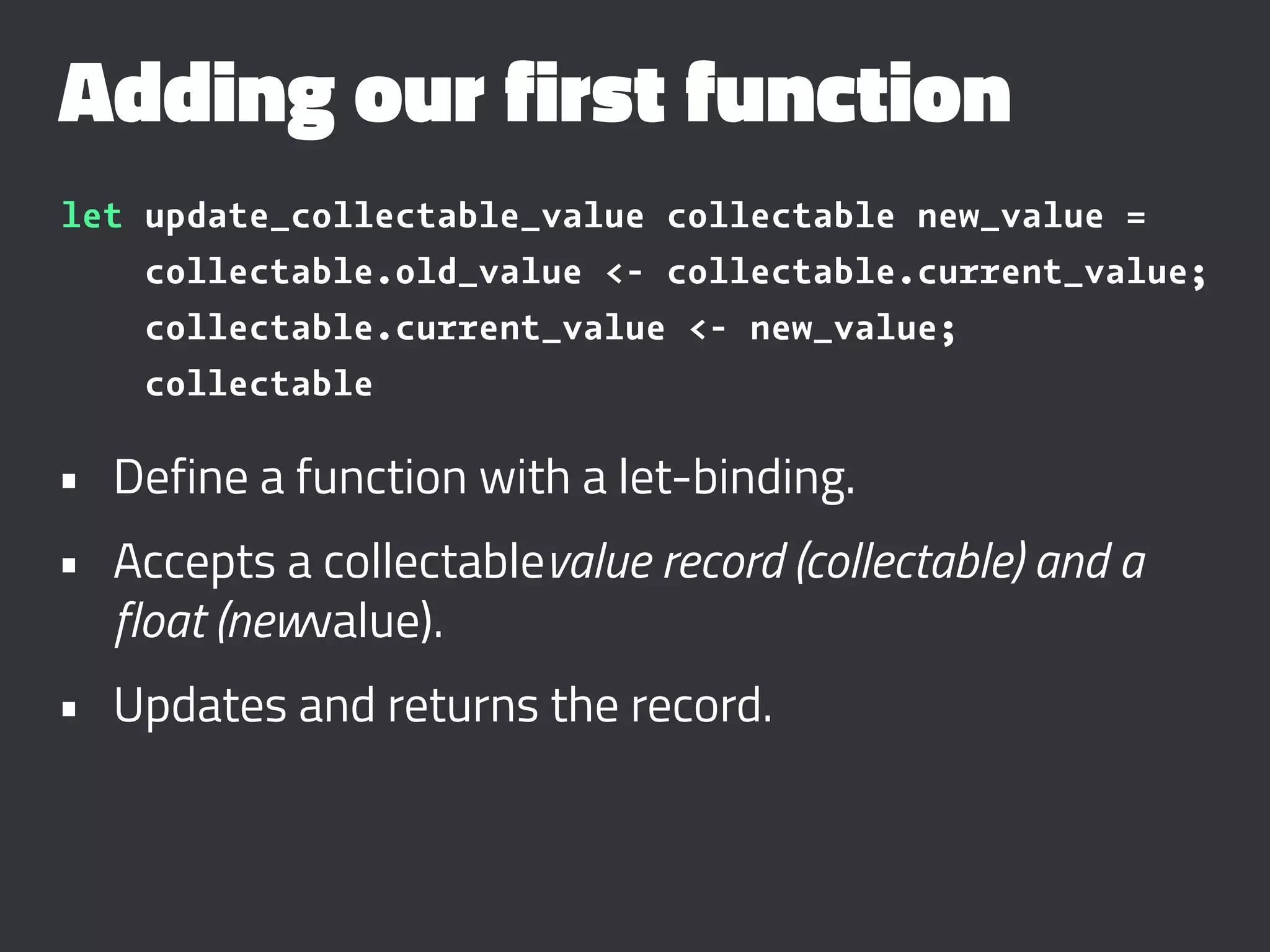

Adding our first function
let update_collectable_value collectable new_value =
collectable.old_value <- collectable.current_value;
collectable.current_value <- new_value;
collectable
• Define a function with a let-binding.
• Accepts a collectablevalue record (collectable) and a
float (newvalue).
• Updates and returns the record.

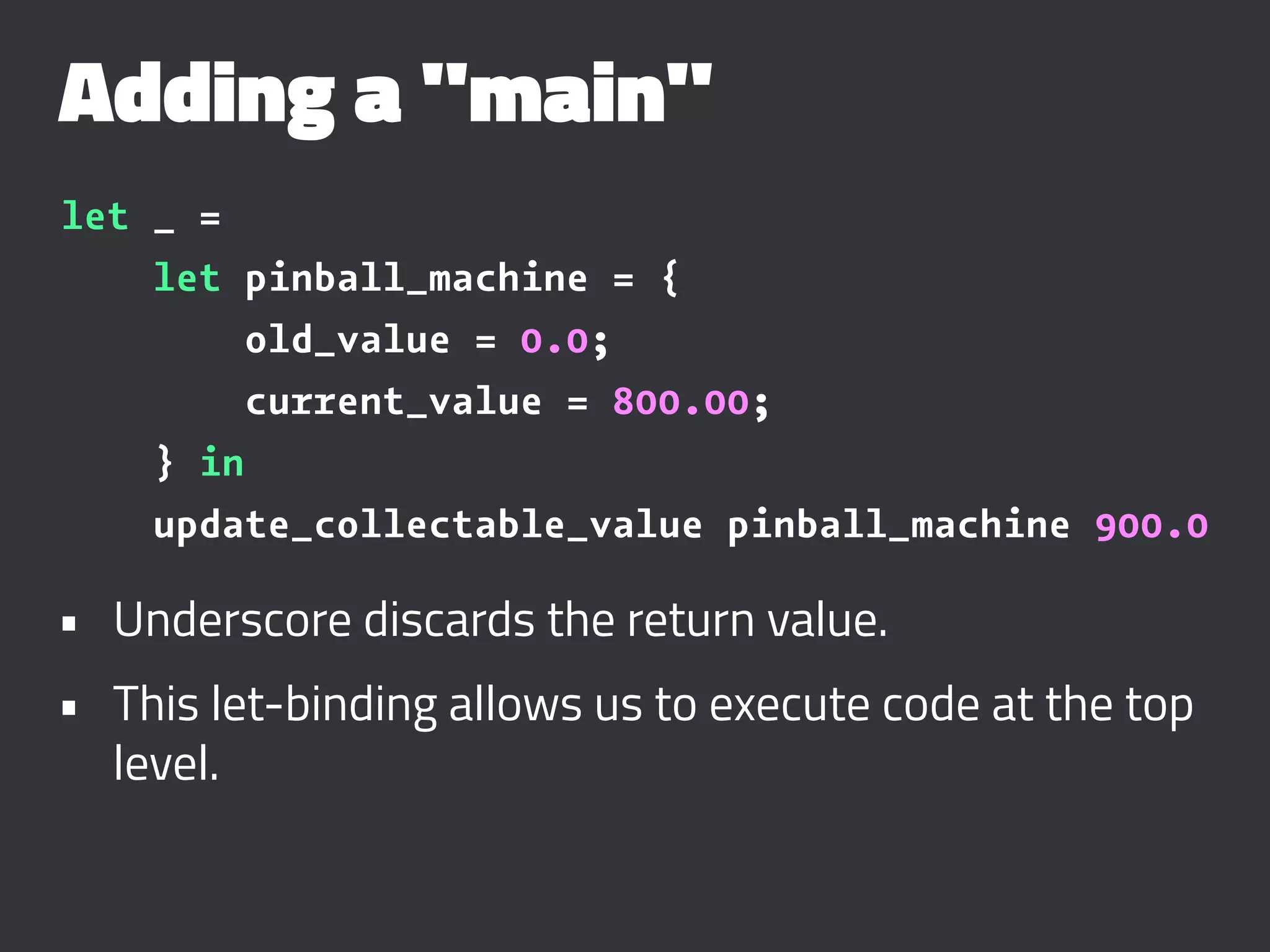

Adding a "main"
let _ =
let pinball_machine = {
old_value = 0.0;
current_value = 800.00;
} in
update_collectable_value pinball_machine 900.0
• Underscore discards the return value.
• This let-binding allows us to execute code at the top
level.

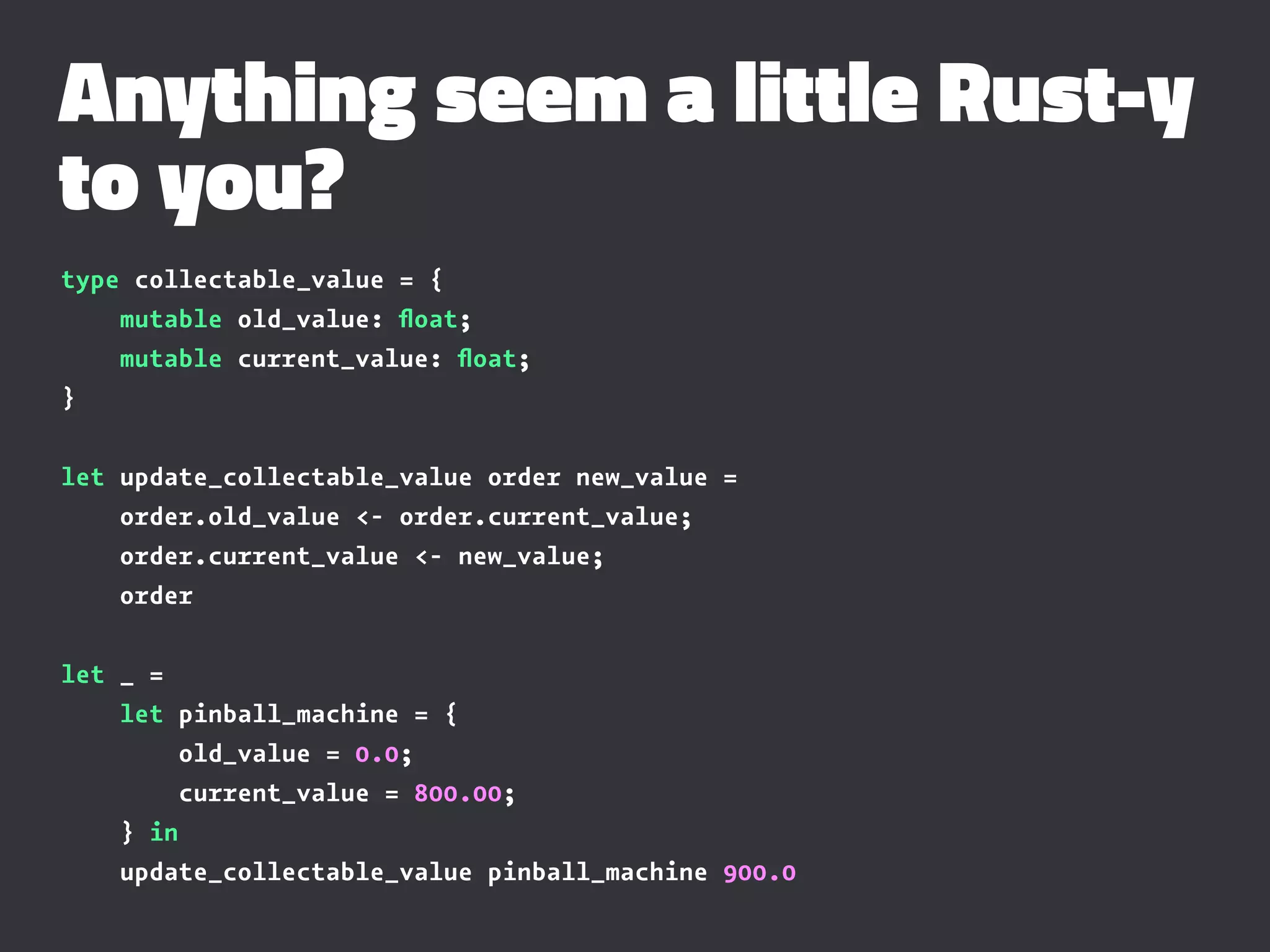

Anything seem a little Rust-y
to you?
type collectable_value = {
mutable old_value: ﬂoat;
mutable current_value: ﬂoat;
}
let update_collectable_value order new_value =
order.old_value <- order.current_value;
order.current_value <- new_value;
order
let _ =
let pinball_machine = {
old_value = 0.0;
current_value = 800.00;
} in
update_collectable_value pinball_machine 900.0

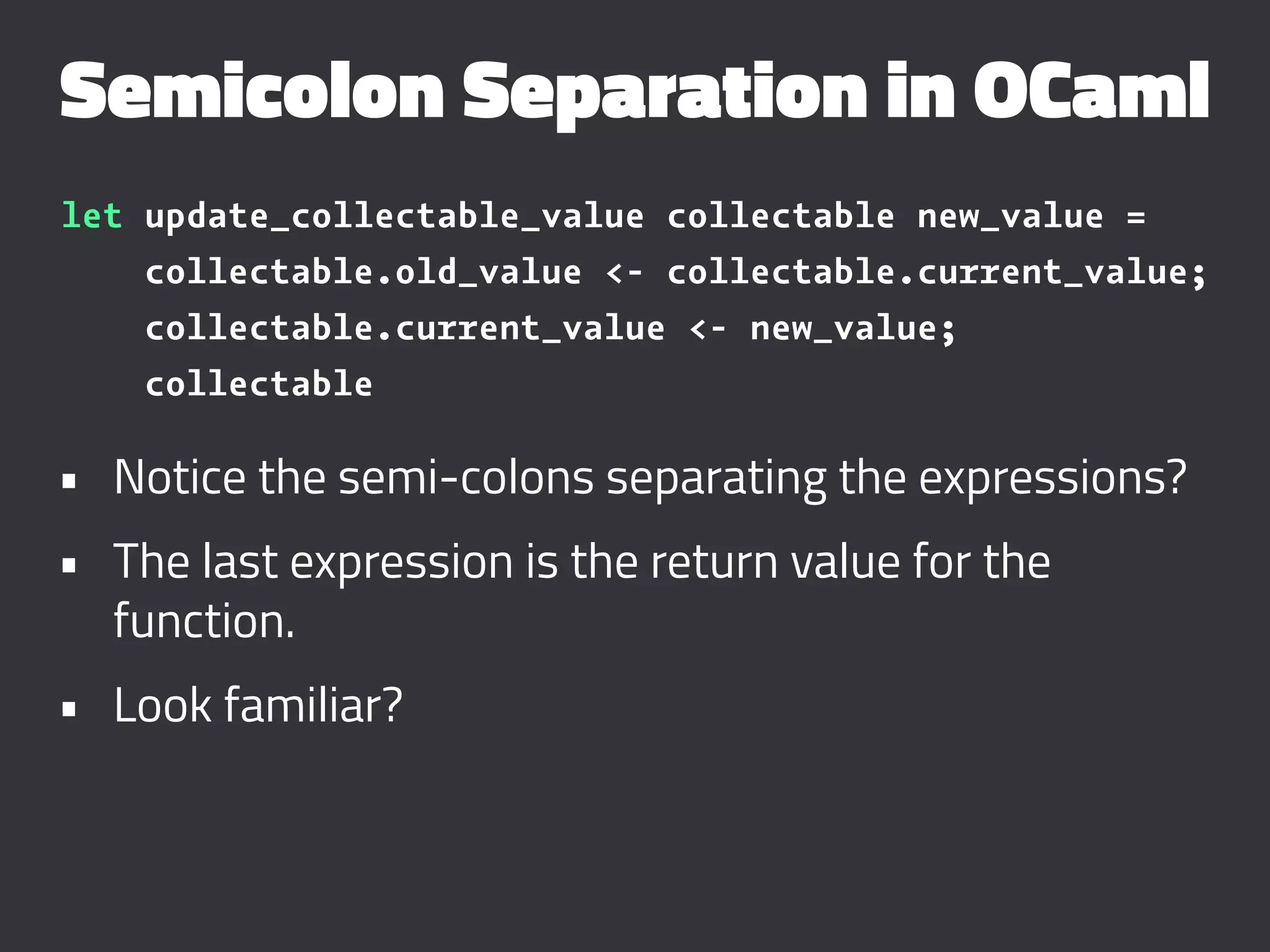

Semicolon Separation in OCaml
let update_collectable_value collectable new_value =
collectable.old_value <- collectable.current_value;
collectable.current_value <- new_value;
collectable
• Notice the semi-colons separating the expressions?
• The last expression is the return value for the
function.
• Look familiar?

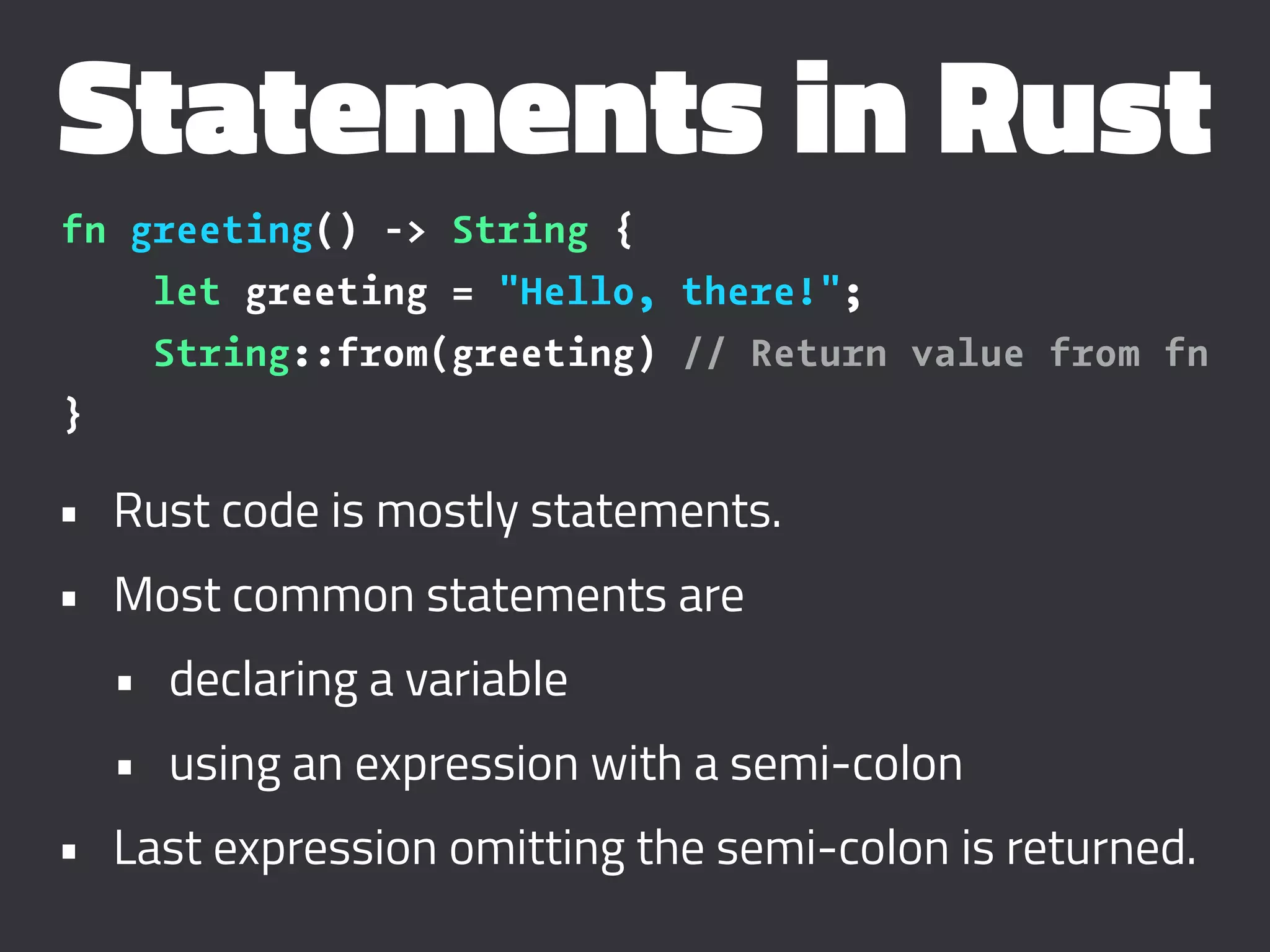

Statements in Rust
fn greeting() -> String {
let greeting = "Hello, there!";
String::from(greeting) // Return value from fn
}
• Rust code is mostly statements.
• Most common statements are
• declaring a variable
• using an expression with a semi-colon
• Last expression omitting the semi-colon is returned.

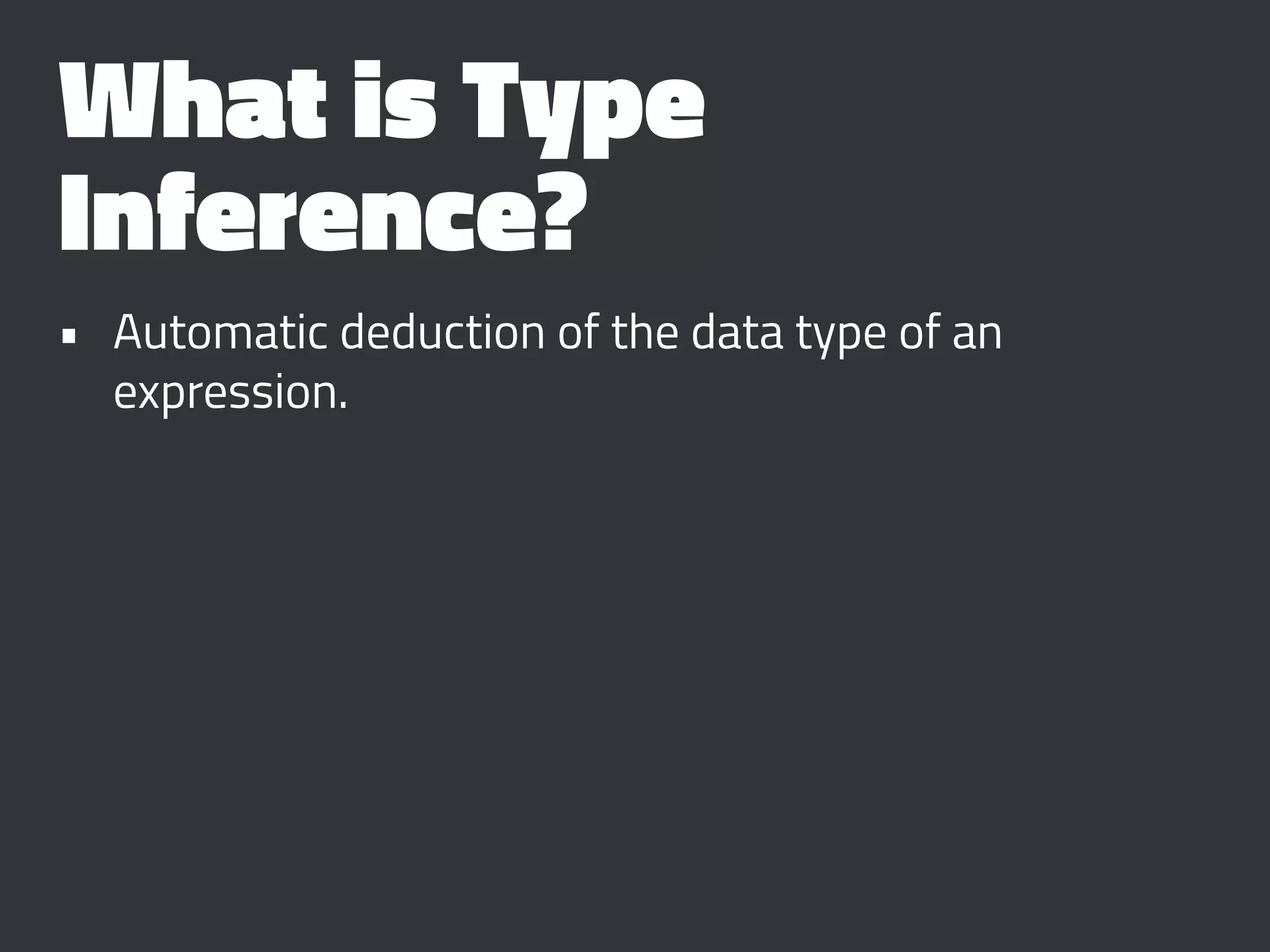

What is Type
Inference?
• Automatic deduction of the data type of an
expression.

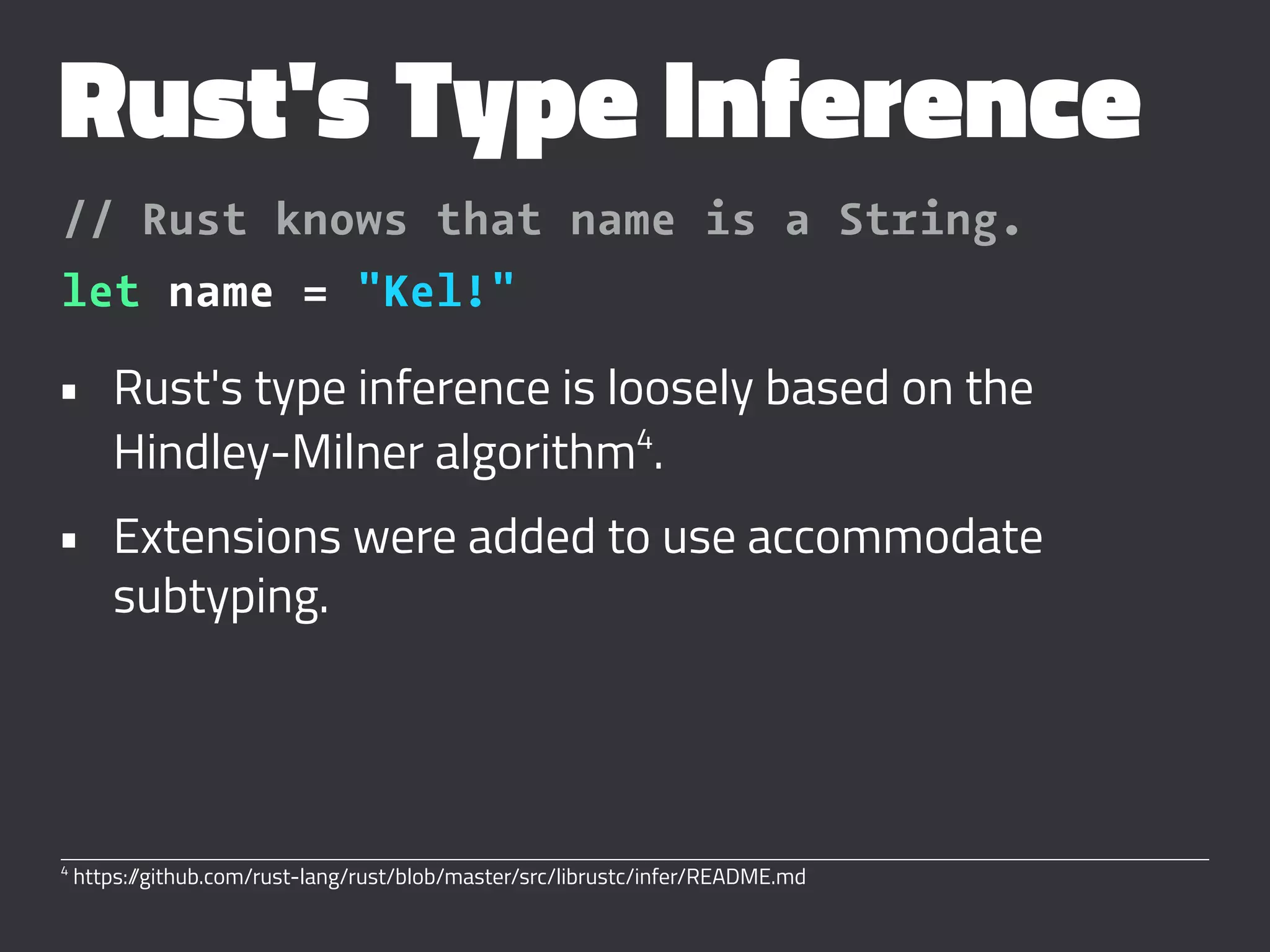

Rust's Type Inference
// Rust knows that name is a String.
let name = "Kel!"
• Rust's type inference is loosely based on the
Hindley-Milner algorithm4
.
• Extensions were added to use accommodate
subtyping.
4
https://github.com/rust-lang/rust/blob/master/src/librustc/infer/README.md

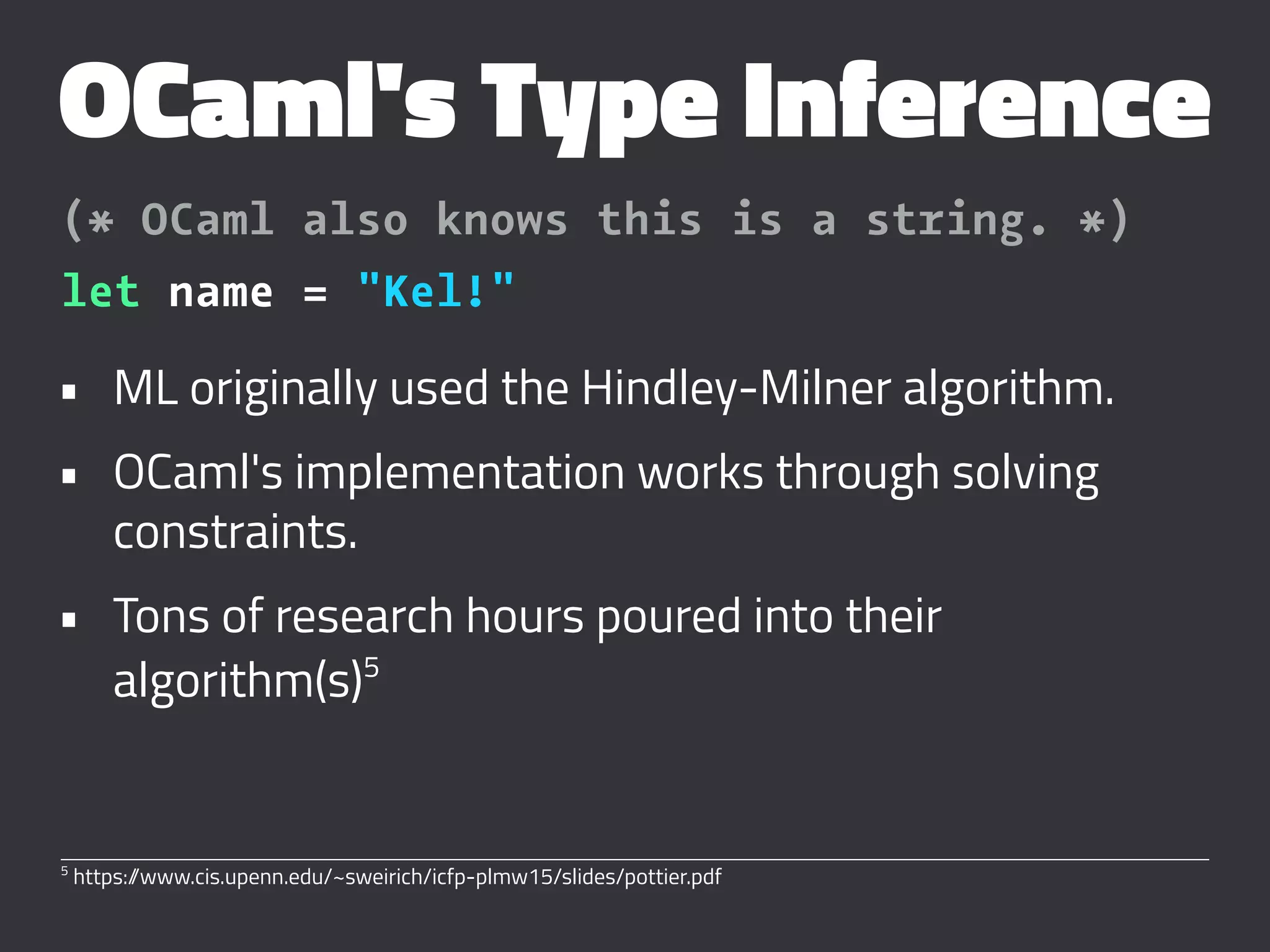

OCaml's Type Inference
(* OCaml also knows this is a string. *)
let name = "Kel!"
• ML originally used the Hindley-Milner algorithm.
• OCaml's implementation works through solving
constraints.
• Tons of research hours poured into their
algorithm(s)5
5
https://www.cis.upenn.edu/~sweirich/icfp-plmw15/slides/pottier.pdf

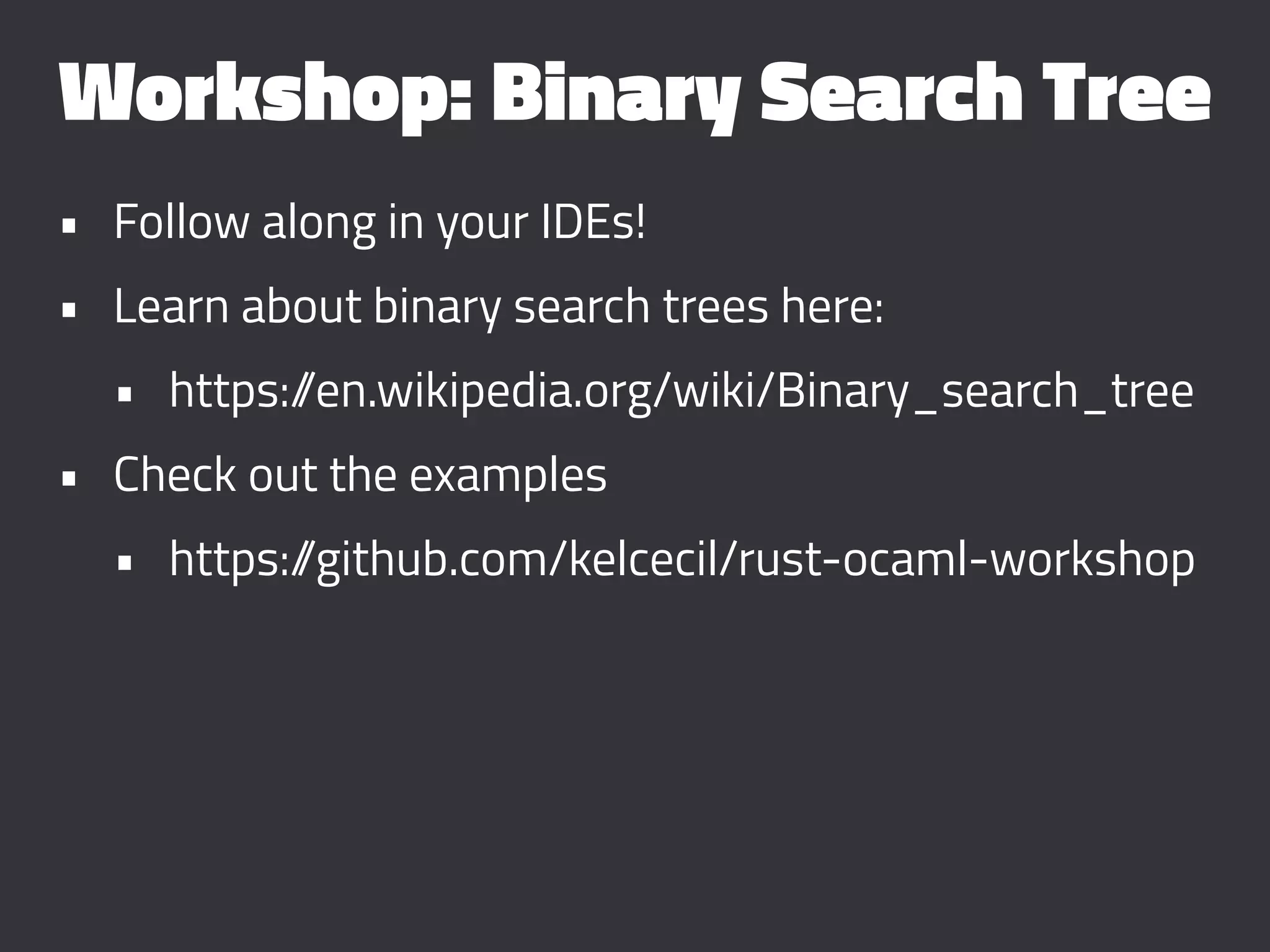

Workshop: Binary Search Tree
• Follow along in your IDEs!
• Learn about binary search trees here:
• https://en.wikipedia.org/wiki/Binary_search_tree
• Check out the examples
• https://github.com/kelcecil/rust-ocaml-workshop

Building our Tree Structure
OCaml, then Rust.

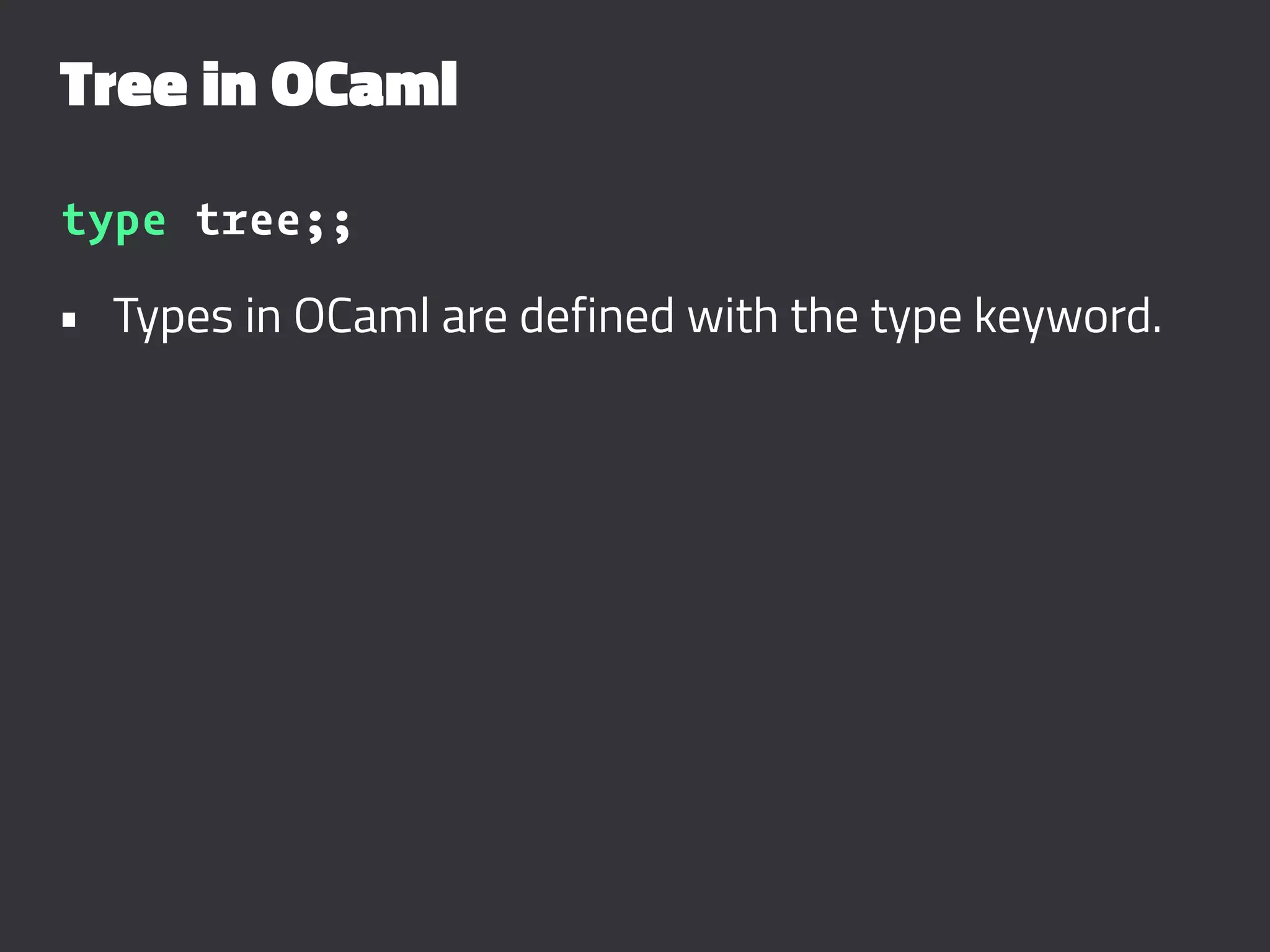

Tree in OCaml
type tree;;
• Types in OCaml are defined with the type keyword.

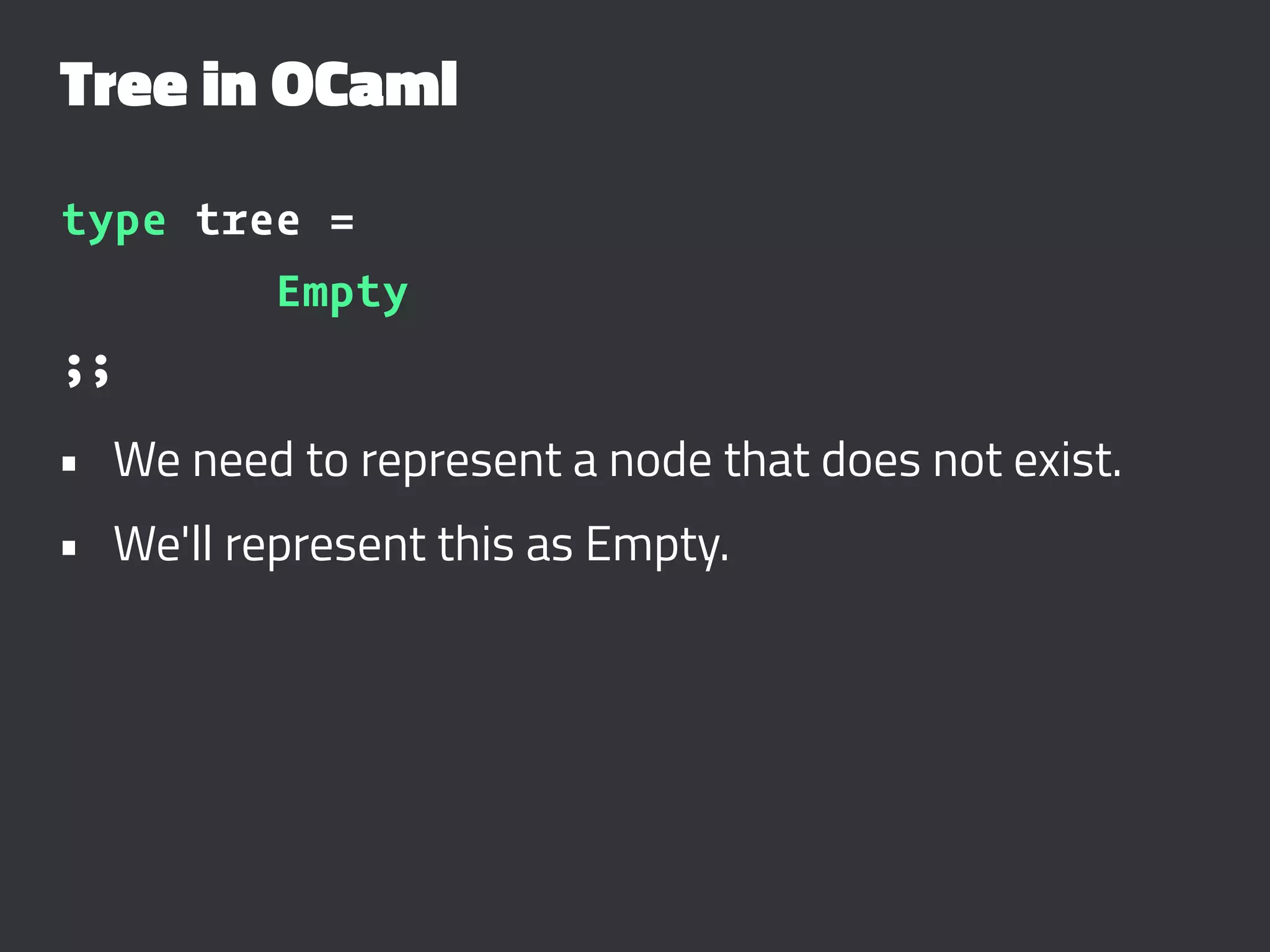

Tree in OCaml
type tree =
Empty
;;
• We need to represent a node that does not exist.
• We'll represent this as Empty.

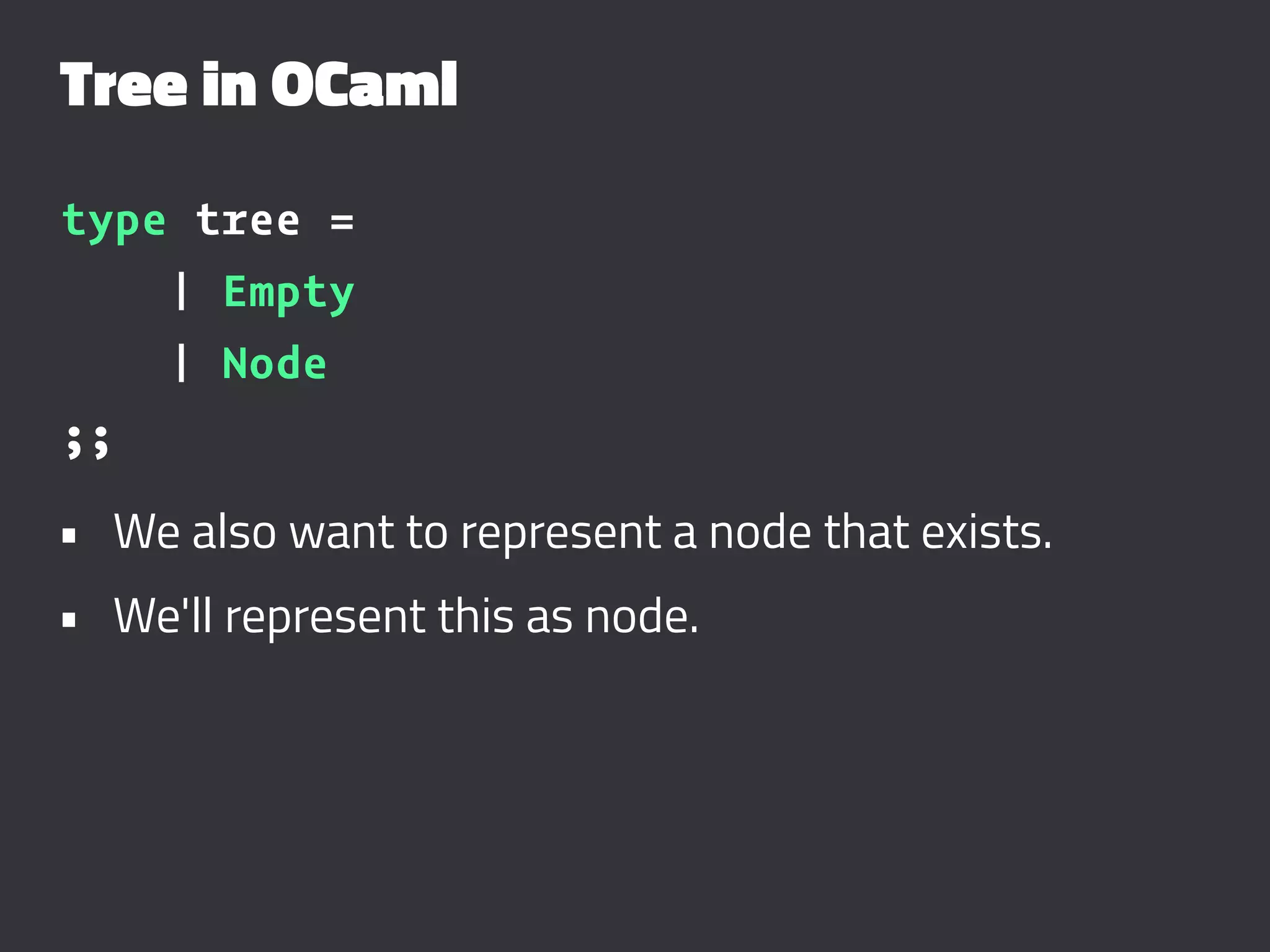

Tree in OCaml
type tree =
| Empty
| Node
;;
• We also want to represent a node that exists.
• We'll represent this as node.

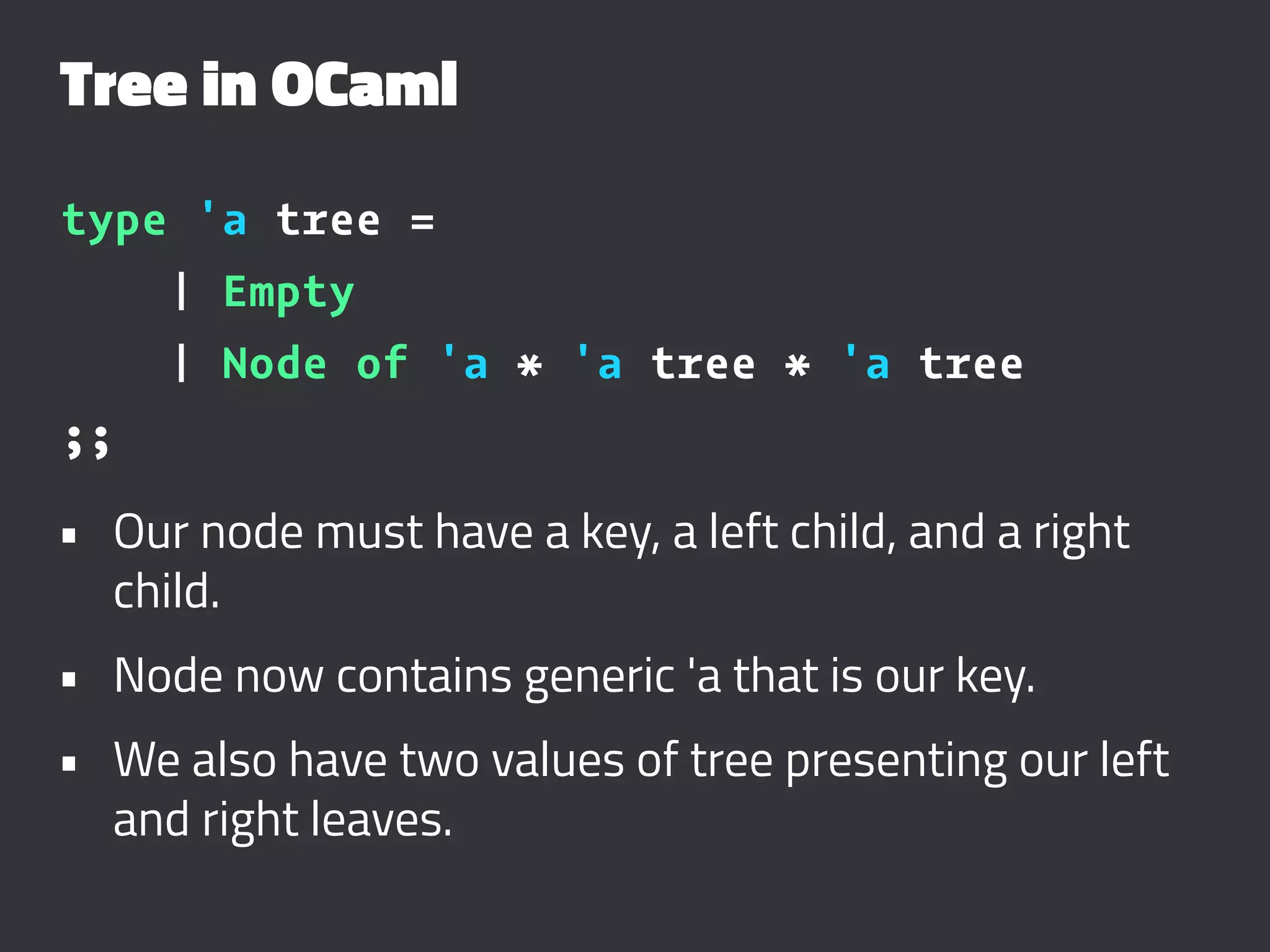

Tree in OCaml
type 'a tree =
| Empty
| Node of 'a * 'a tree * 'a tree
;;
• Our node must have a key, a left child, and a right
child.
• Node now contains generic 'a that is our key.
• We also have two values of tree presenting our left
and right leaves.

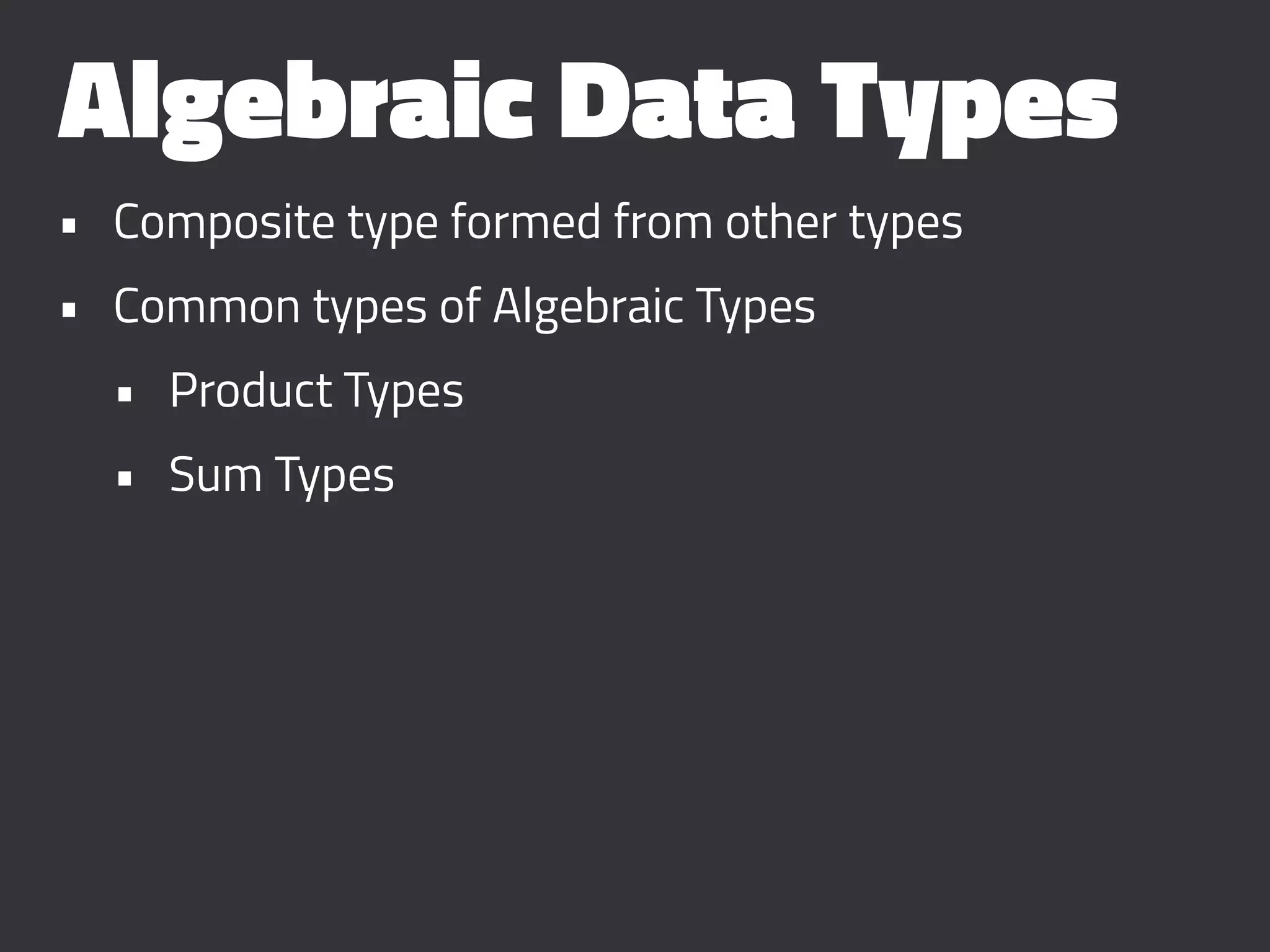

Algebraic Data Types
• Composite type formed from other types
• Common types of Algebraic Types
• Product Types
• Sum Types

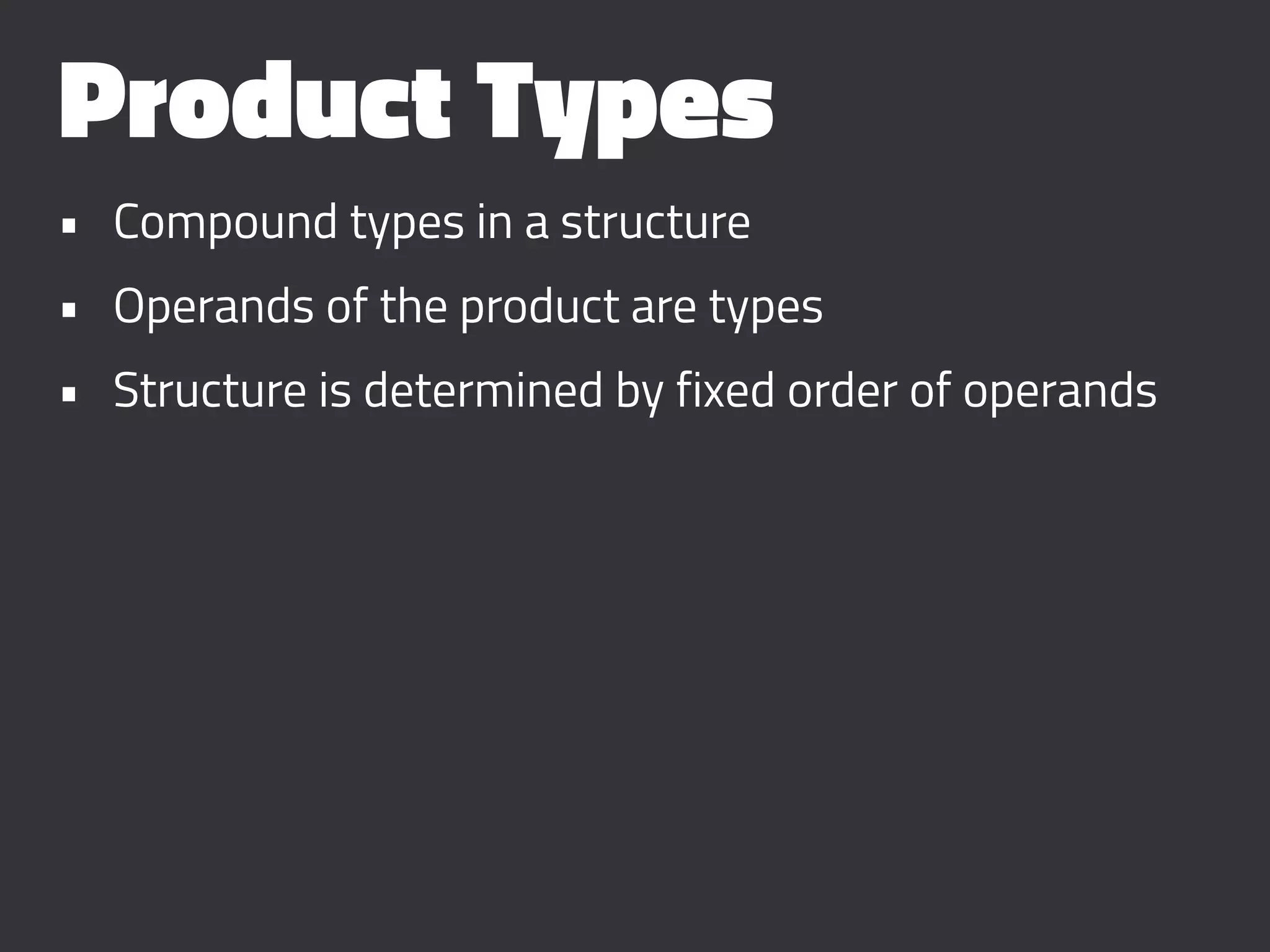

Product Types
• Compound types in a structure
• Operands of the product are types
• Structure is determined by fixed order of operands

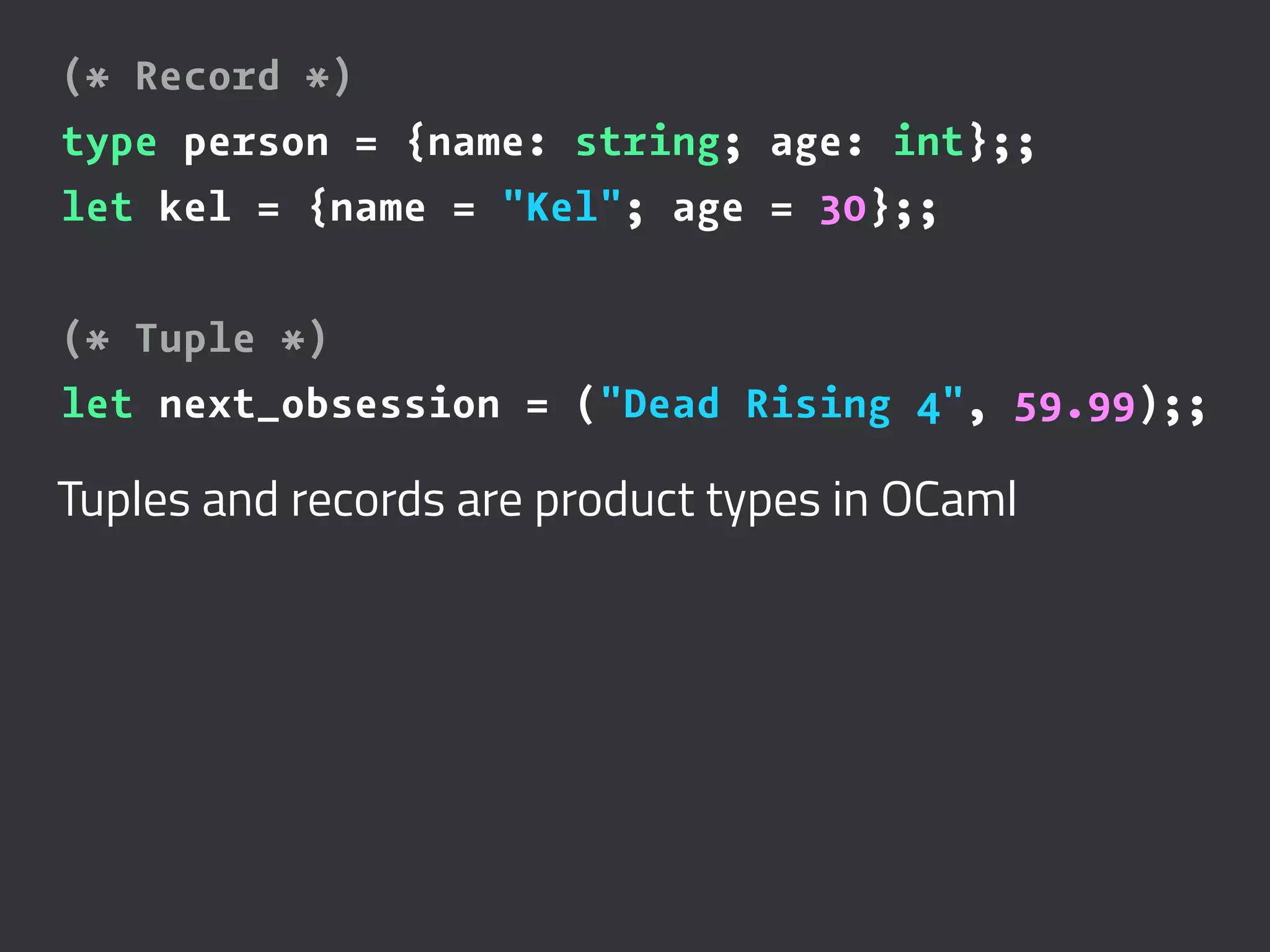

(* Record *)
type person = {name: string; age: int};;
let kel = {name = "Kel"; age = 30};;
(* Tuple *)
let next_obsession = ("Dead Rising 4", 59.99);;
Tuples and records are product types in OCaml

let my_love = ("Rust", 9001)
• Tuples are product types in Rust
• There's also the unit () type
• Tuple with no operands.

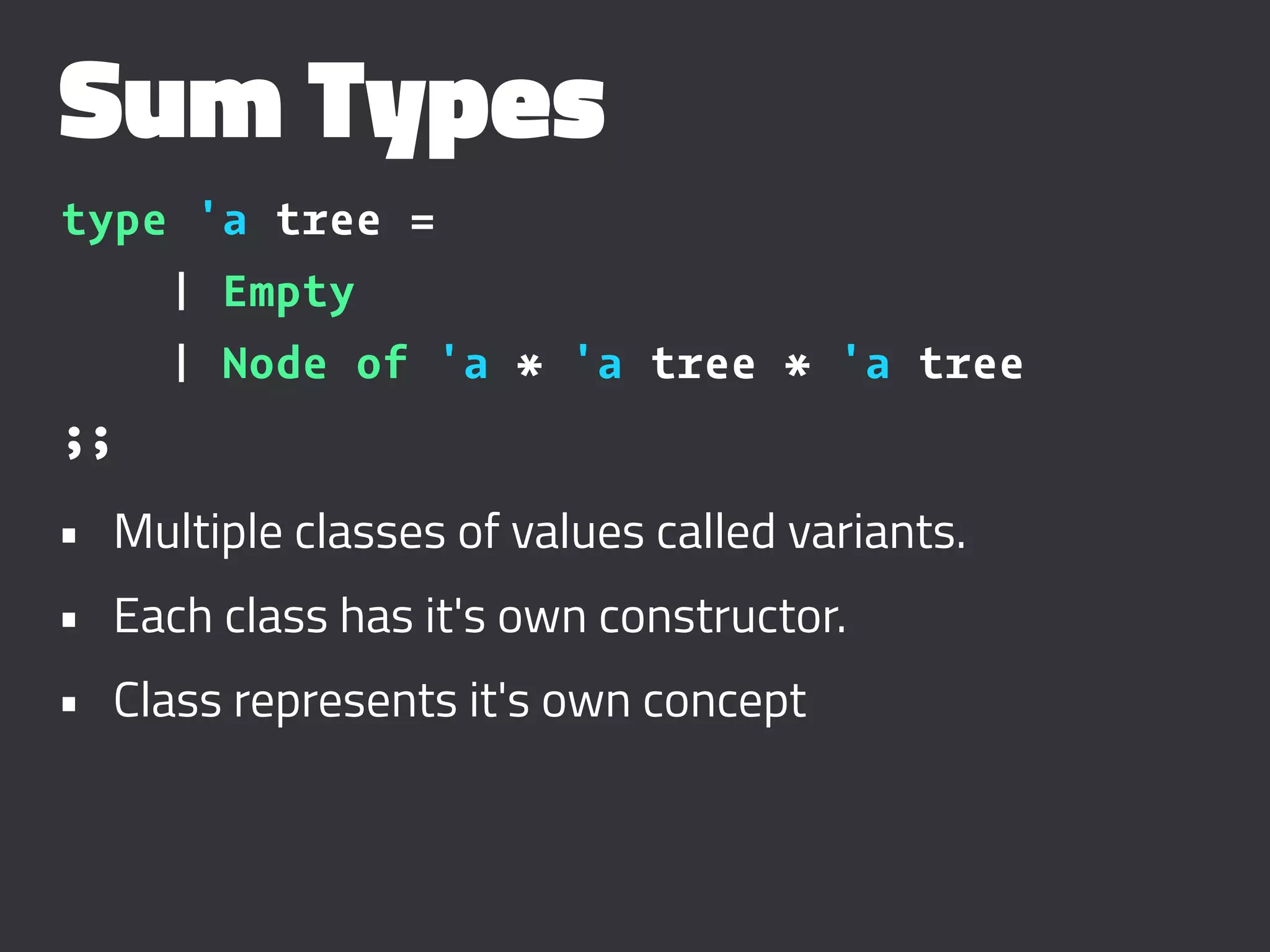

Sum Types
type 'a tree =
| Empty
;;
• Multiple classes of values called variants.
• Each class has it's own constructor.
• Class represents it's own concept

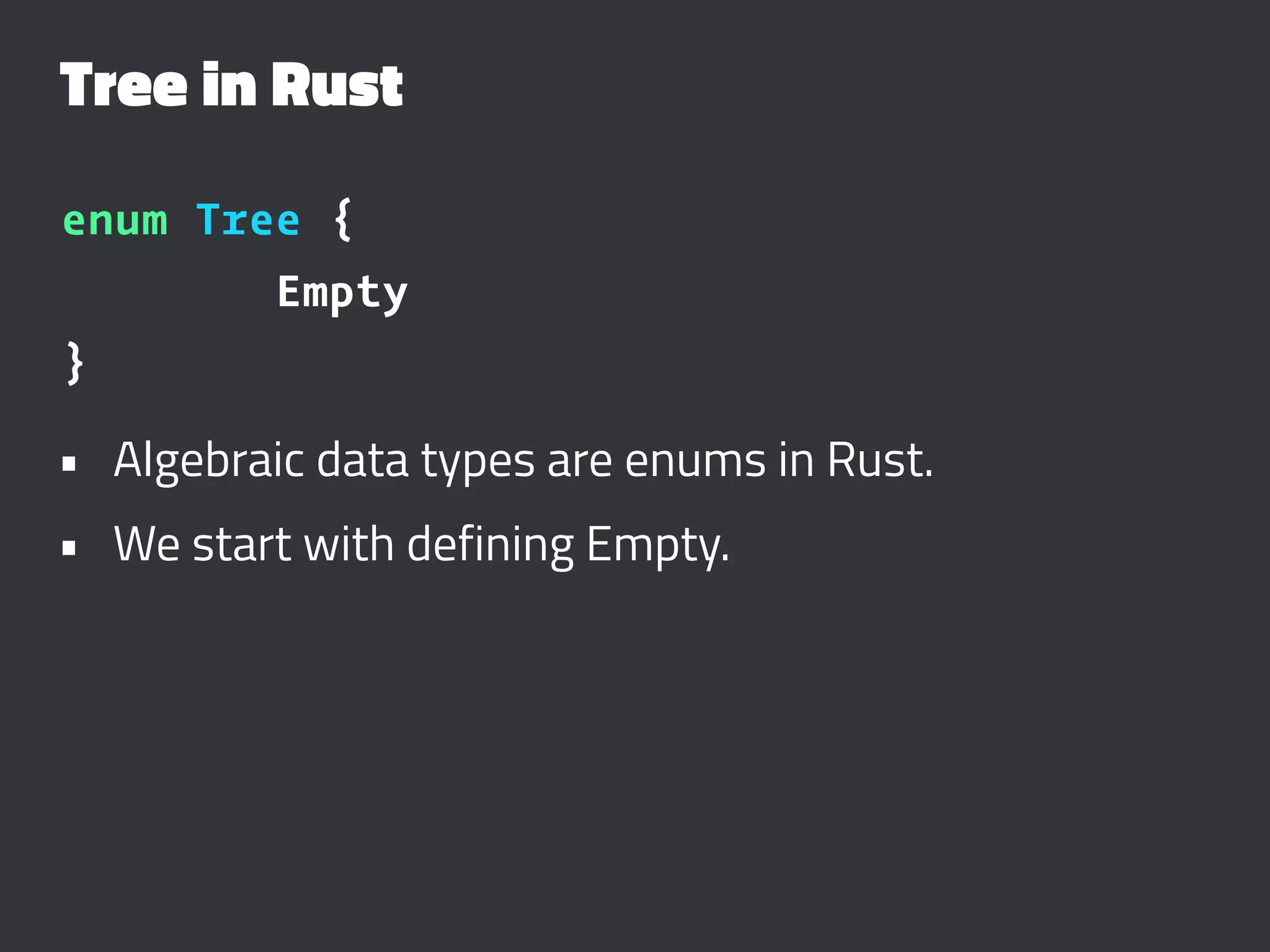

Tree in Rust
enum Tree {
Empty
}
• Algebraic data types are enums in Rust.
• We start with defining Empty.

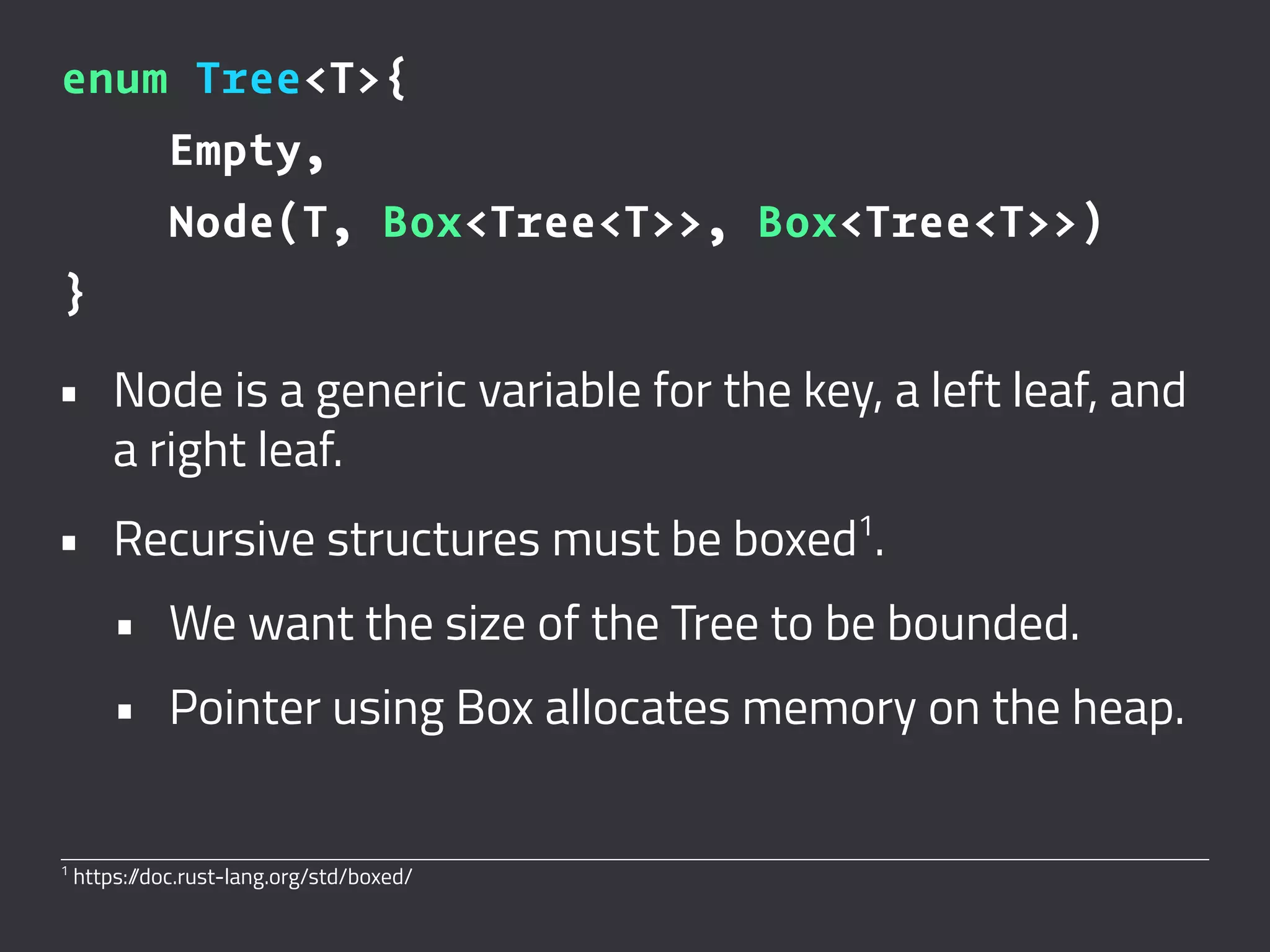

enum Tree<T>{
Empty,
Node(T, Box<Tree<T>>, Box<Tree<T>>)
}
• Node is a generic variable for the key, a left leaf, and
a right leaf.
• Recursive structures must be boxed1
.
• We want the size of the Tree to be bounded.
• Pointer using Box allocates memory on the heap.
1
https://doc.rust-lang.org/std/boxed/

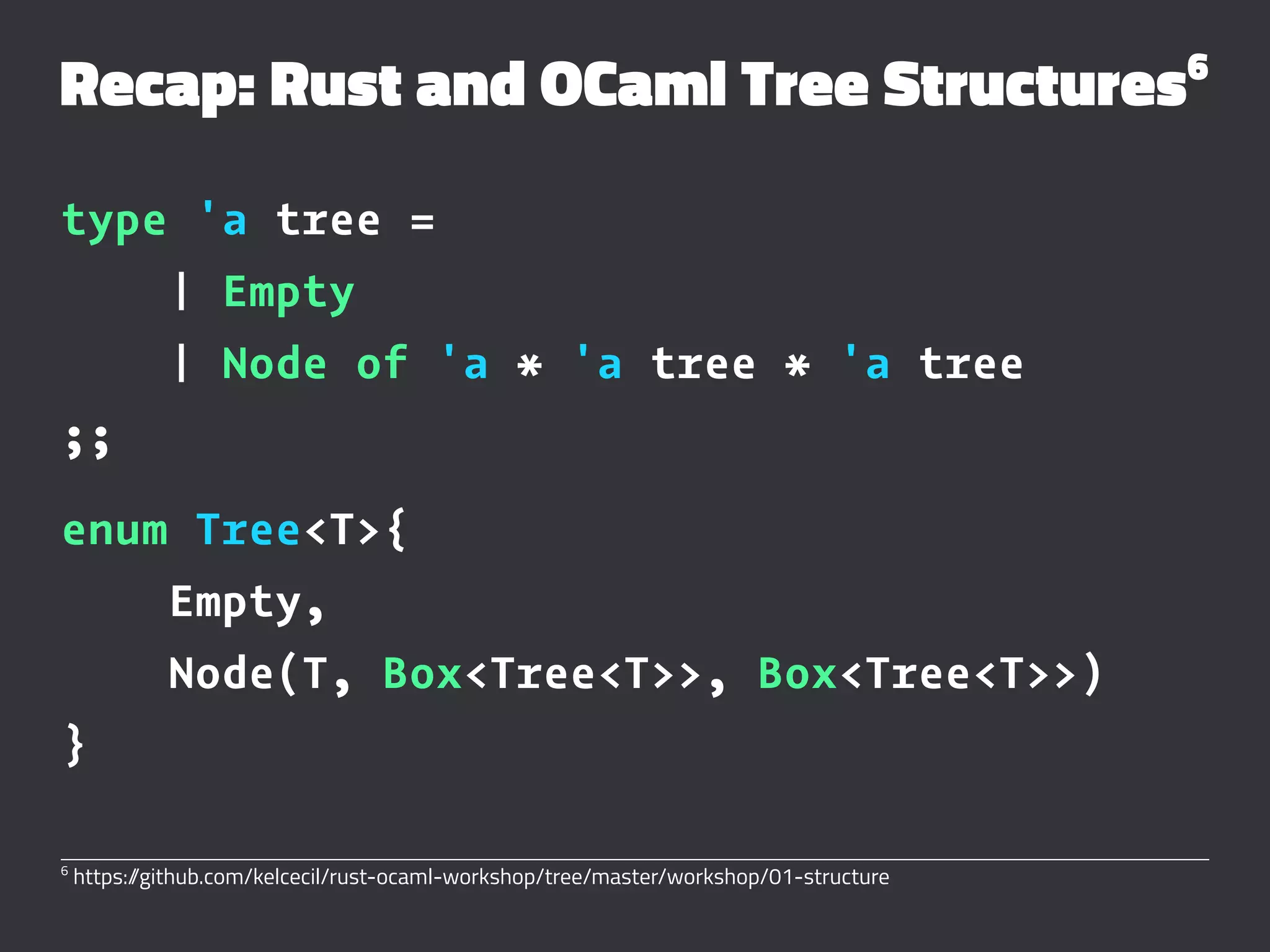

Recap: Rust and OCaml Tree Structures6
type 'a tree =
| Empty
;;
enum Tree<T>{
Empty,
Node(T, Box<Tree<T>>, Box<Tree<T>>)
}
6
https://github.com/kelcecil/rust-ocaml-workshop/tree/master/workshop/01-structure

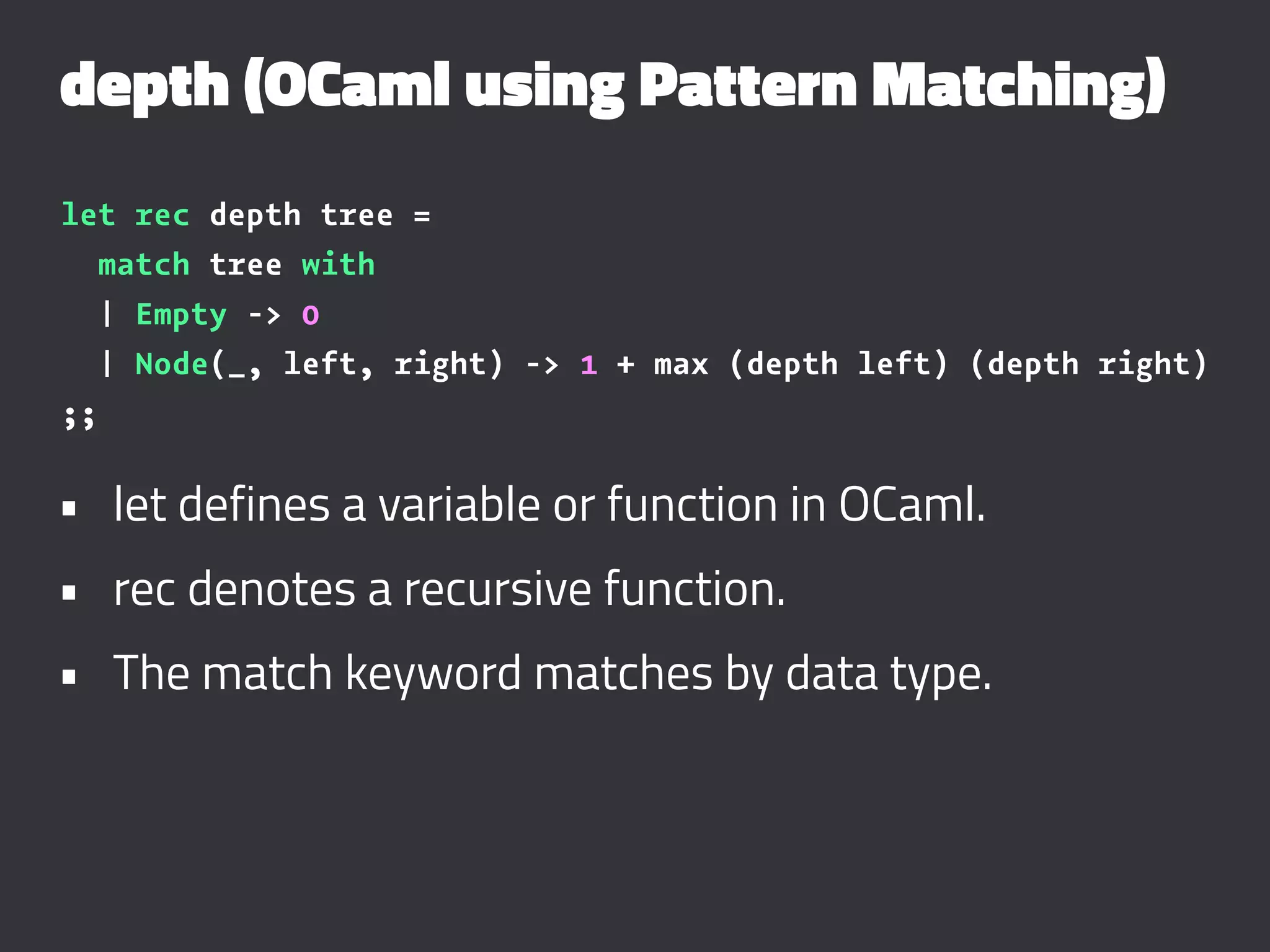

depth (OCaml using Pattern Matching)
let rec depth tree =
match tree with
| Empty -> 0
| Node(_, left, right) -> 1 + max (depth left) (depth right)
;;
• let defines a variable or function in OCaml.
• rec denotes a recursive function.
• The match keyword matches by data type.

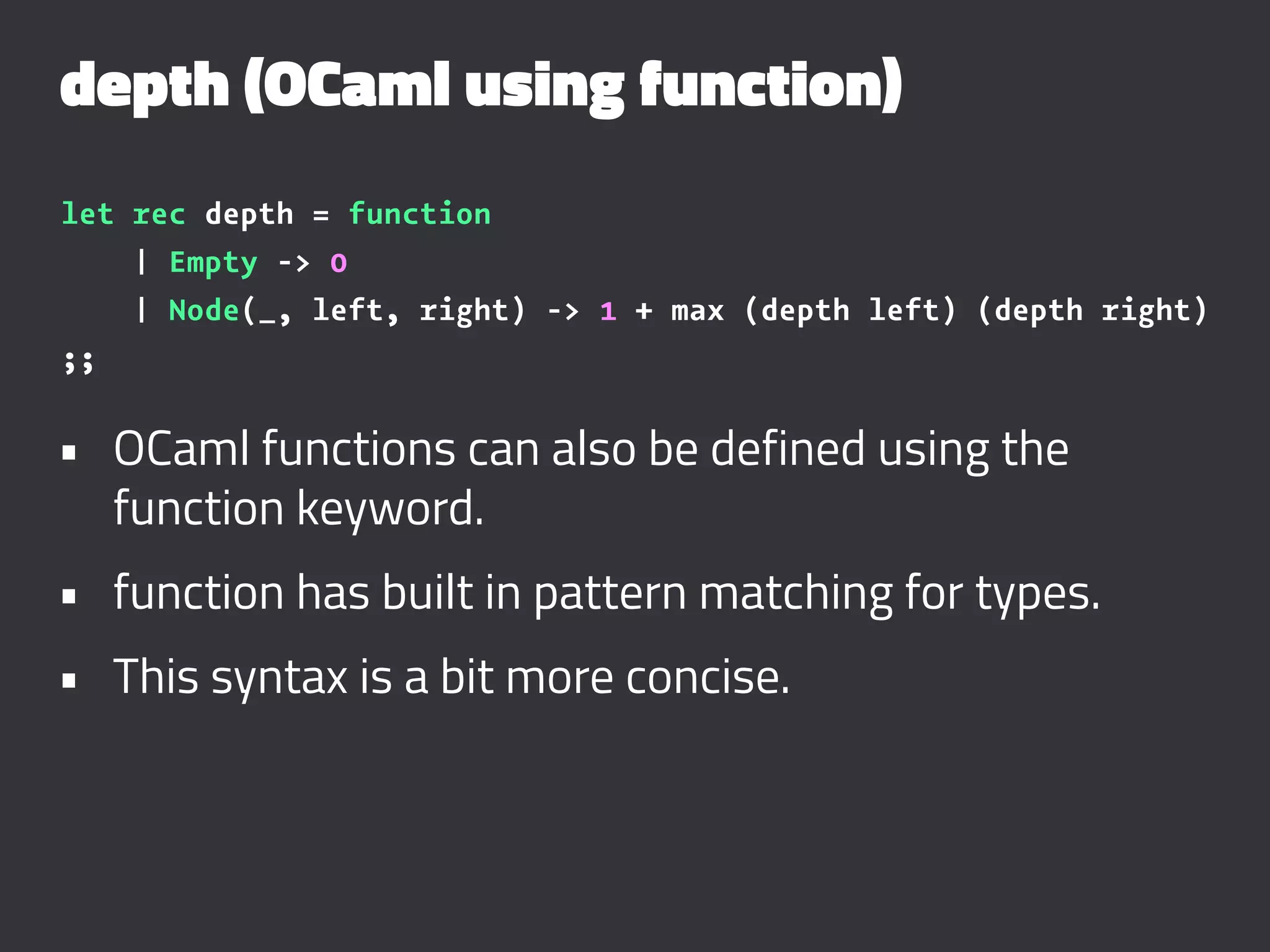

depth (OCaml using function)
let rec depth = function
| Empty -> 0
| Node(_, left, right) -> 1 + max (depth left) (depth right)
;;
• OCaml functions can also be defined using the
function keyword.
• function has built in pattern matching for types.
• This syntax is a bit more concise.

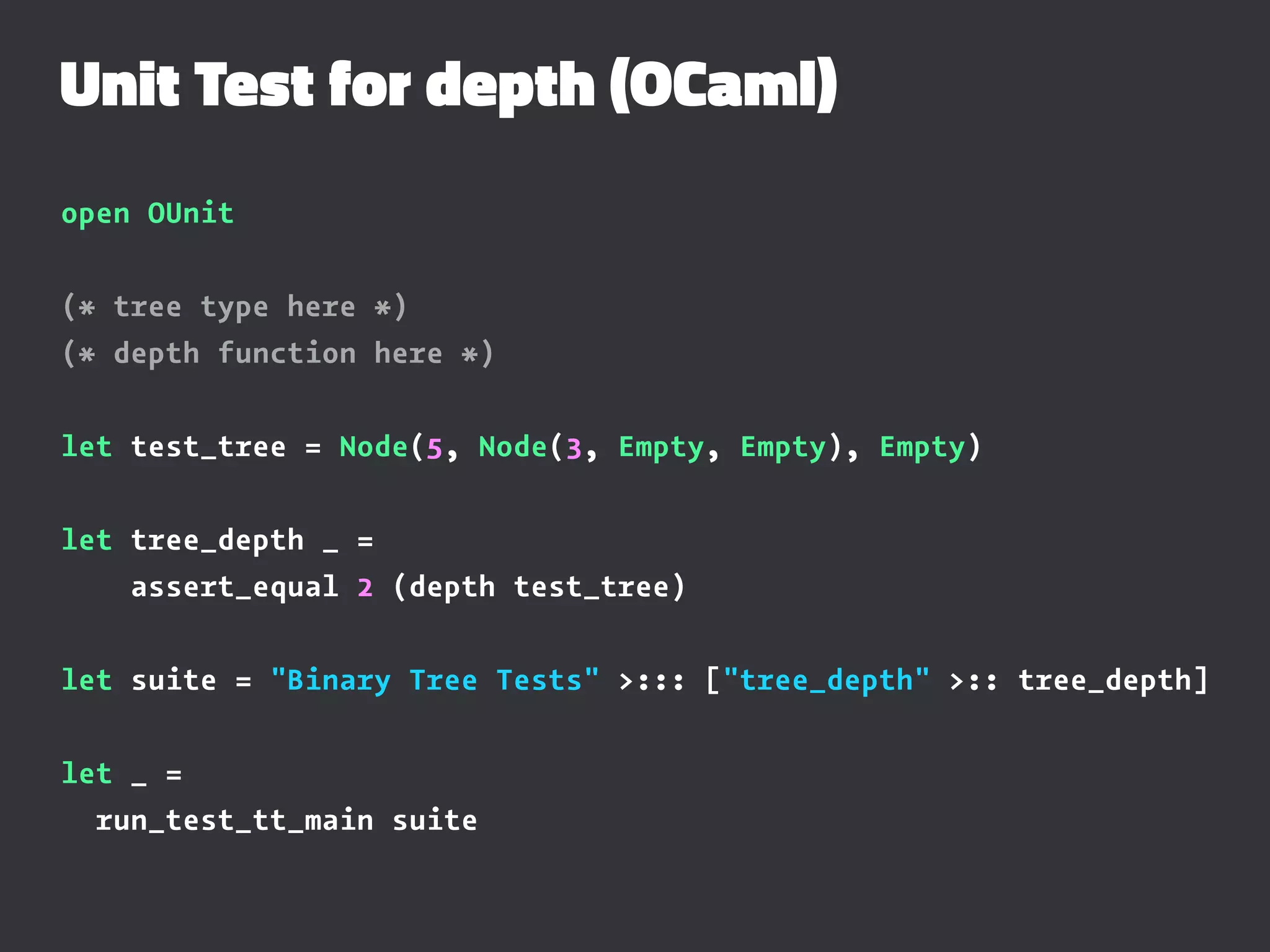

Unit Test for depth (OCaml)
open OUnit
(* tree type here *)
(* depth function here *)
let test_tree = Node(5, Node(3, Empty, Empty), Empty)
let tree_depth _ =
assert_equal 2 (depth test_tree)
let suite = "Binary Tree Tests" >::: ["tree_depth" >:: tree_depth]
let _ =
run_test_tt_main suite

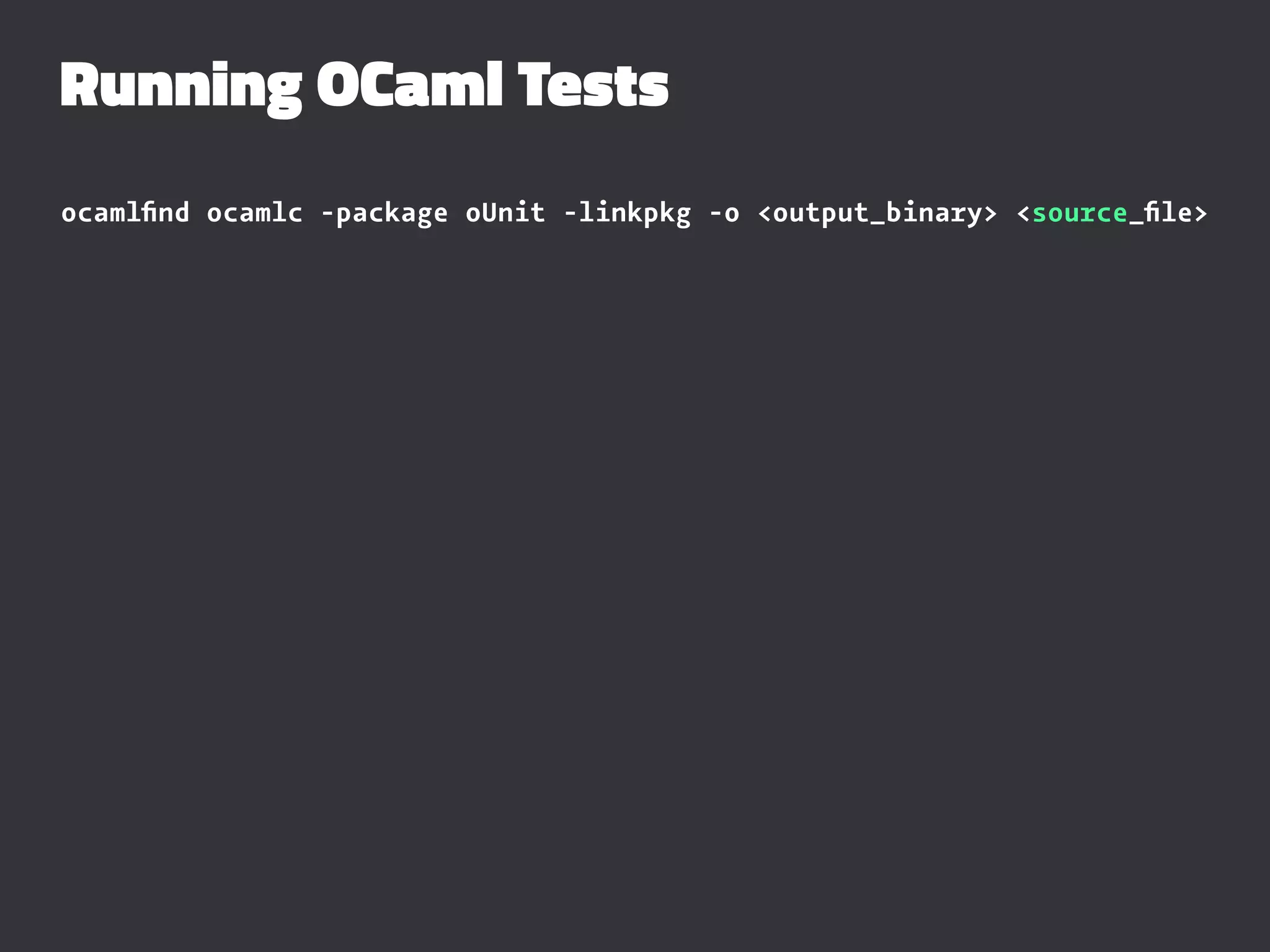

Running OCaml Tests
ocamlﬁnd ocamlc -package oUnit -linkpkg -o <output_binary> <source_ﬁle>

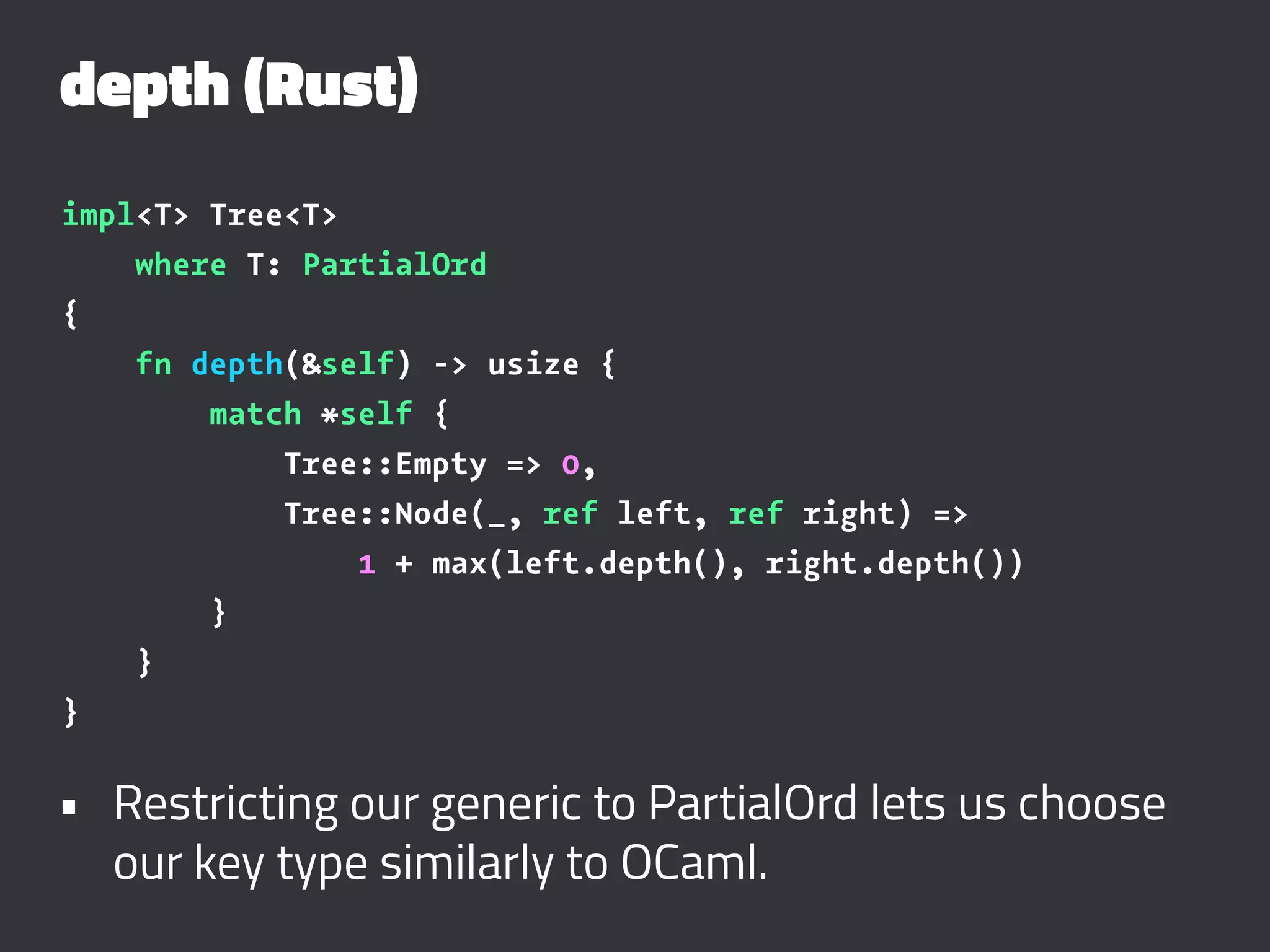

depth (Rust)
impl<T> Tree<T>
where T: PartialOrd
{
fn depth(&self) -> usize {
match *self {
Tree::Empty => 0,
Tree::Node(_, ref left, ref right) =>
1 + max(left.depth(), right.depth())
}
}
}
• Restricting our generic to PartialOrd lets us choose
our key type similarly to OCaml.

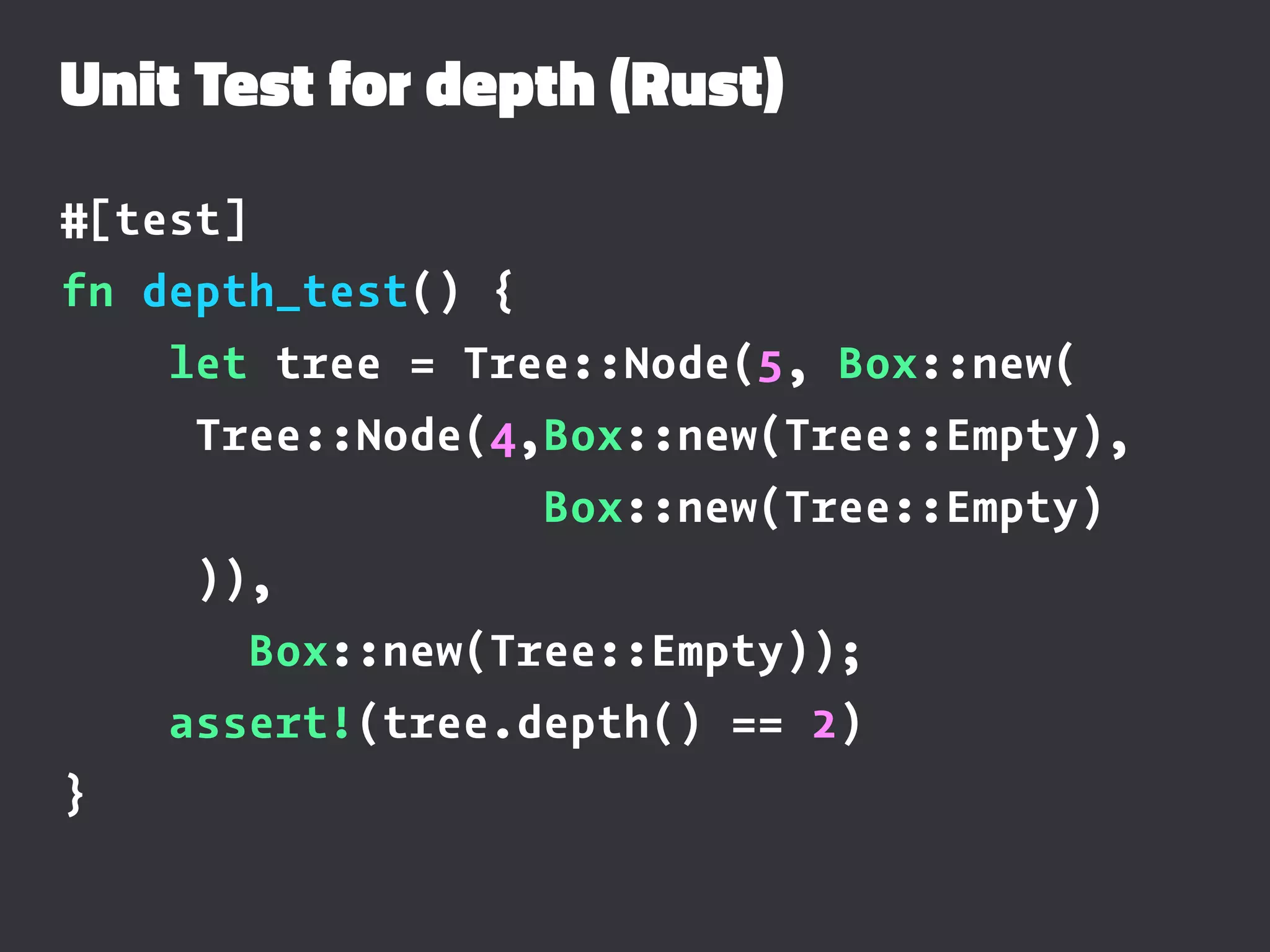

Unit Test for depth (Rust)
#[test]
fn depth_test() {
let tree = Tree::Node(5, Box::new(
Tree::Node(4,Box::new(Tree::Empty),
Box::new(Tree::Empty)
)),
Box::new(Tree::Empty));
assert!(tree.depth() == 2)
}

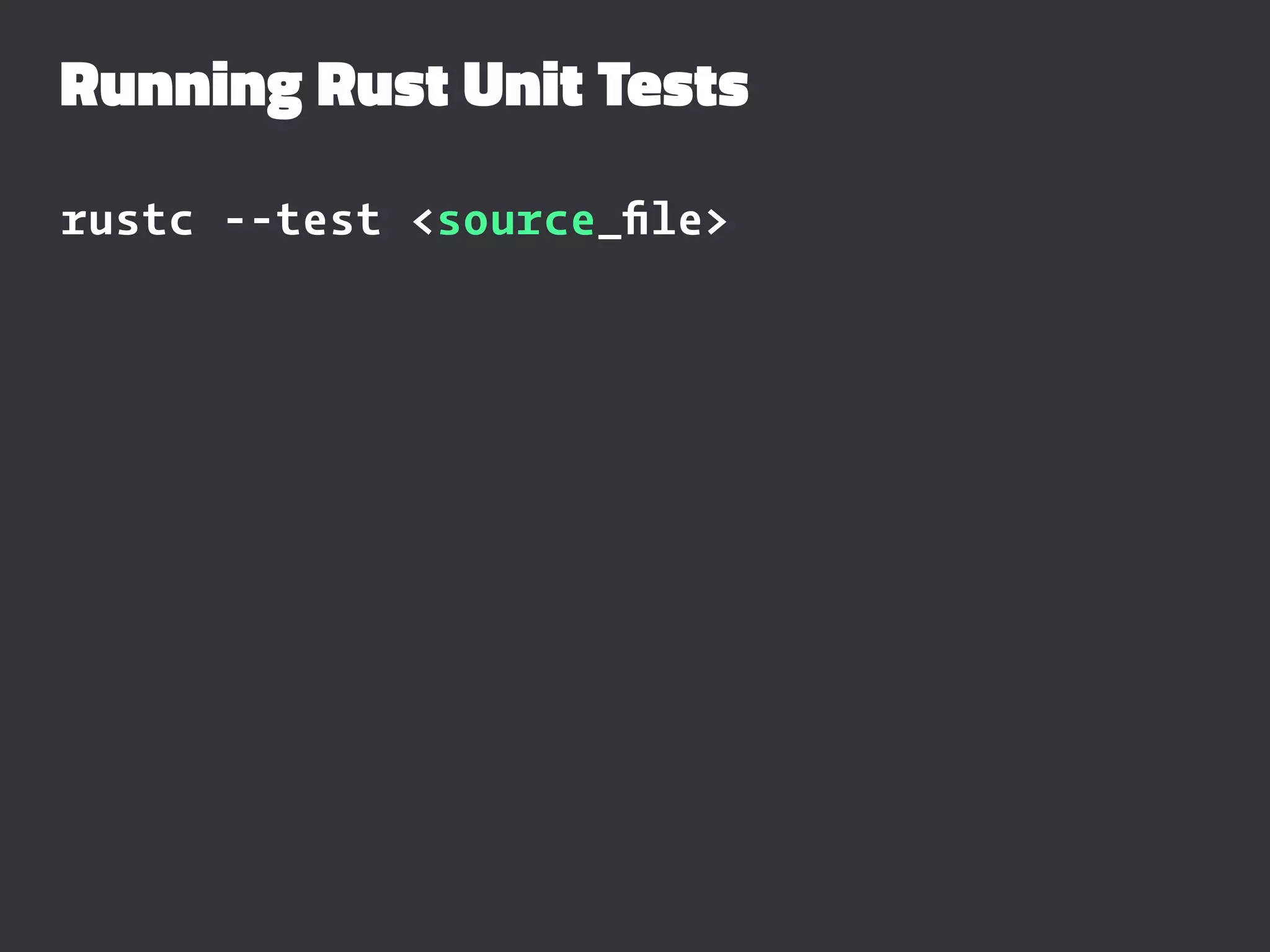

Running Rust Unit Tests
rustc --test <source_ﬁle>

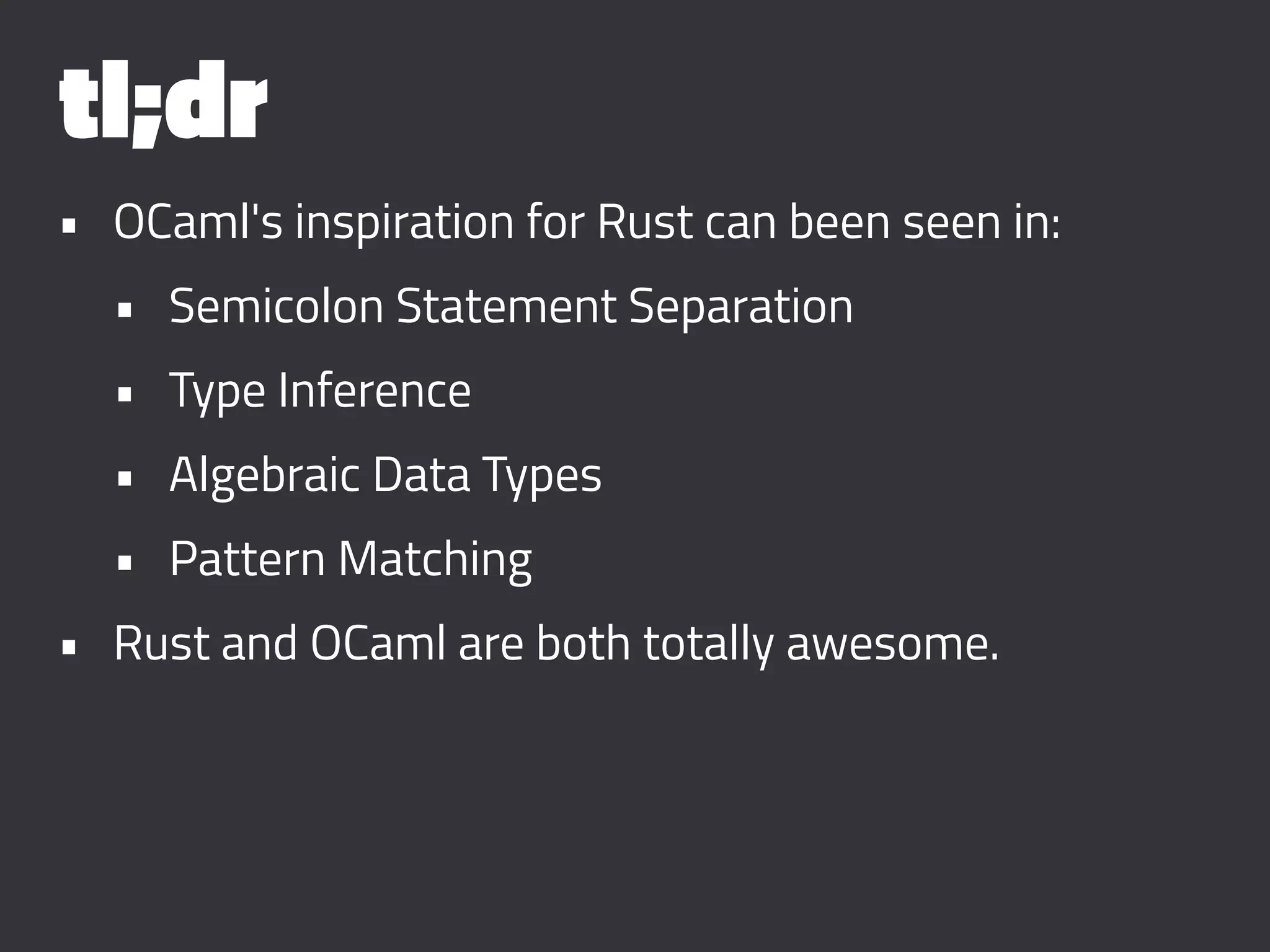

tl;dr
• OCaml's inspiration for Rust can been seen in:
• Semicolon Statement Separation
• Type Inference
• Algebraic Data Types
• Pattern Matching
• Rust and OCaml are both totally awesome.

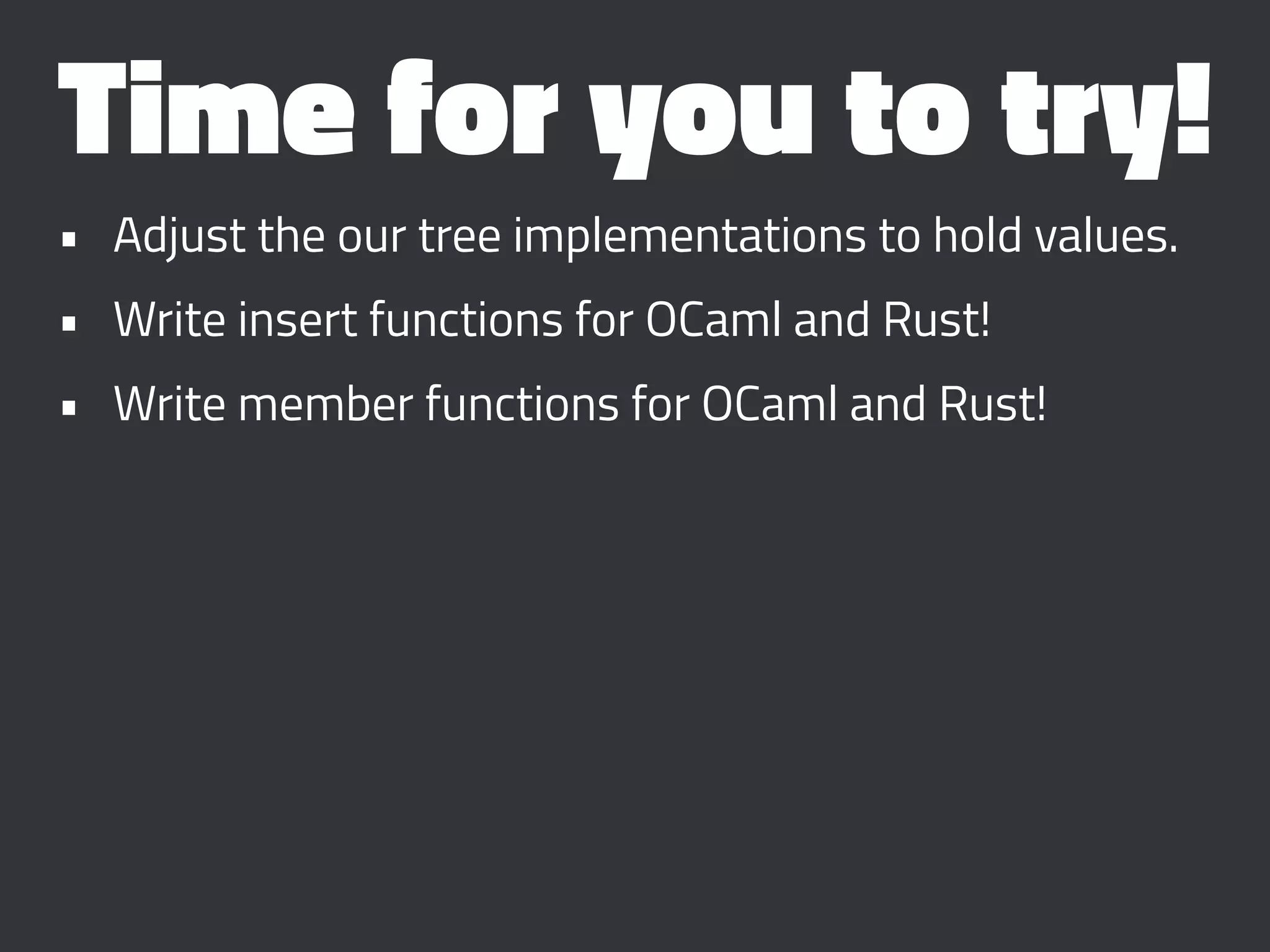

Time for you to try!
• Adjust the our tree implementations to hold values.
• Write insert functions for OCaml and Rust!
• Write member functions for OCaml and Rust!

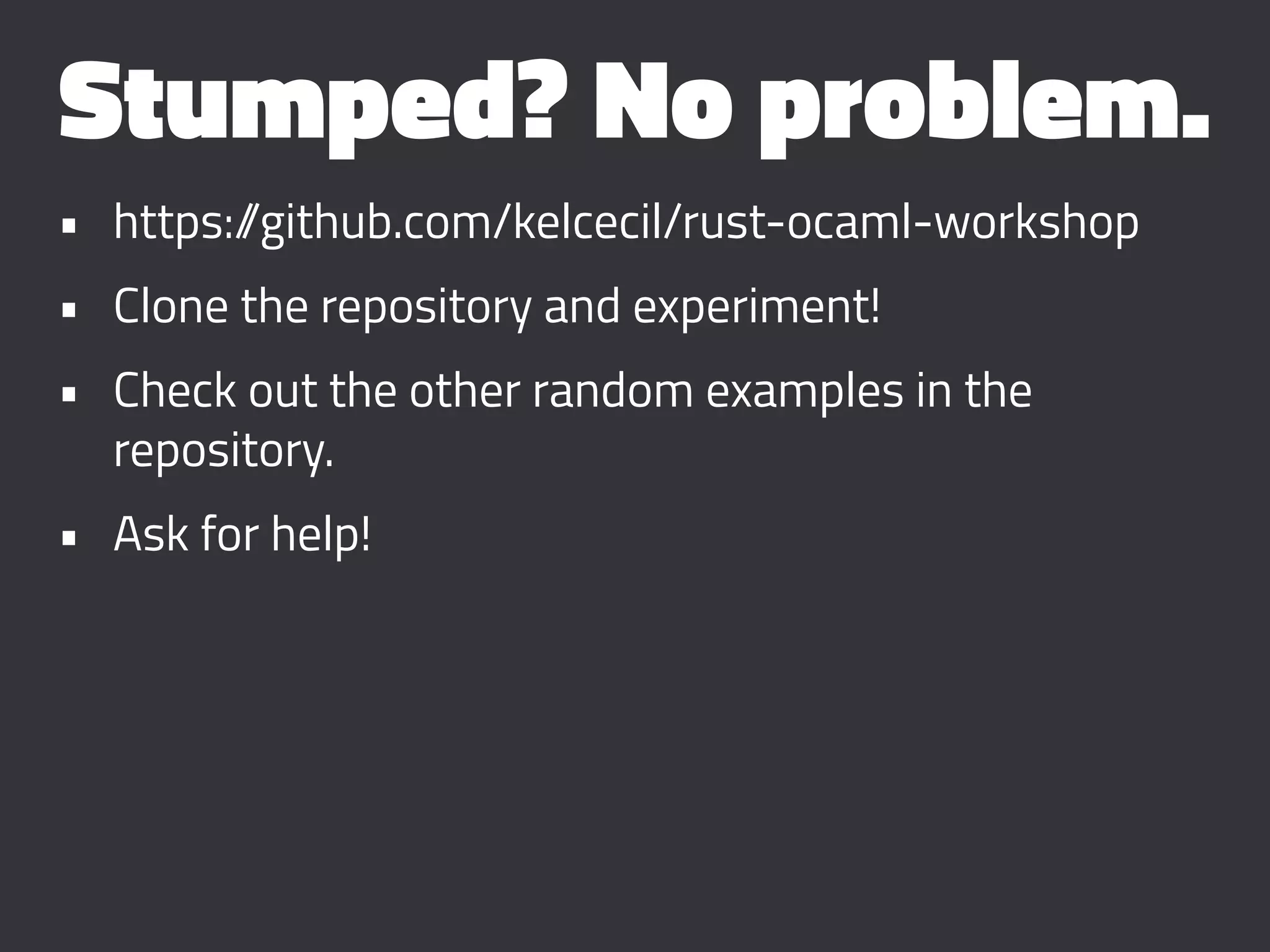

Stumped? No problem.
• https://github.com/kelcecil/rust-ocaml-workshop
• Clone the repository and experiment!
• Check out the other random examples in the
repository.
• Ask for help!

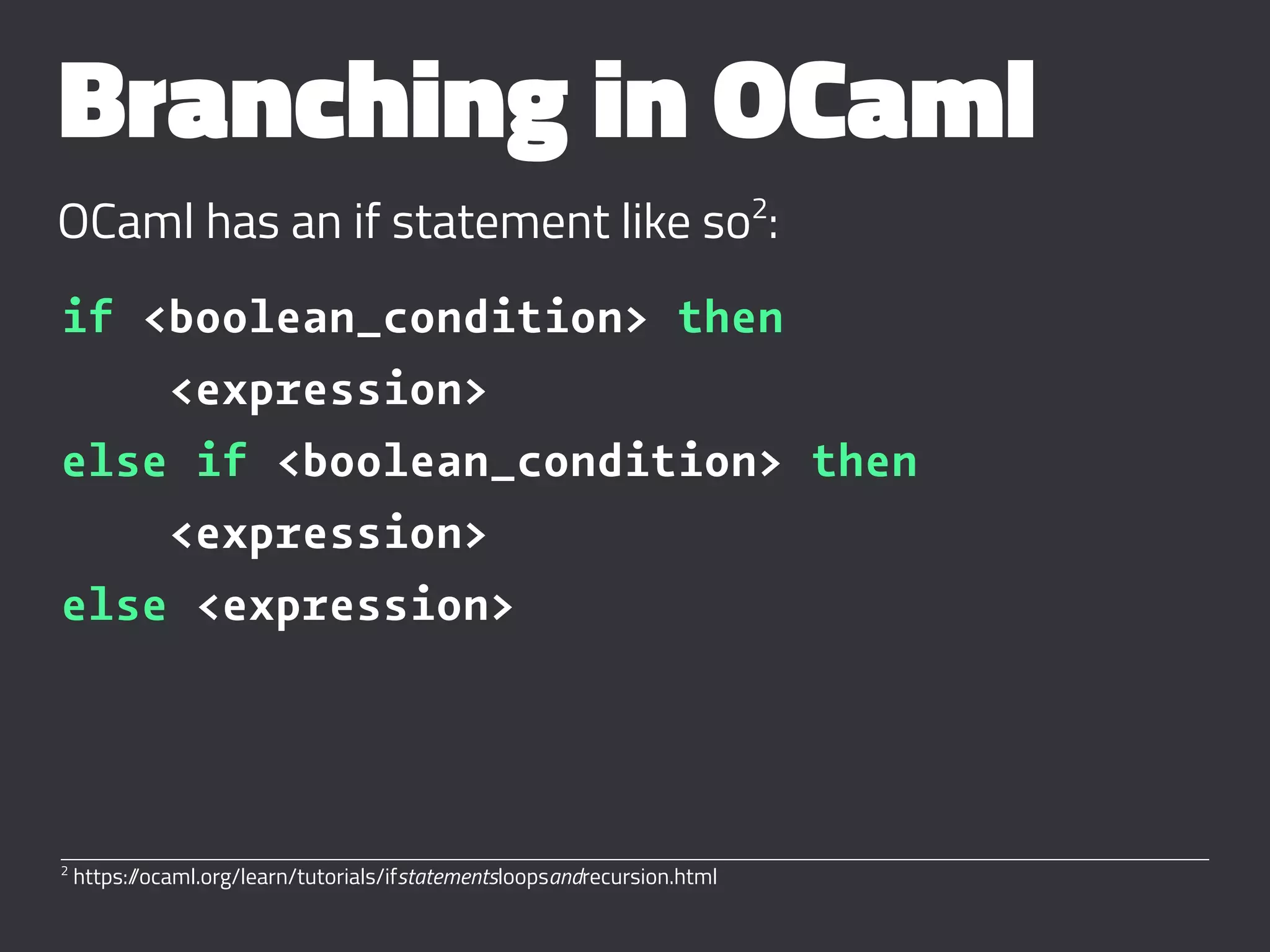

Branching in OCaml
OCaml has an if statement like so2
:
if <boolean_condition> then
<expression>
else if <boolean_condition> then
<expression>
else <expression>
2
https://ocaml.org/learn/tutorials/ifstatementsloopsandrecursion.html
