  Interactive Gaze Detection withVR & Unity Dr James Birt
• 2.
  Requirements • Unity 5.3or higher • Oculus runtime 0.8 installed • Introductory VR in Unity 3d
• 3.

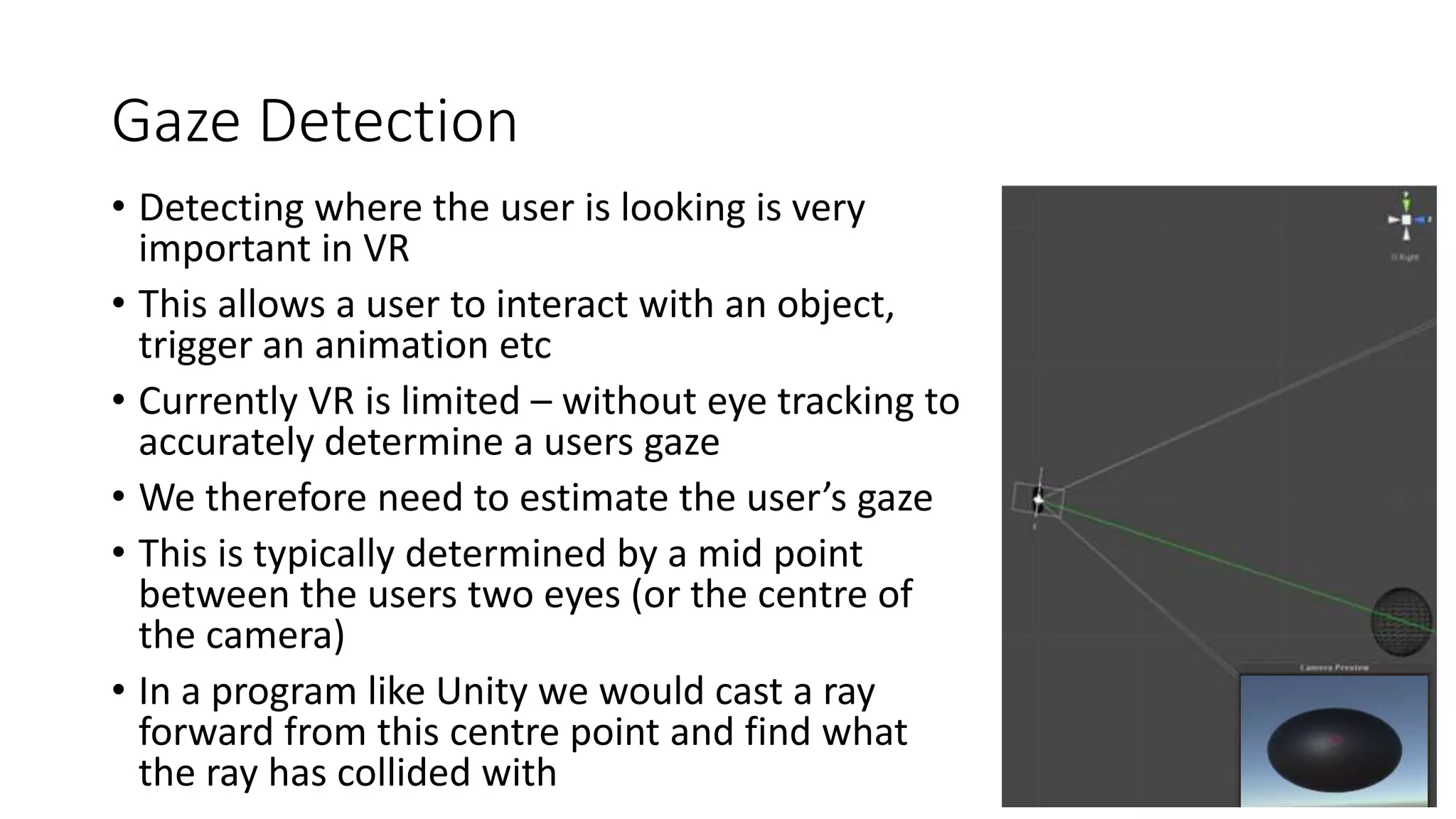

  Gaze Detection • Detectingwhere the user is looking is very important in VR • This allows a user to interact with an object, trigger an animation etc • Currently VR is limited – without eye tracking to accurately determine a users gaze • We therefore need to estimate the user’s gaze • This is typically determined by a mid point between the users two eyes (or the centre of the camera) • In a program like Unity we would cast a ray forward from this centre point and find what the ray has collided with
• 4.
  The Reticle • Gainsthe name from a sighting device such as a telescopic lens • Can help to indicate the center of the user’s vision • The style of the reticle could be a simple dot, or perhaps a crosshair 4
• 5.

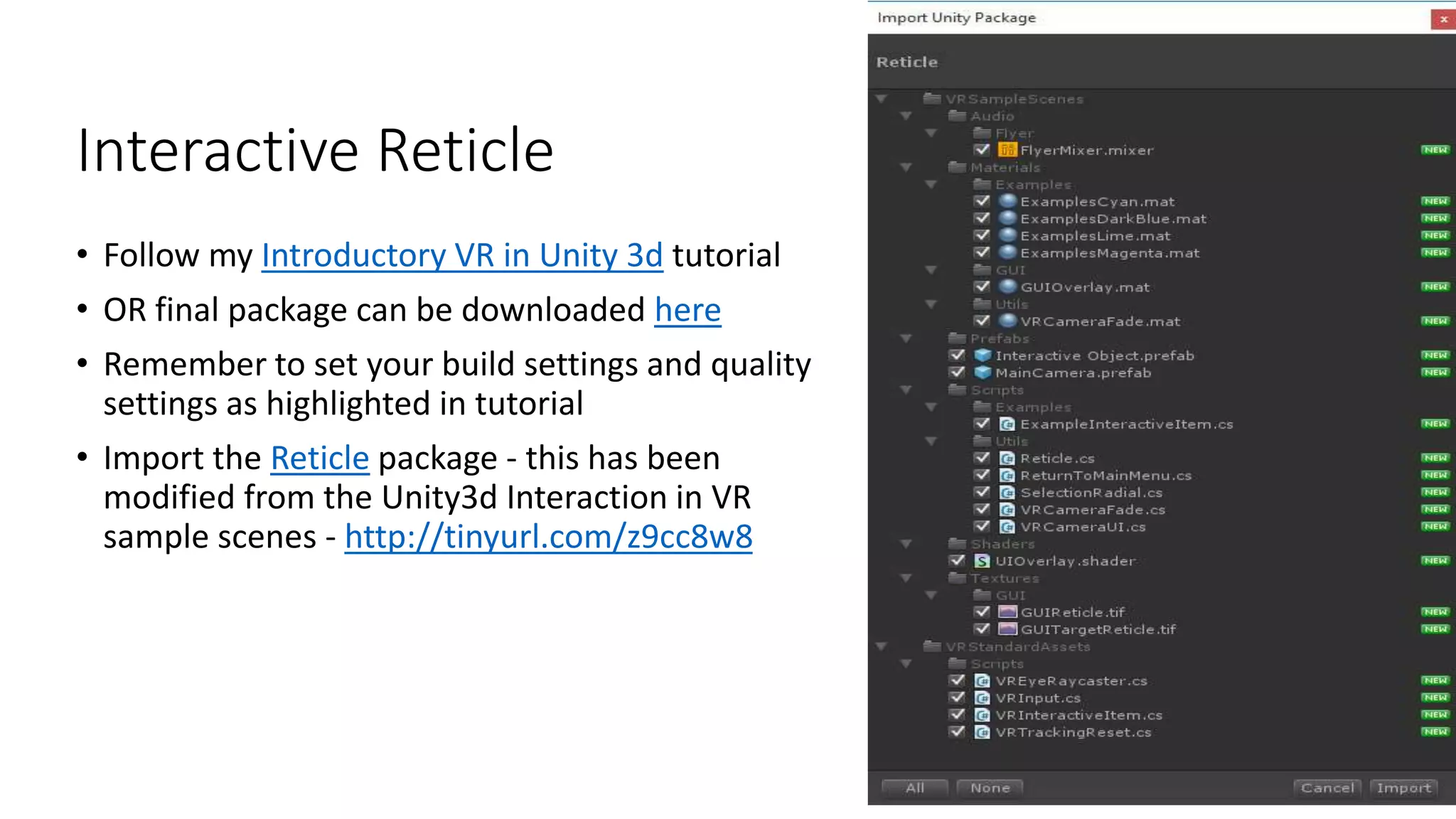

  Interactive Reticle • Followmy Introductory VR in Unity 3d tutorial • OR final package can be downloaded here • Remember to set your build settings and quality settings as highlighted in tutorial • Import the Reticle package - this has been modified from the Unity3d Interaction in VR sample scenes - http://tinyurl.com/z9cc8w8 5
• 6.

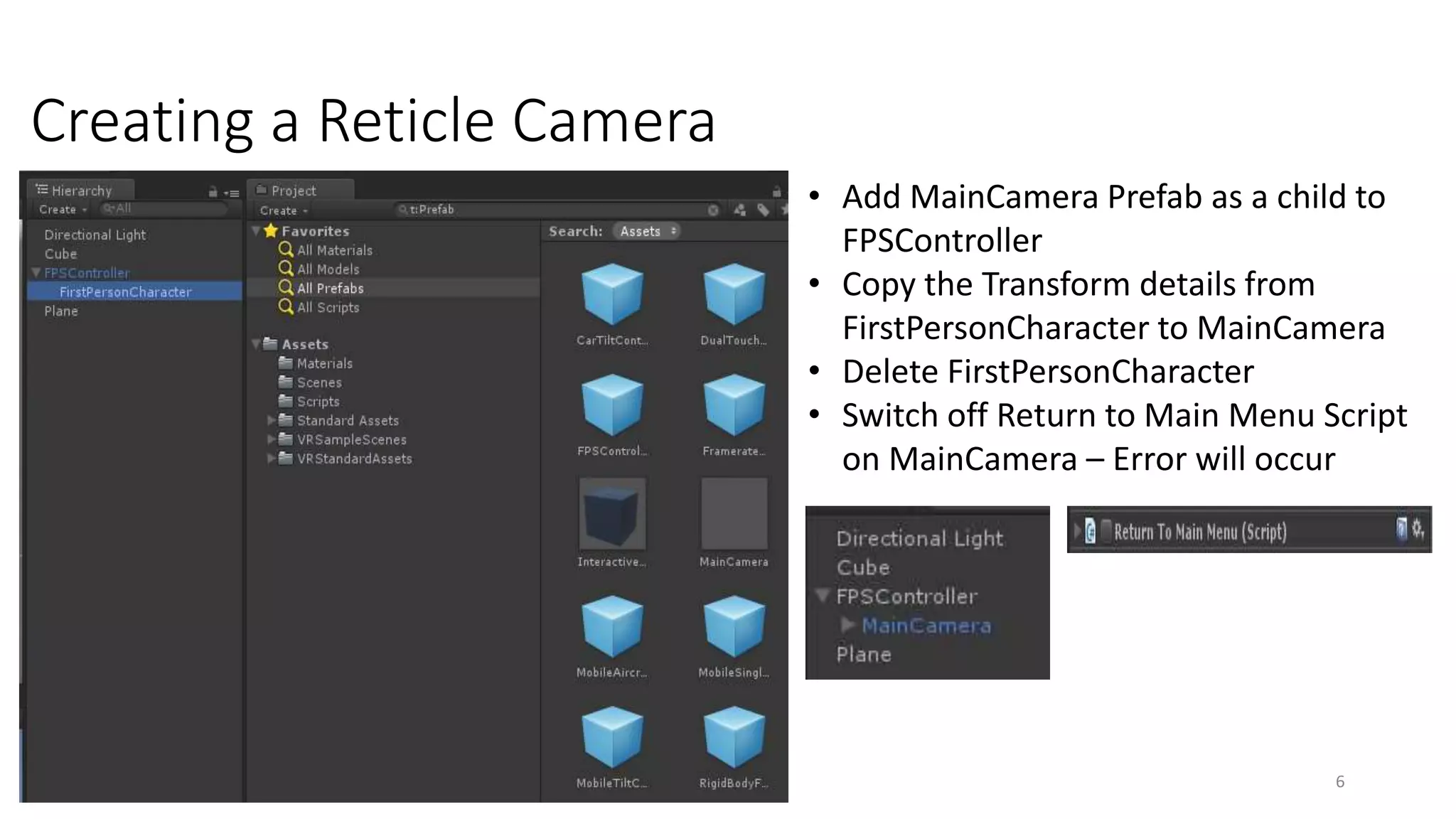

  Creating a ReticleCamera 6 • Add MainCamera Prefab as a child to FPSController • Copy the Transform details from FirstPersonCharacter to MainCamera • Delete FirstPersonCharacter • Switch off Return to Main Menu Script on MainCamera – Error will occur
• 7.

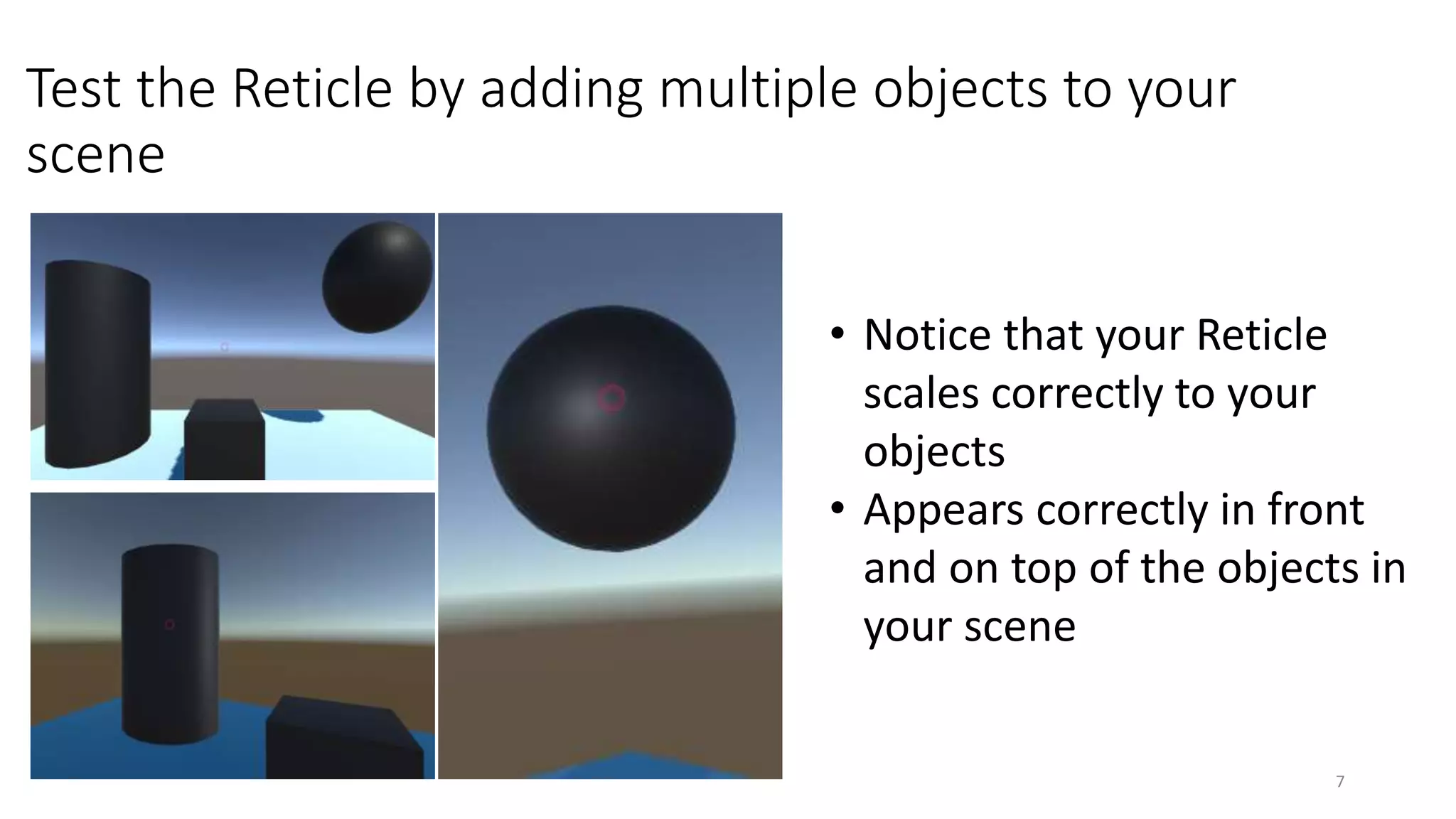

  Test the Reticleby adding multiple objects to your scene 7 • Notice that your Reticle scales correctly to your objects • Appears correctly in front and on top of the objects in your scene
• 8.

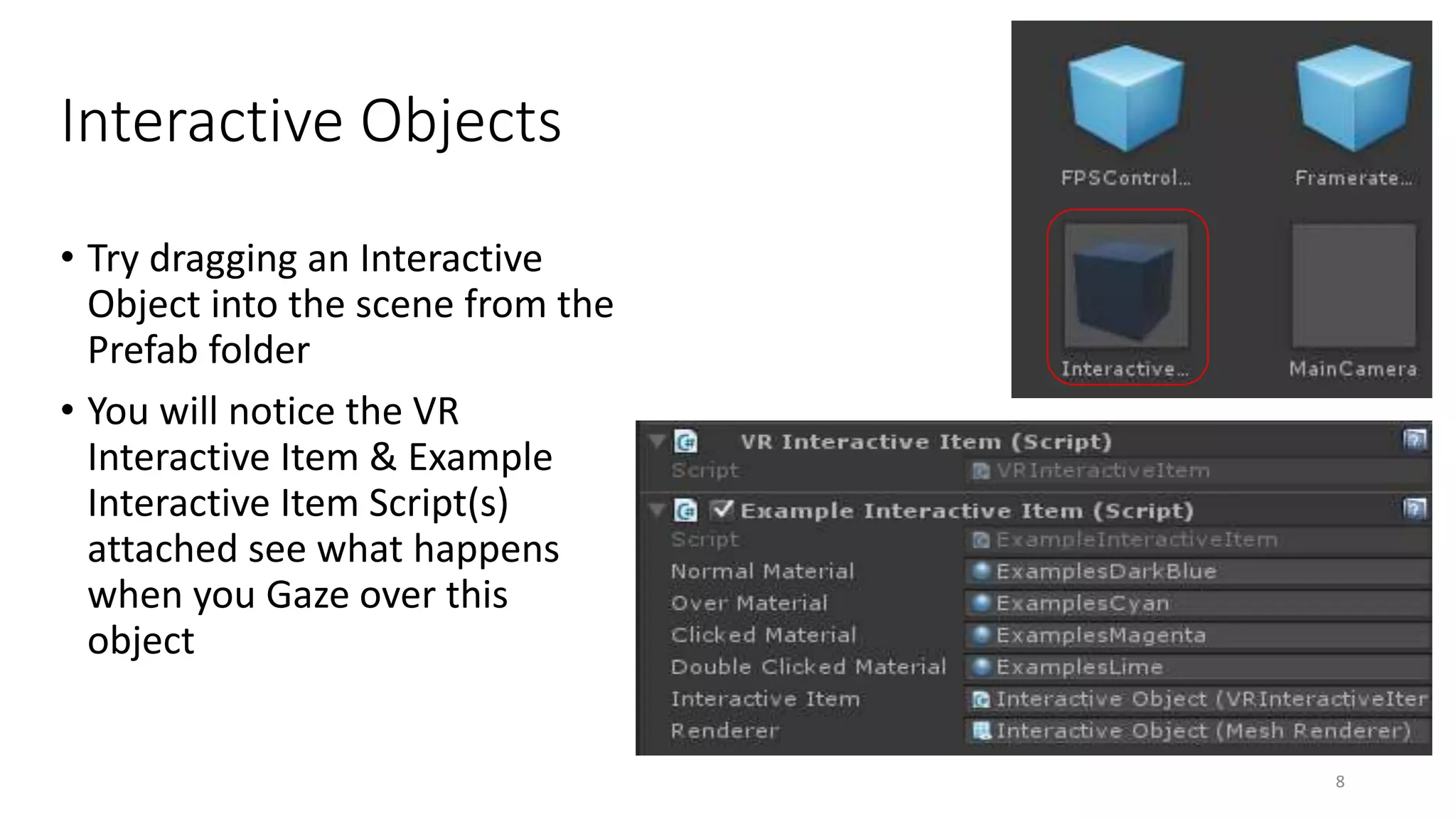

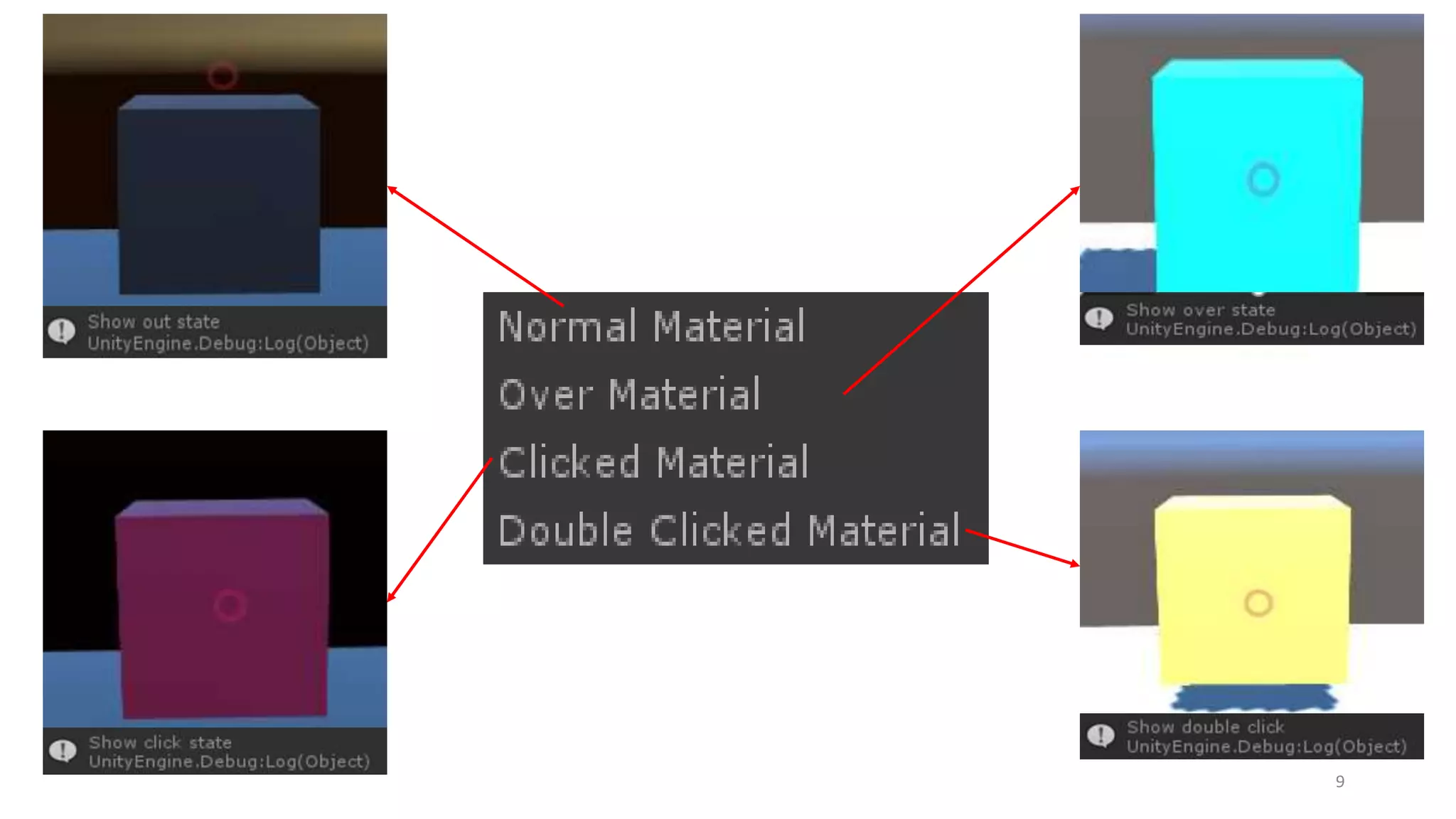

  Interactive Objects • Trydragging an Interactive Object into the scene from the Prefab folder • You will notice the VR Interactive Item & Example Interactive Item Script(s) attached see what happens when you Gaze over this object 8
• 9.
  9
• 10.

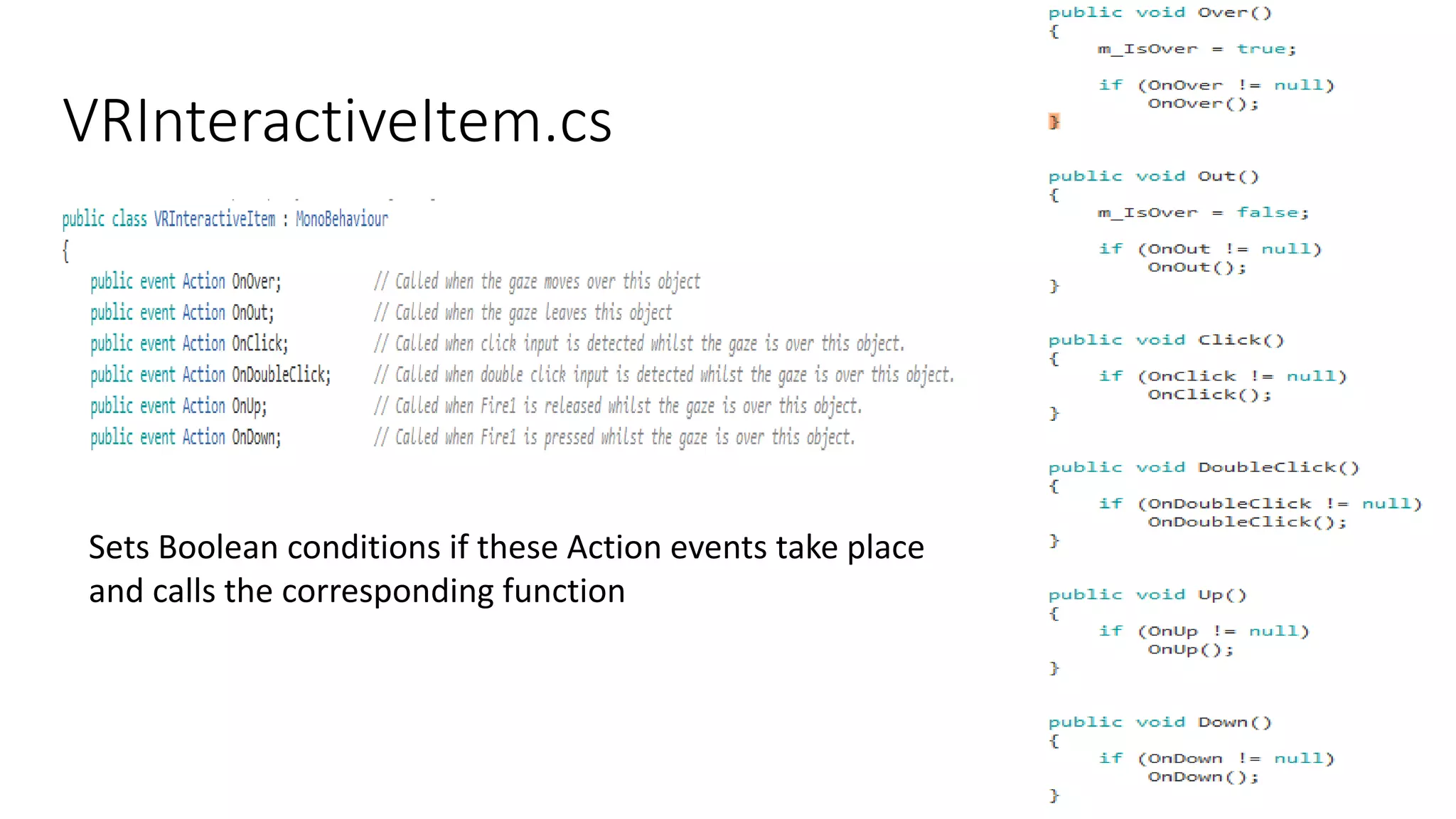

  VRInteractiveItem.cs 10 Sets Boolean conditionsif these Action events take place and calls the corresponding function
• 11.

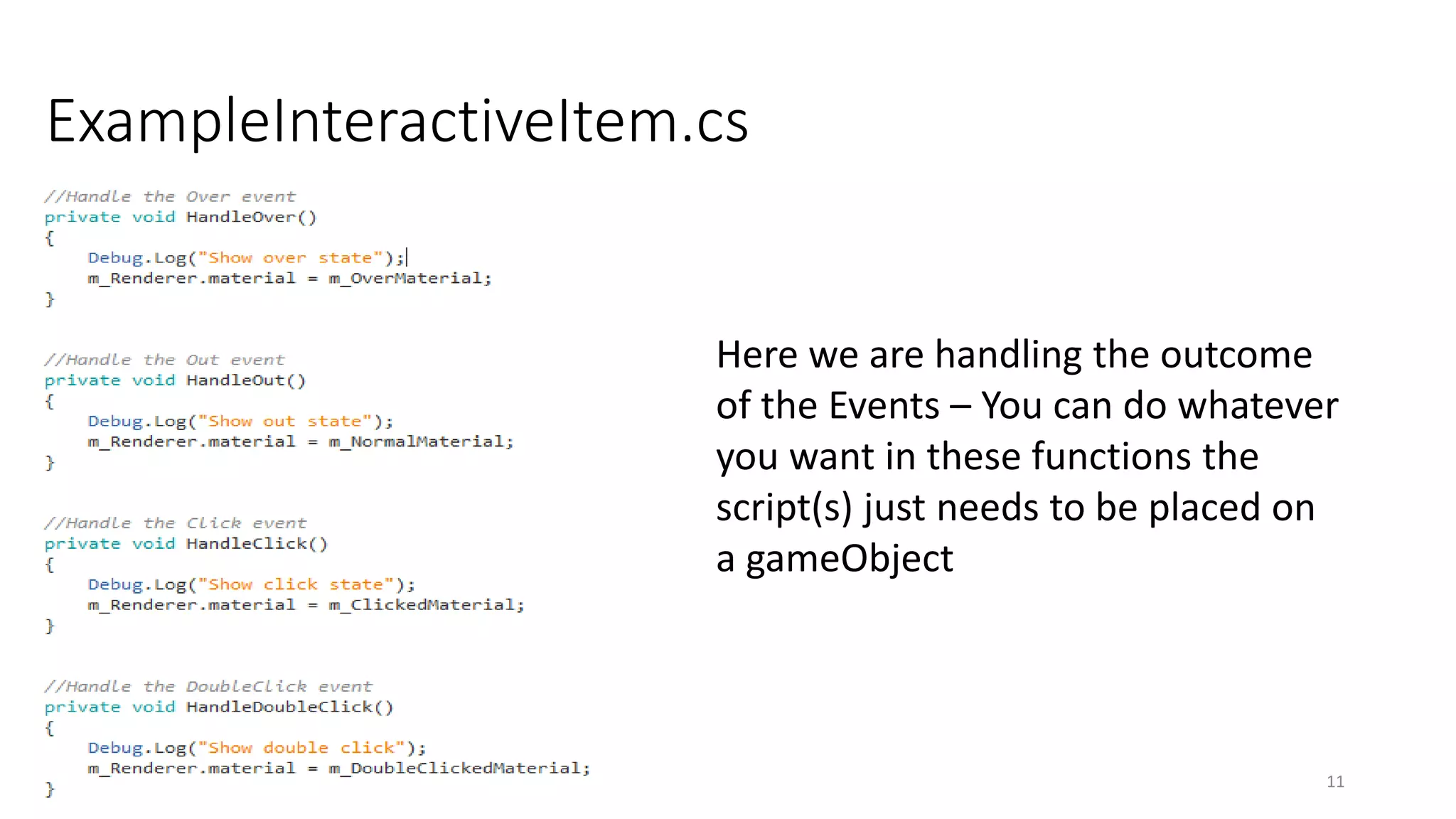

  ExampleInteractiveItem.cs 11 Here we arehandling the outcome of the Events – You can do whatever you want in these functions the script(s) just needs to be placed on a gameObject
• 12.

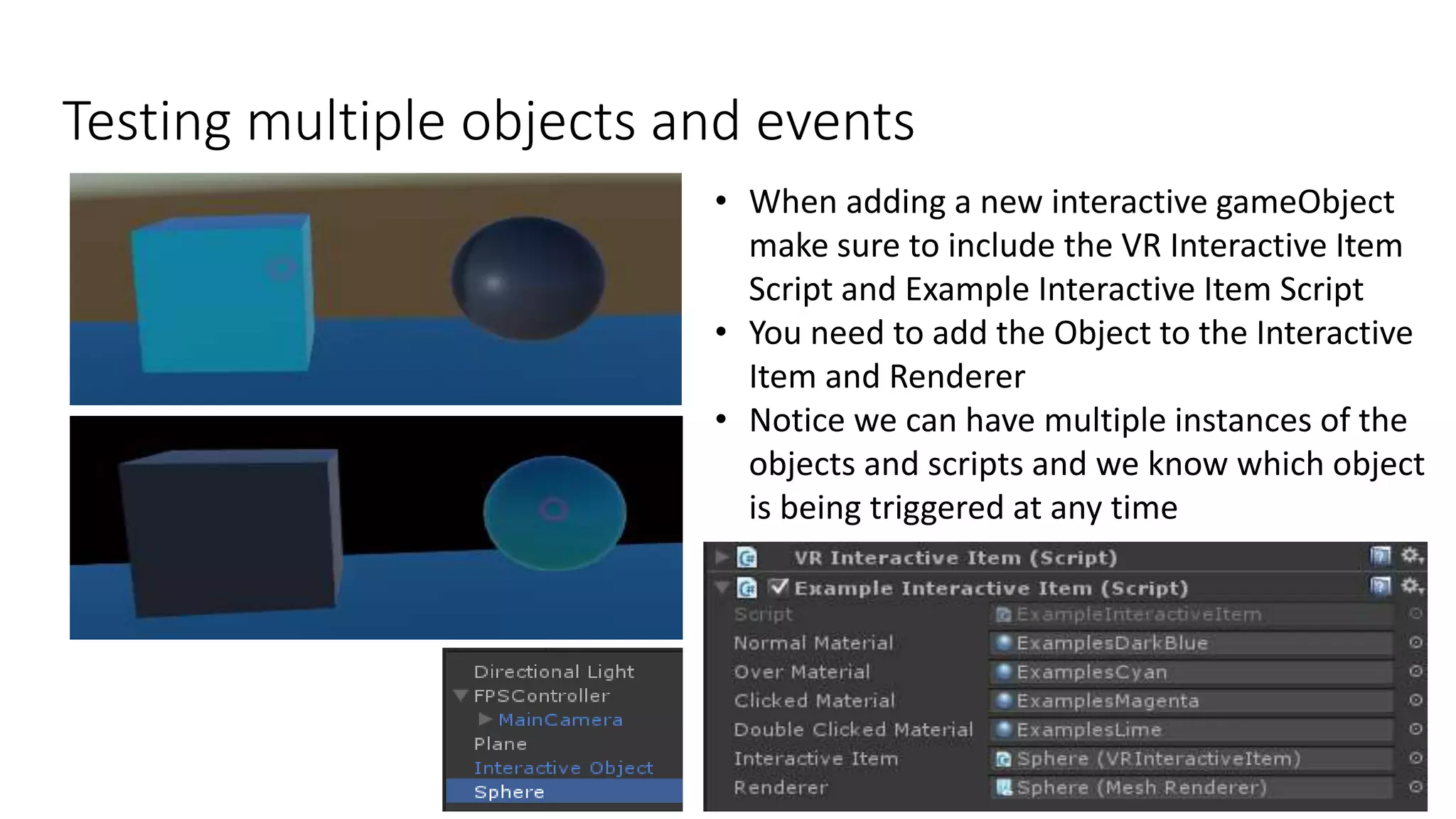

  Testing multiple objectsand events 12 • When adding a new interactive gameObject make sure to include the VR Interactive Item Script and Example Interactive Item Script • You need to add the Object to the Interactive Item and Renderer • Notice we can have multiple instances of the objects and scripts and we know which object is being triggered at any time
• 13.

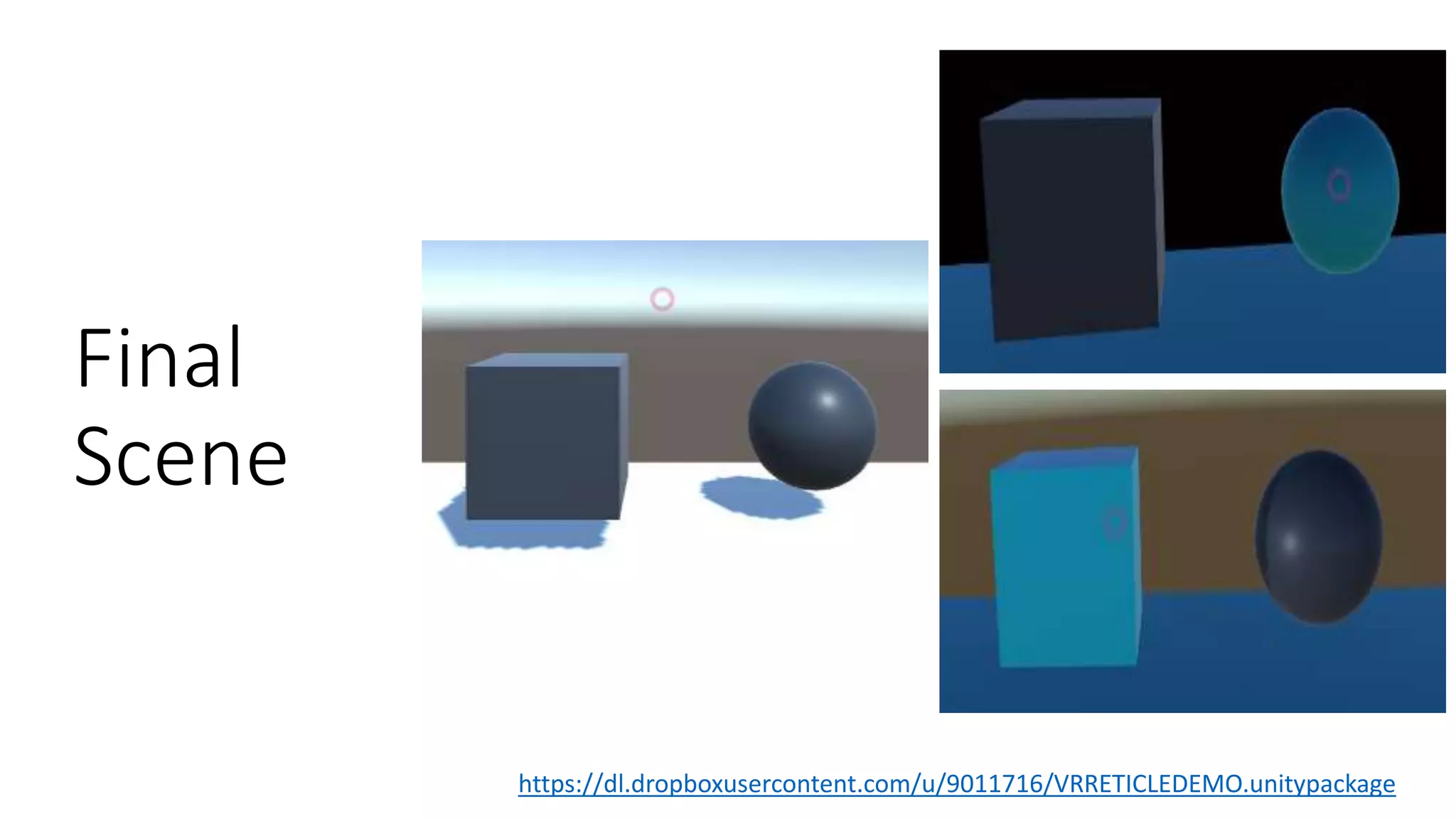

  Final Scene https://dl.dropboxusercontent.com/u/9011716/VRRETICLEDEMO.unitypackage
