From iOS To Android(or reverse)
José Manuel Ortega Candel
@jmortegac
http://www.linkedin.com/jmortega1
MADRID · NOV 21-22 · 2014

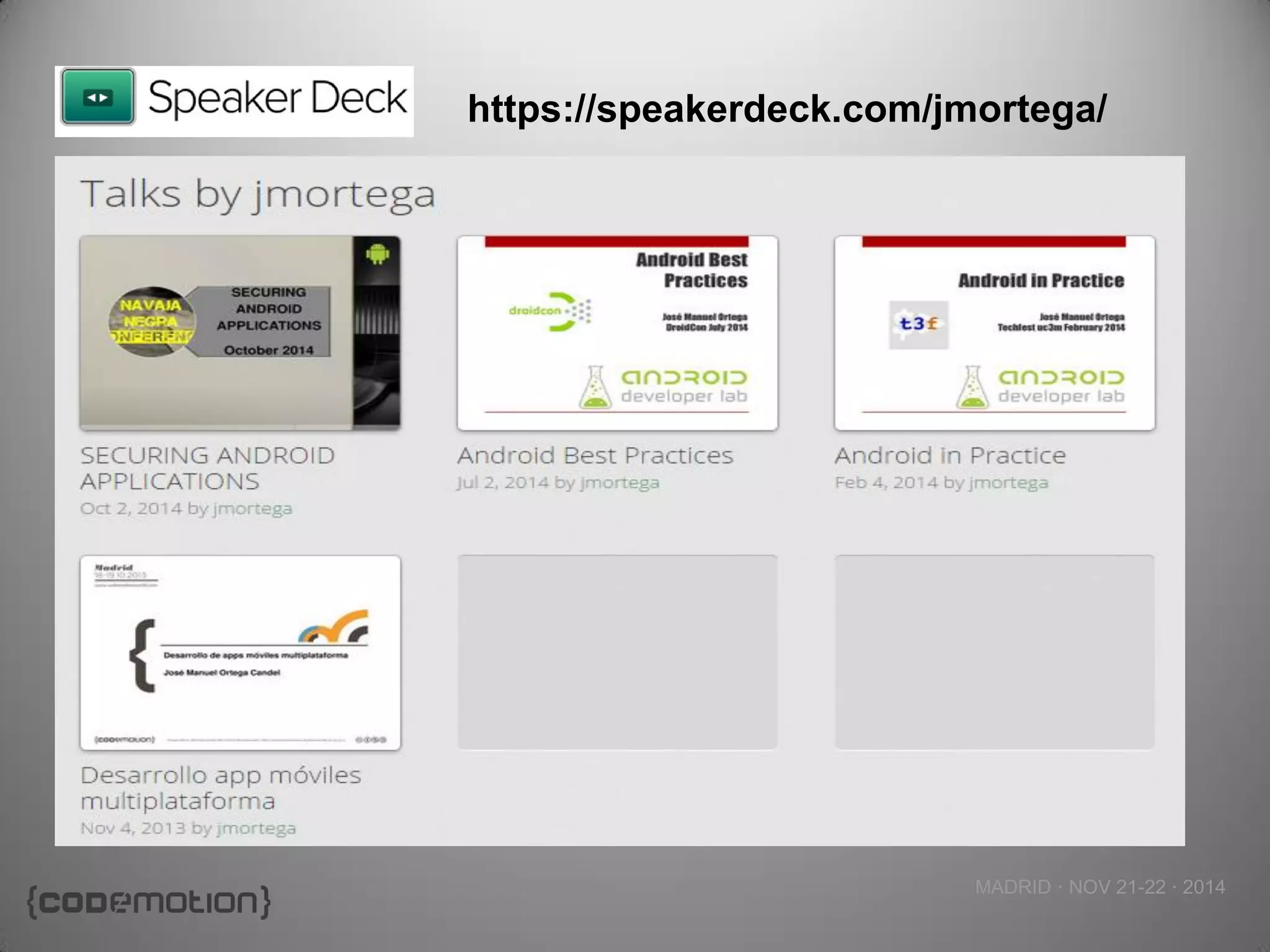

https://speakerdeck.com/jmortega/
MADRID · NOV 21-22 · 2014

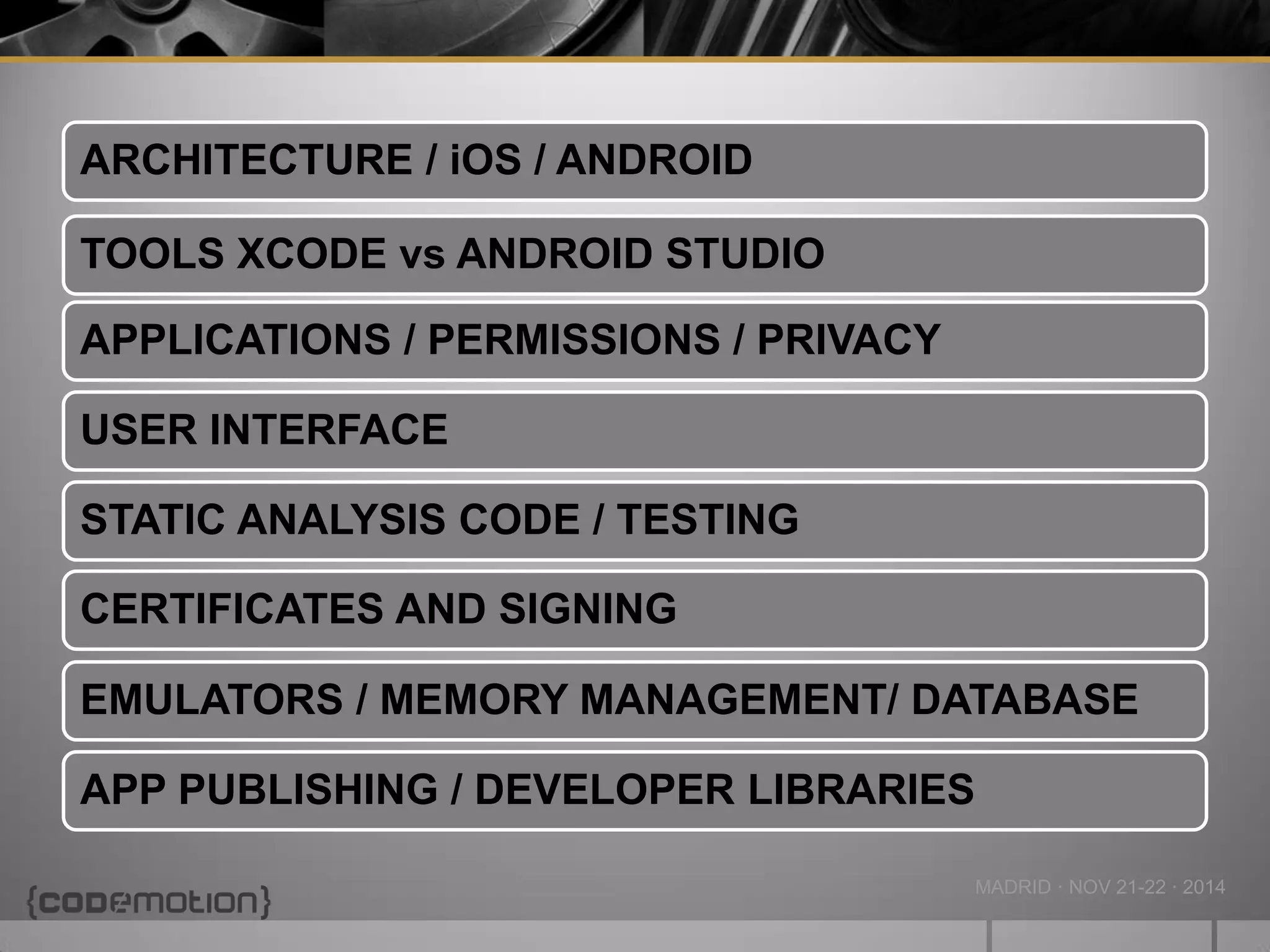

ARCHITECTURE / iOS / ANDROID
TOOLS XCODE vs ANDROID STUDIO
APPLICATIONS / PERMISSIONS / PRIVACY
USER INTERFACE
STATIC ANALYSIS CODE / TESTING
CERTIFICATES AND SIGNING
EMULATORS / MEMORY MANAGEMENT/ DATABASE
APP PUBLISHING / DEVELOPER LIBRARIES
MADRID · NOV 21-22 · 2014
ARCHITECTURE
MADRID · NOV 21-22 · 2014

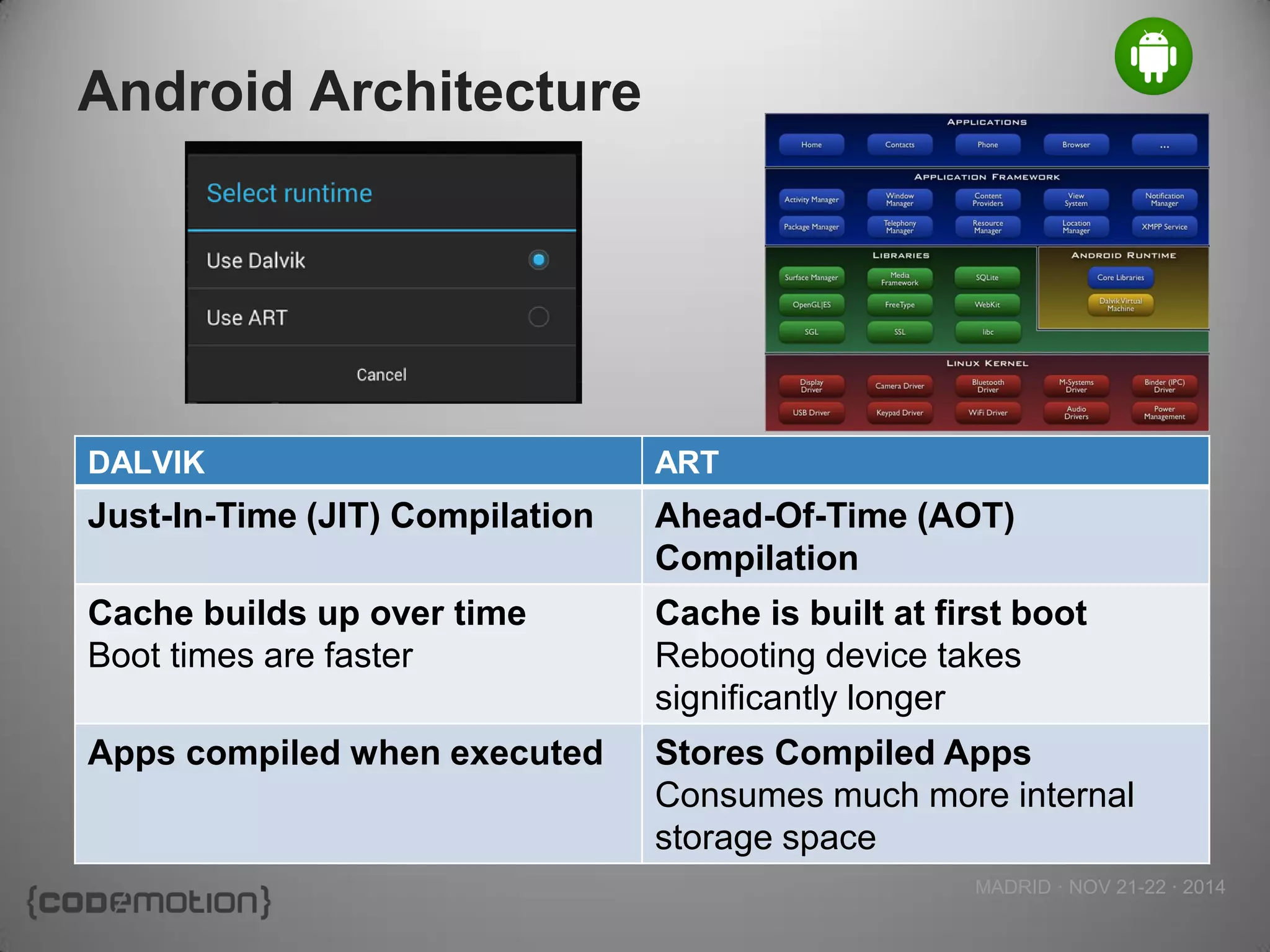

Android Architecture
DALVIK
ART
Just-In-Time (JIT) Compilation
Ahead-Of-Time (AOT) Compilation
Cache builds up over time
Boot times are faster
Cache is built at first boot Rebooting device takes significantly longer
Apps compiled when executed
Stores Compiled Apps
Consumes much more internal storage space
MADRID · NOV 21-22 · 2014

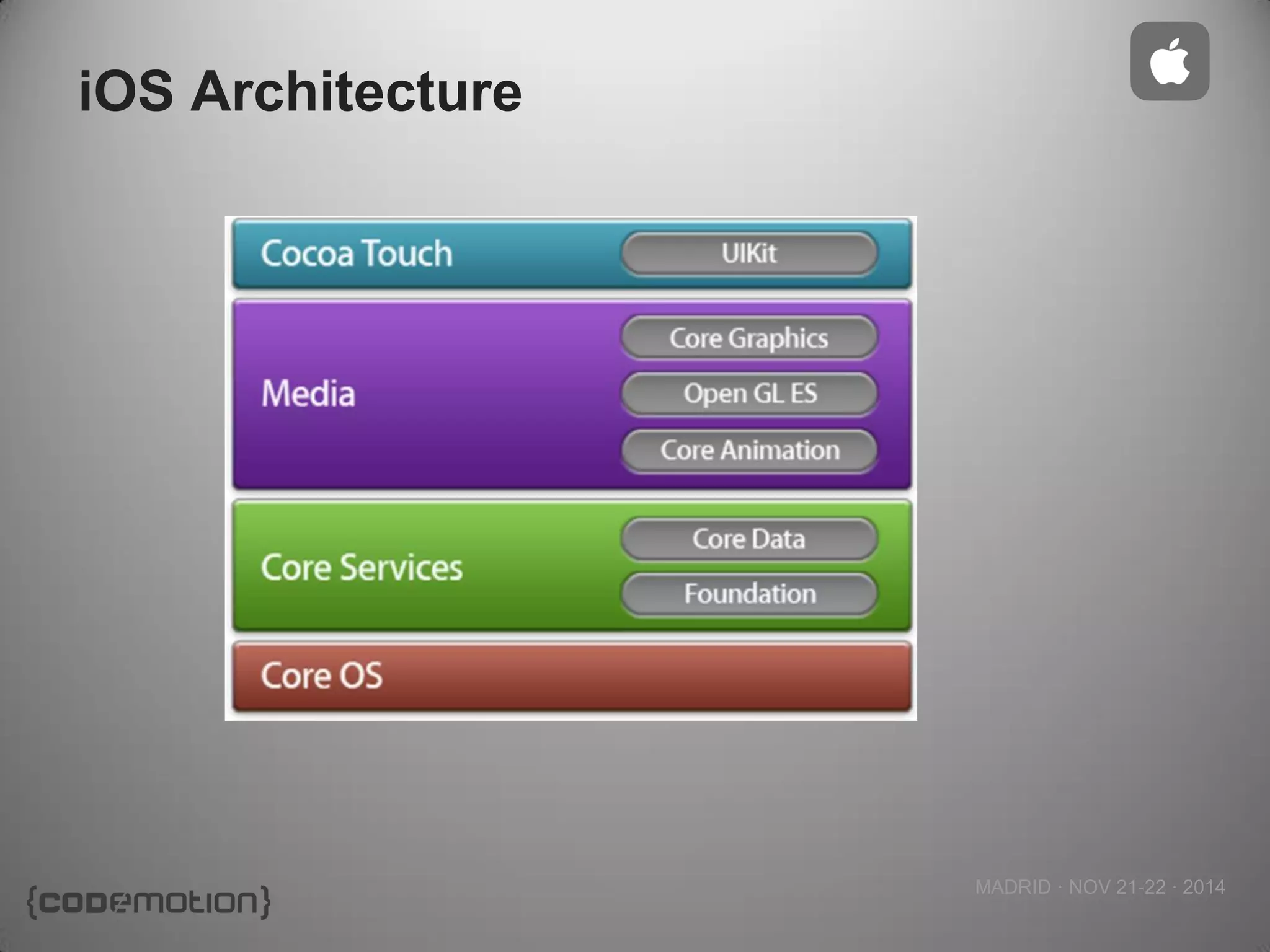

iOS Architecture
MADRID · NOV 21-22 · 2014
TOOLS
MADRID · NOV 21-22 · 2014

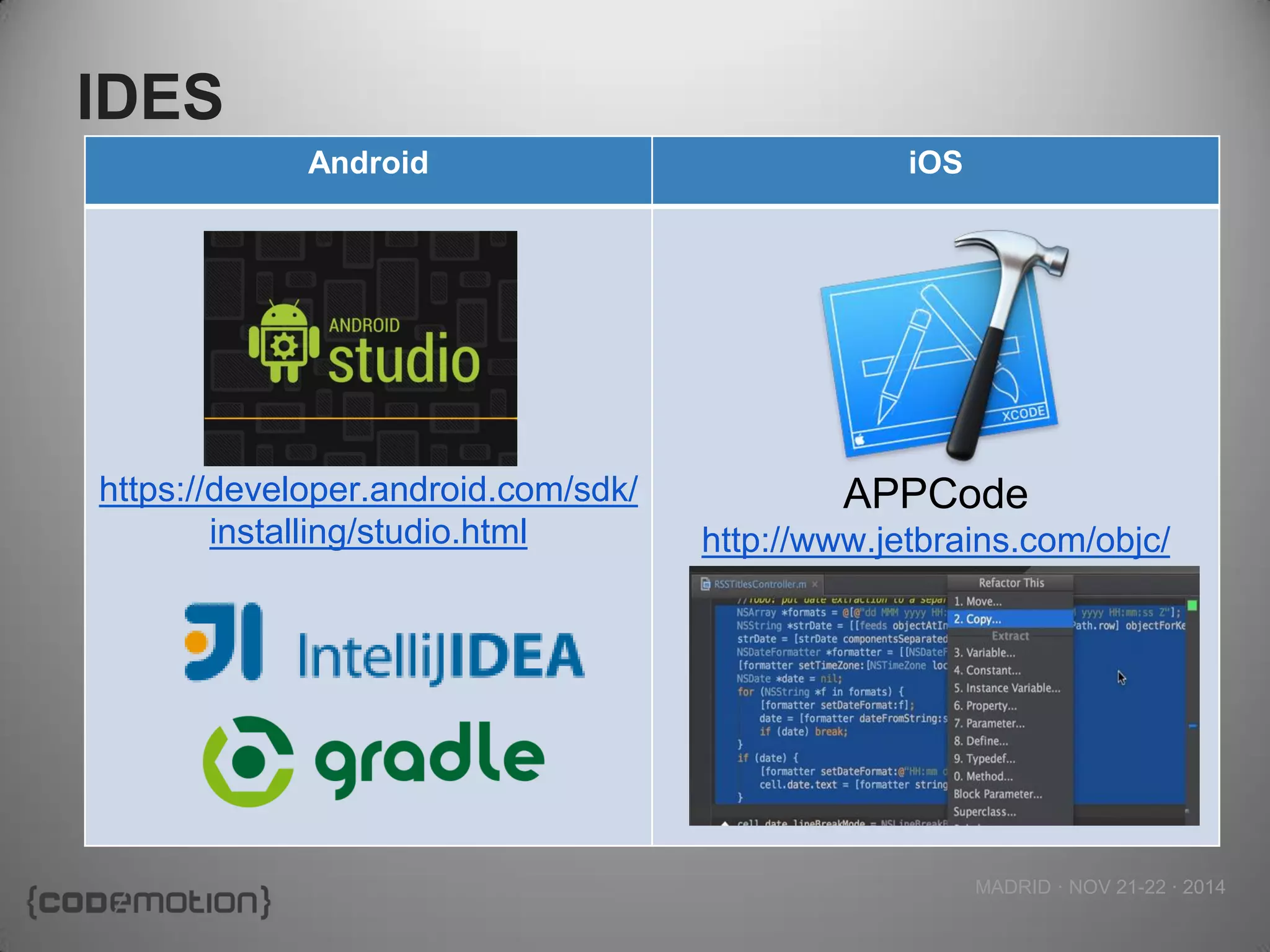

IDES
Android
iOS
https://developer.android.com/sdk/ installing/studio.html
APPCode
http://www.jetbrains.com/objc/
MADRID · NOV 21-22 · 2014

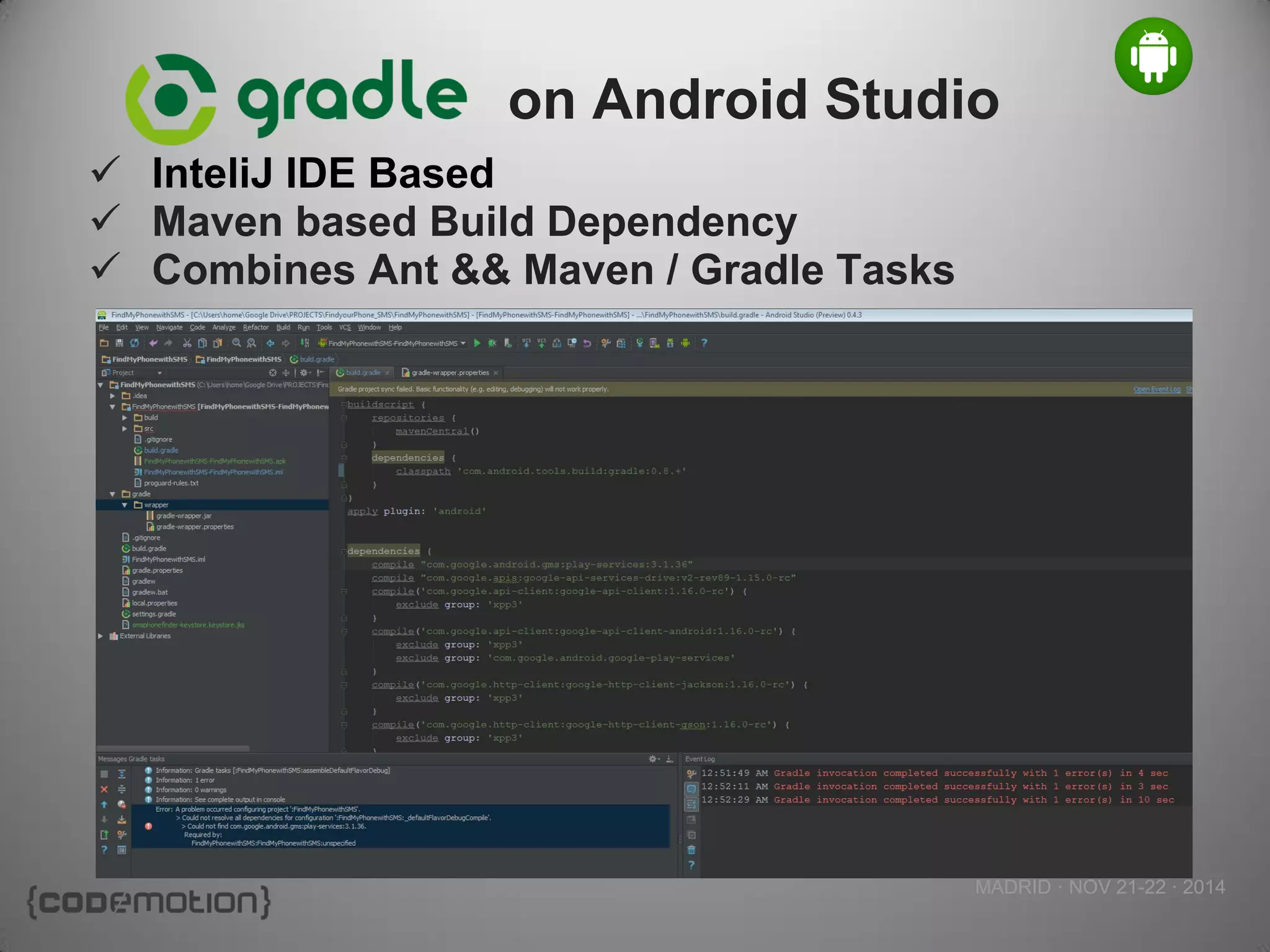

on Android Studio
InteliJ IDE Based
Maven based Build Dependency
Combines Ant && Maven / Gradle Tasks
MADRID · NOV 21-22 · 2014

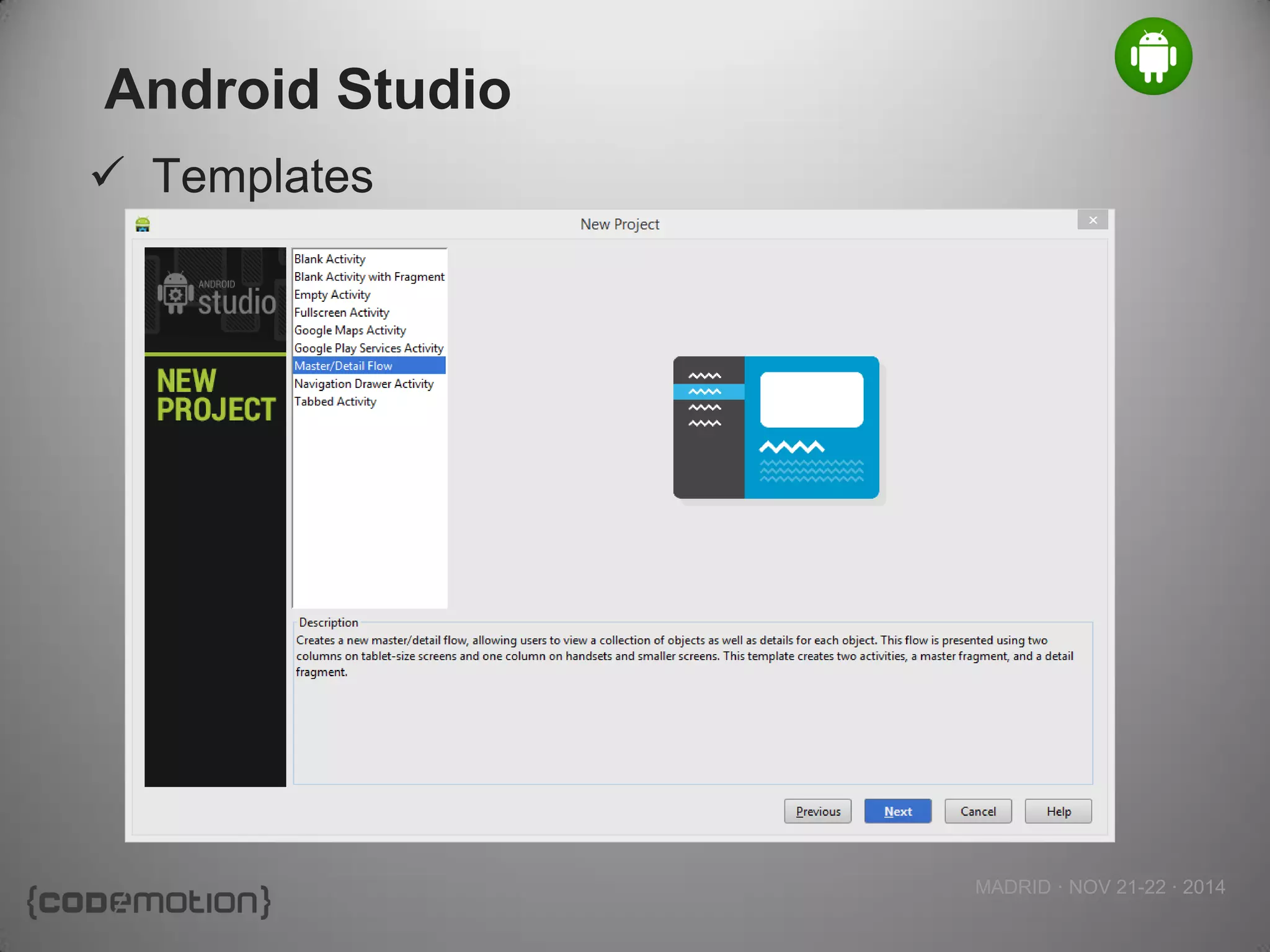

Android Studio
Templates
MADRID · NOV 21-22 · 2014

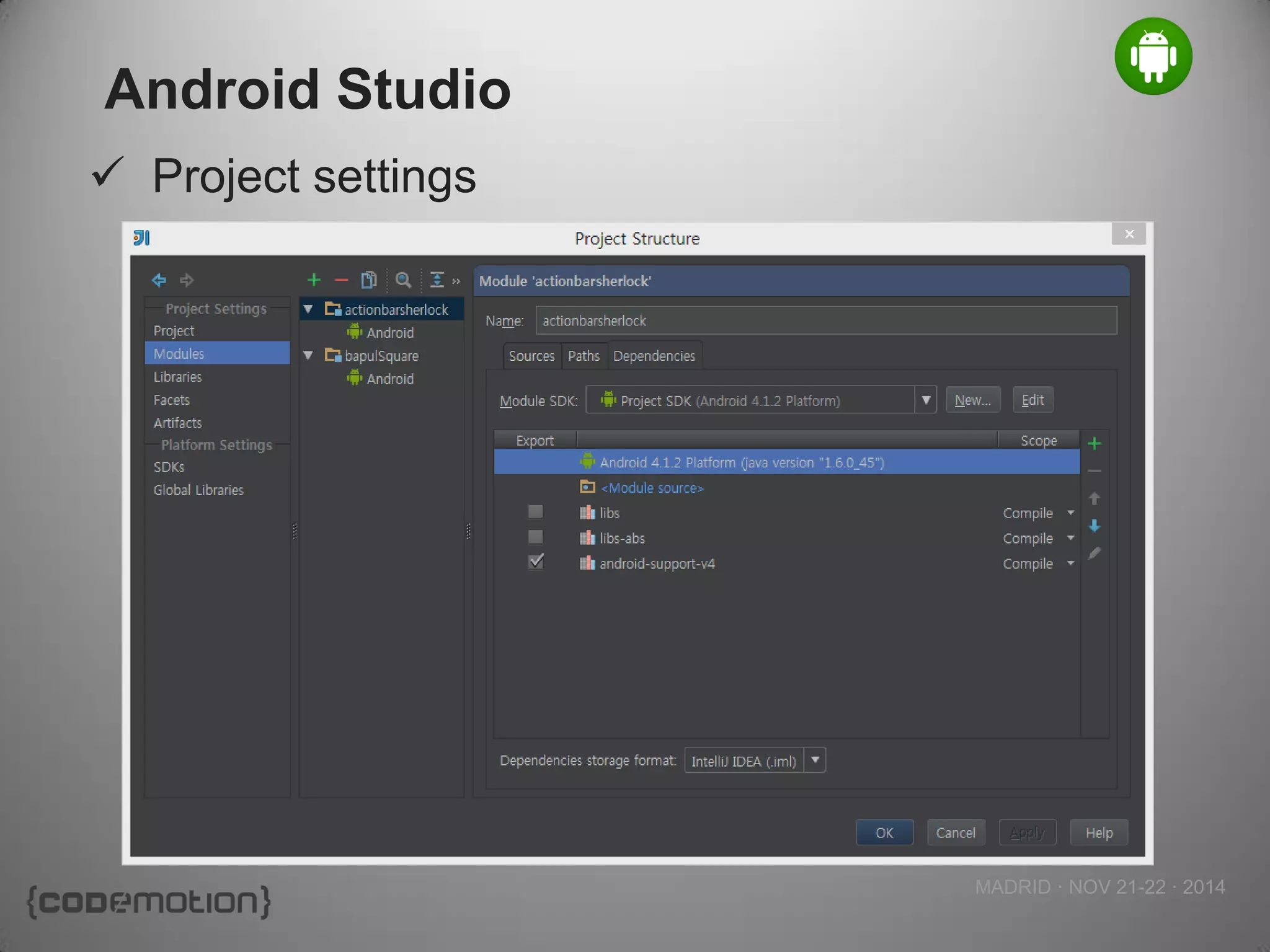

Android Studio
Project settings
MADRID · NOV 21-22 · 2014

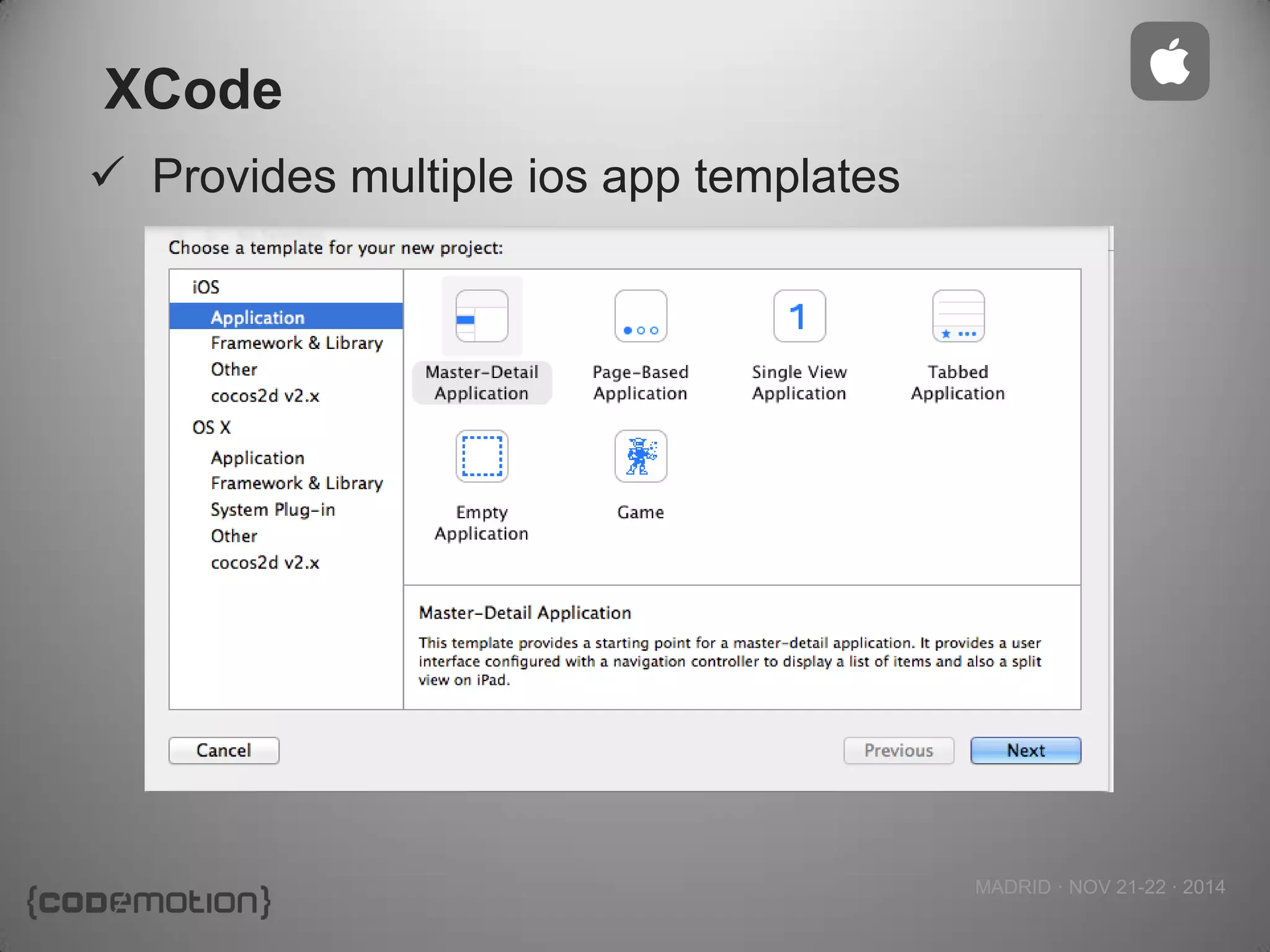

XCode
Provides multiple ios app templates
MADRID · NOV 21-22 · 2014

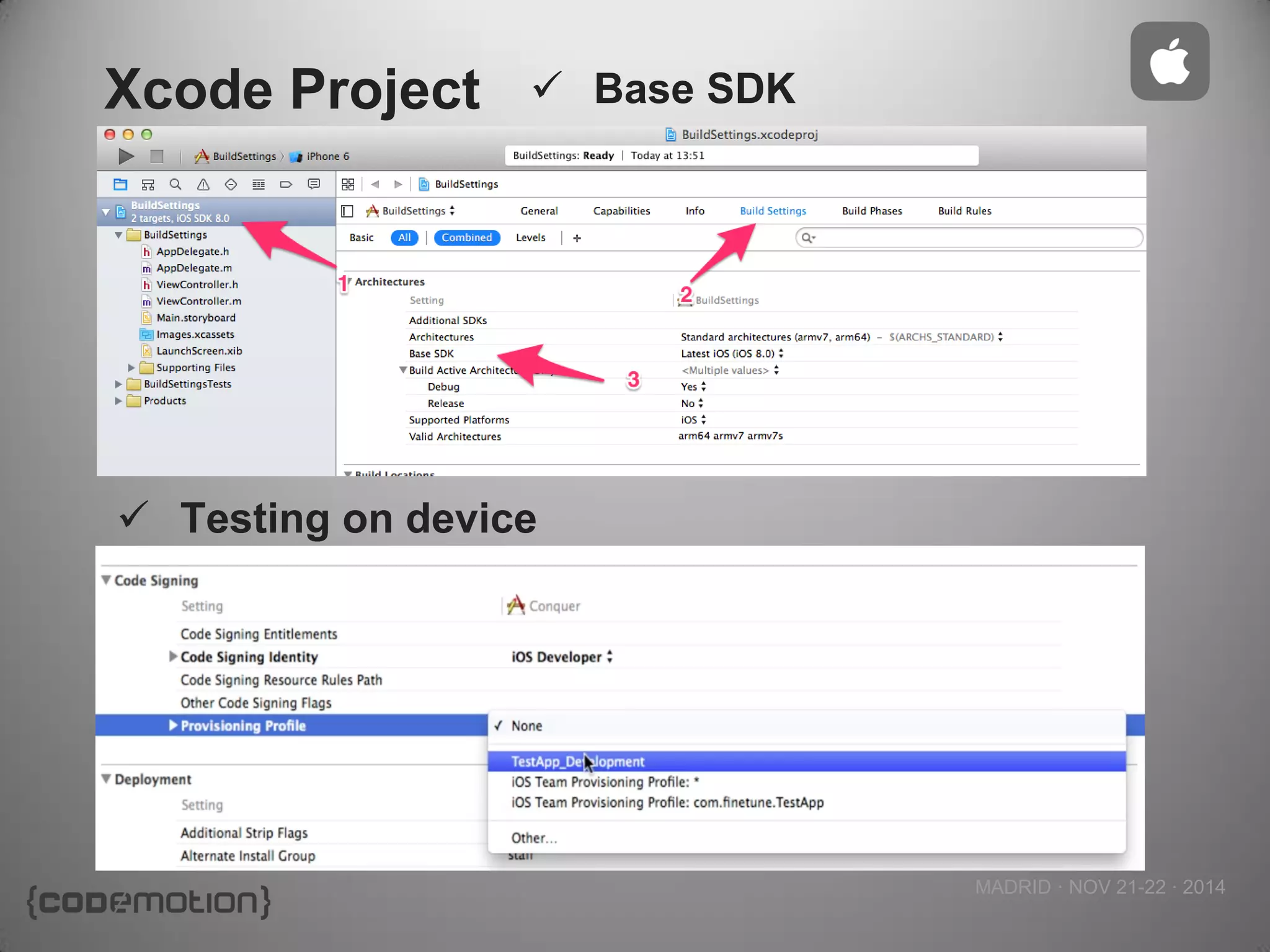

Xcode Project
Testing on device
Base SDK
MADRID · NOV 21-22 · 2014

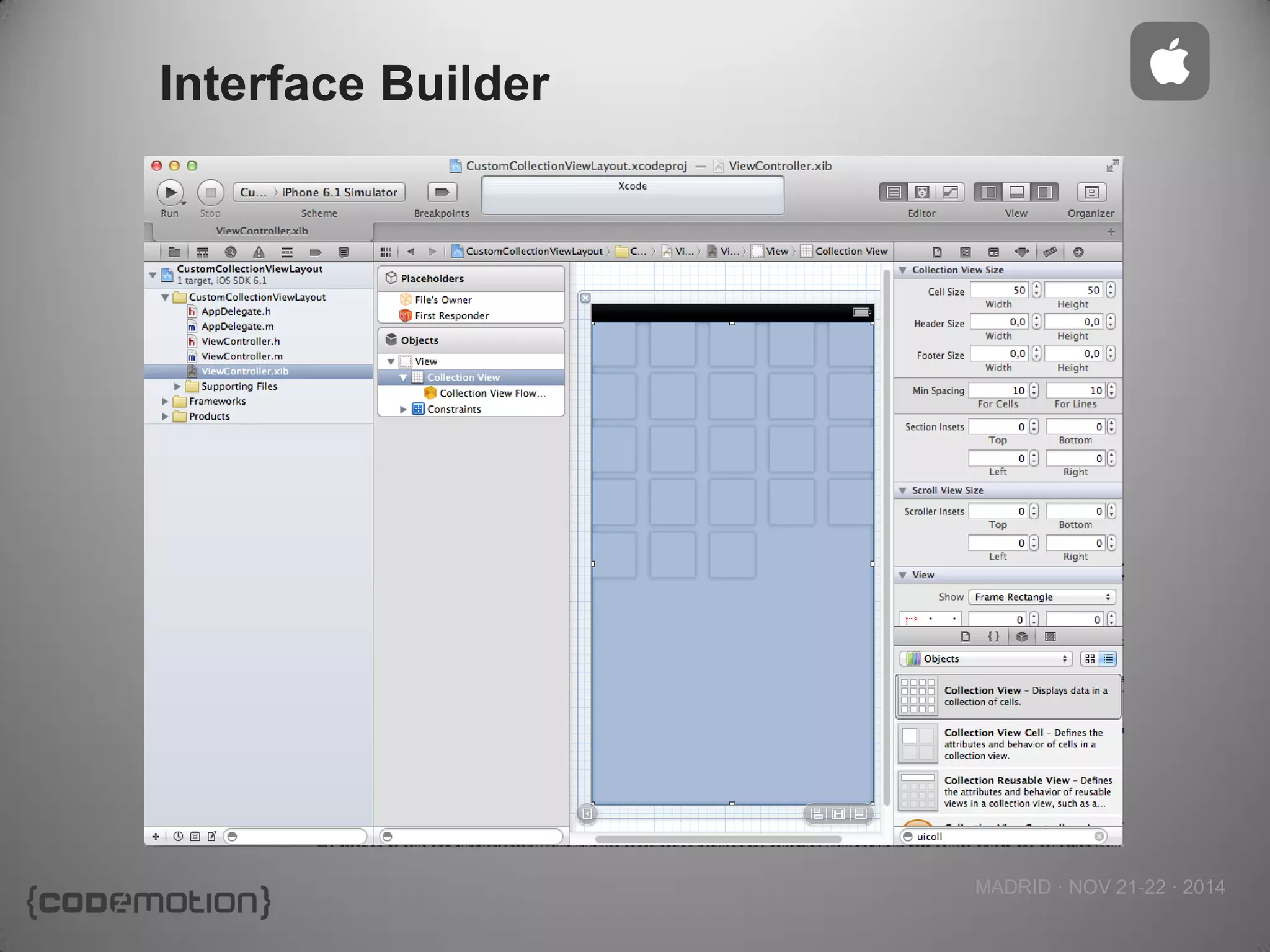

Interface Builder
MADRID · NOV 21-22 · 2014

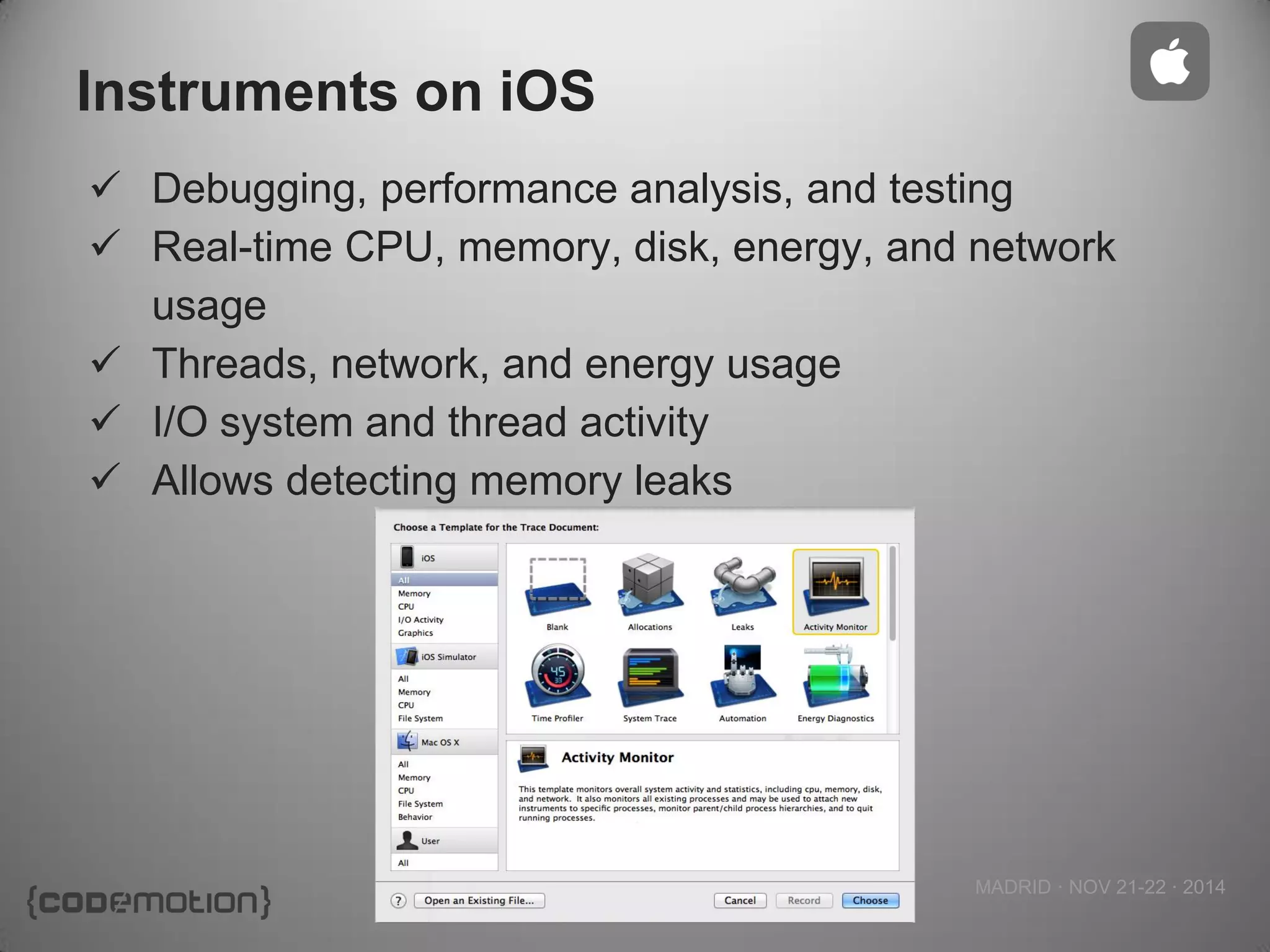

Instruments on iOS
Debugging, performance analysis, and testing
Real-time CPU, memory, disk, energy, and network usage
Threads, network, and energy usage
I/O system and thread activity
Allows detecting memory leaks
MADRID · NOV 21-22 · 2014
APPLICATIONS
MADRID · NOV 21-22 · 2014

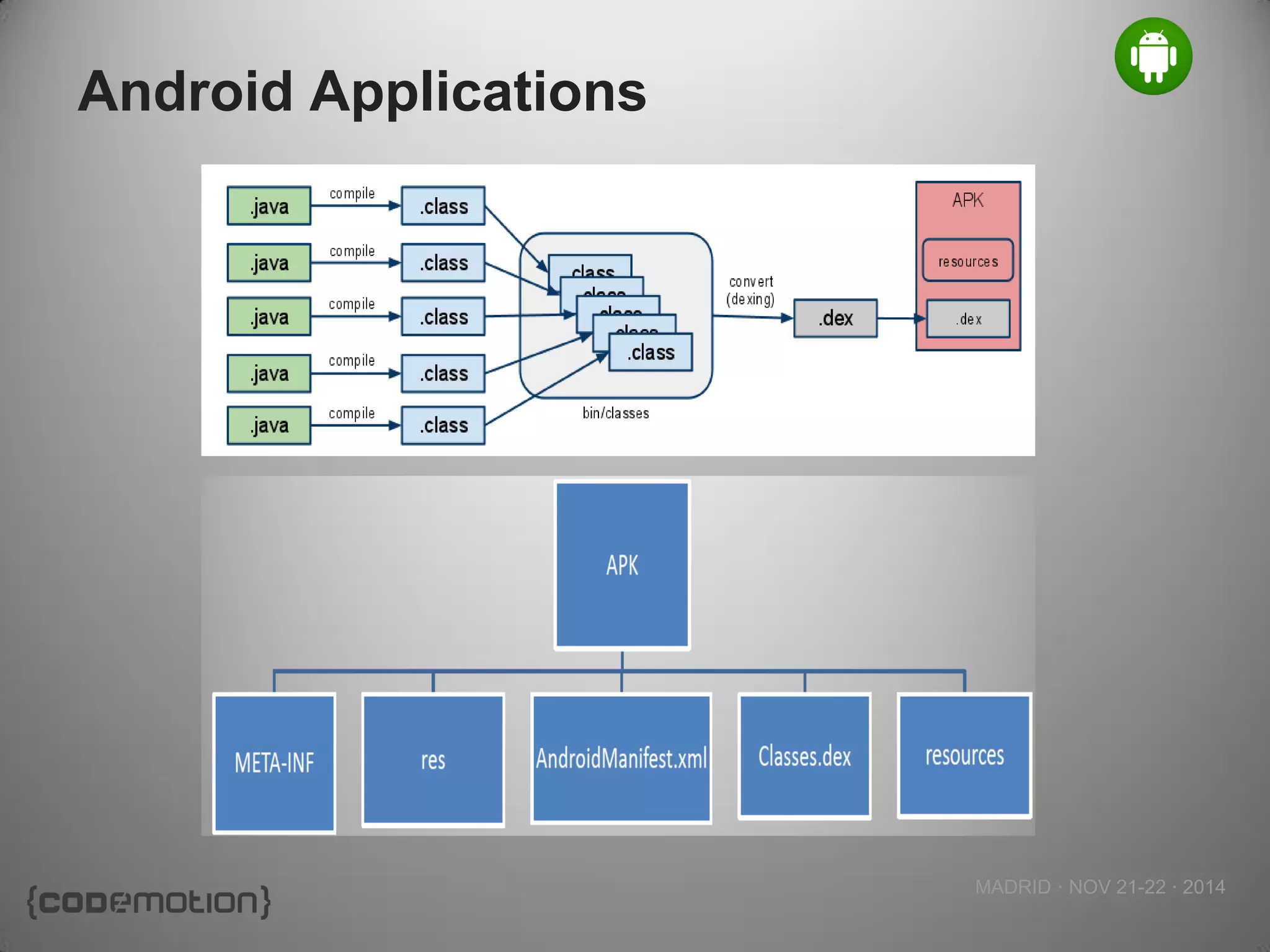

Android Applications
MADRID · NOV 21-22 · 2014

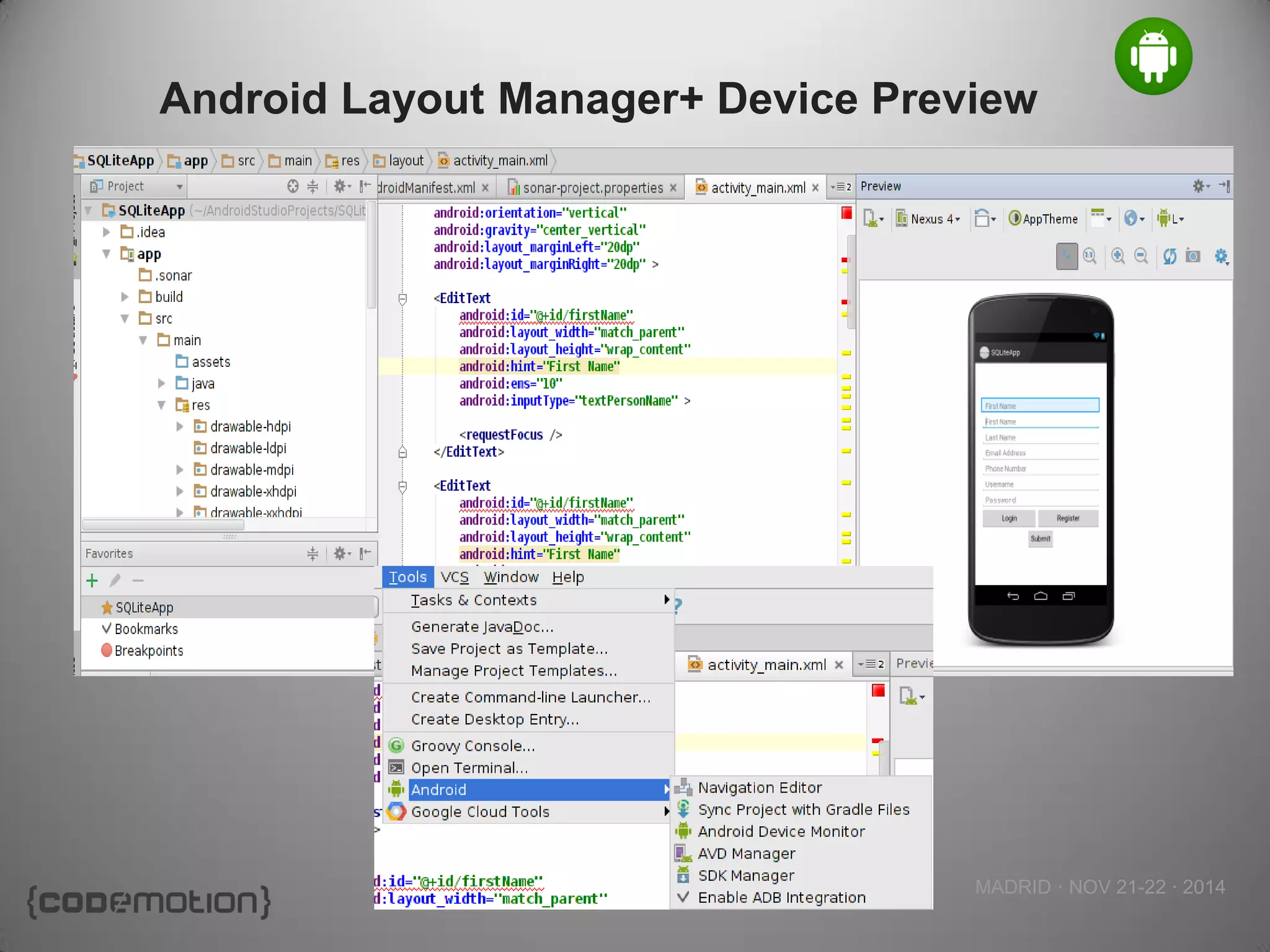

Android Layout Manager+ Device Preview
MADRID · NOV 21-22 · 2014

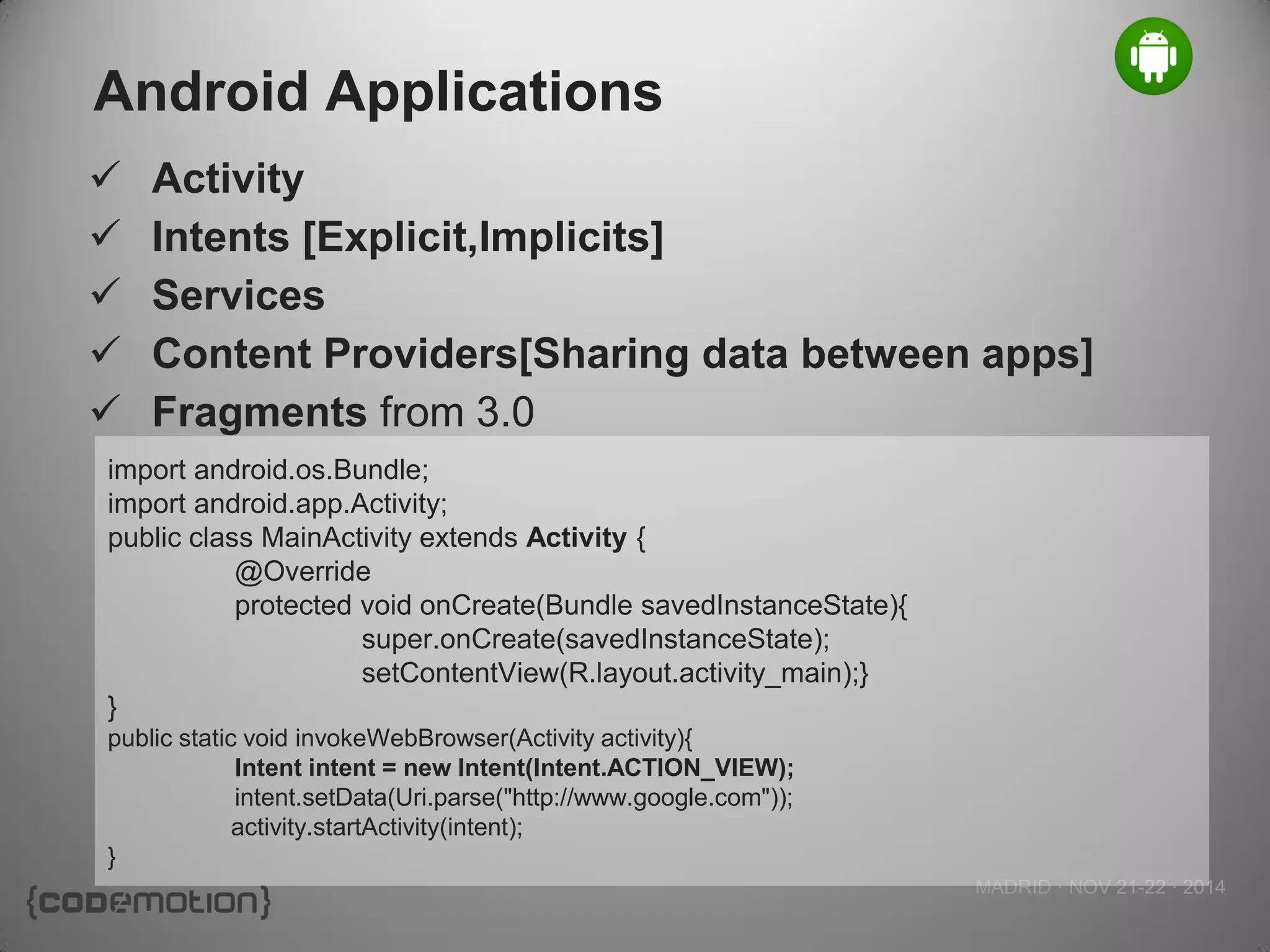

Android Applications
import android.os.Bundle;
import android.app.Activity;
public class MainActivity extends Activity {
@Override
protected void onCreate(Bundle savedInstanceState){
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);}
}
public static void invokeWebBrowser(Activity activity){
Intent intent = new Intent(Intent.ACTION_VIEW); intent.setData(Uri.parse("http://www.google.com"));
activity.startActivity(intent);
}
Activity
Intents [Explicit,Implicits]
Services
Content Providers[Sharing data between apps]
Fragments from 3.0
MADRID · NOV 21-22 · 2014

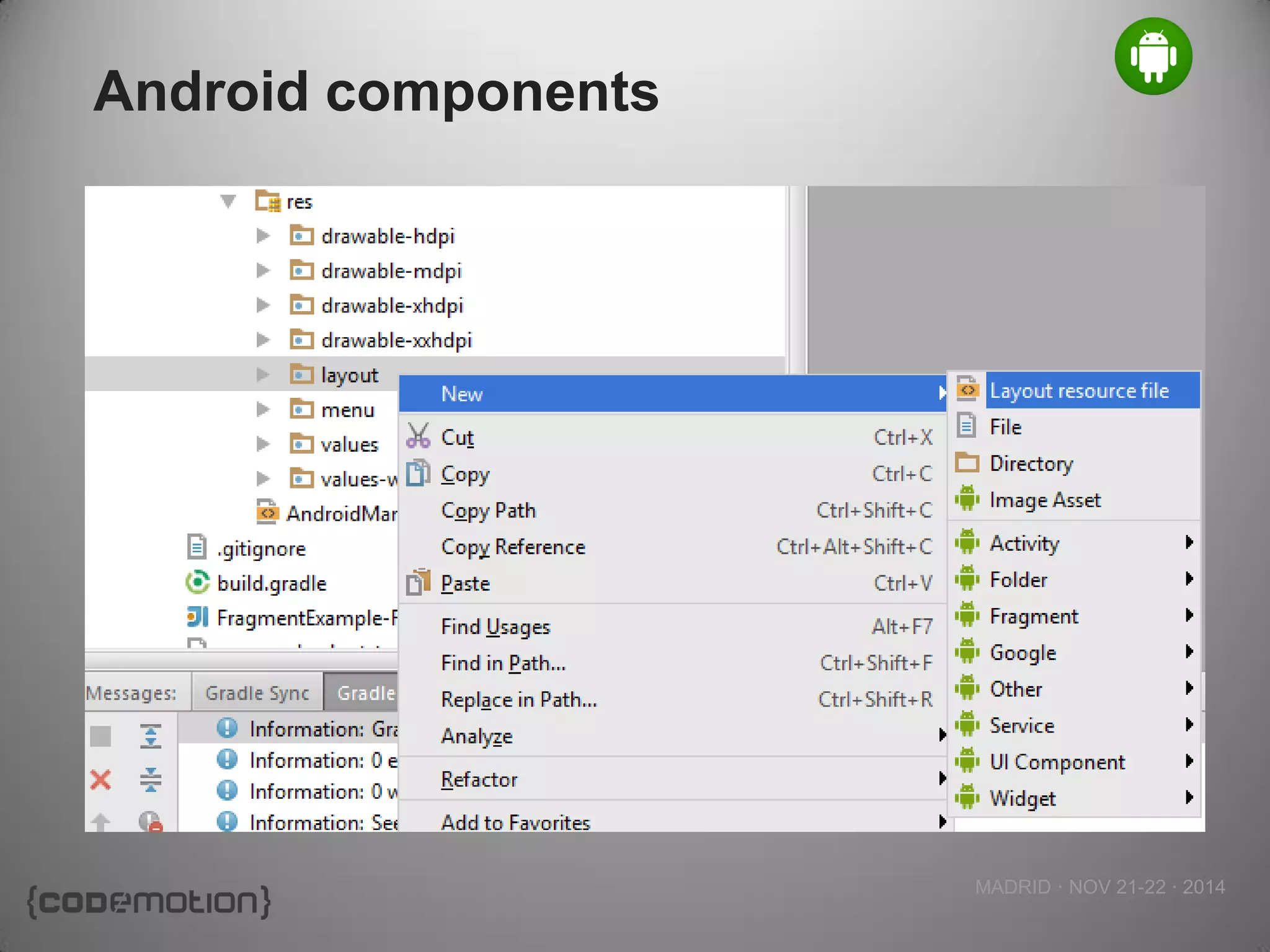

Android components
MADRID · NOV 21-22 · 2014

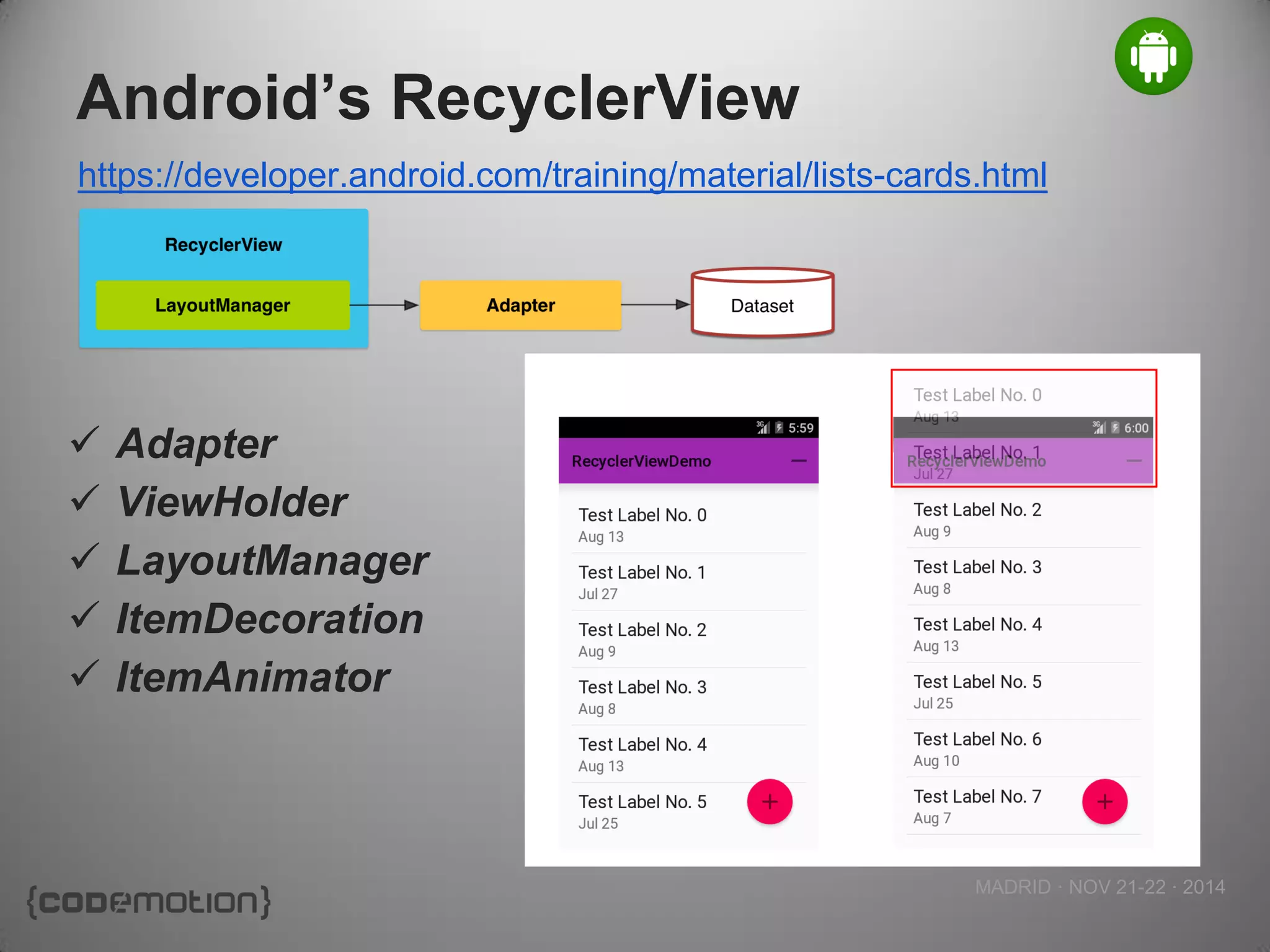

Android’s RecyclerView
Adapter
ViewHolder
LayoutManager
ItemDecoration
ItemAnimator
https://developer.android.com/training/material/lists-cards.html
MADRID · NOV 21-22 · 2014

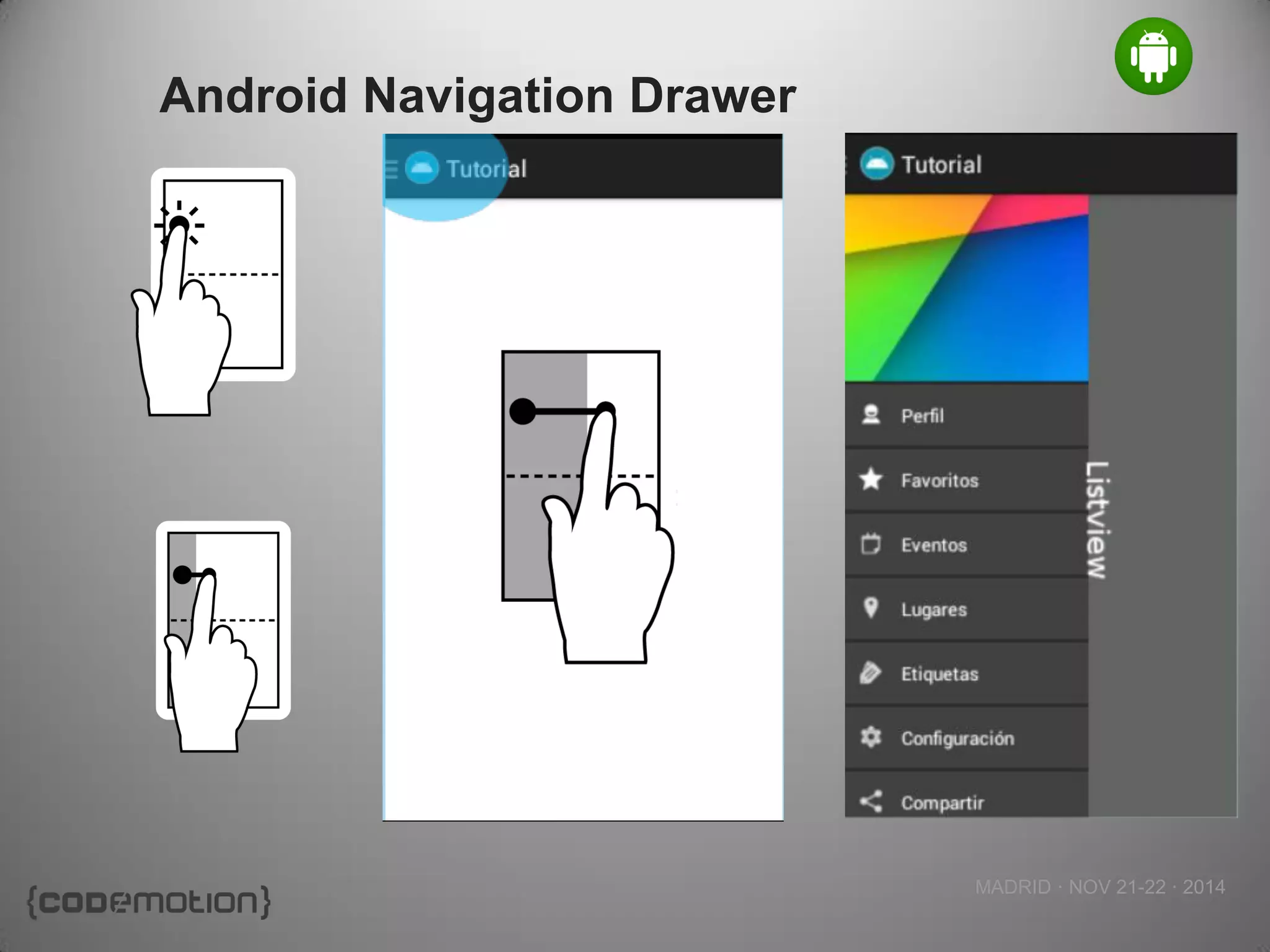

Android Navigation Drawer
MADRID · NOV 21-22 · 2014

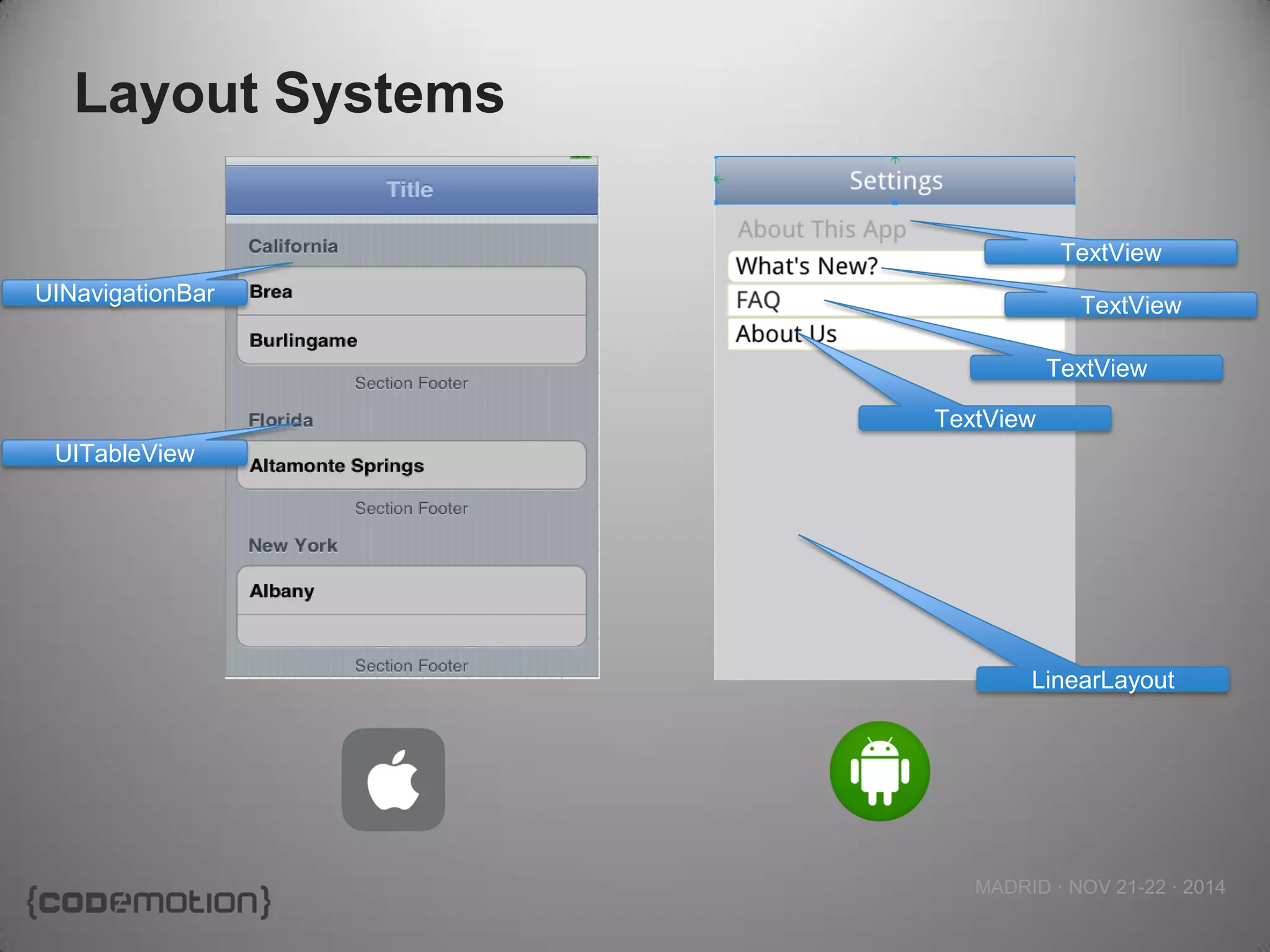

Layout Systems
UINavigationBar
UITableView
TextView
TextView
LinearLayout
TextView
TextView
MADRID · NOV 21-22 · 2014

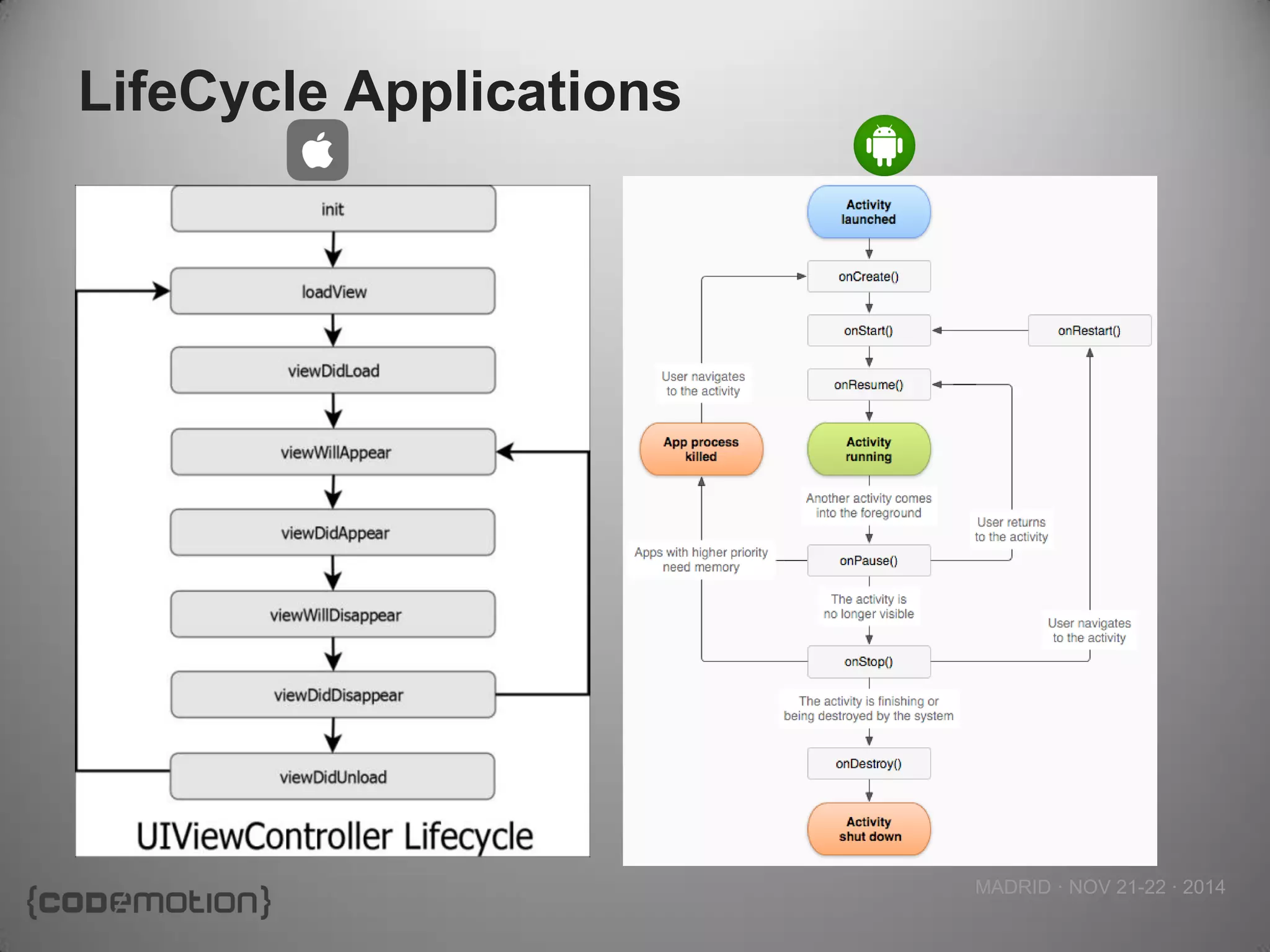

LifeCycle Applications
MADRID · NOV 21-22 · 2014

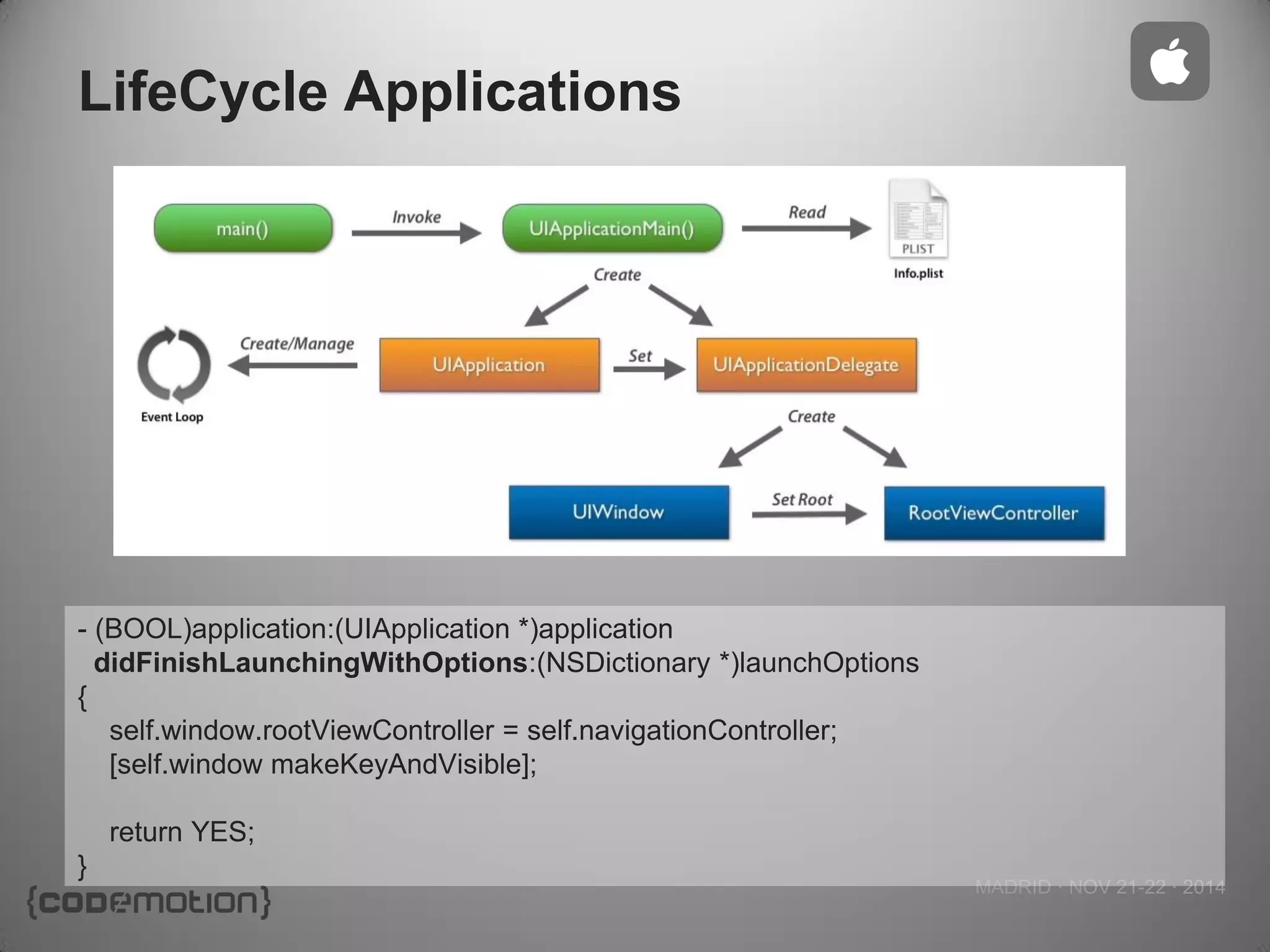

LifeCycle Applications
- (BOOL)application:(UIApplication *)application
didFinishLaunchingWithOptions:(NSDictionary *)launchOptions
{
self.window.rootViewController = self.navigationController;
[self.window makeKeyAndVisible];
return YES;
}
MADRID · NOV 21-22 · 2014

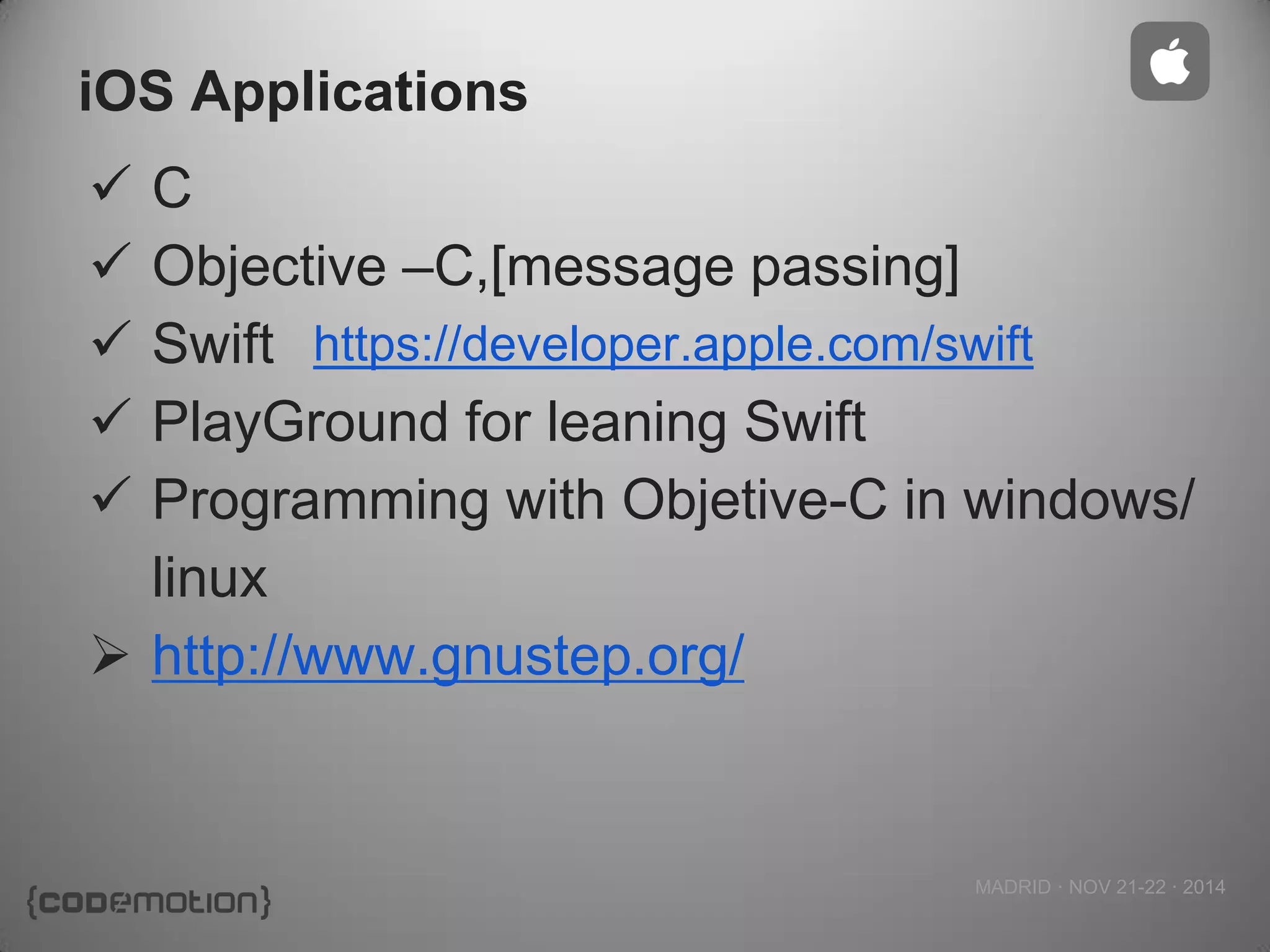

iOS Applications
C
Objective –C,[message passing]
Swift
PlayGround for leaning Swift
Programming with Objetive-C in windows/ linux
http://www.gnustep.org/
https://developer.apple.com/swift
MADRID · NOV 21-22 · 2014

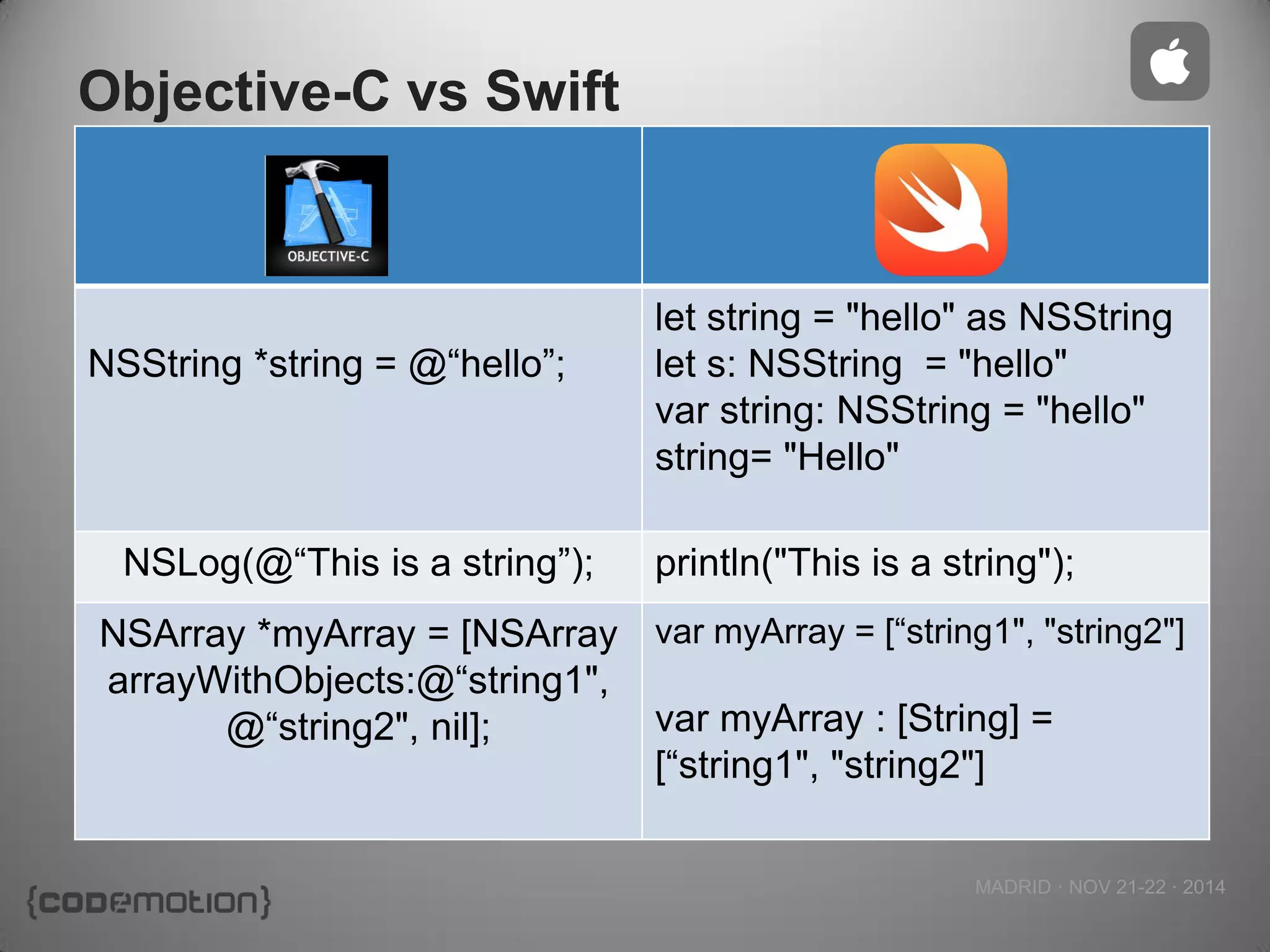

Objective-C vs Swift
NSString *string = @“hello”;
let string = "hello" as NSString
let s: NSString = "hello"
var string: NSString = "hello"
string= "Hello"
NSLog(@“This is a string”);
println("This is a string");
NSArray *myArray = [NSArray arrayWithObjects:@“string1", @“string2", nil];
var myArray = [“string1", "string2"]
var myArray : [String] = [“string1", "string2"]
MADRID · NOV 21-22 · 2014

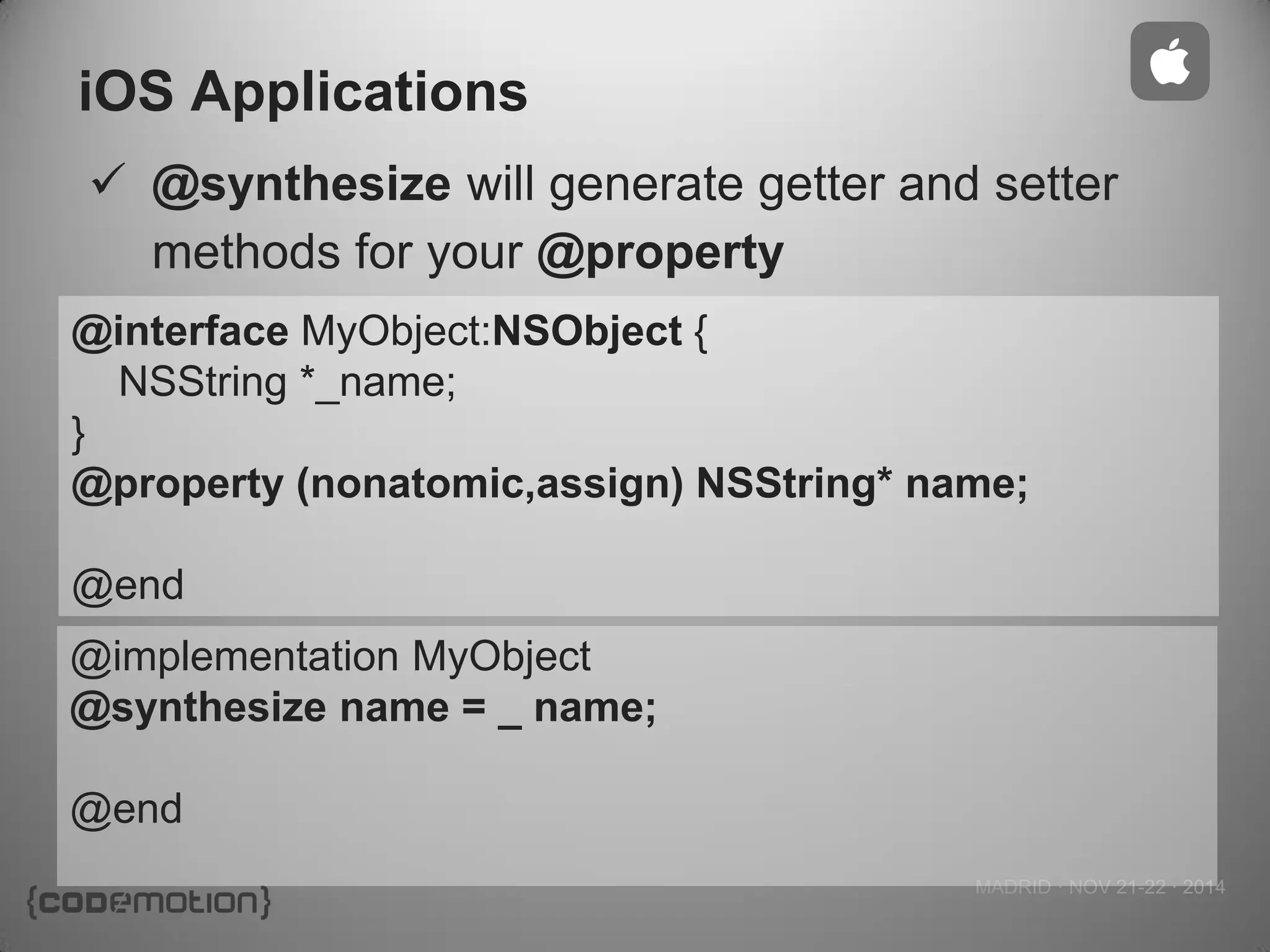

iOS Applications
@synthesize will generate getter and setter methods for your @property
@interface MyObject:NSObject {
NSString *_name;
}
@property (nonatomic,assign) NSString* name;
@end
@implementation MyObject
@synthesize name = _ name;
@end
MADRID · NOV 21-22 · 2014

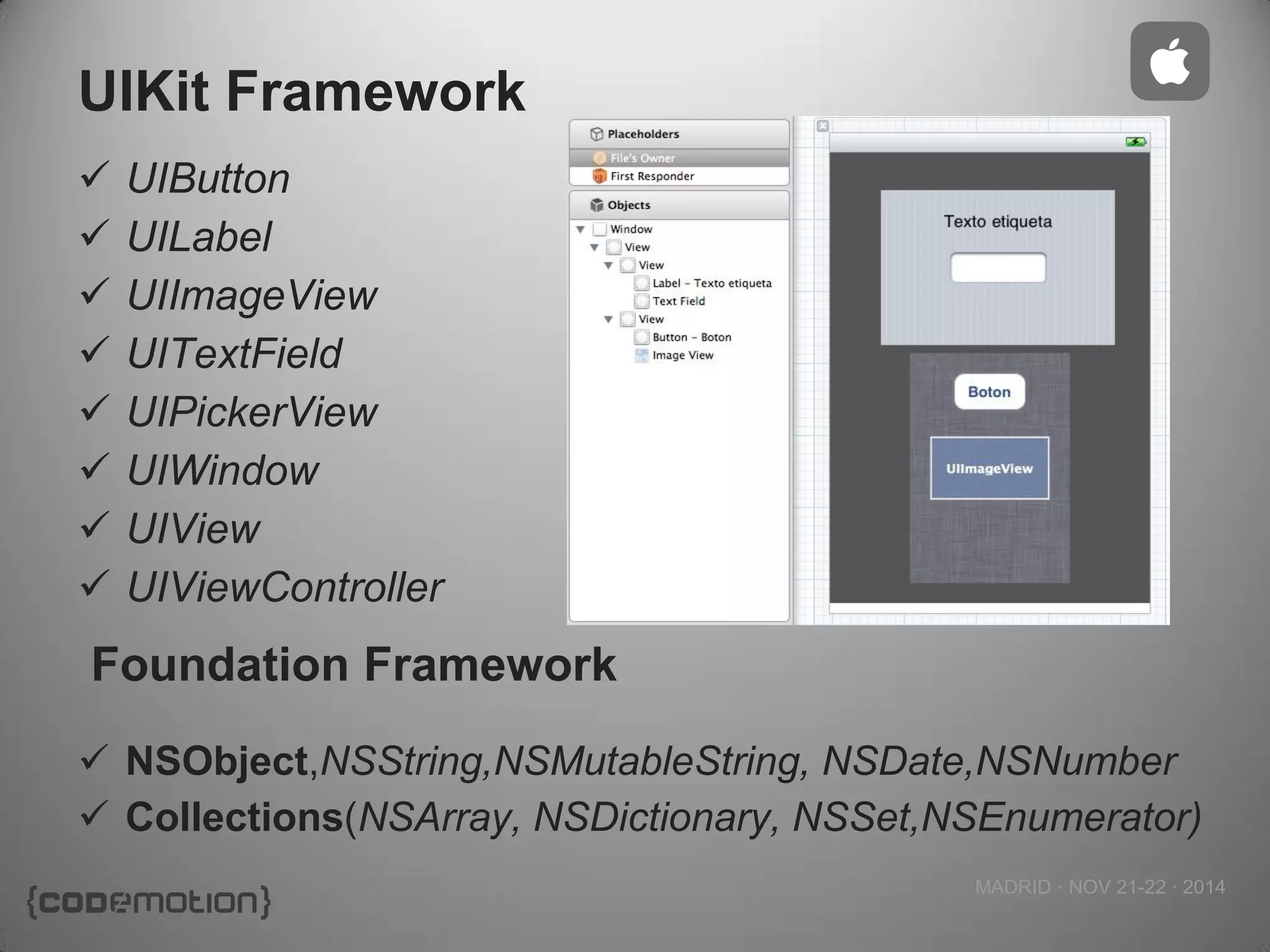

UIKit Framework
UIButton
UILabel
UIImageView
UITextField
UIPickerView
UIWindow
UIView
UIViewController
NSObject,NSString,NSMutableString, NSDate,NSNumber
Collections(NSArray, NSDictionary, NSSet,NSEnumerator)
Foundation Framework
MADRID · NOV 21-22 · 2014

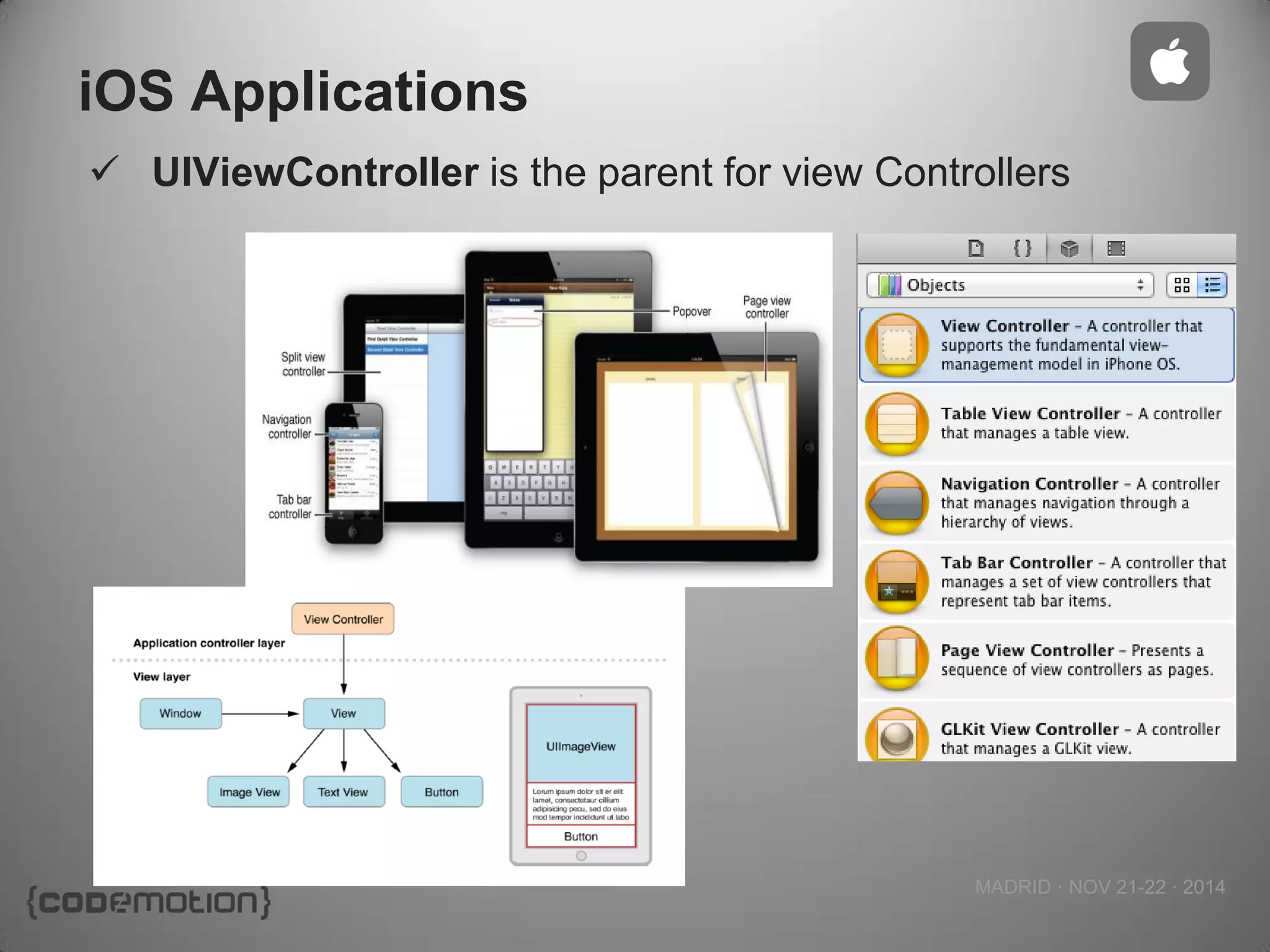

iOS Applications
UIViewController is the parent for view Controllers
MADRID · NOV 21-22 · 2014

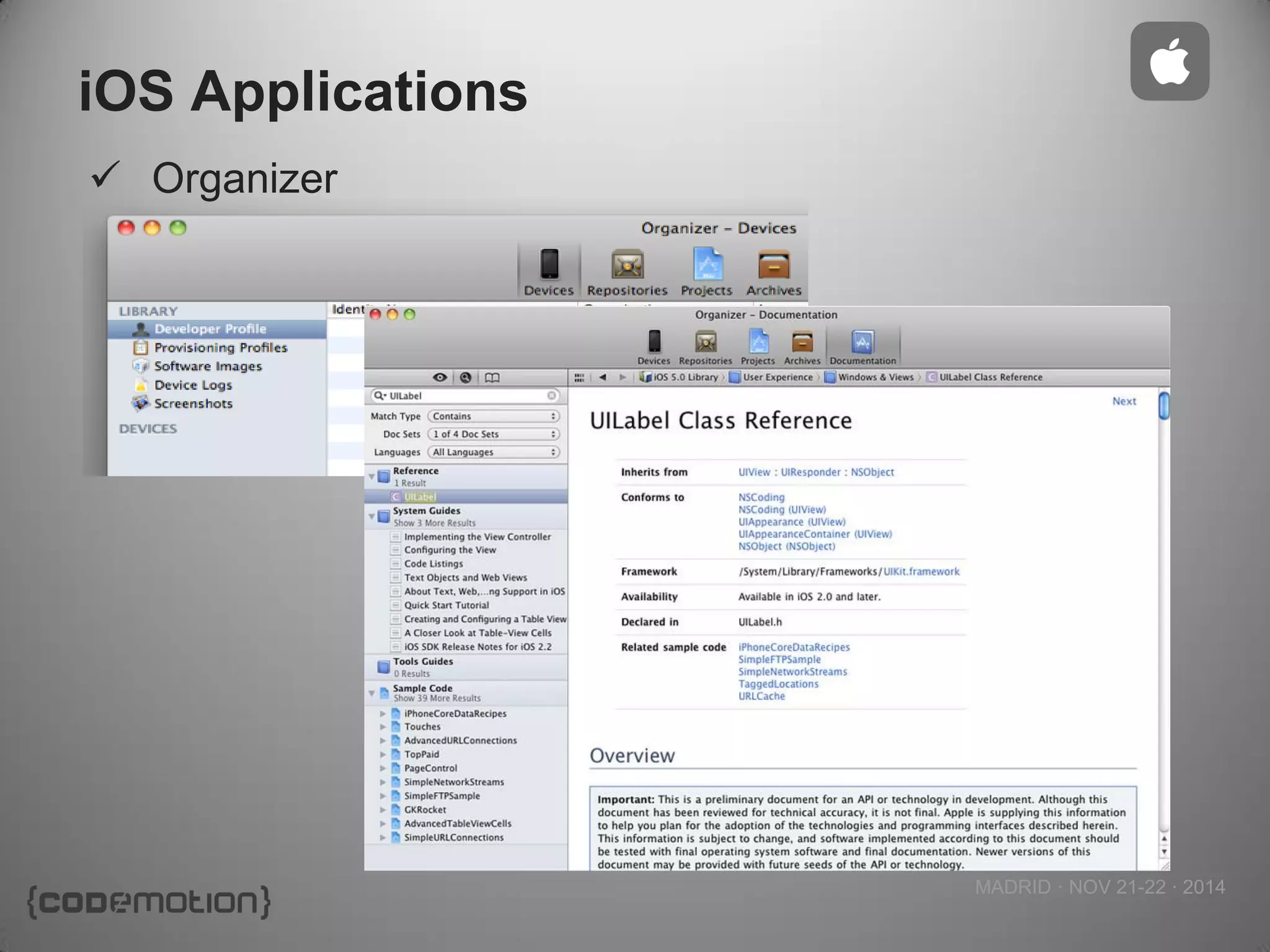

iOS Applications
Organizer
MADRID · NOV 21-22 · 2014

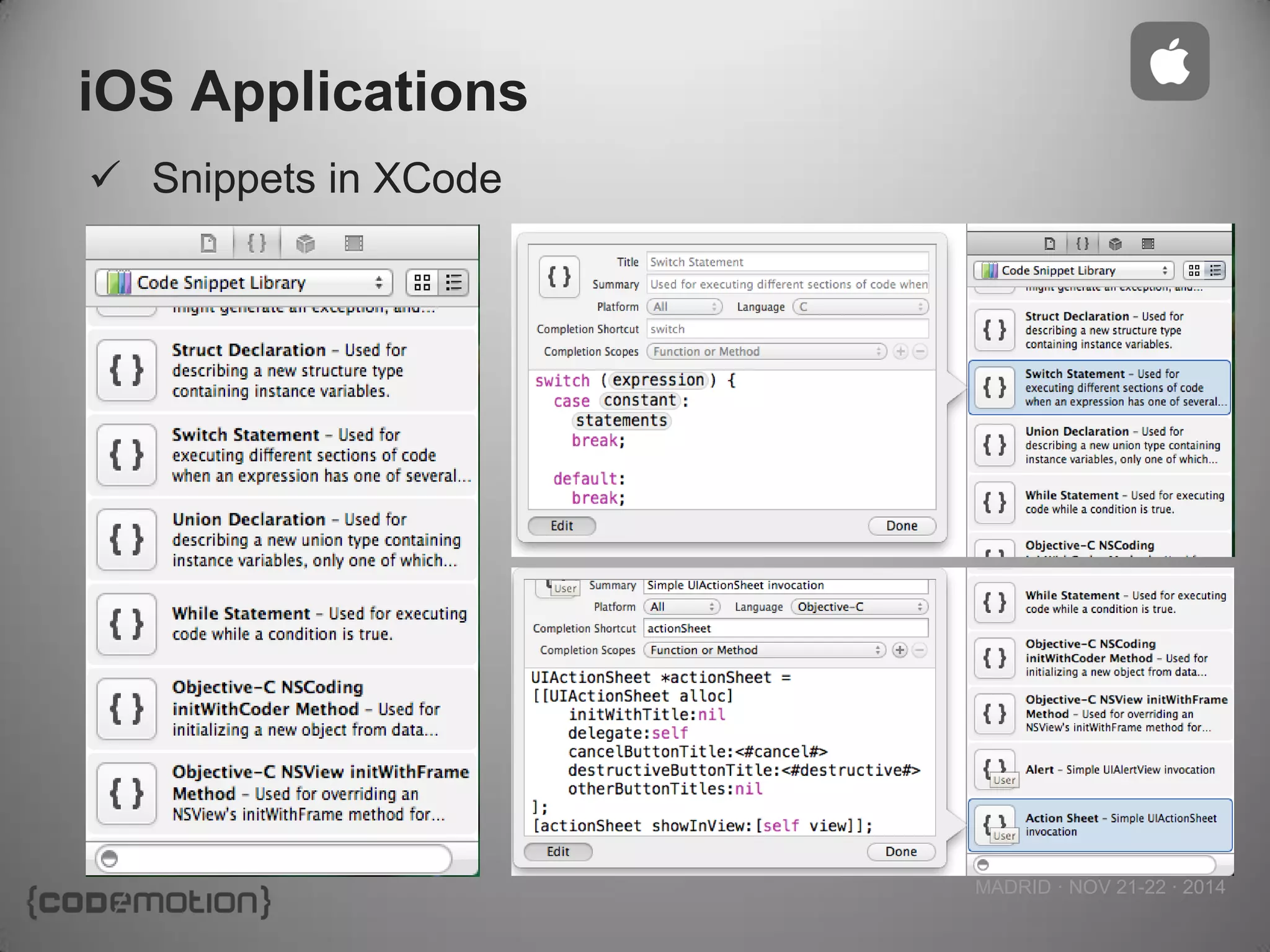

iOS Applications
Snippets in XCode
MADRID · NOV 21-22 · 2014

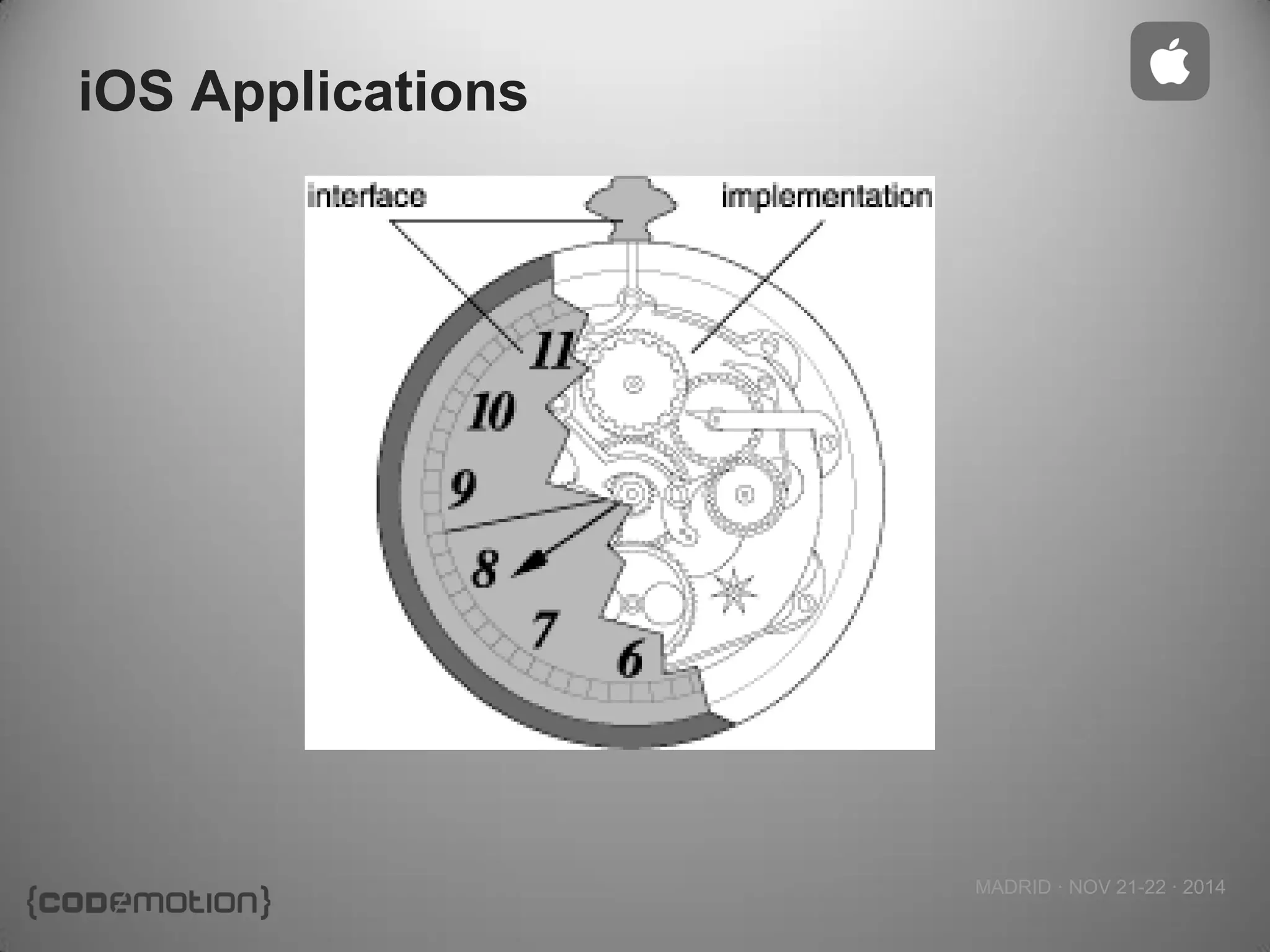

iOS Applications
MADRID · NOV 21-22 · 2014

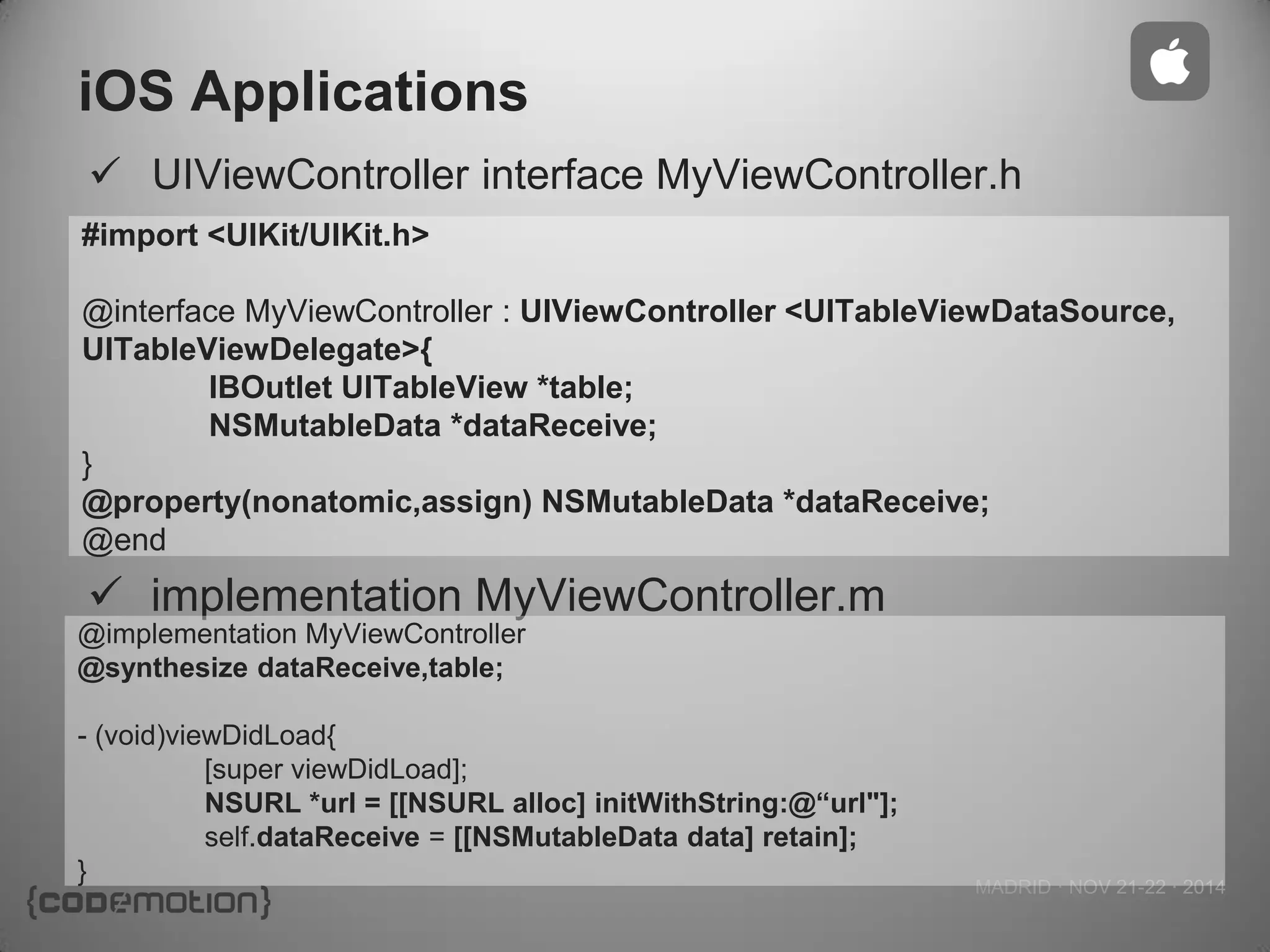

iOS Applications
#import <UIKit/UIKit.h>
@interface MyViewController : UIViewController <UITableViewDataSource, UITableViewDelegate>{
IBOutlet UITableView *table;
NSMutableData *dataReceive;
}
@property(nonatomic,assign) NSMutableData *dataReceive;
@end
UIViewController interface MyViewController.h
implementation MyViewController.m
@implementation MyViewController
@synthesize dataReceive,table;
- (void)viewDidLoad{
[super viewDidLoad];
NSURL *url = [[NSURL alloc] initWithString:@“url"];
self.dataReceive = [[NSMutableData data] retain];
}
MADRID · NOV 21-22 · 2014

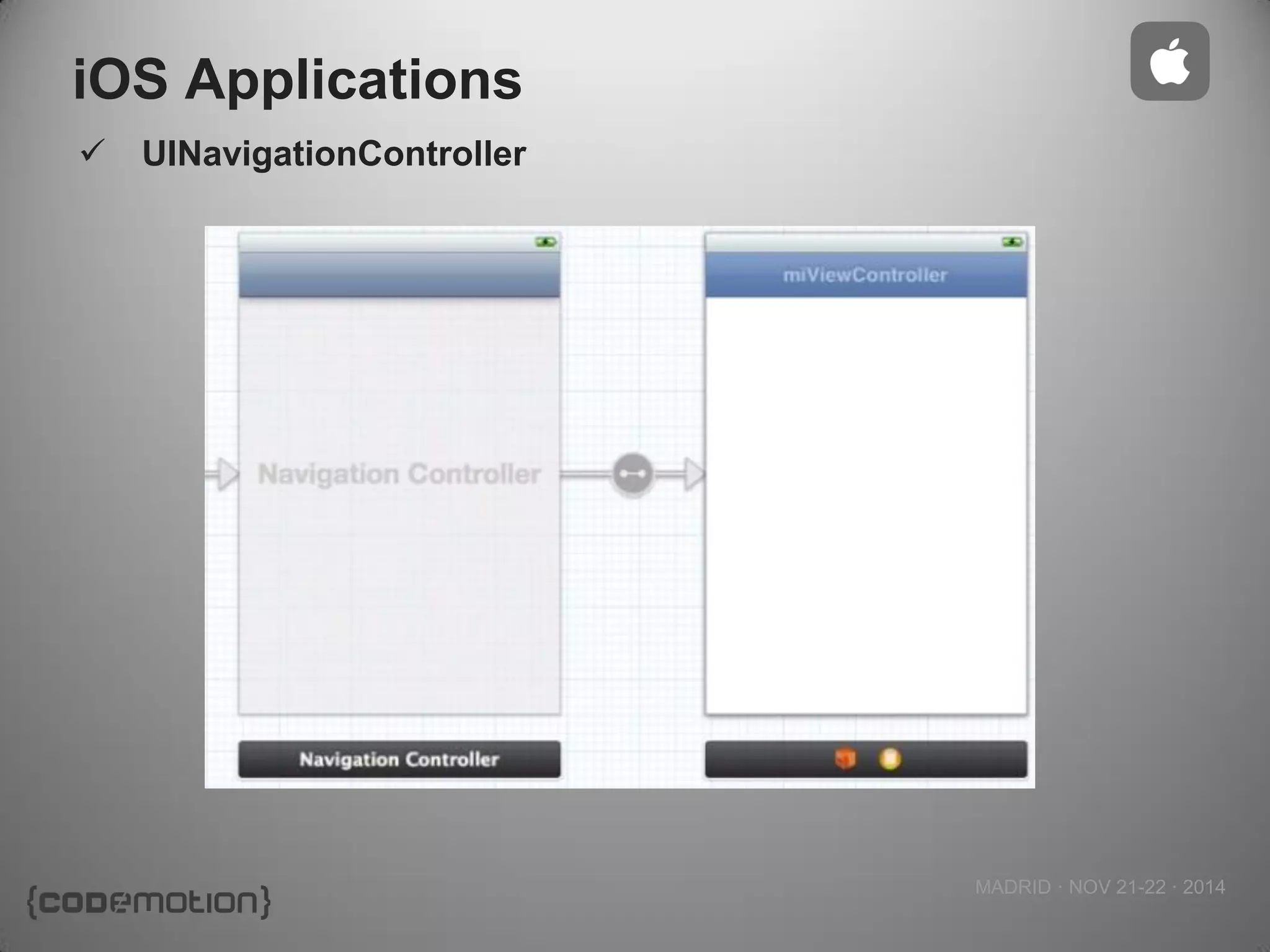

iOS Applications
UINavigationController
MADRID · NOV 21-22 · 2014

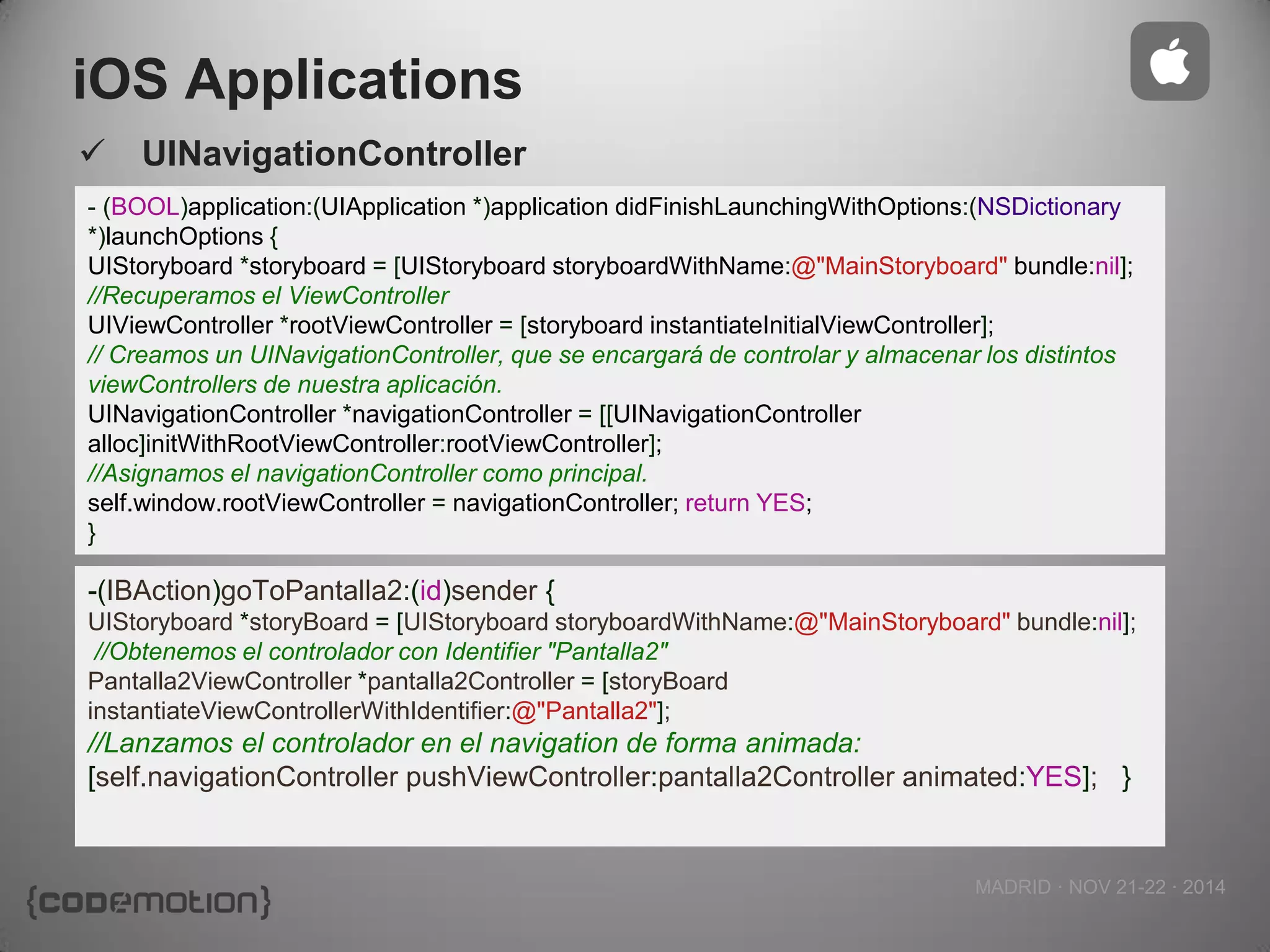

iOS Applications
UINavigationController
- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
UIStoryboard *storyboard = [UIStoryboard storyboardWithName:@"MainStoryboard" bundle:nil];
//Recuperamos el ViewController
UIViewController *rootViewController = [storyboard instantiateInitialViewController];
// Creamos un UINavigationController, que se encargará de controlar y almacenar los distintos viewControllers de nuestra aplicación.
UINavigationController *navigationController = [[UINavigationController alloc]initWithRootViewController:rootViewController];
//Asignamos el navigationController como principal.
self.window.rootViewController = navigationController; return YES;
}
-(IBAction)goToPantalla2:(id)sender {
UIStoryboard *storyBoard = [UIStoryboard storyboardWithName:@"MainStoryboard" bundle:nil];
//Obtenemos el controlador con Identifier "Pantalla2"
Pantalla2ViewController *pantalla2Controller = [storyBoard instantiateViewControllerWithIdentifier:@"Pantalla2"];
//Lanzamos el controlador en el navigation de forma animada: [self.navigationController pushViewController:pantalla2Controller animated:YES]; }
MADRID · NOV 21-22 · 2014

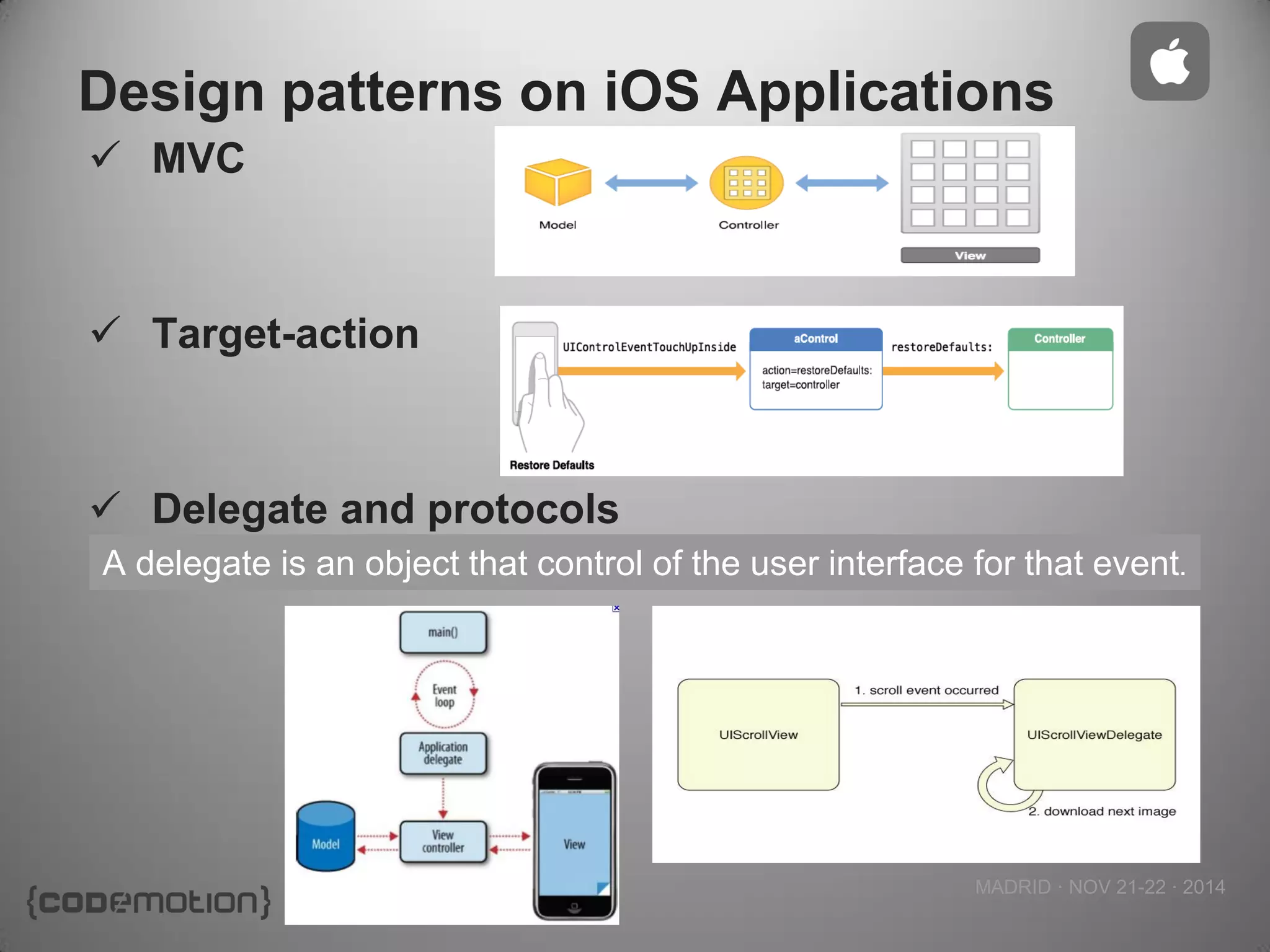

Design patterns on iOS Applications
MVC
Target-action
Delegate and protocols
A delegate is an object that control of the user interface for that event.
MADRID · NOV 21-22 · 2014

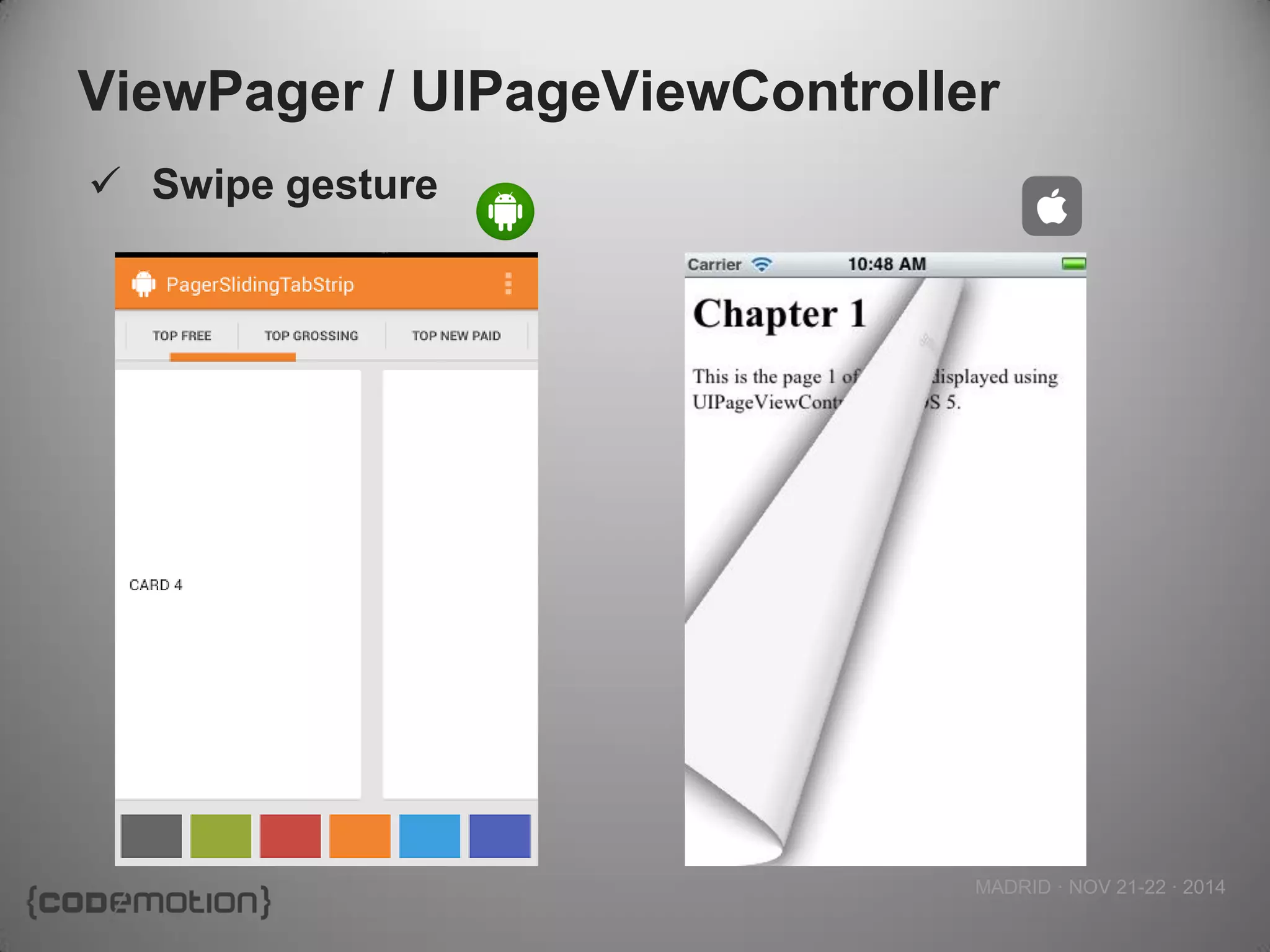

ViewPager / UIPageViewController
Swipe gesture
MADRID · NOV 21-22 · 2014

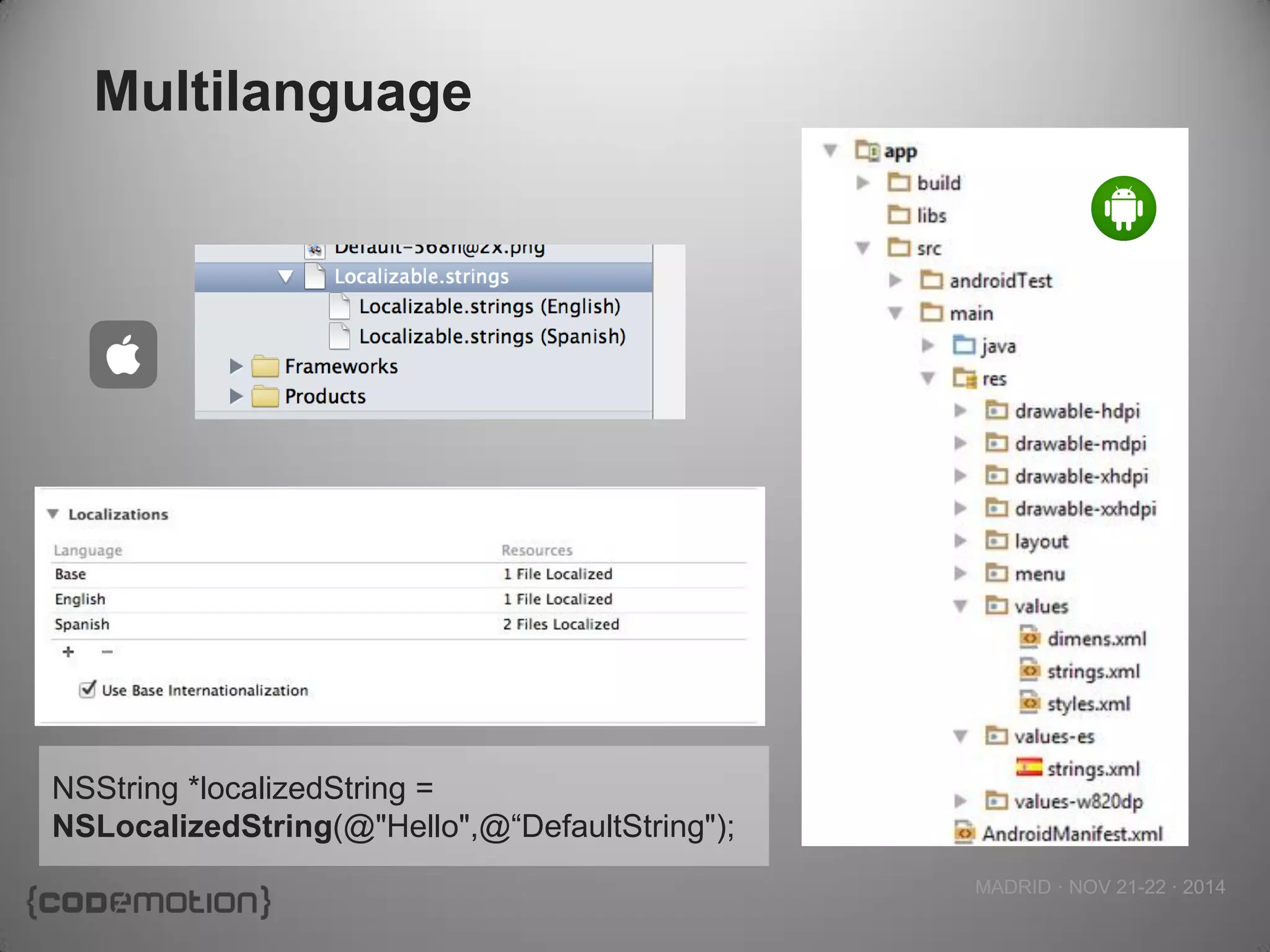

Multilanguage
NSString *localizedString = NSLocalizedString(@"Hello",@“DefaultString");
MADRID · NOV 21-22 · 2014

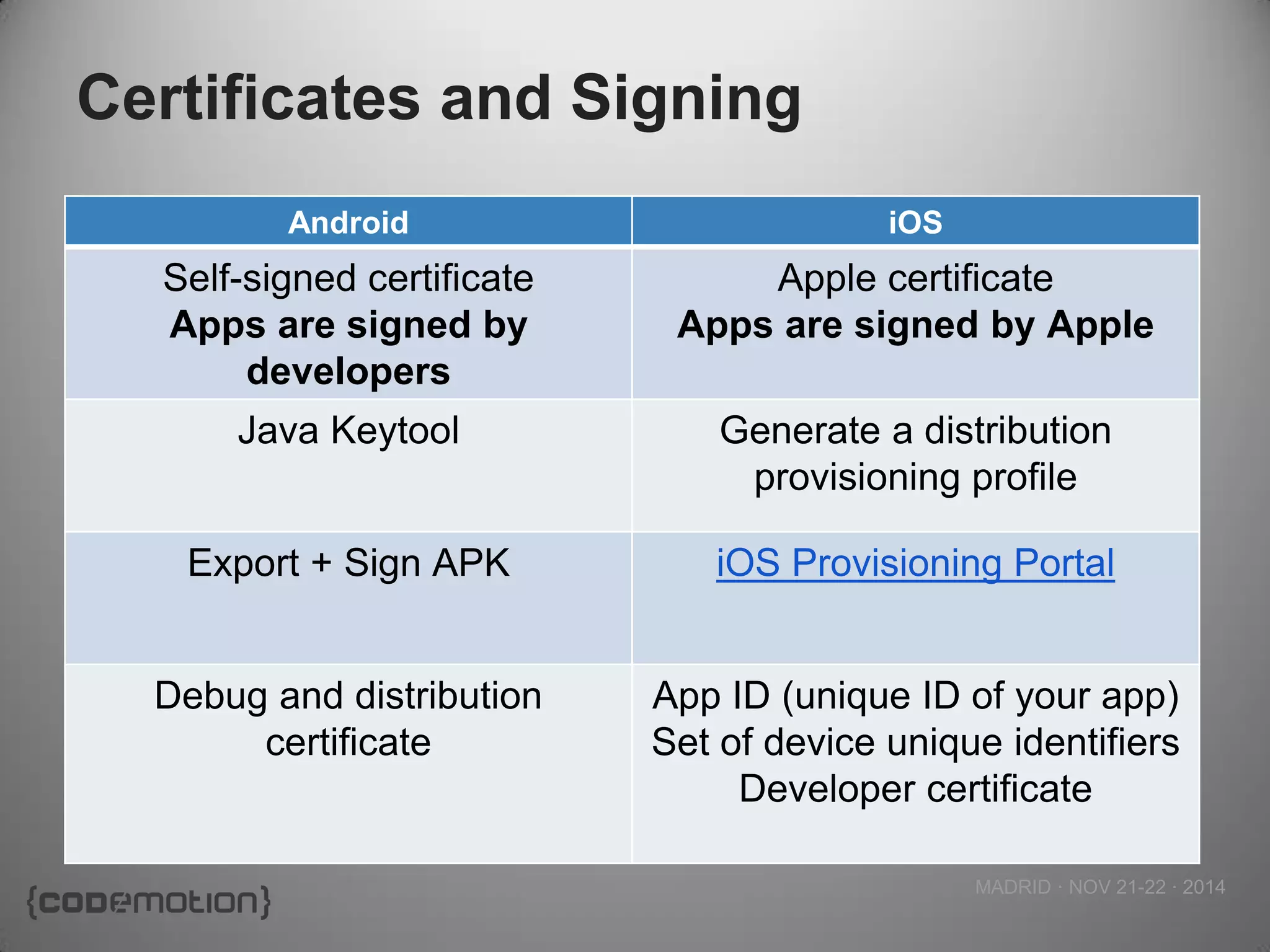

Certificates and Signing
Android
iOS
Self-signed certificate
Apps are signed by developers
Apple certificate
Apps are signed by Apple
Java Keytool
Generate a distribution provisioning profile
Export + Sign APK
iOS Provisioning Portal
Debug and distribution certificate
App ID (unique ID of your app)
Set of device unique identifiers
Developer certificate
MADRID · NOV 21-22 · 2014

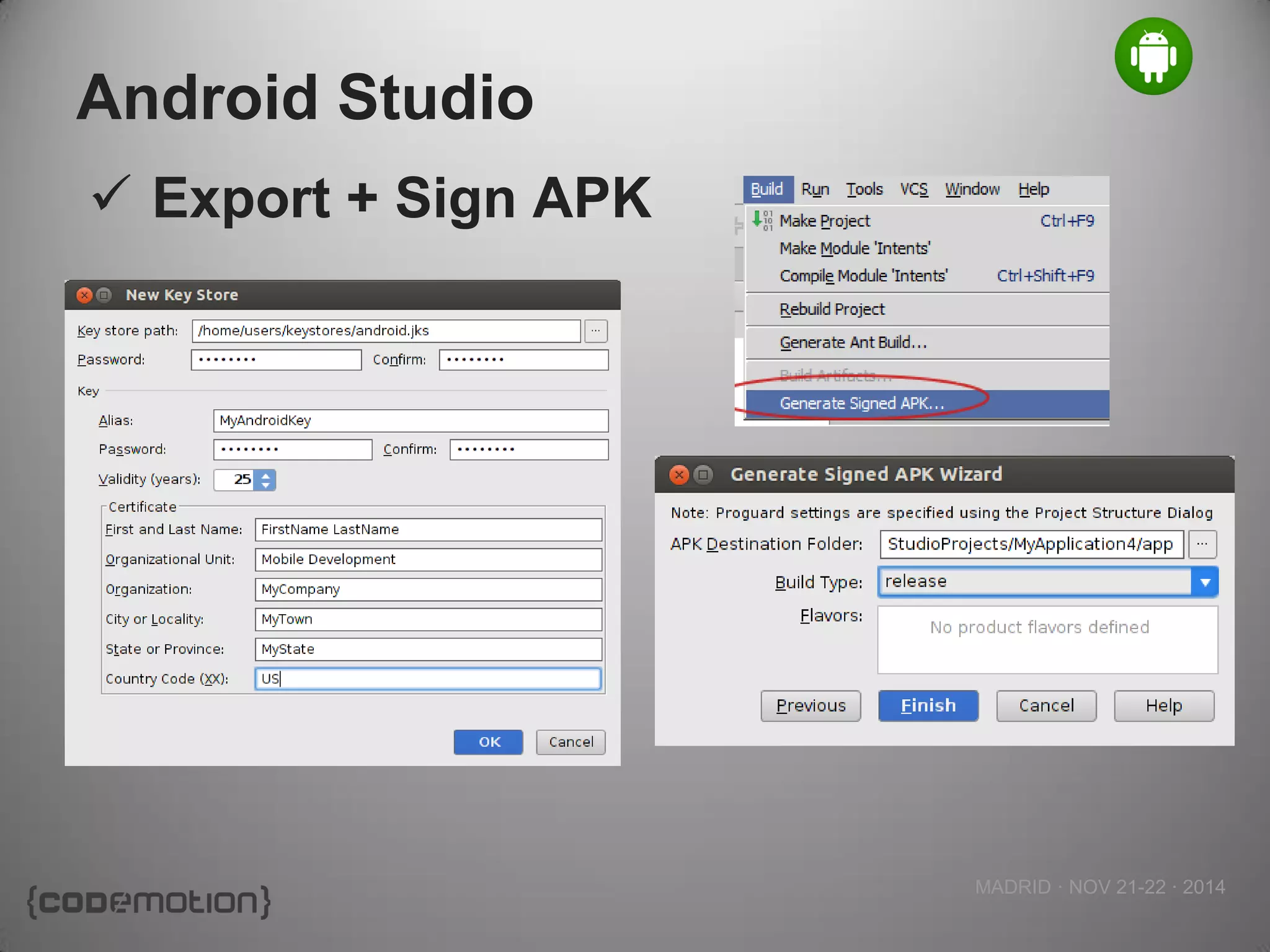

Android Studio
Export + Sign APK
MADRID · NOV 21-22 · 2014
PERMISSIONS
MADRID · NOV 21-22 · 2014

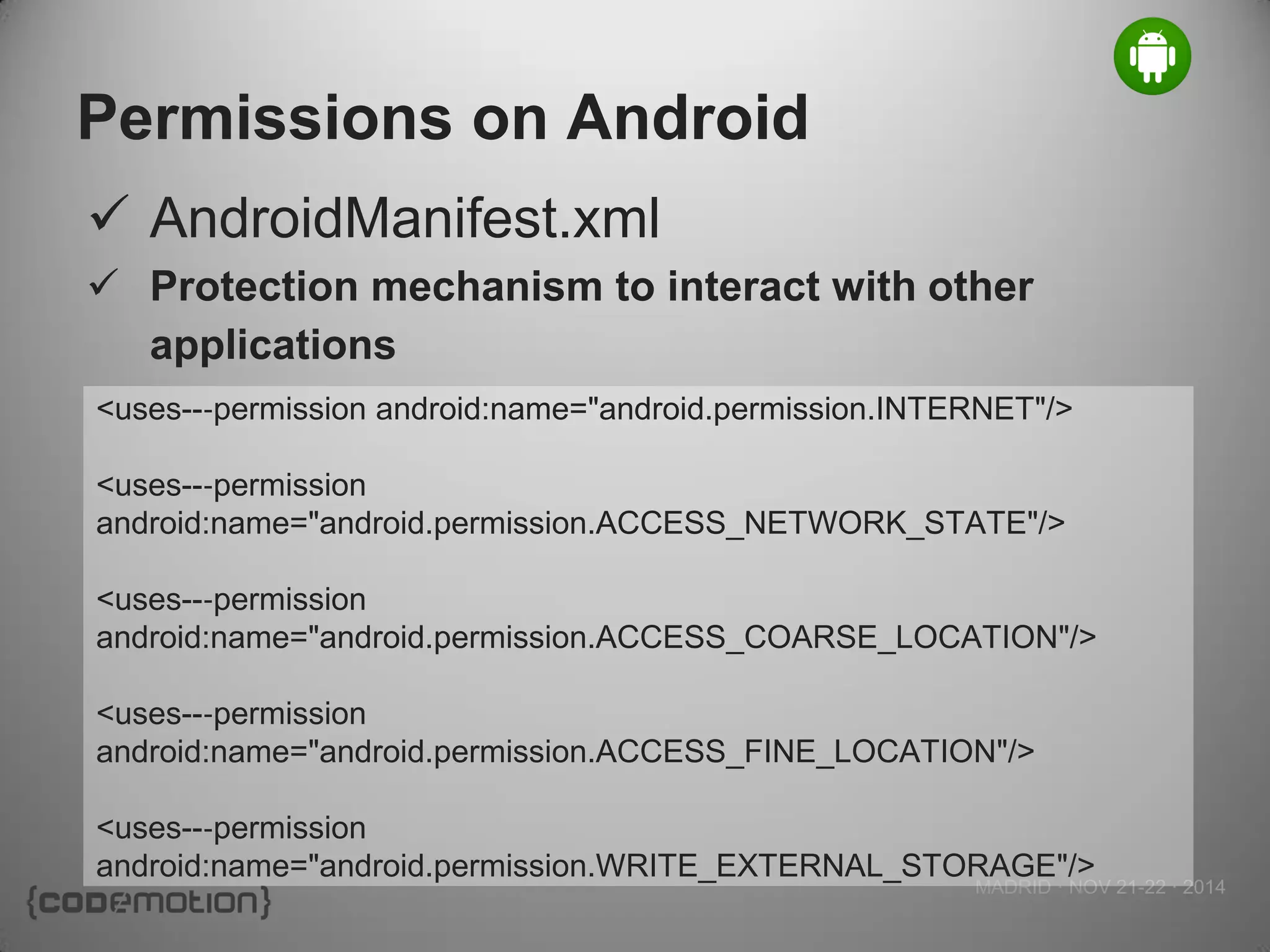

Permissions on Android
AndroidManifest.xml
Protection mechanism to interact with other applications
<uses--‐permission android:name="android.permission.INTERNET"/>
<uses--‐permission android:name="android.permission.ACCESS_NETWORK_STATE"/>
<uses--‐permission
android:name="android.permission.ACCESS_COARSE_LOCATION"/>
<uses--‐permission
android:name="android.permission.ACCESS_FINE_LOCATION"/>
<uses--‐permission
android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>
MADRID · NOV 21-22 · 2014

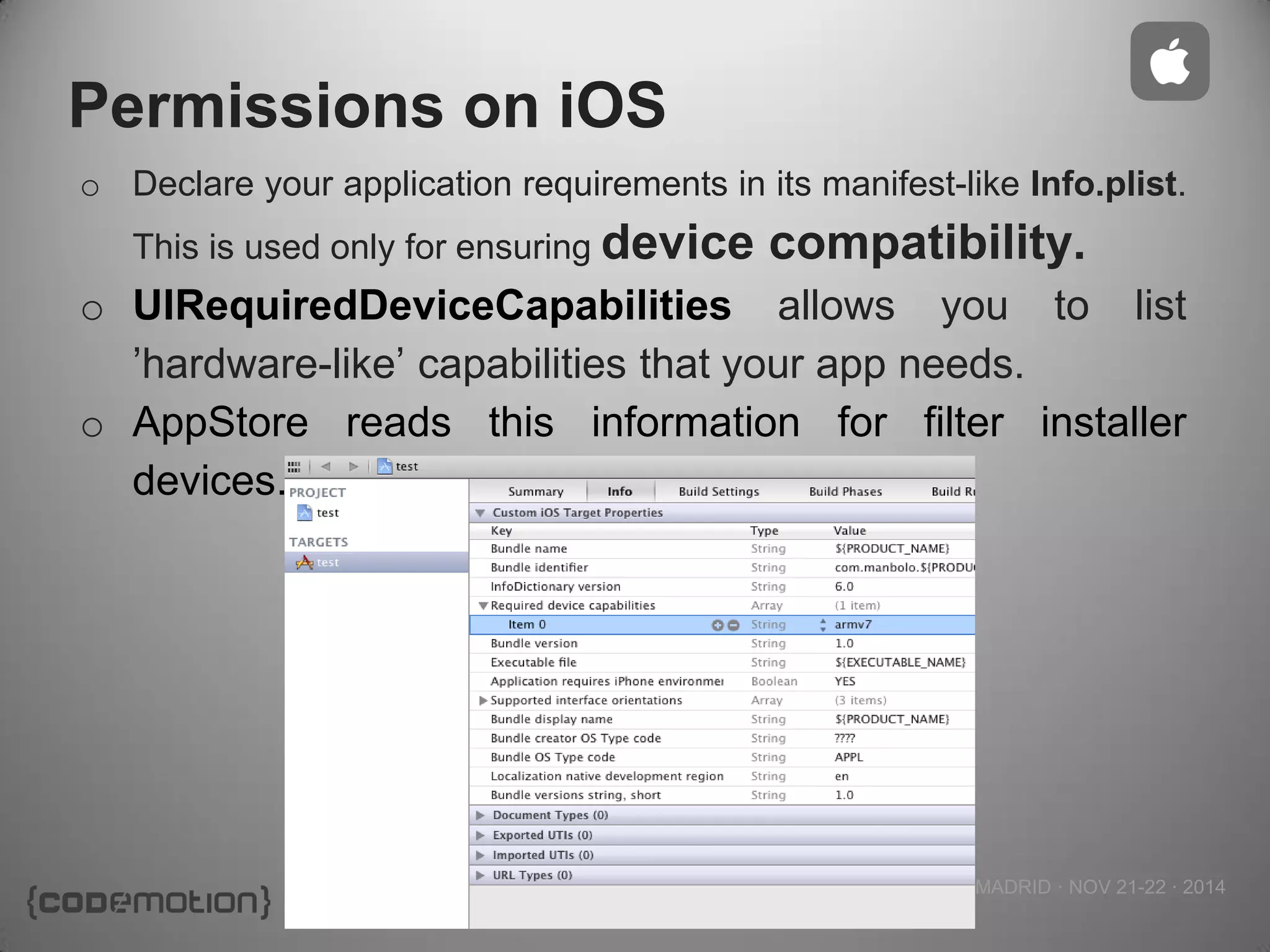

Permissions on iOS
oDeclare your application requirements in its manifest-like Info.plist. This is used only for ensuring device compatibility.
oUIRequiredDeviceCapabilities allows you to list ’hardware-like’ capabilities that your app needs.
oAppStore reads this information for filter installer devices.
MADRID · NOV 21-22 · 2014

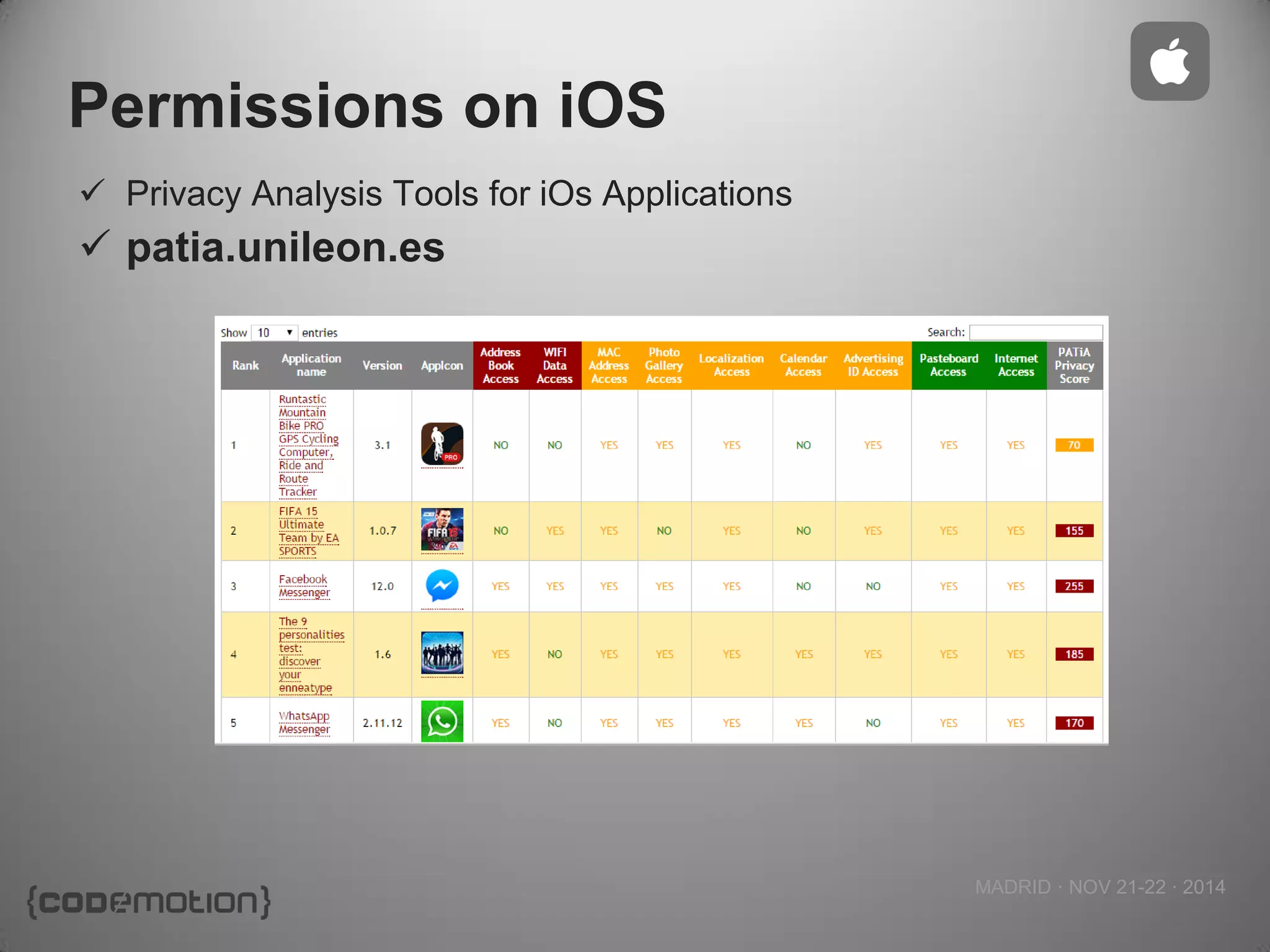

Permissions on iOS
Privacy Analysis Tools for iOs Applications
patia.unileon.es
MADRID · NOV 21-22 · 2014

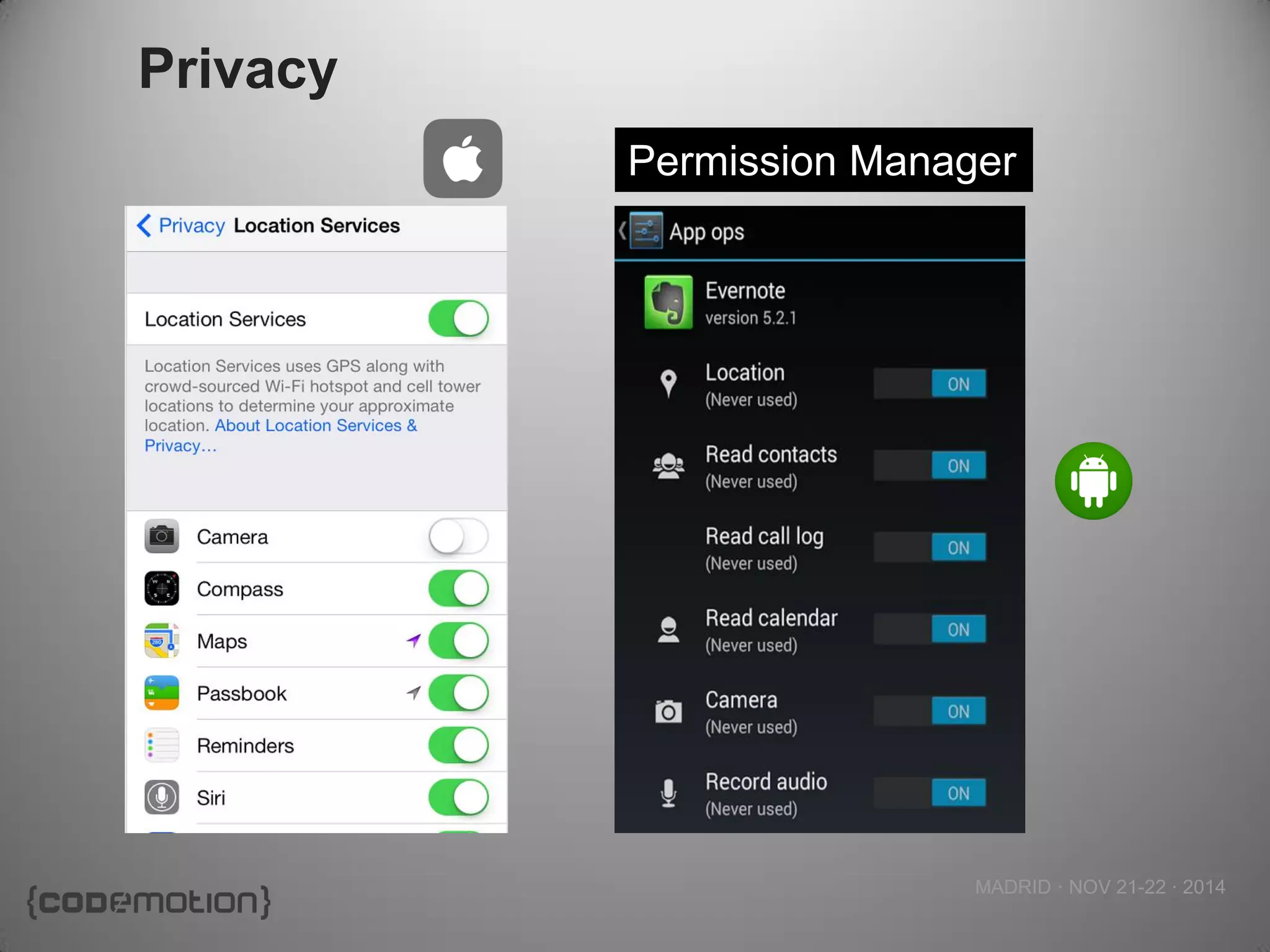

Privacy
Permission Manager
MADRID · NOV 21-22 · 2014
USER INTERFACE
MADRID · NOV 21-22 · 2014

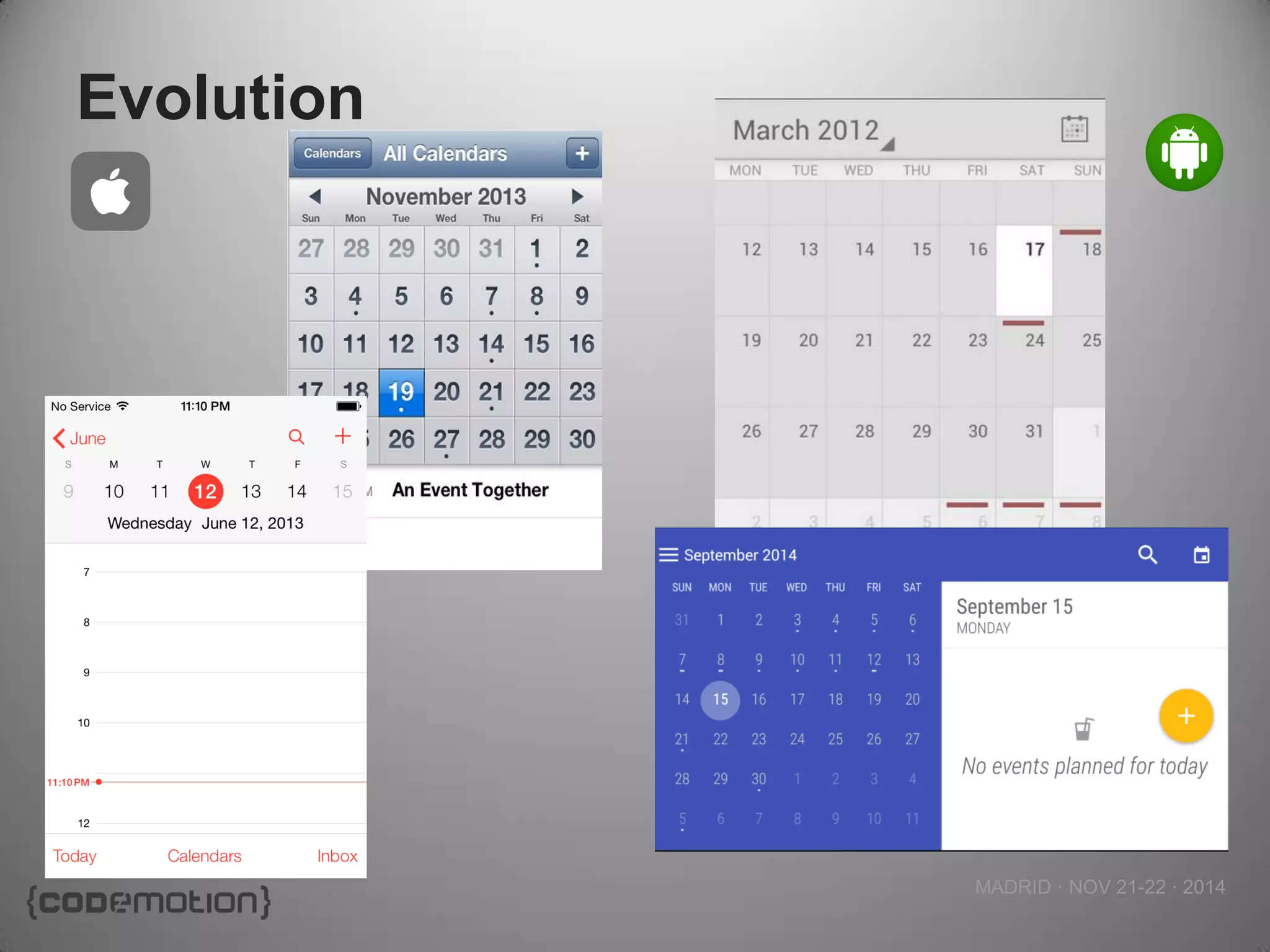

Evolution
MADRID · NOV 21-22 · 2014

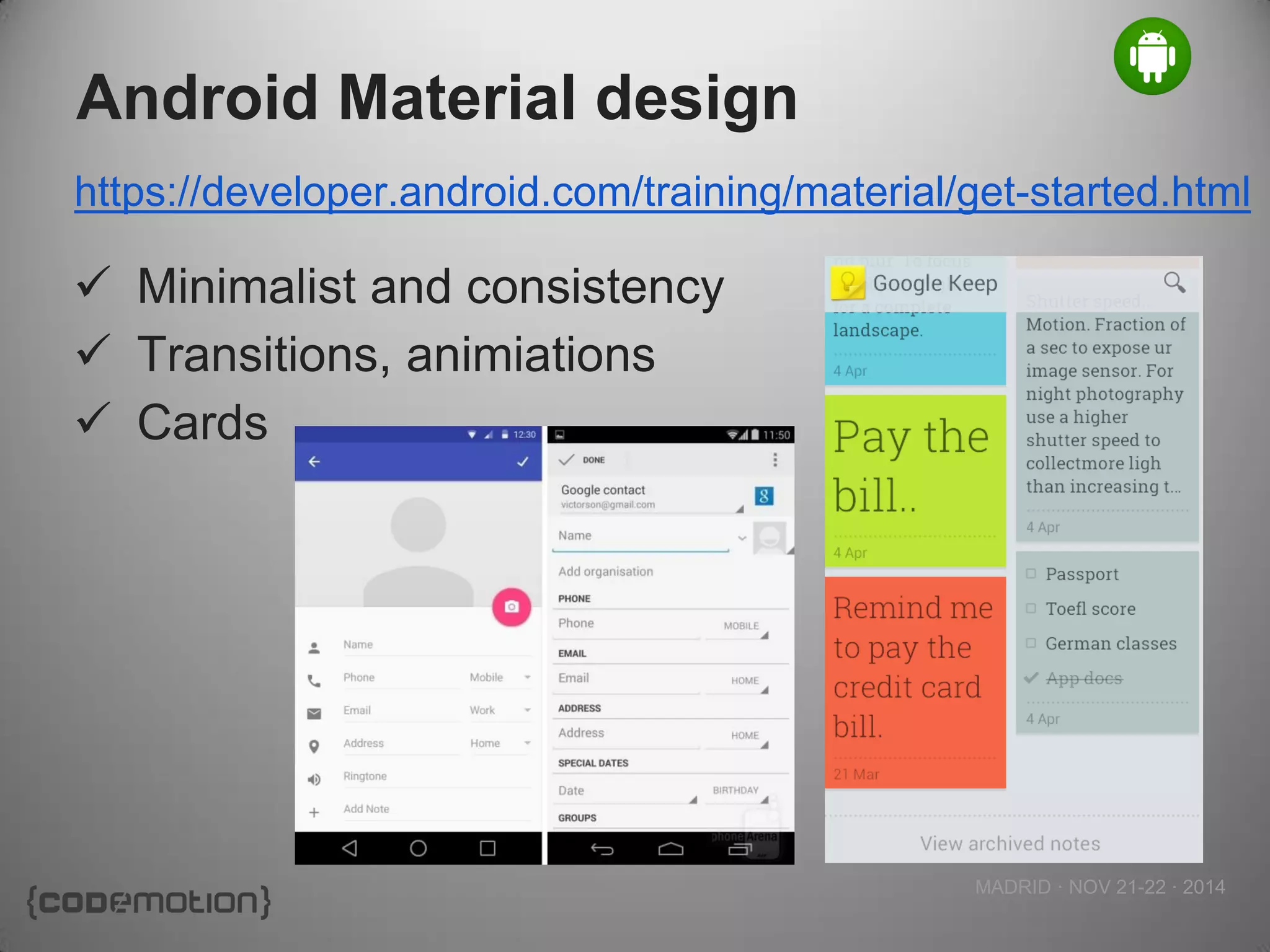

Android Material design
Minimalist and consistency
Transitions, animiations
Cards
https://developer.android.com/training/material/get-started.html
MADRID · NOV 21-22 · 2014

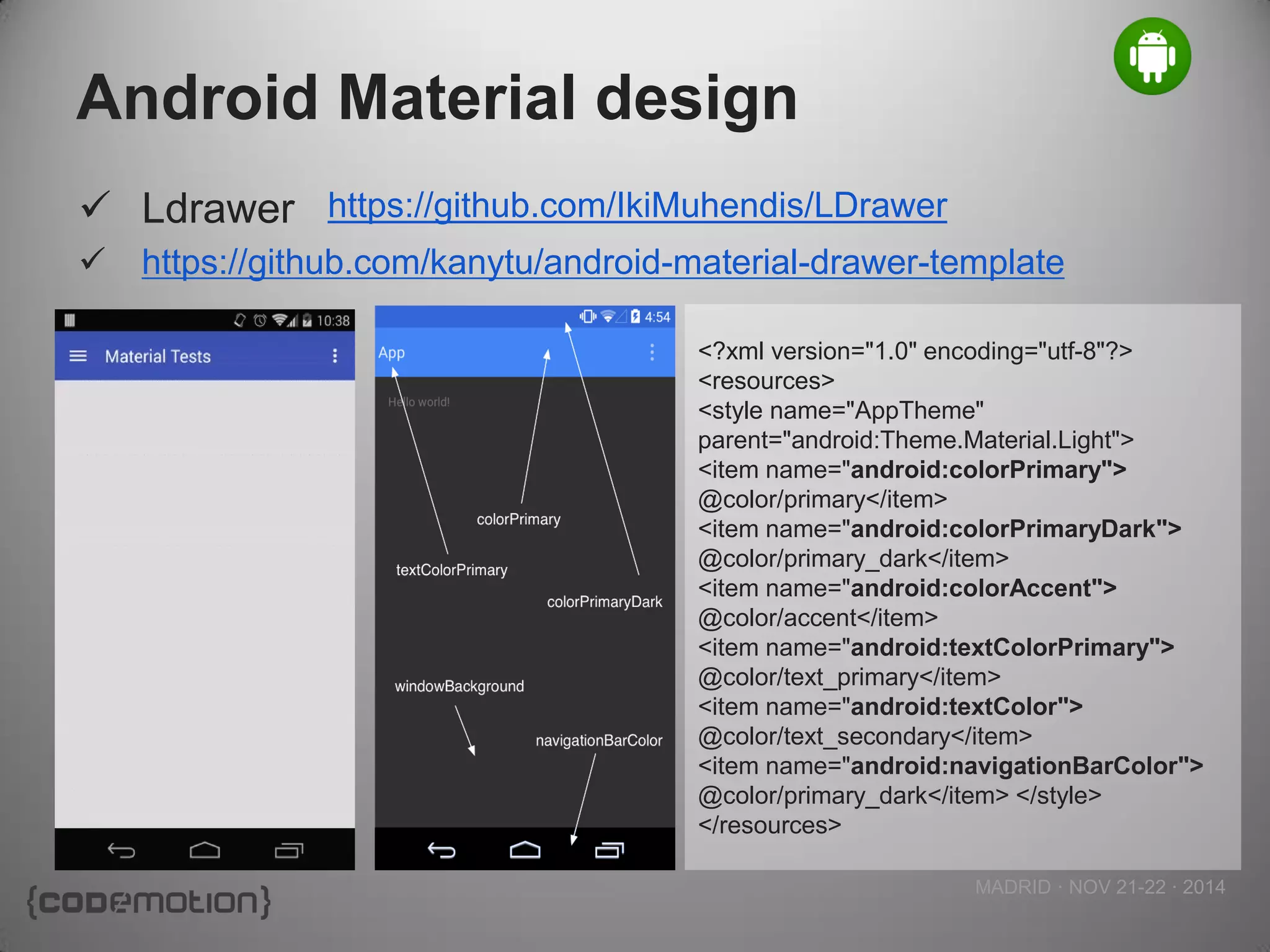

Android Material design
Ldrawer
https://github.com/kanytu/android-material-drawer-template
https://github.com/IkiMuhendis/LDrawer
<?xml version="1.0" encoding="utf-8"?>
<resources>
<style name="AppTheme" parent="android:Theme.Material.Light">
<item name="android:colorPrimary">
@color/primary</item>
<item name="android:colorPrimaryDark">
@color/primary_dark</item>
<item name="android:colorAccent">
@color/accent</item>
<item name="android:textColorPrimary">
@color/text_primary</item>
<item name="android:textColor">
@color/text_secondary</item>
<item name="android:navigationBarColor">
@color/primary_dark</item> </style> </resources>
MADRID · NOV 21-22 · 2014

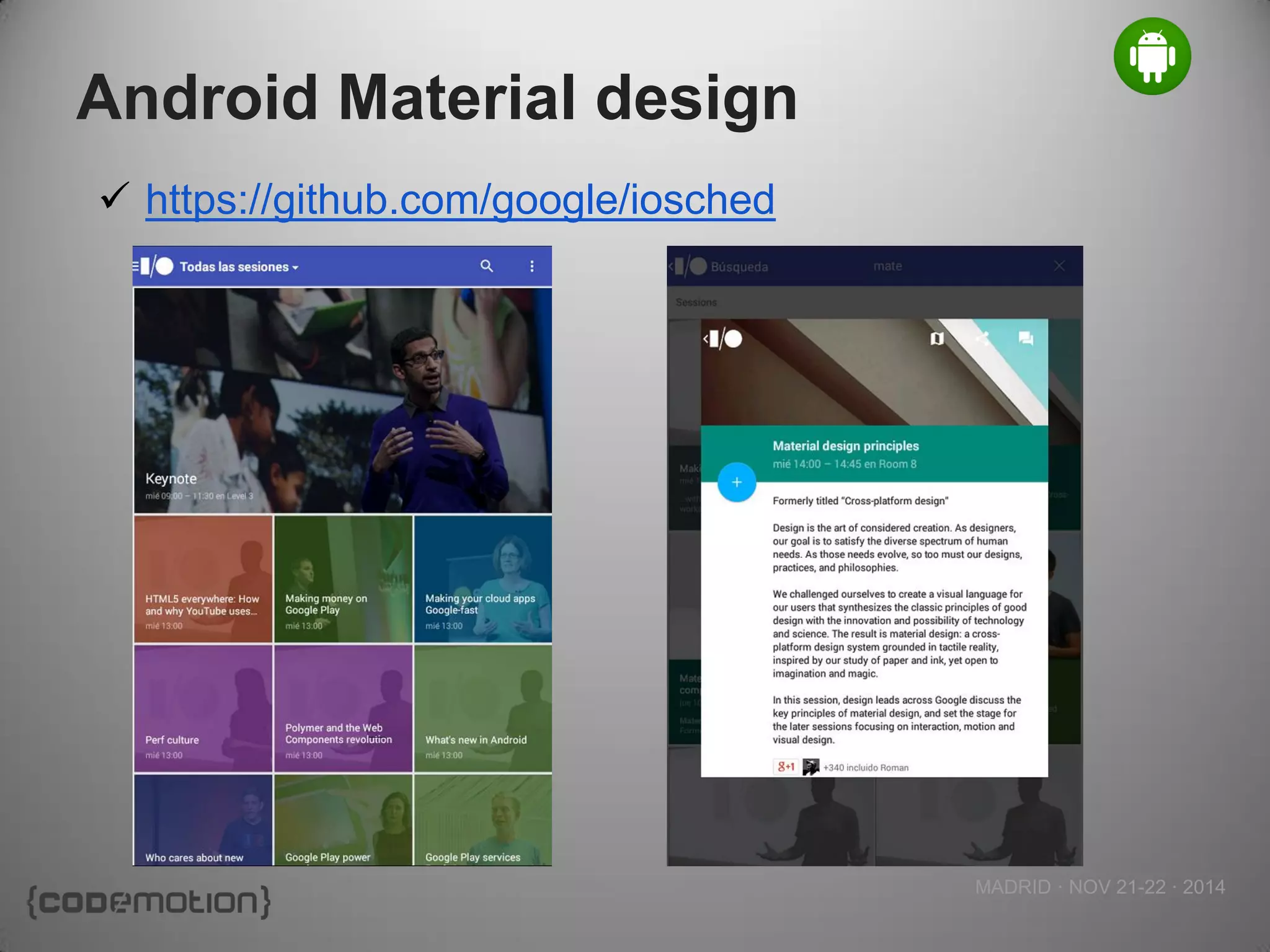

Android Material design
https://github.com/google/iosched
MADRID · NOV 21-22 · 2014

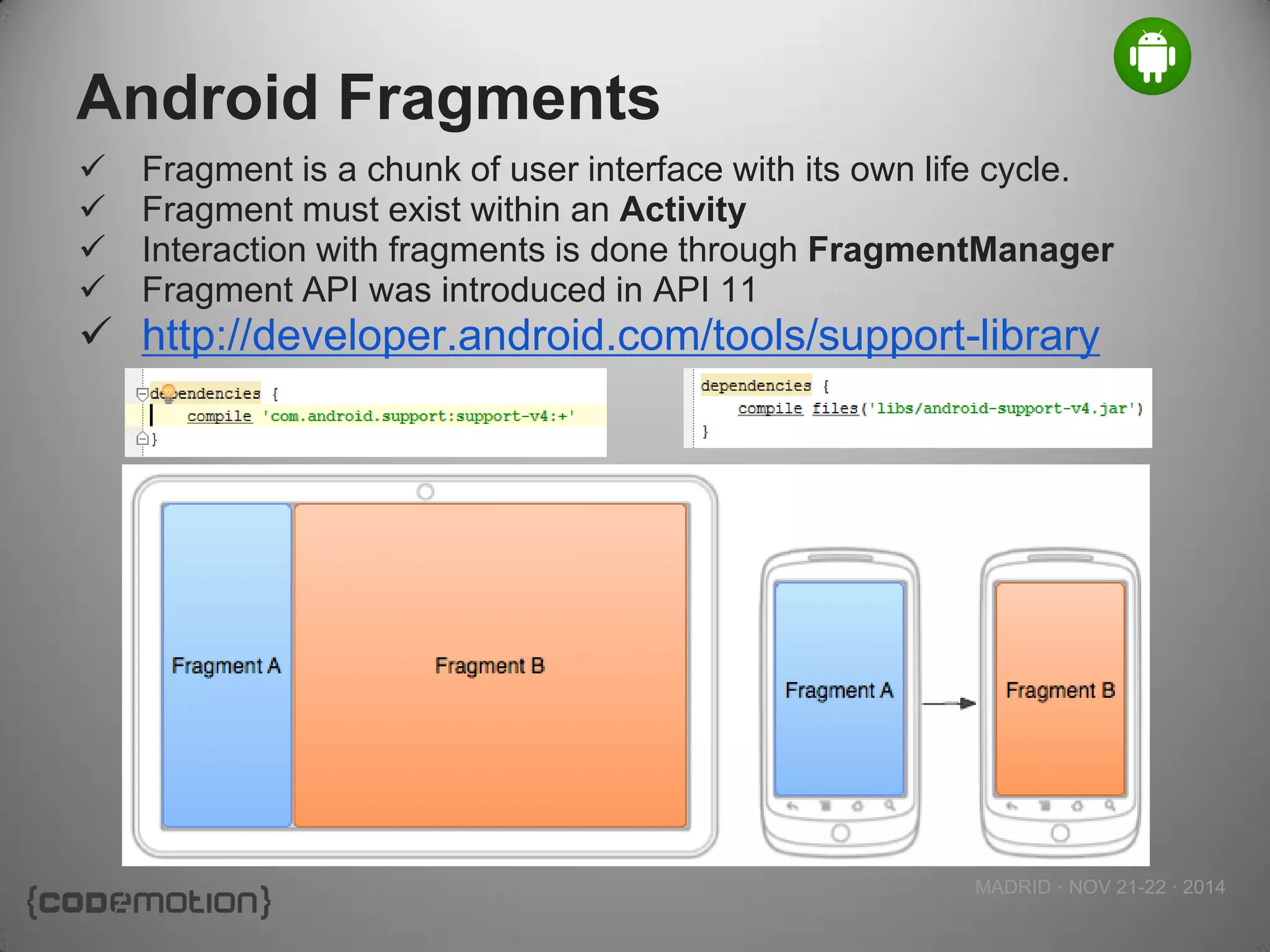

Android Fragments
Fragment is a chunk of user interface with its own life cycle.
Fragment must exist within an Activity
Interaction with fragments is done through FragmentManager
Fragment API was introduced in API 11
http://developer.android.com/tools/support-library
MADRID · NOV 21-22 · 2014

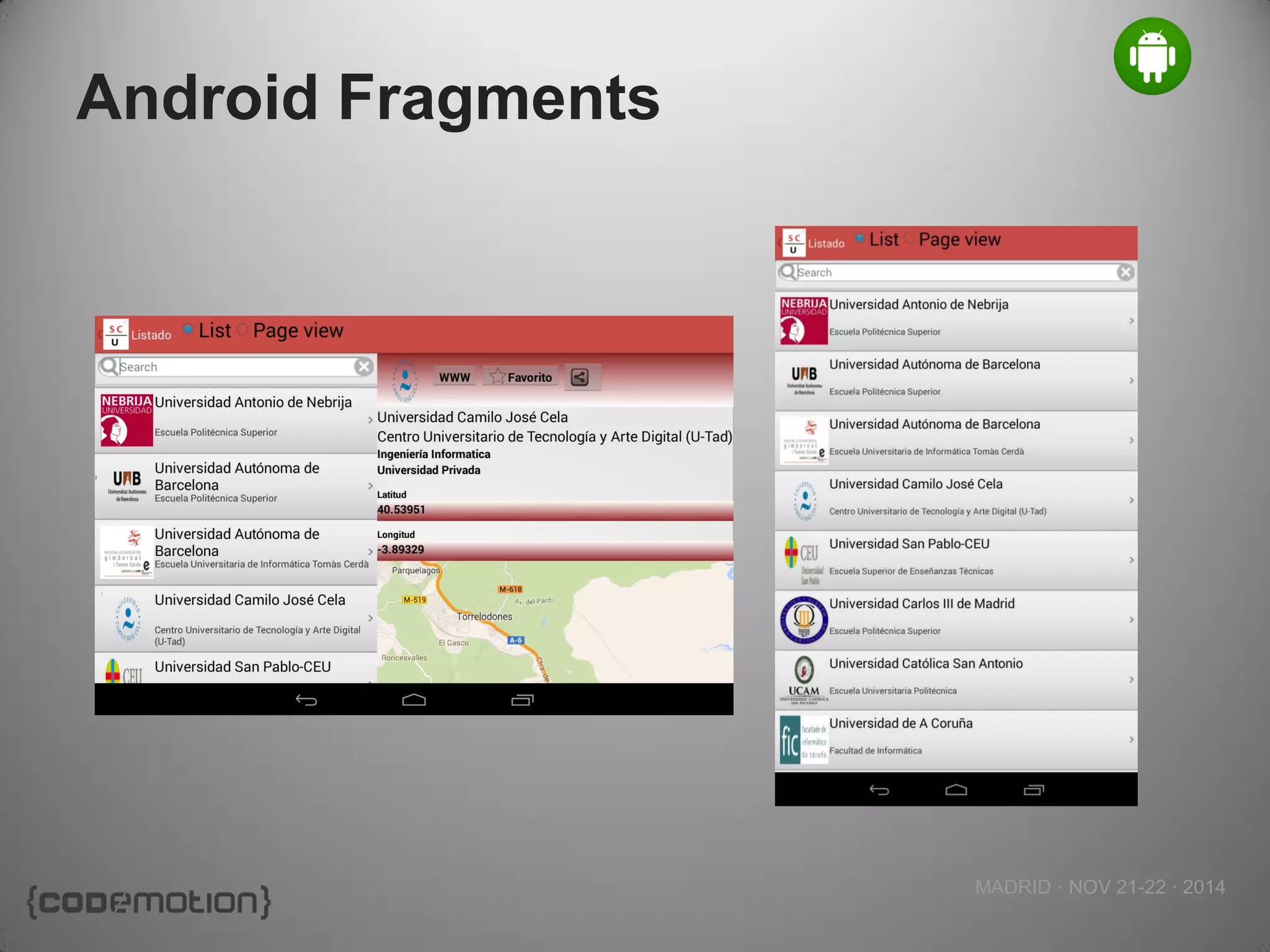

Android Fragments
MADRID · NOV 21-22 · 2014

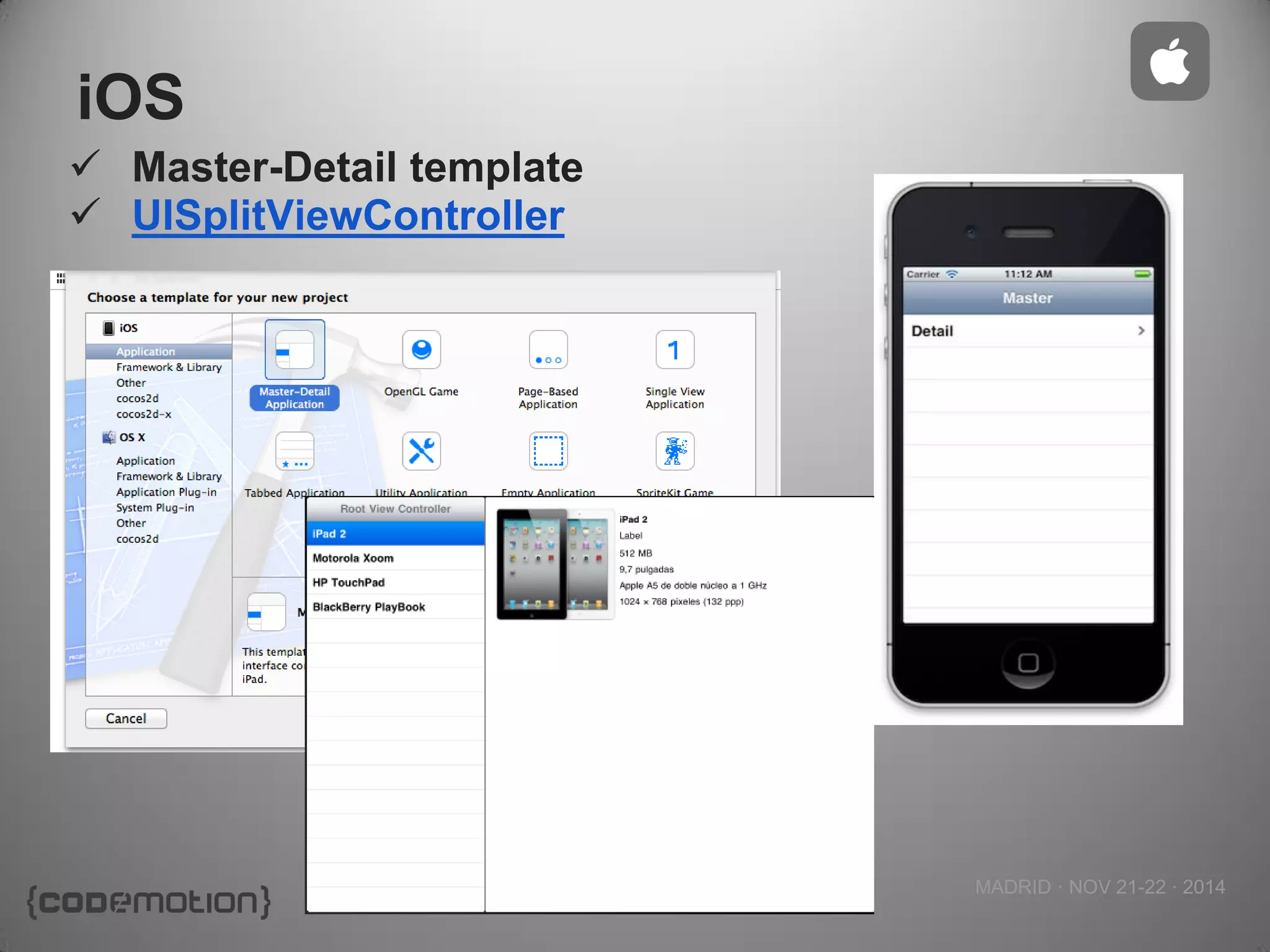

iOS
Master-Detail template
UISplitViewController
MADRID · NOV 21-22 · 2014

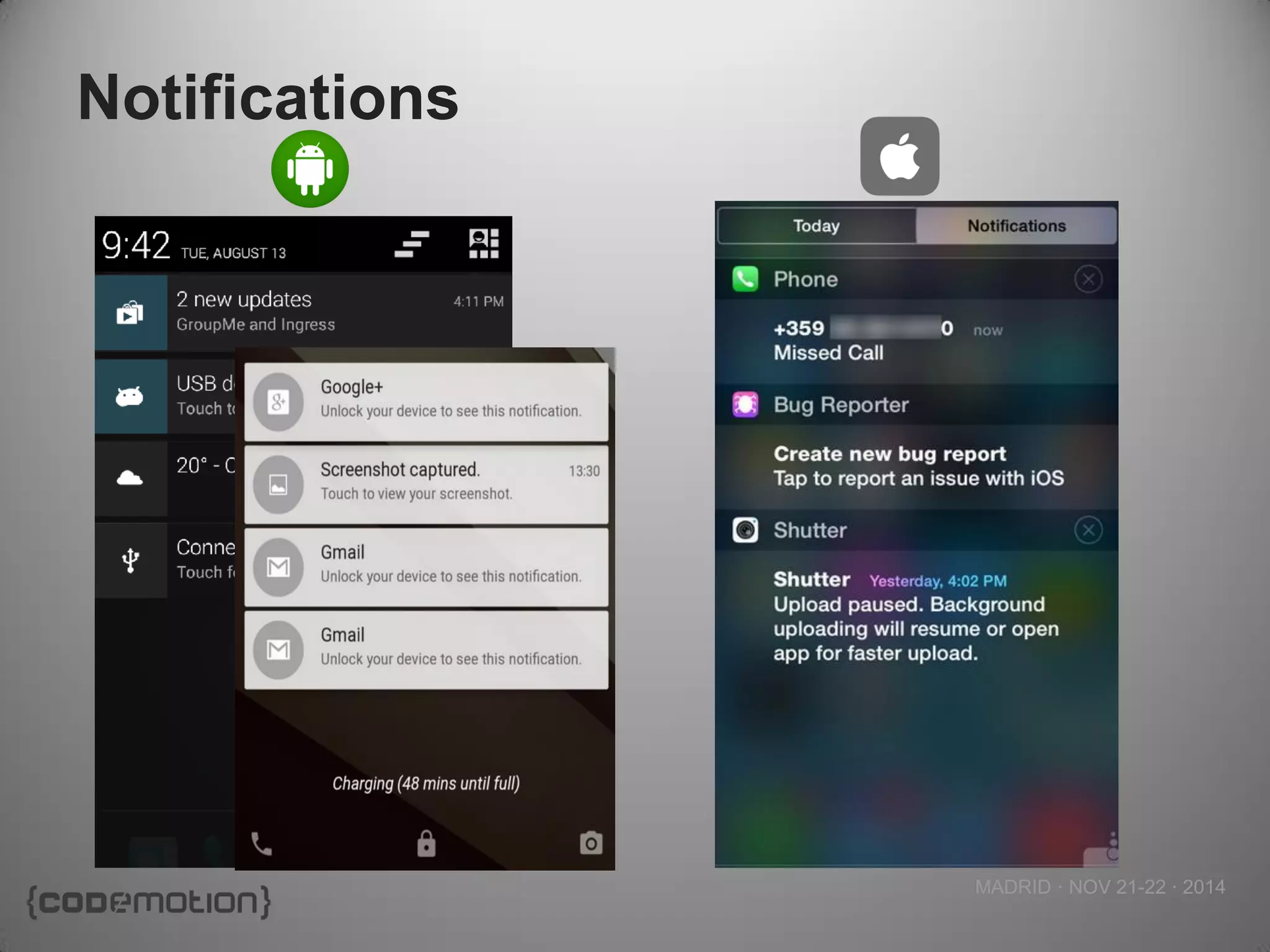

Notifications
MADRID · NOV 21-22 · 2014
STATIC ANALYSIS CODE
MADRID · NOV 21-22 · 2014

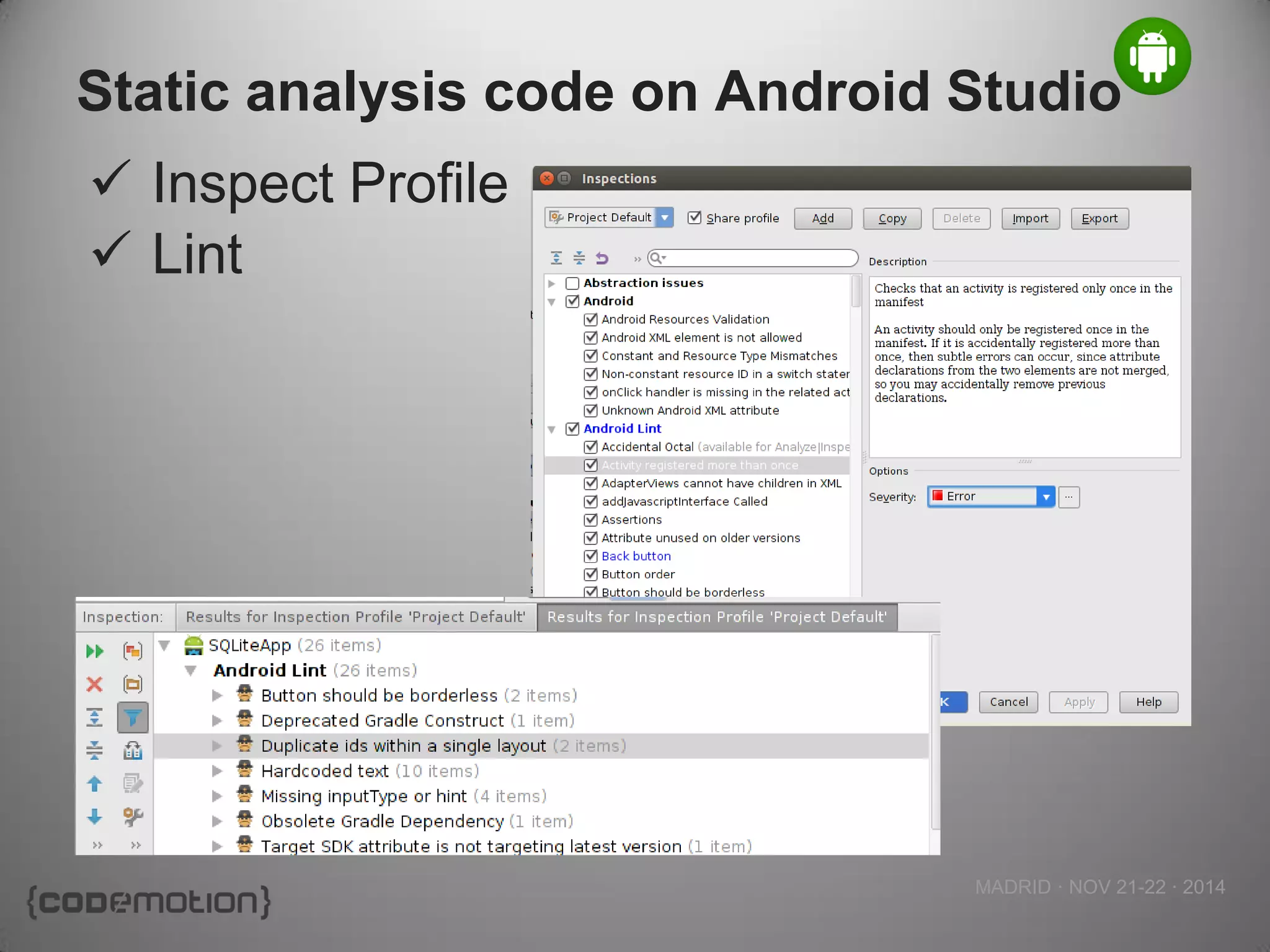

Static analysis code on Android Studio
Inspect Profile
Lint
MADRID · NOV 21-22 · 2014

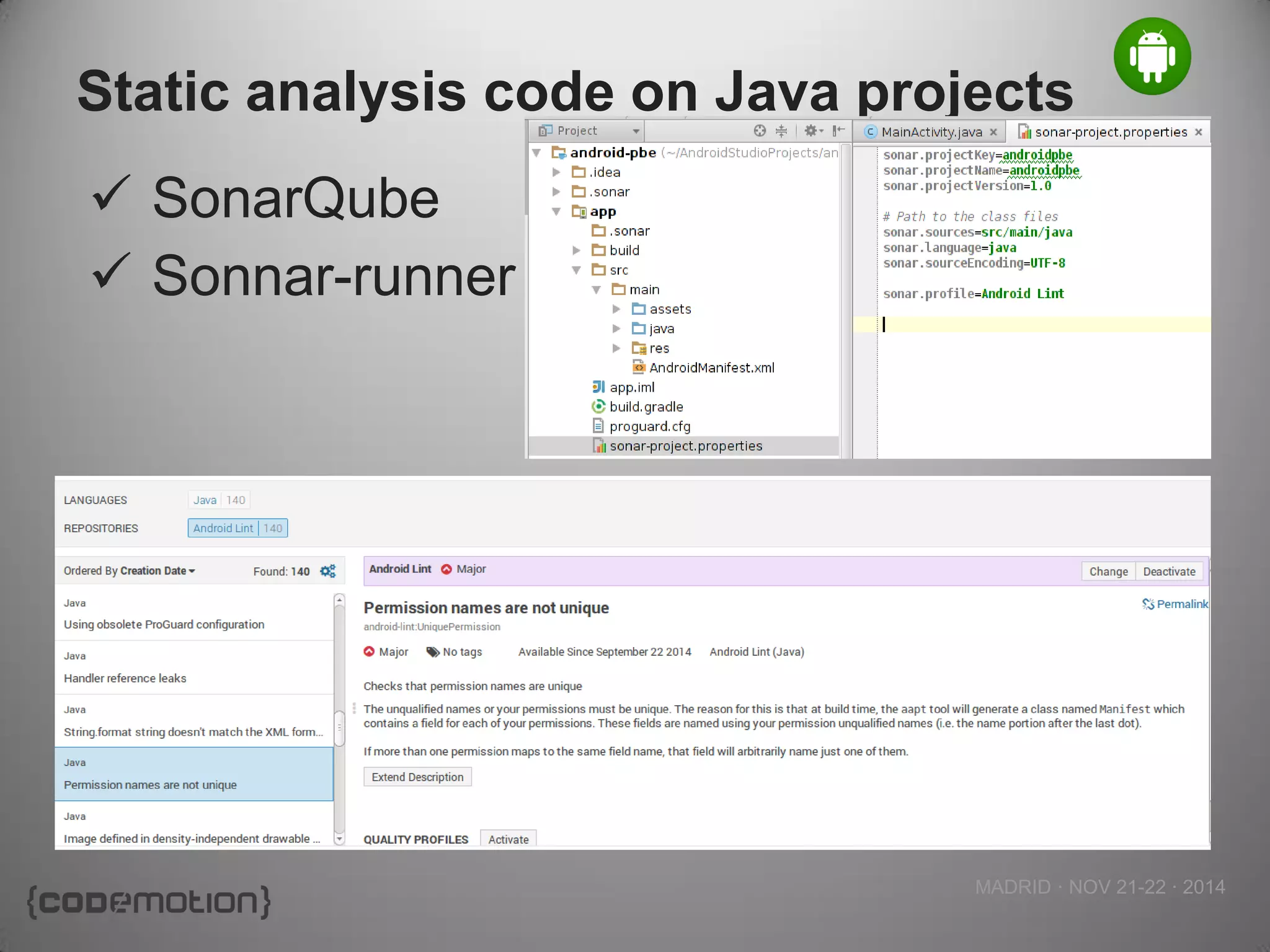

Static analysis code on Java projects
SonarQube
Sonnar-runner
MADRID · NOV 21-22 · 2014

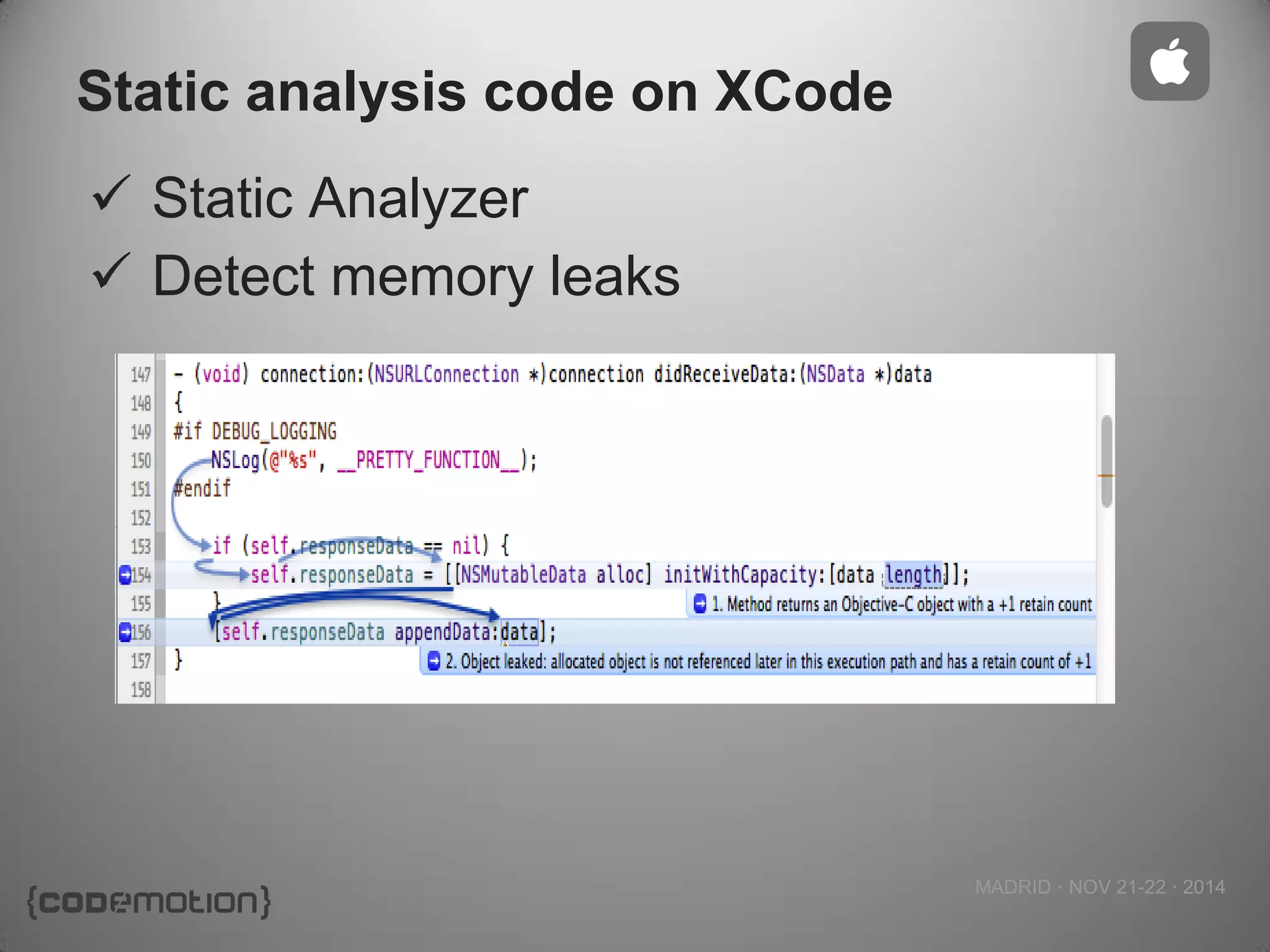

Static analysis code on XCode
Static Analyzer
Detect memory leaks
MADRID · NOV 21-22 · 2014
TESTING
MADRID · NOV 21-22 · 2014

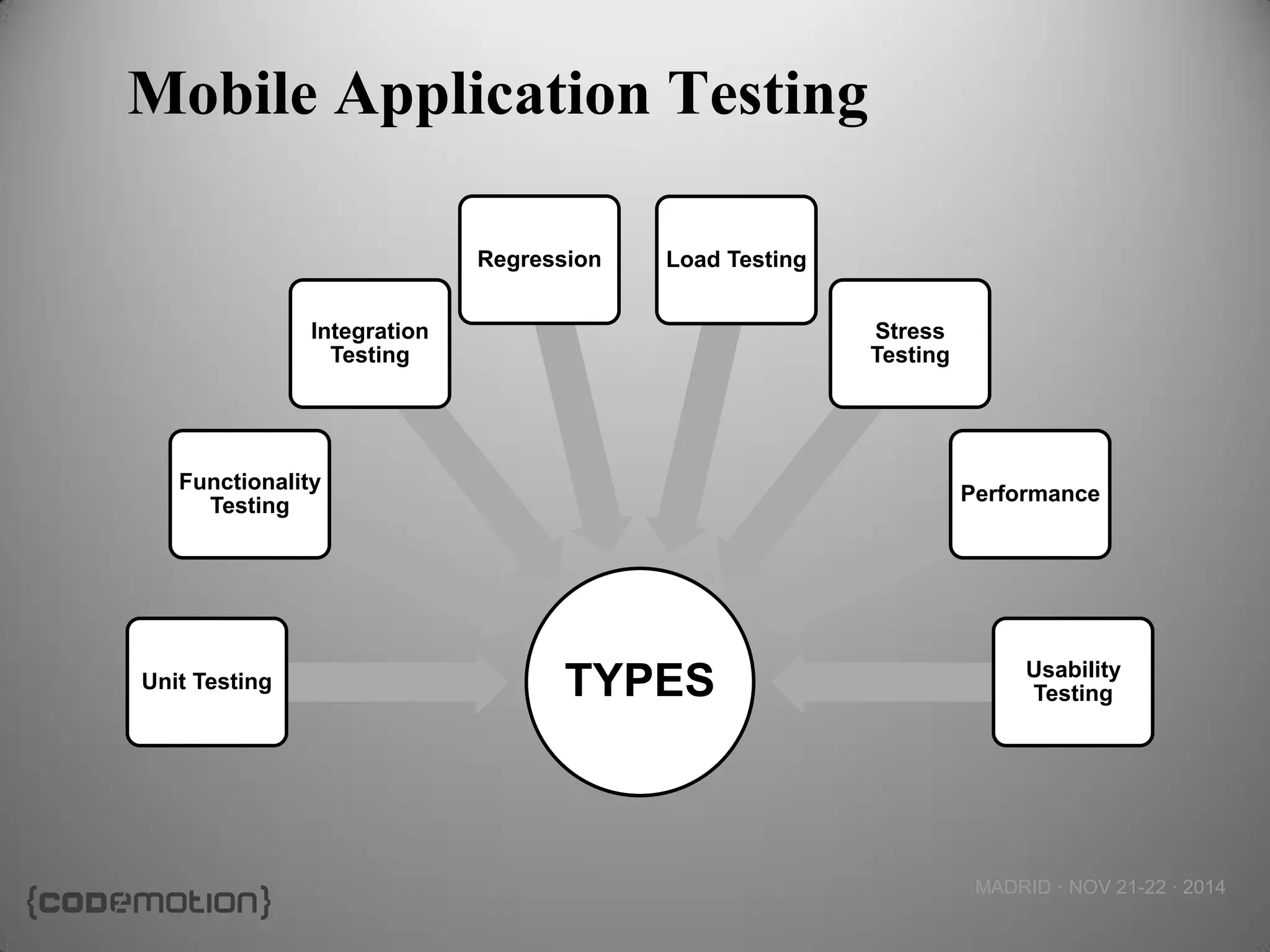

Mobile Application Testing
TYPES
Unit Testing
Functionality Testing
Integration Testing
Regression
Load Testing
Stress Testing
Performance
Usability Testing
MADRID · NOV 21-22 · 2014

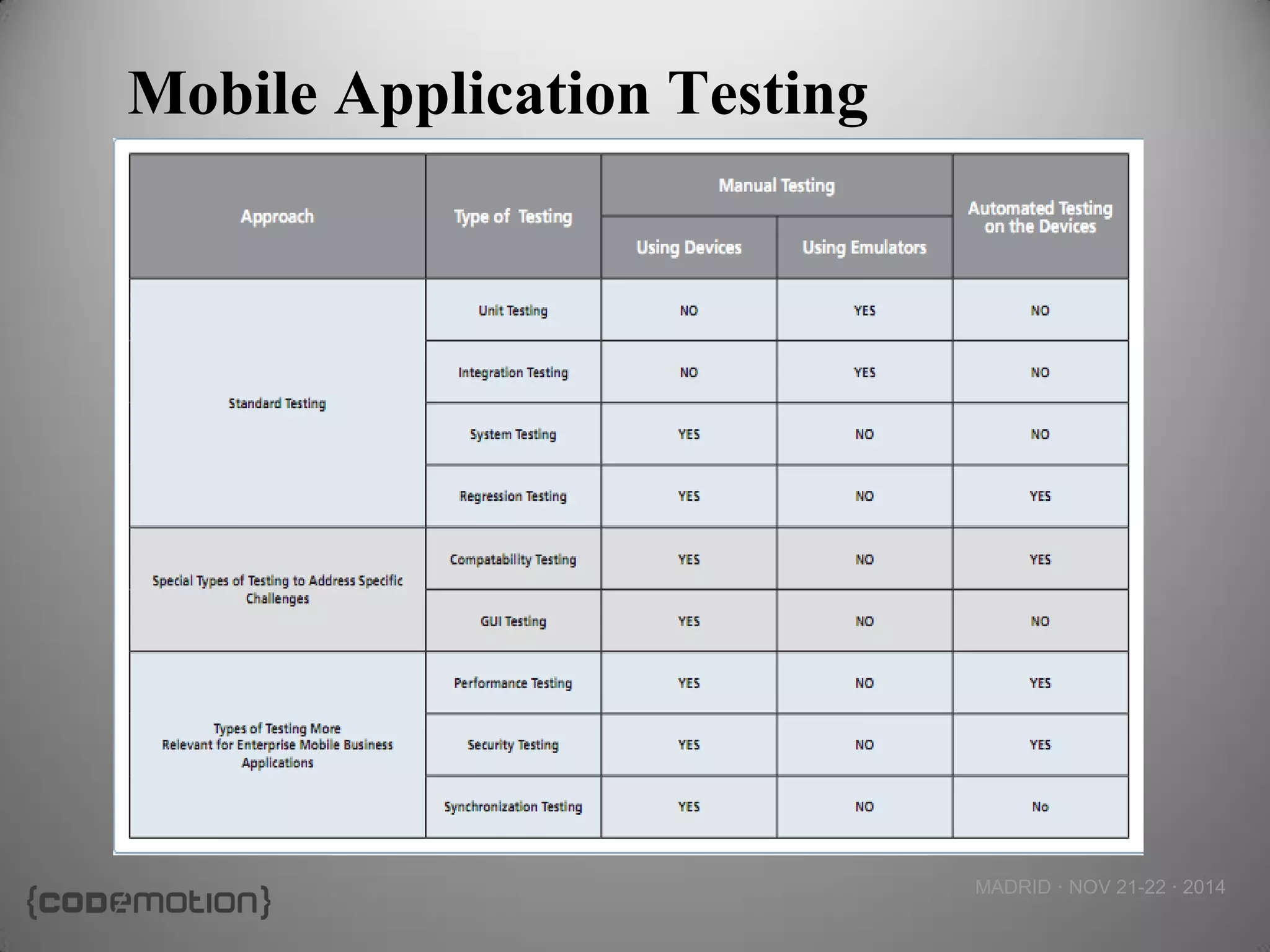

Mobile Application Testing
MADRID · NOV 21-22 · 2014

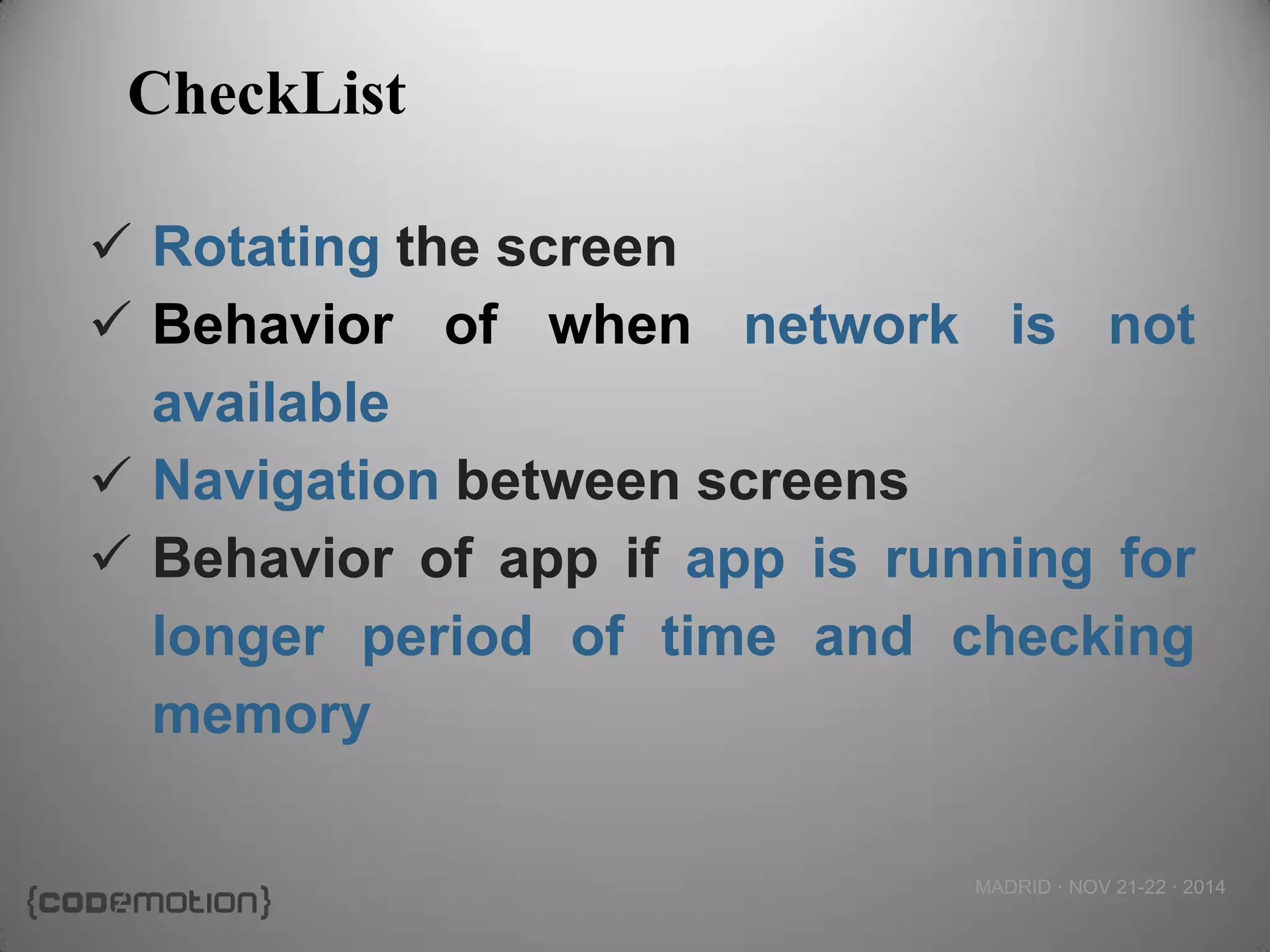

CheckList
Rotating the screen
Behavior of when network is not available
Navigation between screens
Behavior of app if app is running for longer period of time and checking memory
MADRID · NOV 21-22 · 2014

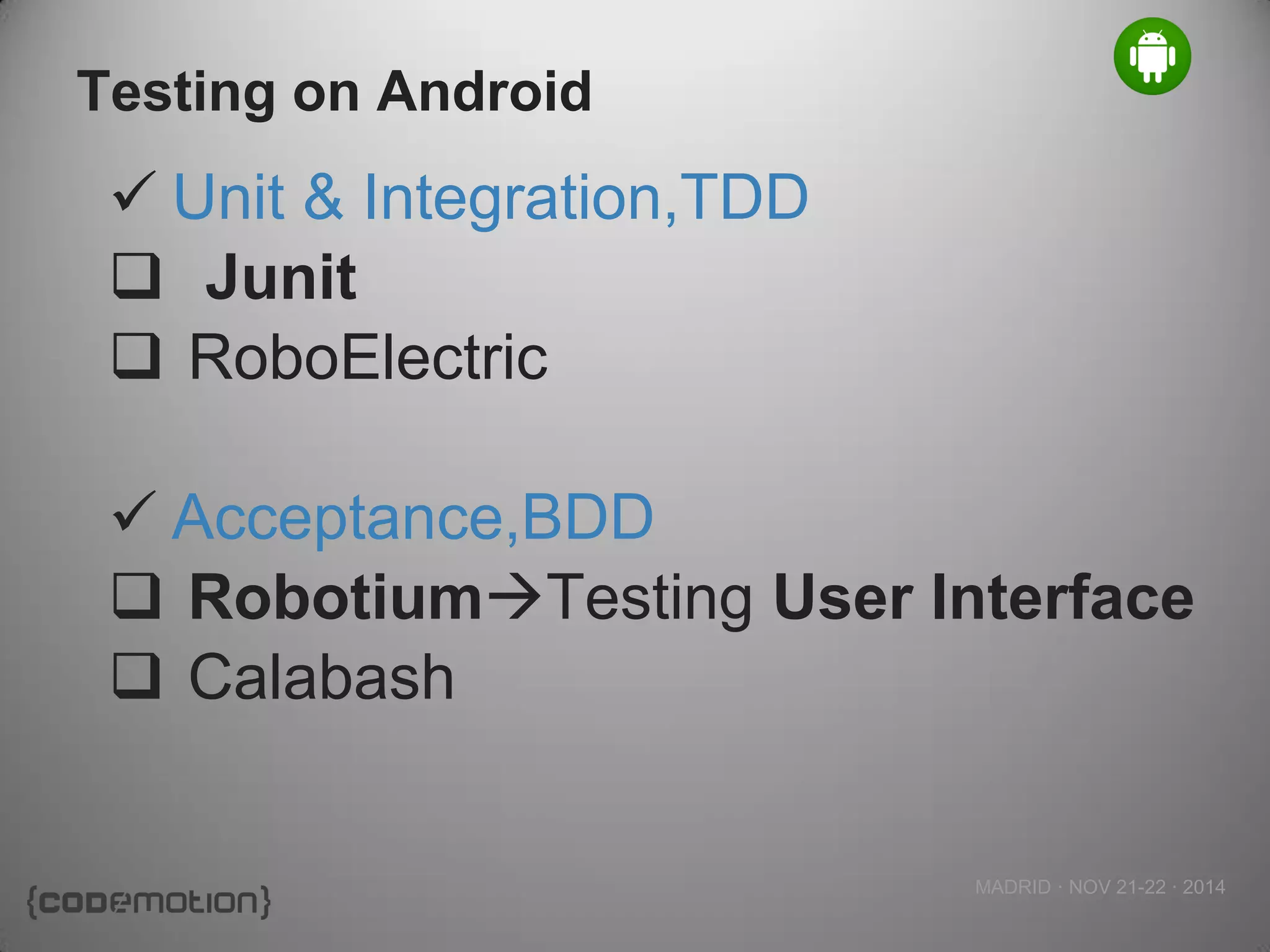

Testing on Android
Unit & Integration,TDD
 Junit
RoboElectric
Acceptance,BDD
RobotiumTesting User Interface
Calabash
MADRID · NOV 21-22 · 2014

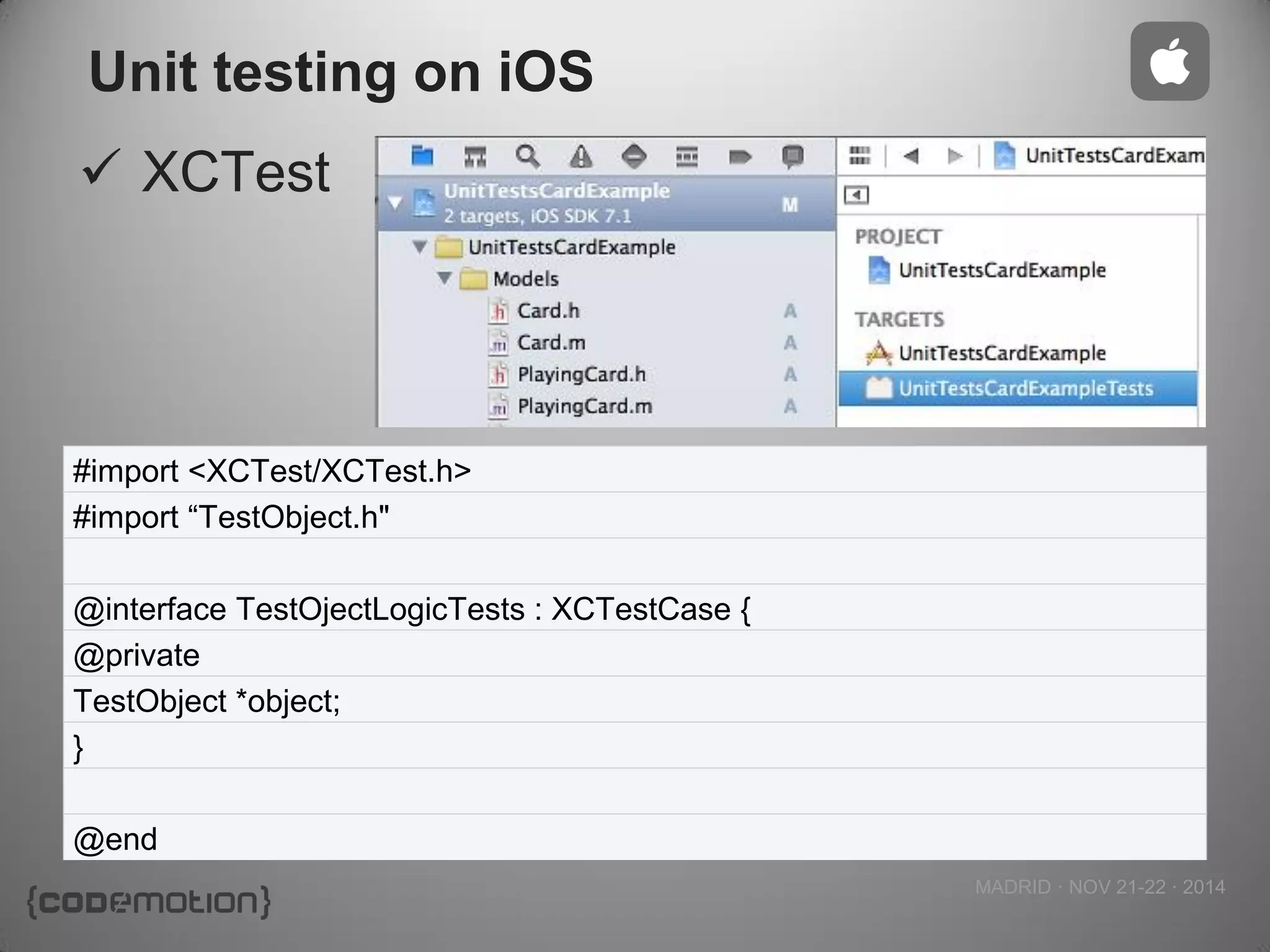

Unit testing on iOS
XCTest
#import <XCTest/XCTest.h>
#import “TestObject.h"
@interface TestOjectLogicTests : XCTestCase {
@private
TestObject *object;
}
@end
MADRID · NOV 21-22 · 2014
EMULATORS
MADRID · NOV 21-22 · 2014

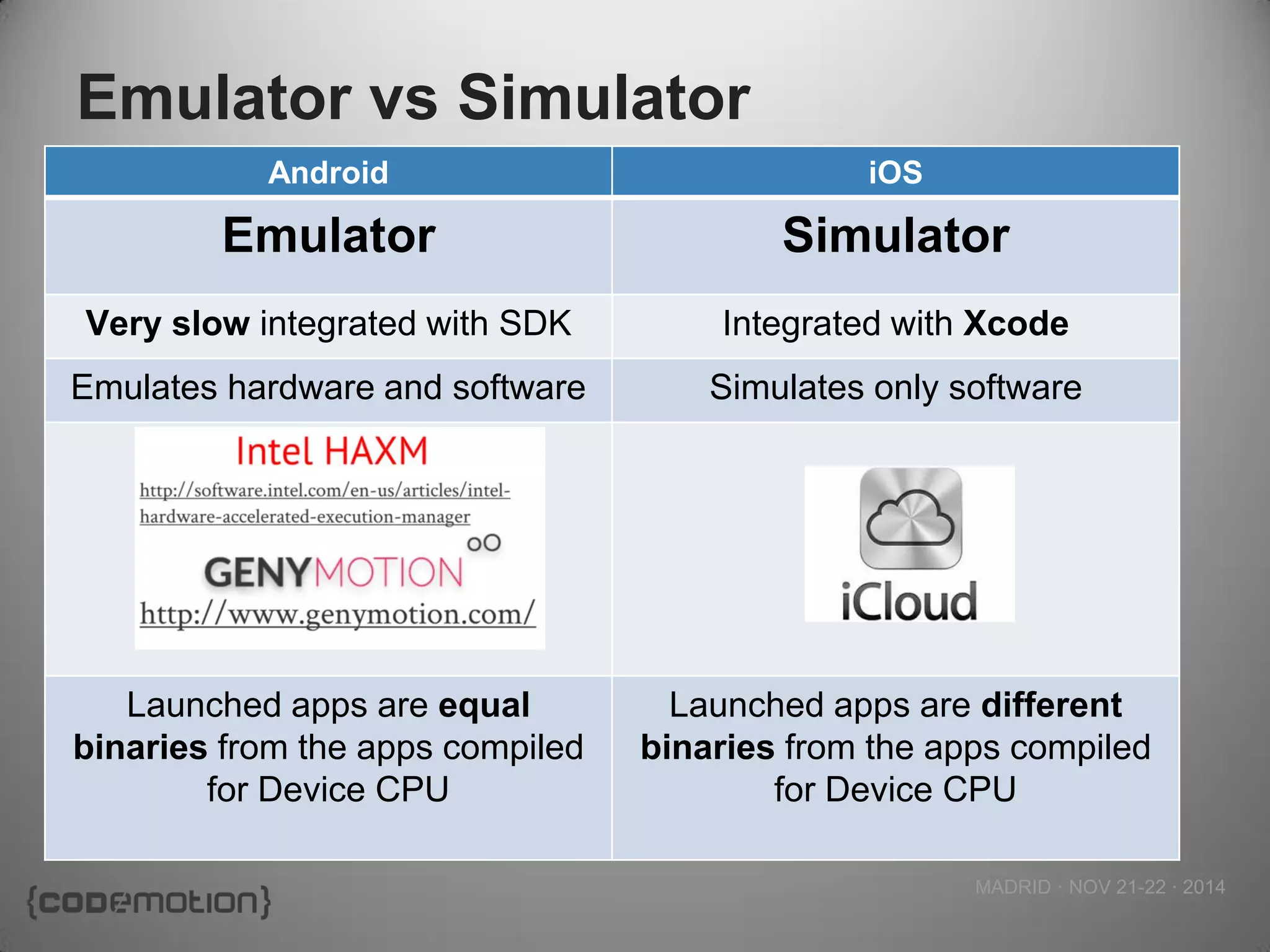

Emulator vs Simulator
Android
iOS
Emulator
Simulator
Very slow integrated with SDK
Integrated with Xcode
Emulates hardware and software
Simulates only software
Launched apps are equal binaries from the apps compiled for Device CPU
Launched apps are different binaries from the apps compiled for Device CPU
MADRID · NOV 21-22 · 2014

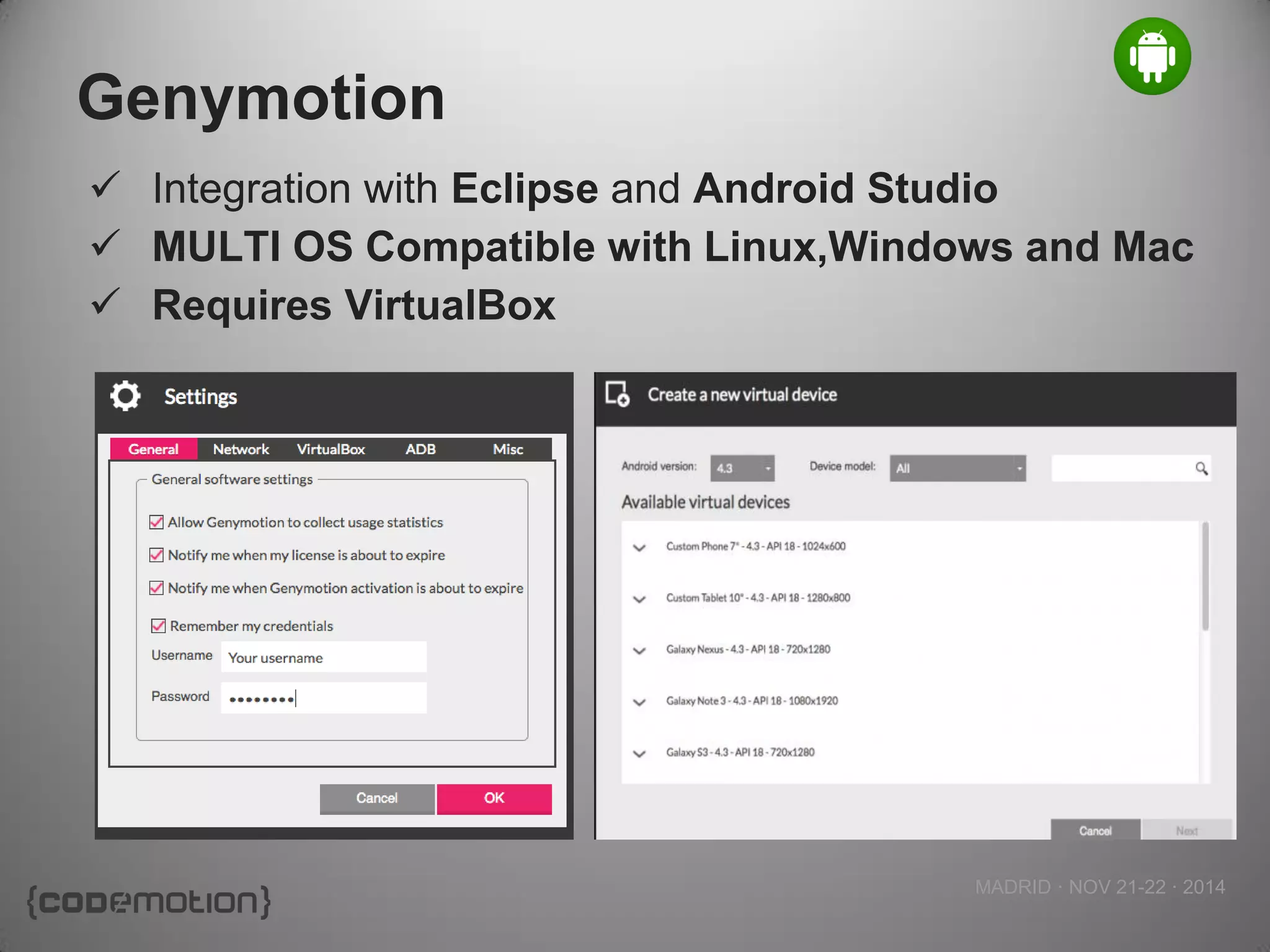

Genymotion
Integration with Eclipse and Android Studio
MULTI OS Compatible with Linux,Windows and Mac
Requires VirtualBox
MADRID · NOV 21-22 · 2014

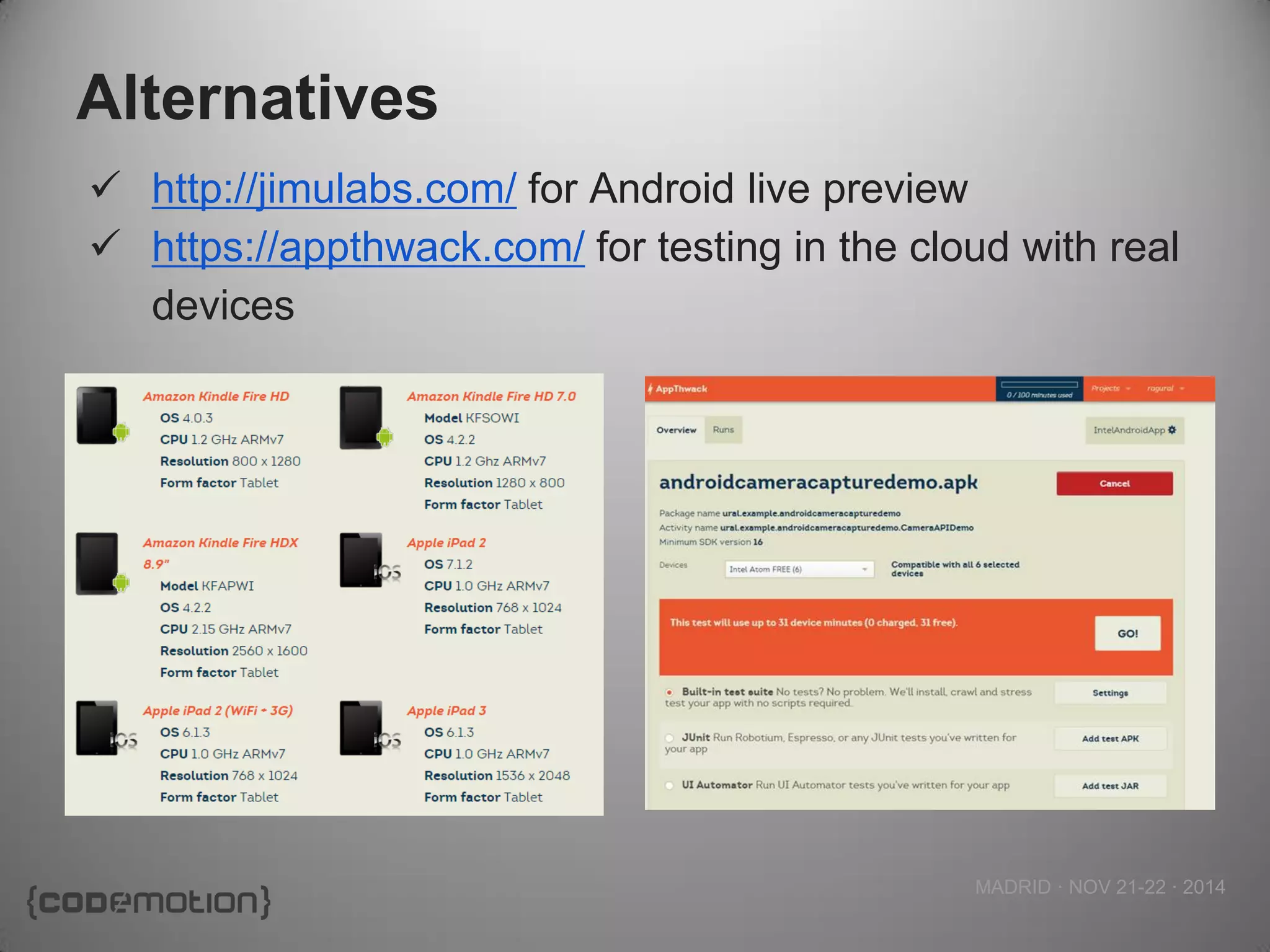

Alternatives
http://jimulabs.com/ for Android live preview
https://appthwack.com/ for testing in the cloud with real devices
MADRID · NOV 21-22 · 2014
MEMORY MANAGEMENT
MADRID · NOV 21-22 · 2014

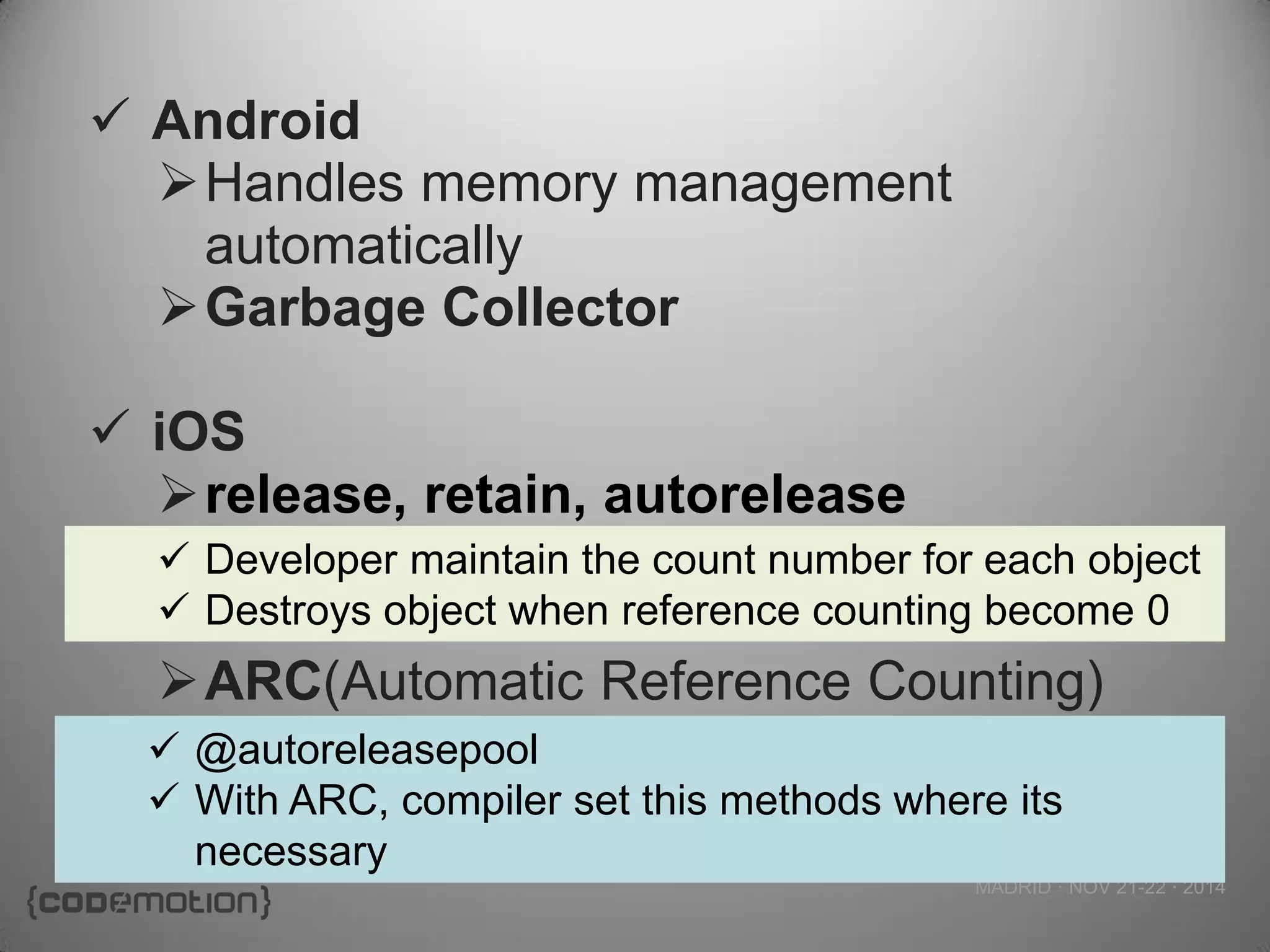

Android
Handles memory management automatically
Garbage Collector
iOS
release, retain, autorelease
ARC(Automatic Reference Counting)
Developer maintain the count number for each object
Destroys object when reference counting become 0
@autoreleasepool
With ARC, compiler set this methods where its necessary
MADRID · NOV 21-22 · 2014

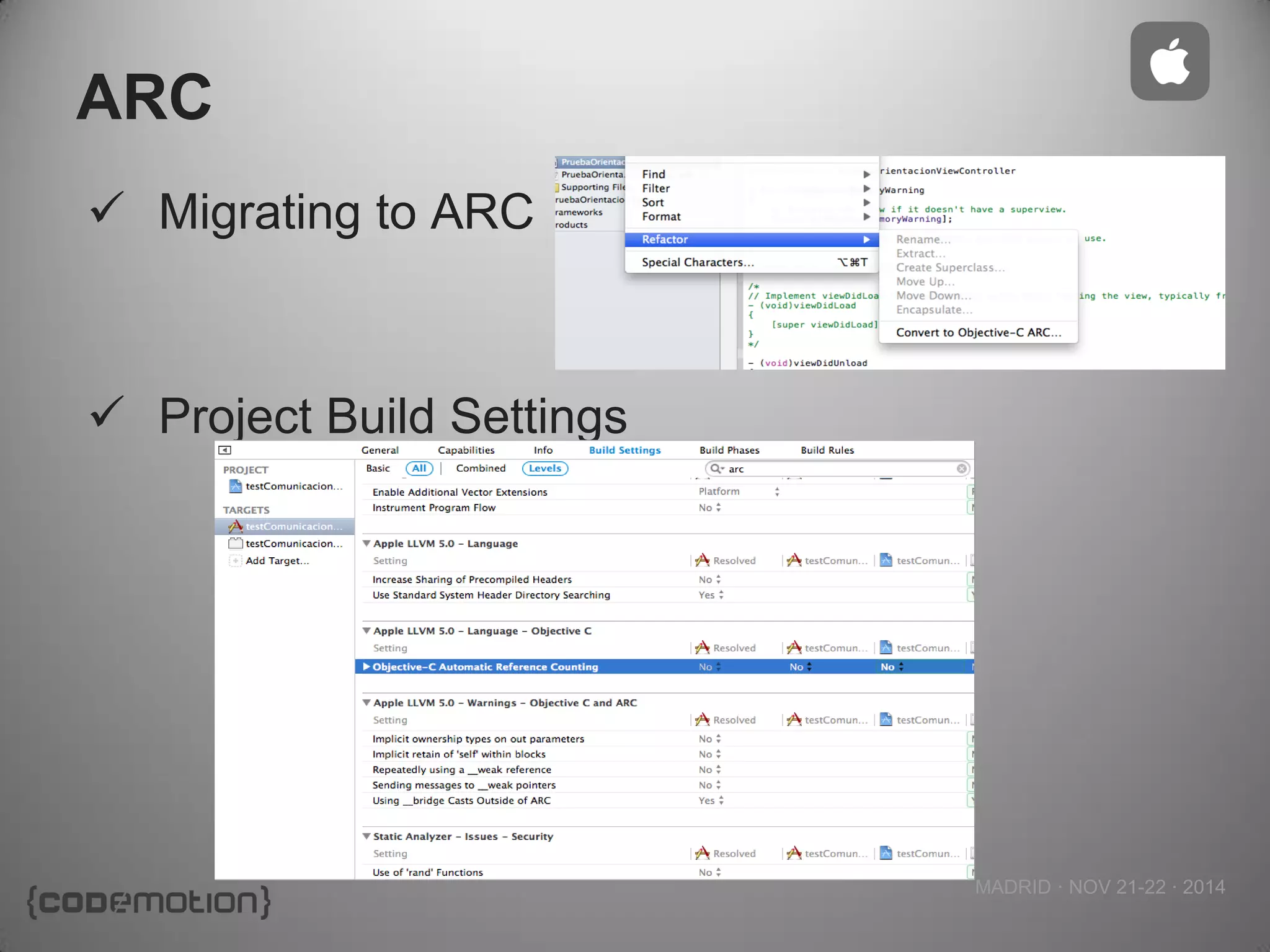

ARC
Migrating to ARC
Project Build Settings
MADRID · NOV 21-22 · 2014
DATA PERSISTENCE
MADRID · NOV 21-22 · 2014

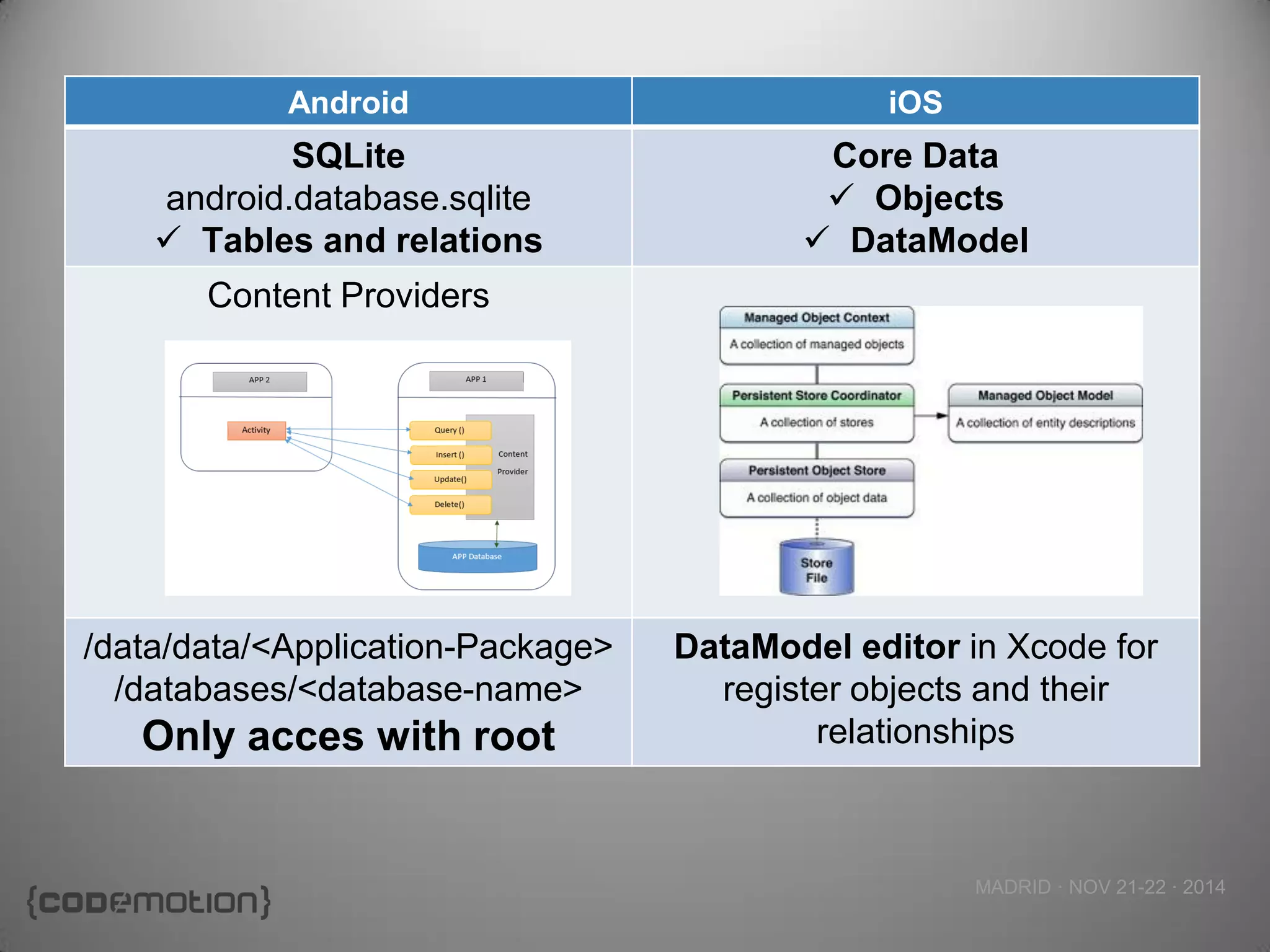

Android
iOS
SQLite
android.database.sqlite
Tables and relations
Core Data
Objects
DataModel
Content Providers
/data/data/<Application-Package> /databases/<database-name> Only acces with root
DataModel editor in Xcode for register objects and their relationships
MADRID · NOV 21-22 · 2014

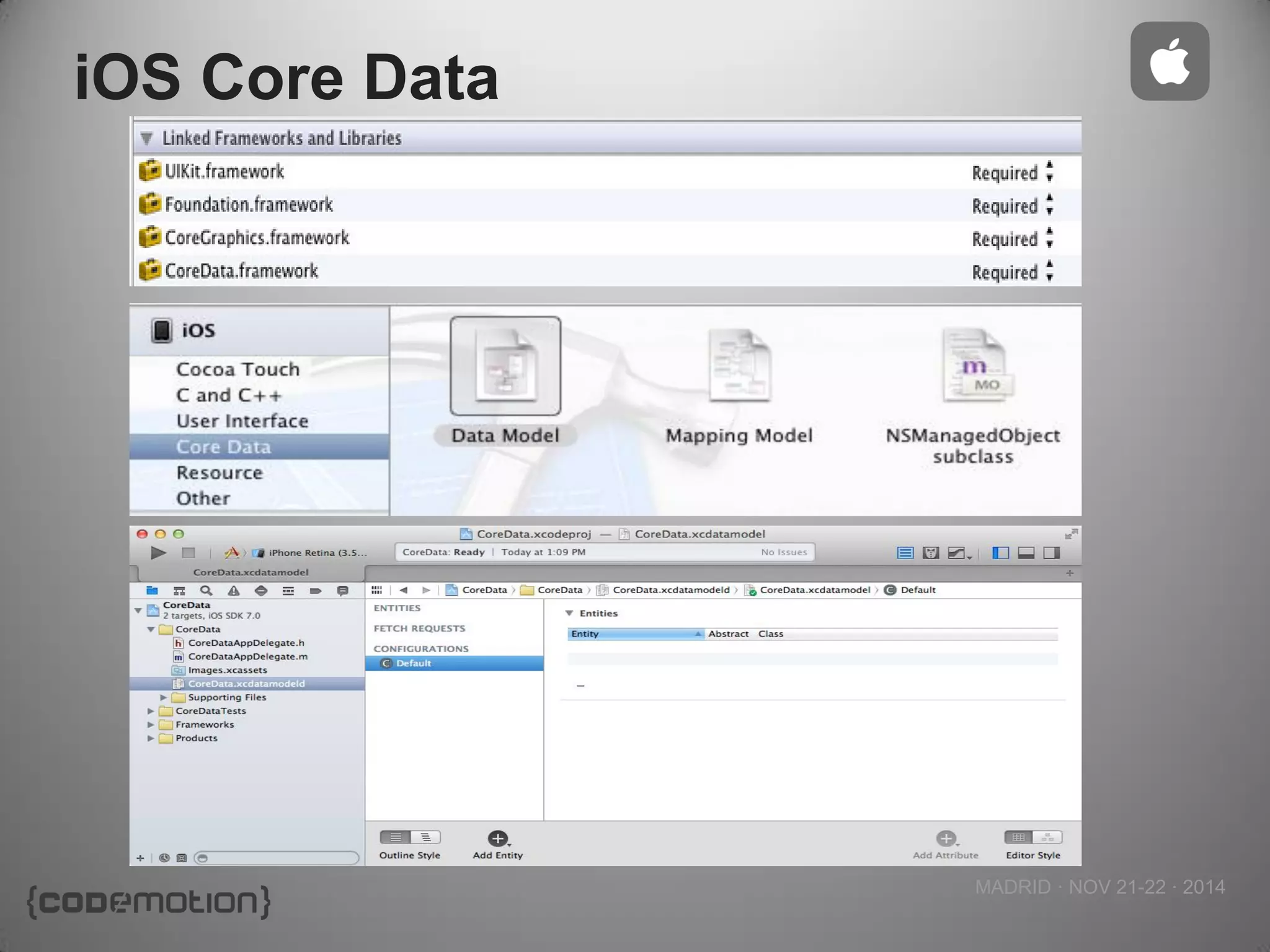

iOS Core Data
MADRID · NOV 21-22 · 2014

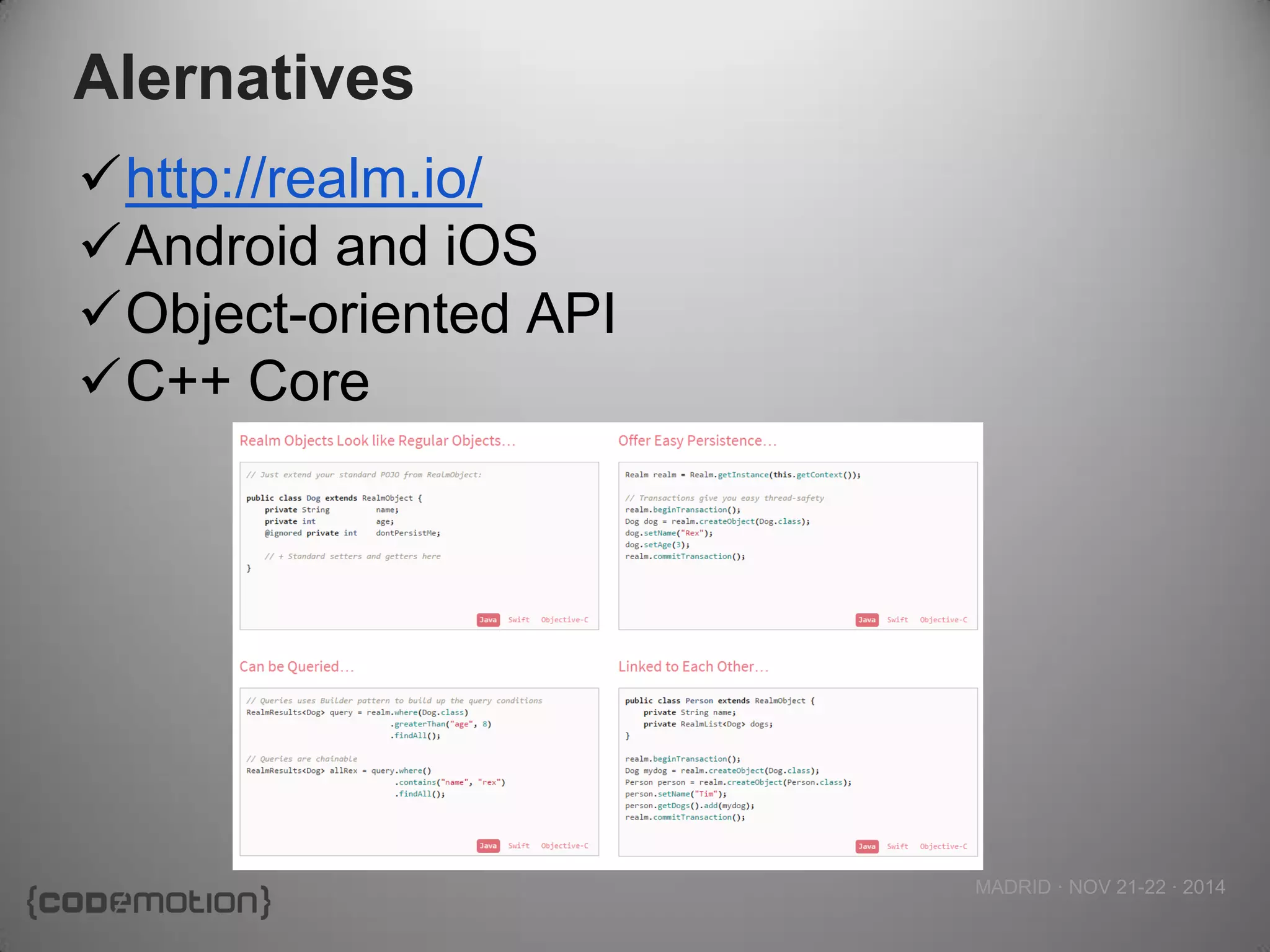

Alernatives
http://realm.io/
Android and iOS
Object-oriented API
C++ Core
MADRID · NOV 21-22 · 2014
SHARED ACTIONS
MADRID · NOV 21-22 · 2014

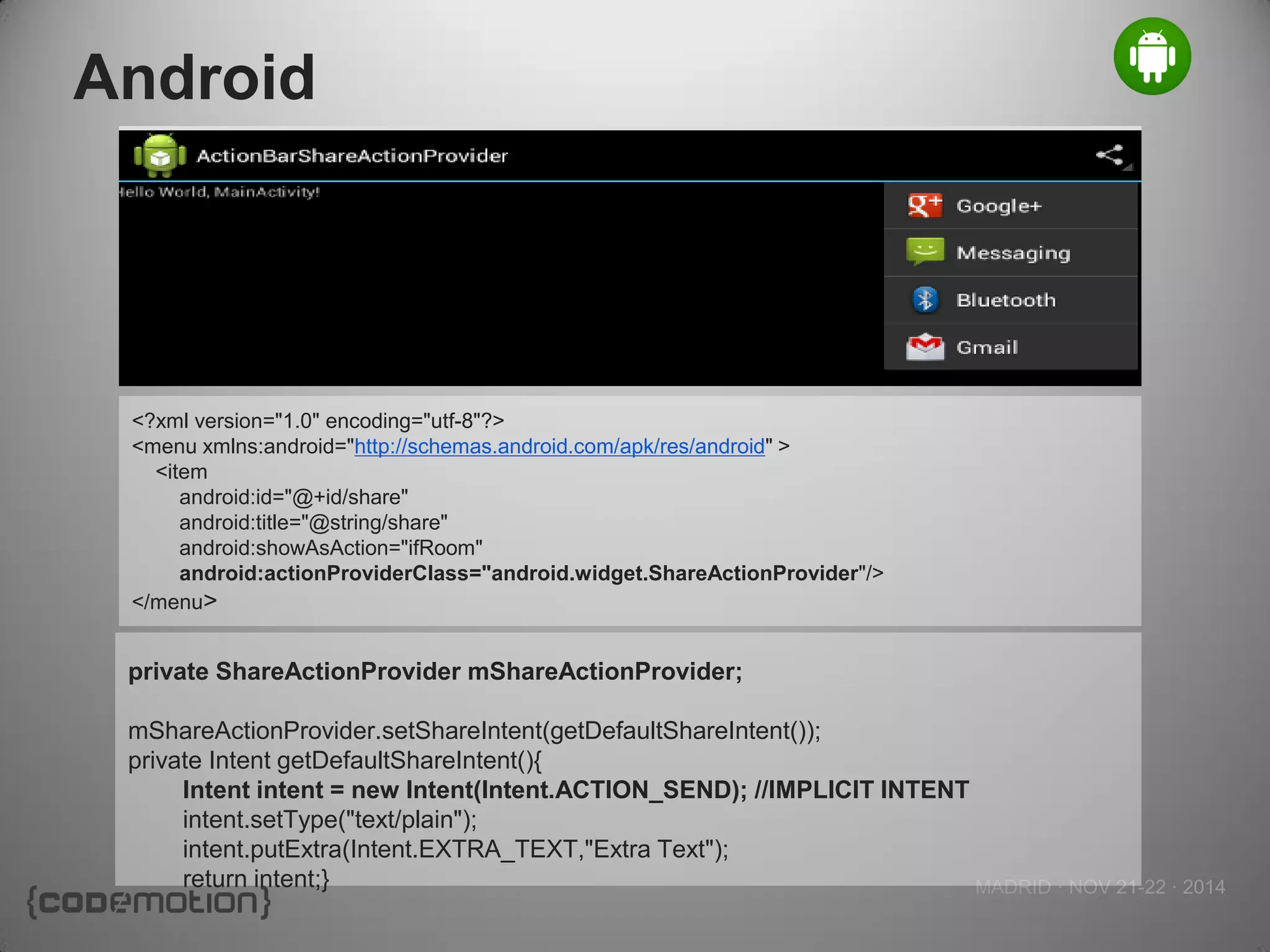

Android
<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android" >
<item
android:id="@+id/share"
android:title="@string/share"
android:showAsAction="ifRoom"
android:actionProviderClass="android.widget.ShareActionProvider"/>
</menu>
private ShareActionProvider mShareActionProvider;
mShareActionProvider.setShareIntent(getDefaultShareIntent());
private Intent getDefaultShareIntent(){
Intent intent = new Intent(Intent.ACTION_SEND); //IMPLICIT INTENT
intent.setType("text/plain");
intent.putExtra(Intent.EXTRA_TEXT,"Extra Text");
return intent;}
MADRID · NOV 21-22 · 2014

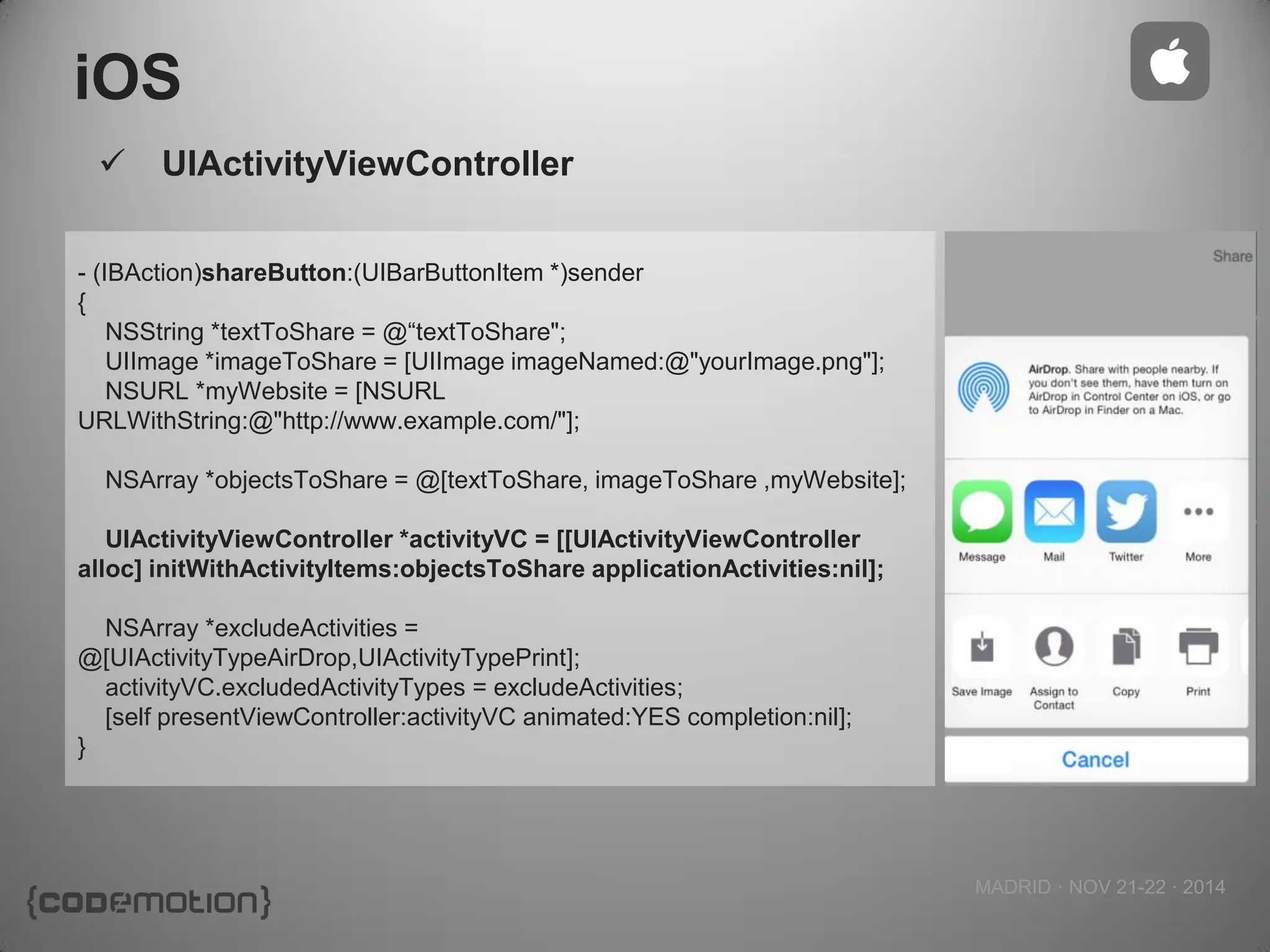

iOS
- (IBAction)shareButton:(UIBarButtonItem *)sender
{
NSString *textToShare = @“textToShare";
UIImage *imageToShare = [UIImage imageNamed:@"yourImage.png"];
NSURL *myWebsite = [NSURL URLWithString:@"http://www.example.com/"];
NSArray *objectsToShare = @[textToShare, imageToShare ,myWebsite];
UIActivityViewController *activityVC = [[UIActivityViewController alloc] initWithActivityItems:objectsToShare applicationActivities:nil];
NSArray *excludeActivities = @[UIActivityTypeAirDrop,UIActivityTypePrint];
activityVC.excludedActivityTypes = excludeActivities;
[self presentViewController:activityVC animated:YES completion:nil];
}
UIActivityViewController
MADRID · NOV 21-22 · 2014
CHECK CONNECTIVITY
MADRID · NOV 21-22 · 2014

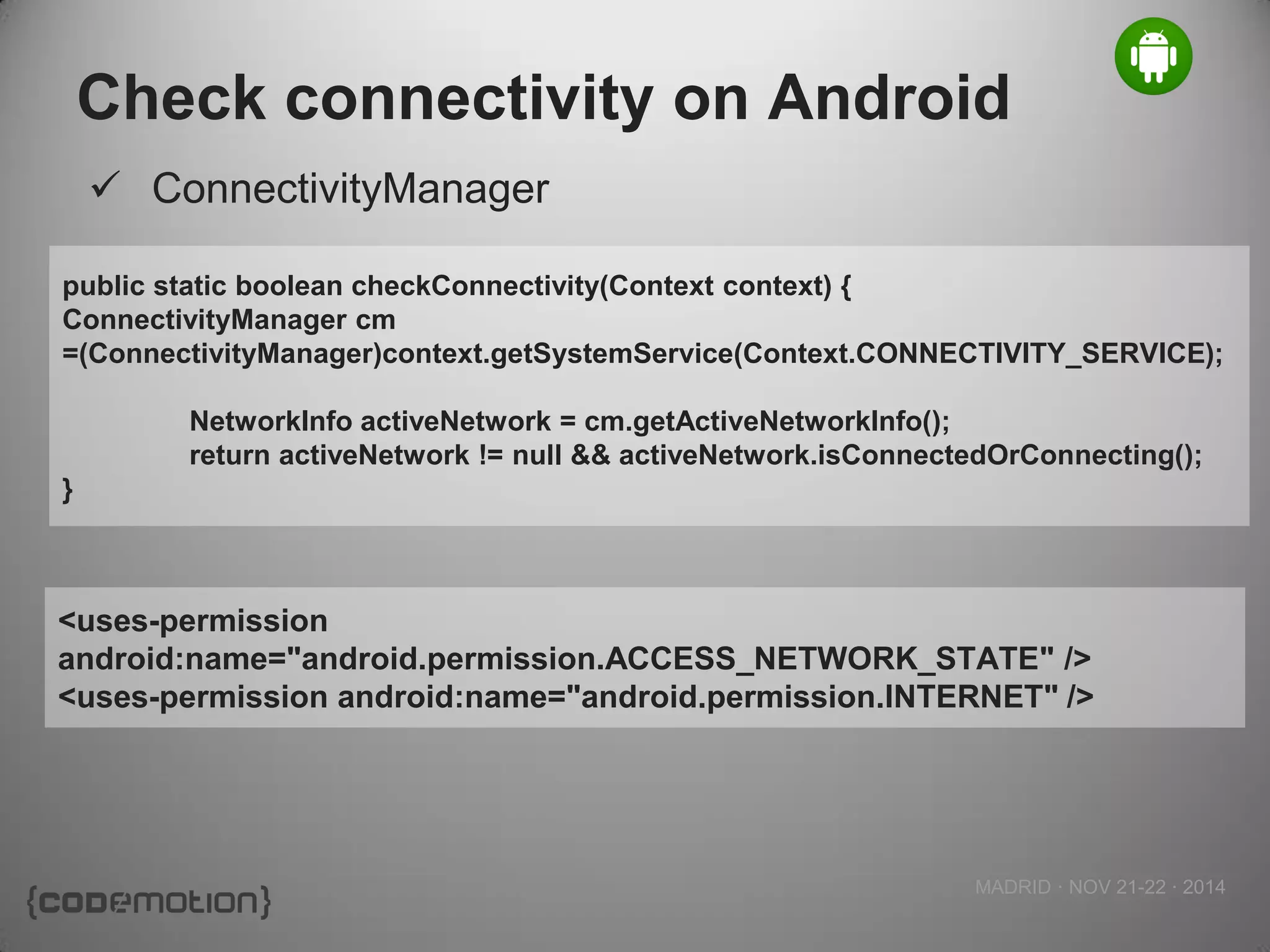

Check connectivity on Android
ConnectivityManager
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<uses-permission android:name="android.permission.INTERNET" />
public static boolean checkConnectivity(Context context) {
ConnectivityManager cm =(ConnectivityManager)context.getSystemService(Context.CONNECTIVITY_SERVICE);
NetworkInfo activeNetwork = cm.getActiveNetworkInfo();
return activeNetwork != null && activeNetwork.isConnectedOrConnecting();
}
MADRID · NOV 21-22 · 2014

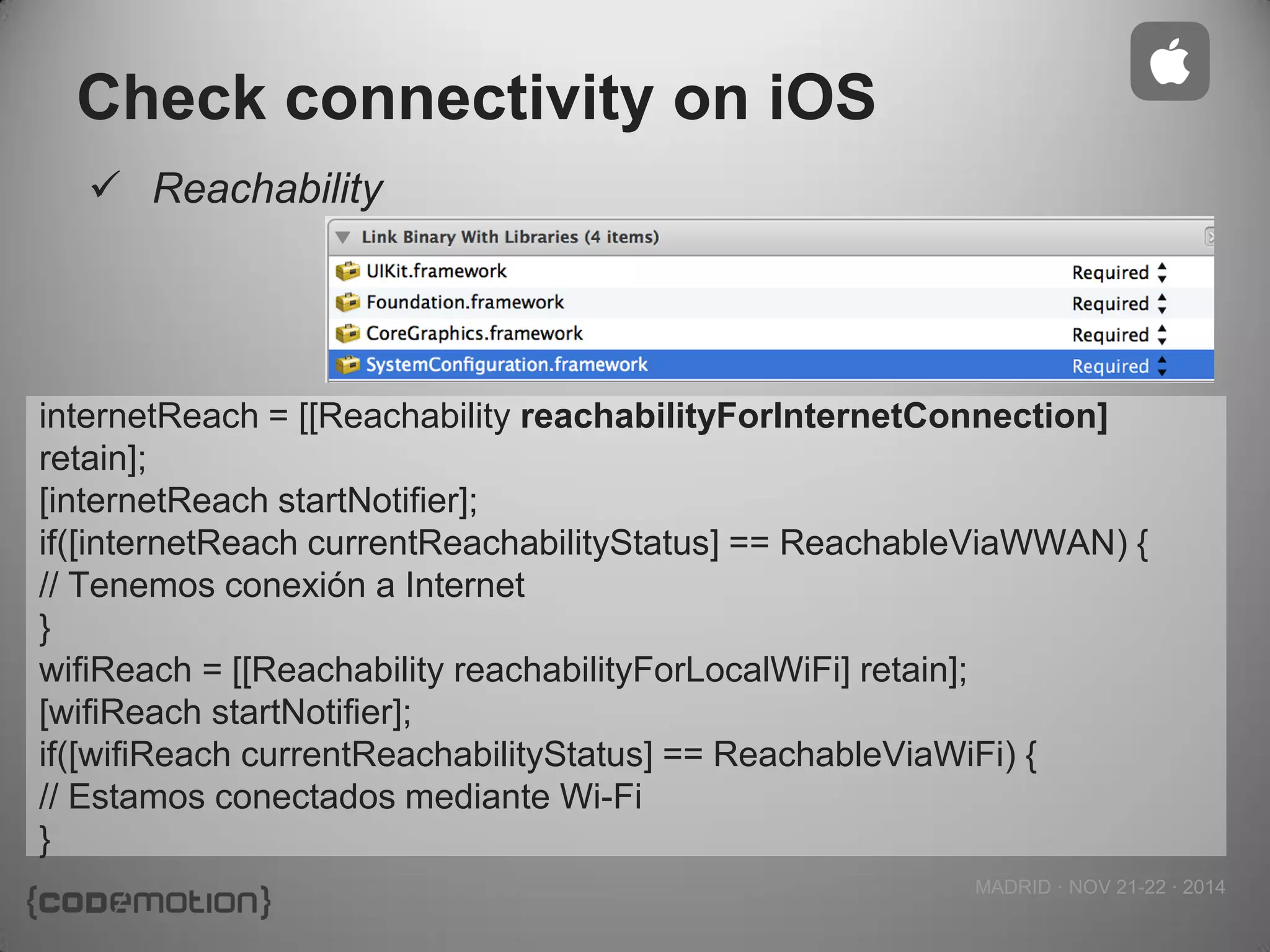

Check connectivity on iOS
Reachability
internetReach = [[Reachability reachabilityForInternetConnection] retain];
[internetReach startNotifier];
if([internetReach currentReachabilityStatus] == ReachableViaWWAN) {
// Tenemos conexión a Internet
}
wifiReach = [[Reachability reachabilityForLocalWiFi] retain];
[wifiReach startNotifier];
if([wifiReach currentReachabilityStatus] == ReachableViaWiFi) {
// Estamos conectados mediante Wi-Fi
}
MADRID · NOV 21-22 · 2014
APP PUBLISHING
MADRID · NOV 21-22 · 2014

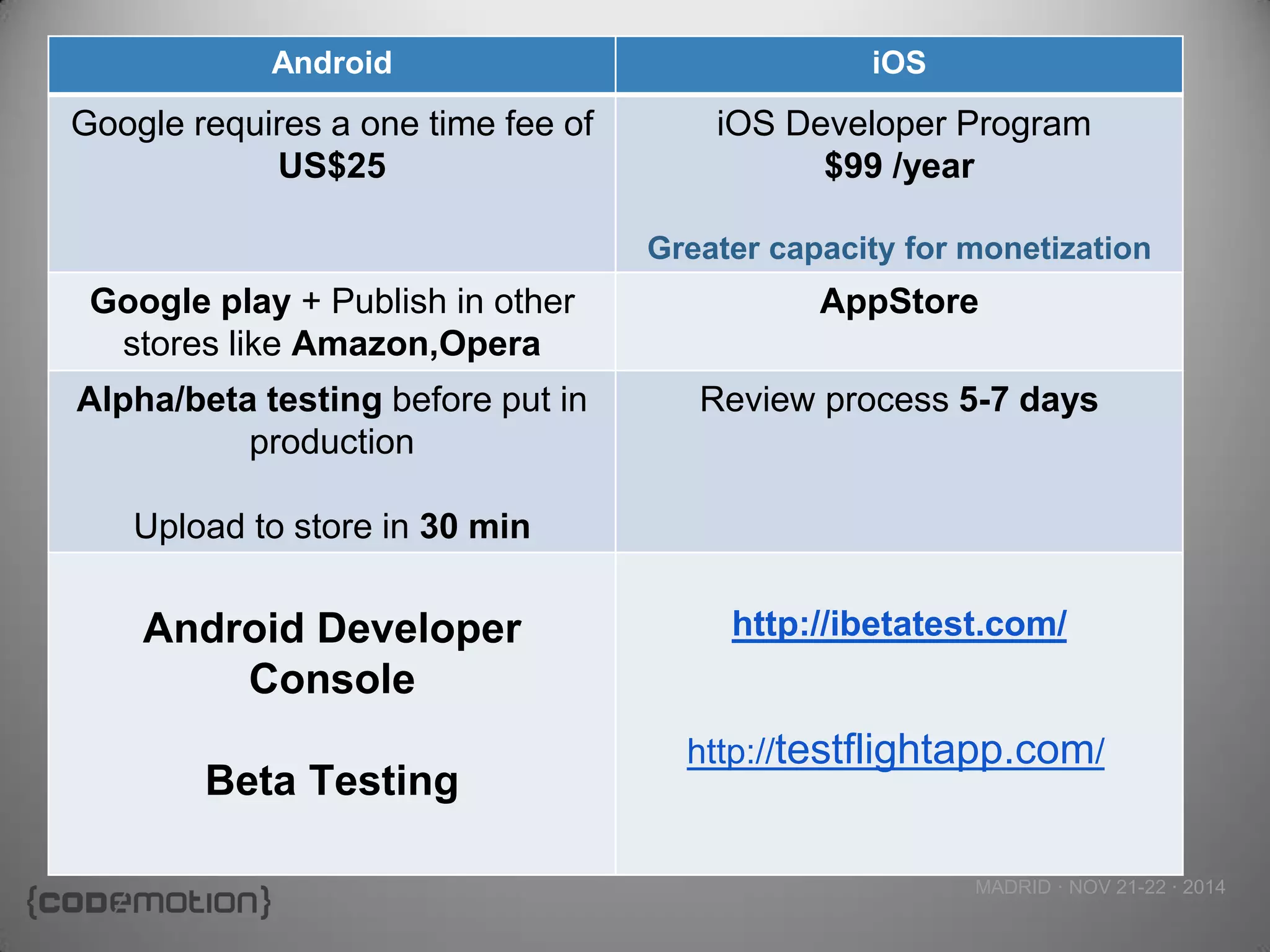

Android
iOS
Google requires a one time fee of US$25
iOS Developer Program
$99 /year
Greater capacity for monetization
Google play + Publish in other stores like Amazon,Opera
AppStore
Alpha/beta testing before put in production
Upload to store in 30 min
Review process 5-7 days
Android Developer Console
Beta Testing
http://ibetatest.com/
http://testflightapp.com/
MADRID · NOV 21-22 · 2014

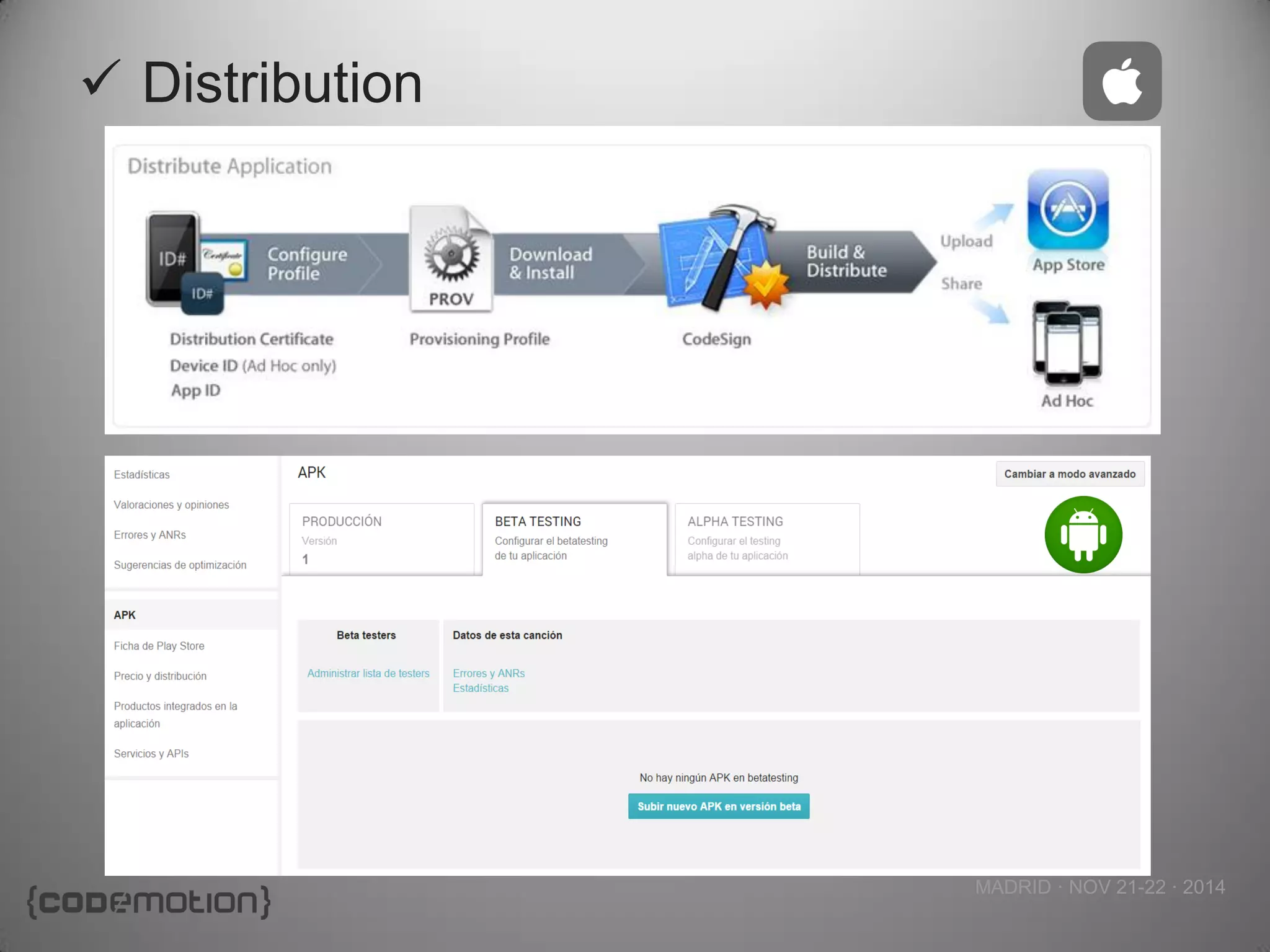

Distribution
MADRID · NOV 21-22 · 2014
Developers Library
MADRID · NOV 21-22 · 2014

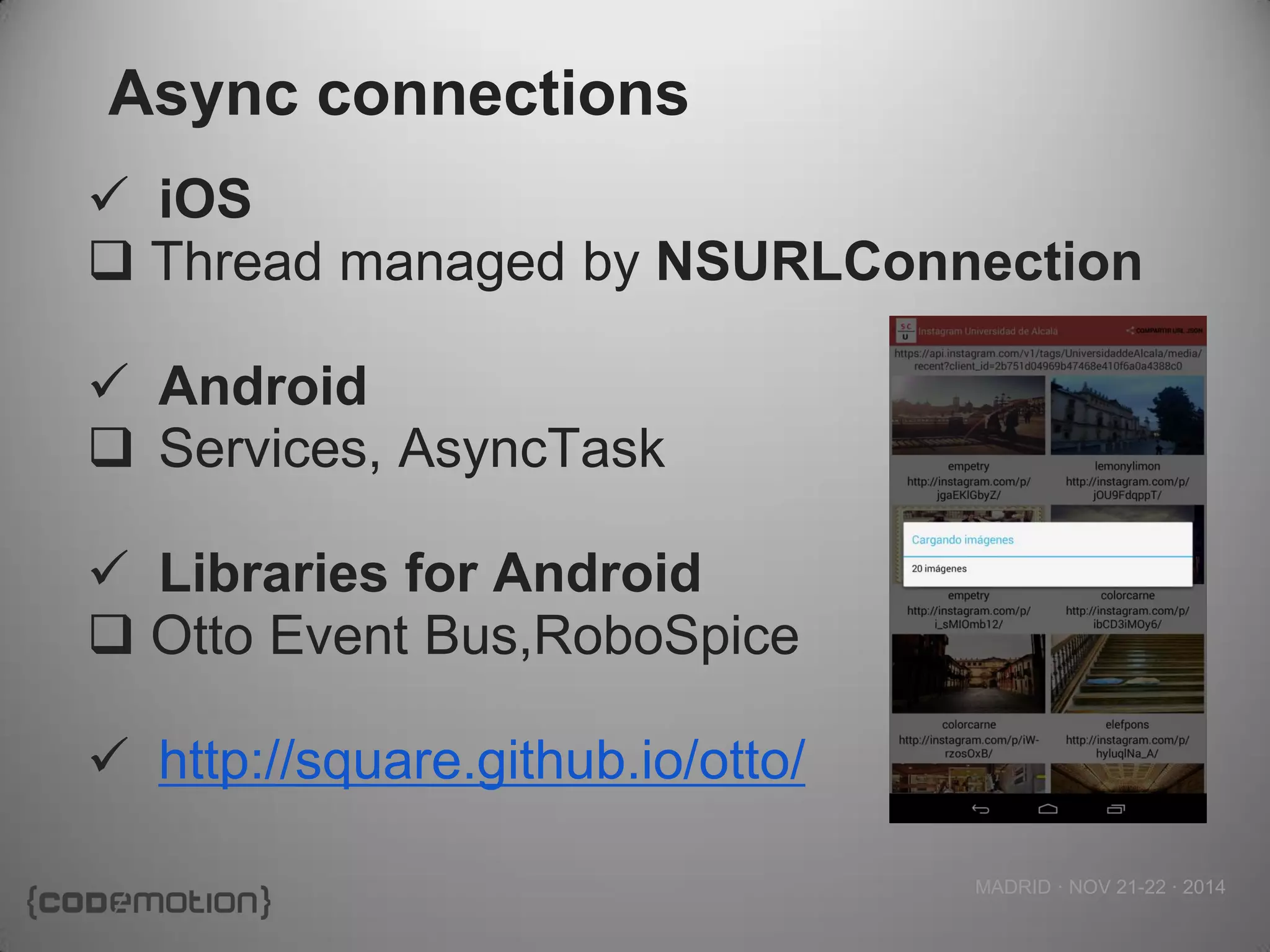

Async connections
iOS
Thread managed by NSURLConnection
Android
Services, AsyncTask
Libraries for Android
Otto Event Bus,RoboSpice
http://square.github.io/otto/
MADRID · NOV 21-22 · 2014

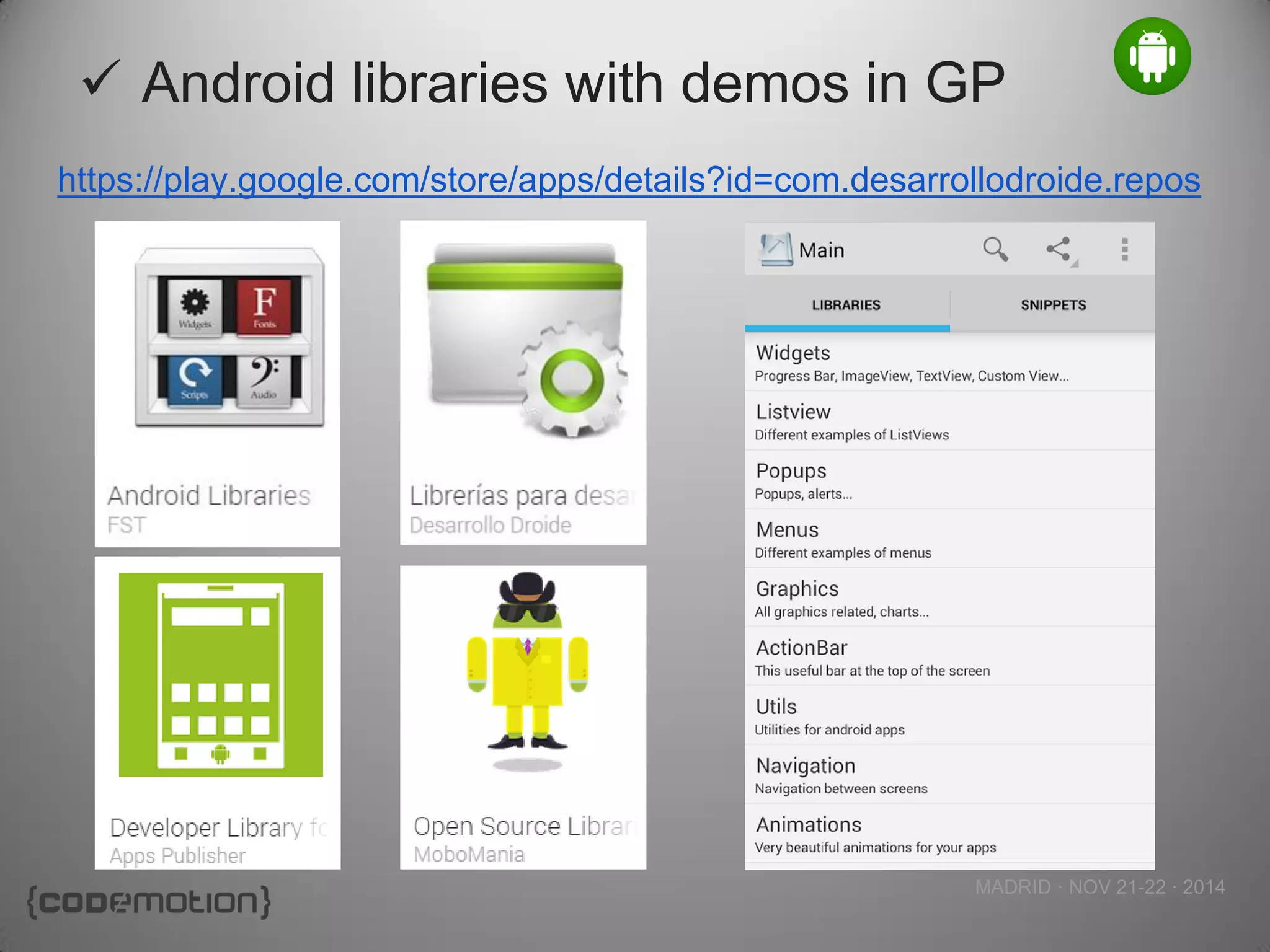

https://play.google.com/store/apps/details?id=com.desarrollodroide.repos
Android libraries with demos in GP
MADRID · NOV 21-22 · 2014

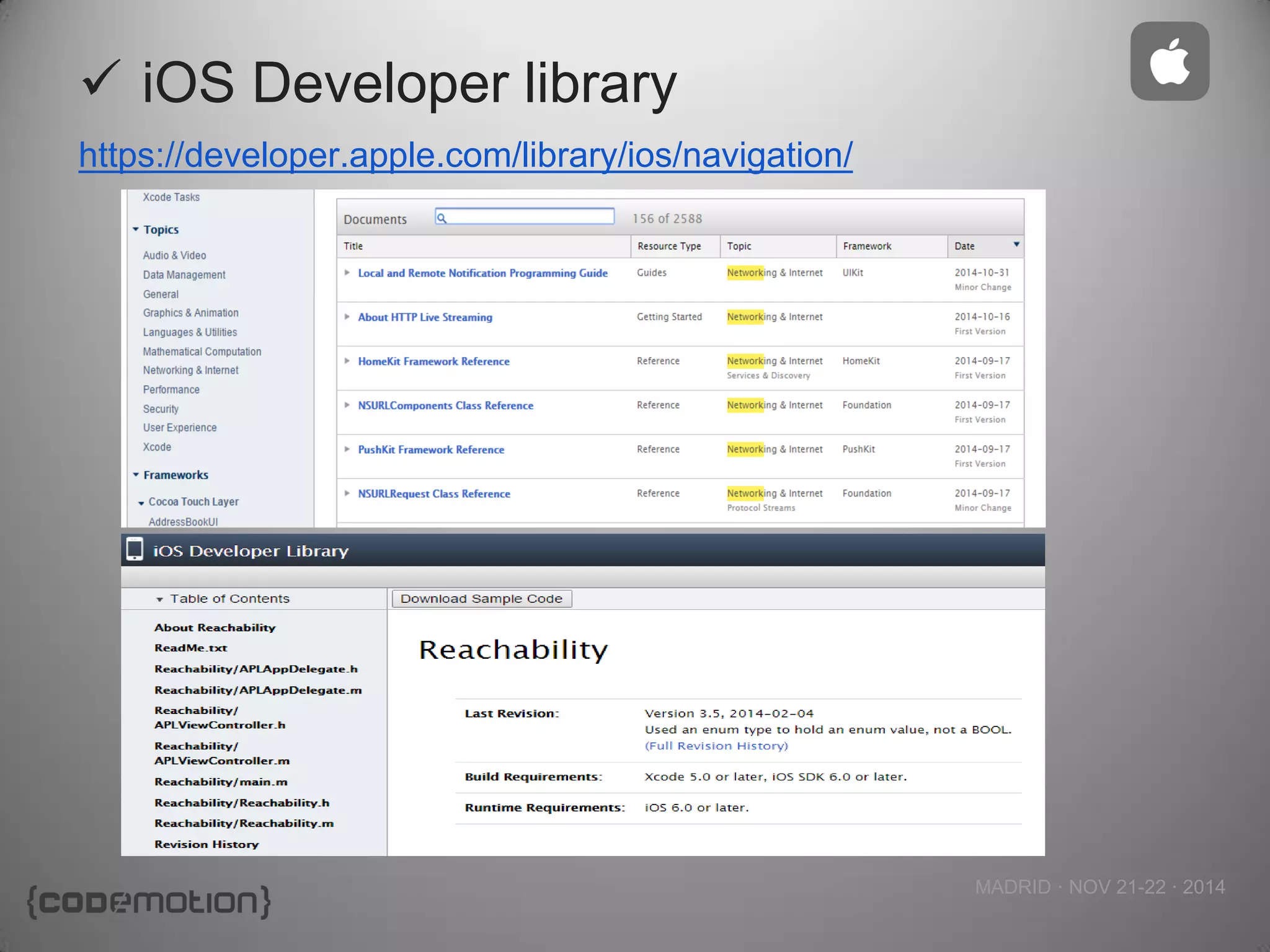

https://developer.apple.com/library/ios/navigation/
iOS Developer library
MADRID · NOV 21-22 · 2014

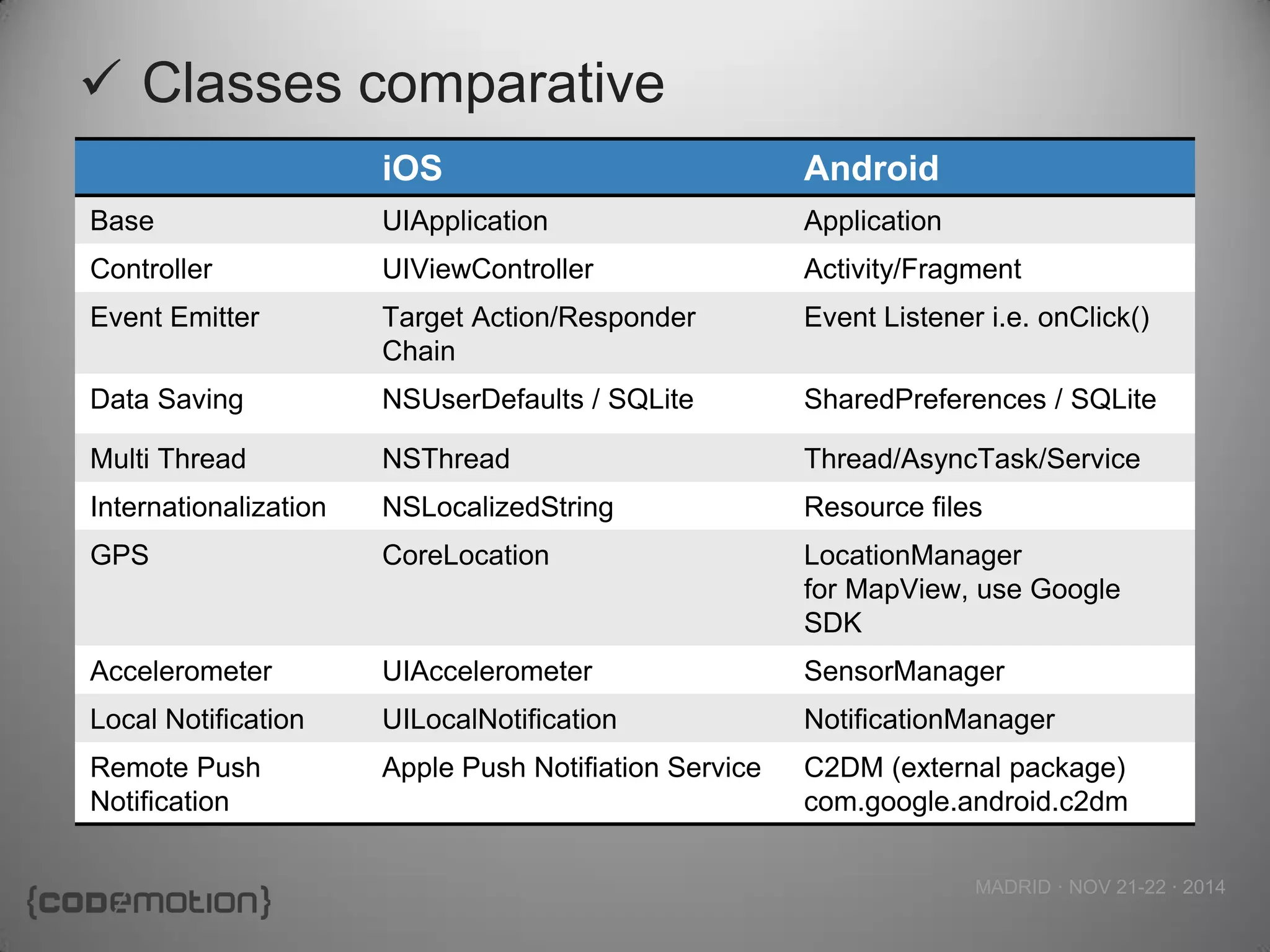

Classes comparative
iOS
Android
Base
UIApplication
Application
Controller
UIViewController
Activity/Fragment
Event Emitter
Target Action/Responder Chain
Event Listener i.e. onClick()
Data Saving
NSUserDefaults / SQLite
SharedPreferences / SQLite
Multi Thread
NSThread
Thread/AsyncTask/Service
Internationalization
NSLocalizedString
Resource files
GPS
CoreLocation
LocationManager
for MapView, use Google SDK
Accelerometer
UIAccelerometer
SensorManager
Local Notification
UILocalNotification
NotificationManager
Remote Push Notification
Apple Push Notifiation Service
C2DM (external package)
com.google.android.c2dm
MADRID · NOV 21-22 · 2014
BOOKS
MADRID · NOV 21-22 · 2014
MADRID · NOV 21-22 · 2014

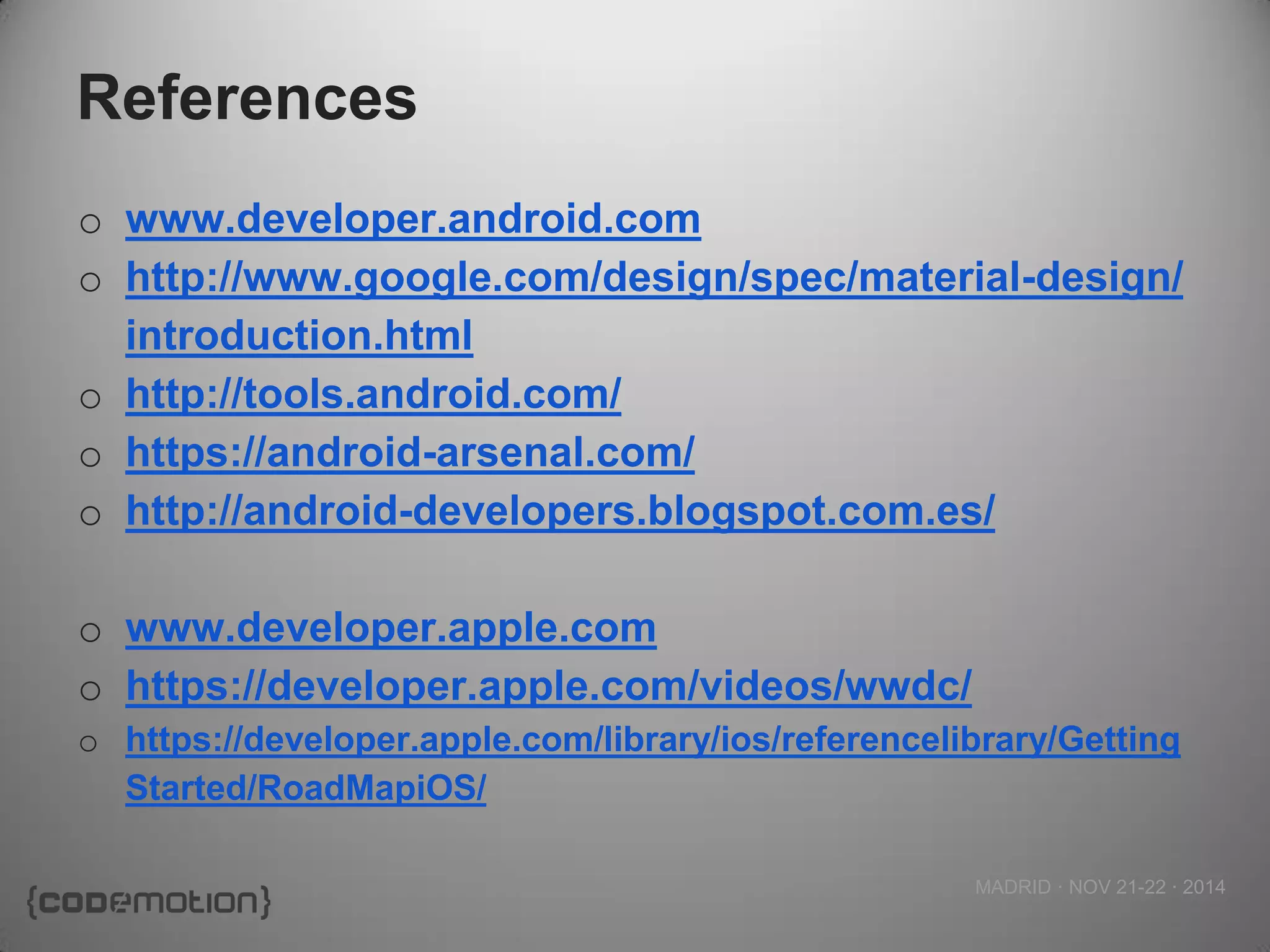

References
owww.developer.android.com
ohttp://www.google.com/design/spec/material-design/ introduction.html
ohttp://tools.android.com/
ohttps://android-arsenal.com/
ohttp://android-developers.blogspot.com.es/
owww.developer.apple.com
ohttps://developer.apple.com/videos/wwdc/
ohttps://developer.apple.com/library/ios/referencelibrary/GettingStarted/RoadMapiOS/
MADRID · NOV 21-22 · 2014
Thanks Questions?

From iOS to Android

  • 1.
    MADRID · NOV21-22 · 2014 From iOS To Android(or reverse) José Manuel Ortega Candel @jmortegac http://www.linkedin.com/jmortega1
  • 2.
    MADRID · NOV21-22 · 2014 https://speakerdeck.com/jmortega/
  • 3.
    MADRID · NOV21-22 · 2014 ARCHITECTURE / iOS / ANDROID TOOLS XCODE vs ANDROID STUDIO APPLICATIONS / PERMISSIONS / PRIVACY USER INTERFACE STATIC ANALYSIS CODE / TESTING CERTIFICATES AND SIGNING EMULATORS / MEMORY MANAGEMENT/ DATABASE APP PUBLISHING / DEVELOPER LIBRARIES
  • 4.
    MADRID · NOV21-22 · 2014 ARCHITECTURE
  • 5.
    MADRID · NOV21-22 · 2014 Android Architecture DALVIK ART Just-In-Time (JIT) Compilation Ahead-Of-Time (AOT) Compilation Cache builds up over time Boot times are faster Cache is built at first boot Rebooting device takes significantly longer Apps compiled when executed Stores Compiled Apps Consumes much more internal storage space
  • 6.
    MADRID · NOV21-22 · 2014 iOS Architecture
  • 7.
    MADRID · NOV21-22 · 2014 TOOLS
  • 8.
    MADRID · NOV21-22 · 2014 IDES Android iOS https://developer.android.com/sdk/ installing/studio.html APPCode http://www.jetbrains.com/objc/
  • 9.
    MADRID · NOV21-22 · 2014 on Android Studio InteliJ IDE Based Maven based Build Dependency Combines Ant && Maven / Gradle Tasks
  • 10.
    MADRID · NOV21-22 · 2014 Android Studio Templates
  • 11.
    MADRID · NOV21-22 · 2014 Android Studio Project settings
  • 12.
    MADRID · NOV21-22 · 2014 XCode Provides multiple ios app templates
  • 13.
    MADRID · NOV21-22 · 2014 Xcode Project Testing on device Base SDK
  • 14.
    MADRID · NOV21-22 · 2014 Interface Builder
  • 15.
    MADRID · NOV21-22 · 2014 Instruments on iOS Debugging, performance analysis, and testing Real-time CPU, memory, disk, energy, and network usage Threads, network, and energy usage I/O system and thread activity Allows detecting memory leaks
  • 16.
    MADRID · NOV21-22 · 2014 APPLICATIONS
  • 17.
    MADRID · NOV21-22 · 2014 Android Applications
  • 18.
    MADRID · NOV21-22 · 2014 Android Layout Manager+ Device Preview
  • 19.
    MADRID · NOV21-22 · 2014 Android Applications import android.os.Bundle; import android.app.Activity; public class MainActivity extends Activity { @Override protected void onCreate(Bundle savedInstanceState){ super.onCreate(savedInstanceState); setContentView(R.layout.activity_main);} } public static void invokeWebBrowser(Activity activity){ Intent intent = new Intent(Intent.ACTION_VIEW); intent.setData(Uri.parse("http://www.google.com")); activity.startActivity(intent); } Activity Intents [Explicit,Implicits] Services Content Providers[Sharing data between apps] Fragments from 3.0
  • 20.
    MADRID · NOV21-22 · 2014 Android components
  • 21.
    MADRID · NOV21-22 · 2014 Android’s RecyclerView Adapter ViewHolder LayoutManager ItemDecoration ItemAnimator https://developer.android.com/training/material/lists-cards.html
  • 22.
    MADRID · NOV21-22 · 2014 Android Navigation Drawer
  • 23.
    MADRID · NOV21-22 · 2014 Layout Systems UINavigationBar UITableView TextView TextView LinearLayout TextView TextView
  • 24.
    MADRID · NOV21-22 · 2014 LifeCycle Applications
  • 25.
    MADRID · NOV21-22 · 2014 LifeCycle Applications - (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions { self.window.rootViewController = self.navigationController; [self.window makeKeyAndVisible]; return YES; }
  • 26.
    MADRID · NOV21-22 · 2014 iOS Applications C Objective –C,[message passing] Swift PlayGround for leaning Swift Programming with Objetive-C in windows/ linux http://www.gnustep.org/ https://developer.apple.com/swift
  • 27.
    MADRID · NOV21-22 · 2014 Objective-C vs Swift NSString *string = @“hello”; let string = "hello" as NSString let s: NSString = "hello" var string: NSString = "hello" string= "Hello" NSLog(@“This is a string”); println("This is a string"); NSArray *myArray = [NSArray arrayWithObjects:@“string1", @“string2", nil]; var myArray = [“string1", "string2"] var myArray : [String] = [“string1", "string2"]
  • 28.
    MADRID · NOV21-22 · 2014 iOS Applications @synthesize will generate getter and setter methods for your @property @interface MyObject:NSObject { NSString *_name; } @property (nonatomic,assign) NSString* name; @end @implementation MyObject @synthesize name = _ name; @end
  • 29.
    MADRID · NOV21-22 · 2014 UIKit Framework UIButton UILabel UIImageView UITextField UIPickerView UIWindow UIView UIViewController NSObject,NSString,NSMutableString, NSDate,NSNumber Collections(NSArray, NSDictionary, NSSet,NSEnumerator) Foundation Framework
  • 30.
    MADRID · NOV21-22 · 2014 iOS Applications UIViewController is the parent for view Controllers
  • 31.
    MADRID · NOV21-22 · 2014 iOS Applications Organizer
  • 32.
    MADRID · NOV21-22 · 2014 iOS Applications Snippets in XCode
  • 33.
    MADRID · NOV21-22 · 2014 iOS Applications
  • 34.
    MADRID · NOV21-22 · 2014 iOS Applications #import <UIKit/UIKit.h> @interface MyViewController : UIViewController <UITableViewDataSource, UITableViewDelegate>{ IBOutlet UITableView *table; NSMutableData *dataReceive; } @property(nonatomic,assign) NSMutableData *dataReceive; @end UIViewController interface MyViewController.h implementation MyViewController.m @implementation MyViewController @synthesize dataReceive,table; - (void)viewDidLoad{ [super viewDidLoad]; NSURL *url = [[NSURL alloc] initWithString:@“url"]; self.dataReceive = [[NSMutableData data] retain]; }
  • 35.
    MADRID · NOV21-22 · 2014 iOS Applications UINavigationController
  • 36.
    MADRID · NOV21-22 · 2014 iOS Applications UINavigationController - (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions { UIStoryboard *storyboard = [UIStoryboard storyboardWithName:@"MainStoryboard" bundle:nil]; //Recuperamos el ViewController UIViewController *rootViewController = [storyboard instantiateInitialViewController]; // Creamos un UINavigationController, que se encargará de controlar y almacenar los distintos viewControllers de nuestra aplicación. UINavigationController *navigationController = [[UINavigationController alloc]initWithRootViewController:rootViewController]; //Asignamos el navigationController como principal. self.window.rootViewController = navigationController; return YES; } -(IBAction)goToPantalla2:(id)sender { UIStoryboard *storyBoard = [UIStoryboard storyboardWithName:@"MainStoryboard" bundle:nil]; //Obtenemos el controlador con Identifier "Pantalla2" Pantalla2ViewController *pantalla2Controller = [storyBoard instantiateViewControllerWithIdentifier:@"Pantalla2"]; //Lanzamos el controlador en el navigation de forma animada: [self.navigationController pushViewController:pantalla2Controller animated:YES]; }
  • 37.
    MADRID · NOV21-22 · 2014 Design patterns on iOS Applications MVC Target-action Delegate and protocols A delegate is an object that control of the user interface for that event.
  • 38.
    MADRID · NOV21-22 · 2014 ViewPager / UIPageViewController Swipe gesture
  • 39.
    MADRID · NOV21-22 · 2014 Multilanguage NSString *localizedString = NSLocalizedString(@"Hello",@“DefaultString");
  • 40.
    MADRID · NOV21-22 · 2014 Certificates and Signing Android iOS Self-signed certificate Apps are signed by developers Apple certificate Apps are signed by Apple Java Keytool Generate a distribution provisioning profile Export + Sign APK iOS Provisioning Portal Debug and distribution certificate App ID (unique ID of your app) Set of device unique identifiers Developer certificate
  • 41.
    MADRID · NOV21-22 · 2014 Android Studio Export + Sign APK
  • 42.
    MADRID · NOV21-22 · 2014 PERMISSIONS
  • 43.
    MADRID · NOV21-22 · 2014 Permissions on Android AndroidManifest.xml Protection mechanism to interact with other applications <uses--‐permission android:name="android.permission.INTERNET"/> <uses--‐permission android:name="android.permission.ACCESS_NETWORK_STATE"/> <uses--‐permission android:name="android.permission.ACCESS_COARSE_LOCATION"/> <uses--‐permission android:name="android.permission.ACCESS_FINE_LOCATION"/> <uses--‐permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>
  • 44.
    MADRID · NOV21-22 · 2014 Permissions on iOS oDeclare your application requirements in its manifest-like Info.plist. This is used only for ensuring device compatibility. oUIRequiredDeviceCapabilities allows you to list ’hardware-like’ capabilities that your app needs. oAppStore reads this information for filter installer devices.
  • 45.
    MADRID · NOV21-22 · 2014 Permissions on iOS Privacy Analysis Tools for iOs Applications patia.unileon.es
  • 46.
    MADRID · NOV21-22 · 2014 Privacy Permission Manager
  • 47.
    MADRID · NOV21-22 · 2014 USER INTERFACE
  • 48.
    MADRID · NOV21-22 · 2014 Evolution
  • 49.
    MADRID · NOV21-22 · 2014 Android Material design Minimalist and consistency Transitions, animiations Cards https://developer.android.com/training/material/get-started.html
  • 50.
    MADRID · NOV21-22 · 2014 Android Material design Ldrawer https://github.com/kanytu/android-material-drawer-template https://github.com/IkiMuhendis/LDrawer <?xml version="1.0" encoding="utf-8"?> <resources> <style name="AppTheme" parent="android:Theme.Material.Light"> <item name="android:colorPrimary"> @color/primary</item> <item name="android:colorPrimaryDark"> @color/primary_dark</item> <item name="android:colorAccent"> @color/accent</item> <item name="android:textColorPrimary"> @color/text_primary</item> <item name="android:textColor"> @color/text_secondary</item> <item name="android:navigationBarColor"> @color/primary_dark</item> </style> </resources>
  • 51.
    MADRID · NOV21-22 · 2014 Android Material design https://github.com/google/iosched
  • 52.
    MADRID · NOV21-22 · 2014 Android Fragments Fragment is a chunk of user interface with its own life cycle. Fragment must exist within an Activity Interaction with fragments is done through FragmentManager Fragment API was introduced in API 11 http://developer.android.com/tools/support-library
  • 53.
    MADRID · NOV21-22 · 2014 Android Fragments
  • 54.
    MADRID · NOV21-22 · 2014 iOS Master-Detail template UISplitViewController
  • 55.
    MADRID · NOV21-22 · 2014 Notifications
  • 56.
    MADRID · NOV21-22 · 2014 STATIC ANALYSIS CODE
  • 57.
    MADRID · NOV21-22 · 2014 Static analysis code on Android Studio Inspect Profile Lint
  • 58.
    MADRID · NOV21-22 · 2014 Static analysis code on Java projects SonarQube Sonnar-runner
  • 59.
    MADRID · NOV21-22 · 2014 Static analysis code on XCode Static Analyzer Detect memory leaks
  • 60.
    MADRID · NOV21-22 · 2014 TESTING
  • 61.
    MADRID · NOV21-22 · 2014 Mobile Application Testing TYPES Unit Testing Functionality Testing Integration Testing Regression Load Testing Stress Testing Performance Usability Testing
  • 62.
    MADRID · NOV21-22 · 2014 Mobile Application Testing
  • 63.
    MADRID · NOV21-22 · 2014 CheckList Rotating the screen Behavior of when network is not available Navigation between screens Behavior of app if app is running for longer period of time and checking memory
  • 64.
    MADRID · NOV21-22 · 2014 Testing on Android Unit & Integration,TDD  Junit RoboElectric Acceptance,BDD RobotiumTesting User Interface Calabash
  • 65.
    MADRID · NOV21-22 · 2014 Unit testing on iOS XCTest #import <XCTest/XCTest.h> #import “TestObject.h" @interface TestOjectLogicTests : XCTestCase { @private TestObject *object; } @end
  • 66.
    MADRID · NOV21-22 · 2014 EMULATORS
  • 67.
    MADRID · NOV21-22 · 2014 Emulator vs Simulator Android iOS Emulator Simulator Very slow integrated with SDK Integrated with Xcode Emulates hardware and software Simulates only software Launched apps are equal binaries from the apps compiled for Device CPU Launched apps are different binaries from the apps compiled for Device CPU
  • 68.
    MADRID · NOV21-22 · 2014 Genymotion Integration with Eclipse and Android Studio MULTI OS Compatible with Linux,Windows and Mac Requires VirtualBox
  • 69.
    MADRID · NOV21-22 · 2014 Alternatives http://jimulabs.com/ for Android live preview https://appthwack.com/ for testing in the cloud with real devices
  • 70.
    MADRID · NOV21-22 · 2014 MEMORY MANAGEMENT
  • 71.
    MADRID · NOV21-22 · 2014 Android Handles memory management automatically Garbage Collector iOS release, retain, autorelease ARC(Automatic Reference Counting) Developer maintain the count number for each object Destroys object when reference counting become 0 @autoreleasepool With ARC, compiler set this methods where its necessary
  • 72.
    MADRID · NOV21-22 · 2014 ARC Migrating to ARC Project Build Settings
  • 73.
    MADRID · NOV21-22 · 2014 DATA PERSISTENCE
  • 74.
    MADRID · NOV21-22 · 2014 Android iOS SQLite android.database.sqlite Tables and relations Core Data Objects DataModel Content Providers /data/data/<Application-Package> /databases/<database-name> Only acces with root DataModel editor in Xcode for register objects and their relationships
  • 75.
    MADRID · NOV21-22 · 2014 iOS Core Data
  • 76.
    MADRID · NOV21-22 · 2014 Alernatives http://realm.io/ Android and iOS Object-oriented API C++ Core
  • 77.
    MADRID · NOV21-22 · 2014 SHARED ACTIONS
  • 78.
    MADRID · NOV21-22 · 2014 Android <?xml version="1.0" encoding="utf-8"?> <menu xmlns:android="http://schemas.android.com/apk/res/android" > <item android:id="@+id/share" android:title="@string/share" android:showAsAction="ifRoom" android:actionProviderClass="android.widget.ShareActionProvider"/> </menu> private ShareActionProvider mShareActionProvider; mShareActionProvider.setShareIntent(getDefaultShareIntent()); private Intent getDefaultShareIntent(){ Intent intent = new Intent(Intent.ACTION_SEND); //IMPLICIT INTENT intent.setType("text/plain"); intent.putExtra(Intent.EXTRA_TEXT,"Extra Text"); return intent;}
  • 79.
    MADRID · NOV21-22 · 2014 iOS - (IBAction)shareButton:(UIBarButtonItem *)sender { NSString *textToShare = @“textToShare"; UIImage *imageToShare = [UIImage imageNamed:@"yourImage.png"]; NSURL *myWebsite = [NSURL URLWithString:@"http://www.example.com/"]; NSArray *objectsToShare = @[textToShare, imageToShare ,myWebsite]; UIActivityViewController *activityVC = [[UIActivityViewController alloc] initWithActivityItems:objectsToShare applicationActivities:nil]; NSArray *excludeActivities = @[UIActivityTypeAirDrop,UIActivityTypePrint]; activityVC.excludedActivityTypes = excludeActivities; [self presentViewController:activityVC animated:YES completion:nil]; } UIActivityViewController
  • 80.
    MADRID · NOV21-22 · 2014 CHECK CONNECTIVITY
  • 81.
    MADRID · NOV21-22 · 2014 Check connectivity on Android ConnectivityManager <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" /> <uses-permission android:name="android.permission.INTERNET" /> public static boolean checkConnectivity(Context context) { ConnectivityManager cm =(ConnectivityManager)context.getSystemService(Context.CONNECTIVITY_SERVICE); NetworkInfo activeNetwork = cm.getActiveNetworkInfo(); return activeNetwork != null && activeNetwork.isConnectedOrConnecting(); }
  • 82.
    MADRID · NOV21-22 · 2014 Check connectivity on iOS Reachability internetReach = [[Reachability reachabilityForInternetConnection] retain]; [internetReach startNotifier]; if([internetReach currentReachabilityStatus] == ReachableViaWWAN) { // Tenemos conexión a Internet } wifiReach = [[Reachability reachabilityForLocalWiFi] retain]; [wifiReach startNotifier]; if([wifiReach currentReachabilityStatus] == ReachableViaWiFi) { // Estamos conectados mediante Wi-Fi }
  • 83.
    MADRID · NOV21-22 · 2014 APP PUBLISHING
  • 84.
    MADRID · NOV21-22 · 2014 Android iOS Google requires a one time fee of US$25 iOS Developer Program $99 /year Greater capacity for monetization Google play + Publish in other stores like Amazon,Opera AppStore Alpha/beta testing before put in production Upload to store in 30 min Review process 5-7 days Android Developer Console Beta Testing http://ibetatest.com/ http://testflightapp.com/
  • 85.
    MADRID · NOV21-22 · 2014 Distribution
  • 86.
    MADRID · NOV21-22 · 2014 Developers Library
  • 87.
    MADRID · NOV21-22 · 2014 Async connections iOS Thread managed by NSURLConnection Android Services, AsyncTask Libraries for Android Otto Event Bus,RoboSpice http://square.github.io/otto/
  • 88.
    MADRID · NOV21-22 · 2014 https://play.google.com/store/apps/details?id=com.desarrollodroide.repos Android libraries with demos in GP
  • 89.
    MADRID · NOV21-22 · 2014 https://developer.apple.com/library/ios/navigation/ iOS Developer library
  • 90.
    MADRID · NOV21-22 · 2014 Classes comparative iOS Android Base UIApplication Application Controller UIViewController Activity/Fragment Event Emitter Target Action/Responder Chain Event Listener i.e. onClick() Data Saving NSUserDefaults / SQLite SharedPreferences / SQLite Multi Thread NSThread Thread/AsyncTask/Service Internationalization NSLocalizedString Resource files GPS CoreLocation LocationManager for MapView, use Google SDK Accelerometer UIAccelerometer SensorManager Local Notification UILocalNotification NotificationManager Remote Push Notification Apple Push Notifiation Service C2DM (external package) com.google.android.c2dm
  • 91.
    MADRID · NOV21-22 · 2014 BOOKS
  • 92.
    MADRID · NOV21-22 · 2014
  • 93.
    MADRID · NOV21-22 · 2014 References owww.developer.android.com ohttp://www.google.com/design/spec/material-design/ introduction.html ohttp://tools.android.com/ ohttps://android-arsenal.com/ ohttp://android-developers.blogspot.com.es/ owww.developer.apple.com ohttps://developer.apple.com/videos/wwdc/ ohttps://developer.apple.com/library/ios/referencelibrary/GettingStarted/RoadMapiOS/
  • 94.
    MADRID · NOV21-22 · 2014 Thanks Questions?
