Factory method pattern (Virtual Constructor)

Factory Method Pattern
Virtual Constructor
Sameer Singh Rathoud

About presentation
This presentation provide information to understand factory method pattern, it’s
various implementation and Applicability.
I have tried my best to explain the concept in very simple language.

The programming language used for implementation is c#. But any one from
different programming background can easily understand the implementation.

Definition
The factory method pattern is a design pattern that define an interface for

creating an object from one among a set of classes based on some logic.

Factory method pattern is a creational design pattern.
Factory method pattern is also known as virtual constructor pattern.

Factory method pattern is the most widely used pattern in the software
engineering world

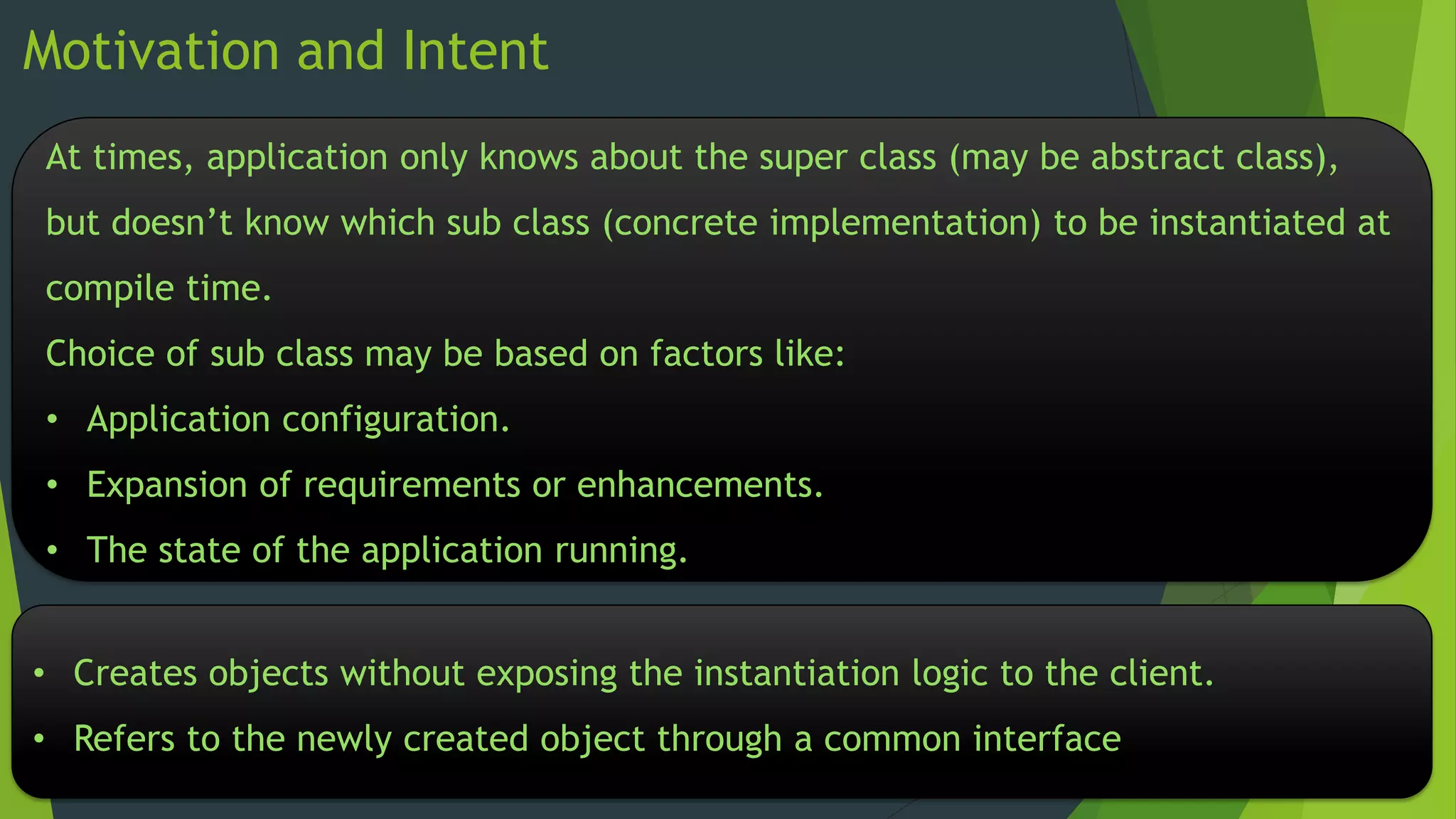

Motivation and Intent
At times, application only knows about the super class (may be abstract class),
but doesn’t know which sub class (concrete implementation) to be instantiated at

compile time.
Choice of sub class may be based on factors like:
• Application configuration.
• Expansion of requirements or enhancements.
• The state of the application running.

• Creates objects without exposing the instantiation logic to the client.
• Refers to the newly created object through a common interface

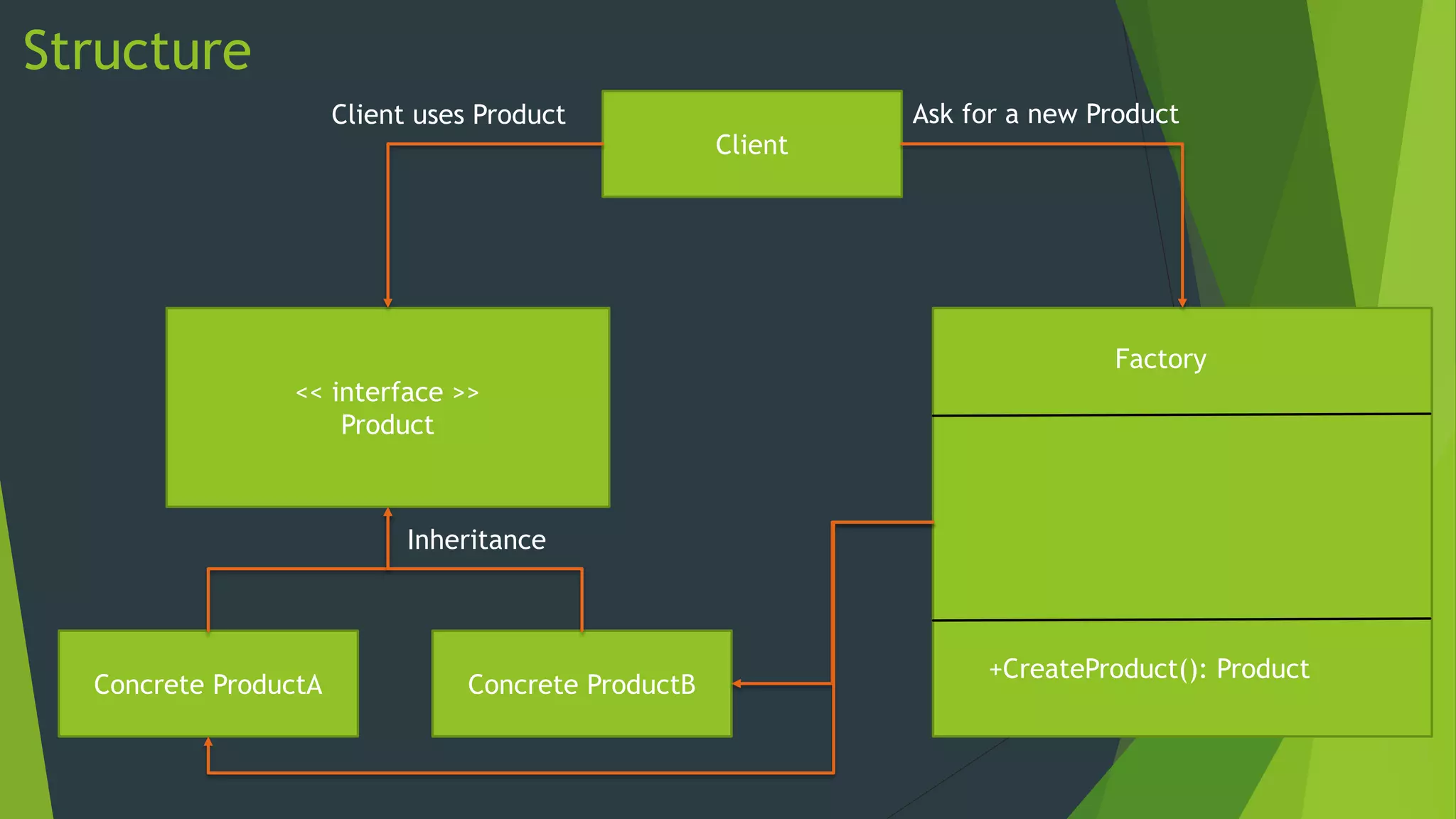

Structure
Client uses Product

Client

Ask for a new Product

Factory
<< interface >>
Product

Inheritance

Concrete ProductA

Concrete ProductB

+CreateProduct(): Product

Implementation (C#)
Product product = new Product()

Product productA = new ProductA();
Product productB = new ProductB();

When we are using “new” keyword in C#, It allocates the
memory and creates a object of specified type.
This will be ok if we are having only one type of product
and a concrete class named “Product”.

But if we are having more than one product type, we can
create our “Product” as interface and provide various
implementation to it. Let the classes providing
implementation to our “Product” interface are “ProductA”
and “ProductB”. But now for Instantiating “Product” we
need to call the constructor of “Product” implementation.
But here Product type specified is fixed (hard-coded).
Let’s try for some generic implementation for this
scenario.

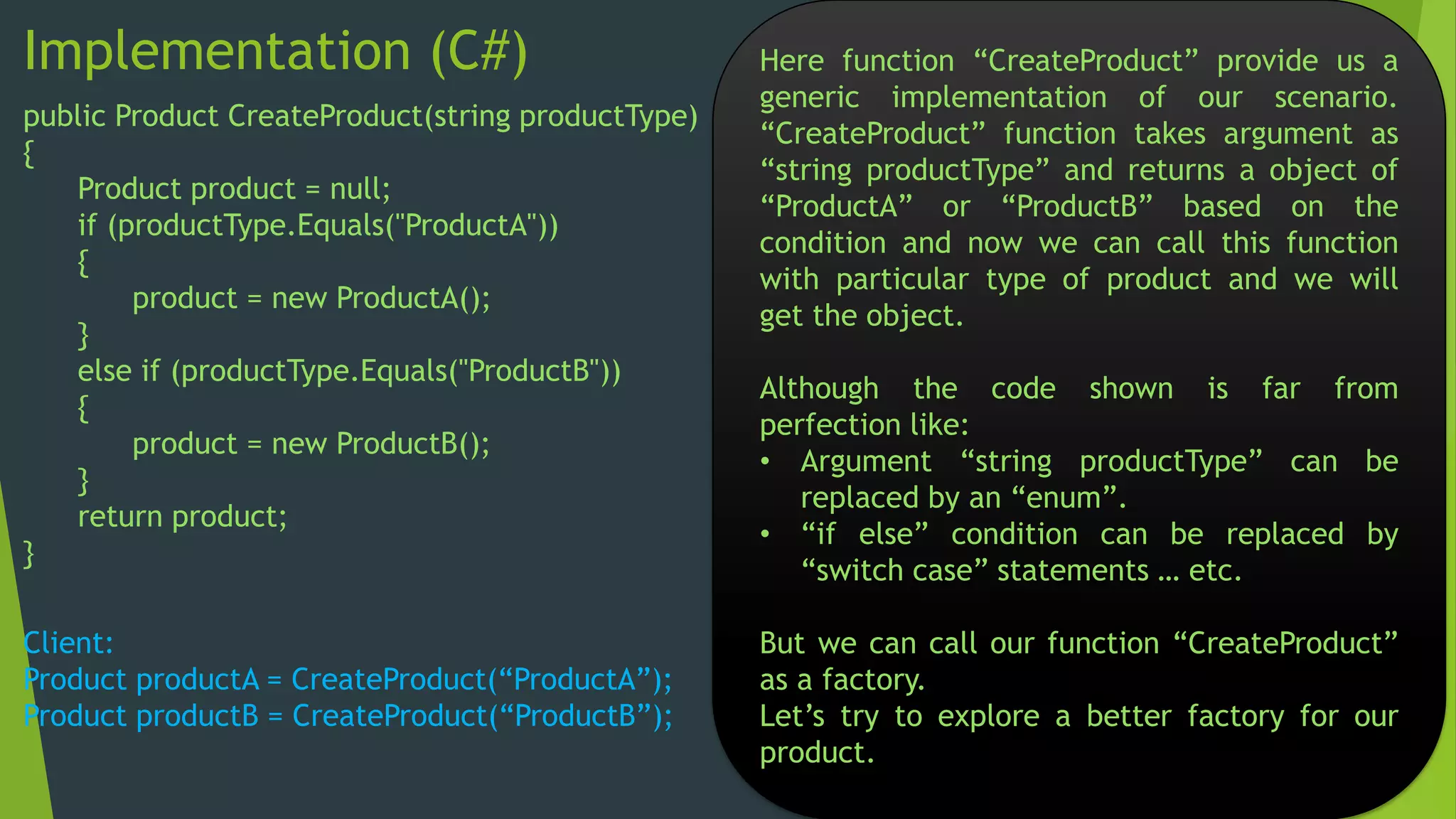

Implementation (C#)
public Product CreateProduct(string productType)
{
Product product = null;
if (productType.Equals("ProductA"))
{
product = new ProductA();
}
else if (productType.Equals("ProductB"))
{
product = new ProductB();
}
return product;
}

Client:
Product productA = CreateProduct(“ProductA”);
Product productB = CreateProduct(“ProductB”);

Here function “CreateProduct” provide us a
generic implementation of our scenario.
“CreateProduct” function takes argument as
“string productType” and returns a object of
“ProductA” or “ProductB” based on the
condition and now we can call this function
with particular type of product and we will
get the object.
Although the code shown is far from
perfection like:
• Argument “string productType” can be
replaced by an “enum”.
• “if else” condition can be replaced by
“switch case” statements … etc.
But we can call our function “CreateProduct”
as a factory.
Let’s try to explore a better factory for our
product.

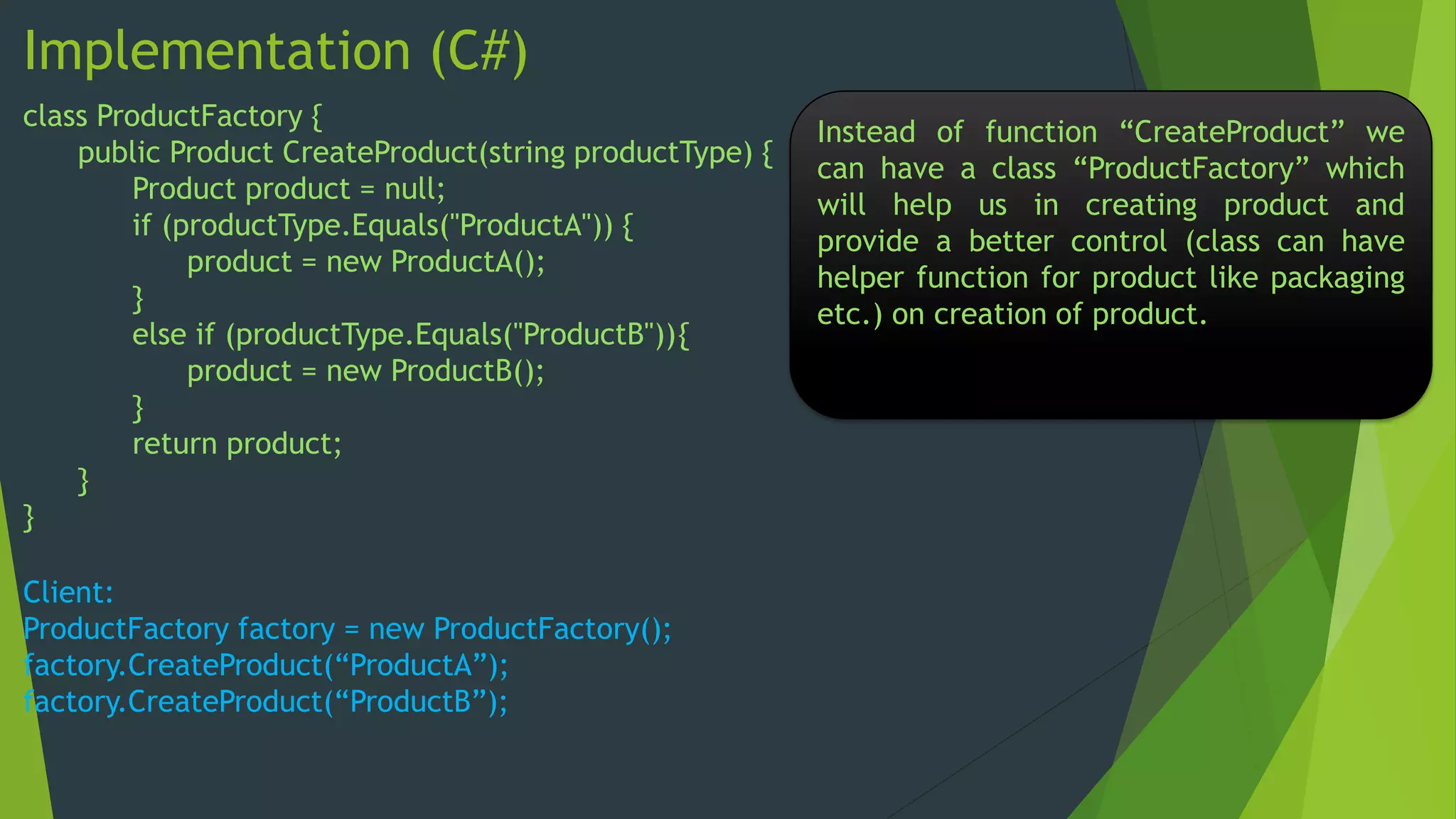

Implementation (C#)
class ProductFactory {
public Product CreateProduct(string productType) {
if (productType.Equals("ProductA")) {
}
else if (productType.Equals("ProductB")){
}
return product;
}
}
Client:
ProductFactory factory = new ProductFactory();
factory.CreateProduct(“ProductA”);
factory.CreateProduct(“ProductB”);

Instead of function “CreateProduct” we
can have a class “ProductFactory” which
will help us in creating product and
provide a better control (class can have
helper function for product like packaging
etc.) on creation of product.

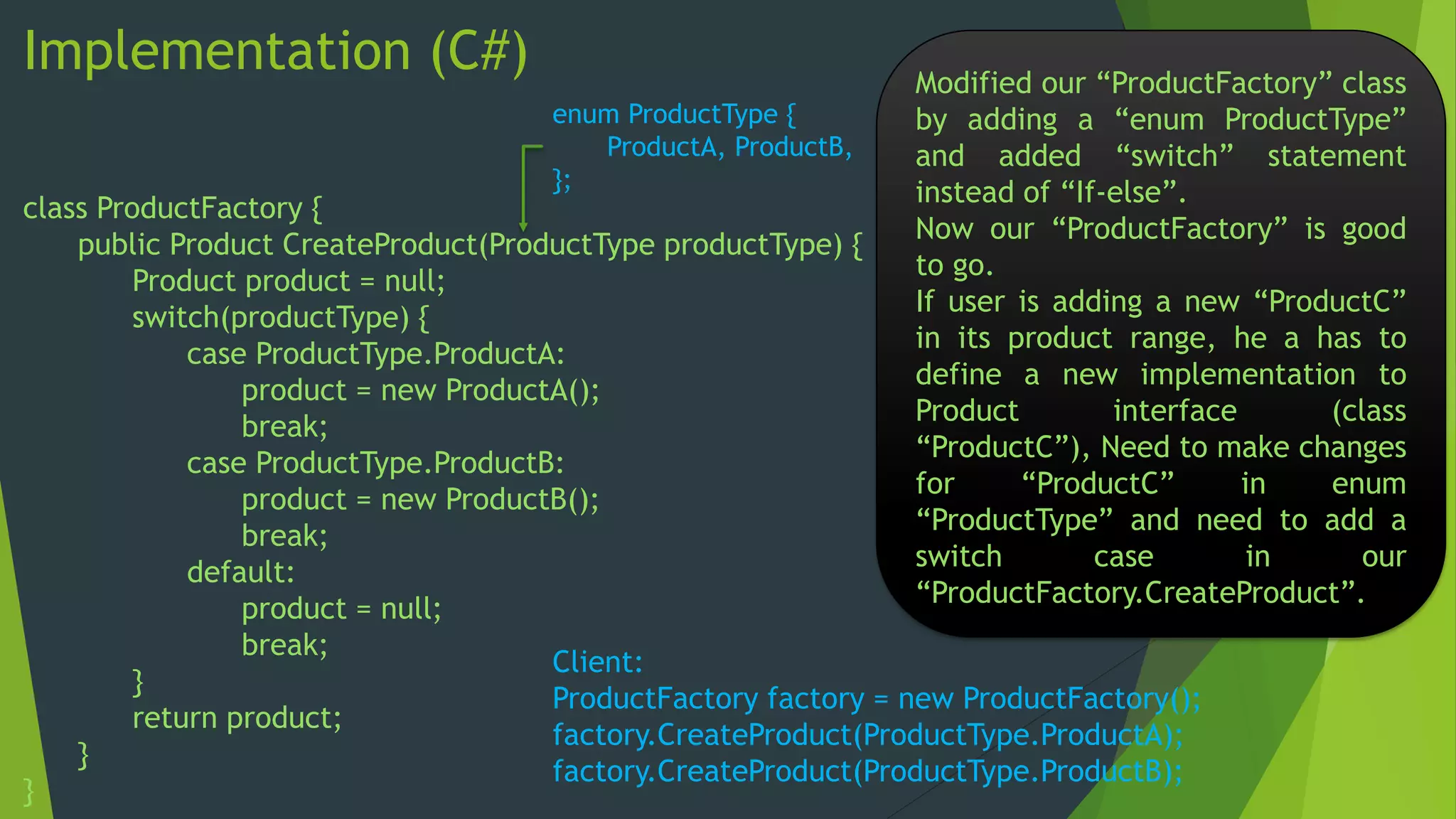

Implementation (C#)
enum ProductType {
ProductA, ProductB,
};

Modified our “ProductFactory” class
by adding a “enum ProductType”
and added “switch” statement
instead of “If-else”.
Now our “ProductFactory” is good
to go.
If user is adding a new “ProductC”
in its product range, he a has to
define a new implementation to
Product
interface
(class
“ProductC”), Need to make changes
for
“ProductC”
in
enum
“ProductType” and need to add a
switch
case
in
our
“ProductFactory.CreateProduct”.

public Product CreateProduct(ProductType productType) {
switch(productType) {
case ProductType.ProductA:
break;
case ProductType.ProductB:
break;
default:
product = null;
break;
Client:
}
return product;
factory.CreateProduct(ProductType.ProductA);
}
factory.CreateProduct(ProductType.ProductB);
}

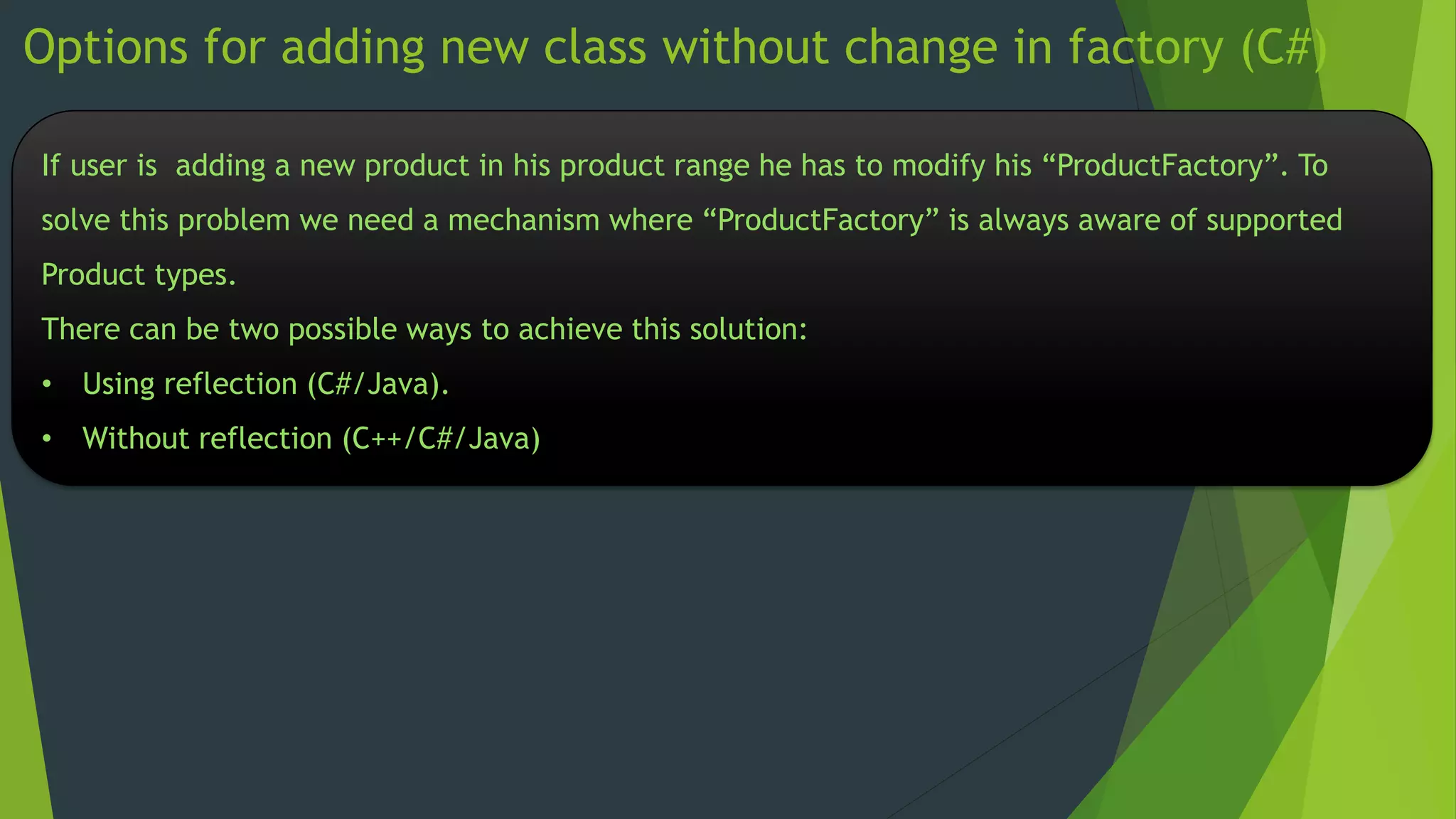

Options for adding new class without change in factory (C#)
If user is adding a new product in his product range he has to modify his “ProductFactory”. To
solve this problem we need a mechanism where “ProductFactory” is always aware of supported
Product types.

There can be two possible ways to achieve this solution:
• Using reflection (C#/Java).
• Without reflection (C++/C#/Java)

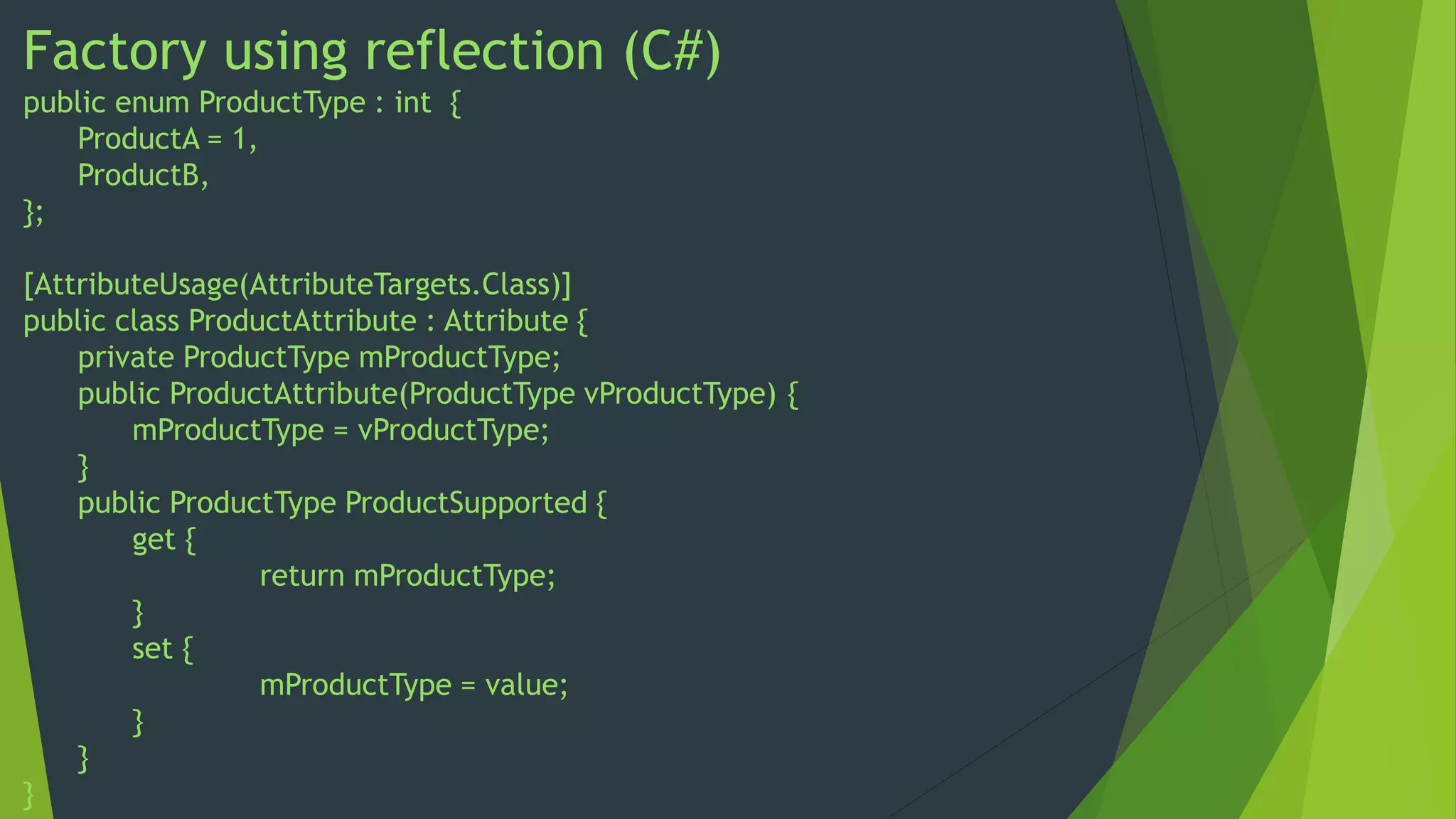

Factory using reflection (C#)
public enum ProductType : int {
ProductA = 1,
ProductB,
};
[AttributeUsage(AttributeTargets.Class)]
public class ProductAttribute : Attribute {
private ProductType mProductType;
public ProductAttribute(ProductType vProductType) {
mProductType = vProductType;
}
public ProductType ProductSupported {
get {
return mProductType;
}
set {
mProductType = value;
}
}
}

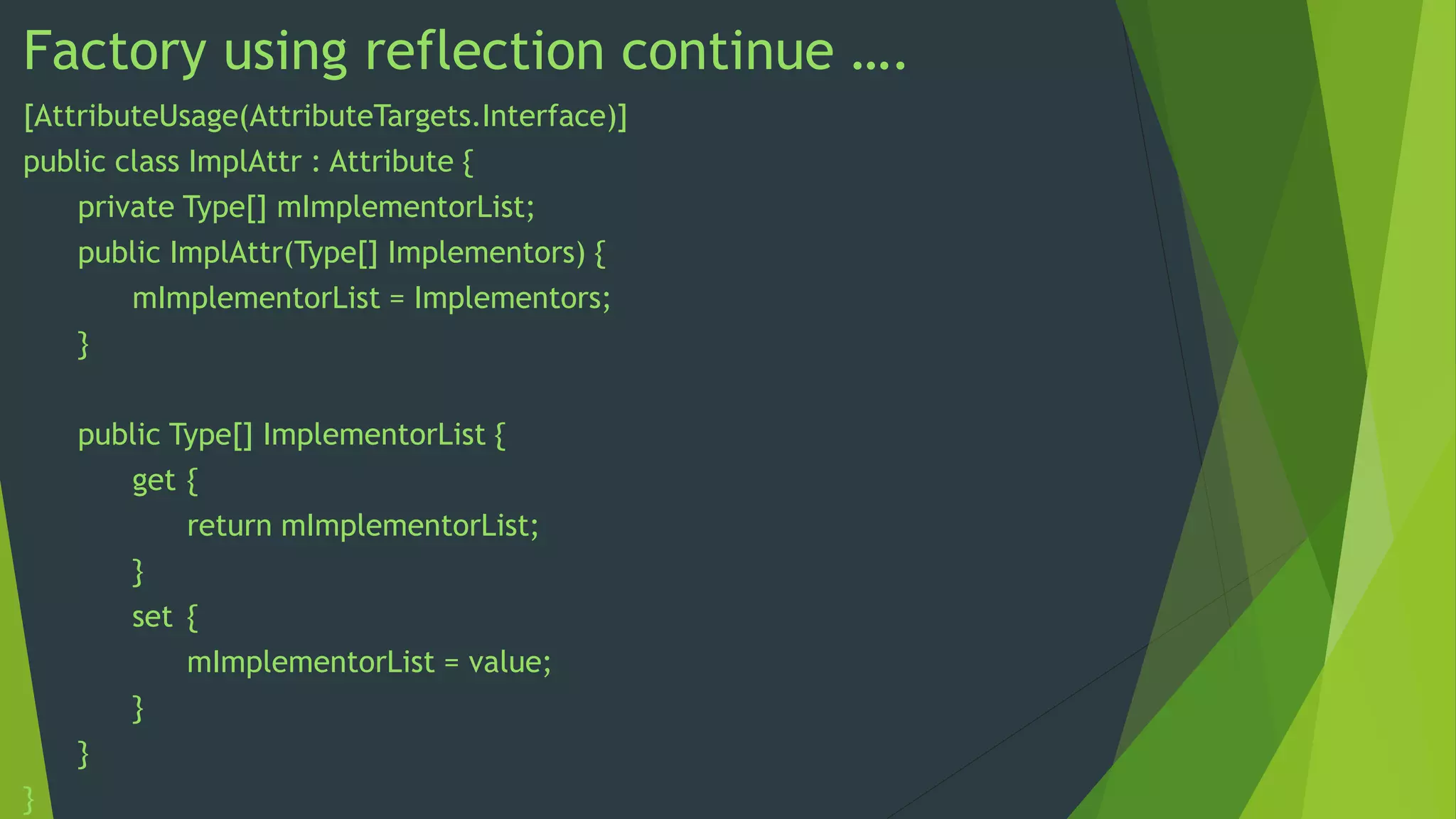

Factory using reflection continue ….
[AttributeUsage(AttributeTargets.Interface)]
public class ImplAttr : Attribute {
private Type[] mImplementorList;
public ImplAttr(Type[] Implementors) {
mImplementorList = Implementors;
}
public Type[] ImplementorList {
get {
return mImplementorList;
}
set {
mImplementorList = value;
}
}

}

[ImplAttr(new Type[] { typeof(ProductA), typeof(ProductB)})]
interface Product {
void Print();
}
[ProductAttribute(ProductType.ProductA)]
class ProductA : Product {
public void Print() {
Console.WriteLine("I am ProductA");
}
}
[ProductAttribute(ProductType.ProductB)]
class ProductB : Product {
Console.WriteLine("I am ProductB");
}
}

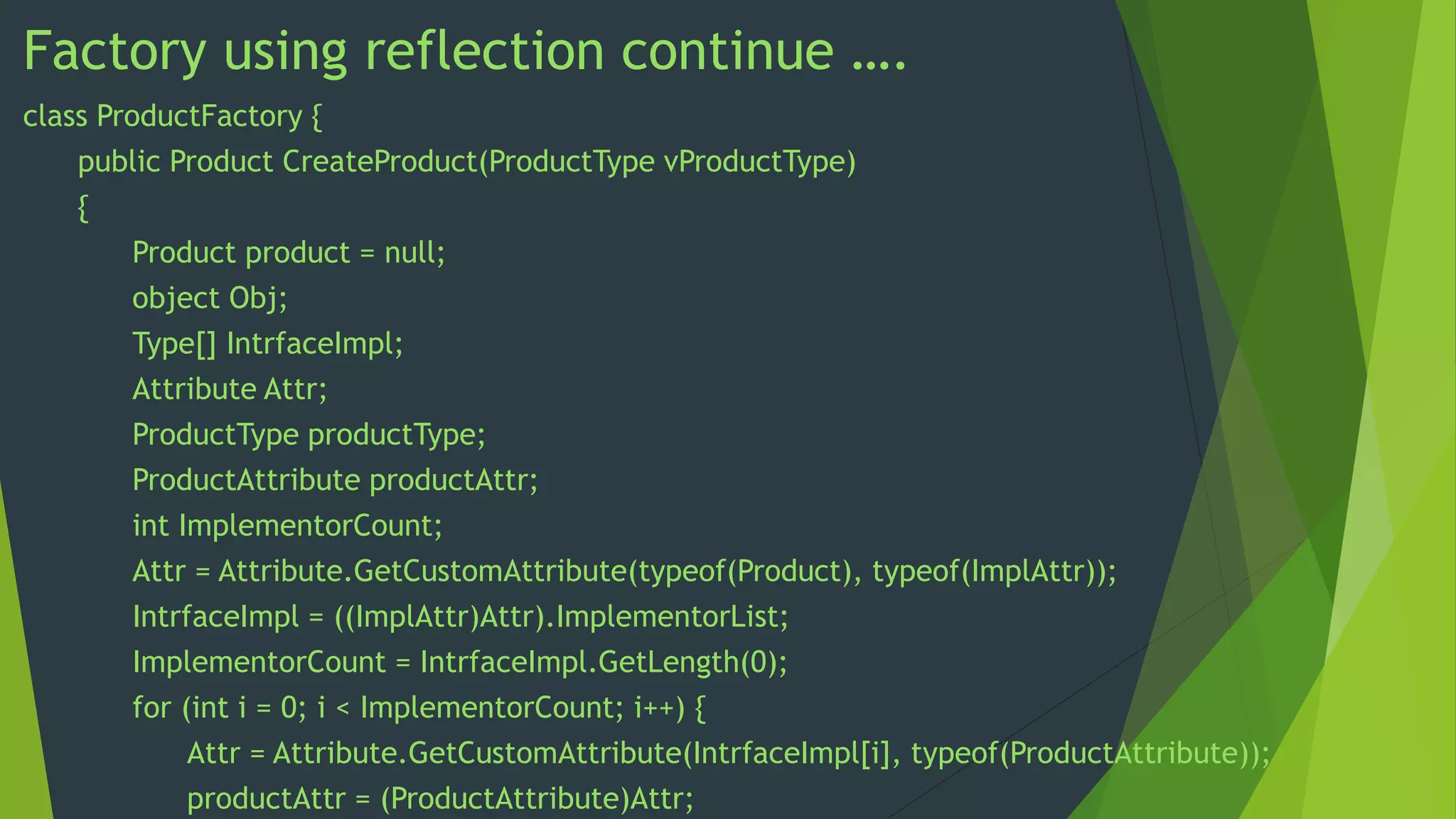

public Product CreateProduct(ProductType vProductType)
{
object Obj;
Type[] IntrfaceImpl;
Attribute Attr;
ProductType productType;
ProductAttribute productAttr;
int ImplementorCount;
Attr = Attribute.GetCustomAttribute(typeof(Product), typeof(ImplAttr));
IntrfaceImpl = ((ImplAttr)Attr).ImplementorList;
ImplementorCount = IntrfaceImpl.GetLength(0);
for (int i = 0; i < ImplementorCount; i++) {
Attr = Attribute.GetCustomAttribute(IntrfaceImpl[i], typeof(ProductAttribute));
productAttr = (ProductAttribute)Attr;

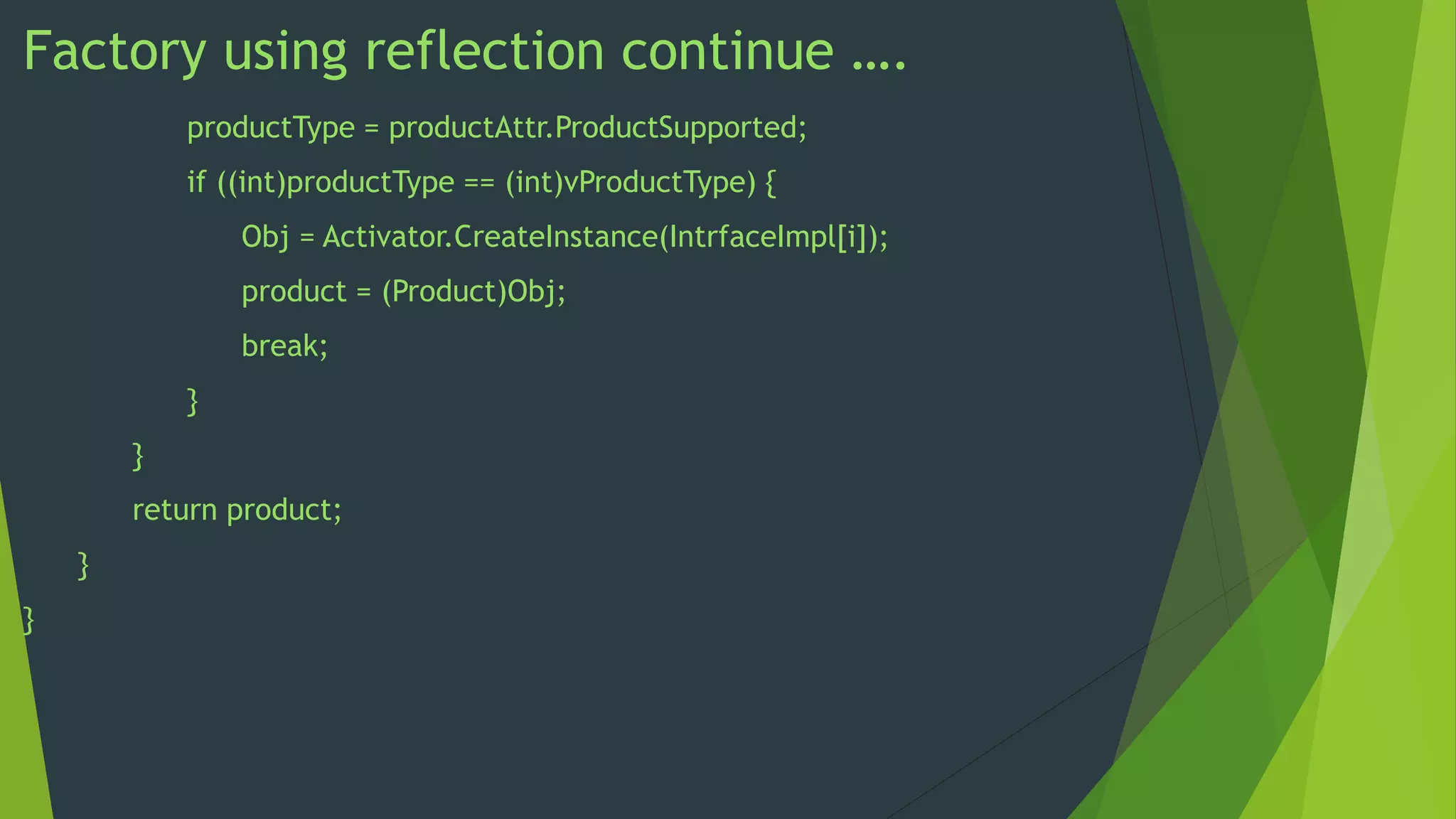

productType = productAttr.ProductSupported;

if ((int)productType == (int)vProductType) {
Obj = Activator.CreateInstance(IntrfaceImpl[i]);
product = (Product)Obj;

break;
}
}
return product;
}
}

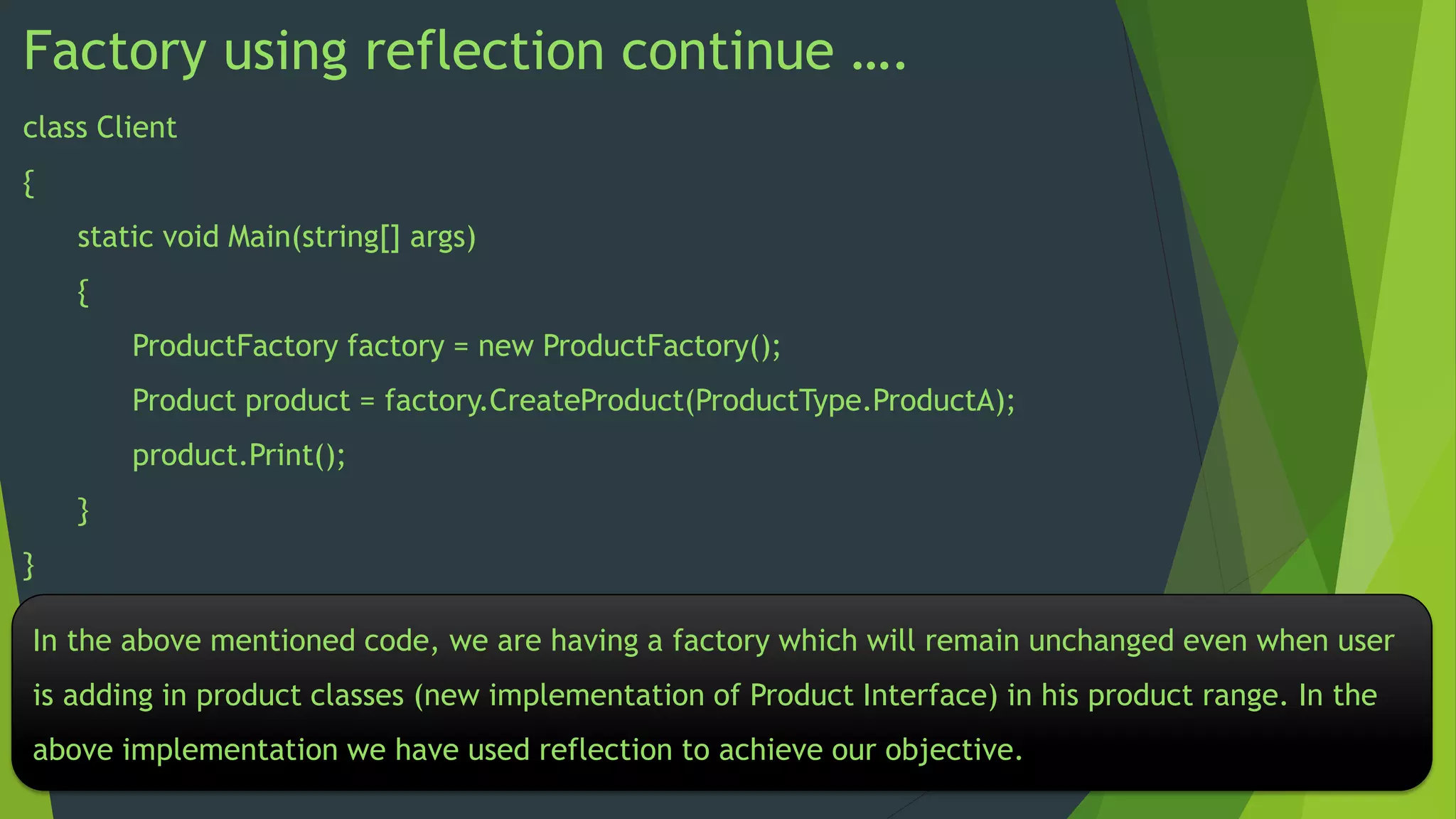

class Client

{
static void Main(string[] args)
{

Product product = factory.CreateProduct(ProductType.ProductA);
product.Print();
}
}
In the above mentioned code, we are having a factory which will remain unchanged even when user
is adding in product classes (new implementation of Product Interface) in his product range. In the
above implementation we have used reflection to achieve our objective.

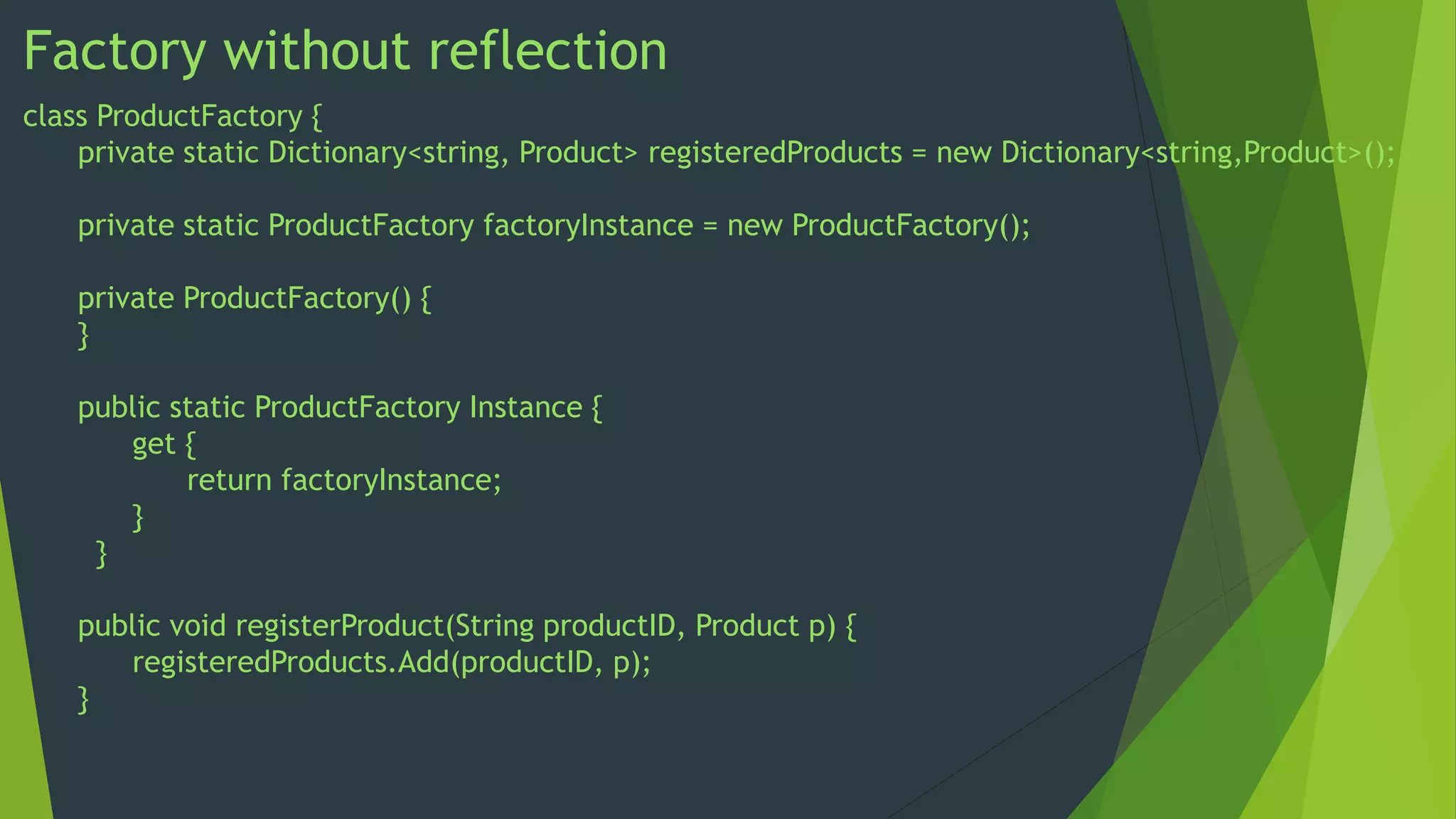

Factory without reflection
private static Dictionary<string, Product> registeredProducts = new Dictionary<string,Product>();
private static ProductFactory factoryInstance = new ProductFactory();
private ProductFactory() {
}
public static ProductFactory Instance {
get {
return factoryInstance;
}
}

public void registerProduct(String productID, Product p) {
registeredProducts.Add(productID, p);
}

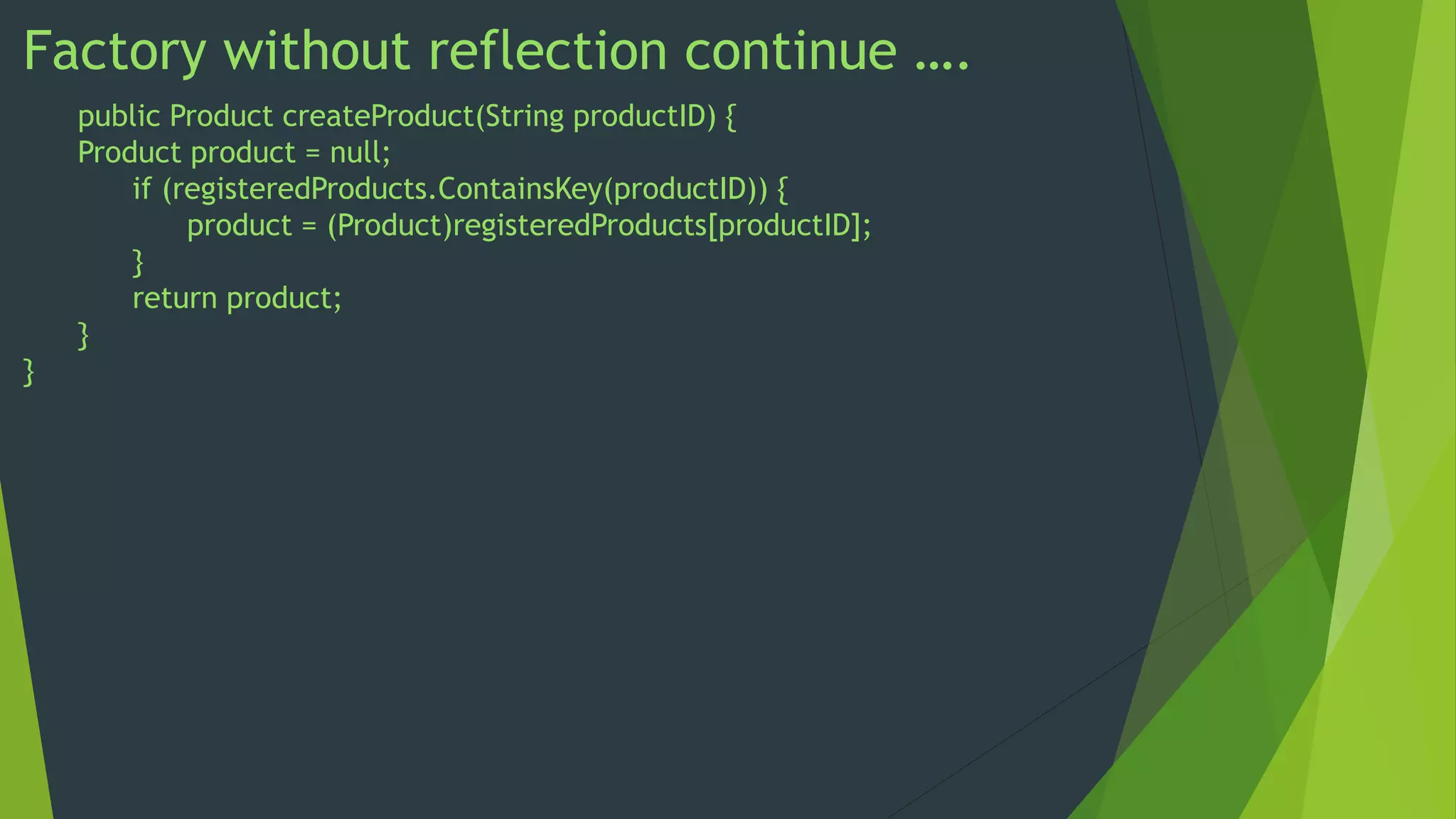

Factory without reflection continue ….
public Product createProduct(String productID) {
if (registeredProducts.ContainsKey(productID)) {
product = (Product)registeredProducts[productID];
}
return product;
}
}

interface Product {
void Print();
}
class ProductA: Product {
public static void RegisterID(string id) {
ProductFactory.Instance.registerProduct(id, new ProductA());
}
System.Console.WriteLine("I am ProductA");
}
}
class ProductB : Product {
public static void RegisterID(string id) {
ProductFactory.Instance.registerProduct(id, new ProductB());
}
System.Console.WriteLine("I am ProductB");
}
}

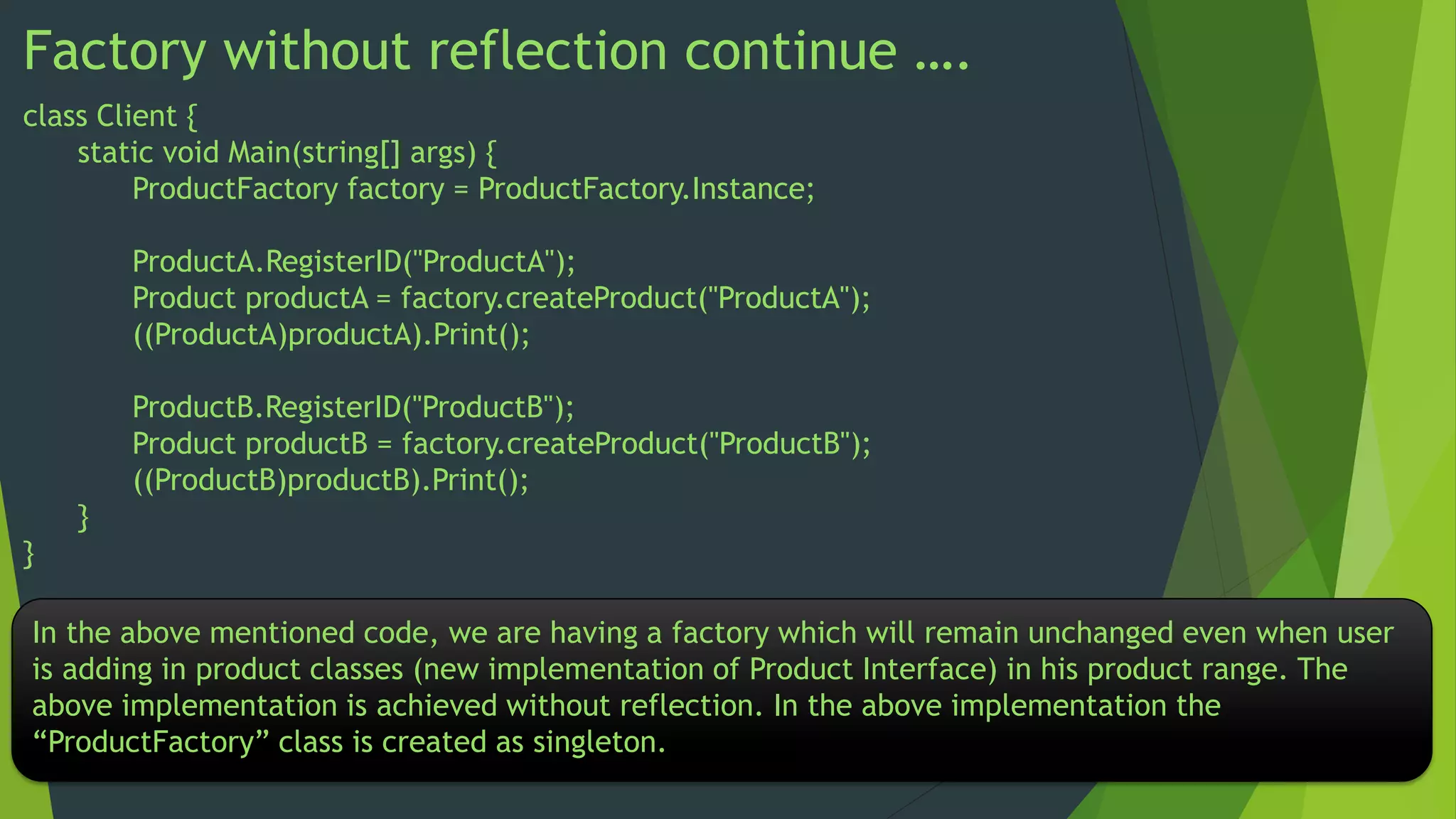

class Client {
static void Main(string[] args) {
ProductFactory factory = ProductFactory.Instance;
ProductA.RegisterID("ProductA");
Product productA = factory.createProduct("ProductA");
((ProductA)productA).Print();
ProductB.RegisterID("ProductB");
Product productB = factory.createProduct("ProductB");
((ProductB)productB).Print();
}
}
In the above mentioned code, we are having a factory which will remain unchanged even when user
is adding in product classes (new implementation of Product Interface) in his product range. The
above implementation is achieved without reflection. In the above implementation the
“ProductFactory” class is created as singleton.
