Embedded Rust – Rust on IoT devices

@choas#Devoxx #embeddedRust
Embedded Rust  
Rust on IoT devices
Lars Gregori
SAP Hybris

Hybris Labs Prototypes
https://labs.hybris.com/prototype/

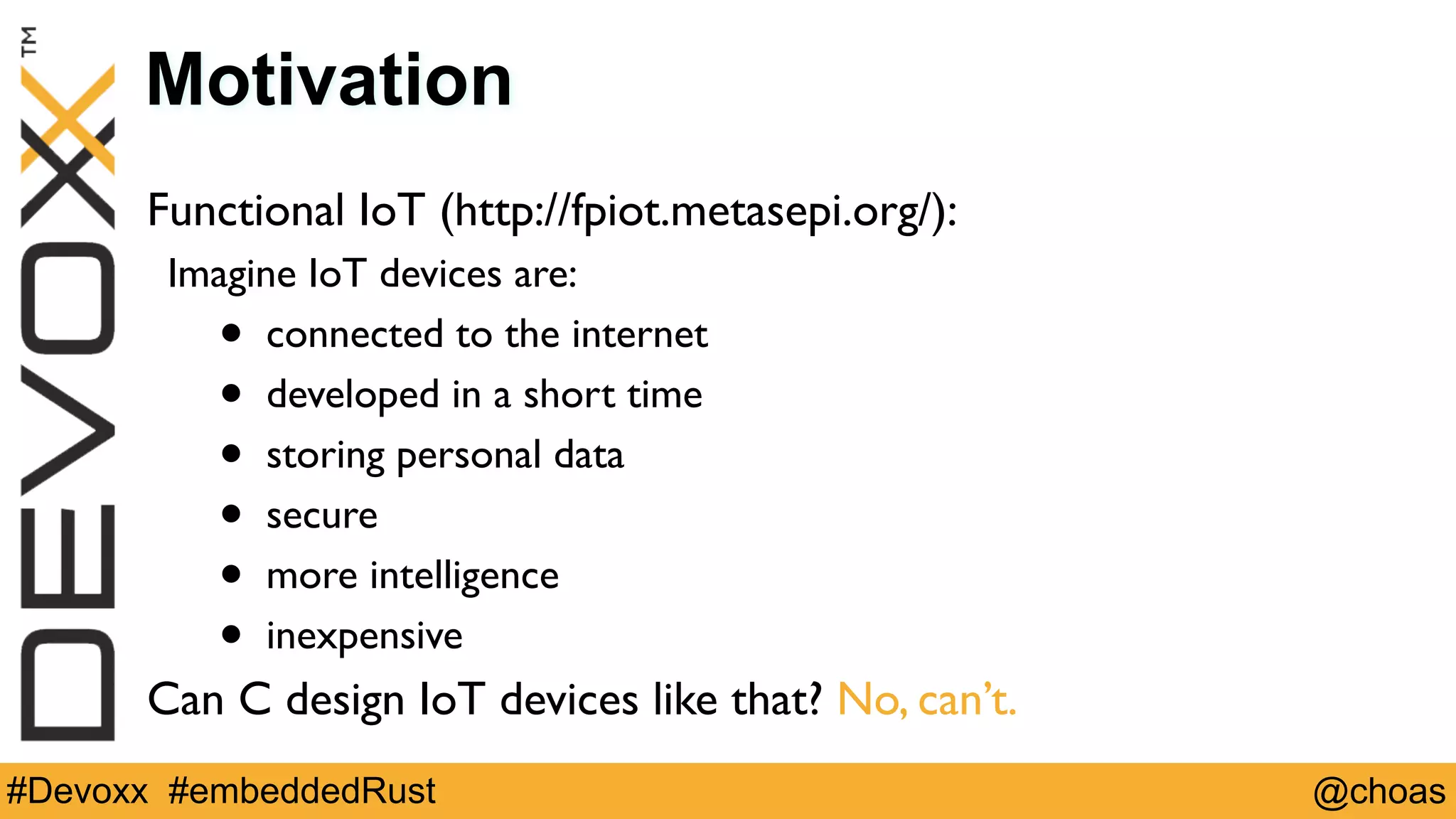

Motivation
Functional IoT (http://fpiot.metasepi.org/):
Imagine IoT devices are:
• connected to the internet
• developed in a short time
• storing personal data
• secure
• more intelligence
• inexpensive
Can C design IoT devices like that? No, can’t.

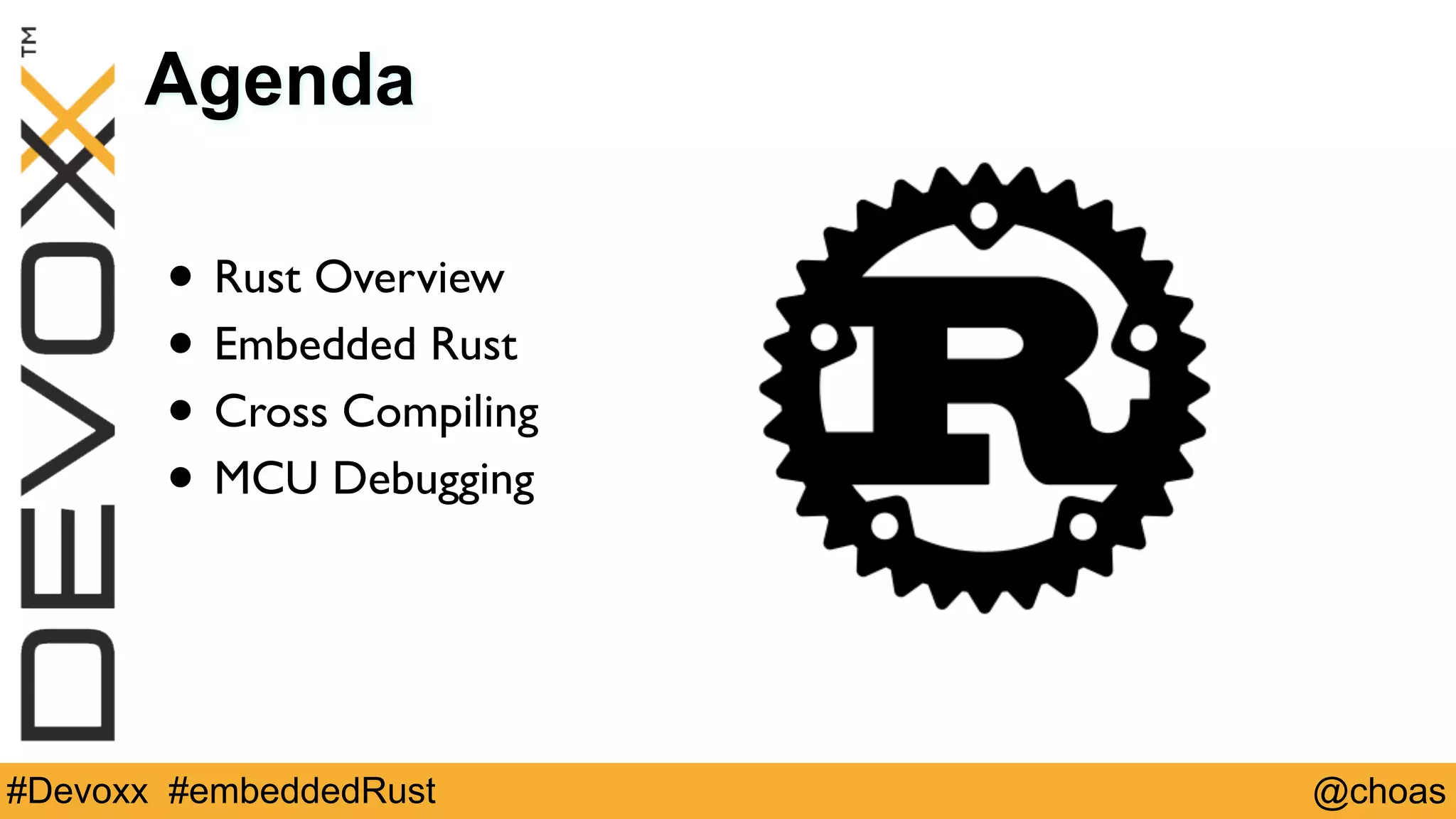

Agenda
• Rust Overview
• Embedded Rust
• Cross Compiling
• MCU Debugging

Rust Overview

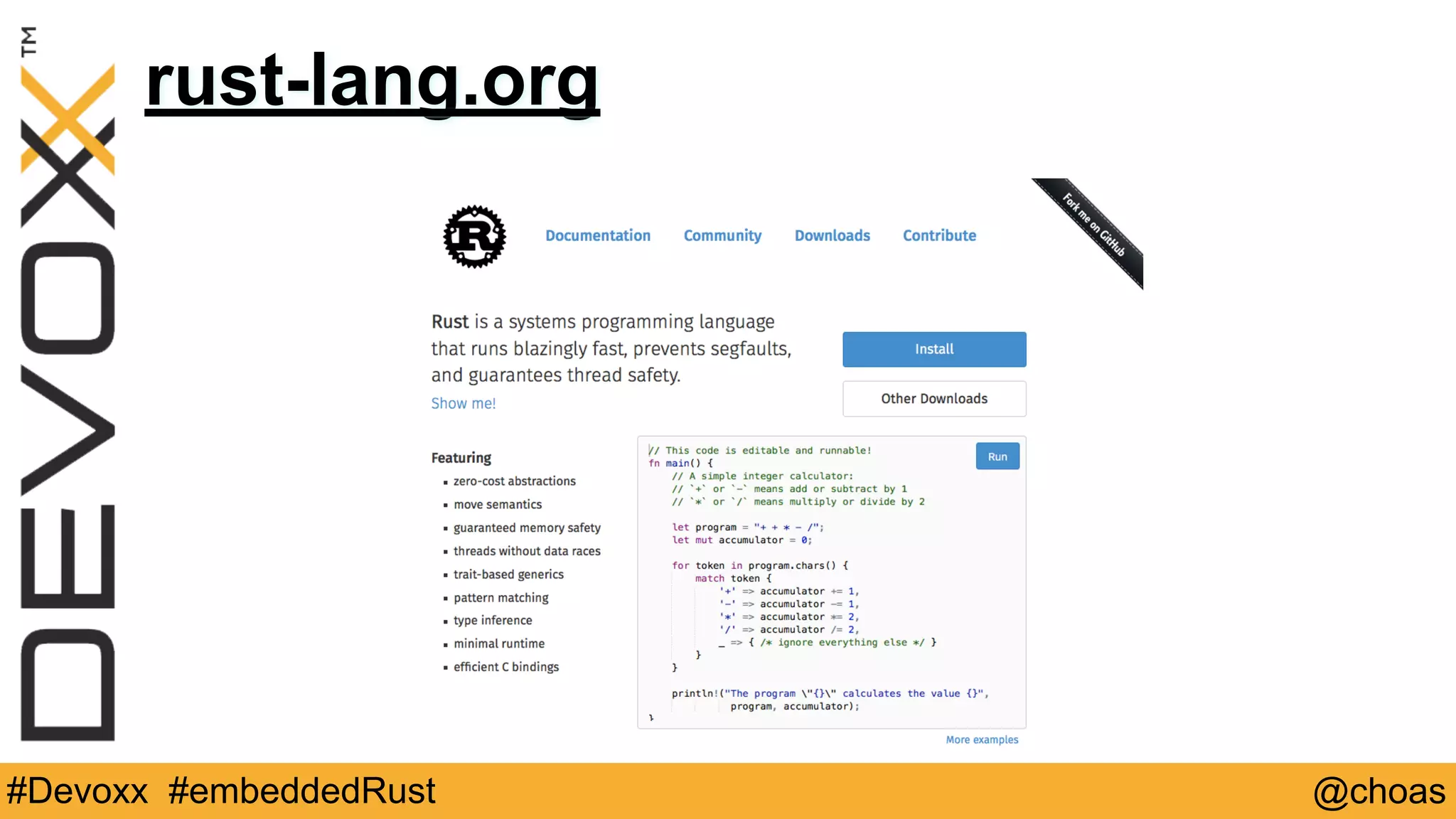

rust-lang.org

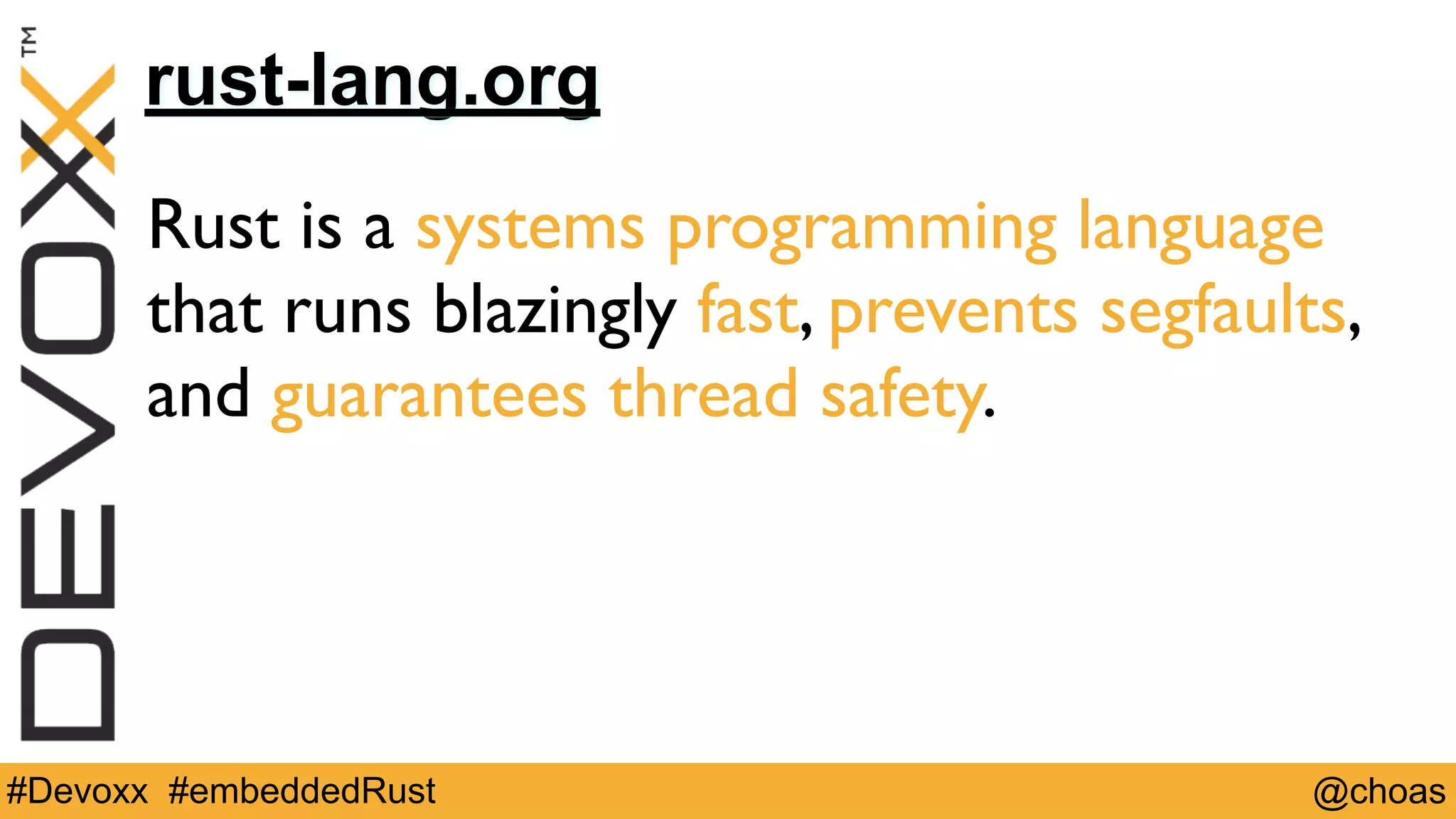

rust-lang.org
Rust is a systems programming language
that runs blazingly fast, prevents segfaults,
and guarantees thread safety.

Rust Overview

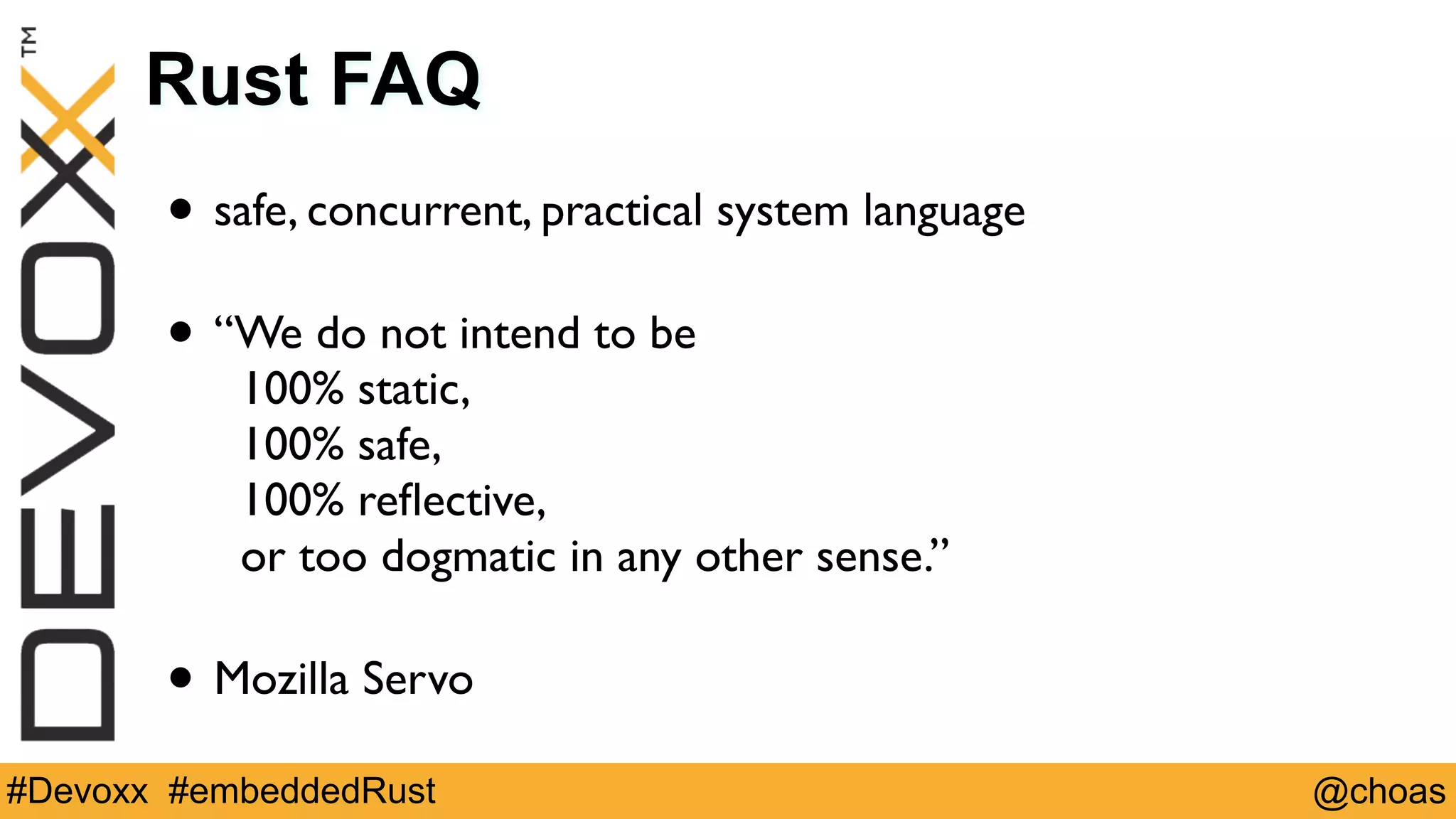

Rust FAQ

Rust FAQ
• safe, concurrent, practical system language 
• “We do not intend to be  
100% static,  
100% safe,  
100% reﬂective,  
or too dogmatic in any other sense.” 
• Mozilla Servo

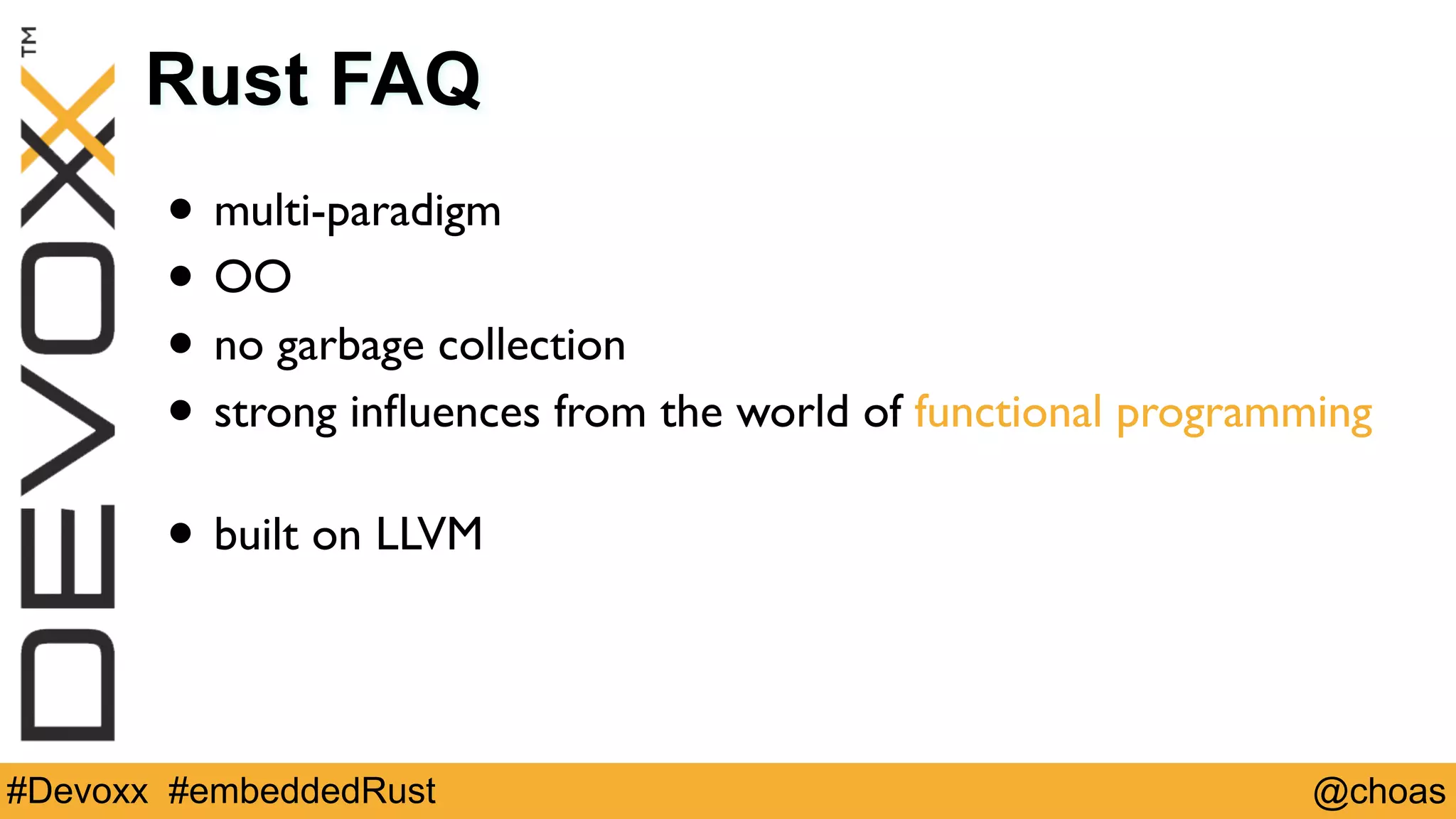

Rust FAQ
• multi-paradigm
• OO
• no garbage collection
• strong inﬂuences from the world of functional programming 
• built on LLVM

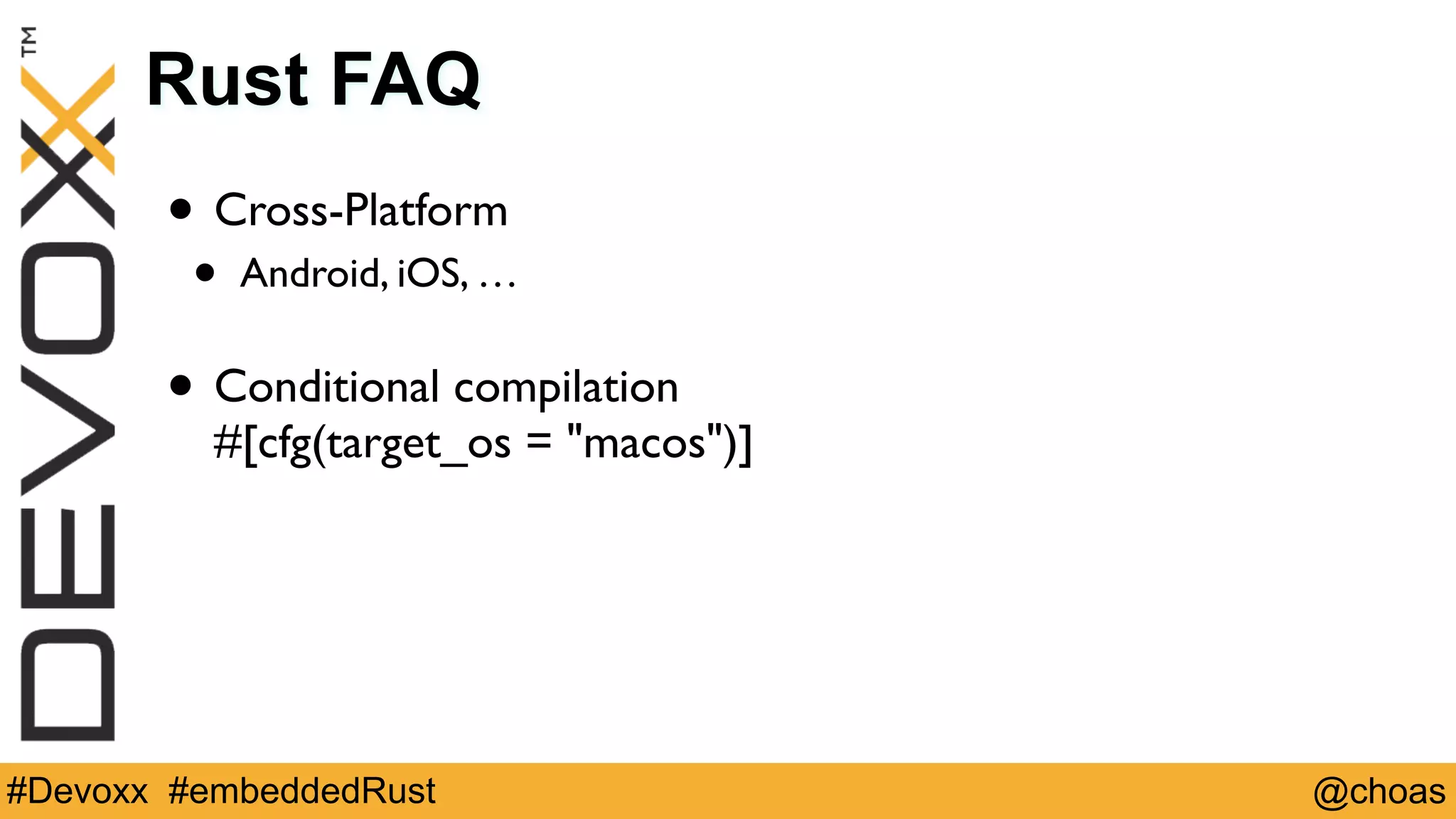

Rust FAQ
• Cross-Platform
• Android, iOS, … 
• Conditional compilation 
#[cfg(target_os = "macos")]

Rust Overview
Control & Safety

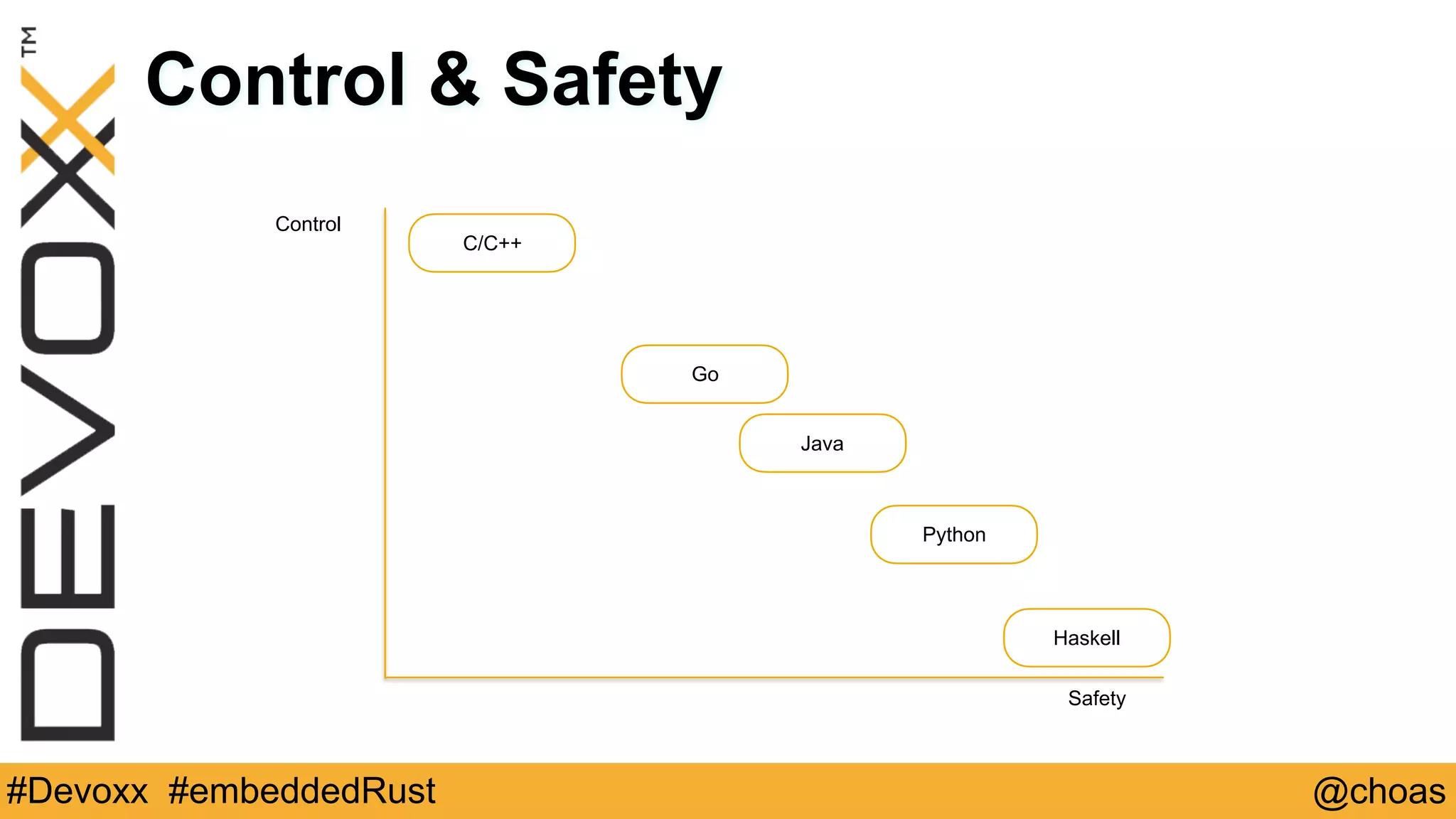

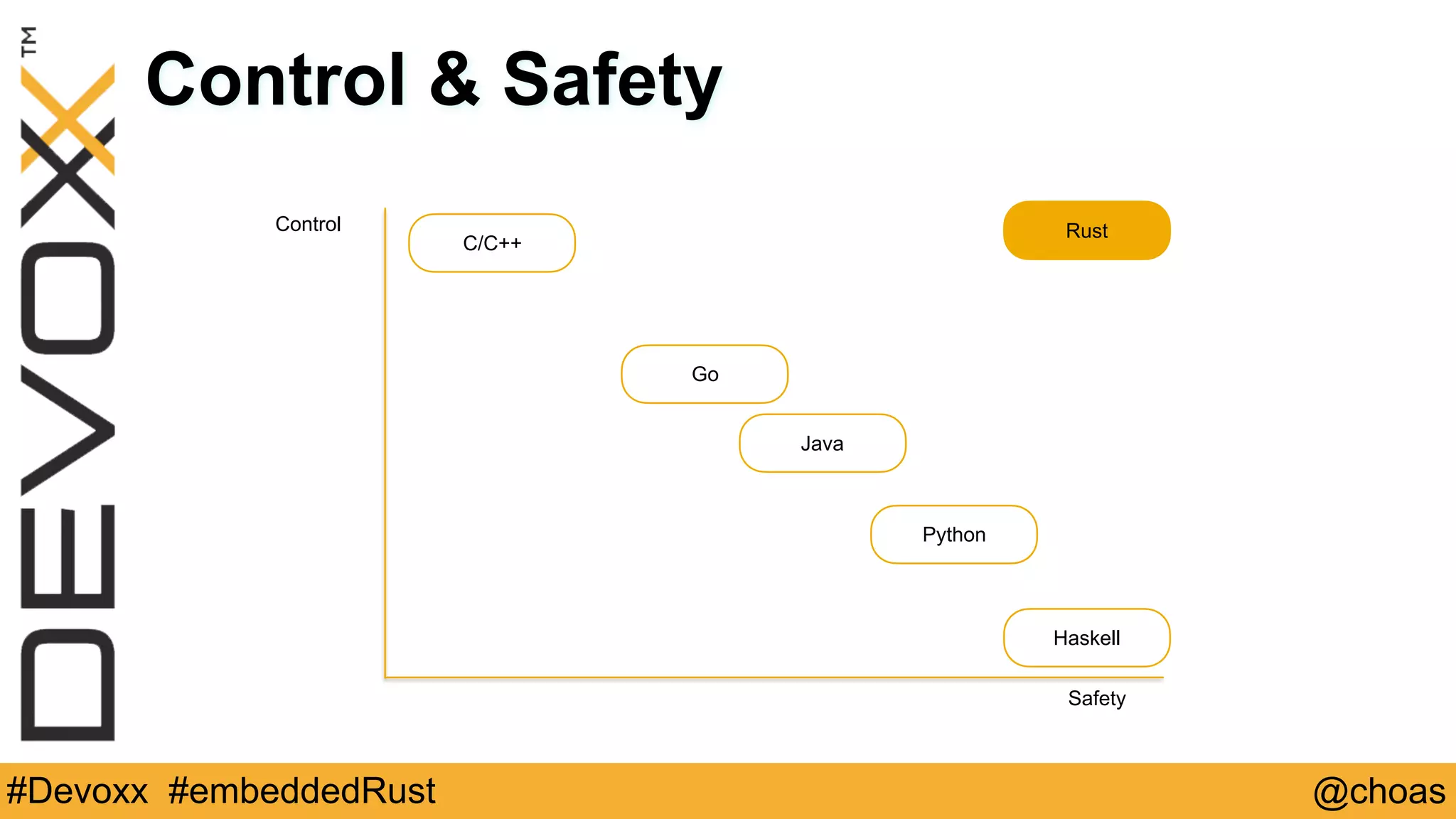

Control & Safety
C/C++
Safety
Control
Haskell
Go
Java
Python

Control & Safety
C/C++
Safety
Control
Haskell
Go
Java
Rust
Python

Rust Overview
Rust Concepts

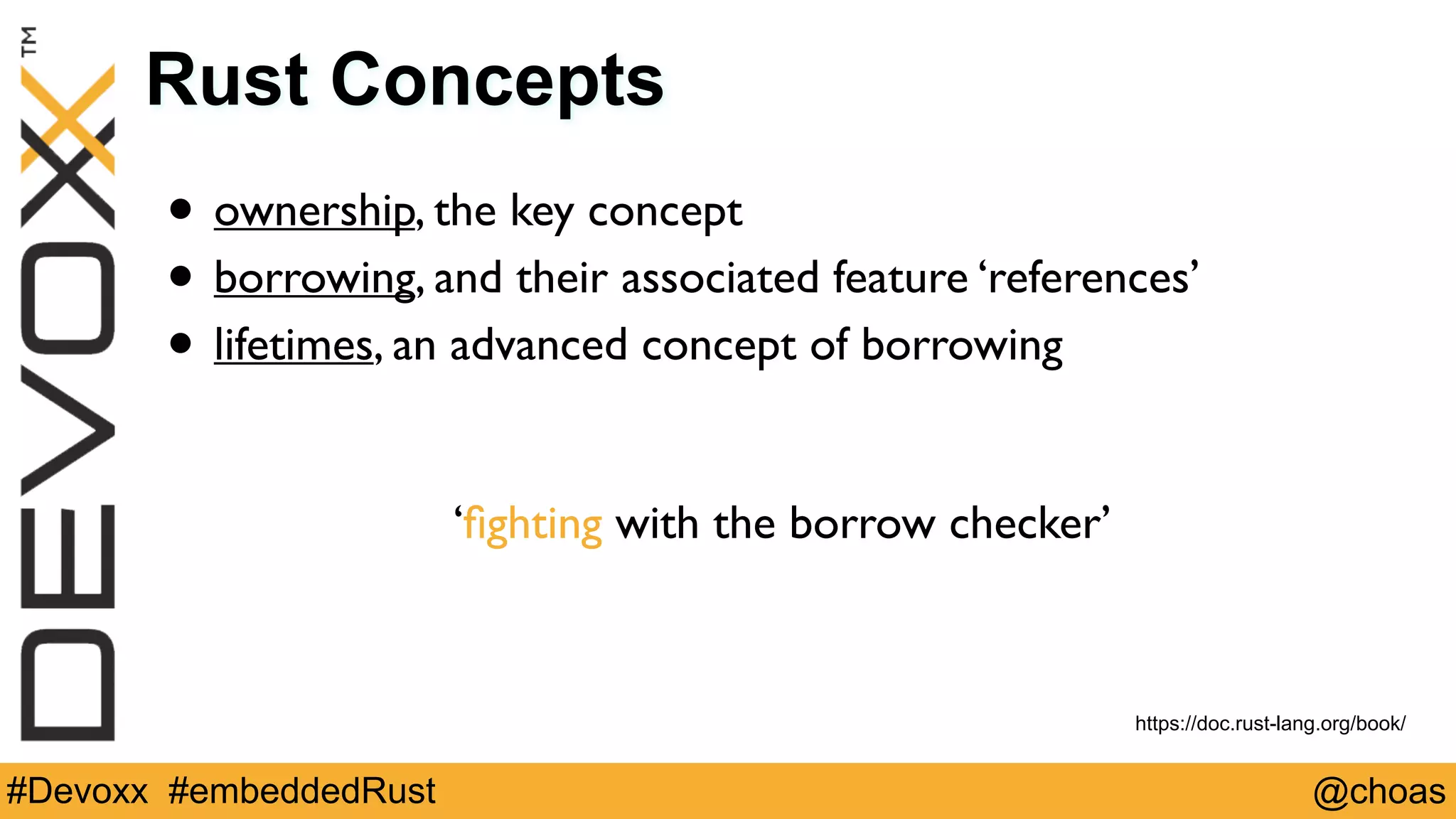

Rust Concepts
• ownership, the key concept
• borrowing, and their associated feature ‘references’
• lifetimes, an advanced concept of borrowing 
 
‘ﬁghting with the borrow checker’
https://doc.rust-lang.org/book/

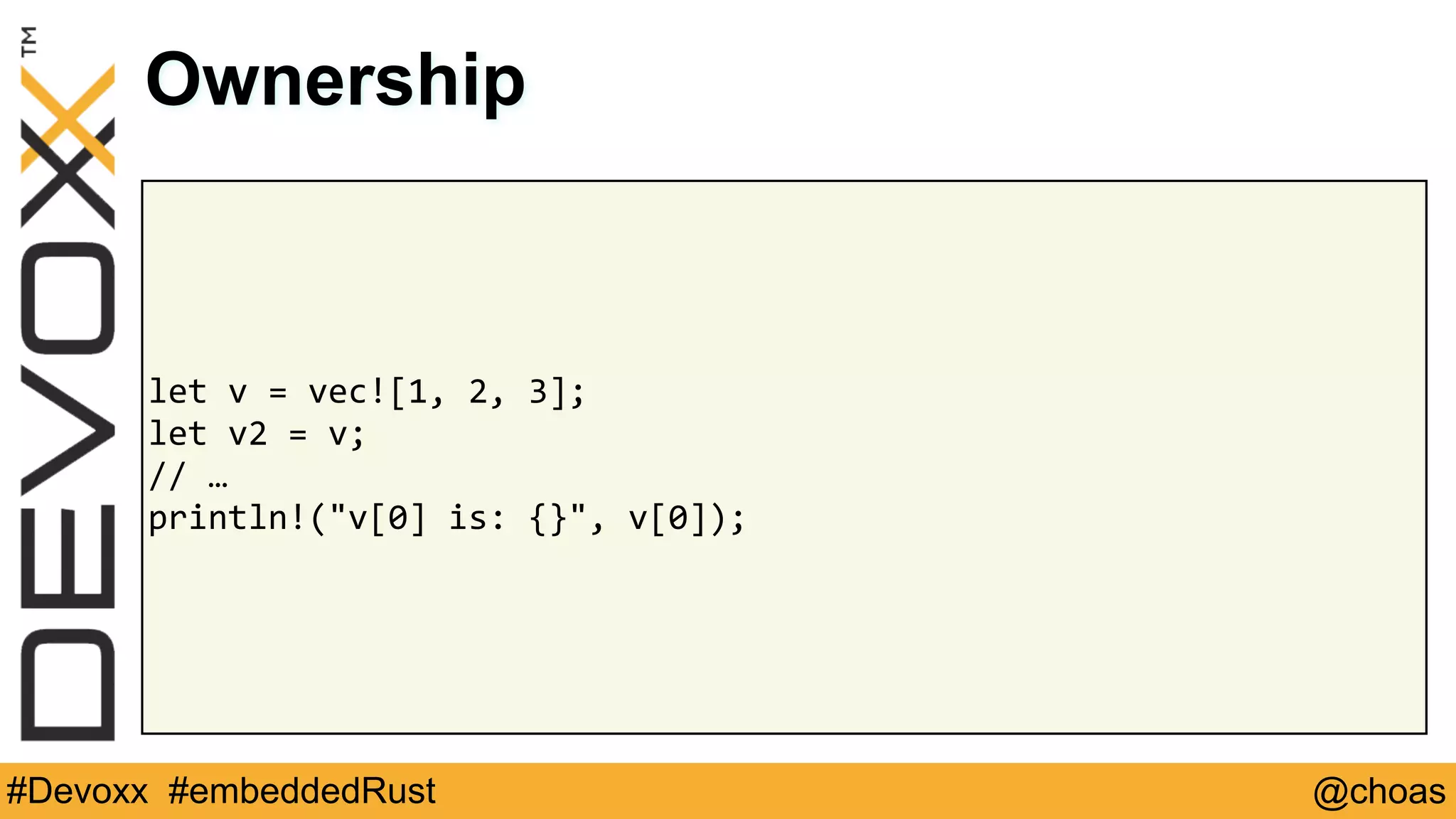

let v = vec![1, 2, 3];
let v2 = v;
// …
println!("v[0] is: {}", v[0]);
Ownership

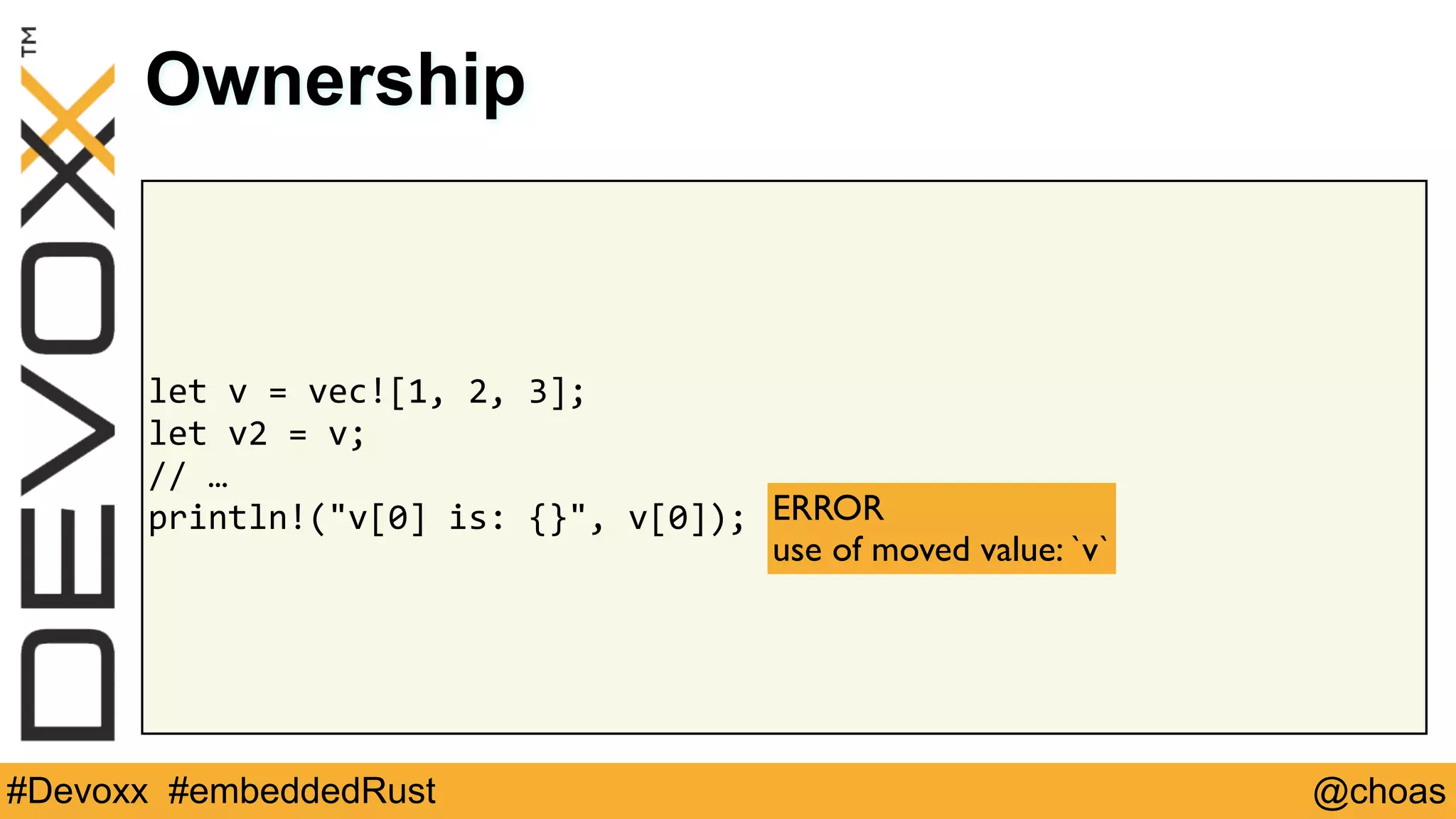

let v = vec![1, 2, 3];
let v2 = v;
// …
println!("v[0] is: {}", v[0]);
Ownership
ERROR 
use of moved value: `v`

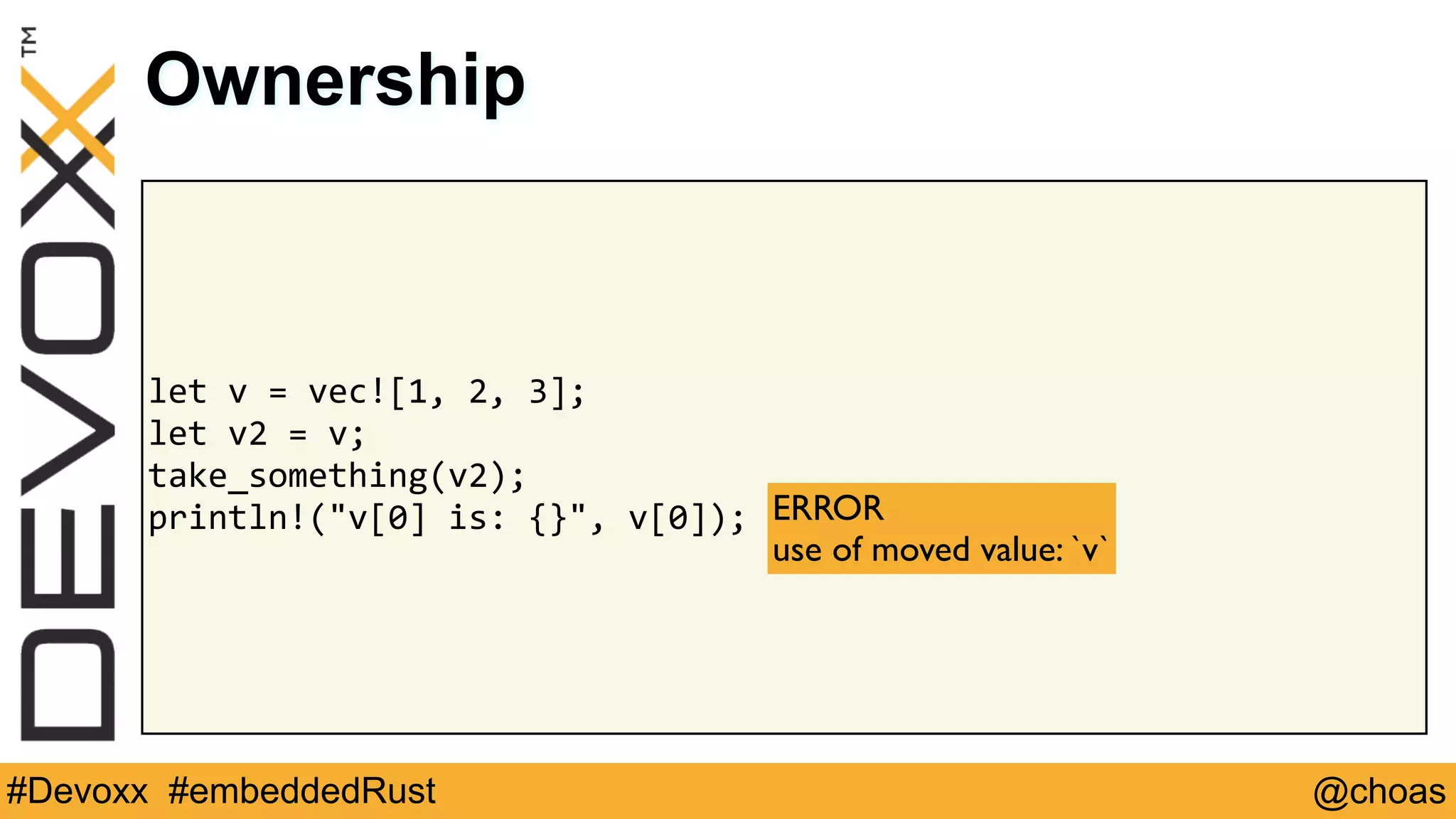

let v = vec![1, 2, 3];
let v2 = v;
take_something(v2);
println!("v[0] is: {}", v[0]);
Ownership
ERROR 
use of moved value: `v`

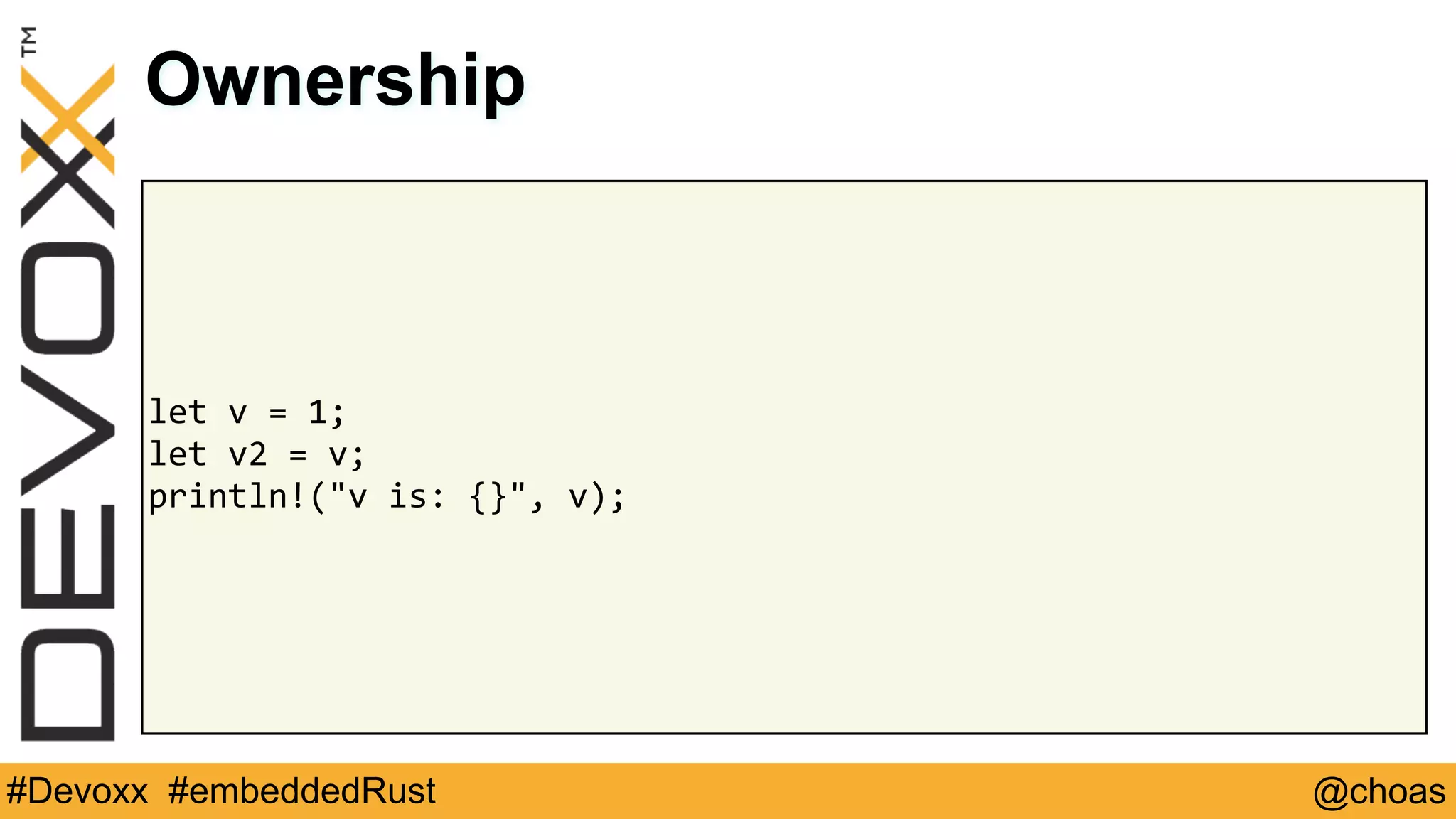

let v = 1;
let v2 = v;
println!("v is: {}", v);
Ownership

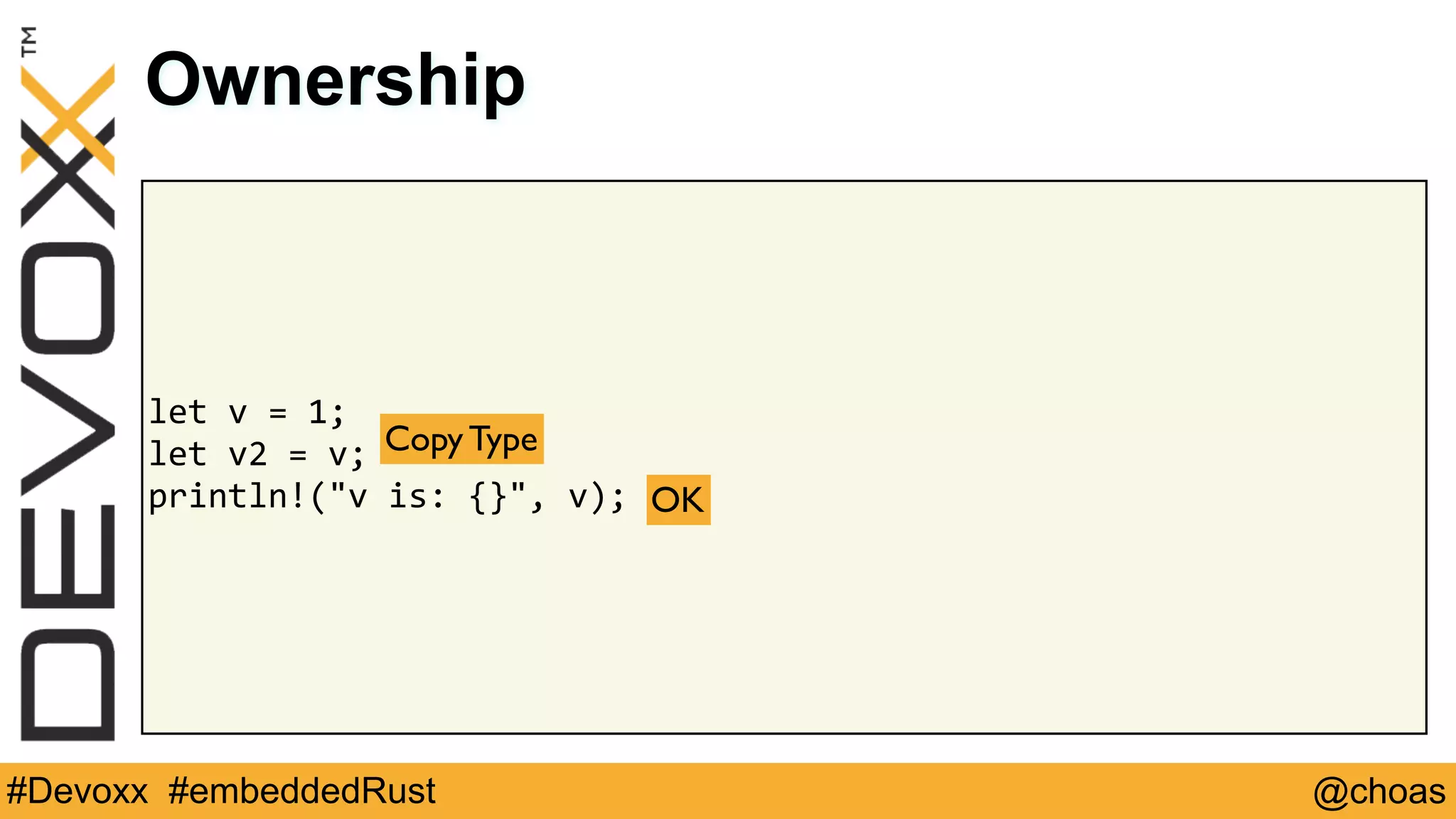

let v = 1;
let v2 = v;
println!("v is: {}", v);
Ownership
Copy Type
OK

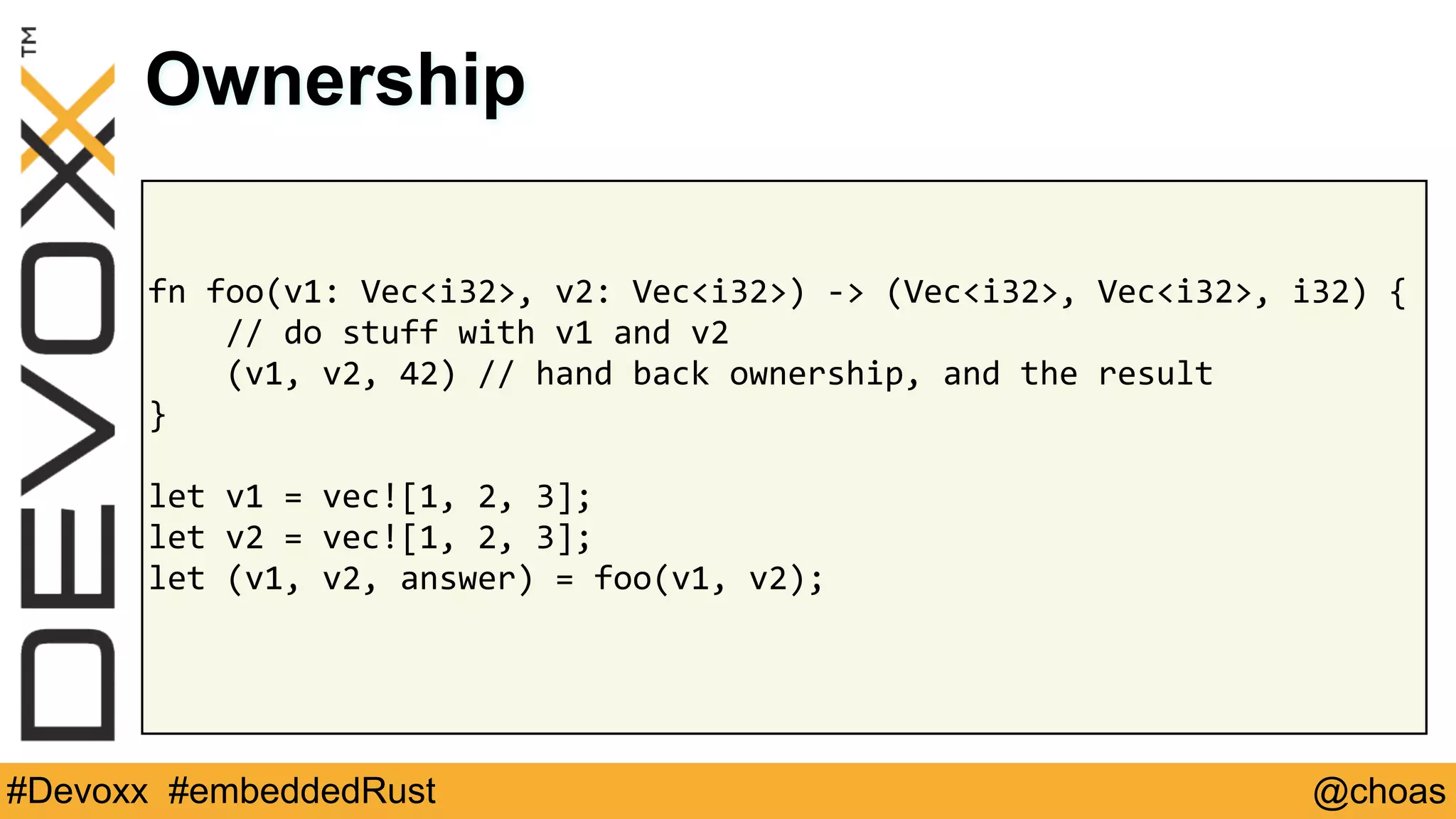

fn foo(v1: Vec<i32>, v2: Vec<i32>) -> (Vec<i32>, Vec<i32>, i32) {
// do stuff with v1 and v2
(v1, v2, 42) // hand back ownership, and the result
}
let v1 = vec![1, 2, 3];
let v2 = vec![1, 2, 3];
let (v1, v2, answer) = foo(v1, v2);
Ownership

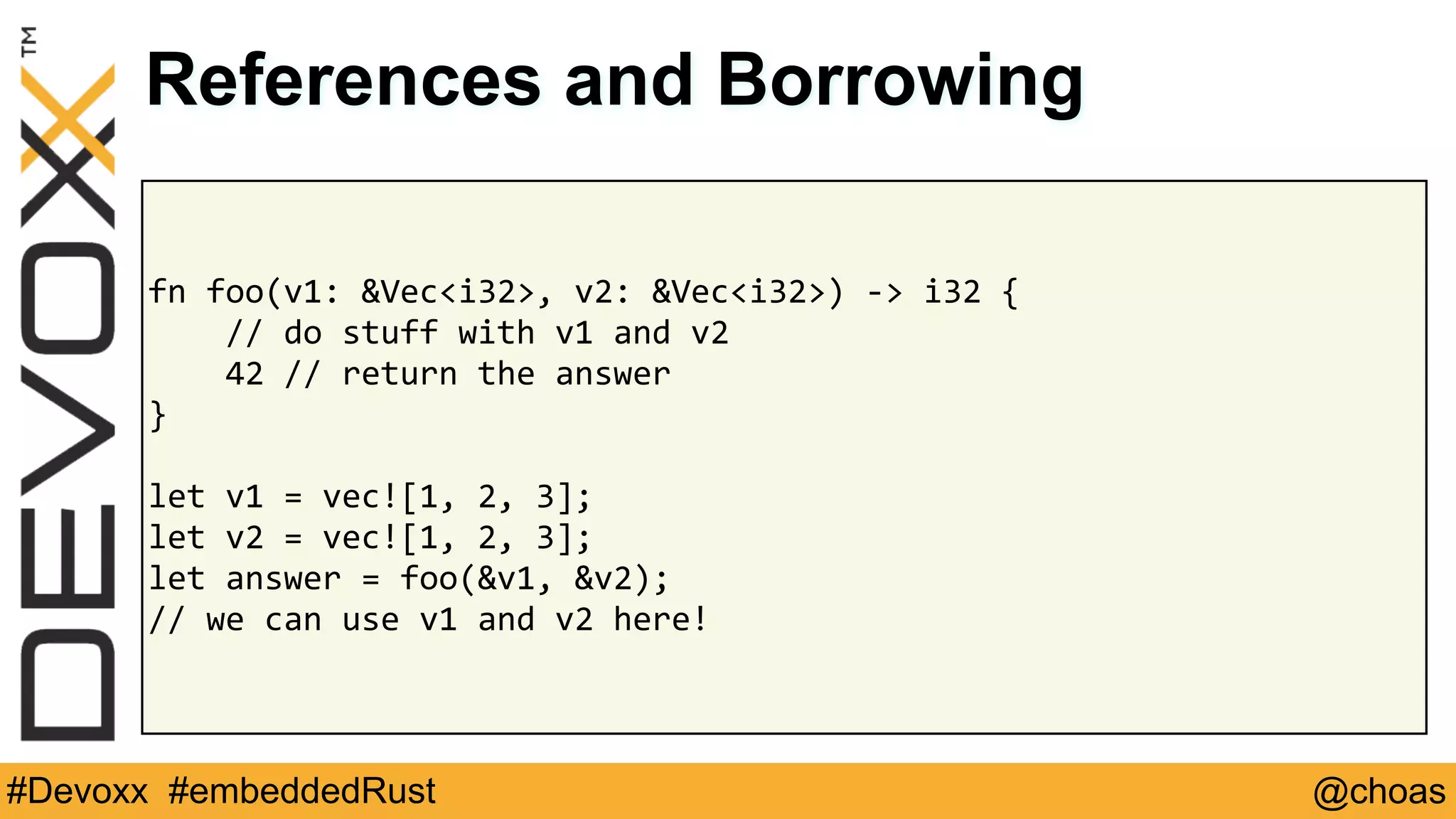

fn foo(v1: &Vec<i32>, v2: &Vec<i32>) -> i32 {
// do stuff with v1 and v2
42 // return the answer
}
let v1 = vec![1, 2, 3];
let v2 = vec![1, 2, 3];
let answer = foo(&v1, &v2);
// we can use v1 and v2 here!
References and Borrowing

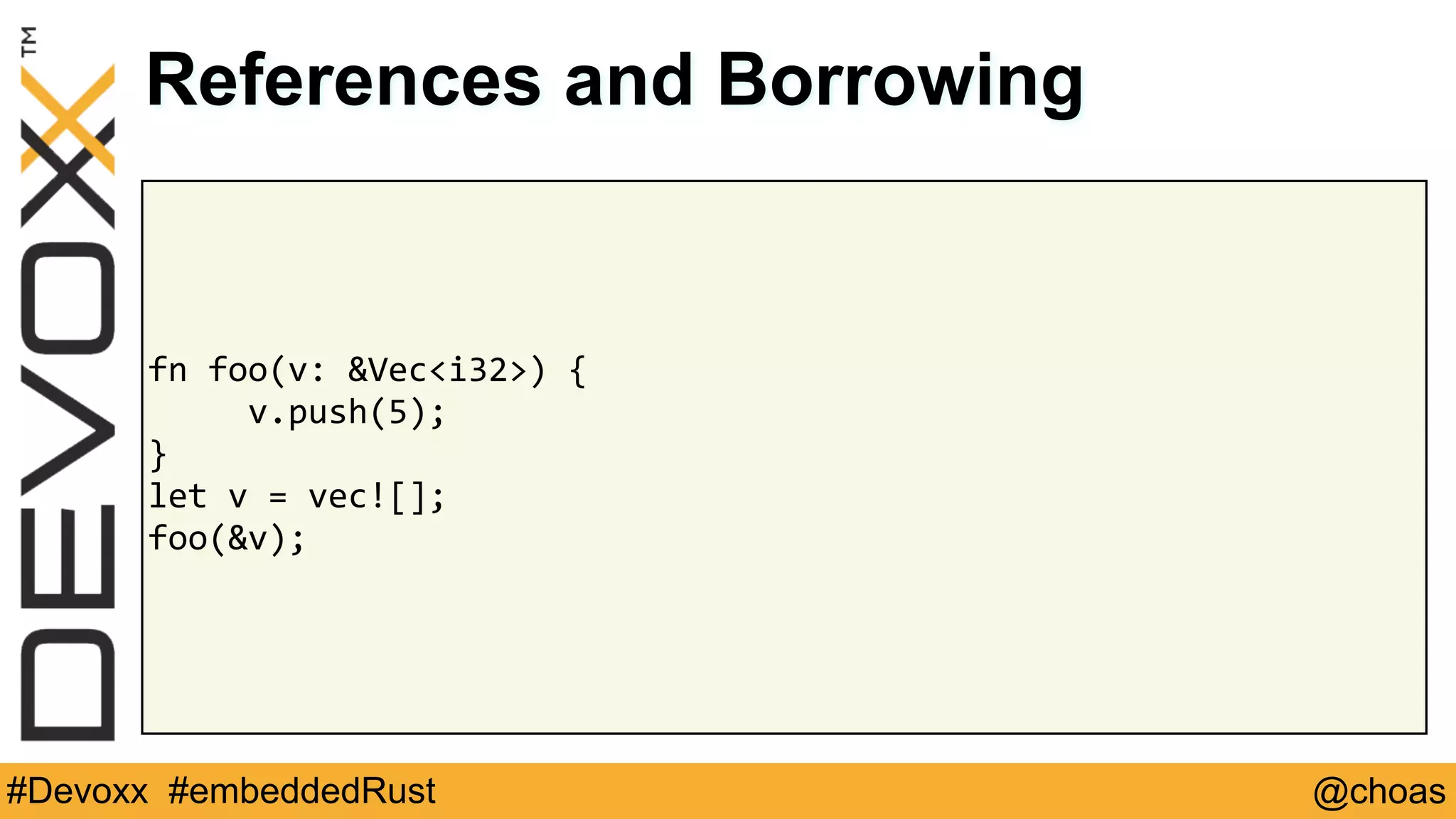

fn foo(v: &Vec<i32>) {
v.push(5);
}
let v = vec![];
foo(&v);

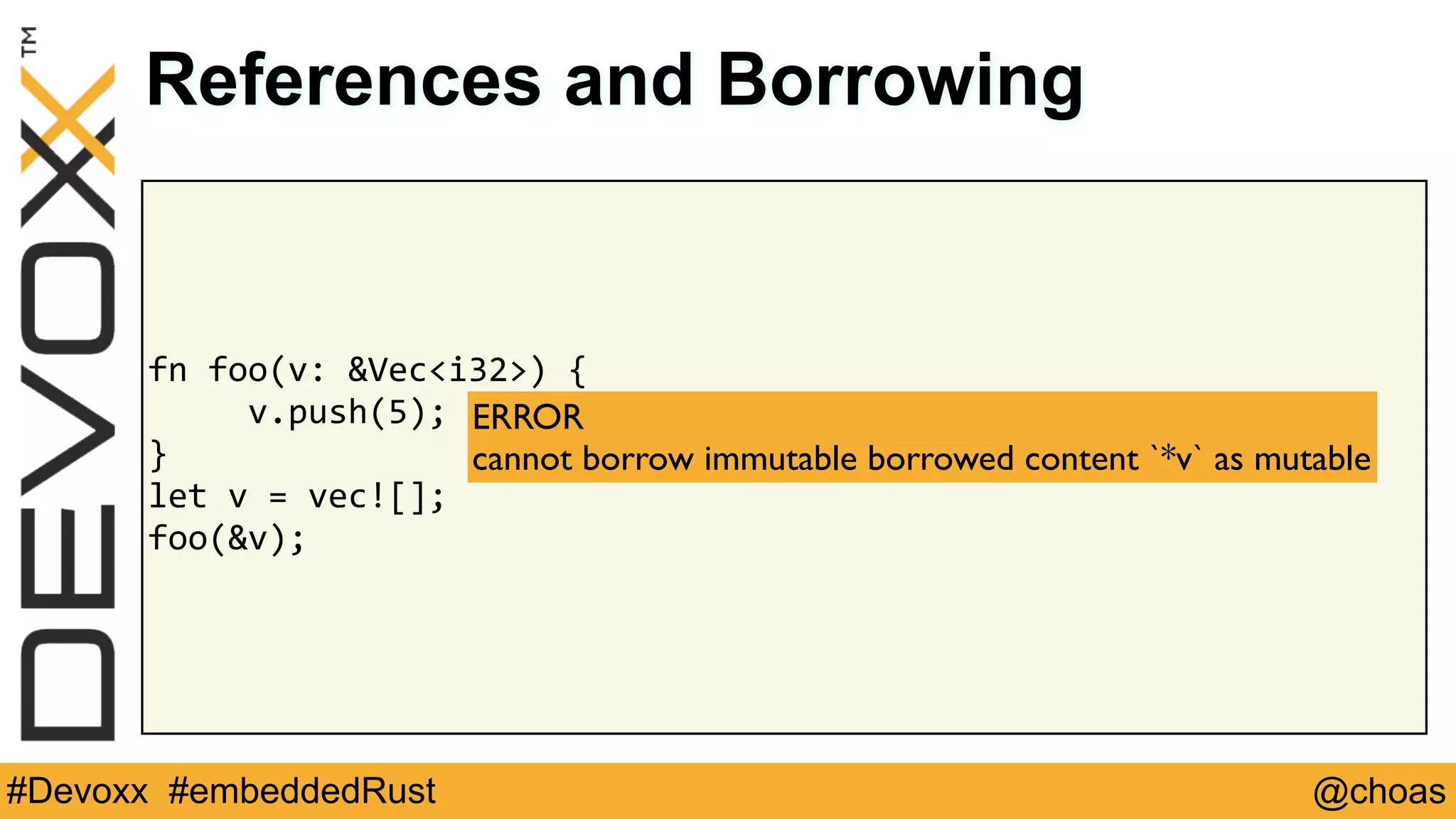

fn foo(v: &Vec<i32>) {
v.push(5);
}
let v = vec![];
foo(&v);
ERROR 
cannot borrow immutable borrowed content `*v` as mutable

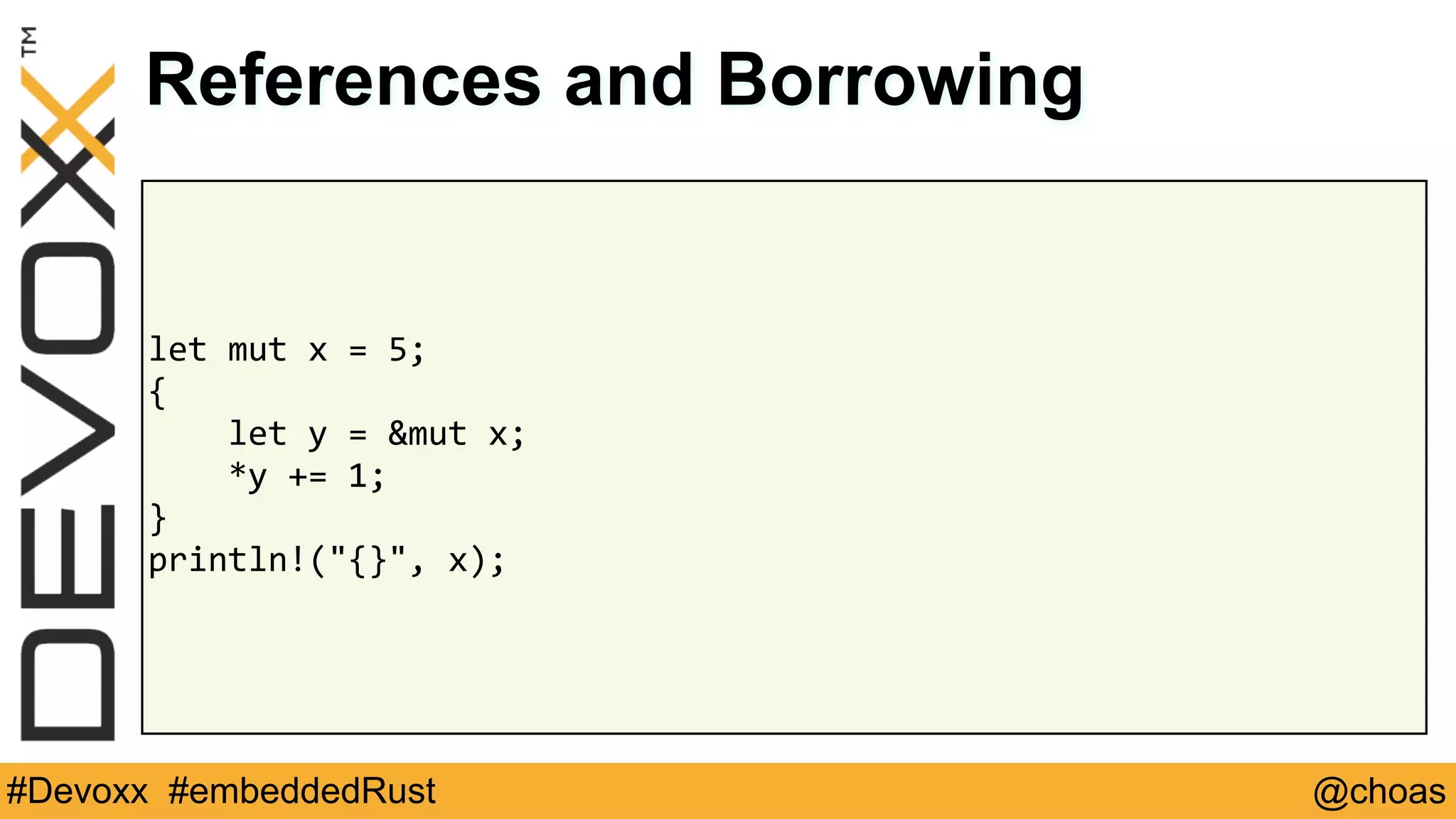

let mut x = 5;
{
let y = &mut x;
*y += 1;
}
println!("{}", x);

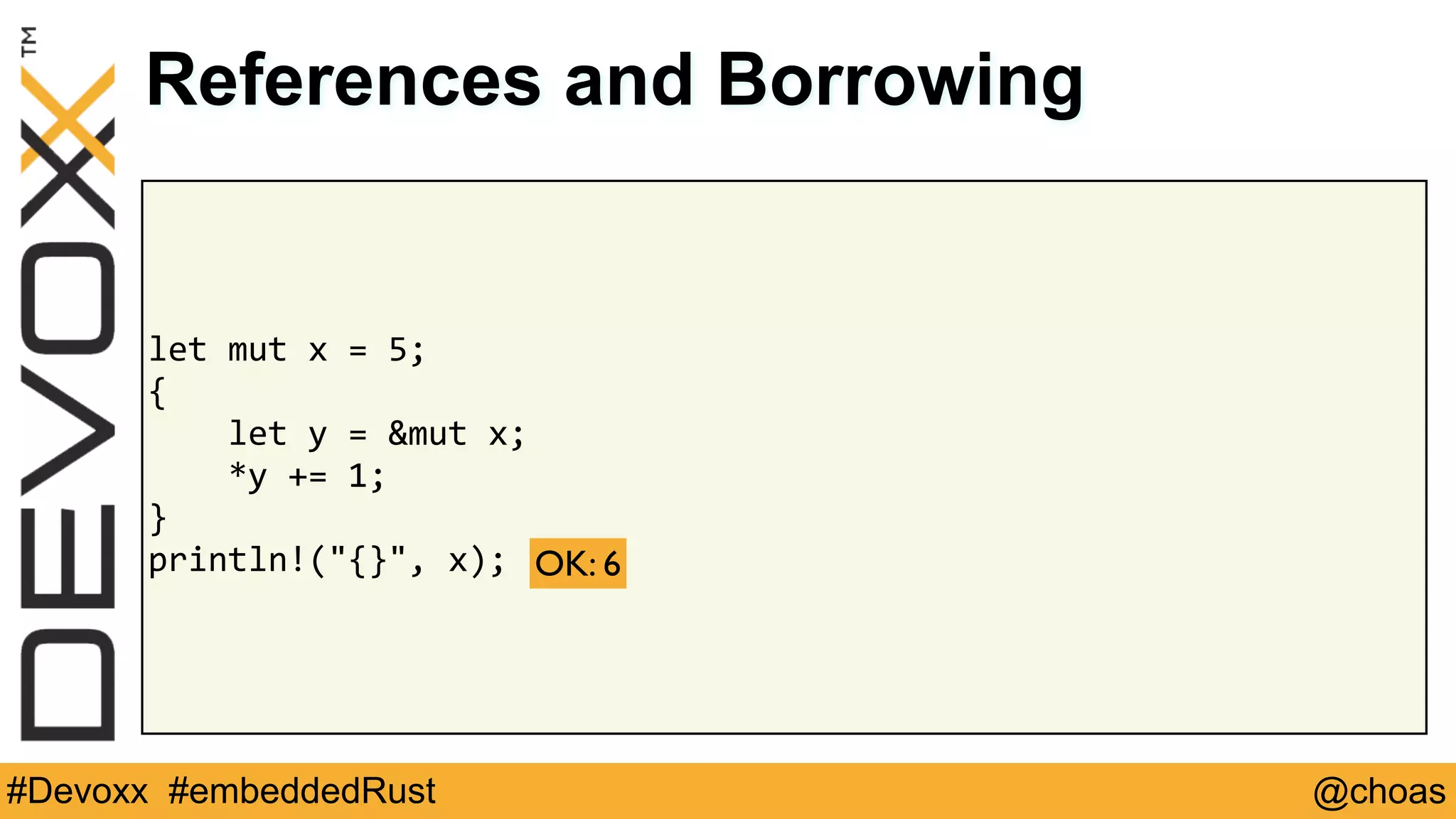

let mut x = 5;
{
let y = &mut x;
*y += 1;
}
println!("{}", x);
OK: 6

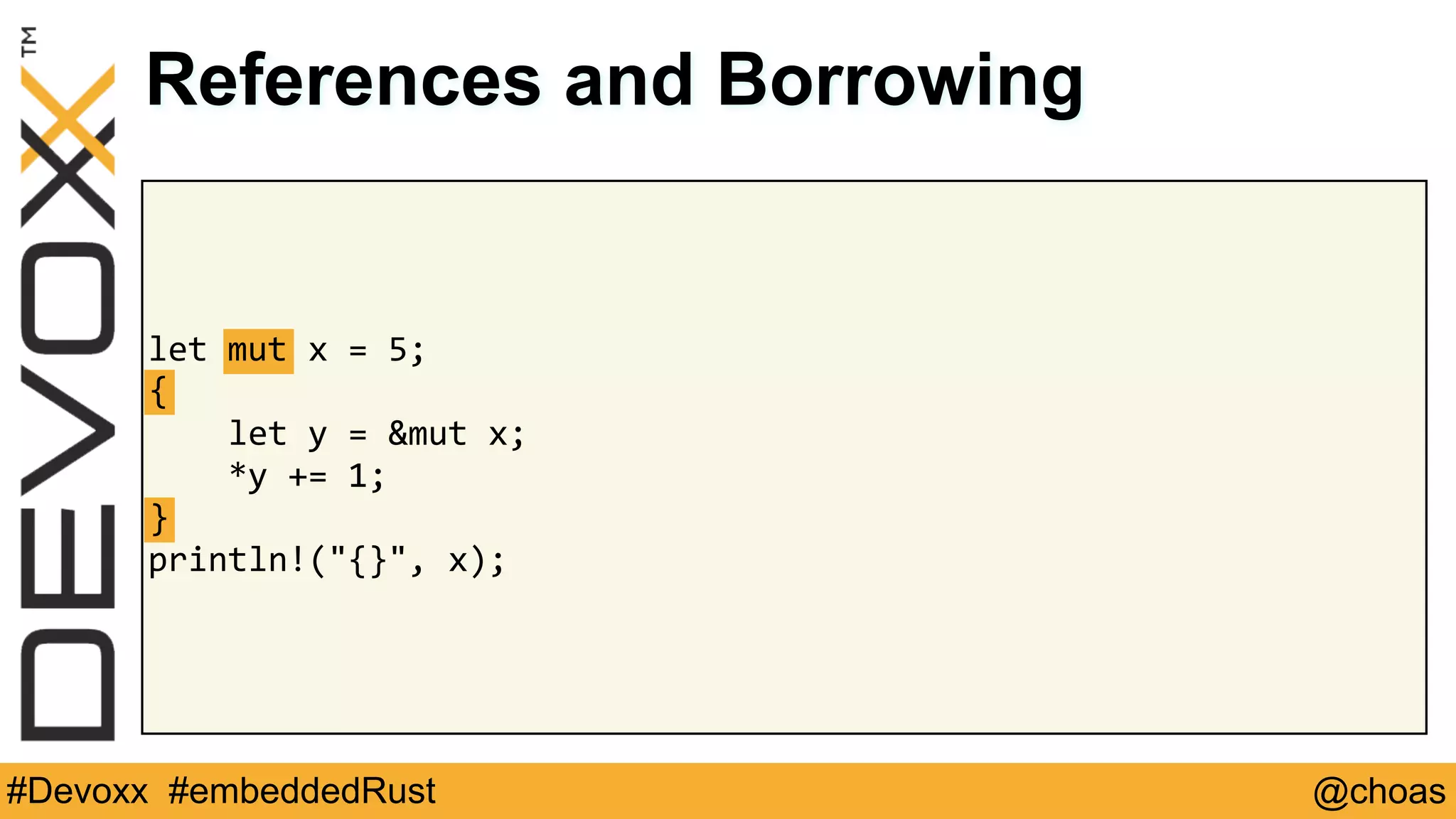

let mut x = 5;
{
let y = &mut x;
*y += 1;
}
println!("{}", x);
mut
{
}

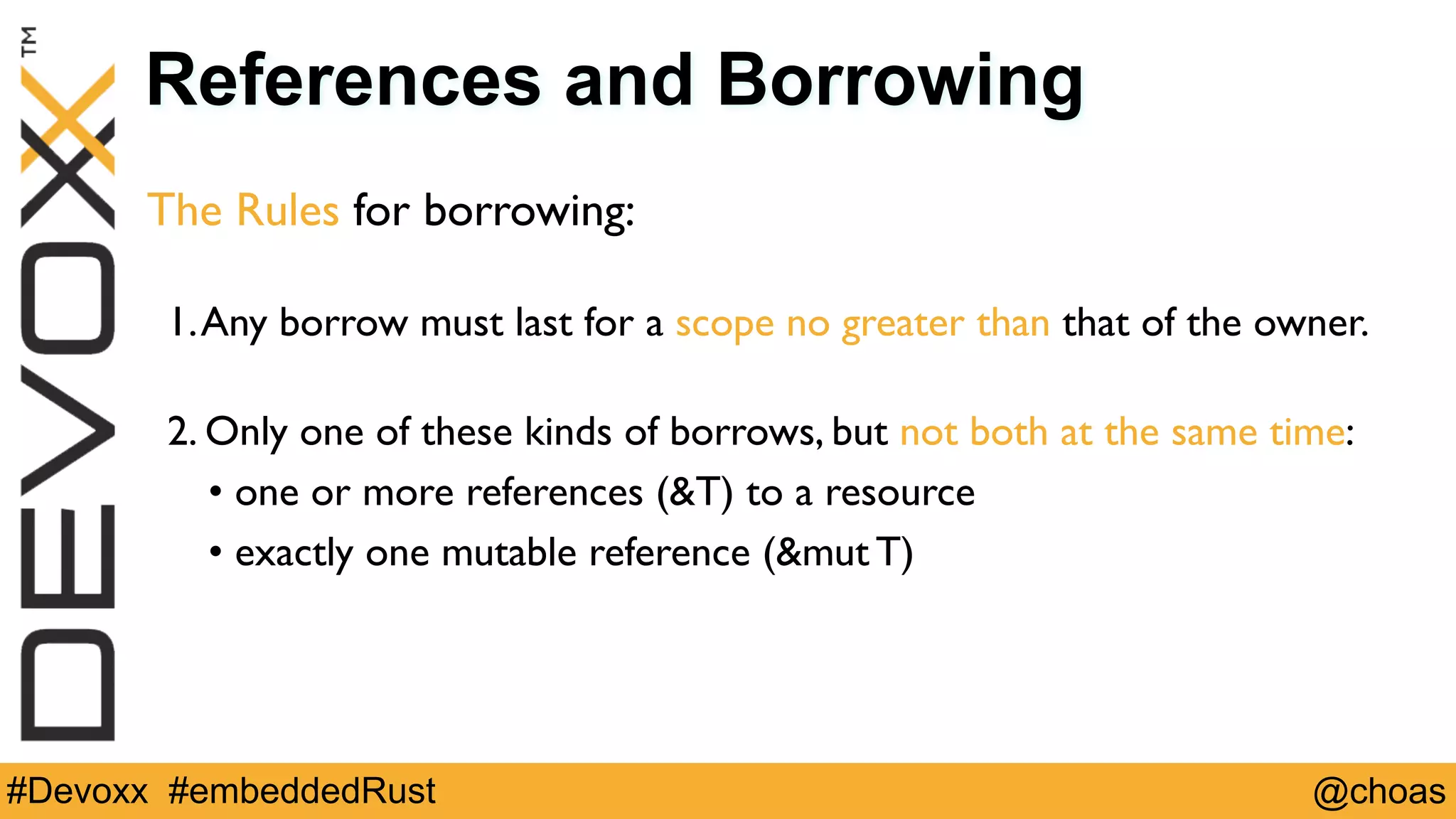

The Rules for borrowing:
 
1.Any borrow must last for a scope no greater than that of the owner. 
2. Only one of these kinds of borrows, but not both at the same time:
• one or more references (&T) to a resource
• exactly one mutable reference (&mut T)

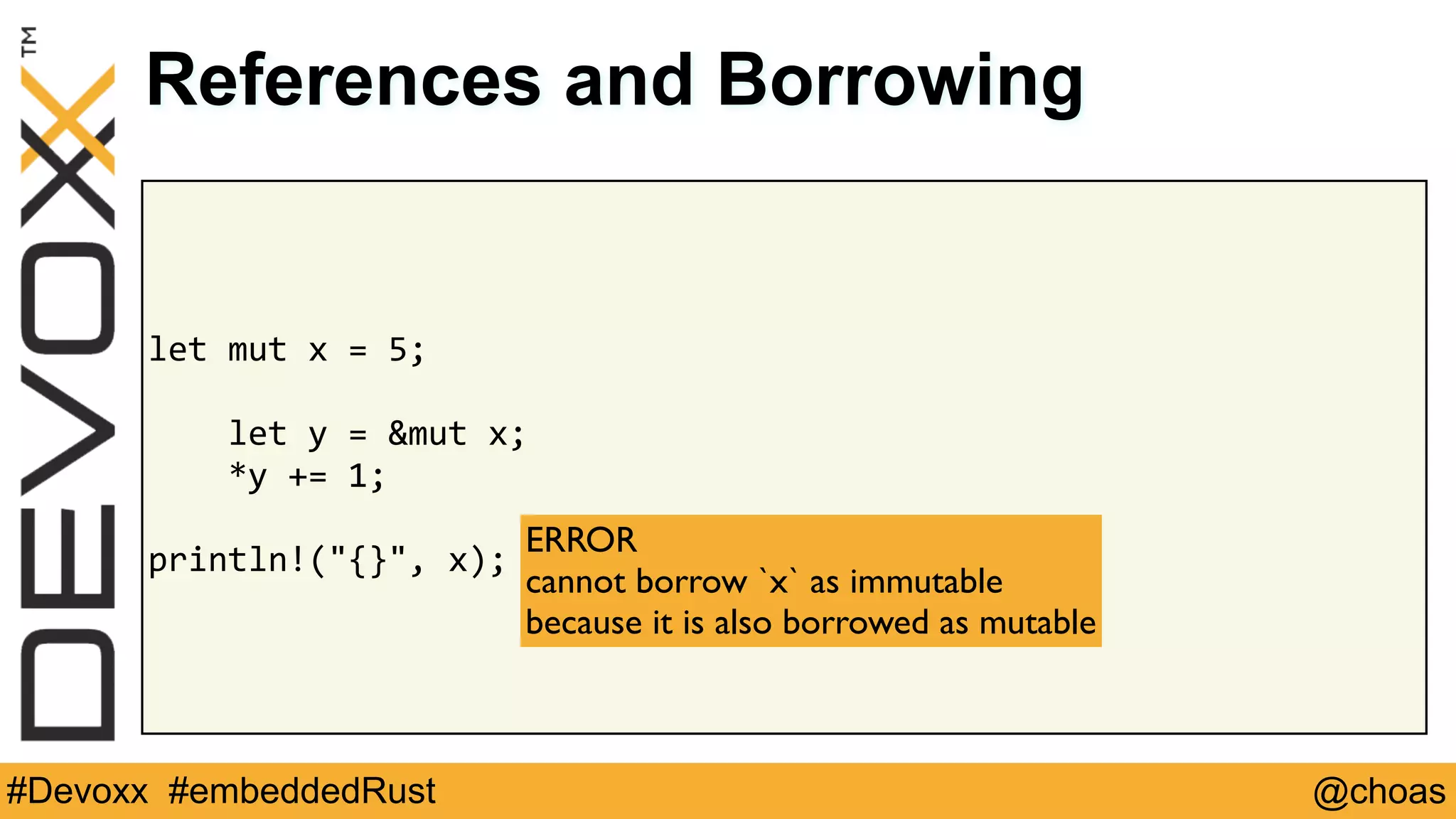

let mut x = 5;
let y = &mut x;
*y += 1;
println!("{}", x);
ERROR 
cannot borrow `x` as immutable  
because it is also borrowed as mutable

Embedded Rust

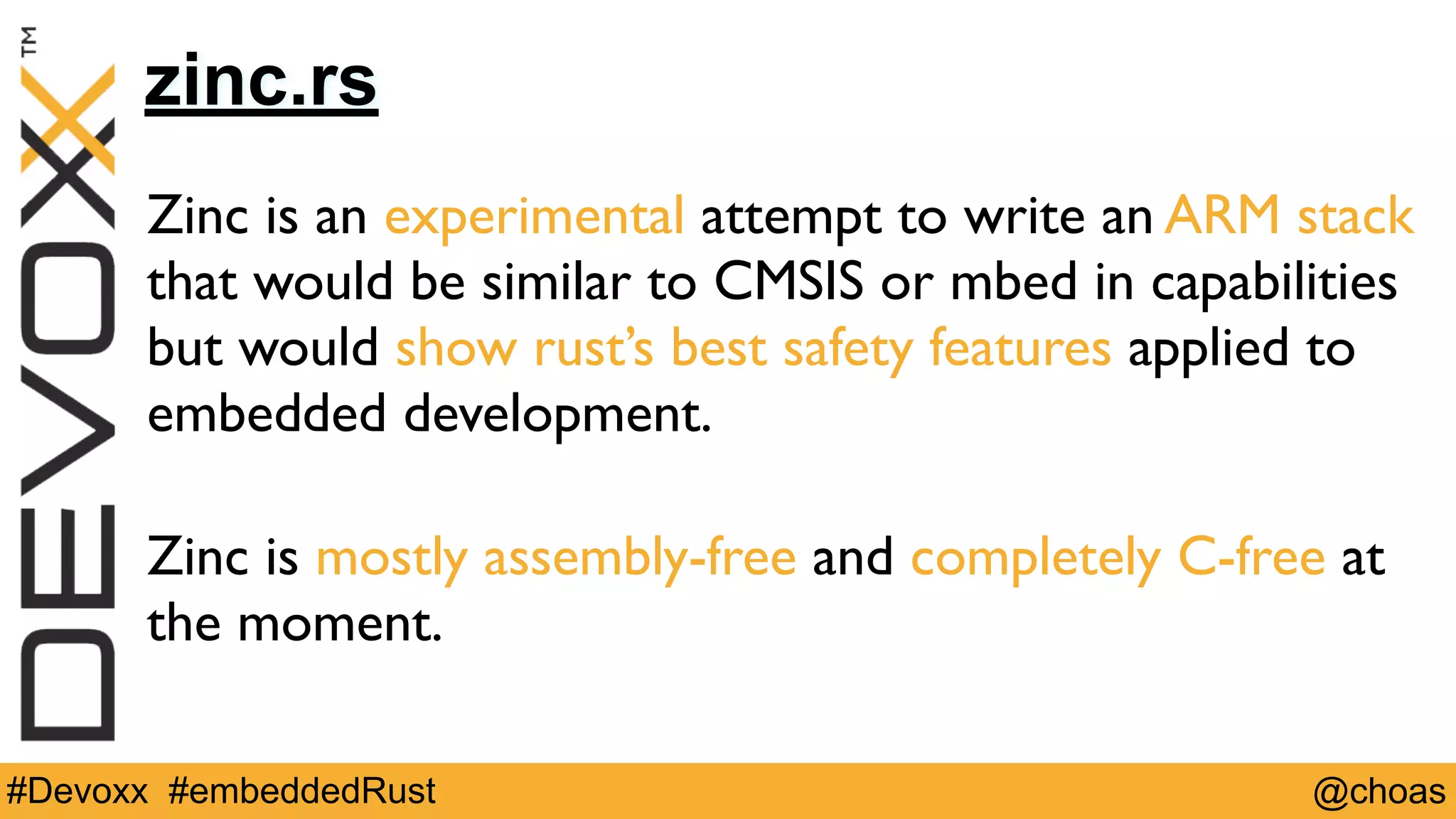

zinc.rs
Zinc is an experimental attempt to write an ARM stack
that would be similar to CMSIS or mbed in capabilities
but would show rust’s best safety features applied to
embedded development. 
Zinc is mostly assembly-free and completely C-free at
the moment.

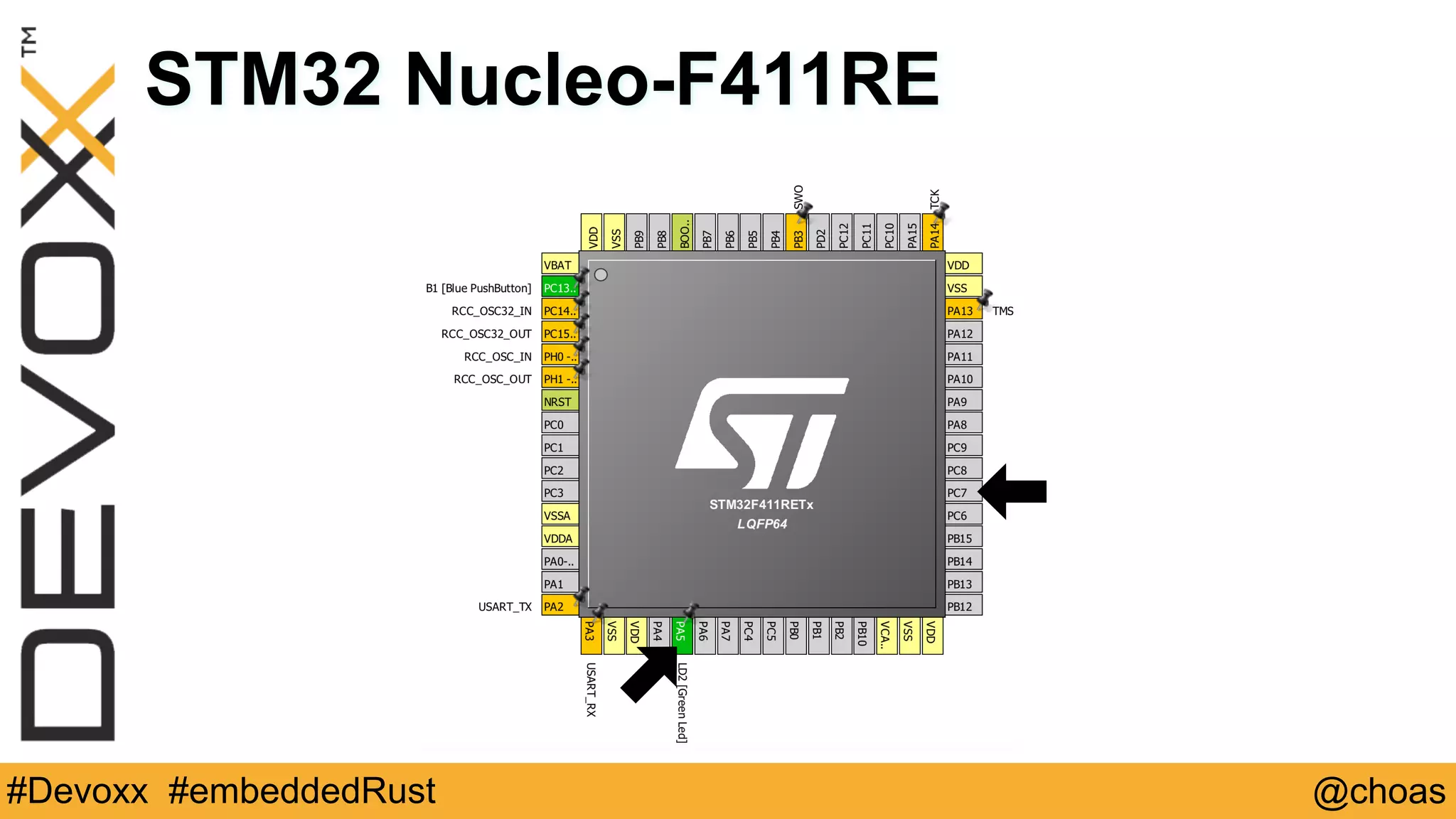

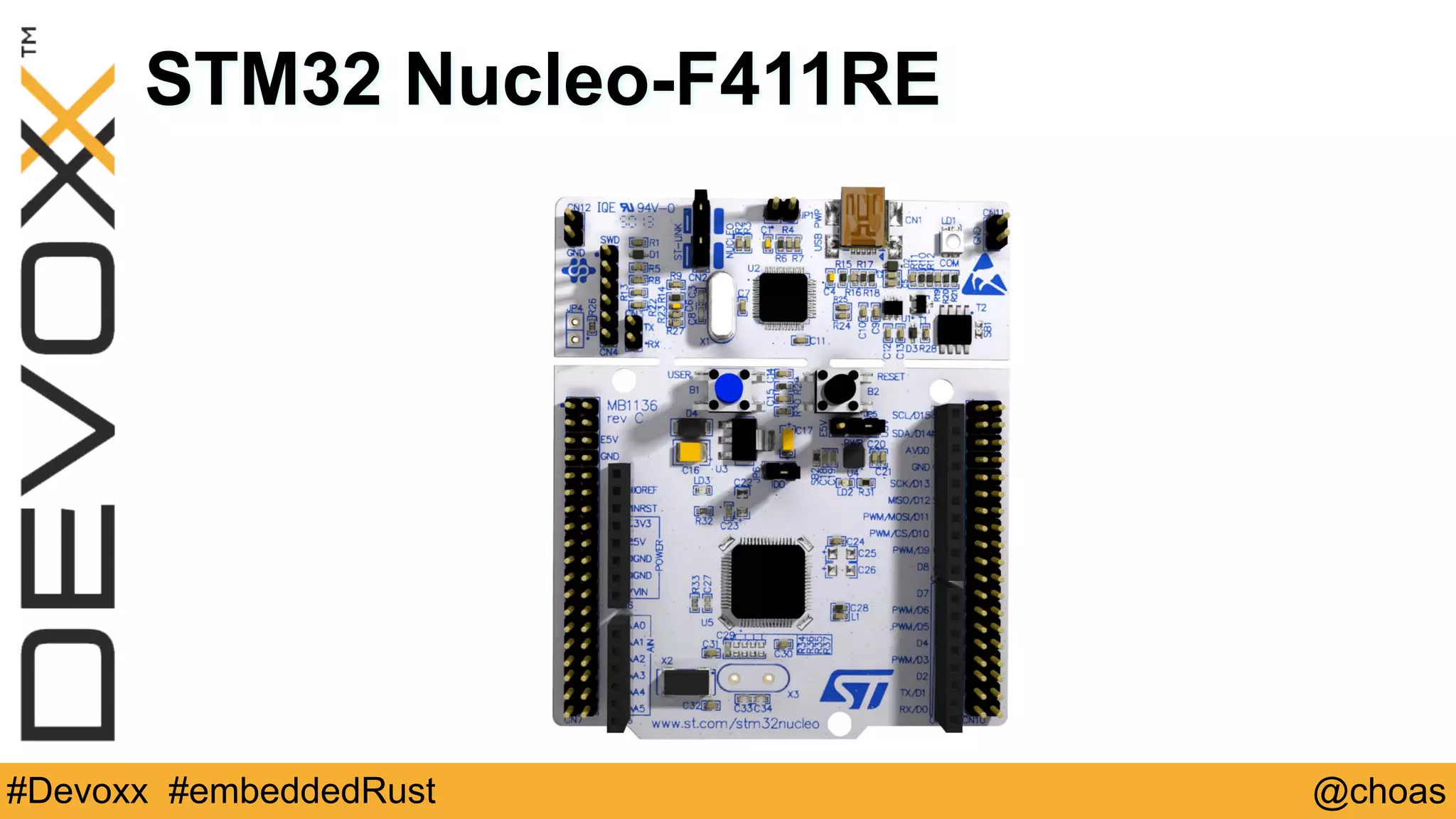

STM32 Nucleo-F411RE

Demo

Cross-Compiling

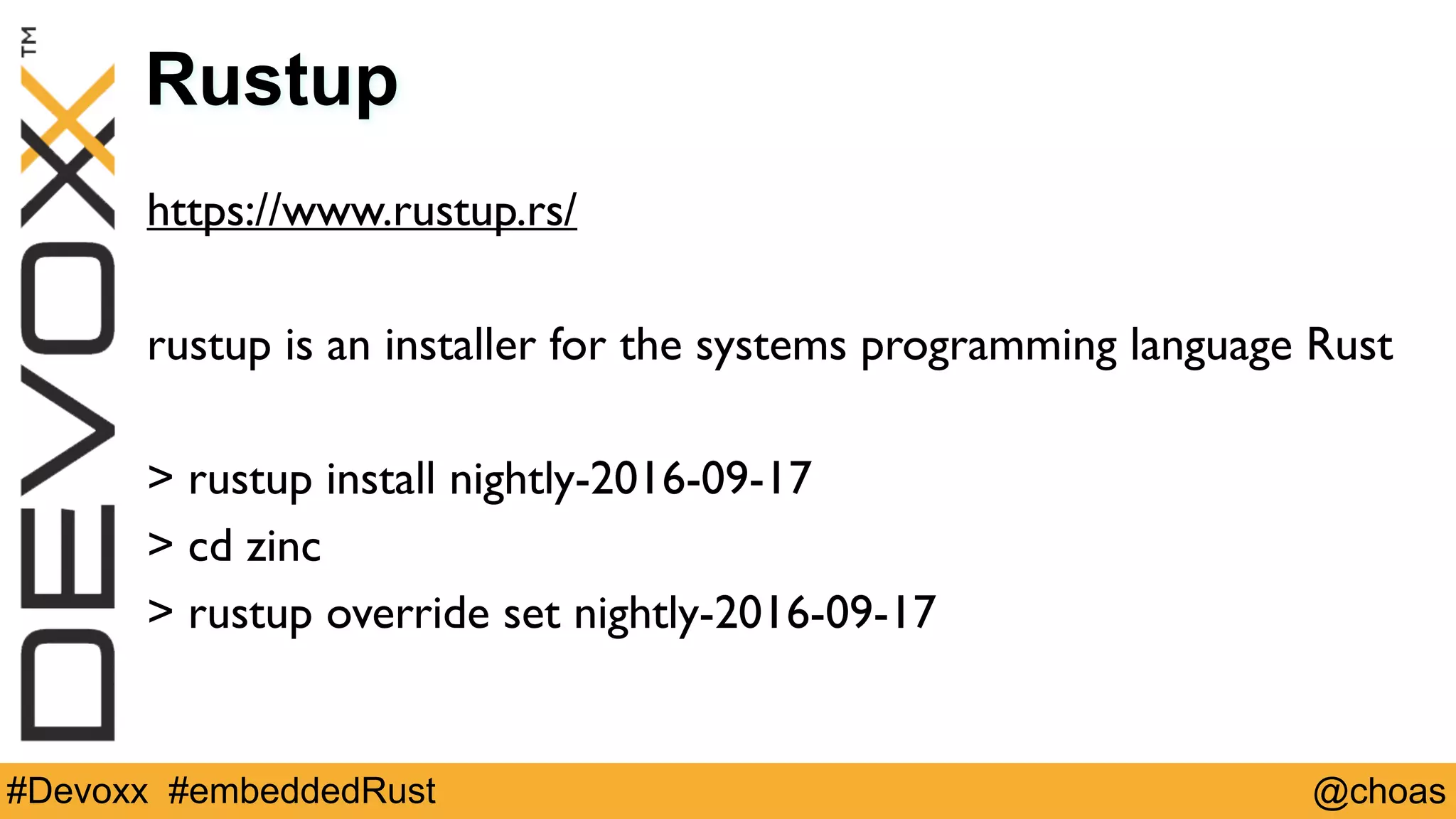

Rustup
https://www.rustup.rs/
rustup is an installer for the systems programming language Rust
> rustup install nightly-2016-09-17
> cd zinc
> rustup override set nightly-2016-09-17

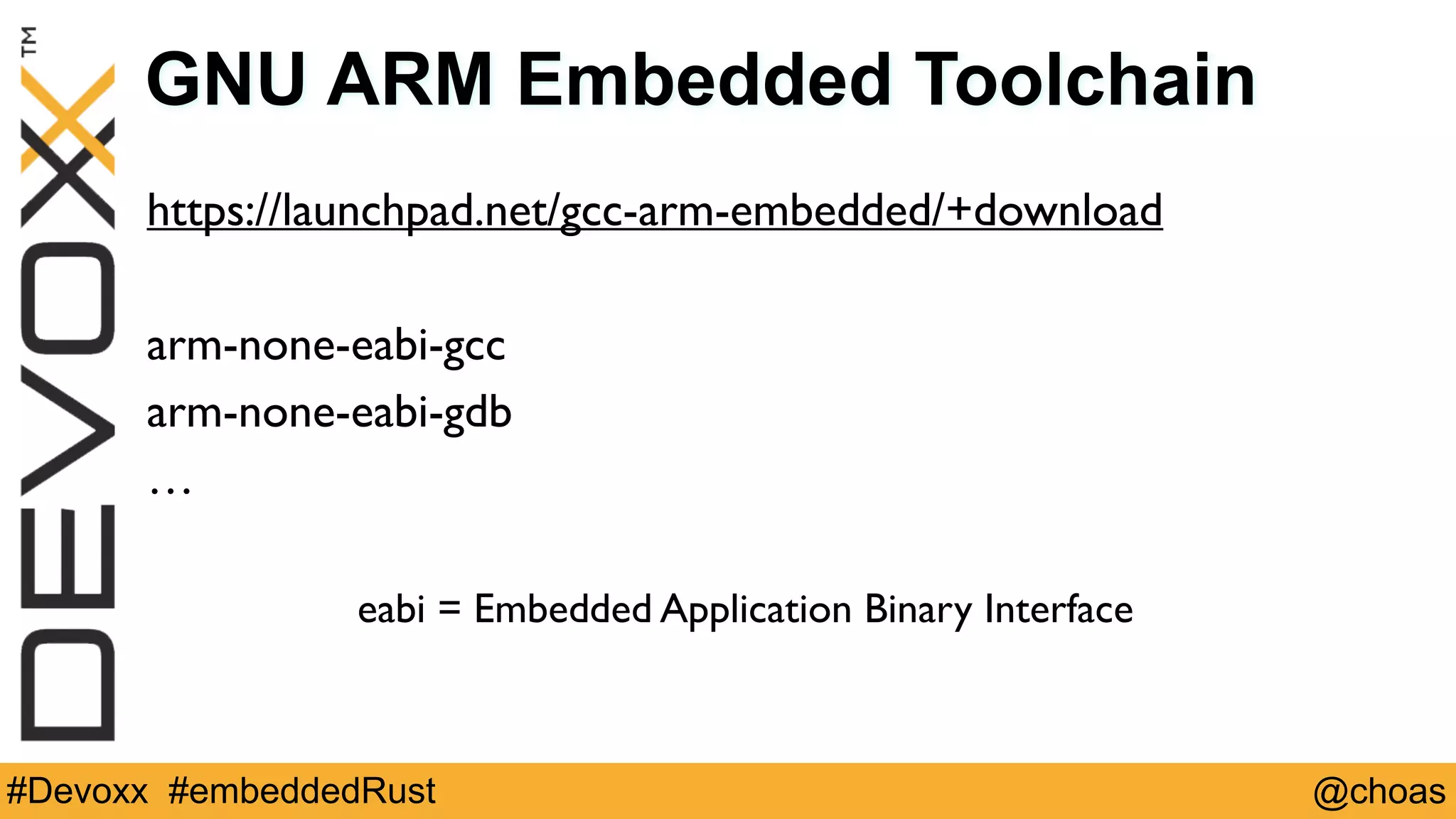

GNU ARM Embedded Toolchain
https://launchpad.net/gcc-arm-embedded/+download
arm-none-eabi-gcc
arm-none-eabi-gdb
…
eabi = Embedded Application Binary Interface

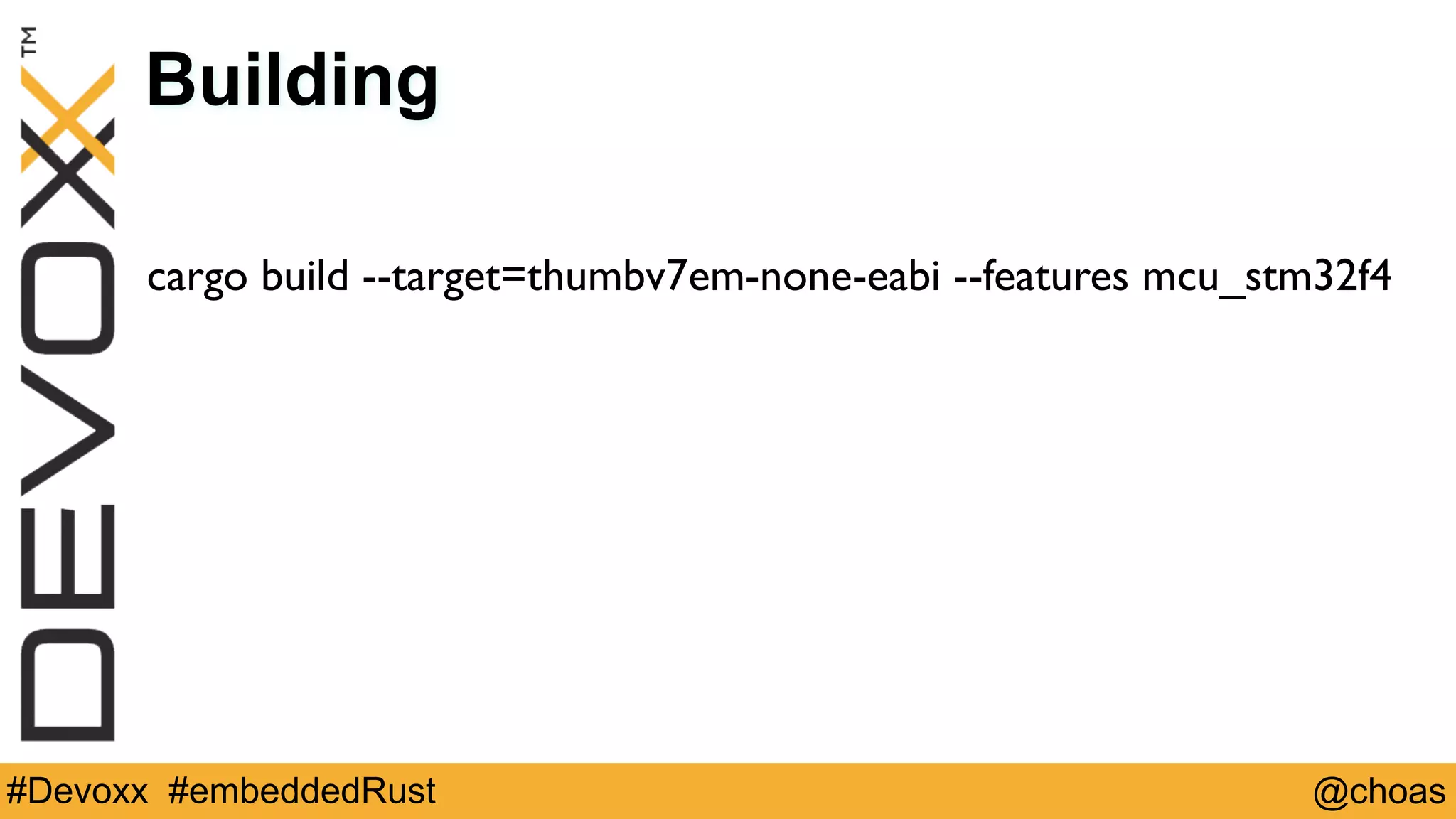

Building
cargo build --target=thumbv7em-none-eabi --features mcu_stm32f4

MCU Debugging

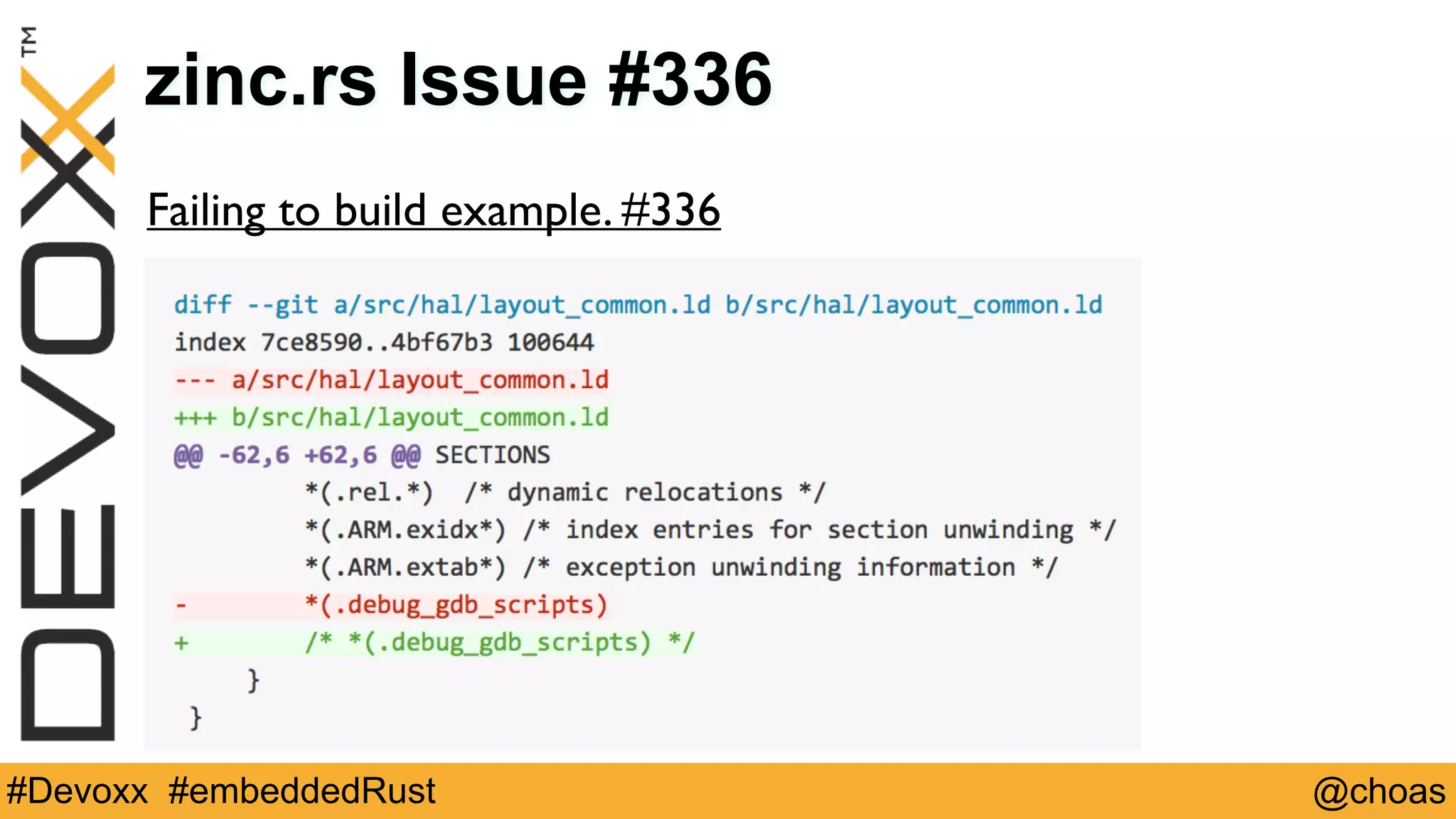

zinc.rs Issue #336
Failing to build example. #336

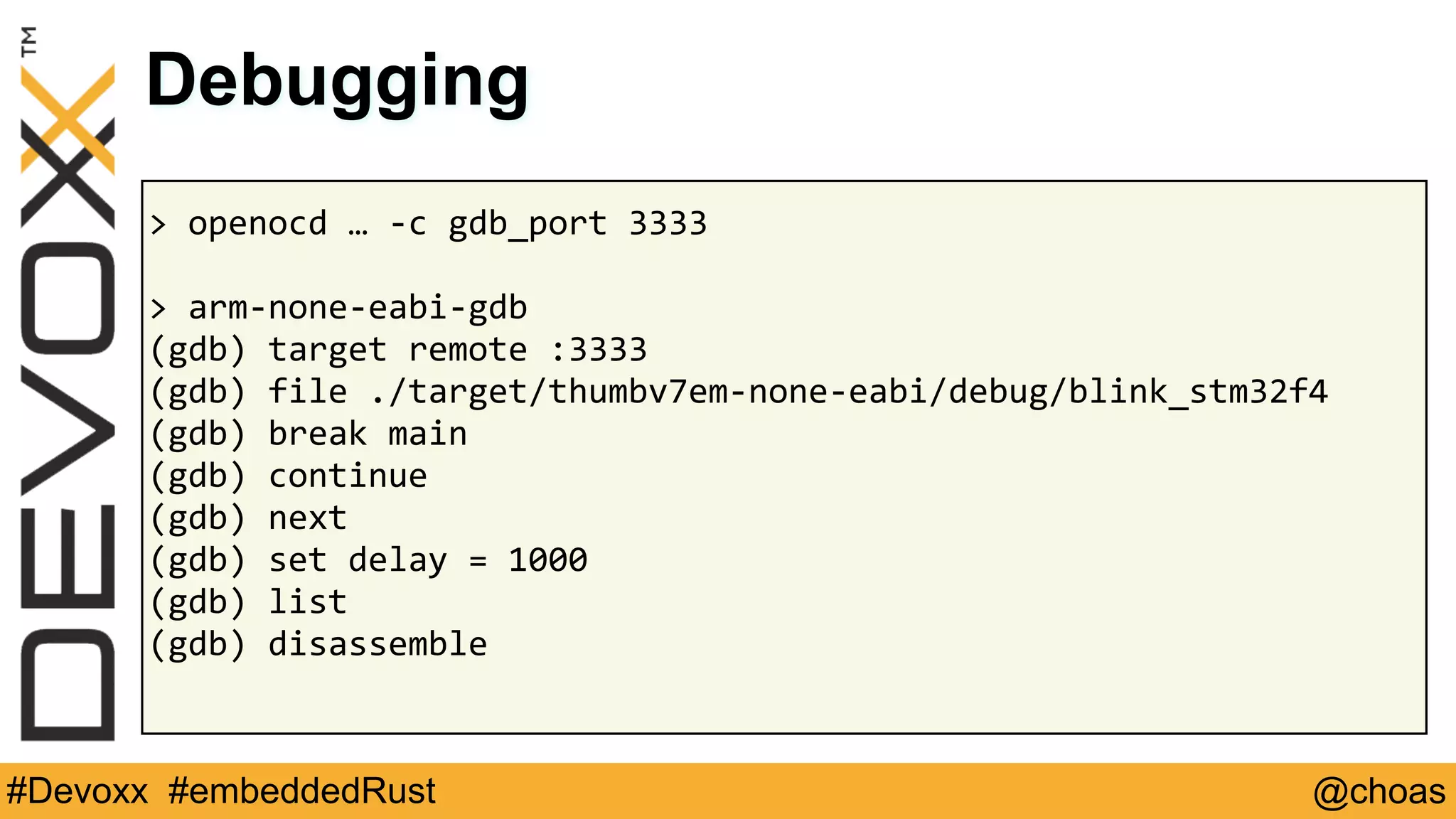

> openocd … -c gdb_port 3333
> arm-none-eabi-gdb
(gdb) target remote :3333
(gdb) file ./target/thumbv7em-none-eabi/debug/blink_stm32f4
(gdb) break main
(gdb) continue
(gdb) next
(gdb) set delay = 1000
(gdb) list
(gdb) disassemble
Debugging

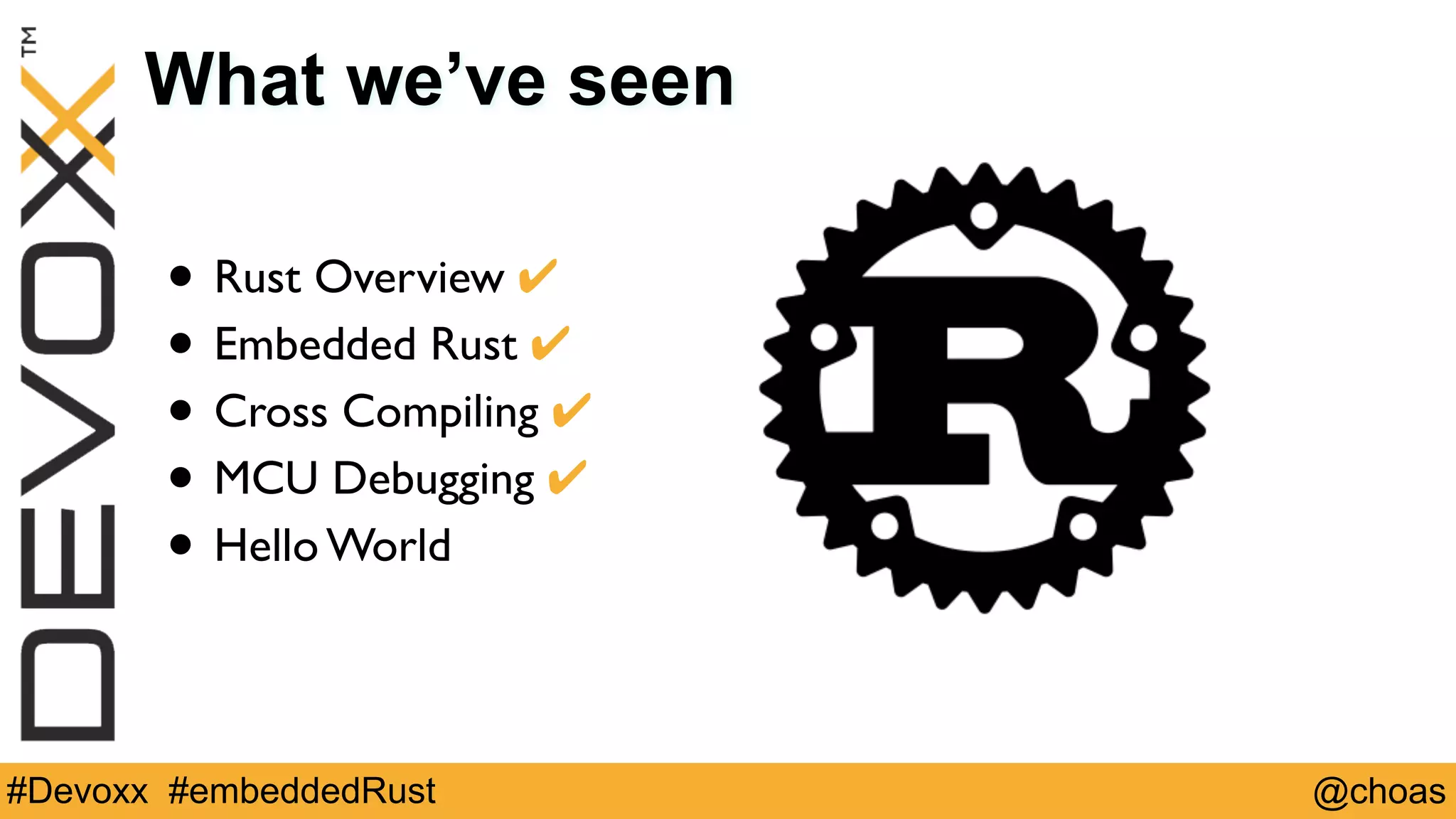

What we’ve seen
• Rust Overview ✔
• Embedded Rust ✔
• Cross Compiling ✔
• MCU Debugging ✔
• Hello World

What we’ve seen
• Rust Overview ✔
• Embedded Rust ✔
• Cross Compiling ✔
• MCU Debugging ✔
• blinking Hello World ✔

Thank you!
