  Dynamically Linked Queues StevePaks
• 2.
  Dynamically Linked Queues •Linked Queue int MAX_QUEUES 10; /* maximum number of stacks */ Class Queue{ element item; Queue link; } Queue front[MAX_QUEUES], rear[MAX_QUEUES];
• 3.

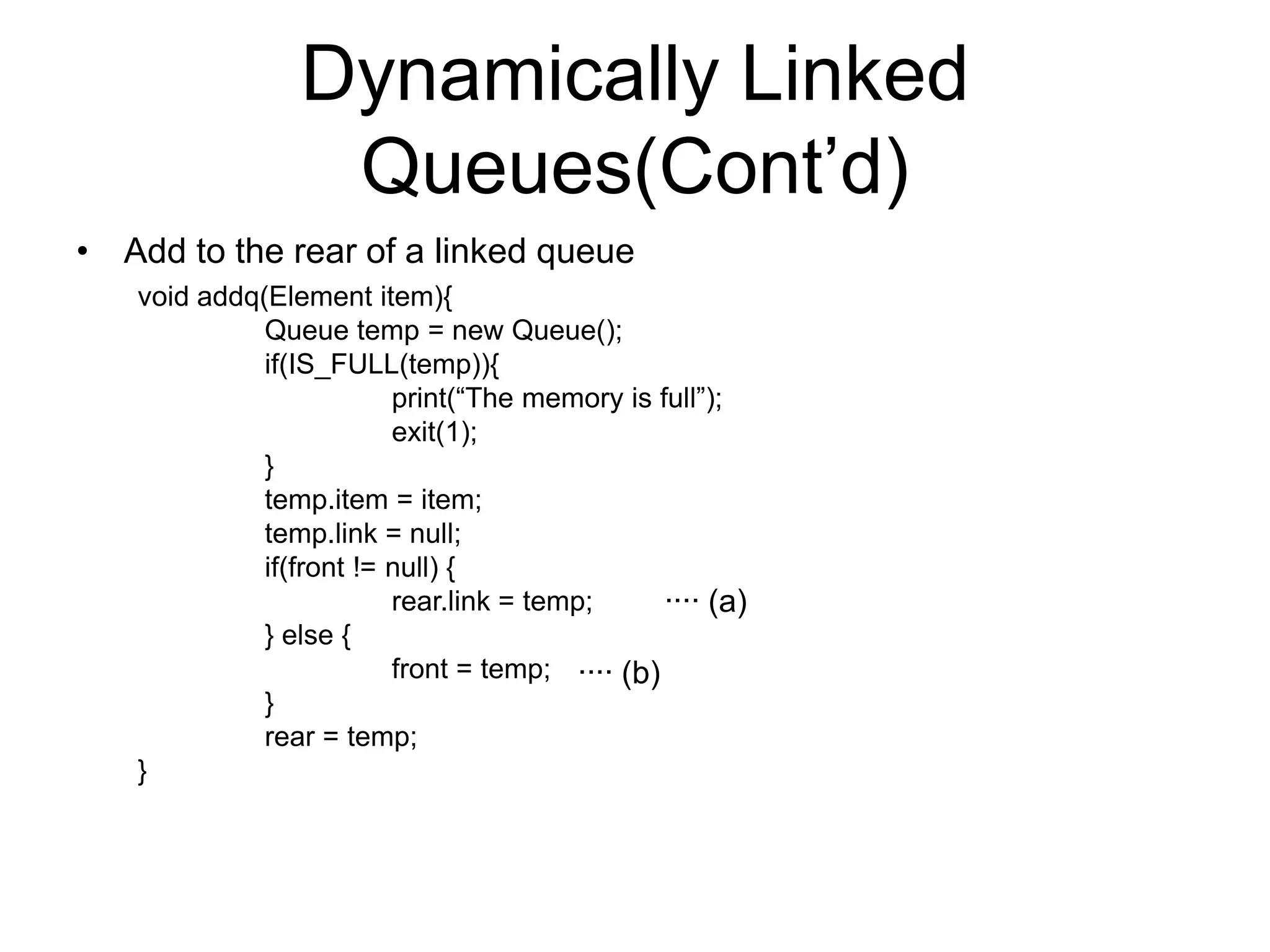

  Dynamically Linked Queues(Cont’d) • Addto the rear of a linked queue void addq(Element item){ Queue temp = new Queue(); if(IS_FULL(temp)){ print(“The memory is full”); exit(1); } temp.item = item; temp.link = null; if(front != null) { rear.link = temp; ∙∙∙∙ (a) } else { front = temp; ∙∙∙∙ (b) } rear = temp; }
• 4.

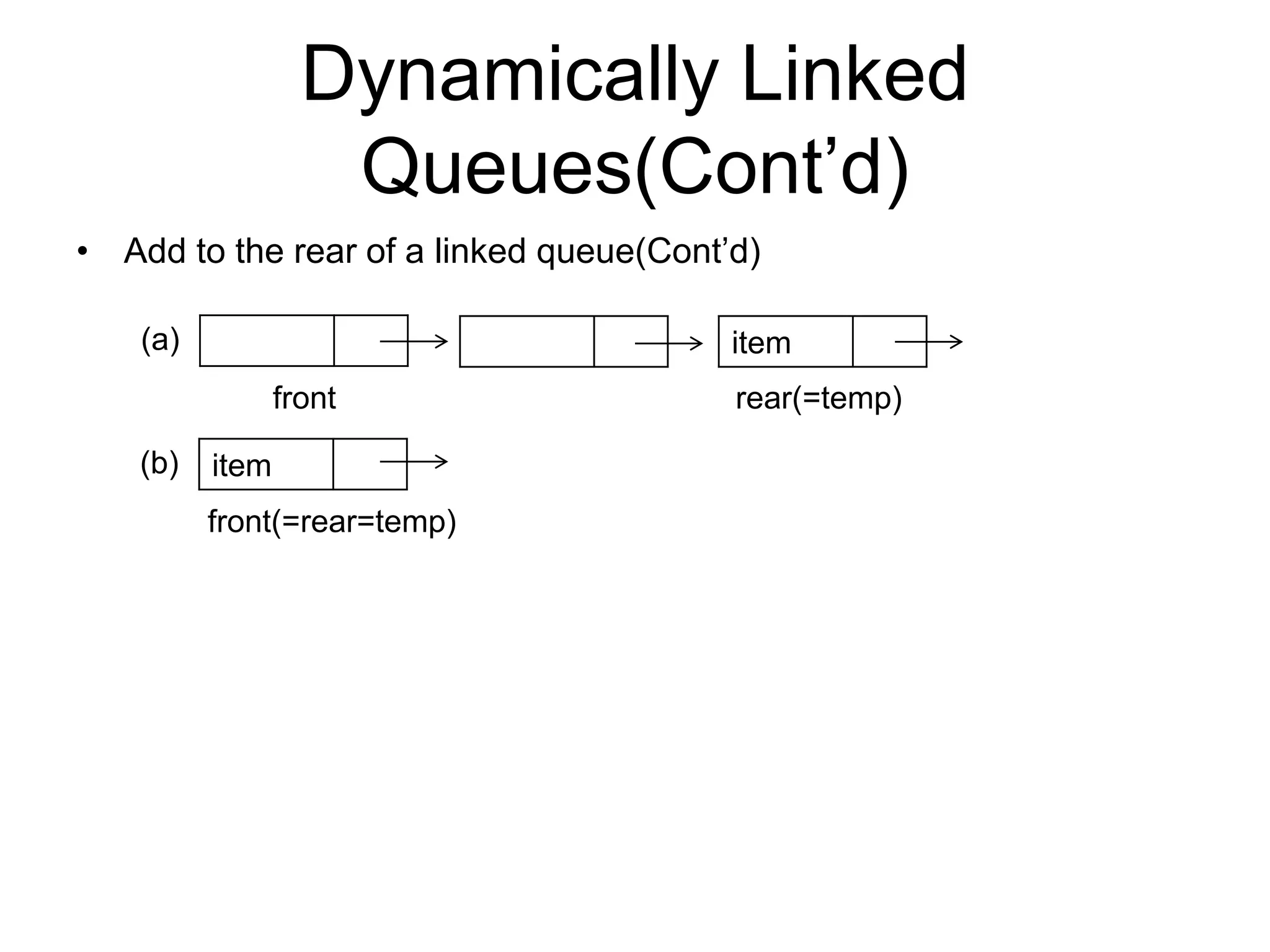

  Dynamically Linked Queues(Cont’d) • Addto the rear of a linked queue(Cont’d) (a) item front (b) item front(=rear=temp) rear(=temp)
• 5.
  Dynamically Linked Queues(Cont’d) • deletefrom the rear of a linked queue Element deleteq(){ Queue temp = front; ∙∙∙∙ (a) Element item; if(IS_EMPTY(front)){ print(“The queue is empty?”); exit(1); } item = temp.item; ∙∙∙∙ (b) front = temp.link; ∙∙∙∙ (c) return item; }
• 6.

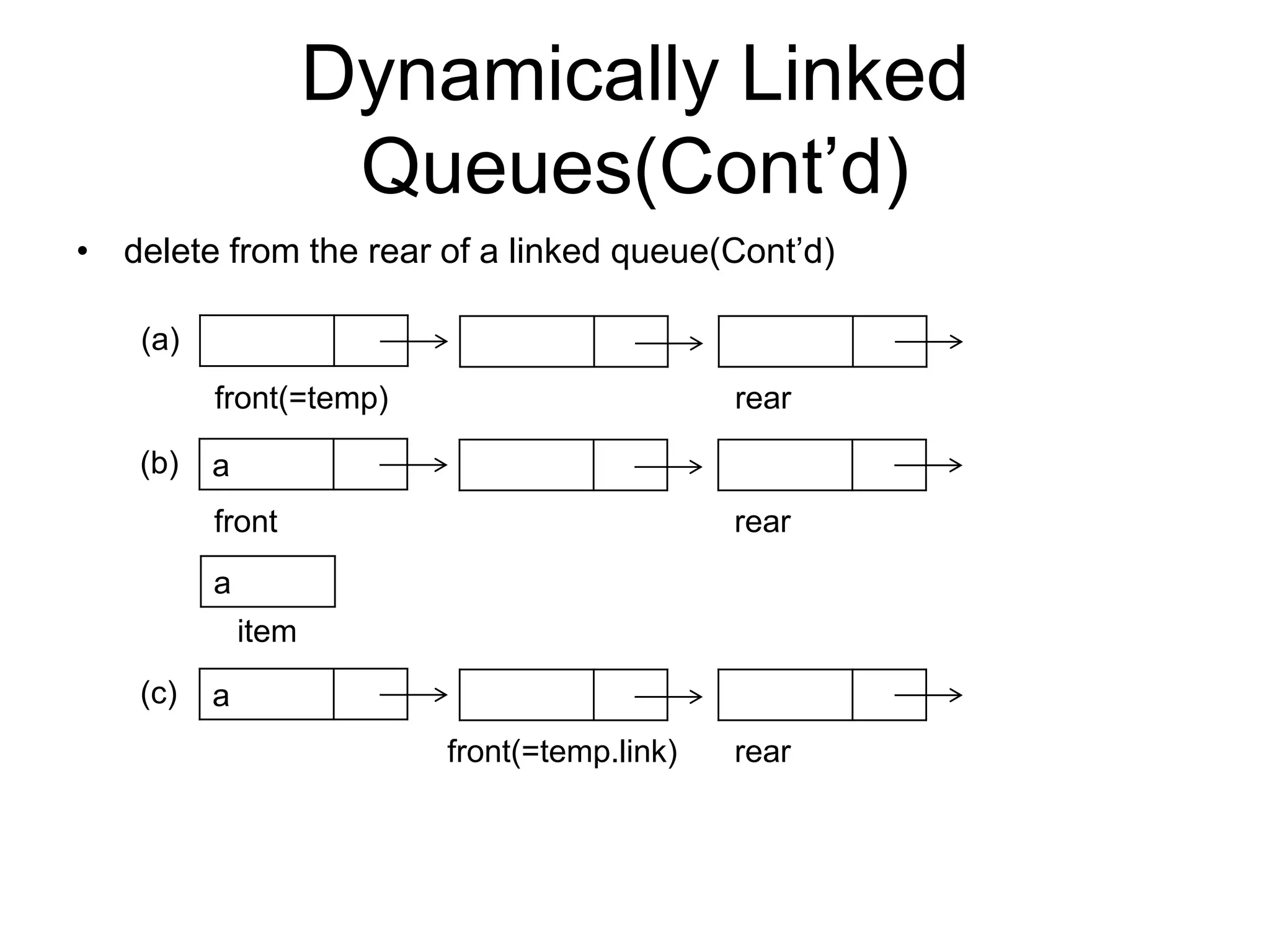

  Dynamically Linked Queues(Cont’d) • deletefrom the rear of a linked queue(Cont’d) (a) front(=temp) (b) rear a front rear a item (c) a front(=temp.link) rear
