DOM(DOCUMENT OBJECT
MODEL)
PRESENTED BY: NABIN JAMKATEL

INTRODUCTION
• JavaScript arranges objects in a Document Object Model or
DOM.
• The DOM defines the logical structure of objects and the way
an object is accessed and manipulated.
• The document object model can be thought of as a hierarchy
moving from the most general object to the most specific.
• The HTML DOM defines a standard set of objects for HTML,
and a standard way to access and manipulate HTML
documents

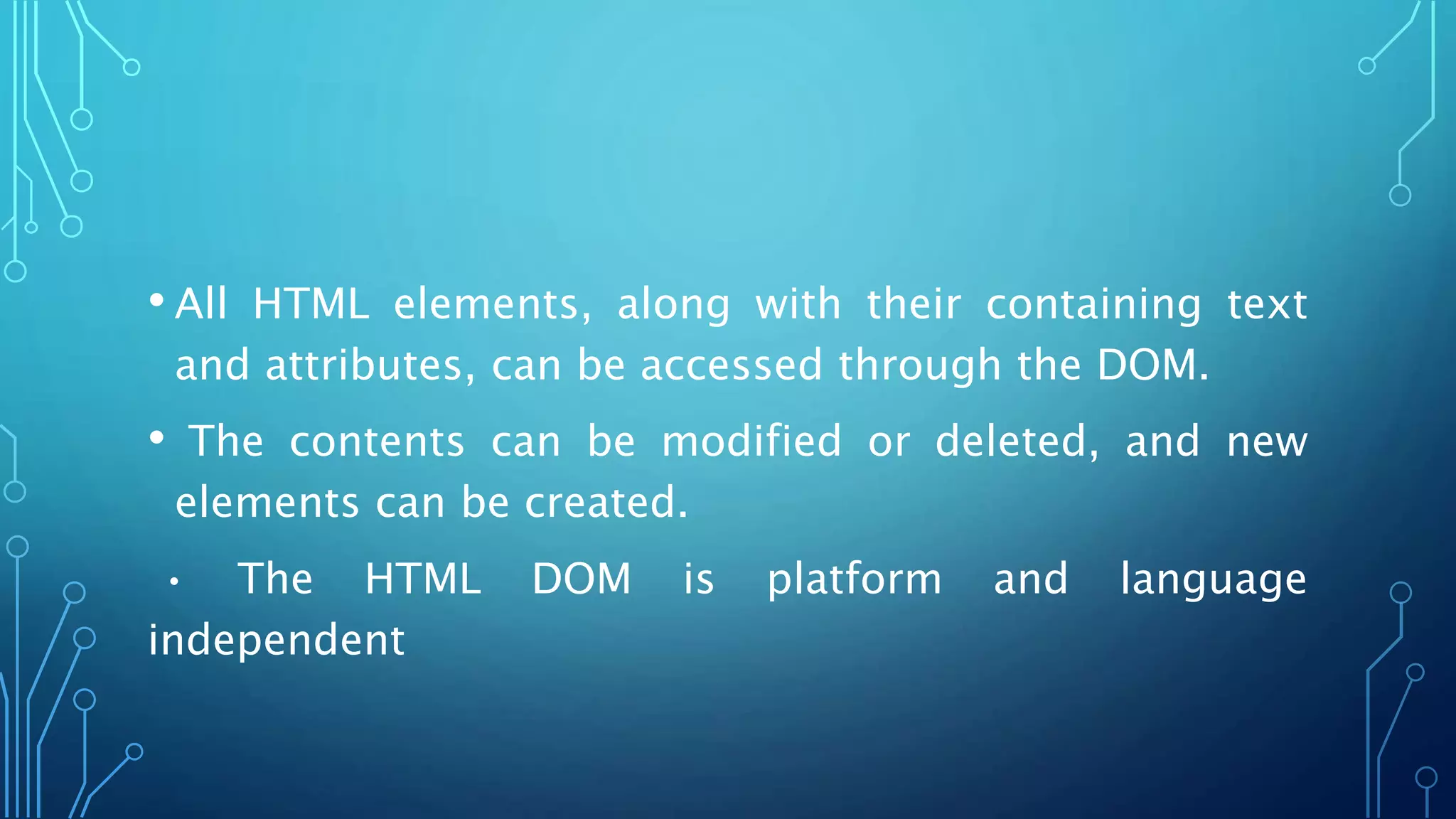

• All HTML elements, along with their containing text
and attributes, can be accessed through the DOM.
• The contents can be modified or deleted, and new
elements can be created.
• The HTML DOM is platform and language
independent

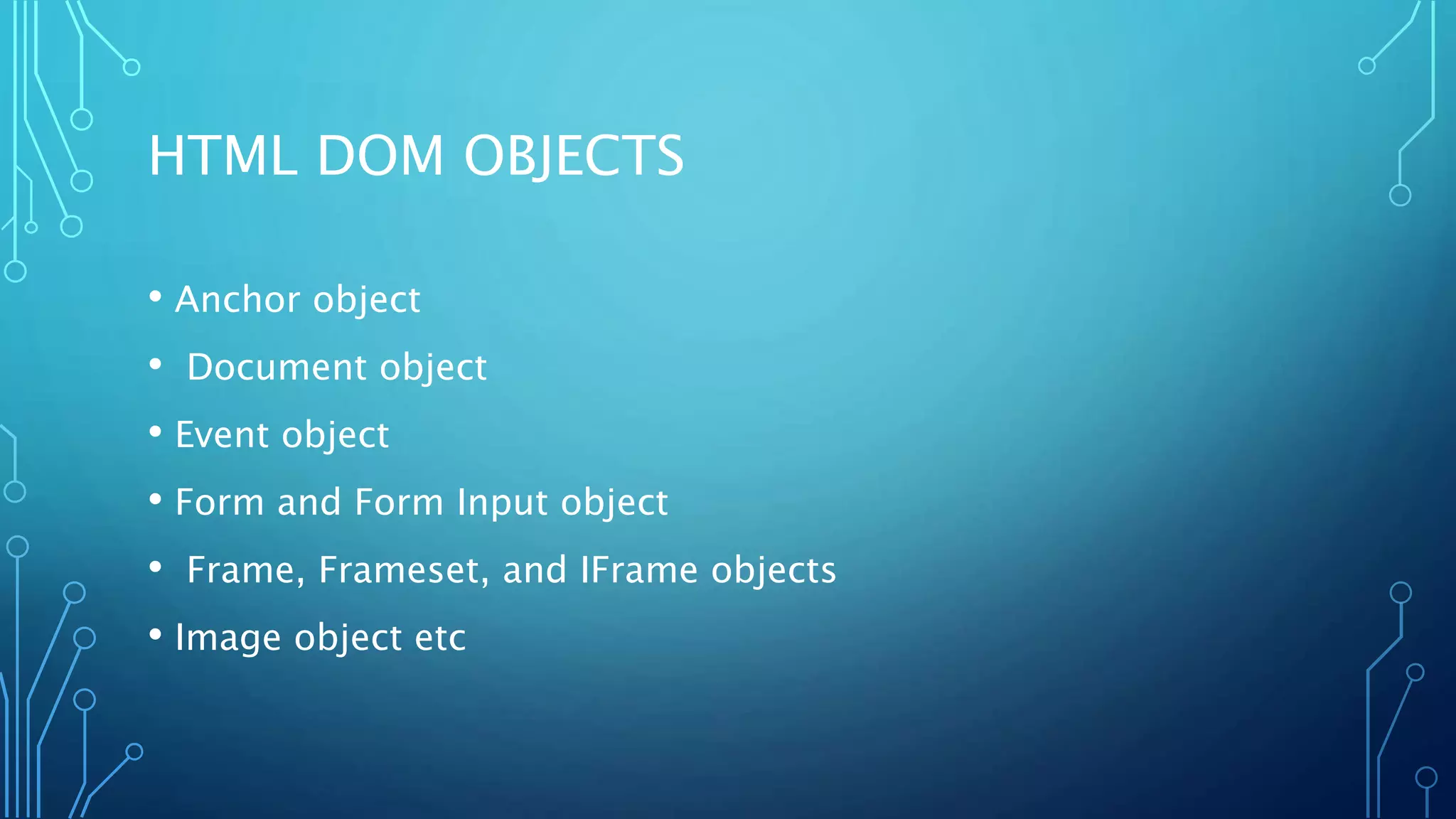

HTML DOM OBJECTS
• Anchor object
• Document object
• Event object
• Form and Form Input object
• Frame, Frameset, and IFrame objects
• Image object etc

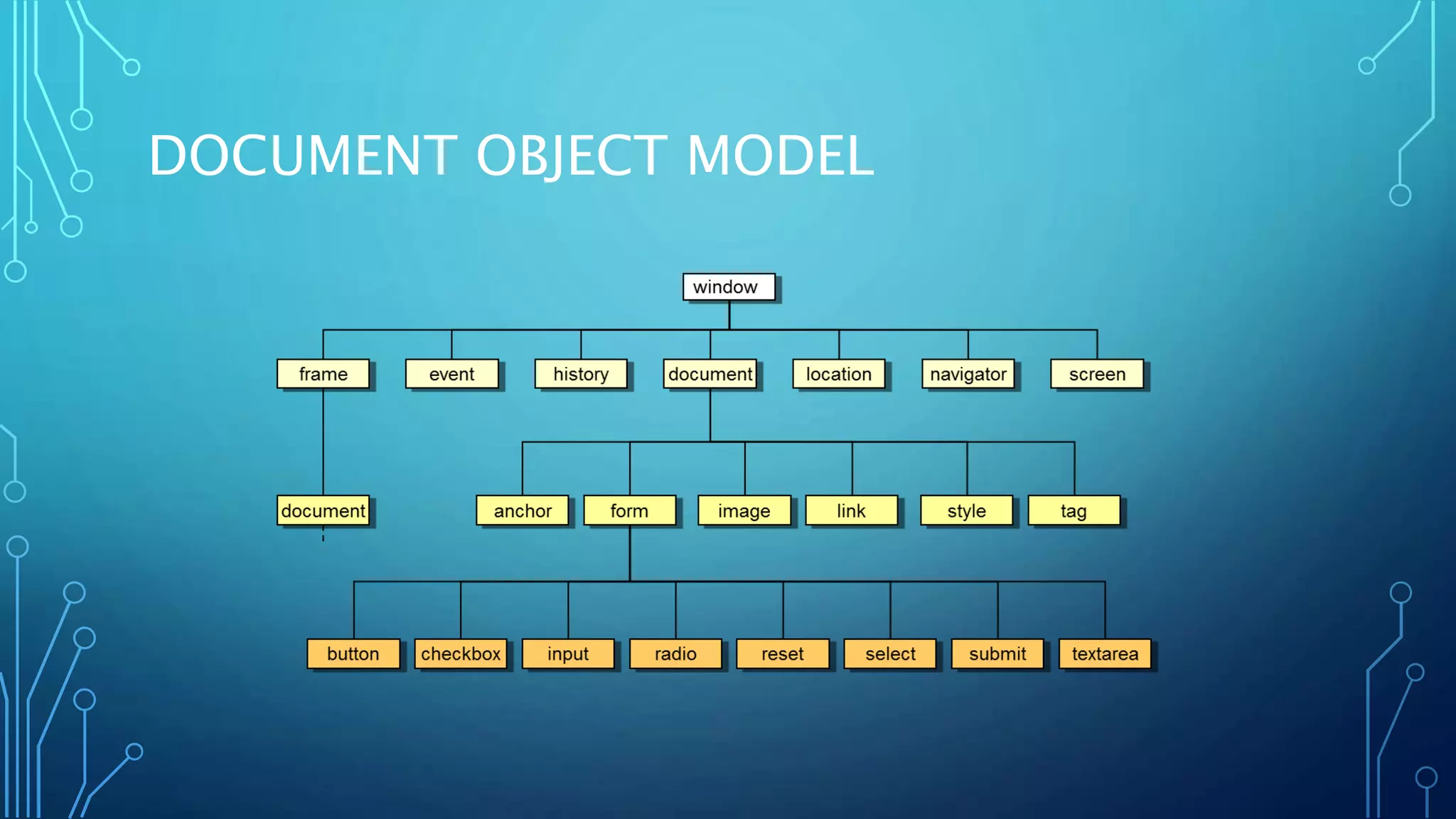

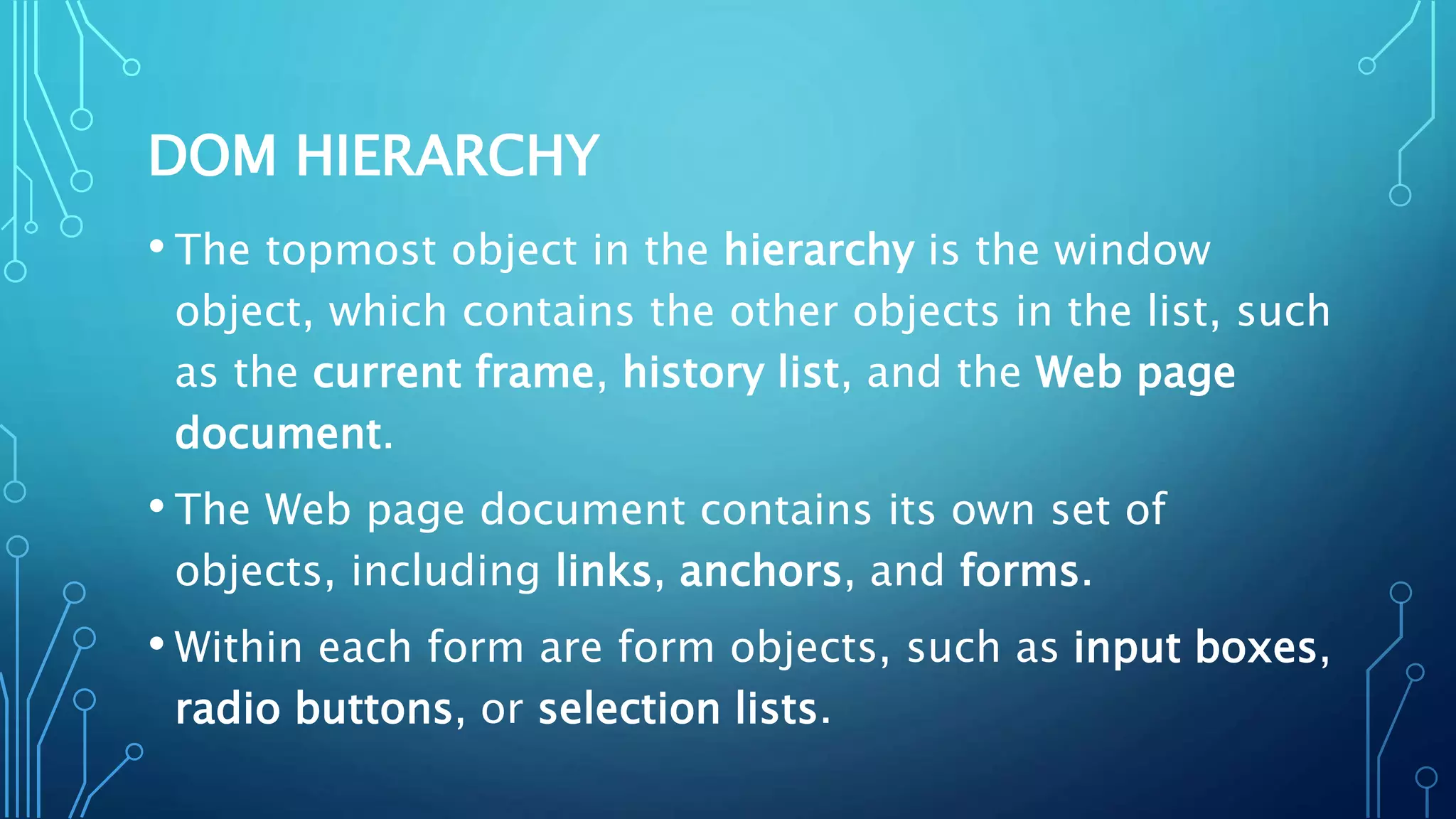

DOM HIERARCHY
• The topmost object in the hierarchy is the window
object, which contains the other objects in the list, such
as the current frame, history list, and the Web page
document.
• The Web page document contains its own set of
objects, including links, anchors, and forms.
• Within each form are form objects, such as input boxes,
radio buttons, or selection lists.

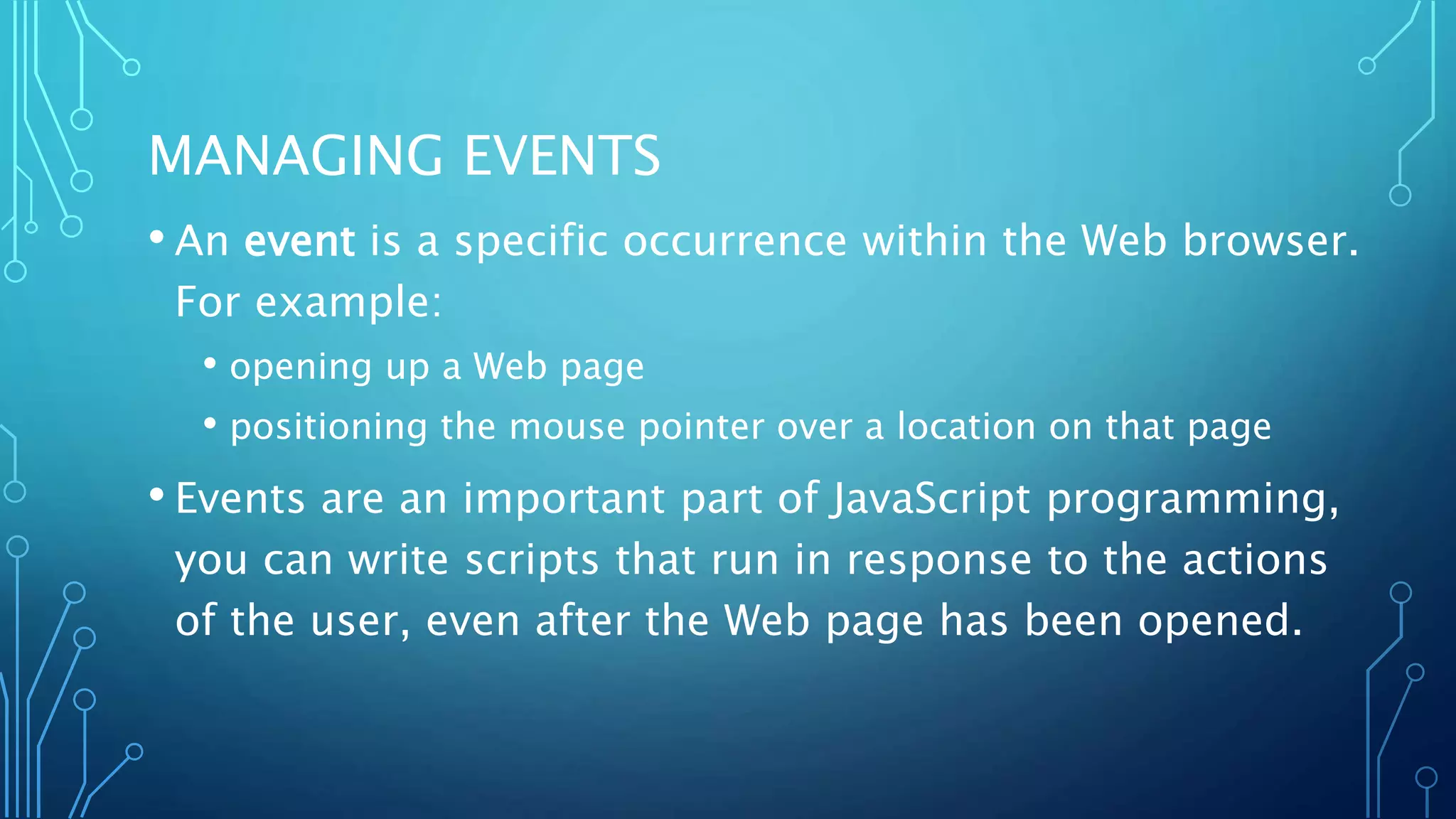

MANAGING EVENTS
• An event is a specific occurrence within the Web browser.
For example:
• opening up a Web page
• positioning the mouse pointer over a location on that page
• Events are an important part of JavaScript programming,
you can write scripts that run in response to the actions
of the user, even after the Web page has been opened.

ONLOAD & ONUNLOAD
<html>
<head>
<title>Hello/Goodbye page</title>
<script type="text/javascript">
function Hello()
{ globalName=prompt("Welcome to my page. " + "What is your
name?","");
}
function Goodbye() {
alert("So long, " + globalName + ome back real soon.");
}
</script>
</head>

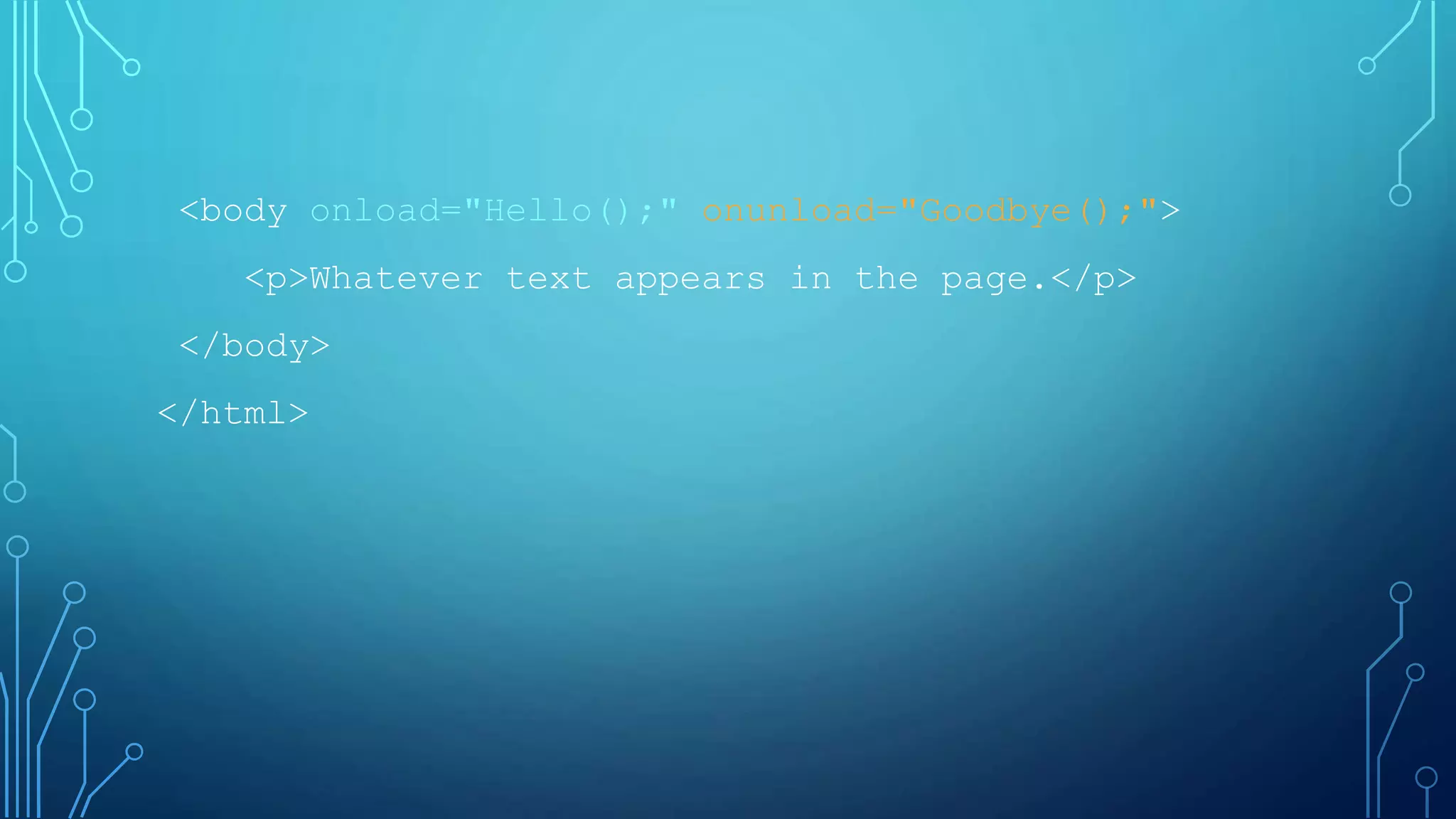

<body onload="Hello();" onunload="Goodbye();">
<p>Whatever text appears in the page.</p>
</body>
</html>

USING THE ONCLICK EVENT HANDLER

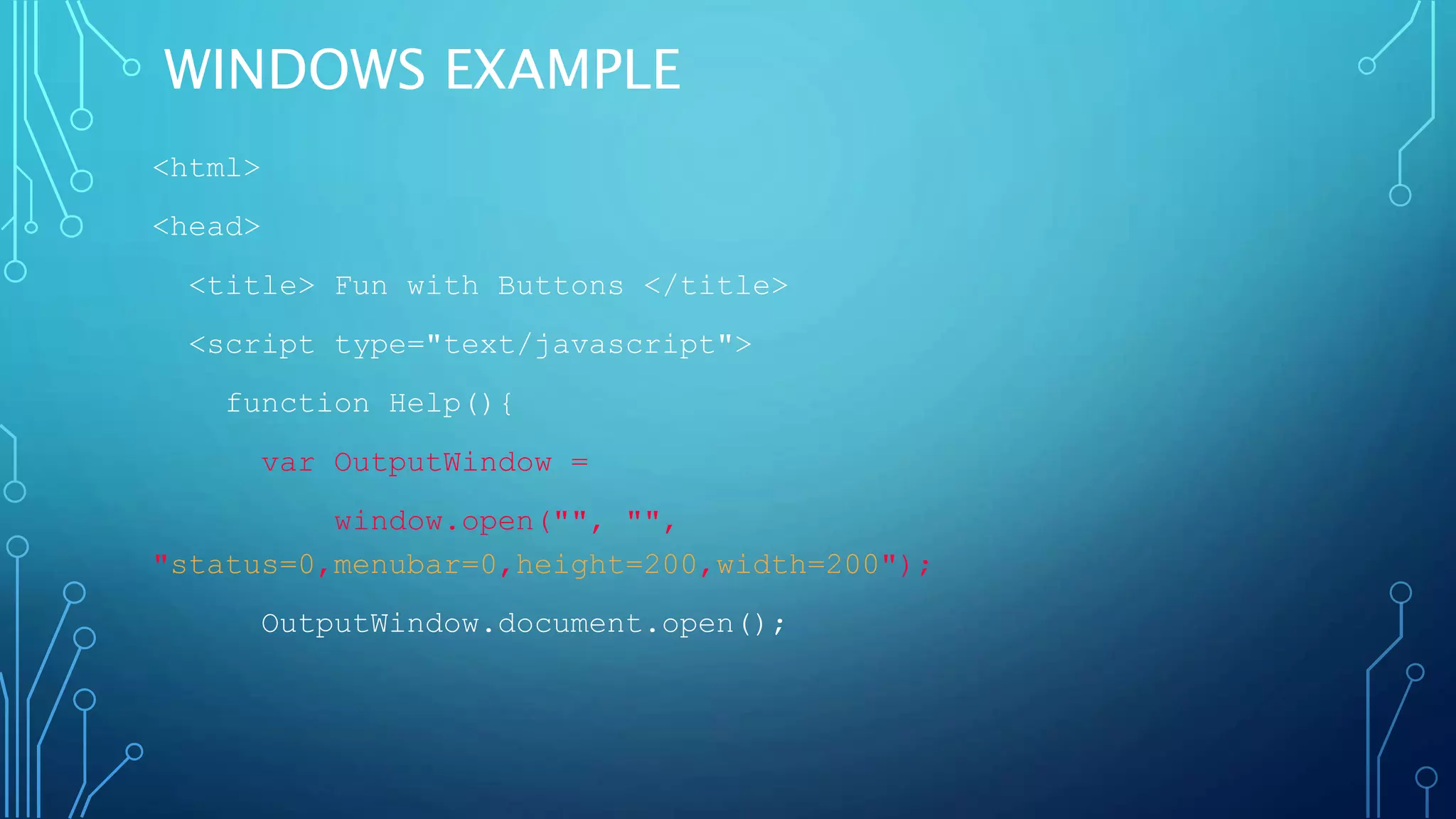

WINDOWS EXAMPLE
<html>
<head>
<title> Fun with Buttons </title>
function Help(){
var OutputWindow =
window.open("", "",
"status=0,menubar=0,height=200,width=200");
OutputWindow.document.open();

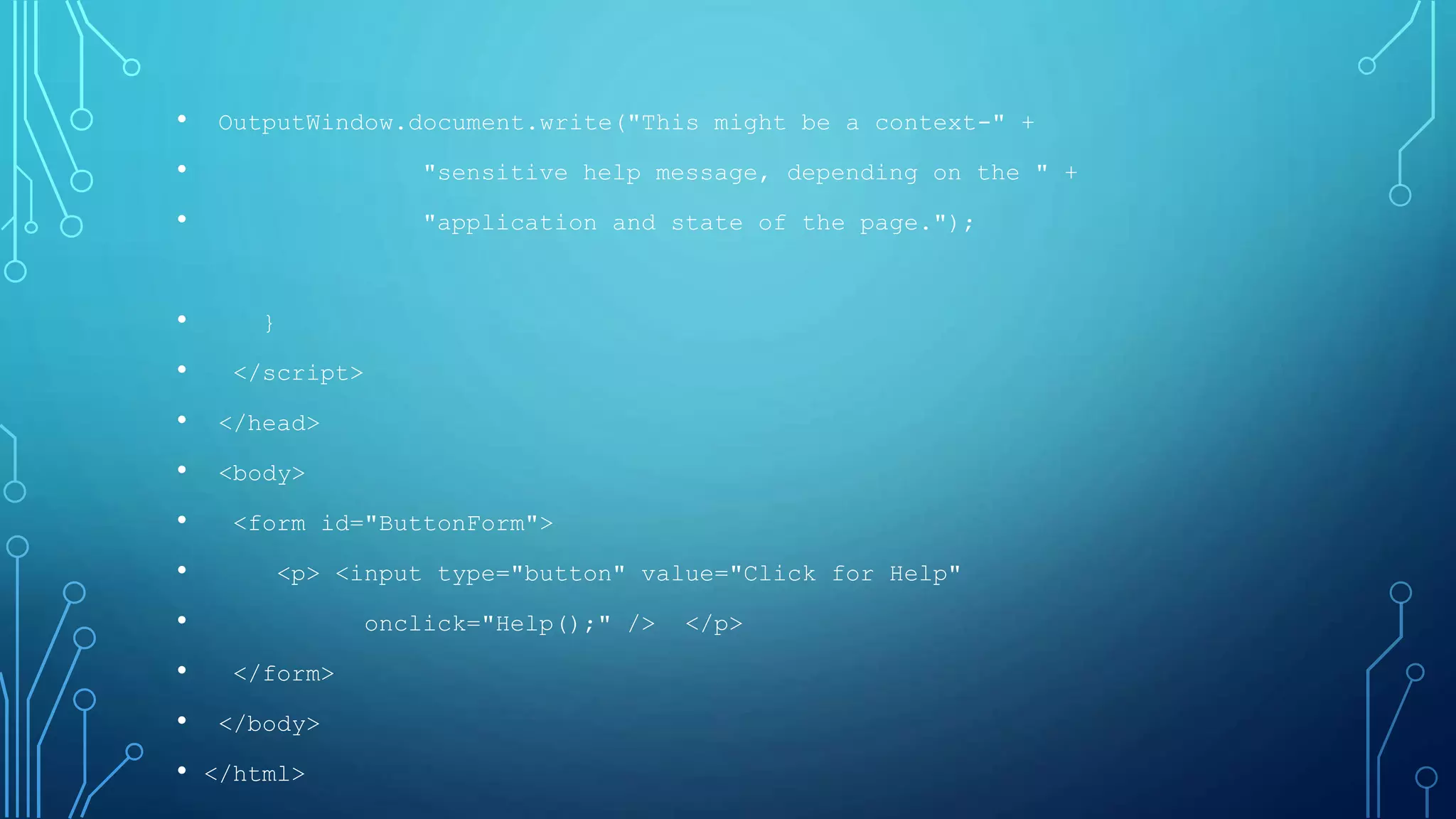

• OutputWindow.document.write("This might be a context-" +
• "sensitive help message, depending on the " +
• "application and state of the page.");
• }
• </script>
• </head>
• <body>
• <form id="ButtonForm">
• <p> <input type="button" value="Click for Help"
• onclick="Help();" /> </p>
• </form>
• </body>
• </html>

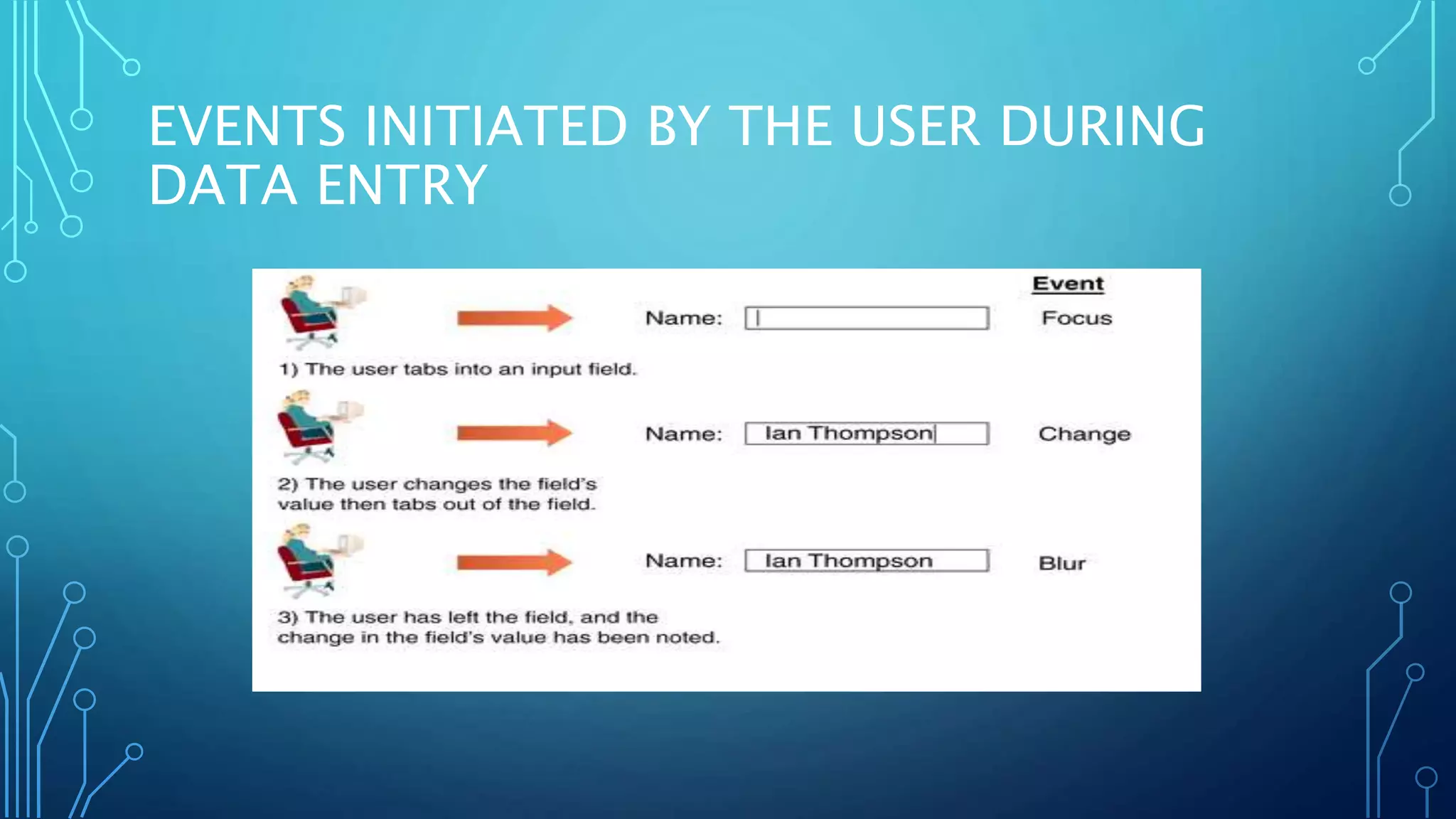

EVENTS INITIATED BY THE USER DURING
DATA ENTRY

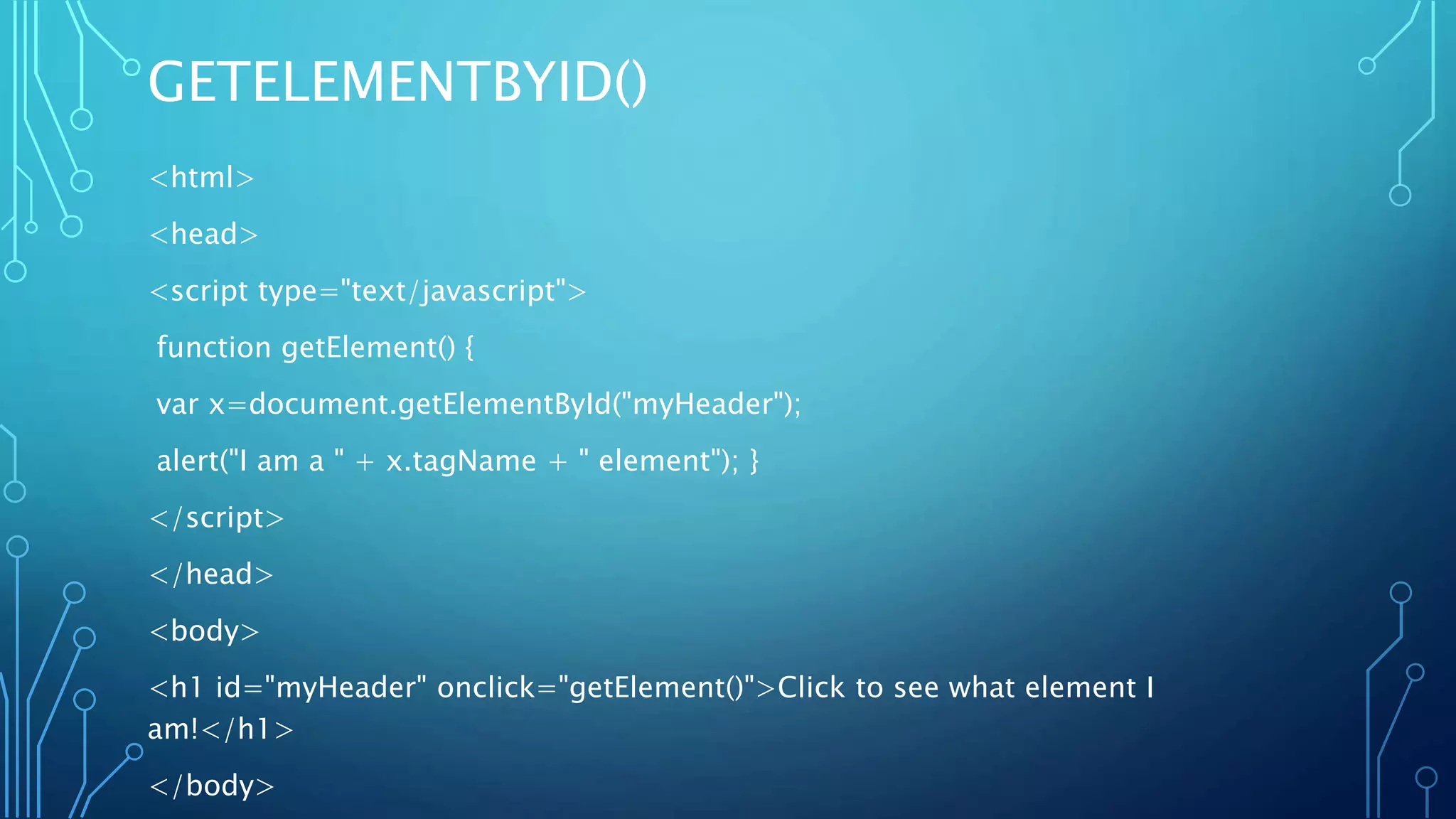

GETELEMENTBYID()
<html>
<head>
function getElement() {
var x=document.getElementById("myHeader");
alert("I am a " + x.tagName + " element"); }
</script>
</head>
<body>
<h1 id="myHeader" onclick="getElement()">Click to see what element I
am!</h1>
</body>

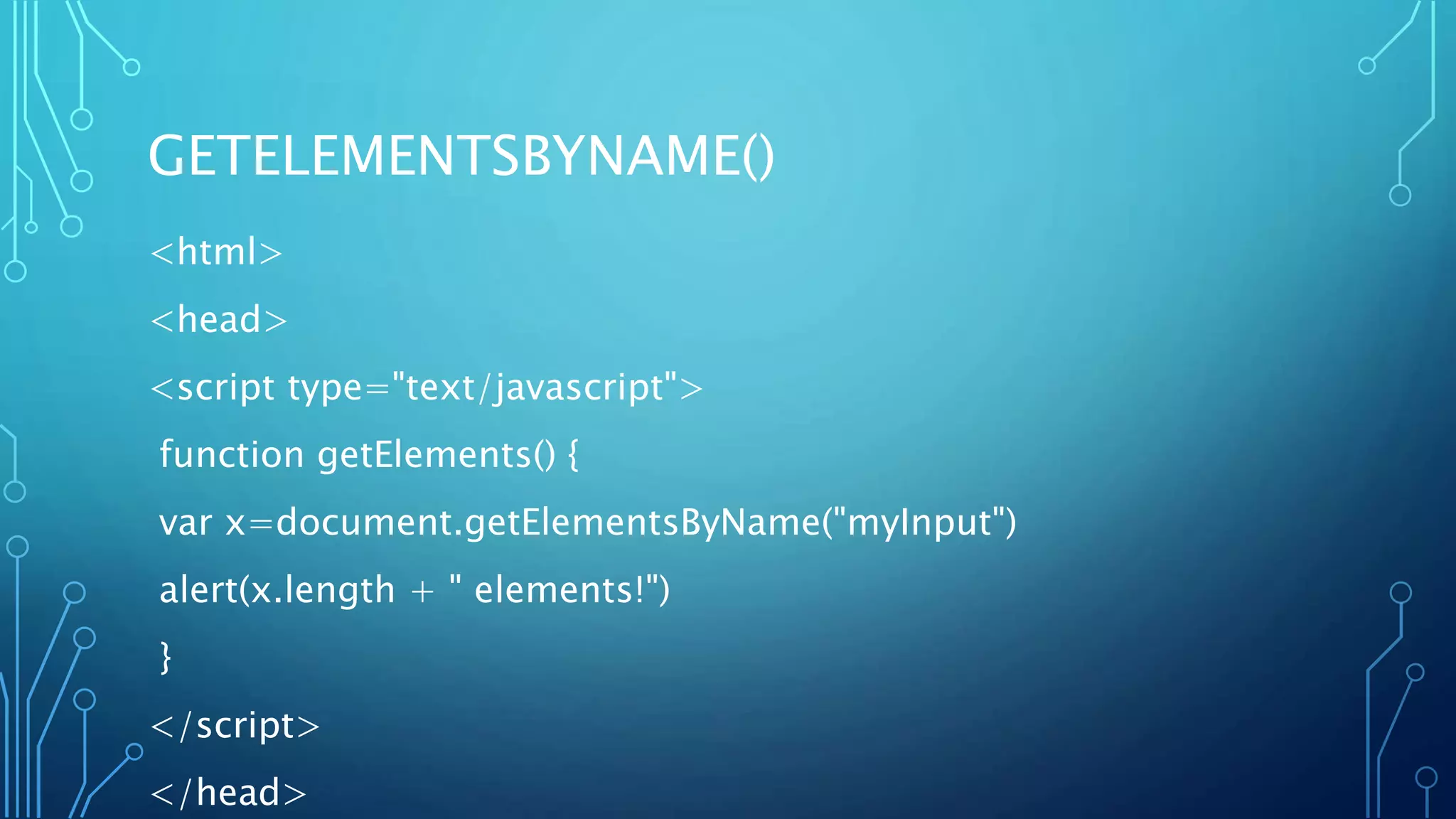

GETELEMENTSBYNAME()
<html>
<head>
function getElements() {
var x=document.getElementsByName("myInput")
alert(x.length + " elements!")
}
</script>
</head>

RETURN THE INNERHTML OF THE FIRST ANCHOR
IN A DOCUMENT
<html>
<body>
<a name="first">First anchor</a><br />
<a name="second">Second anchor</a><br />
<a name="third">Third anchor</a><br />
<br />
InnerHTML of the first anchor in this document:
document.write(document.anchors[0].innerHTML)
</script>
</body>
</html>

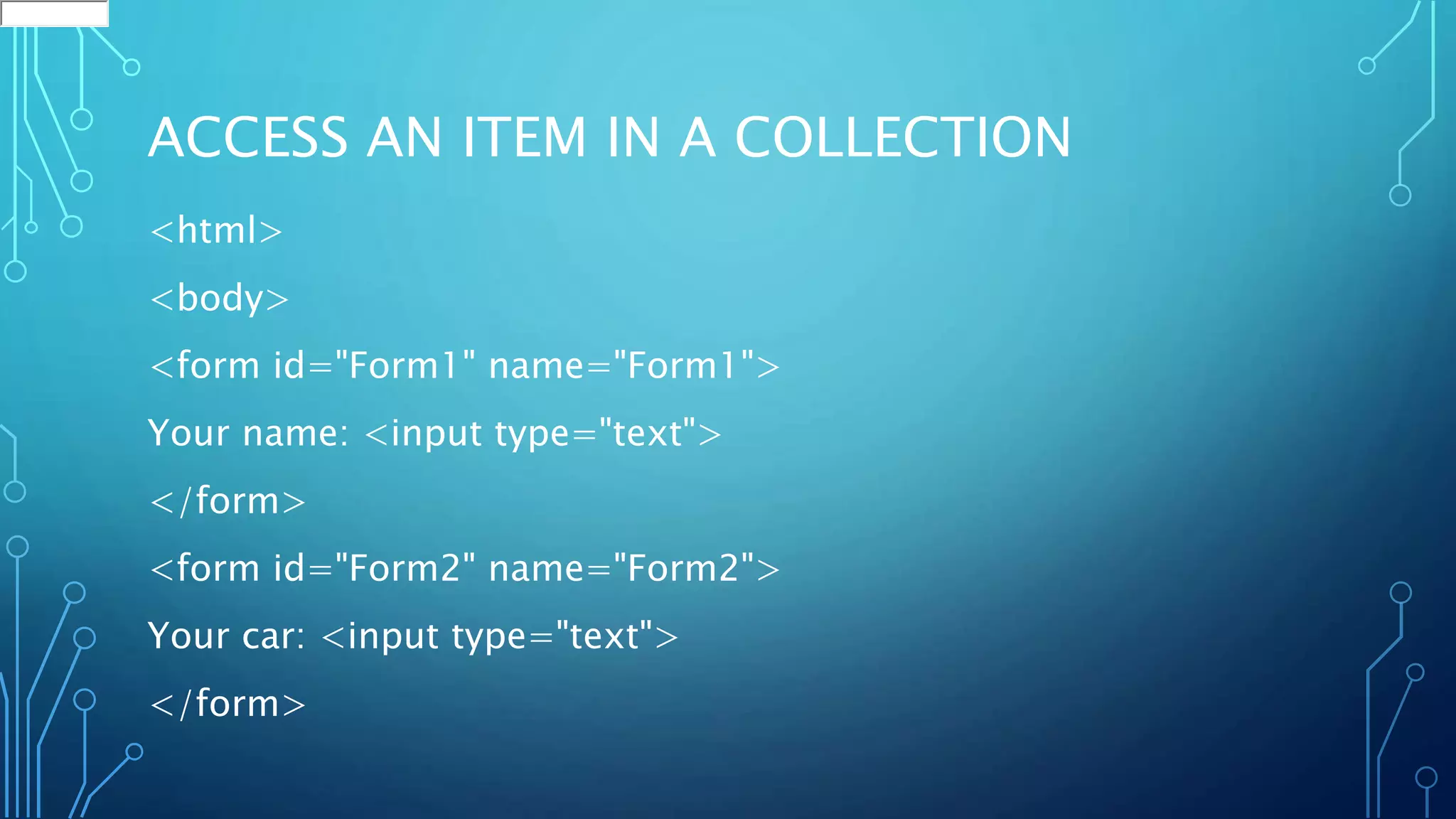

ACCESS AN ITEM IN A COLLECTION
<html>
<body>
<form id="Form1" name="Form1">
Your name: <input type="text">
</form>
<form id="Form2" name="Form2">
Your car: <input type="text">
</form>

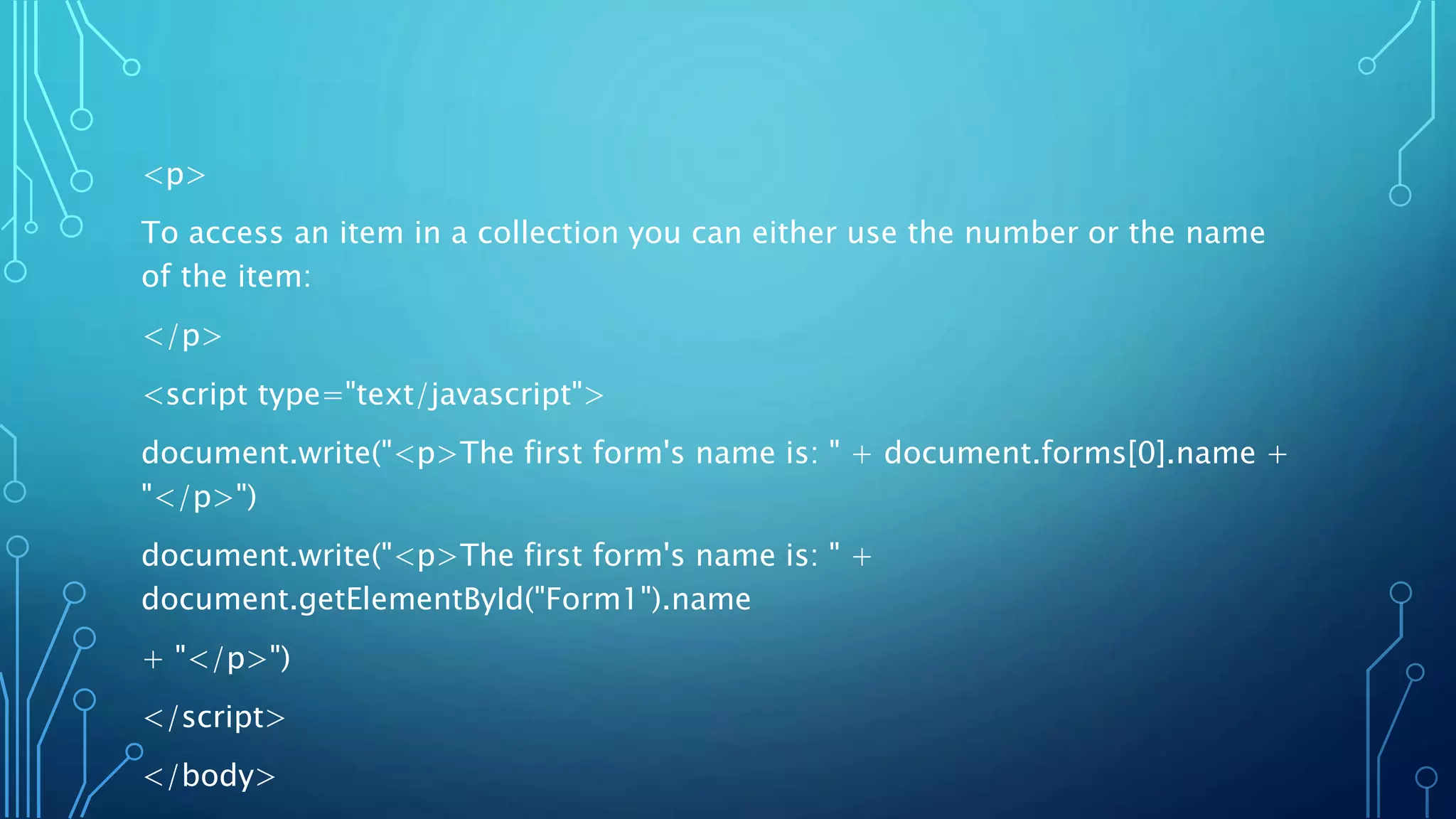

<p>
To access an item in a collection you can either use the number or the name
of the item:
</p>
document.write("<p>The first form's name is: " + document.forms[0].name +
"</p>")
document.write("<p>The first form's name is: " +
document.getElementById("Form1").name
+ "</p>")
</script>
</body>

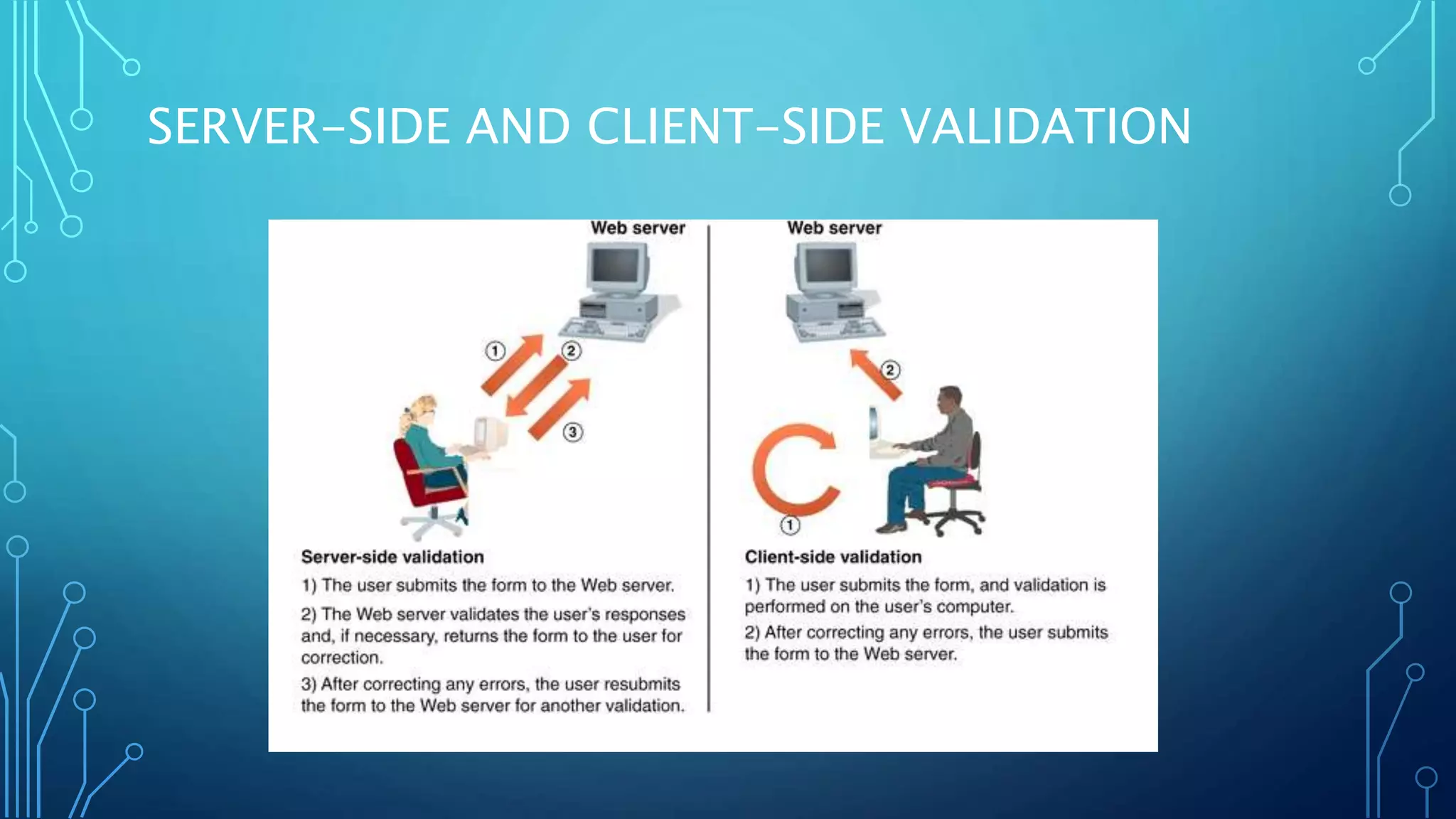

SERVER-SIDE AND CLIENT-SIDE VALIDATION
