Distributed Logging Architecture in the Container Era
- 1. Distributed Logging Architecture inContainer Era LinuxCon Japan 2016 at Jun 13 2016 Satoshi "Moris" Tagomori (@tagomoris)
- 2. Satoshi "Moris" Tagomori (@tagomoris) Fluentd,MessagePack-Ruby, Norikra, ... Treasure Data, Inc.

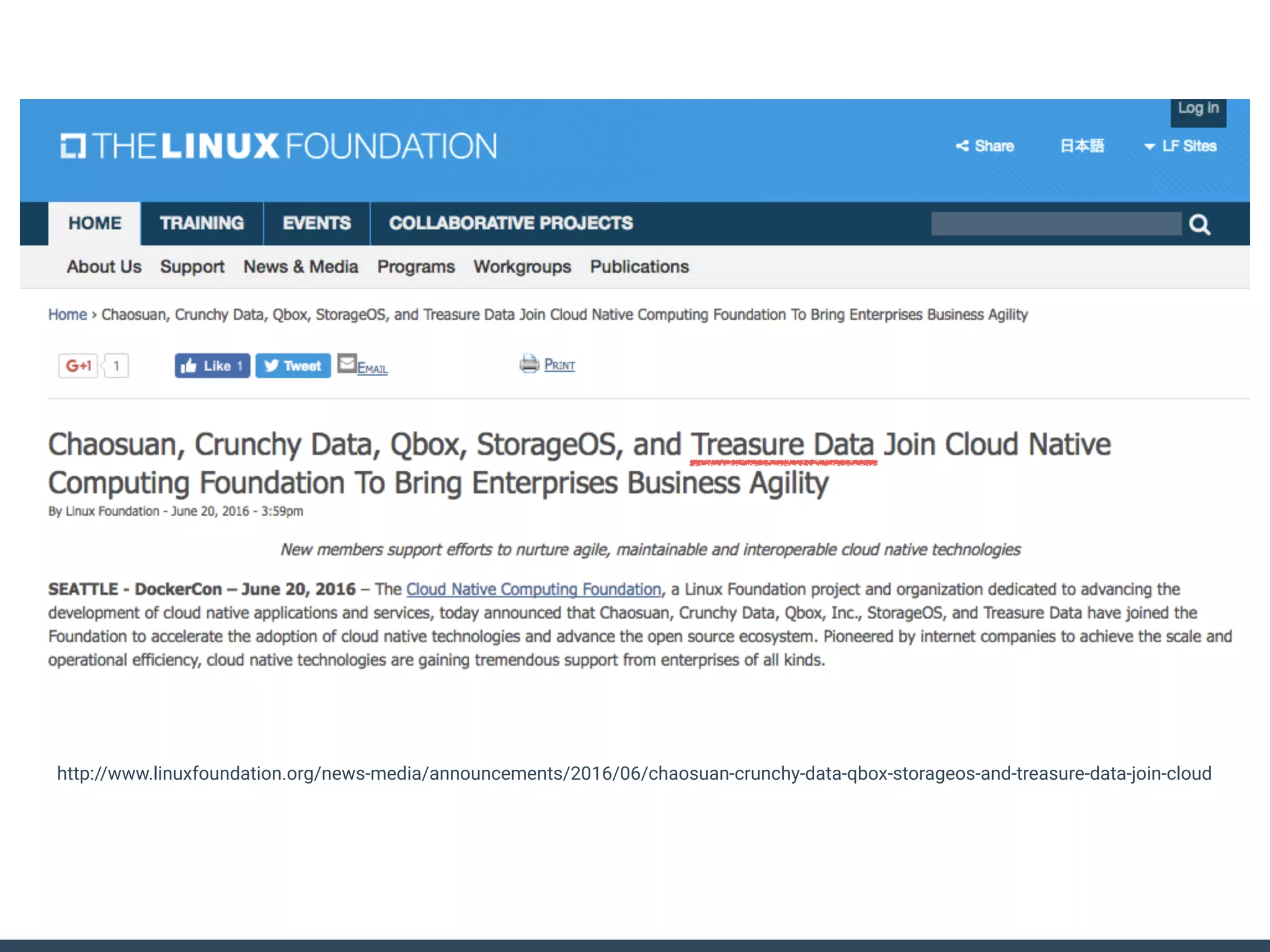

- 4.

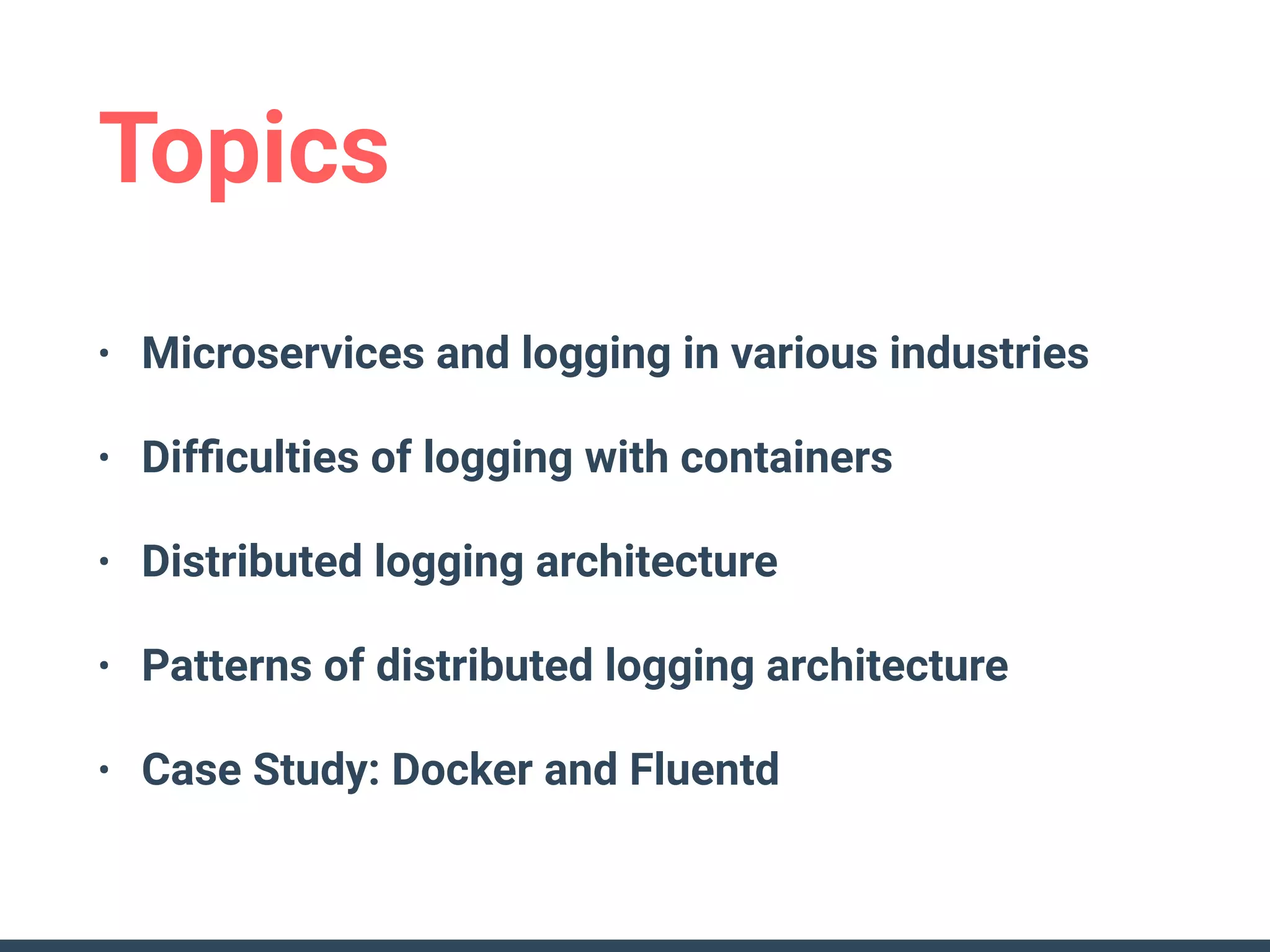

- 5. Topics • Microservices andlogging in various industries • Difficulties of logging with containers • Distributed logging architecture • Patterns of distributed logging architecture • Case Study: Docker and Fluentd
- 6.

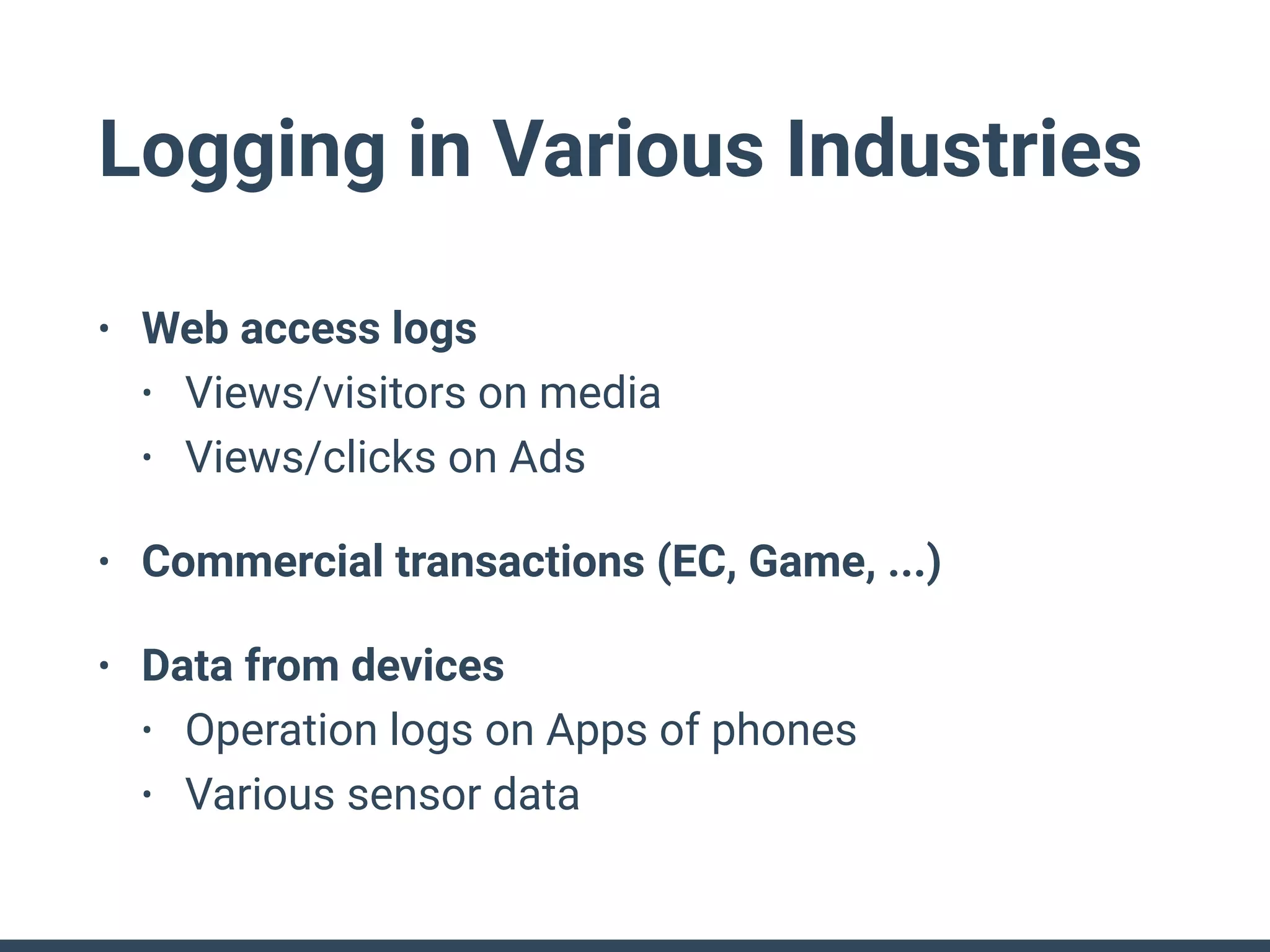

- 7. Logging in VariousIndustries • Web access logs • Views/visitors on media • Views/clicks on Ads • Commercial transactions (EC, Game, ...) • Data from devices • Operation logs on Apps of phones • Various sensor data

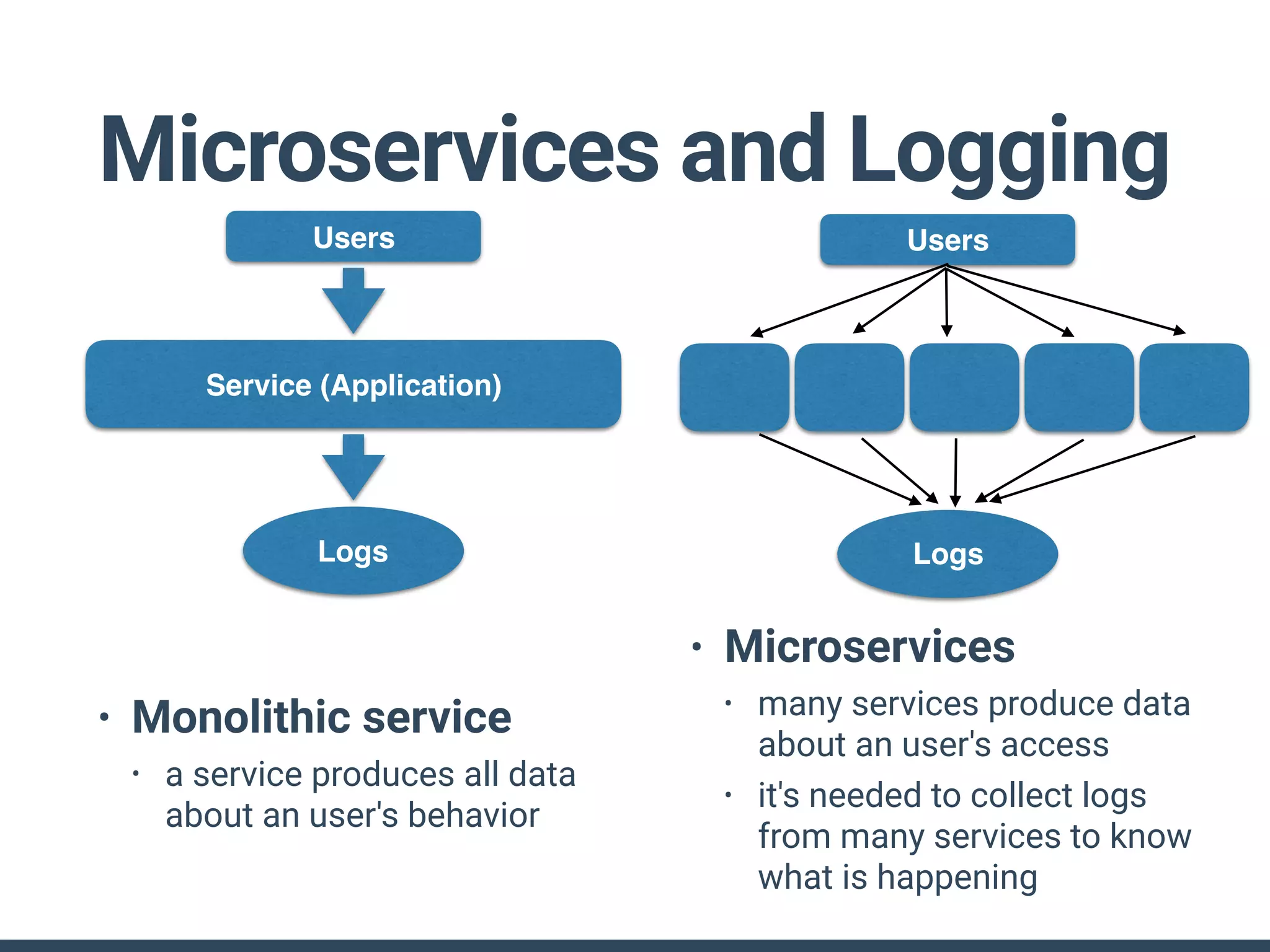

- 8. Microservices and Logging •Monolithic service • a service produces all data about an user's behavior • Microservices • many services produce data about an user's access • it's needed to collect logs from many services to know what is happening Users Service (Application) Logs Users Logs
- 9.

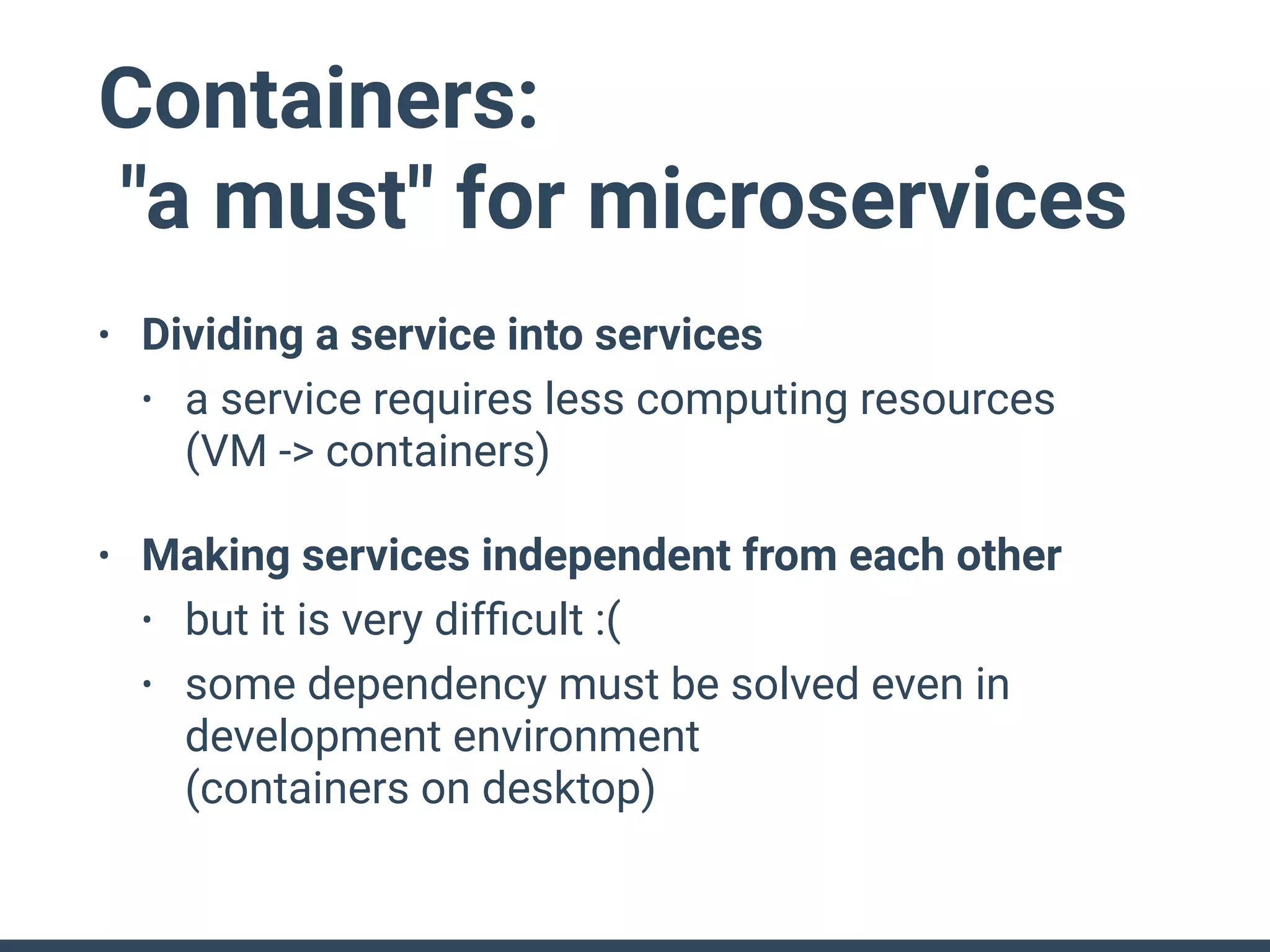

- 10. Containers: "a must" formicroservices • Dividing a service into services • a service requires less computing resources (VM -> containers) • Making services independent from each other • but it is very difficult :( • some dependency must be solved even in development environment (containers on desktop)

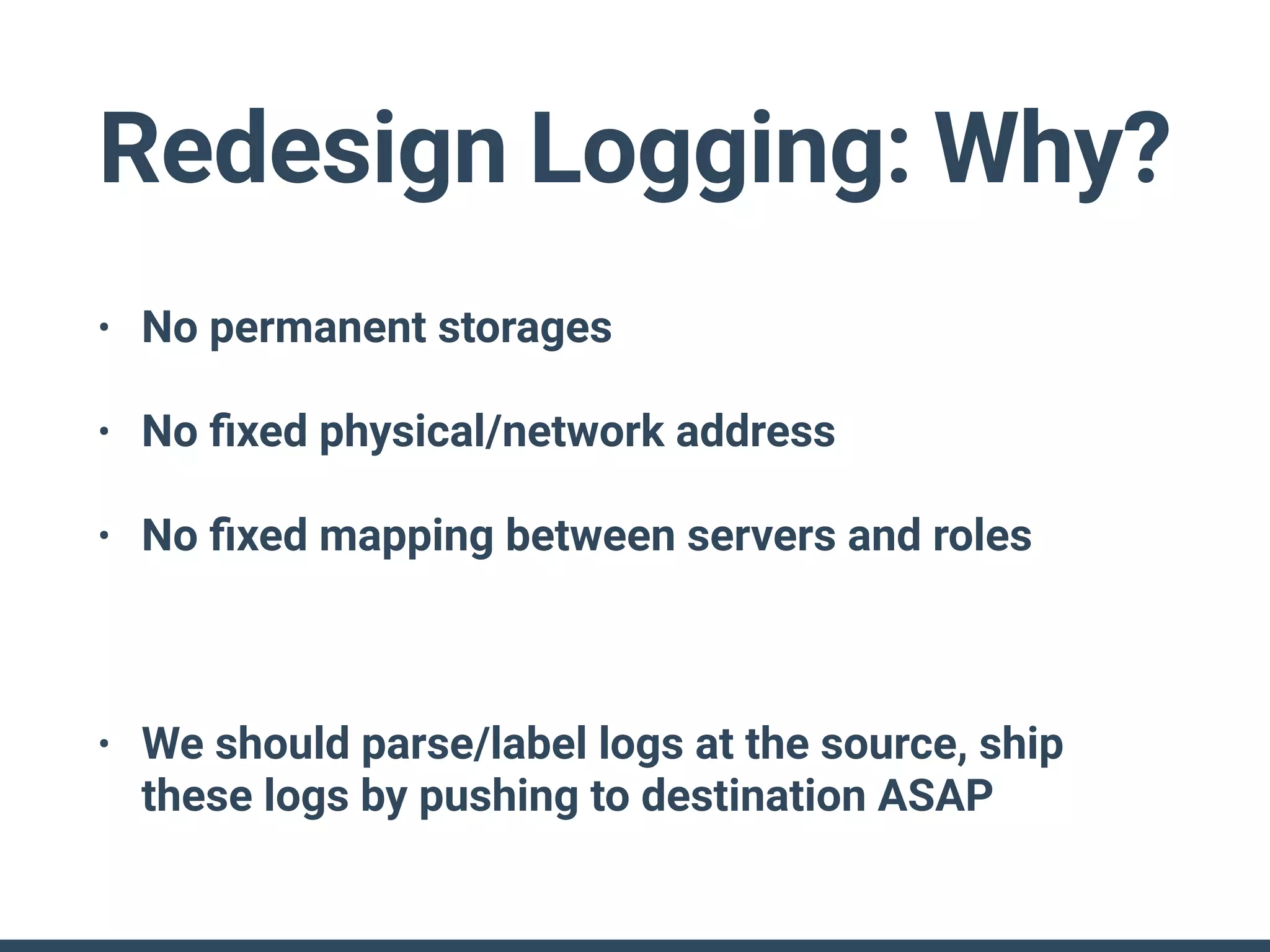

- 11. Redesign Logging: Why? •No permanent storages • No fixed physical/network address • No fixed mapping between servers and roles • We should parse/label logs at the source, ship these logs by pushing to destination ASAP
- 12. Containers: immutable & disposable •No permanent storages • Where to write logs? • files in the container → gone w/ container instance 😞 • directories shared from hosts → hosts are shared by many containers/services ☹ • TODO: ship logs from container to anywhere ASAP
- 13. Containers: unfixed addresses • Nofixed physical / network address • Where should we go to fetch logs? • Service discovery (e.g., consul) → one more component 😞 • rsync? ssh+tail? or ..? Is it installed in containers? → one more tool to depend on ☹ • TODO: push logs to anywhere from containers

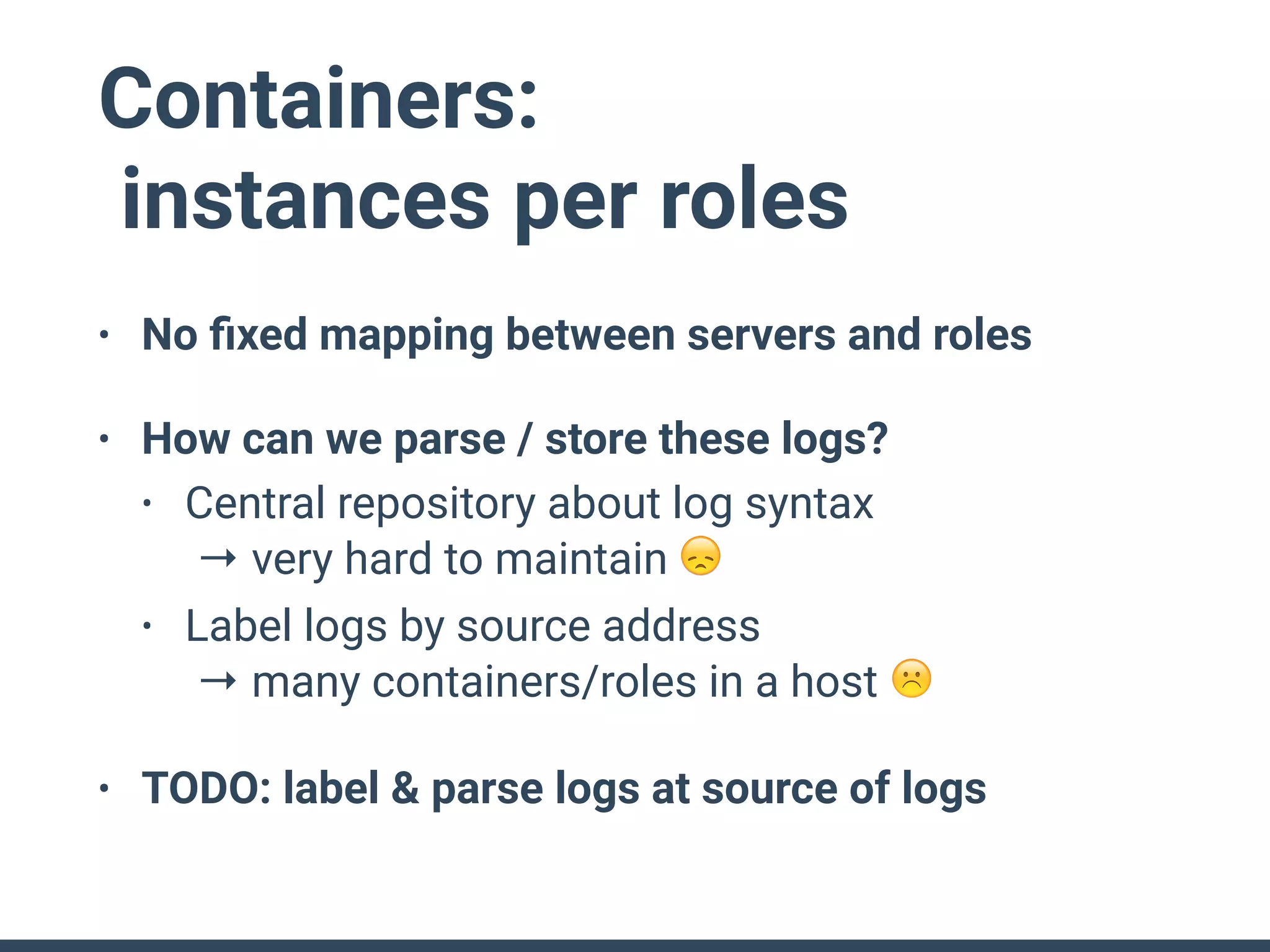

- 14. Containers: instances per roles •No fixed mapping between servers and roles • How can we parse / store these logs? • Central repository about log syntax → very hard to maintain 😞 • Label logs by source address → many containers/roles in a host ☹ • TODO: label & parse logs at source of logs
- 15.

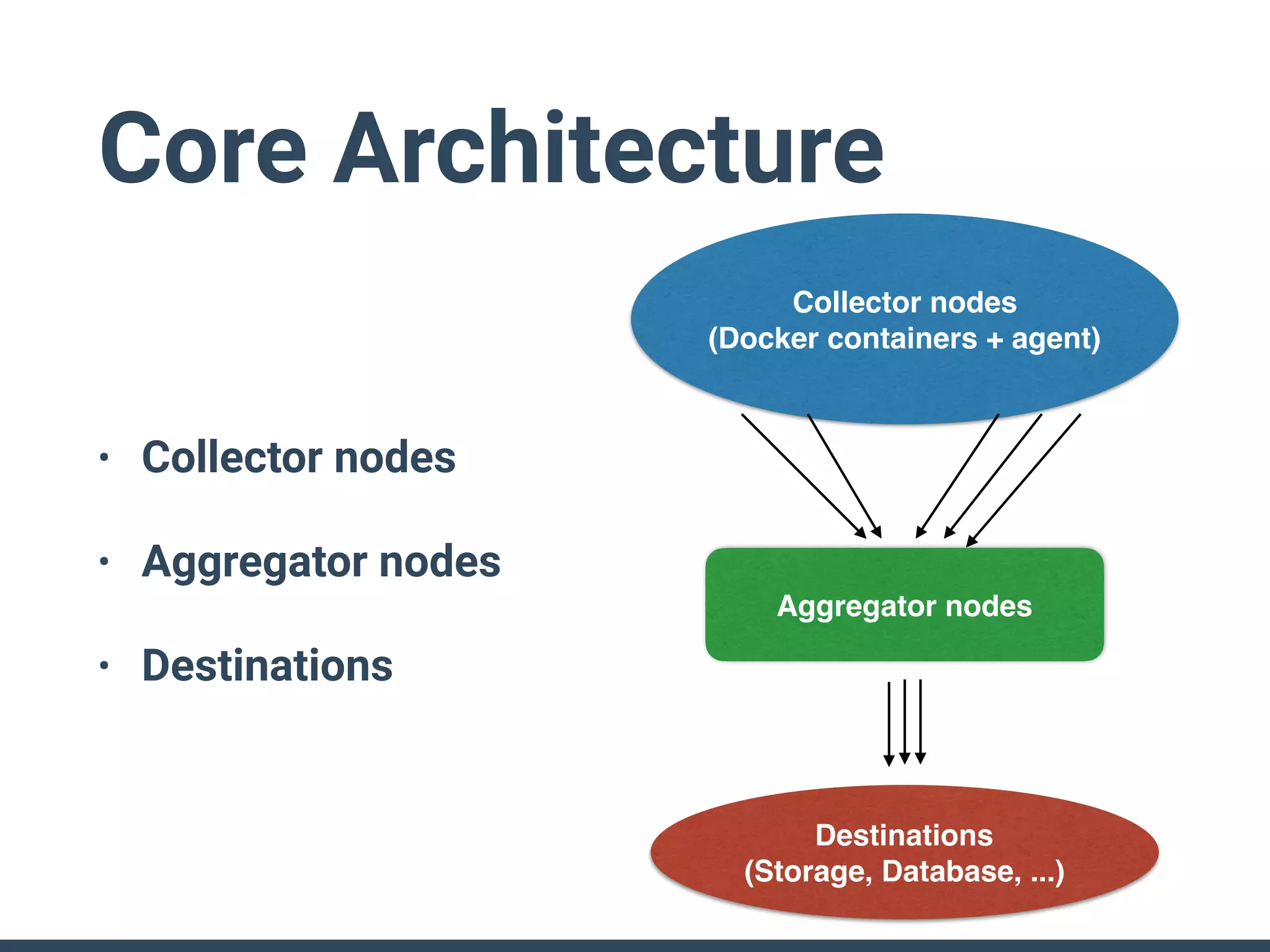

- 16. Core Architecture • Collectornodes • Aggregator nodes • Destinations Collector nodes (Docker containers + agent) Destinations (Storage, Database, ...) Aggregator nodes
- 17. • Parse/Label (collector) •Raw logs are not good for processing • Convert logs to structured data (key-value pairs) • Split/Sort (aggregator) • Mixed logs are not good for searching • Split whole data stream into streams per services • Store (destination) • Format logs(records) as destination expects Collecting and Storing Data
- 18. Scaling Logging • Networktraffic • CPU load to parse / format • Parse logs on each collector (distributed) • Format logs on aggregator (to be distributed) • Capability • Make aggregators redundant • Controlling delay • to make sure when we can know what's happening in our systems
- 19.
- 20.

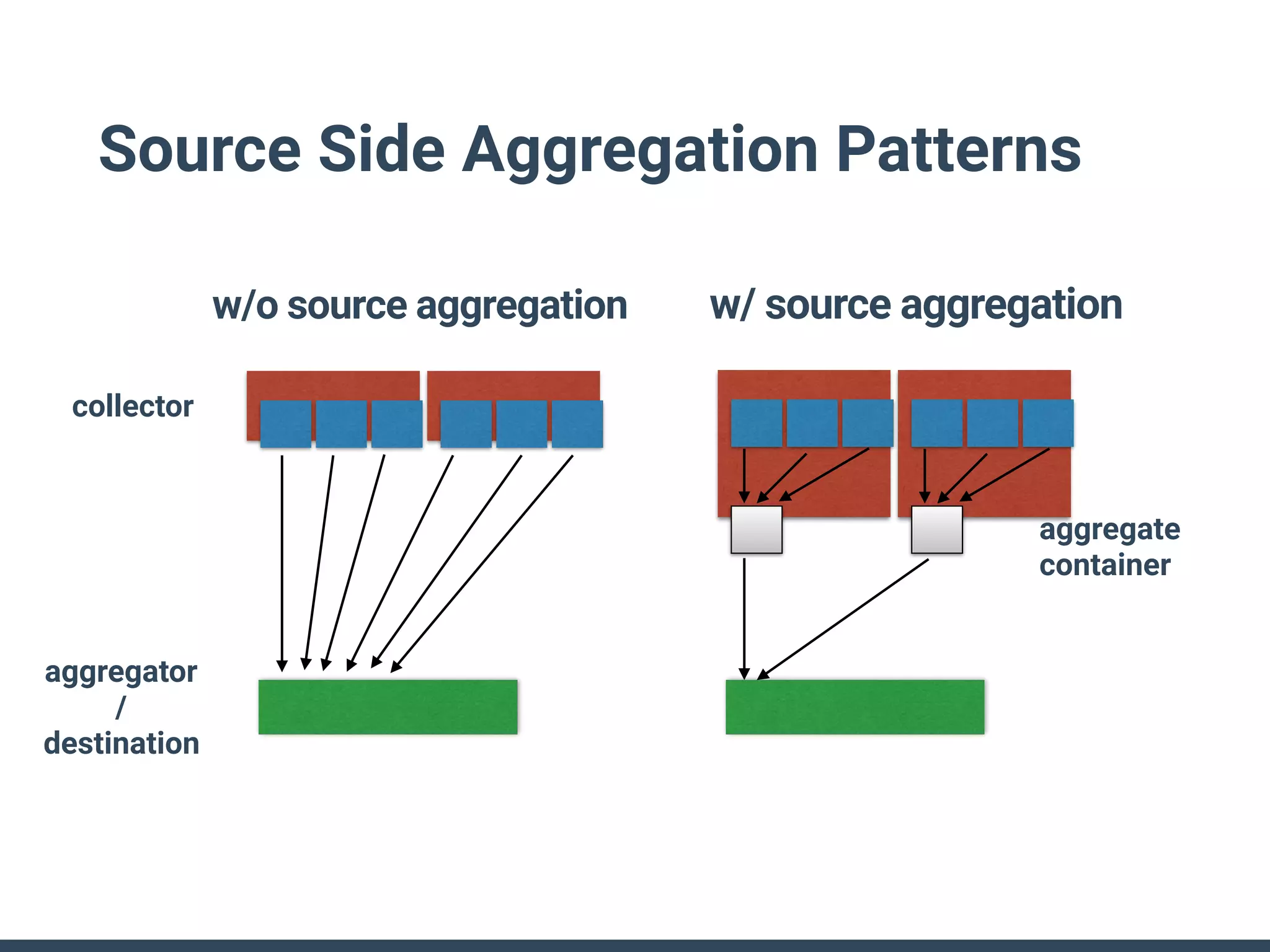

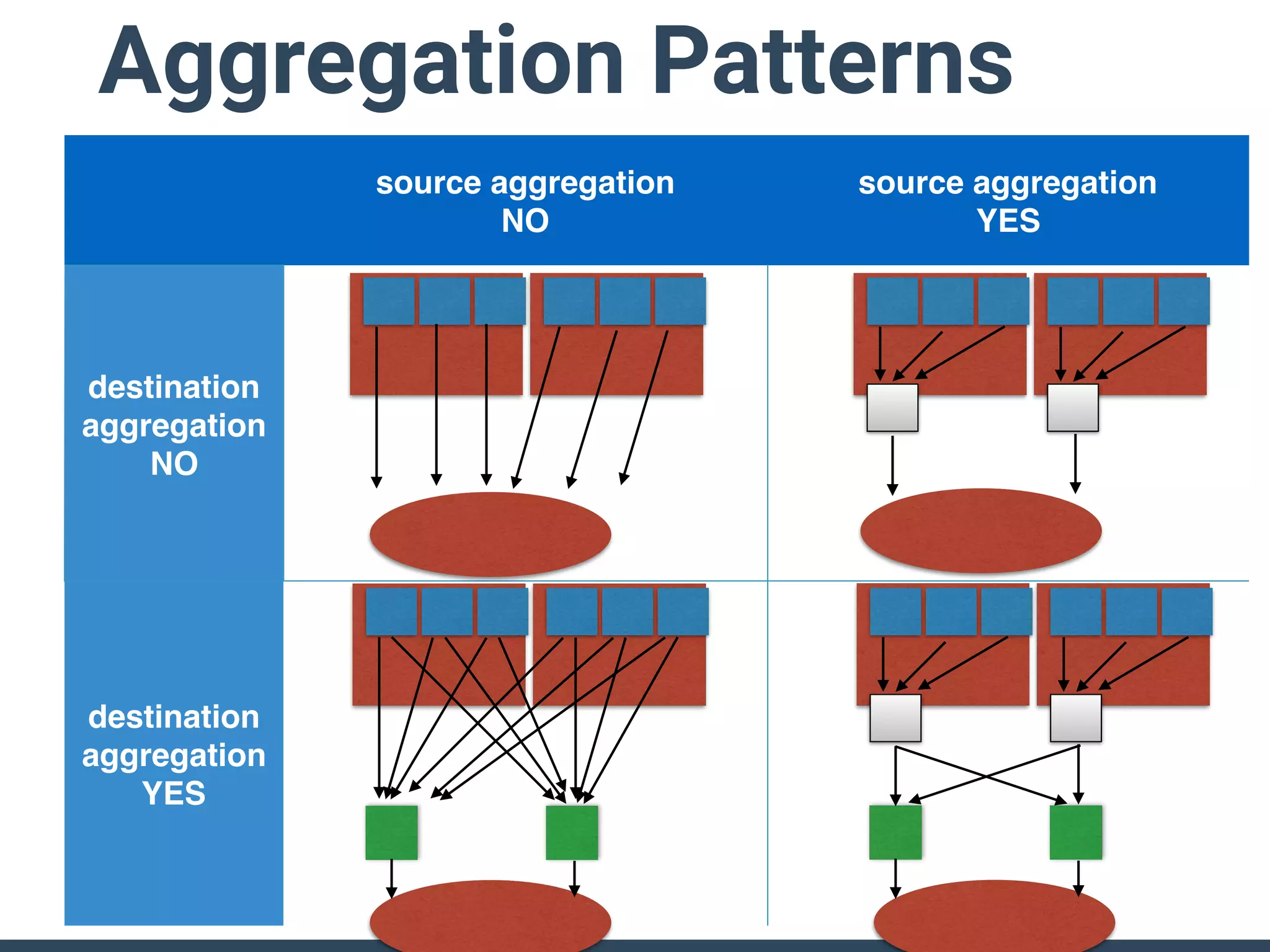

- 21. Source Side AggregationPatterns w/o source aggregation w/ source aggregation collector aggregator / destination aggregate container

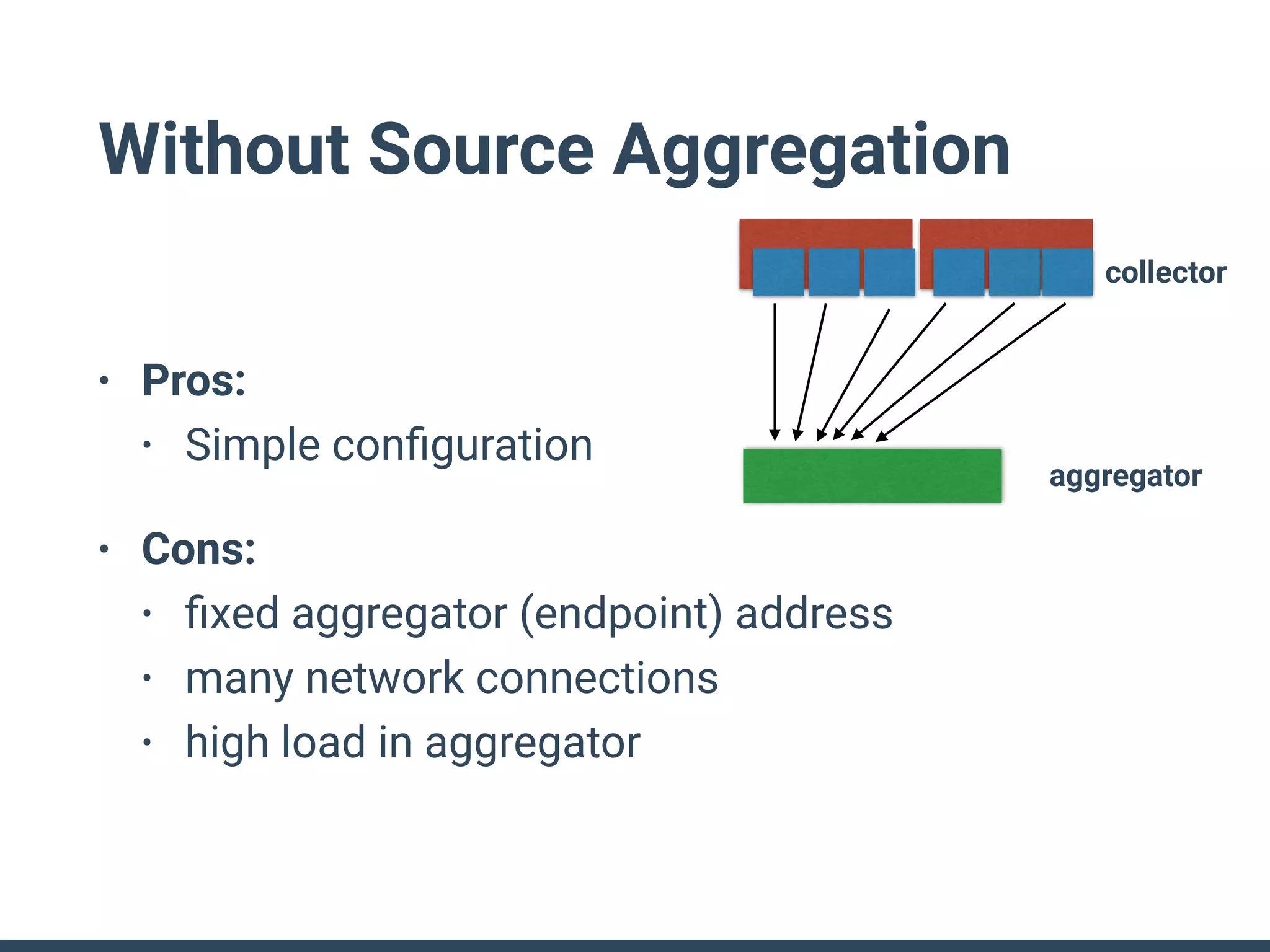

- 22. Without Source Aggregation •Pros: • Simple configuration • Cons: • fixed aggregator (endpoint) address • many network connections • high load in aggregator collector aggregator

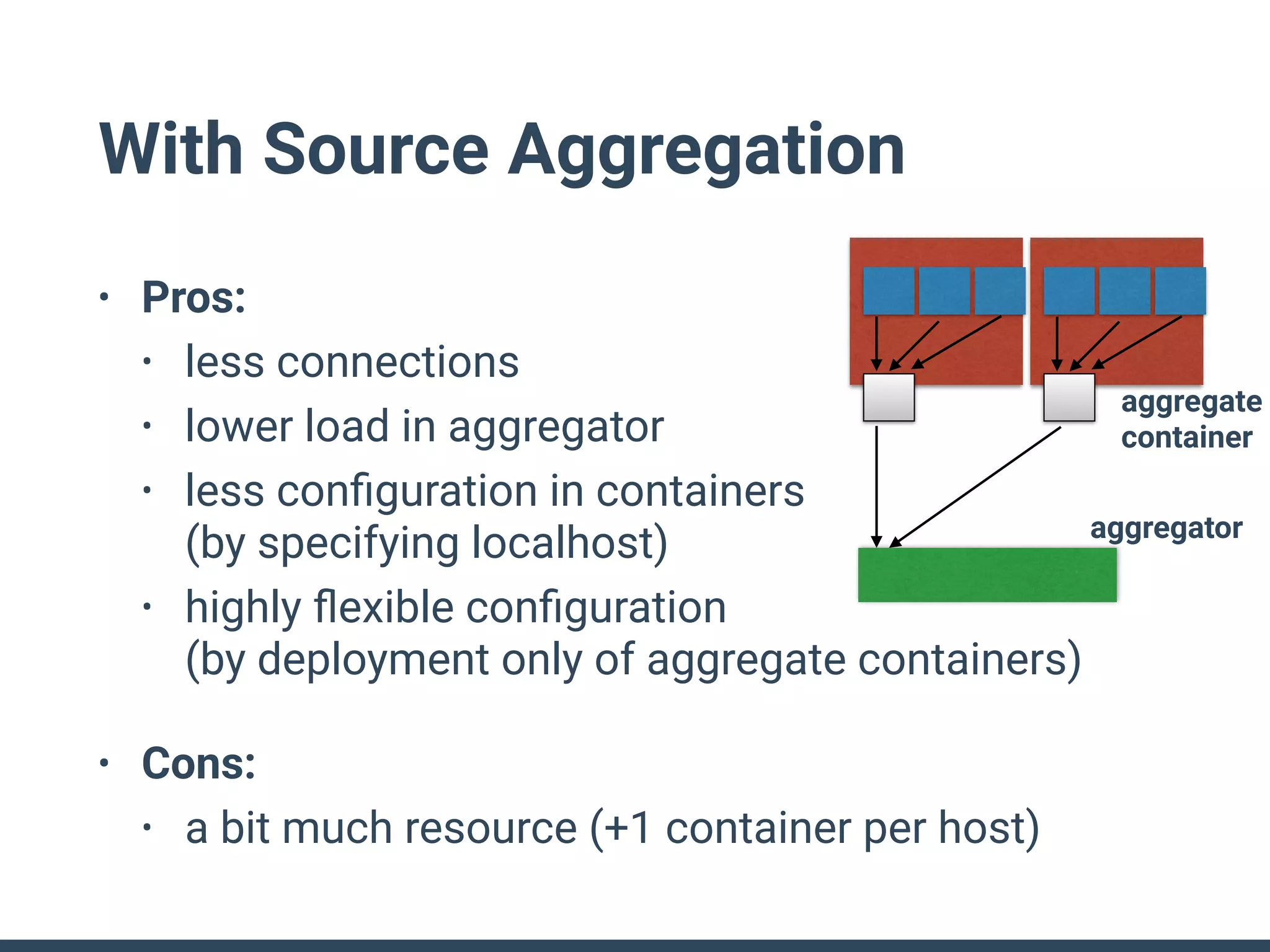

- 23. With Source Aggregation •Pros: • less connections • lower load in aggregator • less configuration in containers (by specifying localhost) • highly flexible configuration (by deployment only of aggregate containers) • Cons: • a bit much resource (+1 container per host) aggregate container aggregator

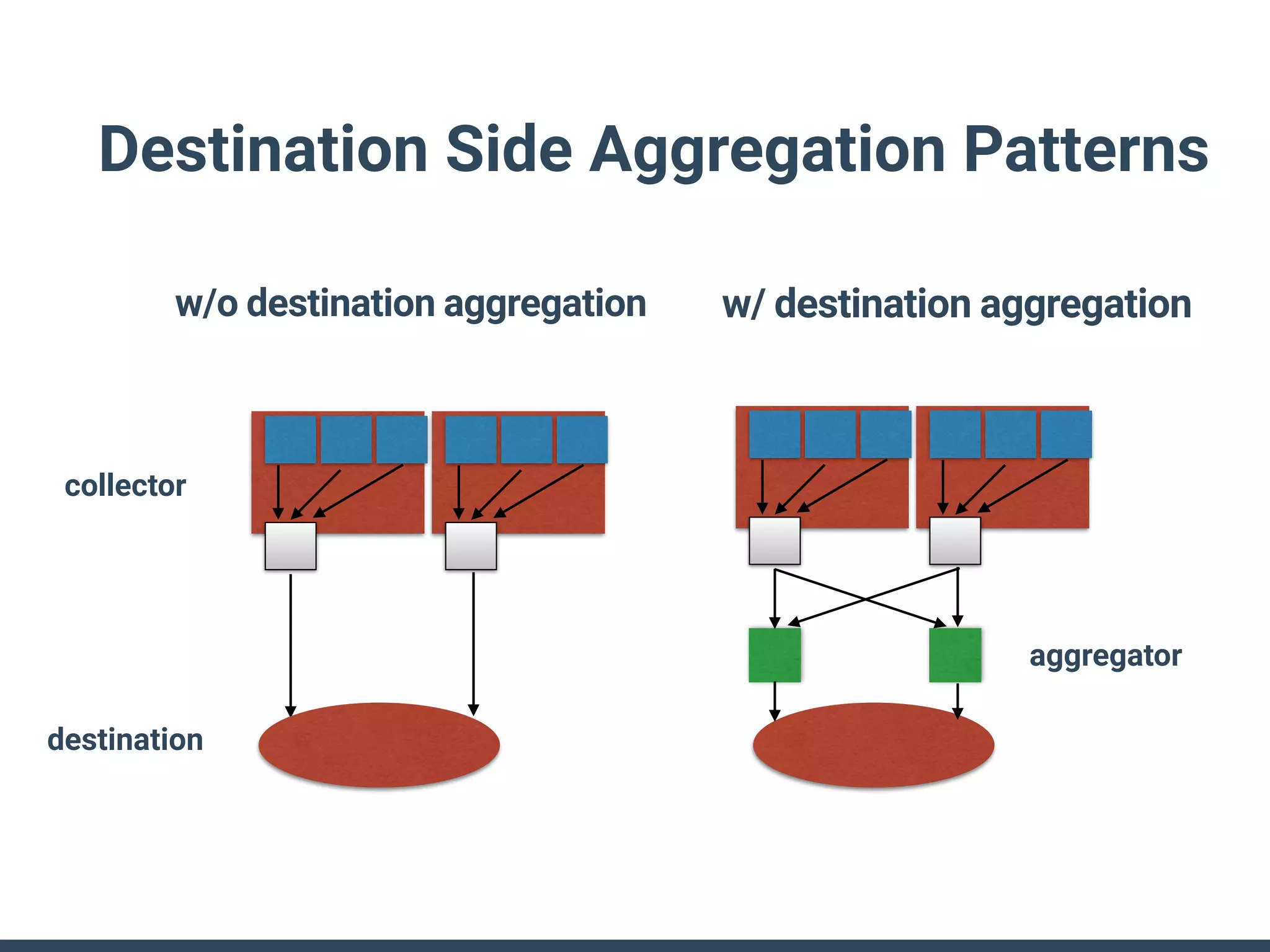

- 24. Destination Side AggregationPatterns w/o destination aggregation w/ destination aggregation aggregator collector destination

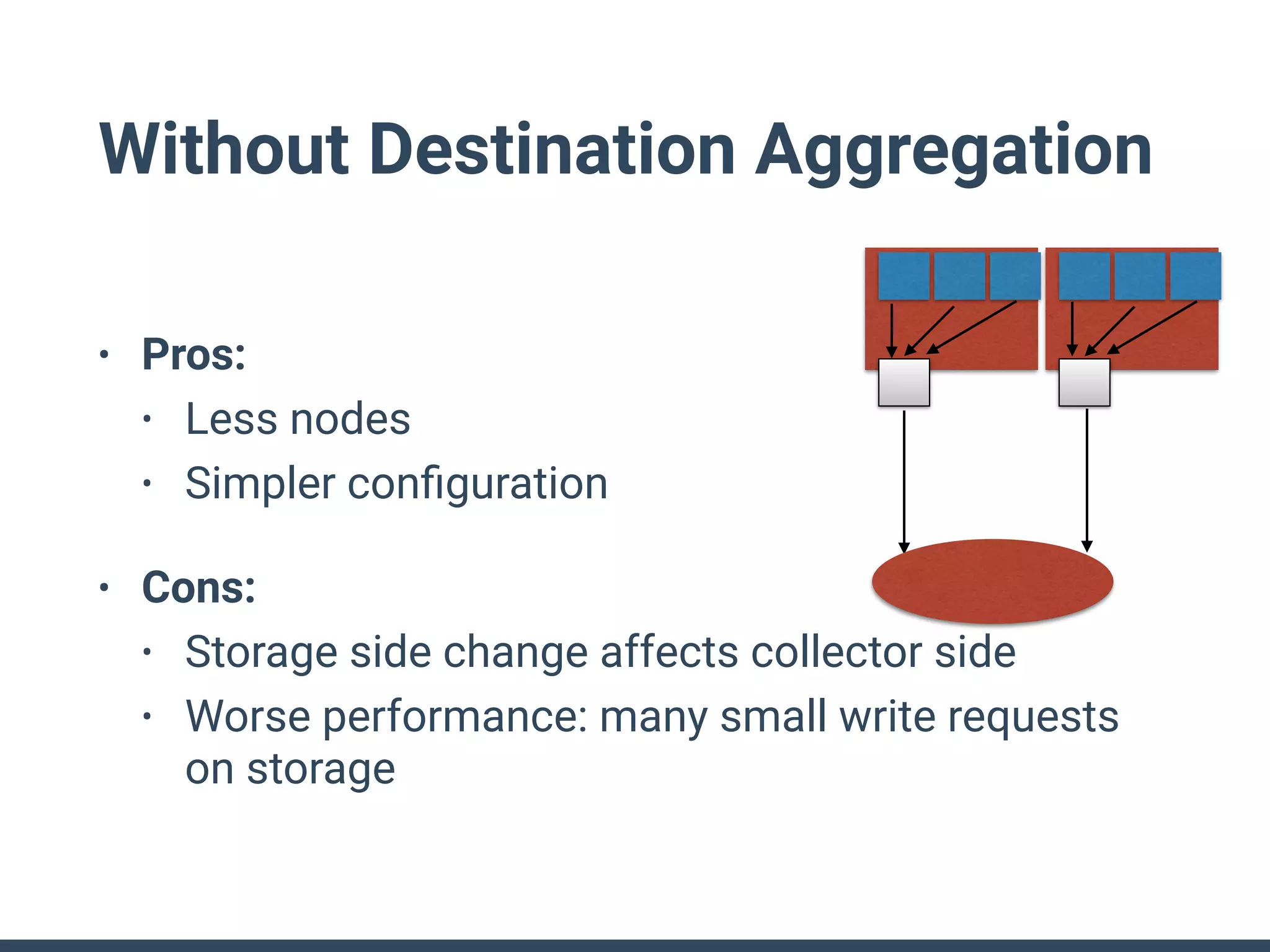

- 25. Without Destination Aggregation •Pros: • Less nodes • Simpler configuration • Cons: • Storage side change affects collector side • Worse performance: many small write requests on storage

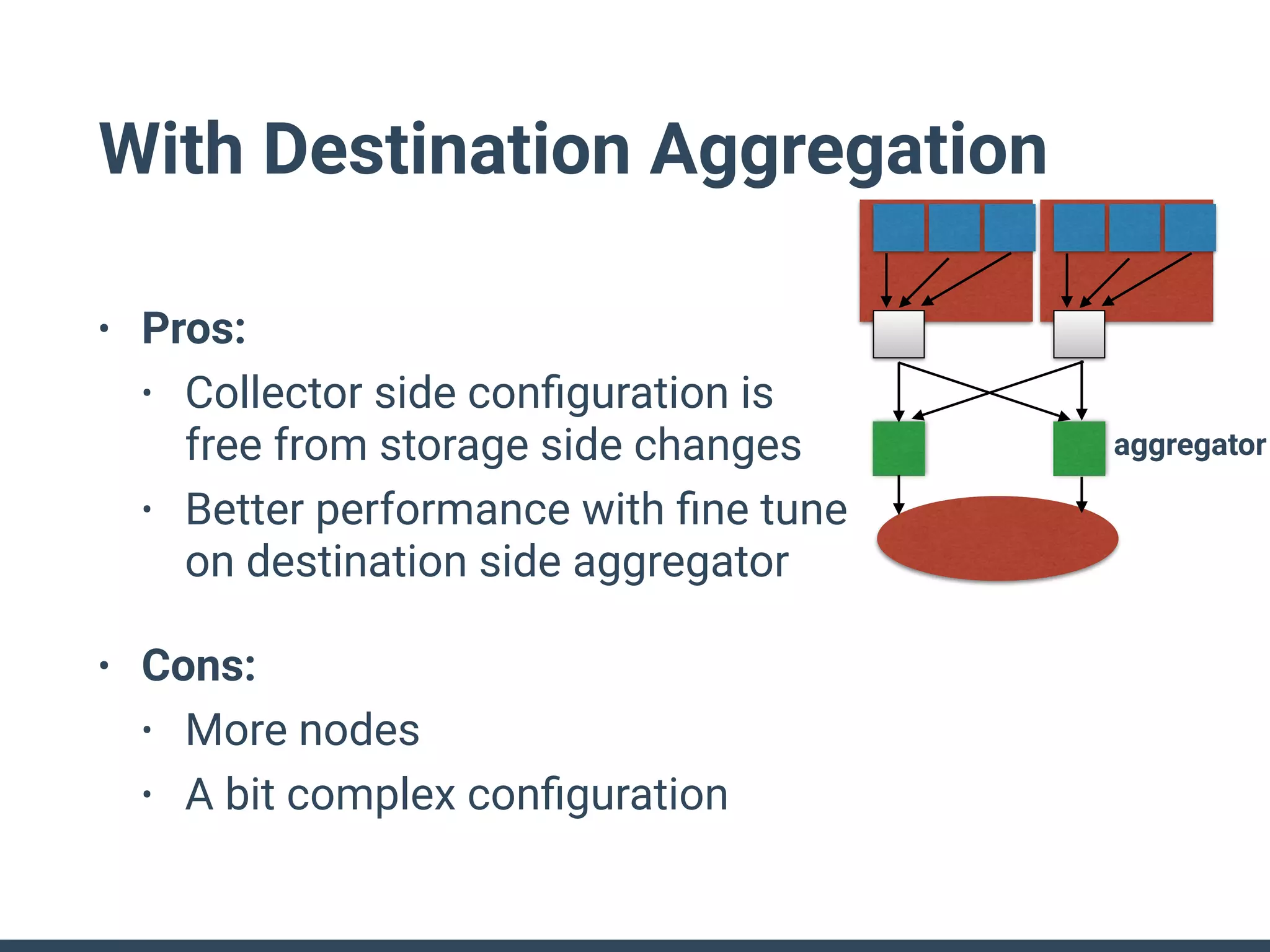

- 26. With Destination Aggregation •Pros: • Collector side configuration is free from storage side changes • Better performance with fine tune on destination side aggregator • Cons: • More nodes • A bit complex configuration aggregator

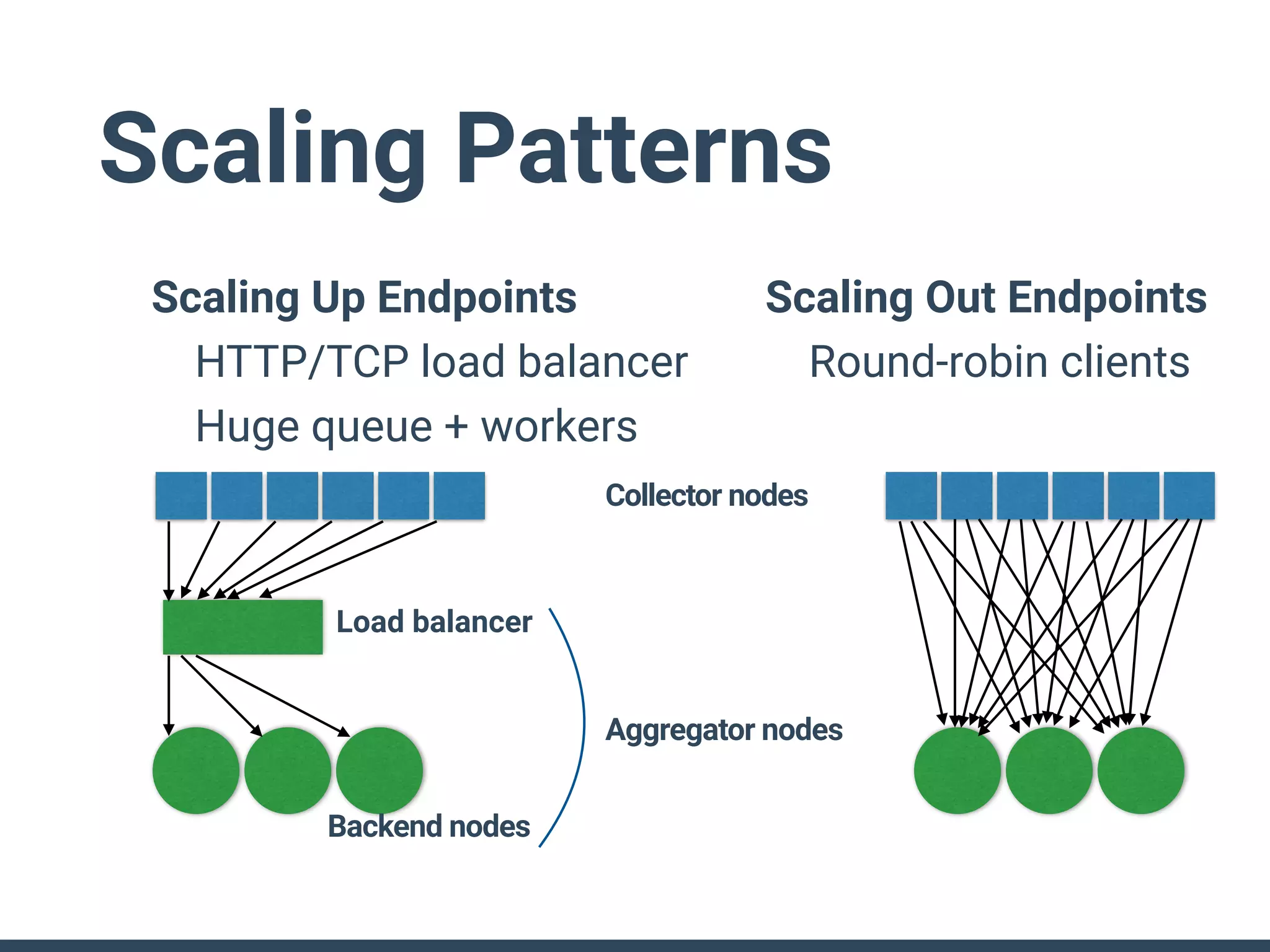

- 27. Scaling Patterns Scaling UpEndpoints HTTP/TCP load balancer Huge queue + workers Scaling Out Endpoints Round-robin clients Load balancer Backend nodes Collector nodes Aggregator nodes

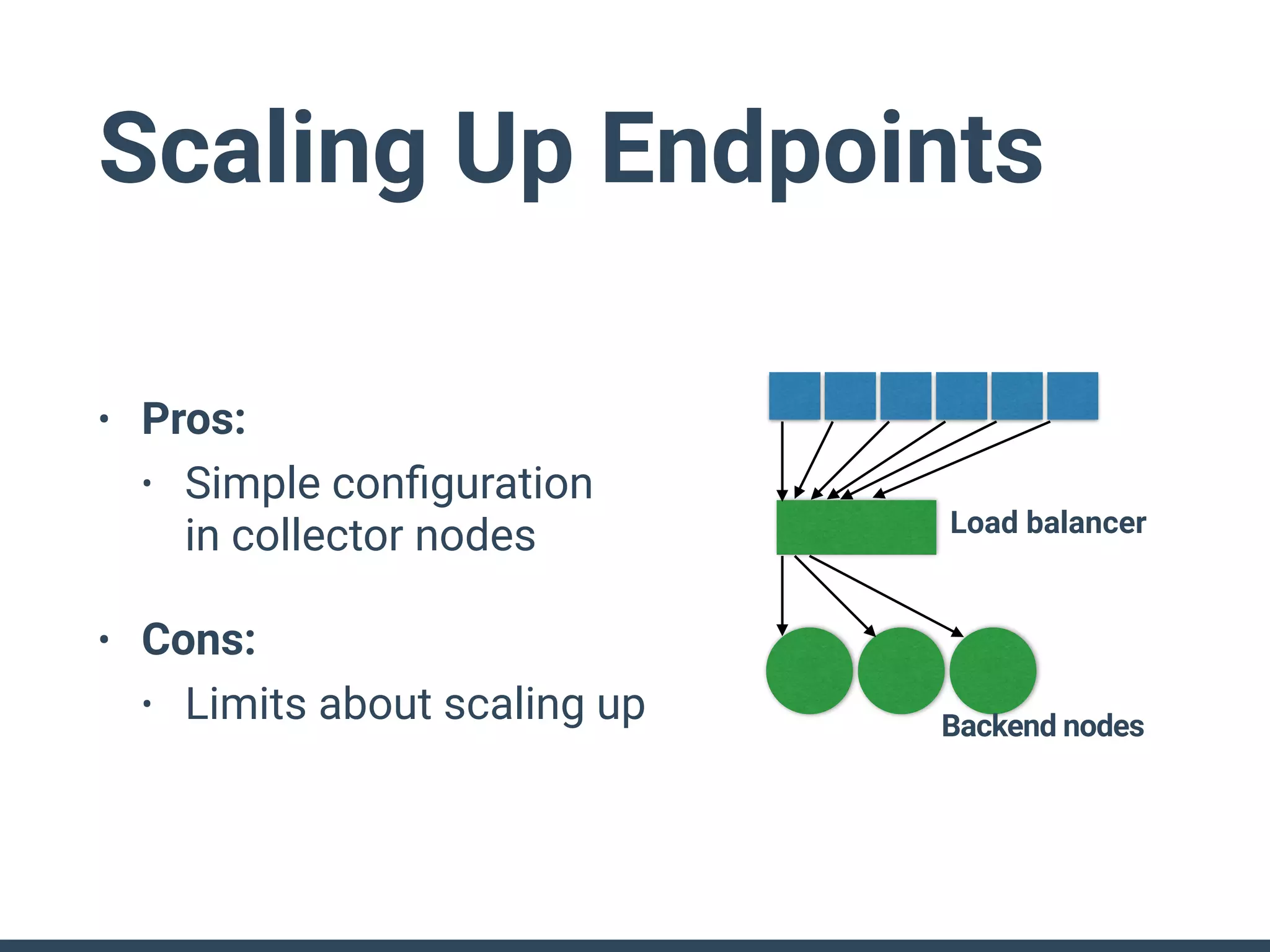

- 28. Scaling Up Endpoints •Pros: • Simple configuration in collector nodes • Cons: • Limits about scaling up Load balancer Backend nodes

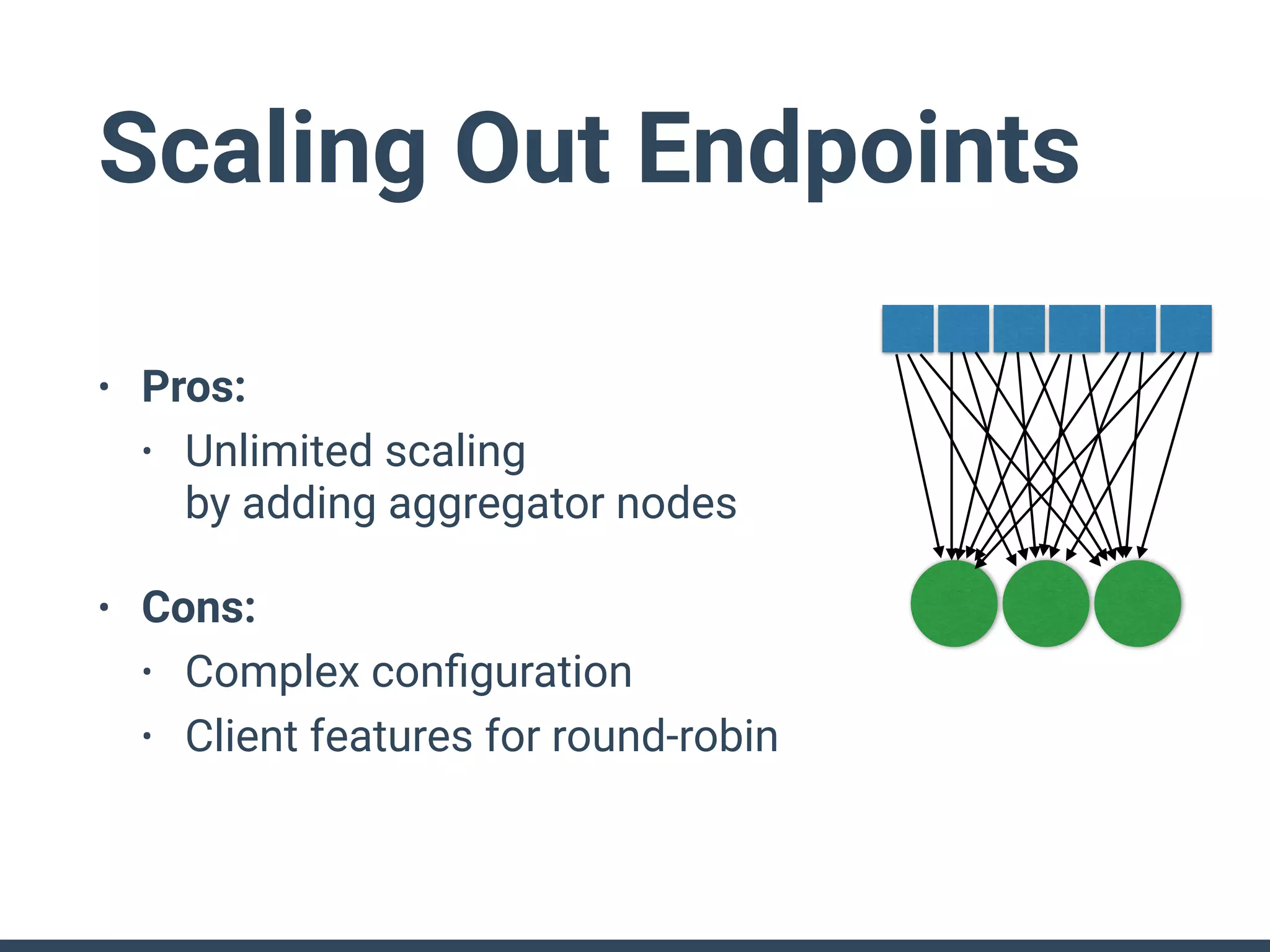

- 29. Scaling Out Endpoints •Pros: • Unlimited scaling by adding aggregator nodes • Cons: • Complex configuration • Client features for round-robin

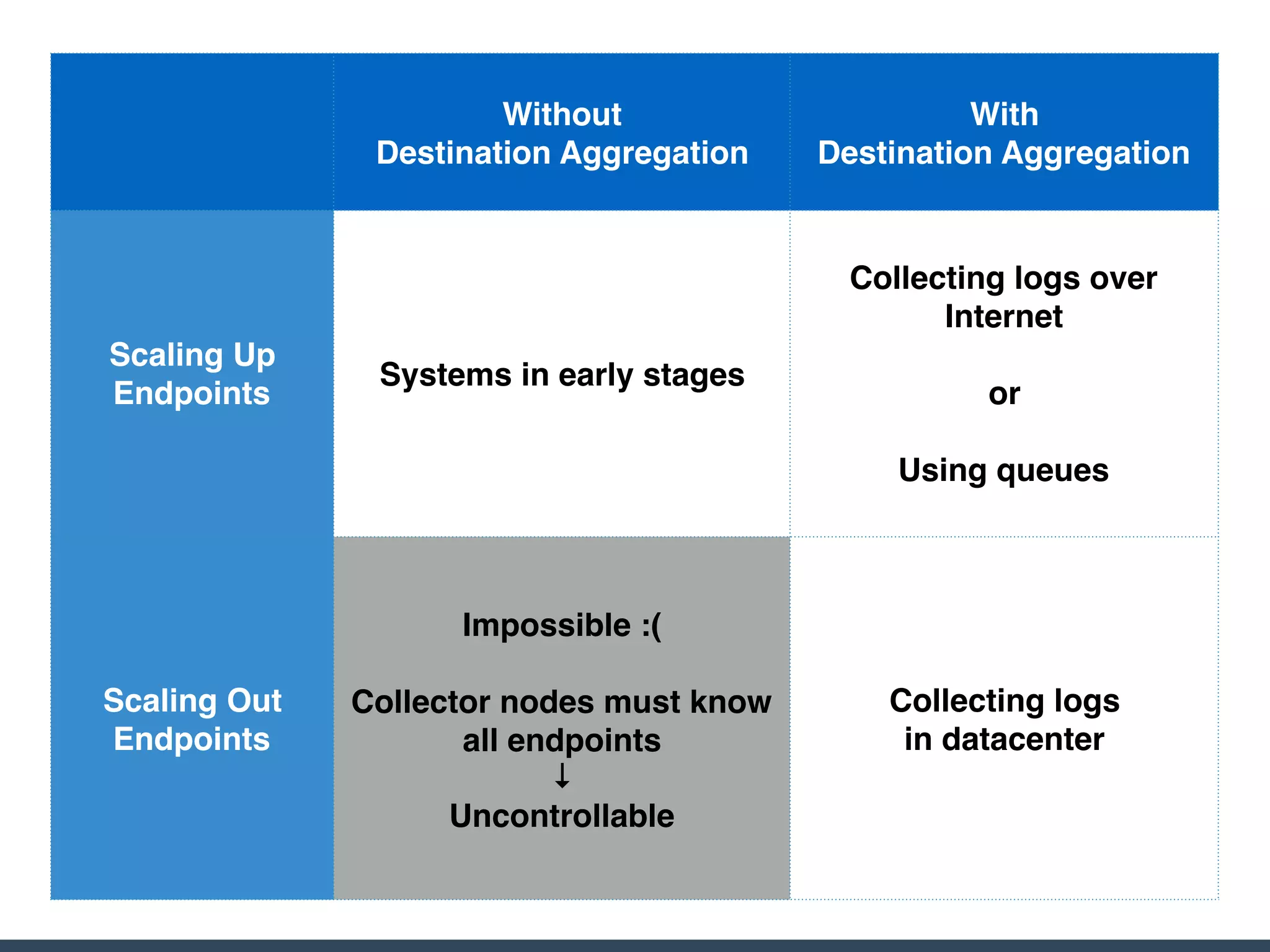

- 30. Without Destination Aggregation With Destination Aggregation ScalingUp Endpoints Systems in early stages Collecting logs over Internet or Using queues Scaling Out Endpoints Impossible :( Collector nodes must know all endpoints ↓ Uncontrollable Collecting logs in datacenter
- 31.

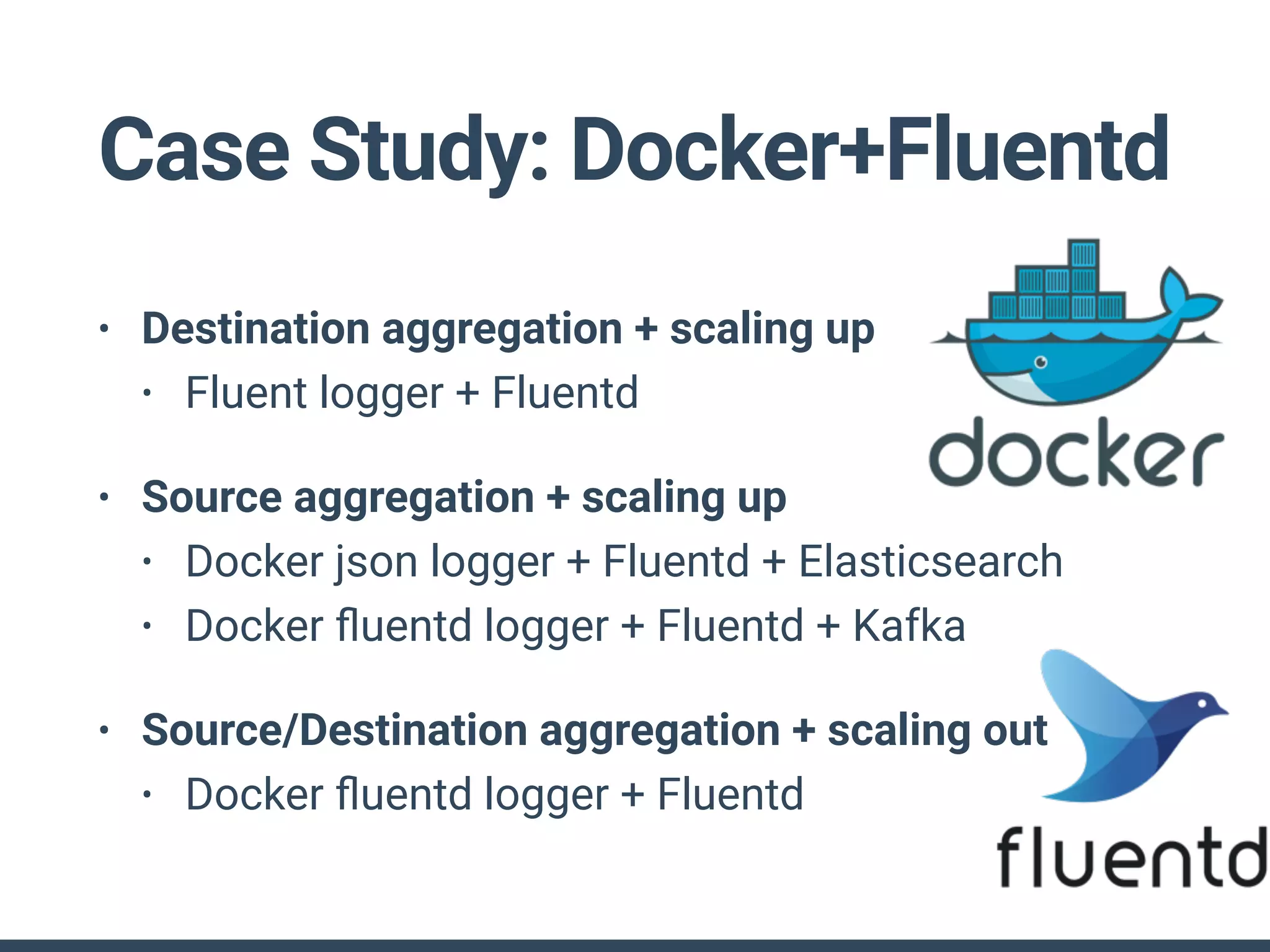

- 32. Case Study: Docker+Fluentd •Destination aggregation + scaling up • Fluent logger + Fluentd • Source aggregation + scaling up • Docker json logger + Fluentd + Elasticsearch • Docker fluentd logger + Fluentd + Kafka • Source/Destination aggregation + scaling out • Docker fluentd logger + Fluentd

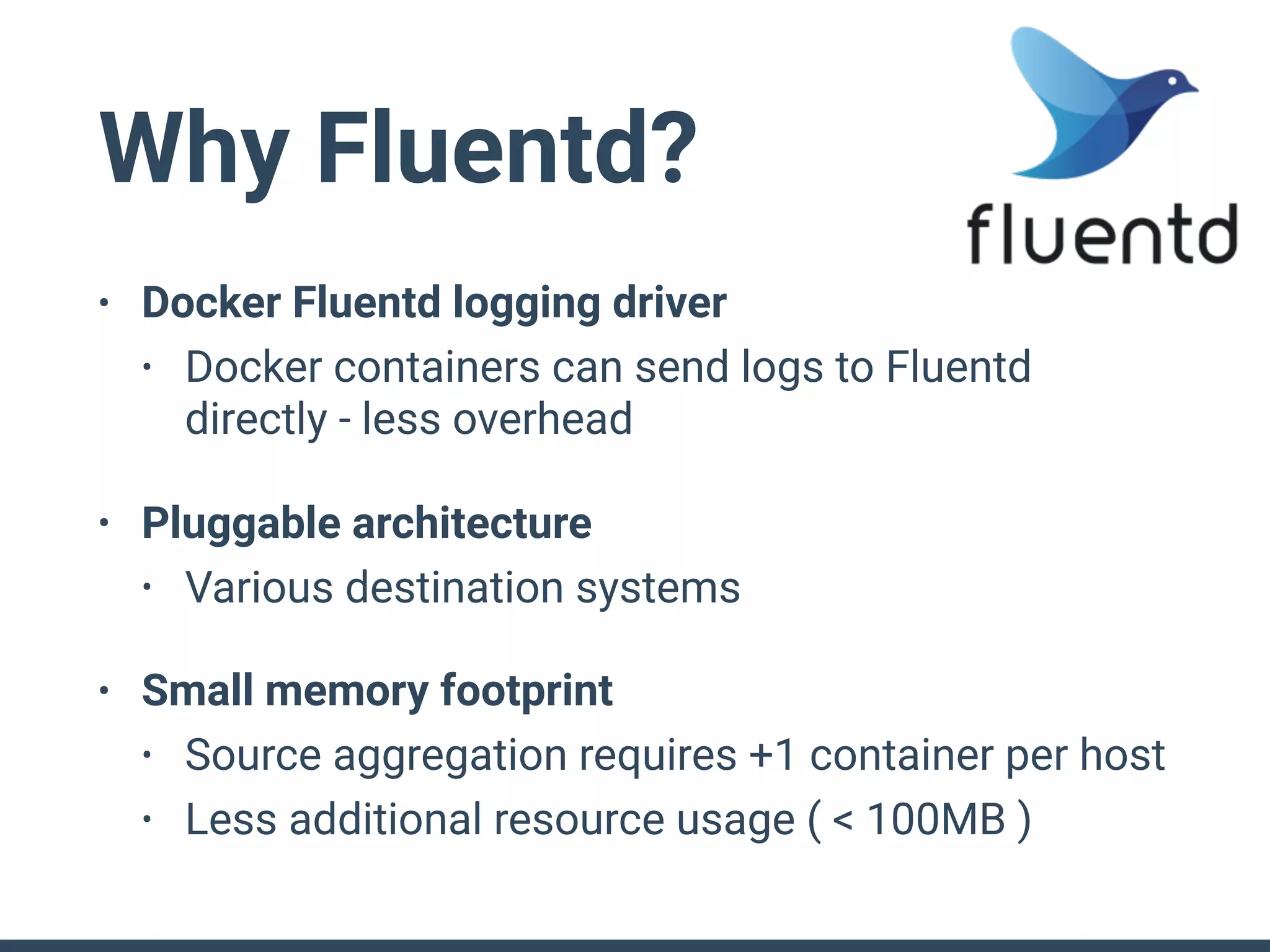

- 33. Why Fluentd? • DockerFluentd logging driver • Docker containers can send logs to Fluentd directly - less overhead • Pluggable architecture • Various destination systems • Small memory footprint • Source aggregation requires +1 container per host • Less additional resource usage ( < 100MB )

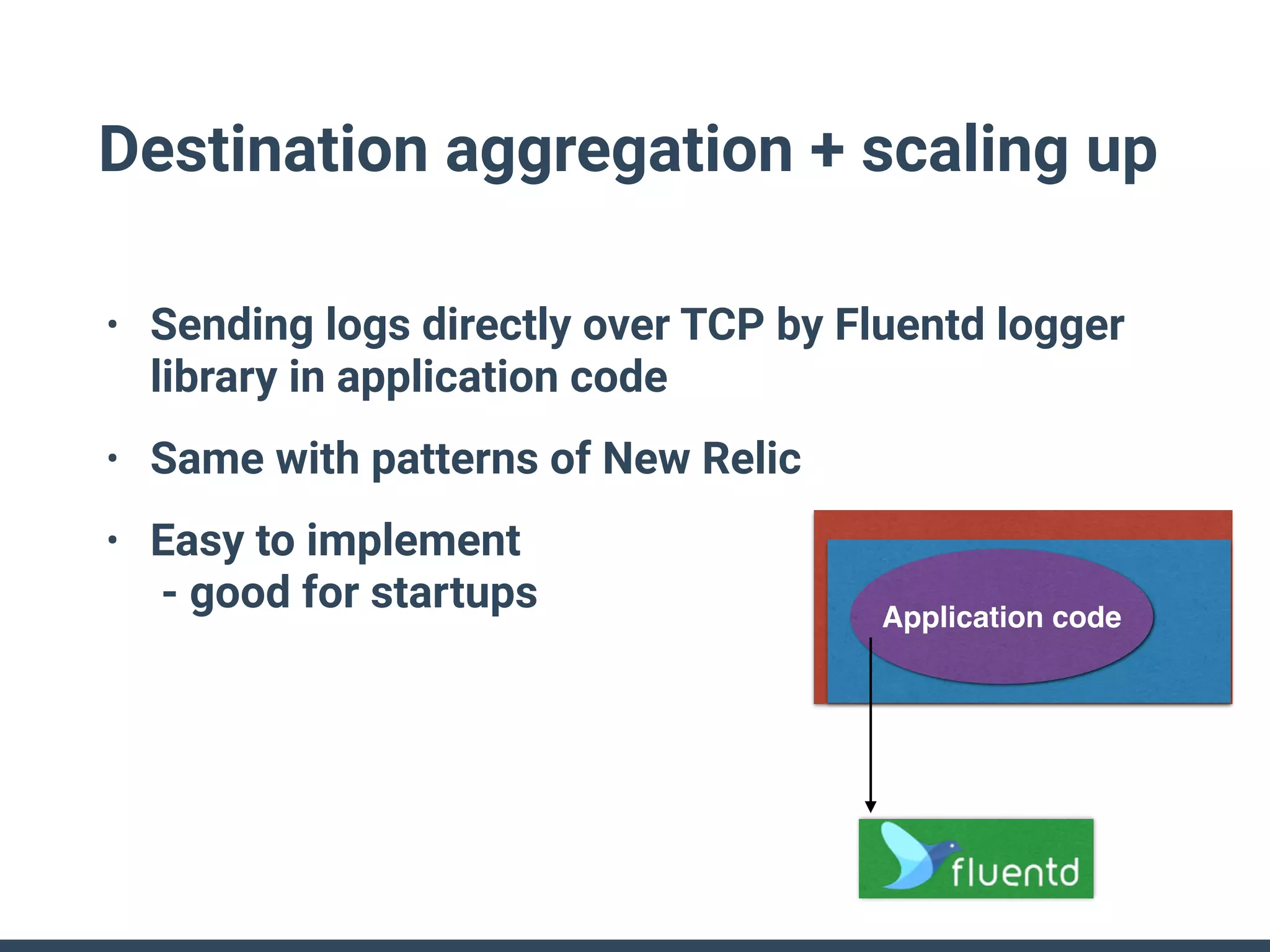

- 34. Destination aggregation +scaling up • Sending logs directly over TCP by Fluentd logger library in application code • Same with patterns of New Relic • Easy to implement - good for startups Application code

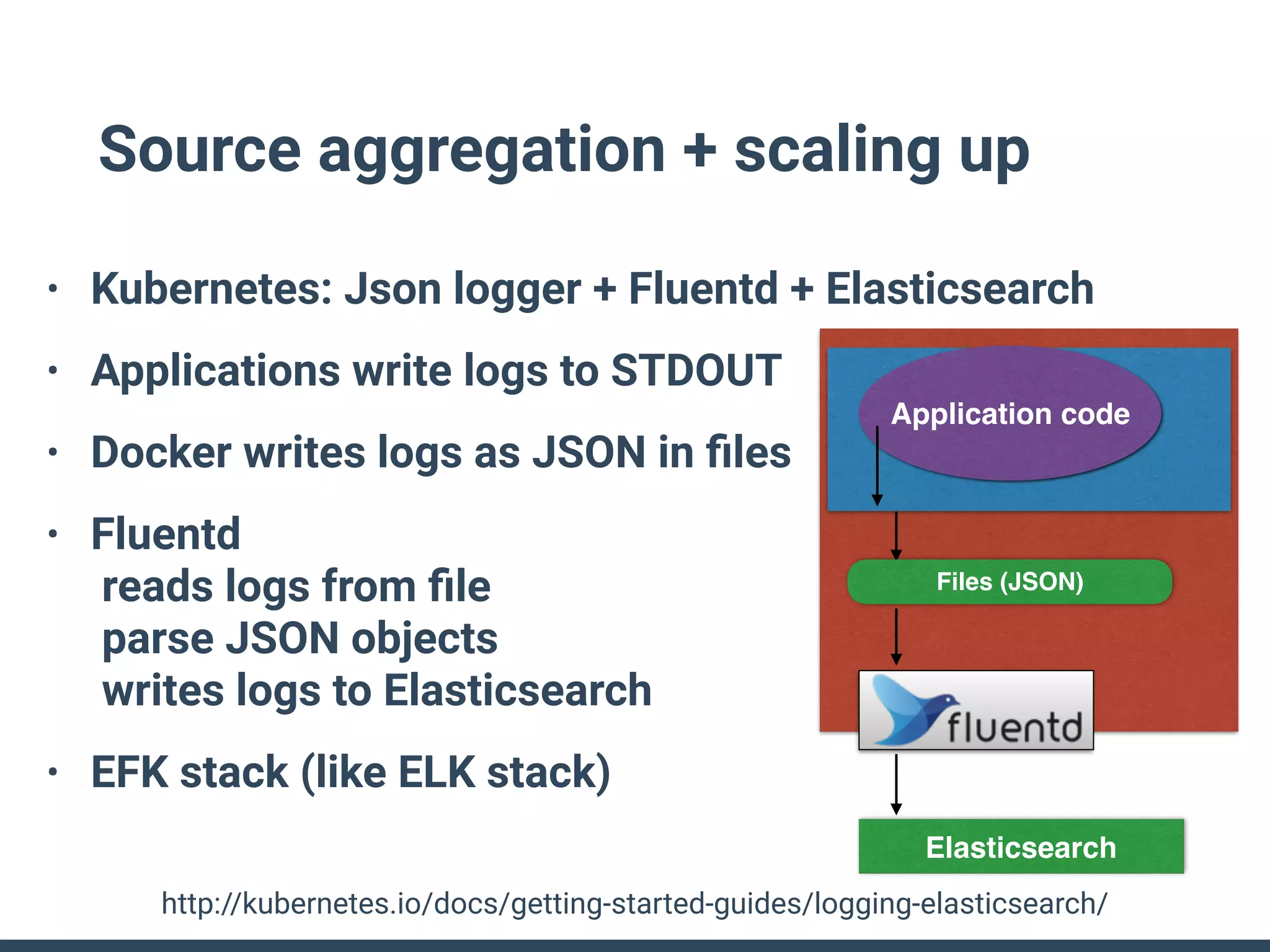

- 35. Source aggregation +scaling up • Kubernetes: Json logger + Fluentd + Elasticsearch • Applications write logs to STDOUT • Docker writes logs as JSON in files • Fluentd reads logs from file parse JSON objects writes logs to Elasticsearch • EFK stack (like ELK stack) http://kubernetes.io/docs/getting-started-guides/logging-elasticsearch/ Elasticsearch Application code Files (JSON)

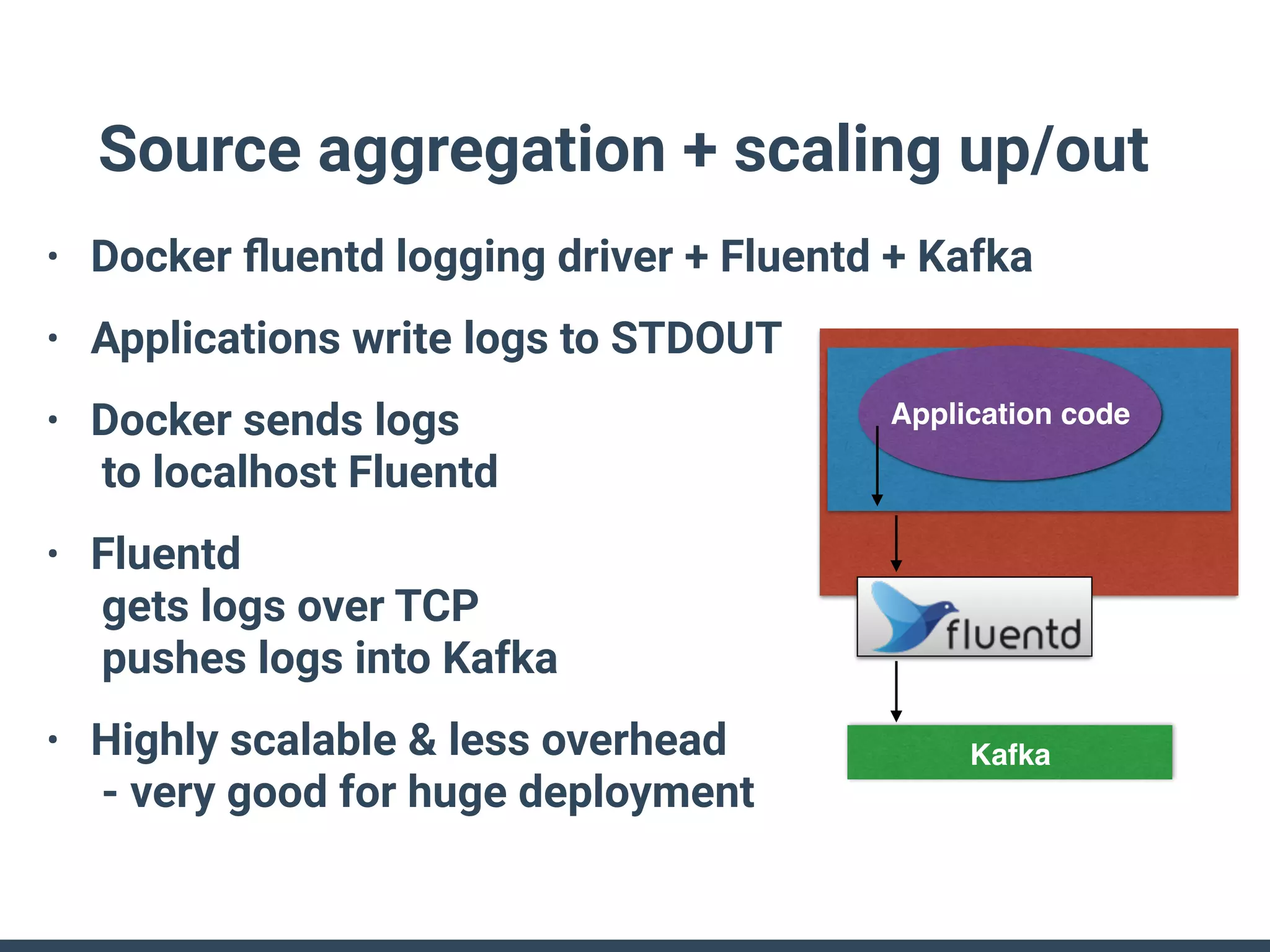

- 36. Source aggregation +scaling up/out • Docker fluentd logging driver + Fluentd + Kafka • Applications write logs to STDOUT • Docker sends logs to localhost Fluentd • Fluentd gets logs over TCP pushes logs into Kafka • Highly scalable & less overhead - very good for huge deployment Kafka Application code

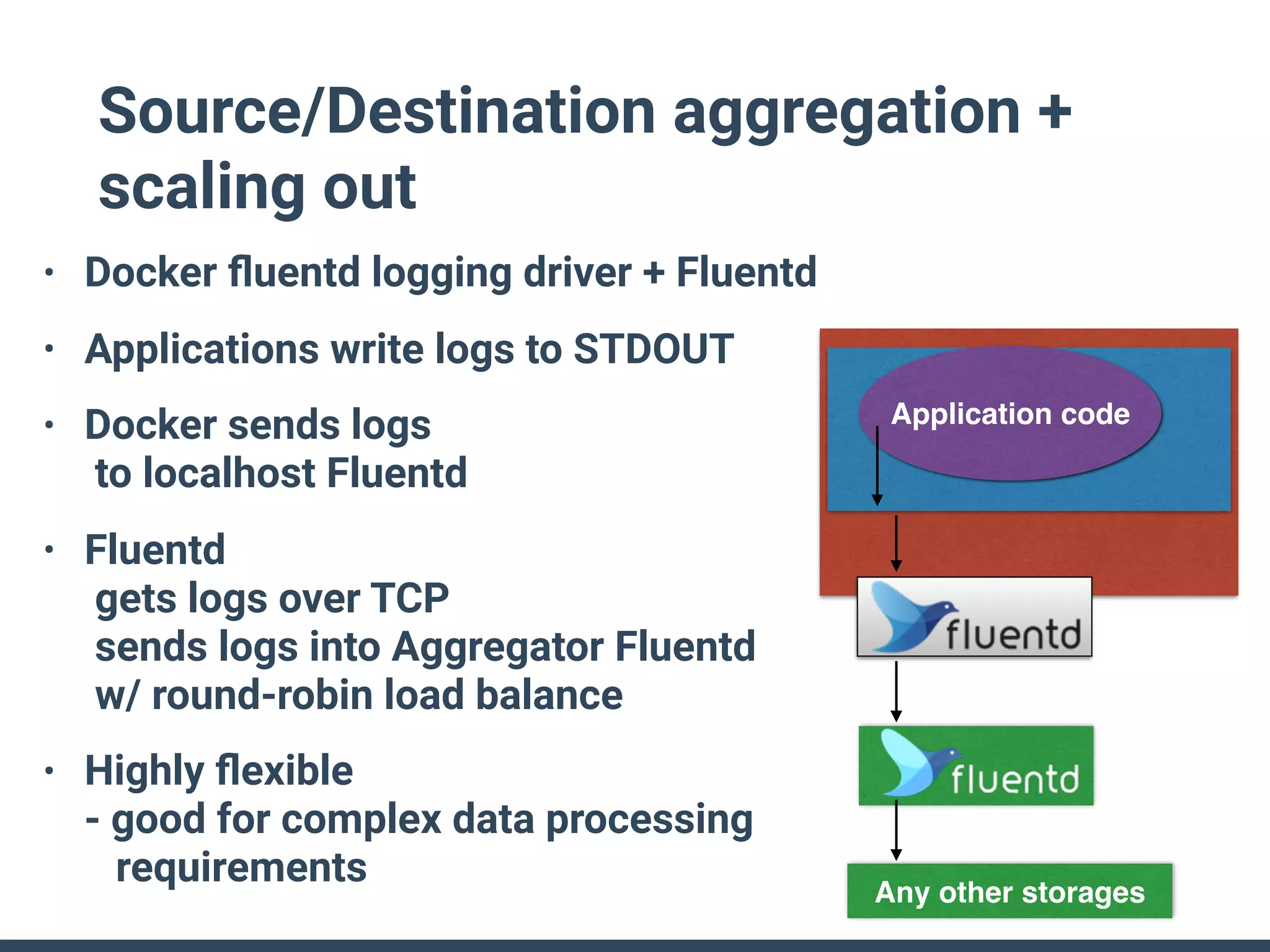

- 37. Application code Source/Destination aggregation+ scaling out • Docker fluentd logging driver + Fluentd • Applications write logs to STDOUT • Docker sends logs to localhost Fluentd • Fluentd gets logs over TCP sends logs into Aggregator Fluentd w/ round-robin load balance • Highly flexible - good for complex data processing requirements Any other storages

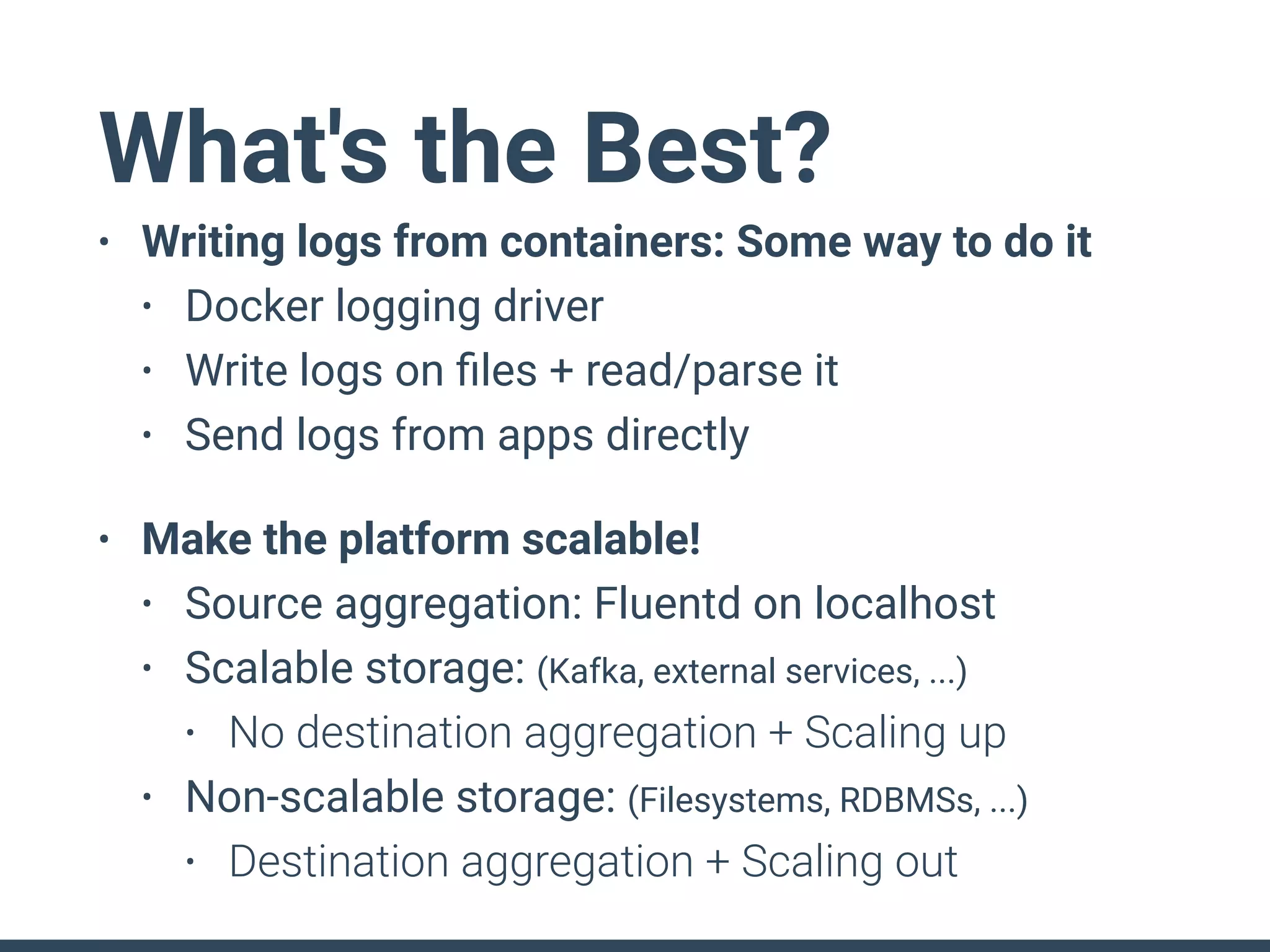

- 38. What's the Best? •Writing logs from containers: Some way to do it • Docker logging driver • Write logs on files + read/parse it • Send logs from apps directly • Make the platform scalable! • Source aggregation: Fluentd on localhost • Scalable storage: (Kafka, external services, ...) • No destination aggregation + Scaling up • Non-scalable storage: (Filesystems, RDBMSs, ...) • Destination aggregation + Scaling out
- 39. Why OSS AreImportant For Logging?

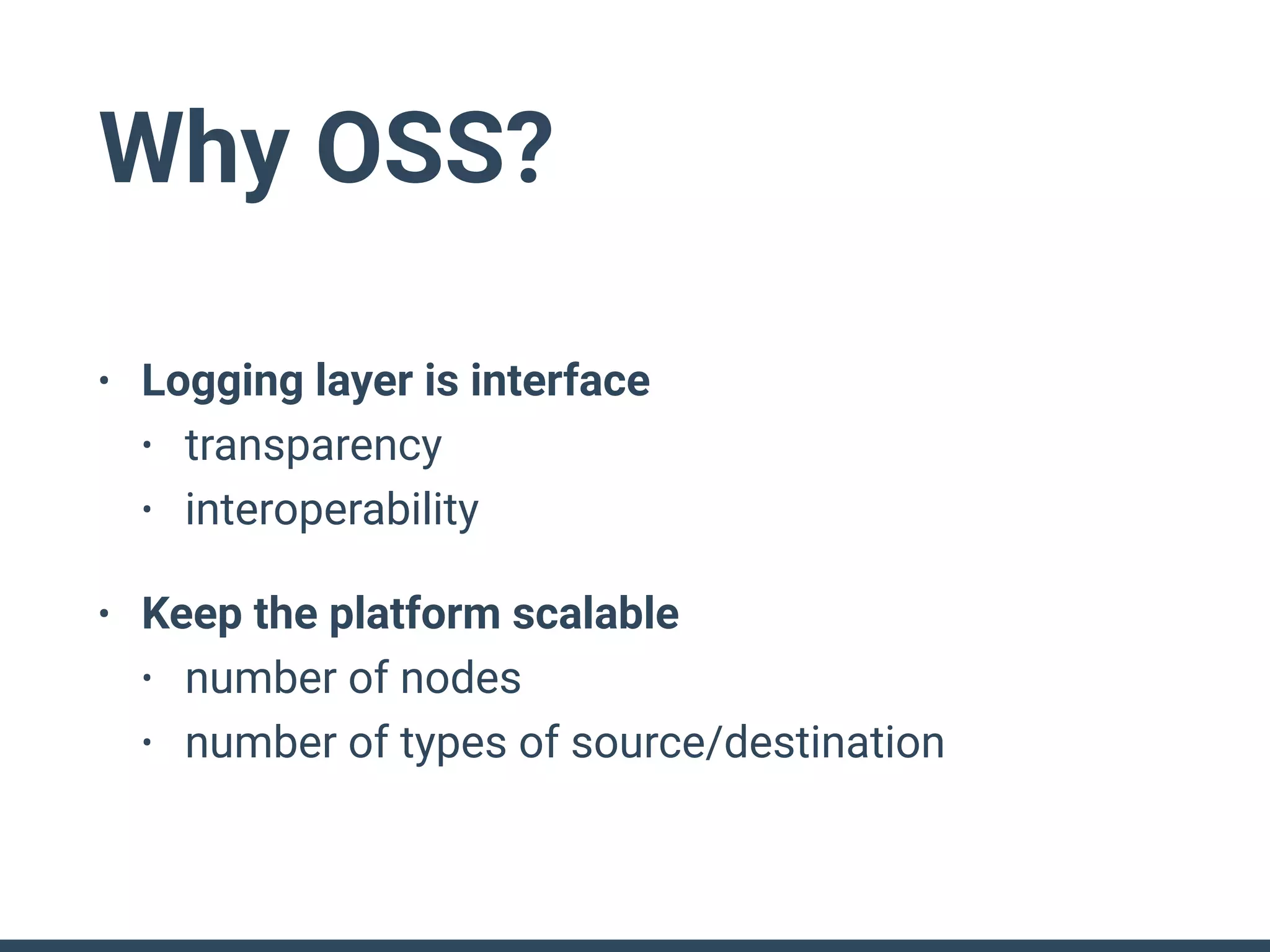

- 40. Why OSS? • Logginglayer is interface • transparency • interoperability • Keep the platform scalable • number of nodes • number of types of source/destination
- 41. Use OSS, Make LoggingScalable Thank you!
