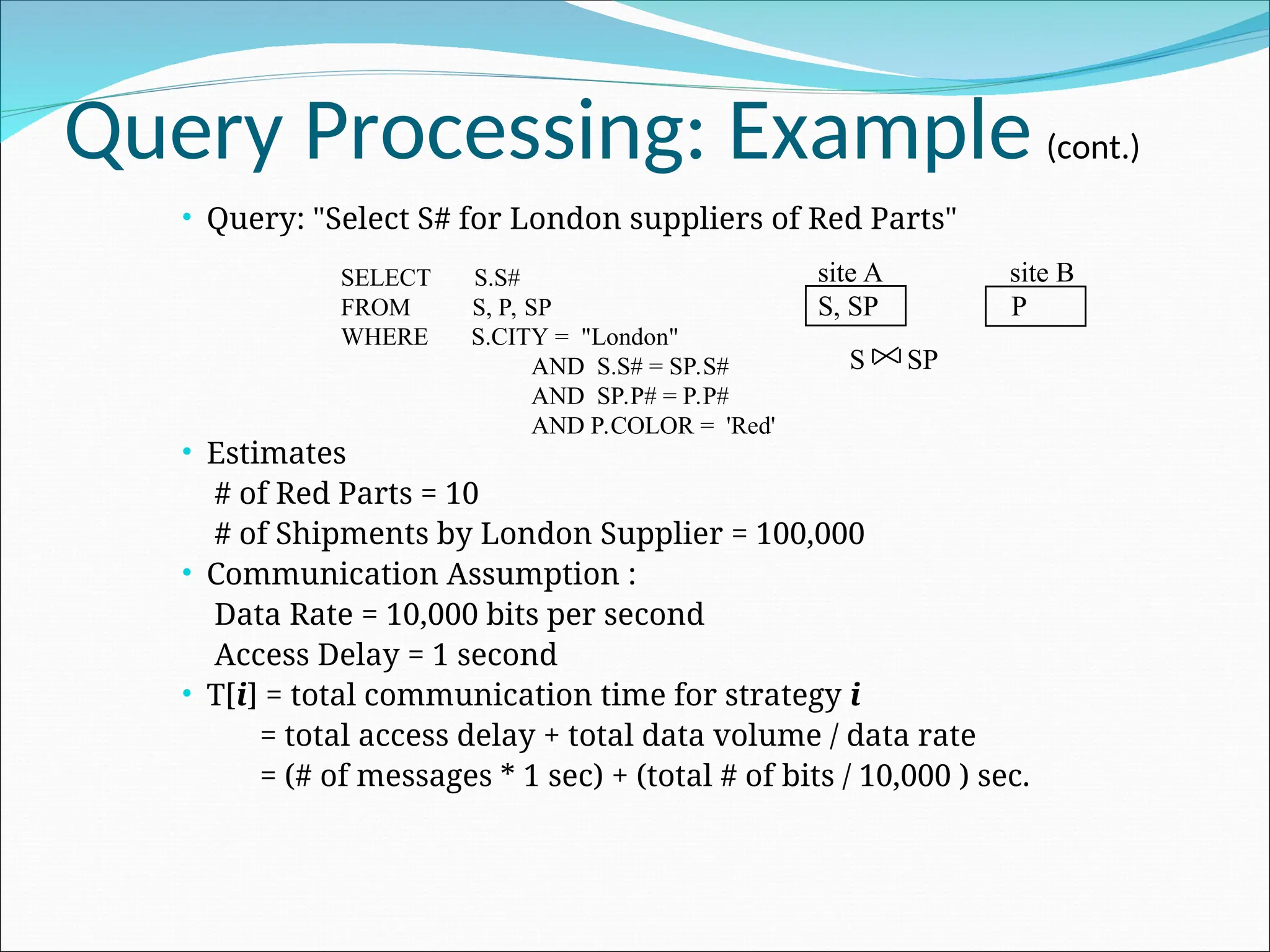

![Query Processing: Example (cont.)
Query: "Select S# for London suppliers of Red Parts"
Estimates
# of Red Parts = 10
# of Shipments by London Supplier = 100,000
Communication Assumption :
Data Rate = 10,000 bits per second
Access Delay = 1 second
T[i] = total communication time for strategy i
= total access delay + total data volume / data rate
= (# of messages * 1 sec) + (total # of bits / 10,000 ) sec.
SELECT S.S#
FROM S, P, SP
WHERE S.CITY = "London"
AND S.S# = SP.S#
AND SP.P# = P.P#
AND P.COLOR = 'Red'
site A site B
S, SP P
S SP](https://image.slidesharecdn.com/distributeddatabases-251123073721-4ae9fcf7/75/Distributed-Databases-ppt-DBMS-concept-Introduction-16-2048.jpg)

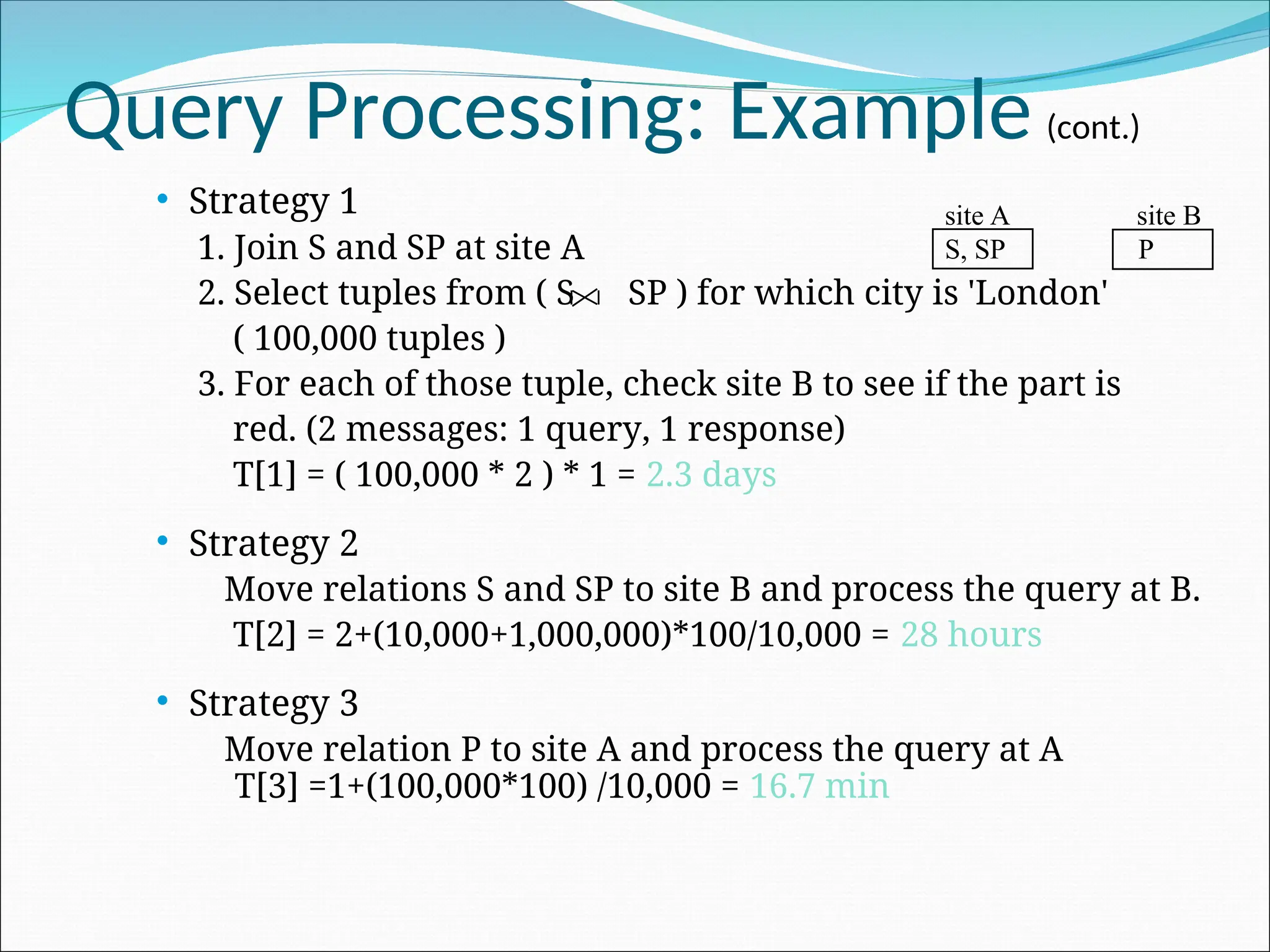

![Query Processing: Example (cont.)
Strategy 1
1. Join S and SP at site A
2. Select tuples from ( S SP ) for which city is 'London'
( 100,000 tuples )
3. For each of those tuple, check site B to see if the part is
red. (2 messages: 1 query, 1 response)
T[1] = ( 100,000 * 2 ) * 1 = 2.3 days
Strategy 2
Move relations S and SP to site B and process the query at B.
T[2] = 2+(10,000+1,000,000)*100/10,000 = 28 hours
Strategy 3
Move relation P to site A and process the query at A
T[3] =1+(100,000*100) /10,000 = 16.7 min
site A site B
S, SP P](https://image.slidesharecdn.com/distributeddatabases-251123073721-4ae9fcf7/75/Distributed-Databases-ppt-DBMS-concept-Introduction-17-2048.jpg)

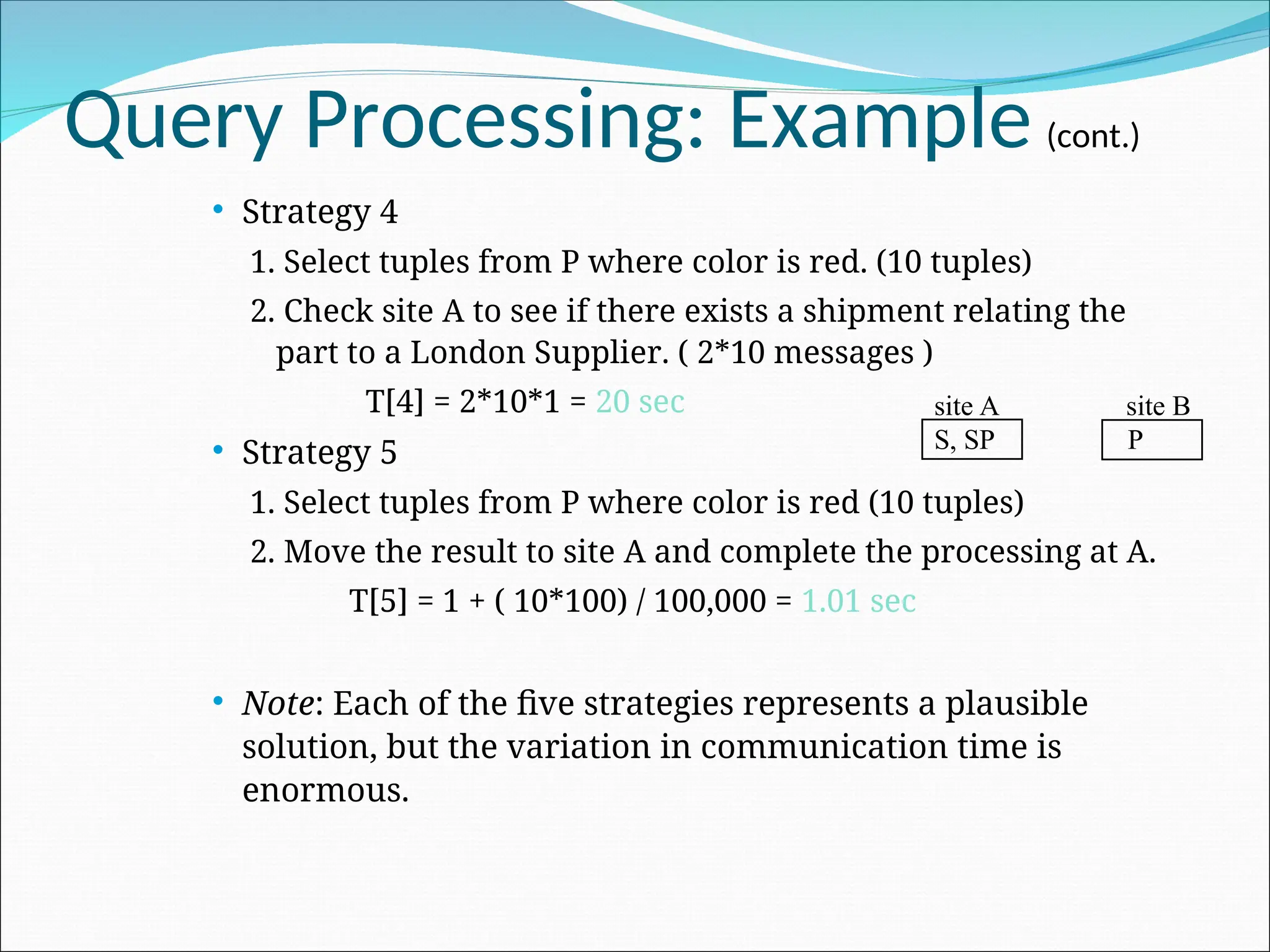

![Query Processing: Example (cont.)
Strategy 4
1. Select tuples from P where color is red. (10 tuples)
2. Check site A to see if there exists a shipment relating the
part to a London Supplier. ( 2*10 messages )
T[4] = 2*10*1 = 20 sec
Strategy 5
1. Select tuples from P where color is red (10 tuples)
2. Move the result to site A and complete the processing at A.
T[5] = 1 + ( 10*100) / 100,000 = 1.01 sec
Note: Each of the five strategies represents a plausible
solution, but the variation in communication time is
enormous.
site A site B
S, SP P](https://image.slidesharecdn.com/distributeddatabases-251123073721-4ae9fcf7/75/Distributed-Databases-ppt-DBMS-concept-Introduction-18-2048.jpg)
Distributed Databases.ppt DBMS concept Introduction
- 1.
- 2. Distributed Database System A system involving multiple sites connected together via communication network. User at any site can access data stored at any site as if the data were all stored at the user’s own site. Each site is a database system in its own right: its own local database, local users, local DBMS, local DC manager. DBMS Communication Network A typical distributed database system database User Communication manager

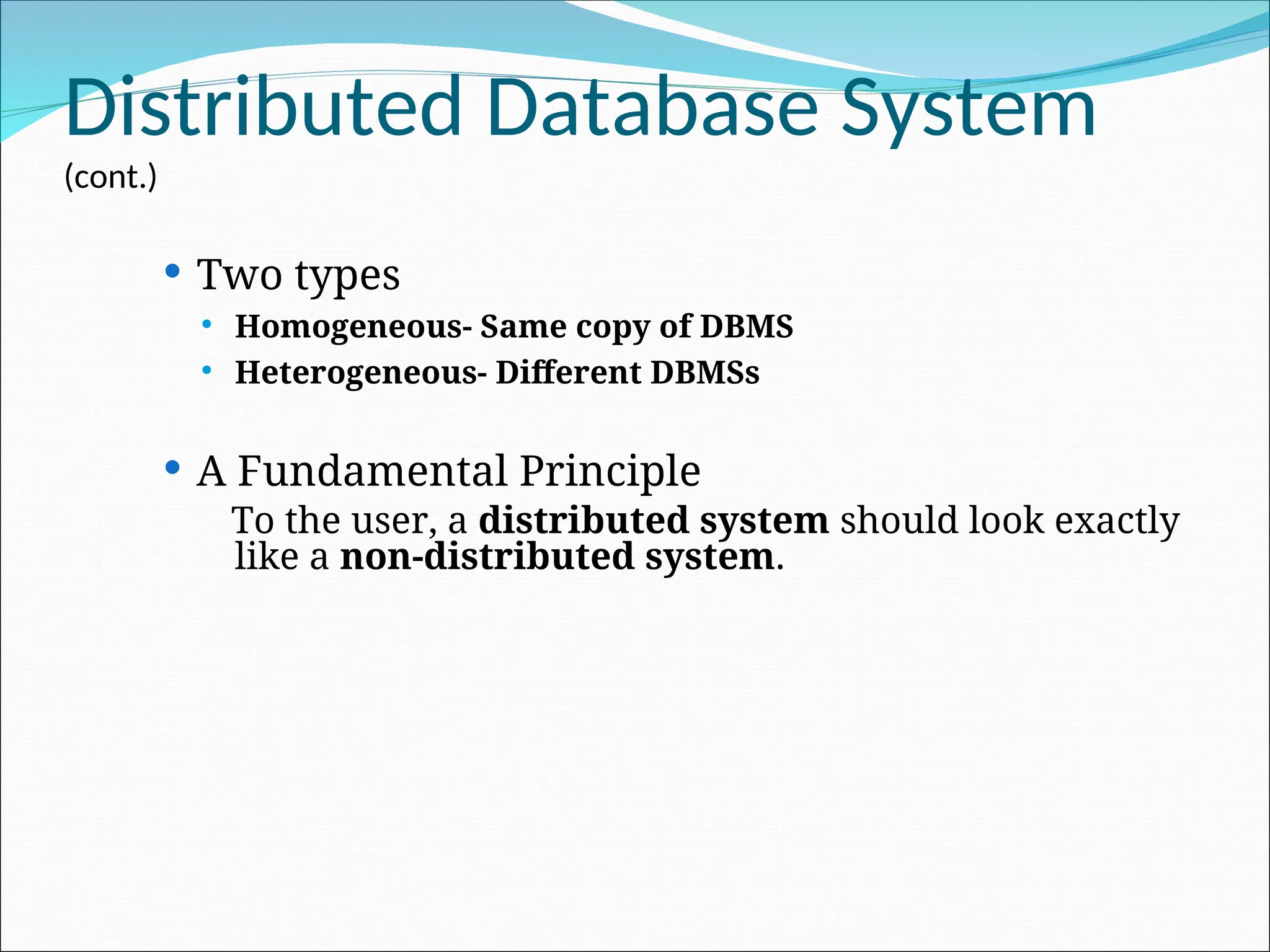

- 3. Distributed Database System (cont.) Two types Homogeneous- Same copy of DBMS Heterogeneous- Different DBMSs A Fundamental Principle To the user, a distributed system should look exactly like a non-distributed system.

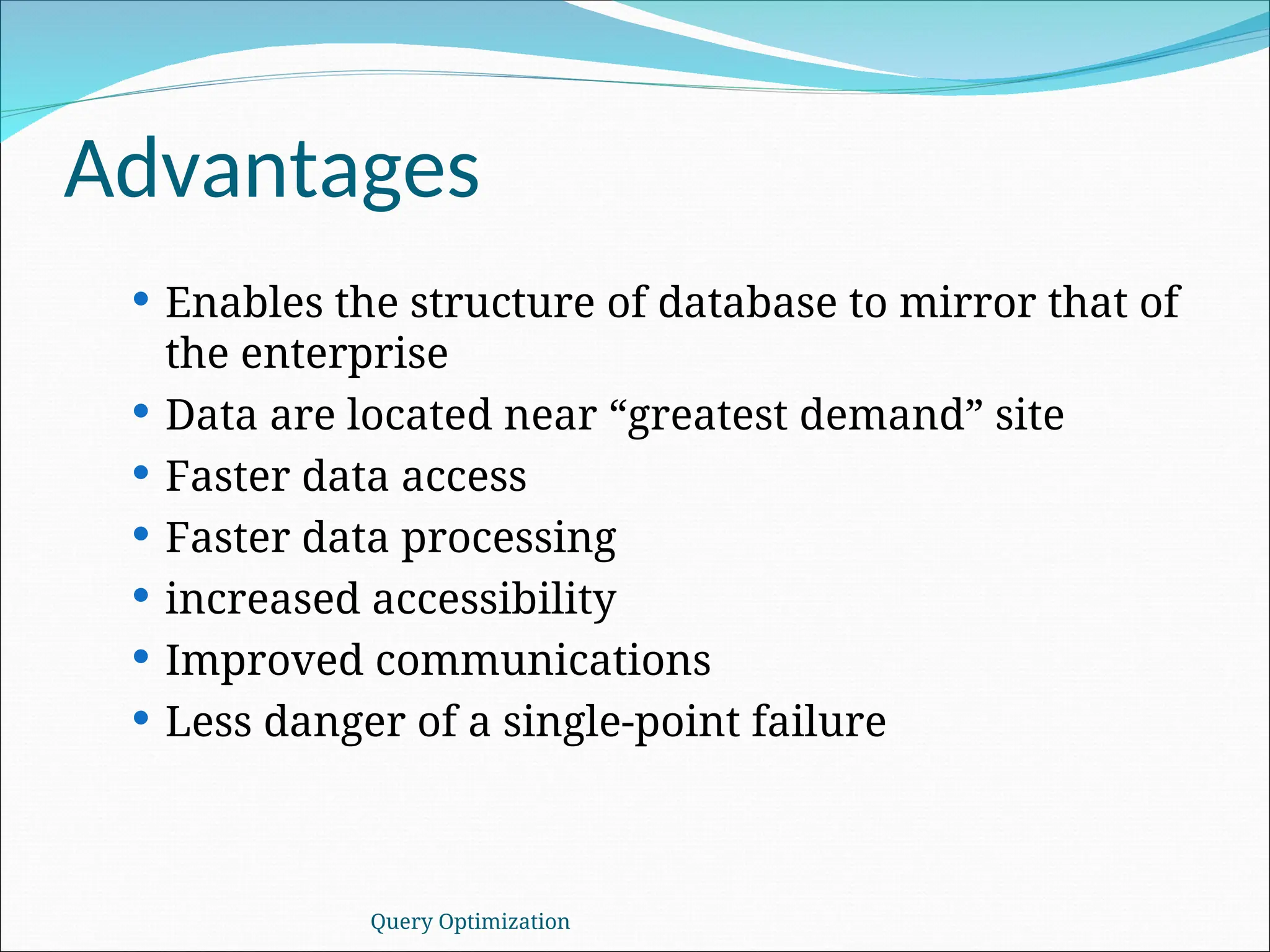

- 4. Advantages Enables thestructure of database to mirror that of the enterprise Data are located near “greatest demand” site Faster data access Faster data processing increased accessibility Improved communications Less danger of a single-point failure Query Optimization

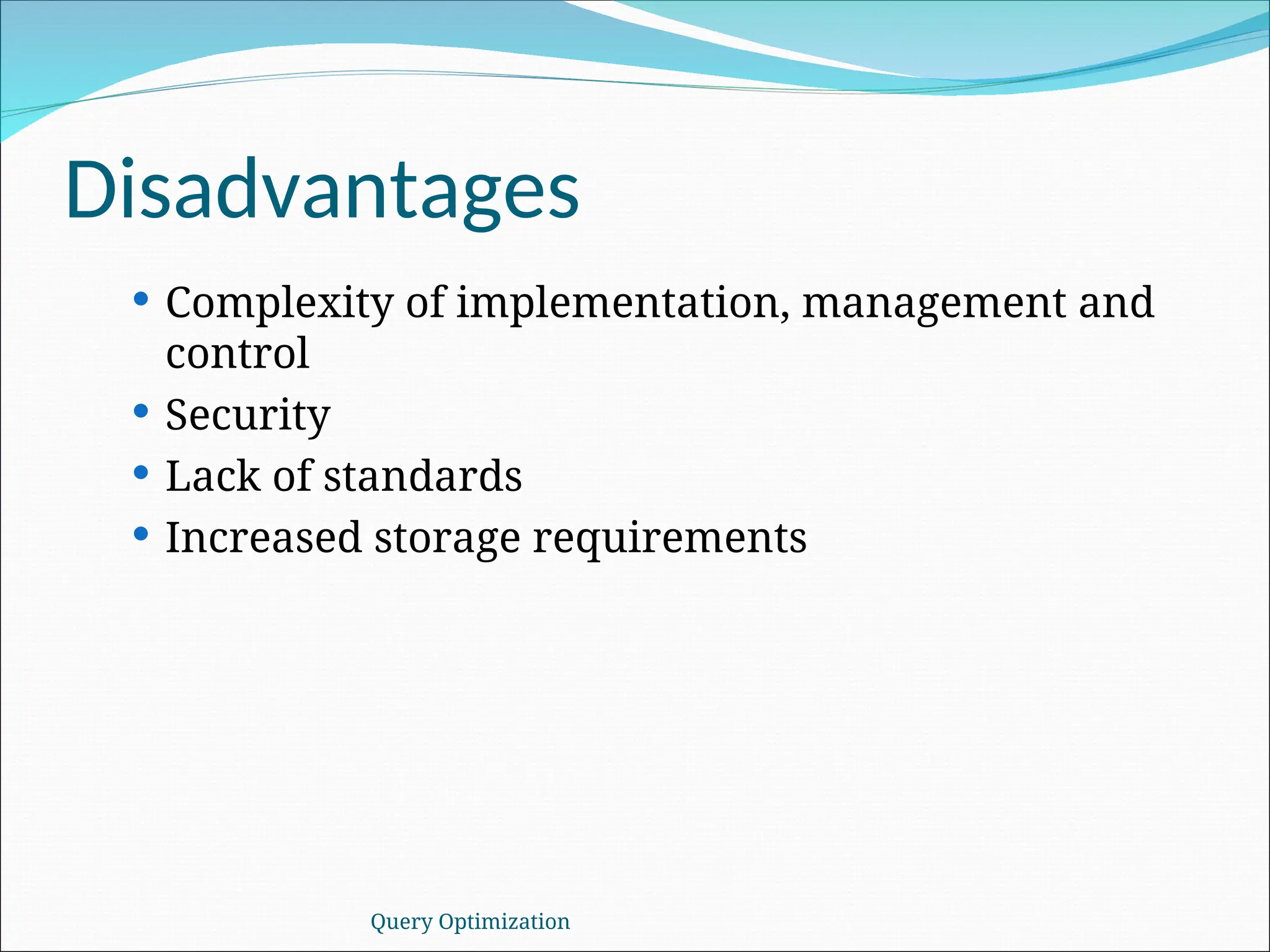

- 5. Disadvantages Complexity ofimplementation, management and control Security Lack of standards Increased storage requirements Query Optimization

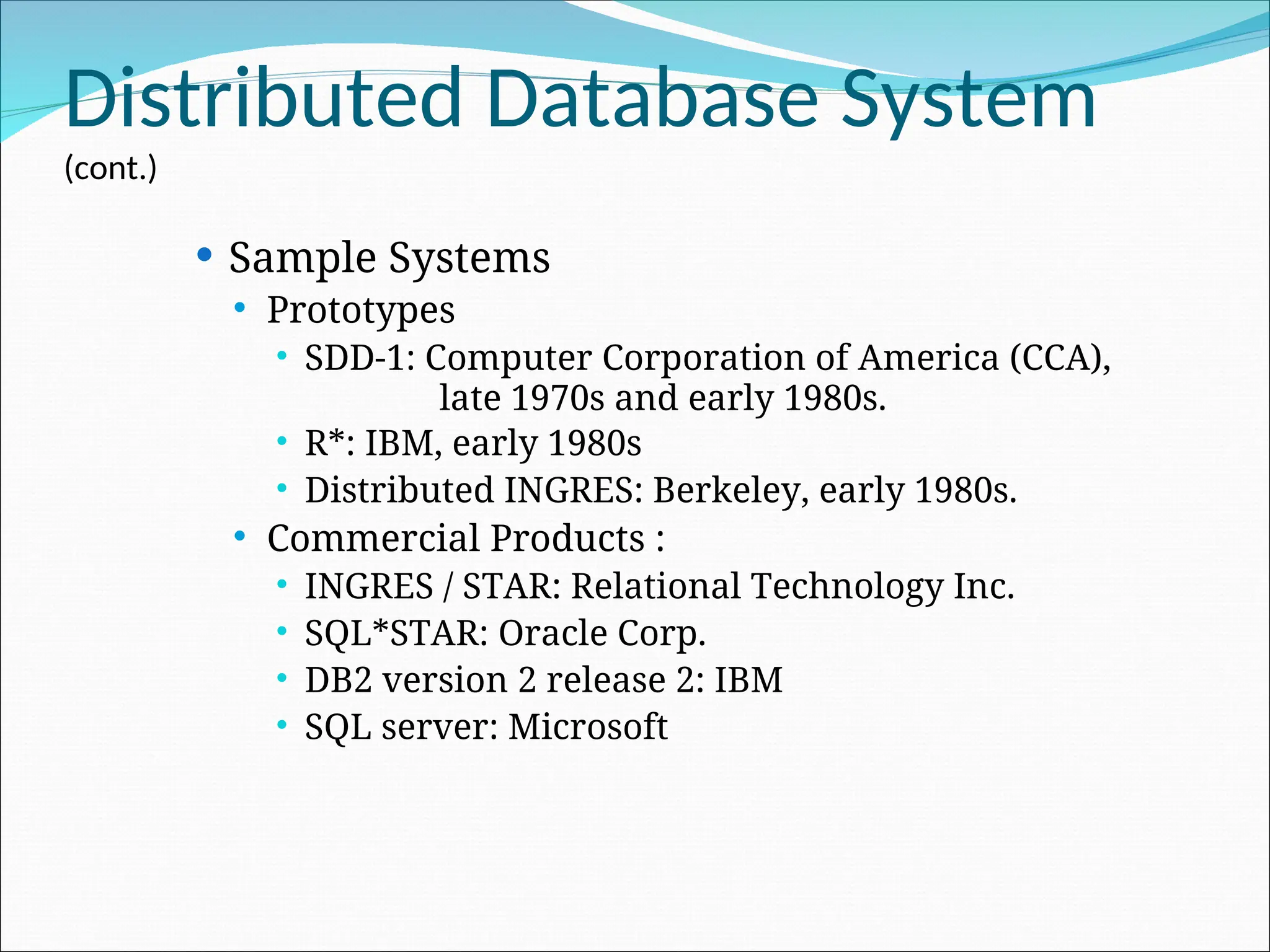

- 6. Distributed Database System (cont.) Sample Systems Prototypes SDD-1: Computer Corporation of America (CCA), late 1970s and early 1980s. R*: IBM, early 1980s Distributed INGRES: Berkeley, early 1980s. Commercial Products : INGRES / STAR: Relational Technology Inc. SQL*STAR: Oracle Corp. DB2 version 2 release 2: IBM SQL server: Microsoft

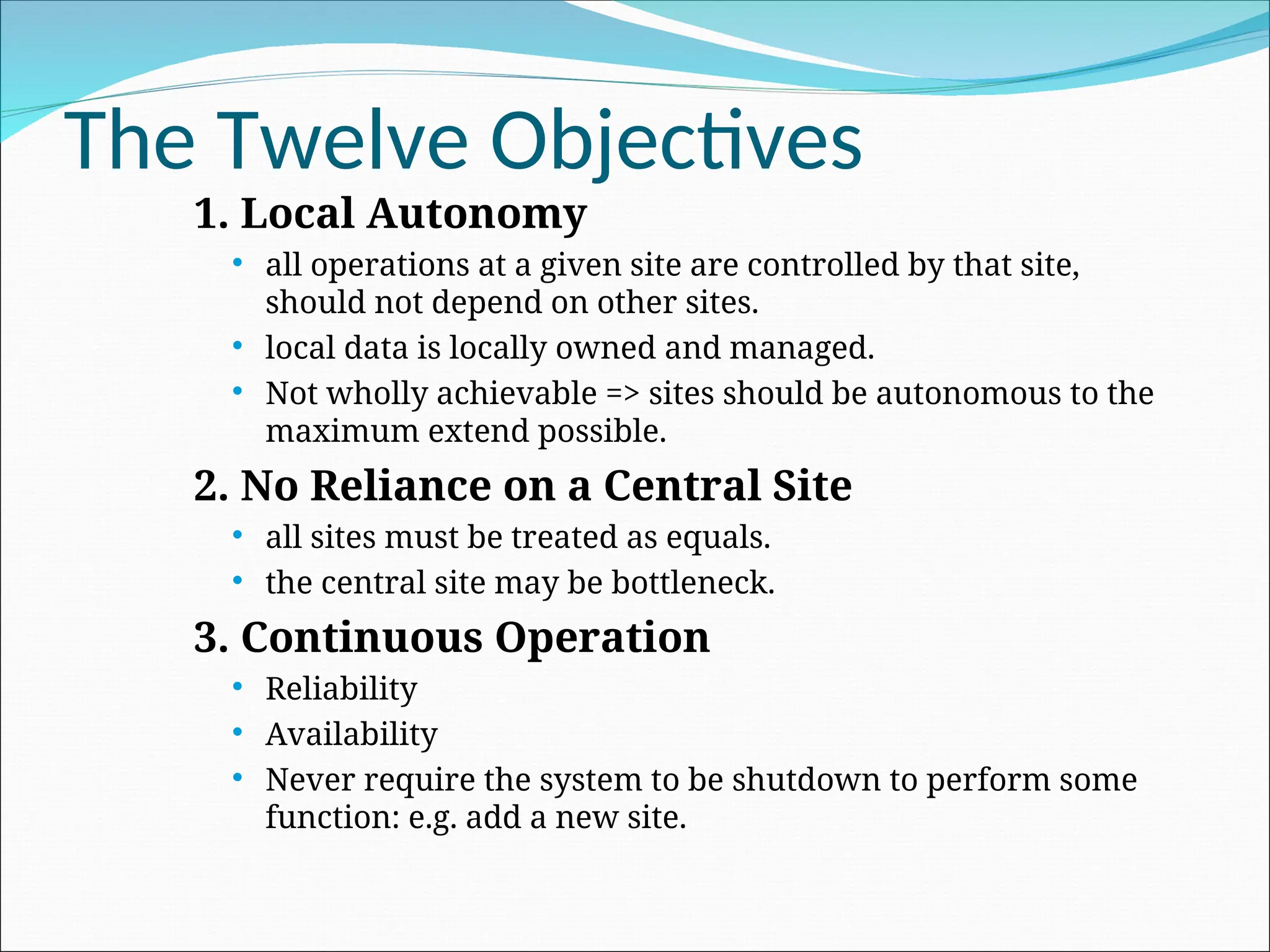

- 7. The Twelve Objectives 1.Local Autonomy all operations at a given site are controlled by that site, should not depend on other sites. local data is locally owned and managed. Not wholly achievable => sites should be autonomous to the maximum extend possible. 2. No Reliance on a Central Site all sites must be treated as equals. the central site may be bottleneck. 3. Continuous Operation Reliability Availability Never require the system to be shutdown to perform some function: e.g. add a new site.

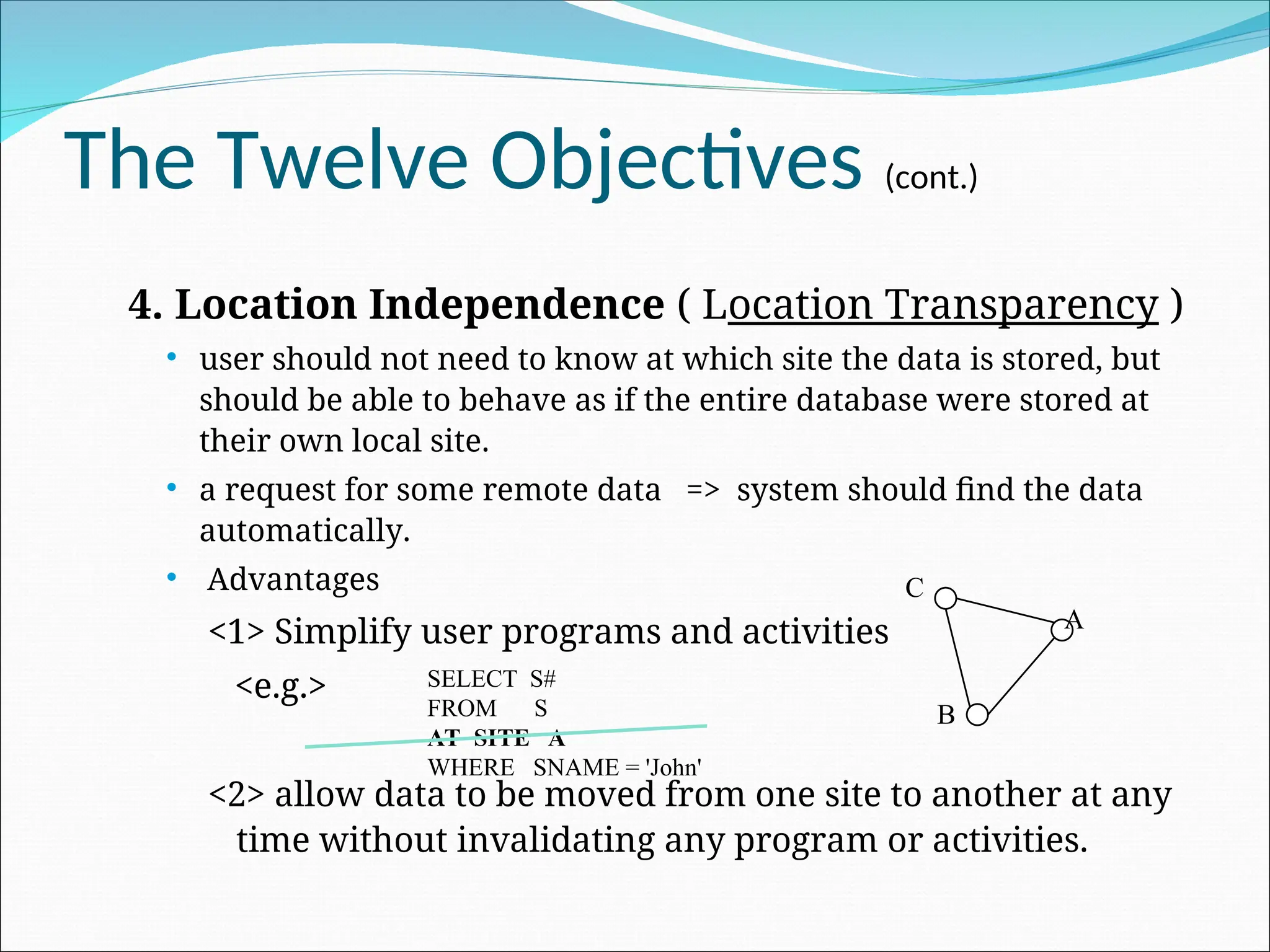

- 8. The Twelve Objectives(cont.) 4. Location Independence ( Location Transparency ) user should not need to know at which site the data is stored, but should be able to behave as if the entire database were stored at their own local site. a request for some remote data => system should find the data automatically. Advantages <1> Simplify user programs and activities <e.g.> <2> allow data to be moved from one site to another at any time without invalidating any program or activities. SELECT S# FROM S AT SITE A WHERE SNAME = 'John' A B C

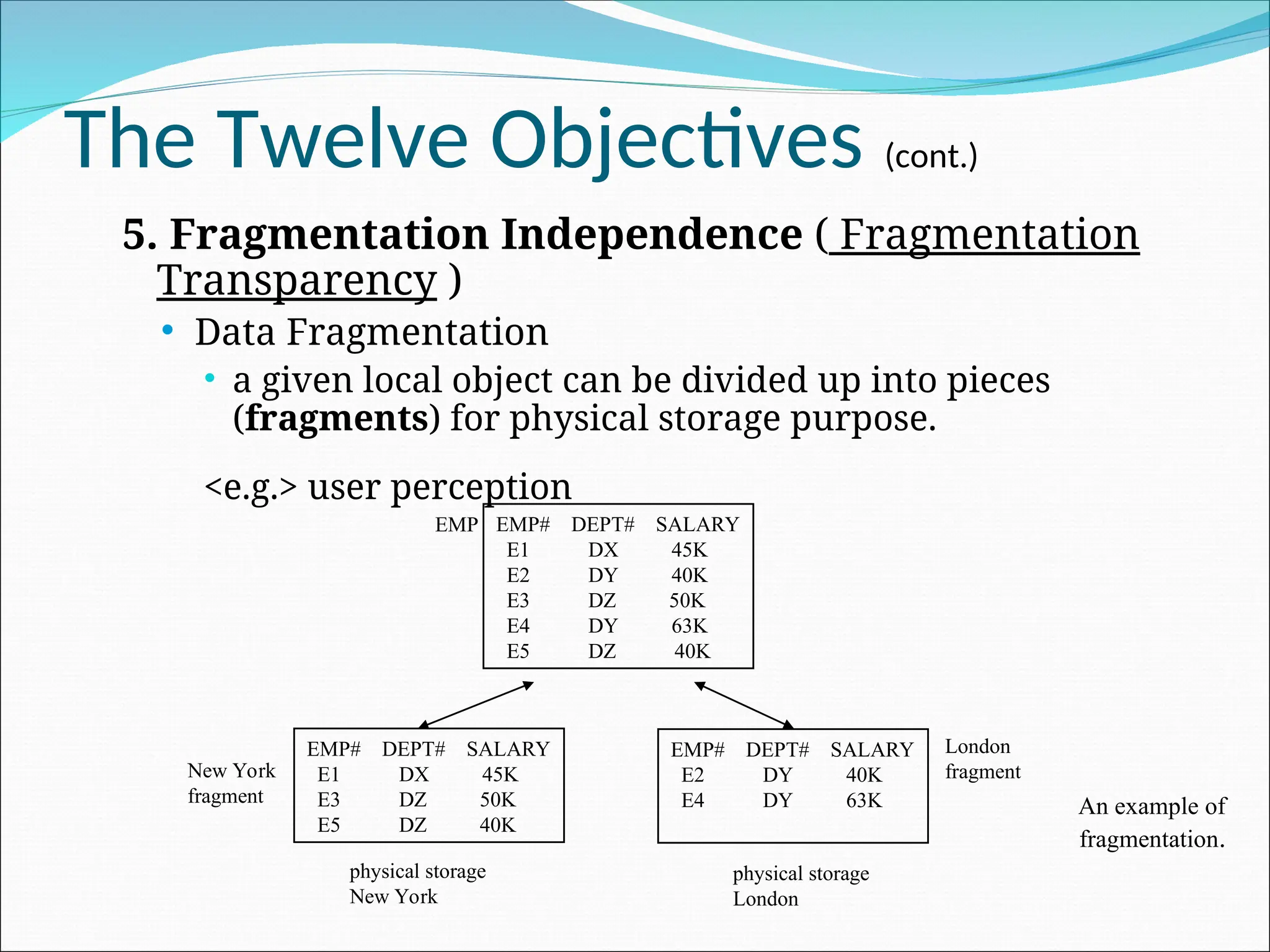

- 9. The Twelve Objectives(cont.) 5. Fragmentation Independence ( Fragmentation Transparency ) Data Fragmentation a given local object can be divided up into pieces (fragments) for physical storage purpose. <e.g.> user perception New York fragment EMP# DEPT# SALARY E1 DX 45K E2 DY 40K E3 DZ 50K E4 DY 63K E5 DZ 40K EMP EMP# DEPT# SALARY E1 DX 45K E3 DZ 50K E5 DZ 40K EMP# DEPT# SALARY E2 DY 40K E4 DY 63K London fragment physical storage New York physical storage London An example of fragmentation.

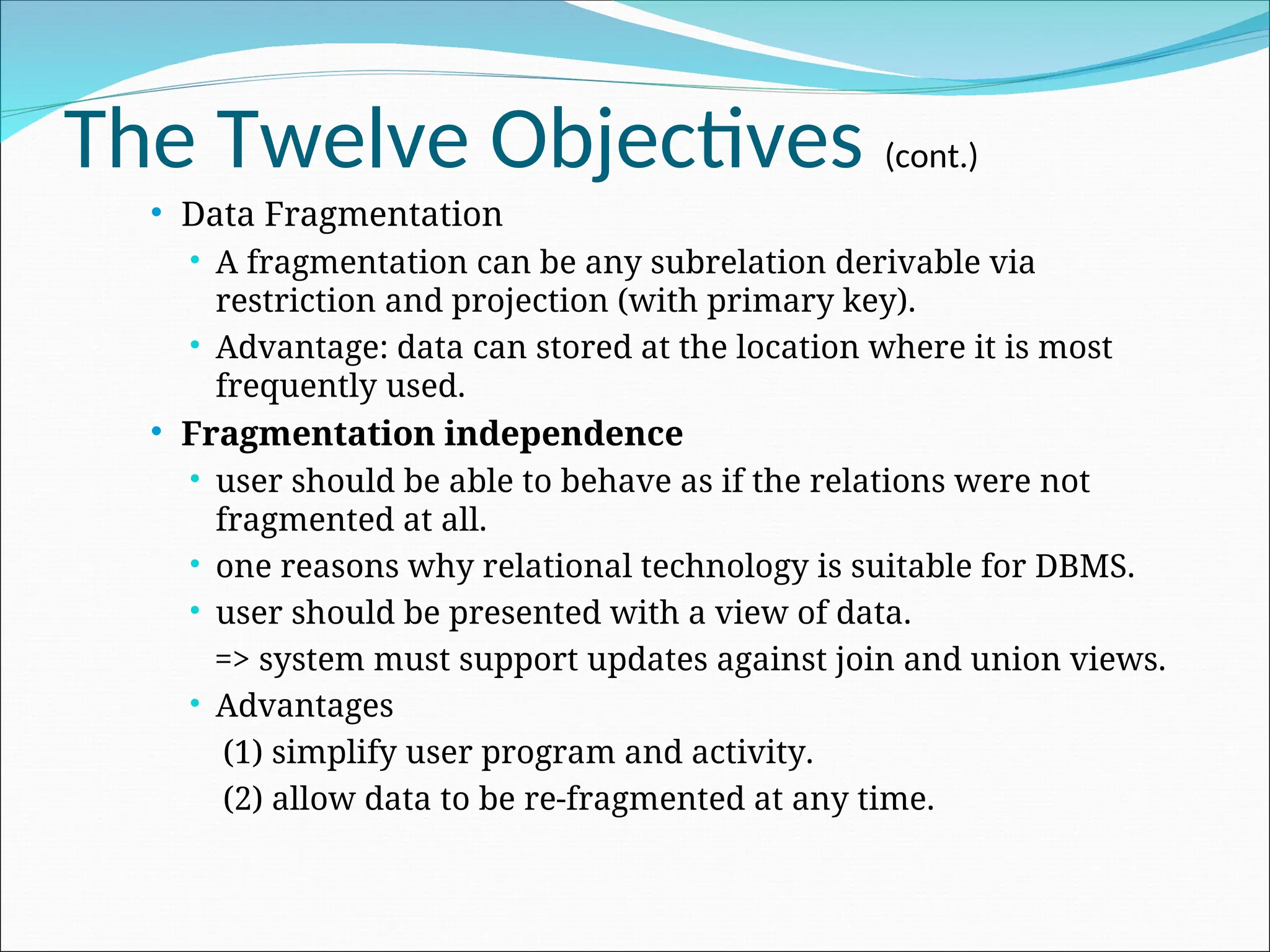

- 10. The Twelve Objectives(cont.) Data Fragmentation A fragmentation can be any subrelation derivable via restriction and projection (with primary key). Advantage: data can stored at the location where it is most frequently used. Fragmentation independence user should be able to behave as if the relations were not fragmented at all. one reasons why relational technology is suitable for DBMS. user should be presented with a view of data. => system must support updates against join and union views. Advantages (1) simplify user program and activity. (2) allow data to be re-fragmented at any time.

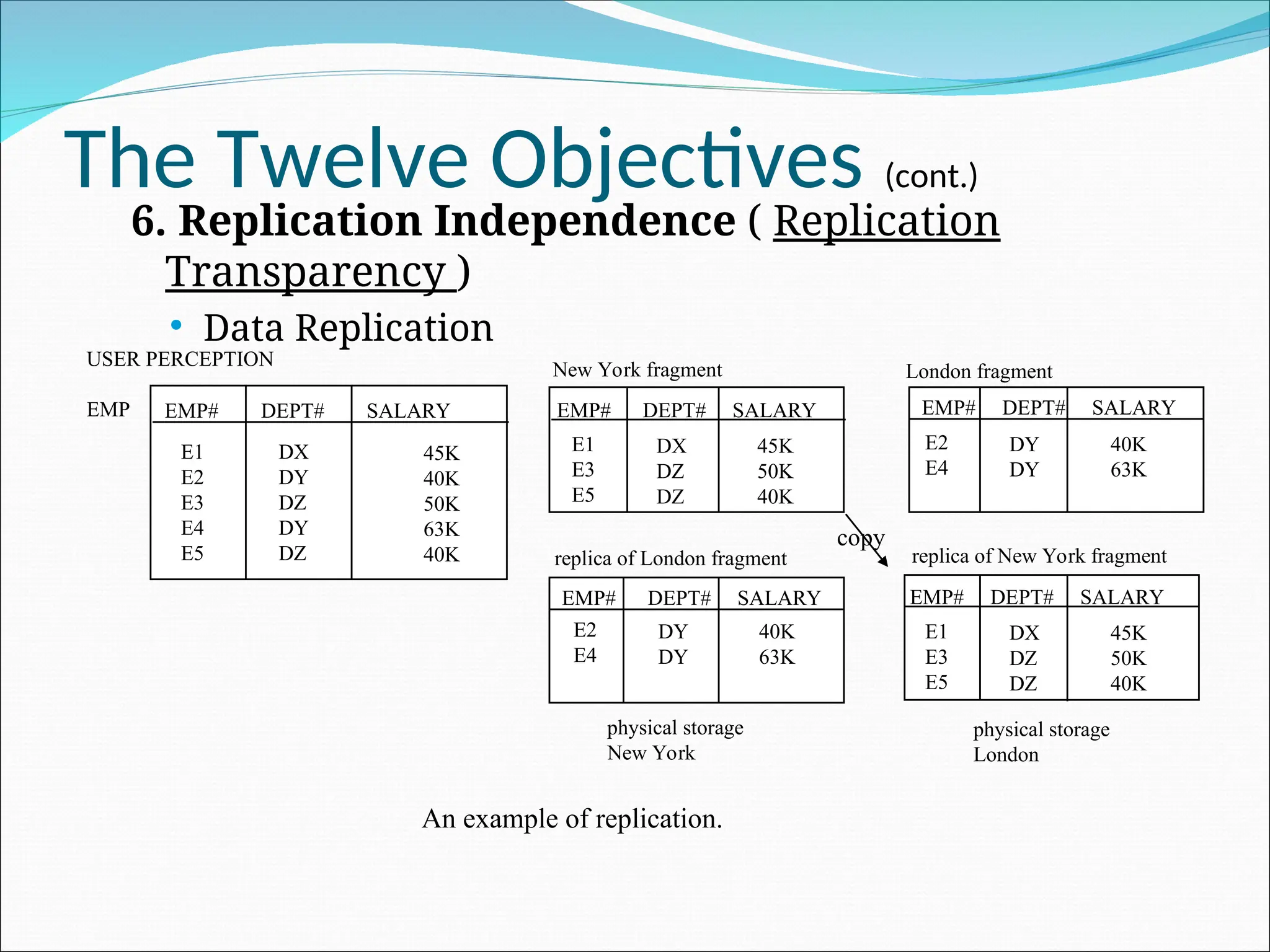

- 11. The Twelve Objectives(cont.) 6. Replication Independence ( Replication Transparency ) Data Replication USER PERCEPTION EMP# DEPT# SALARY E1 E2 E3 E4 E5 DX DY DZ DY DZ 45K 40K 50K 63K 40K EMP An example of replication. EMP# DEPT# SALARY E1 E3 E5 DX DZ DZ 45K 50K 40K EMP# DEPT# SALARY E2 E4 DY DY 40K 63K EMP# DEPT# SALARY E2 E4 DY DY 40K 63K EMP# DEPT# SALARY E1 E3 E5 DX DZ DZ 45K 50K 40K New York fragment London fragment replica of London fragment replica of New York fragment physical storage New York physical storage London copy

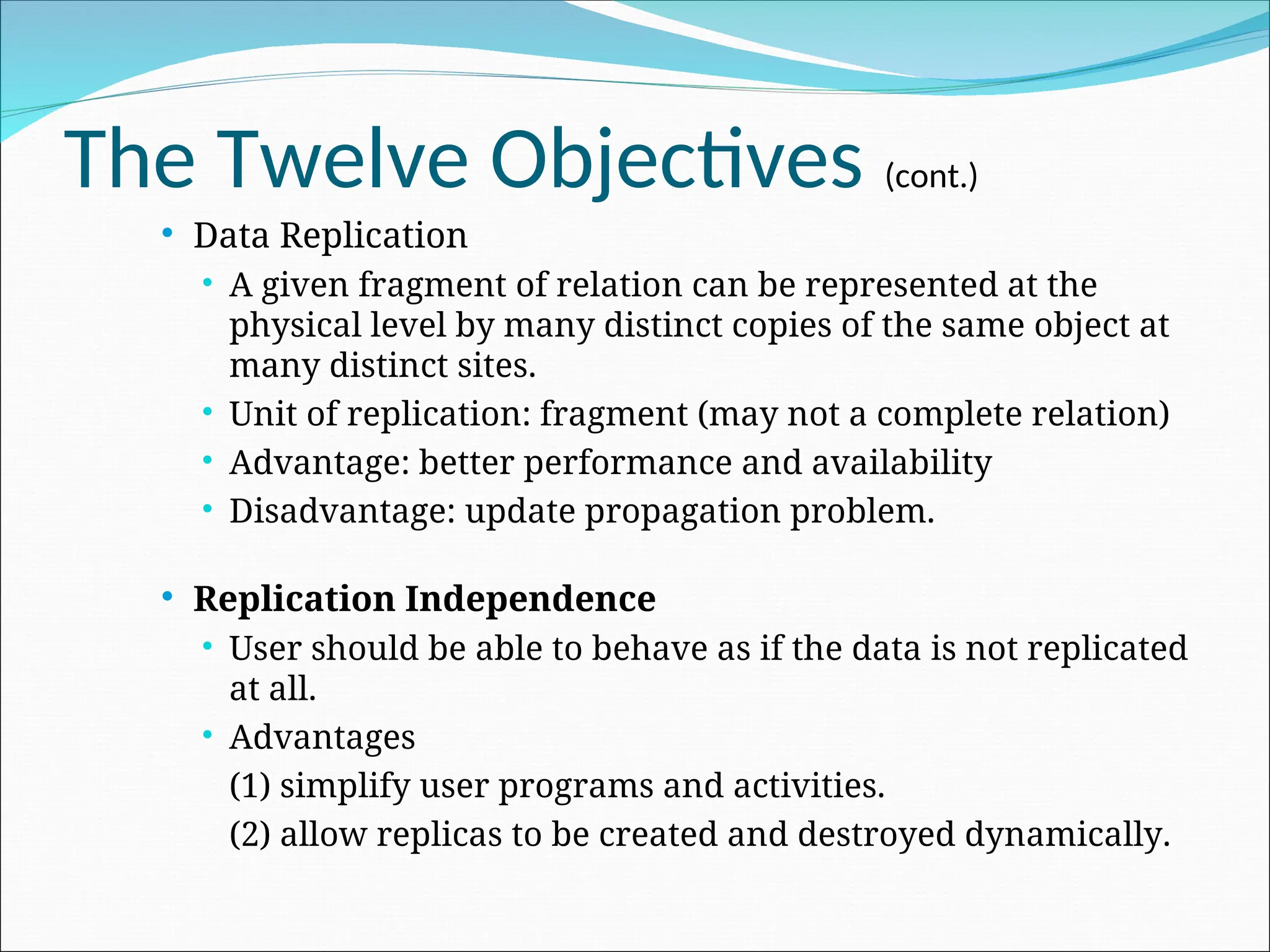

- 12. The Twelve Objectives(cont.) Data Replication A given fragment of relation can be represented at the physical level by many distinct copies of the same object at many distinct sites. Unit of replication: fragment (may not a complete relation) Advantage: better performance and availability Disadvantage: update propagation problem. Replication Independence User should be able to behave as if the data is not replicated at all. Advantages (1) simplify user programs and activities. (2) allow replicas to be created and destroyed dynamically.

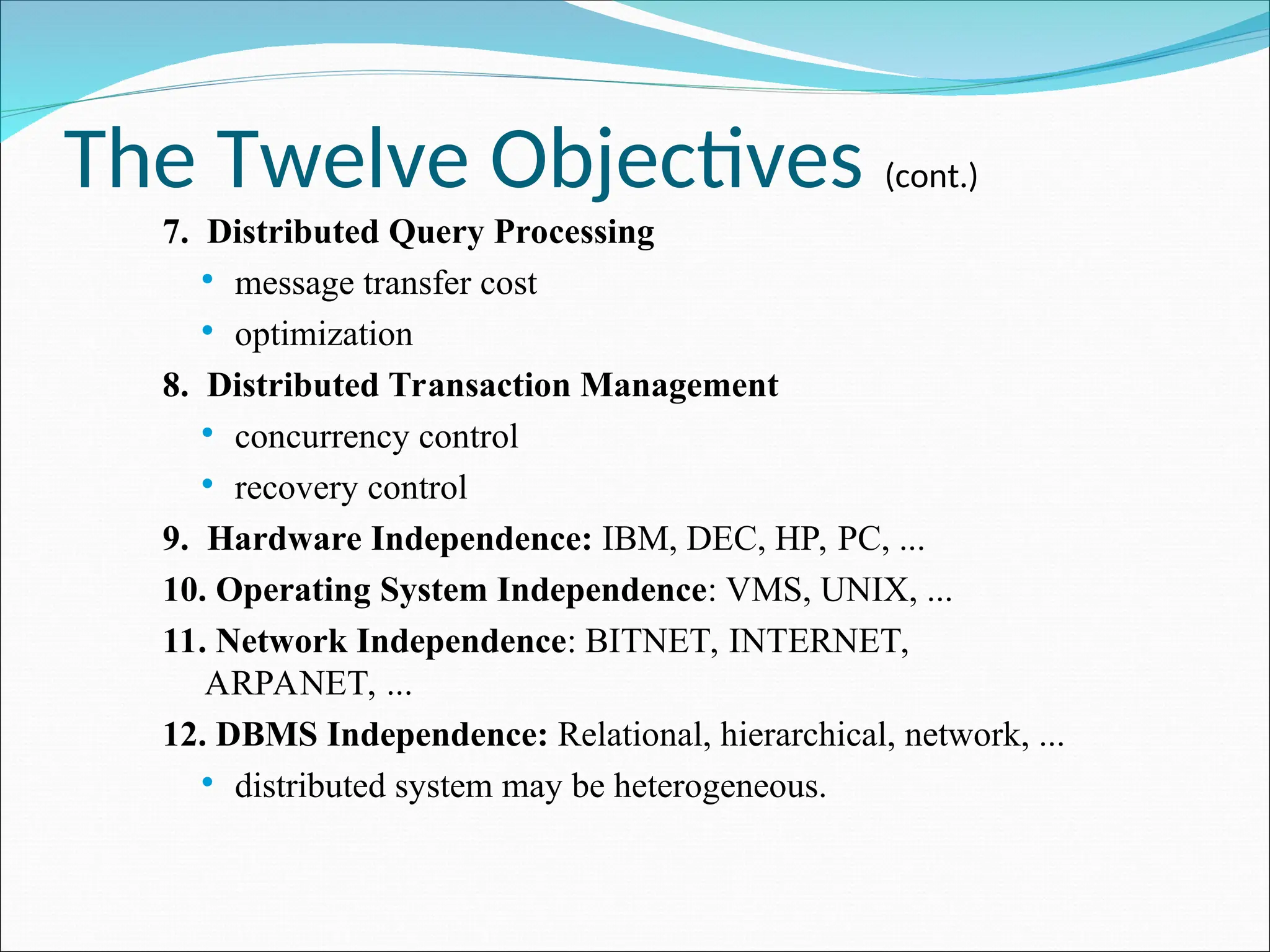

- 13. The Twelve Objectives(cont.) 7. Distributed Query Processing message transfer cost optimization 8. Distributed Transaction Management concurrency control recovery control 9. Hardware Independence: IBM, DEC, HP, PC, ... 10. Operating System Independence: VMS, UNIX, ... 11. Network Independence: BITNET, INTERNET, ARPANET, ... 12. DBMS Independence: Relational, hierarchical, network, ... distributed system may be heterogeneous.

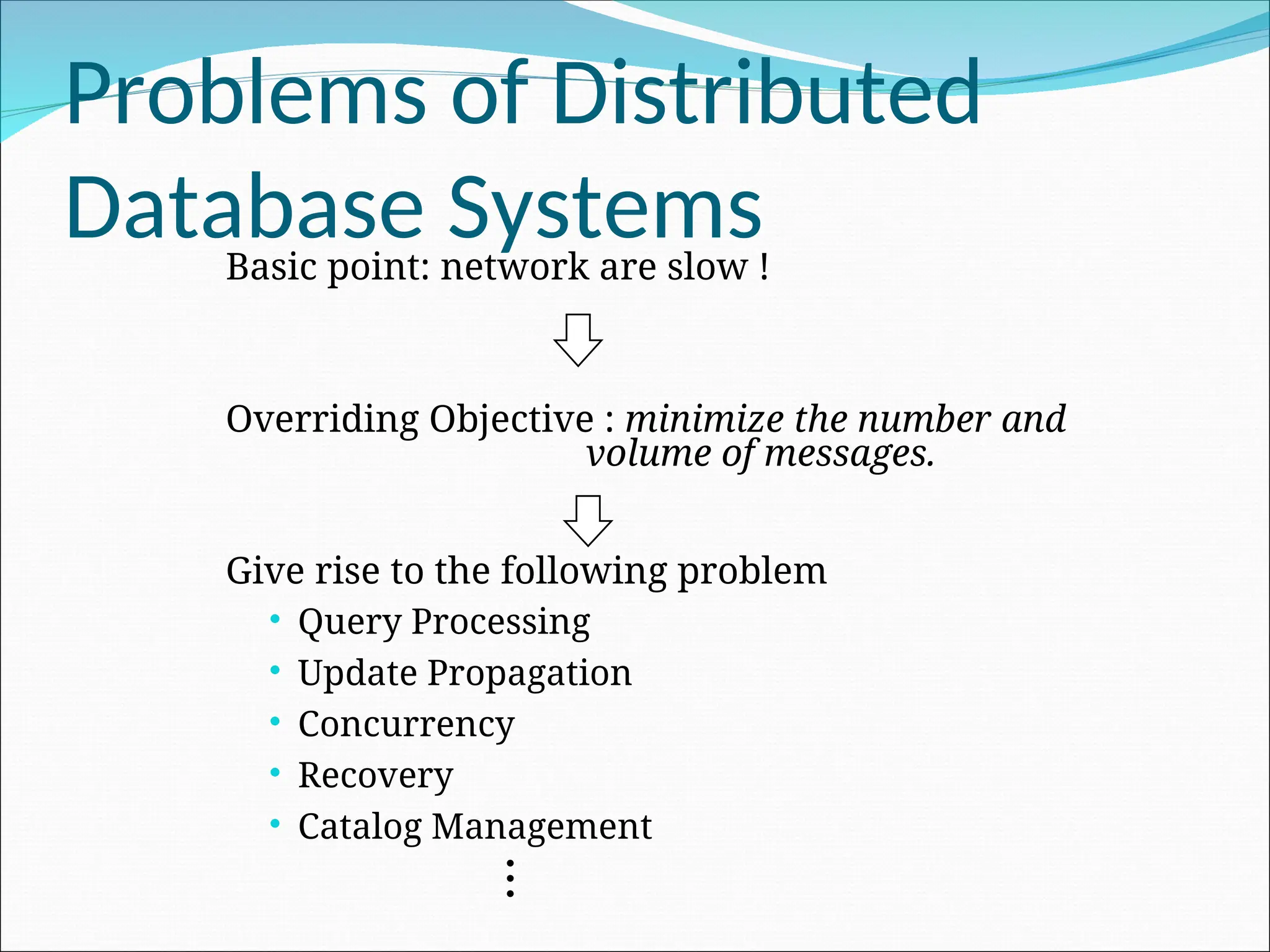

- 14. Problems of Distributed DatabaseSystems Basic point: network are slow ! Overriding Objective : minimize the number and volume of messages. Give rise to the following problem Query Processing Update Propagation Concurrency Recovery Catalog Management . . .

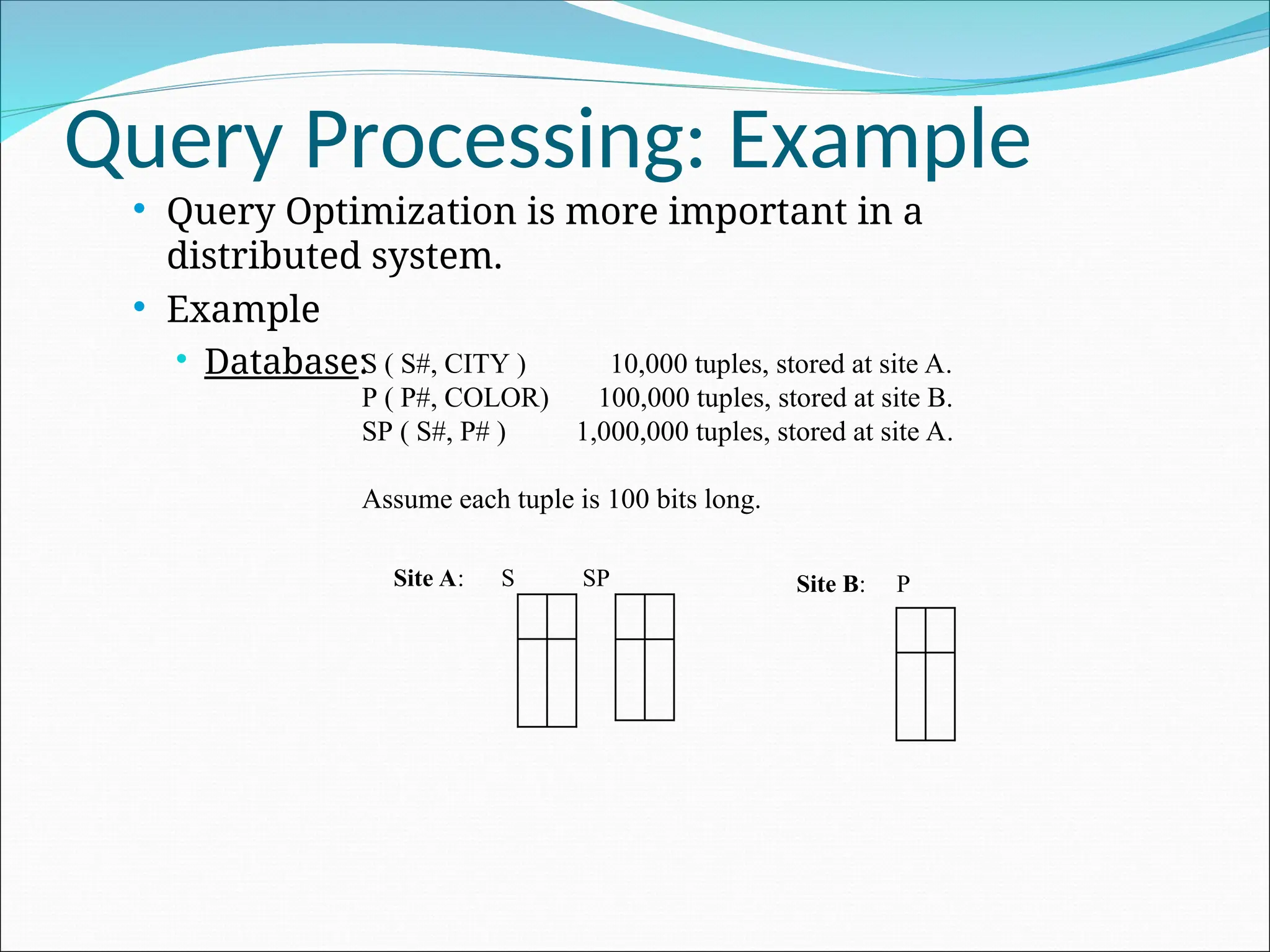

- 15. Query Processing: Example Query Optimization is more important in a distributed system. Example Database:S ( S#, CITY ) 10,000 tuples, stored at site A. P ( P#, COLOR) 100,000 tuples, stored at site B. SP ( S#, P# ) 1,000,000 tuples, stored at site A. Assume each tuple is 100 bits long. Site A: S SP Site B: P
- 16. Query Processing: Example(cont.) Query: "Select S# for London suppliers of Red Parts" Estimates # of Red Parts = 10 # of Shipments by London Supplier = 100,000 Communication Assumption : Data Rate = 10,000 bits per second Access Delay = 1 second T[i] = total communication time for strategy i = total access delay + total data volume / data rate = (# of messages * 1 sec) + (total # of bits / 10,000 ) sec. SELECT S.S# FROM S, P, SP WHERE S.CITY = "London" AND S.S# = SP.S# AND SP.P# = P.P# AND P.COLOR = 'Red' site A site B S, SP P S SP
- 17. Query Processing: Example(cont.) Strategy 1 1. Join S and SP at site A 2. Select tuples from ( S SP ) for which city is 'London' ( 100,000 tuples ) 3. For each of those tuple, check site B to see if the part is red. (2 messages: 1 query, 1 response) T[1] = ( 100,000 * 2 ) * 1 = 2.3 days Strategy 2 Move relations S and SP to site B and process the query at B. T[2] = 2+(10,000+1,000,000)*100/10,000 = 28 hours Strategy 3 Move relation P to site A and process the query at A T[3] =1+(100,000*100) /10,000 = 16.7 min site A site B S, SP P
- 18. Query Processing: Example(cont.) Strategy 4 1. Select tuples from P where color is red. (10 tuples) 2. Check site A to see if there exists a shipment relating the part to a London Supplier. ( 2*10 messages ) T[4] = 2*10*1 = 20 sec Strategy 5 1. Select tuples from P where color is red (10 tuples) 2. Move the result to site A and complete the processing at A. T[5] = 1 + ( 10*100) / 100,000 = 1.01 sec Note: Each of the five strategies represents a plausible solution, but the variation in communication time is enormous. site A site B S, SP P

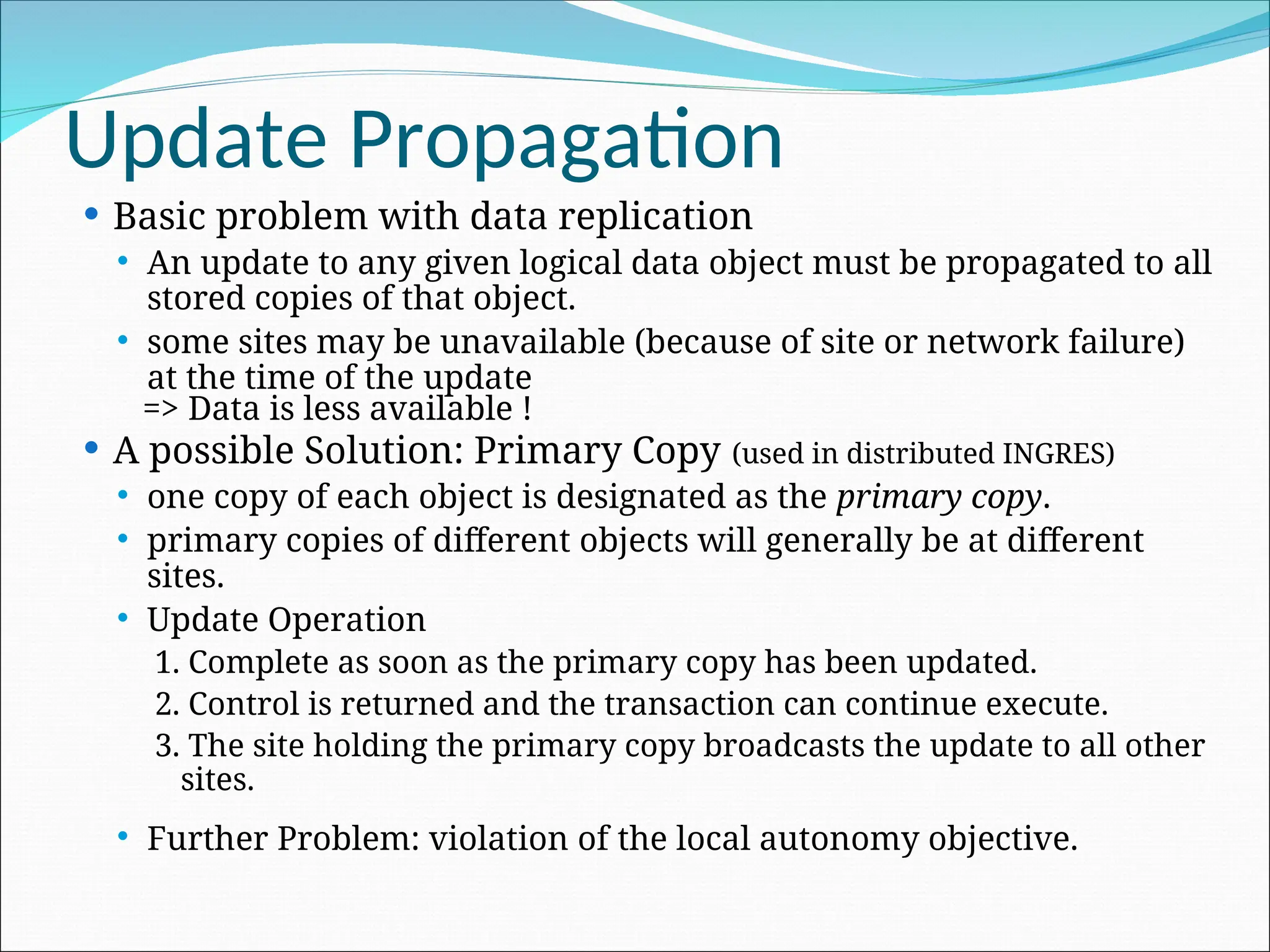

- 19. Update Propagation Basicproblem with data replication An update to any given logical data object must be propagated to all stored copies of that object. some sites may be unavailable (because of site or network failure) at the time of the update => Data is less available ! A possible Solution: Primary Copy (used in distributed INGRES) one copy of each object is designated as the primary copy. primary copies of different objects will generally be at different sites. Update Operation 1. Complete as soon as the primary copy has been updated. 2. Control is returned and the transaction can continue execute. 3. The site holding the primary copy broadcasts the update to all other sites. Further Problem: violation of the local autonomy objective.

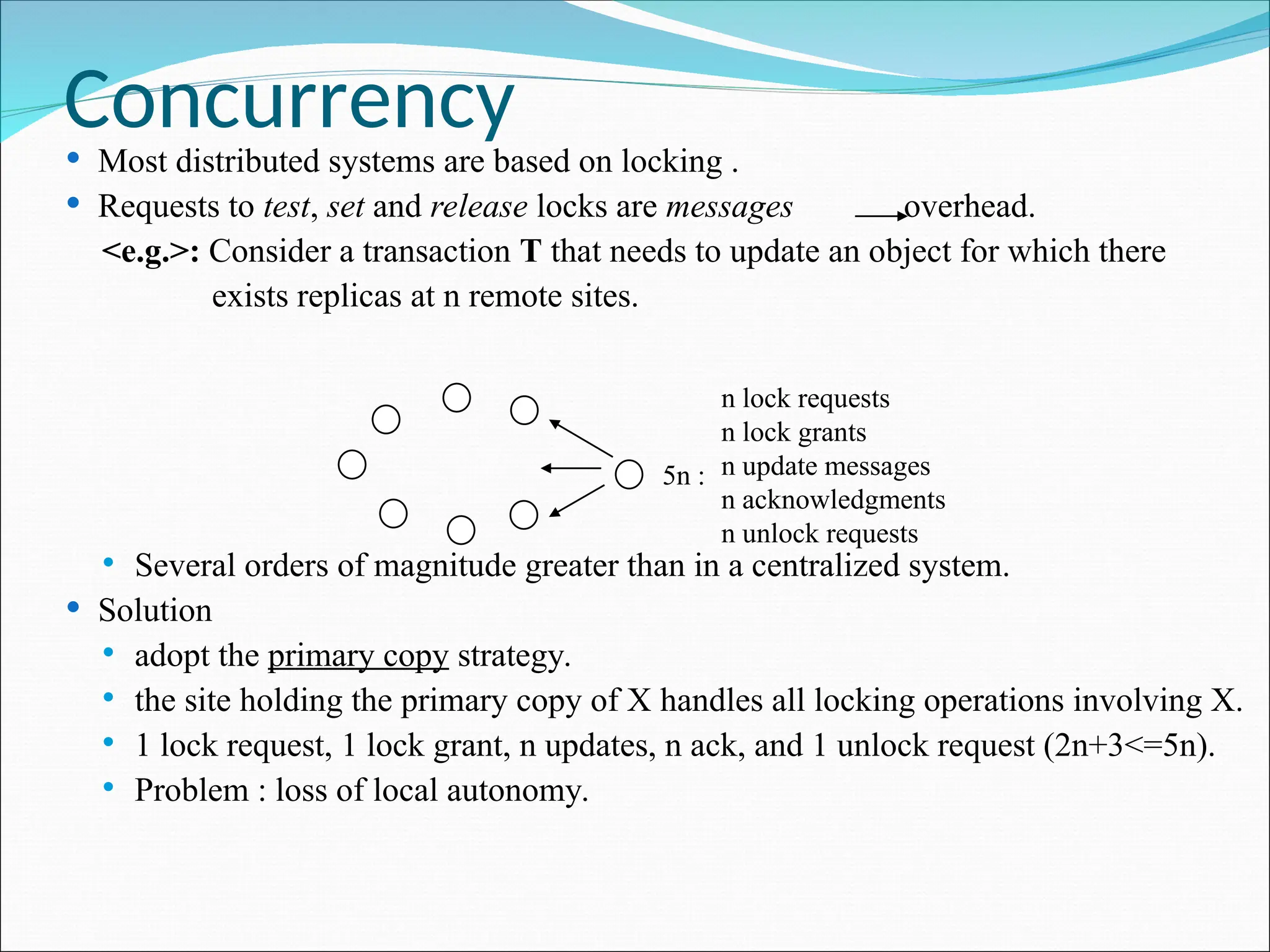

- 20. Concurrency Most distributedsystems are based on locking . Requests to test, set and release locks are messages overhead. <e.g.>: Consider a transaction T that needs to update an object for which there exists replicas at n remote sites. Several orders of magnitude greater than in a centralized system. Solution adopt the primary copy strategy. the site holding the primary copy of X handles all locking operations involving X. 1 lock request, 1 lock grant, n updates, n ack, and 1 unlock request (2n+3<=5n). Problem : loss of local autonomy. n lock requests n lock grants n update messages n acknowledgments n unlock requests 5n :

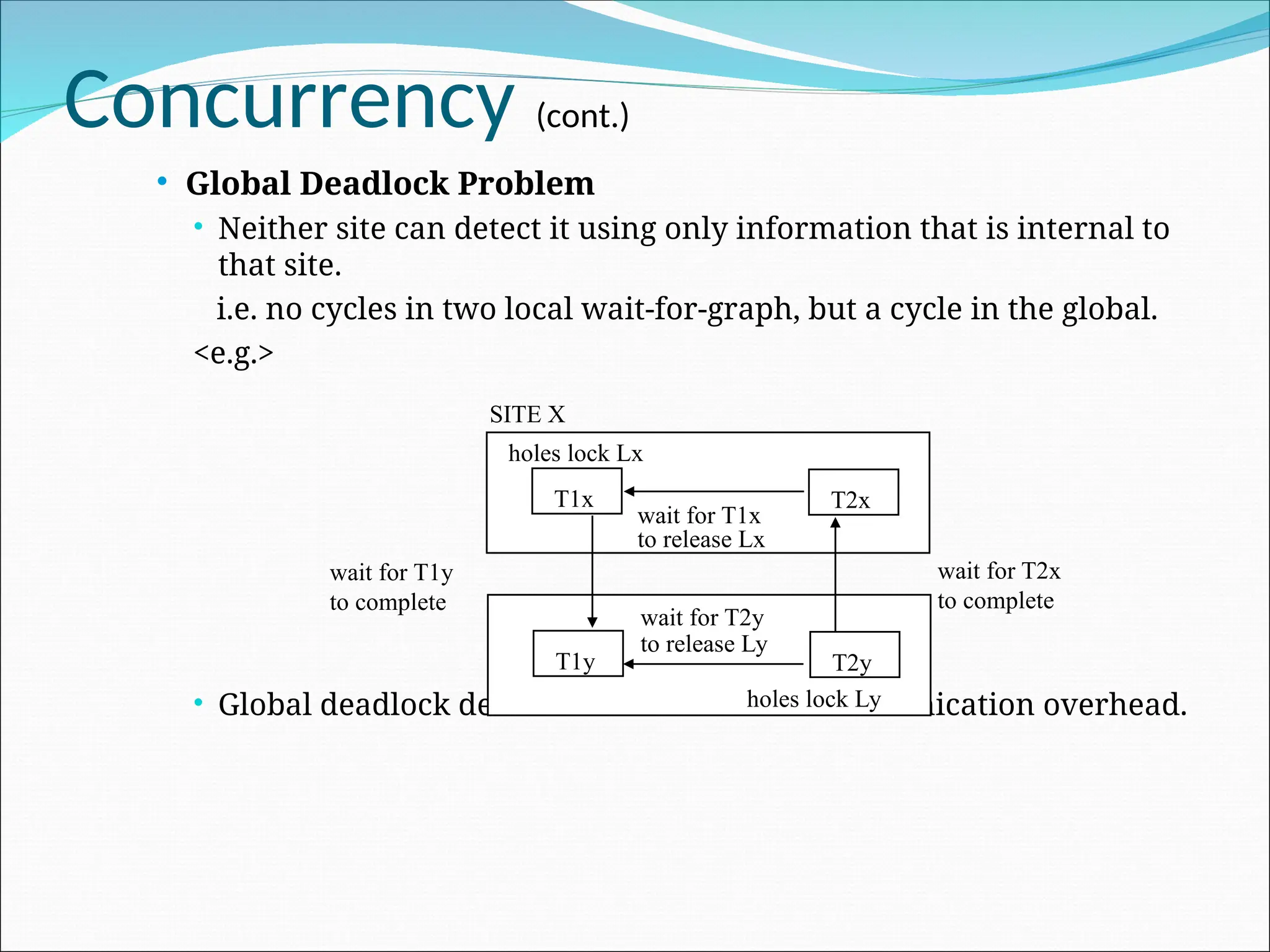

- 21. Concurrency (cont.) GlobalDeadlock Problem Neither site can detect it using only information that is internal to that site. i.e. no cycles in two local wait-for-graph, but a cycle in the global. <e.g.> Global deadlock detection needs further communication overhead. holes lock Lx SITE X T1x T2x wait for T1x to release Lx holes lock Ly T1y T2y wait for T2y to release Ly wait for T1y to complete wait for T2x to complete

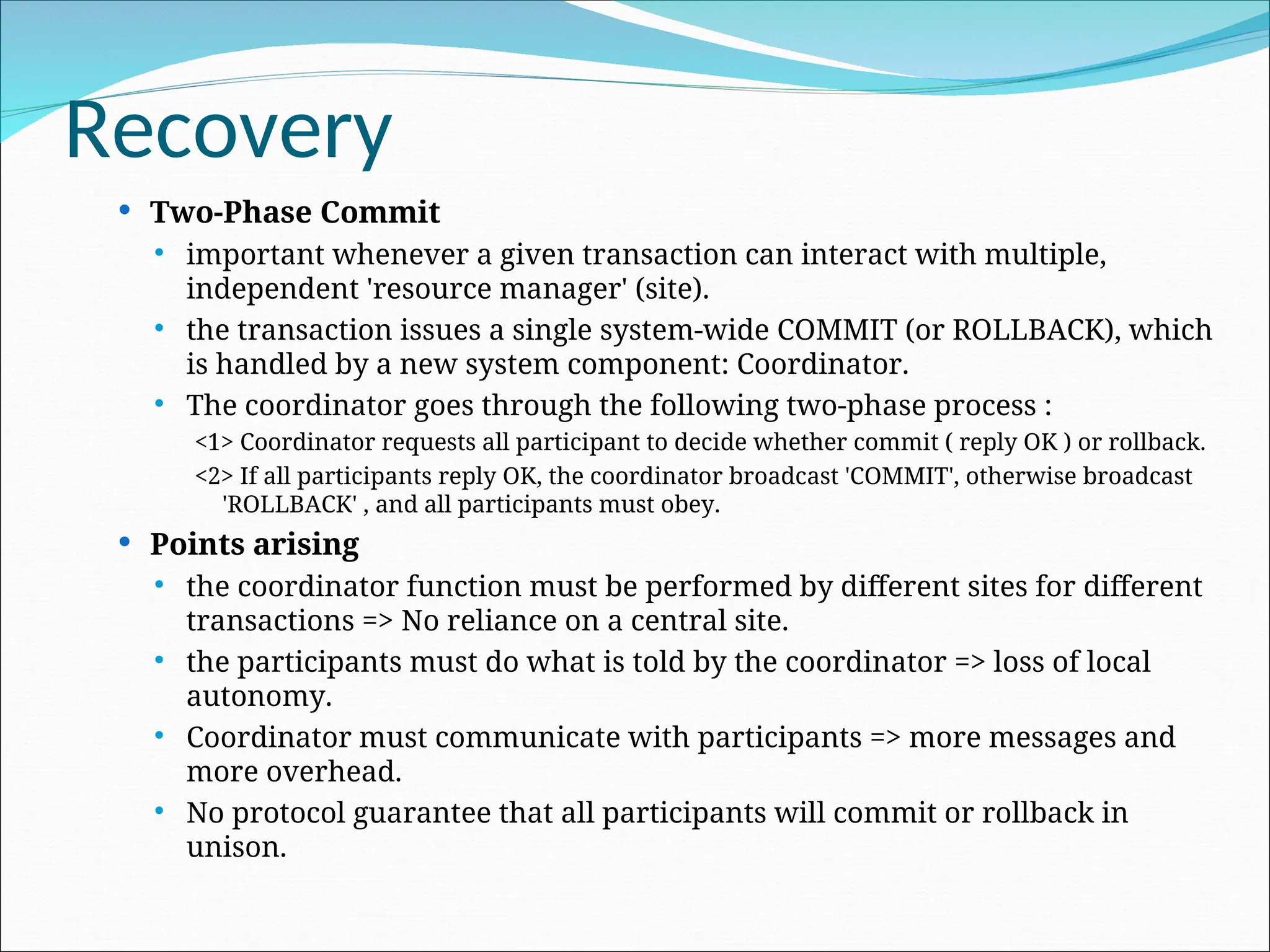

- 22. Recovery Two-Phase Commit important whenever a given transaction can interact with multiple, independent 'resource manager' (site). the transaction issues a single system-wide COMMIT (or ROLLBACK), which is handled by a new system component: Coordinator. The coordinator goes through the following two-phase process : <1> Coordinator requests all participant to decide whether commit ( reply OK ) or rollback. <2> If all participants reply OK, the coordinator broadcast 'COMMIT', otherwise broadcast 'ROLLBACK' , and all participants must obey. Points arising the coordinator function must be performed by different sites for different transactions => No reliance on a central site. the participants must do what is told by the coordinator => loss of local autonomy. Coordinator must communicate with participants => more messages and more overhead. No protocol guarantee that all participants will commit or rollback in unison.

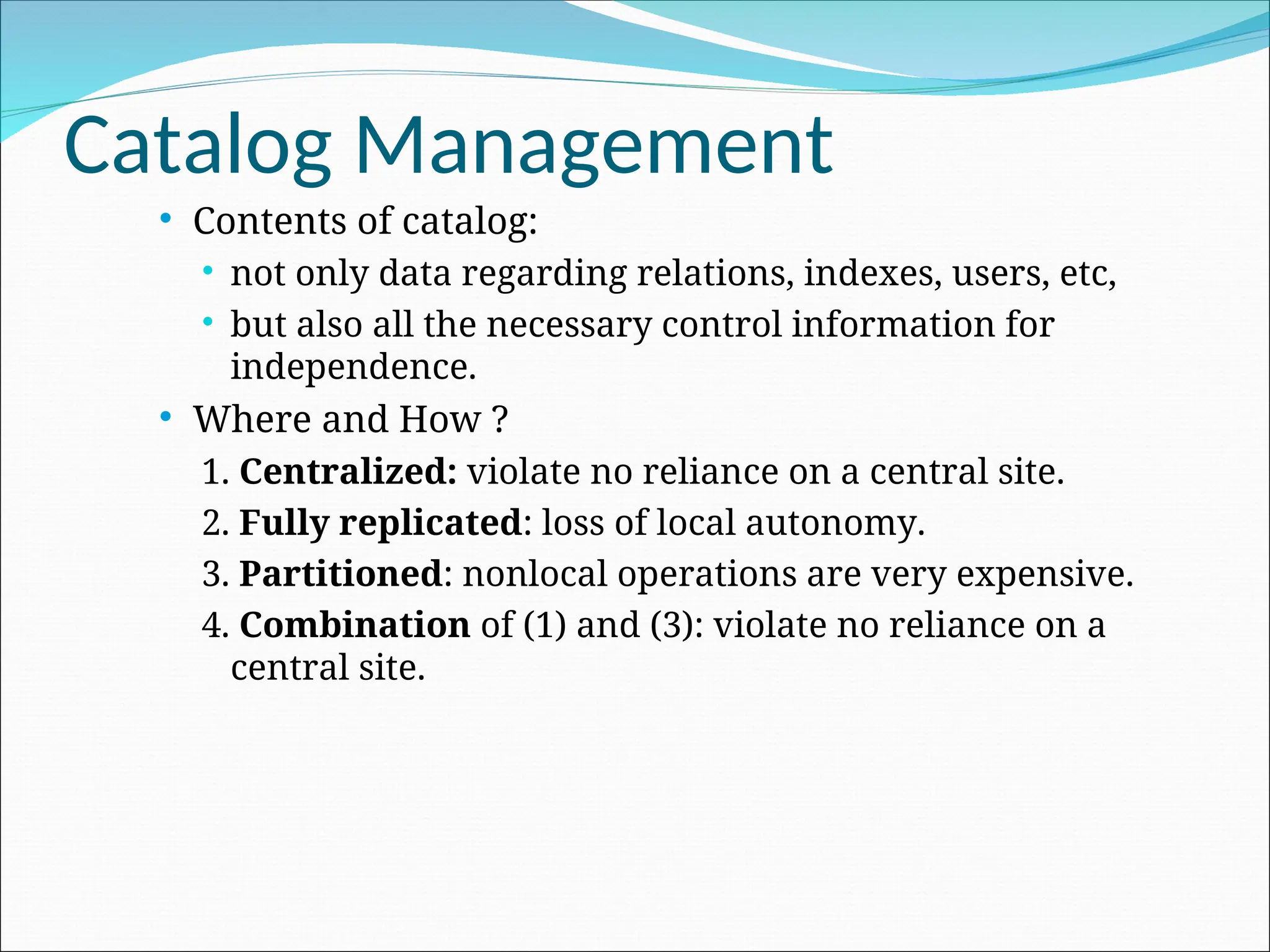

- 23. Catalog Management Contentsof catalog: not only data regarding relations, indexes, users, etc, but also all the necessary control information for independence. Where and How ? 1. Centralized: violate no reliance on a central site. 2. Fully replicated: loss of local autonomy. 3. Partitioned: nonlocal operations are very expensive. 4. Combination of (1) and (3): violate no reliance on a central site.
