- 1. Design Patterns for Tablets and Smartphones Michael Galpin, Bump Technologies
- 2. About me • Apps! • Bump • eBay Mobile • Book! • Android in Practice • Chapter 15
- 3. Agenda • Key Concepts • App Structure • Fragments • Goodies • Action Bar • Loaders • Eye Candy
- 4. So you builtan app...

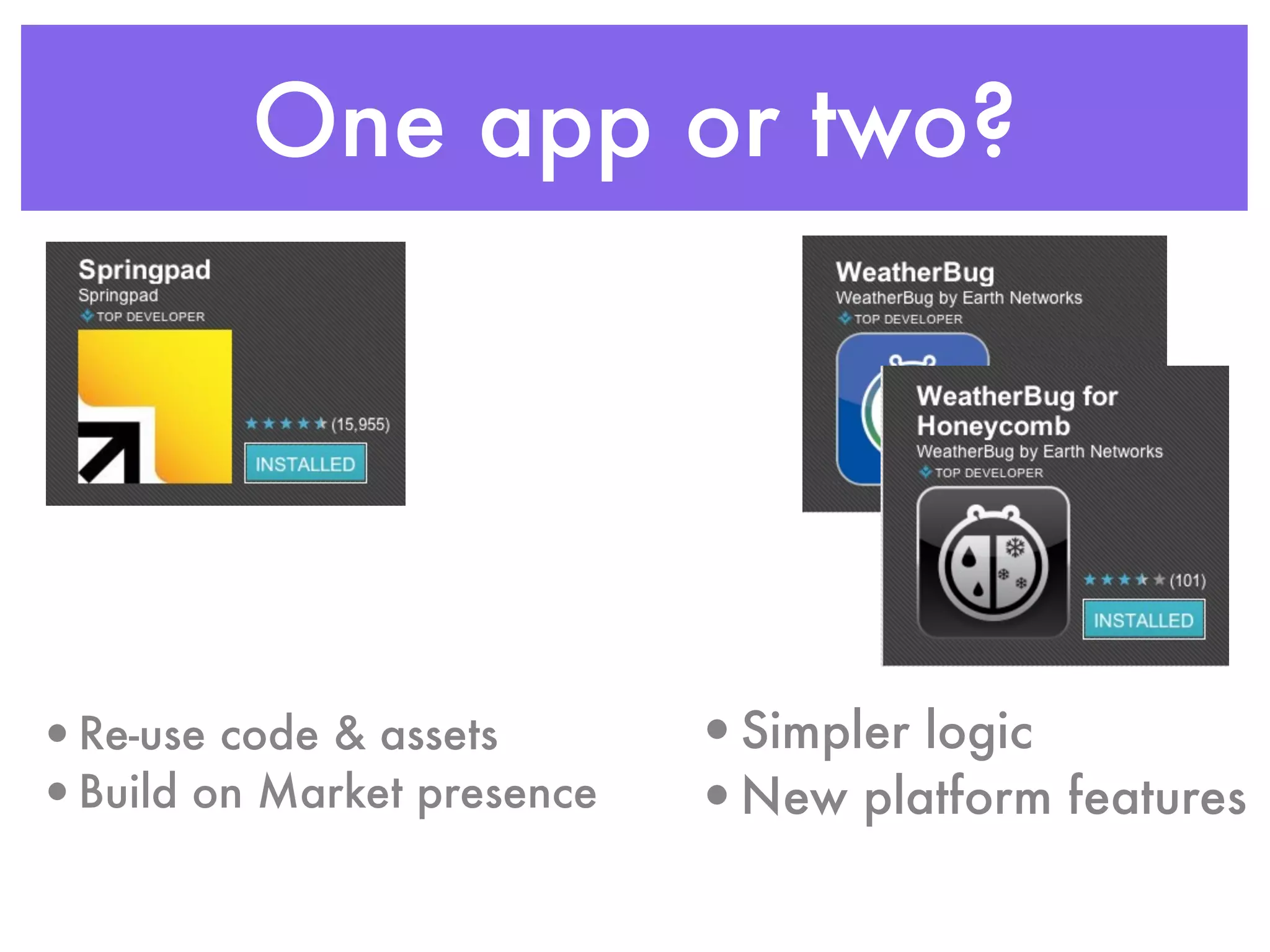

- 5. One app ortwo? •Re-use code & assets •Simpler logic •Build on Market presence •New platform features
- 6.

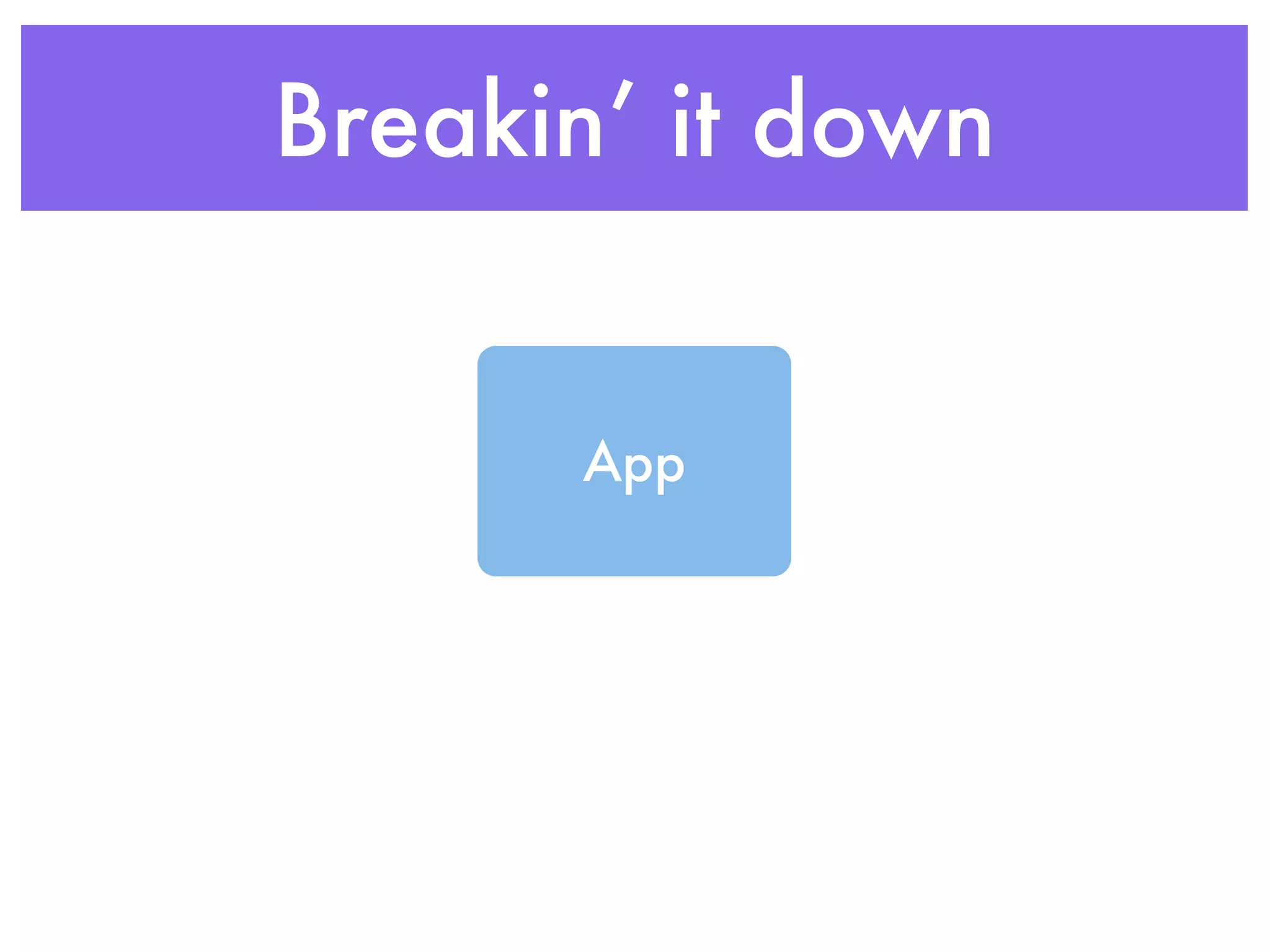

- 7. Breakin’ it down App

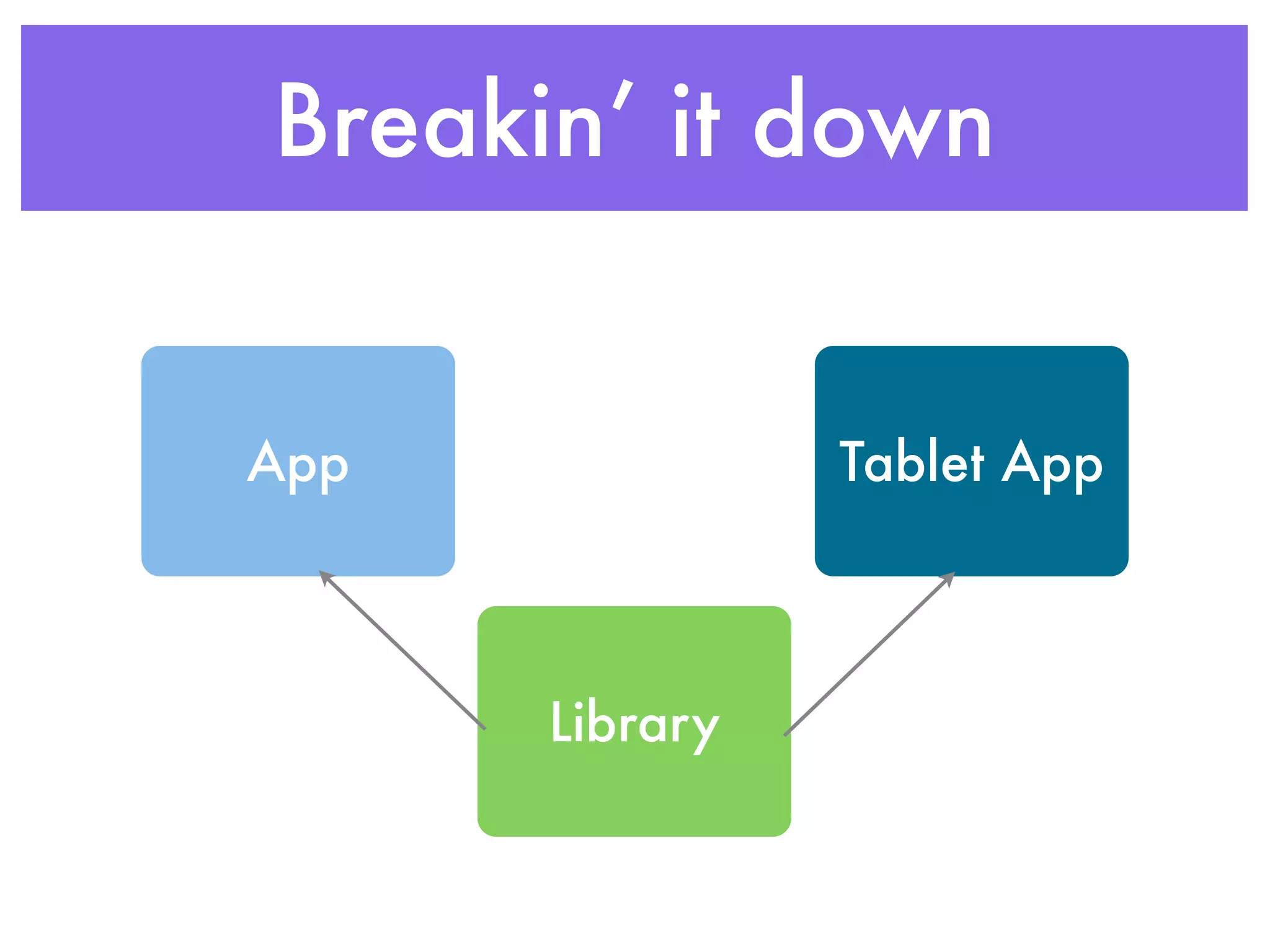

- 8. Breakin’ it down App Tablet App Library

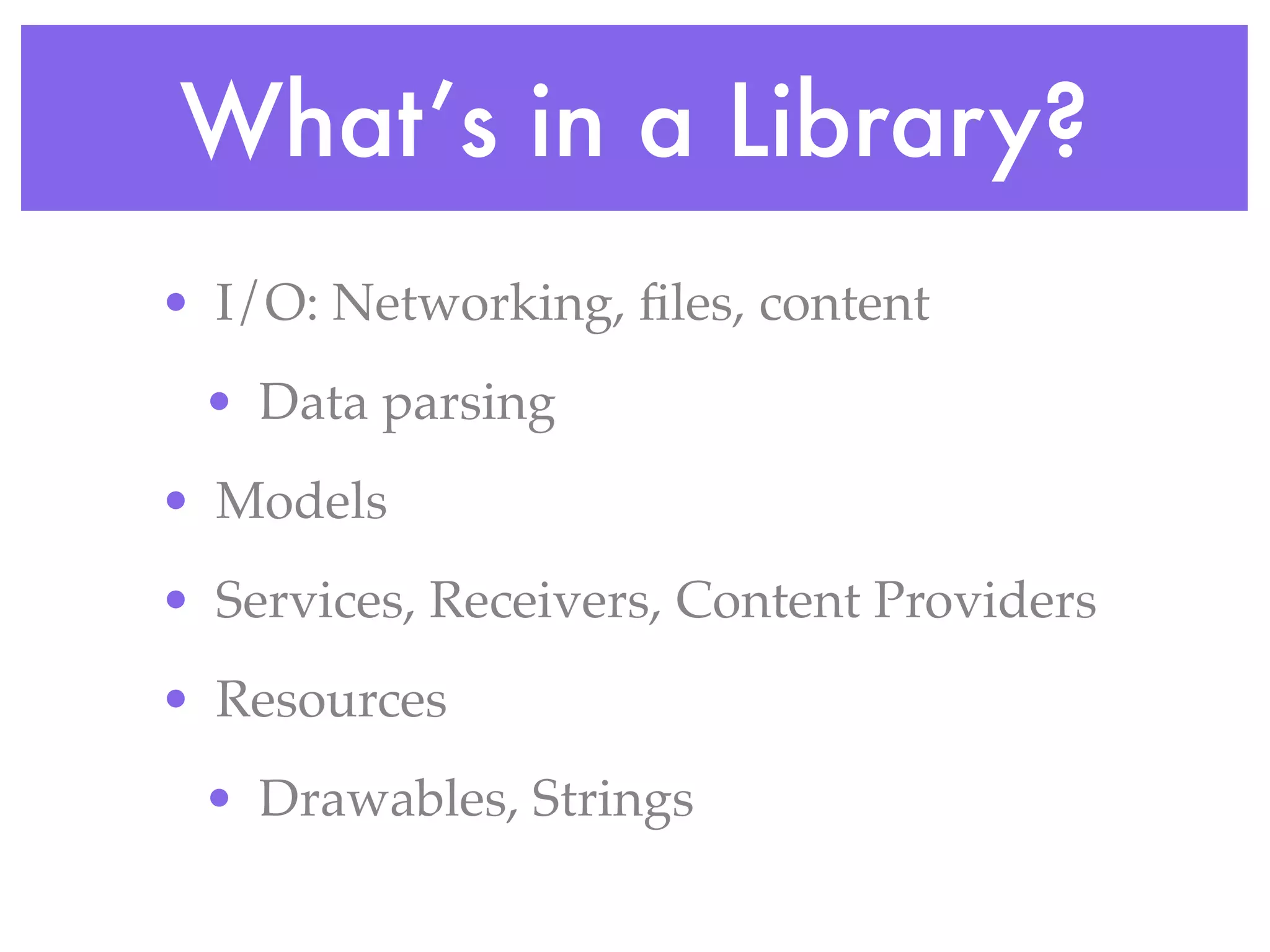

- 9. What’s in aLibrary? • I/O: Networking, files, content • Data parsing • Models • Services, Receivers, Content Providers • Resources • Drawables, Strings
- 10.

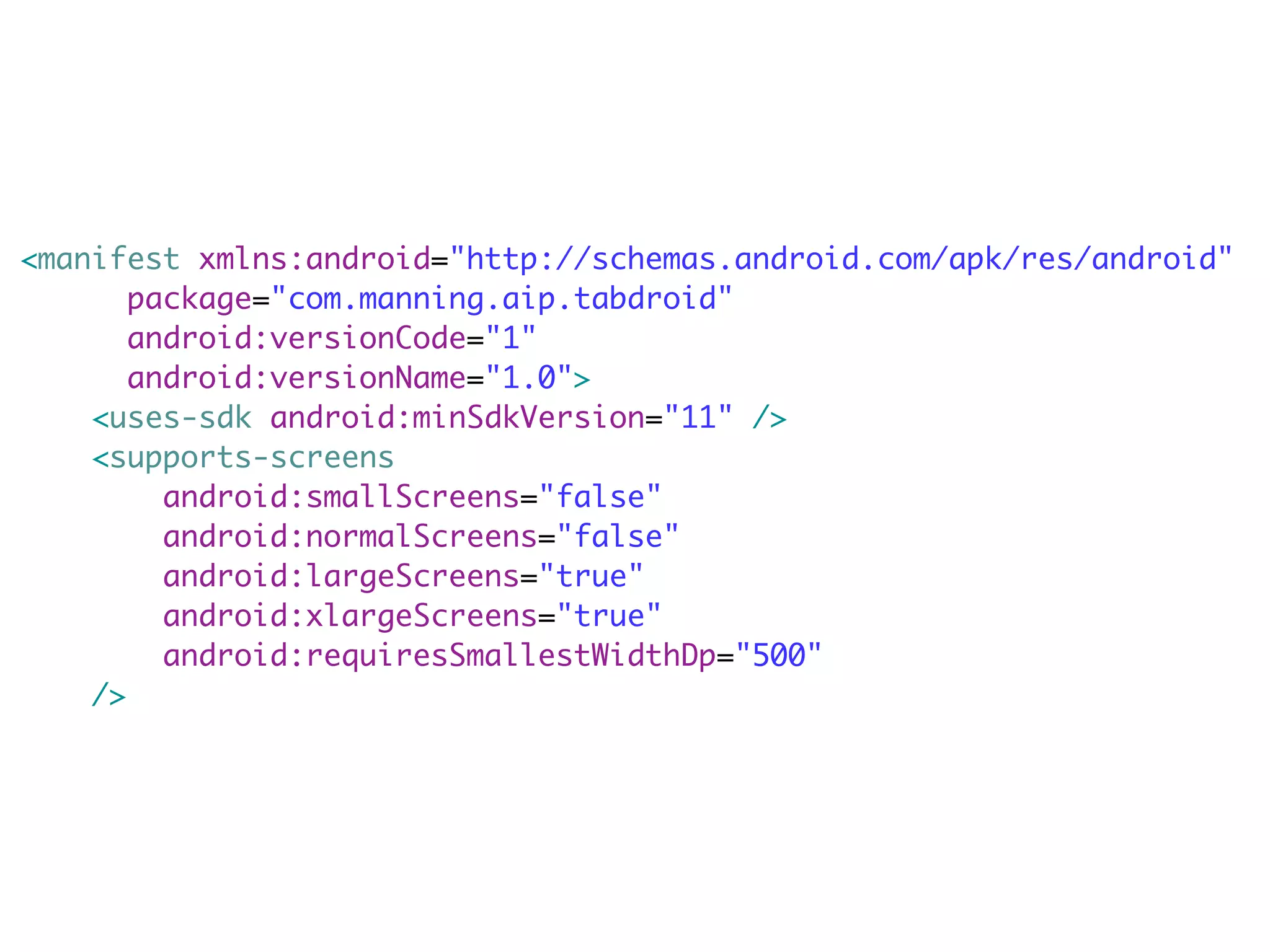

- 14. <manifest xmlns:android="http://schemas.android.com/apk/res/android" package="com.manning.aip.tabdroid" android:versionCode="1" android:versionName="1.0"> <uses-sdk android:minSdkVersion="11" /> <supports-screens android:smallScreens="false" android:normalScreens="false" android:largeScreens="true" android:xlargeScreens="true" android:requiresSmallestWidthDp="500" />

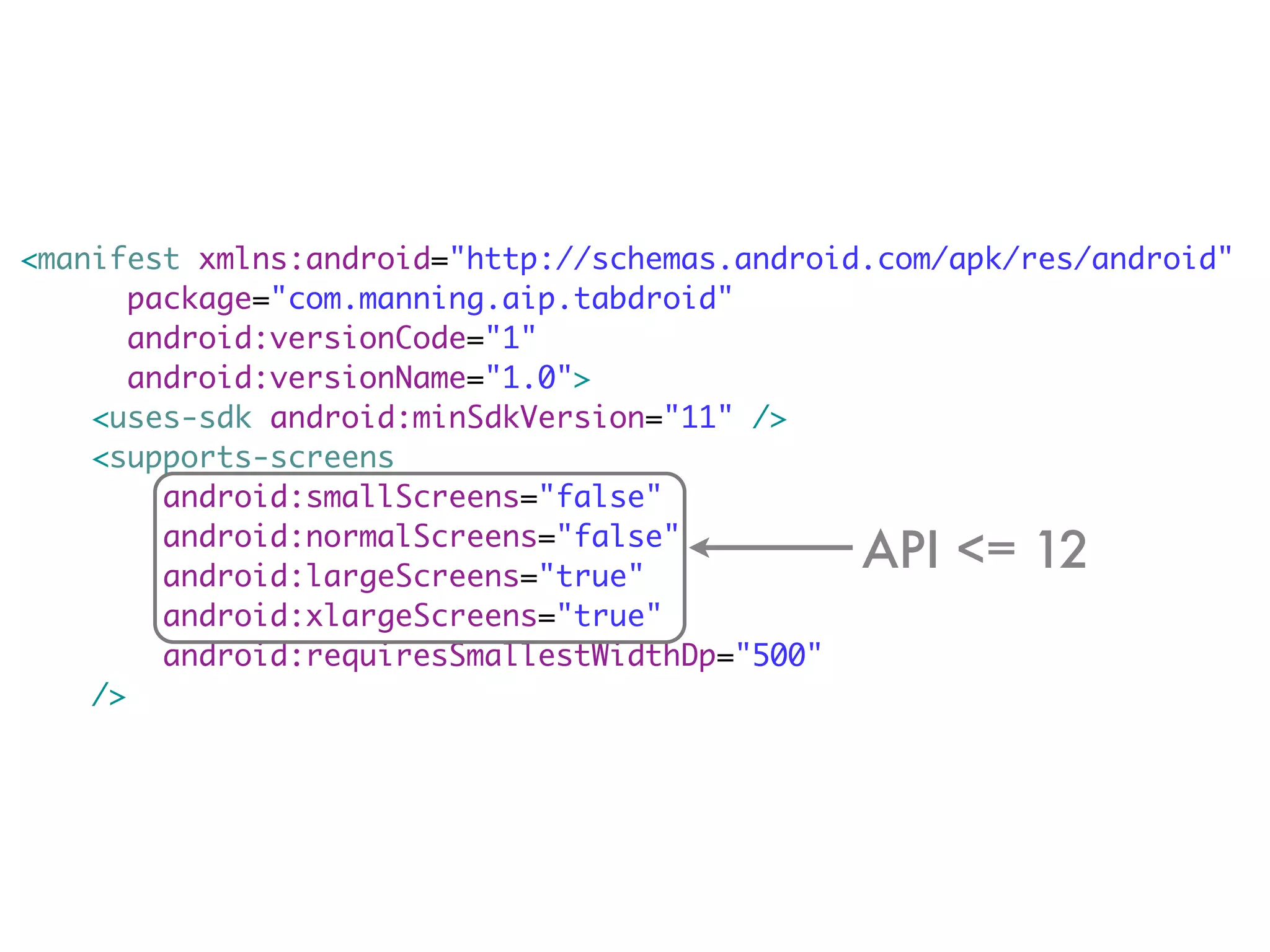

- 15. <manifest xmlns:android="http://schemas.android.com/apk/res/android" package="com.manning.aip.tabdroid" android:versionCode="1" android:versionName="1.0"> <uses-sdk android:minSdkVersion="11" /> <supports-screens android:smallScreens="false" android:normalScreens="false" android:largeScreens="true" API <= 12 android:xlargeScreens="true" android:requiresSmallestWidthDp="500" />

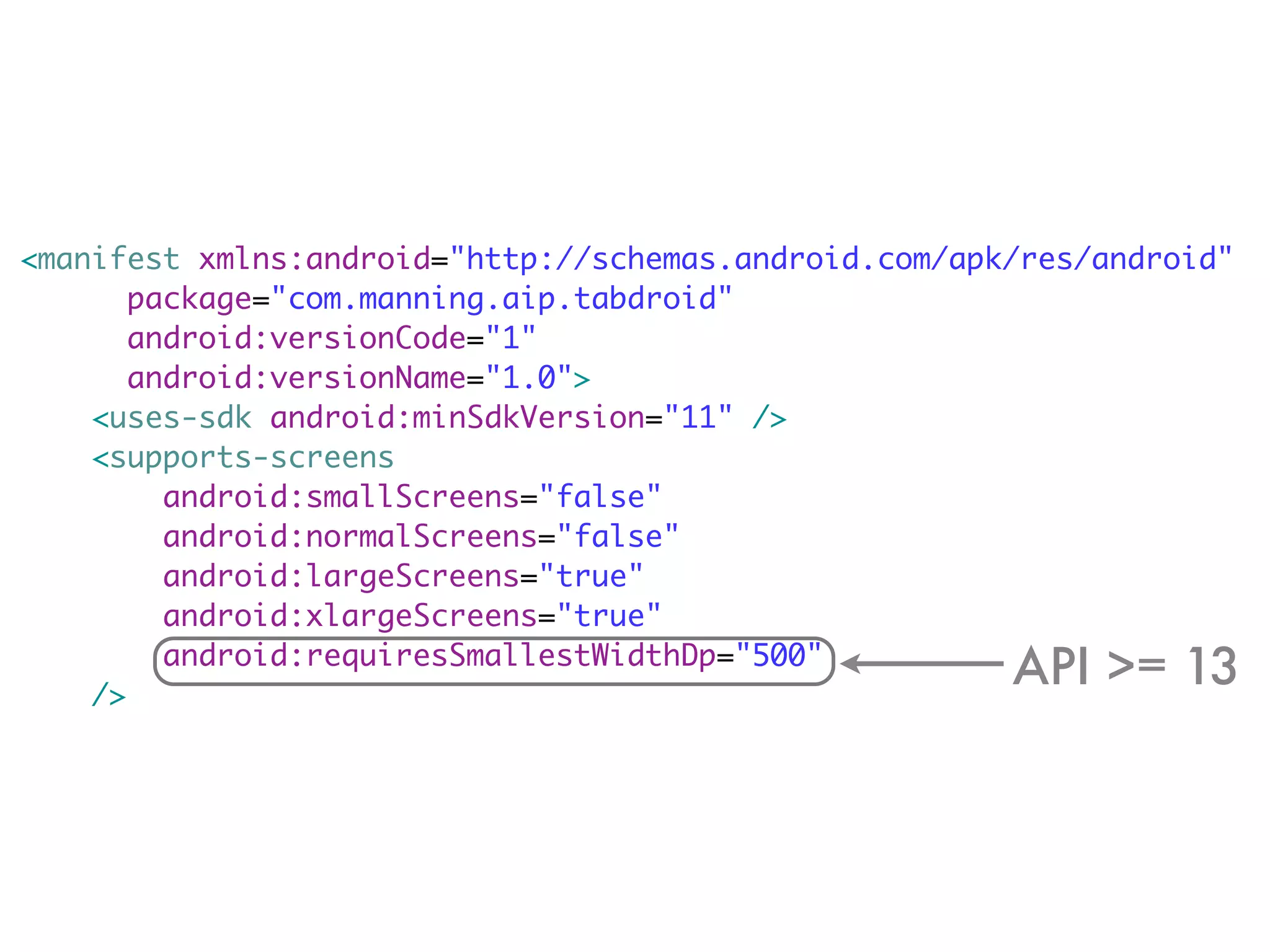

- 16. <manifest xmlns:android="http://schemas.android.com/apk/res/android" package="com.manning.aip.tabdroid" android:versionCode="1" android:versionName="1.0"> <uses-sdk android:minSdkVersion="11" /> <supports-screens android:smallScreens="false" android:normalScreens="false" android:largeScreens="true" android:xlargeScreens="true" /> android:requiresSmallestWidthDp="500" API >= 13

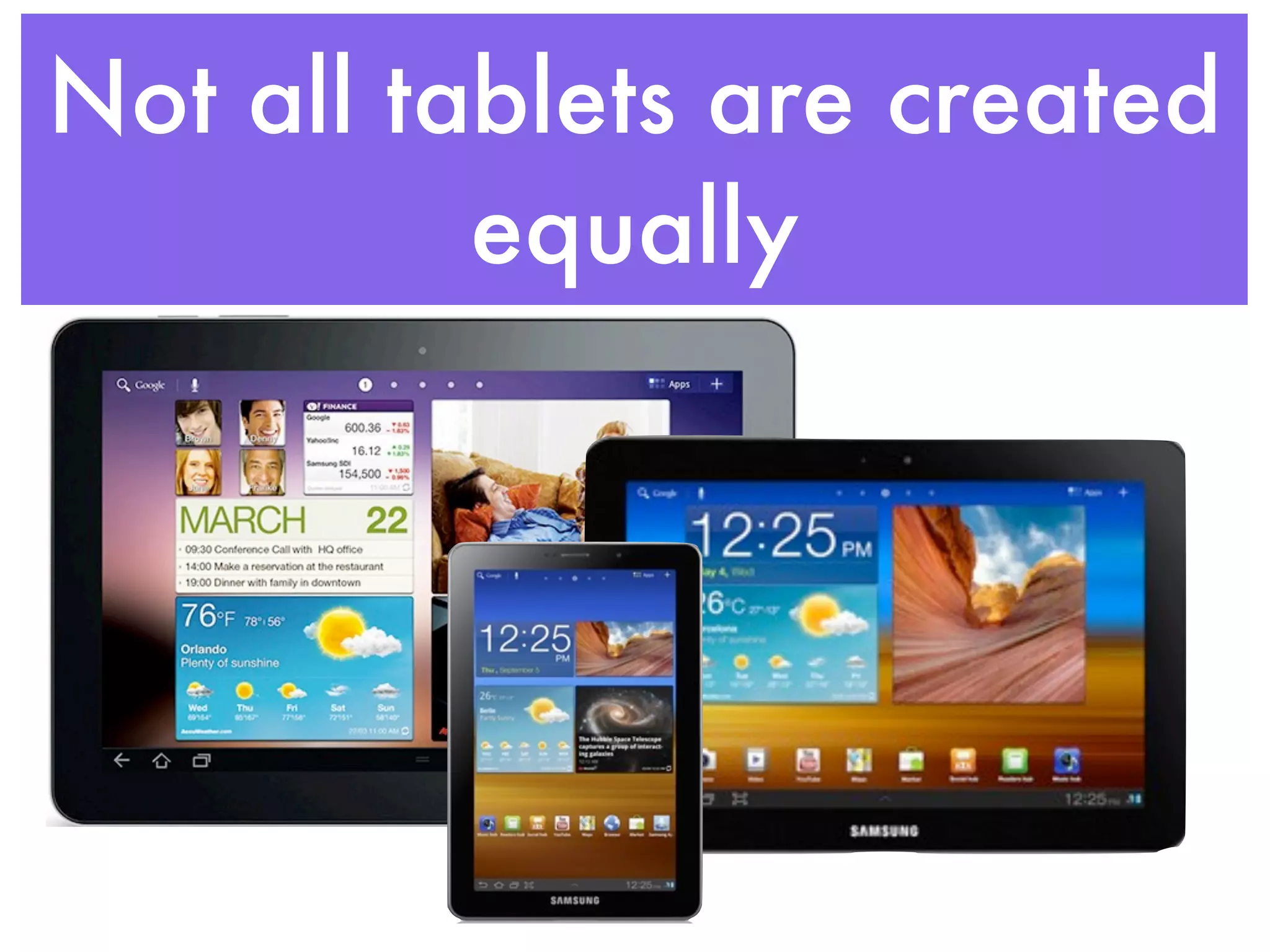

- 17. Not all tabletsare created equally

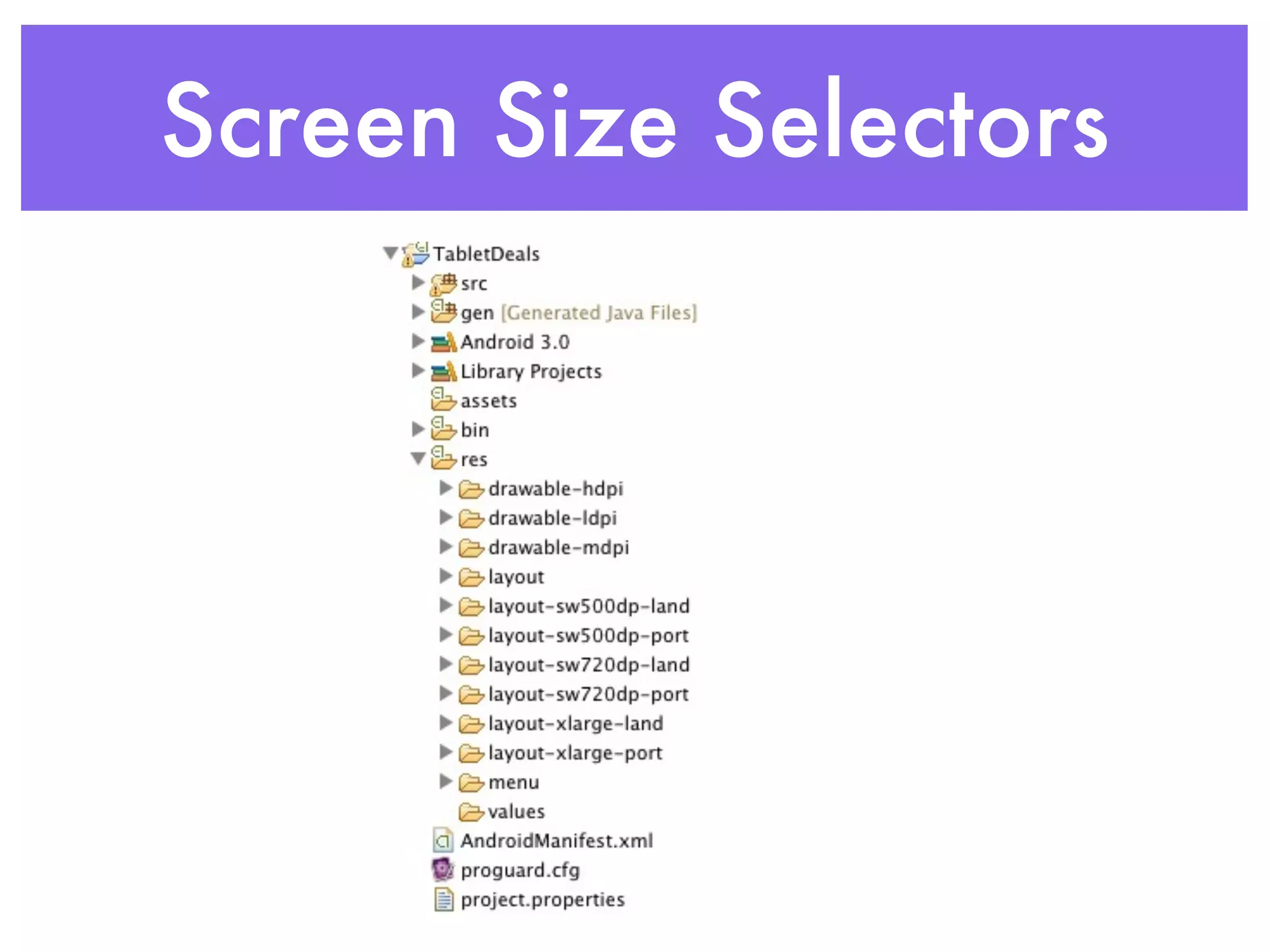

- 18.
- 20. Have your cakeand eat it too

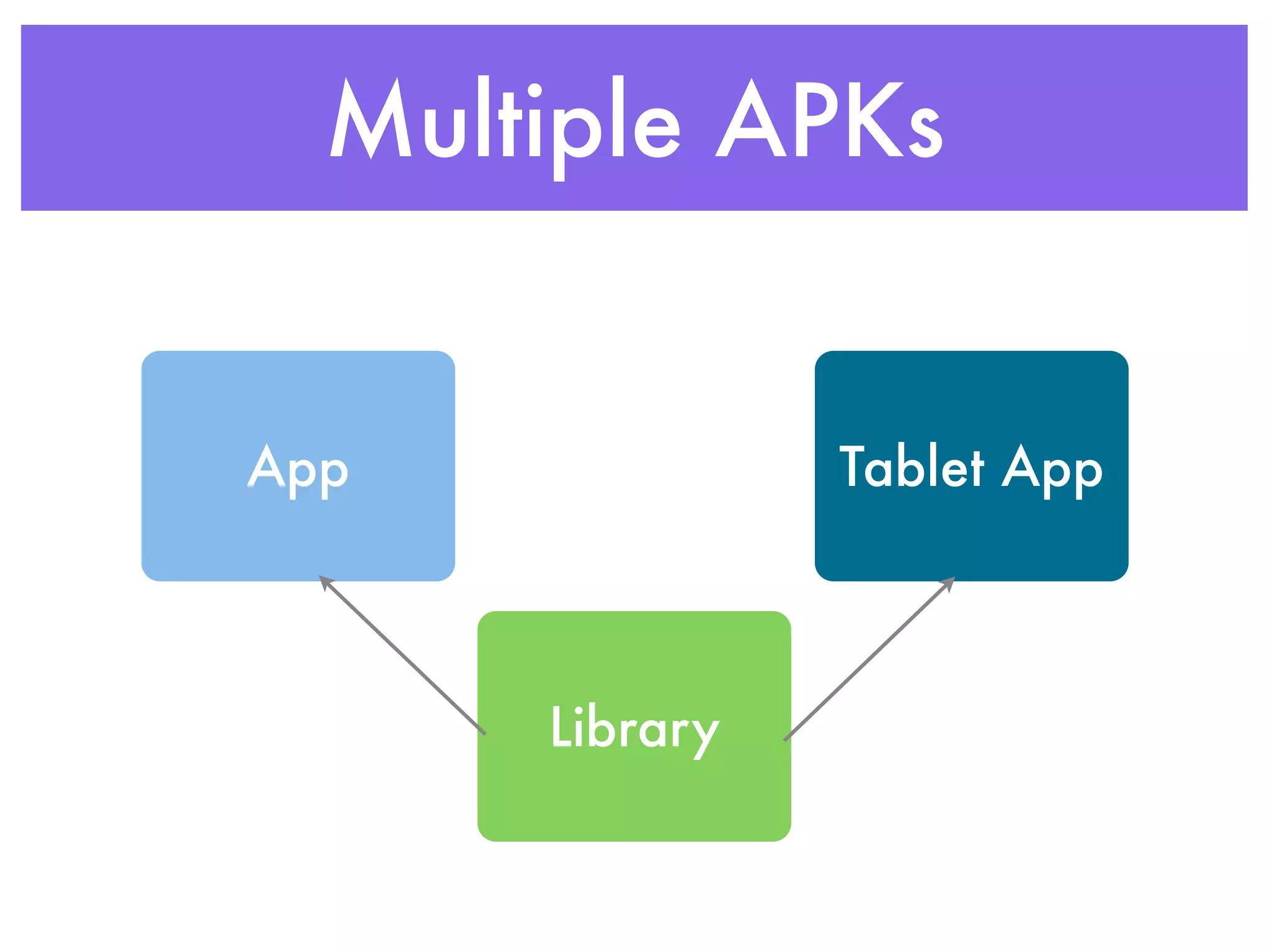

- 21. Multiple APKs App Tablet App Library

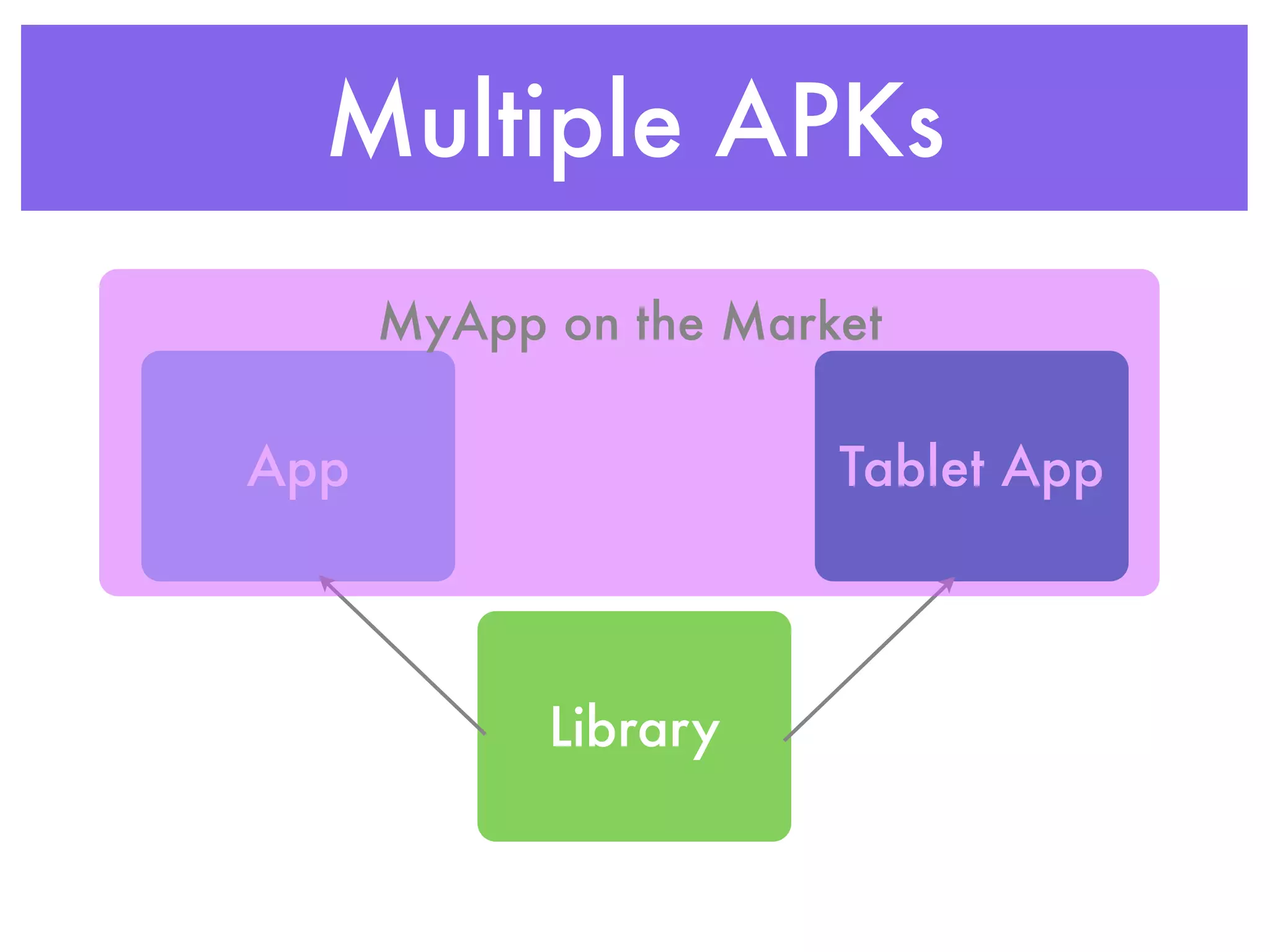

- 22. Multiple APKs MyApp on the Market App Tablet App Library
- 24.

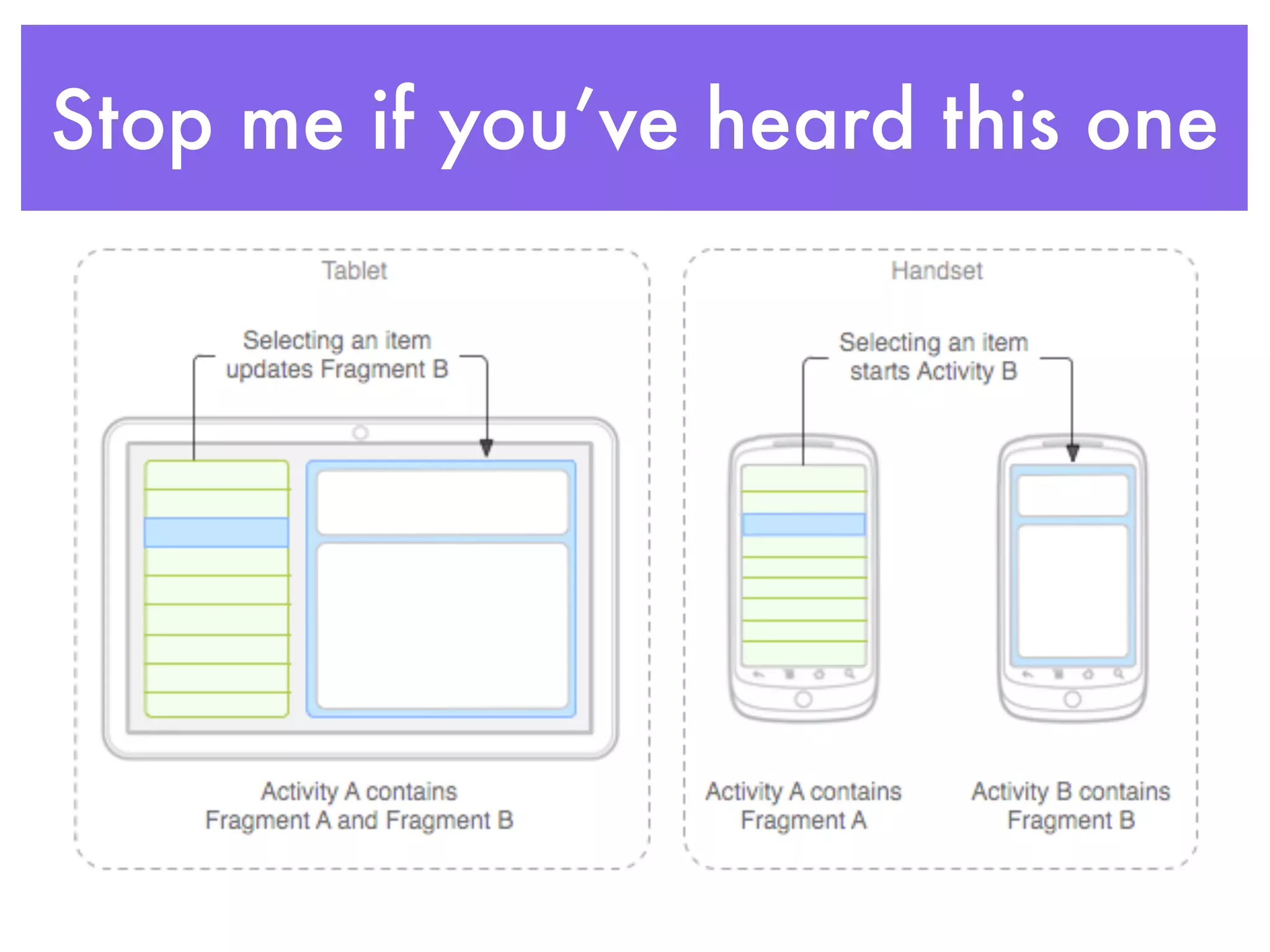

- 25. Stop me ifyou’ve heard this one

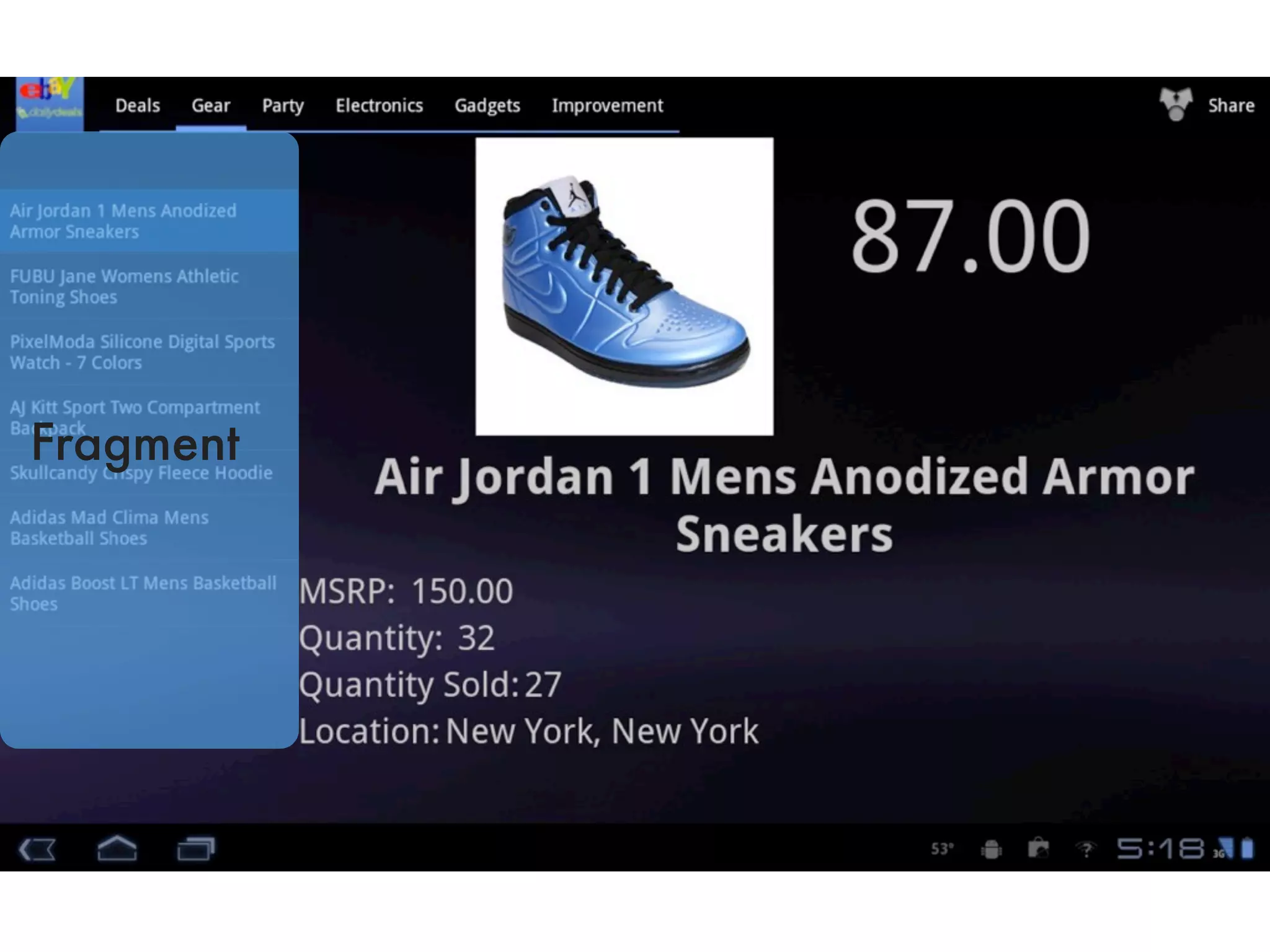

- 27.
- 28.
- 30.
- 31.

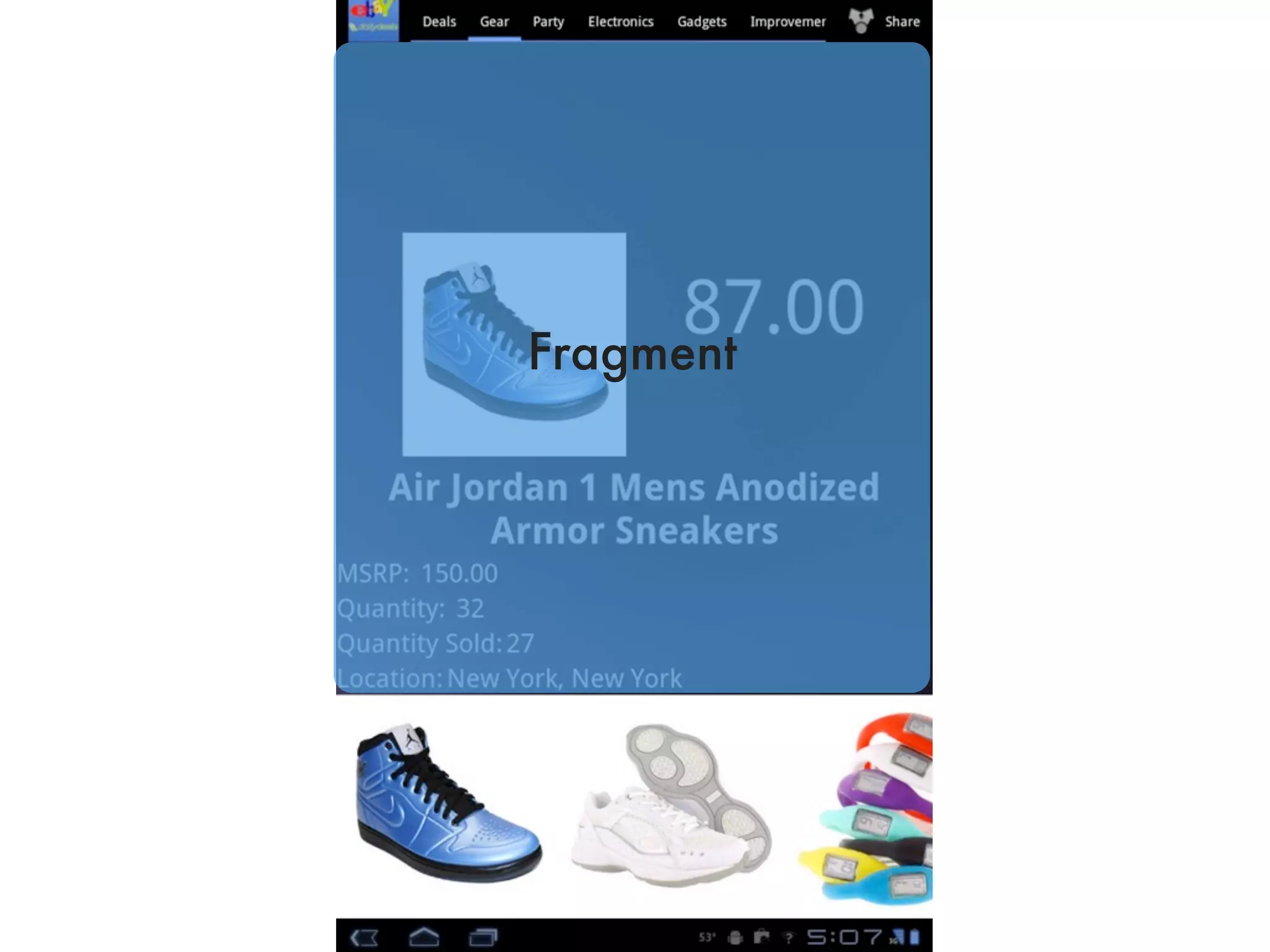

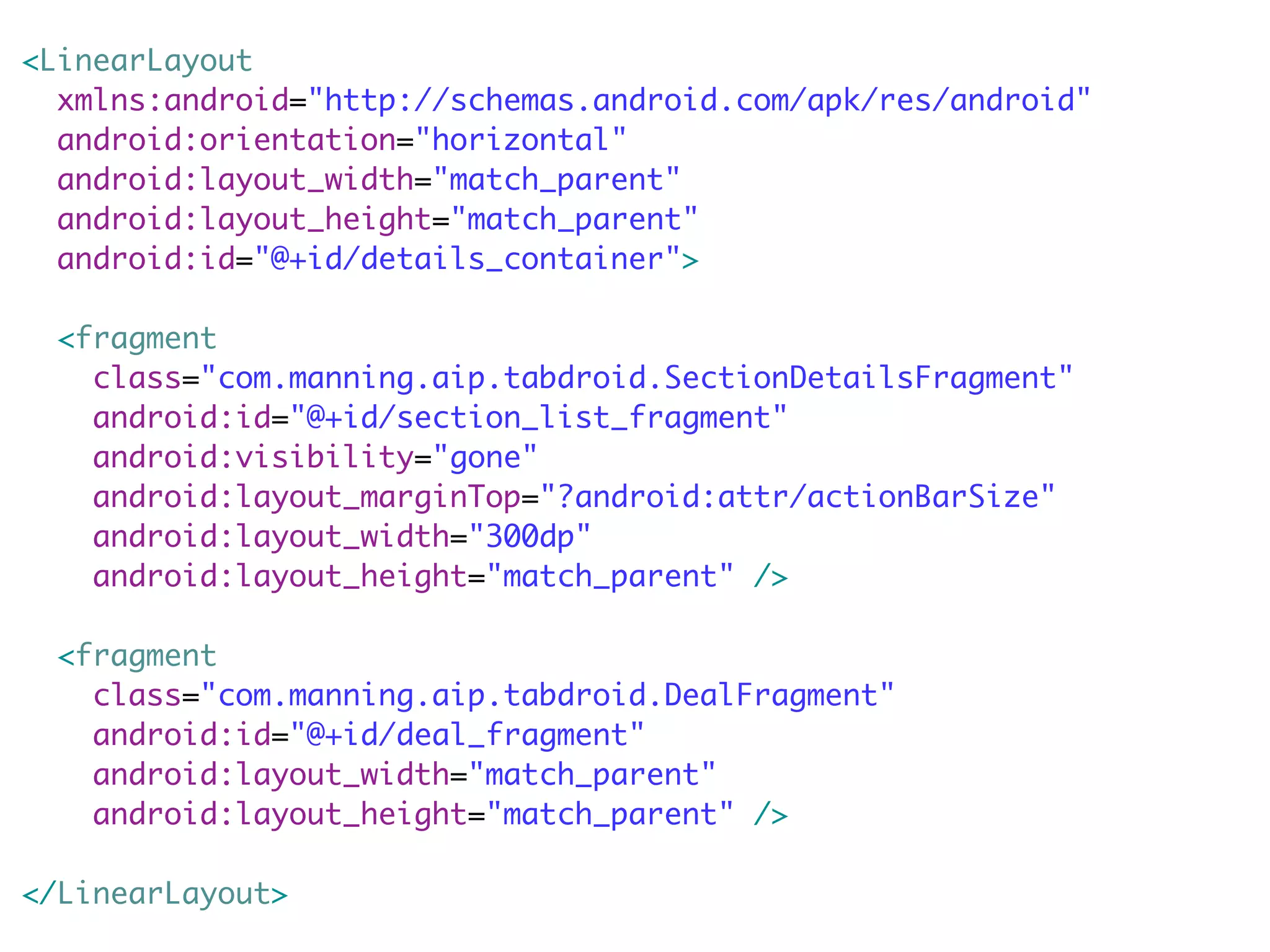

- 32. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="horizontal" android:layout_width="match_parent" android:layout_height="match_parent" android:id="@+id/details_container"> <fragment class="com.manning.aip.tabdroid.SectionDetailsFragment" android:id="@+id/section_list_fragment" android:visibility="gone" android:layout_marginTop="?android:attr/actionBarSize" android:layout_width="300dp" android:layout_height="match_parent" /> <fragment class="com.manning.aip.tabdroid.DealFragment" android:id="@+id/deal_fragment" android:layout_width="match_parent" android:layout_height="match_parent" /> </LinearLayout>

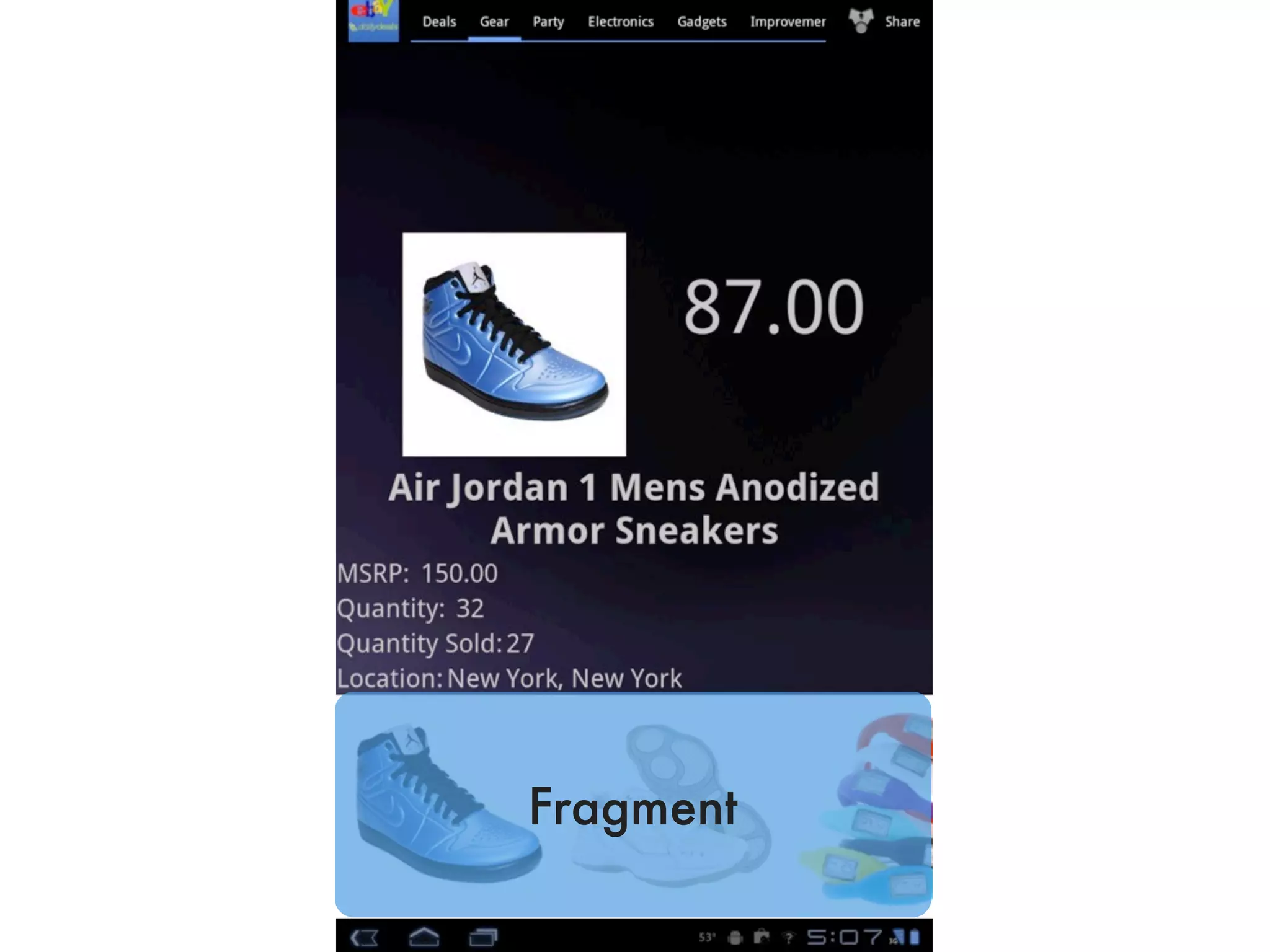

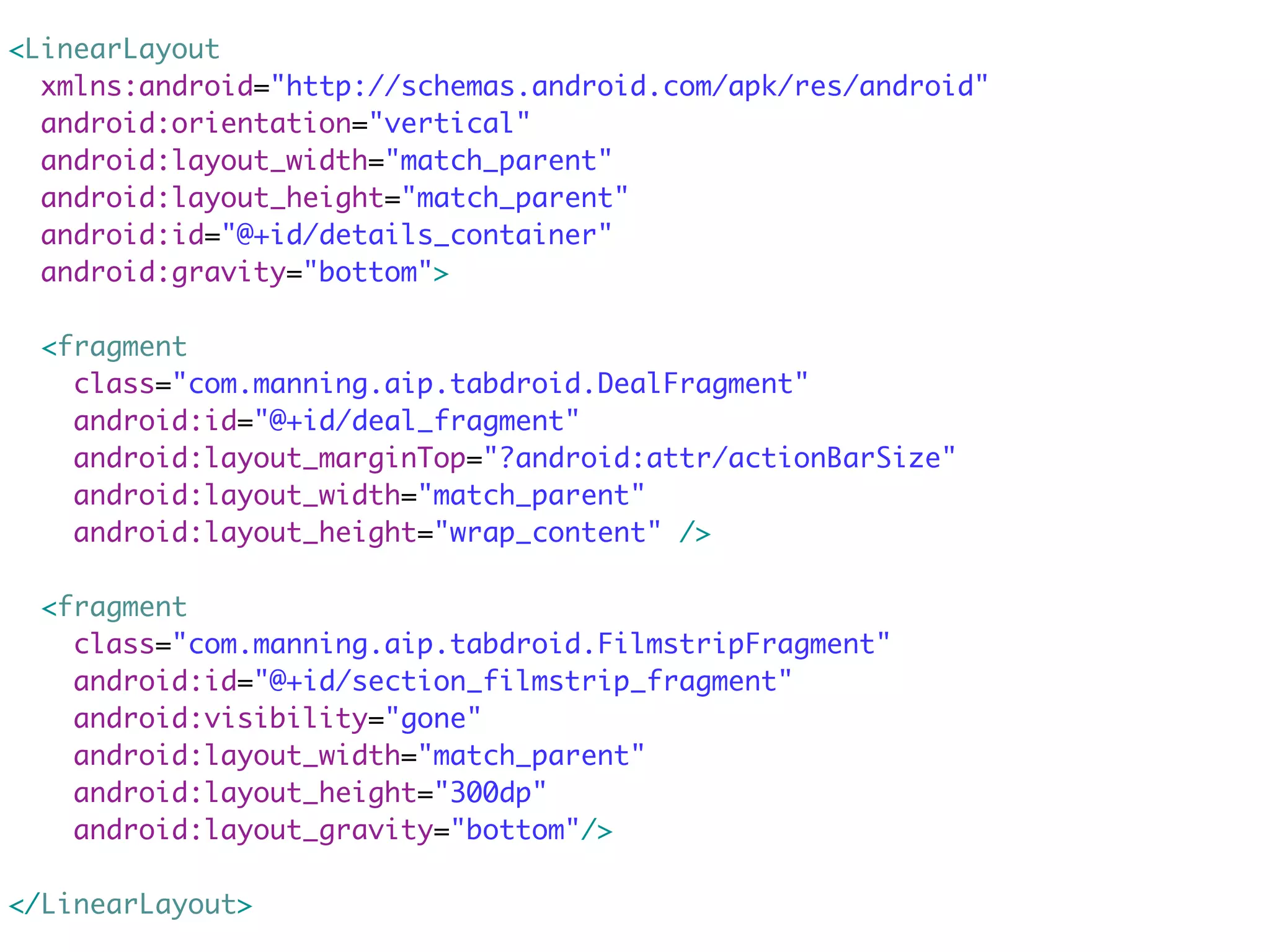

- 33. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="match_parent" android:layout_height="match_parent" android:id="@+id/details_container" android:gravity="bottom"> <fragment class="com.manning.aip.tabdroid.DealFragment" android:id="@+id/deal_fragment" android:layout_marginTop="?android:attr/actionBarSize" android:layout_width="match_parent" android:layout_height="wrap_content" /> <fragment class="com.manning.aip.tabdroid.FilmstripFragment" android:id="@+id/section_filmstrip_fragment" android:visibility="gone" android:layout_width="match_parent" android:layout_height="300dp" android:layout_gravity="bottom"/> </LinearLayout>

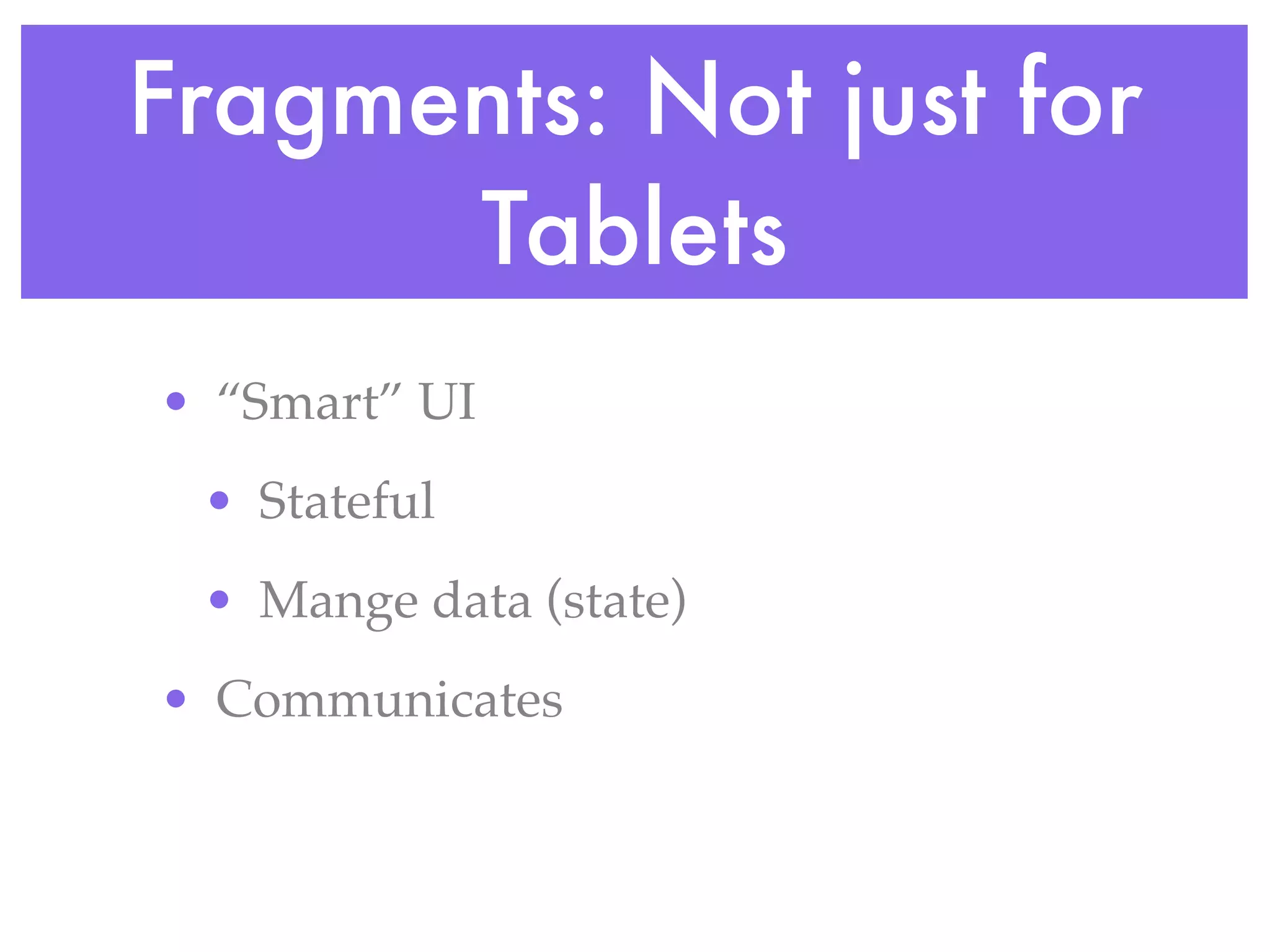

- 35. Fragments: Not justfor Tablets • “Smart” UI • Stateful • Mange data (state) • Communicates

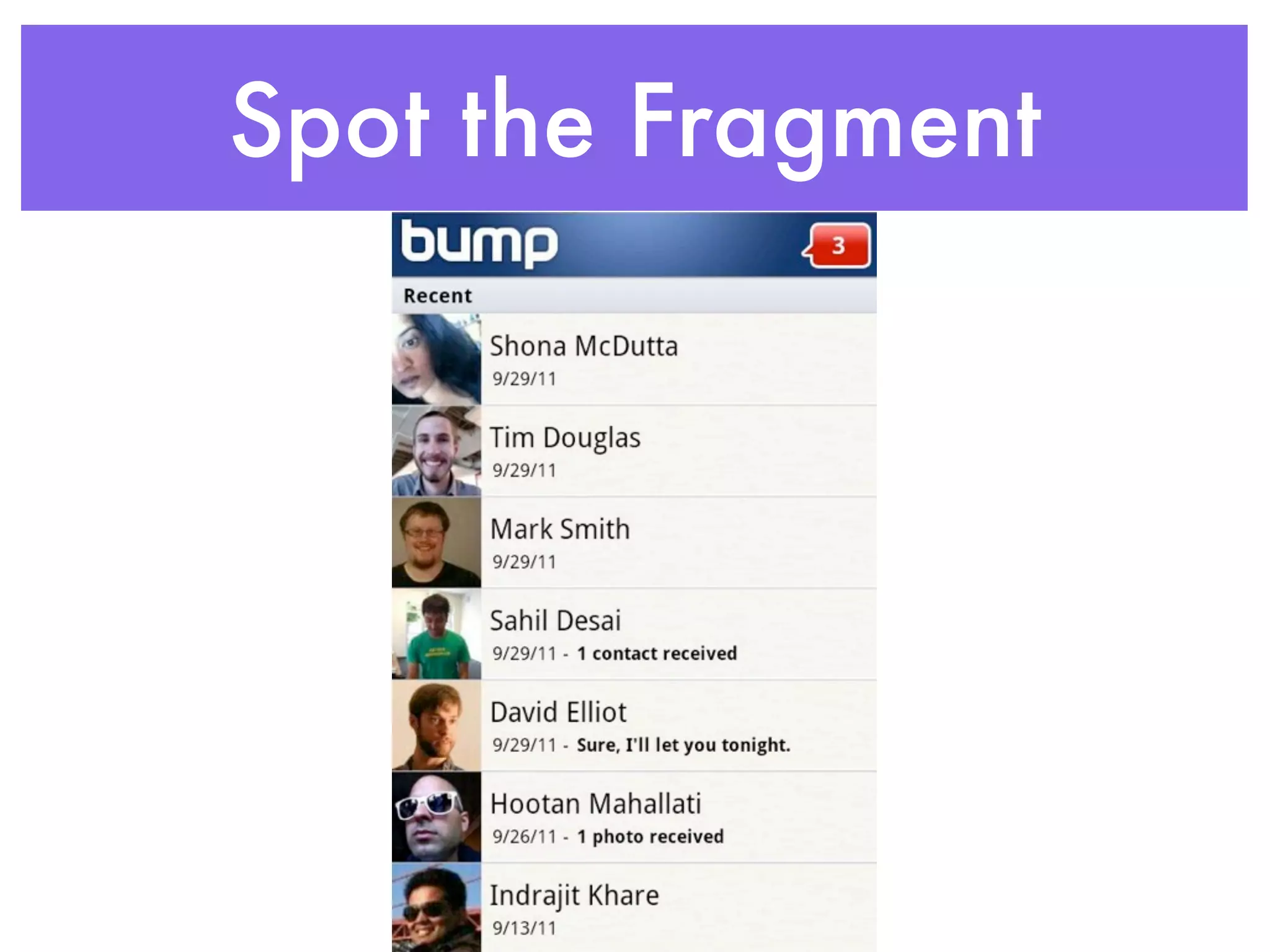

- 36.

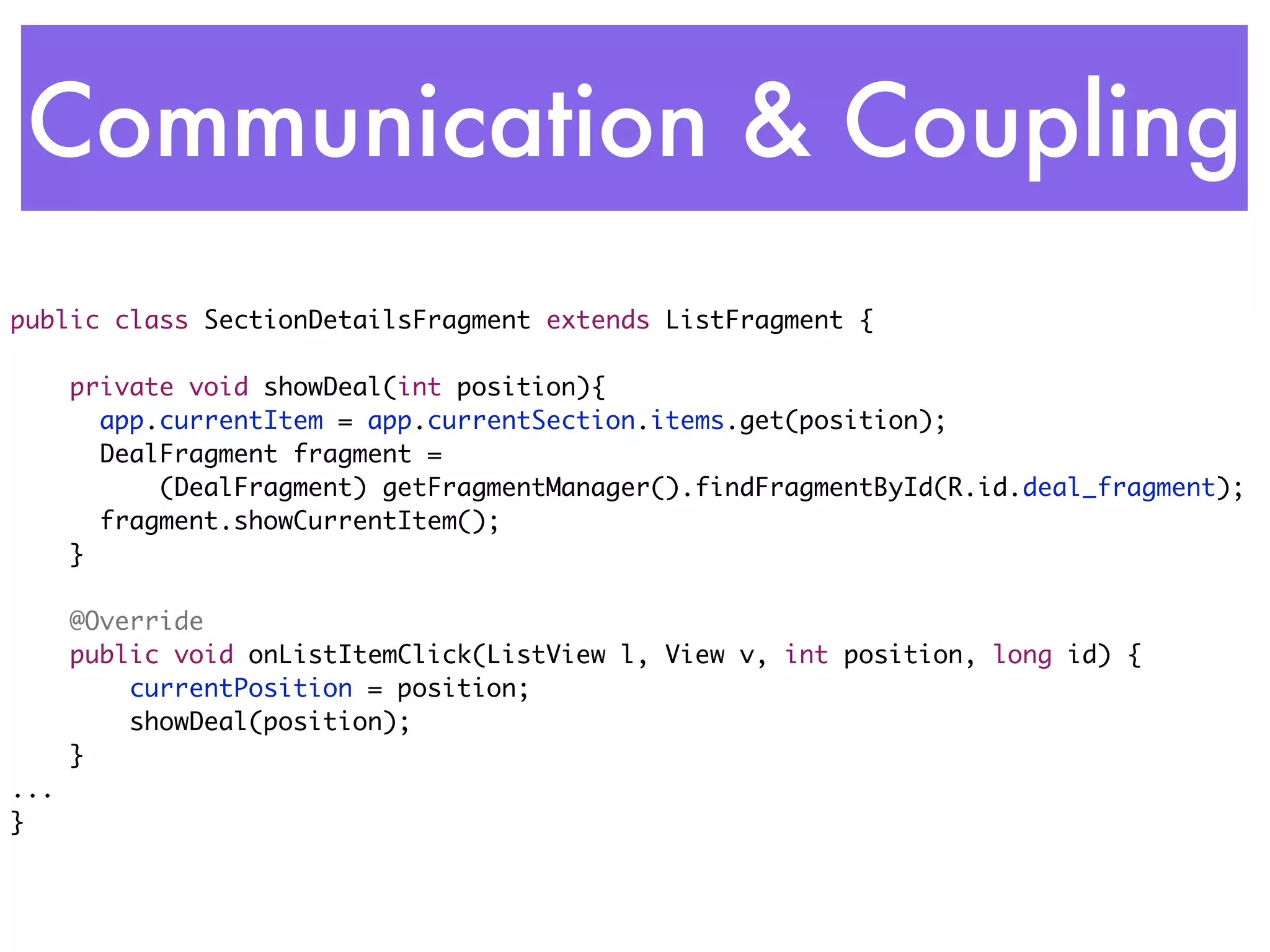

- 37. Communication & Coupling publicclass SectionDetailsFragment extends ListFragment { private void showDeal(int position){ app.currentItem = app.currentSection.items.get(position); DealFragment fragment = (DealFragment) getFragmentManager().findFragmentById(R.id.deal_fragment); fragment.showCurrentItem(); } @Override public void onListItemClick(ListView l, View v, int position, long id) { currentPosition = position; showDeal(position); } ... }

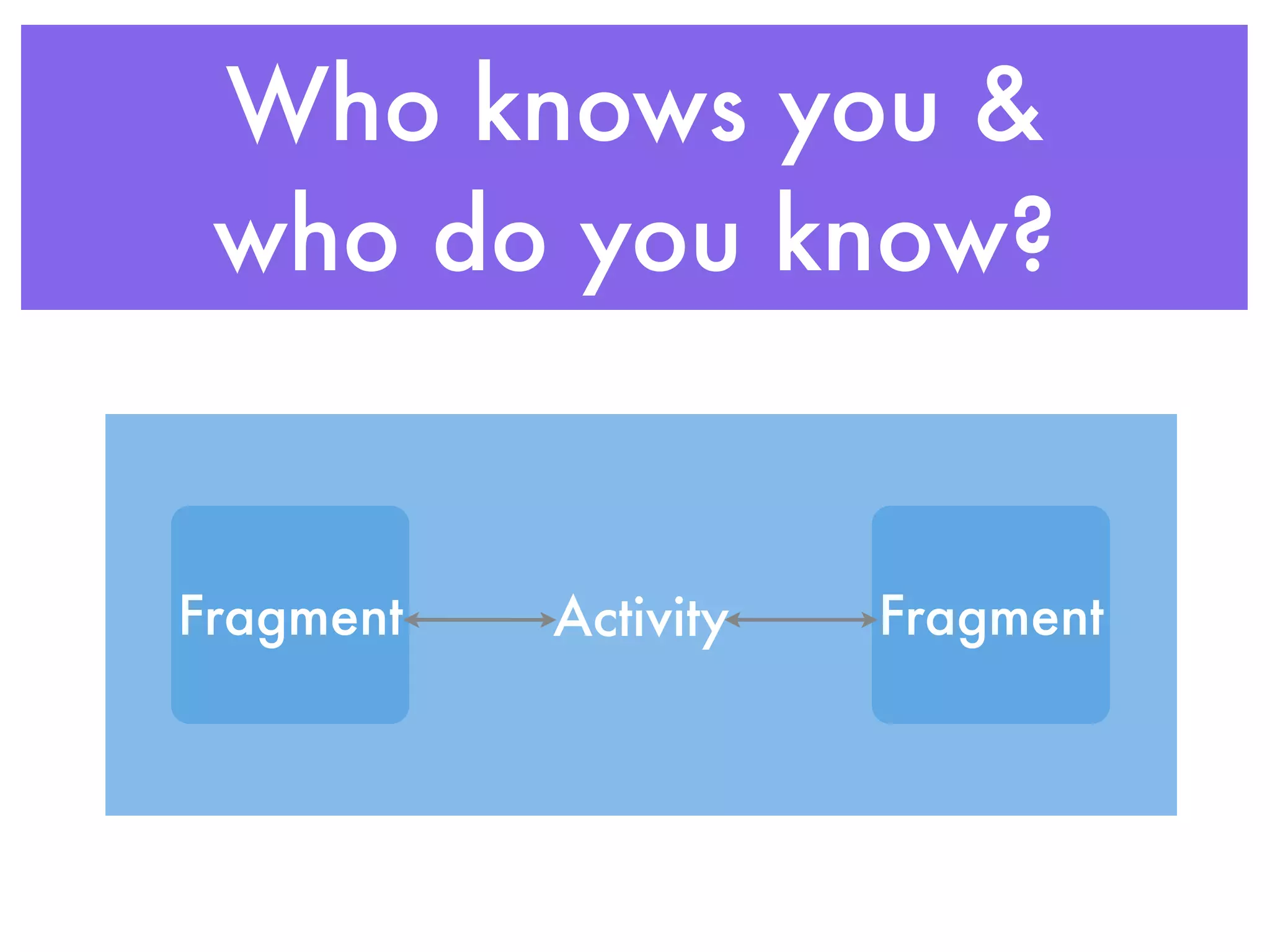

- 38. Who knows you& who do you know? Fragment Activity Fragment

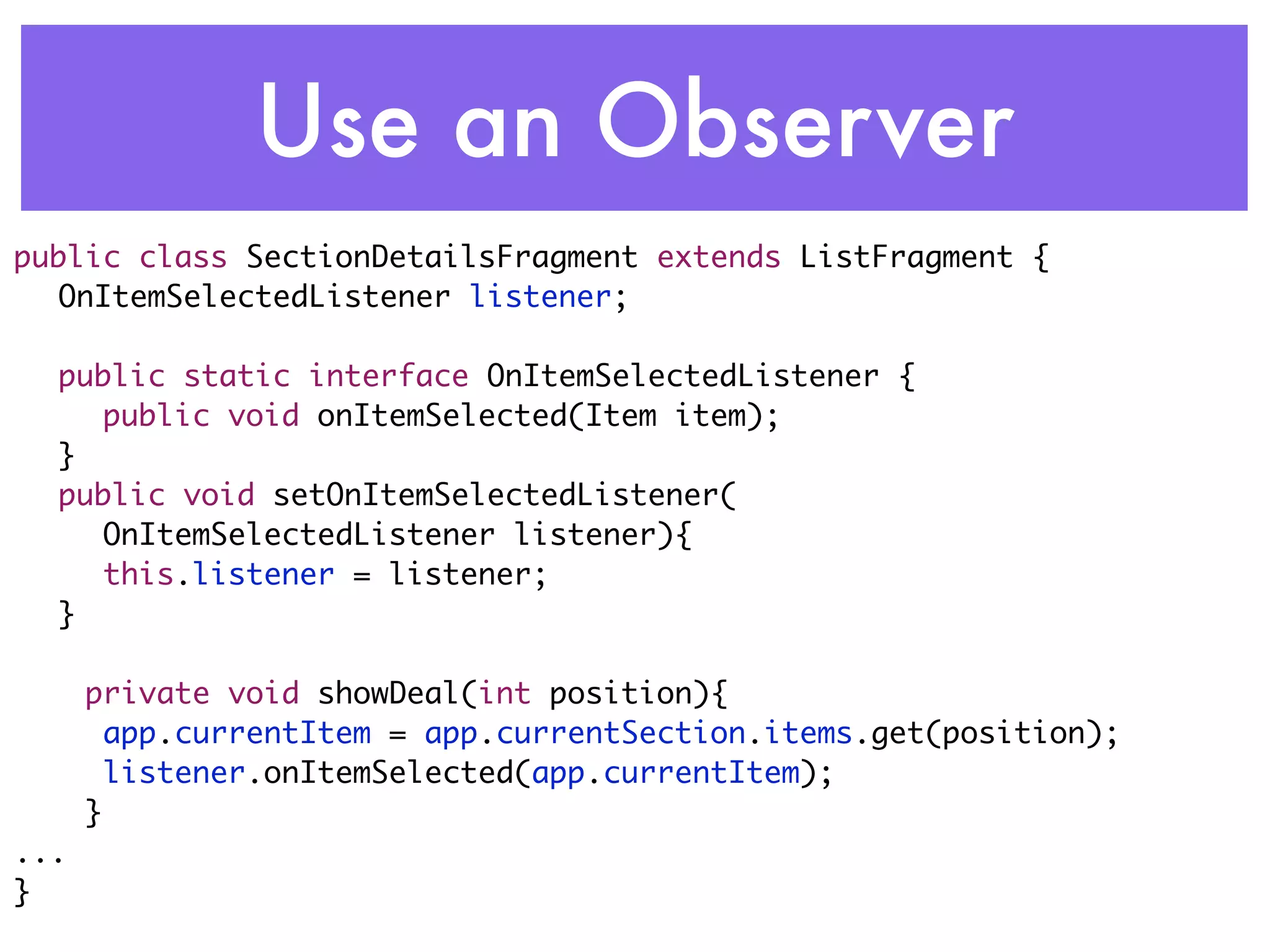

- 39. Use an Observer publicclass SectionDetailsFragment extends ListFragment { OnItemSelectedListener listener; public static interface OnItemSelectedListener { public void onItemSelected(Item item); } public void setOnItemSelectedListener( OnItemSelectedListener listener){ this.listener = listener; } private void showDeal(int position){ app.currentItem = app.currentSection.items.get(position); listener.onItemSelected(app.currentItem); } ... }

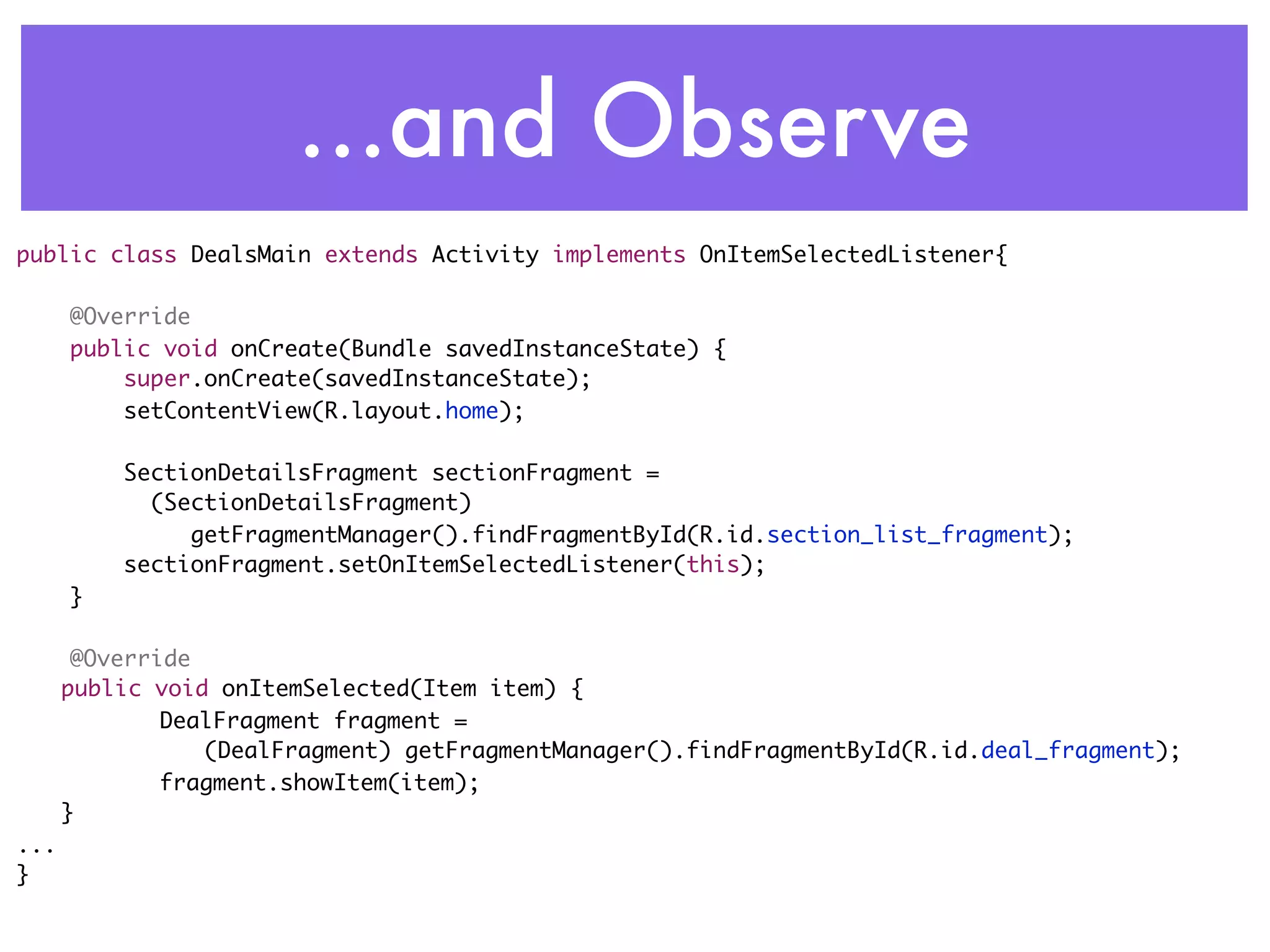

- 40. ...and Observe public classDealsMain extends Activity implements OnItemSelectedListener{ @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.home); SectionDetailsFragment sectionFragment = (SectionDetailsFragment) getFragmentManager().findFragmentById(R.id.section_list_fragment); sectionFragment.setOnItemSelectedListener(this); } @Override public void onItemSelected(Item item) { DealFragment fragment = (DealFragment) getFragmentManager().findFragmentById(R.id.deal_fragment); fragment.showItem(item); } ... }

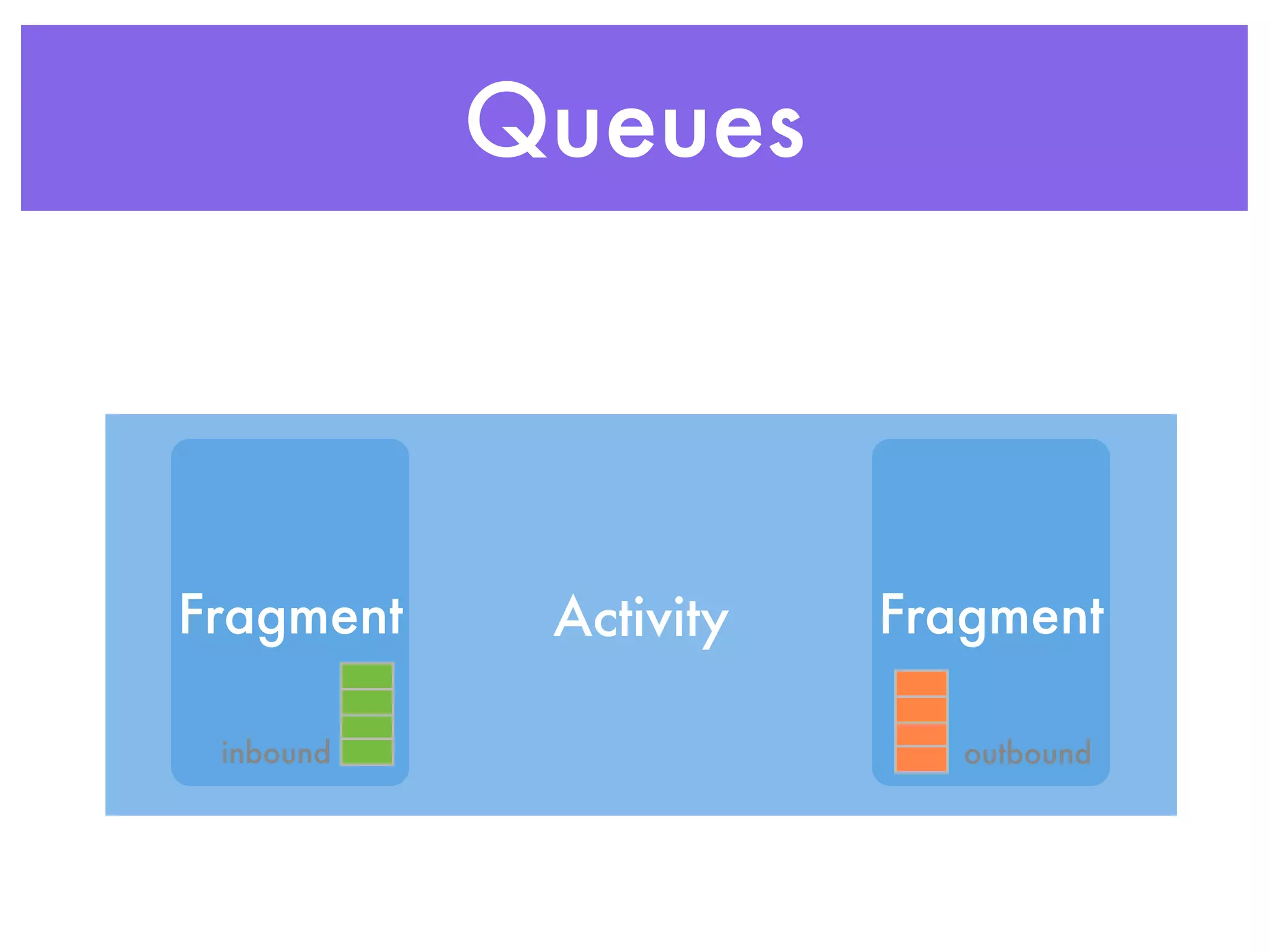

- 41. Queues Fragment Activity Fragment inbound outbound

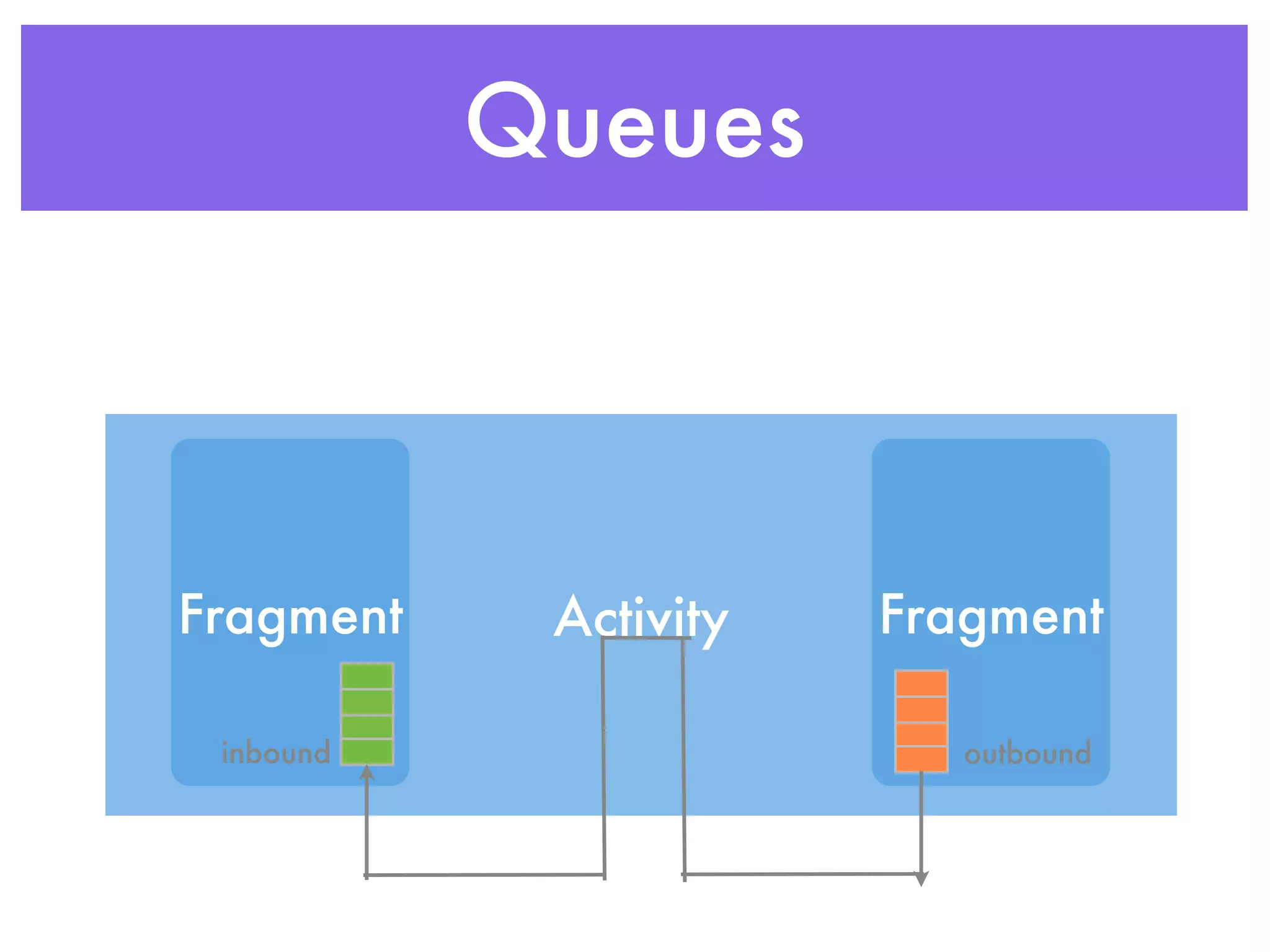

- 42. Queues Fragment Activity Fragment inbound outbound

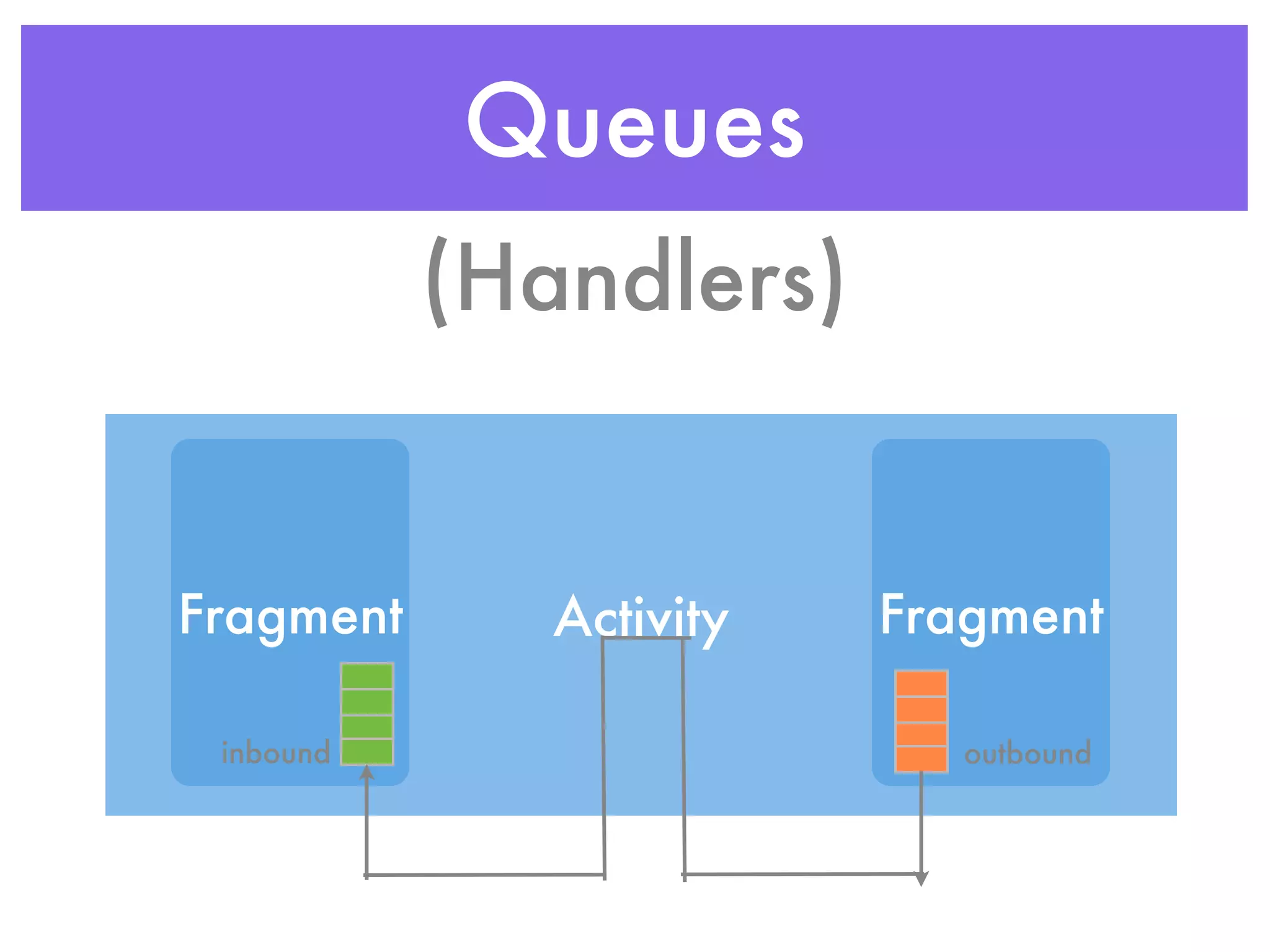

- 43. Queues (Handlers) Fragment Activity Fragment inbound outbound
- 44. But I haveto support Android 2.1
- 48.

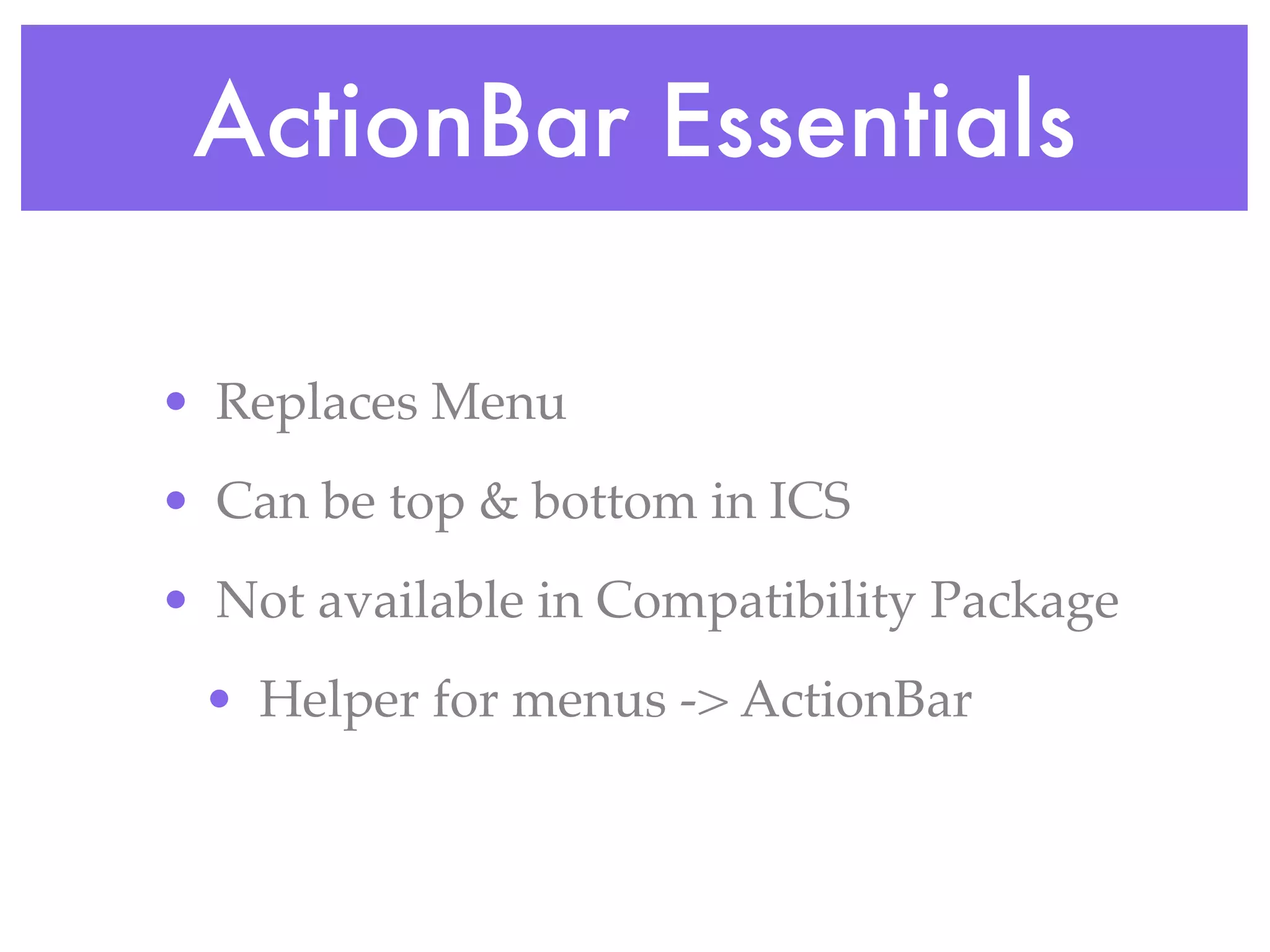

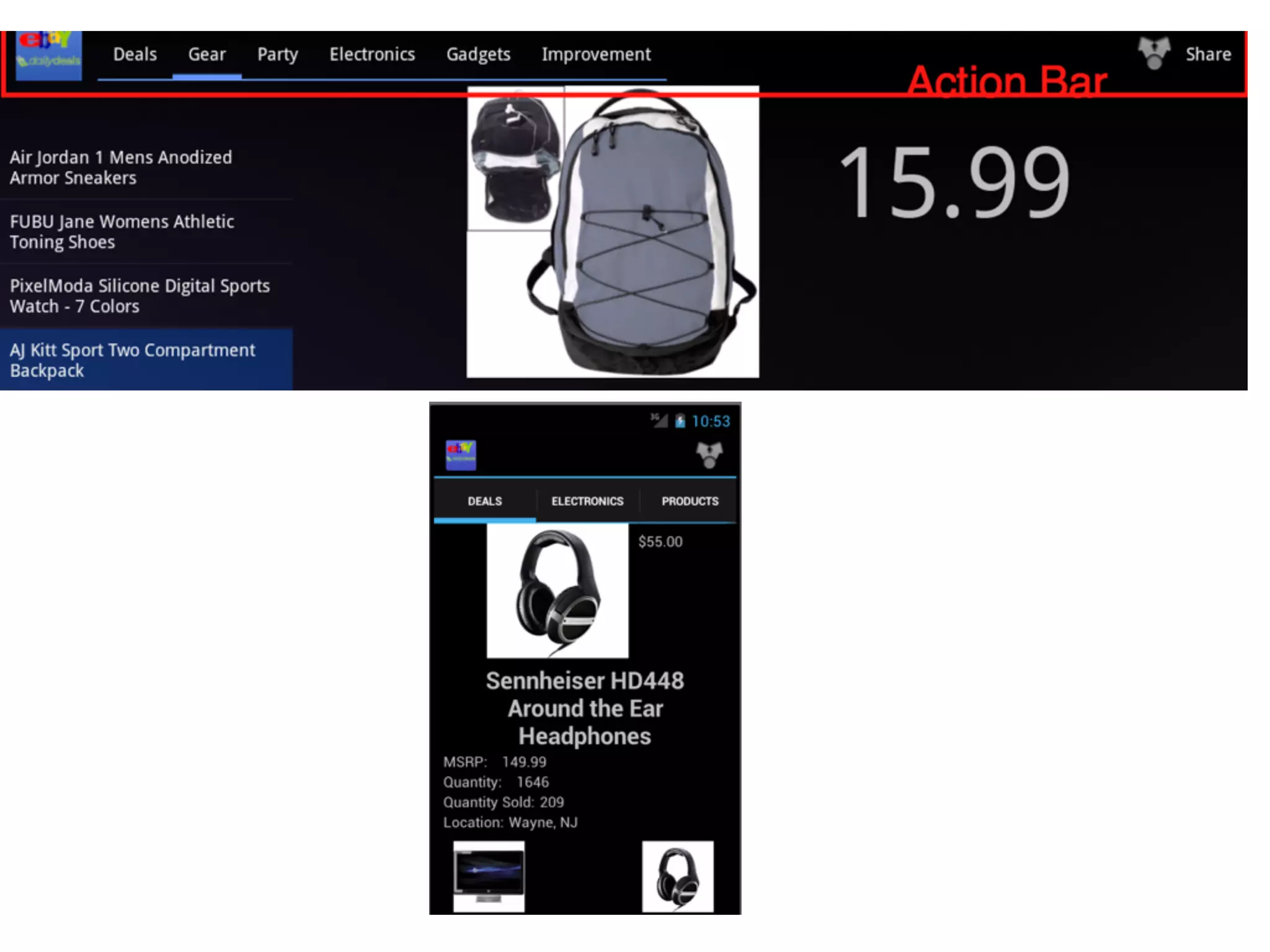

- 52. ActionBar Essentials • ReplacesMenu • Can be top & bottom in ICS • Not available in Compatibility Package • Helper for menus -> ActionBar
- 53.
- 55.
- 56.
- 57. AsyncTask Handlers Threads
- 58. AsyncTaskLoader AsyncTask Handlers Threads

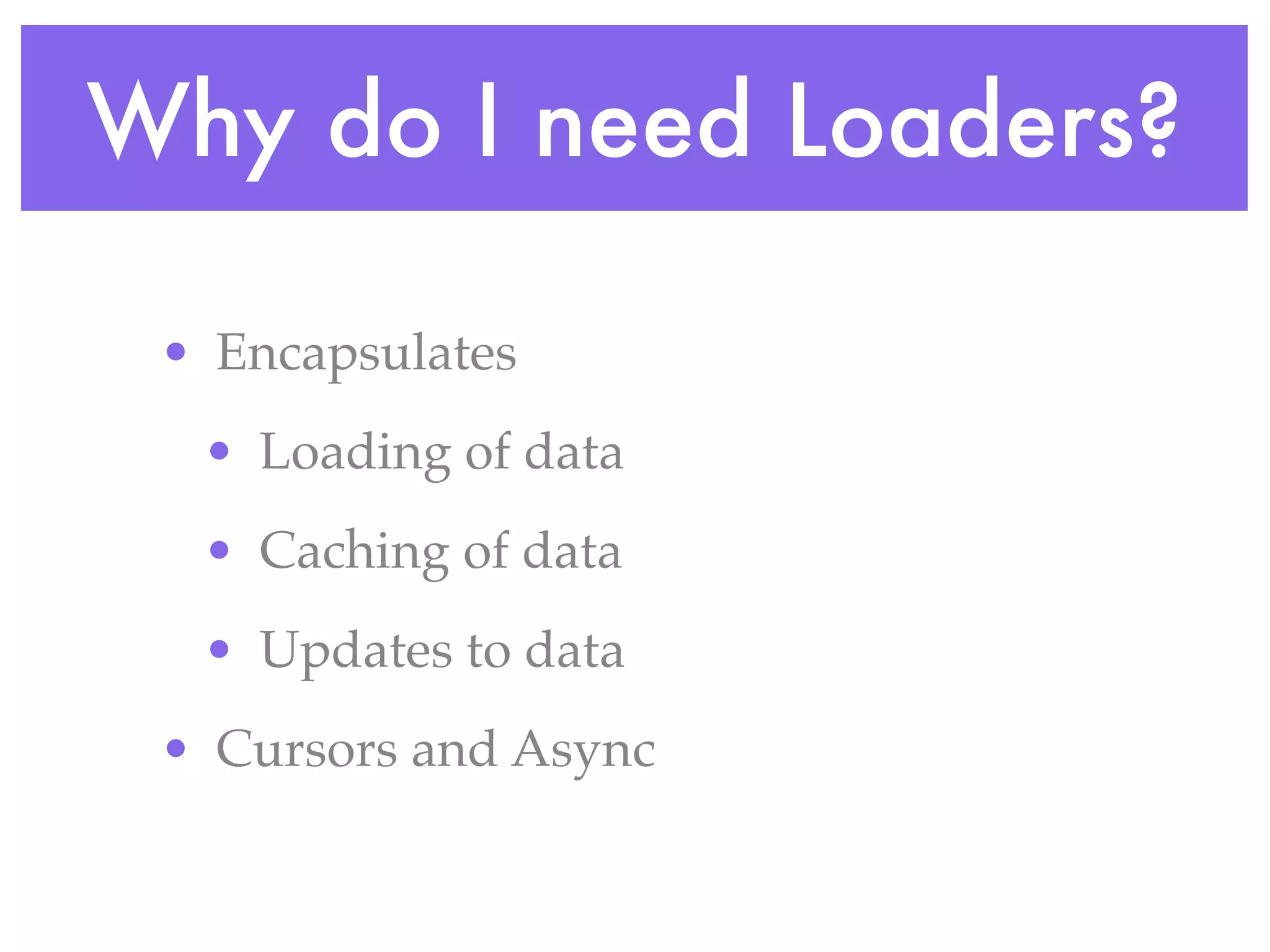

- 59. Why do Ineed Loaders? • Encapsulates • Loading of data • Caching of data • Updates to data • Cursors and Async
- 60.
- 61.

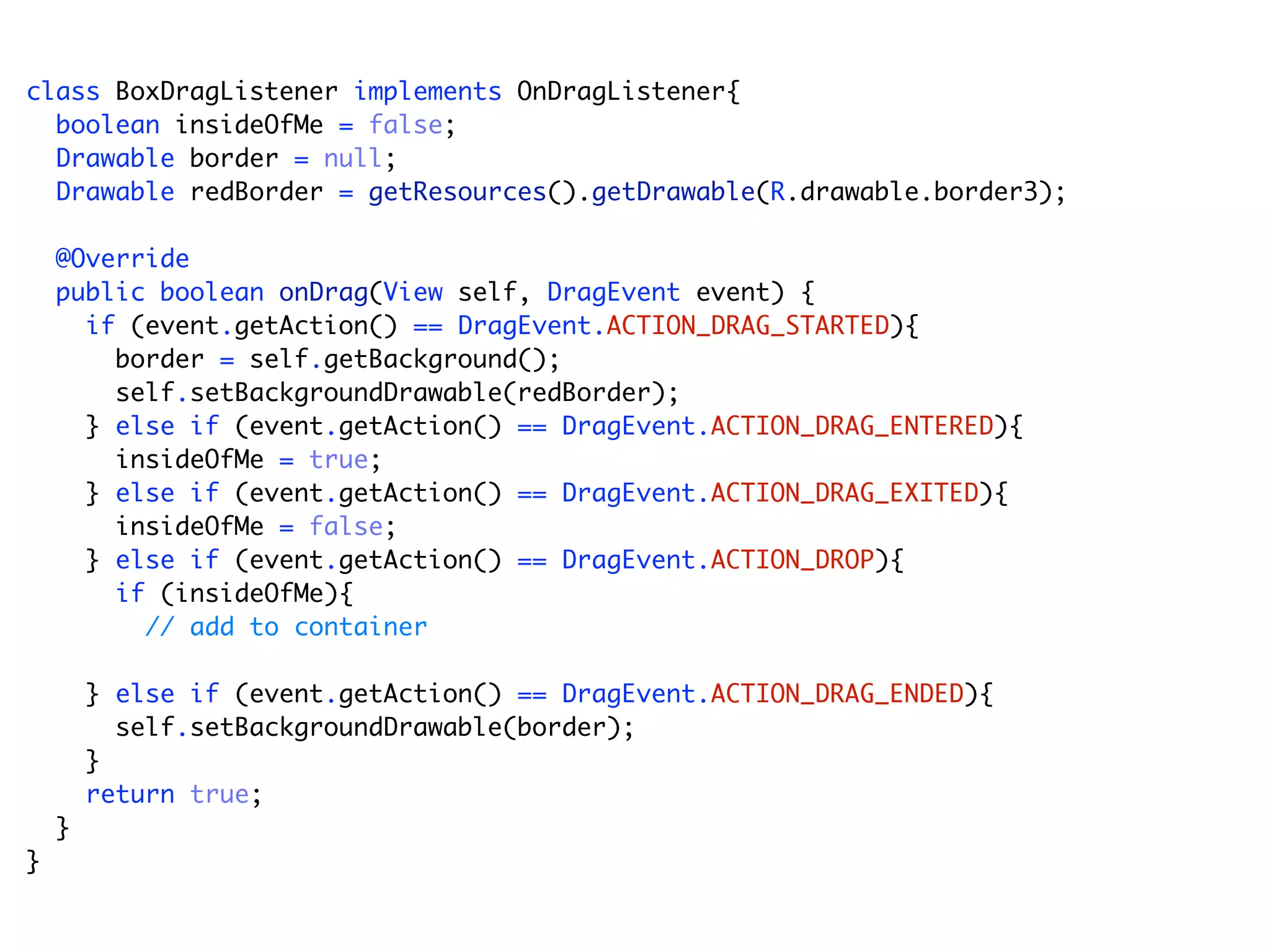

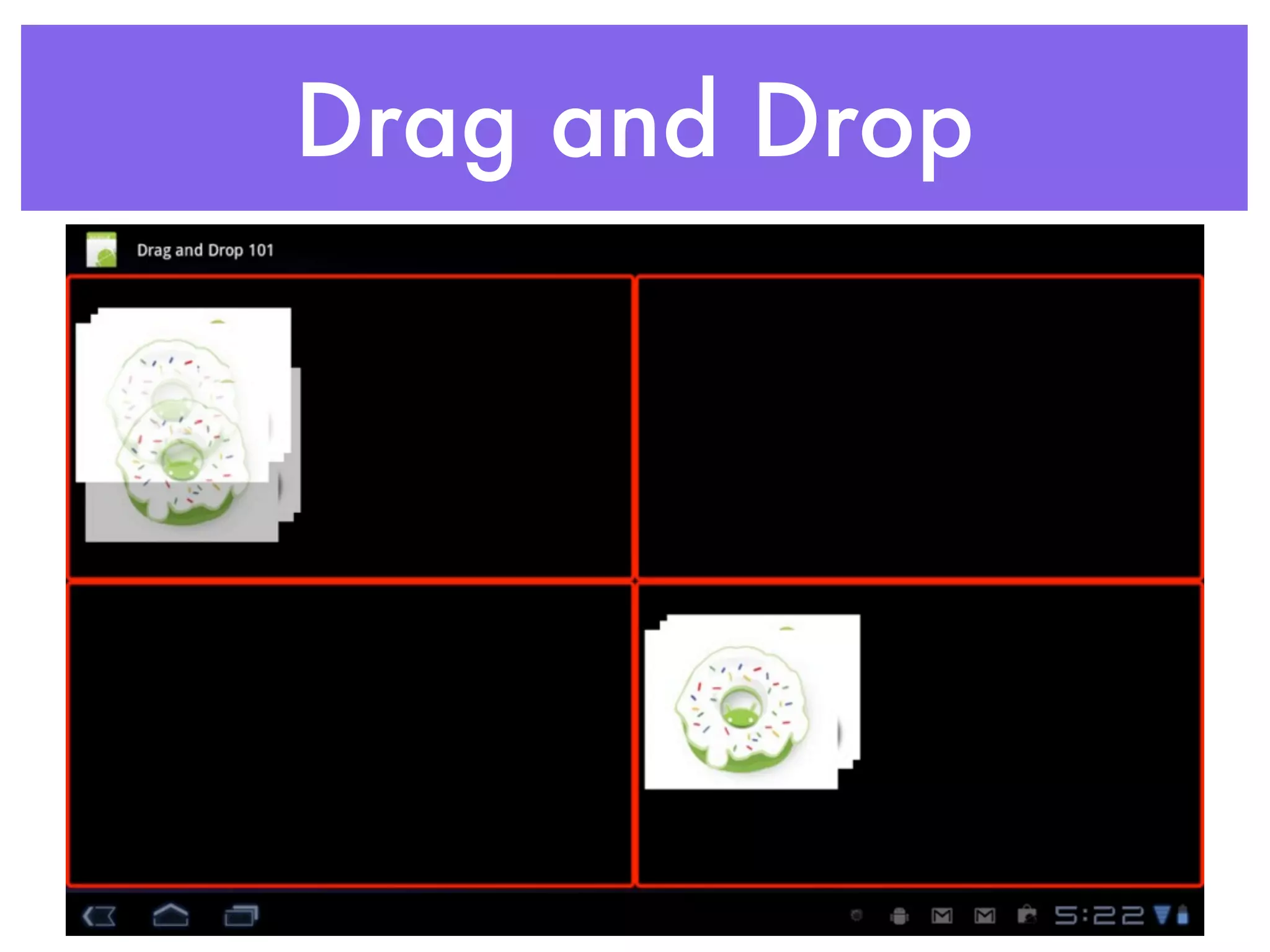

- 62. class BoxDragListener implementsOnDragListener{ boolean insideOfMe = false; Drawable border = null; Drawable redBorder = getResources().getDrawable(R.drawable.border3); @Override public boolean onDrag(View self, DragEvent event) { if (event.getAction() == DragEvent.ACTION_DRAG_STARTED){ border = self.getBackground(); self.setBackgroundDrawable(redBorder); } else if (event.getAction() == DragEvent.ACTION_DRAG_ENTERED){ insideOfMe = true; } else if (event.getAction() == DragEvent.ACTION_DRAG_EXITED){ insideOfMe = false; } else if (event.getAction() == DragEvent.ACTION_DROP){ if (insideOfMe){ // add to container } else if (event.getAction() == DragEvent.ACTION_DRAG_ENDED){ self.setBackgroundDrawable(border); } return true; } }

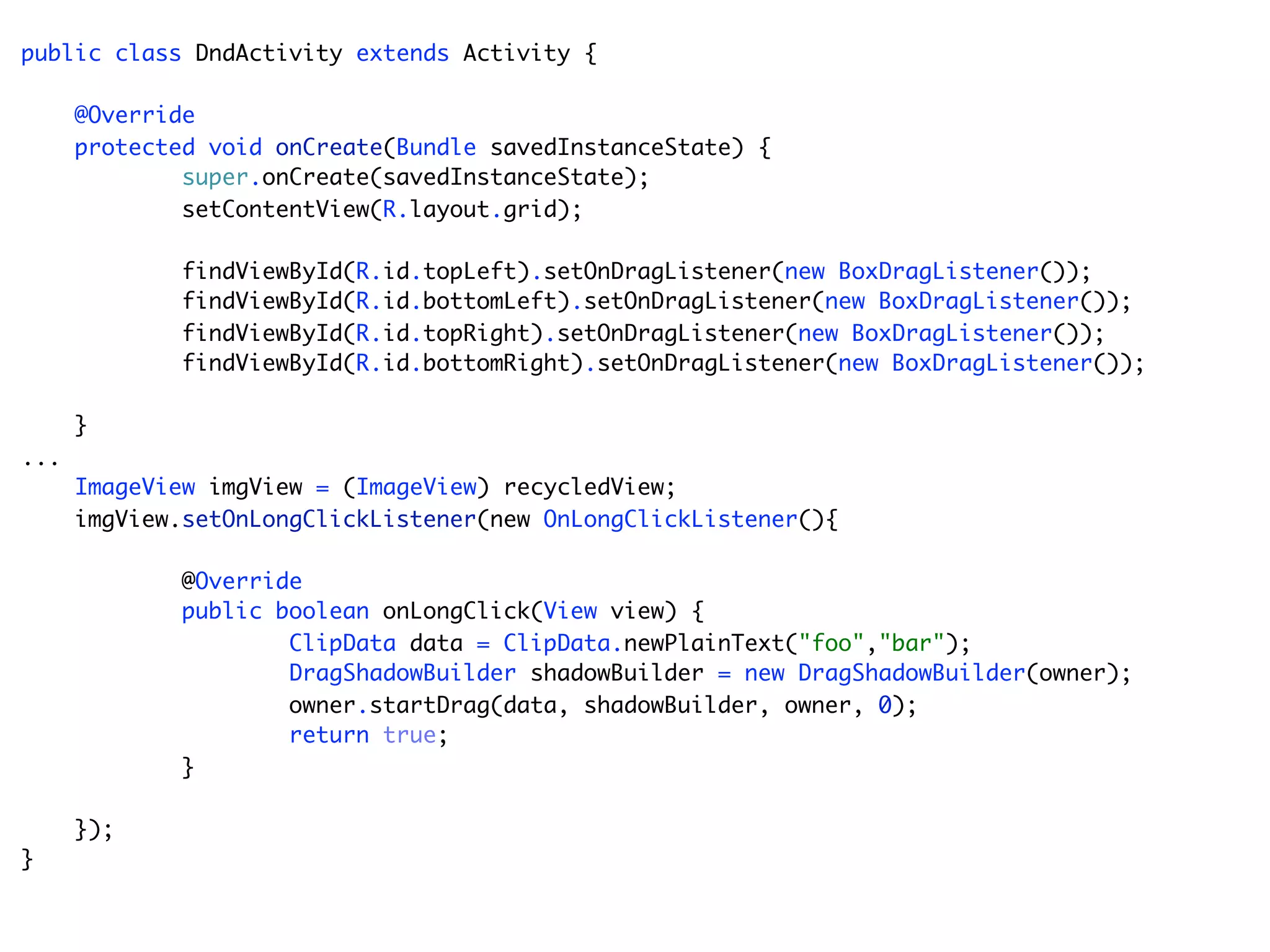

- 63. public class DndActivityextends Activity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.grid); findViewById(R.id.topLeft).setOnDragListener(new BoxDragListener()); findViewById(R.id.bottomLeft).setOnDragListener(new BoxDragListener()); findViewById(R.id.topRight).setOnDragListener(new BoxDragListener()); findViewById(R.id.bottomRight).setOnDragListener(new BoxDragListener()); } ... ImageView imgView = (ImageView) recycledView; imgView.setOnLongClickListener(new OnLongClickListener(){ @Override public boolean onLongClick(View view) { ClipData data = ClipData.newPlainText("foo","bar"); DragShadowBuilder shadowBuilder = new DragShadowBuilder(owner); owner.startDrag(data, shadowBuilder, owner, 0); return true; } }); }

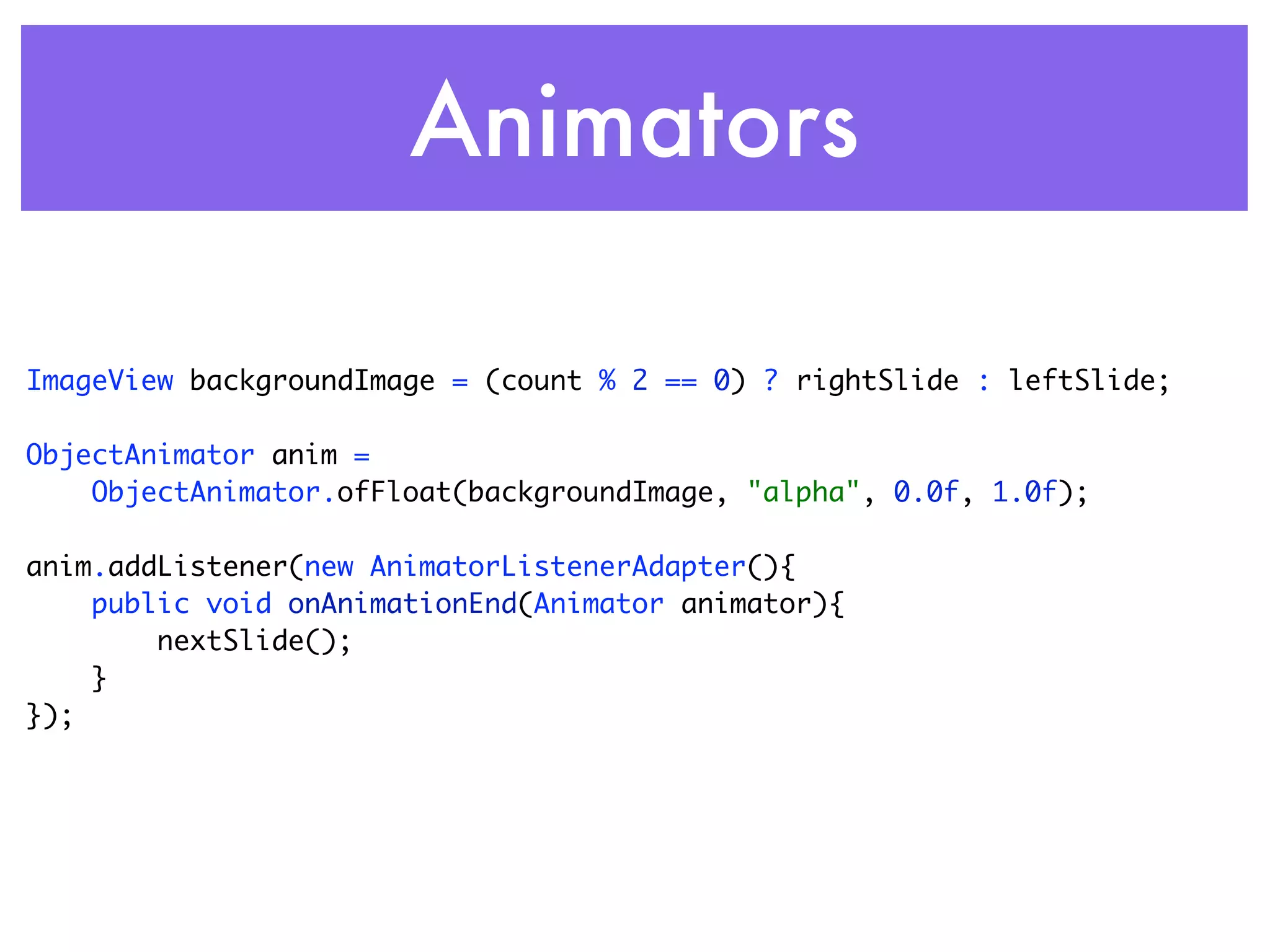

- 64. Animators ImageView backgroundImage =(count % 2 == 0) ? rightSlide : leftSlide; ObjectAnimator anim = ObjectAnimator.ofFloat(backgroundImage, "alpha", 0.0f, 1.0f); anim.addListener(new AnimatorListenerAdapter(){ public void onAnimationEnd(Animator animator){ nextSlide(); } });
