- 1. Deploy STM32 familyon Zephyr Erwan Gouriou
- 2. ENGINEERS AND DEVICES WORKING TOGETHER Plan ● Aglance at STM32 ecosystem ● STM32 porting on Zephyr ● Device tree concept applied to STM32 family ● What’s next for STM32 in Zephyr

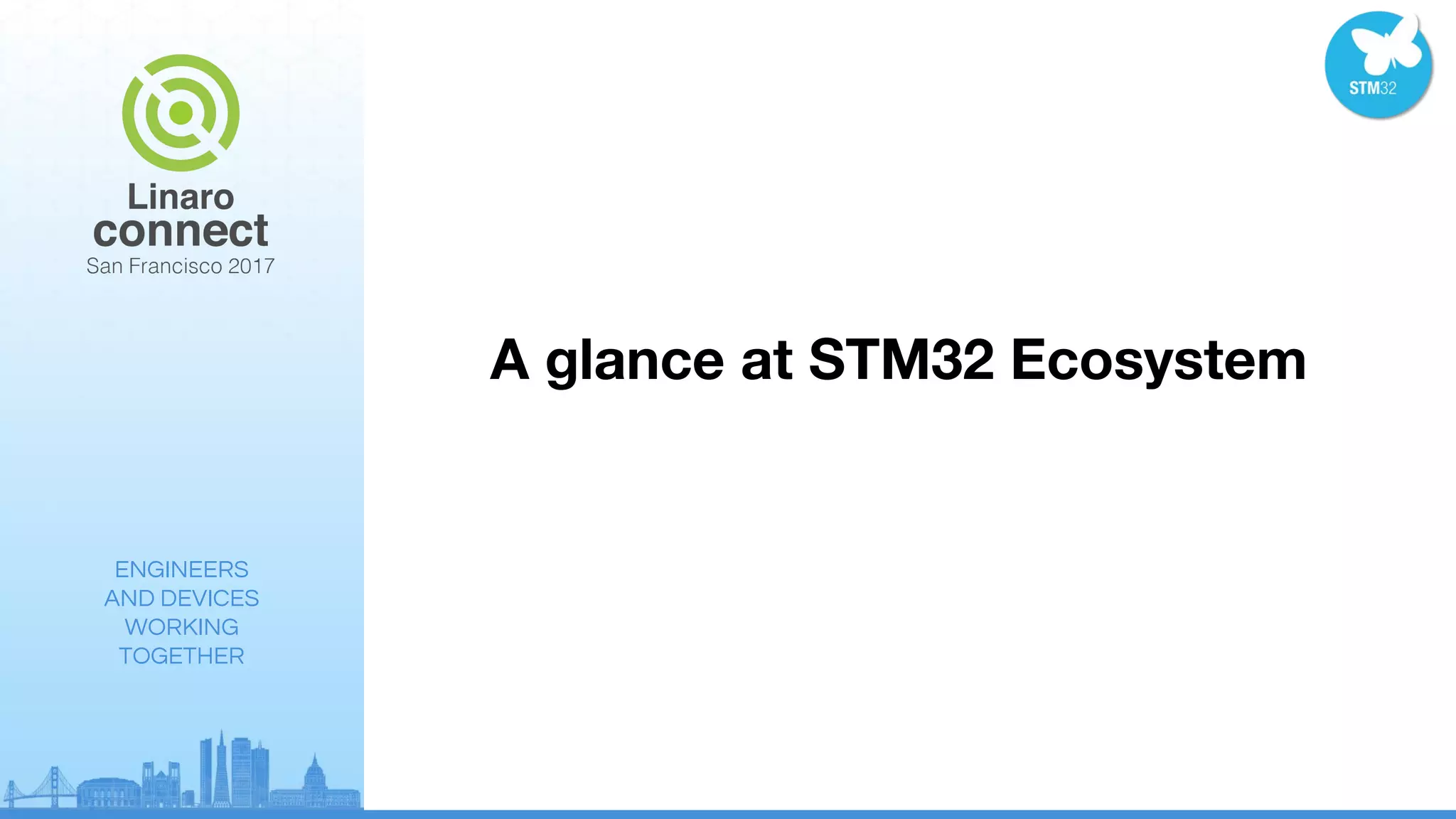

- 3. ENGINEERS AND DEVICES WORKING TOGETHER A glanceat STM32 Ecosystem

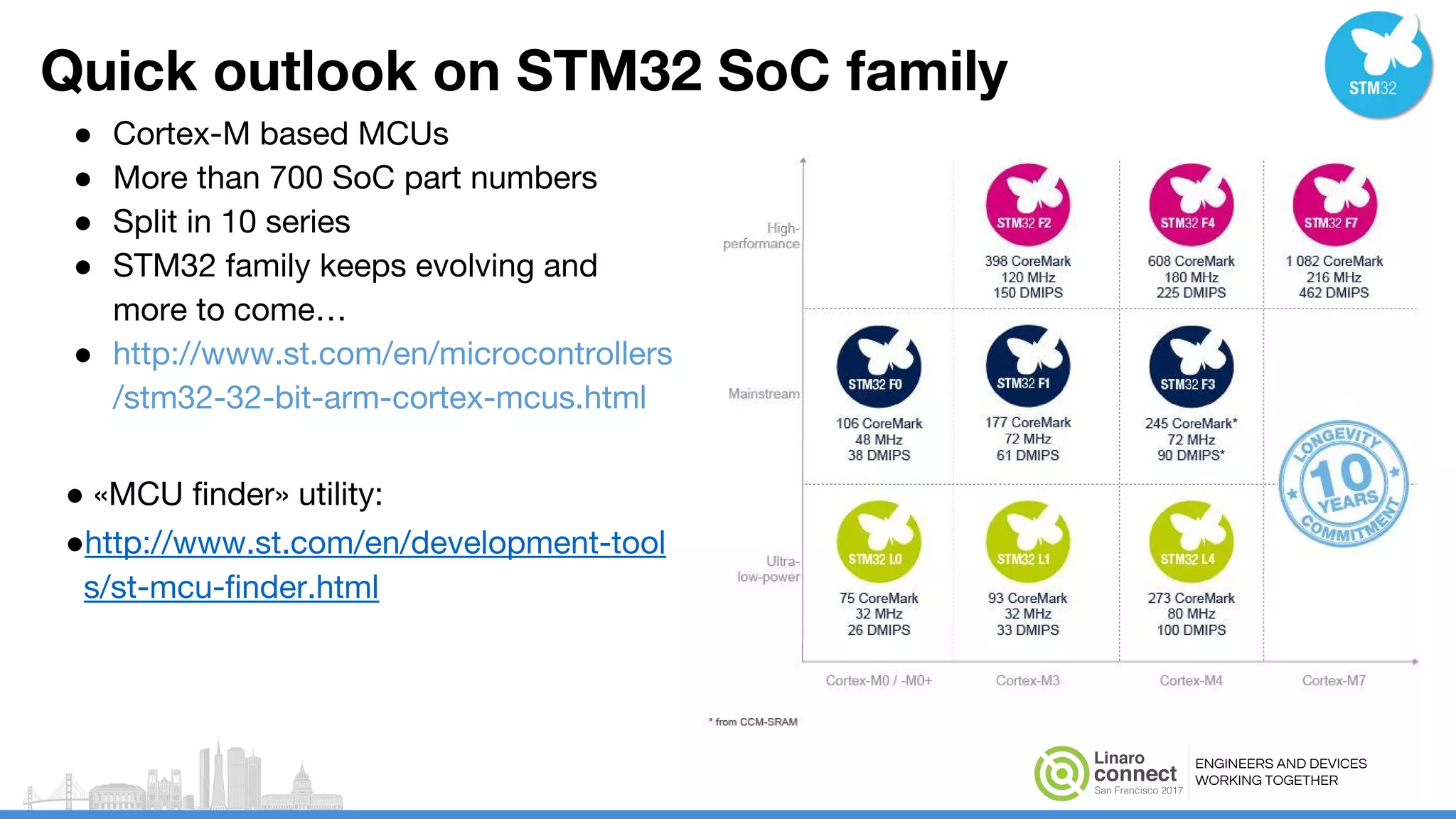

- 4. ENGINEERS AND DEVICES WORKINGTOGETHER Quick outlook on STM32 SoC family ● Cortex-M based MCUs ● More than 700 SoC part numbers ● Split in 10 series ● STM32 family keeps evolving and more to come… ● http://www.st.com/en/microcontrollers /stm32-32-bit-arm-cortex-mcus.html ● «MCU finder» utility: ●http://www.st.com/en/development-tool s/st-mcu-finder.html

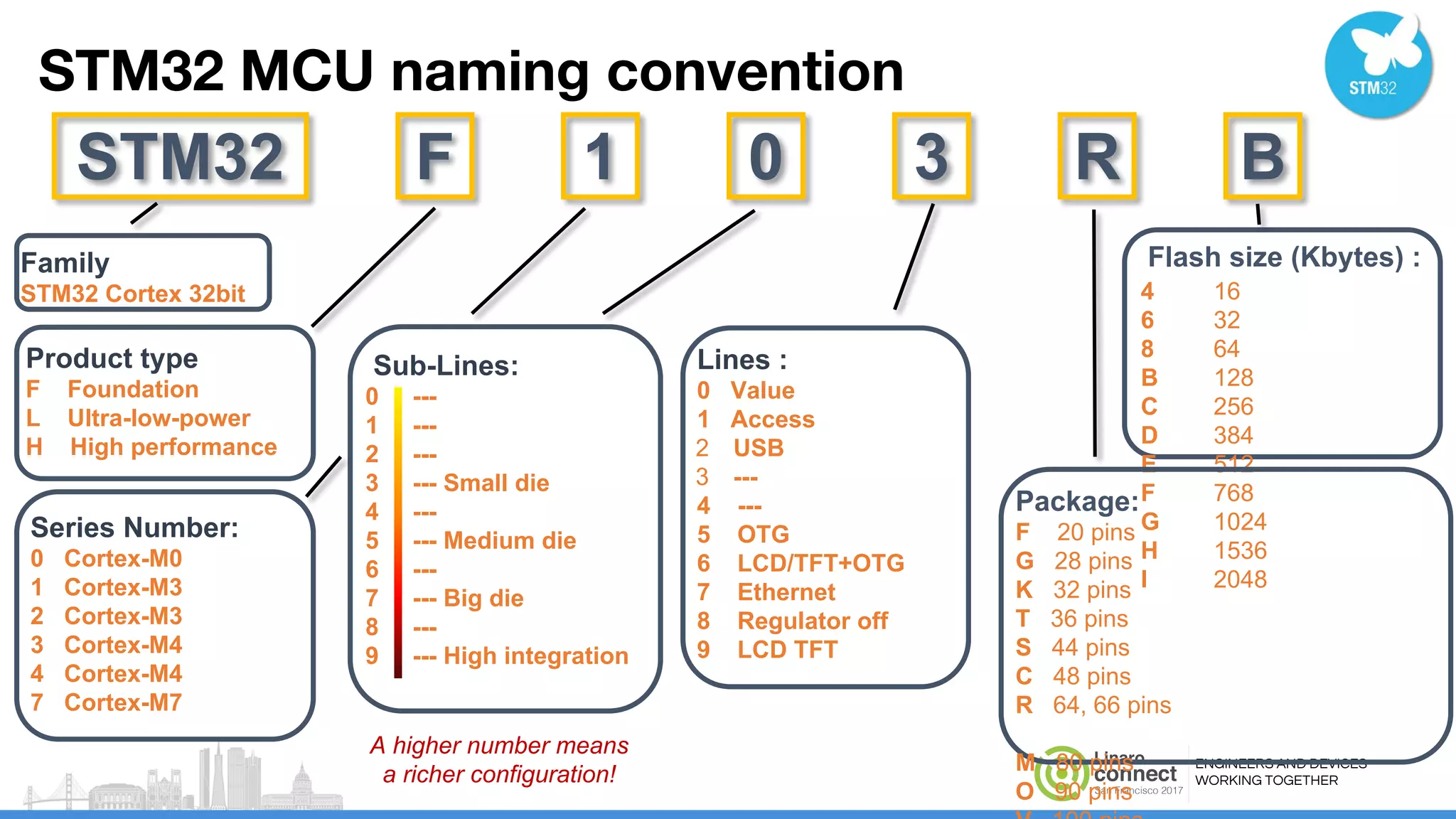

- 5. ENGINEERS AND DEVICES WORKINGTOGETHER STM32 MCU naming convention STM32 F 0 3 Family STM32 Cortex 32bit Lines : 0 Value 1 Access 2 USB 3 --- 4 --- 5 OTG 6 LCD/TFT+OTG 7 Ethernet 8 Regulator off 9 LCD TFT Sub-Lines: 0 --- 1 --- 2 --- 3 --- Small die 4 --- 5 --- Medium die 6 --- 7 --- Big die 8 --- 9 --- High integration Product type F Foundation L Ultra-low-power H High performance A higher number means a richer configuration! 1 R Flash size (Kbytes) : 4 16 6 32 8 64 B 128 C 256 D 384 E 512 F 768 G 1024 H 1536 I 2048 B Package: F 20 pins G 28 pins K 32 pins T 36 pins S 44 pins C 48 pins R 64, 66 pins M 80 pins O 90 pins Series Number: 0 Cortex-M0 1 Cortex-M3 2 Cortex-M3 3 Cortex-M4 4 Cortex-M4 7 Cortex-M7

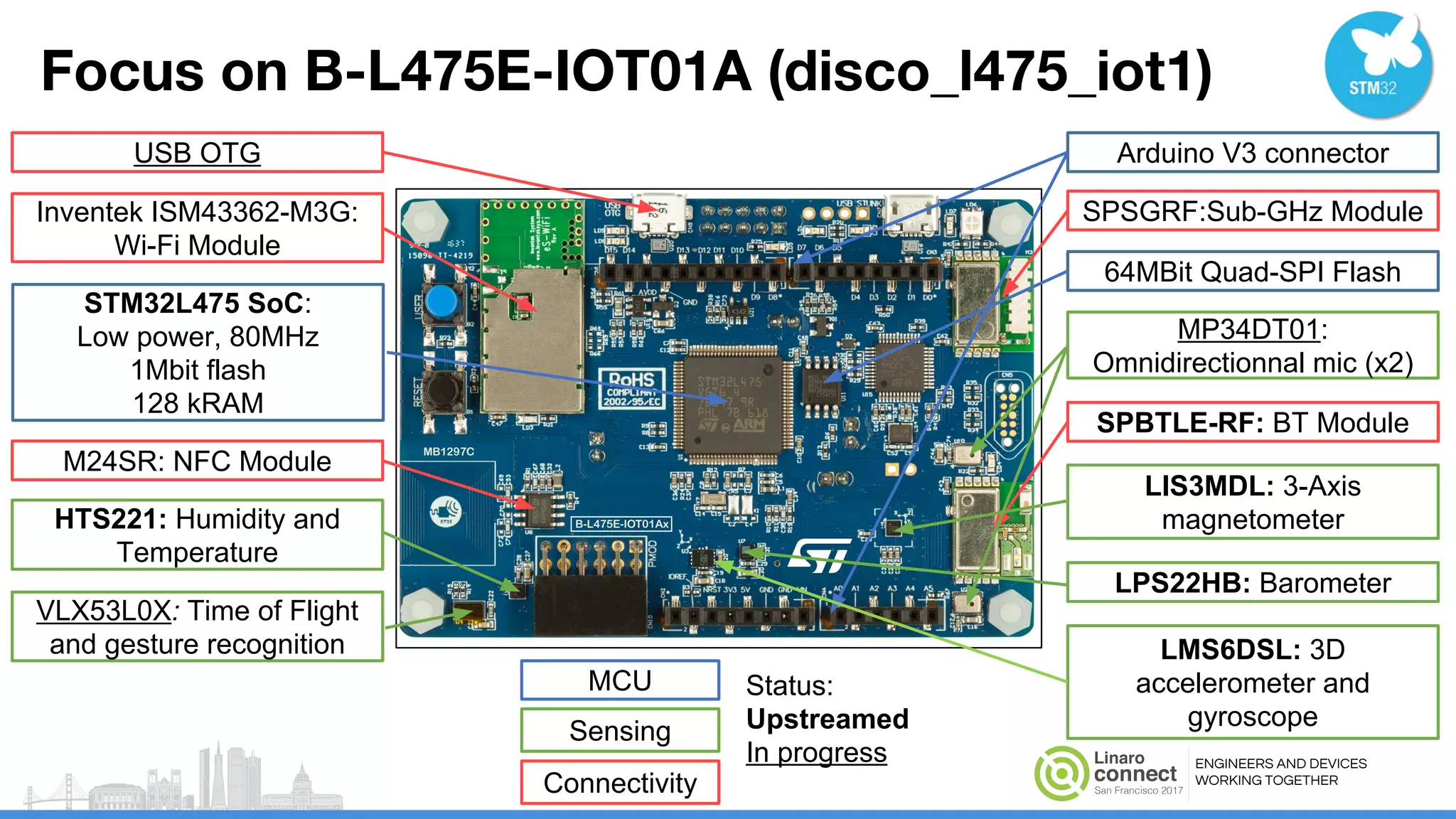

- 6. ENGINEERS AND DEVICES WORKINGTOGETHER Focus on B-L475E-IOT01A (disco_l475_iot1) STM32L475 SoC: Low power, 80MHz 1Mbit flash 128 kRAM Inventek ISM43362-M3G: Wi-Fi Module M24SR: NFC Module VLX53L0X: Time of Flight and gesture recognition HTS221: Humidity and Temperature USB OTG Arduino V3 connector SPSGRF:Sub-GHz Module 64MBit Quad-SPI Flash MP34DT01: Omnidirectionnal mic (x2) SPBTLE-RF: BT Module LIS3MDL: 3-Axis magnetometer LPS22HB: Barometer LMS6DSL: 3D accelerometer and gyroscope Connectivity Sensing MCU Status: Upstreamed In progress

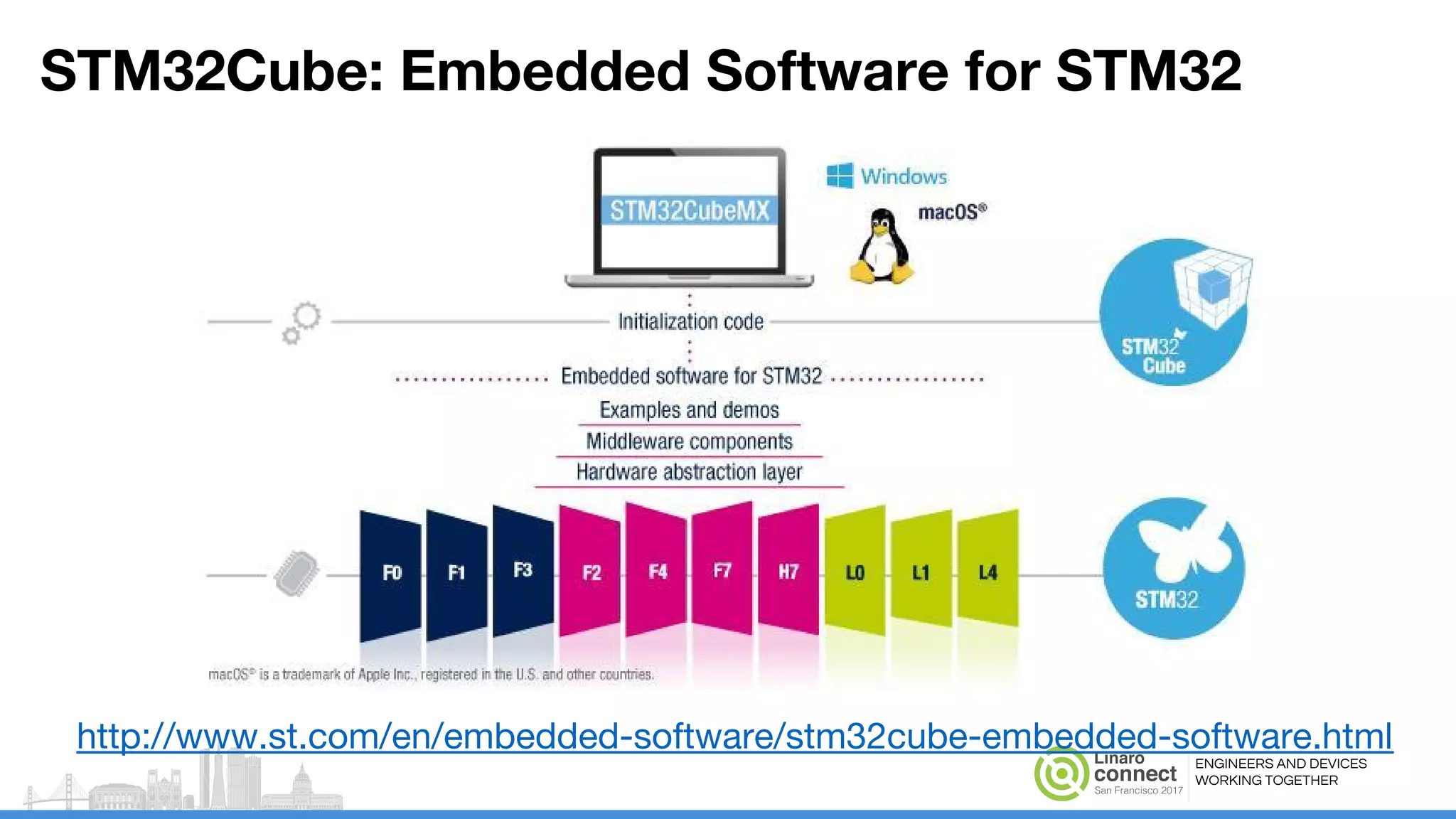

- 7. ENGINEERS AND DEVICES WORKINGTOGETHER STM32Cube: Embedded Software for STM32 http://www.st.com/en/embedded-software/stm32cube-embedded-software.html

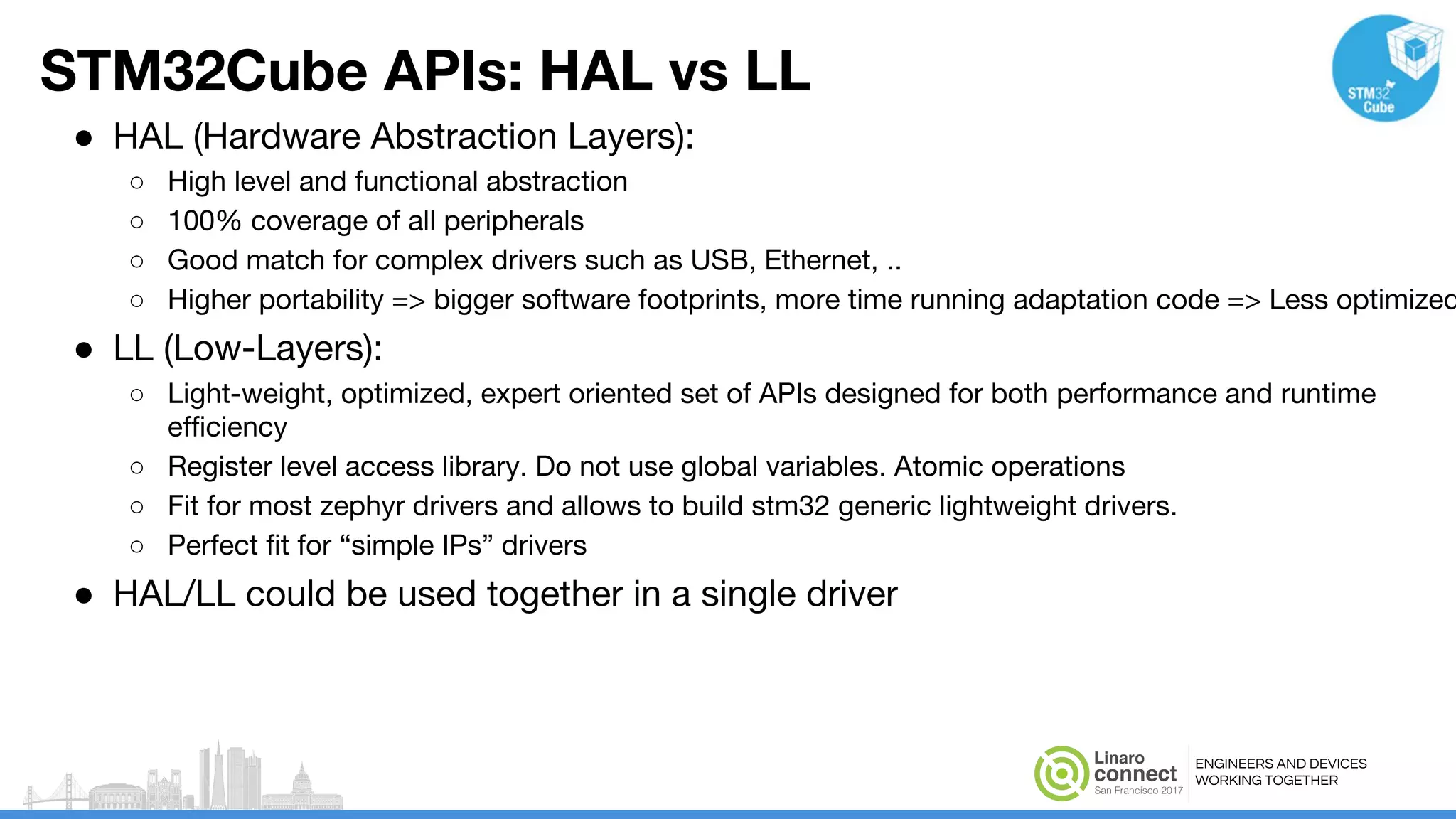

- 8. ENGINEERS AND DEVICES WORKINGTOGETHER STM32Cube APIs: HAL vs LL ● HAL (Hardware Abstraction Layers): ○ High level and functional abstraction ○ 100% coverage of all peripherals ○ Good match for complex drivers such as USB, Ethernet, .. ○ Higher portability => bigger software footprints, more time running adaptation code => Less optimized ● LL (Low-Layers): ○ Light-weight, optimized, expert oriented set of APIs designed for both performance and runtime efficiency ○ Register level access library. Do not use global variables. Atomic operations ○ Fit for most zephyr drivers and allows to build stm32 generic lightweight drivers. ○ Perfect fit for “simple IPs” drivers ● HAL/LL could be used together in a single driver

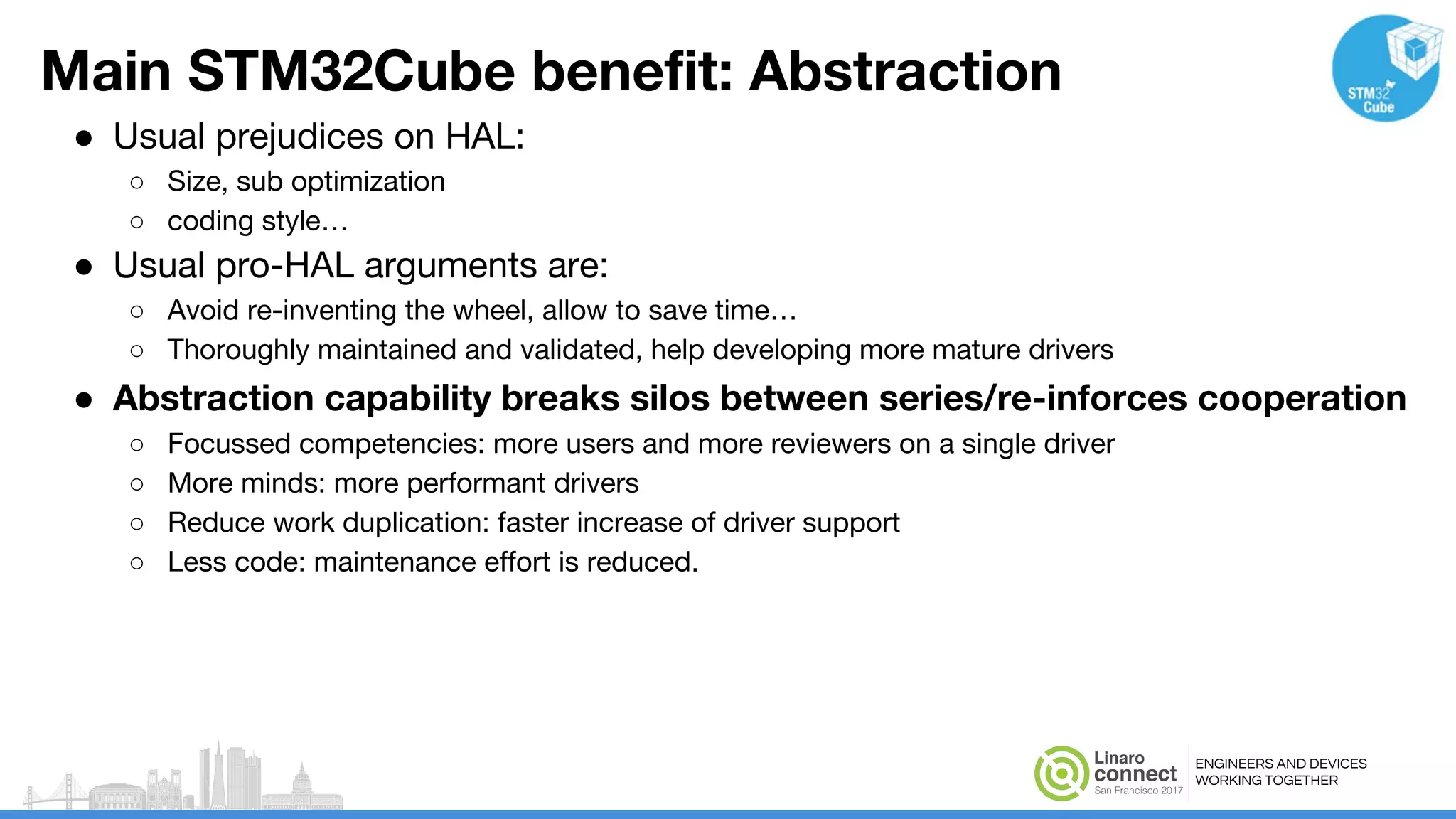

- 9. ENGINEERS AND DEVICES WORKINGTOGETHER Main STM32Cube benefit: Abstraction ● Usual prejudices on HAL: ○ Size, sub optimization ○ coding style… ● Usual pro-HAL arguments are: ○ Avoid re-inventing the wheel, allow to save time… ○ Thoroughly maintained and validated, help developing more mature drivers ● Abstraction capability breaks silos between series/re-inforces cooperation ○ Focussed competencies: more users and more reviewers on a single driver ○ More minds: more performant drivers ○ Reduce work duplication: faster increase of driver support ○ Less code: maintenance effort is reduced.
- 10.

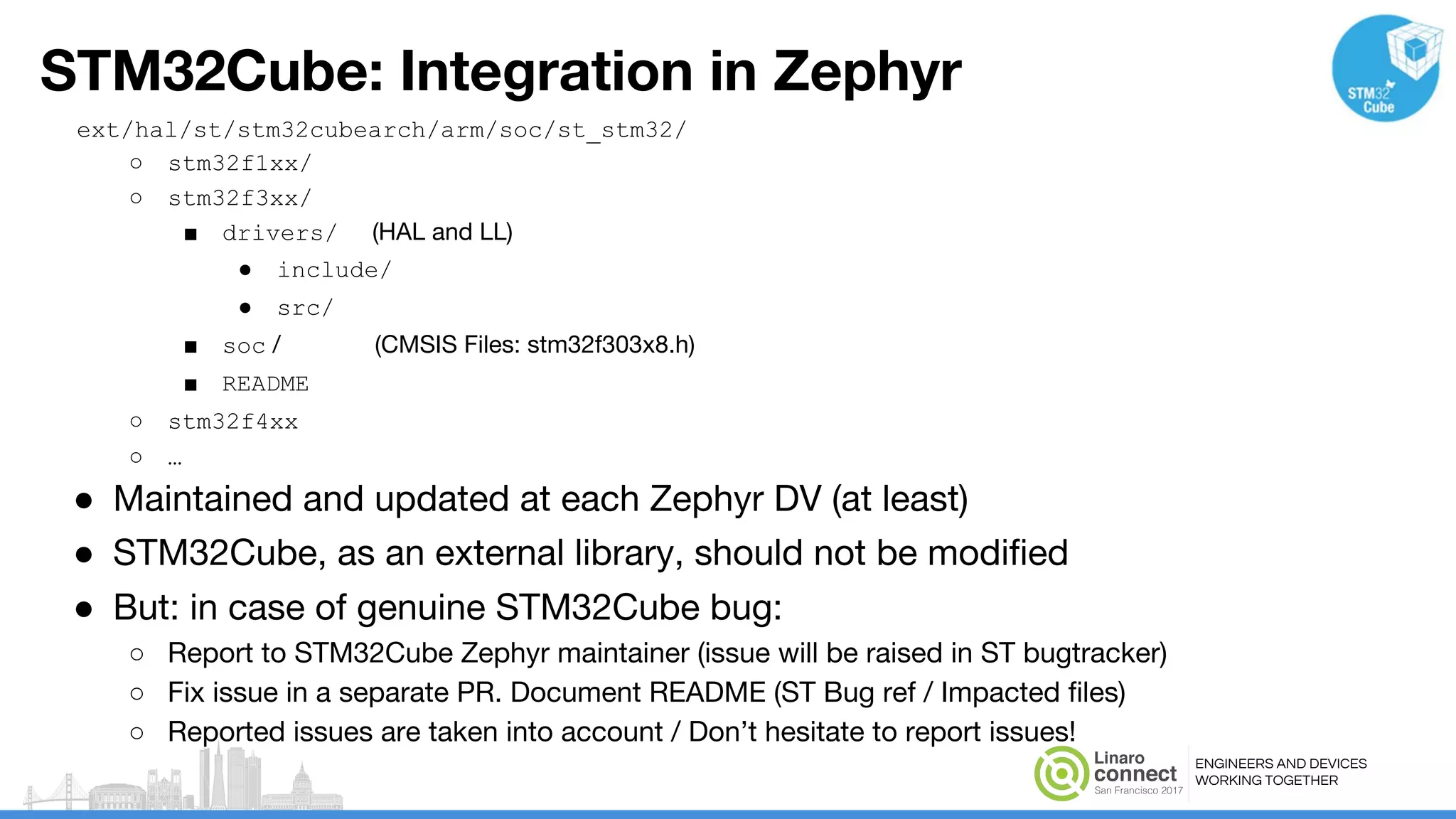

- 11. ENGINEERS AND DEVICES WORKINGTOGETHER STM32Cube: Integration in Zephyr ext/hal/st/stm32cubearch/arm/soc/st_stm32/ ○ stm32f1xx/ ○ stm32f3xx/ ■ drivers/ (HAL and LL) ● include/ ● src/ ■ soc / (CMSIS Files: stm32f303x8.h) ■ README ○ stm32f4xx ○ … ● Maintained and updated at each Zephyr DV (at least) ● STM32Cube, as an external library, should not be modified ● But: in case of genuine STM32Cube bug: ○ Report to STM32Cube Zephyr maintainer (issue will be raised in ST bugtracker) ○ Fix issue in a separate PR. Document README (ST Bug ref / Impacted files) ○ Reported issues are taken into account / Don’t hesitate to report issues!

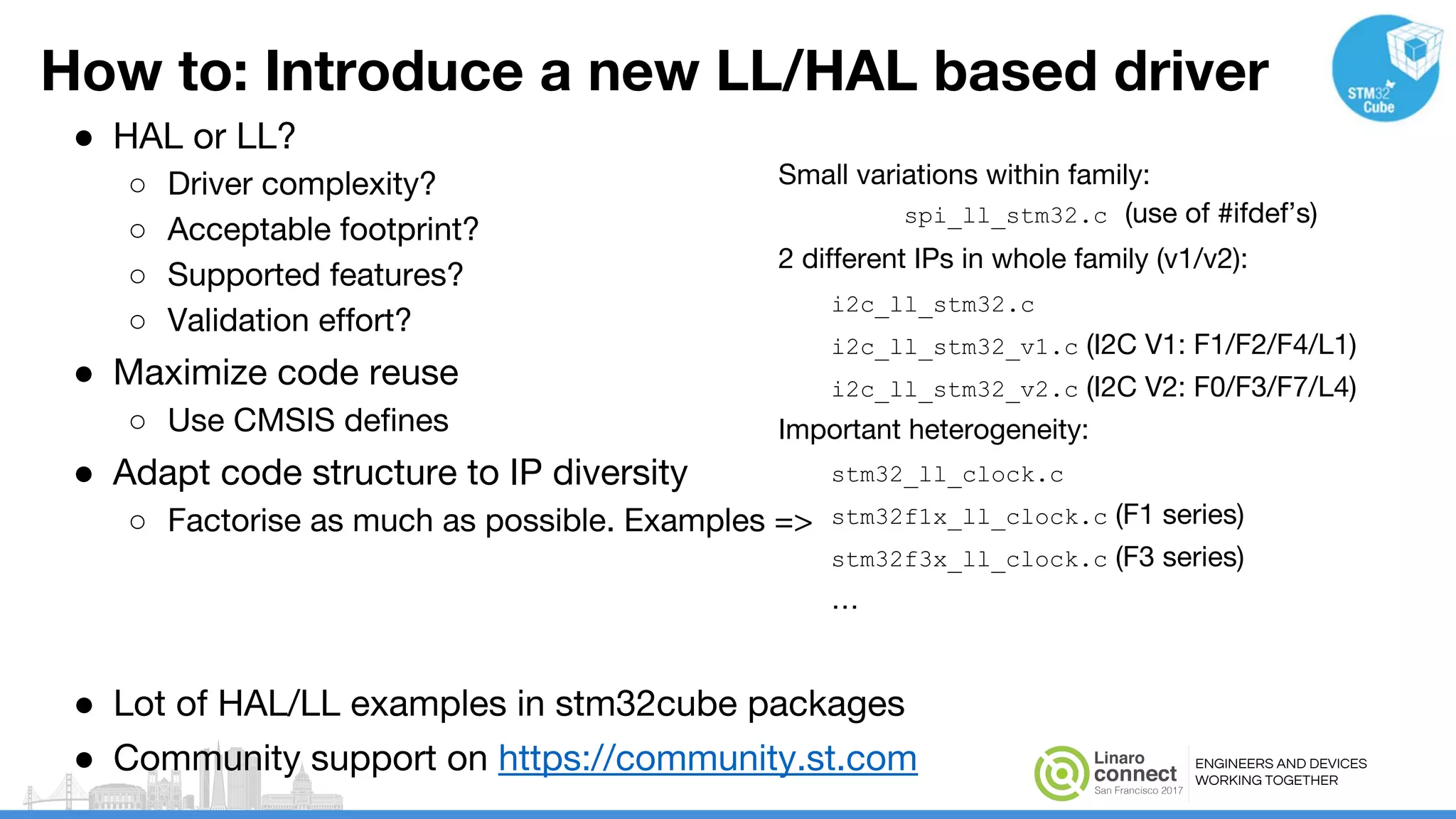

- 12. ENGINEERS AND DEVICES WORKINGTOGETHER How to: Introduce a new LL/HAL based driver ● HAL or LL? ○ Driver complexity? ○ Acceptable footprint? ○ Supported features? ○ Validation effort? ● Maximize code reuse ○ Use CMSIS defines ● Adapt code structure to IP diversity ○ Factorise as much as possible. Examples => Small variations within family: spi_ll_stm32.c (use of #ifdef’s) 2 different IPs in whole family (v1/v2): i2c_ll_stm32.c i2c_ll_stm32_v1.c (I2C V1: F1/F2/F4/L1) i2c_ll_stm32_v2.c (I2C V2: F0/F3/F7/L4) Important heterogeneity: stm32_ll_clock.c stm32f1x_ll_clock.c (F1 series) stm32f3x_ll_clock.c (F3 series) … ● Lot of HAL/LL examples in stm32cube packages ● Community support on https://community.st.com

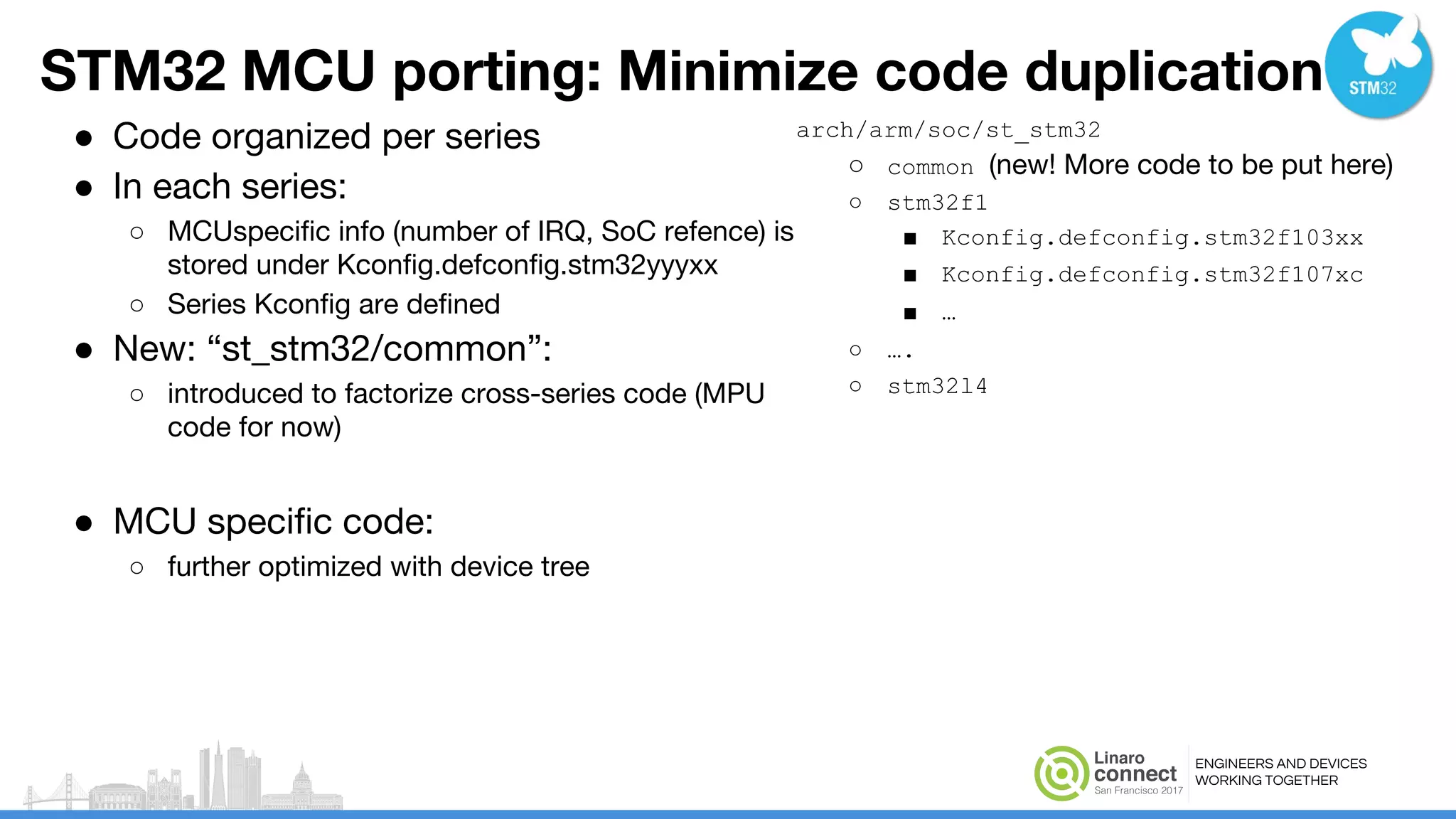

- 13. ENGINEERS AND DEVICES WORKINGTOGETHER STM32 MCU porting: Minimize code duplication ● Code organized per series ● In each series: ○ MCUspecific info (number of IRQ, SoC refence) is stored under Kconfig.defconfig.stm32yyyxx ○ Series Kconfig are defined ● New: “st_stm32/common”: ○ introduced to factorize cross-series code (MPU code for now) ● MCU specific code: ○ further optimized with device tree arch/arm/soc/st_stm32 ○ common (new! More code to be put here) ○ stm32f1 ■ Kconfig.defconfig.stm32f103xx ■ Kconfig.defconfig.stm32f107xc ■ … ○ …. ○ stm32l4
- 14. ENGINEERS AND DEVICES WORKING TOGETHER Device treeconcept applied to STM32 family

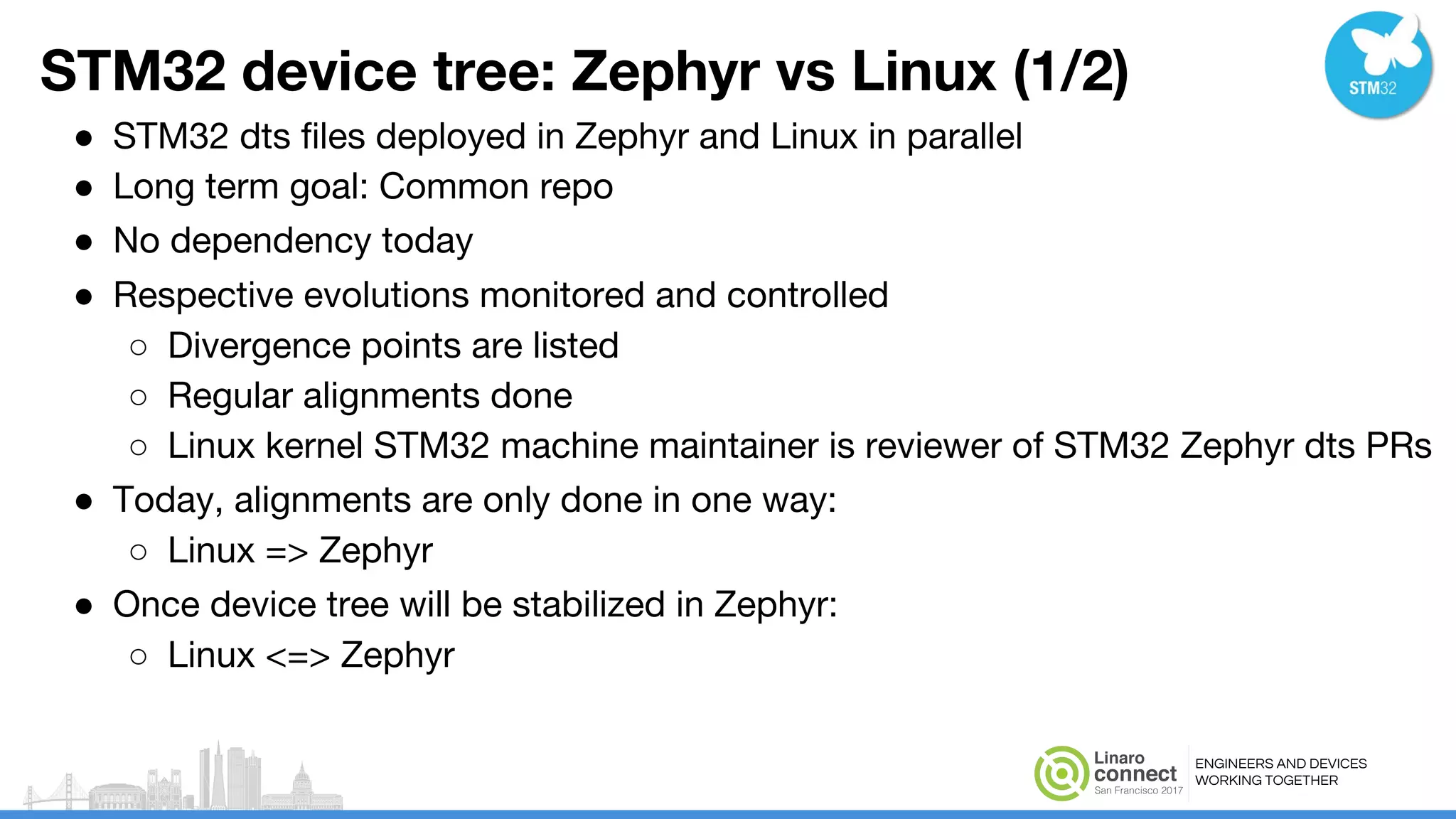

- 15. ENGINEERS AND DEVICES WORKINGTOGETHER STM32 device tree: Zephyr vs Linux (1/2) ● STM32 dts files deployed in Zephyr and Linux in parallel ● Long term goal: Common repo ● No dependency today ● Respective evolutions monitored and controlled ○ Divergence points are listed ○ Regular alignments done ○ Linux kernel STM32 machine maintainer is reviewer of STM32 Zephyr dts PRs ● Today, alignments are only done in one way: ○ Linux => Zephyr ● Once device tree will be stabilized in Zephyr: ○ Linux <=> Zephyr

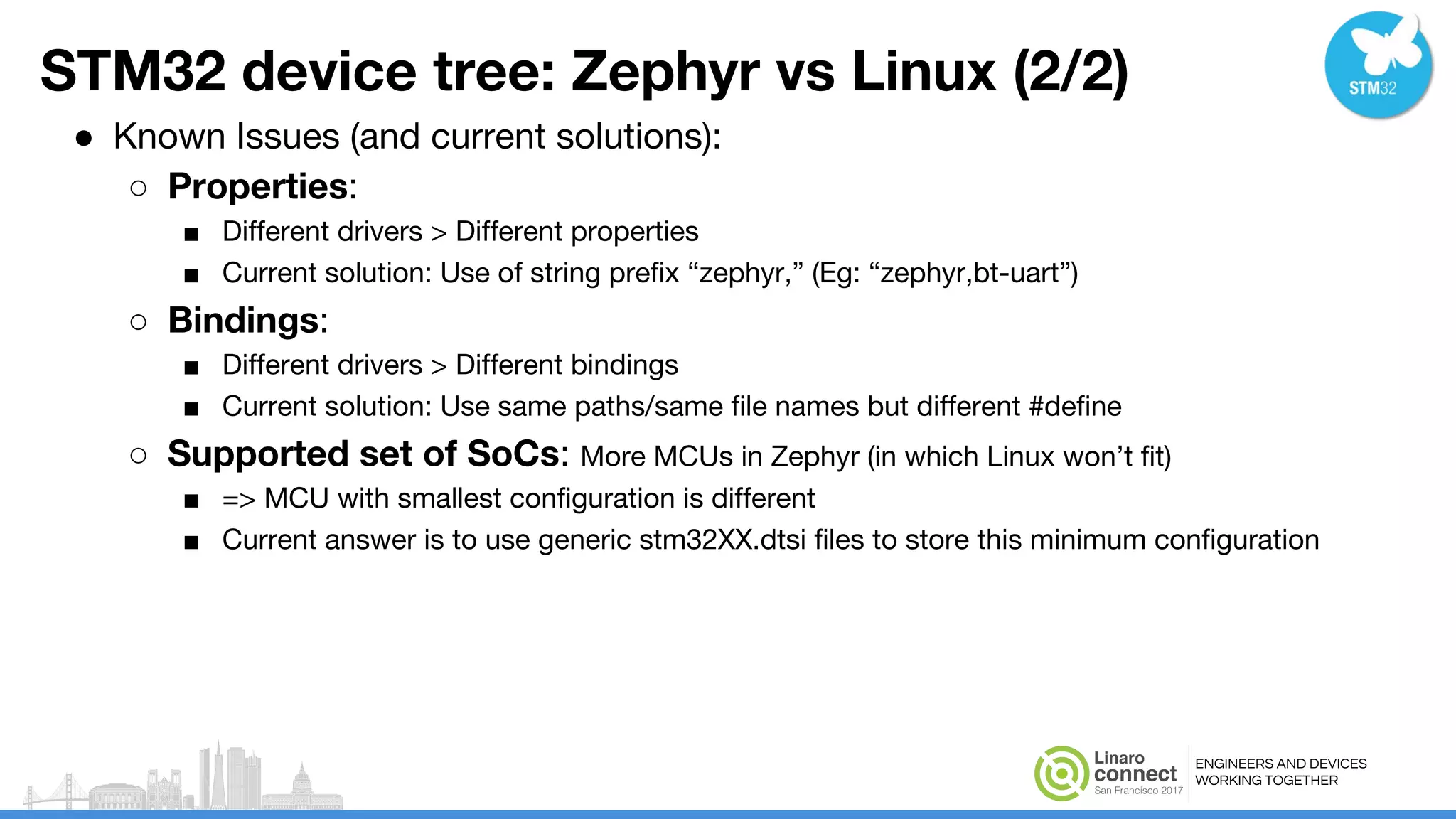

- 16. ENGINEERS AND DEVICES WORKINGTOGETHER STM32 device tree: Zephyr vs Linux (2/2) ● Known Issues (and current solutions): ○ Properties: ■ Different drivers > Different properties ■ Current solution: Use of string prefix “zephyr,” (Eg: “zephyr,bt-uart”) ○ Bindings: ■ Different drivers > Different bindings ■ Current solution: Use same paths/same file names but different #define ○ Supported set of SoCs: More MCUs in Zephyr (in which Linux won’t fit) ■ => MCU with smallest configuration is different ■ Current answer is to use generic stm32XX.dtsi files to store this minimum configuration

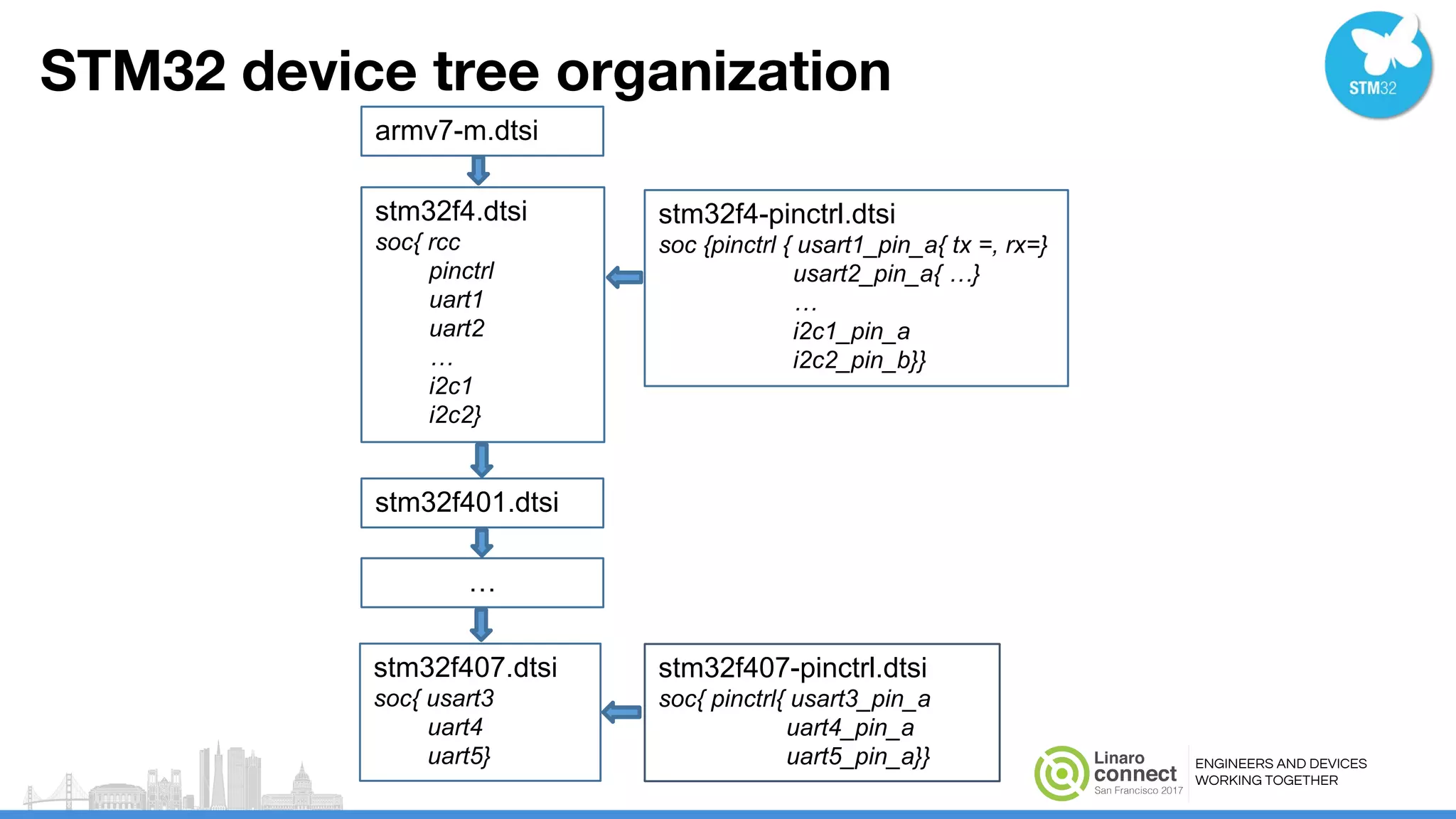

- 17. ENGINEERS AND DEVICES WORKINGTOGETHER STM32 device tree organization stm32f4.dtsi soc{ rcc pinctrl uart1 uart2 … i2c1 i2c2} stm32f4-pinctrl.dtsi soc {pinctrl { usart1_pin_a{ tx =, rx=} usart2_pin_a{ …} … i2c1_pin_a i2c2_pin_b}} armv7-m.dtsi stm32f401.dtsi stm32f407.dtsi soc{ usart3 uart4 uart5} stm32f407-pinctrl.dtsi soc{ pinctrl{ usart3_pin_a uart4_pin_a uart5_pin_a}} …

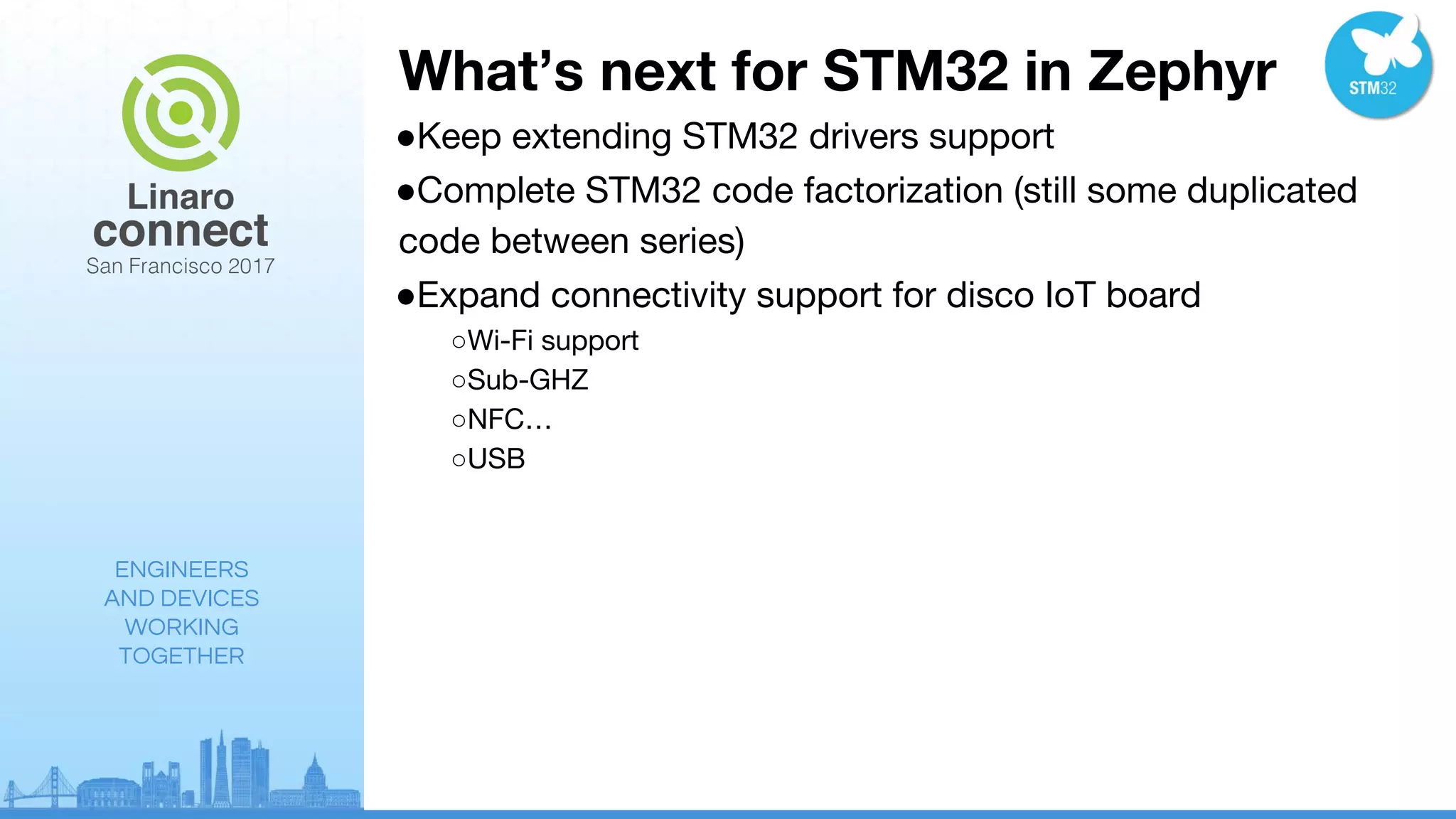

- 18. ENGINEERS AND DEVICES WORKING TOGETHER What’s nextfor STM32 in Zephyr ●Keep extending STM32 drivers support ●Complete STM32 code factorization (still some duplicated code between series) ●Expand connectivity support for disco IoT board ○Wi-Fi support ○Sub-GHZ ○NFC… ○USB
- 19.
- 20. ENGINEERS AND DEVICES WORKINGTOGETHER STM32 prototyping boards and shields

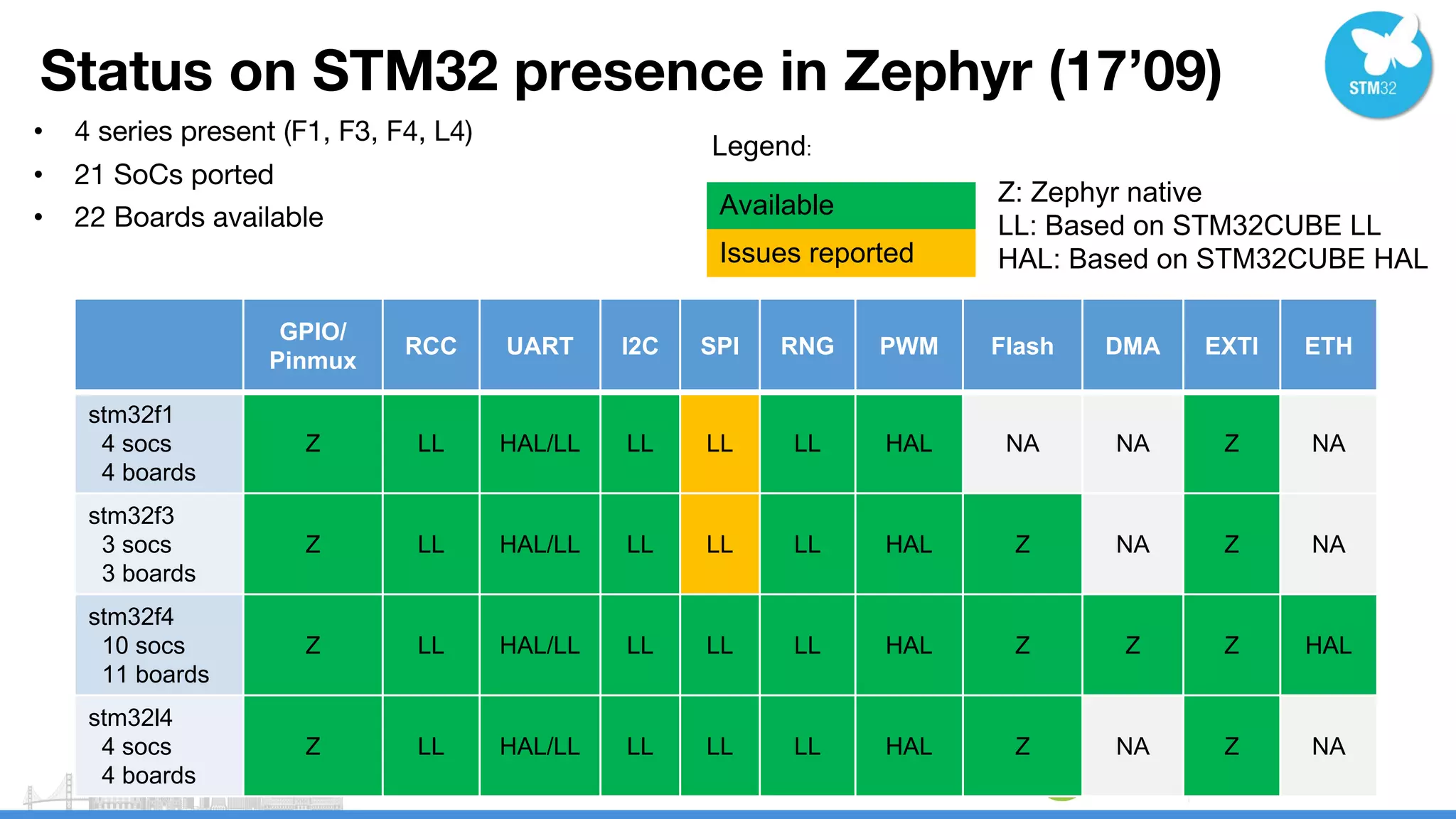

- 21. ENGINEERS AND DEVICES WORKINGTOGETHER Status on STM32 presence in Zephyr (17’09) • 4 series present (F1, F3, F4, L4) • 21 SoCs ported • 22 Boards available GPIO/ Pinmux RCC UART I2C SPI RNG PWM Flash DMA EXTI ETH stm32f1 4 socs 4 boards Z LL HAL/LL LL LL LL HAL NA NA Z NA stm32f3 3 socs 3 boards Z LL HAL/LL LL LL LL HAL Z NA Z NA stm32f4 10 socs 11 boards Z LL HAL/LL LL LL LL HAL Z Z Z HAL stm32l4 4 socs 4 boards Z LL HAL/LL LL LL LL HAL Z NA Z NA Available Issues reported Z: Zephyr native LL: Based on STM32CUBE LL HAL: Based on STM32CUBE HAL Legend:

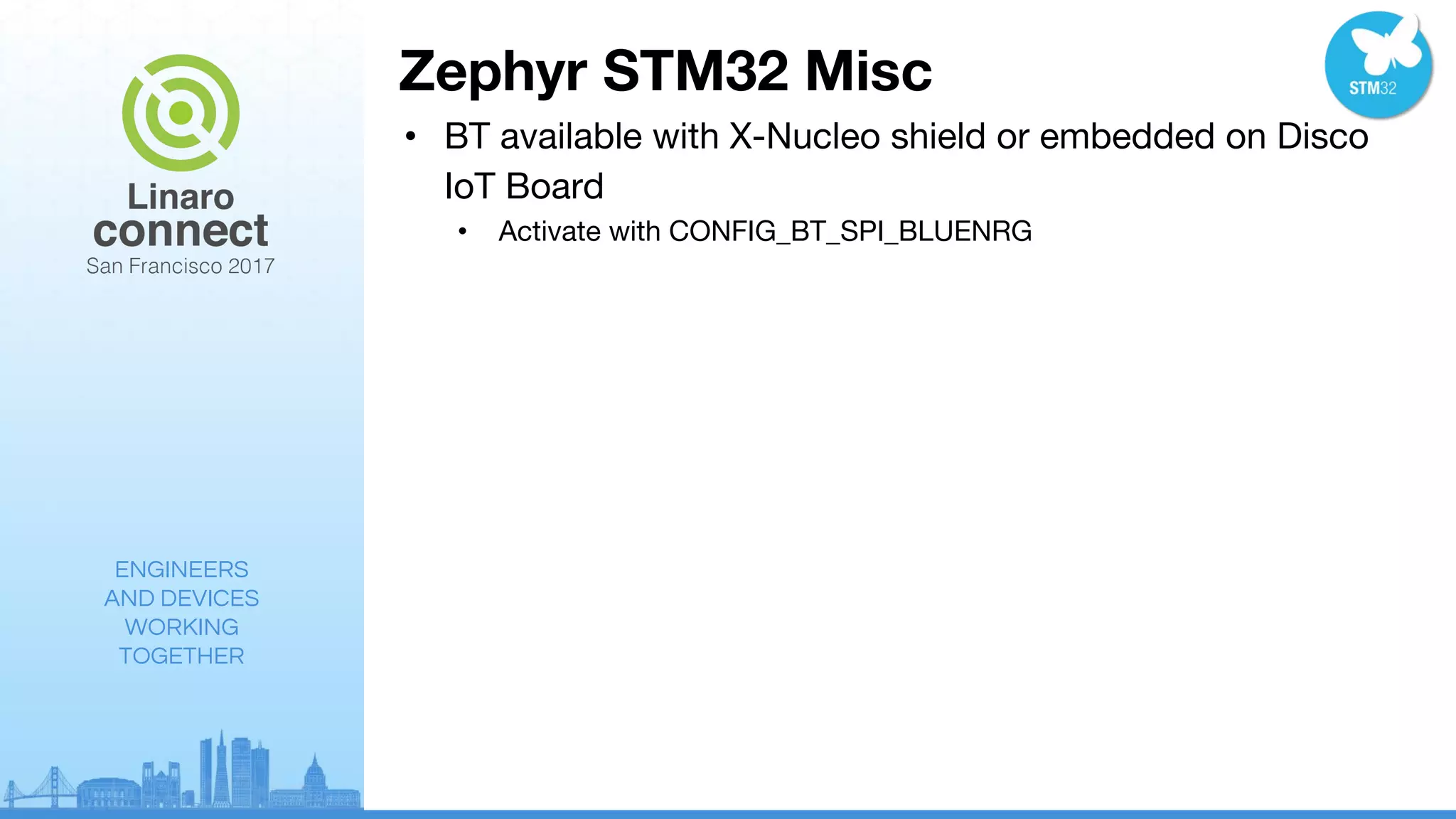

- 22. ENGINEERS AND DEVICES WORKING TOGETHER Zephyr STM32Misc • BT available with X-Nucleo shield or embedded on Disco IoT Board • Activate with CONFIG_BT_SPI_BLUENRG

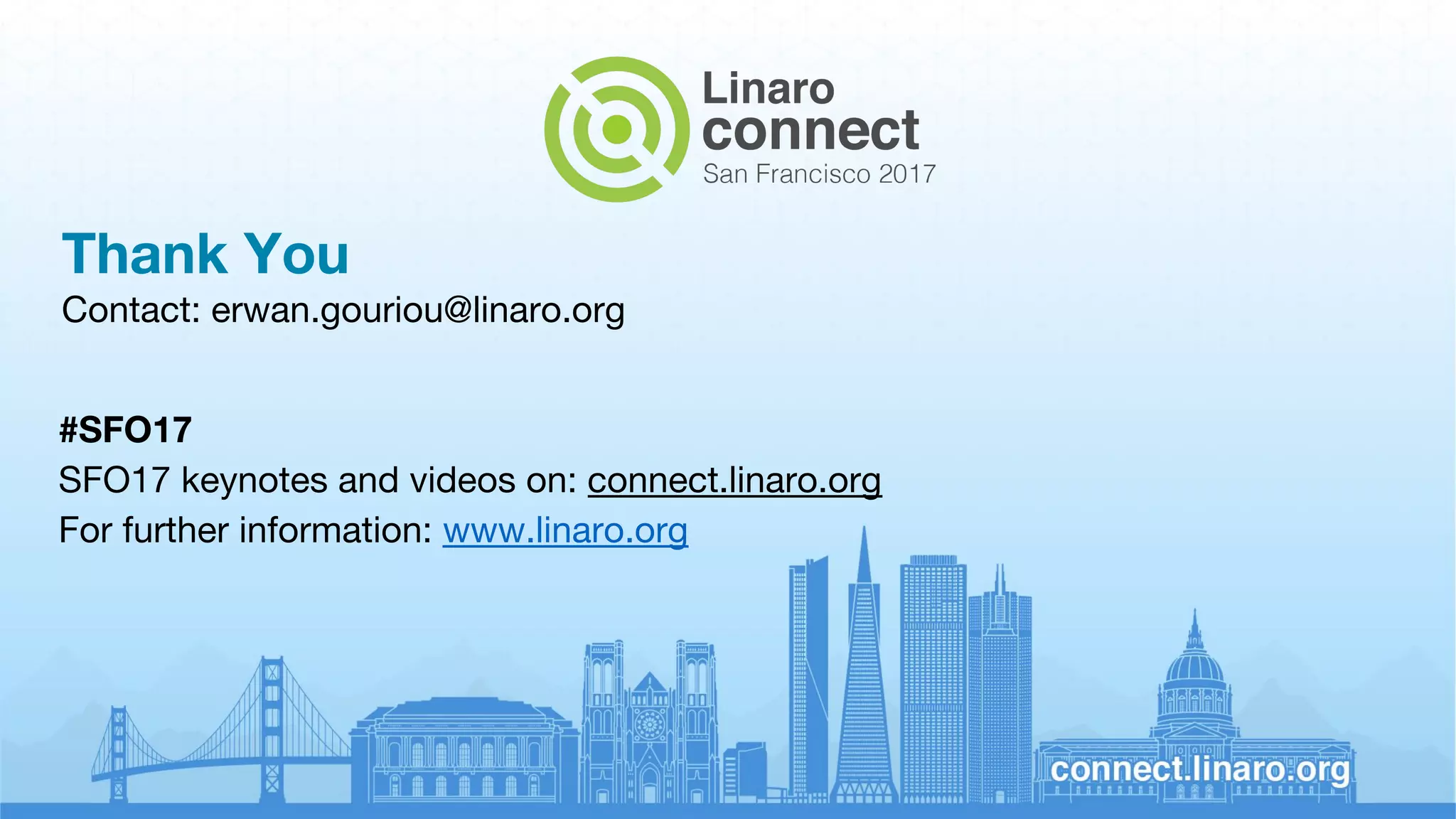

- 23. Thank You Contact: erwan.gouriou@linaro.org #SFO17 SFO17keynotes and videos on: connect.linaro.org For further information: www.linaro.org
