Dependency Injection in iOS
The document discusses Dependency Injection (DI) in iOS, emphasizing its role in creating loosely coupled code through the separation of dependencies from the classes that utilize them. It covers relevant concepts, examples of applying DI through Test-Driven Development (TDD), and the benefits and drawbacks of using DI, such as improved code maintainability versus increased complexity. The document includes real-world applications and case studies demonstrating the practical implementation of DI in iOS development.
More Related Content
Similar to Dependency Injection in iOS
Dependency Injection in iOS
- 1.

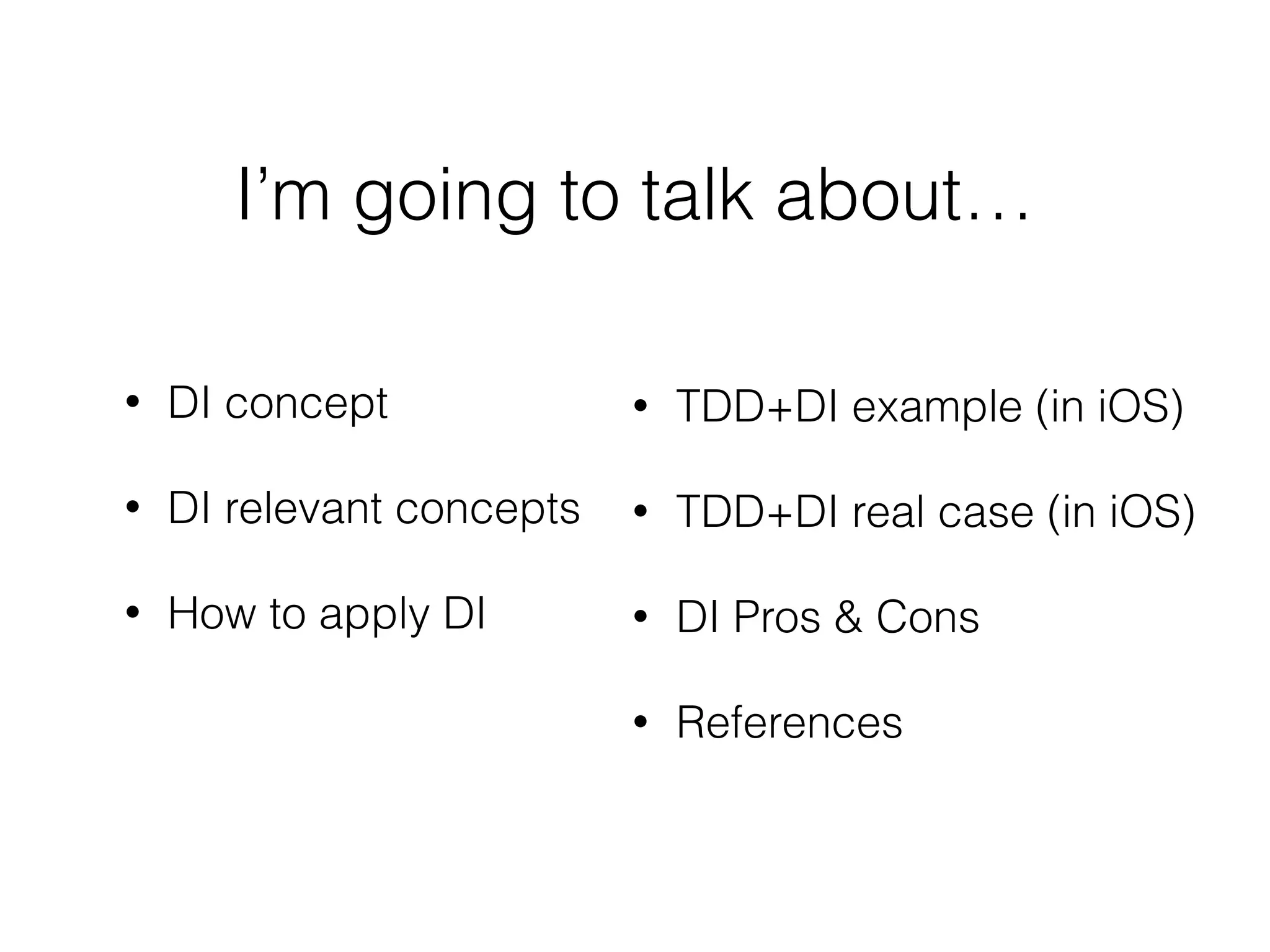

- 2. I’m going totalk about… • DI concept • DI relevant concepts • How to apply DI • TDD+DI example (in iOS) • TDD+DI real case (in iOS) • DI Pros & Cons • References
- 3.

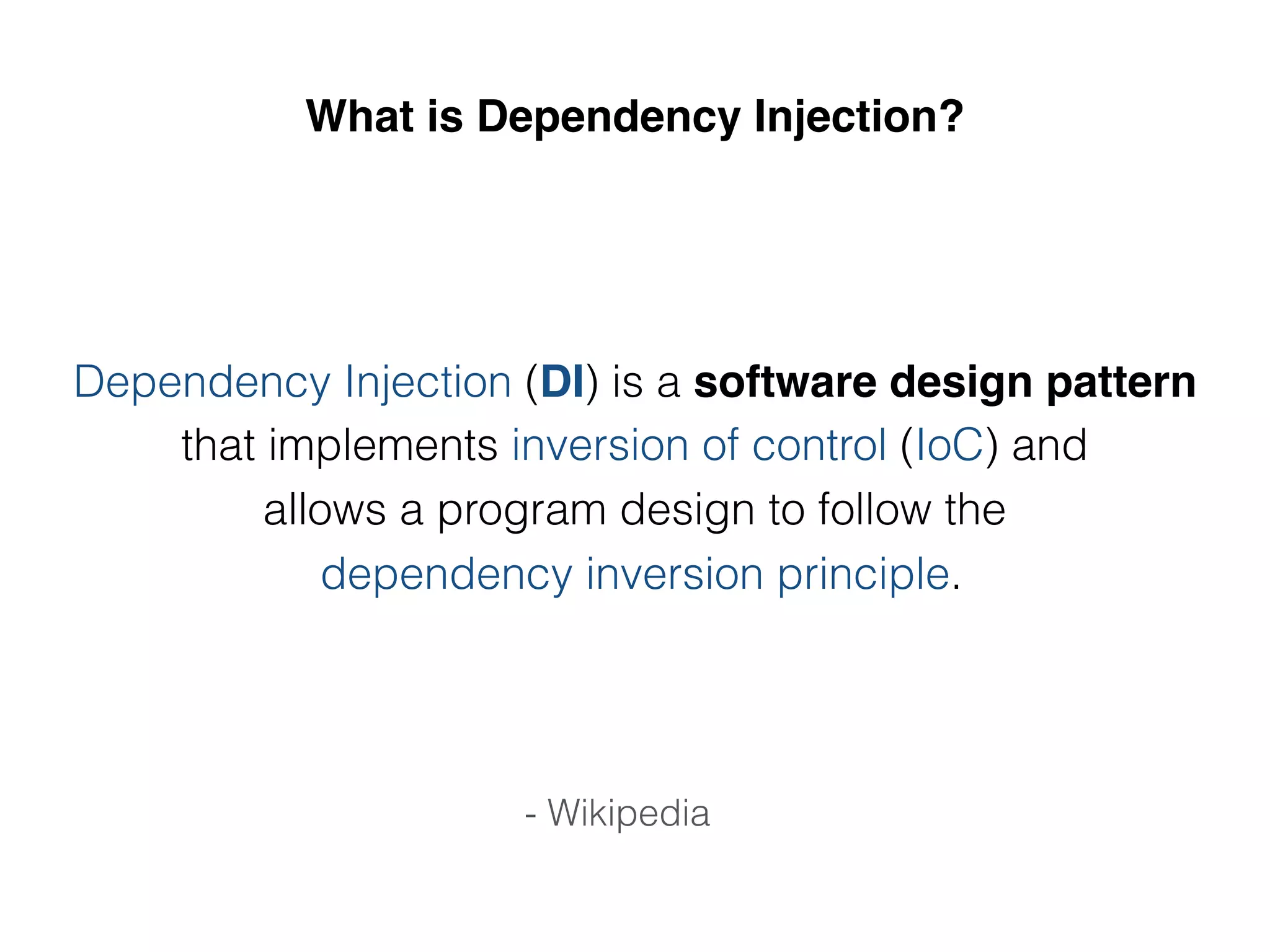

- 4. What is DependencyInjection? Dependency Injection (DI) is a software design pattern that implements inversion of control (IoC) and allows a program design to follow the dependency inversion principle. - Wikipedia
- 5. What is DependencyInjection? Dependency Injection (DI) is a set of software design principles and patterns that enables us to develop loosely coupled code. - Mark Seemann (Dependency Injection in .NET)

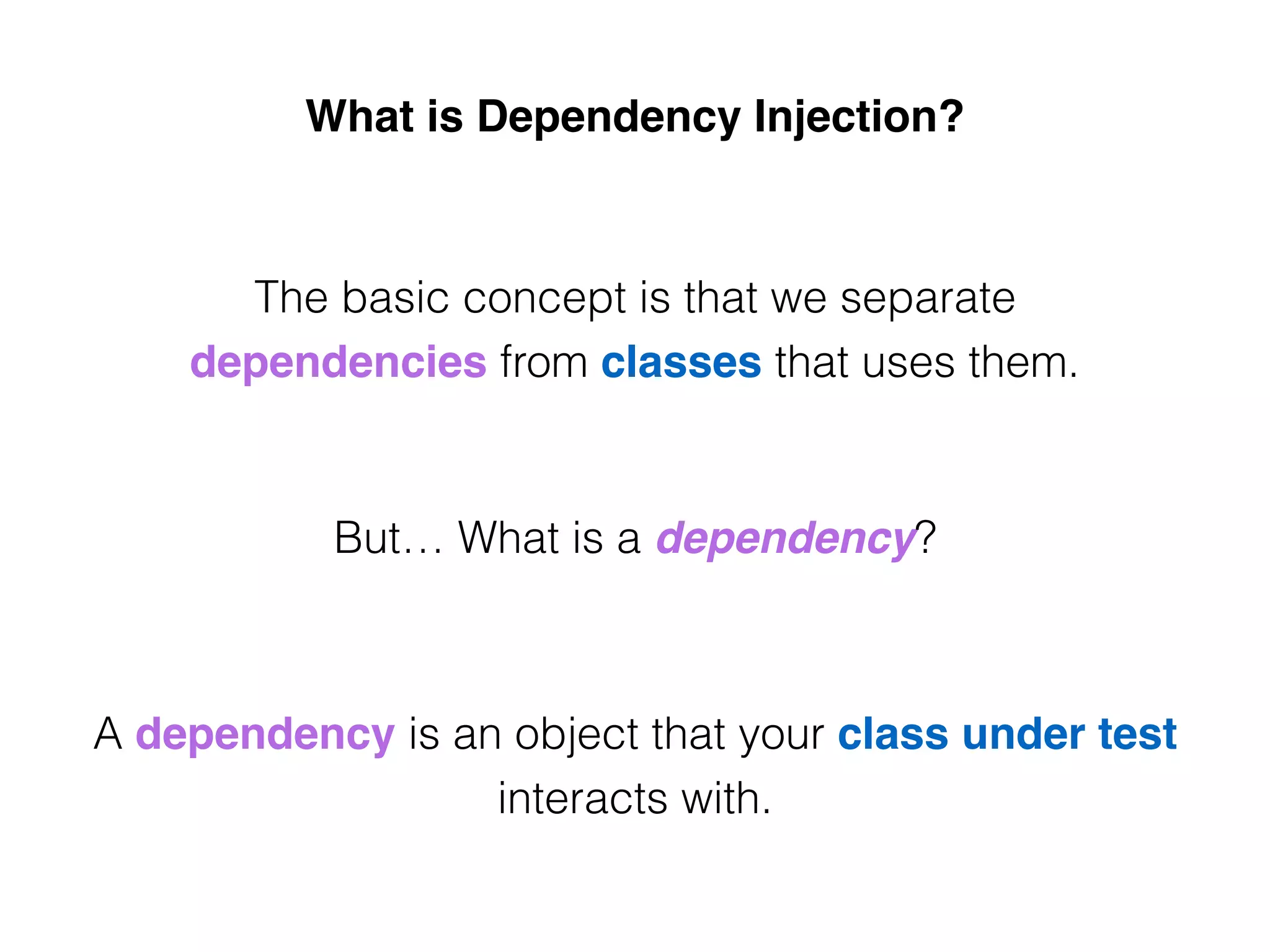

- 6. What is DependencyInjection? The basic concept is that we separate dependencies from classes that uses them. But… What is a dependency? A dependency is an object that your class under test interacts with.

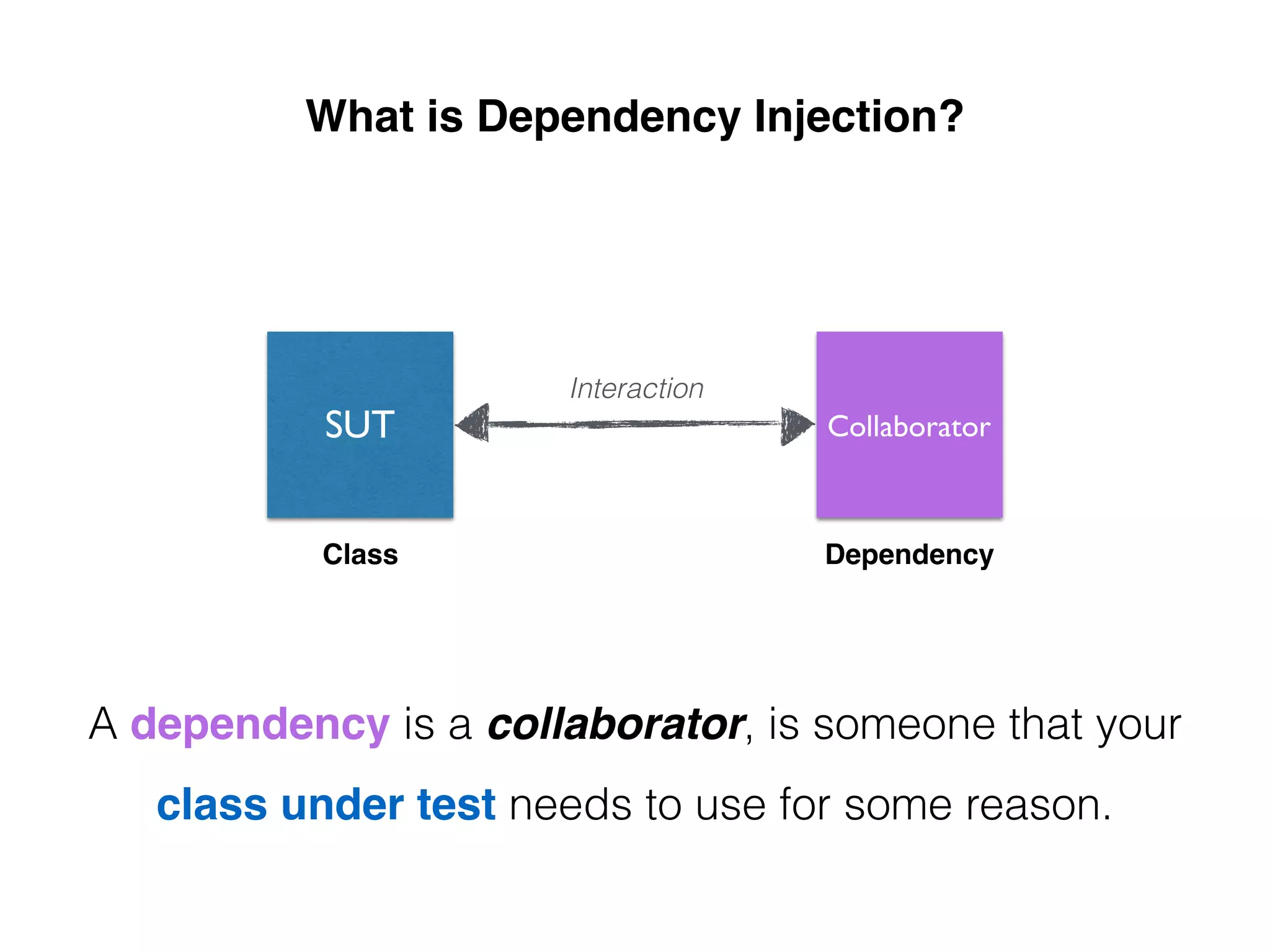

- 7. What is DependencyInjection? CollaboratorSUT DependencyClass Interaction A dependency is a collaborator, is someone that your class under test needs to use for some reason.

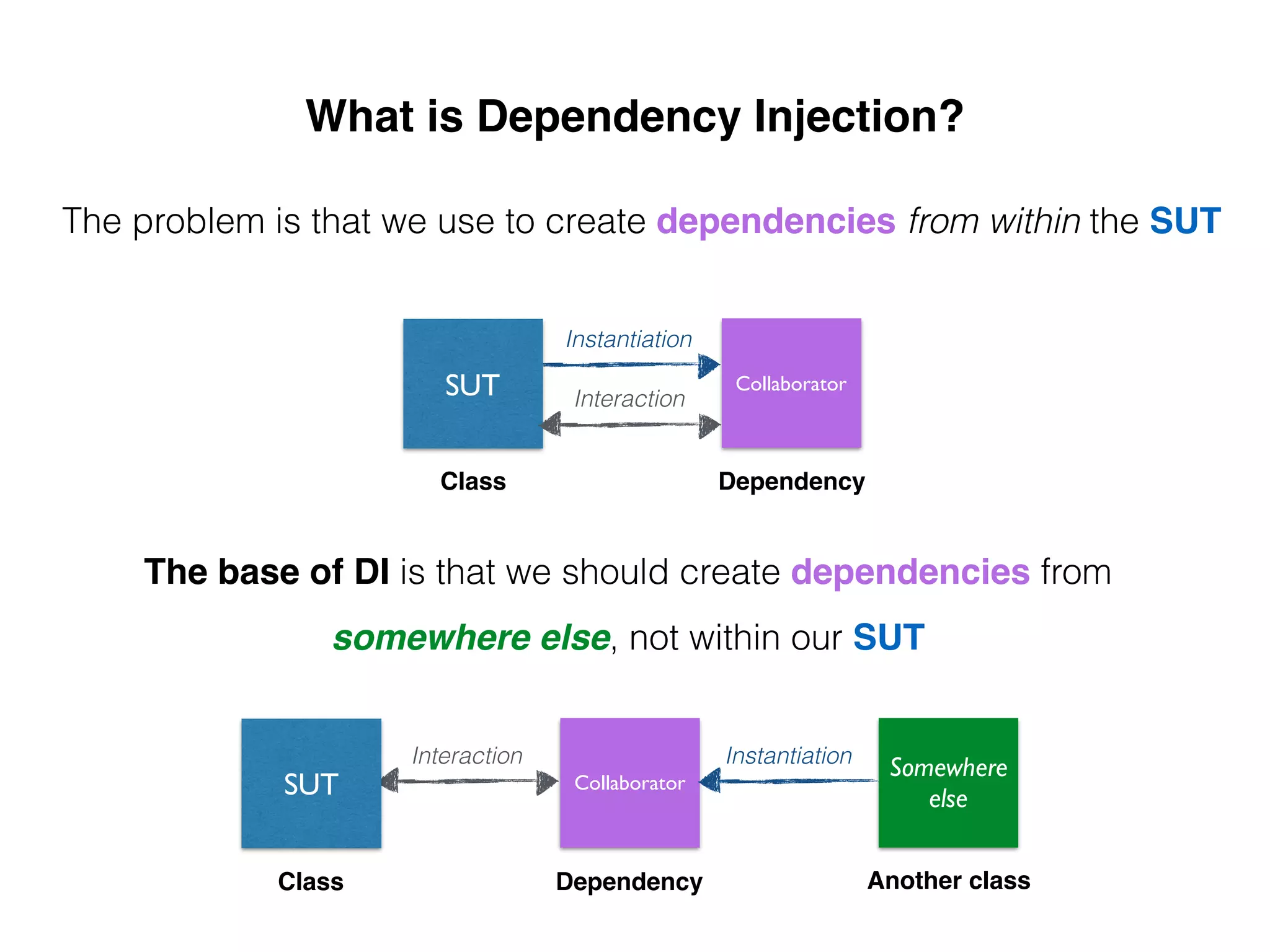

- 8. What is DependencyInjection? The problem is that we use to create dependencies from within the SUT The base of DI is that we should create dependencies from somewhere else, not within our SUT CollaboratorSUT DependencyClass Instantiation Interaction CollaboratorSUT DependencyClass Interaction Instantiation Somewhere else Another class

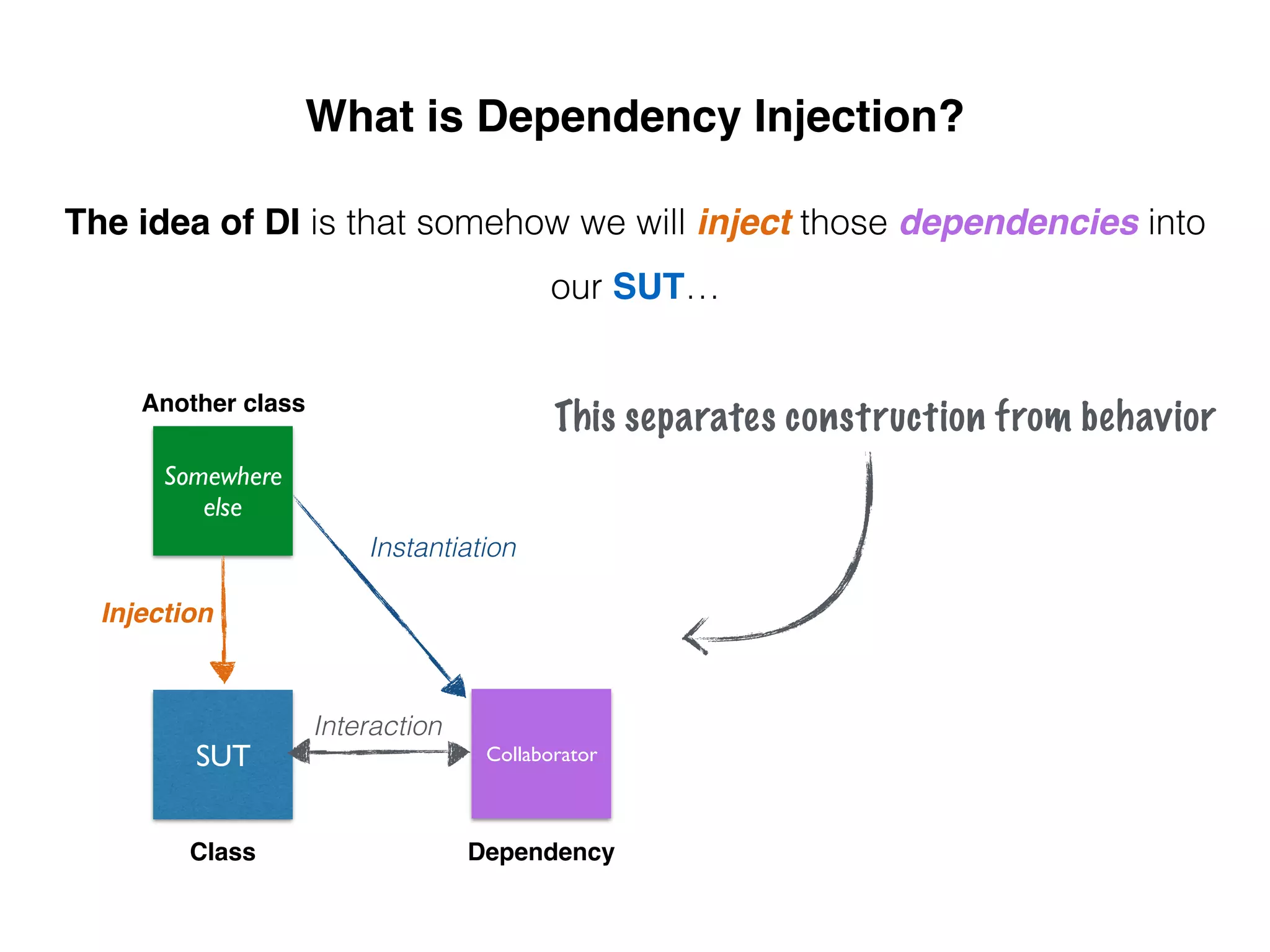

- 9. What is DependencyInjection? The idea of DI is that somehow we will inject those dependencies into our SUT… Collaborator Dependency SUT Class Interaction Instantiation Somewhere else Another class Injection This separates construction from behavior

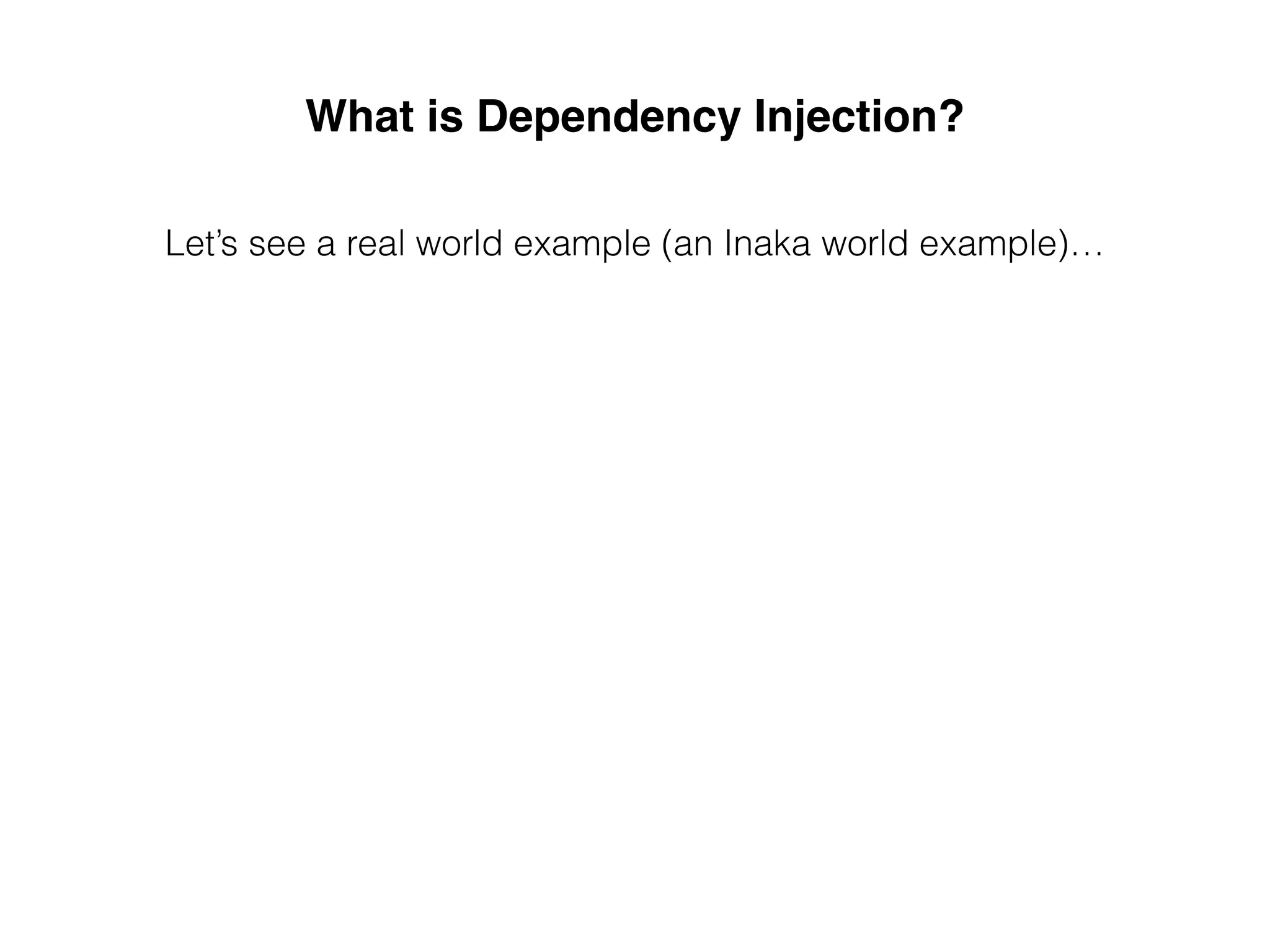

- 10. What is DependencyInjection? Let’s see a real world example (an Inaka world example)…
- 11. What is DependencyInjection? Let’s see a real world example (an Inaka world example)… Say we are testing Nacho, say we want to see whether he has a good working performance, i.e. whether he is producing as we expect. Guy under test
- 12. What is DependencyInjection? Our tester will be Demian (couldn’t be other way…) Evaluates The tester The guy under test

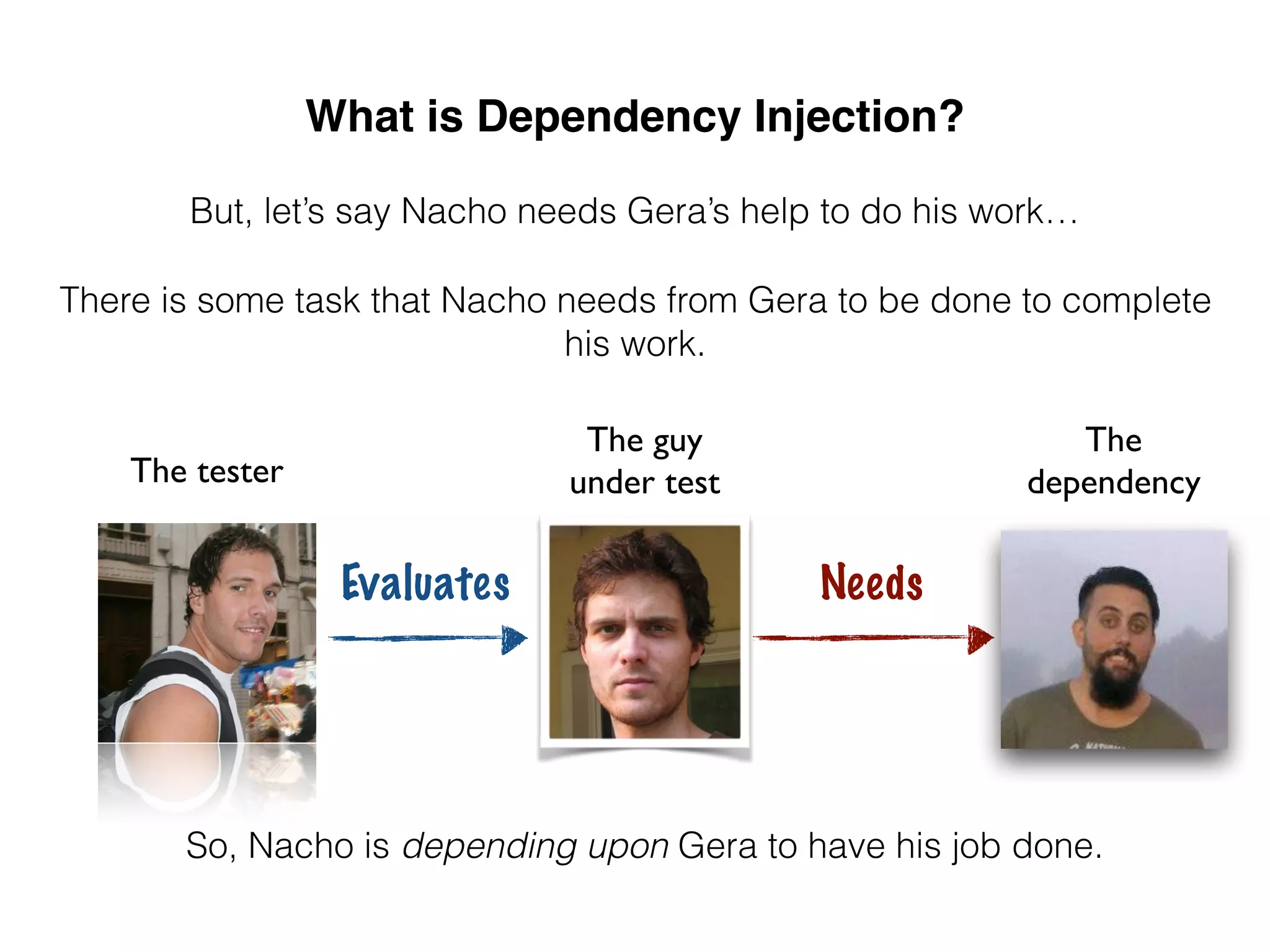

- 13. What is DependencyInjection? But, let’s say Nacho needs Gera’s help to do his work… Evaluates Needs The tester The guy under test The dependency So, Nacho is depending upon Gera to have his job done. There is some task that Nacho needs from Gera to be done to complete his work.
- 14. What is DependencyInjection? Even though Gera is a hard-working guy, he is human, so it will take some time and effort to complete the work he has to do for Nacho. But, wait… We are not testing Gera’s performance, but Nacho’s. In other words, as the guy under test is Nacho, we should not depend upon Gera’s work to see how Nacho works. So, what to do…?
- 15. What is DependencyInjection? Well, Demian (the tester) can make up some sort of fake Gera, one that will have everything there for Nacho as soon as he needs it. Imagine this fake Gera as some sort of terminator that will have everything Nacho needs immediately and perfectly done for him. Creates The tester The dependency fake Gera

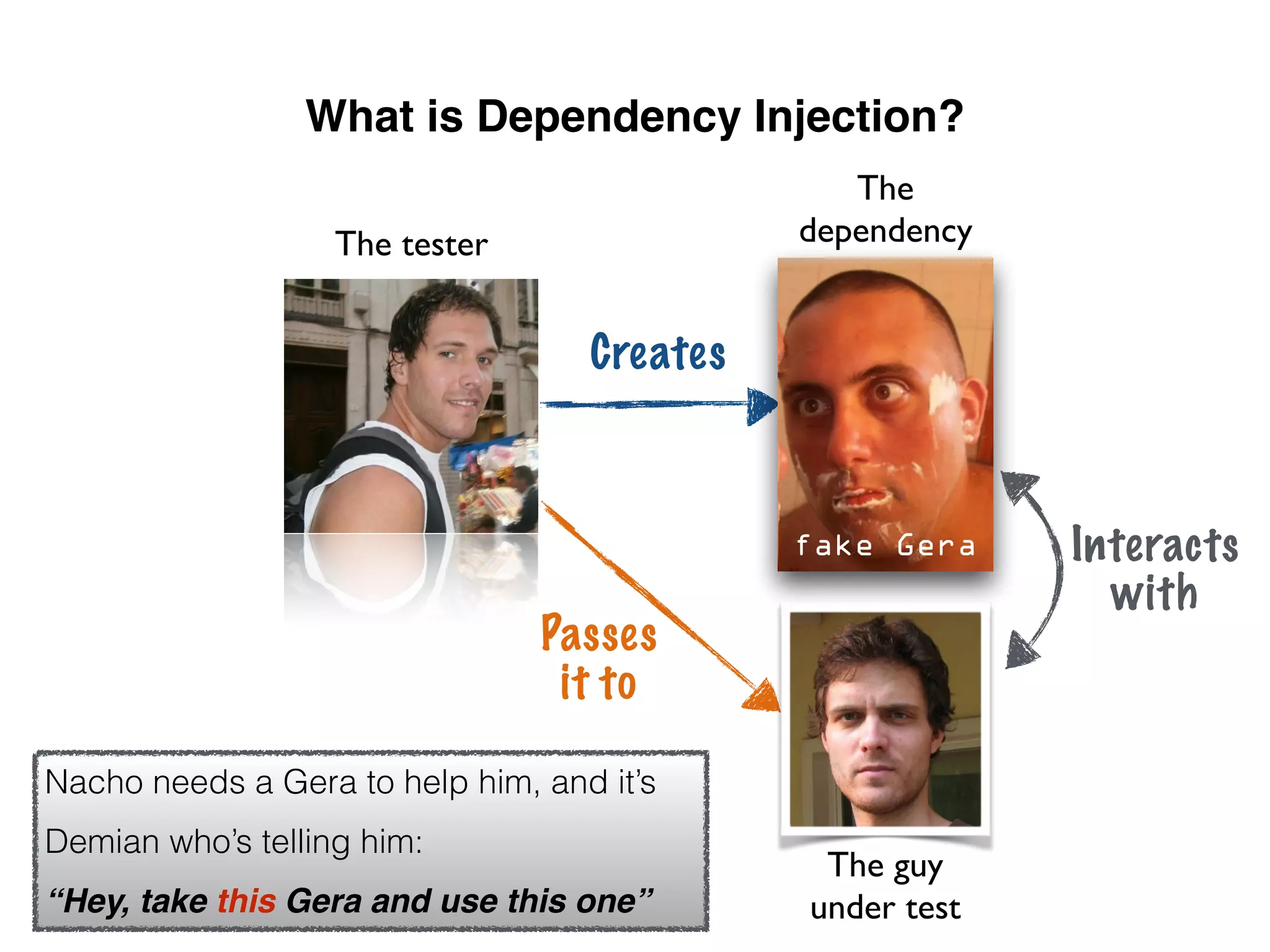

- 16. What is DependencyInjection? Creates The tester The dependency Passes it to The guy under test Nacho needs a Gera to help him, and it’s Demian who’s telling him: “Hey, take this Gera and use this one” Interacts with fake Gera

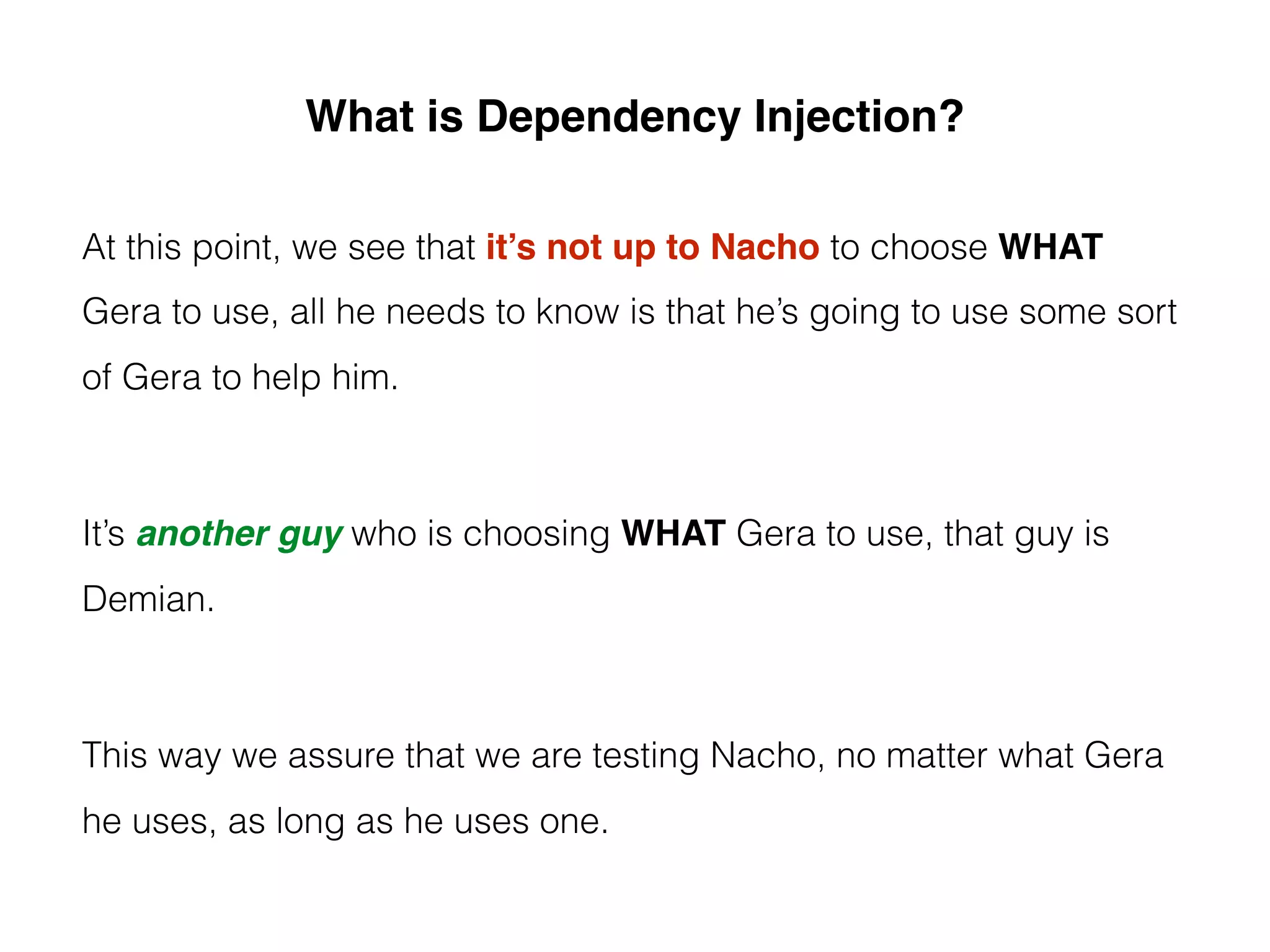

- 17. What is DependencyInjection? At this point, we see that it’s not up to Nacho to choose WHAT Gera to use, all he needs to know is that he’s going to use some sort of Gera to help him. It’s another guy who is choosing WHAT Gera to use, that guy is Demian. This way we assure that we are testing Nacho, no matter what Gera he uses, as long as he uses one.
- 18. Collaborator What is DependencyInjection? Let’s see the equivallences of this example and the OO world… Creates The tester The dependency Passes it to The guy under test Instantiates The tester The dependency Injects The system under test Test class SUT Note that “passing the dependency to” is referred to as “injecting” the dependency. Interacts with Interacts with fake Gera

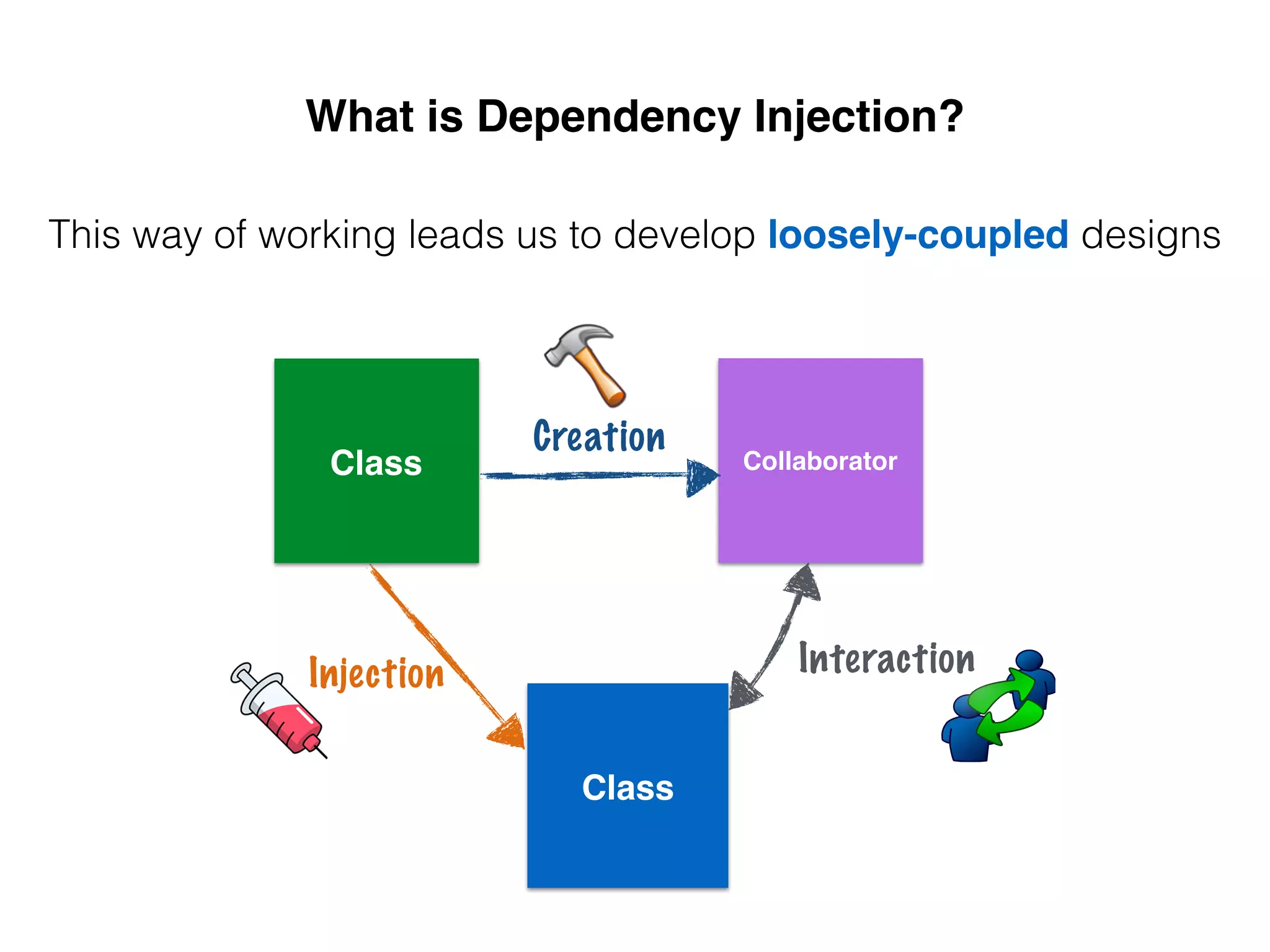

- 19. What is DependencyInjection? This way of working leads us to develop loosely-coupled designs Collaborator Creation Injection Class Class Interaction

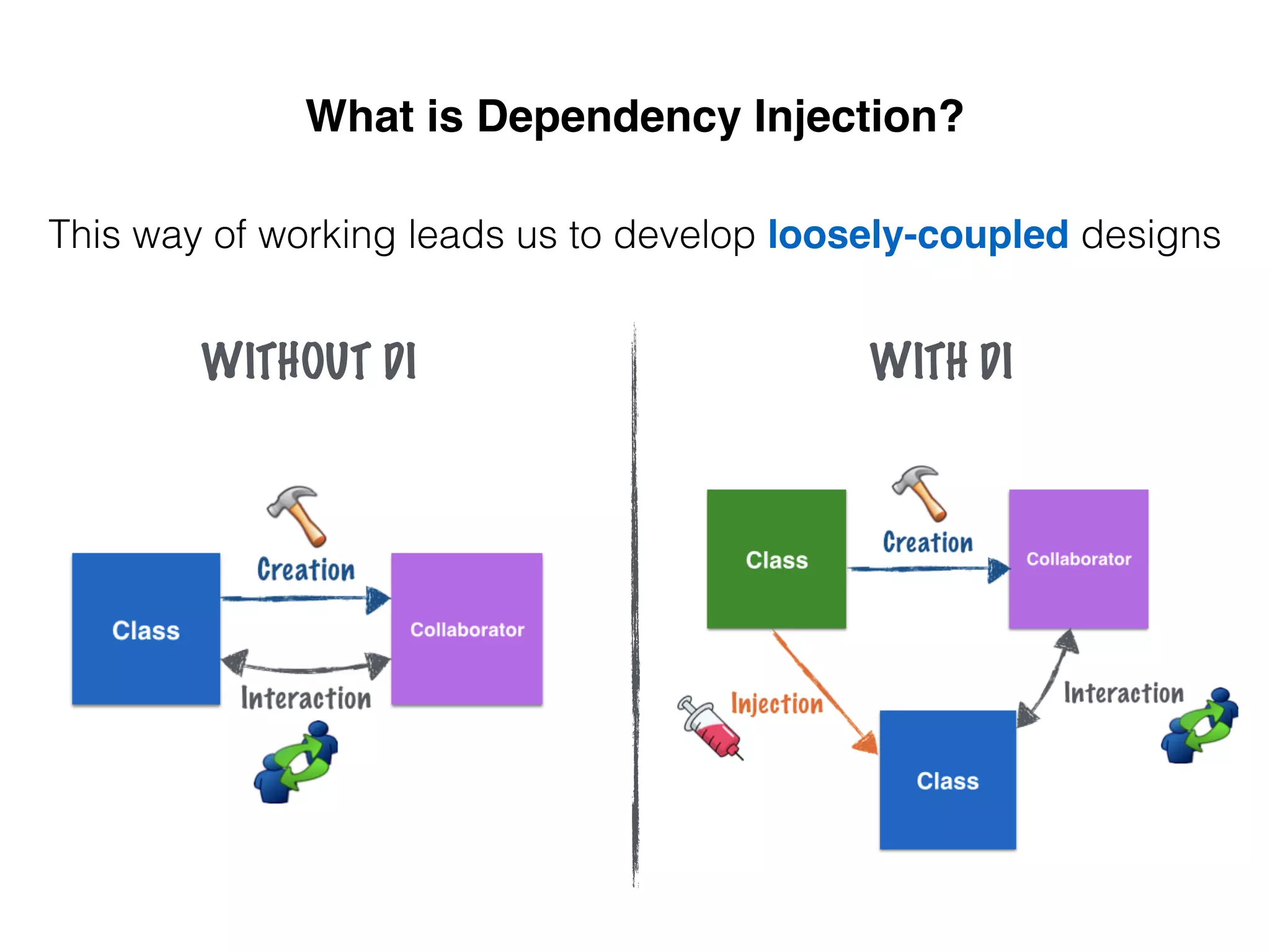

- 20. What is DependencyInjection? This way of working leads us to develop loosely-coupled designs WITHOUT DI WITH DI

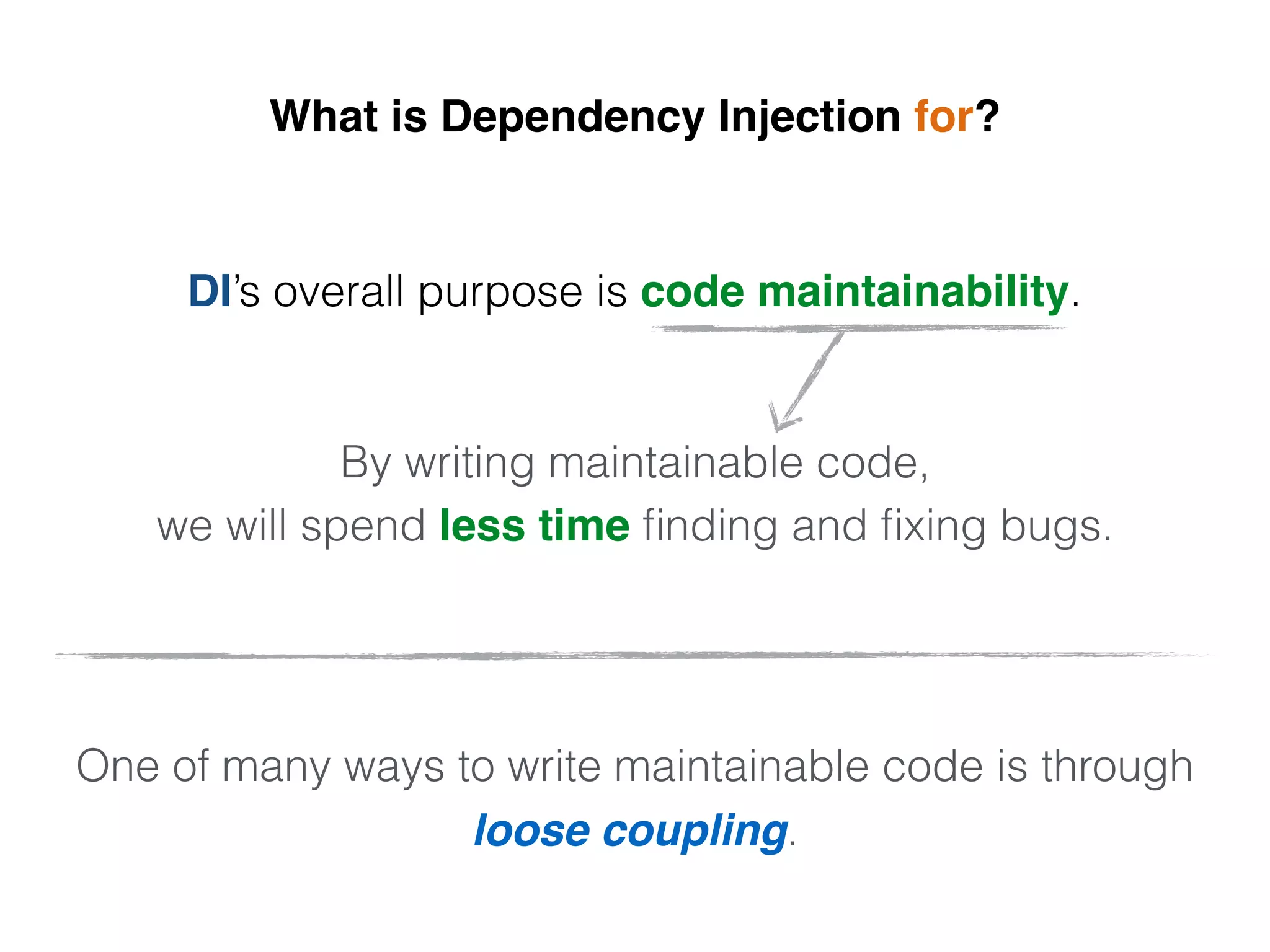

- 21. What is DependencyInjection for? DI’s overall purpose is code maintainability. By writing maintainable code, we will spend less time finding and fixing bugs. One of many ways to write maintainable code is through loose coupling.

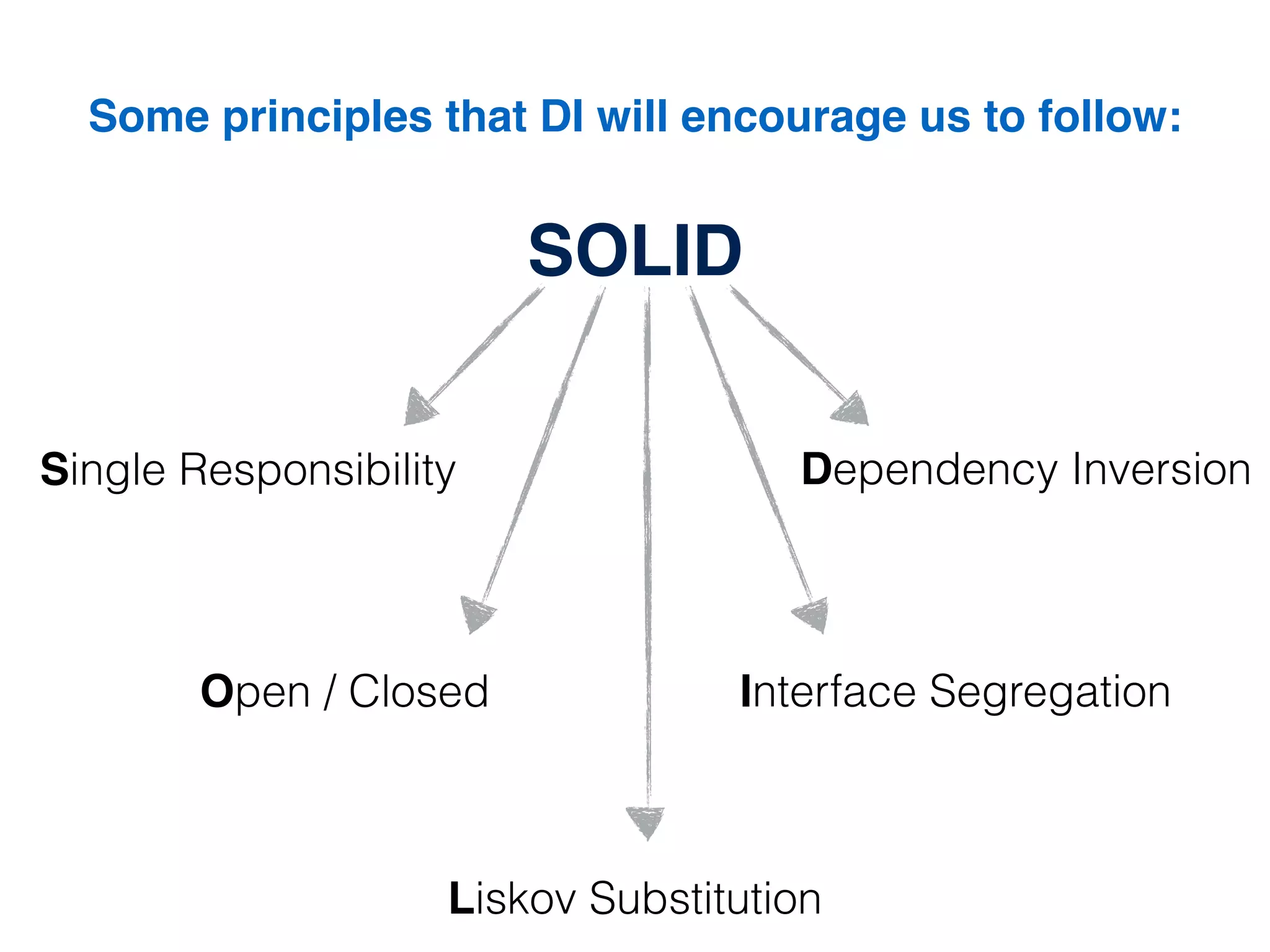

- 22. SOLID Single Responsibility Interface Segregation LiskovSubstitution Dependency Inversion Open / Closed Some principles that DI will encourage us to follow:

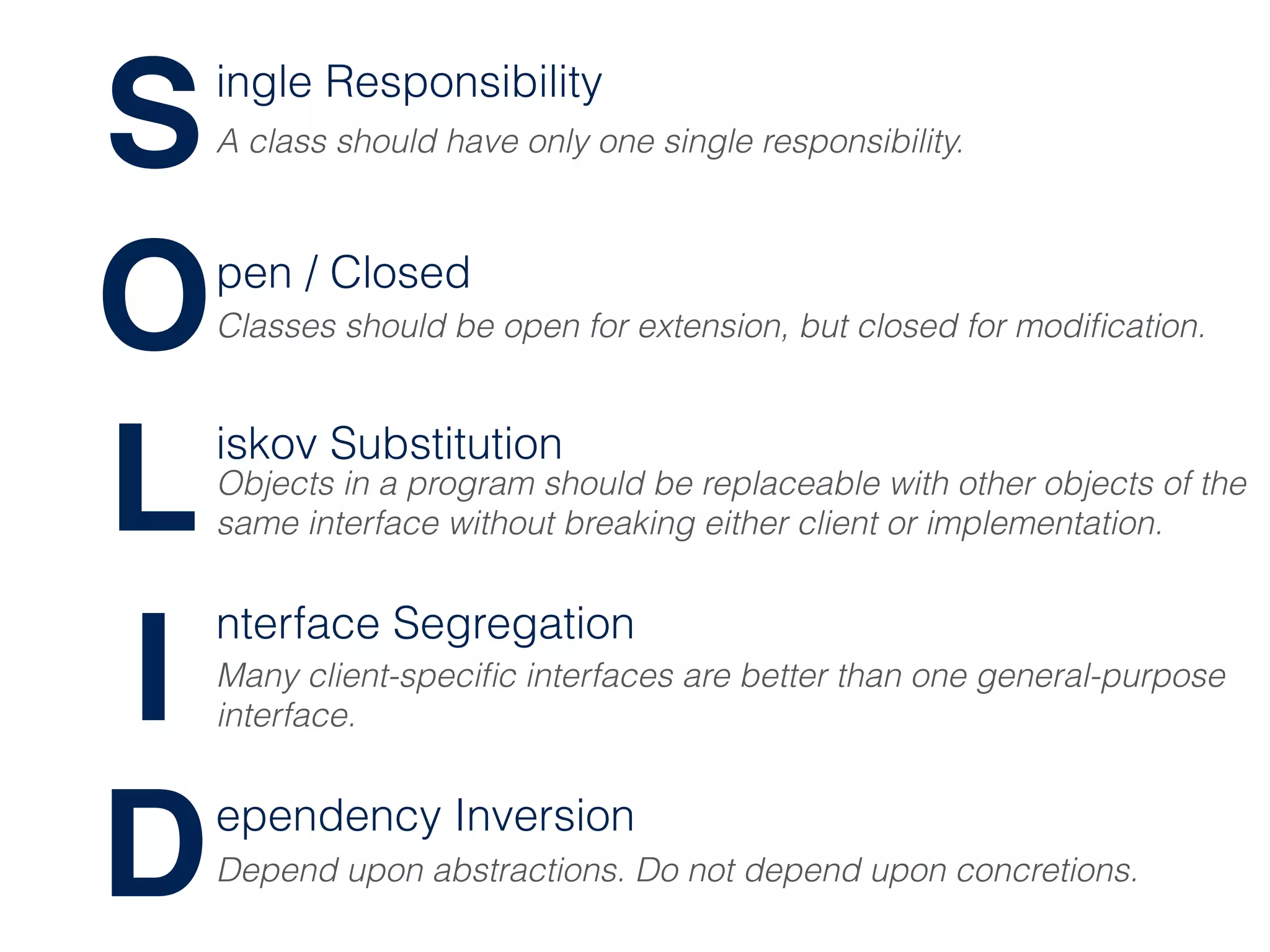

- 23. S O L I D ingle Responsibility pen /Closed iskov Substitution nterface Segregation ependency Inversion A class should have only one single responsibility. Classes should be open for extension, but closed for modification. Objects in a program should be replaceable with other objects of the same interface without breaking either client or implementation. Many client-specific interfaces are better than one general-purpose interface. Depend upon abstractions. Do not depend upon concretions.
- 24.

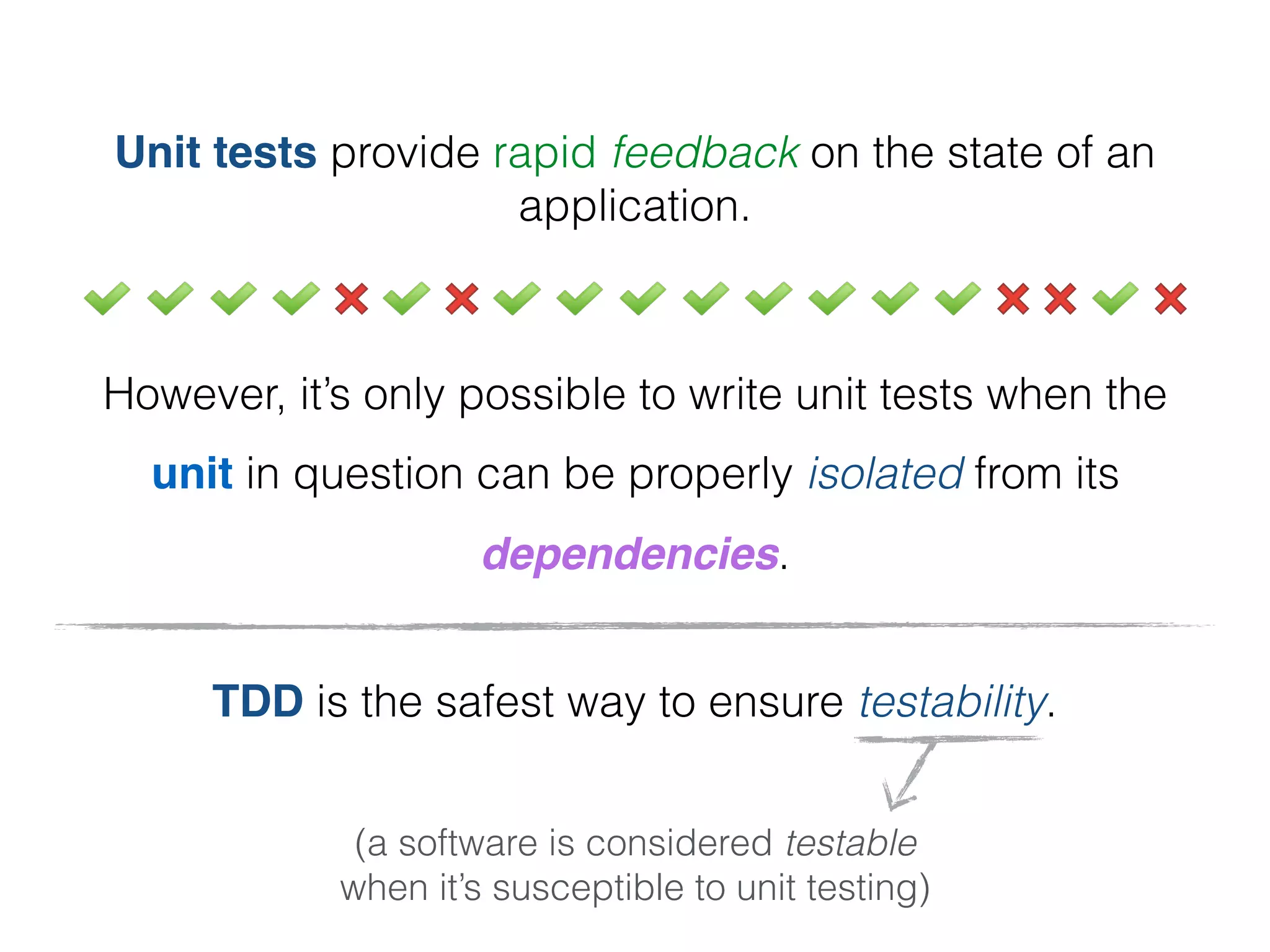

- 25. Unit tests providerapid feedback on the state of an application. However, it’s only possible to write unit tests when the unit in question can be properly isolated from its dependencies. TDD is the safest way to ensure testability. (a software is considered testable when it’s susceptible to unit testing)

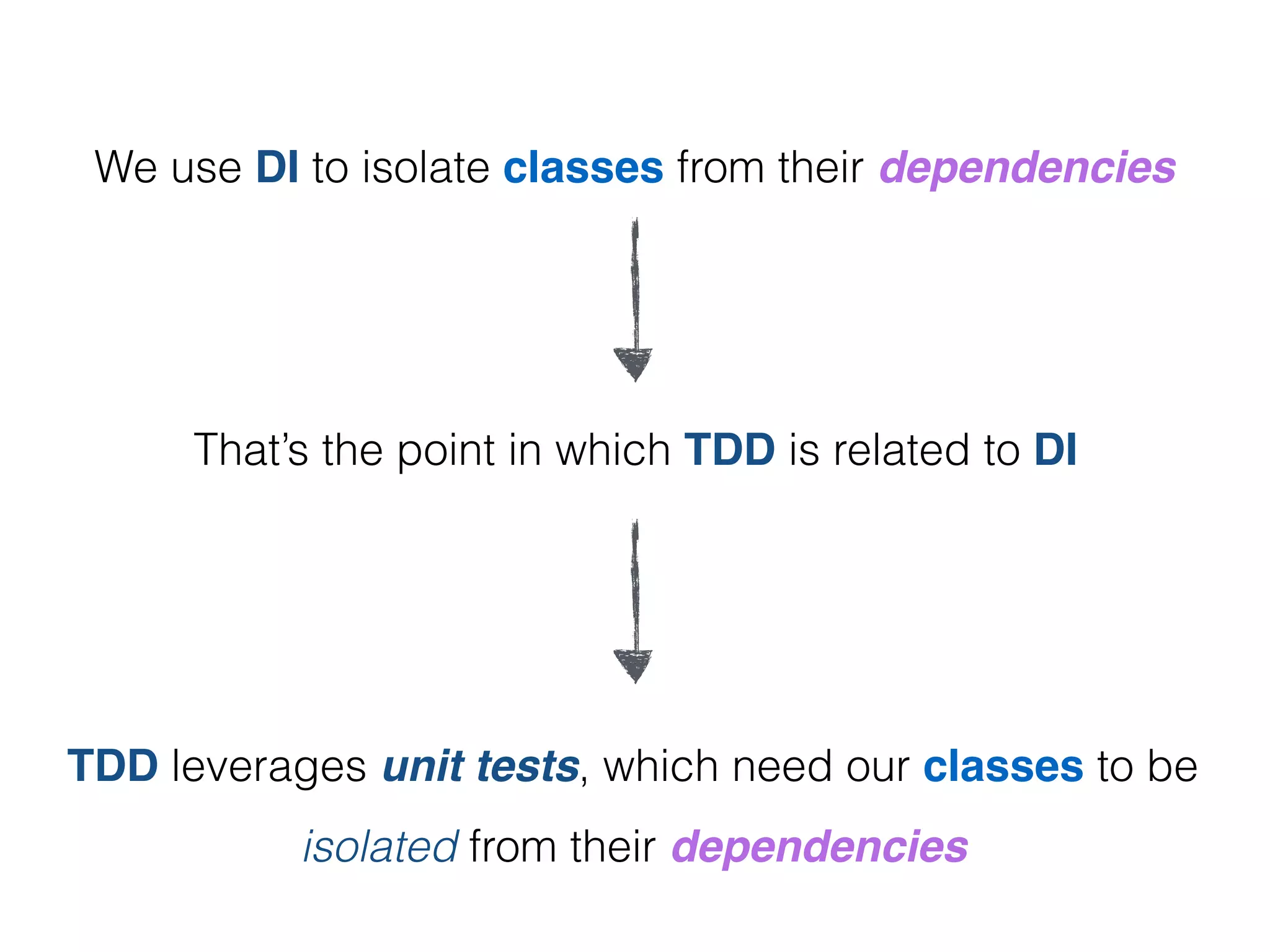

- 26. That’s the pointin which TDD is related to DI We use DI to isolate classes from their dependencies TDD leverages unit tests, which need our classes to be isolated from their dependencies

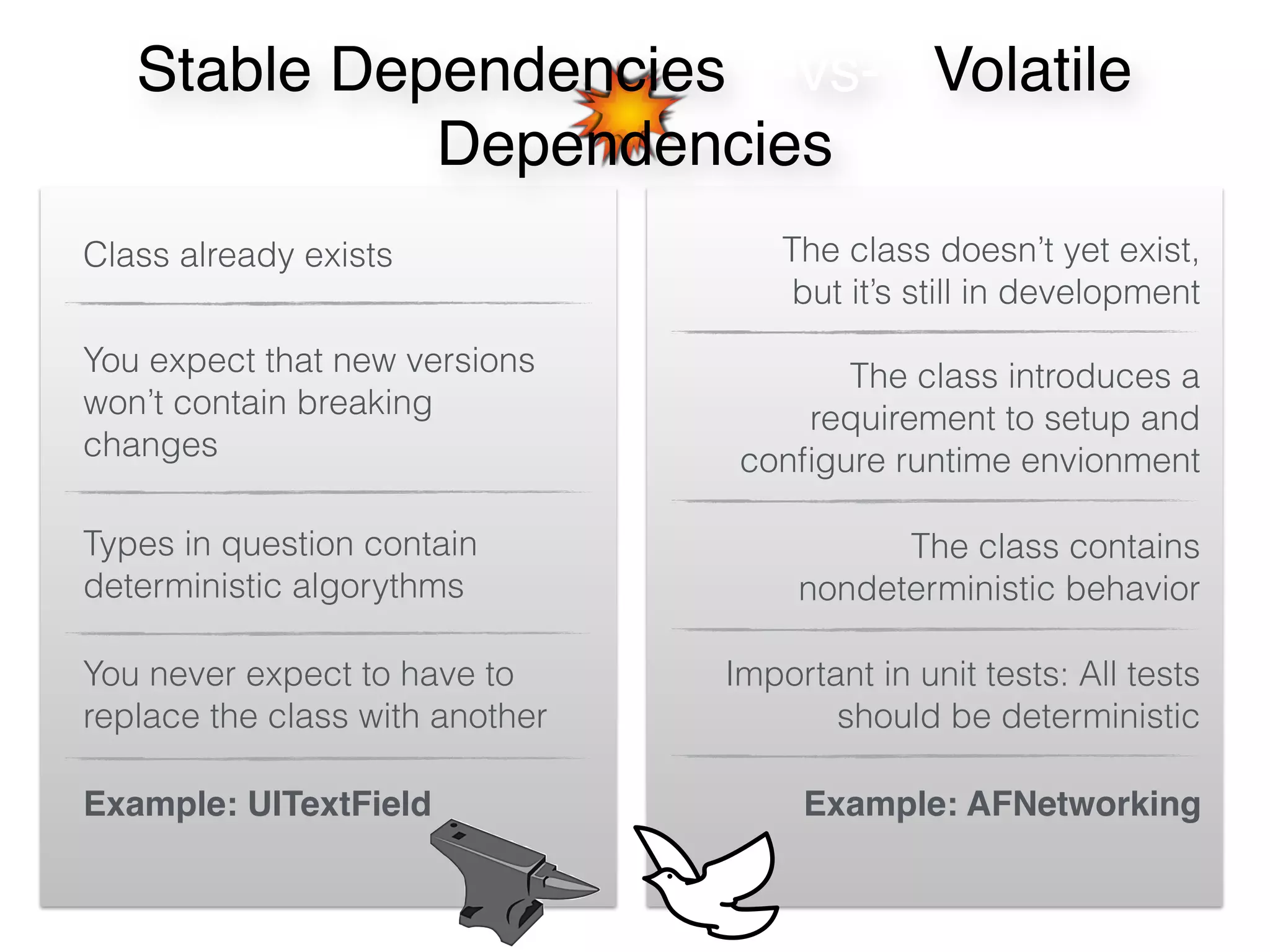

- 27. Stable Dependencies -vs-Volatile Dependencies You expect that new versions won’t contain breaking changes Class already exists Types in question contain deterministic algorythms You never expect to have to replace the class with another Example: UITextField The class introduces a requirement to setup and configure runtime envionment The class contains nondeterministic behavior Important in unit tests: All tests should be deterministic Example: AFNetworking The class doesn’t yet exist, but it’s still in development

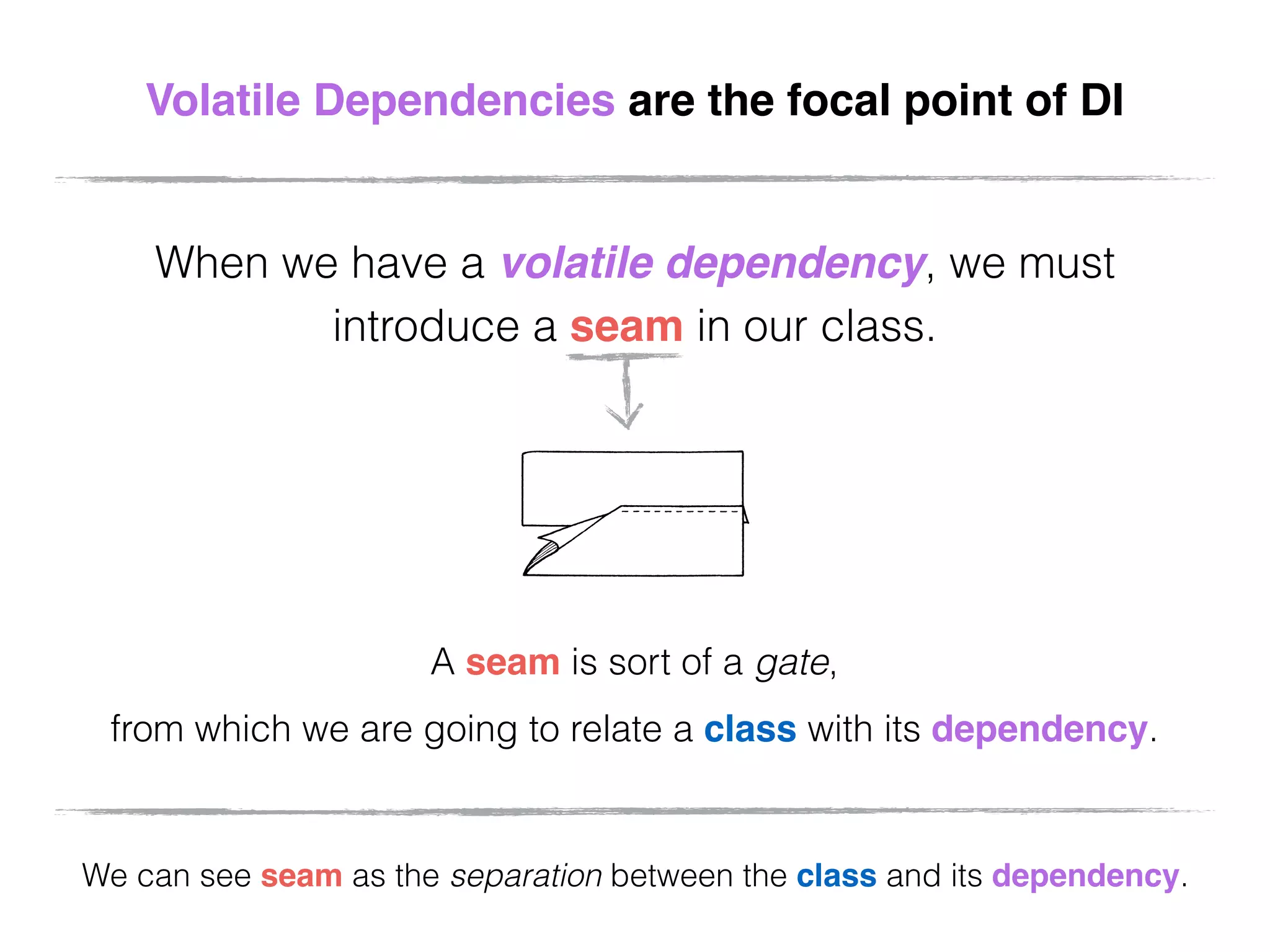

- 28. Volatile Dependencies arethe focal point of DI When we have a volatile dependency, we must introduce a seam in our class. A seam is sort of a gate, from which we are going to relate a class with its dependency. We can see seam as the separation between the class and its dependency.

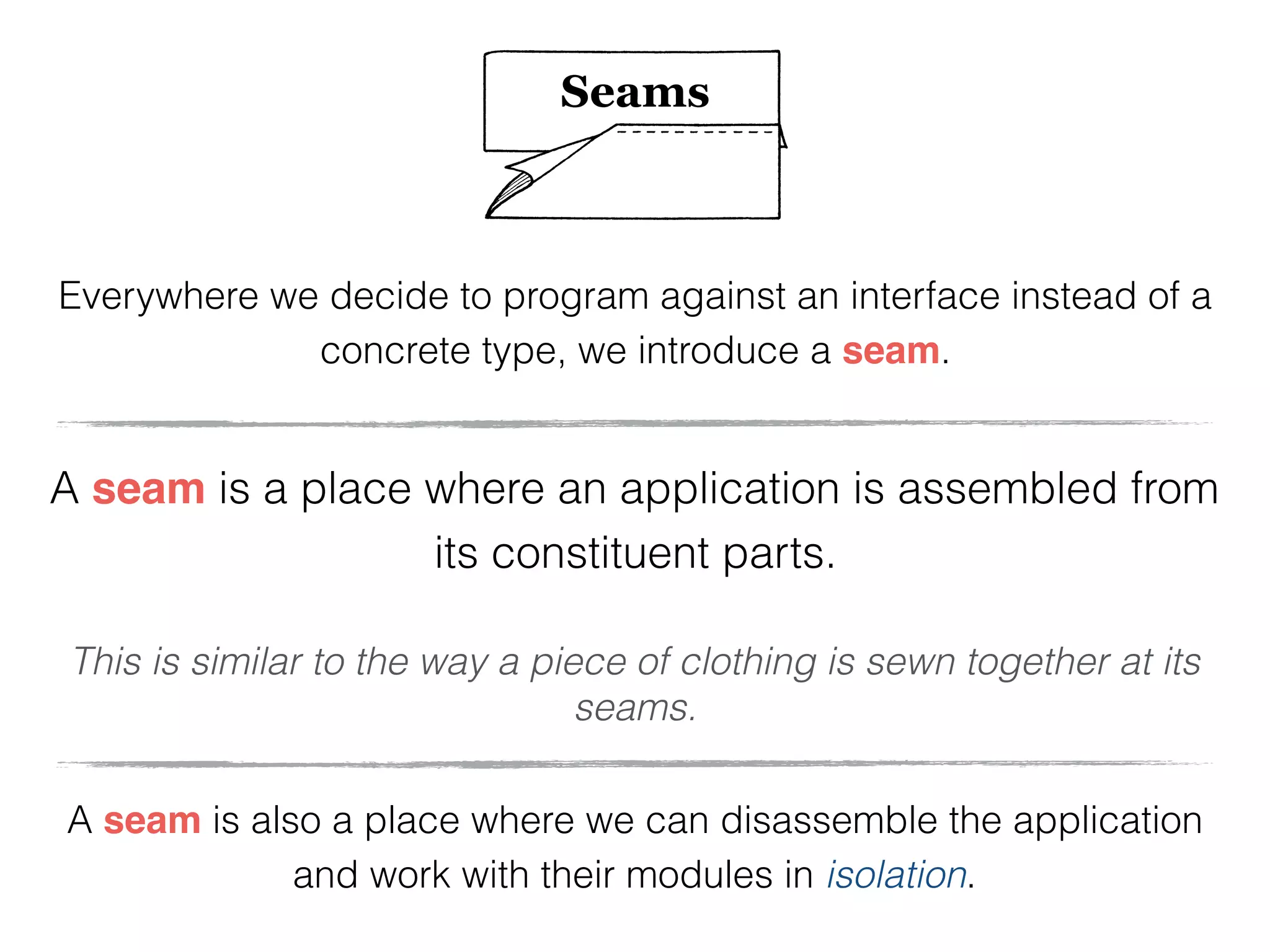

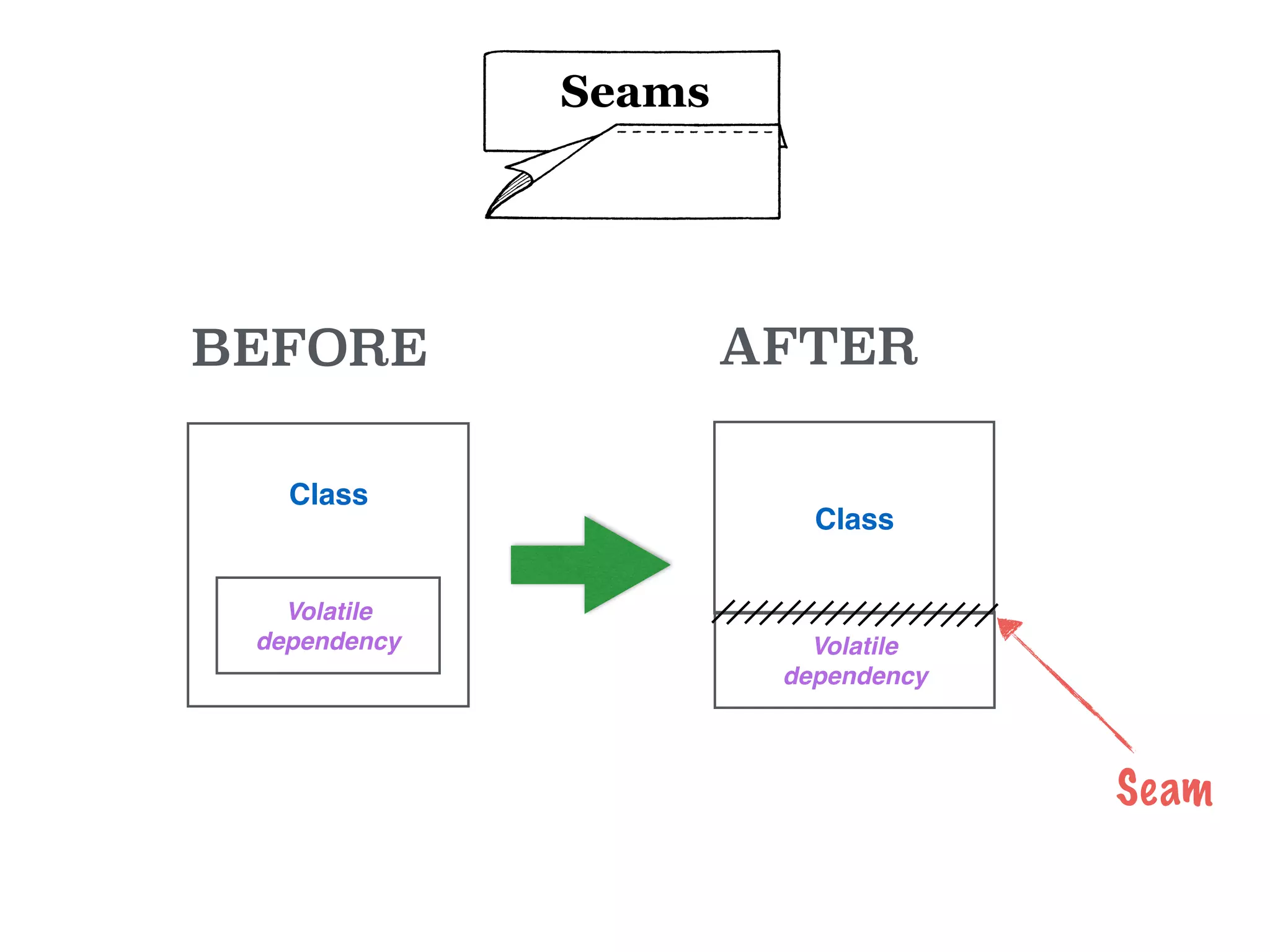

- 29. Seams Everywhere we decideto program against an interface instead of a concrete type, we introduce a seam. A seam is a place where an application is assembled from its constituent parts. This is similar to the way a piece of clothing is sewn together at its seams. A seam is also a place where we can disassemble the application and work with their modules in isolation.

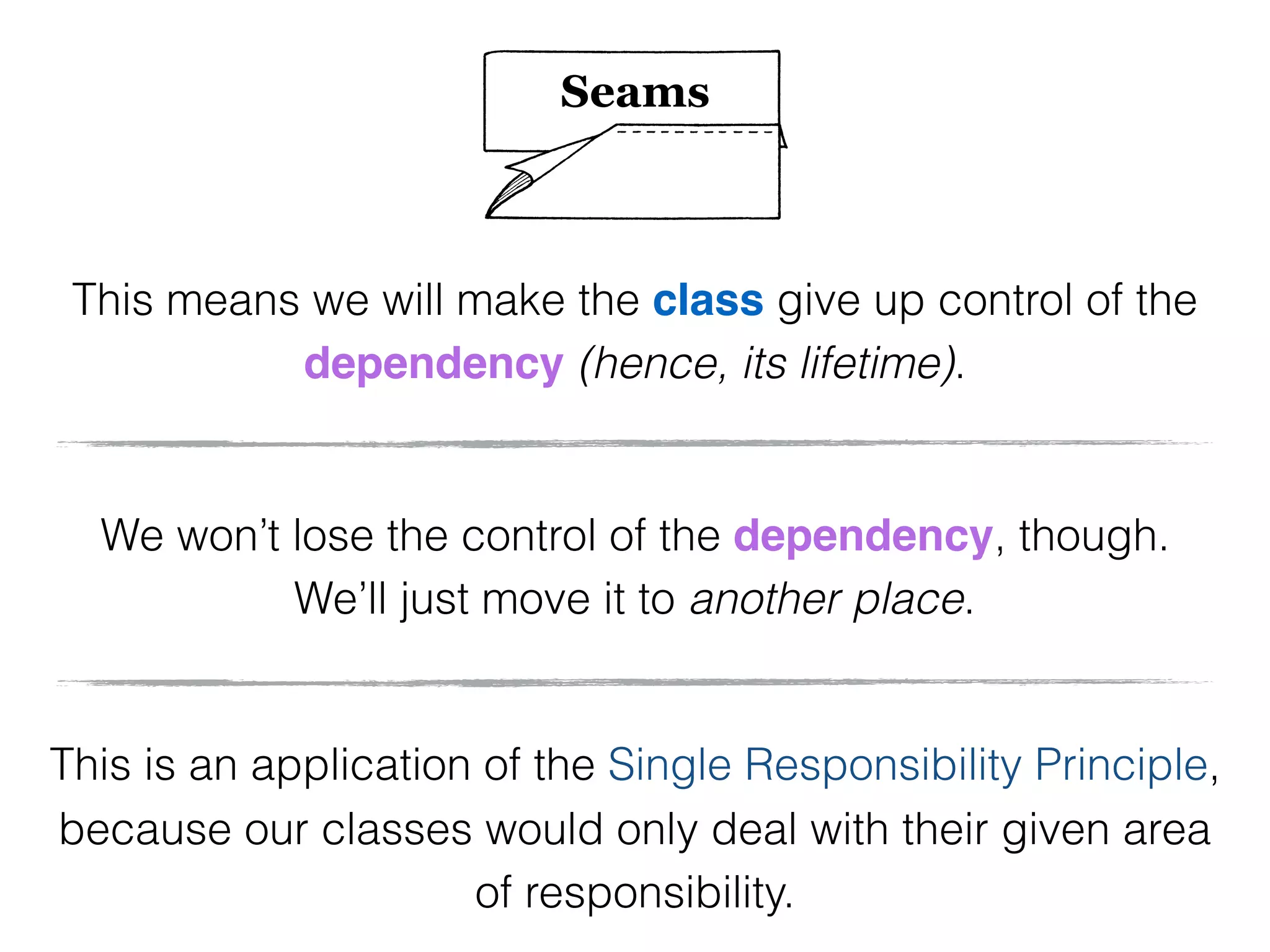

- 30. We won’t losethe control of the dependency, though. We’ll just move it to another place. This is an application of the Single Responsibility Principle, because our classes would only deal with their given area of responsibility. This means we will make the class give up control of the dependency (hence, its lifetime). Seams
- 31.
- 32.
- 33.
- 34.

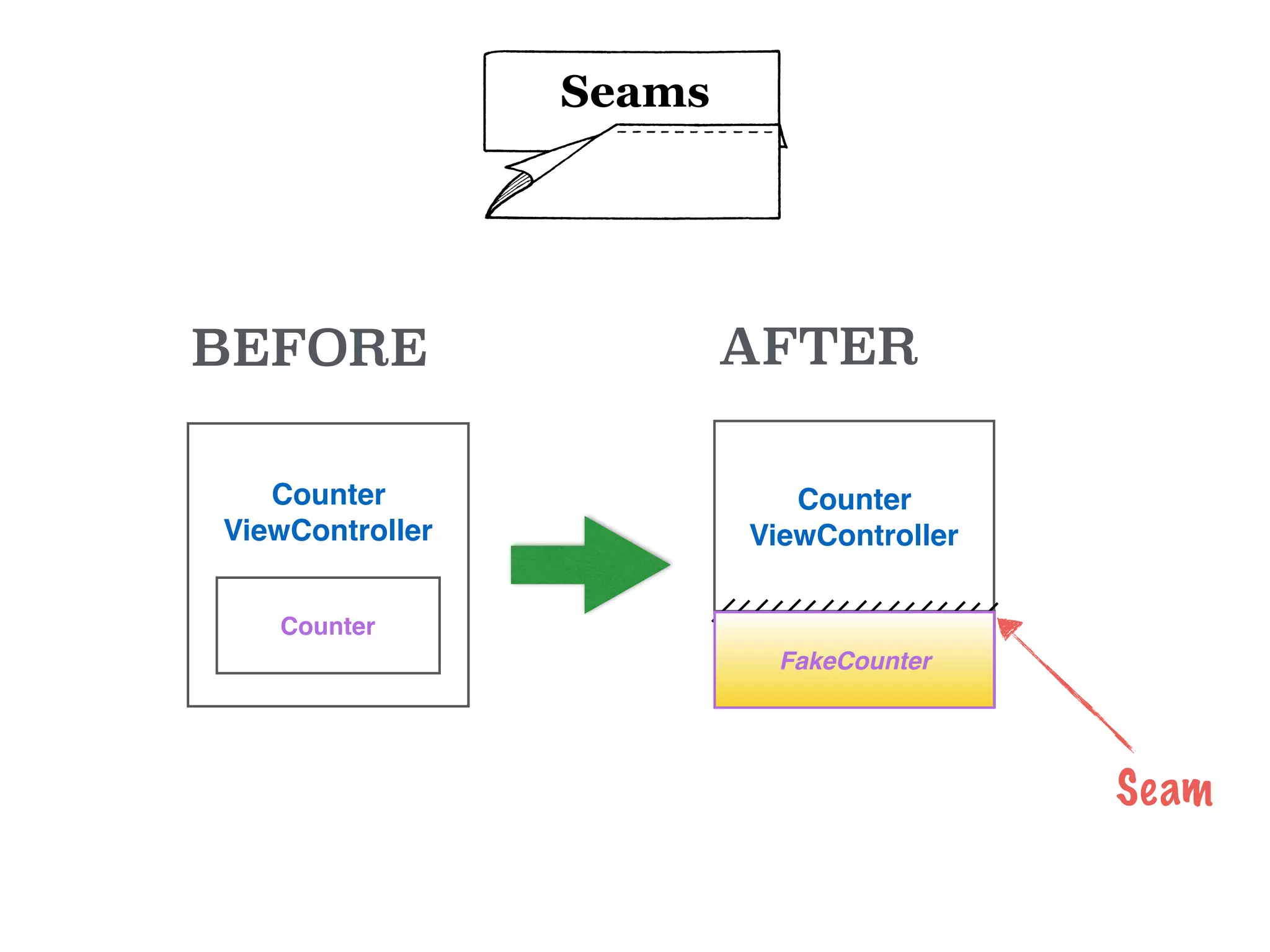

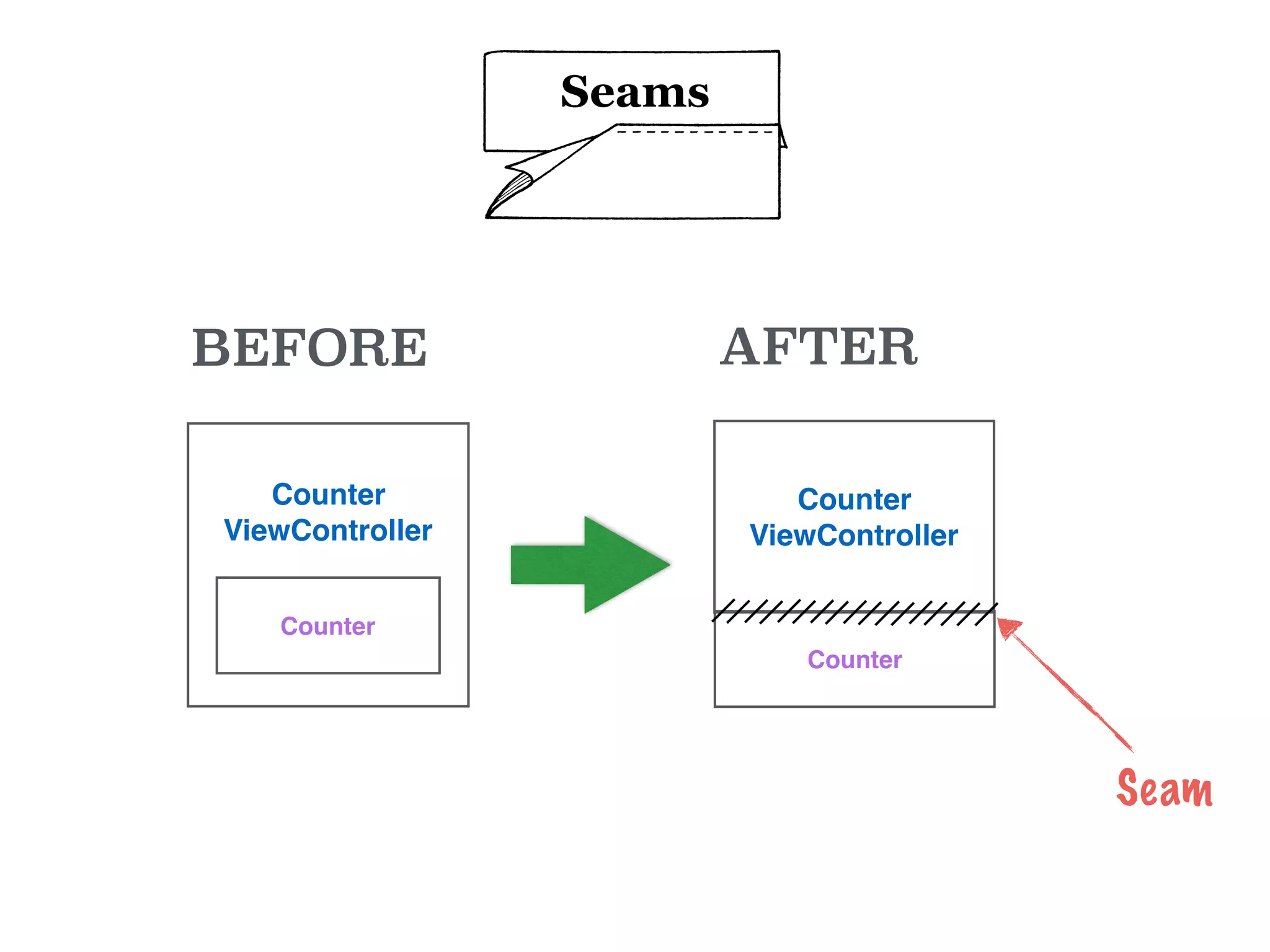

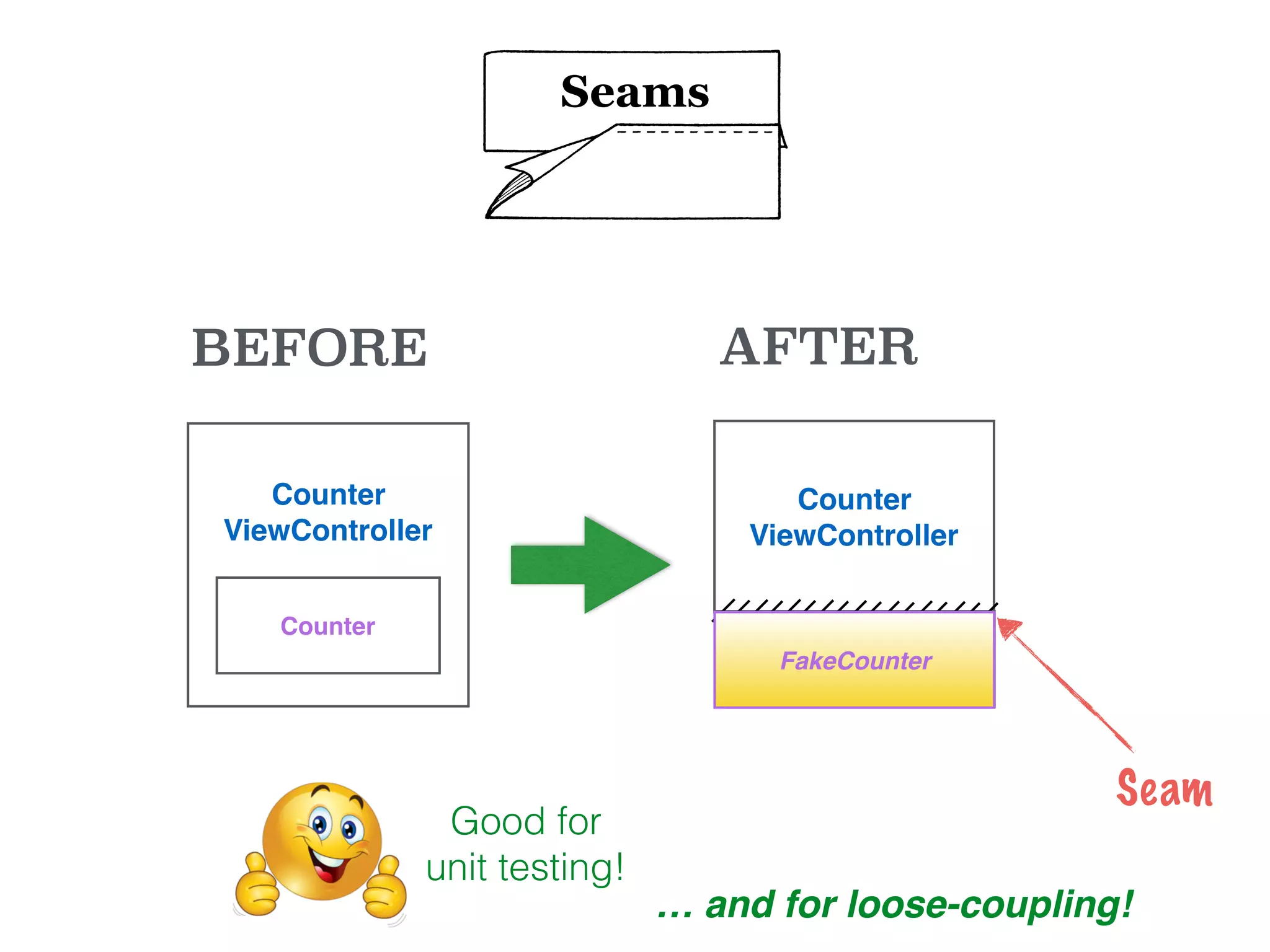

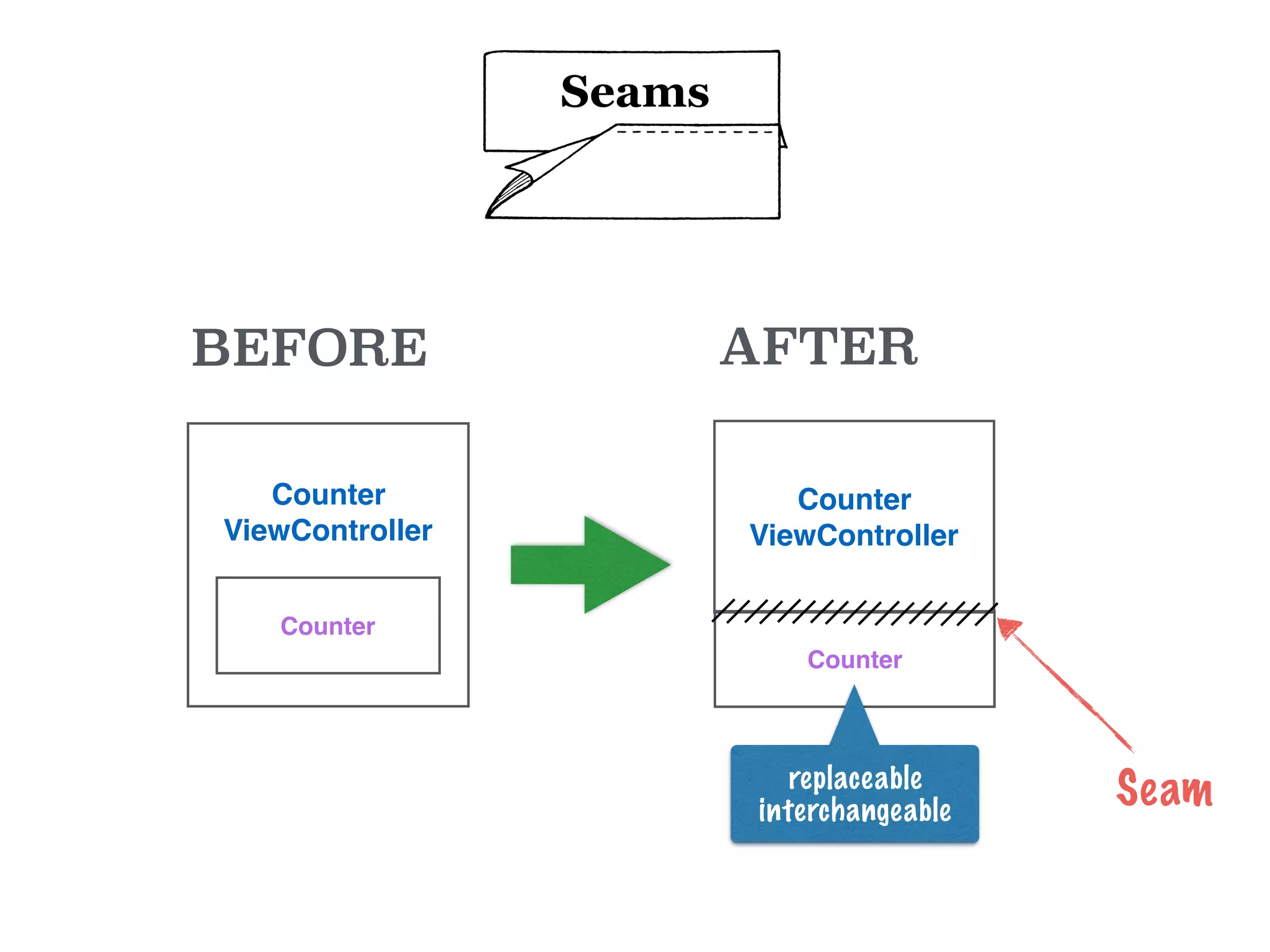

- 35. Seams Counter ViewController Counter Counter ViewController Counter Seam BEFORE AFTER Good for unittesting! FakeCounter … and for loose-coupling!
- 36.
- 37. Methods to applyDI: Extract and override Method injection Setter injection (a.k.a. Property injection) Constructor injection
- 38.

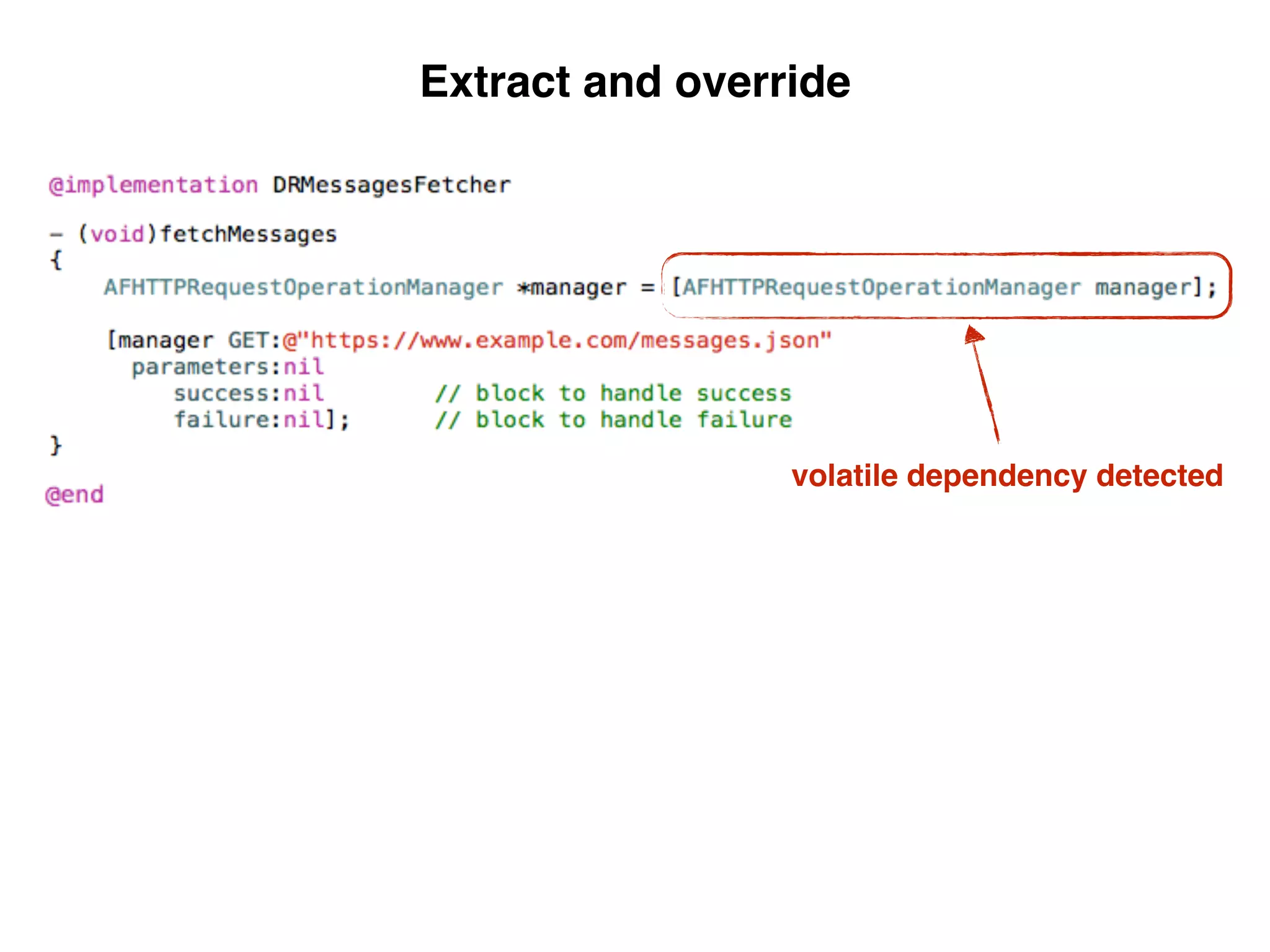

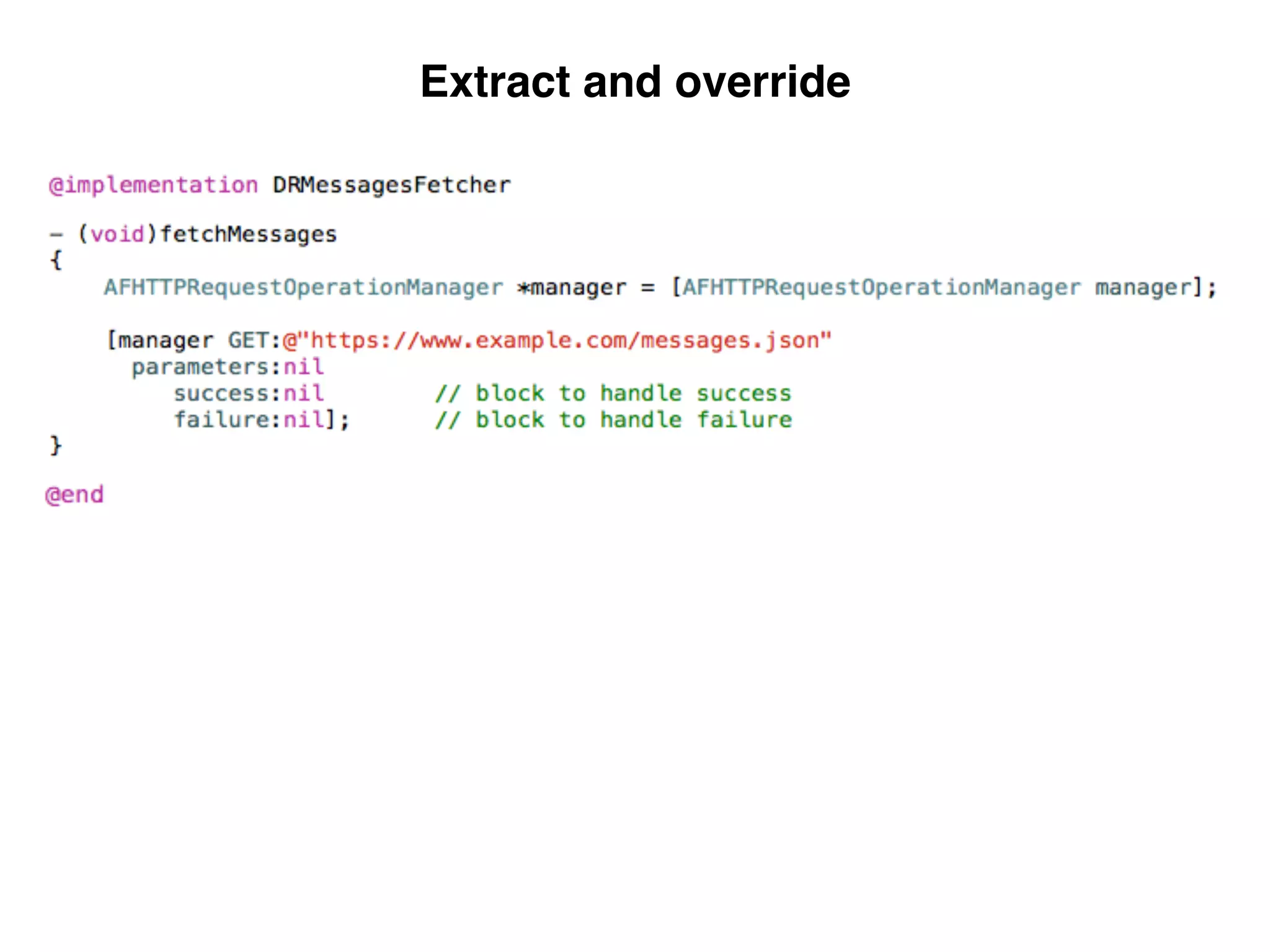

- 39. volatile dependency detected Extractand override
- 40.

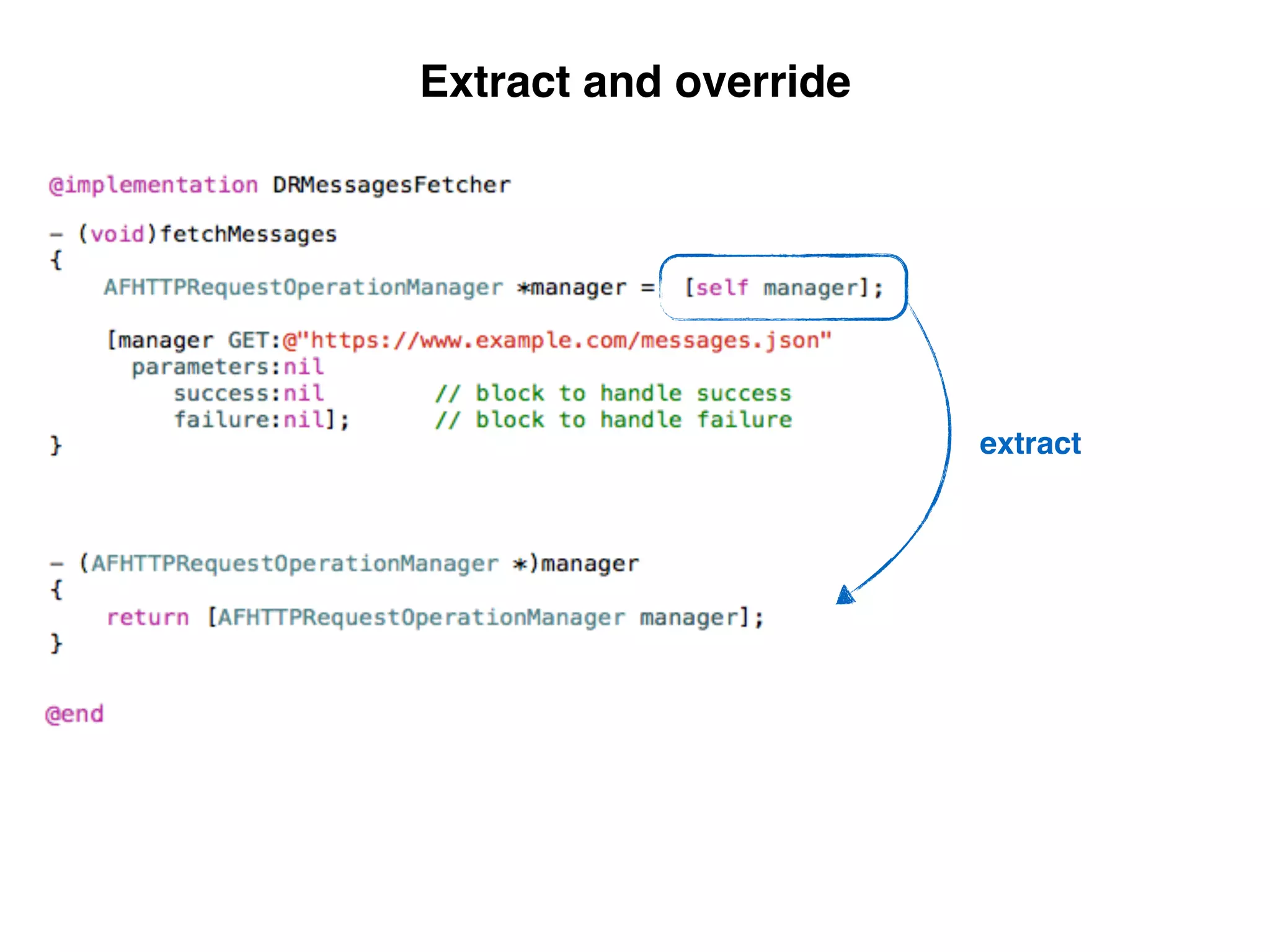

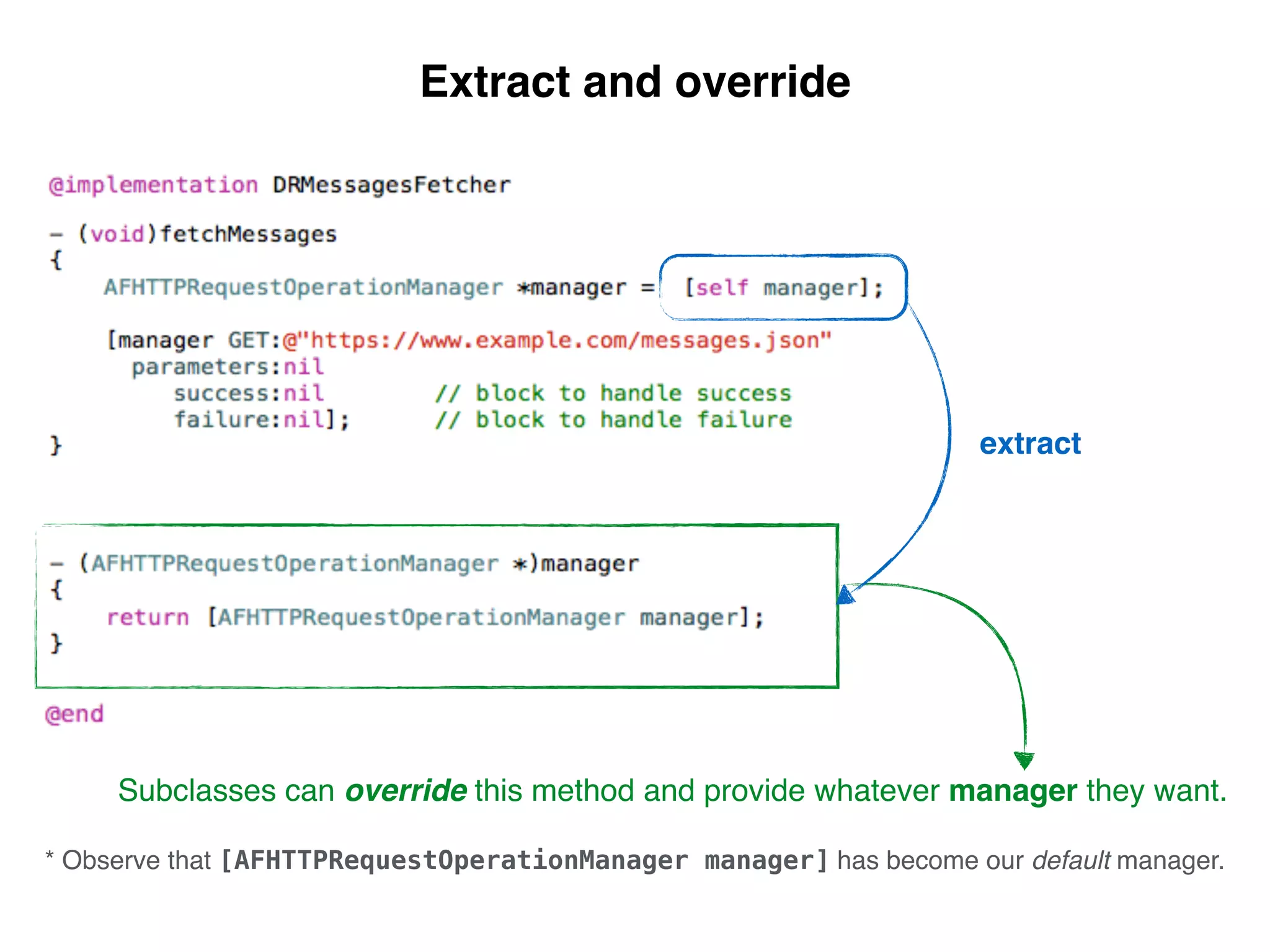

- 41. Subclasses can overridethis method and provide whatever manager they want. extract * Observe that [AFHTTPRequestOperationManager manager] has become our default manager. Extract and override
- 42.

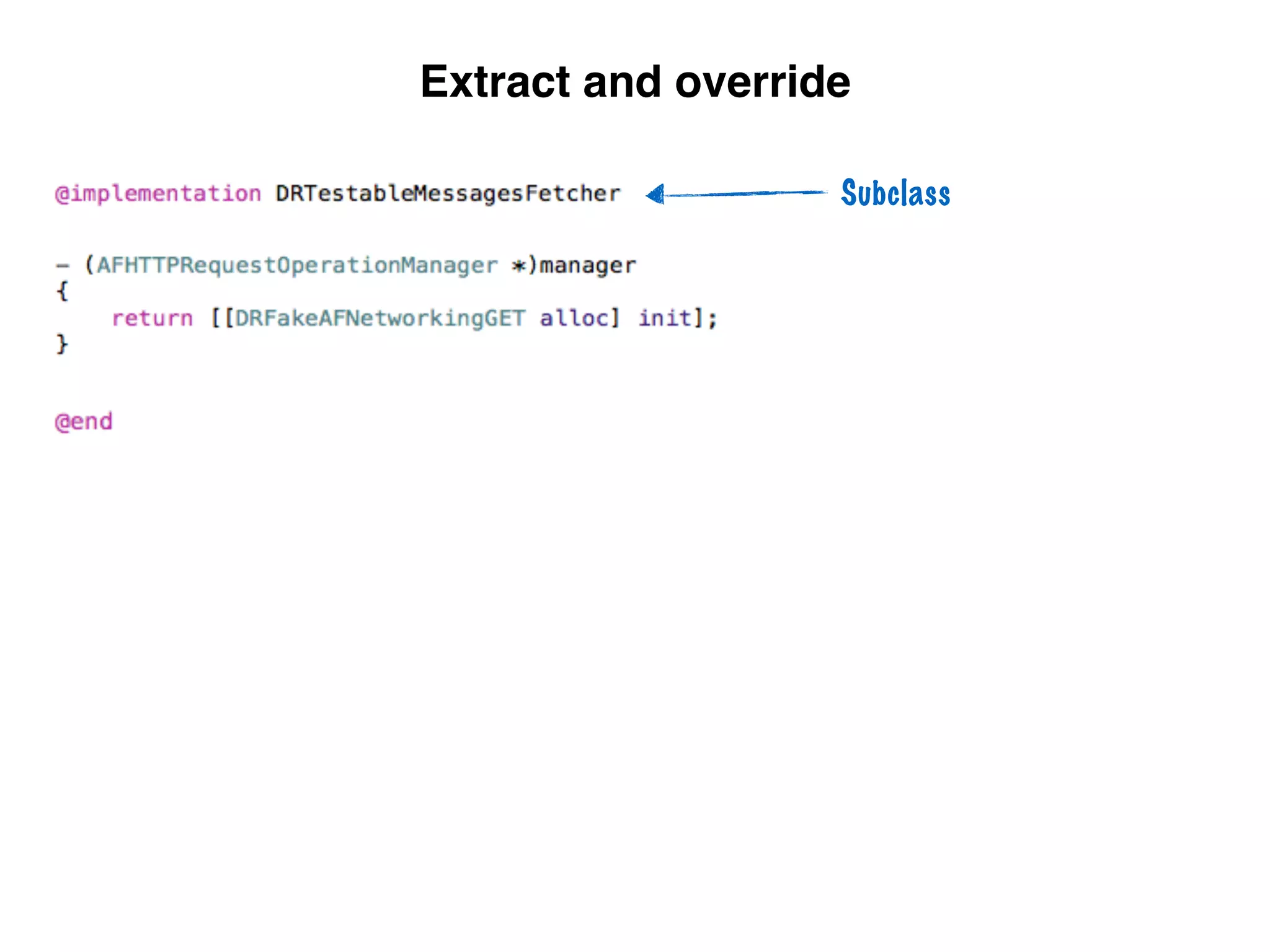

- 43. … or whateveryou want Extract and override Subclass

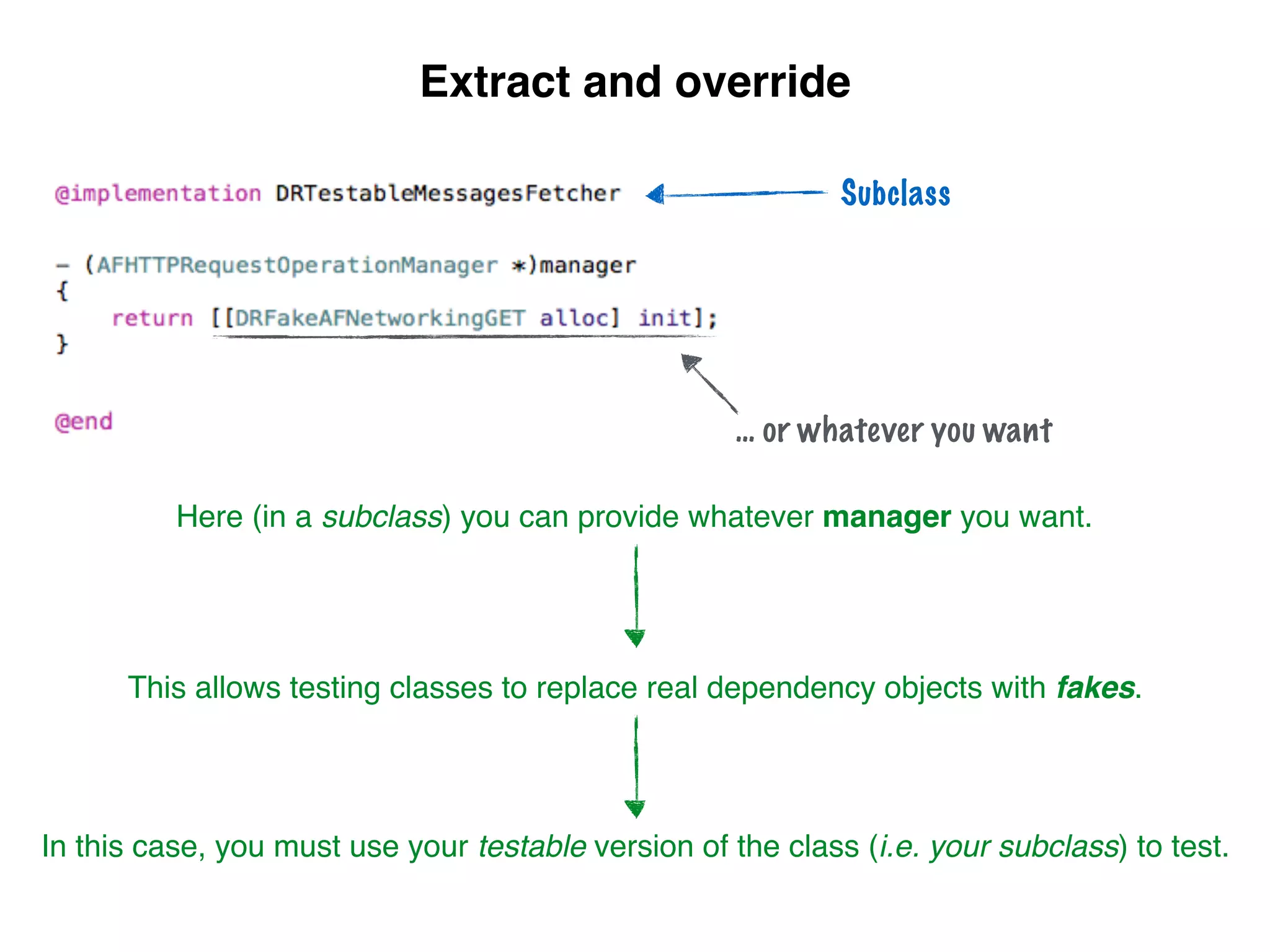

- 44. Here (in asubclass) you can provide whatever manager you want. This allows testing classes to replace real dependency objects with fakes. In this case, you must use your testable version of the class (i.e. your subclass) to test. … or whatever you want Extract and override Subclass
- 45.

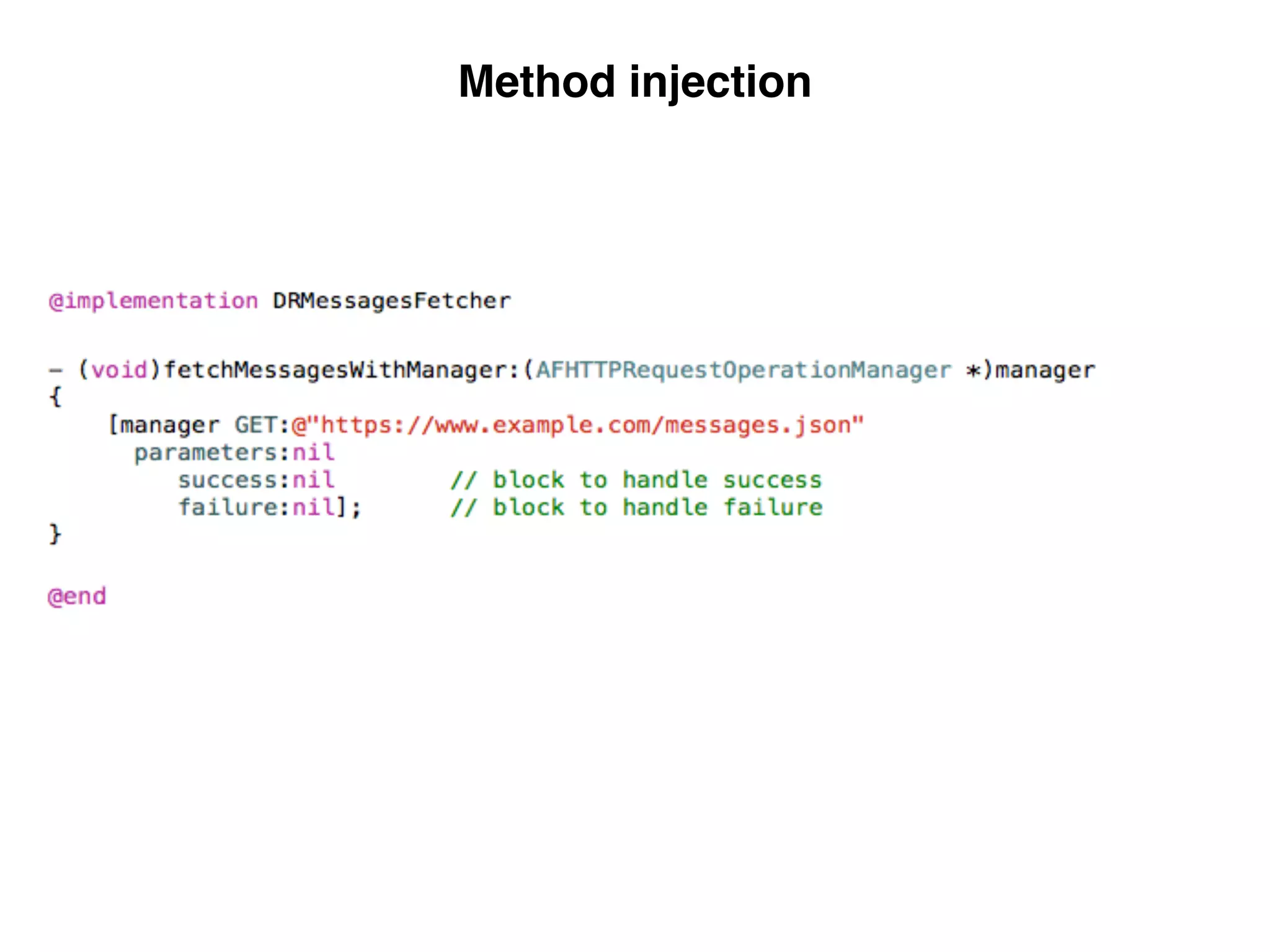

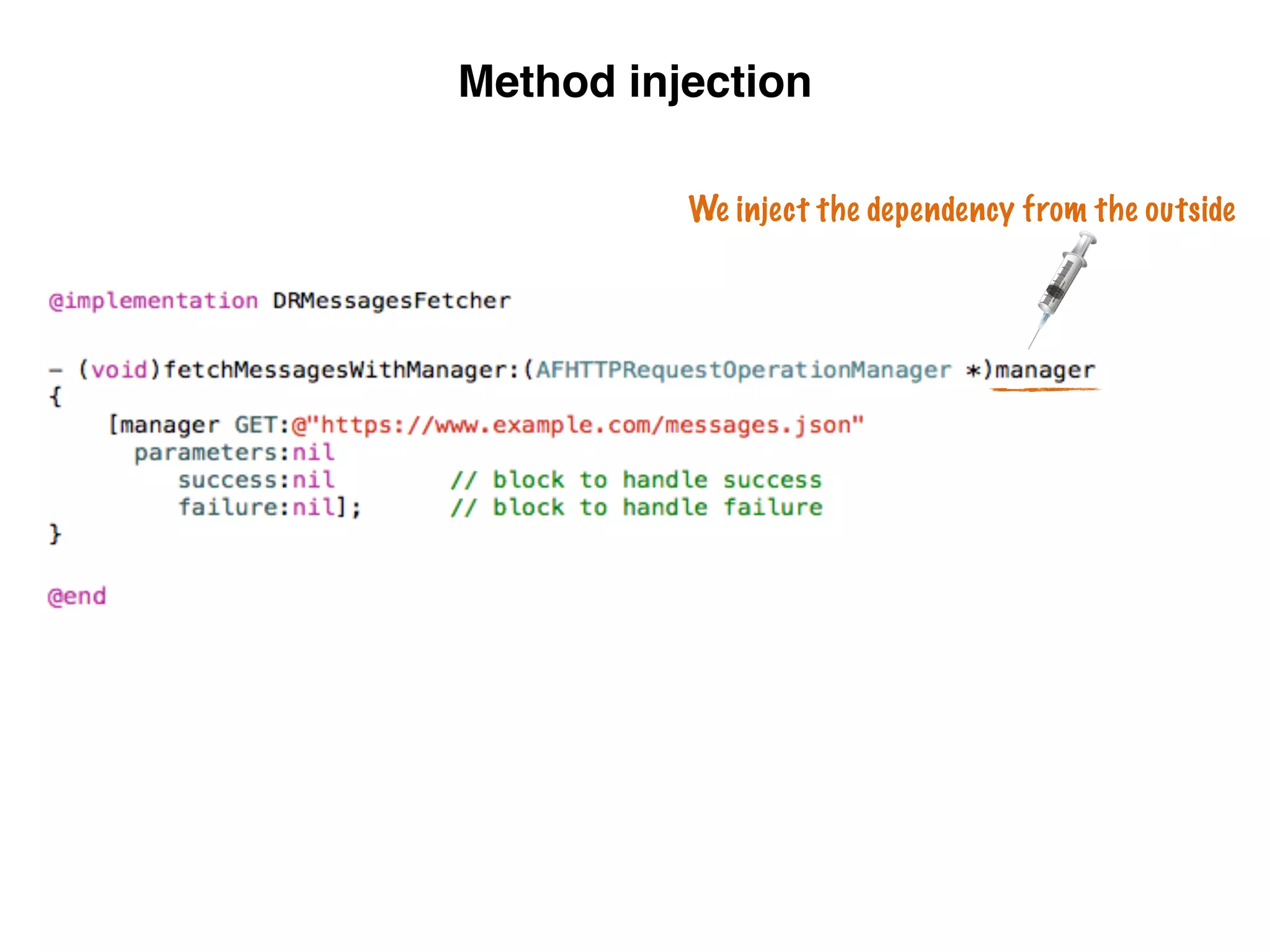

- 46. Method injection We injectthe dependency from the outside

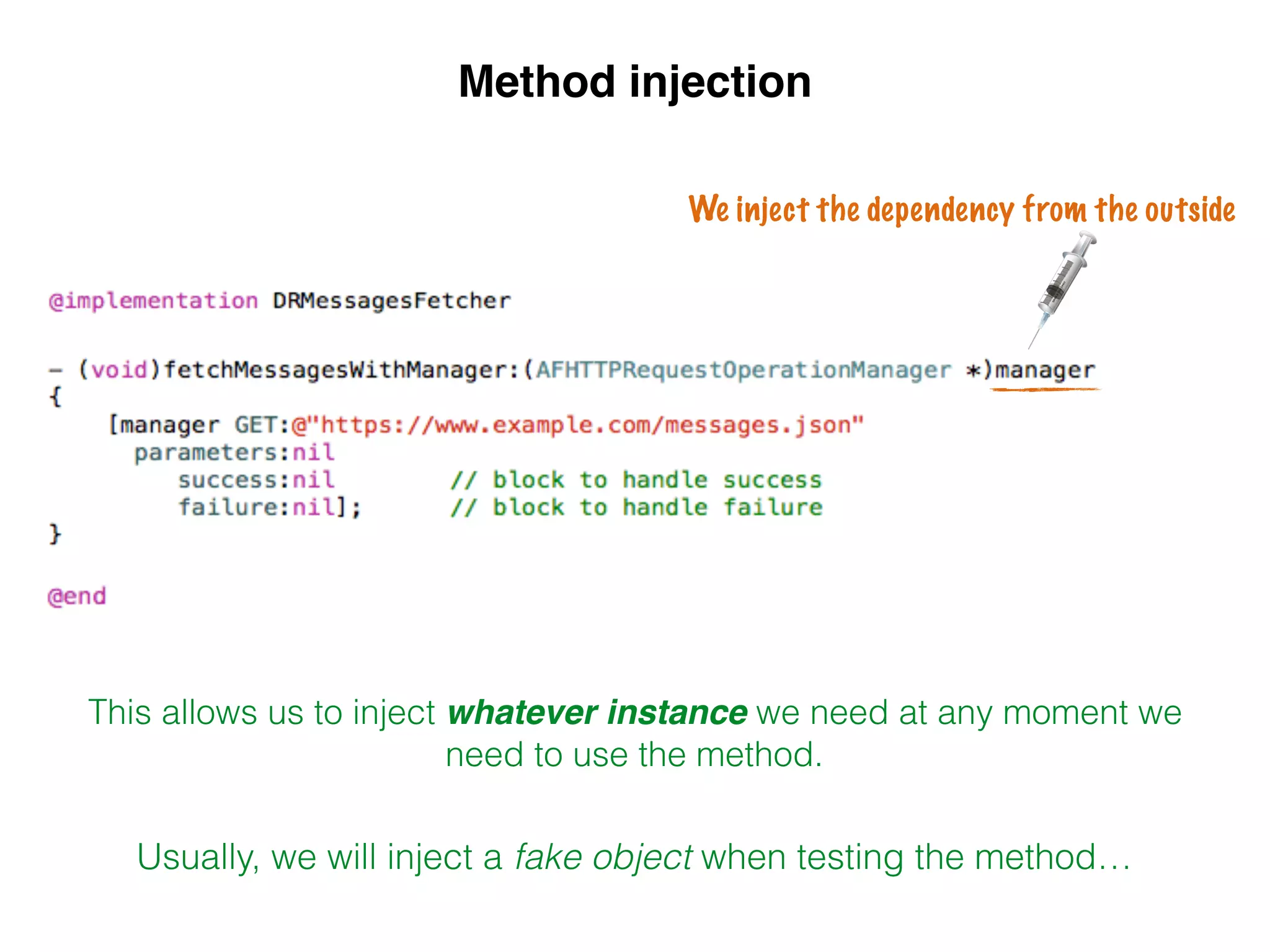

- 47. This allows usto inject whatever instance we need at any moment we need to use the method. Usually, we will inject a fake object when testing the method… Method injection We inject the dependency from the outside

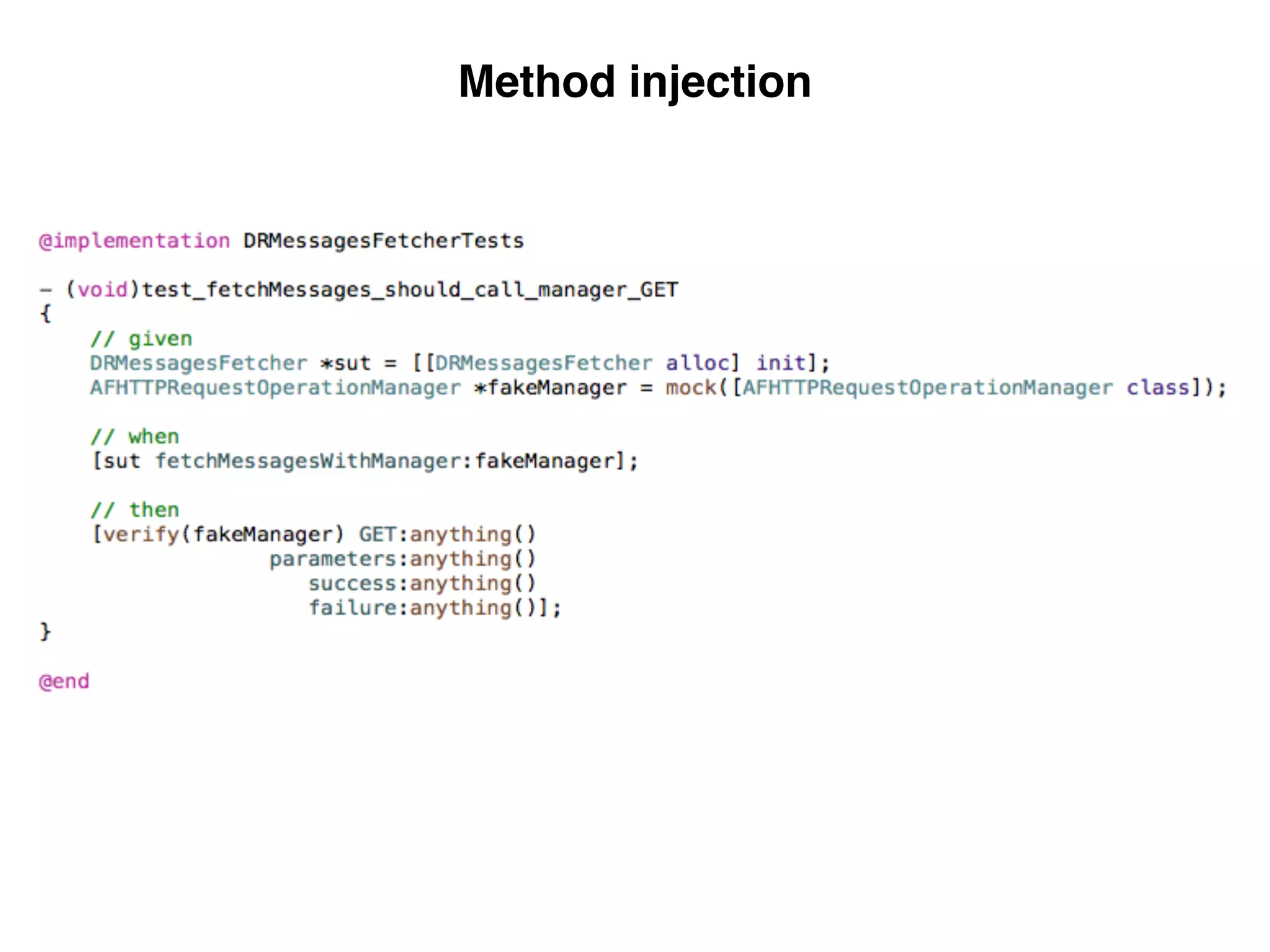

- 48.

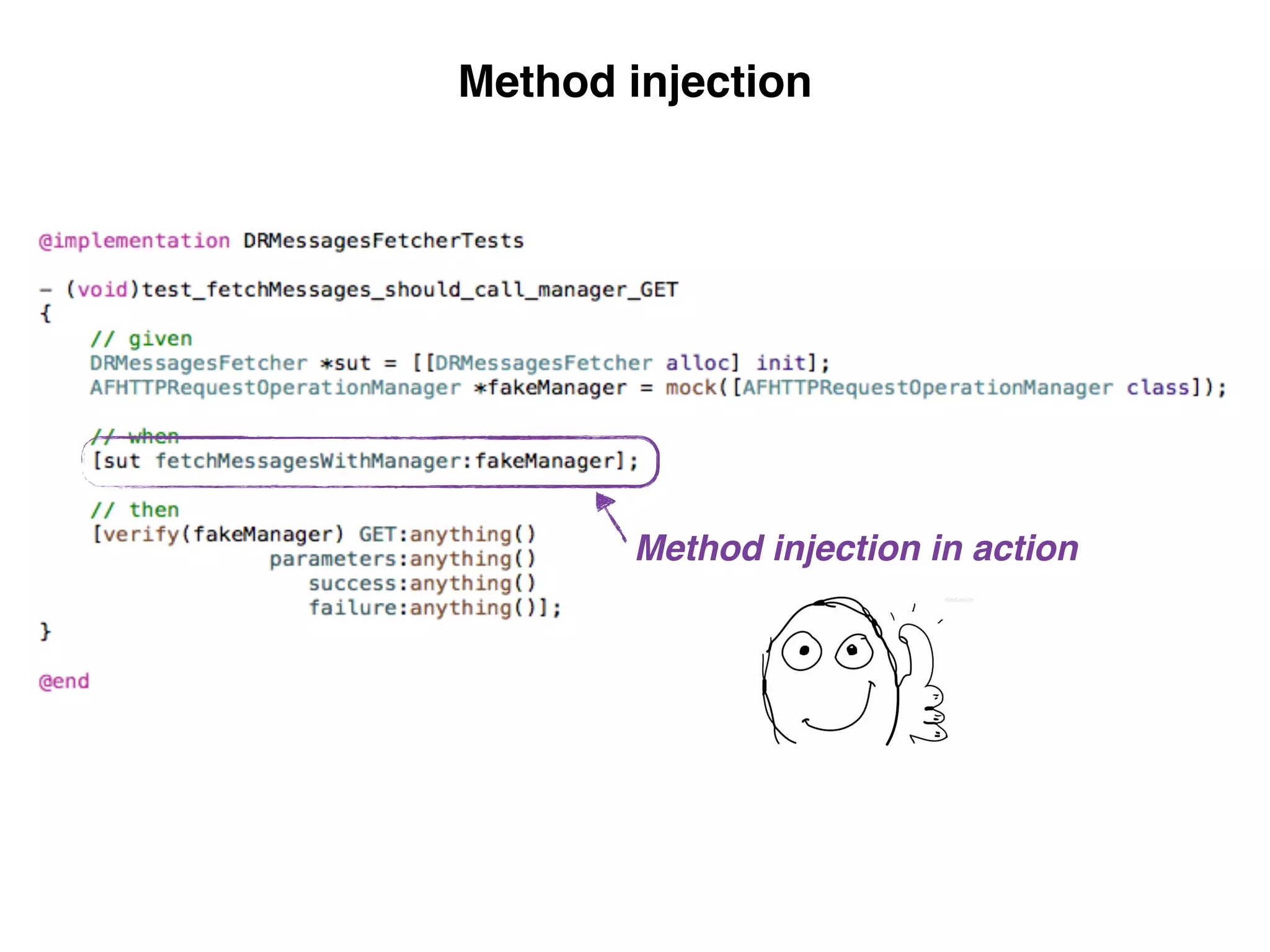

- 49. Method injection Method injectionin action
- 50.

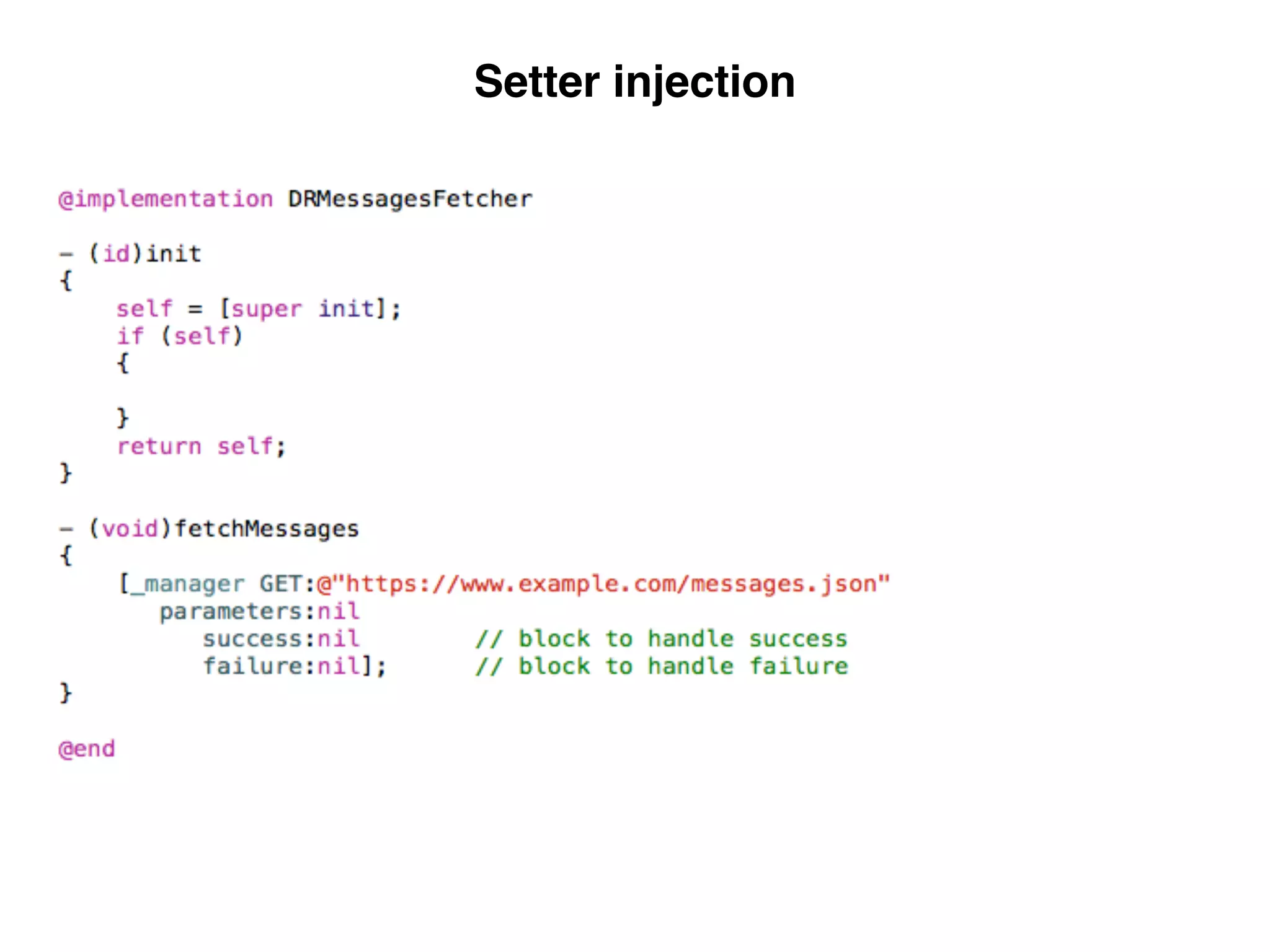

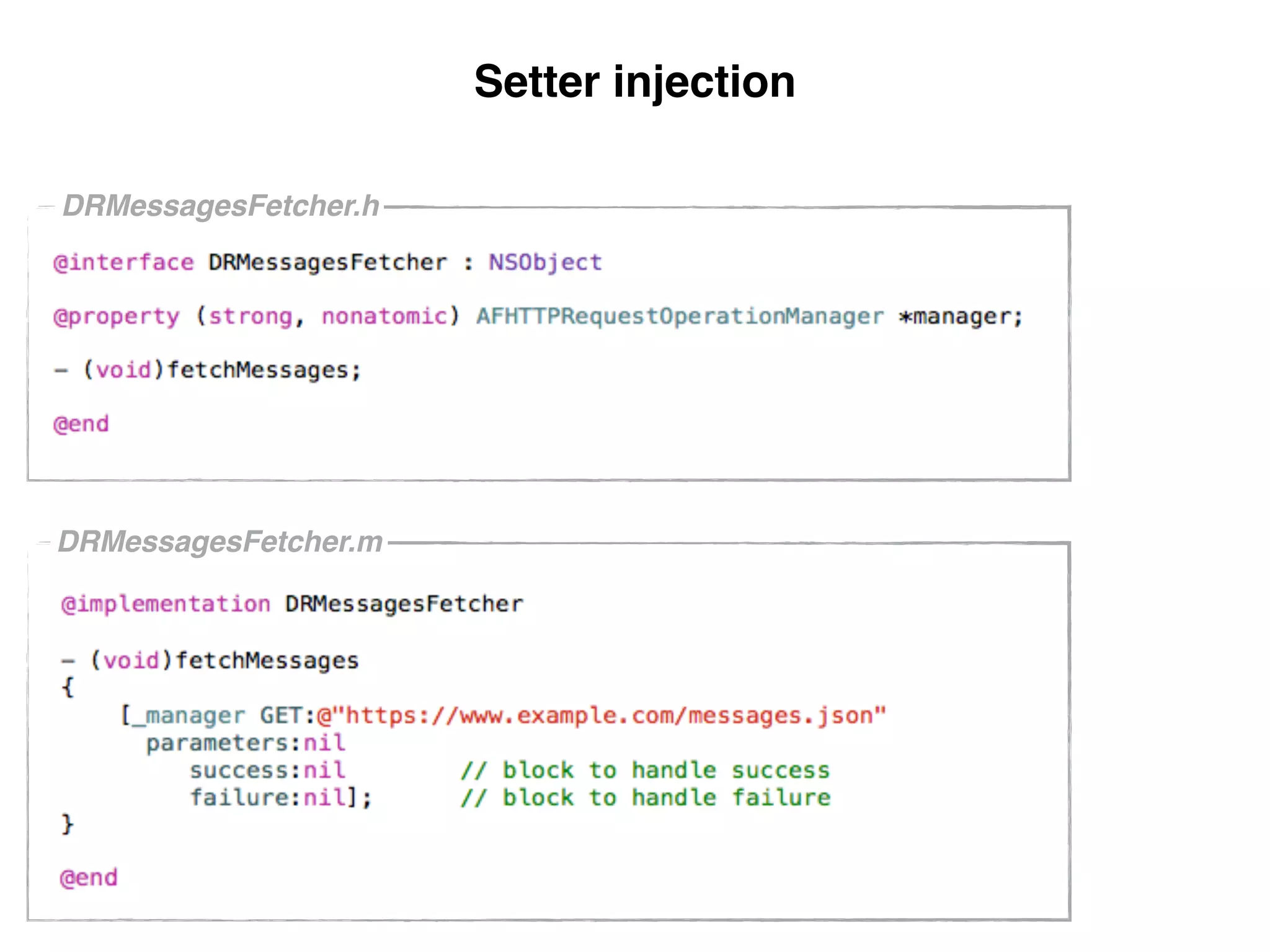

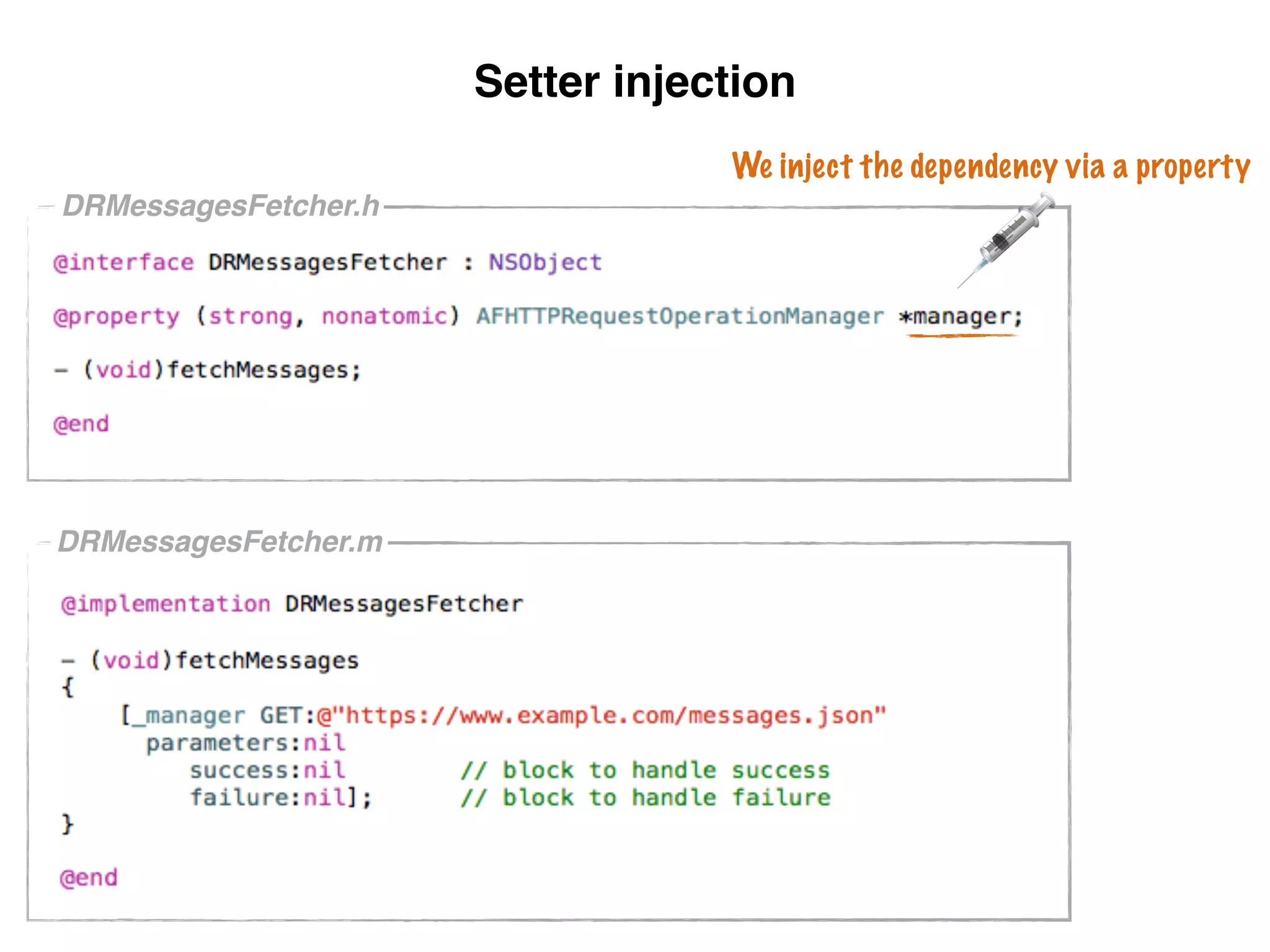

- 51. DRMessagesFetcher.h DRMessagesFetcher.m Setter injection We injectthe dependency via a property
- 52.

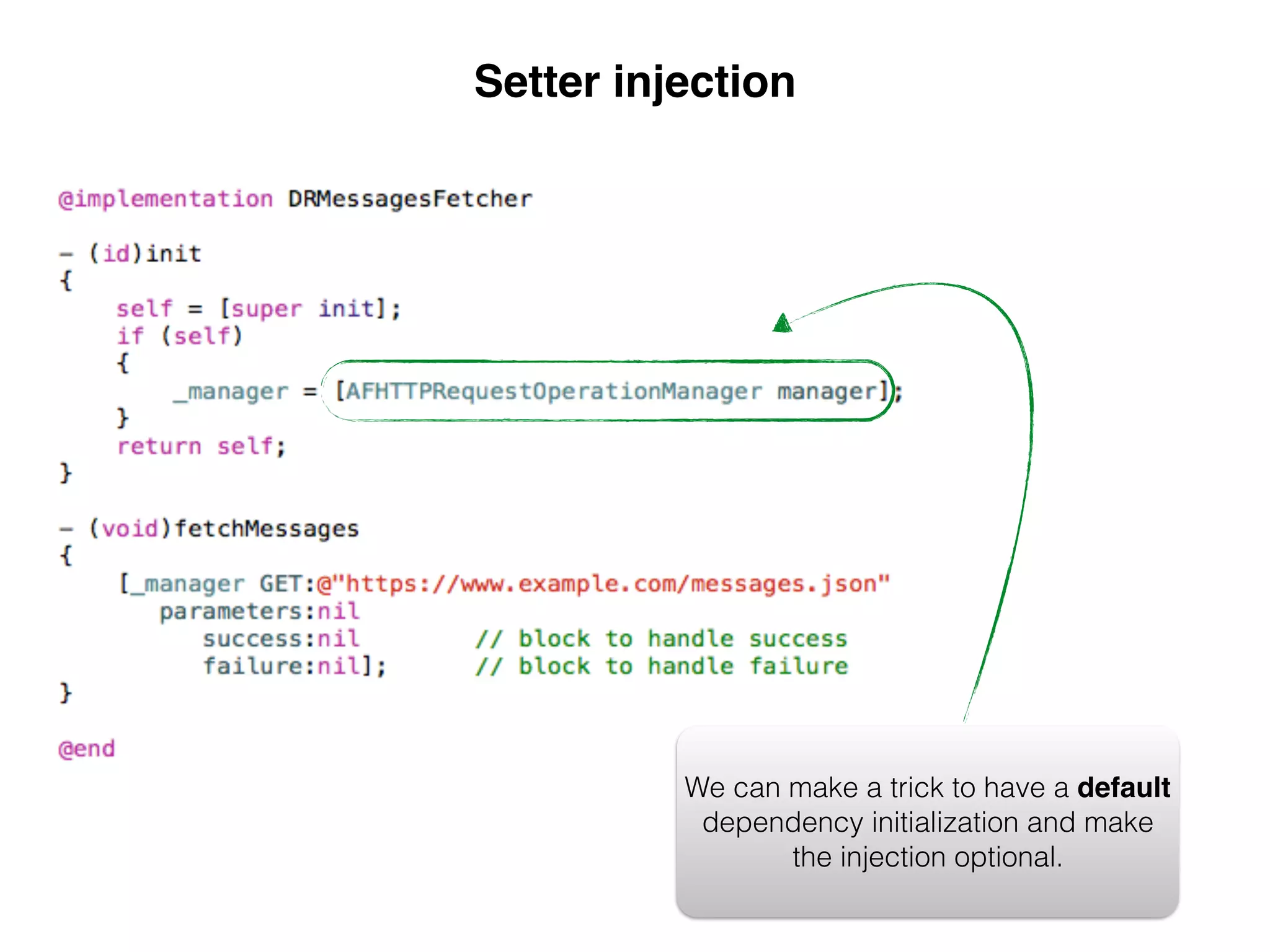

- 53. We can makea trick to have a default dependency initialization and make the injection optional. Setter injection
- 54.

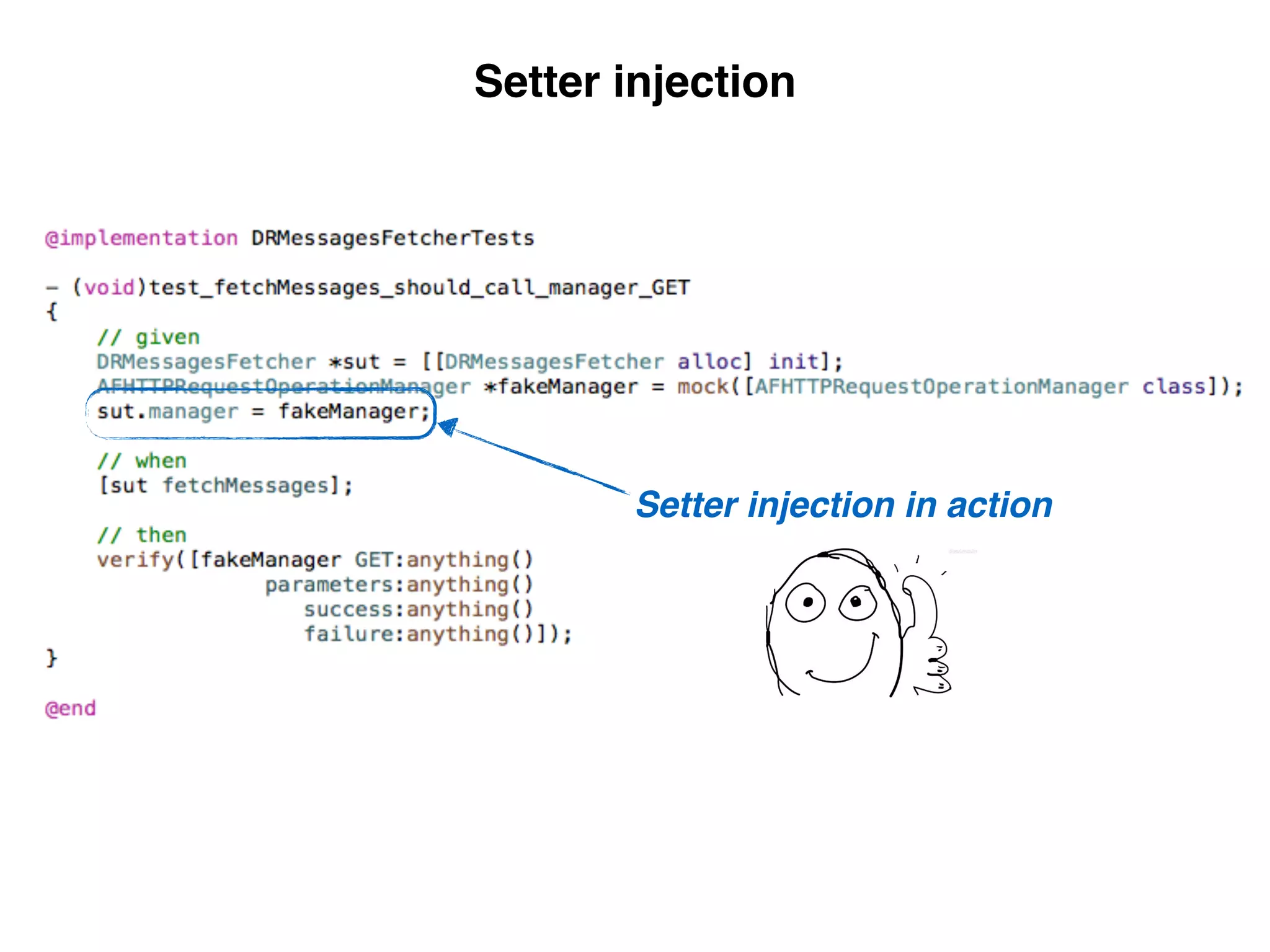

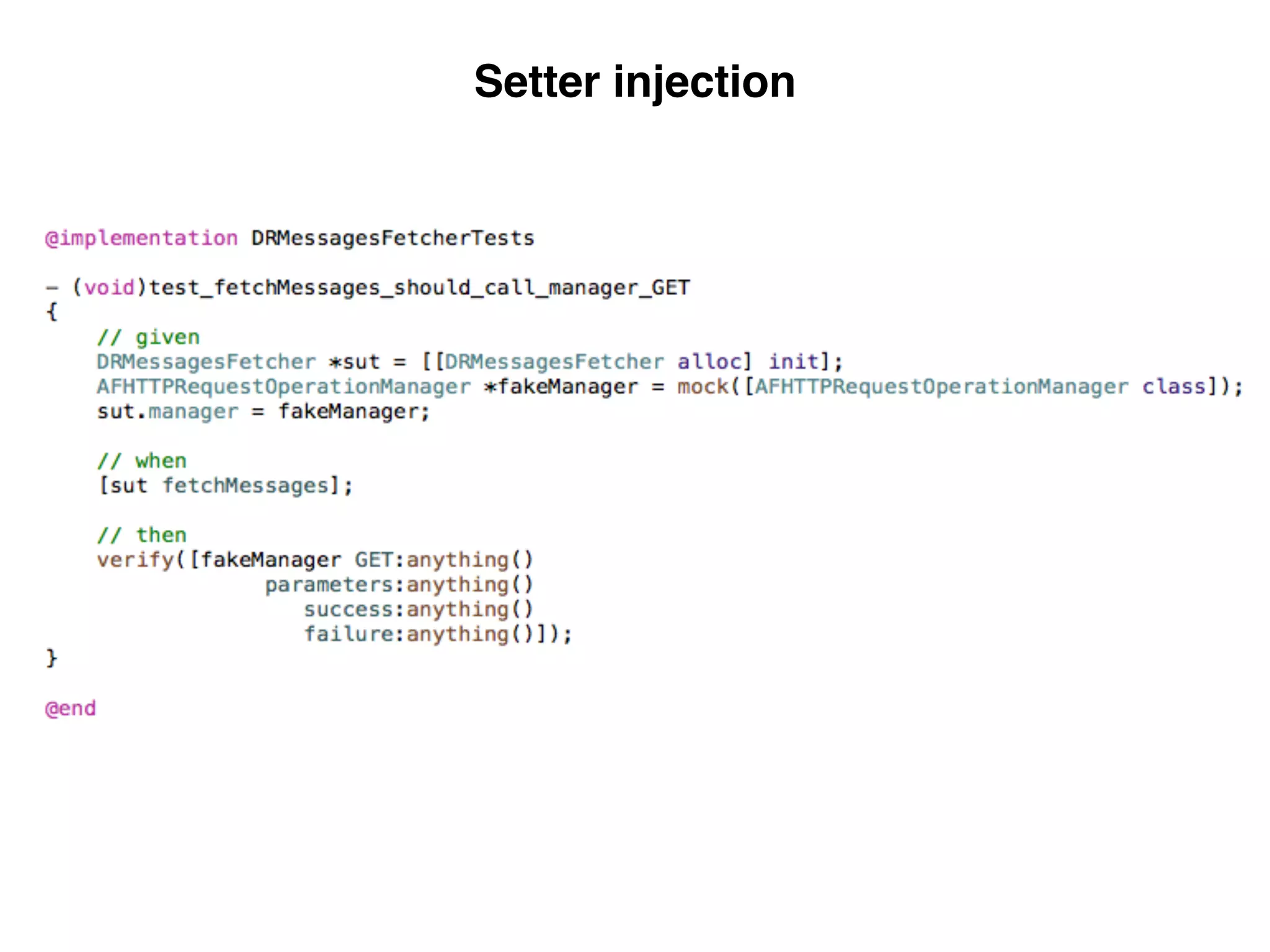

- 55. Setter injection inaction Setter injection
- 56.

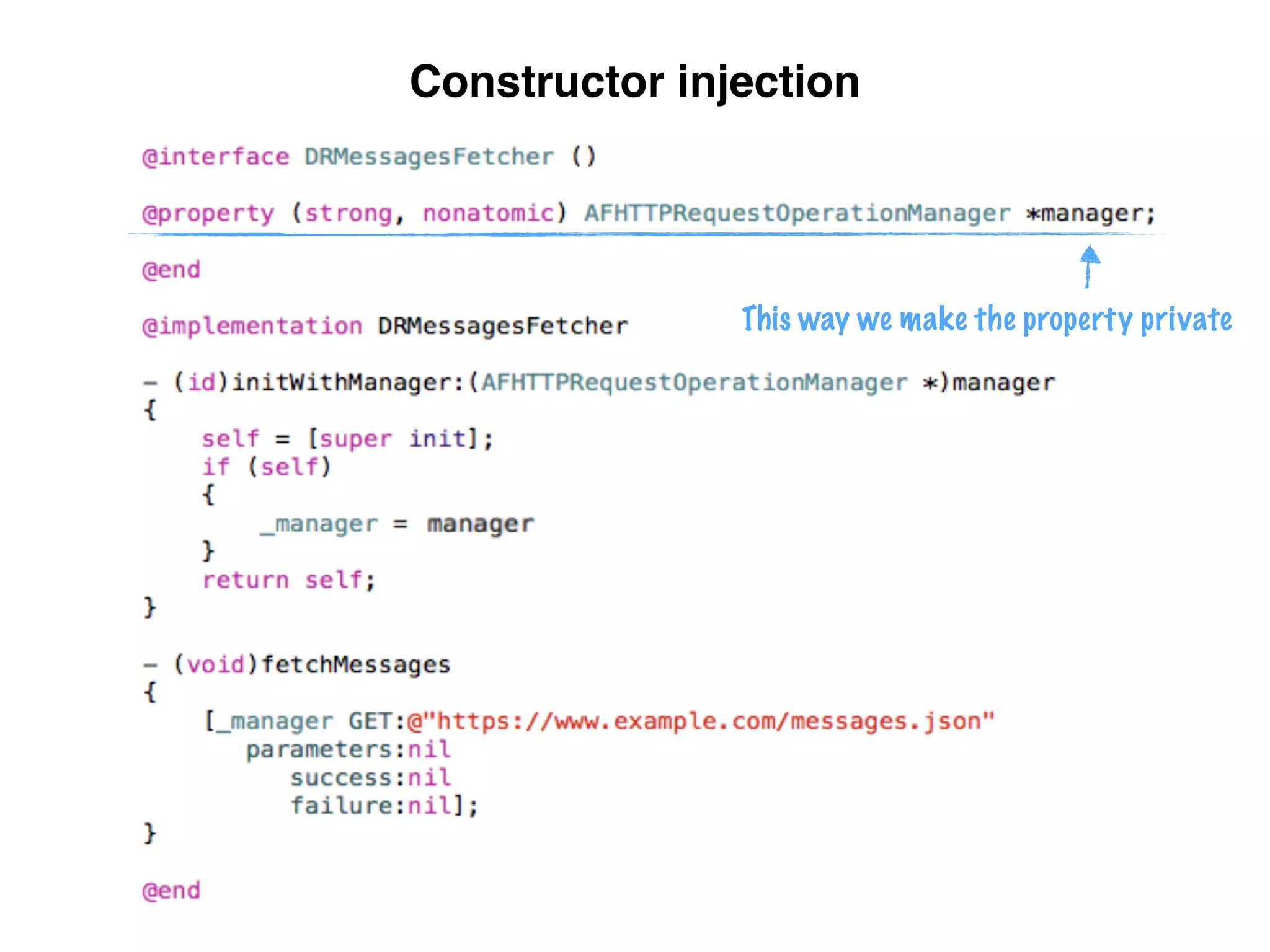

- 57. This way wemake the property private Constructor injection

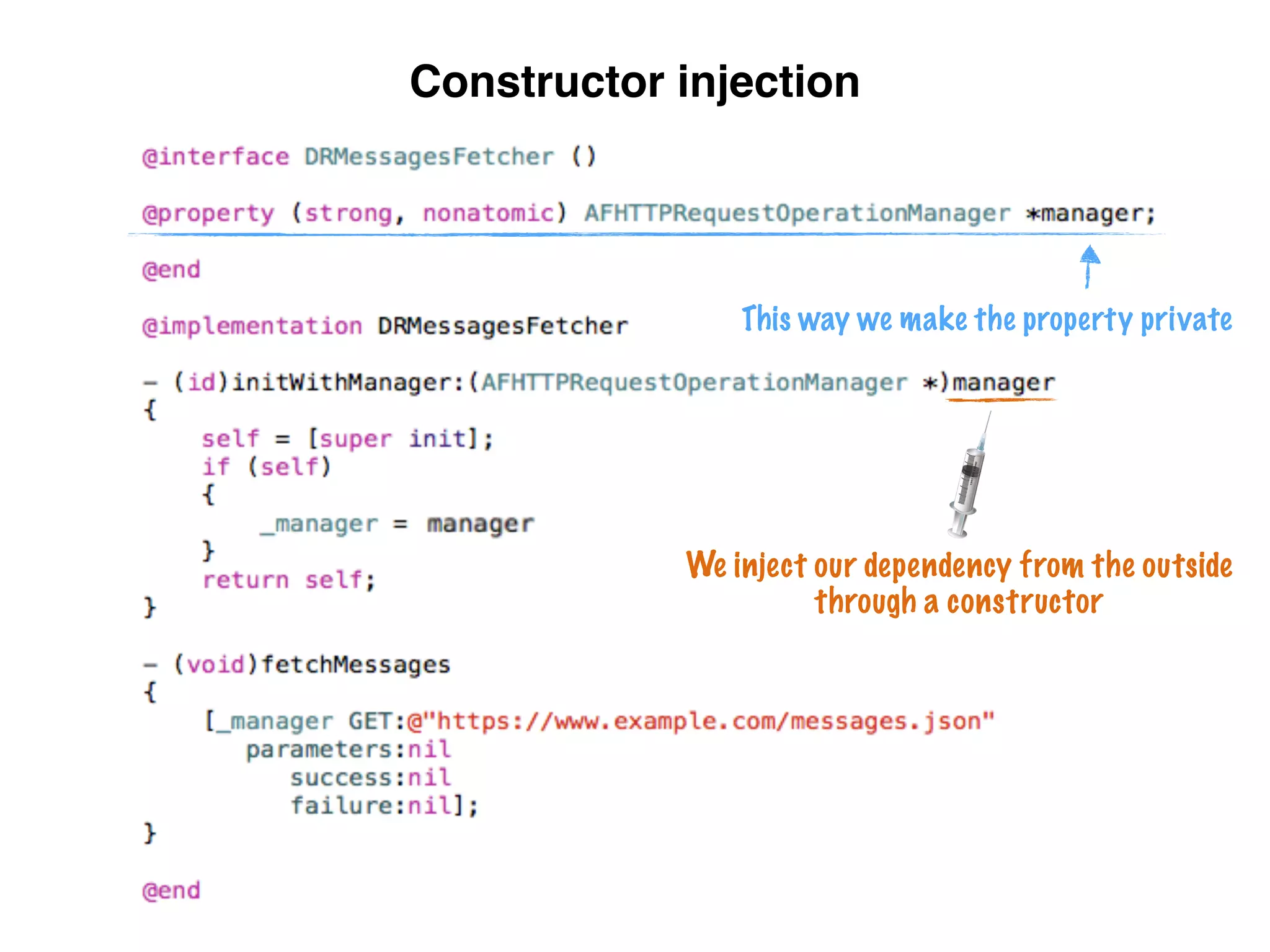

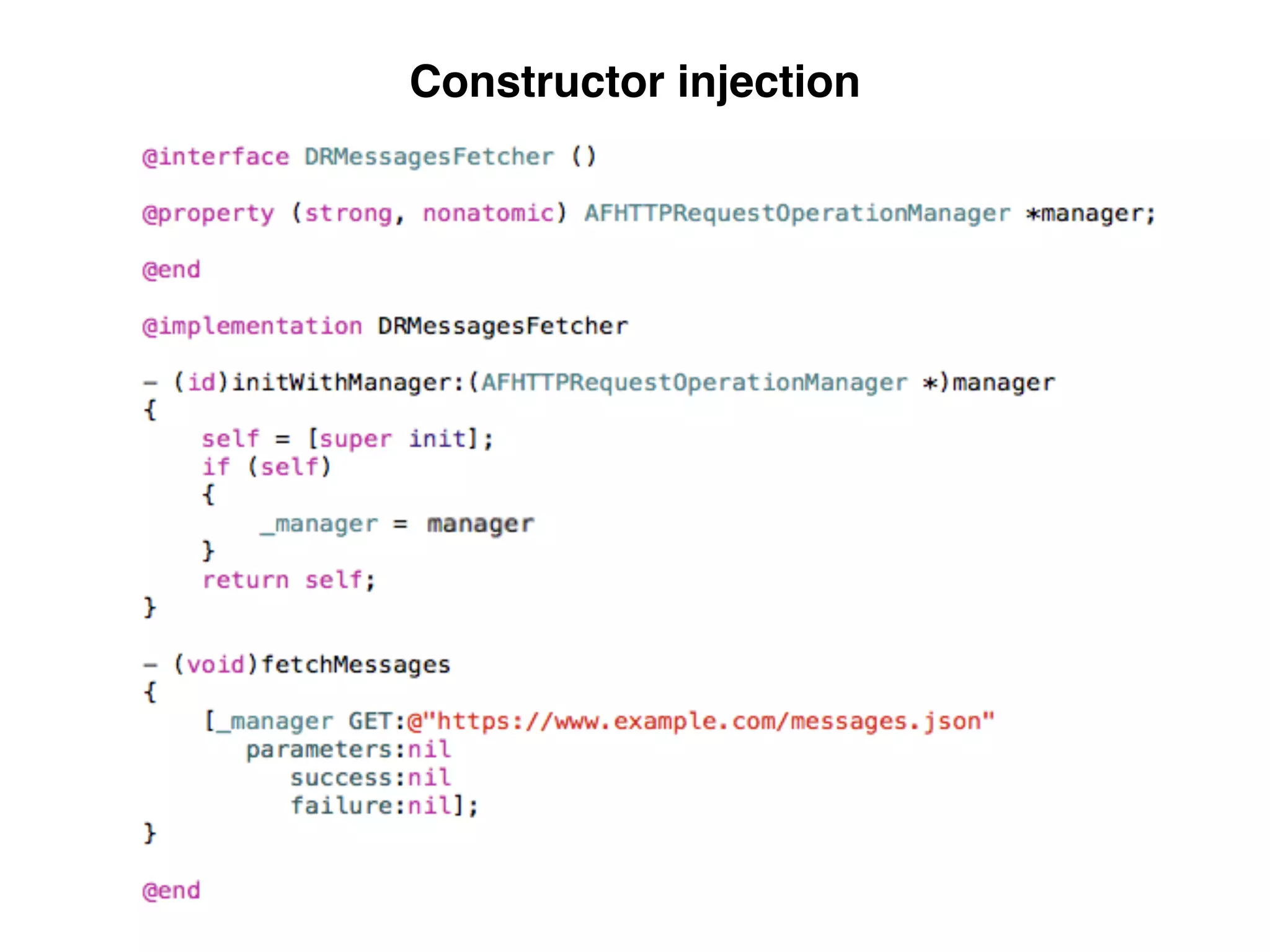

- 58. This way wemake the property private Constructor injection We inject our dependency from the outside through a constructor
- 59.
- 60.
- 61.

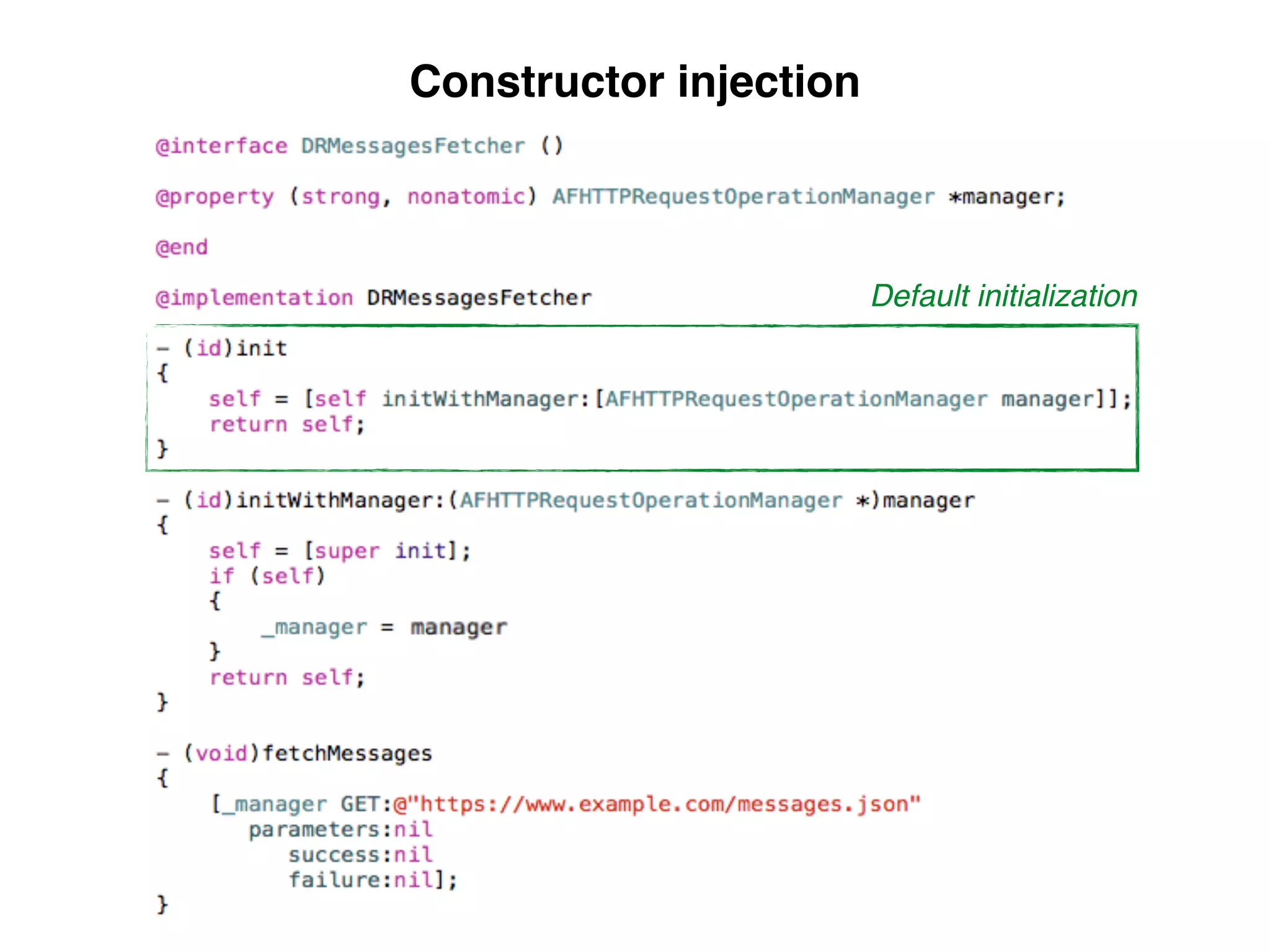

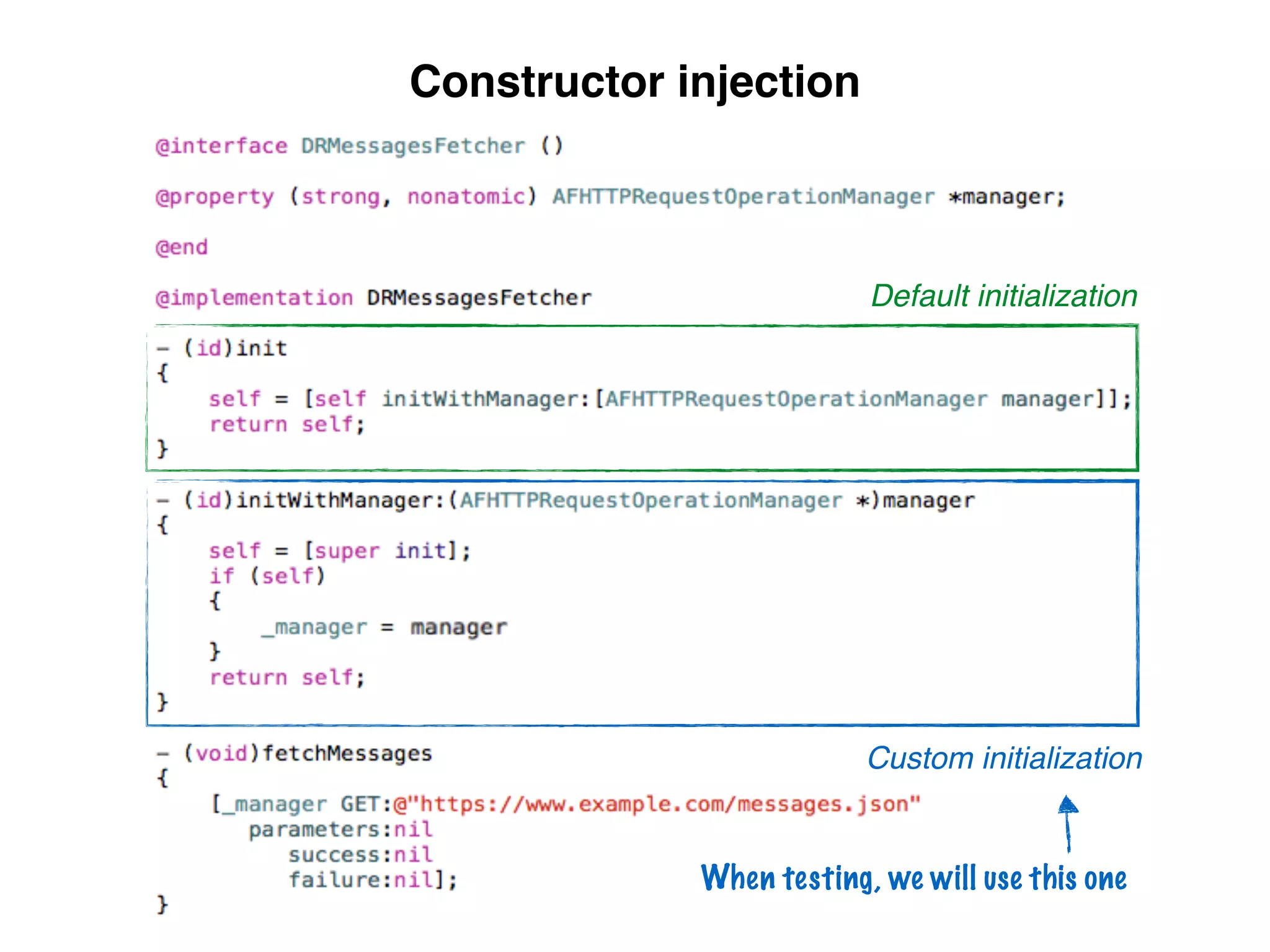

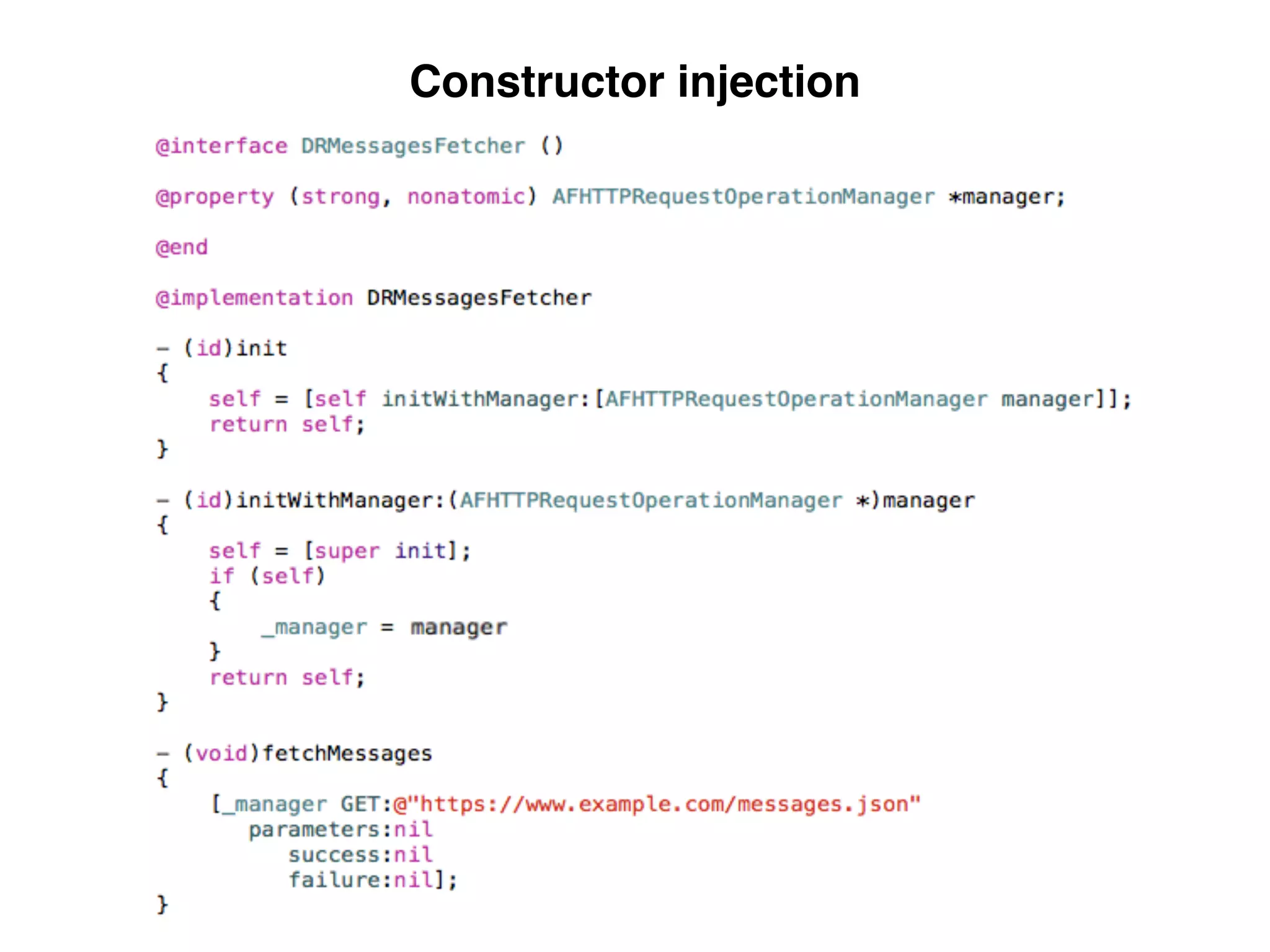

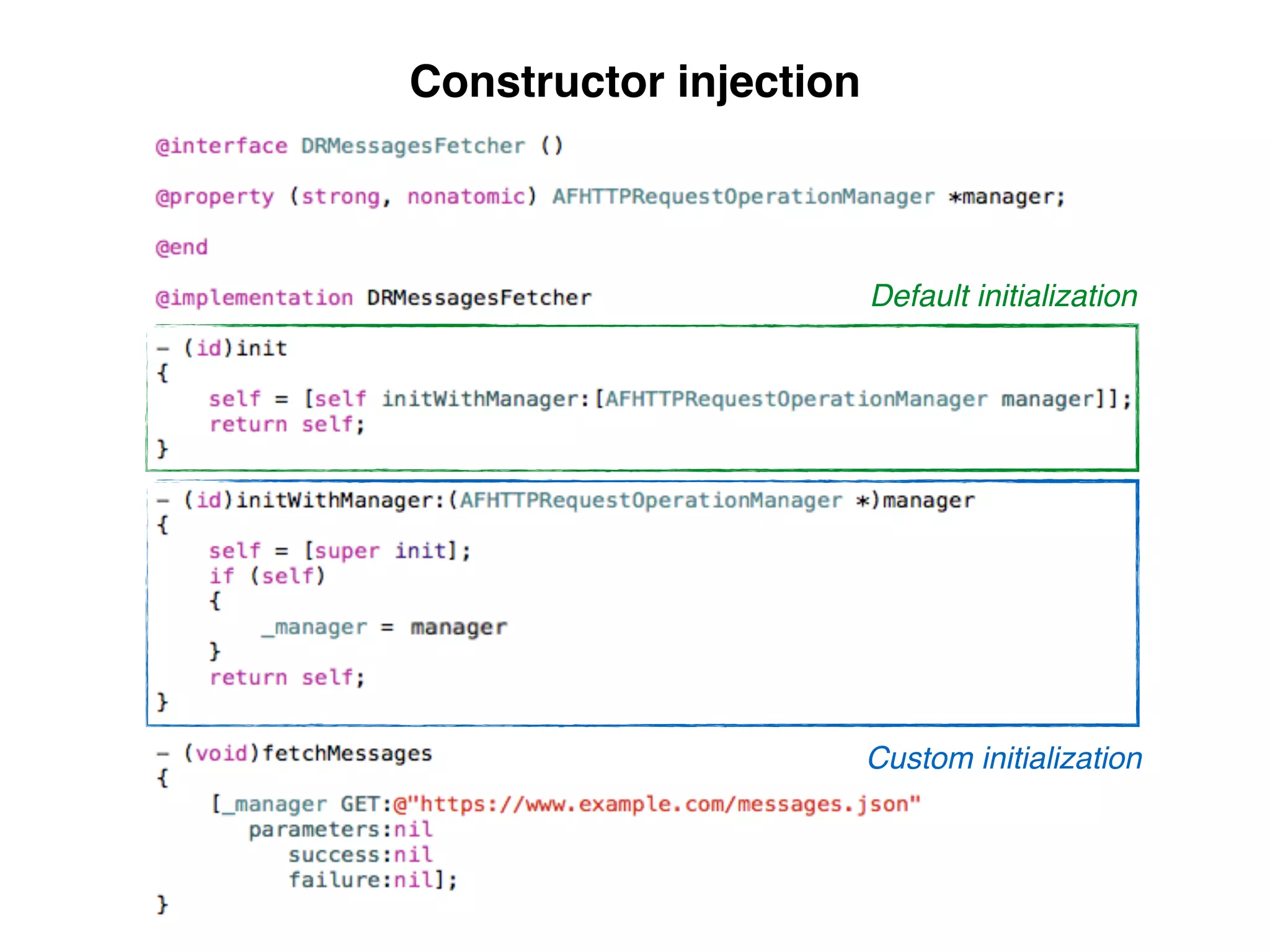

- 62. Default initialization Custom initialization Whentesting, we will use this one Constructor injection
- 63.

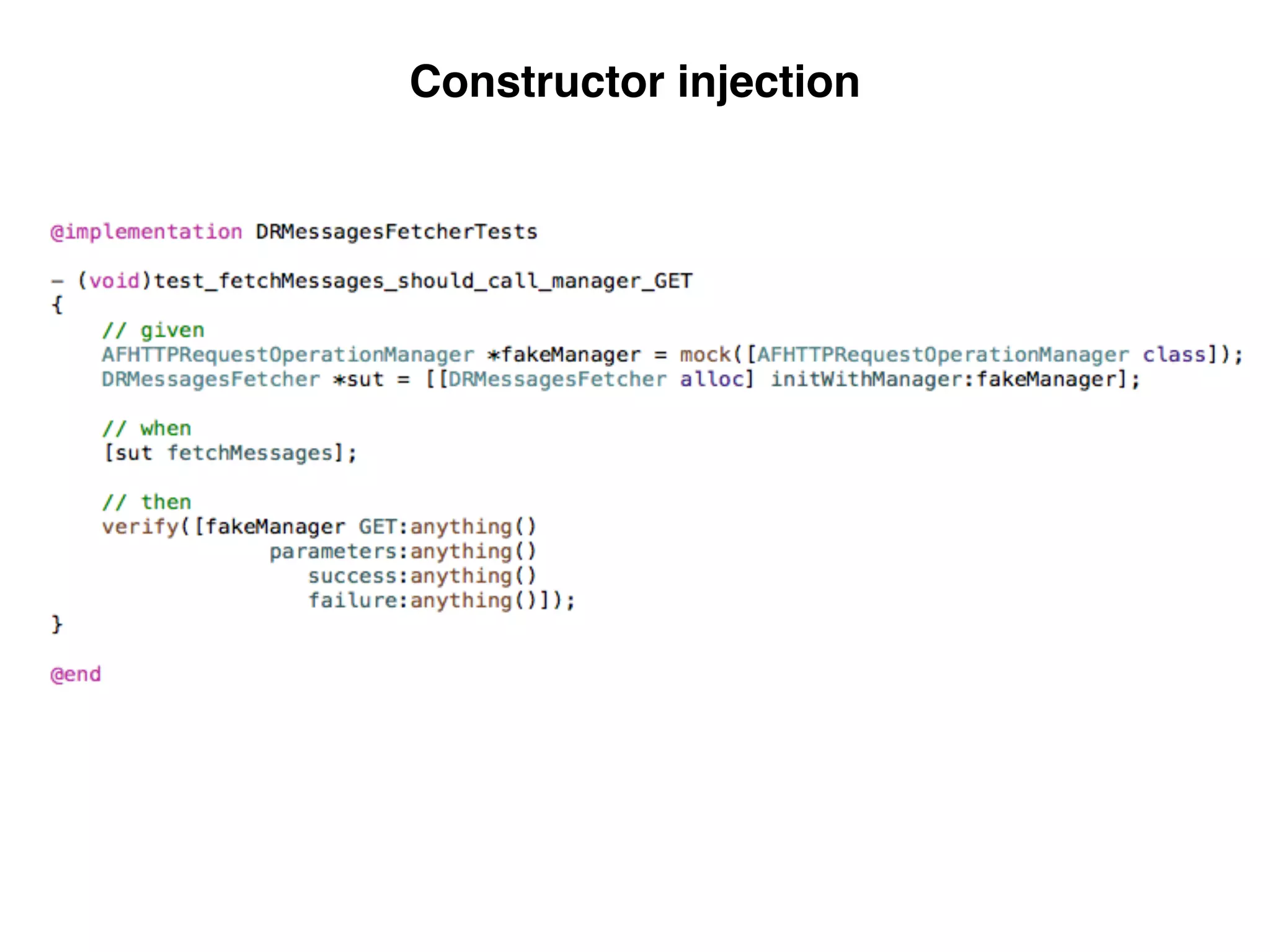

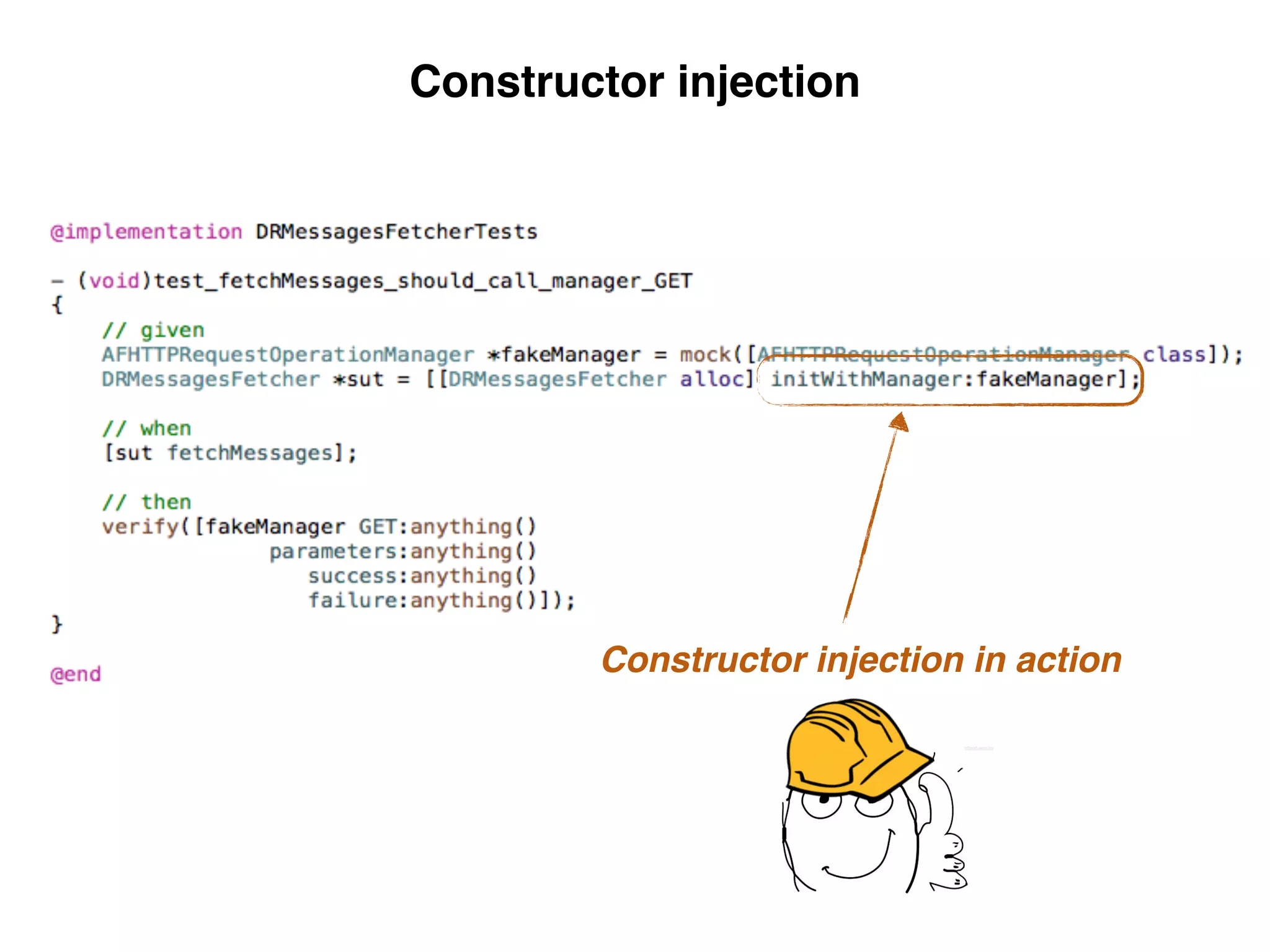

- 64. Constructor injection inaction Constructor injection
- 65.

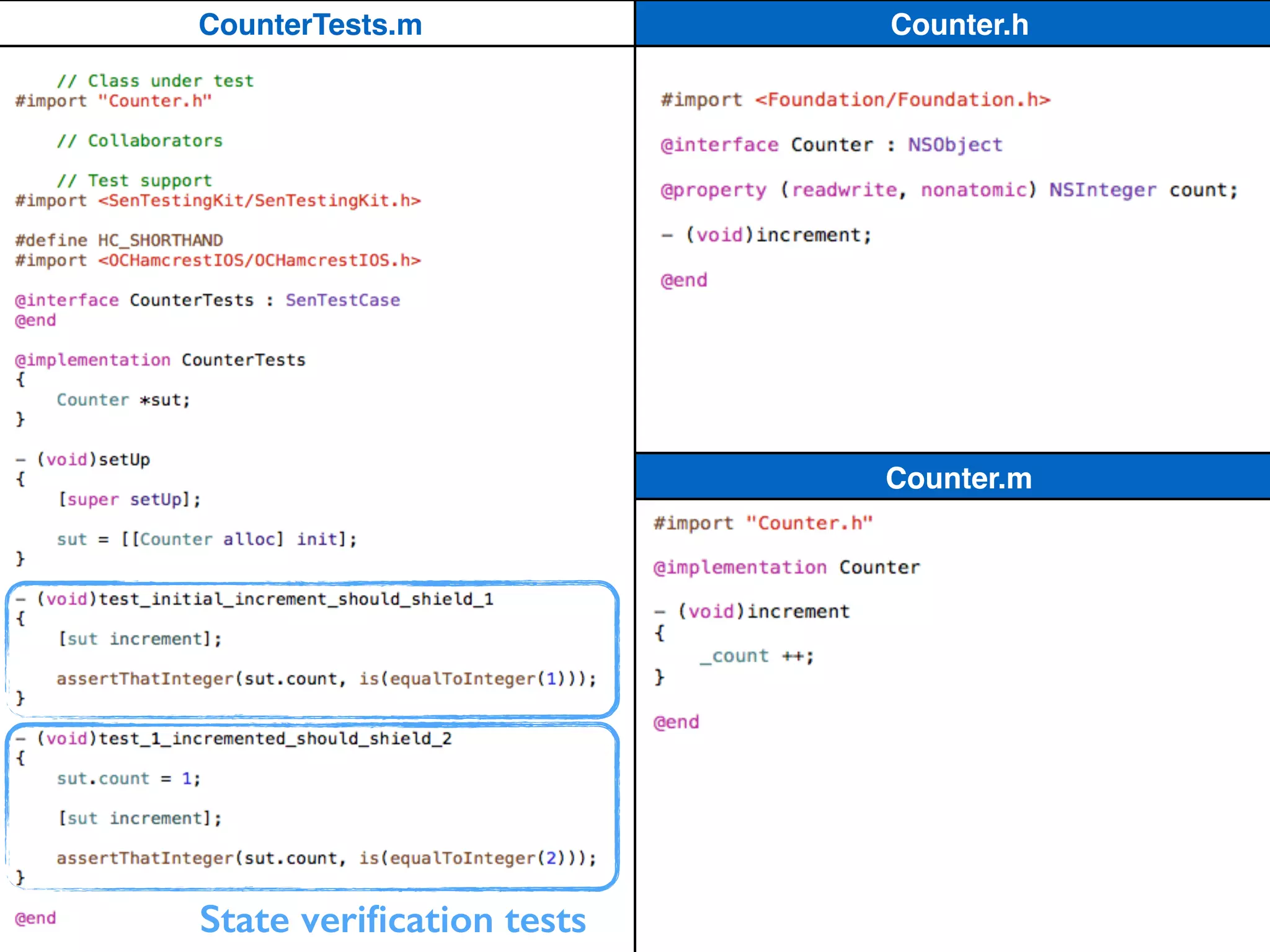

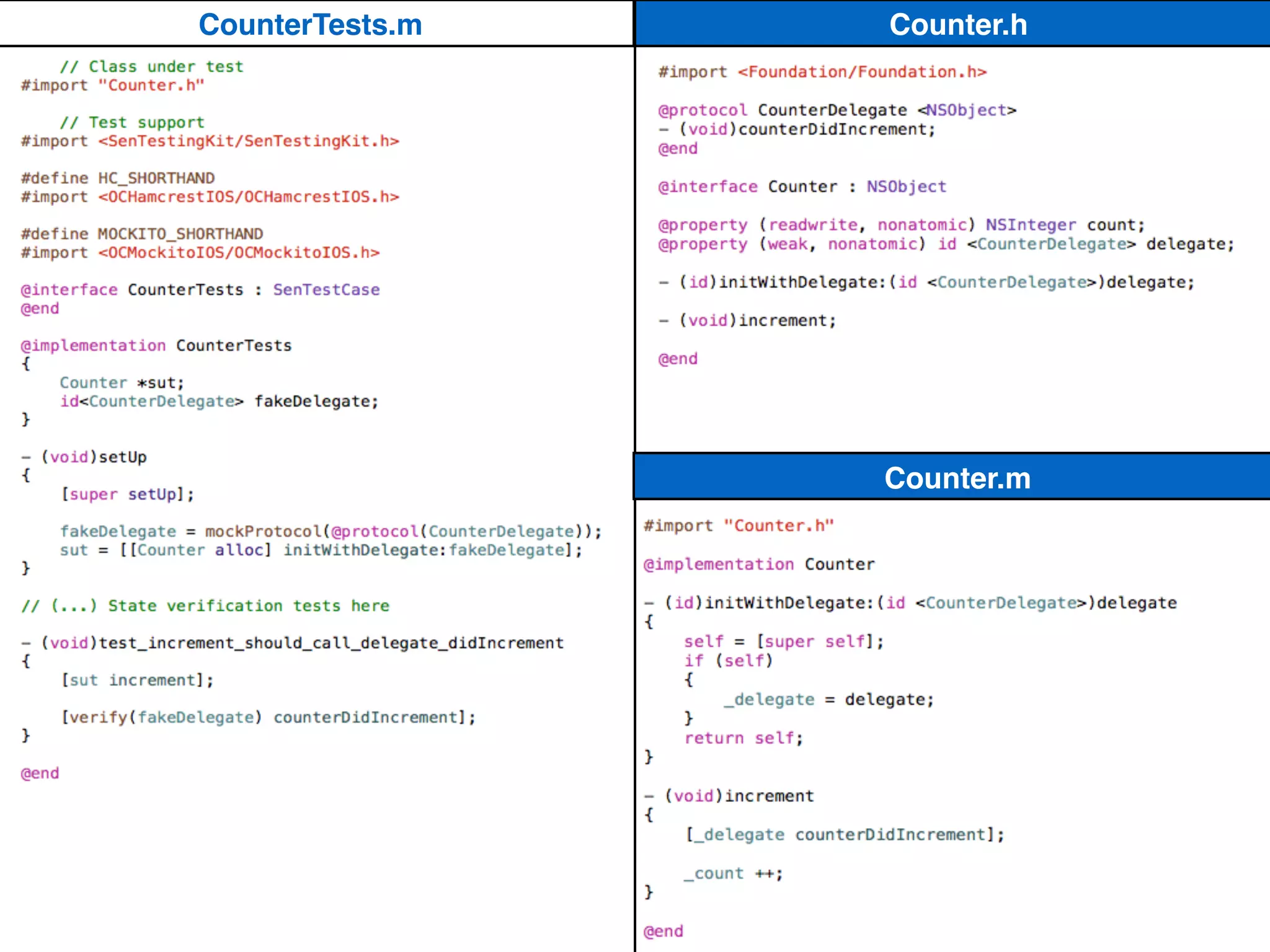

- 66. Let’s make avery simple application from scratch by applying TDD and some DI increment Count: Yet Another Counter 0

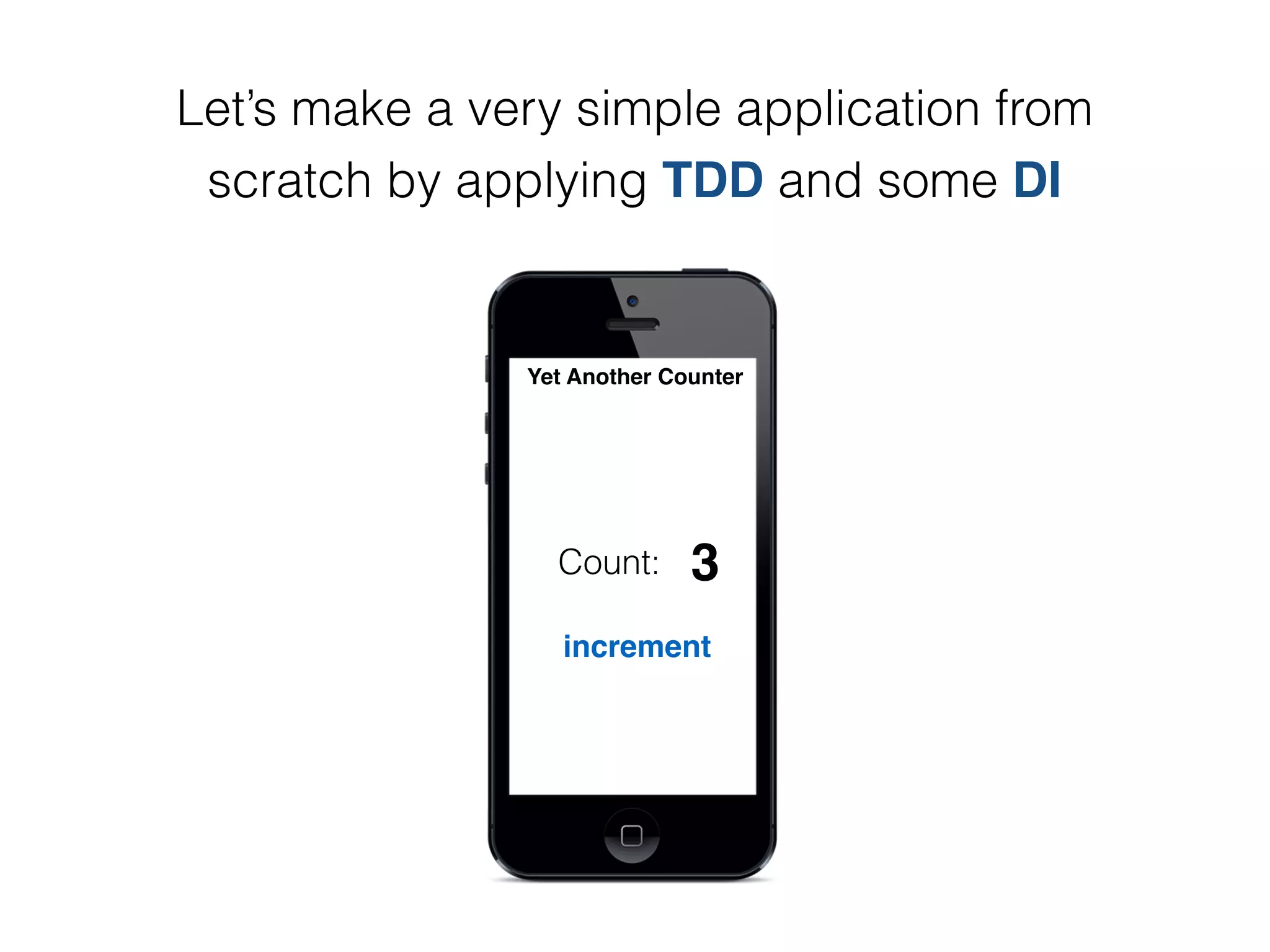

- 67. Let’s make avery simple application from scratch by applying TDD and some DI increment Count: Yet Another Counter 0123

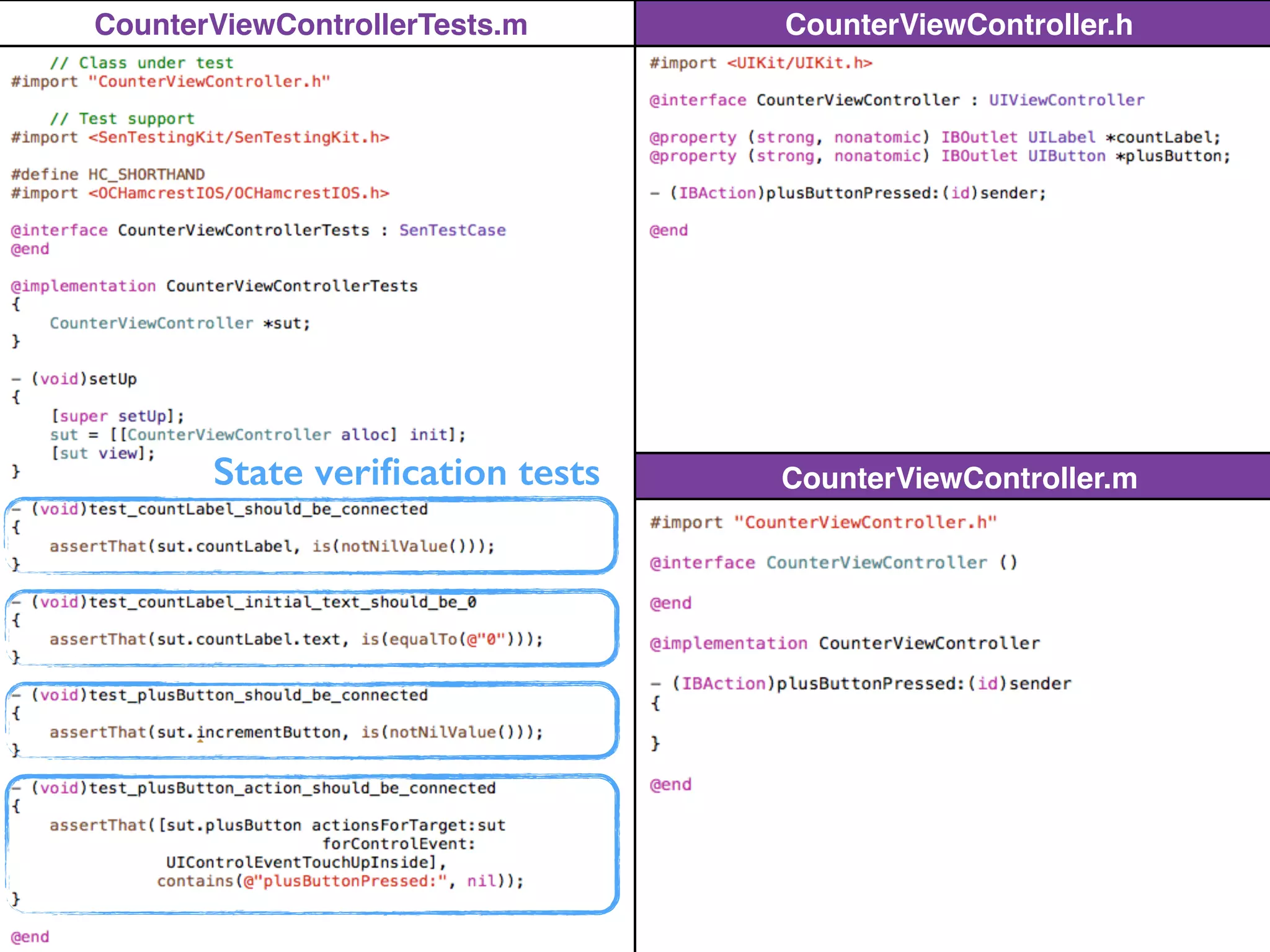

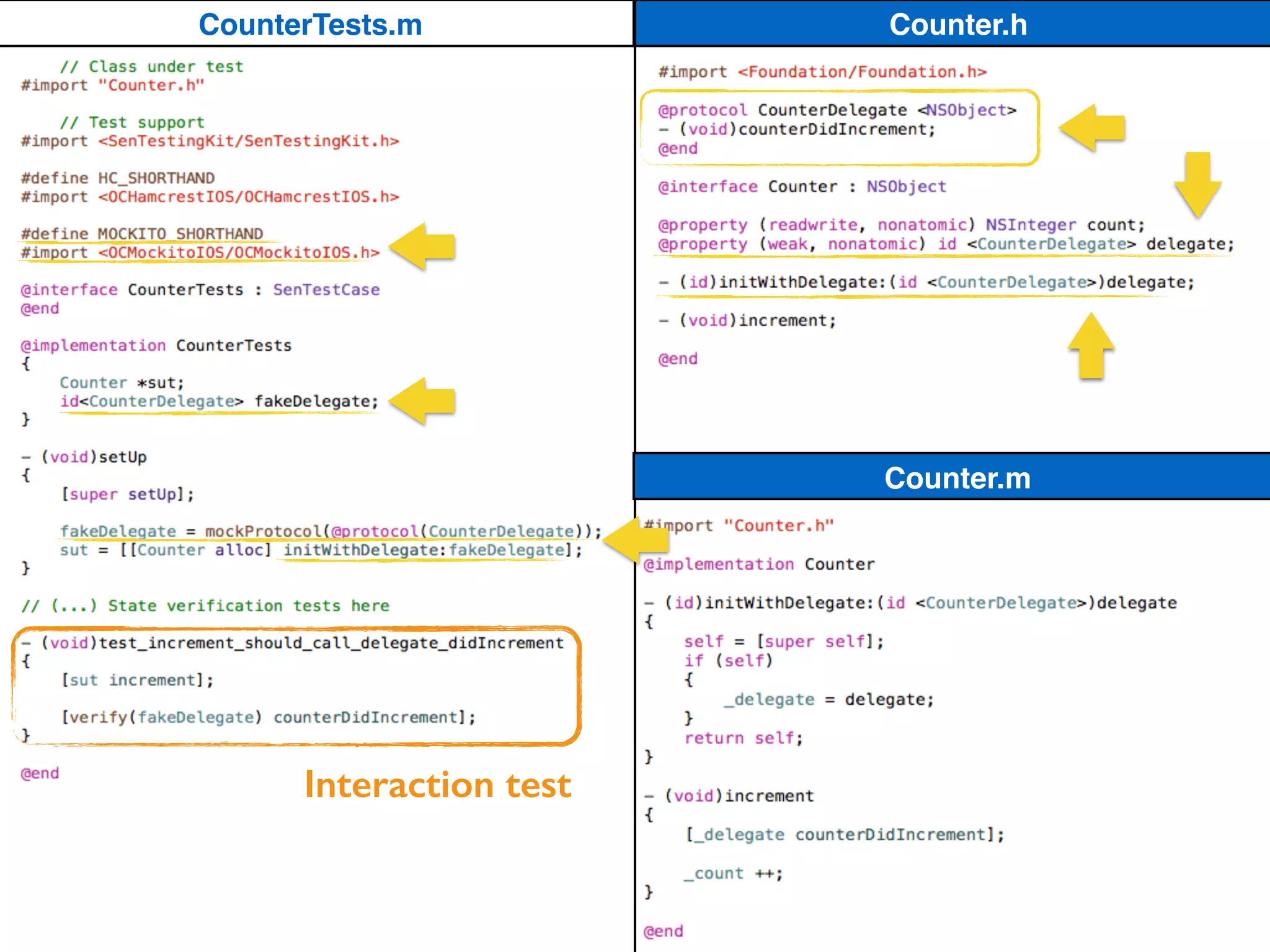

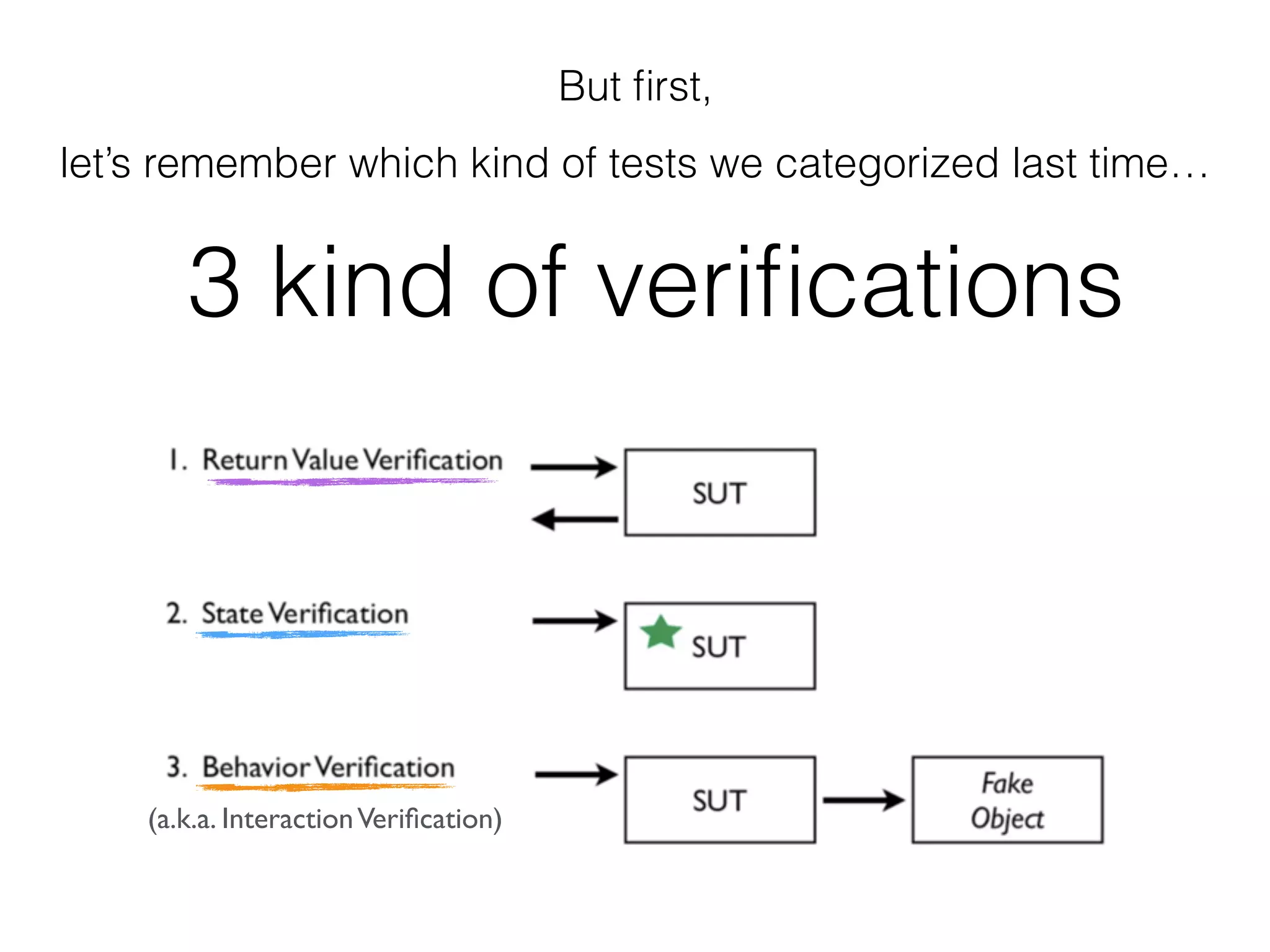

- 68. But first, let’s rememberwhich kind of tests we categorized last time… 3 kind of verifications (a.k.a. InteractionVerification)
- 69.
- 70.
- 71.
- 72.
- 73.

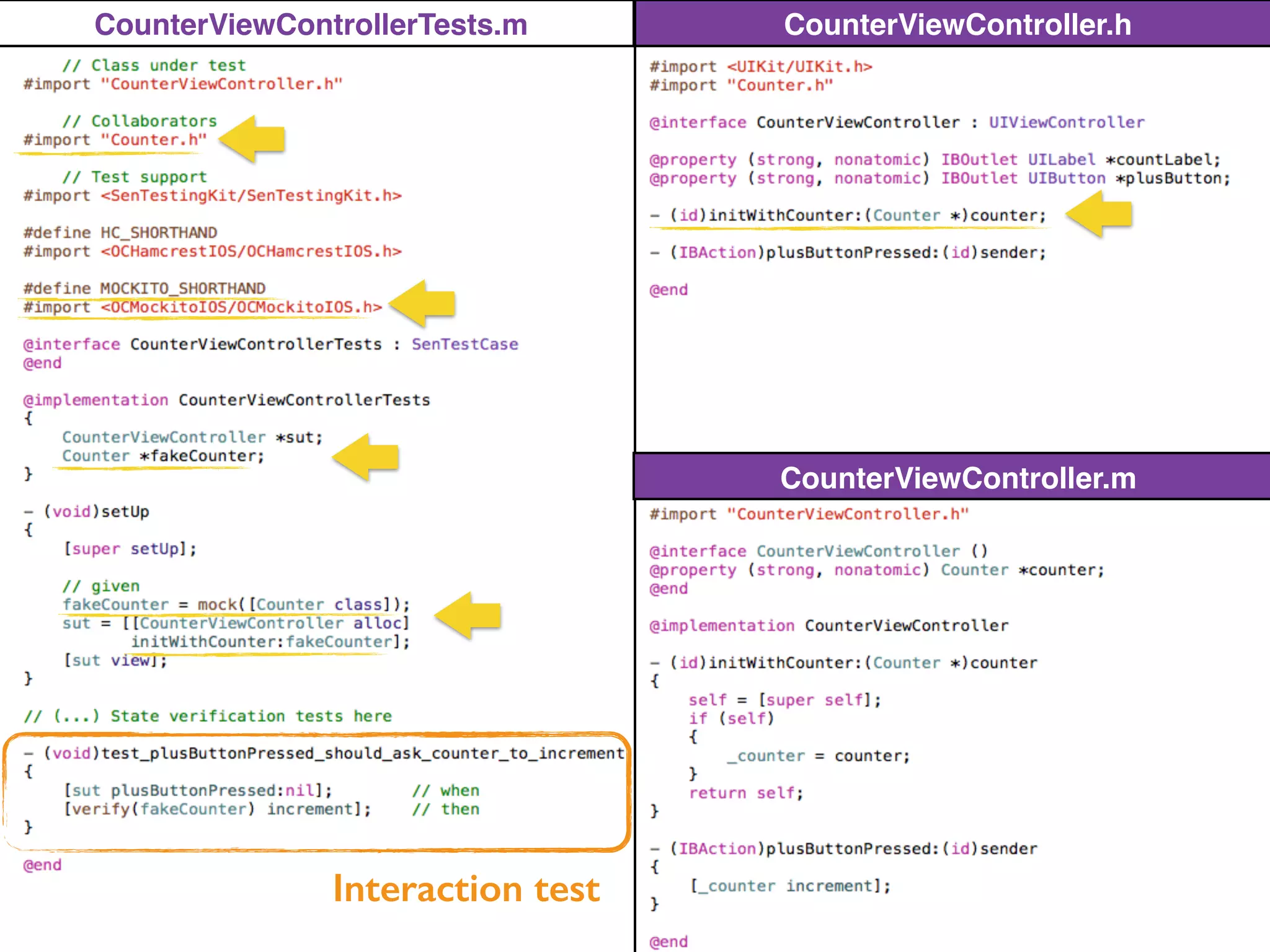

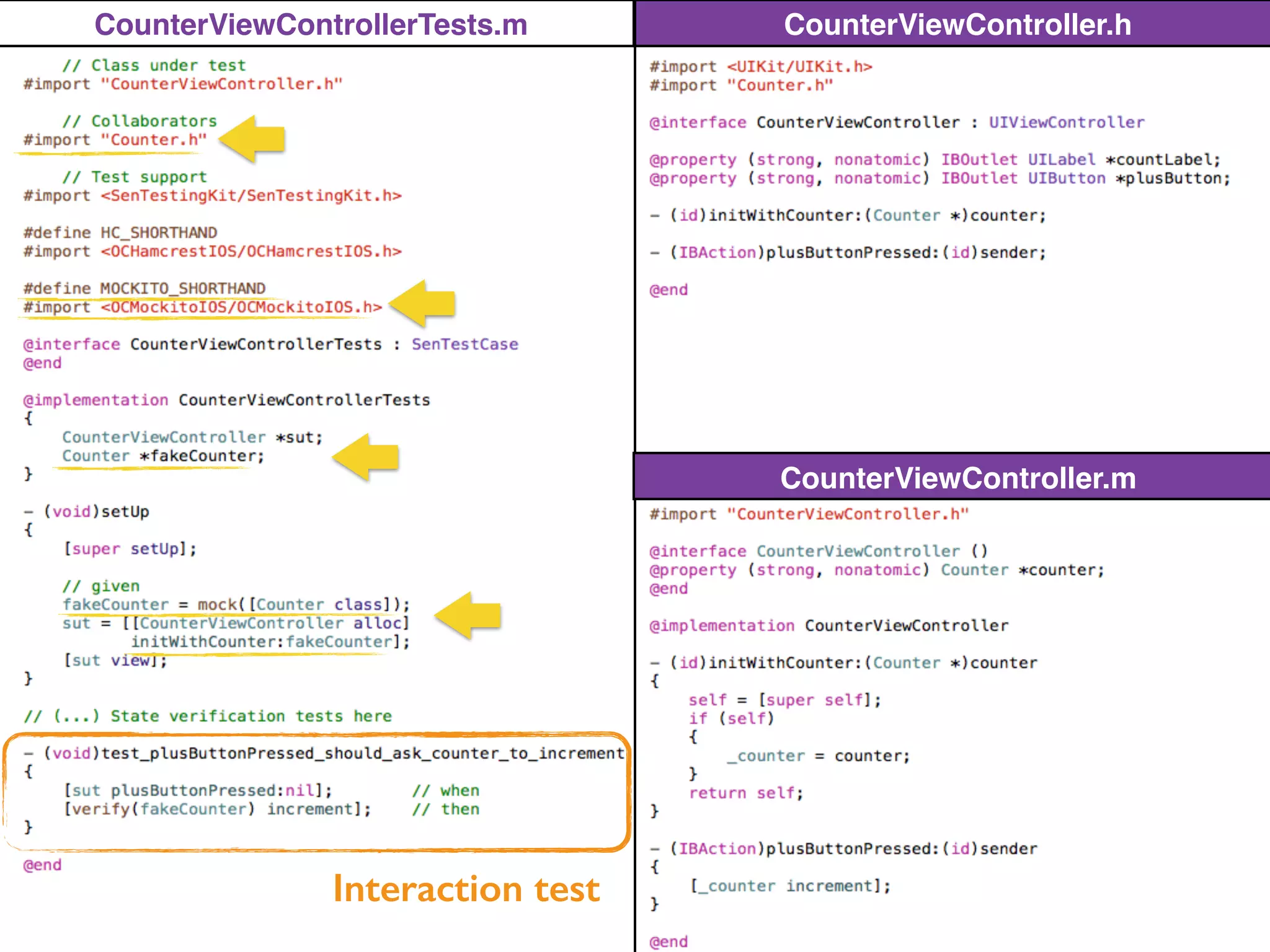

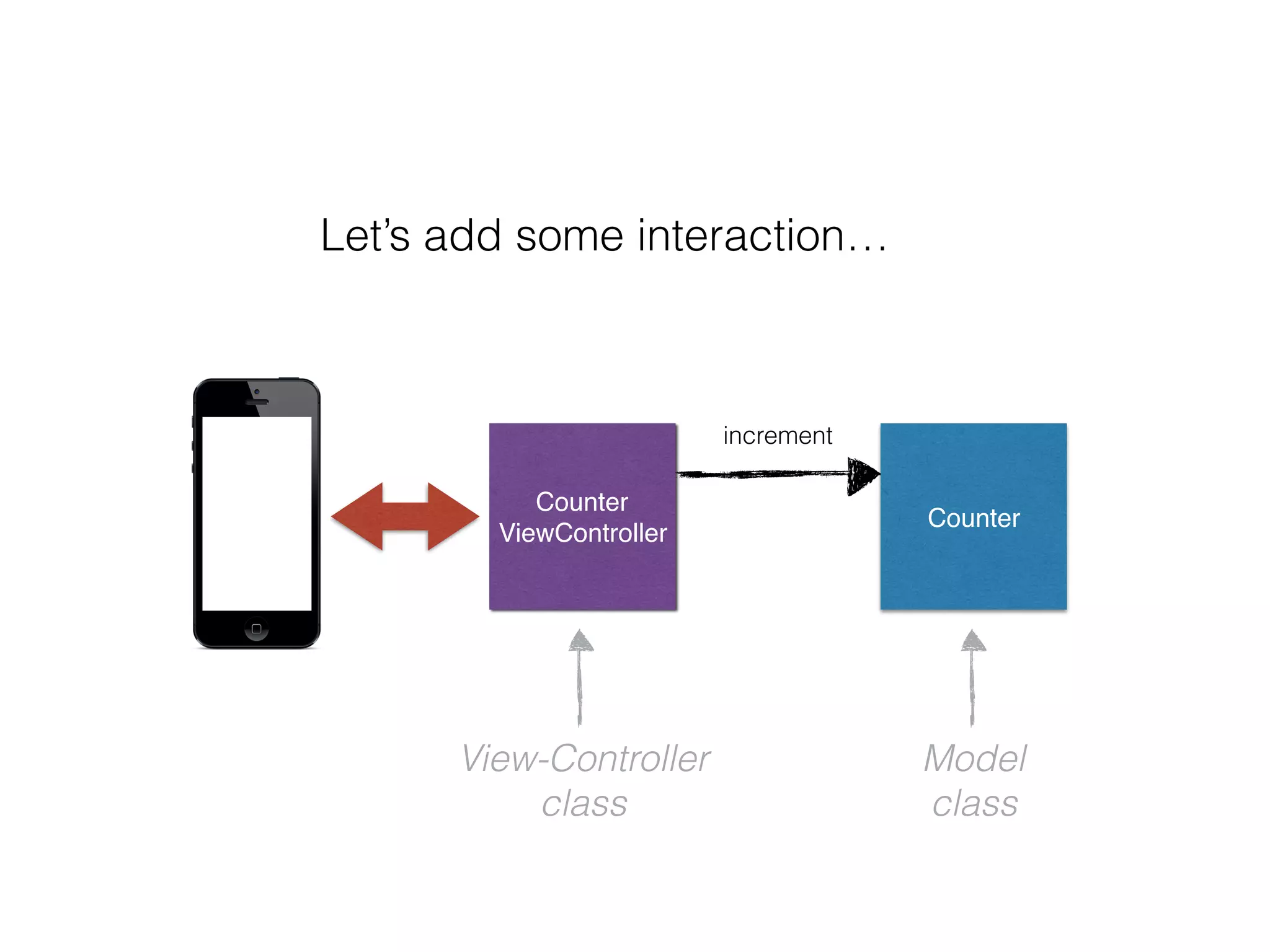

- 74. increment View-Controller class Model class Let’s add someinteraction… Counter ViewController Counter
- 75.
- 76.
- 77.
- 78.
- 79.
- 80.

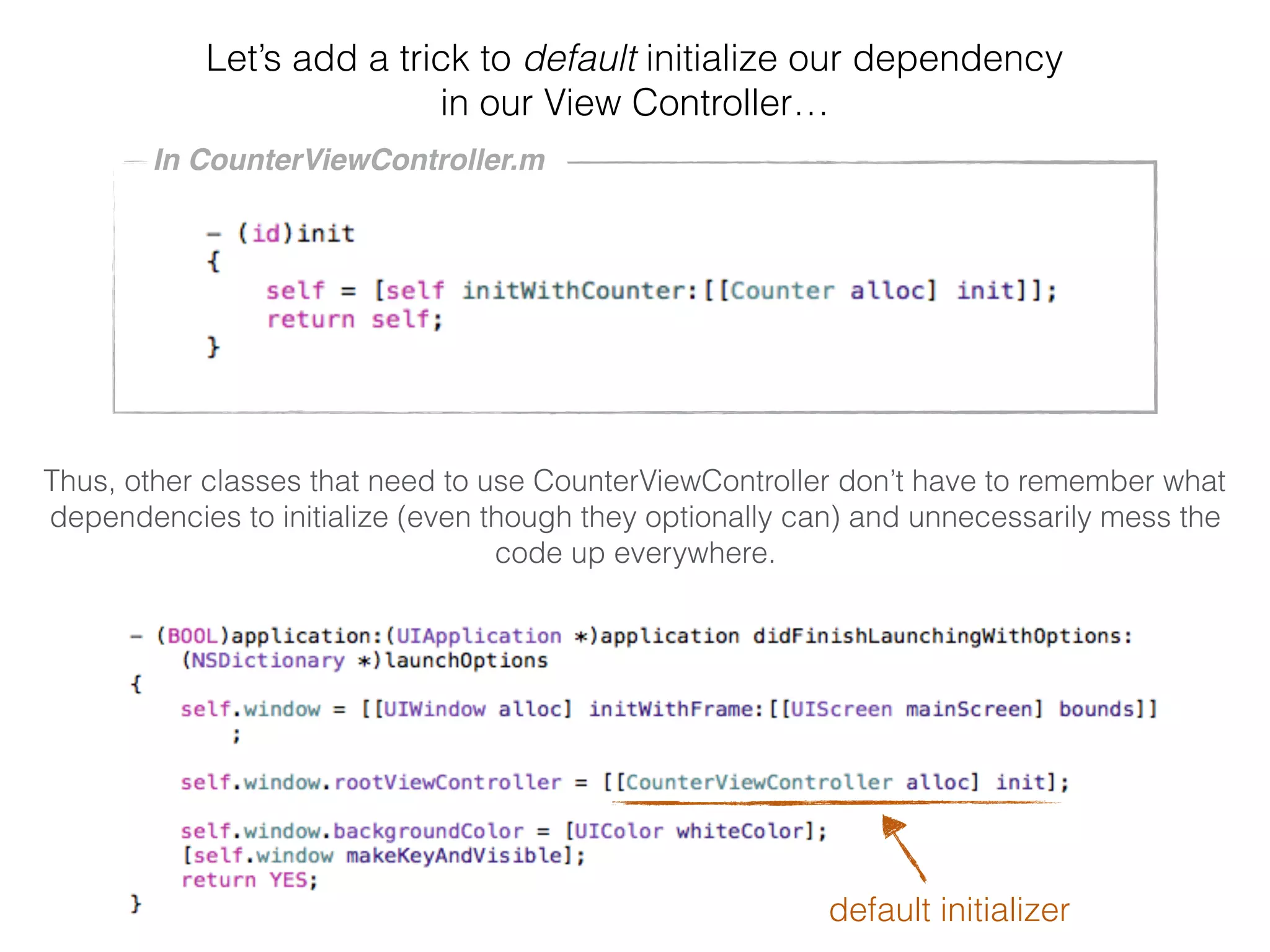

- 81. Let’s add atrick to default initialize our dependency in our View Controller… Thus, other classes that need to use CounterViewController don’t have to remember what dependencies to initialize (even though they optionally can) and unnecessarily mess the code up everywhere. In CounterViewController.m default initializer

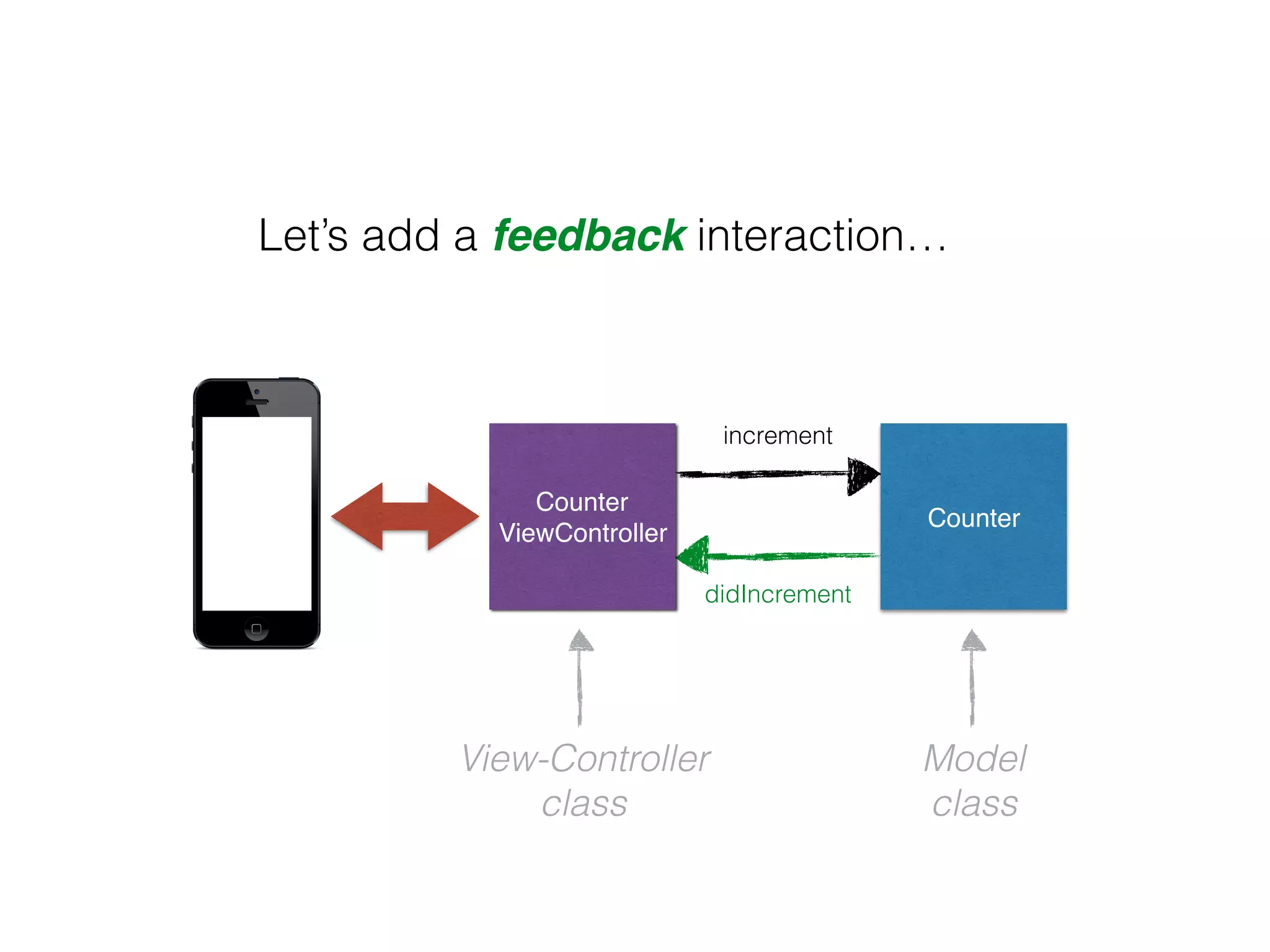

- 82. increment didIncrement View-Controller class Model class Let’s add afeedback interaction… Counter ViewController Counter
- 83.
- 84.
- 85.
- 86.
- 87.
- 88.
- 89.

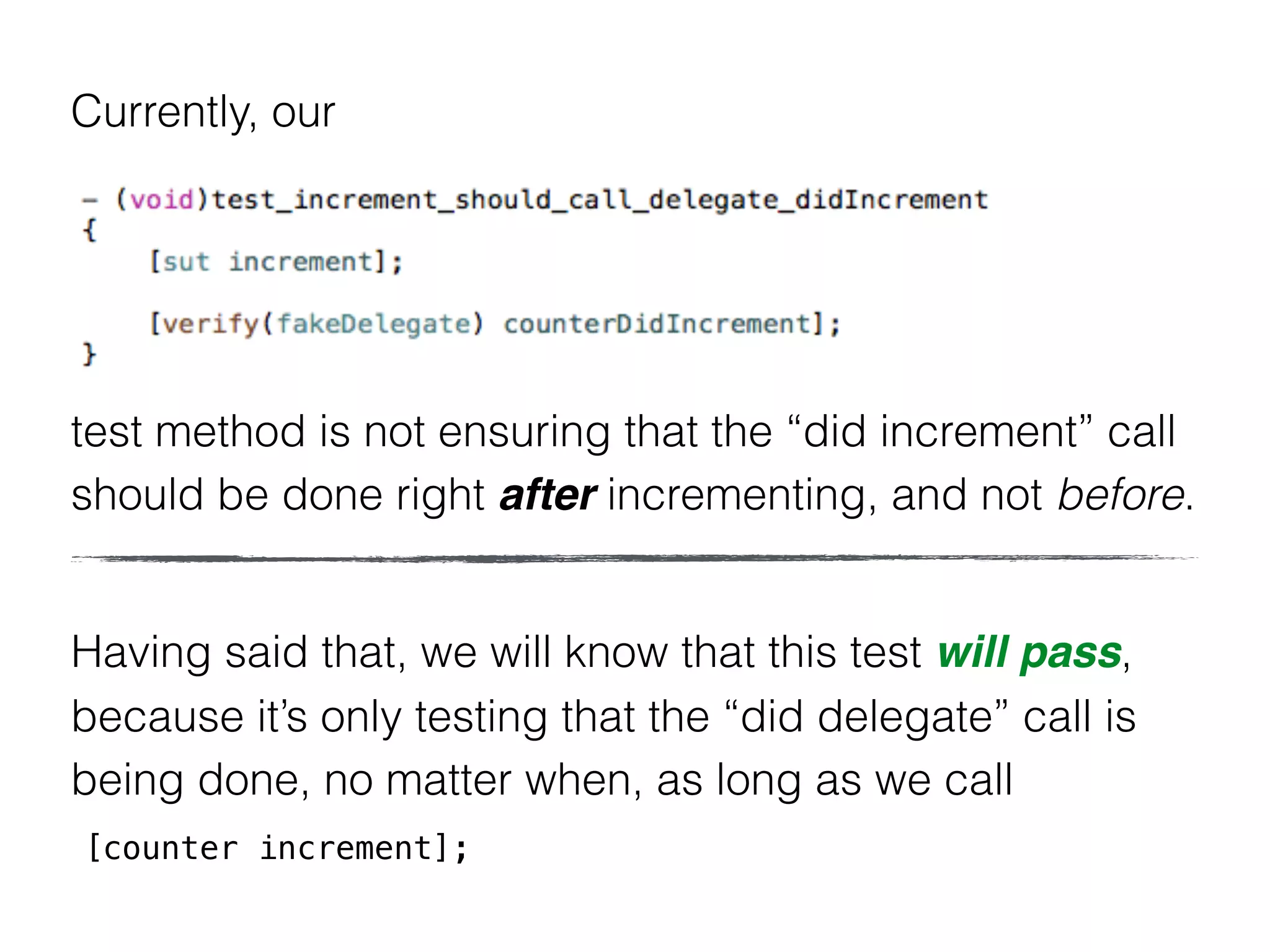

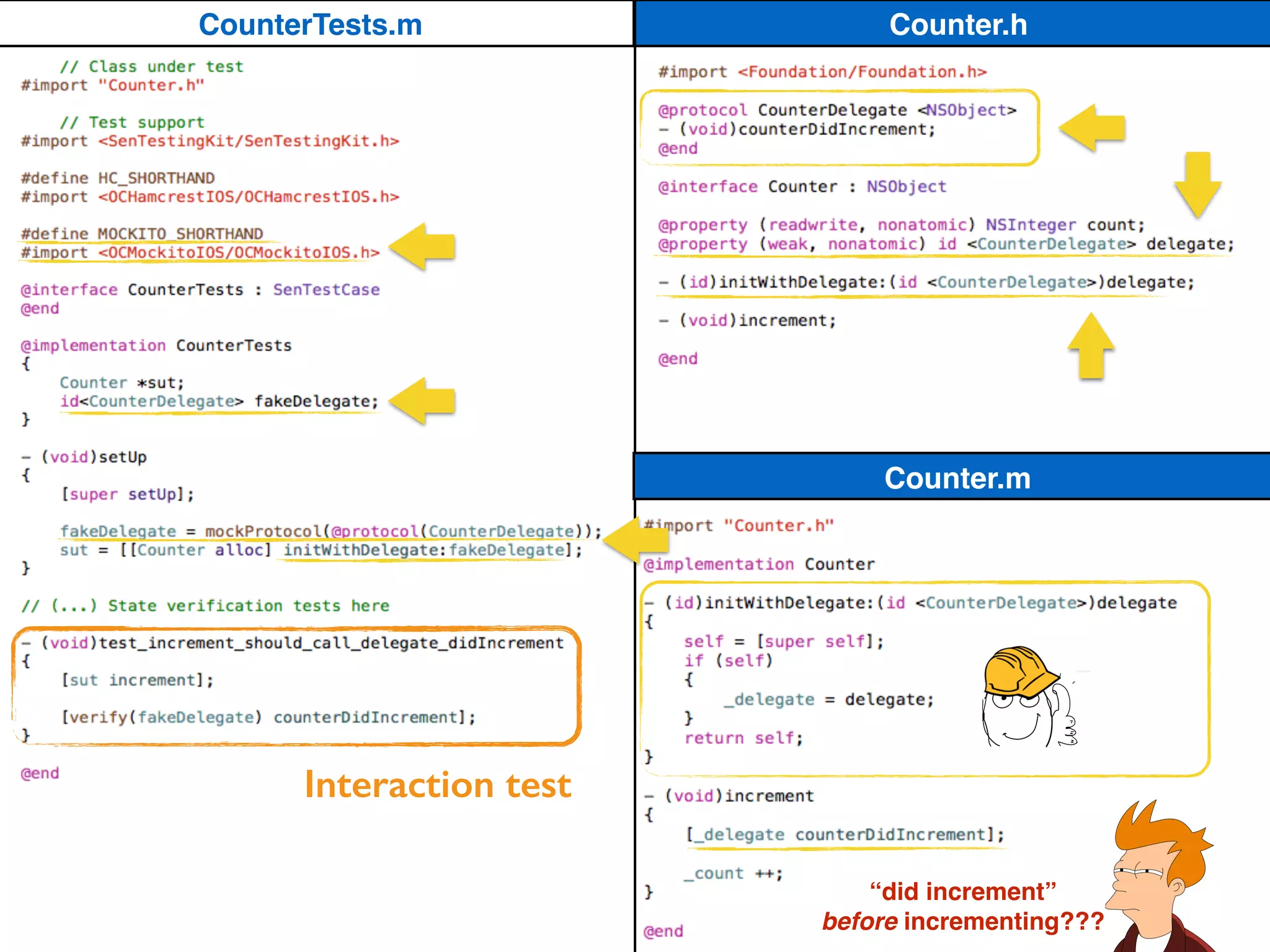

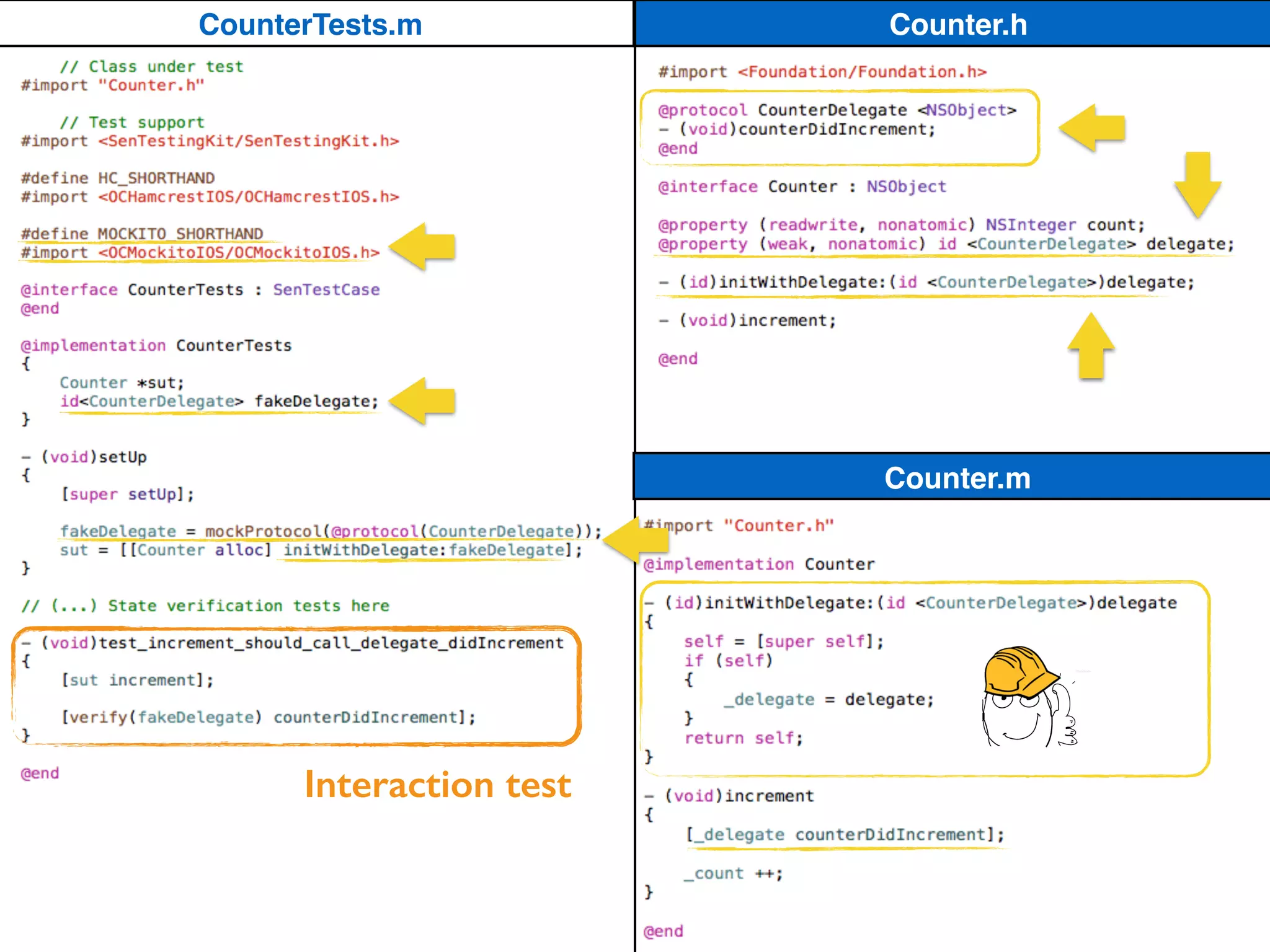

- 90. Currently, our test methodis not ensuring that the “did increment” call should be done right after incrementing, and not before. Having said that, we will know that this test will pass, because it’s only testing that the “did delegate” call is being done, no matter when, as long as we call [counter increment];

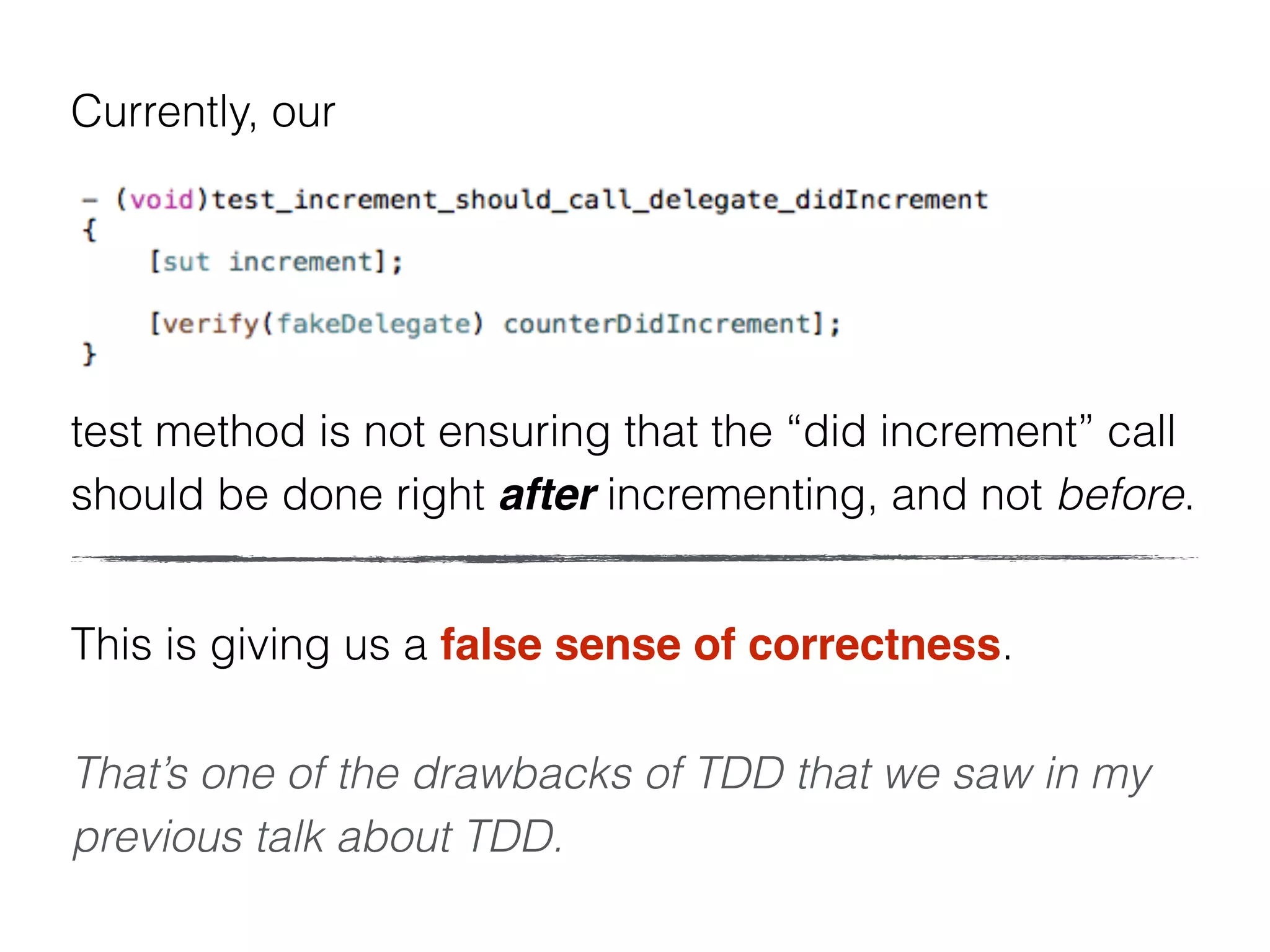

- 91. This is givingus a false sense of correctness. That’s one of the drawbacks of TDD that we saw in my previous talk about TDD. Currently, our test method is not ensuring that the “did increment” call should be done right after incrementing, and not before.

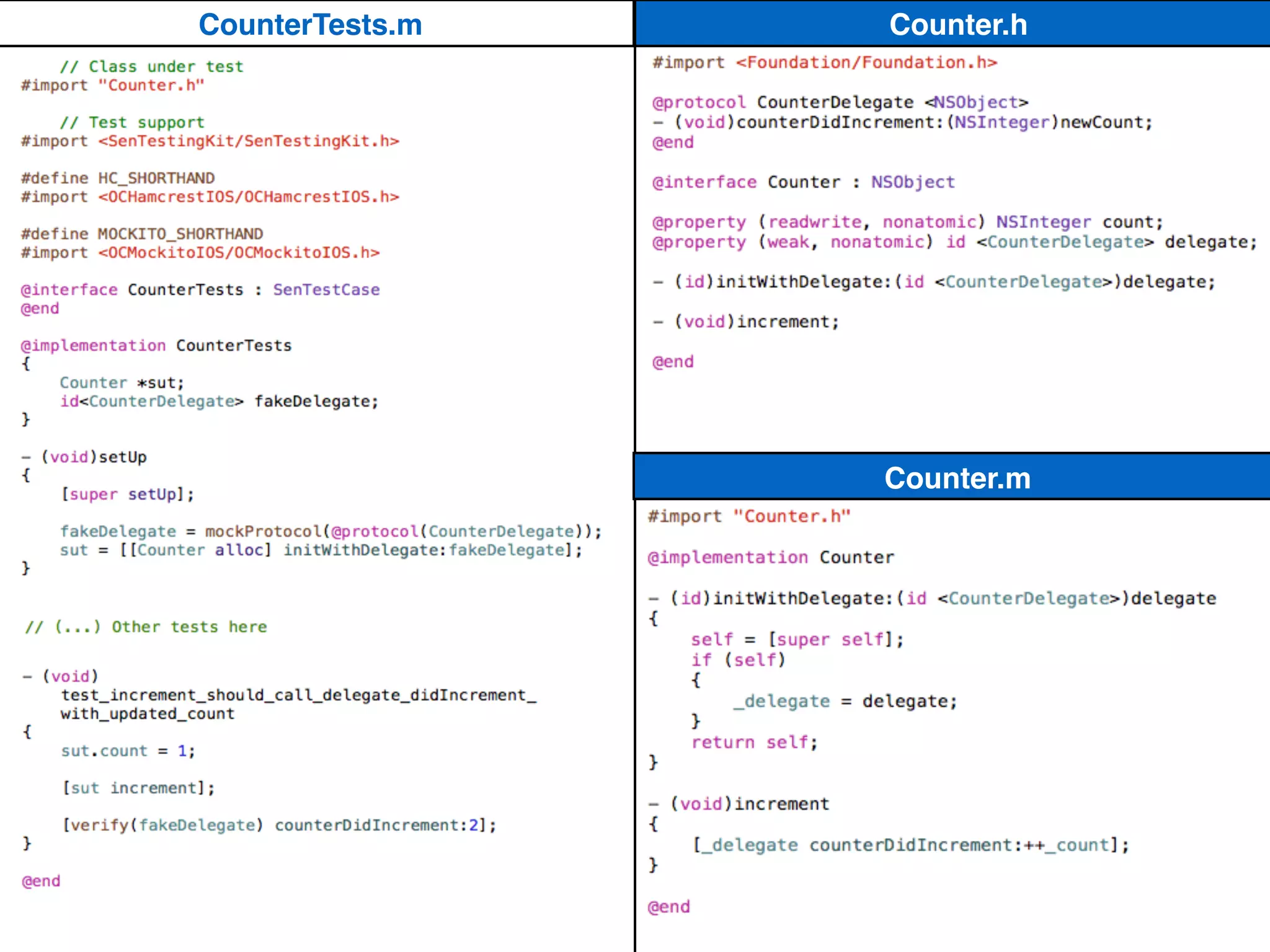

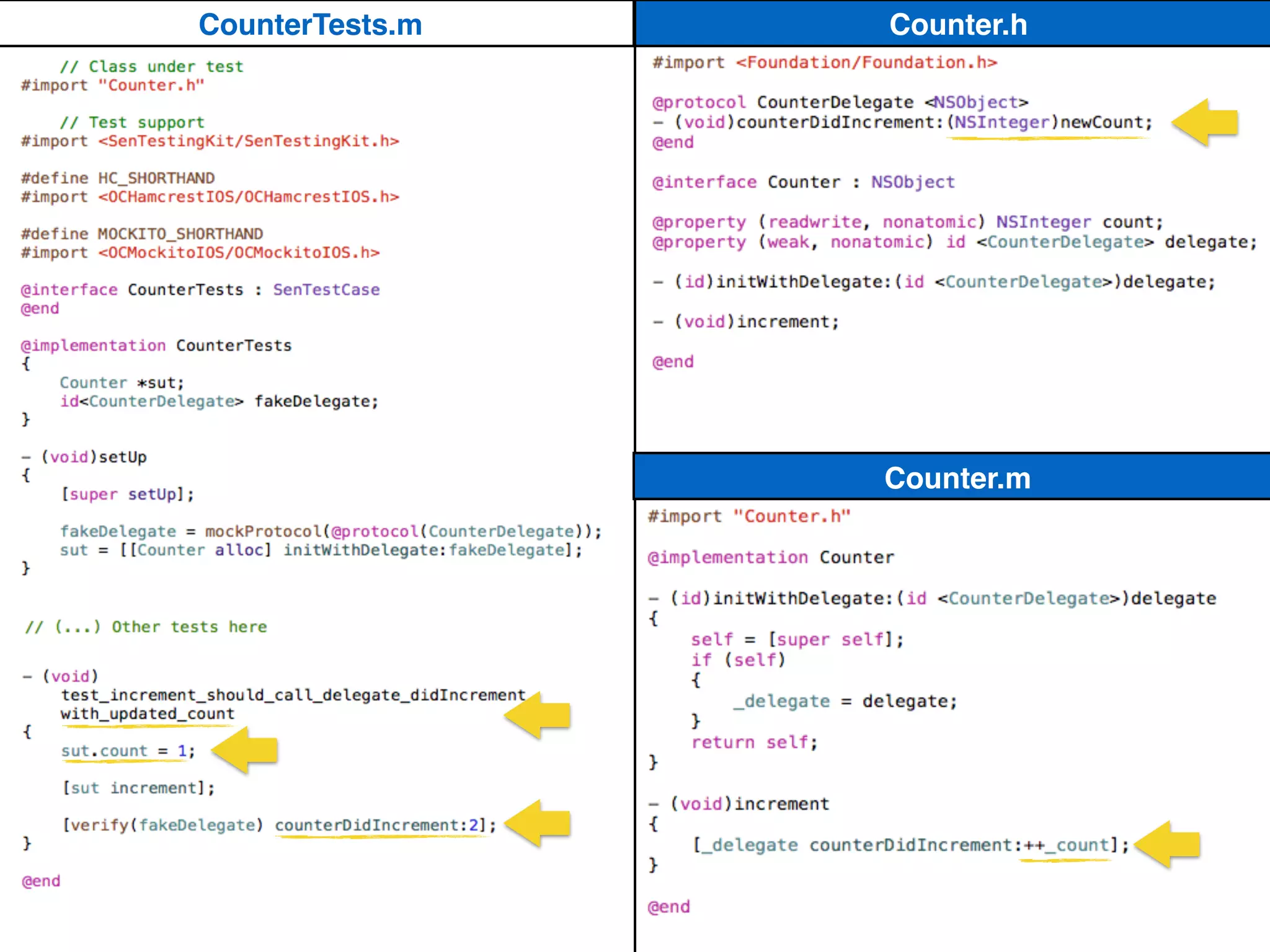

- 92. So, we willneed to modify this test to make sure the “did increment” delegate call is being fired once the integer counter property has been increased. Currently, our test method is not ensuring that the “did increment” call should be done right after incrementing, and not before.
- 93.
- 94.
- 95.
- 96.

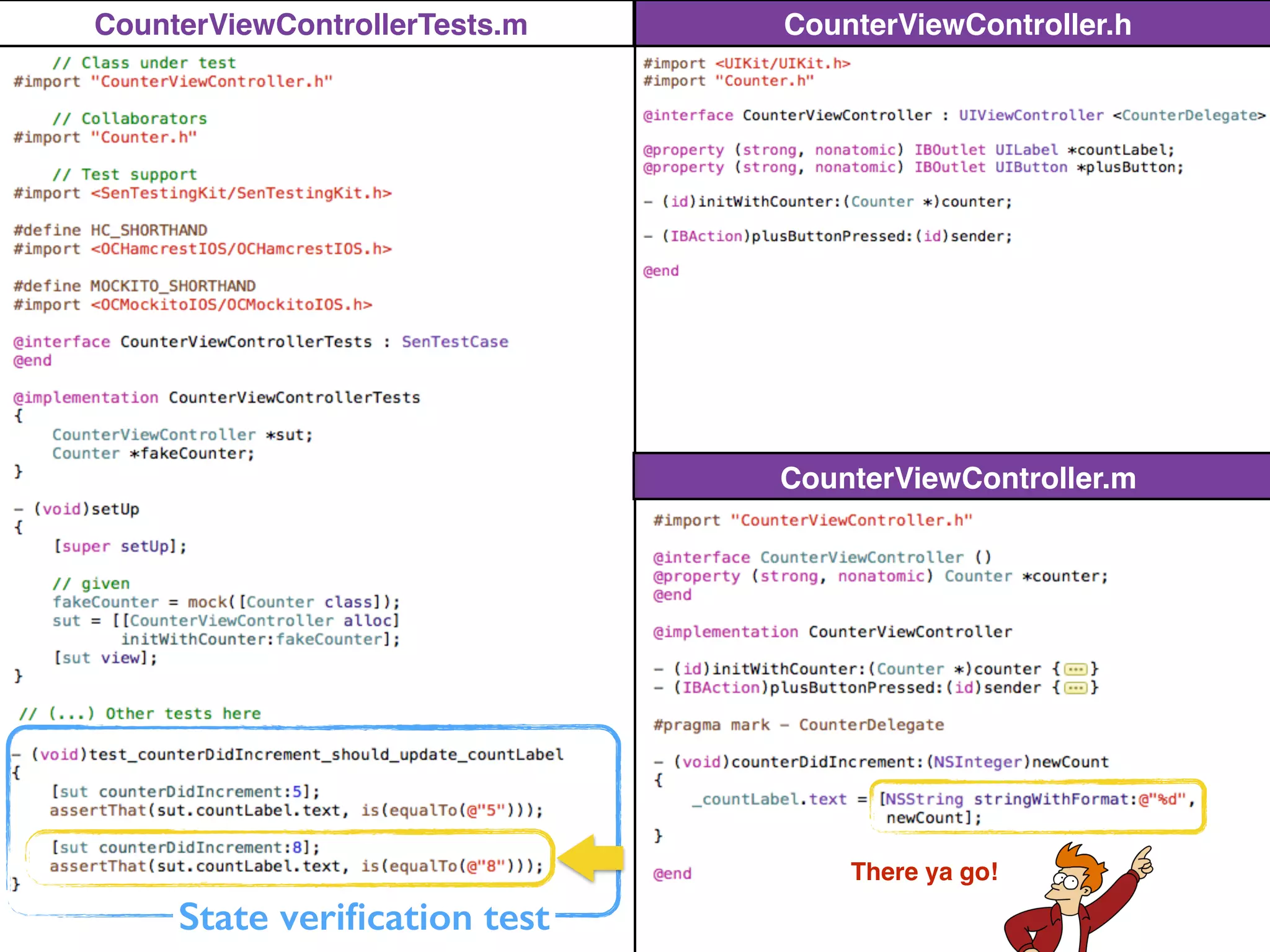

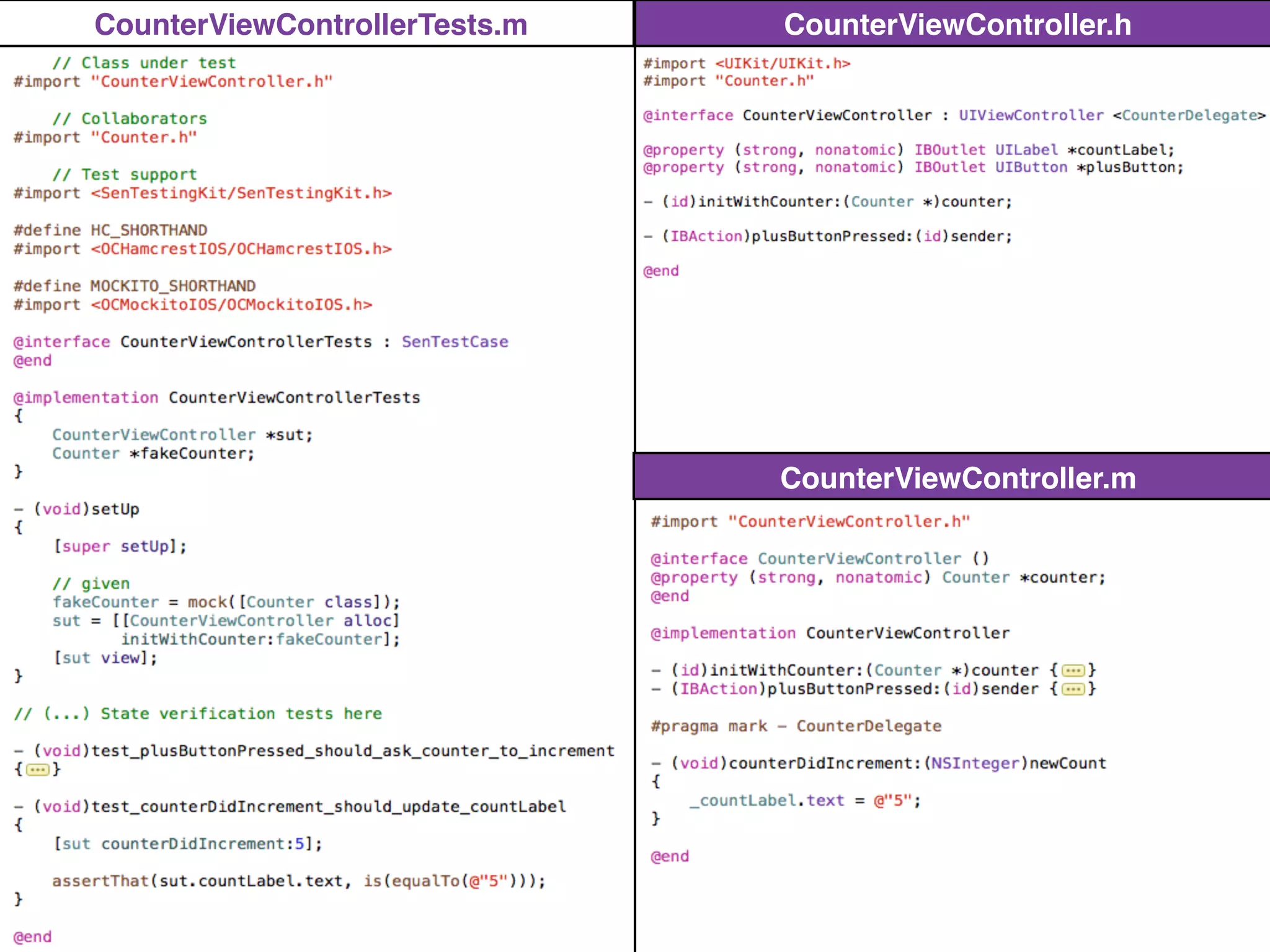

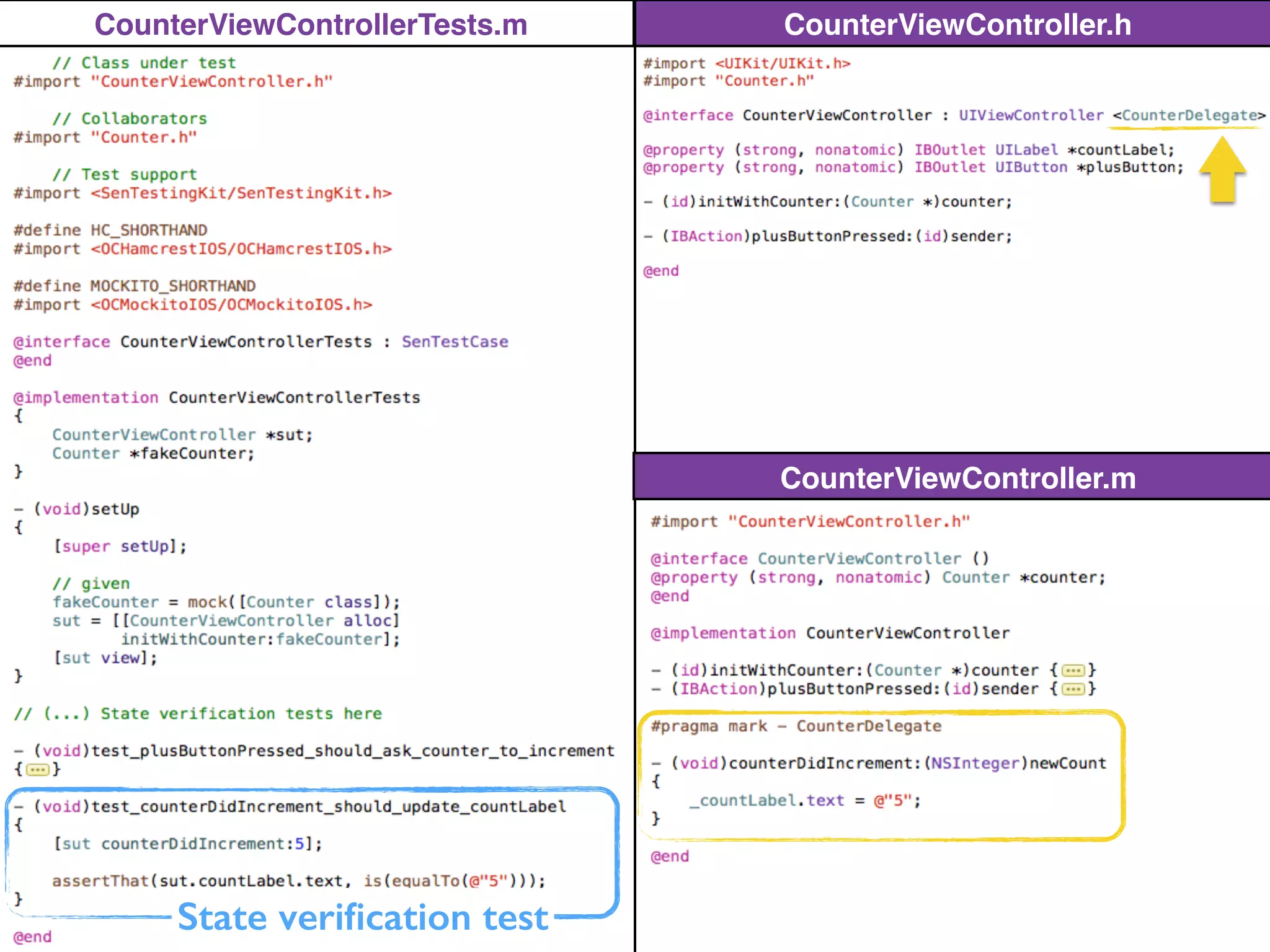

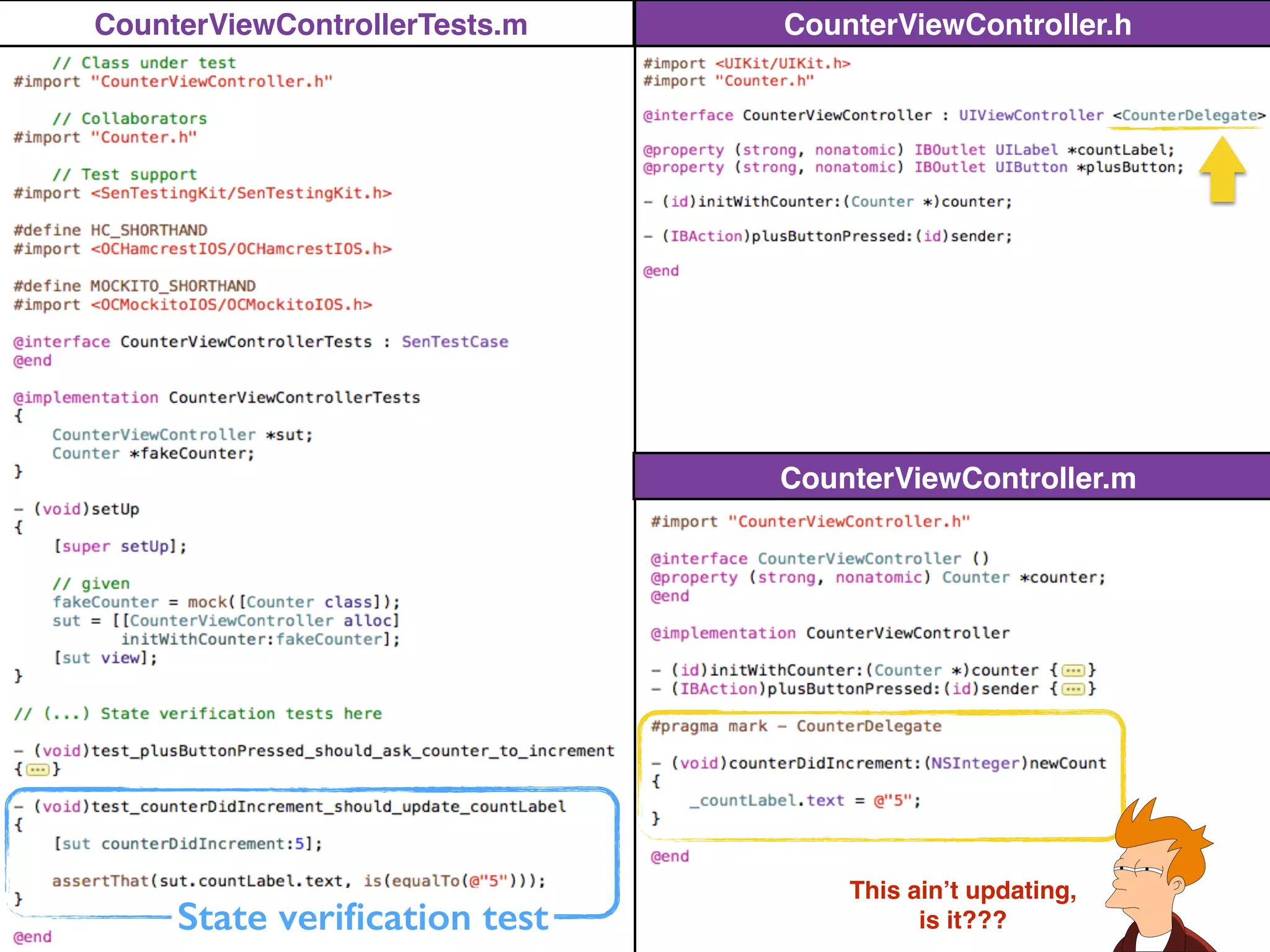

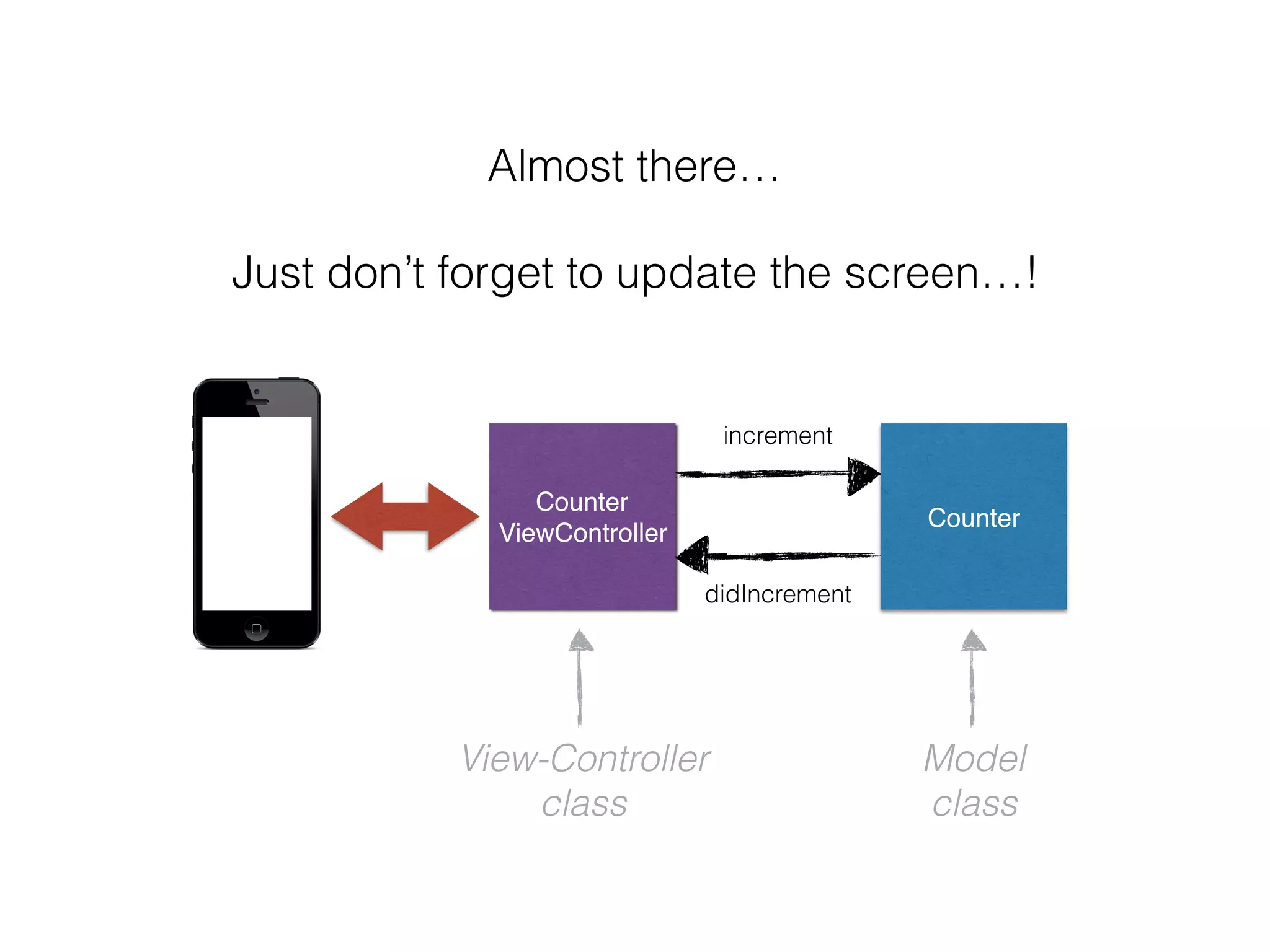

- 97. increment didIncrement View-Controller class Model class Almost there… Just don’tforget to update the screen…! Counter ViewController Counter
- 98.
- 99.
- 100.
- 101.
- 102.
- 103.

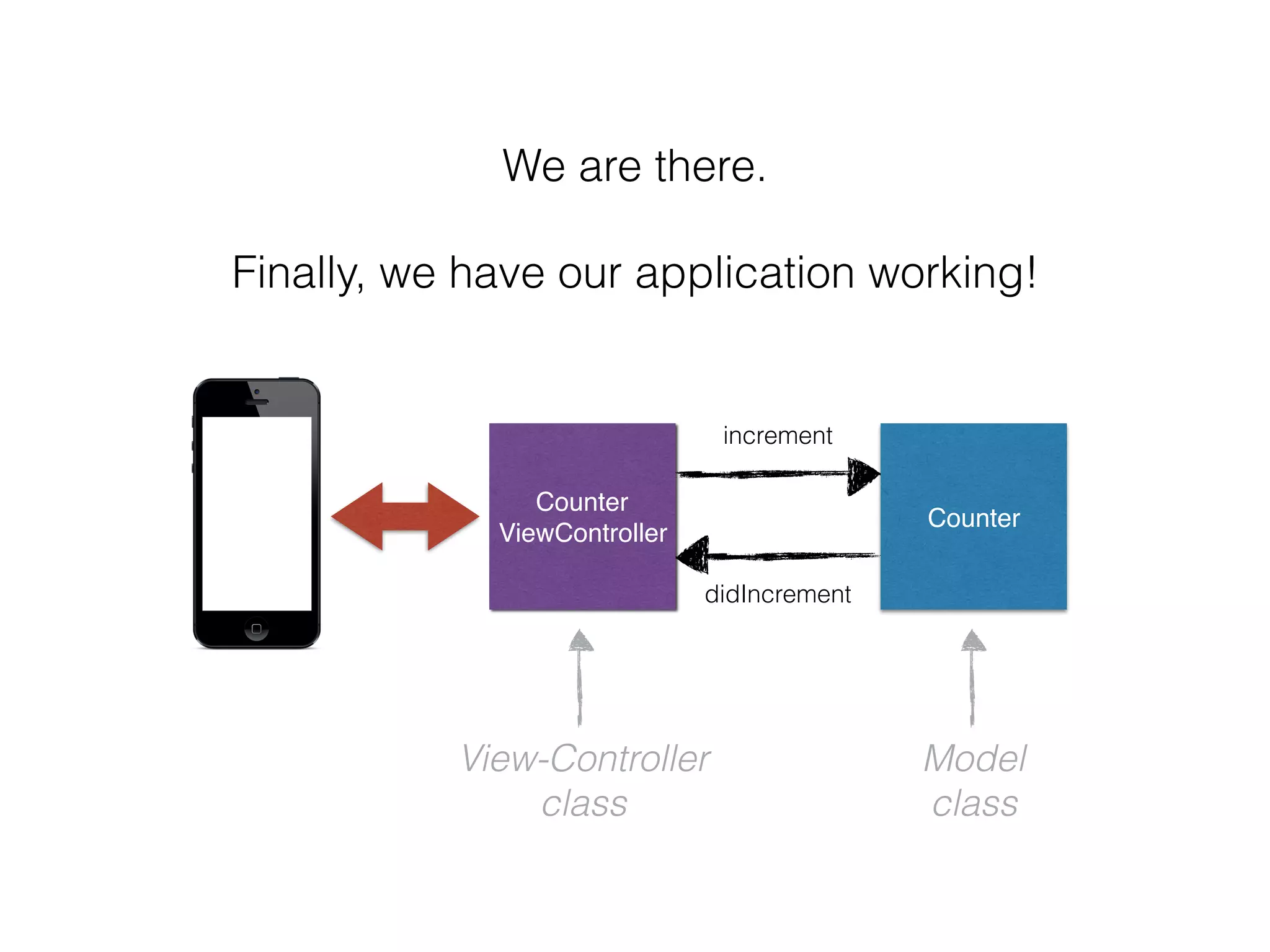

- 104. increment didIncrement View-Controller class Model class We are there. Finally,we have our application working! Counter ViewController Counter
- 105.

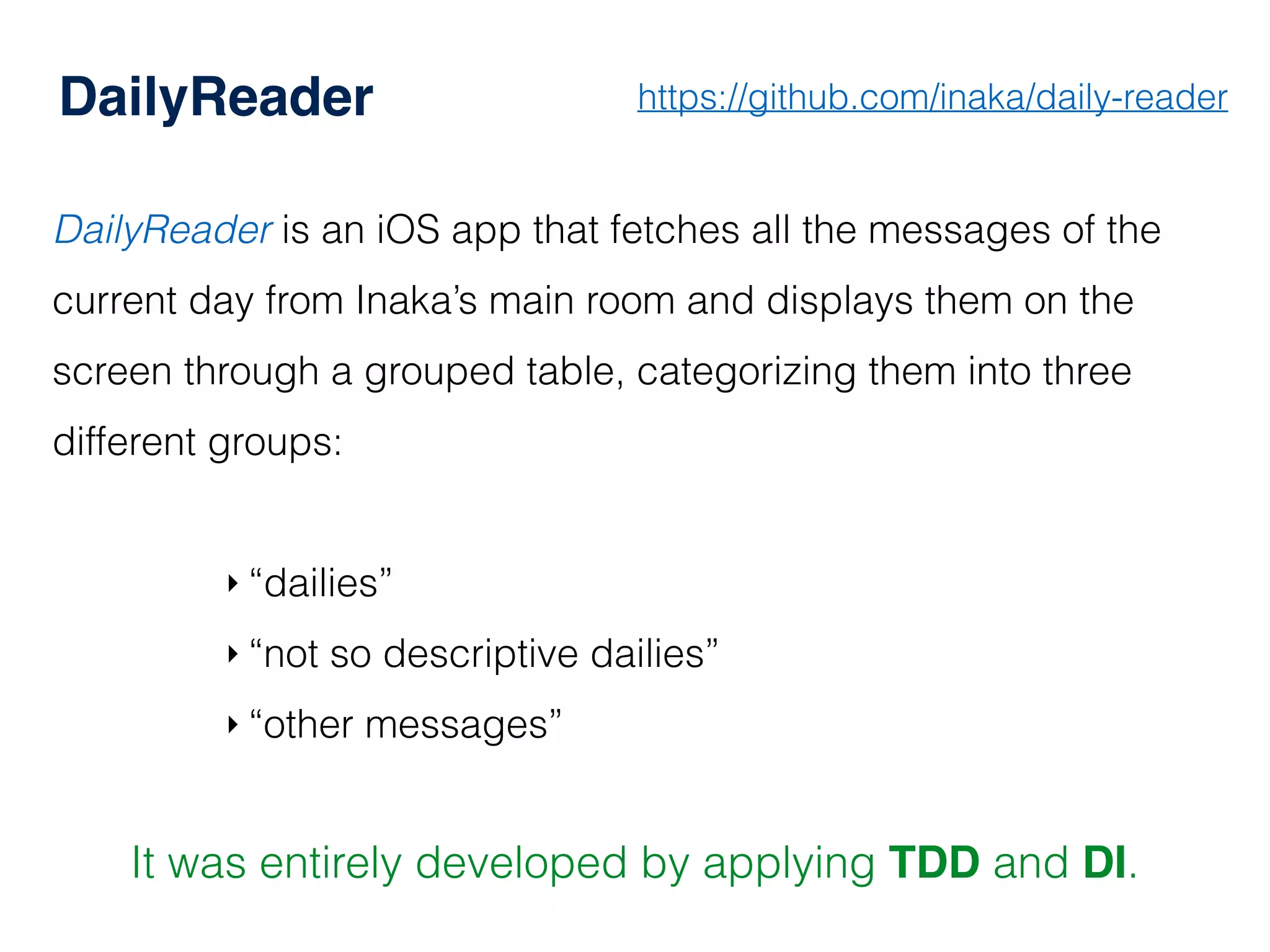

- 106. DailyReader DailyReader is aniOS app that fetches all the messages of the current day from Inaka’s main room and displays them on the screen through a grouped table, categorizing them into three different groups: ‣ “dailies” ‣ “not so descriptive dailies” ‣ “other messages” It was entirely developed by applying TDD and DI. https://github.com/inaka/daily-reader

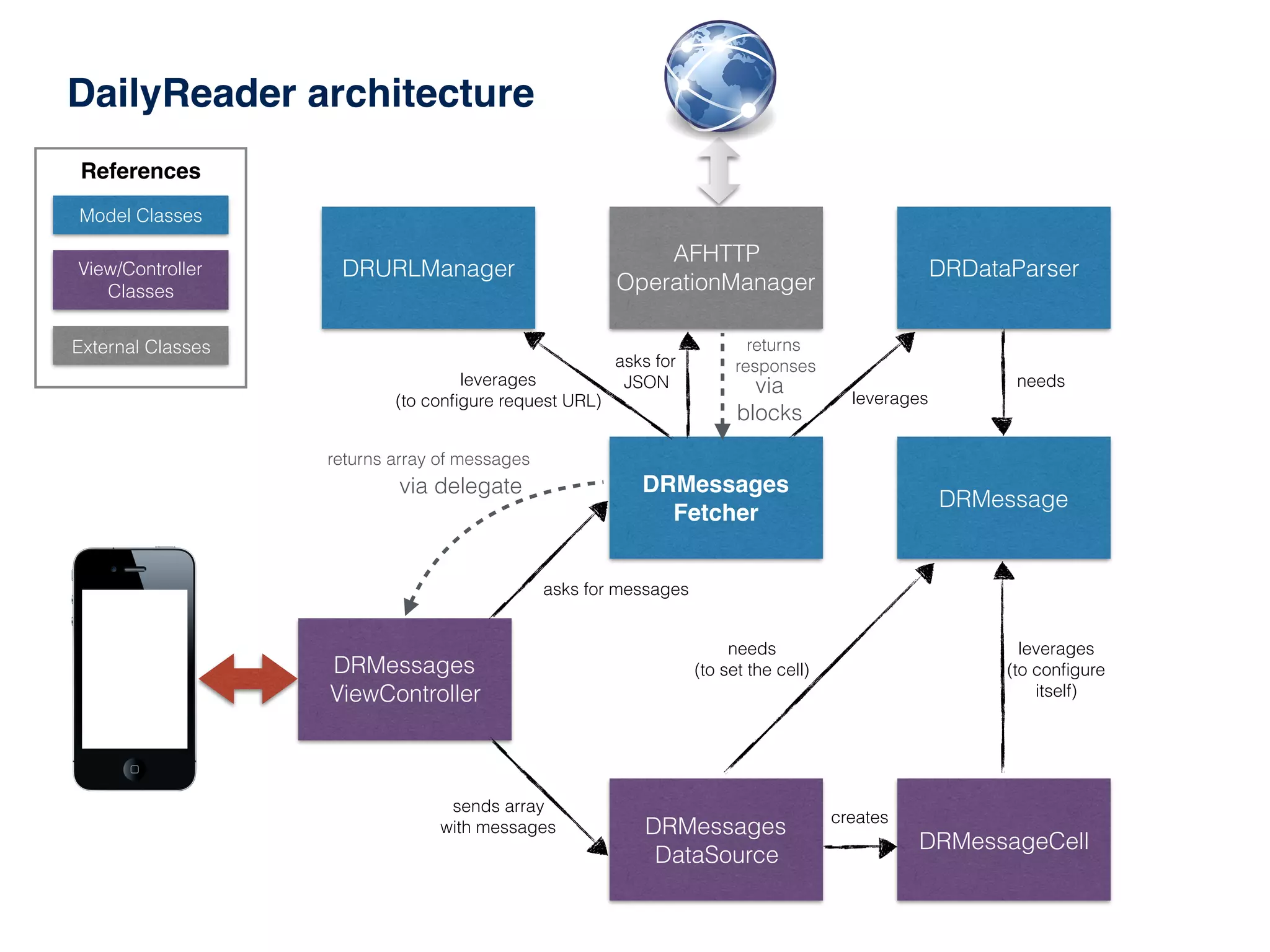

- 107. DRMessages ViewController DRMessages Fetcher AFHTTP OperationManager DRURLManager DRDataParser DRMessage DRMessageCell DRMessages DataSource via delegate via blocks ModelClasses View/Controller Classes External Classes References asks for messages leverages (to configure request URL) leverages needs returns array of messages returns responses needs (to set the cell) leverages (to configure itself) creates sends array with messages asks for JSON DailyReader architecture

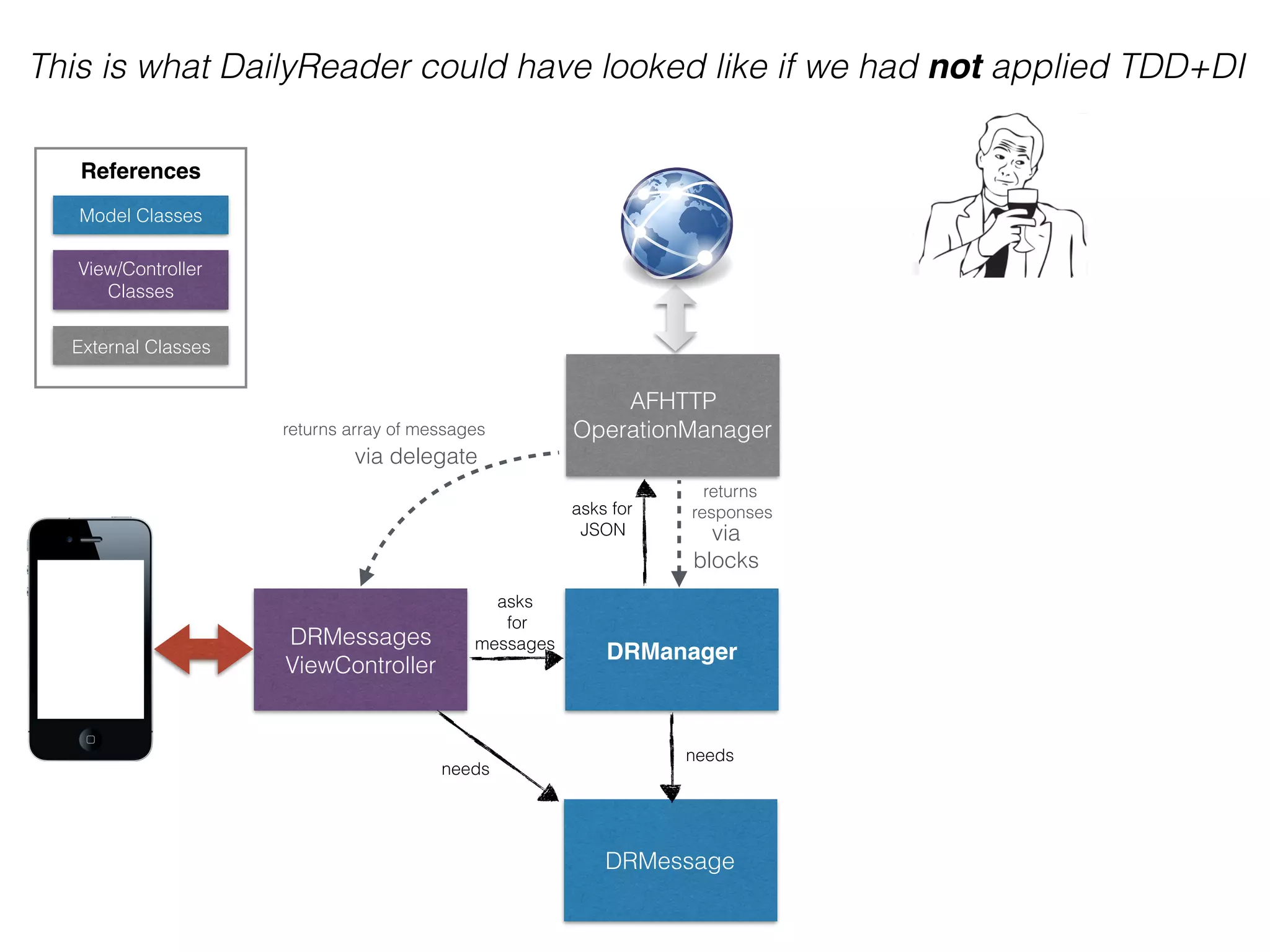

- 108. This is whatDailyReader could have looked like if we had not applied TDD+DI DRMessages ViewController DRManager AFHTTP OperationManager DRMessage via delegate via blocks Model Classes View/Controller Classes External Classes References asks for messages needs returns array of messages returns responsesasks for JSON needs
- 109. This is whatDailyReader could have looked like if we had not applied TDD+DI DRMessages ViewController DRManager AFHTTP OperationManager DRMessage via delegate via blocks Model Classes View/Controller Classes External Classes References asks for messages needs returns array of messages returns responsesasks for JSON • Fewer classes • Classes are tightly coupled • Responsibilites are not clear • Code is less extensible • Code is less testable • Code is less maintainable What do we see here? needs

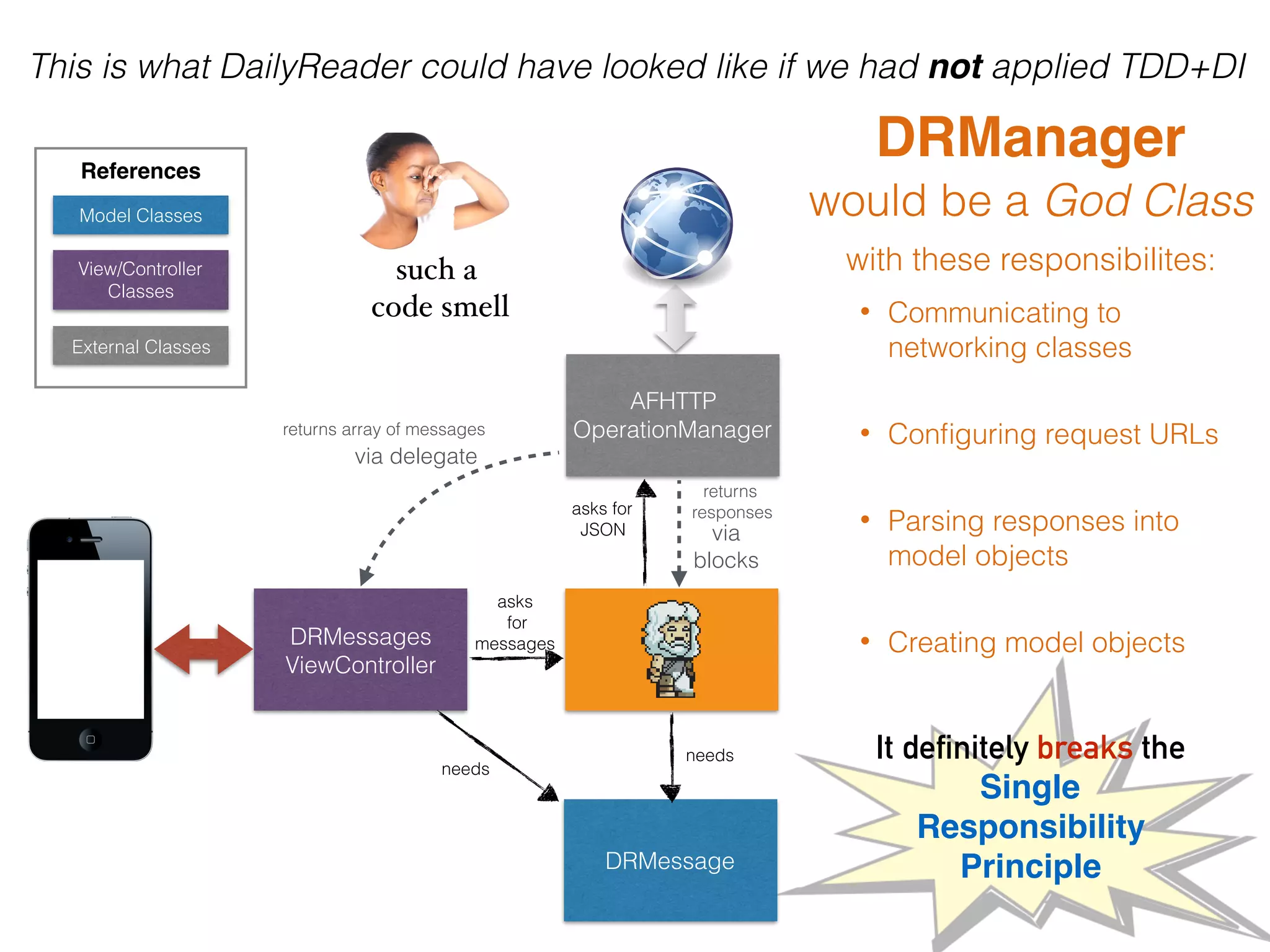

- 110. This is whatDailyReader could have looked like if we had not applied TDD+DI DRMessages ViewController AFHTTP OperationManager DRMessage via delegate via blocks Model Classes View/Controller Classes External Classes References asks for messages needs returns array of messages returns responsesasks for JSON needs DRManager would be a God Class with these responsibilites: • Communicating to networking classes • Configuring request URLs • Parsing responses into model objects • Creating model objects It definitely breaks the Single Responsibility Principle such a code smell
- 111. DI: Pros &Cons

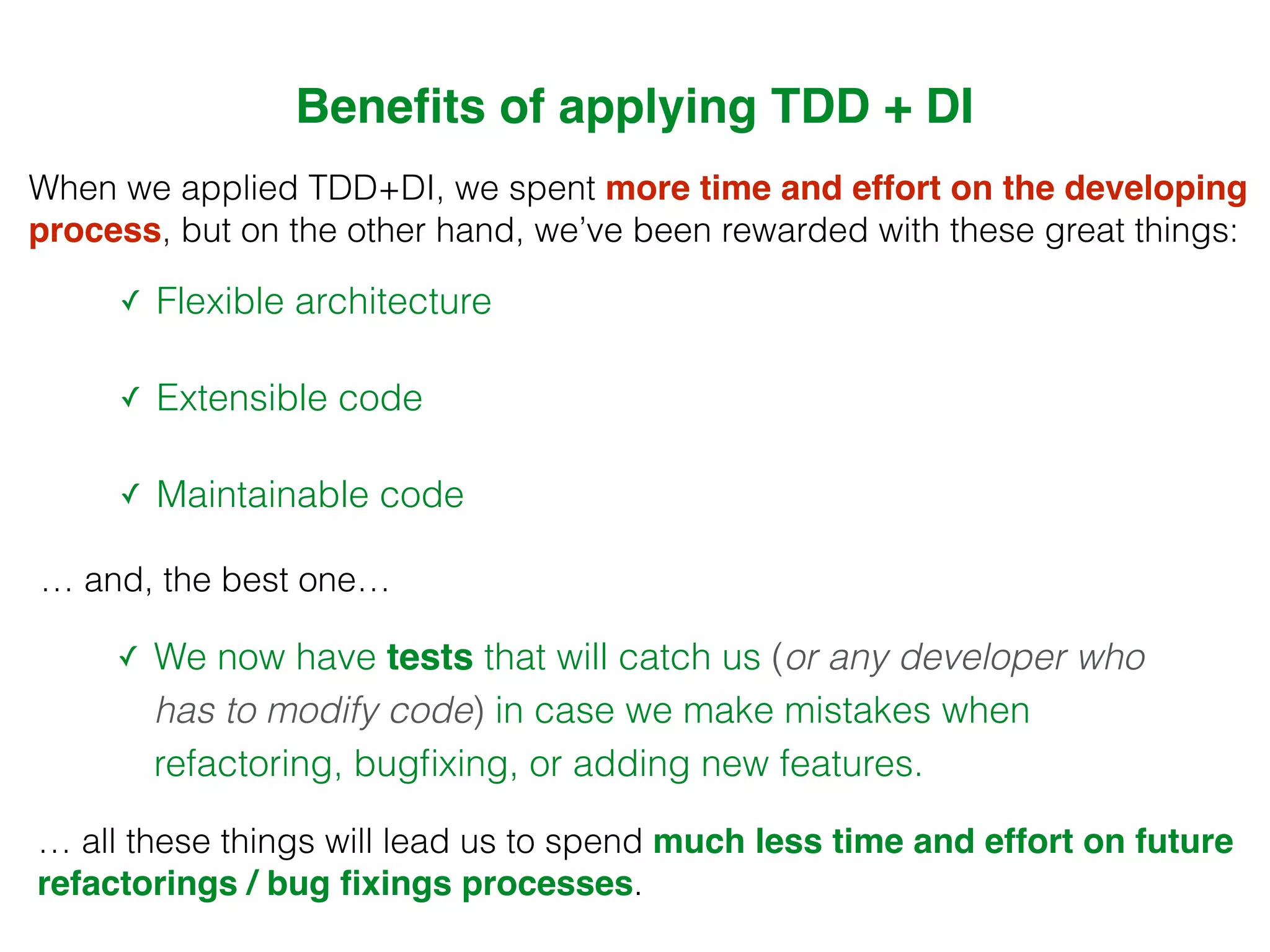

- 112. When we appliedTDD+DI, we spent more time and effort on the developing process, but on the other hand, we’ve been rewarded with these great things: ✓ Flexible architecture ✓ Extensible code ✓ Maintainable code … and, the best one… ✓ We now have tests that will catch us (or any developer who has to modify code) in case we make mistakes when refactoring, bugfixing, or adding new features. Benefits of applying TDD + DI … all these things will lead us to spend much less time and effort on future refactorings / bug fixings processes.

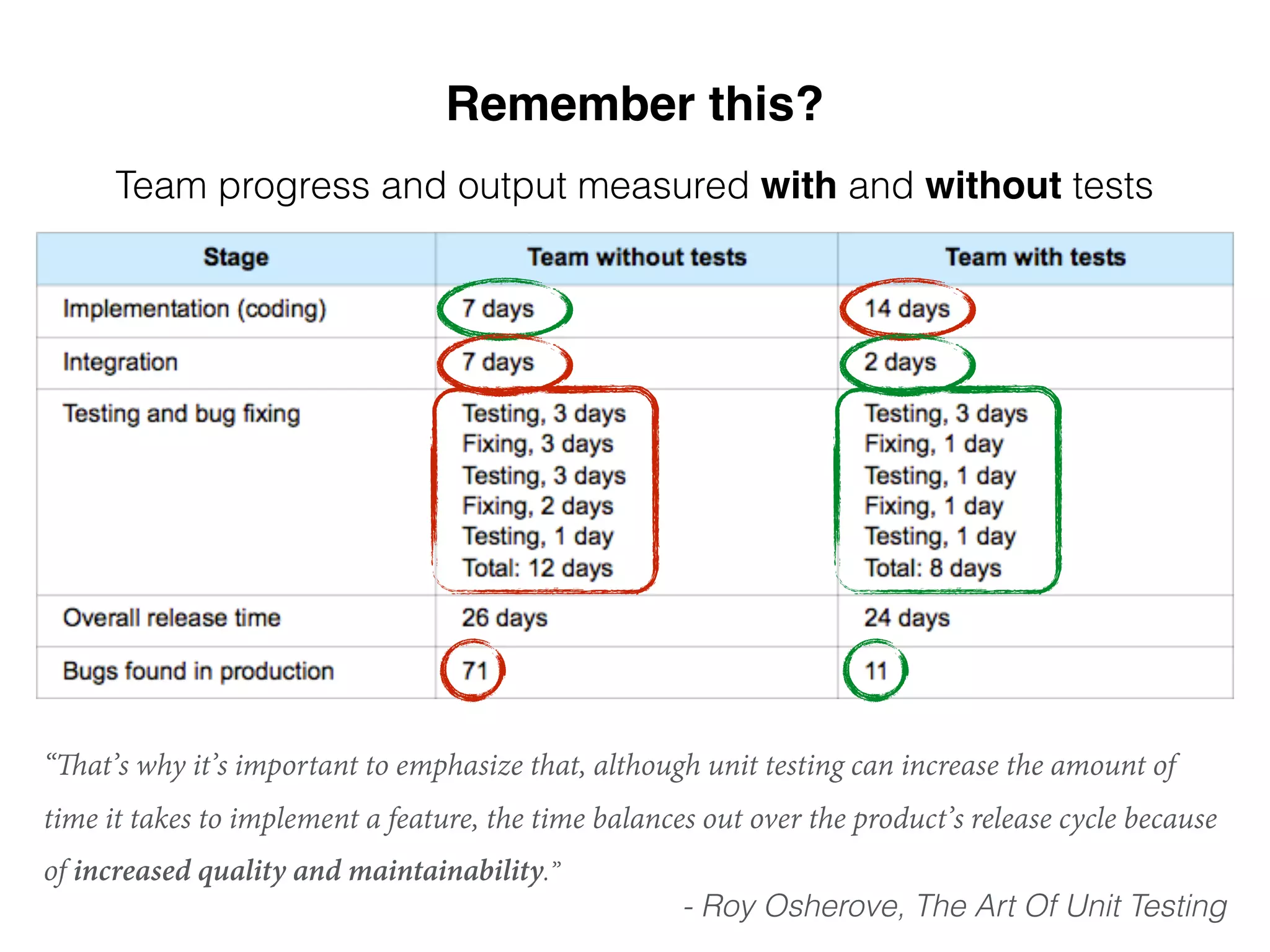

- 113. Remember this? Team progressand output measured with and without tests - Roy Osherove, The Art Of Unit Testing “That’s why it’s important to emphasize that, although unit testing can increase the amount of time it takes to implement a feature, the time balances out over the product’s release cycle because of increased quality and maintainability.”

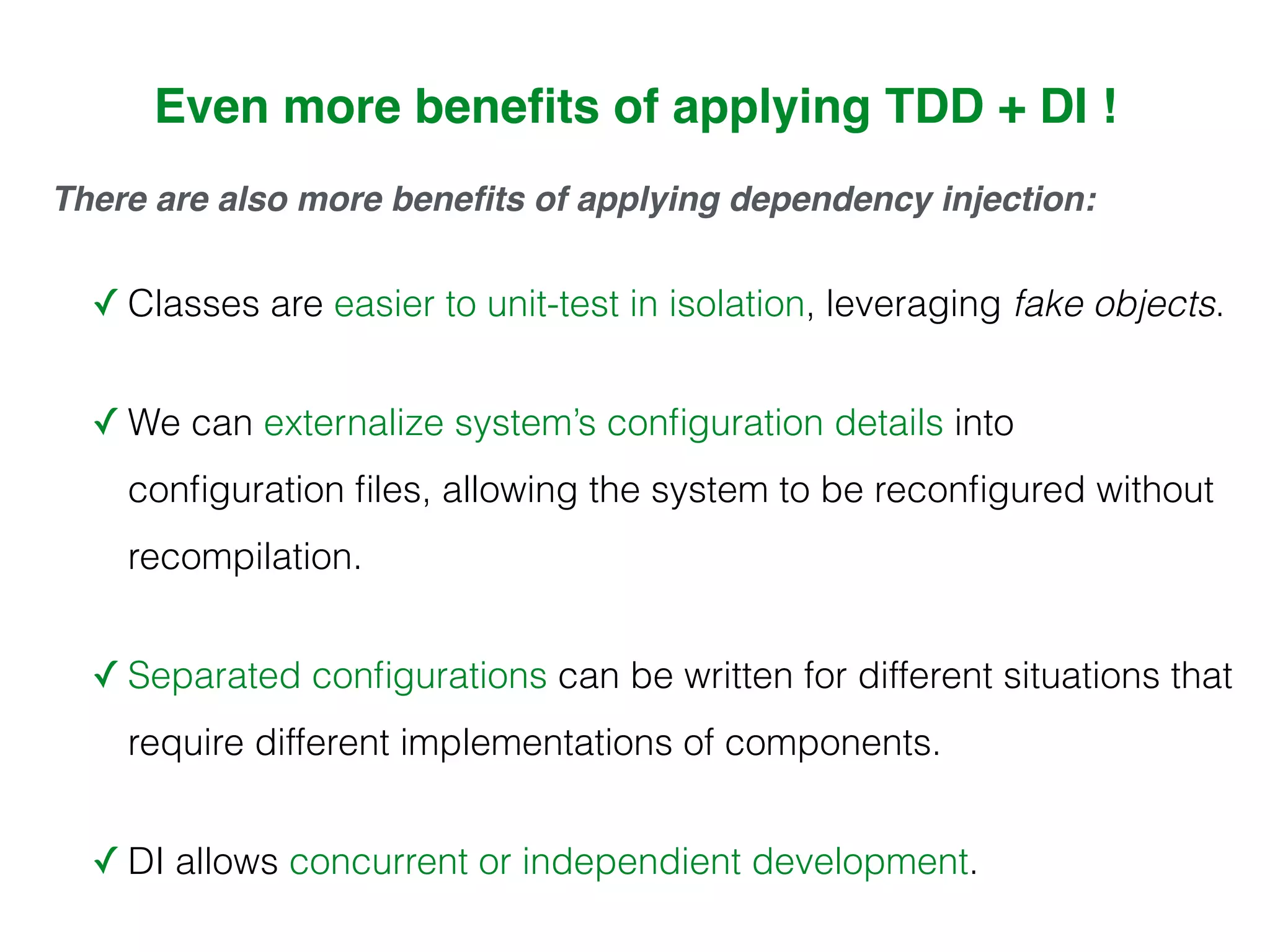

- 114. There are alsomore benefits of applying dependency injection: ✓ Classes are easier to unit-test in isolation, leveraging fake objects. ✓ We can externalize system’s configuration details into configuration files, allowing the system to be reconfigured without recompilation. ✓ Separated configurations can be written for different situations that require different implementations of components. ✓ DI allows concurrent or independient development. Even more benefits of applying TDD + DI !

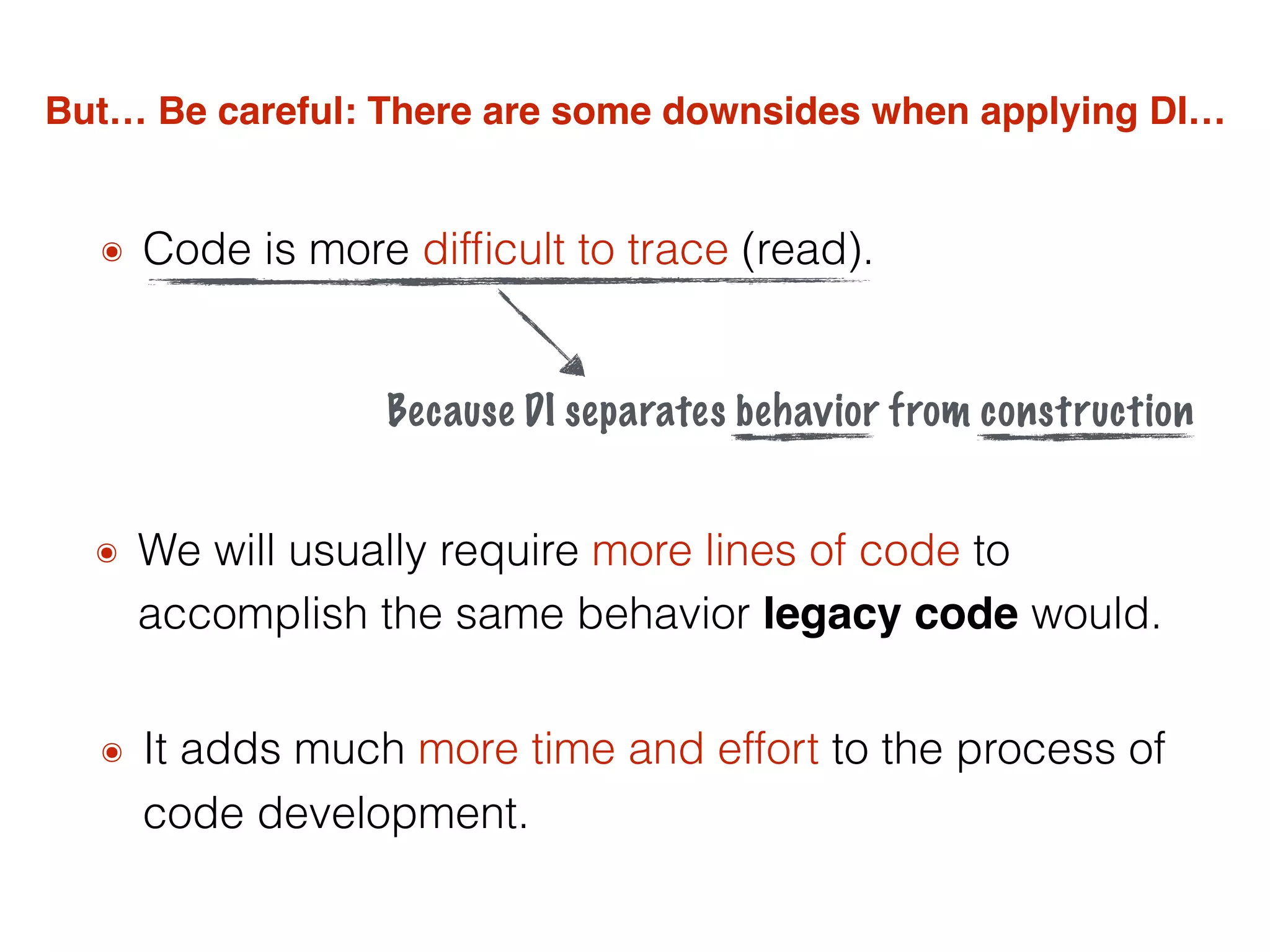

- 115. But… Be careful:There are some downsides when applying DI… ๏ Code is more difficult to trace (read). ๏ We will usually require more lines of code to accomplish the same behavior legacy code would. ๏ It adds much more time and effort to the process of code development. Because DI separates behavior from construction
- 116.
- 117. Dependency Injection by MarkSeemann in .NET 2012 .NET
- 118. The Art OfUnit Testing by Roy Osherove with Examples in .NET 2009 .NET
- 119. Working Effectively With LegacyCode by Michael Feathers 2005 Java, C++, C
- 120.
- 121.
- 122.
- 123. That’s all, folks! (thisstory may continue soon though…)
- 124. I hope youenjoy implementing TDD + DI in iOS :D Pablo Villar - May 2014 @ InakaLabs
