Cycle.js: Functional and Reactive

CYCLE.JS: FUNCTIONAL AND
REACTIVE
EUGENE ZHARKOV

Cycle.js
virtual-dom
RxJS
cycle/corecycle/dom

EXISTED APPLICATION DATA FLOW | FLUX / REDUX
VIEW
DISPATCHER
STORE
action
action
action
STORE
USER
ACTION

EXISTED APPLICATION DATA FLOW | MODEL VIEW INTENT
VIEW
INTENT
MODEL
USER
ACTION
observable
observable
observable

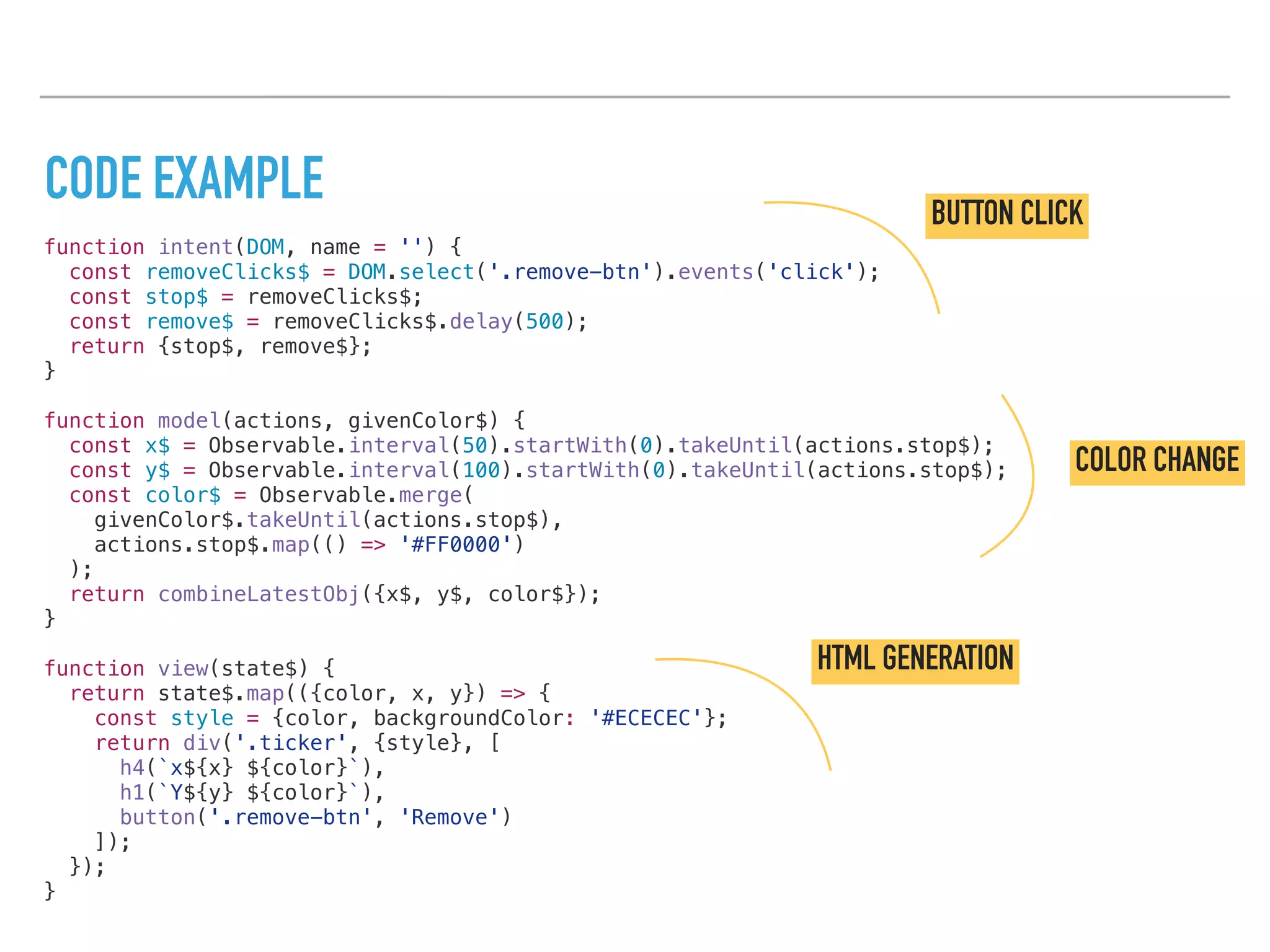

CODE EXAMPLE
function intent(DOM, name = '') {
const removeClicks$ = DOM.select('.remove-btn').events('click');
const stop$ = removeClicks$;
const remove$ = removeClicks$.delay(500);
return {stop$, remove$};
}
function model(actions, givenColor$) {
const x$ = Observable.interval(50).startWith(0).takeUntil(actions.stop$);
const y$ = Observable.interval(100).startWith(0).takeUntil(actions.stop$);
const color$ = Observable.merge(
givenColor$.takeUntil(actions.stop$),
actions.stop$.map(() => '#FF0000')
);
return combineLatestObj({x$, y$, color$});
}
function view(state$) {
return state$.map(({color, x, y}) => {
const style = {color, backgroundColor: '#ECECEC'};
return div('.ticker', {style}, [
h4(`x${x} ${color}`),
h1(`Y${y} ${color}`),
button('.remove-btn', 'Remove')
]);
});
}
BUTTON CLICK
HTML GENERATION
COLOR CHANGE

JSBIN.COM/VUGARUR/
BASIC EXAMPLE
import Cycle from '@cycle/core';
import {div, label, input, hr, h1, makeDOMDriver} from '@cycle/dom';
function main(sources) {
return {
DOM: sources.DOM.select('.myinput').events('input')
.map(ev => ev.target.value)
.startWith('')
.map(name =>
div([
label('Name:'),
input('.myinput', {attributes: {type: 'text'}}),
hr(),
h1(`Hello ${name}`)
])
)
};
}
Cycle.run(main, {
DOM: makeDOMDriver('#main-container')
});

JSBIN.COM/VUGARUR/
BASIC EXAMPLE
return {
.startWith('')
.map(name =>
div([
label('Name:'),
hr(),
h1(`Hello ${name}`)
])
)
};
}
Cycle.run(main, {
});
HANDLE EVENT
GET INPUT VALUE
DEFAULT VALUE
HTML

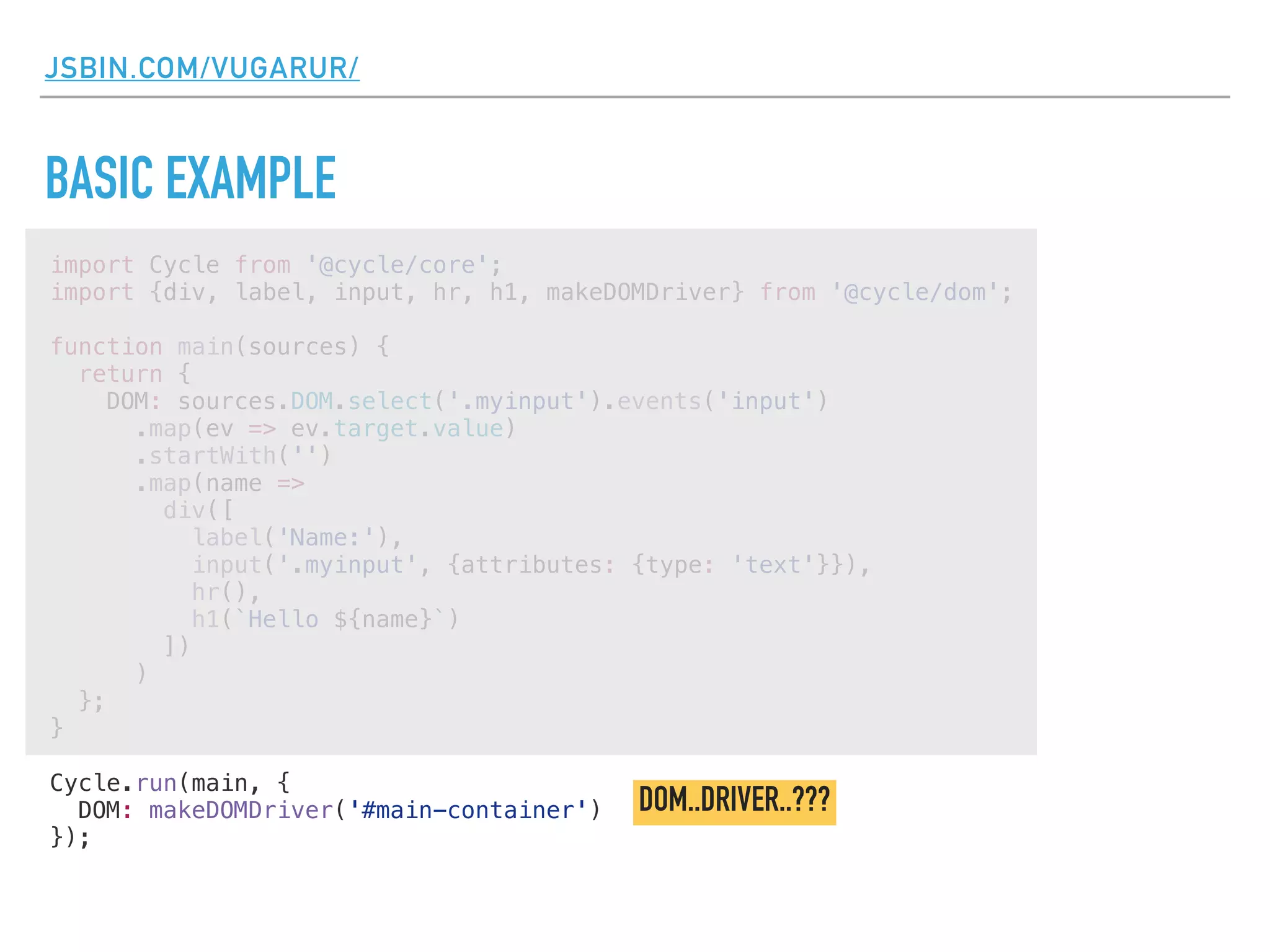

JSBIN.COM/VUGARUR/
BASIC EXAMPLE
return {
.startWith('')
.map(name =>
div([
label('Name:'),
hr(),
h1(`Hello ${name}`)
])
)
};
}
Cycle.run(main, {
});
DOM..DRIVER..???

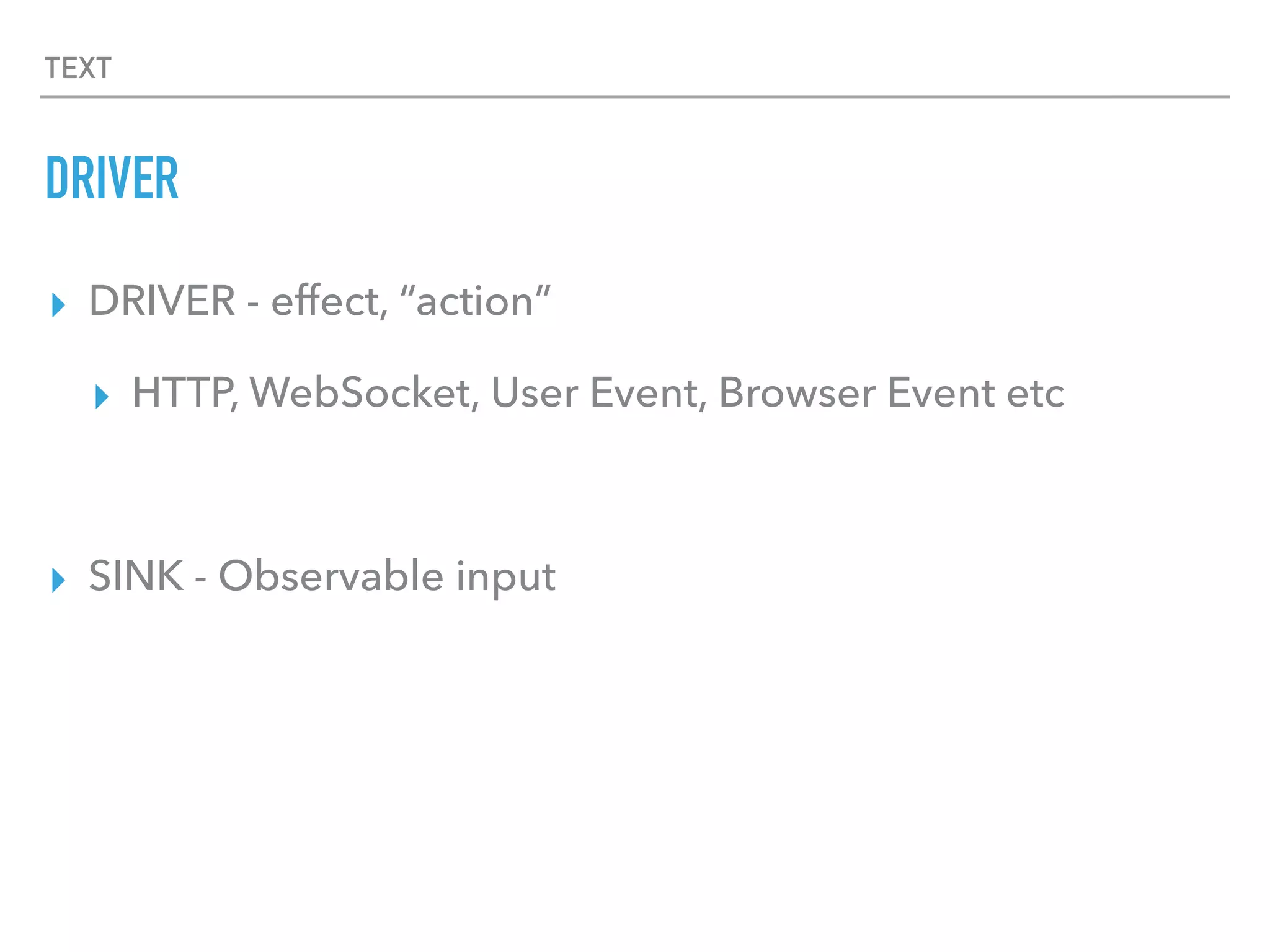

TEXT
DRIVER
▸ DRIVER - effect, “action”
▸ HTTP, WebSocket, User Event, Browser Event etc
▸ SINK - Observable input

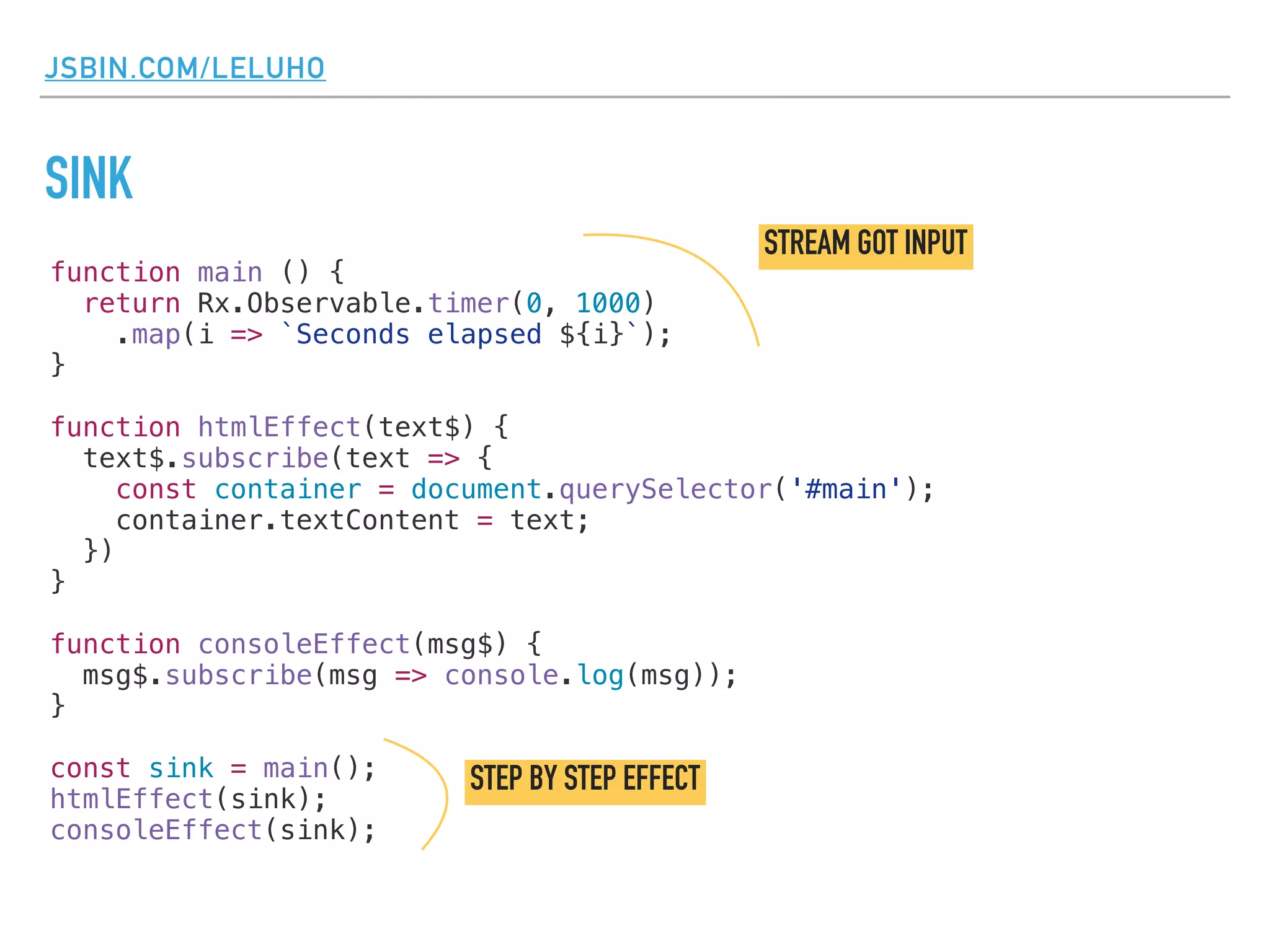

JSBIN.COM/LELUHO
SINK
function main () {
return Rx.Observable.timer(0, 1000)
.map(i => `Seconds elapsed ${i}`);
}
function htmlEffect(text$) {
text$.subscribe(text => {
const container = document.querySelector('#main');
container.textContent = text;
})
}
function consoleEffect(msg$) {
msg$.subscribe(msg => console.log(msg));
}
const sink = main();
htmlEffect(sink);
consoleEffect(sink);
STREAM GOT INPUT
STEP BY STEP EFFECT

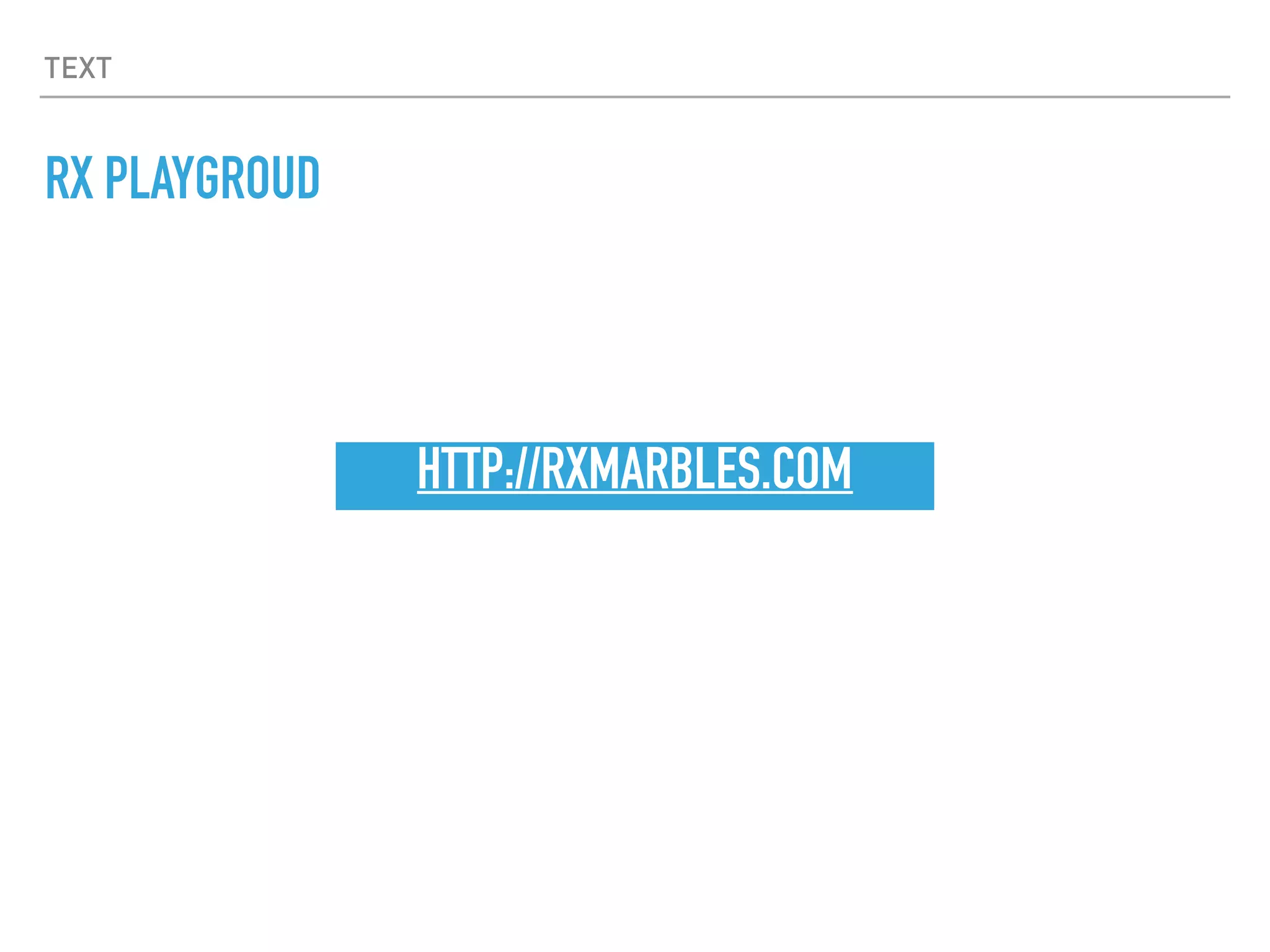

TEXT
RX PLAYGROUD
HTTP://RXMARBLES.COM

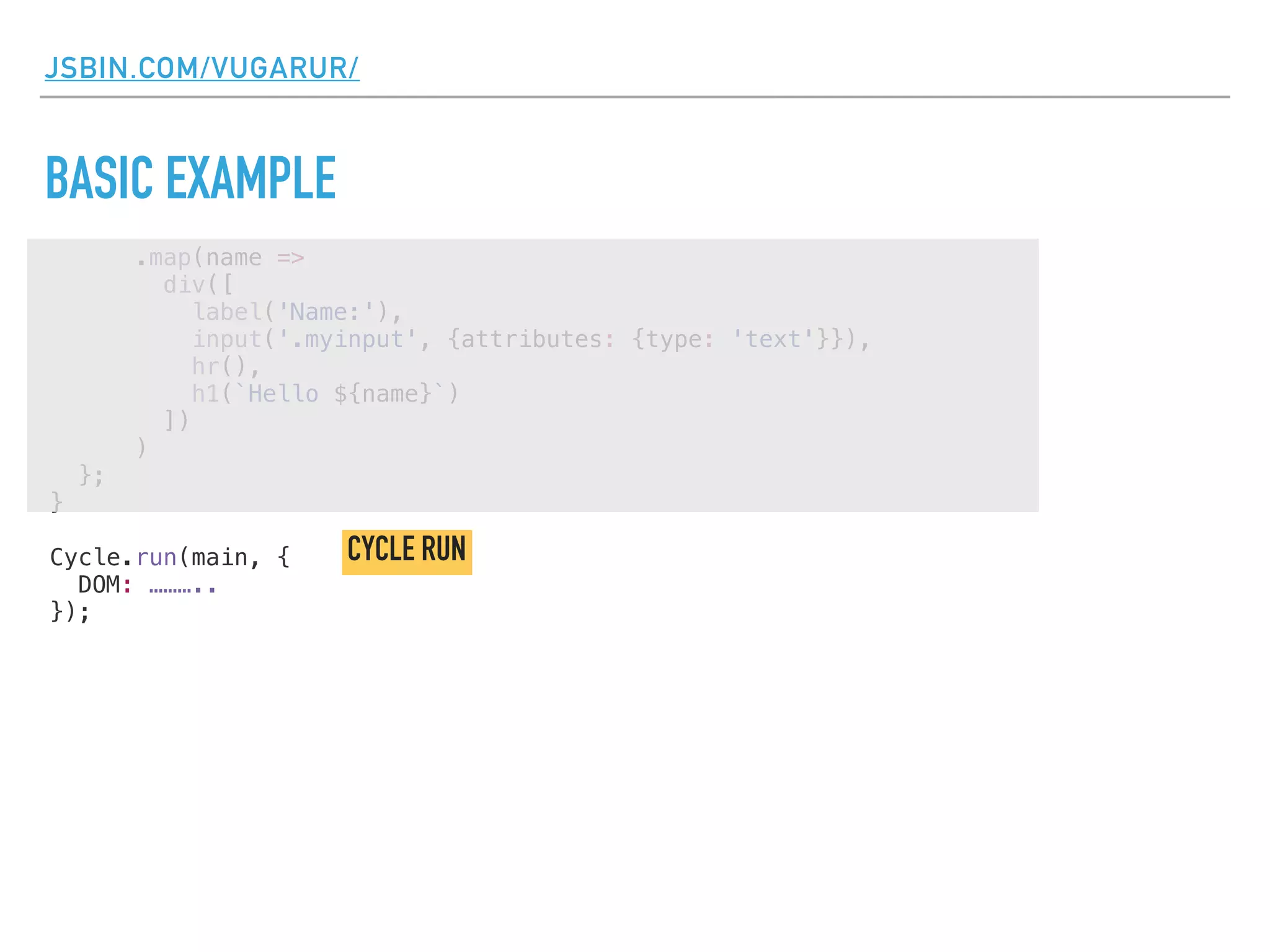

JSBIN.COM/VUGARUR/
BASIC EXAMPLE
.map(name =>
div([
label('Name:'),
hr(),
h1(`Hello ${name}`)
])
)
};
}
Cycle.run(main, {
DOM: ………..
});
CYCLE RUN

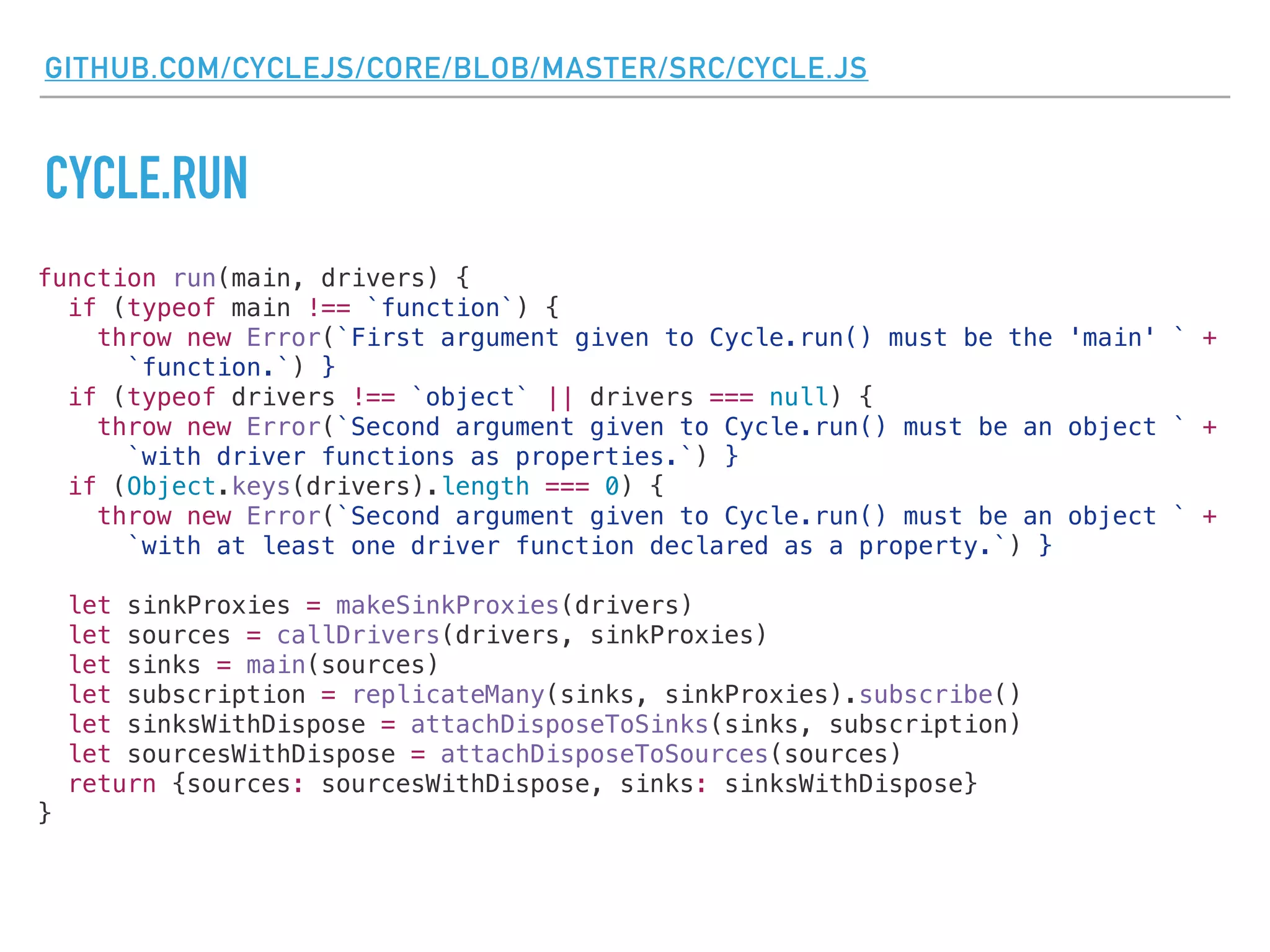

GITHUB.COM/CYCLEJS/CORE/BLOB/MASTER/SRC/CYCLE.JS
CYCLE.RUN
function run(main, drivers) {
if (typeof main !== `function`) {
throw new Error(`First argument given to Cycle.run() must be the 'main' ` +
`function.`) }
if (typeof drivers !== `object` || drivers === null) {
throw new Error(`Second argument given to Cycle.run() must be an object ` +
`with driver functions as properties.`) }
if (Object.keys(drivers).length === 0) {
throw new Error(`Second argument given to Cycle.run() must be an object ` +
`with at least one driver function declared as a property.`) }
let sinkProxies = makeSinkProxies(drivers)
let sources = callDrivers(drivers, sinkProxies)
let sinks = main(sources)
let subscription = replicateMany(sinks, sinkProxies).subscribe()
let sinksWithDispose = attachDisposeToSinks(sinks, subscription)
let sourcesWithDispose = attachDisposeToSources(sources)
return {sources: sourcesWithDispose, sinks: sinksWithDispose}
}

THANK YOU
@2J2E
EU.ZHARKOV@GMAIL.COM
!

TEXT

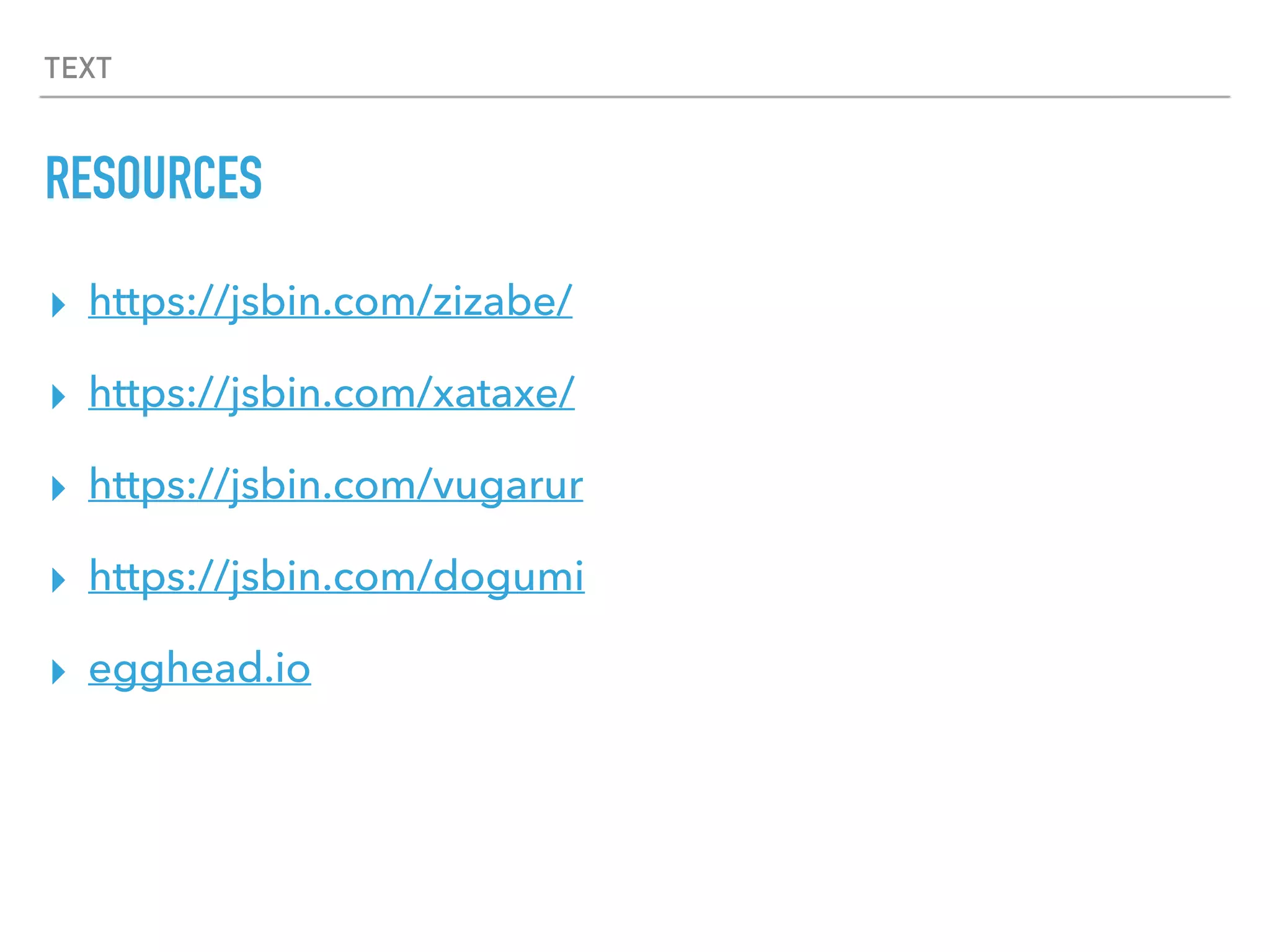

RESOURCES
▸ https://jsbin.com/zizabe/
▸ https://jsbin.com/xataxe/
▸ https://jsbin.com/vugarur
▸ https://jsbin.com/dogumi
▸ egghead.io
