Convolutional Neural Network
- 1. Convolutional Neural Networks RTSSJUN YOUNG PARK

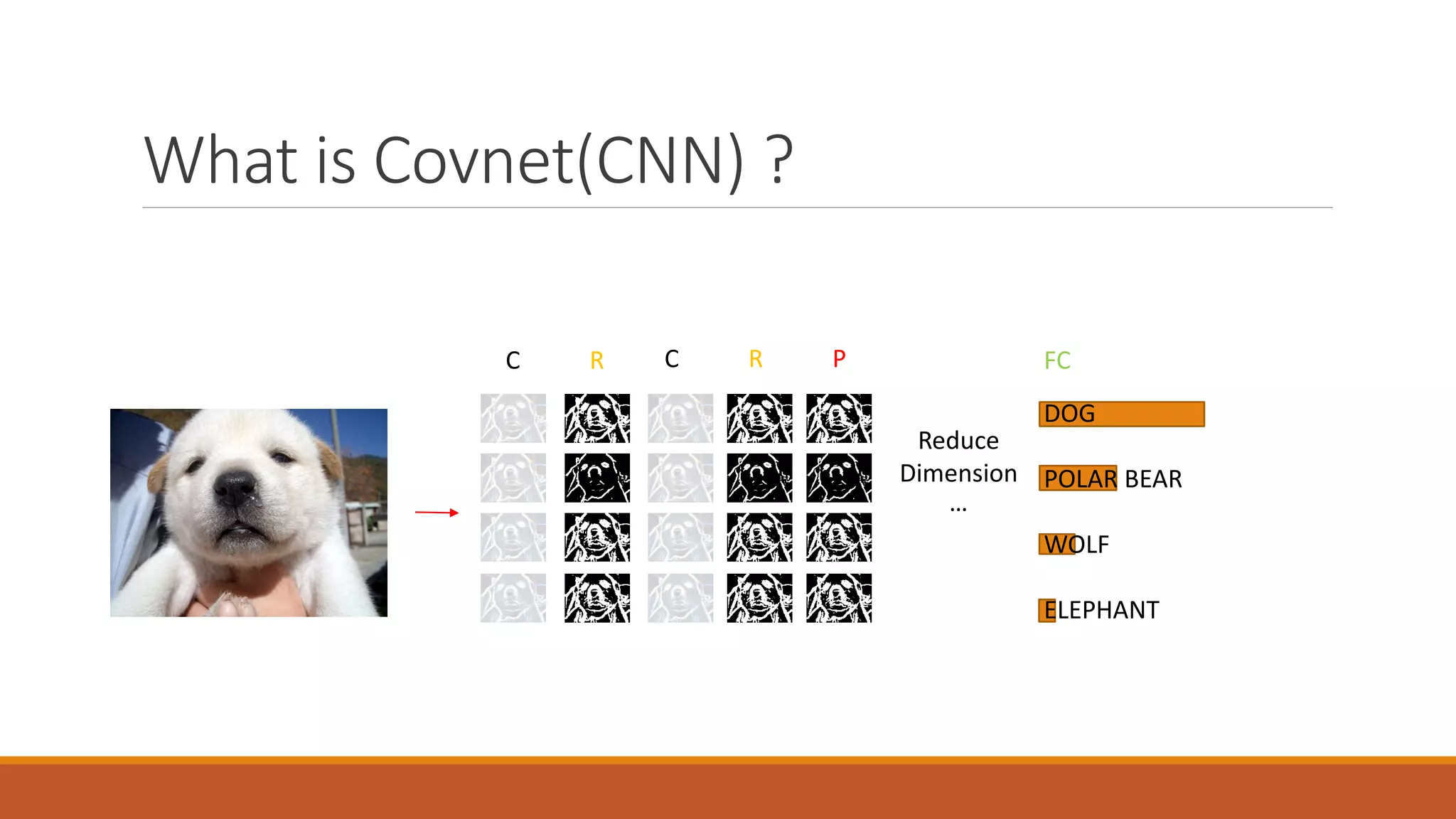

- 2. What is Covnet(CNN)? C R C R P … DOG POLAR BEAR WOLF ELEPHANT FC Reduce Dimension

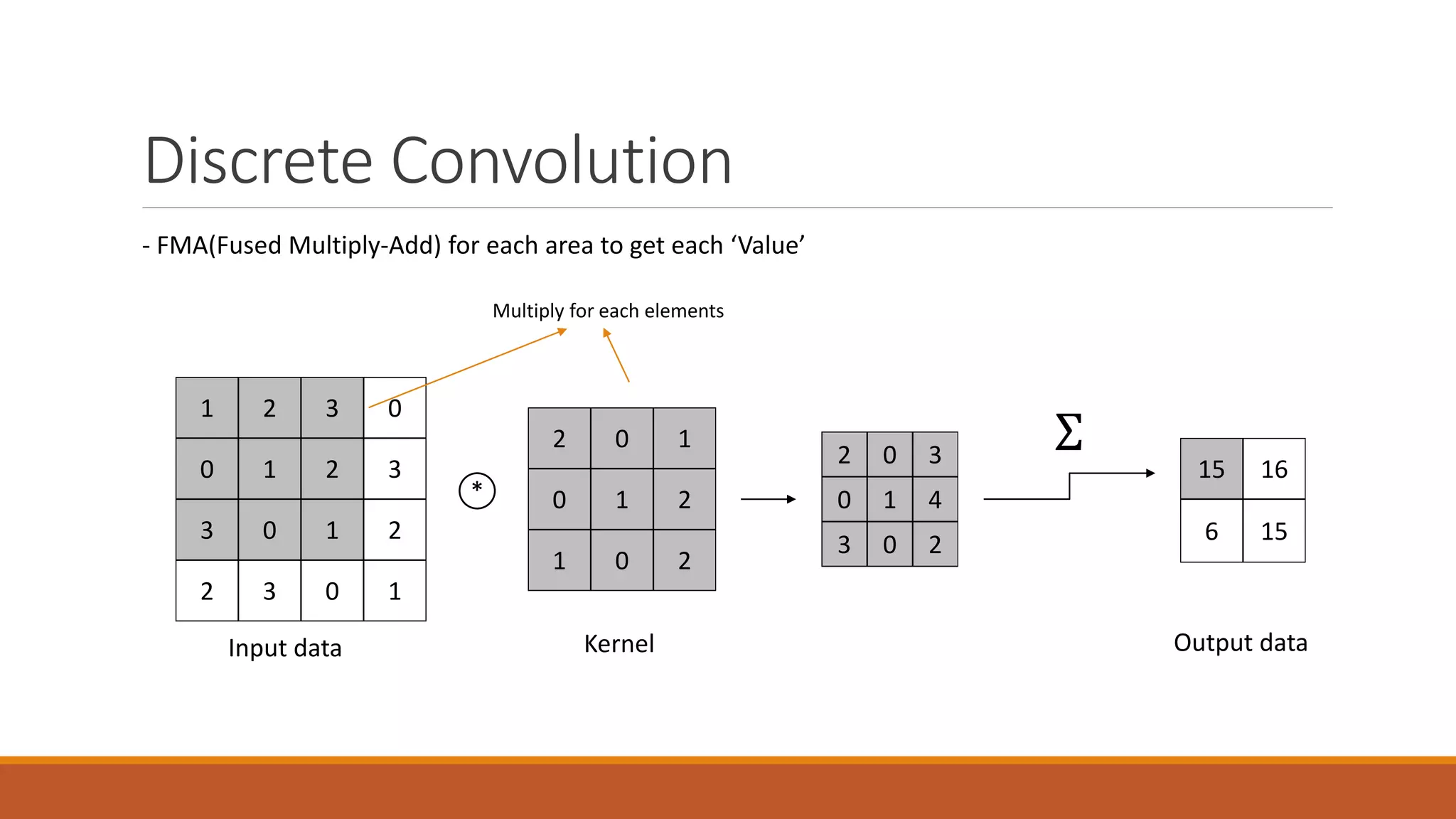

- 3. Discrete Convolution 1 23 0 0 1 2 3 3 0 1 2 2 3 0 1 2 0 1 0 1 2 1 0 2 * 15 16 6 15 2 0 3 0 1 4 3 0 2 - FMA(Fused Multiply-Add) for each area to get each ‘Value’ Multiply for each elements Input data Kernel Output data Σ

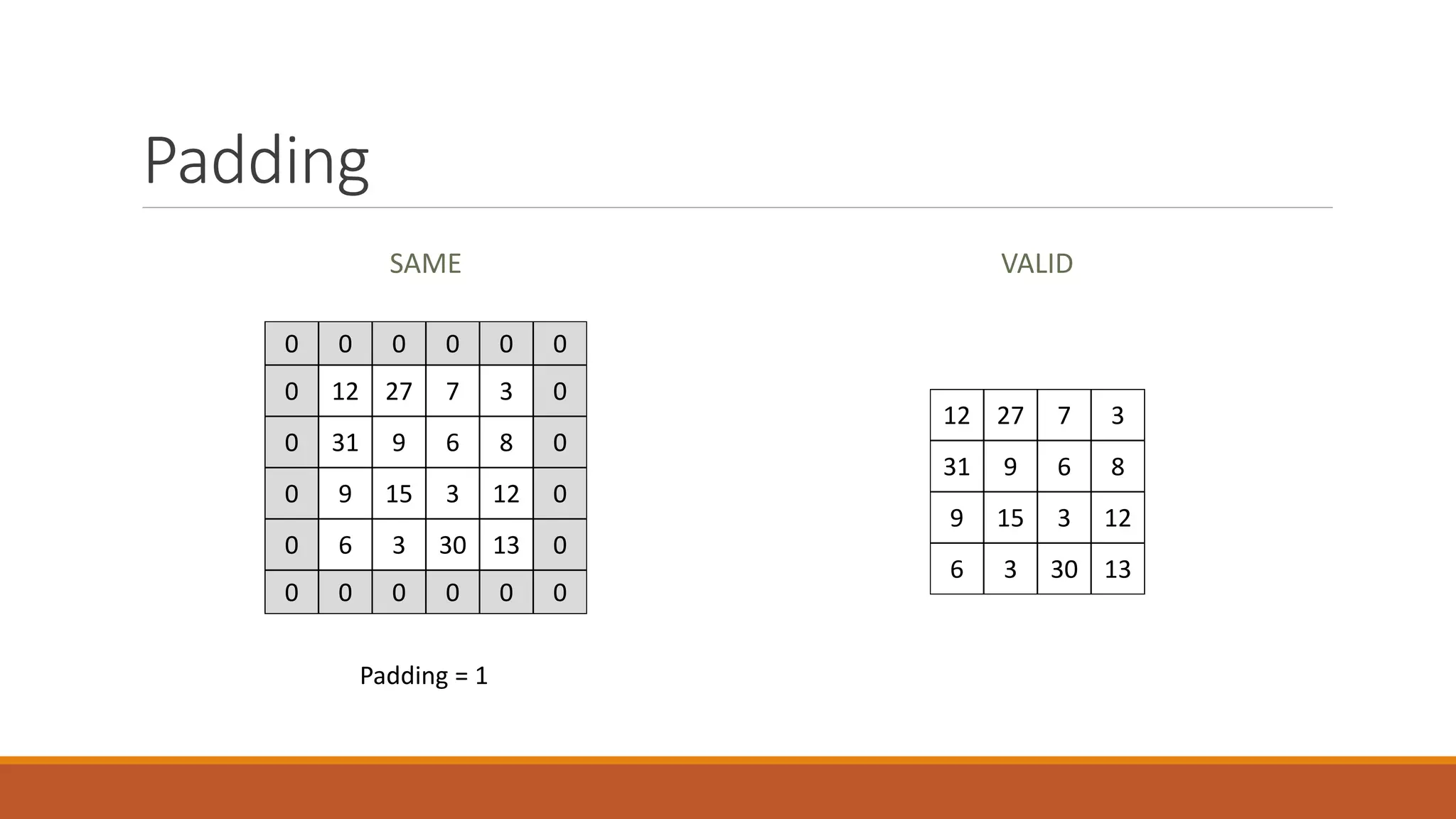

- 4. Padding SAME VALID 0 00 0 0 0 0 12 27 7 3 0 0 31 9 6 8 0 0 9 15 3 12 0 0 6 3 30 13 0 0 0 0 0 0 0 12 27 7 3 31 9 6 8 9 15 3 12 6 3 30 13 Padding = 1

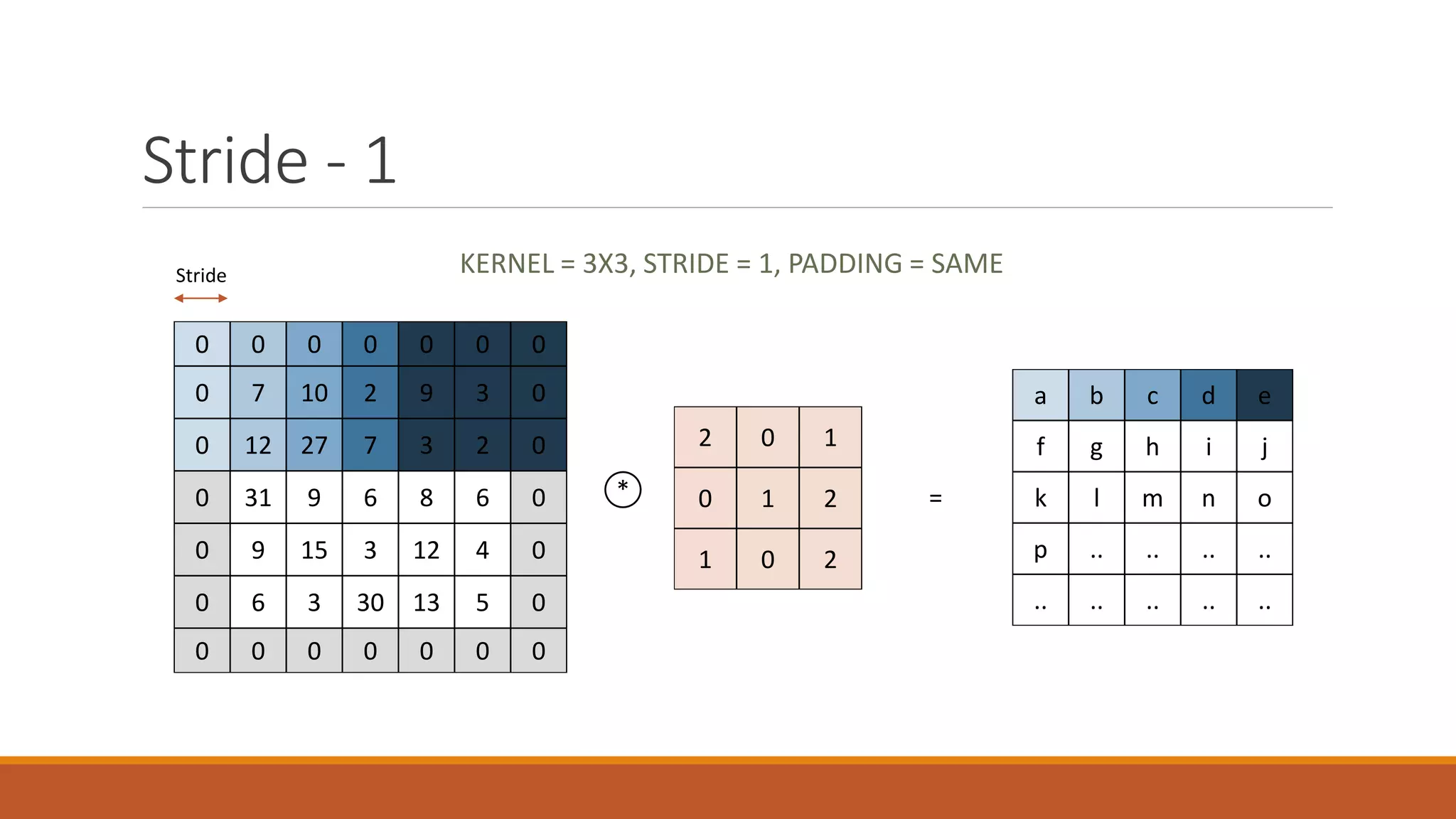

- 5. Stride - 1 KERNEL= 3X3, STRIDE = 1, PADDING = SAME 0 0 0 0 0 0 0 0 7 10 2 9 3 0 0 12 27 7 3 2 0 0 31 9 6 8 6 0 0 9 15 3 12 4 0 0 6 3 30 13 5 0 0 0 0 0 0 0 0 a b c d e f g h i j k l m n o p .. .. .. .. .. .. .. .. .. 2 0 1 0 1 2 1 0 2 * = Stride

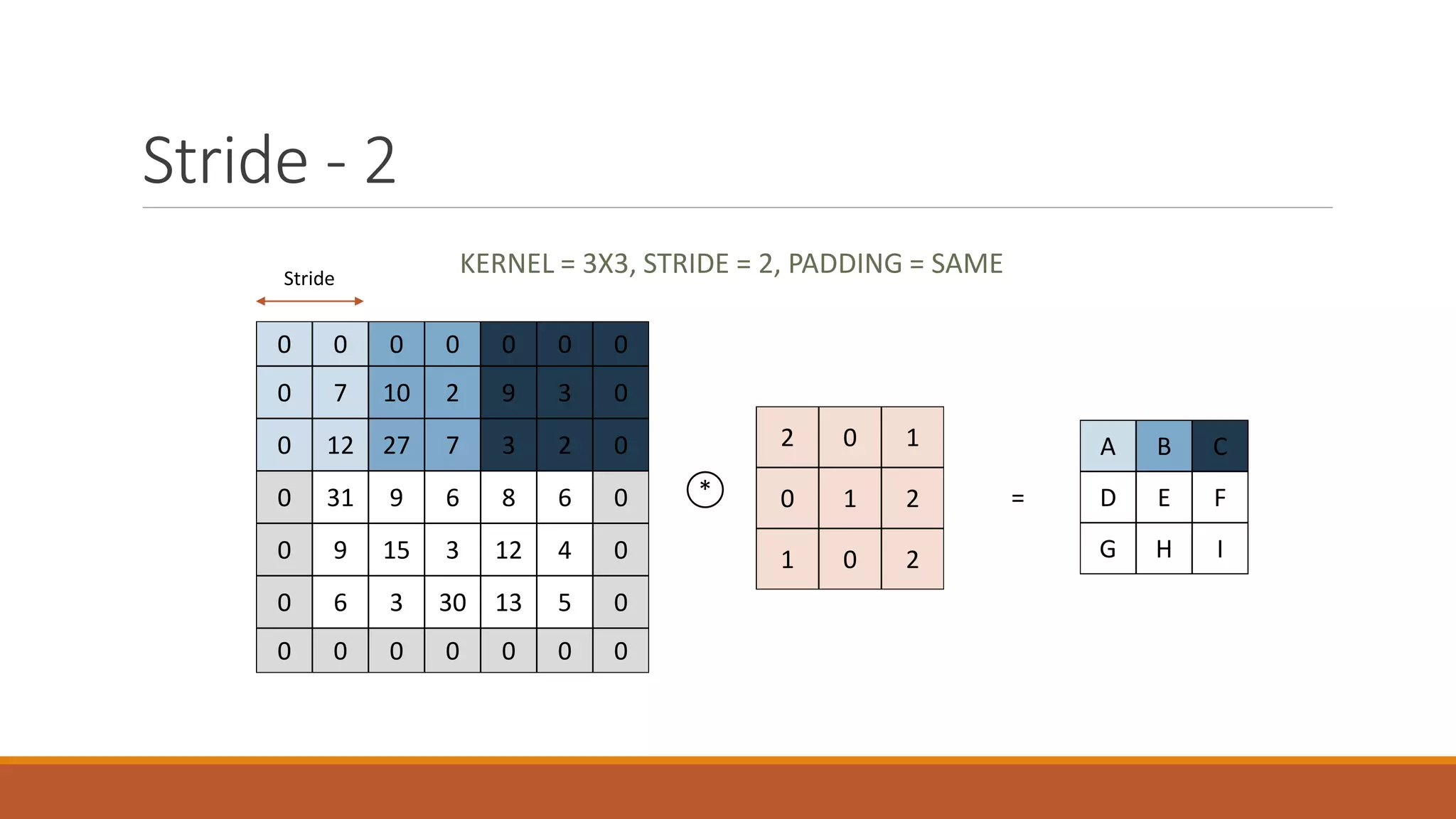

- 6. Stride - 2 KERNEL= 3X3, STRIDE = 2, PADDING = SAME 0 0 0 0 0 0 0 0 7 10 2 9 3 0 0 12 27 7 3 2 0 0 31 9 6 8 6 0 0 9 15 3 12 4 0 0 6 3 30 13 5 0 0 0 0 0 0 0 0 A B C D E F G H I 2 0 1 0 1 2 1 0 2 * = Stride

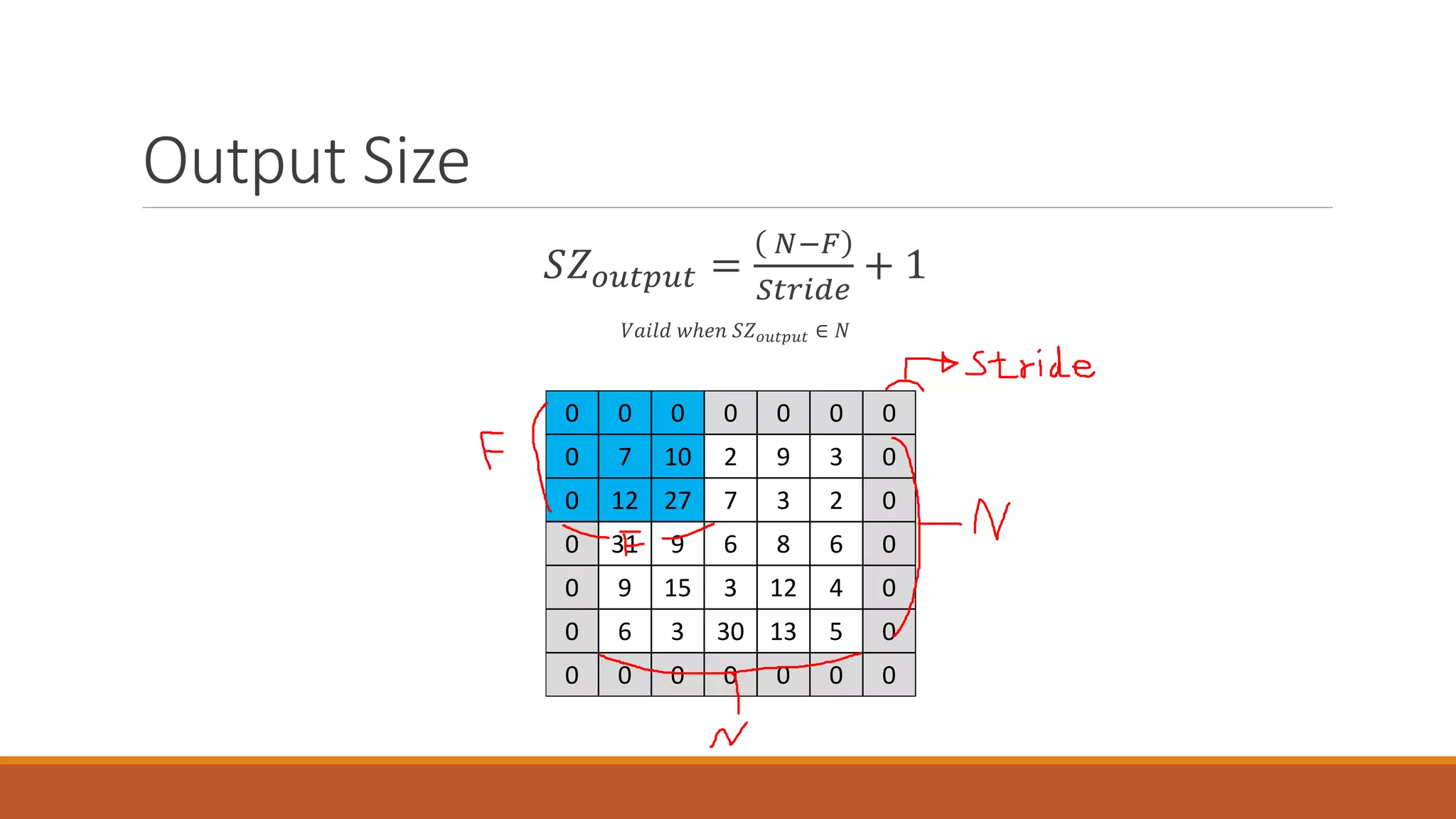

- 7. Output Size 𝑆𝑆𝑍𝑍𝑜𝑜𝑜𝑜𝑜𝑜𝑜𝑜𝑜𝑜𝑜𝑜 = 𝑁𝑁−𝐹𝐹 𝑆𝑆𝑆𝑆𝑆𝑆𝑆𝑆𝑆𝑆𝑆𝑆 + 1 𝑉𝑉𝑉𝑉𝑉𝑉𝑉𝑉𝑉𝑉 𝑤𝑤𝑤𝑤𝑤𝑤𝑤 𝑆𝑆𝑍𝑍𝑜𝑜𝑜𝑜𝑜𝑜𝑜𝑜𝑜𝑜𝑜𝑜 ∈ 𝑁𝑁 0 0 0 0 0 0 0 0 7 10 2 9 3 0 0 12 27 7 3 2 0 0 31 9 6 8 6 0 0 9 15 3 12 4 0 0 6 3 30 13 5 0 0 0 0 0 0 0 0

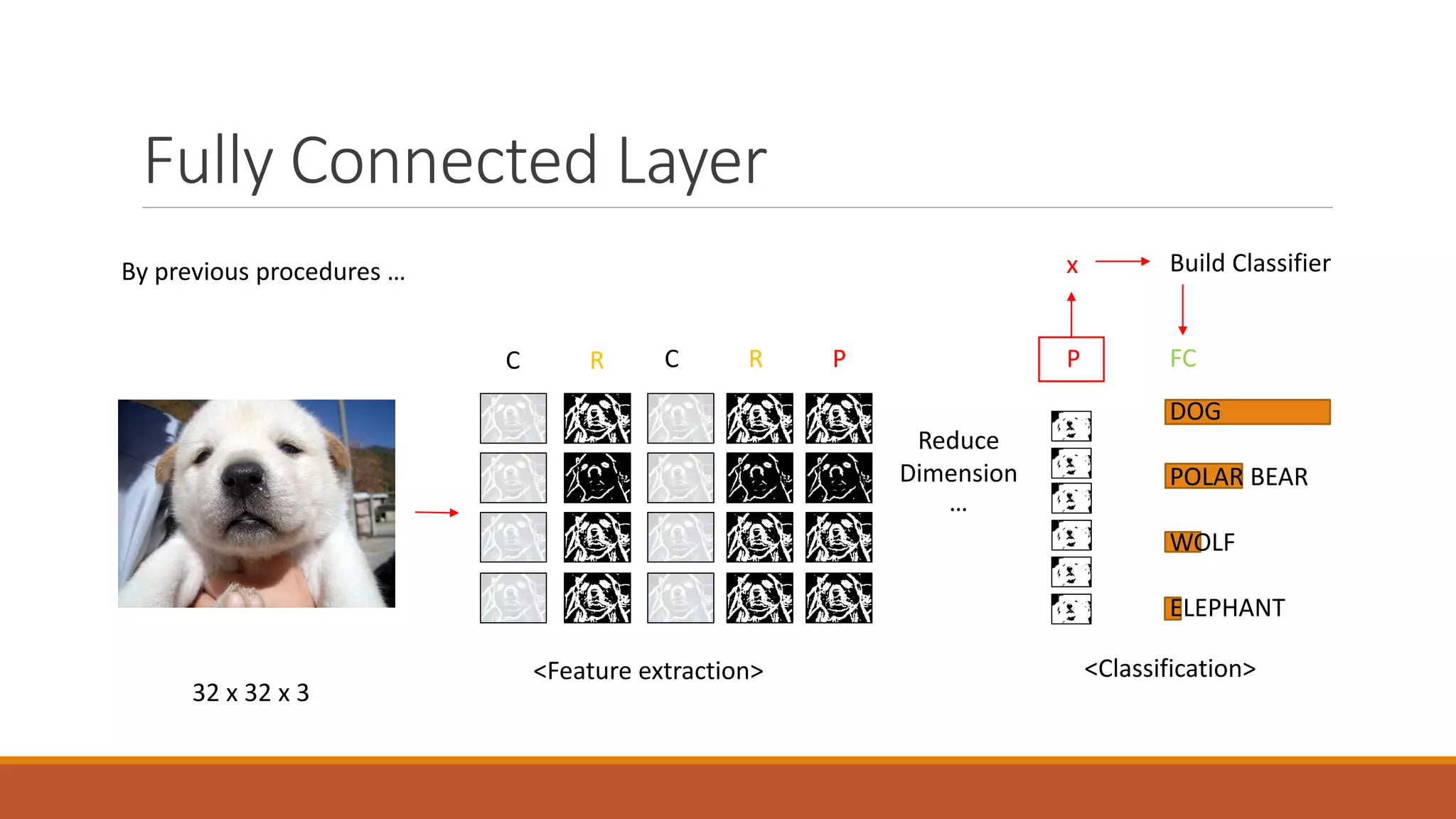

- 8. Fully Connected Layer CR C R P … DOG POLAR BEAR WOLF ELEPHANT FC Reduce Dimension By previous procedures … P 32 x 32 x 3 x Build Classifier <Feature extraction> <Classification>

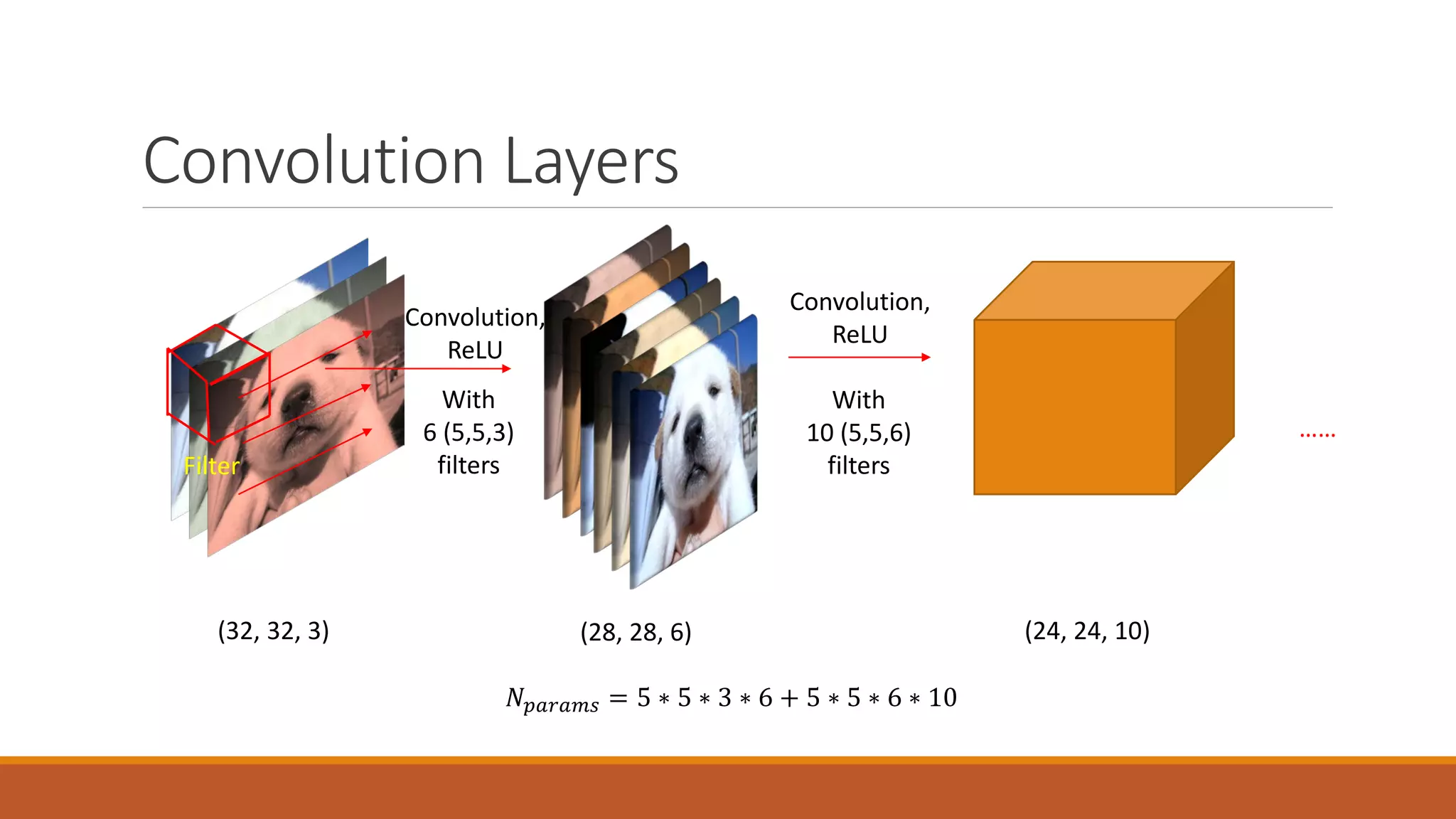

- 9. Convolution Layers Filter (28, 28,6)(32, 32, 3) Convolution, ReLU With 6 (5,5,3) filters With 10 (5,5,6) filters (24, 24, 10) …… 𝑁𝑁𝑝𝑝𝑝𝑝𝑝𝑝𝑝𝑝𝑝𝑝𝑝𝑝 = 5 ∗ 5 ∗ 3 ∗ 6 + 5 ∗ 5 ∗ 6 ∗ 10 Convolution, ReLU

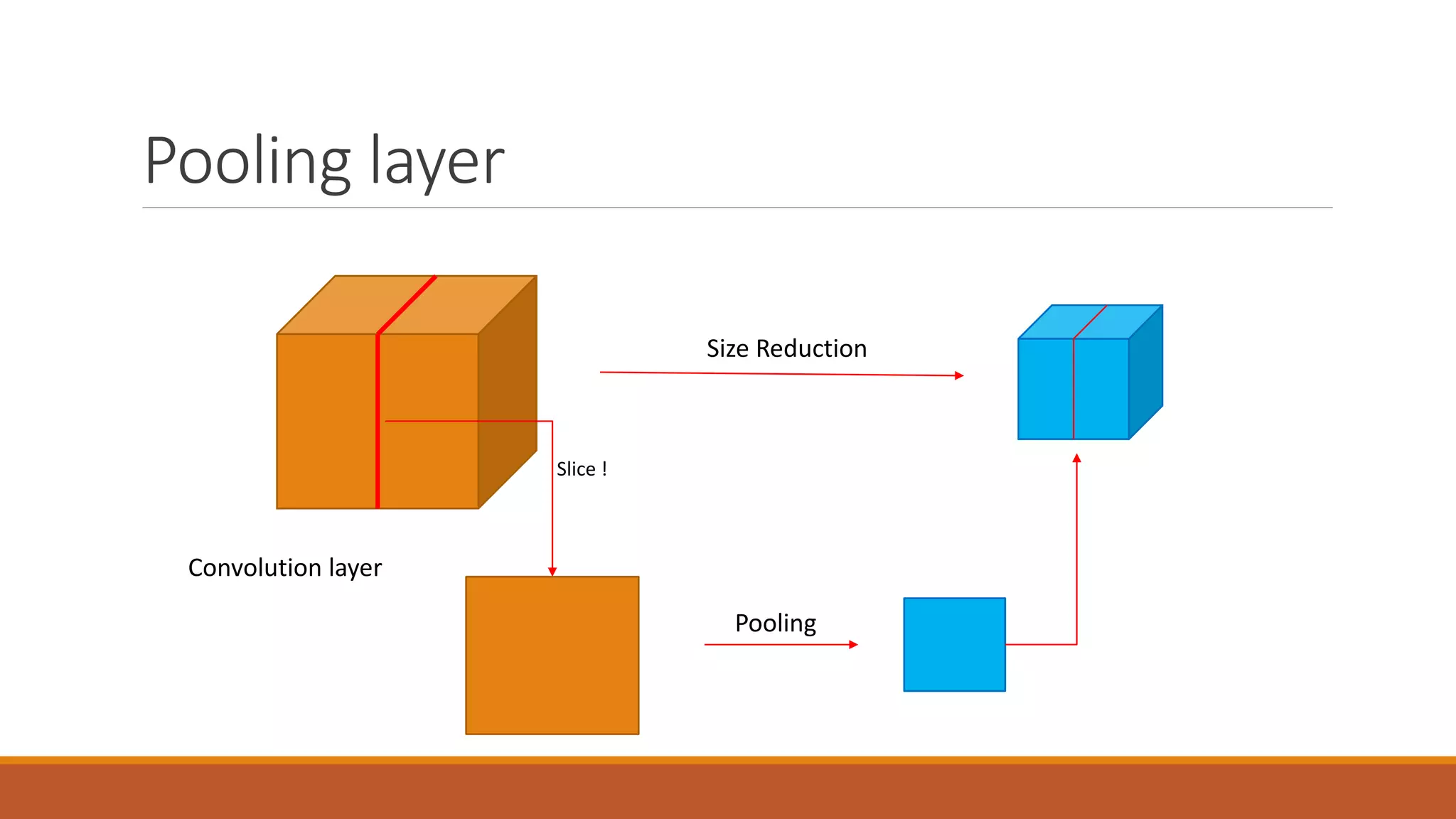

- 10. Pooling layer Convolution layer SizeReduction Pooling Slice !

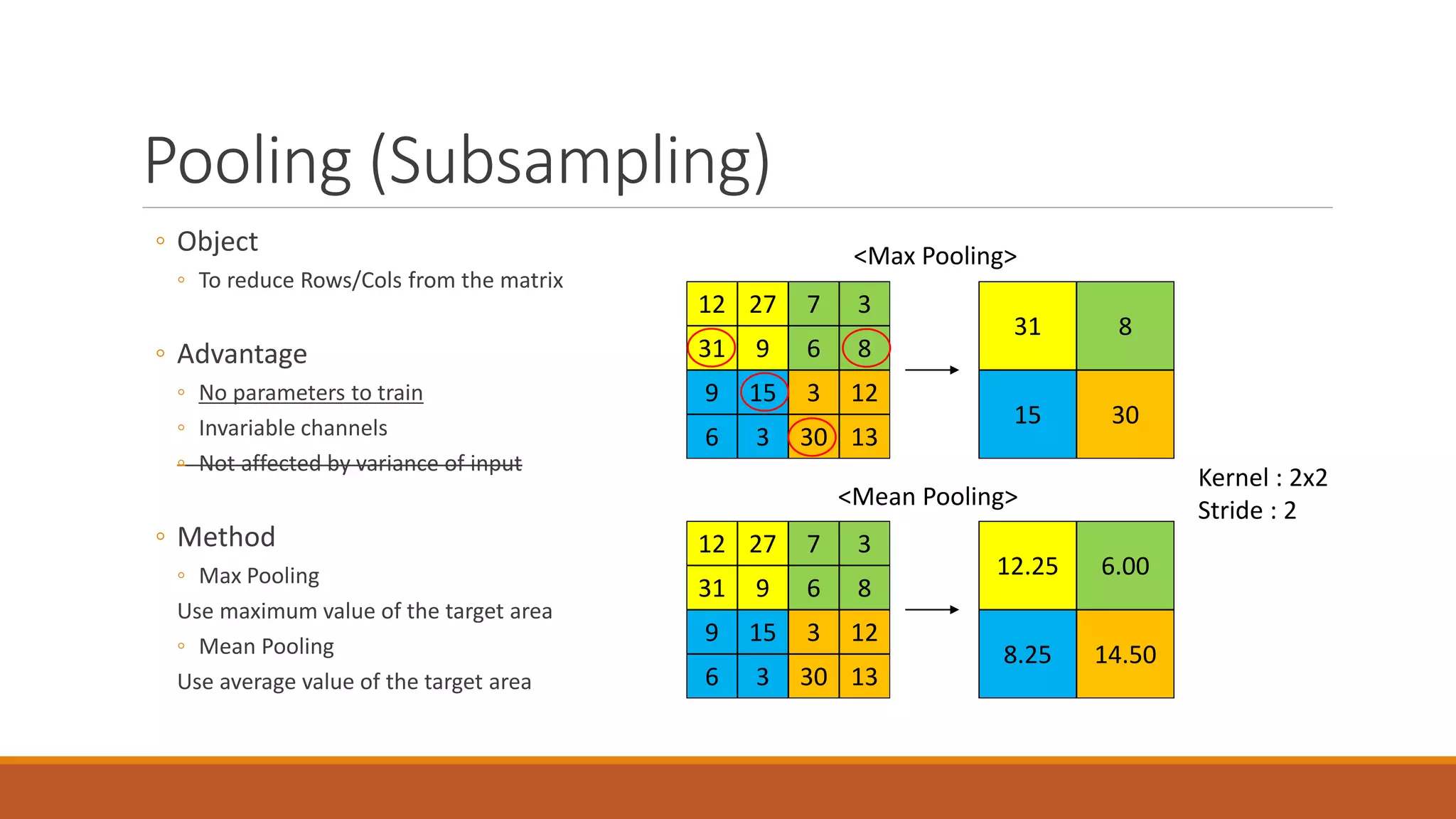

- 11. Pooling (Subsampling) ◦ Object ◦To reduce Rows/Cols from the matrix ◦ Advantage ◦ No parameters to train ◦ Invariable channels ◦ Not affected by variance of input ◦ Method ◦ Max Pooling Use maximum value of the target area ◦ Mean Pooling Use average value of the target area 31 8 15 30 12 27 7 3 31 9 6 8 9 15 3 12 6 3 30 13 12 27 7 3 31 9 6 8 9 15 3 12 6 3 30 13 12.25 6.00 8.25 14.50 <Max Pooling> <Mean Pooling> Kernel : 2x2 Stride : 2

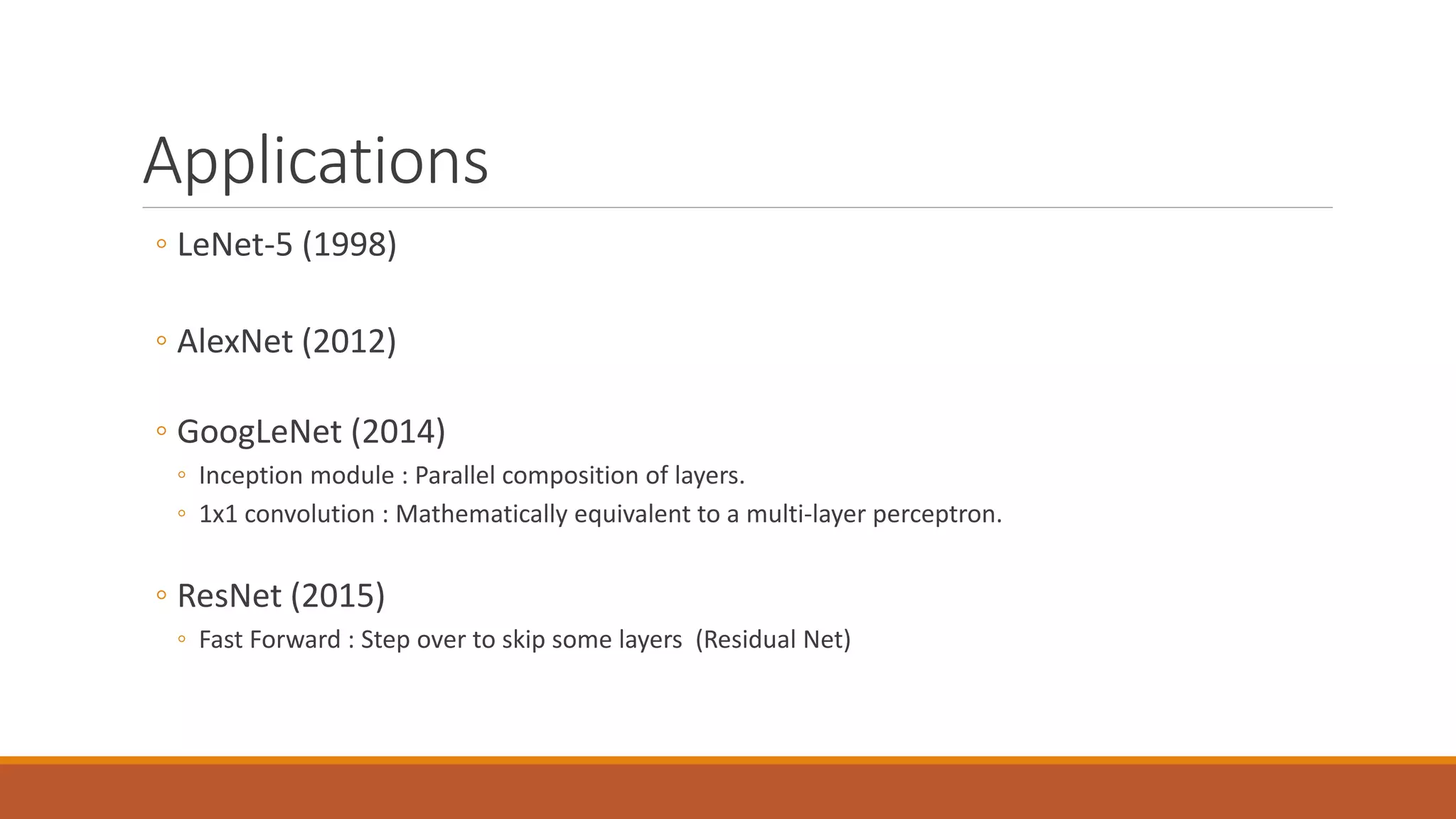

- 12. Applications ◦ LeNet-5 (1998) ◦AlexNet (2012) ◦ GoogLeNet (2014) ◦ Inception module : Parallel composition of layers. ◦ 1x1 convolution : Mathematically equivalent to a multi-layer perceptron. ◦ ResNet (2015) ◦ Fast Forward : Step over to skip some layers (Residual Net)

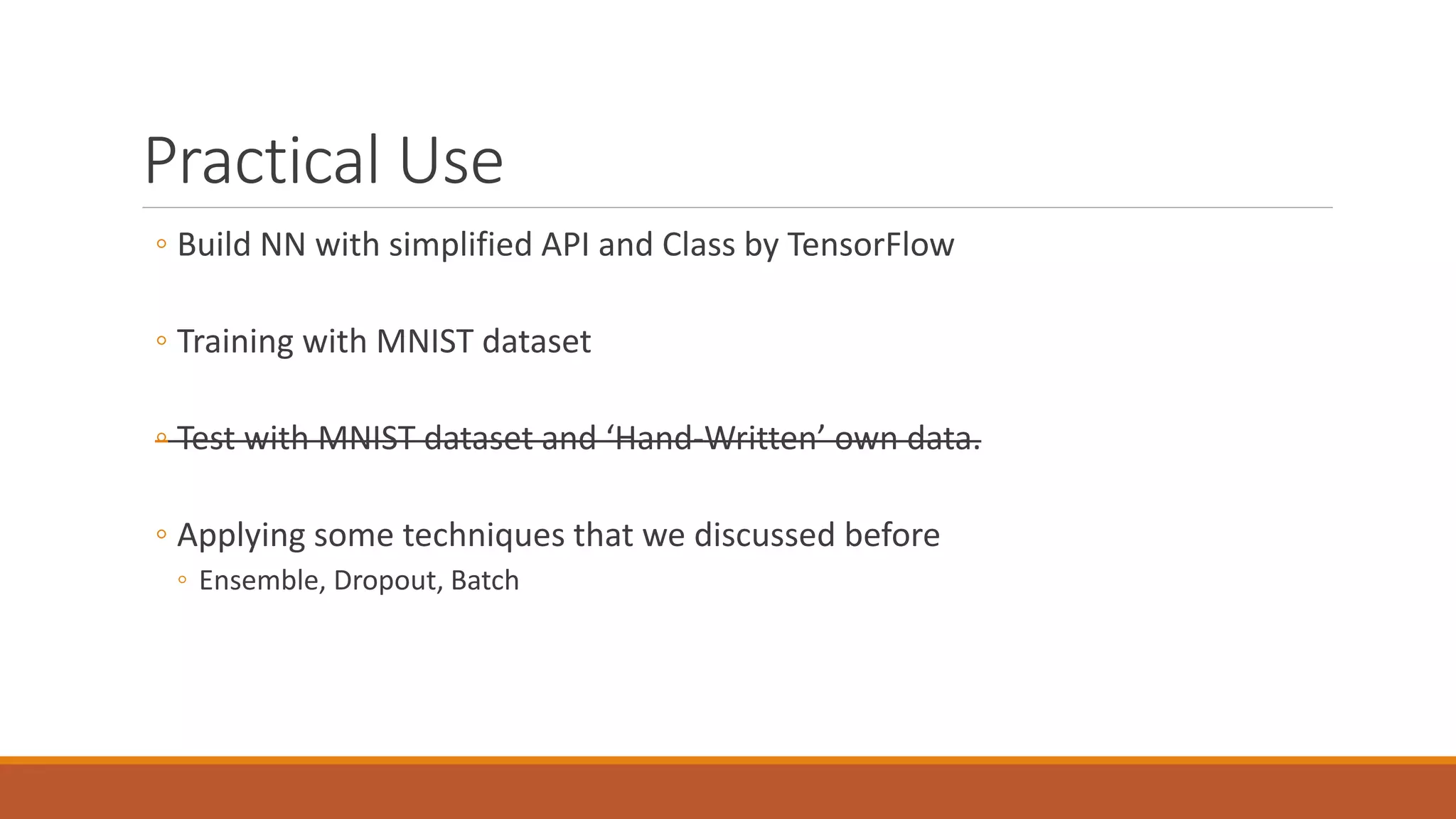

- 13. Practical Use ◦ BuildNN with simplified API and Class by TensorFlow ◦ Training with MNIST dataset ◦ Test with MNIST dataset and ‘Hand-Written’ own data. ◦ Applying some techniques that we discussed before ◦ Ensemble, Dropout, Batch

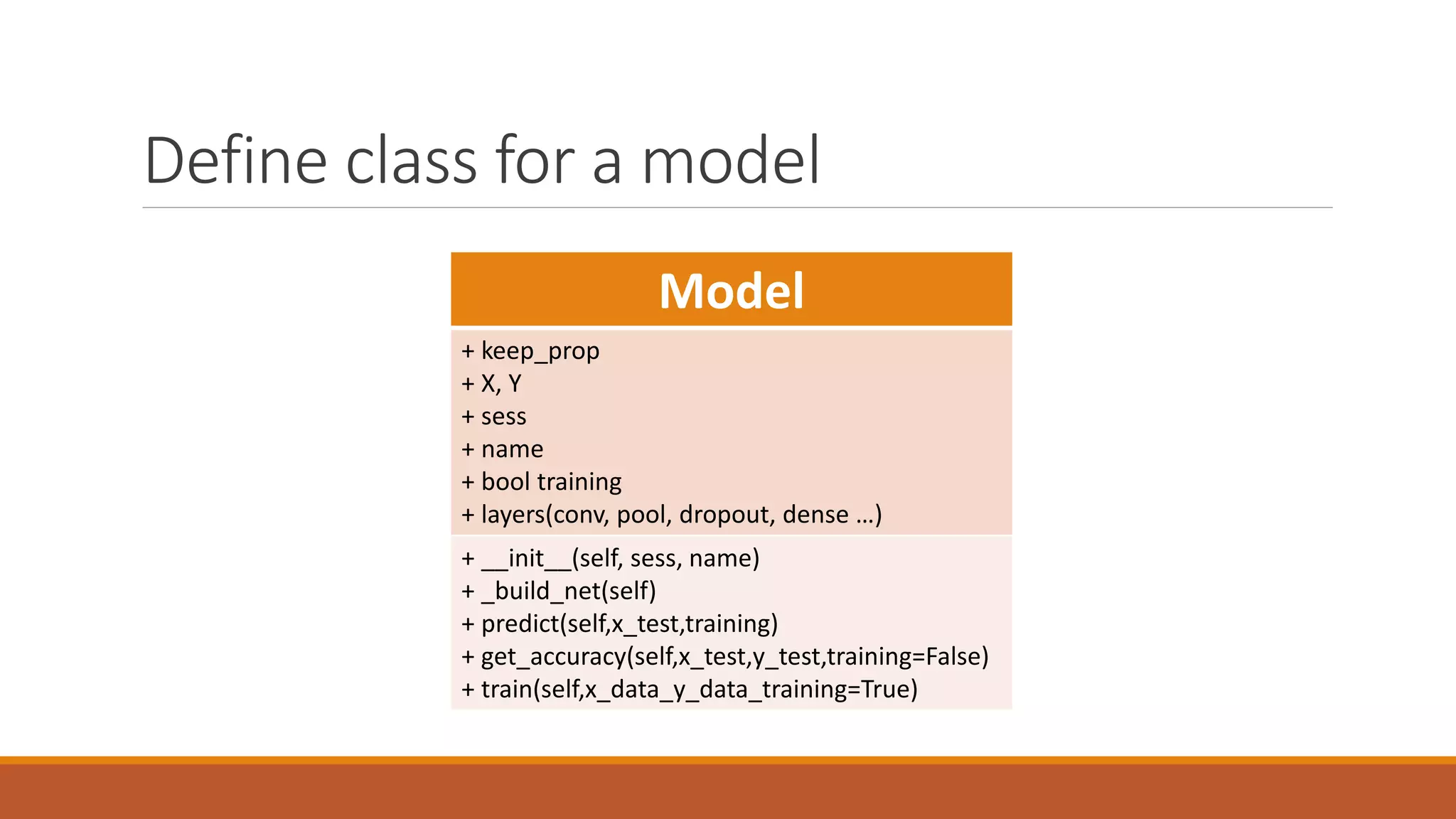

- 14. Define class fora model Model + keep_prop + X, Y + sess + name + bool training + layers(conv, pool, dropout, dense …) + __init__(self, sess, name) + _build_net(self) + predict(self,x_test,training) + get_accuracy(self,x_test,y_test,training=False) + train(self,x_data_y_data_training=True)

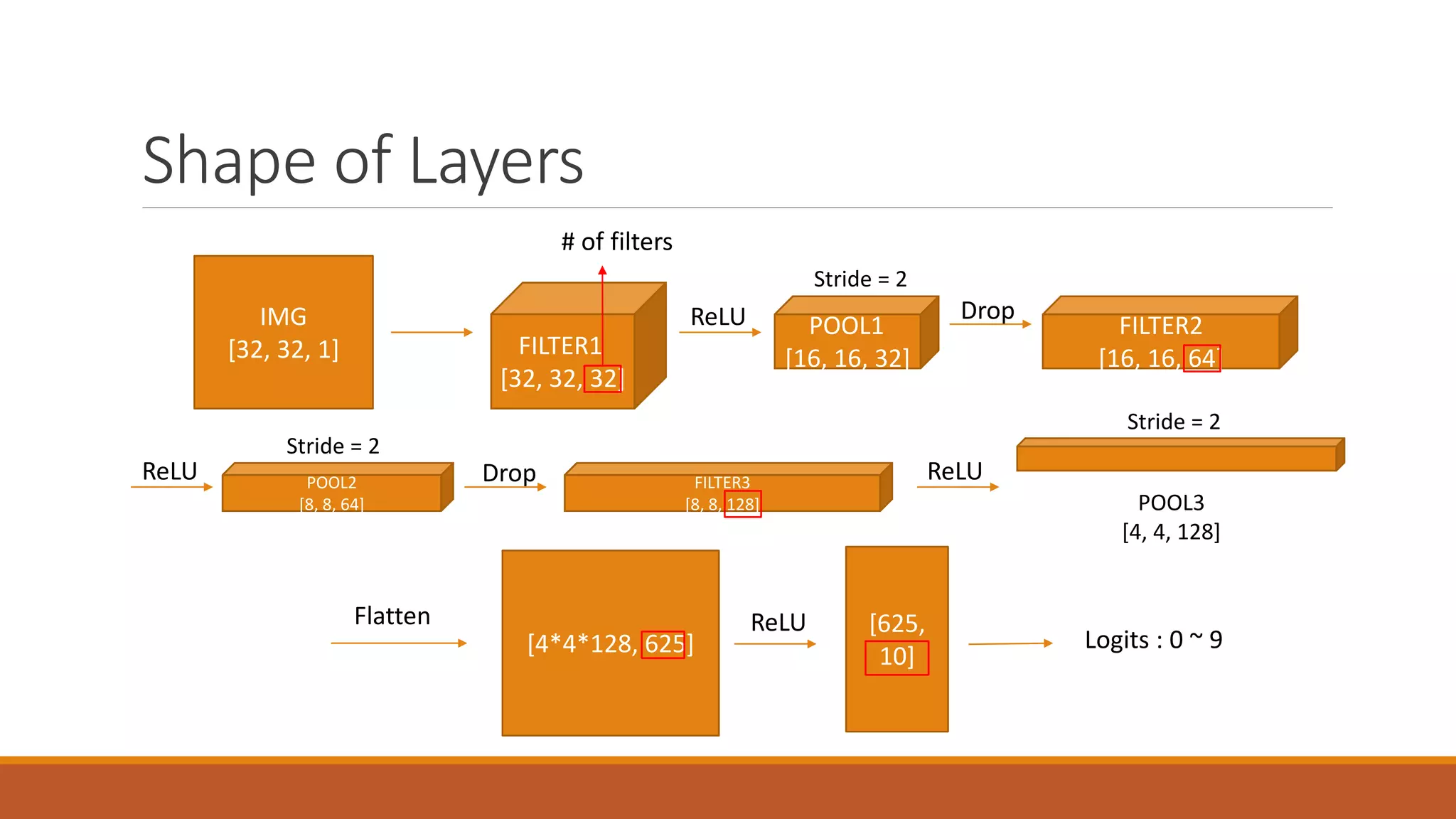

- 15. Shape of Layers IMG [32,32, 1] FILTER1 [32, 32, 32] POOL1 [16, 16, 32] FILTER2 [16, 16, 64] POOL2 [8, 8, 64] FILTER3 [8, 8, 128] POOL3 [4, 4, 128] ReLU ReLU ReLU [4*4*128, 625] Flatten ReLU Drop Drop [625, 10] Logits : 0 ~ 9 # of filters Stride = 2 Stride = 2 Stride = 2

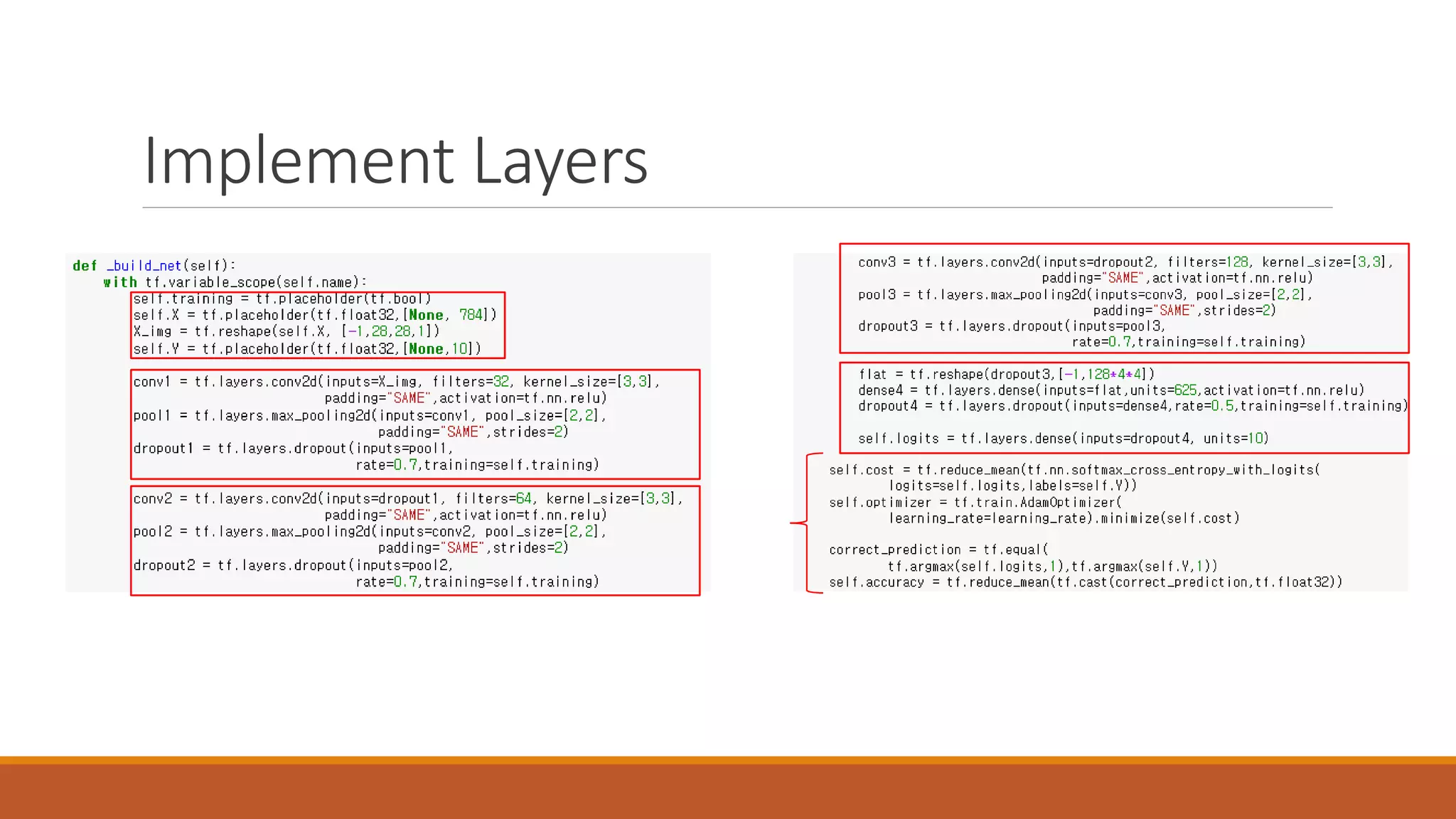

- 16.

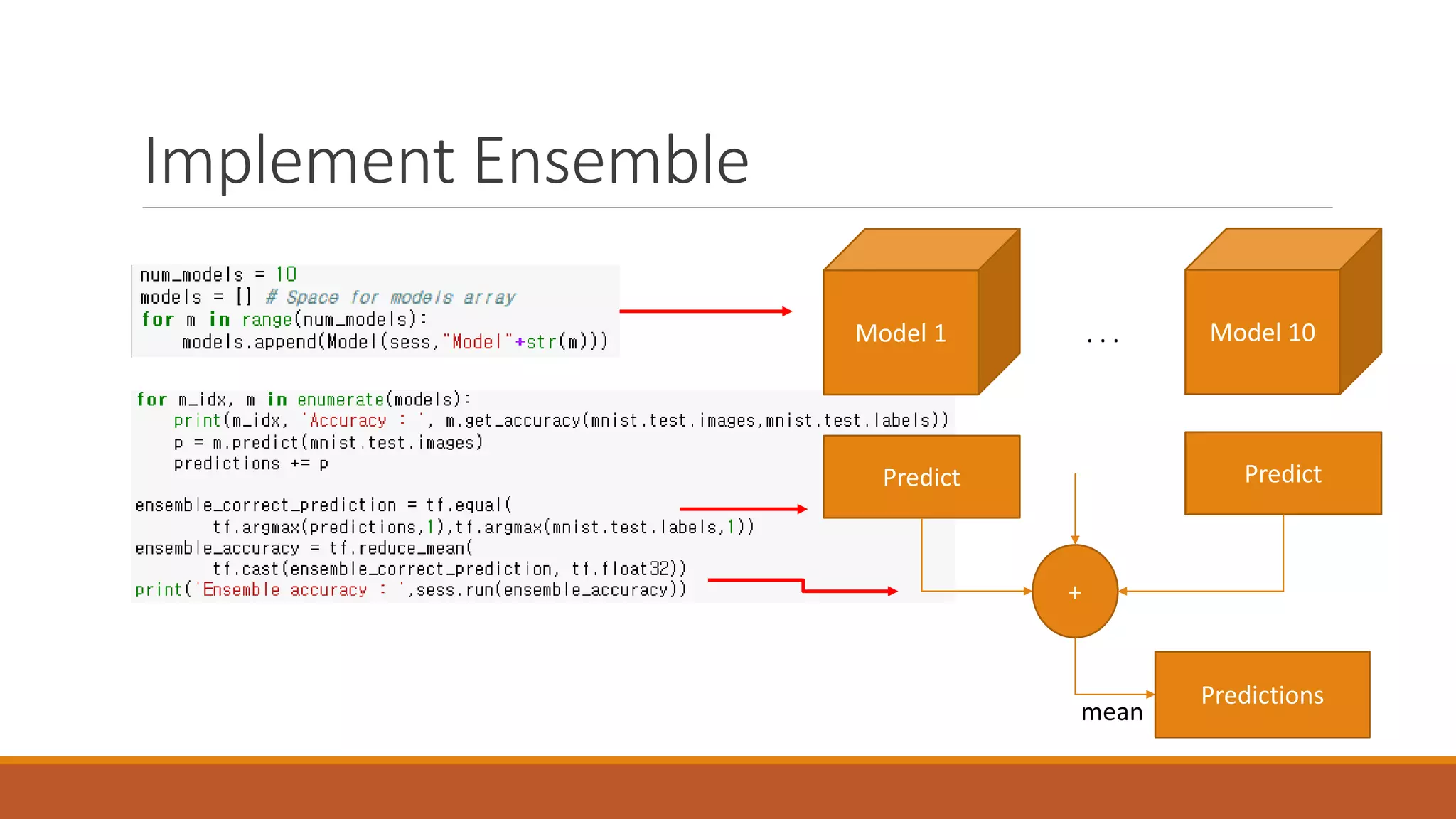

- 17. Implement Ensemble Model 1. . . Model 10 Predict Predict + Predictions mean

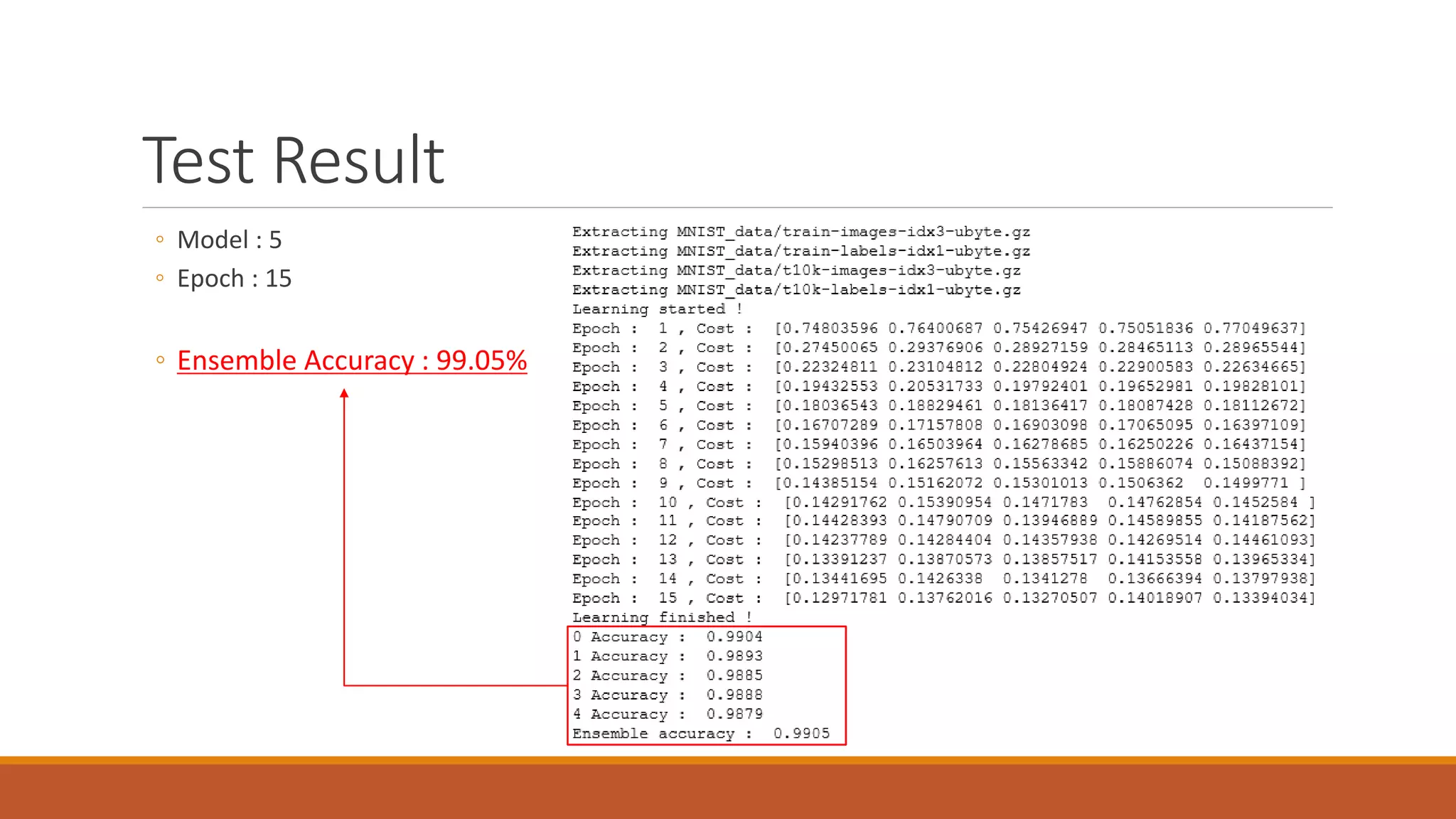

- 18. Test Result ◦ Model: 5 ◦ Epoch : 15 ◦ Ensemble Accuracy : 99.05%

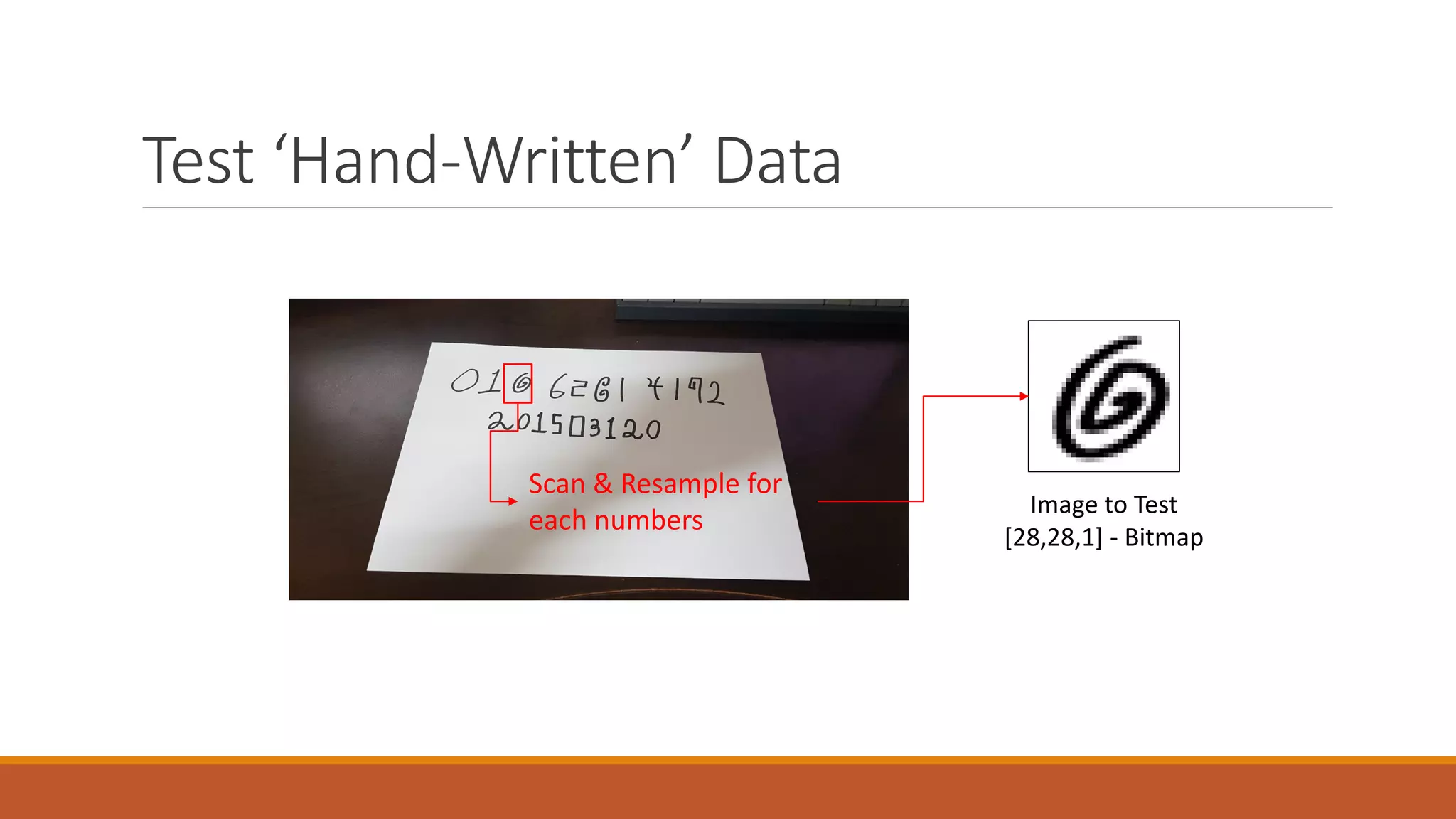

- 19. Test ‘Hand-Written’ Data Scan& Resample for each numbers Image to Test [28,28,1] - Bitmap

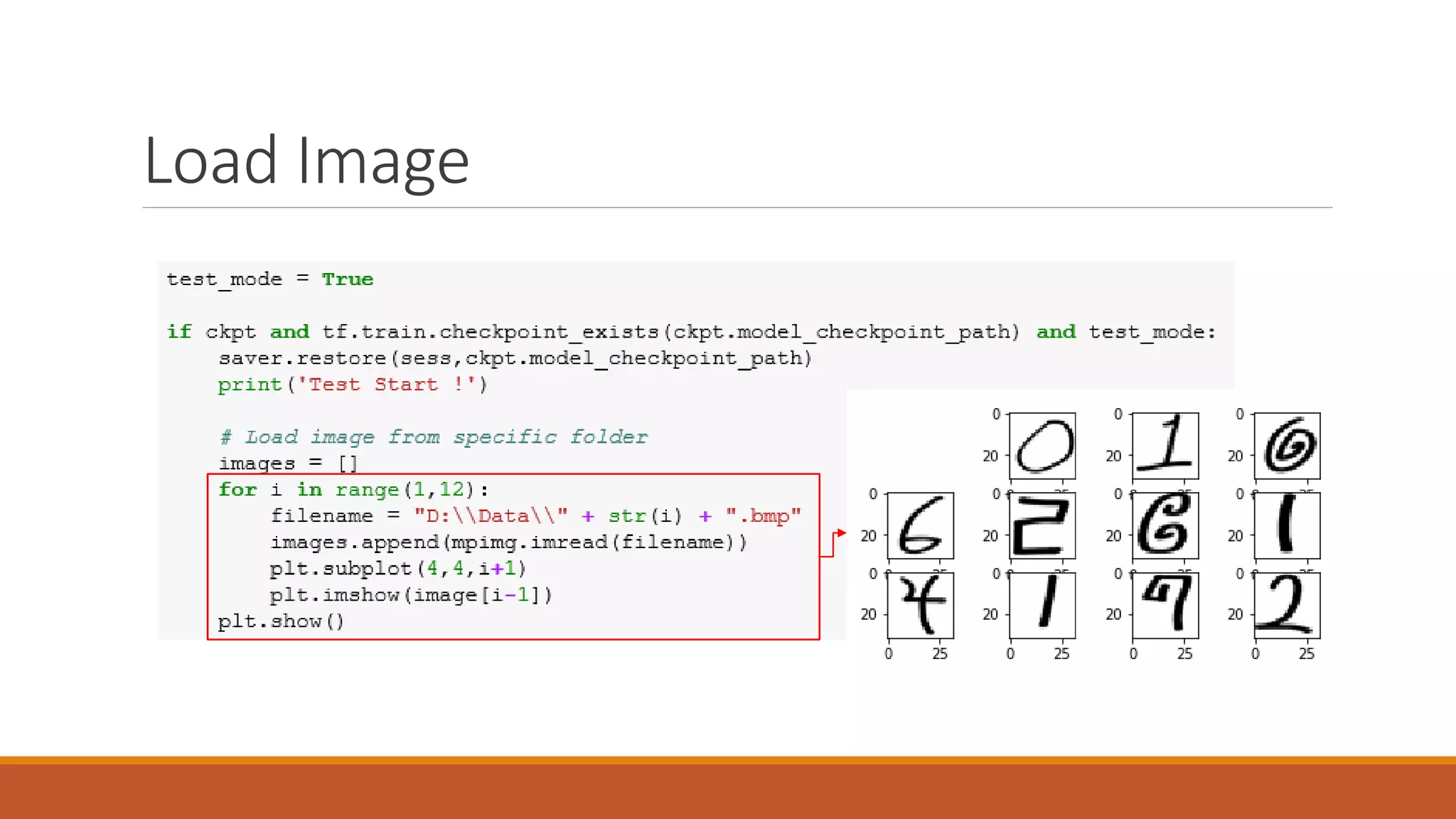

- 20.

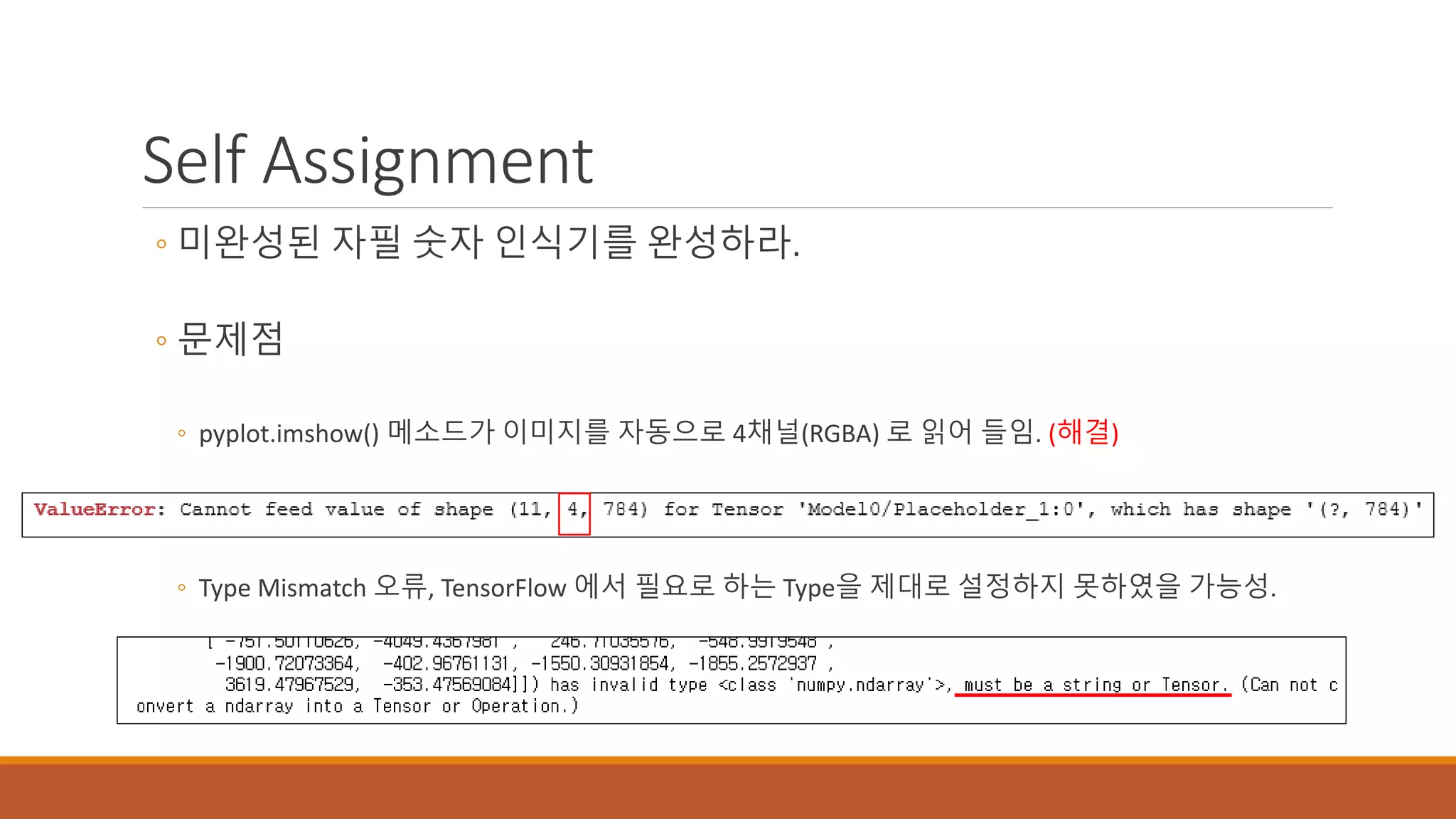

- 21. Self Assignment ◦ 미완성된자필 숫자 인식기를 완성하라. ◦ 문제점 ◦ pyplot.imshow() 메소드가 이미지를 자동으로 4채널(RGBA) 로 읽어 들임. (해결) ◦ Type Mismatch 오류, TensorFlow 에서 필요로 하는 Type을 제대로 설정하지 못하였을 가능성.

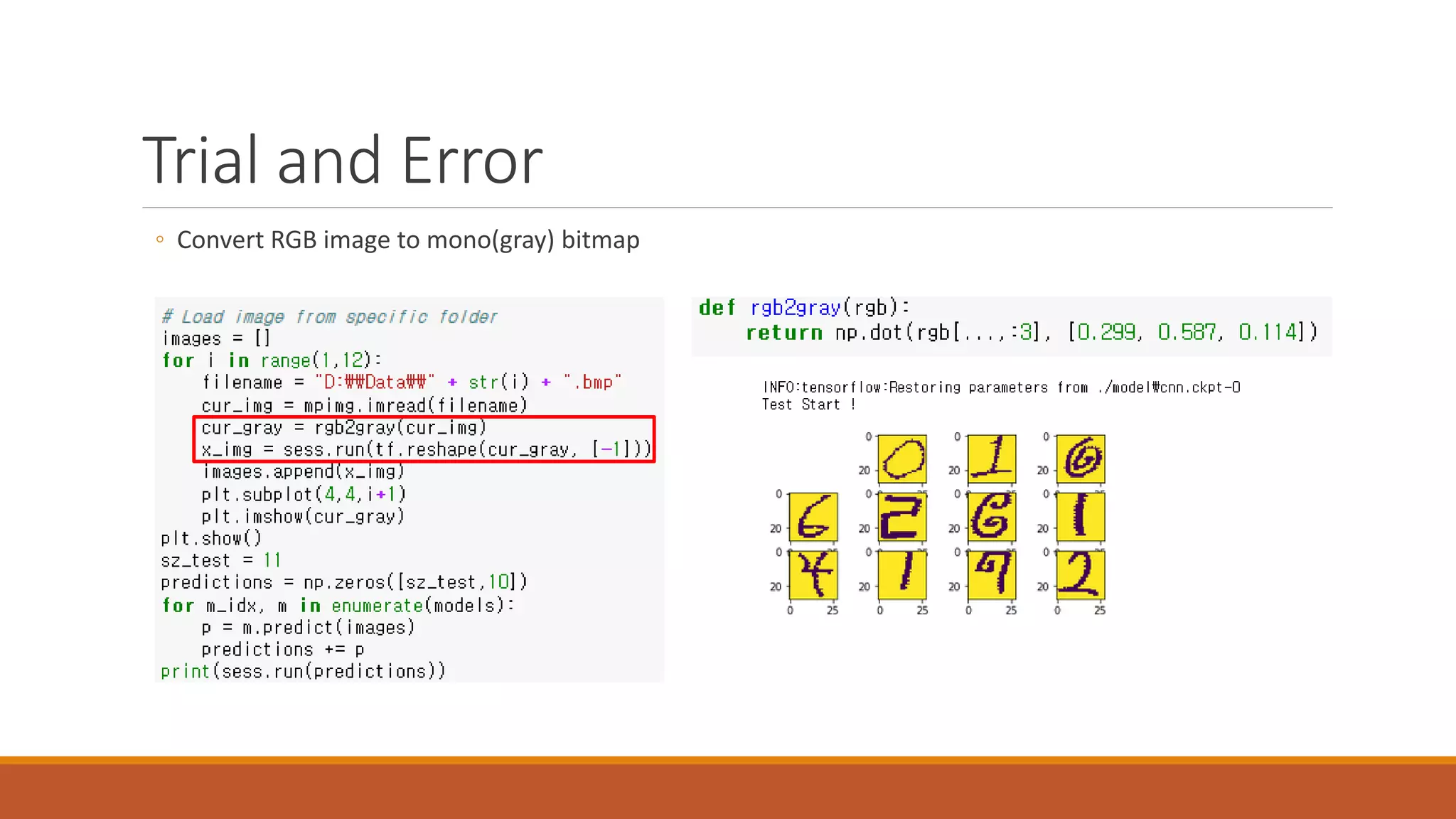

- 22. Trial and Error ◦Convert RGB image to mono(gray) bitmap

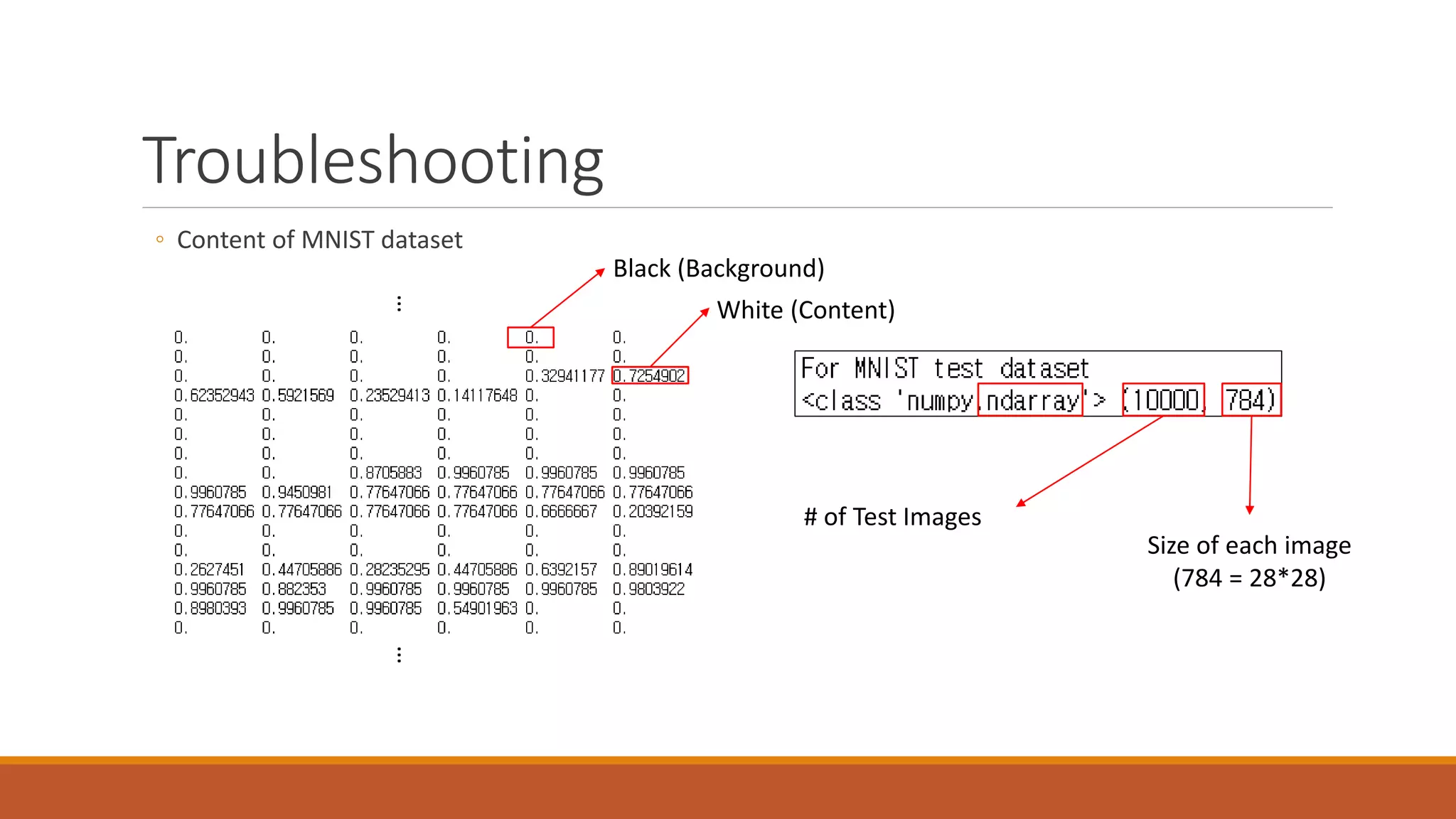

- 23. Troubleshooting ◦ Content ofMNIST dataset …… Black (Background) White (Content) # of Test Images Size of each image (784 = 28*28)

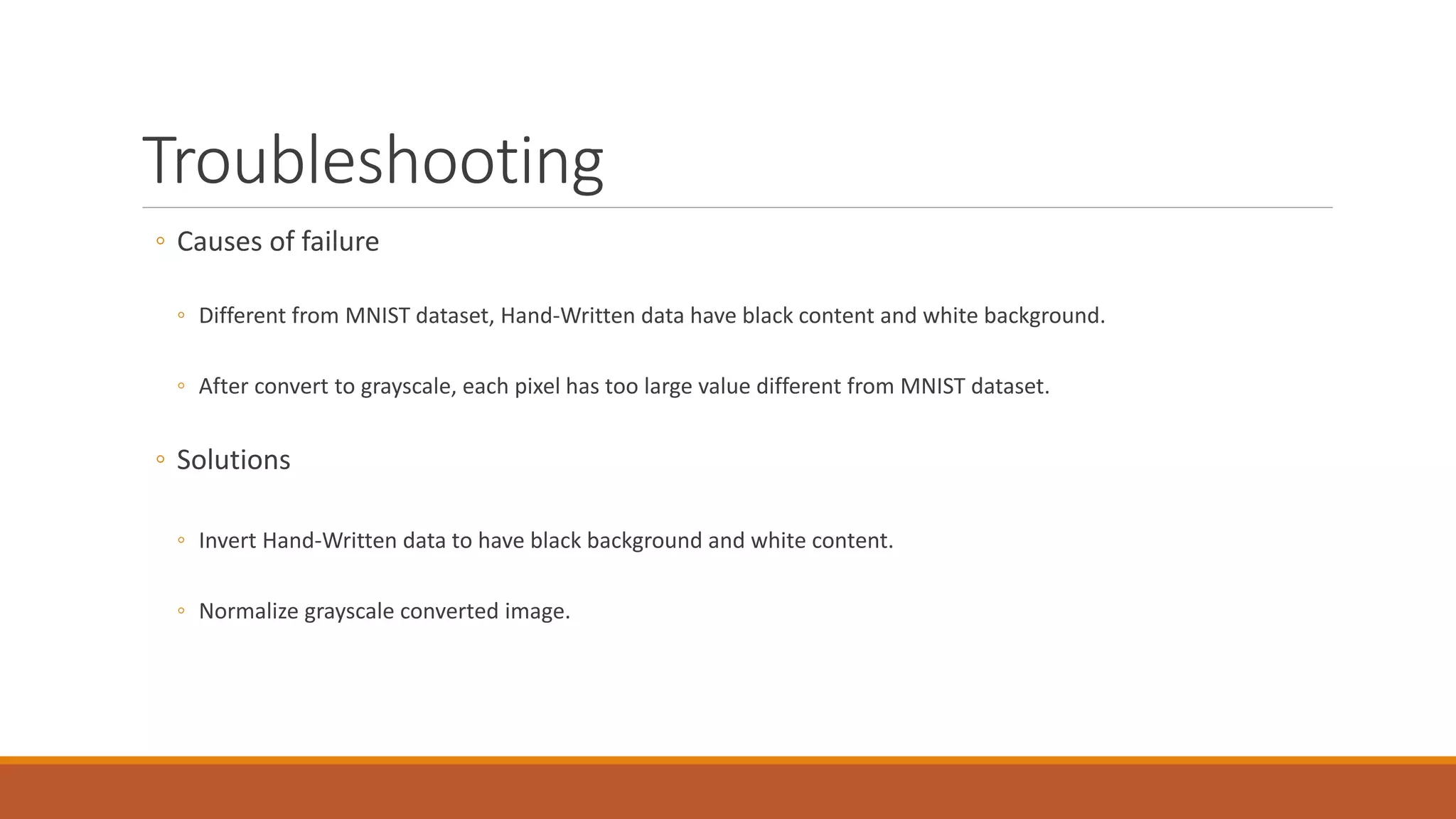

- 24. Troubleshooting ◦ Causes offailure ◦ Different from MNIST dataset, Hand-Written data have black content and white background. ◦ After convert to grayscale, each pixel has too large value different from MNIST dataset. ◦ Solutions ◦ Invert Hand-Written data to have black background and white content. ◦ Normalize grayscale converted image.

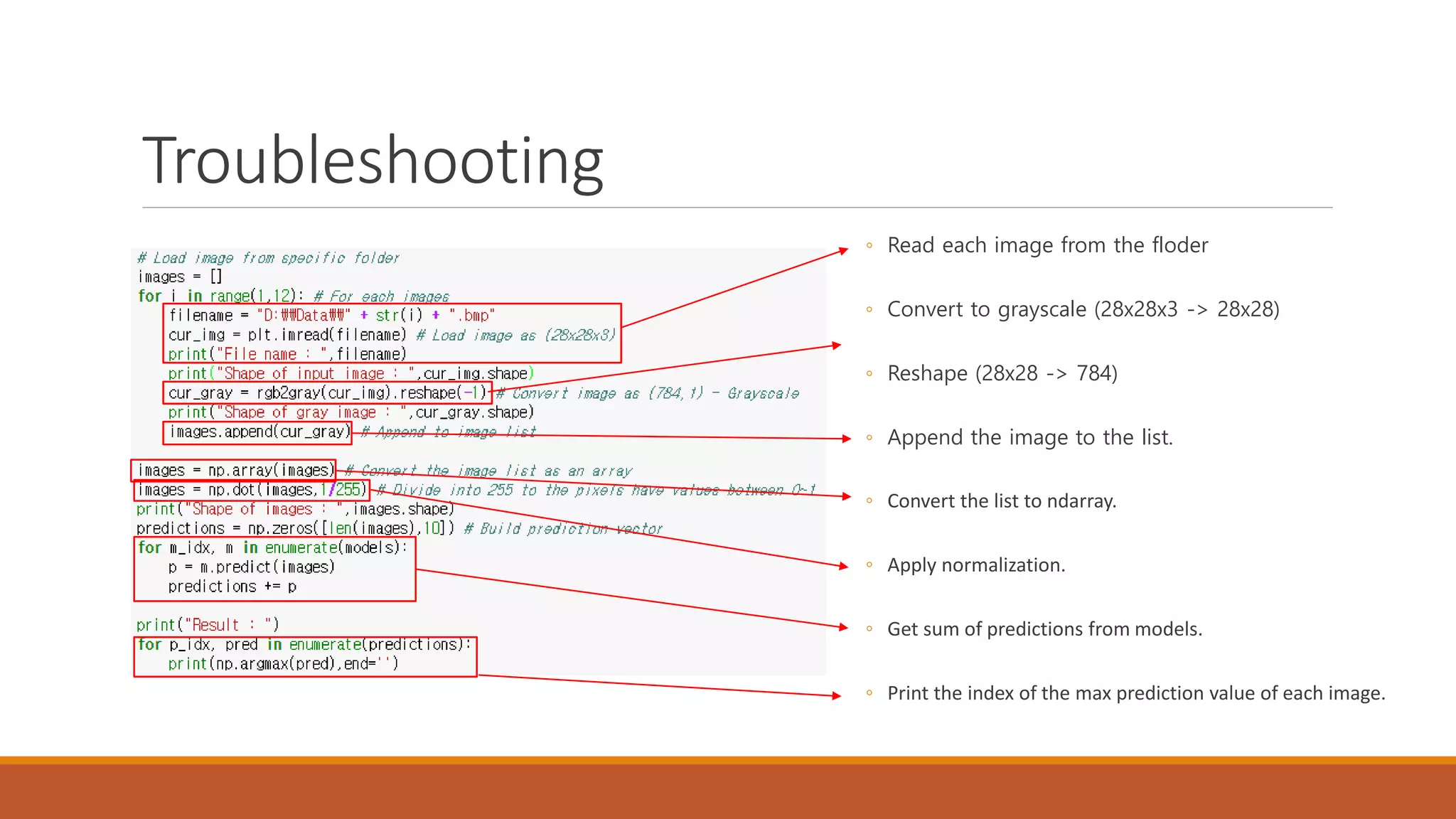

- 25. Troubleshooting ◦ Read eachimage from the floder ◦ Convert to grayscale (28x28x3 -> 28x28) ◦ Reshape (28x28 -> 784) ◦ Append the image to the list. ◦ Convert the list to ndarray. ◦ Apply normalization. ◦ Get sum of predictions from models. ◦ Print the index of the max prediction value of each image.

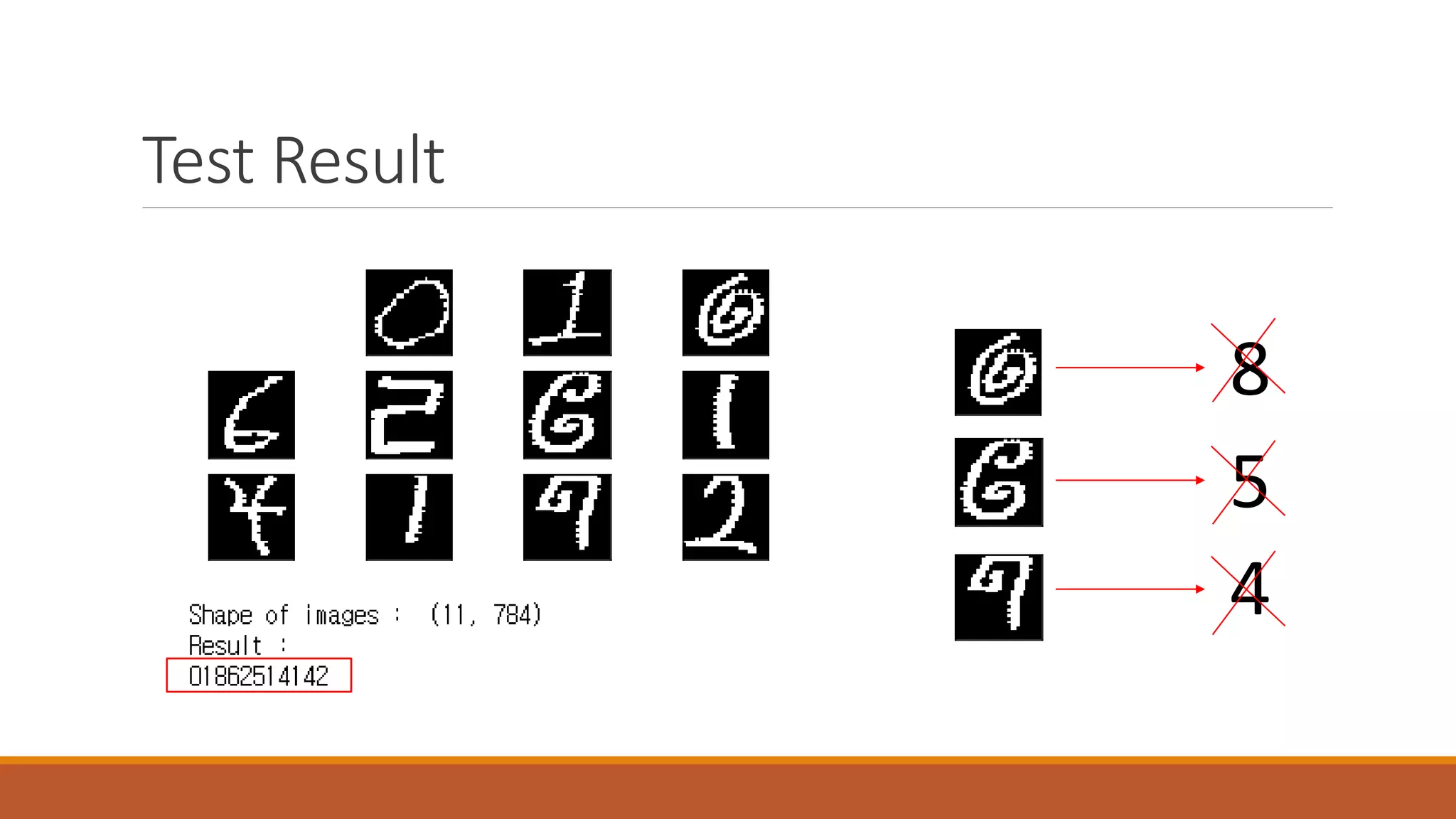

- 26.

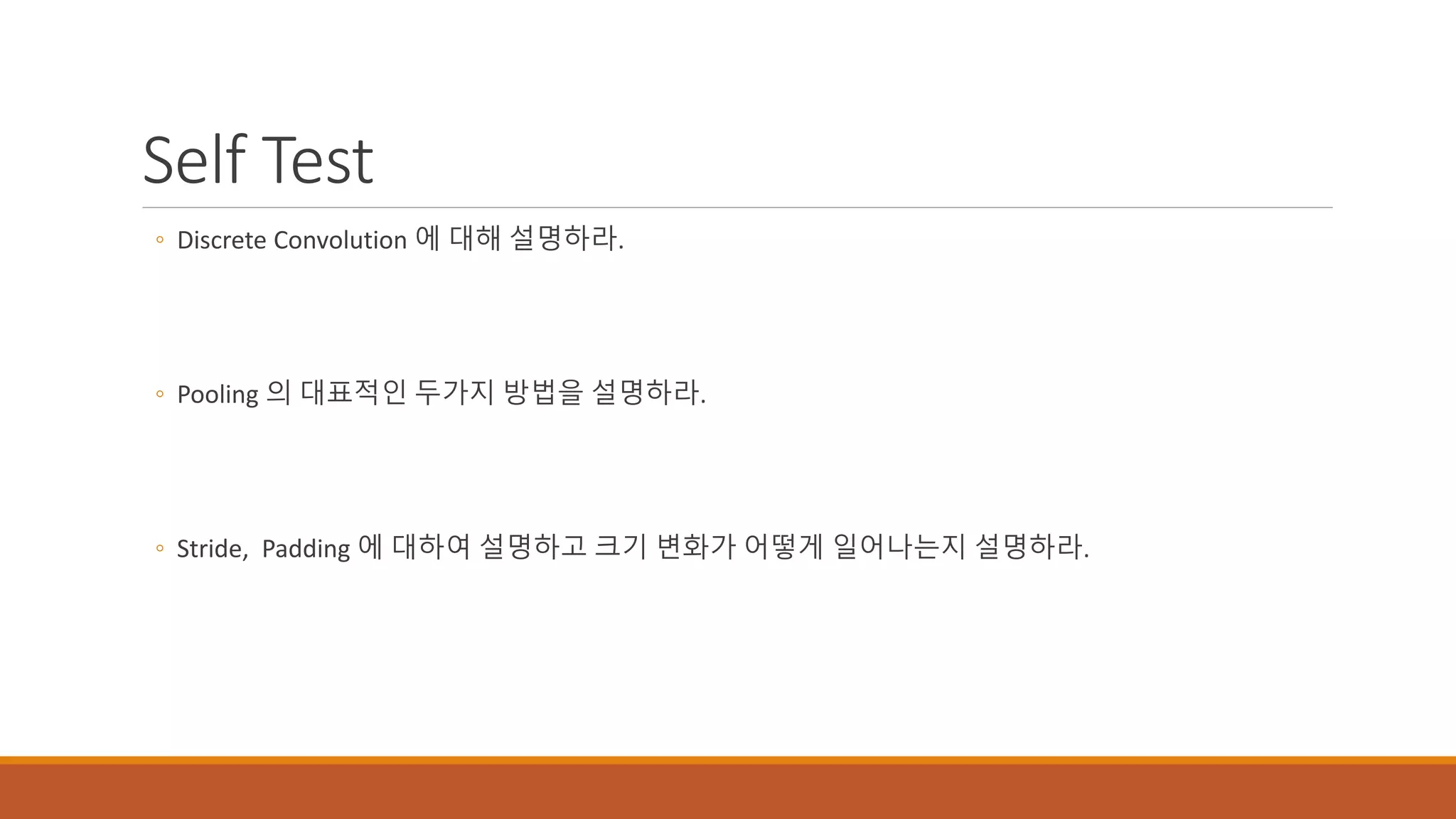

- 27. Self Test ◦ DiscreteConvolution 에 대해 설명하라. ◦ Pooling 의 대표적인 두가지 방법을 설명하라. ◦ Stride, Padding 에 대하여 설명하고 크기 변화가 어떻게 일어나는지 설명하라.
