Compose Async with RxJS

Compose Async with RxJS
@chitacan, Riiid
1

https://goo.gl/W1YChu
2 JSBin for example

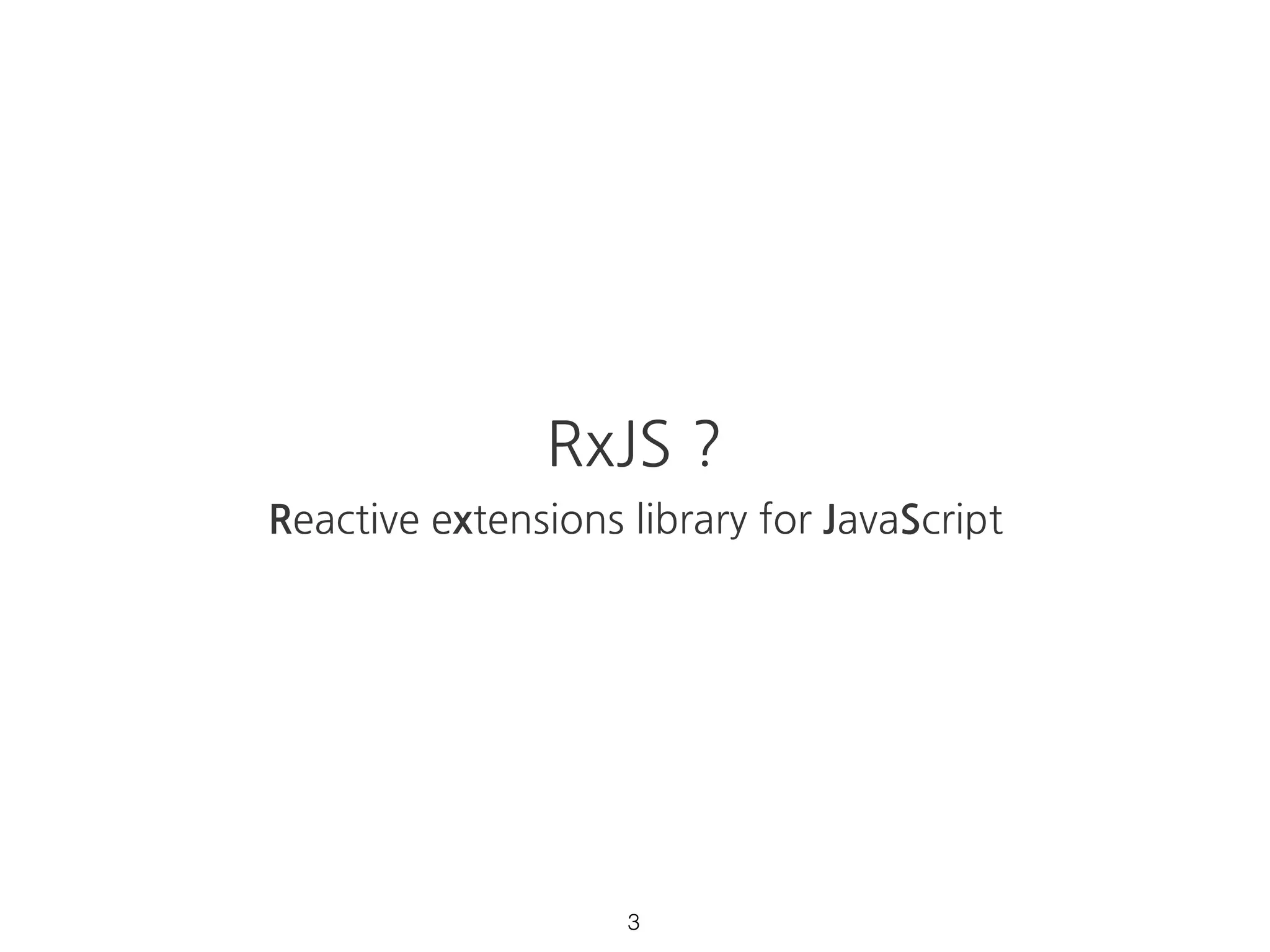

RxJS ?
Reactive extensions library for JavaScript
3

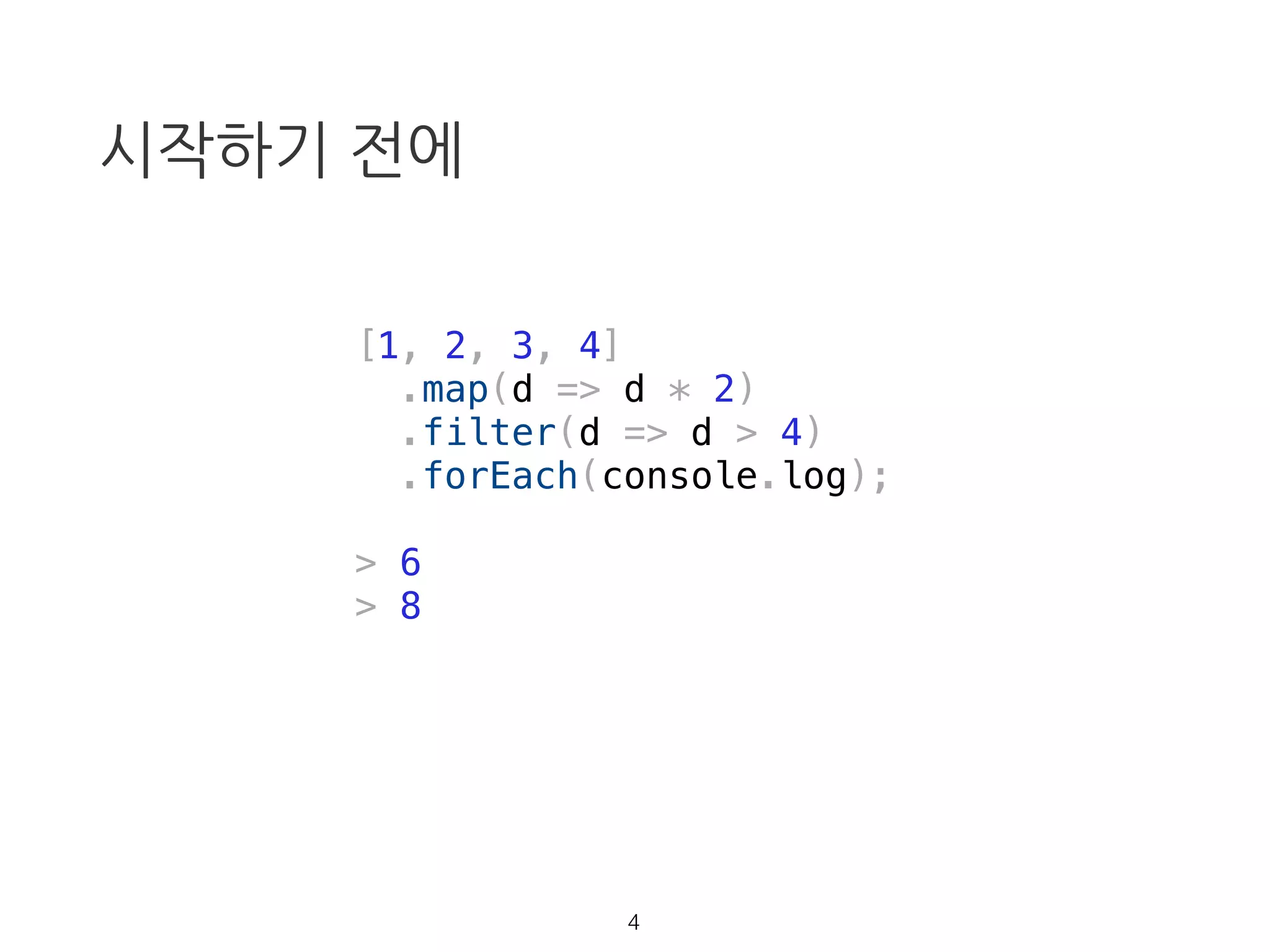

시작하기 전에
[1, 2, 3, 4]
.map(d => d * 2)
.filter(d => d > 4)
.forEach(console.log);
4

시작하기 전에
[1, 2, 3, 4]
.map(d => d * 2)
.filter(d => d > 4)
4
> 6
> 8

Event 를 이렇게 처리한다면 어떨까요?
5

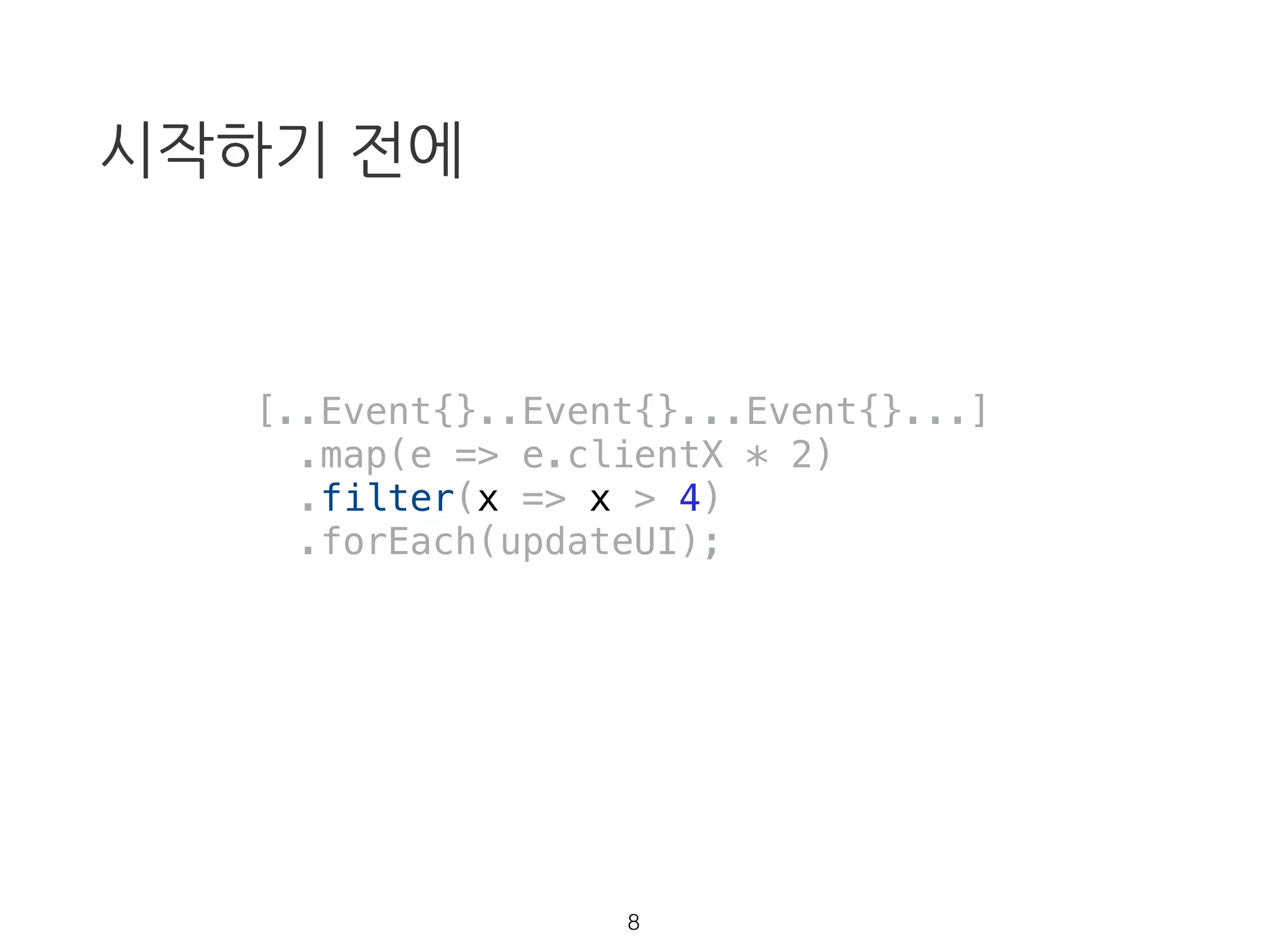

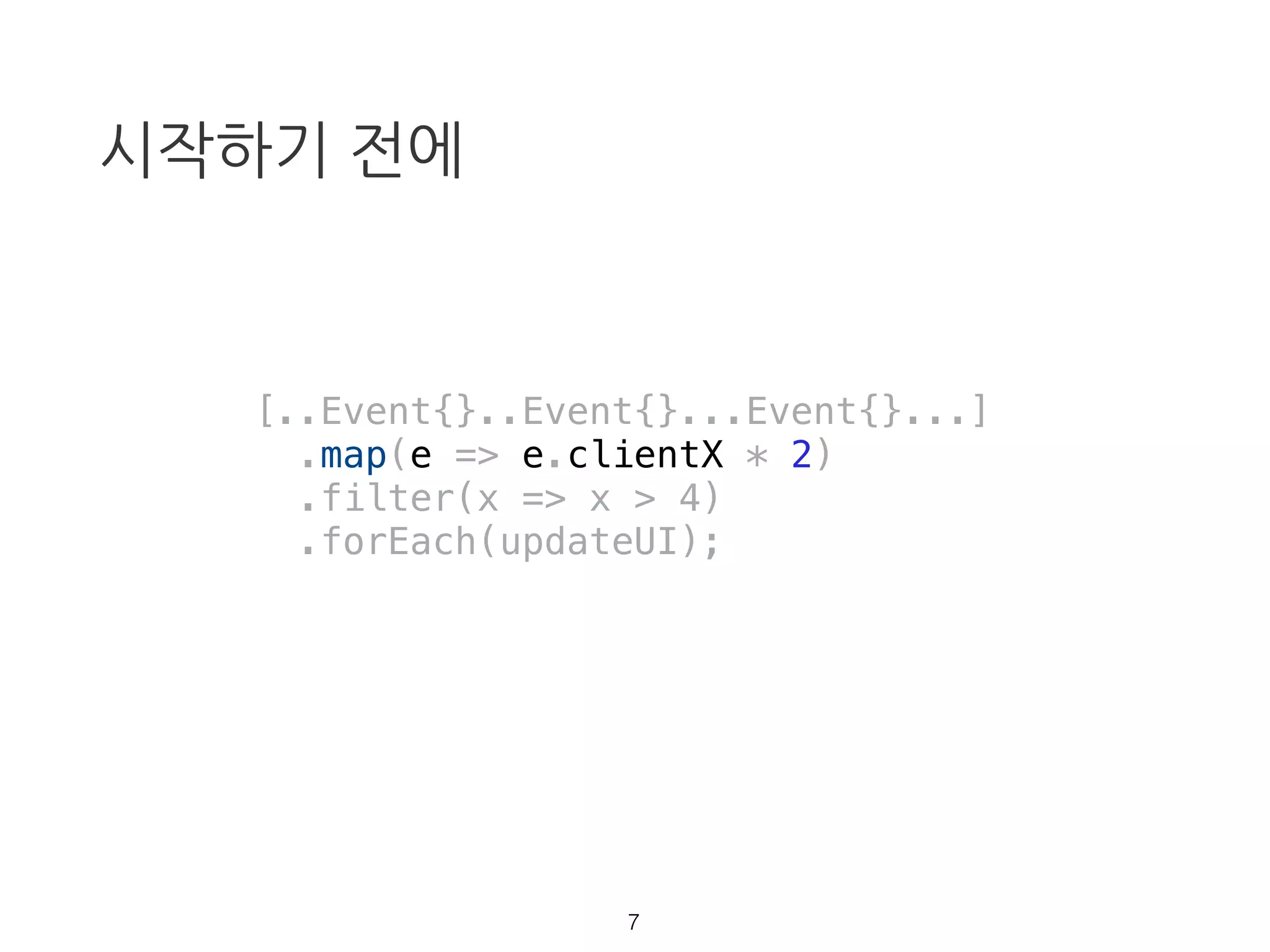

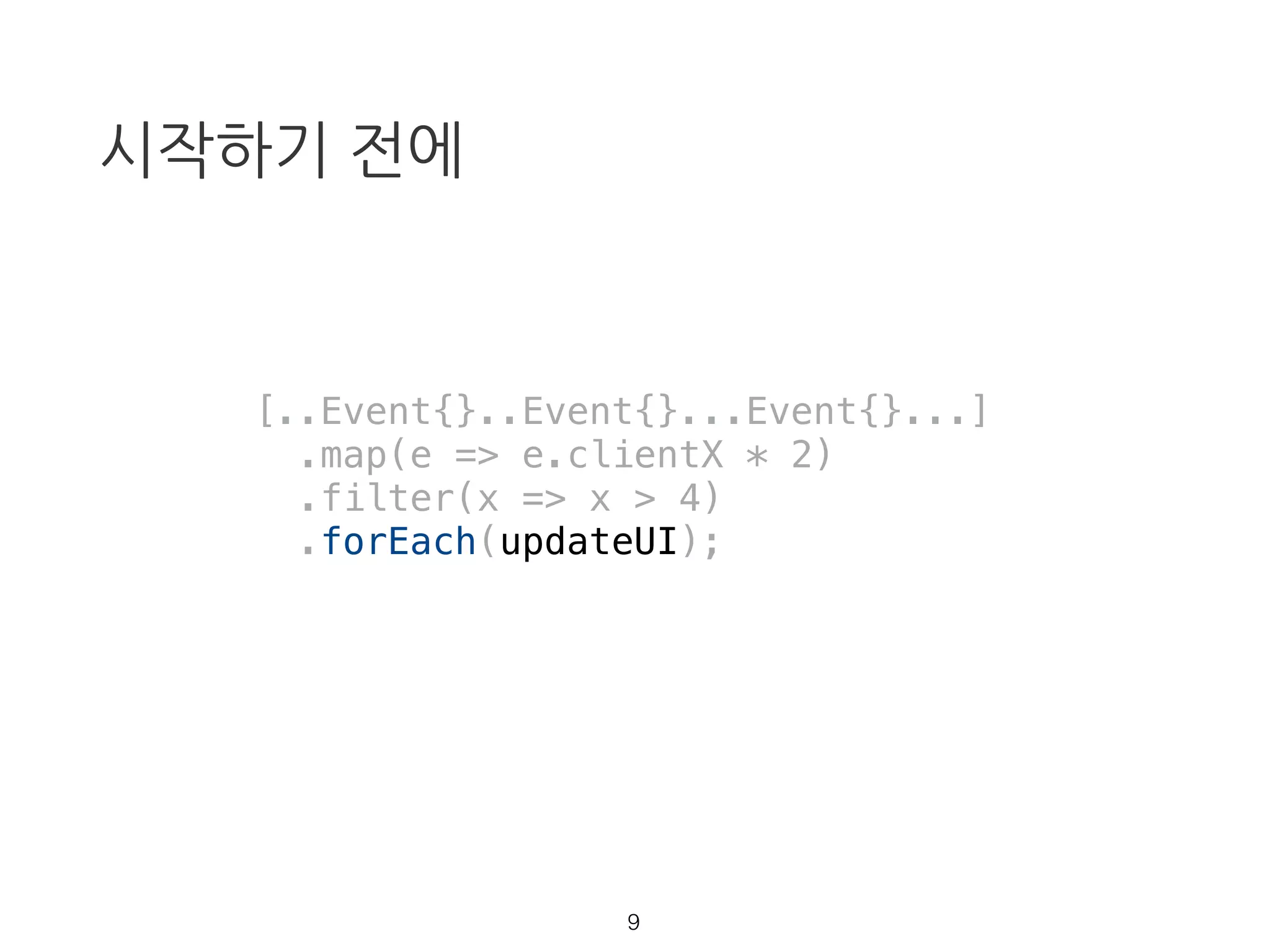

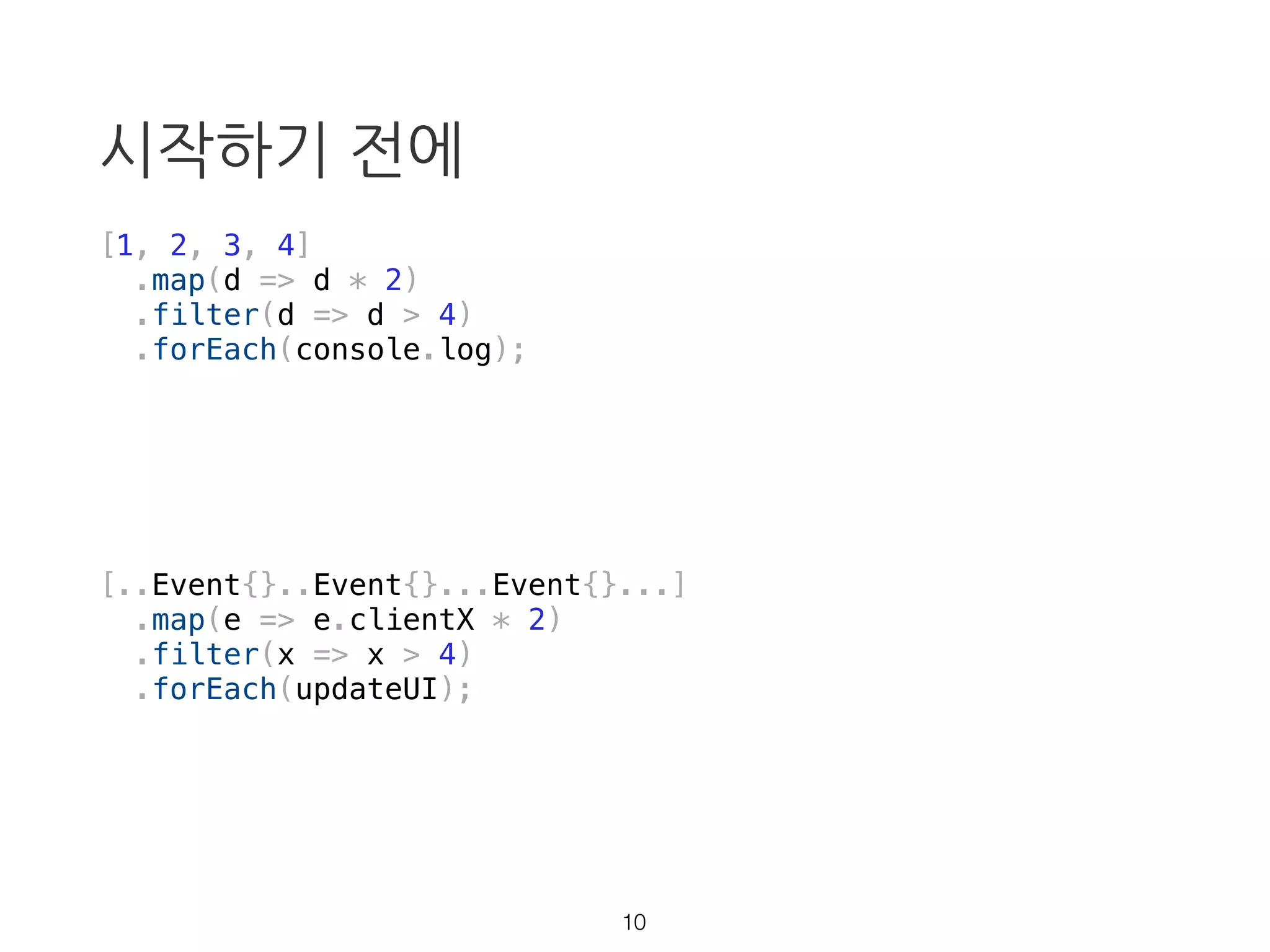

시작하기 전에
[..Event{}..Event{}...Event{}...]
.map(e => e.clientX * 2)
.filter(x => x > 4)
.forEach(updateUI);
6

시작하기 전에
.filter(x => x > 4)
.forEach(updateUI);
7

시작하기 전에
.filter(x => x > 4)
.forEach(updateUI);
8

시작하기 전에
.filter(x => x > 4)
.forEach(updateUI);
9

시작하기 전에
.filter(x => x > 4)
.forEach(updateUI);
[1, 2, 3, 4]
.map(d => d * 2)
.filter(d => d > 4)
10

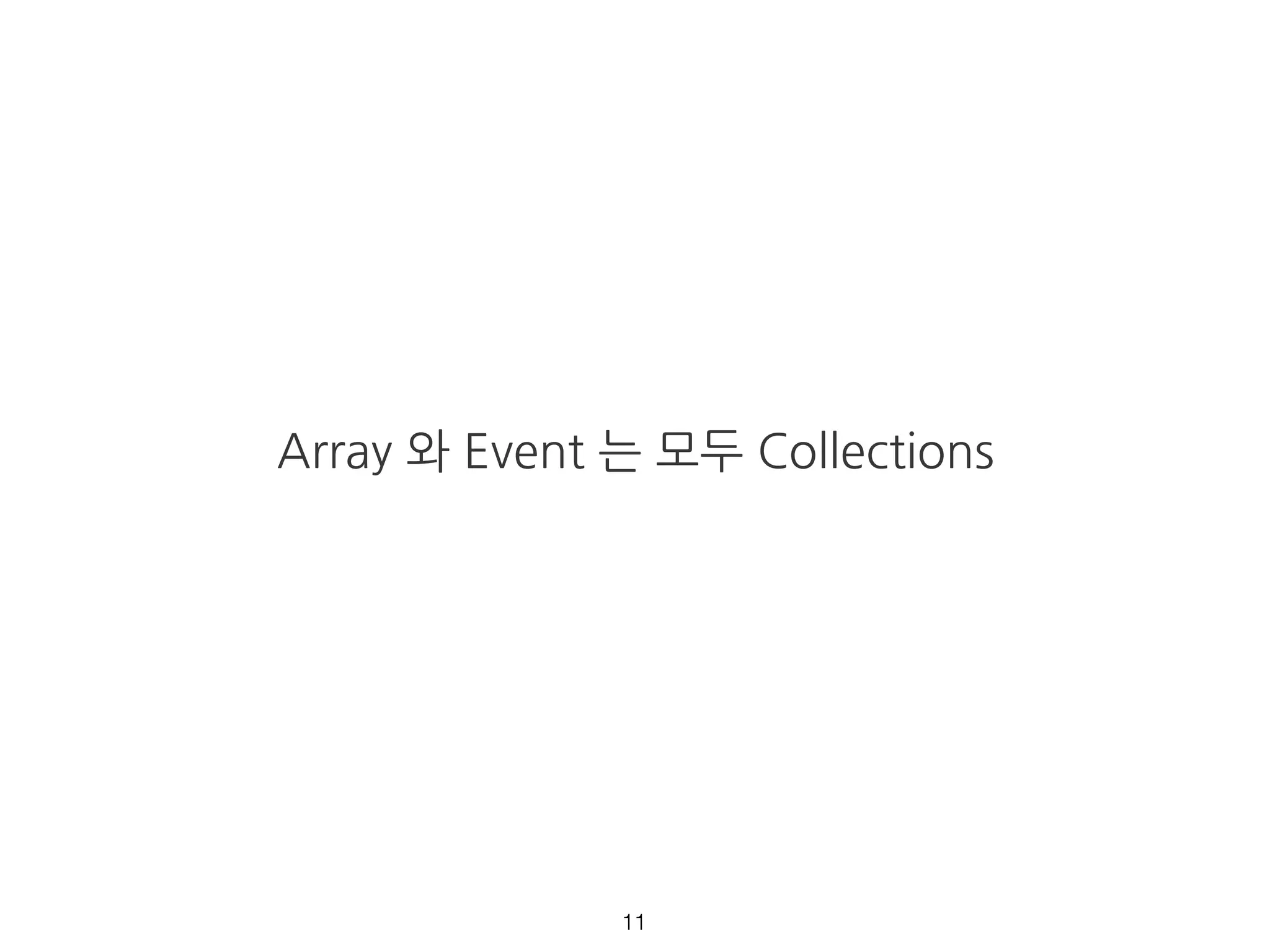

Array 와 Event 는 모두 Collections
11

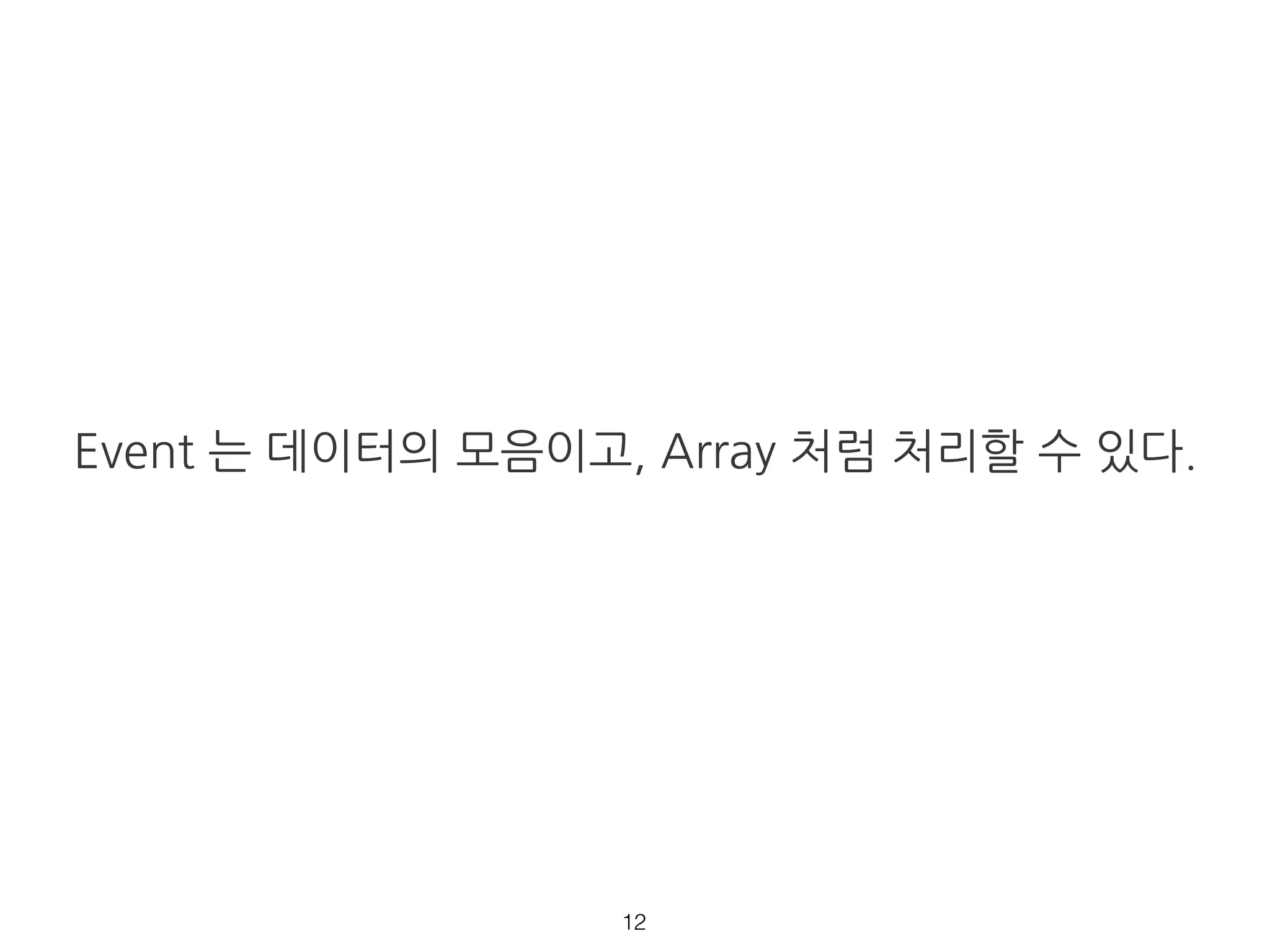

Event 는 데이터의 모음이고, Array 처럼 처리할 수 있다.
12

Array 와 Event
• 차이점
- array 는 각 요소를 동기적 (sync) 으로 조회할 수 있고, 끝이 있다.
- event 는 각 요소를 비동기적 (async) 으로 조회할 수 있고, 끝이 없다. 
(하지만 event listening 을 취소 할 수 있다.)
• 비동기적으로 생성되는 요소들을 표현하고, 원하는 시점에 취소할
수 있는 타입
13

[ ]

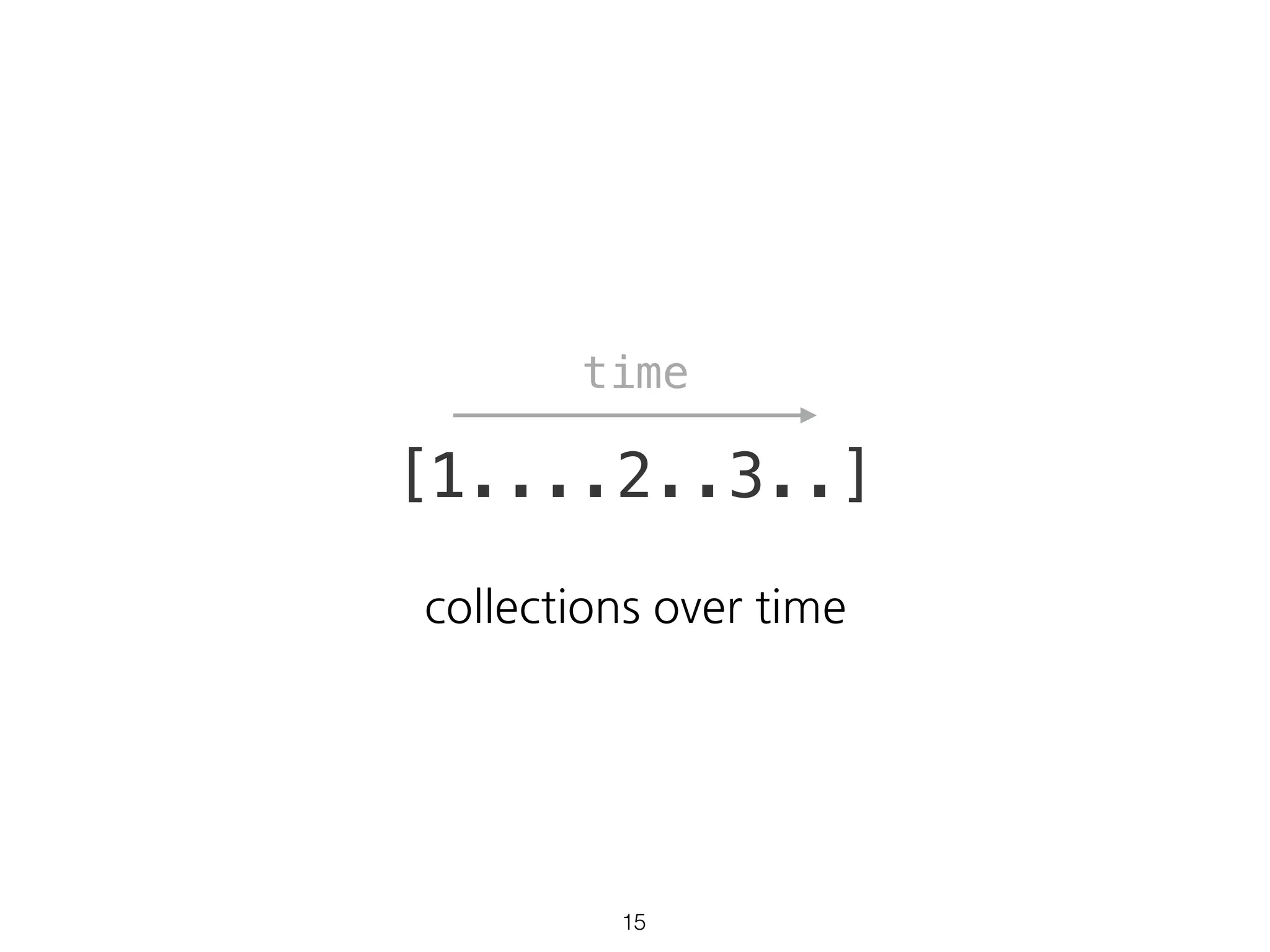

time
collections over time
15

[ ]
time
collections over time
15
1....2..3..

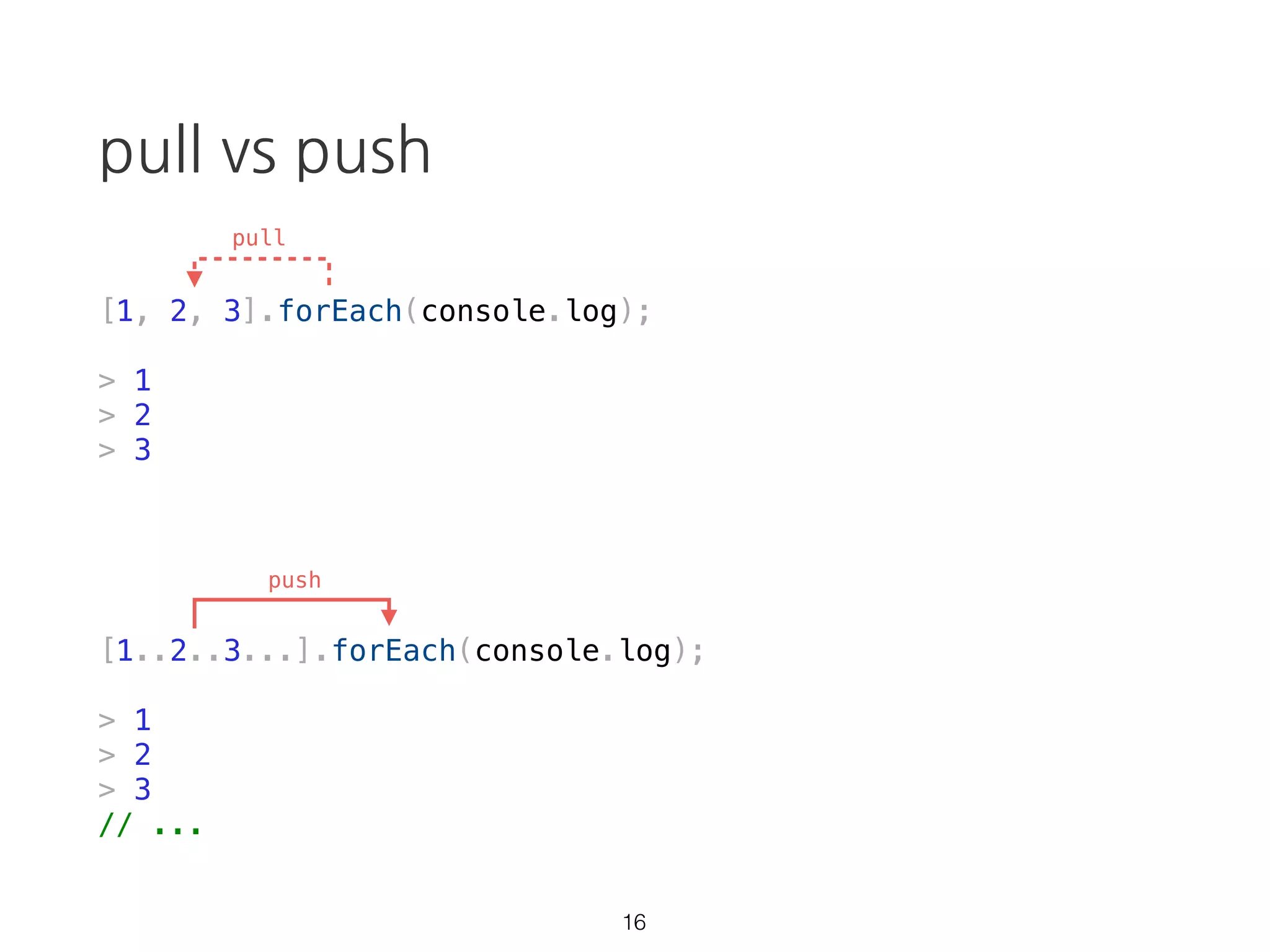

pull vs push
[1, 2, 3].forEach(console.log);
[1..2..3...].forEach(console.log);
16

pull vs push
16
> 1
> 2
> 3

pull vs push
16
> 1
> 2
> 3
> 1

pull vs push
16
> 1
> 2
> 3
> 1
> 2

pull vs push
16
> 1
> 2
> 3
> 1
> 2
> 3
// ...

pull vs push
16
> 1
> 2
> 3
> 1
> 2
> 3
// ...
pull

pull vs push
16
> 1
> 2
> 3
> 1
> 2
> 3
// ...
pull
push

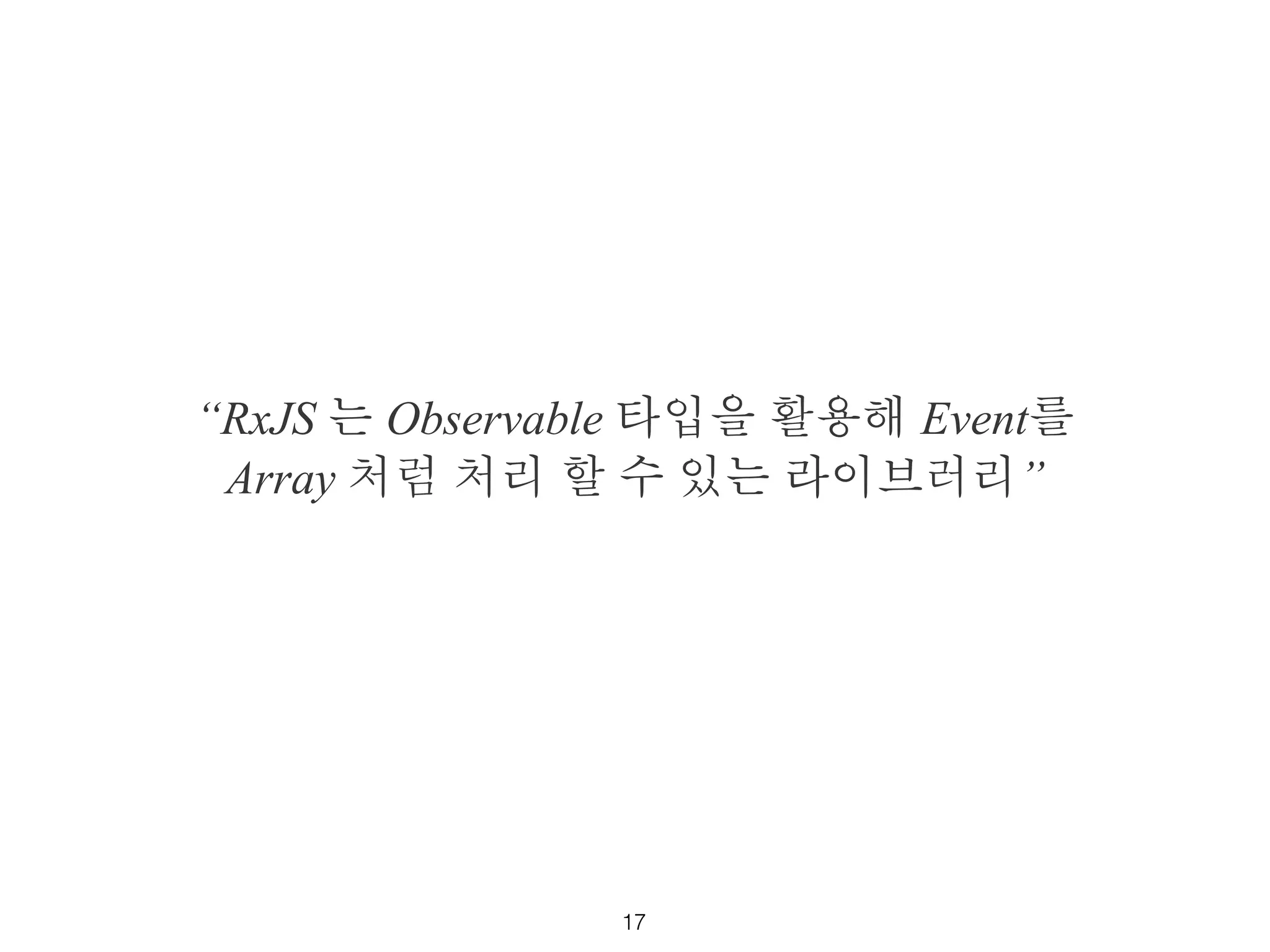

“RxJS 는 Observable 타입을 활용해 Event를
Array 처럼 처리 할 수 있는 라이브러리”
17

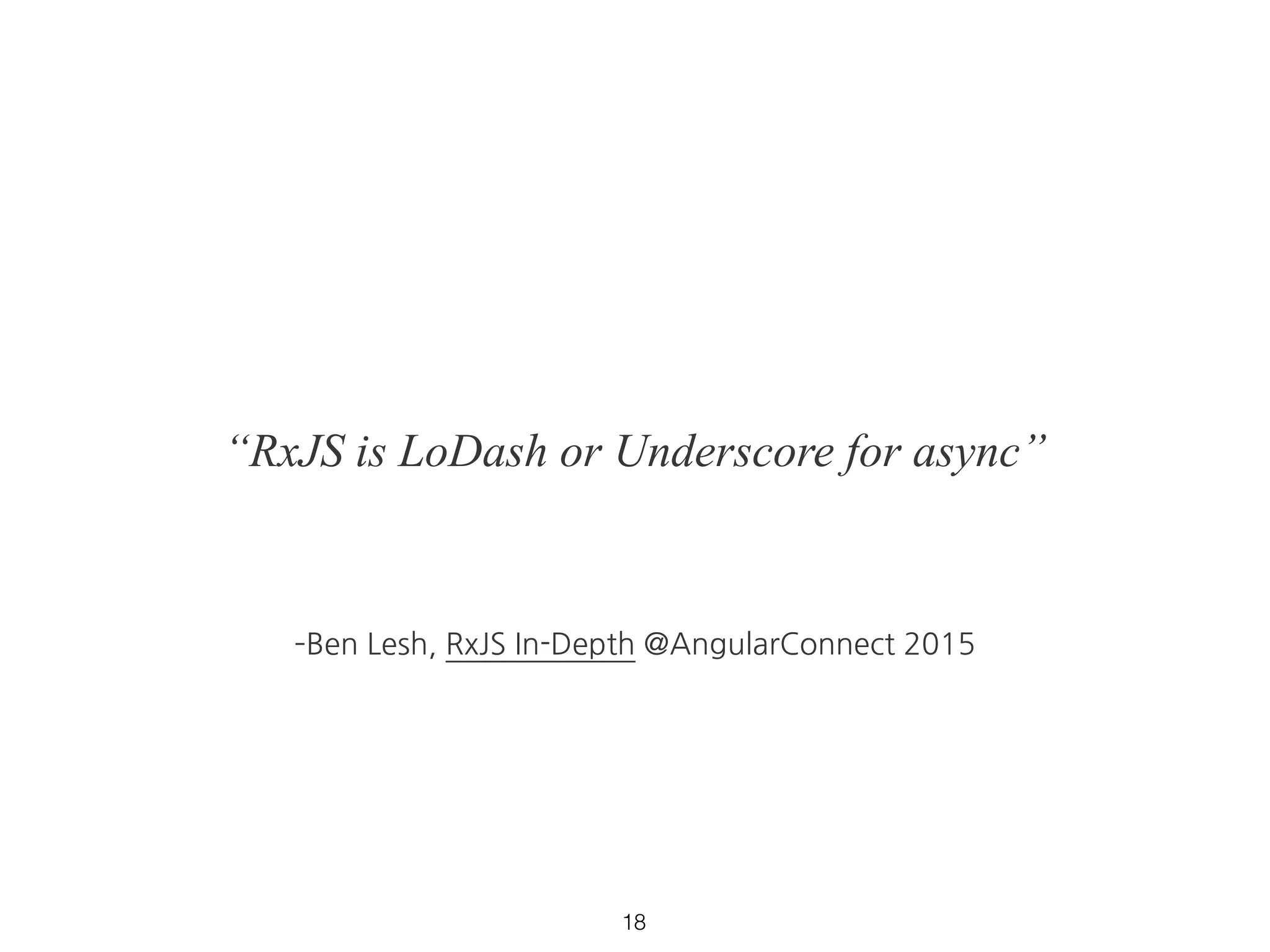

Ben Lesh, RxJS In-Depth @AngularConnect 2015
“RxJS is LoDash or Underscore for async”
18

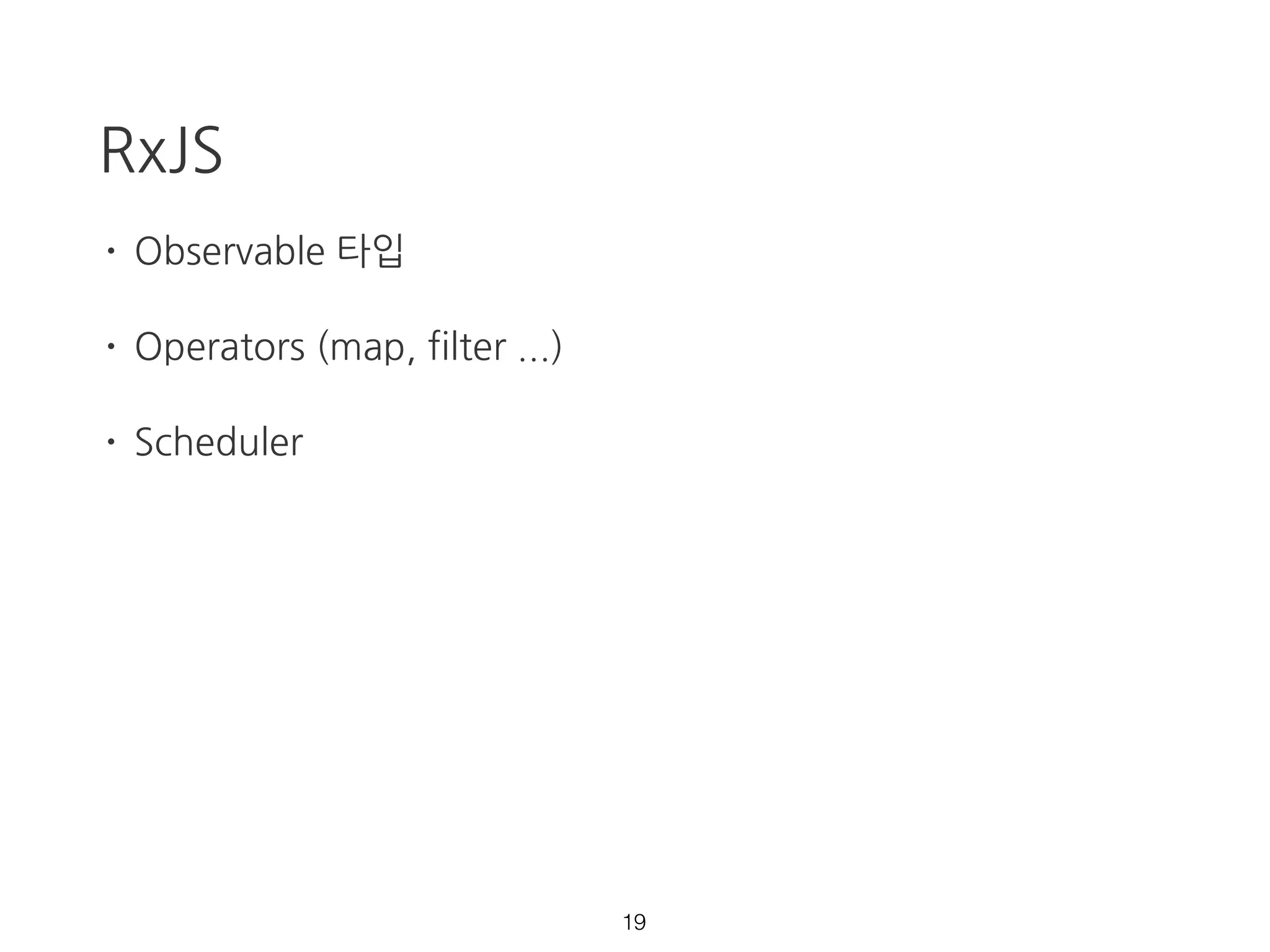

RxJS
• Observable 타입
• Operators (map, filter ...)
• Scheduler
19

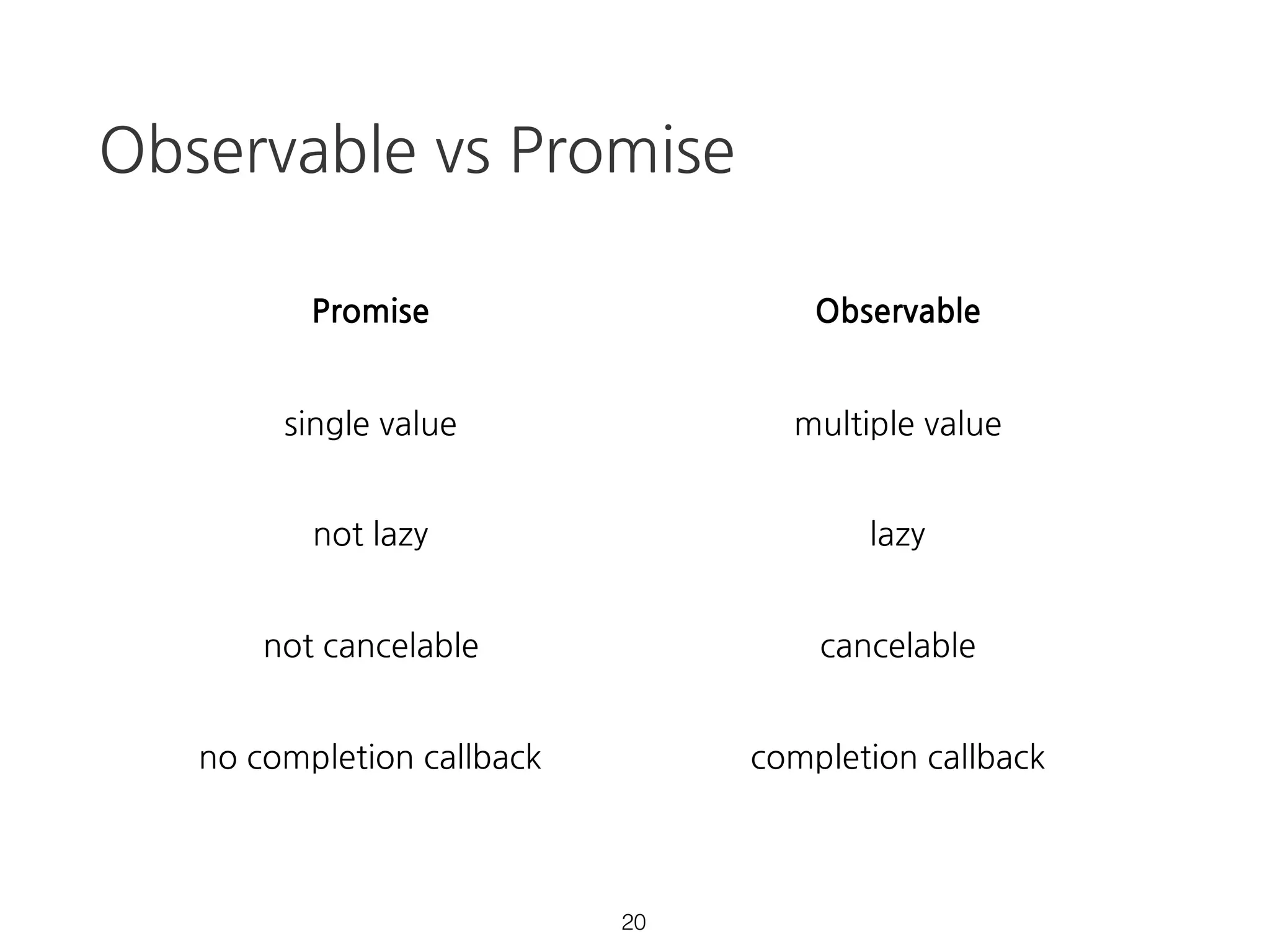

Observable vs Promise
Promise Observable
single value multiple value
not lazy lazy
not cancelable cancelable
no completion callback completion callback
20

single value vs multiple value
• DOM / Event Emitter events (0 - N values)
• Animations (cancelable)
• REST API (1 value)
• WebSockets (0 - N values, retry)
• node.js core API (1 - N values)
21

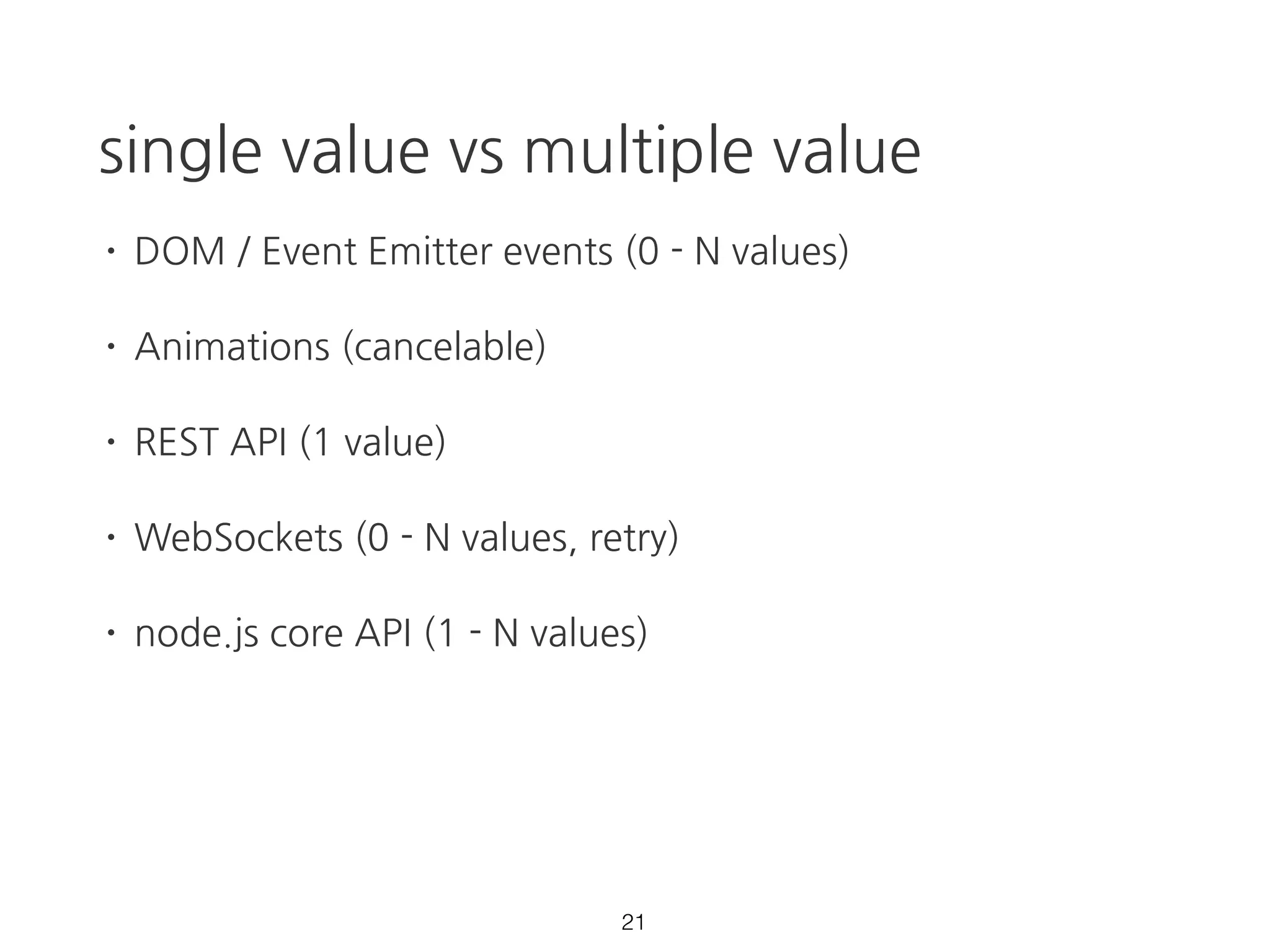

single value vs multiple value
• DOM / Event Emitter events (0 - N values)
• Animations (cancelable)
• REST API (1 value)
• WebSockets (0 - N values)
• node.js core API (1 - N values)
22

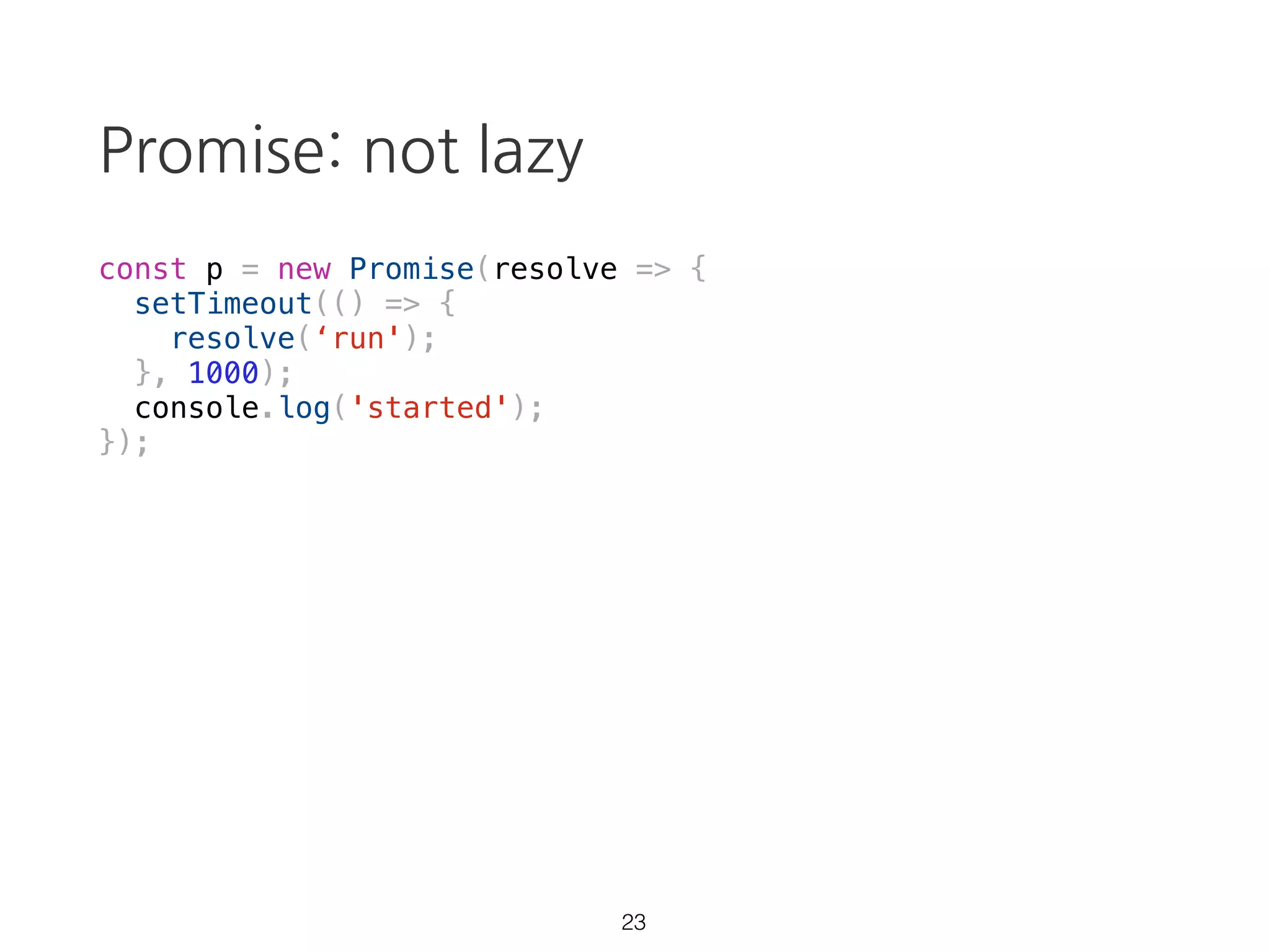

Promise: not lazy
const p = new Promise(resolve => {
setTimeout(() => {
resolve(‘run');
}, 1000);
console.log('started');
});
23

Promise: not lazy
setTimeout(() => {
resolve(‘run');
}, 1000);
});
24

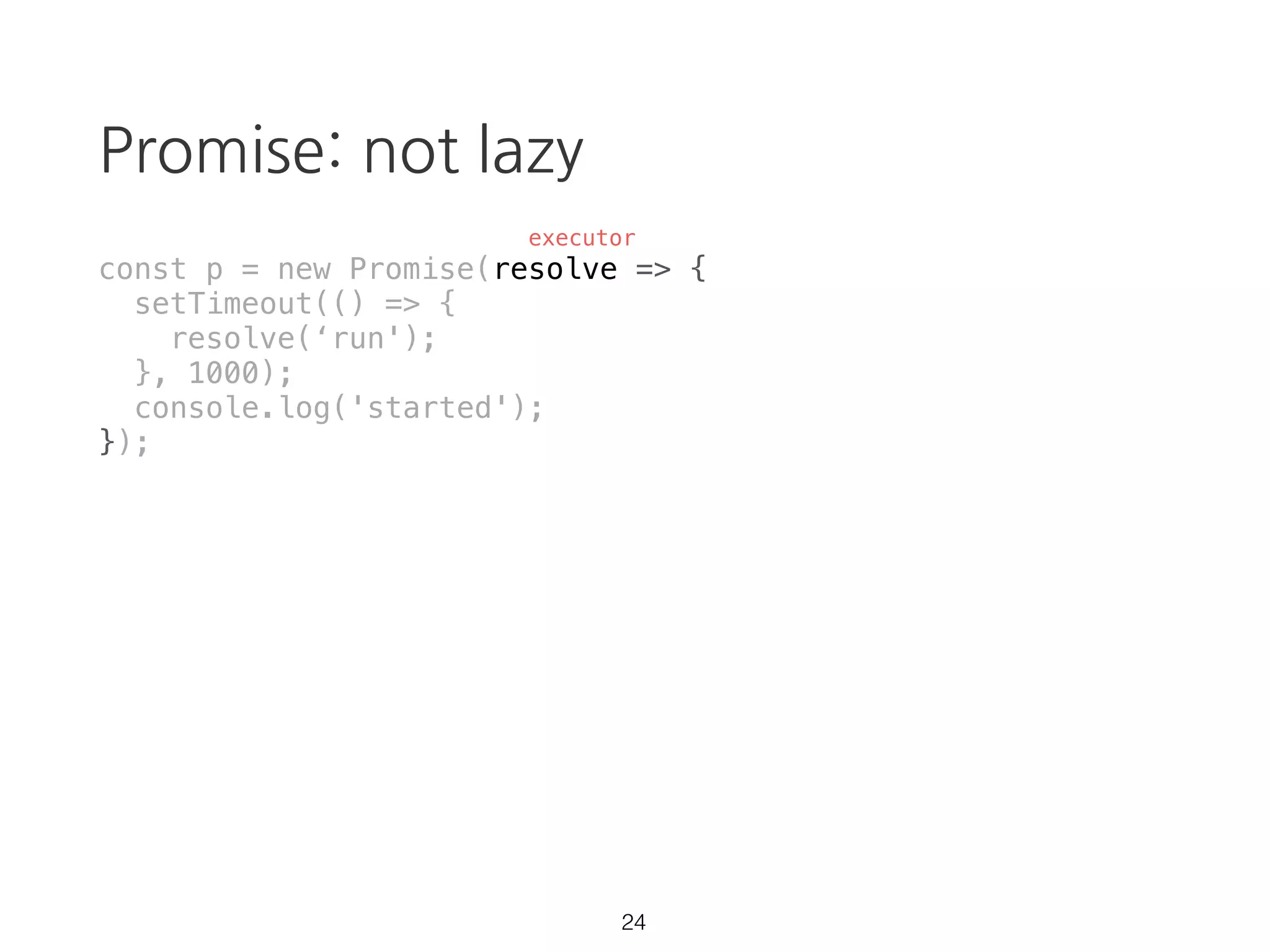

executor

Promise: not lazy
setTimeout(() => {
resolve(‘run');
}, 1000);
});
25 https://goo.gl/tK39aS

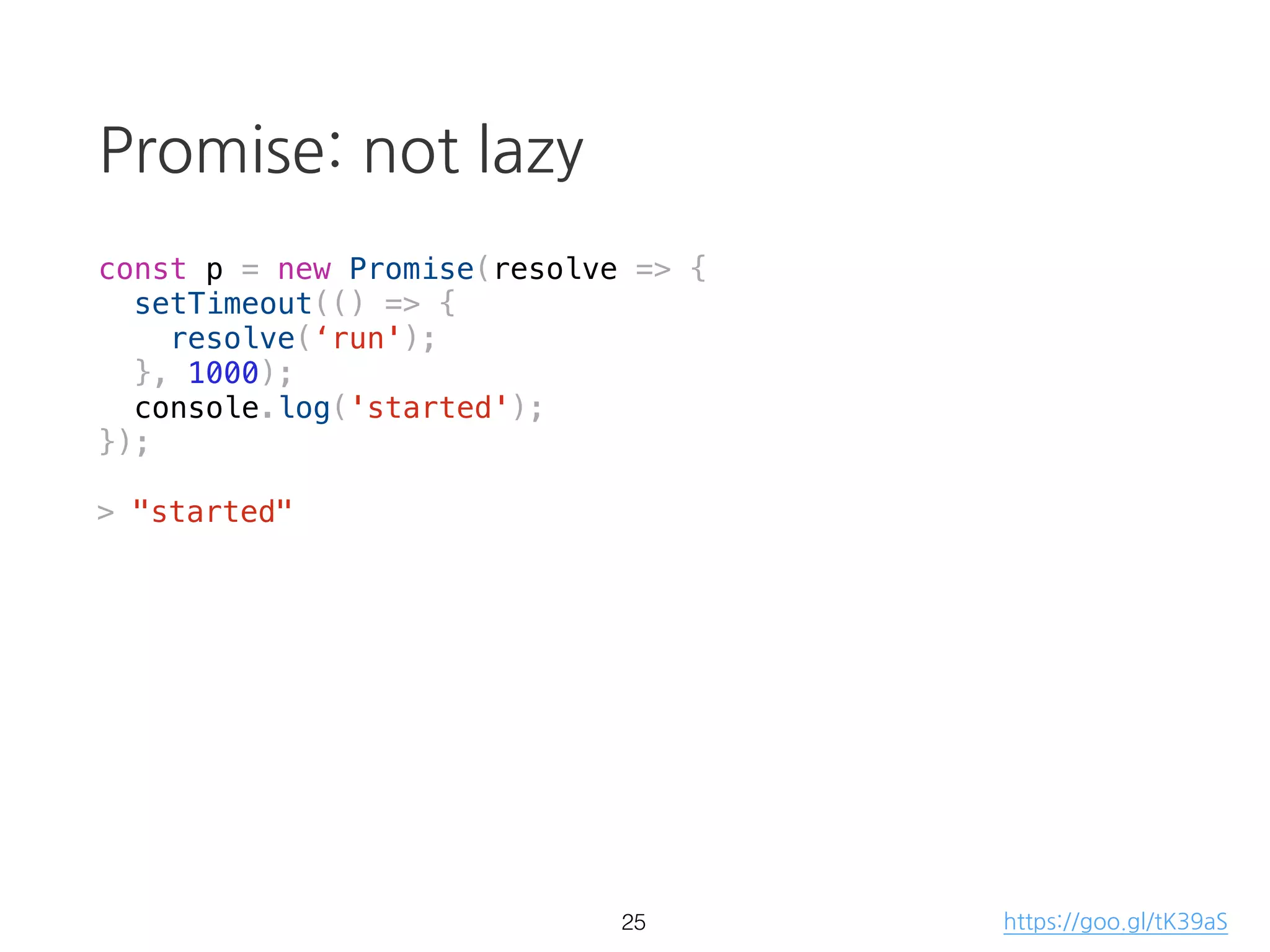

Promise: not lazy
setTimeout(() => {
resolve(‘run');
}, 1000);
});
25
> "started"
https://goo.gl/tK39aS

const source = Rx.Observable.create(observer => {
setTimeout(() => {
observer.next('run');
}, 1000);
});

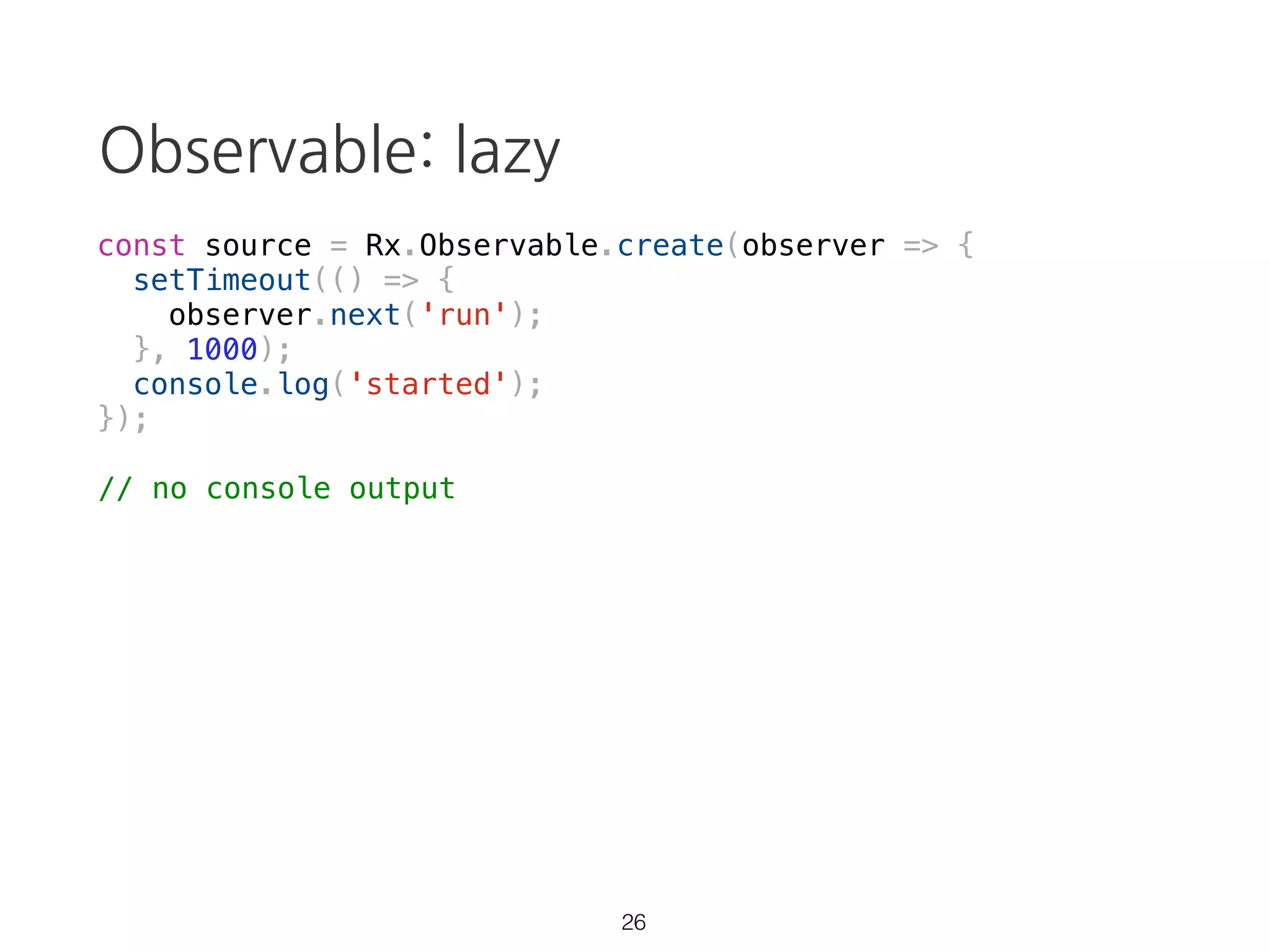

Observable: lazy
26

setTimeout(() => {
}, 1000);
});
Observable: lazy
26
// no console output

setTimeout(() => {
}, 1000);
});
source.subscribe(val => console.log(val));

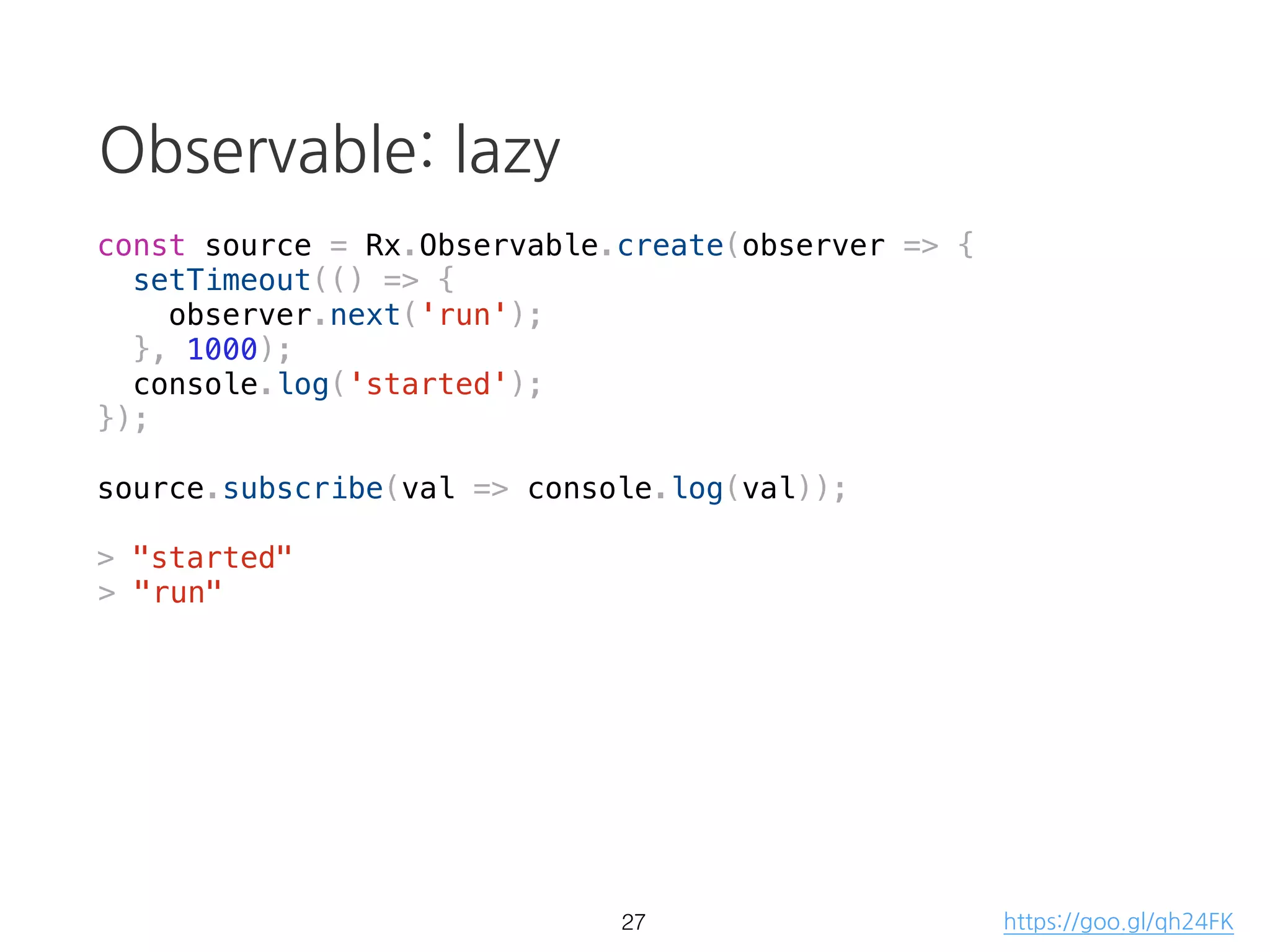

Observable: lazy
27 https://goo.gl/qh24FK

setTimeout(() => {
}, 1000);
});
Observable: lazy
27
> "started"
https://goo.gl/qh24FK

setTimeout(() => {
}, 1000);
});
Observable: lazy
27
> "started"
> "run"
https://goo.gl/qh24FK

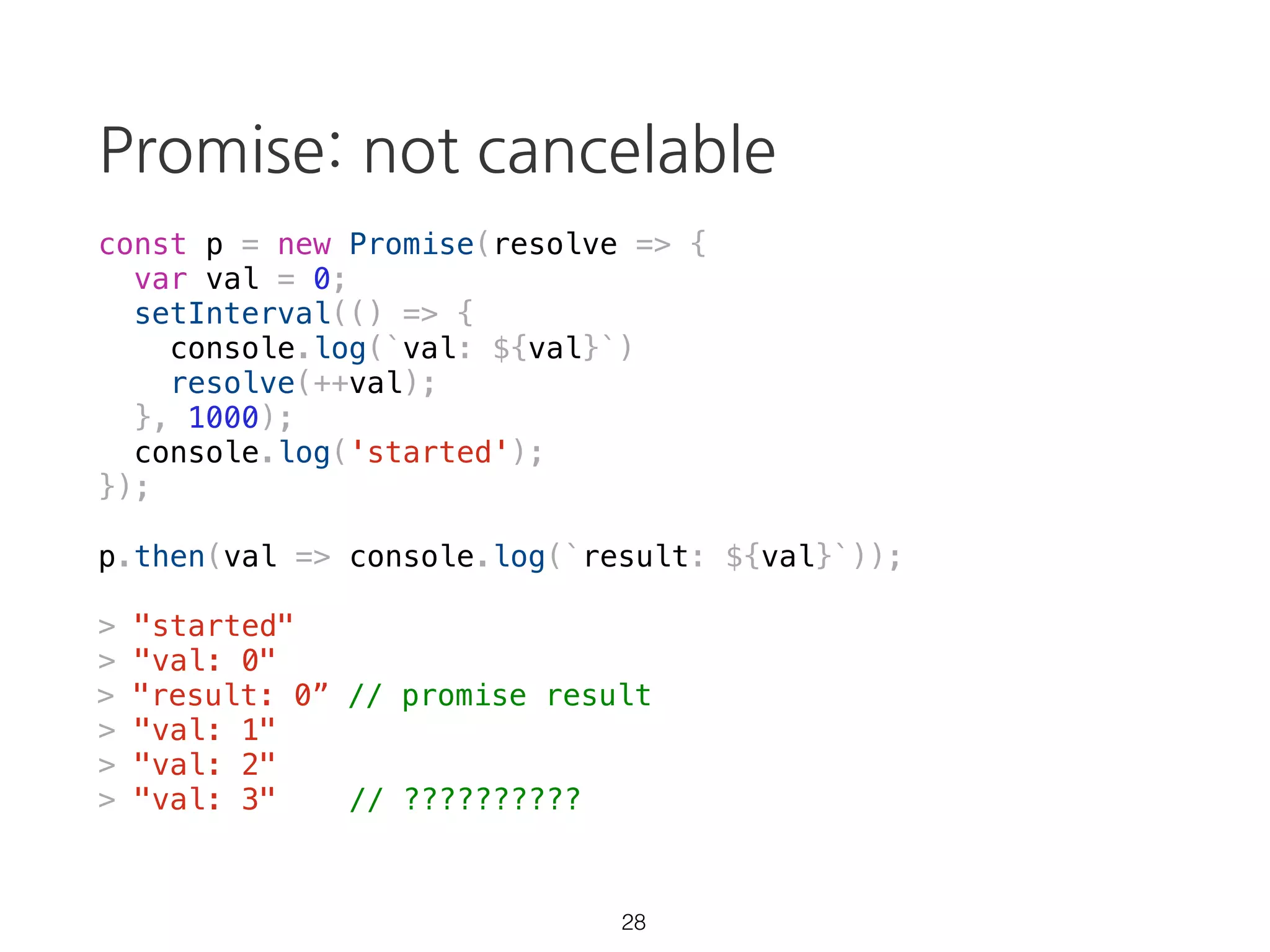

Promise: not cancelable
var val = 0;
setInterval(() => {
console.log(`val: ${val}`)
resolve(++val);
}, 1000);
});
p.then(val => console.log(`result: ${val}`));
28

var val = 0;
setInterval(() => {
resolve(++val);
}, 1000);
});
28
> "started"

var val = 0;
setInterval(() => {
resolve(++val);
}, 1000);
});
28
> "started"
> "val: 0"

var val = 0;
setInterval(() => {
resolve(++val);
}, 1000);
});
28
> "started"
> "val: 0"
> "result: 0” // promise result
> "val: 1"
> "val: 2"
> "val: 3" // ??????????

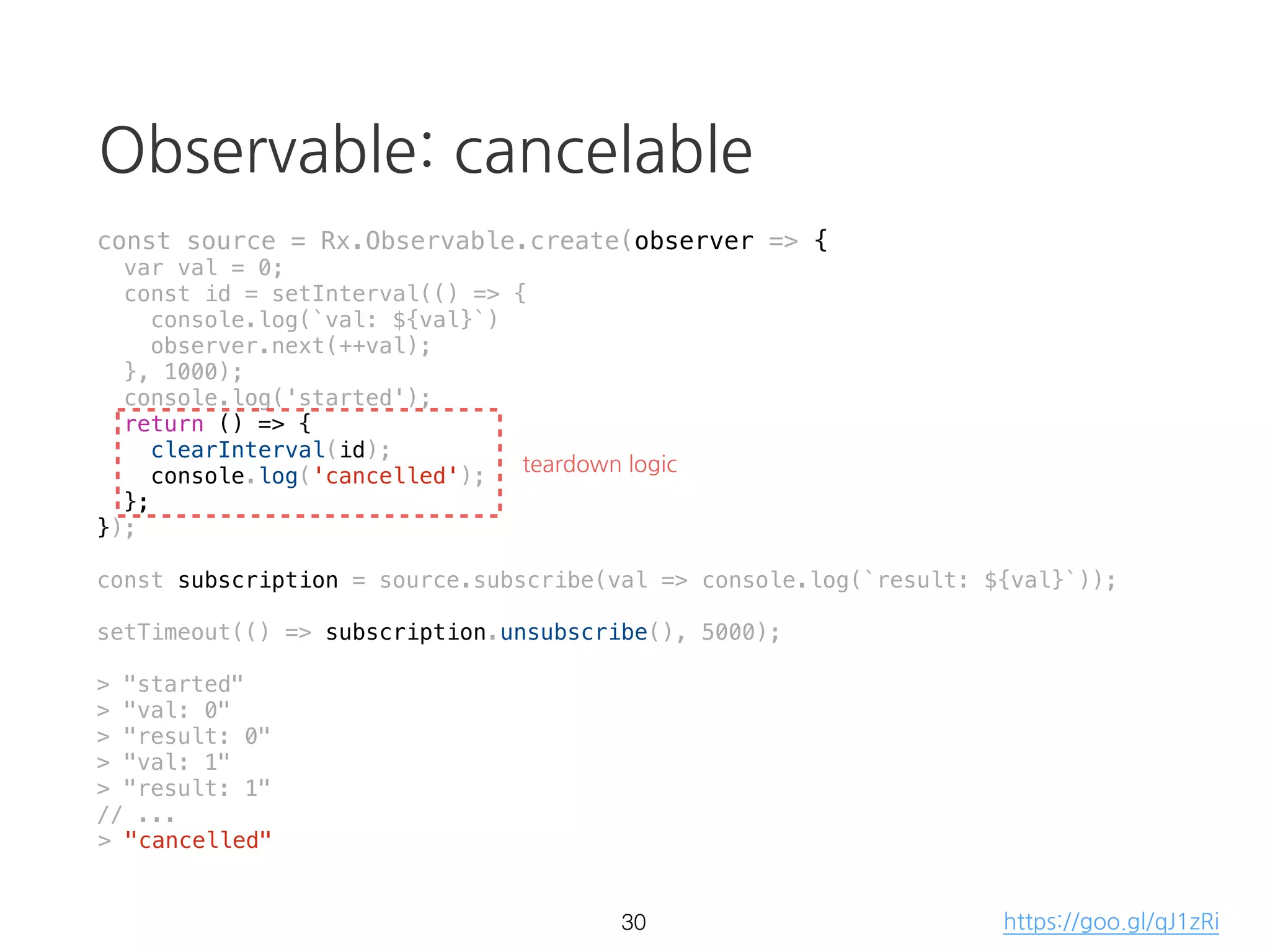

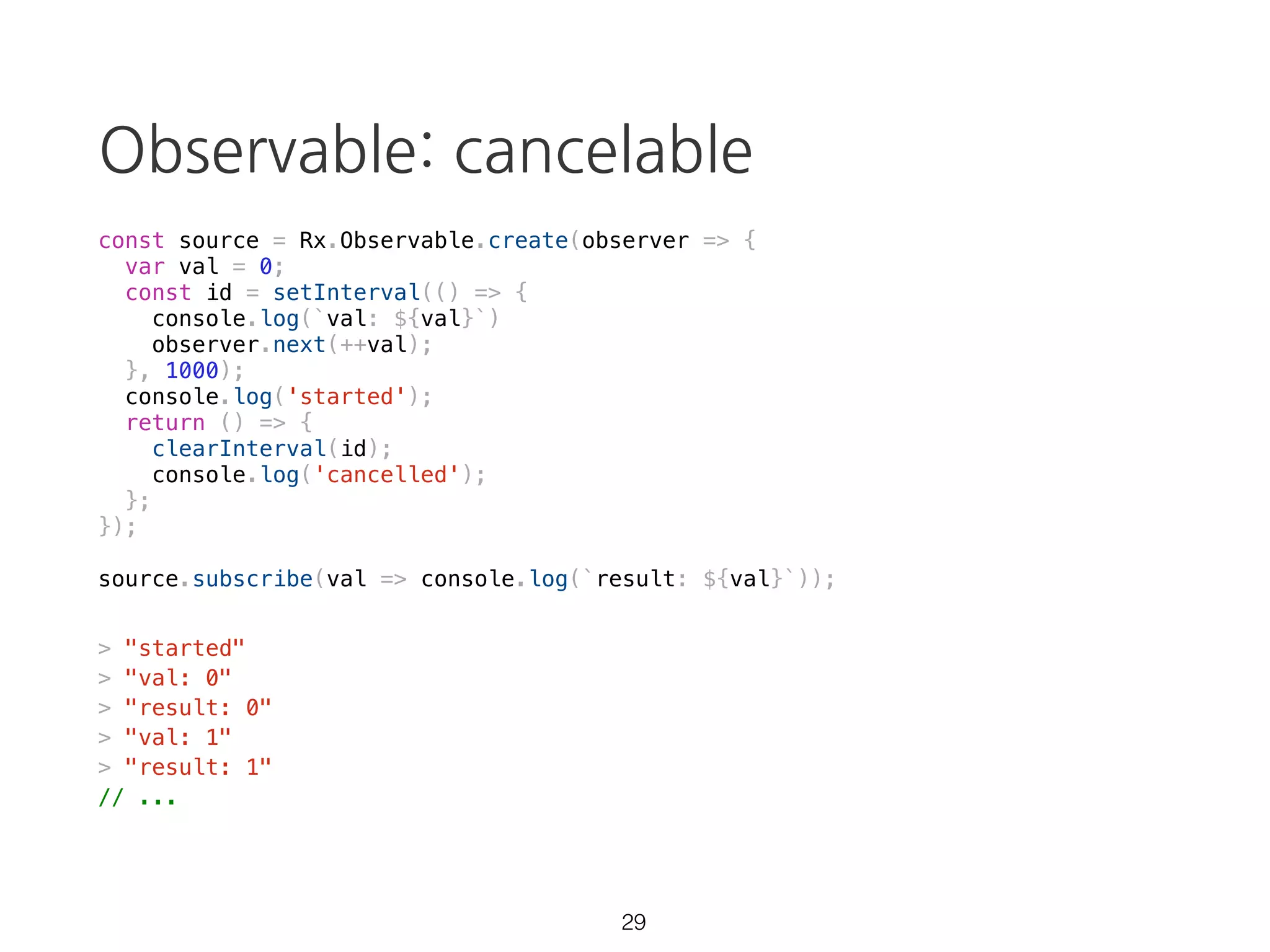

Observable: cancelable
var val = 0;
const id = setInterval(() => {
observer.next(++val);
}, 1000);
return () => {
clearInterval(id);
console.log('cancelled');
};
});
const subscription = source.subscribe(val => console.log(`result: ${val}`));
setTimeout(() => subscription.unsubscribe(), 5000);
29 https://goo.gl/qJ1zRi

var val = 0;
}, 1000);
return () => {
clearInterval(id);
};
});
> "started"
> "val: 0"
> "result: 0"
> "val: 1"
> "result: 1"
// ...
30 https://goo.gl/qJ1zRi

var val = 0;
}, 1000);
return () => {
clearInterval(id);
};
});
> "started"
> "val: 0"
> "result: 0"
> "val: 1"
> "result: 1"
// ...
30
teardown logic
https://goo.gl/qJ1zRi

var val = 0;
}, 1000);
return () => {
clearInterval(id);
};
});
> "started"
> "val: 0"
> "result: 0"
> "val: 1"
> "result: 1"
// ...
30
> "cancelled"
teardown logic
https://goo.gl/qJ1zRi

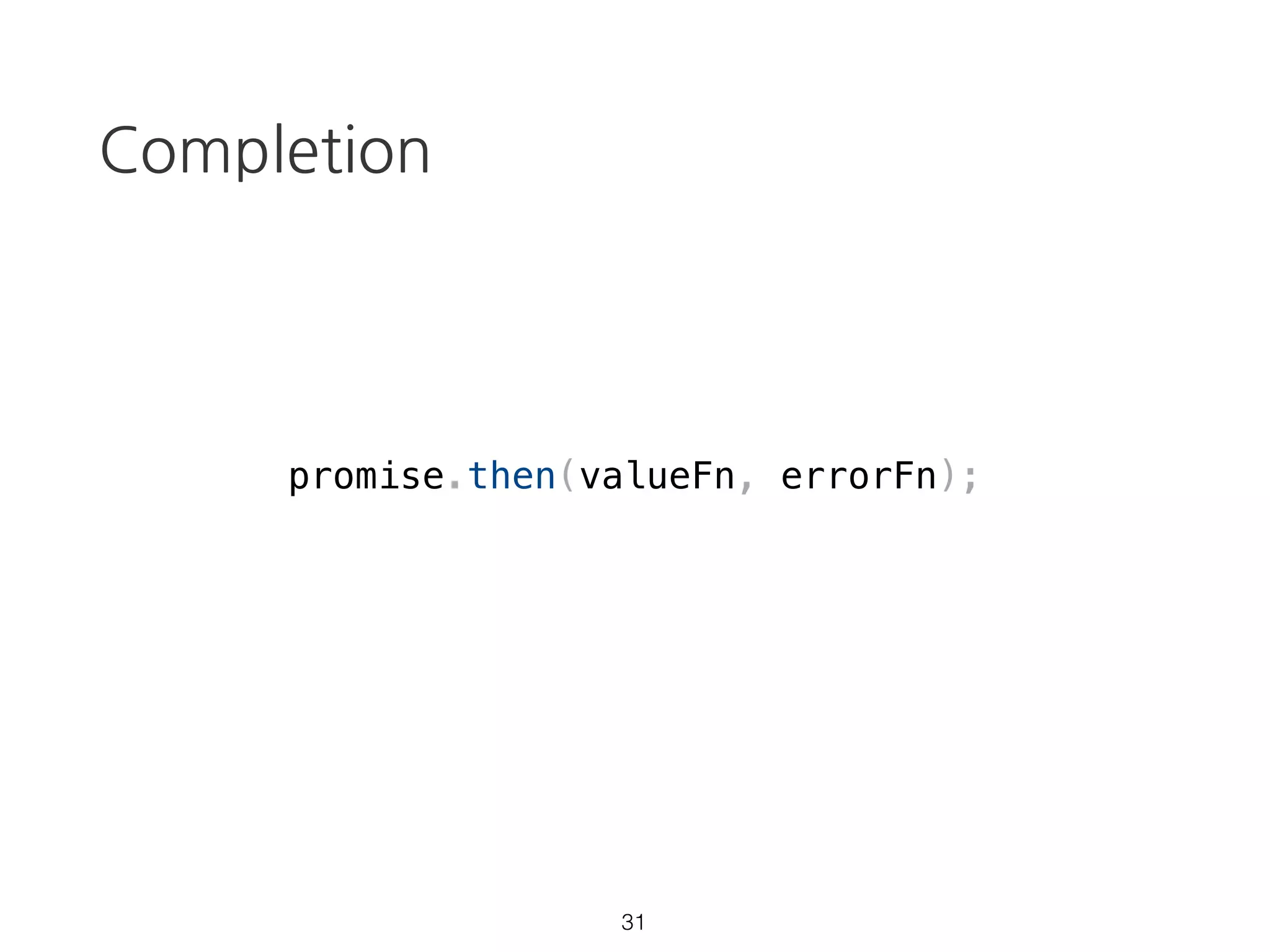

promise.then(valueFn, errorFn);
Completion
31

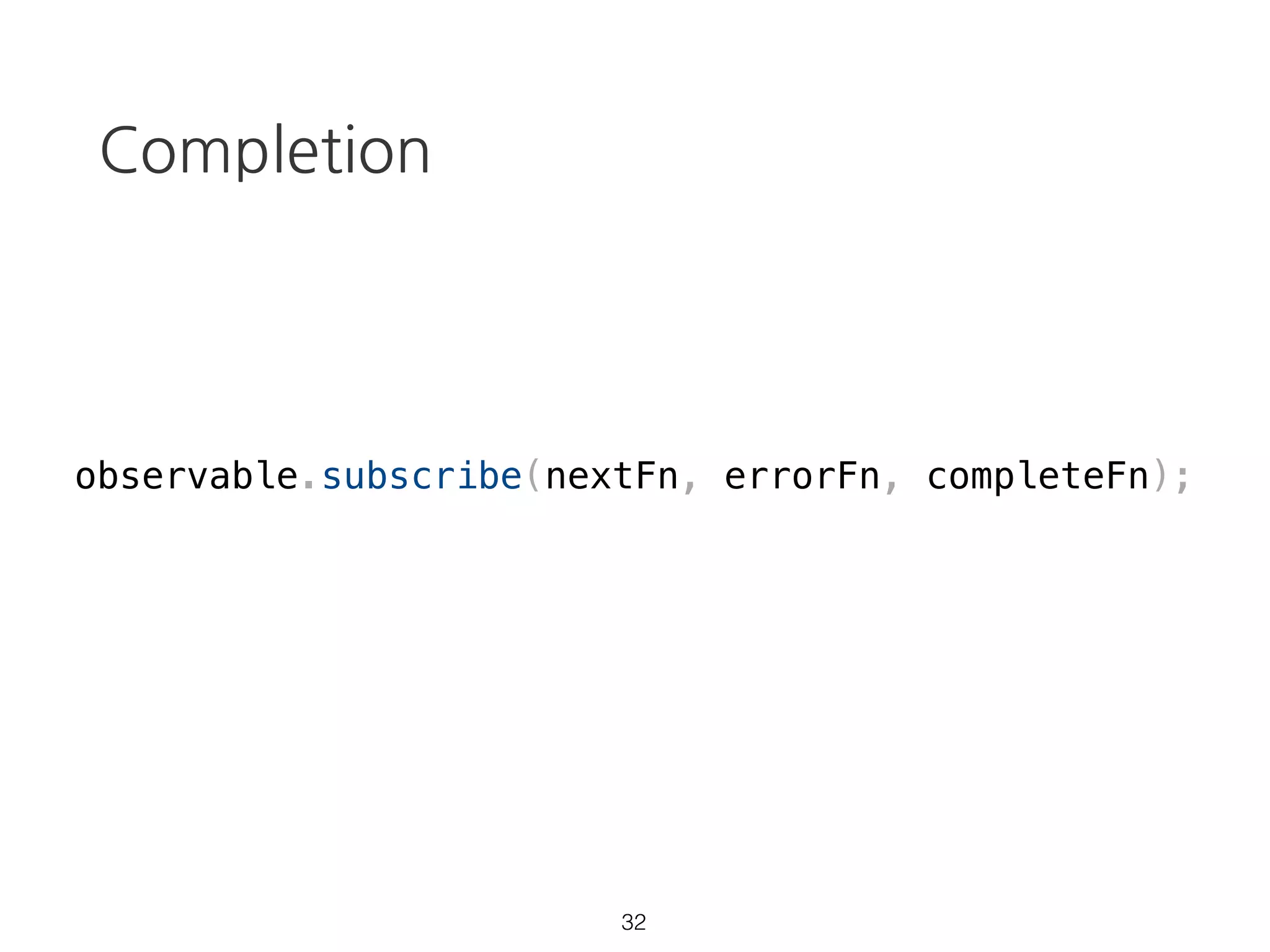

Completion
32
observable.subscribe(nextFn, errorFn, completeFn);

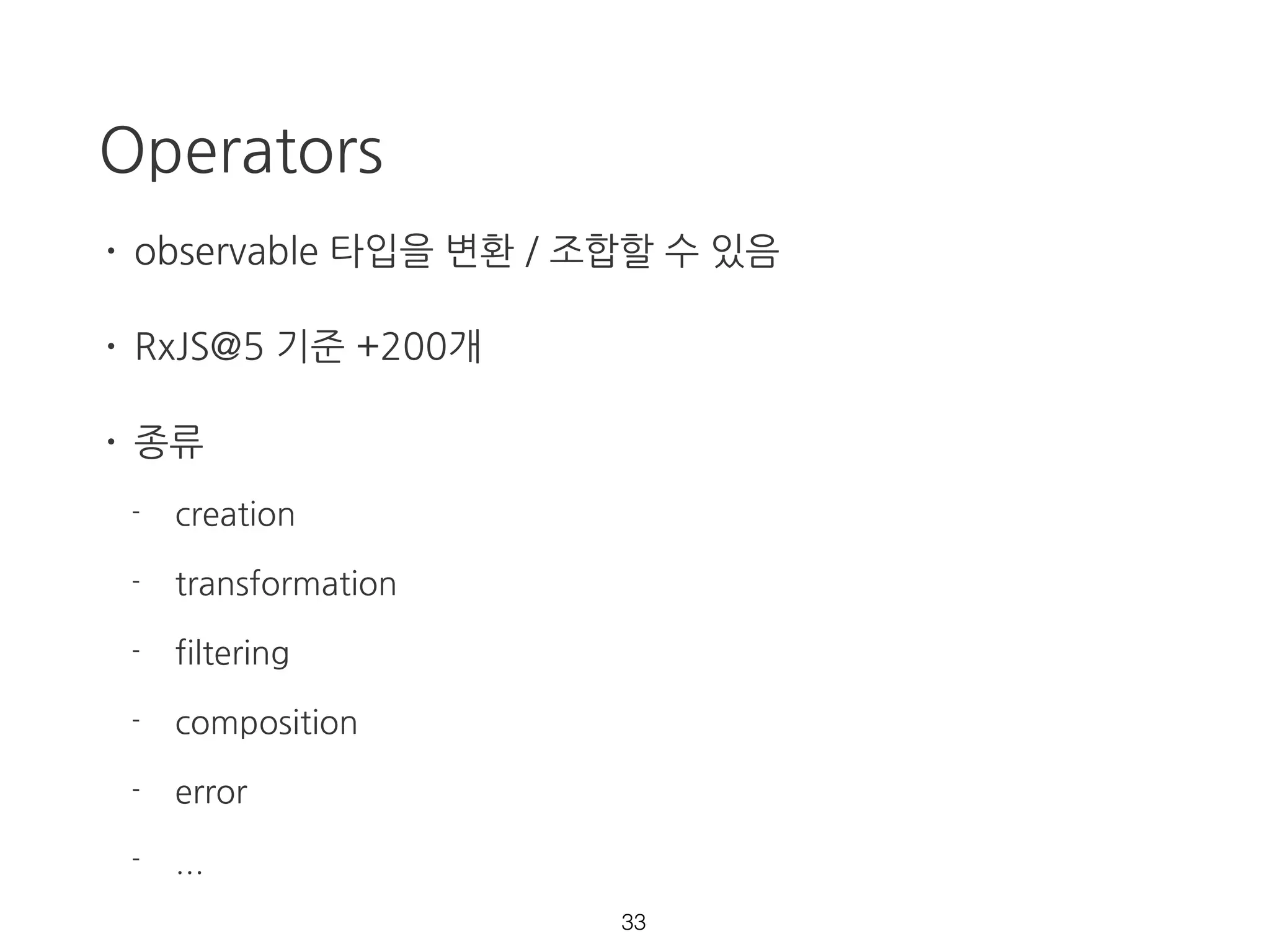

Operators
• observable 타입을 변환 / 조합할 수 있음
• RxJS@5 기준 +200개
• 종류
- creation
- transformation
- filtering
- composition
- error
- ...
33

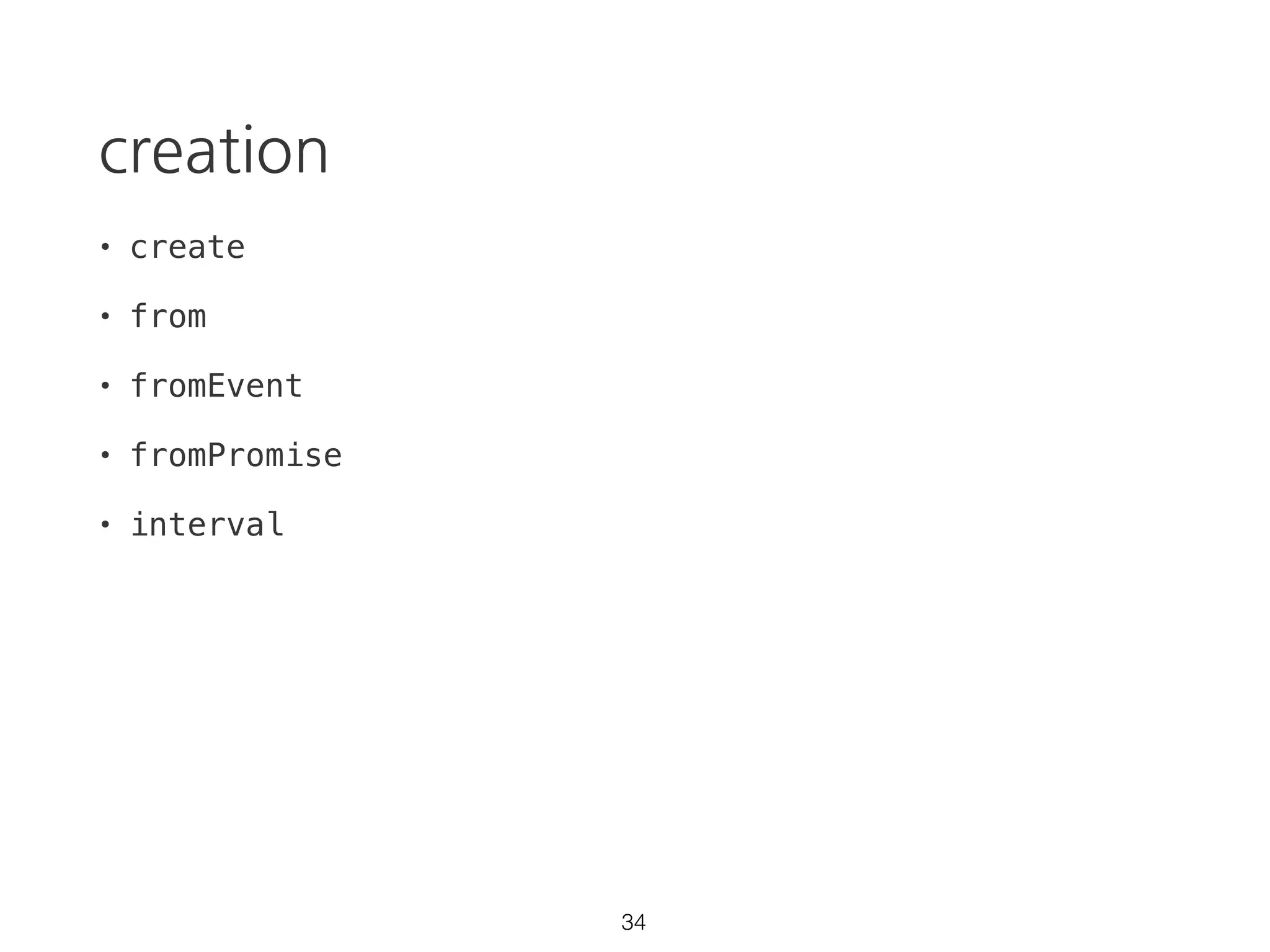

creation
• create
• from
• fromEvent
• fromPromise
• interval
34

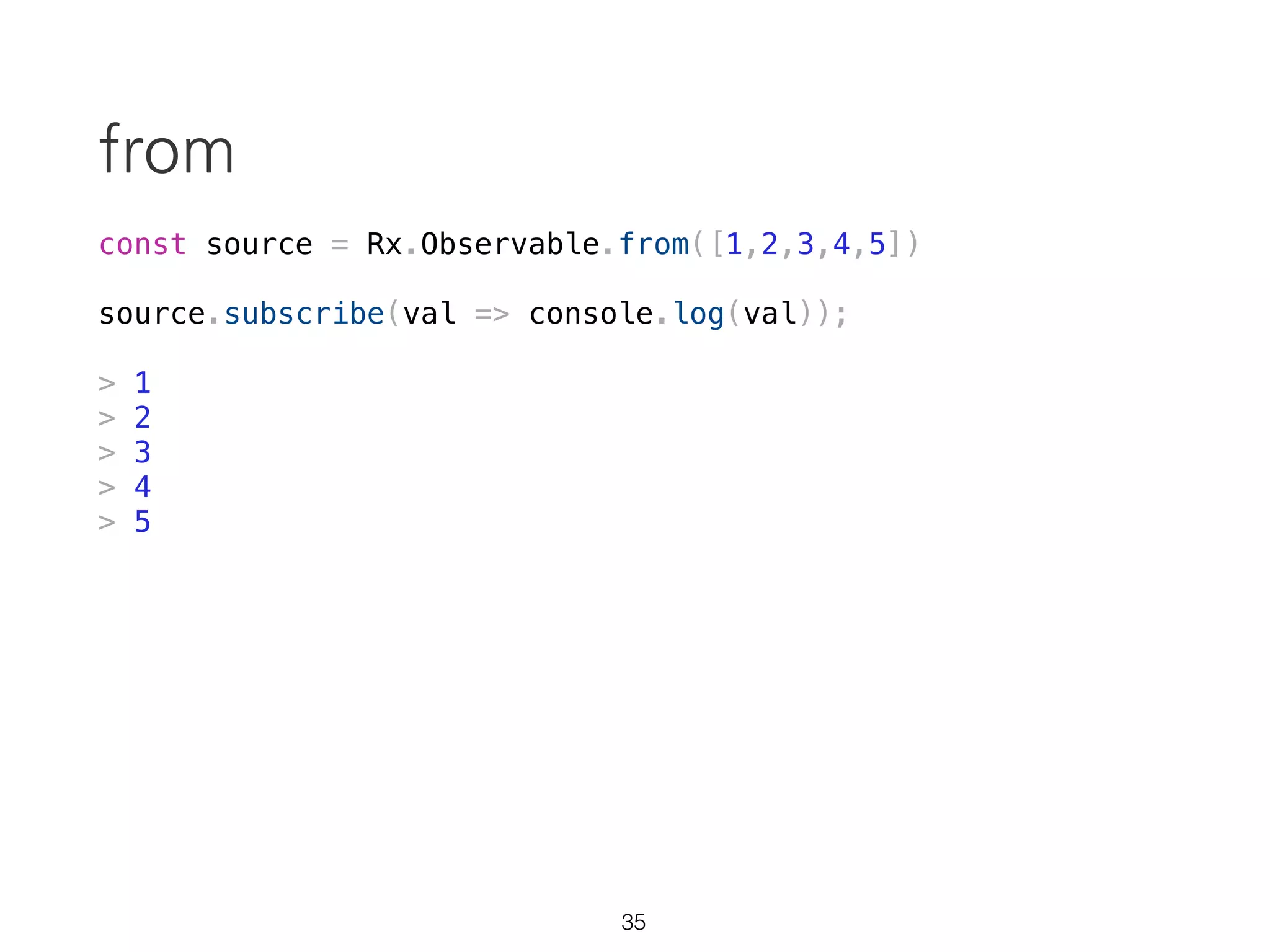

from
const source = Rx.Observable.from([1,2,3,4,5])
> 1
> 2
> 3
> 4
> 5
35

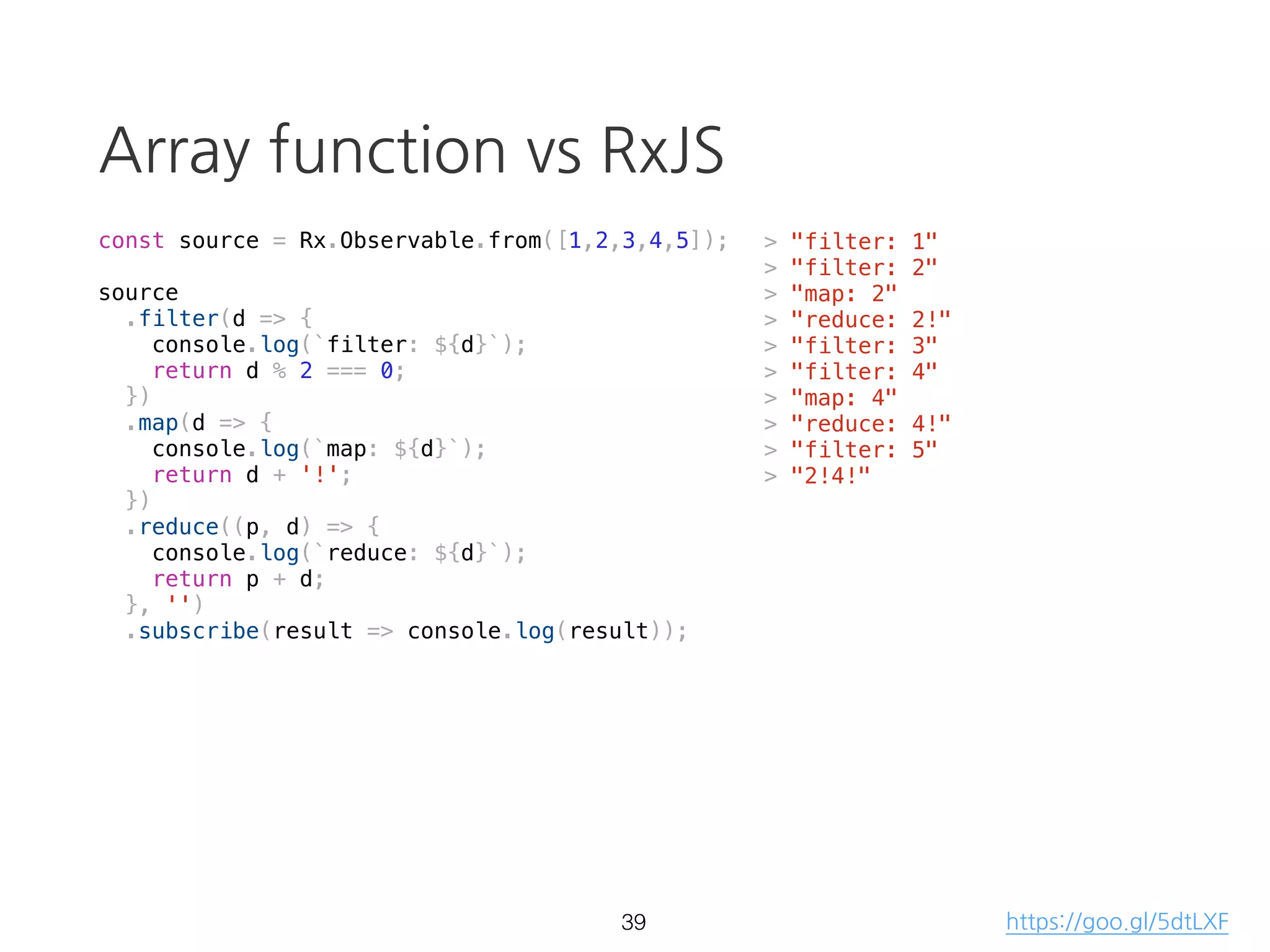

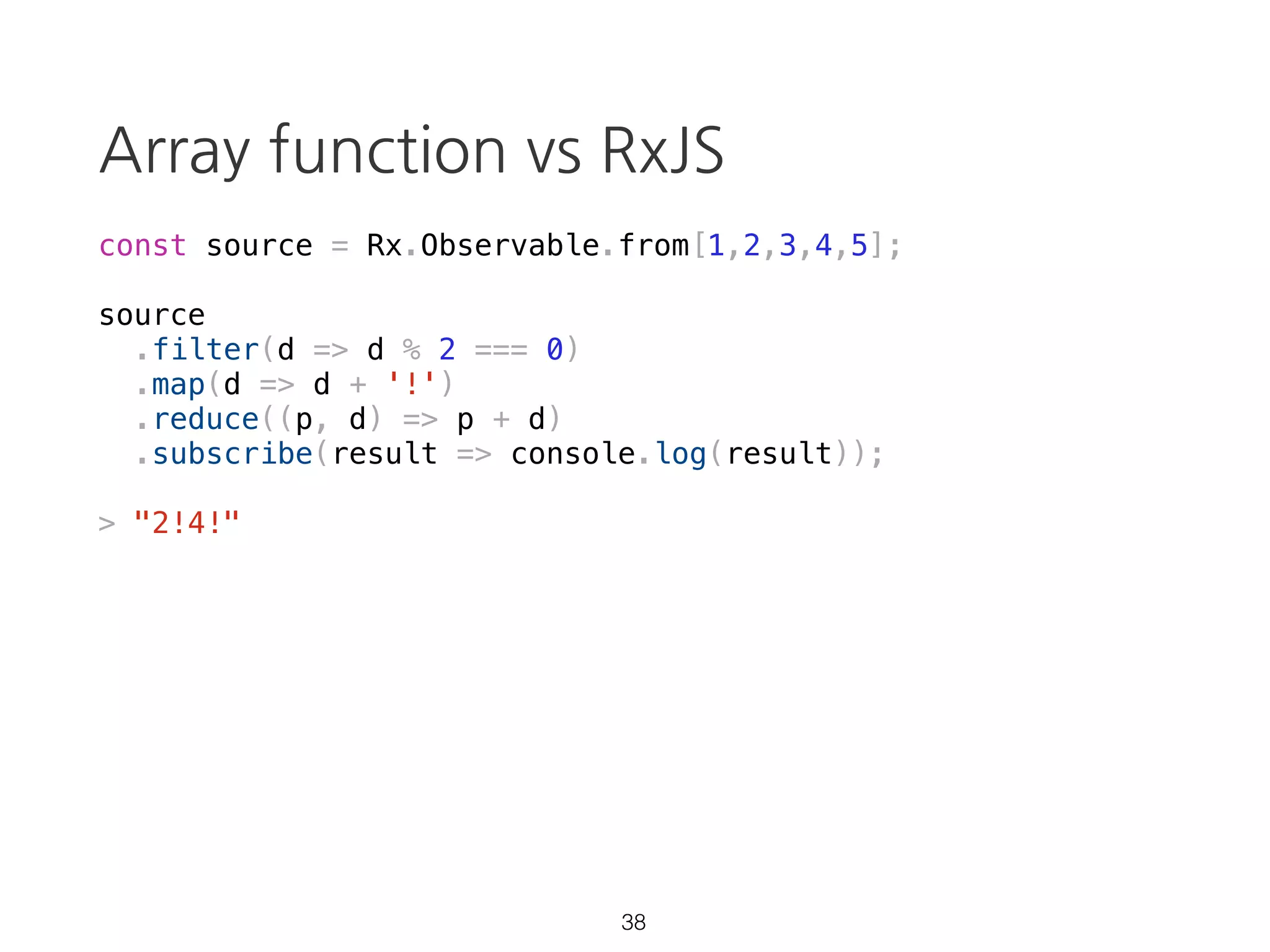

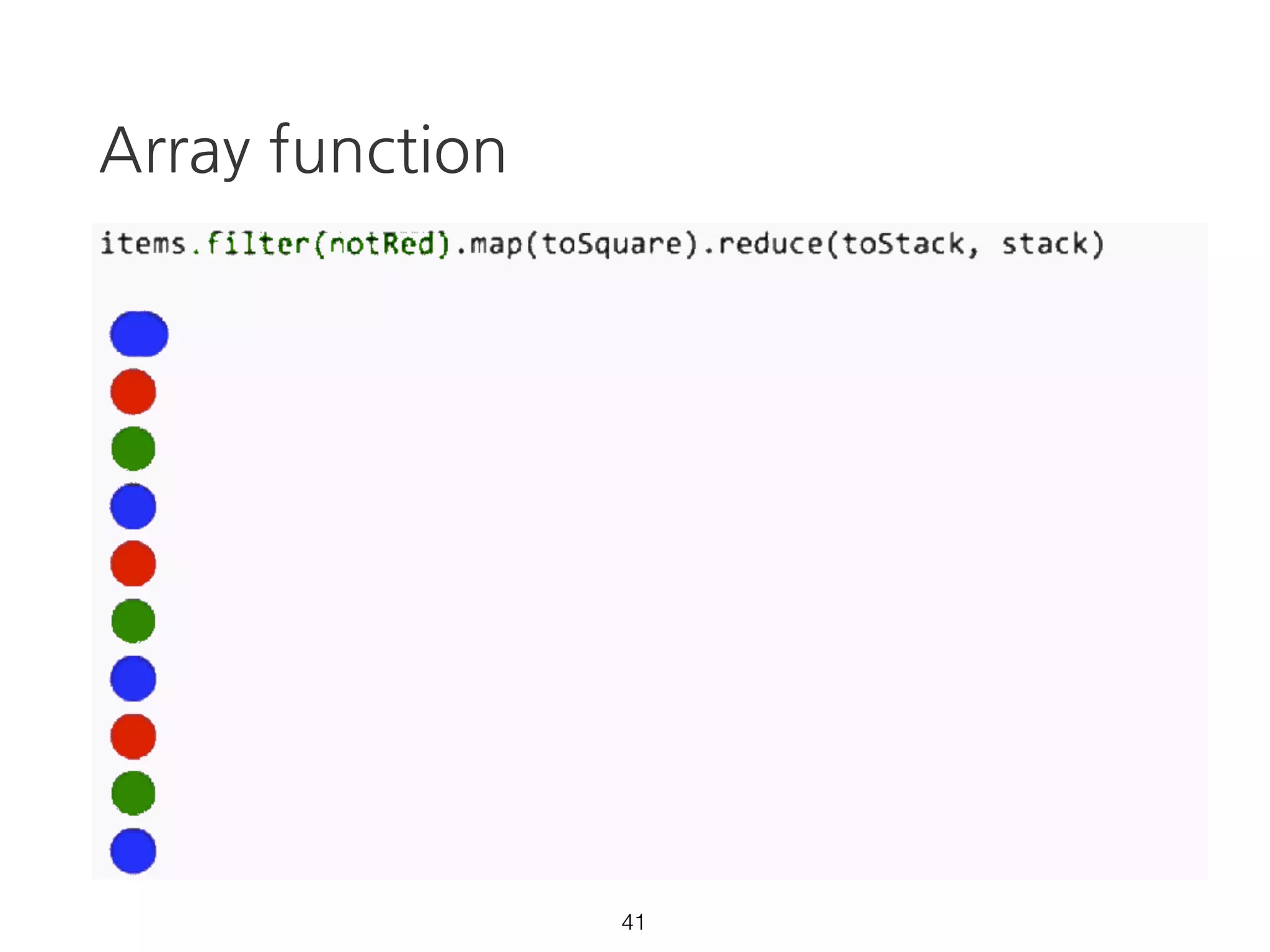

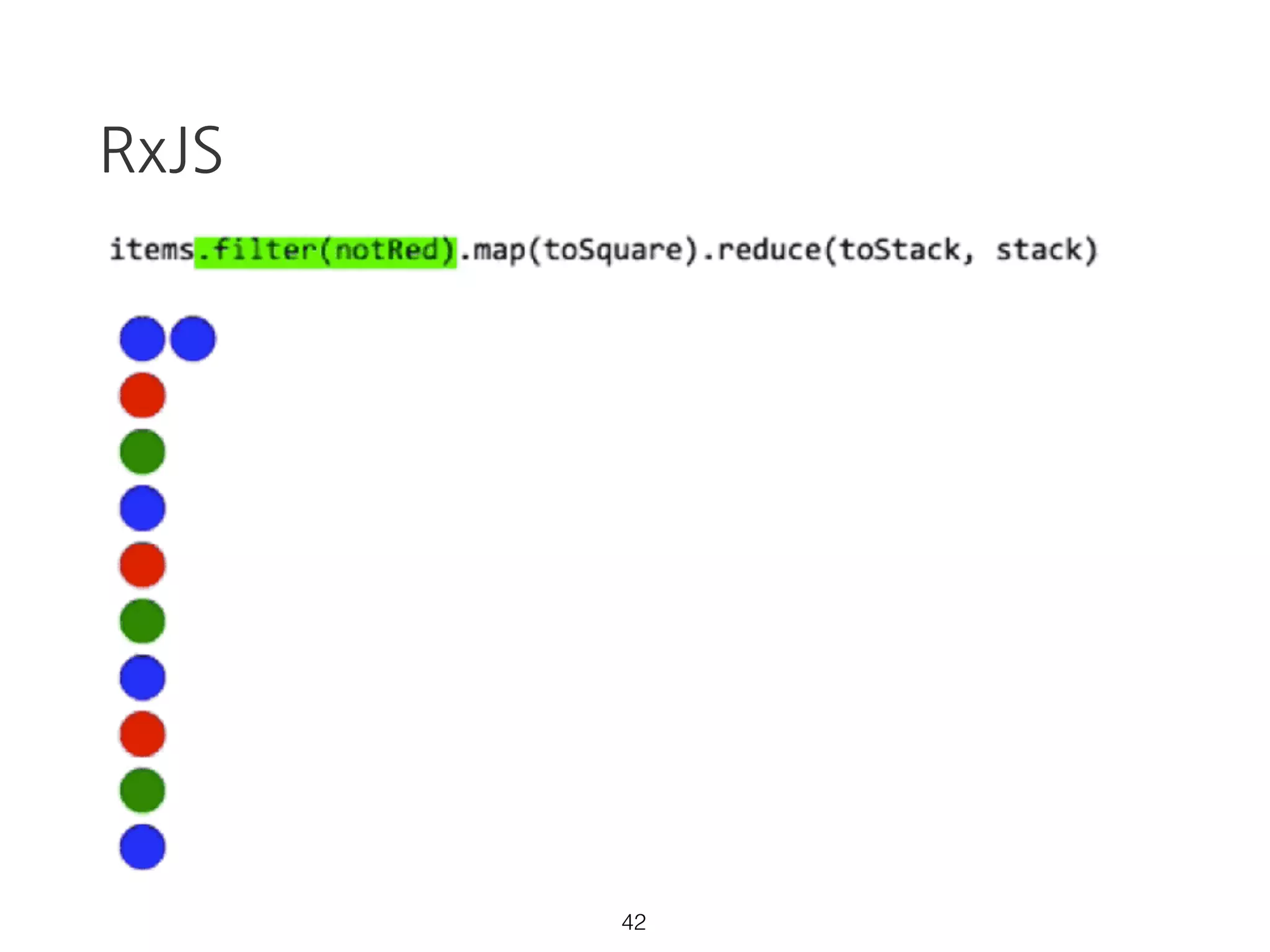

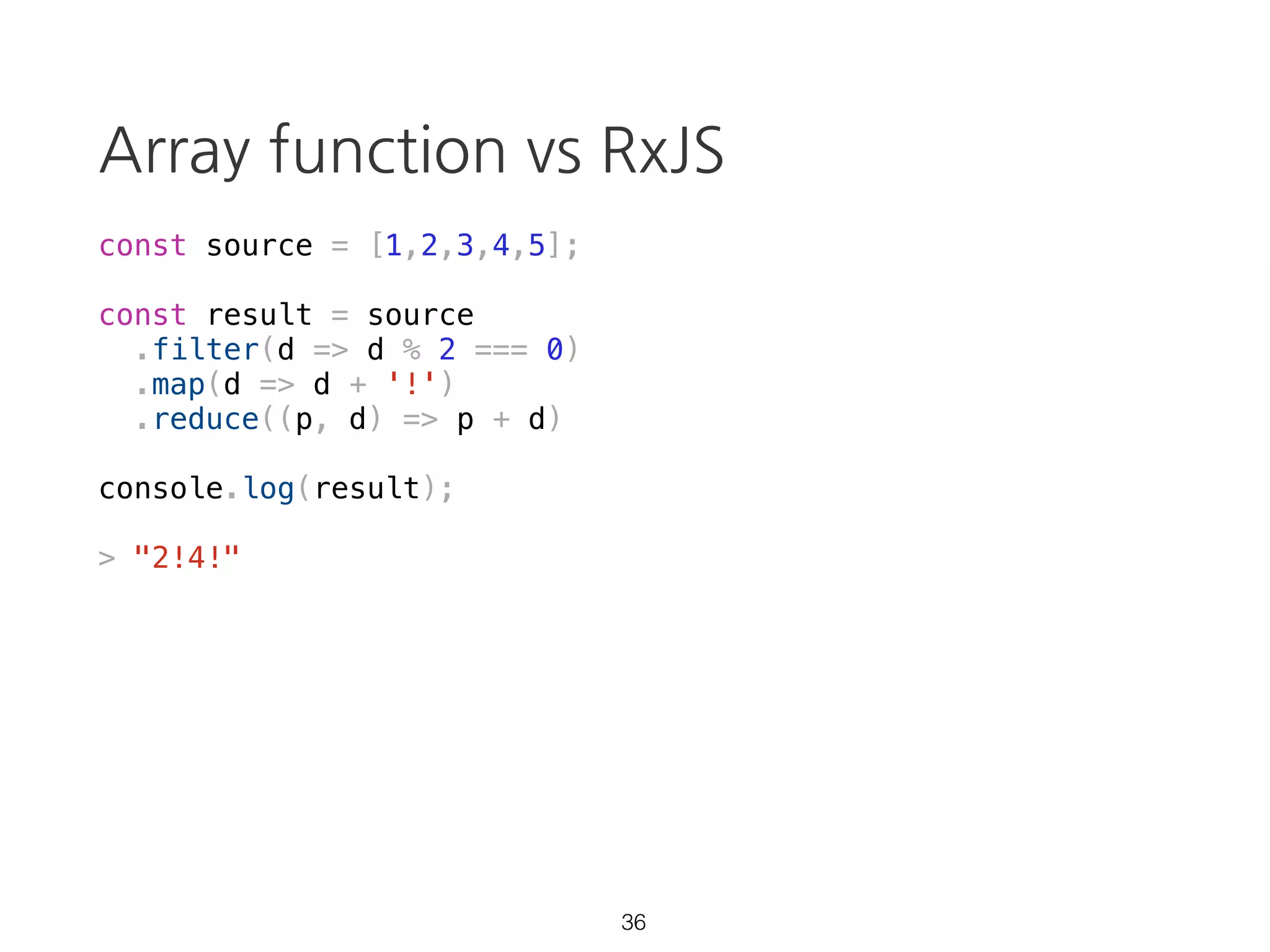

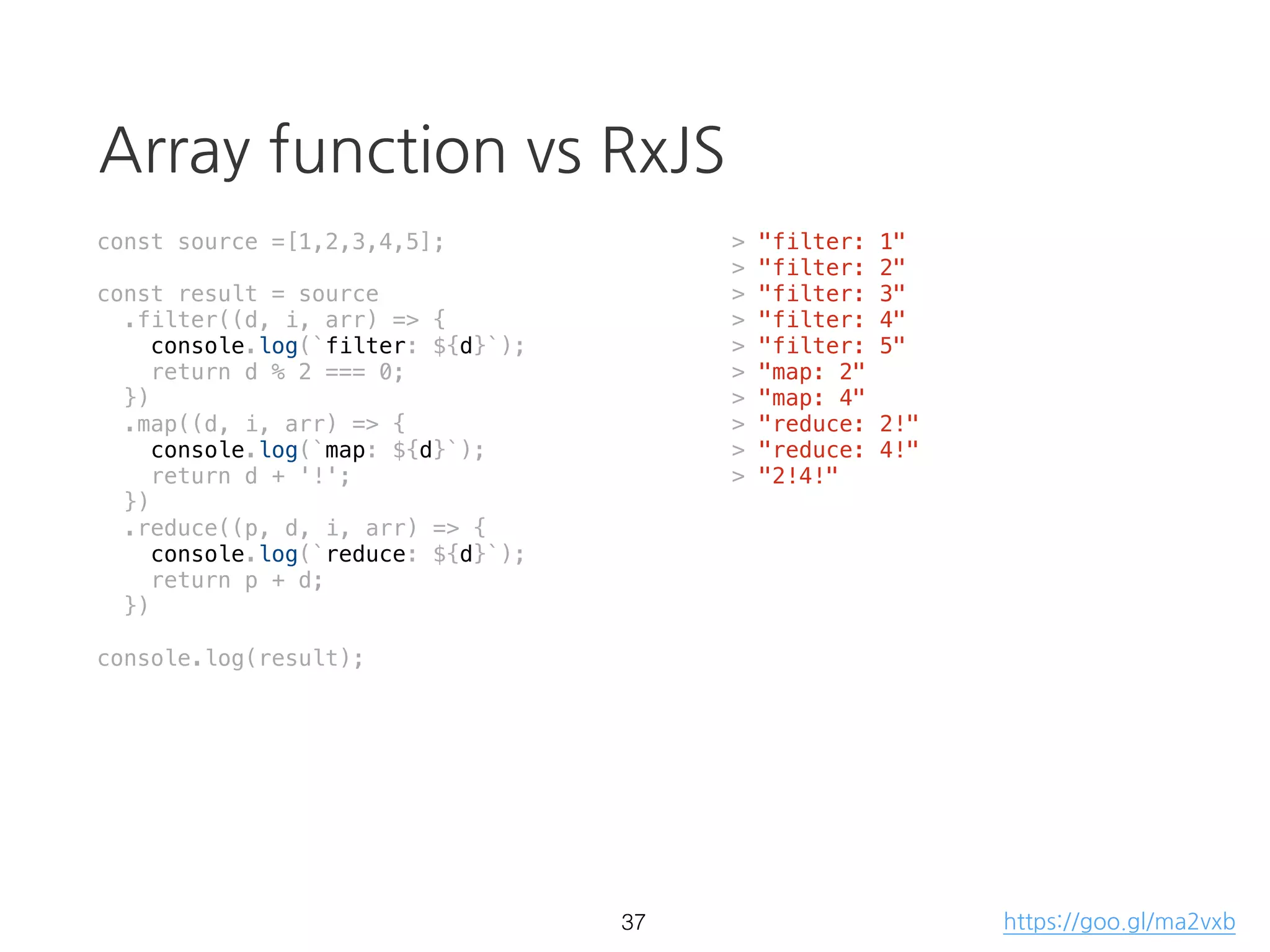

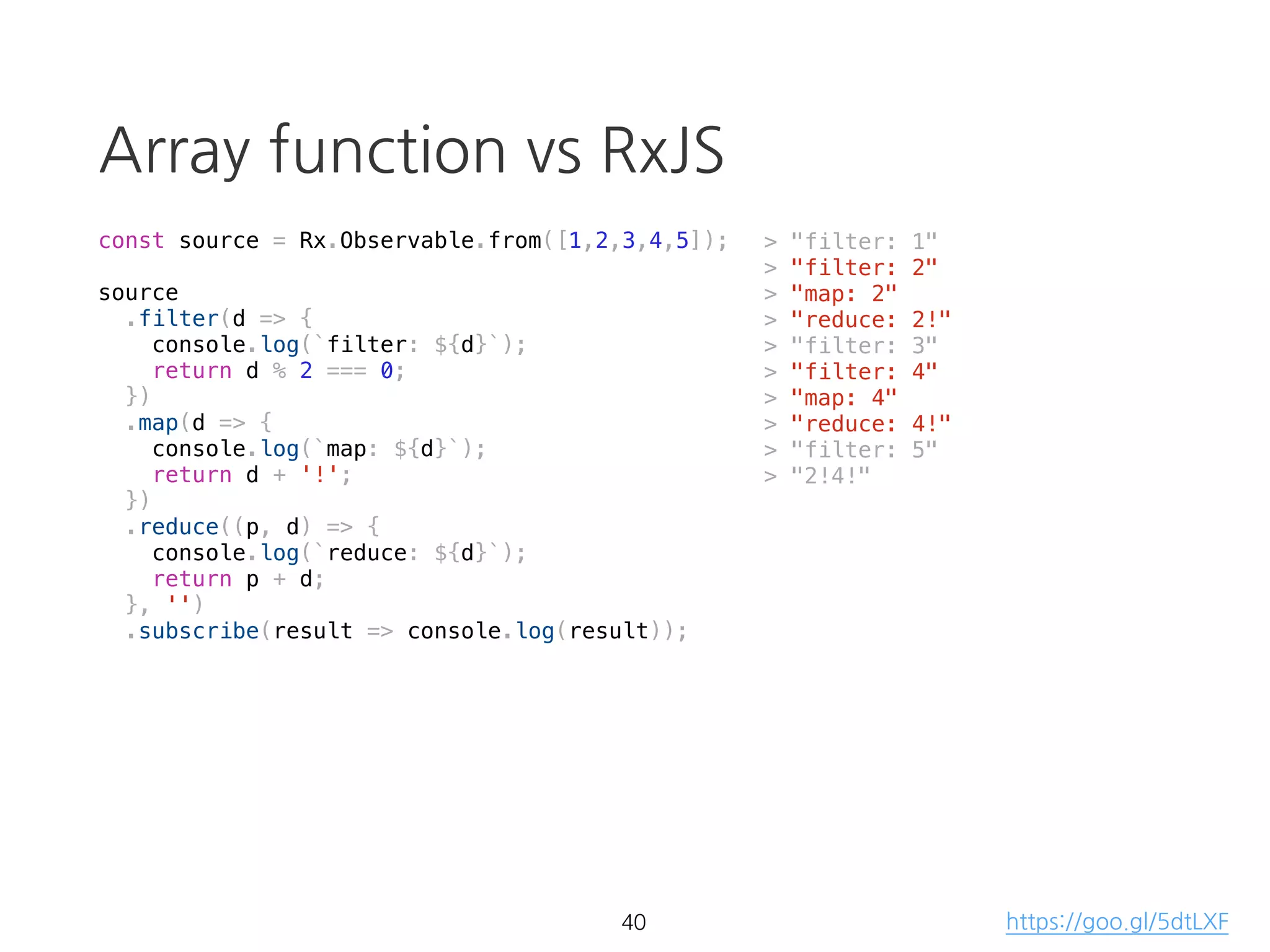

Array function vs RxJS
const source = [1,2,3,4,5];
const result = source
.filter(d => d % 2 === 0)
.map(d => d + '!')
.reduce((p, d) => p + d)
console.log(result);
> "2!4!"
36

const source = Rx.Observable.from[1,2,3,4,5];
source
.filter(d => d % 2 === 0)
.map(d => d + '!')
.reduce((p, d) => p + d)
.subscribe(result => console.log(result));
> "2!4!"
38

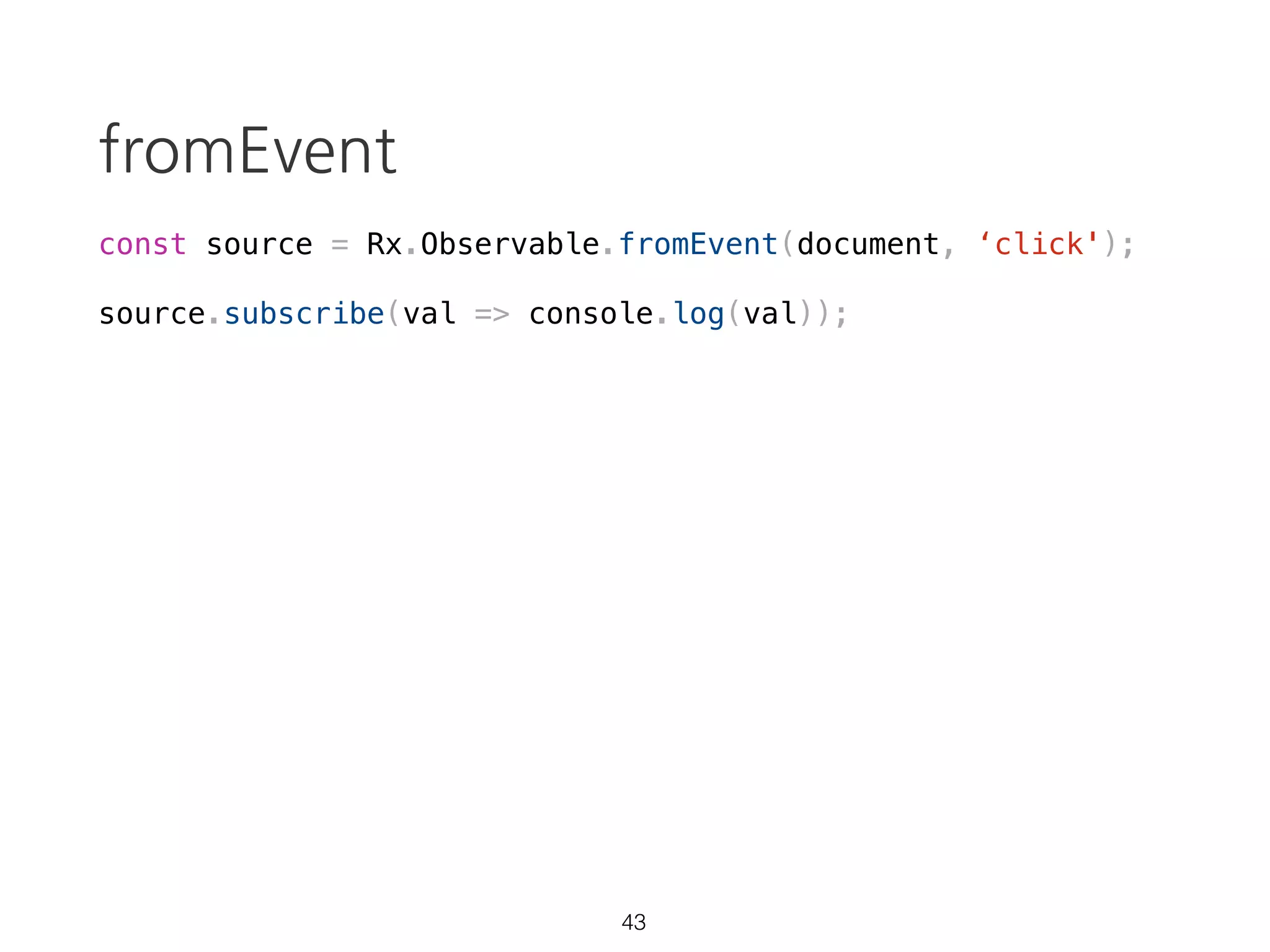

fromEvent
const source = Rx.Observable.fromEvent(document, ‘click');
43

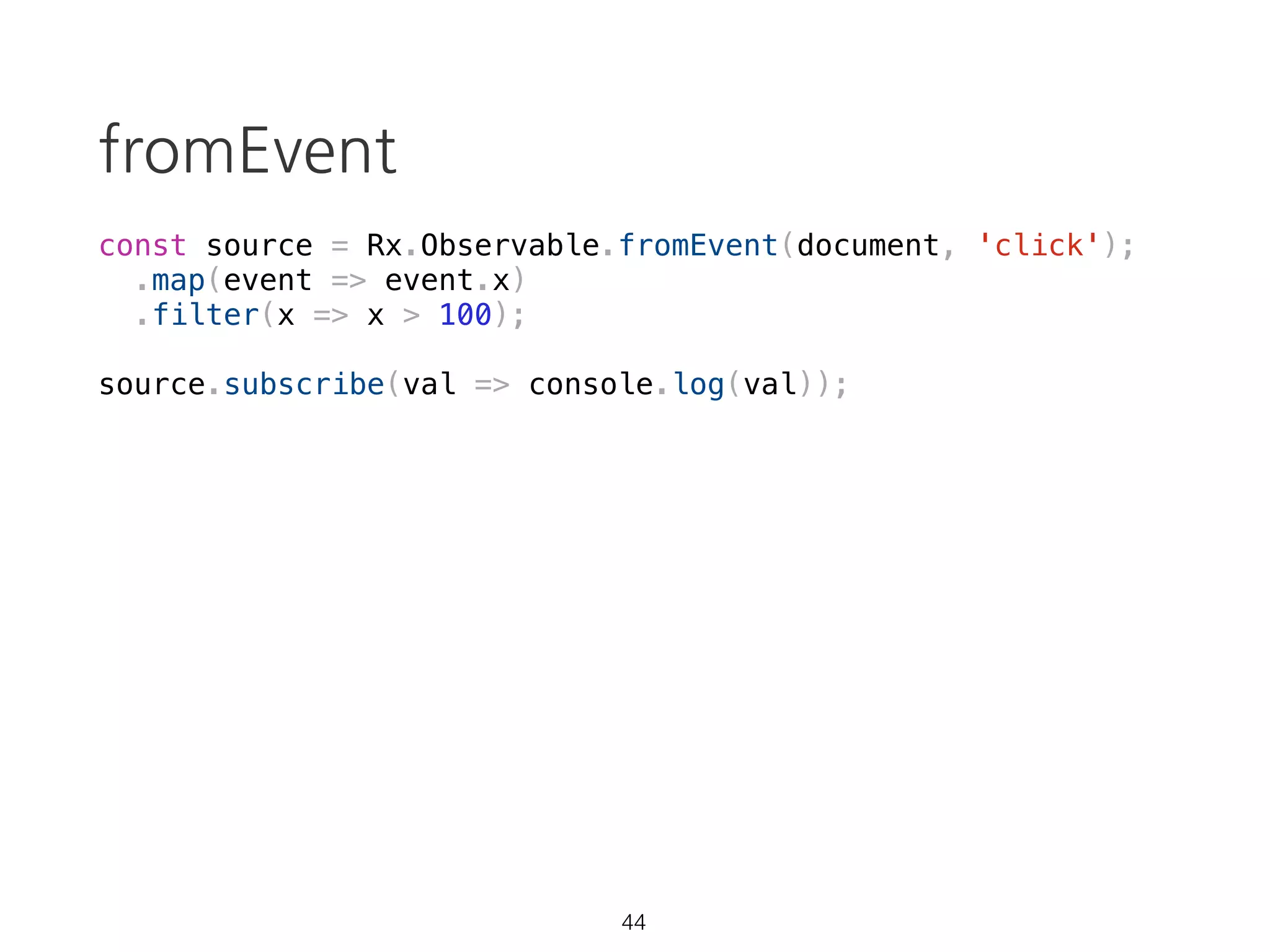

fromEvent
const source = Rx.Observable.fromEvent(document, 'click');
.map(event => event.x)
.filter(x => x > 100);
44

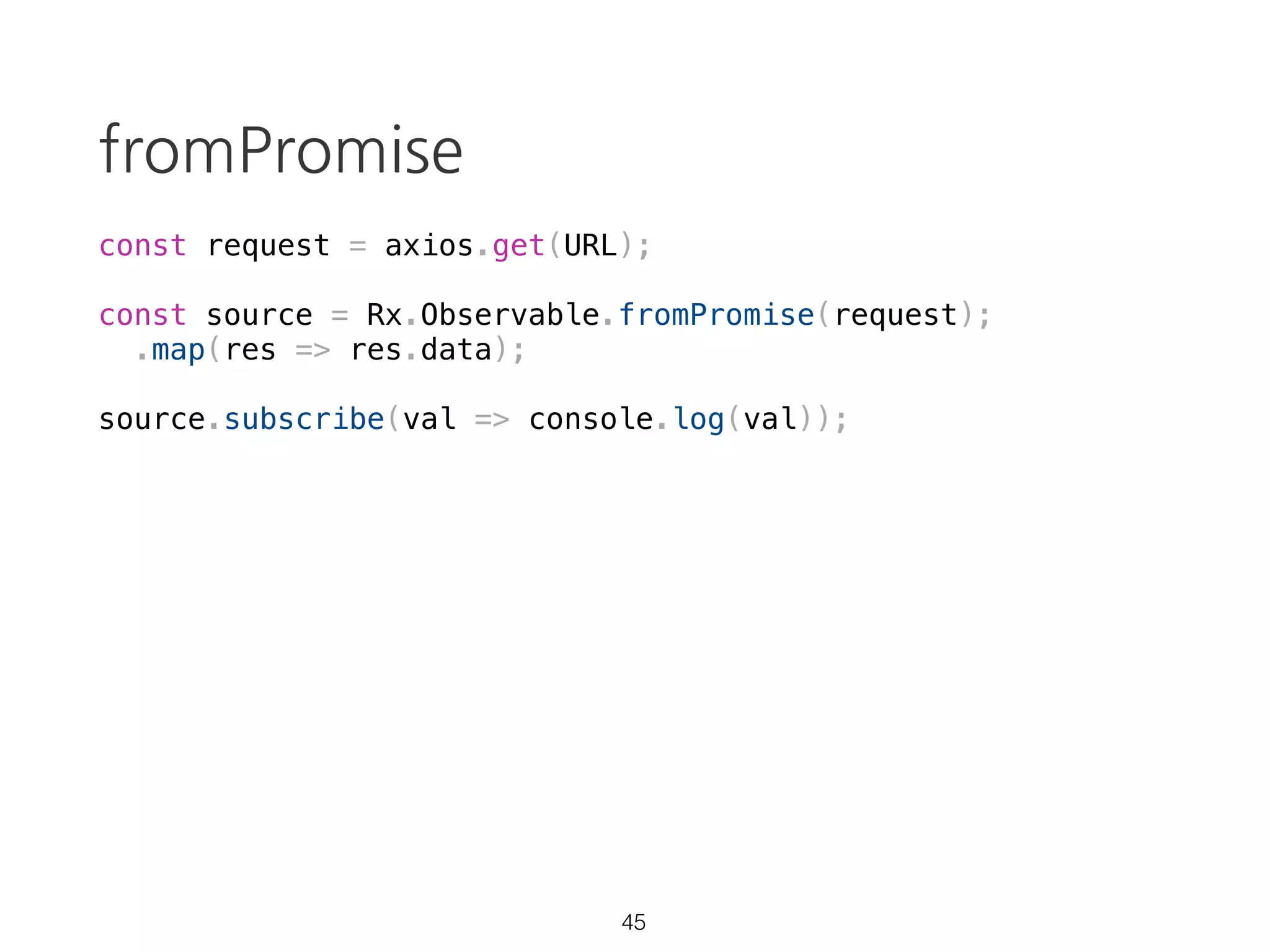

fromPromise
const request = axios.get(URL);
const source = Rx.Observable.fromPromise(request);
.map(res => res.data);
45

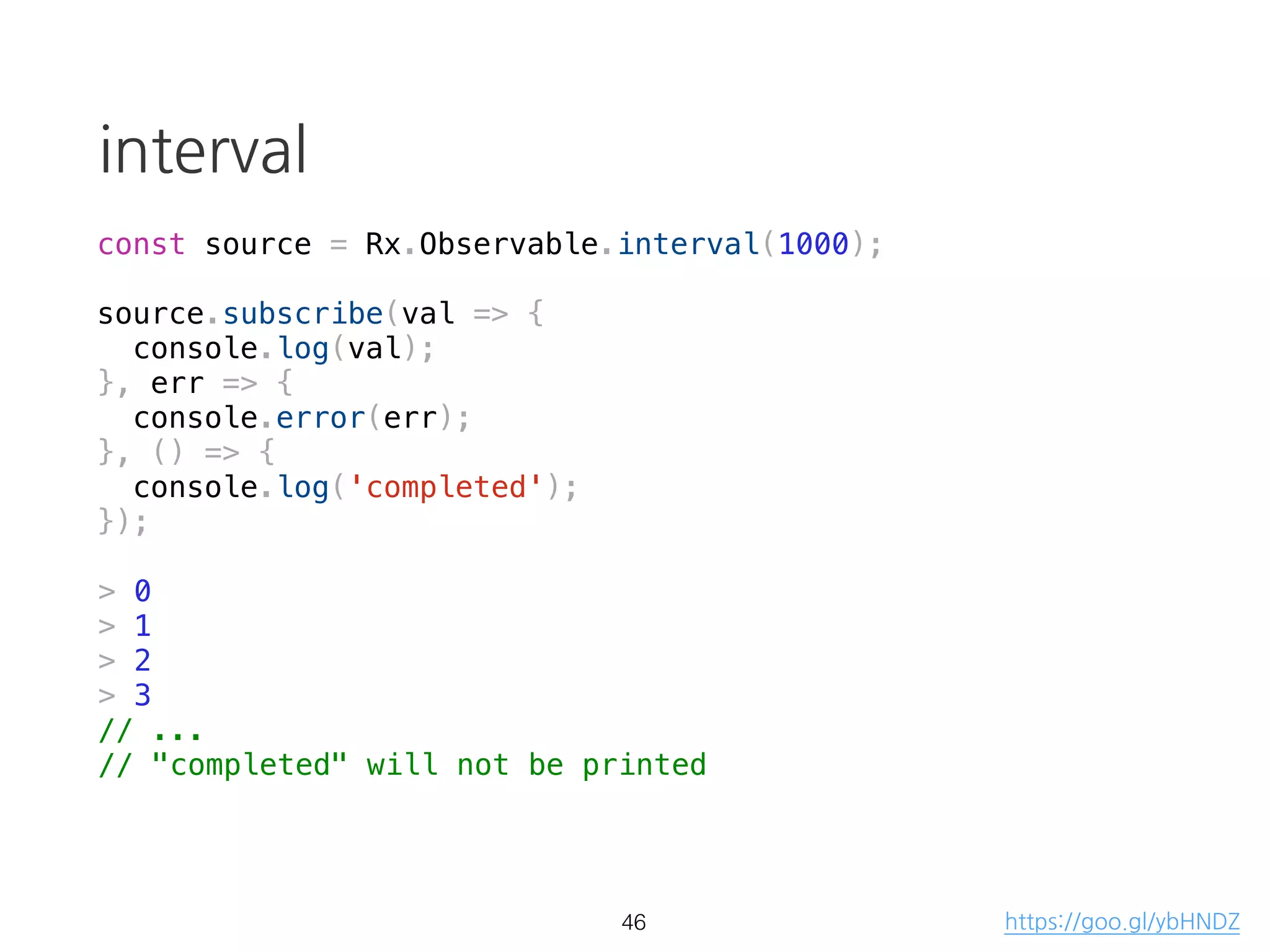

interval
const source = Rx.Observable.interval(1000);
source.subscribe(val => {
console.log(val);
}, err => {
console.error(err);
}, () => {
console.log('completed');
});
46 https://goo.gl/ybHNDZ

interval
console.log(val);
}, err => {
console.error(err);
}, () => {
});
46
> 0
> 1
> 2
> 3
// ...
https://goo.gl/ybHNDZ

interval
console.log(val);
}, err => {
console.error(err);
}, () => {
});
46
> 0
> 1
> 2
> 3
// ...
// "completed" will not be printed
https://goo.gl/ybHNDZ

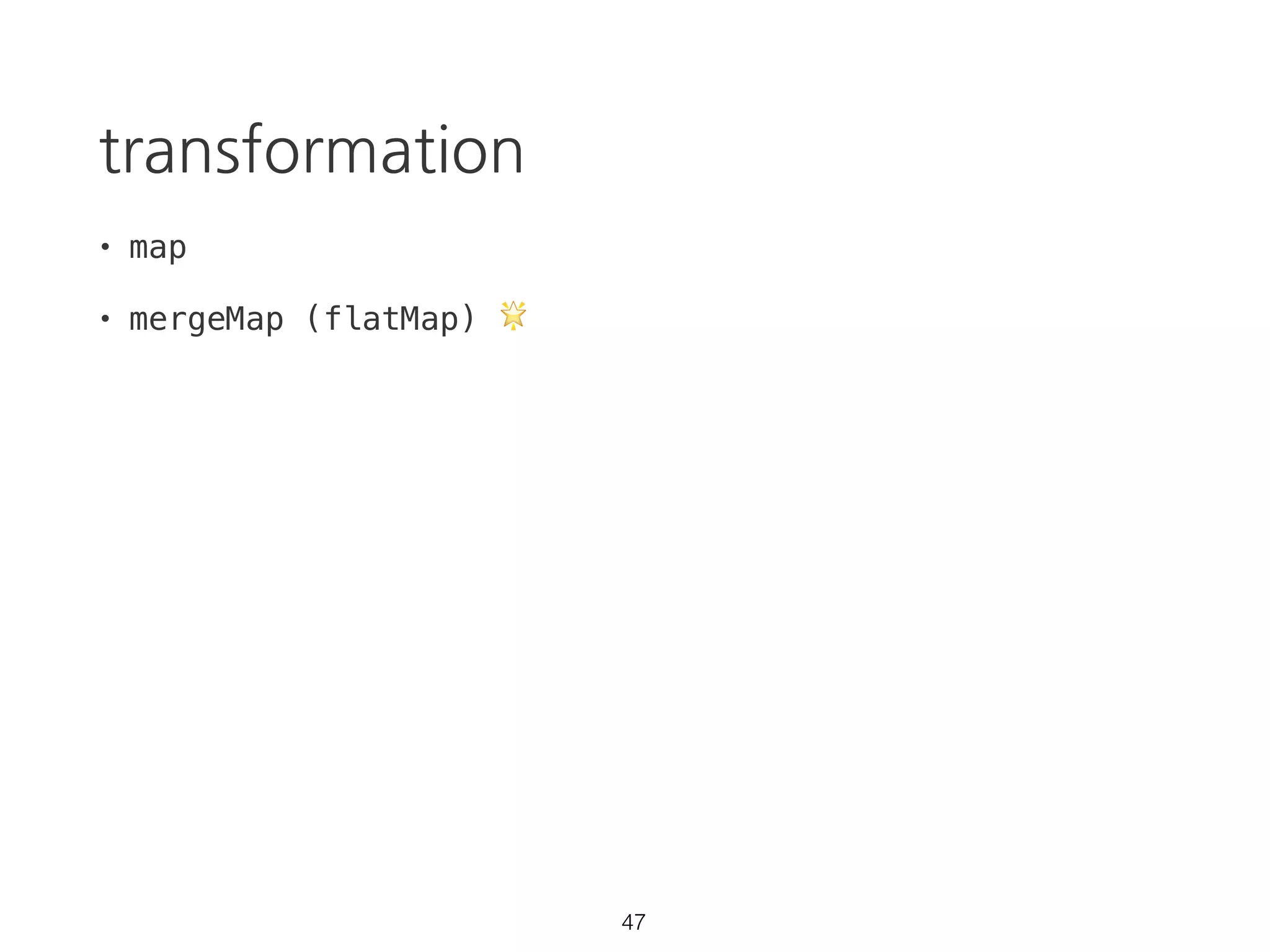

transformation
• map
• mergeMap (flatMap) 🌟
47

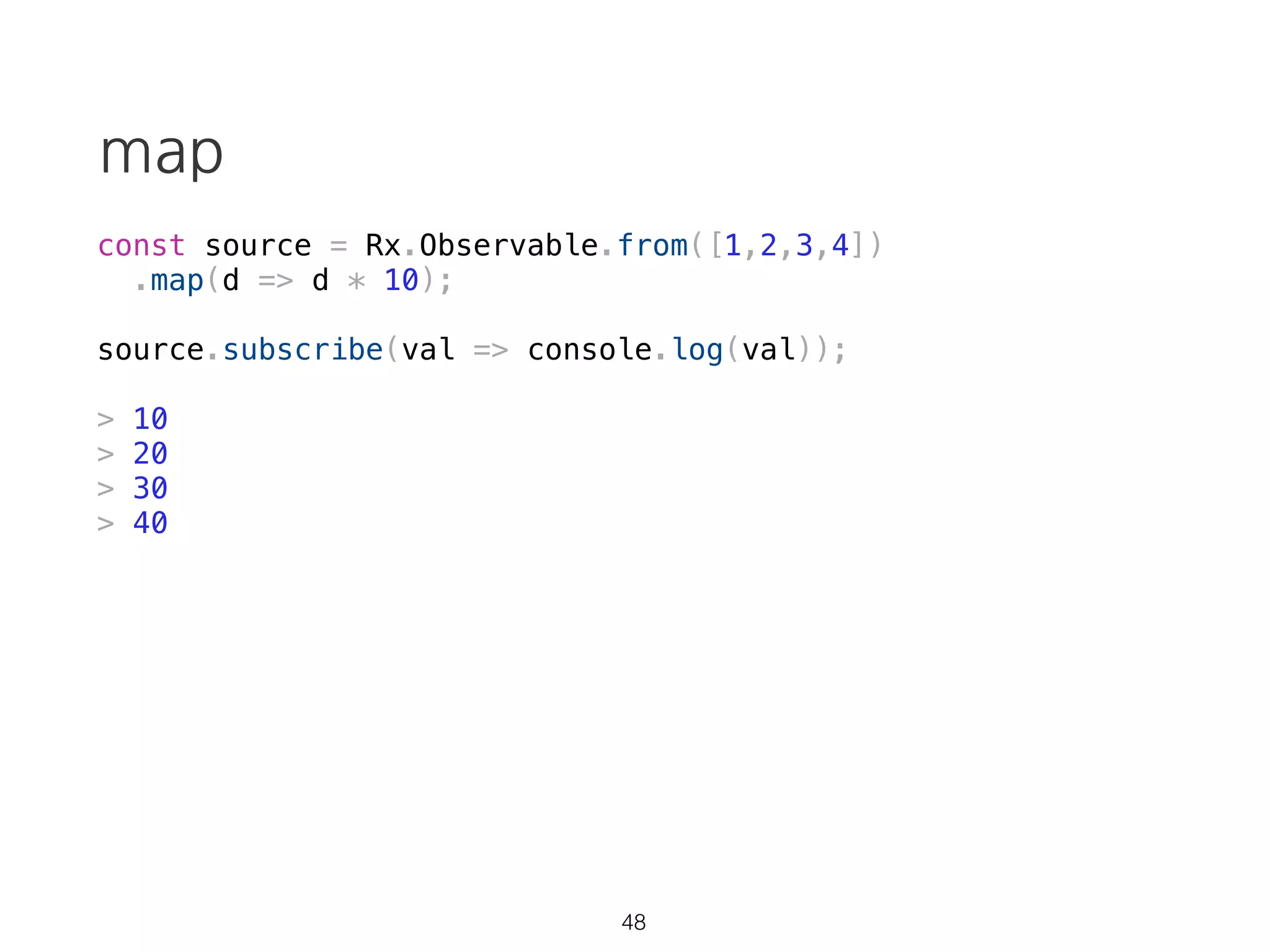

map
const source = Rx.Observable.from([1,2,3,4])
.map(d => d * 10);
> 10
> 20
> 30
> 40
48

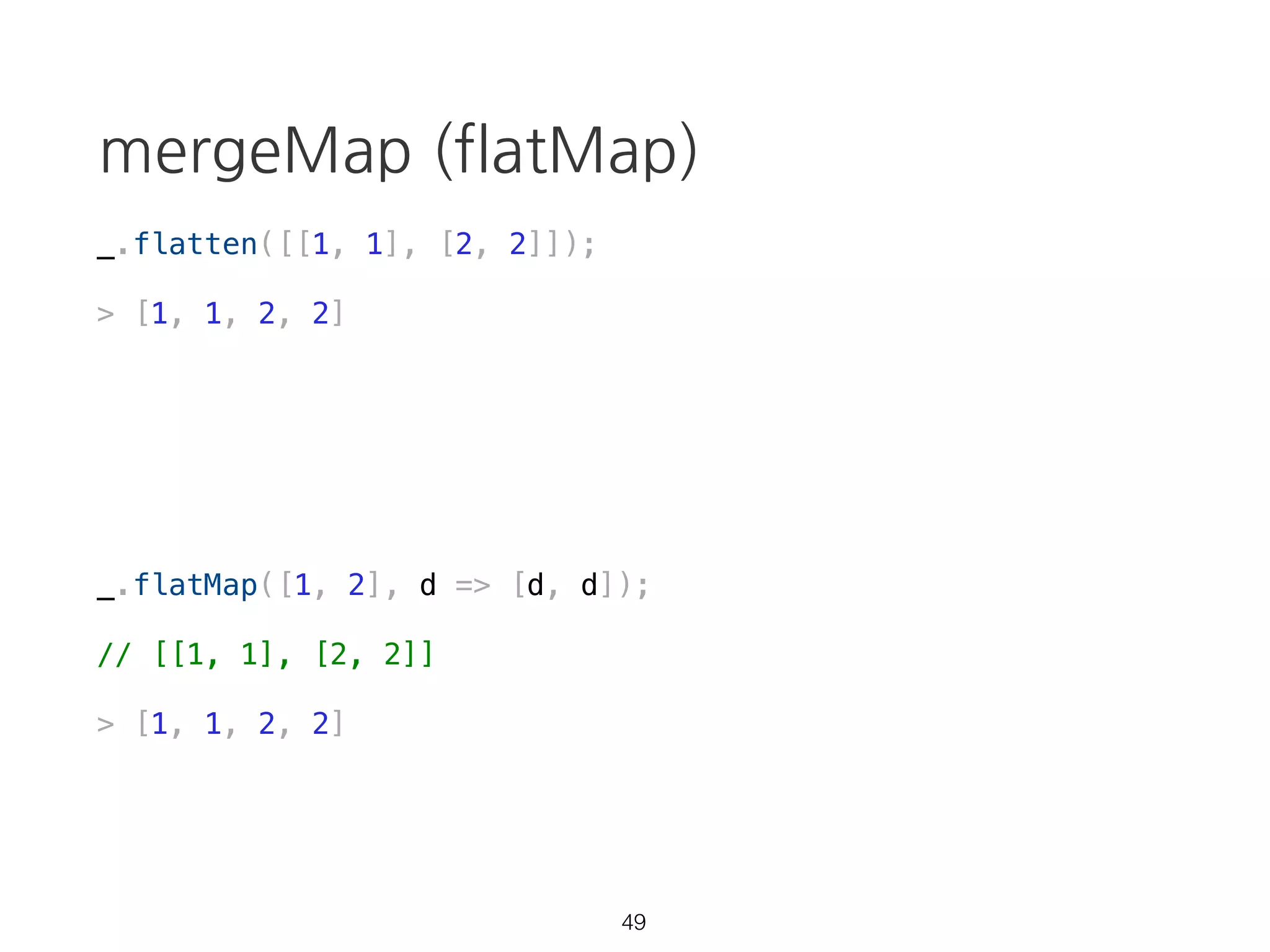

mergeMap (flatMap)
_.flatMap([1, 2], d => [d, d]);
// [[1, 1], [2, 2]]
> [1, 1, 2, 2]
_.flatten([[1, 1], [2, 2]]);
> [1, 1, 2, 2]
49

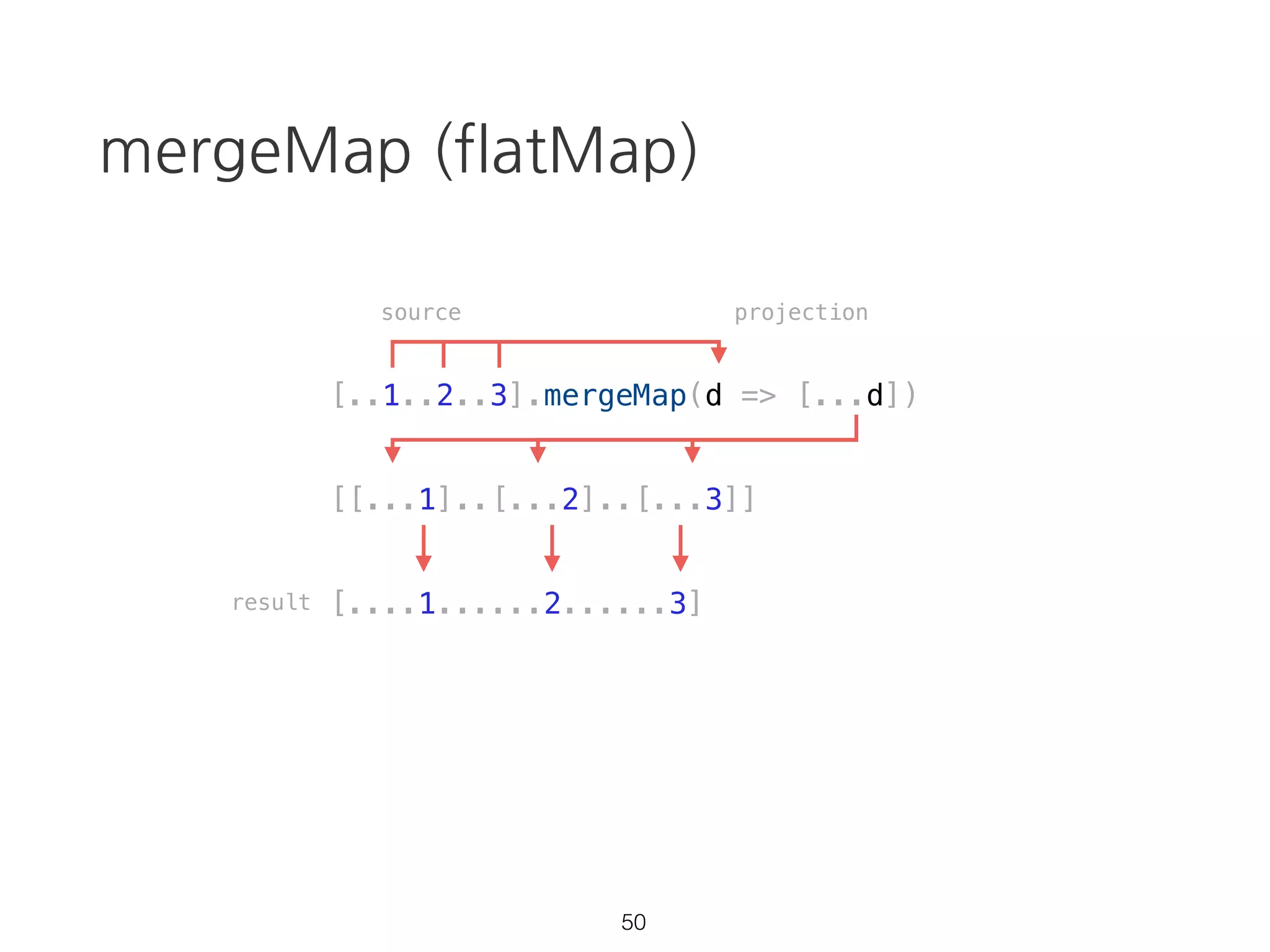

mergeMap (flatMap)
[..1..2..3].mergeMap(d => [...d])
[[...1]..[...2]..[...3]]
[....1......2......3]
50
source projection
result

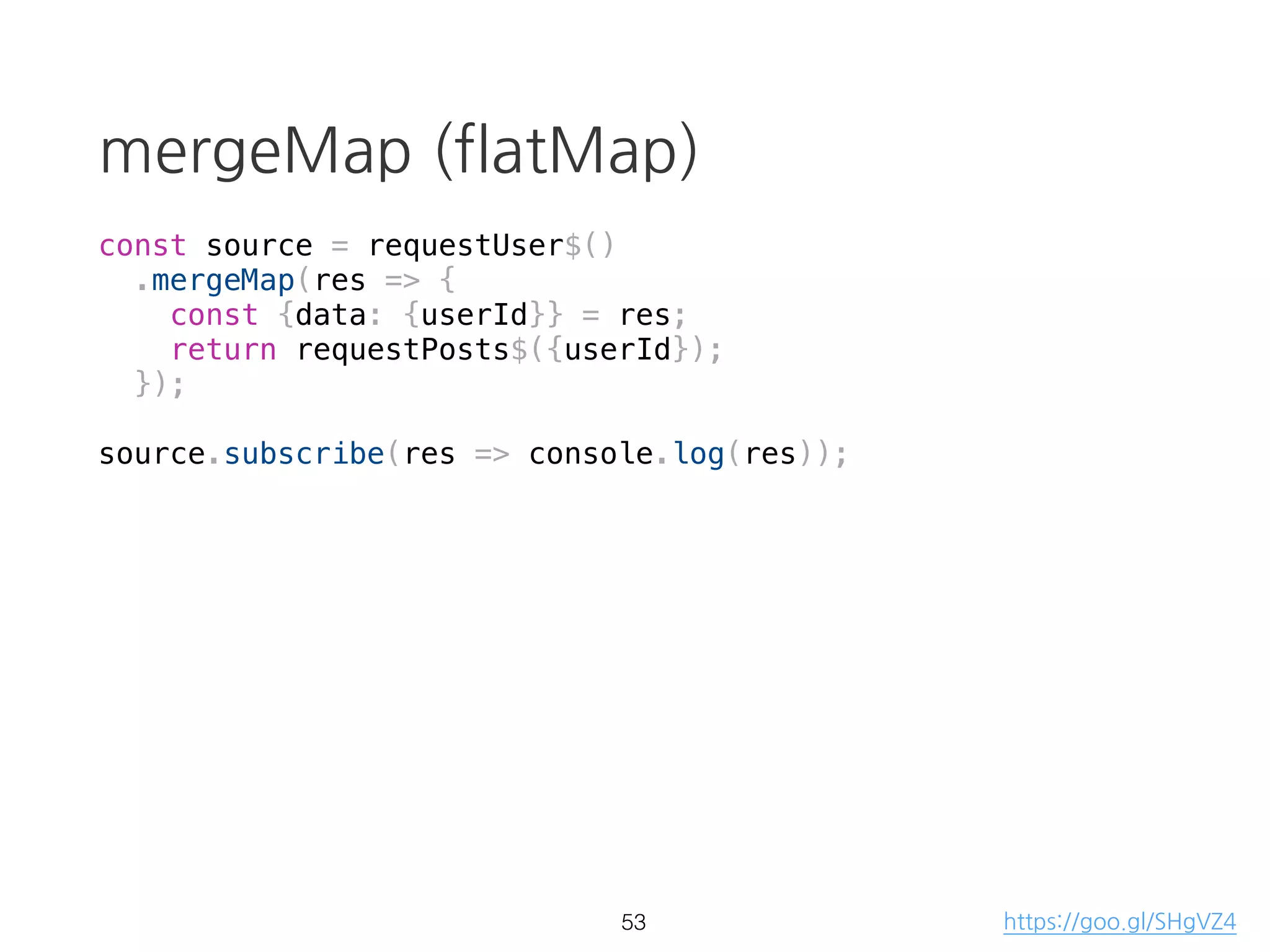

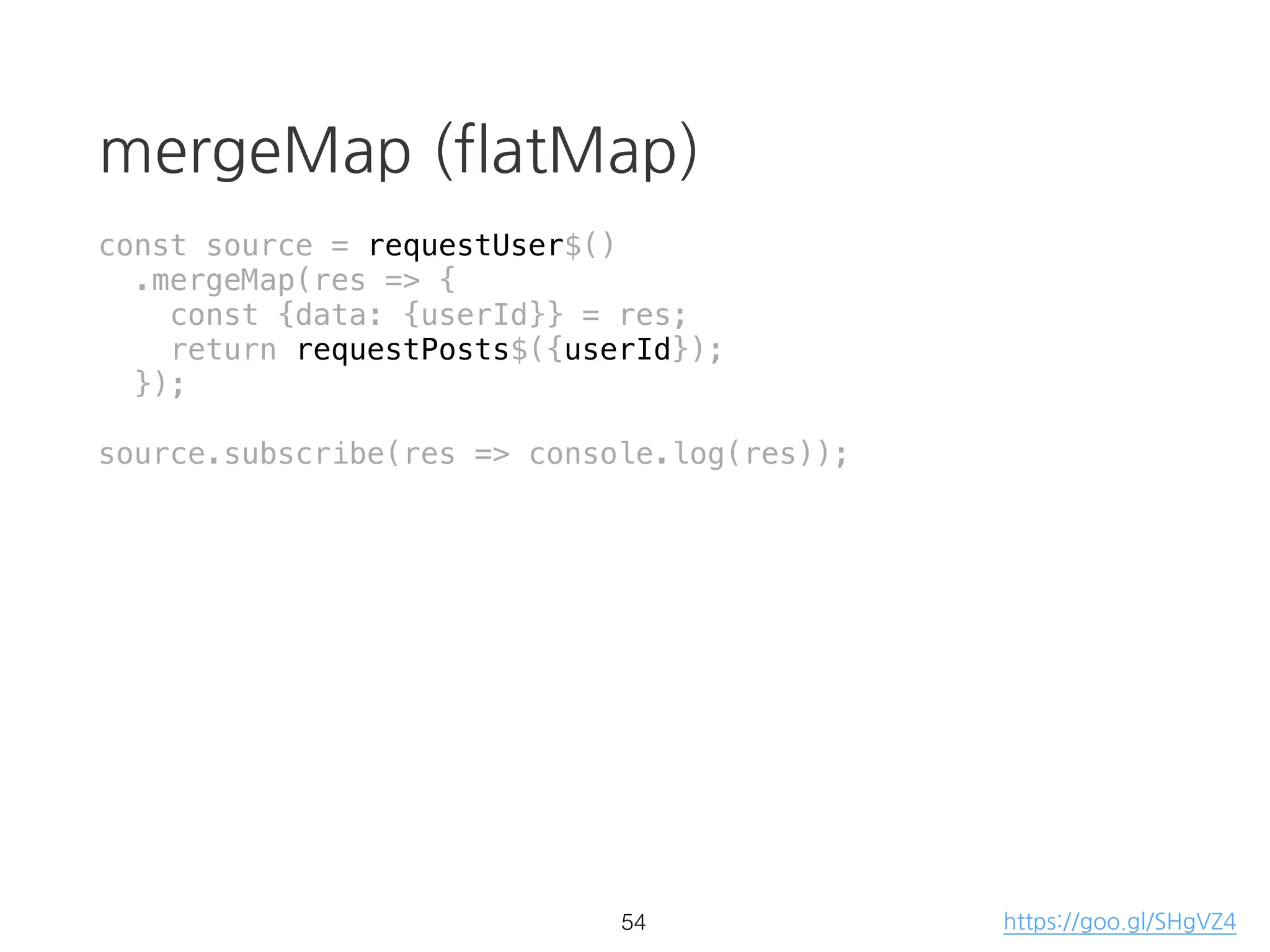

mergeMap (flatMap)
const source = requestUser$()
.mergeMap(res => {
const {data: {userId}} = res;
return requestPosts$({userId});
});
source.subscribe(res => console.log(res));
51 https://goo.gl/SHgVZ4

mergeMap (flatMap)
.mergeMap(res => {
return requestPosts$({userId});
});
source.subscribe(res => console.log(res));

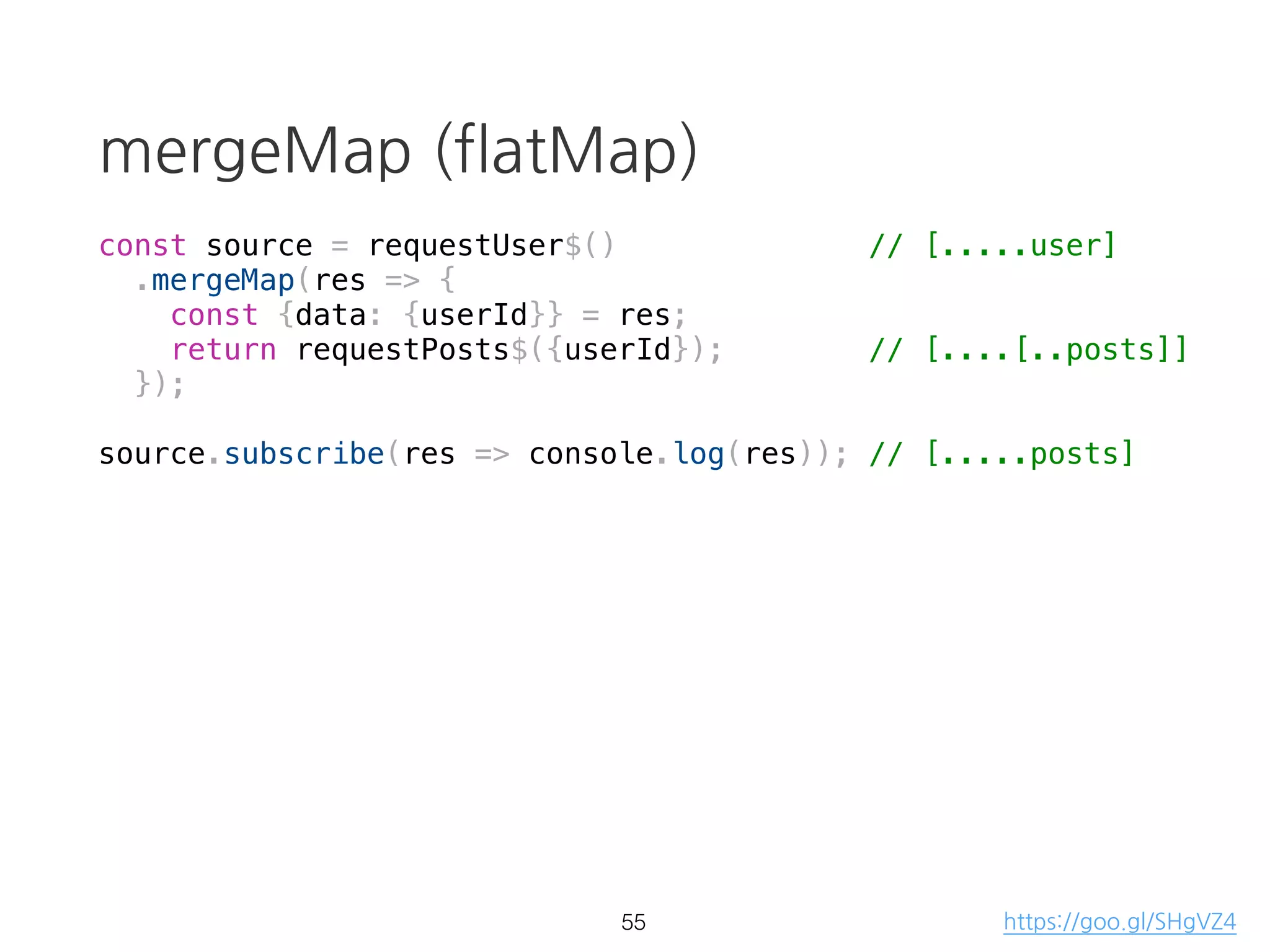

mergeMap (flatMap)
const source = requestUser$() // [.....user]
.mergeMap(res => {
return requestPosts$({userId}); // [....[..posts]]
});
source.subscribe(res => console.log(res)); // [.....posts]

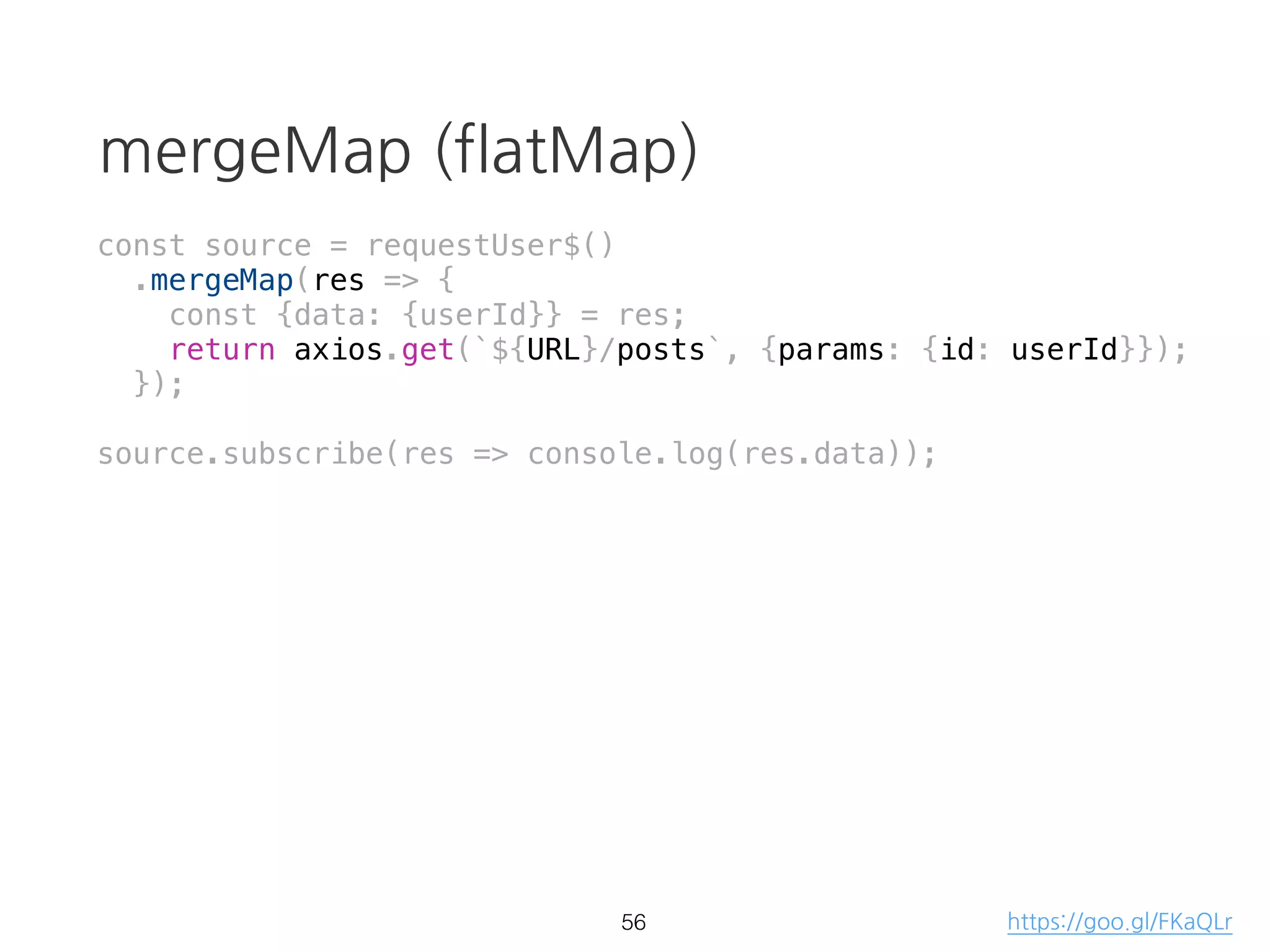

mergeMap (flatMap)
.mergeMap(res => {
return axios.get(`${URL}/posts`, {params: {id: userId}});
});
source.subscribe(res => console.log(res.data));
54 https://goo.gl/FKaQLr

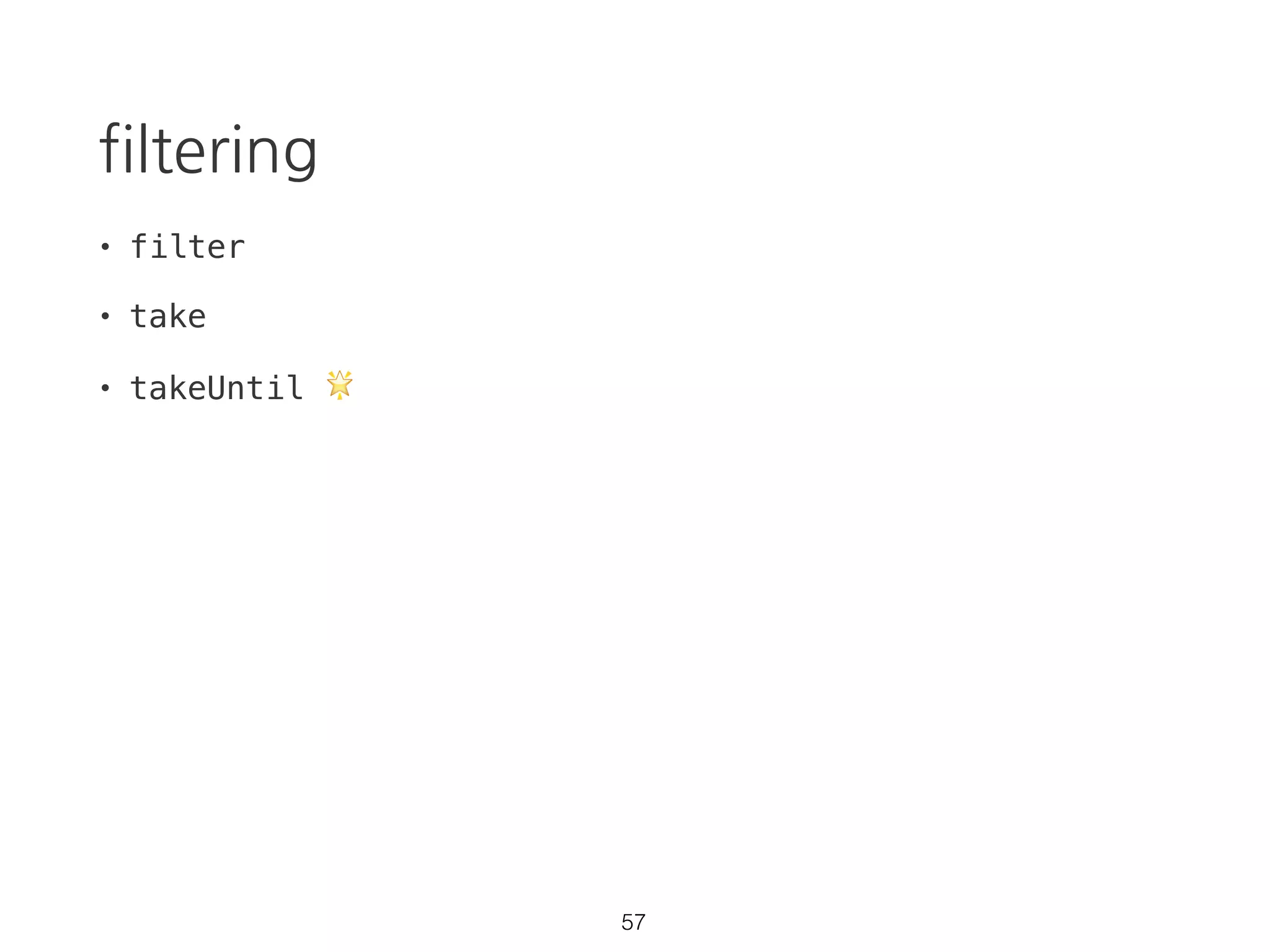

filtering
• filter
• take
• takeUntil 🌟
55

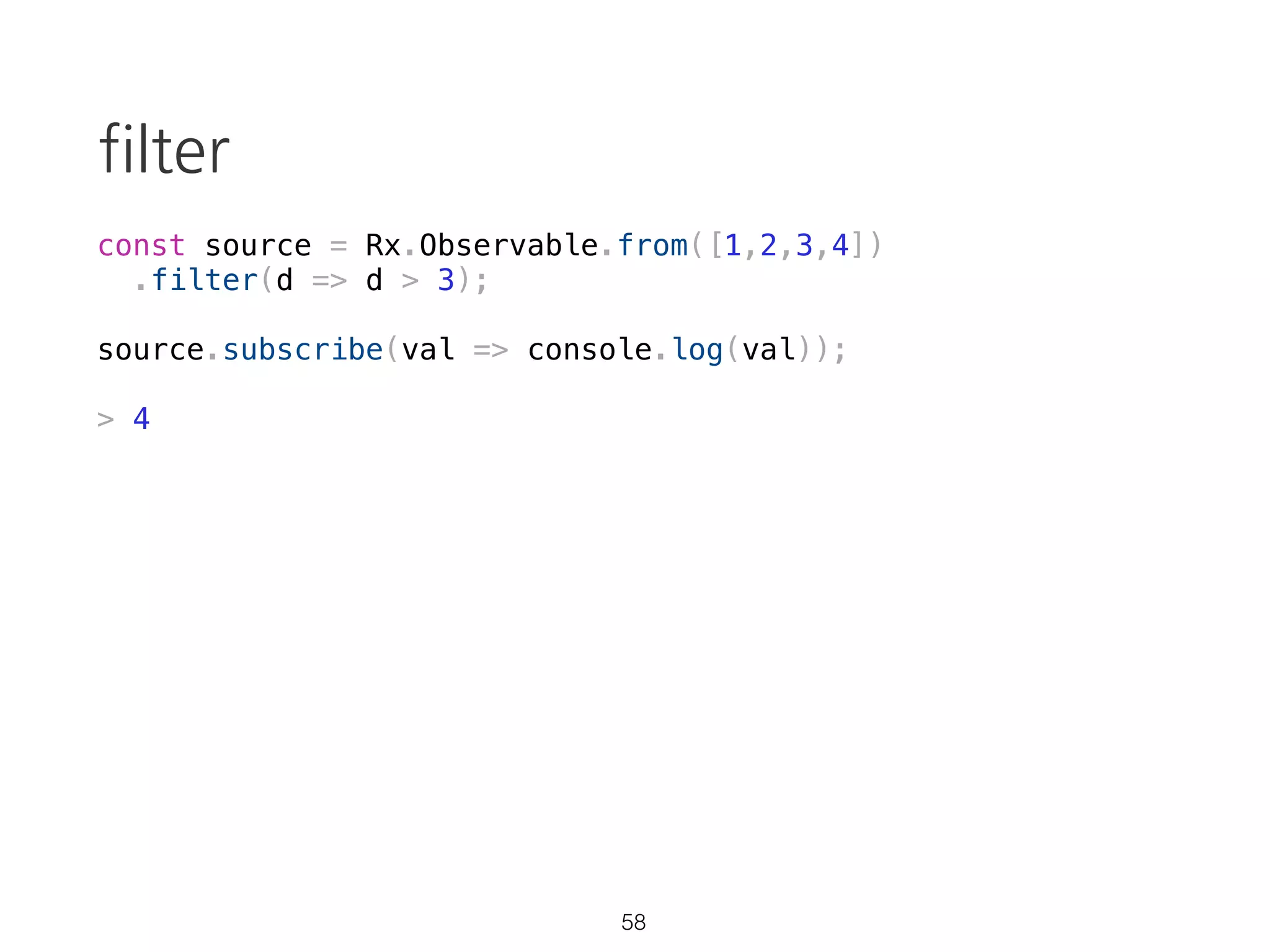

filter
const source = Rx.Observable.from([1,2,3,4])
.filter(d => d > 3);
> 4
56

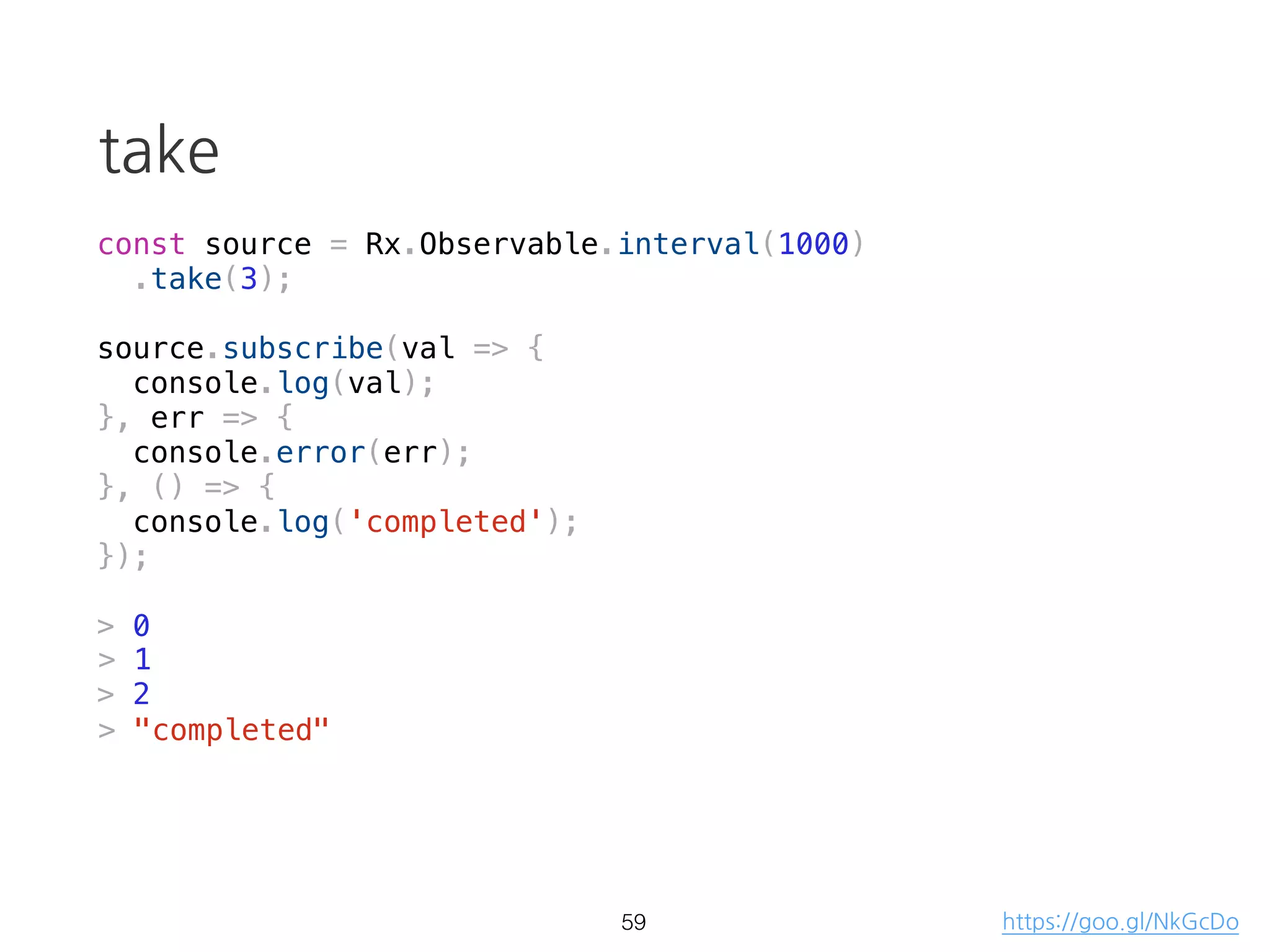

take
const source = Rx.Observable.interval(1000)
.take(3);
console.log(val);
}, err => {
console.error(err);
}, () => {
});
57 https://goo.gl/NkGcDo

take
.take(3);
console.log(val);
}, err => {
console.error(err);
}, () => {
});
57
> 0
> 1
> 2
> "completed"
https://goo.gl/NkGcDo

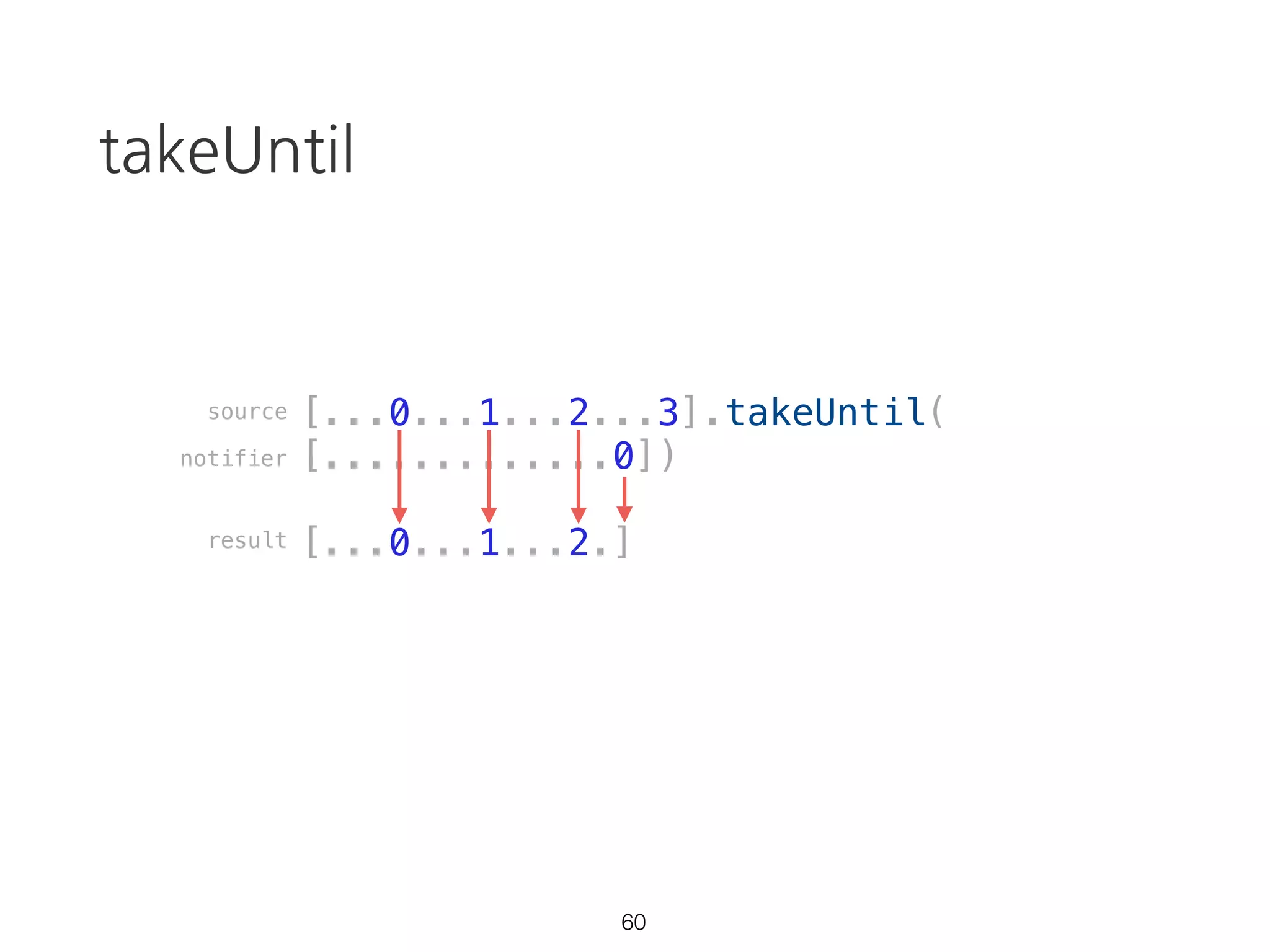

takeUntil
[...0...1...2...3].takeUntil(
[.............0])
[...0...1...2.]
58
source
notifier
result

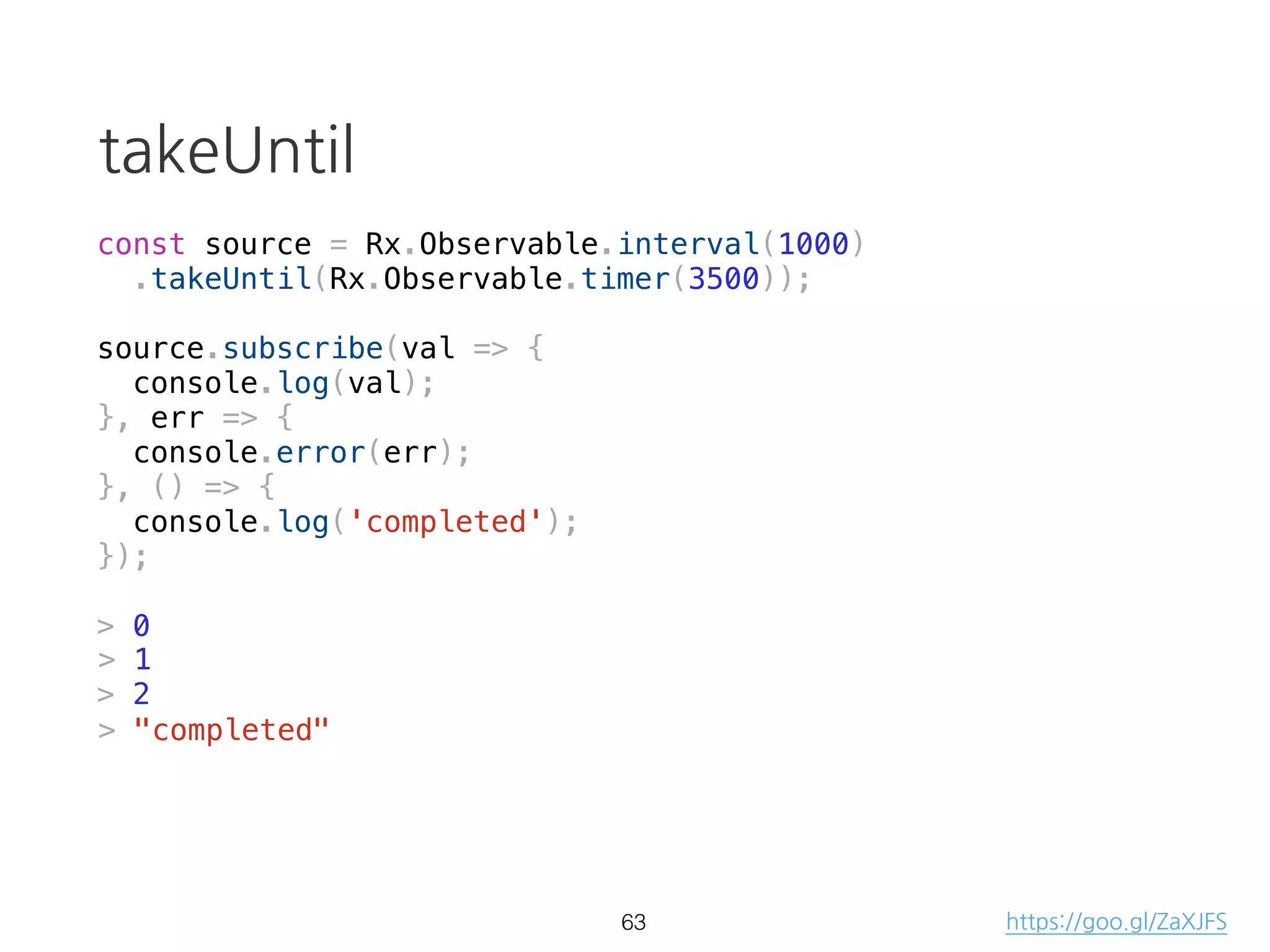

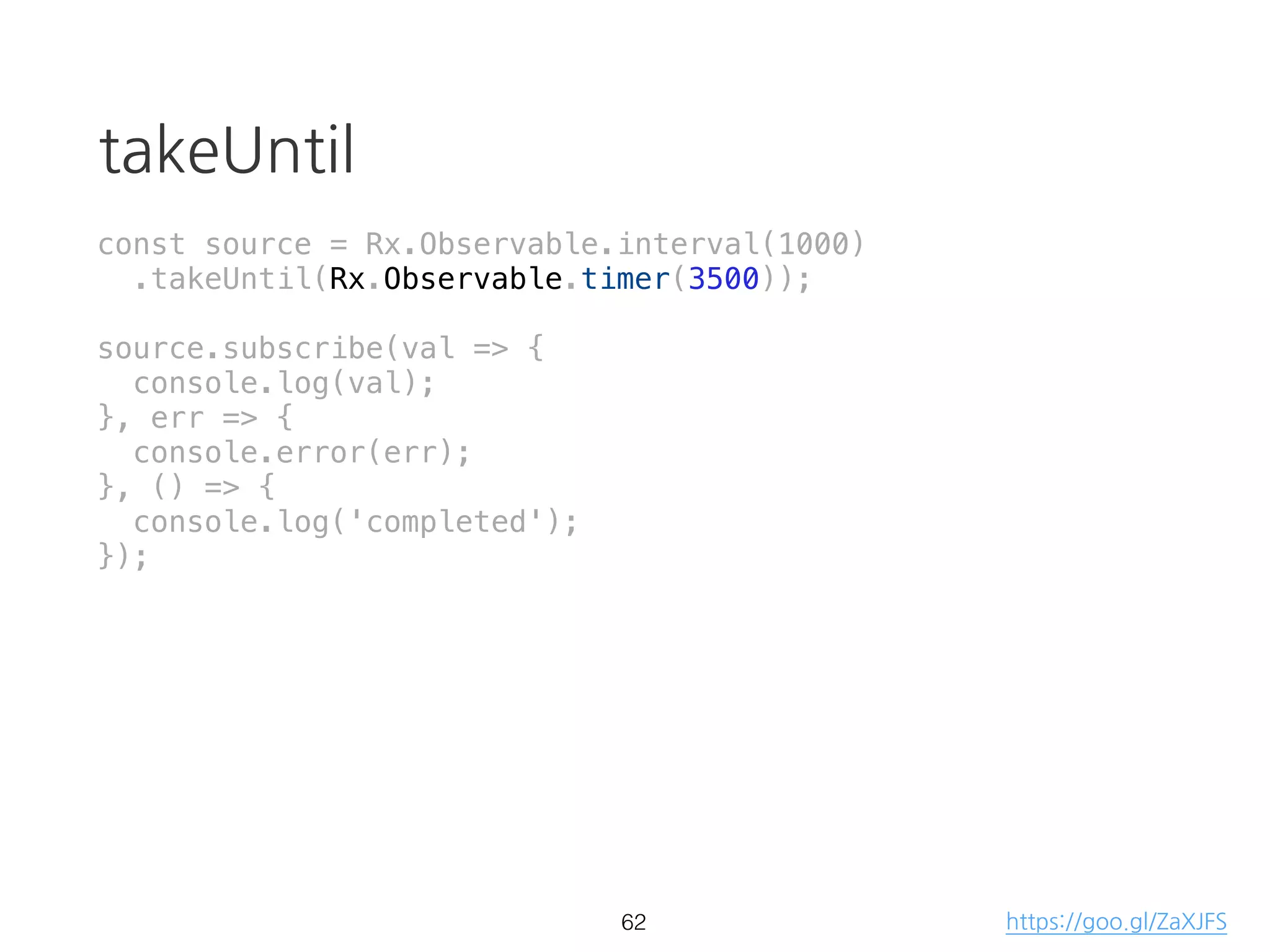

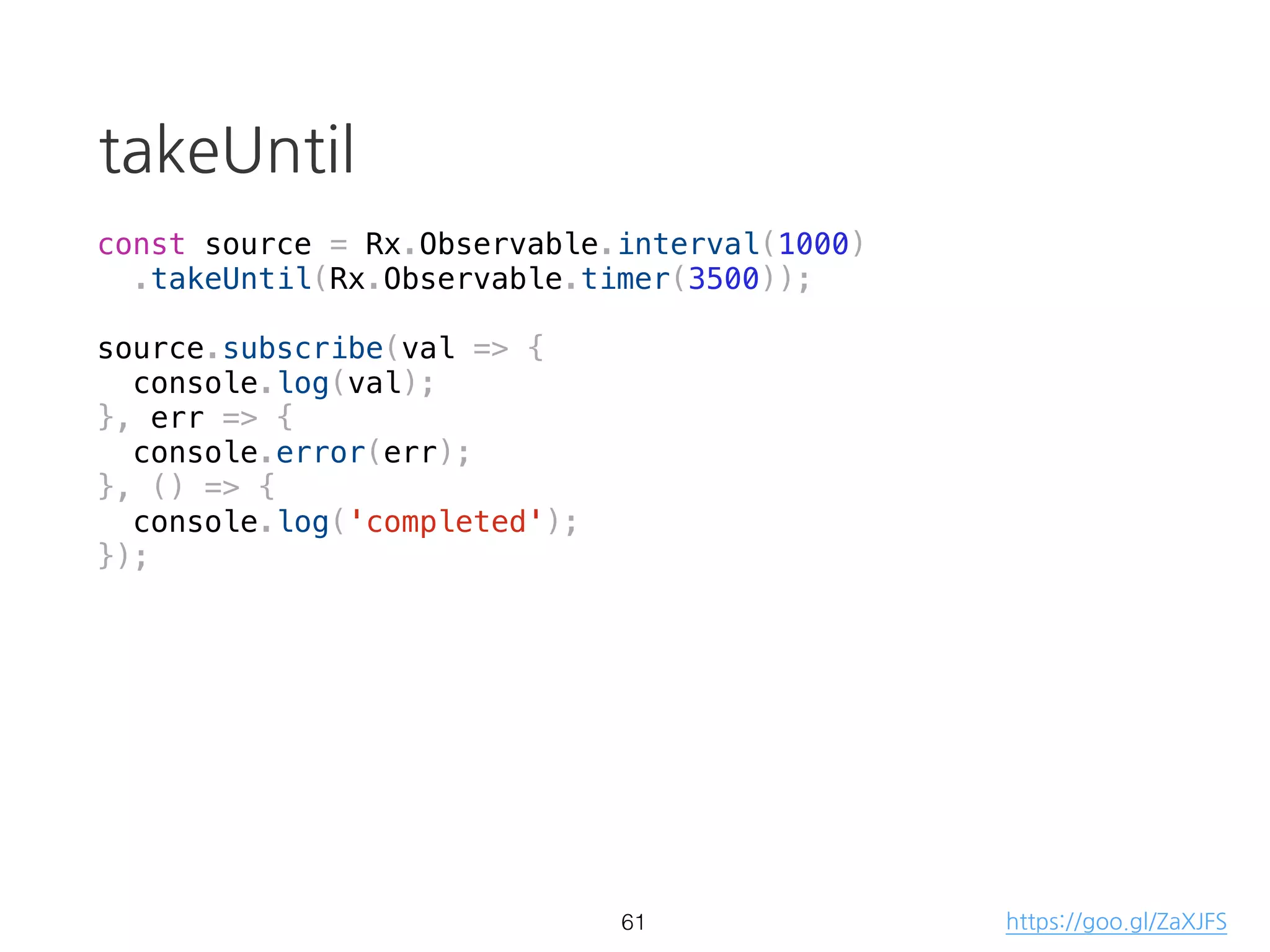

takeUntil
.takeUntil(Rx.Observable.timer(3500));
console.log(val);
}, err => {
console.error(err);
}, () => {
});
59 https://goo.gl/ZaXJFS

takeUntil
console.log(val);
}, err => {
console.error(err);
}, () => {
});

takeUntil
console.log(val);
}, err => {
console.error(err);
}, () => {
});
61
> 0
> 1
> 2
> "completed"
https://goo.gl/ZaXJFS

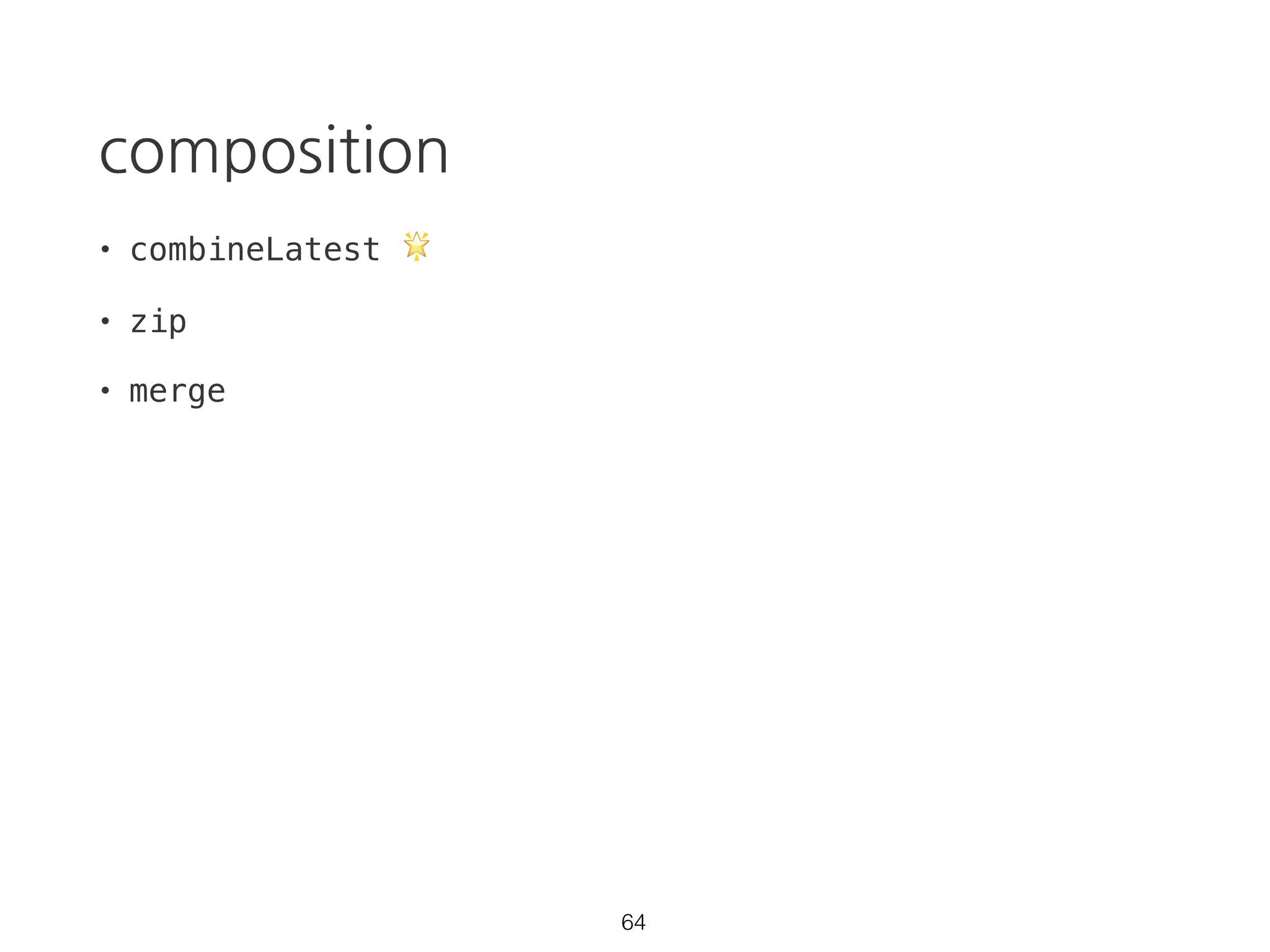

composition
• combineLatest 🌟
• zip
• merge
62

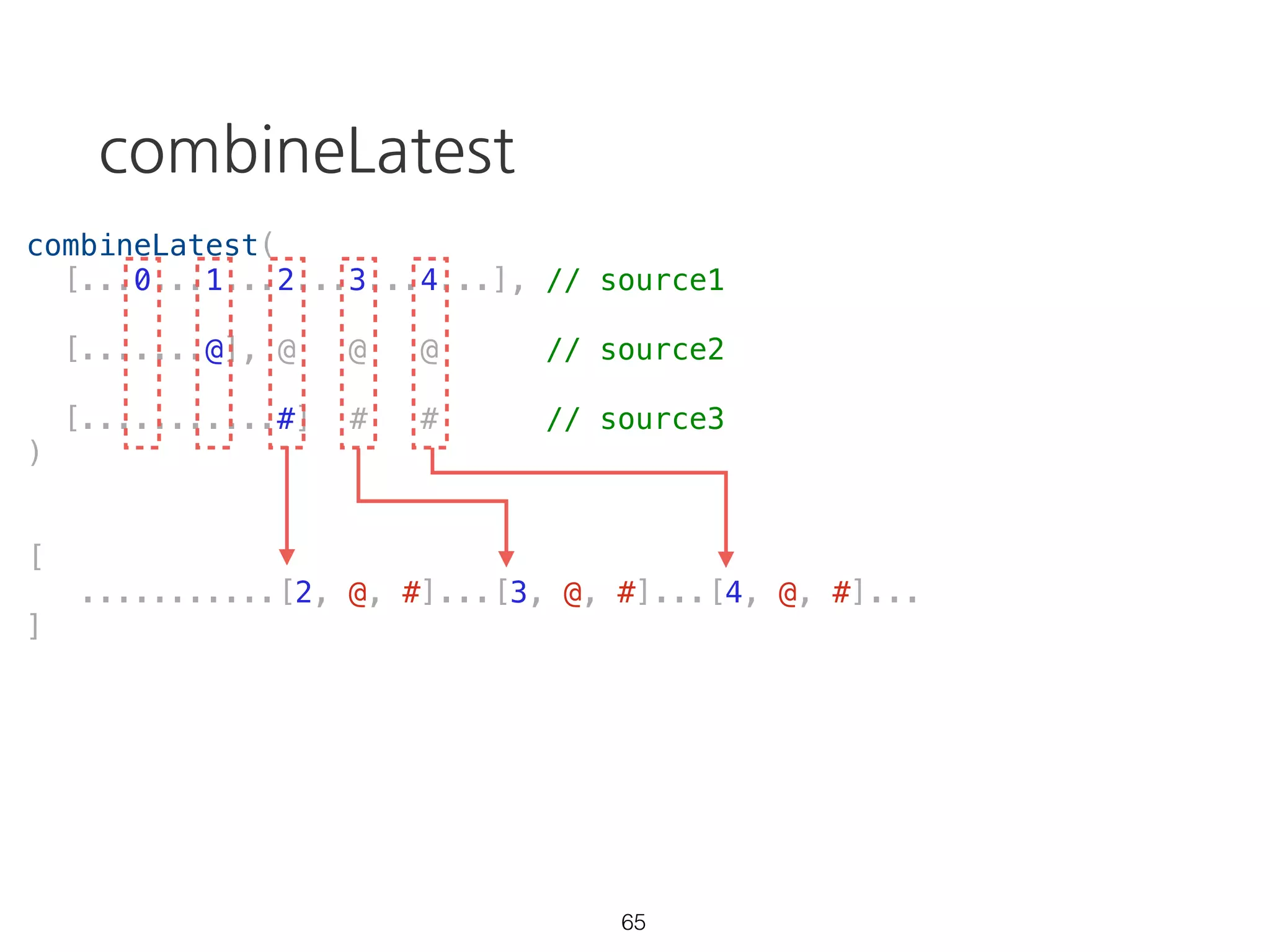

combineLatest
combineLatest(
[...0...1...2...3...4...], // source1
[.......@], // source2
[...........#] // source3
)
[
...........[2, @, #]...[3, @, #]...[4, @, #]...
]
63

combineLatest
combineLatest(
[...0...1...2...3...4...], // source1
[.......@], // source2
[...........#] // source3
)
[
...........[2, @, #]...[3, @, #]...[4, @, #]...
]
63
@

combineLatest
combineLatest(
[...0...1...2...3...4...], // source1
[.......@], // source2
[...........#] // source3
)
[
...........[2, @, #]...[3, @, #]...[4, @, #]...
]
63
@ @
#

combineLatest
combineLatest(
[...0...1...2...3...4...], // source1
[.......@], // source2
[...........#] // source3
)
[
...........[2, @, #]...[3, @, #]...[4, @, #]...
]
63
@ @ @
# #

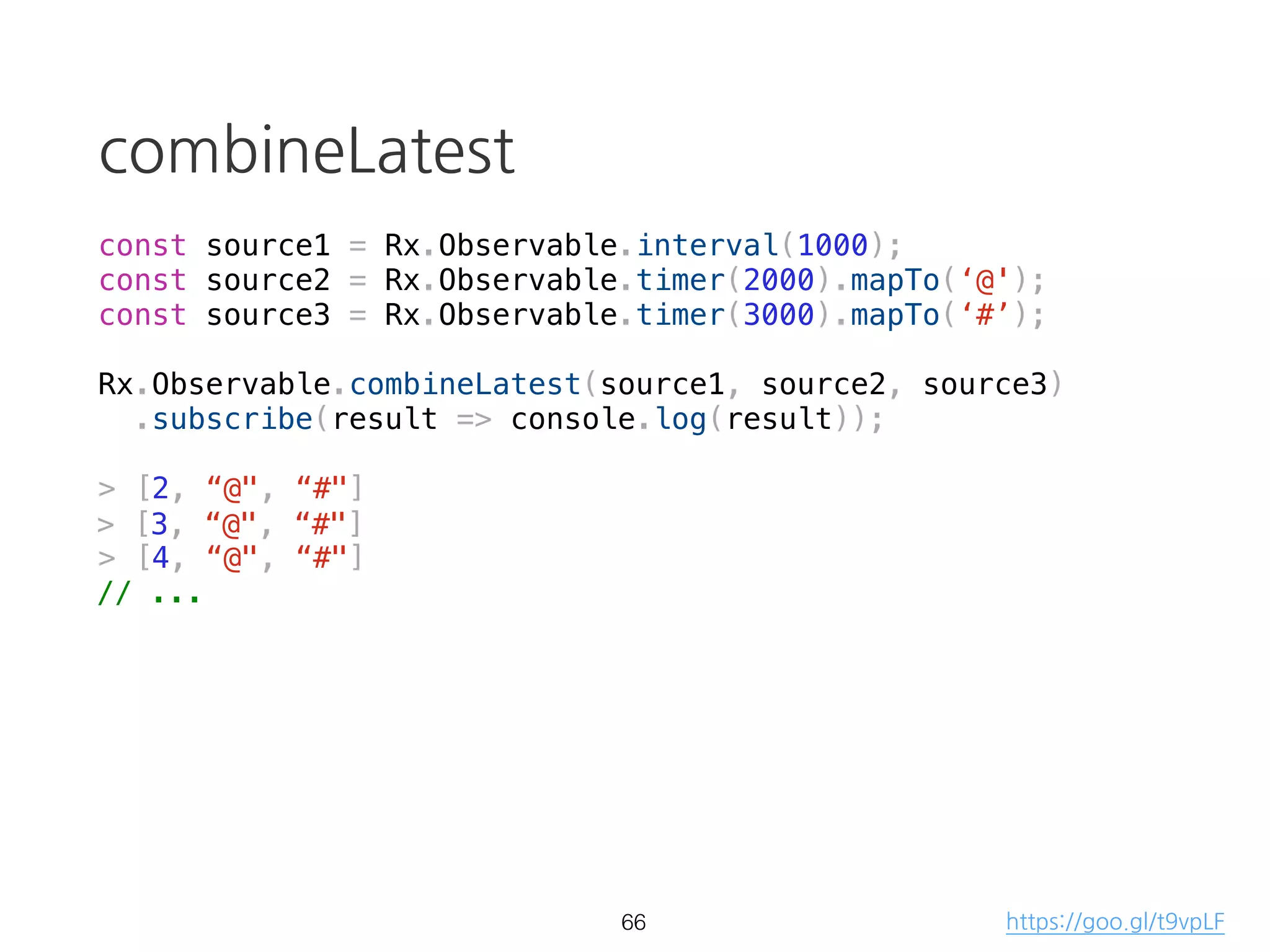

combineLatest
const source1 = Rx.Observable.interval(1000);
const source2 = Rx.Observable.timer(2000).mapTo(‘@');
const source3 = Rx.Observable.timer(3000).mapTo(‘#’);
Rx.Observable.combineLatest(source1, source2, source3)
64 https://goo.gl/t9vpLF

combineLatest
const source2 = Rx.Observable.timer(2000).mapTo(‘@');
const source3 = Rx.Observable.timer(3000).mapTo(‘#’);
Rx.Observable.combineLatest(source1, source2, source3)
64
> [2, “@", “#"]
> [3, “@", “#"]
> [4, “@", “#"]
// ...
https://goo.gl/t9vpLF

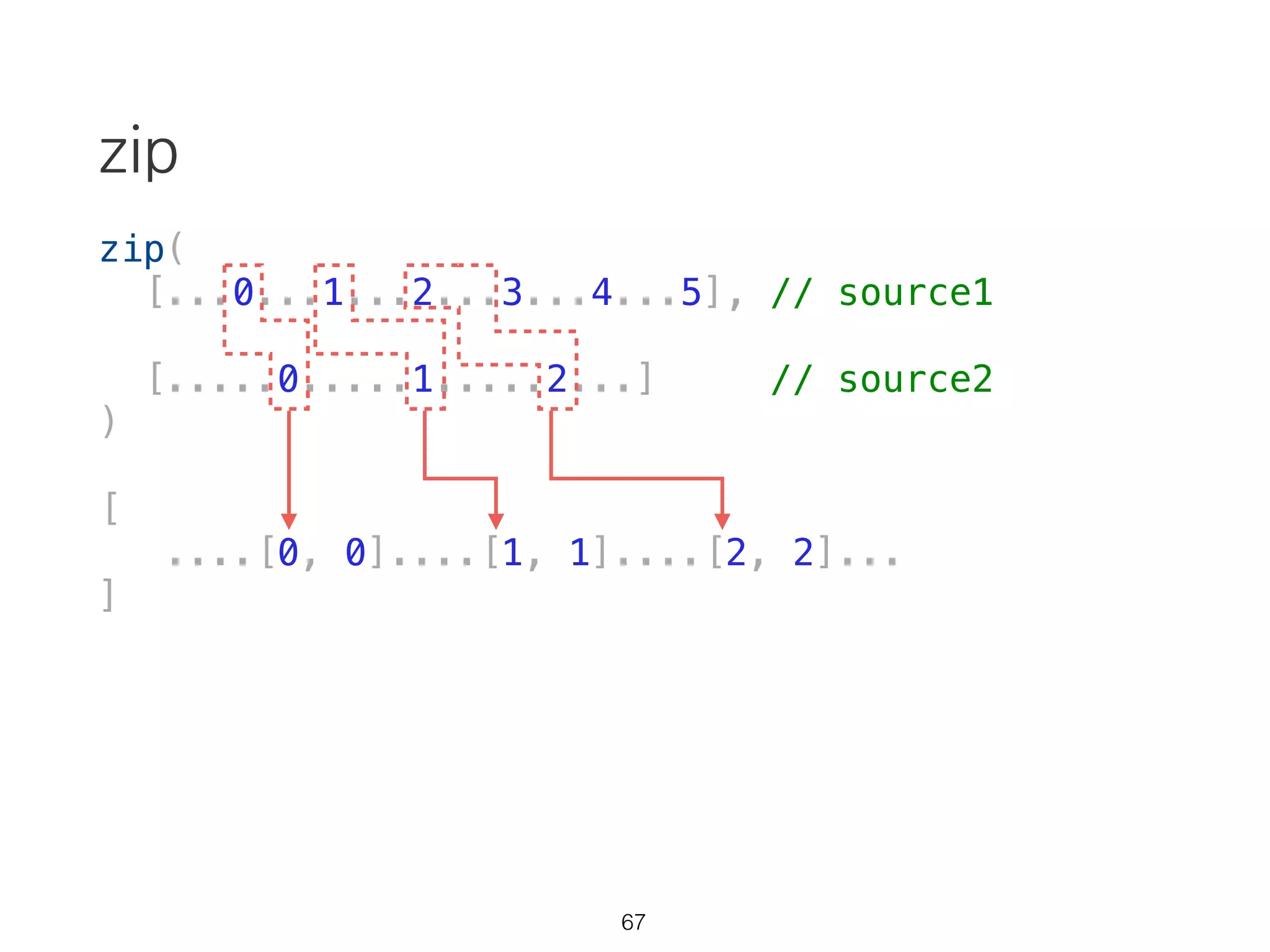

zip
zip(
[...0...1...2...3...4...5], // source1
[.....0.....1.....2...] // source2
)
[
....[0, 0]....[1, 1]....[2, 2]...
]
65

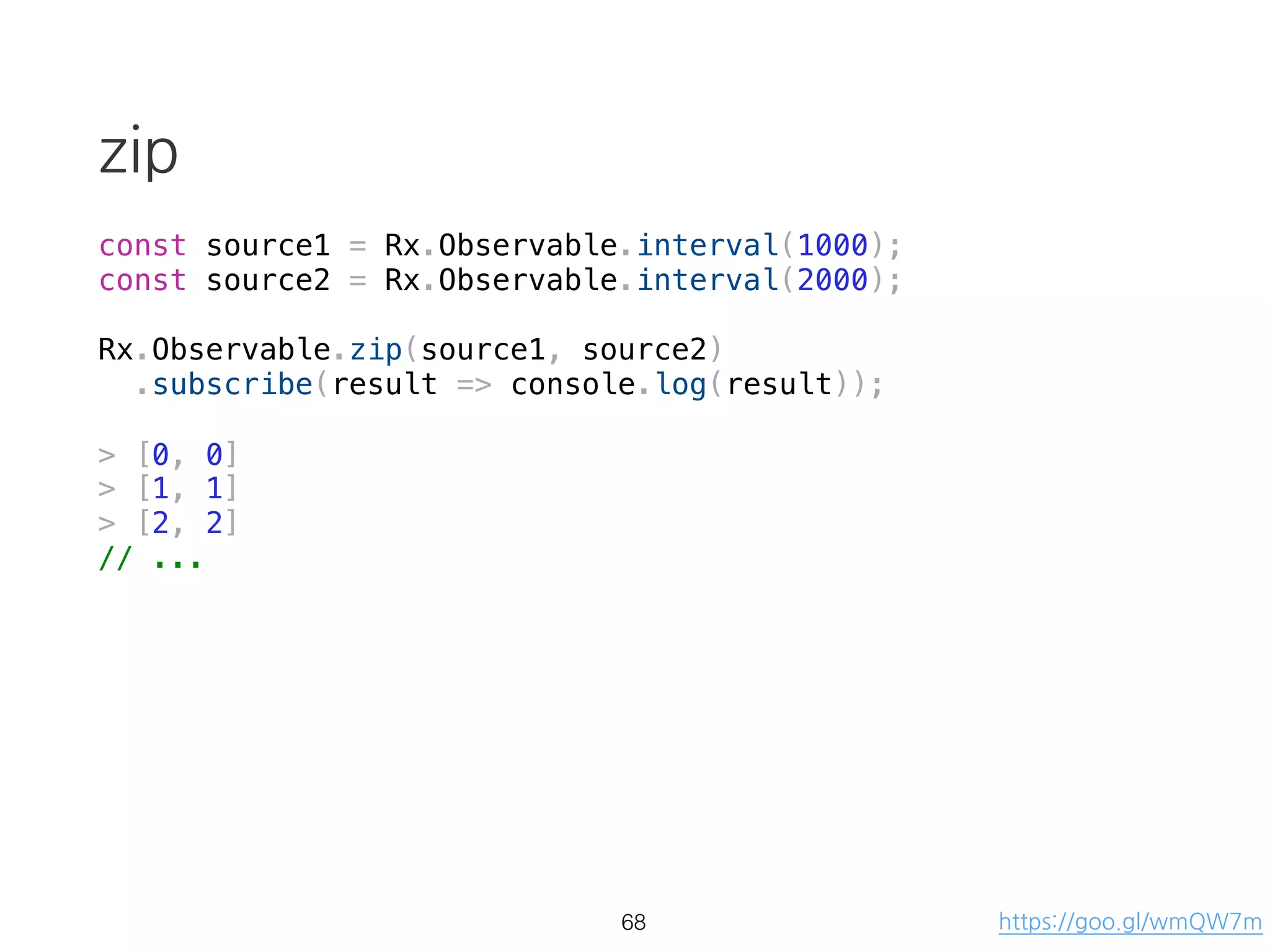

zip
Rx.Observable.zip(source1, source2)
66 https://goo.gl/wmQW7m

zip
Rx.Observable.zip(source1, source2)
66
> [0, 0]
> [1, 1]
> [2, 2]
// ...
https://goo.gl/wmQW7m

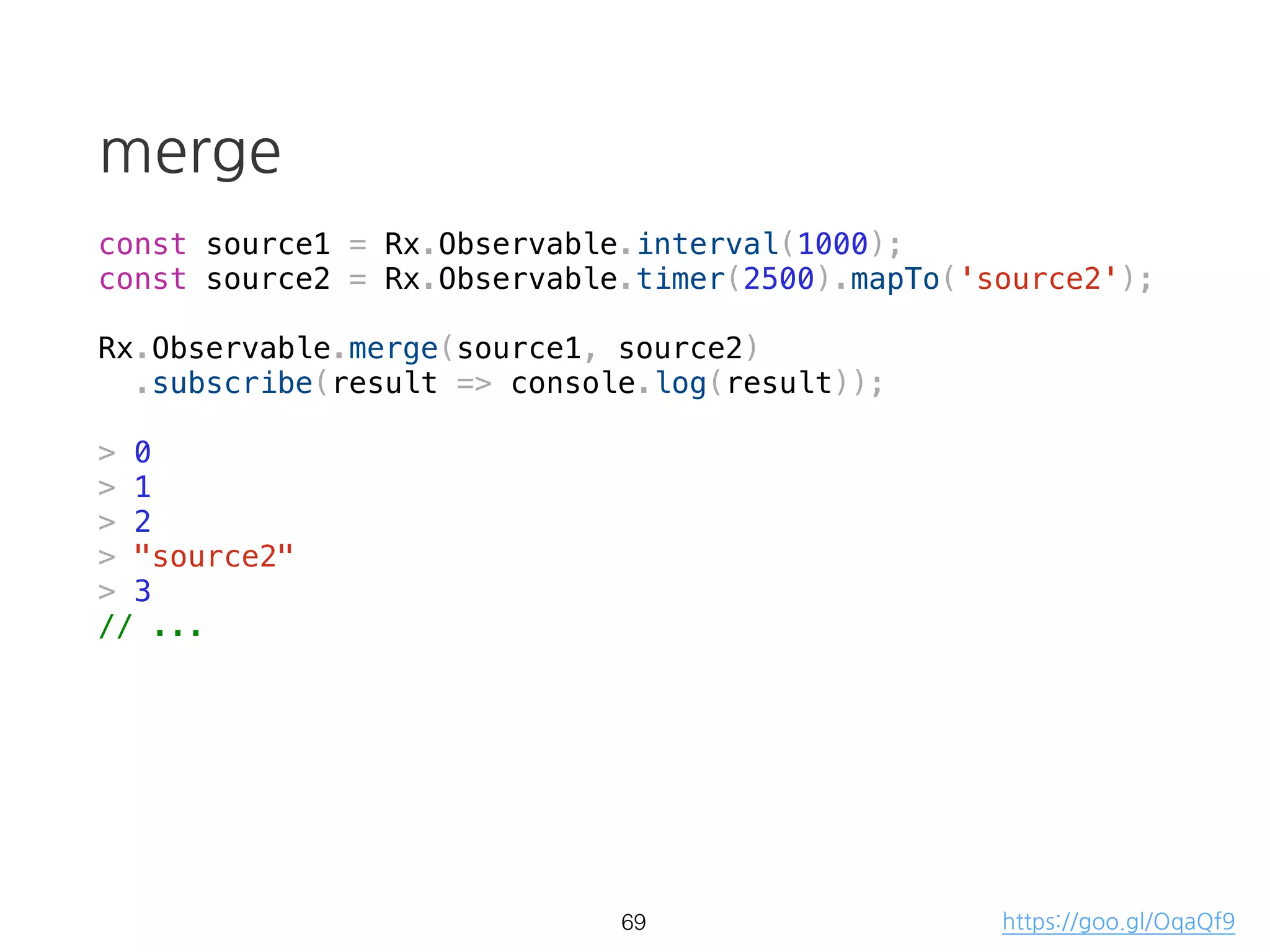

merge
const source2 = Rx.Observable.timer(2500).mapTo('source2');
Rx.Observable.merge(source1, source2)
> 0
> 1
> 2
> "source2"
> 3
// ...
67 https://goo.gl/OqaQf9

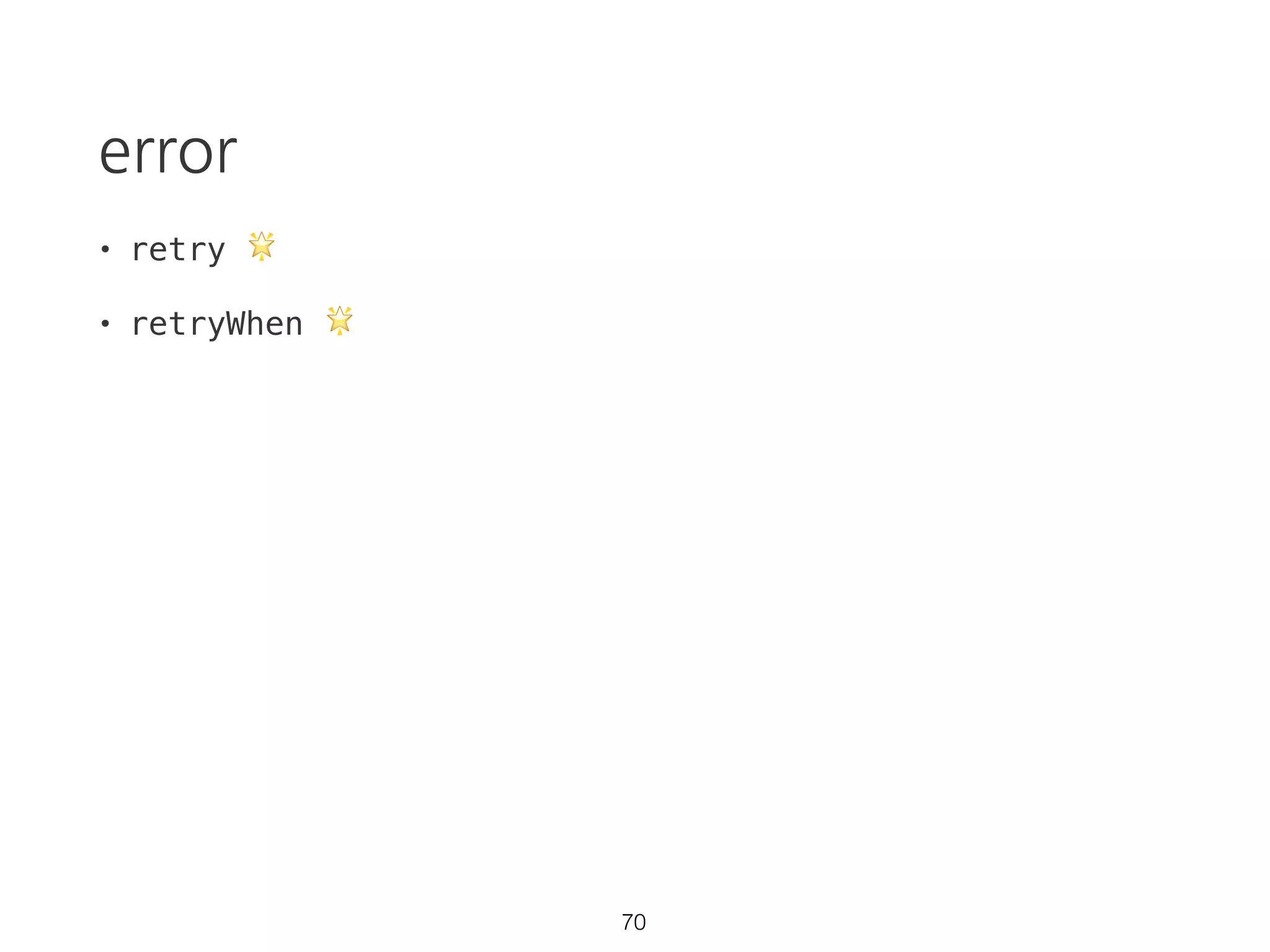

error
• retry 🌟

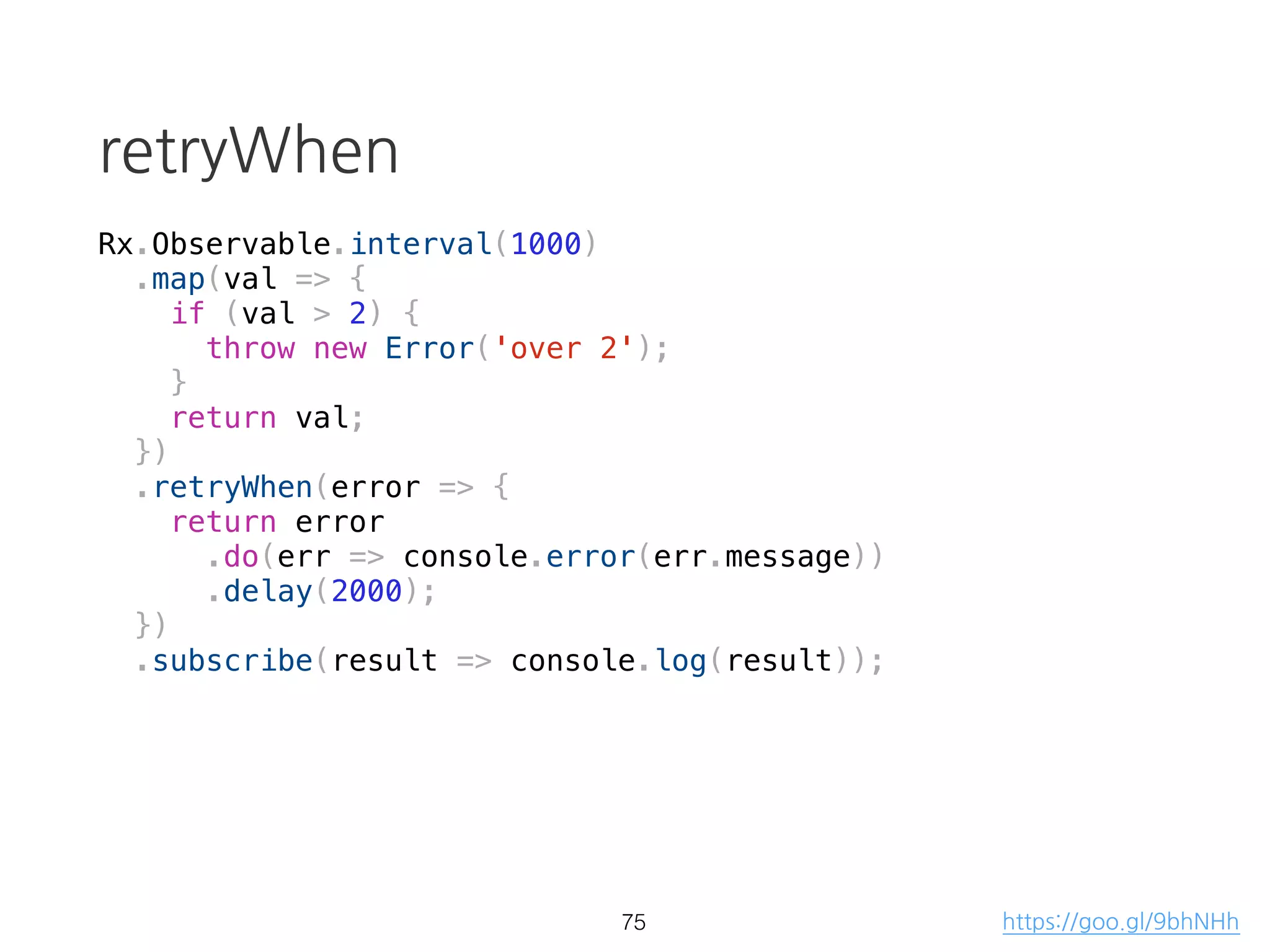

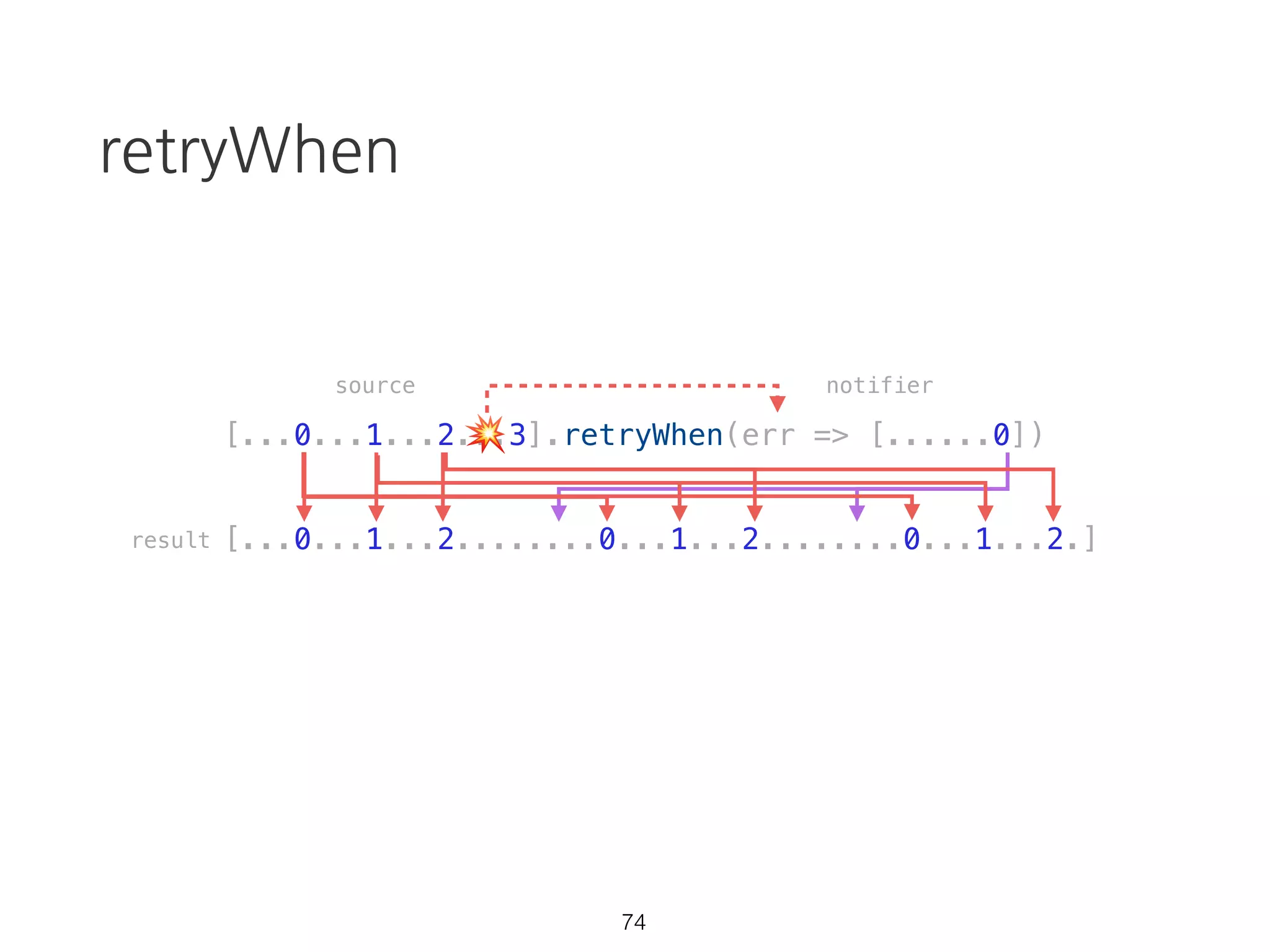

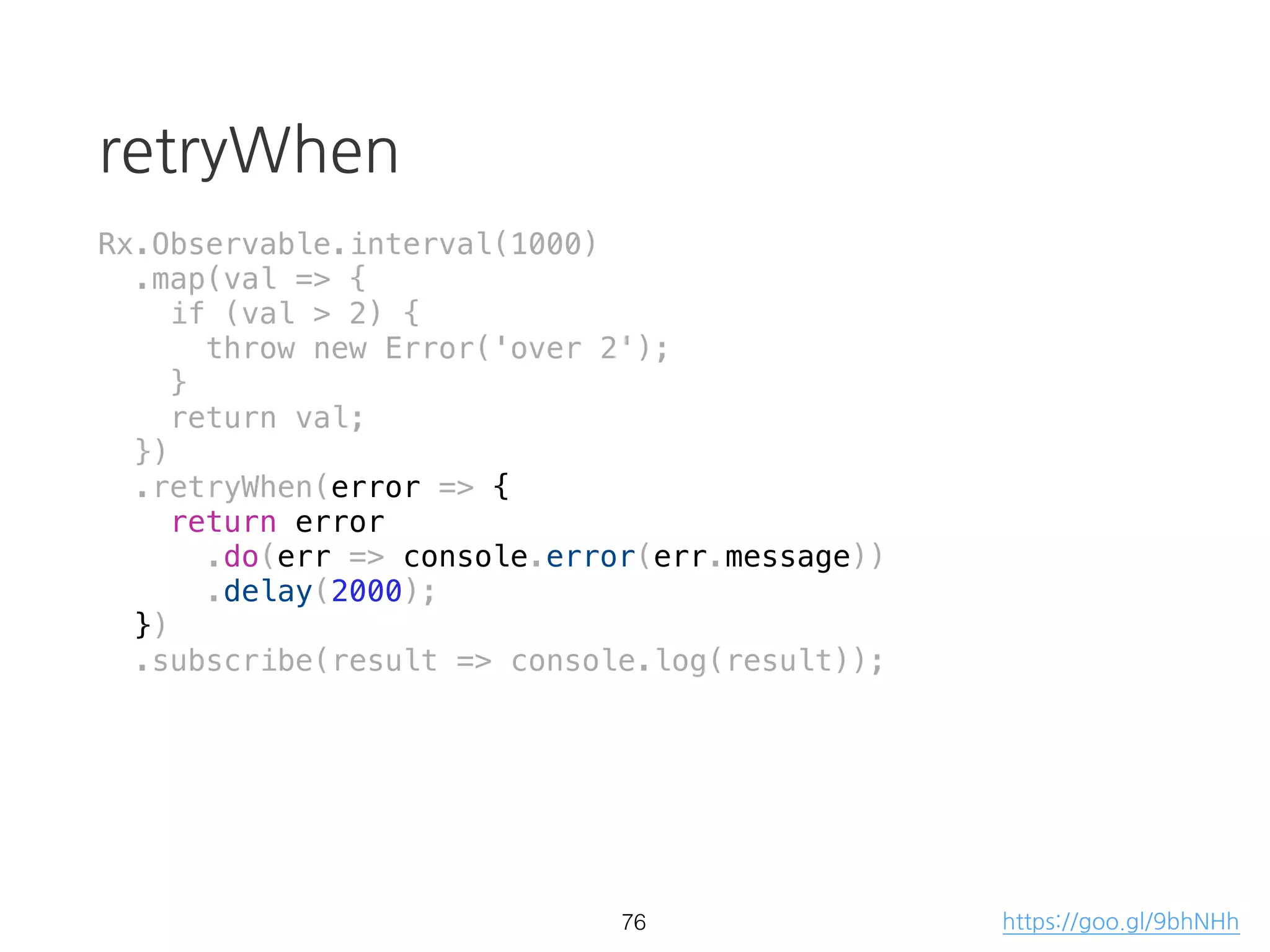

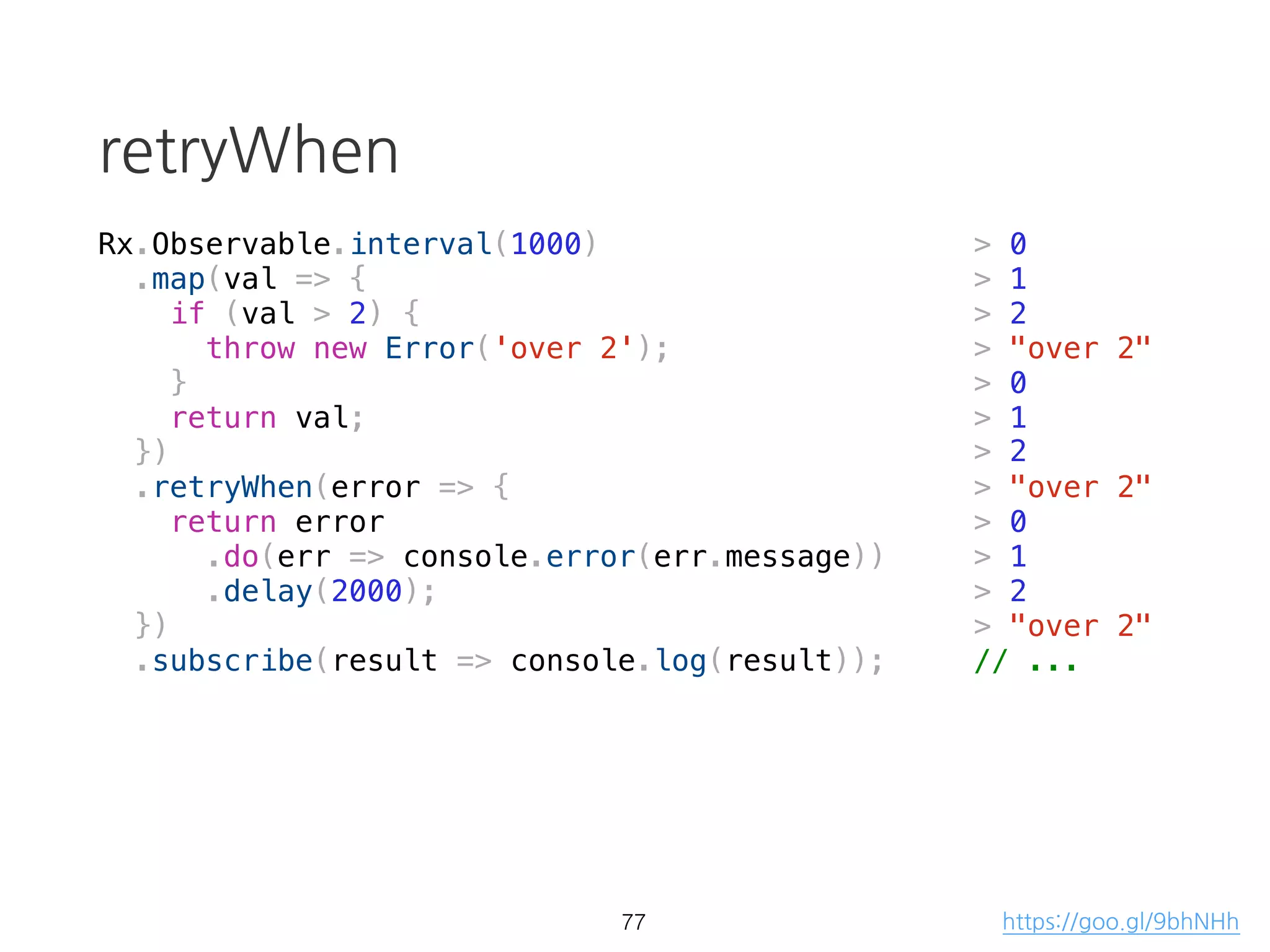

• retryWhen 🌟
68

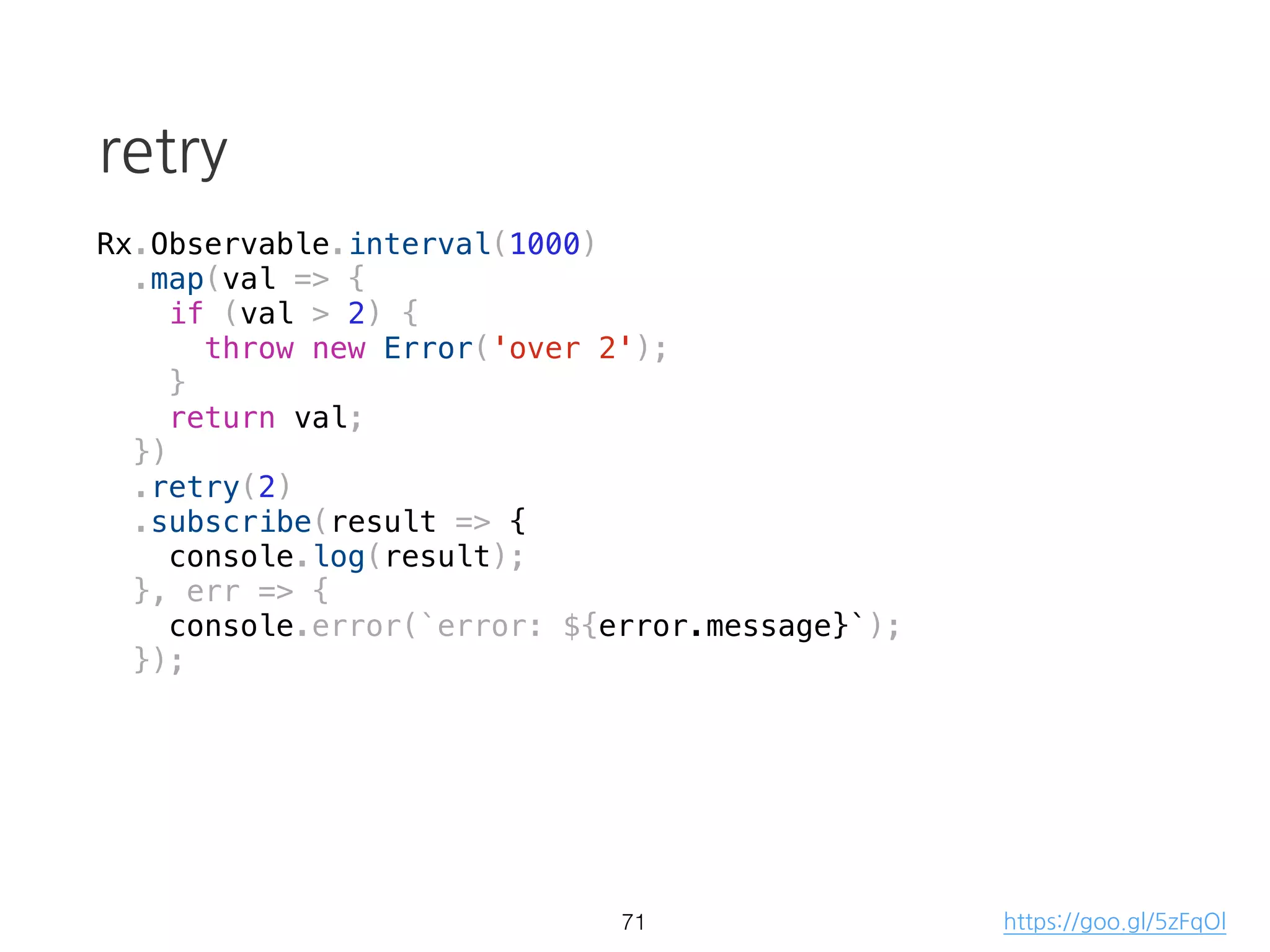

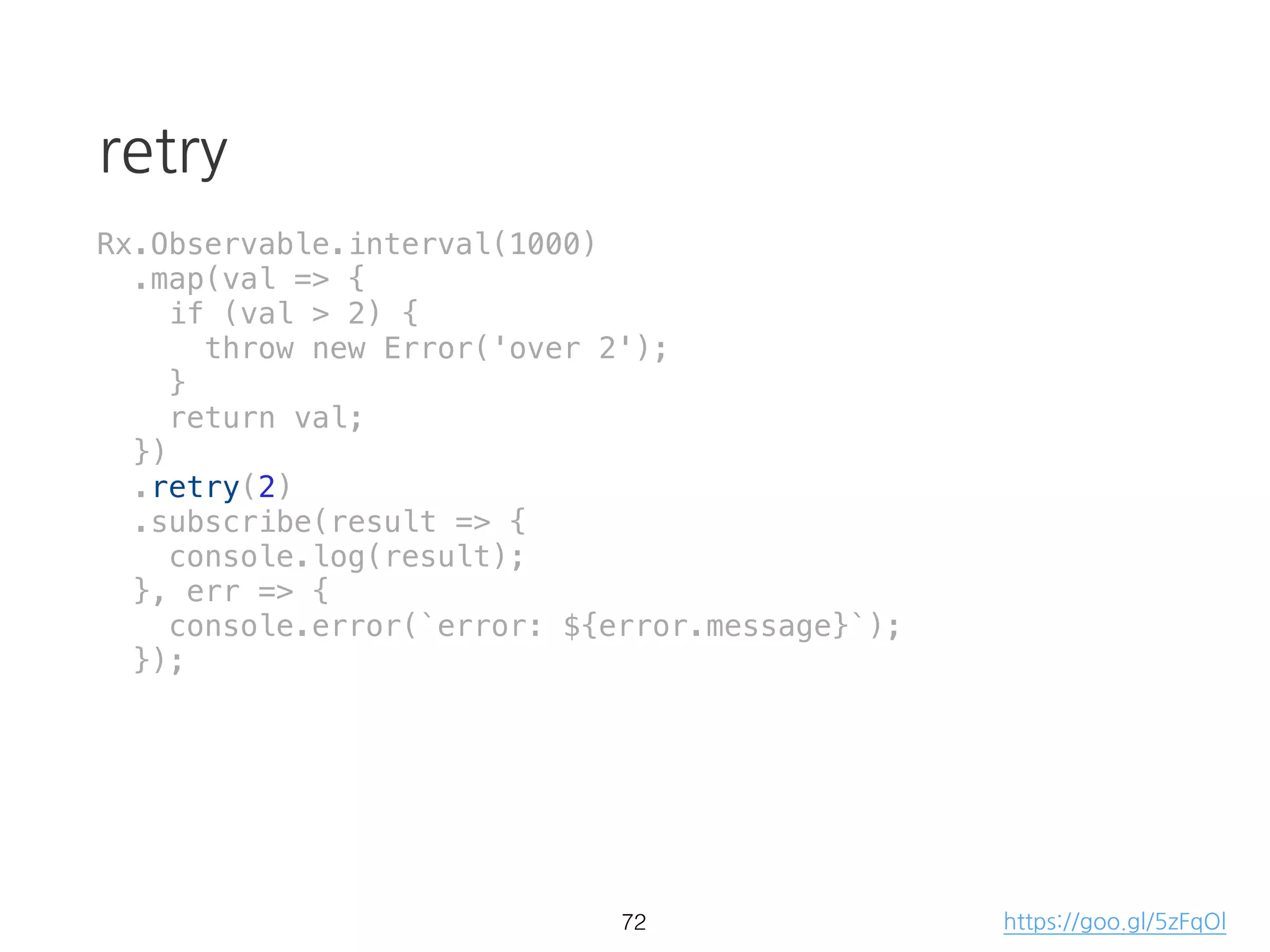

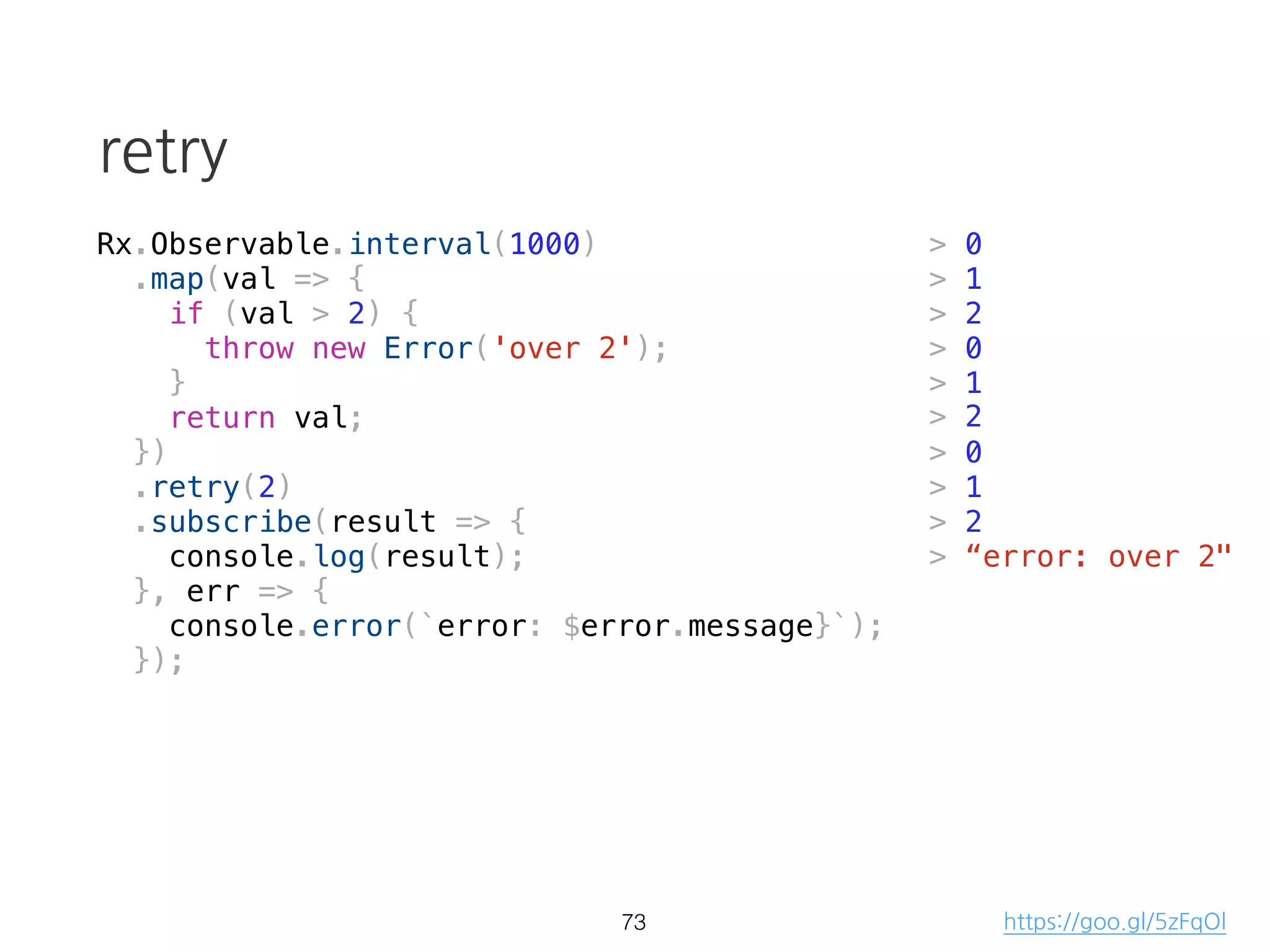

retry
Rx.Observable.interval(1000)
.map(val => {
if (val > 2) {
throw new Error('over 2');
}
return val;
})
.retry(2)
.subscribe(result => {
}, err => {
console.error(`error: ${error.message}`);
});
69 https://goo.gl/5zFqOl

retry
.map(val => {
if (val > 2) {
}
return val;
})
.retry(2)
}, err => {
console.error(`error: ${error.message}`);
});

retry
.map(val => {
if (val > 2) {
}
return val;
})
.retry(2)
}, err => {
console.error(`error: $error.message}`);
});

retry
.map(val => {
if (val > 2) {
}
return val;
})
.retry(2)
}, err => {
console.error(`error: $error.message}`);
});
> 0
> 1
> 2
> “error: over 2"
> 0
> 1
> 2
> 0
> 1
> 2

retryWhen
[...0...1...2...3].retryWhen(err => [......0])
[...0...1...2........0...1...2........0...1...2.]
72
source notifier
result

retryWhen
[...0...1...2...3].retryWhen(err => [......0])
[...0...1...2........0...1...2........0...1...2.]
72
source notifier
result
💥

retryWhen
73
.map(val => {
if (val > 2) {
}
return val;
})
.retryWhen(error => {
return error
.do(err => console.error(err.message))
.delay(2000);
})
https://goo.gl/9bhNHh

retryWhen
74
.map(val => {
if (val > 2) {
}
return val;
})
return error
.delay(2000);
})

retryWhen
75
.map(val => {
if (val > 2) {
}
return val;
})
return error
.delay(2000);
})

retryWhen
75
.map(val => {
if (val > 2) {
}
return val;
})
return error
.delay(2000);
})
> "over 2"
> 0
> 1
> 2
> "over 2"
> 0
> 1
> 2
> "over 2"
> 0
> 1
> 2
// ...

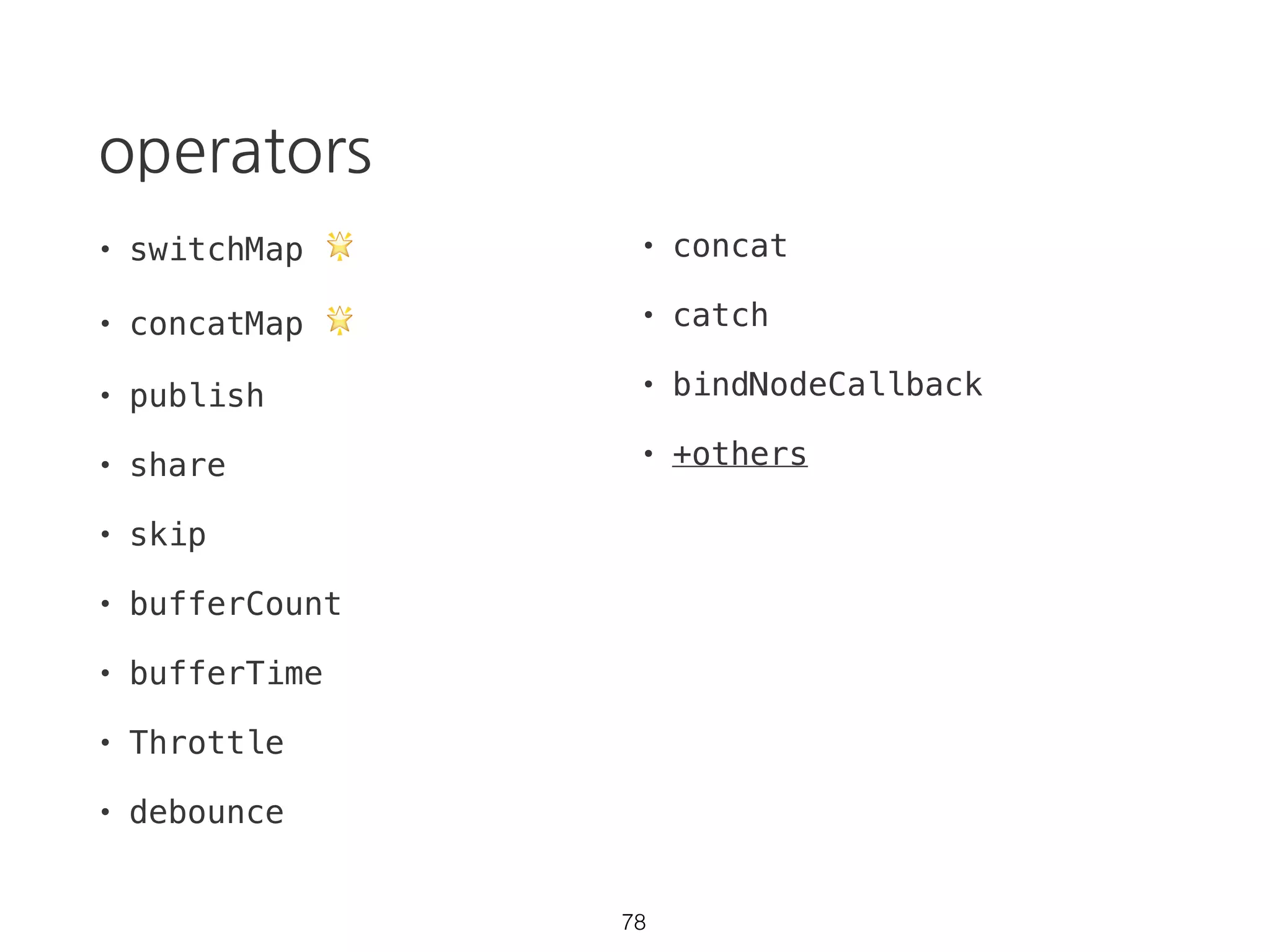

operators
• switchMap 🌟
• concatMap 🌟
• publish
• share
• skip
• bufferCount
• bufferTime
• Throttle
• debounce
76
• concat
• catch
• bindNodeCallback
• +others

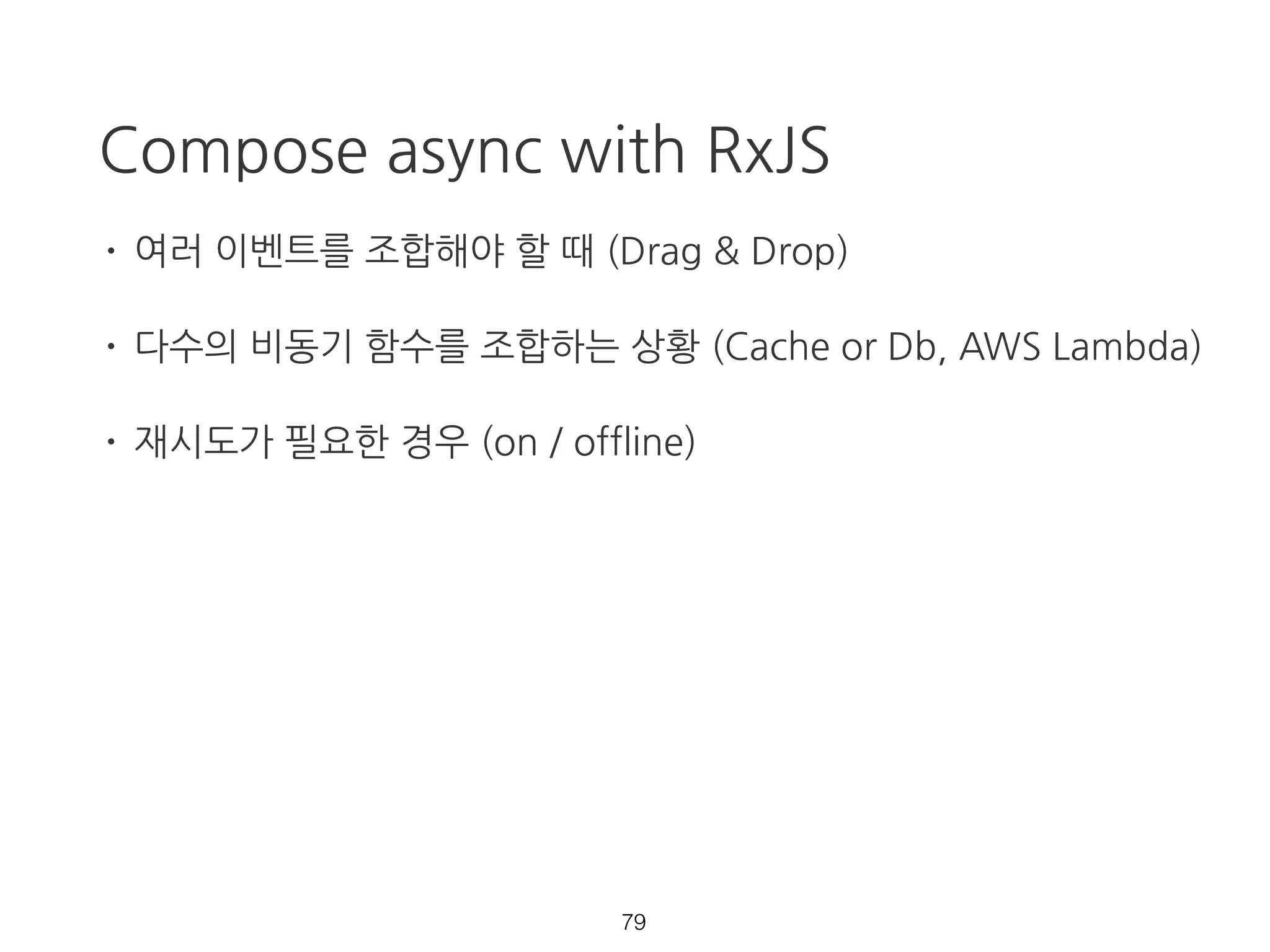

Compose async with RxJS
• 여러 이벤트를 조합해야 할 때 (Drag & Drop)
• 다수의 비동기 함수를 조합하는 상황 (Cache or Db, AWS Lambda)
• 재시도가 필요한 경우 (on / offline)
77

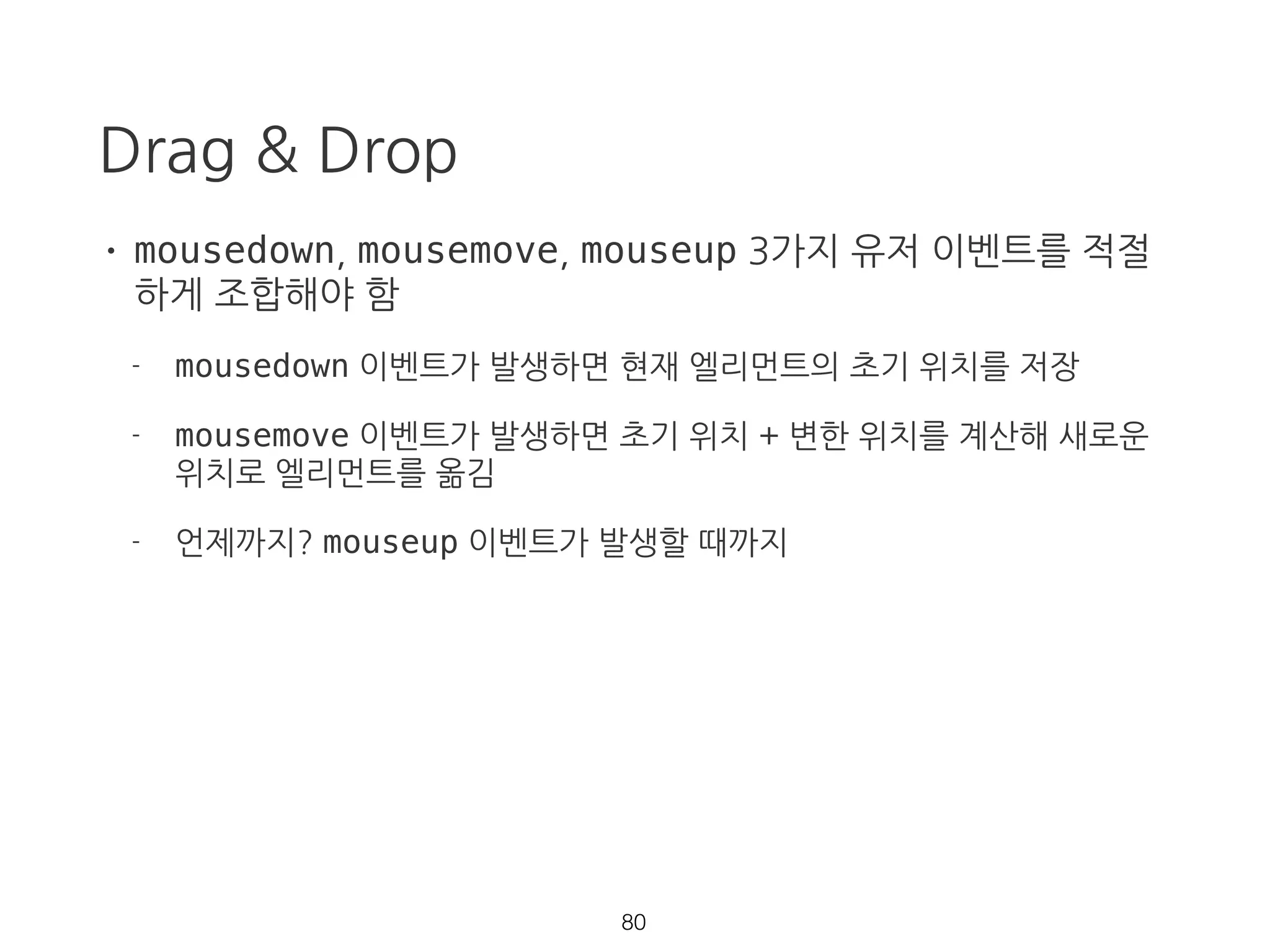

Drag & Drop
• mousedown, mousemove, mouseup 3가지 유저 이벤트를 적절
하게 조합해야 함
- mousedown 이벤트가 발생하면 현재 엘리먼트의 초기 위치를 저장
- mousemove 이벤트가 발생하면 초기 위치 + 변한 위치를 계산해 새로운
위치로 엘리먼트를 옮김
- 언제까지? mouseup 이벤트가 발생할 때까지
78

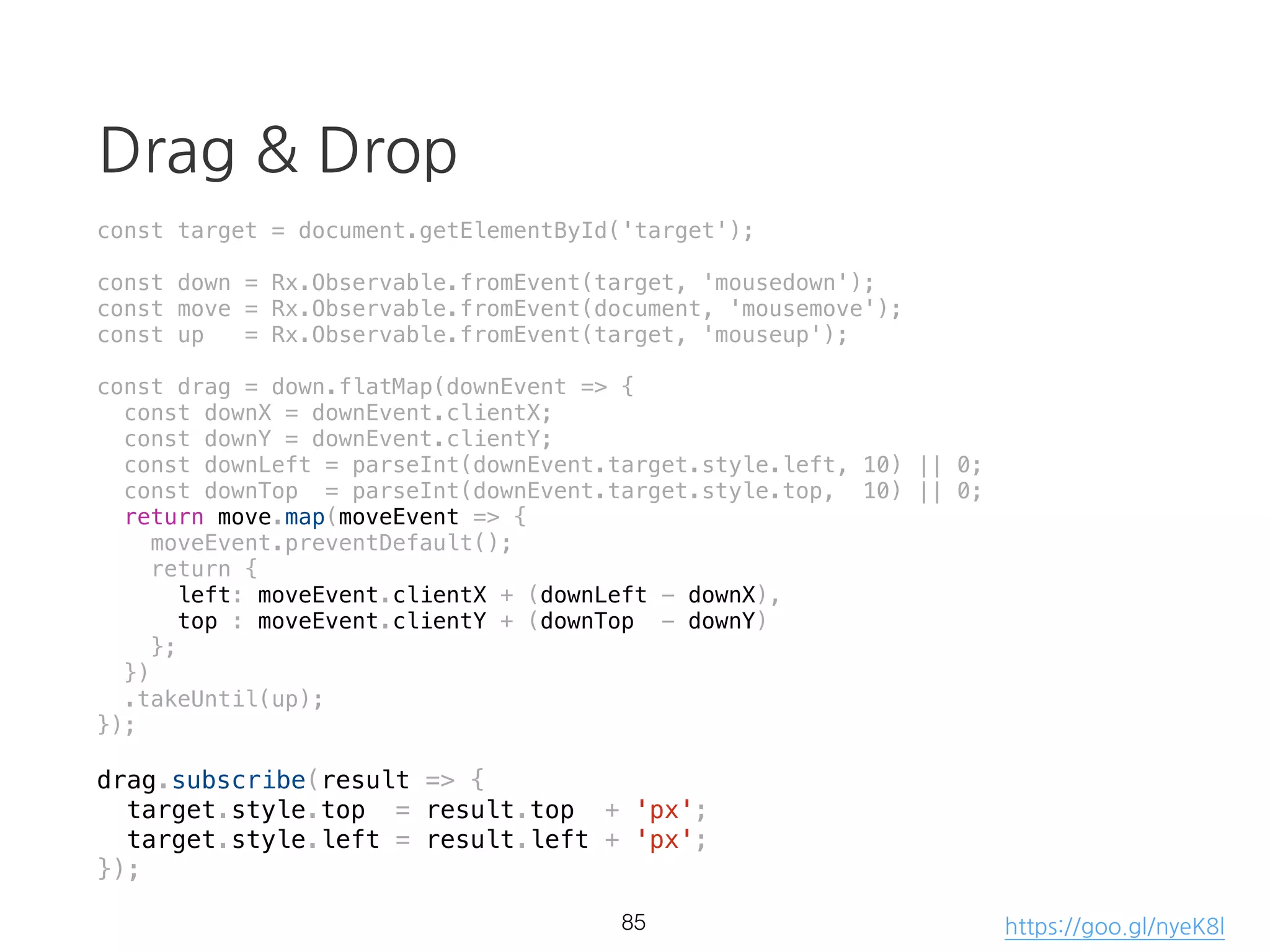

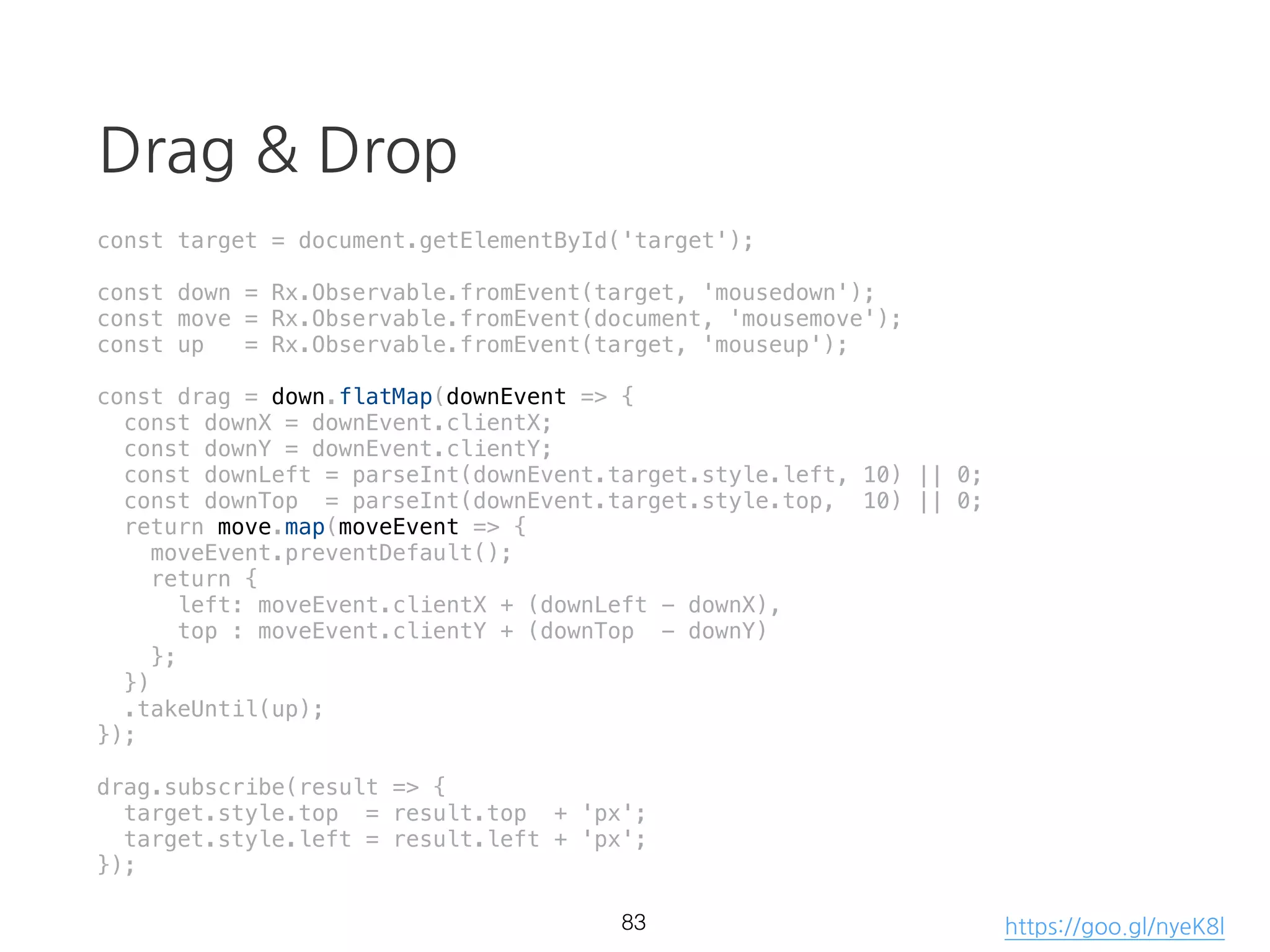

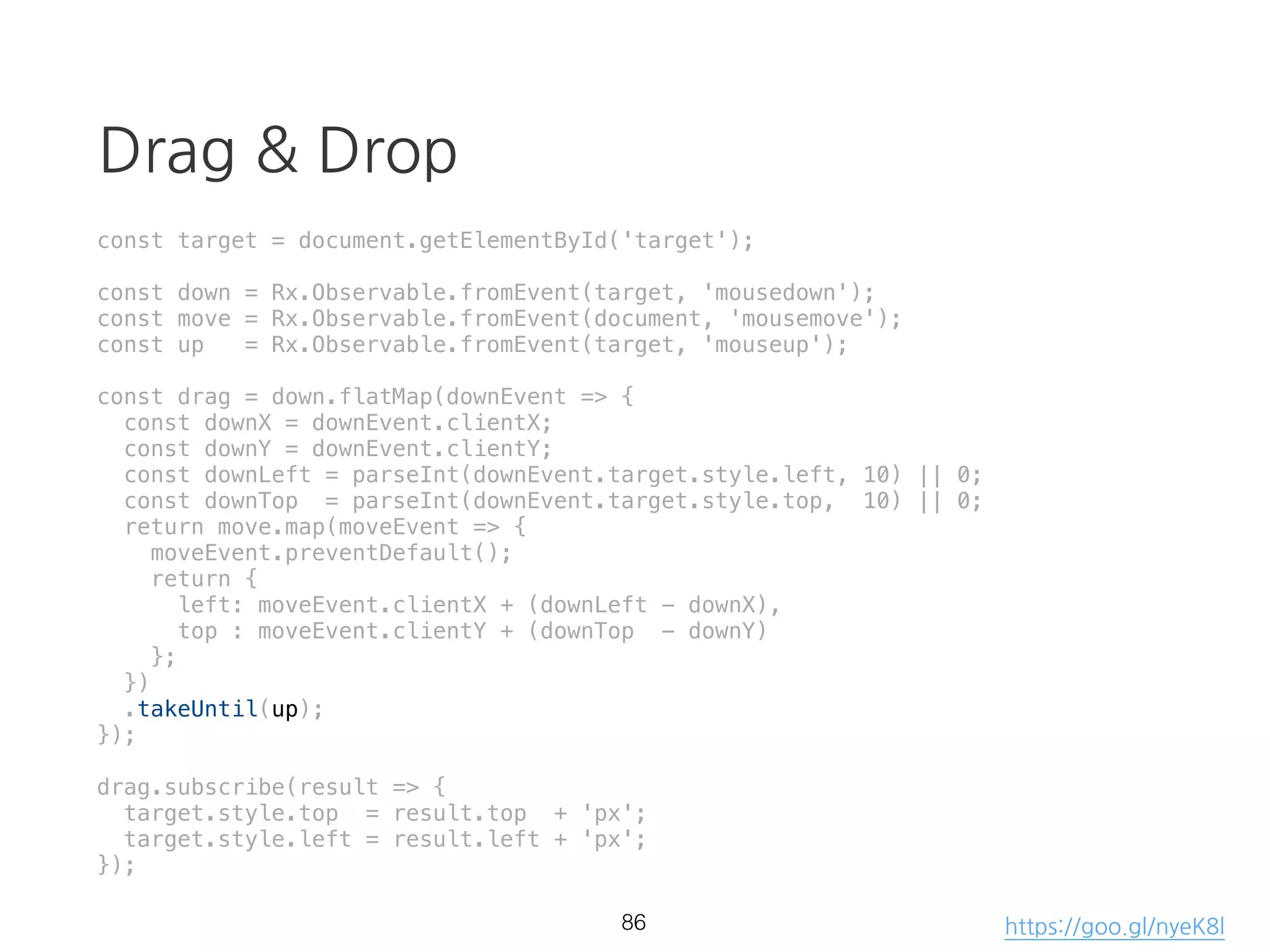

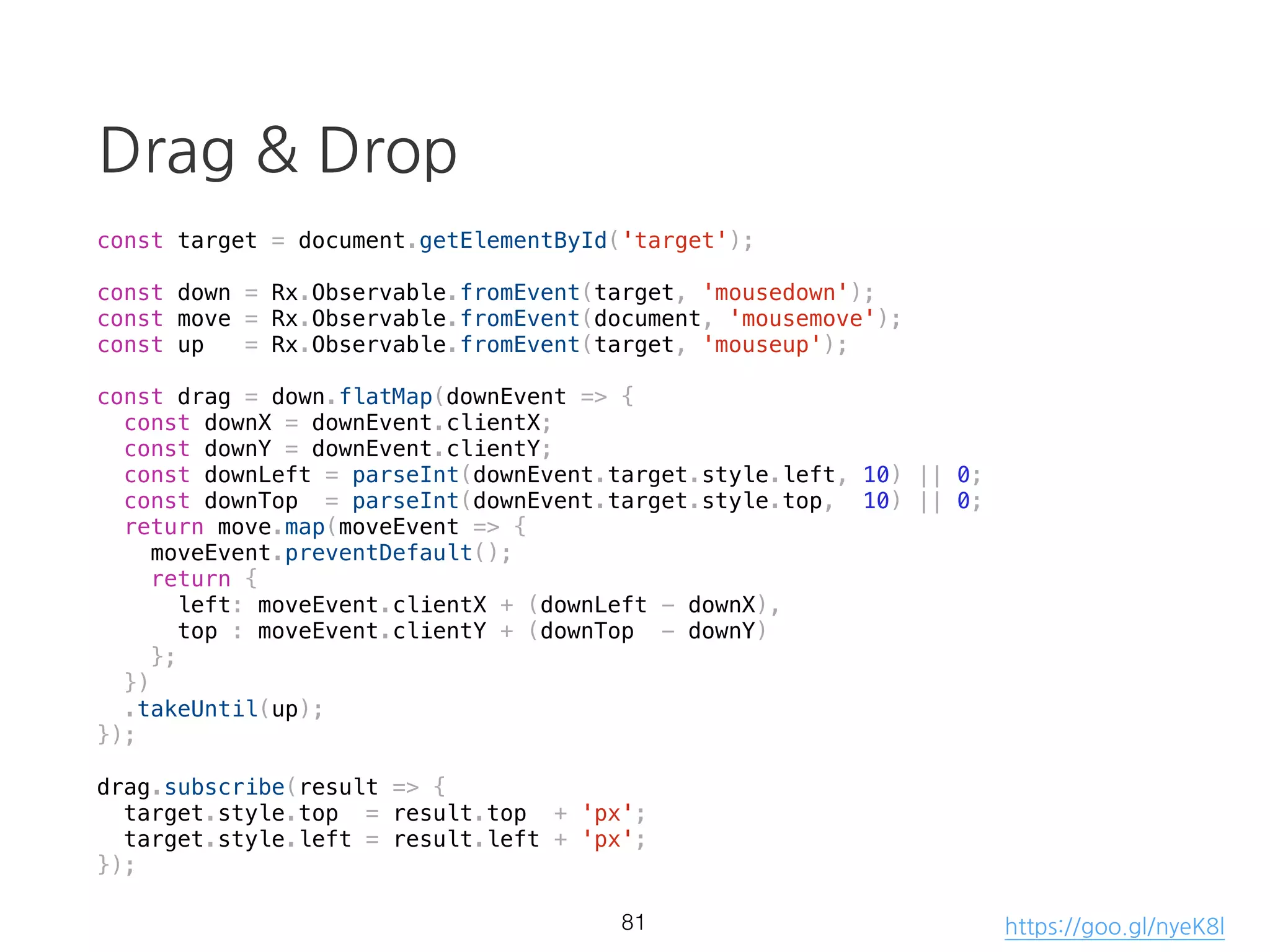

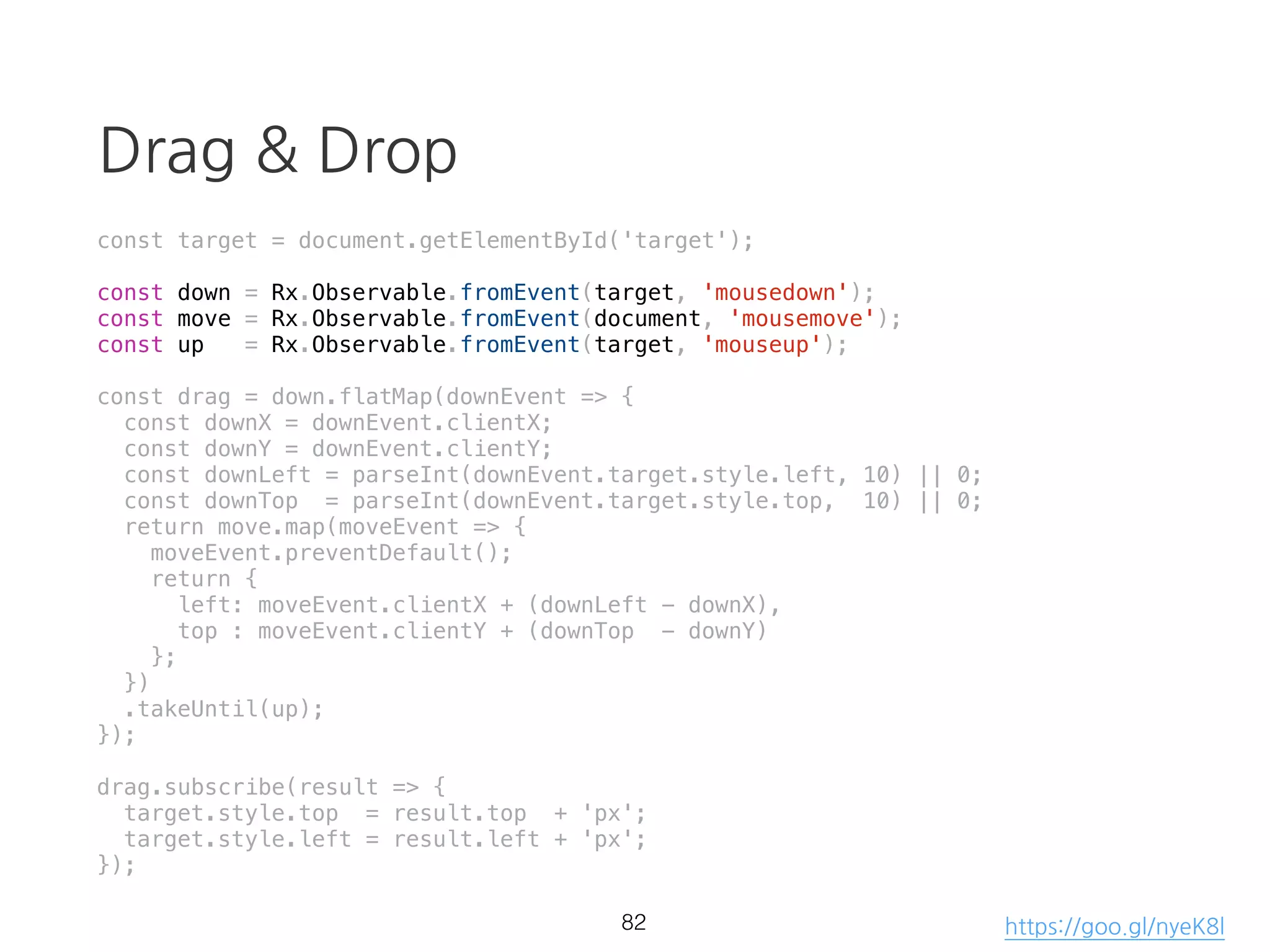

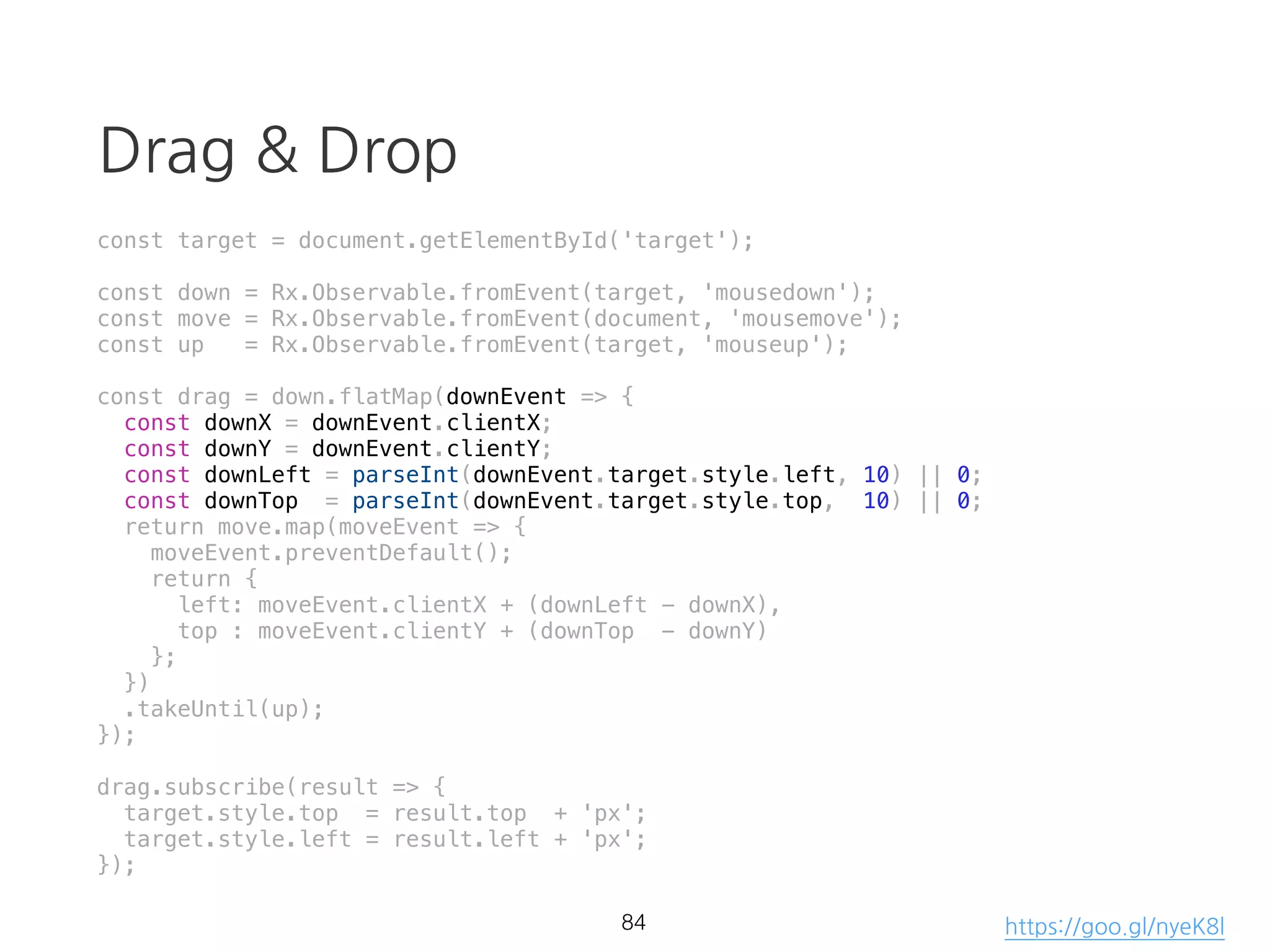

Drag & Drop
const target = document.getElementById('target');
const down = Rx.Observable.fromEvent(target, 'mousedown');
const move = Rx.Observable.fromEvent(document, 'mousemove');
const up = Rx.Observable.fromEvent(target, 'mouseup');
const drag = down.flatMap(downEvent => {
const downX = downEvent.clientX;
const downY = downEvent.clientY;
const downLeft = parseInt(downEvent.target.style.left, 10) || 0;
const downTop = parseInt(downEvent.target.style.top, 10) || 0;
return move.map(moveEvent => {
moveEvent.preventDefault();
return {
left: moveEvent.clientX + (downLeft - downX),
top : moveEvent.clientY + (downTop - downY)
};
})
.takeUntil(up);
});
drag.subscribe(result => {
target.style.top = result.top + 'px';
target.style.left = result.left + 'px';
});
79 https://goo.gl/nyeK8l

Drag & Drop
return {
};
})
.takeUntil(up);
});
});

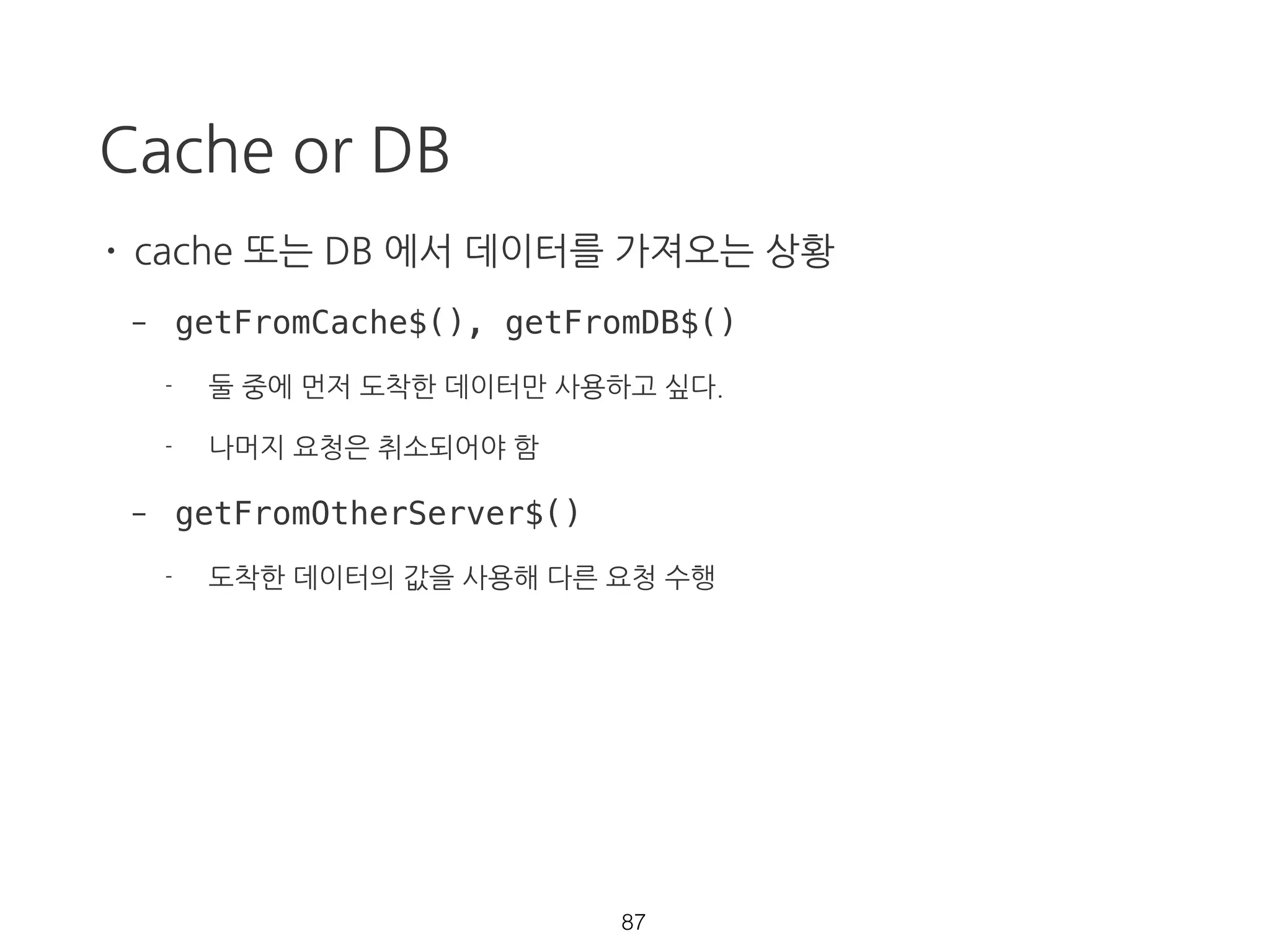

Cache or DB
85
• cache 또는 DB 에서 데이터를 가져오는 상황
- getFromCache$(), getFromDB$()
- 둘 중에 먼저 도착한 데이터만 사용하고 싶다.
- 나머지 요청은 취소되어야 함
- getFromOtherServer$()
- 도착한 데이터의 값을 사용해 다른 요청 수행

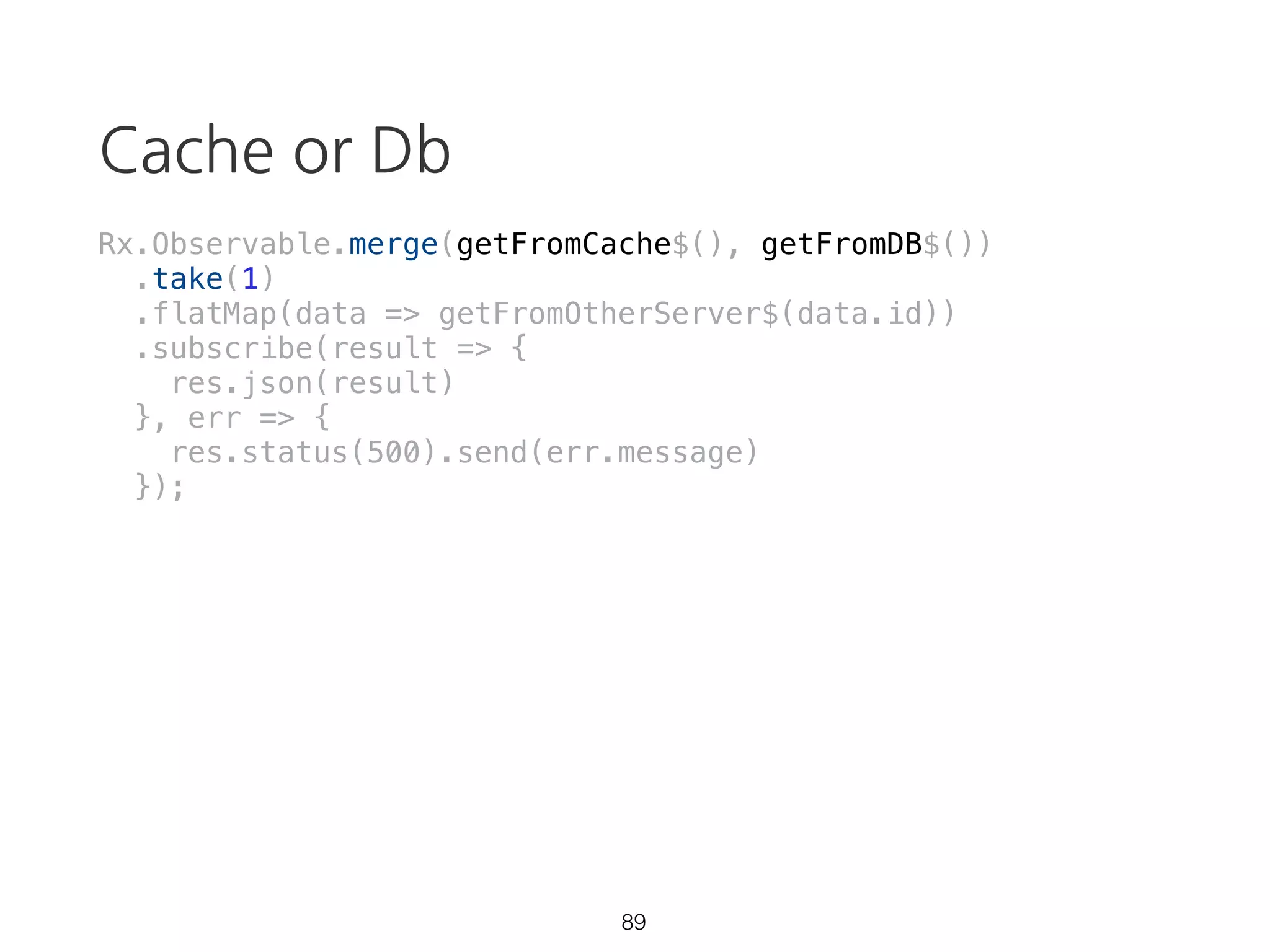

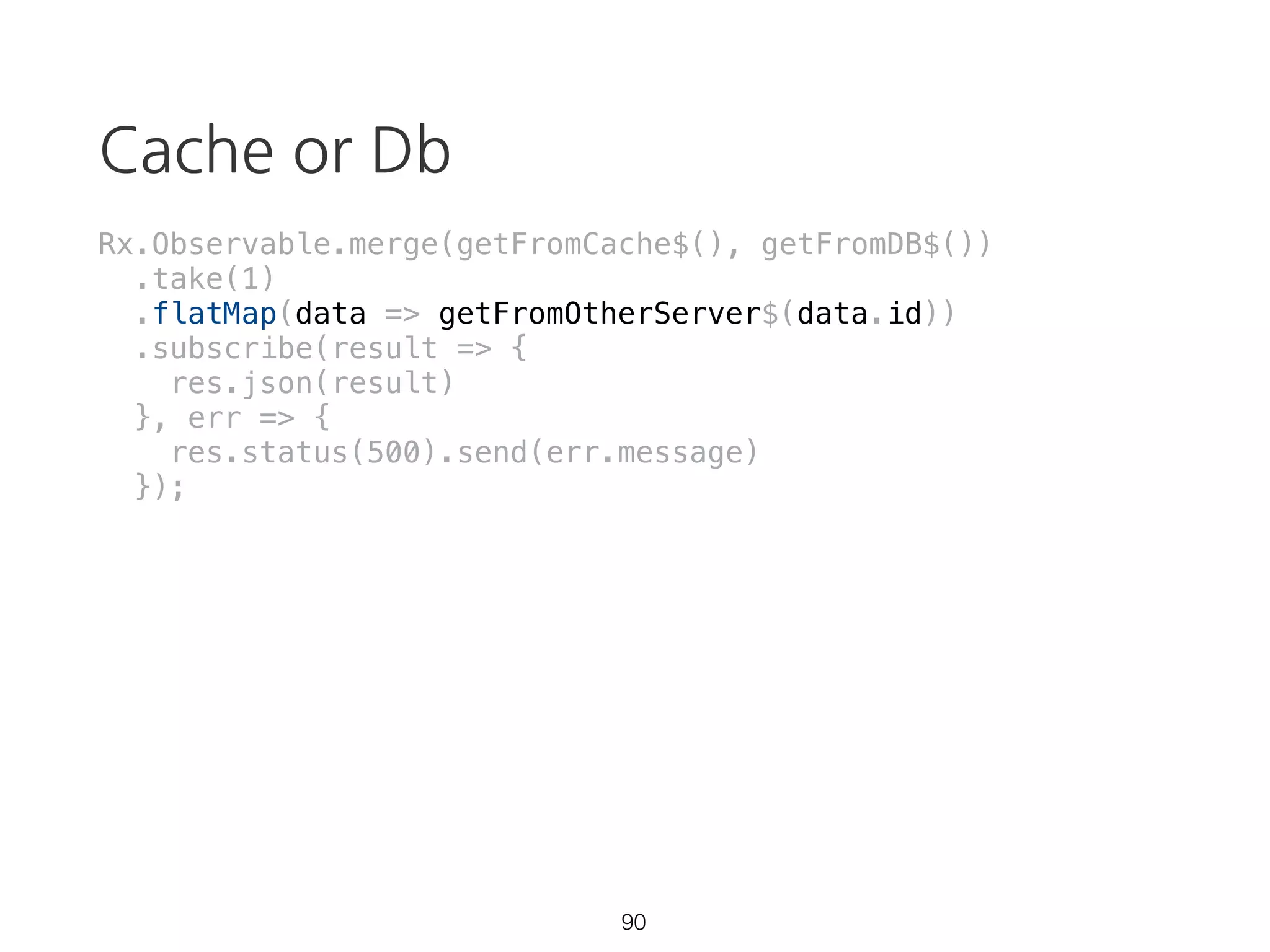

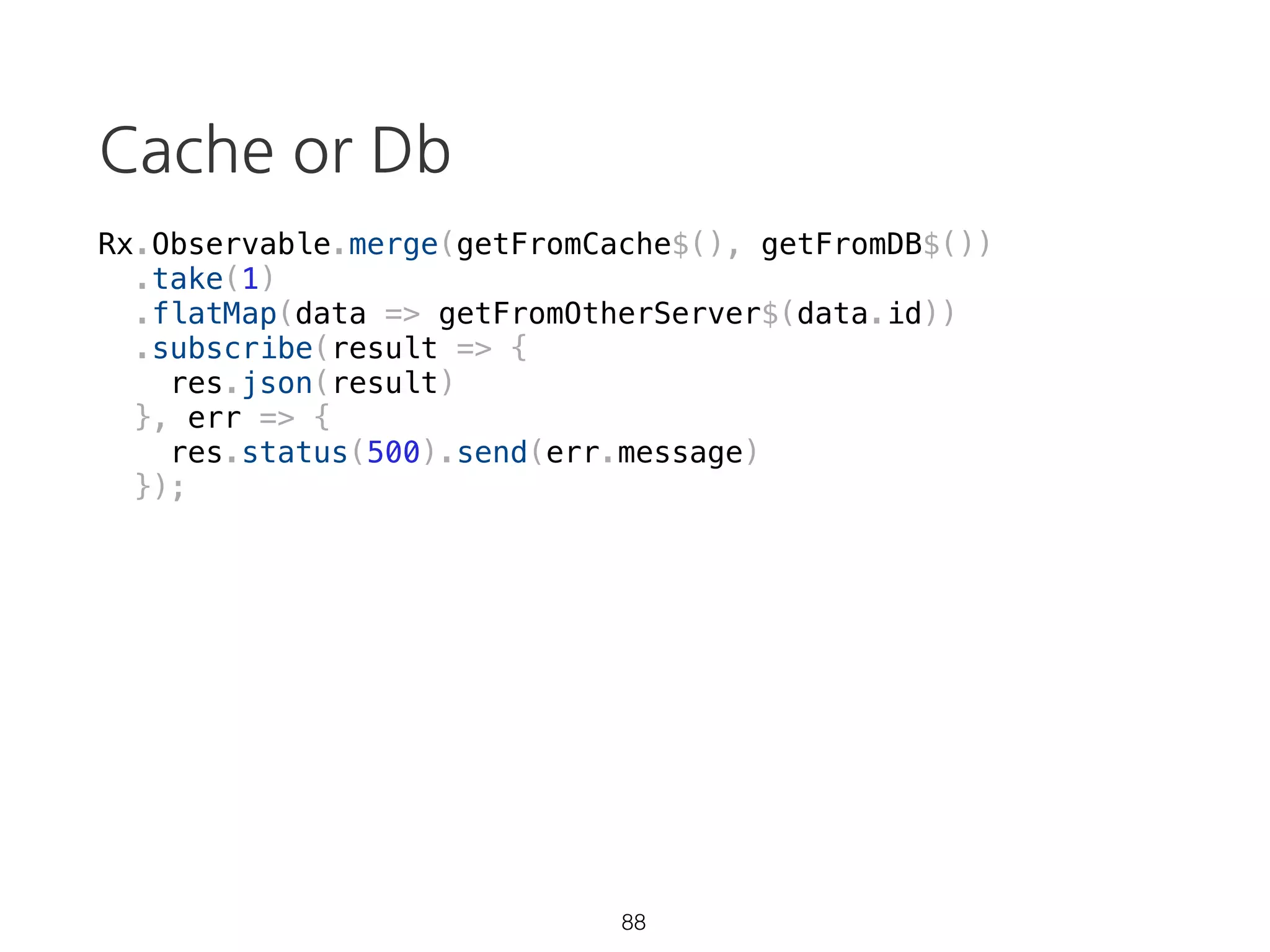

Cache or Db
Rx.Observable.merge(getFromCache$(), getFromDB$())
.take(1)
.flatMap(data => getFromOtherServer$(data.id))
res.json(result)
}, err => {
res.status(500).send(err.message)
});
86

Cache or Db
.take(1)
res.json(result)
}, err => {
});
87

Cache or Db
.take(1)
res.json(result)
}, err => {
});
88

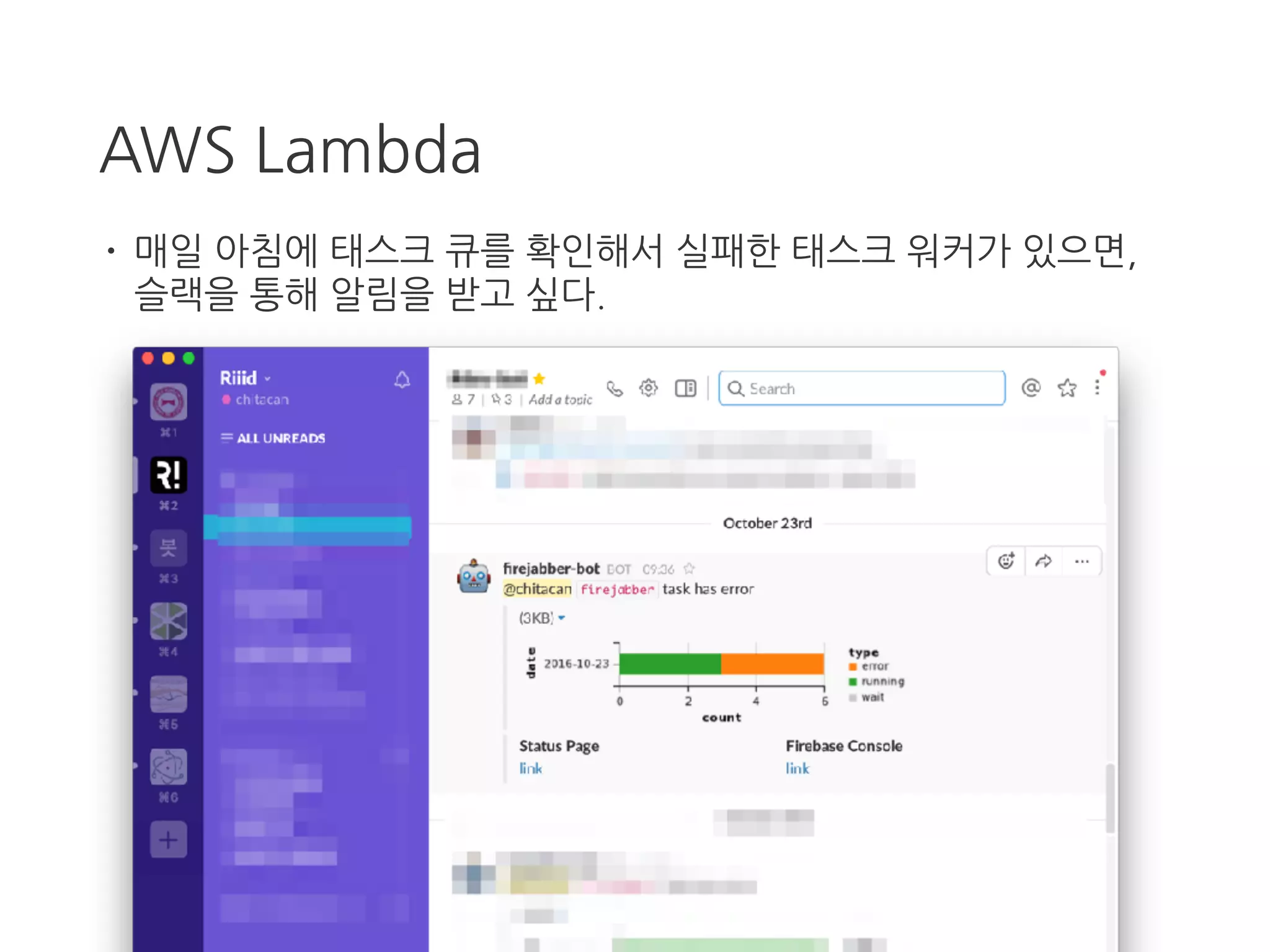

AWS Lambda
89
• 매일 아침에 태스크 큐를 확인해서 실패한 태스크 워커가 있으면,
슬랙을 통해 알림을 받고 싶다.

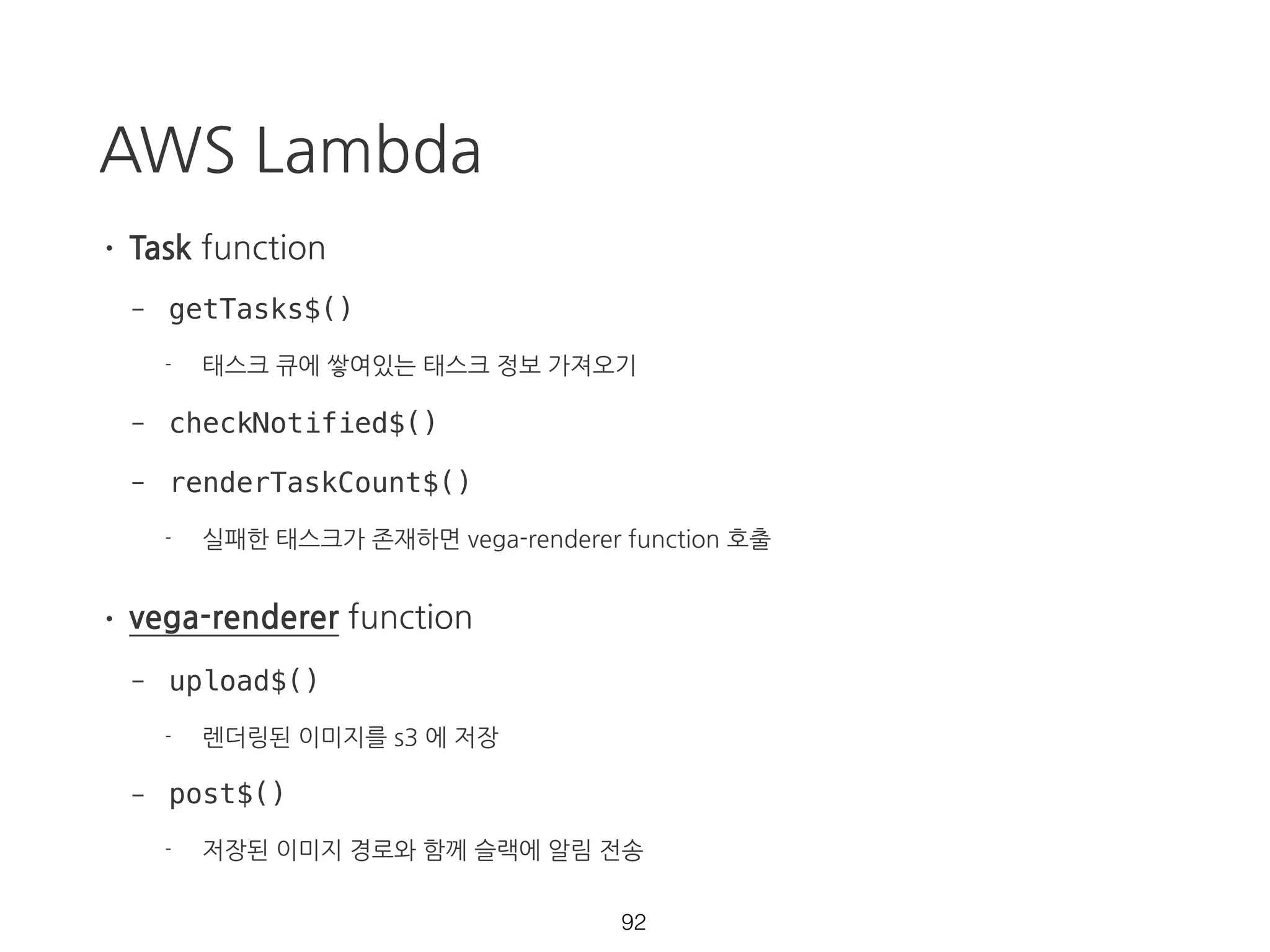

AWS Lambda
90
• Task function
- getTasks$()
- 태스크 큐에 쌓여있는 태스크 정보 가져오기
- checkNotified$()
- renderTaskCount$()
- 실패한 태스크가 존재하면 vega-renderer function 호출
• vega-renderer function
- upload$()
- 렌더링된 이미지를 s3 에 저장
- post$()
- 저장된 이미지 경로와 함께 슬랙에 알림 전송

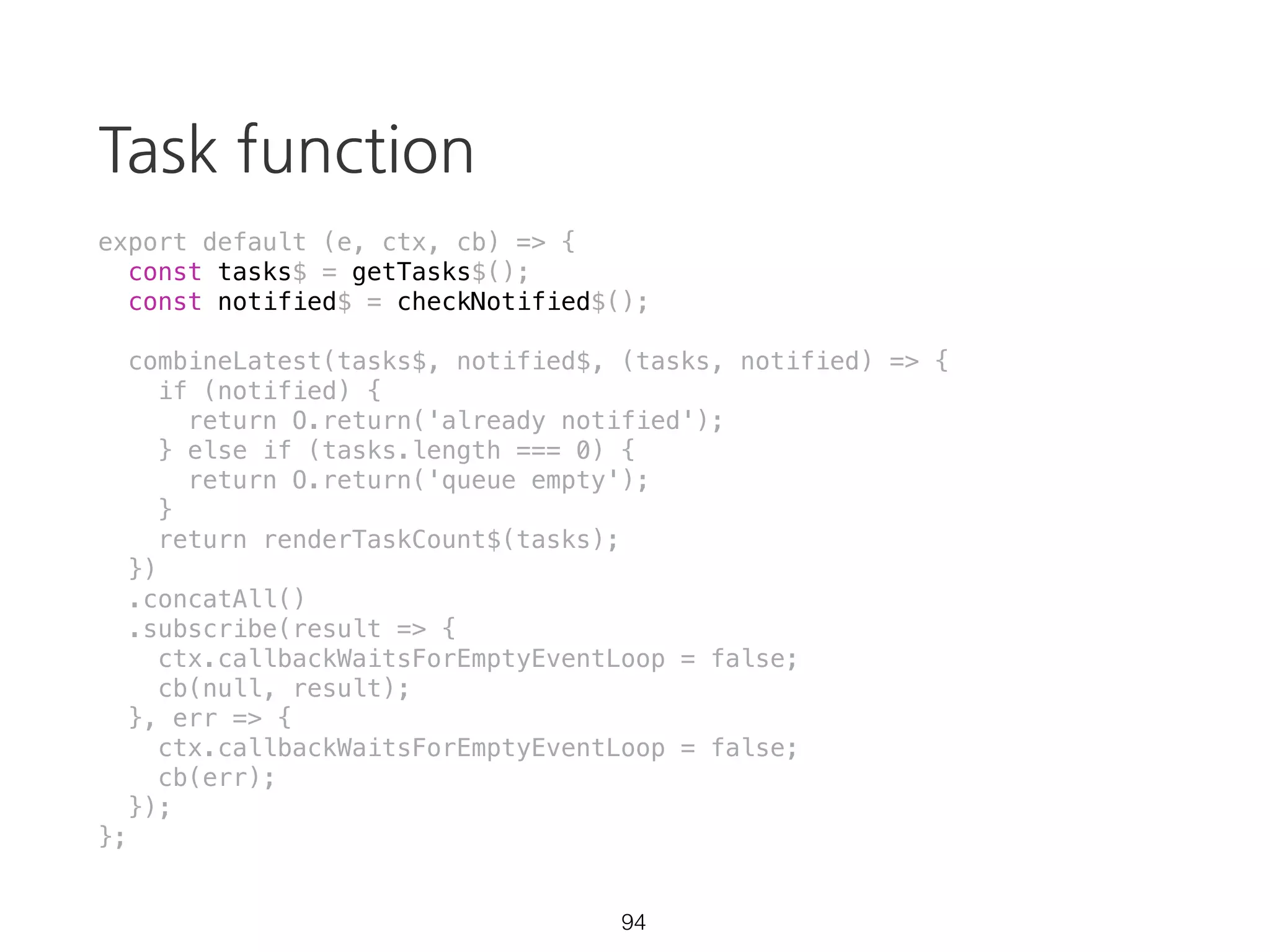

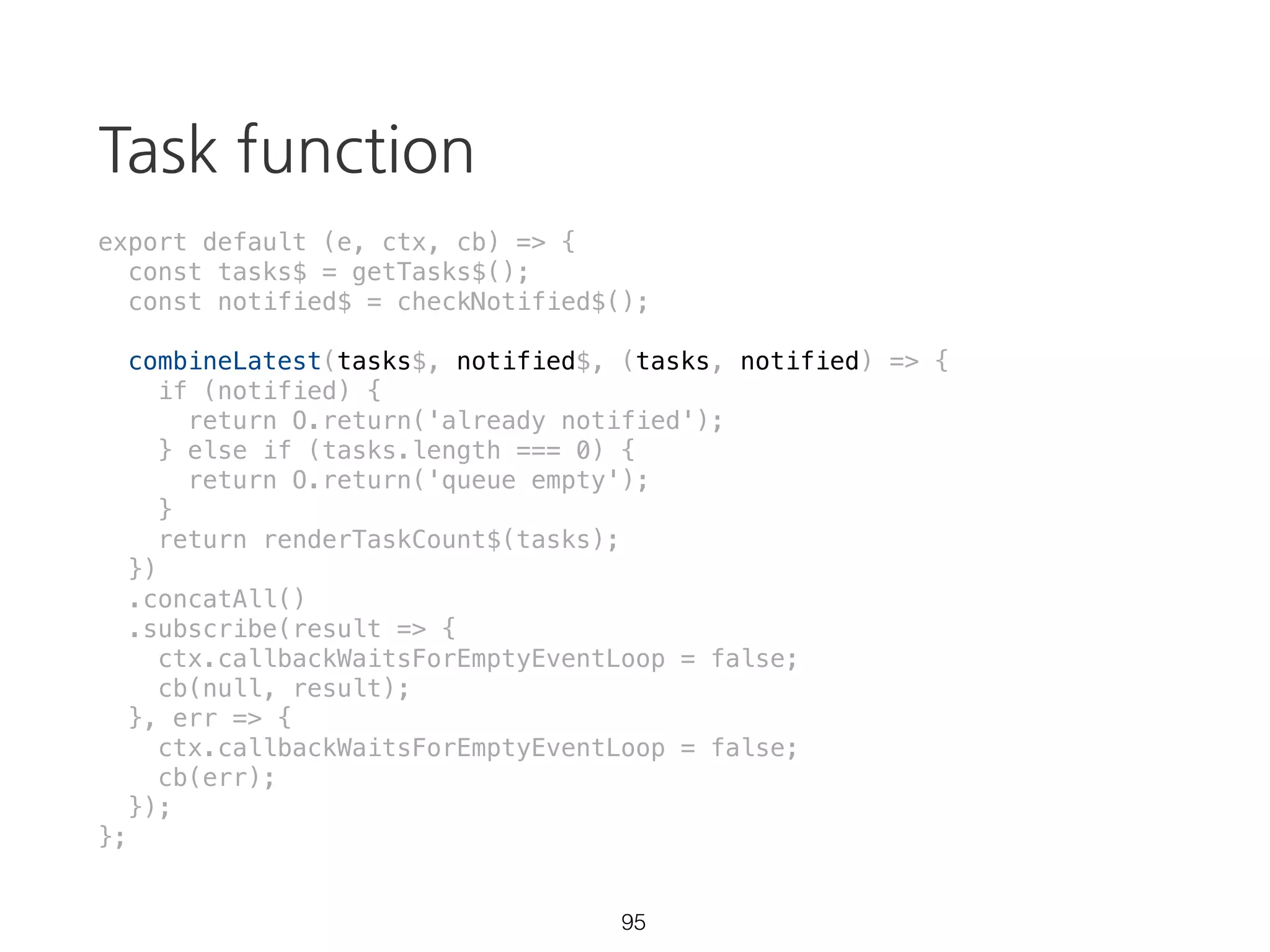

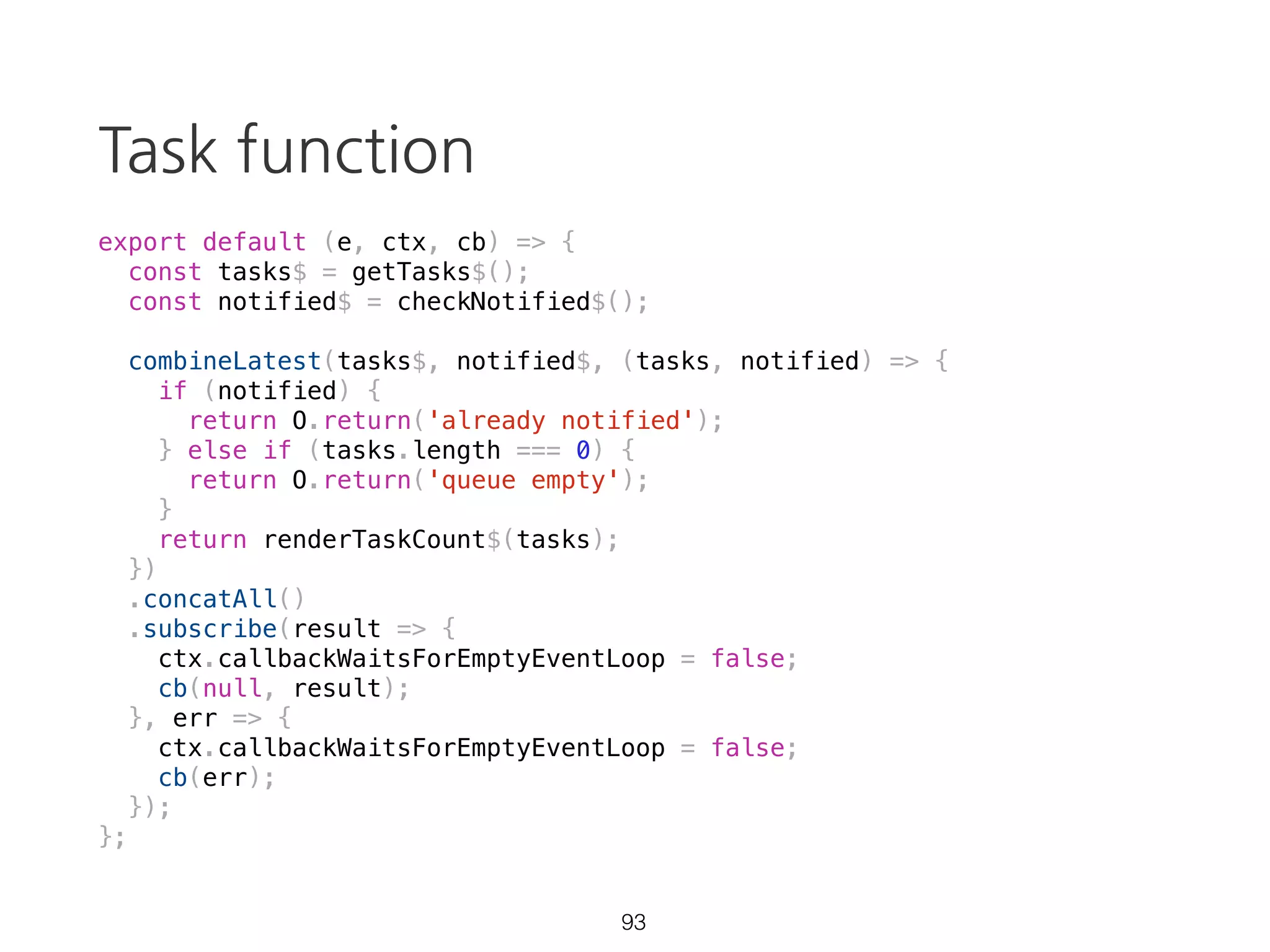

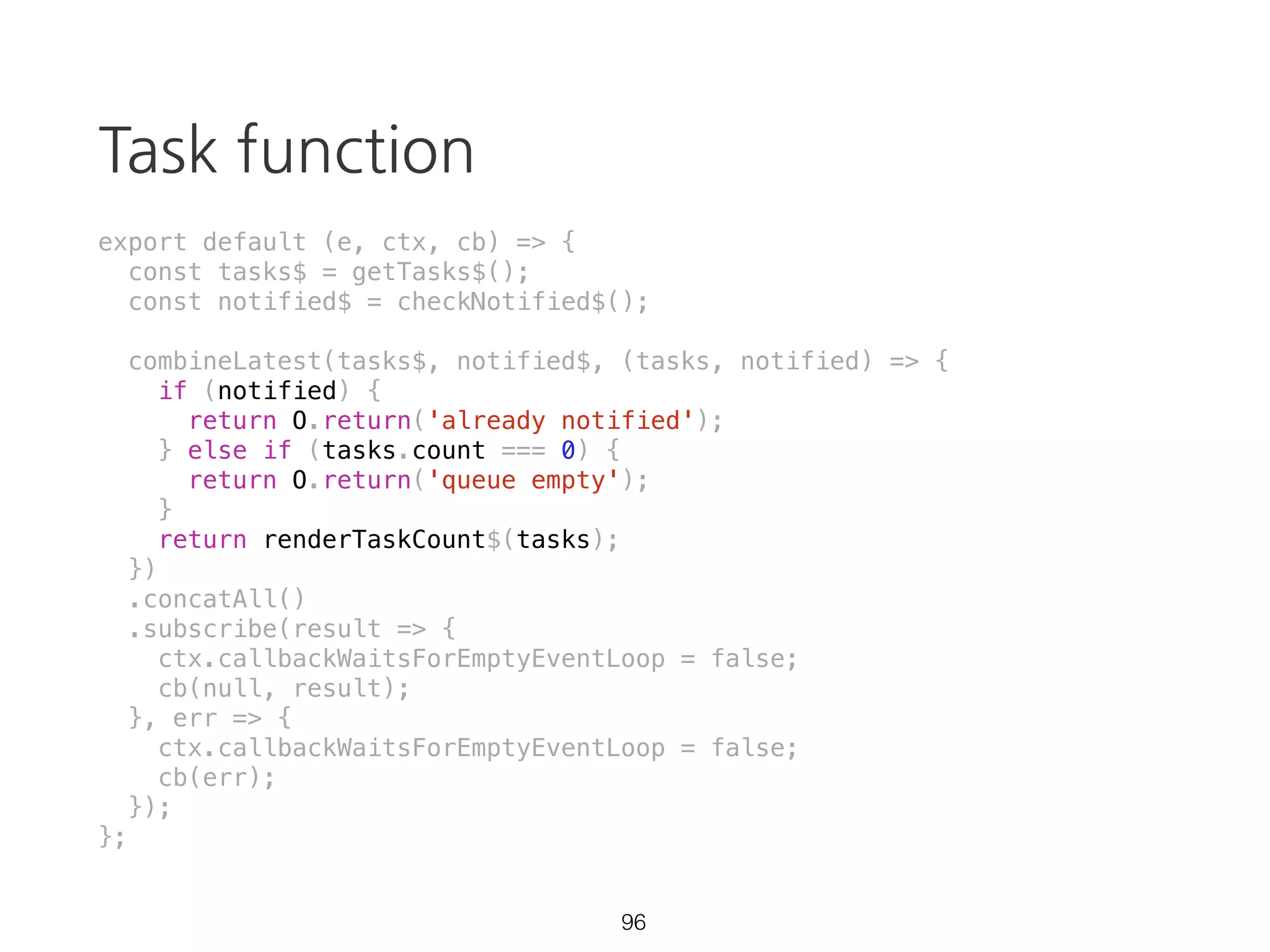

Task function
export default (e, ctx, cb) => {
const tasks$ = getTasks$();
const notified$ = checkNotified$();
combineLatest(tasks$, notified$, (tasks, notified) => {
if (notified) {
return O.return('already notified');
} else if (tasks.length === 0) {
return O.return('queue empty');
}
return renderTaskCount$(tasks);
})
.concatAll()
ctx.callbackWaitsForEmptyEventLoop = false;
cb(null, result);
}, err => {
cb(err);
});
};
91

Task function
if (notified) {
}
})
.concatAll()
cb(null, result);
}, err => {
cb(err);
});
};
92

Task function
if (notified) {
}
})
.concatAll()
cb(null, result);
}, err => {
cb(err);
});
};
93

Task function
if (notified) {
} else if (tasks.count === 0) {
}
})
.concatAll()
cb(null, result);
}, err => {
cb(err);
});
};
94

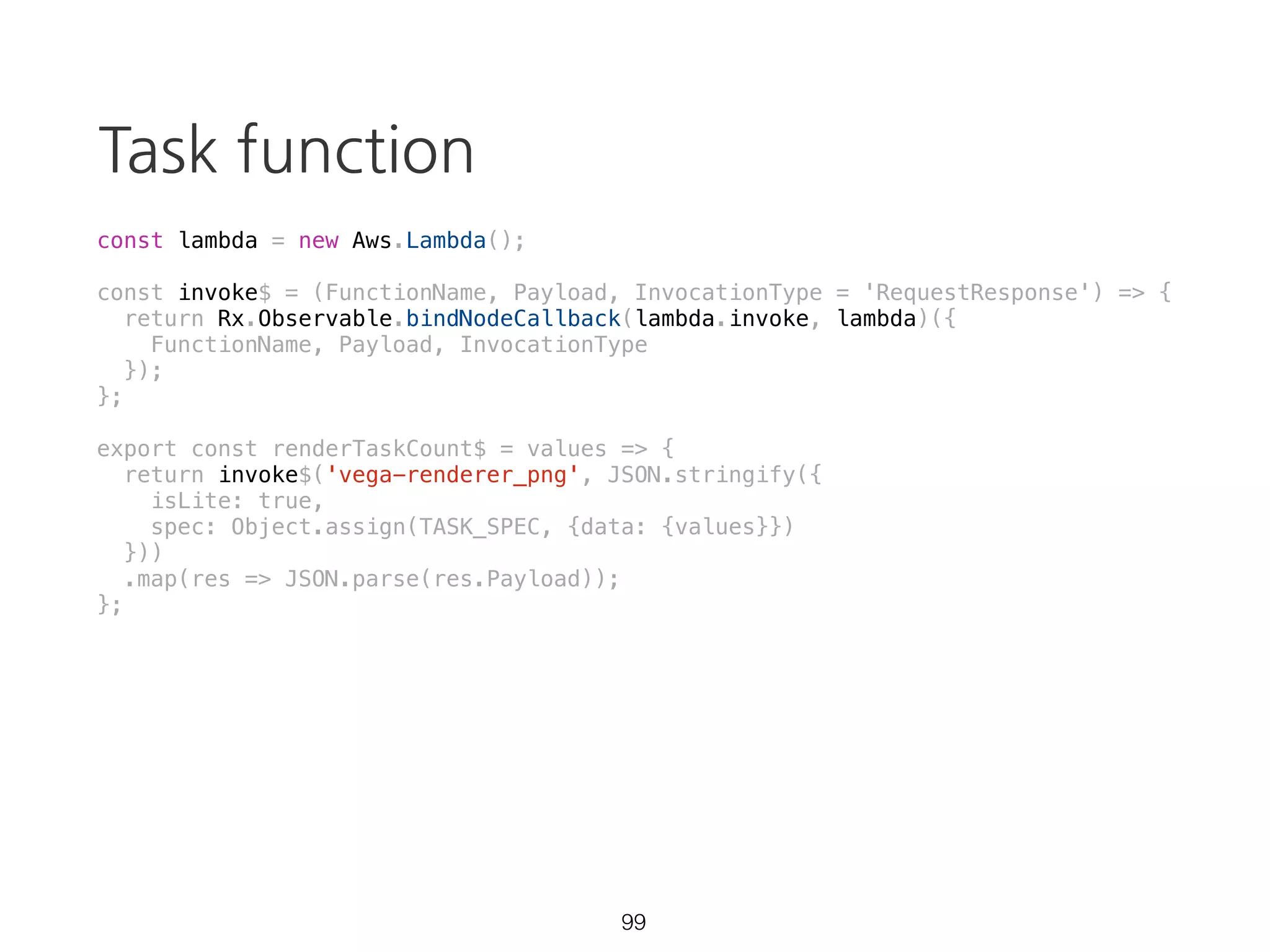

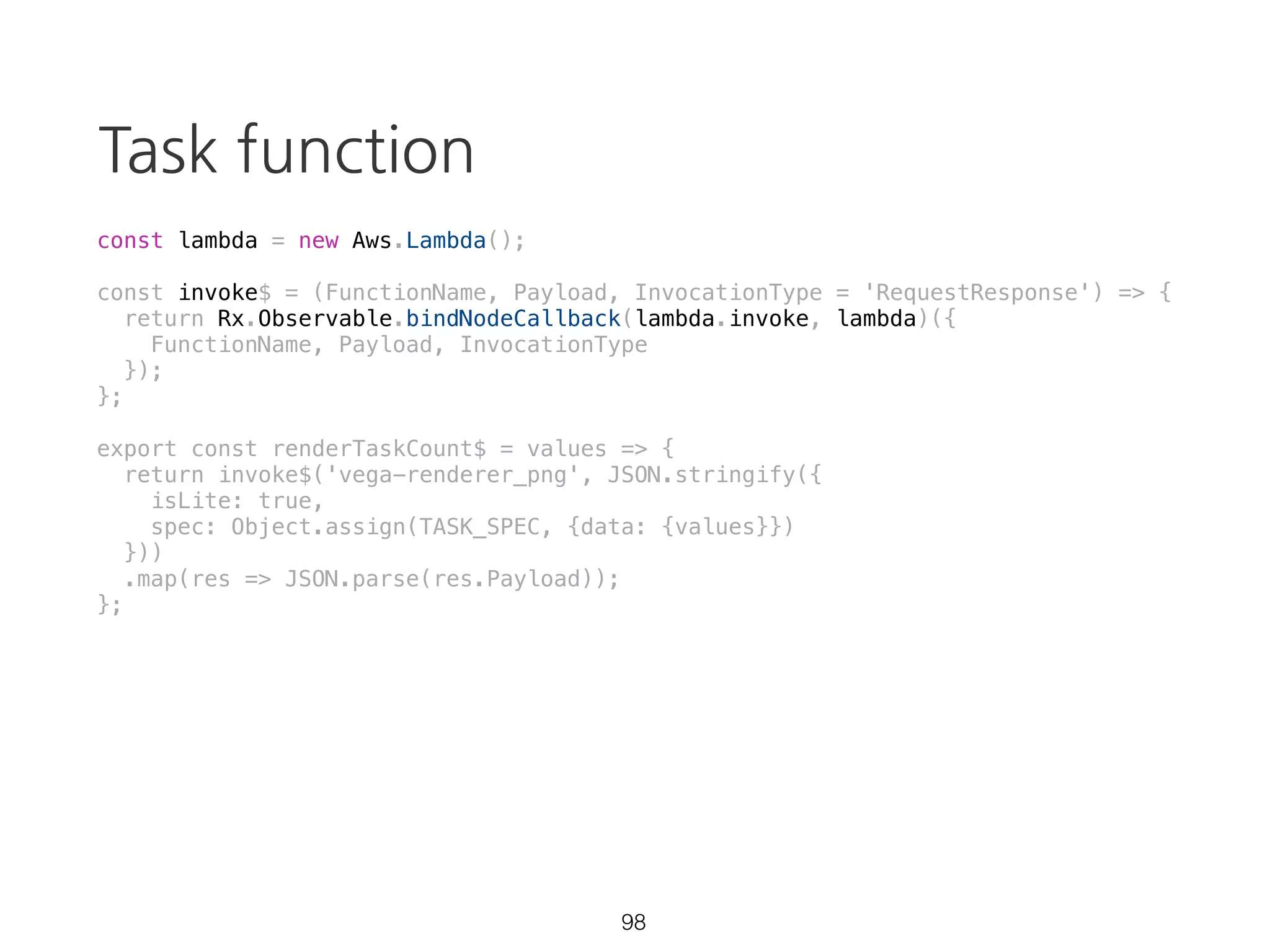

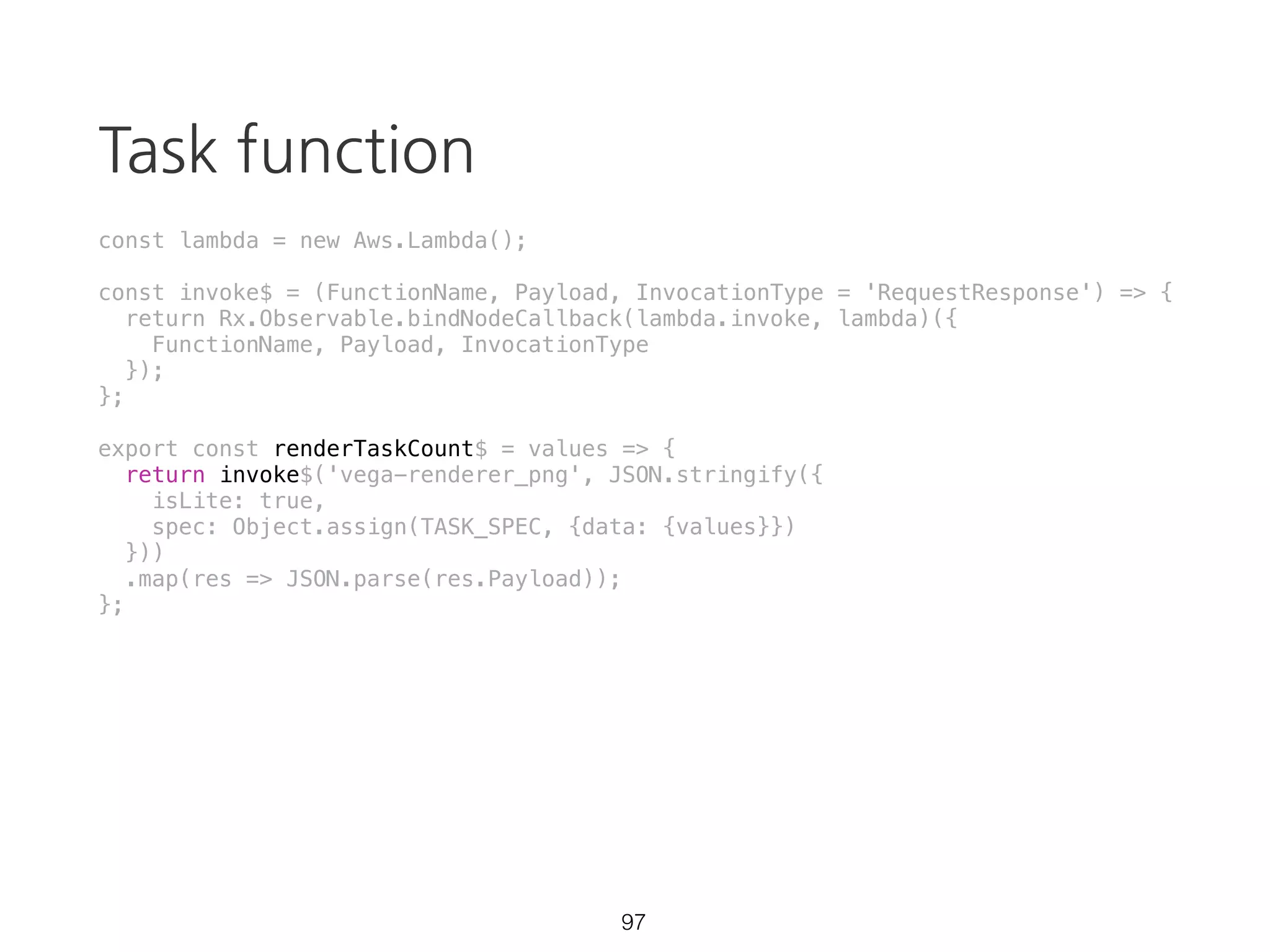

Task function
95
const lambda = new Aws.Lambda();
const invoke$ = (FunctionName, Payload, InvocationType = 'RequestResponse') => {
return Rx.Observable.bindNodeCallback(lambda.invoke, lambda)({
FunctionName, Payload, InvocationType
});
};
export const renderTaskCount$ = values => {
return invoke$('vega-renderer_png', JSON.stringify({
isLite: true,
spec: Object.assign(TASK_SPEC, {data: {values}})
}))
.map(res => JSON.parse(res.Payload));
};

Task function
96
});
};
isLite: true,
}))
};

Task function
97
});
};
isLite: true,
}))
};

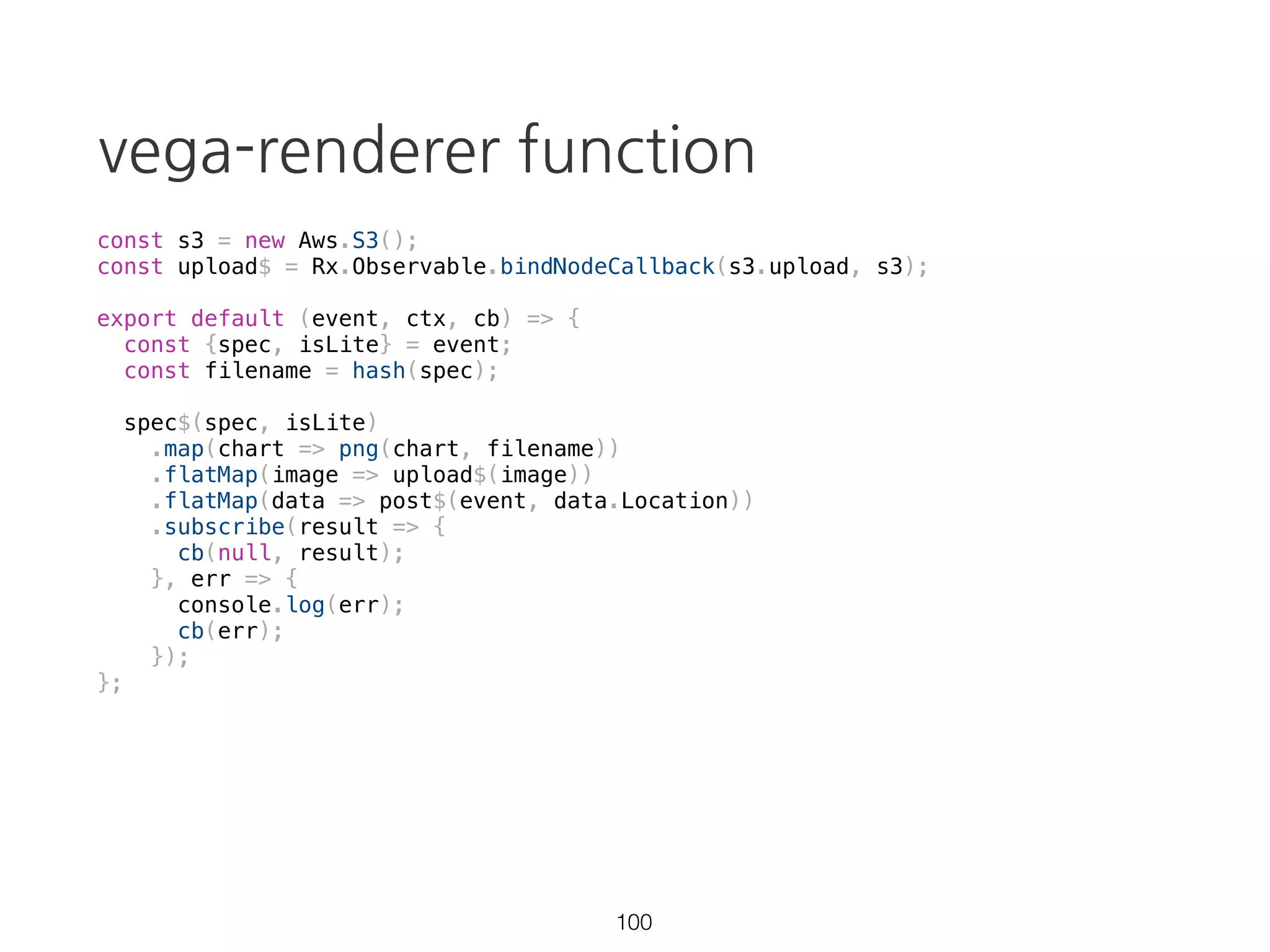

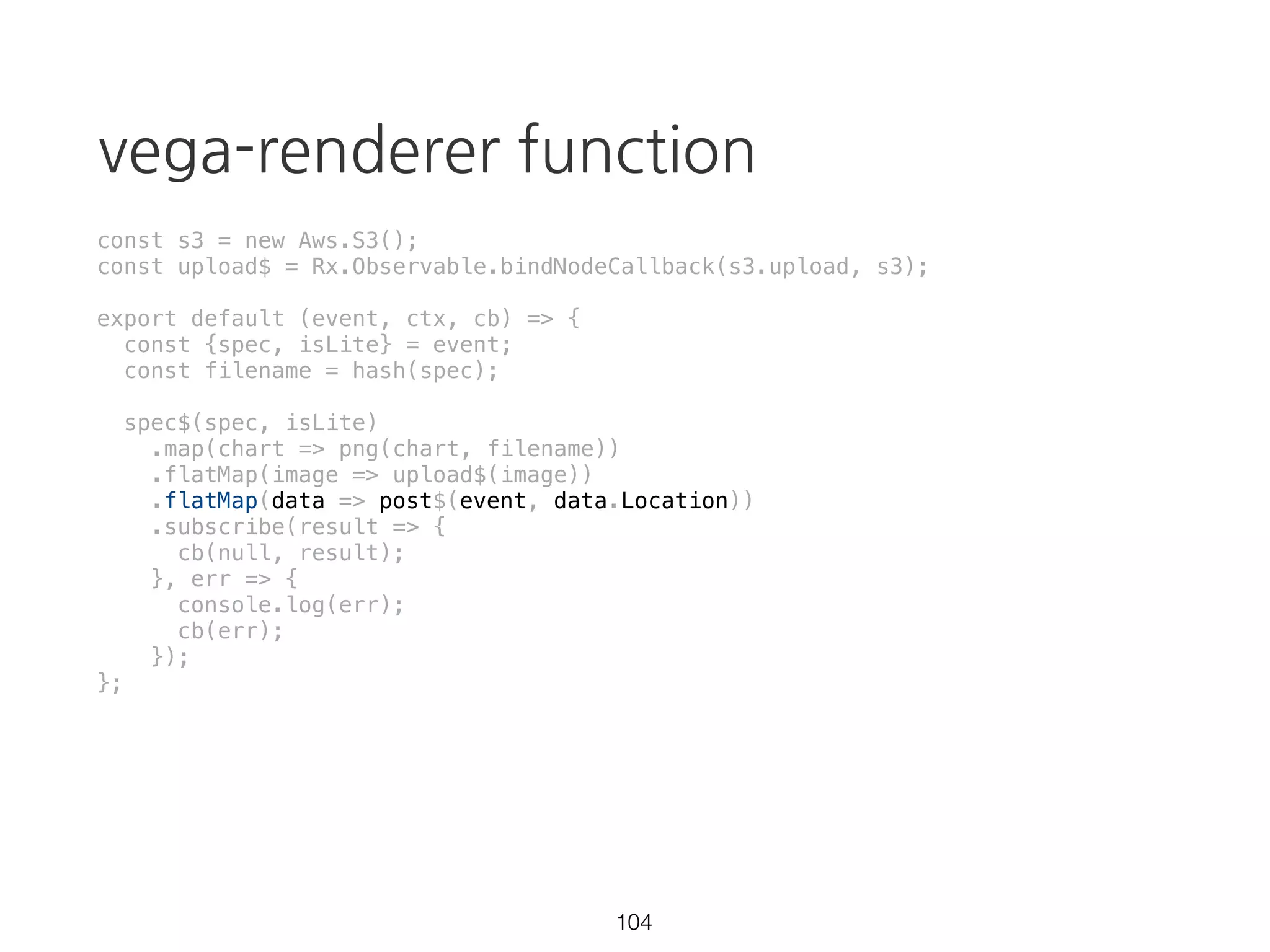

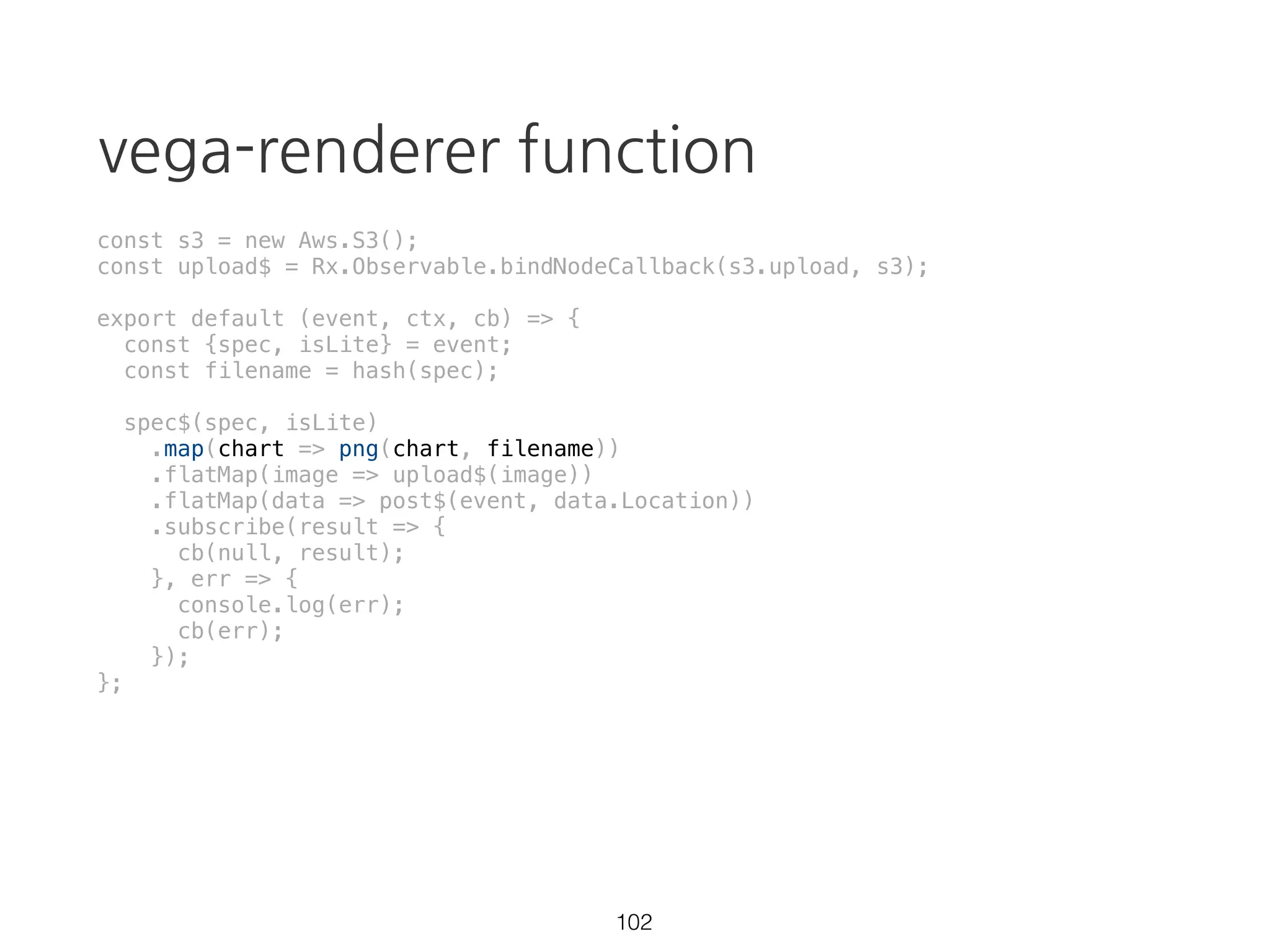

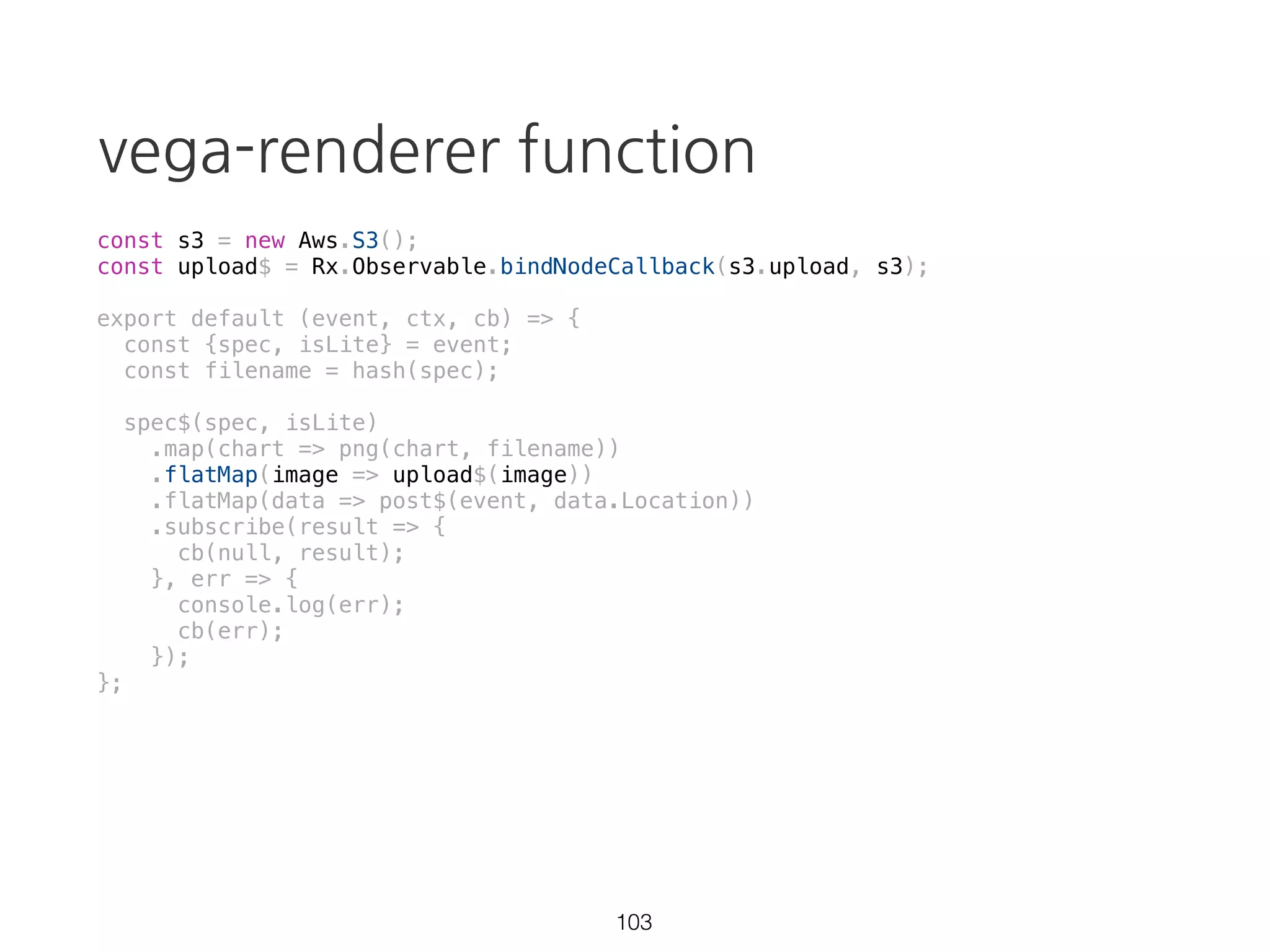

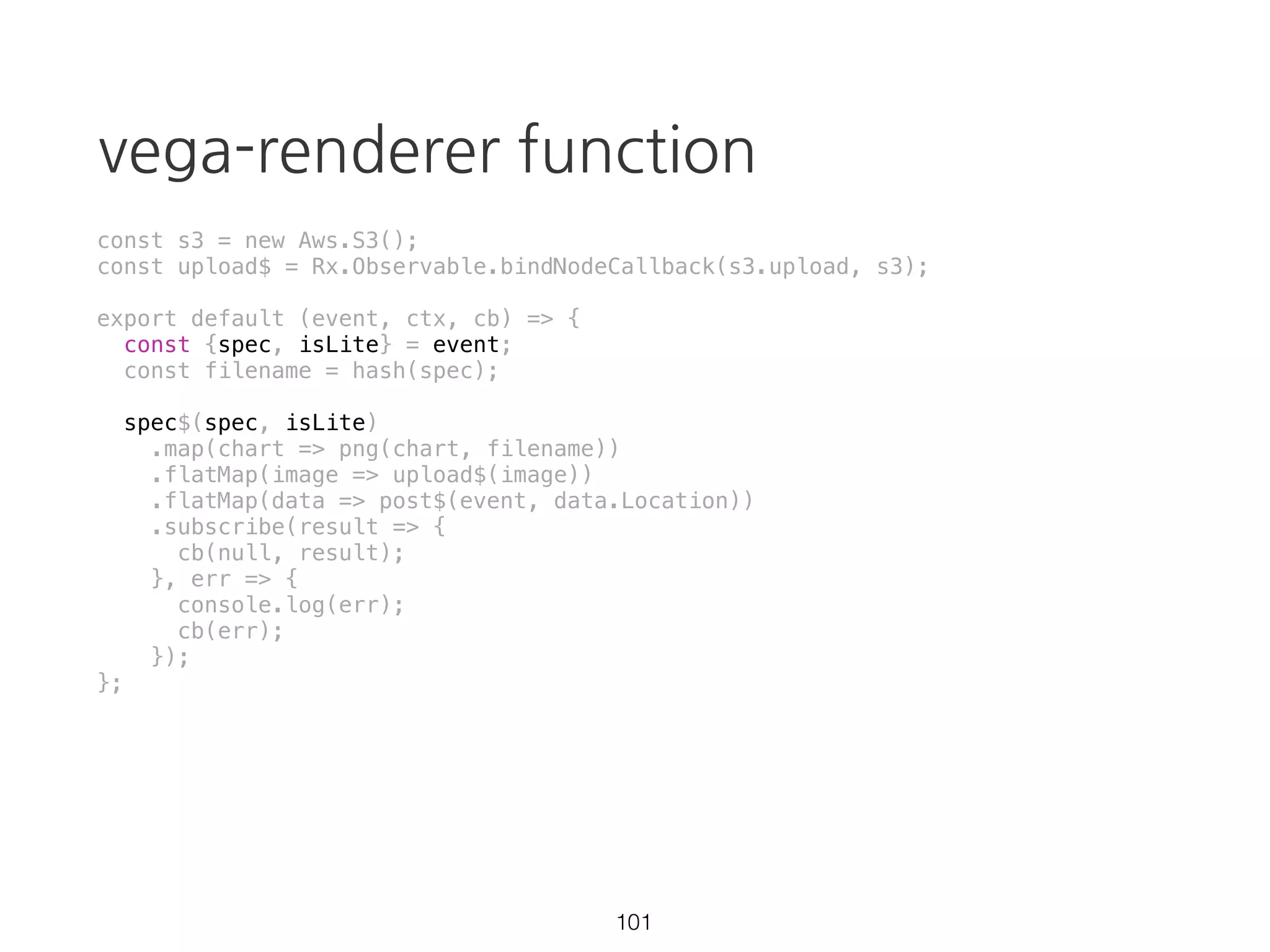

vega-renderer function
98
const s3 = new Aws.S3();
const upload$ = Rx.Observable.bindNodeCallback(s3.upload, s3);
export default (event, ctx, cb) => {
const {spec, isLite} = event;
const filename = hash(spec);
spec$(spec, isLite)
.map(chart => png(chart, filename))
.flatMap(image => upload$(image))
.flatMap(data => post$(event, data.Location))
cb(null, result);
}, err => {
console.log(err);
cb(err);
});
};

99
spec$(spec, isLite)
cb(null, result);
}, err => {
console.log(err);
cb(err);
});
};

100
spec$(spec, isLite)
cb(null, result);
}, err => {
console.log(err);
cb(err);
});
};

101
spec$(spec, isLite)
cb(null, result);
}, err => {
console.log(err);
cb(err);
});
};

102
spec$(spec, isLite)
cb(null, result);
}, err => {
console.log(err);
cb(err);
});
};

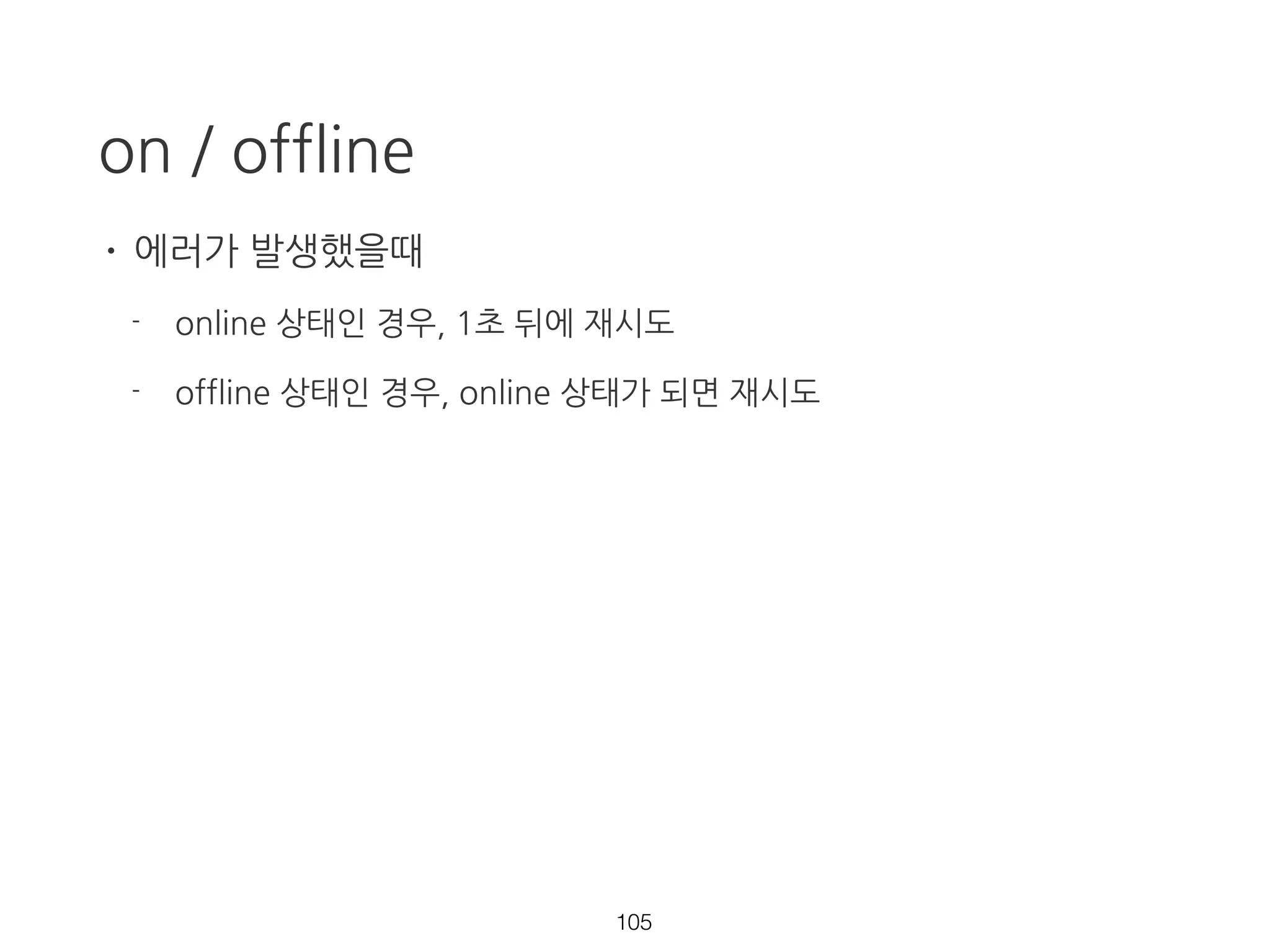

on / offline
104
• 에러가 발생했을때
- online 상태인 경우, 1초 뒤에 재시도
- offline 상태인 경우, online 상태가 되면 재시도

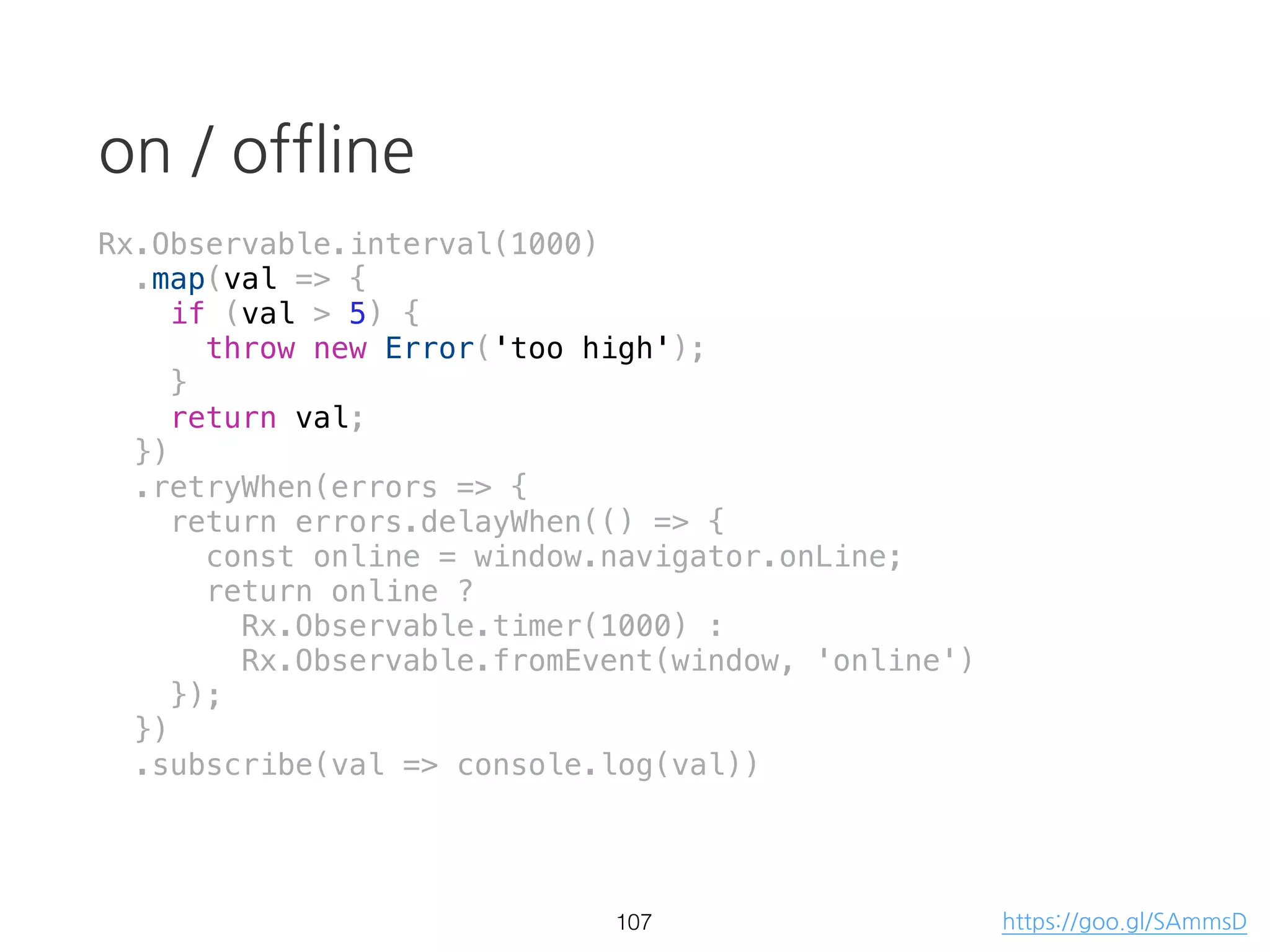

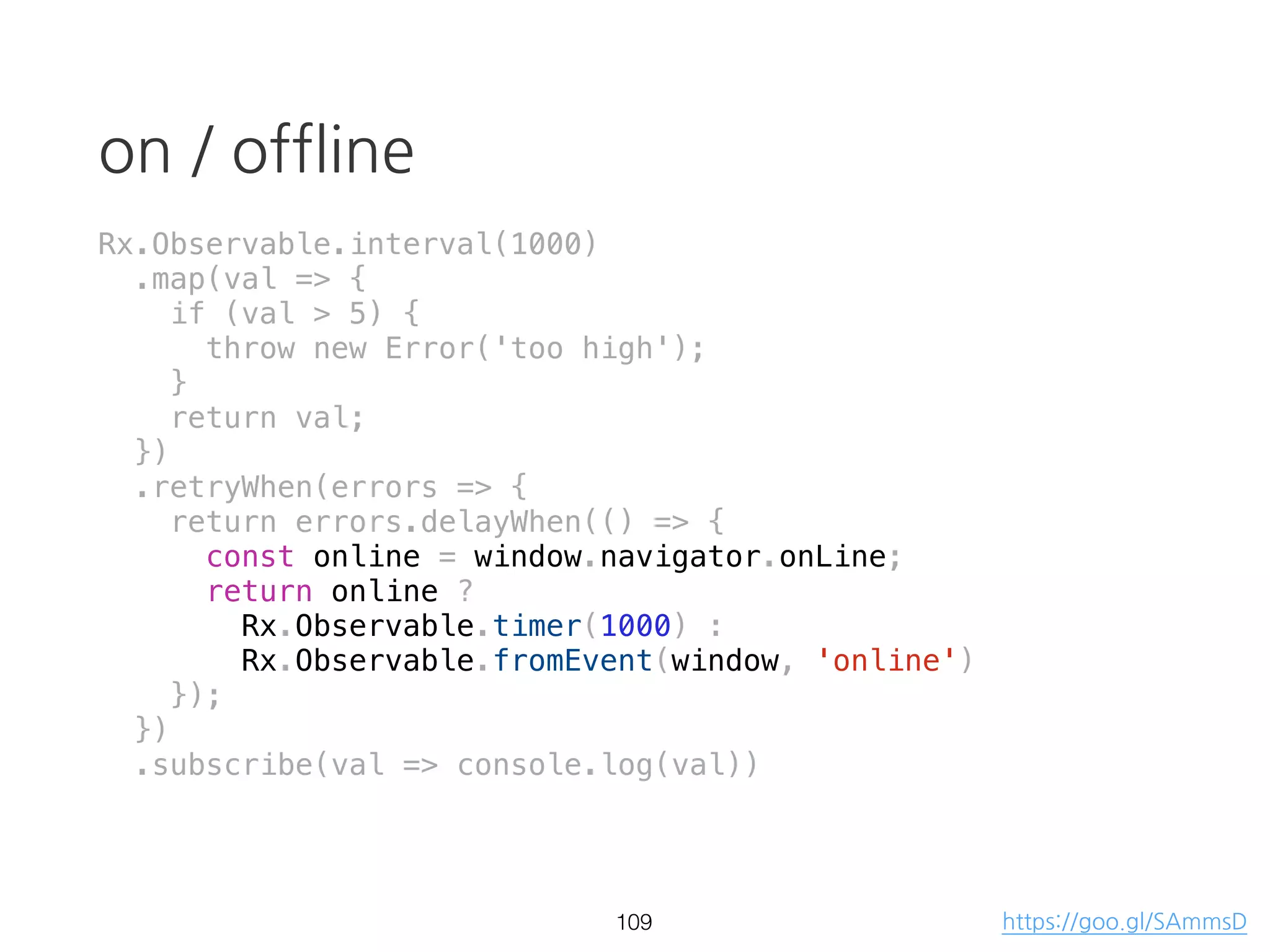

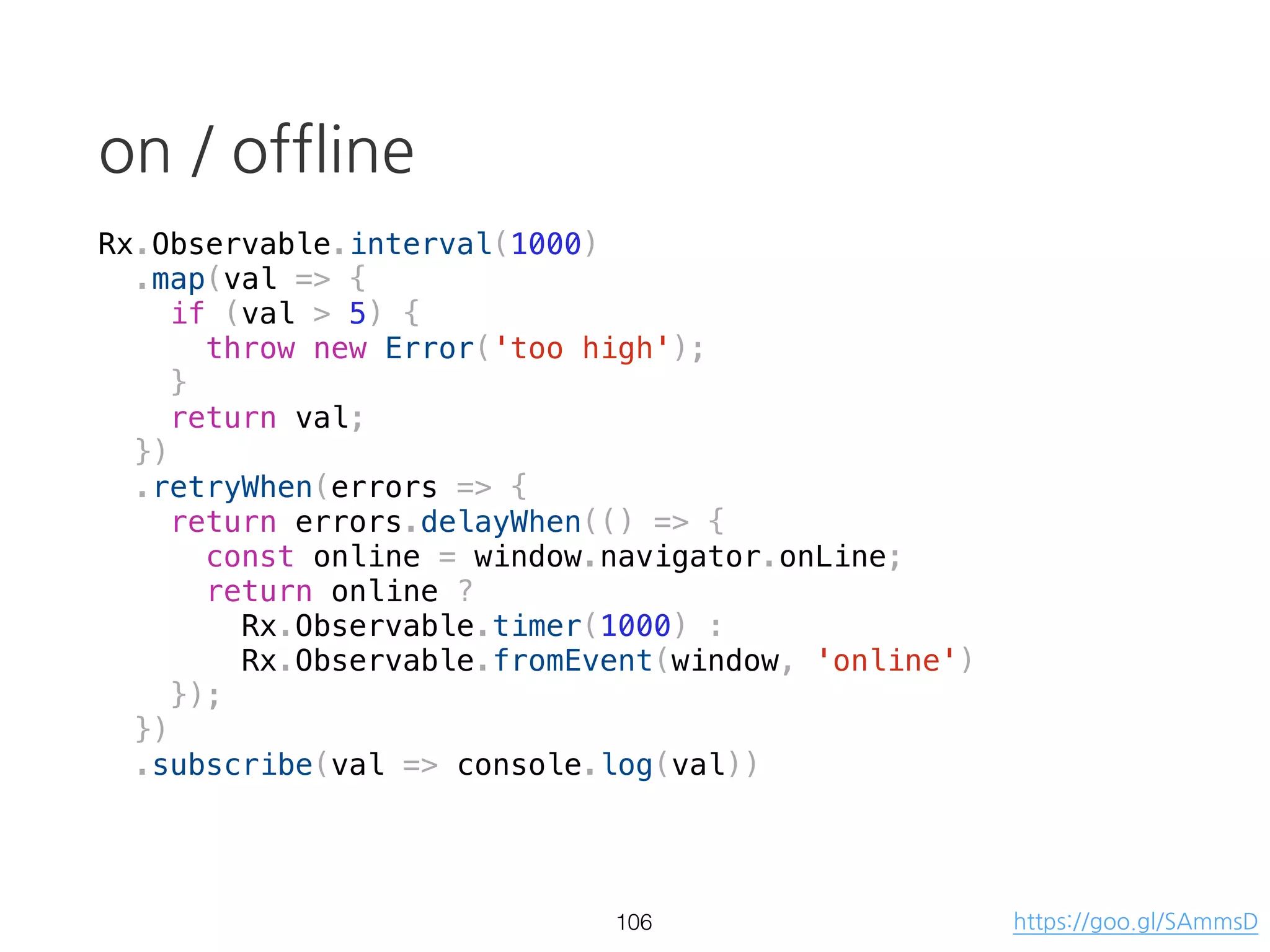

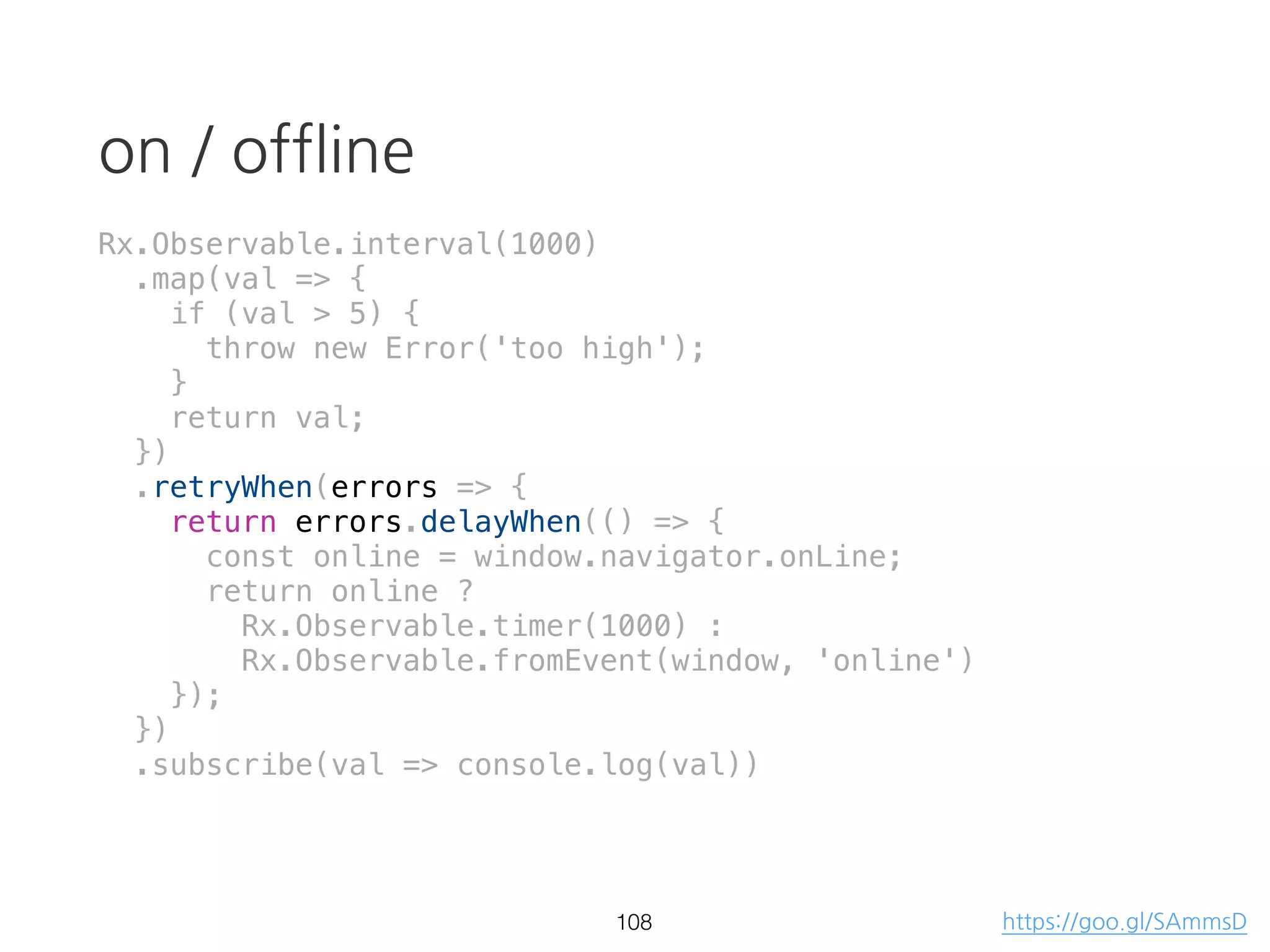

on / offline
.map(val => {
if (val > 5) {
throw new Error('too high');
}
return val;
})
.retryWhen(errors => {
return errors.delayWhen(() => {
const online = window.navigator.onLine;
return online ?
Rx.Observable.timer(1000) :
Rx.Observable.fromEvent(window, 'online')
});
})
.subscribe(val => console.log(val))
105 https://goo.gl/SAmmsD

on / offline
.map(val => {
if (val > 5) {
}
return val;
})
return online ?
});
})

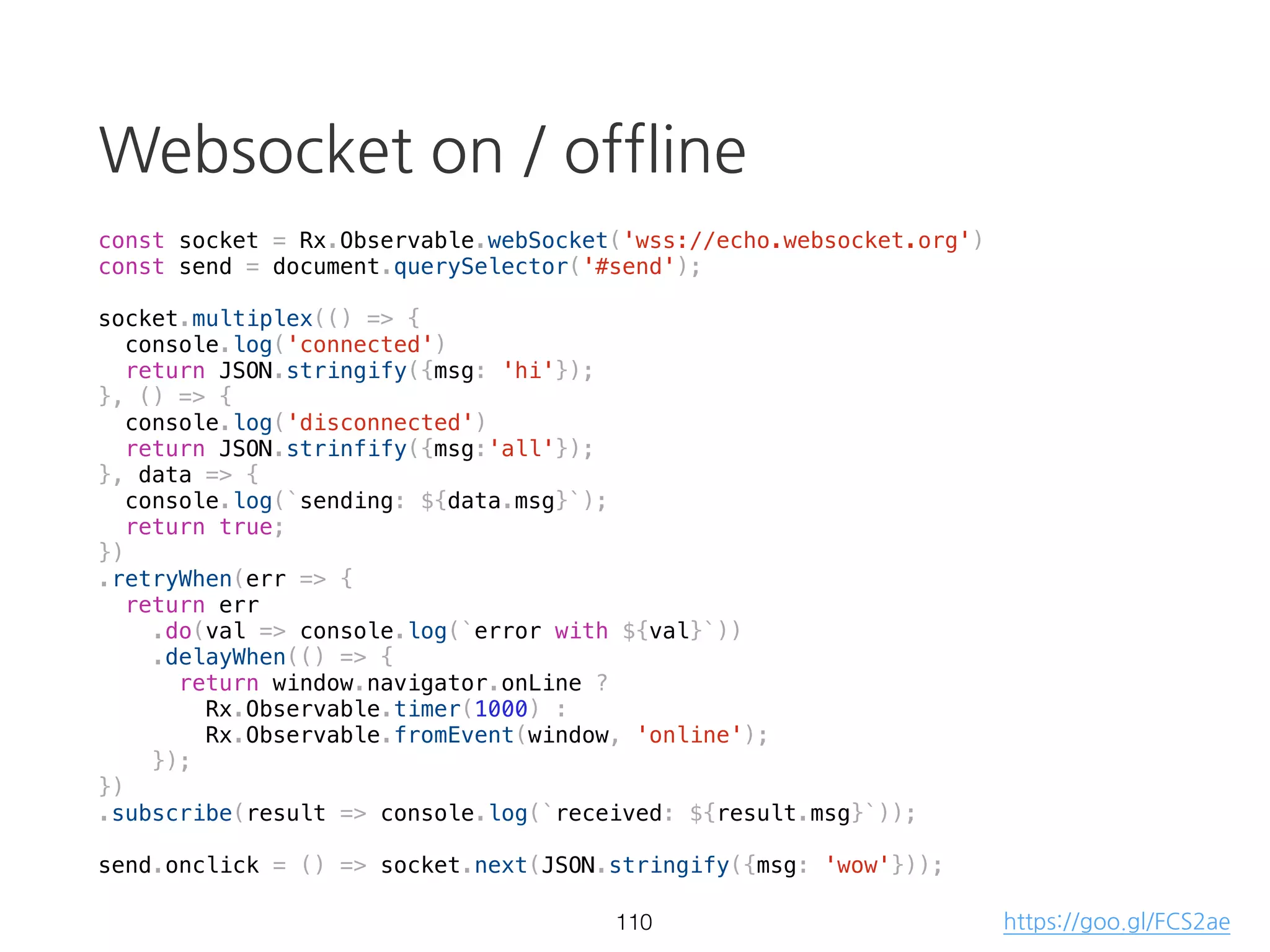

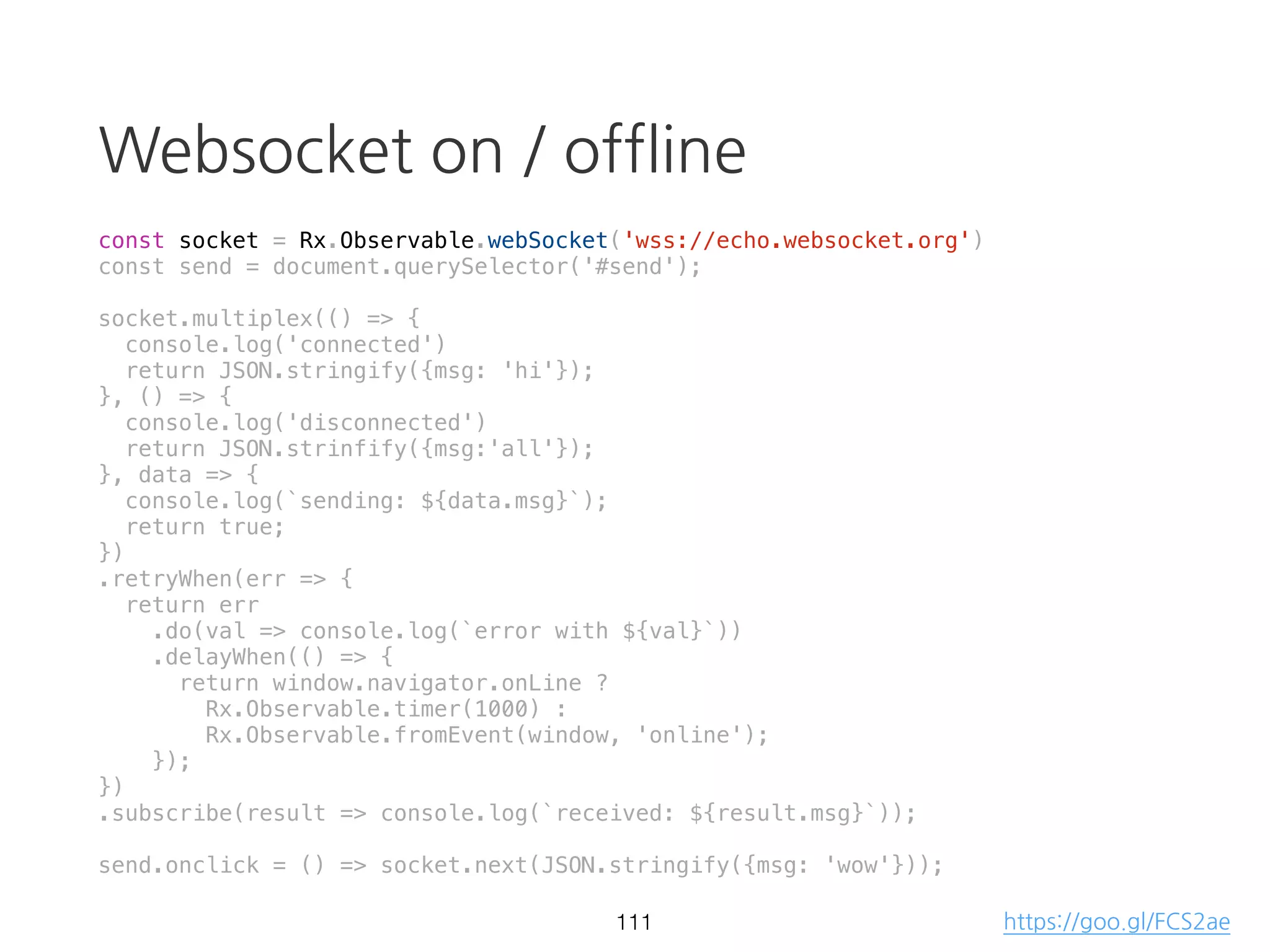

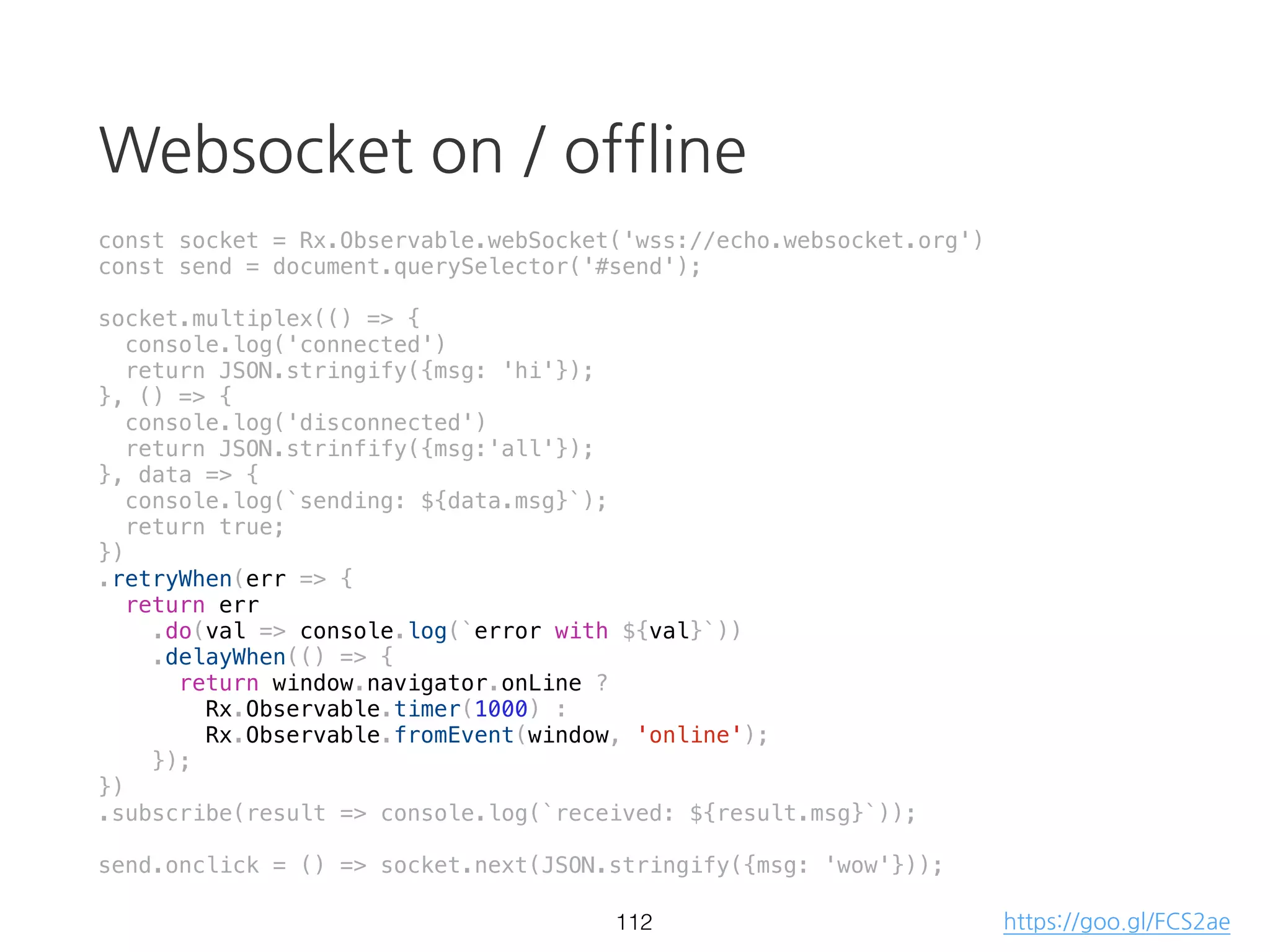

Websocket on / offline
const socket = Rx.Observable.webSocket('wss://echo.websocket.org')
const send = document.querySelector('#send');
socket.multiplex(() => {
console.log('connected')
return JSON.stringify({msg: 'hi'});
}, () => {
console.log('disconnected')
return JSON.strinfify({msg:'all'});
}, data => {
console.log(`sending: ${data.msg}`);
return true;
})
.retryWhen(err => {
return err
.do(val => console.log(`error with ${val}`))
.delayWhen(() => {
return window.navigator.onLine ?
Rx.Observable.fromEvent(window, 'online');
});
})
.subscribe(result => console.log(`received: ${result.msg}`));
send.onclick = () => socket.next(JSON.stringify({msg: 'wow'}));
109 https://goo.gl/FCS2ae

}, () => {
}, data => {
return true;
})
.retryWhen(err => {
return err
.delayWhen(() => {
});
})

Dan Abramov, @JavaScript Air 025
“Rx can solve many real world tasks.
And once you get used to it,
you can apply it pretty much everywhere.”
112

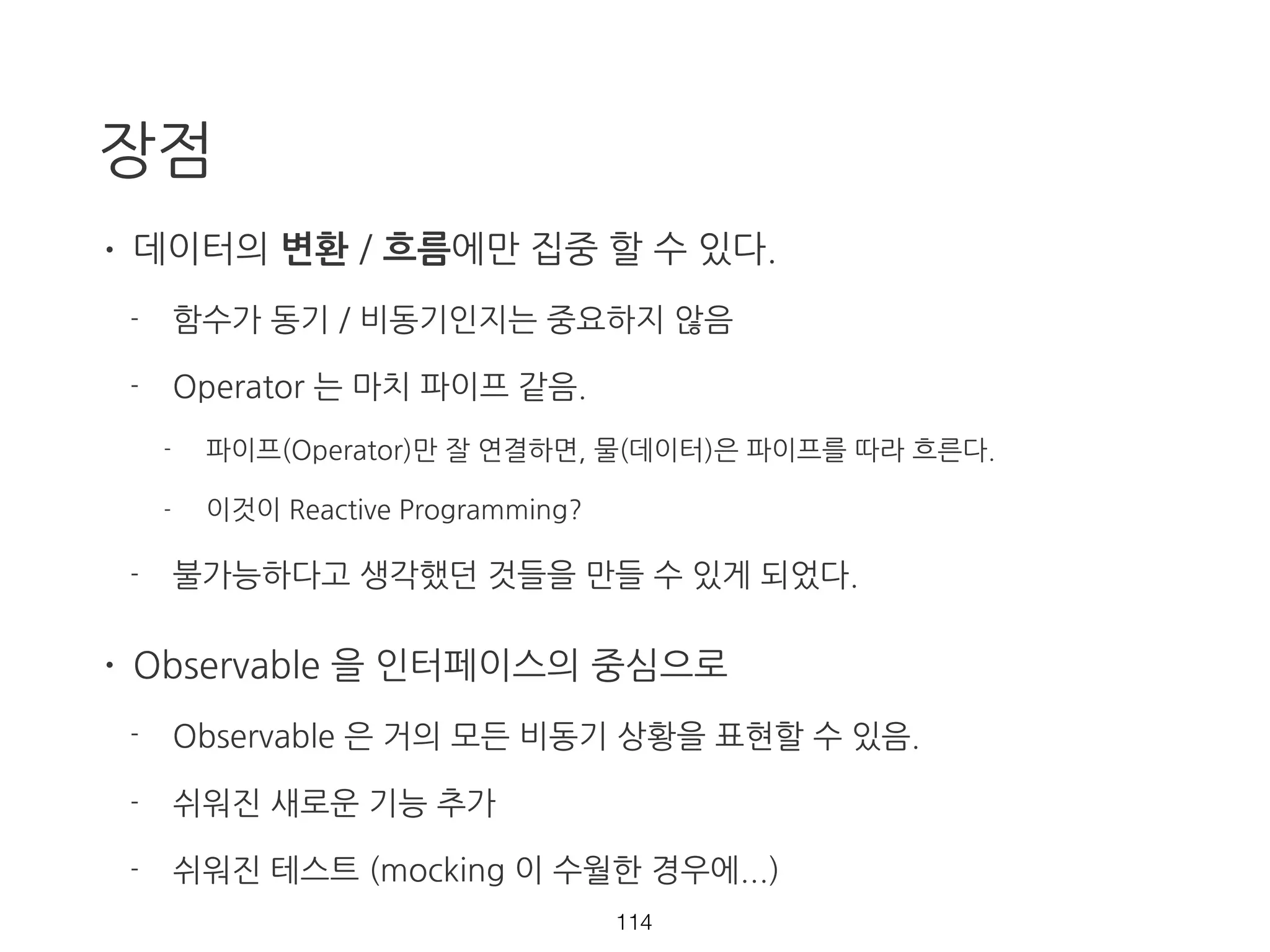

장점
• 데이터의 변환 / 흐름에만 집중 할 수 있다.
- 함수가 동기 / 비동기인지는 중요하지 않음
- Operator 는 마치 파이프 같음.
- 파이프(Operator)만 잘 연결하면, 물(데이터)은 파이프를 따라 흐른다.
- 이것이 Reactive Programming?
- 불가능하다고 생각했던 것들을 만들 수 있게 되었다.
• Observable 을 인터페이스의 중심으로
- Observable 은 거의 모든 비동기 상황을 표현할 수 있음.
- 쉬워진 새로운 기능 추가
- 쉬워진 테스트 (mocking 이 수월한 경우에...)
113

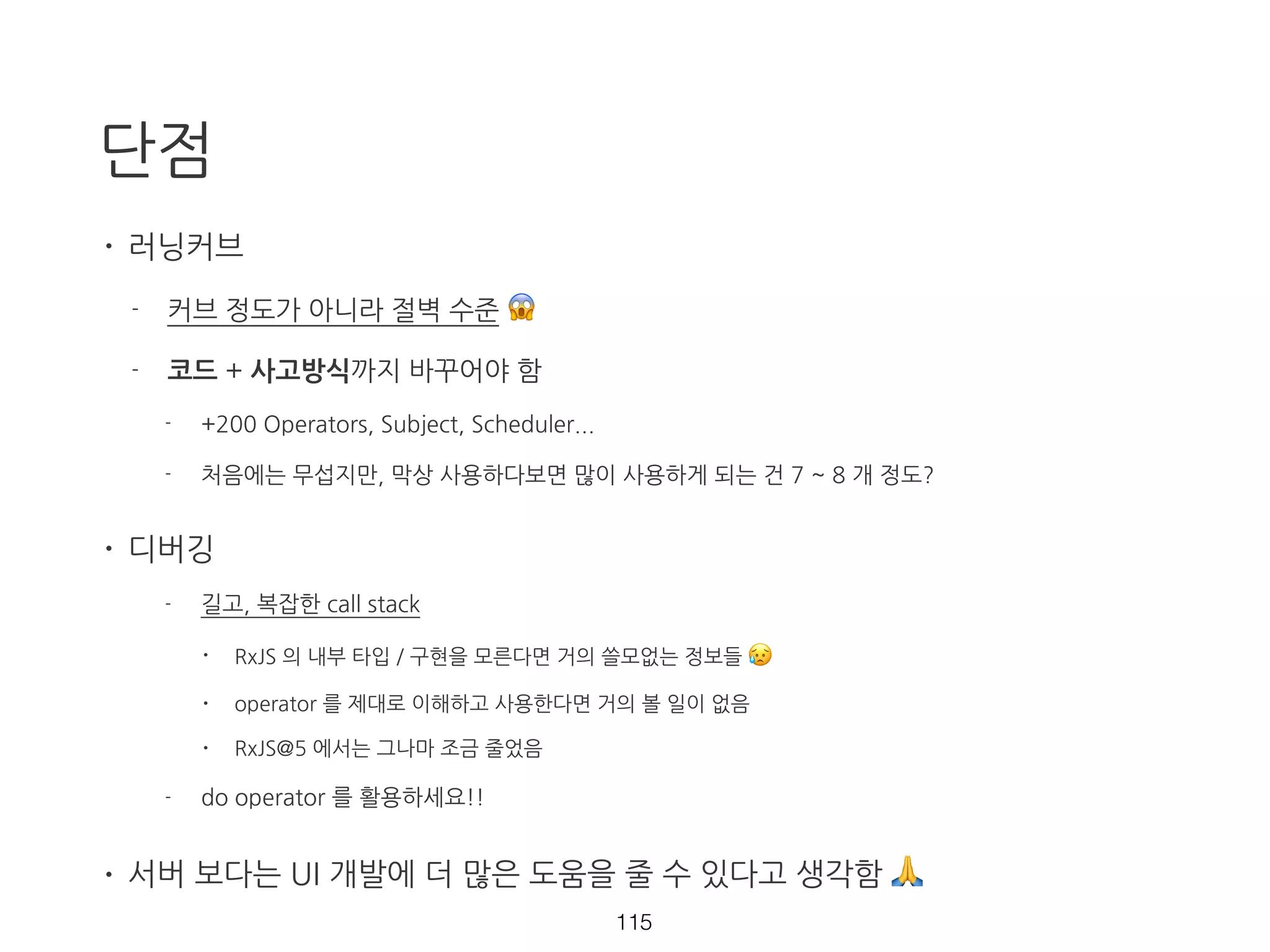

단점
• 러닝커브
- 커브 정도가 아니라 절벽 수준 😱
- 코드 + 사고방식까지 바꾸어야 함
- +200 Operators, Subject, Scheduler...
- 처음에는 무섭지만, 막상 사용하다보면 많이 사용하게 되는 건 7 ~ 8 개 정도?
• 디버깅
- 길고, 복잡한 call stack
• RxJS 의 내부 타입 / 구현을 모른다면 거의 쓸모없는 정보들 😥
• operator 를 제대로 이해하고 사용한다면 거의 볼 일이 없음
• RxJS@5 에서는 그나마 조금 줄었음
- do operator 를 활용하세요!!
• 서버 보다는 UI 개발에 더 많은 도움을 줄 수 있다고 생각함 🙏
114

Who to follow
• Erik Meijer
- creator of reactive-extensions
- 📹 One hacker way
• Matthew Podwyski
- initial creator of RxJS
• Ben Lesh
- RxJS@5 main contributor
115
• André Staltz
- RxJS@5 main contributor
- creator of cycle.js
• kris kowal
- creator of Q
- 📰 general theory of reactivity

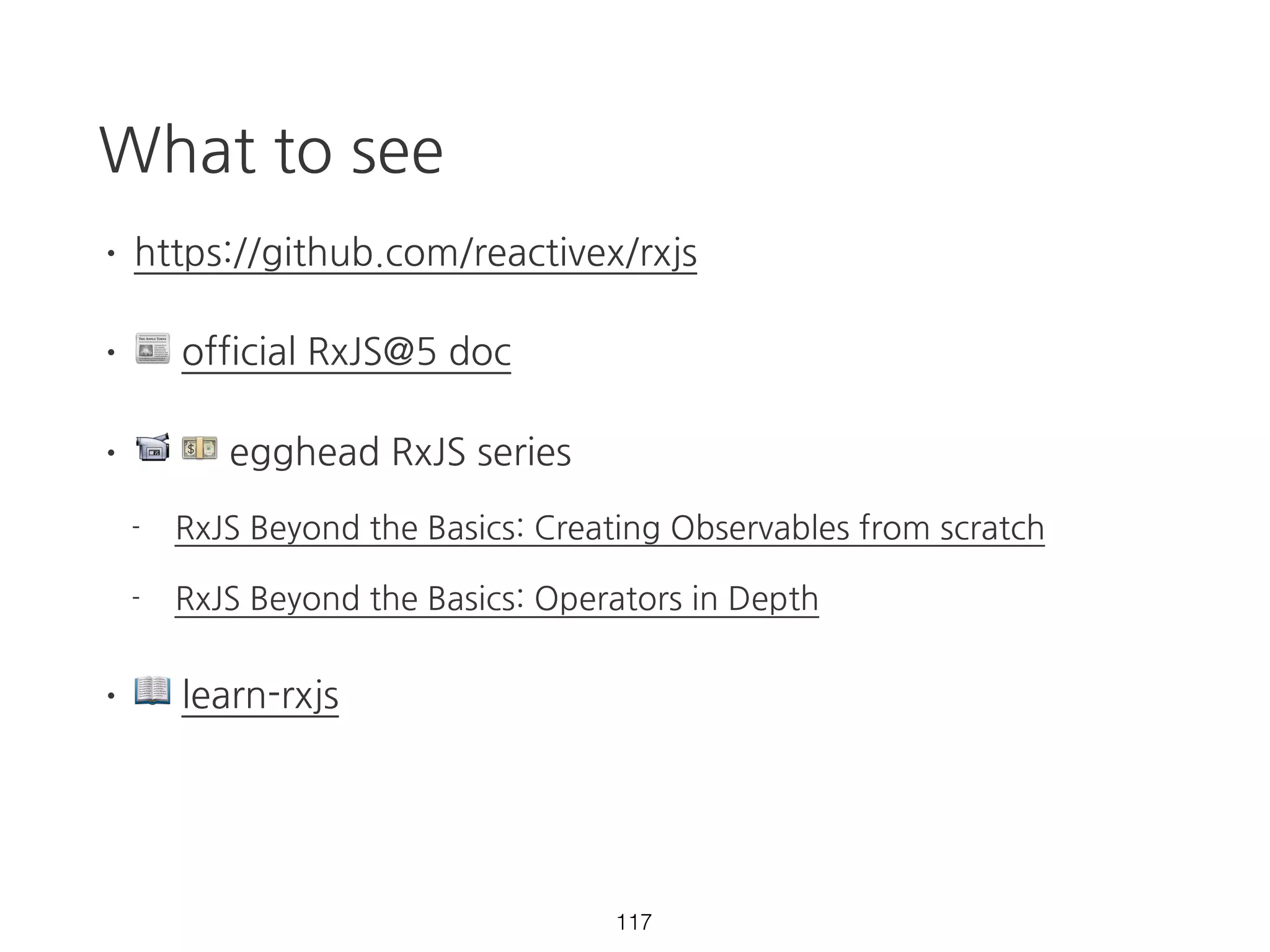

What to see
• https://github.com/reactivex/rxjs
• 📰 official RxJS@5 doc
• 📹 💵 egghead RxJS series
- RxJS Beyond the Basics: Creating Observables from scratch
- RxJS Beyond the Basics: Operators in Depth
• 📖 learn-rxjs
116

Compose Async with RxJS

More Related Content

What's hot

Viewers also liked

Similar to Compose Async with RxJS

Recently uploaded

Compose Async with RxJS
