- 1. Communication in Pythonand the C10k problem Jose Ignacio Galarza @igalarzab
- 2.

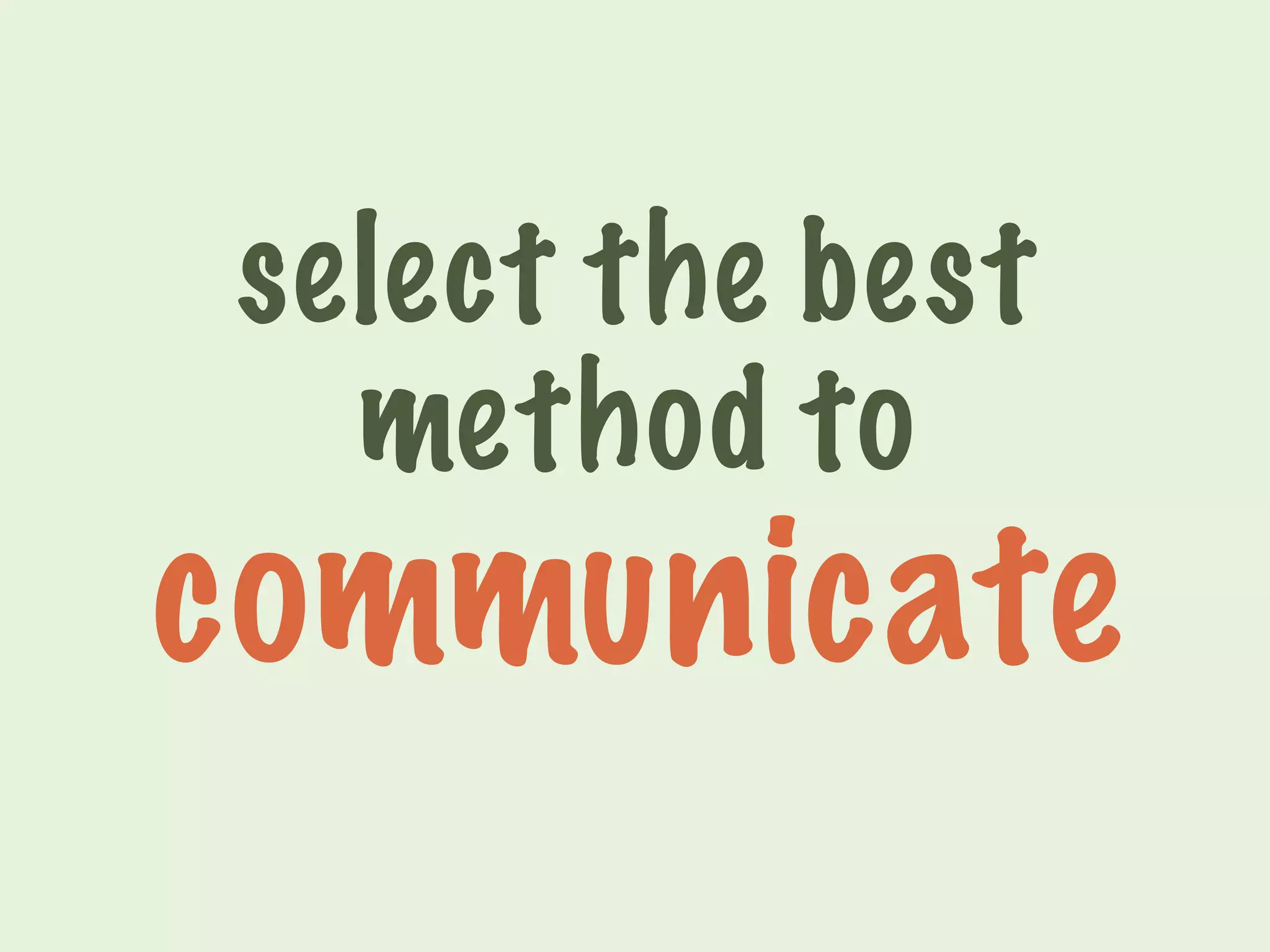

- 4. select the best method to communicate
- 5. select the best method to scale

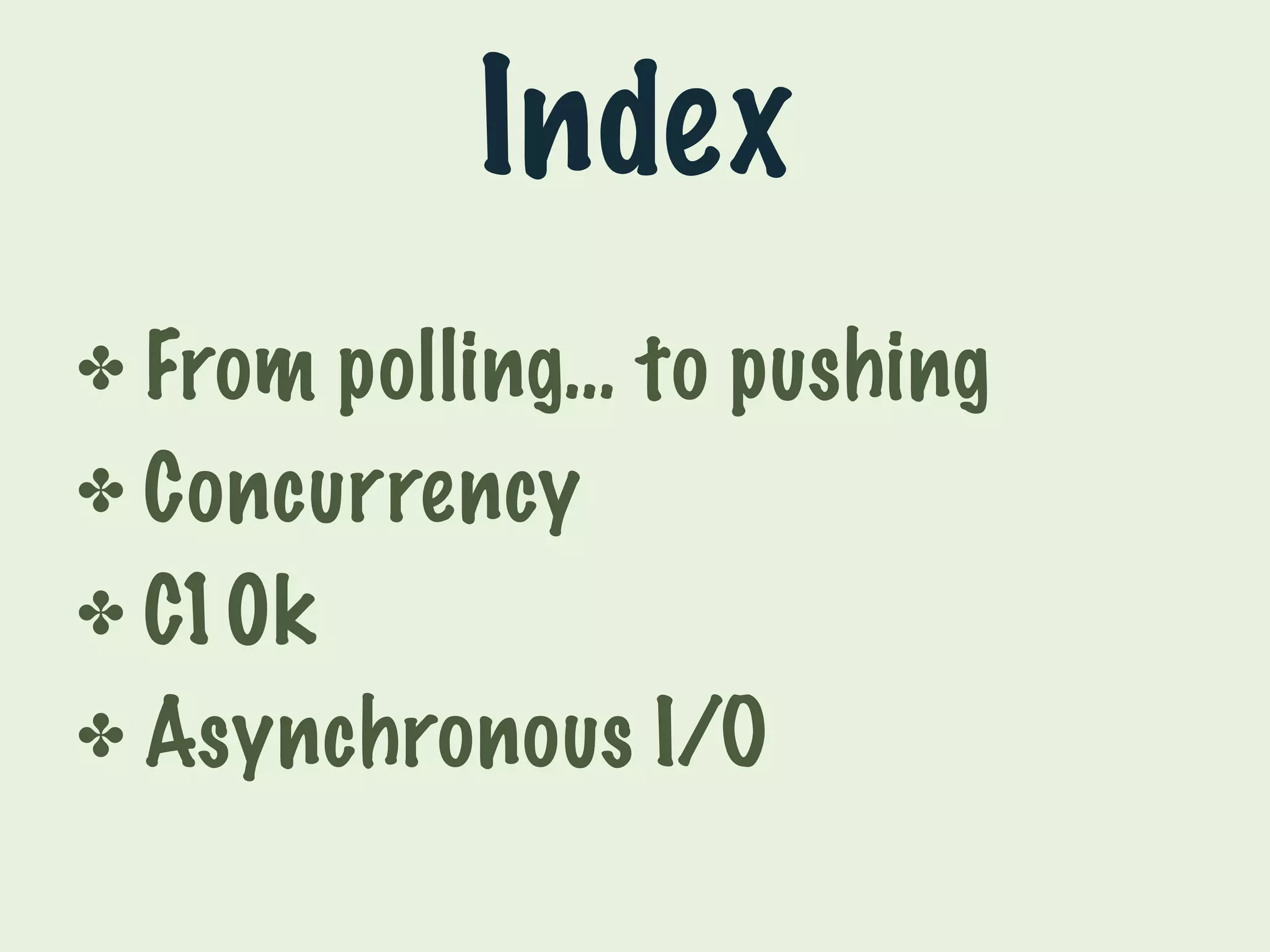

- 7. Index ✤ Frompolling… to pushing ✤ Concurrency ✤ C10k ✤ Asynchronous I/O
- 8. PYTHON 3 PYTHON3 EVERYWHERE
- 9. From polling topushing
- 10.

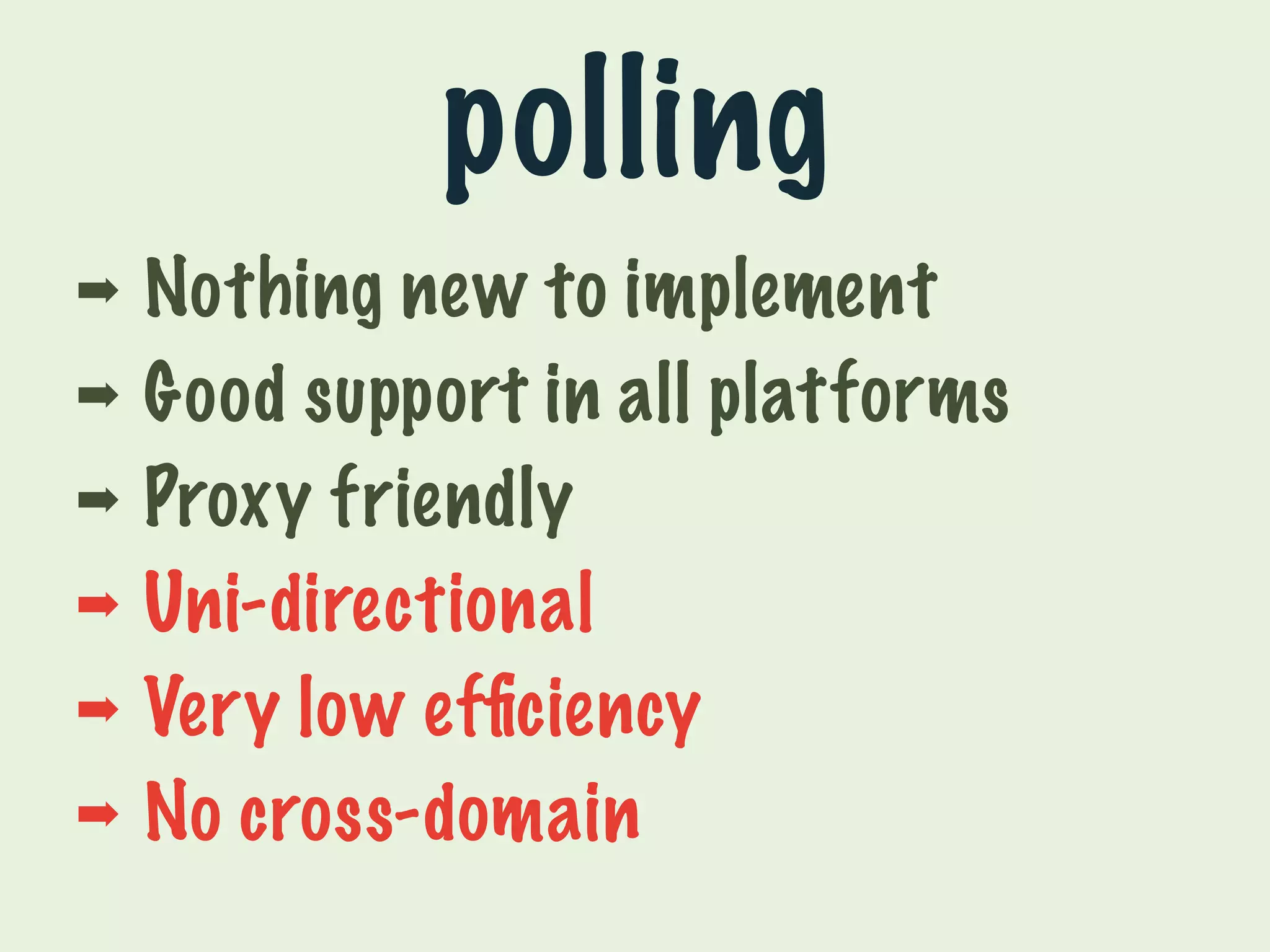

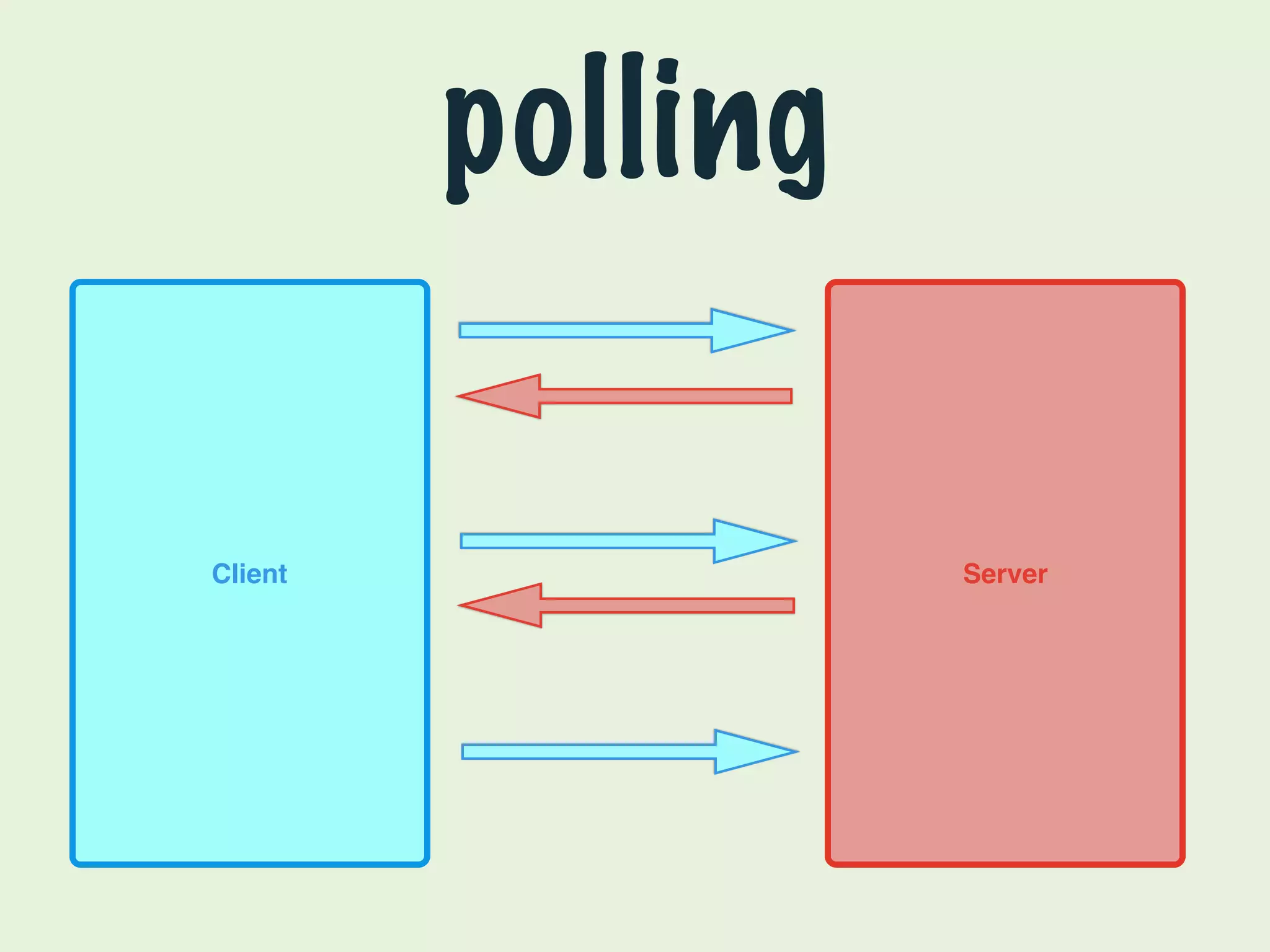

- 11. polling ➡ Nothingnew to implement ➡ Good support in all platforms ➡ Proxy friendly ➡ Uni-directional ➡ Very low efficiency ➡ No cross-domain

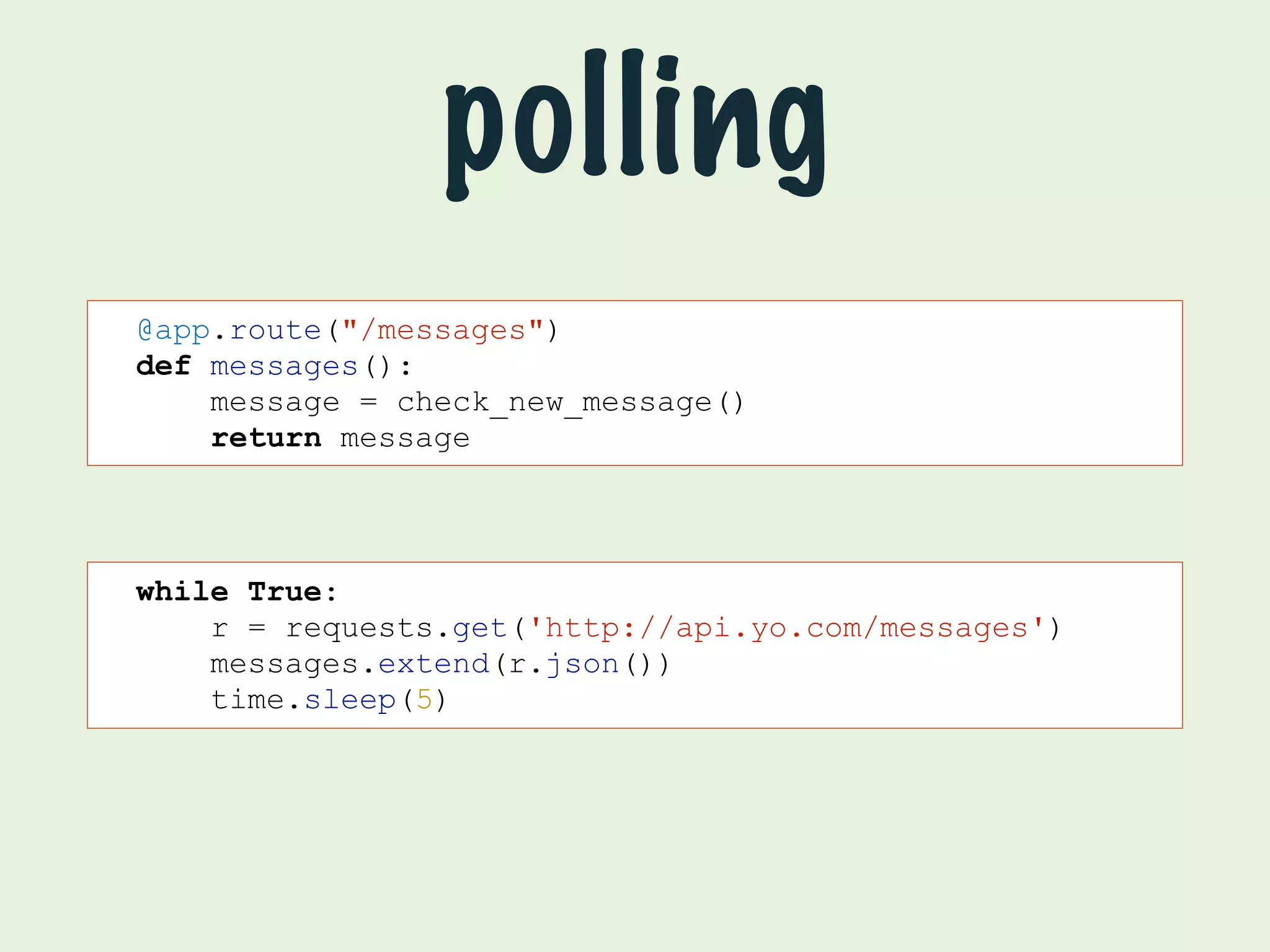

- 12. @app.route("/messages") def messages(): message = check_new_message() return message while True: polling r = requests.get('http://api.yo.com/messages') messages.extend(r.json()) time.sleep(5)

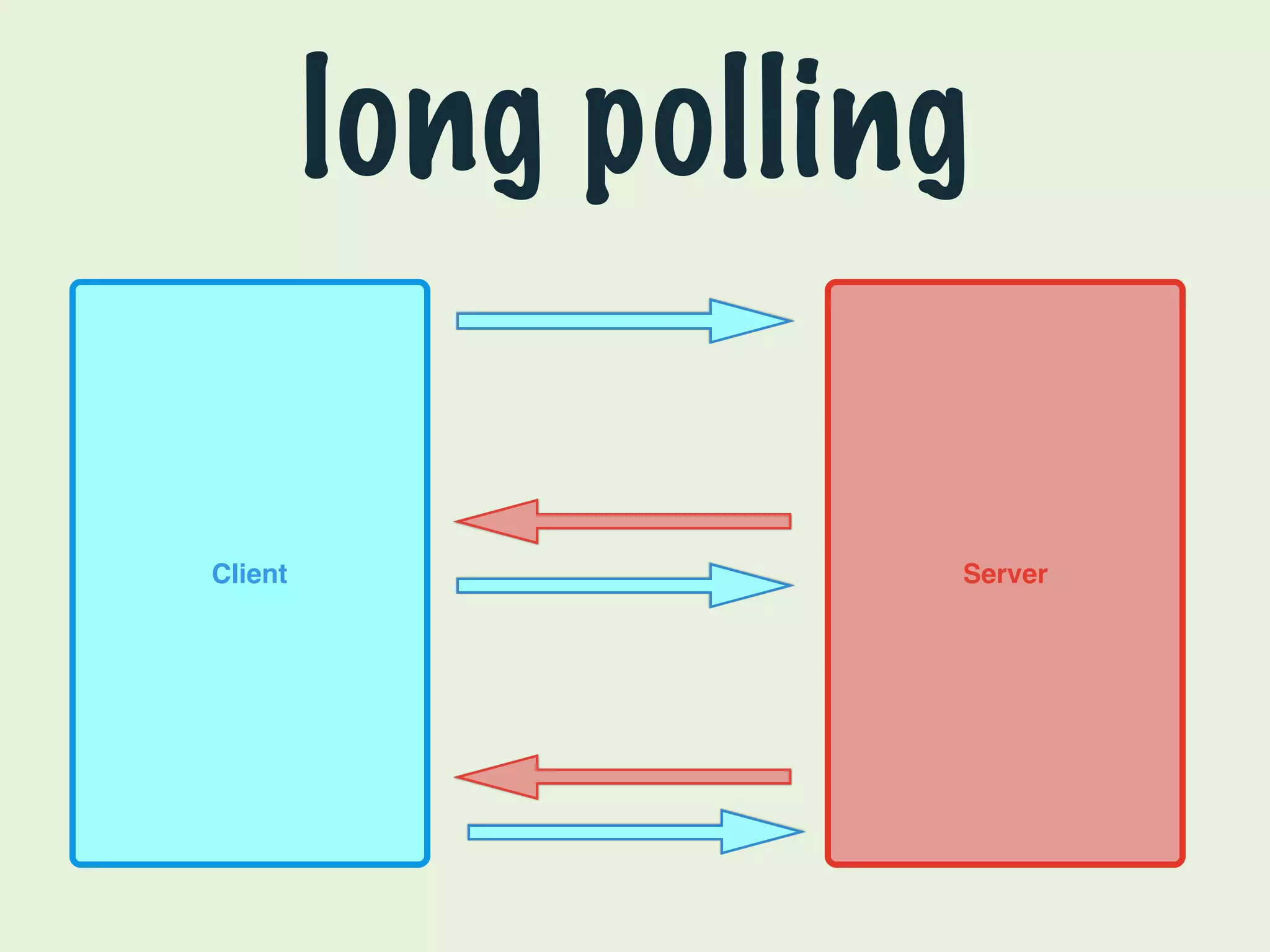

- 13. long polling ClientServer

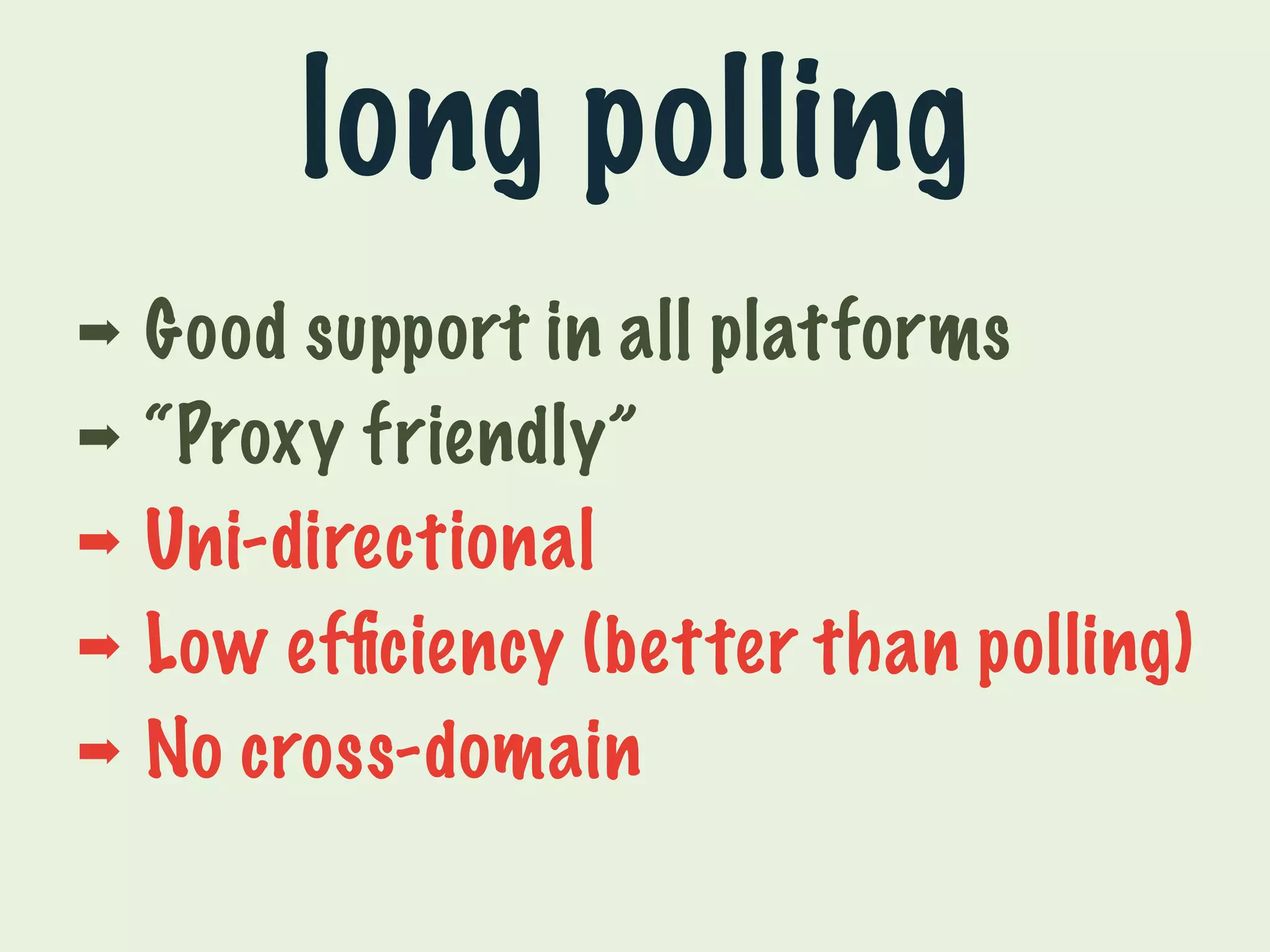

- 14. long polling ➡Good support in all platforms ➡ “Proxy friendly” ➡ Uni-directional ➡ Low efficiency (better than polling) ➡ No cross-domain

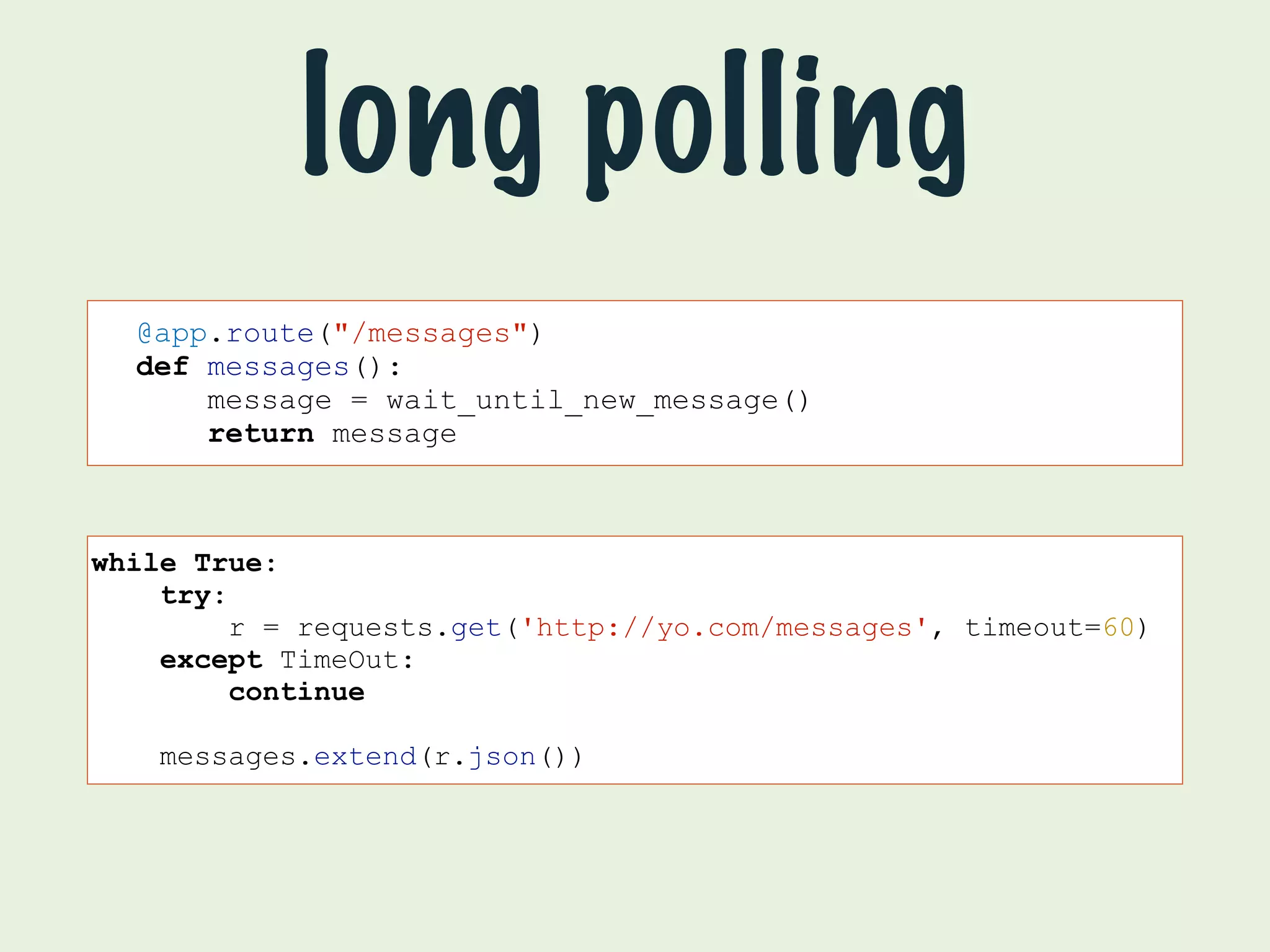

- 15. long polling @app.route("/messages") def messages(): message = wait_until_new_message() return message while True: try: r = requests.get('http://yo.com/messages', timeout=60) except TimeOut: continue messages.extend(r.json())

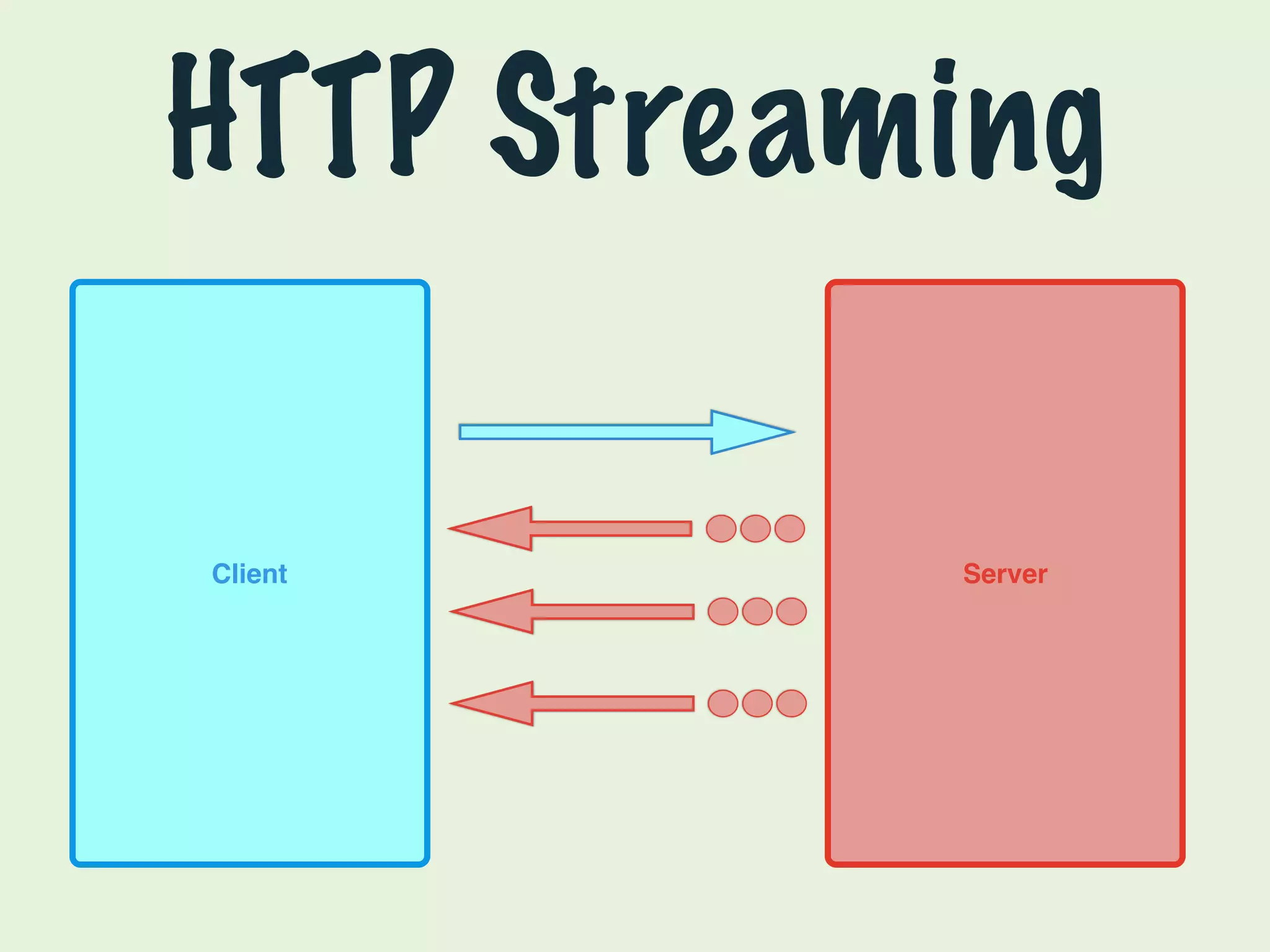

- 16. HTTP Streaming ClientServer
- 17. HTTP Streaming ➡Better efficiency than (long) polling ➡ “Proxy friendly” ➡ Uni-directional ➡ You need to parse the data manually

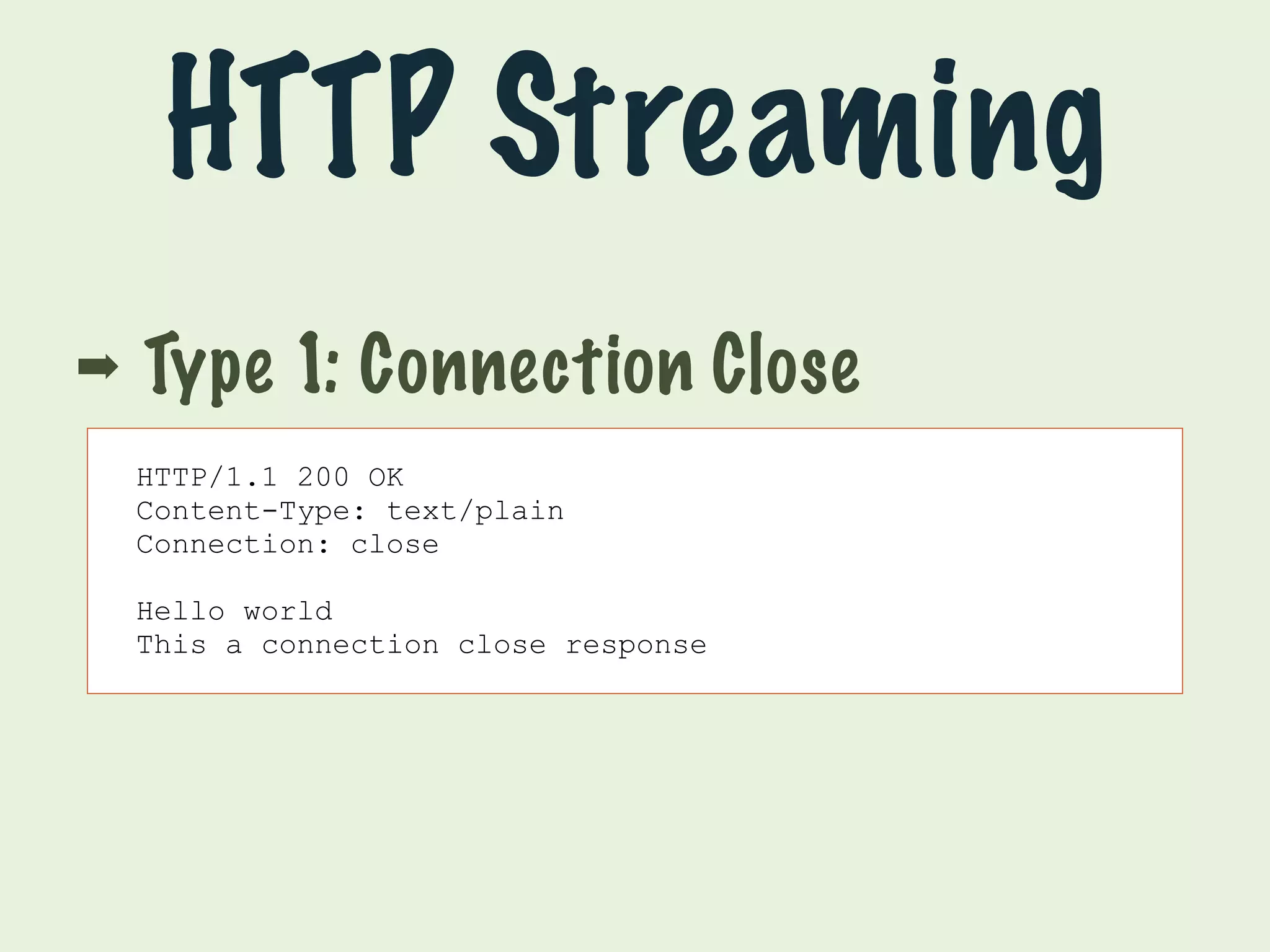

- 18. HTTP Streaming ➡Type 1: Connection Close HTTP/1.1 200 OK Content-Type: text/plain Connection: close Hello world This a connection close response

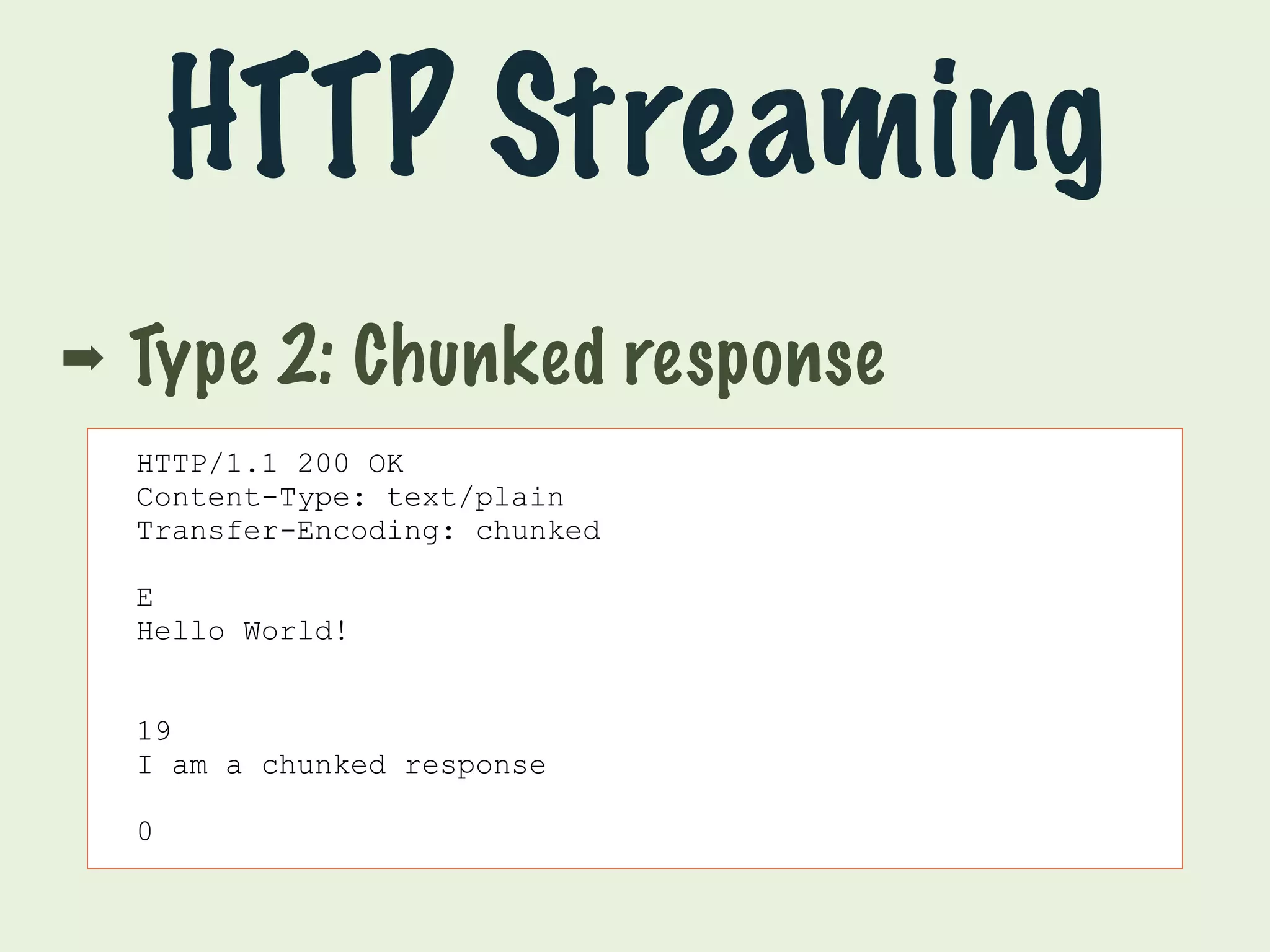

- 19. HTTP Streaming ➡Type 2: Chunked response HTTP/1.1 200 OK Content-Type: text/plain Transfer-Encoding: chunked E Hello World! 19 I am a chunked response 0

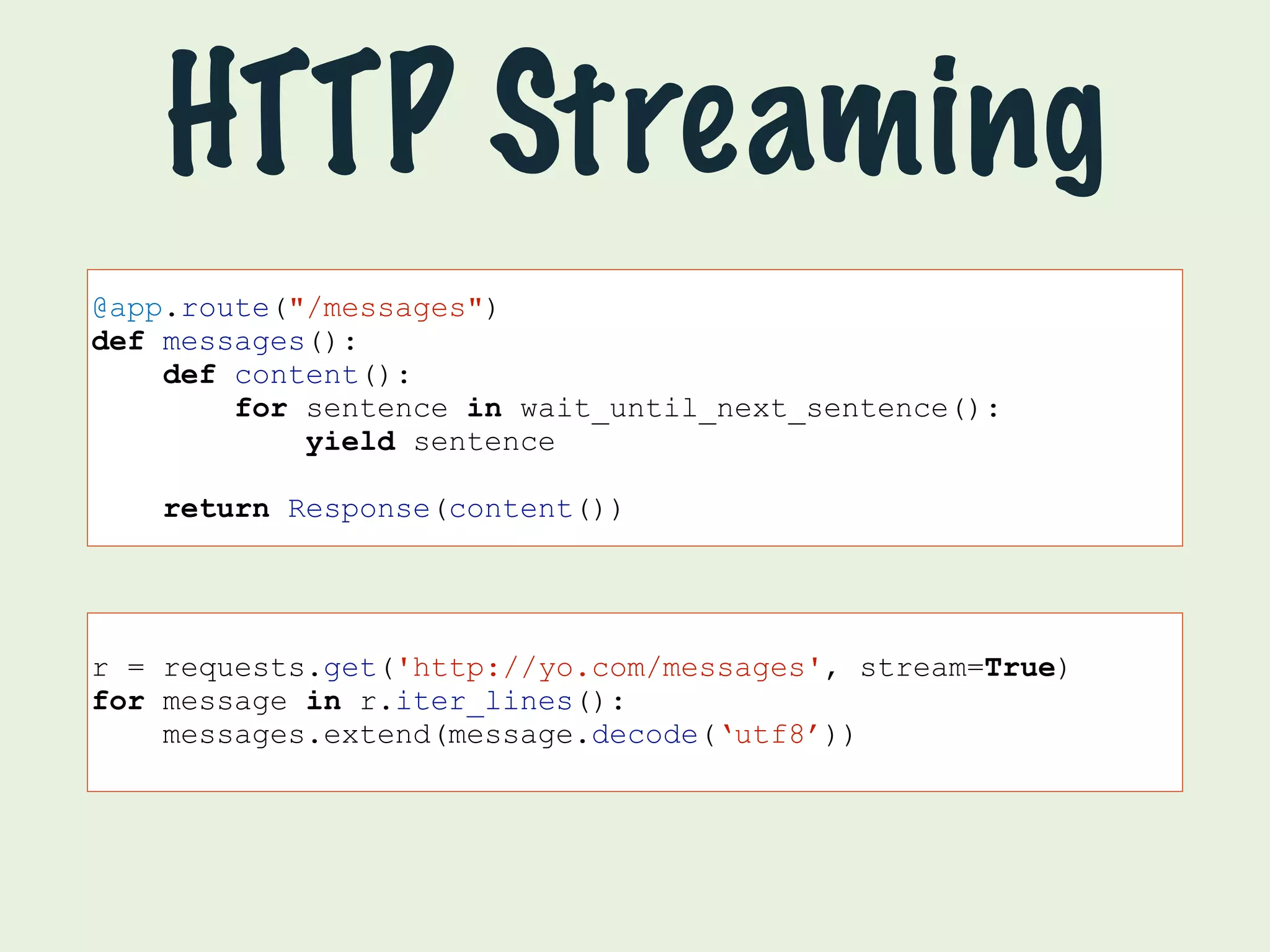

- 20. HTTP Streaming @app.route("/messages") def messages(): def content(): for sentence in wait_until_next_sentence(): yield sentence return Response(content()) r = requests.get('http://yo.com/messages', stream=True) for message in r.iter_lines(): messages.extend(message.decode(‘utf8’))

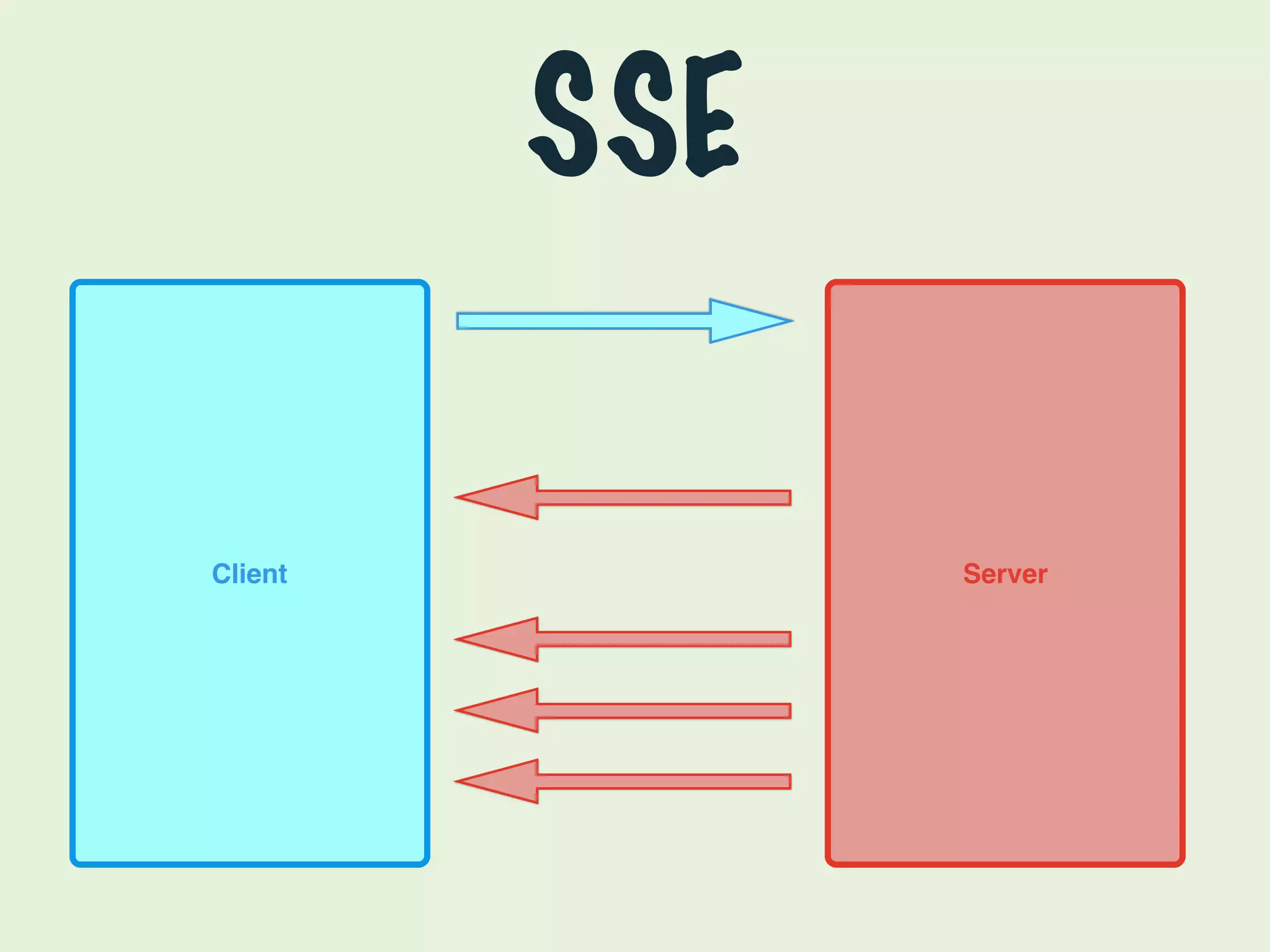

- 21.

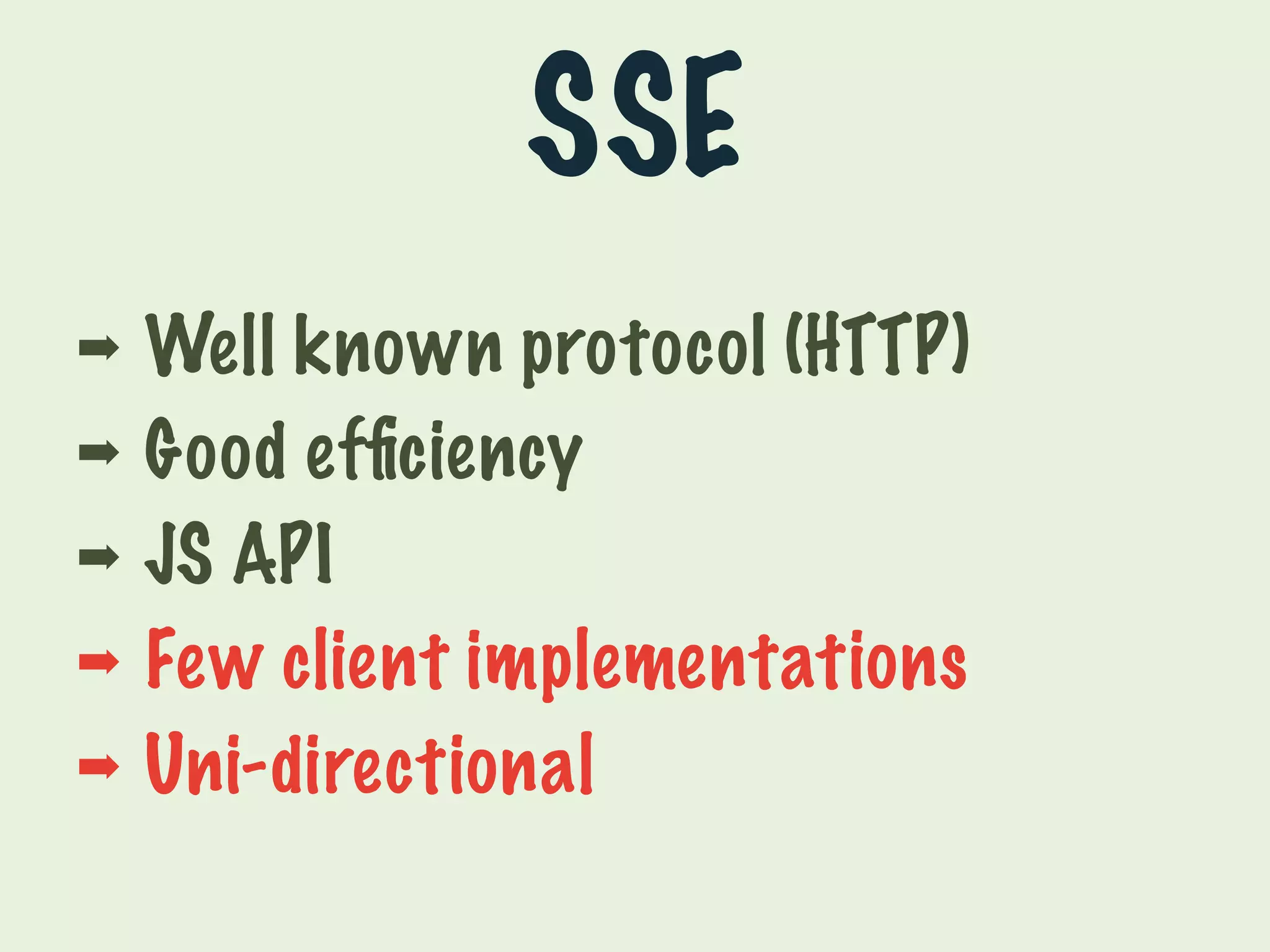

- 22. SSE ➡ Wellknown protocol (HTTP) ➡ Good efficiency ➡ JS API ➡ Few client implementations ➡ Uni-directional
- 23.

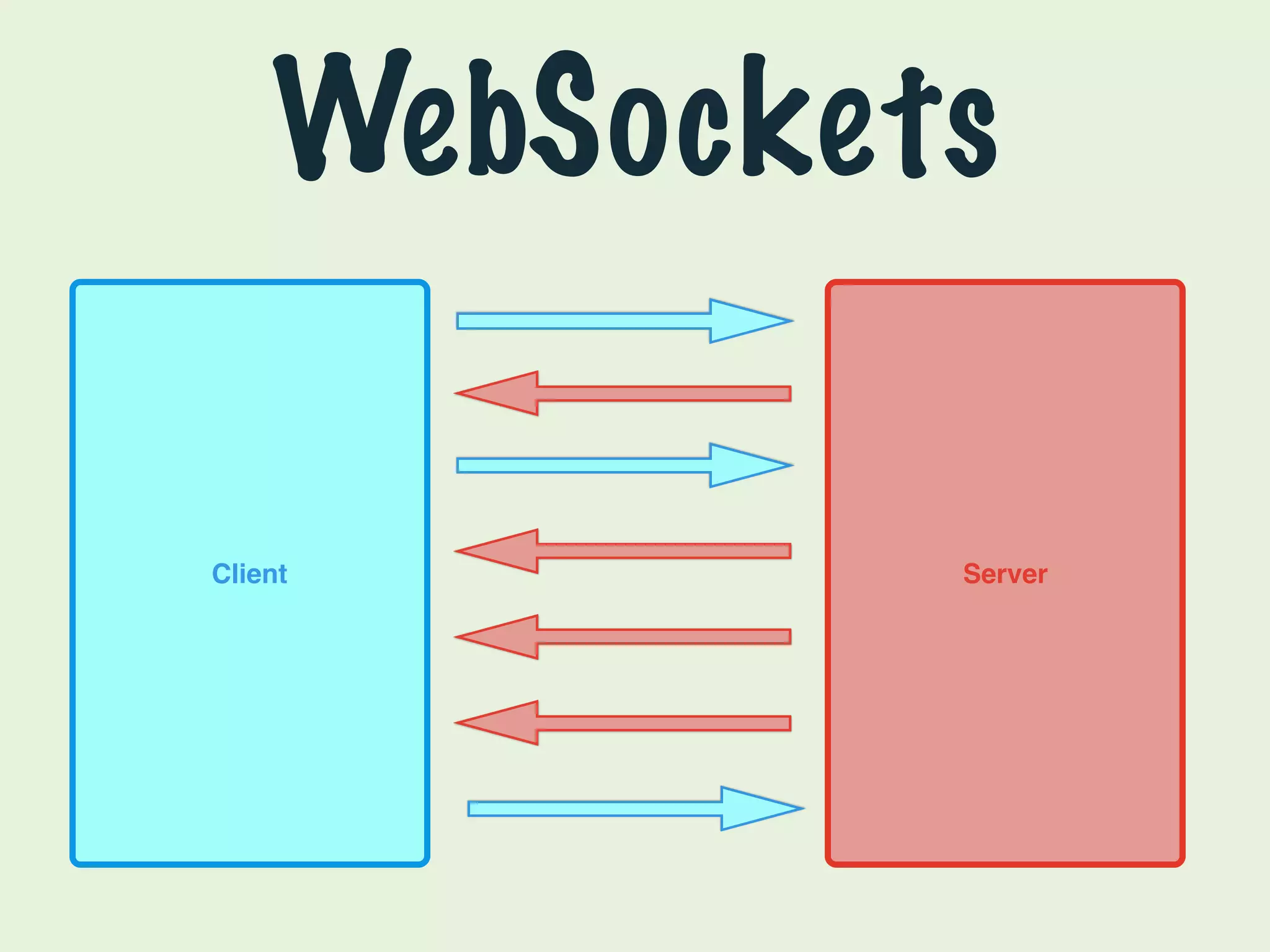

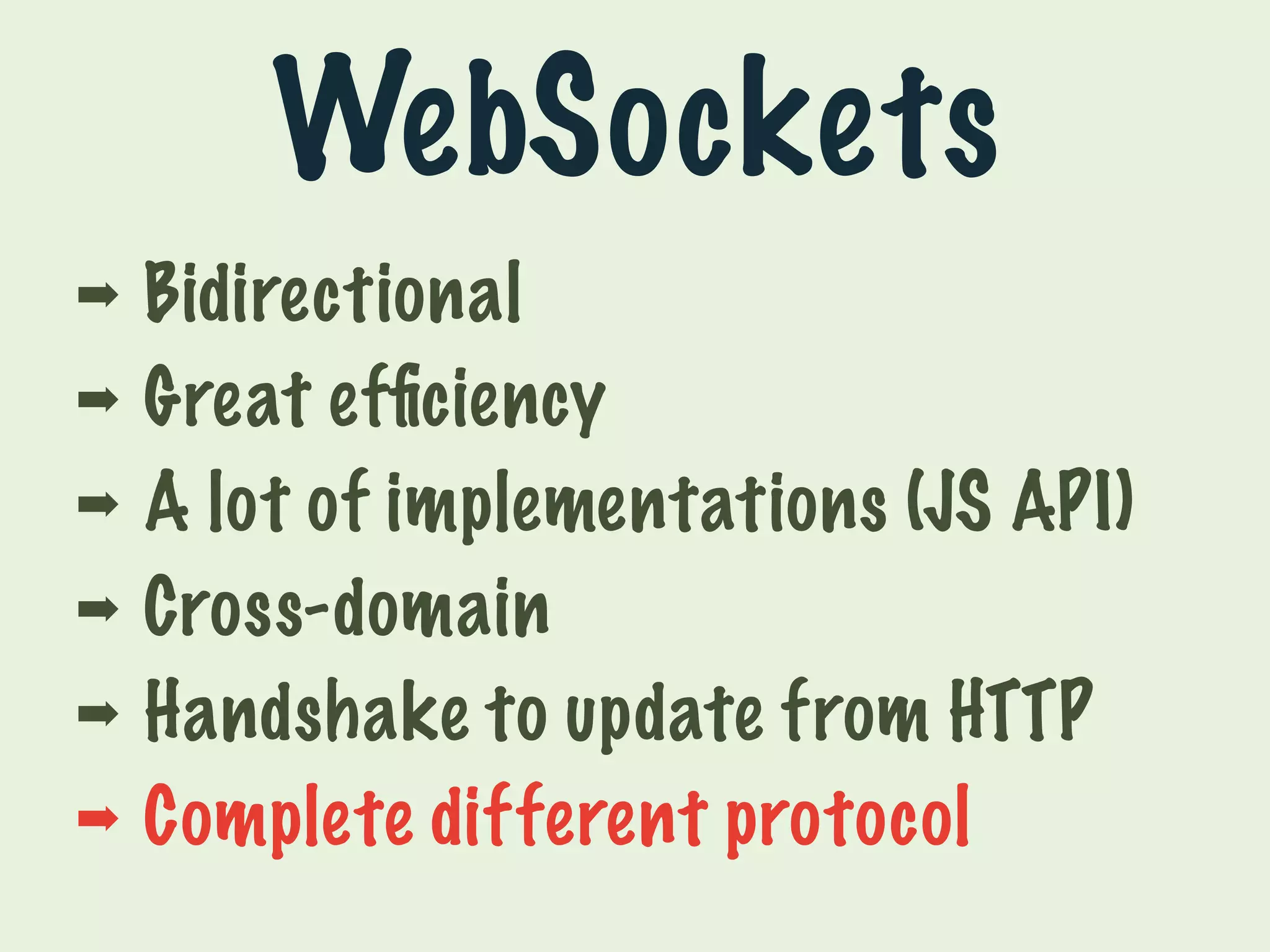

- 24. WebSockets ➡ Bidirectional ➡ Great efficiency ➡ A lot of implementations (JS API) ➡ Cross-domain ➡ Handshake to update from HTTP ➡ Complete different protocol

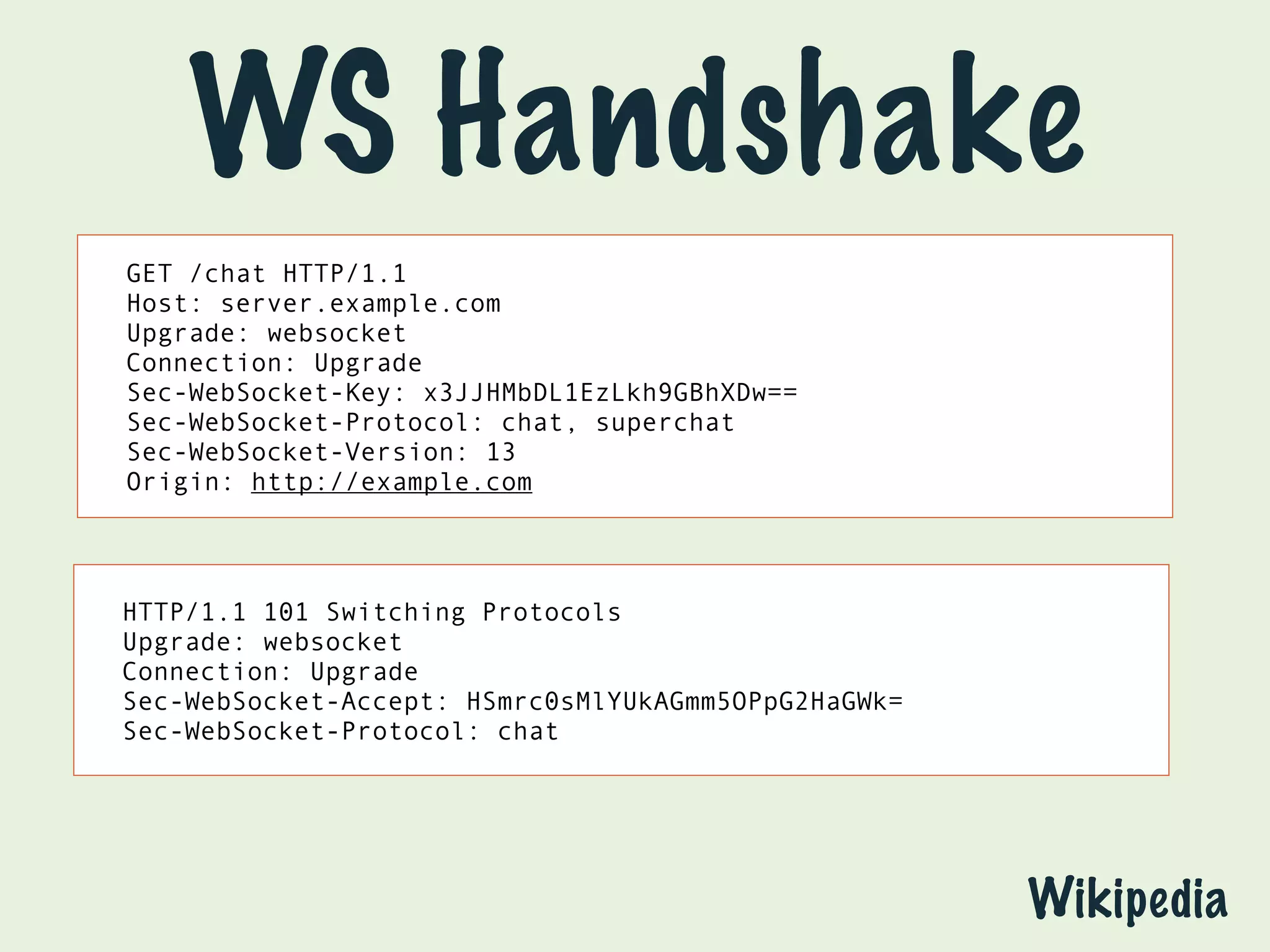

- 25. WS Handshake GET/chat HTTP/1.1 Host: server.example.com Upgrade: websocket Connection: Upgrade Sec-WebSocket-Key: x3JJHMbDL1EzLkh9GBhXDw== Sec-WebSocket-Protocol: chat, superchat Sec-WebSocket-Version: 13 Origin: http://example.com HTTP/1.1 101 Switching Protocols Upgrade: websocket Connection: Upgrade Sec-WebSocket-Accept: HSmrc0sMlYUkAGmm5OPpG2HaGWk= Sec-WebSocket-Protocol: chat Wikipedia

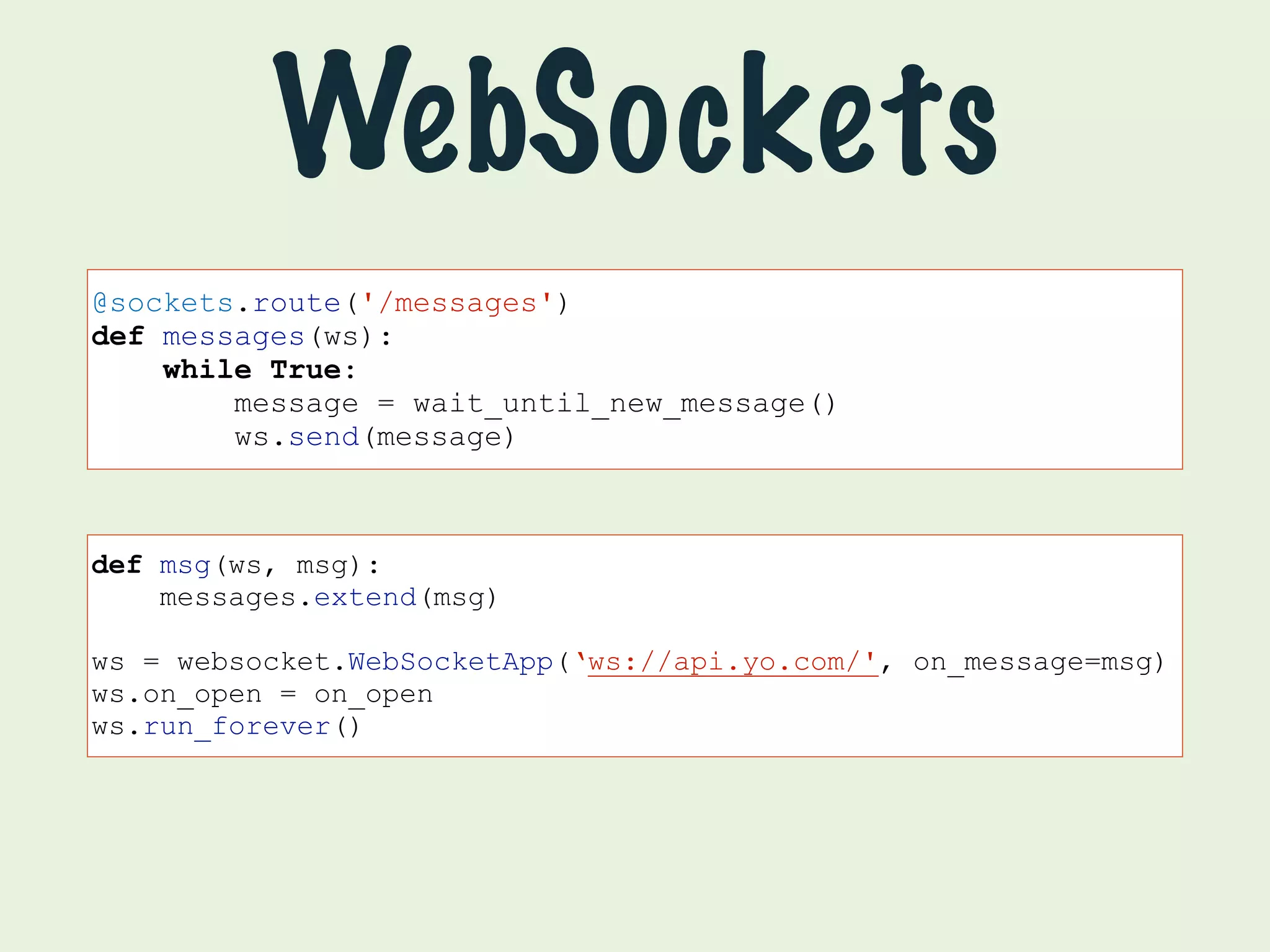

- 26. WebSockets @sockets.route('/messages') defmessages(ws): while True: message = wait_until_new_message() ws.send(message) def msg(ws, msg): messages.extend(msg) ws = websocket.WebSocketApp(‘ws://api.yo.com/', on_message=msg) ws.on_open = on_open ws.run_forever()

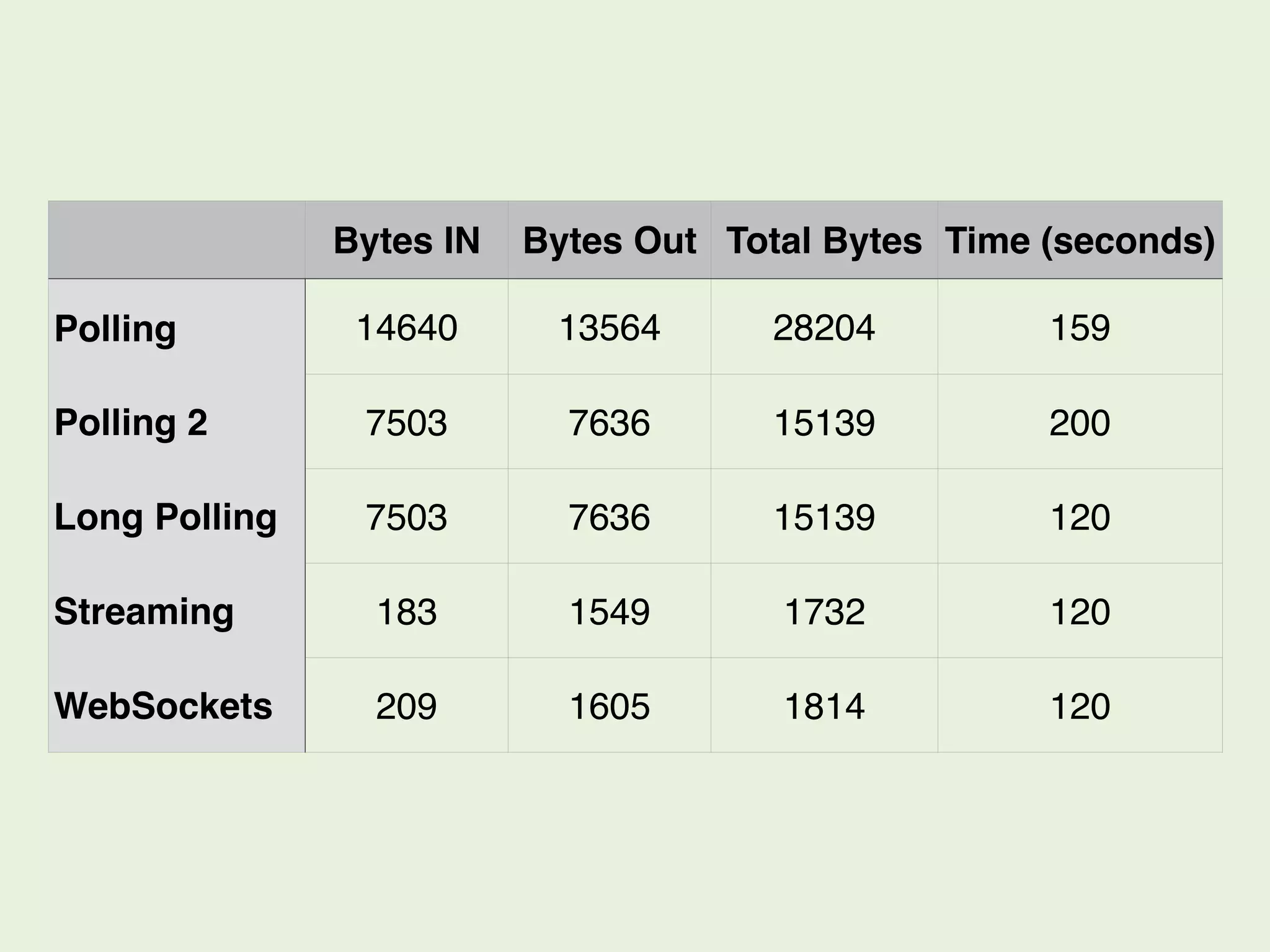

- 28. Bytes IN BytesOut Total Bytes Time (seconds) Polling 14640 13564 28204 159 Polling 2 7503 7636 15139 200 Long Polling 7503 7636 15139 120 Streaming 183 1549 1732 120 WebSockets 209 1605 1814 120

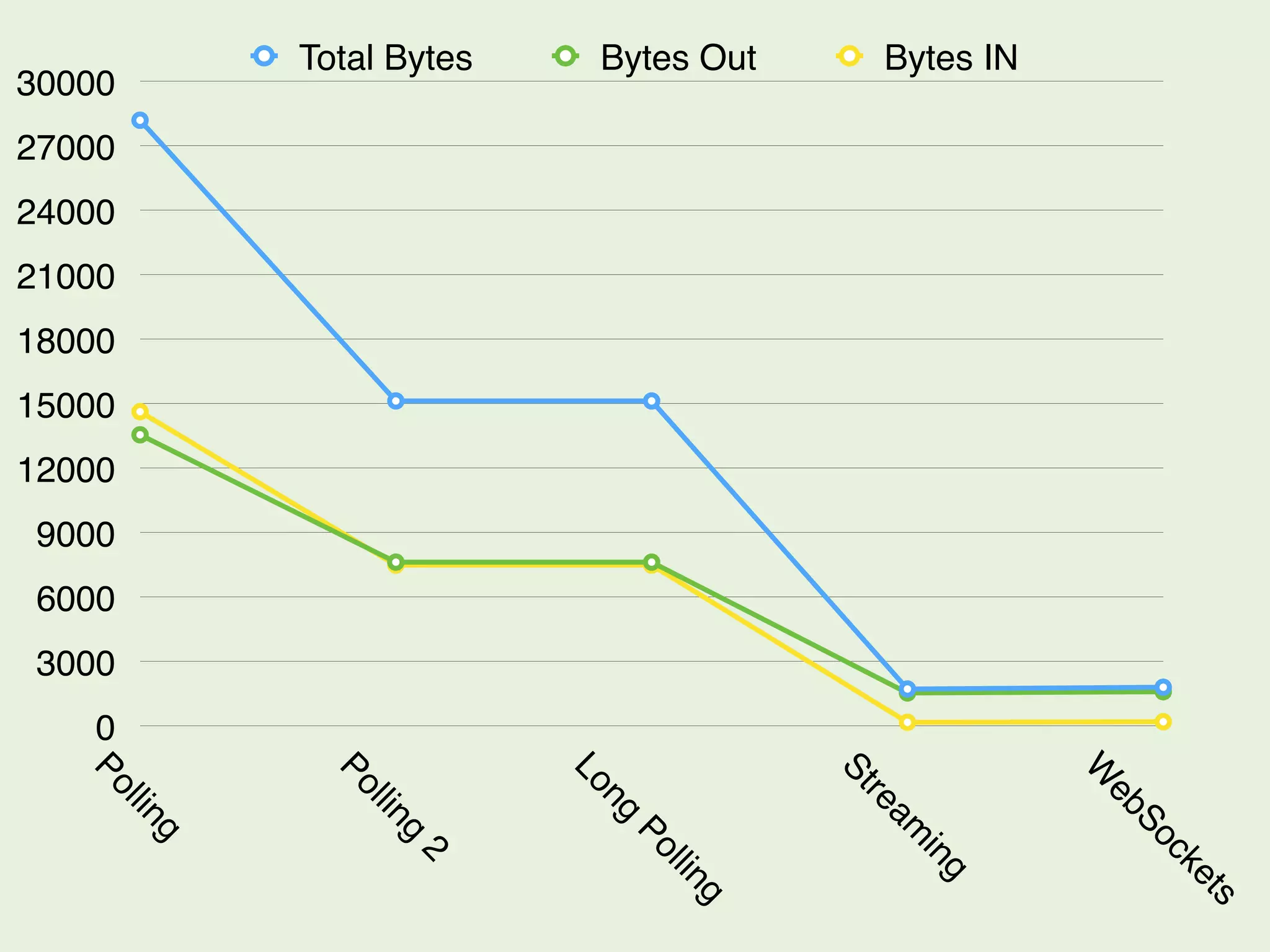

- 29. 30000 27000 24000 21000 18000 15000 12000 9000 6000 3000 0 Polling Polling 2 Long Polling Streaming WebSockets Total Bytes Bytes Out Bytes IN
- 30. Concurrency and the C10k
- 31. C1 0k? howto handle more than 10k connections simultaneously?

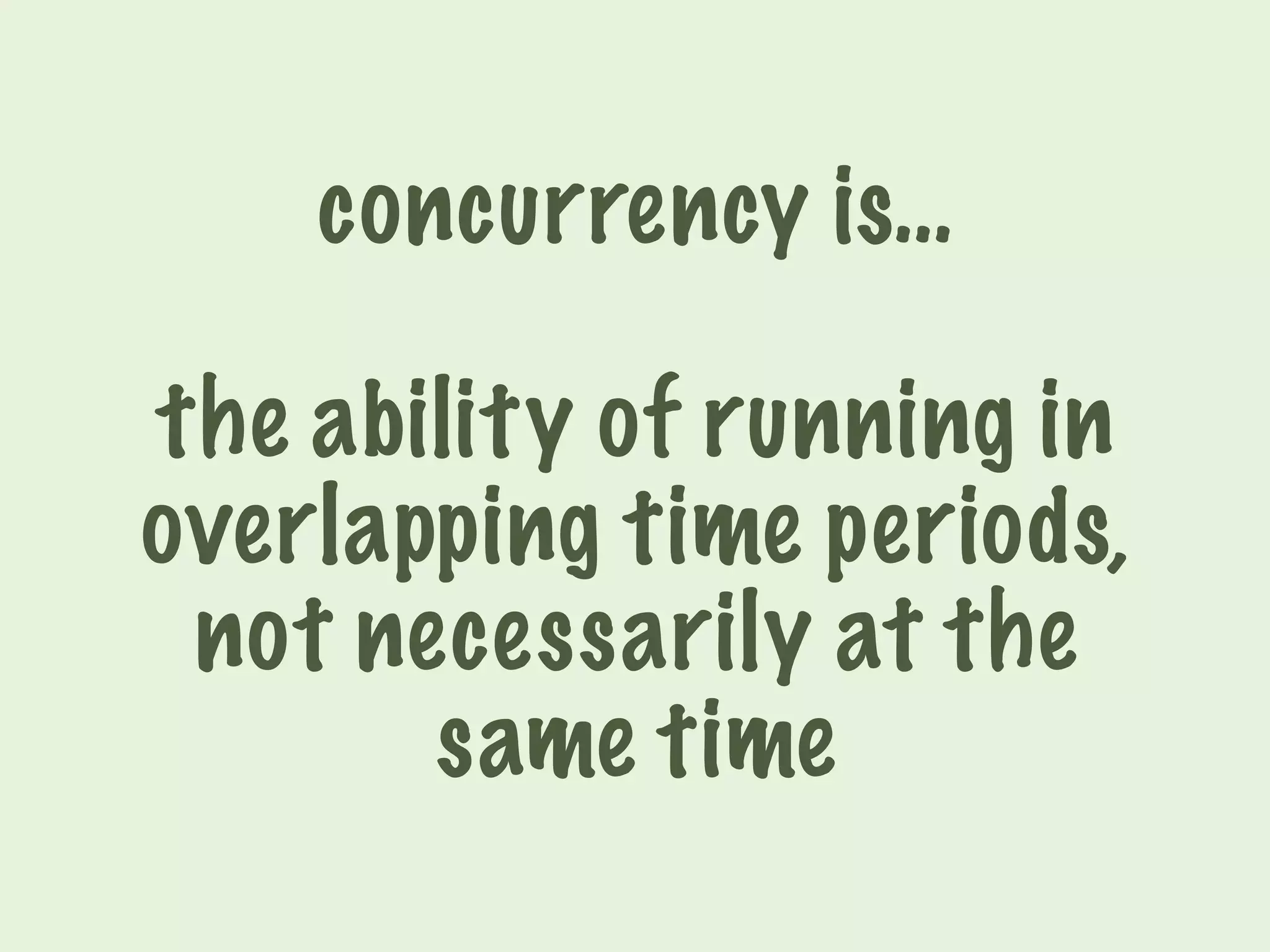

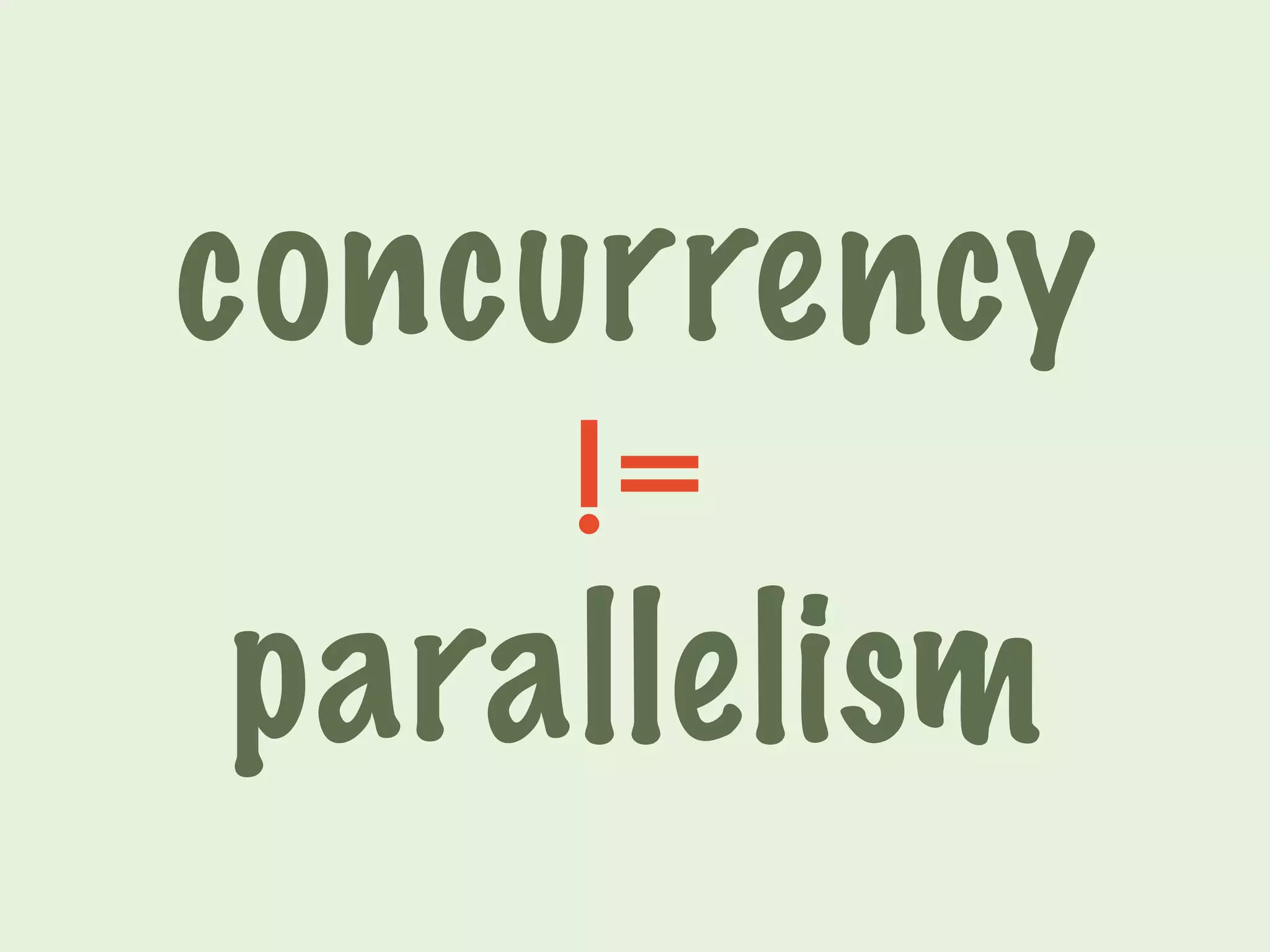

- 32. concurrency is… theability of running in overlapping time periods, not necessarily at the same time
- 33.

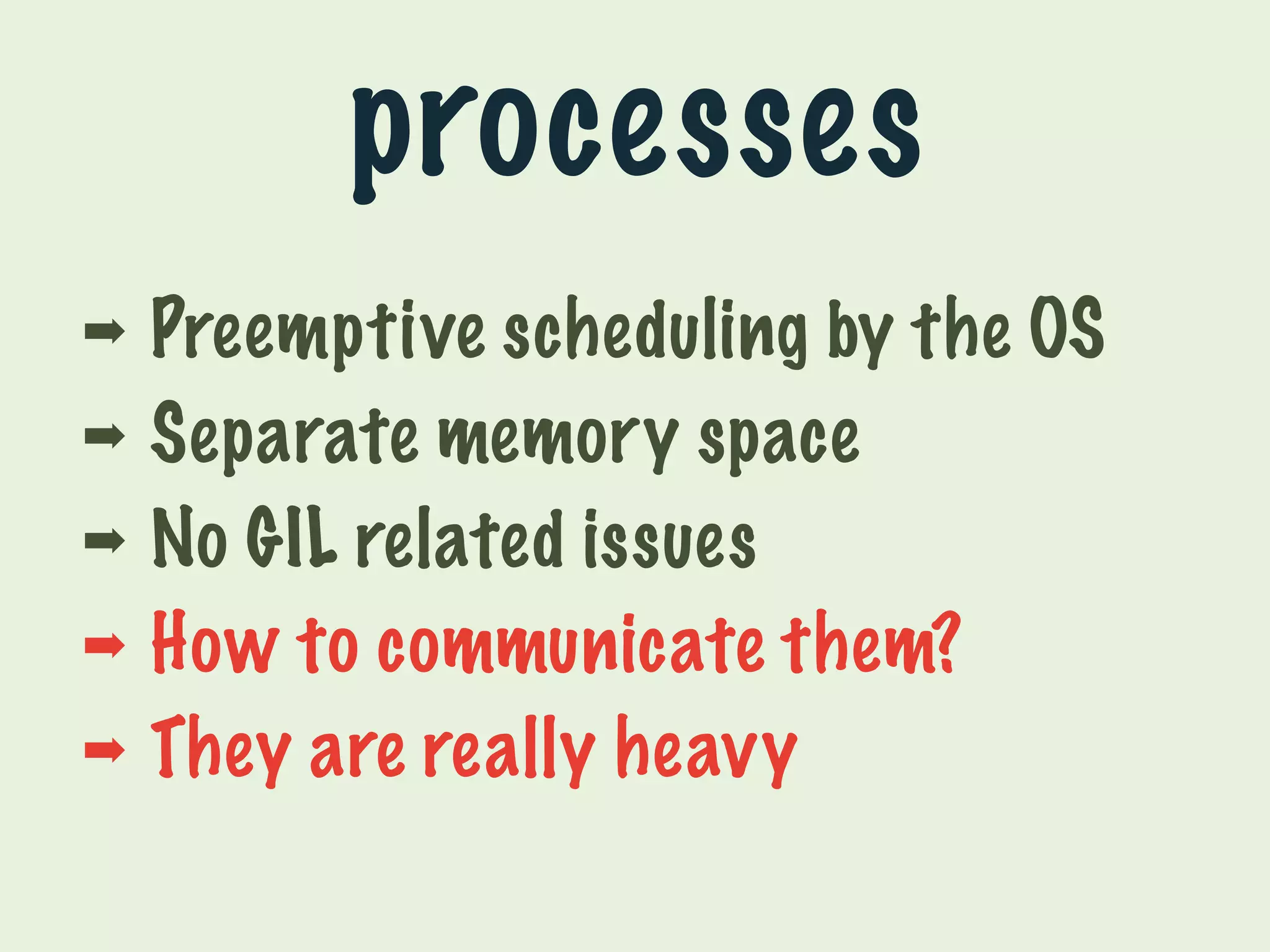

- 34. processes ➡ Preemptivescheduling by the OS ➡ Separate memory space ➡ No GIL related issues ➡ How to communicate them? ➡ They are really heavy

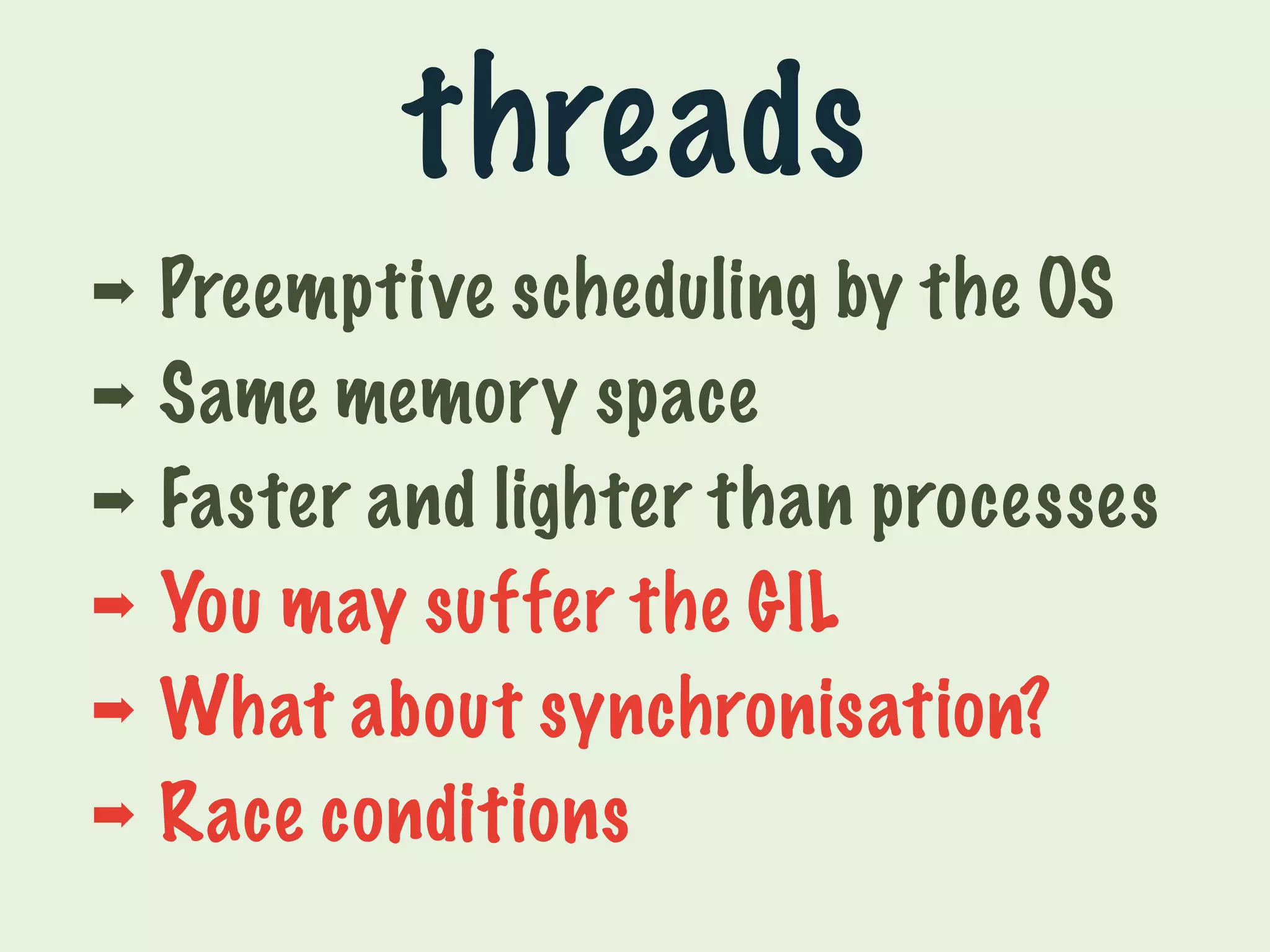

- 35. threads ➡ Preemptivescheduling by the OS ➡ Same memory space ➡ Faster and lighter than processes ➡ You may suffer the GIL ➡ What about synchronisation? ➡ Race conditions

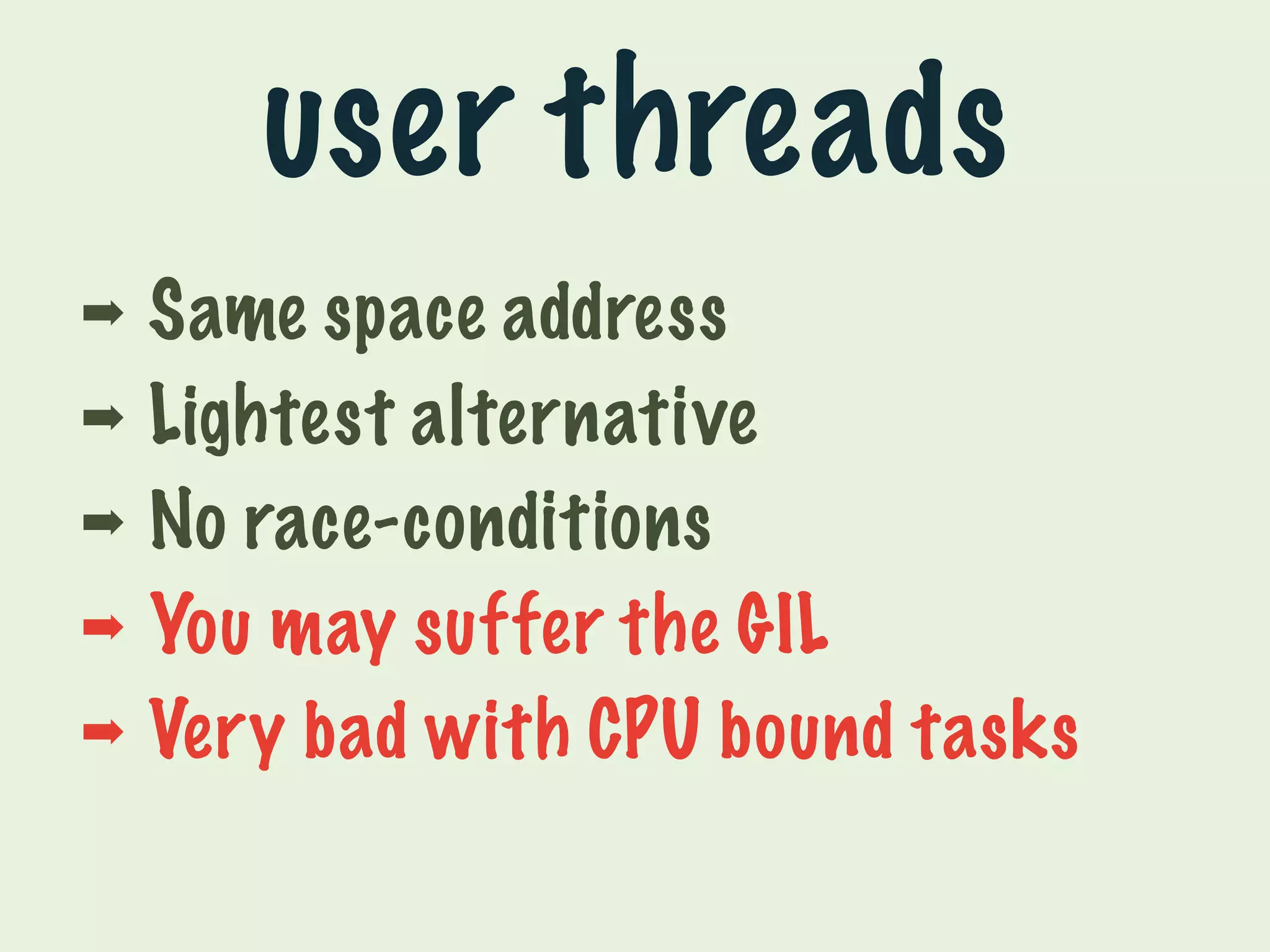

- 36. user threads ➡Same space address ➡ Lightest alternative ➡ No race-conditions ➡ You may suffer the GIL ➡ Very bad with CPU bound tasks
- 37.
- 38.

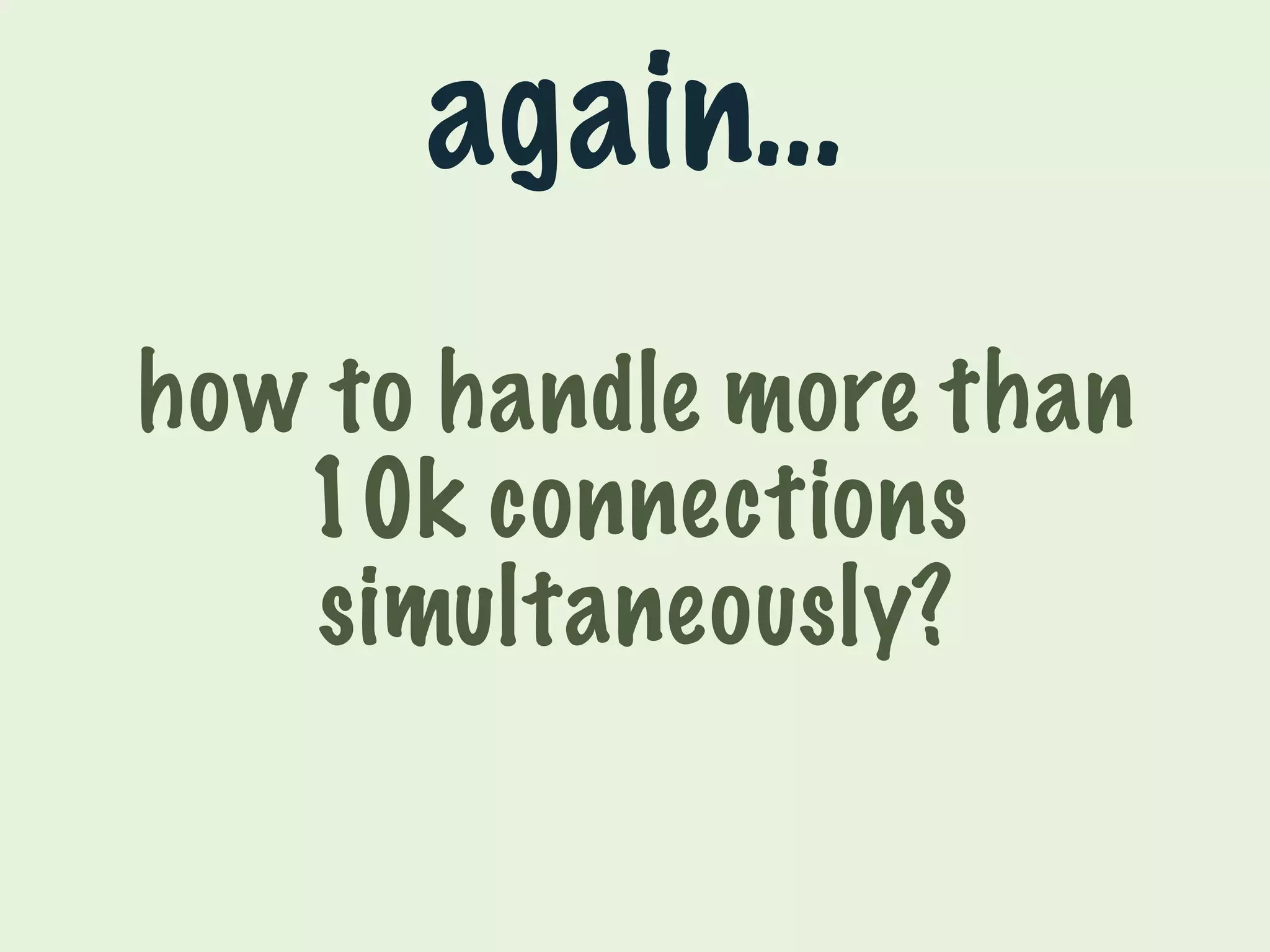

- 39. again… how tohandle more than 10k connections simultaneously?

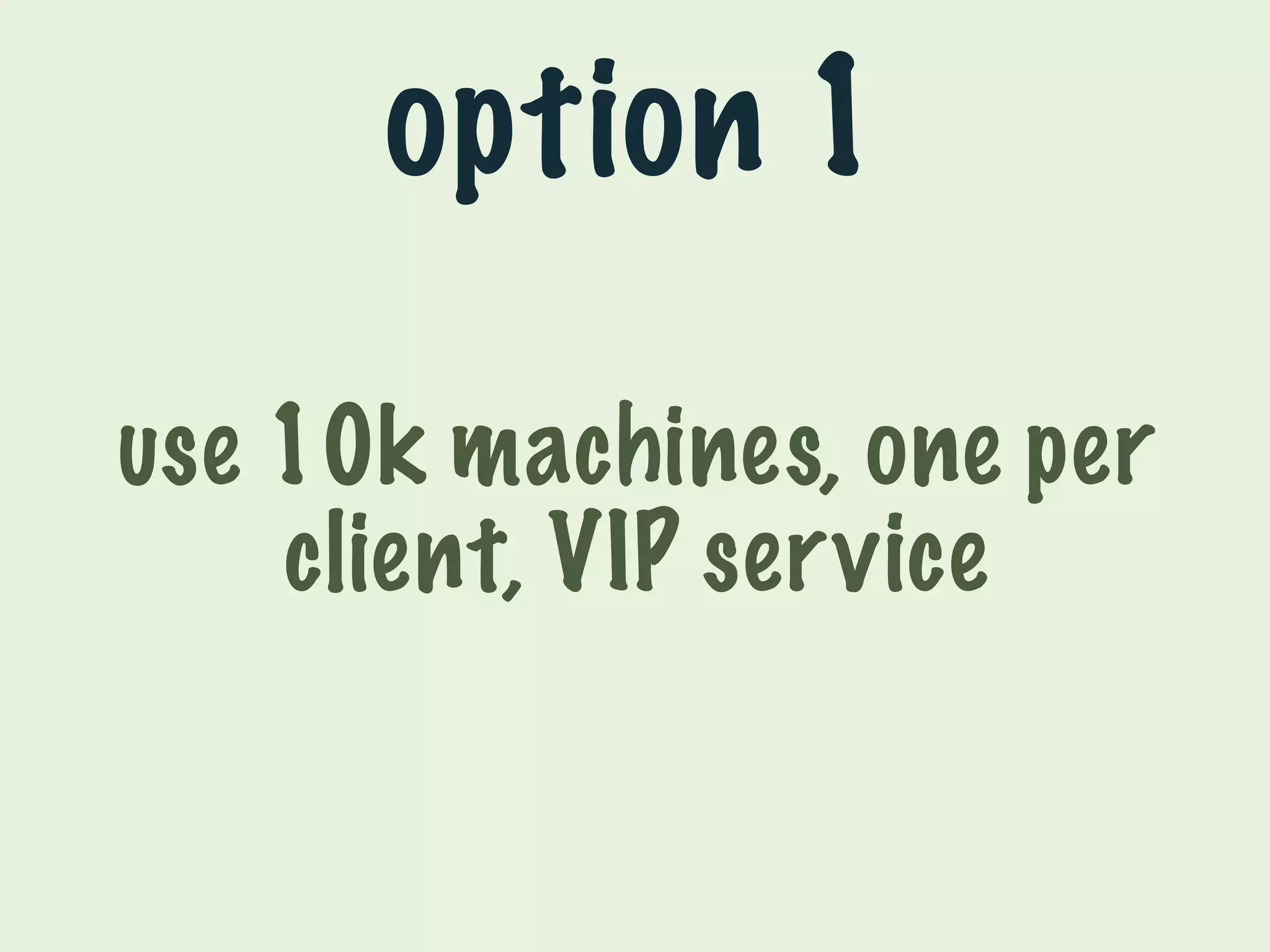

- 40. option 1 use10k machines, one per client, VIP service
- 41. option 2 useblocking and synchronous calls, one per client

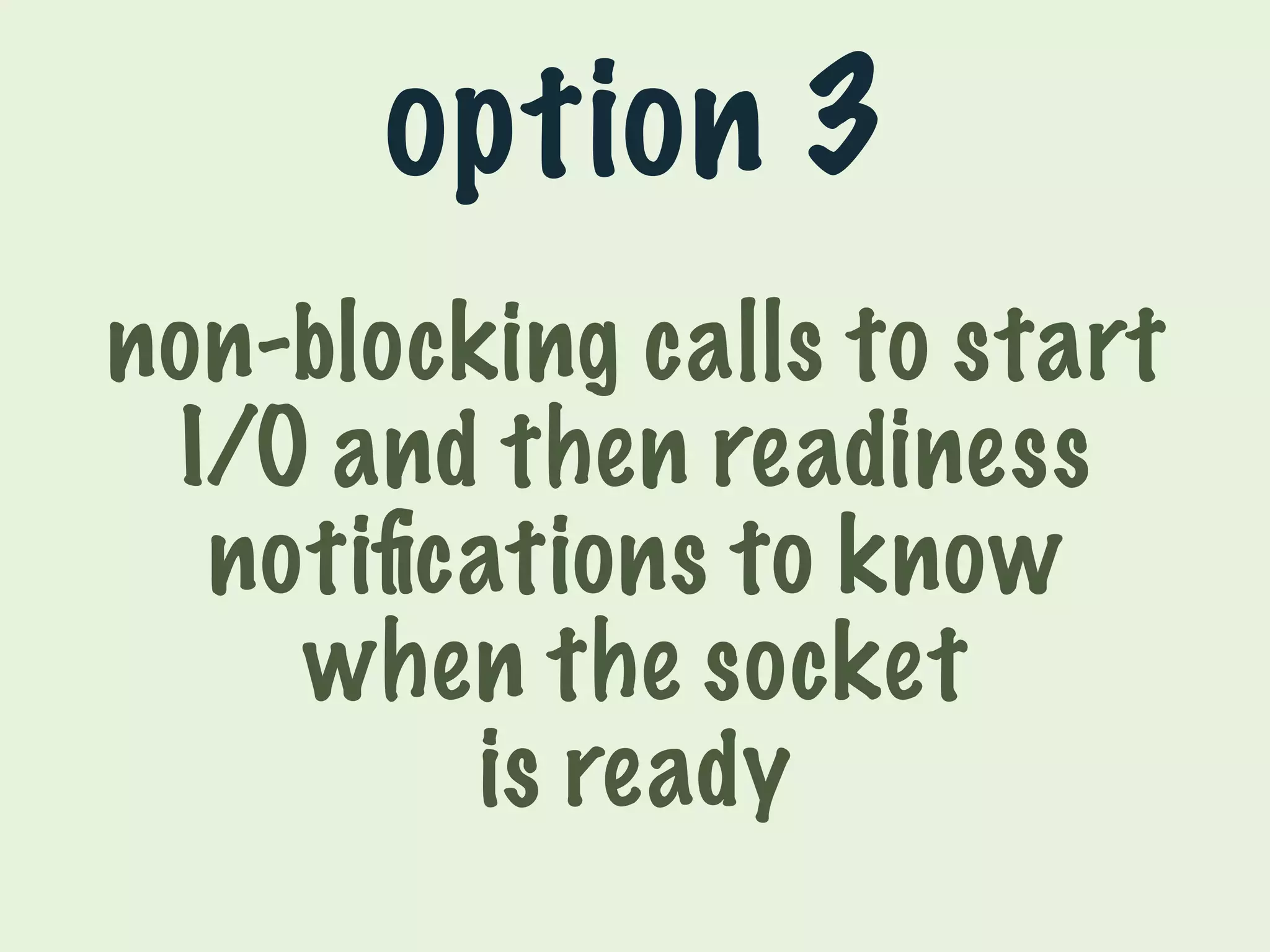

- 42. option 3 non-blockingcalls to start I/O and then readiness notifications to know when the socket is ready

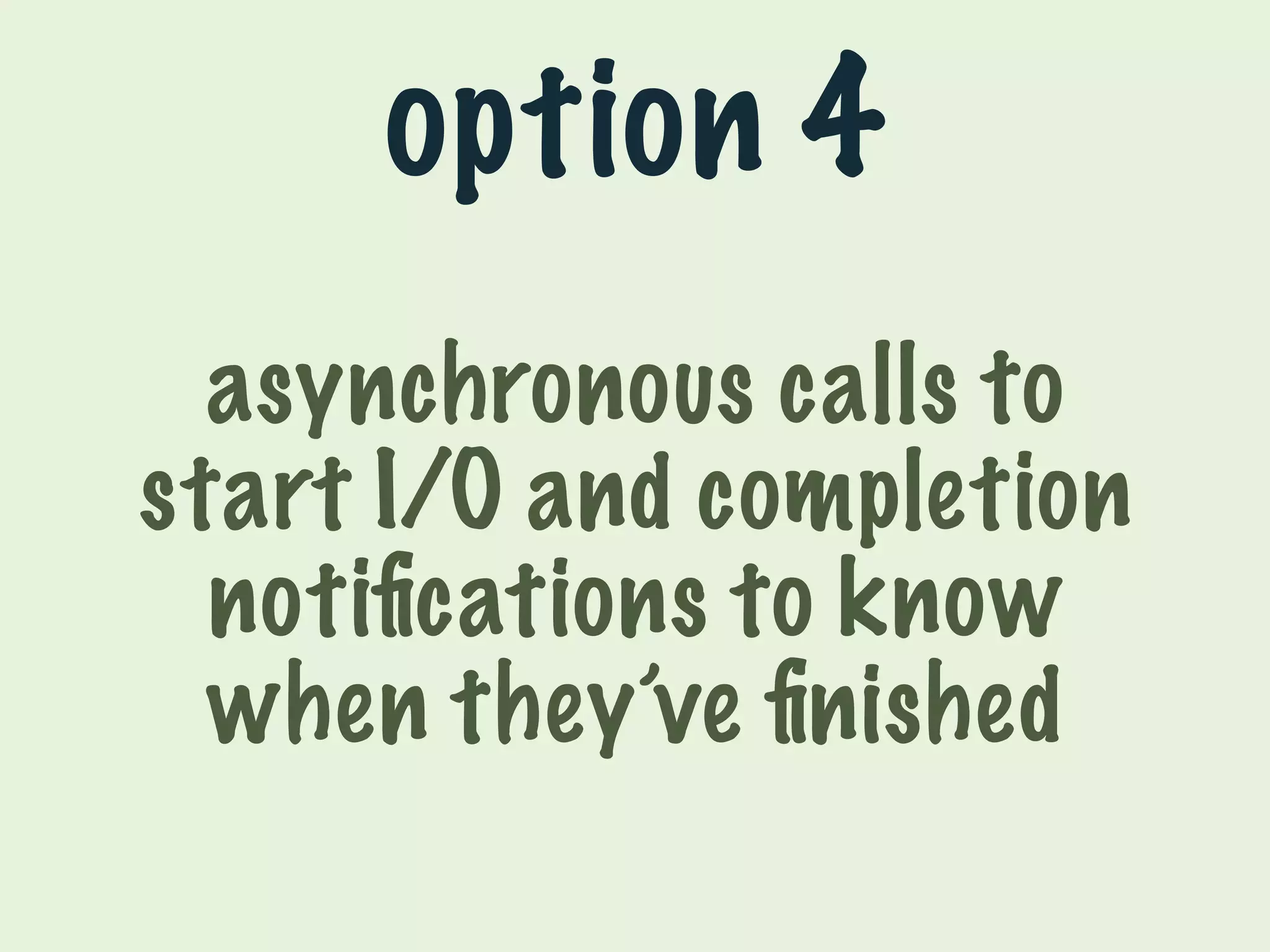

- 43. option 4 asynchronouscalls to start I/O and completion notifications to know when they’ve finished
- 44.
- 45.
- 46.
- 47. asyncio ➡ Single-threaded ➡ Async I/O ➡ Coroutines ➡ Multiplexes I/O events ➡ …
- 48.
- 49.
- 50.

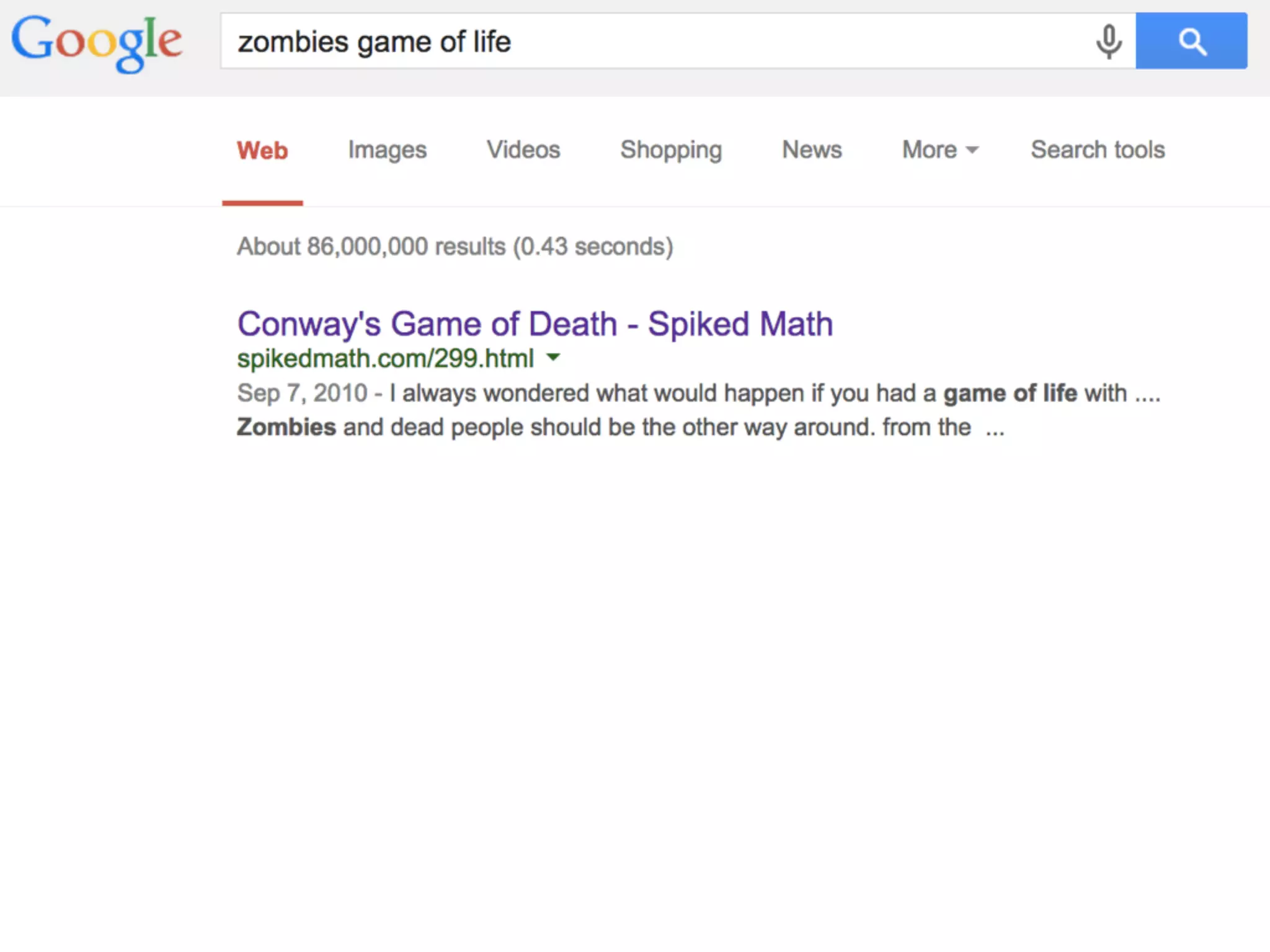

- 55. X Game OfLife
- 56.
- 58.
- 59.
