CI with Gitlab & Docker

CI with Gitlab & Docker

• 1.
  CI with Docker UsingGitlab CI
• 2.
  Jörg Henning @joerghenning
• 3.

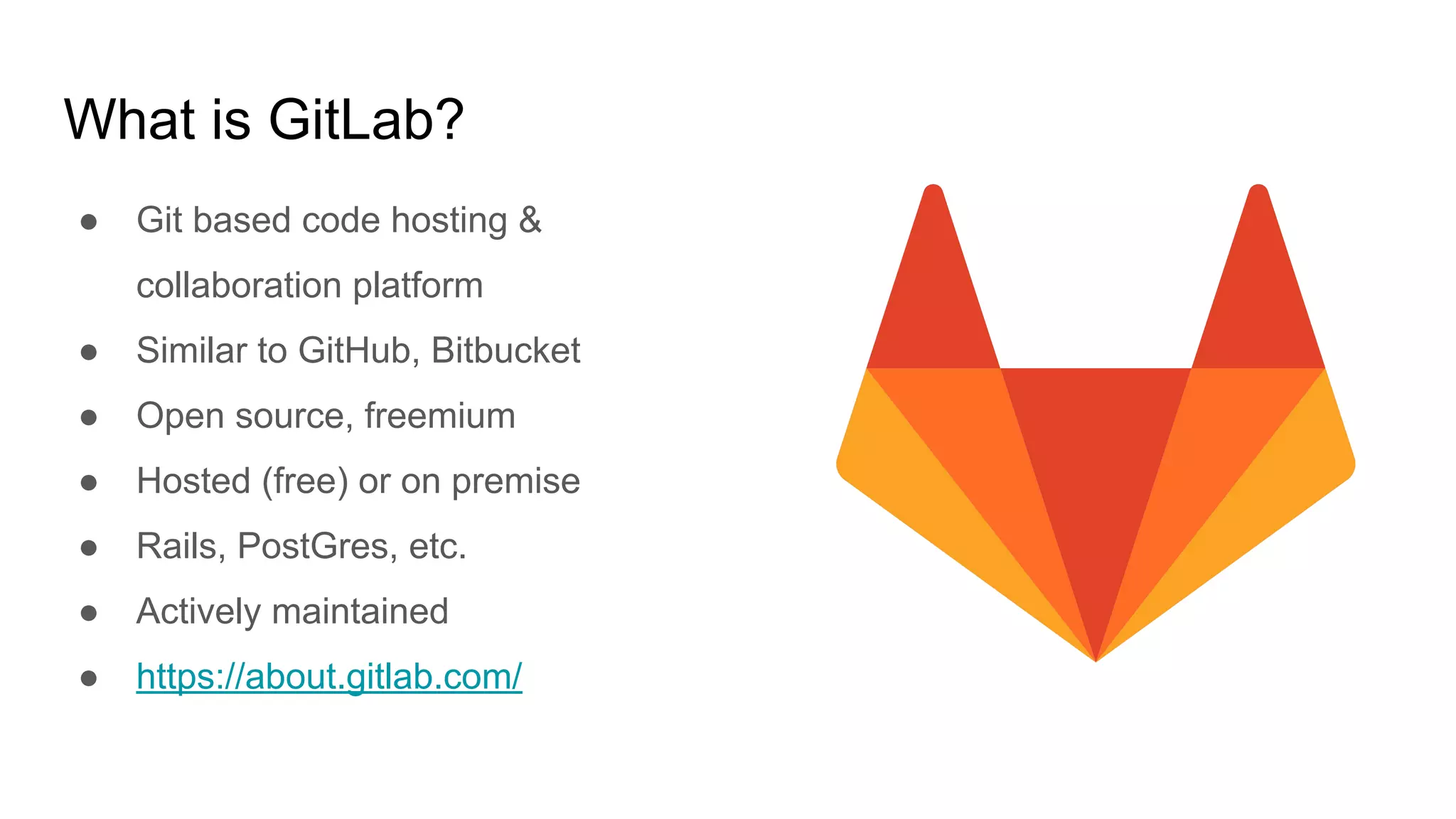

  What is GitLab? ●Git based code hosting & collaboration platform ● Similar to GitHub, Bitbucket ● Open source, freemium ● Hosted (free) or on premise ● Rails, PostGres, etc. ● Actively maintained ● https://about.gitlab.com/
• 4.

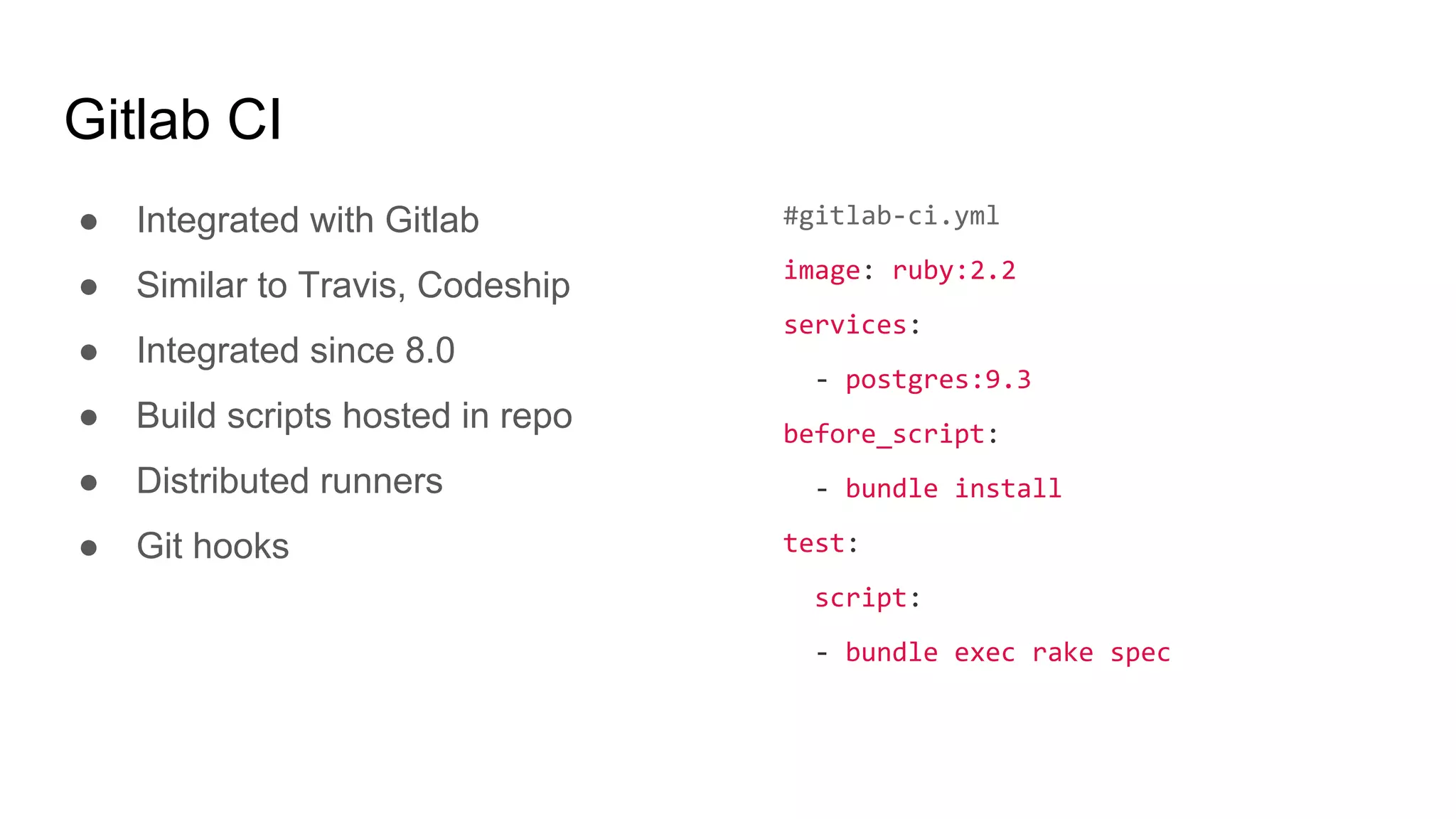

  Gitlab CI ● Integratedwith Gitlab ● Similar to Travis, Codeship ● Integrated since 8.0 ● Build scripts hosted in repo ● Distributed runners ● Git hooks #gitlab-ci.yml image: ruby:2.2 services: - postgres:9.3 before_script: - bundle install test: script: - bundle exec rake spec
• 6.

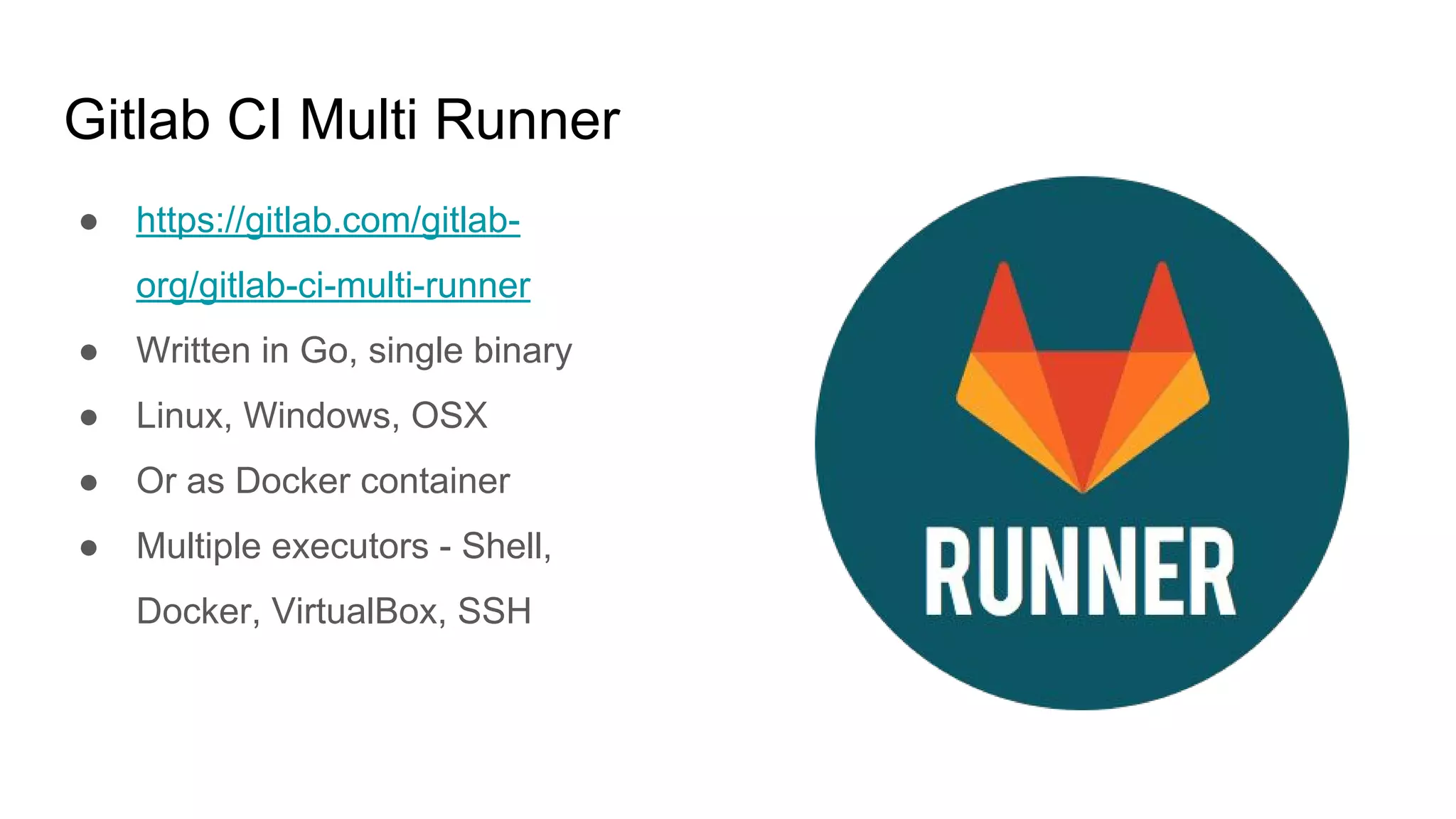

  Gitlab CI MultiRunner ● https://gitlab.com/gitlab- org/gitlab-ci-multi-runner ● Written in Go, single binary ● Linux, Windows, OSX ● Or as Docker container ● Multiple executors - Shell, Docker, VirtualBox, SSH
• 7.

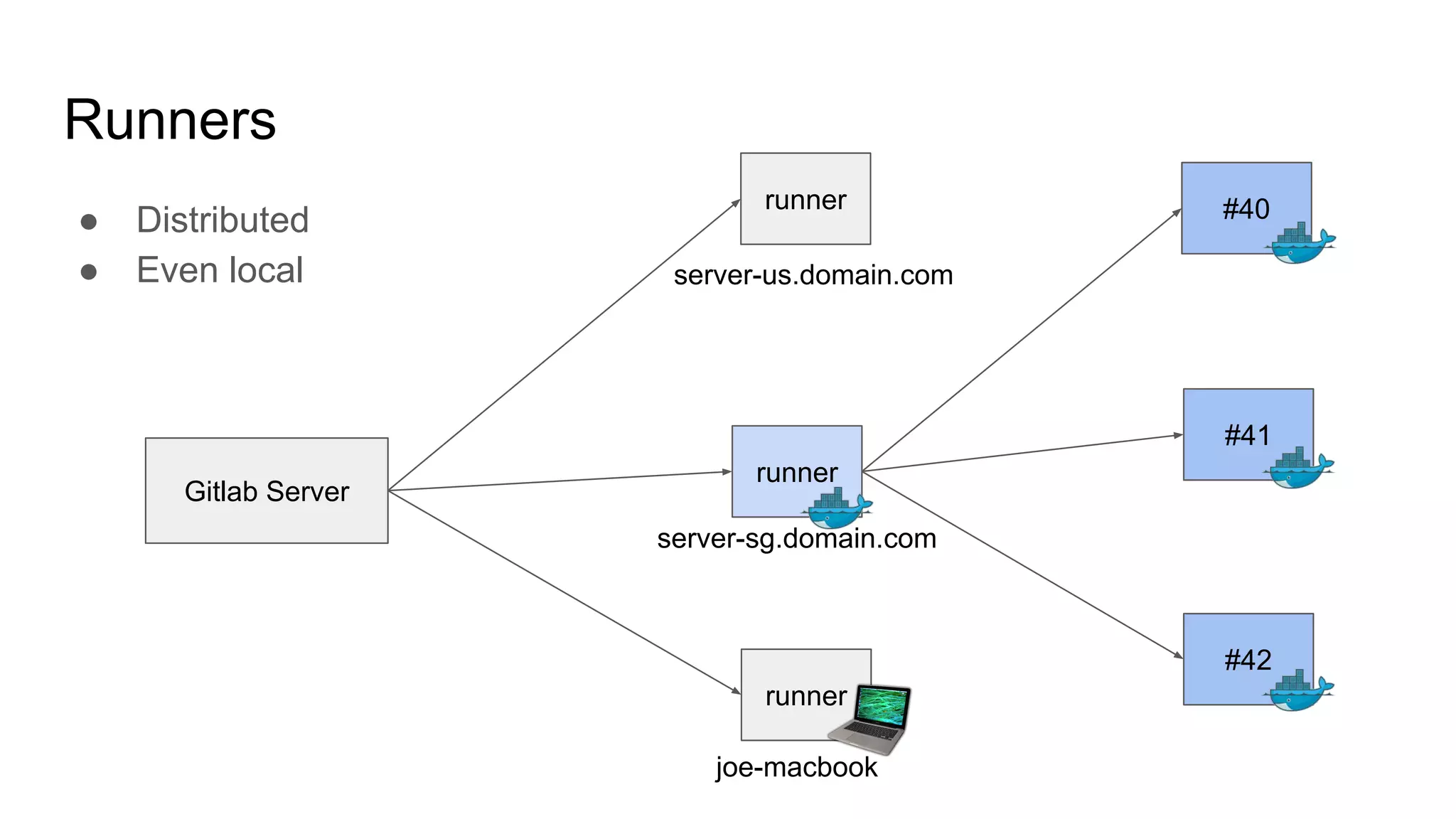

  ● Distributed ● Evenlocal Runners Gitlab Server #41 #40 #42 runner server-us.domain.com runner server-sg.domain.com runner joe-macbook
• 8.

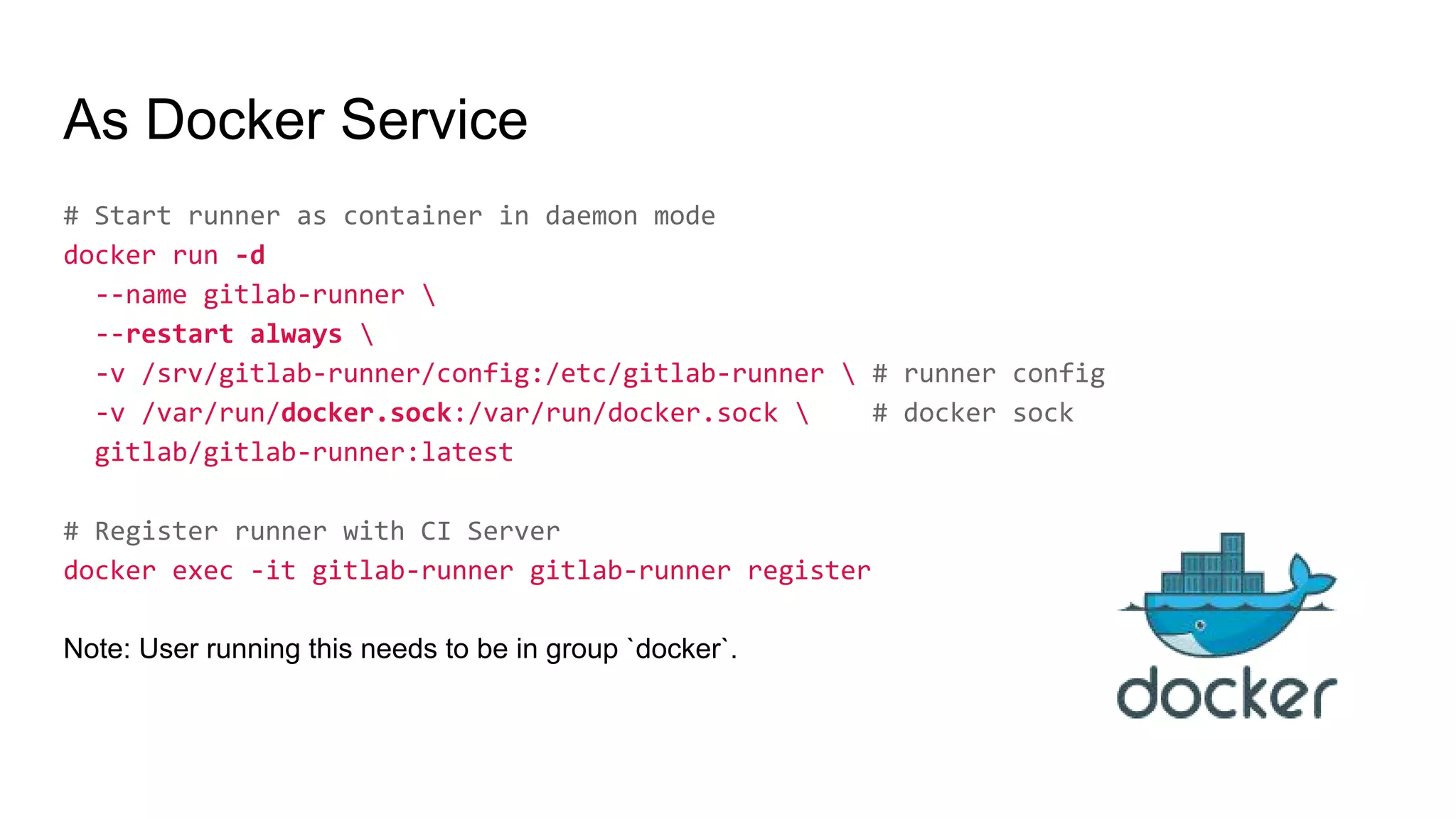

  As Docker Service #Start runner as container in daemon mode docker run -d --name gitlab-runner --restart always -v /srv/gitlab-runner/config:/etc/gitlab-runner # runner config -v /var/run/docker.sock:/var/run/docker.sock # docker sock gitlab/gitlab-runner:latest # Register runner with CI Server docker exec -it gitlab-runner gitlab-runner register Note: User running this needs to be in group `docker`.
• 9.

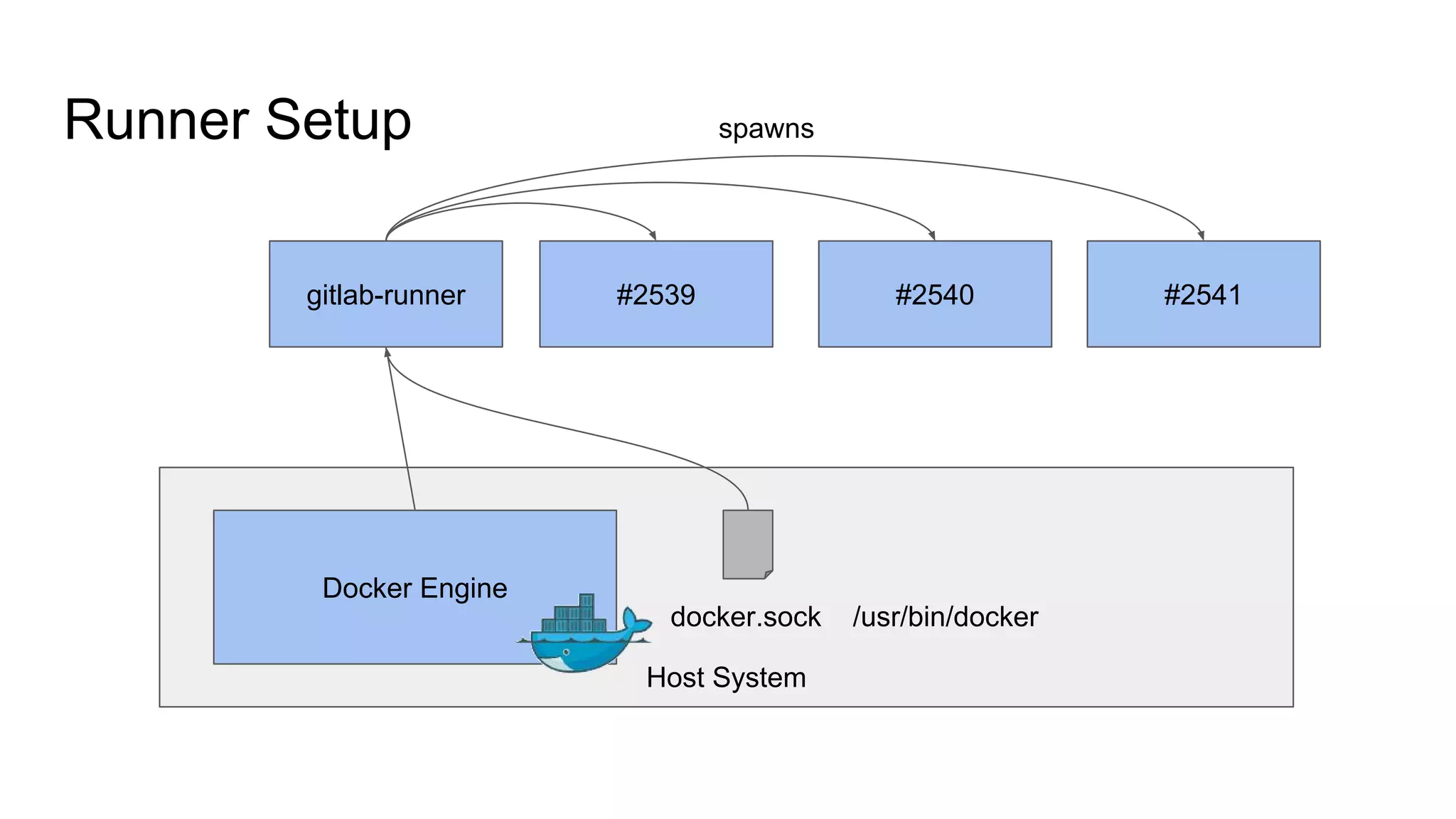

  Host System Runner Setup docker.sock/usr/bin/docker gitlab-runner #2539 #2540 #2541 spawns Docker Engine
• 10.

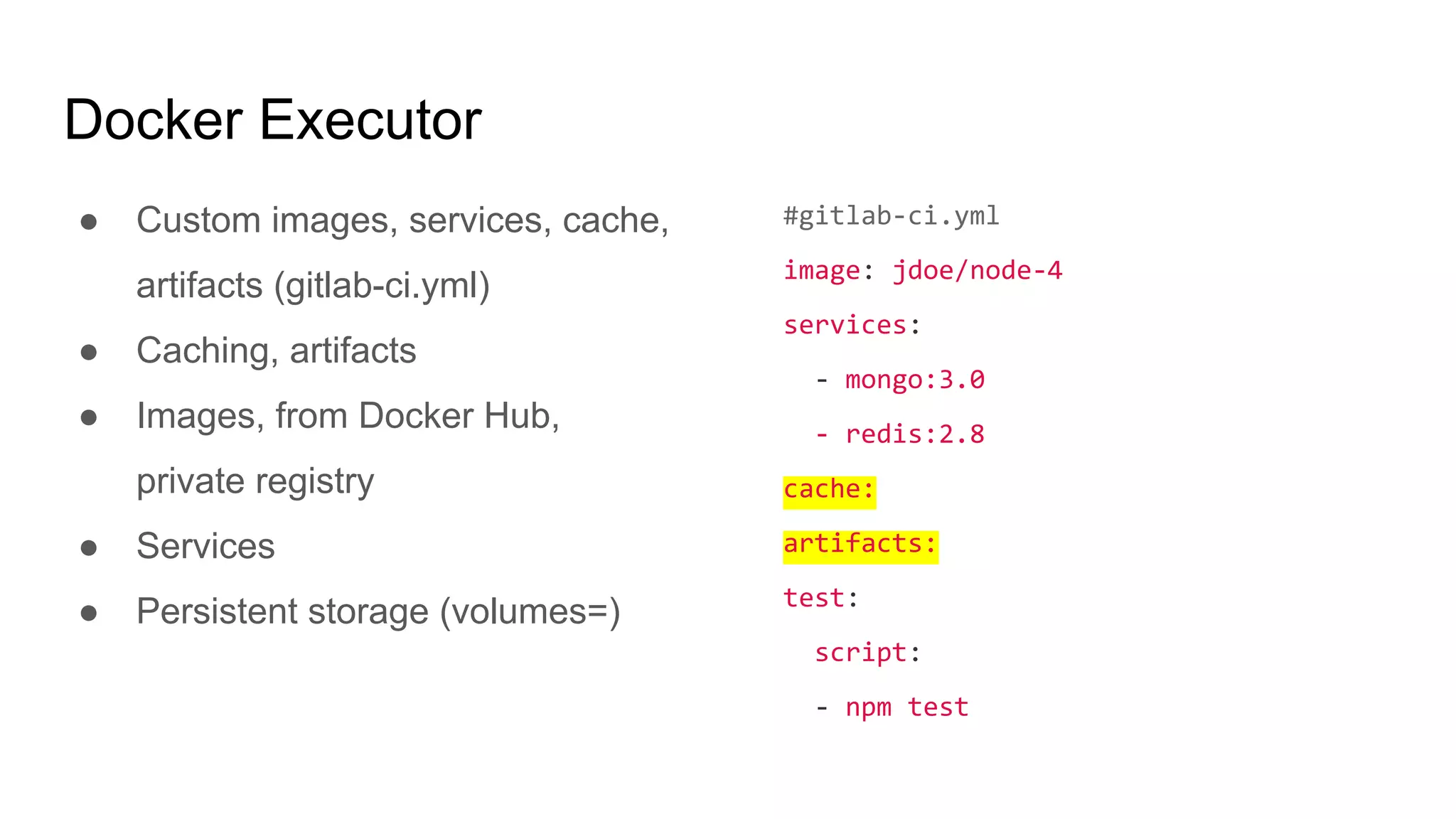

  Docker Executor ● Customimages, services, cache, artifacts (gitlab-ci.yml) ● Caching, artifacts ● Images, from Docker Hub, private registry ● Services ● Persistent storage (volumes=) #gitlab-ci.yml image: jdoe/node-4 services: - mongo:3.0 - redis:2.8 cache: artifacts: test: script: - npm test
• 11.

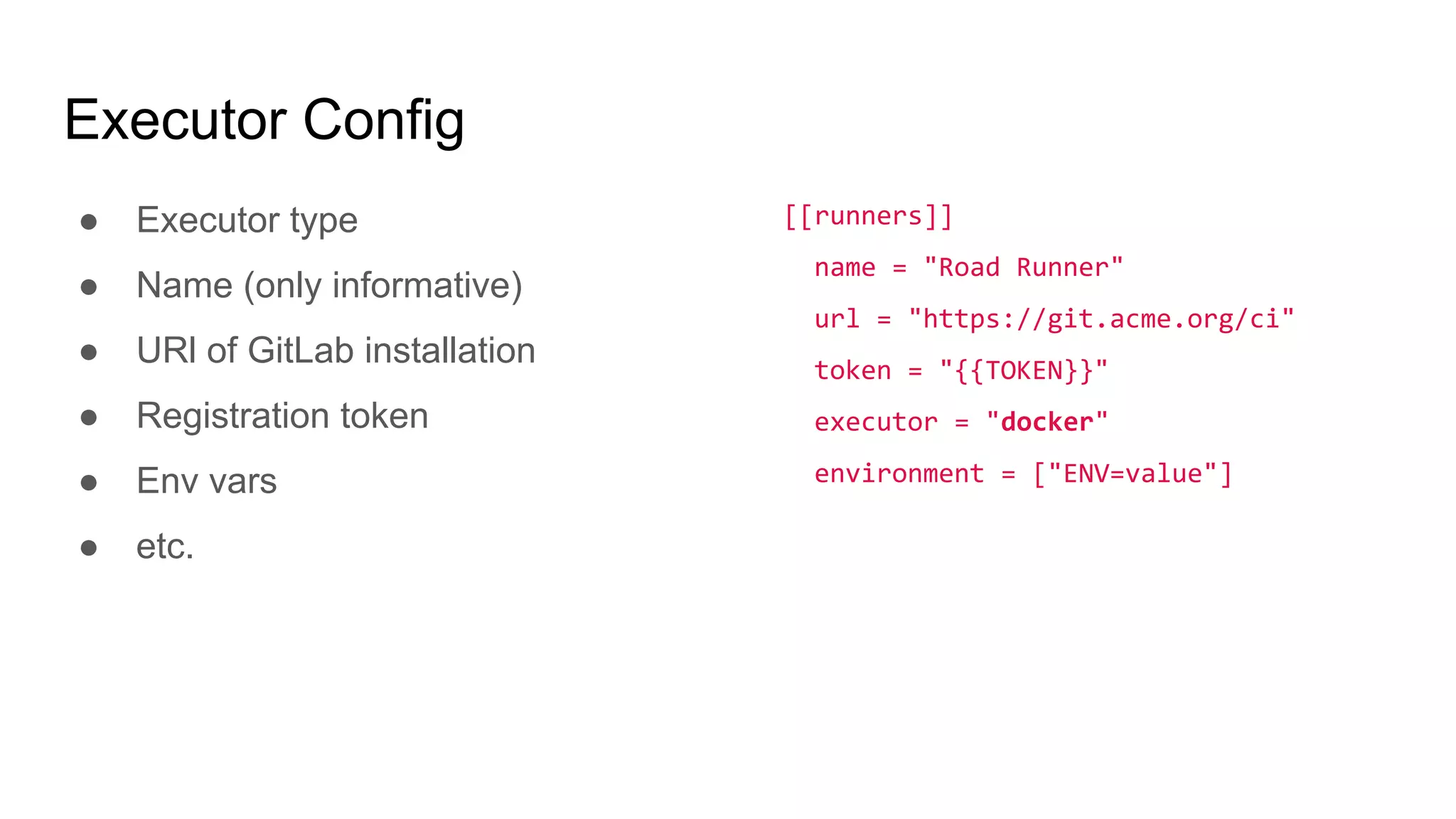

  Executor Config ● Executortype ● Name (only informative) ● URl of GitLab installation ● Registration token ● Env vars ● etc. [[runners]] name = "Road Runner" url = "https://git.acme.org/ci" token = "{{TOKEN}}" executor = "docker" environment = ["ENV=value"]
• 12.

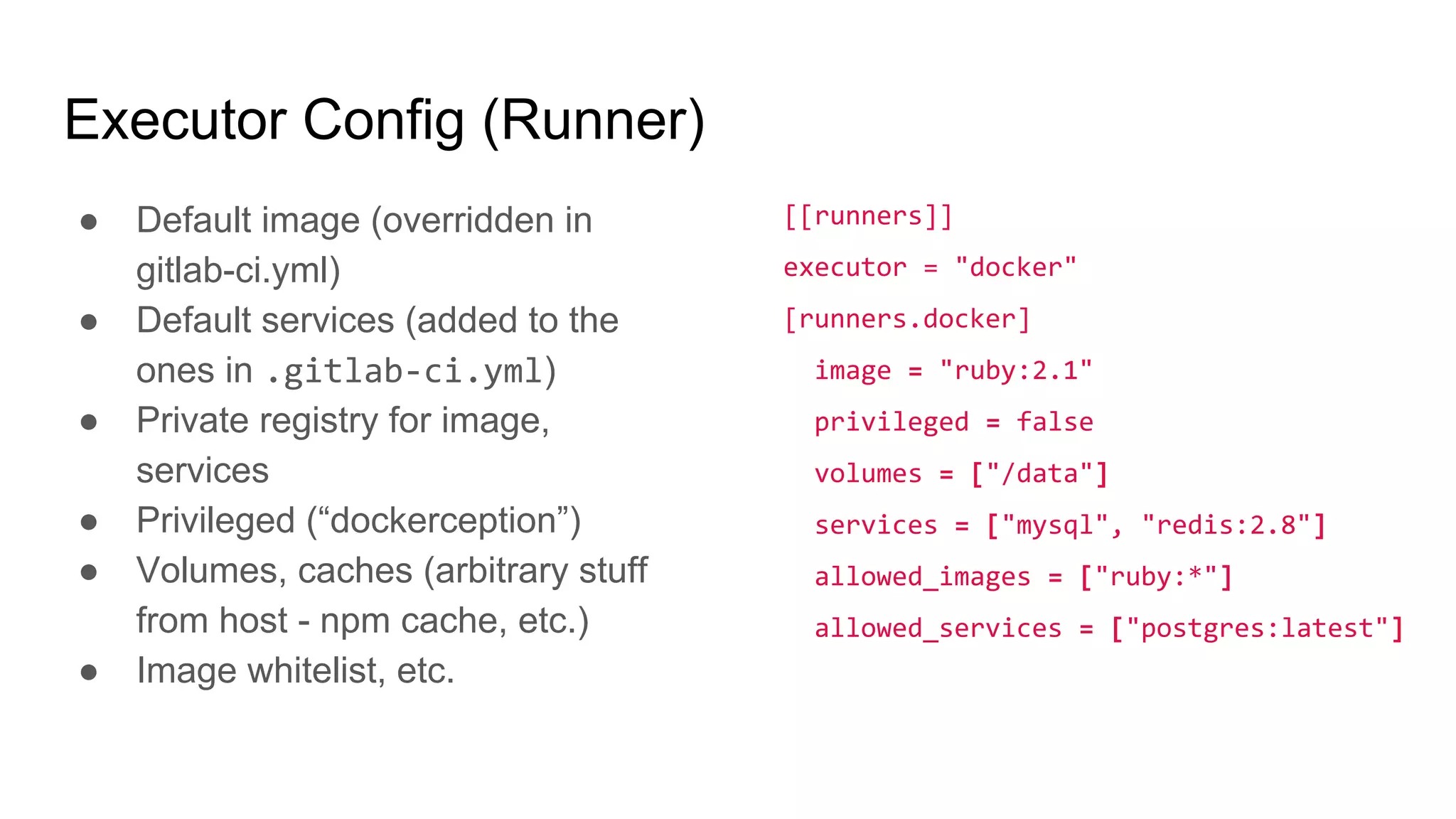

  Executor Config (Runner) ●Default image (overridden in gitlab-ci.yml) ● Default services (added to the ones in .gitlab-ci.yml) ● Private registry for image, services ● Privileged (“dockerception”) ● Volumes, caches (arbitrary stuff from host - npm cache, etc.) ● Image whitelist, etc. [[runners]] executor = "docker" [runners.docker] image = "ruby:2.1" privileged = false volumes = ["/data"] services = ["mysql", "redis:2.8"] allowed_images = ["ruby:*"] allowed_services = ["postgres:latest"]
• 13.

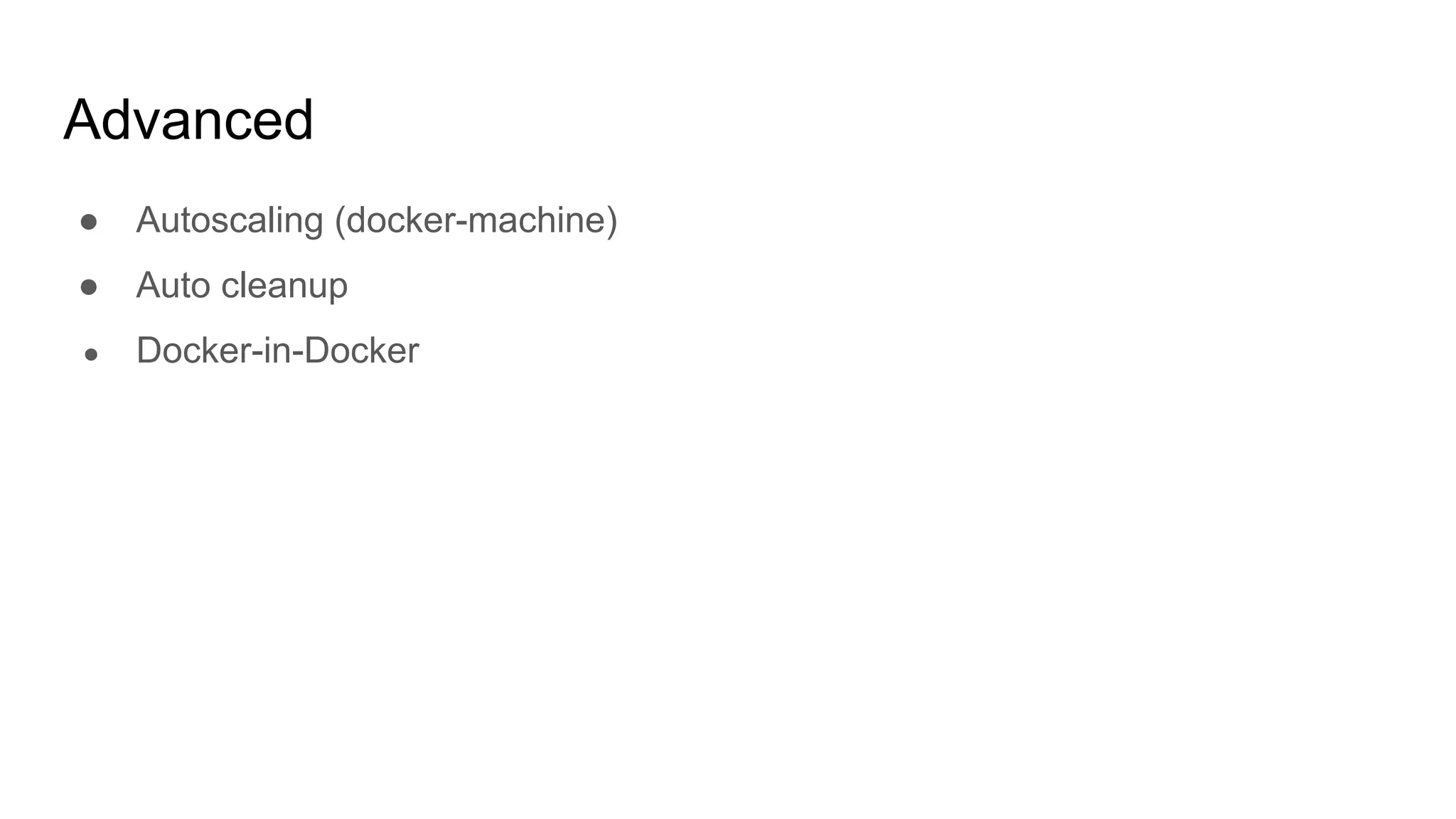

  Advanced ● Autoscaling (docker-machine) ●Auto cleanup ● Docker-in-Docker
• 14.
  Demo
• 15.

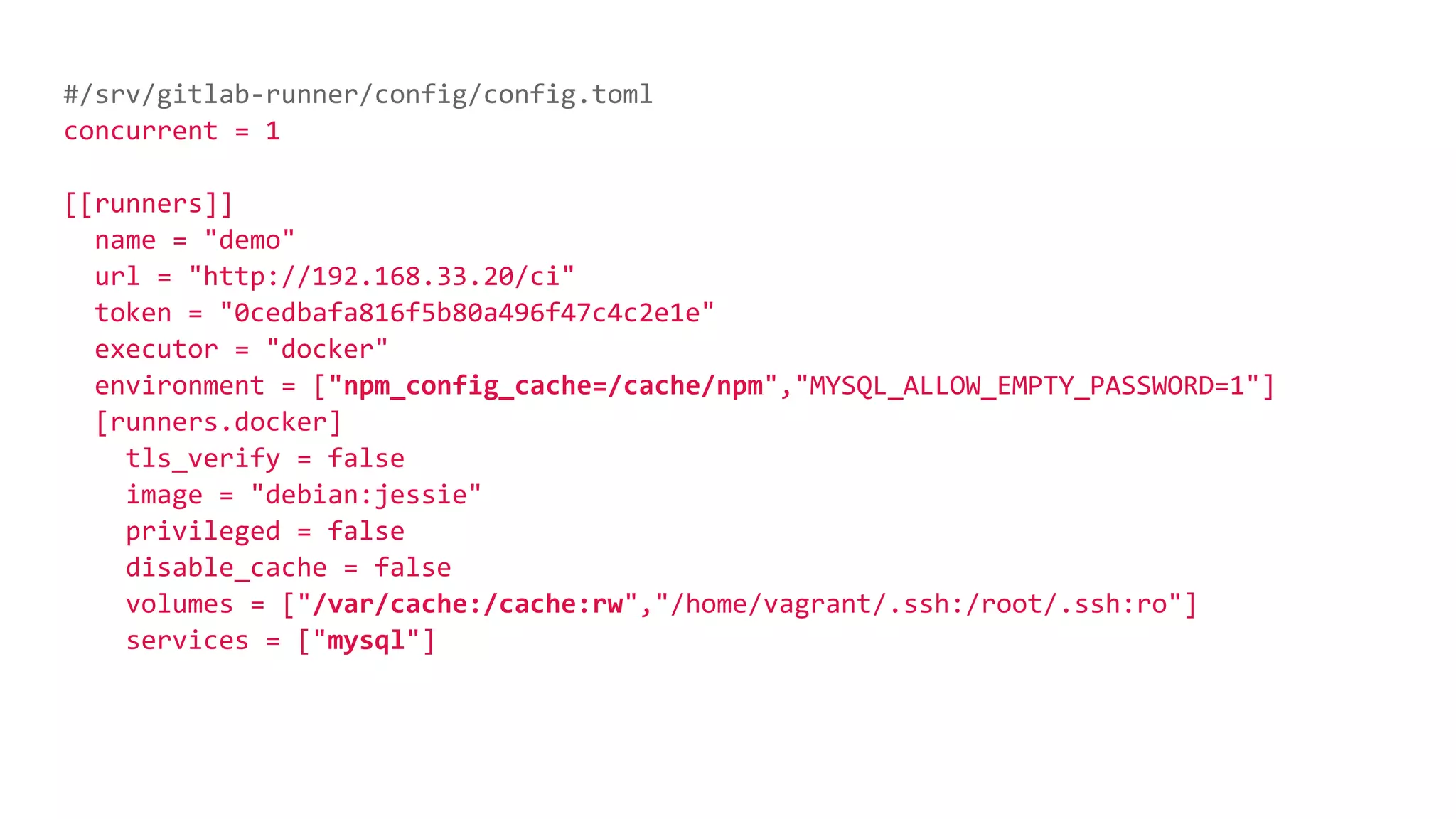

  #/srv/gitlab-runner/config/config.toml concurrent = 1 [[runners]] name= "demo" url = "http://192.168.33.20/ci" token = "0cedbafa816f5b80a496f47c4c2e1e" executor = "docker" environment = ["npm_config_cache=/cache/npm","MYSQL_ALLOW_EMPTY_PASSWORD=1"] [runners.docker] tls_verify = false image = "debian:jessie" privileged = false disable_cache = false volumes = ["/var/cache:/cache:rw","/home/vagrant/.ssh:/root/.ssh:ro"] services = ["mysql"]
