Automation Testing With Appium
The document presents an overview of Appium, an open-source automation tool for mobile applications, highlighting its cross-platform capabilities and support for multiple programming languages. It covers key concepts such as session creation, desired capabilities, and Appium-supported drivers including Apple's XCTest and UI Automator for Android. Additionally, prerequisites for installation and commands for verifying Appium setup are provided.
More Related Content
Similar to Automation Testing With Appium
More from Knoldus Inc.
Automation Testing With Appium
- 1. Automation testing with Appium PresentedBy: Ankur Thakur QA Consultant & Vandana Yadav Sr. QA Consultant
- 2. Our Agenda 01 Introductionof Appium 02 Basic Appium Concepts 03 Appium supported drivers 04 Demo
- 3. Introduction What is Appium Appiumis an open-source automation tool or we can call it an open-source automation framework which allows us to automate the different type of mobile applications, it could be a web application, it could be a native or hybrid application.
- 4. Why Appium ● Appiumis an open source tool. ● Appium is cross-platform. ● It supports multiple programming languages(java, python, ruby, c# and many more). ● Appium can work on the emulator as well as on the real devices.
- 5.
- 6. Session ● The sessionis a communication medium between client and Appium server ● The client can create a session by sending the post/session request to the server. ● This session req contains desired capabilities.
- 7. Desired Capabilities Desired capabilitiesare a list of keys and values sent to the Appium server for creating a new session. For example: If we want to create an android session for testing an android app, we will be required to provide these fields in the desired capabilities file.
- 8. ● platformName :Which defines on which platform we are performing testing. ● platformVersion : Operating system version is defined in this field. ● deviceName : Name of the device which we are using to run our tests on. ● app : Defines the path to the installation file i.e. APK or .IPA file from where the driver can get and install the application to the device.

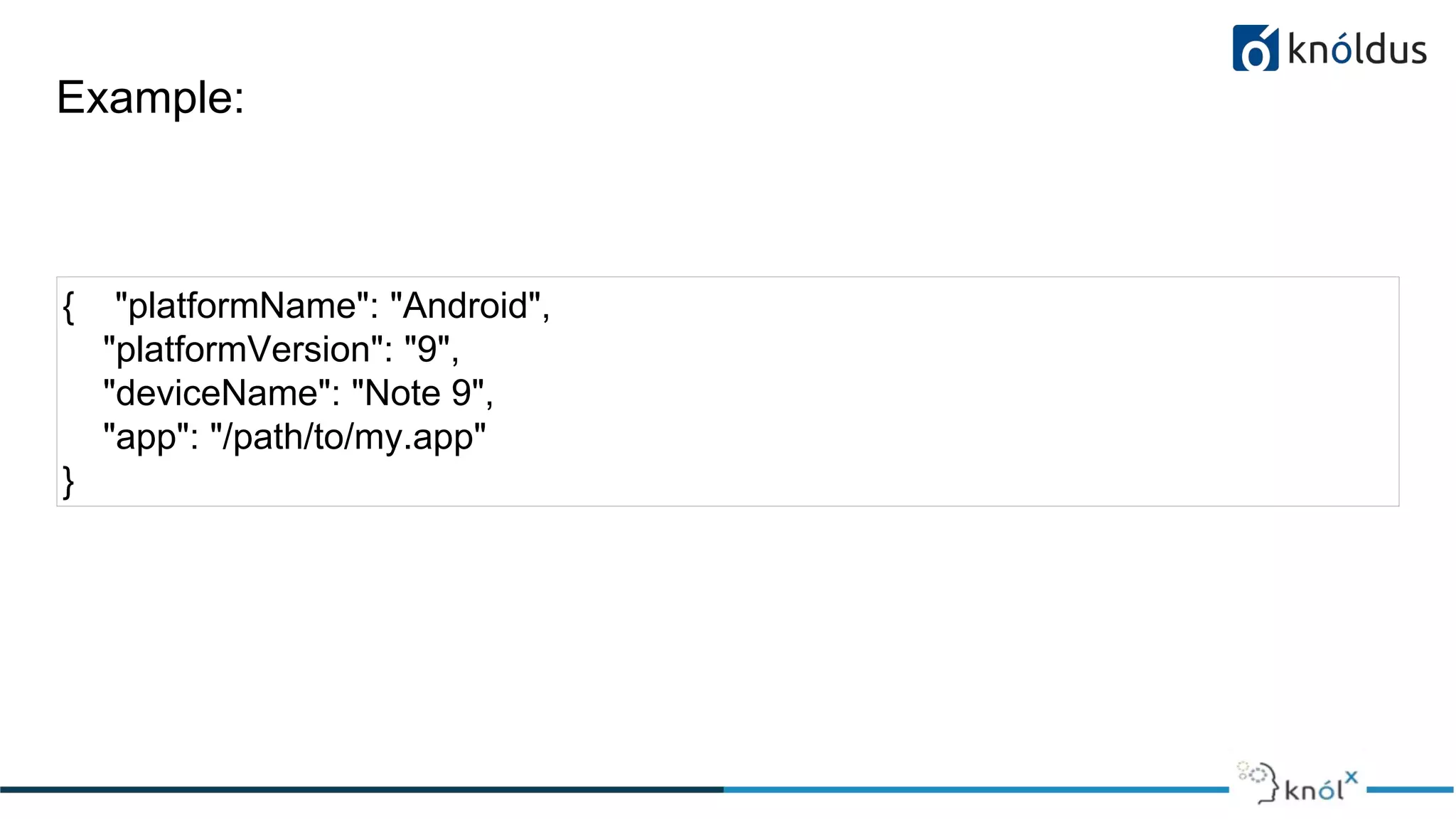

- 9. Example: { "platformName": "Android", "platformVersion":"9", "deviceName": "Note 9", "app": "/path/to/my.app" }
- 10. Appium supported drivers ●Apple's XCUITest ● Apple's UI Automation ● UI Automator/UI Automator2
- 11. Apple's XCUITest ● Itis used for testing iOS applications for version 9.3 and above. ● It is used to create and run unit test cases, performance tests, and UI tests for Xcode. ● It can be also used for automating applications on iPad and tvOS as well.
- 12. Apple UI automator ●It is used for testing iOS applications for version 9.3 and lower. ● JavaScript is used to write test scripts which uses app's interface to execute the tests while the app in running in the iOS device. ● Mac OS installed system and iOS device are required for writing code and using Appium.

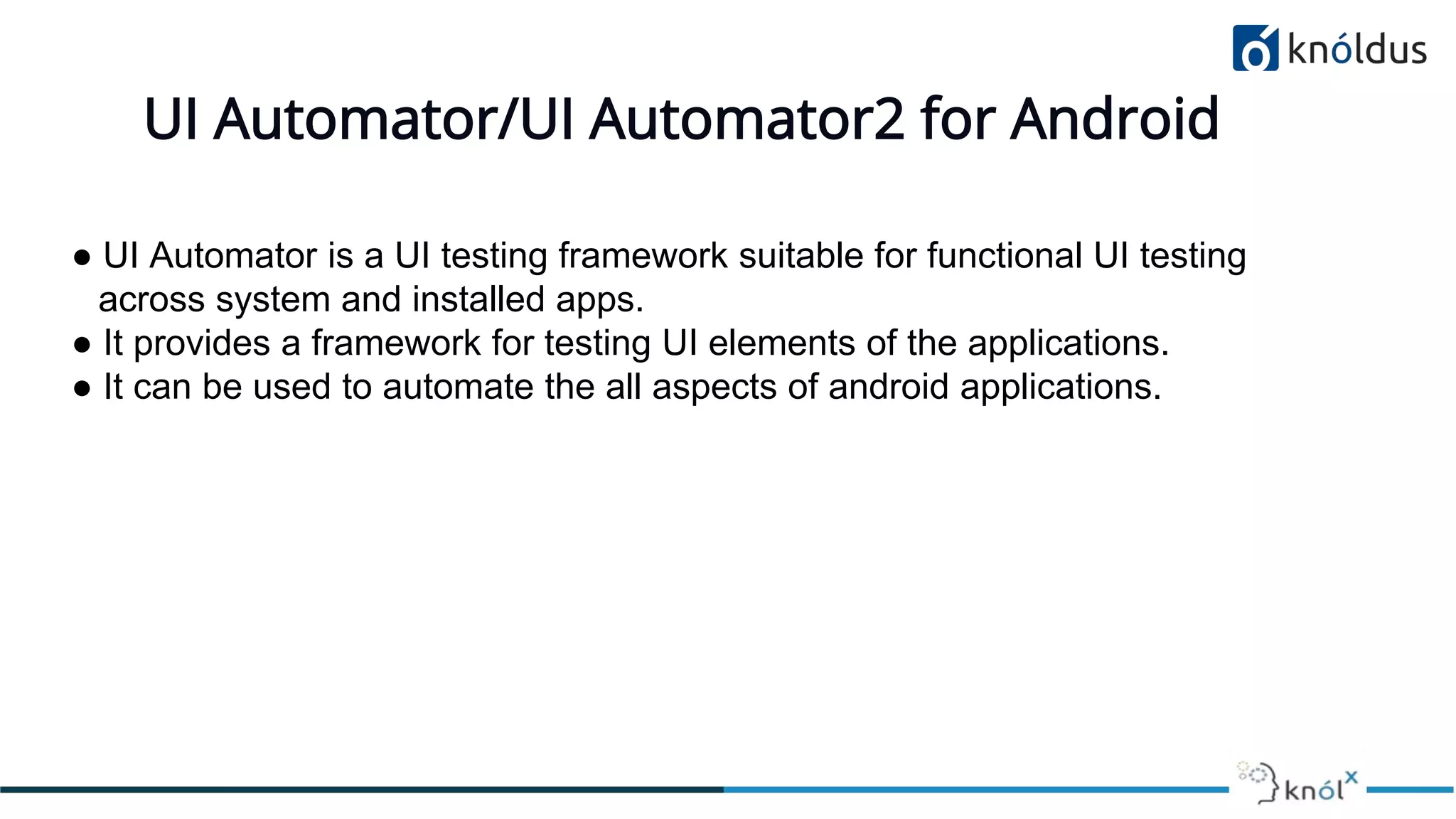

- 13. UI Automator/UI Automator2for Android ● UI Automator is a UI testing framework suitable for functional UI testing across system and installed apps. ● It provides a framework for testing UI elements of the applications. ● It can be used to automate the all aspects of android applications.
- 14. Appium Installation Prerequisite: ● Java ●Android SDK ● Node

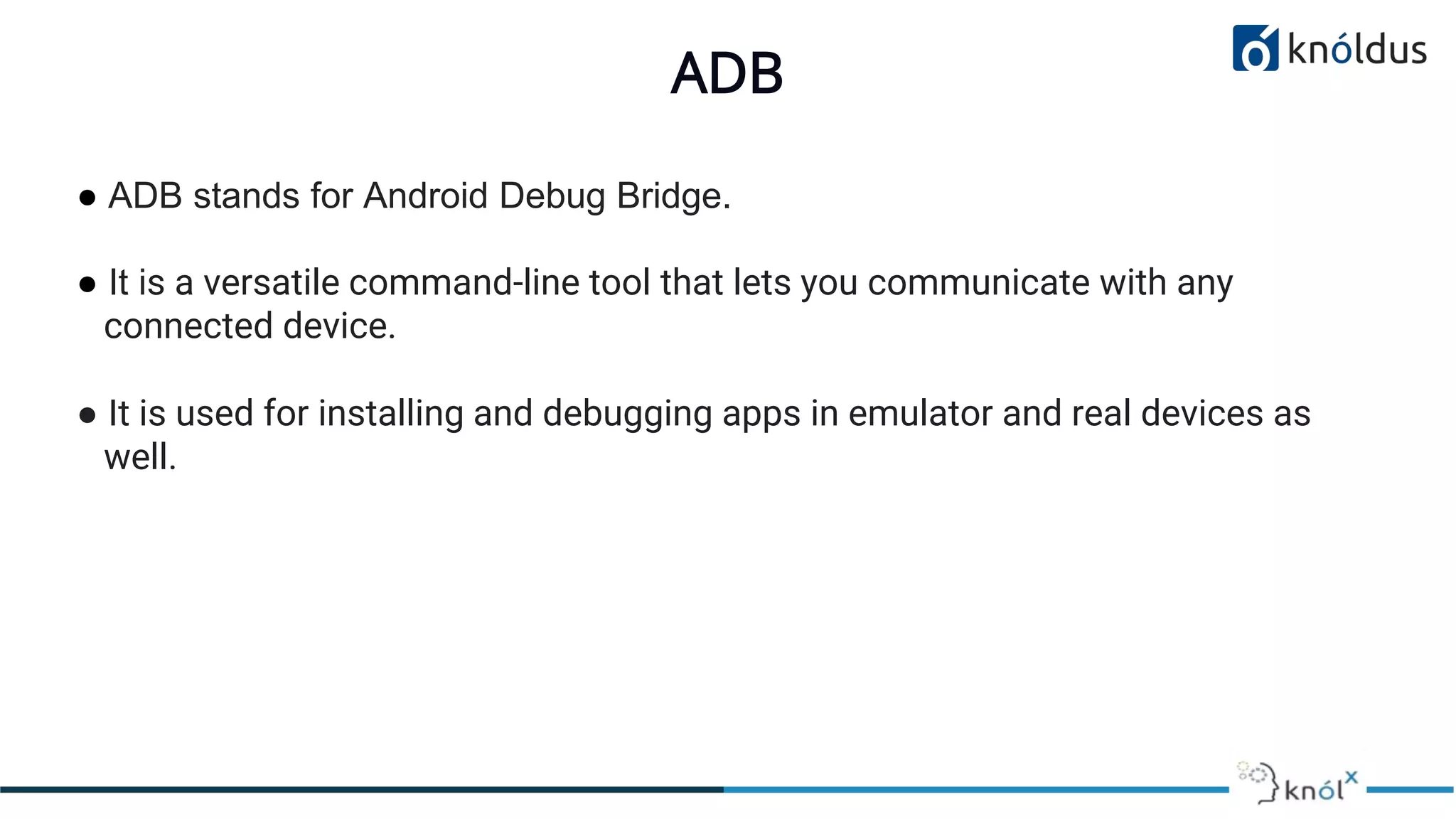

- 15. ADB ● ADB standsfor Android Debug Bridge. ● It is a versatile command-line tool that lets you communicate with any connected device. ● It is used for installing and debugging apps in emulator and real devices as well.
- 16. Command for installingAPPIUM: npm install -g appium Check whether appium is installed or not: appium Verifying the Installation appium-doctor --android
- 17. appium-doctor ● Attempts todiagnose and fix common Node, iOS and Android configuration issues before starting Appium.
- 18. References ● http://appium.io/docs/en/about-appium/intro/ ● http://appium.io/ ●https://www.udemy.com/course/appium-selenium-for-mobile- automation-testing/
- 19.
